Cable Glands & Accessories
Global Solutions
Cable Glands Global Solutions Catalogue
Introducing Crouse-Hinds by Eaton
The leader in electrical products for hazardous, industrial
and commercial applications world wide.
The safety
you rely on.
22
The safety you rely on.
Delivering world-class reliability and safety
in high consequence harsh and hazardous
environments
Only Eaton’s Crouse-Hinds Business can deliver...
.Protection and safety of people and assets around the world with unsurpassed
reliability and quality in every product we offer
.Industry leading innovation and product efficiency
.Product solutions designed and certified for global specifications
.Best-in-class, global sales, and customer service teams that provide local support
Shell – Kittiwake photographic services / Shell International Statoil – Norne FPSO – Kenneth Engelsvold/Statoil
The Eaton advantage.
Crouse-Hinds remains the brand that stands for
safety in the harshest of environments when
power management is most critical. While it all
began with the Condulet®, the Crouse-Hinds
brand has grown into the premier name for a
comprehensive portfolio of solutions for high-
consequence harsh and hazardous environments.
And now, the next phase in the evolution of the
brand you trust: Crouse-Hinds joins the leading
Eaton portfolio of reliable, client and safe
electrical power management solutions.
More protection. More technology.
Expect more.
EATON’S CROUSE-HINDS BUSINESS
Contents
Cable Glands & Thread Conversion Products for
Non-Hazardous Areas
Capri IGA2................................................................. 66
Capri IGBW............................................................... 67
Capri IGCW............................................................... 68
Capri IGCX.................................................................69
Capri IGE1W..............................................................70
Capri IGE1X............................................................... 71
Capri IGE2W..............................................................72
Capri IGE2X............................................................... 73
Capri NEWCAP MS................................................... 74
Capri NEWCAP MS multi-wired / flat........................75
Capri NEWCAP CT.................................................... 76
Capri ADE 4i.............................................................. 77
Capri EUROCAP........................................................ 78
Capri ECP................................................................... 79
Capri UNICAP............................................................ 80
CGD...........................................................................81
CGB..................................................................... 82-83
CGE........................................................................... 84
Capri Industrial Accessories.................................85-92
Technical Information
Cable Glands Installation Guide............................94-95
Capri Cable Gland Certification.............................96-97
Capri ADE Ex Markings............................................. 98
Crouse-Hinds Cable Gland Certification.................... 99
Cable Types and Wiring Methods............................100
Selection of Cable Glands.................................101-103
Bi Metallic Corrosion............................................... 104
Thread Dimension Guide.........................................105
Notes................................................................106-107
3
About Us.................................................................. 4-5
Cable Glands & Thread Conversion Products for
Hazardous Areas
Selection Guide for Hazardous Areas...................... 8-9
Selection Guide for Non Hazardous Areas ........... 10 -11
Capri ADE Cable Glands Specification Features.. 12 -13
Capri ADE 1F2..................................................... 14-15
Capri ADE 1F2 DS................................................16 -17

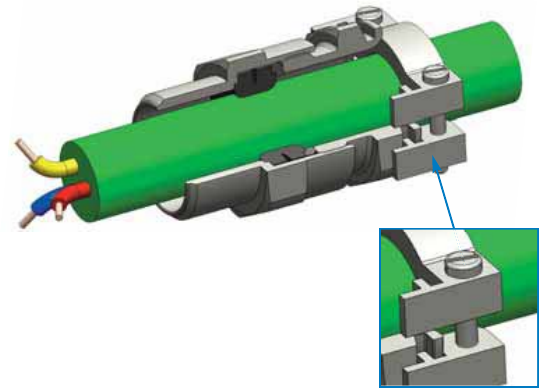

Capri ADE 1F2 with Integral Clamping Module....18 -19
Capri ADE 1FC.....................................................20 -21
Capri ADE 4F........................................................22-23
Capri ADE 5F........................................................24-25
Capri ADE 6F........................................................26-27
Capri ADE 6FC.....................................................28-29
Capri ADE Cable Gland Accessories & Kits...............30
Capri Accessories.................................................31- 33
Capri NEWCAP MS-e................................................ 34
Capri NEWCAP CT-e................................................. 35
Capri EXACAP Ex-e & Ex-i / CEAG GHG Ex-e & Ex-i.... 36
CEAG Trumpet.......................................................... 37
Terminator II TMCX.............................................. 38-39
TMCX......................................................................... 40
TMC.......................................................................... 41
TECK......................................................................... 42
Capri Ex Certified Adaptors / Reducers.....................44
Capri Ex Certified Stopping Plugs............................. 45
Raxton Adaptors........................................................46
Raxton Reducers.......................................................47
Raxton Insulated Adaptors........................................ 48
Raxton Male to Male / Female to Female
Adaptors....................................................................49
Raxton Right Angle Adaptors.................................... 50
Raxton Swivel Adaptors............................................ 51
Raxton ‘Y’ and ‘T’ Adaptors.......................................52
Raxton Earth Lead Adaptors &
Threaded Earth Plates............................................... 53
Raxton Stopping Plugs.........................................54-55
Raxton Breather Drains............................................. 56
Raxton Barrier Stopper Boxes...................................57
Raxton Unions...........................................................58
Raxton Nipples / Couplers / Bushes..........................59
Raxton Locknuts, Washers and Serrated Washers.... 60
Raxton Earthing Locknuts and Earth Tags.................61
Raxton Shrouds......................................................... 62
Thread Selection / Dimensions..................................63
Raxton Product Coding............................................. 64
The product information published in our catalogues and literature is not guaranteed. It has been compiled with care and is sufficiently accurate for most purposes. It is subject to change
without notice. Occasionally, it may be necessary to modify the materials, finishes, or other components of the product. These changes will in no way reduce the performance or function
for which the product is intended.
All statements, technical information and recommendations contained herein are based on information and test we believe to be reliable. The accuracy or completeness thereof are not
guaranteed. In accordance with Eaton’s Crouse-Hinds’ Terms and Conditions of Sale, and since conditions of use are outside our control, the purchaser should determine the suitability
of the product for his/her intended use and assumes all risk and liability whatsoever in connection therewith.
All sales of Eaton’s Crouse-Hinds products are specifically subject to the Terms and Conditions of Sale as shown in Eaton’s Crouse-Hinds distributor price sheets.
EATON’S CROUSE-HINDS BUSINESS
4
Global Cable Glands Solution
Eaton’s Crouse-Hinds Business provides a
termination solution for virtually every cable type
used in hazardous and industrial environments –
both onshore and offshore and above and below
ground. Our cable glands and accessory products
are designed for strict adherence to global
specifications for IEC and NEC wiring standards,
meeting International and North American
certification requirements including ATEX, IECEx,
UL and regional certifications. Our products are
also certified for dust and mining applications.
From the deserts of Africa to the icy waters
of the North Sea, the world turns to Eaton’s
Crouse-Hinds Business for its complete range
of cable installation products. Our cable glands,
thread conversion products and cable installation
accessories are used in industrial and commercial
applications throughout the world enhancing
safety and productivity in the most severe
environmental conditions.
Eaton’s Crouse-Hinds Business cable glands are
the easiest and safest solution for your installation
and maintenance needs. In any electrical or
instrumentation installation, our glands are the
reliable and safe way to move power and signals.
Global Support &
Manufacturing
Our sales support and manufacturing facilities
are strategically positioned around the world to
deliver products close to your project. Whenever
required we are there on-site during construction,
commissioning and training.
Eaton’s Crouse-Hinds Business manufactures in 5
continents and sells into more than 100 countries.
We have dedicated sales support in every major
location with local technical sales and engineering
teams to support your immediate needs. As one of
the largest oil & gas bulk electrical and instrument
material suppliers, we can easily provide you a
single source for all the components to complete
your project on time and on budget.
EATON’S CROUSE-HINDS BUSINESS
5
The Capri, CEAG and Raxton products you know
are evolving. Our products, part of Eaton’s Crouse-
Hinds portfolio, are now united with Eaton’s leading
range of reliable, efficient and safe electrical power
management solutions. Combined, we provide the
world’s largest portfolio of electrical equipment for
explosive, classified, and industrial areas.
With unsurpassed product reliability and quality,
industry-leading innovation and product efficiency,
and products designed and certified for global
specifications, Eaton’s Crouse-Hinds solutions,
including Capri, CEAG and Raxton products, delivers
proven solutions for harsh and hazardous
environments.
A Powerful Transformation
Rely on the names you trust for the safety you need
Capri, CEAG and Raxton have a new look as
Crouse-Hinds by Eaton, but the products and
technology you trust remain unchanged. From
explosion-proof panel boards and lighting to connectivity
and cable glands, the broadest offering of solutions
for harsh and hazardous environments is now available
from Crouse-Hinds by Eaton.
More protection. More technology.
Expect more.
EATON’S CROUSE-HINDS BUSINESS
6EATON’S CROUSE-HINDS BUSINESS
Cable Glands &
Thread Conversion Products for
Hazardous Areas
7
EATON’S CROUSE-HINDS BUSINESS
Selection Guide for Cable Glands for Hazardous Areas
ADE 1F2
Page 14-15
ADE 4F
Page 22-23
ADE 6F
Page 26-27
NEWCAP MS-e
Page 34
Non-armoured
Marine shipboard
cable
Tray cable
Type P
SWA
SWB
STA
Braided marine
shipboard
Lead sheathed
(with washer)
Armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
SWA
SWB
STA
Braided marine
shipboard
Type P
Armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
Non-armoured
Braided cable
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
ADE 1FC
Page 20-21
Non-armoured
Marine shipboard
cable
Tray cable
Type P
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
ADE 1F2DS
Page 16-17
Non-armoured
Marine shipboard
cable
Tray cable
Type P
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
ADE 5F
Page 24-25
SWA
SWB
STA
Braided marine
shipboard
Lead sheathed
(with washer)
Type P
Armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
ADE 6FC
Page 28-29
SWA
SWB
STA
Braided marine
shipboard
Type P
Armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
ADE 1F2
Clamping
Page 18-19
Non-armoured
Marine shipboard
cable
Tray cable
Type P
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
Aluminium
Bronze
CABLE GLAND CABLE TYPE GLAND TYPE STANDARD
MATERIAL CERTIFICATION
8EATON’S CROUSE-HINDS BUSINESS
NEWCAP CT-e
Page 35
Non-armoured
Braided cable
For EMC specific
cable and
application
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
CABLE GLAND
TMCX
Page 40
Metal-clad with
interlocked or
continuously-
welded corrugated
TECK armoured
Non-armoured
Tray cable
Armoured barrier
Non-armoured
barrier
Aluminium
Option:
Nickel-plated
brass
TMC
Page 41
TECK
Page 42
Metal-clad
(interlocked or
continuously
welded corrugated
armoured),
non-armoured and
tray cable
Armoured barrier Aluminium
TECK armoured Non-armoured
barrier
Aluminium
Option:
Stainless Steel
Steel
CABLE TYPE GLAND TYPE STANDARD
MATERIAL CERTIFICATION
Selection Guide for Cable Glands for Hazardous Areas
EXACAP Ex-e
Page 36
EXACAP Ex-i
Page 36
TRUMPET
Page 37
TMCX II
Page 38-39
Non-armoured Non-armoured Nylon
Non-armoured Non-armoured Nylon
Non-armoured Non-armoured Nylon
Metal-clad with
interlocked or
continuously-
welded corrugated
TECK armoured
Non-armoured
Tray cable
Armoured Aluminium
Option:
Nickel-plated
brass
Stainless Steel
9
EATON’S CROUSE-HINDS BUSINESS
Selection Guide for Cable Glands for Non-Hazardous Areas
10 EATON’S CROUSE-HINDS BUSINESS
CAPRI IGA2
Page 66
Non-armoured cable Non-armoured Brass
Option:
Nickel plated
CAPRI IGBW
Page 67
Single wire armoured
cable (SWA)
Armoured Brass
Option:
Nickel plated
CAPRI IGCW
Page 68
Single wire armoured
cable (SWA)
Armoured Brass
Option:
Nickel plated
CAPRI IGCX
Page 69
Single wire armoured
cable (SWA)
Armoured Brass
Option:
Nickel plated
CAPRI IGE1W
Page 70
Single wire armoured
cable (SWA)
Lead sheath cable
Armoured Brass
Option:
Nickel plated
CAPRI IGE1X
Page 71
Wire braid armoured
cable (SWB)
Steel tape cable (STA)
Armoured Brass
Option:
Nickel plated
CAPRI IGE2W
Page 72
Wire braid armoured
cable (SWB)
Steel tape cable (STA)
Armoured Brass
Option:
Nickel plated
CAPRI IGE2X
Page 73
Steel tape cable (STA)
Lead sheath cable
Armoured Brass
Option:
Nickel plated
CABLE GLAND CABLE TYPE GLAND TYPE STANDARD
MATERIAL CERTIFICATION
NEWCAP MS
MULTI WIRED/
FLAT
Page 75
Multi wired cable
Flat cable
Non-armoured Nickel-plated
brass
CGE
Page 84
Non-armoured Non-armoured Iron alloy/steel
CAPRI ECP
Page 79
Non-armoured
round cable
Non-armoured Nylon
NEWCAP MS
Page 74
Non-armoured
round cable
Flexible braided
cable
Non-armoured Nickel-plated
brass
Option:
Stainless Steel
UNICAP
Page 80
Non-armoured
round cable
Non-armoured Nylon
NEWCAP CT
Page 76
Braided round
cable
EMC shielded
cable
Non-armoured Nickel-plated
brass
ADE 4Fi
Page77
SWA
SWB
STA
Armoured Nickel-plated
brass
CGD
Page 81
Non-armoured Non-armoured Iron alloy/steel
CGB
Page 82-83
Non-armoured
and tray cable
Non-armoured Iron alloy/steel
(depending on
form)
Option:
Aluminium
EUROCAP
Page 78
Non-armoured
round cable
Non-armoured Nylon
Selection Guide for Cable Glands for Non-Hazardous Areas
CABLE GLAND CABLE TYPE GLAND TYPE STANDARD
MATERIAL CERTIFICATION
11
EATON’S CROUSE-HINDS BUSINESS
Operating Temperature Range
Material Specification
Capri ADE Cable Glands - Specification Features
Metallic Components
The Capri ADE range of cable glands are available in four
different material types:
•Nickel Plated Brass
•316 Stainless Steel
•Aluminium
•Bronze
Nickel Plated Brass
Nickel Plated Brass is used extensively throughout the oil &
gas and petrochemical industries because it provides superior
protection against corrosion and contamination under severe
conditions and in the most extreme environments over
equivalent natural brass products.
All Nickel Plated Brass components, both external and
internal, are designed specifically to allow for a nickel plated
coating between 5 to 7 microns that ensures the critical
tolerances can be maintained. The design tolerance of the
components and the quality control of the plating process
ensure a uniform coating which protects against the
possibility of chipping, flaking, and peeling under extreme
conditions.
Seal Material
The seal material of the ADE range has been carefully
formulated to achieve the optimized performance across a
wide range of operating temperature conditions.
The ADE range of cable glands are available with seals of the
following material types:
•Neoprene - for standard applications
•Silicone - for extended temperature performance
12
The ADE models are suitable for the following operating
temperatures:
Neoprene Seals -30°C to +80°C
Silicon Seals -60°C to +140°C
Barrier Compound -60°C to +80°C
Refer to individual product data sheets for specifications
For UL Marine refer to certification page 96-97.
EATON’S CROUSE-HINDS BUSINESS
Cable Clamping Technology
Capri ADE Cable Glands - Specification Features
Fig. 1 - External Cable Clamping
All ADE models are designed to accommodate an external
clamping module which provides additional mechanical
strength for strain relief.
Fig. 2 - Outer Sheath Cable Sealing
All ADE models utilize a gland specific seal design (Fig.8),
which combined with the material formulation ensures
suitable sealing and ingress protection on the outer cable
sheath.
Fig. 3 & 4 - Inner Sheath Cable Sealing
The ADE 4F and ADE 5F utilize the same proven seal design
as for the outer sheath (Fig.8) whilst the ADE 6F utilizes a
diaphragm design seal to achieve the desired flame-path
protection.
Fig. 5 & 6 - Universal Clamping - Armoured Cable
The ADE 4F, ADE 5F and ADE 6F models all offer universal
designs for all types of armoured cable. These include:
•Steel wire armoured (SWA) cable
•Steel tape armoured (STA) cable
•Steel wire braided (SWB) cable
•Braided marine shipboard cable
•Lead sheath armoured cable
•Type P cable
All designs achieve clamping and earth bonding of the
armour for all armour types with no reversible components.
Fig. 7 - Lead sheath Armour Cable
The ADE 4F and ADE 5F ranges are suitable for lead sheath
armoured cable with the addition of a simple washer.
Fig. 8 - Specially formulated elastomer seal
13
Fig.1
Fig.3
Fig.5
Fig.2
Fig.4
Fig.6
Fig.7
Fig.8
Ingress Protection
IP Rating
All ADE models incorporate an elastomeric dust cap to prevent
dust and solid ingress prior to installation. IP66 protection is
achieved through the thread to thread engagement. Additional
protection up to IP68 can be achieved through the addition of
a sealing washer or thread sealant.
Deluge Protection
All ADE models comply and are certified to the DTS-01
deluge certification.
The ADE 6F incorporates an additional deluge boot seal for
enhanced deluge protection in marine / offshore environments.
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Suitable for the following cable types
Non-armoured cable
Marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2 Groups IIA, IIB and IIC
Zones 21 and 22 Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
Ex db IIC, Ex db I, Ex eb I, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx e II, Ex e II
cULus Listed: E310130
Marine cULus Listed: E314047
DTS-01:91 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
External cable clamping module (optional)
Capri ADE 1F2 - for Non Armoured Cable
1: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
2: Additional external cable clamping for strain relief (optional).
Features & Benefits
1
2
14 EATON’S CROUSE-HINDS BUSINESS
L
Dimensions
K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
BLANK No Option
N Neoprene
S Silicone
SERIES
DIMENSIONS
VARIANT CODES
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
CABLE SEALING RANGE ISO/(NPT)
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ADE1 12* M12 1/4”* N025 3 4.5 - 8.0 17 17 25.0 4 CAP806404V1 CAP808404V1
ADE1 16* M16 3/8”* N038 2 4.5 - 8.5 17 19 25.0 4 CAP806594V1 CAP808594V1
ADE1 16* M16 3/8”* N038 3 7.0 - 12.0 19 19 27.5 5 CAP806504V1 CAP808504V1
ADE1 20 M20 1/2" N050 0 2.8 - 5.5 15 24 24.0 3 CAP806664V1 CAP808664V1
ADE1 20 M20 1/2" N050 1 4.5 - 8.5 17 24 25.0 4 CAP806674V1 CAP808674V1
ADE1 20 M20 1/2" N050 2 7.0 - 12.0 19 24 27.5 5 CAP806694V1 CAP808694V1
ADE1 20 M20 1/2" N050 3 10.0 - 16.0 (15.5) 24 24 32.0 6 CAP806604V1 CAP808604V1
ADE1 25 M25 3/4" N075 1 7.0 - 12.0 19 30 27.5 5 CAP806774V1 CAP808774V1
ADE1 25 M25 3/4" N075 2 10.0 - 16.0 24 30 32.0 6 CAP806794V1 CAP808794V1
ADE1 25 M25 3/4" N075 3 13.5 - 20.5 30 30 36.5 7 CAP806704V1 CAP808704V1
ADE1 32 M32 1" N100 3 18.0 - 27.5 (26.0) 41 41 46.0 8 CAP806804V1 CAP808804V1
ADE1 40 M40 1 1/4" N125 3 23.0 - 34.0 48 48 50.0 9 CAP806904V1 CAP808904V1
ADE1 50 M50 1 1/2" N150 1 29.0 - 41.0 55 55 52.0 10 CAP807004V1 CAP809004V1
ADE1 50 M50 2" N200 2 35.0 - 45.0 (48.0) 64 64 56.5 11 CAP807084V1 CAP809294V1
ADE1 63 M63 2" N200 3 42.0 - 56.0 (53.0) 72 72 60.0 12 CAP807204V1 CAP809204V1
ADE1 75 M75 2 1/2" N250 3 50.0 - 65.0 (62.5) 85 85 67.5 13 CAP807304V1 CAP809404V1
ADE1 90 M90 3" N300 2 58.0 - 74.0 95 95 69.0 14 CAP807594V1 CAP809594V1
ADE1 90 M90 3" N300 3 66.0 - 83.0 (78.0) 110 110 80.0 15 CAP807504V1 CAP809504V1
ADE1 110 M110 3 1/2" N350 2 75.0 - 93.0 (92.0) 120 120 80.0 16 CAP807604V1 CAP809604V1
ADE1 110 M110 4" N400 3 85.0 - 104.0 135 135 90.0 17 CAP807704V1 CAP809704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
SELECTION TABLE
SERIES
ADE1 M25 3 NP N
OPTION
MATERIAL
THREAD
SIZE
SEALING
TYPE
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium
0 = XS
1 = S
2 = M
3 = L
Capri ADE 1F2 - Order Codes & Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
B*
E**
A*
15
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
SELECT
SELECT
SELECT
SELECT
Technical Specification
Suitable for the following cable types
Non-armoured cable
Marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2 Groups IIA, IIB and IIC,
Zones 21 and 22 Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
II2GD / Ex db IIC/ Ex eb IIC / Ex tb IIIC
II3G Ex nRc IIC, IM2 Ex db I Ex eb I
IECEx Certificate No: IECEx INE 12.0025X
DTS-01:91 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
External cable clamping module (optional)
Capri ADE 1F2 DS - (Double Seal) for Non Armoured Cable
1: Flameproof and sealing on outer sheath of the cable.
2: Environmental sealing and controlled pulling resistance on
outer sheath of the cable.
3: Additional clamping for strain relief (optional).
Features & Benefits
1
3
16
2
EATON’S CROUSE-HINDS BUSINESS
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
SERIES
DIMENSIONS
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
CABLE SEALING RANGE ISO/(NPT)
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ADE2 12 M12 - - 3 4.5 - 8.0 17 17 42 4 CAP826404V1 -
ADE2 16 M16 - - 2 4.5 - 8.5 17 19 42 4 CAP826594V1 -
ADE2 16 M16 - - 3 7.0 - 12.0 19 19 47 5 CAP826504V1 -
ADE2 20 M20 1/2’’ N050 0 2.7 - 5.5 15 24 42 3 CAP826654V1 CAP828664V1
ADE2 20 M20 1/2’’ N050 1 4.5 - 8.5 17 24 42 4 CAP826664V1 CAP828674V1
ADE2 20 M20 1/2’’ N050 2 7.0 - 12.0 19 24 47 5 CAP826674V1 CAP828694V1
ADE2 20 M20 1/2’’ N050 3 10.0 - 16.0 (15.5) 24 24 54 6 CAP826684V1 CAP828604V1
ADE2 25 M25 3/4’’ N075 1 7.0 - 12.0 19 30 47 5 CAP826764V1 CAP828704V1
ADE2 25 M25 3/4’’ N075 2 10.0 - 16.0 24 30 54 6 CAP826774V1 CAP828774V1
ADE2 25 M25 3/4’’ N075 3 13.5 - 20.5 30 30 63 7 CAP826784V1 CAP828794V1
ADE2 32 M32 1’’ N100 3 18.0 - 27.5 (26.0) 41 41 79 8 CAP826884V1 CAP828804V1
ADE2 40 M40 1 1/4’’ N125 3 23.0 - 34.0 48 48 86 9 CAP826984V1 CAP828904V1
ADE2 50 M50 1 1/2’’ N150 2 29.0 - 41.0 55 55 90 10 CAP827074V1 CAP829004V1
ADE2 50 M50 2’’ N200 3 35.0 - 45.0 (48.0) 64 64 99 11 CAP827084V1 CAP829294V1
ADE2 63 M63 2’’ N200 3 42.0 - 56.0 (53.0) 72 72 106 12 CAP827284V1 CAP829204V1
ADE2 75 M75 2 1/2’’ N250 3 50.0 - 65.0 (62.5) 85 85 119 13 CAP827304V1 CAP829404V1
ADE2 90 M90 3’’ N300 2 58.0 - 74.0 95 95 123 14 CAP827594V1 CAP829594V1
ADE2 90 M90 3’’ N300 3 66.0 - 83.0 (78.0) 110 110 139 15 CAP827504V1 CAP829504V1
ADE2 110 M110 3 1/2’’ N350 2 75.0 - 93.0 (92.0) 120 120 139 16 CAP827604V1 CAP829604V1
ADE2 110 M110 4’’ N400 3 85.0 - 104.0 135 135 156 17 CAP827704V1 CAP829704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
For mining applications, please contact us
SELECTION TABLE
SERIES
ADE2 M25 3 NP N
OPTION
MATERIAL
THREAD
SIZE
SEALING
TYPE
Capri ADE 1F2 DS - Order Codes & Dimensions
Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
B*
E**L
A*
17
K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
BLANK No Option
N Neoprene
S Silicone
VARIANT CODES
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
1
2
Suitable for the following cable types
Non-armoured cable
Marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2 Groups I, IIA, IIB and IIC
Zones 21 and 22 Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
Ex db I, Ex eb I (for mining applications)
Ex db IIC, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx e II, Ex e II
cULus Listed: E310130
Marine cULus Listed: E314047
DTS-01:91 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
External cable clamping
1: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
2: Integrated external cable clamping for strain relief.
18
Capri ADE 1F2 with Integral Clamping Module - for Non Armoured Cable
Features & Benefits
EATON’S CROUSE-HINDS BUSINESS
SERIES
DIMENSIONS
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
CABLE SEALING RANGE ISO/(NPT)
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ADE1A 16* M16 - - 2 4.5 - 8.5 20 19 32.0 4 CAP036594V1 -
ADE1A 16* M16 - - 3 7.0 - 12.0 24 19 35.0 5 CAP036504V1 -
ADE1A 20 M20 1/2" N050 0 2.8 - 5.5 15 24 28.0 3 CAP036664V1 CAP038664V1
ADE1A 20 M20 1/2" N050 1 4.5 - 8.5 20 24 32.0 4 CAP036674V1 CAP038674V1
ADE1A 20 M20 1/2" N050 2 7.0 - 12.0 24 24 35.0 5 CAP036694V1 CAP038694V1
ADE1A 20 M20 1/2" N050 3 10.0 - 16.0 (15.5) 27 24 40.0 6 CAP036604V1 CAP038604V1
ADE1A 25 M25 3/4" N075 1 7.0 - 12.0 24 30 40.0 5 CAP036774V1 CAP038774V1
ADE1A 25 M25 3/4" N075 2 10.0 - 16.0 27 30 40.0 6 CAP036794V1 CAP038794V1
ADE1A 25 M25 3/4" N075 3 13.5 - 20.5 32 30 45.0 7 CAP036704V1 CAP038704V1
ADE1A 32 M32 1" N100 3 18.0 - 27.5 (26.0) 41 41 55.0 8 CAP036804V1 CAP038804V1
ADE1A 40 M40 - - 3 23.0 - 34.0 48 48 59.0 9 CAP036904V1 -
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
For mining applications, please contact us
SELECTION TABLE
SERIES
ADE1A M25 3 NP N
OPTION
MATERIAL
HUB
SIZE
SEALING
TYPE
19
Capri ADE 1F2 with Integral Clamping Module - Order Codes & Dimensions
Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
A*
B*
L E**
K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
BLANK No Option
N Neoprene
S Silicone
VARIANT CODES
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
Technical Specification
2
Suitable for the following cable types
Non-armoured cable
Marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2 Groups I, IIA, IIB and IIC
Zones 21 and 22 Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
Ex db I, Ex eb I, Ex db IIC, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx de II, Ex de II
cULus Listed: E310130
Class I, Division 2, Groups A, B, C, D
Marine UL Listed: E324850
DTS-01:91 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
TSC Compound: -60°C to +80°C
(for UL Marine certification refer to page 96-97)
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
Compound barrier seal on cable conductors
External cable clamping module (optional)
1: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
2: Sealing of cable conductors with compound barrier seal.
3: Deluge seal provides enhanced ingress protection.
4: Additional external cable clamping for strain relief (optional).
Features & Benefits
20
Capri ADE 1FC - for Non Armoured Cable
3 4
1
EATON’S CROUSE-HINDS BUSINESS
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
SELECT
N Neoprene
SC Solid Compound
SERIES
DIMENSIONS
VARIANT CODES
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE INNER SHEATH
MIN - MAX
CONDUCTORS
C=Ø MAX
OVER CORES
MAX No
CORES
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
SEALING
RANGE
MIN - MAX
SELECTION TABLE
SERIES
ADE1C M25 3 NP SC
OPTION
MATERIAL
THREAD
SIZE
BARRIER
N
SEALING
TYPE K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
FL Flange (integrated clamping)
BLANK No Option
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
21
Capri ADE 1FC - Order Codes & Dimensions
Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
A*
B*
E**
L
ADE1C 16* M16 3/8"* N038 3 4.0 - 8.5 6.5 6 15 19 36.0 4 CAP019594V1 CAP011594V1
ADE1C 20 M20 1/2" N050 1 4.0 - 8.5 6.5 6 15 24 36.0 4 CAP019674V1 CAP011674V1
ADE1C 20 M20 1/2" N050 2 6.0 - 12.0 9.5 6 19 24 42.0 5 CAP019694V1 CAP011694V1
ADE1C 20 M20 1/2" N050 3 8.5 - 16.0 12.0 10 24 30 48.0 6 CAP019604V1 CAP011604V1
ADE1C 25 M25 3/4" N075 2 8.5 - 16.0 12.0 10 24 30 48.0 6 CAP019794V1 CAP011794V1
ADE1C 25 M25 3/4" N075 3 12.0 - 21.0 17.0 21 30 41 58.0 7 CAP019704V1 CAP011704V1
ADE1C 32 M32 1" N100 2 12.0 - 21.0 17.0 21 30 41 58.0 7 CAP019894V1 CAP011894V1
ADE1C 32 M32 1" N100 3 16.0 - 27.5 23.0 42 41 48 70.0 8 CAP019804V1 CAP011804V1
ADE1C 40 M40 1 1/4" N125 2 16.0 - 27.5 23.0 42 41 48 70.0 8 CAP019994V1 CAP011994V1
ADE1C 40 M40 1 1/4" N125 3 21.0 - 34.0 29.0 60 48 55 79.0 9 CAP019904V1 CAP011904V1
ADE1C 50 M50 1 1/2" N150 2 21.0 - 34.0 29.0 60 48 55 79.0 9 CAP019094V1 CAP011094V1
ADE1C 50 M50 2" N200 1 27.0 - 41.0 36.5 80 55 64 88.0 10 CAP019004V1 CAP011004V1
ADE1C 63 M63 2" N200 2 33.0 - 48.0 43.0 100 64 72 98.0 11 CAP019294V1 CAP011294V1
ADE1C 63 M63 2" N200 3 40.0 - 56.0 50.0 100 72 85 103.0 12 CAP019274V1 CAP011204V1
ADE1C - - 2 1/2" N250 2 40.0 - 56.0 50.0 100 72 85 103.0 12 - CAP011494V1
ADE1C 75 M75 2 1/2" N250 3 46.0 - 65.0 59.0 120 85 95 111.0 13 CAP019304V1 CAP011404V1
ADE1C - - 3" N300 1 46.0 - 65.0 59.0 120 85 95 111.0 13 - CAP012504V1
ADE1C 90 M90 3" N300 2 54.0 - 74.0 66.0 140 95 110 120.0 14 CAP010594V1 CAP012574V1
ADE1C - - 3 1/2" N350 2 54.0 - 74.0 66.0 140 95 110 120.0 14 - CAP012604V1
ADE1C 90 M90 3" N300 3 63.0 - 83.0 75.0 140 110 120 125.0 15 CAP010504V1 CAP012594V1
ADE1C - - 3 1/2" N350 3 63.0 - 83.0 75.0 140 110 120 125.0 15 - CAP012694V1
ADE1C 110 M110 4" N400 3 72.0 - 93.0 85.0 200 120 135 128.0 16 CAP010794V1 CAP012704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
For mining applications, please contact us
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
321
4 5
Suitable for the following cable types
Steel wire armoured cable (SWA)
Steel wire braided cable (SWB)
Steel tape armoured cable (STA)
Braided marine shipboard cable Type P cable
Lead sheathed cable (with addition of earthing washer)
Certifications and Compliances
Zones 1 and 2, Groups I, IIA, IIB and IIC
Zones 21 and 22, Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
Ex db IIC, Ex db I, Ex eb I, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx e II, EX e II
cULus Listed: E310130
Class I, Zone 1, AEx e II, EX e II
Marine cULus Listed: E314047
DTS-01:91 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
Universal armour clamping and bonding for electrical continuity
Elastomeric seal on cable inner-sheath
External cable clamping module (optional)
1: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
2: Universal clamping design for earthing and bonding of armour
shield. Provides mechanical strength and is suitable for all
armour shield types, with no requirement to reverse
components that may introduce risk of incorrect installation.
3: Specifically formulated elastomer for flamepath sealing on
inner sheath of the cable.
4: Suitable for lead sheath cable with installation of simple
washer.
5: Additional external cable clamping for strain relief (optional).
Capri ADE 4F - for Armoured Cable
Features & Benefits
22 EATON’S CROUSE-HINDS BUSINESS
K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
FL Flange (integrated clamping)
BLANK No Option
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
N Neoprene
S Silicone
SERIES
DIMENSIONS
VARIANT CODES
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE INNER SHEATH
MIN - MAX
CABLE SEALING RANGE
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ARMOUR
RANGE
MIN - MAX
SELECTION TABLE
SERIES
ADE4 M25 3 NP N
OPTION
MATERIAL
THREAD
SIZE
SEALING
TYPE
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
Capri ADE 4F - Order Codes & Dimensions
Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
B*
A*
LE**
23
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
ADE4 12* M12 1/4"* N025 3 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 19 46.0 5 CAP846404V1 CAP848404V1
ADE4 16* M16 3/8"* N038 1 2.8 - 5.5 4.5 - 8.5 0.2 - 0.9 17 19 41.0 4 CAP846574V1 CAP848574V1
ADE4 16* M16 3/8"* N038 2 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 19 46.0 5 CAP846594V1 CAP848594V1
ADE4 16* M16 3/8"* N038 3 7.0 - 12.0 10.0 - 16.0 0.2 - 1.3 24 24 51.0 6 CAP846504V1 CAP848504V1
ADE4 20 M20 1/2" N050 0 2.8 - 5.5 4.5 - 8.5 0.2 - 0.9 17 24 41.0 4 CAP846654V1 CAP848664V1
ADE4 20 M20 1/2" N050 1 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 24 46.0 5 CAP846674V1 CAP848674V1
ADE4 20 M20 1/2" N050 2 7.0 - 12.0 10.0 - 16.0 0.2 - 1.3 30 24 51.0 6 CAP846694V1 CAP848694V1
ADE4 20 M20 1/2" N050 3 10.0 - 15.5 13.5 - 21.0 0.2 - 1.3 30 30 57.5 7 CAP846604V1 CAP848604V1
ADE4 25 M25 3/4" N075 1 7.0 - 12.0 10.0 - 16.0 0.2 - 1.3 24 30 51.0 6 CAP846774V1 CAP848774V1
ADE4 25 M25 3/4" N075 2 10.0 - 15.5 13.5 - 21.0 0.2 - 1.3 30 30 57.5 7 CAP846794V1 CAP848794V1
ADE4 25 M25 3/4" N075 3 13.5 - 20.5 18.0 - 27.5 0.2 - 1.6 41 41 68.0 8 CAP846704V1 CAP848704V1
ADE4 32 M32 1" N100 2 13.5 - 21.0 18.0 - 27.5 0.2 - 1.6 41 41 68.0 8 CAP846894V1 CAP848894V1
ADE4 32 M32 1" N100 3 18.0 - 26.0 23.0 - 34.0 0.2 - 1.6 48 48 76.0 9 CAP846804V1 CAP848804V1
ADE4 40 M40 1 1/4" N125 2 18.0 - 27.5 23.0 - 34.0 0.2 - 1.6 48 48 76.0 9 CAP846994V1 CAP848994V1
ADE4 40 M40 1 1/4" N125 3 23.0 - 34.0 29.0 - 41.0 0.2 - 2.0 55 55 88.0 10 CAP846904V1 CAP848904V1
ADE4 50 M50 1 1/2" N150 2 23.0 - 34.0 29.0 - 41.0 0.2 - 2.0 55 55 88.0 10 CAP847094V1 CAP849094V1
ADE4 50 M50 1 1/2" N150 3 29.0 - 41.0 35.0 - 48.0 0.2 - 2.5 64 64 97.0 11 CAP847004V1 CAP849004V1
ADE4 63 M63 2" N200 2 35.0 - 48.0 42.0 - 56.0 0.2 - 2.5 72 72 102.0 12 CAP847294V1 CAP849294V1
ADE4 63 M63 2" N200 3 42.0 - 53.0 50.0 - 65.0 0.2 - 2.5 85 85 117.0 13 CAP847204V1 CAP849204V1
ADE4 75 M75 2 1/2" N250 2 42.0 - 56.0 50.0 - 65.0 0.2 - 2.5 85 85 117.0 13 CAP847394V1 CAP849494V1
ADE4 75 M75 2 1/2" N250 3 50.0 - 62.5 58.0 - 74.0 0.2 - 2.5 95 95 124.0 14 CAP847304V1 CAP849404V1
ADE4 90 M90 3" N300 1 58.0 - 74.0 66.0 - 83.0 0.2 - 3.2 110 110 133.0 15 CAP847594V1 CAP849594V1
ADE4 90 M90 3" N300 2 66.0 - 78.0 75.0 - 93.0 0.2 - 3.2 120 120 140.0 16 CAP847504V1 CAP849504V1
ADE4 90 M90 3 1/2" N350 3 66.0 - 83.0 85.0 - 104.0 0.2 - 3.5 135 135 150.0 17 CAP847574V1 CAP849604V1
ADE4 110 M110 4" N400 3 75.0 - 93.0 85.0 - 104.0 0.2 - 3.5 135 135 150.0 17 CAP847794V1 CAP849704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
For mining applications, please contact us
Technical Specification
123
5 4
Suitable for the following cable types
Steel wire armoured cable (SWA)
Steel wire braided cable( SWB)
Steel tape armoured cable (STA)
Braided marine shipboard cable Type P cable
Lead sheathed cable (with addition of earthing washer)
Certifications and Compliances
Zones 1 and 2, Groups IIA, IIB and IIC,
Zones 21 and 22, Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
II2GD / Ex db IIC/ Ex eb IIC / Ex tb IIIC
II3G Ex nRc IIC, IM2 Ex db I Ex eb I
IECEx Certificate No: IECEx INE 12.0025X
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
Universal armour clamping and bonding for electrical continuity
Elastomeric seal on cable inner-sheath
External cable clamping module (optional)
1: Specifically formulated elastomer for flamepath sealing on inner
sheath of cable.
2: Universal and inspectable armour clamping and grounding system.
3: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
4: Additional external cable clamping for strain relief (optional).
5: Suitable for lead sheath cable with installation of simple washer
(optional).
Capri ADE 5F - for Armoured Cable
Features & Benefits
24 EATON’S CROUSE-HINDS BUSINESS
N Neoprene
S Silicone
SERIES
DIMENSIONS
VARIANT CODES
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE INNER SHEATH
MIN - MAX
CABLE SEALING RANGE
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ARMOUR
RANGE
MIN - MAX
SELECTION TABLE
SERIES
ADE5 M25 3 NP N
OPTION
MATERIAL
THREAD
SIZE
SEALING
TYPE K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
FL Flange (integrated clamping)
BLANK No Option
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
Capri ADE 5F - Order Codes & Dimensions
Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
B*
A*
LE**
25
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
ADE5 12* M12 1/4’’* N025 3 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 19 55.0 5 CAP856404V1 CAP858404V1
ADE5 16* M16 - - 1 2.7 - 5.5 4.5 - 8.5 0.2 - 0.9 17 19 50.0 4 CAP856574V1 -
ADE5 16* M16 3/8’’* N038 2 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 19 55.0 5 CAP856594V1 CAP858594V1
ADE5 16* M16 3/8’’* N038 3 7.0 - 12.0 10.0 - 16.0 0.2 - 1.2 24 24 57.0 6 CAP856504V1 CAP858504V1
ADE5 20 M20 1/2’’ N050 0 2.7 - 5.5 4.5 - 8.5 0.2 - 0.9 17 24 50.0 4 CAP856654V1 CAP858664V1
ADE5 20 M20 1/2’’ N050 1 4.5 - 8.0 7.0 - 12.0 0.2 - 0.9 19 24 55.0 5 CAP856674V1 CAP858674V1
ADE5 20 M20 1/2’’ N050 2 7.0 - 12.0 10.0 - 16.0 0.2 - 1.2 24 24 57.0 6 CAP856694V1 CAP858694V1
ADE5 20 M20 1/2’’ N050 3 10.0 - 15.5 13.5 - 21.0 0.2 - 1.2 30 30 64.0 7 CAP856604V1 CAP858604V1
ADE5 25 M25 3/4’’ N075 1 7.0 - 12.0 10.0 - 16.0 0.2 - 1.2 24 30 57.0 6 CAP856774V1 CAP858774V1
ADE5 25 M25 3/4’’ N075 2 10.0 - 15.5 13.5 - 21.0 0.2 - 1.2 30 30 64.0 7 CAP856794V1 CAP858794V1
ADE5 25 M25 3/4’’ N075 3 13.5 - 20.5 18.0 - 27.5 0.2 - 1.6 41 41 75.0 8 CAP856704V1 CAP858704V1
ADE5 32 M32 1’’ N100 2 13.5 - 21.0 18.0 - 27.5 0.2 - 1.6 41 41 75.0 8 CAP856894V1 CAP858894V1
ADE5 32 M32 1’’ N100 3 18.0 - 26.0 23.0 - 34.0 0.2 - 1.6 48 48 83.0 9 CAP856804V1 CAP858804V1
ADE5 40 M40 1 1/4’’ N125 2 18.0 - 27.5 23.0 - 34.0 0.2 - 1.6 48 48 83.0 9 CAP856994V1 CAP858994V1
ADE5 40 M40 1 1/4’’ N125 3 23.0 - 34.0 29.0 - 41.0 0.2 - 2.0 55 55 90.0 10 CAP856904V1 CAP858904V1
ADE5 50 M50 1 1/2’’ N150 2 23.0 - 34.0 29.0 - 41.0 0.2 - 2.0 55 55 90.0 10 CAP857094V1 CAP859094V1
ADE5 50 M50 1 1/2’’ N150 3 29.0 - 41.0 35.0 - 48.0 0.2 - 2.5 64 64 99.0 11 CAP857004V1 CAP859004V1
ADE5 63 M63 2’’ N200 2 35.0 - 48.0 42.0 - 56.0 0.2 - 2.5 72 72 108.0 12 CAP857294V1 CAP859294V1
ADE5 63 M63 2’’ N200 3 42.0 - 53.0 50.0 - 65.0 0.2 - 2.5 85 85 120.0 13 CAP857204V1 CAP859204V1
ADE5 75 M75 2 1/2’’ N250 2 42.0 - 56.0 50.0 - 65.0 0.2 - 2.5 85 85 120.0 13 CAP857394V1 CAP859494V1
ADE5 75 M75 2 1/2’’ N250 3 50.0 - 62.5 58.0 - 74.0 0.2 - 2.5 95 95 128.0 14 CAP857304V1 CAP859404V1
ADE5 90 M90 3’’ N300 2 58.0 - 74.0 66.0 - 83.0 0.2 - 3.1 110 110 150.0 15 CAP857594V1 CAP859594V1
ADE5 90 M90 3’’ N300 3 66.0 - 78.0 75.0 - 93.0 0.2 - 3.1 120 120 160.0 16 CAP857504V1 CAP859504V1
ADE5 90 M90 3 1/2’’ N350 3 66.0 - 83.0 85.0 - 104.0 0.2 - 3.5 135 135 172.0 17/16 CAP857584V1 CAP859604V1
ADE5 110 M110 4’’ N400 3 75.0 - 93.0 85.0 - 104.0 0.2 - 3.5 135 135 172.0 17 CAP857794V1 CAP859704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
For mining applications, please contact us
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
Technical Specification
Suitable for the following cable types
Steel wire armoured cable (SWA)
Steel wire braided cable (SWB)
Steel tape armoured cable (STA)
Braided marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2, Groups IIA, IIB and IIC
Zones 21 and 22, Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
EX db IIC, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx e II, Ex e II
cULus Listed: E310130
Class I, Zone 1, AEx e II, Ex e II
Marine cULus Listed: E314047
DTS-01 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Silicone seal: -60°C to +80°C
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
Universal armour clamping and bonding for electrical continuity
Cold Flow Protection Diaphragm seal on cable inner-sheath
External cable clamping module (optional)
1: Specifically formulated diaphragm seal offers cold flow
protection when required and sealing on cable inner sheath.
2: Universal clamping design for earthing and bonding of armour
shield. Provides mechanical strength and is suitable for all
armour shield types, with no requirement to reverse components
that may introduce risk of incorrect installation. Fully inspectable.
3: Specifically formulated elastomer for IP sealing on outer sheath
of cable.
4: Deluge performance to avoid water ingress through the thread.
5: Additional external cable clamping for strain relief (optional).
Capri ADE 6F - for Armoured Cable
Features & Benefits
1 2 3
54
26 EATON’S CROUSE-HINDS BUSINESS
Dimensions
S Silicone
SERIES
DIMENSIONS
VARIANT CODES
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE INNER SHEATH
MIN - MAX
CABLE SEALING RANGE
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
ARMOUR
RANGE
MIN - MAX
ADE6 16* M16 3/8"* N038 3 3.0 - 7.5 6.0 - 12.0 0.2 - 0.9 19 19 47.5 5 CAP965595V1 CAP967595V1
ADE6 20 M20 1/2" N050 1 3.0 - 7.5 6.0 - 12.0 0.2 - 0.9 19 19 47.5 5 CAP965675V1 CAP967675V1
ADE6 20 M20 1/2" N050 2 6.5 - 11.0 8.5 - 16.0 0.2 - 1.3 24 24 54.5 6 CAP965695V1 CAP967695V1
ADE6 20 M20 1/2" N050 3 9.0 - 14.5 12.0 - 21.0 0.2 - 1.3 30 30 60.5 7 CAP965605V1 CAP967605V1
ADE6 25 M25 3/4" N075 2 9.0 - 14.5 12.0 - 21.0 0.2 - 1.3 30 30 60.5 7 CAP965795V1 CAP967795V1
ADE6 25 M25 3/4" N075 3 12.0 - 19.5 16.0 - 27.5 0.2 - 1.6 41 41 74.0 8 CAP965705V1 CAP967705V1
ADE6 32 M32 1" N100 2 12.0 - 19.5 16.0 - 27.5 0.2 - 1.6 41 41 74.0 8 CAP965895V1 CAP967895V1
ADE6 32 M32 1" N100 3 17.5 - 26.0 21.0 - 34.0 0.2 - 1.6 48 48 83.0 9 CAP965805V1 CAP967805V1
ADE6 40 M40 1 1/4" N125 2 17.5 - 26.0 21.0 - 34.0 0.2 - 1.6 48 48 83.0 9 CAP965995V1 CAP967995V1
ADE6 40 M40 1 1/4" N125 3 23.0 - 33.0 27.0 - 41.0 0.2 - 2.0 55 55 92.0 10 CAP965905V1 CAP967905V1
ADE6 50 M50 1 1/2" N150 2 23.0 - 33.0 27.0 - 41.0 0.2 - 2.0 55 55 92.0 10 CAP966095V1 CAP968095V1
ADE6 50 M50 2" N200 3 28.5 - 41.0 33.0 - 48.0 0.2 - 2.5 64 64 104.0 11 CAP966005V1 CAP968295V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with silicone seal, refer to page 30 for other options
SELECTION TABLE
SERIES
ADE6 M25 3 NP S
OPTION
MATERIAL
THREAD
SIZE
SEALING
TYPE K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
FL Flange (integrated clamping)
BLANK No Option
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium
Capri ADE 6F - Order Codes & Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
B*
A*
LE**
27
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
Technical Specification
1 2 3
54
Suitable for the following cable types
Steel wire armoured cable (SWA)
Steel wire braided cable (SWB)
Steel tape armoured cable (STA)
Braided marine shipboard cable Type P cable
Certifications and Compliances
Zones 1 and 2, Groups I, IIA, IIB and IIC
Zones 21 and 22, Groups IIIA, IIIB and IIIC
ATEX Certificate No: INERIS12ATEX0032X
Ex db I, Ex eb I, Ex db IIC, Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 12.0025X
Class I, Zone 2, AEx de II, Ex de II
cULus Listed: E310130
Class I, Division 1, Groups A, B, C and D
Marine UL Listed: E324850
DTS-01 Deluge certification
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 Stainless steel, bronze and aluminium options available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
TSC Compound: -60°C to +80°C
(for UL Marine certification refer to page 96-97)
Ingress Protection (IP):
Metric Threads:
Fitted on equipment with a flat surface, on threaded hole, or
on blank hole (“d” use excluded) fixed by a qualified locknut
with all threads engaged:
IP64 and IP66 without Sealing Washer and surface finish of
Ra 0.4µm or on threaded hole and surface finish of
Ra 1.6µm max.
IP64 and IP66 with all Sealing Washers (Red Fibre,
Green Fibre, Neoprene, Nylon or PTFE) on surface
Ra 6.3µm max.
IP68 tested 30m/7days with Red Fibre or Green Fibre
Sealing Washers on surface Ra 6.3µm max.
NPT Threads:
IP64, 66 and IP68 tested 30m/7days, always fitted on
equipment with threaded hole; HTL lubricant may be needed.
Clamping Technology:
Elastomeric seal on cable outer-sheath
Compound barrier seal on cable conductors
Universal armour clamping and bonding for electrical continuity
External cable clamping module (optional)
Capri ADE 6FC - for Armoured Cable
1: Sealing of cable conductors with compound barrier seal.
2: Universal clamping design for earthing and bonding of armour
shield. Provides mechanical strength and is suitable for all
armour shield types, with no requirement to reverse
components that may introduce risk of incorrect installation.
Fully inspectable.
3: Specifically formulated elastomer for IP sealing on outer sheath
of cable
4: Deluge performance to avoid water ingress through the thread
5: Additional external cable clamping for strain relief (optional).
Features & Benefits
28 EATON’S CROUSE-HINDS BUSINESS
Dimensions
N Neoprene
SERIES
DIMENSIONS
ISO NPT
THREAD
SIZE
THREAD
SIZE
CODE A B L
(LENGTH)
THREAD
SIZE
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
OUTER
SHEATH
MIN - MAX
CONDUCTORS
C=Ø MAX
COVER
CORES
Ø MAX
INNER
SHEATH
MAX No
0F
CORES
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
MAX
ARMOUR
THICKNESS
ADE6C 16* M16 3/8"* N038 3 6.0 - 12.0 6.5 8.0 6 0.9 19 19 47.5 5 CAP969594V1 CAP971594V1
ADE6C 20 M20 1/2" N050 1 6.0 - 12.0 6.5 8.0 6 0.9 19 24 47.5 5 CAP969674V1 CAP971674V1
ADE6C 20 M20 1/2" N050 2 8.5 - 16.0 9.5 12.0 6 1.2 24 24 54.5 6 CAP969694V1 CAP971694V1
ADE6C 20 M20 1/2" N050 3 12.0 - 21.0 12.0 16.0 10 1.2 30 30 60.5 7 CAP969604V1 CAP971604V1
ADE6C 25 M25 3/4" N075 2 12.0 - 21.0 12.0 16.0 10 1.2 30 30 60.5 7 CAP969794V1 CAP971794V1
ADE6C 25 M25 3/4" N075 3 16.0 - 27.5 17.0 21.0 21 1.6 41 41 74.0 8 CAP969704V1 CAP971704V1
ADE6C 32 M32 1" N100 2 16.0 - 27.5 17.0 21.0 21 1.6 41 41 74.0 8 CAP969894V1 CAP971894V1
ADE6C 32 M32 1" N100 3 21.0 - 34.0 23.0 27.5 42 1.6 48 48 83.0 9 CAP969804V1 CAP971804V1
ADE6C 40 M40 1 1/4" N125 2 21.0 - 34.0 23.0 27.5 42 1.6 48 48 83.0 9 CAP969994V1 CAP971994V1
ADE6C 40 M40 1 1/4" N125 3 27.0 - 41.0 29.0 34.0 60 2.0 55 55 92.0 10 CAP969904V1 CAP971904V1
ADE6C 50 M50 1 1/2" N150 2 27.0 - 41.0 29.0 34.0 60 2.0 55 55 92.0 10 CAP970094V1 CAP972094V1
ADE6C 50 M50 2" N200 1 33.0 - 48.0 36.5 41.0 80 2.5 64 64 104.0 11 CAP970004V1 CAP972294V1
ADE6C 63 M63 2" N200 2 40.0 - 56.0 43.0 48.0 100 2.5 72 72 108.0 12 CAP970294V1 CAP972274V1
ADE6C 63 M63 2" N200 3 46.0 - 65.0 50.0 56.0 100 2.5 85 85 118.0 13 CAP970204V1 CAP972204V1
ADE6C 75 M75 2 1/2" N250 2 46.0 - 65.0 50.0 56.0 100 2.5 85 85 118.0 13 CAP970394V1 CAP972494V1
ADE6C 75 M75 2 1/2" N250 3 54.0 - 74.0 59.0 65.0 120 2.5 95 95 124.0 14 CAP970304V1 CAP972404V1
ADE6C - - 3" N300 1 54.0 - 74.0 59.0 65.0 120 2.5 95 95 124.0 14 - CAP972574V1
ADE6C 90 M90 3" N300 2 63.0 - 83.0 66.0 73.0 140 3.1 110 110 133.0 15 CAP970594V1 CAP972594V1
ADE6C - - 3 1/2" N350 2 63.0 - 83.0 66.0 73.0 140 3.1 110 110 133.0 15 - CAP972694V1
ADE6C 90 M90 TBC N300 3 72.0 - 93.0 75.0 82.0 140 3.1 120 120 137.0 16 CAP970504V1 CAP972504V1
ADE6C - - TBC N350 3 72.0 - 93.0 75.0 82.0 140 3.1 120 120 137.0 16 - CAP972604V1
ADE6C 110 M110 4" N400 3 85.0 - 104.0 85.0 92.0 200 3.5 135 135 142.0 17 CAP970794V1 CAP972704V1
* Not UL certified All dimensions in mm Above CAP product codes for nickel-plated brass model with neoprene seal, refer to page 30 for other options
SELECTION TABLE
Capri ADE 6FC - Order Codes & Dimensions
* For ‘across corners’
dimensions, multiply
‘across flats’
dimensions by 1.1
**For ‘E’ see Thread
Dimension page 105
SC Solid Compound
VARIANT CODES
CABLE
SEALING
RANGE
SERIES
ADE6C M25 3 NP SC
OPTION
MATERIAL
THREAD
SIZE
BARRIER
N
SEALING
TYPE K1 Accessories Kit 1
K2 Accessories Kit 2
K3 Accessories Kit 3
FL Flange (integrated clamping)
BLANK No Option
NP Nickel Plated Brass
SS Stainless Steel
BZ Bronze
AL Aluminium (not mining)
B*
A*
L E**
29
KIT OPTIONS
Kit 1 Contents:
K1 Locknut
Green Fibre Washer
Kit 2 Contents:
Locknut
K2 Green Fibre Washer
Earth Tag
Shroud
Kit 3 Contents:
Locknut
K3 Green Fibre Washer
Earth Tag
Serrated Washer
EATON’S CROUSE-HINDS BUSINESS
0 = XS
1 = S
2 = M
3 = L
SELECT
SELECT
SELECT
SELECT
SELECT
SHROUD
30
Capri ADE Cable Gland - Accessories & Kits
ADE - CAP Standard Kits
SIZE FOR HEXAGON
OUTER LEAD SHEATH
SELECTION TABLE
GLAND SIZE REFERENCE
MIN MAX
5 4.5 7.5 CAP560530
6 7.0 11.0 CAP560630
7 10.0 15.0 CAP560730
8 13.5 20.0 CAP560830
9 18.0 26.5 CAP560930
10 23.0 32.5 CAP561030
11 29 .0 39.5 CAP561130
12 35.0 46.5 CAP561230
13 42.0 54.5 CAP561330
14 50.0 61.0 CAP561430
15 58.0 72.5 CAP561530
16 66.0 81.5 CAP561630
ADE 4F and 5F LEAD SHEATH WASHER – Material : Natural brass.
All dimensions in mm.
SELECTION TABLE
CABLE RANGE REFERENCE
WIDTH THICKNESS
ADE External Clamping Module - available with all ADE range ADE 4F and 5F Lead Sheath Washer
K1, K2 and K3 kits are available for all of the ADE range. K1 kits are also suitable for the NEWCAP range
Technical Note:
NPT kits are available, however please note the following guidelines:
IEC 60079-14 Ed. 4.0 - Section 9.3.10 Connections of cables to equipment.
Cable glands with tapered threads shall not be used in enclosures having gland plates with unthreaded entries.
+ + =K1
ADE LOCKNUT FIBRE WASHER
+ + +=K2
ADE LOCKNUT FIBRE WASHER EARTH TAG
+ + + =K3
ADE LOCKNUT FIBRE WASHER EARTH TAG SERRATED
WASHER
2.8 - 5.5 3 15 18.0 5.0 CAP810334
4.0 - 8.5 4 17 20.0 5.0 CAP810444
6.0 - 11.0 5 19 22.0 5.0 CAP810534
8.5 - 16.0 6 24 27.5 6.0 CAP810634
12.0 - 21.0 7 30 33.5 8.0 CAP810734
16.0 - 27.5 8 41 45.0 8.0 CAP810834
21.0 - 34.0 9 48 52.0 9.5 CAP810934
27.0 - 41.0 10 55 59.0 9.5 CAP811034
33.0 - 48.0 11 64 69.0 12.0 CAP811134
40.0 - 56.0 12 72 78.0 12.0 CAP811234
47.0 - 65.0 13 85 92.0 16.0 CAP811334
54.0 - 74.0 14 95 103.0 16.0 CAP811434
63.0 - 83.0 15 110 118.0 18.0 CAP811534
72.0 - 93.0 16 120 128.0 18.0 CAP811634
ADE CLAMPING MODULE – Material : nickel-plated brass and stainless steel washer and screws.
All dimensions in mm.
EATON’S CROUSE-HINDS BUSINESS
+
+
CAP NUMBER MATERIAL CODES
ORDERING EXAMPLE
GLAND TYPE
CAP80669 4V1
OPTION
4 Nickel Plated Brass with Neoprene Seal
5 Nickel Plated Brass with Silicone Seal
6 Stainless Steel with Silicone Seal
7 Aluminium (on demand)
8 Bronze (on demand)
9 Stainless Steel with Neoprene Seal
For material options, replace the last digit of the gland CAP
code before the ‘V1’ suffix; for example:
CAP806694V1 = ADE 1F2 M20 size 5 Nickel Plated Brass
with Neoprene Seal
Change the digit before the ‘V1’ suffix:
CAP806699V1 = ADE 1F2 M20 size 5 Stainless Steel with
Neoprene Seal
31
GASKET
THREAD
SIZE
GREEN FIBRE
REFERENCE
DE
THICKNESS
10 15 1.2 CAP221045
12 18 1.2 CAP221245
16 22 1.2 CAP221645
20 27 1.2 CAP222045
25 35 1.5 CAP222545
32 43 1.5 CAP223245
40 55 1.5 CAP224045
50 69 1.5 CAP225045
63 82 2.0 CAP226345
75 94 2.0 CAP227545
90 110 2.0 CAP229045
110 130 2.0 CAP221145
All dimensions in mm.
ISO - METRIC SELECTION TABLE
GASKET
THREAD
SIZE
GREEN FIBRE
REFERENCE
DE
THICKNESS
1/4” 18 1.5 CAP239014
3/8” 22 1.5 CAP239038
1/2” 31 1.5 CAP239012
3/4” 35 1.5 CAP239034
1” 43 1.5 CAP239010
1 1/4” 59 1.5 CAP239114
1 1/2” 69 1.5 CAP239112
2” 79 2.0 CAP239020
2 1/2” 94 2.0 CAP239212
3” 110 2.0 CAP239300
3 1/2” 119 2.0 CAP239312
4” 130 2.0 CAP239414
All dimensions in mm.
NPT - SELECTION TABLE
GASKET
THREAD
SIZE
NEOPRENE
REFERENCE
DE
THICKNESS
10 15 1.2 CAP221049
12 18 1.2 CAP221249
16 22 1.2 CAP221649
20 24 1.2 CAP222049
25 30 1.5 CAP222549
32 42 1.5 CAP223249
40 52 1.5 CAP224049
50 63 1.5 CAP225049
63 7 2.0 CAP226349
75 90 2.0 CAP227549
90 106 2.0 CAP229049
110 126 2.0 CAP221149
All dimensions in mm.
ISO - METRIC SELECTION TABLE
GASKET
THREAD
SIZE
NEOPRENE
REFERENCE
DE
THICKNESS
1/4” 20 1.5 CAP229014
3/8” 22 1.5 CAP229038
1/2” 27 1.5 CAP229012
3/4” 33 1.5 CAP229034
1” 41 1.5 CAP229010
1 1/4” 52 1.5 CAP229114
1 1/2” 57 1.5 CAP229112
2” 71 2.0 CAP229020
2 1/2” 85 2.0 CAP229212
3” 104 2.0 CAP229300
3 1/2” 120 2.0 CAP229312
4” 130 2.0 CAP229414
All dimensions in mm.
NPT - SELECTION TABLE
GASKET
THREAD
SIZE
RED FIBRE
REFERENCE
DE
THICKNESS
10 15 1.5 CAP221041
12 18 1.5 CAP221241
16 22 1.5 CAP221641
20 27 1.5 CAP222541
25 35 1.5 CAP222541
32 43 1.5 CAP223241
40 55 1.5 CAP224041
50 69 1.5 CAP225041
63 82 1.5 CAP226341
75 94 1.5 CAP227541
90 110 1.5 CAP229041
110 130 1.5 CAP221141
All dimensions in mm.
ISO - METRIC SELECTION TABLE
GASKET
THREAD
SIZE
RED FIBRE
REFERENCE
DE
THICKNESS
1/4” 18 1.5 CAP219014
3/8” 22 1.5 CAP219038
1/2” 31 1.5 CAP219012
3/4” 35 1.5 CAP219034
1” 43 1.5 CAP219010
1 1/4” 59 1.5 CAP219114
1 1/2” 69 1.5 CAP219112
2” 79 1.5 CAP219020
2 1/2” 94 1.5 CAP219212
3” 110 1.5 CAP219300
3 1/2” 119 1.5 CAP219312
4” 130 1.5 CAP219414
All dimensions in mm.
NPT - SELECTION TABLE
Capri - Accessories
D
D
D
EATON’S CROUSE-HINDS BUSINESS
EARTH TAG
NPT - SELECTION TABLE
A B
THREAD
SIZE
NICKEL PLATED
BRASS
REFERENCE
STAINLESS
STEEL 316L
REFERENCE
1/2” 61.5 33 10.5 28.6 CAP567064 CAP567069
3/4” 73 36 12.2 34 CAP567084 CAP567089
1” 73 41 12.2 42 CAP567104 CAP567109
1 1/4” 86.5 44.5 13.5 54 CAP567134 CAP567139
1 1/2” 111.5 58 13.5 67 CAP567154 CAP567159
2” 125.5 67 13.5 77 CAP567174 CAP567179
2 1/2” 137.5 73 13.5 89 CAP567194 CAP567199
3” 167 93.0 13.5 109.5 CAP567214 CAP567219
3 1/2’’ 188 107.3 13.5 121.5 CAP567224 CAP567229
4’’ 214 125.0 13.5 138.0 CAP567244 CAP567249
LOCKNUT
ISO - METRIC SELECTION TABLE
THREAD
SIZE
NICKEL PLATED
BRASS
REFERENCE
STAINLESS
STEEL 316L
REFERENCE
16 CAP221694 CAP221699
20 CAP222094 CAP222099
25 CAP222594 CAP222599
32 CAP223294 CAP223299
40 CAP224094 CAP224099
50 CAP225094 CAP225099
63 CAP226394 CAP226399
75 CAP227594 CAP227599
90 CAP229094 CAP229099
110 CAP221104 CAP221109
All dimensions in mm.
LOCKNUT
NPT - SELECTION TABLE
THREAD
SIZE
NICKEL PLATED
BRASS
REFERENCE
STAINLESS
STEEL 316L
REFERENCE
1/2” CAP280124 CAP280129
3/4” CAP280134 CAP280139
1” CAP280144 CAP280149
1 1/4” CAP280154 CAP280159
1 1/2” CAP280164 CAP280169
2” CAP280174 CAP280179
2 1/2” CAP280184 CAP280189
3 CAP280194 CAP280199
3 1/2” CAP280204 CAP280209
4’’ CAP280214 CAP280219
All dimensions in mm.
Capri - Accessories
32
GASKET
THREAD
SIZE
WHITE NYLON
REFERENCE
DE
THICKNESS
WHITE NYLON WASHERS
GASKET
THREAD
SIZE
PTFE
REFERENCE
DE
THICKNESS
12 23.8 1.5 CAP221243
16 25.0 1.5 CAP221643
20 28.7 1.5 CAP222043
25 36.0 1.5 CAP222543
32 42.5 1.5 CAP223243
40 52.0 1.5 CAP224043
50 65.0 1.5 CAP225043
63 79.4 1.5 CAP226343
75 90.5 1.5 CAP227543
80 10.4 1.5 CAP228043
90 114.3 1.5 CAP229043
100 114.3 1.5 CAP229943
110 135.0 1.5 CAP221143
All dimensions in mm.
PTFE WASHERS
12 23.8 1.5 CAP221242
16 25.0 1.5 CAP221642
20 28.7 1.5 CAP222042
25 36.0 1.5 CAP222542
32 42.5 1.5 CAP223242
40 52.0 1.5 CAP224042
50 65.0 1.5 CAP225042
63 79.4 1.5 CAP226342
75 90.5 1.5 CAP227542
80 10.4 1.5 CAP228042
90 114.3 1.5 CAP229042
100 114.3 1.5 CAP229942
110 135.0 1.5 CAP221142
All dimensions in mm.
D
D
EATON’S CROUSE-HINDS BUSINESS
C D
EARTH TAG
ISO - METRIC SELECTION TABLE
A B
THREAD
SIZE
NICKEL PLATED
BRASS
REFERENCE
STAINLESS
STEEL 316L
REFERENCE
16 48.5 30.0 6.5 24.5 CAP567034 CAP567039
20 53.8 33.0 7.0 28.6 CAP567054 CAP567059
25 61.5 36.0 10.5 34.0 CAP567074 CAP567079
32 73.0 41.0 12.2 42.0 CAP567094 CAP567099
40 86.5 44.5 13.5 54.0 CAP567124 CAP567129
50 111.5 58.0 13.5 67.0 CAP567154 CAP567159
63 125.5 67.0 13.5 77.0 CAP567184 CAP567189
75 137.5 73.0 13.5 89.0 CAP567194 CAP567199
90 167.0 93.0 13.5 109.5 CAP567214 CAP567219
110 214.0 125.0 13.5 138.0 CAP567234 CAP567239
All dimensions in mm.
C D
SERRATED WASHER
THREAD
SIZE
GALVANISED
STEEL
REFERENCE
D
16 25.5 CAP280016
20 32.5 CAP280020
25 39.5 CAP280025
32 49.5 CAP280032
40 64.5 CAP280040
50 80.5 CAP280050
63 100.0 CAP280063
75 112.0 CAP280075
90 123.0 CAP280090
All dimensions in mm.
ISO - METRIC SELECTION TABLE
SERRATED WASHER
THREAD
SIZE
STAINLESS
STEEL 304L
REFERENCE
D
16 25.5 CAP280069
20 32.5 CAP280029
25 39.5 CAP280259
32 49.5 CAP280329
40 64.5 CAP280409
50 80.5 CAP280509
63 100.0 CAP280639
75 112.0 CAP280759
90 123.0 CAP280099
All dimensions in mm.
ISO - METRIC SELECTION TABLE
SHROUD
ADE
SIZE
PVC
REFERENCE
DIAMETER
A
SELECTION TABLE
4 16.0 CAP506040
5 20.0 CAP506050
6 25.0 CAP506060
7 31.0 CAP506070
8 43.0 CAP506080
9 52.0 CAP506090
10 59.0 CAP506100
11 67.0 CAP506110
12 75.0 CAP506120
13 90.0 CAP506130
14 100.0 CAP506140
15 116.0 CAP506150
16 127.0 CAP506160
All dimensions in mm.
Capri - Accessories
D
33
CAPRI COMPOUND
CAP
REFERENCE
SIZE
0.5oz CAP560001
1.0oz CAP560002
4.0oz CAP560003
For use with ADE 1FC and ADE 6FC
cable glands
HTL (High temperature thread lubricant)
CAP
REFERENCE
SIZE
4.0oz CAP023836
HTL is a high temperature, anti-seize,
conductive thread lubricant:
• Effective and stable from –70°F to
+1800°F
• Prevents seizure, galling, rust, galvanic
action
• Maintains grounding continuity; should
not be used on exposed current-
carrying parts
• Effective between parts made of
dissimilar metals
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Suitable for the following cable types
Non-armoured cable
Braided cable
Certifications and Compliances
Zones 1 and 2 Group IIC
Zones 21 and 22 Group IIIC
ATEX Certificate No: INERIS 13ATEX0008X
Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No: IECEx INE 13.0003X
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 stainless steel long fixing thread option available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -20°C to +80°C
Ingress Protection (IP):
IP66/IP68 tested 30m/7days on surface Ra 1.6µm max.
Accessory kit available; see page 30 for details.
Capri NEWCAP - MS-e
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page 105
THREAD
SIZE
DIMENSIONS
BRAID
THICKNESS A B L
(LENGTH)
CAP NUMBER
ISO
(nickel plated
brass)
CAP NUMBER
ISO
(316 stainless
steel long fixing
thread)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
CAP GLAND
SIZE
ISO
12 0.70 4.0 - 6.5 15 15 18 4 CAP192124V1 CAP192129V1
16 0.70 4.0 - 6.5 15 18 18 4 CAP192154V1 CAP192159V1
16 0.70 5.5 - 10.0 20 20 24 5 CAP192164V1 CAP192169V1
20 0.70 5.5 - 10.0 20 22 24 5 CAP192194V1 CAP192199V1
20 0.80 7.5 - 13.0 24 24 27 6 CAP192204V1 CAP192209V1
25 0.80 7.5 - 13.0 24 27 27 6 CAP192244V1 CAP192249V1
25 0.85 11.5 - 18.0 30 30 28 7 CAP192254V1 CAP192259V1
32 0.85 11.5 - 18.0 30 34 28 7 CAP192314V1 CAP192319V1
32 0.95 17.5 - 24.5 38 38 30 8 CAP192324V1 CAP192329V1
40 0.95 17.5 - 24.5 38 43 30 8 CAP192394V1 CAP192399V1
40 1.00 24.0 - 32.0 47 47 33 9 CAP192404V1 CAP192409V1
50 1.00 24.0 - 32.0 47 54 33 9 CAP192494V1 CAP192499V1
50 1.15 31.0 - 40.5 57 57 37 10 CAP192504V1 CAP192509V1
63 1.15 31.0 - 40.5 57 68 37 10 CAP192624V1 CAP192629V1
63 1.75 39.0 - 53.0 75 75 48 11 CAP192634V1 CAP192639V1
All dimensions in mm
A*
B*
LE**
34 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
A*
B*
LE**
Capri NEWCAP - CT-e
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page105
THREAD
SIZE
DIMENSIONS
BRAID
THICKNESS A B L
(LENGTH)
CAP NUMBER
ISO
(nickel plated
brass)
CAP NUMBER
ISO
(316 stainless
steel long fixing
thread)
CABLE
DIAMETER
MIN - MAX
DIAMETER
ON SHIELD
SELECTION TABLE
CAP GLAND
SIZE
ISO
35
12 0.70 3.0 4.0 - 6.5 15 15 18 4 CAP193124V1 CAP193129V1
16 0.70 3.0 4.0 - 6.5 15 18 18 4 CAP193154V1 CAP193159V1
16 0.70 4.5 5.5 - 10.0 20 20 24 5 CAP193164V1 CAP193169V1
20 0.70 4.5 5.5 - 10.0 20 22 24 5 CAP193194V1 CAP193199V1
20 0.80 6.0 7.5 - 13.0 24 24 27 6 CAP193204V1 CAP193209V1
25 0.80 6.0 7.5 - 13.0 24 27 27 6 CAP193244V1 CAP193249V1
25 0.85 10.0 11.5 - 18.0 30 30 28 7 CAP193254V1 CAP193259V1
32 0.85 10.0 11.5 - 18.0 30 34 28 7 CAP193314V1 CAP193319V1
32 0.95 15.0 17.5 - 24.5 38 38 30 8 CAP193324V1 CAP193329V1
40 0.95 15.0 17.5 - 24.5 38 43 30 8 CAP193394V1 CAP193399V1
40 1.00 20.5 24.0 - 32.0 47 47 33 9 CAP193404V1 CAP193409V1
50 1.00 20.5 24.0 - 32.0 47 54 33 9 CAP193494V1 CAP193499V1
50 1.15 27.5 31.0 - 40.5 57 57 37 10 CAP193504V1 CAP193509V1
63 1.15 27.5 31.0 - 40.5 57 68 37 10 CAP193624V1 CAP193629V1
63 1.75 34.5 39.0 - 53.0 75 75 48 11 CAP193634V1 CAP193639V1
All dimensions in mm
Suitable for the following cable types
Non-armoured cable
Shielded cable for EMC specific cable and applications
Certifications and Compliances
Zones 1 and 2 Group IIC
Zones 21 and 22 Group IIIC
ATEX Certificate No: INERIS 13ATEX0008X
Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx Certificate No : IECEx INE 13.0003X
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance.
316 stainless steel long fixing thread option available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -20°C to +80°C
Ingress Protection (IP):
IP66/IP68 tested 30m/7days on surface Ra 1.6µm max.
Accessory kit available; see page 30 for details
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
12 4.0 - 7.0 15 8 19 4 CAP451217 CAP451216 GHG 960 1955 R 0001 GHG 960 1955 R0101
16 5.5 - 10.0 20 8 23 6 CAP451617 CAP451616 GHG 960 1955 R 0002 GHG 960 1955 R0102
20 5.5 - 13.0 24 12 25 7 CAP452017 CAP452016 GHG 960 1955 R 0023 GHG 960 1955 R0123
25 8.0 - 17.5 29 13 29 9 CAP452517 CAP452516 GHG 960 1955 R 0024 GHG 960 1955 R0124
32 12.0 - 21.0 36 15 35 10 CAP453217 CAP453216 GHG 960 1955 R 0025 GHG 960 1955 R0125
40 17.0 - 28.0 46 15 39 11 CAP454017 CAP454016 GHG 960 1955 R 0026 GHG 960 1955 R0126
50 22.0 - 35.0 55 16 44 12 CAP455017 CAP455016 GHG 960 1955 R 0027 GHG 960 1955 R0127
63 27.0 - 48.0 68 16 47 13 CAP456317 CAP456316 GHG 960 1955 R 0028 GHG 960 1955 R0128
All dimensions in mm
E
THREAD
LENGTH
Capri EXACAP Ex-e & Ex-i / CEAG GHG Ex-e & Ex-i
DIMENSIONS
ISO
THREAD
SIZE AL
(LENGTH)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
CAP
GLAND
SIZE
CAP
NUMBER
EX-e (black)
CAP
NUMBER
EX-i (blue)
Suitable for the following cable types
Non-armoured cable
Certifications and Compliances
ATEX Certificate No: PTB 99 ATEX 3101X (M12-M16 only)
No: PTB 99 ATEX 3128X (M20-M63 only)
II 2 G Ex e II / II 2 D Ex tD A21 IP66
IECEx Certificate No: IECEx PTB 05.0004X
Product Specification
Operating Temperature:
ATEX / IECEx Certification: -20°C to +7 0°C
Nylon material
Large cable connection area
Low torque required for tightening
Integrated sealing lip on thread
Ingress Protection (IP):
IP66
36
CEAG Number
ISO
Ex-e (black)
CEAG Number
ISO
Ex-i (blue)
EL
A
A
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
37
20 M20 49.0 8.0 - 13.0 26.0 28.6 15.0 GHG 960 1949 R0111
25 M25 50.0 11.0 - 16.0 32.0 35.2 15.0 GHG 960 1949 R0112
32 M32 65.0 15.0 - 20.0 41.0 45.1 15.0 GHG 960 1949 R0113
40 M40 71.0 19.0 - 27.0 50.0 55.0 15.0 GHG 960 1949 R0114
50 M50 79.0 26.0 - 34.0 60.0 66.0 16.0 GHG 960 1949 R0115
60 M60 89.0 35.0 - 46.0 75.0 82.5 16.0 GHG 960 1949 R0116
All dimensions in mm
Suitable for the following cable types
Non-armoured cable
Certifications and Compliances
PTB 00 ATEX 3121 X
Ex II 2 G Ex e II/Ex II 2 D Ex tD A21
Product Specification
Nylon material
Large cable connection area
Low torque required for tightening
Integrated sealing lip on thread
Operating Temperature:
-40°C to +85°C
Ingress Protection (IP):
IP66
CEAG TRUMPET
GLAND LENGTH
‘F’
(LESS ENTRY)
OUTER SHEATH
MIN - MAX
GLAND
SIZE
DIMENSIONS
METRIC
SIZE
ACROSS
FLATS
‘H’
ACROSS
CORNERS
‘G’
THREAD
LENGTH
‘B’
SELECTION TABLE
ISO
ORDER NUMBER
F
B
G
H
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
1
Suitable for the following cable types
Metal clad cable (interlocked or continuously welded
corrugated armoured)
Metal clad cable - Hazardous Locations (MC-HL)
TECK cable
TECK Hazardous Locations cable (TECK HL)
Tray cable
Certifications and Compliances
Class I Division 1 groups A, B, C, D
Class II Groups E, F, G
Class III
NEMA 6P
cULus Listed: E122485
Product Specification
Material:
Aluminium as standard material with neoprene seal
316 stainless steel and nickel-plated brass construction
available.
Chico® LiquidSeal liquid compound with fast gel and cure
times to reduce waiting time. Also available with regular TSC
putty compound.
Operating Temperature:
-40°C to +60°C
For temperatures below -40°C contact manufacturer
Ingress Protection VS
ChicoLiquidSeal
Highly engineered rapid
curing compound.
Mixing time: 2 minutes
Application: pour/gun
Gel time: 10 minutes
Fully cure time: 30
minutes
Available for installation
in vertical position
1: Choice of liquid or putty compound allows rapid curing and
facilitates non-vertical applications. Includes compound dam.
2: Splined shaft ensures the two assemblies lock together and do
not rotate, preventing need for two tools to be used.
3: Back nut / cap nut and environmental seal are captive, retaining
entry end components.
4: Conical compound chamber ensures perfect flame path every
time.
5: Integral union allows for a two-piece assembly gland, minimizing
tightening and loosening of nuts, improving assembly time.
Red anodized union nut is visible in any orientation for quick
identification of Ex gland.
38
Terminator II TMCX - for Armoured/Non Armoured Cable
T
MC
T
T
Features & Benefits
TSC Epoxy Compound
Mixing time: 5 minutes
Application: by hand
Fully cure time: 24 hours
Available for installation in
any orientation
2 3
54
EATON’S CROUSE-HINDS BUSINESS
BULK Bulk packed
Dimensions
BULK
Cold Shrink™ Corrosion Protection Kits
are specially designed for Crouse-Hinds
TMC, TMCX and TECK fittings to provide
protection against corrosive elements like
salt spray and moisture. The TMC-K kit is
made of a Cold Shrink material that is
quick and easy to install on the gland. The
Cold Shrink material is made of EPDM
rubber that contains no chlorides or
sulphurs. The protection kit installs easily
over the gland without the use of a heat
source to shrink the material tightly over
the seal. The Cold Shrink material can be
removed easily from the gland by simply
cutting it off. See ordering information
for complete offering of TMC-K Cold
Shrink kits for corrosion protection. Cold
Shrink is a registered trademark of the 3M
Company.
L Liquid Compound
BLANK TSC Compound
DIMENSIONS
NPT ISO
THREAD
SIZE
‘C’
THREAD
SIZE
CODE
CABLE
SEALING
RANGE
LENGTH
‘F’
THREAD
LENGTH
‘E’
NPT
THREAD
LENGTH
‘E’
ISO
THREAD
SIZE
‘C’
THREAD
SIZE
CODE
CABLE
SEALING
RANGE ARMOUR RANGE ‘A’
MIN - MAX
CABLE SEALING RANGE ISO/(NPT)
OUTER SHEATH ‘B’
MIN - MAX
ORDER
CODE
NPT
ACROSS
CORNERS
‘D’
1/2" 050 20 M20 1 0.40 - 0.86 0.49 - 0.90 1.56 3.05 1.00 25.40 TMCX0501
1/2" 050 20 M20 2 0.56 - 1.14 0.65 - 1.18 1.99 3.18 1.00 25.40 TMCX0502
3/4" 075 25 M25 1 0.40 - 0.86 0.49 - 0.90 1.56 3.05 1.00 25.40 TMCX0751
3/4" 075 25 M25 2 0.56 - 1.14 0.65 - 1.18 1.99 3.18 1.00 25.40 TMCX0752
1" 100 32 M32 1 0.56 - 1.14 0.65 - 1.18 1.99 3.18 1.08 27.40 TMCX1001
1" 100 32 M32 2 0.78 - 1.35 0.87 - 1.39 2.24 3.30 1.08 27.40 TMCX1002
1 1/4" 125 40 M40 1 0.78 - 1.35 0.87 - 1.39 2.24 3.30 1.08 27.40 TMCX1251
All dimensions in inches unless otherwise stated.
SELECTION TABLE
SERIES
TMCX 050 1 NP L
MATERIAL
THREAD
SIZE
SEALING
TYPE
NP Nickel Plated Brass
SS Stainless Steel
BLANK Aluminium
39
Terminator II TMCX - for Armoured/Non Armoured Cable
VARIANT CODES
BULK
FE
C
A
D
B
EATON’S CROUSE-HINDS BUSINESS
SELECT
SELECT
SELECT
COLD SHRINK KIT
ORDER CODE REFERENCE
TMCX0501 -
TMCX0502 TMC K4
TMCX0751 TMC K3
TMCX0752 TMC K4
TMCX1001 TMC K4
TMCX1002 TMC K5
TMCX1251 TMC K5
CHICO® LIQUID SEAL
CATALOGUE
NUMBER SIZE (ml)
STANDARD
CARTON
QUANTITY
LSC 10 10ml 10
LSC 20 20ml 10
LSC 50 50ml 5
TSC EPOXY COMPOUND
CATALOGUE
NUMBER TUBE SIZE (ml)
STANDARD
CARTON
QUANTITY
TSC 05 0.5oz. 10
TSC 1 1.0oz. 10
TSC 4 4.0oz. 5
Technical Specification
1/2" 0.44 - 0.65 0.49 - 0.78 1.25 1.38 2.63 0.75 TMCX165
3/4" 0.60 - 0.85 0.65 - 1.00 1.50 1.63 2.88 0.78 TMCX285
1" 0.80 - 1.12 0.85 - 1.31 1.88 2.00 3.13 0.94 TMCX3112
1 1/4" 1.10 - 1.40 1.15 - 1.62 2.25 2.44 3.13 0.97 TMCX4140
1 1/2" 1.33 - 1.61 1.38 - 1.78 2.50 2.75 3.38 0.97 TMCX5161
2" 1.57 - 2.06 1.63 - 2.31 3.25 3.50 5.31 1.00 TMCX6206
2 1/2" 1.93 - 2.47 1.99 - 2.72 3.75 4.00 6.06 1.44 TMCX7247
3" 2.45 - 3.02 2.52 - 3.28 4.50 4.88 6.06 1.44 TMCX8302
3 1/2" 2.95 - 3.52 3.02 - 3.78 5.00 5.38 7.75 1.63 TMCX9352
4" 3.50 - 4.02 3.58 - 4.28 5.50 5.88 8.31 1.63 TMCX10402
All dimensions in inches unless otherwise stated
TMCX - for Armoured/Non Armoured Cable
Suitable for the following cable types
Metal clad cable
(interlocked or continuously welded corrugated armoured)
Non-armoured cable
TECK cable
TECK Hazardous Locations cable (TECK HL)
Tray cable
Certifications and Compliances
Class I Division 1 groups A, B, C, D
Class II
Class III
UL Listed: E122485
CSA Listed: LR13046
Product Specification
Material:
Aluminium as standard material with neoprene seal, brass
and nickel-plated brass available as an option.
Stainless steel copper-plated spring provides grounding
continuity of cable armour (MC cable only).
Provides explosionproof compound seal on conductors and
watertight seal on outer sheath of cable.
Cold Shrink™ Kit is available for extra protection in
aggressive environments.
Operating Temperature:
-25°C to +60°C
Ingress Protection (IP):
IP56, NEMA 4
MC
OUTER SHEATH
‘E’
MIN - MAX
THREAD
SIZE
DIMENSIONS
ARMOUR RANGE
‘H’
MIN - MAX
ACROSS
FLATS
ACROSS
CORNERS
‘G’
L
(LENGTH)
THREAD
LENGTH
‘B’
SELECTION TABLE
NPT
ORDER NUMBER
ALUMINIUM
GEH
LB
40 EATON’S CROUSE-HINDS BUSINESS
COLD SHRINK KIT
ENTRY THREAD REFERENCE
½” TMC-K1
¾” TMC-K2
1” TMC-K3
1¼” TMC-K4
1½” TMC-K5
2” TMC-K6
2½” TMC-K7
3” TMC-K8
3½” TMC-K9
4” TMC-K10
T
T
Technical Specification
1/2" 0.44 - 0.65 0.49 - 0.78 1.25 1.38 2.38 0.75 TMC165
3/4" 0.60 - 0.85 0.65 - 1.00 1.50 1.63 2.63 0.78 TMC285
1" 0.80 - 1.12 0.85 - 1.31 1.88 2.00 3.13 0.94 TMC3112
1 1/4" 1.10 - 1.40 1.15 - 1.62 2.25 2.44 2.75 0.97 TMC4140
1 1/2" 1.33 - 1.61 1.38 - 1.78 2.50 2.75 3.38 0.97 TMC5161
2" 1.57 - 2.06 1.63 - 2.31 3.25 3.50 4.50 1.00 TMC6206
2 1/2" 1.93 - 2.47 1.99 - 2.72 3.75 4.00 4.75 1.44 TMC7247
3" 2.45 - 3.02 2.52 - 3.28 4.50 4.88 4.88 1.44 TMC8302
3 1/2" 2.95 - 3.52 3.02 - 3.78 5.00 5.38 5.38 1.63 TMC9352
4" 3.50 - 4.02 3.58 - 4.28 5.50 5.88 5.50 1.63 TMC10402
All dimensions in inches unless otherwise stated
TMC - for Armoured/Non Armoured Cable
Suitable for the following cable types
Metal-clad cable (interlocked or continuously welded
corrugated armoured)
TECK cable
Non-armoured cable
Tray cable (not CSA)
Certifications and Compliances
UL Listed: UL File E36379
CSA Listed: LR291
NEMA 4 and IP56
Wet locations
Product Specification
Material:
Standard material is aluminium
Stainless steel copper-plated spring provides grounding
continuity of cable armour (MC cable only)
Watertight seal on outer sheath of cable
Standard neoprene seal suitable for use in operating
temperatures -25° to +60°C
Cold Shrink™ Kit is available for extra protection in
aggressive environments
Available with NPT threads
Operating Temperature:
-25°C to +60°C
Ingress Protection (IP):
IP56, NEMA 4
MC
T
OUTER SHEATH
‘E’
MIN - MAX
THREAD
SIZE
DIMENSIONS
ARMOUR RANGE
‘H’
MIN - MAX
ACROSS
FLATS
ACROSS
CORNERS
‘G’
LENGTH
‘L’
THREAD
LENGTH
‘B’
SELECTION TABLE
NPT
ORDER NUMBER
ALUMINIUM
41
GEH
LB
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
OUTER SHEATH
‘E’
MIN - MAX
Suitable for the following cable types
TECK armoured cable
Certifications and Compliances
CSA Type 4
Class I
Class II Groups E,F G
Class III
CSA Listed: LR13046
Product Specification
Material:
Aluminium as standard material with neoprene seal – steel,
stainless steel and PVC coated aluminium available as an option.
Stainless steel copper-plated spring provides grounding
continuity of cable armour (TECK cable only).
Provides watertight seal on outer sheath of cable.
Has integral O ring seal on entry threads.
Cold Shrink™ Kit is available for extra protection in aggressive
environments.
Operating Temperature:
-25°C to +60°C
Ingress Protection (IP):
IP56, Type 4
TECK - for TECK Armoured Cable
T
THREAD
SIZE
DIMENSIONS
ARMOUR RANGE
‘H’
MIN - MAX
ACROSS
FLATS
ACROSS
CORNERS
‘G’
THREAD
LENGTH
‘B’
L
(LENGTH)
ORDER NUMBER
STEEL
ORDER NUMBER
STAINLESS STEEL
ORDER NUMBER
PVC COATED
ALUMINIUM
SELECTION TABLE
NPT
1/2" 0.41 - 0.57 0.52 - 0.65 1.25 1.35 0.63 2.30 TECK050-1 TECK050-1S TECK050-1SS TECK050-1PVC
1/2" 0.49 - 0.68 0.60 - 0.76 1.38 1.50 0.63 2.30 TECK050-2 TECK050-2S TECK050-2SS TECK050-2PVC
1/2" 0.61 - 0.80 0.72 - 0.88 1.50 1.60 0.63 2.30 TECK050-3 TECK050-3S TECK050-3SS TECK050-3PVC
1/2" 0.71 - 0.90 0.82 - 0.98 1.50 1.60 0.63 2.30 TECK050-4 TECK050-4S TECK050-4SS TECK050-4PVC
3/4" 0.77 - 0.98 0.88 - 1.06 2.00 2.13 0.63 2.50 TECK075-5 TECK075-5S TECK075-5SS TECK075-5PVC
3/4" 0.91 - 1.12 1.02 - 1.20 2.00 2.13 0.63 2.50 TECK075-6 TECK075-6S TECK075-6SS TECK075-6PVC
1" 1.08 - 1.29 1.19 - 1.37 2.25 2.40 0.75 2.63 TECK100-7 TECK100-7S TECK100-7SS TECK100-7PVC
1 1/4" 1.24 - 1.54 1.35 - 1.62 3.00 3.13 0.80 3.50 TECK125-8 TECK125-8S - TECK125-8PVC
1 1/4" 1.39 - 1.54 1.50 - 1.62 3.00 3.13 0.80 3.40 TECK125-9 TECK125-9S - TECK125-9PVC
1 1/4" 1.49 - 1.79 1.60 - 1.87 3.00 3.13 0.80 3.50 TECK125-10 TECK125-10S - TECK125-10PVC
1 1/2" 1.59 - 1.88 1.70 - 1.96 3.75 3.60 0.80 3.80 TECK150-11 TECK150-11S - TECK150-11PVC
1 1/2" 1.79 - 2.11 1.90 - 2.19 3.50 3.75 0.80 3.90 TECK150-12 TECK150-12S - TECK150-12PVC
2" 1.79 - 2.11 1.90 - 2.19 3.75 4.00 0.82 4.00 TECK200-13 TECK200-13S - TECK200-13PVC
2" 1.99 - 2.28 2.10 - 2.37 3.75 4.00 0.82 4.00 TECK200-14 TECK200-14S - TECK200-14PVC
2" 2.19 - 2.48 2.30 - 2.56 4.13 4.40 0.87 4.00 TECK200-15 TECK200-15S - TECK200-15PVC
2" 2.39 - 2.66 2.50 - 2.75 4.13 4.40 0.87 4.00 TECK200-16 TECK200-16S - TECK200-16PVC
2 1/2" 2.24 - 2.56 2.38 - 2.64 4.50 4.75 1.30 5.00 TECK250-17 TECK250-17S - TECK250-17PVC
2 1/2" 2.24 - 2.75 2.58 - 2.84 4.50 4.75 1.30 5.00 TECK250-18 TECK250-18S - TECK250-18PVC
3" 2.64 - 2.97 2.79 - 3.06 4.60 4.90 1.40 5.00 TECK300-19 TECK300-19S - TECK300-19PVC
3" 2.87 - 3.19 3.00 - 3.27 4.90 5.25 1.40 5.00 TECK300-20 TECK300-20S - TECK300-20PVC
3" 3.04 - 3.39 3.21 - 3.48 5.00 5.25 1.40 5.00 TECK300-21 TECK300-21S - TECK300-21PVC
3 1/2" 3.27 - 3.59 3.42 - 3.69 5.60 5.90 1.40 5.00 TECK350-22 TECK350-22S - TECK350-22PVC
3 1/2" 3.44 - 3.77 3.61 - 3.87 5.50 5.90 1.40 5.00 TECK350-23 TECK350-23S - TECK350-23PVC
4" 3.60 - 3.93 3.81 - 4.03 6.13 6.50 1.40 5.00 TECK400-24 TECK400-24S - -
4" 3.75 - 4.06 3.96 - 4.18 6.13 6.50 1.40 5.00 TECK400-25 TECK400-25S - -
4" 3.91 - 4.22 4.12 - 4.34 6.13 6.50 1.40 5.00 TECK400-26 TECK400-26S - -
All dimensions in inches unless otherwise stated
ORDER NUMBER
ALUMINIUM
GE H
LB
42 EATON’S CROUSE-HINDS BUSINESS
Thread Conversion Products
and Accessories
43
EATON’S CROUSE-HINDS BUSINESS
REDUCER / ADAPTOR - NPT / NPT - SELECTION TABLE
44
REDUCER / ADAPTOR - METRIC / NPT - SELECTION TABLE
REDUCER / ADAPTOR - METRIC - SELECTION TABLE
FEMALE
M12 M16 M20 M25 M32 M40 M50 M63 M75 M80 M90 M100 M110
Capri - Ex Certified Adaptors / Reducers
REDUCER / ADAPTOR - NPT / ISO - SELECTION TABLE
LAST CODE DIGIT 9: Stainless Steel 316L
LAST CODE DIGIT 7: Aluminium
MALE
M12 CAP745324 CAP745334 CAP741034
M16 CAP745834 CAP740014 CAP740274 CAP741064
M20 CAP745844 CAP740024 CAP740284 CAP740544 CAP740804
M25 CAP746594 CAP740034 CAP740294 CAP740554 CAP740814 CAP741134
M32 CAP746604 CAP740044 CAP740304 CAP740564 CAP740824 CAP741084 CAP741914
M40 CAP746614 CAP740054 CAP740314 CAP740574 CAP740834 CAP741094 CAP741354 CAP743644
M50 CAP746624 CAP740064 CAP740324 CAP740584 CAP740844 CAP741104 CAP741364 CAP741624 CAP745114
M63 CAP746634 CAP740074 CAP740334 CAP740594 CAP740854 CAP741114 CAP741374 CAP741634 CAP741894 CAP746944
M75 CAP746644 CAP740084 CAP740344 CAP740604 CAP740864 CAP741124 CAP741384 CAP741644 CAP741904 CAP742414 CAP745394
M80 CAP746654 CAP746694 CAP746734 CAP746774 CAP746814 CAP746414 CAP745824 CAP745754 CAP748074 CAP742424 CAP746074 CAP746334
M90 CAP746664 CAP746704 CAP746744 CAP746784 CAP747914 CAP746854 CAP746384 CAP745854 CAP745864 CAP745464 CAP745474 CAP745484 CAP746344
M100 CAP746674 CAP746714 CAP747894 CAP746794 CAP747924 CAP746864 CAP746394 CAP746364 CAP745874 CAP746194 CAP745914 CAP745494 CAP745554
M110 CAP746684 CAP746724 CAP747904 CAP746804 CAP747934 CAP746874 CAP746404 CAP746374 CAP746354 CAP746204 CAP745924 CAP745934 CAP745564
FEMALE
1/4”3/8”1/2”3/4”1”1
1/4”1
1/2”2”2
1/2”3”3
1/2”4”
MALE
M12 CAP744104 CAP747794 CAP747804
M16 CAP744184 CAP744194 CAP744694 CAP747814
M20 CAP744204 CAP744214 CAP744704 CAP744964 CAP747824
M25 CAP746884 CAP742954 CAP744714 CAP744974 CAP745234 CAP747834
M32 CAP746894 CAP746984 CAP744724 CAP744984 CAP745244 CAP745504 CAP745764
M40 CAP746904 CAP746994 CAP744734 CAP744994 CAP745254 CAP745514 CAP745774 CAP747844
M50 CAP746914 CAP747004 CAP744744 CAP745004 CAP745264 CAP745524 CAP745784 CAP746044 CAP746304
M63 CAP746924 CAP747014 CAP744754 CAP745014 CAP745274 CAP745534 CAP745794 CAP746054 CAP746314 CAP747854
M75 CAP746934 CAP747024 CAP744764 CAP745024 CAP745284 CAP745544 CAP745804 CAP746064 CAP746324 CAP746584 CAP747864
M80 CAP747884 CAP747034 CAP747074 CAP746514 CAP745294 CAP746474 CAP746434 CAP746114 CAP746144 CAP746184 CAP747874 CAP747874
M90 CAP746954 CAP747044 CAP747084 CAP746524 CAP745304 CAP746554 CAP746444 CAP744284 CAP744294 CAP744304 CAP744314 CAP746264
M100 CAP746964 CAP747054 CAP747094 CAP746534 CAP745314 CAP746564 CAP746454 CAP746124 CAP743134 CAP746034 CAP744434 CAP744444
M110 CAP746974 CAP747064 CAP747104 CAP746544 CAP747114 CAP746574 CAP746464 CAP746134 CAP746174 CAP744514 CAP744524 CAP744534
FEMALE
1/4”3/8”1/2”3/4”1”1
1/4”1
1/2”2”2
1/2”3”3
1/2”4”
MALE
1/4” CAP744574 CAP744584 CAP747704
3/8” CAP745574 CAP744614 CAP744624 CAP747714
1/2” CAP745584 CAP745594 CAP744874 CAP745134 CAP747724
3/4” CAP747124 CAP745604 CAP744884 CAP745144 CAP745404 CAP747734
1” CAP747134 CAP747214 CAP744894 CAP745154 CAP745414 CAP745674 CAP745814
11/4” CAP747144 CAP747224 CAP744904 CAP745164 CAP745424 CAP745684 CAP745944 CAP747744
11/2” CAP747154 CAP747234 CAP744914 CAP745174 CAP745434 CAP745694 CAP745954 CAP746214 CAP747754
2” CAP747164 CAP747244 CAP744924 CAP745184 CAP745444 CAP745704 CAP745964 CAP746224 CAP746484 CAP747764
21/2” CAP747174 CAP747254 CAP744934 CAP745194 CAP745454 CAP745714 CAP745974 CAP746234 CAP746494 CAP746754 CAP747774
3” CAP747184 CAP747264 CAP744944 CAP745204 CAP746084 CAP745724 CAP745984 CAP746244 CAP746504 CAP746764 CAP744634 CAP747784
31/2” CAP747194 CAP747274 CAP747314 CAP747334 CAP746094 CAP747354 CAP746284 CAP746254 CAP745654 CAP745664 CAP744644 CAP744654
4” CAP747204 CAP747284 CAP747324 CAP747344 CAP746104 CAP747364 CAP746294 CAP746824 CAP746274 CAP746834 CAP745734 CAP744774
FEMALE
M12 M16 M20 M25 M32 M40 M50 M63 M75 M80 M90 M100 M110
MALE
1/4” CAP740614 CAP740624 CAP747624
3/8” CAP740884 CAP740894 CAP740904 CAP747634
1/2” CAP740914 CAP740194 CAP740454 CAP740714 CAP747644
3/4” CAP747374 CAP740204 CAP740464 CAP740724 CAP740984 CAP747654
1” CAP747384 CAP740214 CAP740474 CAP740734 CAP740994 CAP741254 CAP747664
11/4” CAP747394 CAP740224 CAP740484 CAP740744 CAP741004 CAP741264 CAP741524 CAP747674
11/2” CAP747404 CAP740234 CAP740494 CAP740754 CAP741014 CAP741274 CAP741534 CAP741794 CAP747684
2” CAP747414 CAP740244 CAP740504 CAP740764 CAP741024 CAP741284 CAP741544 CAP741804 CAP742064 CAP747694
21/2” CAP747424 CAP740254 CAP740514 CAP740774 CAP741144 CAP741294 CAP741554 CAP741814 CAP742074 CAP742074 CAP741154
3” CAP747434 CAP740264 CAP740524 CAP740784 CAP741044 CAP741304 CAP741564 CAP741824 CAP742084 CAP747594 CAP741244 CAP741314
31/2” CAP747444 CAP747464 CAP747484 CAP747504 CAP747524 CAP747544 CAP747564 CAP747584 CAP741434 CAP747604 CAP741444 CAP741454 CAP741494
4” CAP747454 CAP747474 CAP747494 CAP747514 CAP747534 CAP747554 CAP747574 CAP742404 CAP742394 CAP747614 CAP741584 CAP741594 CAP741604
EATON’S CROUSE-HINDS BUSINESS
45
STOPPING PLUG
ISO - METRIC SELECTION TABLE
THREAD
SIZE E
NICKEL PLATED
BRASS
REFERENCE
12 15 CAP190124
16 15 CAP190164
20 15 CAP190204
25 15 CAP190254
32 15 CAP190324
40 15 CAP190404
50 16 CAP190504
63 17 CAP190634
75 18 CAP190754
90 22 CAP199904
100 22 CAP191004
110 22 CAP191014
All dimensions in mm.
STOPPING PLUG
NPT - SELECTION TABLE
THREAD
SIZE E
NICKEL PLATED
BRASS
REFERENCE
1/4” 12 CAP190194
3/8” 12 CAP190294
1/2” 16 CAP190394
3/4” 16 CAP190494
1” 20 CAP190594
1 1/4” 20 CAP190694
1 1/2” 20 CAP190794
2” 20 CAP190894
2 1/2” 28 CAP190994
3 30 CAP191094
3 1/2” 32 CAP191194
4’’ 32 CAP191294
All dimensions in mm.
STOPPING PLUG
ISO - METRIC SELECTION TABLE
ISO - METRIC SELECTION TABLE
THREAD
SIZE E
STAINLESS
STEEL 316L
REFERENCE
12 15 CAP190129
16 15 CAP190169
20 15 CAP190209
25 15 CAP190259
32 15 CAP190329
40 15 CAP190409
50 16 CAP190509
63 17 CAP190639
75 18 CAP190759
90 22 CAP199909
100 22 CAP191009
110 22 CAP191019
All dimensions in mm.
STOPPING PLUG
NPT - SELECTION TABLE
THREAD
SIZE E
STAINLESS
STEEL 316L
REFERENCE
1/4” 12 CAP190199
3/8” 12 CAP109299
1/2” 16 CAP190399
3/4” 16 CAP190499
1” 20 CAP190599
1 1/4” 20 CAP190699
1 1/2” 20 CAP190799
2” 20 CAP190899
2 1/2” 28 CAP190999
3” 30 CAP191099
3 1/2” 32 CAP191199
4’’ 32 CAP191299
All dimensions in mm.
STOPPING PLUG
A L E
THREAD
SIZE
POLYAMIDE
REFERENCE
12 15 4.0 15 CAP191127
16 19 4.0 15 CAP191167
20 23 4.0 15 CAP191207
25 28 5.0 15 CAP191257
32 36 5.5 15 CAP191327
40 44 5.5 15 CAP191407
50 54 6.0 16 CAP191507
63 67 6.5 17 CAP191637
All dimensions in mm.
Capri - Ex Certified Stopping Plugs
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Adaptors
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, or II G, Ex d IIC Gb, Ex e IIC Gb,
Ex tb IIIC Db
IECEx: Ex d I/IIC, Ex e I/IIC, Ex tb IIIC Db,
CSA: Ex d IIC Class 1, Zone 1, AEx d IIC (Brass and Stainless only)
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC Db IP66/67
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Nylon Adaptors only:
ATEX: II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex e IIC Gb, Ex tb IIIC Db
GOST: ExeIIU
INMETRO: Ex e IIC Gb, Ex tb IIIC Db IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-1: 2007,
EN 60079-7: 2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2004, IEC 60079-1:2003, IEC 60079-7:2006-07
CSA: CAN/CSA-E79-0-95, CAN/CSA-E79-1-95, UL 2279 1997, IEC
60079-0:1998, IEC 60079-1:1998 (Brass and Stainless only)
NEPSI: GB 3836.1-2010, GB 3836.2-2010,
GB 3836.3-2010, GB 12476.1-2000
Nylon Adaptors only:
ATEX / GOST: EN 60079-0:2009, EN 60079-7: 2007, EN 60079-31:2009
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007, IEC 60079-7:2006, IEC 60079-31:2008
Certificate Details
ATEX: Sira 10ATEX1225X, Sira 10ATEX3335U
IECEx: IECEx SIR 07.0010X, IECEx SIR 12.0014X
CSA: CSA 200455-1003277 (Brass and Stainless only)
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
NEPSI: GYJ13.1313X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Nylon temperature range -20°C to 65°C, 'O' ring -30°C to 125°C.
GF Nylon is UL rated @ H.B. @ 1.5mm.
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer's instructions.
Thread Metallic Nylon Male Metallic Nylon Head
Male Thread Thread Max Thread A/F Dia. (mm)
Max Bore Bore (mm)
M16 11.0 8.0 20.8 24.0
M20 14.3 12.5 23.4 27.5
M25 20.5 17.5 27.9 35.5
M32 26.8 24.5 37.6 41.0
M40 33.5 32.5 47.2 50.0
M50 44.0 42.5 56.4 60.0
M63 55.2 53.0 70.1 75.0
M75 66.7 64.0 80.0 85.0
M90 80.0 76.0 105.0 100.0
Adaptors are available for up to two step sizing. e.g. M20 Male x M32 Female
Type AB Hex Type AJ Round
Product Dimensions
Product Codes
*
*
*Minimum 8 full threads parallel 5 full threads taper.
Adaptors Brass 1” NPT(M) M32(F) Ex de PART NUMBER
AB A 44 14 Y = ABA4414Y
PRODUCT CODING EXAMPLE
46 EATON’S CROUSE-HINDS BUSINESS
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
M-F HEX AB BRASS A M16 11 ½" NPT 42 None (standard) X or blank None Blank
M-F ROUND AJ ALUMINIUM B M20 12 ¾" NPT 43 Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
Technical Specification
Thread Metallic Nylon Male
Male Thread Thread Max
Max Bore Bore
M16 20.8 22.0
M20 23.4 25.0
M25 27.9 30.0
M32 37.6 38.0
M40 47.2 46.0
M50 56.4 56.0
M63 70.1 70.0
M75 80.0 81.0
M90 105.0 96.0
*
*Minimum length of thread 10mm
Raxton Reducers
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, or II G, Ex d IIC Gb, Ex e IIC Gb,
Ex tb IIIC Db
IECEx: Ex d I/IIC, Ex e I/IIC, Ex tb IIIC Db
CSA: Ex d IIC Class 1, Zone 1, AEx d IIC (Brass and Stainless only)
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC Db IP66/67
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Nylon Reducers only:
ATEX: II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex e IIC Gb, Ex tb IIIC Db
GOST: ExeIIU
INMETRO: Ex e IIC Gb, Ex tb IIIC Db IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-1: 2007,
EN60079-7: 2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2004, IEC 60079-1:2003, IEC 60079-7:2006-07
CSA: CAN/CSA-E79-0-95, CAN/CSA-E79-1-95, UL 2279 1997,
IEC60079-0:1998, IEC 60079-1:1998
NEPSI: GB 3836.1-2010, GB 3836.2-2010,
GB 3836.3-2010, GB 12476.1-2000
Nylon Reducers only:
ATEX / GOST: EN 60079-0:2009, EN 60079-7: 2007,
EN60079-31:2009
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007, IEC 60079-7:2006, IEC 60079-31:2008
Certificate Details
ATEX: Sira 10ATEX1225X, Sira 10ATEX3335U
IECEx: IECEx SIR 07.0010X, IECEx SIR 12.0014X
CSA: CSA 200455-1003277 (Brass and Stainless only)
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
NEPSI: GYJ13.1314X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Nylon temperature range -20°C to 65°C, 'O' ring -30°C to 125°C.
GF Nylon is UL rated @ H.B. @ 1.5mm
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer's instructions.
Type BB Hex Type BJ Round
Product Dimensions
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
M-F HEX BB BRASS A M16 11 ½" NPT 42 Y None (standard) X or blank None Blank
M-F ROUND BJ ALUMINIUM B M20 12 ¾" NPT 43 Y Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
Product Codes
Reducer Stainless Steel M32 M25 Ex de PART NUMBER
BB E 14 13 Y = BBE1413Y
PRODUCT CODING EXAMPLE
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
47
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Insulated Adaptors
Insulated Adaptors provide a means to isolate the earth of the
supply cable from the load equipment thus reducing the risk
of damage to electronic equipment within the enclosure in
the event of a short circuit to ground through the enclosure.
Certifications and Compliances
Code of Protection Categories
ATEX: Ex d IIC
GOST: Ex d IICU
Compliance Standards
ATEX / GOST: EN 50014:1997, EN50018:2000,
EN 50019: 2000, EN 5081-1-1:1998
Certificate Details
ATEX: Sira 00ATEX1073U
GOST: TC RUC-G B.ГБ06.B.00105
TEMPERATURE
The item is classified as a component and is therefore not given a
temperature rating.
Nylon temperature range -20°C to 130°C.
GF Nylon is UL rated @ H.B. @ 1.5mm
Type DB
Product Dimensions
Product Codes
*Minimum 8 full threads parallel 5 full threads taper.
Ins. Adaptors Brass M32(M) M32(F) Ex d PART NUMBER
DB A 14 14 D = DBA1414D
PRODUCT CODING EXAMPLE
*
*
Enclosure
Cable / Conduit
Bonding Point
Ground
Insulated Adaptor
Cable Gland
Connection
Device
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
INSULATED M-F DB BRASS A M16 11 ½" NPT 42 ATEX Exde D None (standard) X or blank None Blank
INSULATED M-M DD ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde R Customer Special S Nickel N
INSULATED F-F DE MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
Thread Protrusion Bore Dia.
(mm) (mm) (mm)
M16 45.0 11.0 30.0
M20 45.0 14.3 42.0
M25 45.0 20.5 47.0
M32 45.0 26.8 54.0
M40 45.0 33.5 62.0
M50 45.0 44.0 77.0
M63 45.0 55.2 87.0
M75 45.0 66.7 102.0
ATEX/Ex d
48 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Male to Male / Female to Female Adaptors
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, or II GD, Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb Ex e I/IIC Mb/Gb, Ex tb IIIC Db
GOST: ExdIICU
INMETRO: Ex d IIC Gb, Ex tb IIIC IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-1:2007,
EN 60079-7: 2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007-10, IEC 60079-1:2007-04,
IEC 60079-7:2006-07, IEC 61241-1:2004
Certificate Details
ATEX: Sira 10ATEX1225X
IECEx: IECEx SIR 12.0014X
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Type AU Hex (F-F)
Type AR (M-M)
Product Dimensions
Product Codes
M-M Adp Brass M20(M) M20(F) Ex de PART NUMBER
AR A 12 12 Y = ARA1212Y
PRODUCT CODING EXAMPLE
*
*
*Minimum 6 full threads parallel 5 full threads taper.
Type AX Round (F-F)
Thread Length Bore Dia. A/F
(mm) (mm) (mm)
M16 38.0 11.0 18.0
M20 38.0 14.3 23.4
M25 38.0 20.5 28.0
M32 38.0 26.8 37.6
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
M-M AR BRASS A M16 11 ½" NPT 42 ATEX Exde Y None (standard) X or blank None Blank
F-F HEX AU ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde Y Customer Special S Nickel N
F-F ROUND AX MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49 Industrial X or Blank
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
49
EATON’S CROUSE-HINDS BUSINESS
Thread Height Bore Male Bore Size Option
Assembly (mm) (mm) (mm) Available
M16 45.0 11.0 9.0 A
M20 51.0 14.3 15.0 A or B
M25 57.0 20.5 20.8 A or B
M32 66.0 26.8 26.8 A
M40 75.0 33.5 33.5 A
M50 86.0 44.0 44.0 A
M63 101.5 55.2 55.0 A
M75 119.0 66.7 66.5 A
Technical Specification
R.A. M-F Brass M20(M) M20(F) Ex de PART NUMBER
FG A 12 12 Y = FGA1212Y
Raxton Right Angle Adaptors
Right Angle Adaptors provide a means of connection where
protrusion space is limited, whilst simultaneously if necessary,
converting the entry thread to that of a different type or
reducing size and/or gender of the female thread.
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb or II GD, Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db
GOST: ExdIICU
INMETRO: Ex d IIC Gb, Ex tb IIIC IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN60079-1:2007,
EN 60079-7:2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007-10, IEC 60079-1:2007-04,
IEC 60079-7:2006-07, IEC 61241-1:2004
Certificate Details
ATEX: Sira 10ATEX1228U
IECEx: IECEx SIR 09.0086U
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
*M20 and M25 may be supplied as Option A or B
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer's instructions.
Type FG (M-F)
Option A
Type FG (M-F)
Option B
Product Codes
PRODUCT CODING EXAMPLE
*
*
*Minimum 8 full threads parallel 5 full threads taper.
Product Dimensions
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
RIGHT ANGLE M-F FG BRASS A M16 11 ½" NPT 42 ATEX Exde Y None (standard) X or blank None Blank
RIGHT ANGLE F-F FN ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde Y Customer Special S Nickel N
RIGHT ANGLE M-M FK MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
50 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Swivel Adaptors
The 90° Swivel Adaptor (Types FP, FQ, FR) has been
designed to allow a full 360° choice of cable entry/exit
positions. This enables the installer to run the cable in any
direction which greatly improves ease of installation in
confined or difficult situations. The cable entry/exit can be
aligned without the over or under torque compromise
imposed by the direction of the cable. The Inline type (Types
FA, FC, FD) allows independent connection at both ends.
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, (not Alum) or IIGd Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d Ex e IIC Gb, Ex d Ex e IM (Not Alum), Ex tb IIIC Db, IP 6X
INMETRO: Ex d IIC Gb, Ex e IIC Gb, Ex d I Mb, Ex e Mb, Ex tb IIIC Db IP6X
Compliance Standards
ATEX: EN 60079-0:2009, EN60079-1:2007, EN 60079-7:2007,
EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007, IEC 60079-1:2007, IEC 60079-7:2006,
IEC 60079-31:2008
Certificate Details
ATEX: Sira 10ATEX1056U
IECEx: IECEx SIR 10.0025U
INMETRO: NCC 12.0764X
TEMPERATURE
Temperature range: -50°C to +180°C
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer's instructions.
Type FA
Type FP
Product Codes
Swivel Brass 1” NPT(M) M32(F) Ex de PART NUMBER
FA A 44 14 Y = FAA4414Y
PRODUCT CODING EXAMPLE
L
X
X
Y
D
L
D
Y
Product Dimensions
Thread X Thread Y Length (L) Depth (D) Min Wall
(mm) (mm) (mm)
M16 M20 17.0 17.0 2.25
M25 M25-M20 17.0 17.0 2.75
M32 M32-M20 17.0 17.0 3.00
M40 M40-M20 17.0 17.0 3.00
M50 M50-M20 17.0 17.0 3.00
M63 M63-M20 17.0 17.0 3.25
M75 M75-M20 17.0 17.0 3.25
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Swivel Adaptors) Material Thread Reference Approval Special Plating
SWIVEL INLINE M-F FA BRASS A M16 11 ½" NPT 42 ATEX Exde Y None (standard) X or blank None Blank
SWIVEL INLINE F-F FC ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde Y Customer Special S Nickel N
SWIVEL INLINE M-M FD MILD STEEL C M25 13 1" NPT 44 Zinc Z
SWIVEL 90° M-F FP STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
SWIVEL 90° F-F FQ M40 15 1½" NPT 46 Special S
SWIVEL 90° M-M FR M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
51
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Product Codes
‘Y’ M-F Brass M20(M) M25(F) Ex de PART NUMBER
YA A 12 13 A = YAA1213
PRODUCT CODING EXAMPLE
Raxton ‘Y’ and ‘T’ Adaptors
'Y' (Type YA) and 'T' (Type TA) Adaptors provide an opportunity
for two entries where pre-machine entries are limited, and to
also change threadform or to different sizes.
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb or II GD, Ex d IIC Gb, Ex e IIC Gb, Ex
tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db
Compliance Standards
ATEX: EN 60079-0:2009, EN 60079-1:2007, EN 60079-7:2007,
EN60079-31:2008
IECEx: IEC 60079-0: 2007-10, IEC 60079-1: 2007-04,
IEC 60079-7: 2006-07, IEC 61241-1: 2004
Certificate Details
ATEX: Sira 10ATEX1056U
IECEx: IECEx SIR 10.0025U
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Product Dimensions - ‘Y’ Adaptor
Type YA
Type TA
Thread Overall Length Angle Between
(mm) Entries
M20 70.00 120° each
M25 80.00 120° each
M32 85.00 120° each
Product Dimensions - ‘T’ Adaptor
Thread Female Size Height (Single Length
Range Entry to base - mm) (Entry to Entry - mm)
M16 M12 - M20 45.00 55.00
M20 M12 - M25 51.00 60.00
M25 M12 - M32 57.00 65.00
M32 M12 - M40 66.00 72.00
M40 M12 - M50 75.00 80.00
M50 M12 - M63 86.00 90.00
M63 M12 - M75 101.50 105.00
M75 M12 - M90 119.00 120.00
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Adaptors) Material Thread Reference Approval Special Plating
‘Y’ ADAPTORS M-F/F YA BRASS A M12 04 M12 04 ATEX Exde A None (standard) X or blank None Blank
‘T’ ADAPTORS M-F/F TA MILD STEEL C M16 11 M16 11 IECEx Exde R Customer Special S Nickel N
STAINLESS STEEL E M20 12 M20 12 Zinc Z
M25 13 M25 13 Chromatised C
M32 14 M32 14 Special S
M40 15 M40 15
M50 16 M50 16
M63 17 M63 17
M75 18 M75 18
M90 81 M90 81 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
52 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Earth Lead Adaptors & Threaded Earth Plates
Earth Lead Adaptors (Type DG) allow for earth continuity to
be maintained by providing an earth lead which can be
terminated inside the enclosure.
Threaded earth plates (Type DK) are designed to ensure
earth continuity when terminating brass glands into
non-metallic enclosures. The additional use of a locknut is
recommended to ensure pressure is maintained with the
wall enclosure.
Certifications and Compliances - Earth Lead Adaptors
Code of Protection Categories
ATEX: I M2, Ex e I Mb or II G D, Ex e IIC Gb, ExIIIC tb Db
IECEx: Ex d I/IIC Mb/Gb, Ex E I/IIC Mb/Gb, Ex IIIC tb Db
GOST: ExeIIU
INMETRO: Ex e IIC Gb, Ex tb IIIC IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-7:2007,
EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007-10, IEC 60079-1:2007-04,
IEC 60079-7:2006-07, IEC 61241-1:2004
Certificate Details
ATEX: Sira 10ATEX1225X
IECEx: IECEx SIR 12.0014X
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
TEMPERATURE
The item is classified as a component and is therefore not given a
temperature rating, The 'O' ring has an operating temperature of - 30°C to
125°C.
Certifications and Compliances - Threaded Earth Plates
Code of Protection Categories
ATEX: II 2GD, Ex e II
Compliance Standards
ATEX EN 50014:1997, EN50018:2000,
EN 50019:2000, EN50281-1-1:1998
Certificate Details
ATEX: Sira 00ATEX1073U
TEMPERATURE
The item is classified as a component and is therefore not given a
temperature rating.
Product Codes
EL Adaptor Brass M20(M) M20(F) Ex e PART NUMBER
DG A 12 12 E = DGA1212E
PRODUCT CODING EXAMPLE
Type DG
Type DK
Product Dimensions - Earth Lead Adaptors
Product Dimensions - Threaded Earth Plates
Thread Length Earth Lead x
Earth Plate (mm) 300mm (mm2)
M16 22.0 2.5
M20 30.0 2.5
M25 32.0 4.0
M32 38.0 6.0
M40 50.8 10.0
M50 63.5 16.0
M63 76.0 25.0
M75 102.0 25.0
Earth Lead Length Earth Lead x
Adaptor (mm) 300mm (mm2)
M16 38.0 2.5
M20 38.0 2.5
M25 38.0 4.0
M32 38.0 6.0
M40 39.0 10.0
M50 39.0 16.0
M63 39.0 25.0
M75 39.0 25.0
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Earth Accessories) Material Thread Reference Approval Special Plating
ADAPTOR M-F DG BRASS A M16 11 ½" NPT 42 ATEX Exe E None (standard) X or blank None Blank
PLATE DK ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exe I/II P Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
53
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Stopper Plugs) Material Thread Reference Approval Special Plating
RX (External Access) CB BRASS A M16 11 ½" NPT 42 ATEX Exde Y None (standard) X or blank None Blank
TAMPERPROOF CF ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde Y Customer Special S Nickel N
HEX HEAD CK MILD STEEL C M25 13 1" NPT 44 Zinc Z
HOLLOW HEX HEAD CY STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
Raxton Stopping Plugs
Certifications and Compliances
Code of Protection Categories
ATEX: I M2 (not CY), Ex d IMb, Ex e I Mb, or II GD, Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db,
(Group I not for CY)
CSA: Ex d IIC Class 1, Zone 1, AEx d IIC (Brass and Stainless only )
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC IP66/67 (Brass and Stainless)
(not CY) Ex de IIC Gb, Ex tb IIIC IP66/67 (Aluminium)
Ex e IIC Gb, Ex tb IIIC IP66/67 (Nylon)
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-1: 2007,
EN 60079-7: 2007, EN 60079-31:2008
IECEx: IEC 60079-0:2004, IEC 60079-1:2003, IEC 60079-7:2006-07
CSA: CAN/CSA-E79-0-95, CAN/CSA-E79-1-95, UL 2279 1997,
IEC 60079-0:1998, IEC 60079-1:1998
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
NEPSI: GB 3836.1-2010, GB 3836.2-2010,
GB 3836.3-2010, GB 12476.1-2000
Certificate Details
ATEX: Sira 10ATEX1224X
IECEx: IECEx SIR 07.0009X
CSA: CSA 200455-1003277
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
NEPSI: GYJ13.1311X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Ingress Protection (IP):
Tested to IP68
Product Dimensions
Product Codes
Hex Head Brass M25(M) - Ex de PART NUMBER
CB A 13 00 Y = BBE1413Y
PRODUCT CODING EXAMPLE
Type CK
Type CF
Type CY
Type CB
Type CF
Type CK & CY
Type CB
**
*
*Minimum 6 full threads parallel 5 full threads taper.
For other
approvals
please see
product
coding list on
page 64
Thread RX & Tamper- Hex Head A/F
proof Allen Key (mm)
Type CF & CB Type CK & CY
M16 6.0 19.0
M20 10.0 23.3
M25 10.0 28.0
M32 10.0 37.5
M40 10.0 47.0
M50 10.0 56.0
M63 10.0 70.0
M75 10.0 80.0
ATEX/IECEx/
INMETRO Ex de Y
54 EATON’S CROUSE-HINDS BUSINESS
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Nylon temperature range -20°C to 65°C, 'O' ring -30°C to 125°C.
Ingress Protection (IP):
Tested to IP68
Technical Specification
Raxton Stopping Plugs
Certifications and Compliances
Code of Protection Categories
Type CQ metallic only:
ATEX: I M2, Ex d IMb, Ex e I Mb, or II GD, Ex d IIC Gb, Ex e IIC Gb,
Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db
CSA: Ex d IIC Class 1, Zone 1, AEx d IIC
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC IP66/67 (Brass and Stainless)
(not CY) Ex de IIC Gb, Ex tb IIIC IP66/67 (Aluminium)
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Type CQ/CS Nylon only:
ATEX: II 2 GD, Ex e IIC Gb, Ex tb IIIC Db (not Type CS)
IECEx: Ex e IIC Gb, Ex tb IIIC Db
GOST: ExeIIU (not Type CS)
INMETRO: Ex e IIC Gb, Ex tb IIIC IP66/67 (Nylon)
Compliance Standards
Type CQ metallic only:
ATEX / GOST: EN 60079-0:2009, EN 60079-1:2007,
EN 60079-7:2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
NEPSI: GB 3836.1-2010, GB 3836.2-2010,
GB 3836.3-2010, GB 12476.1-2000
IECEx: IEC 60079-0:2004, IEC 60079-1:2003, IEC 60079-7:2006-07
CSA: AN/CSA-E79-0-95, CAN/CSA-E79-1-95, UL 2279, 1997,
IEC 60079-0:1998, IEC60079-1:1998
Type CQ Nylon only:
ATEX / GOST: EN 60079-0:2009 ,EN 60079-7:2007,
EN 60079-31:2009
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007, IEC 60079-7:2006, IEC 60079-31:2008
Type CS only:
IECEx: IEC 60079-0:2007-10, IEC 60079-7:2006-07, IEC 60079-31:2008
Certificate Details
Type CQ metallic only: Type CQ Nylon only:
ATEX: Sira 10ATEX1224X ATEX: Sira 10ATEX1225X
IECEx: IECEx SIR 07.0009X IECEx: IECEx SIR 12.0014X
CSA: CSA 200455-1003277
NEPSI: GYJ13.1311X
Type CQ metallic/Nylon: Type CS only:
GOST: TC RUC-G B.ГБ06.B.00105 IECEx: IECEx LCI 08.0035X
INMETRO: NCC 12.0764X
Product Dimensions
Product Codes
Dome Head Brass M25(M) - Ex de PART NUMBER
CQ A 13 00 Y = CQA1300Y
PRODUCT CODING EXAMPLE
*Minimum 6 full threads parallel 5 full threads taper
Type CQ
Type CS
Type CQ
**
Type CS Type CQ
Thread Dome Head Dome Head Slotted Head
Allen Key Dia (mm) A/F (mm)
Type CQ Type CQ Type CS
M16 6.0 20.5 19.0
M20 10.0 25.0 23.0
M25 10.0 30.0 28.0
M32 10.0 38.0 36.0
M40 10.0 46.0 44.0
M50 10.0 56.0 54.0
M63 10.0 69.0 67.0
M75 10.0 81.0 N/A
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Stopper Plugs) Material Thread Reference Approval Special Plating
DOME HEAD CQ BRASS A M16 11 ½" NPT 42 ATEX Exde Y None (standard) X or blank None Blank
SLOTTED HEAD CS ALUMINIUM B M20 12 ¾" NPT 43 IECEx Exde Y Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
GLASS FILLED NYLON M M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
ATEX/IECEx/
INMETRO Ex de Y
55
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Breather Drains
The Exde (Type CT) and the Exe (Type CV) effectively drain
moisture from an enclosure and allow air from the enclosure
to vent into the surrounding atmosphere thereby minimising
moisture build up.
Certifications and Compliances
Code of Protection Categories
Type CT Breather Drain Plugs
ATEX: II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db, IP 6X
Type CV Breather Drain Plugs
ATEX: I M2, Ex e I Mb or II GD, Ex e IIC Gb, Ex tb IIIC Db.
Nylon: - II 2 GD, Ex e II only.
IECEx: Ex e IIC Mb/Gb, Ex IIIC tb Db (metallic only)
GOST: ExdeIICU, ExeIIU. Nylon: - ExeIIU only.
INMETRO: BR-Ex e I/IIC Gb, BR-Ex tD A21, IP 66
Compliance Standards
Type CT Breather Drain Plugs
ATEX / INMETRO / GOST: EN 60079-0:2007, EN 60079-1:2007,
EN 60079-7:2007, EN 61241-0:2006
EN 61241-1:2004
IECEx: IEC 60079-0:2007-10, IEC 60079-1:2007-04,
IEC 60079-7:2006-07, IEC 61241-1:2004
Type CV Breather Drain Plugs
ATEX / INMETRO / GOST: EN 60079-0:2009, EN 60079-1:2007,
EN 60079-7:2007, EN 60079-31:2008
(Metallic only); EN 50014:1997,
EN 50019:1994, EN 50281-1-1:1998 (Nylon only)
IECEx: IEC 60079-0:2007-10, IEC 60079-7:2006-07, IEC 61241-1:2004
(Metallic only)
Certificate Details
ATEX: (CV) Sira 10ATEX3279U
(CT) ITS 13ATEX17782X
IECEx: (CV) IECEx SIR 09.0096U
(CT) IECEx ITS 13.0018X
GOST: POCC GB. 06.B01060
INMETRO: (CV) NCC 12.0926X
(CT) NCC 12.0927X
TEMPERATURE
The Exde Type CT Breather/Drain plug: -50°C to 230°C.
The Exe Breather/Drain plug is classified as a component and therefore
metallic products are not given an operating temperature.
Nylon temperature range -20°C to 65°C, 'O' ring -30°C to 125°C.
Ingress Protection (IP):
Tested to IP66
Product Codes
Breather Drain Brass M25(M) - Ex de PART NUMBER
CT A 13 00 A = CTA1300A
PRODUCT CODING EXAMPLE
Type CV Type CV
Type CT
Product Dimensions - Ex e (Type CV)
Product Dimensions - Ex de (Type CT)
*
*
*Minimum 6 full threads parallel 5 full threads taper.
Type CTType CV
Thread Dia. Allen Key Head Protrusion
(mm) (mm) (mm)
M20 25.4 10 14
M25 30.5 10 14
M32 38.0 10 14
1/2" NPT 25.4 10 14
3/4" NPT 30.5 10 14
1" NPT 38.0 10 14
Thread Hex AF Thread Length OAL
(mm) (mm) (mm)
M20 27.0 16.0 31
M25 31.8 16.0 31
1/2" NPT 27.0 20.0 35
3/4" NPT 27.9 20.0 35
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Breather Drains) Material Thread Reference Approval Special Plating
B.DRAIN Ex de CT BRASS A M16 11 ½" NPT 42 ATEX Exde A None (standard) X or blank None Blank
B.DRAIN Ex e CV STAINLESS STEEL E M20 12 ¾" NPT 43 IECEx Exde R Customer Special S Nickel N
GLASS FILLED NYLON M M25 13 1" NPT 44 Zinc Z
M32 14 Chromatised C
Special S
Industrial X or Blank
Other sizes / threads are available on request
For other
approvals please
see product
coding list on
page 64
56 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Barrier Stopper Boxes for Cable Glands and Rigid Conduit
The Compound Stopper Box is designed to seal conductors
at the entry to the enclosure via conduit or to enable an
existing compression gland to be converted to a barrier
gland. This is achieved by forming a barrier between the
individual insulated conductors within the cable to prevent
an explosion within the enclosure. The Compound Stopper
Box allows compound to be packed around individual
insulated conductors. Assembly of the component
compresses the packing material and distributes the
compound evenly to effect a barrier at point of entry into the
enclosure.
The Compound Stopper Box is supplied with compound in a
pack, complete with making off instructions and gloves.
Certifications and Compliances
Code of Protection Categories
ATEX: II 2 GD, Ex de IIC
GOST: ExdIICU
INMETRO: BR-Ex d IIC Gb, BR-Ex tD A21 IP 66/67
Compliance Standards
ATEX / INMETRO / GOST: EN 50014:1997, EN 50018:2000,
EN 50019:2000, EN 5081-1-1:1998
Certificate Details
ATEX: ITS 12ATEX17707X
IECEx: IECEx ITS 12.0079X
GOST: POCC GB. 06.B01060
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer's instructions.
Product Codes
Box M-F Brass M20(M) M20(F) Ex de PART NUMBER
EG A 12 12 A = EGA1212A
PRODUCT CODING EXAMPLE
Type EG
*
*Minimum 6 full threads parallel 5 full threads taper.
Type EG
Product Dimensions
Barrier Stopper Box used
with a rigid steel conduit.
Barrier Stopper Box used
with a compression type
cable gland to provide a
barrier gland assembly.
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Stopper Boxes) Material Thread Reference Approval Special Plating
STOPPER BOX M-F EG BRASS A M16 11 ½" NPT 42 ATEX Ex de A None (standard) X or blank None Blank
STOPPER BOX F-F EK ALUMINIUM B M20 12 ¾" NPT 43 Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
Thread Bore MN Thread Length Protrusion
(mm) (mm) (mm)
M16 7.2 15.0 32.0
M20 12.5 15.0 34.5
M25 18.3 15.0 34.5
M32 24.3 15.0 34.5
M40 30.0 17.0 35.0
M50 41.6 17.0 37.0
M63 53.3 17.0 37.0
M75 65.0 17.0 37.0
57
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Unions
Unions are designed to provide a running joint whilst
eliminating exposed threads and are particularly suitable for
use where a coupler would be impractical.
Unions are available in a variety of threadforms and can be
supplied with male to female or female to female thread
entries. The female connection thread of the union shall step
not more than one size up from the male connection thread,
or equal to one size up in the case of a thread gender
change: e.g. M20(M) to M25(F) or M20(M) to 3/4" NPT(F).
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb or II GD, Ex d IIC Gb, Ex e IIC Gb,
Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb , Ex e I/IIC Mb/Gb, Ex tb, IIIC Db
GOST: ExdIICU
INMETRO: BR-Ex d IIC Gb
Compliance Standards
ATEX / INMETRO / GOST: EN 60079-0:2009, EN60079-1:2007,
EN 60079-7:2007, EN 60079-31:2008
IECEx: IEC 60079-0:2007-10, IEC 60079-1:2007-04,
IEC 60079-7:2006-07, IEC 61241-1:2004
Certificate Details
ATEX: Sira 10ATEX1227U
IECEx: IECEx SIR 09.0085U
GOST: POCC GB. 06.B01060
INMETRO: NCC 12.0764X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Product Dimensions
Product Codes
Union Brass M32(M) M32(F) Ex de PART NUMBER
FB A 14 14 A = FBA1414A
PRODUCT CODING EXAMPLE
Type FB (M-F)
Type FL (F-F)
*Minimum 8 full threads parallel 5 full threads taper.
Flamepath in accordance with appropriate standards.
*
*
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Unions) Material Thread Reference Approval Special Plating
UNION M-F FB BRASS A M16 11 ½" NPT 42 ATEX Ex de A None (standard) X or blank None Blank
UNION F-F FL ALUMINIUM B M20 12 ¾" NPT 43 IECEx Ex de R Customer Special S Nickel N
MILD STEEL C M25 13 1" NPT 44 Zinc Z
STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49 Industrial X or Blank
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
Thread Protrusion Bore Dia
(mm) (mm) (mm)
M16 45.0 11.0 30.0
M20 45.0 14.3 42.0
M25 45.0 20.5 47.0
M32 45.0 26.8 54.0
M40 45.0 33.5 62.0
M50 45.0 44.0 77.0
M63 45.0 55.2 87.0
M75 45.0 66.7 102.0
58 EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Raxton Nipples / Couplers / Bushes
Screwed Nippling
Supplied 50mm long as standard, alternative lengths can be
supplied as required.
Available in a variety of thread forms. Materials include
Brass, Mild Steel, Stainless Steel, Aluminium and Nylon.
Metallic finishes can be plated to requirements.
Couplers
Available in round or hexagonal. Manufactured in Brass as
standard in a wide combination of thread forms and sizes.
Bushes
Male and Female Bushes are available in a variety of thread
forms Materials include Brass, Mild Steel, Stainless Steel,
Aluminium and may be plated to requirements.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Product Codes
Male Bush Brass M25(M) - - PART NUMBER
JA A 13 00 = JAA1300
PRODUCT CODING EXAMPLE
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
Material Thread Reference Approval Special Plating
MALE BUSH LONG JA BRASS A M12 04 ½" NPT 42 Industrial X or Blank None (standard) X or blank None Blank
MALE BUSH SHORT JB ALUMINIUM B M16 11 ¾" NPT 43 Customer Special S Nickel N
FEMALE BUSH JC MILD STEEL C M20 12 1" NPT 44 Zinc Z
NIPPLE JD STAINLESS STEEL E M25 13 1¼" NPT 45 Chromatised C
NIPPLE LONG JE NYLON BLACK G M32 14 1½" NPT 46 Special S
NIPPLE BARREL JF M40 15 2" NPT 47
COUPLER ROUND JG M50 16 2½" NPT 48
COUPLER HEX JH M63 17 3" NPT 49
COUPLER FLANGE JJ M75 18 3½" NPT 86
M90 81 4" NPT 87
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
59
EATON’S CROUSE-HINDS BUSINESS
Locknuts & Lockrings (Type GA, GB)
Raxton offer a large variety of Locknuts/Lockrings which are
often recommended for securing cable glands, thread
Adaptors or thread Reducers to a gland plate or into
equipment. Locknuts are available in Brass, Mild Steel,
Stainless Steel, Aluminium or Nylon.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Washers
To maintain the IP rating of the equipment Raxton offer a
wide variety of entry thread sealing Washers and ‘O’ rings.
Materials include Nylon, Teflon, Neoprene, Fibre and Rubber.
In addition Raxton can offer a non-setting
universal jointing sealant.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Serrated Washers
Raxton Serrated (Shakeproof) Washers are available in both
Mild Steel Zinc plated and Stainless Steel and prevent the
risk of attachments becoming loose when used in
conjunction with a Locknut.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Raxton Locknuts, Washers & Serrated Washers
Technical Specification
Product Codes
Washer Fibre (M) M40(F) - PART NUMBER
HA U 00 15 - = HAU0015
PRODUCT CODING EXAMPLE
Types GA
Types HA
Types GC
Product Dimensions
Female Thread A/F Dims Female Thread A/F Dims
Thread Coding (mm) Thread Coding (mm)
M16 0011 19.0 ¾" NPT 0043 33.0
M20 0012 25.4 1" NPT 0044 40.0
M25 0013 30.0 1¼" NPT 0045 50.0
M32 0014 46.0 1½" NPT 0046 56.0
M40 0015 46.0 2" NPT 0047 70.0
M50 0016 65.0 2½" NPT 0048 90.0
M63 0017 80.0 3" NPT 0049 105.0
M75 0018 95.0 3½" NPT 0050 115.0
M90 0019 105.0 4" NPT 0051 130.0
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Earth Accessories) Material Thread Reference Approval Special Plating
LOCKNUTS GA BRASS A M16 11 ½" NPT 42 Industrial X or Blank None (standard) X or blank None Blank
LOCKRINGS GB ALUMINIUM B M20 12 ¾" NPT 43 Customer Special S Nickel N
SERRATED WASHERS GC MILD STEEL C M25 13 1" NPT 44 Zinc Z
CASTELLATED LOCKNUTS GD STAINLESS STEEL E M32 14 1¼" NPT 45 Chromatised C
WASHERS HA NYLON BLACK G M40 15 1½" NPT 46 Special S
‘O’ RINGS HB TEFLON P M50 16 2" NPT 47
EPDM Q M63 17 2½" NPT 48
NEOPRENE T M75 18 3" NPT 49
NYLON WHITE R M90 81 3½" NPT 86
RED FIBRE U M100 82 4" NPT 87
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
60 EATON’S CROUSE-HINDS BUSINESS
Earthing Locknuts
Raxton Earthing Locknuts offer an alternative to the standard
Earth Tag when terminating a metallic cable gland into a thin
wall steel enclosure. The Earthing Locknut design includes a
number of cutting teeth formed on one surface of the nut.
When tightened, these teeth cut into the enclosure wall,
preventing the nut from turning and enabling the gland to be
tightened to the nut from the outside with only one tool. This
allows all connections of the gland to be made within the
enclosure, away from the corrosive or flammable atmosphere
and away from possible mechanical damage, and results in a
neater appearance. The nut may also be fitted with the plain
side facing the enclosure where this is preferred.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Earth Tags
Raxton Earth Tags provide a means of connecting a flexible
earth bond with the gland, thread Adaptor or thread Reducer
in any required position whilst ensuring suitable earth
continuity. Available in Brass, Aluminium and Stainless Steel
and supplied self-colour as standard, additional plating is
available if required.
TEMPERATURE
The item is classified as a component and therefore metallic
products are not given an operating temperature range.
Raxton Earthing Locknuts & Earth Tags
Technical Specification
Product Codes
Earth Tag Brass (M) M20(F) - PART NUMBER
DM A 00 12 - = DMA0012
PRODUCT CODING EXAMPLE
Type DN
Type DM
*
A
A
Product Dimensions
Female Thread A/F Dims Female Thread A/F Dims
Thread Coding (mm) Thread Coding (mm)
M12 0010 14.0 ½" NPT 0042 30.0
M16 0011 18.0 ¾" NPT 0043 36.0
M20 0012 23.0 1" NPT 0044 42.0
M25 0013 28.0 1¼" NPT 0045 50.0
M32 0014 36.0 1½" NPT 0046 55.0
M40 0015 44.0 2" NPT 0047 70.0
M50 0016 54.0 2½" NPT 0048 80.0
M63 0017 70.0 3" NPT 0049 98.0
M75 0018 92.0 3½" NPT 0050 115.0
M90 0019 108.0 4" NPT 0051 130.0
DIGIT 1+2 DIGIT 3 DIGIT 4 & 5 Male DIGIT 6 & 7 Female DIGIT 8 DIGIT 9 DIGIT 10
Description Code Code
(Earth Accessories) Material Thread Reference Approval Special Plating
EARTH TAG DM BRASS A M16 11 ½" NPT 42 Industrial X or Blank None (standard) X or blank None Blank
EARTHING LOCKNUT DN ALUMINIUM B M20 12 ¾" NPT 43 Customer Special S Nickel N
STAINLESS STEEL E M25 13 1" NPT 44 Zinc Z
M32 14 1¼" NPT 45 Chromatised C
M40 15 1½" NPT 46 Special S
M50 16 2" NPT 47
M63 17 2½" NPT 48
M75 18 3" NPT 49
M90 81 3½" NPT 86
M100 82 4" NPT 87
Other sizes / threads are available on request
For other
approvals
please see
product
coding list on
page 64
61
EATON’S CROUSE-HINDS BUSINESS
Raxton Shrouds
Shrouds
Raxton offer a range of push on Shrouds which are used to
minimise the risk of dirt or foreign substances gathering on
the cable gland body and/or point of cable to the gland
interface.
Supplied as standard in black PVC they are suitable for all
leading makes of glands.
Raxton also offer coloured PVC shrouds (blue, grey, red),
Flame Retardant (FR) black PVC shrouds, Low Smoke and
Fume (LSF) Halogen free PVC shrouds in black, white, red,
blue, and PCP shrouds in black.
It should be noted that shrouds do not necessarily improve
the ingress protection (IP) of the installed gland and may in
certain conditions retain unwanted moisture.
TEMPERATURE
The item is classified as a component and is therefore not
given a temperature rating.
Technical Specification
Product Dimensions
Product Codes
TO BE CUT AWAY TO
SUIT DIAMETER OF
CABLE BEING USED
Y
øB øA
ØC
xL1
SIZE ØA ØB ØC X Y L1
M16 11.0 8.0 20.8 24.0
519.9 16.5 2.5 40.0 9.0 57.0
5A 23.8 20.0 2.5 50.0 10.0 60.0
625.2 20.0 2.5 50.0 10.0 78.0
731.5 26.0 8.0 50.0 10.0 80.0
843.0 36.0 11.0 50.0 12.0 78.0
8B 38.8 32.0 11.0 50.0 12.0 80.0
949.5 40.0 15.0 50.0 12.0 83.0
10 57.8 48.0 20.0 60.0 14.0 91.0
11 67.2 60.0 25.0 70.0 14.0 105.0
12 75.6 68.0 31.0 75.0 13.0 90.0
12E 84.0 70.0 34.0 75.0 13.0 115.0
13 89.3 75.0 37.0 75.0 13.0 110.0
SHROUD PDM 100 PDM 100 FR PDM 100 PDM 100 PDM 100 PDM 100 LSF PDM 100 LSF PDM 100 LSF PDM 100 LSF PCP
NUMBER BLACK BLACK BLUE GREY RED BLACK WHITE RED BLUE BLACK
5HCY 5 HCY FR 5 HCB 5 HCG 5 HCR 5 HCB LSF 5 HCW LSF 5 HCR LSF 5 HCL LSF 5 HCY 5X NEO
5A HCY 5A HCY FR 5A HCB 5A HCG 5A HCR 5A HCB LSF 5A HCW LSF 5A HCR LSF 5A HCL LSF 5A HCY 5A NEO
6HCY 6 HCY FR 6 HCB 6 HCG 6 HCR 6 HCB LSF 6 HCW LSF 6 HCR LSF 6 HCL LSF 6 HCY 6X NEO
7HCY 7 HCY FR 7 HCB 7 HCG 7 HCR 7 HCB LSF 7 HCW LSF 7 HCR LSF 7 HCL LSF 7 HCY 7X NEO
8HCY 8 HCY FR 8 HCB 8 HCG 8 HCR 8 HCB LSF 8 HCW LSF 8 HCR LSF 8 HCL LSF 8 HCY 8X NEO
8B HCY 8B HCY FR 8B HCB 8B HCG 8B HCR 8B HCB LSF 8B HCW LSF 8B HCR LSF 8B HCL LSF 8B HCY 8B NEO
9HCY 9 HCY FR 9 HCB 9 HCG 9 HCR 9 HCB LSF 9 HCW LSF 9 HCR LSF 9 HCL LSF 9 HCY 9X NEO
10 HCY 10 HCY FR 10 HCB 10 HCG 10 HCR 10 HCB LSF 10 HCW LSF 10 HCR LSF 10 HCL LSF 10 HCY 10 NEO
11 HCY 11 HCY FR 11 HCB 11 HCG 11 HCR 11 HCB LSF 11 HCW LSF 11 HCR LSF 11 HCL LSF 11 HCY 11 NEO
12 HCY 12 HCY FR 12 HCB 12 HCG 12 HCR 12 HCB LSF 12 HCW LSF 12 HCR LSF 12 HCL LSF 12 HCY 12 NEO
12E HCY 12E HCY FR 12E HCB 12E HCG 12E HCR 12E HCB LSF 12E HCW LSF 12E HCR LSF 12E HCL LSF 12E HCY 12E NEO
13 HCY 13 HCY FR 13 HCB 13 HCG 13 HCR 13 HCB LSF 13 HCW LSF 13 HCR LSF 13 HCL LSF 13 HCY 13 NEO
62 EATON’S CROUSE-HINDS BUSINESS
MAJOR
SIZE DIAMETER THREADS PITCH
(mm) PER INCH
1/8" BSP 9.73 28 0.91
1/4" BSP 13.16 19 1.34
3/8" BSP 16.66 19 1.34
1/2" BSP 20.96 14 1.81
3/4" BSP 26.44 14 1.81
1" BSP 33.25 11 2.31
11/4" BSP 41.91 11 2.31
11/2" BSP 47.80 11 2.31
2" BSP 59.61 11 2.31
21/2" BSP 75.18 11 2.31
3" BSP 87.88 11 2.31
4" BSP 113.03 11 2.31
MAJOR
SIZE DIAMETER THREADS PITCH
(mm) PER INCH
16mm (M16) 16 16.93 1.50
20mm (M20) 20 16.93 1.50
25mm (M25) 25 16.93 1.50
32mm (M32) 32 16.93 1.50
40mm (M40) 40 16.93 1.50
50mm (M50) 50 16.93 1.50
63mm (M63) 63 16.93 1.50
75mm (M75) 75 16.93 1.50
Isometric to BS 3643:1981
Certified Products - Raxton adaptors now available in 2 step format
British Standard Pipe to
BS 21:1985
MAJOR
SIZE DIAMETER THREADS PITCH
(mm) PER INCH
1/8" NPT 10.30 27 0.94
1/4" NPT 13.72 18 1.41
3/8" NPT 17.15 18 1.41
1/2" NPT 21.34 14 1.81
3/4" NPT 26.67 14 1.81
1" NPT 33.40 111/22.20
11/4" NPT 42.16 111/22.20
11/2" NPT 48.26 111/22.20
2" NPT 60.33 111/22.20
21/2" NPT 73.03 8 3.175
3" NPT 88.90 8 3.175
4" NPT 114.30 8 3.175
National Pipe Thread to
ANSI / ASME: 1983
MALE THREAD
FEMALE THREAD
M16
M20
M25
M32
M40
M50
M63
M75
1/2" NPT / BSP
3/4" NPT / BSP
1" NPT / BSP
11/4" NPT / BSP
21/2" NPT / BSP
3" NPT / BSP
4" NPT
11/2" NPT / BSP
2" NPT / BSP
Adaptors Reducers Not Certified
Thread Selection / Dimensions
M16
M20
M25
M32
M40
M50
M63
M75
1/2" NPT
3/4" NPT
1" NPT
11/4" NPT
11/2" NPT
2" NPT
21/2" NPT
3" NPT
4" NPT
1/2" BSP
3/4" BSP
1" BSP
11/4" BSP
11/2" BSP
2" BSP
21/2" BSP
3" BSP
63
EATON’S CROUSE-HINDS BUSINESS
Description
M-F HEX AB
M-F ROUND AJ
M-M AR
F-F HEX AU
F-F ROUND AX
M-F INLINE FA
M-M INLINE FD
F-F INLINE FC
M-F RIGHT ANGLE FP
M-M RIGHT ANGLE FR
F-F RIGHT ANGLE FQ
UNION M-F FB
UNION F-F FL
UNION M-M FE
RIGHT ANGLE M-F FG
RIGHT ANGLE F-F FN
RIGHT ANGLE M-M FK
45º ELBOW FM
M-F HEX BB
M-F ROUND BJ
RX (Externally Accessible) CB
TAMPERPROOF (Internally Accessible) CF
HEX HEAD CK
HEX HEAD (Hollow) CY
DOME HEAD CQ
SLOTTED CS
DRAIN Exe CV
DRAIN Exde CT
INSULATED M-F DB
INSULATED M-M DD
INSULATED F-F DE
EARTH LEAD M-F DG
EARTH PLATE DK
EARTH TAG DM
EARTHING LOCK NUTS DN
GLANDS EB
STOPPER BOX M-F EG
STOPPER BOX F-F EK
FLEXIBLE CONDUIT EF
LOCKNUTS GA
LOCKRINGS GB
SERRATED WASHERS GC
LOCKNUTS CASTELLATED GD
WASHERS HA
O RINGS HB
SHROUDS HC
MALE BUSH LONG JA
MALE BUSH STD 17 JB
MALE BUSH ROUND JQ
FEMALE BUSH JC
NIPPLE THREADED 30mm JD
NIPPLE LONG THREADED JE
NIPPLE BARREL JF
COUPLER ROUND JG
COUPLER HEX JH
COUPLER FLANGE JJ
Approval
ATEX / IECEx / INMETRO Y
Exd / Exe (all approvals)
ATEX Exde A
ATEX Exd D
ATEX Exe E
Mining Group 1 M
CSA ©Exd IIC J
CSA (US) Class 1 Zone 1 K
AExd IIC L
IECEx Exd I/IIC N
IECEx Exe I/II P
IECEx Exde I/II R
Gost Exde IICU T
Gost Exde I/IICU U
Gost Exd IICU V
Gost Exe IICU W
ATEX / IECEx Exde B
ATEX / IECEx Exd C
ATEX / IECEx Exe Q
Industrial X or Blank
THREAD REFERENCES
DIGIT 1 + 2 CODE
ADAPTORS
SWIVEL
ADAPTORS
ADAPTING
AIDS
REDUCERS
PLUGS
INSULATING
& EARTHING
CABLE
RETENTION
LOCKING
ACCESSORIES
INGRESS
PROTECTION
(IP) AIDS
M6 01 1/2” 42 ½" 62 ½" 52
M8 02 3/4” 43 ¾" 63 ¾" 53
M10 03 1” 44 1" 64 1" 54
M12 04 11/4” 45 1¼" 65 1¼" 55
M16 11 11/2” 46 1½" 66 1½" 56
M20 12 2” 47 2" 67 2" 57
M22 07 21/2” 48 2½" 68 2½" 58
M24 08 3” 49 3" 69 3" 59
M25 13 31/2” 86 4" 89 4" 79
M28 09 4” 87 SPECIAL 60 SPECIAL 50
M32 14 5” 88
M38 05 SPECIAL 40
M40 15
M50 16
M63 17
M75 18
M80 80
M90 81
M100 82
SPECIAL 10
MALE DIGIT 4 + 5 FEMALE 6 + 7
ISOMETRIC
SIZE CODE SIZE
NPT BSP P
CODE SIZE CODE
DIGIT 3 CODE
Product Coding Notes
Male thread is always quoted first (digits 4+5)
followed by the Female thread (digits 6+7).
Other threads are available, please consult the sales
department.
Digit 8 (No approval) is blank if digits 9 & 10 are not
required, otherwise use X.
Digit 9 (Not Customer specific) is blank if digit 10 is
not required, otherwise use X.
Digit 10 (Plating) is blank if no plating is required.
Product
Normally Male thread is specified first (digits 4+5), Female thread
second (digits 6+7), with all digits used for M-M and F-F products.
PG & ET thread components are still available, please consult sales
department for advice.
Material
BRASS A
ALUMINIUM B
STEEL C
COPPER & NON-ASB D
STAINLESS STEEL E
PVC F
NYLON BLACK G
NYLON GREY H
SILICONE J
NYLON BLUE K
LEAD L
GLASS FILLED NYLON M
NYLON 66 N
RED FIBRE U
TEFLON P
EPDM Q
NYLON WHITE R
SPECIAL S
DIGIT 9 CODE
Special
None (standard) X or Blank
Customer Special S
‘O’ Ring U
DIGIT 10 CODE
Plating
None Blank
Nickel N
Zinc Z
Chromatised C
Special S
DIGIT 8 CODE
Products shaded are not certified and
do not have any associated approvals
PRODUCT MATERIAL MALE THREAD FEMALE THREAD APPROVAL SPECIAL PLATING PART NUMBER
Adaptor Brass ½" NPT(M) M20(F) Exd None Nickel = ABA4212DXN
AB A 42 12 D X N
PRODUCT CODING
EXAMPLE
PRODUCT CODING
EXAMPLE
Hex Head Plug ST/ST 2" BSPT(M) (F) Gost Exd IICU Yes None = CKE5700VS
CK E 57 00 V S Blank
BSP T
SIZE CODE
Raxton Product Coding
64 EATON’S CROUSE-HINDS BUSINESS
65
EATON’S CROUSE-HINDS BUSINESS
Cable Glands & Thread Conversion
Products for Non-Hazardous Areas
Function:
The IGA2 cable gland provides mechanical retention and a
weatherproof seal on the outer sheath of the cable.
Suitable for the following cable types
Non-armoured cable
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
Technical Specification
Capri IGA2 - for Non Armoured Cable
GLAND
SIZE ISO
ENTRY THREAD
DIA
B C
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGA2M201BRNK2 IGA2M201NPNK2 20 10 8.00 - 11.70 22.00 25.00 1/2" NPT IGA2N0501BRNK2 IGA2N0501NPNK2
20L M20 IGA2M202BRNK2 IGA2M202NPNK2 20 10 11.00 - 14.00 24.00 26.50 1/2" NPT IGA2N0502BRNK2 IGA2N0502NPNK2
25L M25 IGA2M252BRNK2 IGA2M252NPNK2 25 10 13.00 - 20.00 29.50 33.00 3/4" NPT IGA2N0752BRNK2 IGA2N0752NPNK2
32L M32 IGA2M322BRNK2 IGA2M322NPNK2 32 10 19.00 - 26.30 39.00 43.00 1" NPT IGA2N1002BRNK2 IGA2N1002NPNK2
40L M40 IGA2M402BRNK2 IGA2M402NPNK2 40 15 25.00 - 33.00 45.00 51.00 1 1/4" NPT IGA2N1252BRNK2 IGA2N1252NPNK2
50L M50 IGA2M502BRNK2 IGA2M502NPNK2 50 15 36.50 - 44.00 61.50 68.00 1 1/2" NPT IGA2N1502BRNK2 IGA2N1502NPNK2
63L M63 IGA2M632BRNK2 IGA2M632NPNK2 63 15 48.00 - 56.00 71.50 79.00 2" NPT IGA2N2002BRNK2 IGA2N2002NPNK2
75L M75 IGA2M752BRNK2 IGA2M752NPNK2 75 15 60.50 - 68.00 85.50 95.00 2 1/2" NPT IGA2N2502BRNK2 IGA2N2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
DIA.
MIN - MAX
A
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
66 EATON’S CROUSE-HINDS BUSINESS
C
A
B
Technical Specification
Capri IGBW Cable Gland - for Armoured Cable
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGBWM201BRNK2 IGBWM201NPNK2 20 10 11.50 16.00 0.90 - 1.25 21.00 23.40 1/2" NPT IGBWN0501BRNK2 IGBWN0501NPNK2
20L M20 IGBWM202BRNK2 IGBWM202NPNK2 20 10 14.50 20.00 0.90 - 1.25 24.00 27.00 1/2" NPT IGBWN0502BRNK2 IGBWN0502NPNK2
25L M25 IGBWM252BRNK2 IGBWM252NPNK2 25 10 20.50 26.00 1.25 - 1.60 31.50 35.00 3/4" NPT IGBWN0752BRNK2 IGBWN0752NPNK2
32L M32 IGBWM322BRNK2 IGBWM322NPNK2 32 10 26.30 33.00 1.60 - 2.00 40.00 45.00 1" NPT IGBWN1002BRNK2 IGBWN1002NPNK2
40L M40 IGBWM402BRNK2 IGBWM402NPNK2 40 15 33.00 40.50 1.60 - 2.00 49.00 55.00 1 1/4" NPT IGBWN1252BRNK2 IGBWN1252NPNK2
50L M50 IGBWM502BRNK2 IGBWM502NPNK2 50 15 43.50 52.50 2.00 - 2.50 60.50 68.50 1 1/2" NPT IGBWN1502BRNK2 IGBWN1502NPNK2
63L M63 IGBWM632BRNK2 IGBWM632NPNK2 63 15 56.00 66.00 2.50 76.00 86.00 2" NPT IGBWN2002BRNK2 IGBWN2002NPNK2
75L M75 IGBWM752BRNK2 IGBWM752NPNK2 75 15 68.00 78.00 2.50 88.00 98.00 2 1/2" NPT IGBWN2502BRNK2 IGBWN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
Function:
The IGBW cable gland provides mechanical retention and
earth continuity through armour wire termination.
Suitable for the following cable types
Single wire armoured cable (SWA)
Application
Suitable for indoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
67
EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGCW Cable Gland - for Armoured Cable
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGCWM201BRNK2 IGCWM201NPNK2 20 10 11.50 16.00 0.90 - 1.25 22.00 25.00 1/2" NPT IGCWN0501BRNK2 IGCWN0501NPNK2
20L M20 IGCWM202BRNK2 IGCWM202NPNK2 20 10 14.50 20.50 0.90 - 1.25 25.50 28.50 1/2" NPT IGCWN0502BRNK2 IGCWN0502NPNK2
25L M25 IGCWM252BRNK2 IGCWM252NPNK2 25 10 20.50 27.00 1.25 - 1.60 33.50 37.50 3/4" NPT IGCWN0752BRNK2 IGCWN0752NPNK2
32L M32 IGCWM322BRNK2 IGCWM322NPNK2 32 10 26.30 33.00 1.60 - 2.00 40.50 45.50 1" NPT IGCWN1002BRNK2 IGCWN1002NPNK2
40L M40 IGCWM402BRNK2 IGCWM402NPNK2 40 15 33.50 40.50 1.60 - 2.00 49.50 56.00 1 1/4" NPT IGCWN1252BRNK2 IGCWN1252NPNK2
50L M50 IGCWM502BRNK2 IGCWM502NPNK2 50 15 43.50 52.50 2.00 - 2.50 61.00 68.00 1 1/2" NPT IGCWN1502BRNK2 IGCWN1502NPNK2
63L M63 IGCWM632BRNK2 IGCWM632NPNK2 63 15 56.00 66.00 2.50 77.50 86.00 2" NPT IGCWN2002BRNK2 IGCWN2002NPNK2
75L M75 IGCWM752BRNK2 IGCWM752NPNK2 75 15 68.00 78.00 2.50 92.00 102.00 2 1/2" NPT IGCWN2502BRNK2 IGCWN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
Function:
The IGCW cable gland provides mechanical retention, a
weatherproof seal on the outer sheath of the cable and earth
continuity through armour wire termination.
Suitable for the following cable types
Single wire armoured cable (SWA)
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
68 EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGCX Cable Gland - for Armoured Cable
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGCXM201BRNK2 IGCXM201NPNK2 20 10 11.50 16.00 0.15 - 0.35 22.00 25.00 1/2" NPT IGCXN0501BRNK2 IGCXN0501NPNK2
20L M20 IGCXM202BRNK2 IGCXM202NPNK2 20 10 14.50 20.50 0.15 - 0.50 25.50 28.50 1/2" NPT IGCXN0502BRNK2 IGCXN0502NPNK2
25L M25 IGCXM252BRNK2 IGCXM252NPNK2 25 10 20.50 27.00 0.15 - 0.50 33.50 37.50 3/4" NPT IGCXN0752BRNK2 IGCXN0752NPNK2
32L M32 IGCXM322BRNK2 IGCXM322NPNK2 32 10 26.30 33.00 0.15 - 0.55 40.50 45.50 1" NPT IGCXN1002BRNK2 IGCXN1002NPNK2
40L M40 IGCXM402BRNK2 IGCXM402NPNK2 40 15 33.50 40.50 0.20 - 0.60 49.50 56.00 1 1/4" NPT IGCXN1252BRNK2 IGCXN1252NPNK2
50L M50 IGCXM502BRNK2 IGCXM502NPNK2 50 15 43.50 52.50 0.30 - 0.80 61.00 68.00 1 1/2" NPT IGCXN1502BRNK2 IGCXN1502NPNK2
63L M63 IGCXM632BRNK2 IGCXM632NPNK2 63 15 56.00 66.00 0.30 - 0.80 77.50 86.00 2" NPT IGCXN2002BRNK2 IGCXN2002NPNK2
75L M75 IGCXM752BRNK2 IGCXM752NPNK2 75 15 68.00 78.00 0.30 - 1.00 92.00 102.00 2 1/2" NPT IGCXN2502BRNK2 IGCXN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
Function:
The IGCX cable gland provides mechanical retention, a
weatherproof seal on the outer sheath of the cable and earth
continuity through armour wire termination.
Suitable for the following cable types
Wire braid armoured cable (SWB)
Steel tape armoured cable (STA)
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
69
EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGE1W Cable Gland - for Armoured Cable
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGE1WM201BRNK2 IGE1WM201NPNK2 20 10 8.00 - 11.80 12.00 - 16.00 0.90 - 1.25 22.00 25.00 1/2" NPT IGE1WN0501BRNK2 IGE1WN0501NPNK2
20L M20 IGE1WM202BRNK2 IGE1WM202NPNK2 20 10 11.00 - 14.00 15.50 - 20.50 0.90 - 1.25 26.00 29.00 1/2" NPT IGE1WN0502BRNK2 IGE1WN0502NPNK2
25L M25 IGE1WM252BRNK2 IGE1WM252NPNK2 25 10 13.00 - 20.30 24.00 - 27.00 1.25 - 1.60 34.00 38.00 3/4" NPT IGE1WN0752BRNK2 IGE1WN0752NPNK2
32L M32 IGE1WM322BRNK2 IGE1WM322NPNK2 32 10 19.00 - 26.30 26.00 - 33.00 1.60 - 2.00 41.00 46.00 1" NPT IGE1WN1002BRNK2 IGE1WN1002NPNK2
40L M40 IGE1WM402BRNK2 IGE1WM402NPNK2 40 15 25.00 - 33.00 33.00 - 40.50 1.60 - 2.00 49.50 56.00 1 1/4" NPT IGE1WN1252BRNK2 IGE1WN1252NPNK2
50L M50 IGE1WM502BRNK2 IGE1WM502NPNK2 50 15 36.50 - 44.00 45.70 - 52.50 2.00 - 2.50 61.00 68.00 1 1/2" NPT IGE1WN1502BRNK2 IGE1WN1502NPNK2
63L M63 IGE1WM632BRNK2 IGE1WM632NPNK2 63 15 49.00 - 56.00 58.40 - 66.00 2.50 77.50 86.00 2" NPT IGE1WN2002BRNK2 IGE1WN2002NPNK2
75L M75 IGE1WM752BRNK2 IGE1WM752NPNK2 75 15 60.50 - 68.00 71.00 - 78.00 2.50 92.00 102.00 2 1/2" NPT IGE1WN2502BRNK2 IGE1WN2502NPNK2ˆ
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
Function:
The IGE1W cable gland provides mechanical retention, a
weatherproof seal on the inner and outer sheath of the cable
and earth continuity through armour wire termination.
Suitable for the following cable types
Single wire armoured cable (SWA)
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
70 EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGE1X Cable Gland - for Armoured Cable
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGE1XM201BRNK2 IGE1XM201NPNK2 20 10 8.00 - 11.80 12.00 - 16.00 0.15 - 0.35 22.00 25.00 1/2" NPT IGE1XN0501BRNK2 IGE1XN0501NPNK2
20L M20 IGE1XM202BRNK2 IGE1XM202NPNK2 20 10 11.00 - 14.00 15.50 - 20.50 0.15 - 0.50 26.00 29.00 1/2" NPT IGE1XN0502BRNK2 IGE1XN0502NPNK2
25L M25 IGE1XM252BRNK2 IGE1XM252NPNK2 25 10 13.00 - 20.30 24.00 - 27.00 0.15 - 0.50 34.00 38.00 3/4" NPT IGE1XN0752BRNK2 IGE1XN0752NPNK2
32L M32 IGE1XM322BRNK2 IGE1XM322NPNK2 32 10 19.00 - 26.30 26.00 - 33.00 0.15 - 0.55 41.00 46.00 1" NPT IGE1XN1002BRNK2 IGE1XN1002NPNK2
40L M40 IGE1XM402BRNK2 IGE1XM402NPNK2 40 15 25.00 - 33.00 33.00 - 40.50 0.20 - 0.60 49.50 56.00 1 1/4" NPT IGE1XN1252BRNK2 IGE1XN1252NPNK2
50L M50 IGE1XM502BRNK2 IGE1XM502NPNK2 50 15 36.50 - 44.00 45.70 - 52.50 0.30 - 0.80 61.00 68.00 1 1/2" NPT IGE1XN1502BRNK2 IGE1XN1502NPNK2
63L M63 IGE1XM632BRNK2 IGE1XM632NPNK2 63 15 49.00 - 56.00 58.40 - 66.00 0.30 - 0.80 77.50 86.00 2" NPT IGE1XN2002BRNK2 IGE1XN2002NPNK2
75L M75 IGE1XM752BRNK2 IGE1XM752NPNK2 75 15 60.50 - 68.00 71.00 - 78.00 0.30 - 1.00 92.00 102.00 2 1/2" NPT IGE1XN2502BRNK2 IGE1XN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
Function:
The IGE1X cable gland provides mechanical retention, a
weatherproof seal on the inner and outer sheath of the cable
and earth continuity through armour wire termination.
Suitable for the following cable types
Wire braid armoured cable (SWB)
Steel tape armoured cable (STA)
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Standard:
B.S. 6121 Part 1: 1989
Ingress Protection:
IP66
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
71
EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGE2W Cable Gland - for Armoured Cable
Function:
The IGE2W cable gland provides mechanical retention, a
weatherproof seal on the inner and outer sheath of the cable
and earth continuity through armour wire termination.
Suitable for the following cable types
Single wire armoured cable (SWA)
Lead sheathed cable
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
-60°C to +150°C
Ingress Protection:
IP66
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGE2WM201BRNK2 IGE2WM201NPNK2 20 10 8.00 - 11.80 12.00 - 16.00 0.90 - 1.25 22.00 25.00 1/2" NPT IGE2WN0501BRNK2 IGE2WN0501NPNK2
20L M20 IGE2WM202BRNK2 IGE2WM202NPNK2 20 10 11.00 - 14.00 15.50 - 20.50 0.90 - 1.25 26.00 29.00 1/2" NPT IGE2WN0502BRNK2 IGE2WN0502NPNK2
25L M25 IGE2WM252BRNK2 IGE2WM252NPNK2 25 10 13.00 - 20.30 24.00 - 27.00 1.25 - 1.60 34.00 38.00 3/4" NPT IGE2WN0752BRNK2 IGE2WN0752NPNK2
32L M32 IGE2WM322BRNK2 IGE2WM322NPNK2 32 10 19.00 - 26.30 26.00 - 33.00 1.60 - 2.00 41.00 46.00 1" NPT IGE2WN1002BRNK2 IGE2WN1002NPNK2
40L M40 IGE2WM402BRNK2 IGE2WM402NPNK2 40 15 25.00 - 33.00 33.00 - 40.50 1.60 - 2.00 49.50 56.00 1 1/4" NPT IGE2WN1252BRNK2 IGE2WN1252NPNK2
50L M50 IGE2WM502BRNK2 IGE2WM502NPNK2 50 15 36.50 - 44.00 45.70 - 52.50 2.00 - 2.50 61.00 68.00 1 1/2" NPT IGE2WN1502BRNK2 IGE2WN1502NPNK2
63L M63 IGE2WM632BRNK2 IGE2WM632NPNK2 63 15 49.00 - 56.00 58.40 - 66.00 2.50 77.50 86.00 2" NPT IGE2WN2002BRNK2 IGE2WN2002NPNK2
75L M75 IGE2WM752BRNK2 IGE2WM752NPNK2 75 15 60.50 - 68.00 71.00 - 78.00 2.50 92.00 102.00 2 1/2" NPT IGE2WN2502BRNK2 IGE2WN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands
72 EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
Technical Specification
Capri IGE2X Cable Gland - for Armoured Cable
Function:
The IGE2X cable gland provides mechanical retention, a
weatherproof seal on the inner and outer sheath of the cable
and earth continuity through armour wire termination.
Suitable for the following cable types
Wire braid armoured cable (SWB)
Steel tape armoured cable (STA)
Lead sheathed cable
Application
Suitable for indoor and outdoor applications
Product Specification
Material:
Brass, Nickel plated brass
Operating Temperature:
Neoprene seal: -30°C to +80°C
Silicone seal: -60°C to +140°C
Ingress Protection:
IP66
GLAND
SIZE ISO
ENTRY THREAD
DIA
C E
MIN LENGTH
NPT
Reference No.
Nickel Plated
Brass
(in Gland Kit)
SELECTION TABLE
20S M20 IGE2XM201BRNK2 IGE2XM201NPNK2 20 10 8.00 - 11.80 12.00 - 16.00 0.15 - 0.35 22.00 25.00 1/2" NPT IGE2XN0501BRNK2 IGE2XN0501NPNK2
20L M20 IGE2XM202BRNK2 IGE2XM202NPNK2 20 10 11.00 - 14.00 15.50 - 20.50 0.15 - 0.50 26.00 29.00 1/2" NPT IGE2XN0502BRNK2 IGE2XN0502NPNK2
25L M25 IGE2XM252BRNK2 IGE2XM252NPNK2 25 10 13.00 - 20.30 24.00 - 27.00 0.15 - 0.50 34.00 38.00 3/4" NPT IGE2XN0752BRNK2 IGE2XN0752NPNK2
32L M32 IGE2XM322BRNK2 IGE2XM322NPNK2 32 10 19.00 - 26.30 26.00 - 33.00 0.15 - 0.55 41.00 46.00 1" NPT IGE2XN1002BRNK2 IGE2XN1002NPNK2
40L M40 IGE2XM402BRNK2 IGE2XM402NPNK2 40 15 25.00 - 33.00 33.00 - 40.50 0.20 - 0.60 49.50 56.00 1 1/4" NPT IGE2XN1252BRNK2 IGE2XN1252NPNK2
50L M50 IGE2XM502BRNK2 IGE2XM502NPNK2 50 15 36.50 - 44.00 45.70 - 52.50 0.30 - 0.80 61.00 68.00 1 1/2" NPT IGE2XN1502BRNK2 IGE2XN1502NPNK2
63L M63 IGE2XM632BRNK2 IGE2XM632NPNK2 63 15 49.00 - 56.00 58.40 - 66.00 0.30 - 0.80 77.50 86.00 2" NPT IGE2XN2002BRNK2 IGE2XN2002NPNK2
75L M75 IGE2XM752BRNK2 IGE2XM752NPNK2 75 15 60.50 - 68.00 71.00 - 78.00 0.30 - 1.00 92.00 102.00 2 1/2" NPT IGE2XN2502BRNK2 IGE2XN2502NPNK2
To order gland only, remove suffix "K2" from end of reference number.
Other sizes available on request.
NPT
Reference No.
Natural Brass
(in Gland Kit)
CABLE DIMENSION ACCOMMODATION
DIA. MAX
A B
DIA. MAX ARMOUR
THICKNESS
ACROSS
FLAT
ACROSS
CORNER NPT
ISO
Reference No.
Nickel Plated
Brass
(in Gland Kit)
ISO
Reference No.
Natural Brass
(in Gland Kit)
The gland kit comprises of:
• Gland
• Shroud
• Earth Tag
• Locknut
M20, M25 & M32 sizes
supplied in kits of two glands.
73
EATON’S CROUSE-HINDS BUSINESS
A
C
E
B
THREAD
SIZE
Pg
A*
B*
LE**
Technical Specification
Capri NEWCAP - MS
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page 105.
Suitable for the following cable types
Non-armoured cable
Certifications and Compliances
EN 50262
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance
316 stainless steel option available.
It is recommended that a suitable lubricant is used on all
threads of stainless steel and aluminium versions.
Operating Temperature:
Neoprene seal: -20°C to +80°C
Ingress Protection (IP):
IP66/IP68 tested 30m/7days on surface Ra 1.6µm max.
THREAD
SIZE
DIMENSIONS
BRAID
THICKNESS A B L
(LENGTH)
CAP NUMBER
ISO
(nickel plated
brass)
CAP NUMBER
ISO
(316 stainless
steel long fixing
thread)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
ISO
CAP NUMBER
Pg
(nickel plated
brass)
CAP NUMBER
Pg
(316 stainless
steel long fixing
thread)
CAP
GLAND
SIZE
12 Pg7 0.7 3.0 - 6.5 15 15 18 4 CAP187124 CAP187129 CAP186074 CAP186079
16 - 0.7 3.0 - 6.5 15 18 18 4 CAP187544 CAP187549 - -
16 Pg9 0.7 4.5 - 10.0 20 20 24 5 CAP187164 CAP187169 CAP186094 CAP186099
20 - 0.7 4.5 - 10.0 20 22 24 5 CAP187554 CAP187559 - -
20 Pg11 0.8 6.0 - 13.0 24 24 27 6 CAP187204 CAP187209 CAP186114 CAP186119
- Pg13 0.80 6.0 - 13.0 24 24 27 6 CAP186134 CAP186139 - -
25 - 0.8 6.0 - 13.0 24 27 27 6 CAP187564 CAP187569 - -
25 Pg16 0.9 10.0 - 18.0 30 30 28 7 CAP187254 CAP187259 CAP186174 CAP186179
32 Pg21 0.9 10.0 - 18.0 30 34 28 7 CAP187574 CAP187579 CAP186194 CAP186199
32 Pg21 1.0 16.0 - 24.5 38 38 30 8 CAP187324 CAP187329 CAP186184 CAP186189
- Pg29 1.0 16.0 - 24.5 38 38 30 8 CAP186284 CAP186289 - -
40 - 1.0 16.0 - 24.5 38 43 30 8 CAP187584 CAP187589 - -
40 Pg29 1.0 22.0 - 32.0 47 47 33 9 CAP187404 CAP187409 CAP186294 CAP186299
50 - 1.0 22.0 - 32.0 47 54 33 9 CAP187594 CAP187599 - -
50 Pg36 1.2 29.0 - 40.5 57 57 37 10 CAP187504 CAP187509 CAP186364 CAP186369
63 - 1.2 29.0 - 40.5 57 68 37 10 CAP187604 CAP187609 - -
63 Pg48 DIN 1.8 37.0 - 53.0 75 75 48 11 CAP187634 CAP187639 CAP186484 CAP186489
- No48 NFC 1.8 37.0 - 53.0 75 75 48 11 CAP186494 CAP186499 - -
All dimensions in mm.
74 EATON’S CROUSE-HINDS BUSINESS
Capri NEWCAP - MS multi-wired / flat
Technical Specification
* For ‘across corners’ dimensions, multiply ‘across
flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page 105
THREAD
SIZE
DIMENSIONS
AL
(LENGTH)
CAP
NUMBER
NUMBER
OF CABLES
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
CAP GLAND
SIZE
ISO
THREAD
SIZE
DIMENSIONS
AL
(LENGTH)
CAP
NUMBER
CABLE
THICKNESS
MIN - MAX
CABLE
WIDTH
MIN - MAX
SELECTION TABLE
CAP GLAND
SIZE
ISO
NEWCAP - MS Multi-Wired
NEWCAP - MS Flat
Suitable for the following cable types
Non-armoured cable
Multi-wire cable
Flat cable
Certifications and Compliances
EN 50262
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance
Operating Temperature:
Neoprene seal: -20°C to +80°C
Ingress Protection (IP):
IP66/IP68 tested 30m/7days on surface Ra 1.6µm max
25 11.0 - 13.0 4.5 - 6.0 30 28 7 CAP187134
32 11.0 - 18.0 5.0 - 7.0 38 30 8 CAP187184
40 21.0 - 24.0 5.0 - 8.5 47 33 9 CAP187244
40 24.0 - 27.0 8.0 - 11.5 47 33 9 CAP187274
50 30.0 - 32.5 5.0 - 9.0 57 37 10 CAP187304
50 29.0 - 31.0 10.0 - 14.0 57 37 10 CAP187314
50 32.5 - 35.5 9.0 - 12.0 57 37 10 CAP187354
50 34.0 - 37.0 4.5 - 6.5 57 37 10 CAP187374
50 38.0 - 40.0 10.0 - 14.0 57 48 10 CAP187414
63 38.0 - 42.0 4.5 - 6.5 75 48 11 CAP187444
All dimensions in mm.
16 1.5 - 3.0 2 20 24 5 CAP187334
16 2.5 - 4.0 2 20 24 5 CAP187424
20 3.0 - 5.0 2 20 27 6 CAP187524
20 2.5 - 5.0 3 24 27 6 CAP187534
20 4.0 - 6.0 2 24 28 6 CAP187624
25 5.0 - 7.0 3 30 28 7 CAP187734
25 6.0 - 8.0 2 30 28 7 CAP187824
32 4.0 - 6.0 4 38 30 8 CAP187814
32 4.5 - 7.0 4 38 30 8 CAP187744
40 4.0 - 6.0 4 47 33 9 CAP187764
All dimensions in mm.
A*
A*
L
E**
A*
A*
L
E**
75
EATON’S CROUSE-HINDS BUSINESS
A*
B*
LE**
Technical Specification
Capri NEWCAP - CT
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page 105
Suitable for the following cable types
Non-armoured cable
Shielded cable
For EMC specific cable and applications
Certifications and Compliances
EN 50262
Product Specification
Material:
Nickel-plated brass for superior corrosion resistance
Operating Temperature:
Neoprene seal: -20°C to +80°C
Ingress Protection (IP):
IP66/IP68 tested 30m/7days on surface Ra 1.6µm max
.
THREAD
SIZE
Pg
THREAD
SIZE
DIMENSIONS
BRAID
THICKNESS
DIAMETER
ON SHIELD A B L
(LENGTH)
CAP NUMBER
ISO
(nickel plated
brass)
CAP NUMBER
Pg
(nickel plated
brass)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
ISO
CAP
GLAND
SIZE
12 Pg7 0.7 3.0 3.0 - 6.5 15 15 18 4 CAP189124 CAP169074
16 - 0.7 3.0 3.0 - 6.5 15 18 18 4 CAP189544 -
16 Pg9 0.7 4.5 4.5 - 10.0 20 20 24 5 CAP189164 CAP169094
20 - 0.7 4.5 4.5 - 10.0 20 22 24 5 CAP189554 -
20 Pg11 0.8 6.0 6.0 - 13.0 24 24 27 6 CAP189204 CAP169114
- Pg13 0.8 6.0 6.0 - 13.0 24 24 27 6 CAP169134 -
25 - 0.8 6.0 6.0 - 13.0 24 27 27 6 CAP189564 -
25 Pg16 0.9 10.0 10.0 - 18.0 30 30 28 7 CAP189254 CAP169164
32 Pg21 0.9 10.0 10.0 - 18.0 30 34 28 7 CAP189574 CAP169194
32 Pg21 1.0 15.0 16.0 - 24.5 38 38 30 8 CAP189324 CAP169214
- Pg29 1.0 15.0 16.0 - 24.5 38 38 30 8 CAP169284 -
40 - 1.0 15.0 16.0 - 24.5 38 43 30 8 CAP189584 -
40 Pg29 1.0 20.5 22.0 - 32.0 47 47 33 9 CAP189404 CAP169294
50 - 1.0 20.5 22.0 - 32.0 47 54 33 9 CAP189594 -
50 Pg36 1.2 27.5 29.0 - 40.5 57 57 37 10 CAP189504 CAP169364
63 - 1.2 27.5 29.0 - 40.5 57 68 37 10 CAP189604 -
63 Pg48 DIN 1.8 34.5 37.0 - 53.0 75 75 48 11 CAP189634 CAP169484
- No48 NFC 1.8 34.5 37.0 - 53.0 75 75 48 11 CAP169494 -
All dimensions in mm.
76 EATON’S CROUSE-HINDS BUSINESS
Suitable for the following cable types
Steel wire armoured cable (SWA)
Steel wire braided cable (SWB)
Steel tape armoured cable (STA)
Features
• Standard nickel-plated brass material for superior corrosion
resistance
• Armour clamping and bonding with no reversible
components for easy installation, minimizing error
• Provides the sealing on the inner and outer sheath of the
armoured cables
• Continuous use temperature: from -20°C to +100°C
• Available with metric or NPT threads
Technical Specification
Capri - ADE 4i
SERIES
DIMENSIONS
ISO NPT
THREAD
SIZE A B L
(LENGTH)
THREAD
SIZE
INNER SHEATH
MIN - MAX
CABLE SEALING RANGE ISO/(NPT)
OUTER SHEATH
MIN - MAX
CAP
NUMBER
ISO
CAP
GLAND
SIZE
CAP
NUMBER
NPT
MAX ARMOUR
THICKNESS
SELECTION TABLE
ADE4i 12 1/4" 4.0 - 8.0 6.0 - 12.0 0.2 - 0.9 19 19 36 5 CAP946404 CAP948404
ADE4i 16 3/8" 4.0 - 8.5 6.0 - 12.0 0.2 - 0.9 19 19 36 5 CAP946594 CAP948594
ADE4i 16 3/8" 6.0 - 12.0 8.5 - 16.0 0.2 - 1.3 24 24 42 6 CAP946504 CAP948504
ADE4i 20 1/2" 4.0 - 8.5 6.0 - 12.0 0.2 - 0.9 19 24 36 5 CAP946674 CAP948674
ADE4i 20 1/2" 6.0 - 12.0 8.5 - 16.0 0.2 - 1.3 24 24 42 6 CAP946694 CAP948694
ADE4i 20 1/2" 8.5 - 16.0 12.0 - 21.0 0.2 - 1.3 30 30 46 7 CAP946604 CAP948604
ADE4i 25 3/4" 6.0 - 12.0 8.5 - 16.0 0.2 - 1.3 19 30 42 6 CAP946774 CAP948774
ADE4i 25 3/4" 8.5 - 16.0 12.0 - 21.0 0.2 - 1.3 24 30 46 7 CAP946794 CAP948794
ADE4i 25 3/4" 12.0 - 20.5 16.0 - 27.5 0.2 - 1.6 30 41 56 8 CAP946704 CAP948704
ADE4i 32 1" 12.0 - 21.0 16.0 - 27.5 0.2 - 1.6 41 41 56 8 CAP946894 CAP948894
ADE4i 32 1" 16.0 - 27.5 21.0 - 34.0 0.2 - 1.6 41 48 63 9 CAP946804 CAP948804
ADE4i 40 1 1/4" 16.0 - 27.5 21.0 - 34.0 0.2 - 1.6 48 48 63 9 CAP946994 CAP948994
ADE4i 40 1 1/4" 21.0 - 34.0 27.0 - 41.0 0.2 - 2.0 48 55 68 10 CAP946904 CAP948904
ADE4i 50 1 1/2" 21.0 - 34.0 27.0 - 41.0 0.2 - 2.0 55 55 68 10 CAP947094 CAP949904
ADE4i 50 1 1/2" 27.0 - 41.0 33.0 - 48.0 0.2 - 2.5 55 64 74 11 CAP947004 CAP949004
ADE4i 63 2" 27.0 - 41.0 33.0 - 48.0 0.2 - 2.5 64 72 77 12 CAP947294 CAP949294
ADE4i 63 2" 33.0 - 48.0 40.0 - 56.0 0.2 - 2.5 72 85 85 13 CAP947204 CAP949204
ADE4i 75 2 1/2" 40.0 - 56.0 47.0 - 65.0 0.2 - 2.5 85 85 85 13 CAP947394 CAP949949
ADE4i 75 2 1/2" 47.0 - 65.0 54.0 - 74.0 0.2 - 2.5 85 95 92 14 CAP947304 CAP949404
ADE4i 90 3" 54.0 - 74.0 63.0 - 83.0 0.2 - 3.2 95 110 104 15 CAP947594 CAP949564
ADE4i 90 3" 63.0 - 82.0 72.0 - 93.0 0.2 - 3.2 110 120 108 16 CAP947504 CAP949504
ADE4i - 3 1/2" 63.0 - 82.0 72.0 - 93.0 0.2 - 3.2 120 120 108 16 - CAP949604
ADE4i 110 4" 72.0 - 92.0 85.0 - 107.0 0.2 - 3.2 135 135 115 17 CAP947794 CAP949704
All dimensions in mm.
A*
B*
LE**
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
** For ‘E’ see Thread Dimension page 105
77
EATON’S CROUSE-HINDS BUSINESS
L
(LENGTH)
Suitable for the following cable types
Non-armoured round cable
Features
•Material: Nylon 6/6 – UL 94 V0 – Halogen free
•Colour: Grey RAL 7035 or Black RAL9005
•Neoprene sealing ring
•Max operating temperature: +150°C
•Continuous operating temperature: -40°C to +100°C
•IP68 : 5 bars without sealing washer except Pg36/42/48
and ISO40/50/63 according to NF EN 60529
•Entry thread metric: ISO-NF EN 60423 and NF EN 50262
•Entry thread electrical guide: UTE C 68-311 – DIN 40430
Technical Specification
Capri Eurocap
SERIES
DIMENSIONS
ISO
THREAD
SIZE A
E
(THREAD
LENGTH)
CAP NUMBER
GREY COLOUR
CAP NUMBER
BLACK COLOUR
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
EUROCAP 12 3.5 - 6.5 15 21 8 CAP401270 CAP401260 CAP221249 CAP261273 CAP261203
EUROCAP 16 4.0 - 8.0 19 25 8 CAP401670 CAP401660 CAP221649 CAP261673 CAP261603
EUROCAP 20 6.0 - 12.0 24 33 9 CAP402070 CAP402060 CAP222049 CAP262073 CAP262003
EUROCAP 25 12.0 - 18.0 32 36 11 CAP402570 CAP402560 CAP222549 CAP262573 CAP262503
EUROCAP 32 17.0 - 25.0 42 40 11 CAP403270 CAP403260 CAP223249 CAP263273 CAP263203
EUROCAP 40* 20.0 - 32.0 53 36 11 CAP404070 CAP404060 CAP224049* CAP264073 CAP264003
EUROCAP 50* 26.0 - 38.0 60 36 11 CAP405070 CAP405060 CAP225049* CAP265073 CAP265003
EUROCAP 63* 30.0 - 44.0 68 36 11 CAP406370 CAP406360 CAP226349* CAP266373 CAP266303
* Delivered with sealing washer. All dimensions in mm.
CAP NUMBER
SEALING WASHER LOCKNUT
CAP NUMBER
GREY COLOUR
CAP NUMBER
GREY COLOUR
GLAND
CAP NUMBER
GREY COLOUR
CAP NUMBER
BLACK COLOUR
EUROCAP Pg7 3.5 - 6.5 15 21 8 CAP410770 CAP410760 CAP240749 CAP260770 CAP260760
EUROCAP Pg9 4.0 - 8.0 19 25 8 CAP410970 CAP410960 CAP240949 CAP260970 CAP260960
EUROCAP Pg11 5.0 - 10.0 22 29 8 CAP411170 CAP411160 CAP241149 CAP261170 CAP261160
EUROCAP Pg13 6.0 - 12.0 24 33 9 CAP411370 CAP411360 CAP241349 CAP261370 CAP261360
EUROCAP Pg16 9.0 - 14.0 27 34 10 CAP411670 CAP411660 CAP241649 CAP261670 CAP261660
EUROCAP Pg21 12.0 - 18.0 33 36 11 CAP412170 CAP412160 CAP242149 CAP262170 CAP262160
EUROCAP Pg29* 17.0 - 25.0 42 40 11 CAP412970 CAP412960 CAP242949* CAP262970 CAP262960
EUROCAP Pg36* 20.0 - 32.0 53 51 13 CAP413670 CAP413660 CAP243649* CAP263670 CAP263660
EUROCAP Pg42* 26.0 - 38.0 60 50 13 CAP414270 CAP414260 CAP244249* CAP264270 CAP264260
EUROCAP Pg48 DIN* 30.0 - 44.0 65 53 14 CAP414870 CAP414860 CAP244849* CAP264878 CAP264879
* Delivered with sealing washer. All dimensions in mm.
CAP NUMBER
SEALING WASHER LOCKNUT
CAP NUMBER
GREY COLOUR
CAP NUMBER
GREY COLOUR
GLAND
L
(LENGTH)
SERIES
DIMENSIONS
ISO
THREAD
SIZE A
E
(THREAD
LENGTH)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
78 EATON’S CROUSE-HINDS BUSINESS
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
79
EATON’S CROUSE-HINDS BUSINESS
L
(LENGTH)
E
(THREAD
LENGTH)
CAP NUMBER
GLAND
CAP NUMBER
SEALING WASHER LOCKNUT
SEALING
RING
COLOUR
L
(LENGTH)
Suitable for the following cable types
Non-armoured round cable
Features
•Material: Nylon
•Colour: Grey RAL 7035
•Operculated PVC coloured plasticized sealing ring
•Continuous operating temperature: -5°C to +70°C
•PVC hardening temperature: -20°C
•IP68: 5 bars without sealing washer provided if the bearing
area is satisfactory
•Entry thread metric: ISO-NF EN 60423 and NF EN 50262
•Entry thread electrical guide: UTE C 68-311 – DIN 40430
Technical Specification
Capri ECP
SERIES
ISO
THREAD
SIZE A
E
(THREAD
LENGTH)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
CAP NUMBER
GLAND
CAP NUMBER
SEALING WASHER
CAP NUMBER
LOCKNUT
SEALING
RING
COLOUR
DIMENSIONS
SERIES
PG
THREAD
SIZE A
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE DIMENSIONS
CAP NUMBER
ECP Pg7 3.0 - 6.0 15 18 9 CAP430070 CAP240749 CAP260770
ECP Pg9 4.0 - 8.0 19 22 9 CAP430090 CAP240949 CAP260970
ECP Pg11 5.0 - 10.0 22 22 9 CAP430110 CAP241149 CAP261170
ECP Pg13 7.5 - 13.0 24 23 10 CAP430130 CAP241349 CAP261370
ECP Pg16 9.5 - 15.0 28 23 10 CAP430160 CAP241649 CAP261670
ECP Pg21 13.0 - 19.0 32 29 11 CAP430210 CAP242149 CAP262170
ECP Pg29* 15.0 - 25.0 41 29 12 CAP430290 CAP242949 CAP262970
ECP Pg36* 21.0 - 32.0 52 35 14 CAP430360 CAP243649 CAP263670
ECP Pg42* 26.0 - 38.0 59 40 16 CAP430420 CAP244249 CAP264270
ECP No 48 NFC 31.0 - 44.0 65 42 18 CAP430480 CAP244849 CAP264878
ECP Pg48 DIN* 31.0 - 44.0 65 42 18 CAP437480 CAP244849 CAP264878
All dimensions in mm.
ECP 12 3.0 - 6.0 15 18 8 CAP439120 CAP221249 CAP261273
ECP 16 4.0 - 8.0 19 22 8 CAP439160 CAP221649 CAP261673
ECP 16 Bis 5.0 - 10.0 22 22 8 CAP439170 CAP221649 CAP261673
ECP 20 7.5 - 13.0 24 23 9 CAP439200 CAP222049 CAP262073
ECP 20 Bis 9.5 - 15.0 26 23 9 CAP439210 CAP222049 CAP262073
ECP 25 13.0 - 19.0 32 29 11 CAP439250 CAP222549 CAP262573
ECP 32 15.0 - 25.0 41 29 11 CAP439320 CAP223249 CAP263273
ECP 40 21.0 - 32.0 52 35 13 CAP439400 CAP224049 CAP264073
ECP 50 26.0 - 38.0 59 40 13 CAP439500 CAP225049 CAP265073
ECP 63 31.0 - 44.0 65 42 14 CAP439630 CAP226349 CAP266373
All dimensions in mm.
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
A*
L
E**
A*
80
Capri UNICAP
A* A*
L
E
* For ‘across corners’ dimensions, multiply ‘across flats’ dimensions by 1.1
Suitable for the following cable types
Non-armoured cable
Certifications and Compliances
EN 50262
Product Specification
Material: Nylon
Colour: Grey RAL 7035
Operculated thermoplastic sealing ring
Operating Temperature:
Maximum temperature: +150°C
Continuous operating temperature: -40°C to +100°C
Ingress Protection (IP):
IP68: 5 bars without sealing washer provided if the bearing
area is satisfactory
Entry thread metric: ISO-NF EN 60423 and NF EN 50262
Entry thread Pg: UTE C 68-311 - DIN 40430
THREAD
SIZE
Pg
THREAD
SIZE
DIMENSIONS
AE
ISO / PG
L
ISO / PG
CAP NUMBER
ISO
CAP NUMBER
Pg
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
ISO
M12 PG7 3.0 - 6.5 15 14 8 CAP451202 CAP450702
- PG9 4.0 - 8.0 19 28 8 - CAP450902
M16 PG11 5.0 - 10.0 22 28 / 29 10/ 8 CAP451602 CAP451102
M20 PG13 6.0 - 12.0 24 29 10/9 CAP452002 CAP451302
- PG16 10.0 - 14.0 27 33 9 - CAP451602
M25 PG21 12.0 - 18.0 33 38 10/11 CAP452502 CAP452102
M32 PG29 18.0 - 25.0 42 41 10/11 CAP453202 CAP452902
M40 PG36 22.0 - 32.0 53 52 10/13 CAP454002 CAP453602
M50 PG42 30.0 - 38.0 60 54 18/13 CAP455002 CAP454202
M63 PG48 DIN 34.0 - 44.0 65 55 18/14 CAP456302 CAP454802
All dimensions in mm.
THREAD
SIZE
Pg
THREAD
SIZE
DIMENSIONS
AE
ISO / PG
L
ISO / PG
CAP NUMBER
ISO
(fitted with
mounting nut)
CAP NUMBER
Pg
(fitted with
mounting nut)
CABLE
DIAMETER
MIN - MAX
SELECTION TABLE
ISO
CAP NUMBER
ISO
(with mounting
nut - not fitted)
CAP NUMBER
Pg
(with mounting
nut - not fitted)
M12 PG7 3.0 - 6.5 15 14 8 CAP451212 CAP450712 CAP451272 CAP450772
- PG9 4.0 - 8.0 19 28 8 - CAP450912 - CAP450972
M16 PG11 5.0 - 10.0 22 28 / 29 10/ 8 CAP451612 CAP451112 CAP451672 CAP451172
M20 PG13 6.0 - 12.0 24 29 10/9 CAP452012 CAP451312 CAP452072 CAP451372
- PG16 10.0 - 14.0 27 33 9 - CAP451612 - CAP451672
M25 PG21 12.0 - 18.0 33 38 10/11 CAP452512 CAP452112 CAP452572 CAP452172
M32 PG29 18.0 - 25.0 42 41 10/11 CAP453212 CAP452912 CAP453272 CAP452972
M40 PG36 22.0 - 32.0 53 52 10/13 CAP454012 CAP453612 CAP454072 CAP453672
M50 PG42 30.0 - 38.0 60 54 18/13 CAP455012 CAP454212 CAP455072 CAP454272
M63 PG48 DIN 34.0 - 44.0 65 55 18/14 CAP456312 CAP454812 CAP456372 CAP454872
All dimensions in mm.
Technical Specification
EATON’S CROUSE-HINDS BUSINESS
81
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
CGD - for Non Armoured Cable
Suitable for the following cable types
Non-armoured cable
Tray cable
Certifications and Compliances
cULus Listed: UL File E23223
Product Specification
Material:
45° angle with male thread
Standard body material is Feraloy® iron alloy
Standard gland nut material is steel
Weatherproof seal on outer sheath of cable
Standard neoprene seal suitable for use in operating
temperatures -25° to +40°C
Available with NPT threads
Operating Temperature:
-25°C to +4 0°C
1/2" 0.12 - 0.25 1.19 1.69 0.63 CGD192
1/2" 0.25 - 0.37 1.19 1.69 0.63 CGD193
1/2" 0.37 - 0.50 1.19 1.69 0.63 CGD194
1/2" 0.50 - 0.62 1.19 1.69 0.63 CGD195
1/2" 0.62 - 0.75 1.63 2.06 0.63 CGD196
1/2" 0.75 - 0.87 1.63 2.06 0.63 CGD197
3/4" 0.12 - 0.25 1.14 1.94 0.63 CGD292
3/4" 0.25 - 0.37 1.14 1.94 0.63 CGD293
3/4" 0.37 - 0.50 1.13 1.94 0.63 CGD294
3/4" 0.50 - 0.62 1.13 1.94 0.63 CGD295
3/4" 0.62 - 0.75 1.63 2.00 0.63 CGD296
3/4" 0.75 - 0.87 1.63 2.00 0.63 CGD297
All dimensions in inches unless otherwise stated
EXTERNAL
DIAMETER ‘G’
THREAD
SIZE
DIMENSIONS
OUTER SHEATH
‘E’
MIN - MAX
GLAND
LENGTH
‘F’
LESS ENTRY
THREAD
LENGTH
‘B’
SELECTION TABLE
NPT
NPT
CATALOGUE
NUMBER
G
E
F
B
Technical Specification
Suitable for the following cable types
Non-armoured cable
Tray cable
Certifications and Compliances
cULus Listed – UL File E23223
Product Specification
Material:
Form A - D bodies and gland nuts – steel with zinc
electroplate and chromate finish coat
Form E - F bodies and gland nuts – Feraloy® iron alloy with
electrogalvanized and aluminium acrylic paint
Weatherproof seal on outer sheath of cable
Available with NPT threads
• Available in all aluminium construction
Operating Temperature:
-25°C to +40°C
Standard neoprene seal
GEA
F B
82
CGB - for Non Armoured Cable
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
DIMENSIONS
NPT
ACROSS
CORNERS
‘G’
GLAND
LENGTH
‘F’
LESS ENTRY
THREAD
LENGTH
‘B’
NPT
THREAD
SIZE
AFORM EXTERNAL
DIAMETER ‘G’
OUTER SHEATH ‘E’
MIN - MAX
NPT
CATALOGUE
NUMBER
ACROSS
FLATS
SELECTION TABLE
CGB - for Non Armoured Cable
All dimensions in inches unless otherwise stated
† With optional Aluminium construction
* With optional sealing gasket
83
3/8" A 0.12 - 0.25 - 0.75 0.88 1.06 0.44 CGB3814
3/8" A 0.25 - 0.37 - 0.75 0.88 1.06 0.44 CGB3816
3/8" A 0.37 - 0.44 - 0.75 0.88 1.06 0.44 CGB3817
3/8" B 0.12 - 0.25 - 1.00 1.19 1.31 0.44 CGB3892
3/8" B 0.25 - 0.37 - 1.00 1.19 1.31 0.44 CGB3893
3/8" B 0.37 - 0.50 - 1.00 1.19 1.31 0.44 CGB3894
1/2" A 0.12 - 0.25 - 0.88 1.19 1.00 0.62† CGB114†
1/2" A 0.25 - 0.37 - 0.88 1.19 1.00 0.62† CGB116†
1/2" A 0.37 - 0.44 - 0.88 1.19 1.00 0.62† CGB117†
1/2" B 0.12 - 0.25 - 1.00 1.19 1.31 0.75*† CGB192*†
1/2" B 0.25 - 0.37 - 1.00 1.19 1.31 0.75*† CGB193*†
1/2" B 0.37 - 0.50 - 1.00 1.19 1.31 0.75*† CGB194*†
1/2" B 0.50 - 0.62 - 1.00 1.19 1.31 0.75*† CGB195*†
1/2" C 0.62 - 0.75 - 1.50 1.66 1.75 0.62* CGB196*
1/2" C 0.75 - 0.87 - 1.50 1.66 1.75 0.62*† CGB197*†
3/4" B 0.12 - 0.25 - 1.06 1.25 1.38 0.62† CGB292†
3/4" B 0.25 - 0.37 - 1.06 1.25 1.38 0.62† CGB293†
3/4" B 0.37 - 0.50 - 1.06 1.25 1.38 0.62† CGB294†
3/4" B 0.50 - 0.62 - 1.06 1.25 1.38 0.62† CGB295†
3/4" C 0.62 - 0.75 - 1.63 1.66 1.75 0.62*† CGB296*†
3/4" C 0.75 - 0.87 - 1.63 1.66 1.75 0.62*† CGB297*†
3/4" D 0.87 - 1.00 2.25 - - 2.50 0.62*† CGB298*†
1" B 0.25 - 0.37 - 1.38 1.65 1.38 0.69† CGB393†
1" B 0.37 - 0.50 - 1.38 1.65 1.38 0.69† CGB394†
1" C 0.50 - 0.62 - 1.50 1.88 1.69 0.69*† CGB395*†
1" C 0.62 - 0.75 - 1.50 1.88 1.69 0.69*† CGB396*†
1" C 0.75 - 0.87 - 1.50 1.88 1.69 0.69*† CGB397*†
1" C 0.87 - 1.00 - - 1.88 1.69 0.69† CGB3239†
1" D 0.87 - 1.00 2.38 - - 2.38 0.62*† CGB398*†
1" D 1.00 - 1.19 2.38 - - 2.38 0.62*† CGB399*†
1" D 1.19 - 1.37 2.38 - - 2.38 0.62*† CGB3911*†
1 1/4" D 0.87 - 1.00 2.25 - - 2.31 0.69 CGB498
1 1/4" D 1.00 - 1.19 2.25 - - 2.31 0.69 CGB499
1 1/4" D 1.19 - 1.37 2.25 - - 2.31 0.69 CGB4911
1 1/4" E 1.37 - 1.62 3.00 - - 2.63 0.69 CGB4913
1 1/4" E 1.62 - 1.87 3.00 - - 2.63 0.69 CGB4915
1 1/2" D 0.87 - 1.00 2.25 - - 2.31 0.81 CGB598
1 1/2" D 1.00 - 1.19 2.25 - - 2.31 0.81 CGB599
1 1/2" D 1.19 - 1.37 2.25 - - 2.31 0.81 CGB5911
1 1/2" E 1.37 - 1.62 3.00 - - 2.63 0.81 CGB5913
1 1/2" E 1.62 - 1.87 3.00 - - 2.63 0.81 CGB5915
2" E 1.37 - 1.62 3.00 - - 2.63 0.81 CGB6913
2" E 1.62 - 1.87 3.00 - - 2.63 0.81 CGB6915
2" F 1.87 - 2.19 3.75 - - 2.56 0.81 CGB6917
2" F 2.19 - 2.50 3.75 - - 2.56 0.81 CGB6920
2 1/2" E 1.37 - 1.62 3.13 - - 2.63 1.00 CGB7913
2 1/2" E 1.62 - 1.87 3.13 - - 2.63 1.00 CGB7915
2 1/2" F 1.87 - 2.19 3.75 - - 2.63 1.00 CGB7917
2 1/2" F 2.19 - 2.50 3.75 - - 2.63 1.00 CGB7920
3" F 1.87 - 2.19 3.75 - - 2.63 1.00 CGB8917
3" F 2.19 - 2.50 3.75 - - 2.63 1.00 CGB8920
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
CGE - for Non Armoured Cable
Suitable for the following cable types
Non-armoured cable
Certifications and Compliances
cULus Listed – UL File E23223
Product Specification
Material:
90° angle with male thread
Standard body material is Feraloy® iron alloy
Standard gland nut material is steel
Weatherproof seal on outer sheath of cable
Standard neoprene seal suitable for use in operating
temperatures -25° to +40°C
Available with NPT threads
Operating Temperature:
-25°C to +4 0°C
1/2" 0.12 - 0.25 1.19 1.44 0.71 CGE192
1/2" 0.25 - 0.37 1.19 1.44 0.71 CGE193
1/2" 0.37 - 0.50 1.19 1.44 0.71 CGE194
1/2" 0.50 - 0.62 1.19 1.44 0.71 CGE195
1/2" 0.62 - 0.75 1.63 2.00 0.71 CGE196
1/2" 0.75 - 0.87 1.63 2.00 0.71 CGE197
3/4" 0.12 - 0.25 1.19 1.41 0.71 CGE292
3/4" 0.25 - 0.37 1.19 1.41 0.71 CGE293
3/4" 0.37 - 0.50 1.19 1.41 0.71 CGE294
3/4" 0.50 - 0.62 1.19 1.41 0.71 CGE295
3/4" 0.62 - 0.75 1.63 1.88 0.71 CGE296
3/4" 0.75 - 0.87 1.63 1.88 0.71 CGE297
1" 0.50 - 0.62 1.63 2.06 0.71 CGE395
1" 0.62 - 0.75 1.63 2.09 0.71 CGE396
1" 0.75 - 0.87 1.63 2.09 0.71 CGE397
1" 0.87 - 1.00 2.25 2.09 0.71 CGE3239
1" 0.87 - 1.00 2.25 2.66 0.71 CGE398
1" 1.00 - 1.19 1.63 2.66 0.71 CGE399
1" 1.19 - 1.37 2.25 2.66 0.71 CGE3911
All dimensions in inches unless otherwise stated
EXTERNAL
DIAMETER ‘G’
THREAD
SIZE
DIMENSIONS
OUTER SHEATH
‘E’
MIN - MAX
GLAND
LENGTH
‘F’
LESS ENTRY
THREAD
LENGTH
‘B’
SELECTION TABLE
NPT NPT
NPT
CATALOGUE
NUMBER
G
E
F
B
84 EATON’S CROUSE-HINDS BUSINESS
85
EATON’S CROUSE-HINDS BUSINESS
Features
Features
•Material : Nickel-plated brass / Stainless steel 316 L
(Stainless steel 316 L: replace last digit by 9)
•Electrical thread Pg – Standard guide UTE C 68-311 –
DIN 40430
•Adaptors, plugs and reducers: IP66, IP68 with fibre or
neoprene sealing washer.
Capri Industrial Accessories
LOCKNUT
A E
Pg REFERENCE
EARTHING LOCKNUT
A E
Pg REFERENCE
STOPPING PLUG
A L E
Pg REFERENCE
DOME HEAD
ØA L E
Pg REFERENCE
ADAPTOR
A L E ØD
Pg M Pg F REFERENCE
Pg7 15.0 3.0 CAP280794
Pg9 18.0 3.0 CAP280994
Pg11 21.0 3.0 CAP281194
Pg13 23.0 3.0 CAP281394
Pg16 26.0 3.0 CAP281694
Pg21 32.0 3.5 CAP282194
Pg29 41.0 4.0 CAP282994
Pg36 51.0 5.0 CAP283694
Pg42 58.0 5.0 CAP284294
N°48 NFC 64.0 6.0 CAP284894
Pg48 DIN 64.0 6.0 CAP284994
All dimensions in mm.
Pg7 15.0 2.5 6.5 CAP190704
Pg9 18.0 2.5 6.5 CAP190904
Pg11 21.0 3.0 7.0 CAP191104
Pg13 23.0 3.0 7.0 CAP191304
Pg16 26.0 3.5 7.0 CAP191604
Pg21 32.0 4.0 8.0 CAP192104
Pg29 41.0 4.0 8.5 CAP192904
Pg36 51.0 5.0 8.5 CAP193604
Pg42 58.0 6.0 10.0 CAP194204
N°48 NFC 64.0 6.5 11.0 CAP194804
Pg48 DIN 64.0 6.5 11.0 CAP194884
All dimensions in mm.
Pg7 14.0 2.5 6.5 CAP196074
Pg9 17.0 2.5 6.5 CAP196094
Pg11 20.0 3.0 7.0 CAP196114
Pg13 22.0 3.0 7.0 CAP196134
Pg16 24.0 3.5 7.0 CAP196174
Pg21 30.0 4.0 8.0 CAP196214
Pg29 39.0 4.0 8.5 CAP196294
Pg36 50.0 5.0 8.5 CAP196364
Pg42 57.0 6.0 10.0 CAP196424
N°48 NFC 64.0 6.5 11.0 CAP196484
Pg48 DIN 64.0 6.5 11.0 CAP196494
All dimensions in mm.
Pg7 Pg9 17.0 7.5 4.0 10.0 CAP070904
Pg9 Pg11 20.0 8.5 5.0 12.0 CAP091104
Pg9 Pg13 22.0 8.5 5.0 12.0 CAP091304
Pg11 Pg13 22.0 8.5 6.0 15.0 CAP111304
Pg11 Pg16 24.0 8.5 6.0 15.0 CAP111604
Pg13 Pg16 24.0 8.5 6.0 16.5 CAP131604
Pg13 Pg21 30.0 8.5 6.0 16.5 CAP132104
Pg16 Pg21 30.0 10.0 6.0 18.5 CAP162104
Pg21 Pg29 40.0 11.5 7.0 24.0 CAP212904
Pg29 Pg36 50.0 11.5 8.0 32.0 CAP293604
Pg36 Pg42 58.0 15.0 8.0 41.0 CAP364204
Pg36 N°48 NFC 64.0 15.0 8.0 41.0 CAP364804
Pg42 N°48 NFC 64.0 15.0 8.0 48.0 CAP424804
Pg36 Pg48 DIN 64.0 15.0 8.0 41.0 CAP364884
Pg42 Pg48 DIN 64.0 15.0 8.0 48.0 CAP424884
All dimensions in mm.
Pg7 15.0 3.0 CAP280704
Pg9 18.0 3.0 CAP280904
Pg11 21.0 3.0 CAP281104
Pg13 23.0 3.0 CAP281304
Pg16 26.0 3.0 CAP281604
Pg21 32.0 3.5 CAP282104
Pg29 41.0 4.0 CAP282904
Pg36 51.0 5.0 CAP283604
Pg42 58.0 5.0 CAP284204
N°48 NFC 64.0 6.0 CAP284804
Pg48 DIN 64.0 6.0 CAP284884
All dimensions in mm.
Technical Specification
E
Capri Industrial Accessories
REDUCERS
A L
Pg M Pg F REFERENCE
Pg9 Pg7 16.0 2.0 5.0 CAP090704
Pg11 Pg7 20.0 2.0 6.0 CAP110704
Pg11 Pg9 20.0 2.0 6.0 CAP110904
Pg13 Pg9 22.0 2.5 6.0 CAP130904
Pg13 Pg11 22.0 2.5 6.0 CAP131104
Pg16 Pg9 24.0 2.5 6.0 CAP160904
Pg16 Pg11 24.0 2.5 6.0 CAP161104
Pg16 Pg13 24.0 2.5 6.0 CAP161304
Pg21 Pg09 30.0 3.0 7.0 CAP210904
Pg21 Pg11 30.0 3.0 7.0 CAP211104
Pg21 Pg13 30.0 3.0 7.0 CAP211304
Pg21 Pg16 30.0 3.0 7.0 CAP211604
Pg29 Pg16 38.0 3.0 8.0 CAP291604
Pg29 Pg21 38.0 3.0 8.0 CAP292104
Pg36 Pg21 38.0 3.5 8.0 CAP362104
Pg36 Pg29 48.0 3.5 8.0 CAP362904
Pg42 Pg29 58.0 4.0 10.0 CAP422904
Pg42 Pg36 58.0 4.0 10.0 CAP423604
N°48 NFC Pg29 62.0 4.0 10.0 CAP482904
N°48 NFC Pg36 62.0 4.0 10.0 CAP483604
N°48 NFC Pg42 62.0 4.0 10.0 CAP484204
Pg48 DIN Pg36 62.0 4.0 10.0 CAP483684
Pg48 DIN Pg42 62.0 4.0 10.0 CAP484284
All dimensions in mm.
TYPE
REDUCERS
A L E ØD
Pg M ISO F REFERENCE
Pg7 12 14.0 7.0 6.5 9.8 1 CAP751774
Pg7 16 19.0 8.5 6.5 9.8 1 CAP750094
Pg9 12 19.0 2.5 6.5 2 CAP751844
Pg9 16 19.0 8.5 6.5 12.0 1 CAP750104
Pg9 20 22.0 8.5 6.5 12.0 1 CAP750364
Pg11 12 21.0 3.0 7.0 2 CAP751874
Pg11 16 21.0 7.5 7.0 2 CAP750114
Pg11 20 22.0 8.5 7.0 15.0 1 CAP750374
Pg13 16 23.0 3.0 7.0 2 CAP750124
Pg13 20 24.0 8.5 7.0 16.8 1 CAP750384
Pg13 25 27.0 9.5 7.0 16.8 1 CAP750644
Pg16 16 27.0 3.0 8.0 2 CAP750134
Pg16 20 27.0 7.5 8.0 18.5 1 CAP750394
Pg16 25 27.0 9.5 8.0 18.8 1 CAP750654
Pg21 25 32.0 3.5 8.0 2 CAP750864
Pg21 32 34.0 10.5 8.0 24.0 1 CAP750924
Pg29 32 42.0 4.0 8.5 2 CAP750934
Pg29 40 42.0 10.5 8.5 32.8 1 CAP751194
Pg36 40 51.0 4.5 8.5 2 CAP751294
Pg36 50 53.0 11.5 8.5 42.5 1 CAP751464
Pg42 50 58.0 4.5 10.0 2 CAP751474
Pg42 63 67.0 13.0 10.0 49.5 1 CAP751734
Pg48 DIN 50 64.0 5.0 11.0 2 CAP751484
Pg48 DIN 63 67.0 13.0 11.0 54.5 1 CAP751744
All dimensions in mm.
86 EATON’S CROUSE-HINDS BUSINESS
87
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
Capri Industrial Accessories
Features
•Material : Nickel-plated brass / Stainless steel 316 L
(Stainless steel 316 L: replace last digit by 9)
•Electrical thread Pg – Standard guide UTE C 68-311 –
DIN 40430
•Adaptors, plugs and reducers: IP66, IP68 with fibre or
neoprene sealing washer
LOCKNUT
A E
ISO REFERENCE
10 12.0 2.5 CAP221094
12 23.0 3.0 CAP221294
16 29.0 4.0 CAP221694
20 35.0 4.0 CAP222094
25 44.0 4.5 CAP222594
32 60.0 4.8 CAP223294
40 69.0 5.0 CAP224094
50 87.0 6.5 CAP225094
63 103.0 6.5 CAP226394
75 104.0 8.0 CAP227594
90 122.0 8.0 CAP229094
110 132.0 9.0 CAP221104
All dimensions in mm.
EARTHING LOCKNUT
A E
ISO REFERENCE
10 12.0 2.5 CAP229104
12 23.0 3.0 CAP229124
16 29.0 4.0 CAP229164
20 35.0 4.0 CAP229204
25 44.0 4.5 CAP229254
32 60.0 4.8 CAP229324
40 69.0 5.0 CAP229404
50 87.0 6.5 CAP229504
63 103.0 6.5 CAP229634
All dimensions in mm.
STOPPING PLUG
A L E
ISO REFERENCE
12 15.0 2.5 6.5 CAP197124
16 18.0 2.5 6.5 CAP197164
20 23.0 3.0 6.5 CAP197204
25 28.0 3.0 7.0 CAP197254
32 36.0 3.5 8.0 CAP197324
40 44.0 4.0 8.0 CAP197404
50 54.0 4.5 9.0 CAP197504
63 67.0 5.5 10.0 CAP197634
All dimensions in mm.
ADAPTOR
A L E ØD
ISO M ISO F REFERENCE
12 16 18.0 8.0 5.0 8.8 CAP755334
16 20 22.0 8.0 6.0 12.5 CAP750274
20 25 27.0 9.0 6.0 16.2 CAP750544
25 32 36.0 10.5 7.0 21.0 CAP750814
32 40 42.0 10.5 8.0 28.0 CAP751084
40 50 52.0 11.5 8.0 35.8 CAP751354
50 63 67.0 12.5 9.0 45.8 CAP751624
All dimensions in mm.
DOME HEAD
A L E
ISO REFERENCE
12 14.0 3.0 5.0 CAP196124
16 18.0 3.0 6.0 CAP196164
20 22.0 3.0 6.5 CAP196204
25 27.0 4.0 7.0 CAP196254
32 34.0 4.0 8.0 CAP196324
40 44.0 5.0 8.0 CAP196404
50 54.0 5.5 9.0 CAP196504
63 67.0 6.0 10.0 CAP196634
All dimensions in mm.
Technical Specification
Capri Industrial Accessories
E
REDUCERS
A L
ISO M ISO F REFERENCE
16 12 18.0 2.5 6.0 CAP755834
20 12 22.0 3.0 6.0 CAP750044
20 16 22.0 3.0 6.0 CAP750024
25 16 28.0 3.0 7.0 CAP750034
25 20 28.0 3.0 7.0 CAP750294
32 16 36.0 3.5 8.0 CAP759104
32 20 36.0 3.5 8.0 CAP750304
32 25 36.0 3.5 8.0 CAP750564
40 16 44.0 4.0 8.0 CAP759164
40 20 44.0 4.0 8.0 CAP759204
40 25 44.0 4.0 8.0 CAP750574
40 32 44.0 4.0 8.0 CAP750834
50 40 54.0 4.5 9.0 CAP751204
63 50 67.0 5.0 10.0 CAP751374
All dimensions in mm.
88 EATON’S CROUSE-HINDS BUSINESS
89
EATON’S CROUSE-HINDS BUSINESS
Features
Features
Features
•Material : Nickel-plated brass / Stainless steel 316 L
(Stainless steel 316 L: replace last digit by 9)
•Electrical thread Pg – Standard guide UTE C 68-311 –
DIN 40430
•Adaptors, plugs and reducers: IP66, IP68 with fibre or
neoprene sealing washer
Capri Industrial Accessories
LOCKNUT
A E
Pg REFERENCE
STOPPING PLUG
A L E
Pg REFERENCE
Pg7 15.0 4.5 CAP260770
Pg9 19.0 4.5 CAP260970
Pg11 22.0 5.0 CAP261170
Pg13 24.0 5.5 CAP261370
Pg16 27.0 6.0 CAP261670
Pg21 32.0 6.5 CAP262170
Pg29 41.0 7.5 CAP262970
Pg36 54.0 9.0 CAP263670
Pg42 60.0 9.0 CAP264270
N°C8 NFC 67.0 9.5 CAP264870
Pg48 DIN 67.0 9.5 CAP264878
All dimensions in mm.
Pg7 15.0 4.0 8.0 CAP190770
Pg9 19.0 4.5 10.0 CAP190970
Pg11 22.0 4.5 10.5 CAP191170
Pg13 24.0 5.0 11.0 CAP191370
Pg16 27.0 5.0 12.0 CAP191670
Pg21 32.0 5.5 12.5 CAP192170
Pg29 40.0 5.5 13.5 CAP192970
Pg36 54.0 6.0 15.0 CAP193670
Pg42 59.0 6.5 15.0 CAP193670
N°48 NFC 64.0 6.5 15.0 CAP194870
Pg48 DIN 64.0 6.5 10.0 CAP194879
All dimensions in mm.
E
ADAPTORS
A L
Pg Pg REFERENCE
E
REDUCERS
A L
Pg M PAGE F REFERENCE
Pg9 Pg7 19.0 11.0 7.0 CAP090770
Pg11 Pg7 22.0 10.5 8.0 CAP110770
Pg11 Pg9 22.0 12.0 8.0 CAP110970
Pg13 Pg9 24.0 11.5 9.0 CAP130970
Pg13 Pg11 24.0 12.0 9.0 CAP131170
Pg16 Pg9 27.0 11.5 9.0 CAP160970
Pg16 Pg11 27.0 12.0 9.0 CAP161170
Pg16 Pg13 27.0 13.0 9.0 CAP161370
Pg21 Pg11 32.0 11.5 10.0 CAP211170
Pg21 Pg13 32.0 12.5 10.0 CAP211370
Pg21 Pg16 32.0 12.5 10.0 CAP211670
Pg29 Pg13 41.0 12.5 12.0 CAP291370
Pg29 Pg16 41.0 12.5 12.0 CAP291670
Pg29 Pg21 41.0 16.5 12.0 CAP292170
Pg36 Pg29 55.0 16.5 14.0 CAP362970
Pg42 Pg36 60.0 20.5 16.0 CAP423670
N°48 NFC Pg36 65.0 20.5 16.0 CAP483670
All dimensions in mm.
Pg7 Pg9 19.0 13.5 6.5 CAP070970
Pg9 Pg11 22.0 14.0 7.0 CAP091170
Pg11 Pg13 24.0 14.0 8.0 CAP111370
Pg13 Pg16 27.0 14.0 9.0 CAP131670
Pg16 Pg21 32.0 18.5 9.0 CAP162170
Pg21 Pg29 41.0 19.5 10.0 CAP212970
Pg29 Pg36 55.0 22.0 12.0 CAP293670
Pg36 Pg42 60.0 21.0 14.0 CAP364270
Pg36 N°48 NFC 65.0 23.5 14.0 CAP364870
All dimensions in mm.
Features
Features
•Material : Nickel-plated brass / Stainless steel 316 L
(Stainless steel 316 L: replace last digit by 9)
•Electrical thread Pg – Standard guide UTE C 68-311 –
DIN 40430
•Adaptors, plugs and reducers: IP66, IP68 with fibre or
neoprene sealing washer
Capri Industrial Accessories
FIBRE SEALING WASHER
A E
Pg REFERENCE MIN MAX
Pg Pg REFERENCE
Pg7 17.0 1.5 CAP240750
Pg9 21.0 1.5 CAP240950
Pg11 25.0 1.5 CAP241150
Pg13 27.0 1.5 CAP241350
Pg16 31.0 1.5 CAP241650
Pg21 39.0 1.5 CAP242150
Pg29 50.0 1.5 CAP242950
Pg36 64.0 1.5 CAP243650
Pg42 73.0 1.5 CAP244250
N°48 NFC 79.0 2.0 CAP244850
Pg48 DIN 79.0 2.0 CAP244850
G2’’1/2 94.0 2.0 CAP245050
G3’’ 107.0 2.0 CAP246050
G4’’ 133.0 2.0 CAP248050
All dimensions in mm.
NEOPRENE SEALING WASHER
A E
Pg REFERENCE
Pg7 17.0 1.2 CAP240749
Pg9 21.0 1.2 CAP240949
Pg11 24.0 1.2 CAP241149
Pg13 27.0 1.2 CAP241349
Pg16 30.0 1.2 CAP241649
Pg21 35.0 1.2 CAP242149
Pg29 45.0 1.2 CAP242949
Pg36 60.0 1.2 CAP243649
Pg42 65.0 1.2 CAP244249
N° 48 NFC 71.0 1.2 CAP244849
Pg48 DIN 71.0 1.2 CAP244849
G2’’1/2 90.0 1.2 CAP245049
G3’’ 109.0 1.2 CAP246049
G4’’ 136.0 1.2 CAP248049
All dimensions in mm.
PERBUNAN 0-RING
A E
Pg REFERENCE
Pg7 10.0 1.3 CAP240746
Pg9 12.0 1.6 CAP240946
Pg11 16.0 1.6 CAP241146
Pg13 16.0 1.6 CAP241346
Pg16 18.5 1.6 CAP241646
Pg21 23.5 1.8 CAP242146
Pg29 32.0 1.6 CAP242946
Pg36 41.0 1.8 CAP243646
Pg42 46.0 1.8 CAP244246
N°48 NFC 55.0 2.0 CAP244846
Pg48 DIN 55.0 2.0 CAP244846
All dimensions in mm.
PG9 PG7 3.5 6.5 CAP240735
PG11 PG9 5.5 8.7 CAP240935
PG13 PG9 5.5 8.7 CAP241235
PG13 PG11 7.0 10.5 CAP241135
PG16 PG9 5.5 8.7 CAP241535
PG16 PG11 7.0 10.5 CAP241435
PG16 PG13 8.0 12.5 CAP241335
PG21 PG16 10.0 15.0 CAP241635
PG29 PG21 14.0 19.0 CAP242135
PG36 PG29 17.5 22.5 CAP242935
PG42 PG36 22.0 32.5 CAP242635
No48 NFC PG36 22.0 32.5 CAP244735
All dimensions in mm.
PVC REDUCE RING NORMANDIX / ECP
90 EATON’S CROUSE-HINDS BUSINESS
91
EATON’S CROUSE-HINDS BUSINESS
Technical Specification
E
Capri Industrial Accessories
REDUCERS
A L
ISO M ISO F REFERENCE
STOPPING PLUG
A L E
ISO REFERENCE
12 15.0 4.0 15.0 CAP190126
16 19.0 4.0 15.0 CAP190166
20 23.0 4.0 15.0 CAP190206
25 28.0 5.0 15.0 CAP190256
32 36.0 5.5 15.0 CAP190326
40 44.0 5.5 15.0 CAP190406
50 54.0 6.0 16.0 CAP190506
63 67.0 6.5 17.0 CAP190636
All dimensions in mm.
LOCKNUT
A E
ISO REFERENCE
12 18.0 4.5 CAP261273
16 22.0 5.0 CAP261673
20 26.0 5.5 CAP262073
25 32.0 6.0 CAP262573
32 41.0 7.0 CAP263273
40 50.0 8.0 CAP264073
50 60.0 8.0 CAP265073
63 75.0 9.0 CAP266373
All dimensions in mm.
ADAPTOR
A L E D
ISO M ISO F REFERENCE
16 20 24.0 13.0 8.0 11.5 CAP750265
20 25 29.0 15.0 9.0 15.5 CAP750245
25 32 36.0 15.0 11.0 20.0 CAP750705
All dimensions in mm.
20 12 24.0 4.0 8.0 CAP750015
20 16 24.0 4.5 8.0 CAP750025
25 12 29.0 6.0 8.0 CAP750275
25 16 29.0 6.0 8.0 CAP750285
25 20 29.0 6.0 8.0 CAP750295
32 12 36.0 6.0 8.0 CAP750535
32 16 36.0 6.0 10.0 CAP750545
32 20 36.0 6.0 10.0 CAP750555
32 25 36.0 6.0 10.0 CAP750565
40 16 36.0 6.0 10.0 CAP750805
40 20 46.0 6.0 10.0 CAP750815
40 25 46.0 6.0 10.0 CAP750825
40 32 46.0 6.0 10.0 CAP750835
50 20 55.0 6.0 10.0 CAP751075
50 25 55.0 6.0 12.0 CAP751085
50 32 55.0 6.0 12.0 CAP751095
50 40 55.0 6.0 12.0 CAP751105
63 25 68.0 6.0 12.0 CAP751345
63 32 68.0 6.0 12.0 CAP751355
63 40 68.0 6.0 12.0 CAP751365
63 50 68.0 6.0 12.0 CAP751375
All dimensions in mm.
Technical Specification
Capri Industrial Accessories
FIBRE SEALING WASHER
D E
ISO REFERENCE
10 15.0 1.2 CAP221045
12 18.0 1.2 CAP221245
16 22.0 1.2 CAP221645
20 27.0 1.2 CAP222045
25 35.0 1.5 CAP222545
32 43.0 1.5 CAP223245
40 55.0 1.5 CAP224045
50 69.0 1.5 CAP225045
63 82.0 2.0 CAP226345
75 94.0 2.0 CAP227545
90 110.0 2.0 CAP229045
110 130.0 2.0 CAP221145
All dimensions in mm.
NEOPRENE SEALING WASHER
D E
ISO REFERENCE
10 15.0 1.2 CAP221049
12 18.0 1.2 CAP221249
16 18.0 1.2 CAP221649
20 22.0 1.2 CAP222049
25 24.0 1.5 CAP222549
32 30.0 1.5 CAP223249
40 42.0 1.5 CAP224049
50 52.0 1.5 CAP225049
63 63.0 2.0 CAP226349
75 90.0 2.0 CAP227549
90 106.0 2.0 CAP229049
110 126.0 2.0 CAP221149
All dimensions in mm.
PERBUNAN O-RING
A E
ISO REFERENCE
12 10.0 1.8 CAP241244
16 12.5 1.8 CAP241644
20 17.0 1.8 CAP242044
25 22.0 1.8 CAP242544
32 28.0 1.6 CAP243244
40 37.0 1.8 CAP244044
50 46.0 1.8 CAP245044
63 57.0 1.8 CAP246344
All dimensions in mm.
92
EØ
AØ
DØ
E
DØ
E
EATON’S CROUSE-HINDS BUSINESS
Technical Information
93
EATON’S CROUSE-HINDS BUSINESS
Fixing - Blank hole
Cable gland
Cable Glands - Installation Guide
ISO
NPT
Cable gland with an accessory
94 EATON’S CROUSE-HINDS BUSINESS
Fixing - Threaded hole
Cable gland
Cable Glands - Installation Guide
ISO
NPT
Cable gland with an accessory
95
EATON’S CROUSE-HINDS BUSINESS
ADE-1F2 n°3 to 17
& 1F2 A (Anchorage)
Cable outer Ø 2,75 to 104 mm
Fixing thread Metric 10 to 110
Fixing thread NPT 1/8” to 4”
ADE-1FC n°4 to 16
Cable outer Ø 4 to 93 mm
Fixing thread Metric 16 to M 110
Fixing thread NPT 3/8” to 4”
ADE-4F & 5F n°4 to 17
Cable outer Ø 4.5 to 104 mm
Fixing thread Metric 10 to 110
Fixing thread NPT 1/8” to 4”
ADE-6F n°5 to 11
Cable outer Ø 6 to 48 mm
Fixing thread Metric 16 to 63
Fixing thread NPT 3/8” to 2”
ADE-6FC n°5 to 17
Cable outer Ø 6 to 104 mm
Fixing thread Metric 16 to 110
Fixing thread NPT 3/8” to 4”
All ADE
Standards:
EN 60079-0 : 2009
EN 60079-1 : 2007
EN 60079-7 : 2007
EN 60079-31 : 2009
IEC 60079-0 : 2011
IEC 60079-1 : 2007-04
IEC 60079-7 : 2006-07
IEC 60079-31 : 2008
IEC 60079-0 : 2011
IEC 60079-1 : 2007-04
IEC 60079-7 : 2006-07
IEC 60079-15 : 2010
IEC 60079-31 : 2008
ABNT NBR IEC 60079-0:2008
ABNT NBR IEC 60079-1:2009
ABNT NBR IEC 60079-7:2008
IEC 60079-15:2010
ABNT NBR IEC 60529:2009
IEC 60079-31:2008
Capri Cable Gland Certification
Certificate No:ADE Ex Certification INERIS12ATEX0032X: IECEx INE12.0025X 05.0558X for 1F2, 1F2 A, 1FC
05.0559X for 4F, 5F, 6F, 6FC
LOCATIONS
LABS: ATEX / INERIS IECEx / INERIS CEPEL
HAZARDOUS LOCATIONS
Protections:
Special note: Not Gr I for:
a) Thread smaller M20 & NPT1/2”
b) ADE-1F2 & 6F.
II2GD / Ex db IIC/
Ex eb IIC / Ex tb IIIC
II3G Ex nRc IIC
IM2 Ex db I Ex eb I
Ex db IIC/ Ex eb IIC
Ex nRc IIC/ Ex tb IIIC
Ex db I Ex eb I
Ex db IIC/ Ex eb IIC
Ex nRc IIC/ Ex tb IIIC
Ex db I Ex eb I
Ex Sealing types &
Service temperatures:
IP: IP66, IP67, IP68 (30m/7days)
ADE-1F2, 1F2 A, 4F & 5F:
Black neoprene ring: -30 to +80°C
Red silicon ring: -60 to +140°C
ADE-6F: Red silicon ring: -60 to +80°C
ADE-1FC & 6FC: TSC Compound: -60 to +80°C
Classifications: Zones 1 and 2; Groups I, IIA, IIB and IIC; "d", "e", "i", "m", "n", "o", “p”, "q"
Zones 21 and 22; Groups IIIA, IIIB and IIIC; "i", "m" ,"p", "t"
Cable types: Non-armoured Cable with ADE-1F2, 1F2 A & 1FC
Armoured or Braided Cable with ADE-4F, 5F, 6F & 6FC
Certificate No:ADE UL Certification cULus E310130 cULus Marine E314047
UL 2225 3rd Ed. & UL 514B 5th Ed.
CAN/CSA E60079-0:07 & CAN/CSA E60079-7:03
Standards:
ADE-1F2 & 1F2 A n°3 to 17
Cable outer Ø 2.75 to 104 mm
Fixing thread Metric 10 to 110
Fixing thread NPT 1/8” to 4”
ADE-4F n°4 to 17
Cable outer Ø 4.5 to 104 mm
Fixing thread Metric 10 to 110
Fixing thread NPT 1/8” to 4”
ADE-6F n°5 to 11
Cable outer Ø 6 to 48 mm
Fixing thread Metric 16 to 63
Fixing thread NPT 3/8” to 2”
ADE-1FC n°4 to 16
Cable outer Ø 4 to 93 mm
Fixing thread Metric 20 to M 110
Fixing thread NPT 1/2” to 4”
ADE-6FC n°5 to 17
Cable outer Ø 6 to 104 mm
Fixing thread Metric 20 to 110
Fixing thread NPT 1/2” to 4”
UL 2225 3rd Ed. & UL 514B 5th Ed &
Sub part 111.60 of the United States Coast Guard
Electrical Engineering Regulations,
Subchapter J (Title 46 of Federal Regulations,
Parts 110 to 113 inclusive)
CAN/CSA E60079-0:07 & CAN/CSA E60079-7:03
& Ships Electrical Standards, TP 127E,
Section 26, Subsections 8 and 9
IP: IP68 IP68
Classifications: Class I, Zone 2, AEx e II, Ex e I ADE-1F2: Class I, Zone 2, AEx e II, Ex e I
ADE-4F & 6F: Class I, Zone 1, AEx e II, Ex e II
Ex Sealing type &
Service temperature:
ADE-1F2, 1F2 A & 4F:
Black neoprene ring: -30 to +80°C
Red silicon ring: -60 to +140°C
ADE-6F:
Red silicon ring: -30 to +80°C
ADE-1F2, 1F2 A & 4F:
Black neoprene ring: -30 to +80°C
Red silicon ring: -60 to +140°C
ADE-6F:
Red silicon ring: -30 to +80°C
Cable type:
ADE-1F2 & 1F2 A: ITC, MV, PLTC, TC
Non-armoured cable
ADE-4F & 6F: ITC, MV, PLTC, TC Armoured cable
ITC (Instrumentation-Tray-Cable), MV
(Medium Voltage cable), PLTC
(Power-Limited-Tray-Cable) and TC (Tray Cable).
ADE-1F2 & 1F2 A
Non-armoured marine shipboard cable
ADE-4F & 6F
Armoured marine shipboard cable
Classifications: Class I, Zone 2, AEx de II, Ex de II
Sealing & temperature: TSC Compound: -60 to +80°C
Cable type:
ADE-1FC: ITC, MV, PLTC, TC Non-armoured cable.
ADE-6FC: ITC, MV, PLTC, TC Armoured cable.
ITC (Instrumentation-Tray-Cable), MV
(Medium Voltage cable),
PLTC (Power-Limited-Tray-Cable), TC (Tray Cable).
96 EATON’S CROUSE-HINDS BUSINESS
PМЭК 60079-0-2011
IEC 60079-1-2011
P 52350.7-2005 (МЭК 60079-7)
31610.7-2012/IEC 60079-7:2006
PМЭК 60079-15-2010
PМЭК 60079-31-2010
GB3836.1-2010
GB3836.2-2010
GB3836.3-2010
GB12476.1-2000
IEC 62444:2010
EN 50262/1998
EN 60079-0 : 2009
EN 60079-1 : 2007
EN 60079-7 : 2007
EN 60079-31 : 2009
IEC 60079-0 : 2011
IEC 60079-1 : 2007-04
IEC 60079-7 : 2006-07
IEC 60079-31 : 2008
ABS: 2013
Steel Vessels Rules
1-1-4/7.7, 1-1-A3,
4-8-3/1.7, 4-8-3/13
UL 2225 2nd Ed.
IEC 60079-0:2011
IEC 60079-1:2007
IEC 60079-7:2006
IEC 60079-15:2010
IEC 60079-31:2008
IEC61241-1 :2004
IEC 60079-0:2011
IEC 60079-1:2007
IEC 60079-7:2006
IEC 60079-15:2010
IEC 60079-31:2008
IEC61241-1 :2004
UL 2225 2nd Ed.
UL 514B 5th Ed.
CSA E 60079-0 :2007
CSA E 60079-7 :2003
DTS01 :1991
TC RU C-FR.ГБ05.B.00093: GYJ13.1082X E-12360 10-HS577243-2-PDA 11/00072(E1) DTS01
20121029
NANIO CCV NEPSI DNV ABS LLOYDS Dcns
HAZARDOUS LOCATIONS HAZARDOUS LOCATIONS FOR SHIPPING APPLICATIONS DELUGE
1Ex d IIC Gb X / 1Ex e IIC Gb X
Ex nR IIC Gc X
Ex tb IIIC Db IP6X
PB Ex db I X / PB Ex eb I X
Ex d IIC Gb / Ex e IIC Gb
Ex d I Mb / Ex e I Mb
DIP A21 IP66/IP68
Ex db IIC/ Ex eb IIC
Ex nRc IIC/ Ex tb IIIC
Ex db I Ex eb I
- For Zones system, see at left
- For Class system, see UL below
IP66, IP67, IP68 (30m/7days)
Zones 1 and 2; Groups I, IIA, IIB and IIC; "d", "e", "i", "m", "n", "o", “p”, "q"
Zones 21 and 22; Groups IIIA, IIIB and IIIC; "i", "m" ,"p", "t"
Non-armoured Cable with ADE-1F2, 1F2 A & 1FC
Armoured or Braided Cable with ADE-4F, 5F, 6F & 6FC
UL Marine E324850
UL 2225 3rd Ed. & UL 514B 5th Ed.
&
Sub part 111.60 of the United States
Coast Guard Electrical Engineering Regulations,
Subchapter J
(Title 46 of Federal Regulations,
Parts 110 to 113 inclusive)
EN 60079-0 : 2009
EN 60079-7 : 2007
EN 60079-31 : 2009
IEC 60079-0 : 2011
IEC 60079-7 : 2006
IEC 60079-31 : 2008
Standards:
IEC 60079-0 : 2011
IEC 60079-7 : 2006
IEC 60079-15 : 2010
IEC 60079-31 : 2008
EN 60079-0:2004/2006
EN 60079-7:2003/2007
EN 61241-0 : 2006
EN 61241-1 : 2004
Standards: IEC 60079-0 : 2000
IEC 60079-7 : 2001
IP68
ADE-1FC: Class I, Division 2, Groups A, B, C & D
ADE-6FC: Class I, Division 1, Groups A, B, C & D
TSC Compound: -20 to +40°C
ADE-1FC: Non-armoured marine shipboard cable
ADE-6FC: Armoured marine shipboard cable
NEWCAPEXACAP
Certificate No: INERIS13ATEX0008X IECEx INE13.0003X
ATEX / INERIS IECEx / INERIS
II2GD Ex eb IIC
Ex tb IIIC
II3G Ex nRc IIC
Protections:
Ex eb IIC
Ex nRc IIC
Ex tb IIIC
IP66, IP67, IP68IP:
Zones 1 and 2; Groups IIA, IIB and IIC;
"e", "i", "m", "n", "o", “p”, "q"
Zones 21 and 22; Groups IIIA, IIIB and IIIC;
"i", "m" ,"p", "t"
Classification:
-20 to +80°CTemperature:
-25 +70°C -55 to +70°C
Temperature:
II2G Ex e II
II2D Ex tb A21
Protections: Ex eb II
IP66 IP66
IP:
PTB 99 ATEX 3101 X
(M12 - M16 only)
PTB 99 ATEX 3128 X
(M20 - M63 only)
Certificate N°: IECEx PTB 05.0004X
ADE-1F2, 1F2 A, 4F & 5F:
Black neoprene ring: -30 to +80°C
Red silicon ring: -60 to +140°C
ADE-6F: Red silicon ring: -30 to +80°C
ADE-1FC & 6FC: TSC Compound: -60 to +80°C
97
EATON’S CROUSE-HINDS BUSINESS
ADE-1F2ADE-1F2AADE-1F2DSADE-1FCADE-4FADE-5FADE-6F
ADE-6FC
Capri ADE Ex Markings
Details of the main Ex marking (example on ADE-1F2):
Name of the
manufacturer
Product type
identification
Cable size and
Thread type & size
UL MARINE
Certification Valid
for Canada
& the US
if c....us marked
UL Certification
Valid for
Canada & the US
if c...us marked
ATEX Directive
Marking,
including the year
of production.
Certificate No:
ATEX
IECEx
Cepel / Inmetro
New EPL
Specific
ATEX & IECEx
marking
Cable
External
Diameter
CCH-CAPRI
ADE-1F2
n°10 M50
SL Ex e II
AEx e II
CL.I Zn.2
II2GD
II3G
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0558X
Ex db/eb IIC
Ex tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
29-41
SL Ex e II
AEx e II
CL.I Zn.2 0081
20XX
\\ \ \ \\
CCH-CAPRI
ADE-1F2
nº8 M32
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0558X
Ex db/eb IIC
Ex tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
18-27.5
SL Ex e II
AEx e II
CL.I Zn.2 0081
XX
II2GD
II3G
SL Ex e II
AEx e II
CL.I Zn.2
CCH-CAPRI
ADE-1F2
n° 8 M32
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0558X
Ex db/eb IIC
Ex tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
18-27.5
SL Ex e II
AEx e II
CL.I Zn.2 0081
XX
II2GD
II3G
SL Ex e II
AEx e II
CL.I Zn.2
Mining marking, depending Thread & Size N° and never for Aluminum version:
CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\ CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Mining models, depending on Thread & Size N° and never for Aluminum version:
CCH-CAPRI ADE-1F2 DS n°xx IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Mining models, Size N° 11 to 16, and never for Aluminum version:
CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\ CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
CCH-CAPRI
ADE-1FC
n º 7
SL
CL.I
Div.2 0081
X
X
II2GD
II3G
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0558X
Ex db/eb IIC
Ex
tb
IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
12-21
SL Ex e II
AEx e II
CL.I Zn.2
M32x1.5\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Non Mining models, depending on Thread & Size N° and never for Aluminum version:
CCH-CAPRI ADE-1F2 DS n°xx \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
CCH-CAPRI
ADE-1F
2
n° 8 M32
0081 20 12
II2GD
INERIS12ATEX0032X
IECEx INE 12.0025X
Ex db IIC Ex eb IIC
Ex tb IIIC IP66
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Mining models, depending on Thread & Size N° and never for Aluminum version:
CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\ CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
CCH-CAPRI
ADE-4F
n ° 8
SL Ex e II
AEx e II
CL.I Zn.1 0081
X
X
II2GD
II3G
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0559X
Ex db/eb IIC
Ex
tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
18-27.5
SL Ex e II
AEx e II
CL.I Zn.2
M32x1.5\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Mining models, depending on Thread & Size N° and never for Aluminum version:
CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\ CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
M32x1.5\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
CCH-CAPRI
ADE-6F
n ° 8
SL Ex e II
AEx e II
CL.I Zn.1 0081
XX
II2GD
II3G
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0559X
Ex db/eb IIC
Ex
tb
IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
18-27.5
SL Ex e II
AEx e II
CL.I Zn.2
CCH-CAPRI
ADE-5F
n ° 8
SL Ex e II
AEx e II
CL.I Zn.1 0081
XX
II2GD
II3G
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0559X
Ex db/eb IIC
Ex
tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
18-27.5
SL Ex e II
AEx e II
CL.I Zn.2
M32x1.5\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Marking for Mining models, Size N°11 to 17, and never for Aluminum version:
CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\ CCH-CAPRI ADE IM2 Ex db I Ex eb I \\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
CCH-CAPRI
ADE-6FC
n ° 8
INERIS12ATEX0032X
IECEx INE 12.0025X
CEPEL 05.0559X
Ex db/eb IIC
Ex tb IIIC IP66
Ex nRc IIC
Cable
Ext.Ø
16-27.5
0081
XX
II2GD
II3G
SL
CL.I
Div.1
SL Ex e II
AEx e II
CL.I Zn.2
M32x1.5\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
98 EATON’S CROUSE-HINDS BUSINESS
99
EATON’S CROUSE-HINDS BUSINESS
TMCX II
Cable outer Ø 0.49 to
1.39 inches
Fixing Thread NPT :
1/2" to 1 1/4"
Classification:
Sealing type,
Service temperature &
Environmental
Cable type:
TMCX II : cULus Listed
Class I Div 1 ABCD, Class II EFG,
Class III
TMCX II :
TSC compound,
Chico LiquidSeal :
-40°C to +60°C : NEMA 6P
TMCX II : MC-HL (Metal Clad for
Hazardous Locations),
MC (Metal Clad),
TECK, TC (Tray Cable)
Standards:
UL Certification UL2225 3rd Ed. & UL 514B UL 514B CSA C22.2 N0 174
Certification No. cULus E122485 UL E36379
UL 514B
UL E22133 LR13046
TMCX
Cable outer Ø
0.49 to 4.28 inches
Fixing Thread NPT :
1/2" to 4"
Classification:
Sealing type,
Service temperature &
Environmental
Cable type:
TMCX :
UL Listed Class I Div 1 ABCD,
Class II EFG, Class III
TMCX :
TSC compound: -25°C to +40°C :
NEMA 4X
TMCX : MC-HL
(Metal Clad for Hazardous
Locations),
MC (Metal Clad), TECK
TMCX : CSA Listed
Class I Div 1 ABCD,
Class II EFG, Class III
TMCX :
TSC compound:
-25°C to +40°C
TMCX : MC-HL
(Metal Clad for Hazardous
Locations),
MC (Metal Clad), TECK
TMC
Cable outer Ø
0.49 to 4.28 inches
Fixing Thread NPT :
1/2" to 4"
Classification:
Sealing type,
Service temperature &
Environmental
Cable type:
UL Listed
Ordinary Locations
Neoprene seal :
-25°C to +60°C :
NEMA 4
MC (Metal Clad)
TECK
Cable outer Ø
0.52 to 4.34 inches
Fixing Thread NPT :
1/2" to 4"
Classification:
Sealing type,
Service temperature &
Environmental
Cable type:
CSA Certified
Class II EFG, Class III
Neoprene seal :
-25°C to +60°C :
Type 4 and IP56
TECK
CGB
Cable outer Ø
0.12 to 2.50 inches
Fixing Thread NPT :
3/8" to 3"
CGD
Cable outer Ø
0.12 to 0.87 inches
Fixing Thread NPT :
1/2" to 3/4"
CGE
Cable outer Ø
0.12 to 1.37 inches
Fixing Thread NPT :
1/2" to 1"
Classification:
Sealing type,
Service temperature &
Environmental
Cable type:
cULus Listed
Ordinary Locations
Neoprene seal :
-25°C to +40°C
Non-armoured
Crouse-Hinds Cable Gland Certification
US Cable Gland certification (January 2014):
Braided
marine
shipboard
Non-
armoured
SWBSWAITC ITC-HLMVPLTCTECK-HLTECKMITCMC-HL
Zone 1
Zone 2
Cable Types and Wiring Methods
100
CABLE TYPES
IECNORTH AMERICA
MC STA
Div 1 ****
Div 2
Zone 1 ****
Zone 2
All wiring for Div 1 is suitable for Div 2
All wiring for Zone 1 is suitable for Zone 2
* Canada ONLY
** Armoured and sheathed marine shipboard cable can be used in Class 1, Division 1 locations offshore as mentioned in API RPI14F
For Canada: Not Class 1. For areas under jurisdiction of Transport Canada’s Electrical requirements per TP127E. For further details on Canada specific requirements please contact your local Eaton representative.
IEC Wiring methods
Although there are no IEC construction standards for the cables intended for use in flammable atmospheres, according to
IEC 60079-14:2002, 10.4.2(b), if a cable gland with an elastomeric flameproof sealing ring is to be used, when connecting
cables to Ex d equipment enclosures, the cable should be:- Substantially compact and circular, have an extruded bedding
(without gaps), have fillers, if any are used, which are non-hygroscopic.
NEC/CEC Wiring methods
As shown in the table above, the only cables that are permitted for use in Class1 Div1 are those that are mechanically
protected by armour. The three protection techniques approved for Class1 Div1 locations are “intrinsically safe”, “Purge and
Pressurized” and “Explosionproof.” When using the explosionproof protection technique, the cable must be sealed at the
point of entry with an approved sealing device.
Non Armoured Cable
Armoured Cable
STEEL WIRED ARMOURED
ADE4F*
ADE5F*
ADE6F
ADE6FC
* Lead sheathed on ADE4F & ADE5F ONLY
TMCX TMCX II TMC
TMCX TMCX II TECK
ADE1F2 ADE1F2DS ADE1FC
TMCX TMC ADE1F2DS
STEEL BRAID ARMOURED
STEEL TAPE ARMOURED
TYPE P CABLE
METAL CLAD
TECK
NON-ARMOURED
TRAY / TYPE P
EATON’S CROUSE-HINDS BUSINESS
101
Ex ‘d’ X
Ex ‘e’ X X
Ex ‘i’ and Ex ‘nL’ - Group IIaX X X see 16.5
Ex ‘i’ - Group III a Xsee 16.5
Ex ‘m’ Ex ‘m’ would not normally be applied to wiring connections.
The protection technique for connections shall suit the wiring system used.
Ex ‘n’ except Ex ‘nL’
For Ex ”nR” see also 10.8 XXX
Ex ‘o’ Ex ‘o’ would not normally be applied to wiring connections.
The protection technique for connections shall suit the wiring system used
Ex ‘p’, all types X X Xb
Ex ‘pD’ X
Ex ‘q’ Ex ‘q’ would not normally be applied to wiring connections.
The protection technique for connections shall suit the wiring system used.
Ex ‘s’ Only as allowed by the conditions of the certificate.
Ex ‘t’ X
Selection of cable glands - technical references
EATON’S CROUSE-HINDS BUSINESS
References to IEC Standards:
60079-14/Ed.5: Explosive atmospheres – Part 14: Electrical installations design, selection and erection
60079-0/Ed.6: Explosive atmospheres - Part 0: Equipment - General requirements
Extract from IEC 60079-14/Ed.5:
10.2 Selection of Cable Glands
Cable glands shall be in accordance with IEC 60079-0 and shall be selected to maintain the requirements of the protection
technique according to the table below.
Xdenotes permitted use.
a)If only one intrinsically safe circuit is applied then there are no specified requirements for cable glands.
b)Only permitted for Gc installations.
To meet the ingress protection requirement it may also be necessary to seal between the cable glands, adaptors and blanking
elements and the enclosure (for example by means of a sealing washer or thread sealant).
Note 2: In order to meet the minimum requirement of IP54, threaded cable entry devices into threaded cable entry plates or enclosures of 6 mm or greater
thickness need no additional sealing between the cable entry device and the entry plate or enclosure providing the axis of the cable entry device is
perpendicular to the external surface of the cable entry plate or enclosure.
GLANDS, ADAPTORS AND BLANKING ELEMENT PROTECTION TECHNIQUEPROTECTION TECHNIQUE FOR THE EQUIPMENT
Ex ‘d’ - see 10.6 EX ‘e’ - see 10.4 Ex ‘n’ - see 10.4 Ex ‘t’ - see 10.7
Selection of cable glands - technical references
10.3 Connections of cables to equipment
Cable glands shall be installed in a manner that after installation they are only capable of being released or dismantled by
means of a tool.
If additional clamping is required to prevent pulling and twisting of the cable transmitting the forces to the conductor
terminations inside the enclosure, a clamp shall be provided, as close as practicable to the gland along the cable.
Capri ADE Gland with clamping module
NOTE 1 Cable clamps within 300 mm of the end of the cable gland are preferred.
Cables shall be routed straight from the cable gland to avoid lateral tension that may compromise the seal around the cable.
Where cable glands, blanking elements and adaptors with tapered threads are used in enclosures having gland plates with
unthreaded entries, care shall be taken to use appropriate fittings to maintain the enclosure integrity.
NOTE 2 Tapered threads include NPT threads.
When braided or armoured cables have been terminated within the cable gland, the body components that are intended to
retain and secure the cable braid or armour should not be able to be released manually or opened by hand without the use of
a tool.
The connection of cables to the electrical equipment shall be effected by means of cable glands appropriate to the type of
cable used and shall maintain the explosion protection integrity of the relevant type of protection.
Where the threaded entry or hole size is different to that of the cable gland, a threaded adaptor complying with Table 10 shall
be fitted.
10.6 Additional requirements for type of protection ‘d’ – Flameproof enclosures
10.6.1 General
Where cables enter into flameproof equipment via flameproof bushings through the wall of the enclosure which are part of the
equipment (indirect entry), the parts of the bushings outside the flameproof enclosure shall be protected in accordance with
one of the types of protection listed in IEC 60079-0. For example, the exposed parts of the bushings are within a terminal
compartment which may either be another flameproof enclosure or will be protected by type of protection “e”.
If an Ex ‘d’ gland clamping by the sealing ring (compression) is used with braided or armoured cable, it shall be of the type
where the braid or armour is terminated in the gland and compression takes place on the inner cable sheath. For fine braided
cable, where the braid is less than 0.15 mm diameter and has coverage of at least 70 % compression only on the outer sheath
is accepted.
NOTE 1 Flame propagation of flame may occur through the interstices between the strands of standard stranded conductors, or between individual cores of a
cable. Special cable construction can be employed as means of reducing and preventing flame propagation. Examples include compacted strands, sealing of
the individual strands, and extruded bedding. Further
information is given in Annex E.
102 EATON’S CROUSE-HINDS BUSINESS
Selection of cable glands - technical references
Flameproof cable glands, adaptors or blanking elements, having parallel threads may be fitted with a sealing washer between
the entry device and the flameproof enclosure provided that, after the washer has been fitted, the applicable thread
engagement is still achieved. Thread engagement shall be at least five full threads. Suitable grease may be used provided it is
non-setting, non-metallic and non-combustible and any earthing between the two is maintained.
Where taper threads are used, the connection shall be made wrench tight.
The addition of holes or alteration to thread form is only permitted when in compliance with the certification documents and
completed by the manufacturer or certified workshops. Where the threaded entry or hole size is different to that of the cable
gland, a flameproof threaded adaptor complying with IEC 60079-1 shall be fitted which complies with thread engagement
requirements detailed above. Unused cable entries shall be sealed with a flameproof blanking element complying with IEC
60079-1, which shall be fitted directly to the hole (no threaded adaptor shall be used), and shall comply with thread engagement
requirements detailed above and shall be secured against loosening.
NOTE 2 Non-threaded cable glands can be used if certified with the complete equipment or if certified as equipment.
10.6.2 Selection of cable glands
The cable entry system shall comply with one of the following:
a) Cable glands sealed with setting compound (barrier cable glands) in compliance with IEC 60079-1 and certified as equipment;
b) Cables and glands meeting all of the following:
– cable glands comply with IEC 60079-1 and are certified as equipment
– cables used comply with 9.3.2(a)
– the connected cable is at least 3 m in length;
c) Indirect cable entry using combination of flameproof enclosure with a bushing and increased safety terminal box;
d) Mineral-insulated metal-sheathed cable with or without plastic outer covering with appropriate flameproof cable gland
complying with IEC 60079-1;
e) Flameproof sealing device (for example a sealing chamber) specified in the equipment documentation or complying with
IEC 60079-1 and employing a cable gland appropriate to the cables used. The sealing device shall incorporate compound or
other appropriate seals which permit stopping around individual cores. The sealing device shall be fitted at the point of
entry of cables to the equipment.
NOTE 1 The minimum length of cable is to minimize the potential for flame transmission through the cable (see also Annex E);
NOTE 2 If the cable gland and actual cable are certified as a part of the equipment (enclosures) then compliance to 10.6.2 is not necessary.
Extract from IEC 60079-0/Ed.6:
Annex A - Supplementary requirements for cable glands
A.2.3 Clamping
A.2.3.1 General
Cable glands shall provide clamping of the cable in order to prevent pulling or twisting applied to it from being transmitted to
the connections. Such clamping can be provided by a clamping device, sealing ring or filling compound. Whichever clamping
arrangement is used, it shall be capable of meeting the relevant type tests in Clause A.3.
A.2.3.2 Group II or III cable glands
Cable glands for Group II or III equipment, without a clamping device, shall also be accepted as complying with this annex if
they are capable of passing the clamping tests with values reduced to 25 % of those required in Clause A.3. The descriptive
documents shall then state that such cable glands may not provide sufficient clamping and that the user shall provide
additional clamping of the cable to ensure that pulling and twisting is not transmitted to the terminations. Such cable glands
shall be marked with the symbol “X” to indicate this specific condition of use according to item e) of 29.3.
The author thanks the International Electrotechnical Commission (IEC) for permission to reproduce Information from its International Standard
IEC 60079-14 ed.5.0 (2013). All such extracts are copyright of IEC, Geneva, Switzerland. All rights reserved. Further information on the IEC is available from
www.iec.ch. IEC has no responsibility for the placement and context in which the extracts and contents are reproduced by the author, nor is IEC in any way
responsible for the other content or accuracy therein.
IEC 60079-14 ed.5.0 Copyright © 2013 IEC Geneva, Switzerland. www.iec.ch
103
EATON’S CROUSE-HINDS BUSINESS
Material Information
104
Bi Metallic Corrosion
Bi Metallic Corrosion
Bi-metallic corrosion occurs when two metals, with different
potentials, are in electrical contact while immersed / in
contact in an electrically conducting corrosive liquid /
atmosphere. Because the metals have different natural
potentials, a current will flow from the anode (more
electronegative) metal to the cathode (more electropositive),
which will increase the corrosion on the anode.
This additional corrosion is bimetallic corrosion. It is also
referred to as a galvanic corrosion, dissimilar metal corrosion
or contact corrosion. The electrode potential is determined by
many factors but the only fluid / atmospheres for which these
factors are really well documented is sea water.
The value of the potential for any alloy, even in sea water, can
be changed by a variety of factors such as temperature,
velocity, biocide treatment etc. Selection table below are
thereby indicatives.
Keys corrosion prevention points
•Don’t Mix Metals. If only one material is used in a
construction the problem is avoided.
•Consider Area Effect to avoid Bimetallic Corrosion.
The area effect should also be considered in avoiding
corrosion damage.
•Remember stainless steels, such as 316L, have a thin,
protective oxidized film and while this is intact corrosion
rates are very low and the alloy is said to be in its passive
state.
•The bimetallic corrosion rate of many copper-based and of
stainless steels in sea-water, depends upon the flow rate
of the water as well as on the area ratio. Natural brass
alloys tend to become less noble with increasing flow rate
and to corrode more - thereby plating brass will improve
the performance, while stainless steels become more
noble and corrode less. In well-aerated flowing solutions
stainless steels are also likely to become passive and
corrode less.
ENCLOSURE
CABLE GLAND
SERIES
316
STAINLESS STEEL STEEL BRASS ALUMINIUM NON METALLIC
Nickel plated brass SSSSS
316L Stainless steel SSSSS
Aluminium SLLSS
Polyamide SSSSS
Nickel plated brass L NC S NC S
316L Stainless steel SLLNCS
Aluminium NC NC NC S S
Polyamide SSSSS
SSuitable
LLimited corrosion
NC Not compliant. Severe corrosion - do not use
Indoor use
Outdoor use in sea water environment
EATON’S CROUSE-HINDS BUSINESS
ADE - CABLE GLAND RANGE
THREAD SIZE
ISO
STANDARD
LENGTH
THREAD SIZE
NPT
STANDARD
LENGTH
Thread Dimension Guide
NEWCAP - CABLE GLAND RANGE
THREAD SIZE
ISO
STANDARD
LENGTH
LONG
LENGTH
THREAD SIZE
Pg
STANDARD
LENGTH
12 6.5 15.0 PG7 6.5
16 6.5 15.0 PG9 6.5
20 6.5 15.0 PG11 6.5
25 7.0 15.0 PG13.5 6.5
32 8.0 15.0 PG16 7.0
40 8.0 15.0 PG21 8.0
50 9.0 15.0 PG29 8.0
63 10.0 15.0 PG36 9.0
PG48 10.0
All dimensions in mm.
12 15.0 3/8" NPT 16.6
16 15.0 1/2" NPT 22.2
20 15.0 3/4" NPT 22.5
25 15.0 1" NPT 27.3
32 15.0 1 1/4" NPT 28.0
40 15.0 1 1/2" NPT 28.5
50 16.0 2" NPT 29.2
63 17.0 2 1/2" NPT 42.5
75 18.0 3" NPT 44.0
90 22.0 3 1/2" NPT 45.2
110 22.0 4" NPT 46.5
All dimensions in mm.
ISOMETRIC - (ISO) to BS 3643:1981
SIZE
MAJOR
DIAMETER
(MM)
THREADS
PER INCH PITCH
16mm (M16) 16 16.93 1.50
20mm (M20) 20 16.93 1.50
25mm (M25) 25 16.93 1.50
32mm (M32) 32 16.93 1.50
40mm (M40) 40 16.93 1.50
50mm (M50) 50 16.93 1.50
63mm (M63) 63 16.93 1.50
75mm (M75) 75 16.93 1.50
All dimensions in mm.
NATIONAL PIPE THREAD - (NPT) to ANSI / ASME: 1983
SIZE
MAJOR
DIAMETER
(MM)
THREADS
PER INCH PITCH
PANZERGEWINDE - (Pg) to EN 40430
SIZE
MAJOR
DIAMETER
(MM)
THREADS
PER INCH PITCH
PG7 12.5 20 1.27
PG9 15.5 18 1.4112
PG11 18.6 18 1.4112
PG13.5 20.4 18 1.4112
PG16 22.5 18 1.4112
PG21 28.3 16 1.5875
PG29 37.0 16 1.5875
PG36 47.0 16 1.5875
PG42 54.0 16 1.5875
PG48 59.3 16 1.5875
All dimensions in mm.
Thread Lengths
Thread Pitch
1/8" NPT 10.30 27 0.94
1/4" NPT 13.72 18 1.41
3/8" NPT 17.15 18 1.41
1/2" NPT 21.34 14 1.81
3/4" NPT 26.67 14 1.81
1" NPT 33.40 11 1/2 2.20
1 1/4" NPT 42.16 11 1/2 2.20
1 1/2" NPT 48.26 11 1/2 2.20
2" NPT 60.33 11 1/2 2.20
2 1/2" NPT 73.03 8 3.175
3" NPT 88.90 8 3.175
4" NPT 114.30 8 3.175
All dimensions in mm.
105
EATON’S CROUSE-HINDS BUSINESS
Notes
106 EATON’S CROUSE-HINDS BUSINESS
Notes
107
EATON’S CROUSE-HINDS BUSINESS
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2014 Eaton Corporation
All Rights Reserved
Printed in UK
Publication No. CAP185001
May 2014
U.S. (Global Headquarters):
Eaton's Crouse-Hinds Business
1201 Wolf Street
Syracuse, NY 13208
(866) 764-5454
FAX: (315) 477-5179
FAX Orders Only:
(866) 653-0640
crouse.customerctr@
cooperindustries.com
Canada:
Toll Free: 800-265-0502
FAX: (800) 263-9504
FAX Orders only: (866) 653-0645
Mexico/LatinAmerica/Caribbean:
52-555-804-4000
FAX: 52-555-804-4020
mxmercadotecnia@
cooperindustries.com
Singapore:
65-6645-9888
FAX: 65-6297-4819
chsi-sales@cooperindustries.com
Middle East (Dubai):
971 4 4272500
FAX: 971 4 4298521
sales.CCH.me@
cooperindustries.com
Australia:
61-2-8787-2777
FAX: 61-2-9609-2342
CEASales@cooperindustries.com
Europe (Germany):
49 (0) 6271 806-500
49 (0) 6271 806-476
sales.CCH.de@
cooperindustries.com
China:
86-21-2899-3600
FAX: 86-21-2899-4055
cchsales@cooperindustries.com
India:
91-124-4683888
FAX: 91-124-4683899
cchindia@cooperindustries.com
Eaton Cooper Capri SAS
Eaton Cooper Capri SAS
36-40 Rue des Fontenils
41600 Nouan-le-Fuzelier France
T: +33 (0) 820 820 195
F: +33 (0) 820 820 924
W: www.cooperfrance.com
Ex Innovations Limited T/A Raxton
Westgate, Aldridge
West Midlands WS9 8FS
United Kingdom
T: +44 (0) 1922 450400
F: +44 (0) 1922 450401
W: www.raxton.co.uk
Eaton’s Crouse-Hinds Business
1201 Wolf Street
Syracuse, NY 13208
(866) 764-5454
crouse.customerctr@cooperindustries.com
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Eaton’s Crouse-Hinds
The safety you rely on.
See the complete offering of Cable Glands and Accessories at www.crouse-hinds.com.
Korea:
82-2-3484-6783
82-2-3484-6778
CCHK-sales@
cooperindustries.com
For more information:
If further assistance is
required, please contact
an authorized Eaton
Distributor, Sales Office,
or Customer Service
Department.
