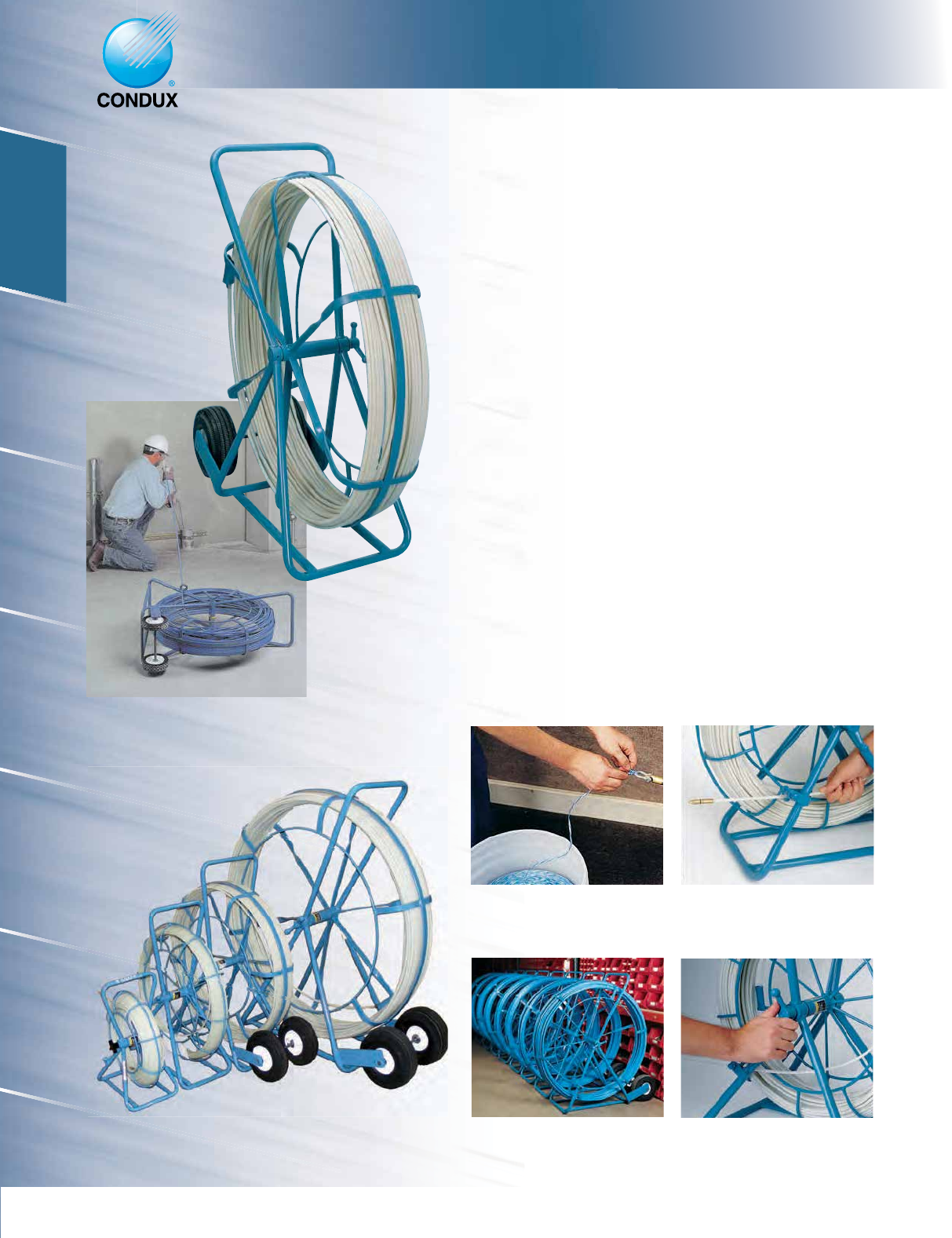

Duct Rodders

Condux Duct Rodders combine ease of operation and

reliable performance to help increase the efficiency of your

rodding operations.

Our Duct Rodder cages have been designed to be lighter weight

for easy handling in the field. They feature sturdy construction

and a hand-operated wheel brake. They can be used on their side

as well as upright. 30" (762 mm) and 45" (1,143 mm) cages

come with flotation wheels for added mobility. Cage sizes are

matched to suit the rod you order.

End Fittings Included

Condux duct rods come equipped with a threaded end fitting

on each end, plus a tapered head on the outward end. Condux

offers a number of optional end fitting accessories for additional

applications.

Easy to Order

Simply refer to the charts in this section based on

the diameter of rod you need. Condux provides 24-hour

turnaround on most rodder orders.

All Duct Rodders come standard with a repair kit.

2 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

24 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDERS

DUCT RODDERS & ACCESSORIES

Dozens of rodder accessories

(pgs. 28-33) are available to fit your

rodding application.

Hand-operated wheel brake adds

control and safety.

Ready to ship! 24-hour turnaround on

most rodders.

End fittings are included with Condux

duct rodders. Vary with rod type

ordered. See page 32.

Duct Rodders

Condux Duct Rodders combine ease of operation and

reliable performance to help increase the efficiency of your

rodding operations.

Our Duct Rodder cages have been designed to be lighter weight

for easy handling in the field. They feature sturdy construction

and a hand-operated wheel brake. They can be used on their side

as well as upright. 30" (762 mm) and 45" (1,143 mm) cages

come with flotation wheels for added mobility. Cage sizes are

matched to suit the rod you order.

End Fittings Included

Condux duct rods come equipped with a threaded end fitting

on each end, plus a tapered head on the outward end. Condux

offers a number of optional end fitting accessories for additional

applications.

Easy to Order

Simply refer to the charts in this section based on

the diameter of rod you need. Condux provides 24-hour

turnaround on most rodder orders.

All Duct Rodders come standard with a repair kit.

FISHING &

RODDING

25

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDERS

*Conduit sizes based on standard

radius bends and should be

considered minimums. A larger diameter

rod than what is listed is not

recommended. Please call your Condux

representative for more assistance.

**Core O.D. Tolerance ±.007" (.2 mm); *Coating O.D. Tolerance ±.015" (.4 mm).

Three Types of Rod

Condux offers three types of duct rod: Cobra®, Python® and Mini-Cobra®.

Each has a glass reinforced composite core jacketed in a rugged plastic

coating to ensure long life. All three have excellent flexural strength,

compressive strength, fatigue resistance, and memory. They also have

favorable electrical and thermal properties that make them safe for use in

cable-occupied duct. They are suitable for pulling back winch line or small

diameter cable.

COBRA®: Cobra is our highest quality rod, designed for heavy-duty

applications. It gets its extra strength from a unique construction

process that ensures greater rigidity and strength, enabling it

to endure the additional force required for long duct runs with

multiple bends and sweeps. A braided wrap of reinforcing fibers increases

its rigidity and helps bond the core with the outer plastic coating. The

coating is made from a polymer blend for greater toughness and superior

abrasion resistance to ensure extra long life. Includes one male and one

female end fitting, and a tapered head.

PYTHON®: Our Python rod is best suited for less demanding

applications. It has strength properties similar to our Cobra rod, but is more

flexible. Also, like the Cobra, it has a heavy-duty outer plastic coating to

resist abrasions and reduce wear. Includes one male and one female end

fitting, and a tapered head.

MINI-COBRA®: Our Mini-Cobra rod includes our

3

⁄

16

" (5 mm)

and

1

⁄

4

" (6 mm) diameter rods used primarily for smaller duct sizes

and shorter runs. The rod has the same flexibility and strength

features of our Python rod and comes wound in 16" (406 mm) and

24" (610 mm) cages in 50' (25 m) to 600' (200 m) lengths. Includes two

male end fittings and two tapered heads.

REPLACEMENT ROD: Replacement rod is available for all Condux

Duct Rodders. Please contact Condux Customer Service to place

your order. Have your existing duct rodder part number ready to

ensure an accurate match. Replacement rod comes with end fittings

and tapered heads in a disposable replacement cage.

Replacement accessories listed on pages 28–33.

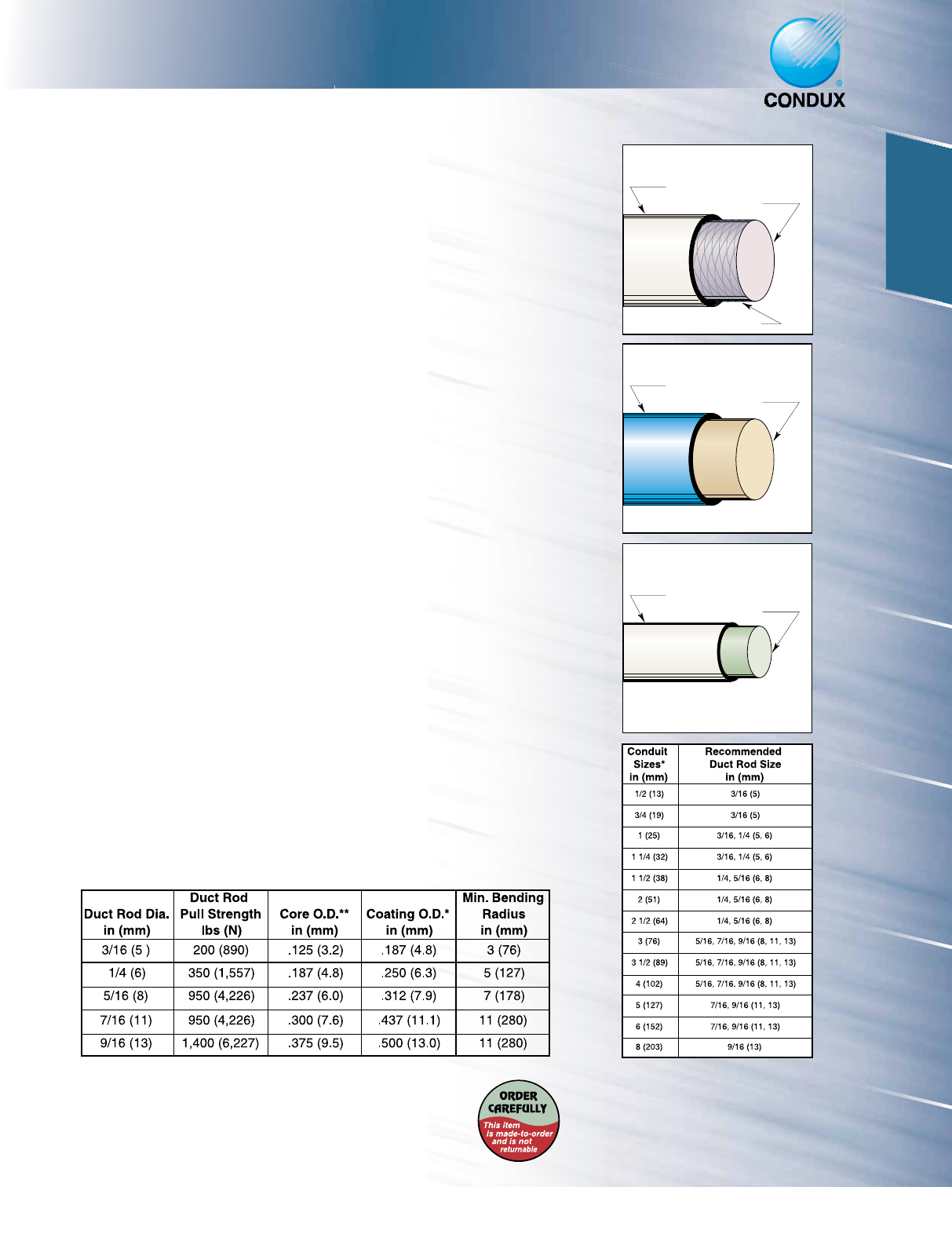

Duct Rod Specifications

Rugged Polymer Jacket

Composite Core

Python® Rod

Rugged Polymer Jacket

Composite Core

Braided Reinforcing Wrap

Cobra® Rod

Mini-Cobra® Rod

Rugged Polymer Jacket

Composite Core

www.CONDUXINTERNATIONAL.za 3

FISHING &

RODDING

26 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDERS (METRIC)DUCT RODDERS (U.S. THREADS–USC)

3/16" Mini-Cobra Rod

#12-24 End Fitting

16" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08072405 50 08073605

08072410 100 08073610

08072415 150 08073615

08072420 200 08073620

08072425 250 08073625

08072430 300 08073630

1/4" Mini-Cobra Rod

5/16"-18 End Fitting

24" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08072510 100 08073710

08072515 150 08073715

08072520 200 08073720

08072525 250 08073725

08072530 300 08073730

08072535 350 08073735

08072540 400 08073740

08072545 450 08073745

08072550 500 08073750

08072555 550 08073755

08072560 600 08073760

5/16" Cobra Rod

3/8"-16 End Fitting

30" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083720 200 08079120

08083725 250 08079125

08083730 300 08079130

08083735 350 08079135

08083740 400 08079140

08083745 450 08079145

08083750 500 08079150

08083755 550 08079155

08083760 600 08079160

08083765 650 08079165

08083770 700 08079170

08083775 750 08079175

08083780 800 08079180

08083790 900 08079190

08083710 1000 08079110

5/16" Python Rod

3/8"-16 End Fitting

30" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08084320 200 08082320

08084325 250 08082325

08084330 300 08082330

08084335 350 08082335

08084340 400 08082340

08084345 450 08082345

08084350 500 08082350

08084355 550 08082355

08084360 600 08082360

08084365 650 08082365

08084370 700 08082370

08084375 750 08082375

08084380 800 08082380

08084390 900 08082390

08084310 1000 08082310

7/16" Cobra Rod

3/8"-16 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083820 200 08086320

08083825 250 08086325

08083830 300 08086330

08083835 350 08086335

08083840 400 08086340

08083845 450 08086345

08083850 500 08086350

08083855 550 08086355

08083860 600 08086360

08083865 650 08086365

08083870 700 08086370

08083875 750 08086375

08083880 800 08086380

08083890 900 08086390

08083810 1000 08086310

08083811 1100 08086311

08083812 1200 08086312

08083813 1300 08086313

08083814 1400 08086314

08083815 1500 08086315

7/16" Python Rod

3/8"-16 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083920 200 08086520

08083925 250 08086525

08083930 300 08086530

08083935 350 08086535

08083940 400 08086540

08083945 450 08086545

08083950 500 08086550

08083955 550 08086555

08083960 600 08086560

08083965 650 08086565

08083970 700 08086570

08083975 750 08086575

08083980 800 08086580

08083990 900 08086590

08083910 1000 08086510

08083911 1100 08086511

08083912 1200 08086512

08083913 1300 08086513

08083914 1400 08086514

08083915 1500 08086515

9/16" Python Rod

3/4"-10 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083220 200 08075720

08083225 250 08075725

08083230 300 08075730

08083235 350 08075735

08083240 400 08075740

08083245 450 08075745

08083250 500 08075750

08083255 550 08075755

08083260 600 08075760

08083265 650 08075765

08083270 700 08075770

08083275 750 08075775

08083280 800 08075780

08083290 900 08075790

08083210 1000 08075710

All Duct Rodders come

standard with a repair kit.

4 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

26 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDERS (METRIC)

DUCT RODDERS (U.S. THREADS–USC)

3/16" Mini-Cobra Rod

#12-24 End Fitting

16" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08072405 50 08073605

08072410 100 08073610

08072415 150 08073615

08072420 200 08073620

08072425 250 08073625

08072430 300 08073630

1/4" Mini-Cobra Rod

5/16"-18 End Fitting

24" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08072510 100 08073710

08072515 150 08073715

08072520 200 08073720

08072525 250 08073725

08072530 300 08073730

08072535 350 08073735

08072540 400 08073740

08072545 450 08073745

08072550 500 08073750

08072555 550 08073755

08072560 600 08073760

5/16" Cobra Rod

3/8"-16 End Fitting

30" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083720 200 08079120

08083725 250 08079125

08083730 300 08079130

08083735 350 08079135

08083740 400 08079140

08083745 450 08079145

08083750 500 08079150

08083755 550 08079155

08083760 600 08079160

08083765 650 08079165

08083770 700 08079170

08083775 750 08079175

08083780 800 08079180

08083790 900 08079190

08083710 1000 08079110

5/16" Python Rod

3/8"-16 End Fitting

30" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08084320 200 08082320

08084325 250 08082325

08084330 300 08082330

08084335 350 08082335

08084340 400 08082340

08084345 450 08082345

08084350 500 08082350

08084355 550 08082355

08084360 600 08082360

08084365 650 08082365

08084370 700 08082370

08084375 750 08082375

08084380 800 08082380

08084390 900 08082390

08084310 1000 08082310

7/16" Cobra Rod

3/8"-16 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083820 200 08086320

08083825 250 08086325

08083830 300 08086330

08083835 350 08086335

08083840 400 08086340

08083845 450 08086345

08083850 500 08086350

08083855 550 08086355

08083860 600 08086360

08083865 650 08086365

08083870 700 08086370

08083875 750 08086375

08083880 800 08086380

08083890 900 08086390

08083810 1000 08086310

08083811 1100 08086311

08083812 1200 08086312

08083813 1300 08086313

08083814 1400 08086314

08083815 1500 08086315

7/16" Python Rod

3/8"-16 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083920 200 08086520

08083925 250 08086525

08083930 300 08086530

08083935 350 08086535

08083940 400 08086540

08083945 450 08086545

08083950 500 08086550

08083955 550 08086555

08083960 600 08086560

08083965 650 08086565

08083970 700 08086570

08083975 750 08086575

08083980 800 08086580

08083990 900 08086590

08083910 1000 08086510

08083911 1100 08086511

08083912 1200 08086512

08083913 1300 08086513

08083914 1400 08086514

08083915 1500 08086515

9/16" Python Rod

3/4"-10 End Fitting

45" Cage

Part No.

Length

(ft)

Replacement

Rod No.

08083220 200 08075720

08083225 250 08075725

08083230 300 08075730

08083235 350 08075735

08083240 400 08075740

08083245 450 08075745

08083250 500 08075750

08083255 550 08075755

08083260 600 08075760

08083265 650 08075765

08083270 700 08075770

08083275 750 08075775

08083280 800 08075780

08083290 900 08075790

08083210 1000 08075710

All Duct Rodders come

standard with a repair kit.

FISHING &

RODDING

27

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

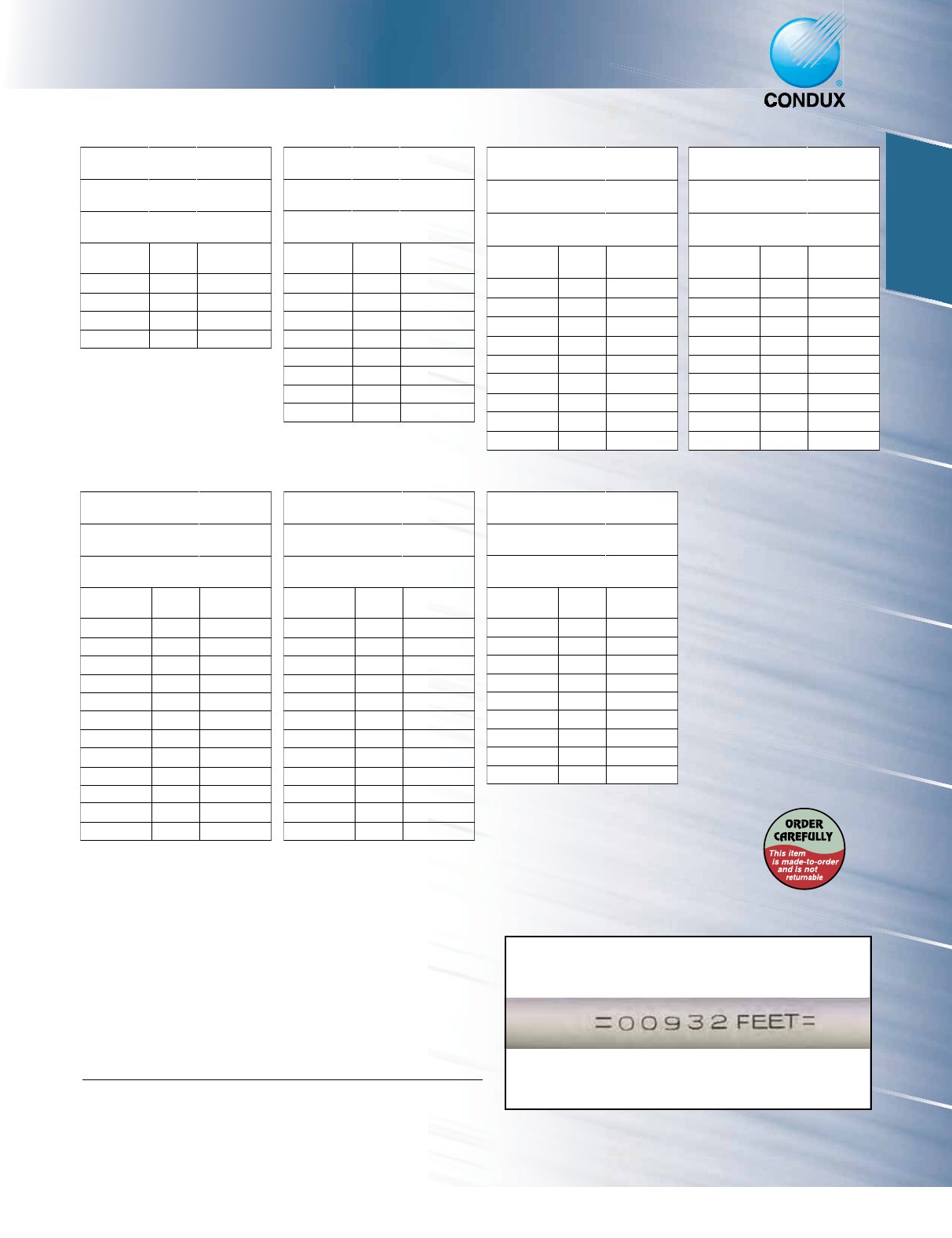

DUCT RODDERS (METRIC)

5 mm Mini-Cobra Rod

M5 End Fitting

406 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08072602 25 08072702

08072605 50 08072705

08072607 75 08072707

08072610 100 08072710

6 mm Mini-Cobra Rod

M8 End Fitting

610 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08072802 25 08072902

08072805 50 08072905

08072807 75 08072907

08072810 100 08072910

08072812 125 08072912

08072815 150 08072915

08072817 175 08072917

08072820 200 08072920

8 mm Cobra Rod

M12 End Fitting

762 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08073005 50 08073505

08073007 75 08073507

08073010 100 08073510

08073012 125 08073512

08073015 150 08073515

08073017 175 08073517

08073020 200 08073520

08073025 250 08073525

08073030 300 08073530

8 mm Python Rod

M12 End Fitting

762 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08075205 50 08076405

08075207 75 08076407

08075210 100 08076410

08075212 125 08076412

08075215 150 08076415

08075217 175 08076417

08075220 200 08076420

08075225 250 08076425

08075230 300 08076430

11 mm Cobra Rod

M12 End Fitting

1143 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08077205 50 08077705

08077207 75 08077707

08077210 100 08077710

08077212 125 08077712

08077215 150 08077715

08077217 175 08077717

08077220 200 08077720

08077225 250 08077725

08077230 300 08077730

08077235 350 08077735

08077240 400 08077740

08077245 450 08077745

11 mm Python Rod

M12 End Fitting

1143 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08078505 50 08078605

08078507 75 08078607

08078510 100 08078610

08078512 125 08078612

08078515 150 08078615

08078517 175 08078617

08078520 200 08078620

08078525 250 08078625

08078530 300 08078630

08078535 350 08078635

08078540 400 08078640

08078545 450 08078645

Footage Marks

Footage marks are available on

5

⁄

16

" (8 mm),

7

⁄

16

" (11 mm),

and

9

⁄

16

" (13 mm) Cobra and Python duct rod. Order

footage marks separately at additional cost. Footage marks are

every two feet.

Part Number Description

08084000 Footage Marks (Feet)

13 mm Python Rod

M12 End Fitting

1143 mm Cage

Part No.

Length

(m)

Replacement

Rod No.

08078705 50 08079305

08078707 75 08079307

08078710 100 08079310

08078712 125 08079312

08078715 150 08079315

08078717 175 08079317

08078720 200 08079320

08078725 250 08079325

08078730 300 08079330

www.CONDUXINTERNATIONAL.za 5

FISHING &

RODDING

28 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

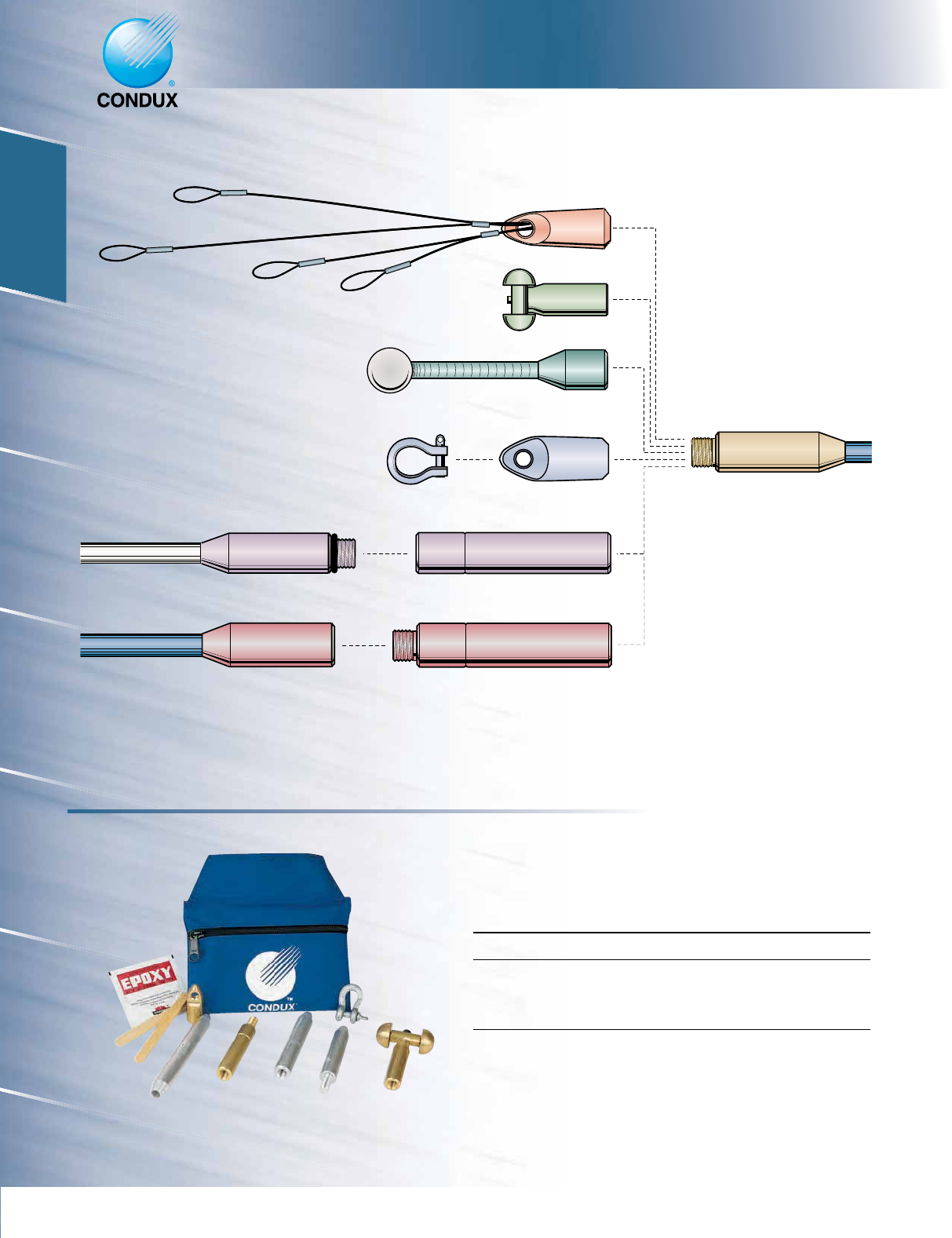

DUCT RODDER ACCESSORIESDUCT RODDER ACCESSORIES

Accessory Kit

Popular accessories available in a convenient bag that attaches

to the cage. Kit Includes: Canvas Bag, Roller Guide, Splice Kit,

Epoxy, Swivel Coupling, Tapered head, and Threaded End Fittings.

Rod Dia., in (mm)

3

⁄

16

(5)*

1

⁄

4

(6)*

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Accessory Kit 08033498 08033499 08033497 08033494 08033488

Metric Thread M5 M8 M12 M12 M12

Accessory Kit 08033492 08033493 08033496 08033495 08033489

*Kits for

3

⁄

16

(5 mm) and

1

⁄

4

(6 mm) rod also include a Flexible Leader and O-Rings.

Bag Only 08033490

Mini-Harness

Roller Guide

Flexible Leader

Tapered Head

Swivel Coupling

female/female

Threaded End Ftg, Male

Mini-Cobra Rod

Threaded End Ftg, Male

included on all rod

Swivel Coupling

male/female

Threaded End Ftg, Female

Cobra & Python Rod

Shackle Ftg.

O-Ring

Duct Rodder Accessories

6 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

28 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDER ACCESSORIES

DUCT RODDER ACCESSORIES

Accessory Kit

Popular accessories available in a convenient bag that attaches

to the cage. Kit Includes: Canvas Bag, Roller Guide, Splice Kit,

Epoxy, Swivel Coupling, Tapered head, and Threaded End Fittings.

Rod Dia., in (mm)

3

⁄

16

(5)*

1

⁄

4

(6)*

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Accessory Kit 08033498 08033499 08033497 08033494 08033488

Metric Thread M5 M8 M12 M12 M12

Accessory Kit 08033492 08033493 08033496 08033495 08033489

*Kits for

3

⁄

16

(5 mm) and

1

⁄

4

(6 mm) rod also include a Flexible Leader and O-Rings.

Bag Only 08033490

Mini-Harness

Roller Guide

Flexible Leader

Tapered Head

Swivel Coupling

female/female

Threaded End Ftg, Male

Mini-Cobra Rod

Threaded End Ftg, Male

included on all rod

Swivel Coupling

male/female

Threaded End Ftg, Female

Cobra & Python Rod

Shackle Ftg.

O-Ring

Duct Rodder Accessories

FISHING &

RODDING

29

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDER ACCESSORIES

Mini Harness

Screws onto the threaded end fitting to allow for easy wire

attachment when pulling wire into conduit.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Mini Harness 08033433 08033434 08033435 08033435 08033436

Metric Thread M5 M8 M12 M12 M12

Mini Harness 08033432 08033431 08033437 08033437 08033437

Roller Guide

Helps guide the duct rod around bends, sweeps, and duct

misalignments. Also used when the conduit is already occupied

by other cables.

Flexible Leader

Helps guide the duct rod around bends, sweeps, and duct

misalignments.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Flexible Ldr. 08033423 08033443 08037538 08037538 08037534

Metric Thread M5 M8 M12 M12 M12

Flexible Ldr. 08033448 08033444 08037512 08037512 08037512

5

⁄

16

" (8 mm) to

9

⁄

16

" (13 mm)

3

⁄

16

" (5 mm) to

1

⁄

4

" (6 mm)

5

⁄

16

" (8 mm) to

9

⁄

16

" (13 mm)

US Duct Rodders

Rod Diameter

(in)

USC

Thread

Roller

Guide

Part Number

Duct Range

I.D.

(in)

3⁄16 #12-24 08037430 .50 - 1.25

1⁄45⁄16-18 08037440 1.00 - 2.50

5⁄16 3⁄8-16 08037460 1.50 - 6.00

5⁄16 3⁄8-16 08037401 2.50 - 6.00

7⁄16 3⁄8-16 08037401 2.50 - 6.00

9⁄16 3⁄4-10 08037400 3.00 - 8.00

Metric Duct Rodders

Rod Diameter

(mm)

Metric

Thread

Roller

Guide

Part Number

Duct Range

I.D.

(mm)

(5) M5 08037428 12.7 - 32

(6) M8 08037450 25 - 63

(8) M12 08037405 63 - 152

(11) M12 08037405 63 - 152

(13) M12 08037405 76 - 203

3

⁄

16

" (5 mm) to

1

⁄

4

" (6 mm)

www.CONDUXINTERNATIONAL.za 7

FISHING &

RODDING

30 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDER ACCESSORIESDUCT RODDER ACCESSORIES

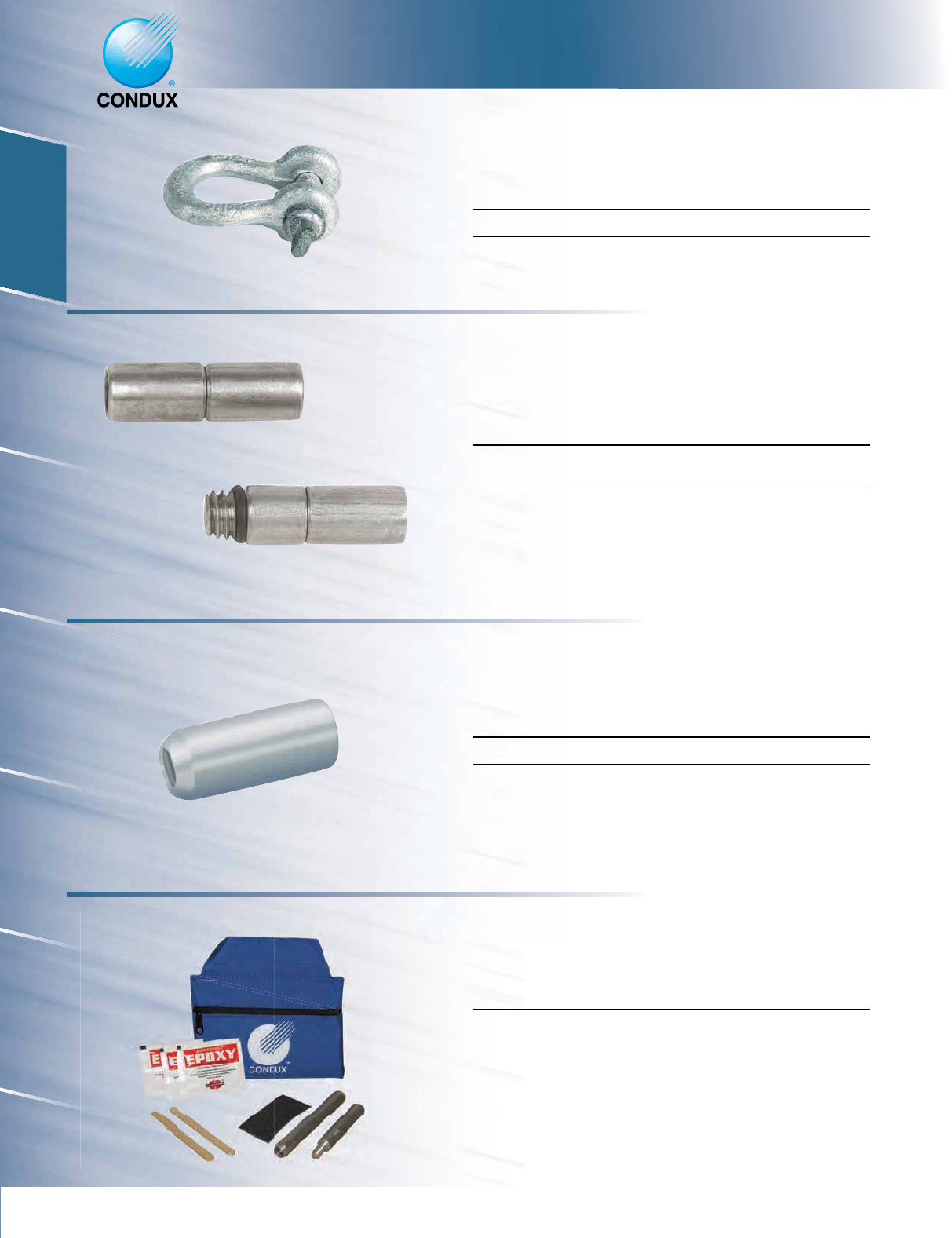

Shackle Fitting

Fits onto Tapered Head to provide a larger pulling loop for

attaching the rope or pull line.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Shackle Fitting - - 08031101 08031101 08031100

Metric Thread M5 M8 M12 M12 M12

Shackle Fitting - - 08031101 08031101 08031101

Swivel Coupling

Used to connect two duct rods pushed into the conduit from the

same end. Used when one length of duct rod is not long enough

for the full conduit run. Also used as a rotating swivel when

pulling wire or rope with the Tapered Head or Mini-Harness.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Female/Female 08033470 08033459 - - -

Male/Female 08033422 08033442 08036800 08036800 08036700

Metric Thread M5 M8 M12 M12 M12

Female/Female 08033429 08033483 - - -

Male/Female 08033426 08033485 08036806 08036806 08036806

Sonde Adapter

Couples a locating sonde or other device with an M10 male

thread to the male end fitting of the duct rod. Specify sonde,

thread and rodder.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Sonde Adapter – 08036500 08036503 08036503 08036504

Metric Thread M5 M8 M12 M12 M12

Sonde Adapter – 08036505 08036501 08036501 08036501

Custom adapters available upon request.

Repair Kit

Replacement repair kit that comes standard with duct rod.

Accessories available in a convenient bag that attaches to the

cage.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

Replacement Kit 08035770 08035772 08035774 08035776 08035778

Female/Female

Male/Female

8 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

30 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDER ACCESSORIES

DUCT RODDER ACCESSORIES

Shackle Fitting

Fits onto Tapered Head to provide a larger pulling loop for

attaching the rope or pull line.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Shackle Fitting - - 08031101 08031101 08031100

Metric Thread M5 M8 M12 M12 M12

Shackle Fitting - - 08031101 08031101 08031101

Swivel Coupling

Used to connect two duct rods pushed into the conduit from the

same end. Used when one length of duct rod is not long enough

for the full conduit run. Also used as a rotating swivel when

pulling wire or rope with the Tapered Head or Mini-Harness.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Female/Female 08033470 08033459 - - -

Male/Female 08033422 08033442 08036800 08036800 08036700

Metric Thread M5 M8 M12 M12 M12

Female/Female 08033429 08033483 - - -

Male/Female 08033426 08033485 08036806 08036806 08036806

Sonde Adapter

Couples a locating sonde or other device with an M10 male

thread to the male end fitting of the duct rod. Specify sonde,

thread and rodder.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Sonde Adapter – 08036500 08036503 08036503 08036504

Metric Thread M5 M8 M12 M12 M12

Sonde Adapter – 08036505 08036501 08036501 08036501

Custom adapters available upon request.

Repair Kit

Replacement repair kit that comes standard with duct rod.

Accessories available in a convenient bag that attaches to the

cage.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

Replacement Kit 08035770 08035772 08035774 08035776 08035778

Female/Female

Male/Female

FISHING &

RODDING

31

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

DUCT RODDER ACCESSORIES

02218300

08081547

08081567

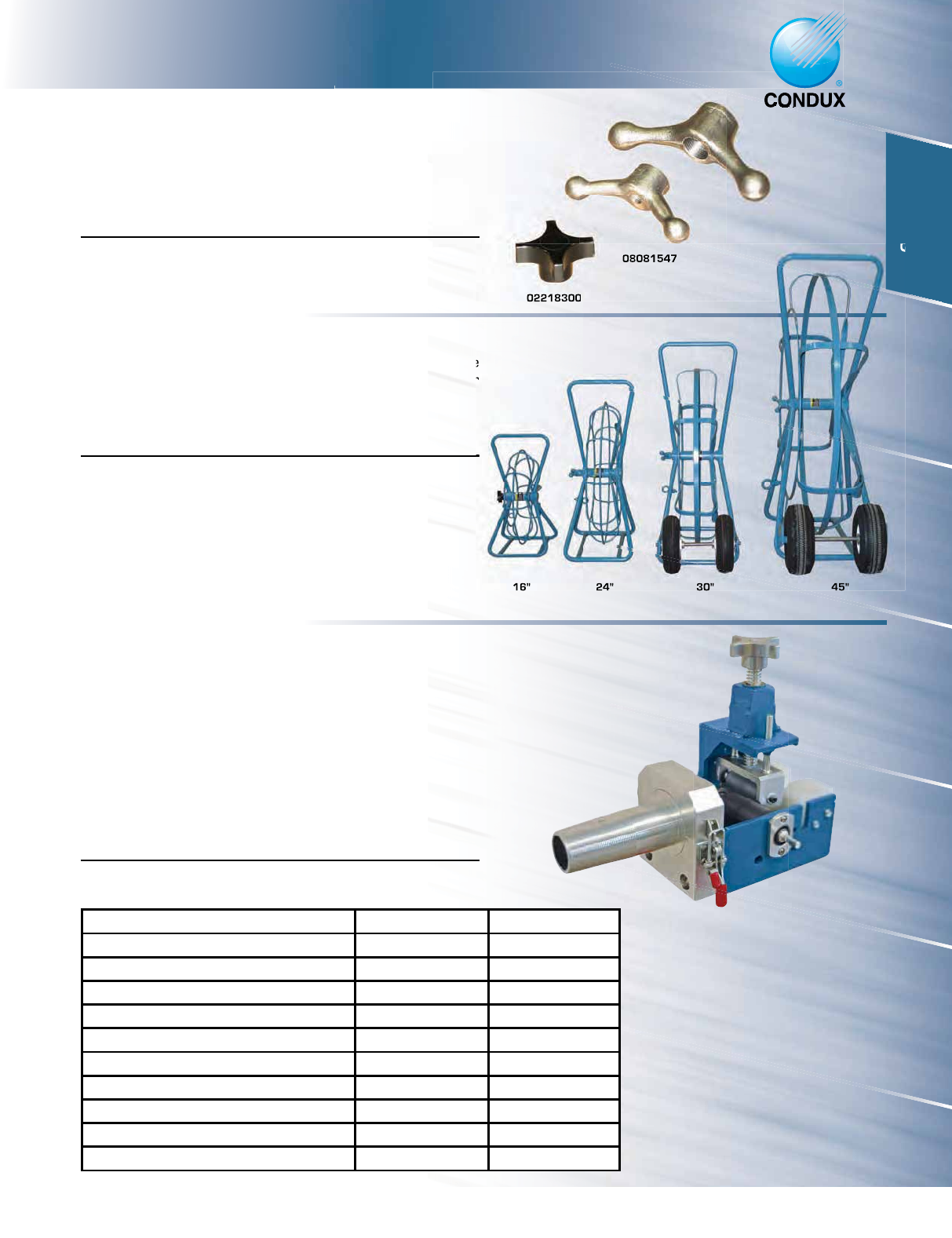

Duct Rodder Replacement

Brake Handles

Use Condux Duct Rodder Replacement Brake Handles to replace

missing or damaged handles on existing cages.

Part No. Description

02218300 16" (406 mm) Duct Rodder Replacement Brake Handle

08081547 24" (610 mm) Duct Rodder Replacement Brake Handle

08081547 30" (762 mm) Duct Rodder Replacement Brake Handle

08081567 45" (1,143 mm) Duct Rodder Replacement Brake Handle

Duct Rodder Replacement Cages

Use Condux Duct Rodder Replacement Cages to update

older cages or to replace damaged cages. Fits all major

manufacturers’ fiberglass rods.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

Replacement Cage 08081516 08081524 08081530 08081550 08081550

Cage Diameter 16" (406) 24" (610) 30" (762) 45" (1,143) 45" (1,143)

Duct Rod Pusher

The Condux Rod Pusher, which has been designed for the

purpose of installing duct rod into conduit. The conduit must

previously have been installed underground or overhead to receive

the duct rod and must be of sufficient length on exit to be received

by the machine. The duct rod is continuously pushed into the

conduit by a roller drive powered by a cordless, corded or

pneumatic drill. A clamp located in front of the entrance to the

unit holds the conduit mechanically to prevent it from moving

axially.

Part Number Description

08081301 Duct Rod Pusher

16" 24" 30" 45"

(406 mm) (610 mm) (762 mm) (1,143 mm)

RODDING

02218300

02218300

08081547

Use Condux Duct Rodder Replacement Cages to update

older cages or to replace damaged cages. Fits all major

16" 24" 30" 45"

16" 24" 30" 45"

Split Threaded Adapter Part No. Duct Size (in) Duct I.D. Range

08201108 .75 0.83 - 1.00

08201110 1 0.90 - 1.13

08201112 1.25 1.25 - 1.40

08201115 1. 5 1.40 - 1.65

08201020 2 1.91 - 2.10

08201025 2.5 2.29 - 2.47

08201030 3 2.83 - 3.10

08201041 4 3.80 -4.06

08201051 5 4.71 - 5.08

08201061 6 5.61 - 6.10

www.CONDUXINTERNATIONAL.za 9

FISHING &

RODDING

32 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

HAND RODSDUCT RODDER ACCESSORIES

A

Replacement/Repair Accessories

Threaded End Fittings

Use as a replacement to the factory installed end fittings

if the end fitting breaks off or if the duct rod breaks

close to the end of the rod. Installation instructions are

included with the end fittings. Epoxy is required for

installation and is ordered separately.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Male 08033420 08033440 08036307 08036303 08036005

Female - - 08036306 08036304 08036006

Metric Thread M5 M8 M12 M12 M12

Male 08033487 08033486 08036318 08036319 08036316

Female - - 08036317 08036314 08036315

Splice Kit

Use to repair the duct rod if it breaks. Kit includes: Splice Tube,

Epoxy and installation instructions.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

Splice Kit 08033457 08033465 08035753 08035751 08035752

Splice Tube Only 08033455 08033463 08035703 08035701 08035702

Epoxy

Use with End Fittings or Splice Tubes to repair Duct Rodders.

Part Number Description

08035851 Single pack for replacing end fittings

08035852 Double pack for splice tubes

Tapered Head

Attaches to the end fitting on the duct rod. Guides duct rod

through the conduit and allows a pull line (diameter A) to be

attached to the duct rod. Comes standard with each of the duct

rodders.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Tapered Head 08033421 08033441 08038400 08038400 08038300

Diameter A .156 (4) .156 (4) .281 (7) .281 (7) .343 (9)

Metric Thread M5 M8 M12 M12 M12

Tapered Head 08033410 08033480 08038301 08038301 08038301

Diameter A .156 (4) .156 (4) .281 (7) .281 (7) .281 (7)

O-Rings

Used to help keep accessories on the end fitting while

rodding. Comes standard with the Mini-Cobra rodders.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

O-Rings 02163600 02215000 – – –

Metric Thread M5 M8 M12 M12 M12

O-Rings 02163600 02215000 – – –

Don’t forget to order the

Epoxy.

Male End Fitting

Female End Fitting

Splice Tube

Splice Kit

10 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

32 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

HAND RODS

DUCT RODDER ACCESSORIES

A

Replacement/Repair Accessories

Threaded End Fittings

Use as a replacement to the factory installed end fittings

if the end fitting breaks off or if the duct rod breaks

close to the end of the rod. Installation instructions are

included with the end fittings. Epoxy is required for

installation and is ordered separately.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Male 08033420 08033440 08036307 08036303 08036005

Female - - 08036306 08036304 08036006

Metric Thread M5 M8 M12 M12 M12

Male 08033487 08033486 08036318 08036319 08036316

Female - - 08036317 08036314 08036315

Splice Kit

Use to repair the duct rod if it breaks. Kit includes: Splice Tube,

Epoxy and installation instructions.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

Splice Kit 08033457 08033465 08035753 08035751 08035752

Splice Tube Only 08033455 08033463 08035703 08035701 08035702

Epoxy

Use with End Fittings or Splice Tubes to repair Duct Rodders.

Part Number Description

08035851 Single pack for replacing end fittings

08035852 Double pack for splice tubes

Tapered Head

Attaches to the end fitting on the duct rod. Guides duct rod

through the conduit and allows a pull line (diameter A) to be

attached to the duct rod. Comes standard with each of the duct

rodders.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Tapered Head 08033421 08033441 08038400 08038400 08038300

Diameter A .156 (4) .156 (4) .281 (7) .281 (7) .343 (9)

Metric Thread M5 M8 M12 M12 M12

Tapered Head 08033410 08033480 08038301 08038301 08038301

Diameter A .156 (4) .156 (4) .281 (7) .281 (7) .281 (7)

O-Rings

Used to help keep accessories on the end fitting while

rodding. Comes standard with the Mini-Cobra rodders.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

O-Rings 02163600 02215000 – – –

Metric Thread M5 M8 M12 M12 M12

O-Rings 02163600 02215000 – – –

Don’t forget to order the

Epoxy.

Male End Fitting

Female End Fitting

Splice Tube

Splice Kit

FISHING &

RODDING

33

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

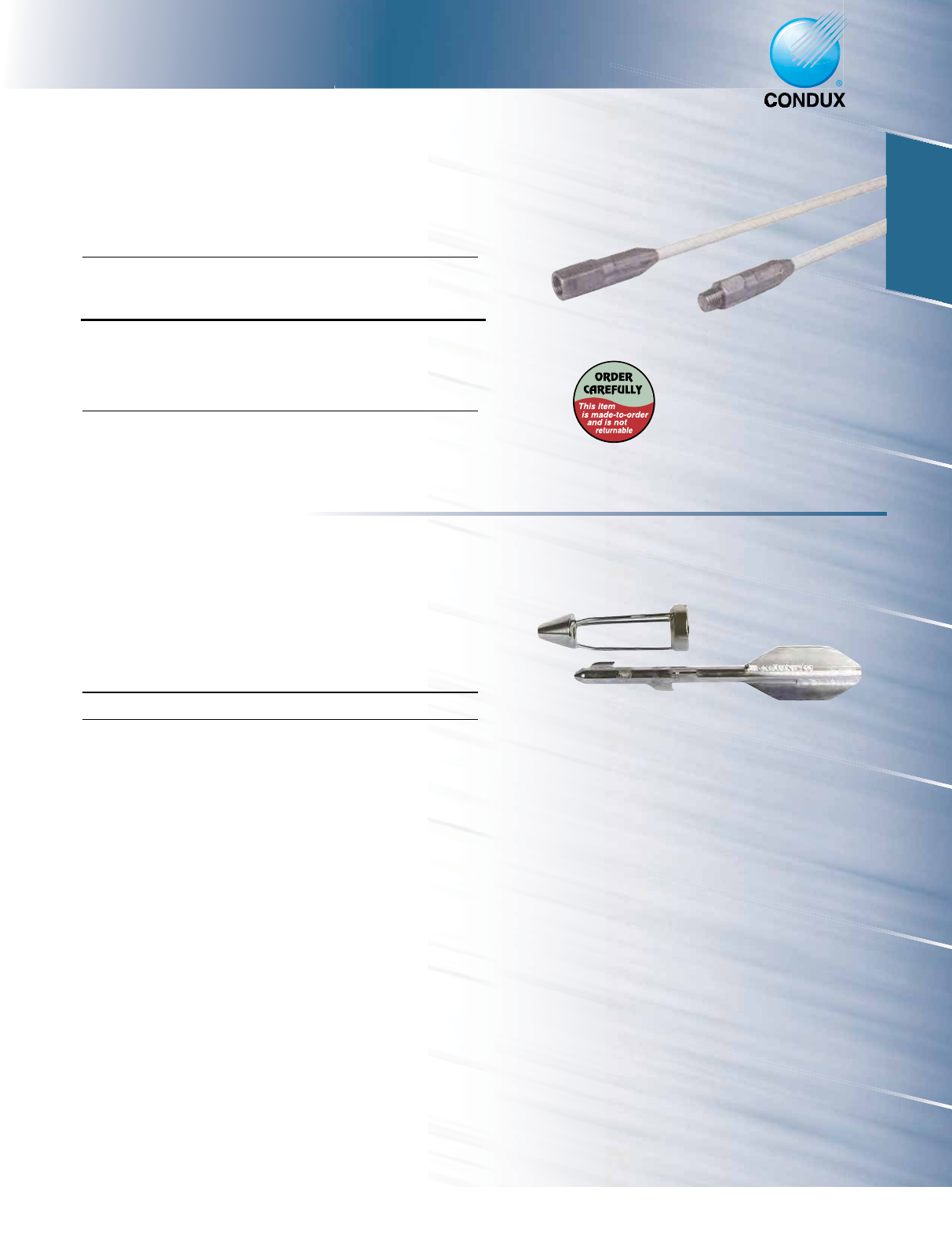

HAND RODS

Fiberglass Hand Rods

Screw together fiberglass duct rods for straight runs. All rods

equipped with

3

⁄

4

"-10 end fittings, which work with

3

⁄

4

"-10 duct

rodder accessories (see pgs. 40-45). 2,500 lbs. (11,120 N)

pull rating.

Part Size

Number (in x ft) (mm x m)

08032026

5

⁄

8

x 5 16 x 1.5

08032022

5

⁄

8

x 10 16 x 3

Replacement Brass Hand Rod End Fittings

Requires Epoxy: 08035851

Part Size/Type

Number in (mm)

08036157

3

⁄

4

"-10 male end for

5

⁄

8

" (16 mm) rod

08036156

3

⁄

4

"-10 female end for

5

⁄

8

" (16 mm) rod

Basket Combination

Used to connect two hand rods pushed into the conduit from

opposite ends of the conduit run. Both rods can then be pulled

out in one direction. Used instead of a swivel coupling when the

full length of the rod is difficult to push from one end. Works in 4"

(102 mm) or larger conduit only. Does not negotiate tight bends.

Rod Dia., in (mm)

3

⁄

16

(5)

1

⁄

4

(6)

5

⁄

16

(8)

7

⁄

16

(11)

9

⁄

16

(13)

USC Thread #12–24

5

⁄

16

–18

3

⁄

8

–16

3

⁄

8

–16

3

⁄

4

–10

Basket Comb. - - 08031400 08031400 08031300

Metric Thread M5 M8 M12 M12 M12

Basket Comb. - - 08033700 08033700 08033700

www.CONDUXINTERNATIONAL.za 11

FISHING &

RODDING

34 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

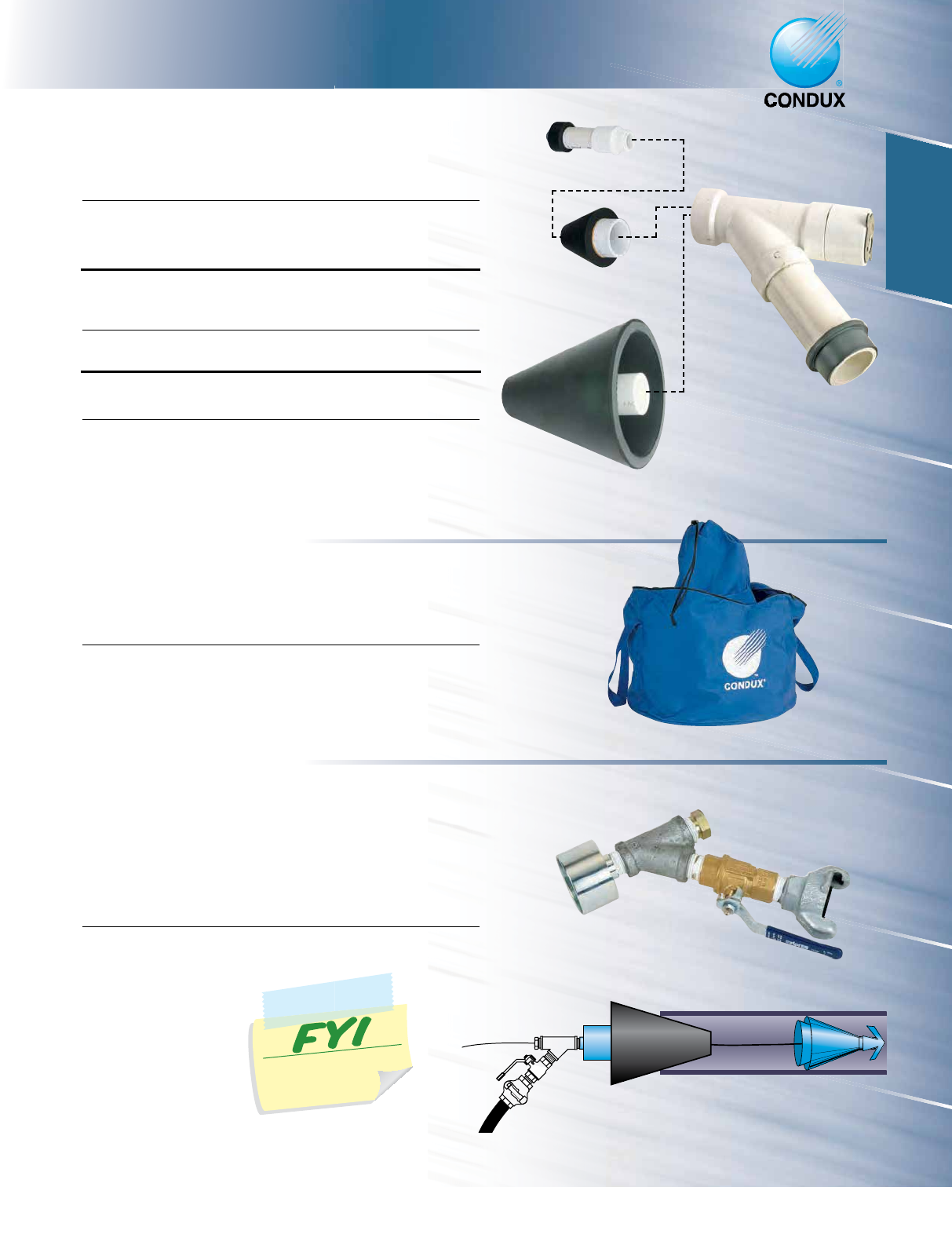

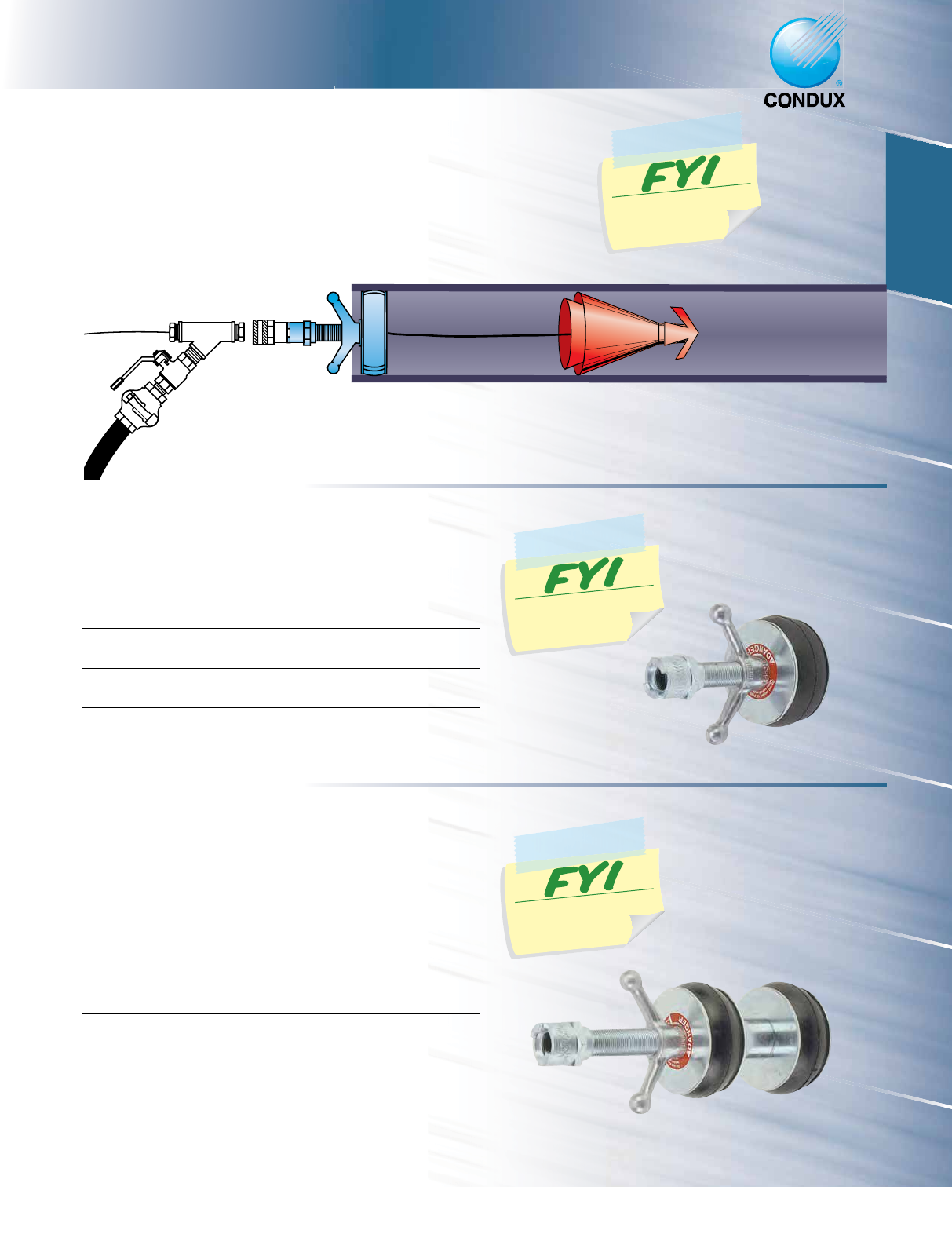

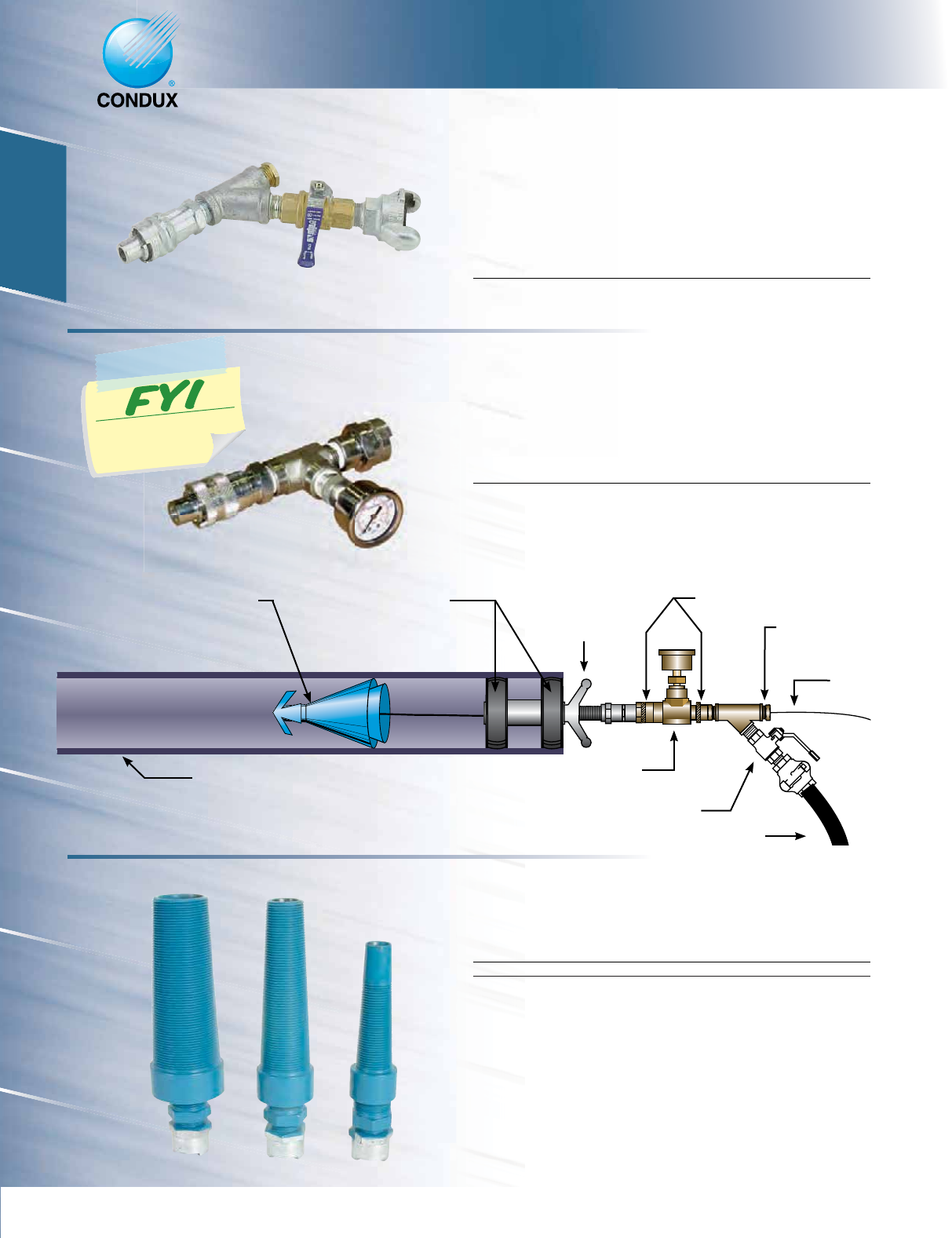

LOW PRESSURE SEAL-OFFSLOW PRESSURE SEAL-OFFS

Universal Seal-Off Control Valve

The Universal Seal-Off Control Valve Body is used with the

Innerduct Seal-Off, Conduit Seal-Off, and Double Seal-Off.

Use the interchangeable heads for the style and size

you need. Comes equipped with an air flow valve and a

universal hose coupling for attachment to most

compressors.

3

⁄

16

" (5 mm) rope adapter included.

Part Number Description

08032165 Seal-Off control valve body

Air Gauge Adapter

The Air Gauge Adapter is used for monitoring air pressure on

the Innerduct Seal-off, Conduit Seal-off, and Double Seal-off.

(do not exceed 15 PSI)

Part Number Description

08032175 Air Gauge Adapter

Individual Innerduct Seal-Offs

Nominal Innerduct

Part Duct Size I.D. Range

Number Description (in) (mm) (in) (mm)

08034321 ¾" Quick Innerduct Seal-Off ¾ 19 .72–.94 19–24

08034315 1" Quick Innerduct Seal-Off 1 25 .93–1.19 24–30

08034316 11⁄4" Quick Innerduct Seal-Off 11⁄4 32 1.18–1.44 30–37

08034317 11⁄2" Quick Innerduct Seal-Off 11⁄2 38 1.31–1.69 33–43

08034318 2" Quick Innerduct Seal-Off 2 51 1.93–2.31 49–59

Rope

Quick Coupler

Rope Adapter

Innerduct

Air Hose

Carrier

Wingnut

Handle

Air Gauge Adapter

Universal Seal-Off

Control Valve

Single or Double

Conduit Seal-Off

15 psi Max Pressure.

12 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

34 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

LOW PRESSURE SEAL-OFFS

LOW PRESSURE SEAL-OFFS

Universal Seal-Off Control Valve

The Universal Seal-Off Control Valve Body is used with the

Innerduct Seal-Off, Conduit Seal-Off, and Double Seal-Off.

Use the interchangeable heads for the style and size

you need. Comes equipped with an air flow valve and a

universal hose coupling for attachment to most

compressors.

3

⁄

16

" (5 mm) rope adapter included.

Part Number Description

08032165 Seal-Off control valve body

Air Gauge Adapter

The Air Gauge Adapter is used for monitoring air pressure on

the Innerduct Seal-off, Conduit Seal-off, and Double Seal-off.

(do not exceed 15 PSI)

Part Number Description

08032175 Air Gauge Adapter

Individual Innerduct Seal-Offs

Nominal Innerduct

Part Duct Size I.D. Range

Number Description (in) (mm) (in) (mm)

08034321 ¾" Quick Innerduct Seal-Off ¾ 19 .72–.94 19–24

08034315 1" Quick Innerduct Seal-Off 1 25 .93–1.19 24–30

08034316 11⁄4" Quick Innerduct Seal-Off 11⁄4 32 1.18–1.44 30–37

08034317 11⁄2" Quick Innerduct Seal-Off 11⁄2 38 1.31–1.69 33–43

08034318 2" Quick Innerduct Seal-Off 2 51 1.93–2.31 49–59

Rope

Quick Coupler

Rope Adapter

Innerduct

Air Hose

Carrier

Wingnut

Handle

Air Gauge Adapter

Universal Seal-Off

Control Valve

Single or Double

Conduit Seal-Off

15 psi Max Pressure.

FISHING &

RODDING

35

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

LOW PRESSURE SEAL-OFFS

Compressor Seal-Offs

Universal duct seal-off for blowing projectiles and line

carriers (see pgs. 40-41) through the duct using an

external air compressor. Order Seal-Off Body, Control Valve

and Seal-Off Heads separately.

Individual Conduit Seal-Offs

Nominal

Part Duct Size Duct I.D. Range

Number Description (in) (mm) (in) (mm)

08032900 2" Quick Conduit Seal-Off 2 51 1.93–2.36 49–60

08032905 2

1

⁄

2

" Quick Conduit Seal-Off 2

1

⁄

2

63 2.40–2.76 61–70

08032910 3" Quick Conduit Seal-Off 3 76 2.87–3.31 73–84

08032915 3

1

⁄

2

" Quick Conduit Seal-Off 3

1

⁄

2

89 3.50–3.75 89–95

08032920 4" Quick Conduit Seal-Off 4 102 3.54–4.25 90–108

08032925 5" Quick Conduit Seal-Off 5 127 4.72–5.37 120–136

08032930 6" Quick Conduit Seal-Off 6 152 5.50–6.29 140–160

08032935 8" Quick Conduit Seal-Off 8 203 7.83–8.27 199–210

Individual Double Seal-Offs

Nominal

Part Duct Size Duct I.D. Range

Number Description (in) (mm) (in) (mm)

08032940 2" Quick Double Seal-Off 2 51 1.93–2.36 49–60

08032945 2

1

⁄

2

" Quick Double Seal-Off 2

1

⁄

2

63 2.40–2.76 61–70

08032950 3" Quick Double Seal-Off 3 76 2.87–3.31 73–84

08032955 3

1

⁄

2

" Quick Double Seal-Off 3

1

⁄

2

89 3.50–3.75 89–95

08032960 4" Quick Double Seal-Off 4 102 3.54–4.25 90–108

08032965 5" Quick Double Seal-Off 5 127 4.72–5.37 120–136

08032970 6" Quick Double Seal-Off 6 152 5.50–6.29 140–160

08032975 8" Quick Double Seal-Off 8 203 7.83–8.27 199–210

15 psi Max Pressure.

15 psi Max Pressure.

15 psi Max Pressure.

www.CONDUXINTERNATIONAL.za 13

FISHING &

RODDING

36 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

LOW PRESSURE SEAL-OFFSLOW PRESSURE SEAL-OFFS

Rope Adapter Kit

Allows a wider range of rope diameters to be used with

the Innerduct and Compressor seal-offs. Adapters specific

for

3

⁄

16

" (5 mm),

1

⁄

4

" (6 mm),

3

⁄

8

" (10 mm) diameter ropes provide

optimum seal-off performance.

Part Number Description

08032181 Adapter Kit for Conduit Seal-Offs

08032190

3

⁄

16

" (5 mm) Rope Adapter

08032191

1

⁄

4

" (6 mm) Rope Adapter

08032170

3

⁄

8

" (10 mm) Rope Adapter

Replacement Seals for

Compressor Seal-Offs

Part Nominal Duct Size

Number (in) (mm)

08082121 2 51

08082126 2

1

⁄

2

63

08082131 3 76

08082136 3

1

⁄

2

89

08082141 4 102

08082151 5 127

08082161 6 152

Innerduct Seal-Off Case

Inserts into the innerduct and twists tight for seal. Comes

standard with Universal control valve,

3

⁄

16

" (5 mm) Rope Adapter,

and case. Seal-offs sold separately.

Part No. Description

08032984 Universal Control Valve & Case (Innerduct)

Replacement Handle for Single &

Double Seal-offs

Use to replace missing or damaged handles for Individual

Conduit Seal-offs or Individual Double Seal-offs.

Part No. Description

08032179 Replacement Handle for Single and Double Seal-offs

Order individual innerduct

seal-offs on page 34.

15 psi Max Pressure.

14 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

36 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

LOW PRESSURE SEAL-OFFS

LOW PRESSURE SEAL-OFFS

Rope Adapter Kit

Allows a wider range of rope diameters to be used with

the Innerduct and Compressor seal-offs. Adapters specific

for

3

⁄

16

" (5 mm),

1

⁄

4

" (6 mm),

3

⁄

8

" (10 mm) diameter ropes provide

optimum seal-off performance.

Part Number Description

08032181 Adapter Kit for Conduit Seal-Offs

08032190

3

⁄

16

" (5 mm) Rope Adapter

08032191

1

⁄

4

" (6 mm) Rope Adapter

08032170

3

⁄

8

" (10 mm) Rope Adapter

Replacement Seals for

Compressor Seal-Offs

Part Nominal Duct Size

Number (in) (mm)

08082121 2 51

08082126 2

1

⁄

2

63

08082131 3 76

08082136 3

1

⁄

2

89

08082141 4 102

08082151 5 127

08082161 6 152

Innerduct Seal-Off Case

Inserts into the innerduct and twists tight for seal. Comes

standard with Universal control valve,

3

⁄

16

" (5 mm) Rope Adapter,

and case. Seal-offs sold separately.

Part No. Description

08032984 Universal Control Valve & Case (Innerduct)

Replacement Handle for Single &

Double Seal-offs

Use to replace missing or damaged handles for Individual

Conduit Seal-offs or Individual Double Seal-offs.

Part No. Description

08032179 Replacement Handle for Single and Double Seal-offs

Order individual innerduct

seal-offs on page 34.

15 psi Max Pressure.

FISHING &

RODDING

37

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

LOW PRESSURE SEAL-OFFS

Order individual conduit

seal-offs on page 35.

Order individual double seal-offs on page 35.

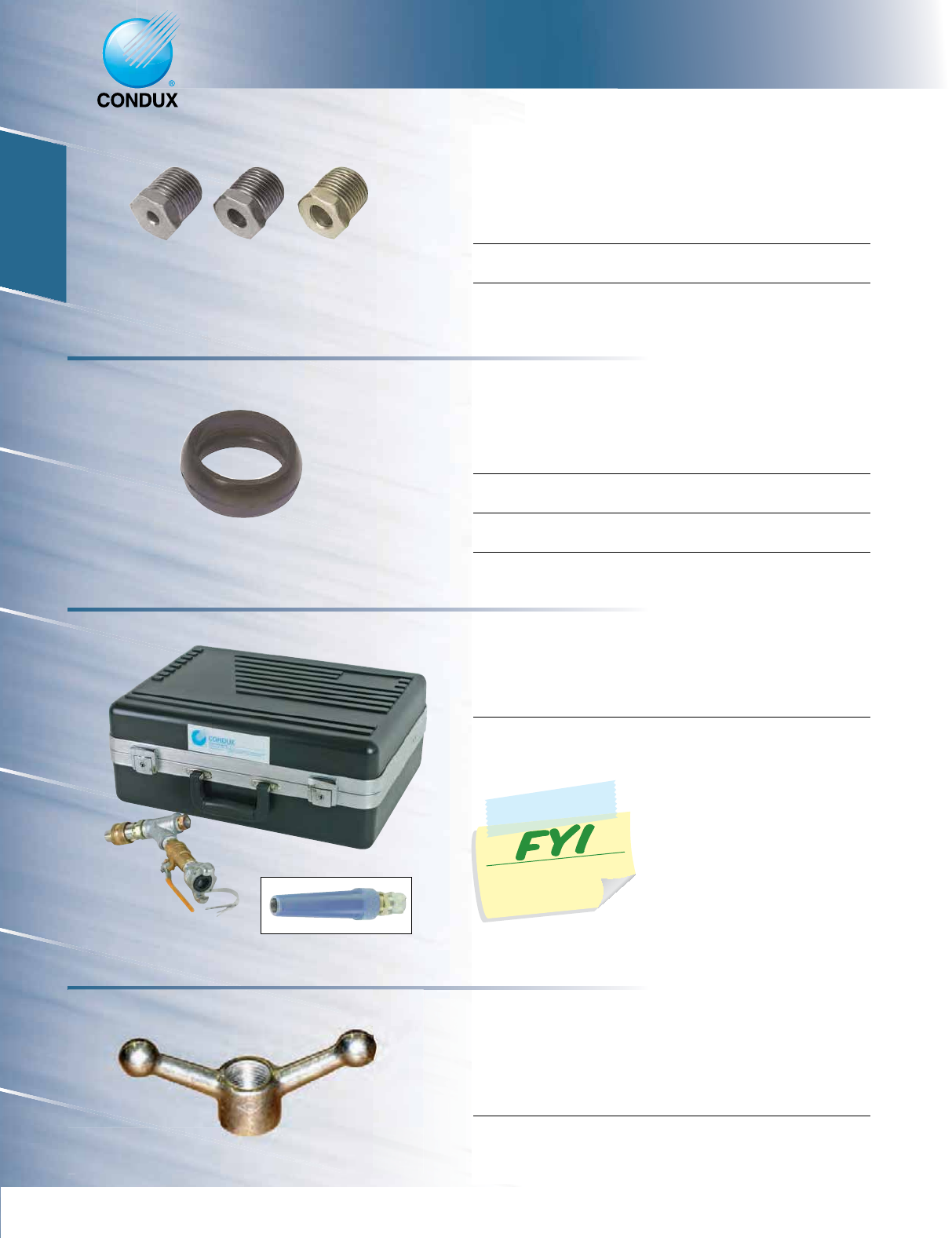

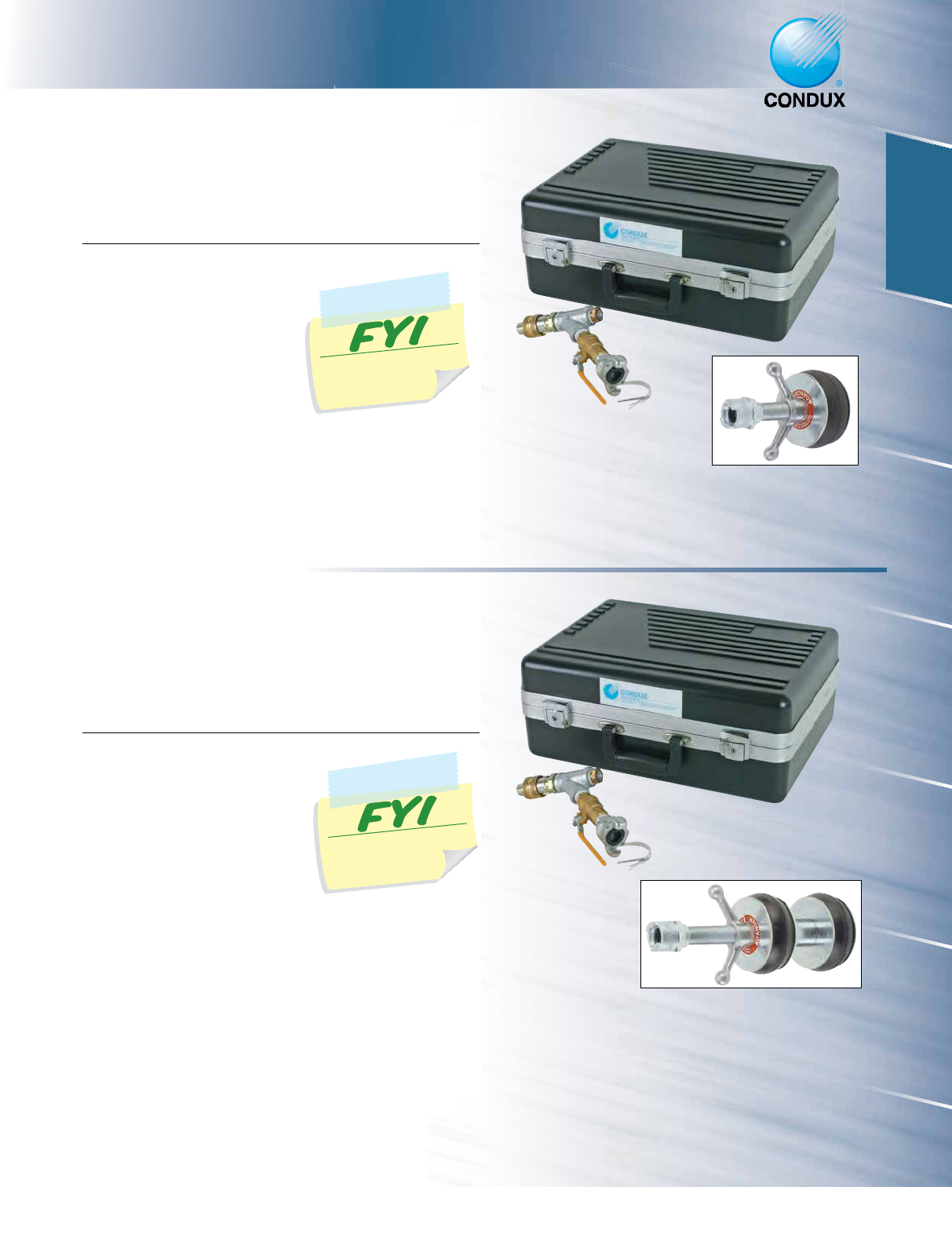

Conduit Seal-Off Case

Locks into duct with a turn of the wing-nut handle,

compressing rubber ring for a better seal. Comes

standard with Universal control valve,

3

⁄

16

" (5 mm) Rope Adapter,

and case. Seal-offs sold separately.

Part No. Description

08032980 Universal Control Valve & Case (Single Conduit)

Double Seal-Off Case

Locks into duct with a turn of the wing-nut handle,

compressing both rubber rings for a better seal. Comes

standard with Universal control valve,

3

⁄

16

" (5 mm) Rope Adapter,

and case. Seal-offs sold separately.

Part No. Description

08032983 Universal Control Valve & Case (Double Conduit)

15 psi Max Pressure.

15 psi Max Pressure.

www.CONDUXINTERNATIONAL.za 15

FISHING &

RODDING

38 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

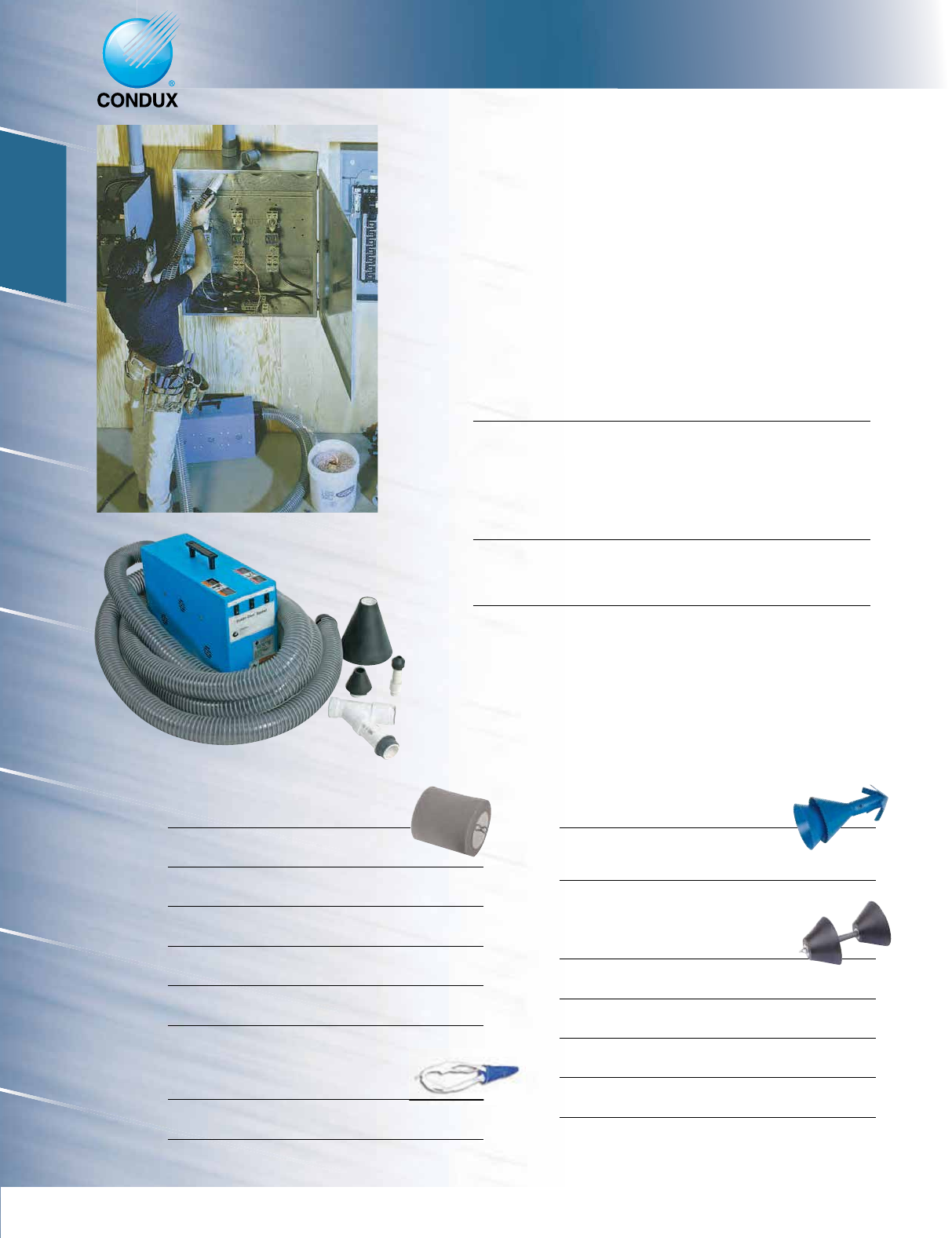

POWER DART BLOWER ACCESSORIESPOWER DART BLOWER

Foam Carrier Options

Part Number Description

08078200

1

⁄

2

" (13 mm) Foam Carrier

08078300

3

⁄

4

" (19 mm) Foam Carrier

08032200 1" (25 mm) Foam Carrier

08033600 30 mm Foam Carrier

08032300 1

1

⁄

4

" (32 mm) Foam Carrier

08039800 1

1

⁄

2

" (38 mm) Foam Carrier

08033500 45 mm Foam Carrier

08032400 2" (51 mm) Foam Carrier

08033800 60 mm Foam Carrier

08078400 2

1

⁄

2

" (64 mm) Foam Carrier

08032500 3" (76 mm) Foam Carrier

08033900 80 mm Foam Carrier

08032100 3

1

⁄

2

" (89 mm) Foam Carrier

08032600 4" (102 mm) Foam Carrier

08059100 5" (127 mm) Foam Carrier

08059200 6" (152 mm) Foam Carrier

Cable Chute Line Carrier Options

(See pg 40 for additional sizes)

Part Number Description

08033520 Carrier, Chute 1.25 Nylon

08033532 Carrier, Chute 2.00 Nylon

08033548 Carrier, Chute 3.00 Nylon

08033564 Carrier, Chute 4.00 Nylon

08033596 Carrier, Chute 6.00 Nylon

Line Carrier Options

Part Number Description

08067900 2" (51 mm) Line Carrier

08030100 3" (76 mm) Line Carrier

08030200 3

1

⁄

2

" (89 mm) Line Carrier

08030300 4" (102 mm) Line Carrier

08030400 5" (127 mm) Line Carrier

08030500 6" (152 mm) Line Carrier

Duct Projectile Options

Part Number Description

08031812 1

1

⁄

4

" (32 mm) Duct Projectile

08031814 1

3

⁄

8

" (35 mm) Duct Projectile

08031815 1

1

⁄

2

" (38 mm) Duct Projectile

08031816 1

5

⁄

8

" (41 mm) Duct Projectile

08031820 2" (51 mm) Duct Projectile

08031822 2

1

⁄

4

" (57 mm) Duct Projectile

08031825 2

1

⁄

2

" (64 mm) Duct Projectile

08031830 3" (76 mm) Duct Projectile

08031835 3

1

⁄

2

" (89 mm) Duct Projectile

08031840 4" (102 mm) Duct Projectile

08031844 4

1

⁄

4

" (108 mm) Duct Projectile

08031846 4

1

⁄

2

" (114 mm) Duct Projectile

08031850 5" (127 mm) Duct Projectile

08031860 6" (152 mm) Duct Projectile

08031880 8" (203 mm) Duct Projectile

Power Dart® Blower

The Power Dart® Blower is a pneumatic rodding system

especially suited for long duct runs. A three-motor system

allows you to choose the right speed for your needs. With

all three motors engaged, the Power Dart Blower will deliver

up to 300 cfm (8.5 m

3

/min) of air at 3 psi (.2 bar) max.

pressure, easily blowing

1

⁄

2

" (13 mm) poly line or

measuring tape over 2,000 feet (610 m) in conduit up to

6 inches (152 mm) in diameter. Weighs only 31 pounds

(14 kg) and operates at 110 Volts. 110 Volt model

includes a 30 amp twist plug. Requires a 3,000 Watt

generator.

Base Part No. Description

08030003 110V Power Dart Blower

(Includes: 110V Power Dart Blower Unit, Hose, Body Seal-Off &

Seal-Offs for

1

⁄

2

" - 6" (13 mm-152 mm) Conduit

Carriers not included.

Bag Option

Part Number Description

08030060 Power dart blower accessory bag

Carrier Kit Option

Part Number Description

08030011 Carrier Kit for Power Dart Blower

16 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

38 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

POWER DART BLOWER ACCESSORIES

POWER DART BLOWER

Foam Carrier Options

Part Number Description

08078200

1

⁄

2

" (13 mm) Foam Carrier

08078300

3

⁄

4

" (19 mm) Foam Carrier

08032200 1" (25 mm) Foam Carrier

08033600 30 mm Foam Carrier

08032300 1

1

⁄

4

" (32 mm) Foam Carrier

08039800 1

1

⁄

2

" (38 mm) Foam Carrier

08033500 45 mm Foam Carrier

08032400 2" (51 mm) Foam Carrier

08033800 60 mm Foam Carrier

08078400 2

1

⁄

2

" (64 mm) Foam Carrier

08032500 3" (76 mm) Foam Carrier

08033900 80 mm Foam Carrier

08032100 3

1

⁄

2

" (89 mm) Foam Carrier

08032600 4" (102 mm) Foam Carrier

08059100 5" (127 mm) Foam Carrier

08059200 6" (152 mm) Foam Carrier

Cable Chute Line Carrier Options

(See pg 40 for additional sizes)

Part Number Description

08033520 Carrier, Chute 1.25 Nylon

08033532 Carrier, Chute 2.00 Nylon

08033548 Carrier, Chute 3.00 Nylon

08033564 Carrier, Chute 4.00 Nylon

08033596 Carrier, Chute 6.00 Nylon

Line Carrier Options

Part Number Description

08067900 2" (51 mm) Line Carrier

08030100 3" (76 mm) Line Carrier

08030200 3

1

⁄

2

" (89 mm) Line Carrier

08030300 4" (102 mm) Line Carrier

08030400 5" (127 mm) Line Carrier

08030500 6" (152 mm) Line Carrier

Duct Projectile Options

Part Number Description

08031812 1

1

⁄

4

" (32 mm) Duct Projectile

08031814 1

3

⁄

8

" (35 mm) Duct Projectile

08031815 1

1

⁄

2

" (38 mm) Duct Projectile

08031816 1

5

⁄

8

" (41 mm) Duct Projectile

08031820 2" (51 mm) Duct Projectile

08031822 2

1

⁄

4

" (57 mm) Duct Projectile

08031825 2

1

⁄

2

" (64 mm) Duct Projectile

08031830 3" (76 mm) Duct Projectile

08031835 3

1

⁄

2

" (89 mm) Duct Projectile

08031840 4" (102 mm) Duct Projectile

08031844 4

1

⁄

4

" (108 mm) Duct Projectile

08031846 4

1

⁄

2

" (114 mm) Duct Projectile

08031850 5" (127 mm) Duct Projectile

08031860 6" (152 mm) Duct Projectile

08031880 8" (203 mm) Duct Projectile

Power Dart® Blower

The Power Dart® Blower is a pneumatic rodding system

especially suited for long duct runs. A three-motor system

allows you to choose the right speed for your needs. With

all three motors engaged, the Power Dart Blower will deliver

up to 300 cfm (8.5 m

3

/min) of air at 3 psi (.2 bar) max.

pressure, easily blowing

1

⁄

2

" (13 mm) poly line or

measuring tape over 2,000 feet (610 m) in conduit up to

6 inches (152 mm) in diameter. Weighs only 31 pounds

(14 kg) and operates at 110 Volts. 110 Volt model

includes a 30 amp twist plug. Requires a 3,000 Watt

generator.

Base Part No. Description

08030003 110V Power Dart Blower

(Includes: 110V Power Dart Blower Unit, Hose, Body Seal-Off &

Seal-Offs for

1

⁄

2

" - 6" (13 mm-152 mm) Conduit

Carriers not included.

Bag Option

Part Number Description

08030060 Power dart blower accessory bag

Carrier Kit Option

Part Number Description

08030011 Carrier Kit for Power Dart Blower

FISHING &

RODDING

39

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

POWER DART BLOWER ACCESSORIES

Replacement Accessories

Power Dart Blower Seal-Off

Part Duct Size

Number (in) (mm)

08039700*

1

⁄

2

–1

1

⁄

4

13–32

08066800 1

1

⁄

2

–2

1

⁄

2

38–64

08039500 2

1

⁄

2

–6 64–152

*Requires Part Number 08066800 to work.

Power Dart Blower Seal-Off Handle

Part Duct Size

Number (in) (mm)

08039400

1

⁄

2

–6 13–152

Power Dart Hose

Part Number Description

08039300 25’ (7.6 m) x 2

1

⁄

2

" (64 mm) heavy duty hose

08039301 Replacement hose end fitting

08039302 Outlet Fitting on the power dart blower box

Power Dart Blower Accessory Bag

Convenient canvas bag holds power dart hose. Inner bag holds

Line Carriers, Foam Carriers, Seal-Off Body and Seal-Offs.

Part Number Description

08030060 Power dart blower accessory bag

Quick Connect Seal-Off Control Valve

The Quick Connect Seal-Off Control Valve is used to

connect the Power Dart Blower Seal-Offs to a standard air

compressor claw fitting. Comes equipped with an air flow

valve and a universal hose coupling for attachment to most

compressors.

3

⁄

16

" (5 mm) rope adapter included. See page 36

for other rope adapters available.

Part Number Description

08032185 Quick connect seal-off control valve

Seal-Off, 2

1

⁄

2

"–6" (64–152 mm)

Part # 08039500

Seal-Off, 1

1

⁄

2

"–2

1

⁄

2

" (38–64 mm)

Part # 08066800

Seal-Off,

1

⁄

2

"–1

1

⁄

4

" (13–32 mm)

Part # 08039700*

Quick Connect

Seal-Off Control Valve

Seal-Off Handle

Part # 08039400

15 psi Max Pressure.

www.CONDUXINTERNATIONAL.za 17

FISHING &

RODDING

40 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

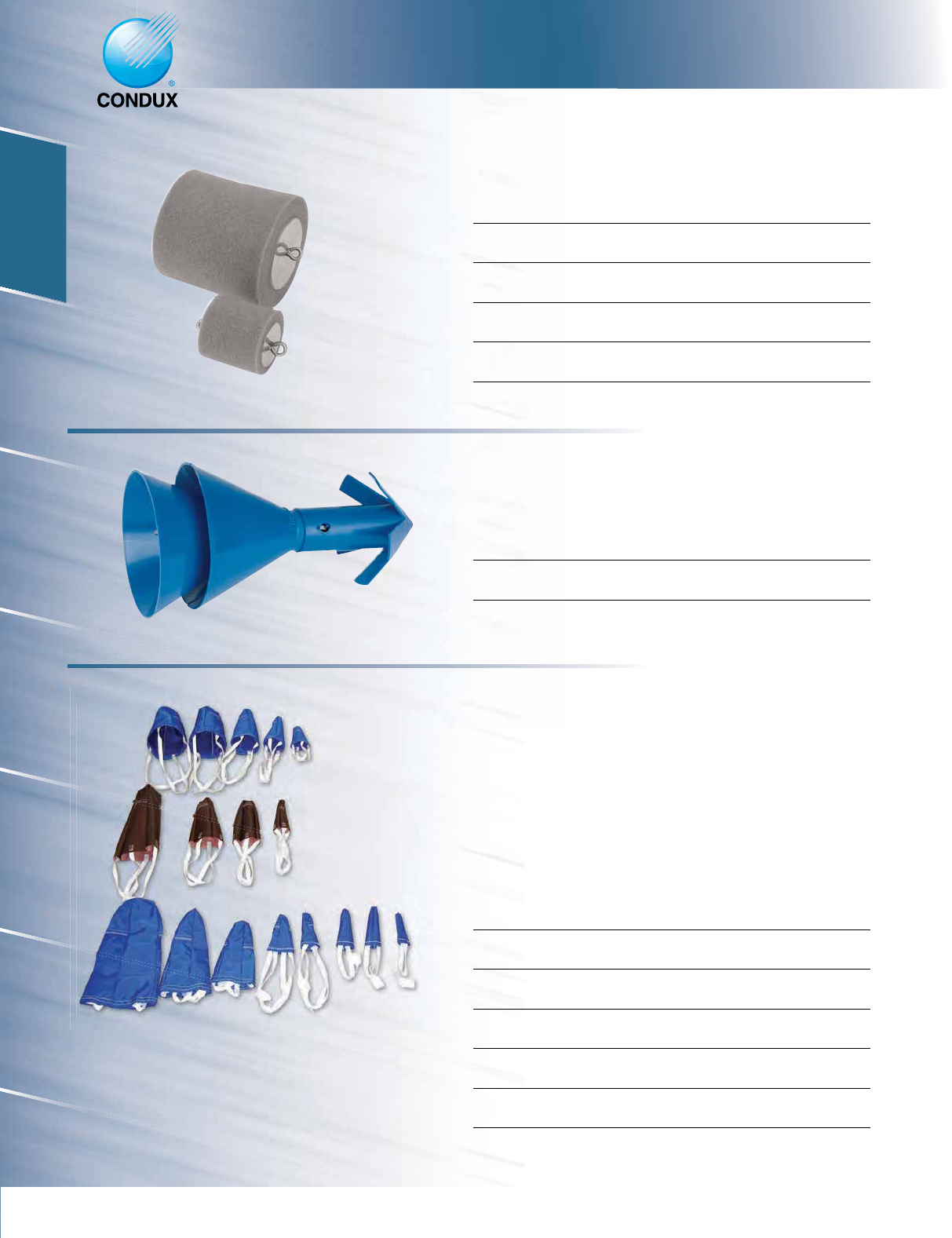

CONDUIT CARRIERSCONDUIT CARRIERS

Foam Carrier

Lightweight carrier easily blows through duct. Best suited for

short runs and runs with multiple bends.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08078200

1

⁄

2

13 .50 13

08078300

3

⁄

4

19 .75 19

08032200 1 25 1.00 25

08032300 1

1

⁄

4

32 1.25 32

08039800 1

1

⁄

2

38 1.50 38

08033500 45 45

08032400 2 51 2.00 51

08033800 60 60

08078400 2

1

⁄

2

64 2.50 64

08032500 3 76 3.00 76

08033900 80 80

08032100 3

1

⁄

2

89 3.50 89

08032600 4 102 4.00 102

08059100 5 127 5.00 127

08059200 6 152 6.00 152

Line Carriers

Fast and efficient plastic carriers for fishing with

high-speed blowers even in out-of-round duct. Carrier will travel

over minor obstructions in duct.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08067900 2 51 2.06 52

08030100 3 76 3.06 78

08030200 3

1

⁄

2

89 3.56 90

08030300 4 102 4.06 103

08030400 5 127 5.06 129

08030500 6 152 6.06 154

Cable Chute Line Carriers

Condux Cable Chute Line Carriers are designed to pass through

conduit without damaging the conduit or existing cable. To use

a Cable Chute Line Carrier you would tie a line or webbing to

a Chute, insert the Chute into the Conduit or duct, and blow

compressed air propelling the Chute to the end of the duct.

All Cable Chute Line Carriers are made with the highest quality

fabrics (nylon or leather) and attention to detail. All products are

hand made and go through a series of quality checks prior to

being shipped out.

Part

Number Description

08033512 Carrier, Chute 0.75 Nylon

08033516 Carrier, Chute 1.00 Nylon

08033520 Carrier, Chute 1.25 Nylon

08033524 Carrier, Chute 1.50 Nylon

08033532 Carrier, Chute 2.00 Nylon

08033548 Carrier, Chute 3.00 Nylon

08033564 Carrier, Chute 4.00 Nylon

08033580 Carrier, Chute 5.00 Nylon

08033596 Carrier, Chute 6.00 Nylon

08033648 Carrier, Chute 3.00 Nylon w/Spring

08033664 Carrier, Chute 4.00 Nylon w/Spring

08033680 Carrier, Chute 5.00 Nylon w/Spring

08033696 Carrier, Chute 6.00 Nylon w/Spring

08033732 Carrier, Chute 2.00 Leather

08033748 Carrier, Chute 3.00 Leather

08033764 Carrier, Chute 4.00 Leather

08033796 Carrier, Chute 6.00 Leather

Advantages of using Cable Chute Line Carriers

over other carriers:

• No damage to cable or conduit

• Eliminates need for duct rodding

• Durable and flexible

• Quick and easy installation

• Cost effective

18 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

40 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

CONDUIT CARRIERS

CONDUIT CARRIERS

Foam Carrier

Lightweight carrier easily blows through duct. Best suited for

short runs and runs with multiple bends.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08078200

1

⁄

2

13 .50 13

08078300

3

⁄

4

19 .75 19

08032200 1 25 1.00 25

08032300 1

1

⁄

4

32 1.25 32

08039800 1

1

⁄

2

38 1.50 38

08033500 45 45

08032400 2 51 2.00 51

08033800 60 60

08078400 2

1

⁄

2

64 2.50 64

08032500 3 76 3.00 76

08033900 80 80

08032100 3

1

⁄

2

89 3.50 89

08032600 4 102 4.00 102

08059100 5 127 5.00 127

08059200 6 152 6.00 152

Line Carriers

Fast and efficient plastic carriers for fishing with

high-speed blowers even in out-of-round duct. Carrier will travel

over minor obstructions in duct.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08067900 2 51 2.06 52

08030100 3 76 3.06 78

08030200 3

1

⁄

2

89 3.56 90

08030300 4 102 4.06 103

08030400 5 127 5.06 129

08030500 6 152 6.06 154

Cable Chute Line Carriers

Condux Cable Chute Line Carriers are designed to pass through

conduit without damaging the conduit or existing cable. To use

a Cable Chute Line Carrier you would tie a line or webbing to

a Chute, insert the Chute into the Conduit or duct, and blow

compressed air propelling the Chute to the end of the duct.

All Cable Chute Line Carriers are made with the highest quality

fabrics (nylon or leather) and attention to detail. All products are

hand made and go through a series of quality checks prior to

being shipped out.

Part

Number Description

08033512 Carrier, Chute 0.75 Nylon

08033516 Carrier, Chute 1.00 Nylon

08033520 Carrier, Chute 1.25 Nylon

08033524 Carrier, Chute 1.50 Nylon

08033532 Carrier, Chute 2.00 Nylon

08033548 Carrier, Chute 3.00 Nylon

08033564 Carrier, Chute 4.00 Nylon

08033580 Carrier, Chute 5.00 Nylon

08033596 Carrier, Chute 6.00 Nylon

08033648 Carrier, Chute 3.00 Nylon w/Spring

08033664 Carrier, Chute 4.00 Nylon w/Spring

08033680 Carrier, Chute 5.00 Nylon w/Spring

08033696 Carrier, Chute 6.00 Nylon w/Spring

08033732 Carrier, Chute 2.00 Leather

08033748 Carrier, Chute 3.00 Leather

08033764 Carrier, Chute 4.00 Leather

08033796 Carrier, Chute 6.00 Leather

Advantages of using Cable Chute Line Carriers

over other carriers:

• No damage to cable or conduit

• Eliminates need for duct rodding

• Durable and flexible

• Quick and easy installation

• Cost effective

FISHING &

RODDING

41

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

CONDUIT CARRIERS

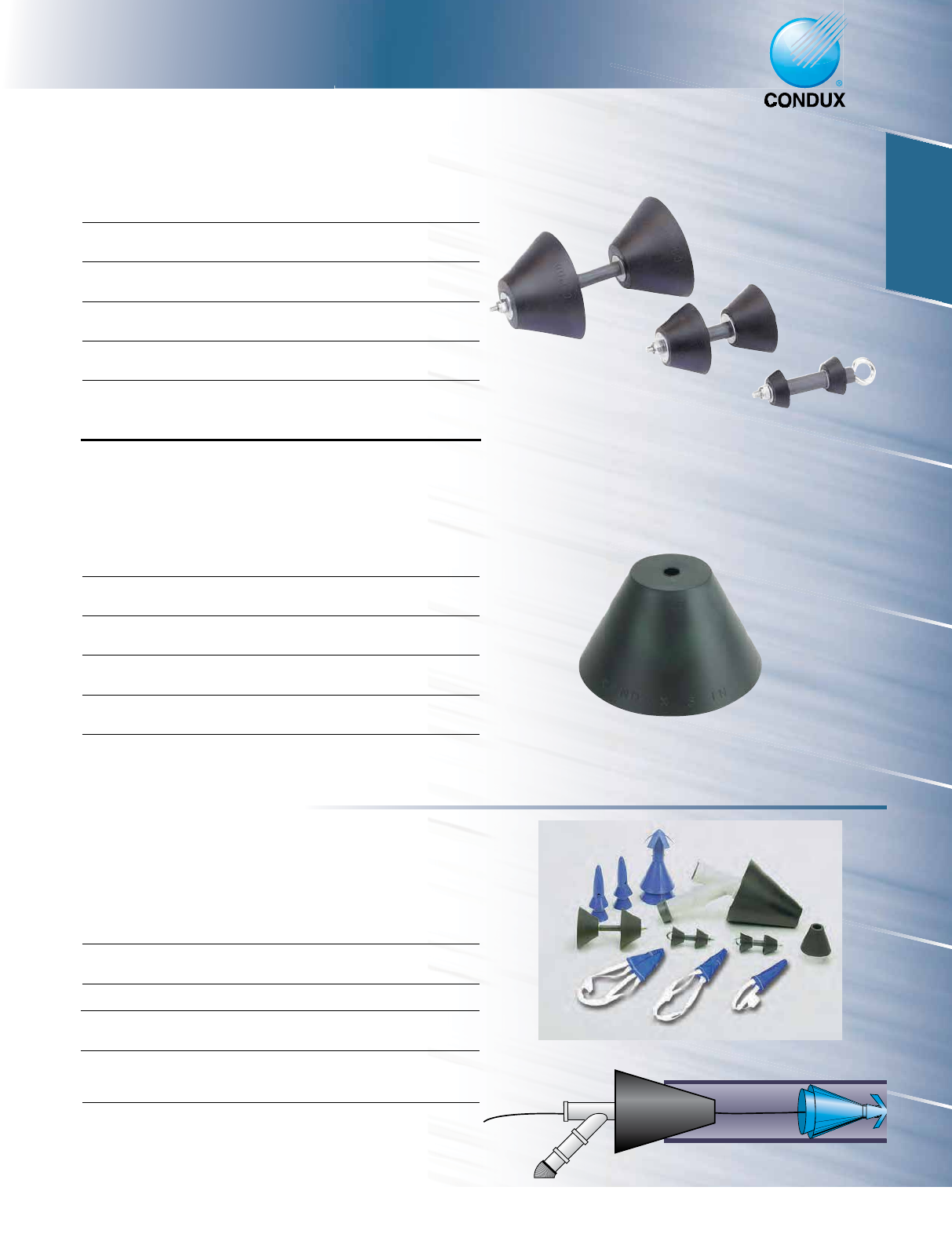

Duct Projectile

Flexible rubber cones are durable for many repeated uses. Fast

and efficient for long runs with easy pull-back.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08031812 1

1

⁄

4

32 1.25 32

08031814 1

3

⁄

8

35 1.37 35

08031815 1

1

⁄

2

38 1.50 38

08031816 1

5

⁄

8

41 1.62 41

08031820 2 51 2.00 51

08031822 2

1

⁄

4

56 2.20 56

08031825 2

1

⁄

2

64 2.50 64

08031830 3 76 3.00 76

08031835 3

1

⁄

2

89 3.50 89

08031840 4 102 4.00 102

08031844 4

1

⁄

4

108 4.25 108

08031846 4

1

⁄

2

115 4.51 115

08031850 5 127 5.00 127

08031860 6 152 6.00 152

08031880 8 203 8.00 203

Replacement Cones

For Duct Projectile

Original equipment replacement cones.

Part Duct Size Max O.D.

Number (in) (mm) (in) (mm)

08031805 1

1

⁄

4

32 1.25 32

08031803 1

3

⁄

8

35 1.38 35

08031806 1

1

⁄

2

38 1.50 38

08031804 1

5

⁄

8

41 1.63 41

08031819 2 51 2.00 51

08031821 2

1

⁄

4

56 2.20 56

08031826 2

1

⁄

2

64 2.50 64

08031831 3 76 3.00 76

08031802 3

1

⁄

2

89 3.50 89

08031841 4 102 4.00 102

08031801 4

1

⁄

4

108 4.25 108

08031847 4

1

⁄

2

115 4.51 115

08031851 5 127 5.00 127

08031861 6 152 6.00 152

08031881 8 203 8.00 203

Carrier Kit For Power Dart Blowers

A convenient way to order a practical assortment of

carriers and seal-off products for use with the Power Dart

Blower or other applications. Kit includes the following:

Duct Size

Item (in) (mm)

Power Dart Blower Seal-Off 1

1

⁄

2

–2

1

⁄

2

38–64

Power Dart Blower Seal-Off 2

1

⁄

2

–6 64–152

Power Dart Blower Seal-Off Body

1

⁄

2

–6 13–152

Line Carrier 2 51

Line Carrier 4 102

Carrier, Chute 2.00 Nylon 2 51

Carrier, Chute 3.00 Nylon 3 76

Carrier, Chute 4.00 Nylon 4 102

Duct Projectile 2 51

Duct Projectile 4 102

Part Number Description

08030011 Carrier Kit for Power Dart Blowers

www.CONDUXINTERNATIONAL.za 19

FISHING &

RODDING

42 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

WINCH LINE BLOWERWINCH LINE BLOWER

The Condux Winch Line Blower

Is a method of installing winch line in Conduit. It turns the job of

pulling winch line into one easy step. Eliminating the need to blow a

string and pull back a rope.

Using compressed air, 90 psi and 100 cfm, the winch line blower

can propel steel winch line, rope or tape in conduit from 1" to 6" in

diameter.

Installation is easy. No special tools are required. Follow the steps

called out on page 43.

Split Threaded

Adapter

Part No.

Duct Size

(in) Duct I.D. Range

Rope Venturi

Conduit Carrier

1⁄4 - 3⁄8 (in) 1⁄2 - 9⁄16 (in) 7⁄8 (in)

08201108 .75 0.83 - 1.00 08201089 08201086 08201090 Call Factory

08201110 1 0.90 - 1.13 08201089 08201086 08201090 Call Factory

08201112 1.25 1.25 - 1.40 08201089 08201086 08201090 Call Factory

08201115 1. 5 1.40 - 1.65 08201089 08201086 08201090 Call Factory

08201020 2 1.91 - 2.10 08201089 08201086 08201090 08202020

08201025 2.5 2.29 - 2.47 08201089 08201086 08201090 08202520

08201030 3 2.83 - 3.10 08201089 08201086 08201090 08202920

08201041 4 3.80 -4.06 08201089 08201086 08201090 08203920

08201051 5 4.71 - 5.08 08201089 08201086 08201090 08204920

08201061 6 5.61 - 6.10 08201089 08201086 08201090 08205920

Split Threaded

Duct Adapter

Winch Line

Blower Head

Winch Line Blower

with 2" Split Threaded Adapter

and 1⁄2" – 9⁄16" Rope Venturi

Rope Venturi

20 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

42 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

WINCH LINE BLOWER

WINCH LINE BLOWER

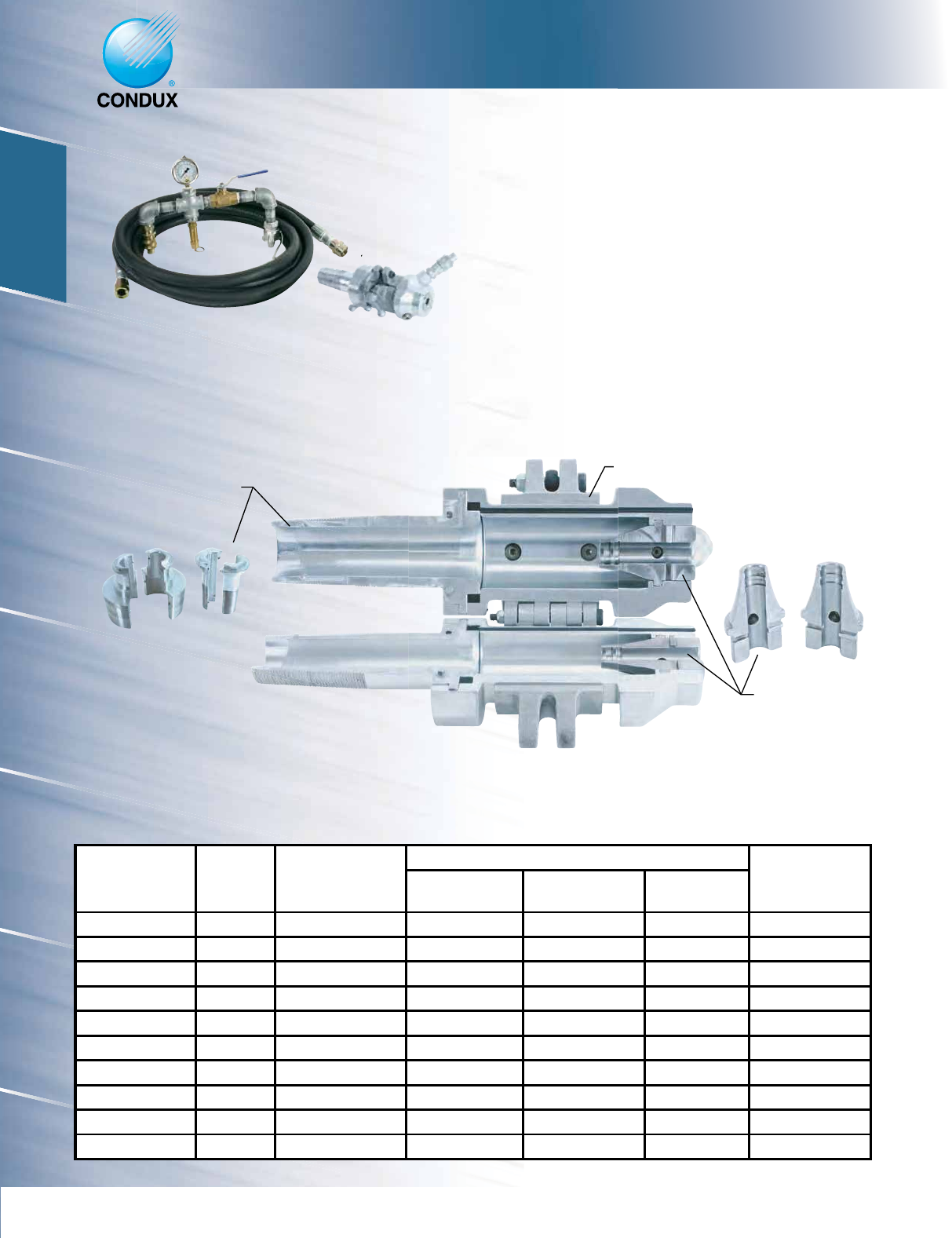

The Condux Winch Line Blower

Is a method of installing winch line in Conduit. It turns the job of

pulling winch line into one easy step. Eliminating the need to blow a

string and pull back a rope.

Using compressed air, 90 psi and 100 cfm, the winch line blower

can propel steel winch line, rope or tape in conduit from 1" to 6" in

diameter.

Installation is easy. No special tools are required. Follow the steps

called out on page 43.

Split Threaded

Adapter

Part No.

Duct Size

(in) Duct I.D. Range

Rope Venturi

Conduit Carrier

1⁄4 - 3⁄8 (in) 1⁄2 - 9⁄16 (in) 7⁄8 (in)

08201108 .75 0.83 - 1.00 08201089 08201086 08201090 Call Factory

08201110 1 0.90 - 1.13 08201089 08201086 08201090 Call Factory

08201112 1.25 1.25 - 1.40 08201089 08201086 08201090 Call Factory

08201115 1. 5 1.40 - 1.65 08201089 08201086 08201090 Call Factory

08201020 2 1.91 - 2.10 08201089 08201086 08201090 08202020

08201025 2.5 2.29 - 2.47 08201089 08201086 08201090 08202520

08201030 3 2.83 - 3.10 08201089 08201086 08201090 08202920

08201041 4 3.80 -4.06 08201089 08201086 08201090 08203920

08201051 5 4.71 - 5.08 08201089 08201086 08201090 08204920

08201061 6 5.61 - 6.10 08201089 08201086 08201090 08205920

Split Threaded

Duct Adapter

Winch Line

Blower Head

Winch Line Blower

with 2" Split Threaded Adapter

and 1⁄2" – 9⁄16" Rope Venturi

Rope Venturi

FISHING &

RODDING

43

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

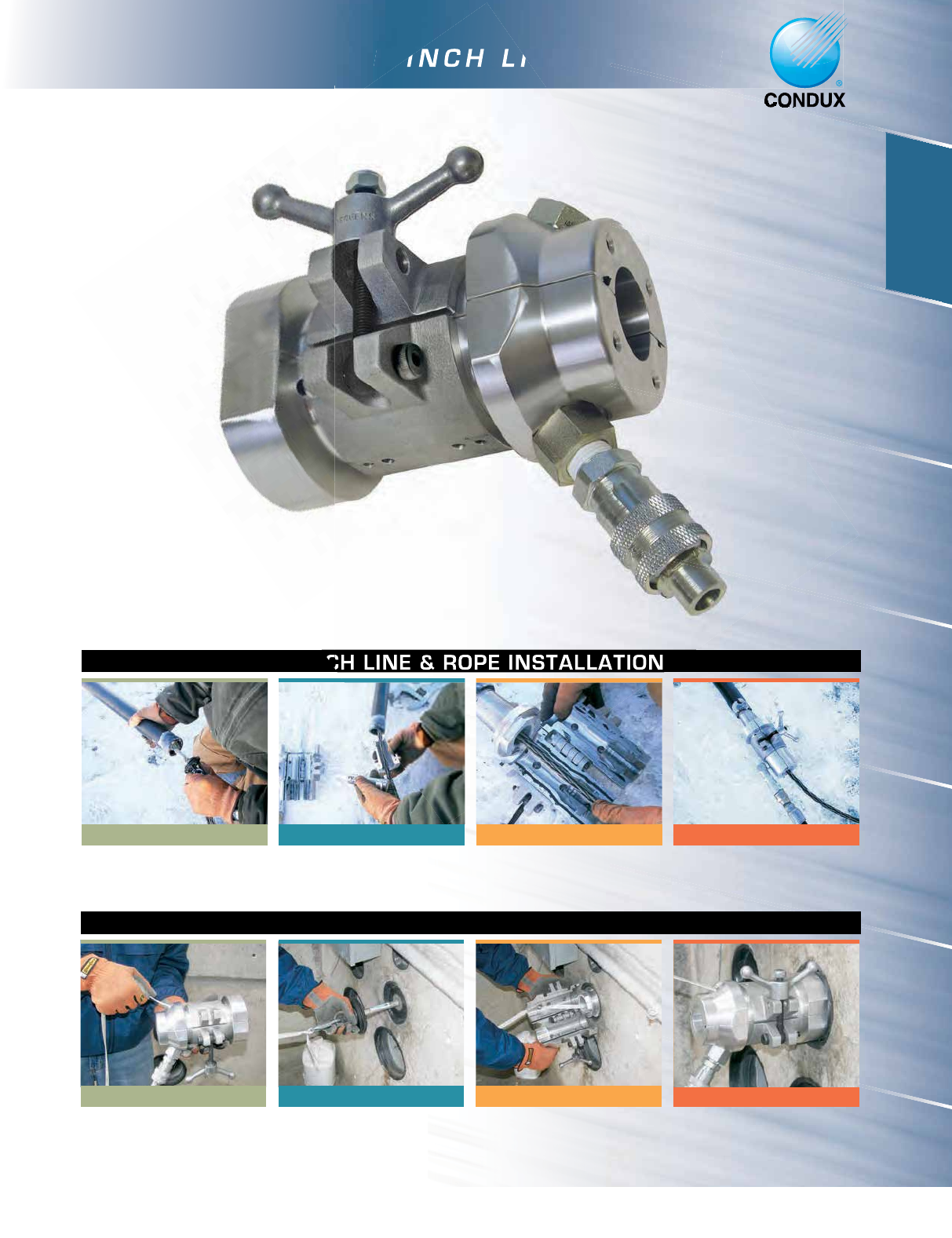

WINCH LINE BLOWER

Place the winch line in the

main blower body and select

the proper venturi.

Complete the assembly,

attach compressed air hose

and blow in winch line.

Install the winch line in the

conduit and thread adapter

into conduit.

Attach winch line to carrier

and insert carrier into pipe.

WINCH LINE & ROPE INSTALLATION

Install pulling tape into winch

blower through 7⁄16" tape

adapter.

Complete the assembly and

blow in tape.

Attach pulling tape to carrier

and insert carrier into pipe.

Install threaded adapter into

conduit and assemble split

winch line blower body.

PULLING TAPE INSTALLATION

WINCH LINE BLOWER

WINCH LINE & ROPE INSTALLATION

WINCH LINE & ROPE INSTALLATION

www.CONDUXINTERNATIONAL.za 21

FISHING &

RODDING

44 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

WINCH LINE BLOWER WINCH LINE BLOWER

Will not work in steel

conduit.

Body

Part No. Description

08201080 Winch Line Body Assembly 2-6in

(body includes

1

⁄

2

- 9⁄16 venturi set)

Venturis

Part No. Description

08201089 Venturi, Winch Line 1⁄4 - 3⁄8 set

08201086* Venturi, Winch Line

1

⁄

2

- 9⁄16 set

08201090 Venturi, Winch Line 7⁄8 set

* Comes standard.

Plug

Part No. Description

08780223 Plug, Venturi Air LW FO Blower

(Used to seal off back to blow in mule tape or pea line)

Hose & Valve

Part No. Description

08201015 Hose Valve Assembly-Winch Line

Adapters

Part No. Description

08201108 Winch Line Duct Adapter .75 in

08201110 Winch Line Duct Adapter 1 in

08201112 Winch Line Duct Adapter 1.25 in

08201115 Winch Line Duct Adapter 1.5 in

08201020 Winch Line Duct Adapter 2 in

08201025 Winch Line Duct Adapter 2 1⁄2 in

08201030 Winch Line Duct Adapter 3 in

08201041 Winch Line Duct Adapter 4 in

08201051 Winch Line Duct Adapter 5 in

08201061 Winch Line Duct Adapter 6 in

Carriers

Part No. Description

08202020 Carrier, Winch Line 2 S40&80, TC6

08202520 Carrier, Winch Line 2 1⁄2 S40&80

08202920 Carrier, Winch Line 3 SCH 40&80

08203020 Carrier, Winch Line 3 S40, TC6&8

08203920 Carrier, Winch Line 4 S40&80, TEL

08204020 Carrier, Winch Line 4 S40,TEL

08204920 Carrier, Winch Line 5 SCH 40&80

08205020 Carrier, Winch Line 5 S40, TC6&8

08205920 Carrier, Winch Line 6 SCH 40&80

08206020 Carrier, Winch Line 6 S40, TC6&8

WINCH LINE BLOWER

22 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

44 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

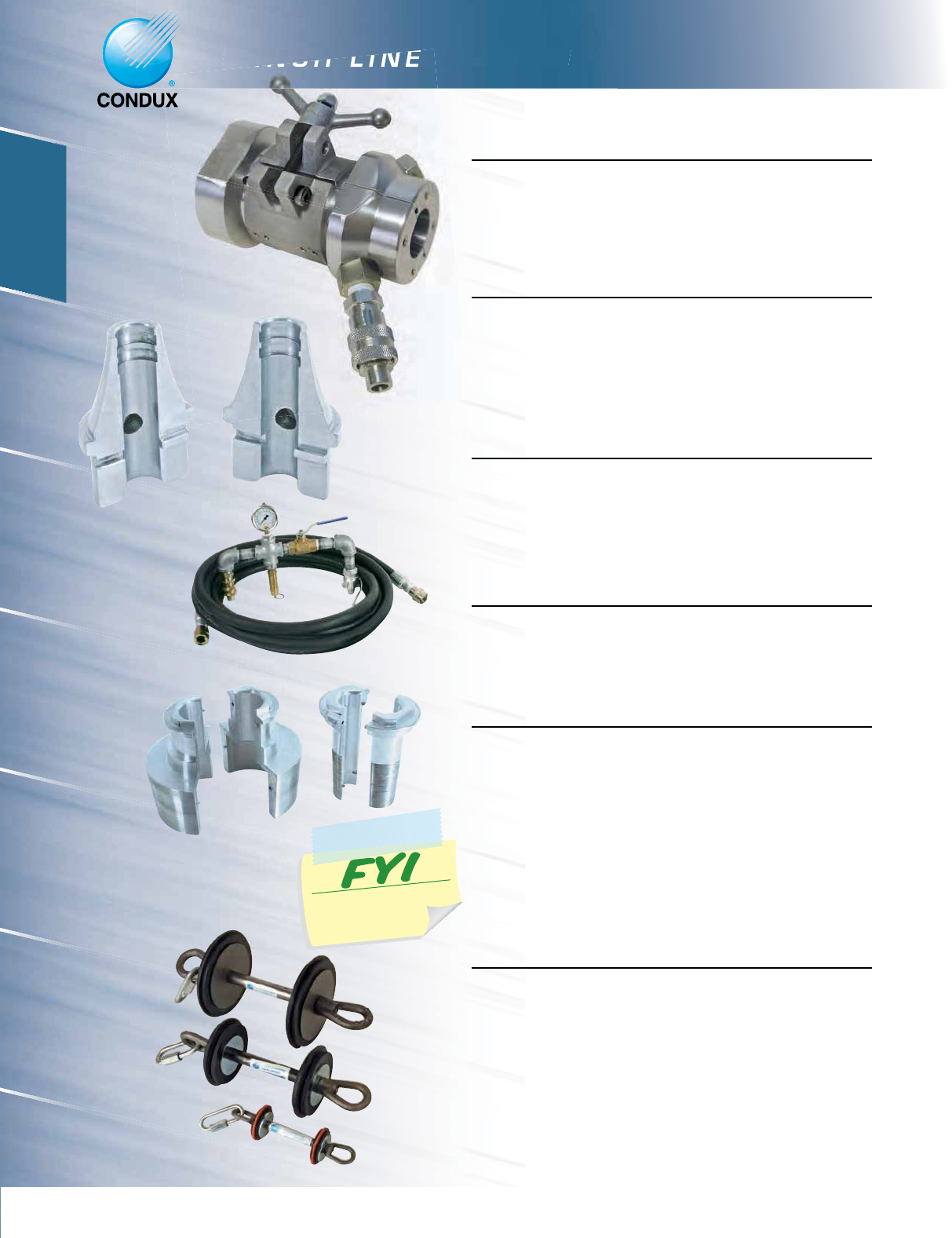

WINCH LINE BLOWER

WINCH LINE BLOWER

Will not work in steel

conduit.

Body

Part No. Description

08201080 Winch Line Body Assembly 2-6in

(body includes

1

⁄

2

- 9⁄16 venturi set)

Venturis

Part No. Description

08201089 Venturi, Winch Line 1⁄4 - 3⁄8 set

08201086* Venturi, Winch Line

1

⁄

2

- 9⁄16 set

08201090 Venturi, Winch Line 7⁄8 set

* Comes standard.

Plug

Part No. Description

08780223 Plug, Venturi Air LW FO Blower

(Used to seal off back to blow in mule tape or pea line)

Hose & Valve

Part No. Description

08201015 Hose Valve Assembly-Winch Line

Adapters

Part No. Description

08201108 Winch Line Duct Adapter .75 in

08201110 Winch Line Duct Adapter 1 in

08201112 Winch Line Duct Adapter 1.25 in

08201115 Winch Line Duct Adapter 1.5 in

08201020 Winch Line Duct Adapter 2 in

08201025 Winch Line Duct Adapter 2 1⁄2 in

08201030 Winch Line Duct Adapter 3 in

08201041 Winch Line Duct Adapter 4 in

08201051 Winch Line Duct Adapter 5 in

08201061 Winch Line Duct Adapter 6 in

Carriers

Part No. Description

08202020 Carrier, Winch Line 2 S40&80, TC6

08202520 Carrier, Winch Line 2 1⁄2 S40&80

08202920 Carrier, Winch Line 3 SCH 40&80

08203020 Carrier, Winch Line 3 S40, TC6&8

08203920 Carrier, Winch Line 4 S40&80, TEL

08204020 Carrier, Winch Line 4 S40,TEL

08204920 Carrier, Winch Line 5 SCH 40&80

08205020 Carrier, Winch Line 5 S40, TC6&8

08205920 Carrier, Winch Line 6 SCH 40&80

08206020 Carrier, Winch Line 6 S40, TC6&8

WINCH LINE BLOWER

FISHING &

RODDING

45

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

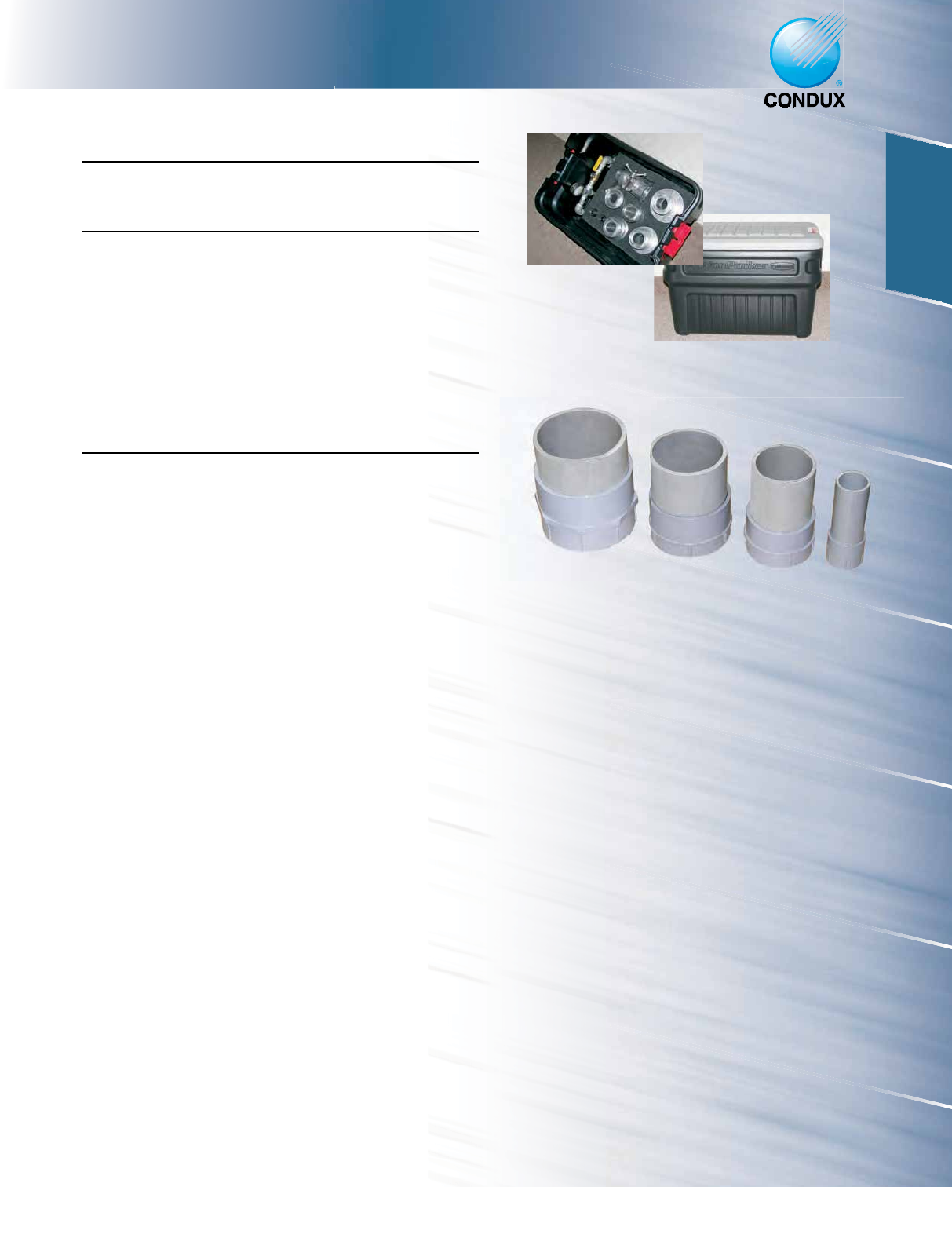

WINCH LINE BLOWER

Rope Adapter

Rope Adapter

08201091

Storage Case

Storage Case

08201093

The Condux GRC to PVC Coupling

An accessory for the Condux Split Winch Line Blower. Adapt your

threaded GRC pipe to PVC so you can use the Condux Winch

Line Blower to blow in your hardline, rope or tape.

Part No. Description

08201620 2" GRC to PVC Coupling

08201640 4" GRC to PVC Coupling

08201650 5" GRC to PVC Coupling

08201660 6" GRC to PVC Coupling

www.CONDUXINTERNATIONAL.za 23

FISHING &

RODDING

46 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

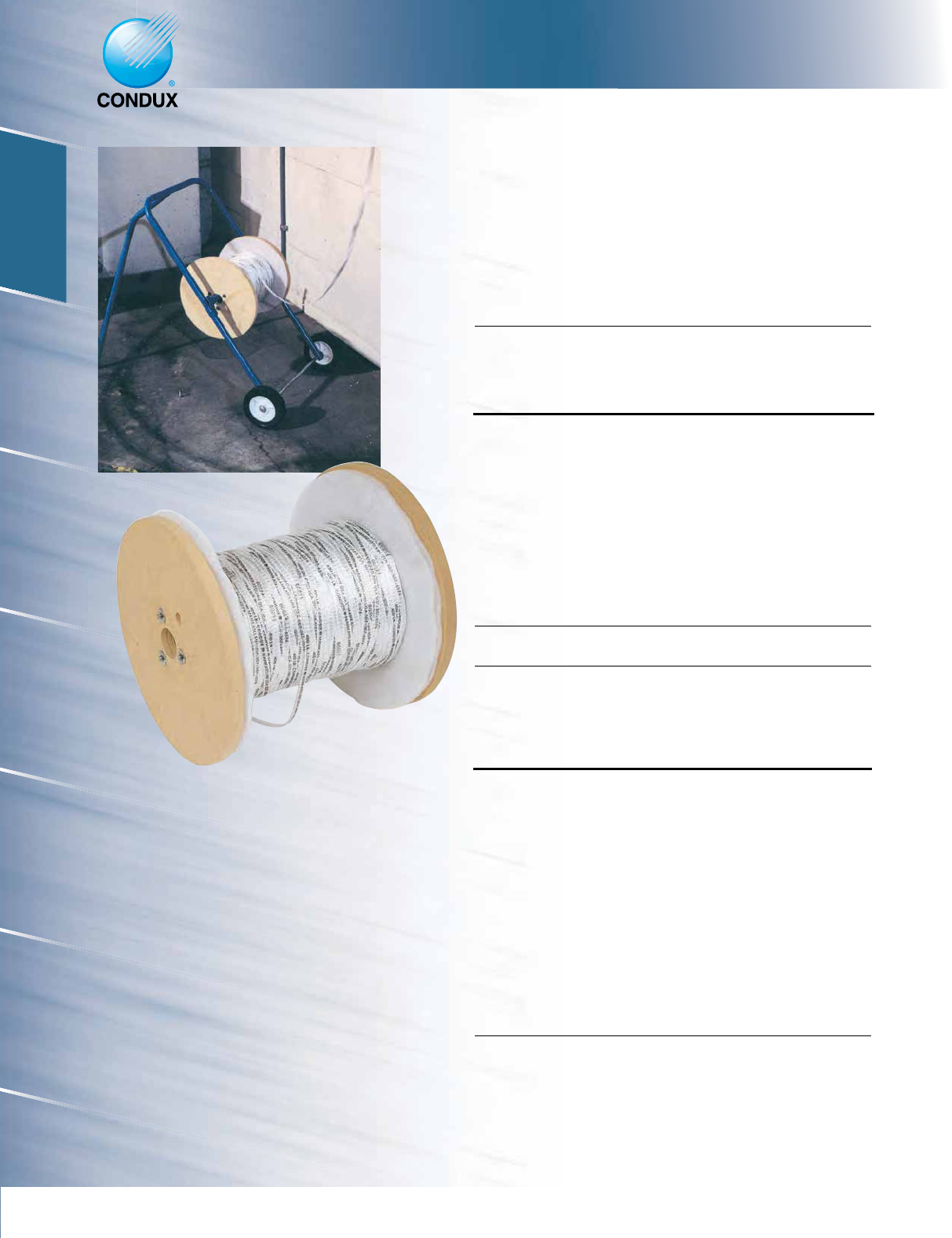

PULLING ROPE & PULLING TAPEPOLY LINE PAIL

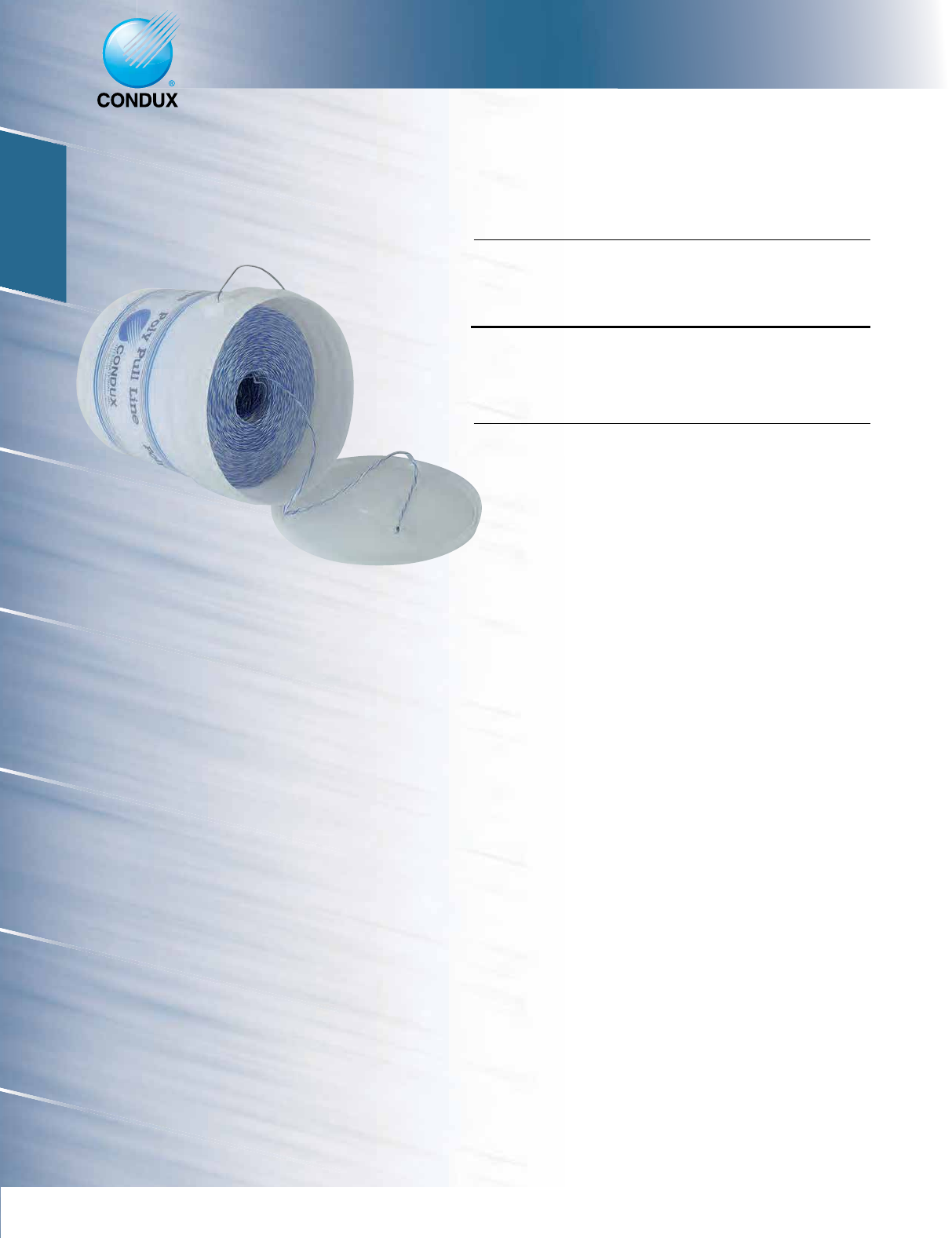

Poly Line Pail

Line attaches to the back of a foam carrier, inflatable

carrier, or line carrier and is used to pull back a rope. Packaged

in a weather-proof, reusable plastic bucket with lid.

Part Break Strength Length

Number (lbs) (N) (ft) (m)

08561285* 200 890 6,500 1,981

08561297* 450 2,002 2,500 762

*Pallet quantities of 48 available.

Poly Line Replacement String

Replacement string refills.

Part Break Strength Length

Number (lbs) (N) (ft) (m)

08561284* 200 890 6,500 1,981

08561299* 450 2,002 2,500 762

*Pallet quantities of 80 available.

24 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

46 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

PULLING ROPE & PULLING TAPE

POLY LINE PAIL

Poly Line Pail

Line attaches to the back of a foam carrier, inflatable

carrier, or line carrier and is used to pull back a rope. Packaged

in a weather-proof, reusable plastic bucket with lid.

Part Break Strength Length

Number (lbs) (N) (ft) (m)

08561285* 200 890 6,500 1,981

08561297* 450 2,002 2,500 762

*Pallet quantities of 48 available.

Poly Line Replacement String

Replacement string refills.

Part Break Strength Length

Number (lbs) (N) (ft) (m)

08561284* 200 890 6,500 1,981

08561299* 450 2,002 2,500 762

*Pallet quantities of 80 available.

FISHING &

RODDING

47

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

PULLING ROPE & PULLING TAPE

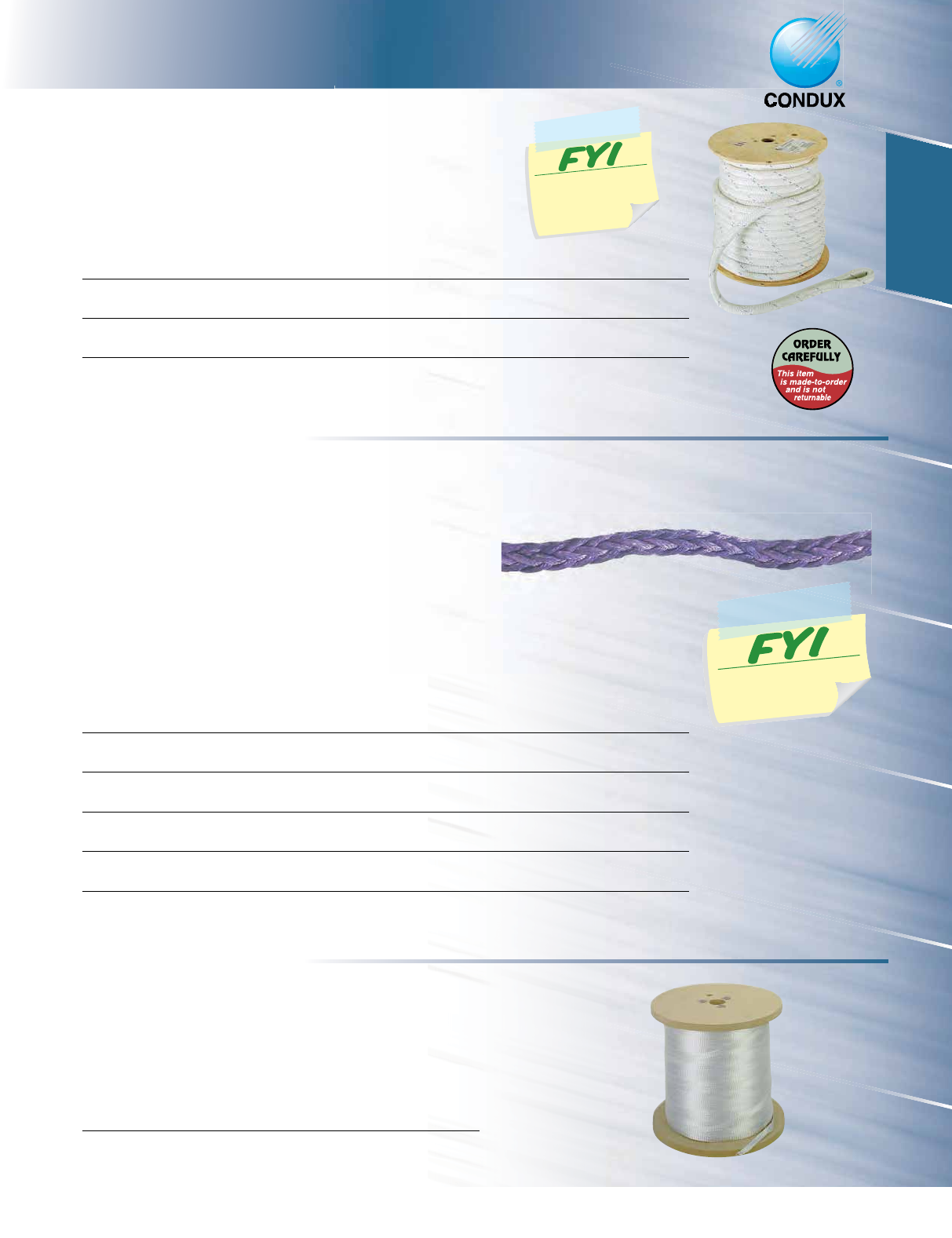

Double-Braided Cable Pulling Rope

Premium quality rope recommended for cable pulling. Complete

with spliced eye on each end. Double-braided construction offers

high working loads and tensile strength without kinking. Other

sizes available. Contact factory for additional rope specifications.

Plasma 12 Strand Pulling Rope

Plasma 12 strand is the highest strength synthetic

rope available. Plasma 12 strand is manufactured from

Honeywell Spectra Fiber that has been enhanced by

a patented recrystallization process. This process is

especially effective in medium to large diameter ropes

where strengths are over 50% higher and creep is

significantly less than that of standard Spectra 12 strand.

Plasma 12 strand comes standard with polyurethane

finish and is easily spliced using a simple lockstitch type

splice, 4-3-2 or 5-4-3 tuck splice. Its soft, torque free

braided construction provides easy handling.

Pulling Tape

A flat woven replacement to

1

⁄

4

" Polypropylene rope that provides a

lower coefficient of friction due to its flat woven design. Drastically

reduces the chance of burn through that is associated with ropes,

and has an elongation of less than 10% compared to Polypropylene

rope which is 25%+. Not available printed. Other lengths available.

Part Break Strength Approx. Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08099703 1,130 5,026

1

⁄

2

13 3,000 914

Recommended Working Load

Part Dia. Length Standard Tensile 5:1

Number (in) (mm) (ft) (m) (lbs) (N) (lbs) (N)

08091003 0.50 13 300 91 10,400 46,262 1,760 7,829

08091006 0.50 13 600 183 10,400 46,262 1,760 7,829

08091012 0.50 13 1,200 366 10,400 46,262 1,760 7,829

08090903 0.63 16 300 91 16,300 72,506 2,780 12,366

08090906 0.63 16 600 183 16,300 72,506 2,780 12,366

08090912 0.63 16 1,200 366 16,300 72,506 2,780 12,366

08091103 0.88 22 300 91 29,900 133,002 5,080 22,597

08091106 0.88 22 600 183 29,900 133,002 5,080 22,597

08091112 0.88 22 1,200 366 29,900 133,002 5,080 22,597

Nominal Size Approximate Minimum

Part Dia. Number Weight Tensile Strength

Number (in) (mm) (circ) (lbs/100 ft) (Kg/100m) (lbs) (kN)

08092005 0.25 6

3

⁄

4

1.5 2.4 8,000 35.6

08092010 0.31 8

15

⁄

16

2.5 3.7 11,700 52

08092015 0.37 9 1

1

⁄

8

3.7 5.5 17,500 77.8

08092020 0.43 11 1

1

⁄

4

4.2 6.3 21,000 93.4

08092025 0.50 12 1

1

⁄

2

6.4 9.5 31,300 139.2

08092030 0.56 14 1

3

⁄

4

7.9 11.8 37,900 168.6

08092035 0.62 16 2 10.6 15.8 51,400 228.6

08092040 0.75 18 2

1

⁄

4

13.3 19.8 68,500 304.7

08092045 0.87 22 2

3

⁄

4

19.6 29.2 92,600 411.9

08092050 1.00 24 3 23.4 34.8 110,000 489.3

08092055 1.12 28 3

1

⁄

2

31.9 47.5 147,000 653.9

08092060 1.25 30 3

3

⁄

4

36.2 53.9 165,000 734

08092065 1.50 36 4

1

⁄

2

51.7 76.9 221,000 983.1

Tensile Strengths are determined in accordance with Cordage Institute 1500, Test methods for Fiber Rope.

Weights are calculated at linear density under standard preload (200d2).

Other lengths and sizes

available upon request.

Order by the foot, sold by

the foot.

www.CONDUXINTERNATIONAL.za 25

FISHING &

RODDING

48 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MEASURING TAPE STANDSMEASURING & PULL TAPE

Conduit Measuring & Pull Tape,

Polyester

For pulling fiber optic or coaxial cable through innerduct or

for determining exact wall-to-wall measurements in duct runs.

Other strengths and lengths are available.

Polyester Tape, Unidirectional*

Used for determining exact wall-to-wall measurements in duct

runs or as a low cost blow string.

Part Break Strength Approx Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08073900 130 578

3

⁄

16

5 3,000 914

*Pallet quantities of 48 available.

Polyester Woven Pre-Lubed Tape

Recommended pulling tape for fiber optic and coaxial

cable pulling. Pre-lubricated tape provides a low

coefficient of friction for easier cable pulling. Flat

design distributes the side-wall load and reduces duct

burn-through. Marked with accurate sequential footage

markings.

Part Break Strength Approx Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08096203 400 1,779

1

⁄

4

6 3,000 915

08096503 600 2,669

3

⁄

8

10 3,000 915

08096803 900 4,003

1

⁄

2

13 3,000 915

08075003 1,250 5,560

1

⁄

2

13 3,000 915

08075103 1,800 8,006

5

⁄

8

16 3,000 915

08096303 2,500 11,120

3

⁄

4

19 3,000 915

Detectable Polyester Woven

Pre-Lubed Tape, 22 Gauge Wire

Provides a proven, reliable means of cable or conduit locating.

Pre-lubricated tape provides a low coefficient of friction for

easier cable pulling. Flat design distributes the side-wall load and

reduces duct burn-through. Marked with accurate sequential

footage markings.

Part Break Strength Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08098203 1,250 5,560

1

⁄

2

13 3,000 915

08098303 1,800 8,007

5

⁄

8

16 3,000 915

08098403 2,500 11,121

3

⁄

4

19 3,000 915

26 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

48 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MEASURING TAPE STANDS

MEASURING & PULL TAPE

Conduit Measuring & Pull Tape,

Polyester

For pulling fiber optic or coaxial cable through innerduct or

for determining exact wall-to-wall measurements in duct runs.

Other strengths and lengths are available.

Polyester Tape, Unidirectional*

Used for determining exact wall-to-wall measurements in duct

runs or as a low cost blow string.

Part Break Strength Approx Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08073900 130 578

3

⁄

16

5 3,000 914

*Pallet quantities of 48 available.

Polyester Woven Pre-Lubed Tape

Recommended pulling tape for fiber optic and coaxial

cable pulling. Pre-lubricated tape provides a low

coefficient of friction for easier cable pulling. Flat

design distributes the side-wall load and reduces duct

burn-through. Marked with accurate sequential footage

markings.

Part Break Strength Approx Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08096203 400 1,779

1

⁄

4

6 3,000 915

08096503 600 2,669

3

⁄

8

10 3,000 915

08096803 900 4,003

1

⁄

2

13 3,000 915

08075003 1,250 5,560

1

⁄

2

13 3,000 915

08075103 1,800 8,006

5

⁄

8

16 3,000 915

08096303 2,500 11,120

3

⁄

4

19 3,000 915

Detectable Polyester Woven

Pre-Lubed Tape, 22 Gauge Wire

Provides a proven, reliable means of cable or conduit locating.

Pre-lubricated tape provides a low coefficient of friction for

easier cable pulling. Flat design distributes the side-wall load and

reduces duct burn-through. Marked with accurate sequential

footage markings.

Part Break Strength Width Length

Number (lbs) (N) (in) (mm) (ft) (m)

08098203 1,250 5,560

1

⁄

2

13 3,000 915

08098303 1,800 8,007

5

⁄

8

16 3,000 915

08098403 2,500 11,121

3

⁄

4

19 3,000 915

FISHING &

RODDING

49

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MEASURING TAPE STANDS

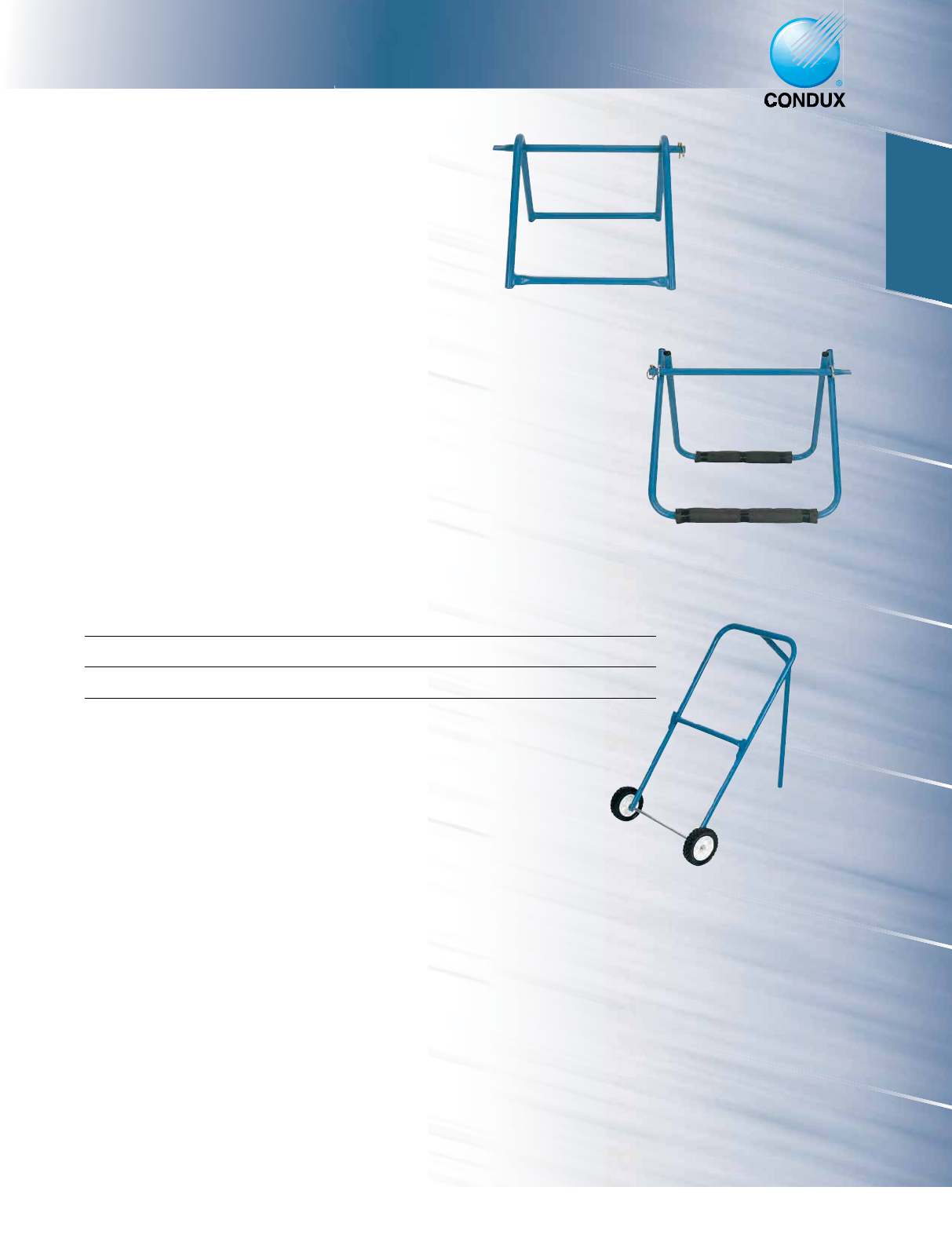

Measuring Tape Stands

Measuring Tape Stands give you a convenient and stable method

for holding and dispensing measuring tape. These lightweight

stands are portable, durable and help keep tape from twisting during

installation. Available in 5 models, all featuring tubular steel frames.

Single Spool Tape Stand 18120100

Support one spool of measuring tape.

Single Spool Tape Stand 18120125

Support one spool of measuring tape.

Collapsible Tape Stand 18120200

Collapsible frame has foam floor protectors on bottom. Folds to just

4" (101 mm) wide. Supports one reel.

Tape Stand 18120225

Collapsible frame, Folds to just 4" (101 mm) wide. Supports one

reel.

Heavy-duty Tape Stand 18120300

Large capacity stand has 6" (152 mm) wheels and upright support

bar. Supports one reel.

Maximum Maximum Gross Load

Part Reel Diameter Reel Width Capacity

Number Description (in) (mm) (in) (mm) (lb) (kg)

18120100 Single Spool Tape Stand 18 457 15 381 100 45

18120125 Single Spool Tape Stand 24 609 24 609 100 45

18120200 Collapsible Tape Stand 18 457 15 381 100 45

18120225 Collapsible Tape Stand 24 609 24 609 100 45

18120300 Heavy-duty Tape Stand 26 660 15 381 200 91

Heavy-duty Tape Stand

Collapsible Tape Stand

Single Spool Tape Stand

www.CONDUXINTERNATIONAL.za 27

FISHING &

RODDING

50 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MANDRELSMANDRELS

Wood Test Mandrels

Pull through duct to prove joint integrity and test for

out-of-round duct. 2,240 lbs. (9,964 N) load capacity. Wood

body with steel end caps and pulling eyes.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08020660 4 102 6 152 3.56 90

08020600 4 102 11

1

⁄

2

292 3.56 90

Aluminum Test Mandrels

Pull through duct to prove joint integrity and test for

out-of-round duct. Provides an 80% fill in schedule 40 and

telephone conduit.

Body Load

Part Duct Size Length Max O.D. Capacity

Number (in) (mm) (in) (mm) (in) (mm) (lbs) (N)

08059515 1

1

⁄

2

38 1.74 44 1.18 30 2,200 9,786

08059520 2 51 2.40 61 1.62 41 2,200 9,786

08059525 2

1

⁄

2

64 2.98 76 2.00 51 2,200 9,786

08059530 3 76 3.50 89 2.37 61 2,200 9,786

08059535 3

1

⁄

2

89 4.10 104 2.75 70 4,500 20,016

08059540 4 102 4.84 123 3.25 83 4,500 20,016

08059550 5 127 5.98 152 4.00 102 4,500 20,016

08059560 6 152 7.08 180 4.75 121 4,500 20,016

08059580 8 203 9.44 240 6.375 162 4,500 20,016

Aluminum Test Slugs

Pull through duct to prove joint integrity and test for

out-of-round duct. Provides an 80% fill in schedule 40 and

telephone conduit.

Body Load

Part Duct Size Length Max O.D. Capacity

Number (in) (mm) (in) (mm) (in) (mm) (lbs) (N)

08059005 1 25 1.71 43 0.860 22 2,200 9,786

08059015 1

1

⁄

4

32 2.17 55 1.086 28 2,200 9,786

08059025 1

1

⁄

2

38 2.49 63 1.243 32 2,200 9,786

Rubber Duct Swab

Ideal for cleaning and assisting in the spreading of lubricant throughout

the duct. 7,000 lbs. (31,136 N) load capacity.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08028820* 2 51 10 254 2.00 51

08028830 3 76 10 254 3.00 76

08028700 3

1

⁄

2

89 10 254 3.50 89

08028800 4 102 10 254 4.00 102

08058700 5 127 10 254 5.00 127

08058800 6 152 10 254 6.00 152

08022880 8 203 10 254 8.00 203

*4,500 lbs. (20,016 N) load capacity.

Custom sizes available.

28 www.CONDUXINTERNATIONAL.za

FISHING &

RODDING

50 www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MANDRELS

MANDRELS

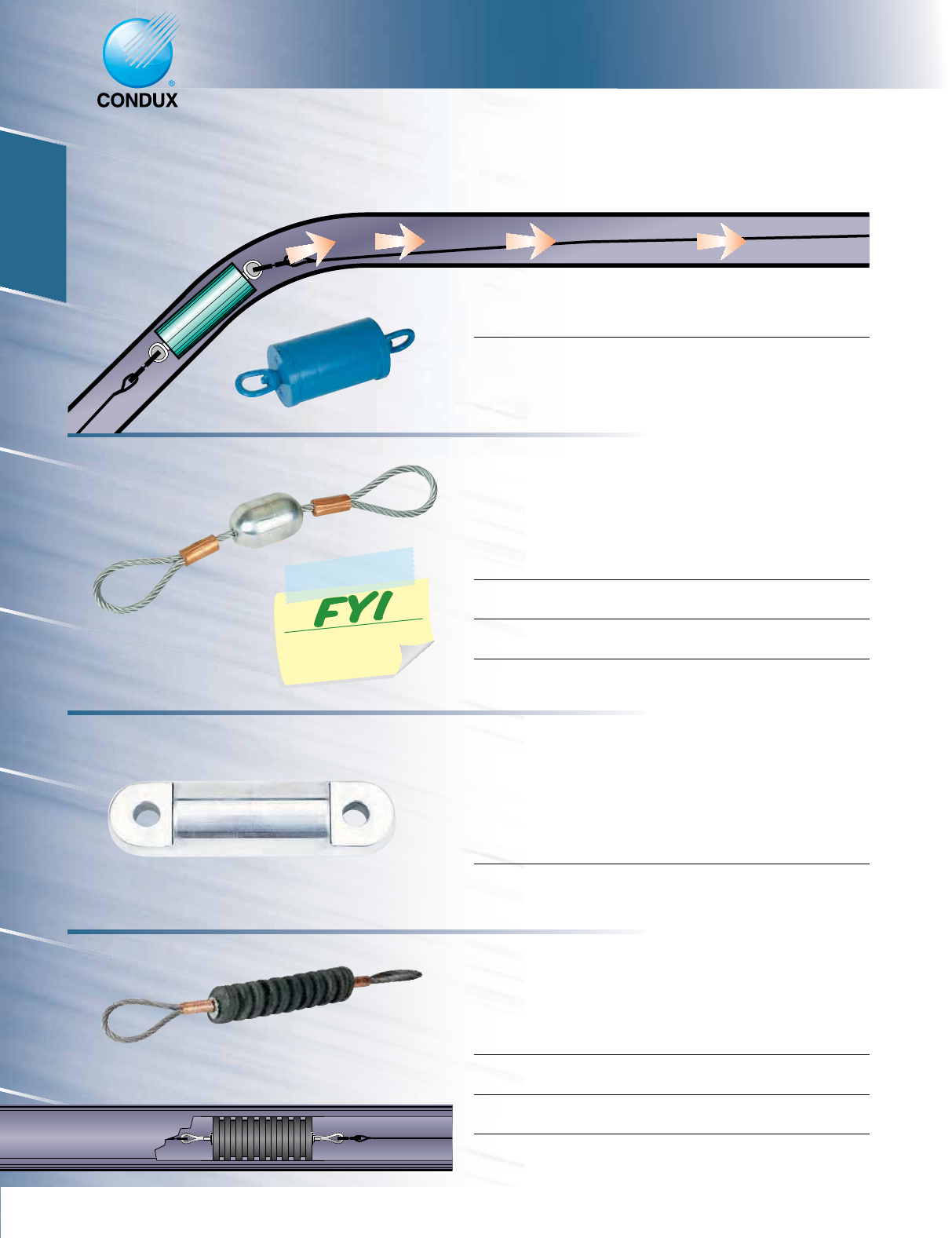

Wood Test Mandrels

Pull through duct to prove joint integrity and test for

out-of-round duct. 2,240 lbs. (9,964 N) load capacity. Wood

body with steel end caps and pulling eyes.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08020660 4 102 6 152 3.56 90

08020600 4 102 11

1

⁄

2

292 3.56 90

Aluminum Test Mandrels

Pull through duct to prove joint integrity and test for

out-of-round duct. Provides an 80% fill in schedule 40 and

telephone conduit.

Body Load

Part Duct Size Length Max O.D. Capacity

Number (in) (mm) (in) (mm) (in) (mm) (lbs) (N)

08059515 1

1

⁄

2

38 1.74 44 1.18 30 2,200 9,786

08059520 2 51 2.40 61 1.62 41 2,200 9,786

08059525 2

1

⁄

2

64 2.98 76 2.00 51 2,200 9,786

08059530 3 76 3.50 89 2.37 61 2,200 9,786

08059535 3

1

⁄

2

89 4.10 104 2.75 70 4,500 20,016

08059540 4 102 4.84 123 3.25 83 4,500 20,016

08059550 5 127 5.98 152 4.00 102 4,500 20,016

08059560 6 152 7.08 180 4.75 121 4,500 20,016

08059580 8 203 9.44 240 6.375 162 4,500 20,016

Aluminum Test Slugs

Pull through duct to prove joint integrity and test for

out-of-round duct. Provides an 80% fill in schedule 40 and

telephone conduit.

Body Load

Part Duct Size Length Max O.D. Capacity

Number (in) (mm) (in) (mm) (in) (mm) (lbs) (N)

08059005 1 25 1.71 43 0.860 22 2,200 9,786

08059015 1

1

⁄

4

32 2.17 55 1.086 28 2,200 9,786

08059025 1

1

⁄

2

38 2.49 63 1.243 32 2,200 9,786

Rubber Duct Swab

Ideal for cleaning and assisting in the spreading of lubricant throughout

the duct. 7,000 lbs. (31,136 N) load capacity.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08028820* 2 51 10 254 2.00 51

08028830 3 76 10 254 3.00 76

08028700 3

1

⁄

2

89 10 254 3.50 89

08028800 4 102 10 254 4.00 102

08058700 5 127 10 254 5.00 127

08058800 6 152 10 254 6.00 152

08022880 8 203 10 254 8.00 203

*4,500 lbs. (20,016 N) load capacity.

Custom sizes available.

FISHING &

RODDING

51

www.CONDUX.com • TOLL-FREE (US & Canada) 1-800-533-2077 • TEL. 1-507-387-6576 • FAX 1-507-387-1442

MANDRELS

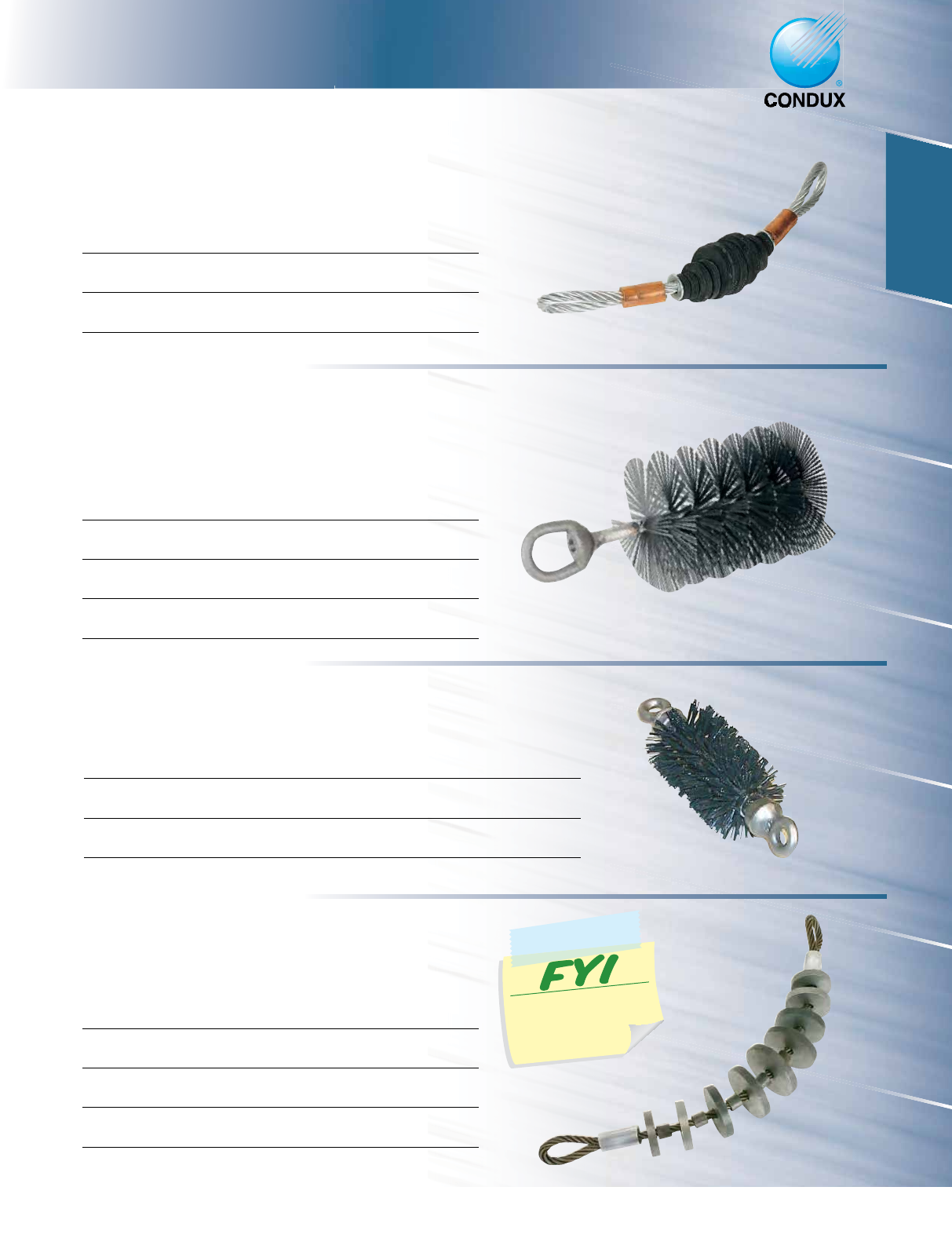

Short Rubber Slug

For proving duct integrity and for spreading cable pulling

lubricant especially in tight-radius bends. 4,500 lbs. (20,016 N)

load capacity.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08082020 2 51 3.25 83 2.00 51

08082025 2

1

⁄

2

64 3.25 83 2.50 64

08082030 3 76 3.25 83 3.00 76

08082035 3

1

⁄

2

89 3.25 83 3.50 89

08082040 4 102 3.25 83 4.00 102

08082050 5 127 3.25 83 5.00 127

08082060 6 154 3.25 83 6.00 154

08082080 8 203 3.25 83 8.00 203

Wire Brush Mandrel

Flat steel bristles with a pulling eye on one end and a loop on the

other end. Easily removes sand, grit and other light obstructions

from the duct. 800 lbs. (3,558 N) load capacity.

Overall

Part Duct Size Body Length Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm) (in) (mm)

08028904 1

1

⁄

4

32 4.25 108 7.50 191 1.00 25

08028905 1

1

⁄

2

38 4.25 108 7.50 191 1.25 32

08028900 2 51 4.25 108 9.16 232 1.75 44

08046000 2

1

⁄

2

64 4.25 108 9.16 232 2.25 57

08067100 3 76 5.50 140 9.16 232 2.75 70

08067200 3

1

⁄

2

89 5.00 127 9.16 232 3.25 82

08029000 4 102 6.75 171 9.16 232 3.75 95

08029100 5 127 6.50 165 9.16 232 4.75 121

08068100 6 152 6.75 171 9.16 232 5.75 146

08029080 8 203 4.75 121 9.73 247 7.75 197

Heavy Duty Wire Brush Mandrels

Heavy-duty steel bristles with pulling eyes on each end. For

removing obstructions from the duct.

Flexible Steel Mandrel

Steel discs in graduated sizes make this mandrel ideal for

removing obstructions in duct with extreme bends. 7,000 lbs.

(31,136 N) load capacity.

Body

Part Duct Size Length Max O.D.

Number (in) (mm) (in) (mm) (in) (mm)

08021700 *2 51 7.31 186 1.75 44

08021925 2

1

⁄

2

64 11.25 286 2.25 57

08021800 3 76 11.25 286 2.75 70

08049400 3

1

⁄

2

89 11.25 286 3.25 83

08067400 4 Sch 80 97 11.25 286 3.50 89

08021900 4 102 11.25 286 3.75 95

08067500 5 Sch 80 114 11.25 286 4.25 108

08058900 5 127 11.25 286 4.75 121

08067600 6 Sch 80 146 11.25 286 5.50 140

08059000 6 152 11.25 286 5.75 146

08079500 8 203 11.25 286 7.75 197

*2,000 lbs. (8,896 N) load capacity.

Body

Part Duct Size Length Max O.D. Load

Number (in) (mm) (in) (mm) (in) (mm) (lbs) (N)

08900546 2 51 3.5 89 1.75 44 1,240 5,516

08900547 2

1

⁄

2

64 4.25 108 2.25 57 1,240 5,516

08900548 3 76 5.25 133 2.75 70 1,240 5,516

08900549 3

1

⁄

2

89 5.25 133 3.25 82 2,240 9,964

08900550 4 102 5.25 133 3.75 95 2,240 9,964

08900551 5 127 5.00 123 4.75 121 2,240 9,964

08900552 6 152 5.00 123 5.75 146 2,240 9,964

08900553 8 203 5.00 123 7.75 196 2,240 9,964

When using the flexible

steel mandrel there is the

potential for duct shaving

to occur.

www.CONDUXINTERNATIONAL.za 29

AERIAL TOOLS

FISHING & RODDING

SWIVELS & ACCESSORIES

PULLING EYES & ACCESSORIES

CABLE PULLING

CABLE BLOWING

CABLE GUIDES

OTHER PRODUCTS

AERIAL TOOLS

FISHING & RODDING

SWIVELS & ACCESSORIES

PULLING EYES & ACCESSORIES

CABLE PULLING

CABLE BLOWING

CABLE GUIDES

OTHER PRODUCTS

CONDUXCONDUXCONDUX

cable installation

cable installation

cable installation

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUX 2011 - 2012 AERIAL & UNDERGROUND CABLE INSTALLATION EQUIPMENT & TOOLS CATALOG www.CONDUX.com

CONDUX INTERNATIONAL, INC.

145 Kingswood Drive • PO Box 247 • Mankato, MN 56002-0247 U.S.A.

1.507.387.6576 • 1.800.533.2077 (U.S. & Canada) • FAX 1.507.387.1442

e-mail: cndxinfo@condux.com • www.condux.com

Available From

CONDUX

2011 - 2012

AERIAL & UNDERGROUND CABLE INSTALLATION EQUIPMENT & TOOLS CATALOG

cable installation

cable installation

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

cable installation

cable installation

cable installation

cable installation

cable installation

cable installation

cable installation

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

CONDUXCONDUXCONDUX

cable installation

cable installation

cable installation

cable installation

Scan me to

get the latest

product

information,

view videos

and download

technical

manuals.

CONDUX INTERNATIONAL, INC

Tesmec SA • Unit 2 Mansal Park • 292 Albert Amon road

Meadowdale 1610 Edenvale • Gauteng • South Africa

TEL: 1079 408 3048 • www.CONDUXINTERNATIONAL.za
