Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Physical ProPerties

• Nut, Post and Collar: Brass

• Nut and Collar Finish: Nickel Tin

• Post Finish: Tin Plated

• O-Rings: Ethylene Propylene

electrical ProPerties

• ReturnLoss:≥-30dBupto1GHzTypical

• InsertionLoss:≤-0.18dBupto1GHzTypical

• RFI Shielding: -90 dB Typical (60% Bonded Foil)

Mechanical ProPerties

• Cable Retention: 40 lbs min.

Complies to SCTE IPS-SP-401

• Cable Insertion Force: <20 lbs

environMental ProPerties

• Temperature Rating: -40°F (-40°C) to

140°F (60°C)

• Moisture Migration: Passes ANSI/SCTE 60 2004

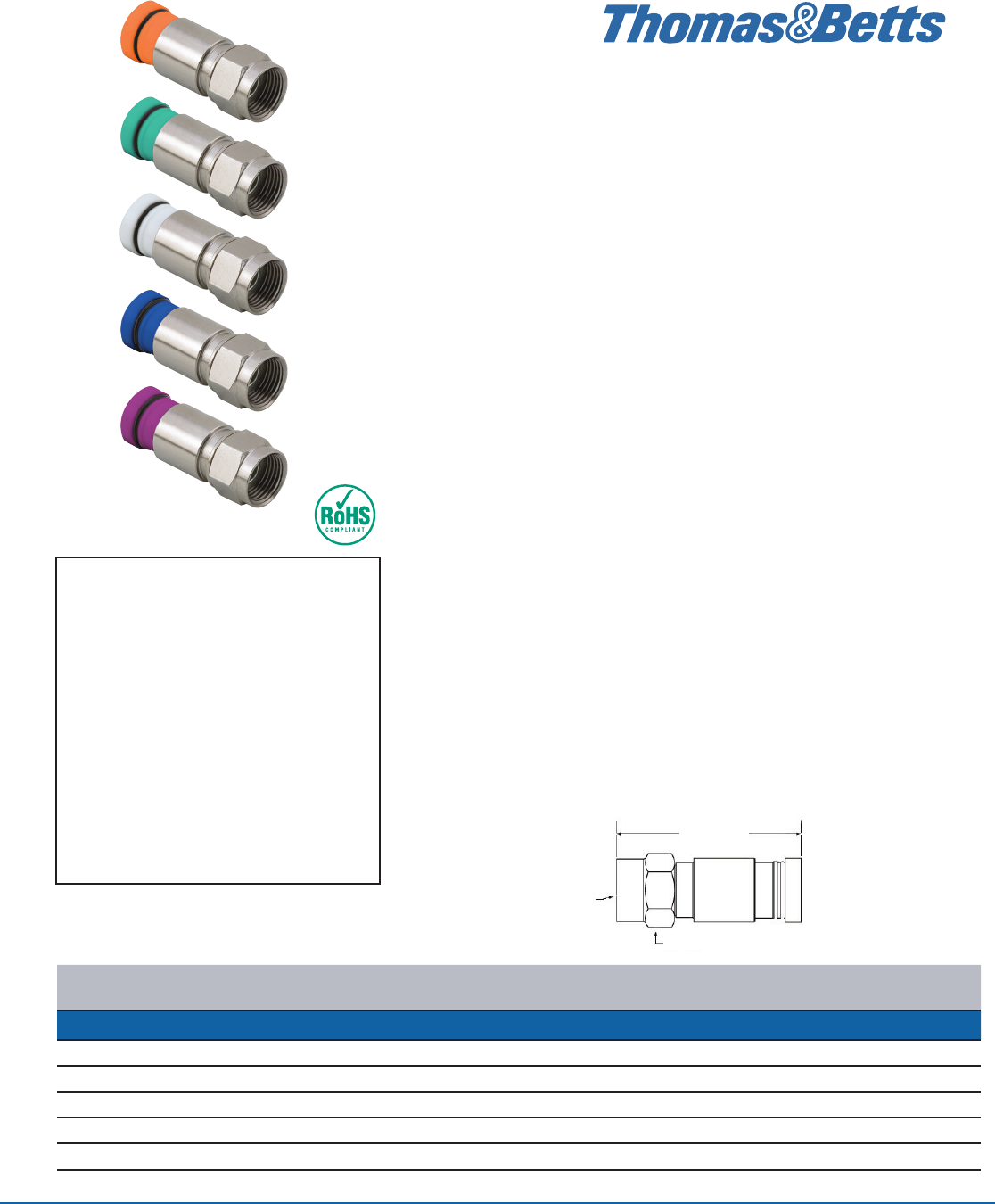

snaP-n-seal®

“F” series Male one-Piece

coMPression connectors

Thomas & Betts Snap-N-Seal® One-Piece

Compression Connectors, feature a user-

friendly, pre-positioned and detachably coupled

plastic sleeve, incorporating time-proven

advantages for a reliable connection.

Snap-N-Seal® One Piece Connectors use the same proven 360º

compression design and installation tools as other Snap-N-Seal® products

• To reduce assembly time and simplify installation, the plastic sleeve

is pre-positioned and detachably coupled to the connector body.

• True 360º compression onto cable ensures superior RF shielding

performance, -90 dB effective shielding (typical on 60% bonded

foil cable).

• Permanently stamped part numbers and color-coded sleeves for

easyidenticationbeforeandafterinstallation.

• Installation requires one-step 1/4” - 1/4” cable preparation and

standard compression tools used for all 59 & 6 series Snap-N-Seal®

product families.

• Quad-sealed system prevents moisture migration.

•IncorporatesaNiTinnishplusUVresistantplasticandO-ringsto

provide a reliable, environmentally sealed product.

•Superbreturnlossperformanceof-30dBto1GHz.

•Cableretentionexceeds40lb.minimumasspeciedbytheSCTE.

Data Sheet # CDS-SNS1P

OrDeriNg iNfOrmatiON

catalog nuMber Post

i.D.

sleeve

i.D.

sleeve

color

tool†inner

Pack

outer

Pack

“F” SerieS Male One-Piece cOMPreSSiOn cOnnectOrS

SNS1P59 .154 .253 Orange 1+2 or 3 50 1000

SNS1P59QS .154 .275 Green 1+2 or 3 50 1000

SNS1P59HEC .154 .290 White 1+2 or 3 50 1000

SNS1P6 .191 .290 Blue 1+2 or 3 50 1000

SNS1P6QS .191 .315 Violet 1+2 or 3 50 1000

†Tool: 1 = CST596 or CST596711 2=SNSUTL3 = IT1000

3/8”-32UNEF-20

THREADSIZE

1.265 TYPICAL

7/16”HEX

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Physical ProPerties

• Nut, Post and Collar: Brass

• Nut and Collar Finish: Nickel Tin

• Post Finish: Tin Plated

• O-Rings: Ethylene Propylene

electrical ProPerties

• ReturnLoss:≥-30dBupto1GHzTypical

• InsertionLoss:≤-0.18dBupto1GHzTypical

• RFI Shielding: -90 dB Typical (60% Bonded Foil)

Mechanical ProPerties

• Cable Retention: 40 lbs min.

Complies to SCTE IPS-SP-401

• Cable Insertion Force: <20 lbs Typical

environMental ProPerties

• Temperature Rating: -40°F (-40°C) to

140°F (60°C)

• Moisture Migration: Passes ANSI/SCTE 60 2004

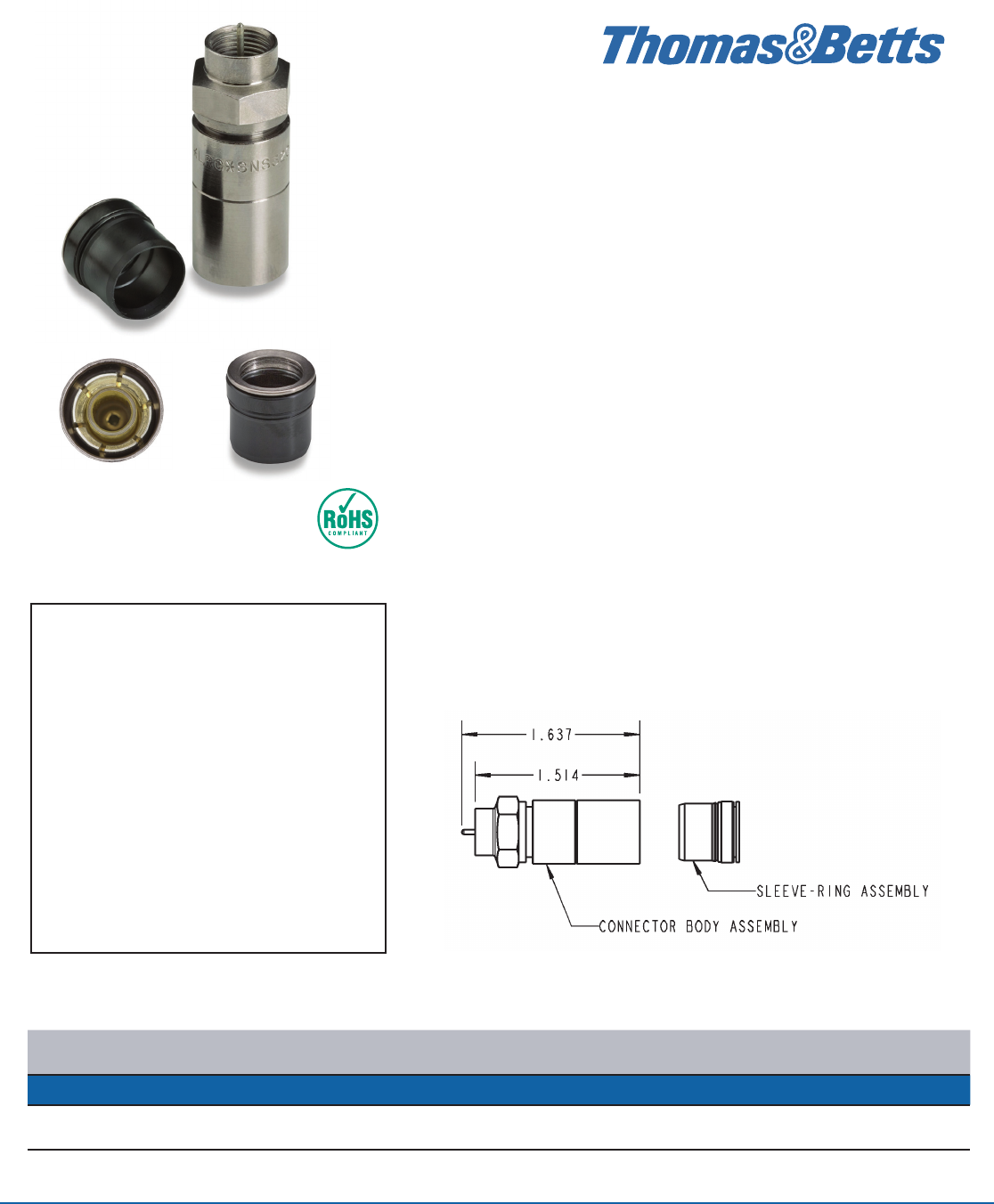

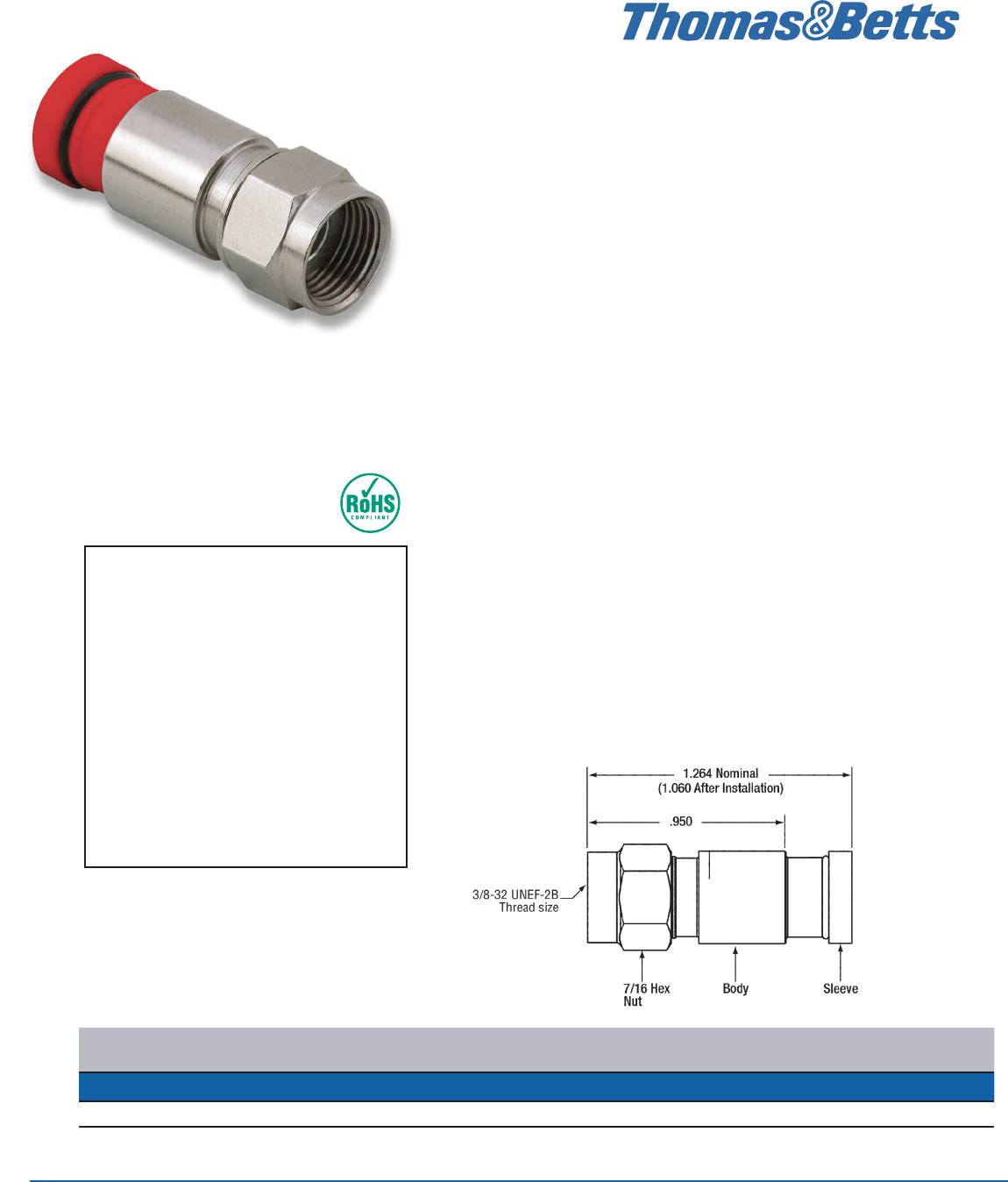

UltiMate™ snaP-n-seal®

“F” series coMPression connector

Thomas & Betts introduces the UltimateTM

Snap-N-Seal® Compression Connector. One

connector for 6 Series SCTE specication

drop cables including 60% braid, tri-shield

and quad shield.

Look for the classic design of this Thomas & Betts connector. With its

user-friendly, pre-positioned and detachably coupled plastic sleeve,

the UltimateTM Snap-N-Seal® Connector incorporates time-proven

advantages for a reliable connection.

• To reduce assembly time and simplify installation, the plastic sleeve

is pre-positioned and detachably coupled to the connector body.

• The plastic sleeve’s separability from the connector body further

simpliesdifcultinstallations.

• True 360° compression onto cable ensures superior RF shielding

performance, -90 dB effective shielding (typical on 60% bonded foil cable).

• Installation requires one-step 1/4” - 1/4” cable preparation and

standard compression tools used for all 59 & 6 Series Snap-N-Seal®

product families.

• Quad-sealed system prevents moisture migration.

•IncorporatesaNiTinnishplusUVresistantplasticandO-ringsto

provide a reliable, environmentally sealed product.

•Cableretentionexceeds40lb.minimumasspeciedbytheSCTE.

Data Sheet # CDS-SNSULt

OrDeriNg iNfOrmatiON

catalog nUMber Post

i.D.

sleeve

i.D.

sleeve

color

tool†inner

Pack

oUter

Pack

“F” SerieS CompreSSion ConneCtor

SNS1P6U .191 .293Red 1+2 or 3 50 1000

†Tool: 1 = CST596 or CST596711 2 = SNSUTL 3 = IT1000

Please ask your Thomas & Betts representative for a complete catalog of quality Thomas &

Betts products or visit us at www.tnb.com. For customer service, call 1-800-685-9452. For

technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 * 901-252-5000

Fax: 800-283-6756 * 801-252-1380

hysical

roPerties

•BodyComponents:Brass

•NutandCollarFinish:NiTinPlated

•PostFinish:TinPlated

•TerminalFinish:SilverPlated

•O-Ring:EthylenePropylene

lectrical

roPerties

•ReturnLoss:≥-30dBupto1GHztypical

•InsertionLoss:≤-0.18dBupto1GHztypical

•RFIShielding:-90dBTypical(60%BondedFoil)

Me c h a n i c a l Pr o P e r t i e s

•CableRetention:40poundsminimum

•CableInsertionForce:<20pounds

en v i r o n M e n t a l Pr o P e r t i e s

•TemperatureRating:-40°F(-40°C)to140°F(60°C)

•SaltSprayExposure:PassesASTMB117,1000hours

•MoistureMigration:PassesANSI/SCTE602004

UltiMate™ snaP-n-seal®

•Toreduceassemblytimeandsimplifyinstallations,theplasticsleeve

is pre-positioned and detachably coupled to the connector body.

•Theplasticsleeve’sseparabilityfromtheconnectorbodyfurther

simpliesdifcultinstallations.

•True360°compressionontocableensuressuperiorRFshielding

performance,-90dBeffectiveshielding(typicalon60%bondedfoil

cable).

•Installationrequiresone-step1/4”–1/4”cablepreparationand

standardcompressiontoolsusedforall59&6seriesSnap-N-Seal

product families.

•Quad-sealedsystempreventsmoisturemigration.

•IncorporatesaRoHSCompliant,NiTinPlatingplusUVresistant

plasticandO-ringstoprovideareliable,environmentallysealed

product.

•Cableretentionexceeds40lb.minimumasrecommendedby

theSCTE.

Da t a Sh e e t # CDS-90SNS1P6U

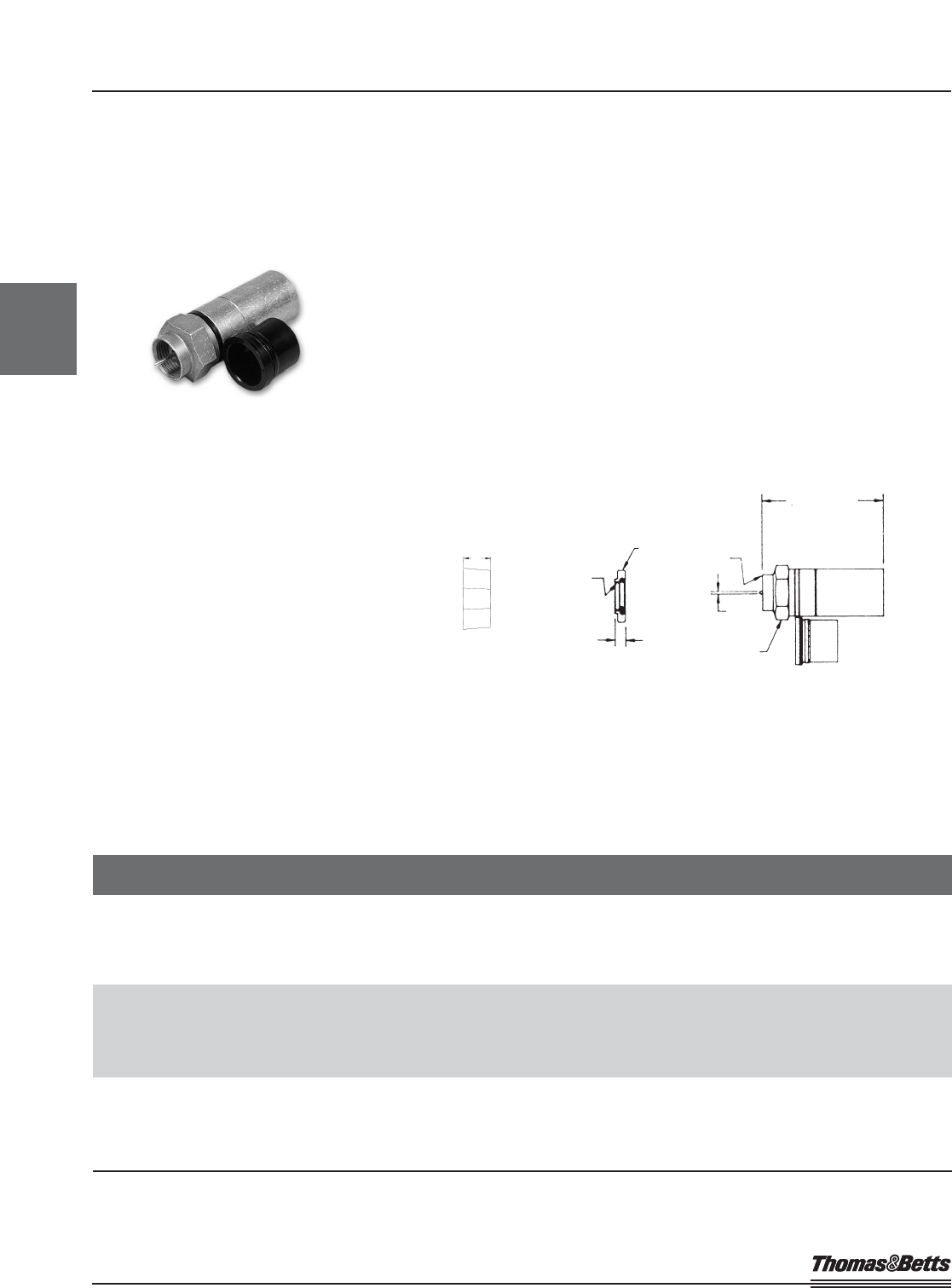

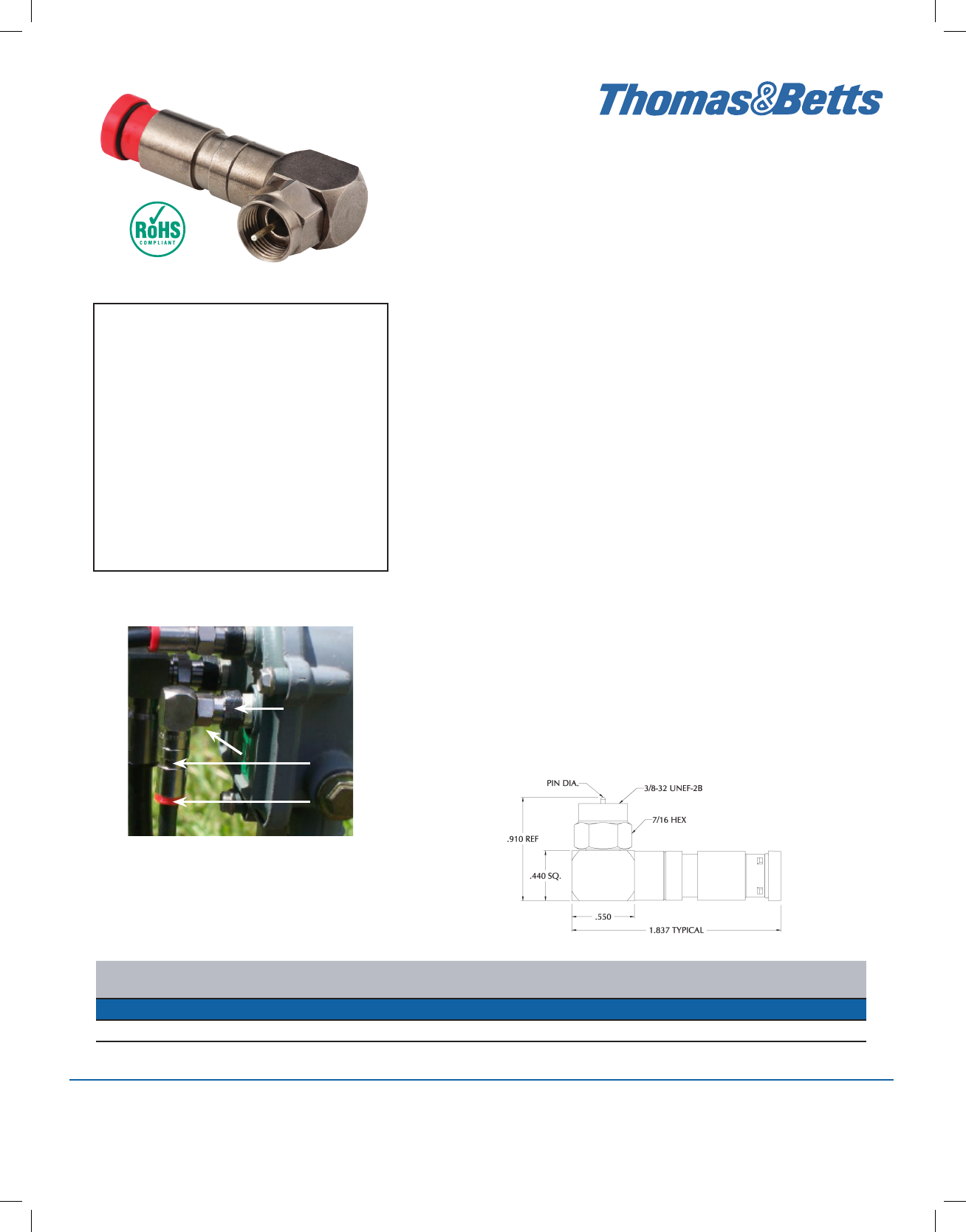

Thomas & Betts introduces the right angle

Ultimate™ Snap-N-Seal® compression connector

– one connector for 6 series SCTE specication

drop cables including 60% braid, tri-shield and

quad shield.

The90°Ultimate™Snap-N-Seal®connectorisdesignedfortighttting

drop applications or situations where space is a premium.

ca t a l o g

nUMber

Post

i.D.

sleeve

i.D.

sleeve

color

tool1inner

Pack

oUter

Pack

Right Angle “F” MAle On e Piece cOMPRessiOn cOnnectOR

90SNS1P6U .191 .315 Red 1+2

40 480

1 Tool: 1=CST596596orCST596711,2=SNSUTL

Or D e r i N g iN f O r m a t i O N

ri g h t an g l e “F” Ma l e on e Pi e c e

co M P r e s s i o n co n n e c t o r

™

.040

1. Thread Protector

2.InternalO-Ring

3.InternalO-Ring

4.PlasticSealingSleeve

Quad-sealed System

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

F Series Male for RG59 & RG6

Snap-N-Seal®“F” Series Male

Environmentally Sealed

Connectors for Series 59 & 6

Cables

LRC Snap-N-Seal®connectors are environmentally sealed to protect drops from

harsh environments. Through a unique 360˚ compression process, Snap-N-Seal®

connectors also offers the signal leakage protection required for today’s systems.

DESIGN ADVANTAGES

• Quad-sealed system prevents moisture from migrating into the connection.

• Connectors manufactured from high quality 360 brass, cadmium plated with

iridescent chromate coating for maximum corrosion resistance.

• Design incorporates UV resistant plastic and O-rings providing a reliable,

environmentally sealed product.

• 1/4”-1/4” cable preparation is standard.

• Multiple tool options make installation fast, easy and reliable.

• Product number is permanently stamped on connectors for easy identification.

Ordering Information

CATALOG POST SLEEVE SLEEVE DIM INNER OUTER

NUMBER FIG. I.D. I.D. COLOR TOOL† A PACK PACK

SNS59 C .154 .253 Orange 1 or 2+3 - 50 1000

SNS59NS B+C .154 .253 Orange 1 or 2+3 - 50 1000

SNS59TP275 A+C .154 .253 Orange 1 or 2+3 .275 50 500

SNS59TP450 A+C .154 .253 Orange 1 or 2+3 .450 50 500

SNS59QS C .154 .275 Green 1 or 2+3 - 50 1000

SNS59QSNS B+C .154 .275 Green 1 or 2+3 - 50 1000

SNS59QSTP275 A+C .154 .275 Green 1 or 2+3 .275 50 1000

SNS59QSTP450 A+C .154 .275 Green 1 or 2+3 .450 50 500

SNS59HEC C .154 .290 White 1 or 2+3 - 50 1000

SNS6 C .191 .290 Blue 1 or 2+3 - 50 1000

SNS6NS B+C .191 .290 Blue 1 or 2+3 - 50 1000

SNS6TP275 A+C .191 .290 Blue 1 or 2+3 .275 50 500

SNS6TP450 A+C .191 .290 Blue 1 or 2+3 .450 50 500

SNS6QS C .191 .315 Violet 1 or 2+3 - 50 1000

SNS6QSNS B+C .191 .315 Violet 1 or 2+3 - 50 1000

SNS6QSTP275 A+C .191 .315 Violet 1 or 2+3 .275 50 1000

SNS6QSTP450 A+C .191 .315 Violet 1 or 2+3 .450 50 500

SNS6PLA C .191 .253 Orange 1 or 2+3 - 50 1000

†T

OOL

: 1 = IT1000, 2 = CST596

CST596711, 3 = SNSUTL

FIG. A FIG. B

A3/8-32

THD

1/2

HEX

.140

FIG. C

3/8-32

THD

.914 REF

7/16 HEX

PROPERTIES

HYSICAL

, P

OST AND

OLLAR

: B

RASS

CDA360

UT AND

OLLAR

INISH

: C

ADMIUM PLATED WITH

IRIDESCENT CHROMATE COATING

OST

INISH

: T

IN PLATED

O-R

ING

: E

THYLENE

ROPYLENE

LECTRICAL

ETURN

OSS

: ≥-30 dB

UP TO

1 GH

ZTYPICAL

NSERTION

OSS

: ≤-0.18 dB

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -95 dB

TYPICAL

(60%

BONDED FOIL

CABLE

)

ECHANICAL

ABLE

ETENTION

: 40

LBS

MIN

. C

OMPLIES TO

SCTE

IPS-SP-404

NVIRONMENTAL

EMPERATURE

ATING

: -40˚ F (-40˚C)

140˚ F

(60˚C)

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

Snap-N-Seal®“F” Series Male

Environmentally Sealed

Connectors for Series 7 & 11

Cables

LRC Snap-N-Seal®connectors are environmentally sealed to protect drops from

harsh environments. Through a unique 360˚ compression process, Snap-N-

Seal®connectors also offer the sustainable signal leakage protection required

for today’s systems.

DESIGN ADVANTAGES

• Quad-sealed system prevents moisture from migrating into the connection.

• Connectors manufactured from high quality 360 brass, cadmium plated with

iridescent chromate coating for maximum corrosion resistance.

• Design incorporates UV resistant plastic and O-rings providing a reliable,

environmentally sealed product.

• 1/4”-1/4” cable preparation is standard.

• Product number is permanently stamped on connectors for easy identification.

SNAP-N-SEAL®

F Series Male for RG7 & RG11

Ordering Information

CATALOG POST SLEEVE SLEEVE DIM INNER OUTER

NUMBER FIG. I.D. I.D. COLOR TOOL† A PACK PACK

SNS7B C .238 .340 Black 1+2 - 36 288

SNS7BNS B+C .238 .340 Black 1+2 - 36 288

SNS7BTP275 A+C .238 .340 Black 1+2 .275 36 288

SNS7BTP450 A+C .238 .340 Black 1+2 .450 36 288

SNS7BQ C .238 .355 Black 1+2 - 36 288

SNS7BQNS B+C .238 .355 Black 1+2 - 36 288

SNS7BQTP275 A+C .238 .355 Black 1+2 .275 36 288

SNS7BQTP450 A+C .238 .355 Black 1+2 .450 36 288

SNS11AS C .295 .415 Black 1+2 - 36 432

SNS11ASNS B+C .295 .415 Black 1+2 - 36 432

SNS11ASTP275 A+C .295 .415 Black 1+2 .275 36 432

SNS11ASTP450 A+C .295 .415 Black 1+2 .450 36 432

† T

OOL

: 1 = CST596711, 2 = L3011B

FIG. CFIG. A FIG. B

3/8-32

THD

3/8-32

THD

9/16

HEX

.032

DIA

5/8

HEX

.140

1.420 REF

PROPERTIES

HYSICAL

, P

OST AND

OLLAR

: B

RASS

CDA360

UT AND

OLLAR

INISH

: C

ADMIUM PLATED WITH

IRIDESCENT CHROMATE COATING

OST

INISH

: T

IN PLATED

O-R

ING

: E

THYLENE

ROPYLENE

LECTRICAL

ETURN

OSS

: ≥-30 dB

UP TO

1 GH

ZTYPICAL

NSERTION

OSS

: ≤-0.18 dB

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -95 dB

TYPICAL

(60%

BONDED FOIL

CABLE

)

ECHANICAL

ABLE

ETENTION

: 40

LBS

MIN

. C

OMPLIES TO

SCTE

IPS-SP-404

NVIRONMENTAL

EMPERATURE

ATING

: -40˚ F (-40˚C)

140˚ F

(60˚C)

Physical ProPerties

• Nut, Post and Collar: Brass

• Nut Finish: Gold (SNS6IG) NiTin (SNS6I)

• Collar Finish: NiTin

• Post Finish: Tin plated

• O-Ring: Ethylene Propylene

electrical ProPerties

• Return Loss: -30 dB up to 1 GHz typical

• Insertion Loss: -0.18 dB up to 1 GHz typical

• RFI Shielding: -90 dB typical

(60% bonded foil cable)

Mechanical ProPerties

• Cable Retention: 40 lbs. min. Complies

to SCTE IPS-SP-404

• Cable Insertion Force: < 20 lbs.

environMental ProPerties

• Temperature Rating: -40º F (-40º C)

to 140º F (60º C)

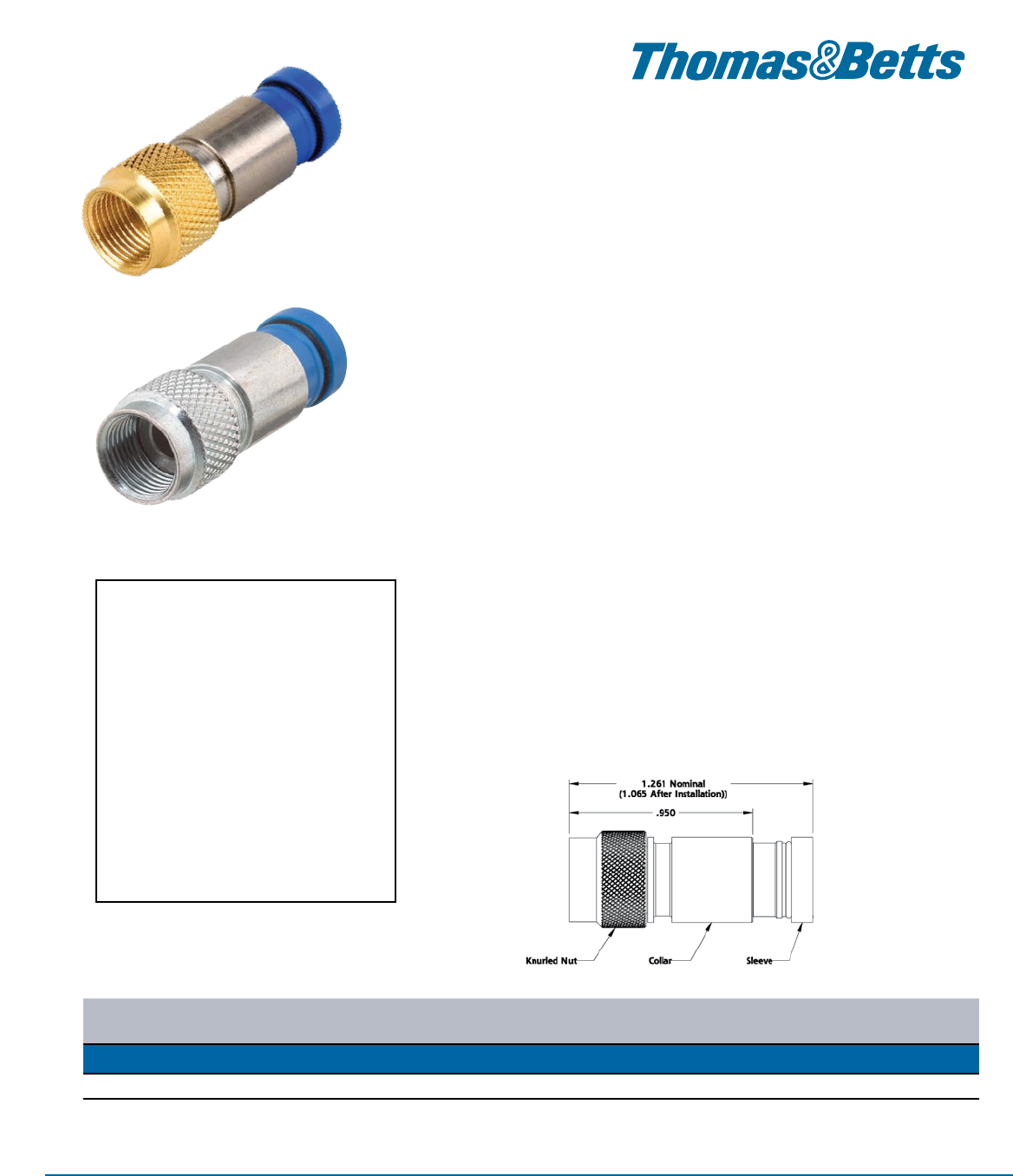

snaP-n-seal®

“F”series Male indoor one-Piece

coMPression connectors

Adapted from our environmentally sealed,

indoor/outdoor Snap-N-Seal® line, the Indoor F Series

Snap-N-Seal® compression connectors offer the same

high shielding effectiveness, low insertion loss and

excellent return loss specications, but with a

knurled nut design that is both unique in appearance

and makes indoor installation easy for installers and

subscribers.

• Large 1/2” diameter knurled “subscriber friendly” nut design provides

additional leverage for connections to TVs, VCRs and Set-Top Converters.

• Installation requires one-step 1/4”-1/4” cable preparation and the standard

compression tools used for all 59 and 6 series Snap-N-Seal® product

families, which saves time and reduces the chance for errors.

• True 360° compression onto cable ensures optimum RF shielding

performance, -90 dB effective shielding (typical on a 60% braid cable),

without performance degradation experienced by all crimp style products

over time.

• Superb return loss performance of -30 dB up to 1GHz.

• Cable retention exceeds 40 lb. minimum as specied by the SCTE.

• Permanently stamped part numbers and color-coded sleeves for easy

identication before and after installation.

Data Sheet # CDS-SNS1PIN

OrDerINg INfOrmatION

catalog

nuMber

Post i.d. sleeve

i.d.

tool†sleeve

color

inner

Pack

outer

Pack

“F” SerieS Male indoor one-Piece coMPreSSion connector

SNS6I .191 .290 1+2 Blue 50 1000

SNS6IG .191 .290 1+2 Blue 50 1000

†TOOL: 1 = CST596 OR CST596711, 2 = SNSUTL

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

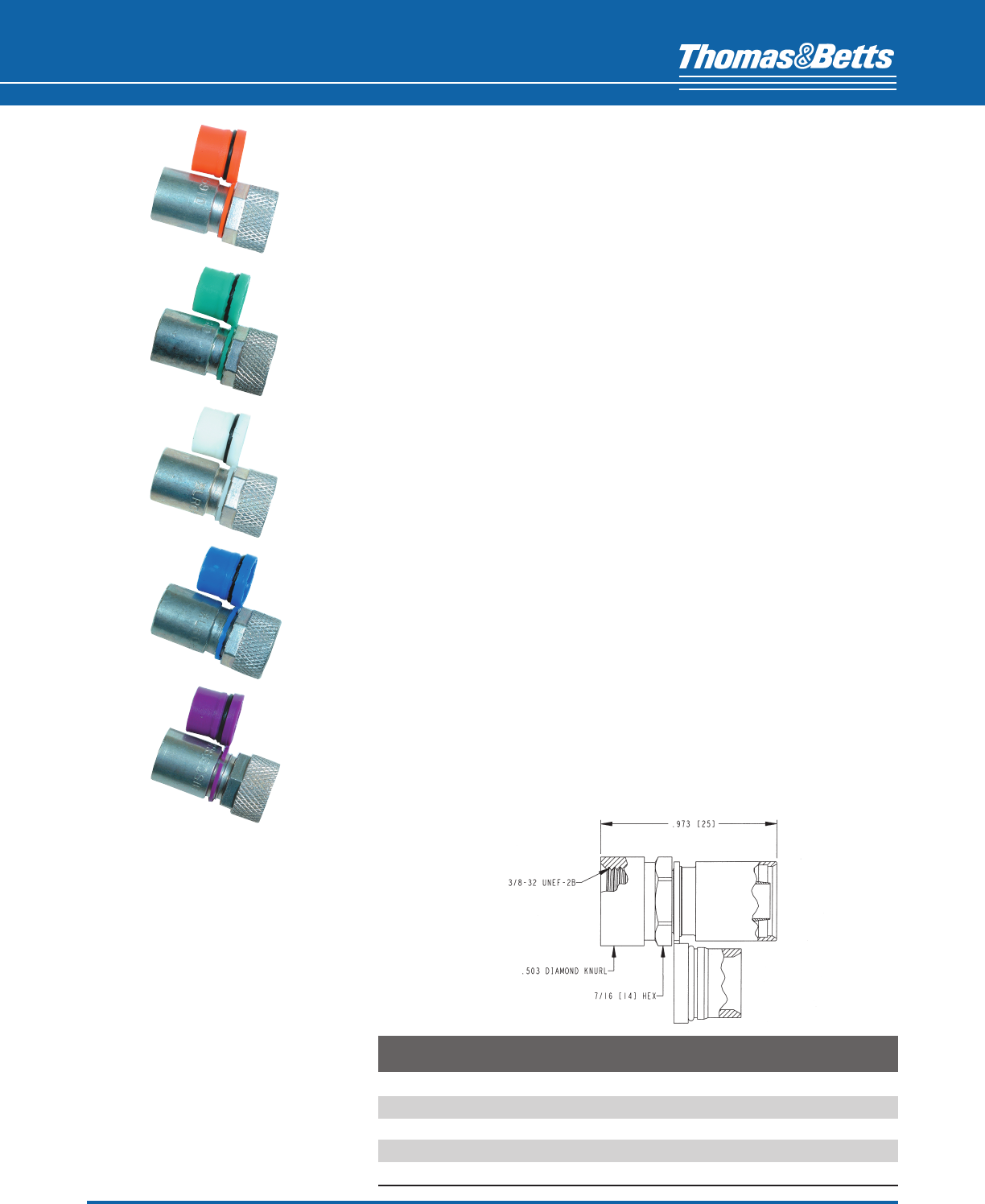

Adapted from our environmentally sealed, indoor/outdoor LRC®Snap-N-Seal®

line, the Indoor F Series Snap-N-Seal®compression connectors offer the

same high shielding effectiveness, low insertion loss and excellent return loss

specifications, but with a knurled nut to make indoor installation easy for

installers and subscribers. Connectors that are not environmentally sealed should

not be used outdoors.

DESIGN ADVANTAGES

• Large 1/2” diameter knurled “subscriber friendly” nut provides additional leverage

over standard 7/16” hex nut, ensuring RF tight connections to TVs, VCRs

and Set-Top Converters.

• Installer can use a standard 7/16” hex for wrench tight installations.

• Installation requires one-step 1/4”-1/4” cable preparation and the standard

compression tools used for all 59 and 6 series Snap-N-Seal®product families,

which saves time and reduces the chances for errors.

• True 360° compression onto cable ensures optimum RF shielding performance,

-95 dB effective shielding (typical on a 60% braid cable), without performance

degradation experienced by all crimp style products over time.

• Superb return loss performance of -30 dB up to 1GHz.

• Cable retention exceeds 40 lb. minimum as specified by the SCTE.

• A clear chromate finish, permanently stamped part numbers and color-

coded sleeves make the connector easy to identify before and after installation.

• The indoor Snap-N-Seal®system includes jumper cable assemblies, which

are the best choice for digital boxes and cable modems.

Thomas & Betts Corporation/Cable Communications Division Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®SNAP-N-SEAL®

“F” Series Male Indoor Compression

Connectors

Order # CCDDSINDOOR LM 10/02-PDF

HYSICAL

ROPERTIES

, P

OST AND

OLLAR

: B

RASS

CDA360

UT AND

OLLAR

INISH

: C

ADMIUM PLATED WITH CLEAR

CHROMATE COATING

OST

INISH

: T

IN PLATED

O-R

ING

: E

THYLENE

ROPYLENE

LECTRICAL

ROPERTIES

ETURN

OSS

: -30 dB

UP TO

1 GH

ZTYPICAL

NSERTION

OSS

: -0.18 dB

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -95 dB

TYPICAL

(60%

BONDED FOIL

CABLE

)

ECHANICAL

ROPERTIES

ABLE

ETENTION

: 40

LBS

MIN

. C

OMPLIES TO

SCTE

IPS-SP-404

ABLE

NSERTION

ORCE

: < 20

LBS

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

: -40˚ F (-40˚C)

140˚ F

(60˚C)

Ordering Information

CATALOG POST SLEEVE SLEEVE INNER OUTER

NUMBER I.D. I.D. TOOL† COLOR PACK PACK

SNS59ID .154 .253 1+2 Orange 50 1000

SNS59QSID .154 .275 1+2 Green 50 1000

SNS59HECID .154 .290 1+2 White 50 1000

SNS6ID .191 .290 1+2 Blue 50 1000

SNS6QSID .191 .315 1+2 Violet 50 1000

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Ph y s i c a l Pr o P e r t i e s

• Body Components: Brass

• Body Finish: NiTin

• Terminal/contact: Brass Berillium Copper

• Insulators: TPX

el e c t r i c a l Pr o P e r t i e s

• Return Loss: -30 dB up to 20 MHz Typical

• Insertion Loss: -0.05 dB up to 20 MHz Typical

• RFI Shielding: -120 dB up to 20 MHz Typical

Me c h a n i c a l Pr o P e r t i e s

• Cable Retention : 40 lbs min. Complies to

SCTE IPS-SP-404

• Cable Insertion Force: <20 lbs

en v i r o n M e n t a l Pr o P e r t i e s

• Temperature Rating: -40˚F (-40˚C) to 140˚F (60˚C)

sn a P -n-se a l ®

rca ty P e Ma l e

co M P r e s s i o n co n n e c t o r s

Extending the use of our Snap-N-Seal®

technology, Thomas & Betts introduces the

Snap-N-Seal® RCA connector. Designed

to interface with all standard RCA female

jacks and utilizing standard or tri-shield

SCTE specication 6 series drop cable,

this product gives the installer maximum

exibility for creating and placing audio

cables in home entertainment systems.

• Features Snap-N-Seal® technology for simple and reliable

installations.

• Designed to interface with RCA female (JACK) per IEC

Specication 60603-14.

• Cadmium plated connector body and precision integral contact

provide maximum reliability.

• Installation requires one-step 1/4”-1/4” cable preparation and

standard compression tools used for all 59 and 6 series

Snap-N-Seal® product families.

• Color coded sleeves based on industry standards for RCA

connector applications.

Da t a Sh e e t # CDS-SNSRCaS

OR D e R i N g iN f O R m a t i O N

ca t a l o g nuMber sleeve color tool† inner

Pack

outer

Pack

RCA-Type MAle CoMpRession ConneCToRs

SNS1P6RMBL Blue 1+2 36 432

SNS1P6RMY Yellow 1+2 36 432

SNS1P6RMW White 1+2 36 432

SNS1P6RMR Red 1+2 36 432

SNS1P6RMG Green 1+2 36 432

SNS1P6RMBK Black 1+2 36 432

†Tool: 1 = CST596 or CST596711 2 = SNSUTL

1.741 TYPICAL

FOR SERIES 6 CABLE

POST ID = .191

SLEEVE ID = .290

TERMINAL ACCEPTS

.032 TO .040 DIA PIN.

SLEEVE

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Physical ProPerties

• Body Components: Brass

• Body Finish: Nickel

• Nut: Zinc alloy with Nickel plate

• Terminal/Contact: Beryllium Copper

with Silver plate

• Insulators: TPX

• O-Rings: Ethylene propylene

electrical ProPerties

• Return Loss: -30 dB up to 1 GHz typical

• Insertion Loss: -0.2 dB up to 1 GHz typical

• RFI Shielding: -65 dB typical

Mechanical ProPerties

• Cable Retention: 40 lbs min. complies to

SCTE IPS-SP-404

• Cable Insertion Force: <20 lbs

environMental ProPerties

• Temperature Rating: -40°F (-40°C)

to 140°F (60°C)

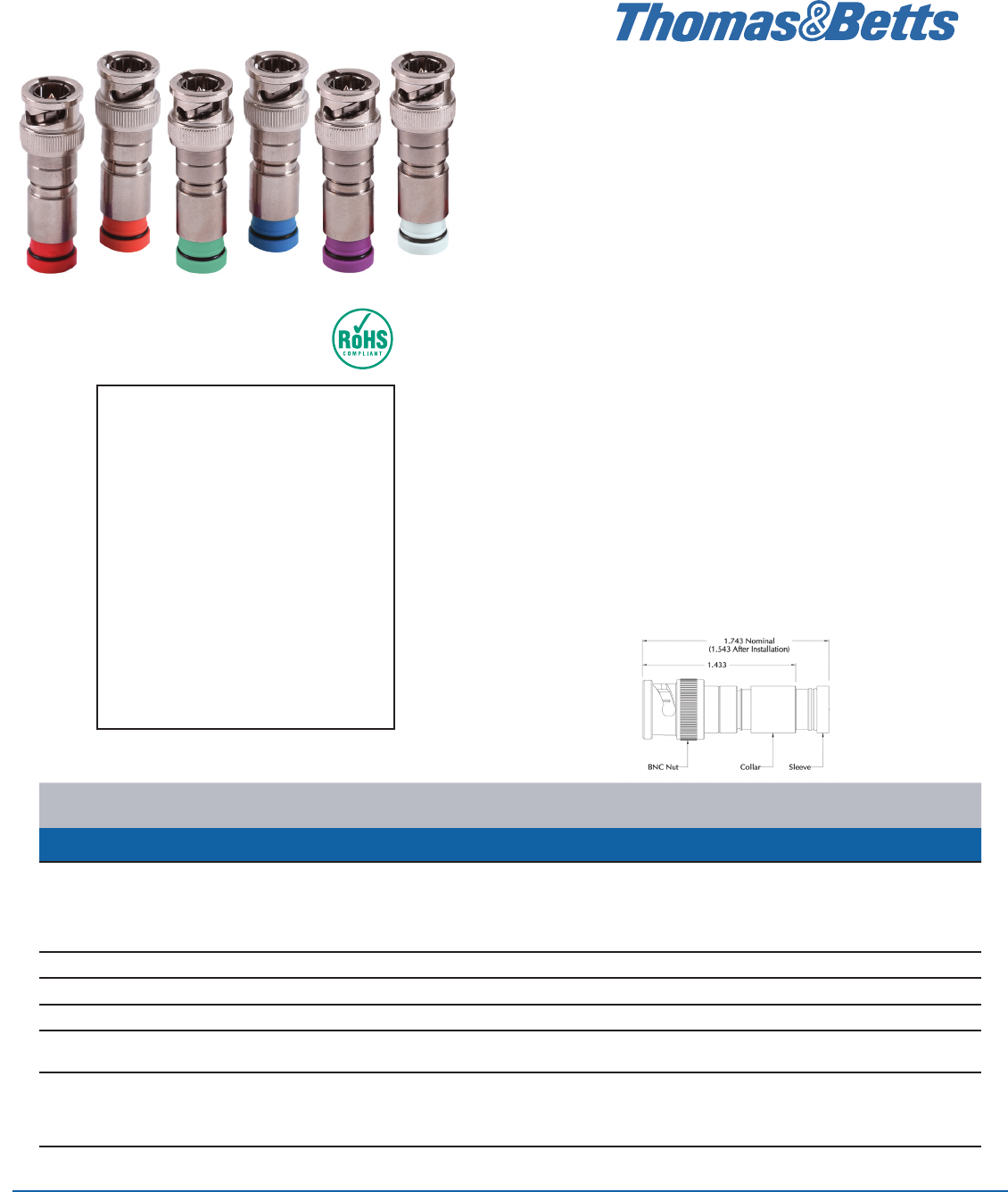

snaP-n-seal®

one-Piece Bnc

coMPression connectors

These connectors are designed for applications using Series

59, Series 59 Quad Shield, Series 6 and Series 6 Quad Shield

SCTE specication coaxial cables. In addition the 59 Series

BNC connectors are designed for applications using specic

Broadband Headend cables and Digital Video cables.

• High performance, 75 ohm Snap-N-Seal® BNC Male

connectors feature precision coaxial contacts for demanding

bandwidth applications.

• True 360 degree compression onto cable ensures optimum

RF shielding performance, -65dB effective shielding.

• BNC Male Plug interface is designed to nominal Mil Spec

C-39012 with 75 ohm characteristic impedance.

• Integral silver-plated contact and Snap-N-Seal® design

ensures ease of installation and reliable, high frequency

return loss performance of -30dB to 1 GHz.

• Installation requires one-step 1/4” - 1/4” cable preparation

and standard compression tools used for all 59 & 6 series

Snap-N-Seal® product families, saving installation time.

Data Sheet # CDS-SNS1PBNC

OrDeriNg iNfOrmatiON

catalog # caBle tyPes center cond

dia range

Post

i.d.

sleeve

i.d.

sleeve

color

tool†inner

Pack

outer

Pack

SNS1P59BNC RG59

Belden 1505A Serial Digital Video Cable

Belden 9167 Broadband Headend Cable

Belden 9275

Belden 8241

.022 to .036 .154 .253 Orange 1+2 10 50

SNS1P59QSBNC RG59QS .022 to .042 .154 .275 Green 1+2 10 50

SNS1P6BNC RG6 .032 to .040 .191 .290 Blue 1+2 10 50

SNS1P6QSBNC RG6QS .032 to .040 .191 .315 Violet 1+2 10 50

SNS1P6UBNC Fits most RG6 and RG6QS coaxial

cables

.032 to .040 .191 .293 Red 1+2 10 50

SNS1P59HECBNC Commscope F59 HEC-2

Times Fiber 02240V

Times Fiber 02241V

Commscope S59 HEC

.022 to .036 .154 .290 White 1+2 10 50

BNC CompressioN CoNNeCtors

†TOOL: 1 = SNSUTL, 2 = CST596711 OR CST596

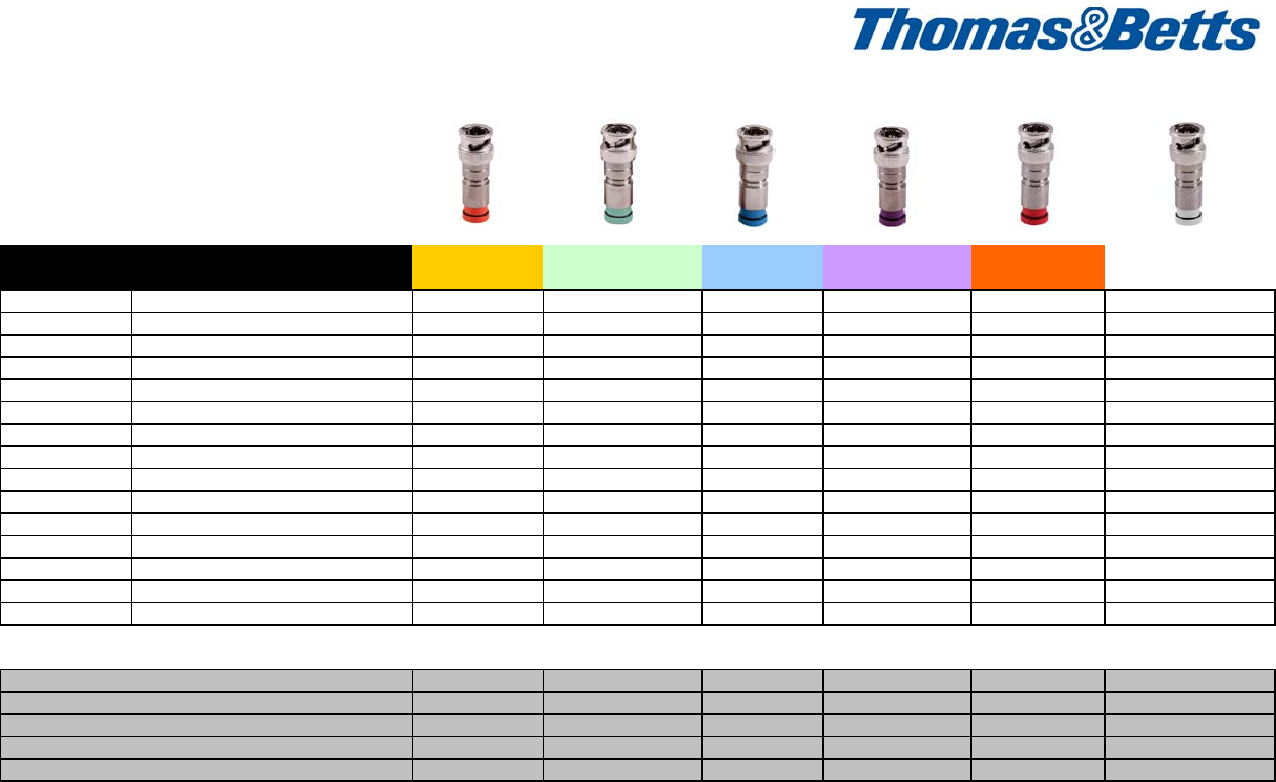

Snap-N-Seal One Piece BNC

Connector to Cable Cross Reference

Cable

Manufacture

Cable Name/Number SNS1P59BNC SNS1P59QSBNC SNS1P6BNC SNS1P6QSBNC SNS1P6UBNC SNS1P59HECBNC

Belden 1505A Serial Digital Video Cable Y

Belden 8241 Y

Belden 9167 Broadband Headend Cable Y

Belden 9275 Y

Commscope F59 HEC-2 Y

Commscope S59 HEC Y

Genesis 5001 Y

Genesis 5002 Y

Genesis 5003 Y

Genesis 5006 Y

Genesis 5007 Y

Genesis 5013 Y

Genesis 5302 Y

Times Fiber 02240V Y

Times Fiber 02241V Y

Note: For Cable TV Market Application

Communications Products Grou

Tel: 800-920-0328 or 901-252-500

Fax: 800-283-6756 or 901-252-138

SCTE specification Series 59 headend coaxial cables

Please ask your Thomas & Betts representative for a complete catalog of quality Thomas & Betts products or visit us at

www.tnb.com. For customer service, call 1-800-685-9452. For technical questions, call 1-888-862-3289.

SCTE specification Series 59 coaxial cables

SCTE specification Series 59 quad shield coaxial cables

SCTE specification Series 6 coaxial cables

SCTE specification Series 6 quad shield coaxial cables

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Sn a p -n-Se a l ®

BnC, RCa & F Ma l e Co M p R e S S i o n

Co n n e C t o R S F o R HDtV a n D pR e C i S i o n

Vi D e o Ca B l e

• Simple, quick installation using the standard SNSUTL Snap-N-Seal

installation tool and CSTMV596 cable stripping tool

• Nearly 2 decades of proven compression connector experience

incorporated in a design for use in HDTV and headend applications

• True 360 degree compression onto cable ensures superior RF

shielding performance

• To reduce assembly time and simplify installation, the plastic sleeve is

pre-positioned and detachably coupled to the connector body

• The BNC male plug interface is designed to nominal Mil Spec C-39012

with 75 ohm characteristic impedance

• The RCA type connector is designed to interface with standard RCA-type

female jacks

• Connectors t SCTE specication mini cables for standard braid

Da t a Sh e e t # CDS-SNSMINIFaM

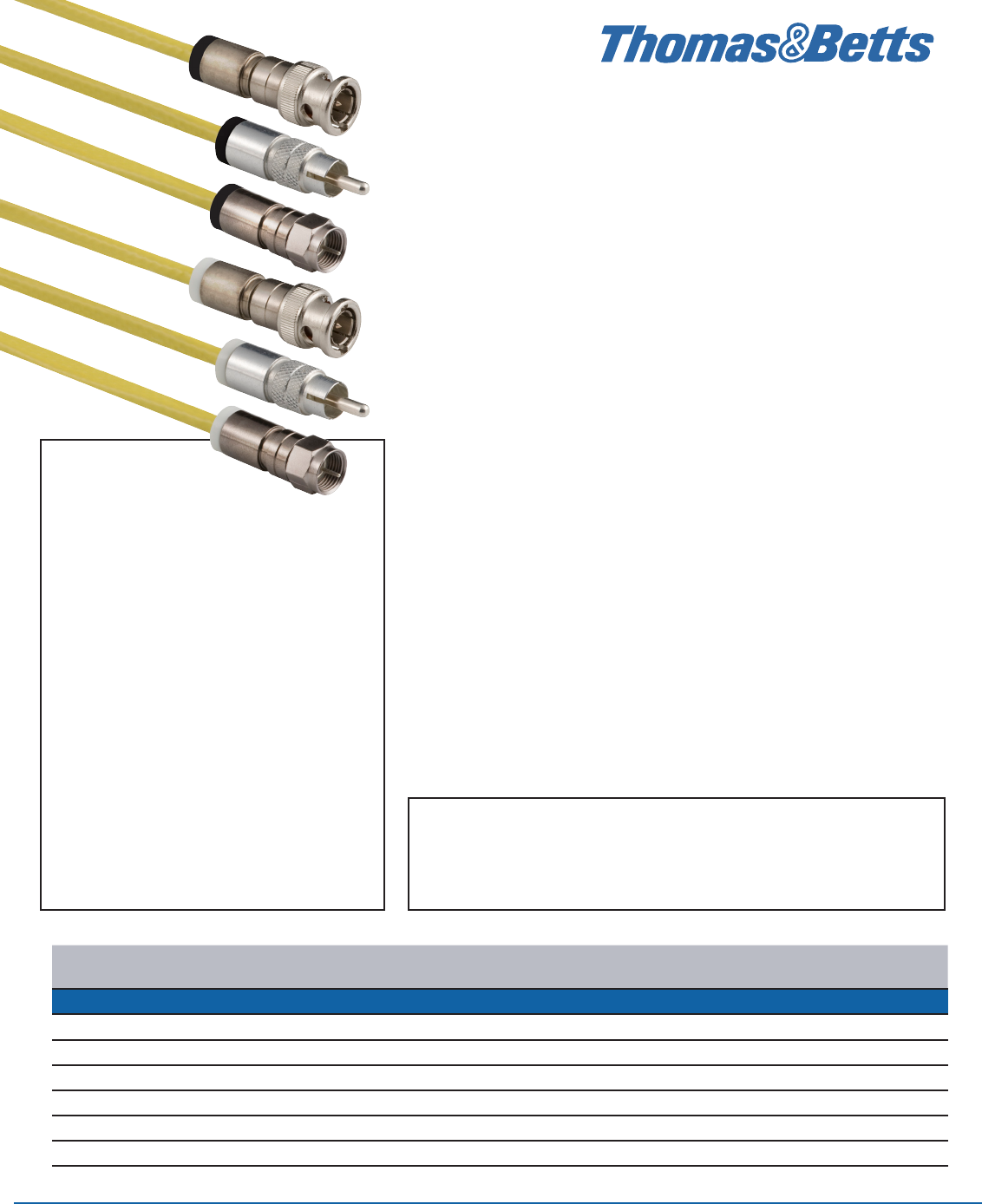

Extending the use of our Snap-N-Seal® technology,

Thomas & Betts introduces BNC, RCA and F Male

compression connectors designed for use in

Headend and jumper applications on HDTV and

precision video cables.

With space at a premium and the exacting demands of digital television,

using a Snap-N-Seal connector in conjunction with precision HDTV cable will

help with your wire management needs.

Or D e r I N g IN F O r M a t I O N

Ca t a l o g

nuMBeR

ConneCtoR

type

SleeVe

ColoR

inStall

tool

CaBle pRepaRation

tool

in n e R

paCk

outeR

paCk

Snap-n-Seal® BnC, RCa & F Male CoMpReSSion ConneCtoRS FoR HDtV anD pReCiSion ViDeo CaBle

SNSBNCMB BNC Black SNSUTL 1, 2 or 3 50 500

SNSRMB RCA Black SNSUTL 1, 2 or 3 50 500

SNSFMB F Male Black SNSUTL 1, 2 or 3 50 500

SNSBNCMTQ BNC White SNSUTL 1, 2 or 3 50 500

SNSRMTQ RCA White SNSUTL 1, 2 or 3 50 500

SNSFMTQ F Male White SNSUTL 1, 2 or 3 50 500

1 Tool: 1=CSTMV596 2=CST596711MV 3=CST596596MV

Application: Cables meeting SCTE Specication IPS SP 009 for

single braid, tri-shield or quad-shield exible 75 ohm mini series

cable, or equivalent.

pR o p e R t i e S

BnC

• Body: Nickel plated Brass

• BNC Nut: Nickel plated Zinc Alloy

• Terminal Contact: Silver plated Beryllium Copper

• Insulators: TPX

• Return Loss: -30 dB up to 1 GHz typical

• Insertion Loss: -0.3 dB up to 1 GHz typical

• RFI Shielding: -60 dB typical (60% + bonded foil)

RCa

• Body: NiTin plated Brass

• RCA Interface: Decorative Gold plated Brass

• Terminal Contact: Silver plated Beryllium Copper

• Insulators: TPX

• Return Loss: -30 dB up to 20 MHz typical

• Insertion Loss: -0.3 dB up to 20 MHz typical

• RFI Shielding: -65 dB typical (60% + bonded foil)

F Ma l e

• Nut & Collar: NiTin plated Brass

• Return Loss: -30 dB up to 1 GHz typical

• Insertion Loss: -0.3 dB up to 1 GHz typical

• RFI Shielding: -80 dB typical (60% + bonded foil)

pR o p e R t i e S (t y p i C a l t o BnC, RCa & F Ma l e )

• Post: Tin plated Brass

• Cable Insertion Force: 20 lbs. maximum

• Cable Retention Force: 40 lbs. minimum

• Temperature Rating: -40°F(-40°C) to 140°F(60°C)

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Physical ProPerties

• Body: NiTin plated Brass

• Post: Tin plated Brass

• Terminal Contact: Tin plated Copper Alloy

• Insulators: Polypropylene

• O-Rings: Ethylene Propylene

electrical ProPerties

• Return Loss: -12 dB up to 1 GHz typical

• Insertion Loss: -0.18 dB up to 1 GHz typical

• RFI Shielding: -90 dB typical (60% + bonded foil)

Mechanical ProPerties

• Cable Insertion Force: 20 lbs. maximum

• Cable Retention Force: 40 lbs. minimum per

SCTE IPS-SP-401

environMental ProPerties

• Temperature Rating -40°F(-40°C) to 140°F(60°C)

• Salt Fog: Passes 1000 hours ASTM B 117

• Moisture Migration: Passes ANSI/SCTE 60 2004

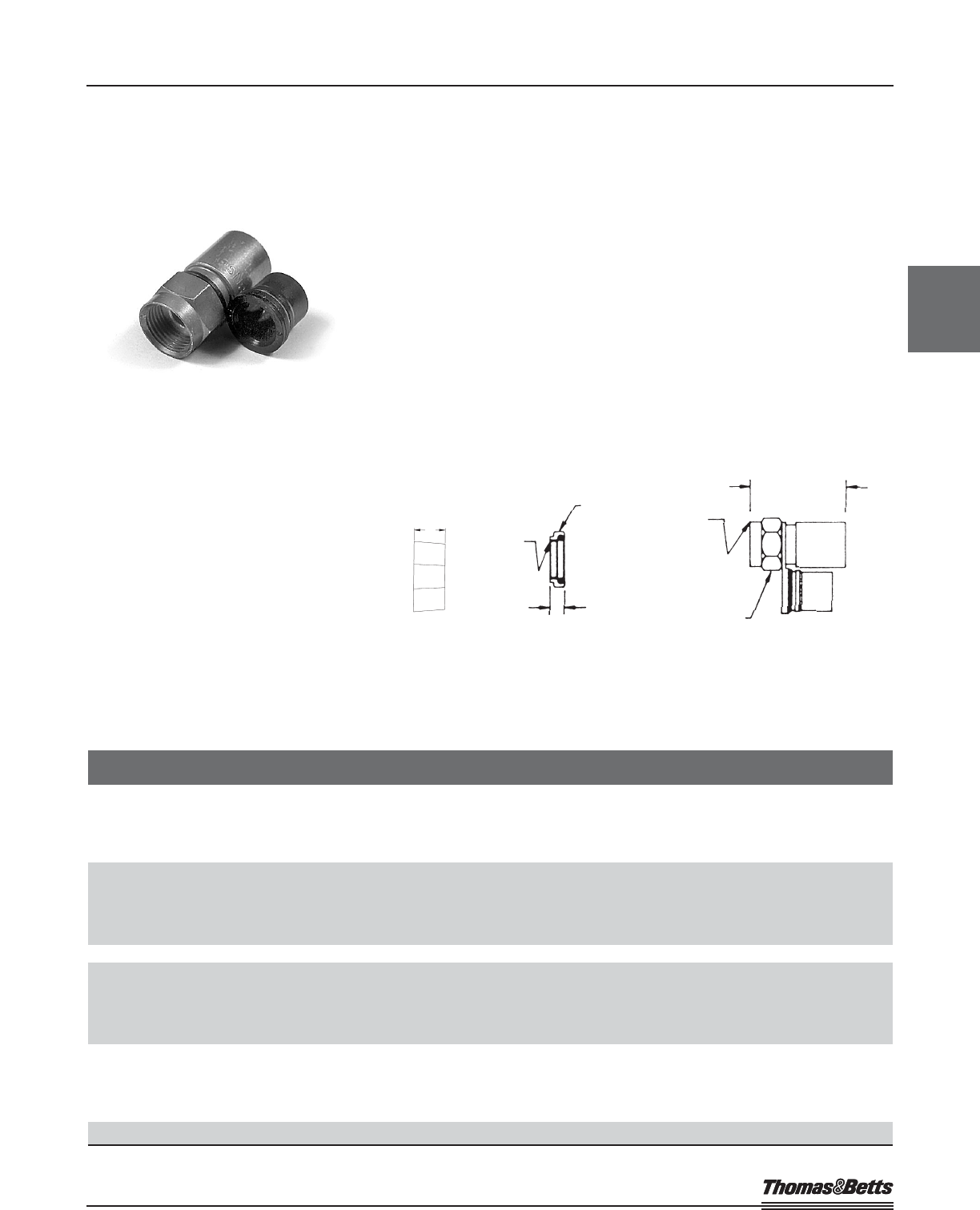

snaP-n-seal®

environMentally sealed

sPlice connectors

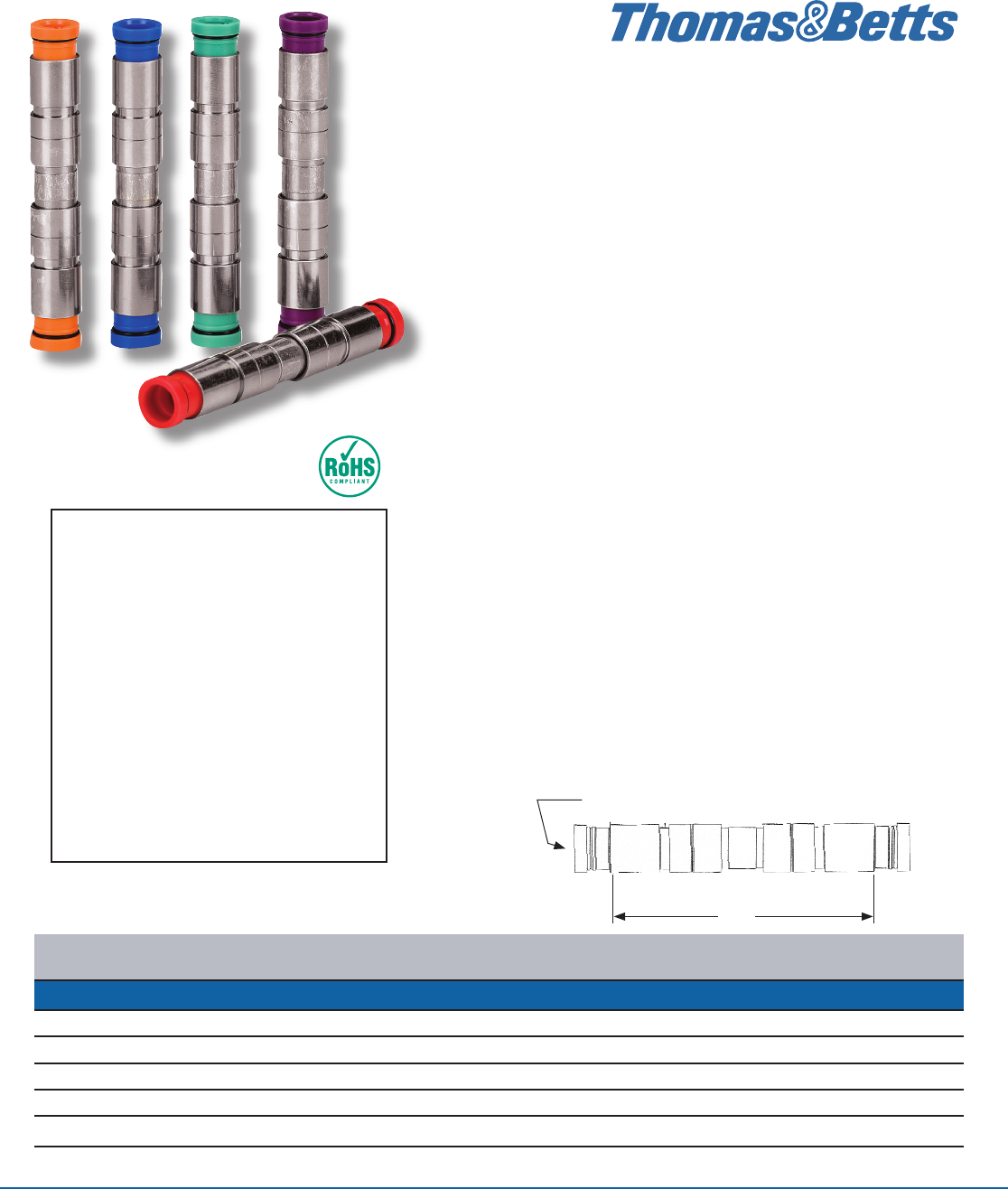

With its integral center contact, the Thomas

& Betts Snap-N-Seal® Splice Connector

ensures reliable, high frequency return loss

performance for midspan and direct burial

drop splices.

Snap-N-Seal® Splice Connectors use the same proven 360°

compression design, installation tools and procedures as other

Snap-N-Seal® products.

• To reduce assembly time and simplify installation, the plastic sleeve

is pre-positioned and detachably coupled to the connector body

• True 360° compression onto cable ensures superior RF shielding

performance, -90 dB effective shielding (typical on 60% bonded

foil cable)

• Installation requires one-step 1/4” - 1/4” cable preparation

and standard compression tools used for all 59 & 6 Series

Snap-N-Seal® product families

• Quad-sealed system prevents moisture migration

• Six-point seal system prevents moisture migration

• Incorporates a NiTin nish plus UV resistant plastic and O-Rings to

provide a reliable, environmentally sealed product

• Cable retention exceeds 40 lb. minimum as specied by the SCTE

• For direct burial applications, recommend Shrink-Kon® heat shrink

tubing #HS12-6L or Kold-N-Klose® sleeve material #TBT2010

Data Sheet # CDS-SNSSPLICe

catalog

nuMber

Post

i.d.

sleeve

i.d.

sleeve

color

tool†inner

Pack

outer

Pack

EnvironmEntally SEalEd SplicE connEctorS

81SNS1P59 .154 .257 Orange 1+2 20 240

81SNS1P59QS .154 .275 Green 1+2 20 240

81SNS1P6U .191 .293 Red 1+2 20 240

81SNS1P6 .191 .290 Blue 1+2 20 240

81SNS1P6QS .191 .315 Violet 1+2 20 240

†TOOL: 1 = CST596 OR CST596711, 2 = SNSUTL

OrDerINg INfOrmatION

Terminal Accepts

.032 to .040 DIA Conductor

2.376

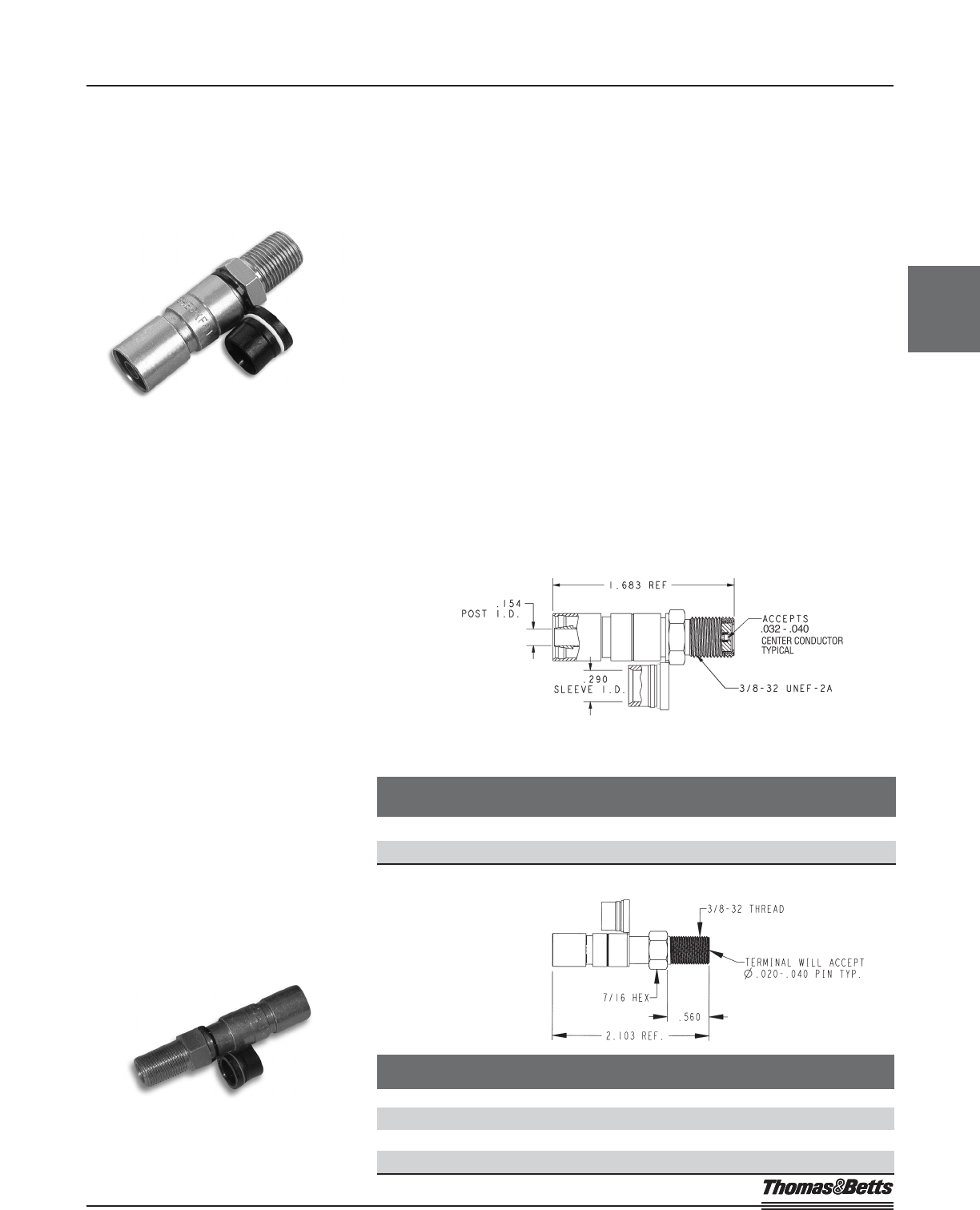

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

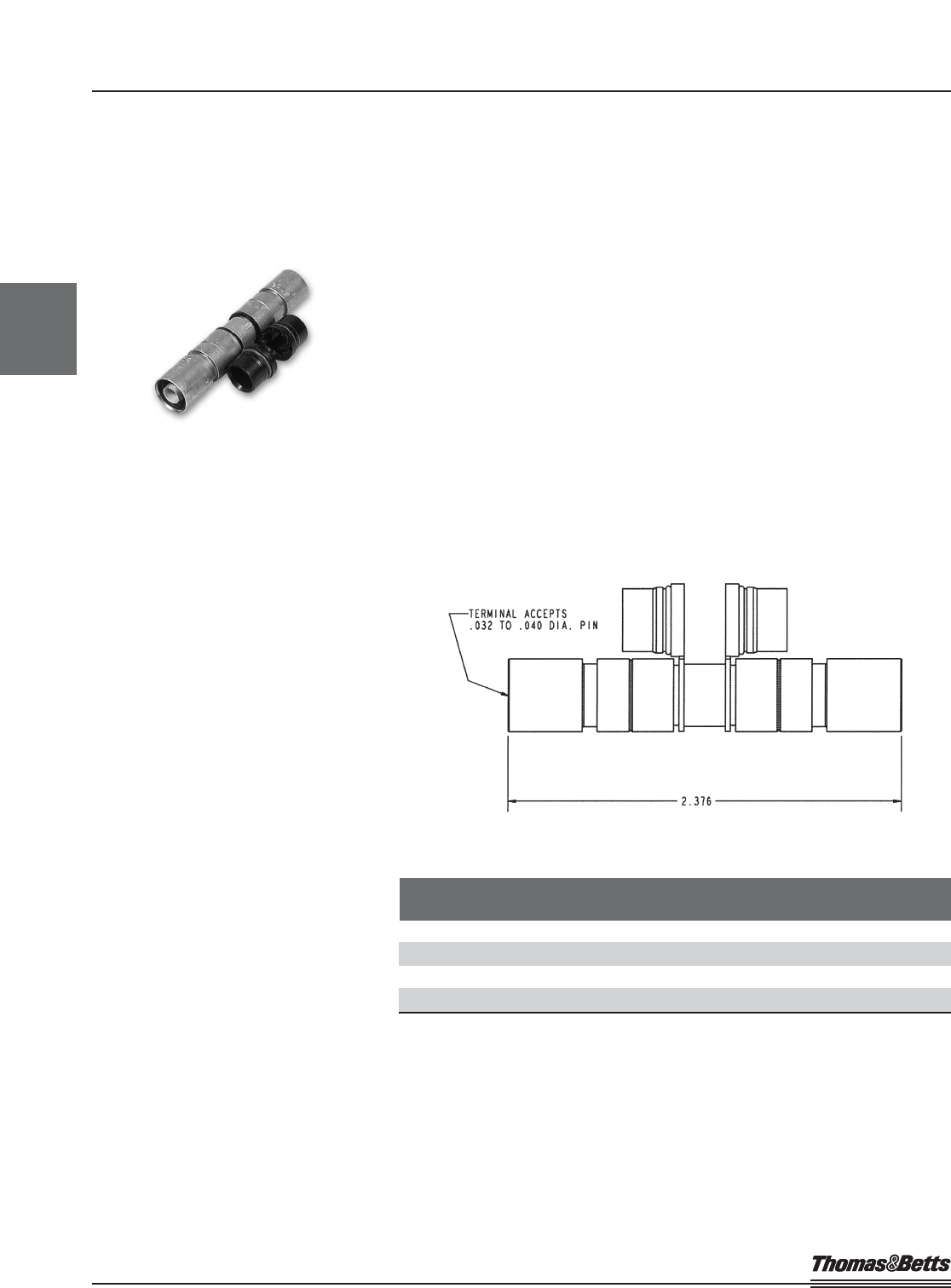

Precision Splice Connectors

Snap-N-Seal®

Environmentally Sealed

Precision-Splice Connectors

Ordering Information

CATALOG POST SLEEVE SLEEVE INNER OUTER

NUMBER I.D. I.D. COLOR TOOL† PACK PACK

81SNS59K .154 .253 Orange 1+2 20 240

81SNS59QSK .154 .275 Green 1+2 20 240

81SNS6K .191 .290 Blue 1+2 20 240

81SNS6QSK .191 .315 Violet 1+2 20 240

Snap-N-Seal®Precision Splice Connectors use the same proven 360°

compression design, installation tools and procedures as other Snap-N-Seal®

products. With its precision integral center contact, the Snap-N-Seal®

Precision Splice Connector ensures reliable, high frequency return loss

performance for midspan and direct burial drop splices.

DESIGN ADVANTAGES

• Precision coaxial contact provides superior signal performance.

• Standard one-step 1/4" - 1/4" cable preparation.

• True 360° compression for superior RF Shielding performance.

• Superb return loss performance of -30 dB up to 1GHz.

• Cable retention exceeds 40 lb. minimum as specified by the SCTE.

• Permanently stamped part numbers and color coded O-rings for easy

identification.

• Moisture prevention, not just protection.

PROPERTIES

HYSICAL

ODY

, P

OST AND

OLLAR

: B

RASS

CDA360

ODY AND

OLLAR

INISH

: C

ADMIUM PLATED WITH

IRIDESCENT CHROMATE COATING

OST

INISH

: T

IN PLATED

O-R

ING

: E

THYLENE

ROPYLENE

LECTRICAL

ETURN

OSS

: -30 dB

UP TO

1 GH

ZTYPICAL

NSERTION

OSS

: -0.27 dB

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -95 dB

TYPICAL

(60%

BONDED FOIL

CABLE

)

ECHANICAL

ABLE

ETENTION

: 40

LBS

MIN

. C

OMPLIES TO

SCTE

IPS-SP-404

ABLE

NSERTION

ORCE

: <20

LBS

NVIRONMENTAL

EMPERATURE

ATING

: -40° F (-40°C)

140° F

(60°C)

†T

OOL

: 1 = CST596

CST596711, 2 = SNSUTL

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

Splice Connectors

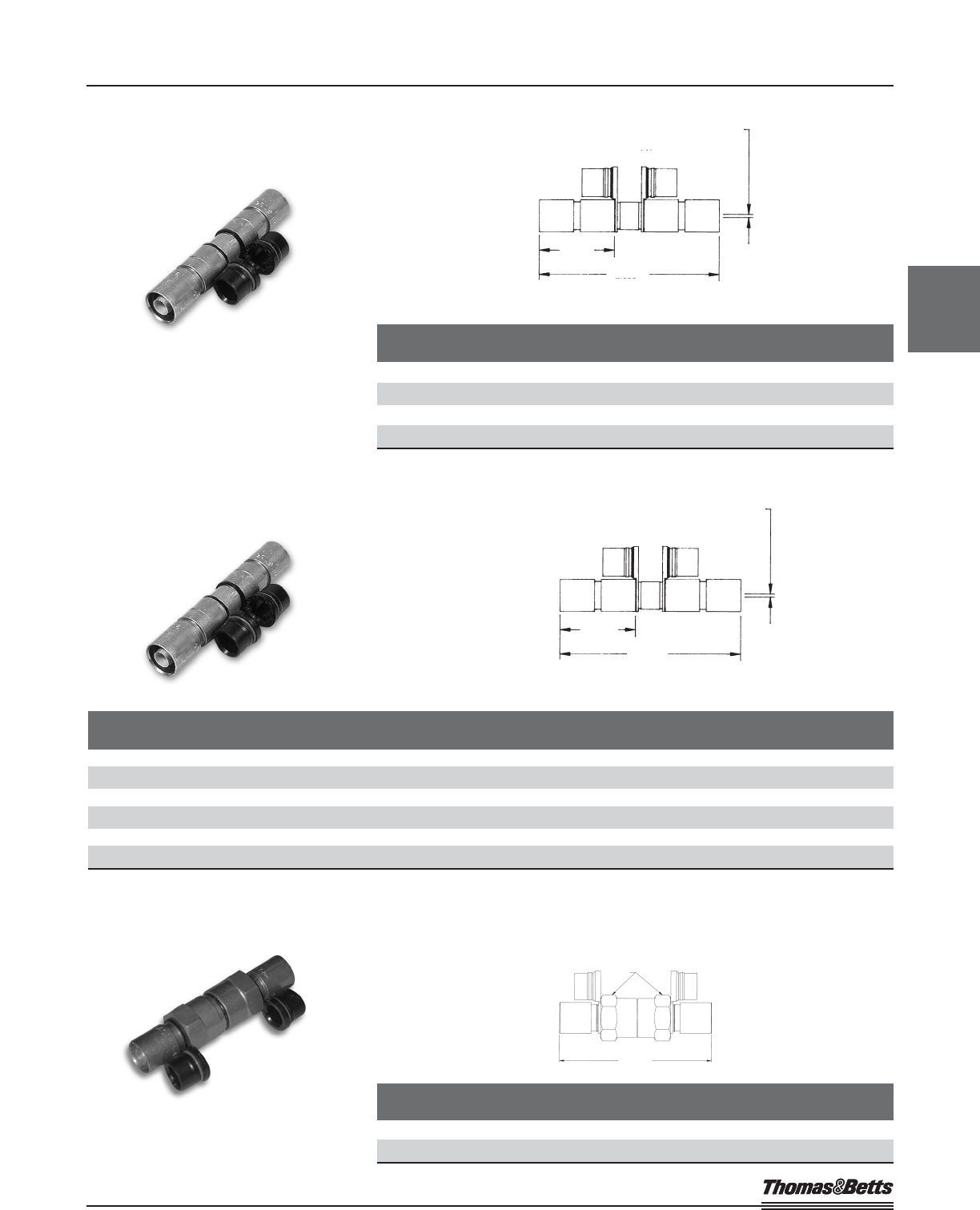

Ordering Information

CATALOG RETURN INSERTION POST SLEEVE SLEEVE INNER OUTER

NUMBER LOSS LOSS RFI I.D. I.D. COLOR TOOL† PACK PACK

81SNS59 -13.5dB -.7dB -95dB .154 .253 Orange 1+2 20 240

81SNS59QS -13.5dB -.7dB -95dB .154 .275 Green 1+2 20 240

81SNS6 -13.5dB -.7dB -95dB .191 .290 Blue 1+2 20 240

81SNS6QS -13.5dB -.7dB -95dB .191 .315 Violet 1+2 20 240

Ordering Information

CATALOG RETURN INSERTION POST SLEEVE SLEEVE INNER OUTER

NUMBER LOSS LOSS RFI I.D. I.D. COLOR TOOL† PACK PACK

SNS8159AS -13.5dB -.7dB -95dB .154 .253 Orange 1+2 20 240

SNS816AS -13.5dB -.7dB -95dB .191 .290 Blue 1+2 20 240

Ordering Information

CATALOG RETURN INSERTION POST SLEEVE SLEEVE INNER OUTER

NUMBER LOSS LOSS RFI I.D. I.D. CODE TOOL† PACK PACK

81SNS5959QS -13.5dB -.7dB -95dB .154 .253 (59)/.275 (59QS) Orange(59)/Green(59QS) 1+2 20 240

81SNS596QS -13.5dB -.7dB -95dB .154(59)/.191(6QS) .253(59)/.315(6QS) Orange(59)/Violet(6QS) 1+2 20 240

81SNS659 -13.5dB -.7dB -95dB .191(6)/0.154(59) .290(6)/.253(59) Blue(6)/Orange(59) 1+2 20 240

81SNS659QS -13.5dB -.7dB -95dB .191(6)/.154(59QS) .290(6)/.275(59QS) Blue(6)/Green(59QS) 1+2 20 240

81SNS66QS -13.5dB -.7dB -95dB .191 .290(6)/.315(6QS) Blue(6)/Violet(6QS) 1+2 20 240

81SNS6QS59QS -13.5dB -.7dB -95dB 0.191(6QS)/0.154(59QS) 0.315(6QS)/0.275(59QS) Violet(6QS)/Green(59QS) 1+2 20 240

TERMINAL WILL ACCEPT

.020 TO .040 DIA. PIN TYP

TERMINAL WILL ACCEPT

.020 TO .040 DIA. PIN TYP

1.000

TYP

2.315

1.000

TYP

2.315

2.173

9/16”

HEX

Snap-N-Seal®

Splice

Snap-N-Seal®

Splice, Delta

Snap-N-Seal®

Splice, Auto Seize

†T

OOL

: 1 = CST596

CST596711, 2 = SNSUTL

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

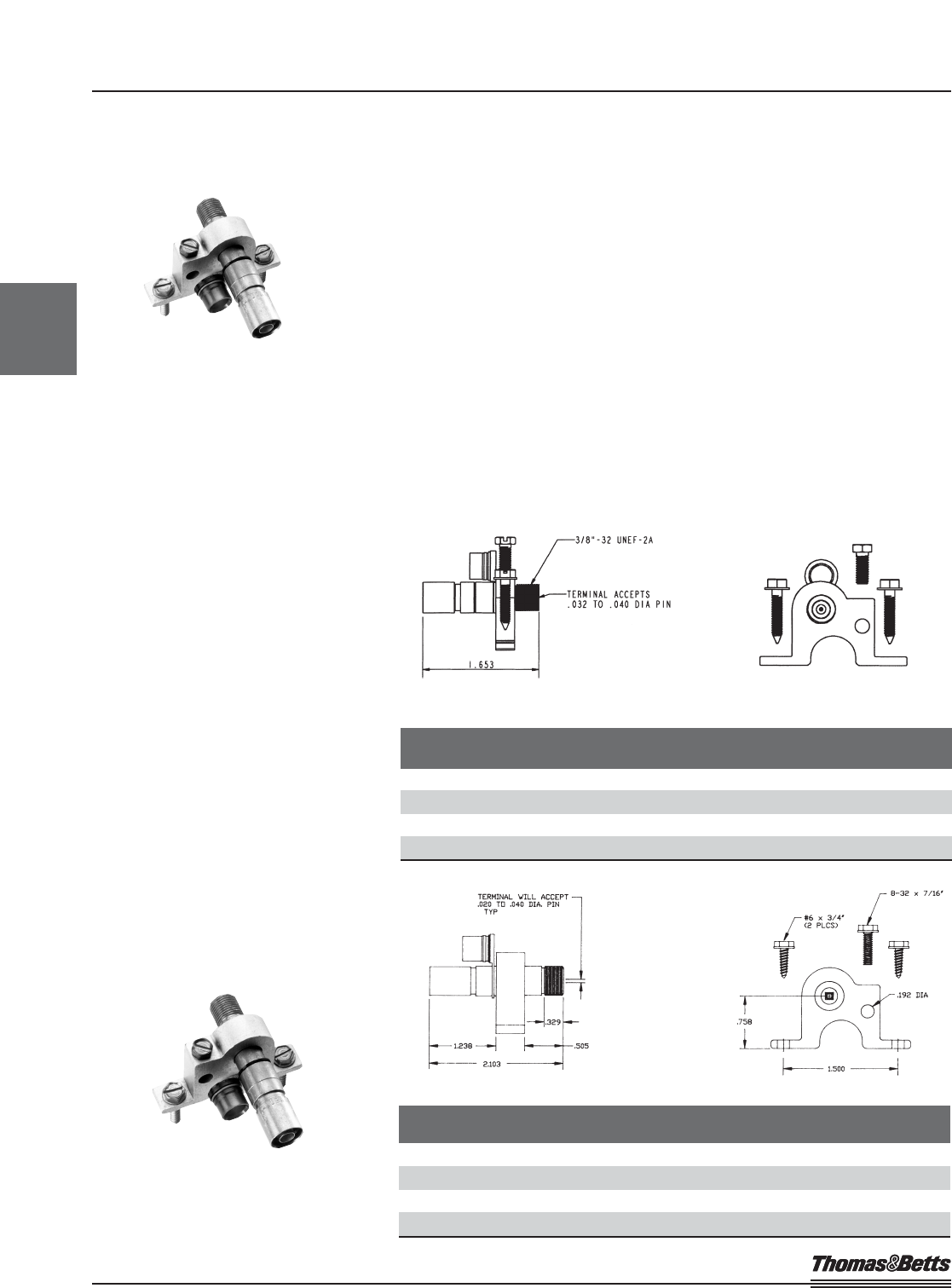

Ground Blocks

Snap-N-Seal®Precision

Ground Block Snap-N-Seal®Precision Ground Blocks use the same proven 360°

compression design, installation tools and procedures as other Snap-N-Seal®

products. With its precision integral center contact, the Snap-N-Seal®

Precision Ground Block ensures reliable, high frequency return loss

performance for ground block and MDU grounding applications.

DESIGN ADVANTAGES

• Precision coaxial contact provides superior signal transmission.

• Standard one-step 1/4" - 1/4" cable preparation.

• True 360° compression for optimum performance.

• Superb return loss performance of -30 dB to 1GHz.

• Cable retention exceeds 40 lb. minimum as specified by the SCTE.

• Permanently stamped part numbers and color coded sleeves for easy

identification before and after installation.

• Will accept up to 6 gauge ground wire.

Ordering Information

CATALOG RETURN INSERTION POST SLEEVE SLEEVE INNER OUTER

NUMBER LOSS LOSS RFI* I.D. I.D. COLOR TOOL† PACK PACK

GB59SNS -13.5dB -.7dB -95dB .154 .253 Orange 1+2 25 350

GB59QSNS -13.5dB -.7dB -95dB .154 .275 Green 1+2 25 350

GB6SNS -13.5dB -.7dB -95dB .191 .290 Blue 1+2 25 350

GB6QSNS -13.5dB -.7dB -95dB .191 .315 Violet 1+2 25 350

Ordering Information

CATALOG POST SLEEVE SLEEVE INNER OUTER

NUMBER I.D. I.D. COLOR TOOL† PACK PACK

GB59SNSK .154 .253 Orange 1+2 25 300

GB59QSNSK .154 .275 Green 1+2 25 300

GB6SNSK .191 .290 Blue 1+2 25 300

GB6QSNSK .191 .315 Violet 1+2 25 300

Snap-N-Seal®

Ground Block

PROPERTIES

HYSICAL

ONNECTOR

OST AND

OLLAR

: B

RASS

CDA360

ONNECTOR

ODY AND

OLLAR

INISH

: C

ADMIUM

PLATED WITH IRIDESCENT CHROMATE COATING

ONNECTOR

OST

INISH

: T

IN PLATED

ONNECTOR

O-R

ING

: E

THYLENE

ROPYLENE

ROUNDING

LOCK

: A

LUMINUM WITH CLEAR CHROMATE

COATING

ROUND

CREW

: S

TEEL

ZINC PLATED WITH GREEN

CHROMATE COATING PER

NEC

OUNTING

CREWS

(2): S

TAI N LESS

TEEL

LECTRICAL

ETURN

OSS

: -30 dB

UP TO

1 GH

ZTYPICAL

NSERTION

OSS

: -0.27 dB

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -85 dB

TYPICAL

(60%

BONDED FOIL

CABLE

)

ECHANICAL

ABLE

ETENTION

: 40

LBS

MIN

. C

OMPLIES TO

SCTE

IPS-SP-404

ABLE

NSERTION

ORCE

: <20

LBS

NVIRONMENTAL

EMPERATURE

ATING

: -40° F (-40°C)

140° F

(60°C)

†T

OOL

: 1 = CST596

CST596711, 2 = SNSUTL

UPPLIED

CREWS

AVE

LOTTED

- 1/4" H

OMBINATION

EAD

*RFI S

HIELDING

USING

60%

BRAID CABLE

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

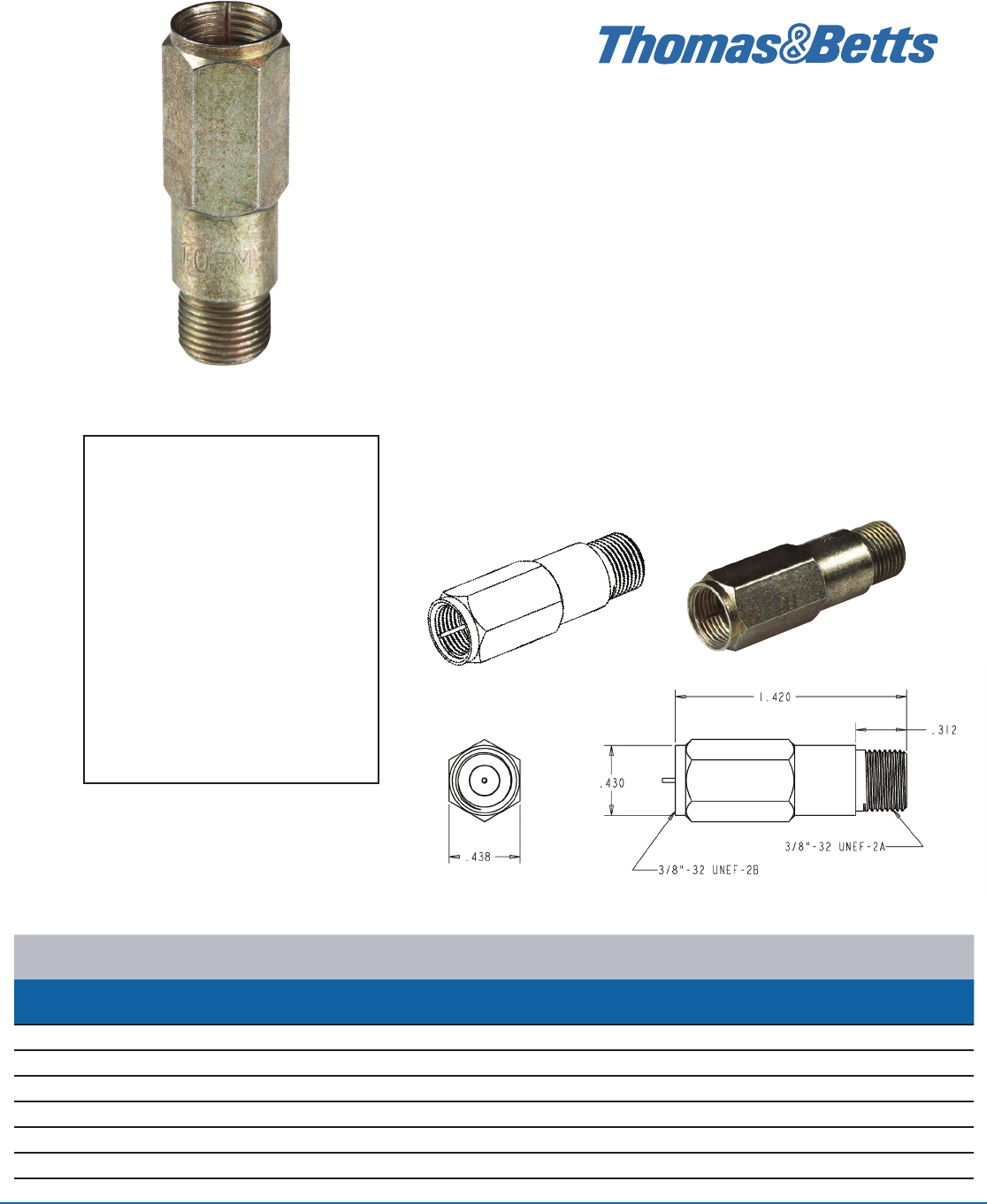

Cable to “F” Female Connectors

Snap-N-Seal®Headend,

Cable to “F” Female

Precision Connector

The Snap-N-Seal®headend, cable to "F" female precision connector is

designed for use in space-limited applications such as Headend Video

Combiners. It is a single connector, thus eliminating the need for separate "F"

male and panel mount "F" splice connectors.

Specifically designed for applications using CommScope®series F59HEC-2

Headend Cable or Times Fiber Communications, Inc. 02240V and 02241V

Headend Cables.

DESIGN ADVANTAGES

• Incorporates silver plated precision center contact providing high frequency

performance.

• Superb Return Loss performance of -30dB up to 1 GHz.

• Extended panel mount thread length of .458" allows for thick panel mounting.

• Installation requires one-step 1/4" - 1/4" cable preparation and standard

compression tools used for all 59 & 6 series Snap-N-Seal®product families,

saving installation time.

• Optional panel mounting hardware includes Lock Washer 6155LW or Flat

Washer 6155 plus 1/2" Hex Panel Nut 6150.

Ordering Information

CATALOG RETURN INSERTION POST SLEEVE SLEEVE INNER OUTER

NUMBER LOSS LOSS RFI* I.D. I.D. COLOR TOOL† PACK PACK

SNS59FF -13.5dB -.7dB -95dB .154 .253 Orange 1+2 20 240

SNS59QSFF -13.5dB -.7dB -95dB .154 .275 Green 1+2 20 240

SNS6FF -13.5dB -.7dB -95dB .191 .290 Blue 1+2 50 1000

SNS6QSFF -13.5dB -.7dB -95dB .191 .315 Violet 1+2 20 240

Ordering Information

CATALOG POST SLEEVE SLEEVE DIM DIM INNER OUTER

NUMBER I.D. I.D. COLOR TOOL† A B PACK PACK

SNS6KF81 .191 .290 Blue 1 + 2 .379 1.554 36 432

SNS59HECKF81 .154 .290 White 1+2 .458 1.683 20 240

Snap-N-Seal®

Cable to “F”

Female Connector

†T

OOL

: 1 = CST596

CST596711, 2 = SNSUTL

*RFI S

HIELDING

USING

60%

BRAID CABLE

PROPERTIES

HYSICAL

OST

, C

OLLAR

AND

ODY

: B

RASS

CDA360

OLLAR

AND

ODY

INISH

: C

ADMIUM WITH

RIDESCENT

HROMATE

OATING

OST

INISH

: T

LATED

LEEVE

: D

ELRIN

O-R

INGS

: E

THYLENE

ROPYLENE

NSULATORS

: TPX

ONTACTS

: B

ERYLLIUM

OPPER WITH

ILVER

LATE

LECTRICAL

ETURN

OSS

: -30

UP TP

1 GH

ZTYPICAL

NSERTION

OSS

: -0.3

UP TO

1 GH

ZTYPICAL

RFI S

HIELDING

: -95

TYPICAL

ECHANICAL

ABLE

ETENTION

: 40

LBS

. M

. C

OMPLIES TO

SCTE

IPS-SP-404

ABLE

NSERTION

ORCE

: <20

LBS

NVIRONMENTAL

EMPERATURE

ATING

: -40ºF (-40ºC)

140ºF

(60ºC)

Thomas & Betts Corporation / Cable Communications

Tel: 800-920-0328 / 901-252-5000 • Fax: 800-283-6746 / 901-252-1312

LRC®

SNAP-N-SEAL®

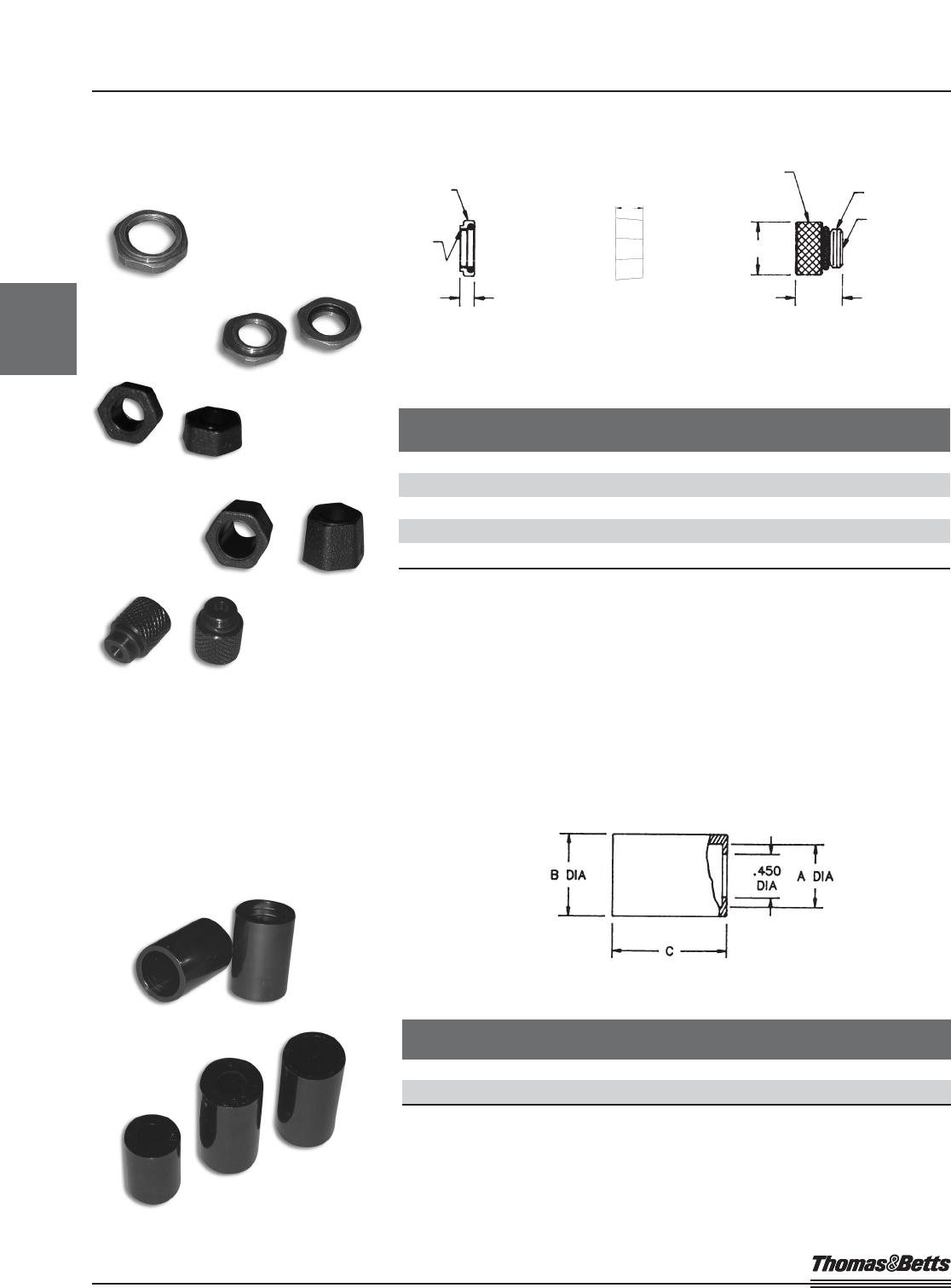

Security Shields & Accessories

Snap-N-Seal®

Accessories

Ordering Information

CATALOG DIMENSION INNER OUTER

NUMBER MATERIAL TOOL A B C PACK PACK

FCSSNS Plastic SSTSNS .658 .858 1.230 50 800

FCSSNS11 Plastic SSTSNS11 .803 .995 1.766 25 400

Ordering Information

CATALOG DIM INNER OUTER

NUMBER FIG. DESCRIPTION USE A PACK PACK

NS500 A Nut Seal All 59 & 6 Connectors 1/2 50 15000

NS625 A Nut Seal All 7 & 11 Connectors 5/8 36 5400

TP275 B Thread Protector 3/8 Threaded Ports .275 50 2500

TP450 B Thread Protector 3/8 Threaded Ports .450 50 2500

SNS375P C Weather Plug All “F” Male Connectors - 50 2000

HEX

3/8-32

THD

.140

DIAMOND

KNURL

3/8-32 THD

CLEARANCE

HOLE FOR

CENTER PIN

.510

.450

FIG. A FIG. B FIG. C

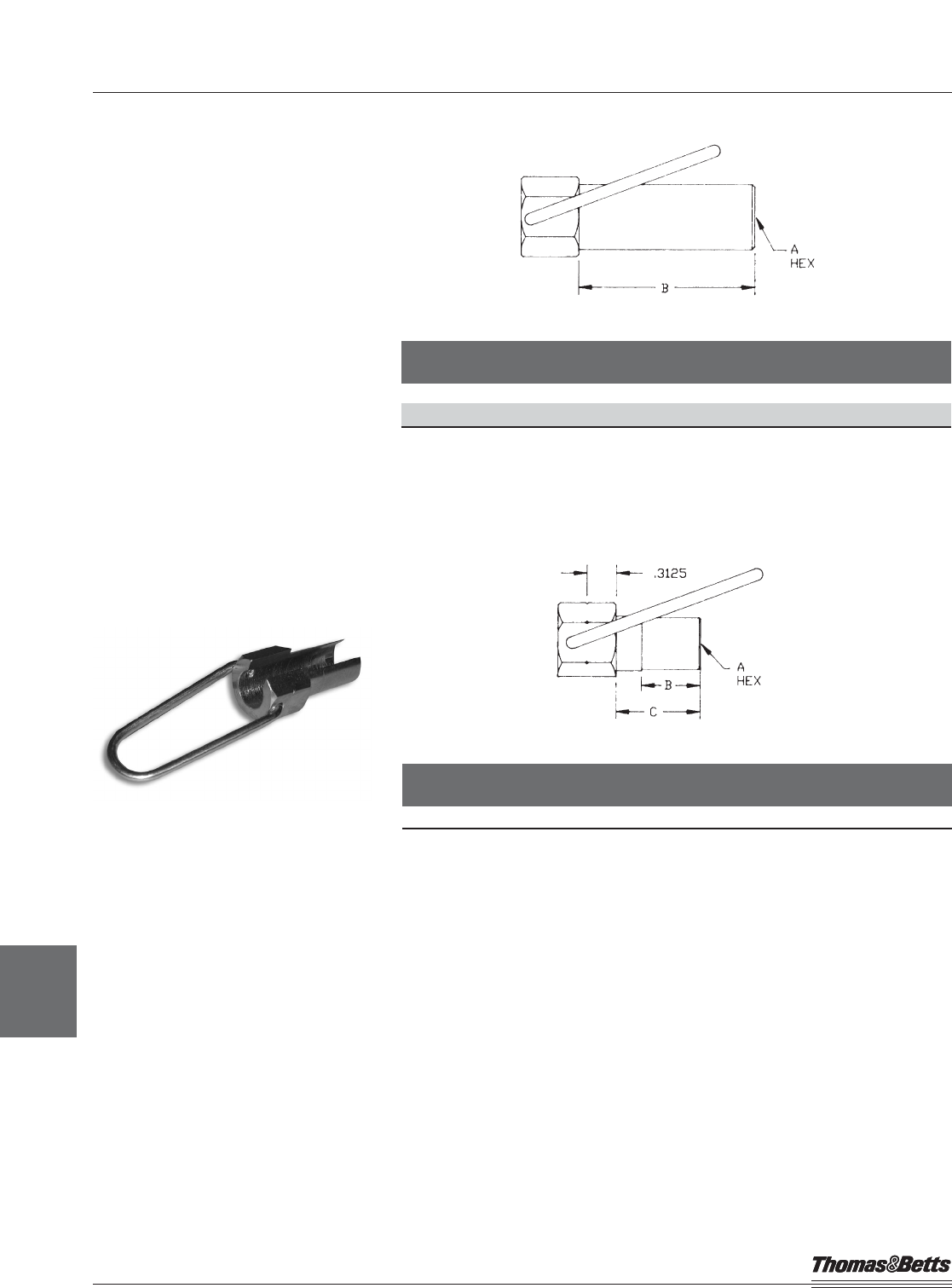

Snap-N-Seal®

Security Shield

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1389

Physical ProPerties

• Material: Advanced Polyvinyl

Chloride Polymer

Mechanical ProPerties

• Brittleness Point: -125º F (-87º C)

• Tensile Strength: 1,170 psi

• Chemical Test: Bellcore GR-1503-CORE

• Moisture Migration: Passes SCTE IPS-

TP-013 (double ended test)

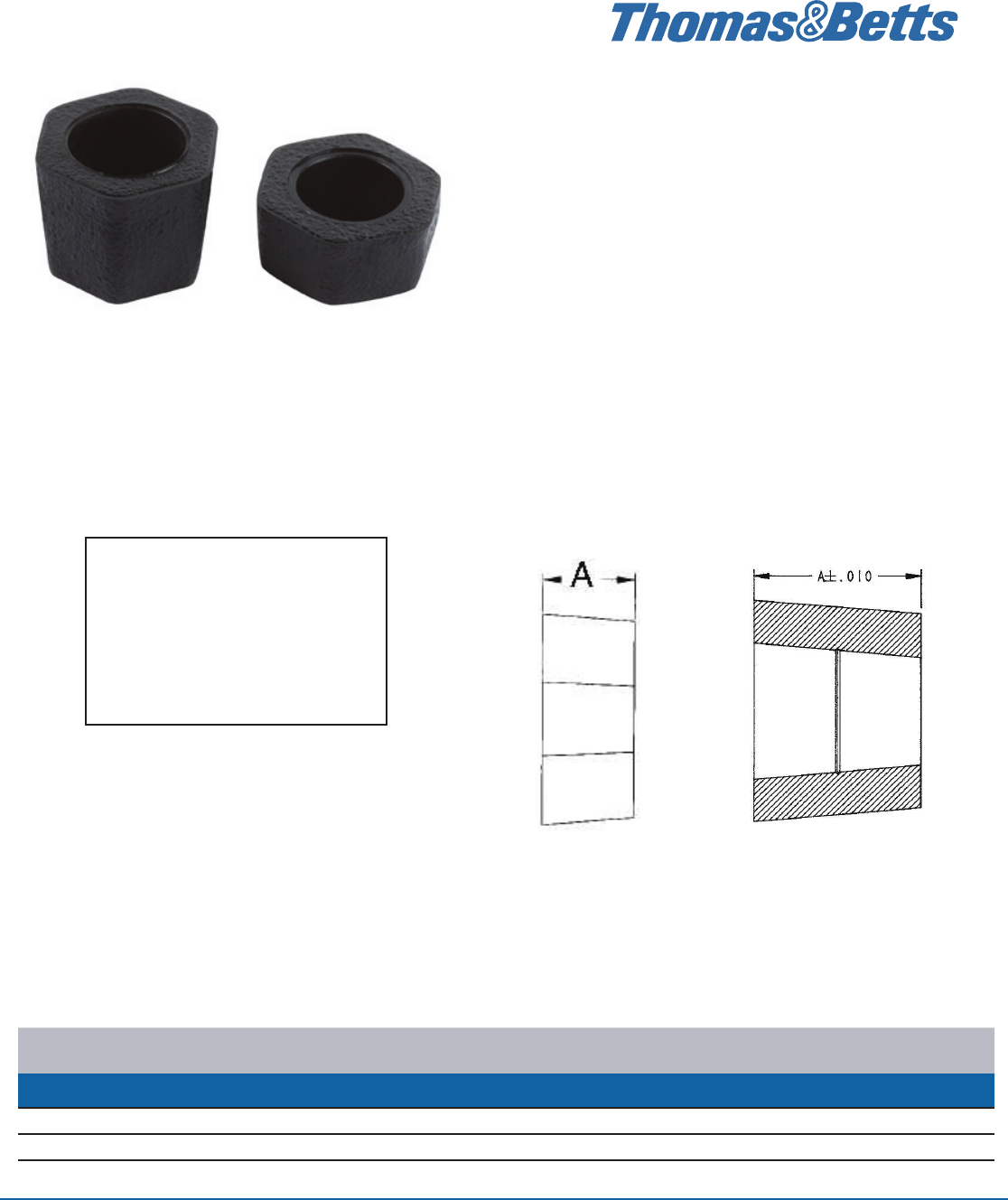

thread Protectors

• Prevents moisture migration from damaging the

connector interface

• UV and Ozone resistant for a reliable environmental seal

• No tools required for installation

• Passes Bellcore GR-1503-CORE, Chemical Resistance

for Outdoor Connectors

Data Sheet # CDS-tPS

OrDering infOrmatiOn

catalog # descriPtion diM a

(inches)

inner

Pack

outer

Pack

Thread ProTecTors

TP275 Thread Protector - short “F” ports .275 50/bag 2500

TP450 Thread Protector - long “F” ports .450 50/bag 2500

Thomas & Betts thread protectors provide

an environmental weather seal for all “F”

male connectors in outdoor applications.

Thread protectors provide a superior

moisture and RF seal for a quality

connection to any “F” port.

TP275 TP450

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

Ph y s i c a l Pr o P e r t i e s

• Body: Brass

• Body Finish: Nickel-Tin

• Terminal Contact: Brass with Tin Plate

el e c t r i c a l Pr o P e r t i e s

• Insulation Resistance: >5000 mega-ohms @ 100 VDC

• Dielectric Strength: Complies to Bellcore GR-2846-Core,

Generic Requirements for Coaxial Distribution

Connectors (1Kv RMS for 1 minute)

• Return Loss: -30dB Typical

• Insertion Loss: -.3 dB Typical

• RFI Shielding: -92dB Typical

Me c h a n i c a l Pr o P e r t i e s

• Cable Retention: >100 LBS

en v i r o n M e n t a l Pr o P e r t i e s

• Temperature Rating: -40º F (-40º C) to 140º F (60º C)

• Salt Fog: Passes 1000 hours ASTM B 117

• Moisture Migration: Passes ANSI/SCTE 60 2004

sn a P -n-se a l ®

“F” co n n e c t o r F o r

co M M sc o P e Qr® 320

Thomas & Betts Snap-N-Seal® QR320 connector

is designed for SDU/MDU applications and can

be installed on either ooded or non-ooded

QR 320 cables. This connector features a non-

metallic post, which reduces craft sensitivity of

the cable to connector interface.

• Featuring Snap-N-Seal® technology for consistent, reliable

connections

• Integral precision Auto Seize® technology enables good contact with

the center conductor

• True 360º compression onto cable ensures superior environmental

seal

• Cable preparation requires the use of cable coring tools (7/16” center

conductor exposure, 3/8” aluminum sheath exposure, 9/16” core)

• Easy and quick to install with standard compression tools used for

Snap-N-Seal 7 & 11 Series product families

• Quad sealed system prevents moisture migration

Da t a Sh e e t # CDS-SNS320QR

OR D e R i N g iN f O R m a t i O N

ca t a l o g nuMber DescriPtion tools†inner

Pack

outer

Pack

“F” ConneCtor For CommSCope Qr® 320

SNS320QR Snap-N-Seal® for CommScope QR® 320

Flooded and Non Flooded Cable

1 + 2 36 288

†Tool: 1 = CSTSNS320 2 = L3011B

QR is a registered trademark of CommScope Inc.

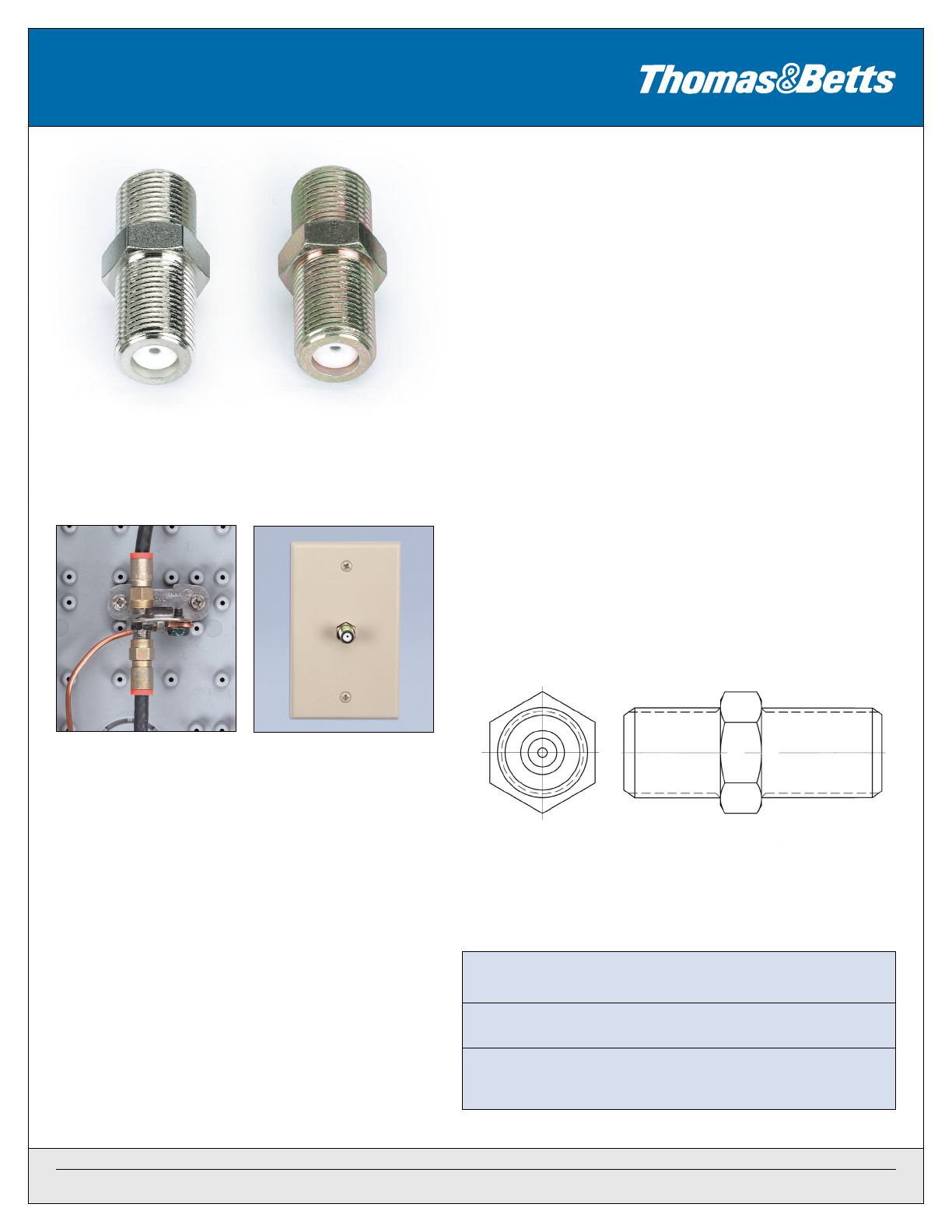

LRC®

Precision F81 Connectors

Thomas & Betts LRC precision F81 connectors are high

performance splice connectors designed for the demands

of today’s broadband networks. These connectors provide

increased return loss performance up to 4 GHz and have

a large, captive pin contact area for greater reliability.

DESIGN FEATURES

• Operate over a wide variety of frequencies (DC to 3 GHz)

• High return loss – meets requirements for DBS (Direct

Broadcast Satellite) and exceeds SCTE minimum specification

• Flat port ends on both sides per SCTE specifications for

flatness and aperture

• Multi-point seizing pin enables lower contact resistance and

higher current handling capability

• Beryllium copper seizing pin insures a greater holding force

and maintains a higher spring tension over repetitive insertions

• Accepts a wide range of cable center conductor sizes

Order # CDS-LRCF81 08/04 23D/LM PDF

Thomas & Betts Corporation/Communications Division Tel: 800-685-9452 / 800-920-0328 / 901-252-5000 • Fax: 800-285-4315 / 800-283-6756 / 901-252-1312

TECHNICAL SPECIFICATION

PHYSICAL PROPERTIES

BODY COMPONENTS: BRASS

BODY FINISH: NICKEL

SEIZING PIN: BERYLLIUM COPPER

ELECTRICAL PROPERTIES

FREQUENCY RANGE: DC-3 GHZ

RETURN LOSS: >35 dB (1 GHZ)

>30 dB (2 GHZ)

>26 dB (3 GHZ)

INSERTION LOSS: <0.1 dB (1 GHZ)

<0.2 dB (2 GHZ)

<0.3 dB (3 GHZ)

CONTACT RESISTANCE: <10 MILLI-OHMS

MECHANICAL PROPERTIES

HOLDING FORCE: >180 GRAMS (INITIAL)

>120 GRAMS*

THREADS: 3/8-32 UNEF

MAX TIGHTENING: 50 IN-LBS

*AFTER 50 INSERTIONS OF RG6

ORDERING INFORMATION

CATALOG CONNECTOR INNER OUTER

NUMBER TYPE PACK PACK

KF81D Precision F81 100 2000

KF81DI Precision F81 100 2000

with Iridescent

Coating

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1389

Physical ProPerties

• Body Components: Brass

• Body Finish: Iridescent Chromate

over Cadmium

• Seizing Pin: Phosphorus Bronze with

Silver Plating

• Pin Finish: Beryllium Copper with

Silver Plating

electrical ProPerties

• Attenuation:

AP1FM - 1 dB +/- .5 dB

AP3FM - 3 dB +/- .5 dB

AP6FM - 6 dB +/- .5 dB

AP8FM - 8 dB +/- .5 dB

AP10FM - 10 dB +/- .5 dB

AP20FM - 20 dB +/- .7 dB

Mechanical ProPerties

• Retention Force of Female Contact:

20 grams minimum

lrc®

one-Piece attenuator Pads

Data Sheet # CDS-1PatPaD

OrDering infOrmatiOn

catalog # connector tyPe inner

Pack

outer

Pack

LRC® One-PieCe

AttenuAtOR PAds

AP1FM One-Piece Attenuator Pad 1 dB 24/box 288

AP3FM One-Piece Attenuator Pad 3 dB 24/box 288

AP6FM One-Piece Attenuator Pad 6 dB 24/box 288

AP8FM One-Piece Attenuator Pad 8 dB 24/box 288

AP10FM One-Piece Attenuator Pad 10 dB 24/box 288

AP20FM One-Piece Attenuator Pad 20 dB 24/box 288

Thomas & Betts one-piece LRC®

in-line Attenuator Pads are designed for

applications including RF attenuation for Set

Top Boxes and VoIP/Cable Modems. These

attenuators reduce RF signal strength, which

in turn reduces RF signal overload and

intermodulation caused by high input levels.

• Attenuation atness within ±0.5 dB from 5 MHz to 1 GHz

(20 dB Attenuation ±0.7 dB)

• Cadmium Chromate plated Brass Body and Silver plated

Beryllium Copper Seizing contact (Seizing Contact retention

20 grams minimum)

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1389

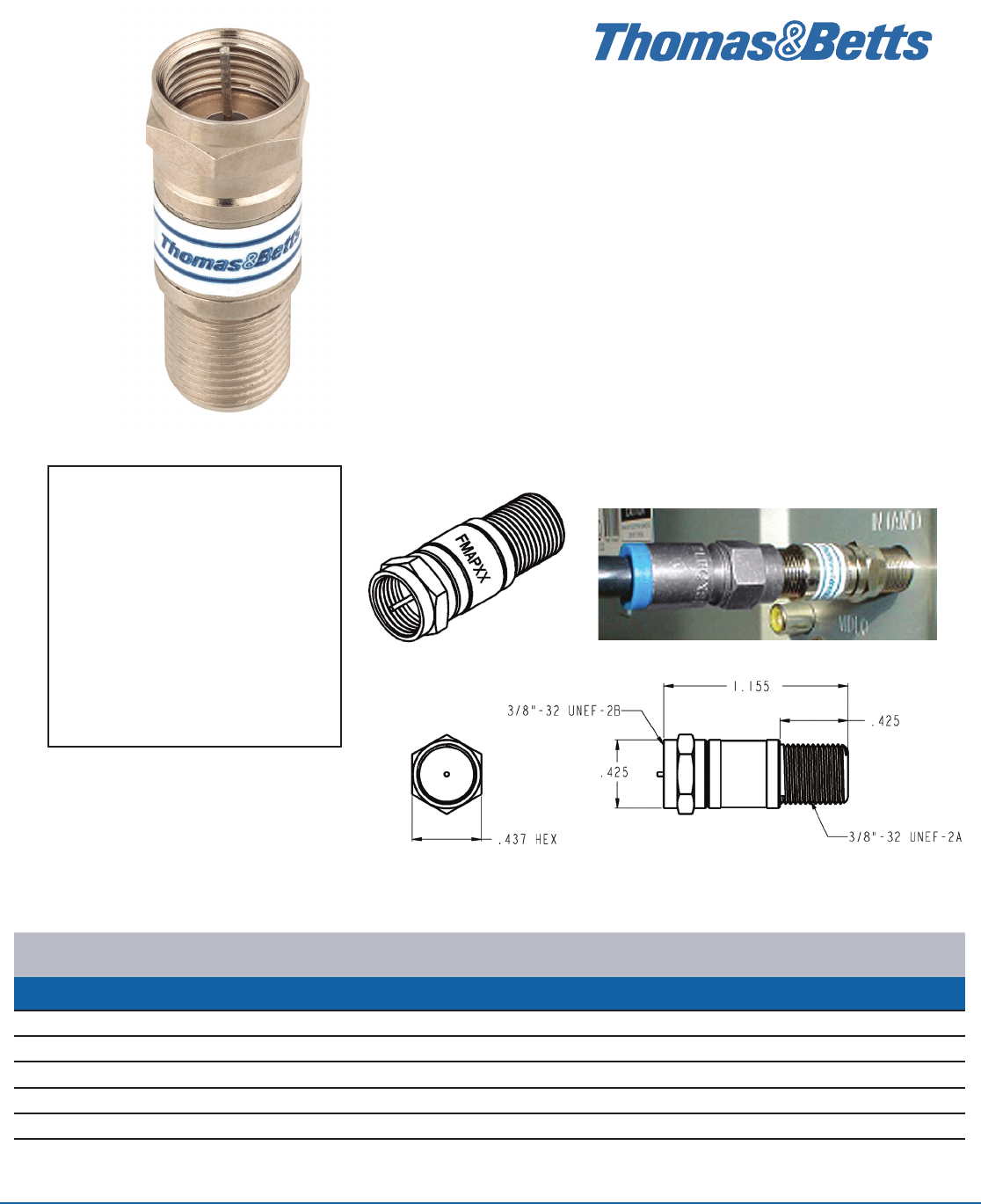

Ph y s i c a l Pr o P e r t i e s

• Body Components: Brass

• Body Finish: Nickel

• Seizing Pin: Beryllium Copper

• Pin Finish: Tin

el e c t r i c a l Pr o P e r t i e s

• Attenuation:

FMAP3 - 3 dB +/- .5 dB

FMAP6 - 6 dB +/- .5 dB

FMAP8 - 8 dB +/- .5 dB

FMAP10 - 10 dB +/- .5 dB

FMAP20- 20 dB +/- .7 dB

Me c h a n i c a l Pr o P e r t i e s

• Retention Force of Female Contact:

20 grams minimum

lrc®

tw o -Pi e c e at t e n u a t o r Pa d s

Da t a Sh e e t # CDS-2PatPaD

Or D e r i n g in f O r m a t i O n

ca t a l o g # connector tyPe inner

Pack

outer

Pack

LRC® Tw o -PieCe ATTenuAToR PAds

FMAP3 Attenuator Pad 3 dB 5600

FMAP6 Attenuator Pad 6 dB 5600

FMAP8 Attenuator Pad 8 dB 5600

FMAP10 Attenuator Pad 10 dB 5600

FMAP20 Attenuator Pad 20 dB 5600

Thomas & Betts two-piece LRC® in-line

Attenuator Pads are designed for applications

including RF attenuation for Set Top Boxes and

VoIP/Cable Modems. These attenuators

reduce RF signal overload and intermodulation

caused by high input levels.

• Attenuation atness within ±0.5 dB from 5 MHz to 1 GHz

(20 dB Attenuation ±0.7 dB)

• Nickel plated Brass Body and Tin Plated Beryllium Copper

Seizing Contact (Seizing Contact retention 20 grams minimum)

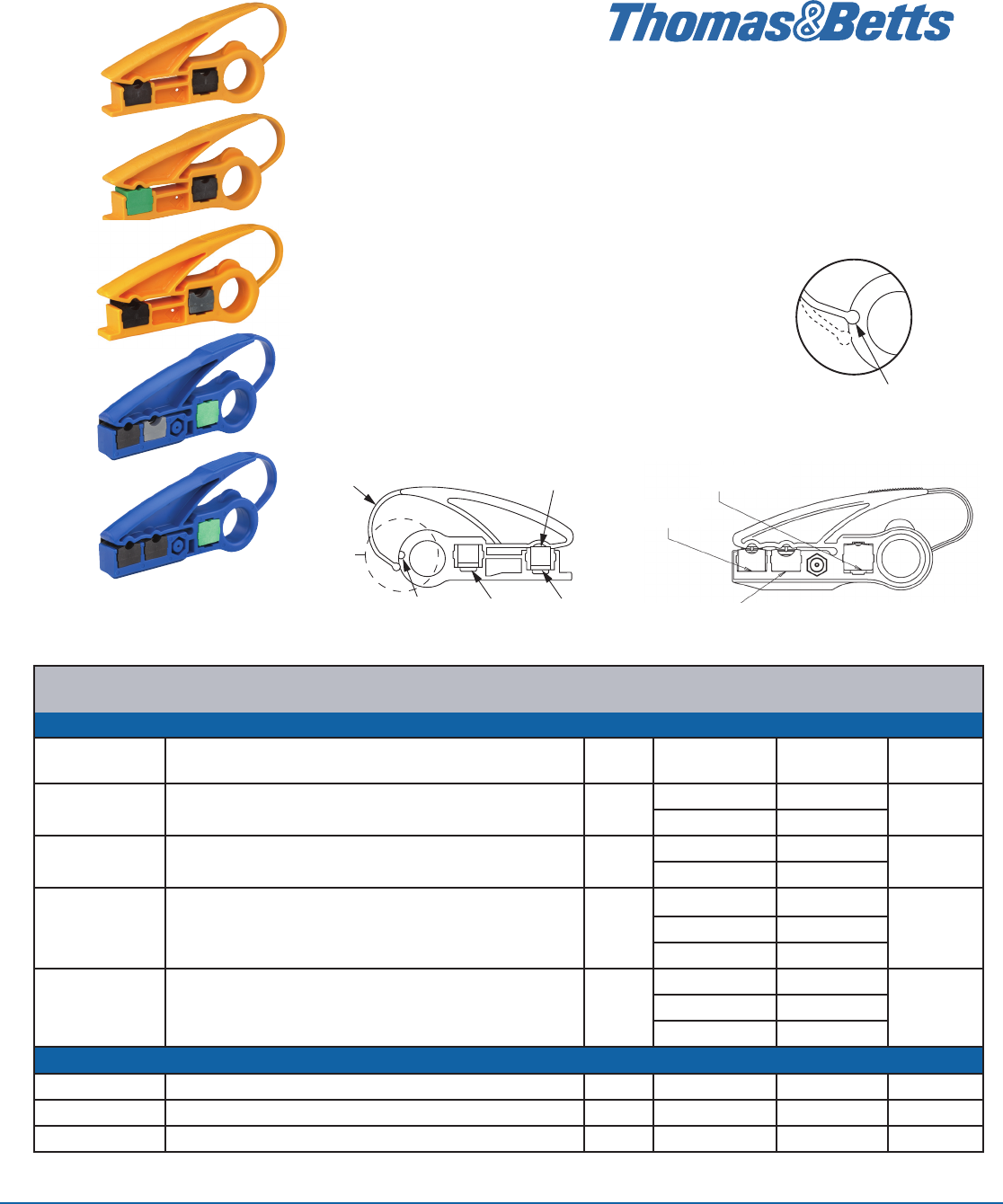

Snap-n-Seal®

Cable preparation toolS

Thomas & Betts’ cable preparation tools provide a reliable and effective

method to prepare coaxial cable. Color-coded blade modules housed in one

tool allow for preparation of a range of cable sizes.

• Consistent one-step cable preparation

• Compatible with all Snap-N-Seal® connectors

• Color-coded replacement blades available

• Built-in storage area for the unused blade module

• High strength polymer tool body

• Ergonomicallydesignedtotthehand

• Finger loop for easy cable preparation

CST596596

CST596711

CST596711MV

CST596596

Prepares 59 and 6 Series Drop Cables

Coax Stripping Tools

Assemble the Tool

This assembly procedure is required to provide proper cutting pressure.

1. Snap the tension arm into the notch of the finger loop as shown.

Spare Cartridge

1. Storage area contains spare cartridge.

Replacement cartridges are available:

59 and 6 Series Cable: RC596 Replacement Cartridge, Black

Primary

Location

Storage

Area

Notch

See

Detail A

Tension Arm Cable Stop

Prepare the Cable

1. Open the tool by squeezing the midpoint of the tension arm.

2. Insert the cable up to the cable stop.

3. Grip the cable close to the tool and rotate tool around the cable 3 to 4

full turns.

4. Squeeze the front portion of the tension arm to hold the cable in the

tool, then pull off the cable.

5. Finish cable preparation and install connector.

1/4”

WARRANTY: Thomas & Betts sells this product with the understanding that the user will perform all

necessary tests to determine the suitability of this product for the user's intended application. Thomas

& Betts warrants that this product will be free from defects in materials and workmanship for a period of

ninety (90) days following the date of purchase. Upon prompt notification of any warranted defect,

Thomas & Betts will, at its option, repair or replace the defective product or refund the purchase price.

Proof of purchase is required. Misuse or unauthorized modification of the product voids all warranties.

Limitations and Exclusions: THE ABOVE WARRANTY IS THE SOLE WARRANTY CONCERNING

THIS PRODUCT, AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE SPECIFICALLY DISCLAIMED. LIABILITY

FOR BREACH OF THE ABOVE WARRANTY IS LIMITED TO COST OF REPAIR OR REPLACEMENT

OF THE PRODUCT, AND UNDER NO CIRCUMSTANCES WILL THOMAS & BETTS BE LIABLE FOR

ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Detail A

Snap Tension

Arm into Notch

Primary

Location

Storage

Area

Notch

See

Detail A

Tension Arm Cable Stop

Primary

Location

Storage

Area

Notch

See

Detail A

Tension Arm

Detail A

Snap Tension

Arm into Notch

Detail A

Snap Tension

Arm into Notch

CST596711

Prepares 59, 6, 7 and 11 Series Drop Cables

Assemble the Tool

This assembly procedure is required to provide proper cutting pressure.

1. Snap the tension arm into the notch of the finger loop as shown.

Spare Cartridge

1. Storage area contains spare cartridge.

Replacement cartridges are available:

59 and 6 Series Cable: RC596 Replacement Cartridge, Black

7 and 11 Series Cable: RC711 Replacement Cartridge, Gray

CSTMV596

Prepares 59 and 6 Series Drop Cables and

Commscope 753 HDTV and 1855 Belden Precision Video Cable

Assemble the Tool

This assembly procedure is required to provide proper cutting pressure.

1. Snap the tension arm into the notch of the finger loop as shown.

Spare Cartridge

1. Storage area contains spare cartridge.

Replacement cartridges are available:

59 and 6 Series Cable: RC596 Replacement Cartridge, Black

7538 HDTV and 1855A Belden Series Video Cable: RCMV

Replacement Cartridge, Green

CST596711MV & CST596596MV

Prepares 59, 6, 7 and 11 Series Drop Cables and

Commscope 753 HDTV and 1855 Belden Precision Video Cable

Assemble the Tool

This assembly procedure is required to provide proper cutting pressure.

1. Snap the tension arm into the notch of the finger loop as shown.

Spare Cartridge

1. Storage area contains spare cartridge.

Replacement cartridges are available:

59 and 6 Series Cable: RC596 Replacement Cartridge, Black

7 and 11 Series Cable: RC711 Replacement Cartridge, Gray

7538 HDTV and 1855A Belden Series Video Cable: RCMV

Replacement Cartridge, Green

Primary

Location

Storage

Area

Notch

See

Detail A

Tension Arm Cable Stop Detail A

Snap Tension

Arm into Notch

Cable Stop

Ordering infOrmatiOn

Catalog # DeSCription Figure blaDe MoDule

Color

Cable Size inner

paCk

Cable Preparation Tools

CST596596 Cable preparation tool with 2 blade modules for

preparation of Series 59/6 coaxial cables A Black Series 59 & 6 1

CSTMV596 Cable preparation tool with 2 blade modules for

preparation of Series 59/6 and mini video coaxial cables* ABlack Series 59 & 6 1

Green Mini Video*

CST596711 Cable preparation tool with 2 blade modules for

preparation of Series 59/6/7 & 11 coaxial cables ABlack Series 59 & 6 1

Gray Series 7 & 11

CST596711MV

Cable preparation tool with 3 blade modules for

preparation of Series 59/6/7/11 and mini video coaxial

cables*

Black Series 59 & 6

Gray Series 7 & 11

Green Mini Video*

CST596596MV Cable preparation tool with 3 blade modules for

preparation of Series 59/6 and mini video coaxial cables* B

Black Series 59 & 6

1Black Series 59 & 6

Green Mini Video*

Blade Modules

RC596 Replacement blade module N/A Black Series 59 & 6 10

RCMV Replacement blade module N/A Green Mini Video* 10

RC711 Replacement blade module N/A Gray Series 7 & 11 10

* For use with CommScope 7538 HDTV and Belden 1855A Precision Video Cable or equivalent

CSTMV596

Please ask your Thomas & Betts representative for a complete catalog of quality

Thomas & Betts products or visit us at www.tnb.com. For customer service, call

1-800-685-9452. For technical questions, call 1-888-862-3289.

Thomas & Betts Corporation

Communications Products Group

Tel: 800-920-0328 • 901-252-5000

Fax: 800-283-6756 • 901-252-1380

data Sheet # CdS-CSt tOOLS

CST596596MV

Storage Area

Primary Location
