General Cable
4 Tesseneer Drive
Highland Heights, Kentucky 41076-9753
Telephone (800) 424-5666
(859) 572-8000
www.generalcable.com
Form No. DAT-0020-R1210
38496
General Cable Canada
590 Barmac Drive
North York, Ontario M9L 2X8
Telephone (800) 561-0649
Fax (800) 565-2529
DATACOM
DECEMBER 2010
DATACOM
WELCOME
Contact Us
On-Line Catalog Features
•Viewthecataloginfullscreenmodebyusingthefarleftexpansion
logoonthemenubar.(Keyboardinputmaynotworkinfullscreen
mode,whichmeansyoumustleavethefullscreenmodeinorderto
utilizetheemailfunction.)
•Clickthe“GeneralCable”logoontheleftsideofthemenubartogoto
GeneralCable’sWebsite.
•The“TableofContents”buttoninthecenterofthemenubartakes
youtoafullyinteractivepage.Clickonanyproductcategoryorlisting
totakeyoutotheappropriatepage.(Allotherpagereferences
throughoutthecatalogarealsofullyinteractive.)
•Theentirecatalog’scontentscanbesearchedusingtheSearchbutton
locatedintheupperrightofthemenubar.
•Turncatalogpagesbyclickingyourmouseonthetoporbottomcorner
ofthepageorbyusingtheforwardorbackarrowsonthesideofthe
pageoronthebottombar.
•Zoomtodetailsoneachpagebyclickingwhenthemagnifyingglass
pointerisactive.Clickagaintoreturntofullview.
•Sharethecompleteinteractivecatalogbyselectingthe“Sharethis
Publication”iconlocatedinthelowerrightonthebottombar.
•PrintallorselectedpagesusingthePrinticonlocatedinthelower
rightonthebottombar.
•Theentireinteractivecatalogorindividualpagescanbedownloaded
asaPDFusingthePDFiconlocatedinthelowerrightonthebottombar.
•Use“Croppartofpage”iconlocatedinthelowerrightonthebottom
bartotakeasnapshotofanypartofapageandsaveasajpg.
General Cable Website
DATACOM
All information in this catalog is presented solely
as a guide to product selection and is believed to
be reliable. All printing errors are subject to
correction in subsequent releases of this catalog.
Although General Cable has taken precautions to
ensure the accuracy of the product specifications
at the time of publication, the specifications of all
products contained herein are subject to change
without notice.
GENERAL CABLE, ANACONDA BRAND, BICC
BRAND, CAROL BRAND, FLEXGUARD,
FLEX-TAPE, GENASSURANCE, GENSPEED, MTP,
MOSAIC CROSSBLOCK, MOSAIC TWISTED
PAIR, NEXTGEN BRAND, PULL-PAC,
SPOOL-PAC and TRU-MARK are registered
trademarks of General Cable Technologies
Corporation.
©2010. General Cable
Technologies
Corporation.
Highland Heights, KY 41076
All rights reserved.
Printed in USA.
This catalog contains in-depth
information on the most
comprehensive line of copper
Datacom products available
today for voice and data
communications.
In a rapidly changing industry
with ever-growing demands,
General Cable continues to
stay ahead of the curve with
engineered products that
guarantee future performance.
Choose from the best cable
in its class—GenSPEED ®
Enhanced Cables.
Our products are readily
available through our
network of authorized
stocking distributors and
distribution centers.
General Cable is committed to meeting
customer requirements through continuous
quality improvements. As a significant part
of our commitment to quality, General
Cable’s manufacturing facilities are certified
to the ISO 9001:2000 quality standard. Our
telecommunications cable manufacturing
facility has received TL 9000 quality
standards registration as a supplement to
the ISO program. This quality system is
based on the ISO 9001 program with added telecommunications-specific performance
metrics. We strive to provide value optimization through innovation and quality solutions.
s /URINHOUSETESTINGCAPABILITIESAREEXTENSIVEWITHSTRICTADHERENCE
to our product specifications as well as industry standards.
s #ABLESARESAFETYLISTEDANDVERIFIED
s 4HIRDPARTYTESTINGLABSLIKE%4,AREUTILIZEDTOQUANTIFYANDCONFIRM
our quality and provide final qualification data that sets the foundation
 FOROUREXTENDEDPRODUCTWARRANTY
s 'ENERAL#ABLEPRODUCTSHAVESTOODTHETESTOFTIMEWITHPROVEN
reliability and performance.
DATACOM
QUALITY
General Cable is dedicated to customer
service and satisfaction. Call our team of
professionally trained sales associates at
800-424-5666
with any questions to meet your
application needs.
CUSTOMER SERVICE
Delivering Solutions
THAT KEEP YOU CONNECTED
GENERALCABLE.COM

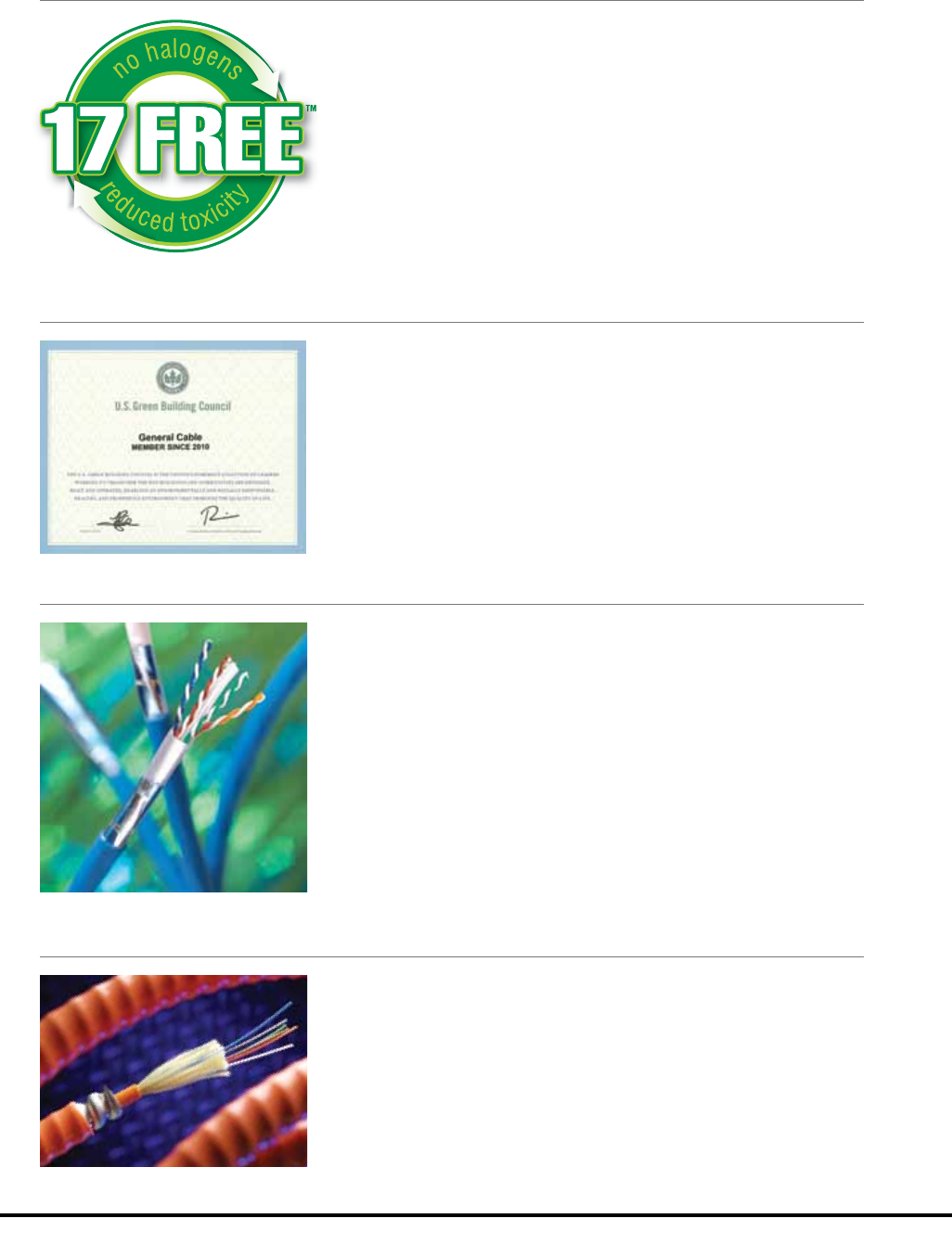

What’s New?
GENSPEED® 17 FREE™
U.S. Green Building Council (USGBC) Membership
General Cable has accelerated its environmental commitment, addressing its green
alternative approach by identifying greener opportunities and promoting green cabling
solutions wherever feasible. This includes promoting our existing green products,
partnering with key customers in their green endeavors, identifying and providing
resources for green product gaps, becoming a member of the United States Green
Building Council (USGBC) and participating in collaborative ventures such as the Green
Suppliers Network (GSN).
U.S. GREEN BUILDING COUNCIL

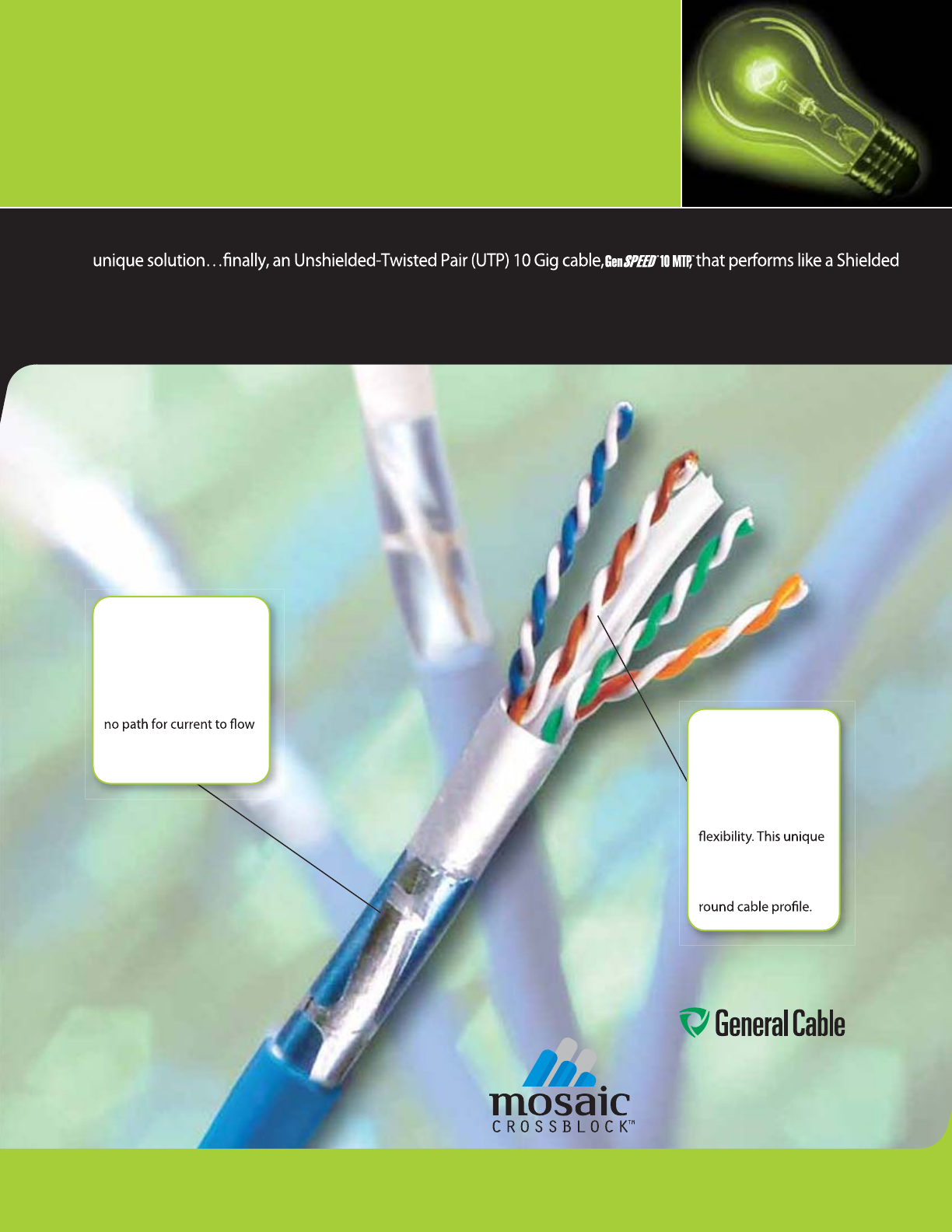

An Unshielded 6A Cable That Performs Like a Shielded Cable
One of the biggest challenges in 10 Gigabit operations is to mitigate noise between
individual cables used for high speed data communication. You could incur the costs
and time to upgrade to a shielded solution, or you can install General Cable’s industry-
leading solution, GenSPEED ® 10 MTP™ Category 6A cable, which can be found on page 12.
GenSPEED 10 MTP utilizes revolutionary Mosaic Crossblock™ technology to shield the
cable from noise coming from external cable sources, referred to as alien crosstalk
(PSANEXT and PSAACRF) – without the need for grounding. This patented technology was
carefully designed with metallic blocks separated by an insulating layer. Since there is no
metal-to-metal contact, there is no path for current to flow longitudinally, and thus, no need
for grounding. Therefore, you get all the benefits of an STP/FTP cable with a UTP cable.
GENSPEED® 10 MTP™
We have added a NextGen® Brand Fiber Optic section to our Data Communications
catalog for your convenience, beginning on page 77. For the complete product line,
request a Fiber Optic catalog: 800-424-5666 or Datacom@GeneralCable.com.
NEXTGEN® BRAND FIBER OPTIC

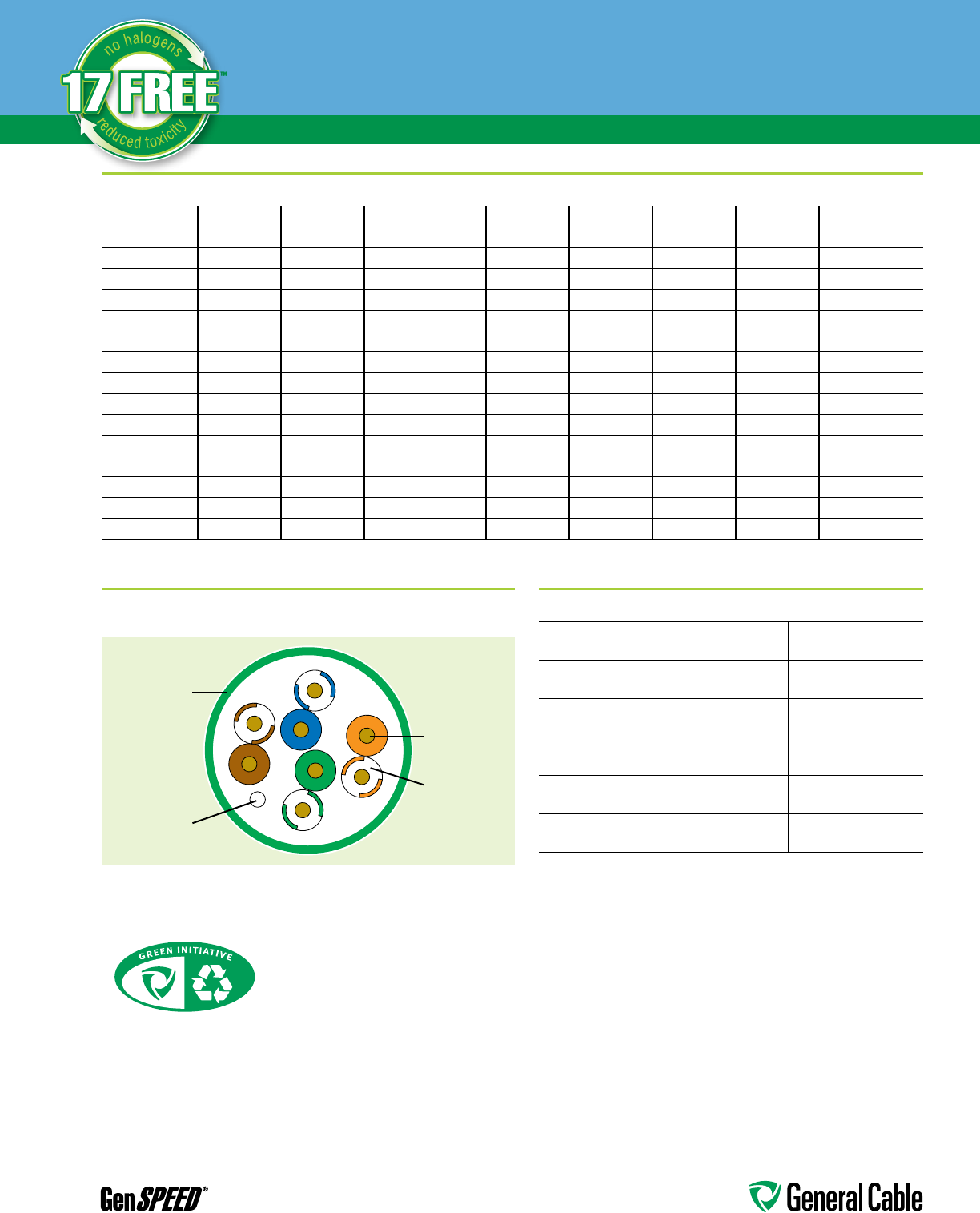

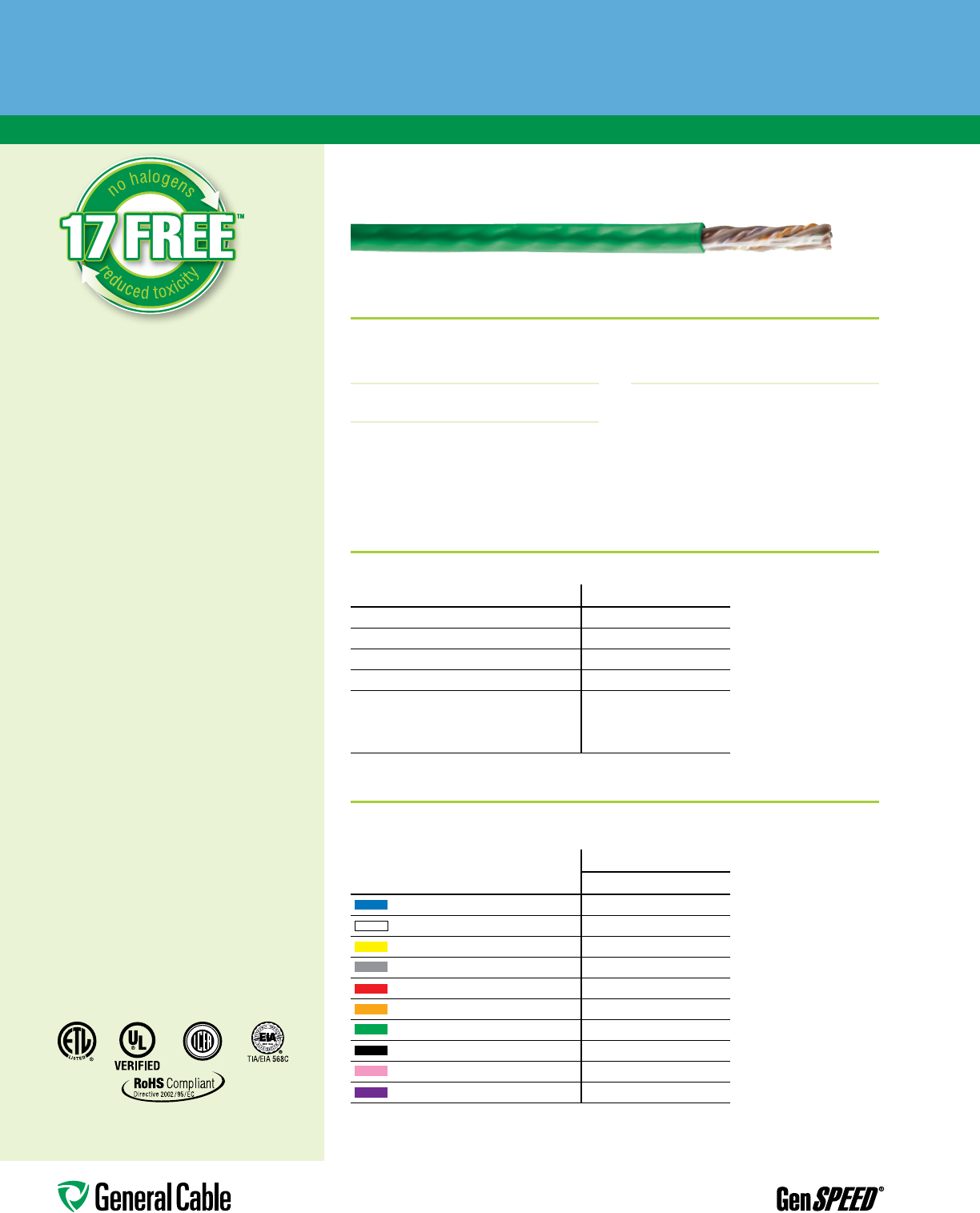

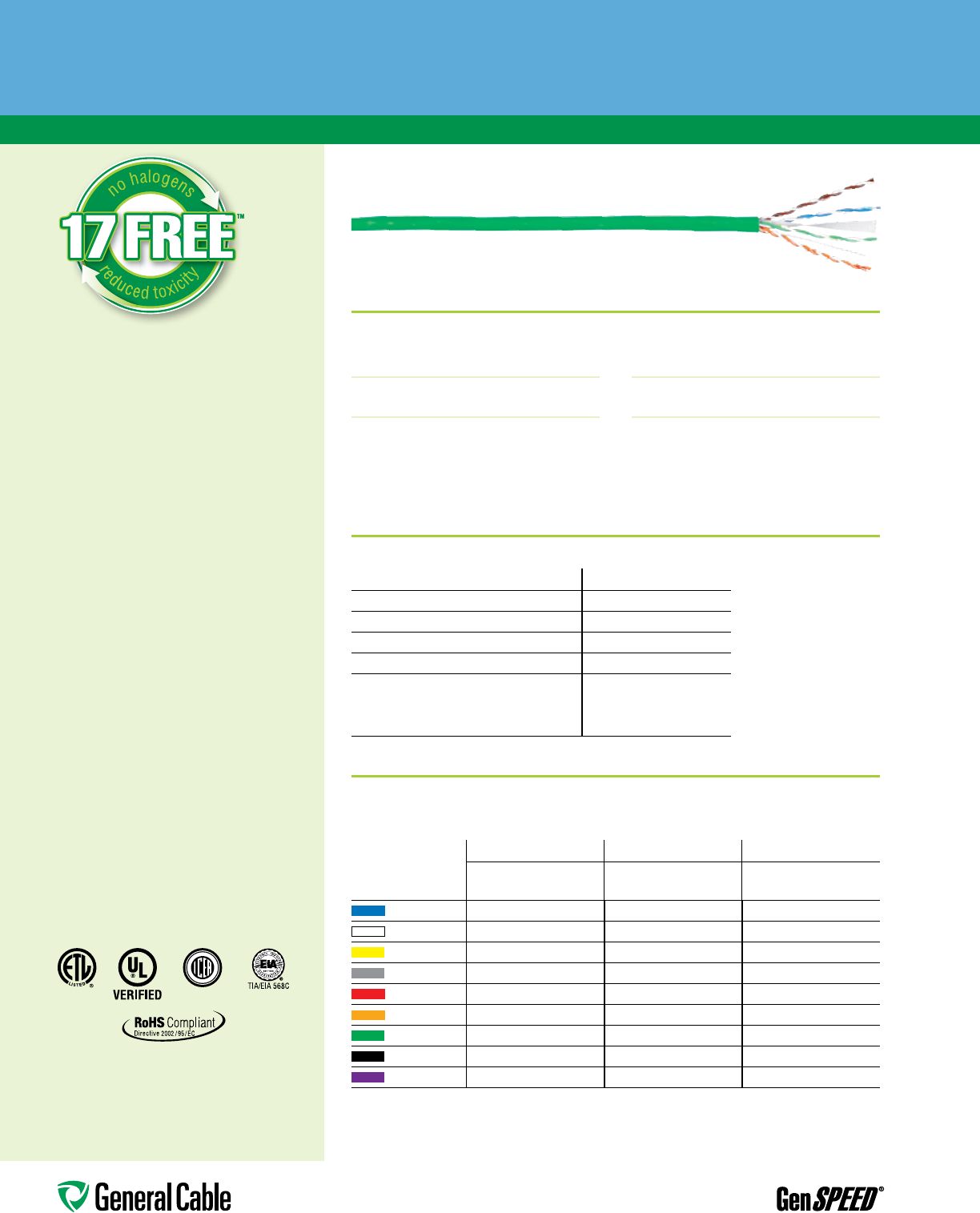

General Cable now offers a line of halogen-free GenSPEED ® Brand UL-Rated Riser
(CMR) cable. By removing halogens, which are Group 17 on the Periodic Table, the cable
has reduced toxicity. This results in a truly “green” cable, which is less toxic and more
environmentally friendly. The U.S. Green Building Council announced a credit geared
toward reducing the release of persistent bio-accumulative toxic chemicals, or PBTs,
associated with the life cycle of building materials, including electrical wiring and
cable jacketing. Based on this LEED credit and demand for green cabling options,
General Cable has successfully engineered 17 FREE™ as a halogen-free cable alternative.
Look for this new product on pages 20, 30 and 44 in the catalog and visit us online at
www.generalcable.com for a complete line of products to meet your green cabling needs.
1
Table of Contents
SECTION 1
SECTION 2
SECTION 3
SECTION 4
2
GenSPEED ® Category 6A Enhanced Cables 10-21
GenSPEED® Category 6A Quick Reference Guide 11

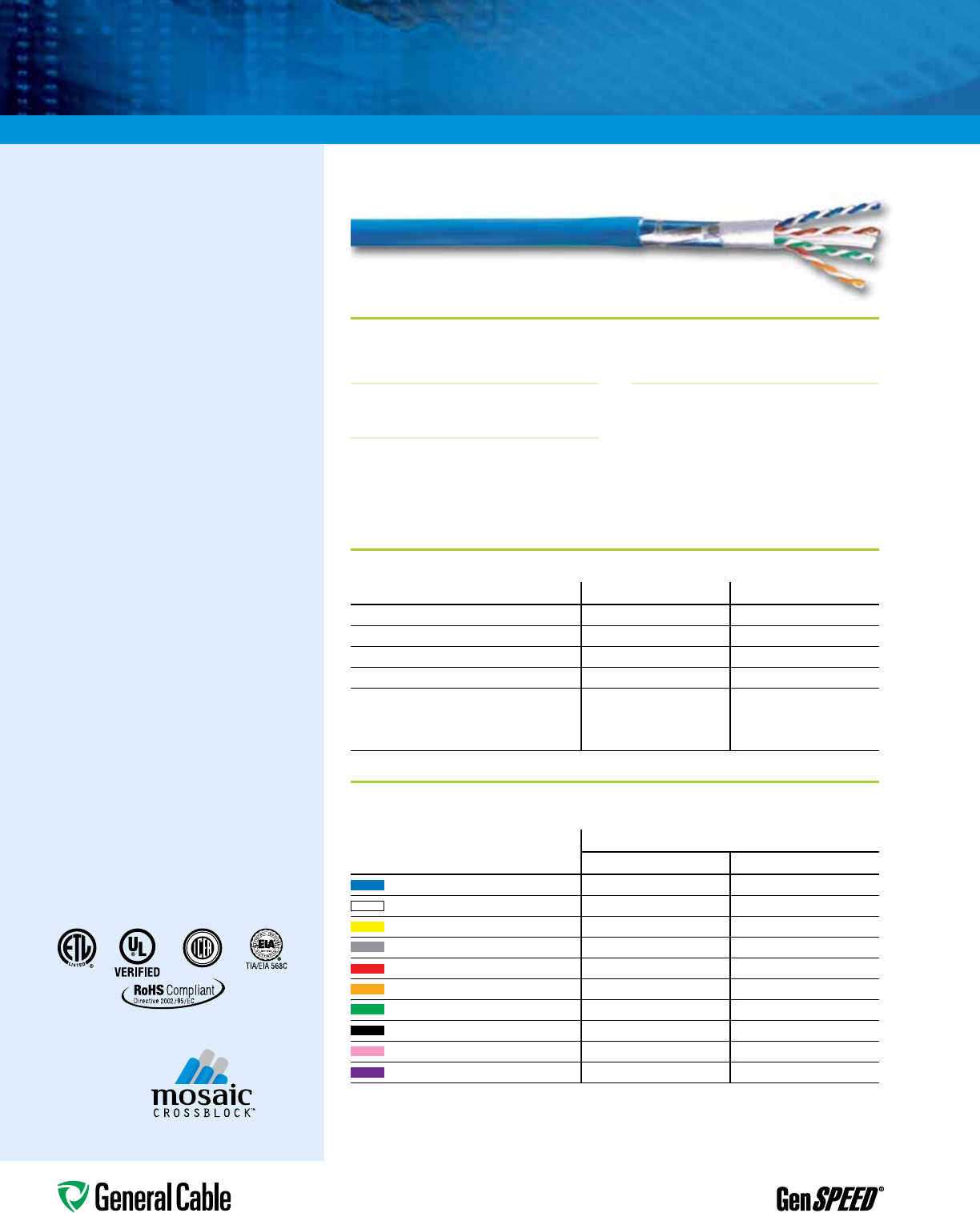

GenSPEED® 10 MTP™ Category 6A Cable 12-13
GenSPEED® 10,000 Category 6a U/FTP (STP) Cable 14-15
GenSPEED® 10,000 Category 6A F/UTP (ScTP) Cable 16-17
GenSPEED® 10,000 Category 6a Cable 18-19

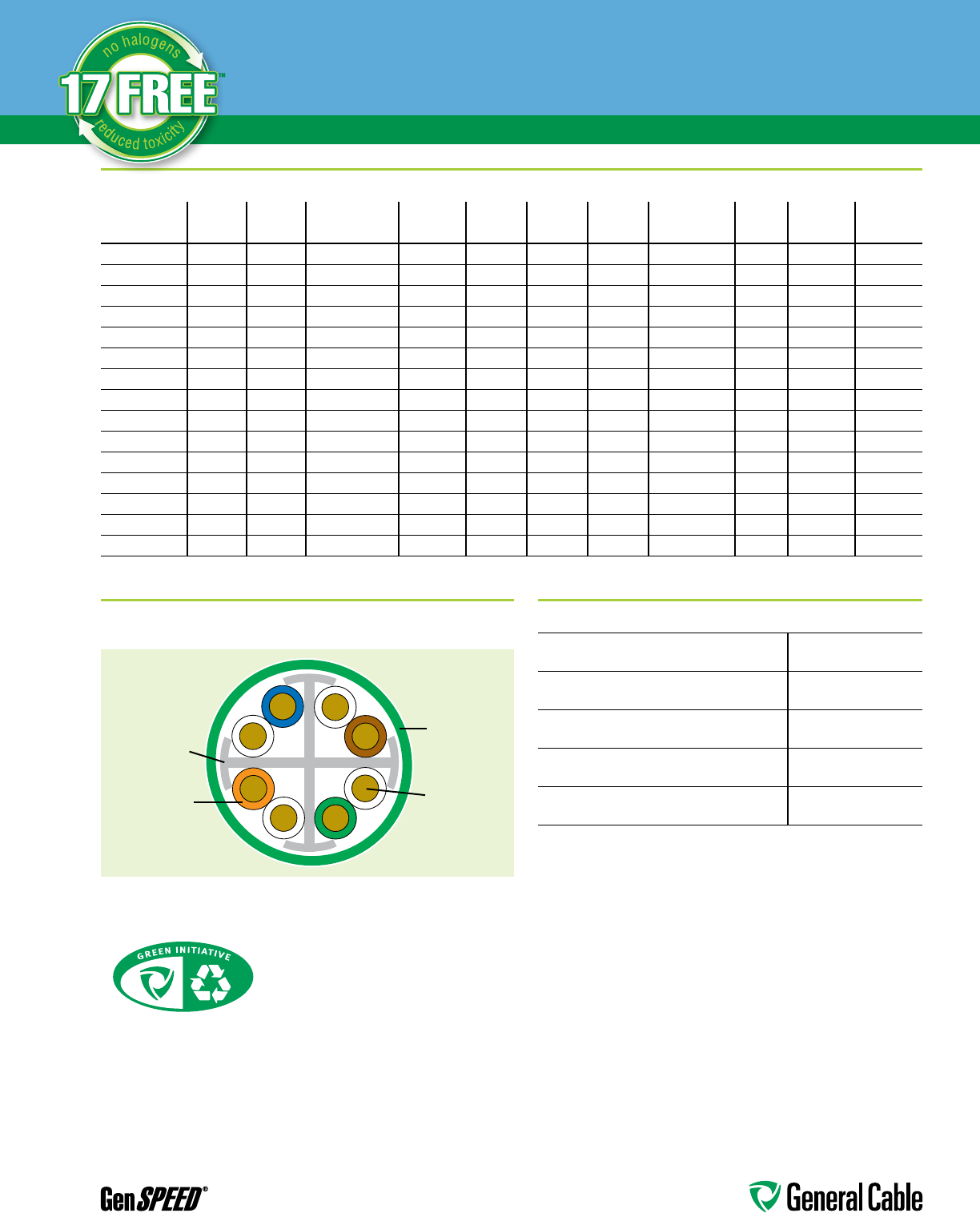

GenSPEED® 10,000 with 17 FREE™ Category 6a Cable 20-21
GenSPEED ® Category 6 Cables 22-35
GenSPEED® Category 6 Quick Reference Guide 23

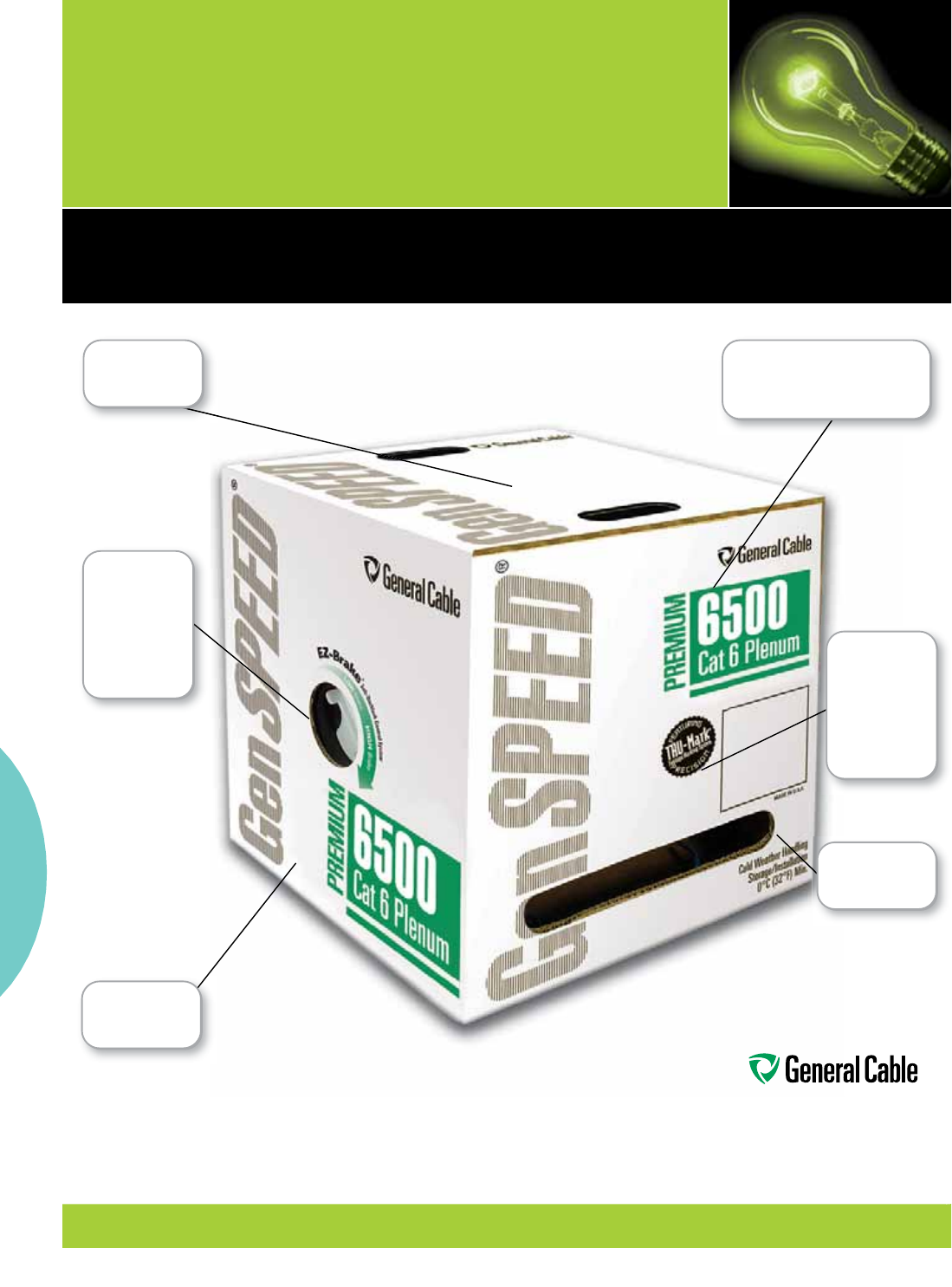

GenSPEED® 6500 Premium Category 6 Cable 24-25
GenSPEED® 6000 Enhanced Category 6 Cable 26-27
GenSPEED® 6 Category 6 Cable 28-29
GenSPEED® 6 with 17 FREE™ Category 6 Cable 30-31

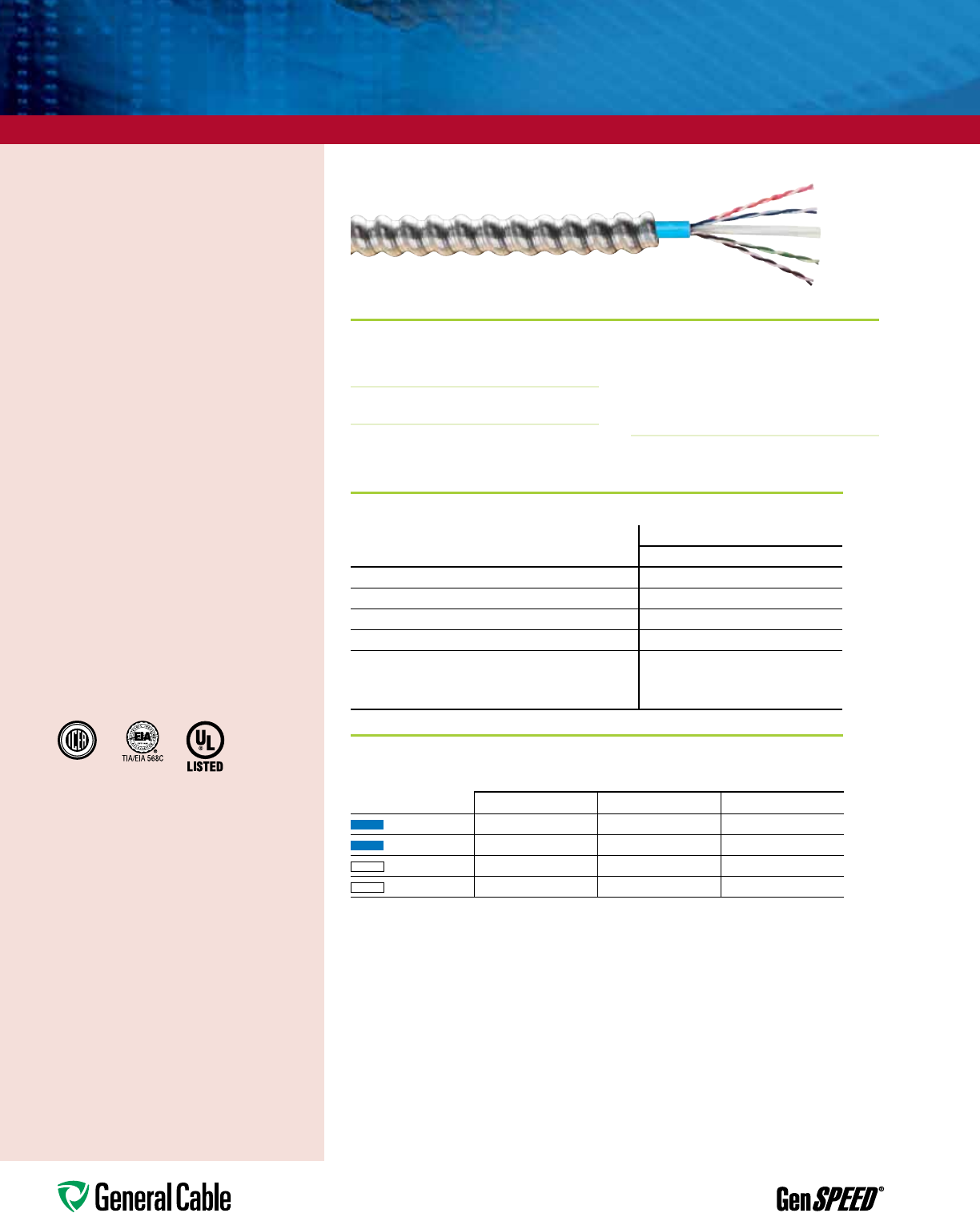

GenSPEED® 6 Category 6 Interlock Armored Cable 32-33
GenSPEED® 6 Category 6 Outside Plant Cable 34-35
GenSPEED ® Category 5e Cables 36-55
GenSPEED® Category 5e Quick Reference Guide 37
GenSPEED® 5500 Premium Category 5e Cable 38-39
GenSPEED® 5350 Enhanced Category 5e Cable 40-41
GenSPEED® 5000 Category 5e Cable 42-43
GenSPEED® 5000 with 17 FREE™ Category 5e Cable 44-45

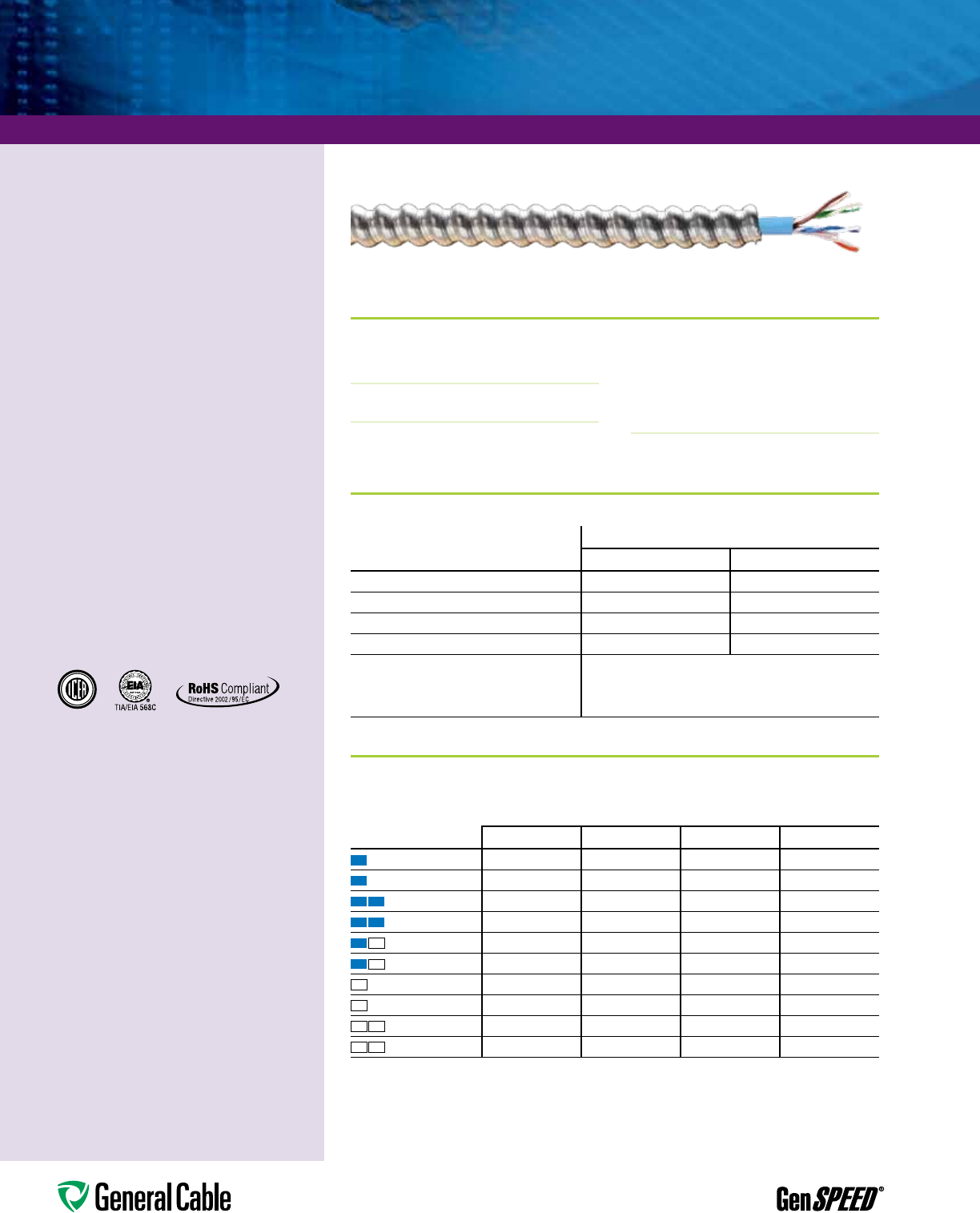

GenSPEED® 5000 Category 5e Interlock Armored Cable 46-47
GenSPEED® 5000 Category 5e Screened Cable 48-49
GenSPEED® 5000 Category 5e Outside Plant Cable 50-51
GenSPEED® 5000 Category 5e Residential CMX Outdoor-CMR Cable 52-53

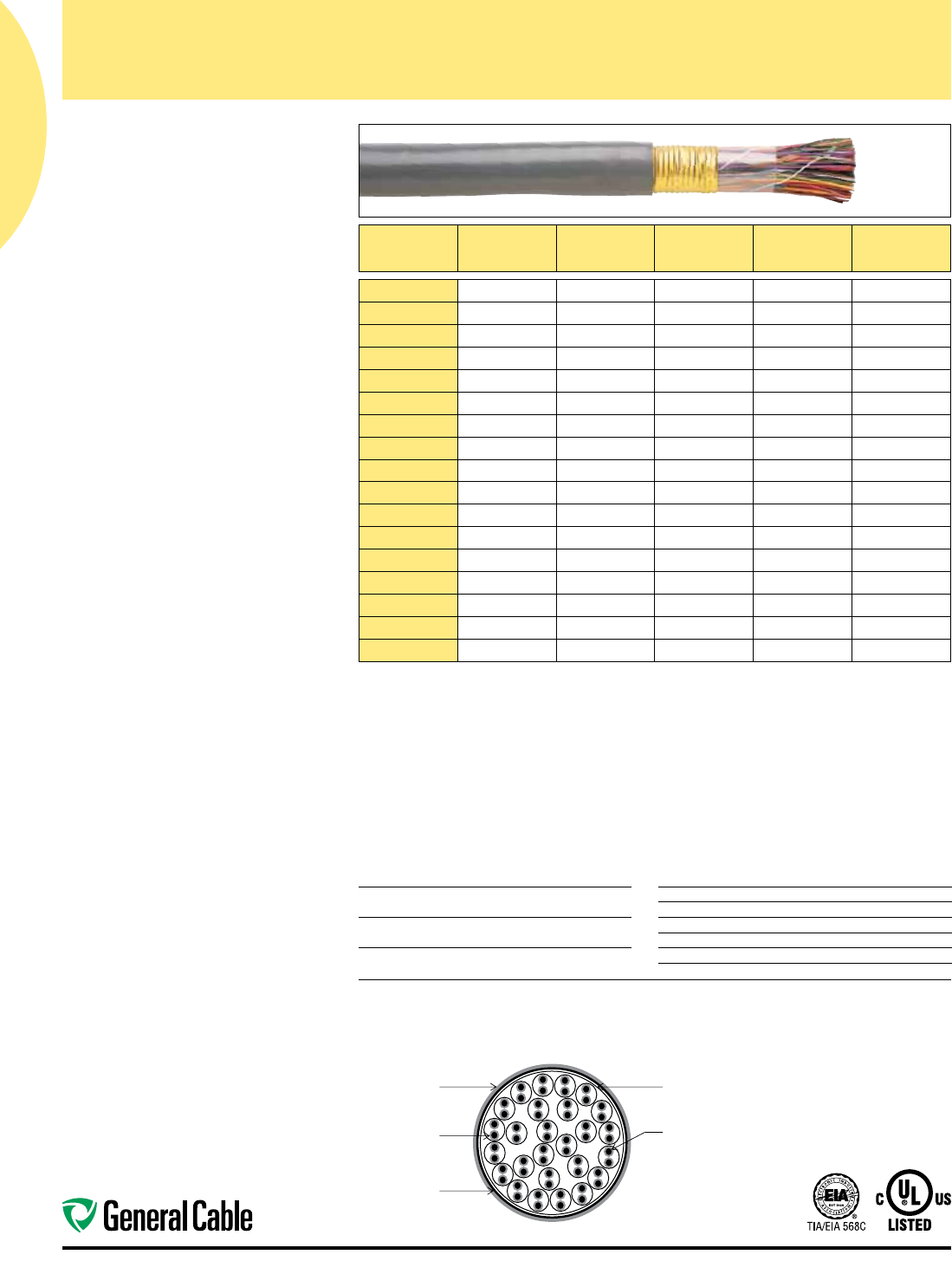

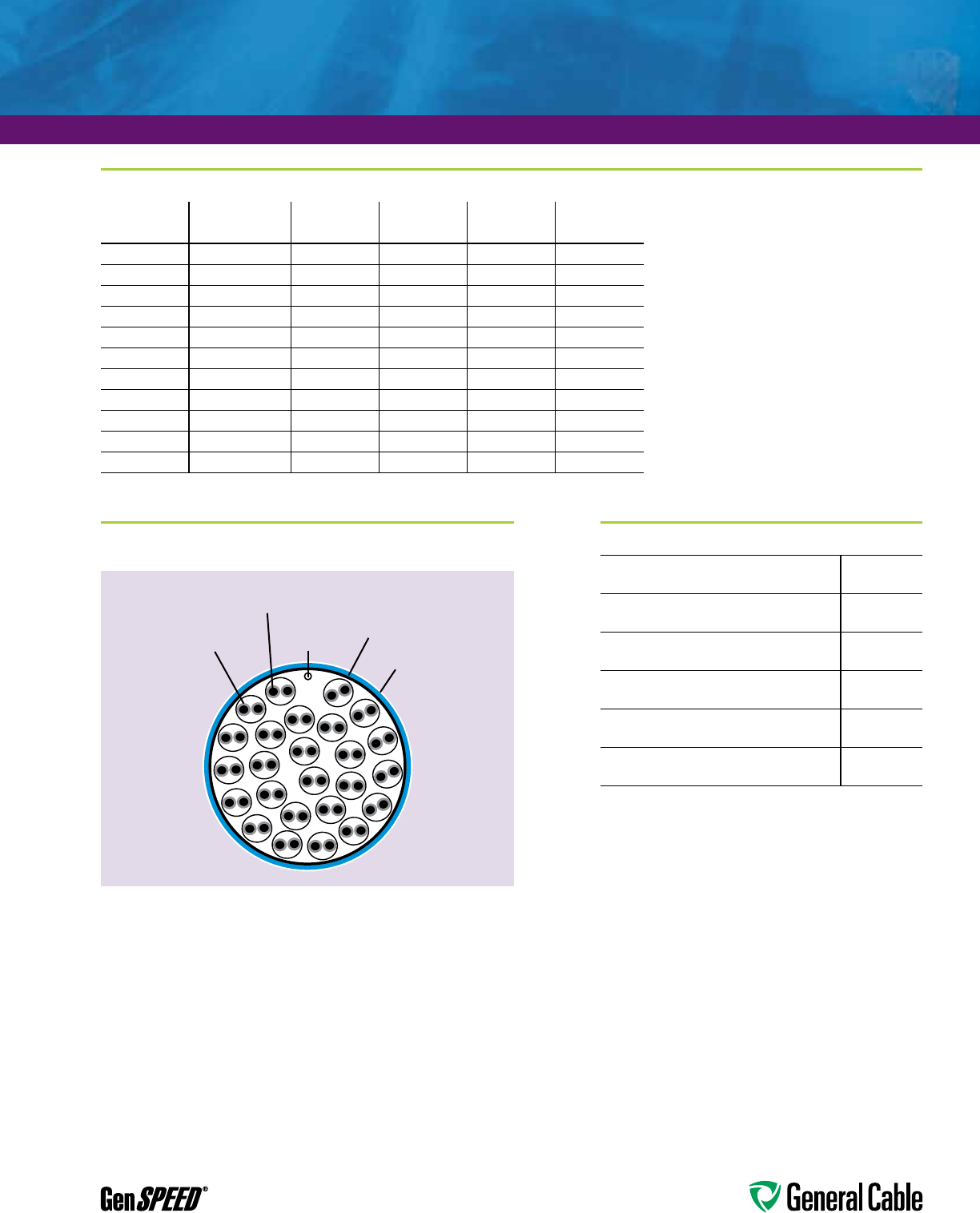

GenSPEED® 5000 Category 5e Backbone 25 Pair Cable 54-55
Category 3 Cables 56-60
Category 3 Plenum 57
Category 3 Non-Plenum 58
Category 3 Screened 59
Category 3 Residential CMX Outdoor-CMR 60
SECTION 5
SECTION 7
SECTION 8
SECTION 9
SECTION 6
3

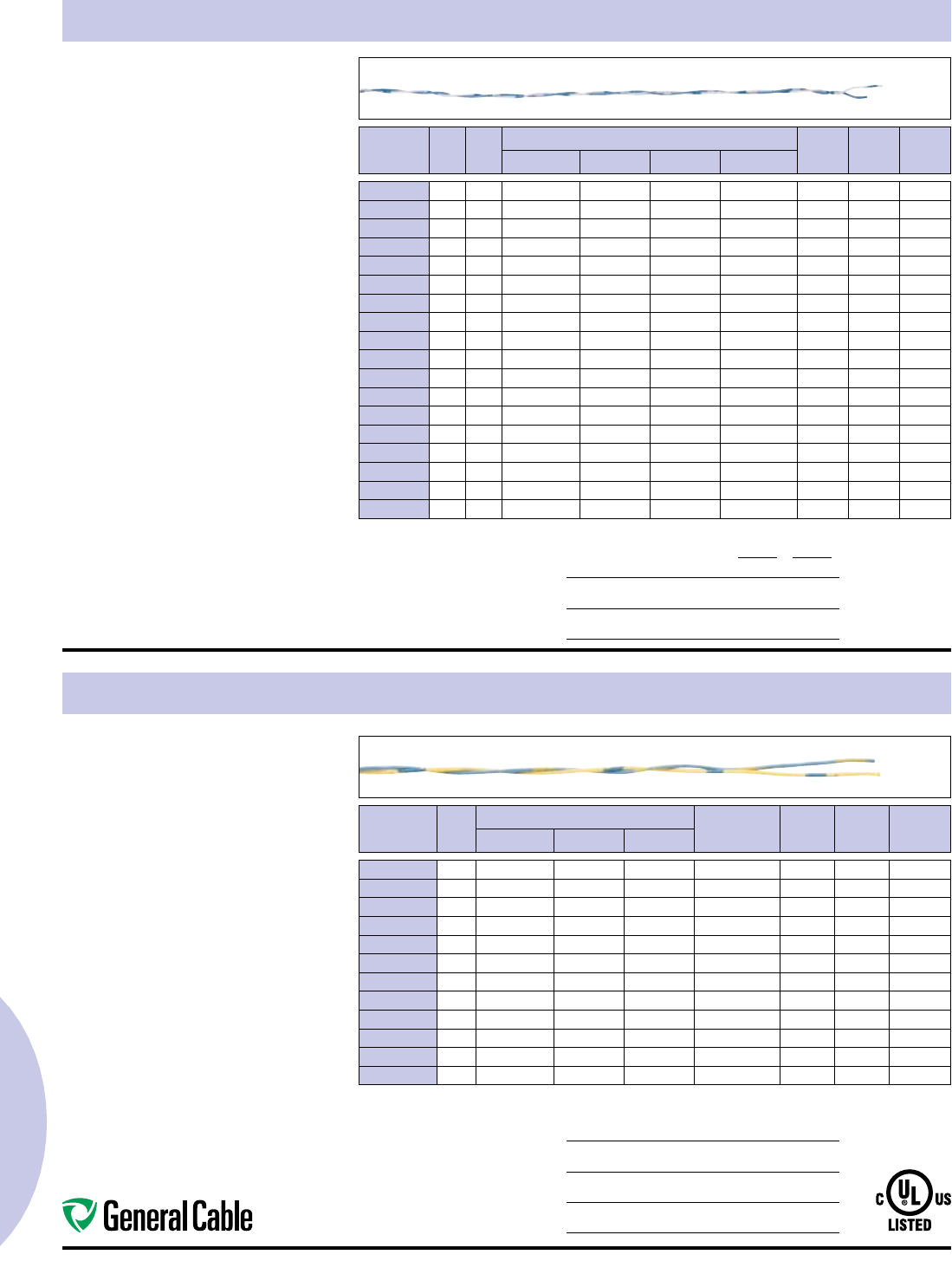

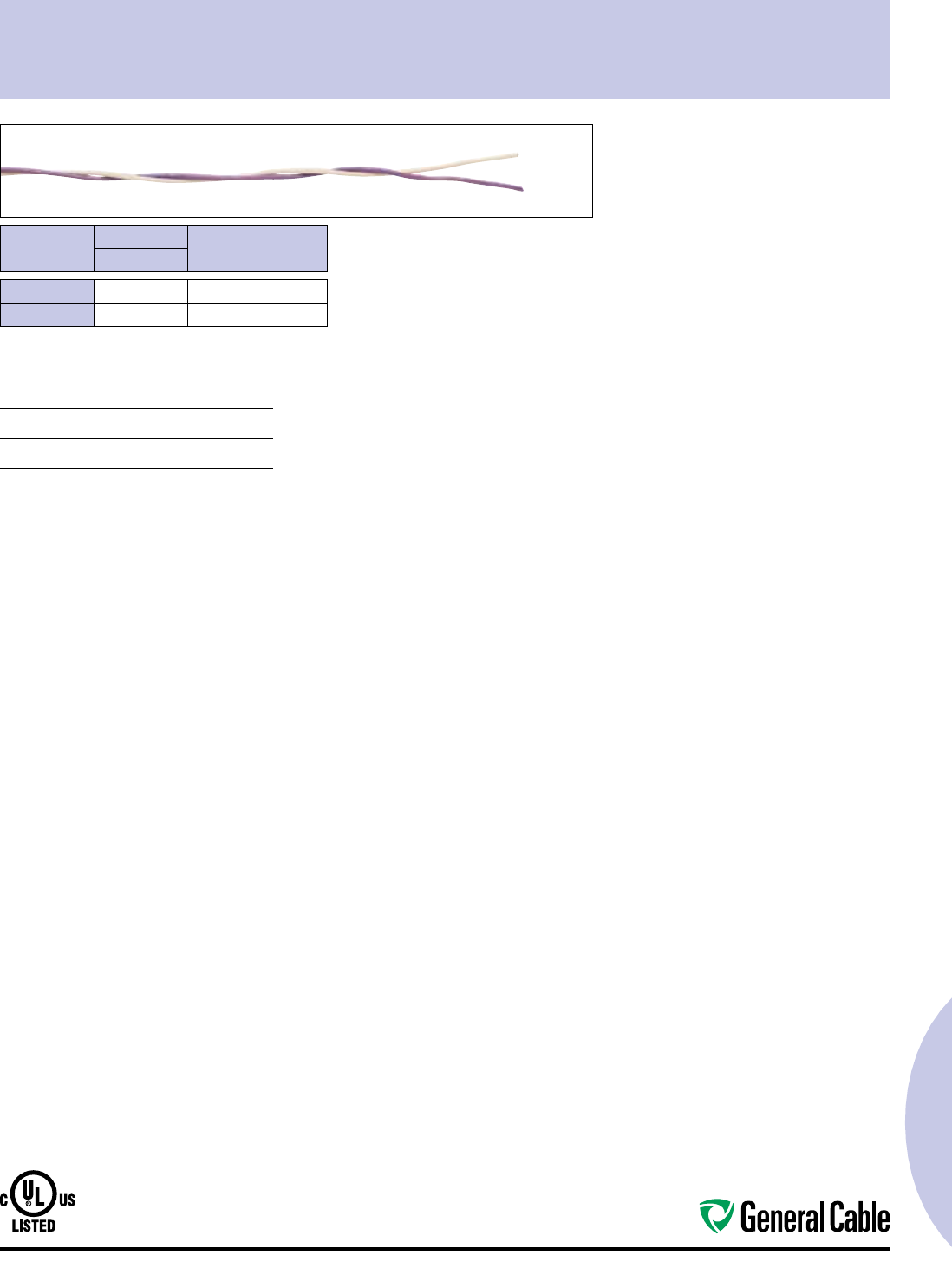

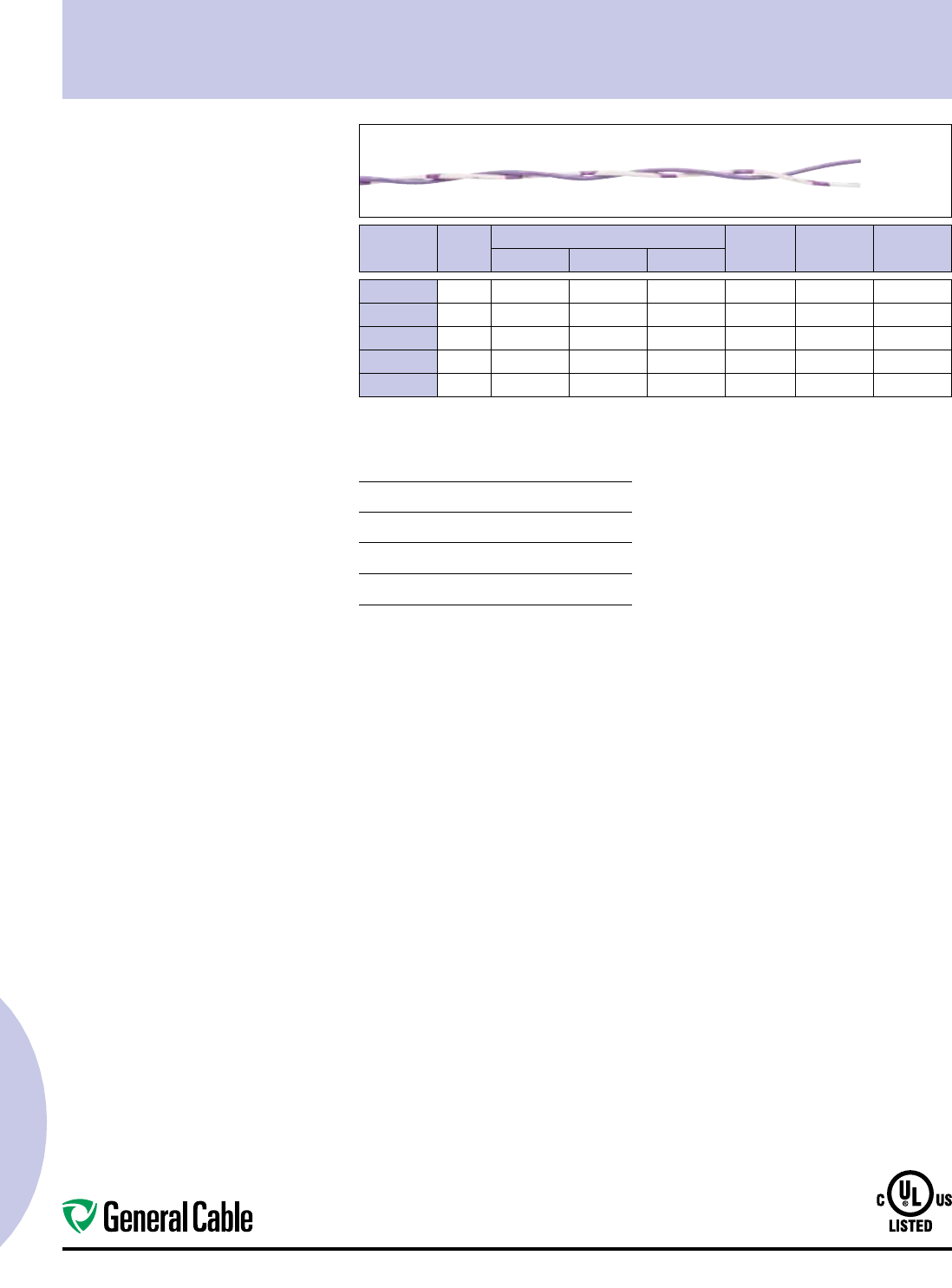

Cross-Connect and Distribution Frame Wire 61-66
Customer Premise Cross-Connect Wire 62
Network Outdoor Cross-Connect Wire 63
Universal Cross-Connect Wire 64
DSX Distribution Frame Wire 65
Distributing Frame Wire 66

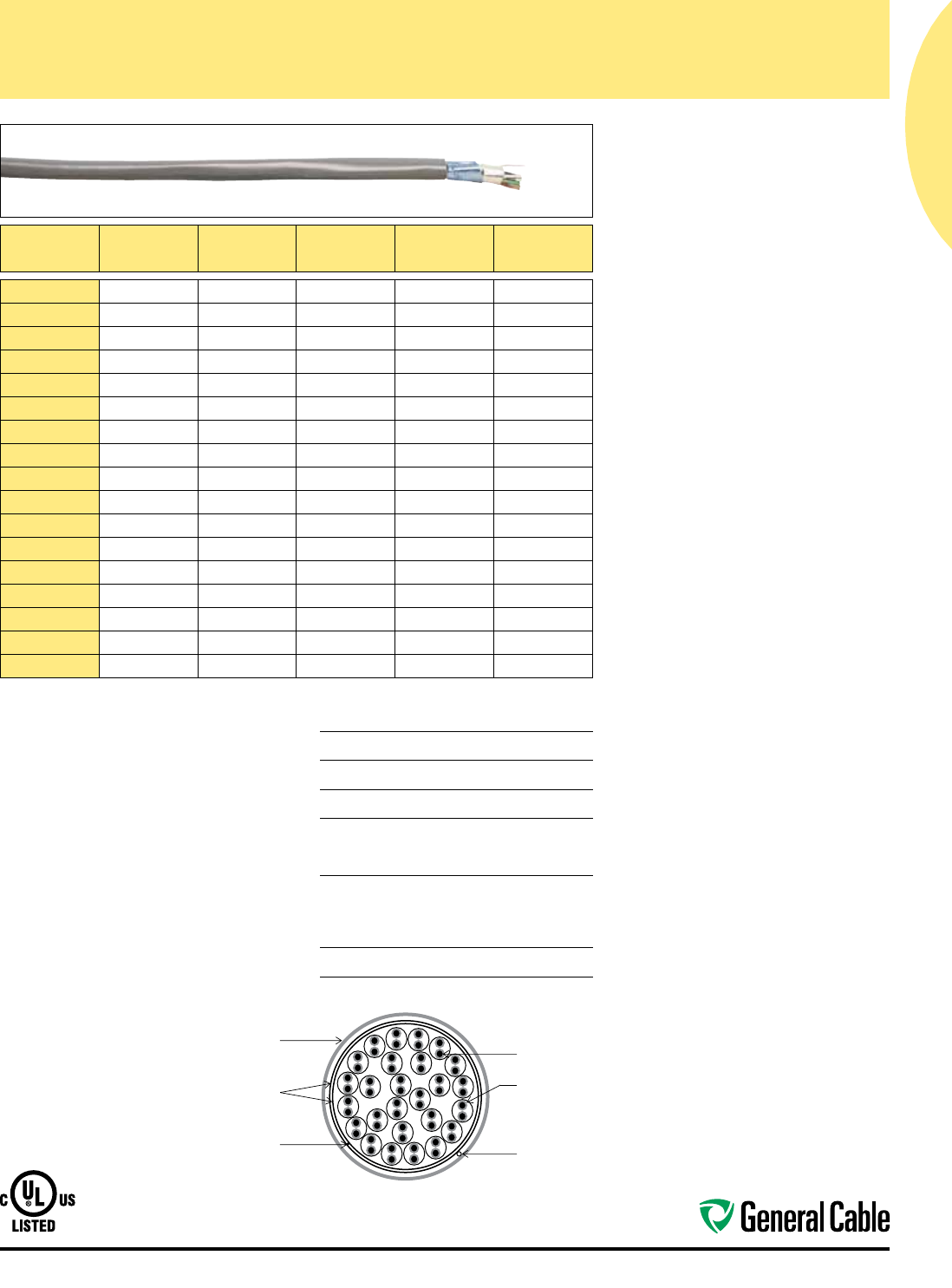

Central Office Cables 67-76
734D Series for DS-3 and DS-4 68
735A/C Series for DS-3 and DS-4 69
Switchboard Cable 70
Shielded Switchboard Cable 71
100 Ohm Individually Braided Shielded Twisted Pair Cable 72
Dual Insulated Dual Shielded Flexible Terminating Cable 73
Tight Twisted Pair Digital Terminating Cable 74
Dual Insulated ALVYN Sheathed Terminating Cable 75
Foam Skin ALVYN Riser 76

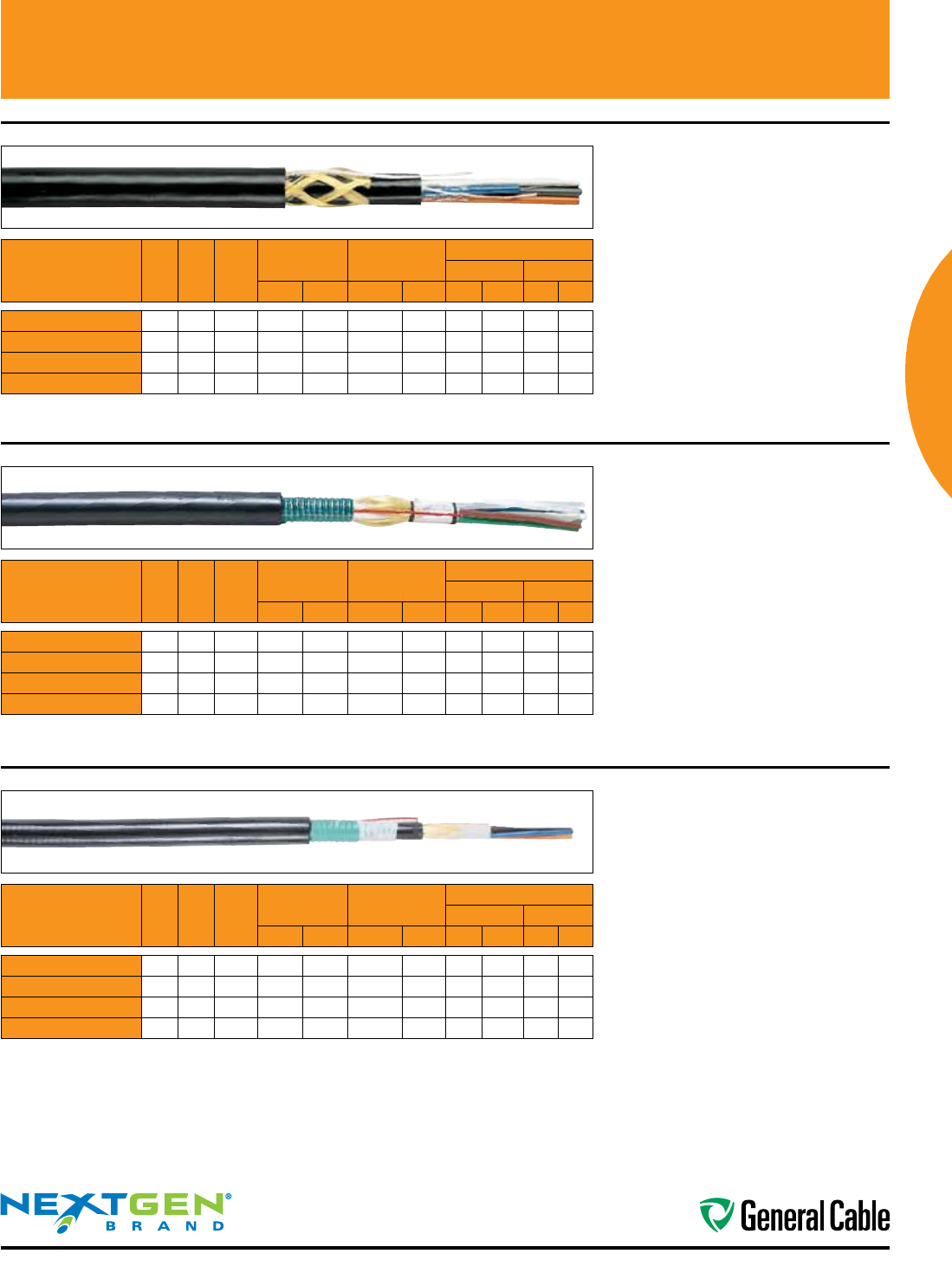

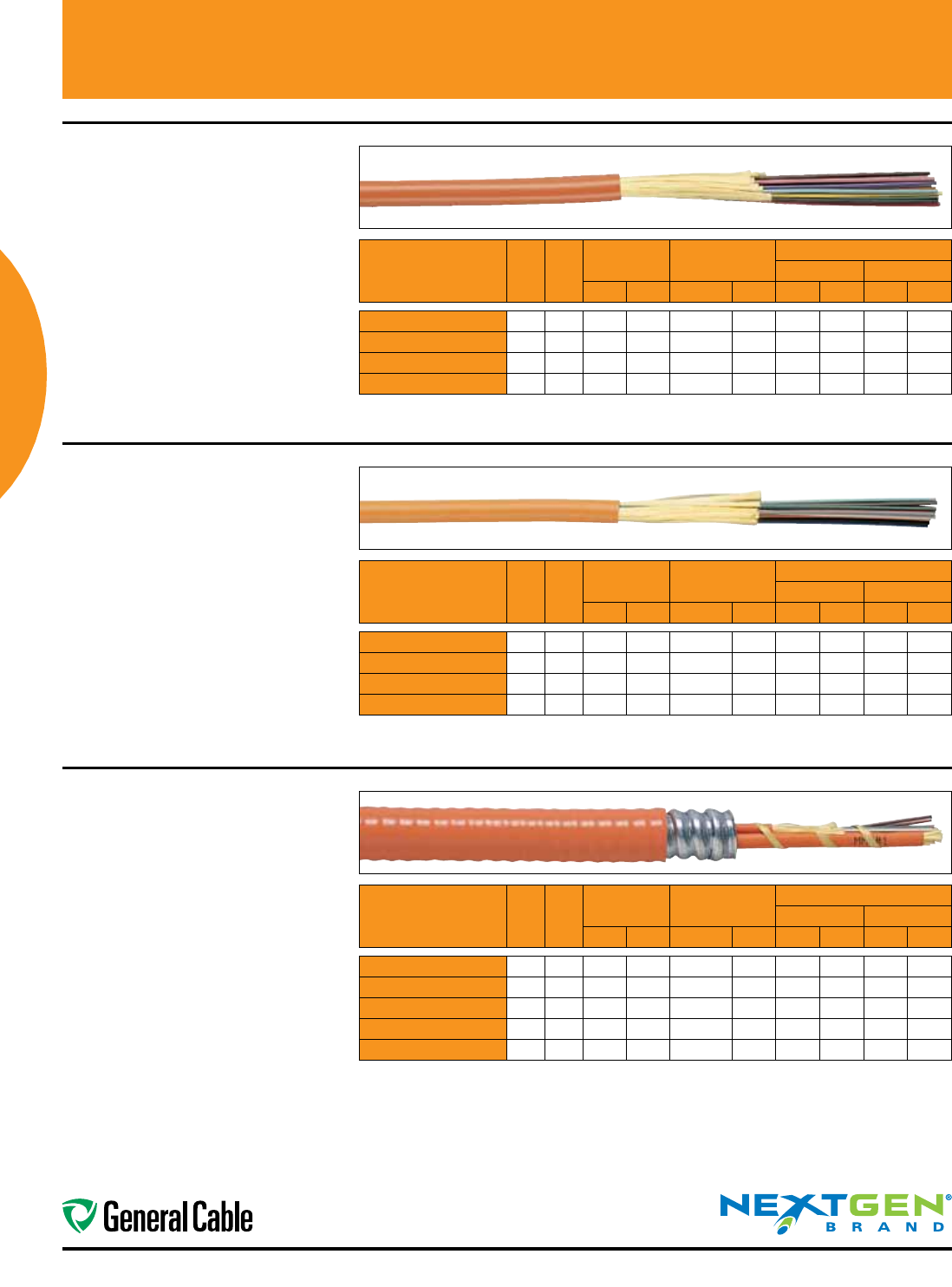

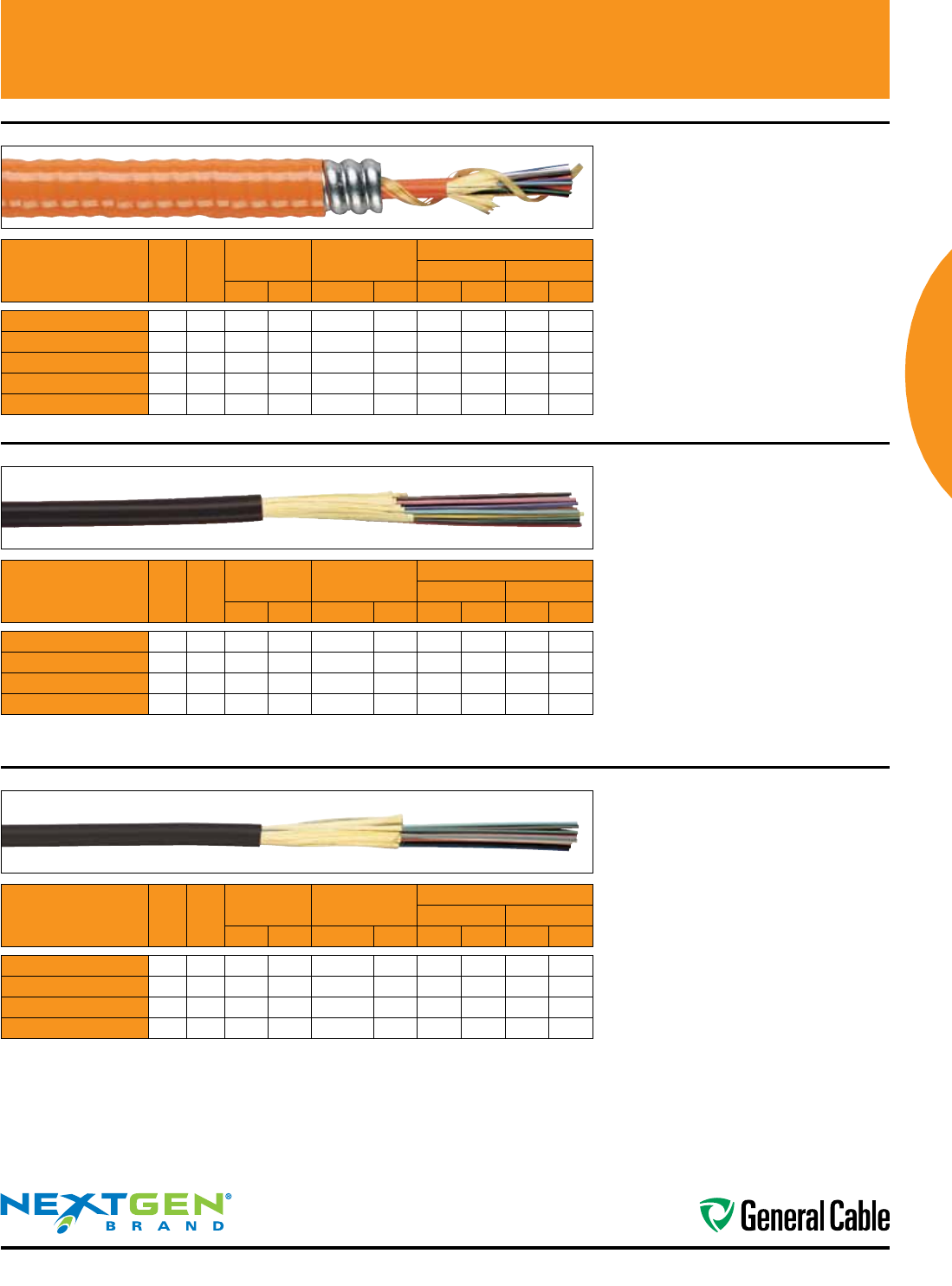

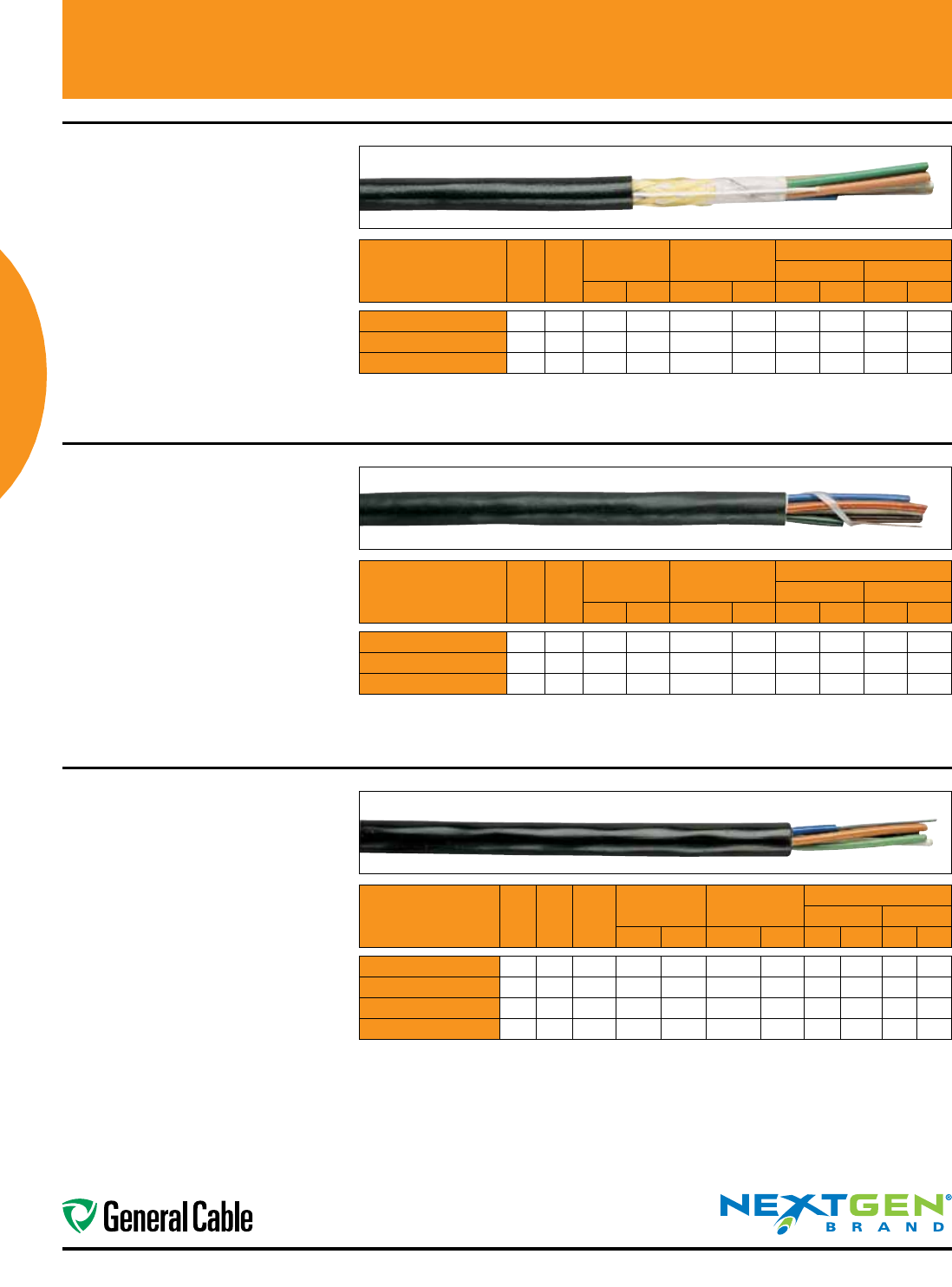

NextGen® Brand Fiber Optic Cables 77-83
General Cable Plus Corning® Optical Fiber 78-79
Fiber Optic Part Number Reference Guide 80-83

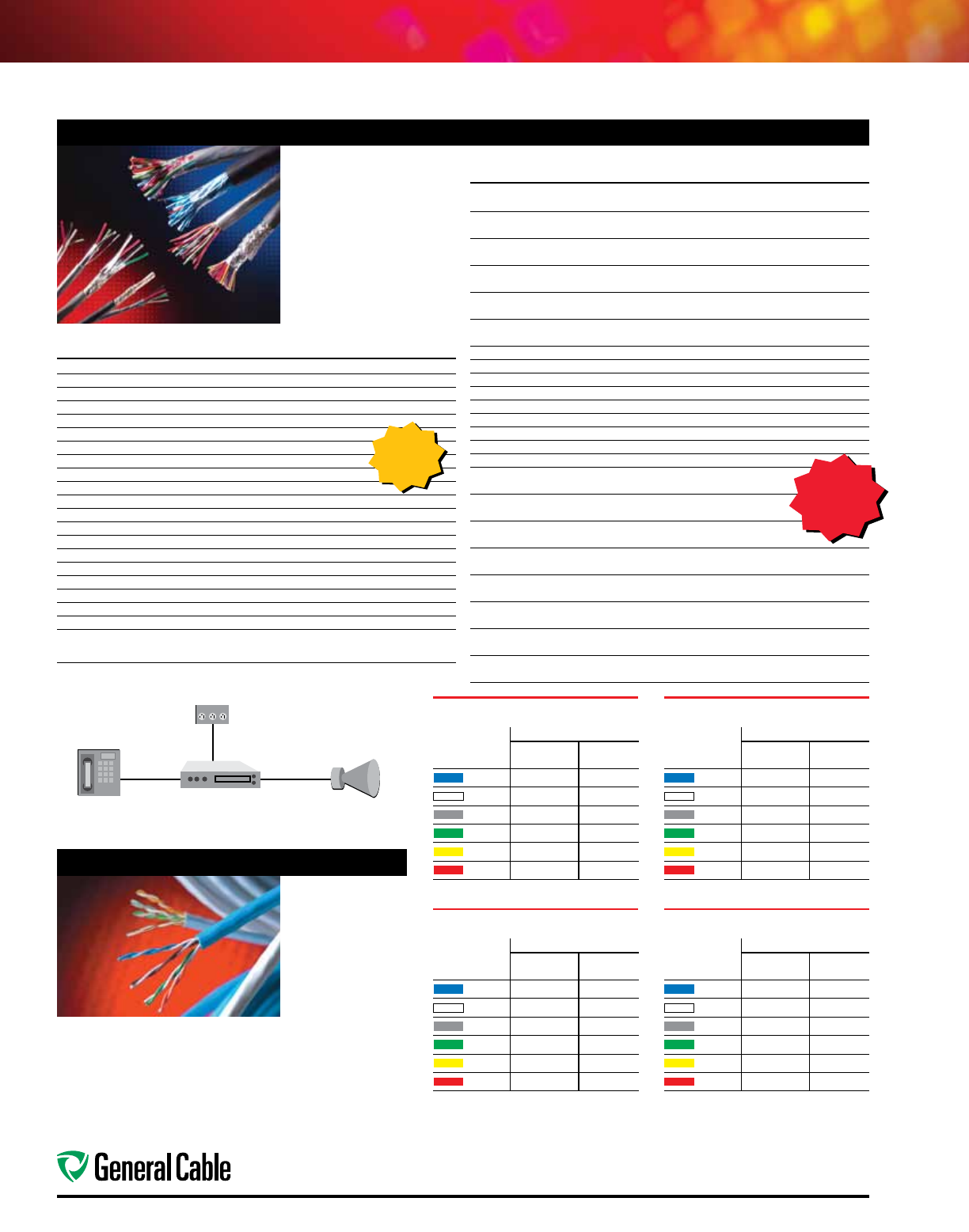

Electronics & Datacom Solutions Guides 84-90

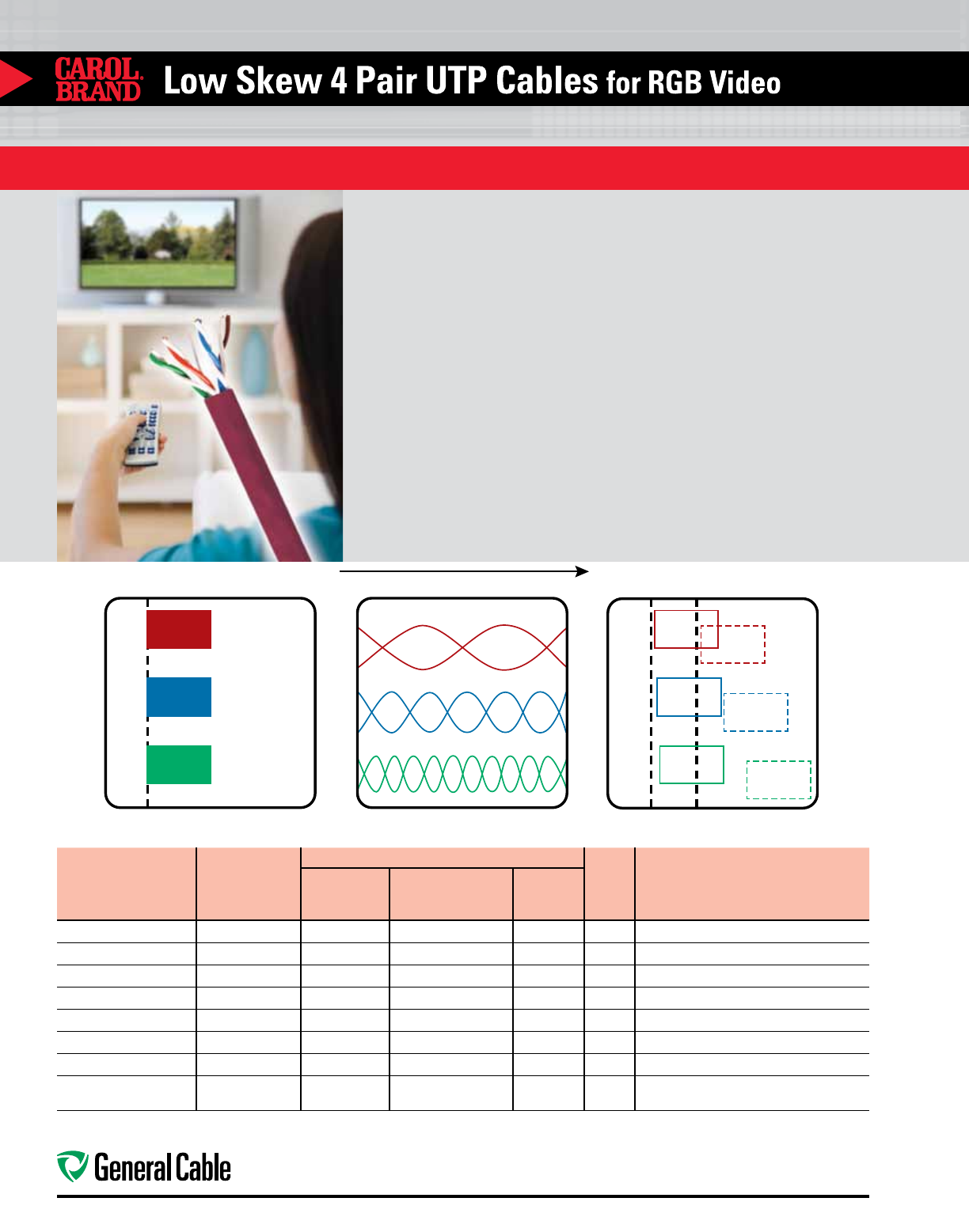

Low Skew 4 Pair UTP Cables 84-85

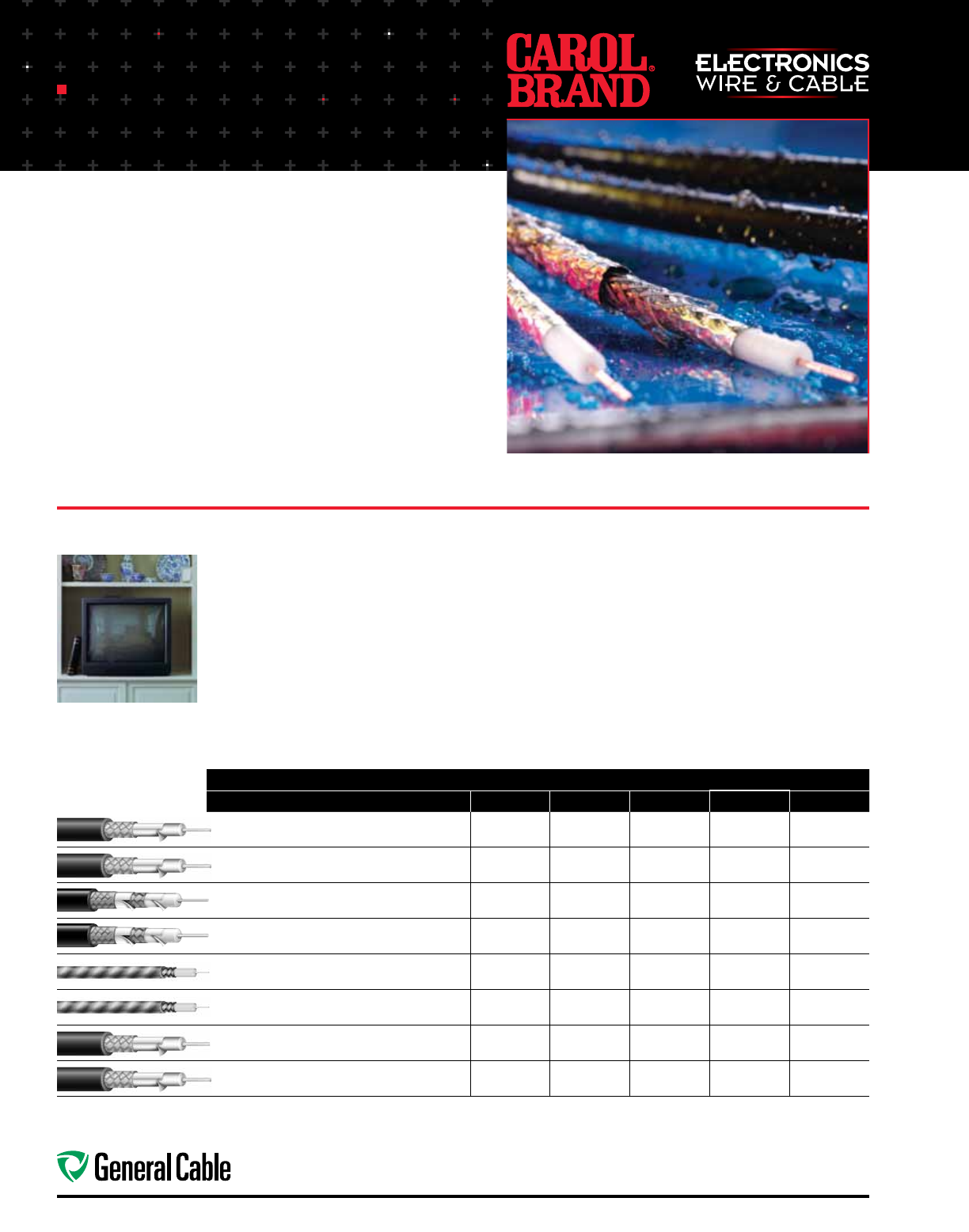

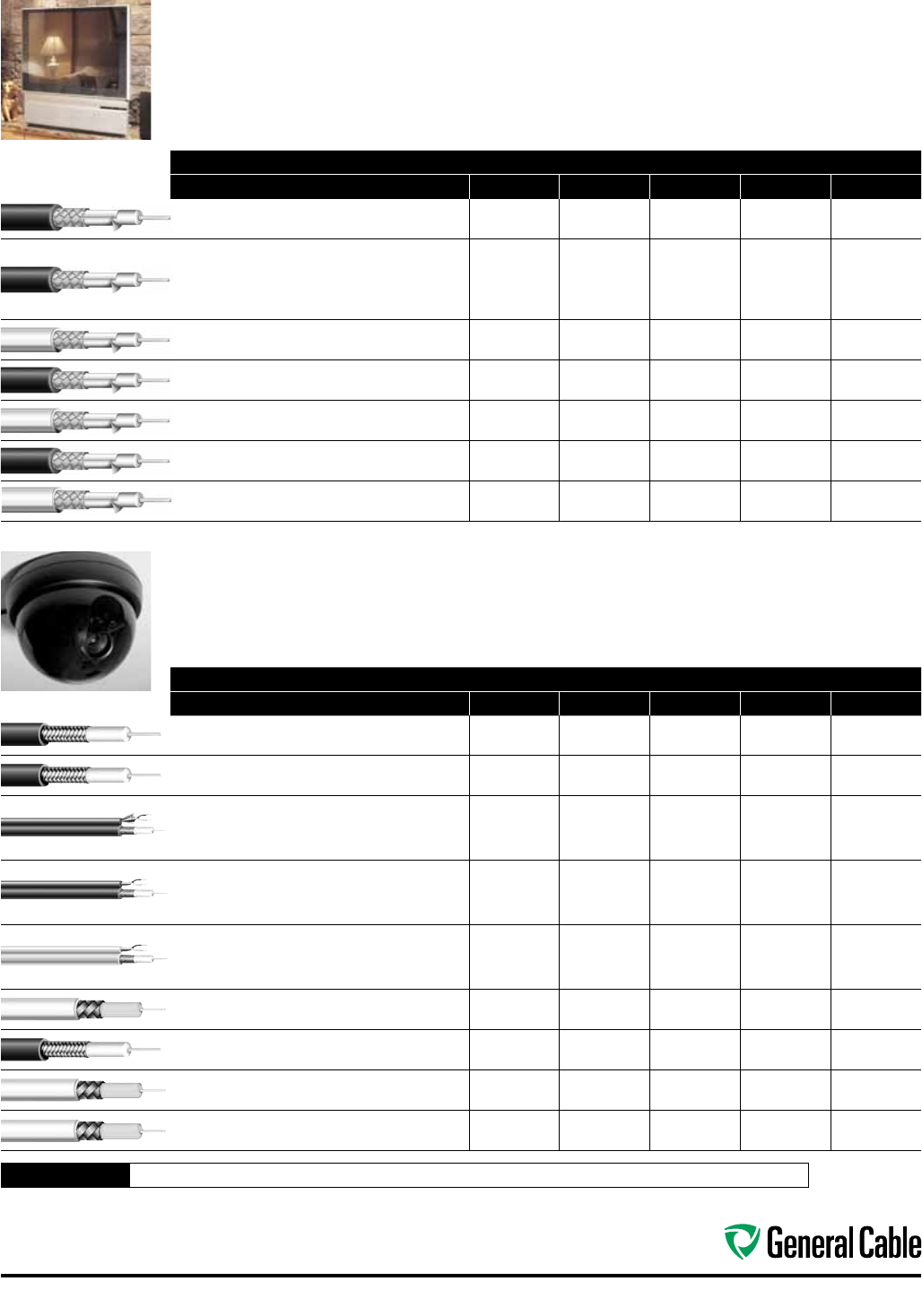

Coaxial Cable Solutions Guide 86-87

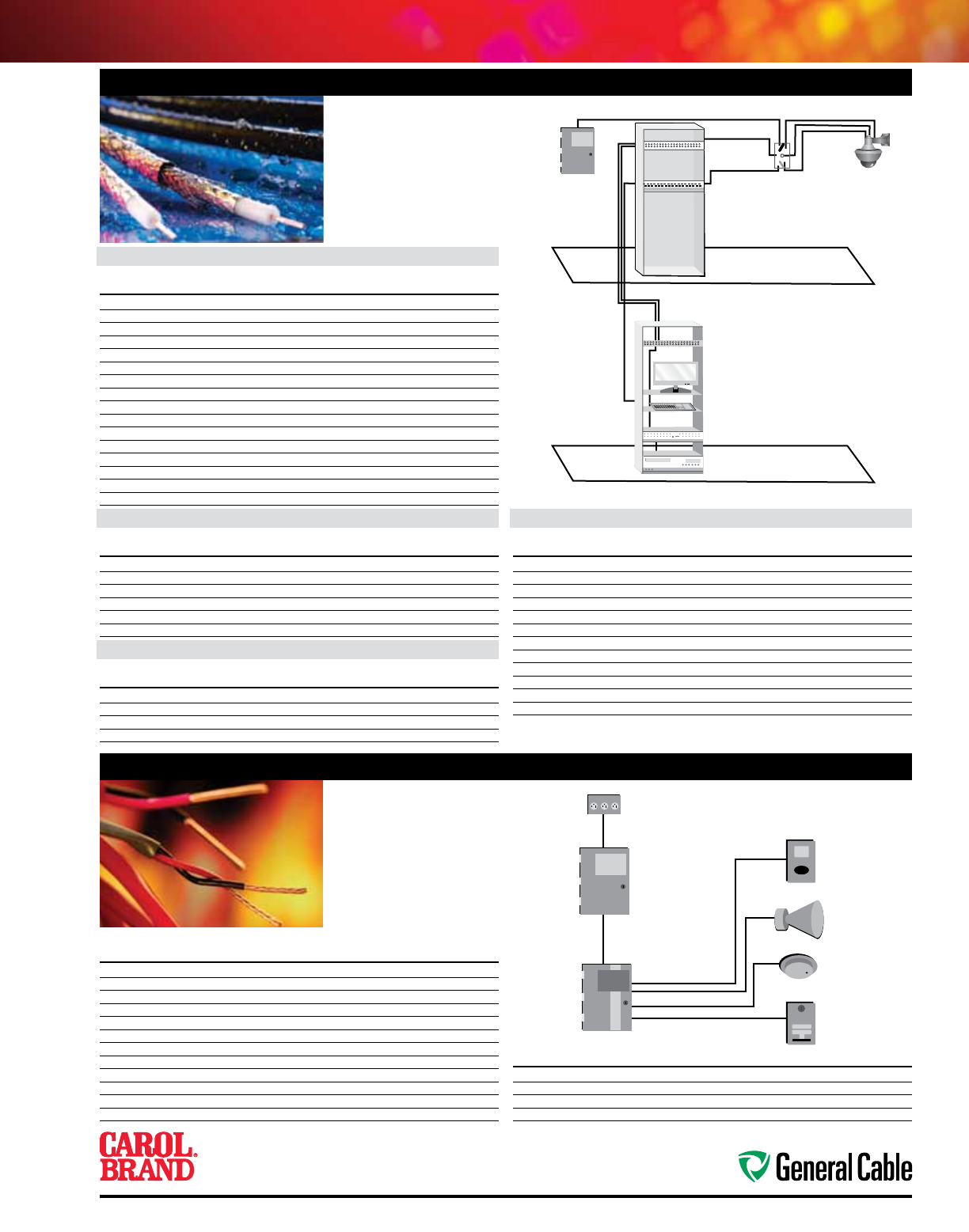

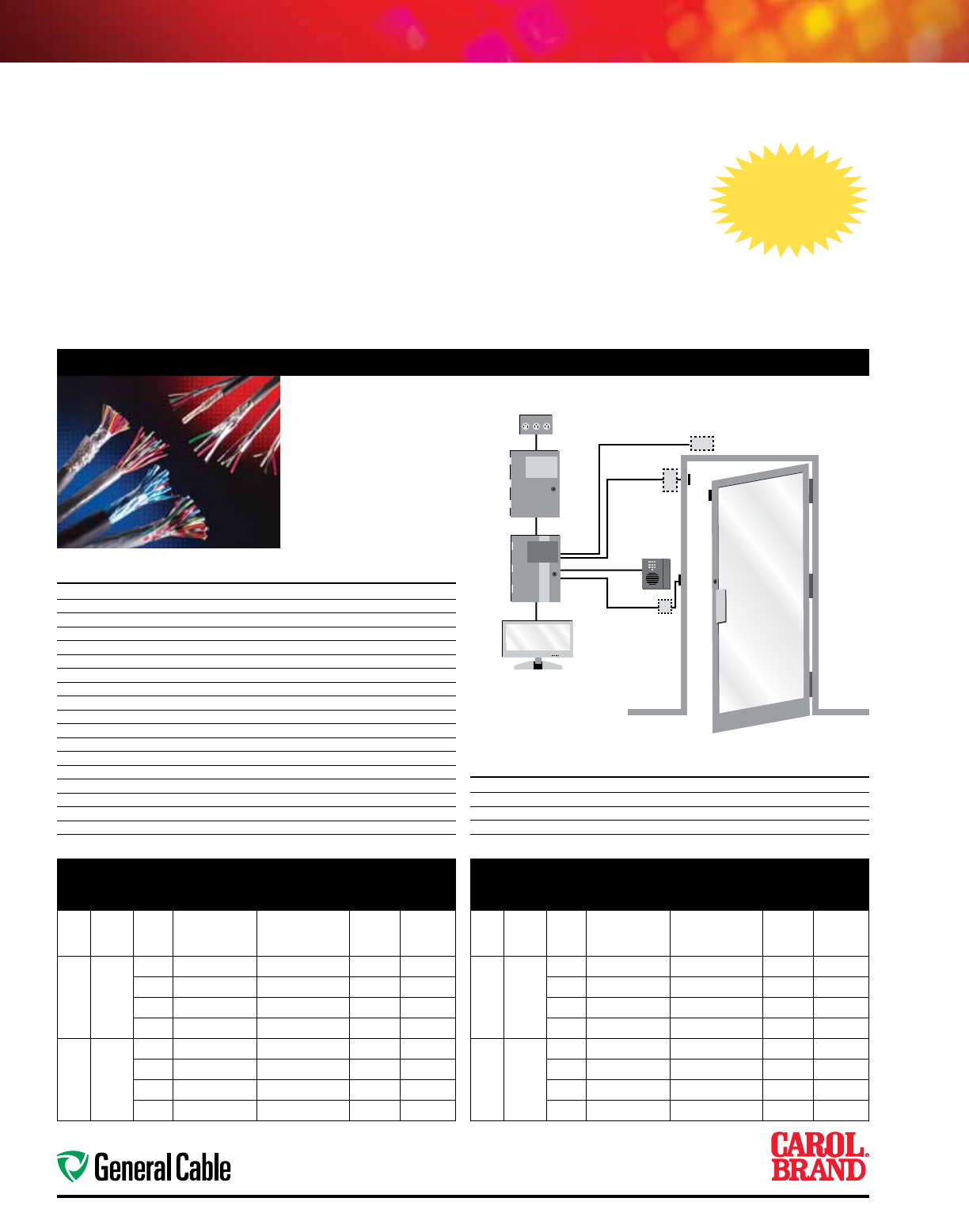

Alarm and Security Solutions 88-90
Technical Information 91-106

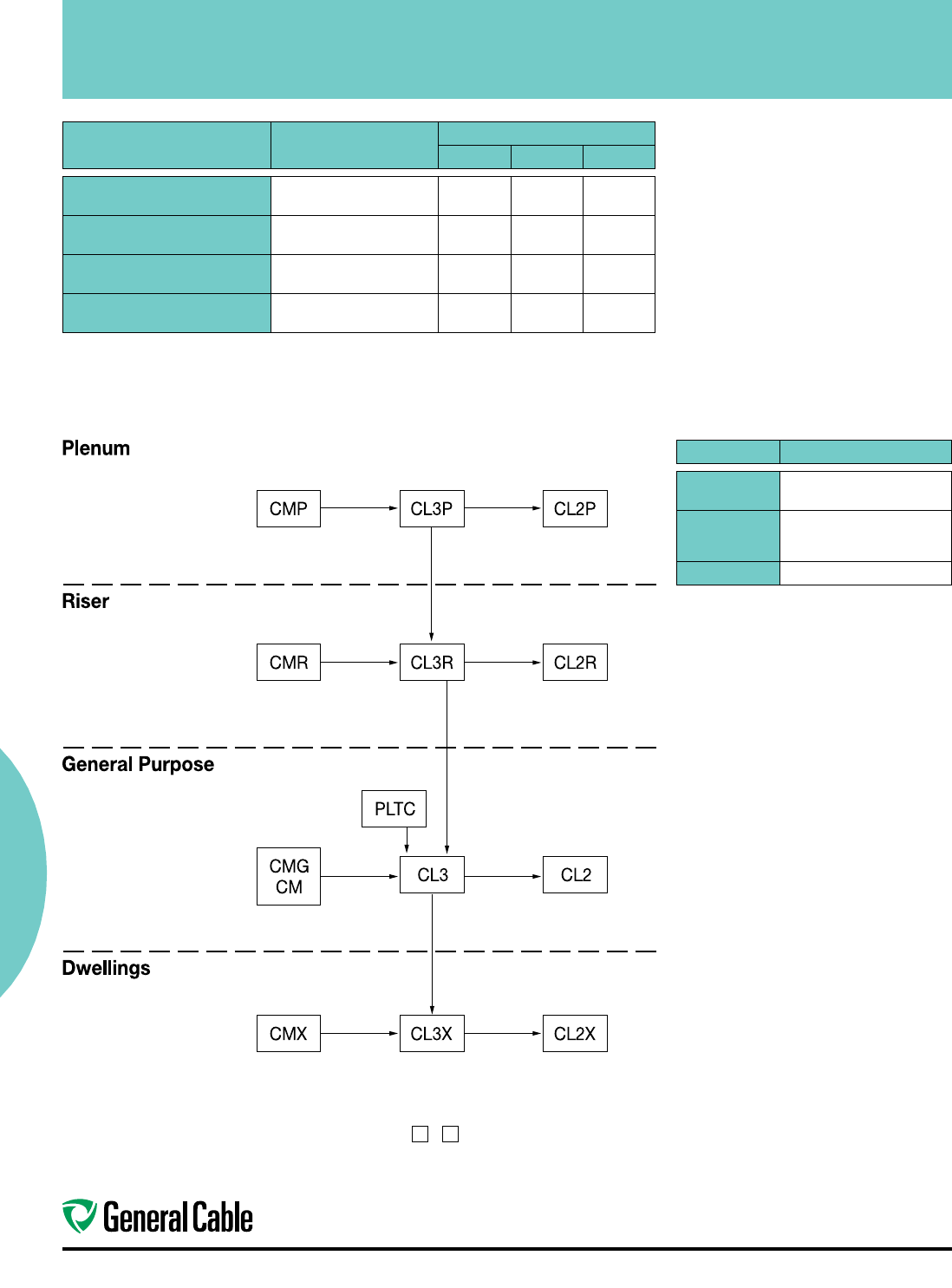

NEC and CSA Fire Resistance Levels 92
Temperature Conversion Chart 93
Color Code Chart 94
Conduit Capacities by Wire or Cable Diameter 95
Commercial Building Datacom/Topology 96-97
Packaging Information 98-99
Industry Standards, Typical Uses and Electrical Requirements 100
Glossary 101-102
Part Number Index 103-106
4
General Cable is committed to exceeding our customers’ expectations for
quality and performance. We strive to ensure this quality through extensive
in-house and third-party testing with strict adherence to our product
specifications and industry standards. As such, our products carry a standard
one-year limited warranty. Additionally, a 25-year extended warranty protection
plan is available for registered products.
Standard Warranty
Products covered are Voice and Data Communications cables, including
Category 3 cable and higher, Fiber Optic cables, Central Office cables (e.g.,
switchboard cable), Terminating cable, and Distribution Frame Wire, Electronics
and Telecommunications (e.g., OSP and OVD) products.
Standard Warranty Term and Conditions
General Cable warrants that its product will conform to its applicable
specifications and will be otherwise free from defects in material and
workmanship for a period of 12 months from the date the product is shipped
from its factory (the “Warranty Period”).
General Cable must be given immediate written notice of any defect and the
opportunity to inspect the product to determine whether a breach of warranty
has occurred. This warranty covers only products installed at the original
installation location. All repairs or replacements covered by this warranty will
be shipped to the destination point specified in the original order. The defective
product will, at General Cable’s option, be either scrapped or returned to
General Cable at its expense and per its shipping instructions.
If General Cable replaces a product under this warranty, the replacement will be
warranted for the balance of the original Warranty Period.
Count on us to
deliver the
solutions that
keep you
connected.
GenAssuranceSM Product Warranty
for General Cable Datacom Products
5
General Cable’s sole responsibility under this
warranty will be to repair or replace, at its option
and expense, any length of product found to be
defective during either installation or normal or
proper use. This warranty does not apply to normal
wear and tear or damage caused by negligence,
lack of maintenance, accident, abnormal operation,
improper installation or service, unauthorized repair,
fire, floods, and acts of God. All costs incidental to
repairing or replacing defective products, including
but not limited to removal, disassembly, reinstallation
and reconstruction, will be borne by the buyer, and in
no event will General Cable be liable for such costs.
THE FOREGOING CONSTITUTES GENERAL
CABLE’S SOLE AND EXCLUSIVE OBLIGATIONS
AND LIABILITIES. GENERAL CABLE MAKES
NO OTHER WARRANTIES ON ITS PRODUCTS,
EXPRESSED OR IMPLIED, INCLUDING
WITHOUT LIMITATION ANY WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. ALL OTHER
WARRANTIES ARE EXPRESSLY DISCLAIMED.
In no event will General Cable be liable for any
incidental, special, consequential or punitive
damages of any nature or kind, however arising,
whether in contract, tort or otherwise, even if
General Cable is deemed to be aware of the
possibility of such damages.
General Cable, in no event, will be responsible for
any claims or damage arising out of or connected
with this warranty or the manufacture, sale,
delivery, installation, or use of the product in
excess of the purchase price of the product.
Extended Warranty
General Cable offers a 25-year limited cable warranty
on Datacom and Electronics products. Registration is
required, and the warranty is administered by General
Cable. To register, please complete the registration
form, found at www.generalcable.com in the Product
Warranty section, and return along with required
documents.
In addition to offering an extended 25-year limited
warranty on Datacom and Electronics products,
General Cable now offers the same extended limited
warranty on OVD and OSP Telecom products. In
order to become eligible for the Telecom extended
GenAssurance warranty, the network project must
use only General Cable Datacom copper and fiber
for the structured cable portion (horizontal cable and
inside backbone). Upon meeting this criteria, submit
the completed registration documents to General
Cable, and the extended GenAssurance warranty will
be provided for the Telecom cable products.
Datacom System Warranties
System warranties include the link and channel.
End-to-end warranties are typically issued by the
connectivity partner.
• Premier Connectivity Partner – Panduit
Registered PanGen and NetGen solutions have a
25-year warranty that covers repair or replacement
of defective components and one point of contact
for all cable and component inquiries. The warranty
is issued by Panduit and maintained by both Panduit
and General Cable. Additional program information
can be found at www.pangensolutions.com.
Additional connectivity partners include:
• Allen-Tel • Hubbell
• Leviton • Siemon
6
DATACOM
Quality is Forethought.
General Cable is committed to exceeding our customers’ expectations for quality and performance.
We strive to ensure this quality through extensive in-house and third-party testing, with strict adherence
to our product specifications and industry standards. At General Cable, quality is not just a process, it
is forethought. It is the forethought of using the best materials and proactive prevention. This level of
quality is best represented in three core steps: Design, Technology, and Control.
General Cable Corporation is committed to developing, producing, and marketing products that meet
the performance, quality, value and safety requirements of our customers by continuously improving all
areas of our business. We apply Lean Sigma Company-wide, seeking innovative ways to differentiate our
products and services and to serve as our customers’ and suppliers’ most valued business partner.
7
DATACOM
“Quality is not
something that is
achieved and then
forgotten, but
something that we
work to improve
every day by
continuously
focusing on design,
technology, and
control. Improved
product designs and
investment in people
and equipment are
all part of our quality
commitment to you.”
Greg Lampert,
President and CEO,
General Cable
North America
TECHNOLOGY
CONTROL
DESIGN
Testing Equipment – General Cable replaced differing quality testing equipment in every
plant. Consistency increases among test results throughout the plants, since all test
parameters are set to exact specifications while checking attenuation and return loss.
Remote Plant Monitoring – General Cable transfers all data tests from every product
sampling to a universal database. Any General Cable employee can access the database and
confirm the results of all products shipped from our plants.
Trending – General Cable observes test result patterns for every single product originated in
the plants. If any product veers from top performance, our proactive steps will correct the
issue instantaneously.
Outside Vapor Deposition – General Cable uses optical fiber manufactured by an outside vapor deposition (OVD) process.
This produces fiber with greater consistency of bandwidth across the entire length of the cable, translating into better
performance and higher quality.
General Cable employs Lean Sigma, which is a management philosophy that combines the views of Lean and Six Sigma.
Lean focuses on the continuous process of eliminating waste and non-value-added activities to improve the flow of
information and materials. Six Sigma utilizes the DMAIC problem-solving methodology to identify and eliminate sources of
variation that affect product characteristics that are critical to the customer’s perception of quality. Combining and applying
these systems across all business processes maximizes quality and service to the customer while improving overall value.
General Cable has more than doubled product sampling rates for quality and control. Including several checks and balances
in the process at both pre- and post-packaging steps ensures our products maintain electrical and physical specifications
before leaving the plant. General Cable improved production lines by investing in new manufacturing and test equipment.
These updates increase the consistency of all products manufactured throughout the plants. Centralized databases provide
constant monitoring of product quality and “Engineering on the Fly” capabilities to aid in the development of new products.
Compliances
ISO – General Cable’s manufacturing facilities are certified to the ISO 9001:2000 quality standard. This standard assures
that formalized business processes are being implemented to ensure efficiency, quality, and continuous improvement.
RoHS is the restriction on hazardous substances, a European Union directive that restricts use of heavy metal substances.
At General Cable, we strive to be an environmentally responsible company. As such, all of our applicable Datacom products
are certified or being upgraded to the RoHS standard.

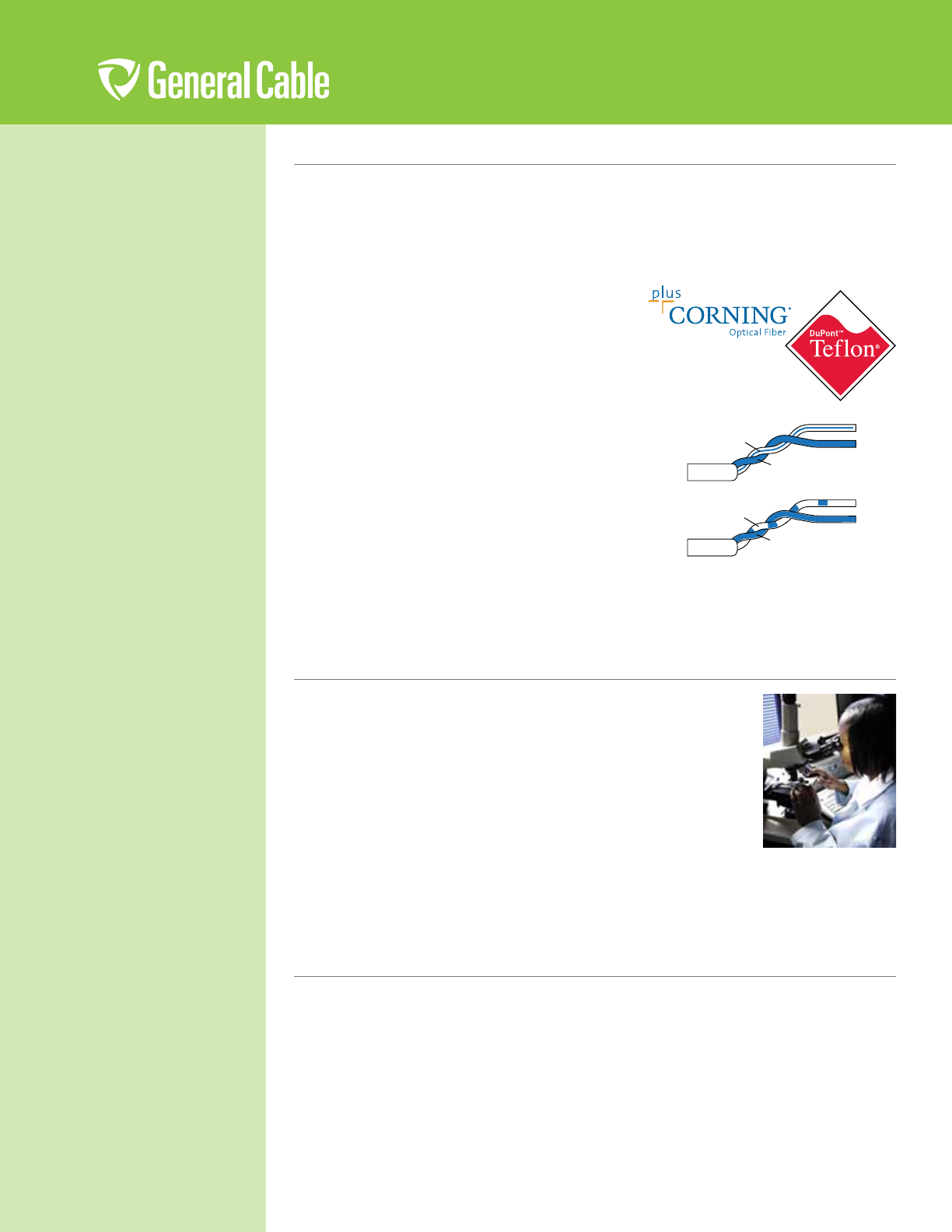

Materials
Quality is what you put in your product. General Cable is proud to be
partnered with industry-leading material suppliers. Names such as DuPont
and Corning are synonymous with product excellence and innovation.
Their premium materials are infused into General Cable’s copper and fiber
optic data communication cables, making our products top-line quality.
Striping and Color
General Cable Datacom Category 6 products are transitioning to striped
marking. This extruded marking method provides for deeper, continuous
differentiating colors along the entire length of the insulated conductors.
General Cable has increased the color chip used for our category cables
for maximum color vibrancy.
Packaging
General Cable made packaging enhancements to address tangling and kinking of cable during installation. The standard
spool-in-a-box for our Category 6 family of products is now offered in an EZ-Brake Spool-Pac® box with knobs to adjust
tension control and pulling speeds. We also redesigned our Pull-Pac® cartons by shaving off the tabs, lengthening the tube
and securing the collar to the box.
STRIPED
Pair 1
Pair 2
W/BL
BL
BANDED
Pair 1
Pair 2
W/BL
BL
Our Green Initiative symbol recognizes our role
and responsibility in promoting sustainability.
The symbol also reflects our commitment to achieving
industry-leading standards and responding
proactively to environmental global issues.
Visit www.generalcable.com
Select “company”, then select “environmental”
Look for our products with the RoHS symbol
for your green building initiatives.
8
General Cable is a leader in the
development, design, manufacture,
marketing and distribution of copper,
aluminum and fiber optic wire and cable
for the energy, industrial, specialty and
communications markets.
Our products inspire progress worldwide …
customers use our value-added products
to create global infrastructure that
improves the standard of living for
people everywhere.
Each day we’re building business
momentum — developing ideas into
innovative solutions and industry-leading
products, expanding geographic access and
furthering our investment in highly capable
associates, Lean Manufacturing, material
science and technology resources.
General Cable is influencing the world … with more than two-thirds
of our sales generated outside North America and more than 11,000
associates in 47 manufacturing facilities throughout 25 countries.
As one of the largest wire and cable manufacturers, we are the
One Company Connecting the World.
Energy Cables
Our cables carry energy across the world — through the air,
underground and under the sea. Increasing demand for energy is
accelerating investment in exploration, extraction, power generation,
transmission and distribution — whether based on coal, natural gas,
oil, nuclear, wind, solar or water.
Industrial & Specialty Cables
Our cables channel the power and signals that make equipment hum
and engines run. From oil rigs and broadcast studios to cars and trains,
and in commercial buildings, public venues, factory floors and special
applications such as military, nuclear, marine and mining — we serve
an extensive range of markets.
Communications Cables
Our cables keep information flowing — facilitating a non-stop stream
of words and images around the world. We meet the high-speed
bandwidth needs of global communications networks from fiber
optic submarine communications cables, copper and fiber aerial and
underground cables to copper and fiber optic enterprise cables and
system solutions.
World Headquarters
General Cable
4 Tesseneer Drive
Highland Heights, KY
41076-9753 U.S.A.
Building Bridges in the Sky
Making Contact with the World
Directing Traffic without Gridlock
9
Index Page
GenSPEED® Category 6A
Quick Reference Guide
11
GenSPEED® 10 MTP™
Category 6A Cable 12-13
GenSPEED® 10,000
Category 6a
U/FTP (STP) Cable 14-15
GenSPEED® 10,000
Category 6A
F/UTP (ScTP) Cable 16-17
GenSPEED® 10,000
Category 6a Cable 18-19
GenSPEED® 10,000
with 17 FREE™
Category 6a Cable 20-21
General Cable recognizes that application and performance needs may vary,
which is why the Company is pleased to now offer four 10 Gigabit solutions:
GenSPEED® 10 MTP™ Category 6A 10 Gig Cable; GenSPEED® 10,000
Category 6a 10 Gig Cable; GenSPEED® 10,000 Shielded Category 6a 10 Gig
Cable; and NextGen® OM3 Fiber Optic 10 Gig Cable.
General Cable’s industry-leading 10 Gig solution, GenSPEED 10 MTP
Category 6A Cable, featuring the new revolutionary Mosaic Crossblock™
technology, provides an Unshielded-Twisted Pair (UTP) cable that performs
like a Shielded or Foiled-Twisted Pair (STP/FTP) cable.
GenSPEED 10 MTP’s Mosaic Crossblock technology shields the cable from
noise coming from external cable sources, which is referred to as alien
crosstalk (PSANEXT and PSAACRF). The Mosaic Crossblock was carefully
designed with metallic blocks separated by an insulating layer. Since there is
no metal-to-metal contact, there is no path for current to flow longitudinally,
and thus, no need for grounding.
General Cable’s second offering, GenSPEED
10,000
Category 6a Cable,
is a cost-effective, standard-compliant 10 Gig UTP cabling option designed
to meet ANSI/TIA 568 C.2. Perfect for component upgrades, this cable
is fully backward-compatible to legacy infrastructures and prepares your
system for future 10 Gigabit applications. GenSPEED 10,000 solves the
One Gigabit limitation of Category 5e and Category 6 and is an ideal solution
for bandwidth-intensive applications.
Next is General Cable’s
GenSPEED
10,000 Category 6a Shielded 10 Gig
Cable.
GenSPEED
10,000 Shielded is an STP cable with individually shielded
pairs for optimized isolation between pairs and immunity from external noise
characterized by powersum alien crosstalk (PSANEXT) in cable bundles. Shields
are an extremely effective way of protecting the cable from outside noise
(“alien sources”) by moving the electromagnetic energy away from the pairs
and directing it through the shield and drain wire to the ground. Of course,
STP cables are only effective if they are properly grounded.
GenSPEED
10,000
Shielded offers you the ultimate PSANEXT protection.
Last but not least, General Cable rounds out its 10 Gig offering with
NextGen OM3 Fiber Optic Cable, the optimum in 10 Gb/s fiber (which
can be found in our Fiber Optic Catalog). General Cable has partnered
with Corning® Optical Fiber to supply you the world’s most technologically
advanced optical fiber cables. The bandwidth is ensured by minEMBc, and
uniformity provides field performance of shorter lengths. With 100% testing
on this product, you don’t have to worry about performance and reliability.
Your cabling system will be future-proofed, because all NextGen 10 Gb/s
fiber exceeds the specifications to which it is sold, typically allowing for
more system margin and extended reach.
GenSPEED ® Category 6A Enhanced Cables 1
10
Datacom
STANDARD ENHANCED PREMIUM
JACKET
COLOR PACKAGE
Category 6a
GenSPEED® 10,000
Category 6a
GenSPEED® 10,000 Shielded
Enhanced Category 6A
GenSPEED® 10 MTP™
CMR CMP CMR CMP CMR CMP
Blue
Pull-Pac®
Spool-Pac®
Spool 7133819 7131819 7133786 7131786 7133849 7131849
White
Pull-Pac®
Spool-Pac®
Spool 7133820 7131820 7133787 7131787 7133850 7131850
Yellow
Pull-Pac®
Spool-Pac®
Spool 7133822 7131822 7133788 7131788 7133852 7131852
Gray
Pull-Pac®
Spool-Pac®
Spool 7133821 7131821 7133789 7131789 7133851 7131851
Red
Pull-Pac®
Spool-Pac®
Spool 7133824 7131824 7133790 7131790 7133854 7131854
Orange
Pull-Pac®
Spool-Pac®
Spool 7133826 7131826 7133791 7131791 7133856 7131856
Green
Pull-Pac®
Spool-Pac®
Spool 7133823 7131823 7133792 7131792 7133853 7131853
Black
Pull-Pac®
Spool-Pac®
Spool 7133828 7131828 7133858 7131858
Pink
Pull-Pac®
Spool-Pac®
Spool 7133827 7131827 7133857 7131857
Purple
Pull-Pac®
Spool-Pac®
Spool 7133825 7131825 7133830 7131830 7133855 7131855
Note: Non-stock items may be subject to minimum order quantities.
GenSPEED ® Category 6A Quick Reference Guide
11
Datacom GenSPEED® Category 6A Enhanced Cables
12
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White
•Pair2:Orange-White
•Pair3:Green-White
•Pair4:Brown-White
Separator
•Cross-Web
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,
Flame-RetardantPVC

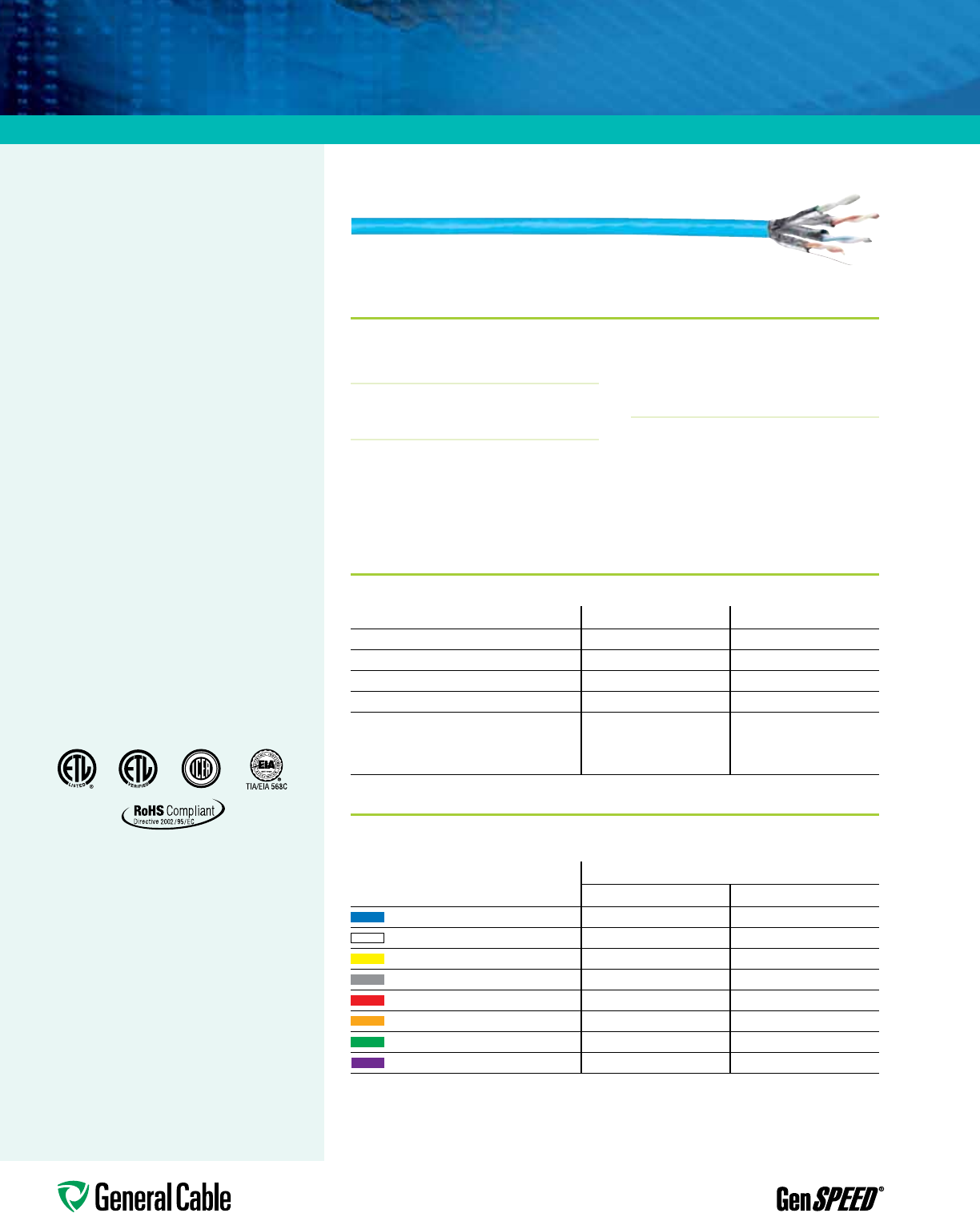

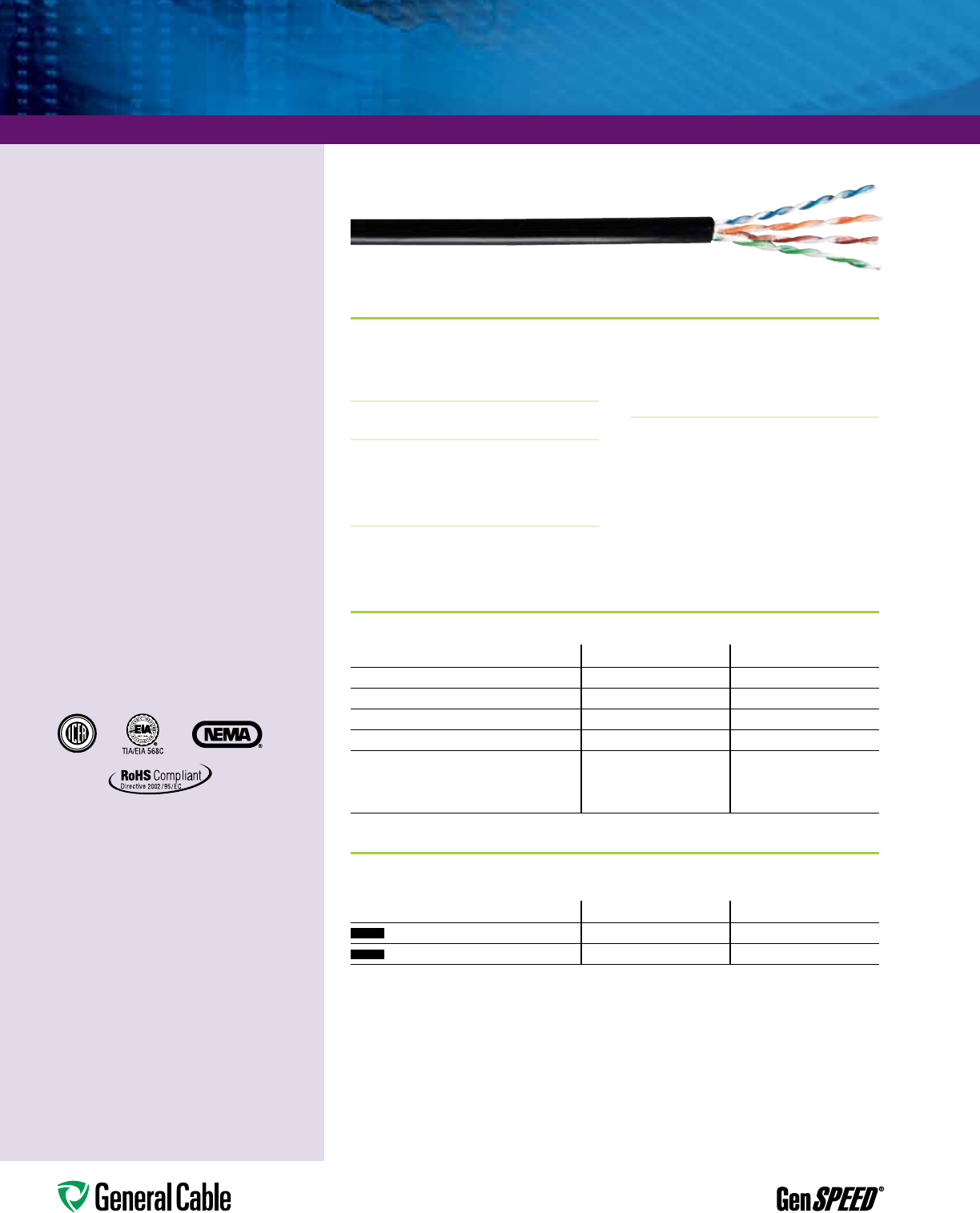

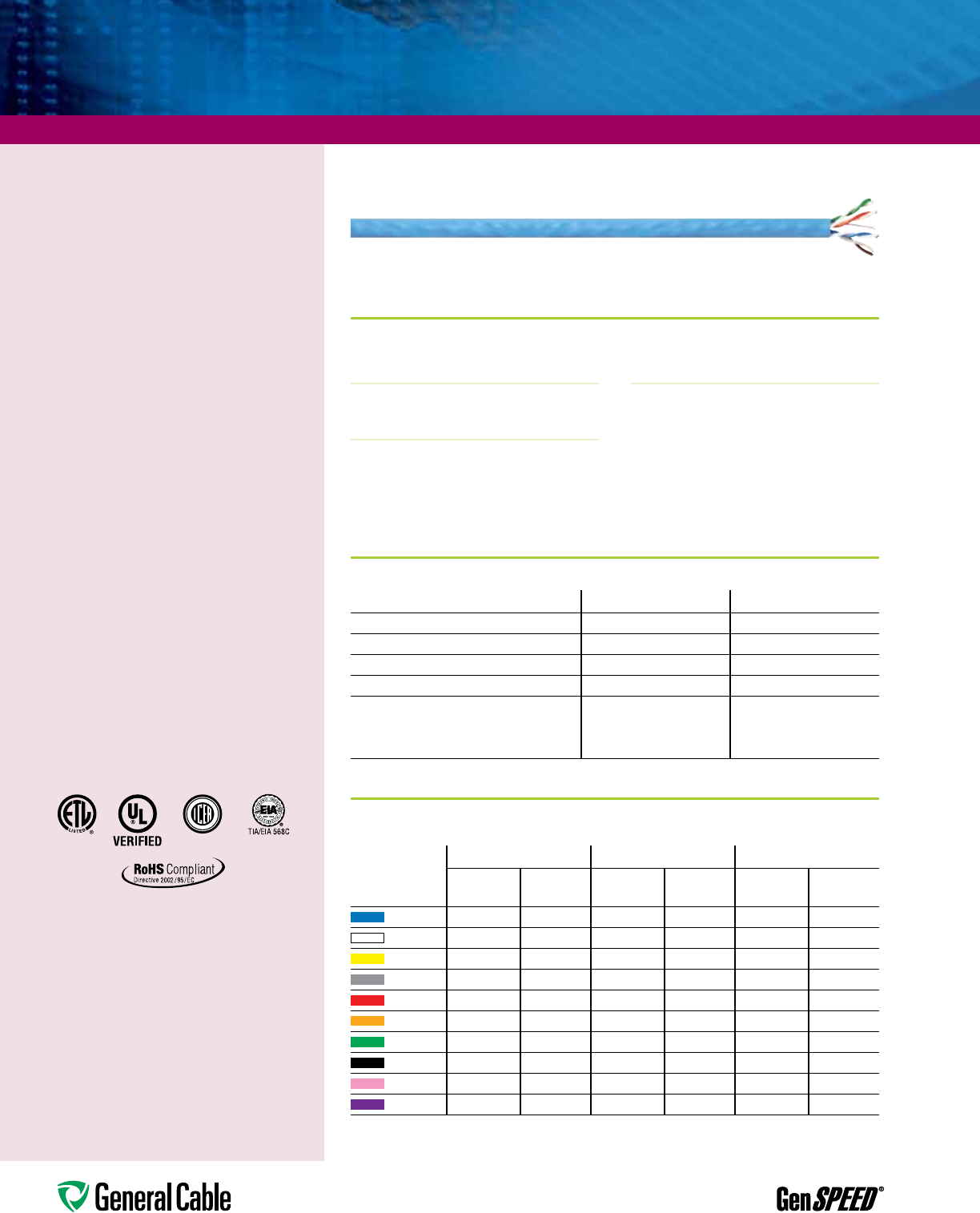

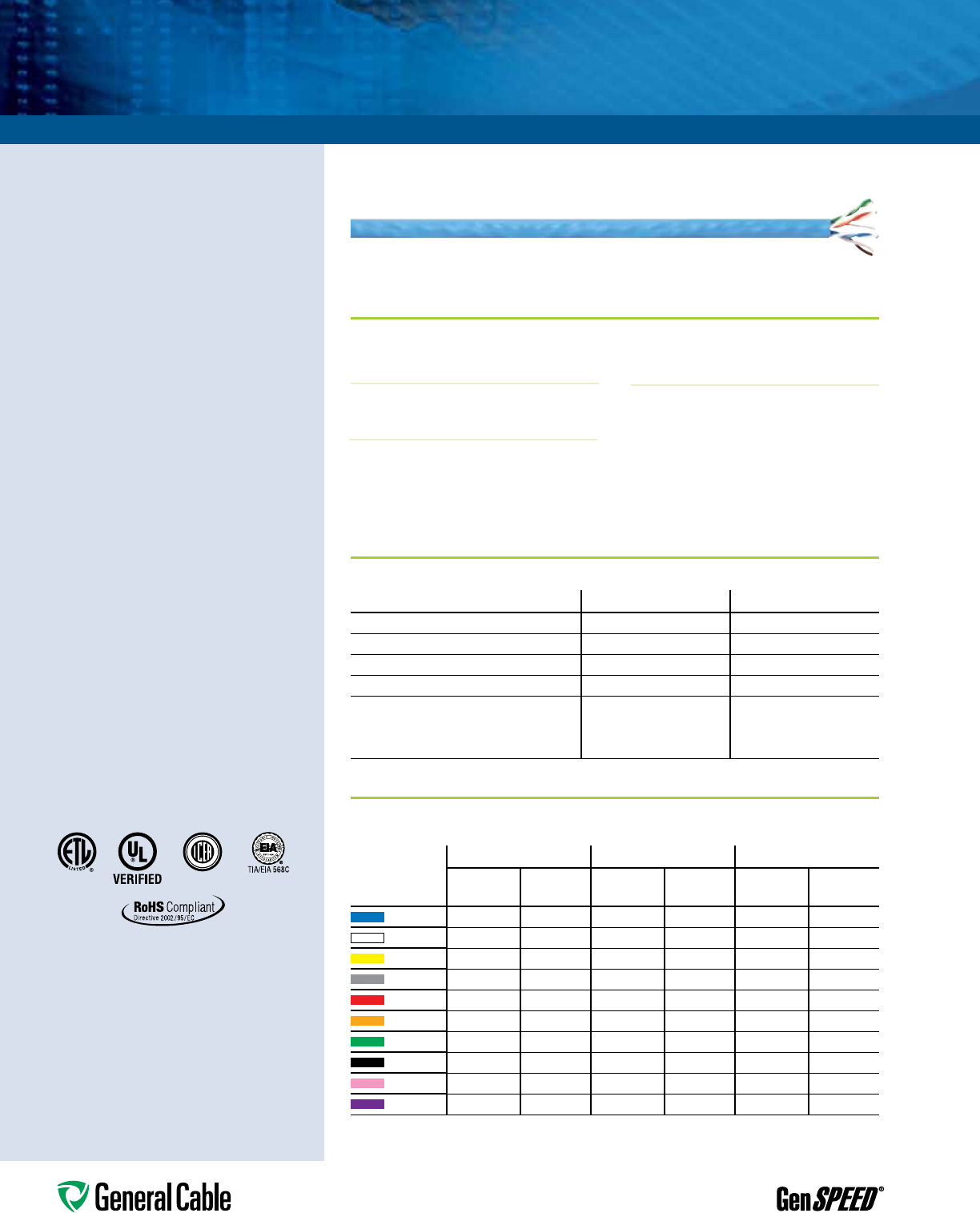

GenSPEED® 10 MTP™ Category 6A Cable
Features And Benefits
■ 10 MTP™ unshielded-twisted pair (UTP)
design performs like a shielded or foiled-
twisted pair (STP/FTP) cable, providing
industry-leading protection from external
cable noise sources, also known as alien
crosstalk (PSANEXT and PSAACRF)
■ Mosaic Crossblock™ is a thin tape made
up of individual metallic blocks separated
by an insulating layer. Since there is no
metal-to-metal contact, there is no path
for current to flow longitudinally, and
thus, no need for grounding
■ The Flex-Separator™ optimizes internal
pair geometry to yield superior electrical
performance and maintain flexibility. This
unique cross-web stabilizes each pair to
create a smaller, round cable profile
■ TRU-Mark® print legend contains footage
markings from 1000’ to 0’
Applications
■ IEEE 802.3 10G BASE-T, 100 BASE-T
■ 100 BASE-TX, 10 BASE-T, 1000 BASE-TX
■ 155 Mb/s ATM
■ IEEE 802.3af for PoE
■ Draft IEEE 802.3at for PoE Plus
■ ANSI X3.263: 100Mb/s
Standard Compliances
■ ANSI/TIA 568 C.2
■ NEC/CEC Type CMR (6AL1666)
for Non-Plenum
■ NEC/CEC Type CMP (NFPA262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.305 0.300
NominalCableWeight(lbs/1000ft) 40 44
MinimumBendRadius(in) 1.25 1.25
MaximumPullingForce(lbs) 40 40
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
featuring
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color CMR (Non-Plenum) CMP (Plenum)
Blue 7133849 7131849
White 7133850 7131850
Yellow 7133852 7131852
Gray 7133851 7131851
Red 7133854 7131854
Orange 7133856 7131856
Green 7133853 7131853
Black 7133858 7131858
Pink 7133857 7131857
Purple 7133855 7131855
Note: Non-stock items may be subject to minimum order quantities.
13
An Unshielded 6A Cable That Performs Like a Shielded Cable
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalanced(max)
IndividualPair% 4
Delay Skew(max)
ns/100m 35
Nom. Velocity of Propagation
%SpeedofLight 70
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion
Loss
(min)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
TCL
(min)
PSANEXT
(min)
PSAACRF
(min)
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
General Cable
Guaranteed
General Cable
Typical
TIA
5 C.2
General Cable
Guaranteed
General Cable
Typical
170.2 72.2 2.1 72.3 74.3 64.8 67.8 20.0 40.0 67.0 73.0 79.0 67.0 73.0 79.0
459.5 61.5 3.8 63.3 65.3 52.8 55.8 23.0 40.0 67.0 73.0 79.0 66.2 72.2 78.2
10 51.4 53.4 5.9 57.3 59.3 44.8 47.8 25.0 40.0 67.0 73.0 79.0 58.2 64.2 70.2
16 46.8 48.8 7.5 54.2 56.2 40.7 43.7 25.0 38.0 67.0 73.0 79.0 54.1 60.1 66.1
20 44.4 46.4 8.4 52.8 54.8 38.8 41.8 25.0 37.0 67.0 73.0 79.0 52.2 58.2 64.2
31.25 39.4 41.4 10.5 49.9 51.9 34.9 37.9 23.6 35.1 67.0 73.0 79.0 48.3 54.3 60.3
62.5 30.4 32.4 15.0 45.4 47.4 28.9 31.9 21.5 32.0 65.6 71.6 77.6 42.3 48.3 54.3
100 23.2 25.2 19.1 42.3 44.3 24.8 27.8 20.1 30.0 62.5 68.5 74.5 38.2 44.2 50.2
150 16.0 18.0 23.7 39.7 41.7 21.3 24.3 18.9 28.2 59.9 65.9 71.9 34.7 40.7 46.7
200 10.2 12.2 27.6 37.8 39.8 18.8 21.8 18.0 27.0 58.0 64.0 70.0 32.2 38.2 44.2
250 5.2 7.2 31.1 36.3 38.3 16.8 19.8 17.3 26.0 56.5 62.5 68.5 30.2 36.2 42.2
300 0.9 2.9 34.3 35.1 37.1 15.3 18.3 16.8 25.2 55.3 61.3 67.3 28.7 34.7 40.7
400 — — 40.1 33.3 35.3 12.8 15.8 15.9 24.0 53.5 59.5 65.5 26.2 32.2 38.2
500 — — 45.3 31.8 33.8 10.8 13.8 15.2 23.0 52.0 58.0 64.0 24.2 30.2 36.2
Note: Values are expressed in dB per 100 m (328 ft.) length.

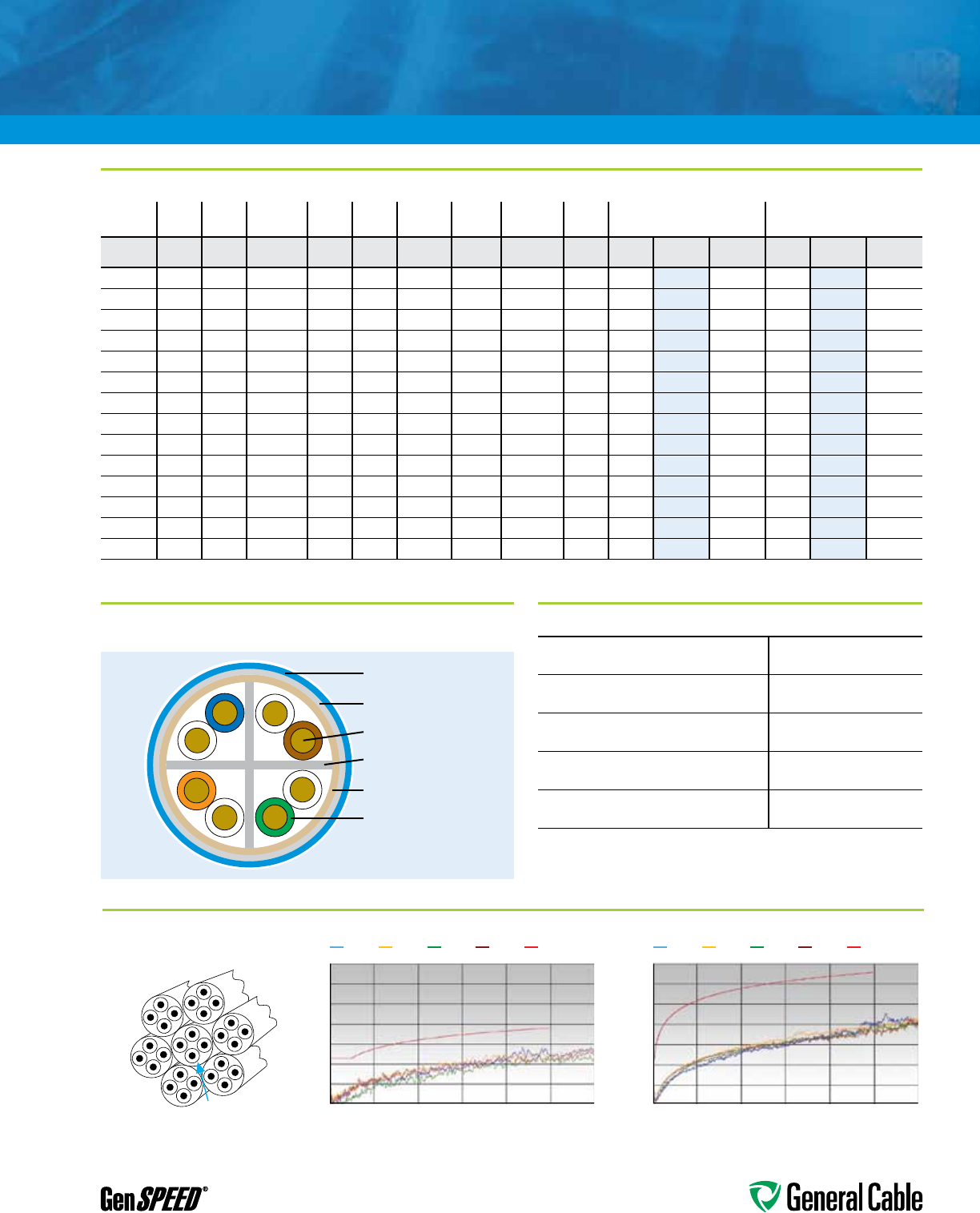

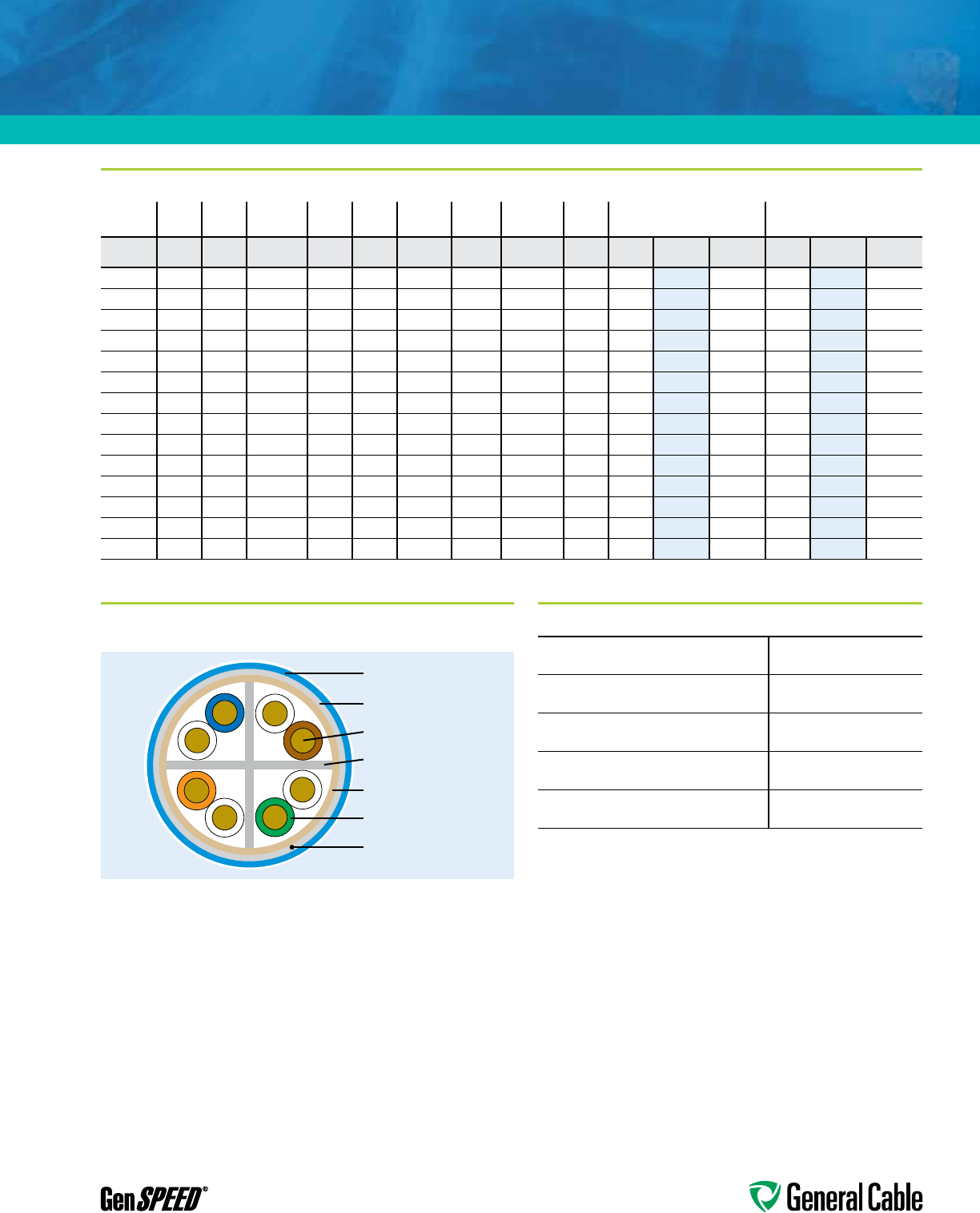

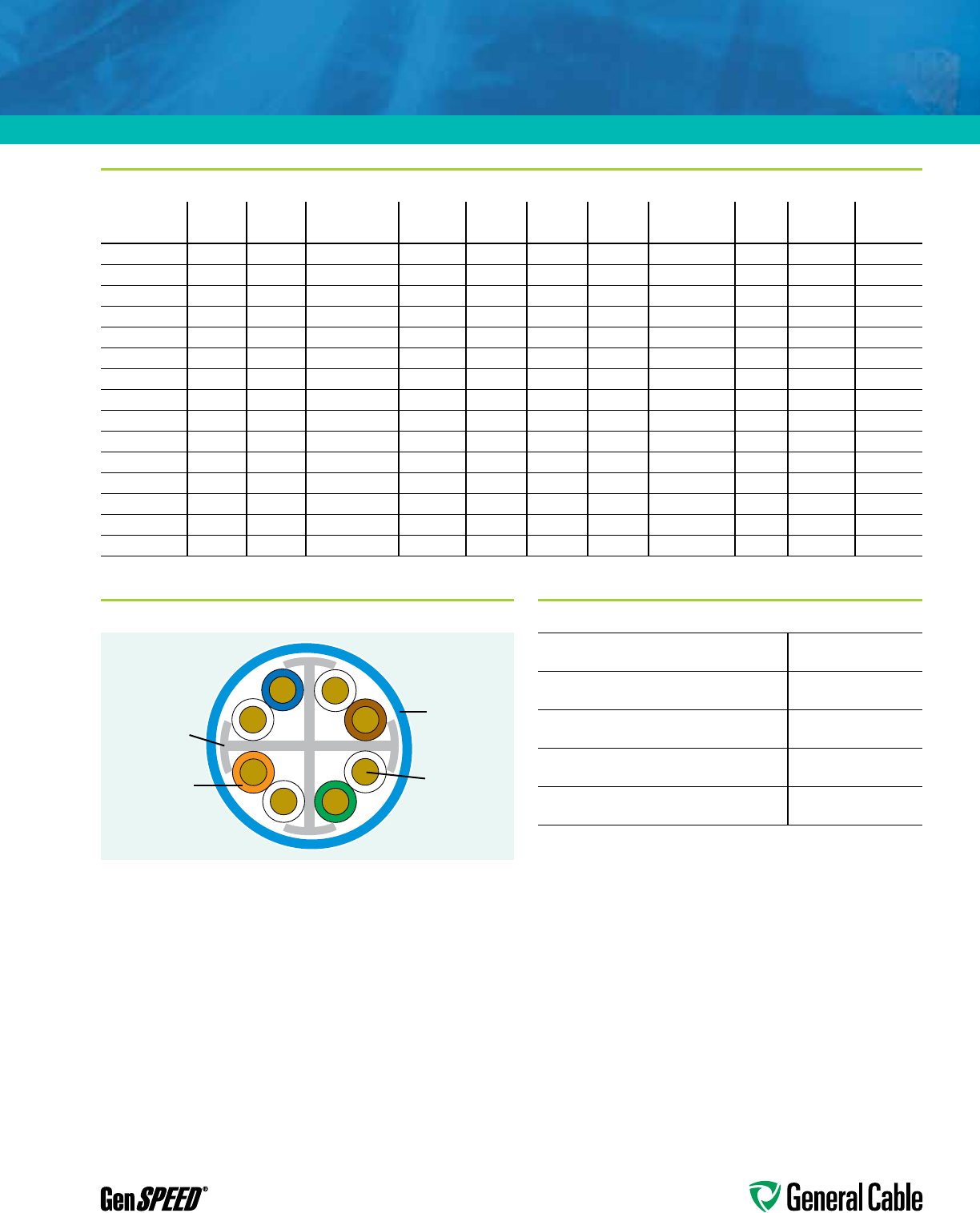

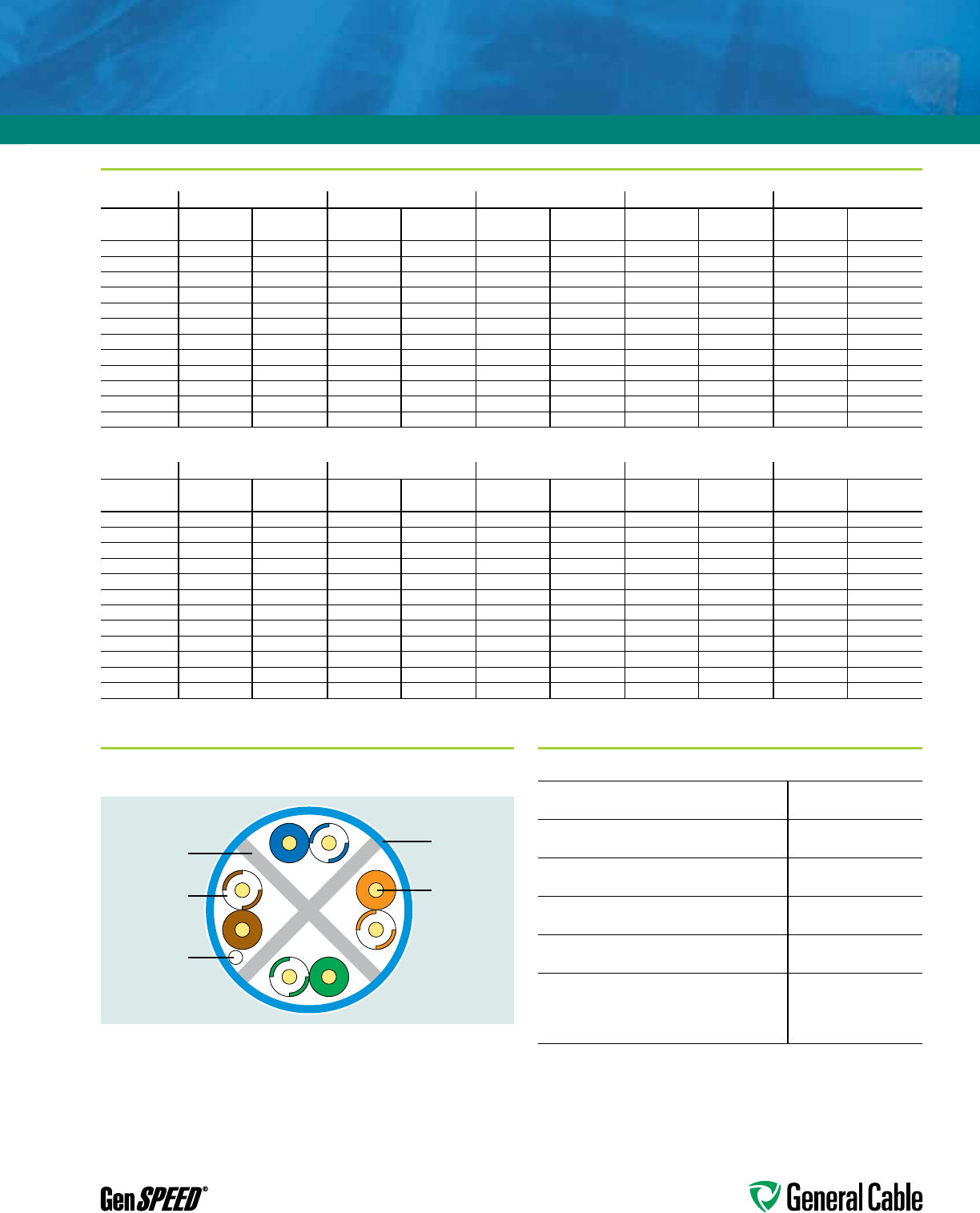

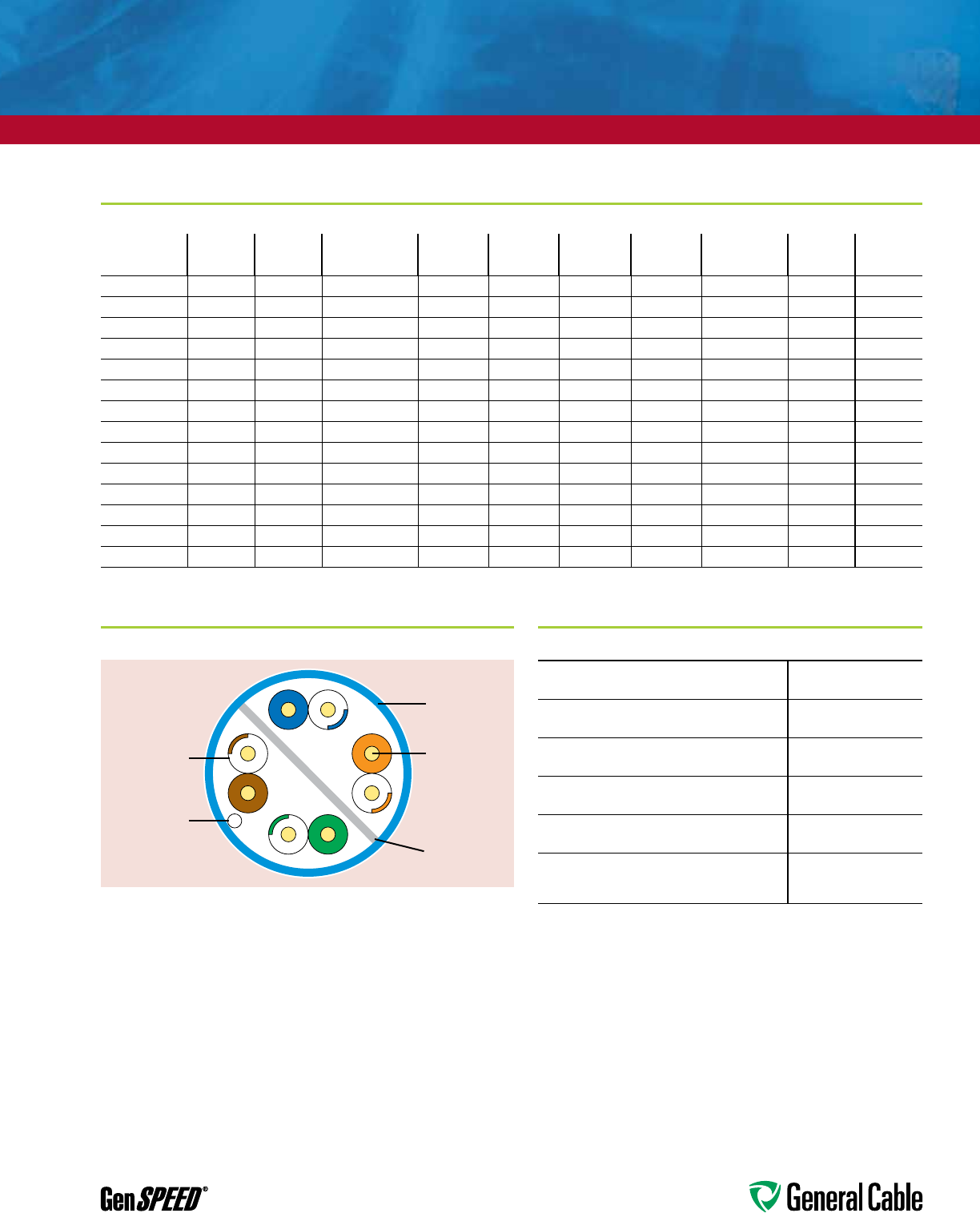

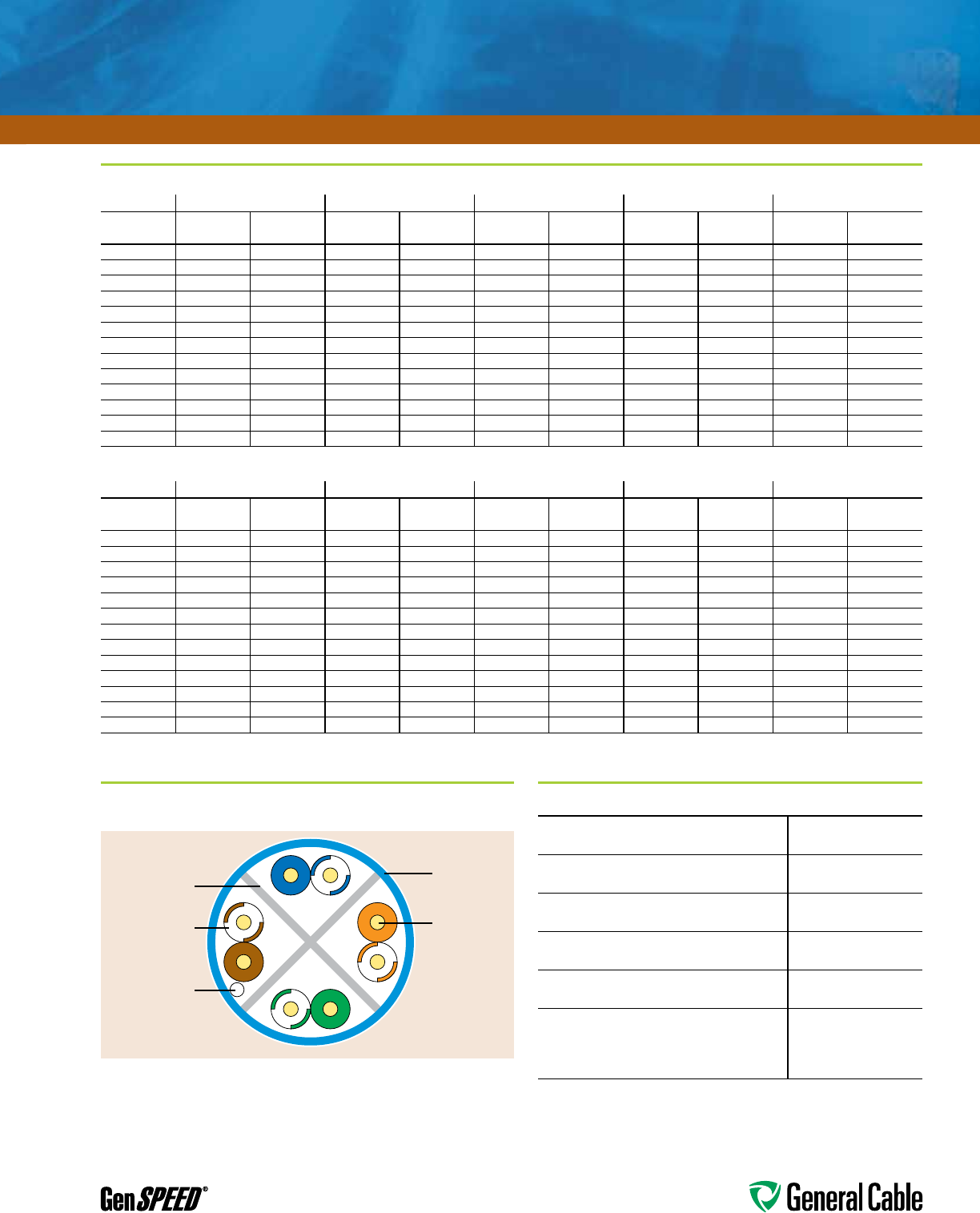

TYPICAL GenSPEED® 10 MTP™ CATEGORY 6A
CROSS-SECTION
OUTER JACKET
MOSAIC CROSSBLOCK™
23 AWG CONDUCTOR
FLEX-SEPARATOR™
OVERALL WRAP
INSULATION
0 100 200 300 400 500 600
Frequency (MHz)
Pair 45 Pair 12 Pair 36 Pair 78 Specification
-20
-30
-40
-50
-60
-70
-80
-90
(dB)
PSANEXT
0 100 200 300 400 500 600
Frequency (MHz)
Pair 45 Pair 12 Pair 36 Pair 78 Specification
-20
-30
-40
-50
-60
-70
-80
-90
(dB)
PSAACRF
4 PAIR CABLES:
Bundles of 7 Test Results
Six-around-one
configuration
disturbed cable
14
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:HDPE
•Plenum:FoamedFluoropolymer
Color Code
•Pair1:Blue-White
•Pair2:Orange-White
•Pair3:Green-White
•Pair4:Brown-White
Shield
•Eachpairisindividuallyshieldedwith
analuminumfoil
•24AWGdrainwire
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC

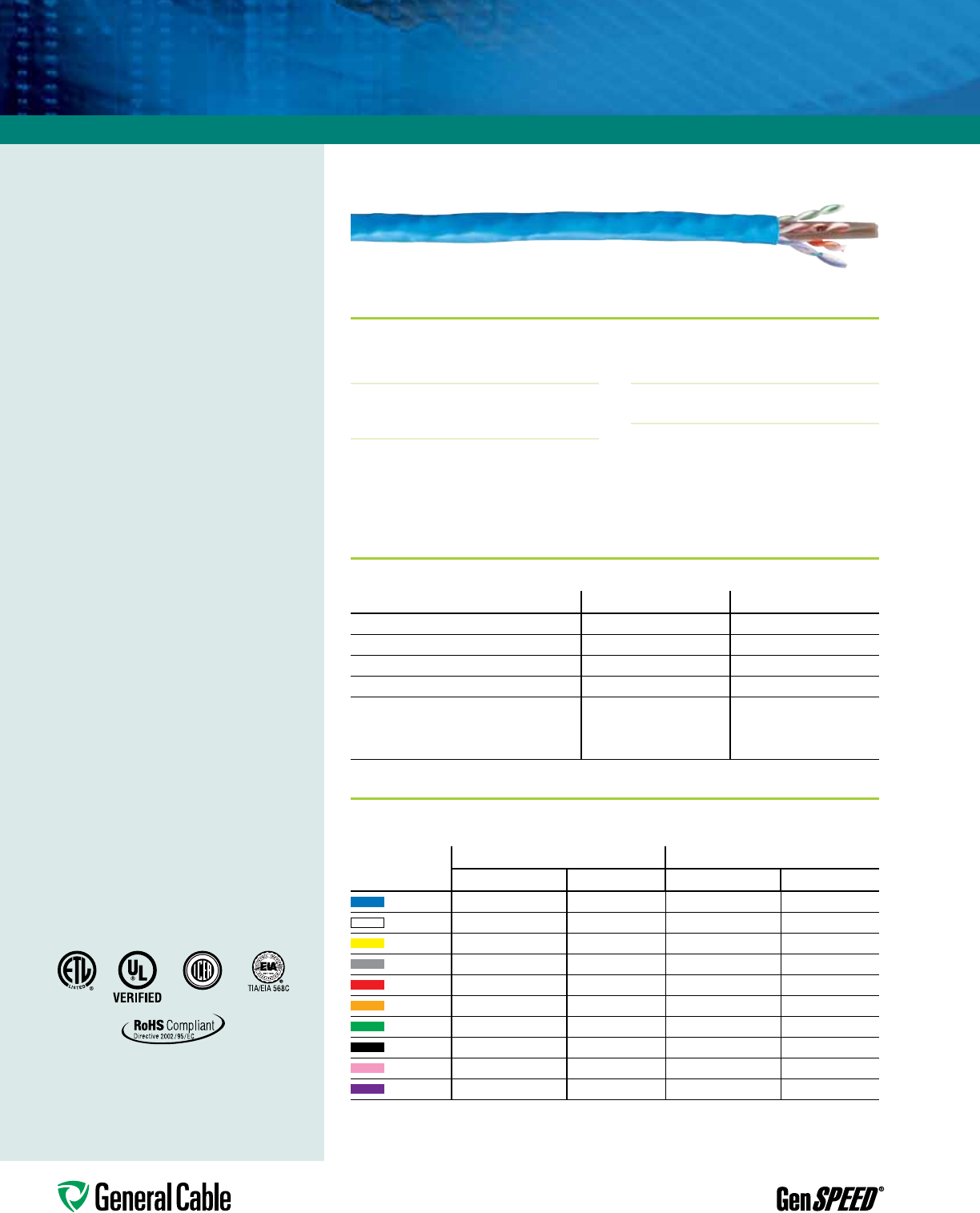

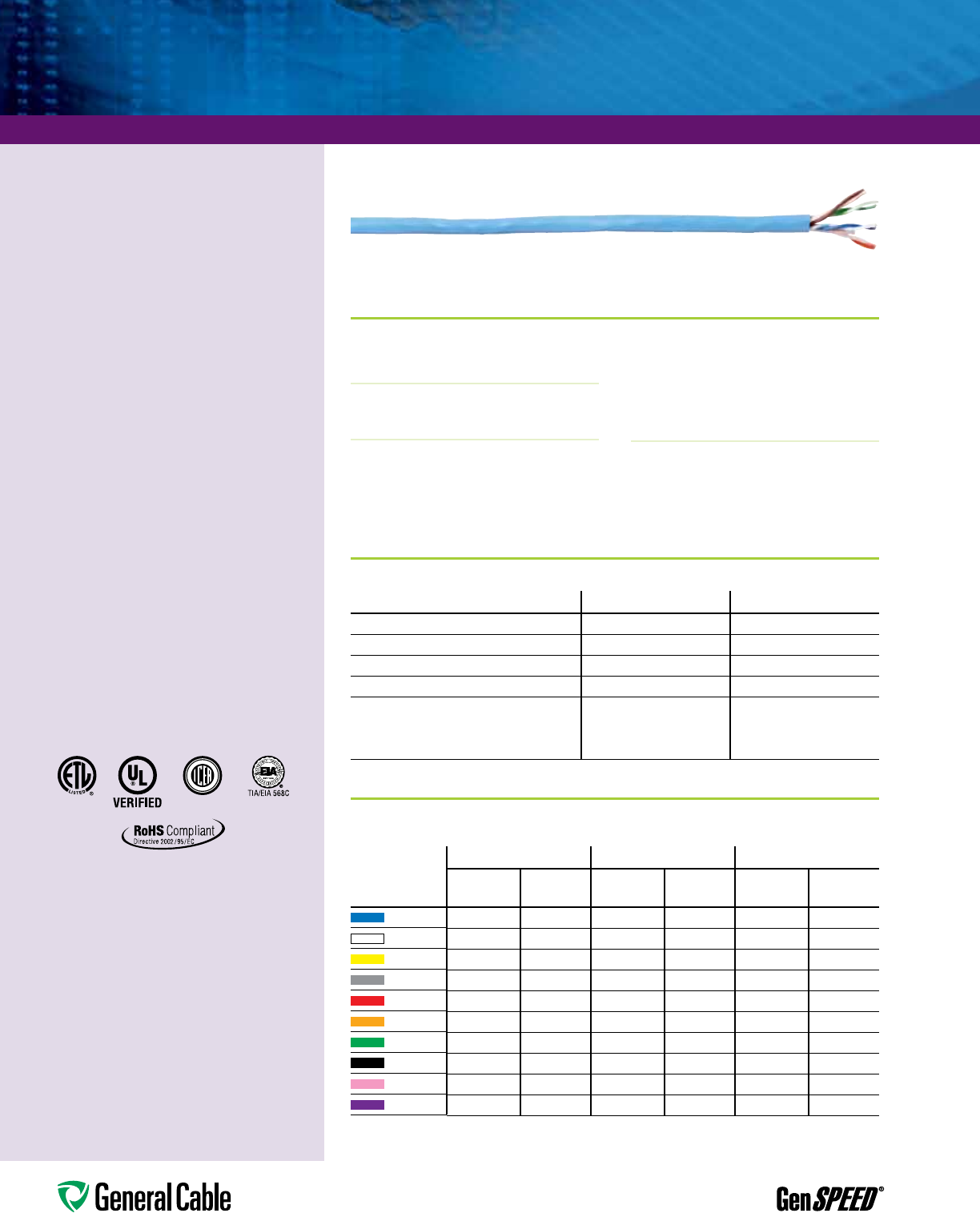

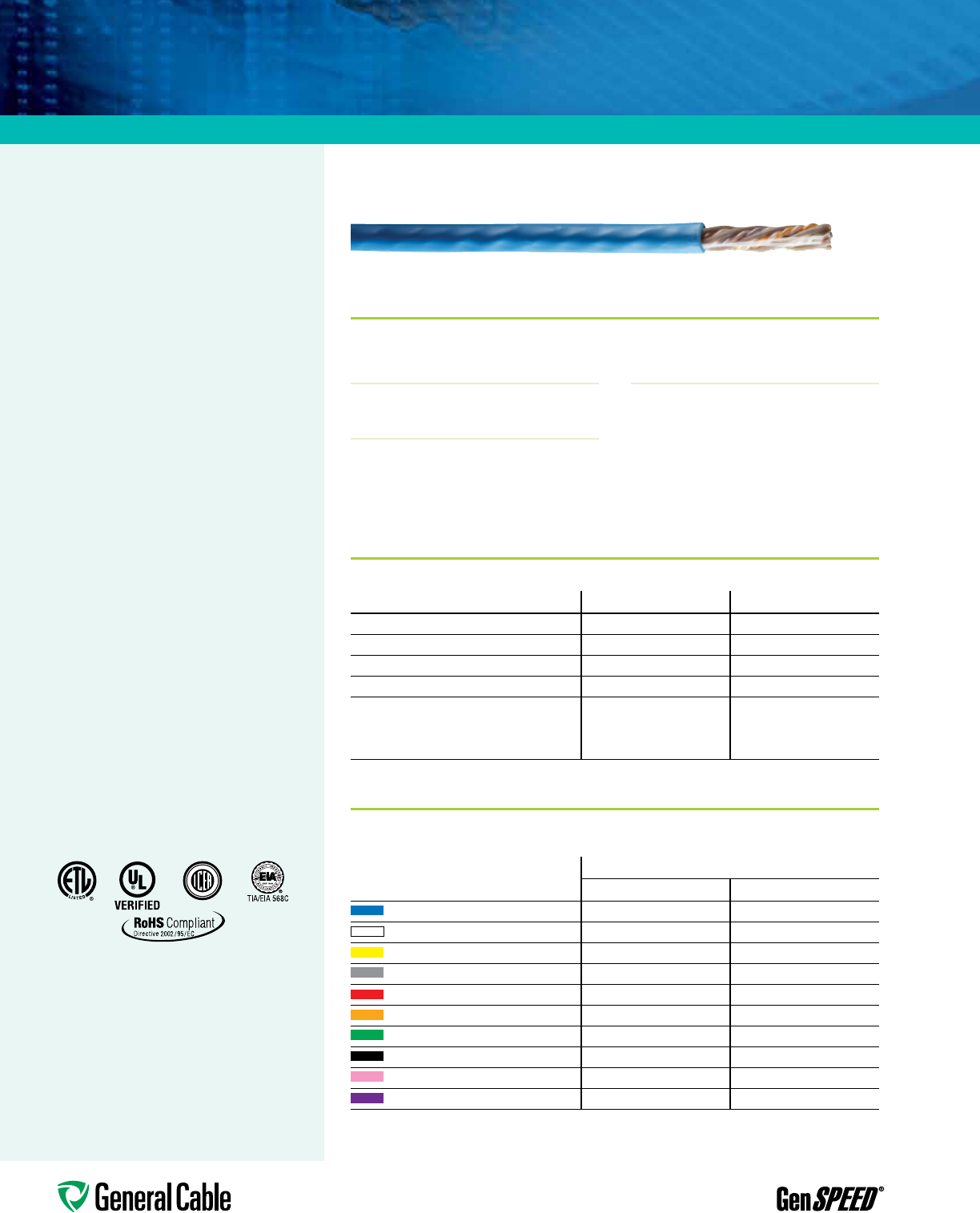

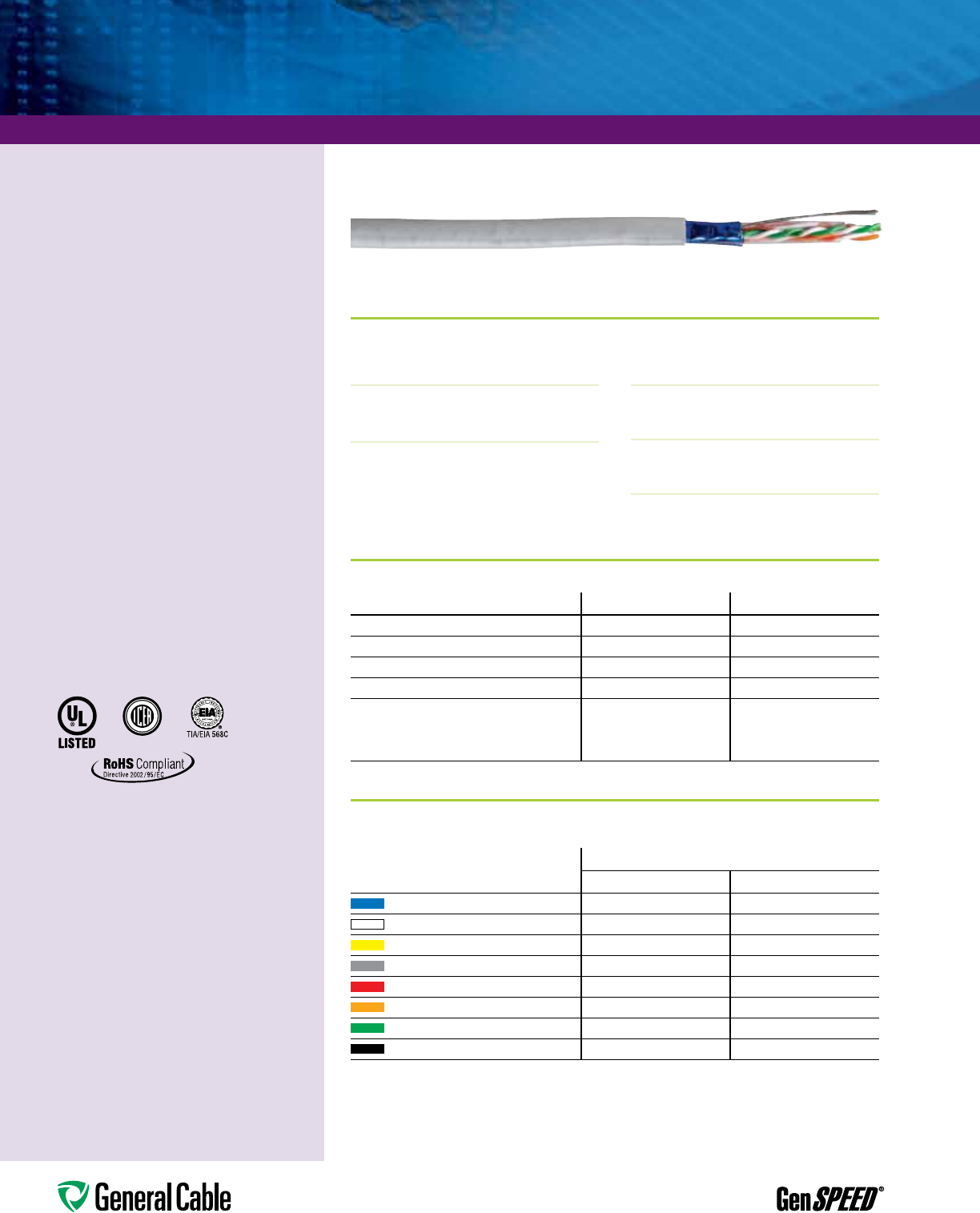

GenSPEED® 10,000 Category 6a U/FTP (STP) Cable
Features And Benefits
■ Shielded design allowing for maximum
pair separation, increasing key electrical
performance parameters
■ Individual pair shielding for EMI
protection
■ Typical positive PSACR beyond 500 MHz
for increased available bandwidth
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
Applications
■ IEEE 802.3an: 10G BASE-T (10 Gigabit
Ethernet) supporting 100 meters
■ 1000 BASE-TX (Gigabit Ethernet)
■ 2.4/1.2 Gb/s ATM
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.310 0.290
NominalCableWeight(lbs/1000ft) 50 45
MinimumBendRadius(in) 3.10 2.90
MaximumPullingForce(lbs) 32 32
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color CMR (Non-Plenum) CMP (Plenum)
Blue 7133786 7131786
White 7133787 7131787
Yellow 7133788 7131788
Gray 7133789 7131789
Red 7133790 7131790
Orange 7133791 7131791
Green 7133792 7131792
Purple 7133830 7131830
Note: Non-stock items may be subject to minimum order quantities.
Data subject to change without notice.
15
A Shielded 10 Gig Option for Peace of Mind

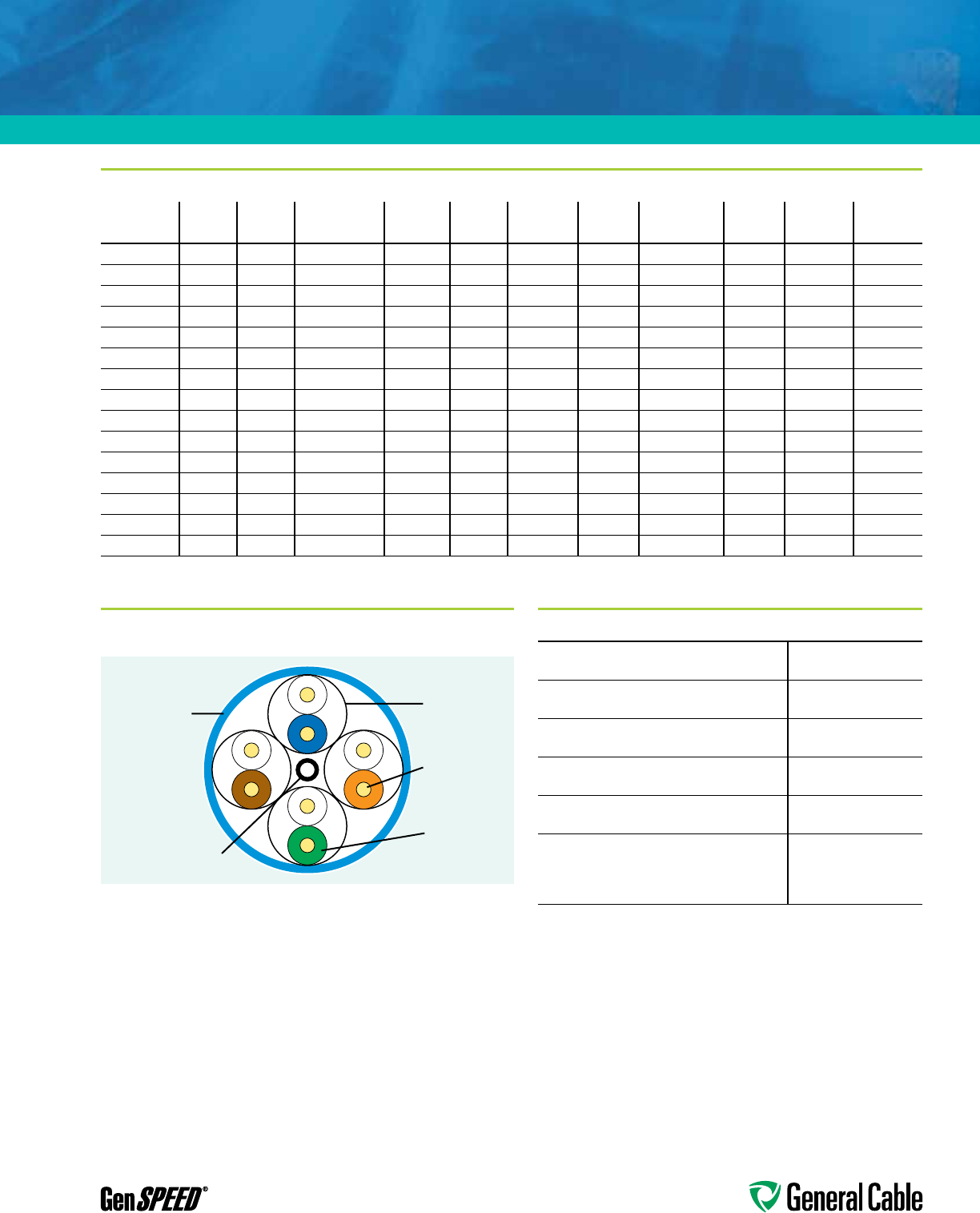

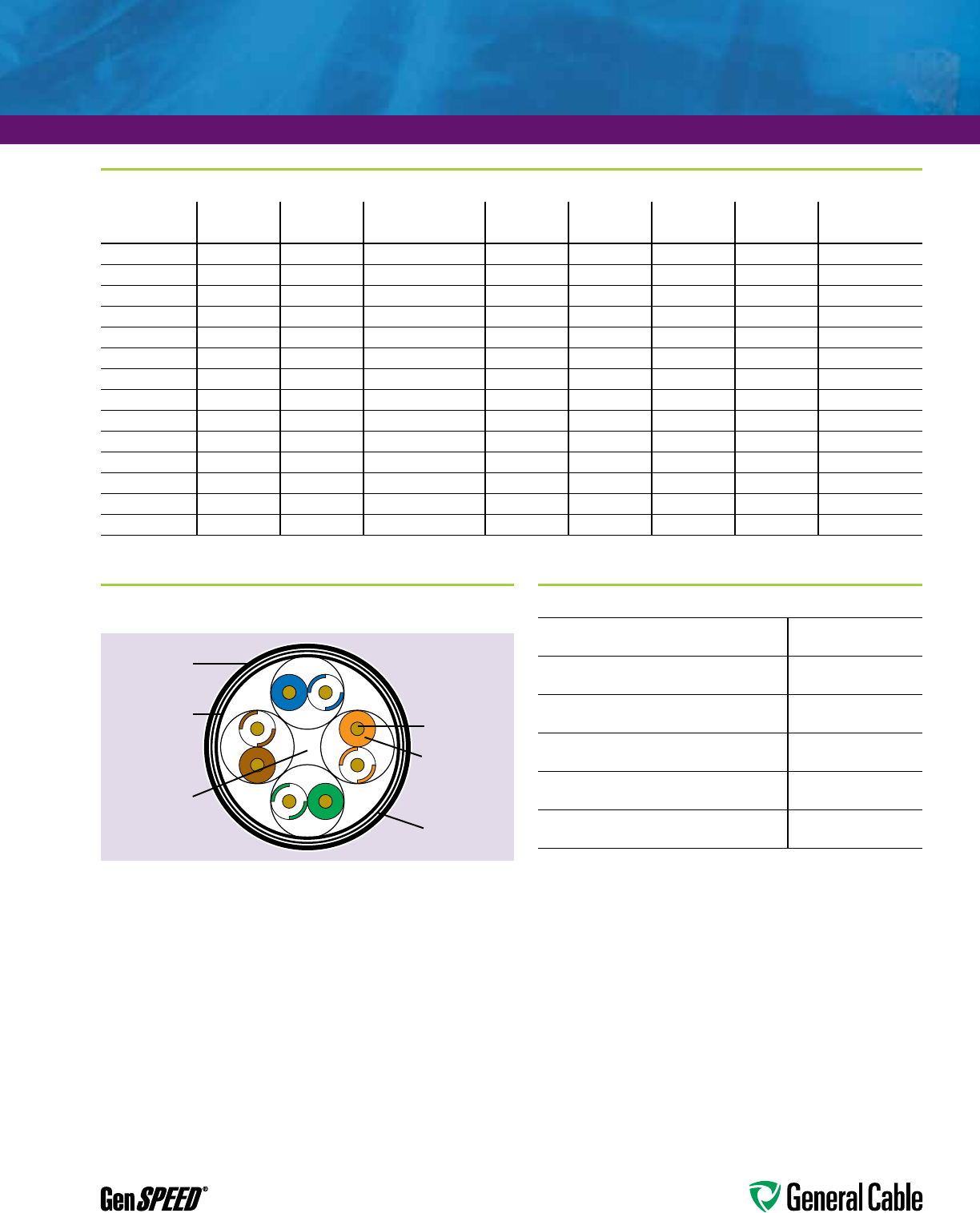

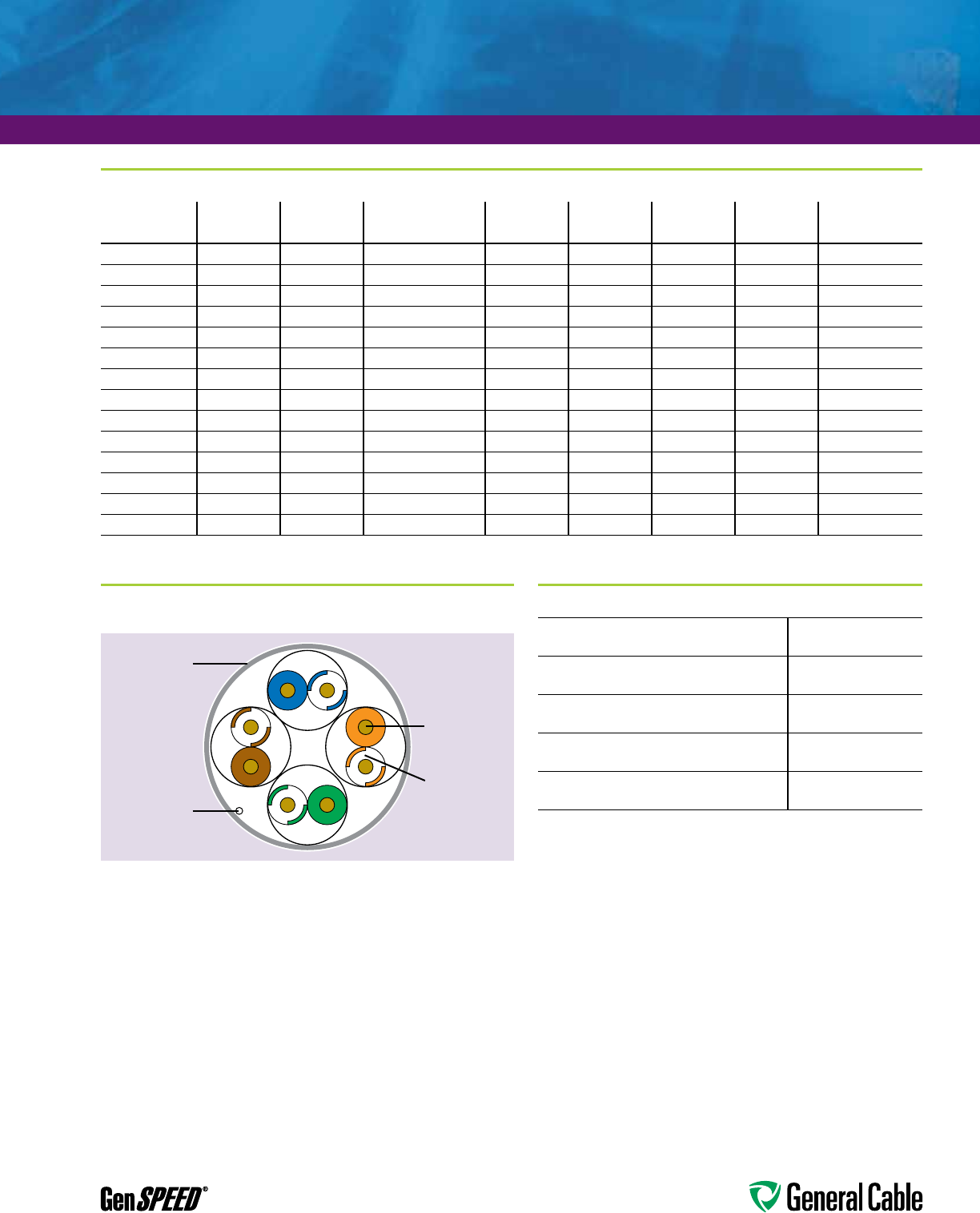

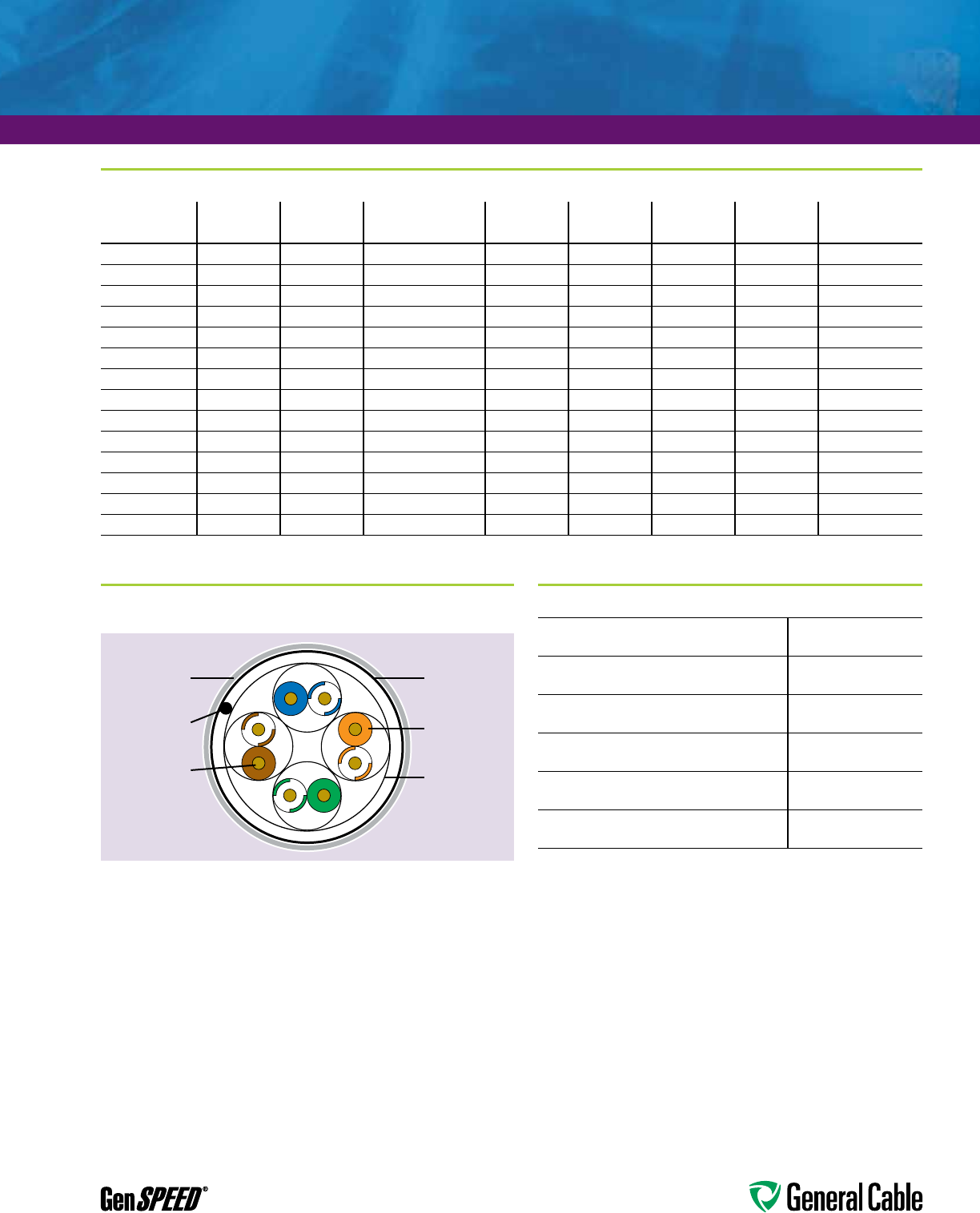

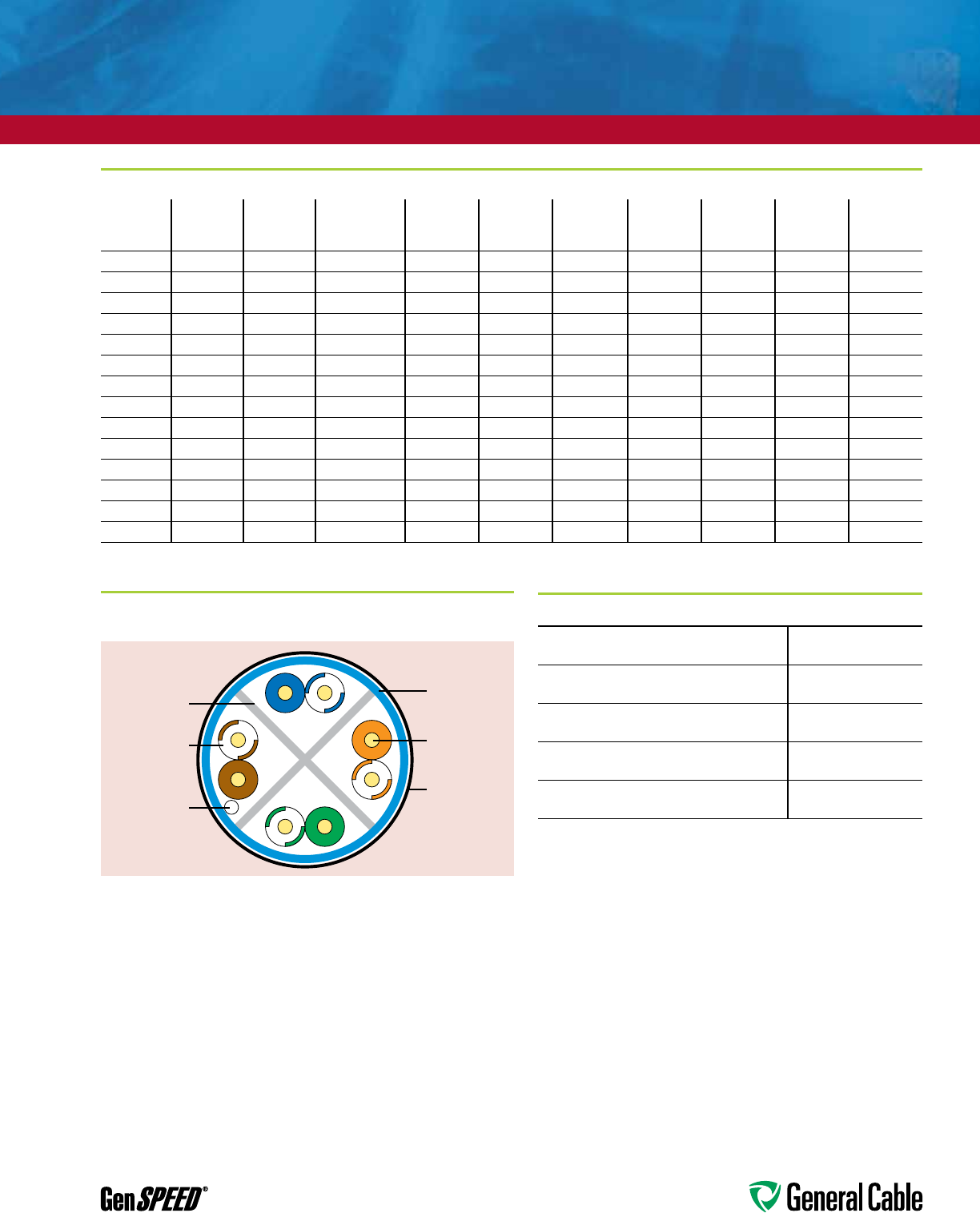

GenSPEED® 10,000 CATEGORY 6a U/FTP (STP)
CROSS-SECTION
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 35
Nom. Velocity of Propagation
%SpeedofLight
CMP:78
CMR:75
Characteristic Impedance
Frequency(f): 1-600MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-200MHz
 200-600MHz
Ohms
100±15
100±22
100±32
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion
Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
LCL/TCL
(min)
PSANEXT
(min)
PSAACRF
(min)
170.2 72.2 2.1 72.3 74.3 70.8 73.8 20.0 50.0 77.0 77.0
468.5 70.5 3.8 72.3 74.3 58.8 61.8 23.0 44.0 77.0 76.2
10 66.3 68.3 5.9 72.3 74.3 50.8 53.8 25.0 40.0 77.0 68.2
16 63.6 66.6 7.5 71.2 74.2 46.7 49.7 25.0 38.0 77.0 64.1
20 61.3 64.3 8.4 69.8 72.8 44.8 47.8 25.0 37.0 77.0 62.2
31.25 56.1 59.1 10.5 66.9 69.9 40.9 43.9 23.6 35.1 77.0 58.3
62.5 46.9 49.9 15.0 62.4 65.4 34.9 37.9 21.5 32.0 75.6 52.3
100 39.4 42.4 19.1 59.3 62.3 30.8 33.8 20.1 30.0 72.5 48.2
200 25.6 28.6 27.6 54.8 57.8 24.8 27.8 18.0 27.0 68.0 42.2
250 20.3 23.3 31.1 53.3 56.3 22.8 25.8 17.3 26.0 66.5 40.2
300 15.5 18.5 34.3 52.1 55.1 21.3 24.3 16.8 25.2 65.3 38.7
350 11.2 14.2 37.2 51.1 54.1 19.9 22.9 16.3 24.6 64.3 37.3
400 7.1 10.1 40.1 50.3 53.3 18.8 21.8 15.9 24.0 63.5 36.2
500 —2.7 45.3 48.8 51.8 16.8 19.8 15.2 23.0 62.0 34.2
600 — — 50.1 47.6 50.6 15.2 18.2 14.7 22.2 60.8 32.6
Note: Values are expressed in dB per 100 m (328 ft.) length.

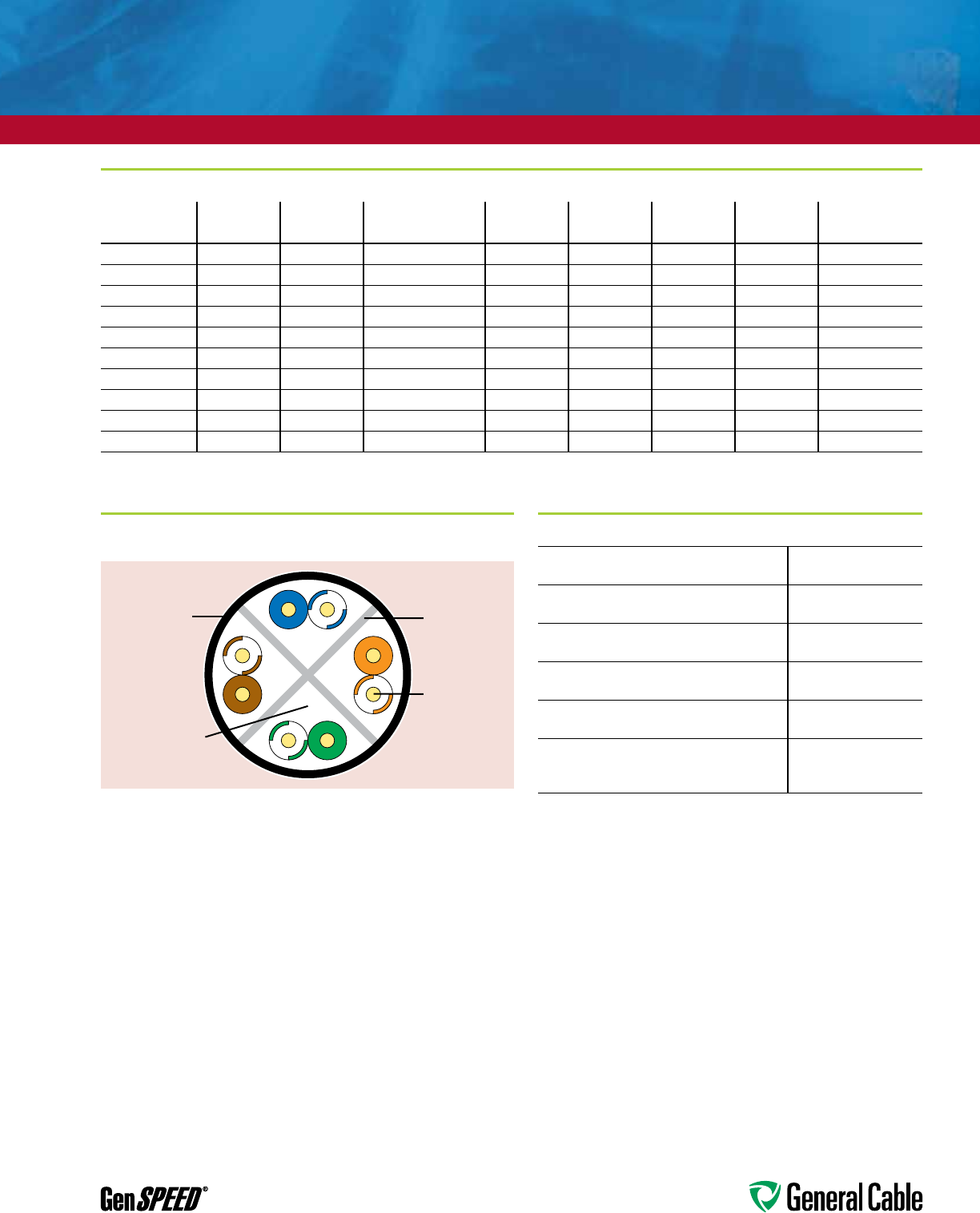

OUTER
JACKET
INDIVIDUAL
ALUMINUM
FOIL
23 AWG
CONDUCTOR
INSULATION
DRAIN WIRE
16
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White
•Pair2:Orange-White
•Pair3:Green-White
•Pair4:Brown-White
Separator
•Cross-Web
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,
Flame-RetardantPVC
Core Tape
•CMR:Polypropylene
•CMP:Fluoropolymer
Drain Wire
•24AWGstranded(7/32)solidtinned
copper
Shield
•Polyester-backedaluminumfoil
(aluminumsidein)
GenSPEED® 10,000 Category 6A F/UTP (ScTP) Cable
Features And Benefits
■ A shielded or foiled-twisted pair (F/UTP)
cable, requiring grounding and providing
industry-leading protection from external
cable noise sources, also known as alien
crosstalk (PSANEXT and PSAACRF)
■ The Flex-Separator™ optimizes internal
pair geometry to yield superior electrical
performance and maintain flexibility. This
unique cross-web stabilizes each pair to
create a smaller, round cable profile
■ TRU-Mark® print legend contains footage
markings from 1000’ to 0’
Applications
■ IEEE 802.3 10G BASE-T, 100 BASE-T
■ 100 BASE-TX, 10 BASE-T, 1000 BASE-TX
■ 155 Mb/s ATM
■ IEEE 802.3af for PoE
■ Draft IEEE 802.3at for PoE Plus
■ ANSI X3.263: 100Mb/s
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.320 0.320
NominalCableWeight(lbs/1000ft) 42 46
MinimumBendRadius(in) 1.25 1.25
MaximumPullingForce(lbs) 40 40
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color CMR (Non-Plenum) CMP (Plenum)
Blue 7133586 7131586
White 7133587 7131587
Yellow 7133588 7131588
Gray 7133589 7131589
Red 7133590 7131590
Orange 7133591 7131591
Green 7133592 7131592
Purple 7133593 7131593
Note: Non-stock items may be subject to minimum order quantities.
17
A Standards-Compliant Shielded Cable
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalanced(max)
IndividualPair% 4
Delay Skew(max)
ns/100m 35
Nom. Velocity of Propagation
%SpeedofLight 70
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Attenuation
(min)
PSNEXT
(min)
NEXT
(min)
PSELFEXT
(min)
ELFEXT
(min)
Return Loss
(min)
TCL
(min)
PSANEXT
(min)
PSAACRF
(min)
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
TIA
568 C.2
General Cable
Guaranteed
General Cable
Typical
TIA
568 C.2
General Cable
Guaranteed
General Cable
Typical
170.2 72.2 2.1 72.3 74.3 64.8 67.8 20.0 40.0 67.0 73.0 85.0 67.0 73.0 85.0
459.5 61.5 3.8 63.3 65.3 52.8 55.8 23.0 40.0 67.0 73.0 85.0 66.2 72.2 84.2
10 51.4 53.4 5.9 57.3 59.3 44.8 47.8 25.0 40.0 67.0 73.0 85.0 58.2 64.2 76.2
16 46.8 48.8 7.5 54.2 56.2 40.7 43.7 25.0 38.0 67.0 73.0 85.0 54.1 60.1 72.1
20 44.4 46.4 8.4 52.8 54.8 38.8 41.8 25.0 37.0 67.0 73.0 85.0 52.2 58.2 70.2
31.25 39.4 41.4 10.5 49.9 51.9 34.9 37.9 23.6 35.1 67.0 73.0 85.0 48.3 54.3 66.3
62.5 30.4 32.4 15.0 45.4 47.4 28.9 31.9 21.5 32.0 65.6 71.6 83.6 42.3 48.3 60.3
100 23.2 25.2 19.1 42.3 44.3 24.8 27.8 20.1 30.0 62.5 68.5 80.5 38.2 44.2 56.2
150 16.0 18.0 23.7 39.7 41.7 21.3 24.3 18.9 28.2 59.9 65.9 77.9 34.7 40.7 52.7
200 10.2 12.2 27.6 37.8 39.8 18.8 21.8 18.0 27.0 58.0 64.0 76.0 32.2 38.2 50.2
250 5.2 7.2 31.1 36.3 38.3 16.8 19.8 17.3 26.0 56.5 62.5 74.5 30.2 36.2 48.2
300 0.9 2.9 34.3 35.1 37.1 15.3 18.3 16.8 25.2 55.3 61.3 73.3 28.7 34.7 46.7
400 — — 40.1 33.3 35.3 12.8 15.8 15.9 24.0 53.5 59.5 71.5 26.2 32.2 44.2
500 — — 45.3 31.8 33.8 10.8 13.8 15.2 23.0 52.0 58.0 70.0 24.2 30.2 42.2
Note: Values are expressed in dB per 100 m (328 ft.) length.

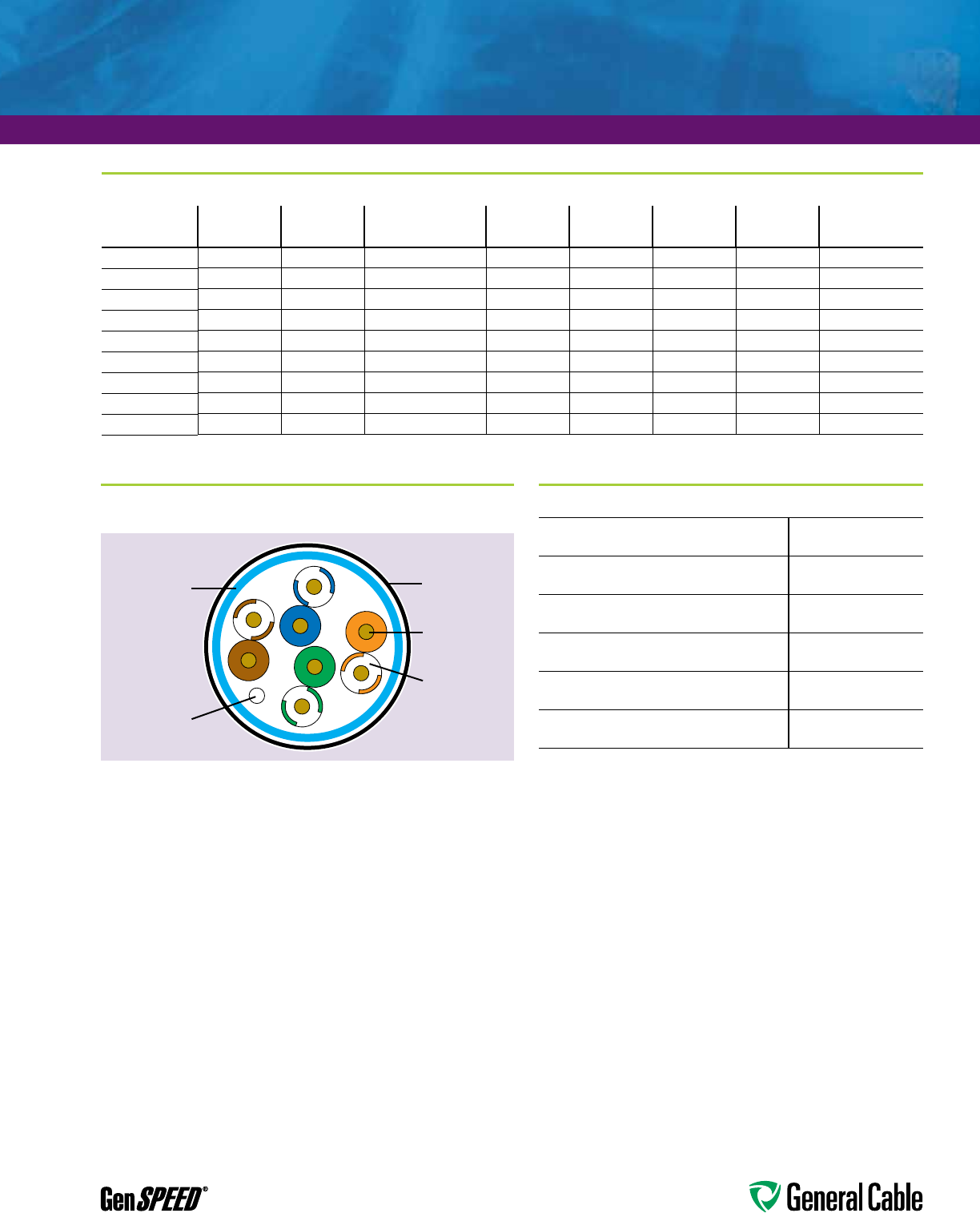

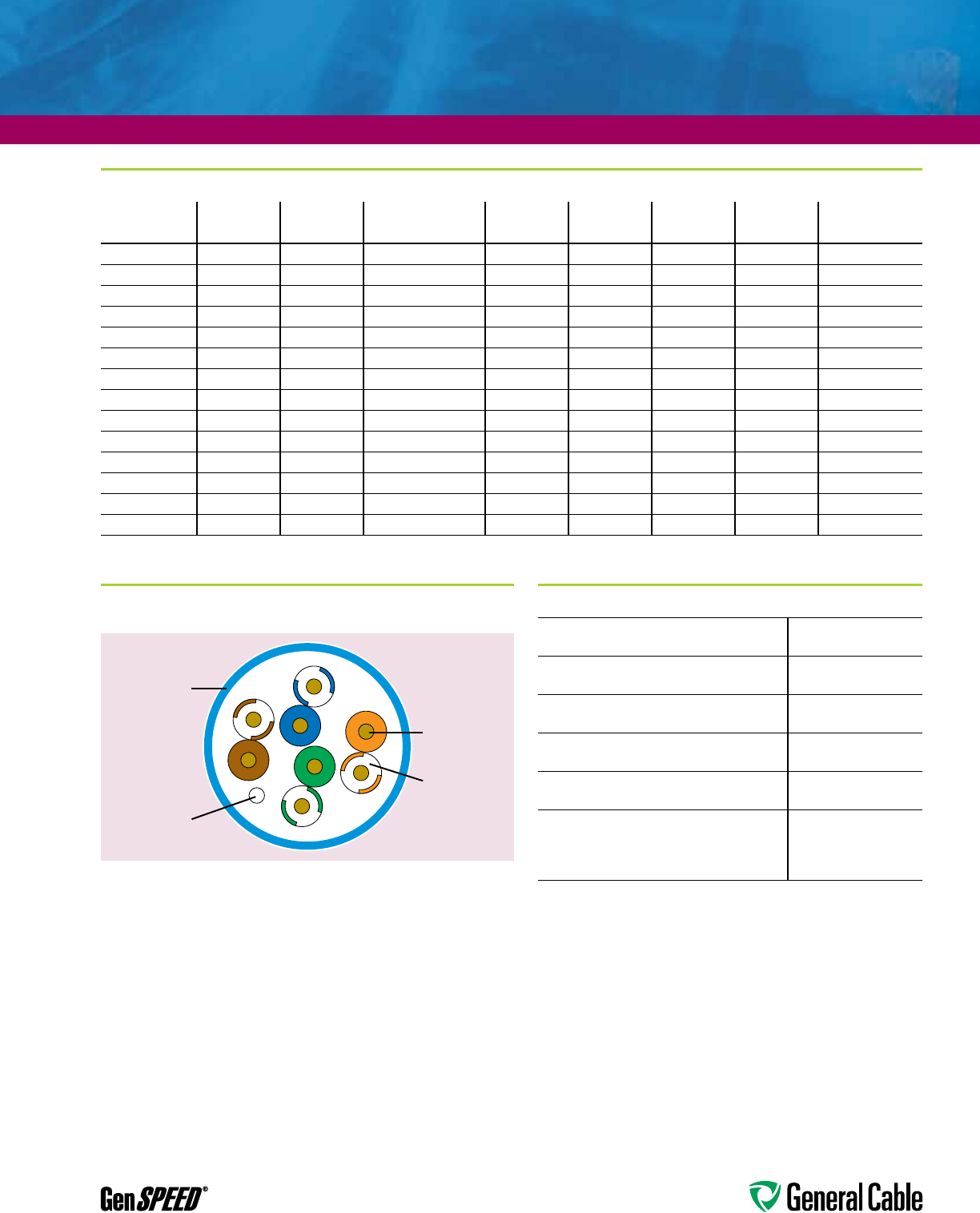

TYPICAL GenSPEED® 10,000 CATEGORY 6A F/UTP
(ScTP) CROSS-SECTION
OUTER JACKET
OVERALL SHIELD
23 AWG CONDUCTOR
FLEX-SEPARATOR™
OVERALL WRAP
INSULATION
DRAIN WIRE
18
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color
CMR (Non-Plenum) CMP (Plenum)
Blue 7133819 7131819
White 7133820 7131820
Yellow 7133822 7131822
Gray 7133821 7131821
Red 7133824 7131824
Orange 7133826 7131826
Green 7133823 7131823
Black 7133828 7131828
Pink 7133827 7131827
Purple 7133825 7131825
Note: Non-stock items may be subject to minimum order quantities.
GenSPEED® 10,000 Category 6a Cable
Features And Benefits
■ Extensive design development
conducted to find the perfect blend of
product performance and consistent
manufacturability
■ Innovative T-Top cross-web provides
superior internal electrical characteristics
by locking the pairs into a systematic
orientation within the cable
■ Superior flame and smoke characteristics
achieved through innovative design
and careful selection of materials with
certified suppliers
■ TRU-Mark® print legend contains footage
markings from 1000’ to 0’
Applications
■ IEEE 802.3: 10G BASE-T, 100 BASE-T
■ 100 BASE-TX, 10 BASE-T, 1000 BASE-TX
■ ANSI/TIA/EIA-854: 1000 BASE-TX
■ 155 Mb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af for PoE
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA 568 C.2
■ NEC/CEC Type CMR (UL 1666)
for Non-Plenum
■ NEC/CEC Type CMP (NFPA 262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White
•Pair2:Orange-White
•Pair3:Green-White
•Pair4:Brown-White
Separator
•T-Topcross-web
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.330 0.320
NominalCableWeight(lbs/1000ft) 42 45
MinimumBendRadius(in) 1.5 1.5
MaximumPullingForce(lbs) 40 40
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
19
Signal Strength and Power
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 4.0
Delay Skew(max)
ns/100m 35
Nom. Velocity of Propagation
%SpeedofLight 70
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion
Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
TCL
(min)
PSANEXT
(min)
PSAACRF
(min)
170.2 72.2 2.1 72.3 74.3 64.8 67.8 20.0 40.0 67.0 67.0
459.5 61.5 3.8 63.3 65.3 52.8 55.8 23.0 40.0 67.0 66.2
853.5 55.5 5.3 58.8 60.8 46.7 49.7 24.5 40.0 67.0 60.1
10 51.4 53.4 5.9 57.3 59.3 44.8 47.8 25.0 40.0 67.0 58.2
16 46.7 48.7 7.5 54.2 56.2 40.7 43.7 25.0 38.0 67.0 54.1
20 44.4 46.4 8.4 52.8 54.8 38.8 41.8 25.0 37.0 67.0 52.2
25 41.9 43.9 9.4 51.3 53.3 36.8 39.8 24.3 36.0 67.0 50.2
31.25 39.4 41.4 10.5 49.9 51.9 34.9 37.9 23.6 35.1 67.0 48.3
62.5 30.4 32.4 15.0 45.4 47.4 28.9 31.9 21.5 32.0 65.6 42.3
100 23.2 25.2 19.1 42.3 44.3 24.8 27.8 20.1 30.0 62.5 38.2
200 10.2 12.2 27.6 37.8 39.8 18.8 21.8 18.0 27.0 58.0 32.2
250 5.2 7.2 31.1 36.3 38.3 16.8 19.8 17.3 26.0 56.5 30.2
300 0.8 2.8 34.3 35.1 37.1 15.3 18.3 16.8 25.2 55.3 28.7
400 — — 40.1 33.3 35.3 12.8 15.8 15.9 24.0 53.5 26.2
500 — — 45.3 31.8 33.8 10.8 13.8 15.2 23.0 52.0 24.2
Note: Values are expressed in dB per 100 m (328 ft.) length.
OUTER
JACKET
23 AWG
CONDUCTOR
T-TOP
SEPARATOR
INSULATION

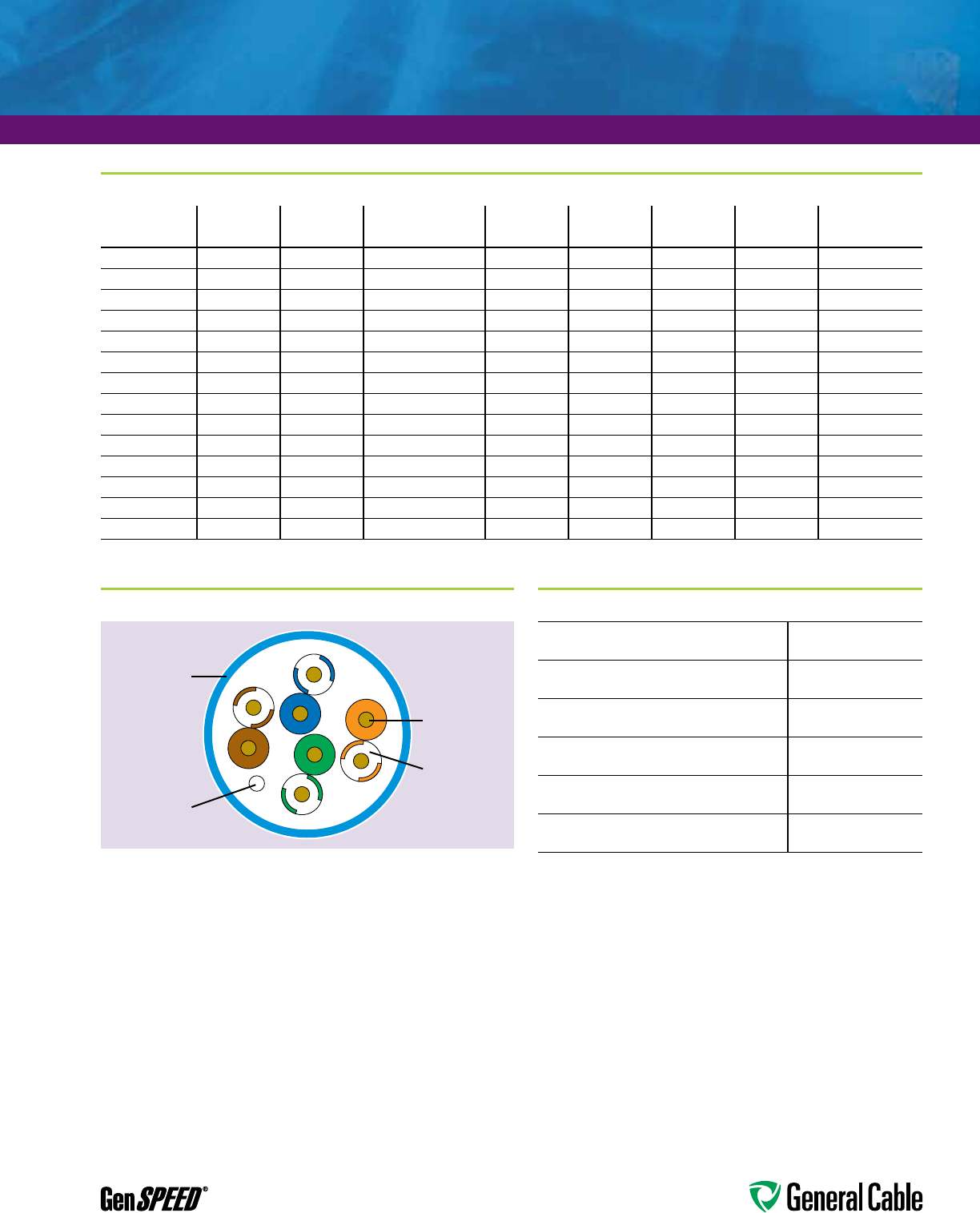

GenSPEED® 10,000 CATEGORY 6a CROSS-SECTION
20
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color
CMR (Non-Plenum)
Blue 7133819-17F
White 7133820-17F
Yellow 7133822-17F
Gray 7133821-17F
Red 7133824-17F
Orange 7133826-17F
Green 7133823-17F
Black 7133828-17F
Pink 7133827-17F
Purple 7133825-17F
Note: Non-stock items may be subject to minimum order quantities.

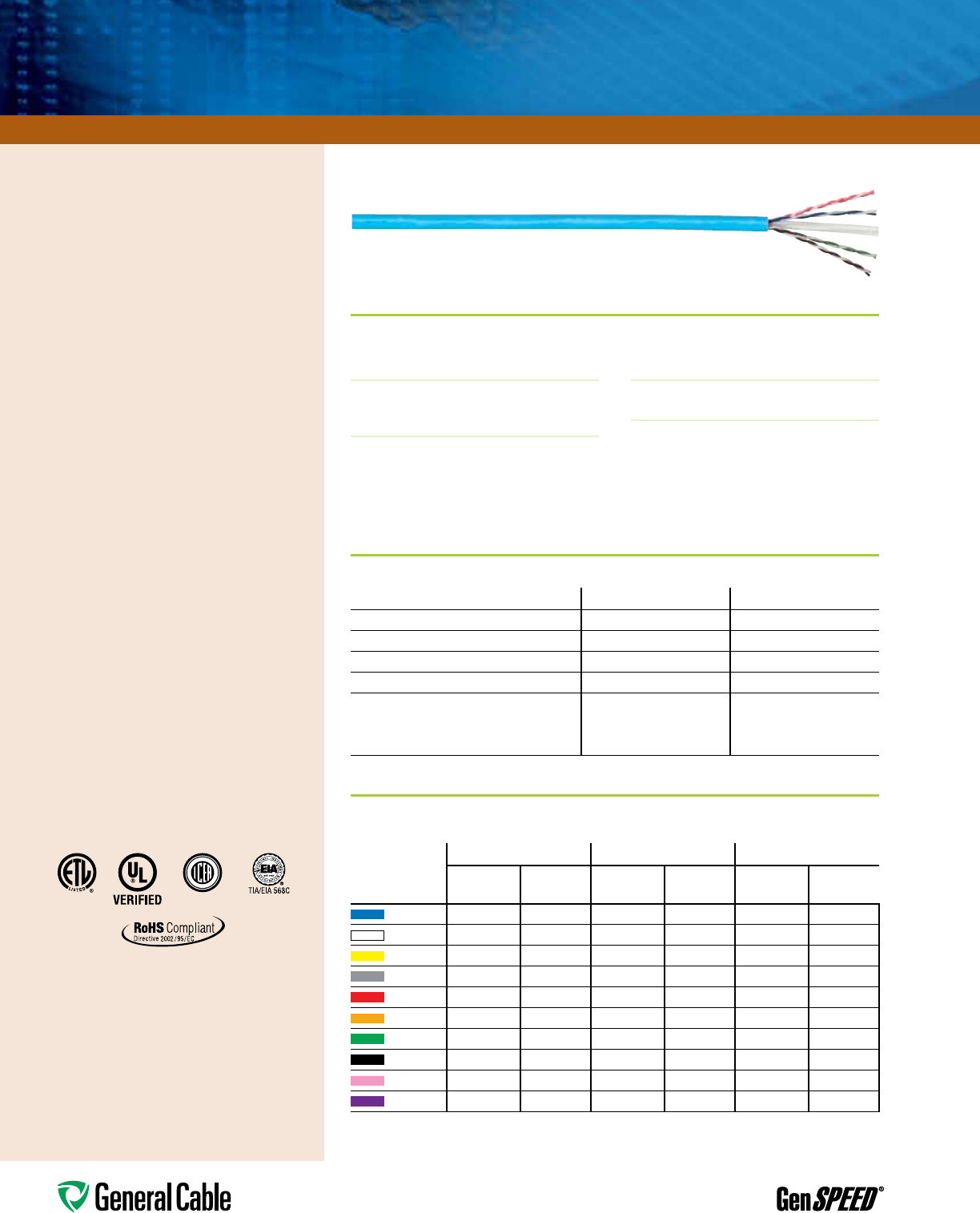

GenSPEED® 10,000 with 17 FREE™ Category 6a Cable
Features And Benefits
■ Halogen-free
■ Reduced toxicity
■ More environmentally friendly
■ Increased flexibility for easy installation
■ Performance guaranteed to 500 MHz
■ TRU-Mark® print legend contains footage
markings from 1000’ to 0’
■ Third-party verified for guaranteed
performance
■ Extensive design development
conducted to find the perfect blend of
product performance and consistent
manufacturability
■ Innovative T-Top cross-web provides
superior internal electrical characteristics
by locking the pairs into a systematic
orientation within the cable
■ Superior flame and smoke characteristics
achieved through innovative design
and careful selection of materials with
certified suppliers
Applications
■ IEEE 802.3: 10G BASE-T, 100 BASE-T
■ 100 BASE-TX, 10 BASE-T, 1000 BASE-TX
■ ANSI/TIA/EIA-854: 1000 BASE-TX
■ 155 Mb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af for PoE
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA 568 C.2
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
Color Code
•Pair1:Blue-White
•Pair2:Orange-White
•Pair3:Green-White
•Pair4:Brown-White
Separator
•T-Topcross-web
Jacket
•Non-Plenum:Zero-HalogenPolyolefin
Data subject to change without notice.
PHYSICAL DATA
CMR (Non-Plenum)
NominalCableDiameter(in) 0.330
NominalCableWeight(lbs/1000ft) 48
MinimumBendRadius(in) 1.5
MaximumPullingForce(lbs) 40
TemperatureRating(˚C)
 Installation: 0to+60
 Operation: -20to+75
21
Signal Strength and Power
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 4.0
Delay Skew(max)
ns/100m 35
Nom. Velocity of Propagation
%SpeedofLight 70
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Attenuation
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
TCL
(min)
PSANEXT
(min)
PSAACRF
(min)
170.2 72.2 2.1 72.3 74.3 64.8 67.8 20.0 40.0 67.0 67.0
459.5 61.5 3.8 63.3 65.3 52.8 55.8 23.0 40.0 67.0 66.2
853.5 55.5 5.3 58.8 60.8 46.7 49.7 24.5 40.0 67.0 60.1
10 51.4 53.4 5.9 57.3 59.3 44.8 47.8 25.0 40.0 67.0 58.2
16 46.7 48.7 7.5 54.2 56.2 40.7 43.7 25.0 38.0 67.0 54.1
20 44.4 46.4 8.4 52.8 54.8 38.8 41.8 25.0 37.0 67.0 52.2
25 41.9 43.9 9.4 51.3 53.3 36.8 39.8 24.3 36.0 67.0 50.2
31.25 39.4 41.4 10.5 49.9 51.9 34.9 37.9 23.6 35.1 67.0 48.3
62.5 30.4 32.4 15.0 45.4 47.4 28.9 31.9 21.5 32.0 65.6 42.3
100 23.2 25.2 19.1 42.3 44.3 24.8 27.8 20.1 30.0 62.5 38.2
200 10.2 12.2 27.6 37.8 39.8 18.8 21.8 18.0 27.0 58.0 32.2
250 5.2 7.2 31.1 36.3 38.3 16.8 19.8 17.3 26.0 56.5 30.2
300 0.8 2.8 34.3 35.1 37.1 15.3 18.3 16.8 25.2 55.3 28.7
400 — — 40.1 33.3 35.3 12.8 15.8 15.9 24.0 53.5 26.2
500 — — 45.3 31.8 33.8 10.8 13.8 15.2 23.0 52.0 24.2
Note: Values are expressed in dB per 100 m (328 ft.) length.
OUTER
JACKET
23 AWG
CONDUCTOR
T-TOP
SEPARATOR
INSULATION
GenSPEED® 10,000 with 17 FREE™ CATEGORY 6a
CROSS-SECTION
Going Green with General Cable
General Cable has accelerated its environmental commitment, addressing its green alternative approach
by identifying greener opportunities and promoting green cabling solutions wherever feasible. This includes
promoting our existing green products, partnering with key customers in their green endeavors, identifying
and providing resources for green product gaps, becoming a member of the U.S. Green Building Council
(USGBC) and participating in collaborative ventures such as the Green Suppliers Network (GSN).
Index Page
GenSPEED® Category 6
Quick Reference Guide
23
GenSPEED® 6500
Premium
Category 6 Cable 24-25
GenSPEED® 6000
Enhanced
Category 6 Cable 26-27
GenSPEED® 6
Category 6 Cable 28-29
GenSPEED® 6
with 17 FREETM
Category 6 Cable 30-31
GenSPEED® 6
Category 6 Interlock
Armored Cable 32-33
GenSPEED® 6
Category 6
Outside Plant Cable 34-35
General Cable offers a complete line-up of Category 6 cables to
meet all your networking needs. This “standard, enhanced, premium”
strategy allows you to choose a cable that meets your bandwidth
needs for each application you deploy. When you need a reliable
cable with warranty assurance, choose from the series of GenSPEED®
Category 6 Cables.
GenSPEED® 6 is a standard-compliant Category 6 cable that features
a unique tape design engineered for consistent electrical performance.
Its TRU-Mark® print legend contains footage markings from 1000' to 0',
making usage easier to track.
General Cable’s GenSPEED® 6000 has been enhanced to provide the
market with a cost-effective, high-bandwidth and high-performance
cabling solution for more robust and complex applications at Gigabit
speed and full duplex transmissions. The GenSPEED 6000 solution
provides a cable system infrastructure with assurance for advanced
applications demanding more bandwidth.
Featuring a revolutionary design, GenSPEED® 6500 Premium provides
the industry with one of the best-performing Category 6 cables in its
class. GenSPEED 6500 Premium offers high power-sum attenuation-
to-crosstalk ratio (PSACR) and low attenuation performance for better
signal strength and power.
All
GenSPEED
Category 6 cables are third-party verified for guaranteed
performance and conform to ANSI/TIA/EIA 568 C.2 standards.
GenSPEED
6 and 6000 Enhanced are offered in a variety of colors and
can be shipped in General Cable’s easy-to-use Pull-Pac
®
or Spool-Pac
®
cartons or on a spool.
GenSPEED
6500
Premium
is available in a
Spool-Pac or on a spool.
GenSPEED ® Category 6 Cables 2
22
Datacom
STANDARD ENHANCED PREMIUM
JACKET
COLOR PACKAGE
Category 6
GenSPEED® 6
Category 6
GenSPEED® 6000 Enhanced
Category 6
GenSPEED® 6500 Premium
CMR CMP CMR CMP CMR CMP
Blue
Pull-Pac®7133800 7131800 7133900 7131900
Spool-Pac®7133840 7131840 7133940 7131940 7133930 7131930
Spool 7133860 7131860 7133960 7131960 7133970 7131970
Bulk* 7133860.2R 7131860.2.5R 7133960.3R 7131960.3R 7133970.2R 7131970.2R
White
Pull-Pac®7133801 7131801 7133901 7131901
Spool-Pac®7133841 7131841 7133941 7131941 7133931 7131931
Spool 7133861 7131861 7133961 7131961 7133971 7131971
Bulk* 7133861.2R 7131861.2.5R 7133961.3R 7131961.3R 7133971.2R 7131971.2R
Yellow
Pull-Pac®7133802 7131802 7133902 7131902
Spool-Pac®7133842 7131842 7133942 7131942 7133932 7131932
Spool 7133862 7131862 7133962 7131962 7133972 7131972
Bulk* 7133862.2R 7131862.2.5R 7133962.3R 7131962.3R 7133972.2R 7131972.2R
Gray
Pull-Pac®7133803 7131803 7133903 7131903
Spool-Pac®7133843 7131843 7133943 7131943 7133933 7131933
Spool 7133863 7131863 7133963 7131963 7133973 7131973
Bulk* 7133863.2R 7131863.2.5R 7133963.3R 7131963.3R 7133973.2R 7131973.2R
Red
Pull-Pac®7133804 7131804 7133904 7131904
Spool-Pac®7133844 7131844 7133944 7131944 7133934 7131934
Spool 7133864 7131864 7133964 7131964 7133974 7131974
Bulk* 7133864.2R 7131864.2.5R 7133964.3R 7131964.3R 7133974.2R 7131974.2R
Orange
Pull-Pac®7133805 7131805 7133905 7131905
Spool-Pac®7133845 7131845 7133945 7131945 7133935 7131935
Spool 7133865 7131865 7133965 7131965 7133975 7131975
Bulk* 7133865.2R 7131865.2.5R 7133965.3R 7131965.3R 7133975.2R 7131975.2R
Green
Pull-Pac®7133806 7131806 7133906 7131906
Spool-Pac®7133846 7131846 7133946 7131946 7133936 7131936
Spool 7133866 7131866 7133966 7131966 7133976 7131976
Bulk* 7133866.2R 7131866.2.5R 7133966.3R 7131966.3R 7133976.2R 7131976.2R
Black
Pull-Pac®7133807 7131807 7133907 7131907
Spool-Pac®7133847 7131847 7133947 7131947 7133937 7131937
Spool 7133867 7131867 7133967 7131967 7133977 7131977
Bulk* 7133 8 6 7. 2 R 7131867.2. 5 R 71339 6 7.3 R 7131967.3R 713 3 97 7. 2 R 7131977.2R
Pink
Pull-Pac®7133808 7131808 7133908 7131908
Spool-Pac®7133848 7131848 7133948 7131948 7133938 7131938
Spool 7133868 7131868 7133968 7131968 7133978 7131978
Bulk* 7133848.2R 7131848.2.5R 7133968.3R 7131968.3R 7133978.2R 7131978.2R
Purple
Pull-Pac®7133809 7131809 7133909 7131909
Spool-Pac®7133859 7131859 7133959 7131959 7133939 7131939
Spool 7133869 7131869 7133969 7131969 7133979 7131979
Bulk* 7133869.2R 7131869.2.5R 7133969.3R 7131969.3R 7133979.2R 7131979.2R
Note: Non-stock items may be subject to minimum order quantities.
* Bulk reels are available in 2000' (2R), 2500' (2.5R), and 3000' (3R) lengths.
GenSPEED ® Category 6 Quick Reference Guide
23
Datacom GenSPEED® Category 6 Enhanced Cables
24
GenSPEED® 6500 Premium Category 6 Cable
Features And Benefits
■ Designed and engineered with precision
balance to offer ultimate headroom
■ High-end optimized performance to
support the most bandwidth-intense
applications
■ New and improved separator
construction allowing for more
pair separation
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ ANSI/TIA/EIA 854: 1000 BASE-TX
■ 155 Mp/s, 1.2 Gb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af DTE Power (PoE)
■ Digital Video
■ Broadband and Baseband Analog Video
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Separator
•Cross-web
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,
Flame-RetardantPVC
PART NUMBERS
Standardpackaging:1000'Spool-Pac®
Spool-Pac®Spool
Jacket Color
CMR (Non-Plenum) CMP (Plenum) CMR (Non-Plenum) CMP (Plenum)
Blue 7133930 7131930 7133970 7131970
White 7133931 7131931 7133971 7131971
Yellow 7133932 7131932 7133972 7131972
Gray 7133933 7131933 7133973 7131973
Red 7133934 7131934 7133974 7131974
Orange 7133935 7131935 7133975 7131975
Green 7133936 7131936 7133976 7131976
Black 7133937 7131937 7133977 7131977
Pink 7133938 7131938 7133978 7131978
Purple 7133939 7131939 7133979 7131979
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.260 0.250
NominalCableWeight(lbs/1000ft) 30 32
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 50 50
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
25
Signal Strength and Power
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight
CMP:72
CMR:70
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-350MHz
 350-500MHz
Ohms
100±15
100±22
100±32
CROSS-WEB
INSULATION
RIP CORD
OUTER
JACKET
23 AWG
CONDUCTOR
GenSPEED® 6500 PREMIUM CATEGORY 6
CROSS-SECTION
GenSPEED® 6500 Electrical Performance
PSACR (min) ACR (min) Insertion Loss (max) PSNEXT (min) NEXT (min)
Frequency
MHz
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
170.3 77.4 72.3 79.4 2.0 1.9 72.3 79.3 74.3 81.3
459.3 66.8 61.5 68.8 3.8 3.5 63.3 70.3 65.3 72.3
10 51.3 58.8 53.3 60.8 6.0 5.5 57.3 64.3 59.3 66.3
16 46.7 54.2 48.7 56.2 7.6 7.0 54.2 61.2 56.2 63.2
20 44.3 51.9 46.3 53.9 8.5 7.8 52.8 59.8 54.8 61.8
31.25 39.2 47.0 41.2 49.0 10.7 9.9 49.9 56.9 51.9 58.9
62.5 29.9 38.0 32.0 40.0 15.4 14.3 45.4 52.4 47.4 54.4
100 22.5 30.8 24.5 32.8 19.8 18.5 42.3 49.3 44.3 51.3
200 8.8 17.5 10.8 19.5 29.0 27.2 37.8 44.8 39.8 46.8
250 3.5 12.4 5.5 14.4 32.8 30.9 36.3 43.3 38.3 45.3
350 —3.5 —5.5 —37.6 —41.1 —43.1
500 —————46.5 —38.8 —40.8
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz for reference only.
PSACRF (min) ACRF (min) Return Loss (min) LCL (min) ELTCTL (min)
Frequency
MHz
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
164.8 70.8 67.8 73.8 20.0 20.0 40.0 40.0 35.0 35.0
452.8 58.8 55.7 61.8 23.0 23.0 40.0 40.0 23.0 23.0
10 44.8 50.8 47.8 53.8 25.0 25.0 40.0 40.0 15.0 15.0
16 40.7 46.7 43.7 49.7 25.0 25.0 38.0 38.0 10.9 10.9
20 38.8 44.8 41.7 47.8 25.0 25.0 37.0 37.0 9.0 9.0
31.25 34.9 40.9 37.9 43.9 23.6 25.0 35.1 35.1 5.1 5.1
62.5 28.9 34.9 31.8 37.9 21.5 23.5 32.0 32.0 5.0 5.0
100 24.8 30.8 27.8 33.8 20.1 22.1 30.0 30.0 5.0 5.0
200 18.8 24.8 21.8 27.8 18.0 20.0 27.0 27.0 5.0 5.0
250 16.8 23.8 19.8 26.8 17.3 19.3 26.0 26.0 5.0 5.0
350 —19.9 —22.9 —18.3 — — — —
500 —16.8 —19.8 —17.2 — — — —
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz for reference only.
26
Features And Benefits
■ Innovative cross-web design allowing for
maximum pair separation, increasing key
electrical performance parameters
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ ANSI/TIA/EIA 854: 1000 BASE-TX
■ 155 Mp/s, 1.2 Gb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af DTE Power (PoE)
■ Digital Video
■ Broadband and Baseband Analog Video
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.235 0.225
NominalCableWeight(lbs/1000ft) 28 31
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 32 32
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
GenSPEED® 6000 Enhanced Category 6 Cable
PART NUMBERS
Standardpackaging:1000'Pull-Pac®ll
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
Blue 7133900 7131900 7133940 7131940 7133960 7131960
White 7133901 7131901 7133941 7131941 7133961 7131961
Yellow 7133902 7131902 7133942 7131942 7133962 7131962
Gray 7133903 7131903 7133943 7131943 7133963 7131963
Red 7133904 7131904 7133944 7131944 7133964 7131964
Orange 7133905 7131905 7133945 7131945 7133965 7131965
Green 7133906 7131906 7133946 7131946 7133966 7131966
Black 7133907 7131907 7133947 7131947 7133967 7131967
Pink 7133908 7131908 7133948 7131948 7133968 7131968
Purple 7133909 7131909 7133959 7131959 7133969 7131969
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Separator
•Cross-web
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC
27
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 4.0
Delay Skew(max)
ns/100m
CMP:35
CMR:38
Nom. Velocity of Propagation
%SpeedofLight
CMP:70
CMR:68
Characteristic Impedance
Frequency(f): 1-500MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-250MHz
 250-500MHz
Ohms
100±15
100±22
100±32
GenSPEED® 6000 Electrical Performance
PSACR (min) ACR (min) Insertion Loss (max) PSNEXT (min) NEXT (min)
Frequency
MHz
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
170.3 75.3 72.3 77.3 2.0 2.0 72.3 77.3 74.3 79.3
459.3 64.5 61.5 66.5 3.8 3.8 63.3 68.3 65.3 70.3
10 51.3 56.4 53.3 58.4 6.0 5.9 57.3 62.3 59.3 64.3
16 46.7 51.7 48.7 53.8 7.6 7.5 54.2 59.3 56.2 61.3
20 44.3 49.4 46.3 51.4 8.5 8.4 52.8 57.8 54.8 59.8
31.25 39.2 44.3 41.2 46.3 10.7 10.6 49.9 54.9 51.9 56.9
62.5 29.9 35.1 32.0 37.1 15.4 15.3 45.4 50.4 47.4 52.4
100 22.5 27.6 24.5 29.6 19.8 19.7 42.3 47.3 44.3 49.3
150 14.9 20.0 16.9 22.0 24.7 24.7 39.7 44.7 41.7 46.7
200 8.8 13.8 10.8 15.8 29.0 29.0 37.8 42.8 39.8 44.8
250 3.5 8.7 5.5 10.7 32.8 32.6 36.3 41.3 38.3 43.3
350 ———1.7 —39.5 —39.2 —41.2
500 —————48.6 —36.8 —38.8
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz for reference only.
PSACRF (min) ACRF (min) Return Loss (min) LCL (min) ELTCTL (min)
Frequency
MHz
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
TIA
568C.2
Guaranteed
164.8 69.8 67.8 72.8 20.0 20.0 40.0 40.0 35.0 35.0
452.8 57.7 55.7 60.7 23.0 23.6 40.0 40.0 23.0 23.0
10 44.8 49.8 47.8 52.8 25.0 26.0 40.0 40.0 15.0 15.0
16 40.7 45.7 43.7 48.7 25.0 26.0 38.0 38.0 10.9 10.9
20 38.8 43.7 41.7 46.7 25.0 26.0 37.0 37.0 9.0 9.0
31.25 34.9 39.9 37.9 42.9 23.6 25.0 35.1 35.1 5.1 5.1
62.5 28.9 33.8 31.8 36.8 21.5 23.5 32.0 32.0 5.0 5.0
100 24.8 29.8 27.8 32.8 20.1 22.5 30.0 30.0 5.0 5.0
150 21.3 26.3 24.3 29.3 18.9 21.6 28.2 28.2 5.0 5.0
200 18.8 23.8 21.8 26.8 18.0 21.0 27.0 27.0 5.0 5.0
250 16.8 21.8 19.8 24.8 17.3 20.5 26.0 26.0 5.0 5.0
350 —18.9 —21.9 —19.8 — — — —
500 —15.8 —18.8 —19.0 — — — —
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz for reference only.
Optimally Balanced Enhanced Performance
GenSPEED® 6000 ENHANCED CATEGORY 6
CROSS-SECTION
CROSS-WEB
INSULATION
RIP CORD
OUTER
JACKET
23 AWG
CONDUCTOR
28
GenSPEED® 6 Category 6 Cable
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Separator
•Tape
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.205 0.200
NominalCableWeight(lbs/1000ft) 28 28
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 32 32
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
Features And Benefits
■ Unique tape design engineered for
consistent electrical performance
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ ANSI/TIA/EIA 854: 1000 BASE-TX
■ 155 Mp/s, 1.2 Gb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af DTE Power (PoE)
■ Digital Video
■ Broadband and Baseband Analog Video
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444 PART NUMBERS
Standardpackaging:1000'Pull-Pac®II
Pull-Pac® II Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
Blue 7133800 7131800 7133840 7131840 7133860 7131860
White 7133801 7131801 7133841 7131841 7133861 7131861
Yellow 7133802 7131802 7133842 7131842 7133862 7131862
Gray 7133803 7131803 7133843 7131843 7133863 7131863
Red 7133804 7131804 7133844 7131844 7133864 7131864
Orange 7133805 7131805 7133845 7131845 7133865 7131865
Green 7133806 7131806 7133846 7131846 7133866 7131866
Black 7133807 7131807 7133847 7131847 7133867 7131867
Pink 7133808 7131808 7133848 7131848 7133868 7131868
Purple 7133809 7131809 7133859 7131859 7133869 7131869
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
29
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 4.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight
CMP:70
CMR:68
Characteristic Impedance
Frequency(f): 1-350MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-350MHz
Ohms
100±15
100±22
GenSPEED® 6 Electrical Performance TIA/EIA 568 C.2*
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
LCL
(min)
ELTCTL
(min)
170.3 72.3 2.0 72.3 74.3 64.8 67.8 20.0 40.0 35.0
459.3 61.5 3.8 63.3 65.3 52.8 55.7 23.0 40.0 23.0
10 51.3 53.3 6.0 57.3 59.3 44.8 47.8 25.0 40.0 15.0
16 46.7 48.7 7.6 54.2 56.2 40.7 43.7 25.0 38.0 10.9
20 44.3 46.3 8.5 52.8 54.8 38.8 41.7 25.0 37.0 9.0
31.25 39.2 41.2 10.7 49.9 51.9 34.9 37.9 23.6 35.1 5.1
62.5 29.9 32.0 15.4 45.4 47.4 28.9 31.8 21.5 32.0 5.0
100 22.5 24.5 19.8 42.3 44.3 24.8 27.8 20.1 30.0 5.0
150 14.9 16.9 24.7 39.7 41.7 21.3 24.3 18.9 28.2 5.0
200 8.8 10.8 29.0 37.8 39.8 18.8 21.8 18.0 27.0 5.0
250 3.5 5.5 32.8 36.3 38.3 16.8 19.8 17.3 26.0 5.0
350 — — 39.8 34.1 36.1 13.9 16.9 16.3 — —
400 — — 43.0 33.3 35.3 12.8 15.8 15.9 — —
500 — — 48.9 31.8 33.8 10.8 13.8 15.2 — —
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz are for reference only.
*Specs meet ANSI/TIA/EIA 568 C.2 standard for Cat 6 UTP cabling.
Standards-Compliant
GenSPEED® 6 CATEGORY 6 CROSS-SECTION
INSULATION
RIP CORD
OUTER
JACKET
23 AWG
CONDUCTOR
TAPE
30
PART NUMBERS
Standardpackaging:1000'Pull-Pac®Ilwithenvironmentallyfriendlypackaging.
Spool-Pac®andSpoolbyspecialorder.
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMR
(Non-Plenum)
CMR
(Non-Plenum)
Blue 7133800-17F 7133840-17F 7133860-17F
White 7133801-17F 7133841-17F 7133861-17F
Yellow 7133802-17F 7133842-17F 7133862-17F
Gray 7133803-17F 7133843-17F 7133863-17F
Red 7133804-17F 7133844-17F 7133864-17F
Orange 7133805-17F 7133845-17F 7133865-17F
Green 7133806-17F 7133846-17F 7133866-17F
Black 7133807-17F 7133847-17F 7133867-17F
Purple 7133809-17F 7133859-17F 7133869-17F
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
Separator
•Tape
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Zero-HalogenPolyolefin
PHYSICAL DATA
CMR (Non-Plenum)
NominalCableDiameter(in) 0.210
NominalCableWeight(lbs/1000ft) 29
MinimumBendRadius(in) 1.0
MaximumPullingForce(lbs) 32
TemperatureRating(˚C)
 Installation: -20to+75
 Operation: -20to+75
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
CONSTRUCTION
Data subject to change without notice.
Features And Benefits
■ Halogen-free
■ Reduced toxicity
■ More environmentally friendly
■ Increased flexibility for easy installation
■ Unique tape design engineered for
consistent electrical performance
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000’ to 0’
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ ANSI/TIA/EIA 854: 1000 BASE-TX
■ 155 Mp/s, 1.2 Gb/s ATM
■ ANSI X3.263: 100 Mb/s
■ IEEE 802.3af DTE Power (PoE)
■ Digital Video
■ Broadband and Baseband Analog Video
■ Draft IEEE 802.3at for PoE Plus
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
GenSPEED® 6 with 17 FREE™ Category 6 Cable
31
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 4.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight CMR:68
Characteristic Impedance
Frequency(f): 1-350MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-350MHz
Ohms
100±15
100±22
GenSPEED® 6 with 17 FREE™ Electrical Performance
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
LCL
(min)
ELTCTL
(min)
170.3 72.3 2.0 72.3 74.3 64.8 67.8 20.0 40.0 35.0
459.3 61.5 3.8 63.3 65.3 52.8 55.7 23.0 40.0 23.0
10 51.3 53.3 6.0 57.3 59.3 44.8 47.8 25.0 40.0 15.0
16 46.7 48.7 7.6 54.2 56.2 40.7 43.7 25.0 38.0 10.9
20 44.3 46.3 8.5 52.8 54.8 38.8 41.7 25.0 37.0 9.0
31.25 39.2 41.2 10.7 49.9 51.9 34.9 37.9 23.6 35.1 5.1
62.5 29.9 32.0 15.4 45.4 47.4 28.9 31.8 21.5 32.0 5.0
100 22.5 24.5 19.8 42.3 44.3 24.8 27.8 20.1 30.0 5.0
150 14.9 16.9 24.7 39.7 41.7 21.3 24.3 18.9 28.2 5.0
200 8.8 10.8 29.0 37.8 39.8 18.8 21.8 18.0 27.0 5.0
250 3.5 5.5 32.8 36.3 38.3 16.8 19.8 17.3 26.0 5.0
350 — — 39.8 34.1 36.1 13.9 16.9 16.3 — —
400 — — 43.0 33.3 35.3 12.8 15.8 15.9 — —
500 — — 48.9 31.8 33.8 10.8 13.8 15.2 — —
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 350 MHz are for reference only.
Spec meets ANSI/TIA/EIA 568 C.2 standard for Cat 6 UTP cabling.
INSULATION
RIP CORD
OUTER
JACKET
23 AWG
CONDUCTOR
TAPE
GenSPEED® 6 with 17 FREE™ CATEGORY 6
CROSS-SECTION
Going Green with General Cable
General Cable has accelerated its environmental commitment, addressing its green alternative approach
by identifying greener opportunities and promoting green cabling solutions wherever feasible. This includes
promoting our existing green products, partnering with key customers in their green endeavors, identifying
and providing resources for green product gaps, becoming a member of the U.S. Green Building Council
(USGBC) and participating in collaborative ventures such as the Green Suppliers Network (GSN).
Standards-Compliant
32
GenSPEED® 6 Category 6 Interlock Armored Cable
PHYSICAL DATA
CMR (Non-Plenum)
1 Cable
NominalCableDiameter(in) 0.450
NominalCableWeight(lbs/1000ft) 67.8
MinimumBendRadius(in) 1.0
MaximumPullingForce(lbs) 32
TemperatureRating(˚C)
 Installation: 0to+60
 Operation: -20to+75
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Polyolefin
Rip Cord
•Appliedlongitudinallyunderjacket
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Jacket
•Flame-RetardantPVC
PART NUMBERS
Spool
Color Part Number Unit 1 Reel
Blue 9133300 6RBlue 1000'reel
Blue 9133300.2R 6RBlue 2000'reel
White 9133305 6RWhite 1000'reel
White 9133305.2R 6RWhite 2000'reel
Features And Benefits
■ Interlock armor provides outstanding
mechanical protection
■ Flexible and easy to install
■ Eliminates the need for conduit, reducing
installation time
■ Single-pull installation
■ Application assurance warranty
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ ANSI/TIA/EIA 854: 100 BASE-TX
■ 155 Mp/s, 1.2 Gb/s ATM
■ ANSI X3.263: 100 Mb/s
■ Indoor applications only
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666)
for Non-Plenum
■ UL 444
Data subject to change without notice.
33
Standards-Compliant
ELECTRICAL PERFORMANCE
PSACR
(min)
ACR
(min)
Insertion
Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return
Loss
(min)
LCL
(min)
ELTCTL
(min)
170.3 72.3 2.0 72.3 74.3 64.8 67.8 20.0 40.0 35.0
459.3 61.5 3.8 63.3 65.3 52.8 55.7 23.0 40.0 23.0
10 51.3 53.3 6.0 57.3 59.3 44.8 47.8 25.0 40.0 15.0
16 46.7 48.7 7.6 54.2 56.2 40.7 43.7 25.0 38.0 10.9
20 44.3 46.3 8.5 52.8 54.8 38.8 41.7 25.0 37.0 9.0
31.25 39.2 41.2 10.7 49.9 51.9 34.9 37.9 23.6 35.1 5.1
62.5 29.9 32.0 15.4 45.4 47.4 28.9 31.8 21.5 32.0 5.0
100 22.5 24.5 19.8 42.3 44.3 24.8 27.8 20.1 30.0 5.0
150 14.9 16.9 24.7 39.7 41.7 21.3 24.3 18.9 28.2 5.0
200 8.8 10.8 29.0 37.8 39.8 18.8 21.8 18.0 27.0 5.0
250 3.5 5.5 32.8 36.3 38.3 16.8 19.8 17.3 26.0 5.0
350 – – 39.8 34.1 36.1 13.9 16.9 16.3 – –
400 – – 43.0 33.3 35.3 12.8 15.8 15.9 – –
500 – – 48.9 31.8 33.8 10.8 13.8 15.2 – –
Note: Values are expressed in dB per 100 m (328 ft.) length. Results beyond 250 MHz are for reference only.
GenSPEED® 6 INTERLOCK ARMORED CABLE
CROSS-SECTION
CROSS-WEB
INSULATION
RIP CORD
OUTER
JACKET
23 AWG
CONDUCTOR
ARMOR
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight CMR:70
Characteristic Impedance
Frequency(f): 1-250MHz
Ohms
100±15
34

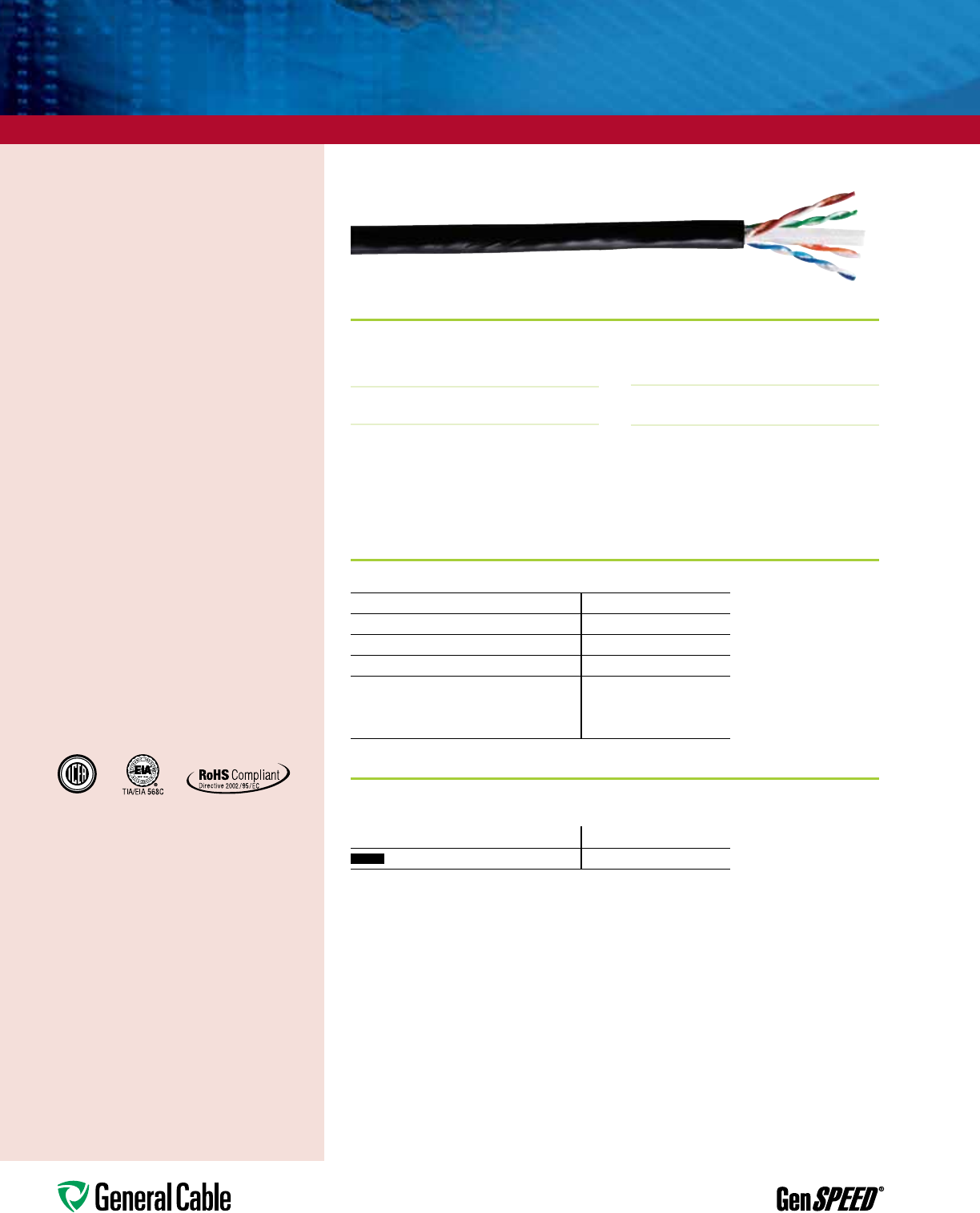

GenSPEED® 6 Category 6 Outside Plant Cable
PHYSICAL DATA
NominalCableDiameter(in) 0.230
NominalCableWeight(lbs/1000ft) 25
MinimumBendRadius(in) 1.0
MaximumPullingForce(lbs) 32
TemperatureRating(˚C)
 Installation: -30to+60
 Operation: -45to+80
CONSTRUCTION
Conductors
•23AWGsolidbareannealedcopper
Insulation
•Polyolefin
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Separator
•Cross-web
Flooding Compound
•Waterproofgel
Jacket
•UV-andAbrasion-Resistant
Polyethylenes
PART NUMBER
Standardpackaging:1000'Reel
Jacket Color Reel
Black 7136100
Features And Benefits
■ Innovative cross-web design allowing for
maximum pair separation, increasing key
electrical performance parameters
■ Gel-filled construction to prevent
moisture migration in underground and
wet applications
■ Wide temperature range for extreme
weather environments
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
Applications
■ Data transmission rates up to 2.4 Gb/s
■ 1000 BASE-T (Gigabit Ethernet)
■ 100/10 BASE-T (IEEE 802.3)
■ 52/155 Mbps ATM
■ Duct and conduit installations
■ Not to be used aerially or direct buried
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ISO 11801 (Category 6)
■ ICEA S-102-700 (Category 6)
■ MIL-C-24640A Water Penetration
Requirement
■ RoHS Compliant Directive 2002/95/EC
Data subject to change without notice.
35
Enhanced Outdoor Performance
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
170.3 72.3 2.0 72.3 74.3 64.8 67.8 20.0
459.5 61.5 3.8 63.3 65.3 52.8 55.8 23.0
10 51.3 53.3 6.0 57.3 59.3 44.8 47.8 25.0
16 47.0 49.0 7.6 54.3 56.3 40.7 43.7 25.0
20 44.3 46.3 8.5 52.8 54.8 38.8 41.8 25.0
31.25 39.2 41.2 10.7 49.9 51.9 36.8 37.9 23.6
62.5 30.0 32.0 15.4 45.4 47.4 28.9 31.9 21.5
100 22.5 24.5 19.8 42.3 44.3 24.8 27.8 20.1
200 9.0 11.0 29.0 37.8 39.8 18.8 21.8 18.0
250 3.5 5.5 32.8 36.3 38.3 16.8 19.8 17.3
Note: Values are expressed in dB per 100 m (328 ft.) length.
GenSPEED® 6 CATEGORY 6 OUTSIDE PLANT
CROSS-SECTION
OUTER
JACKET
CROSS-WEB
23 AWG
CONDUCTOR
FLOODING
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight 69
Characteristic Impedance
Frequency(f): 1-250MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-250MHz
Ohms
100±15
100±22
Index Page
GenSPEED® Category 5e
Quick Reference Guide
37
GenSPEED® 5500
Premium
Category 5e Cable 38-39
GenSPEED® 5350
Enhanced
Category 5e Cable 40-41
GenSPEED® 5000
Category 5e Cable 42-43
GenSPEED® 5000
with 17 FREETM
Category 5e Cable 44-45
GenSPEED® 5000
Category 5e Interlock
Armored Cable 46-47
GenSPEED® 5000
Category 5e
Screened Cable 48-49
GenSPEED® 5000
Category 5e
Outside Plant Cable 50-51
GenSPEED® 5000
Category 5e
Residential CMX
Outdoor-CMR Cable 52-53
GenSPEED® 5000
Category 5e

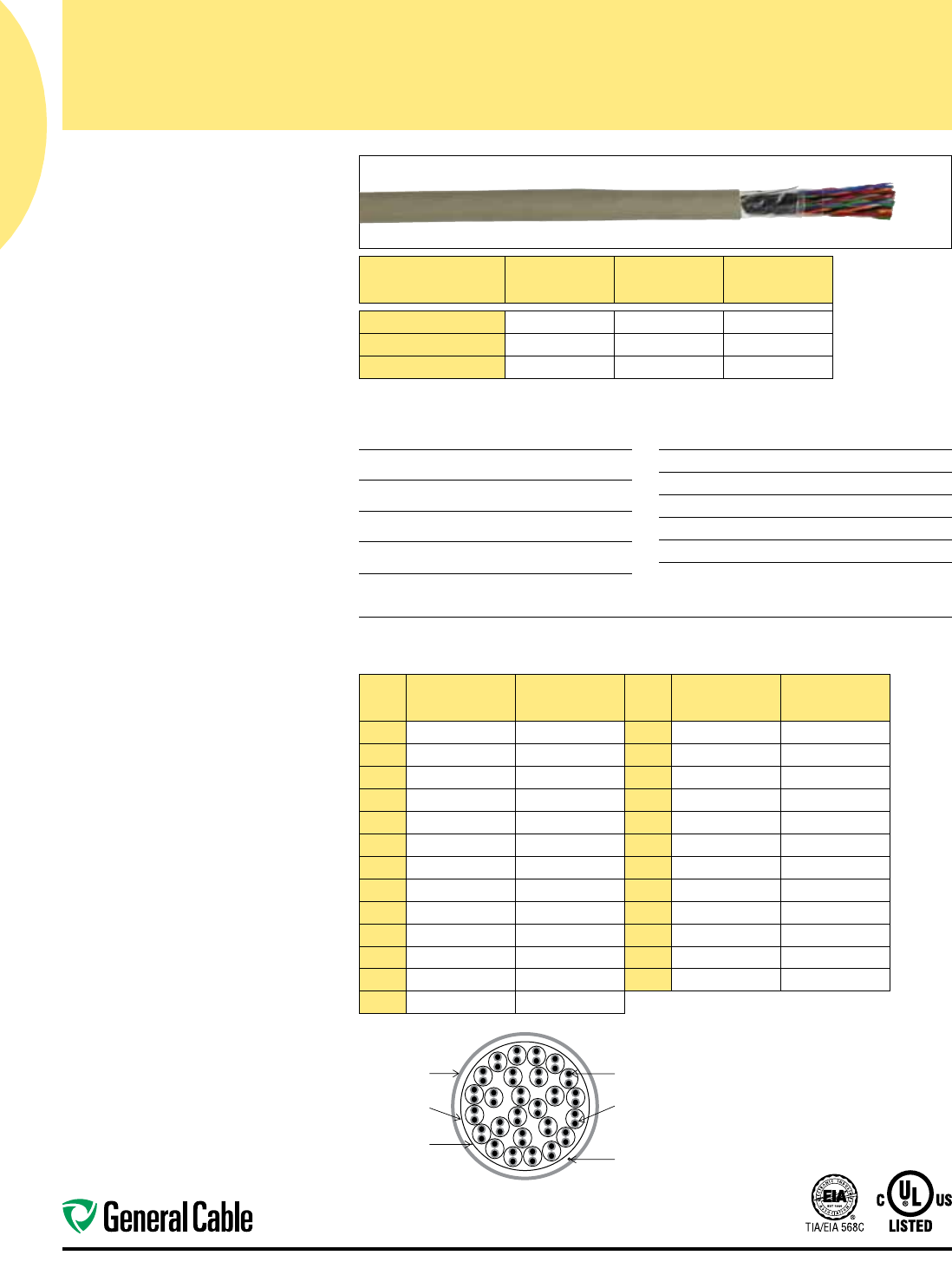

Backbone 25 Pair Cable 54-55
GenSPEED® Category 5e cables are available in a wide variety of performance
levels and constructions. With many options to pick from, you can select
the GenSPEED Category 5e product that meets your specific performance
requirements.
GenSPEED® 5500 Premium Category 5e cable ensures increased headroom,
lower bit-error rates and higher signal transmission quality. GenSPEED®
5350 exceeds Category 5e transmission requirements, offering electrical
performance for 1000 BASE-T and beyond Ethernet applications.
With steady, continuous performance, GenSPEED® 5000 meets Category 5e
requirements for present and future network requirements. Offered in a
variety of constructions, there is a GenSPEED 5000 cable for nearly every
application — including backbone, horizontal, outside, outside plant and
residential cabling.
All GenSPEED cables are are safety listed to the NEC and CEC requirements,
and most are verified for electrical performance. This independent third-
party testing further confirms the quality and performance of all GenSPEED
Enhanced Cables.
GenSPEED’s installer-friendly design means that customers won’t lose
valuable time and money. GenSPEED cables feature unique product-specific
packaging for easy identification and TRU-Mark® footage marking so installers
don’t waste time pulling cable that’s too short.
Through leadership and participation on industry committees, technical
expertise and a focus on cultivating strong relationships, General Cable
provides customers with first-class technical support and a competitive
advantage. General Cable’s comprehensive warranty program means that
all GenSPEED cables conform to standard specifications and are free from
defects in material and workmanship.
For more than a century and a half, General Cable has stayed ahead of
the industry’s changing needs with products that meet future performance
requirements and provide the best value in cabling solutions.
GenSPEED ® Category 5e Cables 3
36
Datacom
STANDARD ENHANCED PREMIUM
JACKET
COLOR PACKAGE
Category 5e
GenSPEED® 5000
Category 5e
GenSPEED® 5350 Enhanced
Category 5e
GenSPEED® 5500 Premium
CMR CMP CMR CMP CMR CMP
Blue
Pull-Pac®5133299E 5131278E 6133712 6131690 6133299 6131278
Spool-Pac®5133374E 5131431E 6133707 6131688 6133403 6131433
Spool 5133300E 5131282E 6133703 6131686 6133282 6131282
Bulk* 5133300E.2.5R 5131282E.3R 6133703.2.5R 6131686.3R 6133282.2.5R 6131282.3R
White
Pull-Pac®5133255E 5131361E 6133713 6131691 6133255 6131361
Spool-Pac®5133342E 5131450E 6133708 6131689 6133339 6131449
Spool 5133250E 5131365E 6133704 6131687 6133492 6131618
Bulk* 5133250E.2.5R 5131365E.3R 6133704.2.5R 6131687.3R 6133492.2.5R 6131618.3R
Yellow
Pull-Pac®5133289E 5131379E 6133715 6131693 6133289 6131546
Spool-Pac®5133448E 5131546E 6133717 6131695 6133369 6131379
Spool 5131648E 6133719 6131697 6133348 6131382
Bulk* 5133251E.2.5R 5131648E.3R 6133719.2.5R 61316 97.3R 6133348.2.5R 6131382.3R
Gray
Pull-Pac®5133200E 5131418E 6133714 6131692 6133200 6131418
Spool-Pac®5133329E 5131456E 6133716 6131694 6133331 6131619
Spool 5133204E 5131475E 6133718 6131696 6133334
Bulk*
Red
Pull-Pac®5133274E 5131477E 6133274 6131477
Spool-Pac®5133427E 5131553E 6131732 6131635
Spool 5131383E
Bulk*
Orange
Pull-Pac®5133383E 5131422E 6133761 6133746 6131422
Spool-Pac®6133383 6131576
Spool 5133667E 6131733
Bulk*
Green
Pull-Pac®5133512E 5131547E 6131699 6133512 6131547
Spool-Pac®5133693E 5131575E 6131731 6133615 6131575
Spool 5133649E 5131649E 6131700 6133616 6131757
Bulk* 5133649E.2.5R 5131649E.3R 6131700.3R 6133616.2.5R 6131757.3R
Black
Pull-Pac®5133696E 5131683E 6131707 6133696 6131683
Spool-Pac®6131829
Spool 5131689E
Bulk*
Pink
Pull-Pac®5133290E 5131380E 6133290 6131709
Spool-Pac®5133447E 5131478E 6133447 6131478
Spool 6133341
Bulk*
Purple
Pull-Pac®5133445E 5131730E 6133445 6131710
Spool-Pac®6133446
Spool
Bulk*
Note: Non-stock items may be subject to minimum order quantities.
* Bulk reels are available in 2000' (2R) and 3000' (3R) lengths.
GenSPEED ® Category 5e Quick Reference Guide
37
Datacom GenSPEED® Category 5e Cables
38
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC

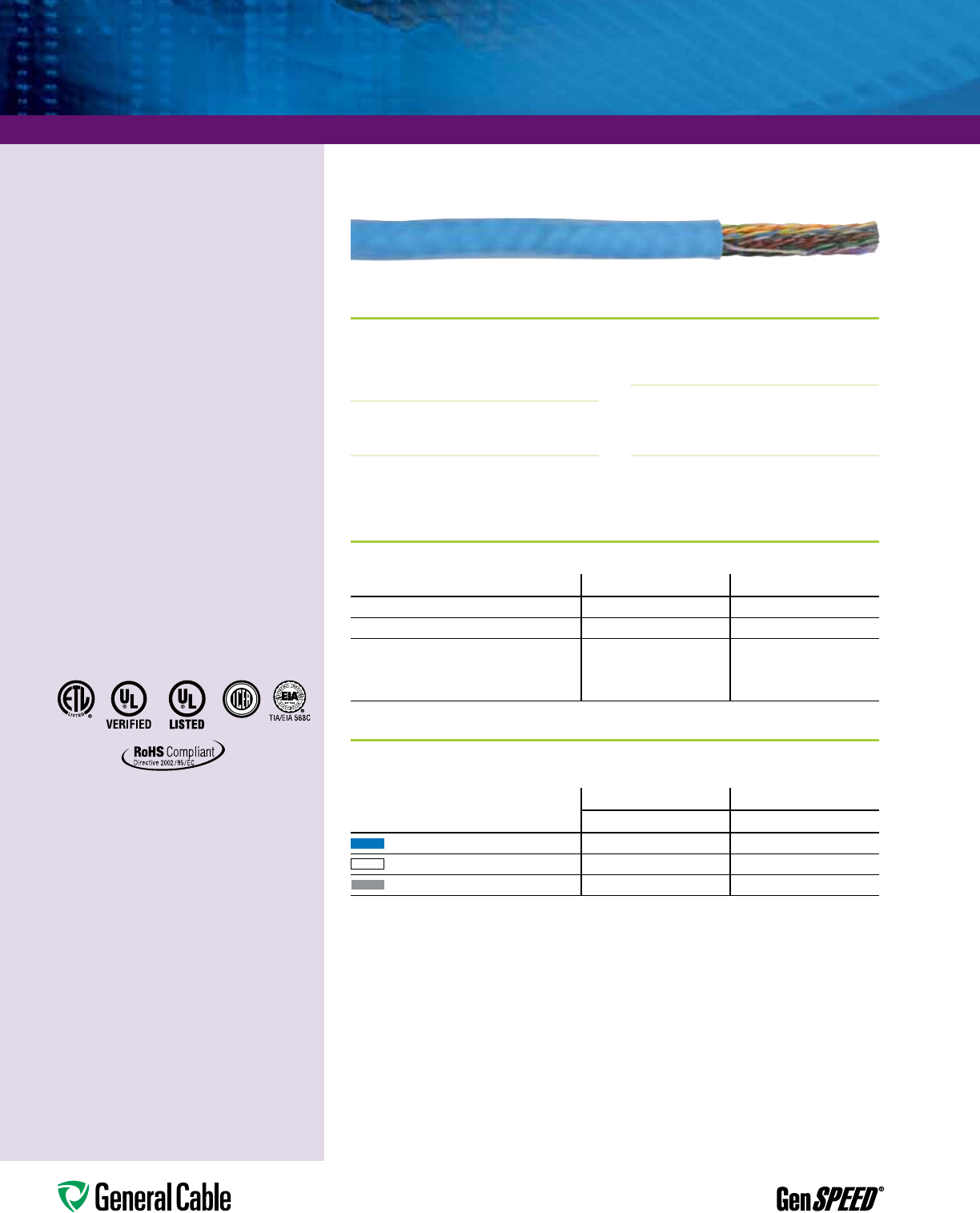

GenSPEED® 5500 Premium Category 5e Cable
Features And Benefits
■ Ensures increased headroom for future
applications, lower bit-error rates, and
higher signal transmission quality
■ Enhanced signal-to-noise ratio, improving
bit-error rate
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ 155 Mp/s, 622 Mp/s ATM
■ ANSI X3.263: 100 Mb/s
■ 4/16 Mb/s Token Ring
■ Broadband and Baseband Analog Video
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class D)
■ ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.210 0.190
NominalCableWeight(lbs/1000ft) 22 20
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
PART NUMBERS
Standardpackaging:1000'Pull-Pac®Il
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
Blue 6133299 6131278 6133403 6131433 6133282 6131282
White 6133255 6131361 6133339 6131449 6133492 6131618
Yellow 6133289 6131546 6133369 6131379 6133348 6131382
Gray 6133200 6131418 6133331 6131619 6133334
Red 6133274 6131477 6131635
Orange 6133746 6131422 6133383 6131576
Green 6133512 6131547 6133615 6131575 6133616 6131757
Black 6133696 6131683 6131829
Pink 6133290 6131709 6133447 6131478 6133341
Purple 6133445 6131710 6133446
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
Data subject to change without notice.
39
Enhanced Transmission Throughput
GenSPEED® 5500 PREMIUM CATEGORY 5e
CROSS-SECTION
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight
CMP:72
CMR:70
Characteristic Impedance
Frequency(f): 1-350MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-250MHz
 250-350MHz
Ohms
100±15
100±22
100±32
GenSPEED® 5500 ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
166.3 68.3 2.0 68.3 70.3 62.0 65.0 20.0
455.4 57.4 3.9 59.3 61.3 50.0 53.0 23.0
10 47.1 49.1 6.2 53.3 55.3 42.0 45.0 25.0
16 42.3 44.3 7.9 50.2 52.2 37.9 40.9 25.0
20 39.9 41.9 8.9 48.8 50.8 36.0 39.0 25.0
25 37.4 39.4 10.0 47.3 49.3 34.0 37.0 24.3
31.25 34.7 36.7 11.2 45.9 47.9 32.1 35.1 23.6
62.5 25.1 27.1 16.3 41.4 43.4 26.1 29.1 21.5
100 17.3 19.3 21.0 38.3 40.3 22.0 25.0 20.1
155 8.6 10.6 26.9 35.4 37.4 18.2 21.2 18.8
200 2.8 4.8 31.0 33.8 35.8 16.0 19.0 18.0
250 — — 35.3 32.3 34.3 14.0 17.0 17.3
300 — — 39.2 31.1 33.1 12.5 15.5 16.8
350 — — 42.9 30.1 32.1 11.1 14.1 16.3
Note: Values are expressed in dB per 100 m (328 ft.) length.
OUTER
JACKET
24 AWG
CONDUCTOR
INSULATION
RIP CORD
40
GenSPEED® 5350 Enhanced Category 5e Cable
PART NUMBERS
Standardpackaging:1000'Pull-Pac®Il
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
Blue 6133712 6131690 6133707 6131688 6133703 6131686
White 6133713 6131691 6133708 6131689 6133704 6131687
Yellow 6133715 6131693 6133717 6131695 6133719 6131697
Gray 6133714 6131692 6133716 6131694 6133718 6131696
Red 6131732
Orange 6133761 6131733
Green 6131699 6131731 6131700
Black 6131707
Pink
Purple
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.200 0.180
NominalCableWeight(lbs/1000ft) 21 19
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
CONSTRUCTION
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC
Features And Benefits
■ For applications that require optimal
Cat 5e performance with flexibility for
the future
■ Performance guaranteed to 350 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ 155 Mp/s, 622 Mp/s ATM
■ ANSI X3.263: 100 Mb/s
■ 4/16 Mb/s Token Ring
■ Broadband and Baseband Analog Video
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class D)
■ ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for
Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
Data subject to change without notice.
41
High Performance
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight
CMP:72
CMR:70
Characteristic Impedance
Frequency(f): 1-350MHz
Ohms
100±15
Input Impedance
Frequency(f): 1-100MHz
 100-250MHz
 250-350MHz
Ohms
100±15
100±22
100±32
GenSPEED® 5350 ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
163.3 64.3 2.0 65.3 66.3 61.0 64.0 25.0
452.3 53.3 4.0 56.3 57.3 49.0 52.0 25.0
10 43.9 44.9 6.4 50.3 51.3 41.0 44.0 25.0
16 39.1 40.1 8.1 47.2 48.2 36.9 39.9 25.0
20 36.6 37.6 9.2 45.8 46.8 35.0 38.0 25.0
25 34.0 35.0 10.3 44.3 45.3 33.0 36.0 24.3
31.25 31.3 32.3 11.6 42.9 43.9 31.1 34.1 23.6
62.5 21.6 22.6 16.8 38.4 39.4 25.1 28.1 21.5
100 13.6 14.6 21.7 35.3 36.3 21.0 24.0 20.1
155 4.7 5.7 27.7 32.4 33.4 17.2 20.2 —
200 — —32.0 30.8 31.8 15.0 18.0 —
250 — — 36.4 29.3 30.3 13.0 16.0 —
300 — — 40.5 28.1 29.1 11.5 14.5 —
350 — — 44.3 27.1 28.1 10.1 13.1 —
Note: Values are expressed in dB per 100 m (328 ft.) length.
GenSPEED® 5350 ENHANCED CATEGORY 5e
CROSS-SECTION
OUTER
JACKET
24 AWG
CONDUCTOR
INSULATION
RIP CORD
42
PART NUMBERS
Standardpackaging:1000'Pull-Pac®Il
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
CMR
(Non-Plenum)
CMP
(Plenum)
Blue
5133299E 5131278E 5133374E 5131431E 5133300E 5131282E
White
5133255E 5131361E 5133342E 5131450E 5133250E 5131365E
Yellow
5133289E 5131379E 5133448E 5131546E 5131648E
Gray
5133200E 5131418E 5133329E 5131456E 5133204E 5131475E
Red
5133274E 5131477E 5133427E 5131553E 5131383E
Orange
5133383E 5131422E 5133667E
Green
5133512E 5131547E 5133693E 5131575E 5133649E 5131649E
Black
5133696E 5131683E 5131689E
Pink
5133290E 5131380E 5133447E 5131478E
Purple
5133445E 5131730E
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Rip Cord
•Appliedlongitudinallyunderjacket
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4: Brown-White/Brown

Jacket
•Non-Plenum:Flame-RetardantPVC
•Plenum:Low-Smoke,Flame-Retardant
PVC
GenSPEED® 5000 Category 5e Cable
Features And Benefits
■ Engineered to provide stable and
continuous performance
■ Performance guaranteed to 200 MHz
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ 52/155 Mp/s ATM
■ ANSI X3.263: 100 Mb/s
■ 4/16 Mb/s Token Ring
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class D)
■ ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.200 0.180
NominalCableWeight(lbs/1000ft) 21 19
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
43
Standards-Compliant
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Mutual Capacitance(nom)
pF/ft@1KHz 14
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight
CMP:72
CMR:70
Characteristic Impedance
Frequency(f): 1-200MHz
Ohms
100±15
GenSPEED® 5000 ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
155 1.4 4.4 28.1 29.4 32.4 17.0 20.0 —
200 — — 32.4 27.8 30.8 14.8 17.8 —
250 — — 36.9 26.3 29.3 12.8 15.8 —
300 — — 41.0 25.1 28.1 11.3 14.3 —
350 — — 44.9 24.1 27.1 9.9 12.9 —
Note: Values are expressed in dB per 100 m (328 ft.) length. Values above 200 MHz are for information only.
GenSPEED® 5000 CATEGORY 5e CROSS-SECTION
RIP CORD
OUTER
JACKET
24 AWG
CONDUCTOR
INSULATION
44
PART NUMBERS
Standardpackaging:1000'Pull-Pac®Ilwithenvironmentallyfriendlypackaging.
Spool-Pac®andSpoolbyspecialorder.
Pull-Pac® Il Spool-Pac®Spool
Jacket Color
CMR
(Non-Plenum)
CMR
(Non-Plenum)
CMR
(Non-Plenum)
Blue
5133299E-17F 5133374E-17F 5133300E-17F
White
5133255E-17F 5133342E-17F 5133250E-17F
Yellow
5133289E-17F 5133448E-17F
Gray
5133200E-17F 5133329E-17F 5133204E-17F
Red
5133274E-17F 5133427E-17F
Orange
5133383E-17F 5133667E-17F
Green
5133512E-17F 5133693E-17F 5133649E-17F
Black
5133696E-17F
Purple
5133445E-17F
Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and
lead time may apply.
Non-stock items may be subject to minimum order quantities.
PHYSICAL DATA
CMR (Non-Plenum)
NominalCableDiameter(in) 0.205
NominalCableWeight(lbs/1000ft) 22
MinimumBendRadius(in) 1.0
MaximumPullingForce(lbs) 25
TemperatureRating(˚C)
 Installation: -20to+75
 Operation: -20to+75
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
Rip Cord
•Appliedlongitudinallyunderjacket
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4: Brown-White/Brown

Jacket
•Non-Plenum:Zero-HalogenPolyolefin
CONSTRUCTION
Data subject to change without notice.
Features And Benefits
■ Halogen-free
■ Reduced toxicity
■ More environmentally friendly
■ Increased flexibility for easy installation
■ Engineered to provide stable and
continuous performance
■ Performance guaranteed to 200 MHz
■ TRU-Mark® print legend contains
footage markings from 1000’ to 0’
■ Third-party verified for guaranteed
performance
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ 52/155 Mp/s ATM
■ ANSI X3.263: 100 Mb/s
■ 4/16 Mb/s Token Ring
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class D)
■ ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
GenSPEED® 5000 with 17 FREE™ Category 5e Cable
45
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Mutual Capacitance(nom)
pF/ft@1KHz 14
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight CMR:70
Characteristic Impedance
Frequency(f): 1-200MHz
Ohms
100±15
GenSPEED® 5000 with 17 FREE™ CATEGORY 5e
CROSS-SECTION
RIP CORD
OUTER
JACKET
24 AWG
CONDUCTOR
INSULATION
Standards-Compliant
GenSPEED® 5000 with 17 FREE™ ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
155 1.4 4.4 28.1 29.4 32.4 17.0 20.0 18.8
200 — — 32.4 27.8 30.8 14.8 17.8 18.0
250 — — 36.9 26.3 29.3 12.8 15.8 17.3
300 — — 41.0 25.1 28.1 11.3 14.3 16.8
350 — — 44.9 24.1 27.1 9.9 12.9 16.3
Note: Values are expressed in dB per 100 m (328 ft.) length. Values above 200 MHz are for information only.
Spec meets TIA/EIA 568 C.2 standard for Cat 5e UTP cabling.
Going Green with General Cable
General Cable has accelerated its environmental commitment, addressing its green alternative approach
by identifying greener opportunities and promoting green cabling solutions wherever feasible. This includes
promoting our existing green products, partnering with key customers in their green endeavors, identifying
and providing resources for green product gaps, becoming a member of the U.S. Green Building Council
(USGBC) and participating in collaborative ventures such as the Green Suppliers Network (GSN).
46
Reel
Color Part Number Unit 1 Unit 2 Reel
Blue 8133300 5000RBlue 1000'reel
Blue 8133300.2R 5000RBlue 2000'reel
Blue/Blue 8133301 5000RBlue 5000RBlue 1000'reel
Blue/Blue 8133301.2R 5000RBlue 5000RBlue 2000'reel
Blue/White 8133307 5000RBlue 5000RWhite 1000'reel
Blue/White 8133307.2R 5000RBlue 5000RWhite 2000'reel
White 8133305 5000RWhite 1000'reel
White 8133305.2R 5000RWhite 2000'reel
White/White 8133306 5000RWhite 5000RWhite 1000'reel
White/White 8133306.2R 5000RWhite 5000RWhite 2000'reel
PART NUMBERS
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Polyolefin
Rip Cord
•Appliedlongitudinallyunderjacket
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4: Brown-White/Brown
Jacket
•Flame-RetardantPVC
GenSPEED® 5000 Category 5e Interlock Armored Cable
Features And Benefits
■ Interlock armor provides outstanding
mechanical protection
■ Flexible and easy to install
■ Eliminates the need for conduit, reducing
installation time
■ Single-pull installation
Applications
■ IEEE 802.3: 1000 BASE-T (Gigabit
Ethernet), 100 BASE-TX, 10 BASE-T
■ 52/155 Mp/s ATM
■ ANSI X3.263: 100 Mb/s
■ 4/16 Mb/s Token Ring
■ Indoor applications only
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/TIA/EIA 862 (Building Automation)
■ ISO/IEC 11801 Ed. 2.0 (Class D)
■ ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ RoHS Compliant Directive 2002/95/EC
PHYSICAL DATA
CMR (Non-Plenum)
1 Cable 2 Cables
NominalCableDiameter(in) 0.450 0.620
NominalCableWeight(lbs/1000ft) 58.5 96.0
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation:
 Operation:
0to+60
-20to+75
CONSTRUCTION
Data subject to change without notice.
47
GenSPEED® 5000 CATEGORY 5e INTERLOCK
ARMORED CROSS-SECTION
Standards-Compliant
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 8.9
DC Resistance Unbalance(max)
IndividualPair% 3.0
Mutual Capacitance(nom)
pF/ft@1KHz 14
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation
%SpeedofLight CMR:70
Characteristic Impedance
Frequency(f): 1-100MHz
Ohms
100±15
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
Note: Values are expressed in dB per 100 m (328 ft.) length.
OUTER
JACKET
ARMOR
24 AWG
CONDUCTOR
INSULATION
RIP CORD
48
Features And Benefits
■ Foil shield reduces electromagnetic
interference (EMI) for optimal
performance
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
Applications
■ 1000 BASE-T (Gigabit Ethernet)
■ E52/155 Mbps ATM
■ E100/10 BASE-T (IEEE 802.3)
■ 4/16 Mbps Token Ring (IEEE 802.5)
■ T1
■ Voice
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
CONSTRUCTION
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Core Tape
•Polyester
Drain Wire
•24AWGstranded(7/32)solidtinned
copper
Shield
•Polyester-backedaluminumfoil
(aluminumsidein)
Jacket
•Flame-RetardantPVC
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.250 0.225
NominalCableWeight(lbs/1000ft) 36 32
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
Data subject to change without notice.
PART NUMBERS
Standardpackaging:1000'Spool
Spool
Jacket Color CMR (Non-Plenum) CMP (Plenum)
Blue 2133496E 2131611E
White 2133774E 2131778E
Yellow 2133777E 2131777E
Gray 2133495E 2131673E
Red 2133778E 2131774E
Orange 2133776E 2131776E
Green 2133775E 2131775E
Black 2133779E 2131779E

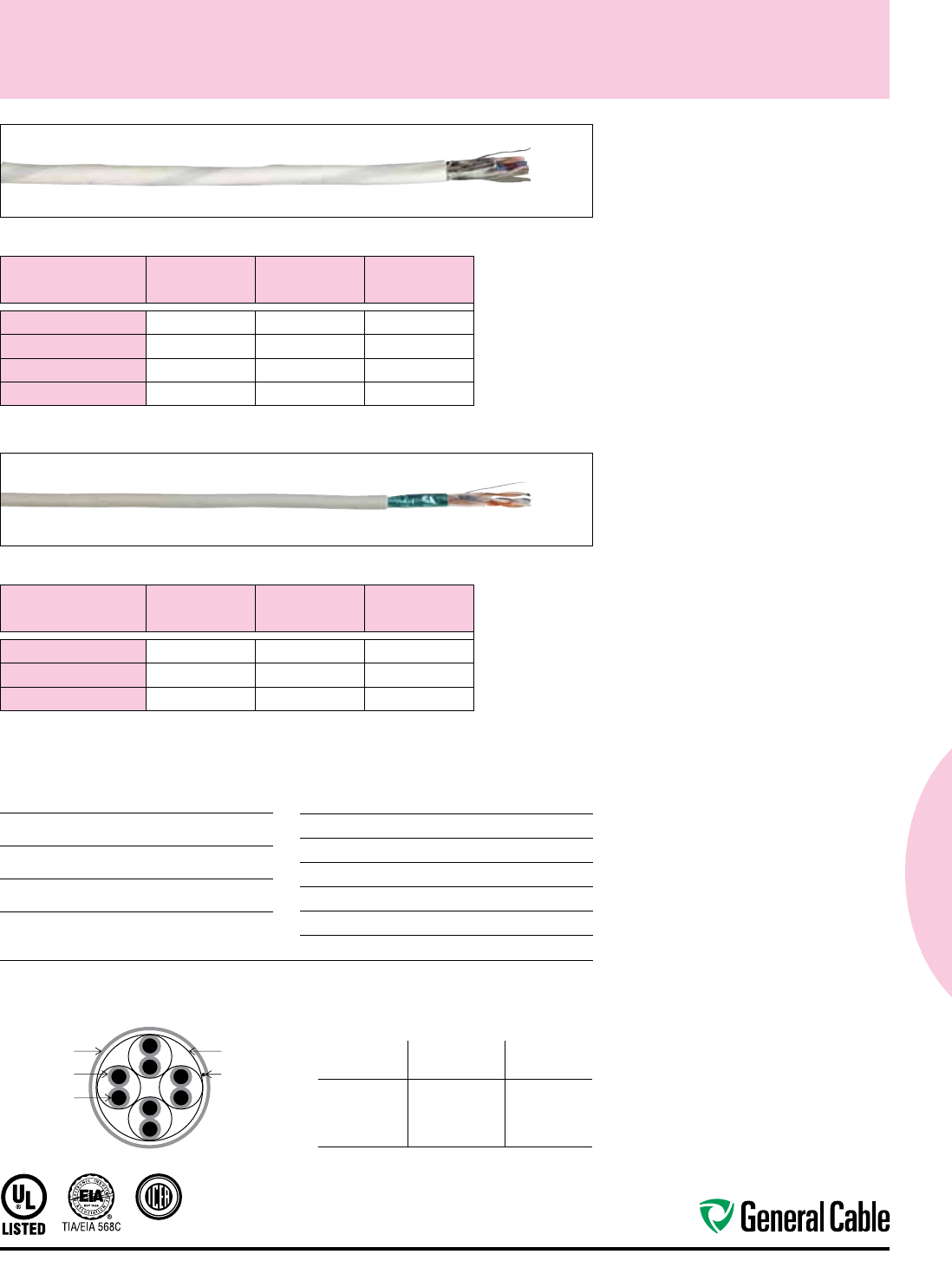

GenSPEED® 5000 Category 5e Screened Cable
49
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
155 1.4 4.4 28.1 29.4 32.4 17.0 20.0 —
200 — — 32.4 27.8 30.8 14.8 17.8 —
250 — — 36.9 26.3 29.3 12.8 15.8 —
300 — — 41.0 25.1 28.1 11.3 14.3 —
350 — — 44.9 24.1 27.1 9.9 12.9 —
Note: Values are expressed in dB per 100 m (328 ft.) length. Values above 100 MHz are for information only.
GenSPEED® 5000 CATEGORY 5e SCREENED
CROSS-SECTION
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
Mutual Capacitance(nom)
pF/ft@1KHz 14
Delay Skew(max)
ns/100m 45
Propagation Delay(max)
ns@100MHz 538
Nom. Velocity of Propagation (NVP)
%SpeedofLight
CMP:72
CMR:70
Characteristic Impedance
Frequency(f): 1-100MHz
Ohms
100±15
JACKET
DRAIN WIRE
24 AWG
CONDUCTOR
SHIELD
INSULATION
POLYESTER
TAPE
Standards-Compliant
50
Features And Benefits
■ Protects against environmental
elements that can cause electrical
performance failures
■ TRU-Mark® print legend contains
footage markings from 1000' to 0'
■ Prevents moisture migration
Applications
■ Aerial, duct and buried installations
(the non-armored design is for duct
installation only)
■ 1000 BASE-T (Gigabit Ethernet)
■ 52/155 Mbps ATM
■ 100/10 BASE-T (IEEE 802.3)
■ Voice/T1
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ISO 11801 (Category 5e)
■ ANSI/ICEA S-90-661 (Category 5e)
■ MIL-C-24640A Water Penetration
Requirements
■ NEMA WC63.1 (Category 5e)
■ RoHS Compliant Directive 2002/95/EC
Data subject to change without notice.
GenSPEED® 5000 Category 5e Outside Plant Cable
PHYSICAL DATA
No Armor Aluminum Armor
NominalCableDiameter(in) 0.230 0.340
NominalCableWeight(lbs/1000ft) 25 50
MinimumBendRadius(in) 1.0 1.0
MaximumPullingForce(lbs) 25 25
TemperatureRating(˚C)
 Installation: -30to+60 -30to+60
 Operation: -45to+80 -45to+80
PART NUMBERS
Standardpackaging:1000'Reel
Jacket Color Reel Armor
Black 5136100 None
Black 5136101 Aluminum
CONSTRUCTION
Conductors
•24AWGsolidbareannealed
 copper
Insulation
•Polyolefin
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Flooding Compound
•Waterproofgel
Optional Armor
•Aluminumappliedhelically(inner
jacketisusedwiththisconstruction)
•Armordiameter12mm
Jacket
•UV-andAbrasion-Resistant
Polyethylene
51
GenSPEED® 5000 CATEGORY 5e OUTSIDE PLANT
CROSS-SECTION
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
155 1.4 4.4 28.1 29.4 32.4 17.0 20.0 —
200 — — 32.4 27.8 30.8 14.8 17.8 —
250 — — 36.9 26.3 29.3 12.8 15.8 —
300 — — 41.0 25.1 28.1 11.3 14.3 —
350 — — 44.9 24.1 27.1 9.9 12.9 —
Note: Values are expressed in dB per 100 m (328 ft.) length. Values above 100 MHz are for information only.
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
Mutual Capacitance(nom)
pF/ft@1KHz 17
Delay Skew(max)
ns/100m 45
Propagation Delay(max)
ns@100MHz 583
Nom. Velocity of Propagation (NVP)
%SpeedofLight 69
Characteristic Impedance
Frequency(f): 1-100MHz
Ohms
100±15
OUTER
JACKET
INNER
JACKET
(ARMORED ONLY)
FLOODING
24 AWG
CONDUCTOR
INSULATION
OPTIONAL
ARMOR
Standards-Compliant
52
Features And Benefits
■ CMX rating allows the cable to be
exposed to temperature variations
for short distances from the Network
Interface Device on the outside of a
house to the point where the cable
enters the house
■ Sunlight-resistant
■ Sequential footage markings
■ Wax box on 1000' PPCs for increased
durability on the job site
Applications
■ 1000 BASE-T (Gigabit Ethernet)
■ 52/155 Mbps ATM
■ 100/10 BASE-T (IEEE 802.3)
■ 4/16 Mbps Token Ring (IEEE 802.5)
■ T1
■ Voice
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/ICEA S-100-685
■ NEC/CEC Type CMX OUTDOOR-CMR
■ RoHS Compliant Directive 2002/95/EC
Data subject to change without notice.

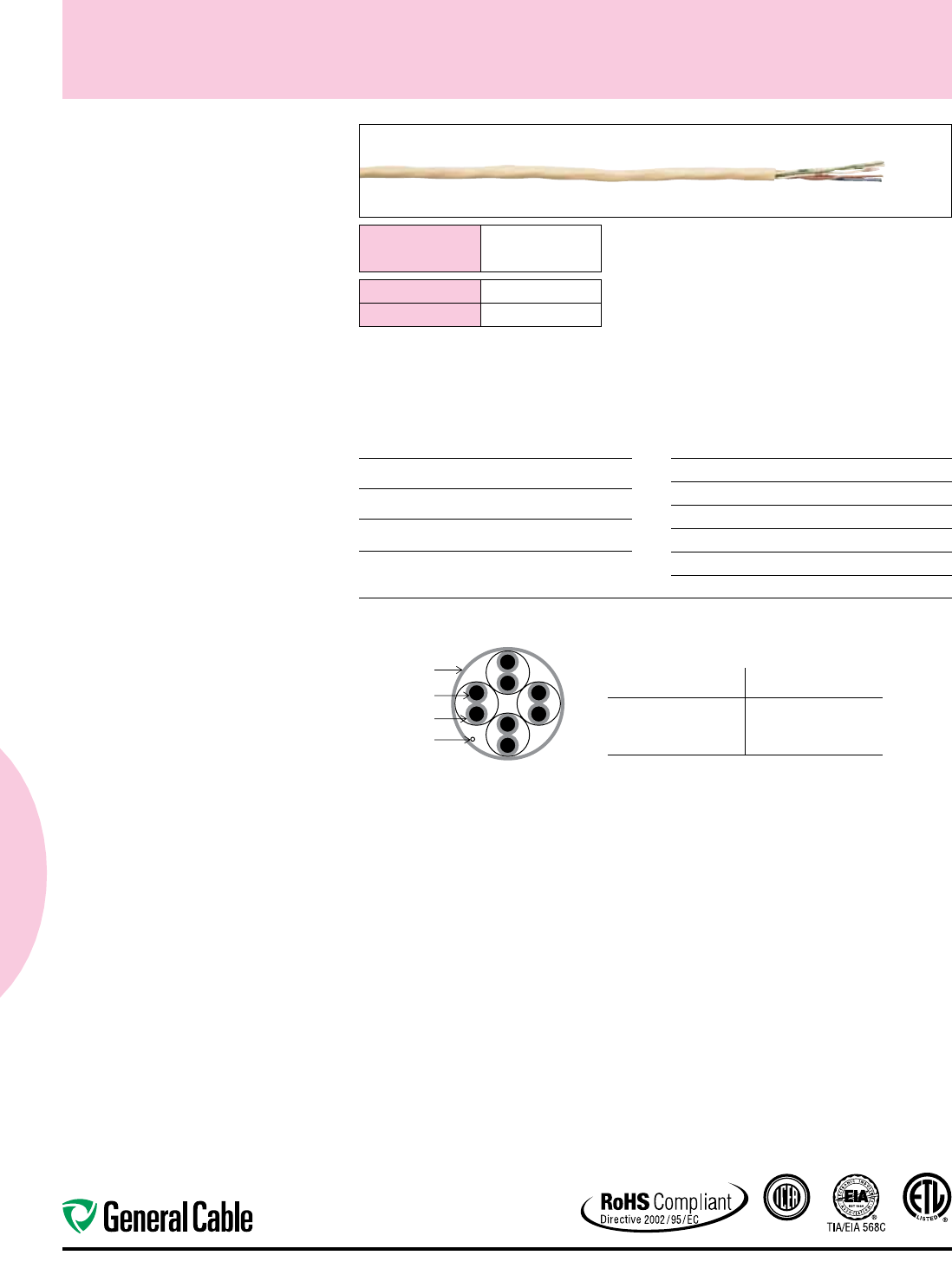

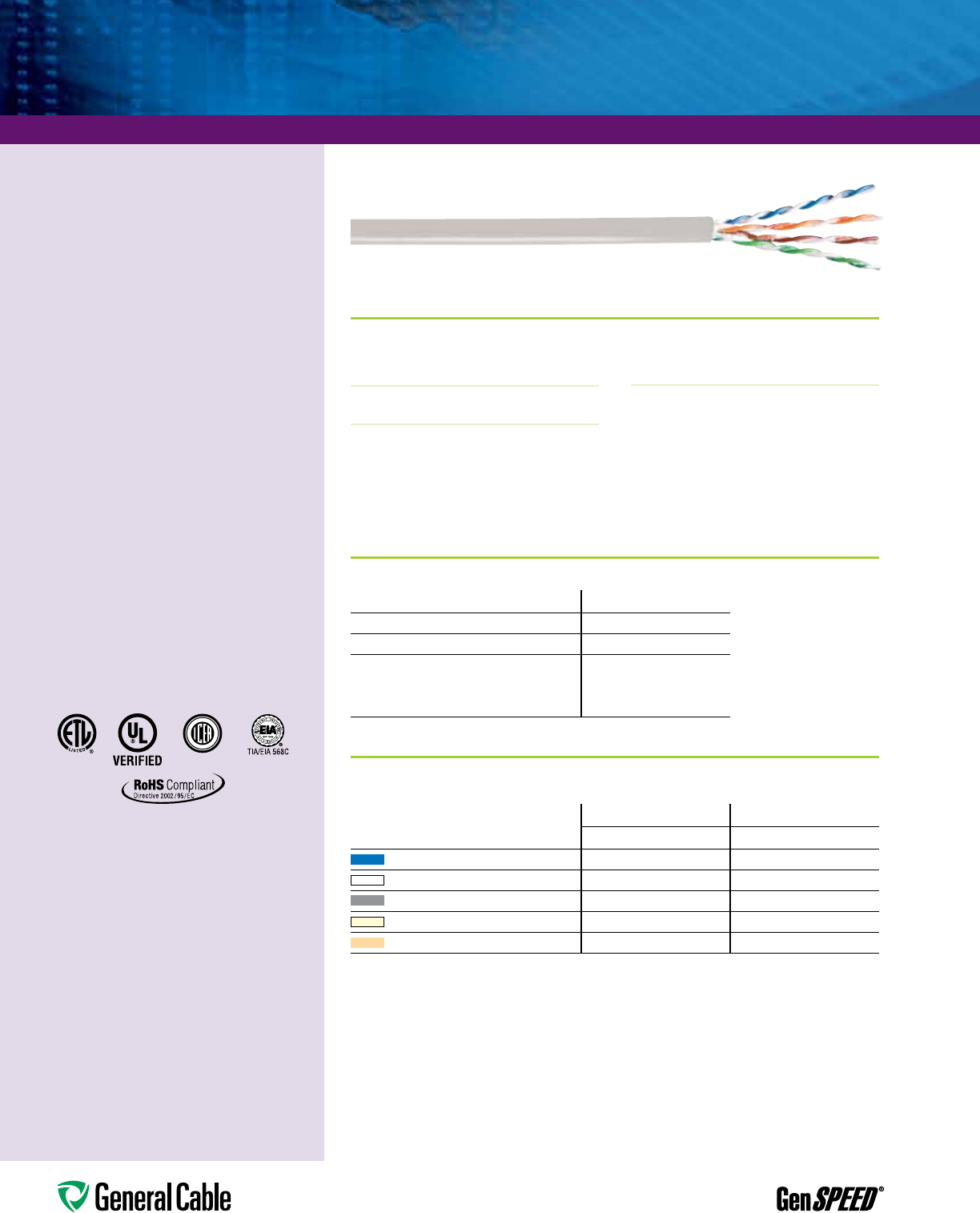

GenSPEED® 5000
Category 5e Residential CMX Outdoor-CMR Cable
CONSTRUCTION
Conductors
•24AWGsolidbareannealedcopper
Insulation
•Polyolefin
Color Code
•Pair1:Blue-White/Blue
•Pair2:Orange-White/Orange
•Pair3:Green-White/Green
•Pair4:Brown-White/Brown
Jacket
•Flame-RetardantPVC
Rip Cord
•Appliedlongitudinallyunderjacket
PHYSICAL DATA
CMR (Non-Plenum)
NominalCableDiameter(in) 0.210
NominalCableWeight(lbs/1000ft) 26
TemperatureRating(˚C)
 Installation: -10to+60
 Operation: -40to+75
PART NUMBERS
Standardpackaging:Pull-Pac®II
600' Pull-Pac® II 1000' Pull-Pac® II
Jacket Color CMR (Non-Plenum) CMR (Non-Plenum)
Blue 2137160E
White 2137147E
Gray 2137114E 2137146E
Ivory 2137113E 2137143E
Beige 2137144E
Note: For installations using staple guns, the 4-pair construction requires the use of T-25 size staples.
53
GenSPEED® 5000 CATEGORY 5e
CMX OUTDOOR-CMR CROSS-SECTION
ELECTRICAL PERFORMANCE
Frequency
MHz
PSACR
(min)
ACR
(min)
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
ACRF
(min)
Return Loss
(min)
160.3 63.3 2.0 62.3 65.3 60.8 63.8 20.0
449.2 52.2 4.1 53.3 56.3 48.8 51.8 23.0
10 40.8 43.8 6.5 47.3 50.3 40.8 43.8 25.0
16 36.0 39.0 8.2 44.2 47.2 36.7 39.7 25.0
20 33.5 36.5 9.3 42.8 45.8 34.8 37.8 25.0
25 30.9 33.9 10.4 41.3 44.3 32.8 35.8 24.3
31.25 28.2 31.2 11.7 39.9 42.9 30.9 33.9 23.6
62.5 18.4 21.4 17.0 35.4 38.4 24.9 27.9 21.5
100 10.3 13.3 22.0 32.3 35.3 20.8 23.8 20.1
155 1.4 4.4 28.1 29.4 32.4 17.0 20.0 —
200 — — 32.4 27.8 30.8 14.8 17.8 —
250 — — 36.9 26.3 29.3 12.8 15.8 —
300 — — 41.0 25.1 28.1 11.3 14.3 —
350 — — 44.9 24.1 27.1 9.9 12.9 —
Note: Values are expressed in dB per 100 m (328 ft.) length. Values above 100 MHz are for information only.

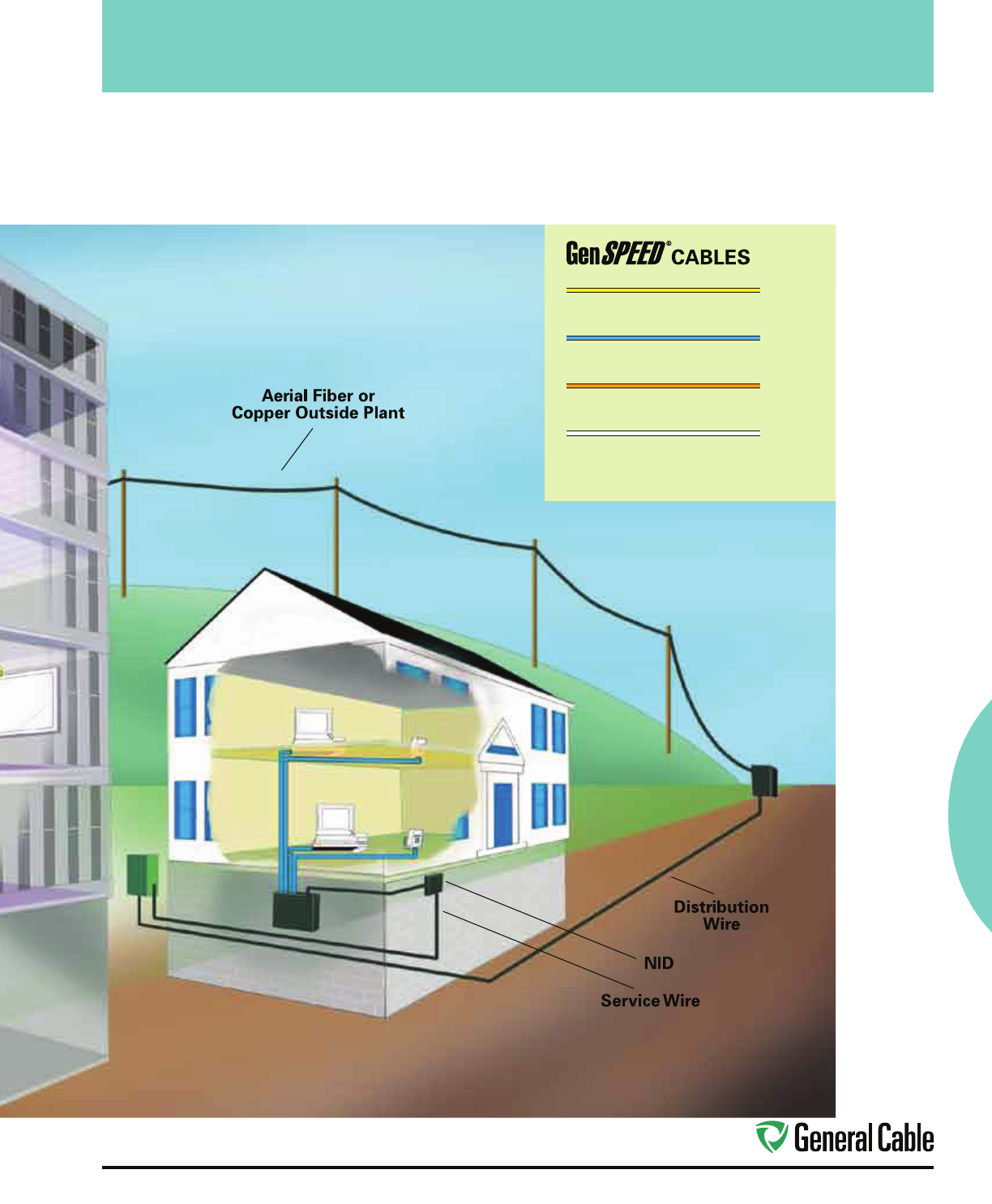

Note: CMX outdoor rating allows the cable to be exposed
for short distances from the Network Interface Device
on the outside of the house to the point where the cable
enters the house. This type of cable is not to be buried,
direct buried or aerially lashed.
OUTER
JACKET
RIP CORD
24 AWG
CONDUCTOR
INSULATION
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
Mutual Capacitance(nom)
pF/ft@1KHz 17
Delay Skew(max)
ns/100m 45
Nom. Velocity of Propagation (NVP)
%SpeedofLight 70
Impedance
Frequency(f): 1-100MHz
Ohms
100±15
Standards-Compliant
54

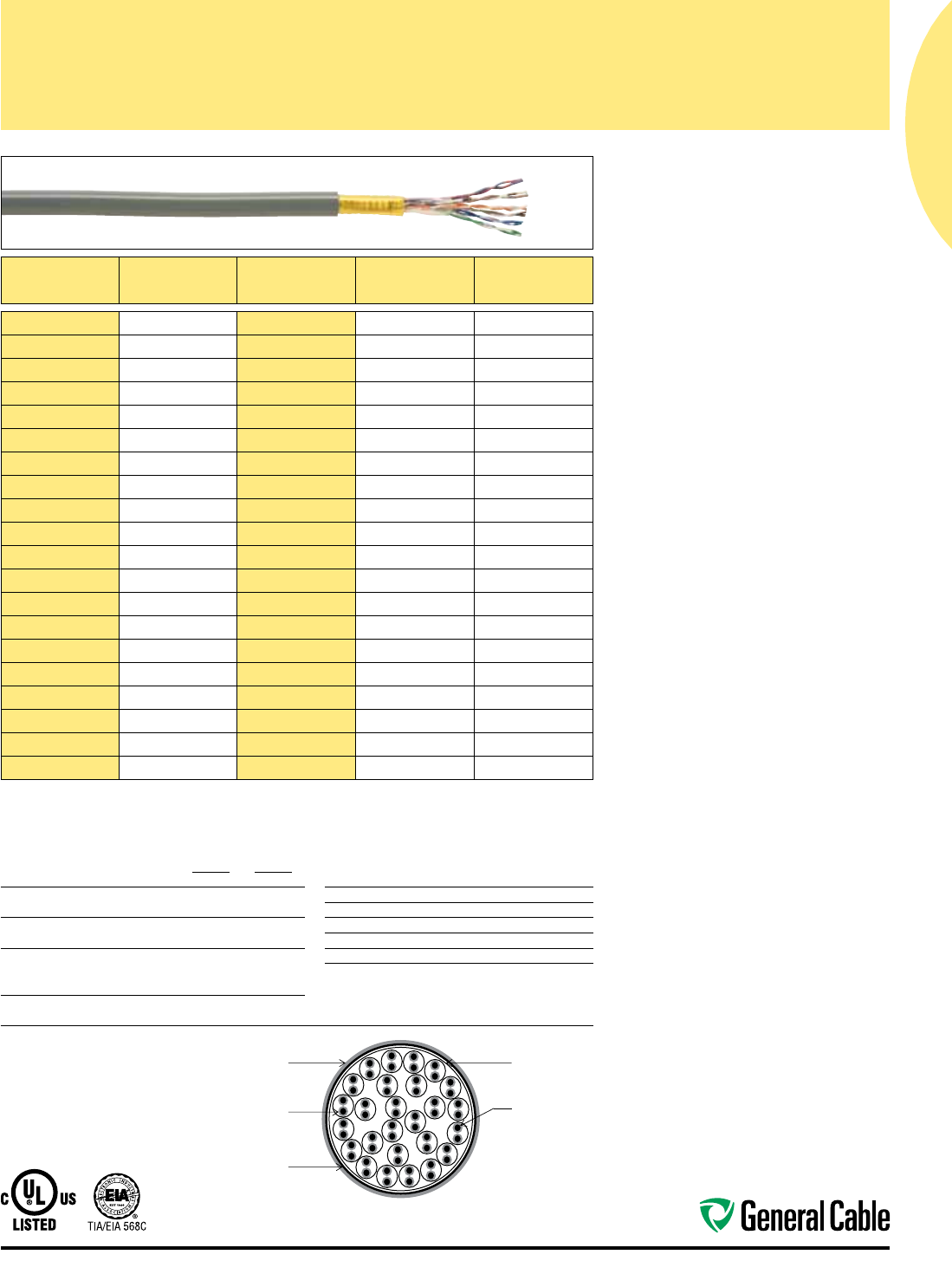

GenSPEED® 5000 Category 5e Backbone 25 Pair Cable
Features And Benefits
■ Connects all systems of a multi-level
distributed system to an intermediate
system
■ Sequential footage markings
Applications
■ 1000 BASE-T (Gigabit Ethernet)
■ 100/10 BASE-T
■ 100 VG-AnyLAN
■ 52/155 Mp/s ATM
■ 4/16 Mb/s Token Ring
■ T1
■ Voice
Standard Compliances
■ ANSI/TIA/EIA 568 C.2
■ ANSI/ICEA S-90-661 (Category 5e)
■ NEC/CEC Type CMR (UL 1666) for
Non-Plenum
■ NEC/CEC Type CMP (NFPA 262)
for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444
Data subject to change without notice.
Conductors
•25pairsof24AWGsolidbare
 annealedcopper
Insulation
•Non-Plenum:Polyolefin
•Plenum:Fluoropolymer
Color Code
•SeeColorCodeChartonpage94,
 exceptnobandmarking;onlysolid
 colors
Rip Cord
•Appliedlongitudinallyunderjacket
Jacket
•Non-Plenum:Flame-retardantPVC
•Plenum:Low-smoke,flame-retardant
PVC
Separator
•Non-Plenum:N/A
•Plenum:Corefiller
CONSTRUCTION
PHYSICAL DATA
CMR (Non-Plenum) CMP (Plenum)
NominalCableDiameter(in) 0.500 0.500
NominalCableWeight(lbs/1000ft) 125 160
TemperatureRating(˚C)
 Installation: 0to+60 0to+60
 Operation: -20to+75 -20to+75
PART NUMBERS
Standardpackaging:1000'Reel
Reel Reel
Jacket Color CMR (Non-Plenum) CMP (Plenum)
Blue 2133694E 2131753E
White 2133781E 2131550E
Gray 2133269E 2131752E
55
ELECTRICAL PERFORMANCE
Frequency
MHz
Insertion Loss
(max)
PSNEXT
(min)
NEXT
(min)
PSACRF
(min)
Return Loss
(min)
0.772 1. 8 64.3 67.3 63.0 —
12.0 62.3 65.3 60.8 20.0
44.1 53.3 56.3 48.7 23.0
85.8 48.3 51.3 42.7 24.5
10 6.5 47.3 50.3 40.8 25.0
16 8.2 44.3 47.3 36.7 25.0
20 9.3 42.3 45.3 34.7 25.0
25 10.4 41.3 44.3 32.8 24.3
31.25 11. 7 39.3 42.3 30.9 23.6
62.5 1 7. 0 35.3 38.3 24.8 21.5
100 22.0 32.3 35.3 20.8 20.1
Note: Values are expressed in dB per 100 m (328 ft.) length.

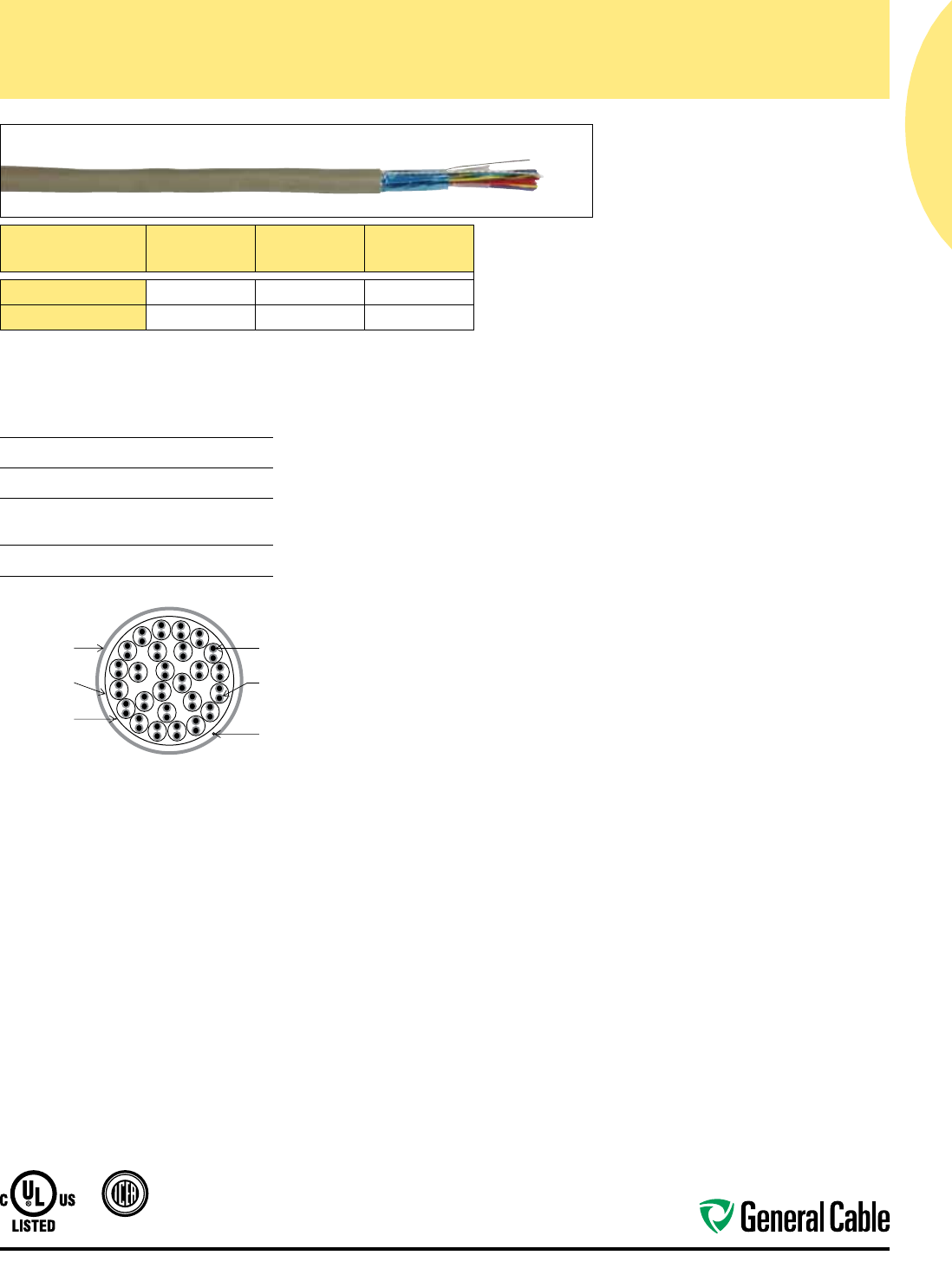

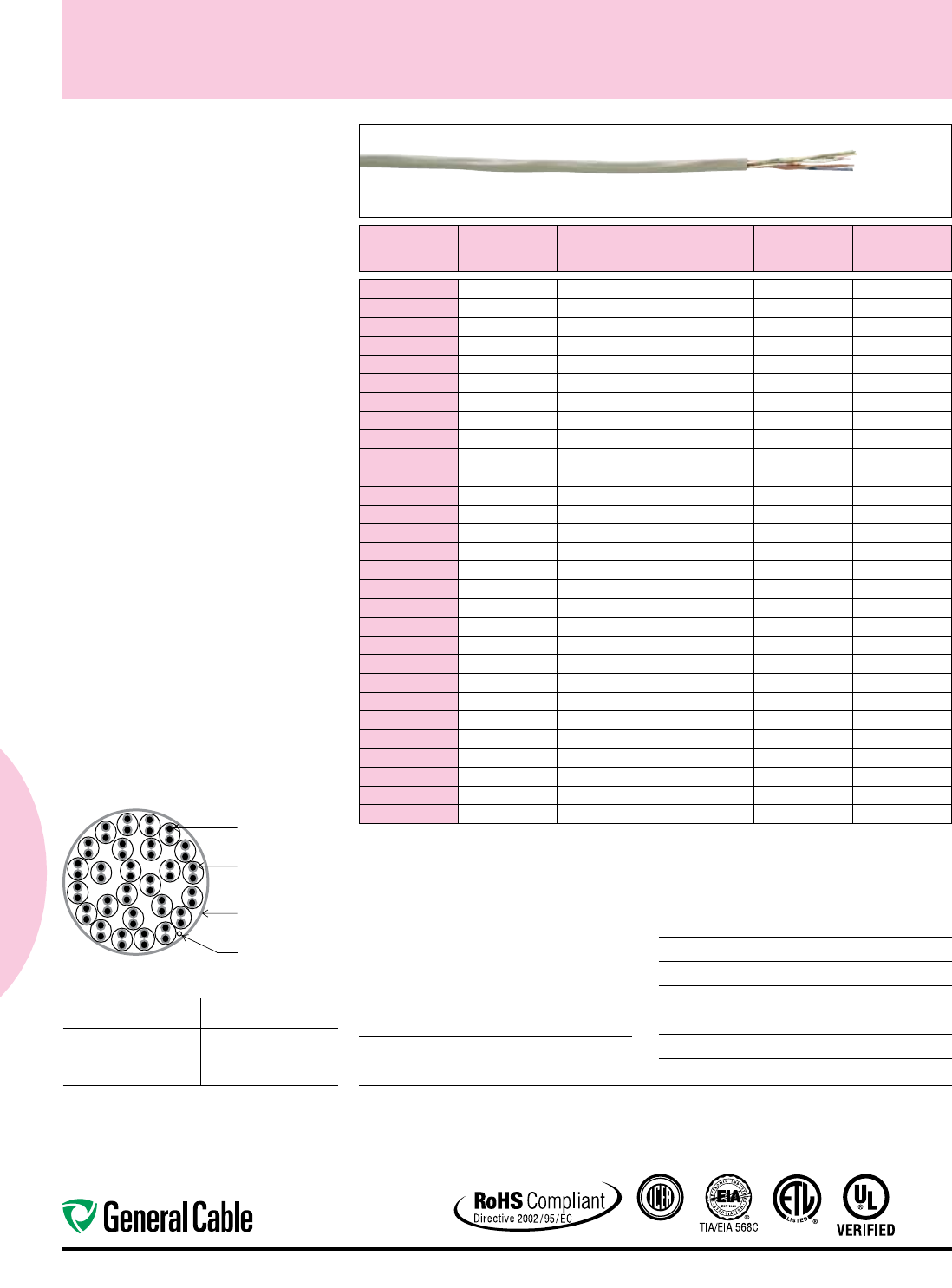

GenSPEED® 5000 CATEGORY 5e BACKBONE
25 PAIR CROSS-SECTION
BINDER
RIP CORD
24 AWG
CONDUCTOR
INSULATION OUTER
JACKET
ELECTRICAL CHARACTERISTICS
DC Resistance(max)
Ohms/100m(328ft)@20˚C 9.38
Mutual Capacitance(nom)
pF/ft@1KHz 14
Delay Skew(max)
ns/100m 45
Propagation Delay(max)
ns@100MHz
CMP:518
CMR:538
Nom. Velocity of Propagation (NVP)
%SpeedofLight
CMP:72
CMR:68
Characteristic Impedance
Frequency(f): 1-100MHz
Ohms
100±15
Standards-Compliant
56
Datacom
Category 3 Cables 4
Index Page
Category 3 Plenum 57
Category 3 Non-Plenum 58
Category 3 Screened 59
Category 3 Residential
CMX Outdoor-CMR 60
As your one-stop resource, General Cable provides a comprehensive line of
Category 3 wiring products. General Cable offers a mix of quality plenum,
riser and multi-dwelling residential cables designed for sophisticated voice
and data systems.
General Cable’s Category 3 Plenum Cable is installed in a building’s return
air plenums for both convenience and aesthetics. Category 3 Riser Cable
is ideal for installation in vertical riser and general horizontal applications.
Available from two to 300 pair counts, Category 3 Plenum and Riser Cables
meet all your Power Sum NEXT backbone voice transmission requirements.
Heavy EMI/RFMI is common in hostile workplaces where equipment and
machinery generate noises that can compromise voice and data signals.
General Cable’s Category 3 Shielded Plenum and Riser Cables feature
Mylar
®
tape and polyester-backed aluminum foil shields to reduce the
effects of EMI/RFI in electromagnetic environments.
All General Cable’s Category Cables meet applicable TIA/EIA 568 C.2
safety standards. Each safety-listed cable meets the Canadian Standards
Association (CSA) and the National Electric Code (NEC) requirements.
Independent third-party testing further confirms the quality and
performance of all cables.

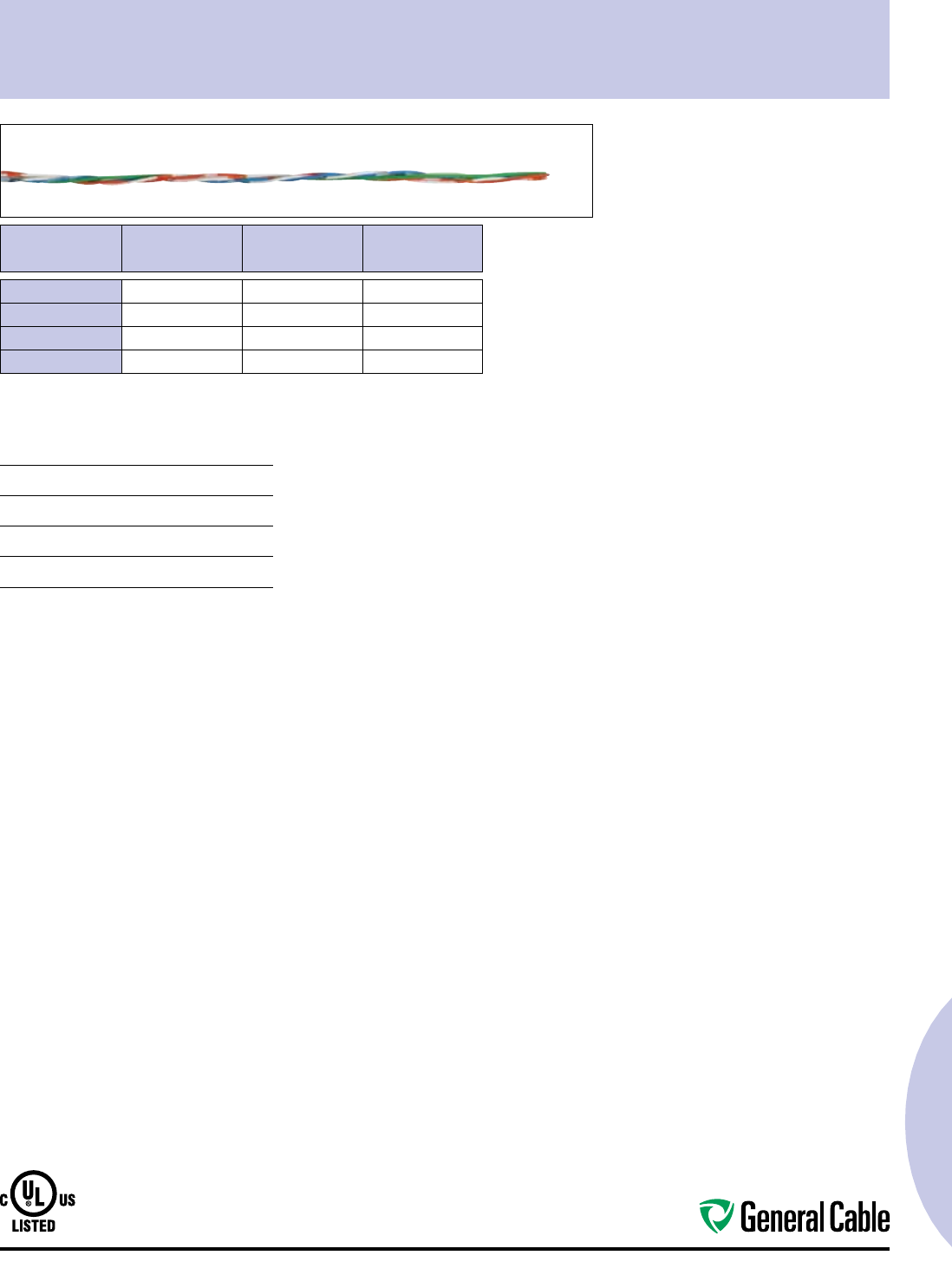

Dual listed for CMX Outdoor-CMR, General Cable’s Category 3 station
wire withstands and operates at the low temperatures found in colder
regions, down to -40°C without jacket cracking.
Available in various jacket colors and pair counts, General Cable’s category
cables meet installers’ needs for virtually every application. Fabricated in
state-of-the-art facilities, these cables are backed by years of technical
expertise and are guaranteed to meet your expectations.
57

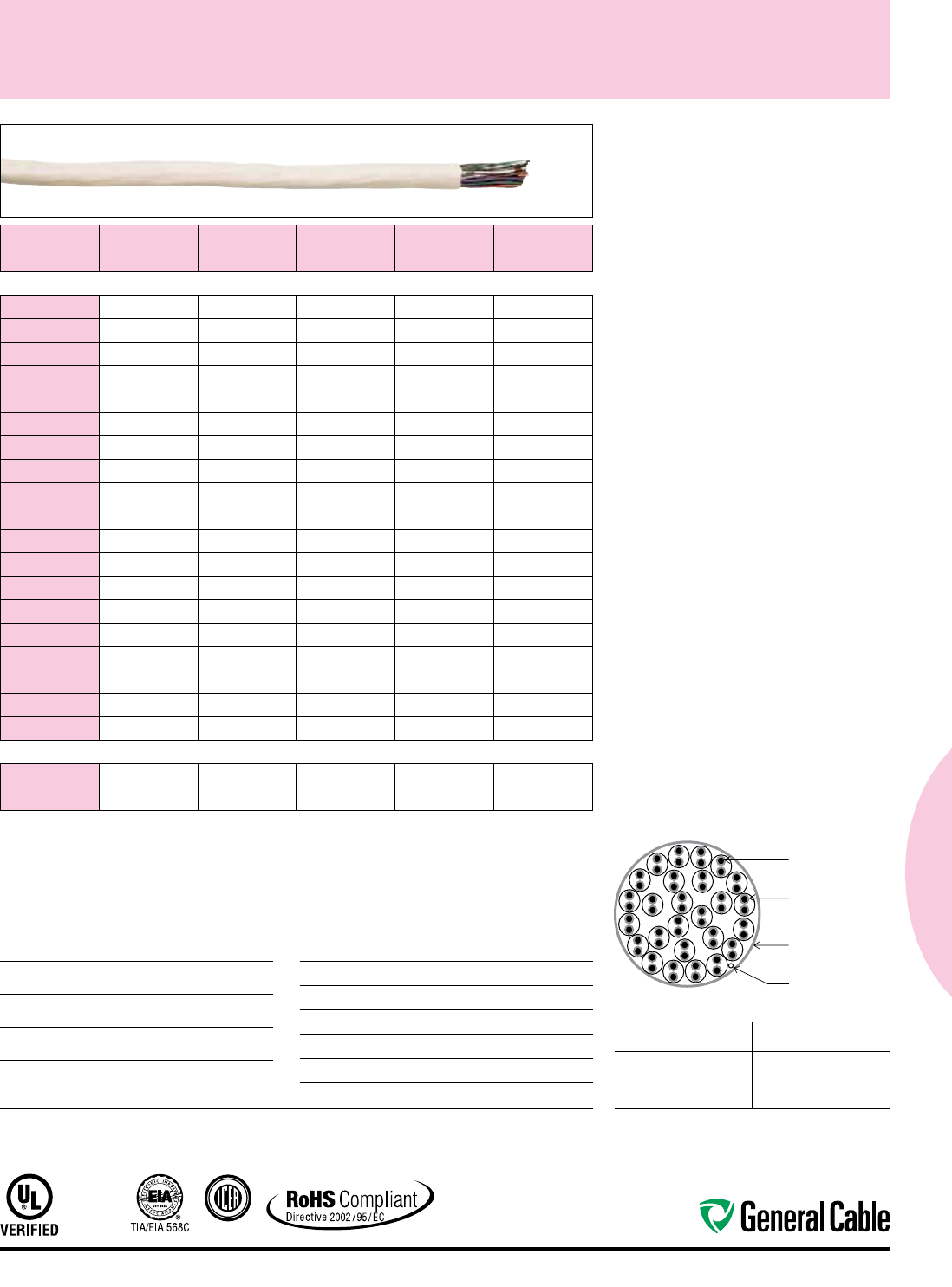

Datacom Category 3 Cables
2-6 Pair
Category 3 Plenum
4 Pair
PRODUCT
NUMBER PAIRS
JACKET
COLOR PKG
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
Flexguard® Flame-Retardant PVC Jacket
2131243 2 White PP 0.13 10
2131244 3 White PP 0.15 13
2131248 3 White SP 0.15 13
2131245 4 White PP 0.17 17
2131313 4 Gray PP 0.17 17
2131249 4 White SP 0.17 17
2131419 4 Gray SP 0.17 17
2131453 4 Blue PP 0.17 17
2131458 4 White SPC 0.17 17
2131462 4 Yellow PP 0.17 17
2131463 4 Green PP 0.17 17
2131246 6 White PP 0.18 24
2131250 6 White SP 0.18 24
2131505 25 White RL 0.42 102
2131505.99 25 White POL 0.42 102
2131757 50 White RL 0.59 220
2131757.99 50 White POL 0.59 220
2131758 100 White RL 0.84 440
2131758.99 100 White POL 0.84 440
PVDF Fluoropolymer Jacket
2131442.99 200 Natural POL 1.10 728
2131474.99 300 Natural POL 1.45 1243
Data subject to change without notice.
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/100 m (328 ft) @ 20˚C
9.38
Mutual Capacitance (nom)
pF/ft @ 1 kHz
18
Characteristic Impedance
Frequency (f): 1.0-16.0 MHz
Ohms
100 ± 15
Structural Return Loss (SRL)
Frequency (f): 1.0-10.0 MHz
10.0-16.0 MHz
dB (min)
12
12-10 log (f/10)
Physical Data
CMP
(Plenum)
Temperature Rating (˚C)
Installation:
Operation:
0 to +75
-10 to +75
Product Construction
Conductors:
 •24AWGsolidbareannealedcopper
Insulation:
 •Flame-retardantsemi-rigidPVC
Color Code:
 •SeeColorCodeChartonpage94
Rip Cord:
 •Appliedlongitudinallyunderjacket
(except 3 and 4 pair)
Jacket:
 •Flexguard®flame-retardantPVC
 •Toughlow-frictionPVDFfluoropolymer
 •Sequentialfootagemarkings
Packaging
 •1000'Pull-Pac® (PP)
 •1000'spool(SP)
 •1000'Spool-Pac® (SPC)
 •1000'reel(RL)
 •Perorderlength(POL)
Applications
 •100VG-AnyLAN
 •52MbpsATM
 •4MbpsTokenRing(IEEE802.5)
 •10BASE-T(IEEE802.3)
 •T1
 •Voice
Compliances
 •ANSI/TIA/EIA568C.2
 •ANSI/ICEAS-90-661(Category3)
 •NEC/CECTypeCMP
 •RoHSCompliantDirective2002/95/EC
Conductor
Insulation
Jacket
Rip Cord
Frequency
Insertion Loss
dB/100 m (max)
Power Sum
Near-End Crosstalk
dB (min)
772 kHz 2.2 43
1 MHz 2.6 41
4 MHz 5.6 32
8 MHz 8.5 27
10 MHz 9.7 26
16 MHz 13.1 23
58
Category 3 Cables Datacom
58

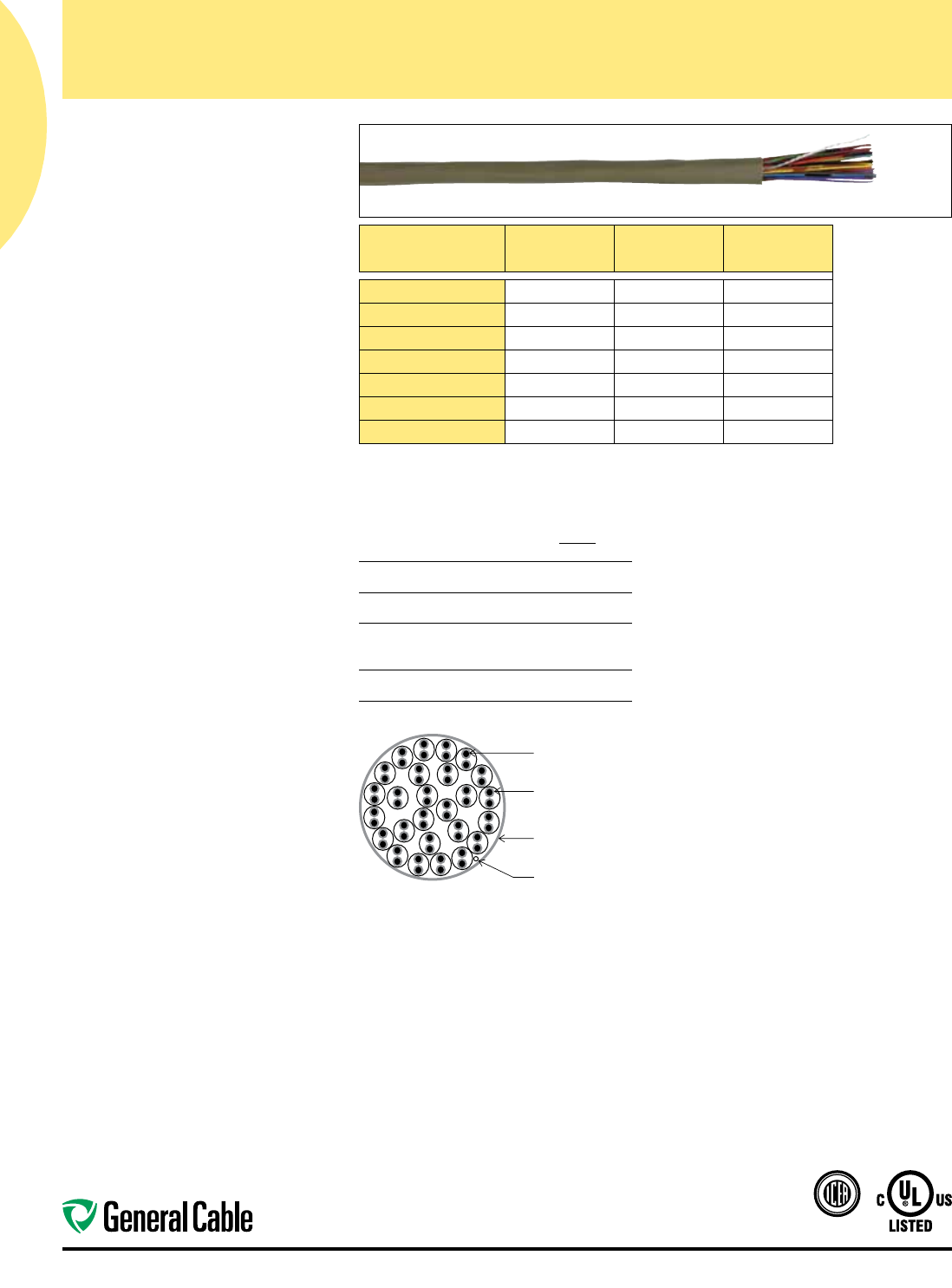

Category 3 Non-Plenum
4 Pair
PRODUCT
NUMBER PAIRS
JACKET
COLOR PKG.
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2133008 2 Beige PP 0.14 9
2133009 2 Gray PP 0.14 9
2133011 2 Gray SP 0.14 9
2133012 3 Beige PP 0.15 13
2133013 3 Gray PP 0.15 13
2133015 3 Gray SP 0.15 13
2133016 4 Beige PP 0.17 16
2133017 4 Gray PP 0.17 16
2133359 4 White SPC 0.17 16
2133358 4 Gray SPC 0.17 16
2133018 4 Beige SP 0.17 16
2133019 4 Gray SP 0.17 16
2133275 4 Blue PP 0.17 16
2133296 4 White PP 0.17 16
2133020 6 Beige PP 0.21 23
2133021 6 Gray PP 0.21 23
2133022 6 Beige SP 0.21 23
2133023 6 Gray SP 0.21 23
2133026 12 Beige RL 0.27 47
2133027 12 Gray RL 0.27 47
2133033 25 Gray RL 0.42 105
2133033.99 25 Gray POL 0.42 105
2133161 50 Gray RL 0.56 185
2133161.99 50 Gray POL 0.56 185
2133144 100 Gray RL 0.74 375
2133144.99 100 Gray POL 0.74 375
2133323 200 Gray RL 1.02 724
2133323.99 200 Gray POL 1.02 724
2133373.99 300 Gray POL 1.23 1077
Data subject to change without notice.
Note: Non-stock items may be subject to minimum order quantities.
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/100 m (328 ft) @ 20˚C
9.38
Mutual Capacitance (nom)
pF/ft @ 1 kHz
18
Characteristic Impedance
Frequency (f): 1.0-16.0 MHz
Ohms
100 ± 15
Structural Return Loss (SRL)
Frequency (f): 1.0-10.0 MHz
10.0-16.0 MHz
dB (min)
12
12-10 log (f/10)
Physical Data
CMR
(Non-Plenum)
Temperature Rating (˚C)
Installation:
Operation:
0 to +60
-10 to +60
Conductor
Insulation
Jacket
Rip Cord
Product Construction
Conductors:
 •24AWGsolidbareannealedcopper
Insulation:
 •Flame-retardantsemi-rigidPVC
Color Code:
 •SeeColorCodeChartonpage90
Rip Cord:
 •Appliedlongitudinallyunderjacket
Jacket:
 •Flame-retardantPVC
 •Sequentialfootagemarkings
Packaging
 •1000'Pull-Pac® (PP)
 •1000'Spool-Pac® (SPC)
 •1000'spool(SP)
 •1000'reel(RL)
 •Perorderlength(POL)
Applications
 •100VG-AnyLAN
 •52MbpsATM
 •4MbpsTokenRing(IEEE802.5)
 •10BASE-T(IEEE802.3)
 •T1
 •Voice
Compliances
 •ANSI/TIA/EIA568C.2
 •ANSI/ICEAS-90-661(Category3)
 •NEC/CECTypeCMR
 •RoHSCompliantDirective2002/95/EC
 •UL144forriser
Frequency
Insertion Loss
dB/100 m (max)
Power Sum
Near-End Crosstalk
dB (min)
772 kHz 2.2 43
1 MHz 2.6 41
4 MHz 5.6 32
8 MHz 8.5 27
10 MHz 9.7 26
16 MHz 13.1 23
59
Datacom Category 3 Cables
59

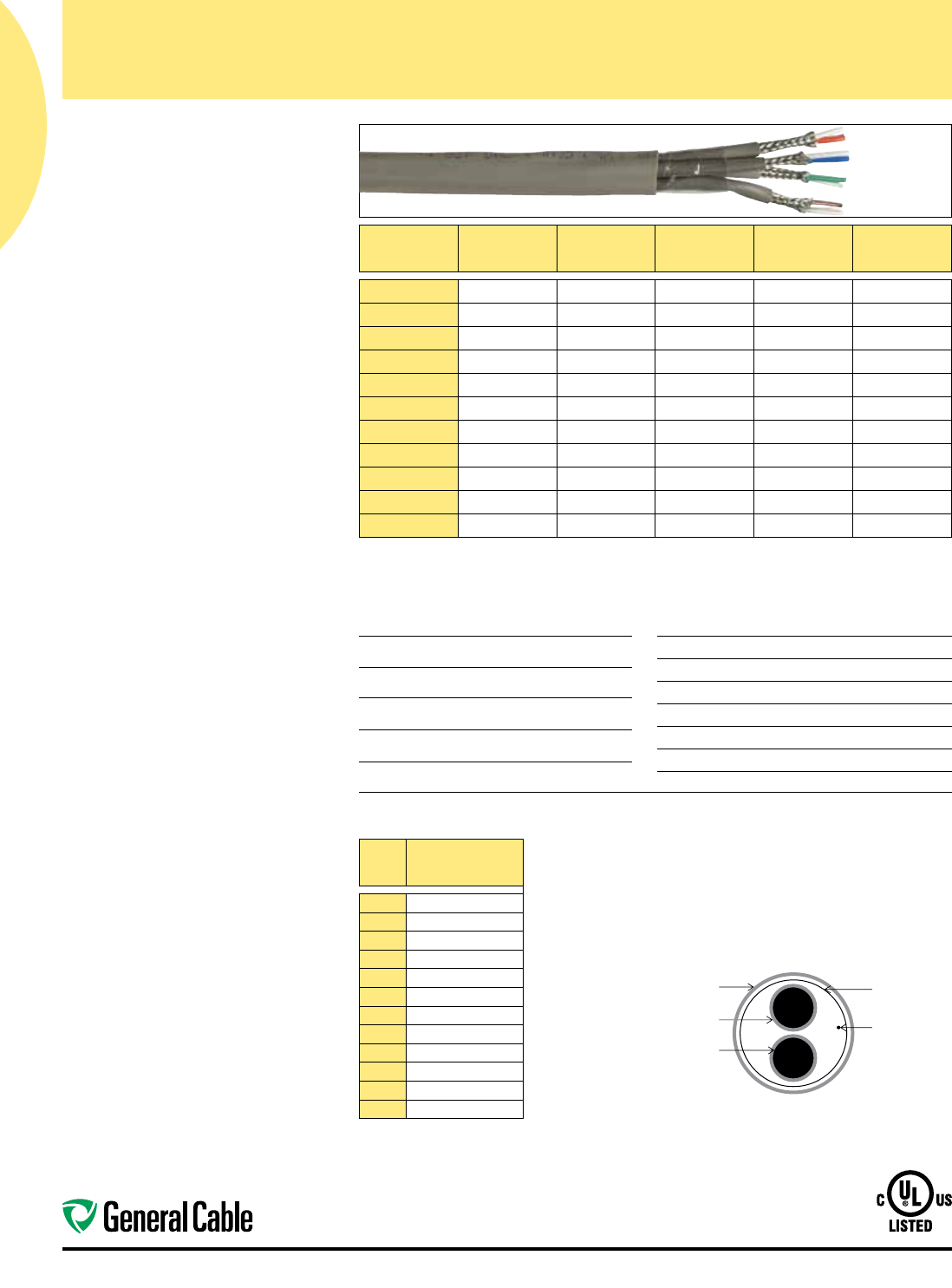

Category 3 Screened
Conductor
Insulation
Jacket
Drain Wire
Shield
CMP (Plenum)
PRODUCT
NUMBER PAIRS
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2131537 2 0.13 14
2131216 3 0.15 18
2131217 4 0.20 23
2131218 6 0.26 32
CMR (Non-Plenum)
PRODUCT
NUMBER PAIRS
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2133175 2 0.19 18
2133176 3 0.22 23
2133177 4 0.23 28
Data subject to change without notice.
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/100 m (328 ft) @ 20˚C
9.38
Mutual Capacitance (nom)
PF/ft @ 1kHz
18
Characteristic Impedance
Frequency (f): 1.0-16.0 MHz
Ohms
100 ± 15
Structural Return Loss (SRL)
Frequency (f): 1.0-10.0 MHz
10.0-16.0 MHz
dB (min)
12
12-10 log (f/10)
Physical Data
CMR
(Non-Plenum)
CMP
(Plenum)
Temperature
Rating (˚C)
Installation:
Operation:
0 to +60
-10 to +60
0 to +75
-10 to +75
Frequency
Insertion Loss
dB/100 m (max)
Power Sum
Near-End Crosstalk
dB (min)
772 kHz 2.2 43
1 MHz 2.6 41
4 MHz 5.6 32
8 MHz 8.5 27
10 MHz 9.7 26
16 MHz 13.1 23
Product Construction
Conductors:
 •24AWGsolidbareannealedcopper
Insulation:
 •Plenum:Fluoropolymer
 •Non-Plenum:Flame-retardantsemi-
rigidPVC
Color Code:
 •Pair1:Blue-White/Blue
 •Pair2:Orange-White/Orange
 •Pair3:Green-White/Green
 •Pair4:Brown-White/Brown
 •Pair5:Slate-White/Slate
 •Pair6:Blue-Red/Blue
Rip Cord:
 •Plenum:None
 •Non-Plenum:Appliedlongitudinally
under jacket
Drain Wire:
 •24AWGsolidtinnedcopper
Shield:
 •Polyester-backedaluminumfoil
Jacket:
 •Plenum:NaturalFlexguard® flame-
retardantPVC(2pr)toughlow-friction
PVDFfluoropolymer(3-6pair)
 •Non-Plenum:Grayflame-retardantPVC
 •Sequentialfootagemarkings
Packaging
 •1000'spool(SP)
Applications
 •100BASEVG-AnyLAN
 •52MbpsATM
 •4MbpsTokenRing(IEEE802.5)
 •10BASE-T(IEEE802.3)
 •T1
 •Voice
Compliances
 •ANSI/TIA/EIA568C.2
 •ANSI/ICEAS-90-661(Category3)
 •Plenum:NEC/CECTypeCMP
 •Non-Plenum:NEC/CECTypeCMR
60
Category 3 Cables Datacom
Category 3 Residential CMX Outdoor-CMR
Conductor
Insulation
Jacket
Rip Cord
PRODUCT
NUMBER
JACKET
COLOR
2137088 Ivory
2137087 L.O. Gray
Data subject to change without notice.
Note: For installations using staple guns, the 4-pair construction requires the use of T-25 size staple.
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/100 m (328 ft) @ 20˚C
9.38
Mutual Capacitance (nom)
pF/ft @ 1 kHz
17
Characteristic Impedance
Frequency (f): 1.0-16.0 MHz
Ohms
100 ± 15
Structural Return Loss (SRL)
Frequency (f): 1.0-10.0 MHz
10.0-16.0 MHz
dB (min)
12
12-10 log (f/10)
Note:
CMX outdoor rating allows the cable to be exposed for short distances from the Network Interface Device on the outside of
the house to the point where the cable enters the house. This type of cable is not to be buried or direct buried.
Physical Data
CMR
(Non-Plenum)
Temperature Rating (˚C)
Installation:
Operation:
0 to +60
-10 to +60
Frequency
Insertion Loss
dB/100 m (max)
NEXT
Power Sum
dB (min)
772 kHz 2.2 43
1 MHz 2.6 41
4 MHz 5.6 32
8 MHz 8.5 27
10 MHz 9.7 26
16 MHz 13.1 23
Product Construction
Conductors:
 •4pairsof24AWGsolidannealed
bare copper
Insulation:
 •Polyolefin
Color Code:
Co-extruded stripe
 •Pair1:Blue-White/Blue
 •Pair2:Orange-White/Orange
 •Pair3:Green-White/Green
 •Pair4:Brown-White/Brown
Rip Cord:
 •Appliedlongitudinallyunderjacket
Jacket
 •Flame-retardantPVC
 •Sequentialfootagemarkings
 •InstallationTemperature:-10°Cto60°C
 •OperationTemperature:-40°Cto75°C
Physical Data
Nominal Cable Diameter (in)
 •0.19
Nominal Cable Weight (lbs/1000ft)
 •20
Packaging
 •600'Pull-Pac® Carton (PP)
Applications
 •100BASEVG-AnyLAN
 •52MbpsATM
 •4MbpsTokenRing(IEEE802.5)
 •10BASE-T(IEEE802.3)
 •T1
 •Voice
Compliances
 •ANSI/TIA/EIA568C.2
 •ANSI/ICEAS-100-685
 •NECCMXOutdoor-CMR
 •RoHSCompliantDirective2002/95/EC
61
Datacom
Cross-Connect and Distribution Frame Wire 5
With extended experience in the field of cross-connect wires, General
Cable provides a variety of indoor and outdoor UL-listed cross-connect and
distributing frame wire for interconnecting equipment and supplying service
in central offices, distribution cabinets and point-to-point hookups.
General Cable meets installers’ needs with a breadth of products for virtually
any application. Aimed at providing convenience and flexibility, all cables are
manufactured, tested and approved to UL, the NEC and applicable TIA/EIA
and Telcordia standards.
With years of technical expertise and a focus on cultivating strong
relationships, General Cable provides customers with first-class technical
support and a competitive advantage. For more than a century and a half,
General Cable has stayed ahead of the industry’s changing needs with a
variety of products that meet future performance requirements and provide
the best value in cabling solutions. General Cable’s cross-connect and
distribution frame wire offer unparalleled, world-class quality.
Index Page
Customer Premise
Cross-Connect Wire 62
Network Outdoor
Cross-Connect Wire 63
Universal
Cross-Connect Wire 64
DSX Distribution
Frame Wire 65
Distributing
Frame Wire 66
62
Cross-Connect and Distribution Frame Wire Datacom

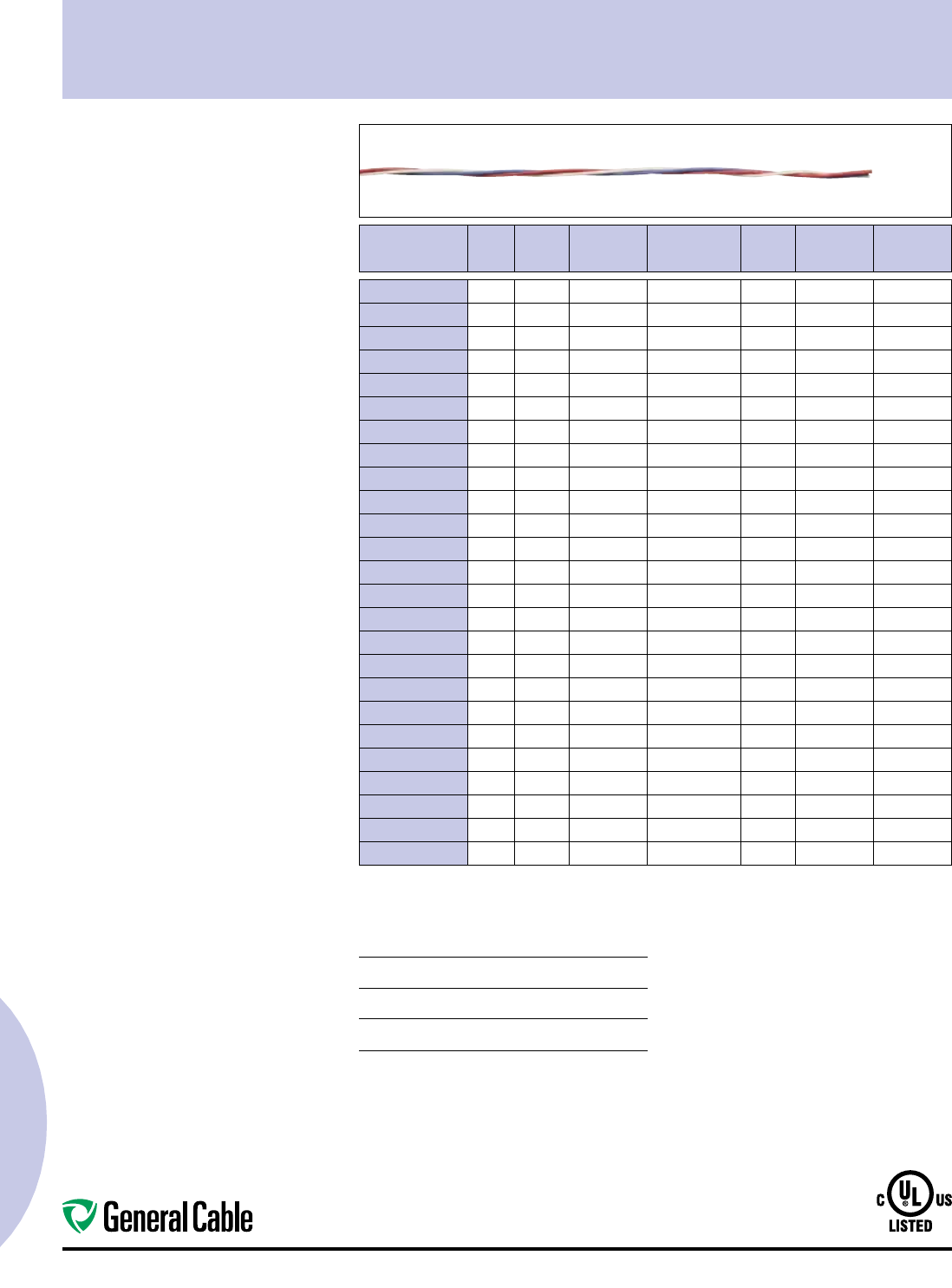

Customer Premise Cross-Connect Wire
Type “F” • Spec. 5008
Customer Premise Cross-Connect Wire
Spec. 5006
PRODUCT
NUMBER PAIRS AWG
COLOR CODE PKG./
CARTON
O.D.
(INCHES)
WEIGHT
(LBS/
KFT)PAIR 1 PAIR 2 PAIR 3 PAIR 4
2114200
1 24 R/G-G/R 8 0.06 3
2114328
1 24 R/BK-BK/R
1000' SP
0.06 3
2114369
1 24 R/BL-BL/R 8 0.06 3
2114385
1 24 R/Y-Y/R 8 0.06 3
7023708
1 24 BL/W-W/BL 8 0.06 3
7041916
1 24 BL/Y-Y/BL 8 0.06 3
7023773
1 24 O/W-W/O 8 0.06 3
7023781
1 24 G/W-W/G 8 0.06 3
7036759
1 24 BK/W-W/BK 8 0.06 3
7023864
1 24 R/W-W/R 8 0.06 3
7023716
2 24 BL/W-W/BL O/W-W/O 3 0.09 6
7023724
3 24 BL/W-W/BL O/W-W/O G/W-W/G 4 0.10 9
2114211
4 24 BL/W-W/BL O/W-W/O G/W-W/G BR/W-W/BR 4 0.12 12
2114363
1 22 W/O-O/W 4 0.08 5
2114364
1 22 W/G-G/W 4 0.08 5
7041973
1 22 BL/W-W/BL 4 0.08 5
7042047
1 22 R/W-W/R 4 0.08 5
2114212
2 22 BL/W-W/BL O/W-W/O 4 0.12 10
Data subject to change without notice.
PRODUCT
NUMBER PAIRS
COLOR CODE
PKG.
PKG./
CARTON
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
PAIR 1 PAIR 2 PAIR 3
2113055
1 O/W-W/O 1000' SP 8 0.07 3
2134023
1 G/W-W/G 1000' SP 8 0.07 3
2114327
1 BL/R-R/BL 1000' SP 8 0.07 3
2114375
1 R/W-W/R 1000' SP 8 0.07 3
2114374
1 BK/W-W/BK 1000' SP 8 0.07 3
7042500
1 BL/Y-Y/BL 1000' SP 8 0.07 3
7051543
1 BL/Y-BL 600' SP 8 0.07 3
2113054
1 BL/W-W/BL 1000' SP 8 0.07 3
2113189
1 V/BL-BL/V 500' SP 8 0.067 3.25
7042518
2 BL/R-R/BL O/R-R/O 1150' SP 40.09 6
2114307
2 BL/W-W/BL O/W-W/O 1000' SP 40.09 6
7042526
3 BL/W-W/BL O/W-W/O G/W-W/G 600' SP 40.12 10
Data subject to change without notice.
Electrical Characteristics
22 AWG
1 PR.
24 AWG
1-4 PR.
DC Resistance (max)
Ohms/1000 ft @ 20˚C
18.0 28.6
Characteristic Impedance
Ohms @ 1 MHz (nom)
100 100
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/1000 ft @ 20˚C
28.6
Coaxial Capacitance (max)
microfarads/kft @ 23˚C
0.15
Insulation Resistance (min)
Megohm - kft @ 23˚C
300
Product Construction
Conductors:
• 22 and 24 AWG solid bare annealed
copper
Insulation:
• Flame-retardant semi-rigid PVC
Pairing:
• Two twists per foot minimum
• For ease of identification, a variety of
different color options are available
Packaging
• 1000' spool (SP)
• Other lengths and put-ups are also
available
Applications
• Suitable for voice and data
transmission up to 4 Mbps
• For cross-connecting between
terminals of a distribution frame or
other premise equipment
Compliances
• UL and c(UL) Type CM
• Category 2 compatible
Product Construction
Conductors:
• 24 AWG solid bare annealed copper
Insulation:
• Flame-retardant semi-rigid PVC
Pairing:
• Four twists per foot minimum
Packaging
• Supplied on non-returnable spools
as shown in table (SP)
Applications
• Suitable for voice and data
transmission up to 16 Mbps
• For cross-connecting between
terminals of a distribution frame or
other premise equipment
Compliances
• UL and c(UL) Type CM
• Bellcore Specification TA-TSY-000130
• Category 3 compatible
Electrical Characteristics
22 AWG
DC Resistance (max)
Ohms/1000 ft @ 20˚C
17.8
Coaxial Capacitance (max)
microfarads/kft @ 23˚C
0.09
Insulation Resistance (min)
Megohm - kft @ 23˚C
5000
63
Datacom Cross-Connect and Distribution Frame Wire
Network Outdoor Cross-Connect Wire
Type “G” • Spec. 5010
PRODUCT
NUMBER
COLOR CODE PKG./
CARTON
WEIGHT
(LBS/KFT)
PAIR 1
7042427 W/V 85
2114357 R/W 85
Data subject to change without notice.
Product Construction
Conductors:
• 1 pair of 22 AWG solid bare
annealed copper
Insulation:
• Dual-insulated polypropylene with a
flame-retardant semi-rigid PVC skin
Pairing:
• Five twists per foot minimum
Packaging
• 400' spool (SP)
• 8 per carton
Applications
• Suitable for voice and data
transmission up to 16 Mbps
• For cross-connecting between feeder
and distribution circuits within the
confines of outdoor distribution
cabinets
Compliances
• Bellcore Specification TA-NWT-000126
• Category 3 compatible
Electrical Characteristics
22 AWG
DC Resistance (max)
Ohms/1000 ft @ 20˚C
18.0
Coaxial Capacitance (max)
microfarads/kft @ 23˚C
0.15
Insulation Resistance (min)
Megohm - kft @ 23˚C
500
Near-End Cross Talk (min)
dB @ 772 kHz
44
64
Cross-Connect and Distribution Frame Wire Datacom
64
Universal Cross-Connect Wire
Type “N” • Spec. 5013
PRODUCT
NUMBER PAIRS
COLOR CODE
PKG.
PKG./
CARTON
WEIGHT
(LBS/KFT)
PAIR 1 PAIR 2 PAIR 3
2113057 1 W/V-V 400' SP 8 4.9
2113058 1 W/V-V 1000' SP 44.9
2113059 1 W/R-R 1000' SP 44.9
2113060 2 R/BL-BL R/O-O 1000' SP 39.9
2113061 3 W/BL-BL W/O-O W/G-G 500' SP 314.7
Data subject to change without notice.
Product Construction
Conductors:
• 22 AWG solid bare annealed copper
Insulation:
• Flame-retardant semi-rigid PVC
Pairing:
• Four twists per foot minimum
Packaging
• Supplied on non-returnable spools as
shown in table (SP)
Applications
• Suitable for voice and data transmission
up to 16 Mbps
• UL Listed cross-connect wire for indoor
use in distributing frames and cross-
connect arrays; suitable for use outdoors
in cross-connect cabinets and terminal
boxes. Has excellent low-temperature
characteristics for installation in cold
climates
Compliances
• UL and c(UL) Type CM
• Bellcore Specification TA-NWT-000126
• Category 3 compatible
Electrical Characteristics
24 AWG
DC Resistance (max)
Ohms/1000 ft @ 20˚C
28.6
Coaxial Capacitance (max)
microfarads/kft @ 23˚C
0.15
Insulation Resistance (min)
Megohm - kft @ 23˚C
300
Capacitance Unbalance (max)
Picofarads - 100ft @ 1.0 kilohertz
70
65
Datacom Cross-Connect and Distribution Frame Wire
65
DSX Distribution Frame Wire
Type “Y2” • Spec. 5506
PRODUCT
NUMBER PAIRS PKG.
PKG./
CARTON
2114388 2.5 5000' SP 1
2114395 2.5 660' SP 4
2114396 2.5 1350' SP 2
7026156 2.5 1000' SP 4
Data subject to change without notice.
Product Construction
Conductors:
• 24 AWG solid tinned annealed copper
Insulation:
• Flame-retardant semi-rigid PVC, 90°C
• Insulation thickness = 0.008"
Pairing:
• Six twists per foot minimum
Color Code:
• Pair 1: Blue-White/White-Blue
• Pair 2: Orange-White/White-Orange
• Single: Green
Physical Data
• Nominal cable diameter (in): 0.10
• Nominal cable weight (lbs/1000 ft): 8.2
Packaging
• Spool (SP)
• Cardboard coil (CL)
Applications
• Suitable for voice and data
transmission up to 16 Mbps
• For cross-connecting equipment
units in telephone central offices
and point-to-point hookups
Compliances
• UL and c(UL) Type CM
• Category 3 compatible
Electrical Characteristics
22 AWG 24 AWG
DC Resistance (max)
Ohms/5 ft
0.089 0.143
Coaxial Capacitance (nom)
microfarads/kft @ kHz
0.150 0.125
Characteristic Impedance
Ohms @ 1 MHz (nom)
100 100
66
Cross-Connect and Distribution Frame Wire Datacom
Distributing Frame Wire
Type “DT” • Spec. 5009
PRODUCT
NUMBER PAIRS AWG
COLOR
CODE PKG.
PKG./
CARTON
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
7051576 1 24 R/BK 1000' SP 40.074 3.1
7051535 1 24 O/W 1000' SP 40.074 3.1
7051592 1 24 R/W 1000' SP 40.074 3.1
7051600 1 24 BK/W 1000' SP 40.074 3.1
7022551 1 24 Y/BL 6000' BSP 20.074 3.1
7022569 1 24 Y/O 6000' BSP 20.074 3.1
7022577 1 24 Y/G 6000' BSP 20.074 3.1
7022585 1 24 Y/R 6000' BSP 20.074 3.1
7056534 1 24 G/W 1000' SP 40.074 3.1
2113046 1 24 W/BL 1000' SP 0.074 3.1
7022593 3C 24 Y/BL/R 4500' BSP 10.080 4.7
7022601 2 24 Y/BL-R/G 3000' BSP 20.098 6.2
2113063 1 22 Y/BL 1000' SP 40.084 4.7
7051618 1 22 BK/W 1000' SP 40.084 4.7
7051626 1 22 R/W 1000' SP 40.084 4.7
7051634 1 22 BL/W 1000' SP 40.084 4.7
7022460 1 22 W/BL 4500' BSP 20.084 4.7
7022478 1 22 W/O 4500' BSP 20.084 4.7
7022486 1 22 W/G 4500' BSP 20.084 4.7
7022494 1 22 W/R 4500' BSP 20.084 4.7
7022502 1 22 R/G 4500' BSP 20.084 4.7
2113040 1 22 W/BK 3000' BSP 0.084 4.7
21130 65 1 22 W/BL 3000' BSP 0.084 4.7
2113184 2 22 W/BL-R/G 2000' BSP 20.116 9.4
2113219 2 22 R/W-BK/BL 1150' HT 0.084 4.7
Data subject to change without notice.
Product Construction
Conductors:
• 22 and 24 AWG solid tinned annealed
copper
Insulation:
• Flame-retardant semi-rigid PVC
• Insulation thickness = 0.008"
Pairing:
• Four twists per foot minimum
Packaging
• Standard spool (SP)
• Bell spool (BSP)
• Bell spool dimensions (tapered)
Inner Drum: 7.25" tapered to
6.25"
Flange: 12.25"
Traverse: 4.25"
• Other lengths and put-ups are also
available
• Tight pair twist cables are available
upon request
Applications
• Suitable for voice and data
transmission up to 16 Mbps
• For cross-connecting equipment units
in telephone central offices and point-
to-point hookups
Compliances
• UL and c(UL) Type CM
• Bellcore Specification TA-TSY-000136
• Category 3 compatible
67
Datacom
Central Office Cables 6
General Cable is a highly recognized manufacturer of a comprehensive line of
Central Office cable. As a primary national supplier, our top-quality product
line includes cables with the ability to run both analog and digital services
from 75 Ohm DS3/4 interconnect cable and switchboard cable to ALVYN
terminating cable and two-way digital transmission cable. General Cable’s
preferred central office cables are engineered for T1, DS1, DS1C, DS2 and
other broadband services.
Designed to provide the optimum in performance, the products’ transmission,
physical and mechanical characteristics are committed to the highest
standards of product quality. All of these cables provide enhanced crosstalk
and attenuation performance for customers who need broadband solutions.
In addition, Telcordia test reports are available upon request for the
terminating cable line of products.
Index Page
734D Series for
DS-3 and DS-4 68
735A/C Series for
DS-3 and DS-4 69
Switchboard Cable 70
Shielded Switchboard Cable 71
100 Ohm Individually
Braided Shielded
Twisted Pair Cable 72
Dual Insulated
Dual Shielded Flexible
Terminating Cable 73
Tight Twisted Pair
Digital Terminating Cable 74
Dual Insulated
ALVYN Sheathed
Terminating Cable 75
Foam Skin ALVYN Riser 76
68
Central Office Cables Datacom

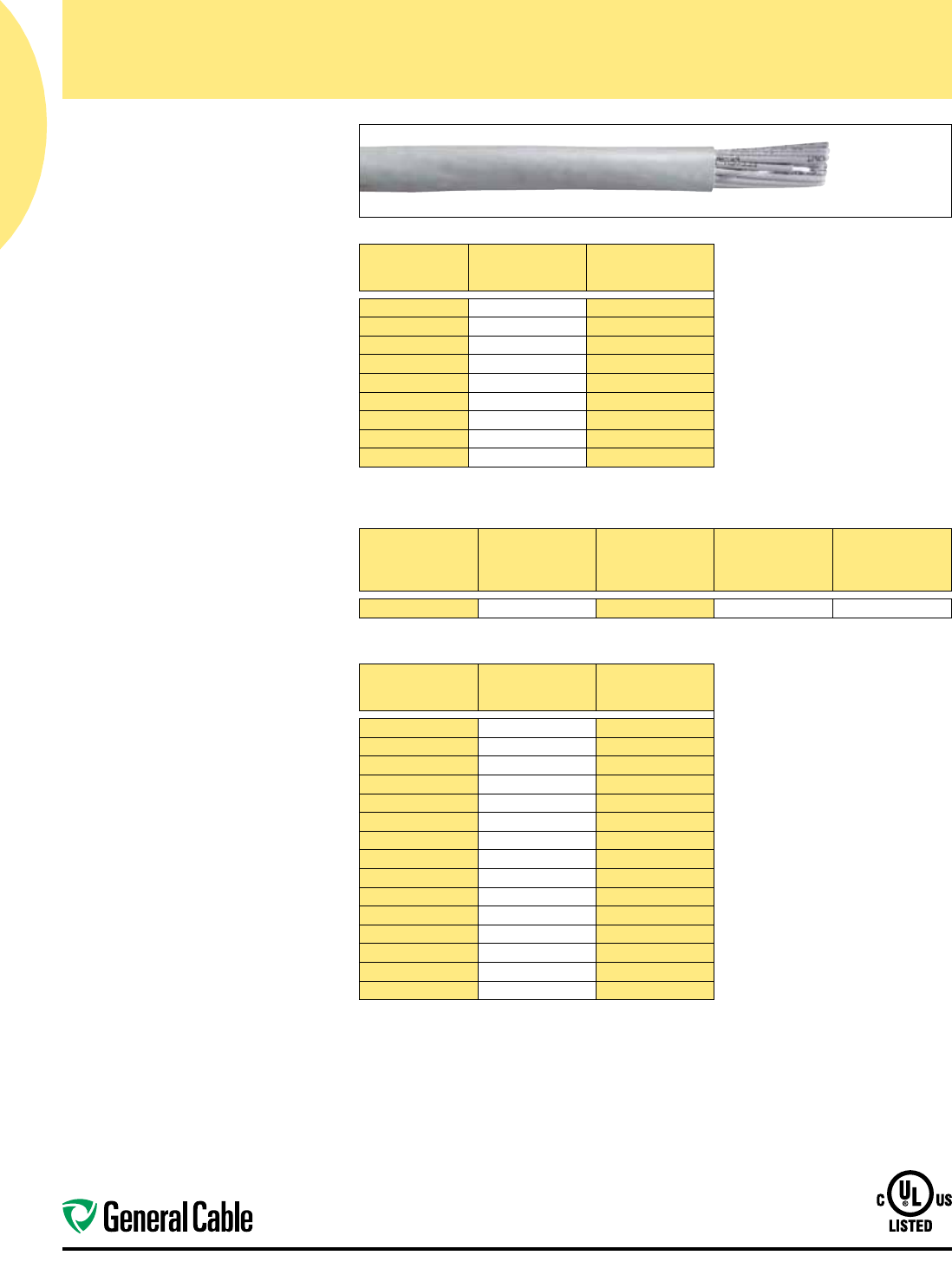

734D Series for DS-3 and DS-4
75 Ohm Coaxial Cable
ATTENUATION (NOMINAL)
MHz/SIGNAL dB/100ft dB/100m
0.772 0.24 0.79
CEPT1 0.25 0.82
CEPT2 0.50 1.64
50.54 1.77
10 0.75 2.46
CEPT3 0.98 3.21
DS3 1.15 3.77
STS1 1.21 3.97
44.736 1.65 5.41
50 1.70 5.58
CEPT4 2.01 6.59
STS3 2.19 7.18
100 2.69 8.82
DS4 2.94 9.64
200 3.58 11.74
Data subject to change without notice.
ELECTRICAL CHARACTERISTICS
SRL
5-90 MHz
(dB MIN.)
DC RESISTANCE
(OHMS/KFT
NOM.)
SHIELD DC
RESISTANCE
(OHMS/KFT NOM.)
NOMINAL
CAPACITANCE
(pF/ft) NVP %
30 10.1 5.6 17.3 80
CMR (Non-Plenum)
PRODUCT
NUMBER CONDUCTORS PART NUMBER
7340201
1CO20C0012410
7340201T
1 + 22 AWG Tracer ZO20C0022010
7340202
2CO20C0022410
7340203
3CO20C0032410
7340206
6CO20C0061110
7340208
8CO20C0082410
7340209
9CO20C0092410
7340212
12 CO20C0122410
7340216
16 CO20C0162410
Data subject to change without notice.
Product Construction
Conductor:
 •20AWGsilver-platedcopper
Insulation:
 •Gas-injectedfoamedPE(O.D.:0.146")
Shield:
 •Foil: Aluminum
•Braid: 85%tinnedcopper
Jacket:
 •Flame-retardantPVC
Temperature/Voltage Rating
 •75˚C/300V
Packaging
 •1000'woodreels
Applications
 •Interconnectandcross-connectingcentral
offices
 •Plenumcableisalsoavailableuponrequest
Compliances
 •ULandc(UL)TypeCMR
69
Datacom Central Office Cables

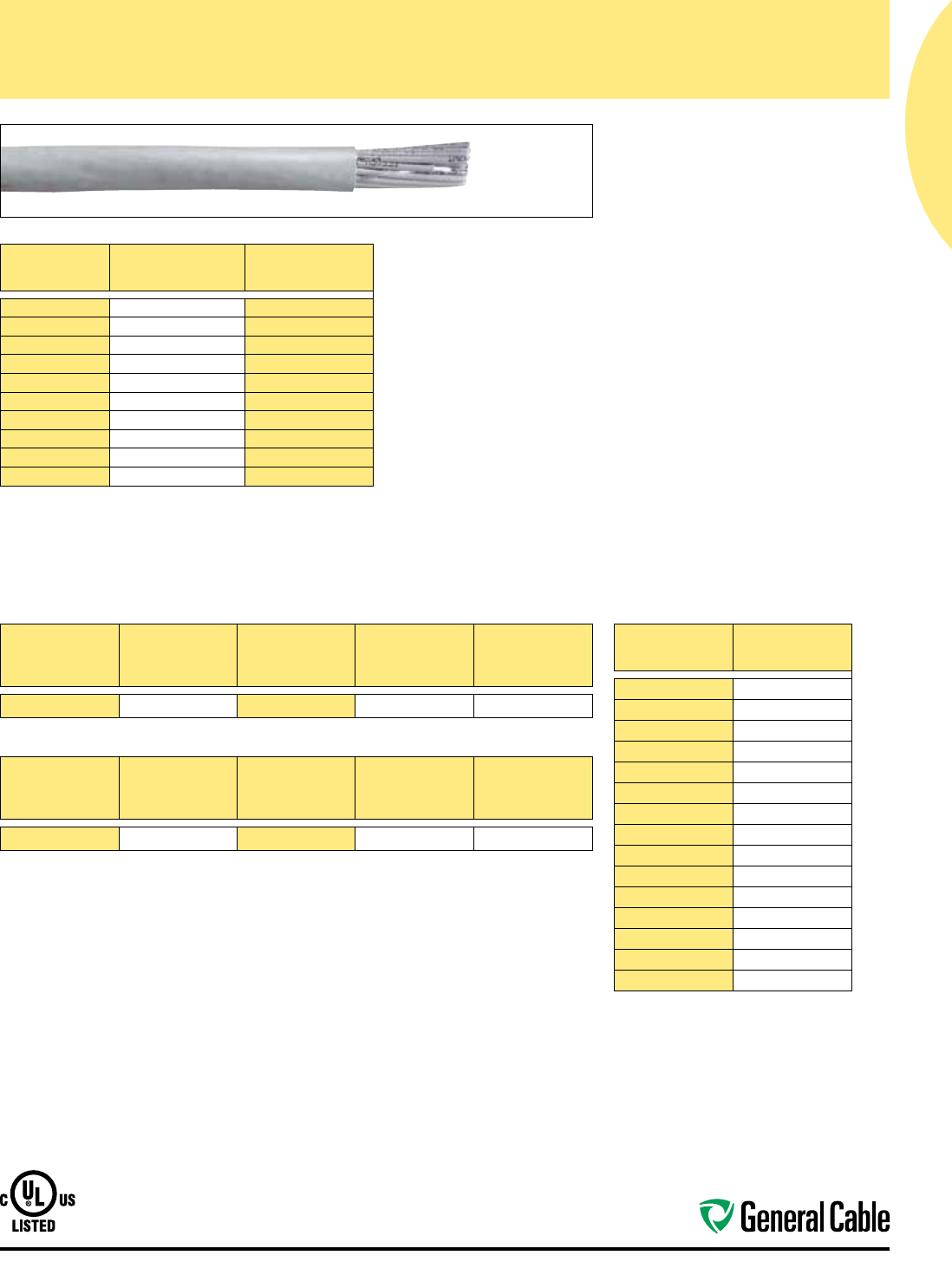

735A/C Series for DS-3 and DS-4
75 Ohm Coaxial Cable
735A ELECTRICAL CHARACTERISTICS
SRL
5-90 MHz
(dB MIN.)
DC RESISTANCE
(OHMS/KFT
MAX.)
SHIELD DC
RESISTANCE
(OHMS/KFT NOM.)
NOMINAL
CAPACITANCE
(pF/ft) NVP %
30 40.0 2.70 17.0 83
735C ELECTRICAL CHARACTERISTICS
SRL
5-150 MHz
(dB MIN.)
DC RESISTANCE
(OHMS/KFT
MAX.)
SHIELD DC
RESISTANCE
(OHMS/KFT NOM.)
NOMINAL
CAPACITANCE
(pF/ft) NVP %
35 40.0 2.70 17.0 83
ATTENUATION (MAXIMUM)
MHz/SIGNAL dB/100ft
0.772 0.50
CEPT1 0.54
CEPT2 1.02
51.10
10 1.50
CEPT3 2.02
DS3 2.30
STS1 2.56
44.736 3.28
50 3.40
CEPT4 4.12
STS3 4.36
100 4.99
DS4 5.84
200 7.08
Data subject to change without notice.
CMR (Non-Plenum)
PRODUCT
NUMBER CONDUCTORS PART NUMBER
7356201
1CO26C0012010
7356201T
1 + 22 AWG Tracer ZO26C0022010
7356202
2CO26C0022010
7356203
3CO26C0032010
7356206
6CO26C0062010
7356208
8CO26C0082010
7356209
9CO26C0092010
7356212
12 CO26C0122010
7356216
16 CO26C0162010
7356224
24 NOTSETUP
Data subject to change without notice.
Product Construction
Conductor:
 •26AWGsilver-platedcopper
Insulation:
 •Gas-injectedfoamedPE(O.D.:0.077")
Shield:
 •Foil: Aluminum
•Braid: 95%tinnedcopper
Jacket:
 •Flame-retardantPVC
Temperature/Voltage Rating
 •75˚C/300V
Packaging:
 •1000'reels
Applications
 •Interconnectandcross-connectingcentral
offices
Compliances
 •ULandc(UL)TypeCMR
70
Central Office Cables Datacom
70
Switchboard Cable
Spec.4753•TypeCMR•TIWSeries
Conductor
Insulation
Jacket
Rip Cord
Electrical Characteristics
24 AWG
3-6 pr over 6 pr
DC Resistance (max)
  Ohms/1000ft@20˚C
31.5 31.5
Mutual Capacitance (nom)
pF/ft @ 1 kHz
19 22
Attenuation (nom)
  dB/1000ft@0.772MHz
  dB/1000ft@4.224MHz
6.2
16
7.1
18
Characteristic Impedance
  Ohms@1MHz(nom)
100 ± 15 100 ± 20
PRODUCT
NUMBER PAIRS
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
7023039
30.13 13
2114621
40.16 16
6970073
12 0.24 42
6970065
25 0.36 84
7023021
32 0.37 106
6970123
50 0.46 168
7002975
75 0.56 247
Data subject to change without notice.
Note:Non-stockitemsmaybesubjecttominimumorderquantities.
Product Construction
Conductors:
 •24AWGsolidtinnedannealedcopper
Insulation:
 •Flame-retardantsemi-rigidPVC
 •Insulationthickness=0.006"
Pairing:
 •Threetwistsperfootminimum
Color Code:
 •SeeColorCodeChartonpage94
Rip Cord:
 •Appliedlongitudinallyunderjacket
Jacket:
 •Gray,tough,flame-retardantPVC
Packaging
 •1000'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •Voice
 •T1Fractional
 •Category2applications
 •BasicrateISDN
Compliances
 •ANSI/ICEAS-80-576
 •ULandc(UL)TypeCMR
Electrical Characteristics
24 AWG
DC Resistance(max)
  Ohms/1000ft@20˚C
31.5
Coaxial Capacitance(max)
  microfarads/kft@23˚C
22
Attenuation (nom)
  dB/1000ft@0.772MHz
  dB/1000ft@4.224MHz
7.1
18
Characteristic Impedance
  Ohms@1MHz(nom)
100 ± 20
71
Datacom Central Office Cables
71
Shielded Switchboard Cable
Spec.4754•TypeCMR
Conductor
Insulation
Jacket
Shield
Drain Wire
Rip Cord
PRODUCT
NUMBER PAIRS
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2114628
25 0.350 90
2114627
32 0.380 120
Data subject to change without notice.
Product Construction
Conductors:
 •24AWGsolidtinnedannealedcopper
Insulation:
 •Flame-retardantsemi-rigidPVC
 •Insulationthickness=0.006"
Pairing:
 •Threetwistsperfootminimum
Color Code:
 •SeeColorCodeChartonpage94
Rip Cord:
 •Appliedlongitudinallyunderjacket
Shield:
 •Polyester-backedaluminumfoilshield
 •Aluminumfacingin
Drain Wire:
 •24AWGsolidtinnedcopperdrainwireis
placed on aluminum side
Jacket:
 •Tough,gray,flame-retardantPVC
Packaging
 •1000'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •Voice
 •T1Fractional
 •Category2applications
 •BasicrateISDN
Compliances
 •ANSI/ICEAS-80-576
 •ULandc(UL)TypeCMR
72
Central Office Cables Datacom
100 Ohm Individually Braided Shielded Twisted Pair Cable
TerminatingCableforDigitalTransmission•Spec.4162•TypeCMR/CM
Conductor
1 Pair Construction
Dual
Insulation
Jacket Braid
Shield
Drain Wire
PRODUCT
NUMBER PAIRS
COLOR
CODE
JACKET
COLOR
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2117037
1W/BL Orange 0.18 26
2117046
1BK/O Gray 0.18 26
2117047
1R/G Gray 0.18 26
211704 8
1W/BL Red 0.18 26
7056898
1W/BL Gray 0.18 26
7056906
1W/O Gray 0.18 26
7056880
2See Chart Gray 0.46 75
7056930
5See Chart Gray 0.57 160
7056948
8See Chart Gray 0.72 244
7056955
10 See Chart Gray 0.80 302
7056963
12 See Chart Gray 0.87 355
Data subject to change without notice.
Electrical Characteristics
22 AWG
DC Resistance (max)
  Ohms/1000ft@20˚C
18
Resistance Unbalanced (max)
  (ofapair)@20˚C
5
Shield Resistance (nom)
Ohms @ 1000 ft
3.3
Mutual Capacitance (max)
pF/ft @ 1 kHz
19
Impedance
Ohms/772 kHz
100 ± 5
Color Code Chart
PAIR
NO.
COLOR
CODE
1
White & Blue
2
White & Orange
3
White & Green
4
White & Brown
5
White & Slate
6
Red & Blue
7
Red & Orange
8
Red & Green
9
Red & Brown
10
Red & Slate
11
Black & Blue
12
Black & Orange
Product Construction
Conductors:
 •22AWGsolidtinnedannealedcopper
Insulation:
 •High-densitypolyethylenewithalayerof
flame-retardant PVC overall
 •Primaryinsulation,nominalO.D.=0.051"
 •Secondaryinsulation,nominalO.D.=0.072"
Drain Wire:
 •22AWGsolidtinnedannealedcopper
Shield:
 •34AWGtinnedcopperbraid90%coverage
Pair Jacket:
 •Flame-retardantPVCjacketovereachbraid
shielded twisted pair
Color Code:
 •Pairjacketsarecolor-codedbyuseof
jacket printing
 •Markingorprintingwillcorrespond
with the colors of the insulated pairs
(e.g.,white/blueprintedonthepairjacket
indicates the insulation colors
ofthepairsenclosed)
Jacket:
 •Flame-retardantPVC
 •Sequentialfootagemarkings
Packaging
 •500'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •T1/DS1
 •Suitableforuseinterminatinghigh-
frequency lines to carrier equipment in
central offices
Compliances
 •1pair:ULandc(UL)TypeCM
 •2pairthrough12pair:ULandc(UL)Type
CMR
Frequency
Attenuation
dB/1000 ft
NEXT
dB/1000 ft
FEXT
dB/1000 ft
.100M Hz 2.2 97 109
.772MHz 6.1 93 94
1.000MHz 7.0 88 92
1.600MHz 9.1 85 90
3.150M Hz 13.2 82 88
6.300MHz 19.1 80 83
10.000MHz 25.0 72 71
73
Datacom Central Office Cables
Electrical Characteristics
22 AWG
DC Resistance (max)
 Ohms/1000ft@20˚C
18
Insulation Resistance (min)
 Megohm-1000ft@23˚C
5000
Mutual Capacitance (nom)
nF/1000 ft @ 1 kHz
20.1
Attenuation (nom)
 dB/1000ft@1MHz
 dB/1000ft@1.6MHz
 dB/1000ft@4.0MHz
5.0
6.6
11.3
PSNEXT
 dB/1000ft@0.772MHz
dB/1000ft@1.600MHz
dB/1000ft@3.150MHz
dB/1000ft@6.300MHz
42
38
33
29
Characteristic Impedance (nom)
 Ohms@1MHz
100 ± 15
Dual Insulated Dual Shielded Flexible Terminating Cable
Spec.4502•TypeCMR•600CSeries
Conductor
Dual
Insulation
Jacket
Shield
Drain Wire Rip Cord
PRODUCT
NUMBER PAIRS
JACKET
COLOR PKG
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
2117005
6DK. Gray 1000' 0.37 66
211703 9
6L.O. Gray Bulk 0.37 66
2117006
12 DK. Gray Bulk 0.48 108
2117040
12 L.O. Gray Bulk 0.48 108
2117007
16 DK. Gray 1000' 0.50 134
2117041
16 L.O. Gray Bulk 0.50 134
2117051
20 L.O. Gray 1000' 0.55 160
2117008
25 DK. Gray 1000' 0.63 191
2117042
25 L.O. Gray Bulk 0.63 191
211704 5
28 L.O. Gray Bulk 0.64 208
2117003
30 DK. Gray 1000' 0.65 222
211704 3
30 L.O. Gray Bulk 0.65 222
2117009
32 DK. Gray 1000' 0.68 234
211704 4
32 L.O. Gray Bulk 0.68 234
2117020
50 DK. Gray 1000' 0.82 343
211705 6
50 L.O. Gray Bulk 0.82 343
2117010
75 DK. Gray 1000' 0.95 489
Data subject to change without notice.
Product Construction
Conductors:
 •22AWGsolidtinnedcopperconductors
Insulation:
•
Inner layer of polyethylene covered by an
outer layer of flame-retardant PVC
•
Primaryinsulation,nominalO.D.=0.042"
•
Secondaryinsulation,nominalO.D.=0.050"
Color Code:
 •SeeColorCodeChartonpage94
Core Wrap:
 •Non-hygroscopicdielectrictapeapplied
longitudinally with an overlap
Shield:
 •Twopolyester-backedaluminumfoilshields
Drain Wire:
 •22AWGsolidtinnedcopperdrainwireis
placed between the two shields
Rip Cord:
 •Appliedlongitudinallyunderjacket
Jacket:
 •Flame-retardantPVC
 •Sequentialfootagemarkings
Packaging
 •1000'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •T1/DS1
 •DS1C
 •DS2
 •Forinterconnecting(DSI)digitalequipment
todigitalcross-connects(DSX)and
computers
Compliances
 •Telcordia(Bellcore)analyzedtheGeneral
Cable 4502 Series - Type 600C Family
of Central Office Cables to the criteria in
Telcordia GR-137-CORE. Copies of the
analysis report are available from General
Cable upon request.
 •ULandc(UL)TypeCMR
74
Central Office Cables Datacom
Tight Twisted Pair Digital Terminating Cable
Spec.7271•TypeCMR•1161ASeries
24 AWG Shielded/Extended Frequency
Conductor
Insulation
Jacket
Shield
Drain Wire
Rip Cord
PRODUCT
NUMBER PAIRS
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
7271.01224.S1R
12 0.35 60
7271.02524.S1R
25 0.48 109
7271.02824.S1R
28 0.51 132
Data subject to change without notice.
Product Construction
Conductors
 •24AWGsolidtinnedannealedcopper
Insulation:
 •High-densitypolyethylene,nom.=0.036"
Pairing:
 •Tightpairlays
Color Code:
 •Seechartbelow
Shield:
 •Polyester-backedaluminumfoilshield
Drain Wire:
 •24AWGsolidtinnedcopper
Rip Cord:
 •Appliedlongitudinallyunderjacket
Jacket:
 •Flame-retardantgrayPVC
Packaging
 •1000'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •T1/DS1
 •DS1C
 •DS2
 •10BASE-T
 •Shieldeddigitalterminatingcableis
designed for switching and transmission
equipment cabling for telephone
central office
Compliances
 •TIA/EIA568C.2
 •ULandc(UL)TypeCMR
Features
 •Nominal100Ohmimpedance
 •ShieldingfromEMI
 •Shorttwistlengthforbettercrosstalk
performance
Color Code Chart
PAIR
NO. TIP RING
PAIR
NO. TIP RING
1
White Blue
14
Black Brown
2
White Orange
15
Black Slate
3
White Green
16
Yellow Blue
4
White Brown
17
Yellow Orange
5
White Slate
18
Yellow Green
6
Red Blue
19
Yellow Brown
7
Red Orange
20
Yellow Slate
8
Red Green
21
Violet Blue
9
Red Brown
22
Violet Orange
10
Red Slate
23
Violet Green
11
Black Blue
24
Violet Brown
12
Black Orange
25
Violet Slate
13
Black Green
Electrical Characteristics
24 AWG
DC Resistance (max)
  Ohms/100m(328ft)@20˚C
9.38
Mutual Capacitance (max)
pF/ft @ 1 kHz
17
Insulation Resistance (min)
  (mohms-1000')
500
Characteristic Impedance
Frequency (f):1.0MHz
Ohms
100 ± 15
Capacitance Unbalance
pF/100m Pr to Pr
Pr to Ground
70(max)
330(max)
Frequency
Attenuation
dB/100 m
NEXT
dB
0.772MHz 1.9 56
1MHz 2.2 55
4MHz 4.1 45
8MHz 5.0 41
10MHz 5.7 39
16MHz 7.2 35
75
Datacom Central Office Cables
Dual Insulated ALVYN Sheathed Terminating Cable
TerminatingCableforVoiceandDigitalTransmission•Spec.4513•TypeCMR
BellSystemType:ABAM(22AWG)•ABMM(24AWG)
Product Construction
Conductors:
 •22and24AWGsolidtinnedcopper
conductors
Insulation:
 •Innerlayerofpolyethylenecoveredbyan
outer layer of flame-retardant PVC
 •22AWG
 •Primaryinsulation,nominalO.D.=0.039"
 •
Secondaryinsulation,nominalO.D.=0.048"
 •24AWG
 •Primaryinsulation,nominalO.D.=0.032"
 •
Secondaryinsulation,nominalO.D.=0.039"
Color Code:
 •SeeColorCodeChartonpage94
Core Wrap:
 •Polyestercorewrap
Shield:
 •0.008"corrugatedpolymer-coated
aluminum bonded to jacket
Jacket:
 •Darkgrayflame-retardantPVC
 •Sequentialfootagemarkings
Packaging
 •1000'reel(RL)
 •Bulkreelsareavailableuponrequest
Applications
 •Voice
 •T1
 •Suitableforvoiceandcarriertransmission
between the outside plant entrance
cables to station protector frames and to
carrier equipment bays and for use in riser
applications
Compliances
 •REAPE-87
 •GTS-8510
 •BellcoreSpecificationTR-TSY-000141
 •TIA/EIA568C.2
 •ULandc(UL)TypeCMR
PRODUCT
NUMBER PAIRS AWG O.D.
(INCHES)
WEIGHT
(LBS/KFT)
7043938
622 0.45 80
7043946
12 22 0.50 120
7043953
16 22 0.58 150
7043961
25 22 0.67 230
2110020
28 22 0.74 250
7044001
30 22 0.75 265
7044118
50 22 0.93 410
7043979
75 22 1.10 570
7043987
100 22 1.20 730
7043995
200 22 1.60 1350
2110021
300 22 1.90 1970
2110022
600 22 2.80 2590
2110013
25 24 0.56 150
2110014
50 24 0.74 255
2110015
100 24 1.00 460
2110016
200 24 1.30 860
2110017
300 24 1.50 1240
2110023
400 24 1.80 1750
2110018
600 24 2.20 2440
2110019
900 24 2.70 3190
Data subject to change without notice.
Core Wrap
Conductor
Jacket
Corrugated
Shield
Dual
Insulation
Electrical Characteristics
22 AWG
6-600 pr.
24 AWG
25-900 pr.
DC Resistance (max)
  Ohms/1000ft@20˚C
17.2 27.3
Insulation Resistance (min)
  Megohm-1000@23°C
5000 5000
Mutual Capacitance (nom)
nF/mile @ 1 kHz
pF/ft@ 1 kHz
83
16
83
16
Characteristic Impedance (nom)
  Ohms@1MHz
100 100
Frequency
Attenuation
dB/100 m (max)
NEXT
dB
0.772MHz 2.2 43
1MHz 2.6 41
4MHz 5.6 32
8MHz 8.5 28
10MHz 9.7 26
16MHz 13.1 23
76
Central Office Cables Datacom
Foam Skin ALVYN Riser
Riser Cable For Voice and Digital Transmission
Spec.2507•TypeCMR•BellSystemType:ARMM(24AWG)•ARTM(26AWG)
Product Construction
Conductors:
 •24and26AWGsolidbareannealedcopper
Insulation:
 •Dualinsulationconsistingofaninnerlayer
of foamed polyolefin surrounded by a solid
PVC skin
 •24AWG
 •Primaryinsulation,nominalO.D.=0.031"
 •
Secondaryinsulation,nominalO.D.=0.035"
 •26AWG
 •
Primaryinsulation,nominalO.D.=0.023"
 •
Secondaryinsulation,nominalO.D.=0.027"
Color Code:
 •SeeColorCodeChartonpage94,except
no bandmarking; only solid colors
Core Wrap:
 •Non-hygroscopicdielectrictapeapplied
longitudinally with an overlap
Shield:
 •0.008"corrugated,adhesive-coated
aluminum bonded to jacket
Jacket:
 •Grayflame-retardantPVCjacketbondedto
the coated aluminum
Packaging
 •Standardlengthsareshippedonreturnable
steel reels or on non-returnable wood reels
when requested
 •ARAM(22AWG)isavailableuponrequest
Applications
 •Intendedprimarilyforplacementinvertical
risers in buildings and may be used in
general horizontal applications
 •Designedforvoiceandcarriertransmission
between the station protector frames and
other equipment terminals
Compliances
 •TIA/EIA568C.2
 •BellcoreSpecificationTR-TSY-000111
 •ULandc(UL)TypeCMR
Core Wrap
Conductor
Jacket
Corrugated
Shield
Dual
Insulation
PRODUCT
NUMBER
PAIRS
AWG
O.D.
(INCHES)
WEIGHT
(LBS/KFT)
STANDARD
LENGTH (FT)
2019000
25 24 0.53 142 5000
2019001
50 24 0.66 234 5000
7507601
100 24 0.85 410 5000
7507619
200 24 1.20 760 2500
7507627
300 24 1.40 1105 2500
7507635
400 24 1.50 1445 2500
7507643
600 24 1.90 2150 1250
7507650
900 24 2.20 3170 1250
7507668
1200 24 2.60 4185 1000
2019005
50 26 0.56 165 5000
2019003
100 26 0.71 280 5000
2019004
200 26 0.92 495 5000
7507544
300 26 1.10 710 3000
7507551
400 26 1.20 930 3000
7507569
600 26 1.50 1365 1000
7507577
900 26 1.80 2025 1000
7507536
1200 26 2.00 2665 1000
Data subject to change without notice.
Note:Non-stockitemsmaybesubjecttominimumorderquantities.
Electrical Characteristics
24 AWG 26 AWG
DC Resistance (max)
  Ohms/1000ft@20˚C
27.3 43.9
Mutual Capacitance (nom)
nF/mile @ 1 kHz
83 83
Frequency
Attenuation
dB/100 m (max)
NEXT
dB
0.772MHz 2.2 43
1MHz 2.6 41
4MHz 5.6 32
8MHz 8.5 28
10MHz 9.7 26
16MHz 13.1 23
77
Tight-Buffer Cable
Blolite® Blown Fiber
Interlock Armor Cable
Indoor/Outdoor Cable
4 Tesseneer Drive
Highland Heights, KY 41076
Phone (800) 424-5666
www.generalcable.com
Not the new kid on the block.
General Cable’s NextGen® Brand fiber optic solutions
derive from over 25 years of technical expertise and
manufacturing excellence. Long recognized as a leader
in copper cabling systems, General Cable offers a broad
range of fiber optic cables for every application. NextGen
Brand fiber optic cables meet today’s performance
expectations while setting the standards for tomorrow.
NextGen Brand delivers the cable
construction and performance that
best fit — whatever the demand.
Fiber Optic Cable for the 21st Century
Whatever the Demand,
NextGen Delivers.
78
Optical Fiber
General Cable, Corning
®
Optical Fiber.
Names that are synonymous with cable
and fiber combine to create the ultimate
in fiber optics. General Cable partners
with Corning Optical Fiber to deliver the
world’s most reliable and technologically
advanced optical fiber cables.
Singlemode
Standard
General Cable utilizes Corning® SMF-28e+™ fiber as its
standard singlemode offering. This is a full-spectrum
fiber that is fully backward-compatible with legacy
singlemode fiber. It enables increased optical launch
power of legacy singlemode fiber, improved macrobend
specifications from 0.05 dB to 0.03 dB, and tighter zero
dispersion wavelength (l0) tolerance from a range of
± 10 nm to ± 7 nm. This fiber supports all broadband
applications and complies with the most stringent
industry standards, such as:
 •ITU-TG.652(TablesA,B,CandD)
 •IEC60793-2-50TypeB1.3
 •TIA/EIA492-CAAB
 •TelecordiaGR-20-CORE
Long-Haul
For long-haul applications, rely on General Cable’s
long history of cable experience and the technology of
Corning®LEAF® fiber. This is the most widely deployed
non-zerodispersionshifted(NZ-DSF)fiberintheworld
andthefirstlowwaterpeakNZ-DSFfiber.Itslarge
effective area and industry-leading polarization mode
dispersion(PMD)specificationsenable10Gb/sand
40Gb/snetworksystemsofthefuture.
Multimode
ClearCurve® Multimode Fiber
Corning® ClearCurve® ultra-bendable laser-optimized™ multimode
optical fiber delivers the best macrobending performance in the
industry while maintaining compatibility with current optical fibers,
equipment,practicesandprocedures.ClearCurveOM3/OM4
multimode fiber is designed to withstand tight bends and
challenging cable routes with substantially less signal loss than
conventional multimode fiber.
InfiniCor® Multimode Fiber
For enterprise networks, turn to General Cable utilizing Corning®
InfiniCor® fibers. These are the world’s first laser-optimizedTM fibers.
These fibers allow higher data aggregation in premise applications
compared with non-laser-optimized fibers, full compatibility
with legacy protocols and applications, superior measurement
technology and manufacturing control, and industry-leading CPC®
coatings for superior microbend and environmental performance.
InfiniCorfiberperformanceisensuredbyminEMBc,theindustry’s
leadingstandards-approvedbandwidthmeasurementforOM3
fibers. InfiniCor fibers are the only ones to use this measurement to
ensure10Gb/sperformance.
62.5 micron
Thesefiberssupportdataratesof1Gb/sinboththe850nmand
1300 nm windows. They comply with the most stringent industry
standards, such as:
 •ISO/IEC11801,typeOM1fiber
 •IEC60793-2-10,typeA1bfiber
 •TIA/EIA,492AAAA-A
50 micron
Thesefiberssupportdataratesof10Gb/sat850nm.Theyalso
comply with the most stringent industry standards, such as:
 •ISO/IEC11801,typeOM2,OM3andOM4*fibers
 •IEC60793-2-10,typeA1a.1,A1a.2andA1a.3*fibers
 •TIA/EIA,492AAAB,492AAAC-Aand492AAAD
*
Assumes IEC draft standard is harmonized with 492AAAD, which was approved by TIA
79
Fiber Type General Cable Corning
®
Optical Fiber Description
Standard Loose
Tube SM
AQ SMF-28e+TM Fiber Full spectrum, low water peak singlemode,
ITU-T G.652.D
Performance Loose
Tube SM
AT SMF-28e+TM Fiber Full spectrum, high performance low water
peak singlemode with 0.35/0.25 attenuation,
ITU-T G.652.D
Tight Buffer SM AP SMF-28e+TM Fiber Full spectrum, low water peak singlemode with
900µm PVC buffer, ITU-T G.652.D
Long-Haul SM AL LEAF® Fiber Large Aeff, low water peak, NZ-DSF singlemode,
ITU-T G.655
Bend-Insensitive SM AB SMF-28e® XB Fiber Full spectrum with improved macrobending
performance, ITU-T G.652.D and ITU-T G.657.A
62.5 µm MM CG InfiniCor® 300 Fiber 1 Gb/s _< 300 m at 850 nm, OM1*
1 Gb/s _< 550 m at 1300 nm
62.5 µm MM CL InfiniCor® CLTM 1000 Fiber 1 Gb/s _< 500 m at 850 nm, OM1*
1 Gb/s _< 1000 m at 1300 nm
50 µm MM BI InfiniCor® SXi Fiber 10 Gb/s _< 150 m at 850 nm, OM2*
1 Gb/s _< 750 m at 850 nm
50 µm MM BE InfiniCor® SX+ Fiber 10 Gb/s _< 300 m at 850 nm, OM3*
1 Gb/s _< 1000 m at 850 nm
50 µm MM BL InfiniCor® eSX+ Fiber 10 Gb/s _< 550 m at 850 nm, OM4*
1 Gb/s _< 1100 m at 850 nm
50 µm MM BM InfiniCor® eSX+ Fiber 10 Gb/s _< 600 m at 850 nm, OM4*
1 Gb/s _< 1100 m at 850 nm
Ultra-bendable
50 µm MM
BC ClearCurve® OM3 Fiber 10 Gb/s _< 300 m at 850 nm, OM3*
1 Gb/s _< 1000 m at 850 nm
Ultra-bendable
50 µm MM
BB ClearCurve® OM4 Fiber 10 Gb/s _< 550 m at 850 nm, OM4*
1 Gb/s _< 1100 m at 850 nm
Optical Fiber Code Cross-Reference
* Designation per ISO 11801 Fiber Standards
SMF-28e+ is a trademark and Corning, LEAF, InfiniCor and Plus Corning Optical
Fiber are registered trademarks of Corning Incorporated, Corning, NY, U.S.A.
SINGLEMODE FIBER SELECTION GUIDE
FIBER
DESCRIPTION
FIBER
TYPE
TYPICAL
ATTENUATION (dB/km)
GIGABIT ETHERNET
DISTANCE (METERS)
10 GIGABIT ETHERNET
DISTANCE (METERS)
1310 nm 1383 nm 1550 nm 1625 nm 1310 nm 1310 nm 1550 nm
Singlemode - Loose Tube
Premium
AQ 0.40 0.40 0.30 0.35 10,000 5,000 30,000
High Performance
AT 0.35 0.35 0.25 0.30 10,000 5,000 30,000
Singlemode - Tight Buffer
Super
AP 0.65 – 0.65 – 10,000 5,000 30,000
Breakout
AP 1.00 –1.00 –10,000 5,000 30,000
MULTIMODE FIBER SELECTION GUIDE
Optical Characteristics:
50/125 PRODUCT FAMILY 62.5/125 PRODUCT FAMILY
UNITS
OM2
Type-BI
OM3
Type-BE
OM4
Type-BL
OM4
Type-BM
OM3
Type-BC
OM4
Type-BB
OM1
Type-CG
OM1
Type-CL
Maximum Finished Cable
Attenuation Coefficient
@850 nm 3.0 3.0 3.0 3.0 3.0 3.0 3.5 3.5 dB/km
@1300 nm 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 dB/km
Overfill Launch Bandwidth
@850 nm 700 1500 1500 1500 1500 1500 200 200 MHz.km
@1300 nm 500 500 500 500 500 500 500 500 MHz.km
Laser Bandwidth
@850 nm 850 2000 4700 5350* 2000 4700 220 385 MHz.km
Gigabit Ethernet Link
Length (1 Gbps)
1000BASE-SX (850 nm) 750 1000 1100 1100 1000 1100 300 500 meters
1000BASE-LX (1300 nm) 550 550 550 550 550 550 550 1000 meters
10 Gigabit Ethernet Length (10 Gbps)
10GBASE-SR (850 nm) 150 300 550 600 300 550 33 33 meters
* Using 3.0 dB cable attenuation and 0.7 dB connector allocation
80
NextGen® Fiber Optic Datacom
Fiber Optic Part Number Reference Guide 7
TighT Buffer DisTriBuTion
riser CaBle
Type OFNR, CSA FT4
Indoor*
TighT Buffer DisTriBuTion
Plenum CaBle
Type OFNP, CSA FT6
Indoor*
TighT Buffer DisTriBuTion
inTerloCk armoreD riser
CaBle
Type OFCR, CSA FT4
Indoor*
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021PNR-ILRA
2 1 0.52 13.2 90 134 550 2447 165 734
XX0041PNR-ILRA
4 1 0.52 13.2 92 137 550 2447 165 734
XX0061PNR-ILRA
6 1 0.52 13.2 94 140 550 2447 165 734
XX0121PNR-ILRA
12 1 0.52 13.2 100 149 550 2447 165 734
XX0241PNR-ILRA
24 1 0.67 17.0 150 223 550 2447 165 734
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021PNU 2 — .17 412 17 225 1000 65 290
XX0061PNU 6 — .20 5 16 24 225 1000 65 290
XX0121PNU 12 —.23 623 34 320 1423 112 500
XX0241PNU 24 —.32 845 67 320 1423 112 500
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021PNR 2 — 0.19 514 20 225 1000 65 290
XX0061PNR 6 — 0.22 618 27 225 1000 65 290
XX0121PNR 12 —0.25 624 36 320 1425 112 500
XX0241PNR 24 —0.34 947 70 320 1425 112 500
XX Denotes glass type.
NOTE: More fiber counts are available upon request. See Fiber Optic Catalog for complete product information.
* Not for aerial or direct burial applications
81
Datacom NextGen® Fiber Optic
Fiber Optic Part Number Reference Guide
TighT Buffer DisTriBuTion
riser CaBle
Type OFNP, CSA FT4
Indoor/Outdoor*
TighT Buffer DisTriBuTion
Plenum CaBle
Indoor/Outdoor Dry Water Block,
Type OFNP, CSA FT6
Indoor/Outdoor*
TighT Buffer DisTriBuTion
inTerloCk armoreD Plenum
CaBle
Type OFCP, CSA FT6
Indoor*
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021PNU-ILPA
2 1 0.49 12.4 78.5 117 550 2447 165 734
XX0041PNU-ILPA
4 1 0.49 12.4 80.5 120 550 2447 165 734
XX0061PNU-ILPA
6 1 0.49 12.4 82.5 123 550 2447 165 734
XX0121PNU-ILPA
12 1 0.49 12.4 89.5 133 550 2447 165 734
XX0241PNU-ILPA
24 1 0.61 15.5 143.0 213 1000 4448 300 1334
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021
ANR.BK
2
—
0.19 5 14 20 300 1334 90 400
XX0061
ANR.BK
6
—
0.22 6 18 27 320 1423 96 427
XX0121
ANR.BK
12
—
0.25 6 24 36 400 1780 120 534
XX0241
ANR.BK
24 — 0.34 9 47 70 320 1425 112 500
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
SUB-
UNITS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0021
ANU.BK
2
—
0.171 4.3 11.7 17.4 300 1334 90 400
XX0061
ANU.BK
6
—
0.195 4.9 16.0 23.8 320 1423 96 427
XX0121
ANU.BK
12
—
0.227 5.8 22.7 33.8 400 1780 120 534
XX0241
ANU.BK
24 — 0.320 8.0 45.0 67.0 320 1423 112 500
XX Denotes glass type.
NOTE: More fiber counts are available upon request. See Fiber Optic Catalog for complete product information.
* Not for aerial or direct burial applications
82
NextGen® Fiber Optic Datacom
Fiber Optic Part Number Reference Guide
loose TuBe single JaCkeT
Plenum CaBle
Type OFNP, CSA FT6
Indoor/Outdoor*
loose TuBe single JaCkeT
riser CaBle
Type OFNR, CSA FT4
Indoor/Outdoor*
loose TuBe single
JaCkeT CaBle
Outdoor
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0064M1D-DT
6 1 0.31 8 48 71 300 1334 100 445
XX0124M1D-DT
12 2 0.31 8 47 69 300 1334 100 445
XX0244M1D-DT
24 4 0.31 8 44 65 300 1334 100 445
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000'kg/km LBS NLBS N
XX0064M1M-DT
6 1 .36 9 53 80 600 2670 200 890
XX0124M1M-DT
12 2 .36 9 52 78 600 2670 200 890
XX0244M1M-DT
24 4 .36 9 51 76 600 2670 200 890
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NO. OF
FILLERS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000' kg/km LBS NLBS N
XX0124M1A-DWB
12 1 4 .440 11.1 52.0 78.0 600 2670 180 800
XX0244M1A-DWB
24 2 3 .440 11.1 52.0 78.0 600 2670 180 800
XX0484M1A-DWB
48 4 1 .440 11.1 52.0 78.0 600 2670 180 800
XX0724M1A-DWB
72 6 0 .470 12.0 62.0 93.0 600 2670 180 800
XX Denotes glass type.
NOTE: More fiber counts are available upon request. See Fiber Optic Catalog for complete product information.
* Not for direct burial applications
83
Datacom NextGen® Fiber Optic
Fiber Optic Part Number Reference Guide
loose TuBe single JaCkeT
armoreD CaBle
Outdoor
loose TuBe Dual JaCkeT
armoreD CaBle
Outdoor
loose TuBe Dual
JaCkeT CaBle
Outdoor
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NO. OF
FILLERS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000' kg/km LBS NLBS N
XX0124H1A-DWB
12 1 4 0.511 13.0 76.0 113.1 600 2670 200 890
XX0244H1A-DWB
24 2 3 0.511 13.0 76.6 114.0 600 2670 200 890
XX0484H1A-DWB
48 4 1 0.511 13.0 77.8 115.8 600 2670 200 890
XX0724H1A-DWB
72 6 0 0.540 13.7 90.0 133.9 600 2670 200 890
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NO. OF
FILLERS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000' kg/km LBS NLBS N
XX0124M1F-DWB
12 1 4 .450 12.1 91 135 600 2670 125 220
XX0244M1F-DWB
24 2 3 .450 12.1 91 135 600 2670 125 220
XX0484M1F-DWB
48 4 1 .450 12.1 91 135 600 2670 125 220
XX0724M1F-DWB
72 6 0 .540 13.6 109 162 600 2670 125 220
XX Denotes glass type.
CATALOG
NUMBER
FIBER
COUNT
NO. OF
LOOSE
TUBES
NO. OF
FILLERS
NOMINAL CABLE
DIAMETER
NOMINAL CABLE
WEIGHT
MAXIMUM TENSILE LOAD
INSTALLATION IN-SERVICE
IN mm LBS/1000' kg/km LBS NLBS N
XX0124H1F-DWB
12 1 4 0.59 15.0 128 190 600 2670 180 800
XX0244H1F-DWB
24 2 3 0.59 15.0 128 190 600 2670 180 800
XX0484H1F-DWB
48 4 1 0.59 15.0 128 190 600 2670 180 800
XX0724H1F-DWB
72 6 0 0.63 15.9 143 212 600 2670 180 800
XX Denotes glass type.
NOTE: More fiber counts are available upon request. See Fiber Optic Catalog for complete product information.
84
General Cable’s Carol® Brand Low Skew UTP Cable is manufactured for your RGB video and
Digital CCTV camera needs. While the basic elements of the Low Skew Cable construction are
similar to a UTP Cable (Category cable) used for data transmission, the design of the pair twists
is the secret to delivering information in a manner necessary for streaming high-quality video.
Your cable selection should be based on your application’s electrical and mechanical needs,
optimizing your system performance and cost. All Carol Brand coaxial cable and UTP cables are
manufactured to the highest standards, providing low structural return loss (signal noise in the
form of Echo), providing maximum performance.
The cable performance chart shown below is intended to provide comparative data to assist you in
choosing the right cable. The values are based on maximum distance while maintaining minimum
acceptable skew. Note that TIA/EIA standards for RGB require a maximum of 40 nsec per 328' and
Cat 5e maximum of 45 nsec per 328' for Time Delay Skew (the difference between the fastest and
slowest signal). Carol Brand Low Skew Cable allows for a compact, cost-effective cable solution
over considerably longer cable run options. A prudent design also considers maximum allowed
attenuation based on active and passive components and installation considerations within your
system design. A more typical installation length is 328 feet, which allows for optimum signal
clarity and crisp, brilliant video resolution.
Video Screen UTP Cable Pair Twists Remote Video Screen
Signal Source Note: 4th Pair Optional 2.2 ns/328 ft. 45 ns/328 ft.
Delay Skew Delay Skew
Pair 1
Pair 2
Pair 3
Low
Skew
Low
Skew
Low
Skew
Typical
UTP
Typical
UTP
Typical
UTP
Cable Typical
24 AWG
Conductors
Time Delay Skew
nsec/328 ft. (max)
RGB (TIA/EIA Spec calls for Max 40 ns/328 ft.)
Cost*
$/328 ft. Applications
Max Distance
ft.
Typical Attenuation
@ 100 MHz
dB/328 ft.
Test
Frequency
MHz
Cat 3 LAN 45 292 16.0 55 1 Paging and Video Intercom
Cat 5e LAN 45 328 19.3 100 2 Private CCTV
10G BASE-T (Cat 6A) 35 370 39.5 500 7 Mass Data Centers less than 55 ft.
Cat 6 LAN 30 440 41.0 250 4 Monitor and Analog Video
Cat 6+ LAN 25 530 43.5 350 5 Projection on large auditorium
Cat 6++ LAN 10 1300 45.6 500 6 Monitor and VDT display
Coax Component Video 91460 16.2 3000 8 HDTV, Broadcast, RF
Low Skew UTP 2.2 5960 22.0 450 3 Analog Video or Digital CCTV, RGB Video
(Not intended for CATV)
*Lowest cost = $1
For more information, contact your local General Cable representative.
85

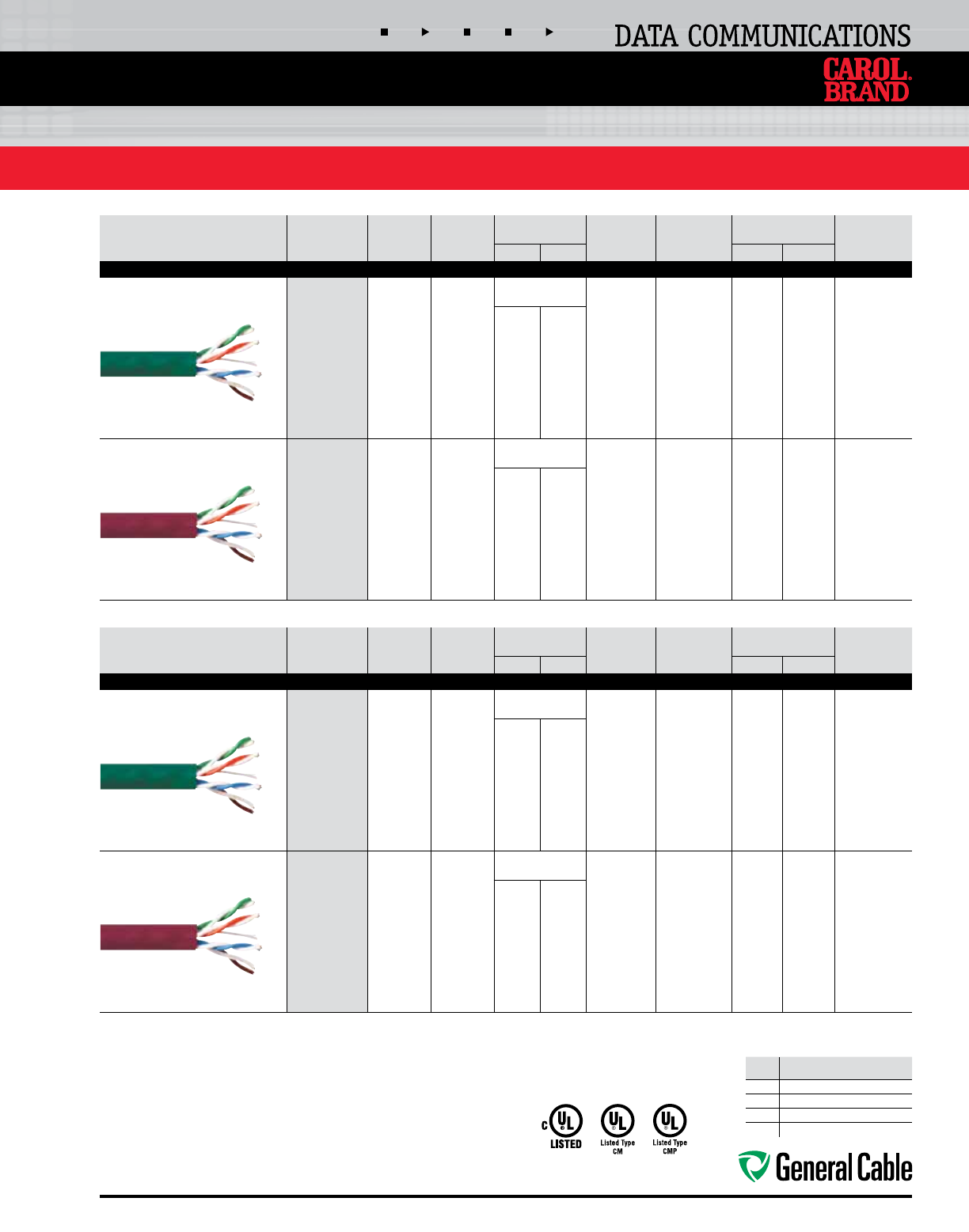

24 AWG 4 PAIR UTP
CATALOG NUMBER AWG SIZE NOM. DCR NOM. O.D.
INCHES
INSULATION
MATERIAL NOMINAL
IMPEDANCE,
OHMS
PROPAGATION
DELAY SKEW
NOMINAL
ATTENUATION BELDEN
PART NO.
INCHES mm MHz dB/328 ft.
Low Skew Type
E3842S
CMP
24
AWG
Solid Bare Copper
27.4 W/Mft. 0.185 Fluorinated Ethylene
Propylene (FEP)
100 2.2 ns/328 ft. 1
4
8
10
16
20
25
31.25
62.5
100
155
200
250*
300*
350*
2.0
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17.0
22.0
28.1
32.0
36.4
41.0
44.8
7987P
0.035 0.9
E1842S
CMR
24
AWG
Solid Bare Copper
27.4 W/Mft. 0.185 High Density
Propylene (HDPE)
100 2.2 ns/328 ft. 1
4
8
10
16
20
25
31.25
62.5
100
155
200
250*
300*
350*
2.0
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17.0
22.0
28.1
32.0
36.4
41.0
44.8
7987R
0.035 0.9
* For information only
23 AWG 4 PAIR UTP
CATALOG NUMBER AWG SIZE NOM. DCR NOM. O.D.
INCHES
INSULATION
MATERIAL NOMINAL
IMPEDANCE,
OHMS
PROPAGATION
DELAY SKEW
NOMINAL
ATTENUATION BELDEN
PART NO.
INCHES mm MHz dB/328 ft.
Low Skew Type
E3843S
CMP
23
AWG
Solid Bare Copper
22.0 W/Mft. 0.200 Fluorinated Ethylene
Propylene (FEP)
100 2.2 ns/328 ft. 1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300*
350*
2.0
3.8
5.3
6.0
7.6
8.5
9.5
10.7
15.4
19.8
25.2
29.0
32.8
35.2
39.8
7989P
0.040 1.0
E1843S
CMR
23
AWG
Solid Bare Copper
22.0 W/Mft. 0.213 High Density
Propylene (HDPE)
100 2.2 ns/328 ft. 1
4
8
10
16
20
25
31.25
62.5
100
155
200
250*
300*
350*
2.0
3.8
5.3
6.0
7.6
8.5
9.5
10.7
15.4
19.8
25.2
29.0
32.8
35.2
39.8
7989R
0.040 1.0
* For information only
Product Construction:
Conductor: •23or24AWGSolidBareCopper
Insulation: •FluorinatedEthylenePropylene(FEP)
 •HighDensityPropylene(HDPE)
Jacket: •Plenum-Flexguard® Green
 •Riser-PVCMaroon
Applications:
•SuitableforRGBVideoApplications
•DigitalCCTVCameras
Industry Approvals:
•NECArticle800TypeCMR(UL),c(UL)
•NECArticle800TypeCMP(UL),c(UL)
Packaging:
•1000'Pull-Pacs®
•ContactCustomerServicefor
Additional Packing Options
Color Code Chart
Pair Color Combination
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
86
CATV/MATV/DBS RG 59, RG 6 and RG 11 Ratings
Coax Solution Carol Belden Genesis West Penn Commscope
RG 6 CCS/Foil/60% AL Braid CATV/CM C5775 9116/1829A 5303 841 5726
RG 6 CCS/Foil/60% AL Braid CATVR/CMR C5886 9116R — — —
RG 6 CCS/Quad/Foil/60%/40% AL Braid CATV/CM C5785 1189A 5307 Q841 5740
RG 6 CCS/Quad/Foil/60%/40% AL Braid CATVR/CMR C5889 1884A — — —
RG 6 CCS/Foil/60% AL Braid CMP - Plenum C3524 9116P — 25841 2275K
RG 6 CCS/Quad/Foil/60%/40% AL Braid CMP - Plenum C3525 1189AP — 25Q841 —
RG 11 CCS/Foil/60% AL Braid CATV/CM C5039 1525A — — 5913
RG 11 CCS/Foil/60% AL Braid CL2P/CMP - Plenum C3528 1523AP — — 2285K
*Note: DuPont™ trademark
General Cable offers a complete line of Carol® Brand Coaxial Cables for
today’s sophisticated high-speed, wide-bandwidth electronics products
that run over long distances with minimal signal loss or degradation.
General Cable has the right coaxial cable to serve every application,
including:
•CATV/MATV/DBS
•HDTV/SDI
•CCTV
The General Cable Coaxial Cable Solutions Guide is a quick-reference
tool to make it easier to specify and sell the right cable for the required
application – residential, commercial, entertainment and security.
Whatever the application calls for, we have a coaxial cable that delivers
the performance your customers need.
Broadband signal, 5 MHz–3 GHz, VHF/UHF, is traditionally transmitted as an analog signal received directly off air (MATV) or delivered as a community
access television (CATV) service and uses a 75 Ohm system.
Recommended Coaxial Cable Construction: Copper clad steel (CCS) conductor with a foam polyethylene or Teflon* core, an aluminum/Mylar*
foil, a minimum of 60% braid, which is typically aluminum (AL) for this application, and a PVC jacket.
For home use, a CM rated coax should be used. A commercial application may require a National Electrical Code (NEC 800 or 725) Riser (CMR) or
Plenum (CMP) rated cable. Economical cable solutions use low smoke PVC (75˚C) jackets. Teflon* (FEP) and other fluoropolymer materials (150˚C)
may be used to provide a more durable and higher-temperature cable alternative.
It is a common misconception that RG 6 coax is “better” than RG 59. While RG 6 has become the industry standard and is an excellent value, it is
a larger cable than RG 59. RG 6 allows the same signal level to be delivered a greater distance. This is expressed as a decibel value at particular
frequencies. For example, at 100 MHz, General Cable’s Carol® Brand part number C5775 RG 6 coax cable has an attenuation value of 2.05 db/100'.
A similar construction Carol® Brand part number C5782 RG 59 coax cable exhibits an attenuation value (loss) at 100 MHz frequency of 2.70 db/100'.
This may or may not be significant, depending on the input signal level and distance of the cable run.
For a longer cable run, or if the coax cable is planned for use as the backbone in a system, Carol® Brand part number C5039 RG 11 coax cable should
be used, because its attenuation at 100 MHz frequency is 1.30 db/100'.
CATV/MATV/DBS
Coaxial Cable
Solutions Guide
87
HDTV/SDI—Interconnect Cables RG 59, RG 6 and RG 11 Ratings
Coax Solution Carol Belden Genesis West Penn Commscope
RG 59 SBC/Foil/95% TC Braid CMR 395025 1505A 5361 819 5553
RG 59 SBC/Miniature/Foil/95% TC Braid CMR - Single
RGB - Overall jacket containing 3 x 395031
RGB - Overall jacket containing 5 x 395031
395031
395031X3
395031X5
1855A
—
—
—
—
—
—
—
—
—
—
—
RG 59 SBC/Foil/95% TC Braid CMP - Plenum 495023 1506A — — —
RG 6 SBC/Foil/95% TC Braid CMR 395011 1694A — — 5765
RG 6 SBC/Foil/95% TC Braid CMP - Plenum 495025 1695A — — —
RG 11 SBC/Foil/95% TC Braid CMR 395029 7731A — — —
RG 11 SBC/Foil/95% TC Braid CMP - Plenum 495027 7732A — — 2286K
HDTV/SDI
A DTV signal is a television signal provided in a digital form. Data bits, like in a computer, provide a dramatically better picture and better sound
quality called High Definition TV (HDTV). HDTV is the highest quality of DTV and is only one of the available formats. In addition to enhanced picture
quality, the DTV signal allows several program streams (multicasting) on one channel, providing more program potential, as well as interactive
services.
Serial Digital Interface (SDI) is the standard for digital video transmission over coaxial cable. The SMPTE 295M standard provides maximum distances
(300 meters; 140 meters for High Definition), typically at 270 Mbps with 540 Mbps possible over a coaxial cable.
Recommended Coax Cable Construction: Cable providing signal to and within the home/building will continue to be CCS construction (C5775,
C5785). Cables with SBC conductors (395011, 495025) are recommended for the interconnect between the decoder box and other electronic devices
(TV, DVD, DVR, CD, Bluray).
CCTV RG 59 and RG 11 Ratings
Coax Solution Carol Belden Genesis West Penn Commscope
RG 59 SBC/95% BC Braid CM C1142 543945 5001 — —
RG 59 Stranded (7/30) BC/95% BC Braid CM C1103 9259 — — —
RG 59 Stranded (7/30) BC/95% BC Braid + 22 AWG (7/30)
Shielded Pair CM C8025 9265 — — —
RG 59 SBC/95% BC Braid + 18 AWG (7/26)
Unshielded Pair CM C8028 549945 — — —
RG 59 SBC/95% BC Braid + 18 AWG (7/26)
Unshielded Pair CMP - Plenum C8030 649948 — — —
RG 59 SBC/95% BC Braid CMP - Plenum 495028 643948 5351 25815 2037V
RG 11 SBC/95% BC Braid CM 395058 513945 — 811 5905
RG 11 SBC/95% BC Braid CMP - Plenum 495015 613948 — — 2286K
RG 6 BC/95% BC Braid CMP - Plenum 495035 — — — 2277V
CCTV
Closed Circuit TV (CCTV) signals are typically lower-frequency analog signals. Attenuation increases as frequency increases, therefore lower
baseband signals are able to travel longer distances on an RG 59 type coaxial cable than a higher-frequency television signal. This is why RG 59 is
the most common coax for CCTV. It is becoming more common for Unshielded Twisted Pair (UTP) products, like Category 5e and 6 cables, to be used
for Closed Circuit over Twisted Pair (CCTP) or Web-enabled cameras implemented over a Power over Ethernet network architecture; however, these
solutions require the use of specialized equipment.
Recommended Coax Cable Construction: Solid bare copper (SBC) conductor and a bare copper (BC) braid shield with coverage of 90-95% to
minimize signal loss of both the horizontal and vertical sync signals. Stranded conductors are recommended for pan, zoom, tilt (PZT) cameras.
*Abbreviation Key AL - aluminum SBC - solid bare copper CCS- copper clad steel BC - bare copper TC - tinned copper
88
General Cable’s Carol® Brand is the right solution for alarm and security
wire and cable. Carol offers as broad an offering as anyone in the industry. Our
Alarm and Security Solutions Guide makes it easier to specify and sell the right
cables for every application in this ever-growing market.
There are five basic areas where alarm and security cables are used. General
Cable has the right product to serve every application, including:
•AccessControl
•VideoSurveillance/CCTV
•FireAlarmandLifeSafety
•HomeTheaterandBurglarAlarms
•DataCommunications
Our alarm and security cables offer solutions in all these major security
applications markets, including:
•CommercialBuildings
•ResidentialHousing
•BusinessandOfceCampusEnvironments
•PublicStadiumsandArenas
•Airport,Train,BusandOtherTransportationHubs
•Schools,CollegesandUniversities
The General Cable Alarm and Security Solutions Guide provides a quick and easy
reference tool to identify every Carol® Brand cable for the appropriate alarm and
security application. Whatever the security application need calls for, we have a
cable that delivers the performance you need.
Carol® Brand Alarm & Security Solutions
Cable
Solution Description
4EPL4S* 4 Shielded Elements Overall Jacket Access Control Plenum
4EPL1S* 4 Elements 1 Shielded Overall Jacket Access Control Plenum
4ERS4S** 4 Shielded Elements Overall Jacket Access Control Riser
4ERS1S** 4 Elements 1 Shielded Overall Jacket Access Control Riser
E2002S 22/2 Conductor Shielded Riser
E2004S 22/4 Conductor Shielded Riser
E2006S 22/6 Conductor Shielded Riser
E2008S 22/8 Conductor Shielded Riser
E2010S 22/10 Conductor Shielded Riser
E2012S 22/12 Conductor Shielded Riser
E2102S 22/2 Conductor Shielded Plenum
E2104S 22/4 Conductor Shielded Plenum
E2106S 22/6 Conductor Shielded Plenum
E2108S 22/8 Conductor Shielded Plenum
E2032S 18/2 Conductor Shielded Riser
E2034S 18/4 Conductor Shielded Riser
E2036S 18/6 Conductor Shielded Riser
E2038S 18/8 Conductor Shielded Riser
Cable
Solution Description
E2202S 18/2 Conductor Shielded Plenum
E2204S 18/4 Conductor Shielded Plenum
E2206S 18/6 Conductor Shielded Plenum
E2208S 18/8 Conductor Shielded Plenum
Applications:
Door Controllers
Prox Sensors
Key Pads
Card Readers
Gate Access
*
Carol® Brand Composite Access Control Cable – Plenum
(3) Multi-Conductors • (1) Multi-Pair • Overall Jacket
60˚C 300 Volt (UL) & C(UL) Type CMP
Catalog
Number
Overall
Nominal OD
Inch (mm)
Component
No. Component Descriptions Conductors Color Code
Component
Nominal OD
Inch (mm)
Insulation
Thickness
Inch (mm)
4EPL4S 0.430
14 Cond, 18 AWG,
Shielded
White, Black, Red, Green
0.180 (4.572) 0.008 (0.2032)
23 Pair, 22 AWG,
Shielded
White & Green, Orange &
Brown, Red & Black
0.195 (4.593) 0.008 (0.2032)
32 Cond, 22 AWG,
Shielded
Red, Black
0.125 (3.175) 0.008 (0.2032)
44 Cond, 22 AWG,
Shielded
White, Black, Red, Green
0.145 (3.683) 0.008 (0.2032)
4EPL1S 0.420
14 Cond, 18 AWG,
Unshielded
White, Black, Red, Green
0.180 (4.572) 0.008 (0.2032)
23 Pair, 22 AWG,
Shielded
White & Green, Orange &
Brown, Red & Black
0.195 (4.593) 0.008 (0.2032)
32 Cond, 22 AWG,
Unshielded
Red, Black
0.125 (3.175) 0.008 (0.2032)
44 Cond, 22 AWG,
Unshielded
White, Black, Red, Green
0.145 (3.683) 0.008 (0.2032)
**
Carol® Brand Composite Access Control Cable – Riser
(3) Multi-Conductors • (1) Multi-Pair • Overall Jacket
60˚C 300 Volt (UL) & C(UL) Type CMR
Catalog
Number
Overall
Nominal OD
Inch (mm)
Component
No. Component Descriptions Conductors Color Code
Component
Nominal OD
Inch (mm)
Insulation
Thickness
Inch (mm)
4ERS4S 0.430
14 Cond, 18 AWG,
Shielded
White, Black, Red, Green
0.180 (4.572) 0.008 (0.2032)
23 Pair, 22 AWG,
Shielded
White & Green, Orange &
Brown, Red & Black
0.195 (4.593) 0.008 (0.2032)
32 Cond, 22 AWG,
Shielded
Red, Black
0.125 (3.175) 0.008 (0.2032)
44 Cond, 22 AWG,
Shielded
White, Black, Red, Green
0.145 (3.683) 0.008 (0.2032)
4ERS1S 0.420
14 Cond, 18 AWG,
Unshielded
White, Black, Red, Green
0.180 (4.572) 0.008 (0.2032)
23 Pair, 22 AWG,
Shielded
White & Green, Orange &
Brown, Red & Black
0.195 (4.593) 0.008 (0.2032)
32 Cond, 22 AWG,
Unshielded
Red, Black
0.125 (3.175) 0.008 (0.2032)
44 Cond, 22 AWG,
Unshielded
White, Black, Red, Green
0.145 (3.683) 0.008 (0.2032)
Access Control
Many cables
also available in
ARMORED
CONSTRUCTIONS
for easy plenum
installations
Surge
Rex/Spare
Door Contact
Card Reader
Lock Power
Power
Supply
Access
Control
Panel
PC
89
Cable
Solution Description
E1502S 18/2 Conductor Riser FPLR
E1504S 18/4 Conductor Riser FPLR
E1522S 14/2 Conductor Riser FPLR
E1524S 14/4 Conductor Riser FPLR
E2502S 18/2 Conductor Shielded Riser FPLR
E2504S 18/4 Conductor Shielded Riser FPLR
E2532S 14/2 Conductor Shielded Riser FPLR
E2534S 14/4 Conductor Shielded Riser FPLR
E3502S 18/2 Conductor Plenum FPLP
E3504S 18/4 Conductor Plenum FPLP
E3522S 14/2 Conductor Plenum FPLP
E3524S 14/4 Conductor Plenum FPLP
Cable
Solution Description
E3602S 18/2 Conductor Shielded Plenum FPLP
E3604S 18/4 Conductor Shielded Plenum FPLP
E3622S 14/2 Conductor Shielded Plenum FPLP
E3624S 14/4 Conductor Shielded Plenum FPLP
CAT V/MATV/DBS RG 59, RG 6 and RG 11 Ratings
Cable
Solution Description
C3521 RG 6/U 18/1 FL + 95% TC CL2P
C3523 RG 6 SBC/Foil/61% TC Braid Plenum
C3524 RG 6 CCS/Foil/60% AL Braid Plenum
C3525 RG 6 CCS/Quad 60/40% AL Braid Plenum
C5761 RG 6 SBC Foil/95% BC Braid CATV/CM
C5775 RG 6 CCS/Foil/60% AL Braid CATV/CM
C5785 RG 6 CCS/Quad 60/40% AL Braid CATV/CM
C5886 RG 6 CCS/Foil/60% AL Braid CATVR/CMR
C5889 RG 6 CCS/Quad 60/40% AL Braid CATVR/CMR
C3528 RG 11 CCS/Foil/60%/AL Braid CATV/CMP Plenum
C5039 RG 11 CCS/Foil/60%/AL Braid CATV/CM
C5043 RG 11/U CCS Burial FL 60% AL
C5044 RG 11/U CCS Quad Shield CL2/CM
C1135 RG 59/U CCS 95% BC Braid CM
C3500 RG 59 CCS/95% BC Braid Plenum
C3526 RG 59/U CCS AMA/80% AL Braid CLP2/CMP
HDTV/SDI—Interconnect Cables RG 59, RG 6 and RG 11 Ratings
Cable
Solution Description
395011 RG 6 SBC/Foil/95% TC Braid CMR
395014 RG 6/U 18/1 SBC Quad Shield 60%/40% CMR
495025 RG 6/U 18 AWG SBC 95% Dual Foil TC Braid CMP Plenum
395025 RG 59 SBC/Foil/95% TC Braid CMR
395031 RG 59 Single/Miniature/Foil/95% TC Braid CMR
495023 RG 59/U SBC/Foil/95% TC Braid CMP Plenum
CCTV RG 59 and RG 11 Ratings
Cable
Solution Description
C8029 RG 6 + 18/2 Unshielded CATV/CM
C8031 RG 6/U SBC/95% + 18/2 Unshielded Pair CMP Plenum
495035 RG 6/U 18 AWG SBC 95% BC CMP Plenum
395058 RG 11 SBC/95% BC Braid CM
495015 RG 11 SBC/95% BC Braid CMP Plenum
C1103 RG 59 BC/95% BC Braid CATV/CM
C1142 RG 59 SBC/95% BC Braid CATV/CM
C8025 RG 59/U STR (7/30) BC/95% + 22/2 SH Pair CCTV/CM
C8027 RG 59 + 18/2 Shielded CATV/CM
C8028 RG 59 + 18/2 Unshielded CATV/CM
C8030 RG 59/U SBC/95% + 18/2 Unshielded Pair CCTV Plenum
495028 RG 59 SBC/95% BC Braid CMP Plenum
Low Skew - 4 Pair UTP Cables for RGB Video
Cable
Solution Description
E3842S Low Skew 24/4 UTP CMP for RGB Video
E1842S Low Skew 24/4 UTP CMR for RGB Video
E3843S Low Skew 23/4 UTP CMP for RGB Video
E1843S Low Skew 23/4 UTP CMR for RGB Video
Applications:
Smoke Detectors
Strobes/Sirens
Pull Stations
Microprocessor/
Addressable
Controlled Systems
Applications:
CCTV
Satellites
Digital Video
Analog Video
Switchers/Multiplexers
Digital Recorders
Fire Alarm and Life Safety
Video Surveillance/CCTV
Power
Supply
BNC
Patch Panel
BNC Patch Panel
Monitor
Remote Keypad
Multiplexer
Recorder
Video
Camera
CDU
Surge
Power
Supply
Strobe
Siren/Horn
Smoke Detector
Pull Station
PUSH
PULL
FIREFIRE
Fire
Control
Panel
90
Cat 6 Pull-Pac® II
Pull-Pac® II
Jacket Color CMR (Non-
Plenum) CMP
(Plenum)
Blue CR6.30.07 CP6.30.07
White CR6.30.02 CP6.30.02
Gray CR6.30.10 CP6.30.10
Green CR6.30.06 CP6.30.06
Yellow CR6.30.05 CP6.30.05
Red CR6.30.03 CP6.30.03
Cat 5e Pull-Pac® II
Pull-Pac® II
Jacket Color CMR (Non-
Plenum) CMP
(Plenum)
Blue CR5.30.07 CP5.30.07
White CR5.30.02 CP5.30.02
Gray CR5.30.10 CP5.30.10
Green CR5.30.06 CP5.30.06
Yellow CR5.30.05 CP5.30.05
Red CR5.30.03 CP5.30.03
Cat 6 Spool-Pac®
Spool-Pac®
Jacket Color CMR (Non-
Plenum) CMP
(Plenum)
Blue CR6.A3.07 CP6.A3.07
White CR6.A3.02 CP6.A3.02
Gray CR6.A3.10 CP6.A3.10
Green CR6.A3.06 CP6.A3.06
Yellow CR6.A3.05 CP6.A3.05
Red CR6.A3.03 CP6.A3.03
Cat 5e Spool-Pac®
Spool-Pac®
Jacket Color CMR (Non-
Plenum) CMP
(Plenum)
Blue CR5.A3.07 CP5.A3.07
White CR5.A3.02 CP5.A3.02
Gray CR5.A3.10 CP5.A3.10
Green CR5.A3.06 CP5.A3.06
Yellow CR5.A3.05 CP5.A3.05
Red CR5.A3.03 CP5.A3.03
Carol® Brand Alarm & Security Solutions
Cable
Solution Description
E1002S 22/2 Conductor Riser
E1004S 22/4 Conductor Riser
C4408 22/2 Solid Conductor CMR/CMX
C4408ST 22/2 Stranded Conductor CMR/CMX
C4412 22/4 Solid Conductor Solid CMR/CMX
C4412ST 22/4 Stranded Conductor CMR/CMX
C4408.86.XX 22/2 Solid Conductor CM/CMX*
C4408ST.86.XX 22/2 Stranded Conductor CM/CMX*
C4412.86.XX 22/4 Solid Conductor CM/CMX*
C4412ST.86.XX 22/4 Stranded Conductor CM/CMX*
E1006S 22/6 Conductor Riser
E1008S 22/8 Conductor Riser
E1032S 18/2 Conductor Riser
E1034S 18/4 Conductor Riser
E1042S 16/2 Conductor Riser
E1044S 16/4 Conductor Riser
E1052S 14/2 Conductor Riser
E1054S 14/4 Conductor Riser
E1062S 12/2 Conductor Riser
E1064S 12/4 Conductor Riser
*Available Colors for Burglar Alarm Coil Packs
XX= White Gray Green Beige Yellow Dark Blue
Cable
Solution Description
C1000 Command® Series Twisted Pair Speaker, 22/2,
7x30 Stranding, 500' Reels
C1001 Command Series Twisted Pair Speaker, 20/2,
7x28 Stranding, 500' Reels
C1002 Command Series Twisted Pair Speaker, 18/2,
7x26 Stranding, 500' Reels
C1003 Command Series Twisted Pair Speaker, 16/2,
19x29 Stranding, 500' Reels
C1004 Command Series Twisted Pair Speaker, 14/2,
42x30 Stranding, 500' Reels
C1005 Command Series Twisted Pair Speaker, 12/2,
65x30 Stranding, 500' Reels
C1362 22/2 Conductor Zip (not for inwall use)
C1357 18/2 Conductor Zip (not for inwall use)
C1458 16/2 Conductor Zip CL2
C1461 14/2 Conductor Zip CL2
C1463 12/2 Conductor Zip CL2
C1702 14/2 Command Series Home Grade Speaker
C1703 14/4 Command Series Home Grade Speaker
C1704 16/2 Command Series Home Grade Speaker
C1705 16/4 Command Series Home Grade Speaker
C1800 Command Series “High Def” Speaker
Type NEC, 12/2, 105x32 Stranding, 500' Reels
C1801 Command Series “High Def” Speaker
Type NEC, 12/4, 105x32 Stranding, 500' Reels
C1802 Command Series “High Def” Speaker
Type NEC, 14/2, 105x34 Stranding, 500' Boxes
C1803 Command Series “High Def” Speaker
Type NEC, 14/4, 105x34 Stranding, 500' Reels
C1804 Command Series “High Def” Speaker
Type NEC, 16/2, 65x34 Stranding, 500' Boxes
C1805 Command Series “High Def” Speaker
Type NEC, 16/4, 65x34 Stranding, 500' Boxes
395031X3 23/3 Command Series RGB Cables, Solid BC, Foam PE,
Dual Foil + 95% TC Braid
395031X5 23/5 Command Series RGB Cables, Solid BC, Foam PE,
Dual Foil + 95% TC Braid
Applications:
Intercoms
PA Systems
Sound Systems
Emergency Phones
Speakers
Burglar Alarms
Home Theater
Applications:
Telephones
Cat 5e and 6
Connections
Networking
Workstations
Video Conferencing
Telco Closets
Home Automation
IP Cameras
Home Theater and Burglar Alarms
Burglar
Alarm Cable
in 500' Coil
Packs*
Oxygen-Free
+ ETP
High-Performance
Home Theater
Cables
Data Communications
Surge
Amplifier
Siren/Horn
Phone,
Microphone,
Alarms, etc.
91
Datacom
Technical Information 9
Index Page
NEC and CSA
Fire Resistance Levels 92
Temperature
Conversion Chart 93
Color Code Chart 94
Conduit Capacities
by Wire or
Cable Diameter 95
Commercial Building
Datacom/Topology 96-97
Packaging Information 98-99
Industry Standards,
Typical Uses and
Electrical Requirements 100
Glossary 101-102
Part Number Index 103-106
Notes 107-108
92
Technical Information Datacom
NEC and CSA Fire Resistance Levels
(From 2008 NEC Handbook)
A
→
B
Cable A shall be
permitted to be used
in place of Cable B
Communications wire and cable
for premise installations are in
accordance with Article 800 and
other applicable parts of the
National Electrical Code (NEC),
latest issue. Communications
wire and cables for Canada are in
accordance with the harmonized
Canadian Standard Association
C22.2 No. 214, Underwriters
Laboratories UL 444, latest issue.
FIRE RESISTANCE LEVEL TEST REQUIREMENT
NEC ARTICLE
800 725 760
(Highest) Plenum Cables NFPA 262 (Steiner tunnel)
CSA-FT6 (Steiner tunnel) CMP CL3P
CL2P FPLP
Riser Cables
Multiple Floors
UL-1666 (Vertical Shaft)
CSA-FT4 (Vertical Tray) CMR CL3R
CL2R FPLR
General Purpose Cables UL-1581 (Vertical Tray)
CSA-FT4 (Vertical Tray) CMG CL3
CL2 FPL
(Lowest) Residential Cables
Restricted Use
UL-1581 VW-1
CSA-FT CMX CL3X
CL2X
Notes: 1. Cables with a higher fire resistance level may be substituted for those with a lower fire resistance level.
2. Non-fire-rated outside plant telephone cables may not run outside of a rigid metal conduit more than 50 feet from the
point of entrance into a building.
3. Cables rated CMG or CM may be used in runs penetrating one floor (NEC 800-53).
TYPE DESCRIPTION
CM
Communications Wires
and Cables
CL2 and CL3
Class 2 and Class 3
Remote-Control, Signaling
and Power-Limited Cables
PLTC
Power-Limited Tray Cable
93
Datacom Technical Information
Temperature Conversion Chart
To use this chart, find your known temperature (˚F or ˚C) in the shaded column. If the known temperature is in ˚C and you
wish to know its value in ˚F, move to the adjacent right-hand column. If the known temperature is in ˚F and you wish to
know its value in ˚C, move to the adjacent left-hand column.
KNOWN
°C TEMP °F
KNOWN
°C TEMP °F
KNOWN
°C TEMP °F
KNOWN
°C TEMP °F
KNOWN
°C TEMP °F
-45.0 -49.0 -56.2 -17.2 1.0 33.8 10.6 51.0 123.8 38.3 101.0 213.8 66.1 151.0 303.8
-43.9 -47.0 -52.6 -16.1 3.0 37.4 11.7 53.0 127.4 39.4 103.0 217.4 67.2 153.0 307.4
-42.8 -45.0 -49.0 -15.0 5.0 41.0 12.8 55.0 131.0 40.6 105.0 221.0 68.3 155.0 311.0
-41.7 -43.0 -45.4 -13.9 7.0 44.6 13.9 57.0 134.6 41.7 107.0 224.6 69.4 157.0 314.6
-40.6 -41.0 -41.8 -12.8 9.0 48.2 15.0 59.0 138.2 42.8 109.0 228.2 70.6 159.0 318.2
-39.4 -39.0 -38.2 -11.7 11.0 51.8 16.1 61.0 141.8 43.9 111.0 231.8 71.7 161.0 321.8
-38.3 -37.0 -34.6 -10.6 13.0 55.4 17.2 63.0 145.4 45.0 113.0 235.4 72.8 163.0 325.4
-37.2 -35.0 -31.0 -9.4 15.0 59.0 18.3 65.0 149.0 46.1 115.0 239.0 73.9 165.0 329.0
-36.1 -33.0 -27.4 -8.3 17.0 62.6 19.4 67.0 152.6 47.2 117.0 242.6 75.0 167.0 332.6
-35.0 -31.0 -23.8 -7.2 19.0 66.2 20.6 69.0 156.2 48.3 119.0 246.2 76.1 169.0 336.2
-33.9 -29.0 -20.2 -6.1 21.0 69.8 21.7 71.0 159.8 49.4 121.0 249.8 77.2 171.0 339.8
-32.8 -27.0 -16.6 -5.0 23.0 73.4 22.8 73.0 163.4 50.6 123.0 253.4 78.3 173.0 343.4
-31.7 -25.0 -13.0 -3.9 25.0 77.0 23.9 75.0 167.0 51.7 125.0 257.0 79.4 175.0 347.0
-30.6 -23.0 -9.4 -2.8 27.0 80.6 25.0 77.0 170.6 52.8 127.0 260.6 80.6 177.0 350.6
-29.4 -21.0 -5.8 -1.7 29.0 84.2 26.1 79.0 174.2 53.9 129.0 264.2 81.7 179.0 354.2
-28.3 -19.0 -2.2 -0.6 31.0 87.8 27.2 81.0 177.8 55.0 131.0 256.8 82.8 181.0 357.8
-27.2 -17.0 -1.4 0.6 33.0 91.4 28.3 83.0 181.4 56.1 133.0 271.4 83.9 183.0 361.4
-26.1 -15.0 5.0 1.7 35.0 95.0 29.4 85.0 185.0 57.2 135.0 275.0 85.0 185.0 365.0
-25.0 -13.0 8.6 2.8 37.0 98.6 30.6 87.0 188.6 58.3 137.0 278.6 86.1 187.0 368.6
-23.9 -11.0 12.2 3.9 39.0 102.2 31.7 89.0 192.2 59.4 139.0 282.2 87.2 189.0 372.2
-22.8 -9.0 15.8 5.0 41.0 105.8 32.8 91.0 195.8 60.6 141.0 285.8 88.3 191.0 375.8
-21.7 -7.0 19.4 6.1 43.0 109.4 33.9 93.0 199.4 61.7 143.0 289.4 89.4 193.0 379.4
-20.6 -5.0 23.0 7.2 45.0 113.0 35.0 95.0 203.0 62.8 145.0 293.0 90.6 195.0 383.0
-19.4 -3.0 26.6 8.3 47.0 116.6 36.1 97.0 206.6 63.9 147.0 296.6 91.7 197.0 386.6
-18.3 -1.0 30.2 9.4 49.0 120.2 37.2 99.0 210.2 65.0 149.0 300.2 92.8 199.0 390.2
Temperature Conversion Formulas
°C = 5 (°F - 32)
9
°F = ( 9 x °C) + 32
5
94
Technical Information Datacom
Color Code Chart
PAIR
NO.
RING CONDUCTOR TIP CONDUCTOR
INSULATION COLOR BAND MARK INSULATION COLOR BAND MARK
1
Blue White White Blue
2
Orange White White Orange
3
Green White White Green
4
Brown White White Brown
5
Slate White White Slate
6
Blue Red Red Blue
7
Orange Red Red Orange
8
Green Red Red Green
9
Brown Red Red Brown
10
Slate Red Red Slate
11
Blue Black Black Blue
12
Orange Black Black Orange
13
Green Black Black Green
14
Brown Black Black Brown
15
Slate Black Black Slate
16
Blue Yellow Yellow Blue
17
Orange Yellow Yellow Orange
18
Green Yellow Yellow Green
19
Brown Yellow Yellow Brown
20
Slate Yellow Yellow Slate
21
Blue Violet Violet Blue
22
Orange Violet Violet Orange
23
Green Violet Violet Green
24
Brown Violet Violet Brown
25
Slate Violet Violet Slate
Note: Bandmarking on the ring conductors is omitted on cables with 5 pairs or less.
BINDER GROUP
COLOR
PAIR
COUNT
White-Blue
001-025
White-Orange
026-050
White-Green
051-075
White-Brown
076-100
White-Slate
101-125
Red-Blue
126-150
Red-Orange
151-175
Red-Green
176-200
Red-Brown
201-225
Red-Slate
226-250
Black-Blue
251-275
Black-Orange
276-300
Black-Green
301-325
Black-Brown
326-350
Black-Slate
351-375
Yellow-Blue
376-400
Yellow-Orange
401-425
Yellow-Green
426-450
Yellow-Brown
451-475
Yellow-Slate
476-500
Violet-Blue
501-525
Violet-Orange
526-550
Violet-Green
551-575
Violet-Brown
576-600
95
Datacom Technical Information
Conduit Capacities by Wire or Cable Diameter
WIRE/CABLE
O.D. (INCHES)
AREA
(SQ. IN.)
.100
.008 15 27 44 76 103 170 243 376 503 648 812 1018
.125
.012 917 28 48 66 109 156 240 322 414 519 652
.150
.018 612 19 33 46 75 108 167 223 288 360 452
.175
.024 5 8 14 24 33 55 79 122 164 211 265 332
.200
.031 3 6 11 19 25 42 60 94 125 162 203 254
.225
.040 35815 20 33 48 74 99 128 160 201
.250
.049 24712 16 27 39 60 80 103 129 163
.275
.059 23510 13 22 32 49 66 85 107 134
.300
.071 134811 18 27 41 55 72 90 113
.325
.083 1247916 23 35 47 61 76 96
.350
.096 1236813 19 30 41 52 66 83
.375
.110 1135712 17 26 35 46 57 72
.400
.126 0124610 15 23 31 40 50 63
.425
.142 01245913 20 27 35 44 56
.450
.159 01235812 18 24 32 40 50
.475
.177 01134710 16 22 28 35 45
.500
.196 011346915 20 25 32 40
.600
.283 001224610 13 18 22 28
.700
.385 0001234710 13 16 20
.800
.503 00011235710 12 15
.900
.636 000012346810 12
1.000
.785 0000112356810
1.200
1.084 000001123457
1.400
1.485 000000112345
1.600
1.948 000000012234
1.800
2.474 000000011223
2.000
3.142 000000000112
1 Table developed for steel or aluminum conduit.
2 Permissible occupied area based on NEC-prescribed 40% fill factor.
Note: The reader is cautioned to consult the NEC or BICSI installation manual for specific information regarding conduit fill. Fill rates must be adjusted down based on distances and
number of bends.
TRADE SIZES IN INCHES1
½ ¾ 1 1¼ 1½ 2 2½ 3 3½ 4 4½ 5
I.D., Inches
.622 .824 1.049 1.380 1.610 2.067 2.469 3.068 3.548 4.026 4.506 5.047
O.D., Inches-Conduit
.840 1.05 1.315 1.660 1.900 2.375 2.875 3.500 4.000 4.500 5.000 5.563
Internal Area, Sq. In.
.304 .533 .864 1.496 2.036 3.356 4.788 7.393 9.887 12.730 15.947 20.006
Permissible Fill, Sq. In.2
.12 .21 .35 .60 .81 1.34 1.92 2.96 3.95 5.09 6.38 8.00
96
Technical Information Datacom
Commercial Building Datacom/Topology
97
Datacom Technical Information
Category 6 or 6A
Category 5e
MM Fiber Cable
Riser Cable
(ARMM)/Category 3
Commercial Building Datacom/Topology
98
4 Tesseneer Drive
Highland Heights, KY 41076
Telephone: (800) 424-5666
(859) 572-8000
www.generalcable.com
Share your ideas. We’re listening:
Datacom@GeneralCable.com
Easy color-coded identification
Plenum=Green
Riser=Blue
White space for
writing notes
New, sturdier
double-ply
construction
New EZ-Brake™
system with
knobs to adjust
tension control
and pulling
speed TRU-Mark™
Sequential
Footage
Marking
on cable
print legend
Wide-mouth
payout
OUR BEST IDEAS COME FROM YOU
You asked us to think outside the box, so we started with the box. Our GenSPEED ® Spool-Pac® Cat 6
cartons have been redesigned in response to your recommendations.
99
Datacom Technical Information
Packaging Information
GenSPEED® Packaging Options:
•Pull-Pac® cartons offer wide-mouth payouts that enhance cable pulling while preventing tangling and kinks.
•Spool-Pac® cartons offer the option of pulling cable from spools packaged within a carton, which also
prevents tangling.
•Spoolsareapackagingofchoiceformostcategorycables.
•Cartonshavebeendesignedandpreprintedwithpertinentinformationsuchasbrandname,categoryofcableand
cable type. Cartons are also labeled with pertinent product information such as UL listing, category of cable, cable
type, color, footage and product description.
•Theplenumcablecartonshaveagreencolorbandforeaseofidentification,andtherisercartonsareidentifiedby
a blue color band.
•AllGenSPEED cables have the TRU-Mark® sequential footage marking system, from 1000 ft to 0 ft, to reduce
waste on the job.
•Mostpackagesaremadewithpartiallyrecycledcardboard.Pleaserecycle.
Other Communications Product Packaging Options:
•StandardPull-Paccartons,Spool-Paccartonsandspools
•Sequentialfootagemarking
•CartonsarelabeledwithpertinentproductinformationsuchasULlisting,categoryofcable,cabletype,color,
footage and product description.
Spool-Pac® Cat 3 GenSPEED® Pull-Pac® lI
5000 CMR/CMP
5350 CMR/CMP
5500 CMR/CMP
6 CMR/CMP
6000E CMR/CMP
GenSPEED® EZ-Brake™
Spool-Pac®
6000E CMR/CMP
6500P CMR/CMP
Spool
Available for all
Datacom products
GenSPEED® Basic
Spool-Pac®
5000 CMR/CMP
5350 CMR/CMP
5500 CMR/CMP
6 CMR/CMP
100
Technical Information Datacom
Industry Standards, Typical Uses and Electrical Requirements
For Twisted Pair Horizontal Wiring Cable
CATEGORY
INDUSTRY
STANDARDS TYPICAL USES FREQUENCY
INSERT.
LOSS
dB/100 M
(MAX)
CHARACTERISTICS
IMPEDANCE
OHMS NEXT
dB (MIN)
PSNEXT
dB (MIN)
RETURN
LOSS
dB (MIN)
PSACRF
(PSELFEXT)
dB (MIN)
PSAACRF
dB (MIN)
PSANEXT
dB (MIN)
MIN MAX
Category 3
ANSI/TIA/EIA 568 C.2
ANSI/ICEA S-90-661
NEMA WC63.1
10 BASE-T
4 Mbps TOKEN RING
52 Mbps ATM
100 BASE VG AnyLAN
772 kHz
1 MHz
4 MHz
8 MHz
10 MHz
16 MHz
2.2
2.6
5.6
8.5
9.7
13.1
87
85
85
85
85
85
117
115
115
115
115
115
43
41
32
28
26
23
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Category 5e
ANSI/TIA/EIA 568 C.2
ANSI/ICEA S-90-661
NEMA WC63.1
ISO 11801
16 Mbps TOKEN RING
100 BASE-T
52/155 Mbps ATM
100 BASE VG AnyLAN
100 Mbps TP PMD
1000 BASE-T
(Gigabit Ethernet)
772 kHz
1 MHz
4 MHz
8 MHz
10 MHz
16 MHz
20 MHz
25 MHz
31.25 MHz
62.5 MHz
100 MHz
1.8
2.0
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17.0
22.0
87
85
85
85
85
85
85
85
85
85
85
117
115
115
115
115
115
115
115
115
115
115
67
65
56
51
50
47
45
44
43
38
35
64
62
53
48
47
44
42
41
40
35
32
—
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
63.0
60.8
48.7
42.7
40.8
36.7
34.7
32.8
30.9
24.8
20.8
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Category 6
ANSI/TIA/EIA 568 C.2
ANSI/ICEA S-90-661
NEMA WC66
ISO 11801
16 Mbps TOKEN RING
155/622 Mbps ATM
1.2 Gbps ATM
100 Mbps TP PMD
100 BASE-T
1000 BASE-T
(Gigabit Ethernet)
772 kHz
1 MHz
4 MHz
10 MHz
16 MHz
20 MHz
31.25 MHz
62.5 MHz
100 MHz
200 MHz
250 MHz
1.8
2.0
3.8
6.0
7.6
8.5
10.7
15.4
19.8
29.0
32.8
87
85
85
85
85
85
85
85
85
85
85
117
115
115
115
115
115
115
115
115
115
115
76.0
74.3
65.3
59.3
56.2
54.8
51.9
47.4
44.3
39.8
38.3
74.0
72.3
63.3
57.3
54.2
52.8
49.9
45.4
42.3
37.8
36.3
—
20.0
23.0
25.0
25.0
25.0
23.6
21.5
20.1
18.0
17.3
67.0
64.8
52.8
44.8
40.7
38.7
36.8
34.9
24.8
18.8
16.8
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Category 6a
ANSI/TIA 568 C.2
RoHS
IEEE 802.3 10G BASE-T
100 BASE-T
100 BASE-TX
10 BASE-T
1000 BASE-TX
155 Mb/s ATM
ANSI X3.263 100Mb/s
1 MHz
4 MHz
8 MHz
10 MHz
16 MHz
20 MHz
25 MHz
31.25 MHz
62.50 MHz
100 MHz
200 MHz
250 MHz
300 MHz
400 MHz
500 MHz
2.1
3.8
5.3
5.9
7.5
8.4
9.4
10.5
15.0
19.1
27.6
31.1
34.3
40.1
45.3
85
85
85
85
85
85
85
85
85
85
85
85
85
85
85
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
74.3
65.3
60.8
59.3
56.2
54.8
53.3
51.9
47.4
44.3
39.8
38.3
37.1
35.3
33.8
72.3
63.3
58.8
57.3
54.2
52.8
51.3
49.9
45.4
42.3
37.8
36.3
35.1
33.3
31.8
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
18.0
17.3
16.8
15.9
15.2
64.8
52.8
46.7
44.8
40.7
38.8
36.8
34.9
28.9
24.8
18.8
16.8
15.3
12.8
10.8
78.2
66.2
60.1
58.2
54.1
52.2
50.2
48.3
42.3
38.2
32.2
30.2
28.7
26.2
24.2
92.5
83.5
79.0
77.5
74.4
73.0
71.5
70.1
65.6
62.5
58.0
56.5
55.3
53.5
52.0
Data subject to change without notice. Contact your Customer Service Representative for latest information.
— No requirement
Note: Higher category may be substituted for lower category.
101
Datacom Technical Information
Glossary
Alien Crosstalk (AXT): Unwanted
signal coupling from one component,
channel, or permanent link to another
is defined as alien crosstalk. Alien
crosstalk is only specified by the
Standards as a power sum parameter
for components and cabling to
approximate the energy present
when all pairs are energized. Power
sum alien measured at the near-end
is called Power Sum Alien Near-End
Crosstalk loss (PSANEXT) and power
sum alien crosstalk at the far-end is
called Power Sum Alien Attenuation to
Crosstalk Ratio, far-end (PSAACRF).
High power sum alien crosstalk levels
can compromise the operation of 10G
Base-T applications.
American Wire Gauge (AWG): A system
used to specify wire size. The greater
the wire diameter, the smaller the value
(e.g., 24 AWG [0.51 mm {0.020 in}]).
Asynchronous Transfer Mode (ATM):
A high-speed switching transmission
protocol that utilizes payload packages
organized into 53-byte cells to carry
data.
Attenuation: The decrease in magnitude
of transmission signal strength
between points, expressed as the
ratio of output to input. Measured in
dB, usually at a specific frequency for
copper or wavelength for optical fiber,
the signal strength may be power or
voltage.
Attenuation-to-Crosstalk Ratio (ACR):
The difference between attenuation
and crosstalk, measured in dB at a
given frequency. This difference is
critical to ensure that the signal sent
down the twisted-pair cable is stronger
at the receiving end of the cable than
any interference signals (crosstalk)
from other cable pairs.
Bandwidth: A range of frequencies,
usually the difference between the
upper and lower limits of the range,
expressed in Hz. It is used to denote
the potential capacity of the medium,
device or system. In copper and
optical fiber cabling, the bandwidth
decreases with increasing length.
Baseband transmission: A transmission
technique in which all of the available
bandwidth is dedicated to a single
communications channel. Only a
single message transfer can occur
at a given time.
Bit Error Rate (BER): The ratio of
incorrectly transmitted bits to
total transmitted bits. A primary
specification for all transmission
systems, it is usually expressed as
a power of 10. The number of errors
made in a digital transmission as
compared to complete accuracy.
Broadband transmission:
The
transmission of multiple signals on a
medium at the same time, sharing the
entire bandwidth of the medium. The
signals are multiplexed into channels
with a bandwidth of 6 kHz each and
occupy a different frequency on the
cable. The signals are divided, usually by
frequency divisions, to allow more than
one channel on the cable at any time.
Broadcast: A technique for sending
data simultaneously to all devices
attached to a network with a single
transmission. See multicast and
unicast.
Capacitance:
The tendency of an
electronic component to store electrical
energy. Pairs of wire in a cable tend
to act as a capacitor. The charge on
one of two conductors of a capacitor
divided by the potential difference
between them (measured in farads).
Common-mode noise (and longitudinal):
The noise voltage that appears
between each signal conductor to
ground, caused by electrostatic
induction and/or electromagnetic
induction.
Cross-connect: A facility enabling the
termination of cable elements and their
interconnection or cross-connection.
Crosstalk: The unwanted reception
of electromagnetic signals on a
communications circuit from another
circuit.
Decibel (dB): A logarithmic unit used for
expressing the loss or gain of signal
strength. One dB is the amount by
which the pressure of a pure sine
wave of sound must be varied in order
for the change to be detected by the
average human ear.
Delay skew: The difference in the
propagation delay between any two
pairs within the same cable sheath.
Dielectric constant: The ratio of
capacitance of an insulated wire
measured against the same wire
uninsulated, but using air as the
dielectric, which is equal to one.
Elongation: The fraction increase in the
length of a material stressed in tension.
Equal Level Far-End Crosstalk (ELFEXT):
A measure of the unwanted signal
coupling from a transmitter at the
near end into another pair measured
at the far end, relative to the received
signal level.
Ethernet: A LAN protocol using a
logical bus structure and carrier
sense multiple access with collision
detection.
Far-end crosstalk loss: A measure of
the unwanted signal coupling from a
transmitter at the near end into another
pair measured at the far end, relative to
the transmitted signal level.
FEP: Fluorinated Ethylene Propylene
Frequency: The measure of the number
of cycles (waves) per second,
expressed in Hz.
Full Duplex: Simultaneous two-way
transmission utilizing all 4 pairs.
Gigabits per second (Gb/s): A
transmission rate denoting one billion
bits per second.
Gigabit Ethernet: A carrier sense
multiple access with collision detection
LAN standard developed by the IEEE
802 group operating at one Gb/s.
Hertz (Hz): A unit of frequency equal to
one cycle per second.
Insertion loss: The signal loss resulting
from the insertion of a component,
link or channel between a transmitter
and receiver (often referred to as
attenuation).
Insulation: The dielectric material
that physically separates wires and
prevents conduction between them.
Megabits per second (Mb/s): A unit
of measure used to express the data
transfer rate of a system, device or
communications channel.
Megahertz (MHz): A unit of frequency
equal to one million cycles per second
(hertz).
Near-end crosstalk (NEXT): The
unwanted signal coupling between
pairs. It is measured at the end of a
cable nearest the point of transmission.
Contrast with far-end crosstalk.
Nominal velocity of propagation (NVP):
The speed of transmission along a
cable relative to the speed of light in a
vacuum.
102
Technical Information Datacom
Glossary
Ohm: The standard unit of electrical
resistance that measures the
opposition to the flow of direct current,
called resistance, or opposition to
the flow of alternating current, called
impedance. One volt will cause one
ampere of current to flow through one
ohm of resistance. The symbol is W.
Plenum: A designated area used for
transport of environmental air as part
of the air distribution system. Because
it is part of the air distribution system,
cables installed in this space require a
higher fire rating.
Plenum cable: A cable with flammability
and smoke characteristics that meet
the safety requirements of the National
Electrical Code® (NEC®) that allow it
to be routed in a plenum area without
being enclosed in a conduit.
Polyolefin: A thermoplastic insulation
material having excellent properties
and moisture resistance, used in the
construction of some communications
cable.
Polyvinyl Chloride (PVC): A tough,
flame-retardant, thermoplastic, water-
resistant insulator. Its dielectric losses
are higher than polyethylene.
Polyvinylidine DiFluoride (PVDF):
A highly non-reactive and pure
thermoplastic fluoropolymer. It is tough
and has low friction.
Power Sum Attenuation-to-Crosstalk
Ratio (PSACR): The difference
between attenuation and power sum
crosstalk measured in dB at a given
frequency. This difference is critical to
ensure that the signal sent down the
twisted-pair cable is stronger at the
receiving end of the cable than any
interference signals (crosstalk) from
other cable pairs.
Power Sum Equal Level Far-End
Crosstalk (PSELFEXT) Loss: A
computation of the unwanted signal
coupling from multiple transmitters
at the near end into a pair measured
at the far end and normalized to the
received signal level.
Power Sum Near-End Crosstalk
(PSNEXT) Loss: A computation of the
unwanted signal coupling from multiple
transmitters at the near end into a pair
measured at the near end.
Propagation delay: The time interval
required for a signal to be transmitted
from one end of the circuit to the other.
Restriction on Hazardous Substances
(RoHS): The European Commission’s
Directive 2002/95/EC adopted
January 27, 2003, also known as
“RoHS,” which restricts the use of
certain hazardous substances in
electrical and electronic equipment.
Return loss: A ratio of the power of the
outgoing signal to the power of the
reflected signal, expressed in dB.
Rip cord: A small filament cord used to
rip through the outer cable sheath.
Riser: Term applied to vertical sections
of cable, such as changing from
underground or direct-buried plant to
aerial plant. Term also applies to the
space used for cable access between
floors.
Separator: A layer of insulating material,
which is placed between pairs inside a
cable to enhance crosstalk. This could
be in a form of tape, cross-web or just
single filler.
Signal-to-Noise Ratio (SNR): The ratio
between the detected signal power
and noise in a receiver, expressed in
dB. The prime determining factor in bit
error rate. See Bit Error Rate.
Star Topology: A Local Area Network
(LAN) topology in which end points
of the network are connected to a
common central switch by point-to-
point links.
Structural Return loss: A measure of
reflected energy of a transmitted signal
due to impedance variations along the
length of the cable, expressed in dB.
T-1: A digital transmission link with a
bandwidth capacity of 1.544 Mb/s.
Typical medium is 2-pair telephone
wire; however, T-1 is not indicative of
transmission medium.
Token ring: Allows attached devices to
share a common cabling system for
communications purposes without
the possibility of a collision between
transmissions. A device is only able
to send a message when it is in
possession of a special electronic
sequence of bits called a token.
Velocity of propagation: The speed of
transmission along a cable relative to
the speed of light in a vacuum.
VoIP: A term used in IP telephony for
voice delivered using the Internet
Protocol.
103
Datacom Technical Information
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Part Number Index
7271.01224.S1R ...... 74
7271.02524.S1R ...... 74
7271.02824.S1R ...... 74
2019000................... 76
2019001................... 76
2019003................... 76
2019004................... 76
2019005................... 76
2110013................... 75
2110014................... 75
2110015................... 75
2110016................... 75
2110017................... 75
2110018................... 75
2110019................... 75
2110020................... 75
2110021................... 75
2110022................... 75
2110023................... 75
2113040................... 66
2113046................... 66
2113054................... 62
2113055................... 62
2113057................... 64
2113058................... 64
2113059................... 64
2113060................... 64
2113061................... 64
2113063................... 66
2113065................... 66
2113184................... 66
2113189................... 62
2113219................... 66
2114200................... 62
2114211................... 62
2114212................... 62
2114307................... 62
2114327................... 62
2114328................... 62
2114357................... 63
2114363................... 62
2114364................... 62
2114369................... 62
2114374................... 62
2114375................... 62
2114385................... 62
2114388................... 65
2114395................... 65
2114396................... 65
2114621................... 70
2114627................... 71
2114628................... 71
2117003................... 73
2117005................... 73
2117006................... 73
2117007................... 73
2117008................... 73
2117009................... 73
2117010................... 73
2117020................... 73
2117037................... 72
2117039................... 73
2117040................... 73
2117041................... 73
2117042................... 73
2117043................... 73
2117044................... 73
2117045................... 73
2117046................... 72
2117047................... 72
2117048................... 72
2117051................... 73
2117056................... 73
2131216................... 59
2131217................... 59
2131218................... 59
2131243................... 57
2131244................... 57
2131245................... 57
2131246................... 57
2131248................... 57
2131249................... 57
2131250................... 57
2131313................... 57
2131419................... 57
2131442.99.............. 57
2131453................... 57
2131458................... 57
2131462................... 57
2131463................... 57
2131474.99.............. 57
2131505................... 57
2131505.99.............. 57
2131537................... 59
2131550E ................ 54
2131611E ................ 48
2131673E ................ 48
2131752E ................ 54
2131753E ................ 54
2131757................... 57
2131757.99.............. 57
2131758................... 57
2131758.99.............. 57
2131774E ................ 48
2131775E ................ 48
2131776E ................ 48
2131777E ................ 48
2131778E ................ 48
2131779E ................ 48
2133008................... 58
2133009................... 58
2133011................... 58
2133012................... 58
2133013................... 58
2133015................... 58
2133016................... 58
2133017................... 58
2133018................... 58
2133019................... 58
2133020................... 58
2133021................... 58
2133022................... 58
2133023................... 58
2133026................... 58
2133027................... 58
2133033................... 58
2133033.99.............. 58
2133144................... 58
2133144.99.............. 58
2133161................... 58
2133161.99.............. 58
2133175................... 59
2133176................... 59
2133177................... 59
2133269E ................ 54
2133275................... 58
2133296................... 58
2133323................... 58
2133323.99.............. 58
2133358................... 58
2133359................... 58
2133373.99.............. 58
2133495E ................ 48
2133496E ................ 48
2133694E ................ 54
2133774E ................ 48
2133775E ................ 48
2133776E ................ 48
2133777E ................ 48
2133778E ................ 48
2133779E ................ 48
2133781E ................ 54
2134023................... 62
2137087................... 60
2137088................... 60
2137113E ................ 52
2137114E ................ 52
2137143E ................ 52
2137144E ................ 52
2137146E ................ 52
2137147E ................ 52
2137160E ................ 52
5131278E .......... 37, 42
5131282E .......... 37, 42
5131282E.3R ........... 37
5131361E .......... 37, 42
5131365E .......... 37, 42
5131365E.3R ........... 37
5131379E .......... 37, 42
5131380E .......... 37, 42
5131383E .......... 37, 42
5131418E .......... 37, 42
5131422E .......... 37, 42
5131431E .......... 37, 42
5131450E .......... 37, 42
5131456E .......... 37, 42
5131475E .......... 37, 42
5131477E .......... 37, 42
5131478E .......... 37, 42
5131546E .......... 37, 42
5131547E .......... 37, 42
5131553E .......... 37, 42
5131575E .......... 37, 42
5131648E .......... 37, 42
5131648E.3R ........... 37
5131649E .......... 37, 42
5131649E.3R ........... 37
5131683E .......... 37, 42
5131689E .......... 37, 42
5131730E .......... 37, 42
5133200E .......... 37, 42
5133200E-17F ......... 44
5133204E .......... 37, 42
5133204E-17F ......... 44
5133250E .......... 37, 42
5133250E.2.5R ........ 37
5133250E-17F ......... 44
5133251E.2.5R ........ 37
5133255E .......... 37, 42
5133255E-17F ......... 44
5133274E .......... 37, 42
5133274E-17F ......... 44
5133289E .......... 37, 42
5133289E-17F ......... 44
5133290E .......... 37, 42
104
Technical Information Datacom
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Part Number Index
5133299E .......... 37, 42
5133299E-17F ......... 44
5133300E .......... 37, 42
5133300E.2.5R ........ 37
5133300E-17F ......... 44
5133329E .......... 37, 42
5133329E-17F ......... 44
5133342E .......... 37, 42
5133342E-17F ......... 44
5133374E .......... 37, 42
5133374E-17F ......... 44
5133383E .......... 37, 42
5133383E-17F ......... 44
5133427E .......... 37, 42
5133427E-17F ......... 44
5133445E .......... 37, 42
5133445E-17F ......... 44
5133447E .......... 37, 42
5133448E .......... 37, 42
5133448E-17F ......... 44
5133512E .......... 37, 42
5133512E-17F ......... 44
5133649E .......... 37, 42
5133649E.2.5R ........ 37
5133649E-17F ......... 44
5133667E .......... 37, 42
5133667E-17F ......... 44
5133693E .......... 37, 42
5133693E-17F ......... 44
5133696E .......... 37, 42
5133696E-17F ......... 44
5136100................... 50
5136101................... 50
6131278............. 37, 38
6131282............. 37, 38
6131282.3R ............. 37
6131361............. 37, 38
6131379............. 37, 38
6131382............. 37, 38
6131382.3R ............. 37
6131418............. 37, 38
6131422............. 37, 38
6131433............. 37, 38
6131449............. 37, 38
6131477............. 37, 38
6131478............. 37, 38
6131546............. 37, 38
6131547............. 37, 38
6131575............. 37, 38
6131576............. 37, 38
6131618............. 37, 38
6131618.3R ............. 37
6131619............. 37, 38
6131635............. 37, 38
6131683............. 37, 38
6131686............. 37, 40
6131686.3R ............. 37
6131687............. 37, 40
6131687.3R ............. 37
6131688............. 37, 40
6131689............. 37, 40
6131690............. 37, 40
6131691............. 37, 40
6131692............. 37, 40
6131693............. 37, 40
6131694............. 37, 40
6131695............. 37, 40
6131696............. 37, 40
6131697............. 37, 40
6131697.3R ............. 37
6131699............. 37, 40
6131700............. 37, 40
6131700.3R ............. 37
6131707............. 37, 40
6131709............. 37, 38
6131710............. 37, 38
6131731............. 37, 40
6131732............. 37, 40
6131733............. 37, 40
6131757............. 37, 38
6131757.3R ............. 37
6131829............. 37, 38
6133200............. 37, 38
6133255............. 37, 38
6133274............. 37, 38
6133282............. 37, 38
6133282.2.5R .......... 37
6133289............. 37, 38
6133290............. 37, 38
6133299............. 37, 38
6133331............. 37, 38
6133334............. 37, 38
6133339............. 37, 38
6133341............. 37, 38
6133348............. 37, 38
6133348.2.5R .......... 37
6133369............. 37, 38
6133383............. 37, 38
6133403............. 37, 38
6133445............. 37, 38
6133446............. 37, 38
6133447............. 37, 38
6133492............. 37, 38
6133492.2.5R .......... 37
6133512............. 37, 38
6133615............. 37, 38
6133616............. 37, 38
6133616.2.5R .......... 37
6133696............. 37, 38
6133703............. 37, 40
6133703.2.5R .......... 37
6133704............. 37, 40
6133704.2.5R .......... 37
6133707............. 37, 40
6133708............. 37, 40
6133712............. 37, 40
6133713............. 37, 40
6133714............. 37, 40
6133715............. 37, 40
6133716............. 37, 40
6133717............. 37, 40
6133718............. 37, 40
6133719............. 37, 40
6133719.2.5R .......... 37
6133746............. 37, 38
6133761............. 37, 40
6970065................... 70
6970073................... 70
6970123................... 70
7002975................... 70
7022460................... 66
7022478................... 66
7022486................... 66
7022494................... 66
7022502................... 66
7022551................... 66
7022569................... 66
7022577................... 66
7022585................... 66
7022593................... 66
7022601................... 66
7023021................... 70
7023039................... 70
7023708................... 62
7023716................... 62
7023724................... 62
7023773................... 62
7023781................... 62
7023864................... 62
7026156................... 65
7036759................... 62
7041916................... 62
7041973................... 62
7042047................... 62
7042427................... 63
7042500................... 62
7042518................... 62
7042526................... 62
7043938................... 75
7043946................... 75
7043953................... 75
7043961................... 75
7043979................... 75
7043987................... 75
7043995................... 75
7044001................... 75
7044118................... 75
7051535................... 66
7051543................... 62
7051576................... 66
7051592................... 66
7051600................... 66
7051618................... 66
7051626................... 66
7051634................... 66
7056534................... 66
7056880................... 72
7056898................... 72
7056906................... 72
7056930................... 72
7056948................... 72
7056955................... 72
7056963................... 72
7131586................... 16
7131587................... 16
7131588................... 16
7131589................... 16
7131590................... 16
7131591................... 16
7131592................... 16
7131593................... 16
7131786............. 11, 14
7131787............. 11, 14
7131788............. 11, 14
7131789............. 11, 14
7131790............. 11, 14
7131791............. 11, 14
7131792............. 11, 14
7131800............. 23, 28
7131801............. 23, 28
7131802............. 23, 28
7131803............. 23, 28
7131804............. 23, 28
7131805............. 23, 28
7131806............. 23, 28
105
Datacom Technical Information
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Part Number Index
7131807............. 23, 28
7131808............. 23, 28
7131809............. 23, 28
7131819............. 11, 18
7131820............. 11, 18
7131821............. 11, 18
7131822............. 11, 18
7131823............. 11, 18
7131824............. 11, 18
7131825............. 11, 18
7131826............. 11, 18
7131827............. 11, 18
7131828............. 11, 18
7131830............. 11, 14
7131840............. 23, 28
7131841............. 23, 28
7131842............. 23, 28
7131843............. 23, 28
7131844............. 23, 28
7131845............. 23, 28
7131846............. 23, 28
7131847............. 23, 28
7131848............. 23, 28
7131848.2.5R .......... 23
7131849............. 11, 12
7131850............. 11, 12
7131851............. 11, 12
7131852............. 11, 12
7131853............. 11, 12
7131854............. 11, 12
7131855............. 11, 12
7131856............. 11, 12
7131857............. 11, 12
7131858............. 11, 12
7131859............. 23, 28
7131860............. 23, 28
7131860.2.5R .......... 23
7131861............. 23, 28
7131861.2.5R .......... 23
7131862............. 23, 28
7131862.2.5R .......... 23
7131863............. 23, 28
7131863.2.5R .......... 23
7131864............. 23, 28
7131864.2.5R .......... 23
7131865............. 23, 28
7131865.2.5R .......... 23
7131866............. 23, 28
7131866.2.5R .......... 23
7131867............. 23, 28
7131867.2.5R .......... 23
7131868............. 23, 28
7131869............. 23, 28
7131869.2.5R .......... 23
7131900............. 23, 26
7131901............. 23, 26
7131902............. 23, 26
7131903............. 23, 26
7131904............. 23, 26
7131905............. 23, 26
7131906............. 23, 26
7131907............. 23, 26
7131908............. 23, 26
7131909............. 23, 26
7131930............. 23, 24
7131931............. 23, 24
7131932............. 23, 24
7131933............. 23, 24
7131934............. 23, 24
7131935............. 23, 24
7131936............. 23, 24
7131937............. 23, 24
7131938............. 23, 24
7131939............. 23, 24
7131940............. 23, 26
7131941............. 23, 26
7131942............. 23, 26
7131943............. 23, 26
7131944............. 23, 26
7131945............. 23, 26
7131946............. 23, 26
7131947............. 23, 26
7131948............. 23, 26
7131959............. 23, 26
7131960............. 23, 26
7131960.3R ............. 23
7131961............. 23, 26
7131961.3R ............. 23
7131962............. 23, 26
7131962.3R ............. 23
7131963............. 23, 26
7131963.3R ............. 23
7131964............. 23, 26
7131964.3R ............. 23
7131965............. 23, 26
7131965.3R ............. 23
7131966............. 23, 26
7131966.3R ............. 23
7131967............. 23, 26
7131967.3R ............. 23
7131968............. 23, 26
7131968.3R ............. 23
7131969............. 23, 26
7131969.3R ............. 23
7131970............. 23, 24
7131970.2R ............. 23
7131971............. 23, 24
7131971.2R ............. 23
7131972............. 23, 24
7131972.2R ............. 23
7131973............. 23, 24
7131973.2R ............. 23
7131974............. 23, 24
7131974.2R ............. 23
7131975............. 23, 24
7131975.2R ............. 23
7131976............. 23, 24
7131976.2R ............. 23
7131977............. 23, 24
7131977.2R ............. 23
7131978............. 23, 24
7131978.2R ............. 23
7131979............. 23, 24
7131979.2R ............. 23
7133586................... 16
7133587................... 16
7133588................... 16
7133589................... 16
7133590................... 16
7133591................... 16
7133592................... 16
7133593................... 16
7133786............. 11, 14
7133787............. 11, 14
7133788............. 11, 14
7133789............. 11, 14
7133790............. 11, 14
7133791............. 11, 14
7133792............. 11, 14
7133800............. 23, 28
7133800-17F ........... 30
7133801............. 23, 28
7133801-17F ........... 30
7133802............. 23, 28
7133802-17F ........... 30
7133803............. 23, 28
7133803-17F ........... 30
7133804............. 23, 28
7133804-17F ........... 30
7133805............. 23, 28
7133805-17F ........... 30
7133806............. 23, 28
7133806-17F ........... 30
7133807............. 23, 28
7133807-17F ........... 30
7133808............. 23, 28
7133809............. 23, 28
7133809-17F ........... 30
7133819............. 11, 18
7133819-17F ........... 20
7133820............. 11, 18
7133820-17F ........... 20
7133821............. 11, 18
7133821-17F ........... 20
7133822............. 11, 18
7133822-17F ........... 20
7133823............. 11, 18
7133823-17F ........... 20
7133824............. 11, 18
7133824-17F ........... 20
7133825............. 11, 18
7133825-17F ........... 20
7133826............. 11, 18
7133826-17F ........... 20
7133827............. 11, 18
7133827-17F ........... 20
7133828............. 11, 18
7133828-17F ........... 20
7133830............. 11, 14
7133840............. 23, 28
7133840-17F ........... 30
7133841............. 23, 28
7133841-17F ........... 30
7133842............. 23, 28
7133842-17F ........... 30
7133843............. 23, 28
7133843-17F ........... 30
7133844............. 23, 28
7133844-17F ........... 30
7133845............. 23, 28
7133845-17F ........... 30
7133846............. 23, 28
7133846-17F ........... 30
7133847............. 23, 28
7133847-17F ........... 30
7133848............. 23, 28
7133848.2R ............. 23
7133849............. 11, 12
7133850............. 11, 12
7133851............. 11, 12
7133852............. 11, 12
7133853............. 11, 12
7133854............. 11, 12
7133855............. 11, 12
7133856............. 11, 12
106
Technical Information Datacom
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Catalog
Number page
Part Number Index
7133857............. 11, 12
7133858............. 11, 12
7133859............. 23, 28
7133859-17F ........... 30
7133860............. 23, 28
7133860.2R ............. 23
7133860-17F ........... 30
7133861............. 23, 28
7133861.2R ............. 23
7133861-17F ........... 30
7133862............. 23, 28
7133862.2R ............. 23
7133862-17F ........... 30
7133863............. 23, 28
7133863.2R ............. 23
7133863-17F ........... 30
7133864............. 23, 28
7133864.2R ............. 23
7133864-17F ........... 30
7133865............. 23, 28
7133865.2R ............. 23
7133865-17F ........... 30
7133866............. 23, 28
7133866.2R ............. 23
7133866-17F ........... 30
7133867............. 23, 28
7133867.2R ............. 23
7133867-17F ........... 30
7133868............. 23, 28
7133869............. 23, 28
7133869.2R ............. 23
7133869-17F ........... 30
7133900............. 23, 26
7133901............. 23, 26
7133902............. 23, 26
7133903............. 23, 26
7133904............. 23, 26
7133905............. 23, 26
7133906............. 23, 26
7133907............. 23, 26
7133908............. 23, 26
7133909............. 23, 26
7133930............. 23, 24
7133931............. 23, 24
7133932............. 23, 24
7133933............. 23, 24
7133934............. 23, 24
7133935............. 23, 24
7133936............. 23, 24
7133937............. 23, 24
7133938............. 23, 24
7133939............. 23, 24
7133940............. 23, 26
7133941............. 23, 26
7133942............. 23, 26
7133943............. 23, 26
7133944............. 23, 26
7133945............. 23, 26
7133946............. 23, 26
7133947............. 23, 26
7133948............. 23, 26
7133959............. 23, 26
7133960............. 23, 26
7133960.3R ............. 23
7133961............. 23, 26
7133961.3R ............. 23
7133962............. 23, 26
7133962.3R ............. 23
7133963............. 23, 26
7133963.3R ............. 23
7133964............. 23, 26
7133964.3R ............. 23
7133965............. 23, 26
7133965.3R ............. 23
7133966............. 23, 26
7133966.3R ............. 23
7133967............. 23, 26
7133967.3R ............. 23
7133968............. 23, 26
7133968.3R ............. 23
7133969............. 23, 26
7133969.3R ............. 23
7133970............. 23, 24
7133970.2R ............. 23
7133971............. 23, 24
7133971.2R ............. 23
7133972............. 23, 24
7133972.2R ............. 23
7133973............. 23, 24
7133973.2R ............. 23
7133974............. 23, 24
7133974.2R ............. 23
7133975............. 23, 24
7133975.2R ............. 23
7133976............. 23, 24
7133976.2R ............. 23
7133977............. 23, 24
7133977.2R ............. 23
7133978............. 23, 24
7133978.2R ............. 23
7133979............. 23, 24
7133979.2R ............. 23
7136100................... 34
7340201................... 68
7340201T ................ 68
7340202................... 68
7340203................... 68
7340206................... 68
7340208................... 68
7340209................... 68
7340212................... 68
7340216................... 68
7356201................... 69
7356201T ................ 69
7356202................... 69
7356203................... 69
7356206................... 69
7356208................... 69
7356209................... 69
7356212................... 69
7356216................... 69
7356224................... 69
7507536................... 76
7507544................... 76
7507551................... 76
7507569................... 76
7507577................... 76
7507601................... 76
7507619................... 76
7507627................... 76
7507635................... 76
7507643................... 76
7507650................... 76
7507668................... 76
8133300................... 46
8133300.2R ............. 46
8133301................... 46
8133301.2R ............. 46
8133305................... 46
8133305.2R ............. 46
8133306................... 46
8133306.2R ............. 46
8133307................... 46
8133307.2R ............. 46
9133300................... 32
9133300.2R ............. 32
9133305................... 32
9133305.2R ............. 32
XX0021ANR.BK ....... 81
XX0021ANU.BK ....... 81
XX0021PNR ............. 80
XX0021PNR-ILRA .... 80
XX0021PNU ............. 80
XX0021PNU-ILPA .... 81
XX0041PNR-ILRA .... 80
XX0041PNU-ILPA .... 81
XX0061ANR.BK ....... 81
XX0061ANU.BK ....... 81
XX0061PNR ............. 80
XX0061PNR-ILRA .... 80
XX0061PNU ............. 80
XX0061PNU-ILPA .... 81
XX0064M1D-DT ...... 82
XX0064M1M-DT ...... 82
XX0121ANR.BK ....... 81
XX0121ANU.BK ....... 81
XX0121PNR ............. 80
XX0121PNR-ILRA .... 80
XX0121PNU ............. 80
XX0121PNU-ILPA .... 81
XX0124H1A-DWB ... 83
XX0124H1F-DWB .... 83
XX0124M1A-DWB ... 82
XX0124M1D-DT ...... 82
XX0124M1F-DWB ... 83
XX0124M1M-DT ...... 82
XX0241ANR.BK ....... 81
XX0241ANU.BK ....... 81
XX0241PNR ............. 80
XX0241PNR-ILRA .... 80
XX0241PNU ............. 80
XX0241PNU-ILPA .... 81
XX0244H1A-DWB ... 83
XX0244H1F-DWB .... 83
XX0244M1A-DWB ... 82
XX0244M1D-DT ...... 82
XX0244M1F-DWB ... 83
XX0244M1M-DT ...... 82
XX0484H1A-DWB ... 83
XX0484H1F-DWB .... 83
XX0484M1A-DWB ... 82
XX0484M1F-DWB ... 83
XX0724H1A-DWB ... 83
XX0724H1F-DWB .... 83
XX0724M1A-DWB ... 82
XX0724M1F-DWB ... 83
