Commercial & Industrial

Product Catalog

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

MILBANK

OVERVIEW

Milbank Overview

Energy At Work since 1927

Milbank builds solutions that move power for the residential, commercial, industrial, utility and transportation

sectors. Milbank combines more than 85 years of expertise in electrical engineering design and manufacturing

with a commitment to develop and globally implement sustainable, integrated power solutions. Milbank’s

portfolio includes electric metering systems, PowerGen™ wind and solar solutions, and portable power. A third-

generation, family-owned business, Milbank is headquartered in Kansas City, Mo. For more information, please

visit milbankworks.com.

Milbank meter sockets have set the standard for quality since

1927. With a 99.97% quality performance, thousands of

active products to meet your utility’s requirements and tens of

millions of sockets installed across the globe, our products help

keep energy at work. And with 22 stocking locations across the

U.S., and our OneSERT program to help during emergency

situations, our meter sockets are ready to go, wherever the job

may be.

Milbank’s standby and portable generators give you the peace

of mind of living life uninterrupted during increasingly frequent

power outages caused by severe weather, high demand and

other situations. Our electric vehicle supply equipment, wind

turbines and power management systems give you reliable and

sustainable ways to reduce both your energy costs and your

impact on the environment.

When it comes to commercial and industrial products, Milbank

has it covered! We offer a complete line of junction boxes,

telephone cabinet covers, transformer cabinets, wireways,

pushbutton enclosures, consoles and thermal management

products. We specialize in custom-built enclosures and are

more than happy to design a solution for your speciﬁc project.

Our commercial meter pedestals are easy to install, fast, safe

and secure, and completely customizable.

METERING

POWERGEN

COMMERCIAL & INDUSTRIAL

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TABLE OF

CONTENTS

Table of Contents

Commercial Pedestals

Overview .................................................................... 4–6

Product details by series ............................................ 7–13

Accessories .................................................................... 14

Specifications example .................................................. 15

Detailed drawings .................................................... 16–24

Product worksheet ......................................................... 25

Application Examples .............................................. 26–35

Commercial Enclosures

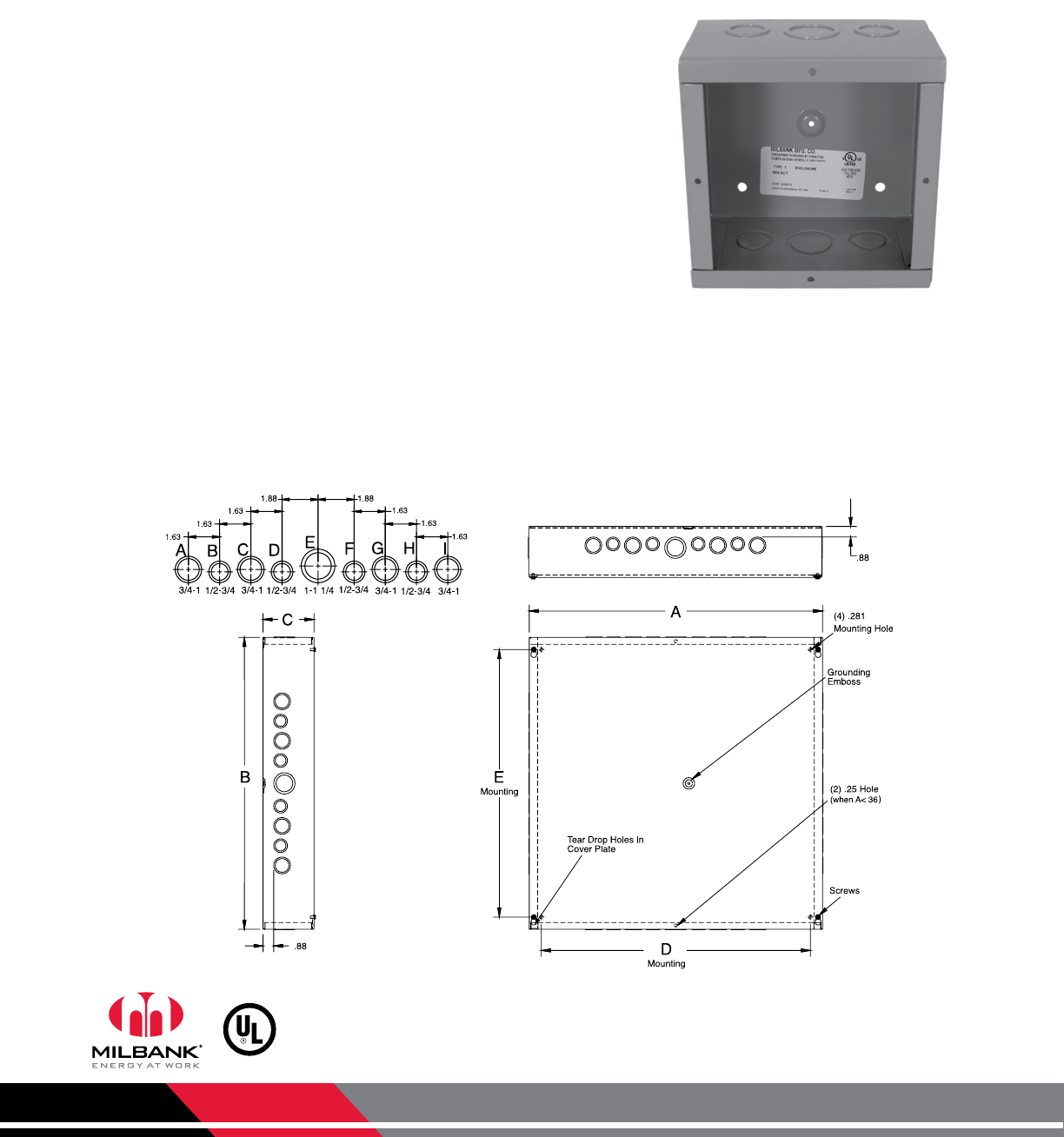

Type 1 junction boxes .............................................. 36–42

Type 1 panel enclosures .......................................... 43–44

Type 3R junction boxes ............................................ 45–49

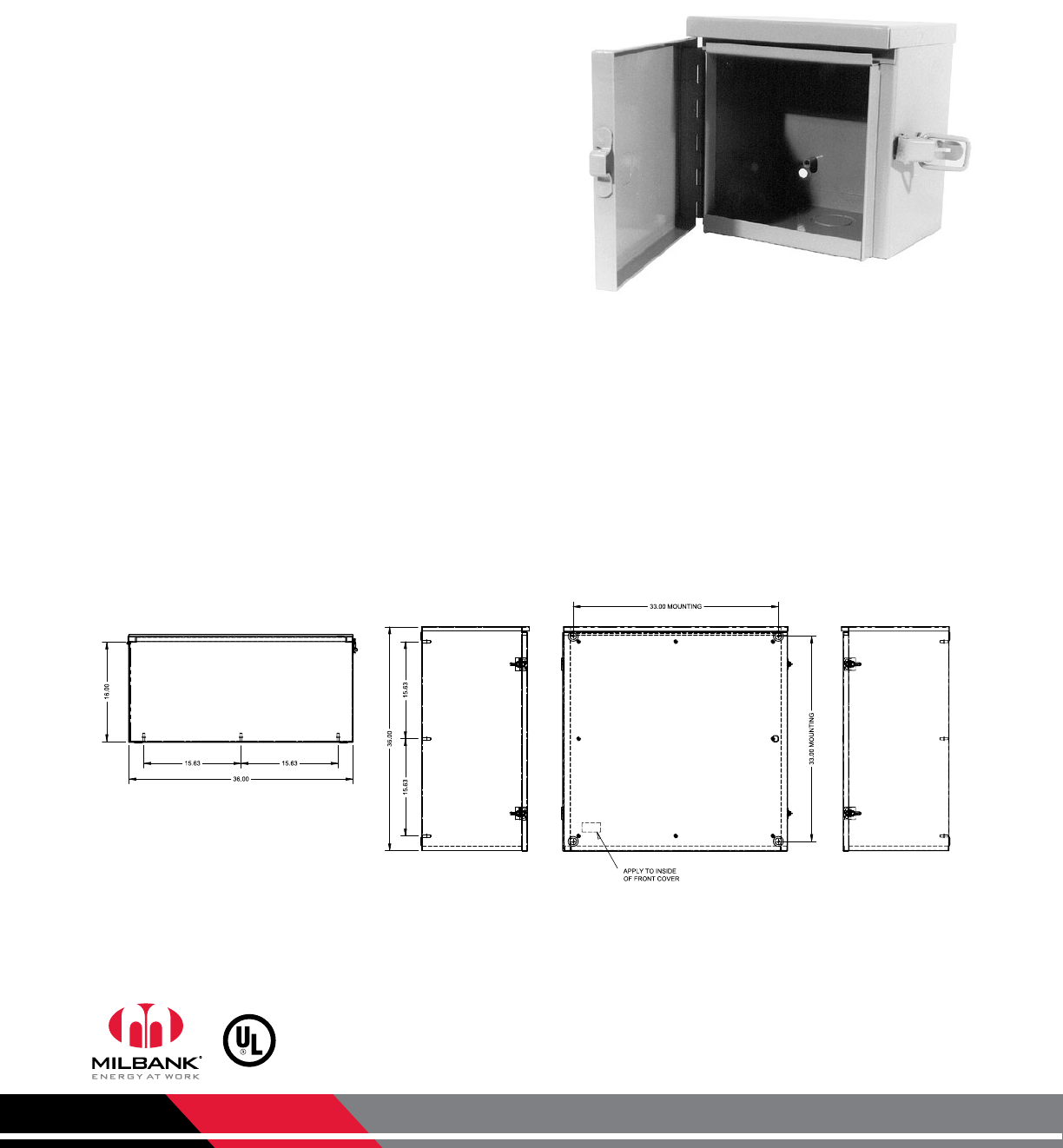

Type 3R telephone cabinets .................................... 50–51

Type 3R current transformer cabinets ........................... 52

Type 1, 3 & 12 gasketed screw cover junction boxes .... 53

Type 1 telephone cabinet covers ............................. 54–55

FLC blank covers ............................................................ 56

Back panels .............................................................. 57–58

Type 1 wireway ........................................................ 59–65

Type 3R wiring trough ............................................. 66–69

Wireway fittings ....................................................... 70–75

Accessories .............................................................. 76–78

Industrial Enclosures

Environmental ratings & protection grades ............. 80–83

Type 12 junction enclosures ..................................... 84–93

Type 12 pushbutton enclosures ............................. 94–101

Type 12 oil-tight consolets .......................................... 102

Type 12 wall mount enclosures ............................ 103–107

Type 12 floor mount enclosures .......................... 108–109

Type 12 freestanding enclosures ......................... 110–113

Type 12 multi-door enclosures with sub panels ... 114–117

Type 12 disconnect enclosures ............................ 118–128

Type 12 heavy-duty enclosures ............................ 129–134

Type 12 modular enclosures ................................ 135–137

Disconnect enclosure information ........................ 138–147

Series 1 and Series 9 consoles ............................. 148–150

Type 4 & 4X junction enclosures .......................... 151–156

Type 4 wall mount enclosures ............................. 157–159

Type 4 & 4X floor mount enclosures .................... 160–161

Type 4 & 4X freestanding enclosures .................. 162–163

Type 4 & 4X disconnect enclosures ..................... 164–165

Type 4 flush mounted enclosures ........................ 166–167

Millennium Series enclosures ............................... 168–172

Industrial enclosure accessories ........................... 173–195

Exterior color chart .............................................. 196–197

Industrial enclosure specials ................................ 198–202

Index .................................................................... 203–219

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

Attractive | Easy to Install | Secure | Cost-Effective

Milbank Commercial Pedestals are pad-mounted,

weatherproof electrical enclosures consisting of a

utility pull section with optional meter socket, and

a customer section containing distribution and

control equipment. Milbank Commercial Pedestals

are an attractive, secure, easy to install and cost-

effective solution when underground remote

site power distribution and control equipment is

required, replacing unsightly and inefficient strut

and backboard structures.

Strut and backboard Commercial pedestal

Standard Features

•Type 3R rainproof, vandal-resistant cabinet of polyurethane

powder-coated steel (aluminum or stainless steel also available)

•UL Listed

•Isolated lockable & sealable utility metering and lug landing

sections

•Lockable customer section for distribution and control equipment

with internal deadfront

•Print pocket inside customer section door contains wiring

schematics and installation instructions

•Most load centers are UL Listed for use with various

manufacturers’ circuit breakers

•All stainless steel external hardware (screws, bolts, hinges,

handles, hasps and sealing screws)

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

Attractive | Easy to Install | Secure | Cost-Effective

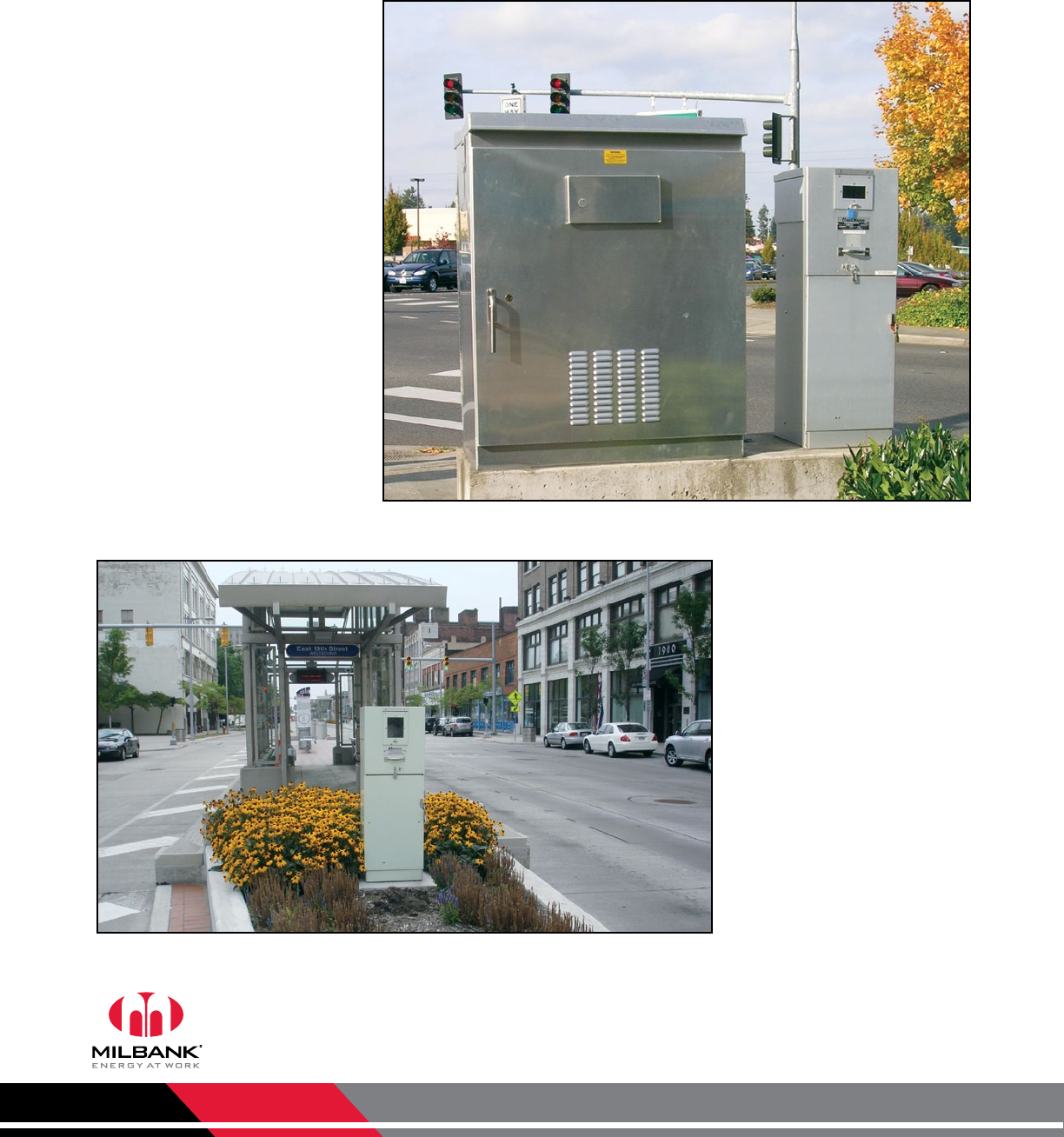

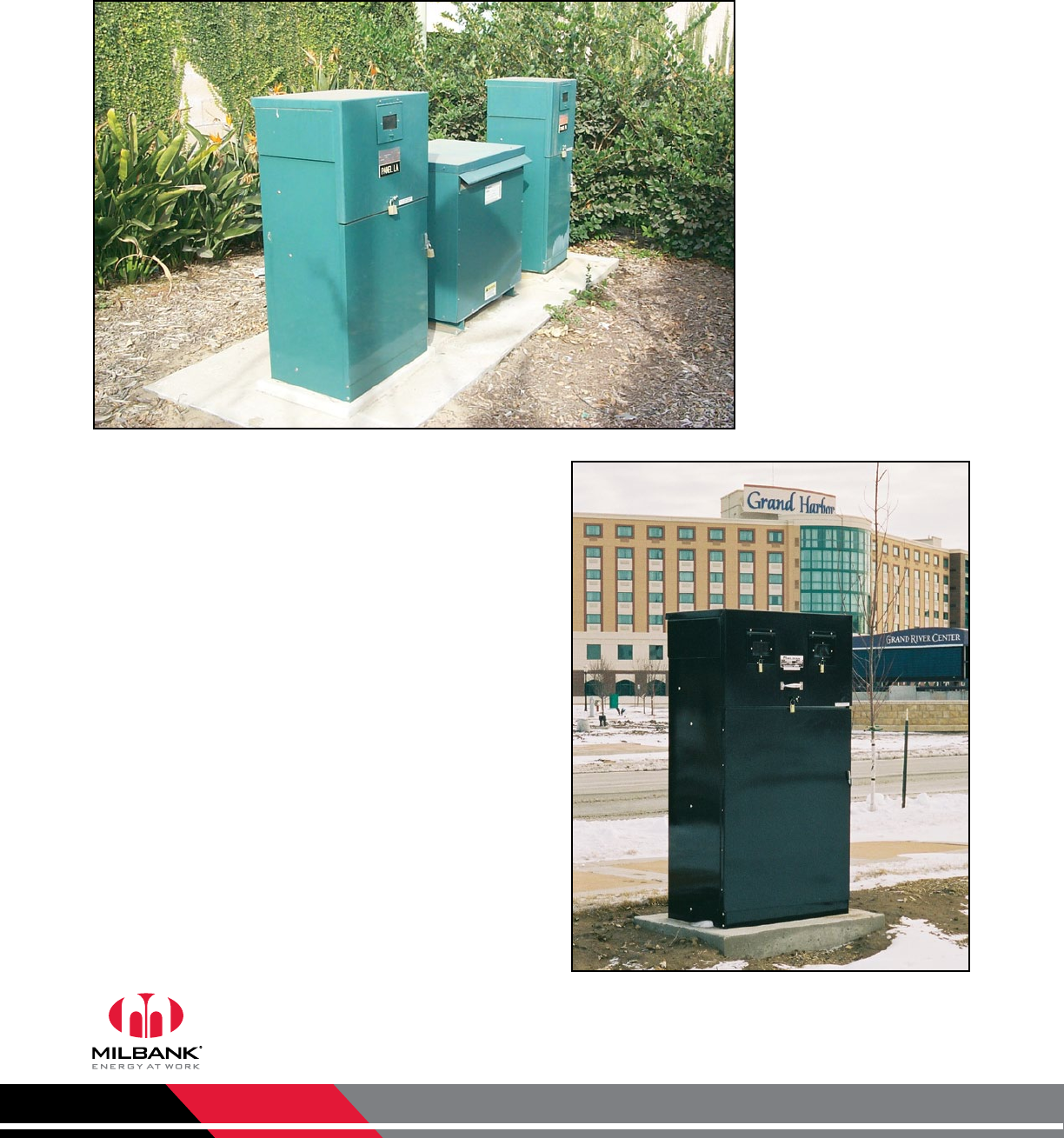

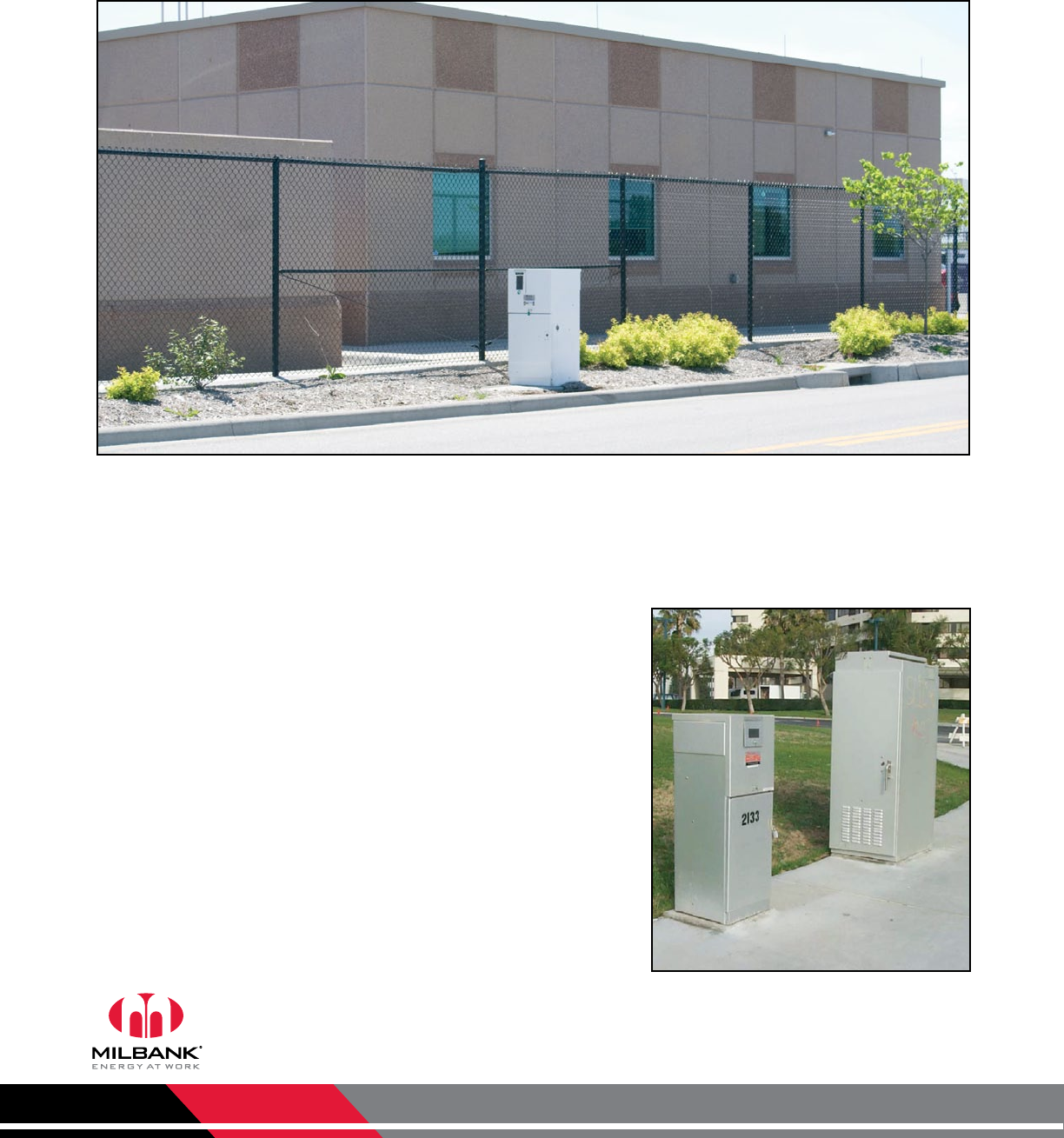

These units are ideal for controlling and metering:

•Traffic signals

•Street lighting

•Irrigation and sprinkler systems

•Cell towers and telephone vaults

•Pump stations

•Temporary power for fairgrounds, swap meets, outdoor

markets, portable offices, holiday lights, etc.

•Outdoor lighting for athletic fields, tennis and basketball

courts, parking lots, landscaping and subdivision

entrances, etc.

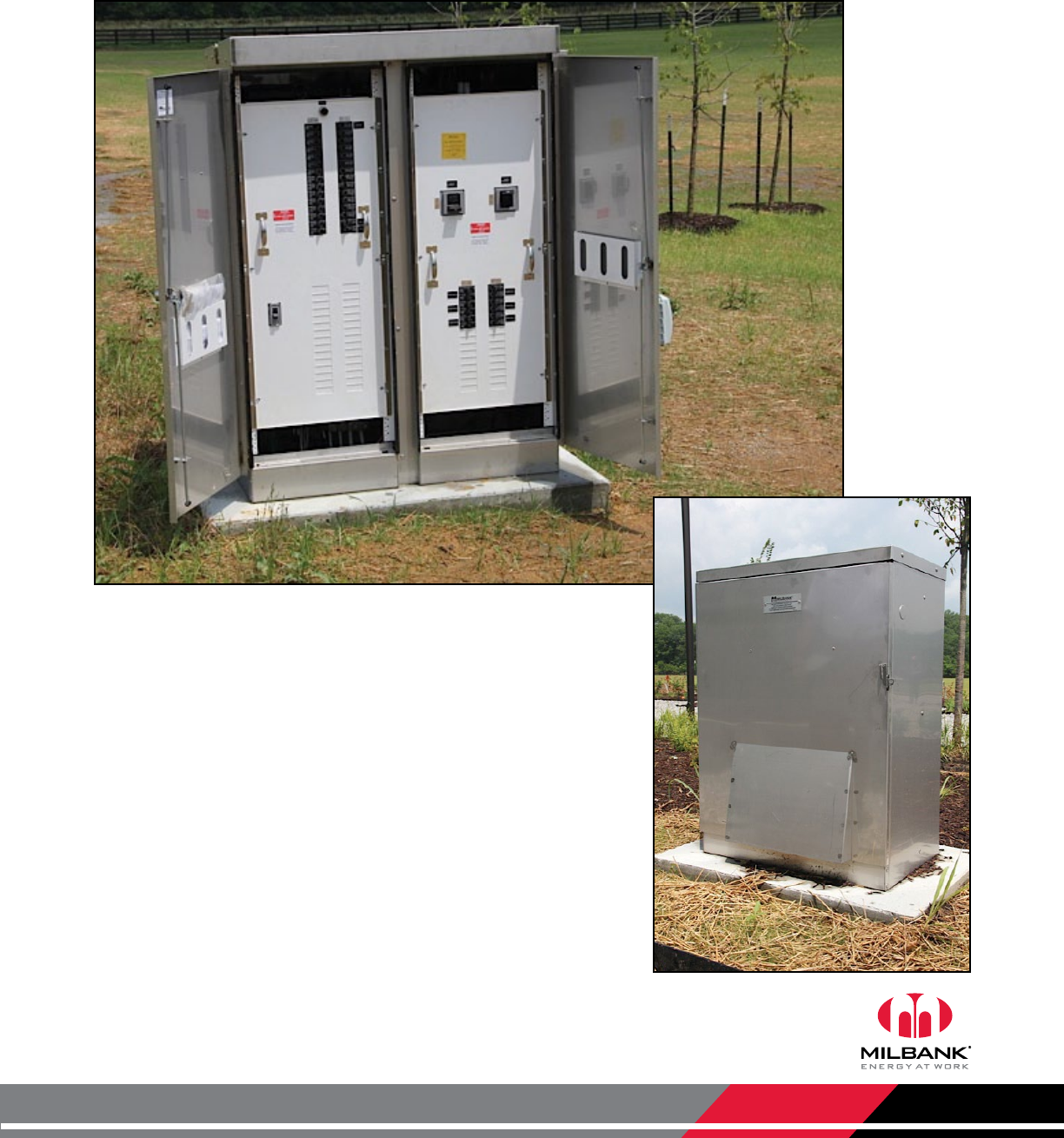

Available Factory-Installed Options

•Meter sockets: ring type or ringless, up to 400 amp

•Main and branch breakers or T fuses

•Distribution: copper load centers and panel boards

•Clocks, timers and relays

•Photoelectric cells and controls

•Power receptacles: pin and sleeve, twist lock or straight

blade

•Contactors: definite purpose, electrical or mechanically

held, IEC and mercury types

•Surge protection and lightning arrestors

•Reserve inlet generator receptacle with interlocked

circuit breakers

•Motor starters and relays

•Push button controls

•Thermostat controls, fans and heating strips

•Power blocks and terminal blocks

•Steel, aluminum and plywood backboards

•Transformers

•Interlock devices for circuit breakers

•Available in steel, aluminum (unpainted, painted or

anodized) or stainless steel construction with powder-

coated finish available in eight standard colors or

special-ordered RAL colors

•Available for applications up to 400 amp, 120V, 208V,

240V, 277V, 480V - 1Ø or 3Ø

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

CATALOG

NUMBER

LOGIC

Catalog Number Logic

For Commercial Pedestals

Note:

Due to size and regulatory constraints, not all combinations will result in a valid catalog number.

1. Meter Socket

0 No socket

1 1 ring type socket (w/ test bypass)

2 2 ring type sockets (w/ test bypass)

3 2 ring type sockets (1 w/ test bypass,

1 without test bypass)

4 1 ring type socket (no test bypass)

5 1 ringless socket (w/ lever bypass)

6 2 ringless sockets (w/ lever bypass)

7 1 ringless socket (no test bypass)

8 1 bolt-on meter (w/ manual bypass)

9 1 ringless socket (-KK horn bypass)

A 2 ringless sockets (-KK horn bypass)

B 1 ring type socket (w/ test switches)

C 1 ringless type socket (w/ test switches)

6. Enclosure Size

A 16"W x 17"D x 48"H

B 24"W x 17"D x 48"H

C 24"W x 30"D x 48"H

C 16"W x 5"D x 46"H (CP2B)

D 44"W x 24"D x 60"H

D 12"W x 9"D x 64"H (CP3A)

E 16"W x 17"D x 41"H

F 12"W x 9"D x 64"H

G 16"W x 17"D x 48"H

H 24"W x 17"D x 48"H

J 16"W x 17"D x 32"H

K 32"W x 20"D x 60"H

L 16"W x 17"D x 48"H

M 24"W x 17"D x 41"H

N 16"W x 6"D x 46"H

X 24"W x 24"D x 60"H

Y 32"W x 24"D x 60"H

3. System Voltage

0 120V, 1Ø, 2W (4 jaw)

1 120V/240V, 1Ø, 3W (4 jaw)

2 208Y/120V, 1Ø, 3W (4 jaw + 105J)

3 240/480V, 1Ø, 3W (4 jaw)

4 480Y/277V, 1Ø, 3W (4 jaw + 105J)

5 208Y/120V, 3Ø, 4W (7 jaw)

6 240∆/120V, 3Ø, 4W (7 jaw)

7 240∆V, 3Ø, 4W (5 jaw)

8 480Y/277V, 3Ø, 4W (7 jaw)

9 480∆V, 3Ø, 3W (5 jaw)

A No rating

B 480∆/240V, 3Ø, 4W (7 jaw)

C 120/240V, 1Ø, 3W (5 jaw)

D 240/480V, 1Ø, 3W (5 jaw)

E 480V, 1Ø, 2W (4 jaw)

4. Main Disconnect

0 No main (up to 6 disconnects max)

1 (1) circuit breaker main

2 (2) circuit breaker mains

3 (1) T-fuse pullout main

4 (3) circuit breaker mains

5 (Obsolete)

6 (1) 4-pole main (100 amps max)

7 (Obsolete)

8 (1) 4-pole 100A & (1) 2-pole 100A

9 (Reserved)

A (Obsolete)

B (2) circuit breaker mains w/ interlock

C (2) T-fuse pullout mains

2. Amp Rating

0 No rating

1 100 amps

2 200 amps

3 125 amps

4 400 amps

5 (Reserved)

6 600 Amp 5. Distribution Interior

0 (2) 16-circuit loadcenters

1 (1) metered 8-circuit loadcenter & (1) unmetered 8-circuit loadcenter

2 (2) 8-circuit loadcenters

3 (1) 12-circuit loadcenter

4 (1) 12-circuit loadcenter & (1) 8-circuit loadcenter

5 (1) 16-circuit loadcenter

6 Lug-lug main & branch breakers only

7 (1) 8-circuit loadcenter & (1) 16-circuit loadcenter

8 Fused pullout switch

9 (1) 24 circuit loadcenter

(2) metered 8-circuit loadcenters & (1) unmetered 8-circuit loadcenter

B (2) 24-circuit loadcenters

C (1) 24-circuit panelboard

D (1) 42-circuit panelboard

E (1) 30-circuit panelboard

F (1) 18-circuit panelboard

G (1) 30-circuit loadcenter

H (2) 12-circuit loadcenters

J No distribution (main only)

K (1) metered 4-circuit loadcenter & (1) unmetered 4-circuit loadcenter

L No branch breakers (distribution blocks only)

M (Obsolete)

N Metered & unmetered lug-lug breakers

P Metered lug-lug breakers

R (1) metered 8-circuit loadcenter, (1) unmetered 8-circuit loadcenter, &

(1) metered 12-circuit loadcenter

T (1) 8-circuit loadcenter

U Unmetered lug-lug breakers

V (1) 6-circuit loadcenter

W (2) 6-circuit loadcenters

X Non-standard

Y (1) 42 circuit loadcenter

CP3B

1 2 43 5

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

CP3B “ML” Main Load Center Series

The Milbank Main Load Center Commercial Pedestals are

designed to handle the vast majority of all requirements in a

standard, stocked configuration.

•No waiting or extra charge

•Units feature a load center with a plug-on, back-fed main

breaker

•Load center has 16 positions for the 100 amp pedestals and

24 circuits for the 200 amp pedestals

•Both sizes include sub-feed lugs to allow feeding an external

panel

If your application requires turning loads on based on “dusk-

to-dawn” requirements, be sure to see the Milbank Switched

Load Center Commercial Pedestal products on the next page.

*Note:

Chart shows standard, stocked items. Other options and features are available. Contact factory for options details and availability.

Stocked Pedestals* Optional Fifth

Terminal Kit

Main CB Load Center

Circuits Meter Socket Type

Amps Spaces

CP3B11115A22 105J 100 1,2 16 Ring type with test / bypass blocks

CP3B12119A22 105J 200 1,2,3 4 24 Ring type with test / bypass blocks

CP3B51115A22 K3865 100 1,2 16 Ringless socket with lever bypass

CP3B52119A22 K3865 200 1,2,3,4 24 Ringless socket with lever bypass

Typical Applications

Remote site service for

multiple loads.

Features

These units include everything required for remote site service:

•Type 3R construction

•Expandable: load centers allow for future expansion without

costly modifications

•All units feature 200 amp meter socket with optional field-

installable fifth terminal kit available

•Optional mounting base can be embedded in concrete for

fast, easy installation

•Separate sealable and lockable utility termination section

•Separate sealable and lockable metering section with the

option of either a ring-type socket with test/bypass blocks

(conforms to EUSERC 308) or a heavy duty ringless socket

with lever bypass

•A separate sealable and lockable customer section with a load

center for “always on” loads that includes:

•Main circuit breaker

•20 (200 or 125 amp models) or 14 (100 amp models)

blank breaker spaces

•A circuit directory to document configuration

CP3B11115A22

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

CP3B “SL” Switched Load Center Series

*Note:

Chart shows standard, stocked items. Other options and features are available. Contact factory for options details and availability.

Stocked Pedestals* Optional Fifth

Terminal Kit

Main CB Contactor

Amperage Meter Socket Type

Amps Spaces

CP3B11110A22SL1 105J 100 1,3 60 Ring type with test / bypass blocks

CP3B12110A22SL1 150J 200 1,2,3,4 100 Ring type with test / bypass blocks

CP3B51110A22SL1 K3865 100 1,3 60 Ringless socket with lever bypass

CP3B52110A22SL1 K3865 200 1,2,3,4 100 Ringless socket with lever bypass

The Milbank Switched Load Center Commercial Pedestals

are designed to not only provide power for various loads, but

also to switch specific loads on and off under certain conditions.

A photoelectric cell is used for these controlled loads, and an

optional time clock is also available.

Features

These units include everything required for remote service:

•Type 3R construction

•Expandable: load centers allow for future expansion without

costly modifications

•All units feature 200 amp meter socket with optional

field-installable fifth terminal kit available

•Optional mounting base can be embedded in concrete for

fast,easy installation

•Separate sealable and lockable utility termination section

•Separate sealable and lockable metering section with the

option of either a ring-type socket with test / bypass blocks

(conforms to EUSERC 308) or a heavy duty ringless socket

with lever bypass

•A separate sealable and lockable customer section with:

•Control circuit including:

•PE receptacle, Lexan® window and glare shield

•Hand-Off-Auto (HOA) switch

•Contactor controlling a 16-circuit load center for

controlled loads

•Pre-mounted DIN rail and pre-wired connector to add

an optional plug-and-play time clock kit for PE on and

TC off operation

•A circuit directory to document configuration

•A load center for “always on” loads that includes a main

circuit breaker, a control power circuit breaker, a switched

load center main breaker, and 9 (200 amp model) or 11 (100

amp model) blank breaker spaces

•A circuit directory to document configuration

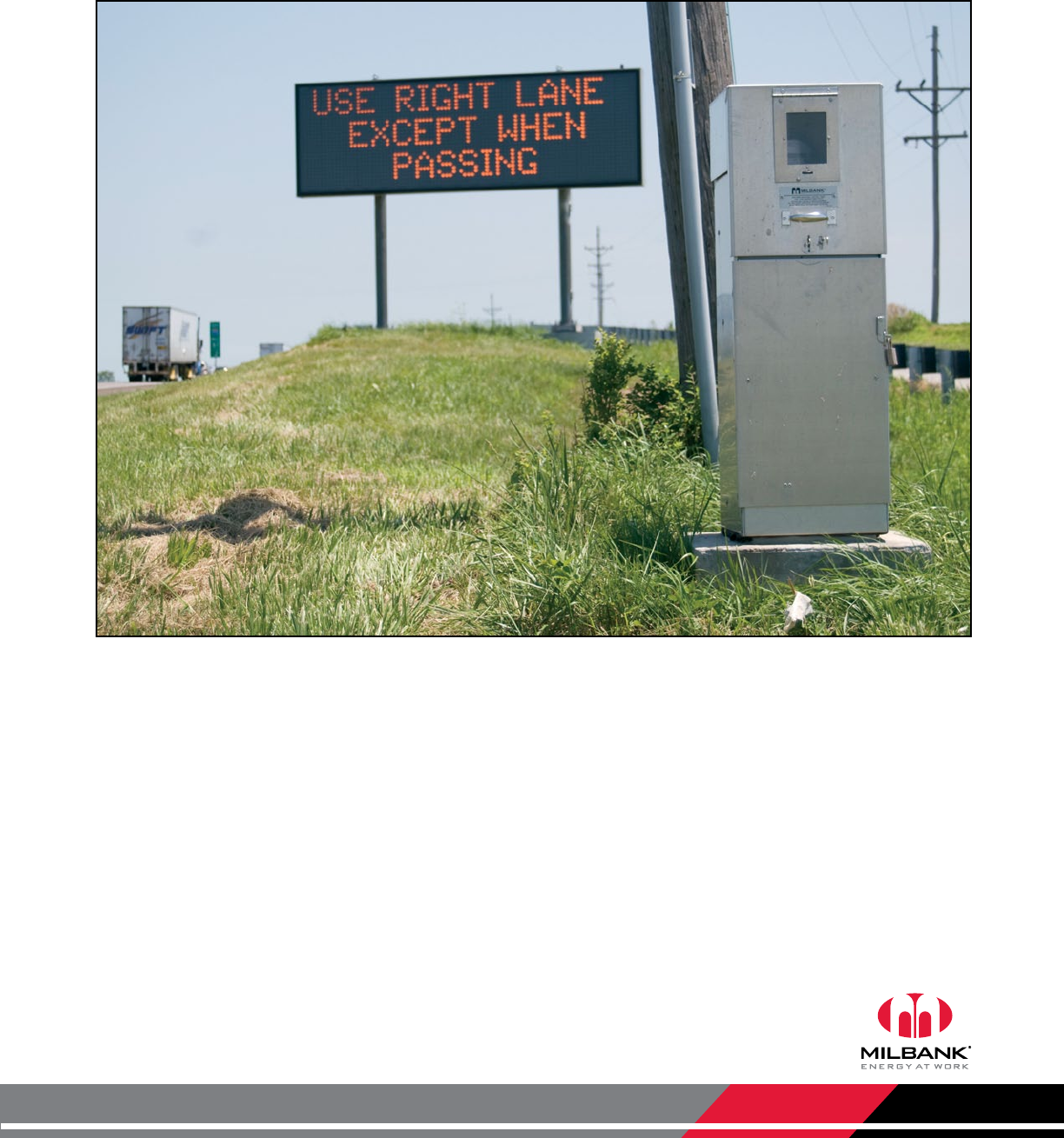

Typical Applications

Traffic signals, parking

lots, highways & athletic

field lighting

CP3B11110A22SL1

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

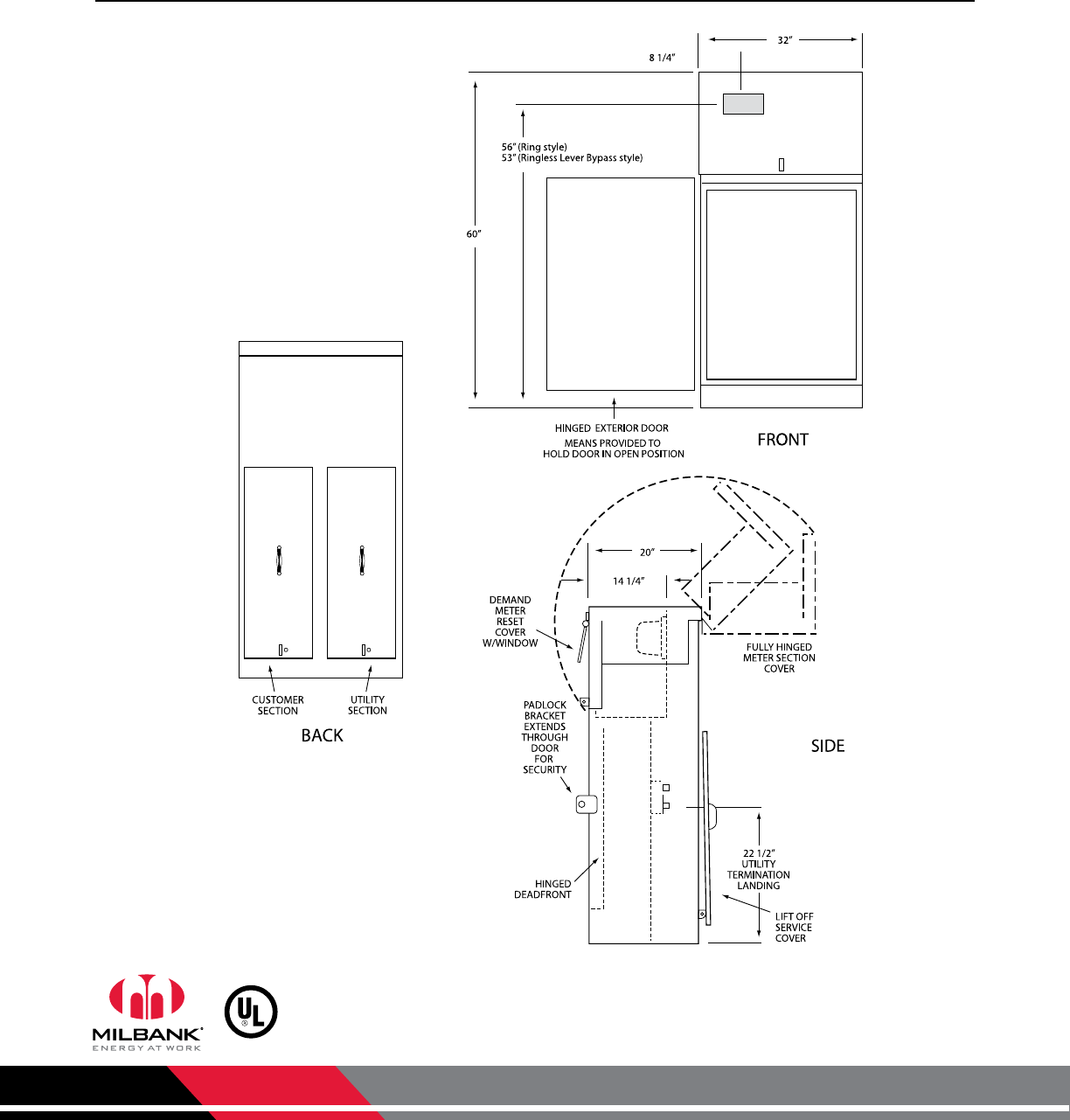

CP3B “400” 400 Amp Series

*NOTE:

Chart shows standard, stocked items. Other options and features are available. Contact factory for options details and availability.

Stud utility landing is standard. Lug kits are available from factory.

Units with load centers have (2) #6-250 sub-feed lugs on each load center. (Each load center is 200 amp rated and UL Listed with: Siemens, General

Electric and Cutler-Hammer plug-in style circuit breakers.)

Standard Pedestals* Optional fifth

Terminal Kit Main CB Load Center Circuits Meter Socket Type

CP3B1411JB N/A 320 amp (400 max) 0 Ring-type with test / bypass studs

CP3B14120B N/A 2-200 amp (2) 12 circuit1Ring-type with test / bypass studs

CP3B54120B22 K3865 2-200 amp (2) 12 circuit1Ringless with lever bypass

CP3B5411JB22 K3865 320 amp (400 max) 0 Ringless with lever bypass

The Milbank 400 Amp Commercial Pedestal is designed to

provide a weather and vandal resistant metered enclosure

for various loads and distribution. Each pedestal has been

designed to handle a wide range of applications using

standard, stocked configurations.

•Choice of a single main breaker or twin service disconnect

breakers gives flexibility to the pedestal design.

•Optional distribution with feed-thru lugs below the service

disconnect breakers allows the pedestal to handle numerous

applications.

•Typical applications include remote homes where the

metering is best located at the curb side or other remote

area. The pedestal can also provide power to secondary

residence, on-site business, workshop, irrigation, lighting,

security or other secondary load.

•Available in custom colors to match home or landscaping.

Features

These units include everything required for remote service:

•Type 3R construction

•Main circuit breaker or dual service disconnects

•Expandable: load center units allow for future expansion

without costly modifications

•Optional mounting base can be embedded in concrete for

fast,easy installation

•Separate sealable and lockable utility termination section

with lug termination

•Separate sealable and lockable metering section

•A separate sealable and lockable customer section with a

circuit directory and a print pocket to hold all documentation

•Meter socket options include ring type with bypass studs,

ringless with heavy duty lever bypass, or K-Type bolt-on

Typical Applications

Remote site service

for residential and

commercial jobsites

CP3B1411JB22

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

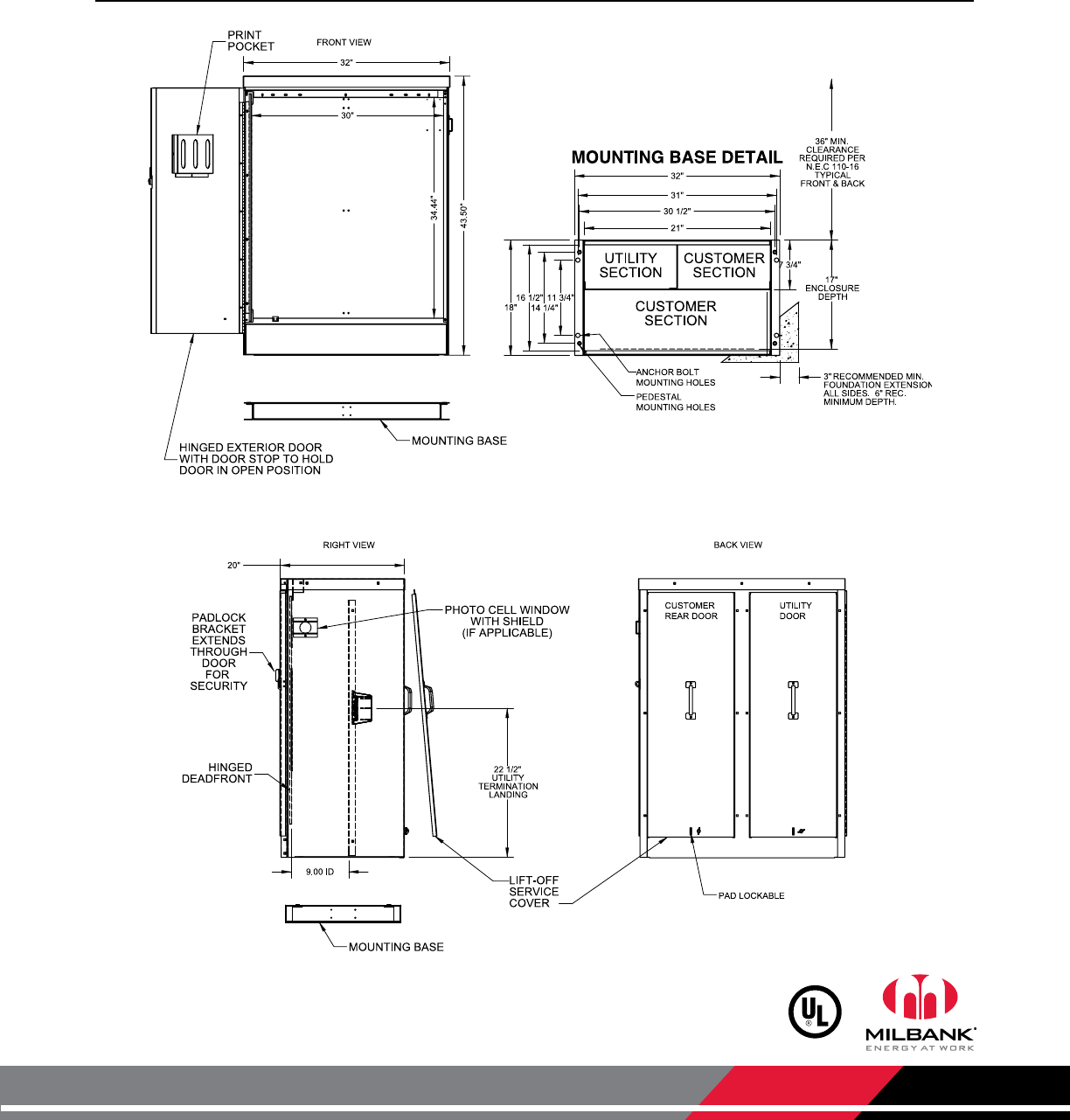

CP3B “IR” Irrigation Control Series

STOCKED

PEDESTALS*

OPTIONAL FIFTH**

TERMINAL KIT EXTERIOR CABINET METER SOCKET TYPE

CP3B111IRASP 105J Steel, light green Ring-type meter socket with test / bypass blocks

CP3B111IRASS 105J Stainless steel Ring-type meter socket with test / bypass blocks

*NOTE:

Chart shows standard, stocked items. Other options and features are available. Contact factory for options details and availability.

The Milbank “IR” Series Commercial Pedestals are designed

to provide a weather and vandal resistant metered enclosure for

irrigation controllers. Breakers and a GFI duplex receptacle are

provided to power the irrigation controllers supplied by others.

A plywood backboard is mounted behind the deadfront door for

mounting the irrigation controller. A large plan pocket is mounted

inside the customer section door to hold plans and specifications.

Light green powder coated steel or stainless steel pedestals are

normally in stock.

Features

These units include everything required for remote site service:

•Type 3R construction

•2 each 20 amp single pole circuit breakers: one breaker for

standard 20 amp GFCI receptacle and one breaker for irrigation

control circuit

•Large plywood back panel for mounting irrigation controller

•All units feature 200 amp meter socket with optional field-

installable fifth terminal kit available

•Optional mounting base can be embedded in concrete for fast,

easy installation

•Separate sealable and lockable utility termination section

•Separate sealable and lockable metering section with the option

of either a ring-type socket with test / bypass blocks (conforms to

EUSERC 308) or a heavy duty ringless socket with lever bypass

Typical Applications

Metered power pedestal

for irrigation systems

CP3B111IRASP

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

CP3B “BBS” Battery Backup Series

The Milbank BBS Series Commercial Pedestals are

designed to provide battery backup power for various

loads, and to switch specific loads on and off under certain

conditions; a photoelectric cell or time clock to control

lighting circuits, as an example. Metered and non-metered

power distribution options are available. The back-up power

pedestal is designed to handle the vast majority of todays

back-up power requirements. By using 19” rack design,

shelves can be adjusted to accommodate the required

batteries and manufactures DC to AC inverters, transfer

switches and other related equipment. This design gives

the user a wide range of design and configuration options.

Complete turnkey, ready to power-up pedestals are offered

along with basic units ready to accept batteries and inverters

supplied by others.

Features

•Type 3R construction

•100 through 320 amp meter socket with the option of

either a ring type socket (conforms to EUSERC 308) with or

without test / bypass blocks or a heavy duty ringless socket

with lever bypass

•Separate sealable utility termination compartment

•An isolated separate customer section with service

disconnects, power distribution options and power control

•19” wide rack in customer compartment for easy layout of

equipment

•Battery trays

•Thermostat with cooling fan

•Filtered louvers for heat rise flow through ventilation

•Three point door latch (key or pad lockable)

Options

•Manual bypass switch

•Transfer switch for generator power back-up

•Generator inlet receptacles 30A through 200A

•Pad lockable provision for receptacles

•Police access door

•Metered load center distribution

•Non metered load center distribution

•Photo electric controls (for street lighting)

•Time clocks

•HOA switches

•Contactors

•GFI duplex receptacles

•Thermostat for heating control

•Heating pads or elements

•Roll out shelves for batteries

•Surge arrestors and lighting arrestors

Typical Applications

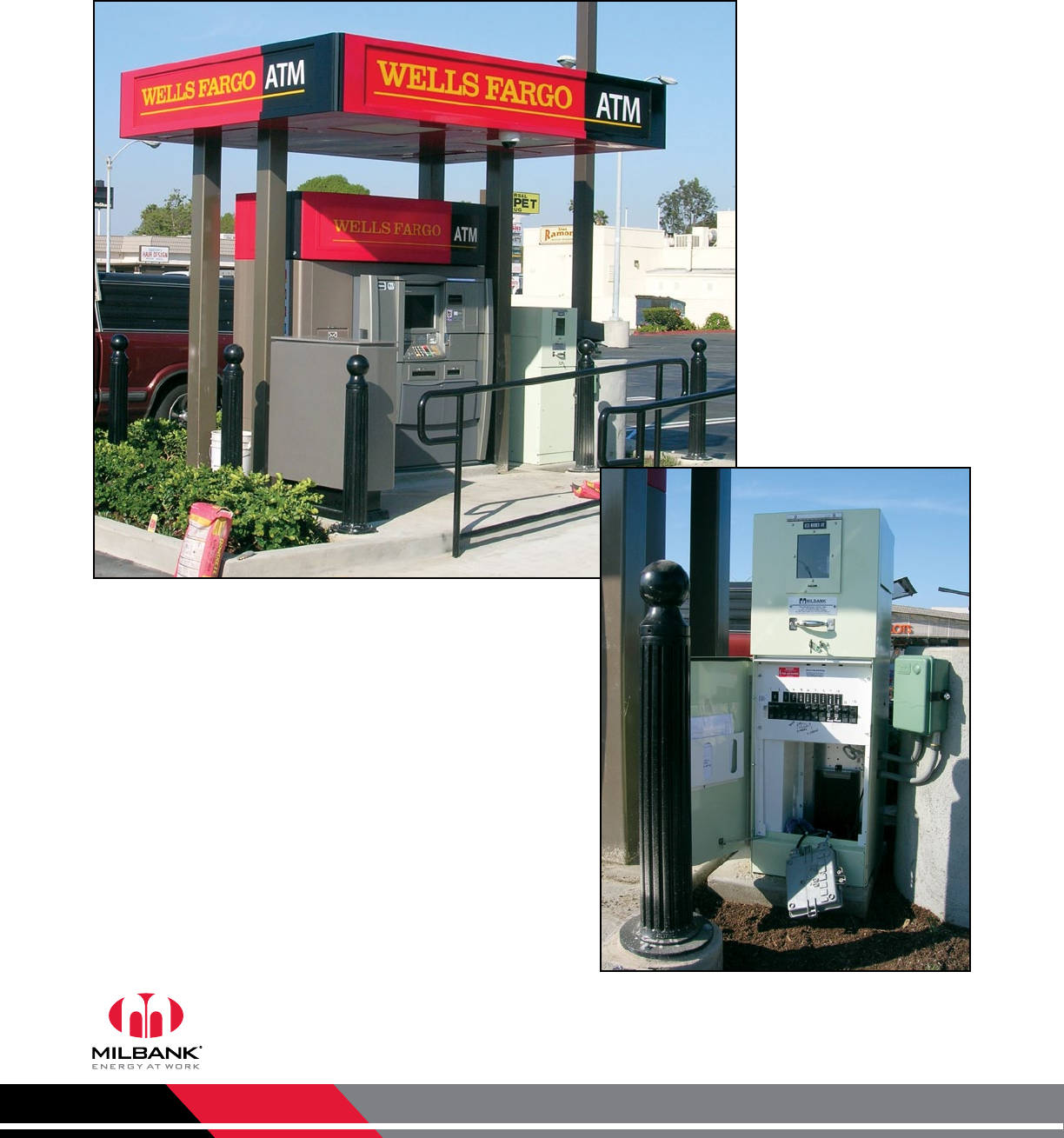

Metered emergency uninterrupted power

for traffic intersections, wireless, phone and

communications equipment, parking lots,

camera and security locations

CP3B5111TCAWSP1

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

CP3B “Power Transfer” Series

The Milbank BBS Series Commercial Pedestals are

designed to provide battery backup power for various

loads, and to switch specific loads on and off under certain

conditions; a photoelectric cell or time clock to control

lighting circuits, as an example. Metered and non-metered

power distribution options are available. The back-up power

pedestal is designed to handle the vast majority of todays

back-up power requirements.

By using 19” rack design, shelves can be adjusted to

accommodate the required batteries and manufactures

DC to AC inverters, transfer switches and other related

equipment. This design gives the user a wide range of

design and configuration options. Complete turnkey, ready

to power-up pedestals are offered along with basic units

ready to accept batteries and inverters supplied by others.

Features

•120/240V 1Ø3W thru 277/480V 3Ø4W ratings

•Metered or unmetered units

•Choice of EUSERC ring type or ringless meter sockets

•60 amps thru 400 amp ratings

•UL Listed Type 3R rated

•Pad lockable, isolated utility compartments

•20 amp GFI convenience receptacle

•Lockable recessed generator receptacle door

•Utility and generator indicator light options

•All stainless steel hardware

•Galvanized steel, aluminum or stainless steel cabinet

options

•Custom designs available

Typical Applications

Traffic intersections, cell sites, cable TV, pump and lift stations requiring utility power with backup generator power

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

CP3A “Slimline” Series

Typical Applications

Roadway lighting and signage, wastewater treatment facilities, parks and landscaping, and any application where

physical space is at a premium

The Milbank Slimline Series Commercial Pedestals provide a

sleeker, smaller footprint and wireway access on the side of the

unit rather than the back, allowing maximum flexibility to place the

pedestal in tighter spaces.

Features

•UL Listed as service equipment

•100 or 200 amps

•Vandal-resistant, secure and attractive design

•Customer compartment with distribution and control equipment

with swing dead front door, secured with both

a hasp/latch and draw latch outer door

•Utility metering compartment protected with a hinged

hood, increasing resistance to meter vandalism

•Small footprint

•Wireway located on left side of pedestal for utility incoming wire,

allowing pedestal to be mounted with back very close to a wall

(14")

•Available in 12" and 20" widths and 50" and 63" (metered) and

43" (nonmetered) heights

•Includes a print pocket for plans and drawings

•200 amp main available

•Voltage range: 120V–480V

•Compatible with both ringless and ring-type meter sockets, 4–7

terminals

•Available in any color upon request

•Pedestal mounting base option saves time and labor to install on a

cement pad—no anchor bolts required

•Powder-coated G90 galvanized steel, raw, anodized or powder-

coated aluminum and stainless steel exterior options

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

ACCESSORIES

CP-ABK5/8

Anchor bolt kit (includes four

5/8-13" x 18" anchor bolts)

K3865

Fifth terminal kit for use with

ringless lever bypass meter

sockets

CP-TC7D

7-day time clock kit

CP-TC24H

24-hour time clock kit

CP-TCWIRE

Male 4-pin connector and

wiring harness for use with

time clocks other than shown

105J

Fifth terminal kit for use with

ring type meter sockets

CP-16PDMNT-CALT

Pedestal mounting base for

16" pedestal

CP-24PDMNT-CALT

Pedestal mounting base

for 24" pedestal (includes

mounting hardware)

CP-32PDMNT

Pedestal mounting base

for 32" pedestal (includes

mounting hardware

CP-PE-HOA-3POS

HOA (Hand-Off-Auto) switch

for field installation

CP-PE-TYP5-2POS

Two position PE control kit

Commercial Pedestals

Accessories

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

SPECIFICATION

ExAMPLE

Commercial Pedestals

Speciﬁcations Example

Example of Speciﬁcations for a Metered Commercial Pedestal

Commercial pedestal shall be type _______________

Catalog # _________________

Voltage rating :____(120/240v 1P 3W)___

SCCR rating: ____10___

Amperage rating :____(100 amps)___

The pedestal shall be of Type 3R rainproof

construction and shall be UL Listed. External

construction shall comply with UL50 requirements

and shall be of G90 galvanized steel with

light green #14672 Federal Specification 595

polyurethane industrial grade powder paint of 1.7

mil minimum thickness (unless otherwise specified).

Aluminum and stainless steel are other factory

options available. Internal construction shall be G90

galvanized steel and 1.7 mil minimum thickness

polyurethane industrial grade powder coat painted

or bare aluminum. No fasteners except sealing

screws shall be removable by external access.

Hinges shall be stainless steel and of the continuous

piano hinge type.

The pedestal mounting bolts shall not be externally

accessible. The pedestal shall be offered with

an optional base designed to be embedded in

concrete in place of anchor bolts. Either pedestal

mounting base or anchor bolt kit is required for

installation.

The service pedestal must have three separate

isolated sections for metering equipment, utility

termination and customer equipment.

The metering section must be pad-lockable and

sealable and have a hinged swing back hood

with an integral hinged polycarbonate sealable

window for access to demand meters. An external

nameplate shall be permanently attached to the

hood. A stainless steel handle shall be provided on

the front exterior of the hood. Meter socket type

shall meet the requirements of the serving utility.

The utility termination section must be pad-lockable

and sealable and shall have a stainless steel handle

provided on a lift-off cover. Sufficient clearance

shall be provided for a 4-inch diameter conduit

for utility cables entrance. Utility landing lugs shall

accommodate #6 – 350 kcmil conductors.

The customer compartment door to be hinged on

the left hand side. A stainless pad-lockable hasp

provided to secure customer compartment. A

door keeper provided to keep the door in an open

position. A print pocket on the inside of the door

shall hold all wiring schematics, circuit directories

and instructions in a clear, weatherproof sleeve.

Required labeling shall be located on the inside

of the customer door. Distribution and control

equipment shall be behind an internal dead-front

door with a quarter-turn securing latch and be

hinged to open more than 90 degrees. The dead-

front door shall be hinged on the same side as the

customer section door. All distribution and control

equipment shall be factory wired using 600 volt wire

sized to UL requirements.

The provided documentation shall list circuit

breaker combinations and those to be used for

de-rated operation for series ratings.

Utility requirements for this equipment vary. Always

consult the serving utility for their requirements

before ordering or installing this equipment.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

16" Metered & Unmetered Drawings

17"

ENCLOSURE

DEPTH

ALL SIDES. 6" REC.

FOUNDATION EXTENSION

RECOMMENDED MIN.3"

REQUIRED PER

N.E.C 110-16

TYPICAL

36" MIN.

CLEARANCE

FRONT & BACK

42"

23.5" UTILITY

TERMINATION

LANDING MIN.

MOUNTING BASE MOUNTING BASE

ANCHOR BOLT

MOUNTING HOLES

MOUNTING BASE DETAIL

MOUNTING HOLES

PEDESTAL

9 3/4"

15"

16"

14 1/2"

12 1/4"16"

14 1/2"

13"

6 3/4"

UTILITY

SECTION

CUSTOMER

SECTION

WITH

COVER

WINDOW

POCKET

HINGED

DEMAND

METER

RESET

HINGED EXTERIOR DOOR

WITH DOOR STOP TO HOLD

DOOR IN OPEN POSITION

48"

HINGED

DEADFRONT

SECURITY

(IF APPLICABLE)

LIFT-OFF

PHOTO CELL WINDOW

FOR

WITH SHIELD

DOOR

COVER

SERVICE

COVER

FULLY HINGED

THROUGH

METER SECTION

PADLOCK

BRACKET

EXTENDS

REMOVEABLE

TEST BYPASS

BLOCK COVER

(IF APPLICABLE)

Pad Mount Base or (4) 5/8-11 X 18” Anchor Bolts Recommended

CP-16PDMNT-CALT

23 7/8" UTILITY

TERMINATION

LANDING MIN.

N.E.C 110-16

TYPICAL

FRONT & BACK

MINIMUM DEPTH.

ALL SIDES. 6" REC.

FOUNDATION EXTENSION

RECOMMENDED MIN.3"

36" MIN.

CLEARANCE

REQUIRED PER

17"

ENCLOSURE

DEPTH

CP-16PDMNT-CALT

MOUNTING BASE

POCKET

HINGED

EXTERIOR

DOOR

40 1/2"

32 1/4"

Pad Mount Base or (4) 5/8-11 X 18" Anchor Bolts Recommended

WITH SHIELD

(IF APPLICABLE)

COVER

SERVICE

LIFT-OFF

SECURITY

DOOR FOR

THROUGH

LATCH HASP

EXTENDS

PHOTO CELL WINDOW

HINGED

DEADFRONT

CP-16PDMNT-CALT

MOUNTING BASE

MOUNTING HOLES

SECTION

UTILITY

MOUNTING BASE DETAIL

CUSTOMER

MOUNTING HOLES

ANCHOR BOLT

SECTION

PEDESTAL

14 1/2"

12 1/4"

9 3/4"

16"

15"

14 1/2"

13"

16"

6 3/4"

“A” Style 16" Metered Commercial Pedestal

“E” Style 16" Unmetered Commercial Pedestal | Low Proﬁle

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

24" Metered & Unmetered Drawings

23.5" UTILITY

TERMINATION

LANDING MIN.

CLEARANCE

REQUIRED PER

N.E.C 110-16

DEPTH

ENCLOSURE

17"

TYPICAL

FRONT & BACK

36" MIN.

3" RECOMMENDED MIN.

FOUNDATION EXTENSION

ALL SIDES. 6" REC.

MINIMUM DEPTH.

42"

THROUGH

COVER

FULLY HINGED

PHOTO CELL WINDOW

HINGED

“B” Style 24" Metered Commercial Pedestal

METER SECTION

COVER

SERVICE

LIFT-OFF

DEADFRONT

WITH SHIELD

SECURITY

FOR

DOOR

(IF APPLICABLE)

PADLOCK

BRACKET

EXTENDS

REMOVEABLE

TEST BYPASS

BLOCK COVER

(IF APPLICABLE)

MOUNTING BASE

MOUNTING HOLES

SECTION

CUSTOMER

SECTION

UTILITY

MOUNTING BASE DETAIL

MOUNTING HOLES

ANCHOR BOLT

PEDESTAL

9 3/4"

12 1/4"

14 1/2"

22 1/2"

21"

23"

24"

6 3/4"

16"

MOUNTING BASE

COVER WITH

POCKET

WINDOW

HINGED DEMAND

METER RESET

HINGED EXTERIOR DOOR

WITH DOOR STOP TO HOLD

DOOR IN OPEN POSITION

48"

Pad Mount Base or (4) 5/8-11 X 18" Anchor Bolts Recommended

CP-24PDMNT-CALTCP-24PDMNT-CALT

22 1/2"

UTILITY

TERMINATION

LANDING

3" RECOMMENDED MIN.

FOUNDATION EXTENSION

ALL SIDES. 6" RECOMMENDED

MINIMUM DEPTH.

CUSTOMER

SECTION

MOUNTING BASE DETAIL

“M” Style 24" Metered Commercial Pedestal

LIFT-OFF

SERVICE

COVER

PADLOCK

BRACKET

EXTENDS

THROUGH

DOOR

FOR

SECURITY

PHOTO CELL WINDOW

WITH SHIELD

(IF APPLICABLE)

HINGED

DEADFRONT

POCKET

HINGED EXTERIOR DOOR

WITH DOOR STOP TO HOLD

DOOR IN OPEN POSITION

MOUNTING BASE MOUNTING BASE

UTILITY TERM.

SECTION

36" MIN.

CLEARANCE

REQUIRED PER

N.E.C 110-16

TYPICAL

FRONT & BACK

21 1/2"

12 1/4"

15 3/8"

17"

6 1/2"

14 1/4"

24"

22 1/2"

1 7/8"

1 1/2"

21"

Pad Mount Base or (4) 5/8-11 X 18" Anchor Bolts Recommended

CP-24PDMNT-CALTCP-24PDMNT-CALT

“B” Style 24" Metered Commercial Pedestal (with one or two meters)

“M” Style 24" Unmetered Commercial Pedestal

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

32" Metered Drawings

(4) 5/8-11 X 18” Anchor Bolts Recommended

Catalog Number CP-ABK5/8

(4) 5/8-11 X 18” Anchor Bolts Recommended

“K” Style 32" Metered Commercial Pedestal (with one or two meters)

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

32" Unmetered Drawings

“Q” Style 32" Unmetered Commercial Pedestal

Recommended:

Milbank mounting base

CP-32PDMNT, AlterNet

mounting with (4) 5/8-11"

x 18" anchor bolts

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

“D” and “C” Style Drawings

SLOPED ROOF

LIFTING EYES

VENTILATION FAN

SECTION 3SECTION 1

SECTION 2 SECTION 6

SECTION 5

SECTION 7

SECTION 4

Section 1 - Utility metering, lockable, sealable

Section 2 - Customer electrical distribution, lockable

Sections 3, 4, 5, 6 - Customer compartments, equipped with 19" rack mount rails, lockable

Section 7 - Utility service entrance, lockable, sealable

VENTILATED OPENINGS

W/ SOFFIT

PE SOCKET

KNOCK-

OUTS

VENTILATION

LOUVERS

WITH FILTER

1/4 TURN

PADLOCKABLE

HANDLES

44.38 24.00

60.00

48.56

19.06

AVAILABLE

EQUIPMENT

SPACE

27.31

AVAILABLE

EQUIPMENT SPACE

24.12

TO BOTTOM OF LUG

CUSTOMER DOOR

55.50

24.50

54.25

ABB

UTILITY PULL

PE WINDOW

PADLOCK-ABLE

METER DOOR

FOR INSTALLATION

SCALE 1 : 16

CUSTOMER

19" RACK

SECTION

SECTION A-A

3-POINT CAM LATCH

DEMAND METER

COVER PLATES

METER

DOOR

SECTION

DOOR

19" RACK

REMOVEABLE

30.50

REMOVEABLE

3-POINT

AIR FILTERS

POCKET

CAM LATCH

19" RACK

UTILITY COVER

SEAL STUD

PADLOCK-ABLE

WINDOW

SEAL STUD

CAM LATCH

METER DOOR

DEMAND METER

REMOVEABLE

PADLOCK HASP

“C” Style 54" Metered Commercial Pedestal

“D” Style Metered Commercial Pedestal

“C” Style 54" Metered Commercial Pedestal

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

Slimline “A” Style Drawing

FRONT & BACK

FOUNDATION EXTENTION

N.E.C. 110-16

PEDESTAL WIDTH TYPICAL

ALL SIDES. 6" REC

12.00"

RECOMMENDED MIN.

MINIMUM DEPTH

36" MIN.

CLEARANCE

REQUIRED PER

8.25"

ENCLOSURE

DEPTH

WINDOW

WITH

HINGED

DEMAND

METER

RESET

COVER

POCKET

12.00"

13.00"

63.00"

(IF APPLICABLE)

WINDOW

THROUGH

DOOR

HINGED

BRACKET

(1.75")

FULLY HINGED

DEAD FRONT

FOR

BLOCK COVER

METER SECTION

SECURITY

COVER

WITH SHIELD

EXTENDS

PADLOCK

PHOTO CELL

KNOCKOUT

REMOVEABLE

TEST BYPASS

PADLOCKABLE

DRAW LATCH

MOUNTING

BASE DETAIL

SCALE 1 : 12

SECTION

CUSTOMER

SECTION C-C

UTILITY

SECTION

6.00

5.00

5.078"

8.00"

6.610"

MOUNTING BASE

AND HARDWARE

PART NUMBER

CP-12-PAD2

COVER

LEFT-OFF

SERVICE

TERMINATION

LINE/LOAD

350-#6

42.734"

26.00" UTILITY

TERMINATION

LANDING MIN.

12.00"

“A” Style Slimline Metered Commercial Pedestal

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

22 Commercial Pedestals

Slimline “B” Style Drawing

RECOMMENDED MIN.

FRONT & BACK

TYPICAL

ALL SIDES. 6" REC

FOUNDATION EXTENTION

PEDESTAL WIDTH

20.00"N.E.C. 110-16

MINIMUM DEPTH

36" MIN.

CLEARANCE

REQUIRED PER

8.25"

ENCLOSURE

DEPTH

THROUGH

(IF APPLICABLE)

WINDOW

WITH SHIELD

FULLY HINGED

DRAW LATCH

HINGED

(1.75")

PADLOCKABLE

METER SECTION

DEAD FRONT

EXTENDS

SECURITY

DOOR

BRACKET

FOR

COVER

PADLOCK

PHOTO CELL

KNOCKOUT

REMOVEABLE

TEST BYPASS

BLOCK COVER

(IF APPLICABLE)

LEFT-OFF

SERVICE

COVER

SERVICE

TERMINATION

LINE/LOAD

350-#6

42.734"

26.00" UTILITY

TERMINATION

LANDING MIN.

12.00"

SECTION

CUSTOMER

SCALE 1 : 12

MOUNTING

BASE DETAIL

SECTION C-C

UTILITY

SECTION

6.00

5.00

5.078"

16.00"

14.610"

WITH

WINDOW

HINGED

DEMAND

METER

RESET

COVER

POCKET

20.00"

21.000"

63.00"

CP-20-PAD2

PART NUMBER

MOUNTING BASE

AND HARDWARE

“B” Style Slimline Metered Commercial Pedestal

COMMERCIAL

PEDESTALS

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

Commercial Pedestals

Slimline “I” Style Drawing

“I” Style Slimline Metered Commercial Pedestal

PEDESTAL WIDTH TYPICAL

FRONT & BACK

MINIMUM DEPTH

ALL SIDES. 6" REC

FOUNDATION EXTENTION

RECOMMENDED MIN.

N.E.C. 110-16

12.00"

36" MIN.

CLEARANCE

REQUIRED PER

8.25"

ENCLOSURE

DEPTH

WITH

WINDOW

HINGED

DEMAND

METER

RESET

COVER

POCKET

12.00"

13.00 "

50.00"

MOUNTING BASE

SHIPPED W/HARDWARE

PART NUMBER

CP-12-PAD2

EXTENDS

(IF APPLICABLE)

DEAD FRONT

HINGED

COVER

METER SECTION

FULLY HINGED

(1.75")

SECURITY

FOR

DRAW LATCH

PADLOCKABLE

WINDOW

BRACKET

DOOR

THROUGH

WITH SHIELD

PADLOCK

PHOTO CELL

KNOCKOUT

REMOVEABLE

TEST BYPASS

BLOCK COVER

(IF APPLICABLE)

C C

SCALE 1 : 12

CUSTOMER

SECTION

BASE DETAIL

MOUNTING

SECTION C-C

UTILITY

SECTION

5.078"

8.00"

5.00

6.00

6.610"

SERVICE

COVER

LEFT-OFF

SERVICE

TERMINATION

LINE/LOAD

350-#6

29.734"

22.50" UTILITY

TERMINATION

LANDING MIN.

12.00"

COMMERCIAL

PEDESTALS

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

Commercial Pedestals

Slimline “J” Style Drawing

N.E.C. 110-16

20.00"

PEDESTAL WIDTH

MINIMUM DEPTH

ALL SIDES. 6" REC

FOUNDATION EXTENTION

RECOMMENDED MIN.

FRONT & BACK

TYPICAL

36" MIN.

CLEARANCE

REQUIRED PER

8.25"

ENCLOSURE

DEPTH

WITH

WINDOW

HINGED

DEMAND

METER

RESET

COVER

POCKET

20.00"

50.00"

21.000"

12.063

SCALE 1 : 12

CUSTOMER

SECTION

BASE DETAIL

MOUNTING

SECTION C-C

UTILITY

SECTION

16.00"

5.00

5.078"

6.00

14.610"

MOUNTING BASE

SHIPPED W/HARDWARE

PART NUMBER

CP-20-PAD2

WINDOW

(1.75")

COVER

METER SECTION

DOOR

THROUGH

FULLY HINGED

BLOCK COVER

SECURITY

FOR

DEAD FRONT

HINGED

(IF APPLICABLE)

BRACKET

EXTENDS

(IF APPLICABLE)

WITH SHIELD

PADLOCK

PHOTO CELL

KNOCKOUT

REMOVEABLE

TEST BYPASS

PADLOCKABLE

DRAW LATCH

C C

SERVICE

COVER

LEFT-OFF

SERVICE

TERMINATION

LINE/LOAD

350-#6

29.734"

22.50" UTILITY

TERMINATION

LANDING MIN.

12.00"

“J” Style Slimline Metered Commercial Pedestal

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTALS

PRODUCT

WORKSHEET

Commercial Pedestals

Product Worksheet

Please answer all of the questions listed below. Any additional information regarding application and/or future requirements will

enable Milbank to configure the best product for your project.

Distributor: __________________________ Phone: _________________________ Fax: ______________________________

Contact Name: _______________________________Application: _______________________________________________

Milbank Representative: ____________________________________Salesmen: ___________________________________

Project Name & Location: ________________________________________________________________________________

Agency Specifications: (DOT-City-Other) __________________________________________________________________

Unit Amperage: ___________________ Voltage: ______________ Phase: _______________ Wire: __________________

Meter socket (200 Amp) RING-TYPE RINGLESS Fifth Terminal? NO YES (at______o’clock)

Main breaker requirements: Amp: _______________Poles: _______________ KAIC: ________________

Interior #1 0-42 circuits ________ Load center _______ Panel board ________ Metered? YES NO

Interior #2 0-42 circuits ________ Load center _______ Panel board ________ Metered? YES NO

Branch breakers: Amps: Poles: KAIC: Label & Special Requirements:

Qty _______Breakers _________ __________ __________ _____________________________

Controls:

Qty _______Time Clock: 24 Hr _________ 7 Day _________ 365 Day Astro _________ Description: ________________

Qty _______Photo Electric Control Receptacle

Qty _______Test switch: 2 Pos. _________ 3 Pos. ________ HOA Type _________ Other ________________________

Qty _______Control Transformer ________________Voltage____________________VA Size (required for all 277/480v)

Contractors:

Type: Lighting - LT / Definite Purpose - DP / Mechanical Held - MH / Mercury - MV / IEC - IC

Qty ________ Type ________ Amps _________ Poles ________ Coil voltage _______ Other _________

Cabinet / Finish requirements: Alum – Untreated = AO / Alum Anodized = AL / Stainless Steel = SS

Aluminum – Painted = A / GALVANIZED STEEL PAINTED (standard)__________ (specify paint below):

MINT GREEN (standard) = G / PINE GREEN = PG / Dark Green = DG / Black = BK / Desert Tan = DT

White = W / Gray = P / Summerland Gray = SG / Other: (RAL finish number) _______________________________

Other Requirements: ____________________________________________________________________________________

Please send any drawings, plans, specifications, and load/panel board schedules with worksheet.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Huntington Beach, CA

Description: Wells Fargo ATM parking lot kiosk.

Milbank pedestal supplies power for the ATM

machine, irrigation controller and overhead lighting.

In addition to the power distribution equipment is

a isolated compartment for phone company phone

lines and equipment. Telco 24 volt equipment

must be separated from the high voltage 120 volt

equipment. Steel powder painted.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Mission Viejo, CA

Description: Pedestal is

supplying power for the

irrigation and pump control

pedestals left of the Milbank

pedestal. Also includes

walk-way lighting control

equipment. Anodized

aluminum.

Location: Costa Mesa, CA

Description: Milbank

commercial pedestal

supplying power for an

underground telephone

equipment vault. Meter

socket, generator

receptacle and surge

protection are all installed

inside this pedestal.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Lacy, WA

Description: Trafﬁc signal

control cabinet next to

a Milbank power supply

and street lighting control

pedestal. Mounted on a

raised pad for winter snow

conditions. Anodized

aluminum.

Location: Cleveland, OH

Description: Milbank

pedestals supplied for

Rapid Transit Bus Stops

providing security and

normal lighting. Pedestals

looped together for

efﬁciency.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Interstate 70, MO

Description: Milbank pedestal providing remote distribution for Dynamic Message Signs along I-70

between Kansas City and St. Louis, MO. Operated through MoDOT, these stationary trafﬁc control

devices provide travelers with real-time trafﬁc-related messages.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Manchester, TN

Description: Milbank

pedestals used for annual

outdoor music and arts

festival. Operating in remote

farmland, multiple pedestals

provide temporary power

receptacles for organizer’s

use. Shown with in-use cover

which allows for security and

safety for plugs-in-use.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Rio Rancho, NM

Description: Battery back-up pedestal. The unit contains an inverter and batteries providing

uninterrupted power to trafﬁc signals at a busy intersection in the event of a utility power failure.

Milbank pedestal supplies power for the intersection signal heads and control cabinet using utility

power and, if necessary, a backup system. The batteries can run the entire intersection trafﬁc lights

for 4 hours in full operation mode and an additional 4 hours in ﬂashing mode. Aluminum powder

painted tan.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Anaheim, CA

Description: Disneyland

parking lot lighting and

control. Two pedestals

were provided as cus-

tomer required both

120 and 480 volts. Steel

painted customer-re-

quested green.

Location: Dubuque, IA

Description: Parking lot lighting

power and control application.

Steel painted black.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Kansas City, MO

Description: Zona Rosa Shopping Center.

Multiple pedestal locations throughout

shopping area providing street lighting

and trafﬁc signal distribution.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Kansas City, MO

Description: Kansas City International Airport. Multiple pedestal locations providing lighting distribu-

tion for rental car facility parking lot.

Location: Anaheim, CA

Description: Milbank pedestal supplying

power for the trafﬁc signal cabinet (seen

in picture). Pedestal also holds the control

equipment for the intersection and road-

way street lighting. Anodized aluminum.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

COMMERCIAL

PEDESTAL

APPLICATION

ExAMPLES

Commercial Pedestals

Application Examples

Location: Louisville, KY

Description: The Parklands of Floyd’s Fork multi-phase

park project. Provides power and automated controls

for area and walkway lighting. Includes receptacles

for temporary power for concerts, festivals and other

events.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 1

Application

• Designed for use as a junction box or pull box.

• For indoor use to provide protection against contact with enclosed

equipment where moisture and dust are not a problem.

Construction

• Enclosure and cover are manufactured from 16, 14, or 12 gauge G90

steel.

• Available with or without knockouts. Rectangular units have knockouts

on all four sides; square units have knockouts on just two sides. For no

knockouts, refer to suffix -NK in catalog number.

• Available with or without paint. For no paint, refer to suffix -NP in catalog

number. Unpainted enclosures are made from galvanized steel.

• Covers have teardrop slots for easy installation and are attached to body

with plated screws.

• Grounding emboss provided with green plated grounding screw.

• Holes are incorporated into the back of enclosure for mounting.

Finish

• ANSI 61 gray polyester powder coating inside and out unless otherwise specified.

Accessories

• Replacement covers: see Covers, pg. 40

• Touch-up paint: see Accessories, pg. 78.

• Wood back panels: see Panels, pg. 58.

• Replacement screws: see Accessories, pg. 78.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 1

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockouts

A Side B Side

444-SC1 SC1C 10650 2.2 6 4 x 4 x 4 B-C None

444-SC1-NK SC1C 10652 2.2 6 4 x 4 x 4 None None

444-SC1-NK-NP SC1C 15483 2.2 6 4 x 4 x 4 None None

464-SC1 SC1C 10704 2.8 4 4 x 6 x 4 B-C B-C-D

464-SC1-NK SC1C 10705 4.5 4 4 x 6 x 4 None None

464-SC1-NK-NP SC1C 19632 2.8 4 4 x 6 x 4 None None

464-SC1-NP SC1C 31193 2.8 4 4 x 6 x 4 B-C B-C-D

663-SC1 SC1C 10790 2.9 12 6 x 6 x 3 B-C-D B-C-D

663-SC1-NK SC1C 10791 2.9 12 6 x 6 x 3 None None

663-SC1-NK-NP SC1C 21830 2.9 12 6 x 6 x 3 None None

664-SC1 SC1C 10801 3.4 9 6 x 6 x 4 B-C-D None

664-SC1-NK SC1C 10803 3.4 9 6 x 6 x 4 None None

664-SC1-NK-NP SC1C 10804 3.4 9 6 x 6 x 4 None None

664-SC1-NP SC1C 16191 3.4 9 6 x 6 x 4 B-C-D None

666-SC1 SC1C 10818 4.5 6 6 x 6 x 6 B-C-D None

666-SC1-NK SC1C 10819 4.5 6 6 x 6 x 6 None None

666-SC1-NK-NP SC1C 15355 4.5 6 6 x 6 x 6 None None

666-SC1-NP SC1C 30985 4.5 6 6 x 6 x 6 B-C-D None

684-SC1 SC1C 10859 4 9 6 x 8 x 4 B-C-D F-G-H-I

684-SC1-NK SC1C 10860 4 9 6 x 8 x 4 None None

684-SC1-NK-NP SC1C 20886 4 9 6 x 8 x 4 None None

684-SC1-NP SC1C 18007 4 9 6 x 8 x 4 B-C-D F-G-H-I

686-SC1 SC1C 10863 5.2 6 6 x 8 x 6 B-C-D F-G-H-I

686-SC1-NK SC1C 10864 5.2 6 6 x 8 x 6 None None

686-SC1-NK-NP SC1C 21059 5.2 6 6 x 8 x 6 None None

686-SC1-NP SC1C 30159 5.2 6 6 x 8 x 6 B-C-D F-G-H-I

6124-SC1 SC1C 10764 5.5 6 6 x 12 x 4 B-C-D C-D-E-F-G

6124-SC1-NK SC1C 15543 5.5 6 6 x 12 x 4 None None

6126-SC1 SC1C 10765 7 2 6 x 12 x 6 B-C-D C-D-E-F-G

6126-SC1-NK SC1C 17754 7 2 6 x 12 x 6 None None

884-SC1 SC1C 10938 5 6 8 x 8 x 4 F-G-H-I None

884-SC1-NK SC1C 10940 5 6 8 x 8 x 4 None None

884-SC1-NK-NP SC1C 15357 5 6 8 x 8 x 4 None None

886-SC1 SC1C 10955 6.5 4 8 x 8 x 6 F-G-H-I None

886-SC1-NK SC1C 10956 6.5 4 8 x 8 x 6 None None

886-SC1-NK-NP SC1C 15358 6.5 4 8 x 8 x 6 None None

886-SC1-NP SC1C 19650 6.5 4 8 x 8 x 6 F-G-H-I None

888-SC1 SC1C 10971 7.5 2 8 x 8 x 8 F-G-H-I None

888-SC1-NK SC1C 10972 7.5 2 8 x 8 x 8 None None

888-SC1-NK-NP SC1C 15509 7.5 2 8 x 8 x 8 None None

888-SC1-NP SC1C 32326 7.5 2 8 x 8 x 8 F-G-H-I None

8104-SC1 SC1C 10879 7 5 8 x 10 x 4 F-G-H-I F-G-H-I

8104-SC1-NK SC1C 10880 7 5 8 x 10 x 4 None None

8104-SC1-NK-NP SC1C 21057 7 5 8 x 10 x 4 None None

8104-SC1-NP SC1C 30485 7 5 8 x 10 x 4 F-G-H-I F-G-H-I

8106-SC1 SC1C 10885 7.5 4 8 x 10 x 6 F-G-H-I F-G-H-I

8106-SC1-NK SC1C 10886 7.5 4 8 x 10 x 6 None None

8106-SC1-NK-NP SC1C 24737 7.5 4 8 x 10 x 6 None None

8106-SC1-NP SC1C 31005 7.5 4 8 x 10 x 6 F-G-H-I F-G-H-I

8124-SC1 SC1C 10892 6.7 3 8 x 12 x 4 F-G-H-I C-D-E-F-G

8124-SC1-NK SC1C 10893 6.7 3 8 x 12 x 4 None None

8124-SC1-NK-NP SC1C 23645 6.7 3 8 x 12 x 4 None None

8126-SC1 SC1C 10898 8.5 2 8 x 12 x 6 F-G-H-I C-D-E-F-G

8126-SC1-NK SC1C 10899 8.5 2 8 x 12 x 6 None None

8126-SC1-NK-NP SC1C 21060 8.5 2 8 x 12 x 6 None None

10104-SC1 SC1C 10017 7 3 10 x 10 x 4 F-G-H-I None

10104-SC1-NK SC1C 10018 7 3 10 x 10 x 4 None None

10104-SC1-NK-NP SC1C 15344 7 3 10 x 10 x 4 None None

10104-SC1-NP SC1C 16190 7 3 10 x 10 x 4 F-G-H-I None

10106-SC1 SC1C 10030 8.5 2 10 x 10 x 6 C-D-E-F-G None

10106-SC1-NK SC1C 10031 8.5 2 10 x 10 x 6 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 1

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockouts

A Side B Side

10106-SC1-NK-NP SC1C 15456 8.5 2 10 x 10 x 6 None None

10106-SC1-NP SC1C 20888 8.5 2 10 x 10 x 6 C-D-E-F-G None

10124-SC1 SC1C 10065 8 3 10 x 12 x 4 C-D-E-F-G C-D-E-F-G

10124-SC1-NK SC1C 10066 8 3 10 x 12 x 4 None None

10124-SC1-NK-NP SC1C 15345 8 3 10 x 12 x 4 None None

10124-SC1-NP SC1C 31006 8 3 10 x 12 x 4 C-D-E-F-G C-D-E-F-G

10126-SC1 SC1C 10071 9.5 2 10 x 12 x 6 C-D-E-F-G C-D-E-F-G

10126-SC1-NK SC1C 10072 9.5 2 10 x 12 x 6 None None

10126-SC1-NP SC1C 32327 9.5 2 10 x 12 x 6 C-D-E-F-G C-D-E-F-G

12124-SC1 SC1C 10113 9.2 4 12 x 12 x 4 C-D-E-F-G None

12124-SC1-NK SC1C 10115 9.2 4 12 x 12 x 4 None None

12124-SC1-NK-NP SC1C 10116 9.2 4 12 x 12 x 4 None None

12124-SC1-NP SC1C 17591 9.2 4 12 x 12 x 4 C-D-E-F-G None

12126-SC1 SC1C 10133 11 3 12 x 12 x 6 C-D-E-F-G None

12126-SC1-NK SC1C 10135 11 3 12 x 12 x 6 None None

12126-SC1-NK-NP SC1C 10136 11 3 12 x 12 x 6 None None

12126-SC1-NP SC1C 16189 11 3 12 x 12 x 6 C-D-E-F-G None

12128-SC1 SC1C 10153 13 2 12 x 12 x 8 C-D-E-F-G None

12128-SC1-NK SC1C 10154 13 2 12 x 12 x 8 None None

12128-SC1-NK-NP SC1C 15469 13 2 12 x 12 x 8 None None

12128-SC1-NP SC1C 20537 13 2 12 x 12 x 8 C-D-E-F-G None

121212-SC1-NK SC1C 24378 15.4 1 12 x 12 x 12 None None

12164-SC1 SC1C 10177 11.3 3 12 x 16 x 4 C-D-E-F-G B-C-D-E-F-G-H

12164-SC1-NK SC1C 10178 11.3 3 12 x 16 x 4 None None

12164-SC1-NK-NP SC1C 15346 11.3 3 12 x 16 x 4 None None

12164-SC1-NP SC1C 32328 11.3 3 12 x 16 x 4 C-D-E-F-G B-C-D-E-F-G-H

12166-SC1 SC1C 10183 13.5 2 12 x 16 x 6 C-D-E-F-G B-C-D-E-F-G-H

12166-SC1-NK SC1C 10184 13.5 2 12 x 16 x 6 None None

12166-SC1-NK-NP SC1C 15347 13.5 2 12 x 16 x 6 None None

12166-SC1-NP SC1C 30984 13.5 2 12 x 16 x 6 C-D-E-F-G B-C-D-E-F-G-H

12184-SC1 SC1C 10202 12.7 3 12 x 18 x 4 C-D-E-F-G A-B-C-D-E-F-G-H-I

12184-SC1-NK SC1C 10203 12.7 3 12 x 18 x 4 None None

12184-SC1-NK-NP SC1C 21058 12.7 3 12 x 18 x 4 None None

12186-SC1 SC1C 10209 14.5 2 12 x 18 x 6 C-D-E-F-G A-B-C-D-E-F-G-H-I

12186-SC1-NK SC1C 10210 14.5 2 12 x 18 x 6 None None

12186-SC1-NK-NP SC1C 16421 14.5 2 12 x 18 x 6 None None

12188-SC1 SC1C 10216 17 1 12 x 18 x 8 C-D-E-F-G A-B-C-D-E-F-G-H-I

12188-SC1-NK SC1C 10217 17 1 12 x 18 x 8 None None

12188-SC1-NK-NP SC1C 31727 17 1 12 x 18 x 8 None None

121810-SC1 SC1C 10198 19 1 12 x 18 x 10 C-D-E-F-G A-B-C-D-E-F-G-H-I

12244-SC1 SC1C 10229 15.8 3 12 x 24 x 4 C-D-E-F-G A-B-C-D-E-F-G-H-I

12244-SC1-NK SC1C 15584 15.8 3 12 x 24 x 4 None None

12246-SC1 SC1C 10232 18.8 2 12 x 24 x 6 C-D-E-F-G A-B-C-D-E-F-G-H-I

12246-SC1-NK SC1C 10233 18.8 2 12 x 24 x 6 None None

12246-SC1-NK-NP SC1C 23762 18.8 2 12 x 24 x 6 None None

15186-SC1 SC1C 10265 17.5 2 15 x 18 x 6 B-C-D-E-F-G-H A-B-C-D-E-F-G-H-I

15186-SC1-NK SC1C 10266 17.5 2 15 x 18 x 6 None None

15186-SC1-NK-NP SC1C 28142 17.5 2 15 x 18 x 6 None None

16164-SC1 SC1C 10283 14 3 16 x 16 x 4 B-C-D-E-F-G-H None

16164-SC1-NK SC1C 10284 14 3 16 x 16 x 4 None None

16164-SC1-NK-NP SC1C 25802 14 3 16 x 16 x 4 None None

16166-SC1 SC1C 10285 16.5 2 16 x 16 x 6 B-C-D-E-F-G-H None

16166-SC1-NK SC1C 10286 16.5 2 16 x 16 x 6 None None

16166-SC1-NK-NP SC1C 15348 16.5 2 16 x 16 x 6 None None

16166-SC1-NP SC1C 30484 16.5 2 16 x 16 x 6 B-C-D-E-F-G-H None

18184-SC1 SC1C 10300 17 3 18 x 18 x 4 A-B-C-D-E-F-G-H-I None

18184-SC1-NK SC1C 10301 17 3 18 x 18 x 4 None None

18184-SC1-NK-NP SC1C 10302 17 3 18 x 18 x 4 None None

18184-SC1-NP SC1C 20538 17 3 18 x 18 x 4 A-B-C-D-E-F-G-H-I None

18186-SC1 SC1C 10309 20.5 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I None

18186-SC1-NK SC1C 10310 20.5 2 18 x 18 x 6 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 1

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockouts

A Side B Side

18186-SC1-NK-NP SC1C 10311 20.5 2 18 x 18 x 6 None None

18186-SC1-NP SC1C 15955 20.5 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I None

18188-SC1 SC1C 10319 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I None

18188-SC1-NK SC1C 10320 24 1 18 x 18 x 8 None None

18188-SC1-NK-NP SC1C 15349 24 1 18 x 18 x 8 None None

18188-SC1-NP SC1C 20536 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I None

181810-SC1 SC1C 10294 25 1 18 x 18 x 10 A-B-C-D-E-F-G-H-I None

181810-SC1-NK SC1C 10295 25 1 18 x 18 x 10 None None

181810-SC1-NK-NP SC1C 21064 25 1 18 x 18 x 10 None None

181812-SC1 SC1C 10298 28 1 18 x 18 x 12 A-B-C-D-E-F-G-H-I None

181812-SC1-NK SC1C 10299 28 1 18 x 18 x 12 None None

181812-SC1-NK-NP SC1C 24736 28 1 18 x 18 x 12 None None

18244-SC1 SC1C 10333 23.5 2 18 x 24 x 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

18244-SC1-NK SC1C 10334 23.5 2 18 x 24 x 4 None None

18244-SC1-NK-NP SC1C 32330 23.5 2 18 x 24 x 4 None None

18246-SC1 SC1C 10338 27 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

18246-SC1-NK SC1C 10339 27 1 18 x 24 x 6 None None

18246-SC1-NK-NP SC1C 15350 27 1 18 x 24 x 6 None None

18246-SC1-NP SC1C 32331 27 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

18248-SC1 SC1C 10346 30 1 18 x 24 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

18248-SC1-NK SC1C 10347 30 1 18 x 24 x 8 None None

18248-SC1-NK-NP SC1C 21063 30 1 18 x 24 x 8 None None

182410-SC1 SC1C 10330 34 1 18 x 24 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

182410-SC1-NK SC1C 24593 34 1 18 x 24 x 10 None None

182410-SC1-NK-NP SC1C 32332 34 1 18 x 24 x 10 None None

182412-SC1 SC1C 10332 36 1 18 x 24 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

182412-SC1-NK SC1C 20294 36 1 18 x 24 x 12 None None

182412-SC1-NK-NP SC1C 24797 36 1 18 x 24 x 12 None None

24244-SC1 SC1C 10417 30.5 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I None

24244-SC1-NK SC1C 10418 30.5 2 24 x 24 x 4 None None

24244-SC1-NK-NP SC1C 15473 30.5 2 24 x 24 x 4 None None

24244-SC1-NP SC1C 32333 30.5 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I None

24246-SC1 SC1C 10423 33.5 1 24 x 24 x 6 A-B-C-D-E-F-G-H-I None

24246-SC1-NK SC1C 10424 33.5 1 24 x 24 x 6 None None

24246-SC1-NK-NP SC1C 15352 33.5 1 24 x 24 x 6 None None

24246-SC1-NP SC1C 20539 33.5 1 24 x 24 x 6 A-B-C-D-E-F-G-H-I None

24248-SC1 SC1C 10434 38 1 24 x 24 x 8 A-B-C-D-E-F-G-H-I None

24248-SC1-NK SC1C 10435 38 1 24 x 24 x 8 None None

24248-SC1-NK-NP SC1C 10436 38 1 24 x 24 x 8 None None

242410-SC1 SC1C 10408 41 1 24 x 24 x 10 A-B-C-D-E-F-G-H-I None

242410-SC1-NK SC1C 10409 41 1 24 x 24 x 10 None None

242410-SC1-NK-NP SC1C 20887 41 1 24 x 24 x 10 None None

242412-SC1 SC1C 10413 44 1 24 x 24 x 12 A-B-C-D-E-F-G-H-I None

242412-SC1-NK SC1C 10414 44 1 24 x 24 x 12 None None

242412-SC1-NK-NP SC1C 20648 44 1 24 x 24 x 12 None None

24308-SC1 SC1C 10460 45 1 24 x 30 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

24308-SC1-NK SC1C 10461 45 1 24 x 30 x 8 None None

24308-SC1-NK-NP SC1C 32334 45 1 24 x 30 x 8 None None

243010-SC1 SC1C 10447 50 1 24 x 30 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

243010-SC1-NK SC1C 10448 50 1 24 x 30 x 10 None None

243010-SC1-NK-NP SC1C 21065 50 1 24 x 30 x 10 None None

243012-SC1 SC1C 10450 54 1 24 x 30 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

243012-SC1-NK-NP SC1C 21067 54 1 24 x 30 x 12 None None

24366-SC1 SC1C 10479 54 1 24 x 36 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

24366-SC1-NK SC1C 10480 54 1 24 x 36 x 6 None None

24366-SC1-NK-NP SC1C 32335 54 1 24 x 36 x 6 None None

24366-SC1-NP SC1C 32336 54 1 24 x 36 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

24368-SC1 SC1C 10485 59 1 24 x 36 x 8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

24368-SC1-NK SC1C 10486 59 1 24 x 36 x 8 None None

24368-SC1-NK-NP SC1C 10487 59 1 24 x 36 x 8 None None

243610-SC1 SC1C 10470 77 1 24 x 36 x 10 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 1

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockouts

A Side B Side

243610-SC1-NK SC1C 24105 77 1 24 x 36 x 10 None None

243612-SC1 SC1C 10471 83 1 24 x 36 x 12 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

243612-SC1-NK SC1C 19903 83 1 24 x 36 x 12 None None

243612-SC1-NK-NP SC1C 10472 83 1 24 x 36 x 12 None None

30306-SC1-NK SC1C 10521 66 1 30 x 30 x 6 None None

30306-SC1-NK-NP SC1C 15475 66 1 30 x 30 x 6 None None

30308-SC1-NK SC1C 10528 76 1 30 x 30 x 8 None None

30308-SC1-NK-NP SC1C 24913 76 1 30 x 30 x 8 None None

303010-SC1-NK SC1C 10508 81 1 30 x 30 x 10 None None

303010-SC1-NK-NP SC1C 21066 81 1 30 x 30 x 10 None None

303012-SC1-NK SC1C 10511 95 1 30 x 30 x 12 None None

303012-SC1-NK-NP SC1C 21068 95 1 30 x 30 x 12 None None

30366-SC1-NK SC1C 10543 87 1 30 x 36 x 6 None None

30366-SC1-NK-NP SC1C 32337 87 1 30 x 36 x 6 None None

30368-SC1-NK SC1C 23846 95 1 30 x 36 x 8 None None

30368-SC1-NK-NP SC1C 16466 95 1 30 x 36 x 8 None None

303610-SC1-NK-NP SC1C 32338 103 1 30 x 36 x 10 None None

303612-SC1-NK SC1C 17923 111 1 30 x 36 x 12 None None

303612-SC1-NK-NP SC1C 32339 111 1 30 x 36 x 12 None None

36364-SC1-NK SC1C 10591 105 1 36 x 36 x 4 None None

36366-SC1-NK SC1C 10596 115 1 36 x 36 x 6 None None

36366-SC1-NK-NP SC1C 15477 115 1 36 x 36 x 6 None None

36368-SC1 SC1C 24886 124 1 36 x 36 x 8 None None

36368-SC1-NK SC1C 10601 124 1 36 x 36 x 8 None None

36368-SC1-NK-NP SC1C 15353 124 1 36 x 36 x 8 None None

363610-SC1-NK SC1C 10584 134 1 36 x 36 x 10 None None

363610-SC1-NK-NP SC1C 24032 134 1 36 x 36 x 10 None None

363612-SC1-NK SC1C 10586 144 1 36 x 36 x 12 None None

363612-SC1-NK-NP SC1C 17418 144 1 36 x 36 x 12 None None

363618-SC1-NK SC1C 10590 173 1 36 x 36 x 18 None None

36486-SC1-NK SC1C 10612 150 1 36 x 48 x 6 None None

48486-SC1-NK SC1C 10731 192 1 48 x 48 x 6 None None

484812-SC1-NK SC1C 10724 220 1 48 x 48 x 12 None None

Covers

44XSC1 CNAC 10694 0.3 1 4 x 4

46XSC1 CNAC 10719 0.4 1 4 x 6

66XSC1 CNAC 10857 0.8 1 6 x 6

68XSC1 CNAC 10867 1 1 6 x 8

612XSC1 CNAC 10767 1.5 1 6 x 12

88XSC1 CNAC 10999 1 1 8 x 8

810XSC1 CNAC 10890 1.2 1 8 x 10

812XSC1 CNAC 10908 1.4 1 8 x 12

1010XSC1 CNAC 10062 2 1 10 x 10

1012XSC1 CNAC 10081 2.2 1 10 x 12

1212XSC1 CNAC 10175 2.5 1 12 x 12

1216XSC1 CNAC 10197 2.9 1 12 x 16

1218XSC1 CNAC 10225 3.2 1 12 x 18

1224XSC1 CNAC 10244 4.3 1 12 x 24

1518XSC1 CNAC 10274 4 1 15 x 18

1616XSC1 CNAC 10288 3.8 1 16 x 16

1818XSC1 CNAC 10328 4.8 1 18 x 18

1824XSC1 CNAC 10354 6.4 1 18 x 24

1830XSC1 CNAC 10366 8 1 18 x 30

2424XSC1 CNAC 10446 10.9 1 24 x 24

2430XSC1 CNAC 10468 12.3 1 24 x 30

2436XSC1 CNAC 10492 16.4 1 24 x 36

3030XSC1 CNAC 10535 12.3 1 30 x 30

3036XSC1 CNAC 10553 19 1 30 x 36

3636XSC1 CNAC 10606 23 1 36 x 36

3648XSC1 CNAC 10621 26 1 36 x 48

4848XSC1 CNAC 10740 42 1 48 x 48

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

HINGE COVER

JUNCTION BOxES

Industry Standards

• NEMA Type 1

• UL 50 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed for use as a junction or pull box

• For indoor use to provide protection against contact with enclosed

equipment where dust and moisture are not a problem.

Construction

• Enclosure made from 16 or 14 gauge steel.

• Available with or without knockouts. For no knockouts, refer to suffix -NK

in catalog number.

• Available with or without paint. For no paint, refer to suffix -NP in catalog

number. Unpainted enclosures are made from galvanized steel.

• Formed stainless hinges.

• Mounting holes on back.

• Provision for grounding, with green grounding screw.

• Flush pull ring for easy opening of door.

Finish

• Finish: ANSI 61 gray polyester finish inside and out unless otherwise specified.

Accessories

• Note: Use wood panels only for HC1 enclosures (WB series, pg. 58).

• Touch-up paint: see Accessories, pg. 78.

Hinge Cover Junction Boxes

Type 1

MOUNTING

(4) Ø.281

MOUNTING HOLE

GROUNDING

EMBOSS

PULL LATCH

EMBOSS

PULL RING

.88

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

HINGE COVER

JUNCTION BOxES

Hinge Cover Junction Boxes

Type 1

Catalog Number Product Family UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockouts

A Side B Side

664-HC1 HC1C 10798 3.4 9 6 x 6 x 4 B-C-D None

664-HC1-NK HC1C 19930 3.4 9 6 x 6 x 4 None None

664-HC1-NK-NP HC1C 21398 3.4 9 6 x 6 x 4 None None

666-HC1 HC1C 10817 4.3 6 6 x 6 x 6 B-C-D None

666-HC1-NK HC1C 15354 4.3 6 6 x 6 x 6 None None

684-HC1 HC1C 31817 4 9 6 x 8 x 4 B-C-D F-G-H-I

684-HC1-NK HC1C 21532 4 9 6 x 8 x 4 None None

884-HC1 HC1C 10935 5.2 6 8 x 8 x 4 F-G-H-I None

884-HC1-NK HC1C 10936 5.2 6 8 x 8 x 4 None None

884-HC1-NP HC1C 30189 5.2 6 8 x 8 x 4 F-G-H-I None

886-HC1 HC1C 10953 6.5 4 8 x 8 x 6 F-G-H-I None

886-HC1-NK HC1C 10954 6.5 4 8 x 8 x 6 None None

886-HC1-NP HC1C 30190 6.5 4 8 x 8 x 6 F-G-H-I None

8124-HC1-NK HC1C 32340 7 3 8 x 12 x 4 None None

10104-HC1 HC1C 10013 7.3 3 10 x 10 x 4 C-D-E-F-G None

10104-HC1-NK HC1C 10014 7.3 3 10 x 10 x 4 None None

10106-HC1 HC1C 10028 8 2 10 x 10 x 6 C-D-E-F-G None

10106-HC1-NK HC1C 10029 8 2 10 x 10 x 6 None None

10124-HC1 HC1C 10064 7.9 3 10 x 12 x 4 C-D-E-F-G C-D-E-F-G

1284-HC1 HC1C 10252 6.7 3 12 x 8 x 4 C-D-E-F-G F-G-H-I

12124-HC1 HC1C 10110 9.3 4 12 x 12 x 4 C-D-E-F-G None

12124-HC1-NK HC1C 10111 9.3 4 12 x 12 x 4 None None

12124-HC1-NK-NP HC1C 21399 9.3 4 12 x 12 x 4 None None

12126-HC1 HC1C 10129 11 3 12 x 12 x 6 C-D-E-F-G None

12126-HC1-NK HC1C 10130 11 3 12 x 12 x 6 None None

12126-HC1-NK-NP HC1C 30187 11 3 12 x 12 x 6 None None

12184-HC1 HC1C 10201 12.5 12 x 18 x 4 C-D-E-F-G A-B-C-D-E-F-G-H-I

18186-HC1 HC1C 10308 19.5 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I None

18186-HC1-NK HC1C 32006 19.5 2 18 x 18 x 6 None None

18186-HC1-NK-NP HC1C 30188 19.5 2 18 x 18 x 6 None None

18246-HC1 HC1C 10337 26 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I

18246-HC1-NK HC1C 32005 26 1 18 x 24 x 6 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

HINGED COVER

PANEL

ENCLOSURES

Hinged Cover Panel Enclosure

Type 1

11.25

MOUNTING

9.00

MOUNTING

APPLY INSIDE OF FRONT

10.25

12.00

DETAIL B

6.00

12.00

6.25

11.25

MOUNTING

9.00

MOUNTING

APPLY INSIDE OF FRONT

10.25

12.00

DETAIL B

6.00

12.00

6.25

11.25

MOUNTING

9.00

MOUNTING

APPLY INSIDE OF FRONT

10.25

12.00

DETAIL B

6.00

12.00

6.25

Industry Standards

• NEMA Type 1

• UL 50 Type 1

• CUL Type1 (Equivalent to CSA)

Application

• Designed for use in control and instrumentation applications.

• For indoor use in applications where moisture and dust are not a

problem.

Construction

• Enclosure and cover manufactured from 16 gauge steel.

• The door is attached to the enclosure with a continuous hinge.

• The door is secured closed by a quarter-turn, screwdriver-

operated flush catch.

• Panel mounting studs are provided for optional back panel.

• Provisions for mounting optional cylinder lock.

• Mounting holes are provided on the back of enclosure.

Finish

• ANSI 61 gray polyester powder coating over phosphatized G90 galvanized steel.

Accessories

•Panelnos.listedbelow:seeoptionalSBPSeriespg.58forspecificationinformation.Note: Wood panels are not

compatible with these units.

• Touch-uppaint:seeAccessoriespg.78.

• Locks:seeAccessoriespg.77.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

HINGED COVER

PANEL

ENCLOSURES

Hinged Cover Panel Enclosure

Type 1

Catalog Number Product

Family

UPC Number

7-84572- Weight (lbs) Carton

Quantity W x H x D Panel

664-LC1 CAB1 18731 3.3 9 6 x 6 x 4 A-66SBP

684-LC1 CAB1 18734 4.1 9 6 x 8 x 4 A-86SBP

884-LC1 CAB1 18955 5.1 6 8 x 8 x 4 A-88SBP

8104-LC1 CAB1 18733 6 5 8 x 10 x 4 A-108SBP

8106-LC1 CAB1 18113 7.4 4 8 x 10 x 6 A-108SBP

10104-LC1 CAB1 18732 7.1 3 10 x 10 x 4 A-1010SBP

10106-LC1 CAB1 18098 8.6 2 10 x 10 x 6 A-1010SBP

10124-LC1 CAB1 18099 8.1 3 10 x 12 x 4 A-1210SBP

10126-LC1 CAB1 18100 9.8 2 10 x 12 x 6 A-1210SBP

12124-LC1 CAB1 16261 9.3 4 12 x 12 x 4 A-1212SBP

12126-LC1 CAB1 18101 11.5 3 12 x 12 x 6 A-1212SBP

12166-LC1 CAB1 18106 15 2 12 x 16 x 6 A-1612SBP

12206-LC1 CAB1 18107 17 2 12 x 20 x 6 A-2012SBP

16166-LC1 CAB1 27625 22.5 2 16 x 16 x 6 A-1616SBP

16206-LC1 CAB1 27623 24 2 16 x 20 x 6 A-2016SBP

18186-LC1 CAB1 26910 25 2 18 x 18 x 6 A-1818SBP

20206-LC1 CAB1 27635 26 1 20 x 20 x 6 A-2020SBP

20246-LC1 CAB1 27633 30 1 20 x 24 x 6 A-2420SBP

20248-LC1 CAB1 27632 32 1 20 x 24 x 8 A-2420SBP

24246-LC1 CAB1 26313 40 1 24 x 24 x 6 A-2424SBP

24248-LC1 CAB1 27631 42 1 24 x 24 x 8 A-2424SBP

242412-LC1 CAB1 18956 46 1 24 x 24 x 12 A-2424SBP

24306-LC1 CAB1 32296 47 1 24 x 30 x 6 A-3024SBP

24366-LC1 CAB1 26564 57.4 1 24 x 36 x 6 A-3624SBP

24368-LC1 CAB1 27629 62 1 24 x 36 x 8 A-3624SBP

30308-LC1 CAB1 27628 63.6 1 30 x 30 x 8 A-3030SBP

30366-LC1 CAB1 27627 69 1 30 x 36 x 6 A-3630SBP

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 3R

Industry Standards

• NEMA Type 3R

• UL 50 Type 3R

• CUL Type 3R (Equivalent to CSA)

Application

• Designed for use as a junction box or pull box.

• For outdoor use to provide protection against rain, sleet or snow, or indoors

where dripping water is a problem.

Construction

• Enclosure and cover are manufactured from 16, 14, or 12 gauge G90

galvanized steel.

• The cover is designed to fit under the drip shield top, held in place with a

plated steel screw.

• Available with or without paint—for no paint refer to suffix -NP in the catalog

number.

• Boxes are available with or without concentric knockouts on the bottom—for

no knockouts refer to suffix -NK in the catalog number.

• Mounting embosses are provided on the back of each enclosure.

• Sealing provisions on the front cover.

Finish

•ANSI61graypolyesterpowdercoatingoverphosphatizedG90 galvanized steel.

Accessories

•Replacementcover:seepg.48.

•Touch-uppaint:seeAccessoriespg.78.

•CylinderLock:seeAccessoriespg.77.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 3R

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs) Carton Quantity W x H x D KO Pattern

444-SC3R SC3R 10653 2.2 6 4 x 4 x 4 B-C

444-SC3R-NK SC3R 10654 2.2 6 4 x 4 x 4 None

444-SC3R-NK-NP SC3R 15484 2.2 6 4 x 4 x 4 None

464-SC3R SC3R 10706 2.8 4 4 x 6 x 4 B-C

464-SC3R-NK SC3R 22258 2.8 4 4 x 6 x 4 None

664-SC3R SC3R 10805 3.4 9 6 x 6 x 4 B-C-D

664-SC3R-NK SC3R 10806 3.4 9 6 x 6 x 4 None

664-SC3R-NK-NP SC3R 15495 3.4 9 6 x 6 x 4 None

664-SC3R-NP SC3R 23225 3.4 9 6 x 6 x 4 B-C-D

666-SC3R SC3R 10820 4.5 6 6 x 6 x 6 B-C

666-SC3R-NK SC3R 10821 4.5 6 6 x 6 x 6 None

666-SC3R-NK-NP SC3R 16179 4.5 6 6 x 6 x 6 None

684-SC3R SC3R 10861 4.2 9 6 x 8 x 4 B-C-D

684-SC3R-NK SC3R 15781 4.2 9 6 x 8 x 4 None

684-SC3R-NK-NP SC3R 21089 4.2 9 6 x 8 x 4 None

686-SC3R SC3R 10865 5.3 6 6 x 8 x 6 B-C-D

686-SC3R-NK SC3R 15632 5.3 6 6 x 8 x 6 None

6124-SC3R SC3R 21446 5.5 6 6 x 12 x 4 B-C-D

884-SC3R SC3R 10941 5.2 6 8 x 8 x 4 F-G-H-I

884-SC3R-NK SC3R 10942 5.2 6 8 x 8 x 4 None

884-SC3R-NK-NP SC3R 15505 5.2 6 8 x 8 x 4 None

884-SC3R-NP SC3R 23226 5.2 6 8 x 8 x 4 F-G-H-I

886-SC3R SC3R 10957 6.5 4 8 x 8 x 6 F-G-H-I

886-SC3R-NK SC3R 10958 6.5 4 8 x 8 x 6 None

886-SC3R-NK-NP SC3R 16178 6.5 4 8 x 8 x 6 None

886-SC3R-NP SC3R 23227 6.5 4 8 x 8 x 6 F-G-H-I

888-SC3R SC3R 19529 7.5 2 8 x 8 x 8 F-G-H-I

888-SC3R-NK SC3R 28467 7.5 2 8 x 8 x 8 None

8104-SC3R SC3R 10882 6 6 8 x 10 x 4 F-G-H-I

8104-SC3R-NK SC3R 10883 6 6 8 x 10 x 4 None

8106-SC3R SC3R 10887 7.5 4 8 x 10 x 6 F-G-H-I

8106-SC3R-NK SC3R 10888 7.5 4 8 x 10 x 6 None

8106-SC3R-NK-NP SC3R 32341 7.5 4 8 x 10 x 6 None

8124-SC3R SC3R 10895 7 3 8 x 12 x 4 F-G-H-I

8124-SC3R-NK SC3R 15911 7 3 8 x 12 x 4 None

8126-SC3R SC3R 10900 8.5 2 8 x 12 x 6 F-G-H-I

8126-SC3R-NK SC3R 26004 8.5 2 8 x 12 x 6 None

10104-SC3R SC3R 10019 7.3 3 10 x 10 x 4 C-D-E-F-G

10104-SC3R-NK SC3R 10020 7.3 3 10 x 10 x 4 None

10104-SC3R-NK-NP SC3R 18371 7.3 3 10 x 10 x 4 None

10104-SC3R-NP SC3R 23228 7.3 3 10 x 10 x 4 C-D-E-F-G

10106-SC3R SC3R 10032 9 2 10 x 10 x 6 C-D-E-F-G

10106-SC3R-NK SC3R 10033 9 2 10 x 10 x 6 None

10106-SC3R-NK-NP SC3R 15457 9 2 10 x 10 x 6 None

10124-SC3R SC3R 10067 8.3 3 10 x 12 x 4 C-D-E-F-G

10126-SC3R SC3R 10073 10 2 10 x 12 x 6 C-D-E-F-G

10126-SC3R-NK SC3R 10074 10 2 10 x 12 x 6 None

10126-SC3R-NK-NP SC3R 32342 10 2 10 x 12 x 6 None

12124-SC3R SC3R 10117 9.5 4 12 x 12 x 4 C-D-E-F-G

12124-SC3R-NK SC3R 10118 9.5 4 12 x 12 x 4 None

12124-SC3R-NK-NP SC3R 15465 9.5 4 12 x 12 x 4 None

12124-SC3R-NP SC3R 17679 9.5 4 12 x 12 x 4 C-D-E-F-G

12126-SC3R SC3R 10137 11.5 3 12 x 12 x 6 C-D-E-F-G

12126-SC3R-NK SC3R 10138 11.5 3 12 x 12 x 6 None

12126-SC3R-NK-NP SC3R 15467 11.5 3 12 x 12 x 6 None

12126-SC3R-NP SC3R 23229 11.5 3 12 x 12 x 6 C-D-E-F-G

12128-SC3R SC3R 10156 13.7 2 12 x 12 x 8 C-D-E-F-G

12128-SC3R-NK SC3R 10157 13.7 2 12 x 12 x 8 None

12128-SC3R-NK-NP SC3R 19306 13.7 2 12 x 12 x 8 None

121212-SC3R-NK SC3R 19257 17.2 1 12 x 12 x 12 None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 3R

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs) Carton Quantity W x H x D KO Pattern

121212-SC3R-NK-NP SC3R 19429 17.2 1 12 x 12 x 12 None

12164-SC3R SC3R 10179 11.7 3 12 x 16 x 4 C-D-E-F-G

12164-SC3R-NK SC3R 22231 11.7 3 12 x 16 x 4 None

12166-SC3R SC3R 10185 14.5 2 12 x 16 x 6 C-D-E-F-G

12166-SC3R-NK SC3R 10186 14.5 2 12 x 16 x 6 None

12184-SC3R SC3R 10204 12.7 3 12 x 18 x 4 C-D-E-F-G

12184-SC3R-NK SC3R 21547 12.7 3 12 x 18 x 4 None

12186-SC3R SC3R 10211 15.5 2 12 x 18 x 6 C-D-E-F-G

12186-SC3R-NK SC3R 10212 15.5 2 12 x 18 x 6 None

12186-SC3R-NK-NP SC3R 21091 15.5 2 12 x 18 x 6 None

12188-SC3R SC3R 10219 18 1 12 x 18 x 8 C-D-E-F-G

12188-SC3R-NK SC3R 10220 18 1 12 x 18 x 8 None

12188-SC3R-NK-NP SC3R 21093 18 1 12 x 18 x 8 None

121810-SC3R SC3R 10200 20 1 12 x 18 x 10 C-D-E-F-G

121812-SC3R-NK SC3R 22432 22.3 1 12 x 18 x 12 None

12246-SC3R SC3R 10235 18.8 2 12 x 24 x 6 C-D-E-F-G

16164-SC3R SC3R 19380 14 3 16 x 16 x 4 B-C-D-E-F-G-H

16166-SC3R SC3R 24648 16.5 2 16 x 16 x 6 B-C-D-E-F-G-H

16166-SC3R-NK SC3R 26704 16.5 2 16 x 16 x 6 None

18184-SC3R SC3R 10303 18.7 3 18 x 18 x 4 A-B-C-D-E-F-G-H-I

18184-SC3R-NK SC3R 18648 18.7 3 18 x 18 x 4 None

18184-SC3R-NK-NP SC3R 19308 18.7 3 18 x 18 x 4 None

18186-SC3R SC3R 10312 21 2 18 x 18 x 6 A-B-C-D-E-F-G-H-I

18186-SC3R-NK SC3R 10313 21 2 18 x 18 x 6 None

18186-SC3R-NK-NP SC3R 19307 21 2 18 x 18 x 6 None

18188-SC3R SC3R 10321 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I

18188-SC3R-NK SC3R 10322 24 1 18 x 18 x 8 None

18188-SC3R-NK-NP SC3R 19417 24 1 18 x 18 x 8 None

18188-SC3R-NP SC3R 23230 24 1 18 x 18 x 8 A-B-C-D-E-F-G-H-I

181810-SC3R SC3R 10296 26 1 18 x 18 x 10 A-B-C-D-E-F-G-H-I

181810-SC3R-NK SC3R 10297 26 1 18 x 18 x 10 None

181812-SC3R SC3R 17317 28 1 18 x 18 x 12 A-B-C-D-E-F-G-H-I

181812-SC3R-NK SC3R 32283 28 1 18 x 18 x 12 None

18246-SC3R SC3R 10340 30 1 18 x 24 x 6 A-B-C-D-E-F-G-H-I

18246-SC3R-NK SC3R 21148 30 1 18 x 24 x 6 None

18246-SC3R-NK-NP SC3R 21092 30 1 18 x 24 x 6 None

18248-SC3R SC3R 10348 33 1 18 x 24 x 8 A-B-C-D-E-F-G-H-I

18248-SC3R-NK SC3R 21168 33 1 18 x 24 x 8 None

18248-SC3R-NK-NP SC3R 21094 33 1 18 x 24 x 8 None

182410-SC3R SC3R 10331 34 1 18 x 24 x 10 A-B-C-D-E-F-G-H-I

24244-SC3R SC3R 23803 32 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I

24244-SC3R-NP SC3R 32343 32 2 24 x 24 x 4 A-B-C-D-E-F-G-H-I

24246-SC3R SC3R 10427 34.5 1 24 x 24 x 6 A-B-C-D-E-F-G-H-I

24246-SC3R-NK SC3R 10428 34.5 1 24 x 24 x 6 None

24246-SC3R-NK-NP SC3R 15474 34.5 1 24 x 24 x 6 None

24248-SC3R SC3R 10437 39 1 24 x 24 x 8 A-B-C-D-E-F-G-H-I

24248-SC3R-NK SC3R 10438 39 1 24 x 24 x 8 None

24248-SC3R-NK-NP SC3R 19305 39 1 24 x 24 x 8 None

242410-SC3R SC3R 10410 43 1 24 x 24 x 10 A-B-C-D-E-F-G-H-I

242410-SC3R-NK SC3R 10411 43 1 24 x 24 x 10 None

242410-SC3R-NK-NP SC3R 21095 43 1 24 x 24 x 10 None

242412-SC3R SC3R 10415 44 1 24 x 24 x 12 A-B-C-D-E-F-G-H-I

242412-SC3R-NK SC3R 10416 44 1 24 x 24 x 12 None

242412-SC3R-NK-NP SC3R 15472 44 1 24 x 24 x 12 None

243010-SC3R SC3R 10449 50 1 24 x 30 x 10 A-B-C-D-E-F-G-H-I

243010-SC3R-NK SC3R 26705 50 1 24 x 30 x 10 None

243012-SC3R SC3R 21511 51 1 24 x 30 x 12 A-B-C-D-E-F-G-H-I

243612-SC3R SC3R 10473 70 1 24 x 36 x 12 A-B-C-D-E-F-G-H-I

243612-SC3R-NK SC3R 22433 70 1 24 x 36 x 12 None

30306-SC3R SC3R 10522 66 1 30 x 30 x 6 A-B-C-D-E-F-G-H-I

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

JUNCTION BOxES

Screw Cover Junction Boxes

Type 3R

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs) Carton Quantity W x H x D KO Pattern

30306-SC3R-NK SC3R 20249 66 1 30 x 30 x 6 None

30308-SC3R SC3R 23298 71 1 30 x 30 x 8 None

30308-SC3R-NK SC3R 30025 71 1 30 x 30 x 8 None

303010-SC3R SC3R 10509 62 1 30 x 30 x 10 None

303010-SC3R-NK SC3R 19153 62 1 30 x 30 x 10 None

303010-SC3R-NK-NP SC3R 21098 62 1 30 x 30 x 10 None

303012-SC3R SC3R 23270 67 1 30 x 30 x 12 None

303012-SC3R-NK-NP SC3R 32344 67 1 30 x 30 x 12 None

303612-SC3R-NK SC3R 20927 77 1 30 x 36 x 12 None

36368-SC3R SC3R 21637 77 1 36 x 36 x 8 None

363612-SC3R SC3R 10587 88.8 1 36 x 36 x 12 None

363612-SC3R-NK SC3R 10588 88.8 1 36 x 36 x 12 None

363612-SC3R-NK-NP SC3R 15476 88.8 1 36 x 36 x 12 None

363618-SC3R-NK SC3R 19959 107 1 36 x 36 x 18 None

364816-SC3R-NK SC3R 23807 126.5 1 36 x 48 x 16 None

Covers

44XSC3R CNAC 10695 0.3 1 4 x 4

46XSC3R CNAC 19155 0.4 1 4 x 6

66XSC3R CNAC 10858 0.8 1 6 x 6

68XSC3R CNAC 10868 1 1 6 x 8

88XSC3R CNAC 11000 1.1 1 8 x 8

810XSC3R CNAC 15932 1.2 1 8 x 10

1010XSC3R CNAC 10063 2 1 10 x 10

1012XSC3R CNAC 15547 2.4 1 10 x 12

1212XSC3R CNAC 10176 2.8 1 12 x 12

1818XSC3R CNAC 10329 4.8 1 18 x 18

1824XSC3R CNAC 15548 8.2 1 18 x 24

2424XSC3R CNAC 20563 10.9 1 24 x 24

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

HINGED COVER

JUNCTION BOxES

Hinged Cover Junction Boxes

Type 3R

Catalog Number Product Family UPC Number

7-84572-

Weight

(lbs) Carton Quantity W x H x D KO Pattern

664-HC3R HC3R 10800 3.5 9 6 x 6 x 4 D-D

884-HC3R HC3R 10937 5.2 6 8 x 8 x 4 C-C

10104-HC3R HC3R 10016 7 3 10 x 10 x 4 C-C

12124-HC3R HC3R 10112 9.2 4 12 x 12 x 4 C-C-C

12126-HC3R HC3R 10132 11 3 12 x 12 x 6 C-A

12126-HC3R-NK HC3R 15839 11 3 12 x 12 x 6 NONE

12186-HC3R HC3R 10208 15.7 2 12 x 18 x 6 C-A

18188-HC3R HC3R 10318 24 1 18 x 18 x 8 C-A-C

242410-HC3R HC3R 10407 42 1 24 x 24 x 10 C-C-A-C-C

Industry Standards

• NEMA Type 3R

• UL 50 Type 3R

• CUL Type 3R (Equivalent to CSA)

Application

• Designed for use as a junction box or

pull box.

• For outdoor use to provide protection

against rain, sleet, or snow, or indoors

where dripping water is a problem.

Construction

• Enclosure and cover are

manufactured from 16, 14, and 12

gauge G90 galvanized steel.

• Formed steel hinge with padlockable

flip latch.

• Available with or without

concentric knockouts on the

bottom—for no knockouts refer to

suffix -NK in the catalog number.

• Four mounting holes are supplied

on back of box.

• Features a drip shield top and

seam-free sides, front and back.

Finish

• ANSI 61 gray polyester powder

coating over phosphatized G90

galvanized steel.

Accessories

• Touch-up paint: see Accessories

pg. 78.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

HINGED COVER

TELEPHONE

CABINET

Hinged Cover Telephone Cabinet

Type 3R

Industry Standards

• NEMA Type 3R

• UL 50 Type 3R

• CUL Type 3R (Equivalent to CSA)

Application

• Designed for use as a telephone cabinet, panel enclosure, or

junction box.

• For outdoor use to provide protection against rain, sleet, or

snow, or indoors where dripping water is a problem.

Construction

• Enclosure and cover are manufactured from 16, 14, 12, or 11

gauge G90 galvanized steel.

• The cover is mounted on galvanized lift-off hinges with

stainless steel hinge pins. Cover is fastened with a padlockable

draw latch.

• Panel mounting studs provided for optional back panel.

• Embossed mounting holes on back.

• Knockouts provided on the bottom of the 12126-TC3R and smaller sizes.

• Drip shield top and seam-free sides, front and back.

Finish

• ANSI 61 gray polyester powder coating over phosphatized G90 galvanized steel.

Accessories

• Panel: see optional P Series pg. 57.

• Touch-up paint: see Accessories pg. 78.

• T-Handle lock: see Accessories pg. 77.

• External mounting-foot kit: see Accessories pg. 78.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

HINGED COVER

TELEPHONE

CABINET

Hinged Cover Telephone Cabinet

Type 3R

Catalog Number Product Family UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity W x H x D Knockout

Pattern

Panel Catalog

Number

664-TC3R TC3R 18756 3.3 9 6 x 6 x 4 B-A-B A-6P6R

684-TC3R TC3R 18757 5.8 9 6 x 8 x 4 B-A-B A-8P6R

886-TC3R TC3R 18758 7.5 4 8 x 8 x 6 B-A-B-A A-8P8R

8106-TC3R TC3R 18759 8.8 4 8 x 10 x 6 B-A-B-A A-10P8R

10126-TC3R TC3R 18761 12.3 3 10 x 12 x 6 B-A-B-A-B A-12P10R

12126-TC3R TC3R 10143 14 3 12 x 12 x 6 B-A-B-A-B A-12P12R

12166-TC3R TC3R 15549 16 2 12 x 16 x 6 None A-16P12

12186-TC3R TC3R 10215 17 2 12 x 18 x 6 None A-18P12

16166-TC3R TC3R 22600 18 2 16 x 16 x 6 None A-16P16

16206-TC3R TC3R 22601 25 1 16 x 20 x 6 None A-20P16

18186-TC3R TC3R 10316 23 2 18 x 18 x 6 None A-18P18

18246-TC3R TC3R 10344 28 2 18 x 24 x 6 None A-24P18

20208-TC3R TC3R 22602 29.5 1 20 x 20 x 8 None A-20P20

20248-TC3R TC3R 22603 34 1 20 x 24 x 8 None A-24P20

24248-TC3R TC3R 22604 39.2 1 24 x 24 x 8 None A-24P24

242410-TC3R TC3R 22508 43.1 1 24 x 24 x 10 None A-24P24

24306-TC3R TC3R 10459 42.6 1 24 x 30 x 6 None A-30P24

24366-TC3R TC3R 10484 53 1 24 x 36 x 6 None A-36P24

303012-TC3R TC3R 22606 84 1 30 x 30 x 12 None A-30P30

303612-TC3R TC3R 23124 118 1 30 x 36 x 12 None A-36P30

363010-TC3R TC3R 27606 110 1 36 x 30 x 10 None A-36P30

36366-TC3R TC3R 15478 90 1 36 x 36 x 6 None A-36P36

363612-TC3R TC3R 22608 112 1 36 x 36 x 12 None A-36P36

363616-TC3R TC3R 27605 127 1 36 x 36 x 16 None A-36P36

364812-TC3R TC3R 24504 156 1 36 x 48 x 12 None A-48P36

364816-TC3R TC3R 22611 170 1 36 x 48 x 16 None A-48P36

Note: 664-TC3R has a continuous hinge. All other models have lift-off hinges.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

CURRENT

TRANSFORMER

CABINET

Current Transformer Cabinet

Type 3R

Industry Standards

• NEMA Type 3R

• UL 50 Type 3R

• CUL Type 3R (Equivalent to CSA)

Application

• Designed for use as a current transformer cabinet or panel

enclosure.

• For outdoor use to provide protection against rain, sleet,

and snow, or indoor use to protect against dripping water.

Construction

• Enclosure and cover manufactured from 16 or 14 gauge

G90 galvanized steel.

• The doors are overlapping with no center post.

• The cover is mounted on galvanized lift-off hinges

with stainless steel hinge pins. Cover is fastened with a

padlockable draw latch.

• Three point pad-lockable handle.

• Panel mounting studs provided for optional back panels.

• Drip shield top and seam-free sides, front and back.

Finish

• ANSI 61 gray polyester powder coating over phosphatized

G90 galvanized steel.

Accessories

• Panel—see optional P Series pg. 57.

• Touch-up paint—see Accessories pg. 78.

Catalog Number Product

Family

UPC Number

7-84572-

Weight

(lbs)

Hinge

Type

Carton

Quantity W x H x D Panel Catalog

Number

363010-CT3R CN3R 18823 99 Lift-off 1 36 x 30 x 10 A-36P30

363016-CT3R CN3R 16181 121.5 Continuous 1 36 x 30 x 16 A-36P30

363610-CT3R CN3R 17368 113 Lift-off 1 36 x 36 x 10 A-36P36

363612-CT3R CN3R 16185 118 Lift-off 1 36 x 36 x 12 A-36P36

363616-CT3R CN3R 18819 139 Lift-off 1 36 x 36 x 16 A-36P36

483616-CT3R CN3R 25707 163 Lift-off 1 48 x 36 x 16 A-48P36

484812-CT3R CN3R 16184 210 Lift-off 1 48 x 48 x 12 A-48P48

606013-CT3R CN3R 18252 274 Continuous 1 60 x 60 x 13 A-60P60

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1, 3 & 12

GASKETED

SCREW COVER

JUNCTION BOxES

Gasketed Screw Cover Junction Boxes

Type 1, 3, & 12

Industry Standards

• NEMA Type 1, Type 3, Type 12

• UL 508 Type 1, Type 3, Type 12

• CUL Type 1, Type 3, Type 12 (Equivalent to CSA)

Application

• Designed for use as a junction box or pull box.

• For indoor or outdoor use to provide protection against dust and

moisture.

Construction

• Bodies are made from 14 gauge G90 galvanized steel.

• Covers are made from 16 gauge G90 galvanized steel.

• Body is a single piece of metal with continuous seam welds.

• Captivated stainless steel screws thread into sealed wells.

• Seamless gasket assures water-tight and dust-tight seal.

• Grounding stud on inside back of box.

Finish

• Body: ANSI 61 gray polyester powder coating over phosphatized

G90 galvanized steel.

• Cover: painted G90 galvanized steel.

Accessories

• Touch-up paint: see Accessories, pg. 78.

Catalog Number Product Family UPC Number

7-84572-

Weight

(lbs) Carton Quantity W x H x D

664-WSC2 CNSP 61722 2.9 9 6 x 6 x 4

666-WSC2 CNSP 61723 2.6 6 6 x 6 x 6

684-WSC2 CNSP 61724 3.95 6 6 x 8 x 4

8104-WSC2 CNSP 61725 3.71 4 8 x 10 x 4

884-WSC2 CNSP 61726 4.5 6 8 x 8 x 4

886-WSC2 CNSP 61727 5.55 4 8 x 8 x 6

888-WSC2 CNSP 61728 5.94 3 8 x 8 x 8

10104-WSC2 CNSP 61729 6.3 4 10 x 10 x 4

10106-WSC2 CNSP 61730 7.65 3 10 x 10 x 6

12106-WSC2 CNSP 61746 8.35 3 12 x 10 x 6

12124-WSC2 CNSP 61732 8.4 4 12 x 12 x 4

12126-WSC2 CNSP 61733 10.05 3 12 x 12 x 6

12128-WSC2 CNSP 61734 11.7 2 12 x 12 x 8

16166-WSC2 CNSP 61735 15.4 1 16 x 16 x 6

18184-WSC2 CNSP 61736 15.03 1 18 x 18 x 4

18186-WSC2 CNSP 61737 19.7 1 18 x 18 x 6

20208-WSC2 CNSP 61738 37.11 1 20 x 20 x 8

24246-WSC2 CNSP 61739 41.6 1 24 x 24 x 6

24248-WSC2 CNSP 61740 46 1 24 x 24 x 8

242412-WSC2 CNSP 61741 54.6 1 24 x 24 x 12

303012-WSC2 CNSP 61742 125.25 1 30 x 30 x 12

363612-WSC2 CNSP 61743 180.36 1 36 x 36 x 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

FLUSH MOUNT

TELEPHONE

CABINET COVERS

Flush Mount Telephone Cabinet Covers

Type 1

Industry Standards

• NEMA Type 1

• UL 50 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed for use with the SC1 series enclosures for flush mount telephone

cabinet applications.

• For indoor use to provide protection against contact with enclosed equipment

where moisture and dust are not a problem.

Construction

• Covers are manufactured from 16, 14, and 12 G90 gauge steel.

• The continuous hinge is made of stainless steel with a stainless steel hinge pin.

• Tumbler lock features slam-latching action on single door (24 wide or less.) Key is

removable in unlocked position. Case is zinc-plated steel; lift lever is steel with a

dull chrome finish.

• Double door (30 and wider) uses overlapping doors with 3 point latching

mechanism.

Ordering Information

• To order a complete telephone cabinet, pick the SC1 enclosure of the

appropriate size and match it with the corresponding cover (height and width must match).

Finish

• ANSI 61 gray polyester powder coating over phosphatized G90 galvanized steel.

Accessories

• Plywood panel: furnished by contractor.

• Touch-up paint: see Accessories, pg. 78.

(photo shows SC1 box with TFLC attached)

Catalog

Number Product Family UPC Number

7-84572-

Weight

(lbs) Enclosure Size

812TFLC CNAC 10905 3.7 8 x 12

1010TFLC CNAC 10059 3.8 10 x 10

1012TFLC CNAC 10078 4 10 x 12

1212TFLC CNAC 10172 4.9 12 x 12

1218TFLC CNAC 10222 6.9 12 x 18

1224TFLC CNAC 10241 9 12 x 24

1818TFLC CNAC 10325 10.5 18 x 18

1824TFLC CNAC 10350 13.7 18 x 24

2424TFLC CNAC 10442 17.8 24 x 24

2430TFLC CNAC 10464 21.9 24 x 30

2436TFLC CNAC 10489 26 24 x 36

2448TFLC CNAC 10501 34 24 x 48

3030TFLC CNAC 10531 27 30 x 30

3036TFLC CNAC 10549 32 30 x 36

3636TFLC CNAC 10603 38 36 x 36

3648TFLC CNAC 10618 51 36 x 48

4848TFLC CNAC 10737 95 48 x 48

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

SURFACE MOUNT

TELEPHONE

CABINET COVERS

Surface Mount Telephone Cabinet Covers

Type 1

Industry Standards

• NEMA Type 1

• UL 50 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed for use with the SC1 series enclosures for surface

mount telephone cabinet applications.

• For indoor use to provide protection against contact with

enclosed equipment where moisture and dust are not a

problem.

Construction

• Covers are manufactured from 16, 14, and 12 G90 gauge steel.

• The continuous hinge is made of stainless steel

with a stainless steel hinge pin.

• Tumbler lock with self-latching bolt on single door (24 wide or

less). Key is removable in unlocked position.

• Overlapping double door (30 and wider) uses

3 point latching mechanism.

Ordering Information

•Toorderacompletetelephonecabinet,pick

the SC1 enclosure of the appropriate size and

match it with the corresponding cover (height

and width must match).

Finish

• ANSI61graypolyesterpowdercoatingoverphosphatizedG90 galvanized steel.

Accessories

•Plywoodpanel:furnishedbycontractor.

•Touch-uppaint:seeAccessories,pg.78.

Catalog Number Product Family UPC Number

7-84572-

Weight

(lbs) Enclosure Size

88TSC CNAC 10997 1.7 8 x 8

812TSC CNAC 10906 2.5 8 x 12

1010TSC CNAC 10060 2.6 10 x 10

1012TSC CNAC 10079 3.5 10 x 12

1212TSC CNAC 10173 3.8 12 x 12

1218TSC CNAC 10223 5.6 12 x 18

1224TSC CNAC 10242 7.6 12 x 24

1818TSC CNAC 10326 8.5 18 x 18

1824TSC CNAC 10351 11.4 18 x 24

2424TSC CNAC 10443 15.2 24 x 24

2430TSC CNAC 10465 19 24 x 30

2436TSC CNAC 10490 23 24 x 36

2448TSC CNAC 10502 33 24 x 48

3030TSC CNAC 10532 24 30 x 30

3036TSC CNAC 10550 28 30 x 36

3636TSC CNAC 10604 38 36 x 36

3648TSC CNAC 10619 50 36 x 48

4848TSC CNAC 10738 88 48 x 48

(photo shows SC1 box with TSC attached)

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

BLANK

COVERS

Blank Covers

FLC

Industry Standards

• NEMA Type 1

• UL 50 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed for use on a screw cover Type 1 (SC1) enclosures to

add a flush edge.

• For Indoor use to provide protection against contact with

enclosed equipment where moisture and dust are not a

problem.

• Cover provides a 3/4 flange on each side of enclosure.

Construction

• Covers are manufactured from 16, 14, or 12 gauge G90

galvanized steel.

• Covers have teardrop slots for easy installation and are

attached to the body with plated steel screws.

Finish

• ANSI 61 gray polyester powder coating over phosphatized

G90 galvanized steel.

Accessories

• Touch-up paint: see Accessories, pg. 78.

Catalog Number Product Family UPC Number

7-84572- Weight (lbs) Enclosure Size

44FLC CNAC 10673 0.3 4 x 4

66FLC CNAC 10836 0.6 6 x 6

88FLC CNAC 10976 1.3 8 x 8

612FLC CNAC 10766 1.2 6 x 12

810FLC CNAC 10889 1.8 8 x 10

1010FLC CNAC 10046 2 10 x 10

1012FLC CNAC 10077 2.5 10 x 12

1212FLC CNAC 10159 2.7 12 x 12

1216FLC CNAC 10192 3.5 12 x 16

1218FLC CNAC 10221 3.9 12 x 18

1224FLC CNAC 10240 5.1 12 x 24

1616FLC CNAC 10287 4.6 16 x 16

1818FLC CNAC 10324 5.7 18 x 18

1824FLC CNAC 10349 9.4 18 x 24

2424FLC CNAC 10441 14.4 24 x 24

2430FLC CNAC 10463 16.2 24 x 30

2436FLC CNAC 10488 19.4 24 x 36

3030FLC CNAC 10530 20.2 30 x 30

3036FLC CNAC 10548 22 30 x 36

3636FLC CNAC 10602 23 36 x 36

3648FLC CNAC 10617 26 36 x 48

FLC Cover

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

P SERIES

BACK PANELS

P Series Back Panels

Steel and Wood Options

Application

• For use in electrical enclosures for mounting electronic

controls and equipment.

Construction

• Steel panels are 10 or 12 G90 gauge steel.

• Wood panels are made from 3/4-inch 7-ply plywood.

• Panel mounting hardware is furnished with all

enclosures that accept these panels.

Finish

• Painted White (Steel)

• Unpainted (Wood)

Accessories

• Touch-up paint: see Accessories, pg. 78.

Catalog

Number

Product

Family

UPC #

7-84572-

Weight

(lbs)

Carton

Qty. H x W

Steel (used with M4, M12, TC3R and CT3R)

A-6P6R IIAC 23988 0.3 1 6 x 6

A-8P6R IIAC 23989 0.4 1 8 x 6

A-8P8R IIAC 23990 0.53 1 8 x 8

A-10P8R IIAC 23712 0.66 1 10 x 8

A-12P10R IIAC 23391 2 1 12 x 10

A-12P12R IIAC 23922 2.5 1 12 x 12

A-16P12 IIAC 17583 2.9 1 16 x 12

A-16P16 IIAC 17215 3.7 1 16 x 16

A-18P12 IIAC 22543 3.6 1 18 x 12

A-18P18 IIAC 18980 4.9 1 18 x 18

A-20P16 IIAC 22547 7 1 20 x 16

A-20P20 IIAC 18284 8.75 1 20 x 20

A-24P18 IIAC 18988 10 1 24 x 18

A-24P20 IIAC 22550 11.3 1 24 x 20

A-24P24 IIAC 17946 13.9 1 24 x 24

A-30P24 IIAC 16474 16 1 30 x 24

A-30P30 IIAC 18312 24 1 30 x 30

A-36P24 IIAC 18280 22 1 36 x 24

A-36P30 IIAC 18297 30 1 36 x 30

A-36P36 IIAC 18299 34 1 36 x 36

A-48P48 IIAC 17746 58 1 48 x 48

A-60P60 IIAC 18115 134 1 60 x 60

Catalog

Number

Product

Family

UPC #

7-84572-

Weight

(lbs)

Carton

Qty. H x W

Wood (used with TC3R and CT3R)

A-12P12W CNAI 18873 2.1 1 12 x 12

A-16P12W CNAI 18707 2.5 1 16 x 12

A-16P16W CNAI 18717 3.4 1 16 x 16

A-18P18W CNAI 18878 4.5 1 18 x 18

A-18P24W CNAI 18877 5.1 1 18 x 24

A-20P20W CNAI 18710 8.6 1 20 x 20

A-20P24W CNAI 18711 10.5 1 20 x 24

A-24P24W CNAI 18713 12.5 1 24 x 24

A-30P24W CNAI 18716 15 1 30 x 24

A-30P30W CNAI 18718 21 1 30 x 30

A-36P24W CNAI 18289 20 1 36 x 24

A-36P30W CNAI 18290 24 1 36 x 30

A-36P36W CNAI 18721 29 1 36 x 36

A-48P36W CNAI 18719 44 1 48 x 36

A-48P48W CNAI 18720 56 1 48 x 48

A-60P60W CNAI 21952 88 1 60 x 60

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

SBP SERIES

BACK PANELS

SBP Series Back Panels

Steel and Wood Options

Application

• For use in electrical enclosures for mounting

electronic controls and equipment.

Construction

• Steel panels are 16 or 12 G90 gauge steel

and have a white finish.

• Wood back panels are made from 3⁄4-inch

7-ply plywood.

• Panel mounting hardware is furnished with all

enclosures that accept these panels.

• No mounting holes in boards

Finish

• Painted white (steel)

• Unpainted (wood)

Accessories

• Touch-up paint: see pg. 78.

Catalog

Number

Product

Family

UPC #

7-84572-

Weight

(lbs)

Carton

Qty. H x W

Steel (used with LC1 and JIC)

A-66SBP IIAC 17412 0.25 1 6 x 6

A-86SBP IIAC 17411 0.44 1 8 x 6

A-88SBP IIAC 17410 0.58 1 8 x 8

A-108SBP IIAC 17223 1.3 1 10 x 8

A-1010SBP IIAC 17409 1.6 1 10 x 10

A-1210SBP IIAC 17408 2 1 12 x 10

A-1212SBP IIAC 17107 2.5 1 12 x 12

A-1612SBP IIAC 18959 2.9 1 16 x 12

A-1616SBP IIAC 18961 3.7 1 16 x 16

A-1818SBP IIAC 17210 4.9 1 18 x 18

A-2012SBP IIAC 18960 3.5 1 20 x 12

A-2016SBP IIAC 19381 4.1 1 20 x 16

A-2020SBP IIAC 29002 9.8 1 20 x 20

A-2420SBP IIAC 17405 16.1 1 24 x 20

A-2424SBP IIAC 18912 16.5 1 24 x 24

A-3024SBP IIAC 18914 18 1 30 x 24

A-3030SBP IIAC 32002 20 1 30 x 30

A-3624SBP IIAC 18913 22 1 36 x 24

A-3630SBP IIAC 28868 24 1 36 x 30

NOTE

Do not use wood panels with LC1 enclosures.

Catalog

Number

Product

Family

UPC #

7-84572-

Weight

(lbs)

Carton

Qty. H x W

Wood (used with HC1, SC1, SC3R, HC3R)

88WB CNAC 10998 0.5 1 8 x 8

812WB CNAC 10907 0.75 1 8 x 12

1010WB CNAC 10061 0.8 1 10 x 10

1012WB CNAC 10080 1 1 10 x 12

1212WB CNAC 10174 1.5 1 12 x 12

1218WB CNAC 10224 2 1 12 x 18

1224WB CNAC 10243 2.8 1 12 x 24

1818WB CNAC 10327 3.5 1 18 x 18

1824WB CNAC 10352 4 1 18 x 24

2424WB CNAC 10444 6.8 1 24 x 24

2430WB CNAC 10466 8.5 1 24 x 30

2436WB CNAC 10491 10.3 1 24 x 36

2448WB CNAC 10503 14 1 24 x 48

3036WB CNAC 10551 13.3 1 30 x 36

3636WB CNAC 10605 16 1 36 x 36

3648WB CNAC 10620 21.5 1 36 x 48

4848WB CNAC 10739 29.3 1 48 x 48

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GSC1 Lay-In Wireway

Type 1

Industry Standards

• NEMA Type 1

• UL 870 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed to allow long interrupted runs of electrical

wiring in applications where moisture and dust are

not a problem.

• All straight sections and fittings are completely open

on one side so wires can be laid-in to the wireway.

Construction

• Wireway and cover are manufactured from code G90

gauge steel.

• Available with or without knockouts. For no

knockouts, refer to suffix -NK in catalog number.

• Available with or without paint. For no paint, refer

to suffix -NP in catalog number. Note: Unpainted

enclosures are made from G90 galvanized steel.

• Covers incorporate teardrop slots for easy installation

and are attached with plated steel screws.

• Available in six standard sizes: 2.5 x 2.5, 4 x 4, 6 x 6,

8 x 8, 10 x 10 and 12 x 12.

• Wide range of fittings allows for change of direction,

junctions, terminations as well

as transition from competitors products.

Finish

• ANSI 61 gray polyester powder paint coating.

ACCESSORIES

• Replacement covers: see pg. 62.

• Touch-up paint: see Accessories, pg. 78.

• Barrier Kit: see Accessories, pg. 78.

Catalog

Number Product

Family UPC Number

7-84572- Weight

(lbs) Carton

Quantity H x D x L KO Clusters

per Side Number of

Clusters

2212-GSC1 GSC1 26598 2.5 4 2.5 x 2.5 x 12 Series 1 1

2212-GSC1-NK GSC1 26573 2.5 4 2.5 x 2.5 x 12 None None

2212-GSC1-NK-NP GSC1 26599 2.5 4 2.5 x 2.5 x 12 None None

2218-GSC1 GSC1 26600 3.6 4 2.5 x 2.5 x 18 Series 1 1

2218-GSC1-NK GSC1 26601 3.6 4 2.5 x 2.5 x 18 None None

2218-GSC1-NK-NP GSC1 26602 3.6 4 2.5 x 2.5 x 18 None None

2218-GSC1-NP GSC1 26621 3.6 4 2.5 x 2.5 x 18 Series 1 1

2224-GSC1 GSC1 26574 5 4 2.5 x 2.5 x 24 Series 1 2

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GSC1 Lay-In Wireway

Type 1

Catalog

Number Product

Family UPC Number

7-84572- Weight

(lbs) Carton

Quantity H x D x L KO Clusters

per Side Number of

Clusters

2224-GSC1-NK GSC1 26603 5 4 2.5 x 2.5 x 24 None None

2224-GSC1-NK-NP GSC1 26604 5 4 2.5 x 2.5 x 24 None None

2236-GSC1 GSC1 26605 7 4 2.5 x 2.5 x 36 Series 1 3

2236-GSC1-NK GSC1 26606 7 4 2.5 x 2.5 x 36 None None

2248-GSC1 GSC1 26608 10 4 2.5 x 2.5 x 48 Series 1 4

2248-GSC1-NK GSC1 26609 10 4 2.5 x 2.5 x 48 None None

2260-GSC1 GSC1 26611 12 4 2.5 x 2.5 x 60 Series 1 5

2260-GSC1-NK GSC1 26612 12 4 2.5 x 2.5 x 60 None None

2272-GSC1 GSC1 26614 14 4 2.5 x 2.5 x 72 Series 1 6

2272-GSC1-NK GSC1 26615 14 4 2.5 x 2.5 x 72 None None

2272-GSC1-NK-NP GSC1 26616 14 4 2.5 x 2.5 x 72 None None

2296-GSC1-NK GSC1 26782 19 4 2.5 x 2.5 x 96 None None

22120-GSC1 GSC1 26617 25 4 2.5 x 2.5 x 120 Series 1 10

22120-GSC1-NK GSC1 26618 25 4 2.5 x 2.5 x 120 None None

22120-GSC1-NK-NP GSC1 26619 25 4 2.5 x 2.5 x 120 None None

4412-GSC1 GSC1 10627 3.8 4 4 x 4 x 12 Series 3 1

4412-GSC1-NK GSC1 10628 3.8 4 4 x 4 x 12 None None

4412-GSC1-NK-NP GSC1 15479 3.8 4 4 x 4 x 12 None None

4418-GSC1 GSC1 10635 5.5 4 4 x 4 x 18 Series 2 1

4418-GSC1-NK GSC1 10636 5.5 4 4 x 4 x 18 None None

4418-GSC1-NK-NP GSC1 21069 5.5 4 4 x 4 x 18 None None

4424-GSC1 GSC1 10640 7 4 4 x 4 x 24 Series 2 1

4424-GSC1-NK GSC1 10641 7 4 4 x 4 x 24 None None

4424-GSC1-NK-NP GSC1 15481 7 4 4 x 4 x 24 None None

4436-GSC1 GSC1 10646 7.8 4 4 x 4 x 36 Series 3 3

4436-GSC1-NK GSC1 10647 7.8 4 4 x 4 x 36 None None

4436-GSC1-NK-NP GSC1 15482 7.8 4 4 x 4 x 36 None None

4448-GSC1 GSC1 10658 14 4 4 x 4 x 48 Series 2 2

4448-GSC1-NK GSC1 10659 14 4 4 x 4 x 48 None None

4448-GSC1-NK-NP GSC1 15485 14 4 4 x 4 x 48 None None

4460-GSC1 GSC1 10664 17.5 4 4 x 4 x 60 Series 3 5

4460-GSC1-NK GSC1 10665 17.5 4 4 x 4 x 60 None None

4460-GSC1-NK-NP GSC1 15486 17.5 4 4 x 4 x 60 None None

4472-GSC1 GSC1 10669 20.8 4 4 x 4 x 72 Series 2 3

4472-GSC1-NK GSC1 10670 20.8 4 4 x 4 x 72 None None

4472-GSC1-NK-NP GSC1 15487 20.8 4 4 x 4 x 72 None None

4496-GSC1 GSC1 26542 27.5 2 4 x 4 x 96 Series 2 4

4496-GSC1-NK GSC1 28677 27.5 2 4 x 4 x 96 None None

44120-GSC1 GSC1 10633 35 2 4 x 4 x 120 Series 2 6

44120-GSC1-NK GSC1 10634 35 2 4 x 4 x 120 None None

44120-GSC1-NK-NP GSC1 15480 35 2 4 x 4 x 120 None None

6612-GSC1 GSC1 10772 5 2 6 x 6 x 12 Series 3 1

6612-GSC1-NK GSC1 10773 5 2 6 x 6 x 12 None None

6612-GSC1-NK-NP GSC1 15491 5 2 6 x 6 x 12 None None

6618-GSC1 GSC1 10780 8 2 6 x 6 x 18 Series 2 1

6618-GSC1-NK GSC1 10781 8 2 6 x 6 x 18 None None

6618-GSC1-NK-NP GSC1 21070 8 2 6 x 6 x 18 None None

6624-GSC1 GSC1 10786 10.5 2 6 x 6 x 24 Series 2 1

6624-GSC1-NK GSC1 10787 10.5 2 6 x 6 x 24 None None

6624-GSC1-NK-NP GSC1 15493 10.5 2 6 x 6 x 24 None None

6636-GSC1 GSC1 10794 16.5 2 6 x 6 x 36 Series 3 3

6636-GSC1-NK GSC1 10795 16.5 2 6 x 6 x 36 None None

6636-GSC1-NK-NP GSC1 15494 16.5 2 6 x 6 x 36 None None

6648-GSC1 GSC1 10813 21 2 6 x 6 x 48 Series 2 2

6648-GSC1-NK GSC1 10814 21 2 6 x 6 x 48 None None

6648-GSC1-NK-NP GSC1 15496 21 2 6 x 6 x 48 None None

6660-GSC1 GSC1 10824 25.5 2 6 x 6 x 60 Series 3 5

6660-GSC1-NK GSC1 10825 25.5 2 6 x 6 x 60 None None

6660-GSC1-NK-NP GSC1 15497 25.5 2 6 x 6 x 60 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GSC1 Lay-In Wireway

Type 1

Catalog

Number Product

Family UPC Number

7-84572- Weight

(lbs) Carton

Quantity H x D x L KO Clusters

per Side Number of

Clusters

6672-GSC1 GSC1 10828 30.5 2 6 x 6 x 72 Series 2 3

6672-GSC1-NK GSC1 10829 30.5 2 6 x 6 x 72 None None

6672-GSC1-NK-NP GSC1 15498 30.5 2 6 x 6 x 72 None None

6696-GSC1 GSC1 27610 40.2 1 6 x 6 x 96 Series 2 4

6696-GSC1-NK GSC1 31180 40.2 1 6 x 6 x 96 None None

6696-GSC1-NK-NP GSC1 31181 40.2 1 6 x 6 x 96 None None

6696-GSC1-NP GSC1 32345 40.2 1 6 x 6 x 96 Series 2 4

66120-GSC1 GSC1 10778 55 1 6 x 6 x 120 Series 2 6

66120-GSC1-NK GSC1 10779 55 1 6 x 6 x 120 None None

66120-GSC1-NK-NP GSC1 15492 55 1 6 x 6 x 120 None None

66120-GSC1-NP GSC1 32346 55 1 6 x 6 x 120 Series 2 6

8812-GSC1 GSC1 10916 8 1 8 x 8 x 12 Series 3 1

8812-GSC1-NK GSC1 10917 8 1 8 x 8 x 12 None None

8812-GSC1-NK-NP GSC1 15501 8 1 8 x 8 x 12 None None

8818-GSC1 GSC1 10922 18 1 8 x 8 x 18 Series 2 1

8818-GSC1-NK GSC1 19154 18 1 8 x 8 x 18 None None

8824-GSC1 GSC1 10925 13 1 8 x 8 x 24 Series 2 1

8824-GSC1-NK GSC1 10926 13 1 8 x 8 x 24 None None

8824-GSC1-NK-NP GSC1 15503 13 1 8 x 8 x 24 None None

8836-GSC1 GSC1 10931 20 1 8 x 8 x 36 Series 3 3

8836-GSC1-NK GSC1 10932 20 1 8 x 8 x 36 None None

8836-GSC1-NK-NP GSC1 15504 20 1 8 x 8 x 36 None None

8848-GSC1 GSC1 10949 33 1 8 x 8 x 48 Series 2 2

8848-GSC1-NK GSC1 10950 33 1 8 x 8 x 48 None None

8848-GSC1-NK-NP GSC1 15506 33 1 8 x 8 x 48 None None

8860-GSC1 GSC1 10963 35 1 8 x 8 x 60 Series 3 5

8860-GSC1-NK GSC1 10964 35 1 8 x 8 x 60 None None

8860-GSC1-NK-NP GSC1 15507 35 1 8 x 8 x 60 None None

8872-GSC1 GSC1 10967 40 1 8 x 8 x 72 Series 2 3

8872-GSC1-NK GSC1 10968 40 1 8 x 8 x 72 None None

8872-GSC1-NK-NP GSC1 15508 40 1 8 x 8 x 72 None None

8896-GSC1 GSC1 21348 53.3 1 8 x 8 x 96 Series 2 4

8896-GSC1-NK GSC1 21347 53.3 1 8 x 8 x 96 None None

8896-GSC1-NK-NP GSC1 21346 53.3 1 8 x 8 x 96 None None

88120-GSC1 GSC1 10920 83.6 1 8 x 8 x 120 Series 2 6

88120-GSC1-NK GSC1 10921 83.6 1 8 x 8 x 120 None None

88120-GSC1-NK-NP GSC1 15502 83.6 1 8 x 8 x 120 None None

101012-GSC1 GSC1 10004 9 1 10 x 10 x 12 Series 3 1

101012-GSC1-NK GSC1 15704 9 1 10 x 10 x 12 None None

101012-GSC1-NK-NP GSC1 19317 9 1 10 x 10 x 12 None None

101024-GSC1 GSC1 10006 17 1 10 x 10 x 24 Series 2 1

101024-GSC1-NK GSC1 10007 17 1 10 x 10 x 24 None None

101024-GSC1-NK-NP GSC1 19316 17 1 10 x 10 x 24 None None

101036-GSC1 GSC1 10009 25 1 10 x 10 x 36 Series 3 3

101036-GSC1-NK GSC1 10010 25 1 10 x 10 x 36 None None

101036-GSC1-NK-NP GSC1 15454 25 1 10 x 10 x 36 None None

101048-GSC1 GSC1 10024 34 1 10 x 10 x 48 Series 2 2

101048-GSC1-NK GSC1 10025 34 1 10 x 10 x 48 None None

101048-GSC1-NK-NP GSC1 15455 34 1 10 x 10 x 48 None None

101060-GSC1 GSC1 10037 42 1 10 x 10 x 60 Series 3 5

101060-GSC1-NK GSC1 10038 42 1 10 x 10 x 60 None None

101060-GSC1-NK-NP GSC1 15458 42 1 10 x 10 x 60 None None

101072-GSC1 GSC1 10041 50 1 10 x 10 x 72 Series 2 3

101072-GSC1-NK GSC1 10042 50 1 10 x 10 x 72 None None

101072-GSC1-NK-NP GSC1 15459 50 1 10 x 10 x 72 None None

101096-GSC1 GSC1 24664 71 1 10 x 10 x 96 Series 2 4

101096-GSC1-NK GSC1 26911 71 1 10 x 10 x 96 None None

101096-GSC1-NK-NP GSC1 24600 71 1 10 x 10 x 96 None None

1010120-GSC1 GSC1 19100 80 1 10 x 10 x 120 Series 2 6

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GSC1 Lay-In Wireway

Type 1

Catalog

Number Product

Family UPC Number

7-84572- Weight

(lbs) Carton

Quantity H x D x L KO Clusters

per Side Number of

Clusters

1010120-GSC1-NK GSC1 24933 80 1 10 x 10 x 120 None None

1010120-GSC1-NK-NP GSC1 32347 80 1 10 x 10 x 120 None None

121212-GSC1 GSC1 10100 10 1 12 x 12 x 12 Series 3 1

121212-GSC1-NK GSC1 10101 10 1 12 x 12 x 12 None None

121212-GSC1-NK-NP GSC1 15462 10 1 12 x 12 x 12 None None

121224-GSC1 GSC1 10102 25 1 12 x 12 x 24 Series 2 1

121224-GSC1-NK GSC1 10103 25 1 12 x 12 x 24 None None

121224-GSC1-NK-NP GSC1 15463 25 1 12 x 12 x 24 None None

121236-GSC1 GSC1 10106 37 1 12 x 12 x 36 Series 3 3

121236-GSC1-NK GSC1 10107 37 1 12 x 12 x 36 None None

121236-GSC1-NK-NP GSC1 15464 37 1 12 x 12 x 36 None None

121248-GSC1 GSC1 10125 48 1 12 x 12 x 48 Series 2 2

121248-GSC1-NK GSC1 10126 48 1 12 x 12 x 48 None None

121248-GSC1-NK-NP GSC1 15466 48 1 12 x 12 x 48 None None

121260-GSC1 GSC1 10145 50 1 12 x 12 x 60 Series 3 5

121260-GSC1-NK GSC1 10146 50 1 12 x 12 x 60 None None

121260-GSC1-NK-NP GSC1 15468 50 1 12 x 12 x 60 None None

121272-GSC1 GSC1 10149 71 1 12 x 12 x 72 Series 2 3

121272-GSC1-NK GSC1 10150 71 1 12 x 12 x 72 None None

121272-GSC1-NK-NP GSC1 20932 71 1 12 x 12 x 72 None None

121296-GSC1 GSC1 24665 99 1 12 x 12 x 96 Series 2 4

121296-GSC1-NK GSC1 27284 99 1 12 x 12 x 96 None None

121296-GSC1-NK-NP GSC1 24658 99 1 12 x 12 x 96 None None

1212120-GSC1 GSC1 24705 120 1 12 x 12 x 120 Series 2 6

1212120-GSC1-NK GSC1 24706 120 1 12 x 12 x 120 None None

1212120-GSC1-NK-NP GSC1 24707 120 1 12 x 12 x 120 None None

1212120-GSC1-NP GSC1 24708 120 1 12 x 12 x 120 Series 2 6

Covers

4X12GSC1 CNAC 10742 0.75 1 4 x 12

4X18GSC1 CNAC 10743 1.1 1 4 x 18

4X24GSC1 CNAC 10744 1.4 1 4 x 24

4X36GSC1 CNAC 10745 2 1 4 x 36

4X48GSC1 CNAC 10746 2.6 1 4 x 48

4X60GSC1 CNAC 10747 3.2 1 4 x 60

4X72GSC1 CNAC 10748 3.8 1 4 x 72

6X12GSC1 CNAC 10869 1 1 6 x 12

6X18GSC1 CNAC 15356 1.5 1 6 x 18

6X24GSC1 CNAC 10870 2 1 6 x 24

6X36GSC1 CNAC 10871 3 1 6 x 36

6X48GSC1 CNAC 10873 4 1 6 x 48

6X60GSC1 CNAC 10874 5 1 6 x 60

6X72GSC1 CNAC 10875 6 1 6 x 72

8X12GSC1 CNAC 11002 1.3 1 8 x 12

8X18GSC1 CNAC 17266 1.9 1 8 x 18

8X24GSC1 CNAC 11003 2.5 1 8 x 24

8X36GSC1 CNAC 11004 3.7 1 8 x 36

8X48GSC1 CNAC 11005 5 1 8 x 48

8X60GSC1 CNAC 11006 6.2 1 8 x 60

8X72GSC1 CNAC 20901 7.4 1 8 x 72

10X12GSC1 CNAC 19597 1.5 1 10 x 12

10X24GSC1 CNAC 10087 3 1 10 x 24

10X36GSC1 CNAC 10088 4.5 1 10 x 36

10X48GSC1 CNAC 10089 6 1 10 x 48

10X60GSC1 CNAC 10090 7.5 1 10 x 60

12X24GSC1 CNAC 10253 3.6 1 12 x 24

12X36GSC1 CNAC 10254 5.4 1 12 x 36

12X48GSC1 CNAC 10255 7.2 1 12 x 48

12X60GSC1 CNAC 10256 9 1 12 x 60

12X72GSC1 CNAC 10257 10.8 1 12 x 72

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GHC1 Lay-In Wireway

Type 1

Industry Standards

• NEMA Type 1

• UL 870 Type 1

• CUL Type 1 (Equivalent to CSA)

Application

• Designed to allow long interrupted runs of electrical

wiring in applications where moisture and dust are

not a problem.

• All straight sections and fittings are completely open

on one side so wires can be laid-in to the wireway.

Construction

• Wireway and cover are manufactured from code

gauge steel.

• Available with or without knockouts. For no

knockouts, refer to suffix -NK in catalog number.

• Available with or without paint. For no paint, refer

to suffix -NP in catalog number. Note: Unpainted

enclosures are made from G90 galvanized steel.

• Covers incorporate teardrop slots for easy

installation

and are attached with plated steel screws.

• Available in seven standard sizes, 2.5 x 2.5, 4 x 4,

4 x 6, 6 x 6, 8 x 8, 10 x 10 and 12 x 12.

• Wide range of fittings allows for change of direction,

junctions, terminations as well as transition from

competitors products.

Finish

• ANSI 61 gray polyester powder paint coating.

Accessories

• Touch-up paint: see Accessories, pg. 78.

• Barrier kit: see Accessories, pg. 78.

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L KO Clusters

per Side

Number of

Clusters

2212-GHC1 GHC1 26572 2.5 4 2.5 x 2.5 x 12 Series 1 1

2212-GHC1-NK GHC1 26576 2.5 4 2.5 x 2.5 x 12 None None

2212-GHC1-NK-NP GHC1 26587 2.5 4 2.5 x 2.5 x 12 None None

2218-GHC1 GHC1 26801 3.6 4 2.5 x 2.5 x 18 Series 1 1

2218-GHC1-NK-NP GHC1 26810 3.6 4 2.5 x 2.5 x 18 None None

2224-GHC1 GHC1 26577 5 4 2.5 x 2.5 x 24 Series 1 2

2224-GHC1-NK GHC1 26575 5 4 2.5 x 2.5 x 24 None None

2236-GHC1 GHC1 26578 7 4 2.5 x 2.5 x 36 Series 1 3

2236-GHC1-NK GHC1 32349 7 4 2.5 x 2.5 x 36 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GHC1 Lay-In Wireway

Type 1

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L KO Clusters

per Side

Number of

Clusters

2236-GHC1-NK-NP GHC1 26591 7 4 2.5 x 2.5 x 36 None None

2248-GHC1 GHC1 26580 10 4 2.5 x 2.5 x 48 Series 1 4

2248-GHC1-NK GHC1 26581 10 4 2.5 x 2.5 x 48 None None

2260-GHC1 GHC1 26582 12 4 2.5 x 2.5 x 60 Series 1 5

2260-GHC1-NK GHC1 26583 12 4 2.5 x 2.5 x 60 None None

2272-GHC1 GHC1 26802 14 4 2.5 x 2.5 x 72 Series 1 6

2272-GHC1-NK GHC1 26805 14 4 2.5 x 2.5 x 72 None None

2296-GHC1-NK GHC1 26806 19 4 2.5 x 2.5 x 96 None None

22120-GHC1 GHC1 26584 25 4 2.5 x 2.5 x 120 Series 1 10

22120-GHC1-NK GHC1 26585 25 4 2.5 x 2.5 x 120 None None

4412-GHC1 GHC1 10625 3.5 4 4 x 4 x 12 Series 3 1

4412-GHC1-NK GHC1 10626 3.5 4 4 x 4 x 12 None None

4424-GHC1 GHC1 10638 7.3 4 4 x 4 x 24 Series 2 1

4424-GHC1-NK GHC1 10639 7.3 4 4 x 4 x 24 None None

4436-GHC1 GHC1 10644 10.8 4 4 x 4 x 36 Series 3 3

4436-GHC1-NK GHC1 10645 10.8 4 4 x 4 x 36 None None

4448-GHC1 GHC1 10656 14 4 4 x 4 x 48 Series 2 2

4448-GHC1-NK GHC1 10657 14 4 4 x 4 x 48 None None

4460-GHC1 GHC1 10662 17.5 4 4 x 4 x 60 Series 3 5

4460-GHC1-NK GHC1 10663 17.5 4 4 x 4 x 60 None None

4472-GHC1-NK GHC1 27373 20.8 4 4 x 4 x 72 None None

4496-GHC1-NK GHC1 28961 27.5 4 4 x 4 x 96 None None

44120-GHC1 GHC1 10631 35.5 2 4 x 4 x 120 Series 2 6

44120-GHC1-NK GHC1 10632 35.5 2 4 x 4 x 120 None None

6612-GHC1 GHC1 10770 6 2 6 x 6 x 12 Series 3 1

6612-GHC1-NK GHC1 10771 6 2 6 x 6 x 12 None None

6612-GHC1-NP GHC1 32350 6 2 6 x 6 x 12 Series 3 1

6624-GHC1 GHC1 10784 10.5 2 6 x 6 x 24 Series 2 1

6624-GHC1-NK GHC1 10785 10.5 2 6 x 6 x 24 None None

6636-GHC1 GHC1 10792 16.5 2 6 x 6 x 36 Series 3 3

6636-GHC1-NK GHC1 10793 16.5 2 6 x 6 x 36 None None

6648-GHC1 GHC1 10811 21.5 2 6 x 6 x 48 Series 2 2

6648-GHC1-NK GHC1 10812 21.5 2 6 x 6 x 48 None None

6648-GHC1-NP GHC1 32351 21.5 2 6 x 6 x 48 Series 2 2

6660-GHC1 GHC1 10823 27 2 6 x 6 x 60 Series 3 5

6660-GHC1-NK GHC1 18647 27 2 6 x 6 x 60 None None

6660-GHC1-NP GHC1 32352 27 2 6 x 6 x 60 Series 3 5

6672-GHC1 GHC1 28944 32 2 6 x 6 x 72 Series 2 3

6672-GHC1-NK GHC1 28954 32 2 6 x 6 x 72 None None

66120-GHC1 GHC1 10776 57 1 6 x 6 x 120 Series 2 6

66120-GHC1-NK GHC1 10777 57 1 6 x 6 x 120 None None

66120-GHC1-NK-NP GHC1 23372 57 1 6 x 6 x 120 None None

66120-GHC1-NP GHC1 32353 57 1 6 x 6 x 120 Series 2 6

8812-GHC1 GHC1 10914 8.5 1 8 x 8 x 12 Series 3 1

8812-GHC1-NK GHC1 10915 8.5 1 8 x 8 x 12 None None

8818-GHC1-NK GHC1 28965 11.6 1 8 x 8 x 18 None None

8824-GHC1 GHC1 10924 14 1 8 x 8 x 24 Series 2 1

8824-GHC1-NK GHC1 17655 14 1 8 x 8 x 24 None None

8836-GHC1 GHC1 10929 21 1 8 x 8 x 36 Series 3 3

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 1

LAY-IN

WIREWAY

GHC1 Lay-In Wireway

Type 1

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L KO Clusters

per Side

Number of

Clusters

8836-GHC1-NK GHC1 10930 21 1 8 x 8 x 36 None None

8848-GHC1 GHC1 10947 28 1 8 x 8 x 48 Series 2 2

8848-GHC1-NK GHC1 10948 28 1 8 x 8 x 48 None None

8860-GHC1 GHC1 10960 35 1 8 x 8 x 60 Series 3 5

8860-GHC1-NK GHC1 10961 35 1 8 x 8 x 60 None None

8872-GHC1 GHC1 28946 40 1 8 x 8 x 72 Series 2 3

8872-GHC1-NK GHC1 28947 40 1 8 x 8 x 72 None None

88120-GHC1 GHC1 10919 69 1 8 x 8 x 120 Series 2 6

88120-GHC1-NK GHC1 15705 69 1 8 x 8 x 120 None None

101012-GHC1-NK GHC1 28166 12 1 10 x 10 x 12 None None

101024-GHC1-NK GHC1 27094 20.4 1 10 x 10 x 24 None None

101036-GHC1-NK GHC1 27093 25 1 10 x 10 x 36 None None

101048-GHC1-NK GHC1 27092 43.4 1 10 x 10 x 48 None None

101060-GHC1 GHC1 15880 49 1 10 x 10 x 60 Series 3 5

101060-GHC1-NK GHC1 27091 49 1 10 x 10 x 60 None None

101072-GHC1 GHC1 27962 58 1 10 x 10 x 72 Series 2 3

101096-GHC1-NK GHC1 32012 76 1 10 x 10 x 96 None None

1010120-GHC1-NK GHC1 17625 90 1 10 x 10 x 120 None None

121224-GHC1 GHC1 32354 25.2 1 12 x 12 x 24 Series 2 1

121224-GHC1-NK GHC1 27090 25.2 1 12 x 12 x 24 None None

121236-GHC1-NK GHC1 27089 37.4 1 12 x 12 x 36 None None

121236-GHC1-NK-NP GHC1 32355 37.4 1 12 x 12 x 36 None None

121248-GHC1-NK GHC1 27088 49 1 12 x 12 x 48 None None

121260-GHC1 GHC1 15881 58 1 12 x 12 x 60 Series 3 5

121260-GHC1-NK GHC1 27087 58 1 12 x 12 x 60 None None

121260-GHC1-NK-NP GHC1 32356 58 1 12 x 12 x 60 None None

121296-GHC1 GHC1 28118 90 1 12 x 12 x 96 Series 2 4

121296-GHC1-NK GHC1 28119 90 1 12 x 12 x 96 None None

1212120-GHC1 GHC1 18006 120 1 12 x 12 x 120 Series 2 6

1212120-GHC1-NK GHC1 24050 120 1 12 x 12 x 120 None None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

WIRING TROUGH

GSC3R Screw Cover Wiring Trough

Type 3R

KO Size

.750 x .671

Industry Standards

• NEMA Type 3R

• UL 870 Type 3R

• CUL Type 3R (Equivalent to CSA)

Application

• Designed to protect wiring in outdoor installations against rain,

sleet, or snow, or indoors against dripping water.

Construction

• Trough and cover are manufactured from 16 gauge G90 galvanized steel.

• Available with or without paint. For no paint, refer to suffix -NP in the catalog number.

• Cover is designed to fit under the drip shield top, and is held in place with plated steel screws.

• Wireway is available with or without concentric knockouts on the bottom—for no knockouts refer to suffix -NK in the

catalog number.

• Embossed mounting holes are provided on the backs of the units.

Finish

• ANSI 61 gray polyester powder coating over phosphatized G90 galvanized steel.

Accessories

• Touch-up paint: see Accessories, pg. 78.

• Locks: see Accessories, pg. 77.

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L Number of

Knockouts

4412-GSC3R GS3R 10629 4.5 4 4 x 4 x 12 3

4412-GSC3R-NK GS3R 10630 4.5 4 4 x 4 x 12 None

4412-GSC3R-NK-NP GS3R 16177 4.5 4 4 x 4 x 12 None

4418-GSC3R GS3R 10637 6.5 4 4 x 4 x 18 3

4418-GSC3R-NK GS3R 21813 6.5 4 4 x 4 x 18 None

4424-GSC3R GS3R 10642 8.5 4 4 x 4 x 24 3

4424-GSC3R-NK GS3R 10643 8.5 4 4 x 4 x 24 None

NOTE

These units are UL Listed for

horizontal runs only.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

WIRING TROUGH

GSC3R Screw Cover Wiring Trough

Type 3R

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L Number of

Knockouts

4424-GSC3R-NK-NP GS3R 16176 8.5 4 4 x 4 x 24 None

4436-GSC3R GS3R 10648 12 4 4 x 4 x 36 5

4436-GSC3R-NK GS3R 10649 12 4 4 x 4 x 36 None

4436-GSC3R-NK-NP GS3R 16175 12 4 4 x 4 x 36 None

4448-GSC3R GS3R 10660 15.8 4 4 x 4 x 48 7

4448-GSC3R-NK GS3R 10661 15.8 4 4 x 4 x 48 None

4448-GSC3R-NK-NP GS3R 16174 15.8 4 4 x 4 x 48 None

4460-GSC3R GS3R 10666 19.5 4 4 x 4 x 60 9

4460-GSC3R-NK GS3R 10667 19.5 4 4 x 4 x 60 None

4460-GSC3R-NK-NP GS3R 16173 19.5 4 4 x 4 x 60 None

4472-GSC3R GS3R 10671 23.5 4 4 x 4 x 72 11

4472-GSC3R-NK GS3R 10672 23.5 4 4 x 4 x 72 None

4472-GSC3R-NK-NP GS3R 19304 23.5 4 4 x 4 x 72 None

4496-GSC3R GS3R 21984 31.1 2 4 x 4 x 96 15

44120-GSC3R GS3R 21985 38.7 2 4 x 4 x 120 19

6612-GSC3R GS3R 10774 7 2 6 x 6 x 12 3

6612-GSC3R-NK GS3R 10775 7 2 6 x 6 x 12 None

6612-GSC3R-NK-NP GS3R 17550 7 2 6 x 6 x 12 None

6618-GSC3R GS3R 10782 10 2 6 x 6 x 18 3

6618-GSC3R-NK GS3R 10783 10 2 6 x 6 x 18 None

6618-GSC3R-NK-NP GS3R 21096 10 2 6 x 6 x 18 None

6624-GSC3R GS3R 10788 12.5 2 6 x 6 x 24 3

6624-GSC3R-NK GS3R 10789 12.5 2 6 x 6 x 24 None

6624-GSC3R-NK-NP GS3R 16172 12.5 2 6 x 6 x 24 None

6636-GSC3R GS3R 10796 18 2 6 x 6 x 36 5

6636-GSC3R-NK GS3R 10797 18 2 6 x 6 x 36 None

6636-GSC3R-NK-NP GS3R 16171 18 2 6 x 6 x 36 None

6648-GSC3R GS3R 10815 24 2 6 x 6 x 48 7

6648-GSC3R-NK GS3R 10816 24 2 6 x 6 x 48 None

6648-GSC3R-NK-NP GS3R 16170 24 2 6 x 6 x 48 None

6660-GSC3R GS3R 10826 28.5 2 6 x 6 x 60 9

6660-GSC3R-NK GS3R 10827 28.5 2 6 x 6 x 60 None

6660-GSC3R-NK-NP GS3R 19303 28.5 2 6 x 6 x 60 None

6672-GSC3R GS3R 10830 34 2 6 x 6 x 72 11

6672-GSC3R-NK GS3R 10831 34 2 6 x 6 x 72 None

6672-GSC3R-NK-NP GS3R 19004 34 2 6 x 6 x 72 None

6696-GSC3R GS3R 10834 45 1 6 x 6 x 96 15

6696-GSC3R-NK GS3R 10835 45 1 6 x 6 x 96 None

6696-GSC3R-NK-NP GS3R 23847 45 1 6 x 6 x 96 None

66120-GSC3R GS3R 20971 55 1 6 x 6 x 120 19

66120-GSC3R-NK GS3R 26496 55 1 6 x 6 x 120 None

8812-GSC3R GS3R 10918 9 1 8 x 8 x 12 3

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

WIRING TROUGH

GSC3R Screw Cover Wiring Trough

Type 3R

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L Number of

Knockouts

8812-GSC3R-NK GS3R 26487 9 1 8 x 8 x 12 None

8812-GSC3R-NK-NP GS3R 16169 9 1 8 x 8 x 12 None

8818-GSC3R GS3R 10923 14 1 8 x 8 x 18 3

8818-GSC3R-NK GS3R 25662 14 1 8 x 8 x 18 None

8818-GSC3R-NK-NP GS3R 21097 14 1 8 x 8 x 18 None

8824-GSC3R GS3R 10927 17 1 8 x 8 x 24 3

8824-GSC3R-NK GS3R 10928 17 1 8 x 8 x 24 None

8824-GSC3R-NK-NP GS3R 16168 17 1 8 x 8 x 24 None

8836-GSC3R GS3R 10933 24 1 8 x 8 x 36 5

8836-GSC3R-NK GS3R 10934 24 1 8 x 8 x 36 None

8836-GSC3R-NK-NP GS3R 16167 24 1 8 x 8 x 36 None

8848-GSC3R GS3R 10951 32 1 8 x 8 x 48 7

8848-GSC3R-NK GS3R 10952 32 1 8 x 8 x 48 None

8848-GSC3R-NK-NP GS3R 16166 32 1 8 x 8 x 48 None

8860-GSC3R GS3R 10965 38 1 8 x 8 x 60 9

8860-GSC3R-NK GS3R 10966 38 1 8 x 8 x 60 None

8860-GSC3R-NK-NP GS3R 19302 38 1 8 x 8 x 60 None

8872-GSC3R GS3R 10969 45 1 8 x 8 x 72 11

8872-GSC3R-NK GS3R 10970 45 1 8 x 8 x 72 None

8872-GSC3R-NK-NP GS3R 16165 45 1 8 x 8 x 72 None

8896-GSC3R GS3R 10974 59 1 8 x 8 x 96 15

8896-GSC3R-NK GS3R 10975 59 1 8 x 8 x 96 None

8896-GSC3R-NK-NP GS3R 21099 59 1 8 x 8 x 96 None

88120-GSC3R GS3R 20882 67 1 8 x 8 x 120 19

88120-GSC3R-NK GS3R 21811 67 1 8 x 8 x 120 None

88120-GSC3R-NK-NP GS3R 26498 67 1 8 x 8 x 120 None

101024-GSC3R GS3R 21550 17 1 10 x 10 x 24 3

101024-GSC3R-NK GS3R 10008 17 1 10 x 10 x 24 None

101024-GSC3R-NK-NP GS3R 19301 17 1 10 x 10 x 24 None

101036-GSC3R GS3R 10011 30 1 10 x 10 x 36 5

101036-GSC3R-NK GS3R 10012 30 1 10 x 10 x 36 None

101036-GSC3R-NK-NP GS3R 18370 30 1 10 x 10 x 36 None

101048-GSC3R GS3R 10026 39 1 10 x 10 x 48 7

101048-GSC3R-NK GS3R 10027 39 1 10 x 10 x 48 None

101048-GSC3R-NK-NP GS3R 18368 39 1 10 x 10 x 48 None

101060-GSC3R GS3R 10039 48 1 10 x 10 x 60 9

101060-GSC3R-NK GS3R 10040 48 1 10 x 10 x 60 None

101060-GSC3R-NK-NP GS3R 19320 48 1 10 x 10 x 60 None

101072-GSC3R GS3R 10043 55 1 10 x 10 x 72 11

101072-GSC3R-NK GS3R 10044 55 1 10 x 10 x 72 None

101072-GSC3R-NK-NP GS3R 17816 55 1 10 x 10 x 72 None

101096-GSC3R GS3R 20455 78 1 10 x 10 x 96 15

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 3R

SCREW COVER

WIRING TROUGH

GSC3R Screw Cover Wiring Trough

Type 3R

Catalog

Number

Product

Family

UPC Number

7-84572-

Weight

(lbs)

Carton

Quantity H x D x L Number of

Knockouts

101096-GSC3R-NK GS3R 19985 78 1 10 x 10 x 96 None

101096-GSC3R-NK-NP GS3R 24662 78 1 10 x 10 x 96 None

1010120-GSC3R GS3R 21986 97 1 10 x 10 x 120 19

1010120-GSC3R-NK GS3R 22991 97 1 10 x 10 x 120 None

1010120-GSC3R-NK-NP GS3R 26499 97 1 10 x 10 x 120 None

121224-GSC3R GS3R 10104 26 1 12 x 12 x 24 3

121224-GSC3R-NK GS3R 10105 26 1 12 x 12 x 24 None

121224-GSC3R-NK-NP GS3R 19430 26 1 12 x 12 x 24 None

121236-GSC3R GS3R 10108 43 1 12 x 12 x 36 5

121236-GSC3R-NK GS3R 10109 43 1 12 x 12 x 36 None

121236-GSC3R-NK-NP GS3R 17773 43 1 12 x 12 x 36 None

121248-GSC3R GS3R 10127 47 1 12 x 12 x 48 7

121248-GSC3R-NK GS3R 10128 47 1 12 x 12 x 48 None

121248-GSC3R-NK-NP GS3R 19431 47 1 12 x 12 x 48 None

121260-GSC3R GS3R 10147 57 1 12 x 12 x 60 9

121260-GSC3R-NK GS3R 10148 57 1 12 x 12 x 60 None

121260-GSC3R-NK-NP GS3R 18369 57 1 12 x 12 x 60 None

121272-GSC3R GS3R 10151 67 1 12 x 12 x 72 11

121272-GSC3R-NK GS3R 10152 67 1 12 x 12 x 72 None

121272-GSC3R-NK-NP GS3R 19432 67 1 12 x 12 x 72 None

121296-GSC3R GS3R 16420 88 1 12 x 12 x 96 15

121296-GSC3R-NK GS3R 16123 88 1 12 x 12 x 96 None

121296-GSC3R-NK-NP GS3R 24018 88 1 12 x 12 x 96 None

1212120-GSC3R GS3R 19101 125 1 12 x 12 x 120 19

1212120-GSC3R-NK GS3R 16122 125 1 12 x 12 x 120 None

1212120-GSC3R-NK-NP GS3R 26400 125 1 12 x 12 x 120 None

1212144-GSC3R GS3R 27168 164 1 12 x 12 x 144 None

1212144-GSC3R-NK GS3R 32357 164 1 12 x 12 x 144 None

1212144-GSC3R-NK-NP GS3R 31063 164 1 12 x 12 x 144 None

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

GX | Crosses*

The cross ﬁtting is for connecting 4 merging wireway

runs from 2 different directions.

-GX

-GTF

-GF

-GR

-L90S*

*Denotes available in hinge cover.

-GE*

-GH

-GT

-L45S

Industry Standards for Fittings

• NEMA Type 1

• UL 870 Type 1

• CUL Type 1 (Equivalent to CSA)

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GX GFIT 26469 4.3 1 2.5 x 2.5

22GX-NP GFIT 26470 4.3 1 2.5 x 2.5

44GX GFIT 10688 6.3 1 4 x 4

66GX GFIT 10851 8.3 1 6 x 6

88GX GFIT 10990 13.3 1 8 x 8

1010GX GFIT 17214 14 1 10 x 10

1212GX GFIT 17128 15 1 12 x 12

A x B Inches (mm) E F G H J K N P V U

3.00 x 3.00

(76 x 76)

5.06

(129)

5.06

(129)

6.06

(154)

11.25

(286)

2.58

(66)

3.20

(81)

11.00

(279)

4.63

(118)

9.00

(229)

4.62

(117)

4.00 x 4.00

(102 x 102)

6.06

(154)

6.06

(154)

7.06

(179)

12.25

(311)

2.80

(71)

3.63

(92)

13.25

(337)

13.25

(337)

10.00

(254)

5.13

(130)

4.00 x 6.00

(102 x 152)

6.06

(154)

8.06

(205)

8.00

(203)

—

12.00

(305)

5.06

(129)

6.00 x 6.00

(152 x 152)

8.06

(205)

8.06

(205)

10.00

(254)

14.25

(362)

3.21

(82)

4.45

(113)

17.75

(451)

7.63

(194)

14.00

(356)

7.06

(179)

8.00 x 8.00

(203 x 203)

10.06

(306)

10.06

(306)

12.00

(305)

16.25

(413)

3.62

(92)

5.28

(134)

22.25

(565)

9.63

(245)

16.00

(406)

8.06

(205)

10.00 x 10.00

(254 x 254)

12.06

(306)

12.06

(306)

14.00

(356)

18.25

(464)

4.04

(103)

6.11

(155)

25.63

(651)

11.63

(295)

18.00

(457)

9.06

(230)

12.00 x 12.00

(305 x 305)

14.06

(357)

14.06

(357)

16.00

(406)

20.25

(514)

4.42

(112)

6.91

(176)

30.13

(765)

13.63

(346)

20.00

(508)

10.06

(256)

Dimensions for product drawings on pages 70–75

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

GE | Ends*

Closes the end of a wireway section or run. All

knockouts are concentric 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2".

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GE GFIT 26413 0.3 20 2.5 x 2.5

22GE-NK GFIT 26414 0.3 20 2.5 x 2.5

22GE-NK-NP GFIT 26415 0.3 20 2.5 x 2.5

22GE-NP GFIT 26416 0.3 20 2.5 x 2.5

22GEU GFIT 26426 0.3 20 2.5 x 2.5

22GFE GFIT 26429 0.3 10 2.5 x 2.5

22GFE-NK GFIT 26430 0.3 10 2.5 x 2.5

44GE GFIT 10676 0.4 20 4 x 4

44GE-NK GFIT 10677 0.4 20 4 x 4

44GE-NK-NP GFIT 15538 0.4 20 4 x 4

44GE-NP GFIT 20889 0.4 20 4 x 4

44GEU GFIT 10678 0.4 20 4 x 4

44GEU-NK-NP GFIT 21085 0.4 20 4 x 4

44GFE GFIT 10680 0.4 10 4 x 4

44GFE-NK GFIT 18771 0.4 10 4 x 4

66GE GFIT 10839 0.8 20 6 x 6

66GE-NK GFIT 10840 0.8 20 6 x 6

66GE-NK-NP GFIT 15537 0.8 20 6 x 6

66GE-NP GFIT 17355 0.8 20 6 x 6

66GEU GFIT 10841 0.8 20 6 x 6

66GEU-NK GFIT 24628 0.8 20 6 x 6

66GEU-NK-NP GFIT 21084 0.8 20 6 x 6

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

66GFE GFIT 10843 0.8 10 6 x 6

88GE GFIT 10978 1.4 20 8 x 8

88GE-NK GFIT 10979 1.4 20 8 x 8

88GE-NK-NP GFIT 15535 1.4 20 8 x 8

88GE-NP GFIT 20890 1.4 20 8 x 8

88GEU GFIT 10980 1.4 20 8 x 8

88GEU-NK-NP GFIT 21086 1.4 20 8 x 8

88GFE GFIT 10982 2 10 8 x 8

88GFE-NK GFIT 17686 2 10 8 x 8

1010GE GFIT 10048 2.6 20 10 x 10

1010GE-NK GFIT 10049 2.6 20 10 x 10

1010GE-NK-NP GFIT 15536 2.6 20 10 x 10

1010GEU GFIT 10050 2.6 20 10 x 10

1010GEU-NK GFIT 31179 2.6 20 10 x 10

1010GEU-NK-NP GFIT 21087 2.6 20 10 x 10

1212GE GFIT 10161 2.8 20 12 x 12

1212GE-NK GFIT 10162 2.8 20 12 x 12

1212GE-NK-NP GFIT 15534 2.8 20 12 x 12

1212GE-NP GFIT 20891 2.8 20 12 x 12

1212GEU GFIT 10163 2.8 20 12 x 12

1212GEU-NK GFIT 32358 2.8 20 12 x 12

1212GEU-NK-NP GFIT 21088 2.8 20 12 x 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

GC | Connectors*

A connector is required at each wireway joint (except at

telescopic ﬁttings, ends or reducers). The swing

portion allows for easy lay-in wiring.

GCU | Universal Connectors*

Universal Connectors can be used to connect a Milbank

wireway to another brand of wireway.

GH | Hangers*

This adjustable hanger is used to support a wireway

run and is placed at 5 foot intervals .

GR | Reducers*

Reduces one size wireway to a smaller size wireway.

The inner opening is centered to keep the two

wireway sizes relative to each other.

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GC GFIT 26412 0.3 12 2.5 x 2.5

44GC GFIT 10674 0.5 12 4 x 4

66GC GFIT 10837 0.6 12 6 x 6

88GC GFIT 10977 0.8 12 8 x 8

1010GC GFIT 10047 1 12 10 x 10

1212GC GFIT 10160 1.44 12 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GCU GFIT 26425 0.3 12 2.5 x 2.5

44GCU GFIT 10675 0.5 12 4 x 4

66GCU GFIT 10838 0.6 12 6 x 6

88GCU GFIT 16255 0.8 12 8 x 8

1010GCU GFIT 18917 1.2 12 10 x 10

1212GCU GFIT 18996 1.7 12 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GH GFIT 26936 1 6 2.5 x 2.5

44GH GFIT 10685 1.5 6 4 x 4

44GH-NP GFIT 21072 1.5 6 4 x 4

66GH GFIT 10848 2 6 6 x 6

66GH-NP GFIT 21073 2 6 6 x 6

88GH GFIT 10987 3 6 8 x 8

1010GH GFIT 10052 7 6 10 x 10

1212GH GFIT 10165 7 6 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

2244GR GFIT 26410 3 4 2.5 x 2.5–4 x 4

4466GR GFIT 10668 4 4 4 x 4–6 x 6

6688GR GFIT 10833 6 4 6 x 6–8 x 8

881010GR GFIT 15669 10 4 8 x 8–10 x 10

881212GR GFIT 32359 11 4 8 x 8–12 x 12

10101212GR GFIT 15648 12 4 10 x 10–12 x 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

GFT | Tees (for Hinge Covers)*

The GFT for hinged covers is used when all three branches

of the wireway run are open along the same side.

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GFT GFIT 26463 2.5 1 2.5 x 2.5

22GFT-NP GFIT 26464 2.5 10 2.5 x 2.5

44GFT GFIT 10684 3 1 4 x 4

66GFT GFIT 10847 7.3 1 6 x 6

66GFT-NP GFIT 21079 7.3 10 6 x 6

88GFT GFIT 10986 13 1 8 x 8

1212GFT GFIT 15879 29 1 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GT GFIT 26417 2.5 1 2.5 x 2.5

22GT-NP GFIT 26418 2.5 1 2.5 x 2.5

44GT GFIT 10686 3.5 1 4 x 4

44GT-NP GFIT 19315 3.5 1 4 x 4

66GT GFIT 10849 7.3 1 6 x 6

66GT-NP GFIT 16422 7.3 1 6 x 6

88GT GFIT 10988 13 1 8 x 8

88GT-NP GFIT 19314 13 1 8 x 8

1010GT GFIT 10053 17 1 10 x 10

1010GT-NP GFIT 19313 17 1 10 x 10

1212GT GFIT 10166 23 1 12 x 12

1212GT-NP GFIT 19312 23 1 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GF GFIT 26428 0.4 10 2.5 x 2.5

44GF GFIT 10679 0.6 10 4 x 4

44GF-NP GFIT 15520 0.6 10 4 x 4

66GF GFIT 10842 0.8 10 6 x 6

66GF-NP GFIT 15523 0.8 10 6 x 6

88GF GFIT 10981 1 10 8 x 8

88GF-NP GFIT 15526 1 10 8 x 8

1010GF GFIT 10051 1.3 10 10 x 10

1010GF-NP GFIT 15514 1.3 10 10 x 10

1212GF GFIT 10164 1.5 10 12 x 12

1212GF-NP GFIT 15517 1.5 10 12 x 12

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GTF GFIT 26431 2.5 1 2.5 x 2.5

44GTF GFIT 10687 3.5 1 4 x 4

66GTF GFIT 10850 7.2 1 6 x 6

88GTF GFIT 10989 13 1 8 x 8

1010GTF GFIT 18918 20.3 1 10 x 10

1212GTF GFIT 18995 29.2 1 12 x 12

GT | Tees*

This ﬁtting can be used to branch from a wireway run to a

perpendicular run.

GF | End Flanges*

When access from a junction enclosure to a wireway is

required, this piece mounts onto the opening of the

enclosure and then secures to the wireway.

GTF | Telescopic Fittings*

This ﬁtting will accommodate a wireway run where

the remaining section is not a standard length. Attach

ﬁtting to the end of the short piece to ﬁll in the required

distance.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

GFL | 90° Elbows (for Hinge Covers)*

These elbows are designed to turn a 90° corner in a wireway run.

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

22GFL90IS GFIT 26472 1.2 10 2.5 x 2.5

22GFL90OS GFIT 26938 1.2 10 2.5 x 2.5

22GFL90OS-NP GFIT 26939 1.2 10 2.5 x 2.5

22GFL90S GFIT 26471 1.2 10 2.5 x 2.5

44GFL90IS GFIT 10681 3 10 4 x 4

44GFL90OS GFIT 10682 3 10 4 x 4

44GFL90S GFIT 10683 3 10 4 x 4

66GFL90IS GFIT 10844 5 10 6 x 6

66GFL90OS GFIT 10845 5 10 6 x 6

66GFL90OS-NP GFIT 32360 5 10 6 x 6

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

66GFL90S GFIT 10846 5 10 6 x 6

88GFL90IS GFIT 10983 11.5 10 8 x 8

88GFL90OS GFIT 10984 11.5 10 8 x 8

88GFL90S GFIT 10985 11.5 10 8 x 8

88GFL90S-NP GFIT 32369 11.5 10 8 x 8

1010GFL90IS GFIT 28354 18.2 10 10 x 10

1010GFL90OS GFIT 28353 18.2 10 10 x 10

1010GFL90S GFIT 17626 18.2 10 10 x 10

1212GFL90IS GFIT 25494 19 10 12 x 12

1212GFL90S GFIT 32362 19 10 12 x 12

S | Side

S Conﬁguration on 90° screw cover elbow

Top and bottom are removable for lay-in wiring.

C | Corner

C Conﬁguration on 90° screw cover elbow

Both inside and outside corners are removable for

lay-in wiring.

Outside Opening | OS Conﬁguration

on Hinge Cover Elbow

Interchangeable Fittings

The following ﬁttings are interchangeable between the screw cover and hinge cover wireways:

Connectors, Hangers, End Flanges, 45º Elbows, Crosses, Reducers, Telescopic Fittings.

Side Opening | S Conﬁguration

on Hinge Cover Elbow

Inside Opening | IS Conﬁguration

on Hinge Cover Elbow

Sufﬁx Designations

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

WIREWAY

FITTINGS

Wireway Fittings

For use with GSC1 and GHC1 wireway

90° Elbows (for Hinge Covers)*

*Note: Screws not included with ﬁttings. Fitting attachment screws are included with straight sections of wireway.

90° Elbows (for Screw Covers)*

L45S (top access)

L45C (side access)

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Std.

Pkg. Size

45° Elbows

22L45C GFIT 26419 3.6 2 2.5 x 2.5

22L45C-NP GFIT 26420 3.6 2 2.5 x 2.5

22L45S GFIT 26432 3.6 2 2.5 x 2.5

22L45S-NP GFIT 26433 3.6 2 2.5 x 2.5

44L45C GFIT 10689 7.1 2 4 x 4

44L45S GFIT 10690 7.1 2 4 x 4

66L45C GFIT 10852 10.8 2 6 x 6

66L45C-NP GFIT 15499 10.8 2 6 x 6

66L45S GFIT 10853 10.8 2 6 x 6

66L45S-NP GFIT 15500 10.8 2 6 x 6

88L45C GFIT 10991 14.4 2 8 x 8

88L45C-NP GFIT 15510 14.4 2 8 x 8

88L45S GFIT 10992 14.4 2 8 x 8

1010L45C GFIT 10054 16 2 10 x 10

1010L45C-NP GFIT 15460 16 2 10 x 10

1010L45S GFIT 10055 16 2 10 x 10

1010L45S-NP GFIT 15461 16 2 10 x 10

1212L45C GFIT 10167 23 2 12 x 12

1212L45C-NP GFIT 15470 23 2 12 x 12

1212L45S GFIT 10168 23 2 12 x 12

1212L45S-NP GFIT 15471 23 2 12 x 12

90° Elbows

22L90C GFIT 26465 3.6 2 2.5 x 2.5

22L90C-NP GFIT 26466 3.6 2 2.5 x 2.5

22L90S GFIT 26467 3.6 2 2.5 x 2.5

22L90S-NP GFIT 26468 3.6 2 2.5 x 2.5

44L90C GFIT 10691 7 2 4 x 4

44L90C-NP GFIT 15521 7 2 4 x 4

44L90S GFIT 10692 7 2 4 x 4

44L90S-NP GFIT 15522 7 2 4 x 4

66L90C GFIT 10854 9 2 6 x 6

66L90C-NP GFIT 15524 9 2 6 x 6

66L90S GFIT 10855 9 2 6 x 6

66L90S-NP GFIT 15525 9 2 6 x 6

88L90C GFIT 10993 13 2 8 x 8

88L90C-NP GFIT 15527 13 2 8 x 8

88L90S GFIT 10994 13 2 8 x 8

88L90S-NP GFIT 15528 13 2 8 x 8

1010L90C GFIT 10056 15 2 10 x 10

1010L90C-NP GFIT 15515 15 2 10 x 10

1010L90S GFIT 10057 15 2 10 x 10

1010L90S-NP GFIT 15516 15 2 10 x 10

1212L90C GFIT 10169 22 2 12 x 12

1212L90C-NP GFIT 15518 22 2 12 x 12

1212L90S GFIT 10170 22 2 12 x 12

1212L90S-NP GFIT 15519 22 2 12 x 12

L45C & L455 | 45° Elbows

Similar to the 90° elbow in design and function, only used in 45°

angle applications.

90° Elbows

These elbows are designed to turn a 90° corner in a wireway run.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

HOLE

SEALS

Hole Seals

Steel and Stainless Steel options

Application

• Designed to seal extra push-button holes, knockout

openings and conduit openings from dust, dirt, water and

oil.

• A hole seal has a cover with a stud welded in the center

and a gasket placed over the stud.

Construction

• Steel: Cover is painted ANSI 61 gray. Oil-resistant gasket.

Back plate is unpainted galvanized steel.

• Stainless Steel (-XS): Cover is stainless steel with a #3

finish. Oil-resistant gasket. Back plate is stainless steel.

Installation

• The cover and gasket are typically placed on the outside

of the enclosure, with the backplate and wing nut fastened

to the seal from the inside of the enclosure.

• As the wing nut is tight-ened, the cover compresses the

gasket and seals the hole. Can be used on holes ranging

in size from .19 through 4.00 with a wall thickness of up

to .31.

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Max

Hole

Dia.

Seal

Dia.

A-HSPBM IIAC 18781 0.1 0.88 1.22

A-HSPBMXS IIAC 20435 0.1 0.88 1.22

A-HSPB IIAC 18782 0.1 1.25 1.75

A-HSPBXS IIAC 20436 0.1 1.25 1.75

A-HS050 IIAC 18783 0.1 0.88 1.38

A-HS050XS IIAC 20439 0.1 0.88 1.38

A-HS075 IIAC 18784 0.1 1.06 1.56

A-HS075XS IIAC 20438 0.1 1.06 1.56

A-HS100 IIAC 18785 0.1 1.38 1.88

A-HS100XS IIAC 19738 0.1 1.38 1.88

Catalog

Number

Product

Family

UPC #

(7-84572)

Weight

(lbs)

Max

Hole

Dia.

Seal

Dia.

A-HS125 IIAC 19858 0.1 1.69 2.19

A-HS125XS IIAC 20437 0.1 1.69 2.19

A-HS150 IIAC 18786 0.2 2 2.5

A-HS150XS IIAC 19737 0.2 2 2.5

A-HS200 IIAC 18787 0.2 2.5 3

A-HS200XS IIAC 19736 0.2 2.5 3

A-HS250 IIAC 21753 0.3 3 3.5

A-HS300 IIAC 21387 0.6 3.62 4.12

A-HS350 IIAC 21754 0.7 4.12 4.62

A-HS400 IIAC 21755 0.9 4.62 5.12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

ACCESSORIES

Accessories

Locks

Catalog Number Description Product

Family

UPC #

(7-84572)

A. Wing Handle | Key Locking

A-LKWHK3R1 For TC3R enclosures 30x30 & under IIAC 27210

A-LKWHK3R2 For TC3R enclosures 30x30 & over IIAC 27211

B. Wing Handle | Pad Locking

A-LKWHP3R1 For TC3R enclosures 30x30 & under IIAC 27214

A-LKWHP3R2 For TC3R enclosures 30x30 & over IIAC 27215

C. T-Handle Lock

A-LKT3R1 For TC3R enclosures 30x30 & under IIAC 27218

A-LKT3R2 For TC3R enclosures 30x30 & over IIAC 27219

A-LKT3R1-K Keys only for T-handle lock IIAC 28209

D. Flush Mount Quarter Turn | Key Locking

A-LKFMKEY3R1 For TC3R enclosures 30x30 & under IIAC 27222

A-LKFMKEY3R2 For TC3R enclosures 30x30 & over IIAC 27223

A-LKFMKEYM-K Keys only for flush mount quarter turn lock IIAC 28271

E. Flush Mount Quarter-Turn | Screwdriver Operated

A-LKFM3R1 For TC3R enclosures 30x30 & under IIAC 27225

A-LKFM3R2 For TC3R enclosures 30x30 & over IIAC 27226

F. Padlocking L-Handle

A-LKPAD3R1 For TC3R enclosures 30x30 & under IIAC 27229

A-LKPAD3R2 For TC3R enclosures 30x30 & over IIAC 27230

G. Keylocking L-Handle

A-LKLKEY3R1 For TC3R enclosures 30x30 & under IIAC 27233

A-LKLKEY3R2 For TC3R enclosures 30x30 & over IIAC 27234

H. Keylocking Cylinder Lock (knockout is .75" x .671")

A-LK3R For SC3R and GSC3R enclosures IIAC 27237

I. Small Flush Mount | Key Locking

A-LKSFMKEYL For LC1 enclosures IIAC 27236

Replacement Locks

1. Slam Latch Lock

A-LK3 Replacement lock for TSC and TFLC cabinet

covers IIAC 18800

2. Padlocking L-Handle for CT3R

A-LKPH Replacement padlock handle for CT3R

enclosures IIAC 25061

3. Small Flush Mount | Screwdriver Operated

A-LK10 Replacement lock for LC1 enclosures IIAC 28068

1 32

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

ACCESSORIES Accessories

Mounting Kits, Paint, Barrier Kits, Screws

Fast Operating Clamps

Application

• Provides quick access to enclosures without the need

for any tools.

Features

• Installs easily on standard clamp bracket (2 clamps per

kit).

A-FOC

*Stainless steel

A-FOCJIC(S)

External Mounting Foot Kits (TC3R Enclosures)

Application

• For use with TC3R enclosures.

Features

• Easy installation, no drilling.

• Manufactured from G90 galvanized steel.

• Painted to match enclosure.

Catalog

Number

Enclosure

Width (B)

Product

Family

UPC #

(7-84572)

A-TC3RMFK6 6 CNAC 26714

A-TC3RMFK8 8 CNAC 26715

A-TC3RMFK10 10 CNAC 26716

A-TC3RMFK12 12 CNAC 26717

A-TC3RMFK16 16 CNAC 26718

A-TC3RMFK18 18 CNAC 26719

A-TC3RMFK24 24 CNAC 26720

A-TC3RMFKLG 30 & over CNAC 26721

Catalog

Number

Wireway

Size

Dim.

Product

Family

UPC #

(7-84572)

A-BK460 4 x 4 3.53 CNAC 18503

A-BK660 6 x 6 5.53 CNAC 18409

A-BK860 8 x 8 7.53 CNAC 18511

A-BK1060 10 x 10 9.53 CNAC 18517

A-BK1260 12 x 12 11.53 CNAC 18523

Catalog

Number Use With: Product

Family

UPC #

(7-84572)

A-FOCJIC NEMA 12 JIC Boxes IIAC 18803

A-FOCJICS* NEMA 4/4X JIC Boxes IIAC 25026

Catalog

Number Color Description Product

Family

UPC #

(7-84572)

A-GP Light Gray 16 oz. spray IIAC 18795

A-WP White 16 oz. spray IIAC 18796

Catalog

Number Description Product

Family

UPC #

(7-84572)

A-GSC Self tapping screw, 4 per bag CNAC 18798

Touch-Up Paint

Self-Tapping Screws

Barrier Kits

For dividing wireway into two compartments. Barriers are easily secured to wireway with the use of screws (screws included).

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

NOTES

Notes

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

ENVIRONMENTAL

RATINGS

Environmental Ratings

UL and CSA Cross Reference

Type National Electrical Manufacturers’ Association

(NEMA Standard 250)

Underwriters’ Laboratories

(UL 50)

Canadian Standards Association

(C22.2, #14, 40, and 94)

Enclosures constructed for indoor use to provide a degree of

protection to personnel against incidental contact with the

enclosed equipment and to provide a degree of protection

against falling dirt.

Indoor use primarily to provide

a degree of protection against

limited amount of falling dirt

General purpose enclosure in

ordinary locations.

Enclosures constructed for indoor use to provide a degree

of protection to personnel against incidental contact with

the enclosed equipment, to provide a degree of protection

against falling dirt, and to provide a degree of protection

against dripping and light splashing of liquids.

Indoor use primarily to provide

a degree of protection against

limited amounts of falling

water and dirt.

Enclosure for indoor use,

constructed to provide a degree

of protection against dripping and

light splashing of noncorrosive

liquids and falling dirt.

Enclosures constructed for either indoor or outdoor use

to provide a degree of protection to personnel against

incidental contact with enclosed equipment, to provide a

degree of protection against falling dirt, rain, sleet, snow and

windblown dust and that will be undamaged by the external

formation of ice on the enclosure.

Outdoor use primarily to

provide a degree of protection

against rain, sleet, windblown

dust, and damage from

external ice formation.

Enclosure for either indoor

or outdoor use, constructed

so as to provide a degree of

protection against rain, snow, and

windblown dust; undamaged by

the external formation of ice on

the enclosure.

Enclosures constructed for either indoor or outdoor use

to provide a degree of protection to personnel against

incidental contact with enclosed equipment, to provide a

degree of protection against falling dirt, rain, sleet, snow and

that will be undamaged by the external formation of ice on

the enclosure.

Outdoor use primarily to

provide a degree of protection

against rain, sleet; and damage

from external ice formation.

Enclosure for either indoor

or outdoor use, constructed

so as to provide a degree of

protection against rain, and snow,

undamaged by the external

formation of ice on the enclosure.

Enclosures constructed for either indoor or outdoor use

to provide a degree of protection to personnel against

incidental contact with the enclosed equipment, to

provide a degree of protection against falling dirt, rain,

sleet, snow, windblown dust, splashing water, and that will

be undamaged by the external formation of ice on the

enclosure.

Indoor or outdoor use primarily

to provide a degree of

protection against windblown

dust, and rain, splashing

water, hose-directed water;

and damage from external ice

formation.

Enclosure for indoor or outdoor

use, constructed to provide a

degree of protection against rain,

snow, windblown dust, splashing

and hose-directed water;

undamaged by the external

formation of ice on the enclosure.

Enclosures constructed for either indoor or outdoor use

to provide a degree of protection to personnel against

incidental contact with the enclosed equipment; to provide

a degree of protection against falling dirt, rain, sleet, snow,

windblown dust, splashing water, hose-directed water, and

corrosion; and that will be undamaged by the external

formation of ice on the enclosure.

Indoor or outdoor use

primarily to provide a degree

of protection against corrosion,

windblown dust and rain,

splashing water, hose-directed

water; and damage from

external ice formation.

Enclosure for either indoor or

outdoor use, constructed so as

to provide a degree of protection

against rain, snow, windblown

dust, splashing and hose-directed

water; undamaged by the

external formation of ice on the

enclosure; resists corrosion.

Enclosures constructed (without knockouts) for indoor use

to provide a degree of protection to personnel against

incidental contact with the enclosed equipment; to provide

a degree of protection against falling dirt; against circulating

dust, lint, ﬁbers and ﬂyings; and against dripping and light

splashing of liquids.

Indoor use primarily to provide

a degree of protection against

circulating dust, falling dirt,

and dripping noncorrosive

liquids.

Enclosure for indoor use,

constructed so as to provide a

degree of protection against

circulating and settling dust, lint,

ﬁbres, and ﬂyings; dripping and

light splashing of non-corrosive

liquids; no knockouts provided.

Enclosures constructed for indoor use to provide a degree

of protection to personnel against incidental contact with

the enclosed equipment; to provide a degree of protection

against falling dirt; against circulating dust, lint, ﬁbers, and

ﬂyings; and against the spraying, splashing, and seepage of

water, oil, and noncorrosive coolants.

Indoor use primarily to provide

a degree of protection against

dust, spraying of water, oil, and

noncorrosive coolant.

Enclosure for indoor use,

constructed so as to provide a

degree of protection against

circulating and settling dust, lint,

ﬁbres, and ﬂyings; seepage and

spraying of noncorrosive liquids

including oils and coolants.

Note: The speciﬁcations on this page are for comparative reference only and are not intended to provide the complete requirements or test

qualiﬁcations published by various associations and agencies. Complete information may be obtained by contacting the appropriate organization.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

DEFINITIONS

OF PROTECTION

GRADES

Deﬁnitions of Protection Grades

IEC 529

IEC publication 529, Classiﬁcation of Degrees of Protection Provided by Enclosures, provides a system for specifying elec-

trical equipment for enclosures on the basis of degree of protection provided by the enclosure. IEC 529 does not specify

degrees of protection against mechanical damage of equipment, risk of explosions, or conditions such as moisture (produced

for example by condensation), corrosive vapors, fungus or vermin. NEMA Standards Publication 250 does test for environ-

mental conditions such as corrosion, rust, icing, oil and coolants. For this reason, and because the tests and evaluations for

other characteristics are not identical, the IEC Enclosure Classiﬁcation Designations cannot be exactly equated with NEMA

Enclosure type Numbers.

The IEC designation consists of the letters IP followed by two numerals. The ﬁrst characteristic numeral indicates the degree

of protection provided by the enclosure with respect to persons and solid foreign objects entering the enclosure. The second

characteristic numeral indicates the degree of protection provided by the enclosure with respect to the harmful ingress of

water.

The IEC has established an enclosure grading system that produces an IP rating. (For example, IP 54 - 5 is the ﬁrst character -

refer to tables I & II. 4 is the second character - refer to table III - following page).

The following is provided for information only.

Table I: Degrees of Protection against Hazardous Parts

Degree of protection is indicated by the ﬁrst characteristic numeral

First

Characteristic

Numeral

Protection of Persons Protection of Equipment

0Non Protected Non-Protected

1Protected against access to hazardous parts with the back

of a hand. Protected against objects of 50mm diameter and greater.

2Protected against access to hazardous parts with a ﬁnger. Protected against objects of 12.5mm diameter and greater.

3Protected against access to hazardous parts with a tool of

2.5mm in diameter and greater. Protected against objects of 2.5mm diameter and greater.

4Protected against access to hazardous parts with a wire of

1.0mm in diameter and greater. Protected against objects of 1.0mm diameter and greater.

5Protected against access to hazardous parts with a wire of

1.0mm in diameter and greater.

Protected against dust. Ingress of dust is not totally prevented,

but dust shall not penetrate in a quantity to interfere with

satisfactory operation of the apparatus or to impair safety.

6Protected against access to hazardous parts with a wire of

1.0mm in diameter and greater. Protected against dust. No ingress of dust.

Note:

In the case of the ﬁrst characteristic numerals 3, 4, 5 and 6, protection against access to hazardous part is satisﬁed if adequate clearance

is kept. The full diameter of the object probe shall not pass through an opening of the enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

DEFINITIONS

OF PROTECTION

GRADES

Deﬁnitions of Protection Grades

IEC 529

Table II: Degrees of Protection against Water

Degree of protection is indicated by the second characteristic numeral

First

Characteristic

Numeral

Description Deﬁnition

0Non-protected

1Protected against vertically falling water drops Vertically falling drops shall have no harmful effects

2Protected against vertically falling water drops when

enclosure tilted up to 15 degrees

Vertically falling drops shall have no harmful effects when the

enclosure is tilted at any angle up to 15° on either side of the

vertical.

3Protected against spraying water. Water sprayed at any angle up to 60° on either side of the vertical

shall have no harmful effects.

4Protected against splashing water Water splashed against the enclosure from any direction shall

have no harmful effects.

5Protected against water jets Water projected in jets against the enclosure from any direction

shall have no harmful effects.

6Protected against powerful water jets Water projected in powerful jets against the enclosure from any

direction shall have no harmful effects.

7Protected against the effects of temporary immersion

in water.

Ingress of water in quantities causing harmful effects shall not be

possible when the enclosure is temporarily immersed in water

under standardized conditions of pressure and time.

8Protected against the effects of continuous immersion

in water.

Ingress of water in quantities causing harmful effects shall not be

possible when the enclosure is continuously immersed in water

under conditions which shall be agreed between manufacturer

and user but which are more severe than for numeral 7.

NEMA TO IEC Enclosure Rating Cross-Reference1

NEMA Type IP23 IP30 IP32 IP55 IP64 IP65 IP66 IP67

3R x

4X x

12 x

13 x

1This cross reference is an approximation of NEMA and IEC classiﬁcations for reference only. Please consult the appropriate JIC agencies for requirements and test qualiﬁcations for

complete information.

Purge/Pressurization Systems

Purge/pressurization systems allow the use of general-purpose enclosures in hazardous locations as an alternative to NEMA Type 7 or 9 en-

closures or those rated for zone classiﬁcation. Purge/pressurization accessories are attached to an enclosure to prevent explosions in hazard-

ous locations by purging combustible gases or dust and then maintaining a positive pressure with clean dry air, or other inert gas.

Purged and Pressurized Enclosures

1. Purged/pressurized Enclosures for Class I Hazardous Locations Purging is deﬁned as the process of supplying an enclosure with clean air

or an inert gas, at sufﬁcient ﬂow and positive pressure to reduce to an acceptable safe level the concentrations of any ﬂammable gases or

vapors initially present, and to maintain this safe level by positive pressure with or without continuous ﬂow.

2. Pressurized Enclosures for Class II Hazardous Locations Pressurizing is similar to purging except that pressurizing is used to prevent the

entrance of hazardous dusts and cannot be used to clean out dust that already exists inside an enclosure.

Purged or pressurized enclosures are acceptable alternatives for use in hazardous location as permitted by Article 500 of the National Electri-

cal Code and the inspection authority having jurisdiction provided that the requirements and safeguards speciﬁed by NFPA 496, “Purged

and Pressurized Enclosures for Electrical Equipment in Hazardous Locations” are strictly followed.

Milbank does not supply purged/pressurized enclosures. The above descriptions are provided for information only.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

MODIFICATION

AND DRAWING

REqUIREMENTS

Modiﬁcation & Drawing Requirements

Milbank Custom Units

Milbank offers a series

of standard options to

complement our wide range

of catalog products. These

options meet common

industry and application

requirements and are

designed to offer a wide

range of flexibility to meet

many different needs. By

utilizing standard catalog

enclosure types and

standard accessories or

options, you can keep your

price and delivery times to a

minimum.

Wall-Mount Enclosures

• Finish options

• Dimension changes

• Hole and cutout options

• Hinge options

• Studs, nuts and tapped

holes

• Sub-panel options

• Ventilation options

• Window options

• Floor mounting options

• Assembled accessories

• Disconnect options

• Special latching

Large Mild Steel Enclosures

• Finish options

• Dimensional changes

• Hole and cutout options

• Component mounting

options

• Sub-panel options

• Ventilation options

• Window options

• Floor mounting options

• Hinge options

• Wire management choices

• Structural changes

• Assembled accessories

• Disconnect options

• Special latching

Stainless Steel Enclosures

Type 304 or 316 stainless

• Hole and cutout options

• Studs, nuts and tapped

holes

• Sub-panel options

• Ventilation options

• Window options

• Mounting options

• Drip shields

• Assembled accessories

• Disconnect options

• Hinge options

• Special latching

CAD Drawing

Requirements

• Drawings to be AutoCad

.DXF or .DWG.

• Provide CAD drawing

scaled 1:1 (1" = 1 Drawing

Unit / 1mm = 1 Drawing

Unit) [Please specify on

drawing 'Inch' or 'Metric'

accordingly].

• Provide only pertinent

information required to

modify the enclosure.

Electronic/component

layout drawings not

required.

Layer Control

• Erase/omit all unnecessary

drawing information.

• Turn on/thaw layers in

which modifications are

necessary (should be only

information on drawing).

• Purge all unnecessary

blocks / layers / line types

/ text styles / dimension

styles.

• Clearly identify on the

drawing, your company

name and drawing

number.

• Clearly identify revisions

Email Drawings

• Clearly state "Quote

request" or "Engineering

Drawings" in subject line.

Provide brief explanation

of revision or change if

appropriate.

1. Clearly specify what you are sending (i.e. Order, RFQ,

Information Request, Credit Information or Change).

2. Specify complete customer name, address, city, state, zip.

3. Specify phone and fax number of customer.

4. Specify customer contact.

5. Specify exactly who is to receive a copy of the quote (i.e.

Customer/Rep/Both).

6. Specify shipping information.

7. Specify requested ship date. Do not specify ASAP, Rush,

or impossible dates.

8. Indicate on repeat orders when a change is taking place.

Follow up with Engineering and Estimating to verify

change.

9. Specify quantities required and indicate if a blanket order

will be placed.

10. Specify part number if item is a repeat.

11. When referencing competitor’s part numbers, cross-

reference them before submitting RFQ.

12. Clearly describe product including environment (Nema),

type, height, width, depth, number of doors, special

construction (i.e. shelves, brackets, etc.), description of

application is helpful.

13. Clearly specify if UL Environmental rating Labels Are

Required. If so, specify type or indicate “none.”

14. Clearly specify paint, paint type, paint color, paint part

number, paint manufacture, and any special requirements

if other than standard.

15. Specify type of finish for stainless enclosures (i.e. brushed,

Scotch Brite). Indicate special requirements if other than

standard.

16. Specify material requirements (i.e. stainless, mild steel).

17. Indicate if sub-panel is required.

18. When sending drawings, specify clear and complete

information.

• Engineering: specify customer name, job number, and

revision if applicable.

• Estimating: specify customer name and reference RFQ

or quote number if applicable.

19. Specify any special requirements (i.e. penalty clauses,

accessories, mil specs).

Modiﬁcation Services

Minimum Requirements for Engineering/Estimating

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

SCREW COVER

JUNCTION

ENCLOSURES

Screw Cover Junction Enclosures

Type 12 | JIC

10-32 Captivated Screws

Subpanel

Lid Removed

W - 2 W - 5

H + 0.75

H - 1.125

W - 1.125

H + 0.336

W + 0.336

D - 0.473

.438

Ø .313

Applications

For housing electrical controls, terminals, and instruments

and to provide protection from dust, dirt, oil and water

Construction

• Fabricated from 16 or 14 gauge carbon steel, type 304

stainless steel and type 316 stainless steel.

• Lids secured with captivated cover screws threaded into

sealed wells.

• Oil resistant gasket applied to the doors.

• External mounting feet for wall or machinery mounting.

• Weld nuts for mounting optional sub panel.

• Chain not included, order as extra.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL

and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder

coat finishes applied over cleaned phosphatized surfaces.

Carbon steel sub panels have a white polyester powder coat

finish. Stainless Steel enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design

enclosures according to your specifications. Holes, cutouts,

sizes, materials, and many more options are available.

Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

SCREW COVER

JUNCTION

ENCLOSURES

Screw Cover Junction Enclosures

Type 12 | JIC

Catalog Number Product Size

H x W x D (inches)

Ship.

Wt.

Sub Panel

Part #

Sub Panel Size

H x W (inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

SC443JIC12 SC443JIC12XS SC443JIC12XZ 4 x 4 x 3 2 — —

SC643JIC12 SC643JIC12XS SC643JIC12XZ 6 x 4 x 3 3 A-64SBP 4.88 x 2.88

SC863JIC12 SC863JIC12XS SC863JIC12XZ 8 x 6 x 3.5 5 A-86SBP 6.88 x 4.88

SC444JIC12 SC444JIC12XS SC444JIC12XZ 4 x 4 x 4 2 — —

SC644JIC12 SC644JIC12XS SC644JIC12XZ 6 x 4 x 4 3 A-64SBP 4.88 x 2.88

SC884JIC12 SC884JIC12XS SC884JIC12XZ 8 x 8 x 4 6 A-88SBP 6.88 x 6.88

SC664JIC12 SC664JIC12XS SC664JIC12XZ 6 x 6 x 4 4 A-66SBP 4.88 x 4.88

SC666JIC12 SC666JIC12XS SC666JIC12XZ 6 x 6 x 6 5 A-66SBP 4.88 x 4.88

SC866JIC12 SC866JIC12XS SC866JIC12XZ 8 x 6 x 6 7 A-86SBP 6.88 x 4.88

SC1084JIC12 SC1084JIC12XS SC1084JIC12XZ 10 x 8 x 4 8 A-108SBP 8.88 x 6.88

SC1264JIC12 SC1264JIC12XS SC1264JIC12XZ 12 x 6 x 4 7 A-126SBP 10.88 x 4.88

SC12105JIC12 SC12105JIC12XS SC12105JIC12XZ 12 x 10 x 5 12 A-1210SBP 10.88 x 8.88

SC1086JIC12 SC1086JIC12XS SC1086JIC12XZ 10 x 8 x 6 9 A-108SBP 8.88 x 6.88

SC10106JIC12 SC10106JIC12XS SC10106JIC12XZ 10 x 10 x 6 11 A-1010SBP 8.88 x 8.88

SC12126JIC12 SC12126JIC12XS SC12126JIC12XZ 12 x 12 x 6 14 A-1212SBP 10.88 x 10.88

SC1486JIC12 SC1486JIC12XS SC1486JIC12XZ 14 x 8 x 6 12 A-148SBP 12.88 x 6.88

SC14126JIC12 SC14126JIC12XS SC14126JIC12XZ 14 x 12 x 6 16 A-1412SBP 12.88 x 10.88

SC16106JIC12 SC16106JIC12XS SC16106JIC12XZ 16 x 10 x 6 16 A-1610SBP 14.88 x 8.88

SC16146JIC12 SC16146JIC12XS SC16146JIC12XZ 16 x 14 x 6 20 A-1614SBP 14.88 x 12.88

SC12108JIC12 SC12108JIC12XS SC12108JIC12XZ 12 x 10 x 8 15 A-1210SBP 10.88 x 8.88

SC14128JIC12 SC14128JIC12XS SC14128JIC12XZ 14 x 12 x 8 19 A-1412SBP 12.88 x 10.88

SC16148JIC12 SC16148JIC12XS SC16148JIC12XZ 16 x 14 x 8 23 A-1614SBP 14.88 x 12.88

SC161410JIC12 SC161410JIC12XS SC161410JIC12XZ 16 x 14 x 10 26 A-1614SBP 14.88 x 12.88

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

CLAMP COVER

JUNCTION

ENCLOSURES

Clamp Cover Junction Enclosures

Type 12 | JIC

Applications

Designed to provide protection for electrical controls,

instruments, and terminals from oil, dirt, dust and water entry.

Construction

• Fabricated from 16 or 14 gauge carbon steel, 14 gauge

type 304 or type 316 stainless steel with continuously

welded seams.

• Door secured with zinc coated clamps.

• Stainless steel doors are secured with type 316 stainless

steel clamps.

• Oil resistant gasket applied to the doors.

• External mounting feet for wall or machinery mounting.

• Weld nuts for mounting optional sub-panel.

• Chain included.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL

and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder

coat finishes applied over cleaned phosphatized surfaces.

Carbon steel sub panels have a white polyester powder coat

finish. Stainlesssteel enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design

enclosures according to your specifications. Holes, cutouts,

sizes, materials, and many more options are available.

Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type12

Subpanel

(sold separately)

Subpanel

H - 1.125

W - 1.125 H + 0.75

W - 2

.324

.313 Ø

H + 0.336

W + 0.336

.438

D - 0.586

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

CLAMP COVER

JUNCTION

ENCLOSURES

Clamp Cover Junction Enclosures

Type 12 | JIC

Catalog Number Enclosure Size

H x W x D

Ship.

Wt.

Sub Panel

Part #

Sub Panel Size

H x W (inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

CC443JIC12 CC443JIC12XS CC443JIC12XZ 4 x 4 x 3 2 — —

CC643JIC12 CC643JIC12XS CC643JIC12XZ 6 x 4 x 3 3 A-64SBP 4.88 x 2.88

CC863JIC12 CC863JIC12XS CC863JIC12XZ 8 x 6 x 3.5 5 A-86SBP 6.88 x 4.88

CC444JIC12 CC444JIC12XS CC444JIC12XZ 4 x 4 x 4 3 — —

CC644JIC12 CC644JIC12XS CC644JIC12XZ 6 x 4 x 4 4 A-64SBP 4.88 x 2.88

CC664JIC12 CC664JIC12XS CC664JIC12XZ 6 x 6 x 4 5 A-66SBP 4.88 x 4.88

CC884JIC12 CC884JIC12XS CC884JIC12XZ 8 x 8 x 4 8 A-88SBP 6.88 x 6.88

CC1084JIC12 CC1084JIC12XS CC1084JIC12XZ 10 x 8 x 4 9 A-108SBP 8.88 x 6.88

CC1264JIC12 CC1264JIC12XS CC1264JIC12XZ 12 x 6 x 4 9 A-126SBP 10.88 x 4.88

CC12105JIC12 CC12105JIC12XS CC12105JIC12XZ 12 x 10 x 5 14 A-1210SBP 10.88 x 8.88

CC666JIC12 CC666JIC12XS CC666JIC12XZ 6 x 6 x 6 6 A-66SBP 4.88 x 4.88

CC866JIC12 CC866JIC12XS CC866JIC12XZ 8 x 6 x 6 8 A-86SBP 6.88 x 4.88

CC1086JIC12 CC1086JIC12XS CC1086JIC12XZ 10 x 8 x 6 11 A-108SBP 8.88 x 6.88

CC10106JIC12 CC10106JIC12XS CC10106JIC12XZ 10 x 10 x 6 13 A-1010SBP 8.88 x 8.88

CC12126JIC12 CC12126JIC12XS CC12126JIC12XZ 12 x 12 x 6 17 A-1212SBP 10.88 x 10.88

CC1486JIC12 CC1486JIC12XS CC1486JIC12XZ 14 x 8 x 6 15 A-148SBP 12.88 x 6.88

CC14126JIC12 CC14126JIC12XS CC14126JIC12XZ 14 x 12 x 6 19 A-1412SBP 12.88 x 10.88

CC16106JIC12 CC16106JIC12XS CC16106JIC12XZ 16 x 10 x 6 19 A-1610SBP 14.88 x 8.88

CC12108JIC12 CC12108JIC12XS CC12108JIC12XZ 12 x 10 x 8 18 A-1210SBP 10.88 x 8.88

CC14128JIC12 CC14128JIC12XS CC14128JIC12XZ 14 x 12 x 8 22 A-1412SBP 12.88 x 10.88

CC16146JIC12 CC16146JIC12XS CC16146JIC12XZ 16 x 14 x 6 24 A-1614SBP 14.88 x 12.88

CC16148JIC12 CC16148JIC12XS CC16148JIC12XZ 16 x 14 x 8 28 A-1614SBP 14.88 x 12.88

CC161410JIC12 CC161410JIC12XS CC161410JIC12XZ 16 x 14 x 10 31 A-1614SBP 14.88 x 12.88

NOTE

When width is equal to or less than 8 inches,

there will be on set of clamps on that side.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

WIRING

TROUGHS

WITH LIFT-OFF

COVERS

Wiring Troughs with Lift-Off Covers

Type 12

Lid Removed

OMIT CENTER

MOUNTING FOOT IF D

IS LESS THAN 60"

.62

.32

(4 sides)

Ø .31

Mtg.

D + .75

Mtg.

D/2 - .62

Mtg.

D - 1.25

Mtg.

Lid Removed

OMIT CENTER

MOUNTING FOOT IF D

IS LESS THAN 60"

.62

.32

(4 sides)

Ø .31

Mtg.

D + .75

Mtg.

D/2 - .62

Mtg.

D - 1.25

Mtg.

Applications

Designed to house electrical wiring where dust, dirt, oil and

water are not serious problems.

Construction

• Fabricated from 16 or 14 gauge carbon steel, 14 gauge

type 304 or type 316 stainless steel with continuously

welded seams.

• No holes or knockouts.

• Troughs with lift-off lids and external screw clamps to

ensure a complete seal between cover and body.

• Mounting feet provided.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL

and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder

coat finishes applied over cleaned phosphatized surfaces.

Stainless Steel enclosures

have a polished #4 finish.

Options

Milbank can modify standard flangeless lay-in wireways

according to your specifications. Sizes and many more

options are available. Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type12

Catalog Number Product Size

H x W x D (in.)

Shipping

Weight Gauge

# of

Mounting

Feet

Qty. Clamps

& Screws

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

2212-GCC12 2212-GCC12XS 2212-GCC12XZ 2.5 x 2.5 x 12 5 16 2 2

2218-GCC12 2218-GCC12XS 2218-GCC12XZ 2.5 x 2.5 x 18 7 16 2 3

2224-GCC12 2224-GCC12XS 2224-GCC12XZ 2.5 x 2.5 x 24 8 16 2 3

4412-GCC12 4412-GCC12XS 4412-GCC12XZ 4 x 4 x 12 7 16 2 2

4418-GCC12 4418-GCC12XS 4418-GCC12XZ 4 x 4 x 18 9 16 2 3

4424-GCC12 4424-GCC12XS 4424-GCC12XZ 4 x 4 x 24 11 14 2 3

4436-GCC12 4436-GCC12XS 4436-GCC12XZ 4 x 4 x 36 17 14 2 4

4448-GCC12 4448-GCC12XS 4448-GCC12XZ 4 x 4 x 48 22 14 2 5

6612-GCC12 6612-GCC12XS 6612-GCC12XZ 6 x 6 x 12 10 14 2 2

6618-GCC12 6618-GCC12XS 6618-GCC12XZ 6 x 6 x 18 13 14 2 3

6624-GCC12 6624-GCC12XS 6624-GCC12XZ 6 x 6 x 24 17 14 2 3

6636-GCC12 6636-GCC12XS 6636-GCC12XZ 6 x 6 x 36 26 14 2 4

6648-GCC12 6648-GCC12XS 6648-GCC12XZ 6 x 6 x 48 31 14 2 5

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

JUNCTION

ENCLOSURES

Junction Enclosures

Type 12 | Continuous Hinge Cover

Subpanel

Sold

Seperately

Lid Removed

H + .75

Mtg.

W - 2

Mtg.

H - 1.125

W - 1.125

Panel

Ø .31

W + 0.3

H + 0.3

D - 0.49 .44 I.D.

Applications

Designed to provide protection for electrical controls,

instruments, and terminals from oil, dirt, and dust

Construction

• Fabricated from 16 or 14 gauge carbon steel, 14 gauge

type 304 or type 316 stainless steel with continuously

welded seams.

• Door secured with a continuous hinge with removable pin

and clamps.

• Oil resistant gasket applied to the doors.

• External mounting feet for wall or machinery mounting.

• Weld nuts for mounting optional sub panel.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL

and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder

coat finishes applied over cleaned phosphatized surfaces.

Carbon steel sub panels have a white polyester powder coat

finish. Stainless steel enclosures have a polished #4 finish

Options

Milbank can modify standard enclosures or custom design

enclosures according to your specifications. Holes, cutouts,

sizes, materials, and many more options are available.

Quotations upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

JUNCTION

ENCLOSURES

Junction Enclosures

Type 12 | Continuous Hinge Cover

Catalog Number Product Size

H x W x D (in.)

Ship.

Weight

Sub Panel

Part #

Sub Panel Size

H x W (in.)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

HC443JIC12 HC443JIC12XS HC443JIC12XZ 4 x 4 x 3 2 — —

HC643JIC12 HC643JIC12XS HC643JIC12XZ 6 x 4 x 3 3 A-64SBP 4.88 x 2.88

HC863JIC12 HC863JIC12XS HC863JIC12XZ 8 x 6 x 3.5 5 A-86SBP 6.88 x 4.88

HC444JIC12 HC444JIC12XS HC444JIC12XZ 4 x 4 x 4 2 — —

HC644JIC12 HC644JIC12XS HC644JIC12XZ 6 x 4 x 4 3 A-64SBP 4.88 x 2.88

HC664JIC12 HC664JIC12XS HC664JIC12XZ 6 x 6 x 4 4 A-66SBP 4.88 x 4.88

HC884JIC12 HC884JIC12XS HC884JIC12XZ 8 x 8 x 4 6 A-88SBP 6.88 x 6.88

HC1084JIC12 HC1084JIC12XS HC1084JIC12XZ 10 x 8 x 4 8 A-108SBP 8.88 x 6.88

HC1264JIC12 HC1264JIC12XS HC1264JIC12XZ 12 x 6 x 4 7 A-126SBP 10.88 x 4.88

HC12105JIC12 HC12105JIC12XS HC12105JIC12XZ 12 x 10 x 5 12 A-1210SBP 10.88 x 8.88

HC666JIC12 HC666JIC12XS HC666JIC12XZ 6 x 6 x 6 5 A-66SBP 4.88 x 4.88

HC866JIC12 HC866JIC12XS HC866JIC12XZ 8 x 6 x 6 7 A-86SBP 6.88 x 4.88

HC1086JIC12 HC1086JIC12XS HC1086JIC12XZ 10 x 8 x 6 9 A-108SBP 8.88 x 6.88

HC10106JIC12 HC10106JIC12XS HC10106JIC12XZ 10 x 10 x 6 11 A-1010SBP 8.88 x 8.88

HC12126JIC12 HC12126JIC12XS HC12126JIC12XZ 12 x 12 x 6 14 A-1212SBP 10.88 x 10.88

HC1486JIC12 HC1486JIC12XS HC1486JIC12XZ 14 x 8 x 6 12 A-148SBP 12.88 x 6.88

HC14126JIC12 HC14126JIC12XS HC14126JIC12XZ 14 x 12 x 6 16 A-1412SBP 12.88 x 10.88

HC16106JIC12 HC16106JIC12XS HC16106JIC12XZ 16 x 10 x 6 16 A-1610SBP 14.88 x 8.88

HC16146JIC12 HC16146JIC12XS HC16146JIC12XZ 16 x 14 x 6 20 A-1614SBP 14.88 x 12.88

HC12108JIC12 HC12108JIC12XS HC12108JIC12XZ 12 x 10 x 8 15 A-1210SBP 10.88 x 8.88

HC14128JIC12 HC14128JIC12XS HC14128JIC12XZ 14 x 12 x 8 19 A-1412SBP 12.88 x 10.88

HC16148JIC12 HC16148JIC12XS HC16148JIC12XZ 16 x 14 x 8 23 A-1614SBP 14.88 x 12.88

HC161410JIC12 HC161410JIC12XS HC161410JIC12XZ 16 x 14 x 10 26 A-1614SBP 14.88 x 12.88

NOTE

When width is equal to or less than 8 inches,

there will be on set of clamps on that side.

Sub panels must be ordered separately.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

JUNCTION

ENCLOSURES

Junction Enclosures

Type 12 | Large Continuous Hinge Cover

Catalog Number Enclosure Size

H x W x D (in.) Shipping Wt. Sub Panel

Catalog Number

Sub Panel Size

H x W (inches)

HC20167JIC12 20 x 16 x 7 31 A-20P16 17 x 13

HC20207JIC12 20 x 20 x 7 37 A-20P20 17 x 17

HC24207JIC12 24 x 20 x 7 43 A-24P20 21 x 17

HC24247JIC12 24 x 24 x 7 48 A-24P24 21 x 21

HC30207JIC12 30 x 20 x 7 50 A-30P20 27 x 17

HC30247JIC12 30 x 24 x 7 58 A-30P24 27 x 21

HC36247JIC12 36 x 24 x 7 69 A-36P24 33 x 21

HC20169JIC12 20 x 16 x 9 36 A-20P16 17 x 13

HC20209JIC12 20 x 20 x 9 41 A-20P20 17 x 17

HC24209JIC12 24 x 20 x 9 47 A-24P20 21 x 17

HC24249JIC12 24 x 24 x 9 54 A-24P24 21 x 21

HC30209JIC12 30 x 20 x 9 55 A-30P20 27 x 17

HC30249JIC12 30 x 24 x 9 62 A-30P24 27 x 21

HC36249JIC12 36 x 24 x 9 76 A-36P24 33 x 21

HC36309JIC12 36 x 30 x 9 90 A-36P30 33 x 27

HC42309JIC12 42 x 30 x 9 103 A-42P30 39 x 27

HC42369JIC12 42 x 36 x 9 115 A-42P36 39 x 33

HC242411JIC12 24 x 24 x 11 58 A-24P24 21 x 21

HC362411JIC12 36 x 24 x 11 77 A-36P24 33 x 21

HC483611JIC12 48 x 36 x 11 139 A-48P36 45 x 33

HC302413JIC12 30 x 24 x 13 70 A-30P24 27 x 21

HC363013JIC12 36 x 30 x 13 100 A-36P30 33 x 27

Subpanel

(sold separately)

Subpanel

Lid Removed

H - 3

W - 3

W + 0.3

H + 0.3

Ø .44

Mtg.

1.00 I.D.

D - 1.18

.62

.62 3 3

Applications

For housing electrical controls,

terminals, and instruments and to

provide protection from dust, dirt, oil

and water.

Construction

• Fabricated from 14 gauge carbon

steel.

• Door secured with continuous hinge

and clamps.

• Oil resistant gasket applied to doors.

• External mounting feet for wall or

machinery mounting.

• Collar studs for mounting optional

sub panel.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Notes:

1. Print pocket: 6” x 6” when

H and W are 24” or less.

Print pocket = 9” x 9”

when H and W are greater

than 24”.

2. Panels will have formed

ﬂanges when either

Height or Width is greater

than or equal to 18".

3. Sub panels must be

ordered separately.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

JUNCTION

ENCLOSURES

Junction Enclosures

Type 12 | Wiring Troughs | Continuous Hinged Cover

Lid Removed

OMIT CENTER

MOUNTING FOOT IF

L IS LESS THAN 60"

.62 Ø .31

Mtg.

.32

(4 sides)

D + 0.75

L/2 - .62

L - 1.25

Lid Removed

OMIT CENTER

MOUNTING FOOT IF

L IS LESS THAN 60"

.62 Ø .31

Mtg.

.32

(4 sides)

D + 0.75

L/2 - .62

L - 1.25

Lid Removed

OMIT CENTER

MOUNTING FOOT IF

L IS LESS THAN 60"

.62 Ø .31

Mtg.

.32

(4 sides)

D + 0.75

L/2 - .62

L - 1.25

Applications

To protect wiring from dust, dirt, oil and water.

Construction

• Fabricated from 14 gauge carbon steel, type 304 or type 316

stainless steel with continuously welded seams.

• No holes or knockouts.

• Troughs have continuous hinges and external screw clamps to

ensure a complete seal between cover and body.

• Mounting feet provided.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder coat finishes applied over cleaned phosphatized surfaces. Stainless

Steel enclosures have a polished #4 finish.

Options

Milbank can modify standard Flangeless Lay-in Wireways according to your specifications. Sizes and many more options are

available. Quotations upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

JUNCTION

ENCLOSURES

Junction Enclosures

Type 12 | Wiring Troughs | Continuous Hinged Cover

Catalog Number Product Size

H x D x L

(inches)

Ship.

Weight

(lbs)

# of

Mounting

Feet

Qty.

Clamps

& Screws

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

2212-GHC12 2212-GHC12XS 2212-GHC12XZ 2.5 x 2.5 x 12 3 2 2

2218-GHC12 2218-GHC12XS 2218-GHC12XZ 2.5 x 2.5 x 18 5 2 3

2224-GHC12 2224-GHC12XS 2224-GHC12XZ 2.5 x 2.5 x 24 6 2 3

2230-GHC12 2230-GHC12XS 2230-GHC12XZ 2.5 x 2.5 x 30 9 2 3

2236-GHC12 2236-GHC12XS 2236-GHC12XZ 2.5 x 2.5 x 36 10 2 4

2248-GHC12 2248-GHC12XS 2248-GHC12XZ 2.5 x 2.5 x 48 13 2 5

2260-GHC12 2260-GHC12XS 2260-GHC12XZ 2.5 x 2.5 x 60 16 3 6

2272-GHC12 2272-GHC12XS 2272-GHC12XZ 2.5 x 2.5 x 72 19 3 6

4412-GHC12 4412-GHC12XS 4412-GHC12XZ 4 x 4 x 12 6 2 2

4418-GHC12 4418-GHC12XS 4418-GHC12XZ 4 x 4 x 18 10 2 3

4424-GHC12 4424-GHC12XS 4424-GHC12XZ 4 x 4 x 24 11 2 3

4430-GHC12 4430-GHC12XS 4430-GHC12XZ 4 x 4 x 30 15 2 3

4436-GHC12 4436-GHC12XS 4436-GHC12XZ 4 x 4 x 36 18 2 4

4448-GHC12 4448-GHC12XS 4448-GHC12XZ 4 x 4 x 48 22 2 5

4460-GHC12 4460-GHC12XS 4460-GHC12XZ 4 x 4 x 60 25 3 6

4472-GHC12 4472-GHC12XS 4472-GHC12XZ 4 x 4 x 72 30 3 6

6612-GHC12 6612-GHC12XS 6612-GHC12XZ 6 x 6 x 12 10 2 2

6618-GHC12 6618-GHC12XS 6618-GHC12XZ 6 x 6 x 18 12 2 3

6624-GHC12 6624-GHC12XS 6624-GHC12XZ 6 x 6 x 24 16 2 3

6630-GHC12 6630-GHC12XS 6630-GHC12XZ 6 x 6 x 30 19 2 3

6636-GHC12 6636-GHC12XS 6636-GHC12XZ 6 x 6 x 36 24 2 4

6648-GHC12 6648-GHC12XS 6648-GHC12XZ 6 x 6 x 48 30 2 5

6660-GHC12 6660-GHC12XS 6660-GHC12XZ 6 x 6 x 60 32 3 6

6672-GHC12 6672-GHC12XS 6672-GHC12XZ 6 x 6 x 72 44 3 6

8812-GHC12 8812-GHC12XS 8812-GHC12XZ 8 x 8 x 12 13 2 2

8824-GHC12 8824-GHC12XS 8824-GHC12XZ 8 x 8 x 24 23 2 3

8836-GHC12 8836-GHC12XS 8836-GHC12XZ 8 x 8 x 36 32 2 4

8848-GHC12 8848-GHC12XS 8848-GHC12XZ 8 x 8 x 48 40 2 5

8860-GHC12 8860-GHC12XS 8860-GHC12XZ 8 x 8 x 60 49 3 6

121224-GHC12 121224-GHC12XS 121224-GHC12XZ 12 x 12 x 24 34 2 3

121236-GHC12 121236-GHC12XS 121236-GHC12XZ 12 x 12 x 36 49 2 4

121248-GHC12 121248-GHC12XS 121248-GHC12XZ 12 x 12 x 48 60 2 5

121260-GHC12 121260-GHC12XS 121260-GHC12XZ 12 x 12 x 60 73 3 6

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Standard Oil-Tight

Catalog Number

# of

Holes

Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Hole Location

Carbon Steel

30.5mm Hole

304 Stainless Steel

30.5mm Hole

Carbon Steel

22.5mm Hole

304 Stainless Steel

22.5mm Hole J K

PB12S11 PB12XS11 PBM12S11 PBM12XS11 1 3.5 x 3.25 x 2.75 2 1.918 1.793

PB12S12 PB12XS12 PBM12S12 PBM12XS12 2 5.75 x 3.25 x 2.75 3 1.918 1.793

PB12S13 PB12XS13 PBM12S13 PBM12XS13 3 8 x 3.25 x 2.75 3 1.918 1.793

PB12S14 PB12XS14 PBM12S14 PBM12XS14 4 10.25 x 3.25 x 2.75 4 1.918 1.793

PB12S22 PB12XS22 PBM12S22 PBM12XS22 4 7.25 x 6.25 x 3 5 2.668 2.168

PB12S15 PB12XS15 PBM12S15 PBM12XS15 5 12.5 x 3.25 x 2.75 5 1.918 1.793

PB12S32 PB12XS32 PBM12S32 PBM12XS32 6 9.5 x 6.25 x 3 6 2.668 2.168

PB12S16 PB12XS16 PBM12S16 PBM12XS16 6 14.75 x 3.25 x 2.75 6 1.918 1.793

PB12S17 PB12XS17 PBM12S17 PBM12XS17 7 18 x 3.25 x 2.75 6 2.418 1.793

PB12S18 PB12XS18 PBM12S18 PBM12XS18 8 20.25 x 3.25 x 2.75 8 2.418 1.793

PB12S33 PB12XS33 PBM12S33 PBM12XS33 9 9.5 x 8.5 x 3 8 2.668 2.168

PB12S19 PB12XS19 PBM12S19 PBM12XS19 9 22.5 x 3.25 x 2.75 8 2.418 1.793

PB12S110 PB12XS110 PBM12S110 PBM12XS110 10 24.75 x 3.25 x 2.75 8 2.418 1.793

PB12S43 PB12XS43 PBM12S43 PBM12XS43 12 11.75 x 8.5 x 3 9 2.668 2.168

PB12S44 PB12XS44 PBM12S44 PBM12XS44 16 11.75 x 10.75 x 3 11 2.668 2.168

PB12S54 PB12XS54 PBM12S54 PBM12XS54 20 14 x 10.75 x 3 12 2.668 2.168

PB12S55 PB12XS55 PBM12S55 PBM12XS55 25 14 x 13 x 3 14 2.668 2.168

Applications

Designed to provide protection from oil, dirt, and dust. Universal holes

accommodate many types of pilot lights, switches and pushbuttons

Construction

• Fabricated from 14 gauge carbon steel or type 304 stainless steel with

continuously welded seams.

• Cover secured with captivated screws.

• Oil resistant gasket applied to the cover.

• External mounting feet for wall or machinery mounting.

• Universal pushbutton holes (30.5mm).

• 22mm available with “M” addition to part number.

Finish

Standard ANSI-61 gray finish on interior and exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture polyester powder coat available at no charge. Standard RAL and custom match finishes

available for an additional charge, please contact Milbank for further assistance. All powder coat finishes applied over cleaned

phosphatized surfaces. Stainless steel enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design enclosures according to your specifications. Custom sizes,

materials, and many more options are available. Quotations upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Standard Oil-Tight

PB12S11 PB12S12 PB12S13 PB12S14 PB12S22 PB12S15 PB12S32 PB12S16 PB12S17 PB12S33 PB12S43

LID

REMOVED

30.5 mm

4 - way

22.5 mm

4 - way

INTERNAL LIFT-OFF

HINGES ON UNITS

WITH MORE THAN

ONE COLUMN OF

PUSHBUTTONS

LID SECURED

WITH 10-32

CAPTIVE SCREWS

W - .875

H + .5

Ø .31

Mtg.

2.25

K 2.25

.19

.67

Ø1.2

( 30.5mm ) .13

.48 Ø.87

( 22.2mm )

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Extra Deep Oil-Tight

Applications

Designed to provide protection from oil, dirt, and dust. Universal holes

accommodate many types of pilot lights, switches and pushbuttons

Construction

• Fabricated from 14 gauge carbon steel or type 304 stainless steel with

continuously welded seams.

• Additional inch of depth.

• Cover secured with captivated screws.

• Oil resistant gasket applied to the cover.

• External mounting feet for wall or machinery mounting.

• Universal pushbutton holes (30.5mm).

• 22mm available with “M” addition to part number.

Finish

Standard ANSI-61 gray finish on interior and exterior of enclosures. Recoatable, smooth, white or RAL 7035 texture polyester

powder coat available at no charge. Standard RAL and custom match finishes available for an additional charge, please

contact Milbank for further assistance. All powder coat finishes applied over cleaned phosphatized surfaces. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design enclosures according to your specifications. Custom sizes,

materials, and many more options are available. Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type12

Catalog Number # of

Holes

Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Hole Location

Carbon Steel

30.5mm Hole

304 Stainless Steel

30.5mm Hole

Carbon Steel

22.5mm Hole

304 Stainless Steel

22.5mm Hole J K

PBD12S11 PBD12XS11 PBDM12S11 PBDM12XS11 1 4 x 4 x 4.75 3 2.168 2.168

PBD12S12 PBD12XS12 PBDM12S12 PBDM12XS12 2 6 x 4 x 4.75 4 2.043 2.168

PBD12S13 PBD12XS13 PBDM12S13 PBDM12XS13 3 8 x 4 x 4.75 5 1.918 2.168

PBD12S14 PBD12XS14 PBDM12S14 PBDM12XS14 4 10 x 4 x 4.75 6 1.793 2.168

PBD12S22 PBD12XS22 PBDM12S22 PBDM12XS22 4 7.25 x 6.25 x 4.75 6 2.668 2.168

PBD12S16 PBD12XS16 PBDM12S16 PBDM12XS16 6 9.5 x 6.25 x 4.75 8 2.668 2.168

PBD12S33 PBD12XS33 PBDM12S33 PBDM12XS33 9 9.5 x 8.5 x 4.75 9 2.668 2.168

PBD12S110 PBD12XS110 PBDM12S110 PBDM12XS110 10 14 x 6.25 x 4.75 10 2.668 2.168

PBD12S43 PBD12XS43 PBDM12S43 PBDM12XS43 12 11.75 x 8.5 4.75 9 2.668 2.168

PBD12S44 PBD12XS44 PBDM12S44 PBDM12XS44 16 11.75 x 10.75 x 4.75 12 2.668 2.168

PBD12S116 PBD12XS116 PBDM12S116 PBDM12XS116 16 20.75 x 6.25 x 4.75 13 2.668 2.168

PBD12S54 PBD12XS54 PBDM12S54 PBDM12XS54 20 14 x 10.75 x 4.75 15 2.668 2.168

PBD12S55 PBD12XS55 PBDM12S55 PBDM12XS55 25 14 x 13 x 4.75 16 2.668 2.168

PBD12S56 PBD12XS56 PBDM12S56 PBDM12XS56 30 16.25 x 13 x 4.75 18 2.668 2.168

PBD12S66 PBD12XS66 PBDM12S66 PBDM12XS66 36 16.25 x 15.25 x 4.75 20 2.668 2.168

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Extra Deep Oil-Tight

LID

REMOVED

30.5 mm

4 - way

22.5 mm

4 - way

INTERNAL LIFT-OFF

HINGES ON UNITS

WITH MORE THAN

ONE COLUMN OF

PUSHBUTTONS

LID SECURED

WITH 10-32

CAPTIVE SCREWS

W - .875

H .336

H + .5

Ø .31

Mtg.

.255

2.25

K 2.25

.19

.67

Ø1.2

( 30.5mm ) .13

.48 Ø.87

( 22.2mm )

PBD12S11 PBD12S12 PBD12S13 PBD12S14 PBD12S22

PBD12S15 PBD12S32 PBD12S16 PBD12S17 PBD12S33 PBD12S43

PBD12S11 PBD12S12 PBD12S13 PBD12S14 PBD12S22

PBD12S15

PBD12S32 PBD12S16 PBD12S17 PBD12S33 PBD12S43

PBD12S11 PBD12S12 PBD12S13 PBD12S14 PBD12S22 PBD12S15 PBD12S32

PBD12S16

PBD12S17 PBD12S33 PBD12S43

PBD12S11 PBD12S12 PBD12S13 PBD12S14 PBD12S22 PBD12S15 PBD12S32 PBD12S16 PBD12S17

PBD12S33 PBD12S43

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Pendant Type Oil-Tight

Catalog Number # of

Holes

Enclosure Size

H x W x D

Ship.

Weight

(lbs)

Hole Location

Carbon Steel

30.5mm Hole

304 Stainless Steel

30.5mm Hole J K

PPB12S11 PPB12XS11 1 4 x 2.5 x 2.5 2 1.418 1.418

PPB12S12 PPB12XS12 2 6.25 x 2.5 x 2.5 3 2.168 1.418

PPB12S13 PPB12XS13 3 8.5 x 2.5 x 2.5 3 2.168 1.418

PPB12S14 PPB12XS14 4 10.75 x 2.5 x 2.5 4 2.168 1.418

PPB12S15 PPB12XS15 5 13 x 2.5 x 2.5 4 2.168 1.418

PPB12S16 PPB12XS16 6 16.25 x 2.5 x 2.5 5 2.668 1.418

PPB12S17 PPB12XS17 7 18.5 x 2.5 x 2.5 6 2.668 1.418

PPB12S18 PPB12XS18 8 20.75 x 2.5 x 2.5 6 2.668 1.418

No Lid

.324

10-32 Captivated Screws

Ø .312

1.500

2.250

W + 0.336

H + 0.336

Applications

Designed to provide protection from oil, dirt, and dust. Universal holes accommodate many types of pilot

lights, switches and pushbuttons.

Construction

Fabricated from 14 gauge carbon steel or type 304 stainless steel with continuously welded seams.

Enclosures feature:

• Coversecuredwithcaptivatedscrews.

• Oilresistantgasketappliedtothecover.

• Externalmountingfeetforwallormachinerymounting.

• Universalpushbuttonholes(30.5mm).

Finish

Standard ANSI-61 gray finish on interior and exterior of enclosures. Recoatable, smooth, white or RAL

7035 texture polyester powder coat available at no charge. Standard RAL and custom match finishes

available for an additional charge, please contact Milbank for further assistance. All powder coat finishes

applied over cleaned phosphatized surfaces. Stainless steel enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design enclosures according to your specifications. 0.88" [22mm]

pushbutton holes, sizes, materials, and many more options are available. Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Sloping Front Oil-Tight

Catalog Number

# of

Holes

Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Hole Location

Carbon Steel

30.5mm Hole

304 Stainless

Steel 30.5mm

Hole

Carbon Steel

22.5mm Hole

304 Stainless

Steel 22.5mm

Hole J K E Y

PBSF12S11 PBSF12XS11 PBSFM12S11 PBSFM12XS11 1 3.5 x 3.25 x 4.87 7 1.86 1.73 3.34 3.53

PBSF12S12 PBSF12XS12 PBSFM12S12 PBSFM12XS12 2 3.5 x 5.5 x 4.87 4 1.86 1.73 3.34 3.53

PBSF12S13 PBSF12XS13 PBSFM12S13 PBSFM12XS13 3 3.5 x 7.75 x 4.87 4 1.86 1.73 3.34 3.53

PBSF12S14 PBSF12XS14 PBSFM12S14 PBSFM12XS14 4 3.5 x 10 x 4.87 5 1.86 1.73 3.34 3.53

PBSF12S22 PBSF12XS22 PBSFM12S22 PBSFM12XS22 4 7.25 x 6.25 x 6.75 6 2.61 2.11 5.22 6.78

PBSF12S23 PBSF12XS23 PBSFM12S23 PBSFM12XS23 6 7.25 x 8.5 x 6.75 7 2.61 2.11 5.22 6.78

PBSF12S24 PBSF12XS24 PBSFM12S24 PBSFM12XS24 8 7.25 x 10.75 x 6.75 9 2.61 2.11 5.22 6.78

PBSF12S33 PBSF12XS33 PBSFM12S33 PBSFM12XS33 9 9.5 x 8.50 x 7.87 10 2.61 2.11 6.34 8.73

PBSF12S25 PBSF12XS25 PBSFM12S25 PBSFM12XS25 10 7.25 x 13 x 6.75 13 2.61 2.11 5.22 6.78

PBSF12S26 PBSF12XS26 PBSFM12S26 PBSFM12XS26 12 7.25 x 15.25 x 6.75 13 2.61 2.11 5.22 6.78

PBSF12S43 PBSF12XS43 PBSFM12S43 PBSFM12XS43 12 11.75 x 8.50 x 9 11 2.61 2.11 7.47 10.69

PBSF12S28 PBSF12XS28 PBSFM12S28 PBSFM12XS28 16 7.25 x 19.75 x 6.75 16 2.61 2.11 5.22 6.78

PBSF12S44 PBSF12XS44 PBSFM12S44 PBSFM12XS44 16 11.75 x 10.75 x 9 13 2.61 2.11 7.47 10.69

PBSF12S45 PBSF12XS45 PBSFM12S45 PBSFM12XS45 20 11.75 x 13 x 9 16 2.61 2.11 7.49 10.69

PBSF12S55 PBSF12XS55 PBSFM12S55 PBSFM12XS55 25 14 x 13 x 10.12 20 2.61 2.11 8.59 12.62

PBSF12S56 PBSF12XS56 PBSFM12S56 PBSFM12XS56 30 14 x 15.25 x 10.12 20 2.61 2.11 8.59 12.62

Applications

Designed to provide protection from

oil, dirt, and dust. Universal holes

accommodate many types of pilot lights,

switches and pushbuttons.

Construction

• Fabricated from 14 gauge carbon

steel or type 304 stainless steel with

continuously welded seams.

• Cover secured with captivated screws.

• Oil resistant gasket applied to the cover.

• External mounting feet for wall or

machinery mounting.

• Universal pushbutton holes (30.5mm)

• 22mm available with: M addition to part

number.

Finish

Standard ANSI-61 gray finish on interior

and exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture

polyester powder coat available at

no charge. Standard RAL and custom

match finishes available for an additional

charge, please contact Milbank for further

assistance. All powder coat finishes

applied over cleaned phosphatized

surfaces. Stainless steel enclosures have a

polished #4 finish.

Options

Milbank can modify standard enclosures

or custom design enclosures according

to your specifications. Custom sizes,

materials, and many more options are

available. Quotations upon request.

Industry Standards

• UL50Listed

•CUL50Listed

• Type12

ASECTION A-A

W + 0.336

H + 0.336

K 2.250

2.250

W - 0.875

Y + 0.5

Ø .313

2.483

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

100

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Large Continuous Hinge Cover

Catalog Number

# of

Holes

Enclosure Size

H x W x D

Sub Panel

Part #

Sub Panel

H x W

(inches)

Ship.

Wt.

(lbs)

Carbon Steel

30.5mm Hole

304 Stainless

Steel 30.5mm

Hole

Carbon Steel

22.5mm Hole

304 Stainless

Steel 22.5mm

Hole

PBHC12S22 PBHC12XS22 PBHCM12S22 PBHCM12XS22 4 8.5 x 7.5 x 6 A-PB7P6 6.5 x 5.5 10

PBHC12S32 PBHC12XS32 PBHCM12S32 PBHCM12XS32 6 11 x 7 x 6 A-PB10P6 9 x 5 12

PBHC12S33 PBHC12XS33 PBHCM12S33 PBHCM12XS33 9 11 x 10 x 6 A-PB9P8 9 x 8 15

PBHC12S43 PBHC12XS43 PBHCM12S43 PBHCM12XS43 12 13.5 x 10 x 6 A-PB12P11 11.5 x 8 17

PBHC12S44 PBHC12XS44 PBHCM12S44 PBHCM12XS44 16 13.5 x 12.5 x 6 A-PB12P11 11.5 x 10.5 19

PBHC12S54 PBHC12XS54 PBHCM12S54 PBHCM12XS54 20 16 x 12.5 x 6 A-PB14P11 14 x 10.5 25

PBHC12S55 PBHC12XS55 PBHCM12S55 PBHCM12XS55 25 16 x 15 x 6 A-PB14P13 14 x 13 27

PBHC12S65 PBHC12XS65 PBHCM12S65 PBHCM12XS65 30 18.5 x 15 x 6 A-PB17P13 16.5 x 13 29

PBHC12S66 PBHC12XS66 PBHCM12S66 PBHCM12XS66 36 18.5 x 17.5 x 6 A-PB17P16 16.5 x 15.5 34

PBHC12S76 PBHC12XS76 PBHCM12S76 PBHCM12XS76 42 21 x 17.5 x 6 A-PB19P16 19 x 15.5 38

Applications

Designed to provide protection from

oil, dirt, and dust. Universal holes

accommodate many types of pilot lights,

switches and pushbuttons.

Construction

• Fabricated from 14 gauge carbon

steel or type 304 stainless steel with

continuously welded seams.

• Cover secured with captivated screws.

• Oil resistant gasket applied to the

cover.

• External mounting feet for wall or

machinery mounting.

• Universal pushbutton holes (30.5mm).

• 22mm available with “M” addition to

part number.

• Studs for optional panel included.

Finish

Standard ANSI-61 gray finish on interior

and exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture

polyester powder coat available at

no charge. Standard RAL and custom

match finishes available for an additional

charge, please contact Milbank for further

assistance. All powder coat finishes

applied over cleaned phosphatized

surfaces. Carbon steel sub panels have

a white polyester powder coat finish.

Stainless Steel enclosures have a polished

#4 finish.

Options

Milbank can modify standard enclosures

or custom design enclosures according

to your specifications. Custom sizes,

materials, and many more options are

available. Quotations upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

10-32 Captivated Screws

Subpanel

H H - 2

W - 2

6.000

2.668 2.500

3.168

2.500

W + 0.336

H + 0.336

H + 0.5

Ø .313 .325

D - 0.547

W - 0.875

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

101

TYPE 12

PUSHBUTTON

ENCLOSURES

Pushbutton Enclosures

Type 12 | Slimline Oil-Tight

Catalog Number # of

Holes

Enclosure Size

H x W x D

Ship.

Wt.

(lbs)

(in.)

Carbon Steel

30mm Hole

304 Stainless

Steel 30mm Hole

Carbon Steel

22.5mm Hole

304 Stainless Steel

22.5mm Hole

PBSL12S11 PBSL12XS11 PBSLM12S11 PBSLM12XS11 1 4 x 2.5 x 2.5 2 2.168

PBSL12S12 PBSL12XS12 PBSLM12S12 PBSLM12XS12 2 6.25 x 2.5 x 2.5 3 2.168

PBSL12S13 PBSL12XS13 PBSLM12S13 PBSLM12XS13 3 8.5 x 2.5 x 2.5 3 2.168

PBSL12S14 PBSL12XS14 PBSLM12S14 PBSLM12XS14 4 10.75 x 2.5 x 2.5 4 2.168

PBSL12S15 PBSL12XS15 PBSLM12S15 PBSLM12XS15 5 13 x 2.5 x 2.5 4 2.168

PBSL12S16 PBSL12XS16 PBSLM12S16 PBSLM12XS16 6 16.25 x 2.5 x 2.5 6 2.668

PBSL12S17 PBSL12XS17 PBSLM12S17 PBSLM12XS17 7 18.5 x 2.5 x 2.5 7 2.668

PBSL12S18 PBSL12XS18 PBSLM12S18 PBSLM12XS18 8 20.75 x 2.5 x 2.5 8 2.668

PBSL12S19 PBSL12XS19 PBSLM12S19 PBSLM12XS19 9 23 x 2.5 x 2.5 8 2.668

PBSL12S110 PBSL12XS110 PBSLM12S110 PBSLM12XS110 10 25.25 x 2.5 x 2.5 8 2.668

NO LID

10-32 Captivated Screws

W - 0.875

H + 0.5

.325

2.250

Ø .313

Applications

Designed to provide protection from oil, dirt, and

dust. Universal holes accommodate many types of

pilot lights, switches and pushbuttons.

Construction

• Fabricated from 14 gauge carbon steel or type

304 stainless steel with continuously welded

seams.

• Cover secured with captivated screws.

• Oil resistant gasket applied to the cover.

• External mounting feet for wall or machinery

mounting.

• Universal pushbutton holes (30mm).

• 22mm available with “M” addition to part

number.

Finish

Standard ANSI-61 gray finish on interior and

exterior of enclosures. Recoatable, smooth,

white or RAL 7035 texture polyester powder coat

available at no charge. Standard RAL and custom

match finishes available for an additional charge,

please contact Milbank for further assistance.

All powder coat finishes applied over cleaned

phosphatized surfaces. Stainless steel enclosures

have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom

design enclosures according to your specifications.

Custom sizes, materials, and many more options

are available. Quotations upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

102

TYPE 12

OIL-TIGHT

CONSOLETS

Oil-Tight Consolets

Type 12

Catalog Number Surface Size

H x W x D

(inches)

Ship.

Weight

(lbs)

(inches)

Carbon Steel # 304 Stainless Steel #

MC8C8 MCXS8C8 8 x 8 x 7.09 9 5.59 7.44

MC8C12 MCXS8C12 8 x 12 x 7.09 11 5.59 7.44

MC8C16 MCXS8C16 8 x 16 x 7.09 14 5.59 7.44

MC8C20 MCXS8C20 8 x 20 x 7.09 17 5.59 7.44

MC12C12 MCXS12C12 12 x 12 x 9.09 15 7.59 10.91

MC12C16 MCXS12C16 12 x 16 x 9.09 20 7.59 10.91

MC12C20 MCXS12C20 12 x 20 x 9.09 24 7.59 10.91

MC12C24 MCXS12C24 12 x 24 x 9.09 28 7.59 10.91

MC16C16 MCXS16C16 16 x 16 x 11.09 25 9.59 14.38

MC16C20 MCXS16C20 16 x 20 x 11.09 29 9.59 14.38

MC16C24 MCXS16C24 16 x 24 x 11.09 35 9.59 14.38

MC16C30 MCXS16C30 16 x 30 x 11.09 42 9.59 14.38

MC16C36 MCXS16C36 16 x 36 x 11.09 47 9.59 14.38

MC20C20 MCXS20C20 20 x 20 x 13.09 36 11.59 17.84

MC20C24 MCXS20C24 20 x 24 x 13.09 42 11.59 17.84

MC20C30 MCXS20C30 20 x 30 x 13.09 50 11.59 17.84

Applications

Consolets provide protection from oil,

dirt, and dust. They can be mounted

on either of two sides, providing a 30

degree or 60 degree inclined control

surface. These enclosures can be

mounted on machines, pedestals, or

desk tops, etc.

Construction

• Fabricated from 14 gauge carbon

steel or type 304 stainless steel with

continuously welded seams.

• Oil resistant adhesive gasket applied

to the cover secured by captivated

screws.

• A continuous hinge with a removable

hinge pin on the long side.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available

for an additional charge, please

contact Milbank for further assistance.

All powder coat finishes applied

over cleaned phosphatized surfaces.

Stainless steel consolets are polished

with a #4 finish on six sides.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications.

Holes, hubs, cutouts, sizes, materials,

and many more options are available.

Quotations upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

10-32 Captivated Screws

Lid Removed

Lid

VIEW A-A

W - 1.25

H - 1.25

.386

.387

H + 0.3

W + 0.336

2.483

.574

30°

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

103

TYPE 12

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 12 | Single Door

Applications

Designed to offer protection for

electrical controls, instruments, and

terminals from dust, dripping liquids,

oil, and dirt.

Construction

• Fabricated from 14 gauge carbon

steel, type 304, type 316 stainless

steel, or .125" 5052 H32 aluminum

with continuous welded seams.

• Door secured with heavy-duty

continuous hinge with removable

hinge pin and clamps.

• Padlocking hasp and staple.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside

cabinet and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panel have a white polyester

powder coat finish. Stainless steel and

aluminum enclosures have a polished

#4 finish.

Options

Milbank can modify standard

enclosures

or custom design enclosures according

to your specifications. Holes, cutouts,

louvers, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Print Pocket

(see notes)

Omit Two Middle

Studs If W=Less

Than 31"

Omit Two Middle

Studs If H=Less

Than 31"

Ground

Stud

Door Clamp

Padlocking

Hasp &

Staple

Mounting

Foot

Mounting

Foot

3/8-16

Collar Stud

3.25

.62 1.25

3.00

2.00 Ø .44

3.00

W - 1.77

Door

H - 1.83

Door

.62 1.25 .44

X X

SECTION X-X

SECTION Y-Y

1.44

.91

.75

H - 3

Subpanel

W - 3

Subpanel

1.50

1.50 1.50

D - .28

1.00

12 GA

.19

.97 1.44

.85

14 GA

Print Pocket

(see notes)

Omit Two Middle

Studs If W=Less

Than 31"

Omit Two Middle

Studs If H=Less

Than 31"

Ground

Stud

Door Clamp

Padlocking

Hasp &

Staple

Mounting

Foot

Mounting

Foot

3/8-16

Collar Stud

3.25

.62 1.25

3.00

2.00 Ø .44

3.00

W - 1.77

Door

H - 1.83

Door

.62 1.25 .44

X X

SECTION X-X

SECTION Y-Y

1.44

.91

.75

H - 3

Subpanel

W - 3

Subpanel

1.50

1.50 1.50

D - .28

1.00

12 GA

.19

.97 1.44

.85

14 GA

Notes:

1. Print pocket = 6" x 6" when H and W are 24" or less.

Print pocket = 9" x 9" when H and W are greater than 24".

2. Panels will have formed ﬂanges when either height or width is

greater than or equal to 18".

3. On 12” wide enclosures, center of mounting foot to edge of

enclosure is 1.25”.

4. Sub panels must be ordered separately. Weights for aluminum

enclosures are not listed. Please contact Milbank for weight.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

104

TYPE 12

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 12 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Sub Panel

Catalog

Number

Sub Panel

Size

(H x L)

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel # Aluminum #

M12S161206 M12XS161206 M12XZ161206 M12XA161206 16 x 12 x 6 24 A-16P12 13 x 9

M12S201206 M12XS201206 M12XZ201206 M12XA201206 20 x 12 x 6 29 A-20P12 17 x 9

M12S241206 M12XS241206 M12XZ241206 M12XA241206 24 x 12 x 6 32 A-24P12 21 x 9

M12S161606 M12XS161606 M12XZ161606 M12XA161606 16 x 16 x 6 29 A-16P16 13 x 13

M12S201606 M12XS201606 M12XZ201606 M12XA201606 20 x 16 x 6 33 A-20P16 17 x 13

M12S241606 M12XS241606 M12XZ241606 M12XA241606 24 x 16 x 6 39 A-24P16 21 x 13

M12S301606 M12XS301606 M12XZ301606 M12XA301606 30 x 16 x 6 46 A-30P16 27 x 13

M12S162006 M12XS162006 M12XZ162006 M12XA162006 16 x 20 x 6 33 A-20P16 17 x 13

M12S202006 M12XS202006 M12XZ202006 M12XA202006 20 x 20 x 6 38 A-20P20 17 x 17

M12S242006 M12XS242006 M12XZ242006 M12XA242006 24 x 20 x 6 45 A-24P20 21 x 17

M12S302006 M12XS302006 M12XZ302006 M12XA302006 30 x 20 x 6 53 A-30P20 27 x 17

M12S122406 M12XS122406 M12XZ122406 M12XA122406 12 x 24 x 6 32 A-24P12 21 x 9

M12S202406 M12XS202406 M12XZ202406 M12XA202406 20 x 24 x 6 46 A-24P20 17 x 21

M12S242406 M12XS242406 M12XZ242406 M12XA242406 24 x 24 x 6 51 A-24P24 21 x 21

M12S302406 M12XS302406 M12XZ302406 M12XA302406 30 x 24 x 6 61 A-30P24 21 x 21

M12S362406 M12XS362406 M12XZ362406 M12XA362406 36 x 24 x 6 69 A-36P24 33 x 21

M12S363006 M12XS363006 M12XZ363006 M12XA363006 36 x 30 x 6 86 A-36P30 33 x 27

M12S122408 M12XS122408 M12XZ122408 M12XA122408 12 x 24 x 8 35 A-24P12 9 x 21

M12S161208 M12XS161208 M12XZ161208 M12XA161208 16 x 12 x 8 27 A-16P12 13 x 9

M12S161608 M12XS161608 M12XZ161608 M12XA161608 16 x 16 x 8 31 A-16P16 13 x 13

M12S162008 M12XS162008 M12XZ162008 M12XA162008 16 x 20 x 8 29 A-20P16 13 x 17

M12S201208 M12XS201208 M12XZ201208 M12XA201208 20 x 12 x 8 30 A-20P12 17 x 9

M12S201608 M12XS201608 M12XZ201608 M12XA201608 20 x 16 x 8 36 A-20P16 17 x 13

M12S202008 M12XS202008 M12XZ202008 M12XA202008 20 x 20 x 8 43 A-20P20 17 x 17

M12S202408 M12XS202408 M12XZ202408 M12XA202408 20 x 24 x 8 50 A-24P20 17 x 21

M12S241608 M12XS241608 M12XZ241608 M12XA241608 24 x 16 x 8 41 A-24P16 21 x 13

M12S242008 M12XS242008 M12XZ242008 M12XA242008 24 x 20 x 8 50 A-24P20 21 x 17

M12S242408 M12XS242408 M12XZ242408 M12XA242408 24 x 24 x 8 57 A-24P24 21 x 21

M12S243008 M12XS243008 M12XZ243008 M12XA243008 24 x 30 x 8 66 A-30P24 21 x 27

M12S302008 M12XS302008 M12XZ302008 M12XA302008 30 x 20 x 8 56 A-30P20 27 x 17

M12S302408 M12XS302408 M12XZ302408 M12XA302408 30 x 24 x 8 67 A-30P24 27 x 21

M12S362408 M12XS362408 M12XZ362408 M12XA362408 36 x 24 x 8 75 A-36P24 33 x 21

M12S422408 M12XS422408 M12XZ422408 M12XA422408 42 x 24 x 8 85 A-42P24 39 x 21

M12S482408 M12XS482408 M12XZ482408 M12XA482408 48 x 24 x 8 97 A-48P24 45 x 21

M12S303008 M12XS303008 M12XZ303008 M12XA303008 30 x 30 x 8 79 A-30P30 27 x 27

M12S363008 M12XS363008 M12XZ363008 M12XA363008 36 x 30 x 8 95 A-36P30 33 x 27

M12S423008 M12XS423008 M12XZ423008 M12XA423008 42 x 30 x 8 105 A-42P30 39 x 27

M12S483008 M12XS483008 M12XZ483008 M12XA483008 48 x 30 x 8 119 A-48P30 45 x 27

M12S303608 M12XS303608 M12XZ303608 M12XA303608 30 x 36 x 8 90 A-36P30 27 x 33

M12S363608 M12XS363608 M12XZ363608 M12XA363608 36 x 36 x 8 104 A-36P36 33 x 33

M12S423608 M12XS423608 M12XZ423608 M12XA423608 42 x 36 x 8 120 A-42P36 39 x 33

M12S483608 M12XS483608 M12XZ483608 M12XA483608 48 x 36 x 8 137 A-48P36 45 x 33

M12S603608 M12XS603608 M12XZ603608 M12XA603608 60 x 36 x 8 164 A-60P36 57 x 33

M12S161210 M12XS161210 M12XZ161210 M12XA161210 16 x 12 x 10 29 A-16P12 13 x 9

M12S241210 M12XS241210 M12XZ241210 M12XA241210 24 x 12 x 10 39 A-24P12 21 x 9

Note: Sub panels must be ordered separately. Weights for aluminum enclosures are not listed. Please contact Milbank for weight.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

105

TYPE 12

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 12 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Sub Panel

Catalog

Number

Sub Panel

Size

(H x L)

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel # Aluminum #

M12S201610 M12XS201610 M12XZ201610 M12XA201610 20 x 16 x 10 39 A-20P16 17 x 13

M12S242010 M12XS242010 M12XZ242010 M12XA242010 24 x 20 x 10 53 A-24P20 21 x 17

M12S302010 M12XS302010 M12XZ302010 M12XA302010 30 x 20 x 10 60 A-30P20 27 x 17

M12S242410 M12XS242410 M12XZ242410 M12XA242410 24 x 24 x 10 63 A-24P24 21 x 21

M12S302410 M12XS302410 M12XZ302410 M12XA302410 30 x 24 x 10 73 A-30P24 27 x 21

M12S362410 M12XS362410 M12XZ362410 M12XA362410 36 x 24 x 10 82 A-36P24 33 x 21

M12S363010 M12XS363010 M12XZ363010 M12XA363010 36 x 30 x 10 100 A-36P30 33 x 27

M12S423010 M12XS423010 M12XZ423010 M12XA423010 42 x 30 x 10 116 A-42P30 39 x 27

M12S483010 M12XS483010 M12XZ483010 M12XA483010 48 x 30 x 10 124 A-48P30 45 x 27

M12S423610 M12XS423610 M12XZ423610 M12XA423610 42 x 36 x 10 124 A-42P36 39 x 33

M12S483610 M12XS483610 M12XZ483610 M12XA483610 48 x 36 x 10 148 A-48P36 45 x 33

M12S603610 M12XS603610 M12XZ603610 M12XA603610 60 x 36 x 10 166 A-60P36 57 x 33

M12S201612 M12XS201612 M12XZ201612 M12XA201612 20 x 16 x 12 42 A-20P16 17 x 13

M12S242012 M12XS242012 M12XZ242012 M12XA242012 24 x 20 x 12 57 A-24P20 21 x 17

M12S242412 M12XS242412 M12XZ242412 M12XA242412 24 x 24 x 12 64 A-24P24 21 x 21

M12S302412 M12XS302412 M12XZ302412 M12XA302412 30 x 24 x 12 77 A-30P24 27 x 21

M12S362412 M12XS362412 M12XZ362412 M12XA362412 36 x 24 x 12 89 A-36P24 33 x 21

M12S303012 M12XS303012 M12XZ303012 M12XA303012 30 x 30 x 12 94 A-30P30 27 x 27

M12S363012 M12XS363012 M12XZ363012 M12XA363012 36 x 30 x 12 103 A-36P30 33 x 27

M12S423012 M12XS423012 M12XZ423012 M12XA423012 42 x 30 x 12 122 A-42P30 39 x 27

M12S723012 M12XS723012 M12XZ723012 M12XA723012 72 x 30 x 12 181 A-72P30 69 x 27

M12S363612 M12XS363612 M12XZ363612 M12XA363612 36 x 36 x 12 127 A-36P36 33 x 33

M12S423612 M12XS423612 M12XZ423612 M12XA423612 42 x 36 x 12 135 A-42P36 39 x 33

M12S483612 M12XS483612 M12XZ483612 M12XA483612 48 x 36 x 12 152 A-48P36 45 x 33

M12S603612 M12XS603612 M12XZ603612 M12XA603612 60 x 36 x 12 176 A-60P36 57 x 33

M12S723612 M12XS723612 M12XZ723612 M12XA723612 72 x 36 x 12 215 A-72P36 69 x 33

M12S242016 M12XS242016 M12XZ242016 M12XA242016 24 x 20 x 16 67 A-24P20 21 x 17

M12S242416 M12XS242416 M12XZ242416 M12XA242416 24 x 24 x 16 75 A-24P24 21 x 21

M12S302416 M12XS302416 M12XZ302416 M12XA302416 30 x 24 x 16 88 A-30P24 27 x 21

M12S363016 M12XS363016 M12XZ363016 M12XA363016 36 x 30 x 16 121 A-36P30 33 x 27

M12S723016 M12XS723016 M12XZ723016 M12XA723016 72 x 30 x 16 206 A-72P30 69 x 27

M12S423616 M12XS423616 M12XZ423616 M12XA423616 42 x 36 x 16 155 A-42P36 39 x 33

M12S483616 M12XS483616 M12XZ483616 M12XA483616 48 x 36 x 16 170 A-48P36 45 x 33

M12S603616 M12XS603616 M12XZ603616 M12XA603616 60 x 36 x 16 199 A-60P36 57 x 33

M12S302420 M12XS302420 M12XZ302420 M12XA302420 30 x 24 x 20 96 A-30P24 27 x 21

M12S363020 M12XS363020 M12XZ363020 M12XA363020 36 x 30 x 20 127 A-36P30 33 x 27

M12S483620 M12XS483620 M12XZ483620 M12XA483620 48 x 36 x 20 170 A-48P36 45 x 33

M12S603620 M12XS603620 M12XZ603620 M12XA603620 60 x 36 x 20 219 A-60P36 57 x 33

M12S723020 M12XS723020 M12XZ723020 M12XA723020 72 x 30 x 20 227 A-72P30 69 x 27

M12S302424 M12XS302424 M12XZ302424 M12XA302424 30 x 24 x 24 109 A-30P24 27 x 21

M12S723024 M12XS723024 M12XZ723024 M12XA723024 72 x 30 x 24 243 A-72P30 69 x 27

Note: Sub panels must be ordered separately. Weights for aluminum enclosures are not listed. Please contact Milbank for weight.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

106

TYPE 12

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 12 | Double Door

Applications

Designed to provide protection for

electrical controls, instruments, and

terminals from dust, dripping liquids,

dirt, and oil.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel with continuous welded seams.

• Overlapping doors secured with

continuous hinges with removable

hinge pins and key locking handle

with three point latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside

cabinet and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless Steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

hubs, cutouts, louvers, sizes, materials,

and many more options are available.

Quotations upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Mounting

Feet

Notes:

Large Print Pocket packed separate.

Ground

Stud

Omit Two Middle

Studs If W < 31

Omit Two Middle

Studs If H < 31

Panel (order

separately)

Continuous Hinge

Mounting

Foot

Panel (order

separately)

3/8-16 Collar Studs

SECTION Y-Y

(W/2) - .68

3.00

.55

(W/2) - .55

W - 2.52

Opening

H - 2.62

Opening

.55

1.31

1.31 1.31

3.00

.62

1.25

.62

.44

Ø .44

2.00

.79

H -1.61

Door

.82

2.00

1.78

1.50 45.00 1.50

33.00

1.50

H / 2

5.38

X X

SECTION X-X

1.31

.75

D - .15 12 GA

14 GA

1.11

10.00

.19

1.31

1.00

Mounting

Feet

Notes:

Large Print Pocket packed separate.

Ground

Stud

Omit Two Middle

Studs If W < 31

Omit Two Middle

Studs If H < 31

Panel (order

separately)

Continuous Hinge

Mounting

Foot

Panel (order

separately)

3/8-16 Collar Studs

SECTION Y-Y

(W/2) - .68

3.00

.55

(W/2) - .55

W - 2.52

Opening

H - 2.62

Opening

.55

1.31

1.31 1.31

3.00

.62

1.25

.62

.44

Ø .44

2.00

.79

H -1.61

Door

.82

2.00

1.78

1.50 45.00 1.50

33.00

1.50

H / 2

5.38

X X

SECTION X-X

1.31

.75

D - .15 12 GA

14 GA

1.11

10.00

.19

1.31

1.00

Note:

9" x 9" Print pocket shipped inside enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

107

TYPE 12

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 12 | Double Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Sub Panel

Part

Number

Sub Panel Size

H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12D244208 M12DXS244208 M12DXZ244208 24 x 42 x 8 94 A-42P24 21 x 39

M12D244808 M12DXS244808 M12DXZ244808 24 x 48 x 8 106 A-48P24 21 x 45

M12D304210 M12DXS304210 M12DXZ304210 30 x 42 x 10 121 A-42P30 27 x 39

M12D304810 M12DXS304810 M12DXZ304810 30 x 48 x 10 136 A-48P30 27 x 45

M12D306010 M12DXS306010 M12DXZ306010 30 x 60 x 10 165 A-60P30 27 x 57

M12D304212 M12DXS304212 M12DXZ304212 30 x 42 x 12 130 A-42P30 27 x 39

M12D364212 M12DXS364212 M12DXZ364212 36 x 42 x 12 150 A-42P36 33 x 39

M12D424212 M12DXS424212 M12DXZ424212 42 x 42 x 12 170 A-42P42 39 x 39

M12D304812 M12DXS304812 M12DXZ304812 30 x 48 x 12 145 A-48P30 27 x 45

M12D364812 M12DXS364812 M12DXZ364812 36 x 48 x 12 167 A-48P36 33 x 45

M12D424812 M12DXS424812 M12DXZ424812 42 x 48 x 12 189 A-42P48 39 x 45

M12D484812 M12DXS484812 M12DXZ484812 48 x 48 x 12 212 A-DD4848 45 x 45

M12D306012 M12DXS306012 M12DXZ306012 30 x 60 x 12 176 A-60P30 27 x 57

M12D366012 M12DXS366012 M12DXZ366012 36 x 60 x 12 203 A-60P36 33 x 57

M12D426012 M12DXS426012 M12DXZ426012 42 x 60 x 12 229 A-42P60 39 x 57

M12D486012 M12DXS486012 M12DXZ486012 48 x 60 x 12 256 A-60P48 45 x 57

M12D606012 M12DXS606012 M12DXZ606012 60 x 60 x 12 308 A-60P60 57 x 57

M12D304216 M12DXS304216 M12DXZ304216 30 x 42 x 16 148 A-42P30 27 x 39

M12D364216 M12DXS364216 M12DXZ364216 36 x 42 x 16 169 A-42P36 33 x 39

M12D424216 M12DXS424216 M12DXZ424216 42 x 42 x 16 190 A-42P42 39 x 39

M12D306016 M12DXS306016 M12DXZ306016 30 x 60 x 16 198 A-60P30 27 x 57

M12D364816 M12DXS364816 M12DXZ364816 36 x 48 x 16 188 A-48P36 33 x 45

M12D366016 M12DXS366016 M12DXZ366016 36 x 60 x 16 226 A-60P36 33 x 57

M12D424816 M12DXS424816 M12DXZ424816 42 x 48 x 16 212 A-42P48 39 x 45

M12D484816 M12DXS484816 M12DXZ484816 48 x 48 x 16 235 A-DD4848 45 x 45

M12D486016 M12DXS486016 M12DXZ486016 48 x 60 x 16 282 A-60P48 45 x 57

M12D426016 M12DXS426016 M12DXZ426016 42 x 60 x 16 254 A-42P60 39 x 57

M12D606016 M12DXS606016 M12DXZ606016 60 x 60 x 16 338 A-60P60 57 x 57

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

108

TYPE 12

FLOOR MOUNT

ENCLOSURES

Floor Mount Enclosures

Type 12 | Two-Door

Applications

Designed to provide protection for

electrical controls, instruments, and

terminals from dust, dripping liquids,

dirt, and oil.

Construction

• Fabricated from 10 and 12 gauge

carbon steel, type 304 or 12

gauge type 316 stainless steel with

continuous welded seams.

• Overlapping doors secured with

continuous hinges with removable

hinge pins and key locking handle

with three point latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• 12-inch floor stands.

• Print pocket.

• Heavy-duty lifting eyes.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

• Body stiffeners for extra rigidity.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, louvers, sizes, materials, and

many more options are available.

Quotations upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel Size

H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12D544208-FT M12DXS544208-FT M12DXZ54428-FT 54 x 42 x 8 285 A-DD5442 50 x 38

M12D60488-FT M12DXS60488-FT M12DXZ60488-FT 60 x 48 x 8 342 A-DD6048 56 x 44

M12D604810-FT M12DXS604810-FT M12DXZ604810-FT 60 x 48 x 10 357 A-DD6048 56 x 44

M12D606010-FT M12DXS606010-FT M12DXZ606010-FT 60 x 60 x 10 415 A-DD6060 56 x 56

M12D726010-FT M12DXS726010-FT M12DXZ726010-FT 72 x 60 x 10 525 A-DD7260 68 x 56

M12D727210-FT M12DXS727210-FT M12DXZ727210-FT 72 x 72 x 10 590 A-DD7272 68 x 68

M12D604812-FT M12DXS604812-FT M12DXZ604812-FT 60 x 48 x 12 375 A-DD6048 56 x 44

M12D606012-FT M12DXS606012-FT M12DXZ606012-FT 60 x 60 x 12 430 A-DD6060 56 x 56

M12D726012-FT M12DXS726012-FT M12DXZ726012-FT 72 x 60 x 12 550 A-DD7260 68 x 56

M12D727212-FT M12DXS727212-FT M12DXZ727212-FT 72 x 72 x 12 626 A-DD7272 68 x 68

M12D604816-FT M12DXS604816-FT M12DXZ604816-FT 60 x 48 x 16 405 A-DD6048 56 x 44

M12D604820-FT M12DXS604820-FT M12DXZ604820-FT 60 x 48 x 20 435 A-DD6048 56 x 44

M12D604824-FT M12DXS604824-FT M12DXZ604824-FT 60 x 48 x 24 465 A-DD6048 56 x 44

M12D606024-FT M12DXS606024-FT M12DXZ606024-FT 60 x 60 x 24 520 A-DD6060 56 x 56

M12D726024-FT M12DXS726024-FT M12DXZ726024-FT 72 x 60 x 24 700 A-DD7260 68 x 56

M12D727224-FT M12DXS727224-FT M12DXZ727224-FT 72 x 72 x 24 805 A-DD7272 68 x 68

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

109

TYPE 12

FLOOR MOUNT

ENCLOSURES

Floor Mount Enclosures

Type 12 | Two-Door

Notes:

1. 9” x 9” print pocket shipped inside enclosure.

2. 24” deep enclosures will receive 4 lifting eyebolts.

Subpanel

(sold separately)

Doors Removed

Print Pocket

3pt Keylocking

Handle

Subpanel Support Brackets

Stieners

Per Milbank's

Specs

A A

SECTION A-A

12.000

H - 1.5

Door

W/2 - 0.5

Door

W/2 - 0.706

Door D

1.253

1.000

D - 0.09

H - 2.625

1.312

4 sides

W - 2.625

W - 4

H - 4

B B

SECTION B-B

2.167

2.875

4.042

Ø .563

Subpanel

(sold separately)

Doors Removed

Print Pocket

3pt Keylocking

Handle

Subpanel Support Brackets

Stieners

Per Milbank's

Specs

A A

SECTION A-A

12.000

H - 1.5

Door

W/2 - 0.5

Door

W/2 - 0.706

Door D

1.253

1.000

D - 0.09

H - 2.625

1.312

4 sides

W - 2.625

W - 4

H - 4

B B

SECTION B-B

2.167

2.875

4.042

Ø .563

Subpanel

(sold separately)

Doors Removed

Print Pocket

3pt Keylocking

Handle

Subpanel Support Brackets

Stieners

Per Milbank's

Specs

A A

SECTION A-A

12.000

H - 1.5

Door

W/2 - 0.5

Door

W/2 - 0.706

Door D

1.253

1.000

D - 0.09

H - 2.625

1.312

4 sides

W - 2.625

W - 4

H - 4

B B

SECTION B-B

2.167

2.875

4.042

Ø .563

Subpanel

(sold separately)

Doors Removed

Print Pocket

3pt Keylocking

Handle

Subpanel Support Brackets

Stieners

Per Milbank's

Specs

A A

SECTION A-A

12.000

H - 1.5

Door

W/2 - 0.5

Door

W/2 - 0.706

Door D

1.253

1.000

D - 0.09

H - 2.625

1.312

4 sides

W - 2.625

W - 4

H - 4

B B

SECTION B-B

2.167

2.875

4.042

Ø .563

Subpanel

(sold separately)

Doors Removed

Print Pocket

3pt Keylocking

Handle

Subpanel Support Brackets

Stieners

Per Milbank's

Specs

A A

SECTION A-A

12.000

H - 1.5

Door

W/2 - 0.5

Door

W/2 - 0.706

Door D

1.253

1.000

D - 0.09

H - 2.625

1.312

4 sides

W - 2.625

W - 4

H - 4

B B

SECTION B-B

2.167

2.875

4.042

Ø .563

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

110

TYPE 12

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 12 | Single Door & Dual Access

Applications

Designed to provide protection for

electrical terminals, controls, and

instruments from dirt, dust, dripping

liquids, and oil. Freestanding

enclosures are designed to accept

Unistrut® mounted sub-panels, rack

angles or other adjustable mount

equipment.

Construction

• Fabricated from 10 and 12 gauge

carbon steel, type 304 or type

316 stainless steel with continuous

welded seams.

• Doors secured with heavy-duty

continuous hinges with removable

hinge pins and key locking handle

with three point latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Unistrut® channel.

• Print pocket.

• Heavy-duty lifting eyes.

•

Ground studs inside cabinet and door.

• Collar studs provided for mounting

optional sub panel in back.

Accessories

• Sub panels include full size, half-size,

side mount, and swing-out panels

which can be mounted and adjusted

for depth on the horizontal Unistrut®

channel. Order sub panels separately.

• Clamping nuts for installing other

equipment.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

INDUSTRY STANDARDS

•UL50Listed

•CUL50Listed

•Type12

Note: Full, half, and side sub panels must be ordered separately.

Single Door Free-Standing Enclosures

Catalog Number Unit Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Full

Sub Panel

Part #

Sub

Panel

Size

H x W

Half

Sub Panel

Part #

Sub Panel

Size

H x W

Side

Mounted

Panel

Part #

Side

Panel

H x W

# of

Lift.

Eyes

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

M12FS602418 M12FSXS602418 M12FSXZ602418 60 x 24 x 18 240 A-60P24F1 48 x 20 A-60P24F2 24.88 x 20 A-60SMP14 48 x 14 2

M12FS722418 M12FSXS722418 M12FSXZ722418 72 x 24 x 18 272 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP14 60 x 14 2

M12FS723018 M12FSXS723018 M12FSXZ723018 72 x 30 x 18 285 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP14 60 x 14 2

M12FS723618 M12FSXS723618 M12FSXZ723618 72 x 36 x 18 338 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP14 60 x 14 2

M12FS902420 M12FSXS902420 M12FSXZ902420 90 x 24 x 20 315 A-90P24F1 78 x 20 A-90P24F2 39.88 x 20 A-90SMP16 78 x 16 2

M12FS903620 M12FSXS903620 M12FSXZ903620 90 x 36 x 20 430 A-90P36F1 78 x 32 A-90P36F2 39.88 x 32 A-90SMP16 78 x 16 2

M12FS603624 M12FSXS603624 M12FSXZ603624 60 x 36 x 24 325 A-60P36F1 48 x 32 A-60P36F2 24.88 x 32 A-60SMP20 48 x 20 4

M12FS722424 M12FSXS722424 M12FSXZ722424 72 x 24 x 24 300 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP20 60 x 20 4

M12FS723024 M12FSXS723024 M12FSXZ723024 72 x 30 x 24 335 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP20 60 x 20 4

M12FS723624 M12FSXS723624 M12FSXZ723624 72 x 36 x 24 370 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP20 60 x 20 4

M12FS903624 M12FSXS903624 M12FSXZ903624 90 x 36 x 24 460 A-90P36F1 78 x 32 A-90P36F2 39.88 x 32 A-90SMP20 78 x 20 4

M12FS722430 M12FSXS722430 M12FSXZ722430 72 x 24 x 30 348 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP20 60 x 20 4

M12FS723630 M12FSXS723630 M12FSXZ723630 72 x 36 x 30 428 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP26 60 x 26 4

M12FS723636 M12FSXS723636 M12FSXZ723636 72 x 36 x 36 465 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP32 60 x 32 4

M12FS903636 M12FSXS903636 M12FSXZ903636 90 x 36 x 36 560 A-90P36F1 78 x 32 A-90P36F2 39.88 x 32 A-90SMP32 78 x 32 4

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

111

TYPE 12

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 12 | Single Door & Dual Access

Subpanel

(sold sepatately)

Doors Removed

3pt Keylocking

Handle

If D dimension is less than 24" Enclosure

will receive only 2 Lifting Eyes

Print Pocket

Unistrut for mounting Subpanels

H - 12

W - 4

3.125

H - 10.25

7.125

1.312 W - 2.875 1.312

H - 9.158

W - 1.459

4.875

(H - 13.75) / 2

H - 13.75

3pt Keylocking

Handle

If D dimension is less than 24" Enclosure

will receive only 2 lifting eyes

Subpanel Support Brackets

Door Removed

Subpanel

(sold separately)

Print Pocket

H - 12

W - 4

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312

H - 9.146

Door

W - 1.52

Door

1.104

4.979

(H - 13.75) / 2

H - 13.75

D - 0.208

1.000

M12FSDA Single Door Dual Access

M12FS Single Door

Note: 9” x 9” Print pocket shipped inside enclosure.

Single Door Dual Access Enclosures

Catalog Number Enclosure

Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Full

Sub Panel

Part #

Sub

Panel Size

H x W

(inches)

Lifting

Eyes

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel #

M12FSDA724824 M12FSDASS724824 M12FSDAXZ724824 72 x 48 x 24 595 A-72P48F1 60 x 44 4

M12FSDA726024 M12FSDASS726024 M12FSDAXZ726024 72 x 60 x 24 615 A-72P60F1 60 x 56 4

M12FSDA727224 M12FSDASS727224 M12FSDAXZ727224 72 x 72 x 24 695 A-72P72F1 60 x 68 4

M12FSDA907224 M12FSDASS907224 M12FSDAXZ907224 90 x 72 x 24 825 A-90P72F1 78 x 68 4

M12FSDA726036 M12FSDASS726036 M12FSDAXZ726036 72 x 60 x 36 750 A-72P60F1 60 x 56 4

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

112

TYPE 12

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 12 | Two Door & Two Door Dual Access

Applications

Provide protection for electrical

terminals, controls, and instruments

from dirt, dust, dripping liquids, and oil.

Freestanding enclosures are designed

to accept Unistrut® mounted sub

panels, rack angles or other adjustable

mount equipment.

Construction

• Fabricated from 10 and 12 gauge

carbon steel, type 304 or 12

gauge type 316 stainless steel with

continuously welded seams.

• Doors secured with heavy-duty

continuous hinges with removable

hinge pins and key locking handle

with three point latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Unistrut® channel.

• Print pocket.

• Heavy-duty lifting bolts.

•

Ground studs inside cabinet and door.

• Body stiffeners for extra rigidity

where needed (not applicable for

dual access).

• Collar studs provided for mounting

optional sub panel in back.

Accessories

• Subpanelsincludefullsize,half-size,

side mount, and swing-out panels.

Sub-panels can be mounted and

adjusted for depth on the horizontal

Unistrut® channel. Order sub panels

separately.

• Clampingnutsforinstallingother

equipment.

• Centerpanelsupports.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Two Door Free-Standing Enclosures

Catalog Number Unit Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Full

Sub Panel

Part #

Sub

Panel

Size

H x W

Half

Sub Panel

Part #

Sub

Panel

Size

H x W

Side

Mounted

Panel

Part #

Side

Panel

H x W

# of

Lift.

Eyes

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

M12FSD604818 M12FSDXS604818 M12FSDXZ604818 60 x 48 x 18 430 A-60P48F1 48 x 44 A-60P48F2 24.88 x 44 A-60SMP14 48 x 14 2

M12FSD724818 M12FSDXS724818 M12FSDXZ724818 72 x 48 x 18 492 A-72P48F1 60 x 44 A-72P48F2 30.88 x 44 A-72SMP14 60 x 14 2

M12FSD726018 M12FSDXS726018 M12FSDXZ726018 72 x 60 x 18 568 A-72P60F1 60 x 56 A-72P60F2 30.88 x 56 A-72SMP14 60 x 14 2

M12FSD727218 M12FSDXS727218 M12FSDXZ727218 72 x 72 x 18 645 A-72P72F1 60 x 68 A-72P72F2 30.88 x 32 A-72SMP14 60 x 14 2

M12FSD904820 M12FSDXS904820 M12FSDXZ904820 90 x 48 x 20 590 A-90P48F1 78 x 44 A-90P48F2 39.88 x 44 A-90SMP16 78 x 16 2

M12FSD907220 M12FSDXS907220 M12FSDXZ907220 90 x 72 x 20 783 A-90P72F1 78 x 68 A-90P72F2 39.88 x 68 A-90SMP16 78 x 16 2

M12FSD724824 M12FSDXS724824 M12FSDXZ724824 72 x 48 x 24 530 A-72P48F1 60 x 44 A-72P48F2 30.88 x 44 A-72SMP20 68 x 20 4

M12FSD726024 M12FSDXS726024 M12FSDXZ726024 72 x 60 x 24 645 A-72P60F1 60 x 20 A-72P60F2 30.88 x 20 A-72SMP20 60 x 20 4

M12FSD727224 M12FSDXS727224 M12FSDXZ727224 72 x 72 x 24 694 A-72P72F1 60 x 68 A-72P72F2 30.88 x 68 A-72SMP20 60 x 20 4

M12FSD907224 M12FSDXS907224 M12FSDXZ907224 90 x 72 x 24 825 A-90P72F1 78 x 68 A-90P72F2 39.88 x 68 A-90SMP20 78 x 20 4

M12FSD726036 M12FSDXS726036 M12FSDXZ726036 72 x 60 x 36 750 A-72P60F1 60 x 56 A-72P60F2 30.88 x 56 A-72SMP32 60 x 32 4

M12FSD907236 M12FSDXS907236 M12FSDXZ907236 90 x 72 x 36 1000 A-90P72F1 78 x 68 A-90P72F2 39.88 x 68 A-90SMP32 78 x 32 4

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

113

TYPE 12

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 12 | Two Door & Two Door Dual Access

Two Door Dual Access Enclosures

Catalog Number Enclosure

Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Full

Sub Panel

Part #

Sub

Panel Size

H x W

(inches)

Lift.

Eyes

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12FSDAD724824 M12FSDADXS724824 M12FSDADXZ724824 72 x 48 x 24 595 A-72P48F1 60 x 44 4

M12FSDAD726024 M12FSDADXS726024 M12FSDADXZ726024 72 x 60 x 24 615 A-72P60F1 60 x 56 4

M12FSDAD727224 M12FSDADXS727224 M12FSDADXZ727224 72 x 72 x 24 695 A-72P72F1 60 x 68 4

M12FSDAD907224 M12FSDADXS907224 M12FSDADXZ907224 90 x 72 x 24 825 A-90P72F1 78 x 68 4

M12FSDAD726036 M12FSDADXS726036 M12FSDADXZ726036 72 x 60 x 36 750 A-72P60F1 60 x 56 4

Subpanels

(sold separately)

Doors Removed

3 pt Keylocking

Handles

Subpanels mounted

on Unistruts

Print Pocket

Enclosure will only receive 2

lifting eyes if D is less than 24"

H - 9.22

Door

(W/2) - 0.568

Door

(W/2) - 0.647

Door

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312

H - 12

W - 4

4.875

(H - 13.75) / 2

H - 13.75

Subpanel

(sold

separately)

Doors Removed

3pt Keylocking

Handle

Print Pocket

Unistruts in sides

Enclosure will only receive 4 lifting eyes

if D is 24" or more

Subpanel Support Brackets

H - 9.22

Door

(W/2) - 0.568

Door

(W/2) - 0.647

Door D

W - 0.183

1.000

4.875

(H - 13.75) / 2

H - 13.75

1.191

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312

H - 12

W - 4

M12FSD Two Door

M12FSDAD Two Door Dual Access

Note:

9” x 9” print pocket shipped inside enclosure.

Note:

9” x 9” print pocket shipped inside enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

114

TYPE 12

MULTI-DOOR

ENCLOSURES

WITH SUB

PANELS

Multi-Door Enclosures with Sub Panels

Type 12

Applications

Designed to house electrical controls,

terminals and instruments; providing

protection from dust, dirt, oil and water.

Construction

• Fabricated from 10 and 12 gauge

carbon steel with continuously

welded seams.

• Adhesive backed, oil resistant gasket

applied to the doors. Overlapping

doors which eliminate the need for a

center post.

• Each enclosure is equipped with

heavy duty lifting eyes, body

stiffeners, 3-point padlocking

handles, removable print pockets,

provision for fluorescent lighting and

mechanical interlock with right hand

door serving as master door.

• 5-door will be split into 3-door

and 2-door sections to be shipped

assembled or separate.

• Sub panels must be listed separately

when ordering enclosures.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard enclosures

or custom design enclosures according

to your specifications. Holes, cutouts,

sizes, materials, and many more options

are available. Quotations upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Catalog Number # of

Doors

Enclosure Size

H x W x D (inches)

Ship.

Wt.

(lbs)

Sub Panel

Part #

Sub Panel 1

Size H x W

(inches)

Sub Panel

Part #

Sub Panel 2

Size H x W

(inches)

# of

Lifting

Eyes

M123D8611214 3 86.12 x 112 x 14.12 1690 A-78X70 (1) 78 x 70 A-78P34 (1) 78 x 34 4

M124D8614914 4 86.12 x 149.19 x 14.12 1850 A-78X70 (2) 78 x 70 — — 8

M125D8618714 5 86.12 x 187 x 14.12 2200 A-78X70 (2) 78 x 70 A-78P34 (1) 78 x 34 8

M123D8611220 3 86.12 x 112 x 20.12 1850 A-78X70 (1) 78 x 70 A-78P34 (1) 78 x 34 4

M124D8614920 4 86.12 x 149.19 x 20.12 2000 A-78X70 (2) 78 x 70 — — 8

M125D8618720 5 86.12 x 187 x 20.12 2900 A-78X70 (2) 78 x 70 A-78P34 (1) 78 x 34 8

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

115

TYPE 12

MULTI-DOOR

ENCLOSURES

WITH SUB

PANELS

Multi-Door Enclosures with Sub Panels

Type 12

Note: 9” x 9” print pocket shipped inside enclosure.

Subpanel 1

(included)

Subpanel 2

(included)

Doors Removed

Unistrut for Mounting Lights

C-Channel (in Back)

Subpanel Support Brackets

(Omit when Subpanel is less than 36")

Door Secured by

Mechanical Interlock

3pt Padlocking

Handles

Print Pocket

81.03

35.51 1.29

D - 1.083

2.00

3.12

79.75

3.12

1.31 34.37

4.62

70.38 1.31

78.00

34.00 70.00

78.00

9.00

35.97 35.97

Subpanel 1

(included)

Subpanel 2

(included)

Doors Removed

Unistrut for Mounting Lights

C-Channel (in Back)

Subpanel Support Brackets

(Omit when Subpanel is less than 36")

Door Secured by

Mechanical Interlock

3pt Padlocking

Handles

Print Pocket

81.03

35.51 1.29

D - 1.083

2.00

3.12

79.75

3.12

1.31 34.37

4.62

70.38 1.31

78.00

34.00 70.00

78.00

9.00

35.97 35.97

M123D

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

116

TYPE 12

MULTI-DOOR

ENCLOSURES

WITH SUB

PANELS

Multi-Door Enclosures with Sub Panels

Type 12

Unistrut for Mounting Lights

C-Channel

(in Back)

Print Pocket 3pt Padlocking

Handles

Subpanel 2

(included)

Subpanel 2

(included)

Doors Removed

Master Door

(All other doors secured with

Mechanical Interlock)

Subpanel Support

Brackets

71.38 1.31

3.12

79.75

3.12

78.00

70.00

78.00

70.00

9.00

81.03

36.47 36.47 36.47 36.47 D1.29

D - 1.083

2.00

4.62

71.381.31

Unistrut for Mounting Lights

C-Channel

(in Back)

Print Pocket 3pt Padlocking

Handles

Subpanel 2

(included)

Subpanel 2

(included)

Doors Removed

Master Door

(All other doors secured with

Mechanical Interlock)

Subpanel Support

Brackets

71.38 1.31

3.12

79.75

3.12

78.00

70.00

78.00

70.00

9.00

81.03

36.47 36.47 36.47 36.47 D1.29

D - 1.083

2.00

4.62

71.381.31

Note: 9” x 9” print pocket shipped inside enclosure.

M124D

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

117

TYPE 12

MULTI-DOOR

ENCLOSURES

WITH SUB

PANELS

Multi-Door Enclosures with Sub Panels

Type 12

Subpanel 1

(included)

Subpanel 2

(included)

Subpanel 3

(included)

Doors Removed

Subpanel Support Brackets

(Omit when Subpanel is less than 36")

Print Pocket

3pt Padlocking

Handles

C-Channel

(in back)

Unistrut for Mounting Lights

Master Door

(All other doors secured with

Mechanical Interlock)

1.31 34.38

4.62

70.38

4.62

70.38 1.31

3.12

79.75

3.12

78.00

34.00

78.00

70.00

78.00

70.00

9.00

H81.03

35.51 35.97 35.97 35.97 35.97 D1.29

D - 1.083

2.00

Subpanel 1

(included)

Subpanel 2

(included)

Subpanel 3

(included)

Doors Removed

Subpanel Support Brackets

(Omit when Subpanel is less than 36")

Print Pocket

3pt Padlocking

Handles

C-Channel

(in back)

Unistrut for Mounting Lights

Master Door

(All other doors secured with

Mechanical Interlock)

1.31 34.38

4.62

70.38

4.62

70.38 1.31

3.12

79.75

3.12

78.00

34.00

78.00

70.00

78.00

70.00

9.00

H81.03

35.51 35.97 35.97 35.97 35.97 D1.29

D - 1.083

2.00

Note: 9” x 9” print pocket shipped

inside enclosure.

M125D

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

118

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount | Single Door with Handles

Applications

Designed to accommodate Allen-

Bradley, Cutler-Hammer, General

Electric, Square D, Westinghouse, and

Siemens/ITE flange mount disconnect

switches and circuit breakers and

protect them from dust, dripping

liquids, dirt and oil. For disconnect

order information see page 122.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel.

• Door is secured with heavy-duty

continuous hinge with removable

hinge pin.

• Provided with black anodized

padlocking handle with defeater

mechanism and two or three point

latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12S202108-FD-H M12XS202108-FD-H M12XZ202108-FD-H 20 x 21.38 x 8 44 A-20P20 17 x 17

M12S242108-FD-H M12XS242108-FD-H M12XZ242108-FD-H 24 x 21.38 x 8 51 A-24P20 21 x 17

M12S242508-FD-H M12XS242508-FD-H M12XZ242508-FD-H 24 x 25.38 x 8 58 A-24P24 21 x 21

M12S302108-FD-H M12XS302108-FD-H M12XZ302108-FD-H 30 x 21.38 x 8 59 A-30P20 27 x 17

M12S302508-FD-H M12XS302508-FD-H M12XZ302508-FD-H 30 x 25.38 x 8 63 A-30P24 27 x 21

M12S362508-FD-H M12XS362508-FD-H M12XZ362508-FD-H 36 x 25.38 x 8 77 A-36P24 33 x 21

M12S363108-FD-H M12XS363108-FD-H M12XZ363108-FD-H 36 x 31.38 x 8 94 A-36P30 33 x 27

M12S423108-FD-H M12XS423108-FD-H M12XZ423108-FD-H 42 x 31.38 x 8 109 A-42P30 39 x 27

M12S423708-FD-H M12XS423708-FD-H M12XZ423708-FD-H 42 x 37.38 x 8 128 A-42P36 39 x 33

M12S483708-FD-H M12XS483708-FD-H M12XZ483708-FD-H 48 x 37.38 x 8 137 A-48P36 45 x 33

M12S603708-FD-H M12XS603708-FD-H M12XZ603708-FD-H 60 x 37.38 x 8 153 A-60P36 57 x 33

M12S202110-FD-H M12XS202110-FD-H M12XZ202110-FD-H 20 x 21.38 x 10 45 A-20P20 17 x 17

M12S242110-FD-H M12XS242110-FD-H M12XZ242110-FD-H 24 x 21.38 x 10 55 A-24P20 21 x 17

M12S242510-FD-H M12XS242510-FD-H M12XZ242510-FD-H 24 x 25.38 x 10 60 A-24P24 21 x 21

NOTE

These enclosures will not accept Allen-Bradley 1494F and 1494D circuit breaker operators (see page 122).

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

119

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount | Single Door with Handles

*M12S603712-FD-H, M12XS603712-FD-H, and M12XZ603712-FD-H accept ABV 1494V 400 and 600 amp and ITE 800/1200 amp only.

Note:

Sub panels must be listed separately when ordering enclosures.

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels will have formed ﬂanges when either height or width is greater than 18".

3. When H=40" or greater, the handle is centered in the height and includes a three

point latch system. When H is less than 40" the handle is at the bottom and

includes a two point latch system.

Space Occupied By Disconnects

E = 4.75 when D = 8.00

E = 7.09 when D = 10.00

E = 11.62 when D = 12.00

E = 11.62 when D = 16.00

E = 18.38 for M12S603712-FD-H

Z = Wire Bend Spacing

See charts on pages C59-C64 for

“F”, “G”, and “Z” dimensions which

cover space occupied by disconnect

and wire bend spacing. Disconnects

occupy the space indicated by “E”,

“F”, and “G”.

MOUNTING FOOT

PANEL ( ORDER

SEPARATELY)

Ground

Stud

Omit Two Middle

Studs IF W < 33

Omit Two Middle

Studs IF H < 31

3/8-16 Collar

Stud

SECTION Y-Y

3.00

.62

Ø .44

2.00

3.00

.62 1.25 .44

1.75 2.62

X X

SECTION X-X

D - .35

.75

1.25

W-2.88

H-1.42

2.00

1.50

H-3.00

1.50

.88

2.75

14 GA

2.22

1.00 12 GA

.19

W-4.38

.90

1.38

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12S302110-FD-H M12XS302110-FD-H M12XZ302110-FD-H 30 x 21.38 x 10 59 A-30P20 27 x 17

M12S302510-FD-H M12XS302510-FD-H M12XZ302510-FD-H 30 x 25.38 x 10 71 A-30P24 27 x 21

M12S362510-FD-H M12XS362510-FD-H M12XZ362510-FD-H 36 x 25.38 x 10 82 A-36P24 33 x 21

M12S363110-FD-H M12XS363110-FD-H M12XZ363110-FD-H 36 x 31.38 x 10 105 A-36P30 33 x 27

M12S423110-FD-H M12XS423110-FD-H M12XZ423110-FD-H 42 x 31.38 x 10 119 A-42P30 39 x 27

M12S423710-FD-H M12XS423710-FD-H M12XZ423710-FD-H 42 x 37.38 x 10 139 A-42P36 39 x 33

M12S483710-FD-H M12XS483710-FD-H M12XZ483710-FD-H 48 x 37.38 x 10 148 A-48P36 45 x 33

M12S603710-FD-H M12XS603710-FD-H M12XZ603710-FD-H 60 x 37.38 x 10 178 A-60P36 57 x 33

M12S302510-FD-H M12XS302510-FD-H M12XZ302510-FD-H 30 x 25.38 x 12 76 A-30P24 27 x 21

M12S363112-FD-H M12XS363112-FD-H M12XZ363112-FD-H 36 x 31.38 x 12 103 A-36P30 33 x 27

M12S423112-FD-H M12XS423112-FD-H M12XZ423112-FD-H 42 x 31.38 x 12 123 A-42P30 39 x 27

M12S423712-FD-H M12XS423712-FD-H M12XZ423712-FD-H 42 x 37.38 x 12 138 A-42P36 39 x 33

M12S483712-FD-H M12XS483712-FD-H M12XZ483712-FD-H 48 x 37.38 x 12 153 A-48P36 45 x 33

*M12S603712-FD-H *M12XS603712-FD-H *M12XZ603712-FD-H 60 x 37.38 x 12 183 A-60P36 57 x 33

M12S363116-FD-H M12XS363116-FD-H M12XZ363116-FD-H 36 x 31.38 x 16 117 A-36P30 33 x 27

M12S483716-FD-H M12XS483716-FD-H M12XZ483716-FD-H 48 x 37.38 x 16 175 A-48P36 45 x 33

M12S603716-FD-H M12XS603716-FD-H M12XZ603716-FD-H 60 x 37.38 x 16 200 A-60P36 57 x 33

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

120

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount | Single Door without Handles

Applications

Designed to accommodate Allen-

Bradley, Cutler-Hammer, General

Electric, Square D, Westinghouse, and

Siemens/ITE flange mount disconnect

switches and circuit breakers and

protect them from dust, dripping

liquids, dirt and oil. For Disconnect

order information see page 122.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel.

• Door is secured with heavy-duty

continuous hinge with removable

hinge pin.

• Punching available for manufacturers

door hardware.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall

or machinery mounting.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available.

Industry Standards

•UL50Listed

•CUL50Listed

•Type12

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12S202108-FD M12XS202108-FD M12XZ202108-FD 20 x 21.38 x 8 44 A-20P20 17 x 17

M12S242108-FD M12XS242108-FD M12XZ242108-FD 24 x 21.38 x 8 51 A-24P20 21 x 17

M12S242508-FD M12XS242508-FD M12XS242508-FD 24 x 25.38 x 8 58 A-24P24 21 x 21

M12S302108-FD M12XS302108-FD M12XS302108-FD 30 x 21.38 x 8 59 A-30P20 27 x 17

M12S302508-FD M12XS302508-FD M12XS302508-FD 30 x 25.38 x 8 63 A-30P24 27 x 21

M12S362508-FD M12XS362508-FD M12XS362508-FD 36 x 25.38 x 8 77 A-36P24 33 x 21

M12S363108-FD M12XS363108-FD M12XS363108-FD 36 x 31.38 x 8 94 A-36P30 33 x 27

M12S423108-FD M12XS423108-FD M12XS423108-FD 42 x 31.38 x 8 109 A-42P30 39 x 27

M12S423708-FD M12XS423708-FD M12XS423708-FD 42 x 37.38 x 8 128 A-42P36 39 x 33

M12S483708-FD M12XS483708-FD M12XS483708-FD 48 x 37.38 x 8 137 A-48P36 45 x 33

M12S603708-FD M12XS603708-FD M12XS603708-FD 60 x 37.38 x 8 153 A-60P36 57 x 33

M12S202110-FD M12XS202110-FD M12XZ202110-FD 20 x 21.38 x 10 45 A-20P20 17 x 17

M12S242110-FD M12XS242110-FD M12XZ242110-FD 24 x 21.38 x 10 55 A-24P20 21 x 17

M12S242510-FD M12XS242510-FD M12XZ242510-FD 24 x 25.38 x 10 60 A-24P24 21 x 21

M12S302110-FD M12XS302110-FD M12XZ302110-FD 30 x 21.38 x 10 59 A-30P20 27 x 17

M12S302510-FD M12XS302510-FD M12XZ302510-FD 30 x 25.38 x 10 71 A-30P24 27 x 21

NOTE

These enclosures will not accept Allen-Bradley 1494F and 1494D circuit breaker operators (see page 122).

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

121

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount | Single Door without Handles

MOUNTING FOOT

PANEL ( ORDER

SEPARATELY)

Ground

Stud

Omit Two Middle

Studs IF W < 33

Omit Two Middle

Studs IF H < 31

3/8-16 Collar

Stud

SECTION Y-Y

3.00

.62

Ø .44

2.00

3.00

.62 1.25 .44

1.75 2.62

X X

SECTION X-X

D - .35

.75

1.25

W-2.88

H-1.42

2.00

1.50

H-3.00

1.50

.88

2.75

14 GA

2.22

1.00 12 GA

.19

W-4.38

.90

1.38

*M12S603712-FD-H, M12XS603712-FD-H, and M12XZ603712-FD-H accept ABV 1494V 400 and 600 amp and ITE 800/1200 amp only.

Note: Sub panels must be listed separately when ordering enclosures.

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12S362510-FD M12XS362510-FD M12XZ362510-FD 36 x 25.38 x 10 82 A-36P24 33 x 21

M12S363110-FD M12XS363110-FD M12XZ363110-FD 36 x 31.38 x 10 105 A-36P30 33 x 27

M12S423110-FD M12XS423110-FD M12XZ423110-FD 42 x 31.38 x 10 119 A-42P30 39 x 27

M12S423710-FD M12XS423710-FD M12XZ423710-FD 42 x 37.38 x 10 139 A-42P36 39 x 33

M12S483710-FD M12XS483710-FD M12XZ483710-FD 48 x 37.38 x 10 148 A-48P36 45 x 33

M12S603710-FD M12XS603710-FD M12XZ603710-FD 60 x 37.38 x 10 178 A-60P36 57 x 33

M12S302512-FD M12XS302512-FD M12XZ302512-FD 30 x 25.38 x 12 76 A-30P24 27 x 21

M12S363112-FD M12XS363112-FD M12XZ363112-FD 36 x 31.38 x 12 103 A-36P30 33 x 27

M12S423112-FD M12XS423112-FD M12XZ423112-FD 42 x 31.38 x 12 123 A-42P30 39 x 27

M12S423712-FD M12XS423712-FD M12XZ423712-FD 42 x 37.38 x 12 138 A-42P36 39 x 33

M12S483712-FD M12XS483712-FD M12XZ483712-FD 48 x 37.38 x 12 153 A-48P36 45 x 33

*M12S603712-FD *M12XS603712-FD *M12XZ603712-FD 60 x 37.38 x 12 183 A-60P36 57 x 33

M12S363116-FD M12XS363116-FD M12XZ363116-FD 36 x 31.38 x 16 117 A-36P30 33 x 27

M12S483716-FD M12XS483716-FD M12XZ483716-FD 48 x 37.38 x 16 175 A-48P36 45 x 33

M12S603716-FD M12XS603716-FD M12XZ603716-FD 60 x 37.38 x 16 200 A-60P36 57 x 33

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels will have formed ﬂanges when either height or width is greater than 18".

3. When H=40" or greater, the handle is centered in the height and includes a three

point latch system. When H is less than 40" the handle is at the bottom and

includes a two point latch system.

Space Occupied By Disconnects

E = 4.75 when D = 8.00

E = 7.09 when D = 10.25

E = 11.62 when D = 12.00

E = 11.62 when D = 16.00

E = 18.38 for M12S603712-FD

Z = Wire Bend Spacing

See charts on pages 138–147 for

“F”, “G”, and “Z” dimensions which

cover space occupied by disconnect

and wire bend spacing. Disconnects

occupy the space indicated by “E”,

“F”, and “G”.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

122

DISCONNECT

ORDERING

INFORMATION

Disconnect Enclosures

Wall Mount Single Door | Disconnect Ordering Info

Disconnect Ordering Information

When ordering ﬂange-mounted disconnects

from the various manufacturers, be sure to

order the necessary items. Each company

has a different system, read through the

following list of items required and refer to

the charts on pages 141–147.

Use a Type 4 disconnect operating handle

on the enclosure ﬂange to provide corrosion

resistance and maintain the enclosure rating.

Items with an (*) proceeding them are

available from disconnect manufacturer as

complete kits.

Allen-Bradley

When using a 1494V disconnect switch,

order:

*1. A disconnect switch with ﬂange

mounted operator. (Bulletin 1494V)

*2. An operating handle (Bulletin 1494V-

H1) Note: use (Bulletin 1494V-H2)

operating handle when ordering

12WMRH-060-037-012-SDAV

enclosure.

*3. A connecting rod - Use (Bulletin

1494V-RA1) when D = 8.00 [203] or

10.25 [260] - Use (Bulletin 1494V-RA2)

when D = 12.00 [305] or 16.00 [406]

- Use (Bulletin 1494V-RB2) for 400A

or 600A switch on 12WMRH-060-037-

012-SDAV enclosure.

*4. A trailer fuse block kit, if required

(Bulletin 1494V)

*5. A fuse clip kit, if required

6. Line and load connectors, if required

When using a Bulletin 1494V circuit breaker

operating mechanism, order:

1. A circuit breaker (C-H/Westinghouse)

2. A circuit breaker operating mechanism

(Bulletin 1494V)

3. An operating handle (Bulletin 1494V-

H11)

4. A connecting rod - Use (Bulletin

1494V-RA1) when D = 8.00 [203] or

10.25 [260] - Use (Bulletin 1494V-RA2)

when D = 12.00 [305] or 16.00 [406]

ABB Controls

When using a disconnect switch, order:

1. A ﬂange-operated switch (fusible or

non-fusible)

2. A shaft - Use (DSFHN-12) when D =

8.00 [203], 10.25 [260] or 12.00 [305] -

when D = 16.00 [406] use (DSFHS-17)

3. A handle (DSFGN-HS12)

When using a circuit breaker, order:

1. A circuit breaker (ABB)

*2. An operating mechanism

*3. A shaft - Use (FHS-12) when D = 8.00

[203], 10.25 [260] or 12.00 [305] -

when D = 16.00 [406] use (FHS-17)

*4. A handle mechanism (FHN-HS12)

Cutler-Hammer/Westinghouse

When using a Type C361 disconnect switch,

order:

*1. A disconnect switch with an operating

mechanism

*2. An operating handle (C361H1 or

C361H3)

When using a Type C371 circuit breaker

operating mechanism with a C-H/

Westinghouse circuit breaker, order:

1. A circuit breaker

*2. An operating mechanism

*3. An operating handle (C361H1 or

C361H3)

When using a C-H/Westinghouse circuit

breaker with a Type 4/4X Flex Shaft™

handle mechanism, order:

1. A circuit breaker

2. A complete Flex Shaft™ handle

mechanism

General Electric

When using a disconnect switch, order:

1. A disconnect switch (Type QMR or

QMW)

2. A fuse clip kit or no-fuse kit

3. A ﬂange handle (STDA1 or STDA2)

4. A variable depth operating

mechanism

When using a circuit breaker, order:

1. A circuit breaker

2. A ﬂange handle (STDA1 or STDA2)

3. A variable depth operating

mechanism

When using a circuit breaker with a Spectra

Flex™ cable operator, order:

1. A circuit breaker

2. A ﬂange-mounted handle mechanism

3. A breaker-mounted mechanism

4. An operating cable

I-T-E Siemens

When using a disconnect switch, order:

1. A basic switch (right hand)

2. A fuse or non-fuse kit

3. A ﬂange-mounted handle (FHOHS)

4. Switch operator

5. Cable 36.00 inch

When using a circuit breaker, order:

1. A circuit breaker

2. Pressure wire connectors

3. A ﬂange-mounted handle (FHOH)

Note: use (FHOHN) for 12WMRH-060-

037-012-SDAV enclosure

4. A circuit breaker operator mechanism

5. An operating cable - standard 36.00

inch for 125A to 600A circuit breakers

- 48.00 inch for 800A to 1200A circuit

breakers

Square D

When using a Class 9422 disconnect switch,

order:

*1. A disconnect switch with operating

mechanism (Class 9422)

*2. A handle mechanism (Class 9422 Type

A-1)

When using a circuit breaker, order:

1. A circuit breaker (Square D)

2. An operating mechanism (Class 9422)

3. A handle mechanism (Class 9422 Type

A-1)

When using a Class 9422 Type “T”

disconnect switch with a cable mechanism,

order:

1. A disconnect switch with operating

mechanism (Class 9422,Type T)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_O) 3, 5, or 10 foot

When using a circuit breaker with a cable

mechanism, order:

1. A circuit breaker (Square D)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_0) 3, 5, or 10 foot

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

123

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount Single Door | A-B 1494F & D

Applications

Designed to accommodate Allen-

Bradley 1494F and 1494D flange

mount disconnect switches and circuit

breakers and protect them from dust,

dripping liquids, dirt and oil.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel with continuously welded

seams.

• Door secured with heavy-duty

continuous hinge with removable

hinge pin.

• Provided with black zinc anodized

padlocking handle with defeater

mechanism and two or three point

latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• NEMA Type 12

Catalog Number Enclosure Size

H x W x D

(inches)

Ship

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12SAB202108-FD-H M12XSAB202108-FD-H M12XZAB202108-FD-H 20 x 21.38 x 8 44 A-20P20 17 x 17

M12SAB242108-FD-H M12XSAB242108-FD-H M12XZAB242108-FD-H 24 x 21.38 x 8 51 A-24P20 21 x 17

M12SAB242508-FD-H M12XSAB242508-FD-H M12XZAB242508-FD-H 24 x 25.38 x 8 58 A-24P24 21 x 21

M12SAB302108-FD-H M12XSAB302108-FD-H M12XZAB302108-FD-H 30 x 21.38 x 8 59 A-30P20 27 x 17

M12SAB302508-FD-H M12XSAB302508-FD-H M12XZAB302508-FD-H 30 x 25.38 x 8 63 A-30P24 27 x 21

M12SAB362508-FD-H M12XSAB362508-FD-H M12XZAB362508-FD-H 36 x 25.38 x 8 77 A-36P24 33 x 21

M12SAB363108-FD-H M12XSAB363108-FD-H M12XZAB363108-FD-H 36 x 31.38 x 8 94 A-36P30 33 x 27

M12SAB423108-FD-H M12XSAB423108-FD-H M12XZAB423108-FD-H 42 x 31.38 x 8 109 A-42P30 39 x 27

M12SAB423708-FD-H M12XSAB423708-FD-H M12XZAB423708-FD-H 42 x 37.38 x 8 128 A-42P36 39 x 33

M12SAB483708-FD-H M12XSAB483708-FD-H M12XZAB483708-FD-H 48 x 37.38 x 8 137 A-48P36 45 x 33

M12SAB603708-FD-H M12XSAB603708-FD-H M12XZAB603708-FD-H 60 x 37.38 x 8 153 A-60P36 57 x 33

M12SAB202110-FD-H M12XSAB202110-FD-H M12XZAB202110-FD-H 20 x 21.38 x 10 45 A-20P20 17 x 17

M12SAB242110-FD-H M12XSAB242110-FD-H M12XZAB242110-FD-H 24 x 21.38 x 10 55 A-24P20 21 x 17

M12SAB242510-FD-H M12XSAB242510-FD-H M12XZAB242510-FD-H 24 x 25.38 x 10 60 A-24P24 21 x 21

M12SAB302110-FD-H M12XSAB302110-FD-H M12XZAB302110-FD-H 30 x 21.38 x 10 59 A-30P20 27 x 17

M12SAB302510-FD-H M12XSAB302510-FD-H M12XZAB302510-FD-H 30 x 25.38 x 10 71 A-30P24 27 x 21

M12SAB362510-FD-H M12XSAB362510-FD-H M12XZAB362510-FD-H 36 x 25.38 x 10 82 A-36P24 33 x 21

M12SAB363110-FD-H M12XSAB363110-FD-H M12XZAB363110-FD-H 36 x 31.38 x 10 105 A-36P30 33 x 27

M12SAB423110-FD-H M12XSAB423110-FD-H M12XZAB423110-FD-H 42 x 31.38 x 10 119 A-42P30 39 x 27

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

124

TYPE 12

WALL MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Wall Mount Single Door | A-B 1494F & D

3/8-16 Collar

Studs

MOUNTING FEET

Omit Two Middle

Studs If H < 31

Omit Two Middle

Studs If W < 33

Ground

Stud

PANEL ( ORDER

SEPARATELY )

SECTION Y-Y

H H - 3.00

W - 4.38

.62

3.00

Ø .44

1.25

3.00

.62

.88

1.50

2.621.75

1.50

X X

SECTION X-X

2.75

2.22

14 GA

D - .35

.19

12 GA

2.00

.44

2.00

1.25

W - 2.88

H - 1.42

1.00 .75

1.38

.90

Catalog Number Enclosure Size

H x W x D

(inches)

Ship

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M12SAB423710-FD-H M12XSAB423710-FD-H M12XZAB423710-FD-H 42 x 37.38 x 10 139 A-42P36 39 x 33

M12SAB483710-FD M12XSAB483710-FD M12XZAB483710-FD 48 x 37.38 x 10 148 A-48P36 45 x 33

M12SAB603710-FD M12XSAB603710-FD M12XZAB603710-FD 60 x 37.38 x 10 178 A-60P36 57 x 33

M12SAB302512-FD M12XSAB302512-FD M12XZAB302512-FD 30 x 25.38 x 12 76 A-30P24 27 x 21

M12SAB363112-FD M12XSAB363112-FD M12XZAB363112-FD 36 x 31.38 x 12 103 A-36P30 33 x 27

M12SAB423112-FD M12XSAB423112-FD M12XZAB423112-FD 42 x 31.38 x 12 123 A-42P30 39 x 27

M12SAB423712-FD M12XSAB423712-FD M12XZAB423712-FD 42 x 37.37 x 12 138 A-42P36 39 x 33

M12SAB483712-FD M12XSAB483712-FD M12XZAB483712-FD 48 x 37.38 x 12 153 A-48P36 45 x 33

M12SAB603712-FD M12XSAB603712-FD M12XZAB603712-FD 60 x 37.38 x 12 183 A-60P36 57 x 33

M12SAB363116-FD M12XSAB363116-FD M12XZAB363116-FD 36 x 31.38 x 16 117 A-36P30 33 x 27

M12SAB483716-FD M12XSAB483716-FD M12XZAB483716-FD 48 x 37.38 x 16 175 A-48P36 45 x 33

M12SAB603716-FD M12XSAB603716-FD M12XZAB603716-FD 60 x 37.38 x 16 200 A-60P36 57 x 33

M12SAB483716-FD-A M12SAB483716-FD-A M12SAB483716-FD-A 48 x 37.38 x 16 175 A-48P36 45 x 33

M12SAB603716-FD-A M12SAB603716-FD-A M12SAB603716-FD-A 60 x 37.38 x 16 200 A-60P36 57 x 33

*Suitable for 200 amp disconnect switches and 1494F-L only.

Note:

Sub panels must be listed separately when ordering enclosures.

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels will have formed ﬂanges when either height or width is greater than 18".

3. When H=40" or greater, the handle is centered in the height and includes a three point latch

system. When H is less than 40" the handle is at the bottom and includes a two point latch system.

Space Occupied By Disconnects

E = 3.84 when D = 8.00

E = 6.75 when D = 10.25

E = 9.50 when D = 12.00 except for 200A switches

E = 9.50 when D = 16.00

E = 10.50 when D = 12.00 for enclosures with 200A switches

Z = Wire Bend Spacing

See charts on pages 138–147 for “F”, “G”, and “Z” dimensions which cover space occupied by

disconnect and wire bend spacing. Disconnects occupy the space indicated by “E”, “F”, and “G”.

Disconnect Ordering Information

When using a 1494F disconnect switch, order:

1. A disconnect switch (30A, 60A, or 100A)

2. A fuse block adapter, if required

3. Line and load connectors, if required

[Exception: M12SAB603712-FD enclosure requires one set (1494F-L4)

3-point latching hardware M12SAB603712-FD enclosure will only

accept 200A (1494F) disconnect switch. This switch will not ﬁt in any

other size.]

When using a Bulletin 1494D circuit breaker operating mechanism, order:

1. A circuit breaker (C-H/Westinghouse)

2. A circuit breaker operating mechanism

3. A slide mechanism

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

125

TYPE 12

FLOOR MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Floor Mount | Double Door Right Flange

Applications

Designed to accommodate Allen-

Bradley, Cutler-Hammer, General

Electric, Square D, Westinghouse,

and Telemecanique/ITE flange mount

disconnect switches and circuit breakers

and protect them from dust, dripping

liquids, dirt and oil. For ordering

information see page 127.

Construction

• Fabricated from 10 gauge carbon

steel with continuously welded seams.

• Doors secured with continuous

hinges with removable hinge pins.

• Black zinc anodized padlocking

handle with built-in defeater

mechanism (on the master door only)

and three point latching system.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Removable center post for easy

installation of the sub panel.

• 15-inch floor stands.

• Print pocket.

• Heavy-duty lifting eyes.

• Universal cutout provides mounting

for most disconnect operators by

using Adapter Kits.

• Ground studs installed inside

cabinet and door.

• Collar studs provided for mounting

optional sub panels.

• Body stiffeners for extra rigidity

where needed.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Catalog

Number

Enclosure Size

H x W x D (inches)

Shipping Wt.

(lbs)

Sub Panel

Part Number

Sub Panel Size

H x W (inches)

FD604912-FT 60 x 49.75 x 12 485 A-DD6048 56 x 44

FD606112-FT 60 x 61.75 x 12 535 A-DD6060 56 x 56

FD726112-FT 72 x 61.75 x 12 635 A-DD7260 68 x 56

FD727312-FT 72 x 73.75 x 12 710 A-DD7272 68 x 68

FD604918-FT 60 x 49.75 x 18 535 A-DD6048 56 x 44

FD606118-FT 60 x 61.75 x 18 630 A-DD6060 56 x 56

FD726118-FT 72 x 61.75 x 18 797 A-DD7260 68 x 56

FD727318-FT 72 x 73.75 x 18 845 A-DD7272 68 x 68

FD604924-FT 60 x 49.75 x 24 639 A-DD6048 56 x 44

FD606124-FT 60 x 61.75 x 24 727 A-DD6060 56 x 56

FD727324-FT 72 x 73.75 x 24 970 A-DD7272 68 x 68

Note: Adapter plates must be ordered separately. See page 189 for ordering information. Sub panels are also ordered separately.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

126

TYPE 12

FLOOR MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Floor Mount | Double Door Right Flange

Subpanel

Support

Brackets

Pocket

3pt

Padlocking

Handle

Both Doors

Left Door Secured

With Mechanical

Interlock. Right

Serving as the

Master Door.

Body Stieners

Subpanels

Ordered

Separately

Universal Disconnect

Cutout

Adapter Plates

Sold Separately.

Interlock Hook

Mtg. Channel

( W/2 ) - 2.56 ( W/2 ) - 2.56

2.01

.92 2.20

H H - .98

.62

.36

X X

SECTION X-X

(W/2)-4.2 (W/2)-4.2 3.001.75

3.64

D - .04 1.00

10 GA.

YSECTION Y-Y

D1.22

3.31 W - 5.75 2.44

2.00

H - 4

2.00

15.00

H - 3.0

Subpanel

Support

Brackets

Pocket

3pt

Padlocking

Handle

Both Doors

Left Door Secured

With Mechanical

Interlock. Right

Serving as the

Master Door.

Body Stieners

Subpanels

Ordered

Separately

Universal Disconnect

Cutout

Adapter Plates

Sold Separately.

Interlock Hook

Mtg. Channel

( W/2 ) - 2.56 ( W/2 ) - 2.56

2.01

.92 2.20

H H - .98

.62

.36

X X

SECTION X-X

(W/2)-4.2 (W/2)-4.2 3.001.75

3.64

D - .04 1.00

10 GA.

SECTION Y-Y

D1.22

3.31 W - 5.75 2.44

2.00

H - 4

2.00

15.00

H - 3.0

Subpanel

Support

Brackets

Pocket

3pt

Padlocking

Handle

Both Doors

Left Door Secured

With Mechanical

Interlock. Right

Serving as the

Master Door.

Body Stieners

Subpanels

Ordered

Separately

Universal Disconnect

Cutout

Adapter Plates

Sold Separately.

Interlock Hook

Mtg. Channel

( W/2 ) - 2.56 ( W/2 ) - 2.56

2.01

.92 2.20

H H - .98

.62

.36

X X

SECTION X-X

(W/2)-4.2 (W/2)-4.2 3.001.75

3.64

D - .04 1.00

10 GA.

YSECTION Y-Y

D1.22 3.31 W - 5.75 2.44

2.00

H - 4

2.00

15.00

H - 3.0

Right Hand Flange Disconnects Center Post Disconnects

Space Occupied By Disconnects

E = 7.88 [204] when H = 60.12 [1527]

E = 13.88 [343] when H = 72.12 [1832]

Allen-Bradley 1494F and 1494D

E = 5.88 [149] when H = 60.12 [1527]

E = 11.88 [288] when H = 72.12 [1832] except for 200 Amp

E = 10.56 [255] when H = 72.12 [1832] for 200 Amp only

Z = Wire Bend Spacing

See charts on pages 138–147 for “F”, “G”, and “Z” dimensions

which cover space occupied by disconnect and wire bend spacing.

Disconnects occupy the space indicated by “E”, “F”, and “G”.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

127

TYPE 12

FLOOR MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Floor Mount | Double Door Right Flange

Space Occupied By Disconnects

See charts on pages 138–147 for "F",

"G", and "Z" dimensions which cover

space occupied by disconnect and wire

bend spacing. Disconnects occupy the

space indicated by "E", "F" and "G" on

disconnect diagrams on the previous page.

All 24.13 [610] deep enclosures include an

adjustable size platform which is 6.00 [152]

high. The platform is required for mounting

the following disconnect devices:

• ABB Controls ﬂange-operated devices

• Cutler Hammer C361 devices

• Cutler Hammer C371 mechanisms which

use C371E, F, G, K operating mechanism

• General Electric Type TDA devices

• Square D Class 9422 devices

The platform can be omitted if long

connecting rods are ordered.

• For Cutler-Hammer operating

mechanisms C371E and C371F, order

catalog number C371CS1 connecting

rod. For C371G and C371K order catalog

number C371CS2 connecting rod.

• For General Electric devices, order

catalog number TDSR extended length

drive rod

• For Square D devices, order catalog

number 9422-R2 extra long operating

rod(s). Some devices require two rods.

Disconnect Ordering Information

When ordering ﬂange-mounted disconnects

from the various manufacturers, be sure to

order the necessary items. Each company

has a different system, read through the

following list of items required and

refer to the charts on pages 141–147.

Items with an (*) proceeding them are

available from disconnect manufacturer as

complete kits.

Allen-Bradley

When using a 1494F ﬂange mounted

disconnect switch, order:

1. A disconnect switch

2. A fuse block adapter

3. Line and load connectors, if required

When using a 1494D ﬂange-mounted

operator for a circuit breaker, order:

1. A circuit breaker (C-H/Westinghouse)

2. A ﬂange mounted operator

mechanism

3. A slide mechanism

When using 1494V disconnect switch, order:

*1. A disconnect switch

*2. An operating handle

*3. A connecting rod (long)

*4. A trailer fuse block kit, if required

*5. A fuse clip kit, if required

6. Line and load connectors, if required

When using a 1494V circuit breaker

operating mechanism, order:

1. A circuit breaker (C-H/Westinghouse)

2. A circuit breaker operating mechanism

3. An operating handle

4. A connecting rod (long)

An optional Allen-Bradley channel support

kit is recommended when Allen-Bradley

1494V devices are installed in 72.13 [1829]

high enclosures with center post mounted

operating handle

ABB Controls

When using a disconnect switch, order:

1. A ﬂange-operated switch (fusible or

non fusible)

2. A shaft (DSFHS-12) for 12.13 [305]

deep or (DSFHS-17) for 18.13 [457]

deep enclosures in 24.13 [610] deep

enclosure a platform must be used

with shaft

3. A handle (DSFHN-HS12)

When using a circuit breaker, order:

1. A circuit breaker (ABB)

2. An operating mechanism

3. A shaft (FSH-12) for 12.13 [305]

deep or (FSH-17) for 18.13 [457]

deep enclosures in 24.13 [610] deep

enclosure a platform must be used

with shaft

4. A handle (FHN-HS12)

Cutler-Hammer/Westinghouse

When using a Type C361 disconnect switch,

order:

*1. A disconnect switch with an operating

mechanism

*2. An operating handle (C361H1 or

C361H3)

When using a Type C371 circuit breaker

operating mechanism with a C-H/

Westinghouse circuit breaker, order:

1. A circuit breaker

*2. An operating mechanism

*3. An operating handle

When using a Type SM handle mechanism,

order:

1. A circuit breaker

2. A Type SM handle mechanism

When using a C-H/Westinghouse circuit

breaker with a Type 4/4X Flex Shaft™

handle mechanism, order:

1. A circuit breaker

2. A complete Flex Shaft™ handle

mechanism

General Electric

When using a disconnect switch, order:

1. A disconnect switch (Type QMR or

QMW)

2. A fuse clip kit or no-fuse kit

3. A ﬂange handle (STDA1 or STDA2)

4. A variable depth operating

mechanism

5. An extended length drive rod, if

required

When using a circuit breaker, order:

1. A circuit breaker

2. A ﬂange handle (STDA1 or STDA2)

3. A variable depth operating

mechanism

4. An extended length drive rod, if

required

An optional General Electric Flange Stiffener

Kit (catalog # TDSR) is recommended when

General Electric Type TDA devices are

installed in 72.13 [1829] high enclosures

with operating handle mounted on

center post. Use with TDOM1, TDOM2,

TDOM3, S100M1A, and S100M3 operating

mechanisms.

When using a circuit breaker with a Spectra

Flex™ cable operator, order:

1. A circuit breaker

2. A ﬂange-mounted handle mechanism

3. A breaker-mounted mechanism

4. An operating cable

I-T-E Siemens

When using a disconnect switch, order:

*5. A basic switch (right hand)

*6. A fuse or non-fuse kit

*7. A ﬂange-mounted handle (FHOHS)

*8. Switch operator

*9. FHOECO36 36.00 inch cable for 12.13

[305] deep enclosures or FHOECO48

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

128

TYPE 12

FLOOR MOUNT

DISCONNECT

ENCLOSURES

Disconnect Enclosures

Type 12 | Floor Mount | Double Door Right Flange

for 18.13 [457] and 24.13 [610] deep

enclosures

When using a circuit breaker, order:

1. A circuit breaker

2. Pressure wire connectors

*3. A ﬂange-mounted handle

*4. A circuit breaker operator mechanism

*5. An operating cable - 36.00 [914] or

48.00 [1219] long cable for 12.13

[305] and 18.13 [457] deep enclosures

and 48.00 [1219] cable 24.13 [610]

deep enclosures

* These items are available from ITE as a

complete mechanism with a 36.00 [914] long

cable only. Order items separately when

using a 48.00 [1219] operating cable.

Square D

When using a disconnect switch, order:

1. A disconnect switch with operating

mechanism

2. A universal handle mechanism

3. A long operating rod, if required

When using a circuit breaker, order:

1. A circuit breaker

2. An operating mechanism

3. A universal handle mechanism

When using a Class 9422 Type “T”

disconnect switch with a cable mechanism,

order:

1. A disconnect switch with operating

mechanism (Class 9422,Type T)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_O) 3, 5, or 10 foot

When using a circuit breaker with a cable

mechanism, order:

1. A circuit breaker (Square D)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_0) 3-, 5-, or 10-foot

An optional Square D Channel Flange

Support Kit (catalog # 9422-C1) is

recommended when some Square D devices

are installed in 72.13 [1829] high enclosures

with operating handle mounted on center

post.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

129

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

Applications

Designed to provide protection for

electrical instruments, terminals, and

controls from dust, oil, dirt and dripping

liquids.

Construction

• Fabricated from 10 gauge carbon

steel with continuously welded

seams.

• Single or multiple doors secured with

continuous hinges and removable

hinge pins.

• Black zinc anodized padlocking

defeater handle, three point latching

system, and overhead mechanical

interlock.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• Heavy-duty lifting eyes.

• Ground studs inside cabinet and

door.

• Collar studs provided for mounting

sub panels. Sub panels are included.

• Body stiffeners for extra rigidity.

• 5-door will be split into 3-door

and 2-door sections to be shipped

assembled or separate.

• Universal cutout provides mounting

for most disconnect operators by

using adapter kits.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

NOTE

Adapter plates must be ordered separately. See page 189 for ordering information.

These units include subpanels.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

130

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

Space Occupied By Disconnects

Note:

E = 11.88 [302] when H = 72 [1778]

E = 17.88 [454] when H = 84 [2134], except 400 Amp or 600 Amp switches

E = 20.88 [530] when H = 90 [2286], except 400 Amp or 600 Amp switches

E = 16.43 [417] when H = 84 [2134], 400 Amp and 600 Amp switches only

E = 19.43 [494] when H = 90 12286], 400 Amp and 600 Amp switches only

Allen Bradley 1494F only:

E = 9.88 [251] when H = 72 [1778], except 200 Amp switch

E = 15.88 [403] when H = 84 [21341, except 200 Amp switch

E = 18.80 [478] when H = 90 [2286], except 200 Amp switch

E = 8.56 [217] when H = 72 [1778], 200 Amp switch only

E = 14.56 [370] when H = 84 [2134], 200 Amp switch only

E = 17.56 [446] when H = 90 [2286], 200 Amp switch only

Z = Wire Bend Spacing

See charts on pages 138–147 for “F”, “G, and “Z” dimensions which cover space occupied by disconnect and wire

bend spacing. Disconnects occupy the space indicated by “E”, “F”, and “G”.

Catalog Number Doors

Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel Part

Number A

Sub Panel

Size H x W

(inches)

Sub Panel Part

Number B

Sub Panel

Size H x W

(inches)

M12FS722818AF-FD 1 72 x 28.25 x 18 368 A-60P21.75 60 x 21.75 — —

M12FS723418AF-FD 1 72 x 34.25 x 18 430 A-60P27.75 60 x 27.75 — —

M12FS724018AF-FD 1 72 x 40.25 x 18 559 A-60P33.75 60 x 33.75 — —

M12FS844018AF-FD 1 84 x 40.25 x 18 630 A-72P33.75 72 x 33.75 — —

M12FS904018AF-FD 1 90 x 40.25 x 18 750 A-78P33.75 78 x 33.75 — —

M12FS904020AF-FD 1 90 x 40.25 x 20 865 A-78P33.75 78 x 33.75 — —

M12FS844024AF-FD 1 84 x 40.25 x 24 750 A-72P33.75 72 x 33.75 — —

M12FS904024AF-FD 1 90 x 40.25 x 24 910 A-78P33.75 78 x 33.75 — —

M12FSD725418AF-FD 2 72 x 54.5 x 18 695 A-60P48 60 x 48 — —

M12FSD726618AF-FD 2 72 x 66.5 x 18 815 A-60P60 60 x 60 — —

M12FSD727818AF-FD 2 72 x 78.5 x 18 895 A-60P72 60 x 72 — —

M12FSD847818AF-FD 2 84 x 78.5 x 18 1200 A-72P72 72 x 72 — —

M12FSD907818AF-FD 2 90 x 78.5 x 18 1250 A-78P72 78 x 72 — —

M12FSD907820AF-FD 2 90 x 78.5 x 20 1330 A-78P72 78 x 72 — —

M12FSD727824SF-FD 2 72 x 78.5 x 24 965 A-60P72 60 x 72 — —

M12FSD847824AF-FD 2 84 x 78.5 x 24 1200 A-72P72 72 x 72 — —

M12FSD907824AF-FD 2 90 x 78.5 x 24 1392 A-78P72 78 x 72 — —

M12FS3D7210018AF-FD 3 72 x 100.75 x 18 1330 A-60P60 60 x 60 A-60P27.75 60 x 27.75

M12FS3D7211818AF-FD 3 72 x 118.75 x 18 1540 A-60P72 60 x 72 A-60P33.75 60 x 33.75

M12FS3D8411818AF-FD 3 84 x 118.75 x 18 1750 A-72P72 72 x 72 A-72P33.75 72 x 33.75

M12FS3D8411824AF-FD 3 84 x 118.75 x 24 1836 A-72P72 72 x 72 A-72P33.75 72 x 33.75

M12FS3D9011824AF-FD 3 90 x 118.75 x 24 1950 A-78P72 78 x 72 A-78P33.75 78 x 33.75

M12FS4D8415818AF-FD 4 84 x 158 x18 2300 (2) A-72P72 72 x 72 — —

M12FS4D9015818AF-FD 4 90 x 158 x 18 2400 (2) A-78P72 78 x 72 — —

M12FS4D8415824AF-FD 4 84 x 158 x 24 2536 (2) A-72P72 72 x 72 — —

M12FS4D9015824AF-FD 4 90 x 158 x 24 2600 (2) A-78P72 78 x 72 — —

M12FS5D8419718AF-FD 5 84 x 197.75 x 18 2580 (2) A-72P72 72 x 72 A-72P33.75 72 x 33.75

M12FS5D9019718AF-FD 5 90 x 197.75 x 18 2800 (2) A-78P72 78 x 72 A-78P33.75 78 x 33.75

M12FS5D8419724AF-FD 5 84 x 197.75 x 24 2830 (2) A-72P72 72 x 72 A-72P33.75 72 x 33.75

M12FS5D9019724AF-FD 5 90 x 197.75 x 24 2900 (2) A-78P72 78 x 72 A-78P33.75 78 x 33.75

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

131

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

Subpanel Support Brackets

(omit if enclosure W is less than 36") Print Pocket

Shipped Loose

3pt Padlocking Handle

Unistrut for

Mounting Lights

Enclosure will receive a total of

4 lifting eyes when D is 24" or more

Unistrut for Defeater Hook

Subpanel

Ordered

Seperately

Door Removed

X X

SECTION X-X

3.00

3.12

H - 10.25

Opening

7.12

1.22

H - 12

1.00

D - 0.18

W - 3.85

Door

H - 8.23

Door

2.18

4.06 2.44

4.00

8.00

W - 6.5

9.00

W - 5.5

Opening

2.50

Unistrut for Defeater Hook

Subpanel Support Brackets

3pt Padlocking Handles

Print Pocket

Shipped Loose

Unistrut for

Mounting Lights

Enclosure will receive a total of

4 lifting eyes when D is 24" or more

Doors Removed

This Door Secured with Mechanical Interlock

Removable

Center Post

2.50 (W/2) - 4.57

Opening

3.64

3.12

H - 10.25

Opening

7.12

W - 6.5

Panel

H - 12

Panel

SECTION X-X

4.00

8.00

D1.26

H - 8.23

Doors

9.00

1.00

D - 0.183

4.06

(W/2) - 4.57

Opening

3.00

2.18(W/2) - 2.92

Door

1.99

(W/2) - 2.92

Door

2.44

X X

Note: 9” x 9” print pocket shipped inside enclosure.

M12FS-FD Single Door

M12FSD-FD Double Door

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

132

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

Removable

Center Post

Nonremovable

Center Post

Subpanel Support Brackets

(omit if the subpanel W is less than 36)

Print Pockets

Shipped Loose

3pt Padlocking

Handles

Unistrut for

Mounting Lights

Master Door

(All other doors secured with

Mechanical Interlock)

Large

Subpanel Small

Subpanel

Interlock Hook

Mtg. Channel

X X

SECTION X-X

(W/3) - 4.88

Opening

5.00

(W/3) - 4.88

Opening

3.50

3.12

H - 10.25

Opening

7.12

4.00

8.00

D1.26

H - 8.23

Door

2.67(W/3) - 3.22

Door

3.34

(W/3) - 3.22

Door

1.98

(W/3) - 3.22

Door

9.00

3.00 2.94

D - 1.18

2 (W/3) -7.17

(to nearest 1/8")

H - 12

(W/3) - 5.83

(to nearest 1/8")

H - 12

3.64

(W/3) - 4.88

Opening

2.50

2.00

Removable

Center Post

Nonremovable

Center Post

Subpanel Support Brackets

(omit if the subpanel W is less than 36)

Print Pockets

Shipped Loose

3pt Padlocking

Handles

Unistrut for

Mounting Lights

Master Door

(All other doors secured with

Mechanical Interlock)

Large

Subpanel Small

Subpanel

Interlock Hook

Mtg. Channel

X X

SECTION X-X

(W/3) - 4.88

Opening

5.00

(W/3) - 4.88

Opening

3.50

3.12

H - 10.25

Opening

7.12

4.00

8.00

D1.26

H - 8.23

Door

2.67(W/3) - 3.22

Door

3.34

(W/3) - 3.22

Door

1.98

(W/3) - 3.22

Door

9.00

3.00 2.94

D - 1.18

2 (W/3) -7.17

(to nearest 1/8")

H - 12

(W/3) - 5.83

(to nearest 1/8")

H - 12

3.64

(W/3) - 4.88

Opening

2.50

2.00

M12FS3D-FD Three Door

Note: 9” x 9” print pocket shipped inside enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

133

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

M12FS4D-FD Four Door

Note: 9” x 9” print pocket shipped inside enclosure.

Doors Removed

Large

Subpanel

Large

Subpanel

Removable

Centerpost

Removable

Centerpost

Nonremovable

Centerpost

Subpanel Support Brackets

Print Pockets

Master Door

(All other doors secured with

Mechanical Interlock)

3pt Padlocking

Handles

Unistrut for

Mounting Lights

A A

SECTION A-A

3.500 (W/4) - 4.698

Opening

3.646

(W/4) - 4.698

Opening

4.500

(W/4) - 4.698

Opening

3.646

(W/4) - 4.698

Opening

3.500

3.125

H - 10.25

Opening

7.125

H -12

(W/2) - 7

(to nearest 1/8")

(W/2) - 7

(to nearest 1/8")

H - 12

H - 8.971

Door

D1.229 8.000

4.000

(W/4) - 3.532

Door

2.916

(W/4) - 3.532

Door

2.897

(W/4) - 3.532

Door

2.480

(W/4) - 3.532

Door

3.135

2.000

D - 1.145

9.00

4.000 2.940

Doors Removed

Large

Subpanel

Large

Subpanel

Removable

Centerpost

Removable

Centerpost

Nonremovable

Centerpost

Subpanel Support Brackets

Print Pockets

Master Door

(All other doors secured with

Mechanical Interlock)

3pt Padlocking

Handles

Unistrut for

Mounting Lights

A A

SECTION A-A

3.500 (W/4) - 4.698

Opening

3.646

(W/4) - 4.698

Opening

4.500

(W/4) - 4.698

Opening

3.646

(W/4) - 4.698

Opening

3.500

3.125

H - 10.25

Opening

7.125

H -12

(W/2) - 7

(to nearest 1/8")

(W/2) - 7

(to nearest 1/8")

H - 12

H - 8.971

Door

D1.229 8.000

4.000

(W/4) - 3.532

Door

2.916

(W/4) - 3.532

Door

2.897

(W/4) - 3.532

Door

2.480

(W/4) - 3.532

Door

3.135

2.000

D - 1.145

9.00

4.000 2.940

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

134

TYPE 12

HEAVY-DUTY

ENCLOSURES

Heavy-Duty Enclosures

Type 12 | Freestanding Disconnect with Sub Panel

Large

Subpanel

Large

Subpanel

Small

Subpanel

Removable

Centerpost Removable

Centerpost

Nonremovable

Centerpost

Enclosure to have two sections bolted together.

Sections to be sealed with gasket and secured

with 3/8" bolts.

Doors Removed

Master Door

(All other doors secured with

Mechanical Interlock)

3pt Padlocking

Handles

Print Pockets

Hole for Mechanical Interlock

Open end of Section 1

Unistrut for

Mounting LIghts

3.50 (W/5) - 4.87

3.64

(W/5) - 4.87

5.00

(W/5) - 4.87

3.64

(W/5) - 4.87

5.00

3.12

H - 10.25

7.12

H - 12

2 (W/5) - 7.1

(to nearest 1/8")

2 (W/5) - 7.1

(to nearest 1/8")

H - 12 H - 12

(W/5) - 5.8

(to nearest 1/8")

(W/5) - 4.87 3.50

Section 1 Section 2

D1.26

A A

SECTION A-A

(W/5) - 3.28

Door

2.92

(W/5) - 3.28

Door

3.34

(W/5) - 3.28

Door

2.92

(W/5) - 3.28

Door

3.34

(W/5) - 3.28

Door

2.70

9.00 D - 1.145

2.00

4.00 2.94

3.00

H - 8.23

Door

4.00

8.00

3.38

3.75

2.00

1.00

2.00

1.00

O .50

M12FS5D-FD Five Door

Notes:

• 9” x 9” print pocket shipped inside enclosure.

• 5-door units will be split into 3-door and 2-door

sections to be shipped assembled or separate.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

135

TYPE 12

MODULAR

ENCLOSURES

Modular Enclosures

Type 12

Applications

Modular enclosures can be bolted

together in any desired arrangement.

This design provides maximum

versatility; enclosures can be added

or removed as required. Modular

disconnect enclosures have provisions

for flange mount disconnects on right-

hand side.

Construction

• Fabricated from 10 gauge carbon

steel with continuously welded

seams.

• Doors secured with heavy gauge lift

off hinges.

• Black zinc anodized padlocking

handle with built-in defeater

mechanism (on the master door only)

and three point latching system.

• Each enclosure has a mechanical

interlock so all doors can be

interlocked with the master door.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Removable center post for easy

installation of the sub panel (two

door only).

• Print pocket.

• Heavy-duty lifting eyes.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

sub panel.

• Panel supports are provided to

support panels and aid in panel

installation.

• Body stiffeners for extra rigidity

where needed.

Accessories (Sold Separately)

• End Plate: not included with

enclosures. See page 189 in

accessories section for ordering

information. Gasket material and

bolts are included with each end

plate.

• Flat End Plates: Can be used as

barriers between enclosures. See

page 185 in accessories section for

ordering information.

• Adaptor kits.

• Gasket kit: Required at each joint

between modular enclosures.

Includes parts needed to connect the

interlock system between adjacent

enclosures.

Single & Two Door Disconnect

The cutouts for the disconnect

operation are located on the right

flange and the right side is closed (left

side open) so the disconnect operator

cannot be obscured by a door.

The heavy-duty overhead mechanical

interlocking system is factory tested

and provides quick, effective assembly

of up to 5 doors in a row, controlled

by a single master door. When the

master door is opened, the interlock is

automatically released, permitting all

doors to be opened in any order. All

doors can be closed in any order.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

136

TYPE 12

MODULAR

ENCLOSURES

Modular Enclosures

Type 12

Catalog Number Enclosure Size

H x W x D

Sub Panel

Part Number

Panel Dimensions Door Opening Door Size

A B J K L M

M12MOD843818 84 x 39.75 x 18 A-72P33.75 72.00 33.75 73.75 34.75 75.77 36.75

M12MOD843824 84 x 39.75 x 24 A-72P33.75 72.00 33.75 73.75 34.75 75.77 36.75

Catalog Number Enclosure Size

H x W x D

Sub Panel

Part Number

Panel Dimensions Door Opening Door Size

A B J K L M

M12MOD843918-FD 84 x 40.25 x 18 A-72P33.75 72.00 33.75 73.75 34.75 75.77 36.75

M12MOD843924-FD 84 x 40.25 x 24 A-72P33.75 72.00 33.75 73.75 34.75 75.77 36.75

Unistrut for Defeater Hook

Door to serve as Master Door

Print Pocket

3pt Padlocking

Handle

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Subpanel Support Brackets

Unistrut for

Mounting Lights

Doors Removed

Subpanel

X X

SECTION X-X

(2.500) W - 5.5

Opening

3.000

3.125

H - 10.24

Opening

7.125

H - 12

E3.375

2.000

3.750

2.000

Ø .500

H - 8.907

Door

D1.016

4.000

8.000

W - 4.045

Door

2.511

4.060 2.440

2.000

D - 1.358

W - 6.5

9.000

Unistrut for Defeater Hook

Door to serve as Master Door

Print Pocket

3pt Padlocking

Handle

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Subpanel Support Brackets

Unistrut for

Mounting Lights

Doors Removed

Subpanel

X X

SECTION X-X

(2.500) W - 5.5

Opening

3.000

3.125

H - 10.24

Opening

7.125

H - 12

E3.375

2.000

3.750

2.000

Ø .500

H - 8.907

Door

D1.016

4.000

8.000

W - 4.045

Door

2.511

4.060 2.440

2.000

D - 1.358

W - 6.5

9.000

Unistrut for Defeater Hook

Door to serve as Master Door

Print Pocket

3pt Padlocking

Handle

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Subpanel Support Brackets

Unistrut for

Mounting Lights

Doors Removed

Subpanel

X X

SECTION X-X

(2.500) W - 5.5

Opening

3.000

3.125

H - 10.24

Opening

7.125

H - 12

E3.375

2.000

3.750

2.000

Ø .500

H - 8.907

Door

D1.016

4.000

8.000

W - 4.045

Door

2.511

4.060 2.440

2.000

D - 1.358

W - 6.5

9.000

Notes:

Reference page C95 for sub panel layout.

Adapter kits must be ordered separately.

9” x 9” print pocket shipped inside enclsoure.

NOTES:

Reference page 188 for sub panel layout.

Adapter kits must be ordered separately.

9” x 9” print pocket shipped inside enclsoure.

Doors Removed

Subpanel

Subpanel Support

Brackets

Print Pocket

Door to be secured with Mechanical Interlock

3pt Padlocking

Handle

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Unistrut for

Mounting Lights

X X

SECTION X-X

2.500 W - 5

Opening

2.500

3.125

H - 10.25

Opening

7.125

H - 12

W - 6

W - 3.545

Door

2.011

2.000

D - 1.358

9.000

(3.000)

3.000

H - 8.907

Door

D1.016

3.375

3.750

2.000

Ø .500

Doors Removed

Subpanel

Subpanel Support

Brackets

Print Pocket

Door to be secured with Mechanical Interlock

3pt Padlocking

Handle

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Unistrut for

Mounting Lights

X X

SECTION X-X

2.500 W - 5

Opening

2.500

3.125

H - 10.25

Opening

7.125

H - 12

W - 6

W - 3.545

Door

2.011

2.000

D - 1.358

9.000

(3.000)

3.000

H - 8.907

Door

D1.016

3.375

3.750

2.000

Ø .500

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

137

TYPE 12

MODULAR

ENCLOSURES

Modular Enclosures

Type 12

Catalog Number Enclosure Size

H x W x D

Sub Panel

Part Number

Panel Dimensions Door Opening Door Size

A B J K L M

M12MOD847818-FD 84 x 78.50 x 18 A-72P72 72.00 72.00 73.75 34.75 75.77 36.7

M12MOD847824-FD 84 x 78.50 x 24 A-72P72 72.00 72.00 73.75 34.75 75.77 36.7

Removable

Centerpost

Subpanel Support Brackets

Doors Removed

Subpanel

Unistrut for

Mounting Lights

Print Pocket

3pt Padlocking

Handles

This door to serve as Master Door

other door secured with Mechanical Interlock

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Unistrut for Defeater Hook

X X

SECTION X-X

2.500 (W/2) - 4.562

Opening

(3.625 )

(W/2) - 4.562

Opening

3.000

3.125

H - 10.25

Opening

7.125

H - 12

W - 6.5

H - 8.907

Door

D1.016 8.000

4.000

3.375

2.000

3.750

2.000

Ø .500

(W/2) - 3.107

Opening

2.170

(W/2) - 3.107

Opening

2.510

2.440

4.060 2.000

D - 1.358

9.000

Removable

Centerpost

Subpanel Support Brackets

Doors Removed

Subpanel

Unistrut for

Mounting Lights

Print Pocket

3pt Padlocking

Handles

This door to serve as Master Door

other door secured with Mechanical Interlock

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Unistrut for Defeater Hook

X X

SECTION X-X

2.500 (W/2) - 4.562

Opening

(3.625 )

(W/2) - 4.562

Opening

3.000

3.125

H - 10.25

Opening

7.125

H - 12

W - 6.5

H - 8.907

Door

D1.016 8.000

4.000

3.375

2.000

3.750

2.000

Ø .500

(W/2) - 3.107

Opening

2.170

(W/2) - 3.107

Opening

2.510

2.440

4.060 2.000

D - 1.358

9.000

Notes:

Reference page 188 for sub panel layout.

Adapter kits must be ordered separately.

9” x 9” print pocket shipped inside enclsoure.

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Doors Removed

Subpanel

Removable

Centerpost

Subpanel Support Brackets

Print Pocket

Doors to be secured with Mechanical Interlock

3pt Padlocking

Handles

Unistrut for

Mounting Lights

X X

SECTION X-X

2.500 (W/2) - 4.312

Opening

(3.625 )

(W/2) - 4.312

Opening

2.500

3.125

H - 10.25

Opening

7.125

W - 6

H - 12

H - 8.907

Door

3.750

2.000

3.375

2.000

4.000

8.000

Ø .500

Typ

9.000

3.000 2.000 (3.000 )

D - 1.358

D1.016

(W/2) - 2.857

Door

2.646

(W/2) - 2.857

Door

Enclosure to receive an additional set of

Lifting Eyes if D is 24" or greater

Doors Removed

Subpanel

Removable

Centerpost

Subpanel Support Brackets

Print Pocket

Doors to be secured with Mechanical Interlock

3pt Padlocking

Handles

Unistrut for

Mounting Lights

X X

SECTION X-X

2.500 (W/2) - 4.312

Opening

(3.625 )

(W/2) - 4.312

Opening

2.500

3.125

H - 10.25

Opening

7.125

W - 6

H - 12

H - 8.907

Door

3.750

2.000

3.375

2.000

4.000

8.000

Ø .500

Typ

9.000

3.000 2.000 (3.000 )

D - 1.358

D1.016

(W/2) - 2.857

Door

2.646

(W/2) - 2.857

Door

Notes:

Reference C95 for sub panel layout.

Adapter kits must be ordered separately.

9” x 9” print pocket shipped inside enclosure.

Catalog Number Enclosure Size

H x W x D

Sub Panel

Part Number

Panel Dimensions Door Opening Door Size

A B J K L M

M12MOD847718 84.00 x 78.00 x 18.00 A-72P72 72.00 72.00 73.75 34.75 75.77 36.7

M12MOD847724 84.00 x 78.00 x 24.00 A-72P72 72.00 72.00 73.75 34.75 75.77 36.7

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

138

DISCONNECT

INFORMATION

Disconnect Information

Multi-Door and Modular Enclosures

Space Occupied By Disconnects

See charts on pages 138–147 for "F",

"G", and "W" dimensions which cover

space occupied by disconnect and wire

bend spacing. Disconnects occupy the

space indicated by "E", "F" and "G" on

disconnect diagrams on the previous page.

All 24.13 [610] deep enclosures include an

adjustable size platform which is 6.00 [152]

high. The platform is required for mounting

the following disconnect devices:

• ABB Controls ﬂange-operated devices.

• Cutler Hammer C361 devices.

• Cutler Hammer C371 mechanisms, which

use C371E, F, G, K operating mechanism.

• General Electric Type TDA devices.

• Square D Class 9422 devices.

The platform can be omitted if long

connecting rods are ordered.

• For Cutler-Hammer operating

mechanisms C371E and C371F order

catalog number C371CS1 connecting

rod. For C371G and C371K order catalog

number C371CS2 connecting rod.

• For General Electric devices, order

catalog number TDSR extended length

drive rod.

• For Square D devices, order catalog

number 9422-R2 extra long operating

rod(s). Some devices require two rods.

Disconnect Ordering Information

When ordering ﬂange-mounted disconnects

from the various manufacturers, be sure to

order the necessary items. Each company

has a different system, so care is required.

Order the following items from the

disconnect manufacturer.

Key to Symbols

Items available from disconnect

manufacturer as complete kits. Please note:

1. The “Space Occupied/Available

Wiring Space” tables on following

pages are based upon information

supplied by disconnect manufacturers.

Milbank does not assume

responsibility for the accuracy of these

dimensions.

2. This information is subject to change

without notice. Please contact Milbank

for the disconnect manufacturer if

there are questions.

Allen-Bradley

When using a 1494F ﬂange mounted

disconnect switch, order:

1. A disconnect switch.

2. A fuse block adapter.

3. Line and load connectors, if required

When using a 1494D ﬂange-mounted

operator for a circuit breaker, order:

1. A circuit breaker (C-H/Westinghouse)

2. A ﬂange mounted operator

mechanism

3. A slide mechanism

When using 1494V disconnect switch, order:

*1. A disconnect switch

*2. An operating handle

*3. A connecting rod (long)

*4. A trailer fuse block kit, if required

*5. A fuse clip kit, if required

6. Line and load connectors, if required

When using a 1494V circuit breaker

operating mechanism, order:

1. A circuit breaker (C-H/Westinghouse)

2. A circuit breaker operating mechanism

3. An operating handle

4. A connecting rod (long)

ABB Controls

When using a disconnect switch, order:

1. A ﬂange-operated switch (fusible or

non-fusible)

2. A shaft (DSFHS-17) for 18.13 [457]

deep enclosures (DSFHS-22) for 20.13

[511] deep enclosures in 24.13 [613]

deep enclosure a platform must be

used with shaft

3. A handle (DSFHN-HS12)

When using a circuit breaker, order:

1. A circuit breaker (ABB)

2. An operating mechanism

3. A shaft (FSH-17) for 18.13 [457]

deep or (FSH-22) for 20.13 [511]

deep enclosures in 24.13 [613] deep

enclosure a platform must be used

with shaft

4. A handle (FHN-HS12)

Cutler-Hammer/Westinghouse

When using a Type C361 disconnect switch,

order:

*1. A disconnect switch with an operating

mechanism

*2. An operating handle (C361H1 or

C361H3)

When using a Type C371 circuit breaker

operating mechanism with a C-H/

Westinghouse circuit breaker, order:

1. A circuit breaker

*2. An operating mechanism

*3. An operating handle

When using a Type SM handle mechanism,

order:

1. A circuit breaker

2. A Type SM handle mechanism

When using a C-H/Westinghouse circuit

breaker with a Type 4/4X Flex Shaft™

handle mechanism, order:

1. A circuit breaker

2. A complete Flex Shaft™ handle

mechanism

General Electric

When using a disconnect switch, order:

1. A disconnect switch (Type QMR or

QMW)

2. A fuse clip kit or no-fuse kit

3. A ﬂange handle (STDA1 or STDA2)

4. A variable depth operating

mechanism

5. An extended length drive rod, if

required

When using a circuit breaker, order:

1. A circuit breaker

2. A ﬂange handle (STDA1 or STDA2)

3. A variable depth operating

mechanism

4. An extended length drive rod, if

required

When using a circuit breaker with a Spectra

Flex™ cable operator, order:

1. A circuit breaker

2. A ﬂange-mounted handle mechanism

3. A breaker-mounted mechanism

4. An operating cable

I-T-E Siemens

When using a disconnect switch, order:

1. A basic switch (right hand)

2. A fuse or non-fuse kit

*3. A ﬂange-mounted handle (FHOHS)

*4. Switch operator

*5. FHOECO48 cable

When using a circuit breaker, order:

1. A circuit breaker

2. Pressure wire connectors

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

139

DISCONNECT

INFORMATION

Disconnect Information

Multi-Door and Modular Enclosures

*3. A ﬂange-mounted handle

*4. A circuit breaker operator mechanism

*5. An operating cable - 36.00 [914] or

48.00 [1219] long cable for 18.13

[460] and 20.13 [511] deep enclosures

and 48.00 [1219] cable 24.13 [610]

deep enclosures

*These items are available from ITE as a

complete mechanism with a 36.00 [914] long

cable only. Order items separately when

using a 48.00 [1219] operating cable.

Square D

When using a disconnect switch, order:

1. A disconnect switch with operating

mechanism

2. A universal handle mechanism

3. A long operating rod, if required

When using a circuit breaker, order:

1. A circuit breaker

2. An operating mechanism

3. A universal handle mechanism

4. A long operating rod, if required

When using a Class 9422 Type “T”

disconnect switch with a cable mechanism,

order:

1. A disconnect switch with operating

mechanism (Class 9422,Type T)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_O) 3, 5, or 10 feet

When using a circuit breaker with a cable

mechanism, order:

1. A circuit breaker (Square D)

2. A handle mechanism (Class 9422 Type

A-1)

3. A cable mechanism (Class 9422

CFT_0) 3-, 5-, or 10-feet

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

140

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

TYPE 4 TYPE 5

TYPE 1 TYPE 2

TYPE 3

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

141

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Type

Number

Amp

Rating

Fuse Clip

Rating

Fuse

Class Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amps Volts F G Z 1 2 3 4 5

DS30 30A No Fuse — 3.88 6.75 E - 1.88 0 0 0 - 0

DS30 30A 30 250 H, K, R 5.25 6.75 E - 1.88 0 0 0 - 0

DS30 30A 30 600 H, K, R 8.00 6.75 E - 1.88 0 0 0 - 0

DS30 30A 30 600 J 5.25 6.75 E - 1.88 0 0 0 - 0

DS30 30A 60 250 H, K 6.00 6.75 E - 1.88 0 0 0 - 0

DS30 30A 60 600 H, K 8.50 6.75 E - 1.88 0 0 0 - 0

DS30 30A 60 600 J 5.38 6.75 E - 1.88 0 0 0 - 0

DS60 60A No Fuse — 3.88 6.75 E - 2.00 0 0 0 - 0

DS60 60A 60 250 H, K, R 6.00 6.75 E - 2.00 0 0 0 - 0

DS60 60A 60 600 H, K, R 8.50 6.75 E - 2.00 0 0 0 - 0

DS60 60A 60 600 J 5.38 6.75 E - 2.00 0 0 0 - 0

DS60 60A 30 600 H, K, R 8.00 6.75 E - 2.00 0 0 0 - 0

DS60 60A 100 250 H, K 8.50 6.75 E - 2.00 0 0 0 - 0

DS60 60A 100 600 H, K 10.50 6.75 E - 2.00 0 0 0 - 0

DS60 60A 100 600 J 7.25 6.75 E - 2.00 0 0 0 - 0

DS100 100A No Fuse — 3.88 6.75 E - 2.18 0 0 0 - 1

DS100 100A 100 250 H, K, R. 8.12 6.75 E - 2.18 0 0 0 - 1

DS100 100A 100 600 H, K, R 10.12 6.75 E - 2.18 0 0 0 - 1

DS100 100A 100 600 J 6.88 6.75 E - 2.18 0 0 0 - 1

DS100 100A 60 600 H, K, R 10.12 6.75 E - 2.18 0 0 0 - 1

DS100 100A 60 600 J 8.88 6.75 E - 2.18 0 0 0 - 1

DS200 200A No Fuse — 4.75 7.88 E - 3.50 0 0 1 - 2

DS200 200A 200 250 H, K, R 10.88 7.88 E - 3.50 0 0 0 - 2

DS200 200A 200 600 H, K, R 13.38 7.88 E - 3.50 0 0 0 - 2

DS200 200A 200 600 J 9.50 7.88 E - 3.50 0 0 0 - 2

DS200 200A 100 600 H, K, R 12.00 7.88 E - 3.50 0 0 0 - 2

DS200 200A 100 600 J 8.75 7.88 E - 3.50 0 0 0 - 2

DS400 400A No Fuse — 10.75 10.88 E - 6.29 - 4 - 5 3

DS400 400A 400 250 H, K, R 16.12 10.88 E - 6.29 - 4 - 5 3

DS400 400A 400 600 H, K, R 19.12 10.88 E - 6.29 - 4 - 5 3

DS400 400A 400 600 J 14.62 10.88 E - 6.29 - 4 - 5 3

DS600 600A No Fuse — 10.75 10.88 E - 6.29 - 4 - 5 3

DS600 600A 600 250 H, R 16.12 10.88 E - 6.29 - 4 - 5 3

DS600 600A 600 600 H, R 19.12 10.88 E - 6.29 - 4 - 5 3

DS600 600A 600 600 J 14.62 10.88 E - 6.29 - 4 - 5 3

M40 15A-

150A

GE Circuit Breaker

TED, THED, TEC — 5.62 4.62 E - 0.50 0 0 0 - 0

M40 15A-

150A

Westinghouse

Circuit Breaker

F Frame / Series C

— 5.00 4.62 E - 0.50 0 0 0 - 0

M50 70A-

250A

Westinghouse

Circuit Breaker

J Frame / Series C

— 9.75 4.88 E - 1.00 0 0 1 - 2

M60 100A-

400A

Westinghouse

Circuit Breaker

K Frame / Series C

— 9.69 6.25 E - 1.125 6 0 0 - 2

Allen-Bradley 1494V Disconnects

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8.00 inch deep enclosures.

2: Do not use in 8.00 or 10.00 inch deep enclosures.

3: Only ﬁts Type 5 Enclsoure with a Designator after Depth.

4: Only ﬁts enclosures 84.00 and 90.00 inch high with the AB

designator at the end of the part number

5: Only ﬁt enclosures 12.00 inches deep.

6: Do not use in 60" high enclosures.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

142

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Type

Number

Frame

Rating Breaker Type Frame Size Space

Occupied

Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 138)

F G Z 1 2 3 4 5

N4/N40 150A Westinghouse F Frame / Series C 5.81 4.44 E - 0.59 0 0 — 0 —

N4/N40 150A General Electric TEC, TED, THED 5.81 4.44 E - 0.59 0 0 — 0 —

N5/N50 225A General Electric TFC, TFK, THFK 8.81 4.63 E - 1.41 0 0 — 1 —

N5/N50 250A Westinghouse J Frame / Series C 8.81 4.63 E - 1.45 0 0 — 1 —

N5/N60 400A Westinghouse K Frame / Series C 8.81 5.75 E - 1.31 8 0 — 1 —

Type

Number

Amp

Rating Fuse Clip Rating Fuse

Class Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G Z 1 2 3 4 5

N30 30A No Fuse — 4.62 6.38 E - 0.59 0 0 — 0 —

NF30 30A 30 250 H, K, R 6.25 6.38 E - 0.59 0 0 — 0 —

NF30 30A 60 250 H, K, R 7.25 6.38 F - 0.59 0 0 — 0 —

NF30 30A 30 600 H, K, R 9.25 6.38 E - 0.59 0 0 — 0 —

NF30 30A 60 600 H, K, R 9.75 6.38 E - 0.59 0 0 — 0 —

NF30 30A 30 600 J 6.50 6.38 E - 0.59 0 0 — 0 —

NF30 30A 60 600 J 6.62 6.38 E - 0.59 0 0 — 0 —

N60 60A No Fuse — 4.62 6.38 E - 1.34 0 0 — 0 —

NF60 60A 30 600 H, K, R 10.38 6.38 E - 1.34 0 0 — 0 —

NF60 60A 60 250 H, K, R 8.38 6.38 E - 1.34 0 0 — 0 —

NF60 60A 100 250 H, K, R 10.88 6.38 E - 1.34 0 0 — 0 —

NF60 60A 60 600 H, K, R 10.88 6.38 E - 1.34 0 0 — 0 —

NF60 60A 100 600 H, K, R 12.88 6.38 E - 1.34 0 0 — 0 —

NF60 60A 60 600 J 7.75 6.38 E - 1.34 0 0 — 0 —

NF60 60A 100 600 J 9.75 6.38 E - 1.34 0 0 — 0 —

N100 100A No Fuse — 4.62 7.13 E - 3.12 8 0 — 1 —

NF100 100A 100 250 H, K, R. 11.38 7.13 E - 3.12 8 0 — 1 —

NF100 100A 200 250 H, K, R 12.25 7.38 E - 3.12 8 0 — 1 —

NF100 100A 100 600 H, K, R 13.38 7.12 E - 3.12 8 0 — 1 —

NF100 100A 200 600 H, K, R 14.75 7.50 E - 3.12 8 0 — 1 —

NF100 100A 100 600 J 10.12 7.13 E - 3.12 8 0 — 1 —

NF100 100A 200 600 J 10.88 7.38 E - 3.12 8 0 — 1 —

N200 200A No Fuse — 7.12 10.13 E - 3.38 8 0 — 7 —

NF200 200A 200 250 H, K, R 15.00 10.13 E - 3.38 8 0 — 7 —

NF200 200A 400 250 H, K, R 18.56 10.50 E - 3.38 8 0 — 7 —

NF200 200A 200 600 H, K, R 17.56 10.13 E - 3.38 8 0 — 7 —

NF200 200A 400 600 H, K, R 19.56 10.75 E - 3.38 8 0 — 7 —

NF200 200A 200 600 J 13.69 10.13 E - 3.38 8 0 — 7 —

NF200 200A 400 600 J 15.00 10.38 E - 3.38 8 0 — 7 —

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8" deep enclosures.

6: Only ﬁt enclosures with the AB designator at the end of the part

number.

7: Only ﬁt enclosures 12.00 inches deep.

8: Do not use in 60" high enclosures.

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8" deep enclosures.

6: Only ﬁt enclosures with the AB designator at the end of the part number.

8: Do not use in 60" high enclosures.

Allen-Bradley 1494F Disconnects

Allen-Bradley 1494D Circuit Breaker Operators

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

143

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Type

Number

Amp

Rating Fuse Clip Rating Fuse Class Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G Z 1 2 3 4 5

TCN-30 30A No Fuse — 3.80 6.97 E - 1.06 0 0 0 - 0

TCF-30 30A 30 250 H, K, R 5.53 6.97 E - 1.06 0 0 0 - 0

TCF-33 30A 30 600 H, K, R 8.15 6.97 E - 1.06 0 0 0 - 0

TCF-33 30A 60 250 H, K, R 6.15 6.97 E - 1.06 0 0 0 - 0

TCF-33 30A 30 600 J 3.80 6.97 E - 1.06 0 0 0 - 0

TDN-60 60A No Fuse — 3.80 6.97 E - 1.06 0 0 0 - 0

TDN-60 60A 30 600 H, K, R 8.15 6.97 E - 1.06 0 0 0 - 0

TDN-60 60A 60 250 H, K, R 6.15 6.97 E - 1.06 0 0 0 - 0

TDN-63 60A 60 600 H, K, R 8.65 6.97 E - 1.06 0 0 0 - 0

TDN-63 60A 60 600 J 5.53 6.97 E - 1.06 0 0 0 - 0

TEN-10 100A No Fuse — 3.80 6.97 E - 1.19 0 0 0 - 1

TEF-10 100A 100 250 H, K, R 8.25 6.97 E - 1.19 0 0 0 - 1

TEF-10 100A 100 600 H, K, R 10.25 6.97 E - 1.19 0 0 0 - 1

TEF-13 100A 100 600 J 7.05 6.97 E - 1.19 0 0 0 - 1

TEF-13 100A 200 600 J E - 1.19 0 0 0 - 1

TC-1 30A No Fuse — 5.75 6.13 E - 2 0 0 0 - 0

TC-2 30A 30 250 H, K, R 5.75 6.13 E - 2 0 0 0 - 0

TC-3 30A 30 600 H, K, R 7.75 6.13 E - 2 0 0 0 - 0

TC-3 30A 60 250 H, K, R 5.88 6.13 E - 2 0 0 0 - 0

TC-3 30A 30 600 J 5.75 6.13 E - 2 0 0 0 - 0

TD-1 60A No Fuse — 6.38 6.75 E - 1.13 0 0 0 - 0

TD-2 60A 30 600 H, K, R 8.50 6.75 E - 1.13 0 0 0 - 0

TD-2 60A 60 250 H, K, R 6.50 6.75 E - 1.13 0 0 0 - 0

TD-3 60A 60 600 H, K, R 9.00 6.75 E - 1.13 0 0 0 - 0

TD-3 60A 60 600 J 6.38 6.75 E - 1.13 0 0 0 - 0

TE-1 100A No Fuse — 4.75 8.50 E - 1.38 0 0 1 - 1

TE-2 100A 100 250 H, K, R 7.50 8.50 E - 1.38 0 0 1 - 1

TE-2 100A 100 600 H, K, R 9.50 8.50 E - 1.38 0 0 1 - 1

TE-2 100A 100 600 J 6.25 8.50 E - 1.38 0 0 1 - 1

TE-3 100A 200 600 J 13.75 8.50 E - 1.38 0 0 1-1

TF-1 200A No Fuse — 5.50 11.75 E - 2.75 0 0 1 - 2

TF-2 200A 200 250 H, K, R 11.50 11.75 E - 2.75 0 0 1 - 2

TF-2 200A 200 600 H, K, R 14.00 11.75 E - 2.75 0 0 1 - 2

TF-2 200A 200 600 J 10.12 11.75 E - 2.75 0 0 1 - 2

TF-3 200A 400 600 J 14.50 11.75 E - 2.75 0 0 0 - 2

RG-1 75A GJL Circuit Breaker 3.53 3.88 E - 1.16 0 0 0 - 0

RG-1 100A GJL Circuit Breaker 3.53 3.88 E - 1.16 0 0 0 - 0

RN-1 100A FAL,FHL Circuit Breaker 5.12 5.38 E - 1.00 0 0 0 - 0

RP-1 250A KAL,KHL Circuit Breaker 7.12 5.75 E - 0.50 0 0 0 - 0

RR-1 400A LAL,LHL,Q4L Circuit Breaker 7.62 8.88 E - 4.62 - 0 1 - 2

Square D Class 9422 Disconnects

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8.00 inch deep enclosures.

2: Do not use in 8.00 or 10.00 inch deep enclosures.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

144

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Mechanism Amp Rating Frame Type Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

F G Z 1 2 3 4 5

SDOM1A 150A TEB, TED, THED 7.75 5.38 E - .64 0 0 0 — 0

SDOM1A 150A TEC 7.75 5.38 E - .64 0 0 0 — 0

TDOM1B 150A TB1 12.38 5.38 E - .64 0 0 0 — 0

TDOM1B 150A TEC, TECL 12.38 5.38 E - .64 0 0 0 — 0

TDOM1C 150A TEL 7.75 5.38 E - .64 0 0 0 — 0

TDOM1D 150A THLC1 7.75 5.38 E - .64 0 0 0 — 1

TDOM3 225A TFJ 10.38 5.88 E - 2.00 0 0 0 — 1

TDOM3 225A TFK, THFK, TFL 10.38 5.88 E - 2.00 0 0 0 — 1

TDOM4 400A TJJ, TJK4, THJK4, TJL4V 8.25 9.50 E - 2.00 8 0 0 — 1

TDOM4 600A TJK6, THJK6, TJ4V, TJL4V 8.25 9.50 E - 2.00 8 0 1 — 1

TDOM5 400A TB4, TJH6S 14.25 9.50 E - 2.00 8 0 0 — 1

TDOM6 225A TLB2, THLC2 11.75 9.50 E - 2.50 8 9 9 — 2

TDOM6 400A TLB4, THLC4 11.75 9.50 E - 2.50 8 9 9 — 2

TDOM6 225A TLB2, THLC2 11.75 9.50 E - 2.50 9 10 — — —

TDOM7 600A TB6 18.12 9.50 E - 2.50 9 9 — — —

TDOM7 800A TB8 18.12 9.50 E - 2.50 9 9 — — —

TDOM7 1200A TKL12S 18.12 9.50 E - 2.50 9 10 — — —

Mechanism Amp

Rating Fuse Clip Rating Fuse Class Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G Z 1 2 3 4 5

TDOM1A 30A No Fuse — 7.75 5.25 E + .5 0 0 0 — 0

TDOM1A 30A 30 250 H,R 7.75 5.25 E + .5 0 0 0 — 0

TDOM1B 30A 30 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 30A 60 250 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 30A 60 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1A 60A No Fuse — 7.75 5.25 E + .5 0 0 0 — 0

TDOM1B 60A 60 250 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 60A 60 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 60A 100 250 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 60A 100 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1A 100A No Fuse — 7.75 5.25 E + .5 0 0 0 — 0

TDOM1B 100A 100 250 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 100A 100 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 100A 200 250 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM1B 100A 200 600 H,R 12.38 5.25 E + .5 0 0 0 — 0

TDOM2 200A No Fuse — 7.00 9.12 E - 2.12 0 0 0 — 2

TDOM2 200A 200 250 H,R 15.38 9.12 E - 2.12 0 0 0 — 2

TDOM2 200A 200 600 H,R 15.38 9.12 E - 2.12 0 0 0 — 2

General Electric Type STDA Operators for Disconnects

General Electric Type STDA Operators for Circuit Breakers

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8.00 inch deep enclosures.

2: Do not use in 8.00 or 10.00 inch deep enclosures.

8: Do not use in 60.00 inch high enclosures.

9: Do not use in 60.00 or 72.00 inch high enclosures.

10: Do not use in 60.00, 72.00, or 84.00 inch high enclosures.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

145

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Complete

Operator

Circuit

Breaker

Max

Amp Circuit Breaker Circuit Breaker Type

Disconnects Fit The

Enclosure Type

Indicated Below

(Page 140)

Mechanism Frame Rating Height Width 1 2 3 4 5

FHOE036 ED 125A 6.34 3.00 ED2, ED4, ED6, HED4, HED6 0 0 0 — 0

FHOE36 CED 125A 9.58 3.00 CED6 0 0 0 — 0

FHOF036 FD 250A 9.50 4.50 FXD6-A, FD6-A, HFD6, FXD6-ETJ, HHFD6, HHFXD6 0 0 0 — 0

FHOJ036 CFD 250A 14.25 4.50 CFD6, CFD6-ETI 0 0 0 — 0

FHOJ036 JD 400A 11.00 7.50 JXD2, JXD6, JD6, HJD6, HHJD6, HHJXD6, JXD6-ETI 0 0 0 — 0

FHOJ036 CJD 400A 17.86 7.50 CJD6, CJD6-ETI 0 0 0 — 0

FHOJ036 LD 600A 11.00 7.50 LXD6, LD6, HLD6, HHLD6, HHLDX6, LXD6-ETI 0 0 0 — 0

FHOJ036 CLD 600A 17.86 7.50 CLD6, CLD6-ETI 0 0 0 — 0

FHOLM036 LMD 800A 16.00 9.00 LMD6, LMXD6, HLMD6, HLMXD6, LMXD6-ETI 0 0 0 — 0

FHON048 MD 800A 24.00 9.00 MD6, MXD6, HMD6, HMXD6, CMD6, MXD6-ETI, CMD6-ETI — 4 — 5 3

FHON048 ND 1200A 24.00 9.00 ND6,NXD6,HND6,HNXD6,CND6 — 4 — 5 3

Switch Amp Rating Fuse Clip Rating Fuse Class Space Occupied Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G 1 2 3 4 5

MCS603R 30A No Fuse — 5.52 6.13 0 0 0 — 0

MCS603R 30A 30 250 H, K, R 8.11 6.13 0 0 0 — 0

MCS603R 30A 30 600 H, K, R 10.11 6.13 0 0 0 — 0

MCS603R 30A 30 600 J 8.48 6.13 0 0 0 — 0

MCS606R 60A No Fuse — 5.52 6.13 0 0 0 — 0

MCS606R 60A 60 250 H, K, R 7.86 6.13 0 0 0 — 0

MCS606R 60A 60 600 H, K, R 10.38 6.13 0 0 0 — 0

MCS606R 60A 60 600 J 8.36 6.13 0 0 0 — 0

MCS610R 100A No Fuse — 7.59 7.38 0 0 0 — 0

MCS610R 100A 100 250 H, K, R 11.85 7.38 0 0 0 — 0

MCS610R 100A 100 600 H, K, R 13.85 7.38 0 0 0 — 0

MCS610R 100A 100 600 J 10.60 7.38 0 0 0 — 0

MCS620R 200A No Fuse — 9.02 9.17 0 0 0 — 0

MCS620R 200A 200 250 H, K, R 14.70 9.17 0 0 0 — 0

MCS620R 200A 200 600 H, K, R 17.20 9.17 0 0 0 — 0

MCS620R 200A 200 600 J 13.32 9.17 0 0 0 — 0

I-T-E Disconnect Switches for Max-Flex™ Operators

I-T-E Circuit Breakers with Max-Flex™ Operators

0: Will ﬁt enclosure. No special restrictions.

3: Only ﬁts Type 5 enclosures with a designator after depth.

4: Only ﬁt enclosures 84.00 and 90.00 inch high with the AB designator at the end of the part number.

5: Only ﬁt enclosures 12.00 inches deep.

0: Will ﬁt enclosure. No special restrictions.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

146

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Mechanism Amp Rating Frame Type Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

F G Z 1 2 3 4 5

FHD-M 150A D 6.92 3.94 E + 0.54 0 0 0 - 0

FHF-M 150A-225A E/Q 5.98 4.23 E - 0.91 8 0 1 - 2

FHF-M 225A F 7.44 4.23 E - 0.91 0 0 0 - 0

FHJ-M 400A J 9.71 5.62 E - 2.85 8 0 1 - 2

FHM-M 600A L 8.28 11.26 E - 2.85 - 0 0 - 2

FHM-M 800A M 10.11 11.26 E - 3.75 - 9 - - -

ABB Controls Circuit Breakers with Flange Mounted Operators

0: Will ﬁt enclosure. No special restrictions.

2: Do not use with 8.00 or 10.00 inch deep enclosures.

8: Do not use in 60.00 inch high enclosures.

9: Do not use in 60.00 or 72.00 inch high enclosures.

Switch

Number

Amp

Rating

Fuse Clip Rating Fuse

Class Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G Z 1 2 3 4 5

OETL-NF30-F 40A No Fuse — 4.45 3.91 E + 1.68 0 0 0 — 0

OETL-NF60-F 80A No Fuse — 4.86 3.91 E + 1.47 0 0 0 — 0

OETL-NF100-F 100A No Fuse — 4.86 4.91 E + 0.91 0 0 0 — 0

OETL-NF175-F 175A No Fuse — 7.30 6.62 E - 1.34 0 0 0 — 1

OETL-NF200-F 200A No Fuse — 7.36 7.41 E + 1.34 0 0 0 — 1

OESA-F30J6-F 30A 30 600 J 4.28 6.71 E = Z 0 0 0 — 0

OESA-F60J6-F 50A 60 600 J 4.28 6.38 E = Z 0 0 0 — 0

OESA-F100J6-F 100A 100 600 J 6.54 7.78 E - 0.45 0 0 0 — 0

ABB Controls Disconnect Switches with Flange Mounted Operators

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8.00 inch deep enclosures.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

147

DISCONNECT

ENCLOSURE

INFORMATION

Disconnect Enclosure Information

Type 12

Switch

Number

Type

Number

Amp

Rating

Fuse Clip Rating Fuse Class Space Occupied

Wire

Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

Amp Volt F G Z 1 2 3 4 5

C361 NC 30A No Fuse — 5.75 7.64 E - 1.31 0 0 0 — 0

C361 SC21 30A 30 250 H, K, R 8.38 7.64 E - 1.31 0 0 0 — 0

C361 SC61 30A 60 250 H, K, R 8.38 7.64 E - 1.31 0 0 0 — 0

C361 SC61 30A 30 600 H, J, K, R 8.38 7.64 E - 1.31 0 0 0 — 0

C361 ND 60A No Fuse — 5.75 7.64 E - 1.31 0 0 0 — 0

C361 SD22 60A 60 250 H, K, R 8.38 7.64 E - 1.31 0 0 0 — 0

C361 SD22 60A 30 600 J 8.38 7.64 E - 1.31 0 0 0 — 0

C361 SD62 60A 60 600 H, K, R 8.38 7.64 E - 1.31 0 0 0 — 0

C361 SD62 60A 60 600 J 8.38 7.64 E - 1.31 0 0 0 — 0

C361 NE 100A No Fuse — 5.56 9.13 E - 1.75 0 0 0 — 0

C361 SE263 100A 100 250 H, K, R 10.31 9.13 E - 1.75 0 0 0 — 0

C361 SE263 100A 100 600 H, K, R 10.31 9.13 E - 1.75 0 0 0 — 0

C361 SE263 100A 100 600 J 10.31 9.13 E - 1.75 0 0 0 — 0

C361 NF 200A No Fuse — 13.06 10.13 E - 3.68 0 0 0 — 2

C361 SF264 200A 200 250 H, K, R 13.06 10.13 E - 3.68 0 0 0 — 2

C361 SF264 200A 200 600 H,J,K,R 13.06 10.13 E - 3.68 0 0 0 - 2

Mechanism Max Amp

Rating Frame Type Space Occupied Wire Bend

Space

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

F G Z 1 2 3 4 5

C371E 225A F Frame: EHD, FDB, FD, HFD, FDC 6.00 5.63 E - 0.31 0 0 0 — 0

C371E 150A F-Frame: HMCP 6.00 5.63 E - 0.31 0 0 0 — 0

C371F 250A J Frame: JDB, JD, HJD, JDC 10.94 8.13 E - 0.37 0 0 1 — 1

C371F 250A J Frame: HMCP 8.94 8.13 E - 0.37 0 0 1 — 1

C371F 400A K Frame: DK, KDB, KD, HKD 9.75 8.13 E - 0.87 8 0 1 — 2

C371F 400A K Frame: HMCP 9.75 8.13 E - 0.87 8 0 1 — 2

C371G 600A L Frame: LD, HLD, LDC 8.44 12.00 E - 2.44 9 0 1 — 2

C371G 600A L Frame: HMCP 8.44 12.00 E - 2.44 9 0 1 — 2

Complete

Operator

Mechanism

Amp

Rating Frame Type Breaker

Height

Breaker

Width

Disconnects Fit The Enclosure

Type Indicated Below (Page 140)

12345

F1S03 225A F-Frame: EHD, FDB, FD, HFD, FDC 6.00 4.12 0 0 - - -

F1S03 150A F-Frame: HMCP 6.00 4.12 0 0 - - -

F2S03 250A J-Frame: JDB, JD, HJD, JDC 10.00 4.12 8 0 - - -

F2S03 250A J-Frame: HMCP 10.00 4.12 8 0 - - -

F3S03 400A K-Frame: DK, KDB, KD, HKD 10.12 5.50 8 0 - - -

F3S03 400A K-Frame: HMCP 12.45 5.50 8 0 - - -

F4S04 600A L-Frame: LD, HLD, LDC 10.75 8.25 - 9 - - -

F4S04 600A L-Frame: HMCP 12.50 8.25 - 9 - - -

F7S04 800A M Frame/MD,MDS 16.00 8.25 - 9 - - -

Cutler-Hammer C361 Disconnect Switches

Cutler-Hammer C371 Circuit Breaker Operators for C-H / Westinghouse Circuit Breakers

Cutler-Hammer Flex Shaft™ Operator Mechanisms for C-H / Westinghouse Circuit Breakers

0: Will ﬁt enclosure. No special restrictions.

1: Do not use in 8.00 inch deep enclosures.

2: Do not use with 8.00 or 10.00 inch deep enclosures.

8: Do not use in 60.00 inch high enclosures.

9: Do not use in 60.00 or 72.00 inch high enclosures.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

148

SERIES 1 &

SERIES 9

CONSOLES

Series 1 and Series 9 Consoles

Type 12

Catalog

Number Description

Enclosure Size

H x W x D

(inches)

Shpg.

Wt.

M12SP1-C18 Console Body 40 x 18 x 20 100

A-30X15 Interior Subpanel 30 x 15 12

M12SP1-C24 Console Body 40 x 24 x 20 115

A-30X21 Interior Subpanel 30 x 21 17

M12SP1-C30 Console Body 40 x 30 x 20 140

A-30X27 Interior Subpanel 30 x 27 21

M12SP1-C36 Console Body 40 x 36 x 20 165

A-30X33 Interior Subpanel 30 x 33 26

M12SP1-C42 Console Body 40 x 42 x 20 210

Catalog

Number Description

Enclosure Size

H x W x D

(inches)

Shpg.

Wt.

A-30X39 Interior Subpanel 30 x 39 31

M12SP1-C48 Console Body 40 x 48 x 20 235

A-30X45 Interior Subpanel 30 x 45 36

M12SP-924B Console Body 48 x 24 x 18 150

A-30P20 Interior Subpanel 27 x 17 16

M12SP-936B Console Body 48 x 36 x 18 186

A-30P30 Interior Subpanel 27 x 27 24

A-30P20 Interior Side Subpanel 27 x 17 16

Applications

Designed to house electrical controls,

instruments, and components.

Pushbuttons, pilot lights, meters,

switches, etc. can be mounted on

the sloping control panel or on the

instrument panel.

Construction

• Fabricated from 14 gauge carbon

steel with continuously welded

seams.

• Doors and exterior panels have oil

resistant gaskets and are secured by

three point latches with key locking

handles.

• The 24" and 36" consoles have a

single door on the front. The door

surfaces are flush with the front to the

body.

• Each console has a large sloping

control panel hinged along the

bottom edge and secured with

captivated panel screws thread into

sealed wells for a good secure fit.

• Stops are provided to hold the

control panel open.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 12

M12SP1 Single Door M12SP1 Double Door M12SP-924 Single Door

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

149

SERIES 1 &

SERIES 9

CONSOLES

Series 1 and Series 9 Consoles

Type 12

3pt Keylocking

Handle

Print Pocket

Outer panels secured

with 10-32 screws

D1.16

24.02

Door

22.88

Opening

.70

6.99

Panel

6.55

Opening

14.02

Panel

W - 1.66

Upper Panels

W - 3.40

Upper Openings

W - 1.45

Door

W - 2.65

Opening

133°

137°

2.50

11.89

Opening

Print Pocket

3pt Keylocking

Handle

Outer panels secured

with 10-32 screws

D1.11

.70

6.54

Opening

7.02

Panel

133°

137°

14.02

Panel

22.88

Opening

23.90

Doors

W - 2.65

Opening

W - 3.40

Openings

W - 1.67

Panels

(W / 2) - 0.79

Left Door

(W / 2) - 0.70

Right Door 2.50

11.83

Opening

Note:

9" x 9" print pockets shipped inside enclosure.

Note:

9" x 9" print pockets shipped inside enclosure.

M1SP1 Single Door

M12SP1 Double Door

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

150

SERIES 1 &

SERIES 9

CONSOLES

Series 1 and Series 9 Consoles

Type 12

Print Pocket

3pt Keylocking

Handle

Control panel secured

with 10-32 screws

48.00

18.001.11

21.88

Panel

26.25

Door

24.00

21.50

19.75

23.19

21.50

3.63

2.00

32.00

Print Pocket

3pt Keylocking

Handle

48.00

18.001.11

21.88

Panel

26.25

Door

36.00

33.50

31.75

35.19

33.50

32.00

3.63

M12SP-924B

M12SP-936B

Note:

9" x 9" print pockets shipped inside enclosure.

Note:

9" x 9" print pockets shipped inside enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

151

TYPE 4 & 4x

SCREW COVER

JUNCTION

ENCLOSURES

Screw Cover Junction Enclosures

Type 4 & 4X | JIC

10-32 Captivated Screws

Subpanel

Lid Removed

W - 2 W - 5

H + 0.75

H - 1.125

W - 1.125

H + 0.336

W + 0.336

D - 0.473

.438

Ø .313

Applications

For housing electrical controls, terminals, and instruments

and to provide protection from dust, dirt, oil and water

Construction

• Fabricated from 16 or 14 gauge carbon steel, type 304

stainless steel and type 316 stainless steel.

• Lids secured with captivated cover screws threaded into

sealed wells.

• Oil resistant gasket applied to the doors.

• External mounting feet for wall or machinery mounting.

• Weld nuts for mounting optional sub panel.

• Chain not included, order as extra.

Finish

Standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL

and custom match finishes available for an additional charge,

please contact Milbank for further assistance. All powder

coat finishes applied over cleaned phosphatized surfaces.

Carbon steel sub panels have a white polyester powder coat

finish. Stainless Steel enclosures have a polished #4 finish.

Options

Milbank can modify standard enclosures or custom design

enclosures according to your specifications. Holes, cutouts,

sizes, materials, and many more options are available.

Quotations upon request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type4&4X

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

152

TYPE 4

SCREW COVER

JUNCTION

ENCLOSURES

Screw Cover Junction Enclosures

Type 4 | JIC

Catalog Number Product Size

H x W x D (inches)

Ship.

Wt.

Sub Panel

Part #

Sub Panel Size

H x W (inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

SC443JIC4 SC443JIC4XS SC443JIC4XZ 4 x 4 x 3 2 — —

SC643JIC4 SC643JIC4XS SC643JIC4XZ 6 x 4 x 3 3 A-64SBP 4.88 x 2.88

SC863JIC4 SC863JIC4XS SC863JIC4XZ 8 x 6 x 3.5 5 A-86SBP 6.88 x 4.88

SC444JIC4 SC444JIC4XS SC444JIC4XZ 4 x 4 x 4 2 — —

SC644JIC4 SC644JIC4XS SC644JIC4XZ 6 x 4 x 4 3 A-64SBP 4.88 x 2.88

SC884JIC4 SC884JIC4XS SC884JIC4XZ 8 x 8 x 4 6 A-88SBP 6.88 x 6.88

SC664JIC4 SC664JIC4XS SC664JIC4XZ 6 x 6 x 4 4 A-66SBP 4.88 x 4.88

SC666JIC4 SC666JIC4XS SC666JIC4XZ 6 x 6 x 6 5 A-66SBP 4.88 x 4.88

SC866JIC4 SC866JIC4XS SC866JIC4XZ 8 x 6 x 6 7 A-86SBP 6.88 x 4.88

SC1084JIC4 SC1084JIC4XS SC1084JIC4XZ 10 x 8 x 4 8 A-108SBP 8.88 x 6.88

SC1264JIC4 SC1264JIC4XS SC1264JIC4XZ 12 x 6 x 4 7 A-126SBP 10.88 x 4.88

SC12105JIC4 SC12105JIC4XS SC12105JIC4XZ 12 x 10 x 5 12 A-1210SBP 10.88 x 8.88

SC1086JIC4 SC1086JIC4XS SC1086JIC4XZ 10 x 8 x 6 9 A-108SBP 8.88 x 6.88

SC10106JIC4 SC10106JIC4XS SC10106JIC4XZ 10 x 10 x 6 11 A-1010SBP 8.88 x 8.88

SC12126JIC4 SC12126JIC4XS SC12126JIC4XZ 12 x 12 x 6 14 A-1212SBP 10.88 x 10.88

SC1486JIC4 SC1486JIC4XS SC1486JIC4XZ 14 x 8 x 6 12 A-148SBP 12.88 x 6.88

SC14126JIC4 SC14126JIC4XS SC14126JIC4XZ 14 x 12 x 6 16 A-1412SBP 12.88 x 10.88

SC16106JIC4 SC16106JIC4XS SC16106JIC4XZ 16 x 10 x 6 16 A-1610SBP 14.88 x 8.88

SC16146JIC4 SC16146JIC4XS SC16146JIC4XZ 16 x 14 x 6 20 A-1614SBP 14.88 x 12.88

SC12108JIC4 SC12108JIC4XS SC12108JIC4XZ 12 x 10 x 8 15 A-1210SBP 10.88 x 8.88

SC14128JIC4 SC14128JIC4XS SC14128JIC4XZ 14 x 12 x 8 19 A-1412SBP 12.88 x 10.88

SC16148JIC4 SC16148JIC4XS SC16148JIC4XZ 16 x 14 x 8 23 A-1614SBP 14.88 x 12.88

SC161410JIC4 SC161410JIC4XS SC161410JIC4XZ 16 x 14 x 10 26 A-1614SBP 14.88 x 12.88

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

153

TYPE 4 & 4x

CLAMP COVER

JUNCTION

ENCLOSURES

Clamp Cover Junction Enclosures

Type 4 & 4X

Applications

Type 4 JIC enclosures are designed

for use in areas which may be regularly

hosed down or otherwise very wet.

CONSTRUCTION

• Fabricated from 16 or 14 gauge

carbon steel, type 304 or type 316

stainless steel with continuously

welded seams.

• Door secured with zinc clamps on

four sides.

• Stainless steel doors are secured with

type 316 stainless steel clamps.

• Oil resistant gasket applied to the

doors.

• External mounting feet for wall or

machinery mounting.

• Weld nuts for mounting optional sub

panel.

FINISH

Standard ANSI-61 gray on interior and

exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture

polyester powder coat finish available

at no charge. Standard RAL and

custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

OPTIONS

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

INDUSTRY STANDARDS

• UL50Listed

• CUL50Listed

• Type4&4X

Subpanel

Ordered

Seperately

Lid Removed

W - 2

Mtg.

H + 0.75

Mtg.

H - 1.125

W - 1.125

H + 0.34

W + 0.34 .25 D

D - 0.5

.44

I.D.

Ø .31

Mtg.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

154

TYPE 4 & 4x

CLAMP COVER

JUNCTION

ENCLOSURES

Clamp Cover Junction Enclosures

Type 4 & 4X

Note: When height is equal to or less than 8" there will be one set of clamps on that side.

Catalog Number Product Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part #

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

CC443JIC4 CC443JIC4XS CC443JIC4XZ 4 x 4 x 3 3 — —

CC643JIC4 CC643JIC4XS CC643JIC4XZ 6 x 4 x 3 4 A-64SBP 4.88 x 2.88

CC863JIC4 CC863JIC4XS CC863JIC4XZ 8 x 6 x 3.5 7 A-86SBP 6.88 x 4.88

CC444JIC4 CC444JIC4XS CC444JIC4XZ 4 x 4 x 4 4 — —

CC644JIC4 CC644JIC4XS CC644JIC4XZ 6 x 4 x 4 5 A-64SBP 4.88 x 2.88

CC664JIC4 CC664JIC4XS CC664JIC4XZ 6 x 6 x 4 6 A-66SBP 4.88 x 4.88

CC884JIC4 CC884JIC4XS CC884JIC4XZ 8 x 8 x 4 9 A-88SBP 6.88 x 6.88

CC1084JIC4 CC1084JIC4XS CC1084JIC4XZ 10 x 8 x 4 11 A-108SBP 8.88 x 6.88

CC1264JIC4 CC1264JIC4XS CC1264JIC4XZ 12 x 6 x 4 10 A-126SBP 10.88 x 4.88

CC12105JIC4 CC12105JIC4XS CC12105JIC4XZ 12 x 10 x 5 17 A-1210SBP 10.88 x 8.88

CC666JIC4 CC666JIC4XS CC666JIC4XZ 6 x 6 x 6 8 A-66SBP 4.88 x 4.88

CC866JIC4 CC866JIC4XS CC866JIC4XZ 8 x 6 x 6 10 A-86SBP 6.88 x 4.88

CC1086JIC4 CC1086JIC4XS CC1086JIC4XZ 10 x 8 x 6 14 A-108SBP 8.88 x 6.88

CC10106JIC4 CC10106JIC4XS CC10106JIC4XZ 10 x 10 x 6 16 A-1010SBP 8.88 x 8.88

CC12126JIC4 CC12126JIC4XS CC12126JIC4XZ 12 x 12 x 6 21 A-1212SBP 10.88 x 10.88

CC1486JIC4 CC1486JIC4XS CC1486JIC4XZ 14 x 8 x 6 18 A-148SBP 12.88 x 6.88

CC14126JIC4 CC14126JIC4XS CC14126JIC4XZ 14 x 12 x 6 24 A-1412SBP 12.88 x 10.88

CC16106JIC4 CC16106JIC4XS CC16106JIC4XZ 16 x 10 x 6 23 A-1610SBP 14.88 x 8.88

CC16146JIC4 CC16146JIC4XS CC16146JIC4XZ 16 x 14 x 6 30 A-1614SBP 14.88 x 12.88

CC12108JIC4 CC12108JIC4XS CC12108JIC4XZ 12 x 10 x 8 22 A-1210SBP 10.88 x 8.88

CC14128JIC4 CC14128JIC4XS CC14128JIC4XZ 14 x 12 x 8 28 A-1412SBP 12.88 x 10.88

CC16148JIC4 CC16148JIC4XS CC16148JIC4XZ 16 x 14 x 8 34 A-1614SBP 14.88 x 12.88

CC161410JIC4 CC161410JIC4XS CC161410JIC4XZ 16 x 14 x 10 39 A-1614SBP 14.88 x 12.88

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

155

TYPE 4 & 4x

CONTINUOUS

HINGE COVER

ENCLOSURES

Continuous Hinge Cover Enclosures

Type 4 & 4X

Subpanel

Lid Removed

Subpanel

(sold separately)

HH + 1.125

W - 1.125

1.000

H + 0.75

W - 2

Ø .313

W + 0.3

H + 0.336

D - 0.586

.438

Applications

Type 4 JIC enclosures are designed

for use in areas which may be regularly

hosed down or otherwise very wet.

Construction

• Fabricated from 16 or 14 gauge

carbon steel, 14 gauge type 304

or type 316 stainless steel with

continuously welded seams.

• Continuous hinge with removable pin.

• Door secured with zinc clamps on

three sides.

• Stainless steel doors are secured with

type 316 stainless steel clamps.

• Oil resistant gasket applied to the

doors.

• External mounting feet for wall or

machinery mounting.

• Weld nuts for mounting sub panel.

Finish

Standard ANSI-61 gray on interior and

exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture

polyester powder coat finish available

at no charge. Standard RAL and

custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials and many more

options are available. Quotations upon

request.

Industry Standards

• UL50Listed

• CUL50Listed

• Type4&4X

Notes: When height or width is equal to or less than 8" there will be one set of clamps on that side.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

156

TYPE 4 & 4x

CONTINUOUS

HINGE COVER

ENCLOSURES

Continuous Hinge Cover Enclosures

Type 4 & 4X

Catalog Number Product Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part #

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

HC443JIC4 HC443JIC4XS HC443JIC4XZ 4 x 4 x 3 2 — —

HC643JIC4 HC643 JIC4XS HC643JIC4XZ 6 x 4 x 3 3 A-64SBP 4.88 x 2.88

HC863JIC4 HC863JIC4XS HC863JIC4XZ 8 x 6 x 3.5 5 A-86SBP 6.88 x 4.88

HC444JIC4 HC444JIC4XS HC444JIC4XZ 4 x 4 x 4 2 — —

HC644JIC4 HC644JIC4XS HC644JIC4XZ 6 x 4 x 4 3 A-64SBP 4.88 x 2.88

HC664JIC4 HC664JIC4XS HC664JIC4XZ 6 x 6 x 4 4 A-66SBP 4.88 x 4.88

HC884JIC4 HC884JIC4XS HC884JIC4XZ 8 x 8 x 4 6 A-88SBP 6.88 x 6.88

HC1084JIC4 HC1084JIC4XS HC1084JIC4XZ 10 x 8 x 4 8 A-108SBP 8.88 x 6.88

HC1264JIC4 HC1264JIC4XS HC1264JIC4XZ 12 x 6 x 4 7 A-126SBP 10.88 x 4.88

HC12105JIC4 HC12105JIC4XS HC12105JIC4XZ 12 x 10 x 5 12 A-1210SBP 10.88 x 8.88

HC666JIC4 HC666JIC4XS HC666JIC4XZ 6 x 6 x 6 5 A-66SBP 4.88 x 4.88

HC866JIC4 HC866JIC4XS HC866JIC4XZ 8 x 6 x 6 7 A-86SBP 6.88 x 4.88

HC1086JIC4 HC1086JIC4XS HC1086JIC4XZ 10 x 8 x 6 9 A-108SBP 8.88 x 6.88

HC10106JIC4 HC10106JIC4XS HC10106JIC4XZ 10 x 10 x 6 11 A-1010SBP 8.88 x 8.88

HC12126JIC4 HC12126JIC4XS HC12126JIC4XZ 12 x 12 x 6 14 A-1212SBP 10.88 x 10.88

HC1486JIC4 HC1486JIC4XS HC1486JIC4XZ 14 x 8 x 6 12 A-148SBP 12.88 x 6.88

HC14126JIC4 HC14126JIC4XS HC14126JIC4XZ 14 x 12 x 6 16 A-1412SBP 12.88 x 10.88

HC16146JIC4 HC16146JIC4XS HC16146JIC4XZ 16 x 14 x 6 20 A-1614SBP 14.88 x 12.88

HC16106JIC4 HC16106JIC4XS HC16106JIC4XZ 16 x 10 x 6 16 A-1610SBP 14.88 x 8.88

HC12108JIC4 HC12108JIC4XS HC12108JIC4XZ 12 x 10 x 8 15 A-1210SBP 10.88 x 8.88

HC14128JIC4 HC14128JIC4XS HC14128JIC4XZ 14 x 12 x 8 19 A-1412SBP 12.88 x 10.88

HC16148JIC4 HC16148JIC4XS HC16148JIC4XZ 16 x 14 x 8 23 A-1614SBP 14.88 x 12.88

Note: When height is equal to or less than 8" there will be one set of clamps on that side.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

157

TYPE 4

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 4 | Single Door

Applications

Designed to protect electrical controls,

instruments, and/or terminals in certain

outdoor applications or wet areas,

where regular hosing down with water

is standard procedure.

Construction

• Fabricated from 14 gauge carbon

steel, type 304, type 316 stainless

steel or .125" 5052 H32 aluminum

with continuously welded seams.

• Door is secured with heavy-duty

continuous hinge with removable

hinge pin and stainless steel clamps.

• Padlocking hasp and staple.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Standard ANSI-61 gray finish on interior

and exterior of enclosures. Recoatable,

smooth, white or RAL 7035 texture

polyester powder coat finish available

at no charge. Standard RAL and custom

match finishes available for an additional

charge, please contact Milbank

for further assistance. All powder

coat finishes applied over cleaned

phosphatized surfaces. Carbon steel sub

panels have a white polyester powder

coat finish. Stainless steel and aluminum

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 4 & 4X

Door Clamp

Padlocking

Hasp &

Staple

Mounting

Foot

Mounting

Foot

3/8-16

Collar Stud

Two Clamps

30" or Larger

Pocket

Ground

Stud

Panel (order

separately)

Omit Two Middle

Studs If H=Less

Than 31"

Omit Two Middle

Studs If W=Less

Than 31"

3.25

.62 1.25

3.00

2.00 Ø .44

3.00

W - 1.77

Door

H - 1.83

Door

.62 1.25 .44

X X

SECTION X-X

SECTION Y-Y

1.44

.91

.19

.97 1.44

.85

14 GA

2.00

.88

1.50

W - 31.50

H - 3

1.50

.75

12 GA 1.00

Door Clamp

Padlocking

Hasp &

Staple

Mounting

Foot

Mounting

Foot

3/8-16

Collar Stud

Two Clamps

30" or Larger

Pocket

Ground

Stud

Panel (order

separately)

Omit Two Middle

Studs If H=Less

Than 31"

Omit Two Middle

Studs If W=Less

Than 31"

3.25

.62 1.25

3.00

2.00 Ø .44

3.00

W - 1.77

Door

H - 1.83

Door

.62 1.25 .44

X X

SECTION X-X

SECTION Y-Y

1.44

.91

.19

.97 1.44

.85

14 GA

2.00

.88

1.50

W - 31.50

H - 3

1.50

.75

12 GA 1.00

Door Clamp

Padlocking

Hasp &

Staple

Mounting

Foot

Mounting

Foot

3/8-16

Collar Stud

Two Clamps

30" or Larger

Pocket

Ground

Stud

Panel (order

separately)

Omit Two Middle

Studs If H=Less

Than 31"

Omit Two Middle

Studs If W=Less

Than 31"

3.25

.62 1.25

3.00

2.00 Ø .44

3.00

W - 1.77

Door

H - 1.83

Door

.62 1.25 .44

X X

SECTION X-X

YSECTION Y-Y

1.44

.91

.19

.97 1.44

.85

14 GA

2.00

.88

1.50

W - 31.50

H - 3

1.50

.75

12 GA 1.00

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

158

TYPE 4

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 4 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part

Number

Sub Panel

Size H x L

(inches)

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel # Aluminum #

M4S161206 M4XS161206 M4XZ161206 M4XA161206 16 x 12 x 6 24 A-16P12 13 x 9

M4S161606 M4XS161606 M4XZ161606 M4XA161606 16 x 16 x 6 29 A-16P16 13 x 13

M4S162006 M4XS162006 M4XZ162006 M4XA162006 16 x 20 x 6 33 A-20P16 17 x 13

M4S201606 M4XS201606 M4XZ201606 M4XA201606 20 x 16 x 6 33 A-20P16 17 x 13

M4S202006 M4XS202006 M4XZ202006 M4XA202006 20 x 20 x 6 38 A-20P20 17 x 17

M4S241206 M4XS241206 M4XZ241206 M4XA241206 24 x 12 x 6 32 A-24P12 21 x 9

M4S241606 M4XS241606 M4XZ241606 M4XA241606 24 x 16 x 6 39 A-24P16 21 x 13

M4S242006 M4XS242006 M4XZ242006 M4XA242006 24 x 20 x 6 45 A-24P20 21 x 17

M4S242406 M4XS242406 M4XZ242406 M4XA242406 24 x 24 x 6 51 A-24P24 21 x 21

M4S302006 M4XS302006 M4XZ302006 M4XA302006 30 x 20 x 6 53 A-30P20 27 x 17

M4S302406 M4XS302406 M4XZ302406 M4XA302406 30 x 24 x 6 61 A-30P24 27 x 21

M4S362406 M4XS362406 M4XZ362406 M4XA362406 36 x 24 x 6 69 A-36P24 33 x 21

M4S201206 M4XS201206 M4XZ201206 M4XA201206 20 x 12 x 6 29 A-20P12 17 x 9

M4S122406 M4XS122406 M4XZ122406 M4XA122406 12 x 24 x 6 32 A-12P24 9 x 21

M4S202406 M4XS202406 M4XZ202406 M4XA202406 20 x 24 x 6 46 A-20P24 17 x 21

M4S301606 M4XS301606 M4XZ301606 M4XA301606 30 x 16 x 6 46 A-30P16 27 x 13

M4S363006 M4XS363006 M4XZ363006 M4XA363006 36 x 30 x 6 86 A-36P30 33 x 27

M4S122408 M4XS122408 M4XZ122408 M4XA122408 12 x 24 x 8 35 A-12P24 9 x 21

M4S161208 M4XS161208 M4XZ161208 M4XA161208 16 x 12 x 8 27 A-16P12 13 x 9

M4S161608 M4XS161608 M4XZ161608 M4XA161608 16 x 16 x 8 31 A-16P16 13 x 13

M4S162008 M4XS162008 M4XZ162008 M4XA162008 16 x 20 x 8 29 A-20P16 17 x 13

M4S201208 M4XS201208 M4XZ201208 M4XA201208 20 x 12 x 8 30 A-20P12 17 x 9

M4S201608 M4XS201608 M4XZ201608 M4XA201608 20 x 16 x 8 36 A-20P16 17 x 13

M4S202008 M4XS202008 M4XZ202008 M4XA202008 20 x 20 x 8 43 A-20P20 17 x 17

M4S202408 M4XS202408 M4XZ202408 M4XA202408 20 x 24 x 8 50 A-24P20 21 x 17

M4S241608 M4XS241608 M4XZ241608 M4XA241608 24 x 16 x 8 41 A-24P16 21 x 13

M4S242008 M4XS242008 M4XZ242008 M4XA242008 24 x 20 x 8 50 A-24P20 21 x 17

M4S242408 M4XS242408 M4XZ242408 M4XA242408 24 x 24 x 8 57 A-24P24 21 x 21

M4S243008 M4XS243008 M4XZ243008 M4XA243008 24 x 30 x 8 66 A-30P24 27 x 21

M4S302008 M4XS302008 M4XZ302008 M4XA302008 30 x 20 x 8 56 A-30P20 27 x 17

M4S302408 M4XS302408 M4XZ302408 M4XA302408 30 x 24 x 8 67 A-30P24 27 x 21

M4S303008 M4XS303008 M4XZ303008 M4XA303008 30 x 30 x 8 79 A-30P30 27 x 27

M4S303608 M4XS303608 M4XZ303608 M4XA303608 30 x 36 x 8 90 A-30P36 33 x 27

M4S362408 M4XS362408 M4XZ362408 M4XA362408 36 x 24 x 8 75 A-36P24 33 x 21

M4S363008 M4XS363008 M4XZ363008 M4XA363008 36 x 30 x 8 95 A-36P30 33 x 27

M4S363608 M4XS363608 M4XZ363608 M4XA363608 36 x 36 x 8 104 A-36P36 33 x 33

M4S422408 M4XS422408 M4XZ422408 M4XA422408 42 x 24 x 8 85 A-42P24 39 x 21

M4S423008 M4XS423008 M4XZ423008 M4XA423008 42 x 30 x 8 105 A-42P30 39 x 27

M4S423608 M4XS423608 M4XZ423608 M4XA423608 42 x 36 x 8 120 A-42P36 39 x 33

M4S482408 M4XS482408 M4XZ482408 M4XA482408 48 x 24 x 8 97 A-48P24 45 x 21

M4S483008 M4XS483008 M4XZ483008 M4XA483008 48 x 30 x 8 119 A-48P30 45 x 27

M4S483608 M4XS483608 M4XZ483608 M4XA483608 48 x 36 x 8 137 A-48P36 45 x 33

M4S603608 M4XS603608 M4XZ603608 M4XA603608 60 x 36 x 8 164 A-60P36 57 x 33

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels have formed ﬂanges on all four sides when Height or Width is equal to or greater than 18".

3. On 12" wide enclosures, center of mounting foot to edge of enclosure is 1.25".

4. Units must be mounted vertically to maintain a NEMA 4 rating.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

159

TYPE 4

WALL MOUNT

ENCLOSURES

Wall Mount Enclosures

Type 4 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part

Number

Sub Panel

Size H x L

(inches)

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel # Aluminum #

M4S161210 M4XS161210 M4XZ161210 M4XA161210 16 x 12 x 10 29 A-16P12 13 x 9

M4S201610 M4XS201610 M4XZ201610 M4XA201610 20 x 16 x 10 39 A-20P16 17 x 13

M4S241210 M4XS241210 M4XZ241210 M4XA241210 24 x 12 x 10 39 A-24P12 21 x 9

M4S242010 M4XS242010 M4XZ242010 M4XA242010 24 x 20 x 10 53 A-24P20 21 x 17

M4S302010 M4XS302010 M4XZ302010 M4XA302010 30 x 20 x 10 60 A-30P20 27 x 17

M4S242410 M4XS242410 M4XZ242410 M4XA242410 24 x 24 x 10 63 A-24P24 21 x 21

M4S302410 M4XS302410 M4XZ302410 M4XA302410 30 x 24 x 10 73 A-30P24 27 x 21

M4S362410 M4XS362410 M4XZ362410 M4XA362410 36 x 24 x 10 82 A-36P24 33 x 21

M4S363010 M4XS363010 M4XZ363010 M4XA363010 36 x 30 x 10 100 A-36P30 33 x 27

M4S423010 M4XS423010 M4XZ423010 M4XA423010 42 x 30 x 10 116 A-42P30 39 x 27

M4S423610 M4XS423610 M4XZ423610 M4XA423610 42 x 36 x 10 124 A-42P36 39 x 33

M4S483010 M4XS483010 M4XZ483010 M4XA483010 48 x 30 x 10 124 A-48P30 45 x 27

M4S483610 M4XS483610 M4XZ483610 M4XA483610 48 x 36 x 10 148 A-48P36 45 x 33

M4S603610 M4XS603610 M4XZ603610 M4XA603610 60 x 36 x 10 166 A-60P36 57 x 33

M4S201612 M4XS201612 M4XZ201612 M4XA201612 20 x 16 x 12 42 A-20P16 17 x 13

M4S242012 M4XS242012 M4XZ242012 M4XA242012 24 x 20 x 12 57 A-24P20 21 x 17

M4S242412 M4XS242412 M4XZ242412 M4XA242412 24 x 24 x 12 64 A-24P24 21 x 21

M4S302412 M4XS302412 M4XZ302412 M4XA302412 30 x 24 x 12 77 A-30P24 27 x 21

M4S303012 M4XS303012 M4XZ303012 M4XA303012 30 x 30 x 12 94 A-30P30 27 x 27

M4S362412 M4XS362412 M4XZ362412 M4XA362412 36 x 24 x 12 89 A-36P24 33 x 21

M4S363012 M4XS363012 M4XZ363012 M4XA363012 36 x 30 x 12 103 A-36P30 33 x 27

M4S423012 M4XS423012 M4XZ423012 M4XA423012 42 x 30 x 12 122 A-42P30 39 x 27

M4S723012 M4XS723012 M4XZ723012 M4XA723012 72 x 30 x 12 181 A-72P30 69 x 27

M4S363612 M4XS363612 M4XZ363612 M4XA363612 36 x 36 x 12 127 A-36P36 33 x 33

M4S423612 M4XS423612 M4XZ423612 M4XA423612 42 x 36 x 12 135 A-42P36 39 x 33

M4S483612 M4XS483612 M4XZ483612 M4XA483612 48 x 36 x 12 152 A-48P36 45 x 33

M4S603612 M4XS603612 M4XZ603612 M4XA603612 60 x 36 x 12 190 A-60P36 57 x 33

M4S723612 M4XS723612 M4XZ723612 M4XA723612 72 x 36 x 12 215 A-72P36 69 x 33

M4S242016 M4XS242016 M4XZ242016 M4XA242016 24 x 20 x 16 67 A-24P20 21 x 17

M4S242416 M4XS242416 M4XZ242416 M4XA242416 24 x 24 x 16 75 A-24P24 21 x 21

M4S302416 M4XS302416 M4XZ302416 M4XA302416 30 x 24 x 16 88 A-30P24 27 x 21

M4S363016 M4XS363016 M4XZ363016 M4XA363016 36 x 30 x 16 121 A-36P30 33 x 27

M4S723016 M4XS723016 M4XZ723016 M4XA723016 72 x 30 x 16 206 A-72P30 69 x 27

M4S423616 M4XS423616 M4XZ423616 M4XA423616 42 x 36 x 16 155 A-42P36 39 x 33

M4S483616 M4XS483616 M4XZ483616 M4XA483616 48 x 36 x 16 170 A-48P36 45 x 33

M4S603616 M4XS603616 M4XZ603616 M4XA603616 60 x 36 x 16 199 A-60P36 57 x 33

M4S302420 M4XS302420 M4XZ302420 M4XA302420 30 x 24 x 20 96 A-30P24 27 x 21

M4S363020 M4XS363020 M4XZ363020 M4XA363020 36 x 30 x 20 127 A-36P30 33 x 27

M4S723020 M4XS723020 M4XZ723020 M4XA723020 72 x 30 x 20 227 A-72P30 69 x 27

M4S483620 M4XS483620 M4XZ483620 M4XA483620 48 x 36 x 20 190 A-48P36 45 x 33

M4S603620 M4XS603620 M4XZ603620 M4XA603620 60 x 36 x 20 240 A-60P36 57 x 33

M4S302424 M4XS302424 M4XZ302424 M4XA302424 30 x 24 x 24 109 A-30P24 27 x 21

M4S723024 M4XS723024 M4XZ723024 M4XA723024 72 x 30 x 24 243 A-72P30 69 x 27

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels have formed ﬂanges on all four sides when Height or Width is equal to or greater than 18".

3. On 12" wide enclosures, center of mounting foot to edge of enclosure is 1.25".

4. Units must be mounted vertically to maintain a NEMA 4 rating.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

160

TYPE 4 & 4x

FLOOR MOUNT

ENCLOSURES

Floor Mount Enclosures

Type 4 & 4X | Double Door

Application

Designed to house electrical

controls and instruments in a variety

of environments, including wet

environments.

Construction

• Fabricated from 10 and 12 gauge

carbon steel, type 304 or 12

gauge type 316 stainless steel with

continuously welded seams.

• Doors are secured with continuous

hinges with removable hinge pins,

and clamps and screws.

• Padlocking hasp and staple.

• Adhesive backed, oil resistant gasket

applied to the doors.

• 12-inch floor stands.

• Print pocket.

• Heavy-duty eyes.

•

Ground studs inside cabinet and door.

• Collar studs provided for mounting

optional sub panels.

• Removable center post for easy

installation of the sub panel.

• Body stiffeners for extra rigidity.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

INDUSTRY STANDARDS

• UL 50 Listed

• CUL 50 Listed

• Type 4 & 4X

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(inches)

Sub Panel

Part Number

Sub Panel

Size (H x L)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M4D62488-FT M4DXS62488-FT M4DXZ62488-FT 62 x 48 x 8 340 A-DD6048 56 x 44

M4D624810-FT M4DXS624810-FT M4DXZ624810-FT 62 x 48 x 10 357 A-DD6048 56 x 44

M4D626010-FT M4DXS626010-FT M4DXZ626010-FT 62 x 60 x 10 433 A-DD6060 56 x 56

M4D746010-FT M4DXS746010-FT M4DXZ746010-FT 74 x 60 x 10 518 A-DD7260 68 x 56

M4D747210-FT M4DXS747210-FT M4DXZ747210-FT 74 x 72 x 10 626 A-DD7272 68 x 68

M4D624812-FT M4DXS624812-FT M4DXZ624812-FT 62 x 48 x 12 385 A-DD6048 56 x 44

M4D626012-FT M4DXS626012-FT M4DXZ626012-FT 62 x 60 x 12 507 A-DD6060 56 x 56

M4D746012-FT M4DXS746012-FT M4DXZ746012-FT 74 x 60 x 12 542 A-DD7260 68 x 56

M4D747212-FT M4DXS747212-FT M4DXZ747212-FT 74 x 72 x 12 626 A-DD7272 68 x 68

M4D624816-FT M4DXS624816-FT M4DXZ624816-FT 62 x 48 x 16 424 A-DD6048 56 x 44

M4D626016-FT M4DXS626016-FT M4DXZ626016-FT 62 x 60 x 16 508 A-DD6060 56 x 56

M4D746016-FT M4DXS746016-FT M4DXZ746016-FT 74 x 60 x 16 560 A-DD7260 68 x 56

M4D747216-FT M4DXS747216-FT M4DXZ747216-FT 74 x 72 x 16 687 A-DD7272 68 x 68

M4D624820-FT M4DXS624820-FT M4DXZ624820-FT 62 x 48 x 20 464 A-DD6048 56 x 44

M4D626020-FT M4DXS626020-FT M4DXZ626020-FT 62 x 60 x 20 552 A-DD6060 56 x 56

M4D746020-FT M4DXS746020-FT M4DXZ746020-FT 74 x 60 x 20 638 A-DD7260 68 x 56

M4D747220-FT M4DXS747220-FT M4DXZ747220-FT 74 x 72 x 20 739 A-DD7272 68 x 68

M4D624824-FT M4DXS624824-FT M4DXZ624824-FT 62 x 48 x 24 503 A-DD6048 56 x 44

M4D626024-FT M4DXS626024-FT M4DXZ626024-FT 62 x 60 x 24 596 A-DD6060 56 x 56

M4D746024-FT M4DXS746024-FT M4DXZ746024-FT 74 x 60 x 24 686 A-DD7260 68 x 56

M4D747224-FT M4DXS747224-FT M4DXZ747224 -FT 74 x 72 x 24 805 A-DD7272 68 x 68

Note: Sub panels must be ordered separately.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

161

TYPE 4 & 4x

FLOOR MOUNT

ENCLOSURES

Floor Mount Enclosures

Type 4 & 4X | Double Door

Note: Maximum between door clamps is 16.84” (center to center).

Padlock

Provisions

Subpanel

(sold

separately)

Doors Removed

Removable Centerpost

Enclosure will receive a total of

4 lifting eyes when D is 24" or more

Print Pocket

Subpanel Support

Brackets

A A

SECTION A-A

12.000

W/2 - 1.95

H - 3.624

3.250

1.312

3.625

W/2 - 3.125 1.312

2.312

H - 4.625

2.312

W - 4

H - 6

1.000

D - 0.183

2.817

W - 2.625

B B

SECTION B-B

2.167

2.875

Ø .563

4.042

1.191

Padlock

Provisions

Subpanel

(sold

separately)

Doors Removed

Removable Centerpost

Enclosure will receive a total of

4 lifting eyes when D is 24" or more

Print Pocket

Subpanel Support

Brackets

A A

SECTION A-A

12.000

W/2 - 1.95

H - 3.624

3.250

1.312

3.625

W/2 - 3.125 1.312

2.312

H - 4.625

2.312

W - 4

H - 6

1.000

D - 0.183

2.817

W - 2.625

B B

SECTION B-B

2.167

2.875

Ø .563

4.042

1.191

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

162

TYPE 4 & 4x

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 4 & 4X | Single Door

Applications

Designed to house electrical and

electronic controls, instruments and

components in areas which may be

hosed down. Hold-down clamps on

top, bottom and open side of door

for maximum dust and moisture-proof

protection.

Construction

• Fabricated from 12 gauge carbon

steel, type 304 or type 316 stainless

steel with continuously welded

seams.

• Doors are secured with heavy-duty

continuous hinges with removable

hinge pins and clamps and screws on

three sides.

• Adhesive backed, oil resistant gasket

applied to doors.

• Unistrut® channel.

• Print pocket.

• Heavy-duty lifting eyes.

• Ground studs inside enclosure and

door.

• Collar studs provided for mounting

optional sub panel in back.

Accessories (ordered separately)

• Sub panels include full size, half size,

side mount and swing out panels can

be mounted and adjusted for depth

on the horizontal Unistrut® channel.

• Clamping nuts for installing other

equipment.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 4 & 4X

Door Removed

Subpanel

(sold separately)

When D is less than 24 Enclosure

will receive only 2 lifting eyes

Unistrut in sides of enclosure

Print Pocket

A A

SECTION A-A

(H - 13.625) / 2

H - 13.625

1.000

D - 0.152

H - 9.259

Door

W - 1.521

Door

H - 12

W - 5

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312

3.250

Door Removed

Subpanel

(sold separately)

When D is less than 24 Enclosure

will receive only 2 lifting eyes

Unistrut in sides of enclosure

Print Pocket

A A

SECTION A-A

(H - 13.625) / 2

H - 13.625

1.000

D - 0.152

H - 9.259

Door

W - 1.521

Door

H - 12

W - 5

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312 3.250

Door Removed

Subpanel

(sold separately)

When D is less than 24 Enclosure

will receive only 2 lifting eyes

Unistrut in sides of enclosure

Print Pocket

A A

SECTION A-A

(H - 13.625) / 2

H - 13.625

1.000

D - 0.152

H - 9.259

Door

W - 1.521

Door

H - 12

W - 5

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312

3.250

Door Removed

Subpanel

(sold separately)

When D is less than 24 Enclosure

will receive only 2 lifting eyes

Unistrut in sides of enclosure

Print Pocket

A A

SECTION A-A

(H - 13.625) / 2

H - 13.625

1.000

D - 0.152

H - 9.259

Door

W - 1.521

Door

H - 12

W - 5

3.125

H - 10.25

7.125

1.312 W - 2.625 1.312 3.250

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

163

TYPE 4 & 4x

FREESTANDING

ENCLOSURES

Freestanding Enclosures

Type 4 & 4X | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(in.)

Sub Panel

Part #

Sub Panel

Size

(H x L)

Half Panel

Part #

Half Panel

Size

(H x L)

Side

Mounted

Panel

Side

Panel

Size

(H x L)

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

M4FS602518 M4FSXS602518 M4FSXZ602518 60 x 25 x 18 240 A-60P24F1 48 x 20 A-60P24F2 24.5 x 20 A-60SMP14 48 x 14

M4FS722518 M4FSXS722518 M4FSXZ722518 72 x 25 x 18 272 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP14 60 x 14

M4FS723118 M4FSXS723118 M4FSXZ723118 72 x 31 x 18 285 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP14 60 x 14

M4FS723718 M4FSXS723718 M4FSXZ723718 72 x 37 x 18 338 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP14 60 x 14

M4FS902520 M4FSXS902520 M4FSXZ902520 90 x 25 x 20 315 A-90P24F1 78 x 20 A-90P24F2 24.88 x 20 A-90SMP16 78 x 16

M4FS903120 M4FSXS903120 M4FSXZ903120 90 x 31 x 20 361 A-90P30F1 78 x 26 A-90P30F2 24.88 x 26 A-90SMP16 78 x 16

M4FS903720 M4FSXS903720 M4FSXZ903720 90 x 37 x 20 430 A-90P36F1 78 x 32 A-90P36F2 24.88 x 32 A-90SMP16 78 x 16

M4FS603724 M4FSXS603724 M4FSXZ603724 60 x 37 x 24 325 A-60P36F1 48 x 32 A-60P36F2 24.5 x 32 A-60SMP20 48 x 20

M4FS722524 M4FSXS722524 M4FSXZ722524 72 x 25 x 24 300 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP20 60 x 20

M4FS723124 M4FSXS723124 M4FSXZ723124 72 x 31 x 24 335 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP20 60 x 20

M4FS723724 M4FSXS723724 M4FSXZ723724 72 x 37 x 24 370 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP20 60 x 20

M4FS902524 M4FSXS902524 M4FSXZ902524 90 x 25 x 24 346 A-90P24F1 78 x 20 A-90P24F2 24.88 x 20 A-90SMP20 78 x 20

M4FS903124 M4FSXS903124 M4FSXZ903124 90 x 31 x 24 395 A-90P30F1 78 x 26 A-90P30F2 24.88 x 26 A-90SMP20 78 x 20

M4FS903724 M4FSXS903724 M4FSXZ903724 90 x 37 x 24 460 A-90P36F1 78 x 32 A-90P36F2 24.88 x 32 A-90SMP20 78 x 20

M4FS722530 M4FSXS722530 M4FSXZ722530 72 x 25 x 30 348 A-72P24F1 60 x 20 A-72P24F2 30.88 x 20 A-72SMP26 60 x 26

M4FS902530 M4FSXS902530 M4FSXZ902530 90 x 25 x 30 395 A-90P24F1 78 x 20 A-90P24F2 24.88 x 20 A-90SMP26 78 x 26

M4FS723130 M4FSXS723130 M4FSXZ723130 72 x 31 x 30 378 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP26 60 x 26

M4FS903130 M4FSXS903130 M4FSXZ903130 90 x 31 x 30 445 A-90P30F1 78 x 26 A-90P30F2 24.88 x 26 A-90SMP26 78 x 26

M4FS723730 M4FSXS723730 M4FSXZ723730 72 x 37 x 30 428 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP26 60 x 26

M4FS903730 M4FSXS903730 M4FSXZ903730 90 x 37 x 30 515 A-90P36F1 78 x 32 A-90P36F2 24.88 x 32 A-90SMP26 78 x 26

M4FS723136 M4FSXS723136 M4FSXZ723136 72 x 31 x 36 422 A-72P30F1 60 x 26 A-72P30F2 30.88 x 26 A-72SMP32 60 x 32

M4FS723736 M4FSXS723736 M4FSXZ723736 72 x 37 x 36 465 A-72P36F1 60 x 32 A-72P36F2 30.88 x 32 A-72SMP32 60 x 32

M4FS903736 M4FSXS903736 M4FSXZ903736 90 x 37 x 36 560 A-90P36F1 78 x 32 A-90P36F2 24.88 x 32 A-90SMP32 78 x 32

Notes:

1. Maximum between door clamps is 16.84” (center to center).

2. Sub panels must be ordered separately

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

164

TYPE 4 & 4x

WALL MOUNTED

DISCONNECT

ENCLOSURE

Disconnect Enclosure

Type 4 & 4X | Wall Mounted | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

Sub Panel

Part Number

Sub Panel

Size

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

M4S24218-FD M4XS24218-FD M4XZ24218-FD 24 x 21.37 x 8 51 A-24P20 21 x 17

M4S242508-FD M4XS242508-FD M4XZ242508-FD 24 x 25.37 x 8 55 A-24P24 21 x 21

M4S302508-FD M4XS302508-FD M4XZ302508-FD 30 x 25.37 x 8 67 A-30P24 27 x 21

M4S363108-FD M4XS363108-FD M4XZ363108-FD 36 x 31.37 x 8 94 A-36P30 33 x 27

M4S423112-FD M4XS423112-FD M4XZ423112-FD 42 x 31.37 x 12 128 A-42P30 39 x 27

M4S423712-FD M4XS423712-FD M4XZ423712-FD 42 x 37.37 x 12 141 A-42P36 39 x 33

M4S483712-FD M4XS483712-FD M4XZ483712-FD 48 x 37.37 x 12 157 A-48P36 45 x 33

M4S603712-FD M4XS603712-FD M4XZ603712-FD 60 x 37.37 x 12 188 A-60P36 57 x 33

Application

For use in the same locations as

Milbank’s standard NEMA 4 enclosures.

For Disconnect order information see

page 122.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel.

• Door is secured with heavy duty

continuous hinge with removable

hinge pin.

• Stainless steel clamps and screws on

remaining three sides.

• Adhesive backed oil resistant gasket

applied to doors.

• Print pocket.

• External mounting feet for wall or

machinery mounting.

• Ground studs installed inside door

and cabinet

• Collar studs provided for mounting

optional sub panels.

• Furnished with holes in right flange

for mounting of operating handle or

mechanism.

• Padlock provision

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standard

• UL 50 Listed

• CUL 50 Listed

• Type 4 & 4X

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

165

TYPE 4 & 4x

WALL MOUNTED

DISCONNECT

ENCLOSURE

Disconnect Enclosure

Type 4 & 4X | Wall Mounted | Single Door

MOUNTING FOOT

PANEL ( ORDER

SEPARATELY)

Omit Two Middle

Studs IF H < 31

3/8-16 Collar

Stud

Ground

Stud

Omit Two Middle

Studs IF W < 33

SECTION Y-Y

3.00

.62

Ø .44

2.00

3.00

.62 1.25 .44

1.75 2.62

X X

SECTION X-X

.75

1.25 1.50

H-3.00

1.50

.88

2.75

14 GA

1.00 12 GA

.19

W-4.38

1.38 D - .18

1.07

2.00

H - 1.83

W - 2.86

2.19

Space Occupied by Disconnects

E: 8.62 when D = 8.00

E: 11.62 when D = 12.00

Z: Wire Bend Spacing

See charts on pages 138–147 for “F”, “G”, and “Z”

dimensions which cover space occupied by disconnect and

wire bend spacing. Disconnects occupy the space indicated

by “E”, “F”, and “G”.

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less. Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels will have formed ﬂanges when either Height or Width is greater than 18".

3. Maximum spacing between door clamps is 16.84" (center to center).

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

166

TYPE 4

FLUSH MOUNTED

ENCLOSURES

Flush Mounted Enclosures

Type 4

Applications

Designed to house electrical controls,

terminals and instruments; providing

protection from dust, dirt, oil and water.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or 316 stainless steel.

• Strong and rigid construction.

• All seams continuously welded.

• No holes or knockouts provided.

• Rolled lip around all sides of

enclosure opening to increase

strength and help keep dirt and

liquids out when the door is open.

• A 14 gauge carbon steel, 14 gauge

type 304 stainless steel, or 12 gauge

type 316 stainless steel frame with

mounting holes extends completely

around enclosure.

• Collar studs provided for mounting

optional sub panels.

• Door is secured with concealed lift-

off hinges and slotted 1⁄4 turn latches.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces. Carbon

steel sub panels have a white polyester

powder coat finish. Stainless steel

enclosures have a polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 4

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less.

Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panels have formed ﬂanges on all four sides when either height or width is equal to or greater than 22.2".

3. When height and width are less than 23" enclosure will have one slotted quarter-turn latch.

4. When height and width are greater than 23" enclosure will have two slotted quarter-turn latches.

5. When height is equal to or greater than 42" enclosure will have one 3 point slotted quarter-turn latch.

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Wt.

(lbs)

Sub Panel

Part Number

Sub Panel Size

H x W

(inches)

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel #

MSDFM16126 MSDFMXS16126 MSDFMXZ16126 16.00 x 12.00 x 6.00 27 A-M16P12 14.2 x 10.2

MSDFM20166 MSDFMXS20166 MSDFMXZ20166 20.00 x 16.00 x 6.00 38 A-M20P16 18.2 x 14.2

MSDFM20206 MSDFMXS20206 MSDFMXZ20206 20.00 x 20.00 x 6.00 44 A-M20P20 18.2 x 18.2

MSDFM24206 MSDFMXS24206 MSDFMXZ24206 24.00 x 20.00 x 6.00 50 A-M24P20 22.2 x 18.2

MSDFM24248 MSDFMXS24248 MSDFMXZ24248 24.00 x 24.00 x 8.00 61 A-M24P24 22.2 x 22.2

MSDFM30248 MSDFMXS30248 MSDFMXZ30248 30.00 x 24.00 x 8.00 73 A-M30P24 28.2 x 22.2

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

167

TYPE 4

FLUSH MOUNTED

ENCLOSURES

Flush Mounted Enclosures

Type 4

Subpanel

(sold separately)

Lid Removed

Back

Print Pocket

(size per table)

Quaterturn Latch will be centered

when latch quantity is one

D + 1.071

H + 1

W + 1

D - 0.181

W + 3.852

H + 3.852

W - 1.5

.750

H - 1.5

Ø .500

4 holes

1.000

H - 1.8

W - 1.8

H - 1.648

Opening

W - 1.53

Opening

2.750

2.632

H + 2.852

Ø .281

4 holes

5.000

.750

Subpanel

(sold separately)

Lid Removed

Back

Print Pocket

(size per table)

Quaterturn Latch will be centered

when latch quantity is one

D + 1.071

H + 1

W + 1

D - 0.181

W + 3.852

H + 3.852

W - 1.5

.750

H - 1.5

Ø .500

4 holes

1.000

H - 1.8

W - 1.8

H - 1.648

Opening

W - 1.53

Opening

2.750

2.632

H + 2.852

Ø .281

4 holes

5.000

.750

Subpanel

(sold separately)

Lid Removed

Back

Print Pocket

(size per table)

Quaterturn Latch will be centered

when latch quantity is one

D + 1.071

H + 1

W + 1

D - 0.181

W + 3.852

H + 3.852

W - 1.5

.750

H - 1.5

Ø .500

4 holes

1.000

H - 1.8

W - 1.8

H - 1.648

Opening

W - 1.53

Opening

2.750

2.632

H + 2.852

Ø .281

4 holes

5.000

.750

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

168

TYPE 4, 4x, 12 &

13 SINGLE DOOR

MILLENNIUM

SERIES

ENCLOSURES

Millennium Series Enclosures

Type 4, 4X, 12 & 13 | Single Door

Application

Designed to house electrical controls,

instruments, and terminals in a variety

of environments, including wet

environments.

Construction

• Fabricated from 14 gauge carbon

steel, type 304 or type 316 stainless

steel with continuously welded

seams.

• Minimum width trough shaped body

flange and hidden hinge design

providing full 180 degree door

opening while excluding liquids and

contaminants.

• Door is secured with concealed lift-

off hinges and slotted quarter-turn

latch. Standard quarter turn latches

can be replaced with a variety of

optional latches.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• Holes are provided for wall or

machinery mounting, options include

bolt-on or weld-on mounting feet.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panel.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard RAL

and custom match finishes available for

an additional charge, please contact

Milbank for further assistance. All

powder coat finishes applied over

cleaned phosphatized surfaces.

Carbon steel sub-panels are finished

with a white polyester powder coating.

Stainless steel enclosures have a

polished #4 finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

• UL 50 Listed

• CUL 50 Listed

• Type 4, 12, 13

• Stainless enclosures: Type 4, 4X, 12,

Subpanel

(sold separately)

LId Removed

Back

Will be centered in Height

when latch quantity is one

Print Pocket

(see note)

1/4-20 X.75"

Ground Stud

1/4-20 X.75"

Ground Stud

3/8-16

Collar

Studs

Concealed

Lift-O

Hinges

Slotted

Quarterturn

Latches

Mounting

Holes

5.000

H - 1.8

W - 1.8

.824

3 sides

1.023

Hinge side

4.262

.750

W - 1.5

H - 1.5

Ø .500

5.000

2.000

D - .181

1.000

1.071

Subpanel

(sold separately)

LId Removed

Back

Will be centered in Height

when latch quantity is one

Print Pocket

(see note)

1/4-20 X.75"

Ground Stud

1/4-20 X.75"

Ground Stud

3/8-16

Collar

Studs

Concealed

Lift-O

Hinges

Slotted

Quarterturn

Latches

Mounting

Holes

5.000

H - 1.8

W - 1.8

.824

3 sides

1.023

Hinge side

4.262

.750

W - 1.5

H - 1.5

Ø .500

5.000

2.000

D - .181

1.000

1.071

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

169

TYPE 4, 4x, 12 &

13 SINGLE DOOR

MILLENNIUM

SERIES

ENCLOSURES

Millennium Series Enclosures

Type 4, 4X, 12 & 13 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

MSD12126 MSDXS12126 MSDXZ12126 12 x 12 x 6 9 A-M12P12 10.2 x 10.2

MSD12246 MSDXS12246 MSDXZ12246 12 x 24 x 6 15 A-M12P24 10.2 x 22.2

MSD16126 MSDXS16126 MSDXZ16126 16 x 12 x 6 29 A-M16P12 14.2 x 10.2

MSD16166 MSDXS16166 MSDXZ16166 16 x 16 x 6 27 A-M16P16 14.2 x 14.2

MSD16206 MSDXS16206 MSDXZ16206 16 x 20 x 6 31 A-M16P20 14.2 x 18.2

MSD20126 MSDXS20126 MSDXZ20126 20 x 12 x 6 40 A-M20P12 18.2 x 10.2

MSD20166 MSDXS20166 MSDXZ20166 20 x 16 x 6 29 A-M20P16 18.2 x 14.2

MSD20206 MSDXS20206 MSDXZ20206 20 x 20 x 6 35 A-M20P20 18.2 x 18.2

MSD20246 MSDXS20246 MSDXZ20246 20 x 24 x 6 44 A-M20P24 18.2 x 22.2

MSD24126 MSDXS24126 MSDXZ24126 24 x 12 x 6 15 A-M24P12 22.2 x 10.2

MSD24166 MSDXS24166 MSDXZ24166 24 x 16 x 6 35 A-M24P16 22.2 x 14.2

MSD24206 MSDXS24206 MSDXZ24206 24 x 20 x 6 39 A-M24P20 22.2 x 18.2

MSD24246 MSDXS24246 MSDXZ24246 24 x 24 x 6 81 A-M24P24 22.2 x 22.2

MSD30166 MSDXS30166 MSDXZ30166 30 x 16 x 6 69 A-M30P16 28.2 x 14.2

MSD30206 MSDXS30206 MSDXZ30206 30 x 20 x 6 43 A-M30P20 28.2 x 18.2

MSD30246 MSDXS30246 MSDXZ30246 30 x 24 x 6 50 A-M30P24 28.2 x 22.2

MSD36246 MSDXS36246 MSDXZ36246 36 x 24 x 6 89 A-M36P24 34.2 x 22.2

MSD36306 MSDXS36306 MSDXZ36306 36 x 30 x 6 127 A-M36P30 34.2 x 28.2

MSD12248 MSDXS12248 MSDXZ12248 12 x 24 x 8 17 A-M12P24 10.2 x 22.2

MSD16128 MSDXS16128 MSDXZ16128 16 x 12 x 8 23 A-M16P12 14.2 x 10.2

MSD16168 MSDXS16168 MSDXZ16168 16 x 16 x 8 27 A-M16P16 14.2 x 14.2

MSD16208 MSDXS16208 MSDXZ16208 16 x 20 x 8 33 A-M16P20 14.2 x 18.2

MSD20128 MSDXS20128 MSDXZ20128 20 x 12 x 8 42 A-M20P12 18.2 x 10.2

MSD20168 MSDXS20168 MSDXZ20168 20 x 16 x 8 33 A-M20P16 18.2 x 14.2

MSD20208 MSDXS20208 MSDXZ20208 20 x 20 x 8 38 A-M20P20 18.2 x 18.2

MSD20248 MSDXS20248 MSDXZ20248 20 x 24 x 8 49 A-M20P24 18.2 x 22.2

MSD24168 MSDXS24168 MSDXZ24168 24 x 16 x 8 39 A-M24P16 22.2 x 14.2

MSD24208 MSDXS24208 MSDXZ24208 24 x 20 x 8 44 A-M24P20 22.2 x 18.2

MSD24248 MSDXS24248 MSDXZ24248 24 x 24 x 8 52 A-M24P24 22.2 x 22.2

MSD24308 MSDXS24308 MSDXZ24308 24 x 30 x 8 55 A-M24P30 22.2 x 28.2

MSD30208 MSDXS30208 MSDXZ30208 30 x 20 x 8 48 A-M30P20 28.2 x 18.2

MSD30248 MSDXS30248 MSDXZ30248 30 x 24 x 8 55 A-M30P24 28.2 x 22.2

MSD30308 MSDXS30308 MSDXZ30308 30 x 30 x 8 94 A-M30P30 28.2 x 28.2

MSD30368 MSDXS30368 MSDXZ30368 30 x 36 x 8 79 A-M30P36 28.2 x 34.2

MSD36248 MSDXS36248 MSDXZ36248 36 x 24 x 8 98 A-M36P24 34.2 x 22.2

MSD36308 MSDXS36308 MSDXZ36308 36 x 30 x 8 138 A-M36P30 34.2 x 28.2

MSD36368 MSDXS36368 MSDXZ36368 36 x 36 x 8 125 A-M36P36 34.2 x 34.2

MSD42248 MSDXS42248 MSDXZ42248 42 x 24 x 8 104 A-M42P24 40.2 x 22.2

MSD42308 MSDXS42308 MSDXZ42308 42 x 30 x 8 88 A-M42P30 40.2 x 28.2

MSD42368 MSDXS42368 MSDXZ42368 42 x 36 x 8 108 A-M42P36 40.2 x 34.2

MSD48248 MSDXS48248 MSDXZ48248 48 x 24 x 8 87 A-M48P24 46.2 x 22.2

MSD48308 MSDXS48308 MSDXZ48308 48 x 30 x 8 95 A-M48P30 46.2 x 28.2

MSD48368 MSDXS48368 MSDXZ48368 48 x 36 x 8 97 A-M48P36 46.2 x 34.2

MSD60368 MSDXS60368 MSDXZ60368 60 x 36 x 8 151 A-M60P36 58.2 x 34.2

MSD161210 MSDXS161210 MSDXZ161210 16 x 12 x 10 38 A-M16P12 14.2 x 10.2

MSD161610 MSDXS161610 MSDXZ161610 16 x 16 x 10 29 A-M16P16 14.2 x 14.2

For optional mounting feet order part number A-MSDMFKXS (set of four)

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less. Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panel have formed ﬂanges on all four sides when either height or width is equal to or greater than 22.2".

3. When height and width are less than 23" enclosure will have one slotted quarter-turn latch.

4. When height and width are greater than 23" enclosure will have two slotted quarter-turn latches.

5. When height is equal to or greater than 42" enclosure will have one 3 point slotted quarter-turn latch.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

170

TYPE 4, 4x, 12 &

13 SINGLE DOOR

MILLENNIUM

SERIES

ENCLOSURES

Millennium Series Enclosures

Type 4, 4X, 12 & 13 | Single Door

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

Sub Panel

Part Number

Sub Panel

Size H x W

(inches)

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

MSD162010 MSDXS162010 MSDXZ162010 16 x 20 x 10 31 A-M16P20 14.2 x 18.2

MSD201610 MSDXS201610 MSDXZ201610 20 x 16 x 10 38 A-M20P16 18.2 x 14.2

MSD202010 MSDXS202010 MSDXZ202010 20 x 20 x 10 45 A-M20P20 18.2 x 18.2

MSD202410 MSDXS202410 MSDXZ202410 20 x 24 x 10 48 A-M20P24 18.2 x 22.2

MSD241210 MSDXS241210 MSDXZ241210 24 x 12 x 10 51 A-M24P12 22.2 x 10.2

MSD242010 MSDXS242010 MSDXZ242010 24 x 20 x 10 41 A-M24P20 22.2 x 18.2

MSD242410 MSDXS242410 MSDXZ242410 24 x 24 x 10 49 A-M24P24 22.2 x 22.2

MSD243010 MSDXS243010 MSDXZ243010 24 x 30 x 10 64 A-M24P30 22.2 x 28.2

MSD302010 MSDXS302010 MSDXZ302010 30 x 20 x 10 53 A-M30P20 28.2 x 18.2

MSD302410 MSDXS302410 MSDXZ302410 30 x 24 x 10 63 A-M30P24 28.2 x 22.2

MSD303010 MSDXS303010 MSDXZ303010 30 x 30 x 10 77 A-M30P30 28.2 x 28.2

MSD362410 MSDXS362410 MSDXZ362410 36 x 24 x 10 78 A-M36P24 34.2 x 22.2

MSD363010 MSDXS363010 MSDXZ363010 36 x 30 x 10 77 A-M36P30 34.2 x 28.2

MSD363610 MSDXS363610 MSDXZ363610 36 x 36 x 10 97 A-M36P36 34.2 x 34.2

MSD423010 MSDXS423010 MSDXZ423010 42 x 30 x 10 95 A-M42P30 40.2 x 28.2

MSD423610 MSDXS423610 MSDXZ423610 42 x 36 x 10 116 A-M42P36 40.2 x 34.2

MSD482410 MSDXS482410 MSDXZ482410 48 x 24 x 10 94 A-M48P24 46.2 x 22.2

MSD483010 MSDXS483010 MSDXZ483010 48 x 30 x 10 102 A-M48P30 46.2 x 28.2

MSD483610 MSDXS483610 MSDXZ483610 48 x 36 x 10 130 A-M48P36 46.2 x 34.2

MSD603610 MSDXS603610 MSDXZ603610 60 x 36 x 10 161 A-M60P36 58.2 x 34.2

MSD201612 MSDXS201612 MSDXZ201612 20 x 16 x 12 40 A-M20P16 18.2 x 14.2

MSD202012 MSDXS202012 MSDXZ202012 20 x 20 x 12 46 A-M20P20 18.2 x 18.2

MSD242012 MSDXS242012 MSDXZ242012 24 x 20 x 12 51 A-M24P20 22.2 x 18.2

MSD242412 MSDXS242412 MSDXZ242412 24 x 24 x 12 63 A-M24P24 22.2 x 22.2

MSD302412 MSDXS302412 MSDXZ302412 30 x 24 x 12 69 A-M30P24 28.2 x 22.2

MSD303012 MSDXS303012 MSDXZ303012 30 x 30 x 12 83 A-M30P30 28.2 x 28.2

MSD362412 MSDXS362412 MSDXZ362412 36 x 24 x 12 84 A-M36P24 34.2 x 22.2

MSD363012 MSDXS363012 MSDXZ363012 36 x 30 x 12 95 A-M36P30 34.2 x 28.2

MSD363612 MSDXS363612 MSDXZ363612 36 x 36 x 12 108 A-M36P36 34.2 x 34.2

MSD423012 MSDXS423012 MSDXZ423012 42 x 30 x 12 102 A-M42P30 40.2 x 28.2

MSD423612 MSDXS423612 MSDXZ423612 42 x 36 x 12 124 A-M42P36 40.2 x 34.2

MSD482412 MSDXS482412 MSDXZ482412 48 x 24 x 12 101 A-M48P24 46.2 x 22.2

MSD483612 MSDXS483612 MSDXZ483612 48 x 36 x 12 138 A-M48P36 46.2 x 34.2

MSD603612 MSDXS603612 MSDXZ603612 60 x 36 x 12 171 A-M60P36 58.2 x 34.2

MSD242016 MSDXS242016 MSDXZ242016 24 x 20 x 16 57 A-M24P20 22.2 x 18.2

MSD242416 MSDXS242416 MSDXZ242416 24 x 24 x 16 65 A-M24P24 22.2 x 22.2

MSD302416 MSDXS302416 MSDXZ302416 30 x 24 x 16 79 A-M30P24 28.2 x 22.2

MSD363016 MSDXS363016 MSDXZ363016 36 x 30 x 16 101 A-M36P30 34.2 x 28.2

MSD423616 MSDXS423616 MSDXZ423616 42 x 36 x 16 135 A-M42P36 40.2 x 34.2

MSD483616 MSDXS483616 MSDXZ483616 48 x 36 x 16 151 A-M48P36 46.2 x 34.2

MSD603616 MSDXS603616 MSDXZ603616 60 x 36 x 16 176 A-M60P36 58.2 x 34.2

MSD242420 MSDXS242420 MSDXZ242420 24 x 24 x 20 75 A-M24P24 22.2 x 22.2

MSD302420 MSDXS302420 MSDXZ302420 30 x 24 x 20 90 A-M30P24 28.2 x 22.2

MSD363020 MSDXS363020 MSDXZ363020 36 x 30 x 20 102 A-M36P30 34.2 x 28.2

MSD483620 MSDXS483620 MSDXZ483620 48 x 36 x 20 176 A-M48P36 46.2 x 34.2

MSD603620 MSDXS603620 MSDXZ603620 60 x 36 x 20 194 A-M60P36 58.2 x 34.2

MSD302424 MSDXS302424 MSDXZ302424 30 x 24 x 24 96 A-M30P24 28.2 x 22.2

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less. Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panel have formed ﬂanges on all four sides when either height or width is equal to or greater than 22.2".

3. When height and width are less than 23" enclosure will have one slotted quarter-turn latch.

4. When height and width are greater than 23" enclosure will have two slotted quarter-turn latches.

5. When height is equal to or greater than 42" enclosure will have one 3 point slotted quarter-turn latch.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

171

TYPE 4, 4x, 12 &

13 SLOPE TOP

MILLENNIUM

SERIES

ENCLOSURES

Millennium Series Enclosures

Type 4, 4X, 12 & 13 | Stainless Steel | Slope Top

Application

Designed to house electrical controls,

instruments, and terminals in a variety

of environments, including wet

environments.

Construction

• Fabricated from 14 gauge type 304

or type 316 stainless steel.

• Minimum width trough shaped body

flange and hidden hinge design

providing full 180 degree door

opening while excluding liquids and

contaminants.

• Door is secured with concealed lift-

off hinges and slotted quarter-turn

latches. Standard quarter-turn latches

can be replaced with a variety of

optional latches.

• Adhesive backed, oil resistant gasket

applied to the doors.

• Print pocket.

• Holes are provided for optional wall

or machinery mounting.

• Ground studs installed inside cabinet

and door.

• Collar studs provided for mounting

optional sub panels.

Finish

Stainless steel enclosures have a

polished #4 finish. Carbon steel sub

panels have white polyester powder

coat finish.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

upon request.

Industry Standards

•UL50Listed

•CUL50Listed

•Type4,4X,12,13

Catalog Number Enclosure Size

H x W x D

(inches)

Ship.

Weight

(lbs)

304 Stainless Steel # 316 Stainless Steel #

MSDSTXS14126 MSDSTXZ14126 14.26 x 12 x 6 18 16.45

MSDSTXS16146 MSDSTXZ16146 16.26 x 14 x 6 23 18.45

MSDSTXS16128 MSDSTXZ16128 16.26 x 12 x 8 23 19.18

MSDSTXS16168 MSDSTXZ16168 16.26 x 16 x 8 28 19.18

MSDSTXS20168 MSDSTXZ20168 20.26 x 16 x 8 33 23.18

MSDSTXS20208 MSDSTXZ20208 20.26 x 20 x 8 39 23.18

MSDSTXS24208 MSDSTXZ24208 24.26 x 20 x 8 45 27.18

MSDSTXS24248 MSDSTXZ24248 24.26 x 24 x 8 52 27.18

MSDSTXS30248 MSDSTXZ30248 30.26 x 24 x 8 62 33.18

MSDSTXS36308 MSDSTXZ36308 36.26 x 30 x 8 83 39.18

MSDSTXS30308 MSDSTXZ30308 30.26 x 30 x 8 74 33.18

MSDSTXS201612 MSDSTXZ201612 20.26 x 16 x 12 39 24.65

MSDSTXS202012 MSDSTXZ202012 20.26 x 20 x 12 46 24.65

MSDSTXS242412 MSDSTXZ242412 24.26 x 24 x 12 60 28.65

MSDSTXS302412 MSDSTXZ302412 30.26 x 24 x 12 71 34.65

MSDSTXS363012 MSDSTXZ363012 36.26 x 30 x 12 97 40.65

MSDSTXS363612 MSDSTXZ363612 36.26 x 36 x 12 112 40.65

MSDSTXS423612 MSDSTXZ423612 42.26 x 36 x 12 127 36.65

MSDSTXS483612 MSDSTXZ483612 48.26 x 36 x 12 142 52.65

MSDSTXS363016 MSDSTXZ363016 36.26 x 30 x 16 111 42.11

MSDSTXS483616 MSDSTXZ483616 48.26 x 36 x 16 143 54.11

MSDSTXS603616 MSDSTXZ603616 60.26 x 36 x 16 172 66.11

For optional mounting feet, order part number

A-MSDMFKXS (set of four)

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

172

TYPE 4, 4x, 12 &

13 SLOPE TOP

MILLENNIUM

SERIES

ENCLOSURES

Millennium Series Enclosures

Type 4, 4X, 12 & 13 | Stainless Steel | Slope Top

Notes:

1. Print pocket = 6” x 6” when H and W are 24” or less. Print pocket = 9” x 9” when H and W are greater than 24”.

2. Panel have formed ﬂanges on all four sides when either Height or Width is equal to or greater than 22.2".

3. When height and width are less than 23" enclosure will have one slotted quarter-turn latch.

4. When height and width are greater than 23" enclosure will have two slotted quarter-turn latches.

5. When height is equal to or greater than 42" enclosure will have one 3 point slotted quarter-turn latch.

3/8-16 Collar

Studs

Print Pocket

Ground

Studs

X X

SECTION X-X

SECTION Y-Y

W - 1.85 .821.02

H - 2.06

W - 1.8 .90

.90

34.50 .75.75

2.42 5.49 2.42

H + 1.41

.75

14 GA

1.07

1.00

D - .18

2.00

3/8-16 Collar

Studs

Print Pocket

Ground

Studs

X X

SECTION X-X

SECTION Y-Y

W - 1.85 .821.02

H - 2.06

W - 1.8 .90

.90

34.50 .75.75

2.42 5.49 2.42

H + 1.41

.75

14 GA

1.07

1.00

D - .18

2.00

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

173

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Drip Shield Kits

Catalog Number Width

(inches)

Ship.

Weight

(lbs.)

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

A-DS12 A-DSXS12 A-DSXZ12 12 2

A-DS16 A-DSXS16 A-DSXZ16 16 2

A-DS20 A-DSXS20 A-DSXZ20 20 2

A-DS24 A-DSXS24 A-DSXZ24 24 4

A-DS30 A-DSXS30 A-DSXZ30 30 4

A-DS36 A-DSXS36 A-DSXZ36 36 5

A-DS42 A-DSXS42 A-DSXZ42 42 6

A-DS48 A-DSXS48 A-DSXZ48 48 6

A-DS60 A-DSXS60 A-DSXZ60 60 7

A-DS72 A-DSXS72 A-DSXZ72 72 9

Type 12 Drip Shield Kits Type 4 Drip Shield Kits

Drip shield kits are designed to protect enclosures from dust and dripping water. They

are fabricated from 14 gauge carbon steel with standard ANSI-61 gray finish on interior

and exterior of enclosures. Recoatable, smooth, white or RAL 7035 texture polyester

powder coat available at no charge. Standard RAL and custom match finishes available

for an additional charge, please contact Milbank for further assistance. All powder coat

finishes applied over cleaned phosphatized surfaces. They are also available in type 304

and type 316 stainless steel. Stainless steel drip shield kits have a polished #4 finish.

They are attached with stainless steel screws and neoprene washers.

Gasket

1/4-20 x .5"

Screw

Drill and Tap

top of enclosure

for 1/4-20 x .5"

Screw

W-.25

1.00 Max of 7.25

Ø .31 3.60

.31

1.81

.60

2.23

1.39

Gasket

1/4-20 x .5"

Screw

Drill and Tap

top of enclosure

for 1/4-20 x .5"

Screw

W-.25

1.00 Max of 7.25

Ø .31 3.60

.31

1.81

.60

2.23

1.39

1/4-20 x .5

Screw

Drill and Tap

top of enclosure

for 1/4-20 x .5

Screw

Gasket

.69

3.73

W - 0.25

Max of 7.25

1.00

Ø .31

3.73

2.38

1.53 .33

.24

Note:

Standard drip shield kits are packaged for ﬁeld installation using common hand tools. Drip shield kits can also be welded on at the

factory. Standard enclosures can be converted to UL 3R when drip shield kits and drain holes are installed at the factory.

Catalog Number Width

(inches)

Ship.

Weight

(lbs.)

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

A-DS12-N4 A-DSXS12-N4 A-DSXZ12-N4 12 2

A-DS16-N4 A-DSXS16-N4 A-DSXZ16-N4 16 2

A-DS20-N4 A-DSXS20-N4 A-DSXZ20-N4 20 2

A-DS24-N4 A-DSXS24-N4 A-DSXZ24-N4 24 4

A-DS30-N4 A-DSXS30-N4 A-DSXZ30-N4 30 4

A-DS36-N4 A-DSXS36-N4 A-DSXZ36-N4 36 5

A-DS42-N4 A-DSXS42-N4 A-DSXZ42-N4 42 6

A-DS48-N4 A-DSXS48-N4 A-DSXZ48-N4 48 6

A-DS60-N4 A-DSXS60-N4 A-DSXZ60-N4 60 7

A-DS72-N4 A-DSXS72-N4 A-DSXZ72-N4 72 9

1/4-20 x .5

Screw

Drill and Tap

top of enclosure

for 1/4-20 x .5

Screw

Gasket

.69

3.73

W - 0.25

Max of 7.25

1.00

Ø .31

3.73

2.38

1.53 .33

.24

Type 12 Drip Shield Kit

Type 4 Drip Shield Kit

Drip Shield Kits

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

174 Industrial Enclosure Accessories

Floor Stand Kits

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Floor stand kits for Type 4 & 12 enclosures are designed to convert wall mounted

enclosures to floor standing enclosures. These kits consist of two stands which may be

bolted onto the bottom of the enclosure in the field or welded on at the factory. These

kits are fabricated from a heavy gauge carbon steel with a standard ANSI-61 gray finish

on interior and exterior of enclosures. Recoatable, smooth, white or RAL 7035 texture

polyester powder coat available at no charge. Standard RAL and custom match finishes

available for an additional charge, please contact Milbank for further assistance. All

powder coat finishes applied over cleaned phosphatized surfaces. Type 304 and type

316 stainless steel is available. Stainless steel floor stand kits have a polished #4 finish.

Special heights, depths, and many other options can also be provided. Quotations are

available upon request.

Catalog Number Size

H x D

(Inches)

Ship.

Weight

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

A-FSK68 A-FSKXS68 A-FSKXZ68 6 x 8 19

A-FSK610 A-FSKXS610 A-FSKXZ610 6 x 10 21

A-FSK612 A-FSKXS612 A-FSKXZ612 6 x 12 23

A-FSK616 A-FSKXS616 A-FSKXZ616 6 x 16 30

A-FSK618 A-FSKXS618 A-FSKXZ618 6 x 18 31

A-FSK620 A-FSKXS620 A-FSKXZ620 6 x 20 34

A-FSK624 A-FSKXS624 A-FSKXZ624 6 x 24 41

A-FSK630 A-FSKXS630 A-FSKXZ630 6 x 30 51

A-FSK636 A-FSKXS636 A-FSKXZ636 6 x 36 61

A-FSK128 A-FSKXS128 A-FSKXZ128 12 x 8 29

A-FSK1210 A-FSKXS1210 A-FSKXZ1210 12 x 10 32

A-FSK1212 A-FSKXS1212 A-FSKXZ1212 12 x 12 35

A-FSK1216 A-FSKXS1216 A-FSKXZ1216 12 x 16 42

A-FSK1218 A-FSKXS1218 A-FSKXZ1218 12 x 18 47

A-FSK1220 A-FSKXS1220 A-FSKXZ1220 12 x 20 50

Top

Bottom

(mounting holes)

If D is less than 10" omit center hole

If D is less than 6" Leg will only receive

1 hole centered in D dimension

7.916

7.972

1.667

1.0002.875

Ø .563

3 places

1.0004.4722.500

2.500

(D/2) - 2.5

Ø .562

7 places

Floor Stand Kits

Catalog Number Size

H x D

(Inches)

Ship.

Weight

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

A-FSK1224 A-FSKXS1224 A-FSKXZ1224 12 x 24 60

A-FSK1230 A-FSKXS1230 A-FSKXZ1230 12 x 30 74

A-FSK1236 A-FSKXS1236 A-FSKXZ1236 12 x 36 88

A-FSK188 A-FSKXS188 A-FSKXZ188 18 x 8 40

A-FSK1810 A-FSKXS1810 A-FSKXZ1810 18 x 10 44

A-FSK1812 A-FSKXS1812 A-FSKXZ1812 18 x 12 47

A-FSK1816 A-FSKXS1816 A-FSKXZ1816 18 x 16 58

A-FSK1820 A-FSKXS1820 A-FSKXZ1820 18 x 20 72

A-FSK1824 A-FSKXS1824 A-FSKXZ1824 18 x 24 85

A-FSK1830 A-FSKXS1830 A-FSKXZ1830 18 x 30 106

A-FSK248 A-FSKXS248 A-FSKXZ248 24 x 8 52

A-FSK2410 A-FSKXS2410 A-FSKXZ2410 24 x 10 56

A-FSK2412 A-FSKXS2412 A-FSKXZ2412 24 x 12 60

A-FSK2416 A-FSKXS2416 A-FSKXZ2416 24 x 16 70

A-FSK2424 A-FSKXS2424 A-FSKXZ2424 24 x 24 103

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

175

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Door Stop Kits, Rack Mounting Angle Kits, Paint

Catalog Number Description Ship. Weight (lbs.)

A-WP White 1

A-GP ANSI-61 Grey 1

A-GP7035 RAL-7035 1

Catalog Number Description

A-DSK Heavy Duty Adjustable - Carbon Steel

A-DSKXS Heavy Duty Adjustable - 304 Stainless Steel

A-DSKXZ Heavy Duty Adjustable - 316 Stainless Steel

Door stop kits are for use on standard Type 4 and 12 enclosures to hold the doors

open. These door stop kits are designed for use on the top or bottom of a horizontally

swinging door of 16 inches wide or wider. Fixed door stop kits provide a 90 degree door

swing. Adjustable door stop kits provide door swing adjustment up to 120 degrees by

means of a wing nut. The stop arm on both fixed and adjustable kits swings out of the

way when the door is closed. Kits are available in carbon or stainless steel. Carbon steel

kits are zinc plated.

Available in pairs and include all required hardware. Used to mount 19” rack mounted equipment in

freestanding enclosures. Use clip nut package (20 pc included) to provide tapped holes at desired

locations. Rack angles are available as shown, or in L-angle style upon request. Additional clip nuts

can be provided upon request. These items are custom-made; please specify height and material.

Used to repair the finish of enclosures and panels. Furnished in 12 oz. spray cans.

Door Stop Kits

Rack Mounting Angle Kits

Touch-Up Paint

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

176

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Replacement Print Pockets

Designed for print storage on the interior of an enclosure. Intended for use as a replacement or as an additional print pocket.

Standard Print pockets are made of gray Polystyrene with self-adhesive provided for mounting on enclosure. Print Pockets

fabricated from 14 gauge carbon steel with white polyester finish.

Catalog

Number Material

Ship.

Wt.

(lbs.)

Description

A-PPSMC Carbon steel 2 Small print pocket

A-PPSMCXS 304 stainless steel 2 Small print pocket

A-PPSMCXZ 316 stainless steel 2 Small print pocket

A-PPLRGC Carbon steel 3 Large print pocket

A-PPLRGCXS 304 stainless steel 3 Large print pocket

A-PPLRGCXZ 316 stainless steel 3 Large print pocket

A-PP991C Carbon steel 4 X-Large print pocket

A-PP991CXS 304 stainless steel 4 X-Large print pocket

A-PP991CXZ 316 stainless steel 4 X-Large print pocket

A-SPPOCKET Polycarbonate 1 Small 6 x 6 print pocket

A-LPPOCKET Polycarbonate 1 Large 9 x 9 print pocket

1/4 X 1/2

Slot

SP-PPLRGC; SP-PPLRGSS; SP-PPLRGSS6

1/4 X 1/2

Slot

SP-PPSMC; SP-PPSMSS; SP-PPSMSS6

SP-PP991; SP-PP991SS; SP-PP991SS6

11.102

9.750

8.000

10.500

.750

.750 .750

14 GA

7.227

5.875

6.625

6.000

.750

.750 .750

14 GA

10.852

9.500

10.250

9.000

1.500

.750

.074

.750

1/4 X 1/2

Slot

SP-PPLRGC; SP-PPLRGSS; SP-PPLRGSS6

1/4 X 1/2

Slot

SP-PPSMC; SP-PPSMSS; SP-PPSMSS6

SP-PP991; SP-PP991SS; SP-PP991SS6

11.102

9.750

8.000

10.500

.750

.750 .750

14 GA

7.227

5.875

6.625

6.000

.750

.750 .750

14 GA

10.852

9.500

10.250

9.000

1.500

.750

.074

.750

1/4 X 1/2

Slot

SP-PPLRGC; SP-PPLRGSS; SP-PPLRGSS6

1/4 X 1/2

Slot

SP-PPSMC; SP-PPSMSS; SP-PPSMSS6

SP-PP991; SP-PP991SS; SP-PP991SS6

11.102

9.750

8.000

10.500

.750

.750 .750

14 GA

7.227

5.875

6.625

6.000

.750

.750 .750

14 GA

10.852

9.500

10.250

9.000

1.500

.750

.074

.750

179P

177P

8.750

9.188

1.125

.625

.673

6.000

1.125

.673

.625

179P

177P

8.750

9.188

1.125

.625

.673

6.000

1.125

.673

.625

A-PPSMC A-PPLRG

A-PP991C

A-LPPOCKET

A-SPPOCKET

Replacement Print Pocket

PPSMC•PPSMCXS•PPSMCXZ

PP991C•PP991CXS•PP991CXZ

PPLRGC•PPLRGXS•PPLRGXZ

A-SPPOCKET

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

177

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Folding Shelves

Catalog

Number Description Size (inch)

W D

A-SHELF18 18" Folding Shelf 18" 19"

A-SHELF24 24" Folding Shelf 24" 19"

Table Lock

Continuous

Hinge

Folding Shelf

W + .274

W - 4

H - 4

Ø .563

.563

2.474

.074

H - .125

90°

Note: When

installing folding

shelf to inside of

enclosure doors, it

is recommended to

also install a door

stop kit.

Support instruments and test equipment that are used to install and

maintain electrical components in an enclosure. Also ideally suited

for supporting programmers, monitoring units and other equipment

used with programmable controllers. Shelf locks in lower and upper

positions.

The shelf can be installed on the inside or outside surface of larger

enclosures. All parts are made of heavy gauge carbon steel with a

standard ANSI-61 gray finish on interior and exterior of enclosures.

Recoatable, smooth, white or RAL 7035 texture polyester powder

coat available at no charge. Standard RAL and custom match finishes

available for an additional charge, please contact Milbank for further

assistance. All powder coat finishes applied over cleaned phosphatized

surfaces. Stainless steel construction is available upon request.

Maintains UL Type 4 and Type 12 if properly installed in a Milbank

enclosure.

Folding Shelf

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

178

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Louver Skirt Kits

4" Louvers

Bug screen will be

tted to louver array.

W-0.21

.625 6 .6256

H- 0.125

.625

H-2.75

H-0.059

Catalog Number Size

H x W

(inches)

Ship.

Wt.

(lbs.)

# of

Louvers

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel #

A-SKT636 A-SKTXS636 A-SKTXZ6636 6 x 36 12 6

A-SKT642 A-SKTXS642 A-SKTXZ6642 6 x 42 14 8

A-SKT648 A-SKTXS648 A-SKTXZ6648 6 x 48 16 10

A-SKT660 A-SKTXS660 A-SKTXZ6660 6 x 60 20 14

A-SKT672 A-SKTXS672 A-SKTXZ6672 6 x 72 24 18

A-SKT1236 A-SKTXS1236 A-SKTXZ61236 12 x 36 20 15

A-SKT1242 A-SKTXS1242 A-SKTXZ61242 12 x 42 23 20

A-SKT1248 A-SKTXS1248 A-SKTXZ61248 12 x 48 26 25

A-SKT1260 A-SKTXS1260 A-SKTXZ61260 12 x 60 33 35

A-SKT1272 A-SKTXS1272 A-SKTXZ61272 12 x 72 40 45

A-SKT1836 A-SKTXS1836 A-SKTXZ61836 18 x 36 30 33

A-SKT1842 A-SKTXS1842 A-SKTXZ61842 18 x 42 35 44

A-SKT1848 A-SKTXS1848 A-SKTXZ61848 18 x 48 40 55

A-SKT1860 A-SKTXS1860 A-SKTXZ61860 18 x 60 50 77

A-SKT1872 A-SKTXS1872 A-SKTXZ61872 18 x 72 60 99

A-SKT2436 A-SKTXS2436 A-SKTXZ62436 24 x 36 40 45

A-SKT2442 A-SKTXS2442 A-SKTXZ62442 24 x 42 47 60

A-SKT2448 A-SKTXS2448 A-SKTXZ62448 24 x 42 53 75

A-SKT2460 A-SKTXS2460 A-SKTXZ62460 24 x 60 67 90

A-SKT2472 A-SKTXS2472 A-SKTXZ62472 24 x 72 80 105

Louver skirt kits are fabricated from 14 gauge carbon steel with a standard ANSI-61 gray finish

on interior and exterior of enclosures. Recoatable, smooth, white or RAL 7035 texture polyester

powder coat available at no charge. Standard RAL and custom match finishes available for an

additional charge, please contact Milbank for further assistance. All powder coat finishes applied

over cleaned phosphatized surfaces. 14 gauge type 304 and type 316 stainless steel are available

with a polished #4 finish. They are designed to restrict access to any connections but still provide

ventilation of any waste gases.

These kits can be easily installed in the field by drilling holes in the floor stand kits and bolting

louver skirt to floor stand kit. Hardware is furnished for mounting.

Kit includes:

2 skirts, hardware to install to enclosure. See A-SPSKTB for skirt kits with bug screen. Vandal

proof design, custom sizes, and features provided upon request.

Louver Skirt Kits

Note: Add the letter “B” after the letter

“T” in the part number when ordering

louver skirt kits with a bug screen (Ex:

A-SPSKTB636)

Bug screen frame will be wrapped with

wire mesh and bolted to the louver skirt.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

179

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Louver Plate Kits

Designed to provide ventilation in enclosures where excessive internal heat or moisture is a problem.

These kits can be easily installed in the field by making a cutout of the proper size and attaching the

louver plate in place. Louver plates are made from heavy gauge carbon steel, type 304 or type 316

stainless steel. Carbon louver plates have a standard ANSI-61 gray finish on interior and exterior of

enclosures. Recoatable, smooth, white or RAL 7035 texture polyester powder coat available at no

charge. Standard RAL and custom match finishes available for an additional charge, please contact

Milbank for further assistance. All powder coat finishes applied over cleaned phosphatized surfaces.

Stainless steel plates have a polished #4 finish. Hardware is furnished for mounting.

Custom sizes, etc., can be provided on special order. Louvers can also be punched in enclosure

at the factory. Louvers used in UL Type 1 or 3R enclosures will maintain UL rating. Additional sizes

available upon request. Louver can also be factory installed (pressed in).

Designed for use with louver plate kit. Mounting

holes on filter bracket align with louver mounting

holes. Hardware supplied with louvers also secure

filter brackets in place. Brackets are fabricated

from .080 aluminum. Custom sizes, etc., can be

provided on special order.

Catalog Number Product Size

H x W (inches)

# of

Louvers

Cutout Size (inches)

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel #

Louver

Length H W Ship. Wt.

(lbs.)

A-LVK23 A-LVK XS23 A-LVK XZ23 3.25 x 3.25 2 2.5 21.75 1

A-LVK33 A-LVK XS33 A-LVKXZ33 3.87 x 4.5 3 2.5 2.62 3 1

A-LVK34 A-LVK XS34 A-LVKXZ34 4.75 x 4.5 4 2.5 3.5 3 1

A-LVK43 A-LVKXS43 A-LVK XZ43 4.5 x 5.5 3 4 3.5 4 1

A-LVK44 A-LVKXS44 A-LVKXZ44 5.62 x 5.5 4 4 4.37 4 1

A-LVK64 A-LVK XS64 A-LVK XZ64 5.62 x 7.5 8 2.5 4.37 6 1

A-LVK66 A-LVK XS66 A-LVK XZ66 7.87 x 7.5 12 2.5 6.62 6 1

A-LVK84 A-LVK XS84 A-LVKXZ84 5.81 x 9.5 8 4 4.56 8 1

A-LVK86 A-LVK XS86 A-LVKXZ86 8.18 x 9.5 12 46.93 8 2

A-LVK88 A-LVK XS88 A-LVKXZ88 10.56 x 9.5 16 49.31 8 2

A-LVK812 A-LVK XS812 A-LVK XZ812 15.31 x 9.5 24 414.06 8 3

Louver Plate Kits

Filters for Louver Kits

Catalog

Number Use with Louver Kit

A-FLT33 A-LVK33

A-FLT34 A-LVK34

A-FLT43 A-LVK43

A-FLT44 A-LVK44

A-FLT64 A-LVK64

A-FLT66 A-LVK66

A-FLT84 A-LVK84

A-FLT86 A-LVK86

A-FLT88 A-LVK88

A-FLT812 A-LVK812

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

180

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Window Kits

1/4 20 CD Studs with Clips to

secure Lexan Window

(quantity will vary per size)

H + 2.5

W + 2.5

.324

2.000 No more than 3.75"

No less than 3"

.656

W + .813

Lexan

H + .813

Lexan

Catalog Number Frame Size Viewing

Area Ship.

Wt.

(lbs.)

Carbon

Steel #

304 Stainless

Steel #

316 Stainless

Steel # H W H W

A-WK53 A-WKXS53 A-WKXZ53 7.5 5.5 5 3 1

A-WK95 A-WKXS95 A-WKXZ95 11.5 8 9 5.5 3

A-WK1010 A-WKXS1010 A-WKXZ1010 12.5 12.5 10 10 4

A-WK1212 A-WKXS1212 A-WKXZ1212 14.5 14.5 12 12 5

A-WK133 A-WKXS133 A-WKXZ133 15.5 5.5 13 3 3

A-WK138 A-WKXS138 A-WKXZ138 15.5 10.5 13 8 4

A-WK1711 A-WKXS1711 A-WKXZ1711 19.5 13.5 17 11 6

A-WK175 A-WKXS175 A-WKXZ175 19.5 7.5 17 5 4

A-WK2016 A-WKXS2016 A-WKXZ2016 22.5 18.5 20 16 8

A-WK2017 A-WKXS2017 A-WKXZ2017 22.5 19.5 20 17 8

A-WK2020 A-WKXS2020 A-WKXZ2020 22.5 22.5 20 20 10

A-WK2315 A-WKXS2315 A-WKXZ2315 25.5 17.5 23 15 8

A-WK2420 A-WKXS2420 A-WKXZ2420 26.5 22.5 24 20 9

A-WK2424 A-WKXS2424 A-WKXZ2424 26.5 26.5 24 24 12

A-WK2919 A-WKXS2919 A-WKXZ2919 31.5 21.5 29 19 12

A-WK3523 A-WKXS3523 A-WKXZ352 37.5 25.5 35 23 16

A-WK3624 A-WKXS3624 A-WKXZ3624 38.5 26.5 36 24 17

A-WK3636 A-WKXS3636 A-WKXZ3636 38.5 38.5 36 36 25

These kits are easily installed by making a cutout

in the enclosure and attaching the window and

frame in place (hardware furnished). Frames are

made from heavy gauge carbon steel and have

a standard ANSI-61 gray finish on interior and

exterior of enclosures. Recoatable, smooth, white or

RAL 7035 texture polyester powder coat available

at no charge. Standard RAL and custom match

finishes available for an additional charge, please

contact Milbank for further assistance.All powder

coat finishes applied over cleaned phosphatized

surfaces. Type 304 and type 316 stainless steel are

available with a polished #4 finish.

The window is scratch-resistant 1/4" Thermoplastic.

Oil-resistant gasket ensures a tight seal around the

perimeter of the window and frame. All mounting

hardware is furnished. Custom sizes and materials

can be provided on special order. Consult factory

for information. Tinted glass and safety glass are

available upon request.

Window Kits

Note: Required cutout size for enclosure is

H + 1.6875” x W + 1.6875”

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

181

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Hinged Window Kits

Catalog Number Frame Size Viewing

Area Shpg.

Wt.

Carbon Steel # 304 Stainless

Steel #

316 Stainless

Steel # H W D H W

A-HWK1010 A-HWKXS1010 A-HWKXZ1010 15 17.75 2.6 10 10 12

A-HWK124 A-HWKXS124 A-HWKXZ124 17 11.75 2.6 12 4 6

A-HWK1212 A-HWKXS1212 A-HWKXZ1212 17 19.75 2.6 12 12 16

A-HWK1520 A-HWKXS1520 A-HWKXZ1520 20 27.75 2.6 15 20 33

A-HWK168 A-HWKXS168 A-HWKXZ168 21 15.75 2.6 16 8 15

A-HWK1711 A-HWKXS1711 A-HWKXZ1711 22 18.75 2.6 17 11 21

A-HWK208 A-HWKXS208 A-HWKXZ208 25 15.75 2.6 20 8 20

A-HWK2010 A-HWKXS2010 A-HWKXZ2010 25 17.75 2.6 20 10 23

A-HWK2012 A-HWKXS2012 A-HWKXZ2012 25 19.75 2.6 20 12 27

A-HWK2017 A-HWKXS2017 A-HWKXZ2017 25 24.75 2.6 20 17 35

A-HWK2020 A-HWKXS2020 A-HWKXZ2020 25 27.75 2.6 20 20 40

A-HWK2021 A-HWKXS2021 A-HWKXZ2021 25 28.75 2.6 20 21 42

A-HWK2424 A-HWKXS2424 A-HWKXZ2424 29 31.75 2.6 24 24 45

A-HWK2615 A-HWKXS2615 A-HWKXZ2615 31 22.75 2.6 26 15 38

A-HWK3215 A-HWKXS3215 A-HWKXZ3215 37 22.75 2.6 32 15 45

A-HWK3636 A-HWKXS3636 A-HWKXZ3636 41 43.75 2.6 36 36 54

For use as a viewing window where access to components mounted behind the window is required. The window is 1/4"

thick with scratch-resistant Thermoplastic. Easily mounted. All mounting hardware is provided. Tinted glass and safety glass

available upon request.

Hinged Window Kits

Continuous Hinge

1/4 20 Pem Studs for Mounting

(quantity will vary per size)

1/4 20 CD Studs with Clips to secure Lexan Window

(quantity will vary per size)

W + 7.75

2.600

H + 5

1.625 No more than 6"

No less than 4"

1.157No more than 3.75"

No less than 3"

.344

.750

.650

13.750

Continuous Hinge

1/4 20 Pem Studs for Mounting

(quantity will vary per size)

1/4 20 CD Studs with Clips to secure Lexan Window

(quantity will vary per size)

W + 7.75

2.600

H + 5

1.625 No more than 6"

No less than 4"

1.157No more than 3.75"

No less than 3"

.344

.750

.650

13.750

Continuous Hinge

1/4 20 Pem Studs for Mounting

(quantity will vary per size)

1/4 20 CD Studs with Clips to secure Lexan Window

(quantity will vary per size)

W + 7.75

2.600

H + 5

1.625 No more than 6"

No less than 4"

1.157No more than 3.75"

No less than 3"

.344

.750

.650

13.750

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

182

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Replacement and Custom Handles

The replacement handles shown on this page are

standard features on Milbank Enclosures and can be

ordered separately.

These handles can be used in three point latching

systems and will maintain the enclosures UL rating.

Factory installation is recommended. These handles

can be used on special enclosures as an option. Call

for availability.

Replacement Handles Custom Handles

Euro-Design Padlocking Handle

Light Duty Quarter-Turn Handles

Type 304 Stainless Steel Heavy Duty Padlocking Handle

Heavy Duty Keylocking Handle

Catalog Number Description

A-HNDLCOMP Compact with defeater

A-HNDLHD Heavy duty

A-HNDLHDD Heavy duty with defeater

Catalog Number Description

A-HNDLHDK Heavy duty keylocking handle

Catalog Number Description

A-HNDL-HDSSPAD Stainless steel padlock handle

• Made of black zinc die cast.

• Available in compact and heavy-

duty style.

• Available with or without defeater

mechanism.

• Used for UL Type 12.

• Suitable for three point latching

systems.

• Custom inserts are available.

• Compact is the replacement for

A-ABN12 enclosures.

• Heavy duty is the replacement

for Type 12 floor mount, Type 12

modular and Type 12 freestanding

enclosures families.

Note: Cams are ordered separately.

• Made of black zinc die cast with key

included.

• Standard replacement handle for

Freestanding enclosures.

• Used for three point latching

systems.

• Maintains UL Type 12 enclosure

ratings.

• Includes handle only.

Catalog Number Description

A-HNDLLNLSS Non-locking stainless steel

A-HNDLKLBLK Keylocking black zinc die

A-HNDLKLCHR Keylocking chrome

A-THNDLKLCHR T-Type keylocking chrome

• Available in black polymide, black

zinc die cast, or chrome.

• Suitable for three point UL Type

12 latching systems.

• Specify material when ordering.

• Made of stainless steel.

• Suitable for three point latching

systems where enhanced corrosion

resistance is required.

• Suitable for UL Type 12

applications.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

183

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Replacement and Custom Latches & Clamps,

Replacement Handle Kits

The replacement latches and clamps shown on this page are standard features on Milbank Enclosures and can be

ordered separately.

Kit includes handle, cam, retainers, hardware, latch rods,

and latch rod guides. All kits are packaged for field

installation.

Custom latches and clamps can be used on standard or

custom enclosures and will maintain the enclosure’s UL

rating. Spacing and quantity limitations apply to maintain

an enclosure’s UL rating. Call for application information.

Specify type of latch, material and insert when ordering.

Replacement Latches & Clamps

Replacement Handle Kits Custom Latches & Clamps

Quarter Turn Slotted Latch

Quick Release J-Series Enclosure Clamps

Type 4 Clamp Type 12 Clamp

Standard Elite UL

Type 4, 4X, 12 and 13

enclosures only. Made

of black polymide.

Allows for a maximum

of 26 inch spacing

between latches.

Made of stainless

steel. Standard on

wall mount UL Type

4 and 4X enclosures.

Assembly includes

clamp, spring and 1⁄4–

20–304 or 1⁄4–28–316

threaded screw. Allows

for a maximum of 24

inch spacing between

clamps.

Made of stainless

steel. Standard on

wall mount UL Type

4 and 4X enclosures.

Assembly includes

clamp, spring and 1⁄4–

20–304 or 1⁄4–28–316

threaded screw. Allows

for a maximum of 24

inch spacing between

clamps.

Catalog

Number Description

A-R002-100BLK Black Polymide

A-R090-100SS Stainless Steel

Catalog

Number Description

A-NH41041 NEMA 4 Clamp 304

A-NH41050 NEMA 4 Clamp 316

Catalog

Number Description

A-NH20030 NEMA 12 Clamp

Note: Cams are ordered separately

Catalog Number Enclosure

Family Description

A-HNDLSPWF M12D Keylocking assembly

A-261612-10-KIT M12-FD-H Padlocking 2-point assembly

A-HNDLSPN12D M12D-FT Keylocking assembly

A-HNDLSPX FD-FT Padlock with defeater assembly

A-HNDLSPXMN FD-FT Padlock non-defeater assembly

A-HNDLSPXM M12FSD-FD Padlock defeater assembly

A-HNDLSPXN M12FSD-FD Padlock non-defeater assembly

A-HNDLSPFS M12FS Keylocking assembly

A-3PTCONS MSD Console 3-point assembly Catalog

Number Description

A-FOCJIC-S Plated Mild Steel

A-FOCJIC-SS Stainless Steel

• Available in zinc plated mild steel

and stainless steel.

• Clamps have 1/4-20 thread.

• Suitable for UL type 4, 4X, 12

and 13 enclosures.

Continued on next page

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

184

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Custom Latches & Clamps

Catalog Number Description

A-LTHMINI Mini 1⁄4-turn slotted latch

Catalog Number Description

A-1000-U78 Wing 1/4-turn latch

• Available in black polymide.

• Suitable for any Milbank

enclosure.

• Latch will maintain the UL rating.

• Available in stainless steel.

• Clamps have 1/4-20 304 or 1/4-28

316 threads and can be used in place

of screwdriver operated clamps on

Milbank enclosures.

• Suitable for UL Type 4, 4X & 12

enclosures.

Catalog Number Description

A-FOCXS Type 304 stainless steel clamp

A-FOCXZ Type 316 stainless steel clamp

Catalog Number Description

A-1000-U237 Keylocking wing 1⁄4-turn latch

Catalog Number Description

A-1000-U429-01 Padlocking wing 1⁄4-turn latch

Catalog Number Description

A-C0035745 Padlocking 1⁄4-turn latch

Custom Latches & Clamps continued

Quick Release Toggle Clamp Keylocking Wing 1⁄4-Turn Latch

Padlocking Wing 1⁄4-Turn Latch

Padlocking 1⁄4-Turn Latch

Mini 1⁄4-Turn Latch

Wing 1⁄4-Turn Latch

Note: Stainless steel clamp required for 4/4X enclosure.

Note: Cams are ordered separately.

• Available in black polymide.

• Suitable for UL Type 12 enclosures.

• Availableinblackpolymide.

• SuitableforanyMilbank

enclosure.

• LatchwillmaintaintheULrating.

• Knockout size is .814 x .814

• Availableinzincdiecastonlyand

comes with chrome insert.

• SuitableforanyMilbank

enclosure.

• LatchwillmaintaintheULrating.

• Knockout size is .814 x .814

Note: Cams are ordered separately.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

185

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Hole Seals and Grounding Kits

Hole seals are used to seal unused pushbutton holes,

conduit and knockout holes and other openings of irregular

shapes and sizes against dust, dirt, water and oil. They

will cover holes ranging in size from 0.19 inches through

4.00 inches, and can be used on enclosures having a wall

thickness up to 0.31 inches. The hole seals have a cover

with 1⁄16” flange. See page 76 for application, construction,

ordering and installation information.

Ground kits include screws, nuts, washers and grounding

label. Can be ordered separately. Ground strap not

included.

Notes:

1. Ground strap not included.

2. The wall mount version can be used on larger enclosures—order one kit per door.

Catalog Number Description

A-JH45015 Grounding kit for J-Series enclosures

A-NH45015 Grounding kit for M4, M12 and

Millennium enclosures

Oil Tight Hole Seals Grounding Kits

J-Series Grounding Kit

Wall Mount Grounding Kit

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

186

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Floor Mount Sub Panels

Catalog Number Sub Panel Size

H x W x D (inches)

Shipping

Weight (lbs.)

A-DD54P42 50 x 38 79

A-DD60P48 56 x 44 103

A-DD60P60 56 x 56 128

A-DD72P60 68 x 56 151

A-DD72P72 68 x 68 184

Applications

For use in Type 4 Double Door Floor Mount, Type 12 Double Door Floor Mount, and Type 12

Double Door Extra Volume enclosures.

Construction

Fabricated from 10 gauge carbon steel.

Finish

White polyester powder coat finish over cleaned phosphatized surfaces.

Options

Milbank can modify standard sub panels according to your specifications. Sizes and many more

options are available. Quotations upon request.

Floor Mount Sub Panels

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

187

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Floor Mount Sub Panels

Omit if W is

less than 28"

Omit if H is

less than 28"

Lifting Holes (O9/16)

Omit if enclosure H

is less than 60"

.75

10.00

.88

.88 O .56 Mounting Holes

1.25

O .28

Grounding Holes

4 Places

Applications

For use in Type 12 and Type 4 freestanding single door and

Type 12 double door freestanding enclosures.

Construction

Fabricated from 12 or 10 gauge carbon steel.

Finish

White polyester powder coat finish over cleaned

phosphatized surfaces.

Options

Milbank can modify standard sub panels according to your

specifications. Sizes and many more options are available.

Quotations upon request.

Note: Panels mount using panel mounting brackets.

Freestanding Sub Panels

Catalog Number Sub Panel Size

H x W x D (inches) Shipping Weight

Single Door - Full Panels

A-60P24F1 48 x 20 52

A-72P24F1 60 x 20 65

A-90P24F1 78 x 20 80

A-72P30F1 60 x 26 74

A-90P30F1 78 x 26 92

A-60P36F1 48 x 32 78

A-72P36F1 60 x 32 80

A-90P36F1 78 x 32 108

Single Door - Half Panels

A-60P24F2 24.87 x 20 26

A-72P24F2 30.87 x 20 32

A-90P24F2 39.87 x 20 41

A-72P30F2 30.87 x 26 41

A-90P30F2 39.87 x 26 53

A-60P36F2 24.87 x 32 41

A-72P36F2 30.87 x 32 50

A-90P36F2 39.87 x 32 65

Double Door - Full Panels

A-60P48F1 48 x 44 108

A-72P48F1 60 x 44 131

A-72P60F1 60 x 56 145

A-72P72F1 60 x 68 187

A-90P48F1 78 x 44 165

A-90P60F1 78 x 56 210

A-90P72F1 78 x 68 238

Double Door - Half Panels

A-60P48F2 24.87 x 44 60

A-72P48F2 30.87 x 44 74

A-72P60F2 30.87 x 56 94

A-72P72F2 30.87 x 68 113

A-90P48F2 39.87 x 44 94

A-90P60F2 39.87 x 56 120

A-90P72F2 39.87 x 68 145

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

188

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Freestanding Side Sub Panels

Add Center Holes

if W is 28" or greater

Lifting Holes (O 9/16)

Omit if enclosure H

is less than 60"

Omit if H is

less than 28"

.75

.88

Ø .56

Mounting Holes

1.25

Ø .28

Grounding Holes

4 Places

10.00

Note: Panels mount using panel mounting brackets.

Catalog Number Sub Panel Size

H x W x D (inches)

Shipping

Weight

A-60SMP14 48 x 14 24

A-60SMP20 48 x 20 34

A-72SMP14 60 x 14 28

A-72SMP20 60 x 20 42

A-72SMP26 60 x 26 54

A-72SMP32 60 x 32 66

A-90SMP14 78 x 14 40

A-90SMP16 78 x 16 45

A-90SMP20 78 x 20 55

A-90SMP26 78 x 26 71

A-90SMP32 78 x 32 86

Applications

For use in Type 12 and Type 4 freestanding single

door and Type 12 double door freestanding

enclosures.

Construction

Fabricated from 12 gauge carbon steel.

Finish

White polyester powder coat finish over cleaned

phosphatized surfaces.

Options

Milbank can modify standard sub panels according

to your specifications. Sizes and many more

options are available. Quotations upon request.

Freestanding Side Sub Panels

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

189

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Clamping Nuts, Mounting Bracket Kits, End Plates

and Heavy Duty Adapter Kits

Freestanding Enclosure Clamping Nuts

Modular Enclosure End Plates

Heavy Duty Adapter Kits for Heavy Duty

Disconnects

Sub Panel Mounting Bracket Kit for

Freestanding Enclosures

Catalog Number Description

A-ADPHD-SQ Square D, GE -TDA,ITE Max Flex , ABB,

Siemens FHOH, Westinghouse Flex Shaft

A-ADPHD-WH Westinghouse

A-ADPHD-CH Cutler Hammer C360/C370

A-ADPHD-GE General Electric GE-TDF

A-ADPHD-ABV Allen Bradley 1494V, 30/200 Amp

A-ADPHD-AMT Westinghouse AMT

A-ADPHD-BLK Blank

A-ADPHD-ABV400 Allen Bradley 1494V/400

A-ADPHD-ITE ITE

A-ADPHD-CHF Cutler Hammer Flex Shaft

A-ADPHD-ABFLEX Allen-Bradley 140U Flex Shaft

A-ADPHD-AB* Allen Bradley 1494F or D

These nuts are used to attach sub panels and rack angles

to the horizontal mounting channels and are ordered

separately if mounting other equipment to the mounting

channels.

• Designed to allow customer to install sub panels on

existing Unistrut® in freestanding enclosures.

• Fabricated from 10 gauge carbon steel with a white

polyester powder finish.

• Includes all installation hardware.

• Custom enclosures may require custom brackets.

Cutler-Hammer

C360/370

*Note: Adapter plate not required for 200 amp 1494F. Reference instruction sheet provided

with the kit.

Square D Class

9422, GE-TED,

GE-TDA, ITE

Max Flex Cutler-

Hammer 361/371

General Electric

TDF

Allen-Bradley

1494F or 1494D

Westinghouse

Blank Adapter

Allen-Bradley

1494V

Allen-Bradley

140U Flex Shaft

END PLATE END PLATE FLAT

Catalog Number

Size

H x D

(inches)

Description

A-MOD8418EP 84 x 18 Formed with gasket & bolts

A-MOD8424EP 84 x 24 Formed with gasket & bolts

A-MOD8418FEP 84 x 18 Flat with gasket & bolts

A-MOD8424FEP 84 x 24 Flat with gasket & bolts

A-MOD8418GK 84 x 18 Gasket kit with bolts

A-MOD8424GK 84 x 24 Gasket kit with bolts

Catalog Number Description

A-G1034 Clamping Nut

Catalog Number Description

A-SUBBRKTB Sub panel mounting bracket

freestanding

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

190 Industrial Enclosure Accessories

Semi-Adjustable Swing Panel Kit

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Catalog Number Fits

Enclosures

Size H x W

Panel Size

F x G ++

(inches)

Ship.

Weight

Millennium M4, M12 3R

A-SPK2M-1224 A-SPK2N-1224 A-SPK2R-1224 12 X 24 8.13 x 19.13 12

A-SPK2M-1612 A-SPK2N-1612 A-SPK2R-1612 16 X 12 12.13 x 7.13 8

A-SPK2M-1616 A-SPK2N-1616 A-SPK2R-1616 16 X 16 12.13 x 11.13 11

A-SPK2M-1620 A-SPK2N-1620 A-SPK2R-1620 16 X 20 12.13 x 15.13 14

A-SPK2M-2012 A-SPK2N-2012 A-SPK2R-2012 20 X 12 16.13 x 7.13 10

A-SPK2M-2016 A-SPK2N-2016 A-SPK2R-2016 20 X 16 16.13 x 11.13 14

A-SPK2M-2020 A-SPK2N-2020 A-SPK2R-2020 20 X 20 16.13 x 15.13 18

A-SPK2M-2024 A-SPK2N-2024 A-SPK2R-2024 20 X 24 16.13 x 19.13 22

A-SPK2M-2412 A-SPK2N-2412 A-SPK2R-2412 24 X 12 20.13 x 7.13 12

A-SPK2M-2416 A-SPK2N-2416 A-SPK2R-2416 24 X 16 20.13 x 11.13 17

A-SPK2M-2420 A-SPK2N-2420 A-SPK2R-2420 24 X 20 20.13 x 15.13 22

A-SPK2M-2424 A-SPK2N-2424 A-SPK2R-2424 24 X 24 20.13 x 19.13 26

A-SPK2M-2430 A-SPK2N-2430 A-SPK2R-2430 24 X 30 20.13 x 25.13 33

A-SPK2M-3016 A-SPK2N-3016 A-SPK2R-3016 30 X 16 26.13 x 11.13 22

A-SPK2M-3020 A-SPK2N-3020 A-SPK2R-3020 30 X 20 26.13 x 15.13 28

A-SPK2M-3024 A-SPK2N-3024 A-SPK2R-3024 30 X 24 26.13 x 19.13 33

A-SPK2M-3030 A-SPK2N-3030 A-SPK2R-3030 30 X 30 26.13 x 25.13 41

A-SPK2M-3036 A-SPK2N-3036 A-SPK2R-3036 30 X 36 26.13 x 31.13 49

A-SPK2M-3624 A-SPK2N-3624 A-SPK2R-3624 36 X 24 32.13 x 19.13 40

A-SPK2M-3630 A-SPK2N-3630 A-SPK2R-3630 36 X 30 32.13 x 25.13 49

A-SPK2M-3636 A-SPK2N-3636 A-SPK2R-3636 36 X 36 32.13 x 31.13 59

A-SPK2M-4224 A-SPK2N-4224 A-SPK2R-4224 42 X 24 38.13 x 19.13 46

A-SPK2M-4230 A-SPK2N-4230 A-SPK2R-4230 42 X 30 38.13 x 25.13 58

A-SPK2M-4236 A-SPK2N-4236 A-SPK2R-4236 42 X 36 38.13 x 31.13 70

A-SPK2M-4824 A-SPK2N-4824 A-SPK2R-4824 48 X 24 44.13 x 19.13 53

A-SPK2M-4830 A-SPK2N-4830 A-SPK2R-4830 48 X 30 44.13 x 25.13 66

A-SPK2M-4836 A-SPK2N-4836 A-SPK2R-4836 48 X 36 44.13 x 31.13 79

A-SPK2M-6036 A-SPK2N-6036 A-SPK2R-6036 60 X 36 56.13 x 31.13 99

A-SPK2M-7230 A-SPK2N-7230 A-SPK2R-7230 72 X 30 68.13 x 25.13 99

Applications

Allows for additional component

mounting on a 90 degree swing panel.

Kit Includes

• Brackets with 3" slots for semi-

adjustability (fabricated from 12

gauge carbon steel).

• Panel (fabricated from 12 gauge

carbon steel).

• Quarter-turn wing latch(es).

• Bolt on continuous hinge.

Finish

White polyester powder coat over

cleaned phosphatized surfaces.

Aluminum kits have a polished #4

finish.

Options

Milbank can modify standard

enclosures to your specifications.

Holes, cutouts, sizes, materials, and

many more options are available.

Quotations upon request.

5/8 x 3 Slot

4.50

W - 4.06

X X

SECTION X-X

Adjustable from

2.00" to 4.38"

Note:

Weights for aluminum swing panels are not listed. Please contact Milbank for weight.

++ Panel sizes for A-SPK2M and A-SPK2R versions will be slightly larger.

Note:

A-SPK2’s are for installation in N4, N12, MSD,

and 3R only. Enclosure must be studded or have

holes drilled. Customer can order these and use

them in existing enclosures. The customer will have

to drill holes in the sides of the enclosure to mount.

Installation by Milbank will require an extra installation

fee. Some assembly required.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

191

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Fully Adjustable Swing Panel Kit

Applications

Allows for additional component mounting on a

90 degree swing panel.

Kit Includes

• Brackets (fabricated from 12 gauge carbon

steel).

• Panel (fabricated from 12 gauge carbon steel).

• Quarter-turn wing latch(es).

• Bolt on continuous hinge.

Finish

White polyester powder coat over cleaned

phosphatized surfaces. Aluminum kits have a

polished #4 finish.

Options

Milbank can modify standard enclosures to

your specifications. Holes, cutouts, sizes,

materials, and many more options are available.

Quotations upon request.

SECTION X-X

D - 2

ADJUSTABLE

DIMENSION

W - 4.5

OPENING

1.000

Catalog Number Fits

Enclosure

Size H x W

Panel Size

F x G

(inches)

Ship.

Weight

(lbs.)

Carbon Steel # ++ Aluminum # ++

A-SPK3-1224 A-SPK3AL-1224 12 x 24 7.13 x 20.38 14

A-SPK3-1612 A-SPK3AL-1612 16 x 12 11.13 x 8.38 9

A-SPK3-1616 A-SPK3AL-1616 16 x 16 11.13 x 12.38 12

A-SPK3-1620 A-SPK3AL-1620 16 x 20 11.13 x 16.38 15

A-SPK3-2012 A-SPK3AL-2012 20 x 12 15.13 x 8.38 11

A-SPK3-2016 A-SPK3AL-2016 20 x 16 15.13 x 12.38 15

A-SPK3-2020 A-SPK3AL-2020 20 x 20 15.13 x 16.38 19

A-SPK3-2024 A-SPK3AL-2024 20 x 24 15.13 x 20.38 23

A-SPK3-2412 A-SPK3AL-2412 24 x 12 19.13 x 8.38 14

A-SPK3-2416 A-SPK3AL-2416 24 x 16 19.13 x 12.38 19

A-SPK3-2420 A-SPK3AL-2420 24 x 20 19.13 x 16.38 23

A-SPK3-2424 A-SPK3AL-2424 24 x 24 19.13 x 20.38 27

A-SPK3-2430 A-SPK3AL-2430 24 x 30 19.13 x 26.38 34

A-SPK3-3016 A-SPK3AL-3016 30 x 16 25.13 x 12.38 23

A-SPK3-3020 A-SPK3AL-3020 30 x 20 25.13 x 16.38 28

A-SPK3-3024 A-SPK3AL-3024 30 x 24 25.13 x 20.38 34

A-SPK3-3030 A-SPK3AL-3030 30 x 30 25.13 x 26.38 43

A-SPK3-3036 A-SPK3AL-3036 30 x 36 25.13 x 32.38 52

A-SPK3-3624 A-SPK3AL-3624 36 x 24 31.13 x 20.38 42

A-SPK3-3630 A-SPK3AL-3630 36 x 30 31.13 x 26.38 52

A-SPK3-3636 A-SPK3AL-3636 36 x 36 31.13 x 32.38 62

A-SPK3-4224 A-SPK3AL-4224 42 x 24 37.13 x 20.38 48

A-SPK3-4230 A-SPK3AL-4230 42 x 30 37.13 x 26.38 60

A-SPK3-4236 A-SPK3AL-4236 42 x 36 37.13 x 32.38 72

A-SPK3-4824 A-SPK3AL-4824 48 x 24 43.13 x 20.38 55

A-SPK3-4830 A-SPK3AL-4830 48 x 30 43.13 x 26.38 69

A-SPK3-4836 A-SPK3AL-4836 48 x 36 43.13 x 32.38 83

A-SPK3-6036 A-SPK3AL-6036 60 x 36 55.13 x 32.38 104

A-SPK3-7230 A-SPK3AL-7230 72 x 30 67.13 x 26.38 104

Catalog Number Enclosure

Depth

Bracket

Length

Ship.

Weight

Brackets for the Swing Panel Kits

A-SPKB3-8 8 6 5

A-SPKB3-10 10 8 6

A-SPKB3-12 12 10 7

A-SPKB3-16 16 14 8

A-SPKB3-18 18 16 9

A-SPKB3-20 20 18 10

A-SPKB3-24 24 22 12

Notes:

Must order the appropriate A-SPK3 (according to the depth of enclosure) for full adjustability. These brackets will

be welded in each corner of enclosure and the Swing panel kit will be attached to them. If installing with a door

stop kit, holes must be drilled in Swing panel ﬂange. A-SPK3’s are for installation in N4, N12, MSD, and 3R only.

Installation by Milbank will require an extra installation fee. Some assembly required.

Weights for aluminum swing panels are not listed. Please contact Milbank for weight. Brackets for the swing panel

kits must be ordered separate based on depth of enclosure.

++ For MSD Enclosures modify the part number to have an E. (example: A-SPK3). Panel sizes will vary depending

on enclosure.

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

192 Industrial Enclosure Accessories

Heavy Duty Swing Panel Kit

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Catalog Number Fits Enclosure

Size H x W

Panel Size

F x G (inches)

Ship.

Weight

Carbon Steel # Aluminum #

Freestanding Swing Panel Kits

A-SPK4-60P24 A-SPK4AL-60P24 60 X 24 47.75 x 18.75 48

A-SPK4-60P36 A-SPK4AL-60P36 60 X 36 47.75 x 30.75 72

A-SPK4-60P48 A-SPK4AL-60P48 60 X 48 47.75 x 42.75 96

A-SPK4-72P24 A-SPK4AL-72P24 72 X 24 59.75 x 18.75 58

A-SPK4-72P30 A-SPK4AL-72P30 72 X 30 59.75 x 24.75 72

A-SPK4-72P36 A-SPK4AL-72P36 72 X 36 59.75 x 30.75 86

A-SPK4-72P48 A-SPK4AL-72P48 72 X 48 59.75 x 42.75 128

A-SPK4-72P60 A-SPK4AL-72P60 72 X 60 59.75 x 54.75 160

A-SPK4-72P72 A-SPK4AL-72P72 72 X 72 59.75 x 66.75 192

A-SPK4-90P24 A-SPK4AL-90P24 90 X 24 77.75 x 18.75 72

A-SPK4-90P36 A-SPK4AL-90P36 90 X 36 77.75 x 30.75 120

A-SPK4-90P48 A-SPK4AL-90P48 90 X 48 77.75 x 42.75 160

A-SPK4-90P72 A-SPK4AL-90P72 90 X 72 77.75 x 66.75 240

Catalog Number Fits Enclosure

Depth

Panel Size

H x W (inches)

Ship.

Weight

Carbon Steel # Aluminum #

N12 Double Door Floor Mount Swing Panel Kits

A-SPK4-5442 A-SPK4AL-5442 54 X 42 49.38 X 36.75 80

A-SPK4-6048 A-SPK4AL-6048 60 X 48 55.38 X 42.75 100

A-SPK4-6060 A-SPK4AL-6060 60 X 60 55.38 X 54.75 125

A-SPK4-7260 A-SPK4AL-7260 72 X 60 67.38 X 54.75 150

A-SPK4-7272 A-SPK4AL-7272 72 X 72 67.38 X 66.75 180

Applications

Allows for additional component mounting on a

90 degree swing panel.

Kit Includes

• Brackets (fabricated from 12 gauge carbon

steel).

• Panel (fabricated from 12 gauge carbon steel).

• Quarter-turn wing latch(es).

• Bolt on continuous hinge.

• Not applicable for Millennium series.

• Must designate if for a stainless steel

enclosure. Please designate part number with

SS if for stainless steel.

• Wall-mount N4, N12 order A-SPK4: HHWW.

Finish

White polyester powder coat over cleaned

phosphatized surfaces. Aluminum kits have a

polished #4 finish.

Options

Milbank can modify standard swing panels

to your specifications. Holes, cutouts, sizes,

materials, and many more options are available.

Quotations upon request. Installation by

Milbank will require an extra installation fee.

Some assembly required.

Note: Weights for aluminum swing panels are not listed. Please contact

Milbank for weight. Unistrut® must be ordered separately based on

depth of enclosure.

Freestanding Swing Panel Kit Double Door Floor Mount

Swing Panel Kit

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

193

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Swing Panels

X X

SECTION X-X

1.00

Adjustable

Dimension

W - 5.1

Opening

W - 2.21

H - 11.25

Unistrut will be

centered in the

HEIGHT of the

enclosure.

Unistrut Length = Enclosure Depth - 1"

W - .208

(H-5.75)/2

W - 5.1

SECTION X-X

1.001

1.000

Adjustable

Dimension

A-SPK4 | Freestanding Swing Panel Kit

A-SPK4 | Double Door Floor Mount Swing Panel Kit

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

194 Industrial Enclosure Accessories

Pedestals

Applications

Designed for floor mounting of

consolets and pushbutton enclosures.

Construction

Columns are fabricated from 14 gauge

carbon steel with the flanges fabricated

from 10 gauge carbon steel. Bases

fabricated from 12 gauge.

• Two column and base sizes are

available.

• Columns are flanged at each end and

contain a gasketed access plate.

• Wiring connections can be made

through the pedestal base.

• Gasket and screws are standard

with each column.

Finish

Standard ANSI-61 gray finish on

interior and exterior of enclosures.

Recoatable, smooth, white or RAL

7035 texture polyester powder coat

available at no charge. Standard

RAL and custom match finishes

available for an additional charge,

please contact Milbank for further

assistance. All powder coat finishes

applied over cleaned phosphatized

surfaces. Columns and bases are

ordered separately. A 60 degree

adaptor is available to convert standard

pushbutton enclosures to an operator

station.

Options

Milbank can modify standard

enclosures or custom design enclosures

according to your specifications. Holes,

cutouts, sizes, materials, and many

more options are available. Quotations

made upon request.

Industry Standards

• UL 50 Listed

• UL Type 12

• CUL Type 12

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Catalog Number Surface Size

H x W x D (inches) A B Ship.

Weight

Carbon Steel # 304 Stainless Steel # 316 Stainless Steel #

A-COL44 A-COL44XS A-COL44XZ 35 x 4.5 x 4 28.25 3.5 17

A-COL66 A-COL66XS A-COL66XZ 35 x 6.5 x 6 28.25 5.25 23

A-BASE18 A-BASE18XS A-BASE18XZ 18 x 18 x 1.25 — — 18

A-BASE24 A-BASE24XS A-BASE24XZ 24 x 24 x 1.25 — — 39

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

195

INDUSTRIAL

ENCLOSURE

ACCESSORIES

Industrial Enclosure Accessories

Pedestals

COLUMN

4.25" x 30.25" COVER

6.25" x 30.25" COVER

BASE WITH STIFFENERS

6.00

5.50

8.00

H A

8.00

8.00 D

8.00

COLUMN

4.25" x 30.25" COVER

6.25" x 30.25" COVER

BASE WITH STIFFENERS

6.00

5.50

8.00

H A

8.00

8.00 D

8.00

COLUMN

4.25" x 30.25" COVER

6.25" x 30.25" COVER

BASE WITH STIFFENERS

6.00

5.50

8.00

H A

8.00

8.00 D

8.00

Column & Base

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

196

INDUSTRIAL

ENCLOSURE

ExTERIOR

COLOR CHART

Industrial Enclosures

Exterior Color Chart

Available Colors

The color chips represented on these pages

have been prepared as replications of actual

powder coatings. Chips may vary slightly in

color and gloss from actual coating due to the

effects of heat, light and manufacturing process.

Please contact your sales representative for more

information.

1000 1018 2003 3005 3022 4010 5015

1001 1019 2004 3007 3027 5000 5017

1002 1020 2008 3009 3031 5001 5018

1003 1021 2009 3011 4001 5002 5019

1004 1023 2010 3012 4002 5003 5020

1005 1024 5004 5021

1006 1027 5005 5022

1007 1028 5007 5023

1011 1032 2011 3013 4003 5008 5024

1012 1033 2012 3014 4004 5009 6000

1013 1034 3000 3015 4005 5010 6001

1014 1037 3001 3016 4006 5011 6002

1015 2000 3002 3017 4007 5012 6003

1016 2001 3003 3018 4008 5013 6004

1017 2002 3004 3020 4009 5014 6005

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

197

INDUSTRIAL

ENCLOSURE

ExTERIOR

COLOR CHART

Industrial Enclosures

Exterior Color Chart

Available Colors

The color chips represented on these pages

have been prepared as replications of actual

powder coatings. Chips may vary slightly in

color and gloss from actual coating due to the

effects of heat, light and manufacturing process.

Please contact your sales representative for more

information.

6006 6021 7004 7022 7038 8003 8028

6007 6022 7005 7023 7039 8004 9001

6008 6024 7006 7024 7040 8007 9002

6009 6025 7008 7026 7042 8008 9003

6010 6026 7009 7030 7043 8011 9004

6011 6027 8012 9005

6012 6028 8014 9010

6013 6029 8015 9011

6014 6032 7010 7031 7044 8016 9016

6015 6033 7011 7032 7045 8017 9017

6016 6034 7012 7033 7046 8019 9018

6017 7000 7015 7035 8000 8023

6019 7002 7016 7036 8001 8024

6020 7003 7021 7037 8002 8025

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

198

INDUSTRIAL

ENCLOSURE

SPECIALS

Industrial Enclosures

Specials

Double Door Enclosure

• Special powder coat

• Special ﬂush latch

• Special open right side

Double Door

Cabinet

• Special light green

powder coat

• Swing panels

installed

• Ventilation ﬁlter

installed

• 1/4" aluminum

sunshield on

standoffs

• Computer shelf

on the left swing

panel door

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

199

INDUSTRIAL

ENCLOSURE

SPECIALS

Industrial Enclosures

Specials

Large Switchgear Unit

• Completely custom designed switchgear

enclosure

• Multiple compartments and dividers

• Louvered plates

• Breaker cutouts and supporting “top hat”

brackets

Control Panel

• Special two-color powder cota with customer

exterior

• Special punching per customer in bottom

• Special window kit

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

200

INDUSTRIAL

ENCLOSURE

SPECIALS

Industrial Enclosures

Specials

Stainless Steel Large Enclosure

• Special 11 gauge 316 stainless steel with 3⁄16"

thick face

• Special keyboard compartment

• Special NEMA Type 4 window kits

• Recessed doors

Stainless Steel Large Enclosure

• Special 11 gauge 316 stainless steel with 3⁄16"

thick face

• Special keyboard compartment

• Special NEMA Type 4 window kits

• Stainless steel painted beige

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

201

INDUSTRIAL

ENCLOSURE

SPECIALS

Industrial Enclosures

Specials

Drive Cabinet

• Special gauge cutouts in top of doors

• Special ventilation cutouts in bottom of

enclosure and doors

• Custom size

Skid Enclosure

• Highly custom design

• Special safety yellow powder coat

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

202

INDUSTRIAL

ENCLOSURE

SPECIALS

Industrial Enclosures

Specials

Custom Console—Two-Tone

• Special two-tone powder coating

• Special computer compartments with ventilation provisions

• Special storage compartments behind lockable tinted plexiglass

• Custom machined phenolic swivel mechanism that allows for

positioning with a tight, smooth motion

• Special studding, punching and door access

• Stainless grab handles to help with positioning of control monitors

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

203

NOTES

Notes

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

204

INDEx Index

1010120-GHC1-NK .................. 65

1010120-GSC1 ......................... 61

1010120-GSC1-NK ................... 62

1010120-GSC1-NK-NP ............. 62

1010120-GSC3R ....................... 69

1010120-GSC3R-NK ................. 69

1010120-GSC3R-NK-NP ........... 69

10101212GR ............................. 72

101012-GHC1-NK .................... 65

101012-GSC1 ........................... 61

101012-GSC1-NK ..................... 61

101012-GSC1-NK-NP ............... 61

101024-GHC1-NK .................... 65

101024-GSC1 ........................... 61

101024-GSC1-NK ..................... 61

101024-GSC1-NK-NP ............... 61

101024-GSC3R ......................... 68

101024-GSC3R-NK ................... 68

101024-GSC3R-NK-NP ............. 68

101036-GHC1-NK .................... 65

101036-GSC1 ........................... 61

101036-GSC1-NK ..................... 61

101036-GSC1-NK-NP ............... 61

101036-GSC3R ......................... 68

101036-GSC3R-NK ................... 68

101036-GSC3R-NK-NP ............. 68

101048-GHC1-NK .................... 65

101048-GSC1 ........................... 61

101048-GSC1-NK ..................... 61

101048-GSC1-NK-NP ............... 61

101048-GSC3R ......................... 68

101048-GSC3R-NK ................... 68

101048-GSC3R-NK-NP ............. 68

10104-HC1 ............................... 42

10104-HC1-NK ......................... 42

10104-HC3R ............................. 49

10104-LC1 ................................ 44

10104-SC1 ................................ 37

10104-SC1-NK .......................... 37

10104-SC1-NK-NP.................... 37

10104-SC1-NP .......................... 37

10104-SC3R .............................. 46

10104-SC3R-NK ....................... 46

10104-SC3R-NK-NP ................. 46

10104-SC3R-NP ........................ 46

10104-WSC2 ............................ 53

101060-GHC1 .......................... 65

101060-GHC1-NK .................... 65

101060-GSC1 ........................... 61

101060-GSC1-NK ..................... 61

101060-GSC1-NK-NP ............... 61

101060-GSC3R ......................... 68

101060-GSC3R-NK ................... 68

101060-GSC3R-NK-NP ............. 68

10106-HC1 ............................... 42

10106-HC1-NK ......................... 42

10106-LC1 ................................ 44

10106-SC1 ................................ 37

10106-SC1-NK .......................... 37

10106-SC1-NK-NP.................... 38

10106-SC1-NP .......................... 38

10106-SC3R .............................. 46

10106-SC3R-NK ....................... 46

10106-SC3R-NK-NP ................. 46

10106-WSC2 ............................ 53

101072-GHC1 .......................... 65

101072-GSC1 ........................... 61

101072-GSC1-NK ..................... 61

101072-GSC1-NK-NP ............... 61

101072-GSC3R ......................... 68

101072-GSC3R-NK ................... 68

101072-GSC3R-NK-NP ............. 68

101096-GHC1-NK .................... 65

101096-GSC1 ........................... 61

101096-GSC1-NK ..................... 61

101096-GSC1-NK-NP ............... 61

101096-GSC3R ......................... 68

101096-GSC3R-NK ................... 69

101096-GSC3R-NK-NP ............. 69

1010FLC ................................... 56

1010GC .................................... 72

1010GCU .................................. 72

1010GE ..................................... 71

1010GE-NK .............................. 71

1010GE-NK-NP ........................ 71

1010GEU .................................. 71

1010GEU-NK ............................ 71

1010GEU-NK-NP ...................... 71

1010GF ..................................... 73

1010GFL90IS ............................ 74

1010GFL90OS .......................... 74

1010GFL90S ............................. 74

1010GF-NP ............................... 73

1010GH .................................... 72

1010GT ..................................... 73

1010GTF ................................... 73

1010GT-NP ............................... 73

1010GX .................................... 70

1010L45C ................................. 75

1010L45C-NP ........................... 75

1010L45S .................................. 75

1010L45S-NP ............................ 75

1010L90C ................................. 75

1010L90C-NP ........................... 75

1010L90S .................................. 75

1010L90S-NP ............................ 75

1010TFLC ................................. 54

1010TSC ................................... 55

1010WB .................................... 58

1010XSC1 ................................. 40

1010XSC3R ............................... 48

10124-HC1 ............................... 42

10124-LC1 ................................ 44

10124-SC1 ................................ 38

10124-SC1-NK .......................... 38

10124-SC1-NK-NP.................... 38

10124-SC1-NP .......................... 38

10124-SC3R .............................. 46

10126-LC1 ................................ 44

10126-SC1 ................................ 38

10126-SC1-NK .......................... 38

10126-SC1-NP .......................... 38

10126-SC3R .............................. 46

10126-SC3R-NK ....................... 46

10126-SC3R-NK-NP ................. 46

10126-TC3R .............................. 51

1012FLC ................................... 56

1012TFLC ................................. 54

1012TSC ................................... 55

1012WB .................................... 58

1012XSC1 ................................. 40

1012XSC3R ............................... 48

105j ........................................... 11

10X12GSC1 .............................. 62

10X24GSC1 .............................. 62

10X36GSC1 .............................. 62

10X48GSC1 .............................. 62

10X60GSC1 .............................. 62

12106-WSC2 ............................ 53

1212120-GHC1 ........................ 65

1212120-GHC1-NK .................. 65

1212120-GSC1 ......................... 62

1212120-GSC1-NK ................... 62

1212120-GSC1-NK-NP ............. 62

1212120-GSC1-NP ................... 62

1212120-GSC3R ....................... 69

1212120-GSC3R-NK ................. 69

1212120-GSC3R-NK-NP ........... 69

121212-GSC1 ........................... 62

121212-GSC1-NK ..................... 62

121212-GSC1-NK-NP ............... 62

121212-SC1-NK ........................ 38

121212-SC3R-NK ..................... 46

121212-SC3R-NK-NP ............... 47

1212144-GSC3R ....................... 69

1212144-GSC3R-NK ................. 69

1212144-GSC3R-NK-NP ........... 69

121224-GHC1 .......................... 65

121224-GHC12 ........................ 93

121224-GHC12XS .................... 93

121224-GHC12XZ .................... 93

121224-GHC1-NK .................... 65

121224-GSC1 ........................... 62

121224-GSC1-NK ..................... 62

121224-GSC1-NK-NP ............... 62

121224-GSC3R ......................... 69

121224-GSC3R-NK ................... 69

121224-GSC3R-NK-NP ............. 69

121236-GHC12 ........................ 93

121236-GHC12XS .................... 93

121236-GHC12XZ .................... 93

121236-GHC1-NK .................... 65

121236-GHC1-NK-NP .............. 65

121236-GSC1 ........................... 62

121236-GSC1-NK ..................... 62

121236-GSC1-NK-NP ............... 62

121236-GSC3R ......................... 69

121236-GSC3R-NK ................... 69

121236-GSC3R-NK-NP ............. 69

121248-GHC12 ........................ 93

121248-GHC12XS .................... 93

121248-GHC12XZ .................... 93

121248-GHC1-NK .................... 65

121248-GSC1 ........................... 62

121248-GSC1-NK ..................... 62

121248-GSC1-NK-NP ............... 62

121248-GSC3R ......................... 69

121248-GSC3R-NK ................... 69

121248-GSC3R-NK-NP ............. 69

12124-HC1 ............................... 42

12124-HC1-NK ......................... 42

12124-HC1-NK-NP ................... 42

12124-HC3R ............................. 49

12124-LC1 ................................ 44

12124-SC1 ................................ 38

12124-SC1-NK .......................... 38

12124-SC1-NK-NP.................... 38

12124-SC1-NP .......................... 38

12124-SC3R .............................. 46

12124-SC3R-NK ....................... 46

12124-SC3R-NK-NP ................. 46

12124-SC3R-NP ........................ 46

12124-WSC2 ............................ 53

121260-GHC1 .......................... 65

121260-GHC12 ........................ 93

121260-GHC12XS .................... 93

121260-GHC12XZ .................... 93

121260-GHC1-NK .................... 65

121260-GHC1-NK-NP .............. 65

121260-GSC1 ........................... 62

121260-GSC1-NK ..................... 62

121260-GSC1-NK-NP ............... 62

121260-GSC3R ......................... 69

121260-GSC3R-NK ................... 69

121260-GSC3R-NK-NP ............. 69

12126-HC1 ............................... 42

12126-HC1-NK ......................... 42

12126-HC1-NK-NP ................... 42

12126-HC3R ............................. 49

12126-HC3R-NK ....................... 49

12126-LC1 ................................ 44

12126-SC1 ................................ 38

12126-SC1-NK .......................... 38

12126-SC1-NK-NP.................... 38

12126-SC1-NP .......................... 38

12126-SC3R .............................. 46

12126-SC3R-NK ....................... 46

12126-SC3R-NK-NP ................. 46

12126-SC3R-NP ........................ 46

12126-TC3R .............................. 51

12126-WSC2 ............................ 53

121272-GSC1 ........................... 62

121272-GSC1-NK ..................... 62

121272-GSC1-NK-NP ............... 62

121272-GSC3R ......................... 69

121272-GSC3R-NK ................... 69

121272-GSC3R-NK-NP ............. 69

12128-SC1 ................................ 38

12128-SC1-NK .......................... 38

12128-SC1-NK-NP.................... 38

12128-SC1-NP .......................... 38

12128-SC3R .............................. 46

12128-SC3R-NK ....................... 46

12128-SC3R-NK-NP ................. 46

12128-WSC2 ............................ 53

121296-GHC1 .......................... 65

121296-GHC1-NK .................... 65

121296-GSC1 ........................... 62

121296-GSC1-NK ..................... 62

121296-GSC1-NK-NP ............... 62

121296-GSC3R ......................... 69

121296-GSC3R-NK ................... 69

121296-GSC3R-NK-NP ............. 69

1212FLC ................................... 56

1212GC .................................... 72

1212GCU .................................. 72

1212GE ..................................... 71

1212GE-NK .............................. 71

1212GE-NK-NP ........................ 71

1212GE-NP ............................... 71

1212GEU .................................. 71

1212GEU-NK ............................ 71

1212GEU-NK-NP ...................... 71

1212GF ..................................... 73

1212GFL90IS ............................ 74

1212GFL90S ............................. 74

1212GF-NP ............................... 73

1212GFT ................................... 73

1212GH .................................... 72

1212GT ..................................... 73

1212GTF ................................... 73

1212GT-NP ............................... 73

1212GX .................................... 70

1212L45C ................................. 75

1212L45C-NP ........................... 75

1212L45S .................................. 75

1212L45S-NP ............................ 75

1212L90C ................................. 75

1212L90C-NP ........................... 75

1212L90S .................................. 75

1212L90S-NP ............................ 75

1212TFLC ................................. 54

1212TSC ................................... 55

1212WB .................................... 58

1212XSC1 ................................. 40

1212XSC3R ............................... 48

12164-SC1 ................................ 38

12164-SC1-NK .......................... 38

12164-SC1-NK-NP.................... 38

12164-SC1-NP .......................... 38

12164-SC3R .............................. 47

12164-SC3R-NK ....................... 47

12166-LC1 ................................ 44

12166-SC1 ................................ 38

12166-SC1-NK .......................... 38

12166-SC1-NK-NP.................... 38

12166-SC1-NP .......................... 38

12166-SC3R .............................. 47

12166-SC3R-NK ....................... 47

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

205

INDEx

Index

12166-TC3R .............................. 51

1216FLC ................................... 56

1216XSC1 ................................. 40

121810-SC1 .............................. 38

121810-SC3R ............................ 47

121812-SC3R-NK ..................... 47

12184-HC1 ............................... 42

12184-SC1 ................................ 38

12184-SC1-NK .......................... 38

12184-SC1-NK-NP.................... 38

12184-SC3R .............................. 47

12184-SC3R-NK ....................... 47

12186-HC3R ............................. 49

12186-SC1 ................................ 38

12186-SC1-NK .......................... 38

12186-SC1-NK-NP.................... 38

12186-SC3R .............................. 47

12186-SC3R-NK ....................... 47

12186-SC3R-NK-NP ................. 47

12186-TC3R .............................. 51

12188-SC1 ................................ 38

12188-SC1-NK .......................... 38

12188-SC1-NK-NP.................... 38

12188-SC3R .............................. 47

12188-SC3R-NK ....................... 47

12188-SC3R-NK-NP ................. 47

1218FLC ................................... 56

1218TFLC ................................. 54

1218TSC ................................... 55

1218WB .................................... 58

1218XSC1 ................................. 40

12206-LC1 ................................ 44

12244-SC1 ................................ 38

12244-SC1-NK .......................... 38

12246-SC1 ................................ 38

12246-SC1-NK .......................... 38

12246-SC1-NK-NP.................... 38

12246-SC3R .............................. 47

1224FLC ................................... 56

1224TFLC ................................. 54

1224TSC ................................... 55

1224WB .................................... 58

1224XSC1 ................................. 40

1284-HC1 ................................. 42

12X24GSC1 .............................. 62

12X36GSC1 .............................. 62

12X48GSC1 .............................. 62

12X60GSC1 .............................. 62

12X72GSC1 .............................. 62

15186-SC1 ................................ 38

15186-SC1-NK .......................... 38

15186-SC1-NK-NP.................... 38

1518XSC1 ................................. 40

16164-SC1 ................................ 38

16164-SC1-NK .......................... 38

16164-SC1-NK-NP.................... 38

16164-SC3R .............................. 47

16166-LC1 ................................ 44

16166-SC1 ................................ 38

16166-SC1-NK .......................... 38

16166-SC1-NK-NP.................... 38

16166-SC1-NP .......................... 38

16166-SC3R .............................. 47

16166-SC3R-NK ....................... 47

16166-TC3R .............................. 51

16166-WSC2 ............................ 53

1616FLC ................................... 56

1616XSC1 ................................. 40

16206-LC1 ................................ 44

16206-TC3R .............................. 51

181810-SC1 .............................. 39

181810-SC1-NK ........................ 39

181810-SC1-NK-NP.................. 39

181810-SC3R ............................ 47

181810-SC3R-NK ..................... 47

181812-SC1 .............................. 39

181812-SC1-NK ........................ 39

181812-SC1-NK-NP.................. 39

181812-SC3R ............................ 47

181812-SC3R-NK ..................... 47

18184-SC1 ................................ 38

18184-SC1-NK .......................... 38

18184-SC1-NK-NP.................... 38

18184-SC1-NP .......................... 38

18184-SC3R .............................. 47

18184-SC3R-NK ....................... 47

18184-SC3R-NK-NP ................. 47

18184-WSC2 ............................ 53

18186-HC1 ............................... 42

18186-HC1-NK ......................... 42

18186-HC1-NK-NP ................... 42

18186-LC1 ................................ 44

18186-SC1 ................................ 38

18186-SC1-NK .......................... 38

18186-SC1-NK-NP.................... 39

18186-SC1-NP .......................... 39

18186-SC3R .............................. 47

18186-SC3R-NK ....................... 47

18186-SC3R-NK-NP ................. 47

18186-TC3R .............................. 51

18186-WSC2 ............................ 53

18188-HC3R ............................. 49

18188-SC1 ................................ 39

18188-SC1-NK .......................... 39

18188-SC1-NK-NP.................... 39

18188-SC1-NP .......................... 39

18188-SC3R .............................. 47

18188-SC3R-NK ....................... 47

18188-SC3R-NK-NP ................. 47

18188-SC3R-NP ........................ 47

1818FLC ................................... 56

1818TFLC ................................. 54

1818TSC ................................... 55

1818WB .................................... 58

1818XSC1 ................................. 40

1818XSC3R ............................... 48

182410-SC1 .............................. 39

182410-SC1-NK ........................ 39

182410-SC1-NK-NP.................. 39

182410-SC3R ............................ 47

182412-SC1 .............................. 39

182412-SC1-NK ........................ 39

182412-SC1-NK-NP.................. 39

18244-SC1 ................................ 39

18244-SC1-NK .......................... 39

18244-SC1-NK-NP.................... 39

18246-HC1 ............................... 42

18246-HC1-NK ......................... 42

18246-SC1 ................................ 39

18246-SC1-NK .......................... 39

18246-SC1-NK-NP.................... 39

18246-SC1-NP .......................... 39

18246-SC3R .............................. 47

18246-SC3R-NK ....................... 47

18246-SC3R-NK-NP ................. 47

18246-TC3R .............................. 51

18248-SC1 ................................ 39

18248-SC1-NK .......................... 39

18248-SC1-NK-NP.................... 39

18248-SC3R .............................. 47

18248-SC3R-NK ....................... 47

18248-SC3R-NK-NP ................. 47

1824FLC ................................... 56

1824TFLC ................................. 54

1824TSC ................................... 55

1824WB .................................... 58

1824XSC1 ................................. 40

1824XSC3R ............................... 48

1830XSC1 ................................. 40

20206-LC1 ................................ 44

20208-TC3R .............................. 51

20208-WSC2 ............................ 53

20246-LC1 ................................ 44

20248-LC1 ................................ 44

20248-TC3R .............................. 51

22120-GHC1 ............................ 64

22120-GHC1-NK ...................... 64

22120-GSC1 ............................. 60

22120-GSC1-NK ....................... 60

22120-GSC1-NK-NP ................. 60

2212-GCC12 ............................ 88

2212-GCC12XS ........................ 88

2212-GCC12XZ ........................ 88

2212-GHC1 .............................. 63

2212-GHC12 ............................ 93

2212-GHC12XS ........................ 93

2212-GHC12XZ ........................ 93

2212-GHC1-NK ........................ 63

2212-GHC1-NK-NP .................. 63

2212-GSC1 ............................... 59

2212-GSC1-NK ......................... 59

2212-GSC1-NK-NP ................... 59

2218-GCC12 ............................ 88

2218-GCC12XS ........................ 88

2218-GCC12XZ ........................ 88

2218-GHC1 .............................. 63

2218-GHC12 ............................ 93

2218-GHC12XS ........................ 93

2218-GHC12XZ ........................ 93

2218-GHC1-NK-NP .................. 63

2218-GSC1 ............................... 59

2218-GSC1-NK ......................... 59

2218-GSC1-NK-NP ................... 59

2218-GSC1-NP ......................... 59

2224-GCC12 ............................ 88

2224-GCC12XS ........................ 88

2224-GCC12XZ ........................ 88

2224-GHC1 .............................. 63

2224-GHC12 ............................ 93

2224-GHC12XS ........................ 93

2224-GHC12XZ ........................ 93

2224-GHC1-NK ........................ 63

2224-GSC1 ............................... 59

2224-GSC1-NK ......................... 60

2224-GSC1-NK-NP ................... 60

2230-GHC12 ............................ 93

2230-GHC12XS ........................ 93

2230-GHC12XZ ........................ 93

2236-GHC1 .............................. 63

2236-GHC12 ............................ 93

2236-GHC12XS ........................ 93

2236-GHC12XZ ........................ 93

2236-GHC1-NK ........................ 63

2236-GHC1-NK-NP .................. 64

2236-GSC1 ............................... 60

2236-GSC1-NK ......................... 60

2244GR ..................................... 72

2248-GHC1 .............................. 64

2248-GHC12 ............................ 93

2248-GHC12XS ........................ 93

2248-GHC12XZ ........................ 93

2248-GHC1-NK ........................ 64

2248-GSC1 ............................... 60

2248-GSC1-NK ......................... 60

2260-GHC1 .............................. 64

2260-GHC12 ............................ 93

2260-GHC12XS ........................ 93

2260-GHC12XZ ........................ 93

2260-GHC1-NK ........................ 64

2260-GSC1 ............................... 60

2260-GSC1-NK ......................... 60

2272-GHC1 .............................. 64

2272-GHC12 ............................ 93

2272-GHC12XS ........................ 93

2272-GHC12XZ ........................ 93

2272-GHC1-NK ........................ 64

2272-GSC1 ............................... 60

2272-GSC1-NK ......................... 60

2272-GSC1-NK-NP ................... 60

2296-GHC1-NK ........................ 64

2296-GSC1-NK ......................... 60

22GC ........................................ 72

22GCU ...................................... 72

22GE ......................................... 71

22GE-NK .................................. 71

22GE-NK-NP ............................ 71

22GE-NP ................................... 71

22GEU ...................................... 71

22GF ......................................... 73

22GFE ....................................... 71

22GFE-NK ................................ 71

22GFL90IS ................................ 74

22GFL90OS .............................. 74

22GFL90OS-NP ........................ 74

22GFL90S ................................. 74

22GFT ....................................... 73

22GFT-NP ................................. 73

22GH ........................................ 72

22GT ......................................... 73

22GTF ....................................... 73

22GT-NP ................................... 73

22GX ........................................ 70

22GX-NP .................................. 70

22L45C ..................................... 75

22L45C-NP ............................... 75

22L45S ...................................... 75

22L45S-NP ................................ 75

22L90C ..................................... 75

22L90C-NP ............................... 75

22L90S ...................................... 75

22L90S-NP ................................ 75

242410-HC3R ........................... 49

242410-SC1 .............................. 39

242410-SC1-NK ........................ 39

242410-SC1-NK-NP.................. 39

242410-SC3R ............................ 47

242410-SC3R-NK ..................... 47

242410-SC3R-NK-NP ............... 47

242410-TC3R ............................ 51

242412-LC1 .............................. 44

242412-SC1 .............................. 39

242412-SC1-NK ........................ 39

242412-SC1-NK-NP.................. 39

242412-SC3R ............................ 47

242412-SC3R-NK ..................... 47

242412-SC3R-NK-NP ............... 47

242412-WSC2 .......................... 53

24244-SC1 ................................ 39

24244-SC1-NK .......................... 39

24244-SC1-NK-NP.................... 39

24244-SC1-NP .......................... 39

24244-SC3R .............................. 47

24244-SC3R-NP ........................ 47

24246-LC1 ................................ 44

24246-SC1 ................................ 39

24246-SC1-NK .......................... 39

24246-SC1-NK-NP.................... 39

24246-SC1-NP .......................... 39

24246-SC3R .............................. 47

24246-SC3R-NK ....................... 47

24246-SC3R-NK-NP ................. 47

24246-WSC2 ............................ 53

24248-LC1 ................................ 44

24248-SC1 ................................ 39

24248-SC1-NK .......................... 39

24248-SC1-NK-NP.................... 39

24248-SC3R .............................. 47

24248-SC3R-NK ....................... 47

24248-SC3R-NK-NP ................. 47

24248-TC3R .............................. 51

24248-WSC2 ............................ 53

2424FLC ................................... 56

2424TFLC ................................. 54

2424TSC ................................... 55

2424WB .................................... 58

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

206

2424XSC1 ................................. 40

2424XSC3R ............................... 48

243010-SC1 .............................. 39

243010-SC1-NK ........................ 39

243010-SC1-NK-NP.................. 39

243010-SC3R ............................ 47

243010-SC3R-NK ..................... 47

243012-SC1 .............................. 39

243012-SC1-NK-NP.................. 39

243012-SC3R ............................ 47

24306-LC1 ................................ 44

24306-TC3R .............................. 51

24308-SC1 ................................ 39

24308-SC1-NK .......................... 39

24308-SC1-NK-NP.................... 39

2430FLC ................................... 56

2430TFLC ................................. 54

2430TSC ................................... 55

2430WB .................................... 58

2430XSC1 ................................. 40

243610-SC1 .............................. 39

243610-SC1-NK ........................ 40

243612-SC1 .............................. 40

243612-SC1-NK ........................ 40

243612-SC1-NK-NP.................. 40

243612-SC3R ............................ 47

243612-SC3R-NK ..................... 47

24366-LC1 ................................ 44

24366-SC1 ................................ 39

24366-SC1-NK .......................... 39

24366-SC1-NK-NP.................... 39

24366-SC1-NP .......................... 39

24366-TC3R .............................. 51

24368-LC1 ................................ 44

24368-SC1 ................................ 39

24368-SC1-NK .......................... 39

24368-SC1-NK-NP.................... 39

2436FLC ................................... 56

2436TFLC ................................. 54

2436TSC ................................... 55

2436WB .................................... 58

2436XSC1 ................................. 40

2448TFLC ................................. 54

2448TSC ................................... 55

2448WB .................................... 58

303010-SC1-NK ........................ 40

303010-SC1-NK-NP.................. 40

303010-SC3R ............................ 48

303010-SC3R-NK ..................... 48

303010-SC3R-NK-NP ............... 48

303012-SC1-NK ........................ 40

303012-SC1-NK-NP.................. 40

303012-SC3R ............................ 48

303012-SC3R-NK-NP ............... 48

303012-TC3R ............................ 51

303012-WSC2 .......................... 53

30306-SC1-NK .......................... 40

30306-SC1-NK-NP.................... 40

30306-SC3R .............................. 47

30306-SC3R-NK ....................... 48

30308-LC1 ................................ 44

30308-SC1-NK .......................... 40

30308-SC1-NK-NP.................... 40

30308-SC3R .............................. 48

30308-SC3R-NK ....................... 48

3030FLC ................................... 56

3030TFLC ................................. 54

3030TSC ................................... 55

3030XSC1 ................................. 40

303610-SC1-NK-NP.................. 40

303612-SC1-NK ........................ 40

303612-SC1-NK-NP.................. 40

303612-SC3R-NK ..................... 48

303612-TC3R ............................ 51

30366-LC1 ................................ 44

30366-SC1-NK .......................... 40

30366-SC1-NK-NP.................... 40

30368-SC1-NK .......................... 40

30368-SC1-NK-NP.................... 40

3036FLC ................................... 56

3036TFLC ................................. 54

3036TSC ................................... 55

3036WB .................................... 58

3036XSC1 ................................. 40

363010-CT3R ............................ 52

363010-TC3R ............................ 51

363016-CT3R ............................ 52

363610-CT3R ............................ 52

363610-SC1-NK ........................ 40

363610-SC1-NK-NP.................. 40

363612-CT3R ............................ 52

363612-SC1-NK ........................ 40

363612-SC1-NK-NP.................. 40

363612-SC3R ............................ 48

363612-SC3R-NK ..................... 48

363612-SC3R-NK-NP ............... 48

363612-TC3R ............................ 51

363612-WSC2 .......................... 53

363616-CT3R ............................ 52

363616-TC3R ............................ 51

363618-SC1-NK ........................ 40

363618-SC3R-NK ..................... 48

36364-SC1-NK .......................... 40

36366-SC1-NK .......................... 40

36366-SC1-NK-NP.................... 40

36366-TC3R .............................. 51

36368-SC1 ................................ 40

36368-SC1-NK .......................... 40

36368-SC1-NK-NP.................... 40

36368-SC3R .............................. 48

3636FLC ................................... 56

3636TFLC ................................. 54

3636TSC ................................... 55

3636WB .................................... 58

3636XSC1 ................................. 40

364812-TC3R ............................ 51

364816-SC3R-NK ..................... 48

364816-TC3R ............................ 51

36486-SC1-NK .......................... 40

3648FLC ................................... 56

3648TFLC ................................. 54

3648TSC ................................... 55

3648WB .................................... 58

3648XSC1 ................................. 40

44120-GHC1 ............................ 64

44120-GHC1-NK ...................... 64

44120-GSC1 ............................. 60

44120-GSC1-NK ....................... 60

44120-GSC1-NK-NP ................. 60

44120-GSC3R ........................... 67

4412-GCC12 ............................ 88

4412-GCC12XS ........................ 88

4412-GCC12XZ ........................ 88

4412-GHC1 .............................. 64

4412-GHC12 ............................ 93

4412-GHC12XS ........................ 93

4412-GHC12XZ ........................ 93

4412-GHC1-NK ........................ 64

4412-GSC1 ............................... 60

4412-GSC1-NK ......................... 60

4412-GSC1-NK-NP ................... 60

4412-GSC3R ............................. 66

4412-GSC3R-NK ....................... 66

4412-GSC3R-NK-NP ................. 66

4418-GCC12 ............................ 88

4418-GCC12XS ........................ 88

4418-GCC12XZ ........................ 88

4418-GHC12 ............................ 93

4418-GHC12XS ........................ 93

4418-GHC12XZ ........................ 93

4418-GSC1 ............................... 60

4418-GSC1-NK ......................... 60

4418-GSC1-NK-NP ................... 60

4418-GSC3R ............................. 66

4418-GSC3R-NK ....................... 66

4424-GCC12 ............................ 88

4424-GCC12XS ........................ 88

4424-GCC12XZ ........................ 88

4424-GHC1 .............................. 64

4424-GHC12 ............................ 93

4424-GHC12XS ........................ 93

4424-GHC12XZ ........................ 93

4424-GHC1-NK ........................ 64

4424-GSC1 ............................... 60

4424-GSC1-NK ......................... 60

4424-GSC1-NK-NP ................... 60

4424-GSC3R ............................. 66

4424-GSC3R-NK ....................... 66

4424-GSC3R-NK-NP ................. 67

4430-GHC12 ............................ 93

4430-GHC12XS ........................ 93

4430-GHC12XZ ........................ 93

4436-GCC12 ............................ 88

4436-GCC12XS ........................ 88

4436-GCC12XZ ........................ 88

4436-GHC1 .............................. 64

4436-GHC12 ............................ 93

4436-GHC12XS ........................ 93

4436-GHC12XZ ........................ 93

4436-GHC1-NK ........................ 64

4436-GSC1 ............................... 60

4436-GSC1-NK ......................... 60

4436-GSC1-NK-NP ................... 60

4436-GSC3R ............................. 67

4436-GSC3R-NK ....................... 67

4436-GSC3R-NK-NP ................. 67

4448-GCC12 ............................ 88

4448-GCC12XS ........................ 88

4448-GCC12XZ ........................ 88

4448-GHC1 .............................. 64

4448-GHC12 ............................ 93

4448-GHC12XS ........................ 93

4448-GHC12XZ ........................ 93

4448-GHC1-NK ........................ 64

4448-GSC1 ............................... 60

4448-GSC1-NK ......................... 60

4448-GSC1-NK-NP ................... 60

4448-GSC3R ............................. 67

4448-GSC3R-NK ....................... 67

4448-GSC3R-NK-NP ................. 67

444-SC1 .................................... 37

444-SC1-NK .............................. 37

444-SC1-NK-NP........................ 37

444-SC3R .................................. 46

444-SC3R-NK ........................... 46

444-SC3R-NK-NP ..................... 46

4460-GHC1 .............................. 64

4460-GHC12 ............................ 93

4460-GHC12XS ........................ 93

4460-GHC12XZ ........................ 93

4460-GHC1-NK ........................ 64

4460-GSC1 ............................... 60

4460-GSC1-NK ......................... 60

4460-GSC1-NK-NP ................... 60

4460-GSC3R ............................. 67

4460-GSC3R-NK ....................... 67

4460-GSC3R-NK-NP ................. 67

4466GR ..................................... 72

4472-GHC12 ............................ 93

4472-GHC12XS ........................ 93

4472-GHC12XZ ........................ 93

4472-GHC1-NK ........................ 64

4472-GSC1 ............................... 60

4472-GSC1-NK ......................... 60

4472-GSC1-NK-NP ................... 60

4472-GSC3R ............................. 67

4472-GSC3R-NK ....................... 67

4472-GSC3R-NK-NP ................. 67

4496-GHC1-NK ........................ 64

4496-GSC1 ............................... 60

4496-GSC1-NK ......................... 60

4496-GSC3R ............................. 67

44FLC ....................................... 56

44GC ........................................ 72

44GCU ...................................... 72

44GE ......................................... 71

44GE-NK .................................. 71

44GE-NK-NP ............................ 71

44GE-NP ................................... 71

44GEU ...................................... 71

44GEU-NK-NP .......................... 71

44GF ......................................... 73

44GFE ....................................... 71

44GFE-NK ................................ 71

44GFL90IS ................................ 74

44GFL90OS .............................. 74

44GFL90S ................................. 74

44GF-NP ................................... 73

44GFT ....................................... 73

44GH ........................................ 72

44GH-NP .................................. 72

44GT ......................................... 73

44GTF ....................................... 73

44GT-NP ................................... 73

44GX ........................................ 70

44L45C ..................................... 75

44L45S ...................................... 75

44L90C ..................................... 75

44L90C-NP ............................... 75

44L90S ...................................... 75

44L90S-NP ................................ 75

44XSC1 ..................................... 40

44XSC3R ................................... 48

464-SC1 .................................... 37

464-SC1-NK .............................. 37

464-SC1-NK-NP........................ 37

464-SC1-NP .............................. 37

464-SC3R .................................. 46

464-SC3R-NK ........................... 46

46XSC1 ..................................... 40

46XSC3R ................................... 48

483616-CT3R ............................ 52

484812-CT3R ............................ 52

484812-SC1-NK ........................ 40

48486-SC1-NK .......................... 40

4848TFLC ................................. 54

4848TSC ................................... 55

4848WB .................................... 58

4848XSC1 ................................. 40

4X12GSC1 ................................ 62

4X18GSC1 ................................ 62

4X24GSC1 ................................ 62

4X36GSC1 ................................ 62

4X48GSC1 ................................ 62

4X60GSC1 ................................ 62

4X72GSC1 ................................ 62

606013-CT3R ............................ 52

6124-SC1 .................................. 37

6124-SC1-NK ............................ 37

6124-SC3R ................................ 46

6126-SC1 .................................. 37

6126-SC1-NK ............................ 37

612FLC ..................................... 56

612XSC1 ................................... 40

66120-GHC1 ............................ 64

66120-GHC1-NK ...................... 64

66120-GHC1-NK-NP ................ 64

66120-GHC1-NP ...................... 64

66120-GSC1 ............................. 61

66120-GSC1-NK ....................... 61

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

207

66120-GSC1-NK-NP ................. 61

66120-GSC1-NP ....................... 61

66120-GSC3R ........................... 67

66120-GSC3R-NK ..................... 67

6612-GCC12 ............................ 88

6612-GCC12XS ........................ 88

6612-GCC12XZ ........................ 88

6612-GHC1 .............................. 64

6612-GHC12 ............................ 93

6612-GHC12XS ........................ 93

6612-GHC12XZ ........................ 93

6612-GHC1-NK ........................ 64

6612-GHC1-NP ........................ 64

6612-GSC1 ............................... 60

6612-GSC1-NK ......................... 60

6612-GSC1-NK-NP ................... 60

6612-GSC3R ............................. 67

6612-GSC3R-NK ....................... 67

6612-GSC3R-NK-NP ................. 67

6618-GCC12 ............................ 88

6618-GCC12XS ........................ 88

6618-GCC12XZ ........................ 88

6618-GHC12 ............................ 93

6618-GHC12XS ........................ 93

6618-GHC12XZ ........................ 93

6618-GSC1 ............................... 60

6618-GSC1-NK ......................... 60

6618-GSC1-NK-NP ................... 60

6618-GSC3R ............................. 67

6618-GSC3R-NK ....................... 67

6618-GSC3R-NK-NP ................. 67

6624-GCC12 ............................ 88

6624-GCC12XS ........................ 88

6624-GCC12XZ ........................ 88

6624-GHC1 .............................. 64

6624-GHC12 ............................ 93

6624-GHC12XS ........................ 93

6624-GHC12XZ ........................ 93

6624-GHC1-NK ........................ 64

6624-GSC1 ............................... 60

6624-GSC1-NK ......................... 60

6624-GSC1-NK-NP ................... 60

6624-GSC3R ............................. 67

6624-GSC3R-NK ....................... 67

6624-GSC3R-NK-NP ................. 67

6630-GHC12 ............................ 93

6630-GHC12XS ........................ 93

6630-GHC12XZ ........................ 93

6636-GCC12 ............................ 88

6636-GCC12XS ........................ 88

6636-GCC12XZ ........................ 88

6636-GHC1 .............................. 64

6636-GHC12 ............................ 93

6636-GHC12XS ........................ 93

6636-GHC12XZ ........................ 93

6636-GHC1-NK ........................ 64

6636-GSC1 ............................... 60

6636-GSC1-NK ......................... 60

6636-GSC1-NK-NP ................... 60

6636-GSC3R ............................. 67

6636-GSC3R-NK ....................... 67

6636-GSC3R-NK-NP ................. 67

663-SC1 .................................... 37

663-SC1-NK .............................. 37

663-SC1-NK-NP........................ 37

6648-GCC12 ............................ 88

6648-GCC12XS ........................ 88

6648-GCC12XZ ........................ 88

6648-GHC1 .............................. 64

6648-GHC12 ............................ 93

6648-GHC12XS ........................ 93

6648-GHC12XZ ........................ 93

6648-GHC1-NK ........................ 64

6648-GHC1-NP ........................ 64

6648-GSC1 ............................... 60

6648-GSC1-NK ......................... 60

6648-GSC1-NK-NP ................... 60

6648-GSC3R ............................. 67

6648-GSC3R-NK ....................... 67

6648-GSC3R-NK-NP ................. 67

664-HC1 ................................... 42

664-HC1-NK ............................. 42

664-HC1-NK-NP ....................... 42

664-HC3R ................................. 49

664-LC1 .................................... 44

664-SC1 .................................... 37

664-SC1-NK .............................. 37

664-SC1-NK-NP........................ 37

664-SC1-NP .............................. 37

664-SC3R .................................. 46

664-SC3R-NK ........................... 46

664-SC3R-NK-NP ..................... 46

664-SC3R-NP ............................ 46

664-TC3R .................................. 51

664-WSC2 ................................ 53

6660-GHC1 .............................. 64

6660-GHC12 ............................ 93

6660-GHC12XS ........................ 93

6660-GHC12XZ ........................ 93

6660-GHC1-NK ........................ 64

6660-GHC1-NP ........................ 64

6660-GSC1 ............................... 60

6660-GSC1-NK ......................... 60

6660-GSC1-NK-NP ................... 60

6660-GSC3R ............................. 67

6660-GSC3R-NK ....................... 67

6660-GSC3R-NK-NP ................. 67

666-HC1 ................................... 42

666-HC1-NK ............................. 42

666-SC1 .................................... 37

666-SC1-NK .............................. 37

666-SC1-NK-NP........................ 37

666-SC1-NP .............................. 37

666-SC3R .................................. 46

666-SC3R-NK ........................... 46

666-SC3R-NK-NP ..................... 46

666-WSC2 ................................ 53

6672-GHC1 .............................. 64

6672-GHC12 ............................ 93

6672-GHC12XS ........................ 93

6672-GHC12XZ ........................ 93

6672-GHC1-NK ........................ 64

6672-GSC1 ............................... 61

6672-GSC1-NK ......................... 61

6672-GSC1-NK-NP ................... 61

6672-GSC3R ............................. 67

6672-GSC3R-NK ....................... 67

6672-GSC3R-NK-NP ................. 67

6688GR ..................................... 72

6696-GSC1 ............................... 61

6696-GSC1-NK ......................... 61

6696-GSC1-NK-NP ................... 61

6696-GSC1-NP ......................... 61

6696-GSC3R ............................. 67

6696-GSC3R-NK ....................... 67

6696-GSC3R-NK-NP ................. 67

66FLC ....................................... 56

66GC ........................................ 72

66GCU ...................................... 72

66GE ......................................... 71

66GE-NK .................................. 71

66GE-NK-NP ............................ 71

66GE-NP ................................... 71

66GEU ...................................... 71

66GEU-NK ................................ 71

66GEU-NK-NP .......................... 71

66GF ......................................... 73

66GFE ....................................... 71

66GFL90IS ................................ 74

66GFL90OS .............................. 74

66GFL90OS-NP ........................ 74

66GFL90S ................................. 74

66GF-NP ................................... 73

66GFT ....................................... 73

66GFT-NP ................................. 73

66GH ........................................ 72

66GH-NP .................................. 72

66GT ......................................... 73

66GTF ....................................... 73

66GT-NP ................................... 73

66GX ........................................ 70

66L45C ..................................... 75

66L45C-NP ............................... 75

66L45S ...................................... 75

66L45S-NP ................................ 75

66L90C ..................................... 75

66L90C-NP ............................... 75

66L90S ...................................... 75

66L90S-NP ................................ 75

66XSC1 ..................................... 40

66XSC3R ................................... 48

684-HC1 ................................... 42

684-HC1-NK ............................. 42

684-LC1 .................................... 44

684-SC1 .................................... 37

684-SC1-NK .............................. 37

684-SC1-NK-NP........................ 37

684-SC1-NP .............................. 37

684-SC3R .................................. 46

684-SC3R-NK ........................... 46

684-SC3R-NK-NP ..................... 46

684-TC3R .................................. 51

684-WSC2 ................................ 53

686-SC1 .................................... 37

686-SC1-NK .............................. 37

686-SC1-NK-NP........................ 37

686-SC1-NP .............................. 37

686-SC3R .................................. 46

686-SC3R-NK ........................... 46

68XSC1 ..................................... 40

68XSC3R ................................... 48

6X12GSC1 ................................ 62

6X18GSC1 ................................ 62

6X24GSC1 ................................ 62

6X36GSC1 ................................ 62

6X48GSC1 ................................ 62

6X60GSC1 ................................ 62

6X72GSC1 ................................ 62

8104-LC1 .................................. 44

8104-SC1 .................................. 37

8104-SC1-NK ............................ 37

8104-SC1-NK-NP...................... 37

8104-SC1-NP ............................ 37

8104-SC3R ................................ 46

8104-SC3R-NK ......................... 46

8104-WSC2 .............................. 53

8106-LC1 .................................. 44

8106-SC1 .................................. 37

8106-SC1-NK ............................ 37

8106-SC1-NK-NP...................... 37

8106-SC1-NP ............................ 37

8106-SC3R ................................ 46

8106-SC3R-NK ......................... 46

8106-SC3R-NK-NP ................... 46

8106-TC3R ................................ 51

810FLC ..................................... 56

810XSC1 ................................... 40

810XSC3R ................................. 48

8124-HC1-NK ........................... 42

8124-SC1 .................................. 37

8124-SC1-NK ............................ 37

8124-SC1-NK-NP...................... 37

8124-SC3R ................................ 46

8124-SC3R-NK ......................... 46

8126-SC1 .................................. 37

8126-SC1-NK ............................ 37

8126-SC1-NK-NP...................... 37

8126-SC3R ................................ 46

8126-SC3R-NK ......................... 46

812TFLC ................................... 54

812TSC ..................................... 55

812WB ...................................... 58

812XSC1 ................................... 40

881010GR ................................. 72

88120-GHC1 ............................ 65

88120-GHC1-NK ...................... 65

88120-GSC1 ............................. 61

88120-GSC1-NK ....................... 61

88120-GSC1-NK-NP ................. 61

88120-GSC3R ........................... 68

88120-GSC3R-NK ..................... 68

88120-GSC3R-NK-NP ............... 68

881212GR ................................. 72

8812-GHC1 .............................. 64

8812-GHC12 ............................ 93

8812-GHC12XS ........................ 93

8812-GHC12XZ ........................ 93

8812-GHC1-NK ........................ 64

8812-GSC1 ............................... 61

8812-GSC1-NK ......................... 61

8812-GSC1-NK-NP ................... 61

8812-GSC3R ............................. 67

8812-GSC3R-NK ....................... 68

8812-GSC3R-NK-NP ................. 68

8818-GHC1-NK ........................ 64

8818-GSC1 ............................... 61

8818-GSC1-NK ......................... 61

8818-GSC3R ............................. 68

8818-GSC3R-NK ....................... 68

8818-GSC3R-NK-NP ................. 68

8824-GHC1 .............................. 64

8824-GHC12 ............................ 93

8824-GHC12XS ........................ 93

8824-GHC12XZ ........................ 93

8824-GHC1-NK ........................ 64

8824-GSC1 ............................... 61

8824-GSC1-NK ......................... 61

8824-GSC1-NK-NP ................... 61

8824-GSC3R ............................. 68

8824-GSC3R-NK ....................... 68

8824-GSC3R-NK-NP ................. 68

8836-GHC1 .............................. 64

8836-GHC12 ............................ 93

8836-GHC12XS ........................ 93

8836-GHC12XZ ........................ 93

8836-GHC1-NK ........................ 65

8836-GSC1 ............................... 61

8836-GSC1-NK ......................... 61

8836-GSC1-NK-NP ................... 61

8836-GSC3R ............................. 68

8836-GSC3R-NK ....................... 68

8836-GSC3R-NK-NP ................. 68

8848-GHC1 .............................. 65

8848-GHC12 ............................ 93

8848-GHC12XS ........................ 93

8848-GHC12XZ ........................ 93

8848-GHC1-NK ........................ 65

8848-GSC1 ............................... 61

8848-GSC1-NK ......................... 61

8848-GSC1-NK-NP ................... 61

8848-GSC3R ............................. 68

8848-GSC3R-NK ....................... 68

8848-GSC3R-NK-NP ................. 68

884-HC1 ................................... 42

884-HC1-NK ............................. 42

884-HC1-NP ............................. 42

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

208

884-HC3R ................................. 49

884-LC1 .................................... 44

884-SC1 .................................... 37

884-SC1-NK .............................. 37

884-SC1-NK-NP........................ 37

884-SC3R .................................. 46

884-SC3R-NK ........................... 46

884-SC3R-NK-NP ..................... 46

884-SC3R-NP ............................ 46

884-WSC2 ................................ 53

8860-GHC1 .............................. 65

8860-GHC12 ............................ 93

8860-GHC12XS ........................ 93

8860-GHC12XZ ........................ 93

8860-GHC1-NK ........................ 65

8860-GSC1 ............................... 61

8860-GSC1-NK ......................... 61

8860-GSC1-NK-NP ................... 61

8860-GSC3R ............................. 68

8860-GSC3R-NK ....................... 68

8860-GSC3R-NK-NP ................. 68

886-HC1 ................................... 42

886-HC1-NK ............................. 42

886-HC1-NP ............................. 42

886-SC1 .................................... 37

886-SC1-NK .............................. 37

886-SC1-NK-NP........................ 37

886-SC1-NP .............................. 37

886-SC3R .................................. 46

886-SC3R-NK ........................... 46

886-SC3R-NK-NP ..................... 46

886-SC3R-NP ............................ 46

886-TC3R .................................. 51

886-WSC2 ................................ 53

8872-GHC1 .............................. 65

8872-GHC1-NK ........................ 65

8872-GSC1 ............................... 61

8872-GSC1-NK ......................... 61

8872-GSC1-NK-NP ................... 61

8872-GSC3R ............................. 68

8872-GSC3R-NK ....................... 68

8872-GSC3R-NK-NP ................. 68

888-SC1 .................................... 37

888-SC1-NK .............................. 37

888-SC1-NK-NP........................ 37

888-SC1-NP .............................. 37

888-SC3R .................................. 46

888-SC3R-NK ........................... 46

888-WSC2 ................................ 53

8896-GSC1 ............................... 61

8896-GSC1-NK ......................... 61

8896-GSC1-NK-NP ................... 61

8896-GSC3R ............................. 68

8896-GSC3R-NK ....................... 68

8896-GSC3R-NK-NP ................. 68

88FLC ....................................... 56

88GC ........................................ 72

88GCU ...................................... 72

88GE ......................................... 71

88GE-NK .................................. 71

88GE-NK-NP ............................ 71

88GE-NP ................................... 71

88GEU ...................................... 71

88GEU-NK-NP .......................... 71

88GF ......................................... 73

88GFE ....................................... 71

88GFE-NK ................................ 71

88GFL90IS ................................ 74

88GFL90OS .............................. 74

88GFL90S ................................. 74

88GFL90S-NP ........................... 74

88GF-NP ................................... 73

88GFT ....................................... 73

88GH ........................................ 72

88GT ......................................... 73

88GTF ....................................... 73

88GT-NP ................................... 73

88GX ........................................ 70

88L45C ..................................... 75

88L45C-NP ............................... 75

88L45S ...................................... 75

88L90C ..................................... 75

88L90C-NP ............................... 75

88L90S ...................................... 75

88L90S-NP ................................ 75

88TSC ....................................... 55

88WB ........................................ 58

88XSC1 ..................................... 40

88XSC3R ................................... 48

8X12GSC1 ................................ 62

8X18GSC1 ................................ 62

8X24GSC1 ................................ 62

8X36GSC1 ................................ 62

8X48GSC1 ................................ 62

8X60GSC1 ................................ 62

8X72GSC1 ................................ 62

A-1000-U237 .......................... 184

A-1000-U429-01 ..................... 184

A-1000-U78 ............................ 184

A-1010SBP ................................ 58

A-108SBP .................................. 58

A-10P8R .................................... 57

A-1210SBP ................................ 58

A-1212SBP ................................ 58

A-12P10R .................................. 57

A-12P12R .................................. 57

A-12P12W ................................ 57

A-1612SBP ................................ 58

A-1616SBP ................................ 58

A-16P12 .................................... 57

A-16P12W ................................ 57

A-16P16 .................................... 57

A-16P16W ................................ 57

A-1818SBP ................................ 58

A-18P12 .................................... 57

A-18P18 .................................... 57

A-18P18W ................................ 57

A-18P24W ................................ 57

A-2012SBP ................................ 58

A-2016SBP ................................ 58

A-2020SBP ................................ 58

A-20P16 .................................... 57

A-20P20 .................................... 57

A-20P20W ................................ 57

A-20P24W ................................ 57

A-2420SBP ................................ 58

A-2424SBP ................................ 58

A-24P18 .................................... 57

A-24P20 .................................... 57

A-24P24 .................................... 57

A-24P24W ................................ 57

A-261612-10-KIT .................... 183

A-3024SBP ................................ 58

A-3030SBP ................................ 58

A-30P20 .................................. 148

A-30P24 .................................... 57

A-30P24W ................................ 57

A-30P30 .................................... 57

A-30P30 .................................. 148

A-30P30W ................................ 57

A-30X15 .................................. 148

A-30X21 .................................. 148

A-30X27 .................................. 148

A-30X33 .................................. 148

A-30X39 .................................. 148

A-30X45 .................................. 148

A-3624SBP ................................ 58

A-3630SBP ................................ 58

A-36P24 .................................... 57

A-36P24W ................................ 57

A-36P30 .................................... 57

A-36P30W ................................ 57

A-36P36 .................................... 57

A-36P36W ................................ 57

A-3PTCONS ........................... 183

A-48P36W ................................ 57

A-48P48 .................................... 57

A-48P48W ................................ 57

A-60P24F1 .............................. 187

A-60P24F2 .............................. 187

A-60P36F1 .............................. 187

A-60P36F2 .............................. 187

A-60P48F1 .............................. 187

A-60P48F2 .............................. 187

A-60P60 .................................... 57

A-60P60W ................................ 57

A-60SMP14 ............................. 188

A-60SMP20 ............................. 188

A-66SBP .................................... 58

A-6P6R ...................................... 57

A-72P24F1 .............................. 187

A-72P24F2 .............................. 187

A-72P30F1 .............................. 187

A-72P30F2 .............................. 187

A-72P36F1 .............................. 187

A-72P36F2 .............................. 187

A-72P48F1 .............................. 187

A-72P48F2 .............................. 187

A-72P60F1 .............................. 187

A-72P60F2 .............................. 187

A-72P72F1 .............................. 187

A-72P72F2 .............................. 187

A-72SMP14 ............................. 188

A-72SMP20 ............................. 188

A-72SMP26 ............................. 188

A-72SMP32 ............................. 188

A-86SBP .................................... 58

A-88SBP .................................... 58

A-8P6R ...................................... 57

A-8P8R ...................................... 57

A-90P24F1 .............................. 187

A-90P24F2 .............................. 187

A-90P30F1 .............................. 187

A-90P30F2 .............................. 187

A-90P36F1 .............................. 187

A-90P36F2 .............................. 187

A-90P48F1 .............................. 187

A-90P48F2 .............................. 187

A-90P60F1 .............................. 187

A-90P60F2 .............................. 187

A-90P72F1 .............................. 187

A-90P72F2 .............................. 187

A-90SMP14 ............................. 188

A-90SMP16 ............................. 188

A-90SMP20 ............................. 188

A-90SMP26 ............................. 188

A-90SMP32 ............................. 188

A-ADPHD-AB.......................... 189

A-ADPHD-ABFLEX ................. 189

A-ADPHD-ABV ....................... 189

A-ADPHD-ABV400 ................. 189

A-ADPHD-AMT....................... 189

A-ADPHD-BLK ........................ 189

A-ADPHD-CH ......................... 189

A-ADPHD-CHF ....................... 189

A-ADPHD-GE ......................... 189

A-ADPHD-ITE ......................... 189

A-ADPHD-SQ ......................... 189

A-ADPHD-WH ........................ 189

A-BASE18 ............................... 194

A-BASE18XS ........................... 194

A-BASE18XZ ........................... 194

A-BASE24 ............................... 194

A-BASE24XS ........................... 194

A-BASE24XZ ........................... 194

A-BK1060 ................................. 78

A-BK1260 ................................. 78

A-BK460 ................................... 78

A-BK660 ................................... 78

A-BK860 ................................... 78

A-C0035745 ........................... 184

A-COL44 ................................. 194

A-COL44XS ............................ 194

A-COL44XZ ............................ 194

A-COL66 ................................. 194

A-COL66XS ............................ 194

A-COL66XZ ............................ 194

A-DD54P42 ............................ 186

A-DD60P48 ............................ 186

A-DD60P60 ............................ 186

A-DD72P60 ............................ 186

A-DD72P72 ............................ 186

A-DS12 ................................... 173

A-DS12-N4 ............................. 173

A-DS16 ................................... 173

A-DS16-N4 ............................. 173

A-DS20 ................................... 173

A-DS20-N4 ............................. 173

A-DS24 ................................... 173

A-DS24-N4 ............................. 173

A-DS30 ................................... 173

A-DS30-N4 ............................. 173

A-DS36 ................................... 173

A-DS36-N4 ............................. 173

A-DS42 ................................... 173

A-DS42-N4 ............................. 173

A-DS48 ................................... 173

A-DS48-N4 ............................. 173

A-DS60 ................................... 173

A-DS60-N4 ............................. 173

A-DS72 ................................... 173

A-DS72-N4 ............................. 173

A-DSK ..................................... 175

A-DSKXS ................................. 175

A-DSKXZ ................................. 175

A-DSXS12 ............................... 173

A-DSXS12-N4 ......................... 173

A-DSXS16 ............................... 173

A-DSXS16-N4 ......................... 173

A-DSXS20 ............................... 173

A-DSXS20-N4 ......................... 173

A-DSXS24 ............................... 173

A-DSXS24-N4 ......................... 173

A-DSXS30 ............................... 173

A-DSXS30-N4 ......................... 173

A-DSXS36 ............................... 173

A-DSXS36-N4 ......................... 173

A-DSXS42 ............................... 173

A-DSXS42-N4 ......................... 173

A-DSXS48 ............................... 173

A-DSXS48-N4 ......................... 173

A-DSXS60 ............................... 173

A-DSXS60-N4 ......................... 173

A-DSXS72 ............................... 173

A-DSXS72-N4 ......................... 173

A-DSXZ12 ............................... 173

A-DSXZ12-N4 ......................... 173

A-DSXZ16 ............................... 173

A-DSXZ16-N4 ......................... 173

A-DSXZ20 ............................... 173

A-DSXZ20-N4 ......................... 173

A-DSXZ24 ............................... 173

A-DSXZ24-N4 ......................... 173

A-DSXZ30 ............................... 173

A-DSXZ30-N4 ......................... 173

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

209

A-DSXZ36 ............................... 173

A-DSXZ36-N4 ......................... 173

A-DSXZ42 ............................... 173

A-DSXZ42-N4 ......................... 173

A-DSXZ48 ............................... 173

A-DSXZ48-N4 ......................... 173

A-DSXZ60 ............................... 173

A-DSXZ60-N4 ......................... 173

A-DSXZ72 ............................... 173

A-DSXZ72-N4 ......................... 173

A-FLT33 .................................. 179

A-FLT34 .................................. 179

A-FLT43 .................................. 179

A-FLT44 .................................. 179

A-FLT64 .................................. 179

A-FLT66 .................................. 179

A-FLT812 ................................ 179

A-FLT84 .................................. 179

A-FLT86 .................................. 179

A-FLT88 .................................. 179

A-FOCJIC ................................. 78

A-FOCJICS ............................... 78

A-FOCJIC-S ............................ 183

A-FOCJIC-SS .......................... 183

A-FOCXS ................................ 184

A-FOCXZ ................................ 184

A-FSK1210 .............................. 174

A-FSK1212 .............................. 174

A-FSK1216 .............................. 174

A-FSK1218 .............................. 174

A-FSK1220 .............................. 174

A-FSK1224 .............................. 174

A-FSK1230 .............................. 174

A-FSK1236 .............................. 174

A-FSK128 ................................ 174

A-FSK1810 .............................. 174

A-FSK1812 .............................. 174

A-FSK1816 .............................. 174

A-FSK1820 .............................. 174

A-FSK1824 .............................. 174

A-FSK1830 .............................. 174

A-FSK188 ................................ 174

A-FSK2410 .............................. 174

A-FSK2412 .............................. 174

A-FSK2416 .............................. 174

A-FSK2424 .............................. 174

A-FSK248 ................................ 174

A-FSK610 ................................ 174

A-FSK612 ................................ 174

A-FSK616 ................................ 174

A-FSK618 ................................ 174

A-FSK620 ................................ 174

A-FSK624 ................................ 174

A-FSK630 ................................ 174

A-FSK636 ................................ 174

A-FSK68 .................................. 174

A-FSKXS1210 ......................... 174

A-FSKXS1212 ......................... 174

A-FSKXS1216 ......................... 174

A-FSKXS1218 ......................... 174

A-FSKXS1220 ......................... 174

A-FSKXS1224 ......................... 174

A-FSKXS1230 ......................... 174

A-FSKXS1236 ......................... 174

A-FSKXS128 ........................... 174

A-FSKXS1810 ......................... 174

A-FSKXS1812 ......................... 174

A-FSKXS1816 ......................... 174

A-FSKXS1820 ......................... 174

A-FSKXS1824 ......................... 174

A-FSKXS1830 ......................... 174

A-FSKXS188 ........................... 174

A-FSKXS2410 ......................... 174

A-FSKXS2412 ......................... 174

A-FSKXS2416 ......................... 174

A-FSKXS2424 ......................... 174

A-FSKXS248 ........................... 174

A-FSKXS610 ........................... 174

A-FSKXS612 ........................... 174

A-FSKXS616 ........................... 174

A-FSKXS618 ........................... 174

A-FSKXS620 ........................... 174

A-FSKXS624 ........................... 174

A-FSKXS630 ........................... 174

A-FSKXS636 ........................... 174

A-FSKXS68 ............................. 174

A-FSKXZ1210 ......................... 174

A-FSKXZ1212 ......................... 174

A-FSKXZ1216 ......................... 174

A-FSKXZ1218 ......................... 174

A-FSKXZ1220 ......................... 174

A-FSKXZ1224 ......................... 174

A-FSKXZ1230 ......................... 174

A-FSKXZ1236 ......................... 174

A-FSKXZ128 ........................... 174

A-FSKXZ1810 ......................... 174

A-FSKXZ1812 ......................... 174

A-FSKXZ1816 ......................... 174

A-FSKXZ1820 ......................... 174

A-FSKXZ1824 ......................... 174

A-FSKXZ1830 ......................... 174

A-FSKXZ188 ........................... 174

A-FSKXZ2410 ......................... 174

A-FSKXZ2412 ......................... 174

A-FSKXZ2416 ......................... 174

A-FSKXZ2424 ......................... 174

A-FSKXZ248 ........................... 174

A-FSKXZ610 ........................... 174

A-FSKXZ612 ........................... 174

A-FSKXZ616 ........................... 174

A-FSKXZ618 ........................... 174

A-FSKXZ620 ........................... 174

A-FSKXZ624 ........................... 174

A-FSKXZ630 ........................... 174

A-FSKXZ636 ........................... 174

A-FSKXZ68 ............................. 174

A-G1034 ................................. 189

A-GP ......................................... 78

A-GP ....................................... 175

A-GP7035 ............................... 175

A-GSC ....................................... 78

A-HNDLCOMP ....................... 182

A-HNDLHD ............................. 182

A-HNDLHDD .......................... 182

A-HNDLHDK........................... 182

A-HNDL-HDSSPAD ................. 182

A-HNDLKLBLK ........................ 182

A-HNDLKLCHR ....................... 182

A-HNDLLNLSS ........................ 182

A-HNDLSPFS .......................... 183

A-HNDLSPN12D..................... 183

A-HNDLSPWF ......................... 183

A-HNDLSPX ............................ 183

A-HNDLSPXM......................... 183

A-HNDLSPXMN ...................... 183

A-HNDLSPXN ......................... 183

A-HS050 ................................... 76

A-HS050XS ............................... 76

A-HS075 ................................... 76

A-HS075XS ............................... 76

A-HS100 ................................... 76

A-HS100XS ............................... 76

A-HS125 ................................... 76

A-HS125XS ............................... 76

A-HS150 ................................... 76

A-HS150XS ............................... 76

A-HS200 ................................... 76

A-HS200XS ............................... 76

A-HS250 ................................... 76

A-HS300 ................................... 76

A-HS350 ................................... 76

A-HS400 ................................... 76

A-HSPB ..................................... 76

A-HSPBM .................................. 76

A-HSPBMXS ............................. 76

A-HSPBXS ................................. 76

A-HWK1010 ............................ 181

A-HWK1212 ............................ 181

A-HWK124 .............................. 181

A-HWK1520 ............................ 181

A-HWK168 .............................. 181

A-HWK1711 ............................ 181

A-HWK2010 ............................ 181

A-HWK2012 ............................ 181

A-HWK2017 ............................ 181

A-HWK2020 ............................ 181

A-HWK2021 ............................ 181

A-HWK208 .............................. 181

A-HWK2424 ............................ 181

A-HWK2615 ............................ 181

A-HWK3215 ............................ 181

A-HWK3636 ............................ 181

A-HWKXS1010 ....................... 181

A-HWKXS1212 ....................... 181

A-HWKXS124 ......................... 181

A-HWKXS1520 ....................... 181

A-HWKXS168 ......................... 181

A-HWKXS1711 ....................... 181

A-HWKXS2010 ....................... 181

A-HWKXS2012 ....................... 181

A-HWKXS2017 ....................... 181

A-HWKXS2020 ....................... 181

A-HWKXS2021 ....................... 181

A-HWKXS208 ......................... 181

A-HWKXS2424 ....................... 181

A-HWKXS2615 ....................... 181

A-HWKXS3215 ....................... 181

A-HWKXS3636 ....................... 181

A-HWKXZ1010 ....................... 181

A-HWKXZ1212 ....................... 181

A-HWKXZ124 ......................... 181

A-HWKXZ1520 ....................... 181

A-HWKXZ168 ......................... 181

A-HWKXZ1711 ....................... 181

A-HWKXZ2010 ....................... 181

A-HWKXZ2012 ....................... 181

A-HWKXZ2017 ....................... 181

A-HWKXZ2020 ....................... 181

A-HWKXZ2021 ....................... 181

A-HWKXZ208 ......................... 181

A-HWKXZ2424 ....................... 181

A-HWKXZ2615 ....................... 181

A-HWKXZ3215 ....................... 181

A-HWKXZ3636 ....................... 181

A-JH45015 .............................. 185

A-LK10 ...................................... 77

A-LK3 ........................................ 77

A-LK3R ...................................... 77

A-LKFM3R1 .............................. 77

A-LKFM3R2 .............................. 77

A-LKFMKEY3R1 ........................ 77

A-LKFMKEY3R2 ........................ 77

A-LKFMKEYM-K ....................... 77

A-LKLKEY3R1 ........................... 77

A-LKLKEY3R2 ........................... 77

A-LKPAD3R1 ............................. 77

A-LKPAD3R2 ............................. 77

A-LKPH ..................................... 77

A-LKSFMKEYL .......................... 77

A-LKT3R1 .................................. 77

A-LKT3R1-K .............................. 77

A-LKT3R2 .................................. 77

A-LKWHK3R1 ........................... 77

A-LKWHK3R2 ........................... 77

A-LKWHP3R1 ............................ 77

A-LKWHP3R2 ............................ 77

A-LPPOCKET .......................... 176

A-LTHMINI .............................. 184

A-LVK23 .................................. 179

A-LVK33 .................................. 179

A-LVK34 .................................. 179

A-LVK43 .................................. 179

A-LVK44 .................................. 179

A-LVK64 .................................. 179

A-LVK66 .................................. 179

A-LVK812 ................................ 179

A-LVK84 .................................. 179

A-LVK86 .................................. 179

A-LVK88 .................................. 179

A-LVKXS23 .............................. 179

A-LVKXS33 .............................. 179

A-LVKXS34 .............................. 179

A-LVKXS43 .............................. 179

A-LVKXS44 .............................. 179

A-LVKXS64 .............................. 179

A-LVKXS66 .............................. 179

A-LVKXS812 ............................ 179

A-LVKXS84 .............................. 179

A-LVKXS86 .............................. 179

A-LVKXS88 .............................. 179

A-LVKXZ23 .............................. 179

A-LVKXZ33 .............................. 179

A-LVKXZ34 .............................. 179

A-LVKXZ43 .............................. 179

A-LVKXZ44 .............................. 179

A-LVKXZ64 .............................. 179

A-LVKXZ66 .............................. 179

A-LVKXZ812 ............................ 179

A-LVKXZ84 .............................. 179

A-LVKXZ86 .............................. 179

A-LVKXZ88 .............................. 179

A-MOD8418EP ....................... 189

A-MOD8418FEP ..................... 189

A-MOD8418GK ...................... 189

A-MOD8424EP ....................... 189

A-MOD8424FEP ..................... 189

A-MOD8424GK ...................... 189

A-NH20030 ............................ 183

A-NH41041 ............................ 183

A-NH41050 ............................ 183

A-NH45015 ............................ 185

A-PP991C ............................... 176

A-PP991CXS ........................... 176

A-PP991CXZ ........................... 176

A-PPLRGC............................... 176

A-PPLRGCXS .......................... 176

A-PPLRGCXZ .......................... 176

A-PPSMC ................................ 176

A-PPSMCXS ............................ 176

A-PPSMCXZ ............................ 176

A-R002-100BLK ...................... 183

A-R090-100SS ......................... 183

A-Shelf18 ................................ 177

A-Shelf24 ................................ 177

A-SKT1236 .............................. 178

A-SKT1242 .............................. 178

A-SKT1248 .............................. 178

A-SKT1260 .............................. 178

A-SKT1272 .............................. 178

A-SKT1836 .............................. 178

A-SKT1842 .............................. 178

A-SKT1848 .............................. 178

A-SKT1860 .............................. 178

A-SKT1872 .............................. 178

A-SKT2436 .............................. 178

A-SKT2442 .............................. 178

A-SKT2448 .............................. 178

A-SKT2460 .............................. 178

A-SKT2472 .............................. 178

A-SKT636 ................................ 178

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

210

A-SKT642 ................................ 178

A-SKT648 ................................ 178

A-SKT660 ................................ 178

A-SKT672 ................................ 178

A-SKTXS1236 ......................... 178

A-SKTXS1242 ......................... 178

A-SKTXS1248 ......................... 178

A-SKTXS1260 ......................... 178

A-SKTXS1272 ......................... 178

A-SKTXS1836 ......................... 178

A-SKTXS1842 ......................... 178

A-SKTXS1848 ......................... 178

A-SKTXS1860 ......................... 178

A-SKTXS1872 ......................... 178

A-SKTXS2436 ......................... 178

A-SKTXS2442 ......................... 178

A-SKTXS2448 ......................... 178

A-SKTXS2460 ......................... 178

A-SKTXS2472 ......................... 178

A-SKTXS636 ........................... 178

A-SKTXS642 ........................... 178

A-SKTXS648 ........................... 178

A-SKTXS660 ........................... 178

A-SKTXS672 ........................... 178

A-SKTXZ61236 ....................... 178

A-SKTXZ61242 ....................... 178

A-SKTXZ61248 ....................... 178

A-SKTXZ61260 ....................... 178

A-SKTXZ61272 ....................... 178

A-SKTXZ61836 ....................... 178

A-SKTXZ61842 ....................... 178

A-SKTXZ61848 ....................... 178

A-SKTXZ61860 ....................... 178

A-SKTXZ61872 ....................... 178

A-SKTXZ62436 ....................... 178

A-SKTXZ62442 ....................... 178

A-SKTXZ62448 ....................... 178

A-SKTXZ62460 ....................... 178

A-SKTXZ62472 ....................... 178

A-SKTXZ6636 ......................... 178

A-SKTXZ6642 ......................... 178

A-SKTXZ6648 ......................... 178

A-SKTXZ6660 ......................... 178

A-SKTXZ6672 ......................... 178

A-SPK2M-1224 ....................... 190

A-SPK2M-1612 ....................... 190

A-SPK2M-1616 ....................... 190

A-SPK2M-1620 ....................... 190

A-SPK2M-2012 ....................... 190

A-SPK2M-2016 ....................... 190

A-SPK2M-2020 ....................... 190

A-SPK2M-2024 ....................... 190

A-SPK2M-2412 ....................... 190

A-SPK2M-2416 ....................... 190

A-SPK2M-2420 ....................... 190

A-SPK2M-2424 ....................... 190

A-SPK2M-2430 ....................... 190

A-SPK2M-3016 ....................... 190

A-SPK2M-3020 ....................... 190

A-SPK2M-3024 ....................... 190

A-SPK2M-3030 ....................... 190

A-SPK2M-3036 ....................... 190

A-SPK2M-3624 ....................... 190

A-SPK2M-3630 ....................... 190

A-SPK2M-3636 ....................... 190

A-SPK2M-4224 ....................... 190

A-SPK2M-4230 ....................... 190

A-SPK2M-4236 ....................... 190

A-SPK2M-4824 ....................... 190

A-SPK2M-4830 ....................... 190

A-SPK2M-4836 ....................... 190

A-SPK2M-6036 ....................... 190

A-SPK2M-7230 ....................... 190

A-SPK2N-1224 ........................ 190

A-SPK2N-1612 ........................ 190

A-SPK2N-1616 ........................ 190

A-SPK2N-1620 ........................ 190

A-SPK2N-2012 ........................ 190

A-SPK2N-2016 ........................ 190

A-SPK2N-2020 ........................ 190

A-SPK2N-2024 ........................ 190

A-SPK2N-2412 ........................ 190

A-SPK2N-2416 ........................ 190

A-SPK2N-2420 ........................ 190

A-SPK2N-2424 ........................ 190

A-SPK2N-2430 ........................ 190

A-SPK2N-3016 ........................ 190

A-SPK2N-3020 ........................ 190

A-SPK2N-3024 ........................ 190

A-SPK2N-3030 ........................ 190

A-SPK2N-3036 ........................ 190

A-SPK2N-3624 ........................ 190

A-SPK2N-3630 ........................ 190

A-SPK2N-3636 ........................ 190

A-SPK2N-4224 ........................ 190

A-SPK2N-4230 ........................ 190

A-SPK2N-4236 ........................ 190

A-SPK2N-4824 ........................ 190

A-SPK2N-4830 ........................ 190

A-SPK2N-4836 ........................ 190

A-SPK2N-6036 ........................ 190

A-SPK2N-7230 ........................ 190

A-SPK2R-1224 ........................ 190

A-SPK2R-1612 ........................ 190

A-SPK2R-1616 ........................ 190

A-SPK2R-1620 ........................ 190

A-SPK2R-2012 ........................ 190

A-SPK2R-2016 ........................ 190

A-SPK2R-2020 ........................ 190

A-SPK2R-2024 ........................ 190

A-SPK2R-2412 ........................ 190

A-SPK2R-2416 ........................ 190

A-SPK2R-2420 ........................ 190

A-SPK2R-2424 ........................ 190

A-SPK2R-2430 ........................ 190

A-SPK2R-3016 ........................ 190

A-SPK2R-3020 ........................ 190

A-SPK2R-3024 ........................ 190

A-SPK2R-3030 ........................ 190

A-SPK2R-3036 ........................ 190

A-SPK2R-3624 ........................ 190

A-SPK2R-3630 ........................ 190

A-SPK2R-3636 ........................ 190

A-SPK2R-4224 ........................ 190

A-SPK2R-4230 ........................ 190

A-SPK2R-4236 ........................ 190

A-SPK2R-4824 ........................ 190

A-SPK2R-4830 ........................ 190

A-SPK2R-4836 ........................ 190

A-SPK2R-6036 ........................ 190

A-SPK2R-7230 ........................ 190

A-SPK3-1224 .......................... 191

A-SPK3-1612 .......................... 191

A-SPK3-1616 .......................... 191

A-SPK3-1620 .......................... 191

A-SPK3-2012 .......................... 191

A-SPK3-2016 .......................... 191

A-SPK3-2020 .......................... 191

A-SPK3-2024 .......................... 191

A-SPK3-2412 .......................... 191

A-SPK3-2416 .......................... 191

A-SPK3-2420 .......................... 191

A-SPK3-2424 .......................... 191

A-SPK3-2430 .......................... 191

A-SPK3-3016 .......................... 191

A-SPK3-3020 .......................... 191

A-SPK3-3024 .......................... 191

A-SPK3-3030 .......................... 191

A-SPK3-3036 .......................... 191

A-SPK3-3624 .......................... 191

A-SPK3-3630 .......................... 191

A-SPK3-3636 .......................... 191

A-SPK3-4224 .......................... 191

A-SPK3-4230 .......................... 191

A-SPK3-4236 .......................... 191

A-SPK3-4824 .......................... 191

A-SPK3-4830 .......................... 191

A-SPK3-4836 .......................... 191

A-SPK3-6036 .......................... 191

A-SPK3-7230 .......................... 191

A-SPK3AL-1224 ...................... 191

A-SPK3AL-1612 ...................... 191

A-SPK3AL-1616 ...................... 191

A-SPK3AL-1620 ...................... 191

A-SPK3AL-2012 ...................... 191

A-SPK3AL-2016 ...................... 191

A-SPK3AL-2020 ...................... 191

A-SPK3AL-2024 ...................... 191

A-SPK3AL-2412 ...................... 191

A-SPK3AL-2416 ...................... 191

A-SPK3AL-2420 ...................... 191

A-SPK3AL-2424 ...................... 191

A-SPK3AL-2430 ...................... 191

A-SPK3AL-3016 ...................... 191

A-SPK3AL-3020 ...................... 191

A-SPK3AL-3024 ...................... 191

A-SPK3AL-3030 ...................... 191

A-SPK3AL-3036 ...................... 191

A-SPK3AL-3624 ...................... 191

A-SPK3AL-3630 ...................... 191

A-SPK3AL-3636 ...................... 191

A-SPK3AL-4224 ...................... 191

A-SPK3AL-4230 ...................... 191

A-SPK3AL-4236 ...................... 191

A-SPK3AL-4824 ...................... 191

A-SPK3AL-4830 ...................... 191

A-SPK3AL-4836 ...................... 191

A-SPK3AL-6036 ...................... 191

A-SPK3AL-7230 ...................... 191

A-SPK4-5442 .......................... 192

A-SPK4-6048 .......................... 192

A-SPK4-6060 .......................... 192

A-SPK4-60P24 ........................ 192

A-SPK4-60P36 ........................ 192

A-SPK4-60P48 ........................ 192

A-SPK4-7260 .......................... 192

A-SPK4-7272 .......................... 192

A-SPK4-72P24 ........................ 192

A-SPK4-72P30 ........................ 192

A-SPK4-72P36 ........................ 192

A-SPK4-72P48 ........................ 192

A-SPK4-72P60 ........................ 192

A-SPK4-72P72 ........................ 192

A-SPK4-90P24 ........................ 192

A-SPK4-90P36 ........................ 192

A-SPK4-90P48 ........................ 192

A-SPK4-90P72 ........................ 192

A-SPK4AL-5442 ...................... 192

A-SPK4AL-6048 ...................... 192

A-SPK4AL-6060 ...................... 192

A-SPK4AL-60P24 .................... 192

A-SPK4AL-60P36 .................... 192

A-SPK4AL-60P48 .................... 192

A-SPK4AL-7260 ...................... 192

A-SPK4AL-7272 ...................... 192

A-SPK4AL-72P24 .................... 192

A-SPK4AL-72P30 .................... 192

A-SPK4AL-72P36 .................... 192

A-SPK4AL-72P48 .................... 192

A-SPK4AL-72P60 .................... 192

A-SPK4AL-72P72 .................... 192

A-SPK4AL-90P24 .................... 192

A-SPK4AL-90P36 .................... 192

A-SPK4AL-90P48 .................... 192

A-SPK4AL-90P72 .................... 192

A-SPKB3-10 ............................ 191

A-SPKB3-12 ............................ 191

A-SPKB3-16 ............................ 191

A-SPKB3-18 ............................ 191

A-SPKB3-20 ............................ 191

A-SPKB3-24 ............................ 191

A-SPKB3-8 .............................. 191

A-SPPOCKET .......................... 176

A-SUBBRKTB .......................... 189

A-TC3RMFK10 .......................... 78

A-TC3RMFK12 .......................... 78

A-TC3RMFK16 .......................... 78

A-TC3RMFK18 .......................... 78

A-TC3RMFK24 .......................... 78

A-TC3RMFK6 ............................ 78

A-TC3RMFK8 ............................ 78

A-TC3RMFKLG ......................... 78

A-THNDLKLCHR ..................... 182

A-WK1010 .............................. 180

A-WK1212 .............................. 180

A-WK133 ................................ 180

A-WK138 ................................ 180

A-WK1711 .............................. 180

A-WK175 ................................ 180

A-WK2016 .............................. 180

A-WK2017 .............................. 180

A-WK2020 .............................. 180

A-WK2315 .............................. 180

A-WK2420 .............................. 180

A-WK2424 .............................. 180

A-WK2919 .............................. 180

A-WK3523 .............................. 180

A-WK3624 .............................. 180

A-WK3636 .............................. 180

A-WK53 .................................. 180

A-WK95 .................................. 180

A-WKXS1010 .......................... 180

A-WKXS1212 .......................... 180

A-WKXS133 ............................ 180

A-WKXS138 ............................ 180

A-WKXS1711 .......................... 180

A-WKXS175 ............................ 180

A-WKXS2016 .......................... 180

A-WKXS2017 .......................... 180

A-WKXS2020 .......................... 180

A-WKXS2315 .......................... 180

A-WKXS2420 .......................... 180

A-WKXS2424 .......................... 180

A-WKXS2919 .......................... 180

A-WKXS3523 .......................... 180

A-WKXS3624 .......................... 180

A-WKXS3636 .......................... 180

A-WKXS53 .............................. 180

A-WKXS95 .............................. 180

A-WKXZ1010 .......................... 180

A-WKXZ1212 .......................... 180

A-WKXZ133 ............................ 180

A-WKXZ138 ............................ 180

A-WKXZ1711 .......................... 180

A-WKXZ175 ............................ 180

A-WKXZ2016 .......................... 180

A-WKXZ2017 .......................... 180

A-WKXZ2020 .......................... 180

A-WKXZ2315 .......................... 180

A-WKXZ2420 .......................... 180

A-WKXZ2424 .......................... 180

A-WKXZ2919 .......................... 180

A-WKXZ352 ............................ 180

A-WKXZ3624 .......................... 180

A-WKXZ3636 .......................... 180

A-WKXZ53 .............................. 180

A-WKXZ95 .............................. 180

A-WP ........................................ 78

A-WP ...................................... 175

CC10106JIC12 ........................ 87

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

211

CC10106JIC12XS .................... 87

CC10106JIC12XZ .................... 87

CC10106JIC4 ......................... 154

CC10106JIC4XS .................... 154

CC10106JIC4XZ ................... 154

CC1084JIC12 .......................... 87

CC1084JIC12XS ...................... 87

CC1084JIC12XZ ...................... 87

CC1084JIC4 .......................... 154

CC1084JIC4XS ...................... 154

CC1084JIC4XZ ..................... 154

CC1086JIC12 .......................... 87

CC1086JIC12XS ...................... 87

CC1086JIC12XZ ...................... 87

CC1086JIC4 .......................... 154

CC1086JIC4XS ...................... 154

CC1086JIC4XZ ..................... 154

CC12105JIC12 ........................ 87

CC12105JIC12XS .................... 87

CC12105JIC12XZ .................... 87

CC12105JIC4 ........................ 154

CC12105JIC4XS .................... 154

CC12105JIC4XZ ................... 154

CC12108JIC12 ........................ 87

CC12108JIC12XS .................... 87

CC12108JIC12XZ .................... 87

CC12108JIC4 ........................ 154

CC12108JIC4XS .................... 154

CC12108JIC4XZ ................... 154

CC12126JIC12 ........................ 87

CC12126JIC12XS .................... 87

CC12126JIC12XZ .................... 87

CC12126JIC4 ........................ 154

CC12126JIC4XS .................... 154

CC12126JIC4XZ ................... 154

CC1264JIC12 .......................... 87

CC1264JIC12XS ...................... 87

CC1264JIC12XZ ...................... 87

CC1264JIC4 .......................... 154

CC1264JIC4XS ...................... 154

CC1264JIC4XZ ..................... 154

CC14126JIC12 ........................ 87

CC14126JIC12XS .................... 87

CC14126JIC12XZ .................... 87

CC14126JIC4 ........................ 154

CC14126JIC4XS .................... 154

CC14126JIC4XZ ................... 154

CC14128JIC12 ........................ 87

CC14128JIC12XS .................... 87

CC14128JIC12XZ .................... 87

CC14128JIC4 ........................ 154

CC14128JIC4XS .................... 154

CC14128JIC4XZ ................... 154

CC1486JIC12 .......................... 87

CC1486JIC12XS ...................... 87

CC1486JIC12XZ ...................... 87

CC1486JIC4 .......................... 154

CC1486JIC4XS ...................... 154

CC1486JIC4XZ ..................... 154

CC16106JIC12 ........................ 87

CC16106JIC12XS .................... 87

CC16106JIC12XZ .................... 87

CC16106JIC4 ........................ 154

CC16106JIC4XS .................... 154

CC16106JIC4XZ ................... 154

CC161410JIC12 ...................... 87

CC161410JIC12XS .................. 87

CC161410JIC12XZ .................. 87

CC161410JIC4 ....................... 154

CC161410JIC4XS .................. 154

CC161410JIC4XZ .................. 154

CC16146JIC12 ........................ 87

CC16146JIC12XS .................... 87

CC16146JIC12XZ .................... 87

CC16146JIC4 ........................ 154

CC16146JIC4XS .................... 154

CC16146JIC4XZ ................... 154

CC16148JIC12 ........................ 87

CC16148JIC12XS .................... 87

CC16148JIC12XZ .................... 87

CC16148JIC4 ........................ 154

CC16148JIC4XS .................... 154

CC16148JIC4XZ ................... 154

CC443JIC12 ............................ 87

CC443JIC12XS ........................ 87

CC443JIC12XZ ........................ 87

CC443JIC4 ............................. 154

CC443JIC4XS ........................ 154

CC443JIC4XZ ........................ 154

CC444JIC12 ............................ 87

CC444JIC12XS ........................ 87

CC444JIC12XZ ........................ 87

CC444JIC4 ............................ 154

CC444JIC4XS ........................ 154

CC444JIC4XZ ....................... 154

CC643JIC12 ............................ 87

CC643JIC12XS ........................ 87

CC643JIC12XZ ........................ 87

CC643JIC4 ............................. 154

CC643JIC4XS ........................ 154

CC643JIC4XZ ....................... 154

CC644JIC12 ............................ 87

CC644JIC12XS ........................ 87

CC644JIC12XZ ........................ 87

CC644JIC4 ............................ 154

CC644JIC4XS ........................ 154

CC644JIC4XZ ....................... 154

CC664JIC12 ............................ 87

CC664JIC12XS ........................ 87

CC664JIC12XZ ........................ 87

CC664JIC4 ............................ 154

CC664JIC4XS ........................ 154

CC664JIC4XZ ....................... 154

CC666JIC12 ............................. 87

CC666JIC12XS ......................... 87

CC666JIC12XZ ......................... 87

CC666JIC4 ............................. 154

CC666JIC4XS ......................... 154

CC666JIC4XZ ........................ 154

CC863JIC12 ............................ 87

CC863JIC12XS ........................ 87

CC863JIC12XZ ........................ 87

CC863JIC4 ............................ 154

CC863JIC4XS ........................ 154

CC863JIC4XZ ....................... 154

CC866JIC12 ............................ 87

CC866JIC12XS ........................ 87

CC866JIC12XZ ........................ 87

CC866JIC4 ............................ 154

CC866JIC4XS ........................ 154

CC866JIC4XZ ....................... 154

CC884JIC12 ............................. 87

CC884JIC12XS ......................... 87

CC884JIC12XZ ......................... 87

CC884JIC4 ............................ 154

CC884JIC4XS ........................ 154

CC884JIC4XZ ....................... 154

cp-16pdmnt-calt ....................... 11

cp-24pdmnt-calt ....................... 11

cp-32pdmnt .............................. 11

CP3B11110A22SL1 .................... 8

CP3B11115A22 .......................... 7

CP3B111IRASP ......................... 10

CP3B111IRASS ......................... 10

CP3B12110A22SL1 .................... 8

CP3B12119A22 .......................... 7

CP3B1411JB ............................... 9

CP3B14120B .............................. 9

CP3B51110A22SL1 .................... 8

CP3B51115A22 .......................... 7

CP3B52110A22SL1 .................... 8

CP3B52119A22 .......................... 7

CP3B5411JB22 ........................... 9

CP3B54120B22 .......................... 9

cp-abk5/8 ................................. 11

cp-pe-hoa-3pos ........................ 11

cp-pe-typ5-2pos ....................... 11

cp-tc24h.................................... 11

cp-tc7d ..................................... 11

cp-tcwire ................................... 11

FD604912-FT ......................... 125

FD604918-FT ......................... 125

FD604924-FT ......................... 125

FD606112-FT ......................... 125

FD606118-FT ......................... 125

FD606124-FT ......................... 125

FD726112-FT ......................... 125

FD726118-FT ......................... 125

FD727312-FT ......................... 125

FD727318-FT ......................... 125

FD727324-FT ......................... 125

HC10106JIC12 ........................ 90

HC10106JIC12XS .................... 90

HC10106JIC12XZ .................... 90

HC10106JIC4 ........................ 156

HC10106JIC4XS .................... 156

HC10106JIC4XZ .................... 156

HC1084JIC12 .......................... 90

HC1084JIC12XS ...................... 90

HC1084JIC12XZ ...................... 90

HC1084JIC4 .......................... 156

HC1084JIC4XS ...................... 156

HC1084JIC4XZ ...................... 156

HC1086JIC12 .......................... 90

HC1086JIC12XS ...................... 90

HC1086JIC12XZ ...................... 90

HC1086JIC4 .......................... 156

HC1086JIC4XS ...................... 156

HC1086JIC4XZ ...................... 156

HC12105JIC12 ........................ 90

HC12105JIC12XS .................... 90

HC12105JIC12XZ .................... 90

HC12105JIC4 ........................ 156

HC12105JIC4XS .................... 156

HC12105JIC4XZ .................... 156

HC12108JIC12 ........................ 90

HC12108JIC12XS .................... 90

HC12108JIC12XZ .................... 90

HC12108JIC4 ........................ 156

HC12108JIC4XS .................... 156

HC12108JIC4XZ .................... 156

HC12126JIC12 ........................ 90

HC12126JIC12XS .................... 90

HC12126JIC12XZ .................... 90

HC12126JIC4 ........................ 156

HC12126JIC4XS .................... 156

HC12126JIC4XZ .................... 156

HC1264JIC12 .......................... 90

HC1264JIC12XS ...................... 90

HC1264JIC12XZ ...................... 90

HC1264JIC4 .......................... 156

HC1264JIC4XS ...................... 156

HC1264JIC4XZ ....................... 156

HC14126JIC12 ........................ 90

HC14126JIC12XS .................... 90

HC14126JIC12XZ .................... 90

HC14126JIC4 ........................ 156

HC14126JIC4XS .................... 156

HC14126JIC4XZ .................... 156

HC14128JIC12 ........................ 90

HC14128JIC12XS .................... 90

HC14128JIC12XZ .................... 90

HC14128JIC4 ........................ 156

HC14128JIC4XS .................... 156

HC14128JIC4XZ .................... 156

HC1486JIC12 .......................... 90

HC1486JIC12XS ...................... 90

HC1486JIC12XZ ...................... 90

HC1486JIC4 .......................... 156

HC1486JIC4XS ...................... 156

HC1486JIC4XZ ...................... 156

HC16106JIC12 ........................ 90

HC16106JIC12XS .................... 90

HC16106JIC12XZ .................... 90

HC16106JIC4 ........................ 156

HC16106JIC4XS .................... 156

HC16106JIC4XZ .................... 156

HC161410JIC12 ....................... 90

HC161410JIC12XS ................... 90

HC161410JIC12XZ ................... 90

HC16146JIC12 ........................ 90

HC16146JIC12XS .................... 90

HC16146JIC12XZ .................... 90

HC16146JIC4 ........................ 156

HC16146JIC4XS .................... 156

HC16146JIC4XZ .................... 156

HC16148JIC12 ........................ 90

HC16148JIC12XS .................... 90

HC16148JIC12XZ .................... 90

HC16148JIC4 ........................ 156

HC16148JIC4XS .................... 156

HC16148JIC4XZ .................... 156

HC20167JIC12 ......................... 91

HC20169JIC12 ......................... 91

HC20207JIC12 ......................... 91

HC20209JIC12 ......................... 91

HC24207JIC12 ......................... 91

HC24209JIC12 ......................... 91

HC242411JIC12 ....................... 91

HC24247JIC12 ......................... 91

HC24249JIC12 ......................... 91

HC30207JIC12 ......................... 91

HC30209JIC12 ......................... 91

HC302413JIC12 ....................... 91

HC30247JIC12 ......................... 91

HC30249JIC12 ......................... 91

HC362411JIC12 ....................... 91

HC36247JIC12 ......................... 91

HC36249JIC12 ......................... 91

HC363013JIC12 ....................... 91

HC36309JIC12 ......................... 91

HC42309JIC12 ......................... 91

HC42369JIC12 ......................... 91

HC443JIC12 ............................. 90

HC443JIC12XS ......................... 90

HC443JIC12XZ ......................... 90

HC443JIC4 ............................ 156

HC443JIC4XS ........................ 156

HC443JIC4XZ ........................ 156

HC444JIC12 ............................ 90

HC444JIC12XS ........................ 90

HC444JIC12XZ ........................ 90

HC444JIC4 ............................ 156

HC444JIC4XS ........................ 156

HC444JIC4XZ ........................ 156

HC483611JIC12 ....................... 91

HC643 JIC4XS ........................ 156

HC643JIC12 ............................ 90

HC643JIC12XS ........................ 90

HC643JIC12XZ ........................ 90

HC643JIC4 ............................ 156

HC643JIC4XZ ........................ 156

HC644JIC12 ............................ 90

HC644JIC12XS ........................ 90

HC644JIC12XZ ........................ 90

HC644JIC4 ............................ 156

HC644JIC4XS ........................ 156

HC644JIC4XZ ........................ 156

HC664JIC12 ............................. 90

HC664JIC12XS ......................... 90

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

212

HC664JIC12XZ ......................... 90

HC664JIC4 ............................ 156

HC664JIC4XS ........................ 156

HC664JIC4XZ ........................ 156

HC666JIC12 ............................. 90

HC666JIC12XS ......................... 90

HC666JIC12XZ ......................... 90

HC666JIC4 ............................. 156

HC666JIC4XS ......................... 156

HC666JIC4XZ ......................... 156

HC863JIC12 ............................. 90

HC863JIC12XS ......................... 90

HC863JIC12XZ ......................... 90

HC863JIC4 ............................ 156

HC863JIC4XS ........................ 156

HC863JIC4XZ ........................ 156

HC866JIC12 ............................ 90

HC866JIC12XS ........................ 90

HC866JIC12XZ ........................ 90

HC866JIC4 ............................ 156

HC866JIC4XS ........................ 156

HC866JIC4XZ ........................ 156

HC884JIC12 ............................ 90

HC884JIC12XS ........................ 90

HC884JIC12XZ ........................ 90

HC884JIC4 ............................ 156

HC884JIC4XS ........................ 156

HC884JIC4XZ ........................ 156

k3865 ........................................ 11

M123D8611214 ..................... 114

M123D8611220 ..................... 114

M124D8614914 ..................... 114

M124D8614920 ..................... 114

M125D8618714 ..................... 114

M125D8618720 ...................... 114

M12D244208 .......................... 107

M12D244808 .......................... 107

M12D304210 .......................... 107

M12D304212 .......................... 107

M12D304216 ......................... 107

M12D304810 .......................... 107

M12D304812 ......................... 107

M12D306010 .......................... 107

M12D306012 .......................... 107

M12D306016 .......................... 107

M12D364212 ......................... 107

M12D364216 ......................... 107

M12D364812 ......................... 107

M12D364816 ......................... 107

M12D366012 ......................... 107

M12D366016 ......................... 107

M12D424212 ......................... 107

M12D424216 .......................... 107

M12D424812 ......................... 107

M12D424816 ......................... 107

M12D426012 ......................... 107

M12D426016 ......................... 107

M12D484812 ......................... 107

M12D484816 ......................... 107

M12D486012 ......................... 107

M12D486016 ......................... 107

M12D544208-FT .................... 108

M12D604810-FT ................... 108

M12D604812-FT .................... 108

M12D604816-FT .................... 108

M12D604820-FT .................... 108

M12D604824-FT .................... 108

M12D60488-FT ..................... 108

M12D606010-FT .................... 108

M12D606012 .......................... 107

M12D606012-FT ................... 108

M12D606016 ......................... 107

M12D606024-FT ................... 108

M12D726010-FT ................... 108

M12D726012-FT ................... 108

M12D726024-FT ................... 108

M12D727210-FT ................... 108

M12D727212-FT ................... 108

M12D727224-FT ................... 108

M12DXS244208 .................... 107

M12DXS244808 .................... 107

M12DXS304210 .................... 107

M12DXS304212 .................... 107

M12DXS304216 .................... 107

M12DXS304810 .................... 107

M12DXS304812 .................... 107

M12DXS306010 .................... 107

M12DXS306012 ..................... 107

M12DXS306016 ..................... 107

M12DXS364212 .................... 107

M12DXS364216 .................... 107

M12DXS364812 .................... 107

M12DXS364816 .................... 107

M12DXS366012 .................... 107

M12DXS366016 .................... 107

M12DXS424212 .................... 107

M12DXS424216 ..................... 107

M12DXS424812 .................... 107

M12DXS424816 .................... 107

M12DXS426012 .................... 107

M12DXS426016 .................... 107

M12DXS484812 .................... 107

M12DXS484816 .................... 107

M12DXS486012 .................... 107

M12DXS486016 .................... 107

M12DXS544208-FT ............... 108

M12DXS604810-FT ............... 108

M12DXS604812-FT ................ 108

M12DXS604816-FT ................ 108

M12DXS604820-FT ................ 108

M12DXS604824-FT ................ 108

M12DXS60488-FT ................. 108

M12DXS606010-FT ................ 108

M12DXS606012 ..................... 107

M12DXS606012-FT ............... 108

M12DXS606016 .................... 107

M12DXS606024-FT ............... 108

M12DXS726010-FT ................ 108

M12DXS726012-FT ............... 108

M12DXS726024-FT ............... 108

M12DXS727210-FT ............... 108

M12DXS727212-FT ............... 108

M12DXS727224-FT ............... 108

M12DXZ244208 .................... 107

M12DXZ244808 .................... 107

M12DXZ304210 .................... 107

M12DXZ304212 .................... 107

M12DXZ304216 .................... 107

M12DXZ304810 .................... 107

M12DXZ304812 .................... 107

M12DXZ306010 .................... 107

M12DXZ306012 ..................... 107

M12DXZ306016 ..................... 107

M12DXZ364212 .................... 107

M12DXZ364216 .................... 107

M12DXZ364812 .................... 107

M12DXZ364816 .................... 107

M12DXZ366012 .................... 107

M12DXZ366016 .................... 107

M12DXZ424212 .................... 107

M12DXZ424216 ..................... 107

M12DXZ424812 .................... 107

M12DXZ424816 .................... 107

M12DXZ426012 .................... 107

M12DXZ426016 .................... 107

M12DXZ484812 .................... 107

M12DXZ484816 .................... 107

M12DXZ486012 .................... 107

M12DXZ486016 .................... 107

M12DXZ54428-FT .................. 108

M12DXZ604810-FT ............... 108

M12DXZ604812-FT ................ 108

M12DXZ604816-FT ................ 108

M12DXZ604820-FT ................ 108

M12DXZ604824-FT ................ 108

M12DXZ60488-FT ................. 108

M12DXZ606010-FT ................ 108

M12DXZ606012 ..................... 107

M12DXZ606012-FT ............... 108

M12DXZ606016 .................... 107

M12DXZ606024-FT ............... 108

M12DXZ726010-FT ................ 108

M12DXZ726012-FT ............... 108

M12DXZ726024-FT ............... 108

M12DXZ727210-FT ............... 108

M12DXZ727212-FT ............... 108

M12DXZ727224-FT ............... 108

M12FS3D7210018AF-FD ...... 130

M12FS3D7211818AF-FD ...... 130

M12FS3D8411818AF-FD ...... 130

M12FS3D8411824AF-FD ...... 130

M12FS3D9011824AF-FD ...... 130

M12FS4D8415818AF-FD ...... 130

M12FS4D8415824AF-FD ...... 130

M12FS4D9015818AF-FD ...... 130

M12FS4D9015824AF-FD ...... 130

M12FS5D8419718AF-FD ...... 130

M12FS5D8419724AF-FD ...... 130

M12FS5D9019718AF-FD ...... 130

M12FS5D9019724AF-FD ...... 130

M12FS602418 ........................ 110

M12FS603624 ........................ 110

M12FS722418 ........................ 110

M12FS722424 ........................ 110

M12FS722430 ........................ 110

M12FS722818AF-FD ............. 130

M12FS723018 ........................ 110

M12FS723024 ........................ 110

M12FS723418AF-FD ............. 130

M12FS723618 ........................ 110

M12FS723624 ........................ 110

M12FS723630 ........................ 110

M12FS723636 ........................ 110

M12FS724018AF-FD ............. 130

M12FS844018AF-FD ............. 130

M12FS844024AF-FD ............. 130

M12FS902420 ........................ 110

M12FS903620 ........................ 110

M12FS903624 ........................ 110

M12FS903636 ........................ 110

M12FS904018AF-FD ............. 130

M12FS904020AF-FD ............. 130

M12FS904024AF-FD ............. 130

M12FSD604818 ...................... 112

M12FSD724818 ...................... 112

M12FSD724824 ...................... 112

M12FSD725418AF-FD .......... 130

M12FSD726018 ...................... 112

M12FSD726024 ...................... 112

M12FSD726036 ...................... 112

M12FSD726618AF-FD .......... 130

M12FSD727218 ...................... 112

M12FSD727224 ...................... 112

M12FSD727818AF-FD .......... 130

M12FSD727824SF-FD ........... 130

M12FSD847818AF-FD .......... 130

M12FSD847824AF-FD .......... 130

M12FSD904820 ...................... 112

M12FSD907220 ...................... 112

M12FSD907224 ...................... 112

M12FSD907236 ...................... 112

M12FSD907818AF-FD .......... 130

M12FSD907820AF-FD .......... 130

M12FSD907824AF-FD .......... 130

M12FSDA724824 ................... 111

M12FSDA726024 ................... 111

M12FSDA726036 ................... 111

M12FSDA727224 ................... 111

M12FSDA907224 ................... 111

M12FSDAD724824 ................. 113

M12FSDAD726024 ................. 113

M12FSDAD726036 ................. 113

M12FSDAD727224 ................. 113

M12FSDAD907224 ................. 113

M12FSDADXS724824 ............ 113

M12FSDADXS726024 ............ 113

M12FSDADXS726036 ............ 113

M12FSDADXS727224 ............ 113

M12FSDADXS907224 ............ 113

M12FSDADXZ724824 ............ 113

M12FSDADXZ726024 ............ 113

M12FSDADXZ726036 ............ 113

M12FSDADXZ727224 ............ 113

M12FSDADXZ907224 ............ 113

M12FSDASS724824 ............... 111

M12FSDASS726024 ............... 111

M12FSDASS726036 ............... 111

M12FSDASS727224 ............... 111

M12FSDASS907224 ............... 111

M12FSDAXZ724824 ............... 111

M12FSDAXZ726024 ............... 111

M12FSDAXZ726036 ............... 111

M12FSDAXZ727224 ............... 111

M12FSDAXZ907224 ............... 111

M12FSDXS604818 ................. 112

M12FSDXS724818 ................. 112

M12FSDXS724824 ................. 112

M12FSDXS726018 ................. 112

M12FSDXS726024 ................. 112

M12FSDXS726036 ................. 112

M12FSDXS727218 ................. 112

M12FSDXS727224 ................. 112

M12FSDXS904820 ................. 112

M12FSDXS907220 ................. 112

M12FSDXS907224 ................. 112

M12FSDXS907236 ................. 112

M12FSDXZ604818 ................. 112

M12FSDXZ724818 ................. 112

M12FSDXZ724824 ................. 112

M12FSDXZ726018 ................. 112

M12FSDXZ726024 ................. 112

M12FSDXZ726036 ................. 112

M12FSDXZ727218 ................. 112

M12FSDXZ727224 ................. 112

M12FSDXZ904820 ................. 112

M12FSDXZ907220 ................. 112

M12FSDXZ907224 ................. 112

M12FSDXZ907236 ................. 112

M12FSXS602418 .................... 110

M12FSXS603624 .................... 110

M12FSXS722418 .................... 110

M12FSXS722424 .................... 110

M12FSXS722430 .................... 110

M12FSXS723018 .................... 110

M12FSXS723024 .................... 110

M12FSXS723618 .................... 110

M12FSXS723624 .................... 110

M12FSXS723630 .................... 110

M12FSXS723636 .................... 110

M12FSXS902420 .................... 110

M12FSXS903620 .................... 110

M12FSXS903624 .................... 110

M12FSXS903636 .................... 110

M12FSXZ602418 .................... 110

M12FSXZ603624 .................... 110

M12FSXZ722418 .................... 110

M12FSXZ722424 .................... 110

M12FSXZ722430 .................... 110

M12FSXZ723018 .................... 110

M12FSXZ723024 .................... 110

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

213

M12FSXZ723618 .................... 110

M12FSXZ723624 .................... 110

M12FSXZ723630 .................... 110

M12FSXZ723636 .................... 110

M12FSXZ902420 .................... 110

M12FSXZ903620 .................... 110

M12FSXZ903624 .................... 110

M12FSXZ903636 .................... 110

M12MOD843818 .................. 136

M12MOD843824 .................. 136

M12MOD843918-FD ............. 136

M12MOD843924-FD ............. 136

M12MOD847718 .................. 137

M12MOD847724 .................. 137

M12MOD847818-FD ............. 137

M12MOD847824-FD ............. 137

M12S122406 .......................... 104

M12S122408 .......................... 104

M12S161206 .......................... 104

M12S161208 .......................... 104

M12S161210 .......................... 104

M12S161606 .......................... 104

M12S161608 .......................... 104

M12S162006 .......................... 104

M12S162008 .......................... 104

M12S201206 .......................... 104

M12S201208 .......................... 104

M12S201606 .......................... 104

M12S201608 .......................... 104

M12S201610 .......................... 105

M12S201612 .......................... 105

M12S202006 .......................... 104

M12S202008 .......................... 104

M12S202108-FD ................... 120

M12S202108-FD-H ................ 118

M12S202110-FD ................... 120

M12S202110-FD-H ................ 118

M12S202406 .......................... 104

M12S202408 .......................... 104

M12S241206 .......................... 104

M12S241210 .......................... 104

M12S241606 .......................... 104

M12S241608 .......................... 104

M12S242006 .......................... 104

M12S242008 .......................... 104

M12S242010 .......................... 105

M12S242012 .......................... 105

M12S242016 .......................... 105

M12S242108-FD ................... 120

M12S242108-FD-H ................ 118

M12S242110-FD ................... 120

M12S242110-FD-H ................ 118

M12S242406 .......................... 104

M12S242408 .......................... 104

M12S242410 .......................... 105

M12S242412 .......................... 105

M12S242416 .......................... 105

M12S242508-FD ................... 120

M12S242508-FD-H ................ 118

M12S242510-FD ................... 120

M12S242510-FD-H ................ 118

M12S243008 .......................... 104

M12S301606 .......................... 104

M12S302006 .......................... 104

M12S302008 .......................... 104

M12S302010 .......................... 105

M12S302108-FD ................... 120

M12S302108-FD-H ................ 118

M12S302110-FD ................... 120

M12S302110-FD-H ................ 119

M12S302406 .......................... 104

M12S302408 .......................... 104

M12S302410 .......................... 105

M12S302412 .......................... 105

M12S302416 .......................... 105

M12S302420 .......................... 105

M12S302424 .......................... 105

M12S302508-FD ................... 120

M12S302508-FD-H ................ 118

M12S302510-FD ................... 120

M12S302510-FD-H ................ 119

M12S302512-FD ................... 121

M12S303008 .......................... 104

M12S303012 .......................... 105

M12S303608 .......................... 104

M12S362406 .......................... 104

M12S362408 .......................... 104

M12S362410 .......................... 105

M12S362412 .......................... 105

M12S362508-FD ................... 120

M12S362508-FD-H ................ 118

M12S362510-FD ................... 121

M12S362510-FD-H ................ 119

M12S363006 .......................... 104

M12S363008 .......................... 104

M12S363010 .......................... 105

M12S363012 .......................... 105

M12S363016 .......................... 105

M12S363020 .......................... 105

M12S363108-FD ................... 120

M12S363108-FD-H ................ 118

M12S363110-FD ................... 121

M12S363110-FD-H ................ 119

M12S363112-FD ................... 121

M12S363112-FD-H ................ 119

M12S363116-FD ................... 121

M12S363116-FD-H ................ 119

M12S363608 .......................... 104

M12S363612 .......................... 105

M12S422408 .......................... 104

M12S423008 .......................... 104

M12S423010 .......................... 105

M12S423012 .......................... 105

M12S423108-FD ................... 120

M12S423108-FD-H ................ 118

M12S423110-FD ................... 121

M12S423110-FD-H ................ 119

M12S423112-FD ................... 121

M12S423112-FD-H ................ 119

M12S423608 .......................... 104

M12S423610 .......................... 105

M12S423612 .......................... 105

M12S423616 .......................... 105

M12S423708-FD ................... 120

M12S423708-FD-H ................ 118

M12S423710-FD ................... 121

M12S423710-FD-H ................ 119

M12S423712-FD ................... 121

M12S423712-FD-H ................ 119

M12S482408 .......................... 104

M12S483008 .......................... 104

M12S483010 .......................... 105

M12S483608 .......................... 104

M12S483610 .......................... 105

M12S483612 .......................... 105

M12S483616 .......................... 105

M12S483620 .......................... 105

M12S483708-FD ................... 120

M12S483708-FD-H ................ 118

M12S483710-FD ................... 121

M12S483710-FD-H ................ 119

M12S483712-FD ................... 121

M12S483712-FD-H ................ 119

M12S483716-FD ................... 121

M12S483716-FD-H ................ 119

M12S603608 .......................... 104

M12S603610 .......................... 105

M12S603612 .......................... 105

M12S603616 .......................... 105

M12S603620 .......................... 105

M12S603708-FD ................... 120

M12S603708-FD-H ................ 118

M12S603710-FD ................... 121

M12S603710-FD-H ................ 119

M12S603712-FD ................... 121

M12S603712-FD-H ................ 119

M12S603716-FD ................... 121

M12S603716-FD-H ................ 119

M12S723012 .......................... 105

M12S723016 .......................... 105

M12S723020 .......................... 105

M12S723024 .......................... 105

M12S723612 .......................... 105

M12SAB202108-FD-H ............ 123

M12SAB202110-FD-H ............ 123

M12SAB242108-FD-H ............ 123

M12SAB242110-FD-H ............ 123

M12SAB242508-FD-H ............ 123

M12SAB242510-FD-H ............ 123

M12SAB302108-FD-H ............ 123

M12SAB302110-FD-H ............ 123

M12SAB302508-FD-H ............ 123

M12SAB302510-FD-H ............ 123

M12SAB302512-FD ............... 124

M12SAB362508-FD-H ............ 123

M12SAB362510-FD-H ............ 123

M12SAB363108-FD-H ............ 123

M12SAB363110-FD-H ............ 123

M12SAB363112-FD ............... 124

M12SAB363116-FD ............... 124

M12SAB423108-FD-H ............ 123

M12SAB423110-FD-H ............ 123

M12SAB423112-FD ............... 124

M12SAB423708-FD-H ............ 123

M12SAB423710-FD-H ............ 124

M12SAB423712-FD ............... 124

M12SAB483708-FD-H ............ 123

M12SAB483710-FD ............... 124

M12SAB483712-FD ............... 124

M12SAB483716-FD ............... 124

M12SAB483716-FD-A ............ 124

M12SAB483716-FD-A ........... 124

M12SAB603708-FD-H ............ 123

M12SAB603710-FD ............... 124

M12SAB603712-FD ............... 124

M12SAB603716-FD ............... 124

M12SAB603716-FD-A ............ 124

M12SAB603716-FD-A ........... 124

M12SP1-C18 ........................... 148

M12SP1-C24 ........................... 148

M12SP1-C30 ........................... 148

M12SP1-C36 ........................... 148

M12SP1-C42 ........................... 148

M12SP1-C48 ........................... 148

M12SP-924B ........................... 148

M12SP-936B ........................... 148

M12XA122406 ........................ 104

M12XA122408 ........................ 104

M12XA161206 ........................ 104

M12XA161208 ........................ 104

M12XA161210 ........................ 104

M12XA161606 ........................ 104

M12XA161608 ........................ 104

M12XA162006 ........................ 104

M12XA162008 ........................ 104

M12XA201206 ........................ 104

M12XA201208 ........................ 104

M12XA201606 ........................ 104

M12XA201608 ........................ 104

M12XA201610 ........................ 105

M12XA201612 ........................ 105

M12XA202006 ........................ 104

M12XA202008 ........................ 104

M12XA202406 ........................ 104

M12XA202408 ........................ 104

M12XA241206 ........................ 104

M12XA241210 ........................ 104

M12XA241606 ........................ 104

M12XA241608 ........................ 104

M12XA242006 ........................ 104

M12XA242008 ........................ 104

M12XA242010 ........................ 105

M12XA242012 ........................ 105

M12XA242016 ........................ 105

M12XA242406 ........................ 104

M12XA242408 ........................ 104

M12XA242410 ........................ 105

M12XA242412 ........................ 105

M12XA242416 ........................ 105

M12XA243008 ........................ 104

M12XA301606 ........................ 104

M12XA302006 ........................ 104

M12XA302008 ........................ 104

M12XA302010 ........................ 105

M12XA302406 ........................ 104

M12XA302408 ........................ 104

M12XA302410 ........................ 105

M12XA302412 ........................ 105

M12XA302416 ........................ 105

M12XA302420 ........................ 105

M12XA302424 ........................ 105

M12XA303008 ........................ 104

M12XA303012 ........................ 105

M12XA303608 ........................ 104

M12XA362406 ........................ 104

M12XA362408 ........................ 104

M12XA362410 ........................ 105

M12XA362412 ........................ 105

M12XA363006 ........................ 104

M12XA363008 ........................ 104

M12XA363010 ........................ 105

M12XA363012 ........................ 105

M12XA363016 ........................ 105

M12XA363020 ........................ 105

M12XA363608 ........................ 104

M12XA363612 ........................ 105

M12XA422408 ........................ 104

M12XA423008 ........................ 104

M12XA423010 ........................ 105

M12XA423012 ........................ 105

M12XA423608 ........................ 104

M12XA423610 ........................ 105

M12XA423612 ........................ 105

M12XA423616 ........................ 105

M12XA482408 ........................ 104

M12XA483008 ........................ 104

M12XA483010 ........................ 105

M12XA483608 ........................ 104

M12XA483610 ........................ 105

M12XA483612 ........................ 105

M12XA483616 ........................ 105

M12XA483620 ........................ 105

M12XA603608 ........................ 104

M12XA603610 ........................ 105

M12XA603612 ........................ 105

M12XA603616 ........................ 105

M12XA603620 ........................ 105

M12XA723012 ........................ 105

M12XA723016 ........................ 105

M12XA723020 ........................ 105

M12XA723024 ........................ 105

M12XA723612 ........................ 105

M12XS122406 ........................ 104

M12XS122408 ........................ 104

M12XS161206 ........................ 104

M12XS161208 ........................ 104

M12XS161210 ........................ 104

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

214

M12XS161606 ........................ 104

M12XS161608 ........................ 104

M12XS162006 ........................ 104

M12XS162008 ........................ 104

M12XS201206 ........................ 104

M12XS201208 ........................ 104

M12XS201606 ........................ 104

M12XS201608 ........................ 104

M12XS201610 ........................ 105

M12XS201612 ........................ 105

M12XS202006 ........................ 104

M12XS202008 ........................ 104

M12XS202108-FD ................. 120

M12XS202108-FD-H ............. 118

M12XS202110-FD ................. 120

M12XS202110-FD-H ............. 118

M12XS202406 ........................ 104

M12XS202408 ........................ 104

M12XS241206 ........................ 104

M12XS241210 ........................ 104

M12XS241606 ........................ 104

M12XS241608 ........................ 104

M12XS242006 ........................ 104

M12XS242008 ........................ 104

M12XS242010 ........................ 105

M12XS242012 ........................ 105

M12XS242016 ........................ 105

M12XS242108-FD ................. 120

M12XS242108-FD-H ............. 118

M12XS242110-FD ................. 120

M12XS242110-FD-H ............. 118

M12XS242406 ........................ 104

M12XS242408 ........................ 104

M12XS242410 ........................ 105

M12XS242412 ........................ 105

M12XS242416 ........................ 105

M12XS242508-FD ................. 120

M12XS242508-FD-H ............. 118

M12XS242510-FD ................. 120

M12XS242510-FD-H ............. 118

M12XS243008 ........................ 104

M12XS301606 ........................ 104

M12XS302006 ........................ 104

M12XS302008 ........................ 104

M12XS302010 ........................ 105

M12XS302108-FD ................. 120

M12XS302108-FD-H ............. 118

M12XS302110-FD ................. 120

M12XS302110-FD-H ............. 119

M12XS302406 ........................ 104

M12XS302408 ........................ 104

M12XS302410 ........................ 105

M12XS302412 ........................ 105

M12XS302416 ........................ 105

M12XS302420 ........................ 105

M12XS302424 ........................ 105

M12XS302508-FD ................. 120

M12XS302508-FD-H ............. 118

M12XS302510-FD ................. 120

M12XS302510-FD-H ............. 119

M12XS302512-FD ................. 121

M12XS303008 ........................ 104

M12XS303012 ........................ 105

M12XS303608 ........................ 104

M12XS362406 ........................ 104

M12XS362408 ........................ 104

M12XS362410 ........................ 105

M12XS362412 ........................ 105

M12XS362508-FD ................. 120

M12XS362508-FD-H ............. 118

M12XS362510-FD ................. 121

M12XS362510-FD-H ............. 119

M12XS363006 ........................ 104

M12XS363008 ........................ 104

M12XS363010 ........................ 105

M12XS363012 ........................ 105

M12XS363016 ........................ 105

M12XS363020 ........................ 105

M12XS363108-FD ................. 120

M12XS363108-FD-H ............. 118

M12XS363110-FD ................. 121

M12XS363110-FD-H ............. 119

M12XS363112-FD ................. 121

M12XS363112-FD-H ............. 119

M12XS363116-FD ................. 121

M12XS363116-FD-H ............. 119

M12XS363608 ........................ 104

M12XS363612 ........................ 105

M12XS422408 ........................ 104

M12XS423008 ........................ 104

M12XS423010 ........................ 105

M12XS423012 ........................ 105

M12XS423108-FD ................. 120

M12XS423108-FD-H ............. 118

M12XS423110-FD ................. 121

M12XS423110-FD-H ............. 119

M12XS423112-FD ................. 121

M12XS423112-FD-H ............. 119

M12XS423608 ........................ 104

M12XS423610 ........................ 105

M12XS423612 ........................ 105

M12XS423616 ........................ 105

M12XS423708-FD ................. 120

M12XS423708-FD-H ............. 118

M12XS423710-FD ................. 121

M12XS423710-FD-H ............. 119

M12XS423712-FD ................. 121

M12XS423712-FD-H ............. 119

M12XS482408 ........................ 104

M12XS483008 ........................ 104

M12XS483010 ........................ 105

M12XS483608 ........................ 104

M12XS483610 ........................ 105

M12XS483612 ........................ 105

M12XS483616 ........................ 105

M12XS483620 ........................ 105

M12XS483708-FD ................. 120

M12XS483708-FD-H ............. 118

M12XS483710-FD ................. 121

M12XS483710-FD-H ............. 119

M12XS483712-FD ................. 121

M12XS483712-FD-H ............. 119

M12XS483716-FD ................. 121

M12XS483716-FD-H ............. 119

M12XS603608 ........................ 104

M12XS603610 ........................ 105

M12XS603612 ........................ 105

M12XS603616 ........................ 105

M12XS603620 ........................ 105

M12XS603708-FD ................. 120

M12XS603708-FD-H ............. 118

M12XS603710-FD ................. 121

M12XS603710-FD-H ............. 119

M12XS603712-FD ................. 121

M12XS603712-FD-H ............. 119

M12XS603716-FD ................. 121

M12XS603716-FD-H ............. 119

M12XS723012 ........................ 105

M12XS723016 ........................ 105

M12XS723020 ........................ 105

M12XS723024 ........................ 105

M12XS723612 ........................ 105

M12XSAB202108-FD-H ......... 123

M12XSAB202110-FD-H .......... 123

M12XSAB242108-FD-H .......... 123

M12XSAB242110-FD-H .......... 123

M12XSAB242508-FD-H .......... 123

M12XSAB242510-FD-H .......... 123

M12XSAB302108-FD-H .......... 123

M12XSAB302110-FD-H .......... 123

M12XSAB302508-FD-H .......... 123

M12XSAB302510-FD-H .......... 123

M12XSAB302512-FD ............ 124

M12XSAB362508-FD-H .......... 123

M12XSAB362510-FD-H .......... 123

M12XSAB363108-FD-H .......... 123

M12XSAB363110-FD-H .......... 123

M12XSAB363112-FD ............ 124

M12XSAB363116-FD ............ 124

M12XSAB423108-FD-H .......... 123

M12XSAB423110-FD-H .......... 123

M12XSAB423112-FD ............ 124

M12XSAB423708-FD-H .......... 123

M12XSAB423710-FD-H .......... 124

M12XSAB423712-FD ............ 124

M12XSAB483708-FD-H .......... 123

M12XSAB483710-FD ............ 124

M12XSAB483712-FD ............ 124

M12XSAB483716-FD ............ 124

M12XSAB603708-FD-H .......... 123

M12XSAB603710-FD ............ 124

M12XSAB603712-FD ............ 124

M12XSAB603716-FD ............ 124

M12XZ122406 ........................ 104

M12XZ122408 ........................ 104

M12XZ161206 ........................ 104

M12XZ161208 ........................ 104

M12XZ161210 ........................ 104

M12XZ161606 ........................ 104

M12XZ161608 ........................ 104

M12XZ162006 ........................ 104

M12XZ162008 ........................ 104

M12XZ201206 ........................ 104

M12XZ201208 ........................ 104

M12XZ201606 ........................ 104

M12XZ201608 ........................ 104

M12XZ201610 ........................ 105

M12XZ201612 ........................ 105

M12XZ202006 ........................ 104

M12XZ202008 ........................ 104

M12XZ202108-FD ................. 120

M12XZ202108-FD-H ............. 118

M12XZ202110-FD ................. 120

M12XZ202110-FD-H ............. 118

M12XZ202406 ........................ 104

M12XZ202408 ........................ 104

M12XZ241206 ........................ 104

M12XZ241210 ........................ 104

M12XZ241606 ........................ 104

M12XZ241608 ........................ 104

M12XZ242006 ........................ 104

M12XZ242008 ........................ 104

M12XZ242010 ........................ 105

M12XZ242012 ........................ 105

M12XZ242016 ........................ 105

M12XZ242108-FD ................. 120

M12XZ242108-FD-H ............. 118

M12XZ242110-FD ................. 120

M12XZ242110-FD-H ............. 118

M12XZ242406 ........................ 104

M12XZ242408 ........................ 104

M12XZ242410 ........................ 105

M12XZ242412 ........................ 105

M12XZ242416 ........................ 105

M12XZ242508-FD-H ............. 118

M12XZ242510-FD ................. 120

M12XZ242510-FD-H ............. 118

M12XZ243008 ........................ 104

M12XZ301606 ........................ 104

M12XZ302006 ........................ 104

M12XZ302008 ........................ 104

M12XZ302010 ........................ 105

M12XZ302108-FD-H ............. 118

M12XZ302110-FD ................. 120

M12XZ302110-FD-H ............. 119

M12XZ302406 ........................ 104

M12XZ302408 ........................ 104

M12XZ302410 ........................ 105

M12XZ302412 ........................ 105

M12XZ302416 ........................ 105

M12XZ302420 ........................ 105

M12XZ302424 ........................ 105

M12XZ302508-FD-H ............. 118

M12XZ302510-FD ................. 120

M12XZ302510-FD-H ............. 119

M12XZ302512-FD ................. 121

M12XZ303008 ........................ 104

M12XZ303012 ........................ 105

M12XZ303608 ........................ 104

M12XZ362406 ........................ 104

M12XZ362408 ........................ 104

M12XZ362410 ........................ 105

M12XZ362412 ........................ 105

M12XZ362508-FD-H ............. 118

M12XZ362510-FD ................. 121

M12XZ362510-FD-H ............. 119

M12XZ363006 ........................ 104

M12XZ363008 ........................ 104

M12XZ363010 ........................ 105

M12XZ363012 ........................ 105

M12XZ363016 ........................ 105

M12XZ363020 ........................ 105

M12XZ363108-FD-H ............. 118

M12XZ363110-FD ................. 121

M12XZ363110-FD-H ............. 119

M12XZ363112-FD ................. 121

M12XZ363112-FD-H ............. 119

M12XZ363116-FD ................. 121

M12XZ363116-FD-H ............. 119

M12XZ363608 ........................ 104

M12XZ363612 ........................ 105

M12XZ422408 ........................ 104

M12XZ423008 ........................ 104

M12XZ423010 ........................ 105

M12XZ423012 ........................ 105

M12XZ423108-FD-H ............. 118

M12XZ423110-FD ................. 121

M12XZ423110-FD-H ............. 119

M12XZ423112-FD ................. 121

M12XZ423112-FD-H ............. 119

M12XZ423608 ........................ 104

M12XZ423610 ........................ 105

M12XZ423612 ........................ 105

M12XZ423616 ........................ 105

M12XZ423708-FD-H ............. 118

M12XZ423710-FD ................. 121

M12XZ423710-FD-H ............. 119

M12XZ423712-FD ................. 121

M12XZ423712-FD-H ............. 119

M12XZ482408 ........................ 104

M12XZ483008 ........................ 104

M12XZ483010 ........................ 105

M12XZ483608 ........................ 104

M12XZ483610 ........................ 105

M12XZ483612 ........................ 105

M12XZ483616 ........................ 105

M12XZ483620 ........................ 105

M12XZ483708-FD-H ............. 118

M12XZ483710-FD ................. 121

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

215

M12XZ483710-FD-H ............. 119

M12XZ483712-FD ................. 121

M12XZ483712-FD-H ............. 119

M12XZ483716-FD ................. 121

M12XZ483716-FD-H ............. 119

M12XZ603608 ........................ 104

M12XZ603610 ........................ 105

M12XZ603612 ........................ 105

M12XZ603616 ........................ 105

M12XZ603620 ........................ 105

M12XZ603708-FD-H ............. 118

M12XZ603710-FD ................. 121

M12XZ603710-FD-H ............. 119

M12XZ603712-FD ................. 121

M12XZ603712-FD-H ............. 119

M12XZ603716-FD ................. 121

M12XZ603716-FD-H ............. 119

M12XZ723012 ........................ 105

M12XZ723016 ........................ 105

M12XZ723020 ........................ 105

M12XZ723024 ........................ 105

M12XZ723612 ........................ 105

M12XZAB202108-FD-H .......... 123

M12XZAB202110-FD-H .......... 123

M12XZAB242108-FD-H .......... 123

M12XZAB242110-FD-H .......... 123

M12XZAB242508-FD-H .......... 123

M12XZAB242510-FD-H .......... 123

M12XZAB302108-FD-H .......... 123

M12XZAB302110-FD-H .......... 123

M12XZAB302508-FD-H .......... 123

M12XZAB302510-FD-H .......... 123

M12XZAB302512-FD ............ 124

M12XZAB362508-FD-H .......... 123

M12XZAB362510-FD-H .......... 123

M12XZAB363108-FD-H .......... 123

M12XZAB363110-FD-H .......... 123

M12XZAB363112-FD ............ 124

M12XZAB363116-FD ............ 124

M12XZAB423108-FD-H .......... 123

M12XZAB423110-FD-H .......... 123

M12XZAB423112-FD ............ 124

M12XZAB423708-FD-H .......... 123

M12XZAB423710-FD-H .......... 124

M12XZAB423712-FD ............ 124

M12XZAB483708-FD-H .......... 123

M12XZAB483710-FD ............ 124

M12XZAB483712-FD ............ 124

M12XZAB483716-FD ............ 124

M12XZAB603708-FD-H .......... 123

M12XZAB603710-FD ............ 124

M12XZAB603712-FD ............ 124

M12XZAB603716-FD ............ 124

M4D624810-FT ...................... 160

M4D624812-FT ...................... 160

M4D624816-FT ...................... 160

M4D624820-FT ...................... 160

M4D624824-FT ...................... 160

M4D62488-FT ....................... 160

M4D626010-FT ...................... 160

M4D626012-FT ..................... 160

M4D626016-FT ..................... 160

M4D626020-FT ..................... 160

M4D626024-FT ..................... 160

M4D746010-FT ..................... 160

M4D746012-FT ..................... 160

M4D746016-FT ..................... 160

M4D746020-FT ..................... 160

M4D746024-FT ..................... 160

M4D747210-FT ..................... 160

M4D747212-FT ..................... 160

M4D747216-FT ..................... 160

M4D747220-FT ..................... 160

M4D747224-FT ..................... 160

M4DXS624810-FT ................. 160

M4DXS624812-FT .................. 160

M4DXS624816-FT .................. 160

M4DXS624820-FT .................. 160

M4DXS624824-FT .................. 160

M4DXS62488-FT ................... 160

M4DXS626010-FT .................. 160

M4DXS626012-FT ................. 160

M4DXS626016-FT ................. 160

M4DXS626020-FT ................. 160

M4DXS626024-FT ................. 160

M4DXS746010-FT ................. 160

M4DXS746012-FT ................. 160

M4DXS746016-FT ................. 160

M4DXS746020-FT ................. 160

M4DXS746024-FT ................. 160

M4DXS747210-FT ................. 160

M4DXS747212-FT ................. 160

M4DXS747216-FT ................. 160

M4DXS747220-FT ................. 160

M4DXS747224-FT ................. 160

M4DXZ624810-FT ................. 160

M4DXZ624812-FT .................. 160

M4DXZ624816-FT .................. 160

M4DXZ624820-FT .................. 160

M4DXZ624824-FT .................. 160

M4DXZ62488-FT ................... 160

M4DXZ626010-FT .................. 160

M4DXZ626012-FT ................. 160

M4DXZ626016-FT ................. 160

M4DXZ626020-FT ................. 160

M4DXZ626024-FT ................. 160

M4DXZ746010-FT ................. 160

M4DXZ746012-FT ................. 160

M4DXZ746016-FT ................. 160

M4DXZ746020-FT .................. 160

M4DXZ746024-FT ................. 160

M4DXZ747210-FT ................. 160

M4DXZ747212-FT ................. 160

M4DXZ747216-FT ................. 160

M4DXZ747220-FT ................. 160

M4DXZ747224 -FT ................. 160

M4FS602518 ......................... 163

M4FS603724 ......................... 163

M4FS722518 ......................... 163

M4FS722524 ......................... 163

M4FS722530 ......................... 163

M4FS723118 ......................... 163

M4FS723124 ......................... 163

M4FS723130 ......................... 163

M4FS723136 ......................... 163

M4FS723718 ......................... 163

M4FS723724 ......................... 163

M4FS723730 ......................... 163

M4FS723736 ......................... 163

M4FS902520 ......................... 163

M4FS902524 ......................... 163

M4FS902530 ......................... 163

M4FS903120 ......................... 163

M4FS903124 ......................... 163

M4FS903130 ......................... 163

M4FS903720 ......................... 163

M4FS903724 ......................... 163

M4FS903730 ......................... 163

M4FS903736 ......................... 163

M4FSXS602518 ..................... 163

M4FSXS603724 ..................... 163

M4FSXS722518 ..................... 163

M4FSXS722524 ..................... 163

M4FSXS722530 ..................... 163

M4FSXS723118 ..................... 163

M4FSXS723124 ..................... 163

M4FSXS723130 ..................... 163

M4FSXS723136 ..................... 163

M4FSXS723718 ..................... 163

M4FSXS723724 ..................... 163

M4FSXS723730 ..................... 163

M4FSXS723736 ..................... 163

M4FSXS902520 ..................... 163

M4FSXS902524 ..................... 163

M4FSXS902530 ..................... 163

M4FSXS903120 ..................... 163

M4FSXS903124 ..................... 163

M4FSXS903130 ..................... 163

M4FSXS903720 ..................... 163

M4FSXS903724 ..................... 163

M4FSXS903730 ..................... 163

M4FSXS903736 ..................... 163

M4FSXZ602518 ..................... 163

M4FSXZ603724 ..................... 163

M4FSXZ722518 ..................... 163

M4FSXZ722524 ..................... 163

M4FSXZ722530 ..................... 163

M4FSXZ723118 ..................... 163

M4FSXZ723124 ..................... 163

M4FSXZ723130 ..................... 163

M4FSXZ723136 ..................... 163

M4FSXZ723718 ..................... 163

M4FSXZ723724 ..................... 163

M4FSXZ723730 ..................... 163

M4FSXZ723736 ..................... 163

M4FSXZ902520 ..................... 163

M4FSXZ902524 ..................... 163

M4FSXZ902530 ..................... 163

M4FSXZ903120 ..................... 163

M4FSXZ903124 ..................... 163

M4FSXZ903130 ..................... 163

M4FSXZ903720 ..................... 163

M4FSXZ903724 ..................... 163

M4FSXZ903730 ..................... 163

M4FSXZ903736 ..................... 163

M4S122406 ............................ 158

M4S122408 ............................ 158

M4S161206 ............................ 158

M4S161208 ............................ 158

M4S161210 ........................... 159

M4S161606 ............................ 158

M4S161608 ............................ 158

M4S162006 ............................ 158

M4S162008 ............................ 158

M4S201206 ............................ 158

M4S201208 ............................ 158

M4S201606 ............................ 158

M4S201608 ............................ 158

M4S201610 ........................... 159

M4S201612 ........................... 159

M4S202006 ............................ 158

M4S202008 ............................ 158

M4S202406 ............................ 158

M4S202408 ............................ 158

M4S241206 ............................ 158

M4S241210 ........................... 159

M4S241606 ............................ 158

M4S241608 ............................ 158

M4S242006 ............................ 158

M4S242008 ............................ 158

M4S242010 ........................... 159

M4S242012 ........................... 159

M4S242016 ........................... 159

M4S24218-FD ....................... 164

M4S242406 ............................ 158

M4S242408 ............................ 158

M4S242410 ........................... 159

M4S242412 ............................ 159

M4S242416 ........................... 159

M4S242508-FD ..................... 164

M4S243008 ............................ 158

M4S301606 ............................ 158

M4S302006 ............................ 158

M4S302008 ............................ 158

M4S302010 ........................... 159

M4S302406 ............................ 158

M4S302408 ............................ 158

M4S302410 ........................... 159

M4S302412 ........................... 159

M4S302416 ............................ 159

M4S302420 ........................... 159

M4S302424 ........................... 159

M4S302508-FD ..................... 164

M4S303008 ............................ 158

M4S303012 ........................... 159

M4S303608 ............................ 158

M4S362406 ............................ 158

M4S362408 ............................ 158

M4S362410 ............................ 159

M4S362412 ........................... 159

M4S363006 ............................ 158

M4S363008 ............................ 158

M4S363010 ........................... 159

M4S363012 ........................... 159

M4S363016 ........................... 159

M4S363020 ........................... 159

M4S363108-FD ..................... 164

M4S363608 ............................ 158

M4S363612 ............................ 159

M4S422408 ............................ 158

M4S423008 ............................ 158

M4S423010 ............................ 159

M4S423012 ........................... 159

M4S423112-FD ..................... 164

M4S423608 ............................ 158

M4S423610 ........................... 159

M4S423612 ........................... 159

M4S423616 ........................... 159

M4S423712-FD ..................... 164

M4S482408 ............................ 158

M4S483008 ............................ 158

M4S483010 ........................... 159

M4S483608 ............................ 158

M4S483610 ........................... 159

M4S483612 ........................... 159

M4S483616 ........................... 159

M4S483620 ............................ 159

M4S483712-FD ..................... 164

M4S603608 ............................ 158

M4S603610 ........................... 159

M4S603612 ............................ 159

M4S603616 ........................... 159

M4S603620 ............................ 159

M4S603712-FD ..................... 164

M4S723012 ........................... 159

M4S723016 ........................... 159

M4S723020 ........................... 159

M4S723024 ........................... 159

M4S723612 ........................... 159

M4XA122406 .......................... 158

M4XA122408 .......................... 158

M4XA161206 .......................... 158

M4XA161208 .......................... 158

M4XA161210 ......................... 159

M4XA161606 .......................... 158

M4XA161608 .......................... 158

M4XA162006 .......................... 158

M4XA162008 .......................... 158

M4XA201206 .......................... 158

M4XA201208 .......................... 158

M4XA201606 .......................... 158

M4XA201608 .......................... 158

M4XA201610 ......................... 159

M4XA201612 ......................... 159

M4XA202006 .......................... 158

M4XA202008 .......................... 158

M4XA202406 .......................... 158

M4XA202408 .......................... 158

M4XA241206 .......................... 158

M4XA241210 ......................... 159

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

216

M4XA241606 .......................... 158

M4XA241608 .......................... 158

M4XA242006 .......................... 158

M4XA242008 .......................... 158

M4XA242010 ......................... 159

M4XA242012 ......................... 159

M4XA242016 ......................... 159

M4XA242406 .......................... 158

M4XA242408 .......................... 158

M4XA242410 ......................... 159

M4XA242412 .......................... 159

M4XA242416 ......................... 159

M4XA243008 .......................... 158

M4XA301606 .......................... 158

M4XA302006 .......................... 158

M4XA302008 .......................... 158

M4XA302010 ......................... 159

M4XA302406 .......................... 158

M4XA302408 .......................... 158

M4XA302410 ......................... 159

M4XA302412 ......................... 159

M4XA302416 .......................... 159

M4XA302420 ......................... 159

M4XA302424 ......................... 159

M4XA303008 .......................... 158

M4XA303012 ......................... 159

M4XA303608 .......................... 158

M4XA362406 .......................... 158

M4XA362408 .......................... 158

M4XA362410 .......................... 159

M4XA362412 ......................... 159

M4XA363006 .......................... 158

M4XA363008 .......................... 158

M4XA363010 ......................... 159

M4XA363012 ......................... 159

M4XA363016 ......................... 159

M4XA363020 ......................... 159

M4XA363608 .......................... 158

M4XA363612 .......................... 159

M4XA422408 .......................... 158

M4XA423008 .......................... 158

M4XA423010 .......................... 159

M4XA423012 ......................... 159

M4XA423608 .......................... 158

M4XA423610 ......................... 159

M4XA423612 ......................... 159

M4XA423616 ......................... 159

M4XA482408 .......................... 158

M4XA483008 .......................... 158

M4XA483010 ......................... 159

M4XA483608 .......................... 158

M4XA483610 ......................... 159

M4XA483612 ......................... 159

M4XA483616 ......................... 159

M4XA483620 .......................... 159

M4XA603608 .......................... 158

M4XA603610 ......................... 159

M4XA603612 .......................... 159

M4XA603616 ......................... 159

M4XA603620 .......................... 159

M4XA723012 ......................... 159

M4XA723016 ......................... 159

M4XA723020 ......................... 159

M4XA723024 ......................... 159

M4XA723612 ......................... 159

M4XS122406 .......................... 158

M4XS122408 .......................... 158

M4XS161206 .......................... 158

M4XS161208 .......................... 158

M4XS161210 ......................... 159

M4XS161606 .......................... 158

M4XS161608 .......................... 158

M4XS162006 .......................... 158

M4XS162008 .......................... 158

M4XS201206 .......................... 158

M4XS201208 .......................... 158

M4XS201606 .......................... 158

M4XS201608 .......................... 158

M4XS201610 ......................... 159

M4XS201612 ......................... 159

M4XS202006 .......................... 158

M4XS202008 .......................... 158

M4XS202406 .......................... 158

M4XS202408 .......................... 158

M4XS241206 .......................... 158

M4XS241210 ......................... 159

M4XS241606 .......................... 158

M4XS241608 .......................... 158

M4XS242006 .......................... 158

M4XS242008 .......................... 158

M4XS242010 ......................... 159

M4XS242012 ......................... 159

M4XS242016 ......................... 159

M4XS24218-FD ..................... 164

M4XS242406 .......................... 158

M4XS242408 .......................... 158

M4XS242410 ......................... 159

M4XS242412 .......................... 159

M4XS242416 ......................... 159

M4XS242508-FD ................... 164

M4XS243008 .......................... 158

M4XS301606 .......................... 158

M4XS302006 .......................... 158

M4XS302008 .......................... 158

M4XS302010 ......................... 159

M4XS302406 .......................... 158

M4XS302408 .......................... 158

M4XS302410 ......................... 159

M4XS302412 ......................... 159

M4XS302416 .......................... 159

M4XS302420 ......................... 159

M4XS302424 ......................... 159

M4XS302508-FD ................... 164

M4XS303008 .......................... 158

M4XS303012 ......................... 159

M4XS303608 .......................... 158

M4XS362406 .......................... 158

M4XS362408 .......................... 158

M4XS362410 .......................... 159

M4XS362412 ......................... 159

M4XS363006 .......................... 158

M4XS363008 .......................... 158

M4XS363010 ......................... 159

M4XS363012 ......................... 159

M4XS363016 ......................... 159

M4XS363020 ......................... 159

M4XS363108-FD ................... 164

M4XS363608 .......................... 158

M4XS363612 .......................... 159

M4XS422408 .......................... 158

M4XS423008 .......................... 158

M4XS423010 .......................... 159

M4XS423012 ......................... 159

M4XS423112-FD ................... 164

M4XS423608 .......................... 158

M4XS423610 ......................... 159

M4XS423612 ......................... 159

M4XS423616 ......................... 159

M4XS423712-FD ................... 164

M4XS482408 .......................... 158

M4XS483008 .......................... 158

M4XS483010 ......................... 159

M4XS483608 .......................... 158

M4XS483610 ......................... 159

M4XS483612 ......................... 159

M4XS483616 ......................... 159

M4XS483620 .......................... 159

M4XS483712-FD ................... 164

M4XS603608 .......................... 158

M4XS603610 ......................... 159

M4XS603612 .......................... 159

M4XS603616 ......................... 159

M4XS603620 .......................... 159

M4XS603712-FD ................... 164

M4XS723012 ......................... 159

M4XS723016 ......................... 159

M4XS723020 ......................... 159

M4XS723024 ......................... 159

M4XS723612 ......................... 159

M4XZ122406 .......................... 158

M4XZ122408 .......................... 158

M4XZ161206 .......................... 158

M4XZ161208 .......................... 158

M4XZ161210 ......................... 159

M4XZ161606 .......................... 158

M4XZ161608 .......................... 158

M4XZ162006 .......................... 158

M4XZ162008 .......................... 158

M4XZ201206 .......................... 158

M4XZ201208 .......................... 158

M4XZ201606 .......................... 158

M4XZ201608 .......................... 158

M4XZ201610 ......................... 159

M4XZ201612 ......................... 159

M4XZ202006 .......................... 158

M4XZ202008 .......................... 158

M4XZ202406 .......................... 158

M4XZ202408 .......................... 158

M4XZ241206 .......................... 158

M4XZ241210 ......................... 159

M4XZ241606 .......................... 158

M4XZ241608 .......................... 158

M4XZ242006 .......................... 158

M4XZ242008 .......................... 158

M4XZ242010 ......................... 159

M4XZ242012 ......................... 159

M4XZ242016 ......................... 159

M4XZ24218-FD ..................... 164

M4XZ242406 .......................... 158

M4XZ242408 .......................... 158

M4XZ242410 ......................... 159

M4XZ242412 .......................... 159

M4XZ242416 ......................... 159

M4XZ242508-FD ................... 164

M4XZ243008 .......................... 158

M4XZ301606 .......................... 158

M4XZ302006 .......................... 158

M4XZ302008 .......................... 158

M4XZ302010 ......................... 159

M4XZ302406 .......................... 158

M4XZ302408 .......................... 158

M4XZ302410 ......................... 159

M4XZ302412 ......................... 159

M4XZ302416 .......................... 159

M4XZ302420 ......................... 159

M4XZ302424 ......................... 159

M4XZ302508-FD ................... 164

M4XZ303008 .......................... 158

M4XZ303012 ......................... 159

M4XZ303608 .......................... 158

M4XZ362406 .......................... 158

M4XZ362408 .......................... 158

M4XZ362410 .......................... 159

M4XZ362412 ......................... 159

M4XZ363006 .......................... 158

M4XZ363008 .......................... 158

M4XZ363010 ......................... 159

M4XZ363012 ......................... 159

M4XZ363016 ......................... 159

M4XZ363020 ......................... 159

M4XZ363108-FD ................... 164

M4XZ363608 .......................... 158

M4XZ363612 .......................... 159

M4XZ422408 .......................... 158

M4XZ423008 .......................... 158

M4XZ423010 .......................... 159

M4XZ423012 ......................... 159

M4XZ423112-FD ................... 164

M4XZ423608 .......................... 158

M4XZ423610 ......................... 159

M4XZ423612 ......................... 159

M4XZ423616 ......................... 159

M4XZ423712-FD ................... 164

M4XZ482408 .......................... 158

M4XZ483008 .......................... 158

M4XZ483010 ......................... 159

M4XZ483608 .......................... 158

M4XZ483610 ......................... 159

M4XZ483612 ......................... 159

M4XZ483616 ......................... 159

M4XZ483620 .......................... 159

M4XZ483712-FD ................... 164

M4XZ603608 .......................... 158

M4XZ603610 ......................... 159

M4XZ603612 .......................... 159

M4XZ603616 ......................... 159

M4XZ603620 .......................... 159

M4XZ603712-FD ................... 164

M4XZ723012 ......................... 159

M4XZ723016 ......................... 159

M4XZ723020 ......................... 159

M4XZ723024 ......................... 159

M4XZ723612 ......................... 159

MC12C12 ............................... 102

MC12C16 ............................... 102

MC12C20 ............................... 102

MC12C24 ............................... 102

MC16C16 ............................... 102

MC16C20 ............................... 102

MC16C24 ............................... 102

MC16C30 ............................... 102

MC16C36 ............................... 102

MC20C20 ............................... 102

MC20C24 ............................... 102

MC20C30 ............................... 102

MC8C12 ................................. 102

MC8C16 ................................. 102

MC8C20 ................................. 102

MC8C8 ................................... 102

MCXS12C12 ........................... 102

MCXS12C16 ........................... 102

MCXS12C20 ........................... 102

MCXS12C24 ........................... 102

MCXS16C16 ........................... 102

MCXS16C20 ........................... 102

MCXS16C24 ........................... 102

MCXS16C30 ........................... 102

MCXS16C36 ........................... 102

MCXS20C20 ........................... 102

MCXS20C24 ........................... 102

MCXS20C30 ........................... 102

MCXS8C12 ............................. 102

MCXS8C16 ............................. 102

MCXS8C20 ............................. 102

MCXS8C8 ............................... 102

MSD12126 .............................. 169

MSD12246 .............................. 169

MSD12248 .............................. 169

MSD161210 ............................ 169

MSD16126 .............................. 169

MSD16128 .............................. 169

MSD161610 ............................ 169

MSD16166 .............................. 169

MSD16168 .............................. 169

MSD162010 ............................ 170

MSD16206 .............................. 169

MSD16208 .............................. 169

MSD20126 .............................. 169

MSD20128 .............................. 169

MSD201610 ............................ 170

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

217

MSD201612 ............................ 170

MSD20166 .............................. 169

MSD20168 .............................. 169

MSD202010 ............................ 170

MSD202012 ............................ 170

MSD20206 .............................. 169

MSD20208 .............................. 169

MSD202410 ............................ 170

MSD20246 .............................. 169

MSD20248 .............................. 169

MSD241210 ............................ 170

MSD24126 .............................. 169

MSD24166 .............................. 169

MSD24168 .............................. 169

MSD242010 ............................ 170

MSD242012 ............................ 170

MSD242016 ............................ 170

MSD24206 .............................. 169

MSD24208 .............................. 169

MSD242410 ............................ 170

MSD242412 ............................ 170

MSD242416 ............................ 170

MSD242420 ............................ 170

MSD24246 .............................. 169

MSD24248 .............................. 169

MSD243010 ............................ 170

MSD24308 .............................. 169

MSD30166 .............................. 169

MSD302010 ............................ 170

MSD30206 .............................. 169

MSD30208 .............................. 169

MSD302410 ............................ 170

MSD302412 ............................ 170

MSD302416 ............................ 170

MSD302420 ............................ 170

MSD302424 ............................ 170

MSD30246 .............................. 169

MSD30248 .............................. 169

MSD303010 ............................ 170

MSD303012 ............................ 170

MSD30308 .............................. 169

MSD30368 .............................. 169

MSD362410 ............................ 170

MSD362412 ............................ 170

MSD36246 .............................. 169

MSD36248 .............................. 169

MSD363010 ............................ 170

MSD363012 ............................ 170

MSD363016 ............................ 170

MSD363020 ............................ 170

MSD36306 .............................. 169

MSD36308 .............................. 169

MSD363610 ............................ 170

MSD363612 ............................ 170

MSD36368 .............................. 169

MSD42248 .............................. 169

MSD423010 ............................ 170

MSD423012 ............................ 170

MSD42308 .............................. 169

MSD423610 ............................ 170

MSD423612 ............................ 170

MSD423616 ............................ 170

MSD42368 .............................. 169

MSD482410 ............................ 170

MSD482412 ............................ 170

MSD48248 .............................. 169

MSD483010 ............................ 170

MSD48308 .............................. 169

MSD483610 ............................ 170

MSD483612 ............................ 170

MSD483616 ............................ 170

MSD483620 ............................ 170

MSD48368 .............................. 169

MSD603610 ............................ 170

MSD603612 ............................ 170

MSD603616 ............................ 170

MSD603620 ............................ 170

MSD60368 .............................. 169

MSDFM16126 ....................... 166

MSDFM20166 ........................ 166

MSDFM20206 ........................ 166

MSDFM24206 ........................ 166

MSDFM24248 ........................ 166

MSDFM30248 ........................ 166

MSDFMXS16126 .................... 166

MSDFMXS20166 .................... 166

MSDFMXS20206 .................... 166

MSDFMXS24206 .................... 166

MSDFMXS24248 .................... 166

MSDFMXS30248 .................... 166

MSDFMXZ16126 .................... 166

MSDFMXZ20166 .................... 166

MSDFMXZ20206 .................... 166

MSDFMXZ24206 .................... 166

MSDFMXZ24248 .................... 166

MSDFMXZ30248 .................... 166

MSDSTXS14126 ..................... 171

MSDSTXS16128 ..................... 171

MSDSTXS16146 ..................... 171

MSDSTXS16168 ..................... 171

MSDSTXS201612 ................... 171

MSDSTXS20168 ..................... 171

MSDSTXS202012 ................... 171

MSDSTXS20208 ..................... 171

MSDSTXS24208 ..................... 171

MSDSTXS242412 ................... 171

MSDSTXS24248 ..................... 171

MSDSTXS302412 ................... 171

MSDSTXS30248 ..................... 171

MSDSTXS30308 ..................... 171

MSDSTXS363012 ................... 171

MSDSTXS363016 ................... 171

MSDSTXS36308 ..................... 171

MSDSTXS363612 ................... 171

MSDSTXS423612 ................... 171

MSDSTXS483612 ................... 171

MSDSTXS483616 ................... 171

MSDSTXS603616 ................... 171

MSDSTXZ14126 ..................... 171

MSDSTXZ16128 ..................... 171

MSDSTXZ16146 ..................... 171

MSDSTXZ16168 ..................... 171

MSDSTXZ201612 ................... 171

MSDSTXZ20168 ..................... 171

MSDSTXZ202012 ................... 171

MSDSTXZ20208 ..................... 171

MSDSTXZ24208 ..................... 171

MSDSTXZ242412 ................... 171

MSDSTXZ24248 ..................... 171

MSDSTXZ302412 ................... 171

MSDSTXZ30248 ..................... 171

MSDSTXZ30308 ..................... 171

MSDSTXZ363012 ................... 171

MSDSTXZ363016 ................... 171

MSDSTXZ36308 ..................... 171

MSDSTXZ363612 ................... 171

MSDSTXZ423612 ................... 171

MSDSTXZ483612 ................... 171

MSDSTXZ483616 ................... 171

MSDSTXZ603616 ................... 171

MSDXS12126 ......................... 169

MSDXS12246 ......................... 169

MSDXS12248 ......................... 169

MSDXS161210 ....................... 169

MSDXS16126 ......................... 169

MSDXS16128 ......................... 169

MSDXS161610 ....................... 169

MSDXS16166 ......................... 169

MSDXS16168 ......................... 169

MSDXS162010 ....................... 170

MSDXS16206 ......................... 169

MSDXS16208 ......................... 169

MSDXS20126 ......................... 169

MSDXS20128 ......................... 169

MSDXS201610 ....................... 170

MSDXS201612 ....................... 170

MSDXS20166 ......................... 169

MSDXS20168 ......................... 169

MSDXS202010 ....................... 170

MSDXS202012 ....................... 170

MSDXS20206 ......................... 169

MSDXS20208 ......................... 169

MSDXS202410 ....................... 170

MSDXS20246 ......................... 169

MSDXS20248 ......................... 169

MSDXS241210 ....................... 170

MSDXS24126 ......................... 169

MSDXS24166 ......................... 169

MSDXS24168 ......................... 169

MSDXS242010 ....................... 170

MSDXS242012 ....................... 170

MSDXS242016 ....................... 170

MSDXS24206 ......................... 169

MSDXS24208 ......................... 169

MSDXS242410 ....................... 170

MSDXS242412 ....................... 170

MSDXS242416 ....................... 170

MSDXS242420 ....................... 170

MSDXS24246 ......................... 169

MSDXS24248 ......................... 169

MSDXS243010 ....................... 170

MSDXS24308 ......................... 169

MSDXS30166 ......................... 169

MSDXS302010 ....................... 170

MSDXS30206 ......................... 169

MSDXS30208 ......................... 169

MSDXS302410 ....................... 170

MSDXS302412 ....................... 170

MSDXS302416 ....................... 170

MSDXS302420 ....................... 170

MSDXS302424 ....................... 170

MSDXS30246 ......................... 169

MSDXS30248 ......................... 169

MSDXS303010 ....................... 170

MSDXS303012 ....................... 170

MSDXS30308 ......................... 169

MSDXS30368 ......................... 169

MSDXS362410 ....................... 170

MSDXS362412 ....................... 170

MSDXS36246 ......................... 169

MSDXS36248 ......................... 169

MSDXS363010 ....................... 170

MSDXS363012 ....................... 170

MSDXS363016 ....................... 170

MSDXS363020 ....................... 170

MSDXS36306 ......................... 169

MSDXS36308 ......................... 169

MSDXS363610 ....................... 170

MSDXS363612 ....................... 170

MSDXS36368 ......................... 169

MSDXS42248 ......................... 169

MSDXS423010 ....................... 170

MSDXS423012 ....................... 170

MSDXS42308 ......................... 169

MSDXS423610 ....................... 170

MSDXS423612 ....................... 170

MSDXS423616 ....................... 170

MSDXS42368 ......................... 169

MSDXS482410 ....................... 170

MSDXS482412 ....................... 170

MSDXS48248 ......................... 169

MSDXS483010 ....................... 170

MSDXS48308 ......................... 169

MSDXS483610 ....................... 170

MSDXS483612 ....................... 170

MSDXS483616 ....................... 170

MSDXS483620 ....................... 170

MSDXS48368 ......................... 169

MSDXS603610 ....................... 170

MSDXS603612 ....................... 170

MSDXS603616 ....................... 170

MSDXS603620 ....................... 170

MSDXS60368 ......................... 169

MSDXZ12126 ......................... 169

MSDXZ12246 ......................... 169

MSDXZ12248 ......................... 169

MSDXZ161210 ....................... 169

MSDXZ16126 ......................... 169

MSDXZ16128 ......................... 169

MSDXZ161610 ....................... 169

MSDXZ16166 ......................... 169

MSDXZ16168 ......................... 169

MSDXZ162010 ....................... 170

MSDXZ16206 ......................... 169

MSDXZ16208 ......................... 169

MSDXZ20126 ......................... 169

MSDXZ20128 ......................... 169

MSDXZ201610 ....................... 170

MSDXZ201612 ....................... 170

MSDXZ20166 ......................... 169

MSDXZ20168 ......................... 169

MSDXZ202010 ....................... 170

MSDXZ202012 ....................... 170

MSDXZ20206 ......................... 169

MSDXZ20208 ......................... 169

MSDXZ202410 ....................... 170

MSDXZ20246 ......................... 169

MSDXZ20248 ......................... 169

MSDXZ241210 ....................... 170

MSDXZ24126 ......................... 169

MSDXZ24166 ......................... 169

MSDXZ24168 ......................... 169

MSDXZ242010 ....................... 170

MSDXZ242012 ....................... 170

MSDXZ242016 ....................... 170

MSDXZ24206 ......................... 169

MSDXZ24208 ......................... 169

MSDXZ242410 ....................... 170

MSDXZ242412 ....................... 170

MSDXZ242416 ....................... 170

MSDXZ242420 ....................... 170

MSDXZ24246 ......................... 169

MSDXZ24248 ......................... 169

MSDXZ243010 ....................... 170

MSDXZ24308 ......................... 169

MSDXZ30166 ......................... 169

MSDXZ302010 ....................... 170

MSDXZ30206 ......................... 169

MSDXZ30208 ......................... 169

MSDXZ302410 ....................... 170

MSDXZ302412 ....................... 170

MSDXZ302416 ....................... 170

MSDXZ302420 ....................... 170

MSDXZ302424 ....................... 170

MSDXZ30246 ......................... 169

MSDXZ30248 ......................... 169

MSDXZ303010 ....................... 170

MSDXZ303012 ....................... 170

MSDXZ30308 ......................... 169

MSDXZ30368 ......................... 169

MSDXZ362410 ....................... 170

MSDXZ362412 ....................... 170

MSDXZ36246 ......................... 169

MSDXZ36248 ......................... 169

MSDXZ363010 ....................... 170

MSDXZ363012 ....................... 170

MSDXZ363016 ....................... 170

MSDXZ363020 ....................... 170

MSDXZ36306 ......................... 169

MSDXZ36308 ......................... 169

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

218

MSDXZ363610 ....................... 170

MSDXZ363612 ....................... 170

MSDXZ36368 ......................... 169

MSDXZ42248 ......................... 169

MSDXZ423010 ....................... 170

MSDXZ423012 ....................... 170

MSDXZ42308 ......................... 169

MSDXZ423610 ....................... 170

MSDXZ423612 ....................... 170

MSDXZ423616 ....................... 170

MSDXZ42368 ......................... 169

MSDXZ482410 ....................... 170

MSDXZ482412 ....................... 170

MSDXZ48248 ......................... 169

MSDXZ483010 ....................... 170

MSDXZ48308 ......................... 169

MSDXZ483610 ....................... 170

MSDXZ483612 ....................... 170

MSDXZ483616 ....................... 170

MSDXZ483620 ....................... 170

MSDXZ48368 ......................... 169

MSDXZ603610 ....................... 170

MSDXZ603612 ....................... 170

MSDXZ603616 ....................... 170

MSDXZ603620 ....................... 170

MSDXZ60368 ......................... 169

PB12S11 ................................... 94

PB12S110 ................................. 94

PB12S12 ................................... 94

PB12S13 ................................... 94

PB12S14 ................................... 94

PB12S15 ................................... 94

PB12S16 ................................... 94

PB12S17 ................................... 94

PB12S18 ................................... 94

PB12S19 ................................... 94

PB12S22 ................................... 94

PB12S32 ................................... 94

PB12S33 ................................... 94

PB12S43 ................................... 94

PB12S44 ................................... 94

PB12S54 ................................... 94

PB12S55 ................................... 94

PB12XS11 ................................. 94

PB12XS110 ............................... 94

PB12XS12 ................................. 94

PB12XS13 ................................. 94

PB12XS14 ................................. 94

PB12XS15 ................................. 94

PB12XS16 ................................. 94

PB12XS17 ................................. 94

PB12XS18 ................................. 94

PB12XS19 ................................. 94

PB12XS22 ................................. 94

PB12XS32 ................................. 94

PB12XS33 ................................. 94

PB12XS43 ................................. 94

PB12XS44 ................................. 94

PB12XS54 ................................. 94

PB12XS55 ................................. 94

PBD12S11 ................................. 96

PBD12S110 ............................... 96

PBD12S116 ............................... 96

PBD12S12 ................................. 96

PBD12S13 ................................. 96

PBD12S14 ................................. 96

PBD12S16 ................................. 96

PBD12S22 ................................. 96

PBD12S33 ................................. 96

PBD12S43 ................................. 96

PBD12S44 ................................. 96

PBD12S54 ................................. 96

PBD12S55 ................................. 96

PBD12S56 ................................. 96

PBD12S66 ................................. 96

PBD12XS11 .............................. 96

PBD12XS110 ............................ 96

PBD12XS116 ............................ 96

PBD12XS12 .............................. 96

PBD12XS13 .............................. 96

PBD12XS14 .............................. 96

PBD12XS16 .............................. 96

PBD12XS22 .............................. 96

PBD12XS33 .............................. 96

PBD12XS43 .............................. 96

PBD12XS44 .............................. 96

PBD12XS54 .............................. 96

PBD12XS55 .............................. 96

PBD12XS56 .............................. 96

PBD12XS66 .............................. 96

PBDM12S11 ............................. 96

PBDM12S110 ........................... 96

PBDM12S116 ........................... 96

PBDM12S12 ............................. 96

PBDM12S13 ............................. 96

PBDM12S14 ............................. 96

PBDM12S16 ............................. 96

PBDM12S22 ............................. 96

PBDM12S33 ............................. 96

PBDM12S43 ............................. 96

PBDM12S44 ............................. 96

PBDM12S54 ............................. 96

PBDM12S55 ............................. 96

PBDM12S56 ............................. 96

PBDM12S66 ............................. 96

PBDM12XS11 ........................... 96

PBDM12XS110 ......................... 96

PBDM12XS116 ......................... 96

PBDM12XS12 ........................... 96

PBDM12XS13 ........................... 96

PBDM12XS14 ........................... 96

PBDM12XS16 ........................... 96

PBDM12XS22 ........................... 96

PBDM12XS33 ........................... 96

PBDM12XS43 ........................... 96

PBDM12XS44 ........................... 96

PBDM12XS54 ........................... 96

PBDM12XS55 ........................... 96

PBDM12XS56 ........................... 96

PBDM12XS66 ........................... 96

PBHC12S22 ............................ 100

PBHC12S32 ............................ 100

PBHC12S33 ............................ 100

PBHC12S43 ............................ 100

PBHC12S44 ............................ 100

PBHC12S54 ............................ 100

PBHC12S55 ............................ 100

PBHC12S65 ............................ 100

PBHC12S66 ............................ 100

PBHC12S76 ............................ 100

PBHC12XS22 .......................... 100

PBHC12XS32 .......................... 100

PBHC12XS33 .......................... 100

PBHC12XS43 .......................... 100

PBHC12XS44 .......................... 100

PBHC12XS54 .......................... 100

PBHC12XS55 .......................... 100

PBHC12XS65 .......................... 100

PBHC12XS66 .......................... 100

PBHC12XS76 .......................... 100

PBHCM12S22 ......................... 100

PBHCM12S32 ......................... 100

PBHCM12S33 ......................... 100

PBHCM12S43 ......................... 100

PBHCM12S44 ......................... 100

PBHCM12S54 ......................... 100

PBHCM12S55 ......................... 100

PBHCM12S65 ......................... 100

PBHCM12S66 ......................... 100

PBHCM12S76 ......................... 100

PBHCM12XS22 ....................... 100

PBHCM12XS32 ....................... 100

PBHCM12XS33 ....................... 100

PBHCM12XS43 ....................... 100

PBHCM12XS44 ....................... 100

PBHCM12XS54 ....................... 100

PBHCM12XS55 ....................... 100

PBHCM12XS65 ....................... 100

PBHCM12XS66 ....................... 100

PBHCM12XS76 ....................... 100

PBM12S11 ................................ 94

PBM12S110 .............................. 94

PBM12S12 ................................ 94

PBM12S13 ................................ 94

PBM12S14 ................................ 94

PBM12S15 ................................ 94

PBM12S16 ................................ 94

PBM12S17 ................................ 94

PBM12S18 ................................ 94

PBM12S19 ................................ 94

PBM12S22 ................................ 94

PBM12S32 ................................ 94

PBM12S33 ................................ 94

PBM12S43 ................................ 94

PBM12S44 ................................ 94

PBM12S54 ................................ 94

PBM12S55 ................................ 94

PBM12XS11 .............................. 94

PBM12XS110 ............................ 94

PBM12XS12 .............................. 94

PBM12XS13 .............................. 94

PBM12XS14 .............................. 94

PBM12XS15 .............................. 94

PBM12XS16 .............................. 94

PBM12XS17 .............................. 94

PBM12XS18 .............................. 94

PBM12XS19 .............................. 94

PBM12XS22 .............................. 94

PBM12XS32 .............................. 94

PBM12XS33 .............................. 94

PBM12XS43 .............................. 94

PBM12XS44 .............................. 94

PBM12XS54 .............................. 94

PBM12XS55 .............................. 94

PBSF12S11 ............................... 99

PBSF12S12 ............................... 99

PBSF12S13 ............................... 99

PBSF12S14 ............................... 99

PBSF12S22 ............................... 99

PBSF12S23 ............................... 99

PBSF12S24 ............................... 99

PBSF12S25 ............................... 99

PBSF12S26 ............................... 99

PBSF12S28 ............................... 99

PBSF12S33 ............................... 99

PBSF12S43 ............................... 99

PBSF12S44 ............................... 99

PBSF12S45 ............................... 99

PBSF12S55 ............................... 99

PBSF12S56 ............................... 99

PBSF12XS11 ............................. 99

PBSF12XS12 ............................. 99

PBSF12XS13 ............................. 99

PBSF12XS14 ............................. 99

PBSF12XS22 ............................. 99

PBSF12XS23 ............................. 99

PBSF12XS24 ............................. 99

PBSF12XS25 ............................. 99

PBSF12XS26 ............................. 99

PBSF12XS28 ............................. 99

PBSF12XS33 ............................. 99

PBSF12XS43 ............................. 99

PBSF12XS44 ............................. 99

PBSF12XS45 ............................. 99

PBSF12XS55 ............................. 99

PBSF12XS56 ............................. 99

PBSFM12S11 ............................ 99

PBSFM12S12 ............................ 99

PBSFM12S13 ............................ 99

PBSFM12S14 ............................ 99

PBSFM12S22 ............................ 99

PBSFM12S23 ............................ 99

PBSFM12S24 ............................ 99

PBSFM12S25 ............................ 99

PBSFM12S26 ............................ 99

PBSFM12S28 ............................ 99

PBSFM12S33 ............................ 99

PBSFM12S43 ............................ 99

PBSFM12S44 ............................ 99

PBSFM12S45 ............................ 99

PBSFM12S55 ............................ 99

PBSFM12S56 ............................ 99

PBSFM12XS11 .......................... 99

PBSFM12XS12 .......................... 99

PBSFM12XS13 .......................... 99

PBSFM12XS14 .......................... 99

PBSFM12XS22 .......................... 99

PBSFM12XS23 .......................... 99

PBSFM12XS24 .......................... 99

PBSFM12XS25 .......................... 99

PBSFM12XS26 .......................... 99

PBSFM12XS28 .......................... 99

PBSFM12XS33 .......................... 99

PBSFM12XS43 .......................... 99

PBSFM12XS44 .......................... 99

PBSFM12XS45 .......................... 99

PBSFM12XS55 .......................... 99

PBSFM12XS56 .......................... 99

PBSL12S11 ............................. 101

PBSL12S110 ........................... 101

PBSL12S12 ............................. 101

PBSL12S13 ............................. 101

PBSL12S14 ............................. 101

PBSL12S15 ............................. 101

PBSL12S16 ............................. 101

PBSL12S17 ............................. 101

PBSL12S18 ............................. 101

PBSL12S19 ............................. 101

PBSL12XS11 ........................... 101

PBSL12XS110 ......................... 101

PBSL12XS12 ........................... 101

PBSL12XS13 ........................... 101

PBSL12XS14 ........................... 101

PBSL12XS15 ........................... 101

PBSL12XS16 ........................... 101

PBSL12XS17 ........................... 101

PBSL12XS18 ........................... 101

PBSL12XS19 ........................... 101

PBSLM12S11 .......................... 101

PBSLM12S110 ........................ 101

PBSLM12S12 .......................... 101

PBSLM12S13 .......................... 101

PBSLM12S14 .......................... 101

PBSLM12S15 .......................... 101

PBSLM12S16 .......................... 101

PBSLM12S17 .......................... 101

PBSLM12S18 .......................... 101

PBSLM12S19 .......................... 101

PBSLM12XS11 ........................ 101

PBSLM12XS110 ...................... 101

PBSLM12XS12 ........................ 101

PBSLM12XS13 ........................ 101

PBSLM12XS14 ........................ 101

PBSLM12XS15 ........................ 101

PBSLM12XS16 ........................ 101

PBSLM12XS17 ........................ 101

PBSLM12XS18 ........................ 101

PBSLM12XS19 ........................ 101

PPB12S11 ................................. 98

PPB12S12 ................................. 98

Index

INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com

Utility requirements for this equipment may vary. Always consult the serving

utility for their requirements before ordering or installing equipment.

219

PPB12S13 ................................. 98

PPB12S14 ................................. 98

PPB12S15 ................................. 98

PPB12S16 ................................. 98

PPB12S17 ................................. 98

PPB12S18 ................................. 98

PPB12XS11 ............................... 98

PPB12XS12 ............................... 98

PPB12XS13 ............................... 98

PPB12XS14 ............................... 98

PPB12XS15 ............................... 98

PPB12XS16 ............................... 98

PPB12XS17 ............................... 98

PPB12XS18 ............................... 98

SC10106JIC12 ......................... 85

SC10106JIC12XS ..................... 85

SC10106JIC12XZ ..................... 85

SC10106JIC4 ......................... 152

SC10106JIC4XS ..................... 152

SC10106JIC4XZ ..................... 152

SC1084JIC12 ........................... 85

SC1084JIC12XS ....................... 85

SC1084JIC12XZ ....................... 85

SC1084JIC4 ........................... 152

SC1084JIC4XS ....................... 152

SC1084JIC4XZ ....................... 152

SC1086JIC12 ........................... 85

SC1086JIC12XS ....................... 85

SC1086JIC12XZ ....................... 85

SC1086JIC4 ........................... 152

SC1086JIC4XS ....................... 152

SC1086JIC4XZ ....................... 152

SC12105JIC12 ......................... 85

SC12105JIC12XS ..................... 85

SC12105JIC12XZ ..................... 85

SC12105JIC4 ......................... 152

SC12105JIC4XS ..................... 152

SC12105JIC4XZ ..................... 152

SC12108JIC12 ......................... 85

SC12108JIC12XS ..................... 85

SC12108JIC12XZ ..................... 85

SC12108JIC4 ......................... 152

SC12108JIC4XS ..................... 152

SC12108JIC4XZ ..................... 152

SC12126JIC12 ......................... 85

SC12126JIC12XS ..................... 85

SC12126JIC12XZ ..................... 85

SC12126JIC4 ......................... 152

SC12126JIC4XS ..................... 152

SC12126JIC4XZ ..................... 152

SC1264JIC12 ........................... 85

SC1264JIC12XS ....................... 85

SC1264JIC12XZ ....................... 85

SC1264JIC4 ........................... 152

SC1264JIC4XS ....................... 152

SC1264JIC4XZ ....................... 152

SC14126JIC12 ......................... 85

SC14126JIC12XS ..................... 85

SC14126JIC12XZ ..................... 85

SC14126JIC4 ......................... 152

SC14126JIC4XS ..................... 152

SC14126JIC4XZ ..................... 152

SC14128JIC12 ......................... 85

SC14128JIC12XS ..................... 85

SC14128JIC12XZ ..................... 85

SC14128JIC4 ......................... 152

SC14128JIC4XS ..................... 152

SC14128JIC4XZ ..................... 152

SC1486JIC12 ........................... 85

SC1486JIC12XS ....................... 85

SC1486JIC12XZ ....................... 85

SC1486JIC4 ........................... 152

SC1486JIC4XS ....................... 152

SC1486JIC4XZ ....................... 152

SC16106JIC12 ......................... 85

SC16106JIC12XS ..................... 85

SC16106JIC12XZ ..................... 85

SC16106JIC4 ......................... 152

SC16106JIC4XS ..................... 152

SC16106JIC4XZ ..................... 152

SC161410JIC12 ....................... 85

SC161410JIC12XS ................... 85

SC161410JIC12XZ ................... 85

SC161410JIC4 ....................... 152

SC161410JIC4XS ................... 152

SC161410JIC4XZ ................... 152

SC16146JIC12 ......................... 85

SC16146JIC12XS ..................... 85

SC16146JIC12XZ ..................... 85

SC16146JIC4 ......................... 152

SC16146JIC4XS ..................... 152

SC16146JIC4XZ ..................... 152

SC16148JIC12 ......................... 85

SC16148JIC12XS ..................... 85

SC16148JIC12XZ ..................... 85

SC16148JIC4 ......................... 152

SC16148JIC4XS ..................... 152

SC16148JIC4XZ ..................... 152

SC443JIC12 ............................. 85

SC443JIC12XS ......................... 85

SC443JIC12XZ ......................... 85

SC443JIC4 ............................. 152

SC443JIC4XS ......................... 152

SC443JIC4XZ ......................... 152

SC444JIC12 ............................. 85

SC444JIC12XS ......................... 85

SC444JIC12XZ ......................... 85

SC444JIC4 ............................. 152

SC444JIC4XS ......................... 152

SC444JIC4XZ ......................... 152

SC643JIC12 ............................. 85

SC643JIC12XS ......................... 85

SC643JIC12XZ ......................... 85

SC643JIC4 ............................. 152

SC643JIC4XS ......................... 152

SC643JIC4XZ ......................... 152

SC644JIC12 ............................. 85

SC644JIC12XS ......................... 85

SC644JIC12XZ ......................... 85

SC644JIC4 .............................. 152

SC644JIC4XS ......................... 152

SC644JIC4XZ ......................... 152

SC664JIC12 ............................. 85

SC664JIC12XS ......................... 85

SC664JIC12XZ ......................... 85

SC664JIC4 ............................. 152

SC664JIC4XS ......................... 152

SC664JIC4XZ ......................... 152

SC666JIC12 .............................. 85

SC666JIC12XS.......................... 85

SC666JIC12XZ.......................... 85

SC666JIC4 .............................. 152

SC666JIC4XS.......................... 152

SC666JIC4XZ.......................... 152

SC863JIC12 ............................. 85

SC863JIC12XS ......................... 85

SC863JIC12XZ ......................... 85

SC863JIC4 ............................. 152

SC863JIC4XS ......................... 152

SC863JIC4XZ ......................... 152

SC866JIC12 .............................. 85

SC866JIC12XS.......................... 85

SC866JIC12XZ.......................... 85

SC866JIC4 .............................. 152

SC866JIC4XS.......................... 152

SC866JIC4XZ.......................... 152

SC884JIC12 ............................. 85

SC884JIC12XS ......................... 85

SC884JIC12XZ ......................... 85

SC884JIC4 ............................. 152

SC884JIC4XS ......................... 152

SC884JIC4XZ ......................... 152

Index INDEx

Milbank Manufacturing | 4801 Deramus Ave., Kansas City, MO 64120 | 660.463.0805 | milbankworks.com CIPC 10/13
