Slim Line (SL/SLX) Series
Industrial Ethernet Switches
& Media Converter
Hardware Manual
Revision: 9 October 2014
www.redlion.net
Slim Line Switch Hardware Manual Page 2 of 35
Table of Contents
Section 1
General Information
Page 4
Section 2
LED Indicators
Page 7
Section 3
Installation / Mounting
Page 9
Section 4
Power Wiring
Page 21
Section 5
Communication Wiring
Page 27
Section 6
Technical Specifications
Page 31
Section 7
Service Information
Page 35
This manual applies to the following products:
SL-2ES-# 2-port unmanaged Ethernet media converter
SLX-3ES-# 3-port unmanaged Ethernet media converter
SLX-3EG-1 3-port unmanaged Gigabit Ethernet converter
SLX-5EG-1 5-port unmanaged Gigabit Ethernet switch
SLX-5EG-2SFP 5-port unmanaged Gigabit Ethernet switch with 2 fiber SFPs
SL/SLX- 5ES-# 5-port unmanaged Ethernet switch with 5 10/100 ports
SL/SLX- 5MS-# 5-port managed Ethernet switch with 5 10/100 ports
SL/SLX-5MS-MDM-1 5-port managed Ethernet land-line modem with 5 10/100 ports
SL/SLX- 6ES-# 6-port unmanaged Ethernet switch
SL/SLX- 8ES/9ES-# 8/9-port unmanaged Ethernet switch with 8 or 9 10/100 ports
SL/SLX- 8MS-# 8-port managed Ethernet switch with 8 10/100 ports
SL/SLX- 8MG-1 8-port managed Ethernet switch with 8 Gigabit ports
SLX-10MG-1 10-port managed Gigabit Ethernet switch with 10 ports
SLX-16MS-1 16-port managed Ethernet switch with 16 10/100 ports
SLX-18MG-1 18-port managed Gigabit Ethernet switch with 18 ports
To obtain support for Red Lion products:
Latest product info: www.redlion.net
E-mail: support@redlion.net
Phone: 1-877-432-9908
Fax: 1-518-877-8346
Mailing address: Red Lion Controls, 20 Willow Springs Circle, York PA 17406 USA
Slim Line Switch Hardware Manual Page 3 of 35
RED LION Protected Technology Policy - Red Lion protects your investment in Red Lion systems
with long-term planned technology and our unique Protected Technology Policy. We will continue to
support the specified capabilities of standard Red Lion products for at least five years (twenty years for
Industrial Managed Switches). We plan each product improvement and new feature to be upward
compatible with existing designs and installations. Our goals are to make each new software release bring
new power to your Red Lion systems and have every existing feature, applications program and data file
continue to work. We protect your investment even further with a liberal five-year trade-in policy. Exchange
standard products for upgraded versions of the same product to take advantage of new features and
improvements at any time for five years. A prorated trade-in allowance will be given for your existing unit.
Red Lion protects your long-term productivity with state-of-the-art planned technology and continued
support.
Red Lion Statement of Limited Warranty - Red Lion, manufacturer of Red Lion products, warrants to
Buyer that products, except software, manufactured by Red Lion will be free from defects in material and
workmanship. Red Lion's obligation under this warranty will be limited to repairing or replacing, at Red
Lion's option, the defective parts within one year of the date of installation, or within 18 months of the date
of shipment from the point of manufacture, whichever is sooner. Products may be returned by Buyer only
after permission has been obtained from Red Lion. Buyer will prepay all freight charges to return any
products to the repair facility designated by Red Lion. This limited warranty does not cover losses or
damages which occur in shipment to or from Buyer or due to improper installation, maintenance, misuse,
neglect or any cause other than ordinary commercial or industrial applications. In particular, Red Lion
makes no warranties whatsoever with respect to implied warranties of merchantability or fitness for any
particular purpose. All such warranties are hereby expressly disclaimed. No oral or written information or
advice given by Red Lion or Red Lion’s representative shall create a warranty or in any way increase the
scope of this warranty. This limited warranty is in lieu of all other warranties whether oral or written,
expressed or implied. Red Lion's liability shall not exceed the price of the individual units, which are the
basis of the claim. In no event shall Red Lion be liable for any loss of profits, loss of use of facilities or
equipment, or other indirect, incidental or consequential damages.
FCC Statement - This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna; Increase the separation between the equipment and receiver; Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an
experienced radio/TV technician for help.
Copyright & Trademarks - Copyright 2014 Sixnet, Inc. All Rights Reserved.
Note: All information in this document is subject to change without notice.
Slim Line Switch Hardware Manual Page 4 of 35
General Information
This manual will help you install and maintain these industrial Ethernet switches.
Installation of these switches is very easy and they will begin to operate as soon as they are
powered up. For the unmanaged models (denoted by ES in their part number) there are no
user settings so they are truly plug and play. The managed models (denoted by MS in their
part number) will act as unmanaged switches until they are configured otherwise. Refer to
the managed switch software manual for configuration of advanced network functionality.
Note: This manual only covers the installation and wiring of these switches. For
the managed models refer to the separate Software User Manuals for details on
configuring and using any of the management functions such as SNMP, RSTP,
IGMP, VLANs, security, port mirroring and much more.
Unlike an Ethernet hub that broadcasts all messages out all ports, these industrial Ethernet
switches will intelligently route Ethernet messages only out the appropriate port. The major
benefits of this are increased bandwidth and speed, reduction or elimination of message
collisions, and deterministic performance when tied with real-time systems.
These industrial Ethernet switches can support 10BaseT (10 Mbps), 100BaseT (100 Mbps)
and 1000BaseT (100 Mbps) on their RJ45 ports (depending on the model). Each of these
ports will independently auto-sense the speed/duplex, mdi/mdix-crossover and polarity
allowing you to use straight, crossed or even mis-wired cables. Some models also have
one or more fiber optic ports for making noise immune connections up to 120 km.
These general specifications apply to these industrial Ethernet switches. Refer to Section 7
for complete technical specifications.
Number of ports
2,3, 5, 6, 8, 9, 10, 16 or 18 Ethernet ports
Ethernet Switch Type
Unmanaged (ES/EG models) or managed (MS models)
Ethernet Switch Mode
Store and forward, wire-speed, non-blocking
Ethernet Protocols
All standard IEEE 802.3 protocols supported
RJ45 Ports Speed
10/100 or 10/100/1000 Mbps
RJ45 Ports Operation
Auto-negotiation, auto-mdi/mdix-crossover and auto-polarity
Fiber Optic Port Speed
100 Mbps (SC or ST) or 1000 Mbps (SFP/LC)
Fiber Optic Type
Multimode, singlemode, long-haul or special application
Safety
Standards
These industrial Ethernet Switches meet the following standards plus others:
Note: Some ratings may be pending on newer models. Contact Red Lion for latest info.
Electrical safety –
CE per Low Voltage Directive and IEC61010-1
UL508
CSA per C22.2/142
See warnings below.
Install the Managed Switches in accordance with local and national electrical codes.
Note: This Equipment is Suitable for Use in Class I, Division 2, Groups A, B, C, D
or Non Hazardous Locations Only
Slim Line Switch Hardware Manual Page 5 of 35
Lightning Danger: Do not work on equipment during periods of lightning activity.
Do not connect a telephone line into one of the Ethernet RJ45 connectors.
EMC (emissions and immunity) –
CE per the EMC directive, EN 55022, EN 61000-6-2/4
FCC part 15 and ICES 003; Class B. See FCC statement on previous page.
Marine, maritime and offshore –
These devices, when installed in an appropriately IP rated enclosure, comply with the ABS
standards which is similar to DNV No. 2.4 and equivalent Lloyds. Please reference
product datasheet for individual specifications and agency certifications.
See warning below.
For marine and maritime compliance, do not install this product within 5 meters of a
standard or a steering magnetic compass.
WEEE compliance –
These devices comply with the WEEE directive. Do not throw away these devices in the
standard trash. Contact Red Lion regarding proper disposal.
RoHS compliance –
These devices comply with the RoHS directive and are consider lead and other hazardous
substance free.
Hazardous Locations –
CE per ATEX directive and IEC60079-0,-15 (Zone 2)
ISA12.12.01 (Class I, Div. 2), Groups A,B,C,D
CSA per C22.2/213 (Class 1, Div. 2), Groups A,B,C,D
See warnings below.
Slim Line Switch Hardware Manual Page 6 of 35
INSTALLATION AND HAZARDOUS AREA WARNINGS:
These products should not be used to replace proper safety interlocking. No software-based device (or any
other solid-state device) should ever be designed to be responsible for the maintenance of consequential
equipment or personnel safety. In particular, Red Lion disclaims any responsibility for damages, either
direct or consequential, that result from the use of this equipment in any application.
All power, input and output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods and in
accordance with the authority having jurisdiction. This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D or non-hazardous locations only.
WARNING
(EXPLOSION HAZARD)
SUBSTITUTION OF ANY COMPONENTS MAY IMPAIR SUITABILITY
FOR CLASS 1, DIVISION 2 (ZONE 2).
WARNING
(EXPLOSION HAZARD)
WHEN IN HAZARDOUS LOCATIONS, DISCONNECT POWER BEFORE
REPLACING OR WIRING UNITS.
WARNING
(EXPLOSION HAZARD)
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.
WARNING
(EXPLOSION HAZARD)
IN HAZARDOUS OR POTENTIALLY HAZARDOUS LOCATIONS, DO
NOT SEPARATE ANY PART OF THE UNIT WHEN ENERGIZED. USE
THE UNIT FOR INTERNAL CONNECTIONS ONLY.
INSTRUCTIONS D’INSTALLATION ET D’UTILISATION:
Ces produits ne doivent pas être utilisés pour remplacer le verrouillage de sécurité approprié. Aucun
dispositif basé sur un logiciel (ou tout autre dispositif à l'état solide) devraient jamais être conçus pour être
responsable de l'entretien de l'équipement consécutifs ou la sécurité du personnel. En particulier, Red Lion
décline toute responsabilité pour les dommages, directs ou indirects, résultant de l'utilisation de cet
équipement dans n'importe quelle application.
Tout courant, câblage entrée et sortie (I / O) doit être conforme aux méthodes de câblage à la Classe I,
Division 2 et conformément à l'autorité compétente. Cet équipement est adapté à une utilisation en Classe
I, Division 2, Groupes A, B, C, D ou environnements non-dangereux seulement.
AVERTISSEMENT
(RISQUE
D’EXPLOSION)
LA SUBSTITUTION DE TOUT COMPOSANT PEUT NUIRE À LA
CONFORMITÉ DE CLASSE I, DIVISION 2 (ZONE 2).
AVERTISSEMENT
(RISQUE
D’EXPLOSION)
LORSQUE DANS DES ENDROITS DANGEREUX, DÉBRANCHEZ LE
CORDON D’ALIMENTATION AVANT DE REMPLACER OU DE
BRANCHER DES MODULES.
AVERTISSEMENT
(RISQUE
D’EXPLOSION)
NE DÉBRANCHEZ PAS L’ÉQUIPEMENT PENDANT QUE LE CIRCUIT
EST DIRECT OU À MOINS QUE L’ENVIRONNEMENT SOIT CONNU
POUR ÊTRE LIBRE DE CONCENTRATIONS INFLAMMABLES.
AVERTISSEMENT
(RISQUE
D’EXPLOSION)
DANS LES ENDROITS DANGEREUX OU POTENTIELLEMENT
DANGEREUX, NE PAS SÉPARER UNE PARTIE DE L'UNITÉ SOUS
TENSION. SEULEMENT UTILISEZ L'APPAREIL POUR LES
CONNEXIONS INTERNES.
Slim Line Switch Hardware Manual Page 7 of 35
Section 2
LED Indicators
Overview
All these industrial Ethernet switches have 1 or 2 communication LEDs for each port and a
power LED. The managed models also have an “OK” output LED, a status LED and dual
power LEDs. Refer to the sample pictures below for the location of these LEDs.

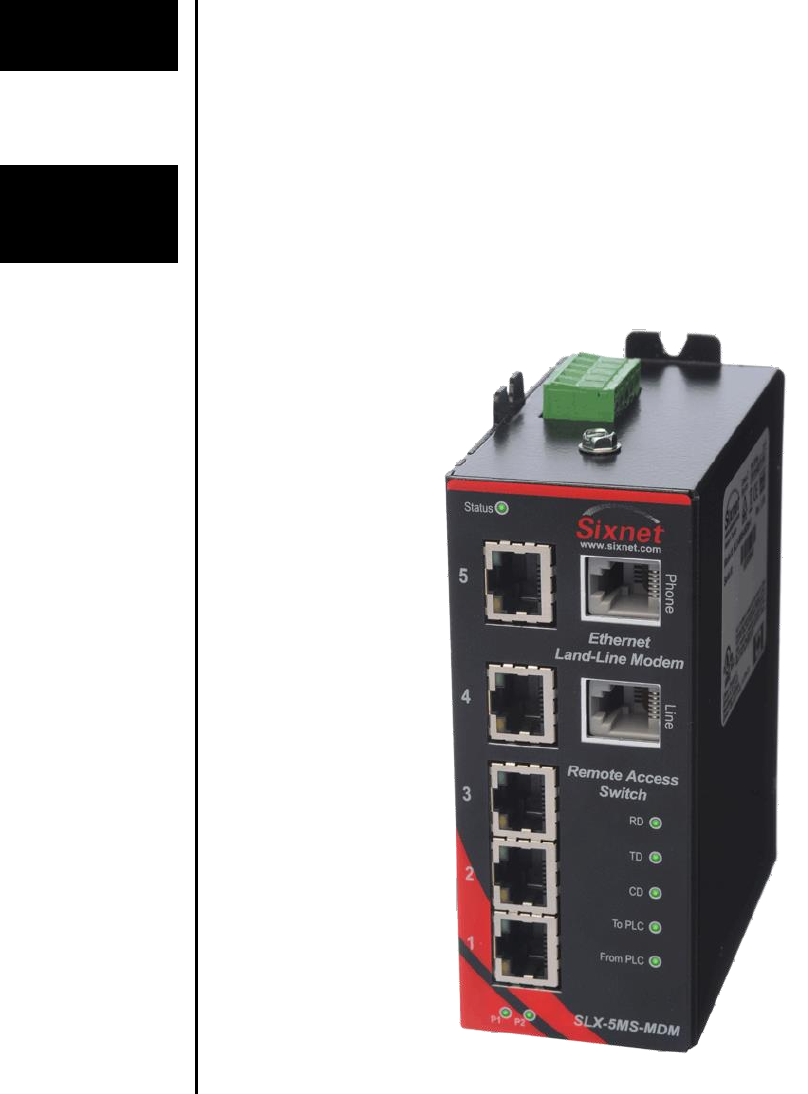

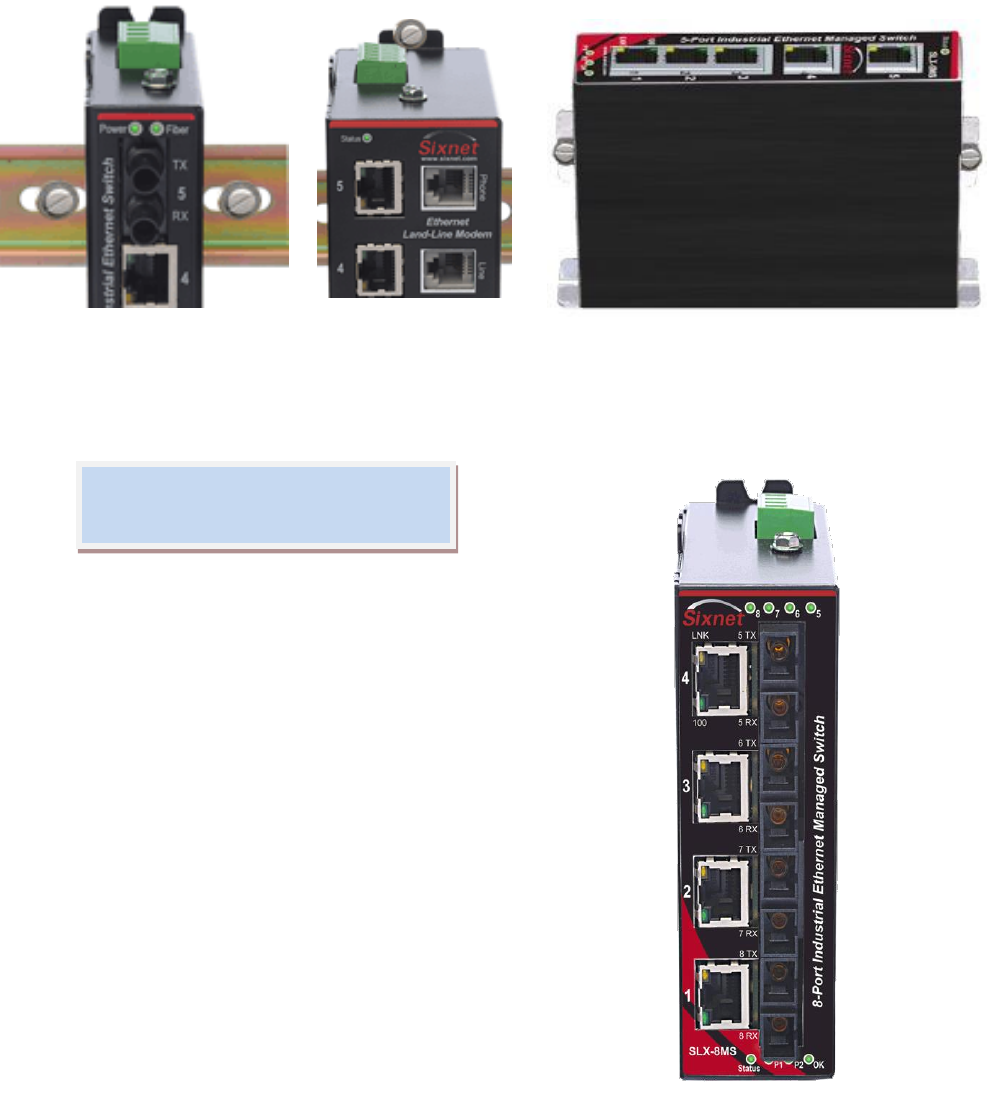

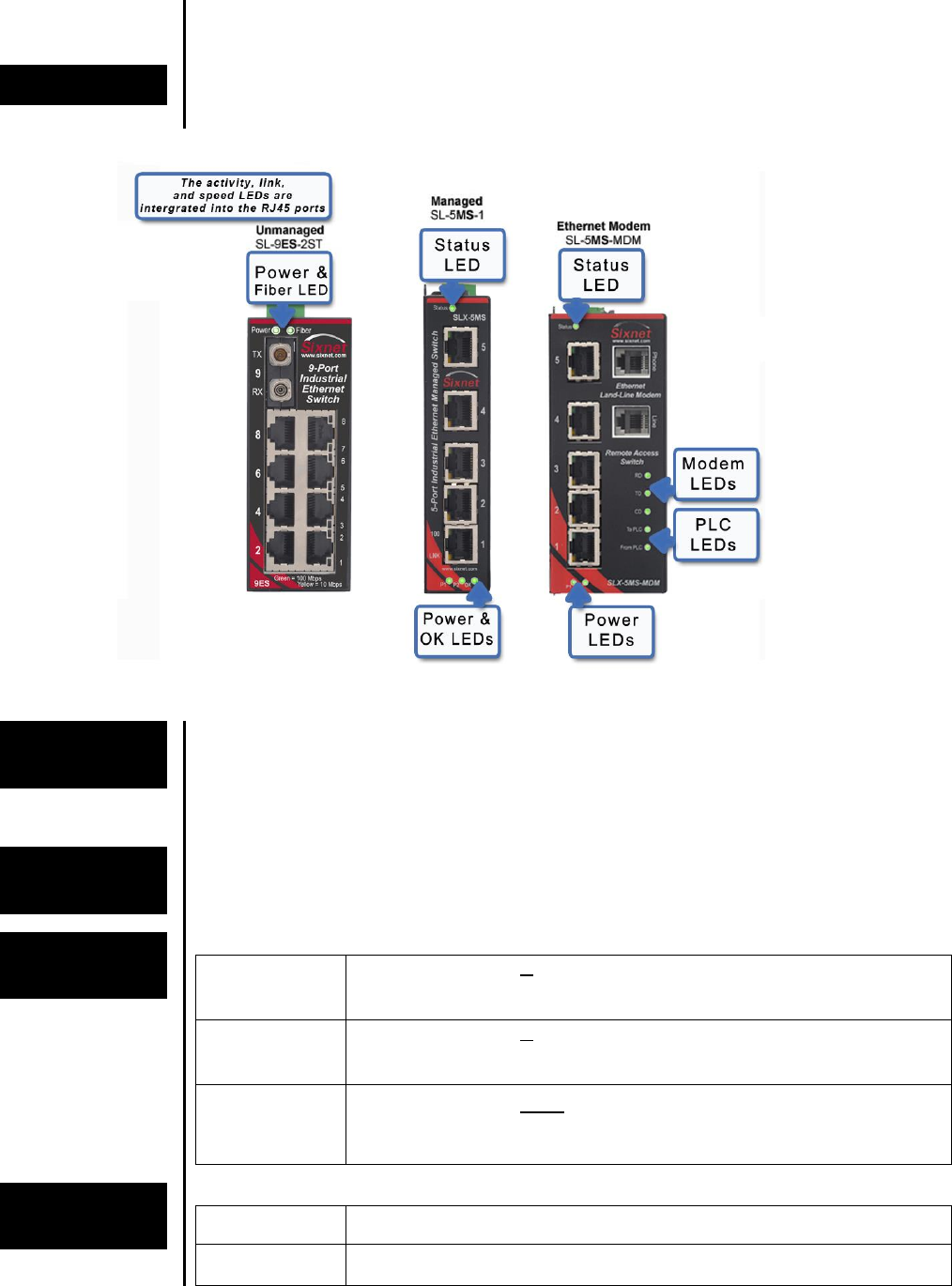

Typical LED Location (varies with model)
Status LED
Managed Models Only: The Status LED indicates the overall health of the switch. It is
normally ON solid indicating that no internal CPU or software problems are detected. It will
flash when loading firmware and briefly on power up or reset. Otherwise, if it is OFF or
flashing for an extended period of time then a problem is detected. In this case, please
contact Red Lion for support.
Power LED
On unmanaged models there is typically one power LED that is ON if either power input (P1
or P2) has power applied to it. On the managed models (and some unmanaged models)
there are two Power LEDs that indicate if there is power applied to the respective input.
ACT / LNK
LED
This is the Yellow LED on models with two LEDs per RJ45 port.
ON (yellow)
(not flashing)
Indicates that there is a proper Ethernet connection (Link) between the
port and another Ethernet device, but no communications activity is
detected.
ON (yellow)
(flashing)
Indicates that there is a proper Ethernet connection (Link) between the
port and another Ethernet device, and that there is communications
activity.
OFF
Indicates that there is not a proper Ethernet connection (Link) between
the port and another Ethernet device. Make sure the cable has been
plugged securely into the ports at both ends.
Speed 10/100
LED
This is the Green LED on models with two LEDs per RJ45 port.
ON (green)
A 100 Mbps (100BaseT) connection is detected.
OFF
A 10 Mbps (10BaseT) connection is detected.
Slim Line Switch Hardware Manual Page 8 of 35
ACT / LNK /
Speed LED
This is a bi-color (green and yellow or orange) LED on models with one LED per RJ45
port.
ON Solid
(not flashing)
Indicates that there is a proper Ethernet connection (Link) between the
port and another Ethernet device, but no communications activity is
detected.
Flashing
Indicates that there is a proper Ethernet connection (Link) between the
port and another Ethernet device, and that there is communications
activity.
Green
On 10/100 ports, a 100 Mbps connection is detected.
On 10/100/1000 ports, a 1000 Mbps connection is detected.
Yellow or
Orange
On 10/100 ports, a 10 Mbps connection is detected.
ON 10/100/100 ports, a 10 or 1000 Mbps connection is detected.
OFF
Indicates that there is not a proper Ethernet connection (Link) between
the port and another Ethernet device. Make sure the cable has been
plugged securely into the ports at both ends.
PoE LED
ON
A valid Powered Device(PD) is detected and the switch is sourcing
power on this port.
OFF
No valid Powered Device(PD) is detected and no power is sourced.
Periodically
Blinks ON
No valid Powered Device (PD) is detected or the connected device is
drawing too little current (<10 mA) so no power is being sourced. Once
the connected device is loaded and draws more than 10 or 15 mA
then power will be sourced.
Error Code
Blink
If you see the same sequence of blinks repeatedly then contact Red
Lion for more information.
OK LED

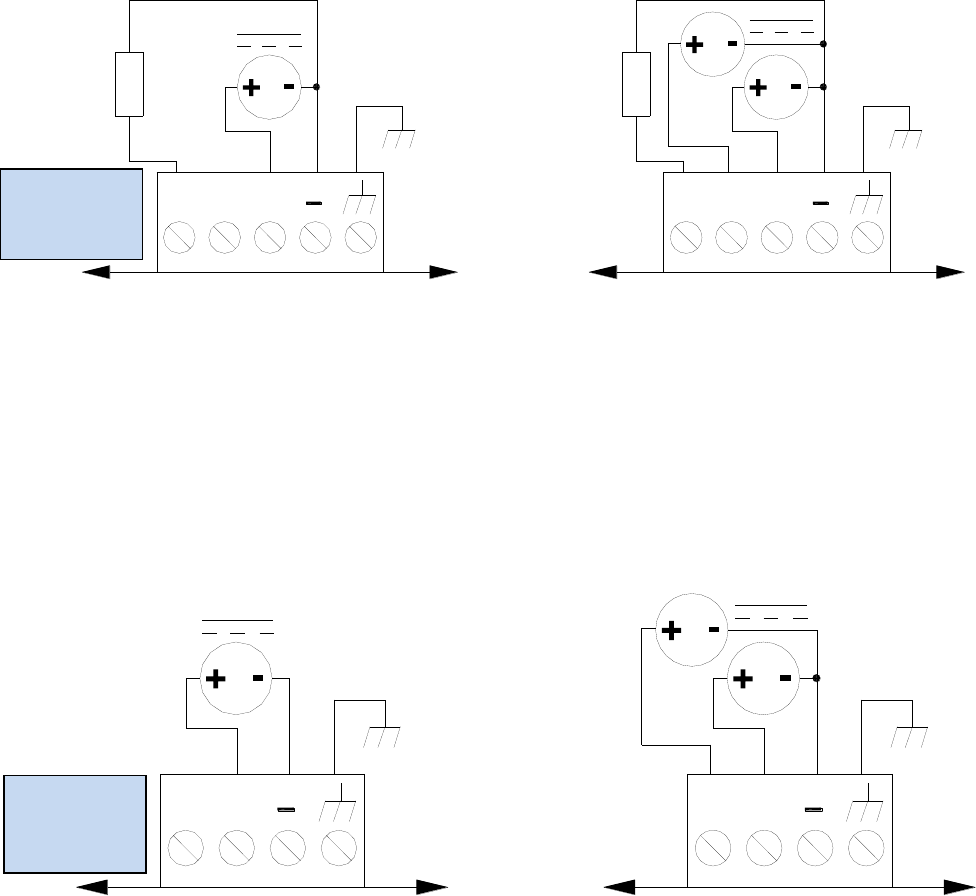

Managed Models and Some Unmanaged Models: This LED indicates the status of the
power inputs. There is an output screw terminal that can be connected as shown in the
wiring diagram. The output voltage from the screw terminal marked ‘OK’ will be the same
as the applied switch input voltage. The output will be ON when both the PI and P2
terminals have power applied to them. It will be OFF if either input does not have power or
the switch software is not running.
From PLC
Input LED
5MS-MDM Models Only: This LED indicates status of the Discrete “From PLC” input on
the modem. There is an input screw terminal that can be connected as shown in the
diagram. When voltage is applied to the From PLC input the LED will be ON. When no
voltage is applied the LED will be OFF.
To PLC
Output LED
5MS-MDM Models Only: This LED can indicate Power Status or Modem Connection
status. There is an output screw terminal. That can be connected as shown in the wiring
diagram. . The output voltage from the screw terminal marked ‘OK’ will be the same as the
applied switch input voltage. In “OK output” mode the output will be ON when both P1 and
P2 terminals have power applied to them. It will be OFF if either input does not have power
or the switch software is not running. In “Carrier Detect” mode the output will be ON when
the CD LED is ON and will be OFF when the CD LED is OFF.
CD LED
5MS-MDM Models Only: The CD LED indicates when there is a carrier (successful
connection) established between the SL-5MS-MDM and another modem. When OFF the
connection is not established, and when ON the Carrier is established.
RD LED
5MS-MDM Models Only: The RD LED flashes when the SL-5MS-MDM is receiving data
from the phone line port. Flashing on this LED when the CD LED is OFF could indicate a
Ring coming in from a calling device. When the CD LED is ON and the RD LED is flashing
will indicate communication coming in from the remote device.
TD LED
5MS-MDM Models Only: The TD LED will flash on as the SL-5MS-MDM transmits data
out to the modem. The flashing of TD LED while the CD LED is ON will indicate
communications between the SL-5MS-MDM and device connected to the other modem.
Slim Line Switch Hardware Manual Page 9 of 35

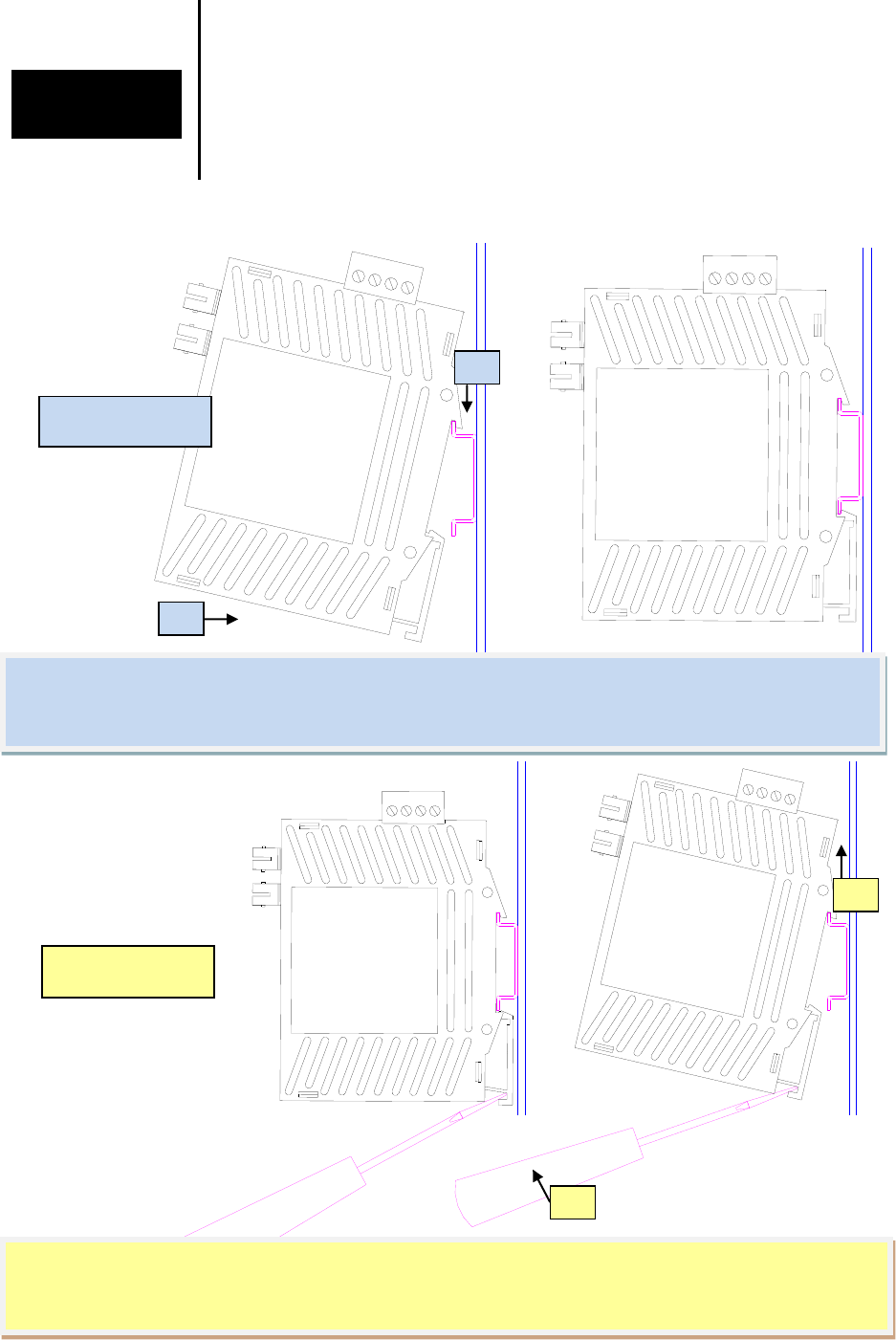

Section 3
Installation
Overview
These industrial Ethernet switches can be snapped onto a standard DIN rail (EN50022) or
screwed directly to a flat panel. Refer to the mechanical drawings below to properly mount
your switch.
Note: Make sure to allow enough room to route your Ethernet copper or fiber optic cables.
SL- or SLX-#ES models in Lexan case:
Mounting
Removal
1
2
B
A
Recommended DIN rail mounting steps:
1. Hook the top back of the unit over the DIN rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Recommended DIN rail removal steps:
A. Insert screwdriver into DIN clip and pry until the bottom of the unit releases from the din rail.
B. Unhook the top of the unit and remove it from the DIN rail.
Slim Line Switch Hardware Manual Page 10 of 35

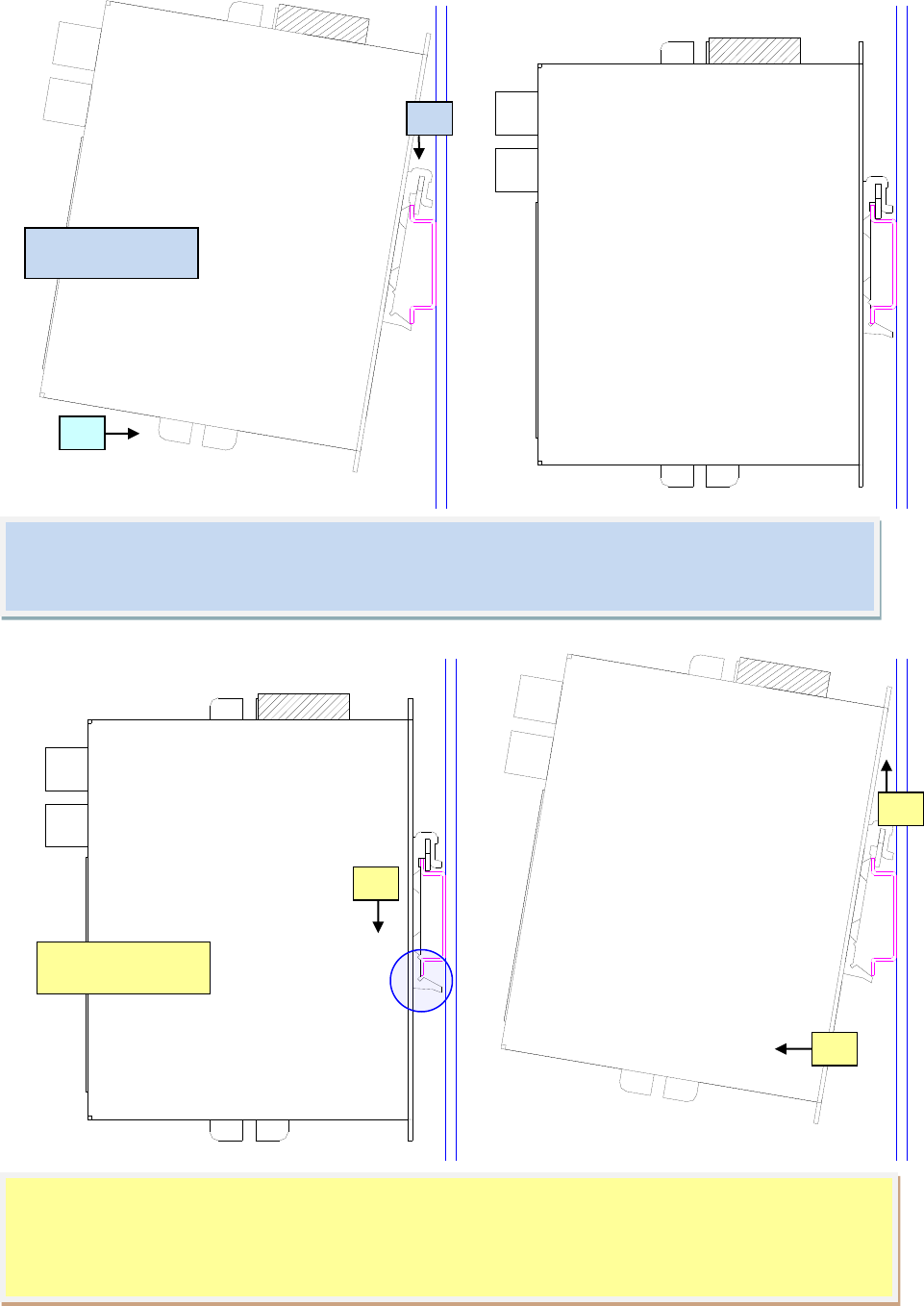

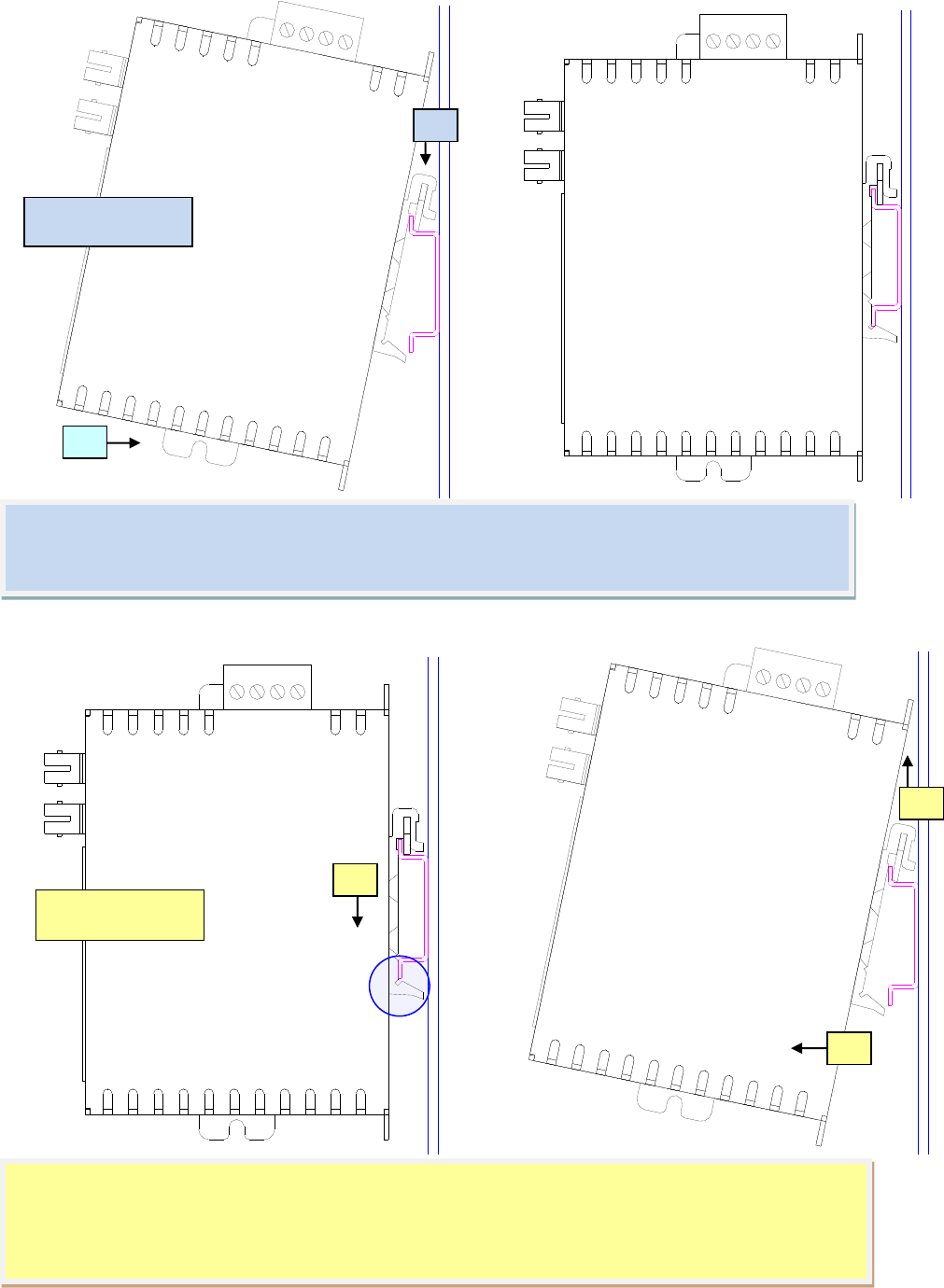

SL- or SLX-#ES models in metal case:
Mounting
Removal
1
2
B
A
Recommended DIN rail mounting steps:
1. Hook the top back of the DIN rail clip on the unit over the din rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Recommended DIN rail removal steps:
A. Push the whole unit down to free the bottom of the DIN rail clip. See blue circle area.
B. Pull the bottom of the unit away from the DIN rail.
C. Unhook the top of unit and remove it from the DIN rail.
C
Slim Line Switch Hardware Manual Page 11 of 35

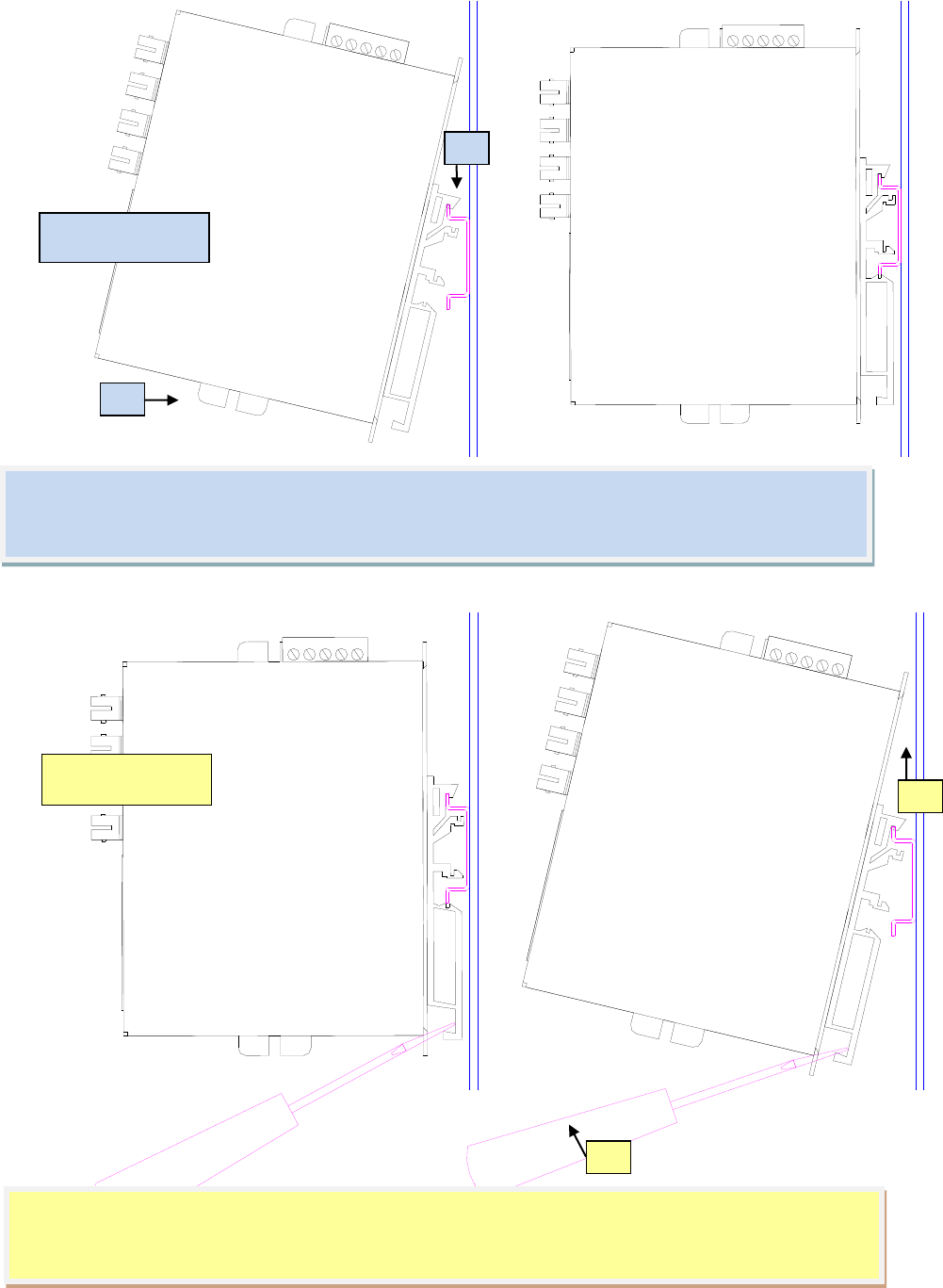

SL- or SLX-#MS models in metal case with plastic DIN rail clip (older models):
Mounting
Removal
1
2
B
A
Recommended DIN rail mounting steps:
1. Hook the top back of the unit over the DIN rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Recommended DIN rail removal steps:
A. Insert screwdriver into DIN clip and pry until the bottom of the unit releases from the din rail.
B. Unhook the top of the DIN clip and remove the unit from DIN rail.
Slim Line Switch Hardware Manual Page 12 of 35
SL/SLX-#MS and -#MG models in metal case with metal DIN rail clip:
Mounting
Removal
1
2
B
A
Recommended DIN rail mounting steps:
1. Hook the top back of the DIN rail clip on the unit over the din rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Recommended DIN rail removal steps:
A. Push the whole unit down to free the bottom of the DIN rail clip. See blue circle area.
B. Pull the bottom of the unit away from the DIN rail.
C. Unhook the top of unit and remove it from the DIN rail.
C
Slim Line Switch Hardware Manual Page 13 of 35
Dia. 0.15"
(0.38 cm)
Use for direct
panel mounting
to a flat surface
3.95"
[10.03 cm]
1.98"
[5.02 cm]
1.98"
[5.02 cm]
1.00"
[2.54 cm]
1.50"
[3.81 cm]
3.26"
[8.28 cm]
4.20"
[10.67 cm]
0.40" (1.02 cm)
Typical for
SC or ST fiber
Removable Screw Block
Snaps to standard
DIN rail EN50022
(35 mm)
2/3/5
Ports 6/8/9
Ports
1.01"
[2.57 cm]
1.01"
[2.57 cm]
0.06"
[0.15 cm]
2.90"
[7.35 cm]

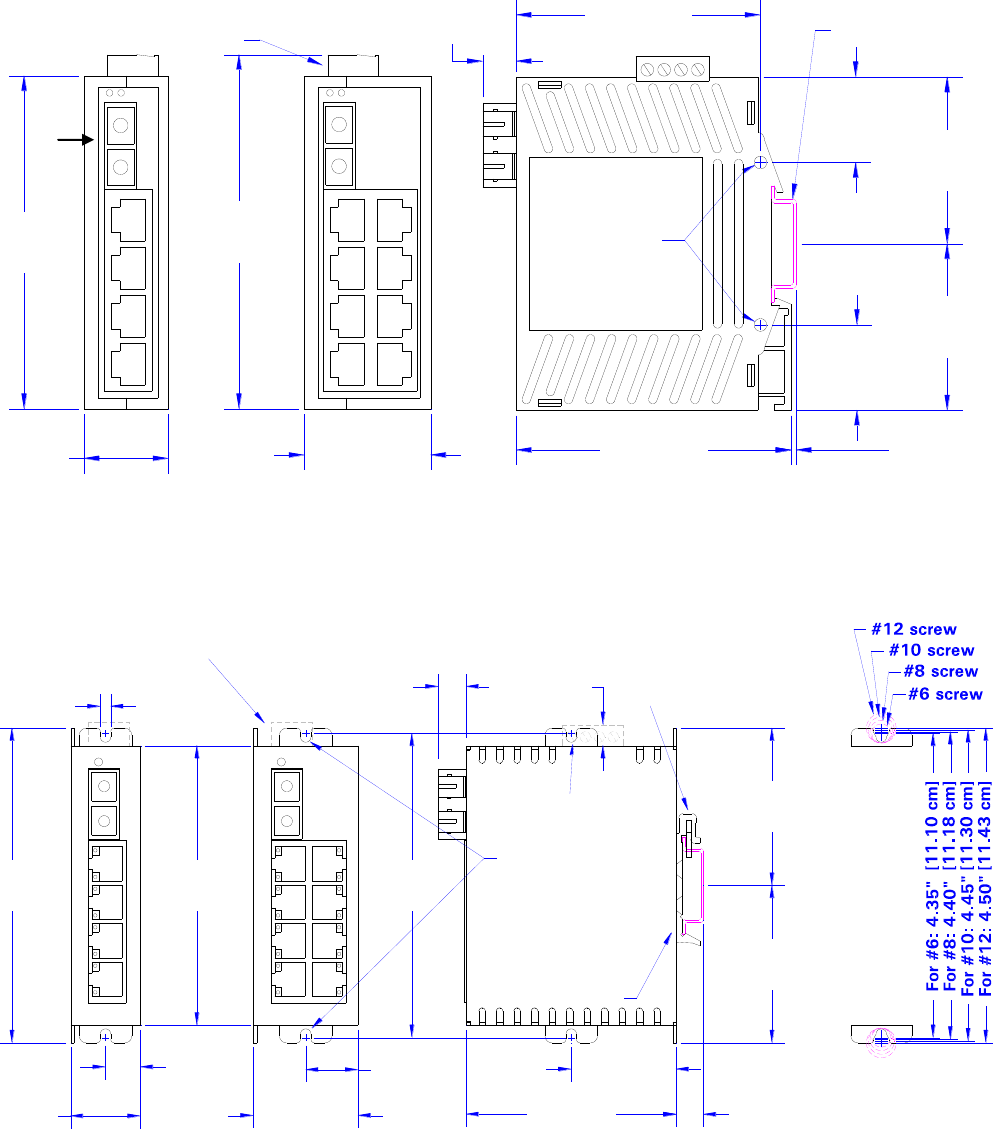

Mechanical Dimensions for SL-2/3/5/6/8/9ES-1/2/3
in Lexan Packaging
Use for direct panel
mounting to a flat
surface with up to
#8 screw for older
units or up to #12
for newer units
(see guide to right)
4.00"
[10.16 cm]
4.50"
[11.43 cm]
4.35"
[11.05 cm]
2.25"
[5.71 cm]
2.25"
[5.71 cm]
Typical for
SC or ST fiber
0.40" (1.02 cm) Snaps to standard
DIN rail EN50022
(35 mm)
Removable Screw Block
1.50"
[3.81 cm]
3.00"
[7.62 cm]
0.30"
[0.76 cm]
0.39"
[0.99 cm]
2/3/5
Ports 6/8/9
Ports
C
Removable
for direct panel
mounting
1.10"
[2.79 cm]
0.55"
[1.40 cm]
1.60"
[4.06 cm]
0.80"
[2.03 cm]
0.175"
[0.44 cm]
SLX
Panel mounting ears on
newer models accept
up to a #12 screw
Direct to panel
mounting guide
Mechanical Dimensions for SLX-2/3/5/6/8/9ES-1/2/3
in Metal Packaging
Slim Line Switch Hardware Manual Page 14 of 35

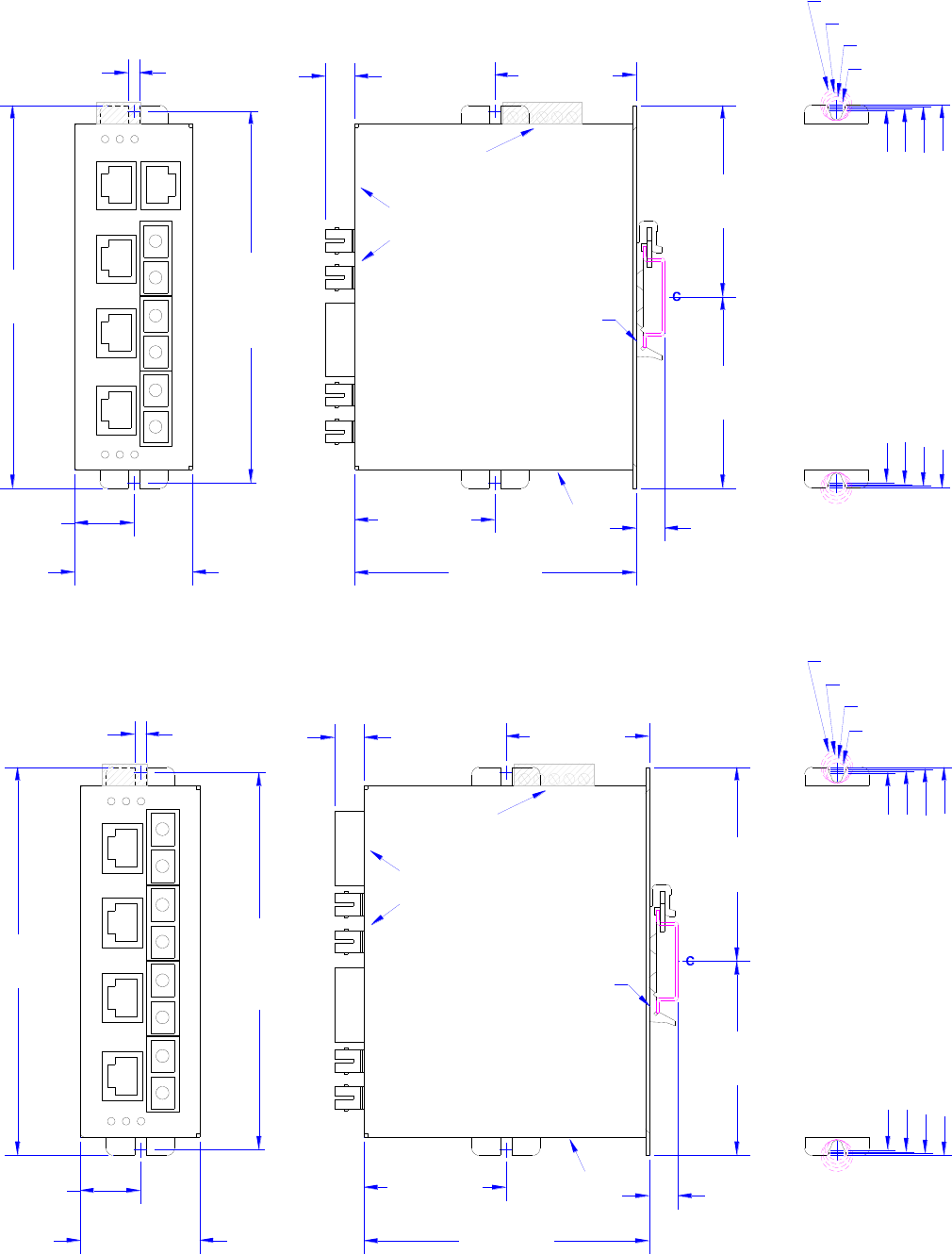

Mechanical Dimensions for SL/SLX-5/8MS-1/4/5 with up to 2 Fiber Ports
5.05"
Removable
Screw Block
Console
Port(s)
C
#6 screw
#8 screw
#10 screw
#12 screw
Direct to panel
mounting guide
for newer models
Panel mounting ears on
newer models accept
up to a #12 screw
[12.83 cm]
For #6 screw: 5.05" [12.95 cm]
For #8 screw: 5.10" [13.08 cm]
For #10 screw: 5.15" [13.21 cm]
For #12 screw: 5.20"
0.39"
[0.99 cm]
3.82"
[9.70 cm]
2.00"
[5.08 cm]
1.00"
[2.54 cm]
5.20"
[13.21 cm]
4.70"
[11.93 cm]
[12.83 cm]
2.60"
[6.60 cm]
2.60"
[6.60 cm]
1.92"
[4.88 cm]
1.90"
[4.83 cm]
0.15"
[0.38 cm]
Snaps to
standard
DIN Rail
EN50022
(35 mm)
Removable DIN clip for
direct panel mounting
Panel mounting ears accept
up to a #6 screw on older
models (see to the right for
newer models)

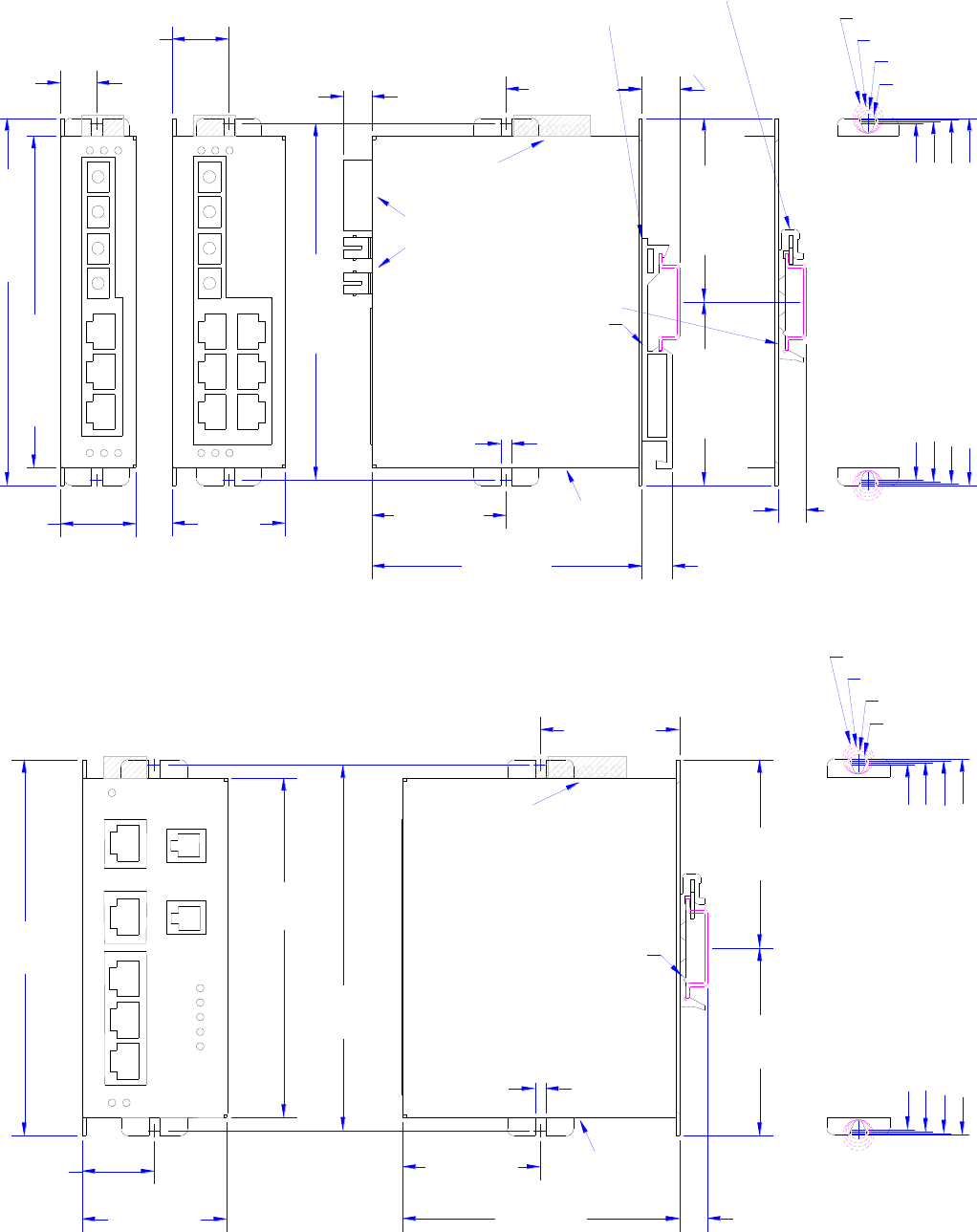

Mechanical Dimensions for SL/SLX-5MS-MDM-1
SC Fiber
ST Fiber
Removable DIN clip for
direct panel mounting
Removable
Screw Block
Panel mounting ears accept up
to a #6 screw on older models
w/ plastic DIN clip (see to the
right for newer models)
5 Port
Snaps to
standard
DIN Rail
EN50022
(35 mm)
8 Port
Console
Port(s)
Metal DIN Clip (newer models)
Plastic DIN Clip (older models)
C
0.39"
[0.99 cm]
1.60"
[4.07 cm]
4.70"
[11.94 cm]
5.20"
[13.21 cm]
0.51"
[1.29 cm]
1.07"
[2.71 cm]
0.40"
[1.02 cm]
1.92"
[4.88 cm]
0.53"
[1.36 cm]
2.60"
[6.60 cm] 2.60"
[6.60 cm]
0.43"
[1.10 cm]
3.82"
[9.70 cm]
0.80"
[2.04 cm]
1.90"
[4.83 cm]
0.15"
[0.38 cm]
For #12 screw: 5.20" [13.21 cm]
For #10 screw: 5.15" [13.08 cm]
For #8 screw: 5.10" [12.95 cm]
For #6 screw: 5.05" [12.83 cm]
Panel mounting ears on
newer models (w/ metal DIN clip)
accept up to a #12 screw
Direct to panel
mounting guide
for newer models
#12 screw
#10 screw
#8 screw
#6 screw
Typ. for SC or ST Fiber
5.05"
[12.83 cm]
Slim Line Switch Hardware Manual Page 15 of 35
2.60"
[6.60 cm]
2.60"
[6.60 cm]
3.82"
[9.70 cm]
5.05"
[12.83 cm]
for #6
screw
Removable
Screw Block
1.60"
[4.07 cm]
5.20"
[13.21 cm]
0.80"
[2.04 cm]
0.40"
[1.02 cm]
typical
0.15"
[0.38 cm]
0.39"
[0.99 cm]
1.92"
[4.88 cm]
1.90"
[4.83 cm]
#6 screw
#8 screw
#10 screw
#12 screw
Direct to panel
mounting guide
for newer models
Panel mounting ears on
newer models accept
up to a #12 screw
[12.83 cm]
For #6 screw: 5.05" [12.95 cm]
For #8 screw: 5.10" [13.08 cm]
For #10 screw: 5.15" [13.21 cm]
For #12 screw: 5.20"
Console
Port(s)
Snaps to
standard
DIN Rail
EN50022
(35 mm)
SC Fiber
ST Fiber
Removable DIN clip for
direct panel mounting
Panel mounting ears accept
up to a #6 screw on older
models (see to the right for
newer models)
Mechanical Dimensions for SL/SLX-8ES-6/7 with 3 Fiber Ports
2.60"
[6.60 cm]
2.60"
[6.60 cm]
3.82"
[9.70 cm]
5.05"
[12.83 cm]
for #6
screw
Removable
Screw Block
1.60"
[4.07 cm]
5.20"
[13.21 cm]
0.80"
[2.04 cm]
0.40"
[1.02 cm]
typical
0.15"
[0.38 cm]
1.92"
[4.88 cm]
1.90"
[4.83 cm]
For #12 screw: 5.20" [13.21 cm]
For #10 screw: 5.15" [13.08 cm]
For #8 screw: 5.10" [12.95 cm]
For #6 screw: 5.05" [12.83 cm]
Panel mounting ears on
newer models accept
up to a #12 screw
Direct to panel
mounting guide
for newer models
#12 screw
#10 screw
#8 screw
#6 screw
SC Fiber
ST Fiber
Snaps to
standard
DIN Rail
EN50022
(35 mm)
Removable DIN clip for
direct panel mounting
Panel mounting ears accept
up to a #6 screw on older
models (see to the right for
newer models)
Console
Port(s) 0.39"
[0.99 cm]
Mechanical Dimensions for SL/SLX-8MS-8/9 with 4 Fiber Ports
Slim Line Switch Hardware Manual Page 16 of 35

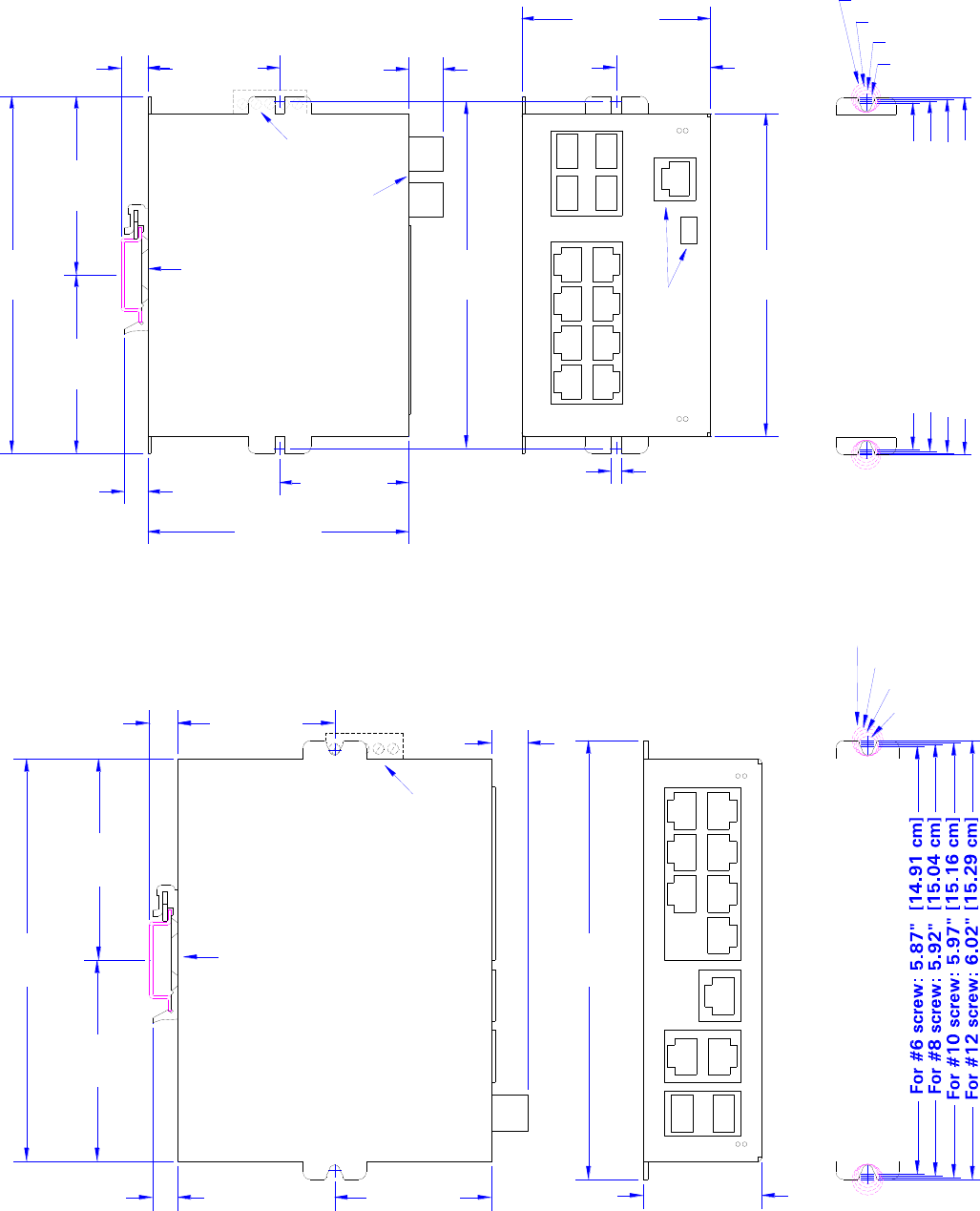

0.15"
[0.38 cm]
5.20"
[13.21 cm]
0.35"
[0.88 cm]
#6 screw
#8 screw
#10 screw
#12 screw
Direct to panel
mounting guide
for newer models
Panel mounting ears on
newer models
accept up to a #12 screw
[12.83 cm]
For #6 screw: 5.05" [12.95 cm]
For #8 screw: 5.10" [13.08 cm]
For #10 screw: 5.15" [13.21 cm]
For #12 screw: 5.20"
2.60"
[6.60 cm]
2.60"
[6.60 cm]
Typical for SFP Xcvrs
1.92"
[4.88 cm]
0.39"
[0.99 cm]
3.80"
[9.65 cm]
5.05"
[12.83 cm]
SFP Fiber
Ports
Removable DIN clip
for direct panel mounting
Removable
Screw Block
Panel mounting ears
accept up to a #6
screw on earlier models
and up to a #12 screw
on newer models.
Snaps to
standard
DIN Rail
EN50022
(35 mm)
1.88"
[4.78 cm]
Console
Ports
4.70"
[11.94 cm]
0.50"
[1.27 cm]
1.37"
[3.49 cm]
2.75"
[6.98 cm]
Mechanical Dimensions for SL/SLX-8MG with 8 Gigabit Ports
#6 screw
#8 screw
#10 screw
#12 screw
Panel mounting ears
accept up to a #12 screw
Direct to panel
mounting guide
Snaps to
standard
DIN Rail
EN50022
(35 mm)
Removable
Screw Block
Removable DIN
clip for direct
panel mounting
Panel mounting ears
accept up to
a #12 screw
2.76"
[7.01 cm]
2.76"
[7.01 cm]
0.35"
[0.88 cm]
0.39"
[0.99 cm]
5.52"
[14.02 cm]
2.15"
[5.46 cm]
2.15"
[5.46 cm]
Typical for SFP Xcvrs
0.50" [1.27 cm]
6.02"
[15.29 cm]
1.63"
[4.13 cm]
Mechanical Dimensions for SLX-10MG-1
Slim Line Switch Hardware Manual Page 17 of 35
#6 screw
#8 screw
#10 screw
#12 screw
Panel mounting ears
accept up to a #12 screw
Direct to panel
mounting guide
Snaps to
standard
DIN Rail
EN50022
(35 mm)
Removable
Screw Block
Removable DIN
clip for direct
panel mounting
Panel mounting ears
accept up to
a #12 screw
2.76"
[7.01 cm]
2.76"
[7.01 cm]
0.35"
[0.88 cm]
0.39"
[0.99 cm]
5.52"
[14.02 cm]
2.15"
[5.46 cm]
2.15"
[5.46 cm]
Typical for SFP Xcvrs
0.50" [1.27 cm]
6.02"
[15.29 cm]
2.13"
[5.40 cm]
Mechanical Dimensions for SLX-16MS-1
2.88"
[7.31 cm]
#6 screw
#8 screw
#10 screw
#12 screw
Panel mounting ears
accept up to a #12 screw
Direct to panel
mounting guide
Snaps to
standard
DIN Rail
EN50022
(35 mm)
Removable
Screw Block
Removable DIN
clip for direct
panel mounting
Panel mounting ears
accept up to
a #12 screw
2.76"
[7.01 cm]
2.76"
[7.01 cm]
0.35"
[0.88 cm]
0.39"
[0.99 cm]
5.52"
[14.02 cm]
2.15"
[5.46 cm]
2.15"
[5.46 cm]
Typical for SFP Xcvrs
0.50" [1.27 cm]
6.02"
[15.29 cm]
Mechanical Dimensions for SLX-18MG-1
Slim Line Switch Hardware Manual Page 18 of 35
Mechanical Dimensions for SLX-3EG-1SFP
Mechanical Dimensions for SLX-5EG-2SFP
Slim Line Switch Hardware Manual Page 19 of 35

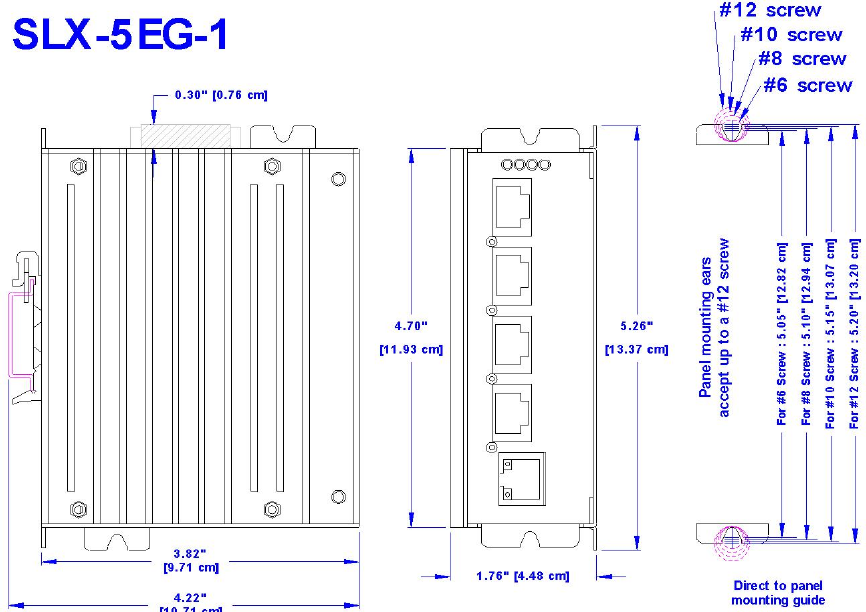

Mechanical Dimensions for SLX-5EG-1
Slim Line Switch Hardware Manual Page 20 of 35
The metal packaged models allow you to choose the mounting method that best fits your requirements. (Note:
Not all methods are available on all models. Refer to the mechanical diagrams for details.)
Vertical snap-on DIN rail
mounting for quickest
installation and optimal
utilization of your rail space.
Vertical screw-to-
panel mounting for
better shock and
vibration resistance.
Flat screw-to-panel mounting
for low profile orientation
in shallow boxes plus best
shock and vibration resistance.
Overview of Optional Mounting Methods
The Slim Lines switches with metal cases use an
innovative technique to remove excess heat from
the product and its components. This technique
effectively utilizes the heavy-gauge all-aluminum
case as a large heat-sink. Therefore, you may
notice the case becoming warm during operation
(especially with large loads such as all ports
linked and active). This is normal operation. For
best performance it is recommended that a DIN
rail spacer (such as an end clamp) be used
between the switch and adjacent devices. This
will leave an air gap for best heat dissipation off
the case. Also, do not block the air slots.
For best thermal performance when direct panel
mounting to a metal surface, you may use a
thermal compound or pad between the mounting
face and the mounting surface. This will reduce
any air gaps and optimize the transfer of heat
from the case to the mounting surface.
Important Notes about
Thermal Performance:
Slim Line Switch Hardware Manual Page 21 of 35
Section 4
Power and Output Wiring
Overview
These industrial Ethernet switches can be powered from the same DC source that is used
to power your other devices. A voltage in the range of 10 to 30 VDC needs to be applied
between the P1 (plus) terminal and the Minus terminal as shown in the diagrams on the
next page. The chassis screw terminal should be tied to panel or chassis ground. To
reduce down time resulting from power loss, these industrial Ethernet switches can
optionally be powered redundantly with a second power supply as shown in the diagrams.
The managed models also have an “OK” output that can be tied to a PLC input or other
device to indicate when there is a power loss. When ON, this output will source the same
voltage that is applied to the switches power terminals. See the wiring diagrams on the next
page.
Models with PoE accepts power in the range of 12 to 48 VDC and can source 48 VDC
power to four PoE devices. For PoE sourcing (PSE) operation, the power must be in the
range of 45 to 50 VDC. Otherwise, the switch will function properly as an industrial Ethernet
switch but will not source any PoE power. For PoE operation, make sure your 48 VDC
supply is rated for at least 16 Watts per PoE channel being sourced, plus some overhead
for the switch. It is recommended that a supply with 75 Watts or more of power be used.
PoE switchs support dual power inputs allowing you to connect a backup power source.
The backup power should have the same voltage as the primary power.

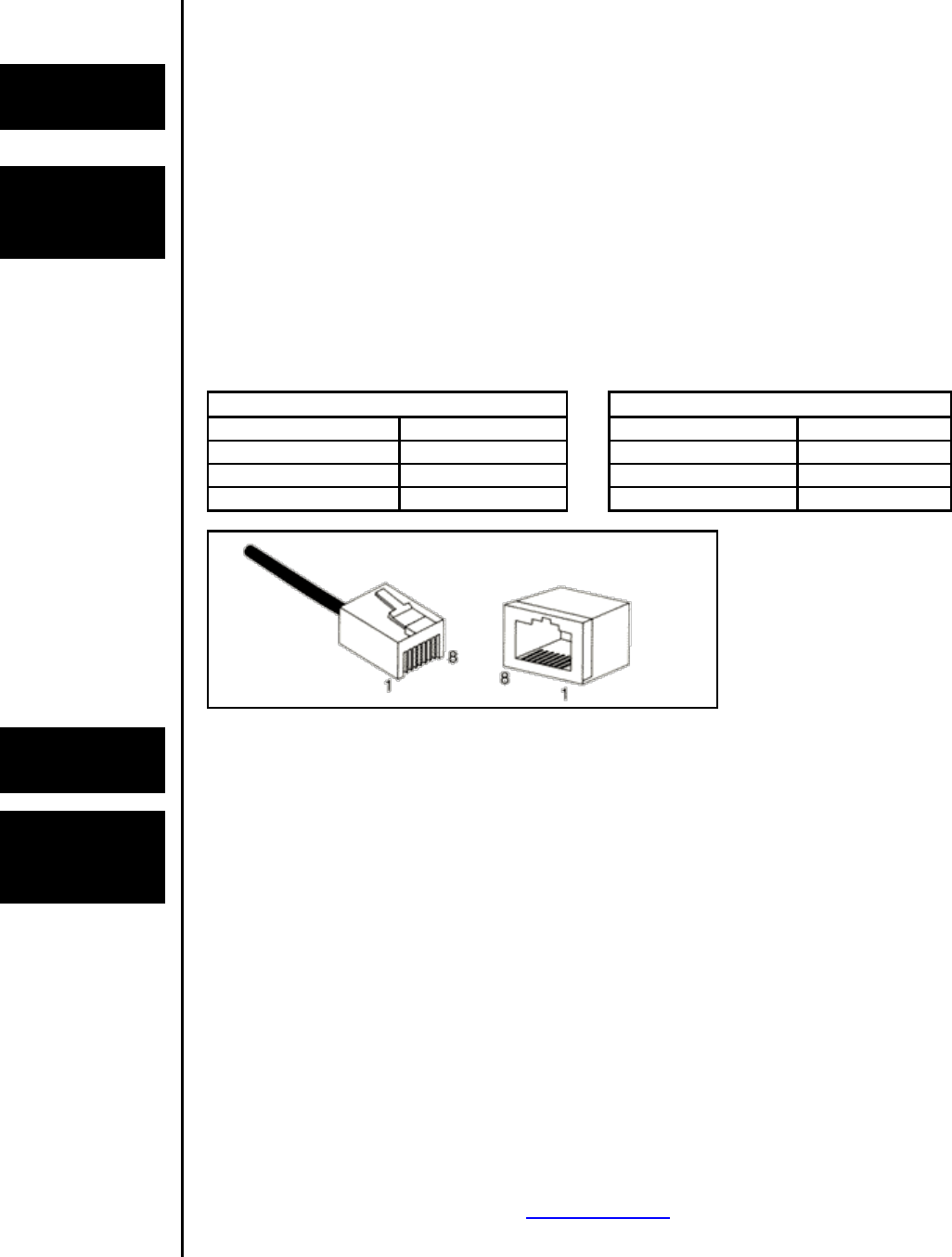

The PoE ports when sourcing power will put out 48 VDC* (see note below) over the signal
pair of the RJ45 connection:
o V+ on RX lines 1 and 2
o V- on TX lines 3 and 6
o Lines 4, 5, 7 and 8 are unused
* Note: When the supply voltage is 45 to 47 VDC then the power output for the PoE will be
the same as the supply voltage. For example, if the supply voltage is 45 VDC then the PoE
output will also be 45 VDC. If the supply voltage is 48 to 50 VDC then the PoE output will be
regulated at 48 VDC.
Screw Torque
When tightening the screws be careful to tighten to a max. torque of 5 in/lb (0.57 Nm).
WIRING
WARNINGS
BEFORE PERFORMING ANY WIRING TO THESE SWITCHES MAKE SURE …
THE AREA IS CURRENTLY NONHAZARDOUS (ESPECIALLY WHEN
WORKING IN CLASS I, DIV 2 OR ZONE 2 HAZARDOUS LOCATIONS)
TO TURN OFF THE POWER TO THE SWITCH
TO UNPLUG THE SCREW TERMINAL BLOCK (This is especially important on
the units that have a metal case as shown below. Connecting or disconnecting
wires to the screw block when it is in place and the power is turned on can allow
the screwdriver to short the power to the case.)
Slim Line Switch Hardware Manual Page 22 of 35
UL Requirements
To meet the requirements for UL you must do one of the following:
1. Install a 3.33 Amp maximum fuse at the input of the switch.
OR
2. Use a Class 2 rated power supply to power the switch.
TO PREVENT
SHORTING THE
POWER TO THE
CASE ALWAYS
UNPLUG THE
SCREW
TERMINAL
BLOCK BEFORE
PERFORMING
ANY WIRING!
Slim Line Switch Hardware Manual Page 23 of 35
Alarm
Output
Load
(opt.)
Dual DC Supplies
OK P1
P2
Single DC Power Redundant DC Power
+
-
Back of
Switch
(DIN rail)
Front of
Switch
(connectors)
-
+
P2 P1
OK
Single DC Supply
Alarm
Output
Load
(opt.)
Chassis
GND
(panel)
Chassis
GND
(panel)

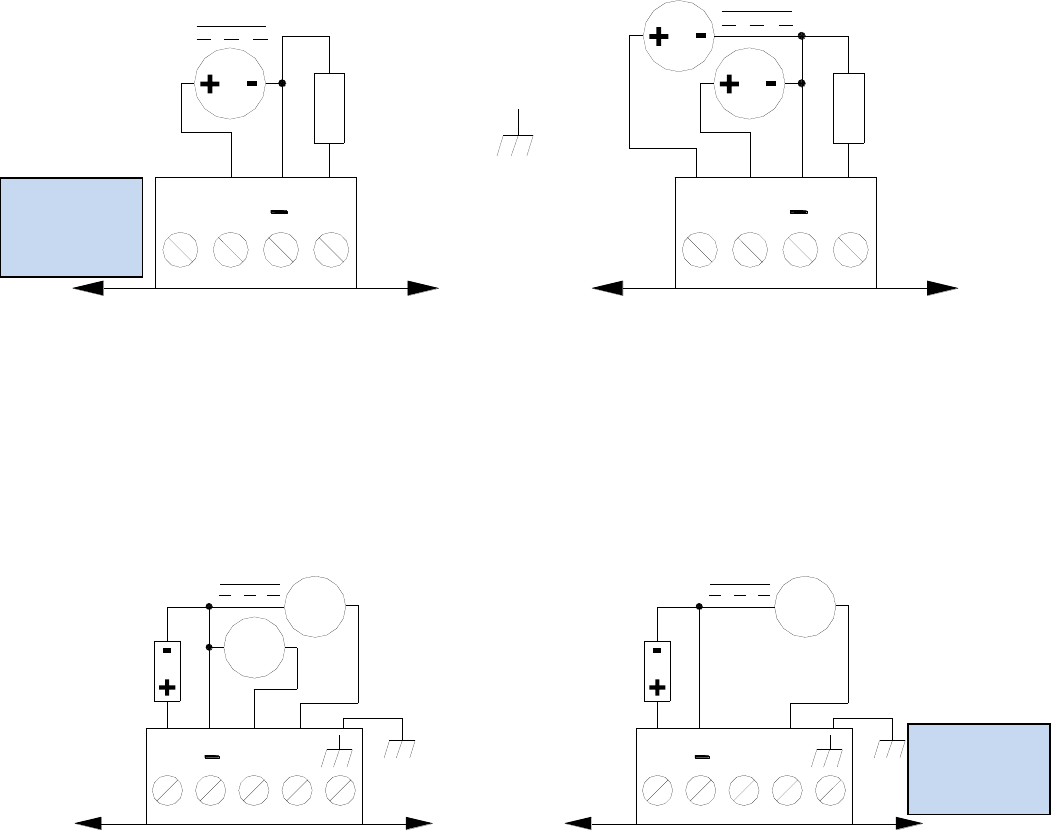

Power & Alarm Wiring for
SL/SLX-5/8MS Managed Switches
-------------------------------------------------------
Chassis
GND
(panel)
Single DC Supply
P1
P2
Front of
Switch
(connectors)
Back of
Switch
(DIN rail)
Redundant DC Power
Single DC Power
P2 P1
Dual DC Supplies
Chassis
GND
(panel)
Power Wiring for
SL/SLX-5/8/9ES Unmanaged Switches
and SL-2ES Media Converter
Front of
Switch
(connectors)
Front of
Switch
(connectors)
Slim Line Switch Hardware Manual Page 24 of 35
P2
+
Redundant DC Power
From
PLC
Single DC Power
OUT IN IN IN
IN OUT
Back of
Switch
(DIN rail)
PLC or
Other
Device
PLC or
Other
Device
P1
+
To
PLC
OUT
IN
IN IN INOUT
From
PLC
P2
+
Front of
Switch
(connectors)
Single DC Supply Dual DC Supplies
Chassis
GND
(panel)
Chassis
GND
(panel)
To
PLC
P1
+

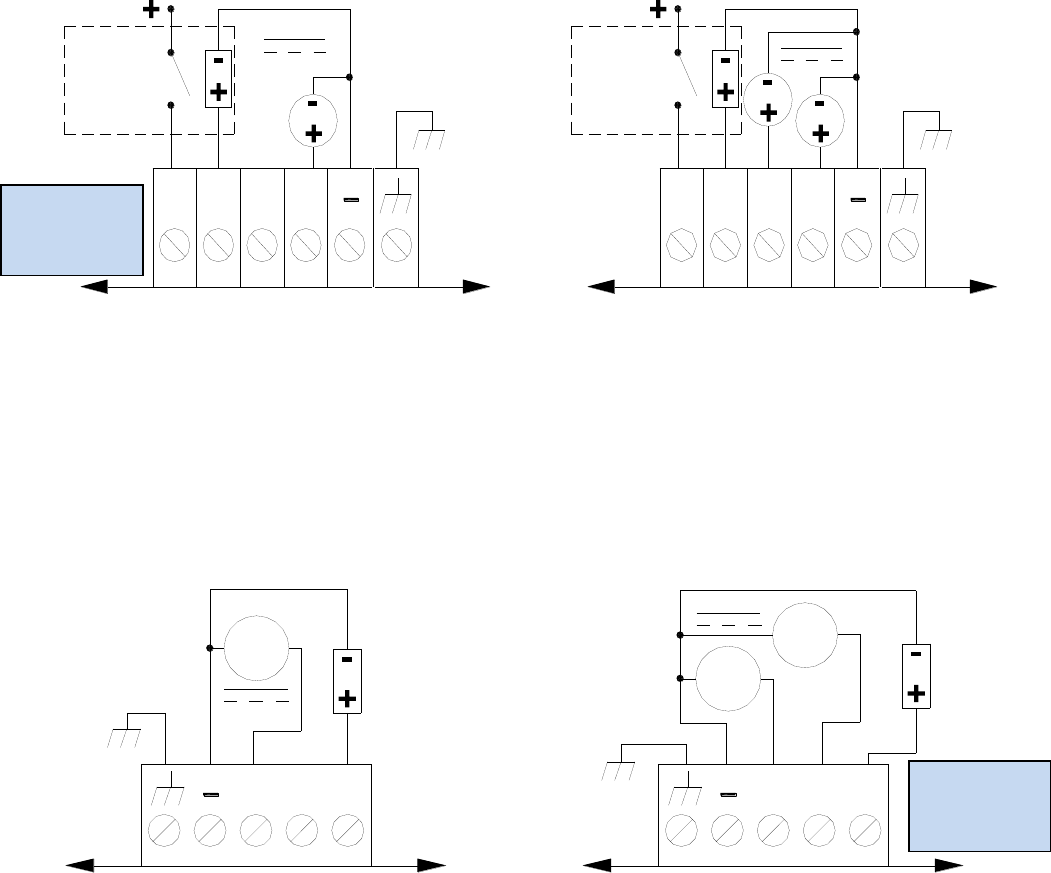

Power & PLC Wiring for
SL/SLX-5MS-MDM Ethernet Modem
-------------------------------------------------------
P2
P1 OK
One DC Supply
+-
Chassis
GND
(panel)
-
+
Dual DC Supplies
OK
P1 P2
Single DC Power Redundant DC Power
Alarm
Output
Load
+-
Chassis
GND
(panel)
(optional) (optional)
Alarm
Output
Load
Front of
Switch
(connectors)
Back of
Switch
(DIN rail)
Power & Alarm Wiring for
SL/SLX-8MG Managed Switches
Front of
Switch
(connectors)
Front of
Switch
(connectors)
Slim Line Switch Hardware Manual Page 25 of 35
-
++
-
Alarm
Output
Load
(opt.)
Alarm
Output
Load
(opt.)
OK OK
Chassis GND is
made through the
DIN rail mounting
Single DC Supply
P1
P2
Front of
Switch
(connectors)
Back of
Switch
(DIN rail)
Redundant DC Power
Single DC Power
P2 P1
Dual DC Supplies
Power and Alarm Wiring For
SL/SLX-6ES Unmanaged Switches
-------------------------------------------------------
Single DC Supply
Front of
Switch
(connectors)
Back of
Switch
(DIN rail)
-
+
+-
Redundant DC Power
Single DC Power
P2 P1
OK
Dual DC Supplies
Alarm
Output
Load
(opt.)
Chassis
GND
(panel)
OK P1
P2
-
+
Alarm
Output
Load
(opt.)
Chassis
GND
(panel)
Power and Alarm Wiring for
SLX-10/16/18-Mx Managed Switches
Front of
Switch
(connectors)
Front of
Switch
(connectors)
Slim Line Switch Hardware Manual Page 26 of 35
Power and Alarm Wiring for
SLX-3EG-1 Managed Switches
Power and Alarm Wiring for
SLX-5EG-1 Managed Switches
Slim Line Switch Hardware Manual Page 27 of 35
Section 5
Communication Ports Wiring
Overview
These industrial Ethernet switches provide connections to standard Ethernet devices such
as PLCs, Ethernet I/O, industrial computers and much more. Three types of communication
ports may be found on these switches: RJ45 (copper) Ethernet ports, fiber optic Ethernet
ports and a serial or USB console port for management (managed models).
RJ45
Ethernet
Wiring
Use data-quality (not voice-quality) twisted pair cable rated category 5 (or better) with
standard RJ45 connectors. For best performance use shielded cable. Straight through or
crossover RJ45 cable can be used regardless of the device the switch is to be connected to
as all the ports are capable of auto-mdi/mdix-crossover detection.
The RJ45 Ethernet port connector bodies on these products are metallic and are connected
to the Chassis GND terminal. Therefore, shielded cables may be used to provide further
protection. To prevent ground loops, the cable shield should be tied to the metal connector
body at one end of the cable only. Electrical isolation is also provided on the Ethernet ports
for increased reliability.
For Reference
Only.
Either cable
wiring will work!
Straight-thru Cable Wiring
Cross-over Cable Wiring
Pin 1
Pin 1
Pin 1
Pin 3
Pin 2
Pin 2
Pin 2
Pin 6
Pin 3
Pin 3
Pin 3
Pin 1
Pin 6
Pin 6
Pin 6
Pin 2
Ethernet
Plug & Connector
Pin Positions
RJ45 Cable
Distance
The maximum cable length for 10/100/1000BaseT is typically 100 meters (328 ft.).
Ethernet
Fiber Wiring
Guidelines
Depending on the model these industrial Ethernet switches may have up to four fiber optic
ports. All 100 Mbps fiber ports are available with dual SC or ST style connectors. They are
also available with multimode, singlemode, long-haul (for connections up to 120+ km) or
special-application transceivers. Refer to the technical specifications for details.
All 1000 Mbps fiber ports are provided as mini-gbic SFP (small form pluggable). These
accept plug in fiber transceivers that typically have an LC style connector. They are
available with multimode, singlemode, long-haul (for connections up to 80+ km) or special-
application transceivers. Refer to the technical specifications for details.
For each fiber port there is a transmit (TX) and receive (RX) signal. When making your
fiber optic connections, make sure that the transmit (TX) port of the switch connects to the
receive (RX) port of the other device, and the receive (RX) port of the switch connects to
the transmit (TX) port of the other device.
Use standard fiber optic wiring techniques (not covered by this manual) to make your
connections. The corresponding ACT/LNK LED will be ON solid or flashing when you have
made a proper connection.
For more fiber optic guidelines go to: www.redlion.net
See images below for typical fiber optic port placement on these switches.
Slim Line Switch Hardware Manual Page 28 of 35
Typical Fiber
Ports on
Unmanaged
Models
Typical Fiber
Ports on
Managed
Models
Typical Fiber
Ports on an
SL-8MG
Duplex
Operation
The RJ45 ports will auto-sense for Full or Half duplex operation, while the fiber ports are
configured for full duplex operation. Note: Fiber devices with half duplex settings should still
communicate with the switch. If otherwise then please contact Red Lion. On managed
models the duplex setting is software configurable.
Typical SC style
connector on a
SL-5ES-2/3SC
Typical ST style
connector on a
SL-5ES-2/3ST
Typical SC style
connector on a
SLX-5MS-4/5SC
Typical ST style
connector on a
SLX-5MS-4/5ST
Typical SC style
connector on a
SLX-8xS-6/7/8/9SC
SLX-8MG with
no transceivers
installed
SLX-8MG with
four transceivers
installed
Slim Line Switch Hardware Manual Page 29 of 35
Verifying
Connectivity
After all Ethernet and/or fiber connections are made, check the LED’s corresponding to the
ports that each of the devices are connected to. Ensure that for each port that is in use, the
LED is on or blinking. If a port LED is off, go back and check for connectivity problems
between that port and the network device connected to that particular port. In addition, the
color of the LED should indicate the speed for which your device is connected at (see prior
section on LEDs).
Telephone
Port Wiring
(MDM models)
A standard cross-wired telephone patch cable should be used to connect to the phone line
provided by the phone company. Tip and Ring are the only two pins used on the Ethernet
Land-Line modem.
Telephone
Ports on
Modem Models
Slim Line Switch Hardware Manual Page 30 of 35

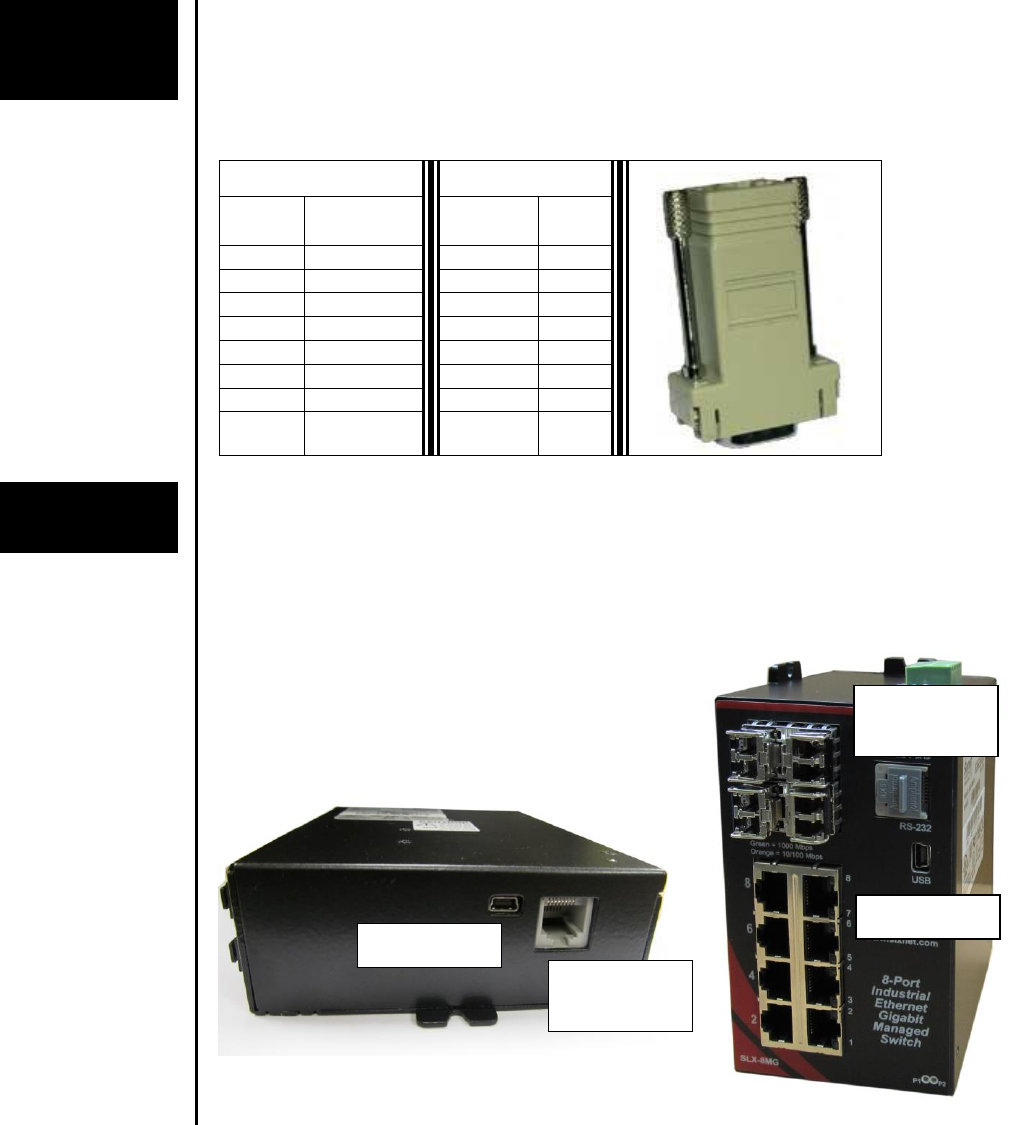

Serial
Console Port
Wiring
An optional way to configure the switch is through the RJ45 console RS232 port. Use a
DB9F to RJ45F adapter along with a RJ45 male to RJ45 male straight-thru-wired patch
cable to make a connection between a com port on your PC (DB9 male) and the RS232
port of the Managed Switch (RJ45 female). Contact Red Lion or your switch vendor to
purchase this adapter as an accessory.
A typical DB9F to RJ45F adapter should be wired as follows:
Switch
Adapter
RJ45F
Pin #
Signal
Name
Signal
Name
DB9F
Pin #
1
RI/DSR in
DTR out
4
2
DCD in
N/C
n/c
3
DTR out
DSR in
6
4
GND
GND
5
5
RXD in
TXD out
3
6
TXD out
RXD in
2
7
CTS in
RTS out
7
8
RTS out
CTS in
8
USB Console
Port Wiring
Newer models of these switches may also have an USB port instead of or in addition to the
RS232 port. Use a standard USB cable with a mini-USB plug on one end and an A-type-
USB plug on the other end. The A-type plug goes into a standard USB port on a computer.
The mini-USB plug goes into the USB port on the switch.
Refer to the software user manual for how to use this USB port.
The RS232 and/or USB ports may located
on the bottom edge or front face of the switch
RS232
RJ45F
Mini-USB
RS232
RJ45F
Mini-USB
Slim Line Switch Hardware Manual Page 31 of 35
Section 6
Technical Specifications
Technical
Specs
Here are the hardware technical specifications for the industrial Ethernet switches covered
by this manual. For the managed models, refer to the software user manual or datasheet
for complete software specifications.
Note: These specifications are subject to change. Contact Red Lion for the latest details.
General Specifications:
Ethernet switch type
Unmanaged or managed with up to 9 ports
Operating mode
Store and forward, wire-speed switching, non-blocking
Devices supported
All IEEE 802.3 compliant devices are supported
Protocols
(managed models only)
SNMPv1/v2/v3, RMON, DHCP, SNTP, TFTP, STP, RSTP,
QoS/CoS/ToS/DS, IGMPv1/v2, VLAN (tag and port based), HTTP,
HTTPS (SSL & TSL), Telnet, SSH and more
Industrial protocols
supported
Modbus/TCP, EtherNet/IP, PROFInet, Foundation Fieldbus HSE
and others
Standards (depends on
model)
IEEE 802.3, 802.3u, 802.3ab/z, 802.3x, 802.1D/w, 802.1p, 802.1Q
and others
Management interfaces
(managed models only)
Web (see online demo), text (Telnet & SSH), CLI (command line
interface) and SNMP (see software manual for supported MIBs)
Open source linux
(managed models only)
The Linux Advantage – Contact Red Lion for more information
MAC addresses
1024 on unmanaged (ES) models;
2048 on managed (MS)models;
8192 on Gigabit (MG) models
Memory bandwidth
3.2 Gbps on ES & MS models; 32 Gbps on MG models
Latency for 10 Mbps
16 us + frame time (typical)
Varies on load and settings
Latency for 100/1000 Mbps
<5 us + frame time (typical)
Ethernet isolation
1500 VRMS 1 minute
Management serial port
(managed models only)
RS232 (TXD, RXD and GND), 9600, 8, N, 1 fixed
and/or mini-USB
Copper RJ45 Ports: (10/100 Mbps or 10/100/1000 Mbps)
Copper ports
Shielded RJ45
Speed
10/100 Mbps or 10/100/1000 Mbps (depending on model)
Protocols supported
All standard IEEE 802.3
Auto-crossover
Yes, allows you to use straight or cross wired cables
Auto-sensing operation
Yes, Full and half duplex
Auto-negotiating
Yes, 10BaseT and 100BaseT
Auto-polarity
Yes, on the TD and RD pair
Flow control
Automatic
Ethernet isolation
1500 VRMS 1 minute
Plug and play
Yes
Cable requirements
Twisted pair (Cat. 5 or better) (shielded recommended)
Max. cable distance
100 meters
PoE models
Power input with reverse
polarity protection
10-44 VDC with no PoE output
45-56 VDC for PoE output
Switch power consumption
(typical all ports active at
1000 Mbps)
4.3 W (SLX-5EG-1) + PoE
6.2 W (SLX-5EG-2SFP) + PoE
PoE power consumption
Up to 15.4 W per port
RJ45 pin assignments for
TX/V- (3, 6); RX/V+ (1, 2)
Slim Line Switch Hardware Manual Page 32 of 35
PoE
Power input transient
protection
15,000 watts peak
Power input spike Protection
5,000 watts (10 times for 10 uS)
PoE operation
Auto power management
PoE disconnect mode
DC disconnect
PoE auto-detection
Per IEEE 802.2af
PoE protection
Over-temperature, over-current, over/under-voltage and transient
SC or ST Fiber Ports: (100BaseF multimode or singlemode)
100BaseF ports
Up to 4
Fiber port mode
Multimode (mm) or Singlemode (sm)
Fiber port connector
Duplex SC or ST
Optimal fiber cable
50/125 or 62.5/125 µm for mm; 9/125 µm for sm
Center wavelength
1300 nm (other wavelengths available)
Multimode
Links up to 4 km typ.; 1310 nm; use with 50 or 62.5/125 um fiber
> Transmitter power (dB): -21 min, -17 typ, -14 max
> Receiver sensitivity (dB): -34 typ, -31 max
Singlemode
Links up to 20 km typical; 1310 nm; use with 9/125 um fiber
> Transmitter power (dB): -15 min, -11 typ, -8 max
> Receiver sensitivity (dB): -36 typ, -31 max
Singlemode long haul
Links up to 40 km typical; 1310 nm; use with 9/125 um fiber
> Transmitter power (dB): -5 min, -3 typ, -0 max
> Receiver sensitivity (dB): -36 typ, -34 max
Nominal max. distance (full
duplex)
(see web for details)
4 km with multimode;
20 km with singlemode;
up to 120 km with long haul singlemode
Half and full duplex
Full duplex on unmanaged models;
Software configurable on managed models
Ethernet compliance
100BaseF
Eye safety
IEC 60825-1, Class 1; FDA 21 CFR 1040.10 and 1040.11
SFP Mini-Gbic SFP (pluggable) Ports: (many types available)
Note: On the Gigabit (MG) models these ports are pluggable and accept many different types of
pluggable SFP (Mini-Gbic) transceiver modules for Gigabit fiber connections.
Gigabit SFP ports
Up to 4
Port types supported
Gigabit fiber multimode, fiber singlemode, fiber long-haul
singlemode, fiber single-strand and more
Note: 100 Mbps fiber transceiver modules are also supported on these ports.
Fiber port connector
LC typically for fiber (depends on module)
Optimal fiber cable
Typical 50 or 62.5/125 µm for multimode (mm);
Typical 8 or 9/125 µm for singlemode (sm)
Fiber wavelength (typical)
850 nm for mm; 1310 nm for sm; 1550 for long haul sm
TX output power
See fiber transceiver datasheet for details.
RX input sensitivity
Max. distance (full duplex)
Up to 80+ km with long haul singlemode modules
Half and full duplex
Software Configurable(managed models only)
Ethernet compliance
1000BaseT and 1000BaseF (SX/LX/LH)
Eye safety
IEC 60825-1, Class 1; FDA 21 CFR 1040.10 and 1040.11
Note: See SFP fiber optic transceiver datasheet for complete
specifications. Also, other fiber transceivers may be available for
special requirements such as longer distances, single strand (BiDi) or
other special applications. Contact Red Lion for details.
Slim Line Switch Hardware Manual Page 33 of 35
Industrial Telephone Modem (SL-5MS-MDM Only)
Maximum data rates
56 Kbps
Compatibility
V.90, V.34, V.32, V.32 bis, V.22, V.22 bis, V.21
Data compression
V.42 bis
Error correction
V.42 MNP or LAP
Ringer
0.3
Jacks
2 RJ11 (phone and line)
Command sets
Standard AT and S register
Country compatibility
World-wide (100+ countries)
Telecom ratings
FCC Part 68; Industry Canada CS03-8; CTR21 (98/482/EC); ACA TS
001 and ACA TS 002
“PLC” Input and Output (SL-5MS-MDM Only)
PLC / Alarm output voltage
Same as switch input power voltage
Maximum current output
0.5 Amp
PLC / Trigger input voltage
10-30 VDC
Typically current input
6.5 mA @ 24 VDC
“OK” Alarm Output (managed models only)
“OK” Output
ON if P1 and P2 have power and switch software is running
Voltage
Same as switch input voltage
Maximum current output
0.5 Amp
Power Input:
Power input
Redundant Input Terminals
Input power (typical with all
ports active at 100 Mbps)
2.0 W (2-port converter with 1 fiber),
2.0 W (5-port unmanaged w/ 0 fiber),
3.0 W (5-port unmanaged w/ 1 fiber),
5.0 W (6-port unmanaged w/ 2 fiber),
4.0 W (8-port unmanaged w/ 0 fiber),
5.0 W (9-port unmanaged w/ 1 fiber),
8.0 W (8-port unmanaged w/ 3 fiber)
3.6 W (5-port managed w/o fiber),
4.8 W (5-port with phone modem),
5.6 W (5-port managed w/ 2 fiber),
4.3 W (8-port managed w/ 0 fiber),
6.3 W (8-port managed w/ 2 fiber),
9.0 W (8-port managed w/ 4 fiber),
12 W (8-port man. gigabit w/ 0 fiber)
15 W (8-port man. gigabit w/ 4 fiber),
5.0 W (10-port man. gigabit w/ 0 fiber),
7.0 W (10-port man. gigabit w/ 2 fiber),
7.0 W (16-port man. gigabit w/ 0 fiber),
8.0 W (18-port man. gigabit w/ 0 fiber),
10 W (18-port man. gigabit w/ 2 fiber)
Input voltage (all models)
12-48 VDC @ 1.3A , Amb: T4 @ 85C
Reverse power protection
Yes
Transient protection
15,000 watts peak
Spike protection
5,000 watts (10x for 10 uS)
Slim Line Switch Hardware Manual Page 34 of 35
Environmental and Compliances:
Operating temperature
range
SL-2/5/6/8/9ES models: -10 to +60°C (cold startup at -10°C)
SL-5/8MS models: -10 to +60°C (cold startup at -10°C)
SLX-3/5EG: -40 to +85°C (cold startup at -40°C)
SL/SLX-5MS-MDM: -40 to +75°C (cold startup at -40°C)
SL/SLX-8MG: -40 to +75°C (cold startup at -40°C)
SLX-5/6/8/9ES-1/2/3/4/5 models: -40 to +85°C (cold startup at -40°C)
SLX-8ES-6/7 models: -40 to 75° C (cold startup at -40°C)
SLX-5/8MS models: -40 to +75°C (cold startup at -40°C)
SLX-10/18MG-1 model -40 to +75°C (cold startup at -40°C)
SLX-16MS-1 model -40 to +75°C (cold startup at -40°C)
Contact Red Lion if wider ranges are needed.
Storage temperature range
-40 to +85 °C
PoE Models
Power input with reverse
polarity protection
10-44 VDC with no PoE output
45-56 VDC for PoE output
Switch power consumption
(typical all ports active at 1000
Mbps)
4.3 W (5EG-1, all copper) typical
6.2 W (5EG-2SFP with 2 fiber) typical
66W (5EG-1) with 4 fully loaded PoE ports
53W (5EG-2SFP) with 3 fully loaded PoE ports
PoE power consumption
Up to 15.4 W per port
RJ45 pin assignments for PoE
TX/V- (3, 6); RX/V+ (1, 2)
Power input transient
protection
15,000 watts peak
Power input spike Protection
5,000 watts (10 times for 10 uS)
PoE operation
Auto power management
PoE disconnect mode
DC disconnect
PoE auto-detection
Per IEEE 802.2af
PoE protection
Over-temperature, over-current, over/under-voltage and transient
Mechanical:
Ingress protection
IP40 (all models)
Packaging and protection
UL94V0 Lexan plastic for all plastic cased units.
Aluminum w/ protective finish for all metal cased units.
Dimensions (L x W x H)
See mechanical diagrams for details
Weights (typical)
SL-2ES-2/3 and SL-5ES-1/2/3 in Lexan case – 4 oz (0.11 kg)
SLX-3EG in metal case – 6 oz (0.17 kg)
SLX-5ES-1/2/3 in metal case – 6 oz (0.17 kg)
SLX-5EG-1/2SFP in metal case – 15.2 oz (0.43 kg)
SL/SLX-5MS-1/4/5 in metal case – 8 oz (0.23 kg)
SL-5MS-MDM managed – 11 oz (0.31 kg)
SL-6/8/9ES-1/2/3/4/5 in Lexan case – 6 oz (0.17 kg)
SLX-6/8/9ES-1/2/3/4/5 in metal case – 8 oz (0.23 kg)
SL/SLX-8MS-1/4/5 in metal case – 10 oz (0.28 kg)
SL/SLX-8xS-6/7/8/9 in metal case – 11 oz (0.31 kg)
SL-8MG-1 without fiber transceivers – 16 oz (0.45 kg)
SL-8MG with 4 fiber transceivers – 18 oz (0.50 kg)
SLX-10MG-1 in metal case – 12 oz (0.34 kg)
SLX-16MS-1 in metal case – 16 oz (0.45 kg)
SLX-18MG-1 in metal case – 16 oz (0.46 kg)
Slim Line Switch Hardware Manual Page 35 of 35
Section 7
Service Information
Service
Information
We sincerely hope that you never experience a problem with any Red Lion product. If you do
need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will
help you to quickly determine the source of the problem. Many problems are easily resolved
with a single phone call. If it is necessary to return a unit to us, an RO (Repair Order) can be
obtained on the Red Lion website.
Red Lion tracks the flow of returned material with our RO system to ensure speedy service.
You must include this RO number on the outside of the box so that your return can be
processed immediately.
Be sure to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not
covered under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RO form and supplied to the repair department before your unit
arrives. This helps us to provide you with the best service, in the fastest manner. Repairs
are completed as soon as possible. If you need a quicker turnaround, ship the unit to us by
air freight. We give priority service to equipment that arrives by overnight delivery.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Red Lion system for future
reference:
P.O. #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
Product
Support
To obtain support for Red Lion products:
Latest product info: www.redlion.net
Phone: 1-877-432-9908
Fax: 1-518-877-8346
E-mail: support@redlion.net
Mailing address:
Red Lion Controls • 20 Willow Springs Circle • York • PA • 17406 • USA

Navigation menu
