Universal Enclosures

Essential guide

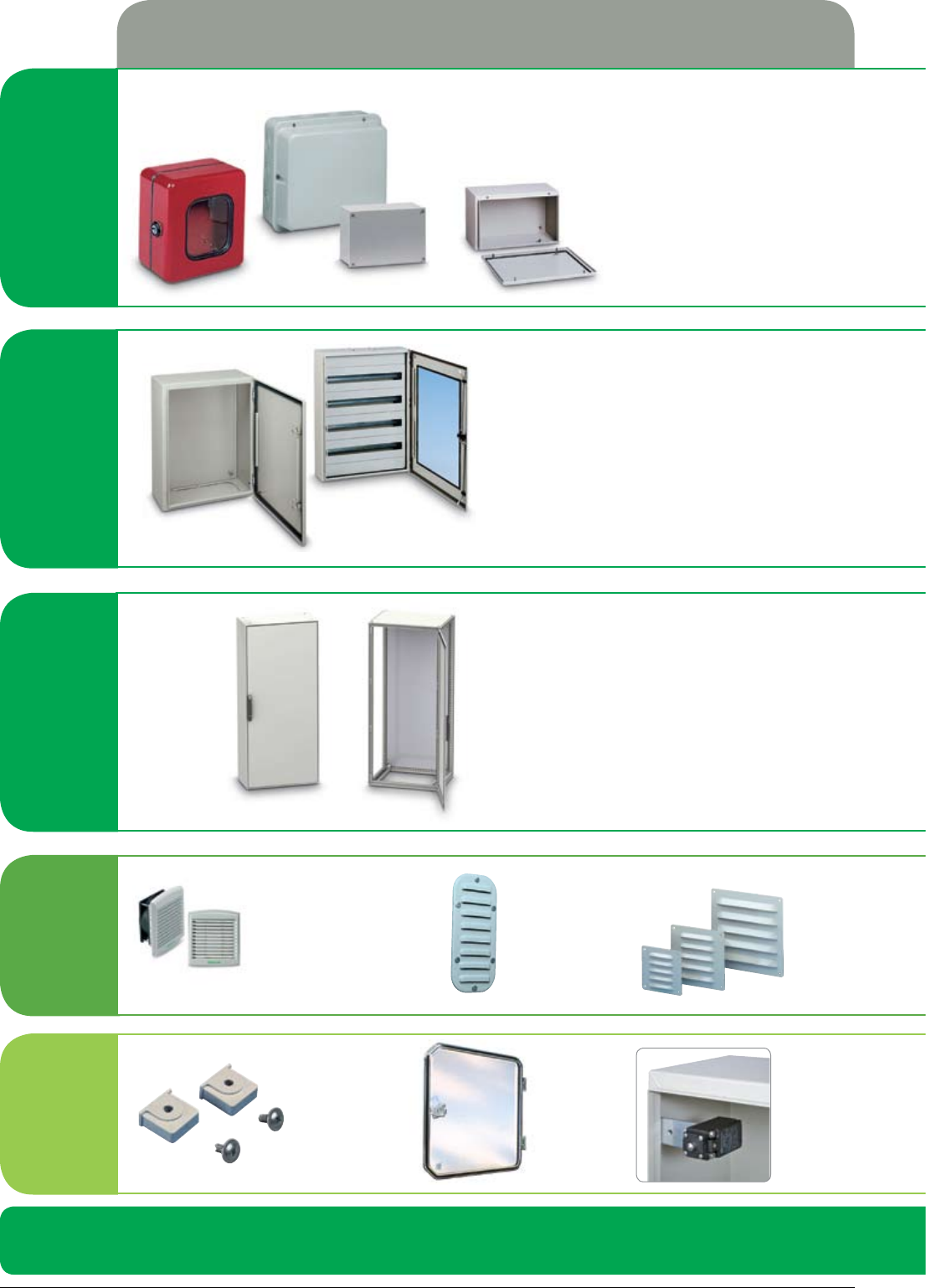

Summary

Selection guides

Industrial boxes

• Spacial S44 - S57 - S24 - SDB Steel industrial boxes

• Thalassa TBS - TBP Insulating industrial boxes

• Mureva Modular boxes

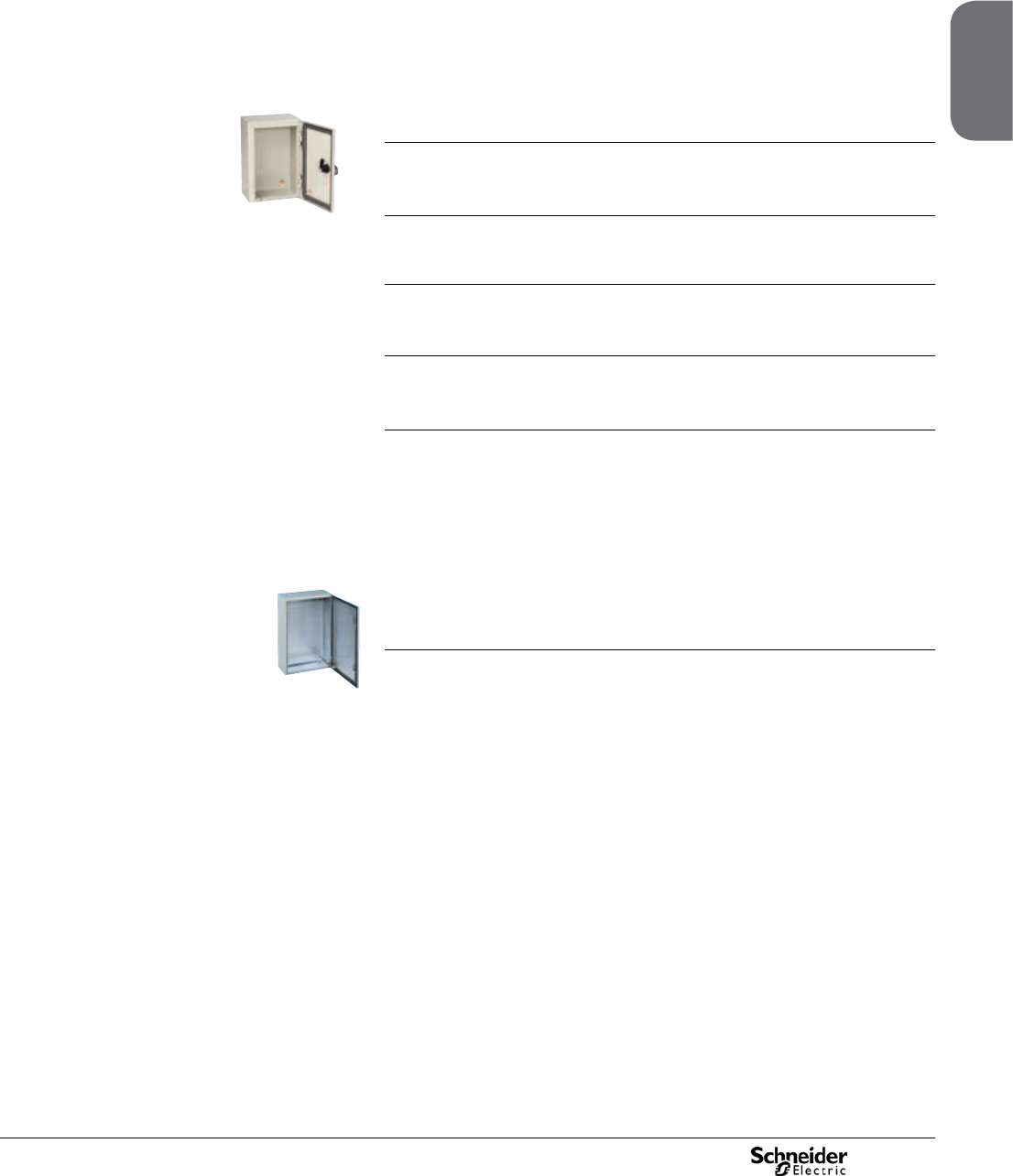

Steel wall-mounting enclosures

• Spacial S3D Steel wall-mounting enclosures

• Spacial S3DEX ATEX wall-mounting accessories

• Applications offer

Steel floor-standing enclosures

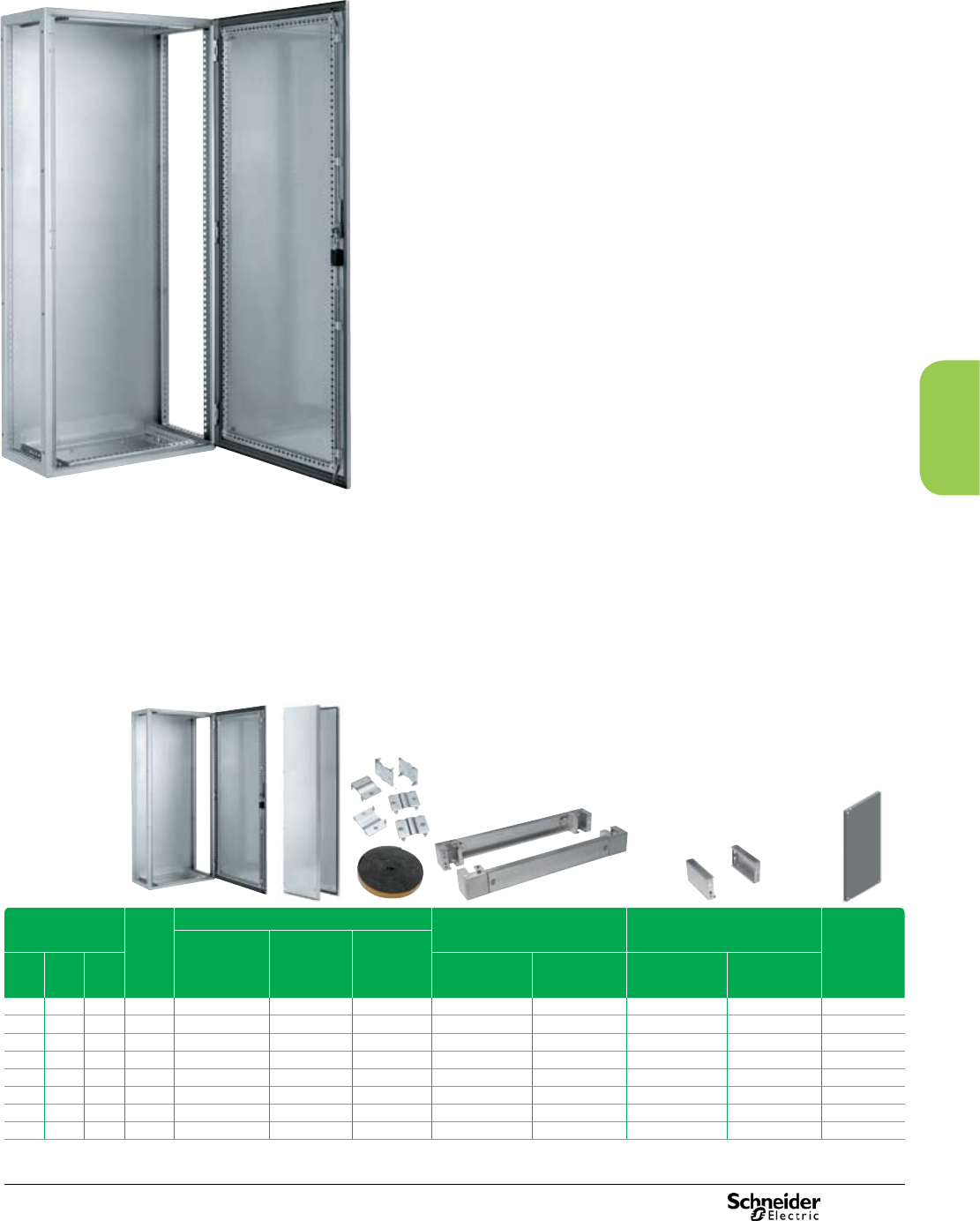

• Spacial SM Steel ﬂoor-standing compact enclosures

• Spacial SF Steel ﬂoor-standing suitable enclosures

• Applications offer

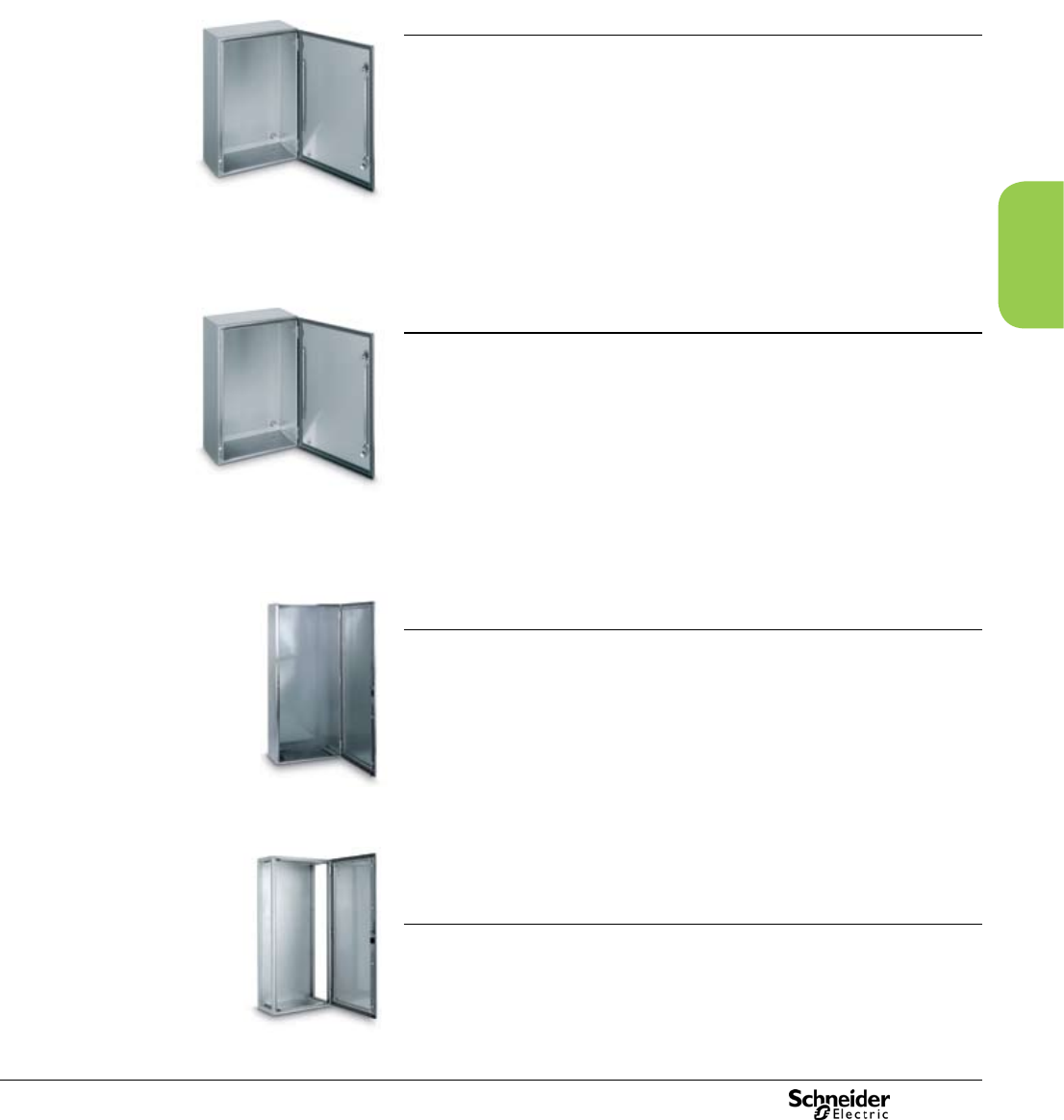

Stainless-steel enclosures

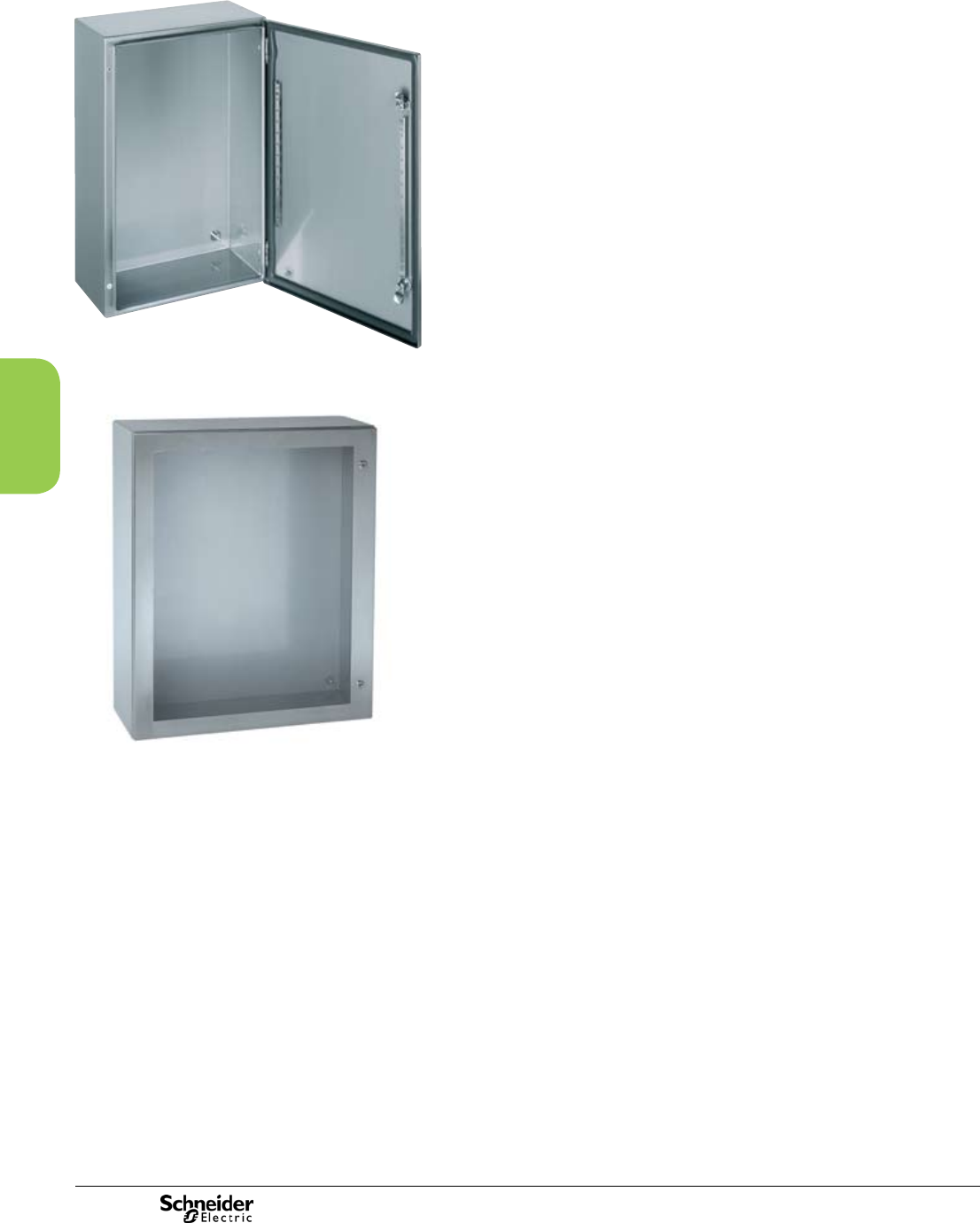

• Spacial S3X Stainless-steel wall-mounting enclosures

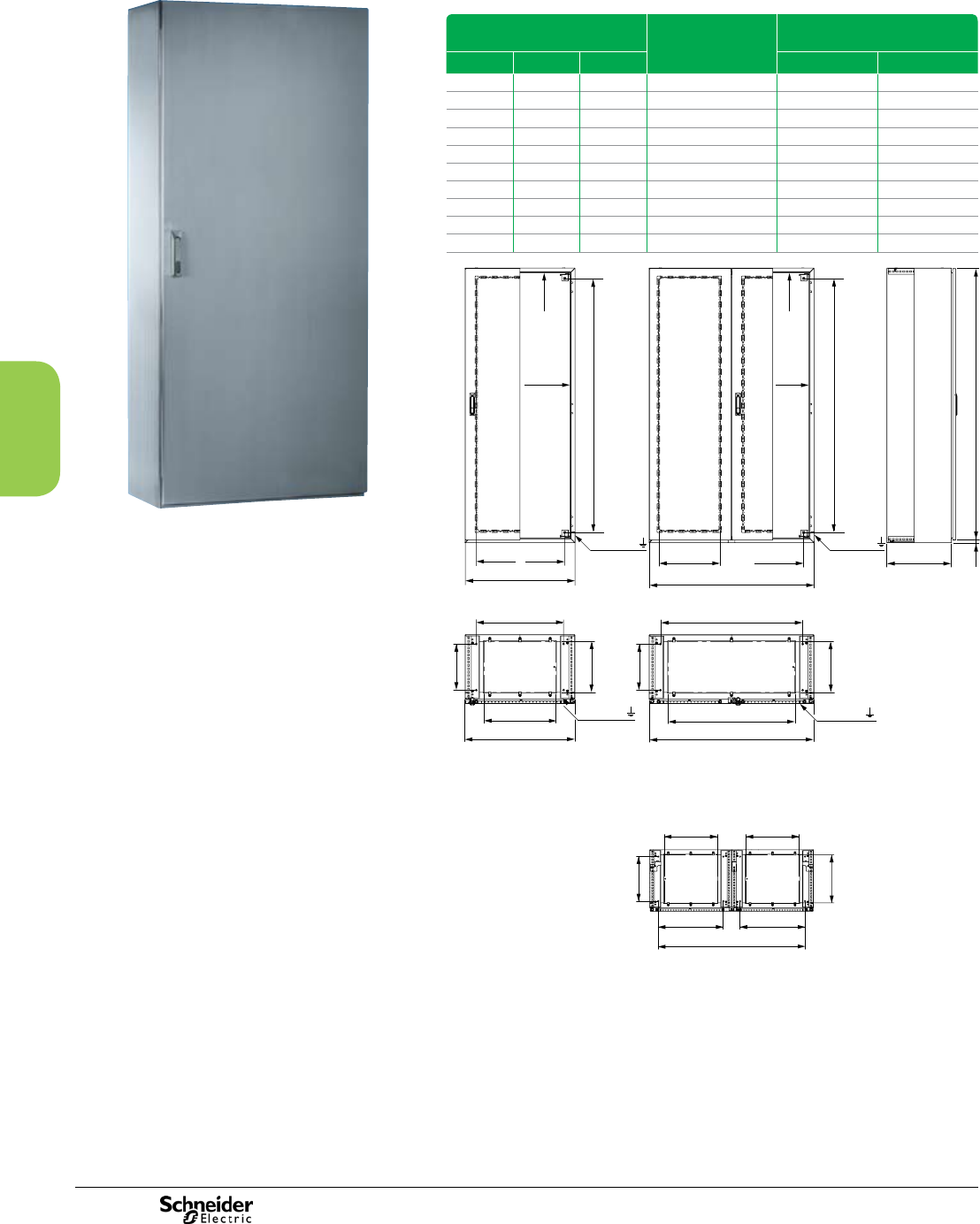

• Spacial SMX Stainless-steel ﬂoor-standing monobloc enclosures

• Spacial SFX Stainless-steel ﬂoor-standing suitable enclosures

Insulating enclosures

• Thalassa PLS Insulating modular boxes

• Thalassa PLM Wall-mounting in polyester

• Thalassa PLA Floor-standing in polyester

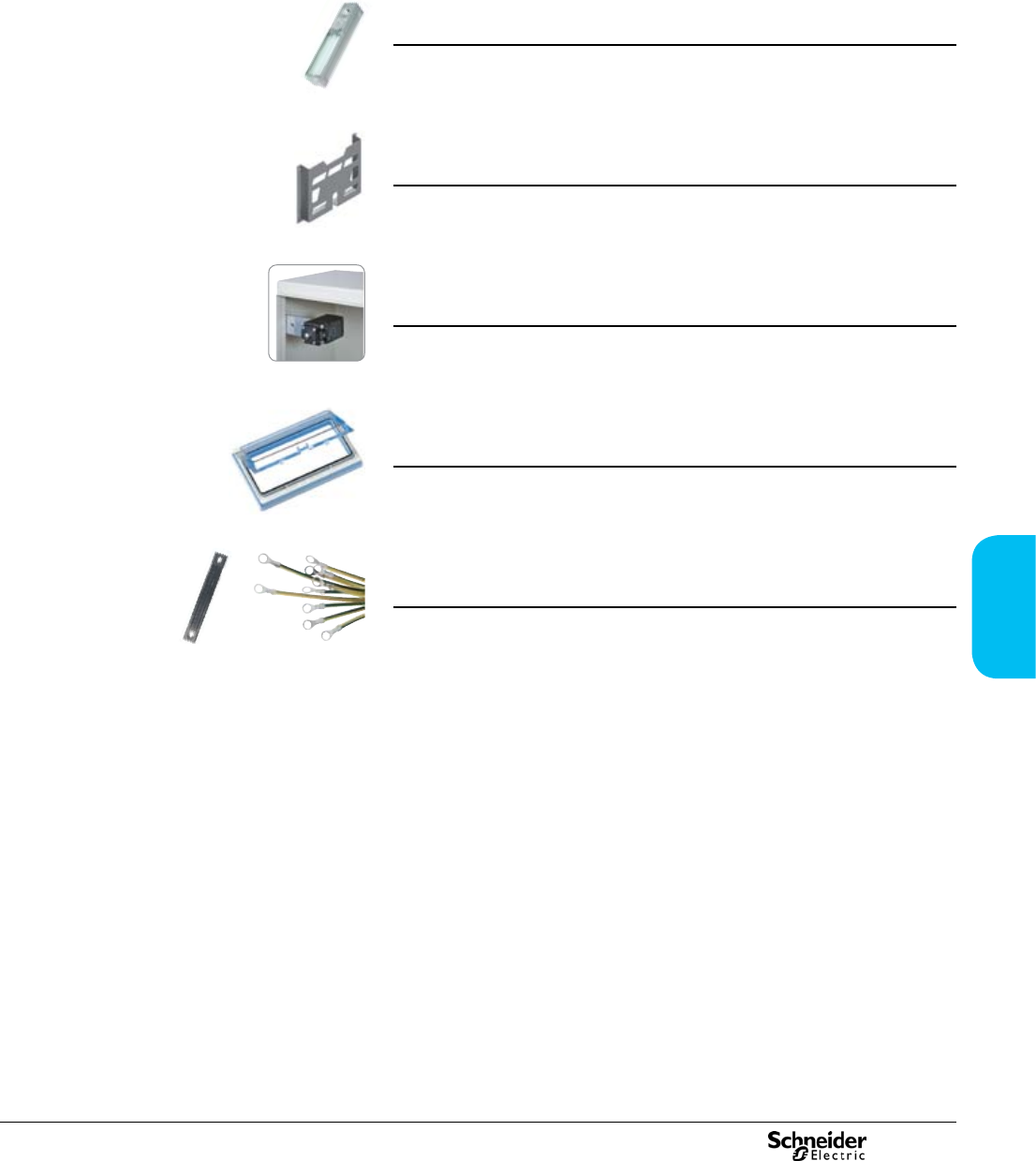

Accessories

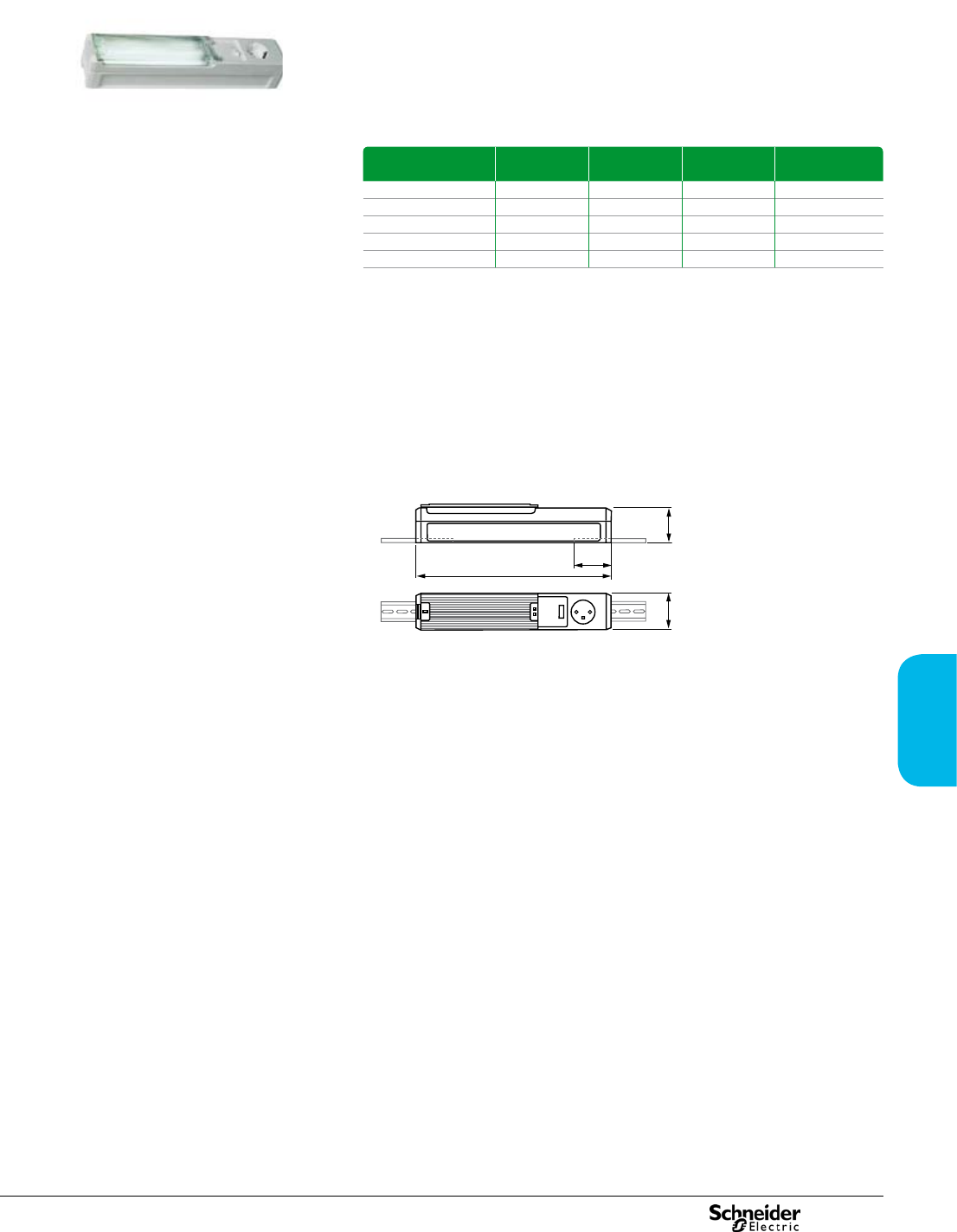

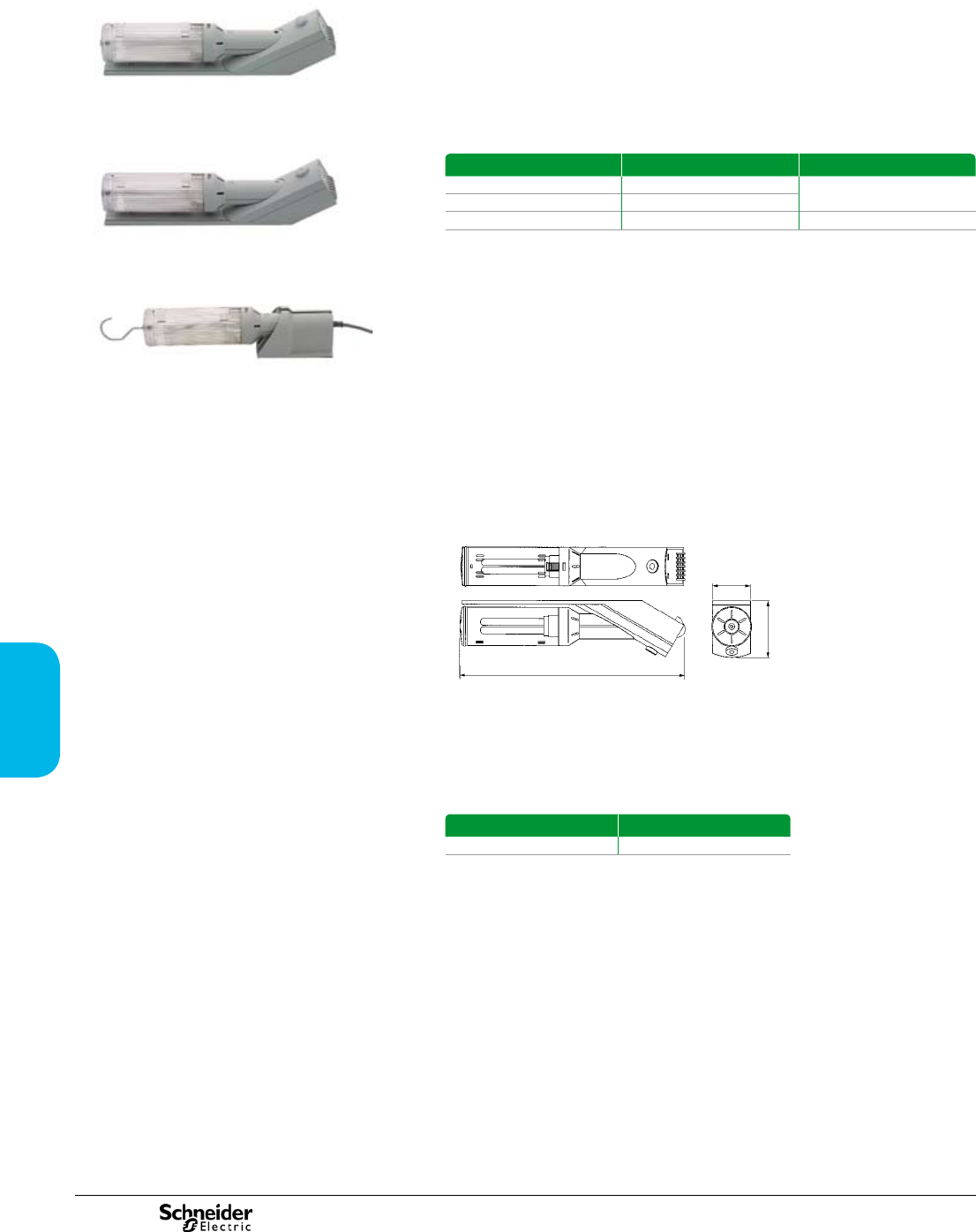

• Lamps

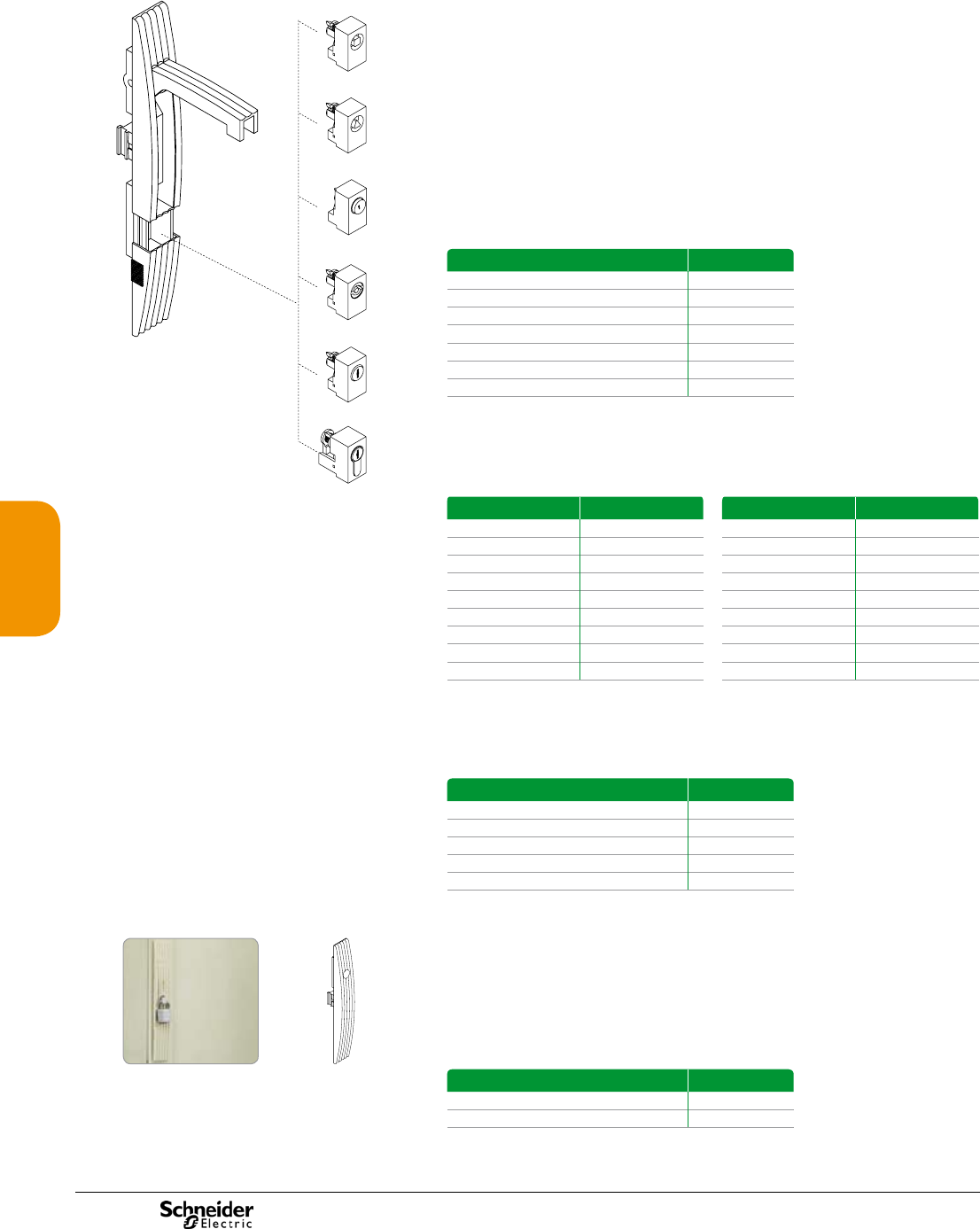

• Door switches

• Document pockets

• Windows

• Earthing accessories

Thermal management system

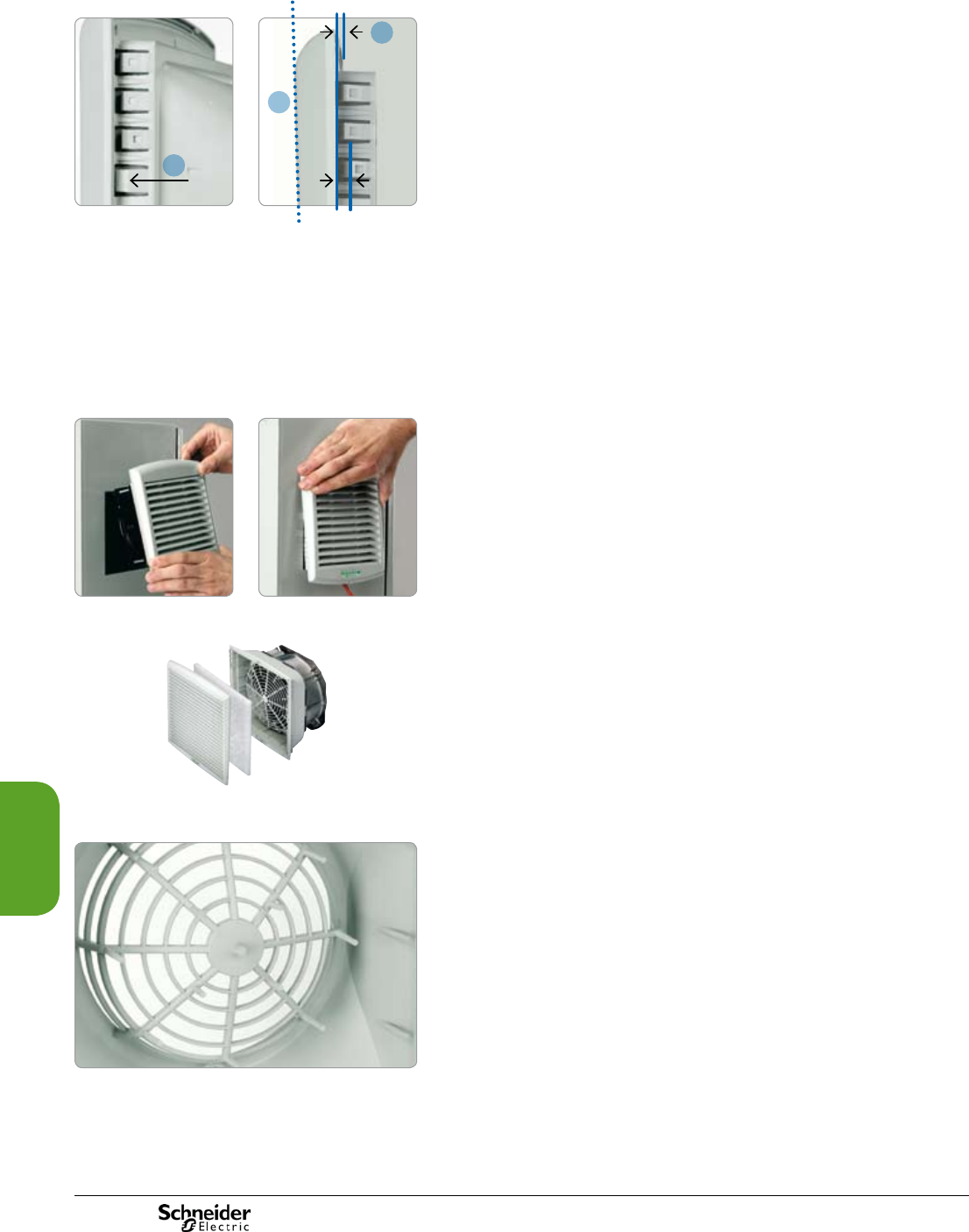

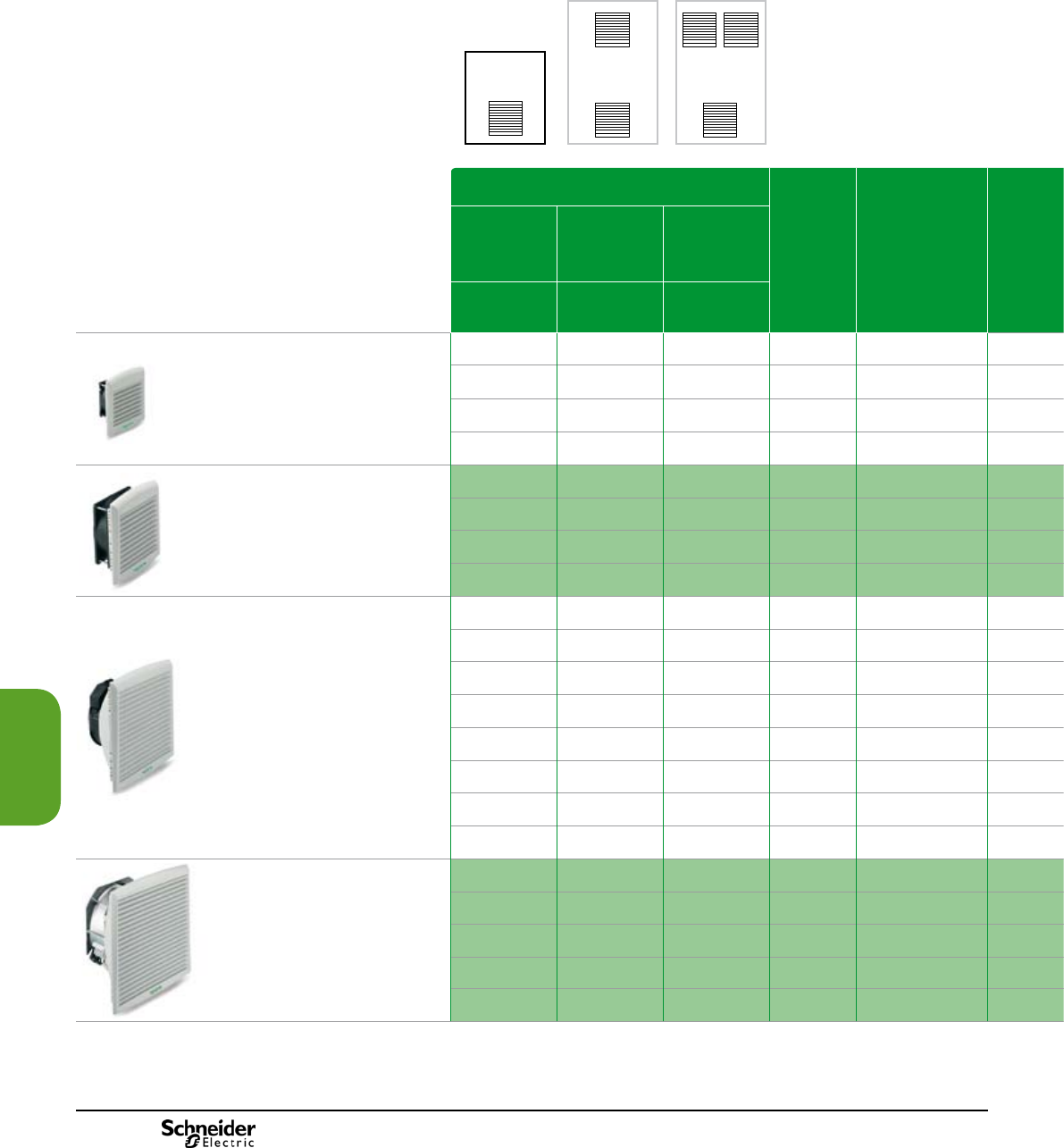

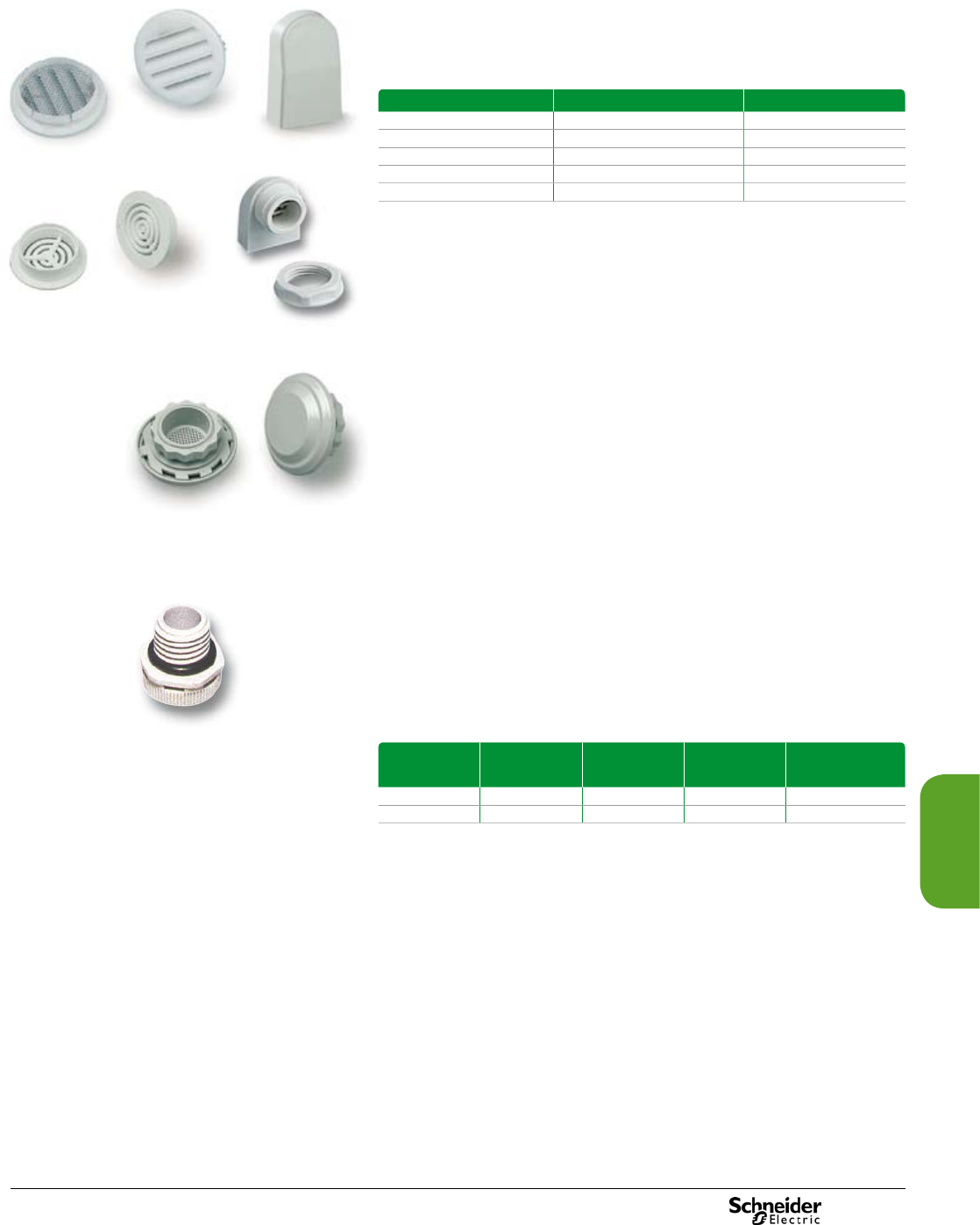

• ClimaSys CV-CA Ventilation and Airing systems

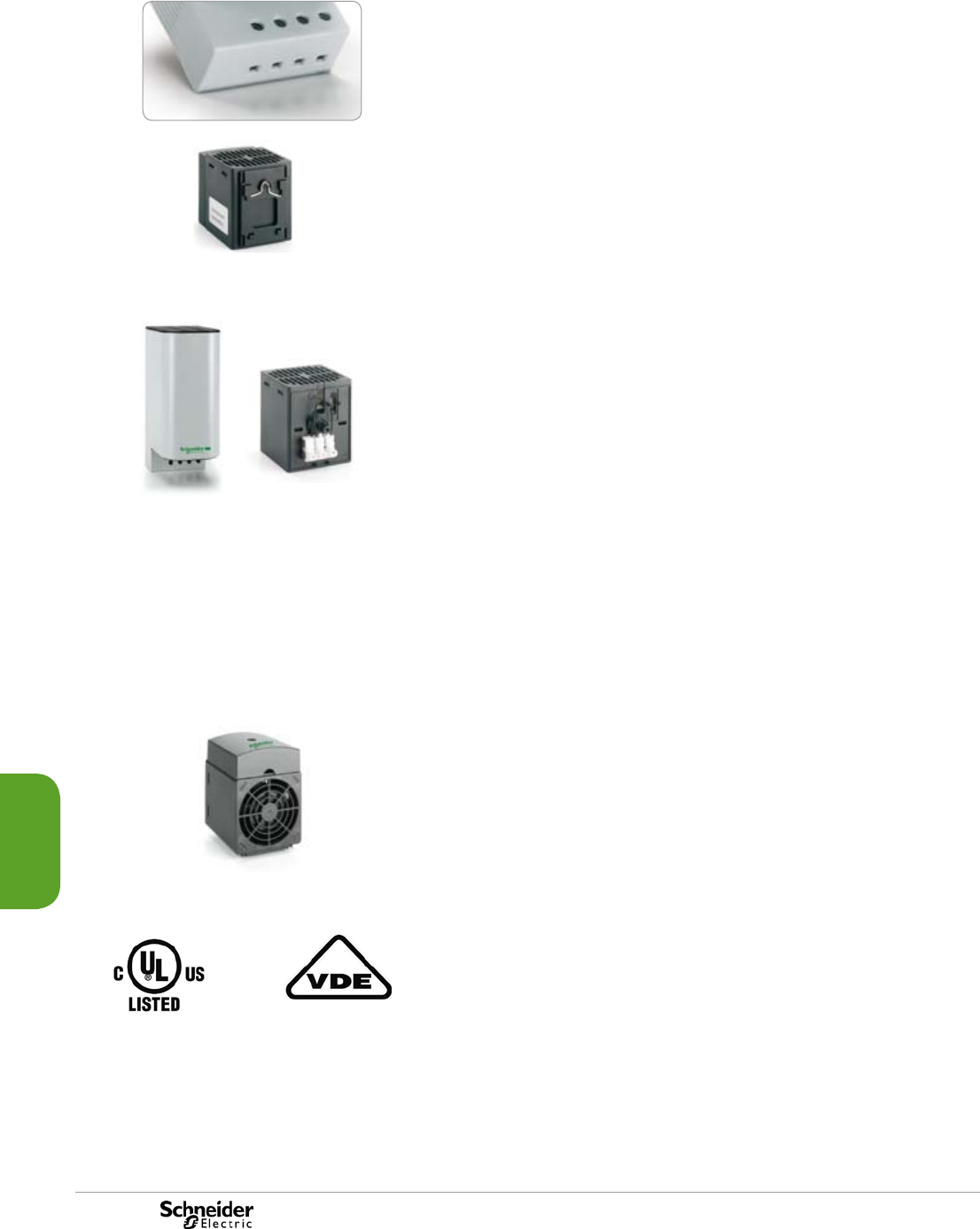

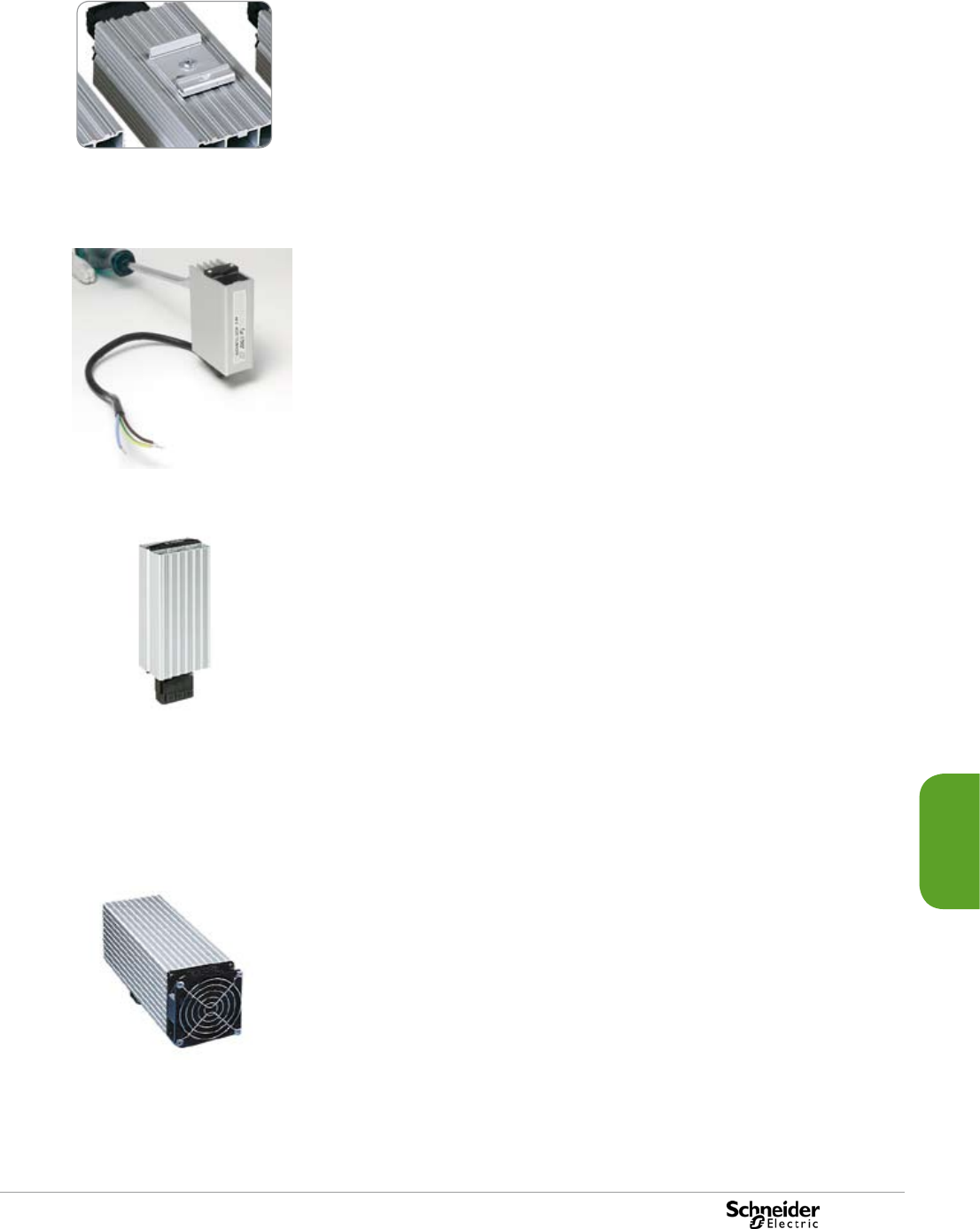

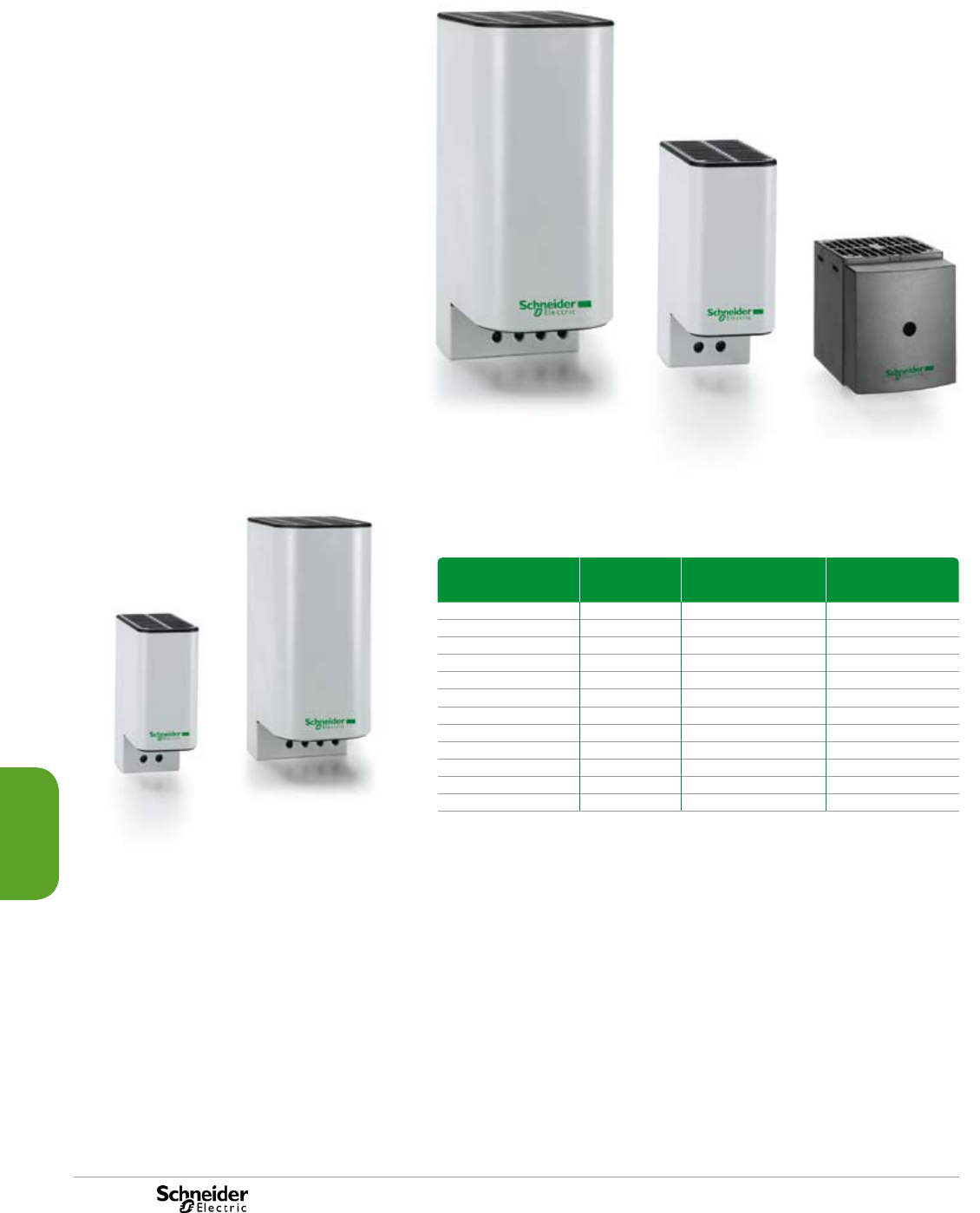

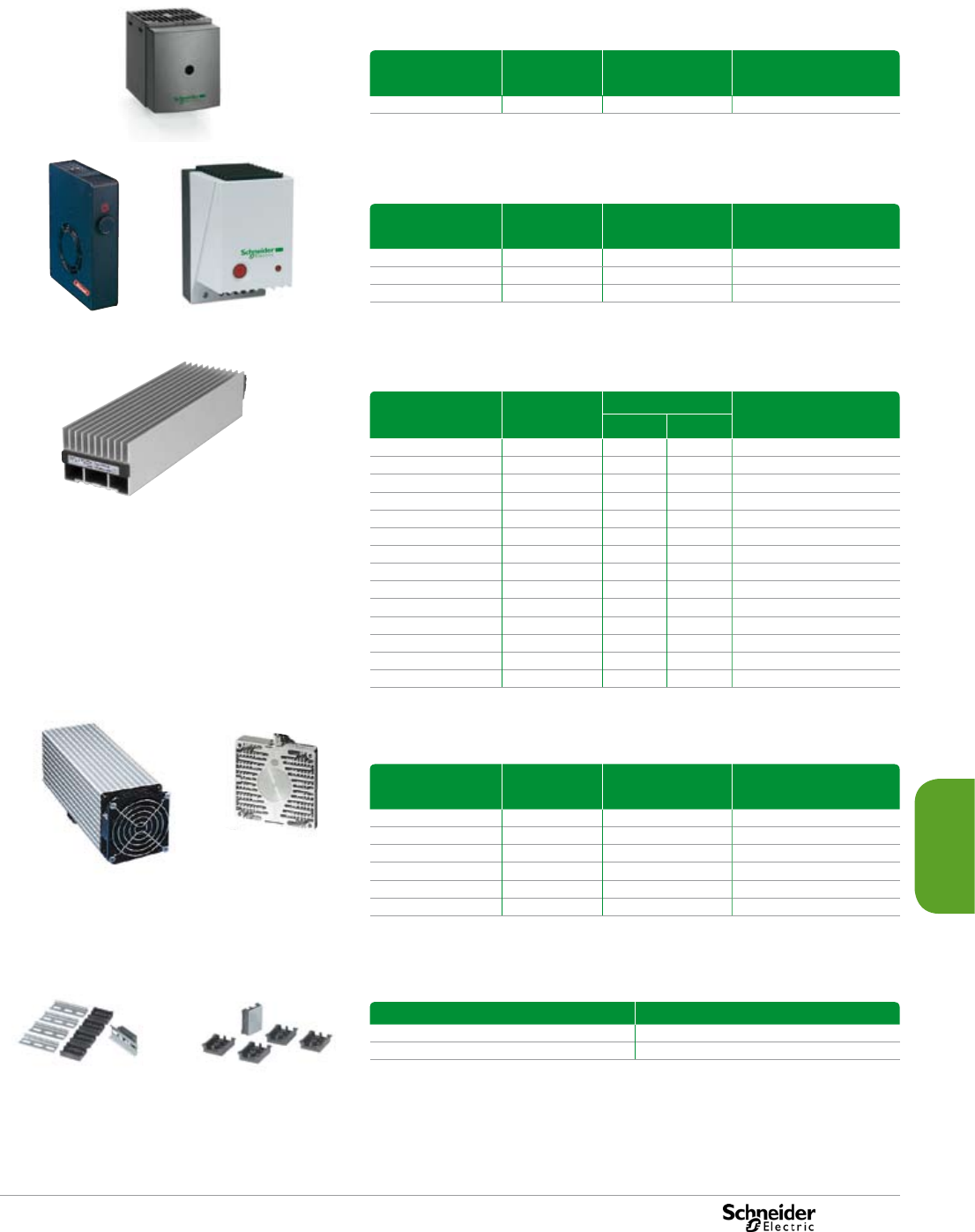

• ClimaSys CR Resistance Heaters

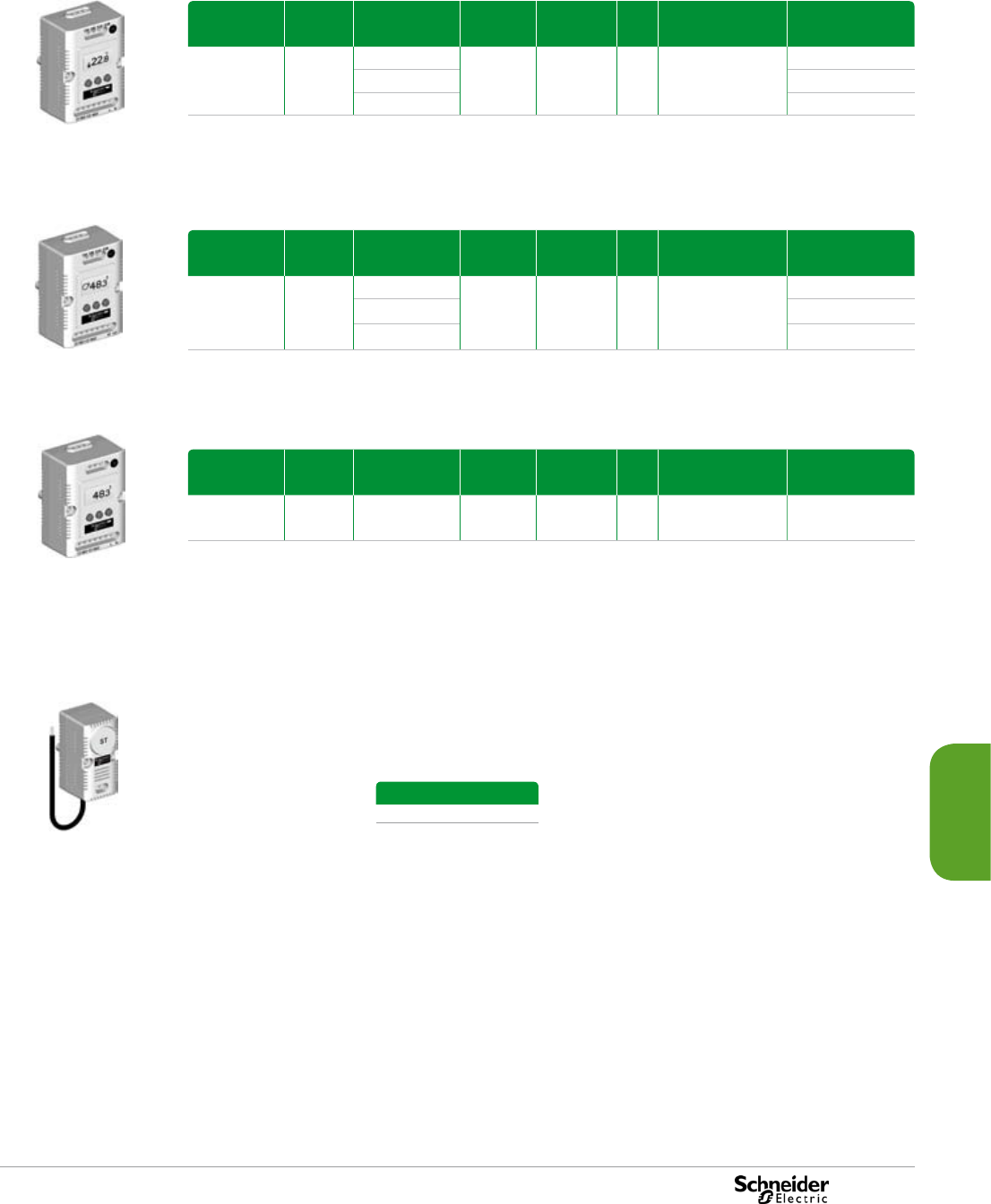

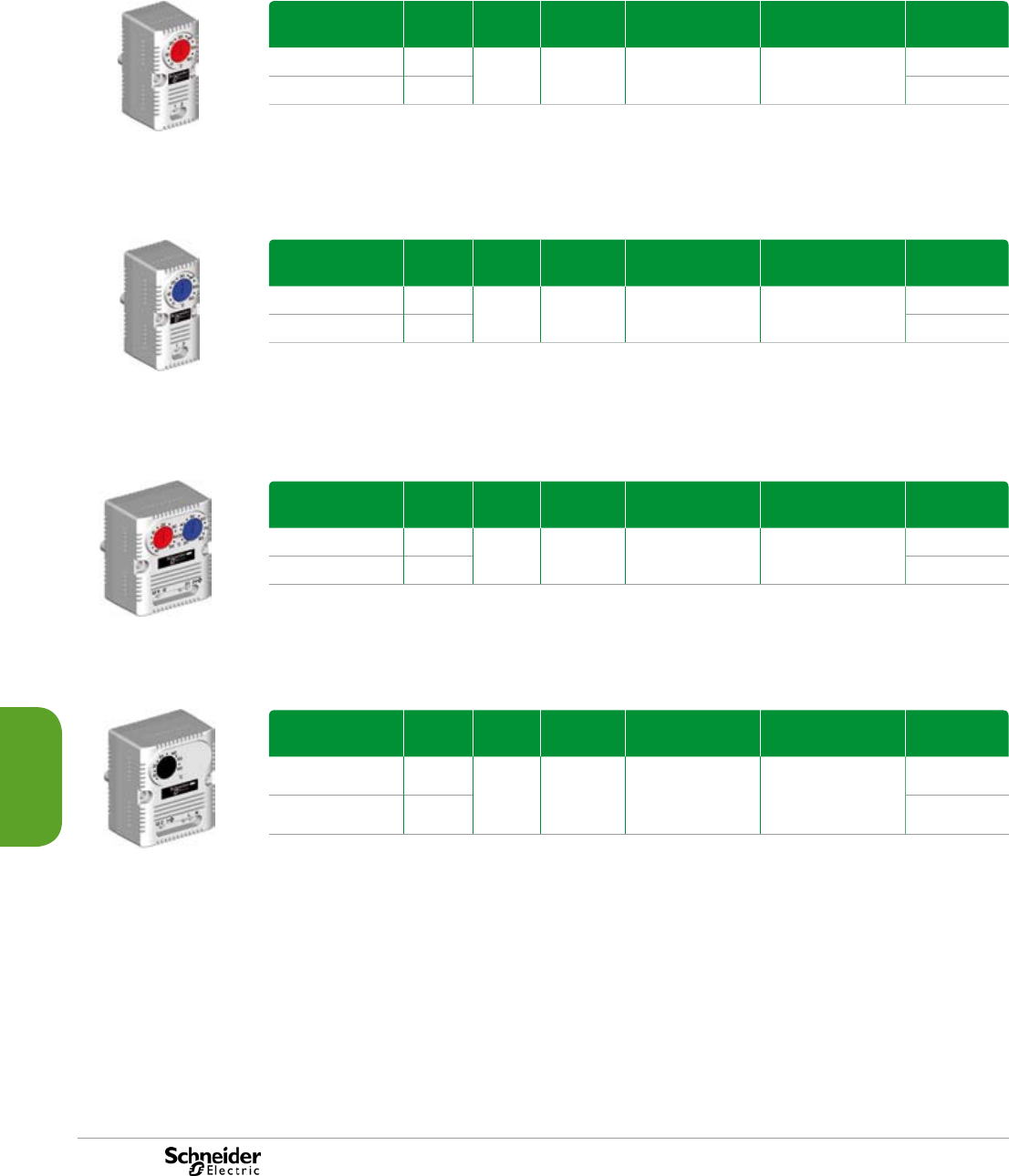

• ClimaSys CC Thermal Control

Technical annexes

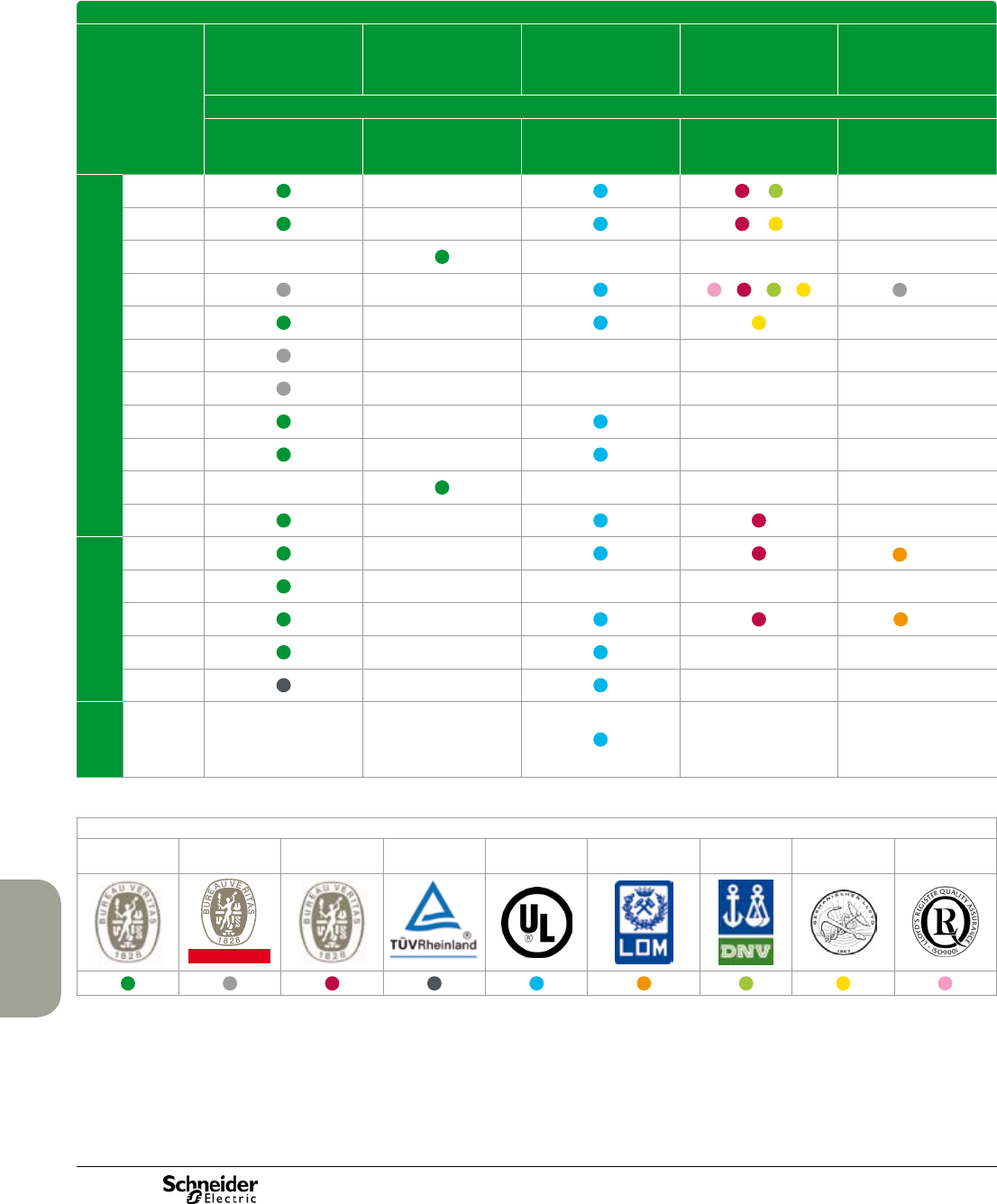

• Standard certiﬁcations

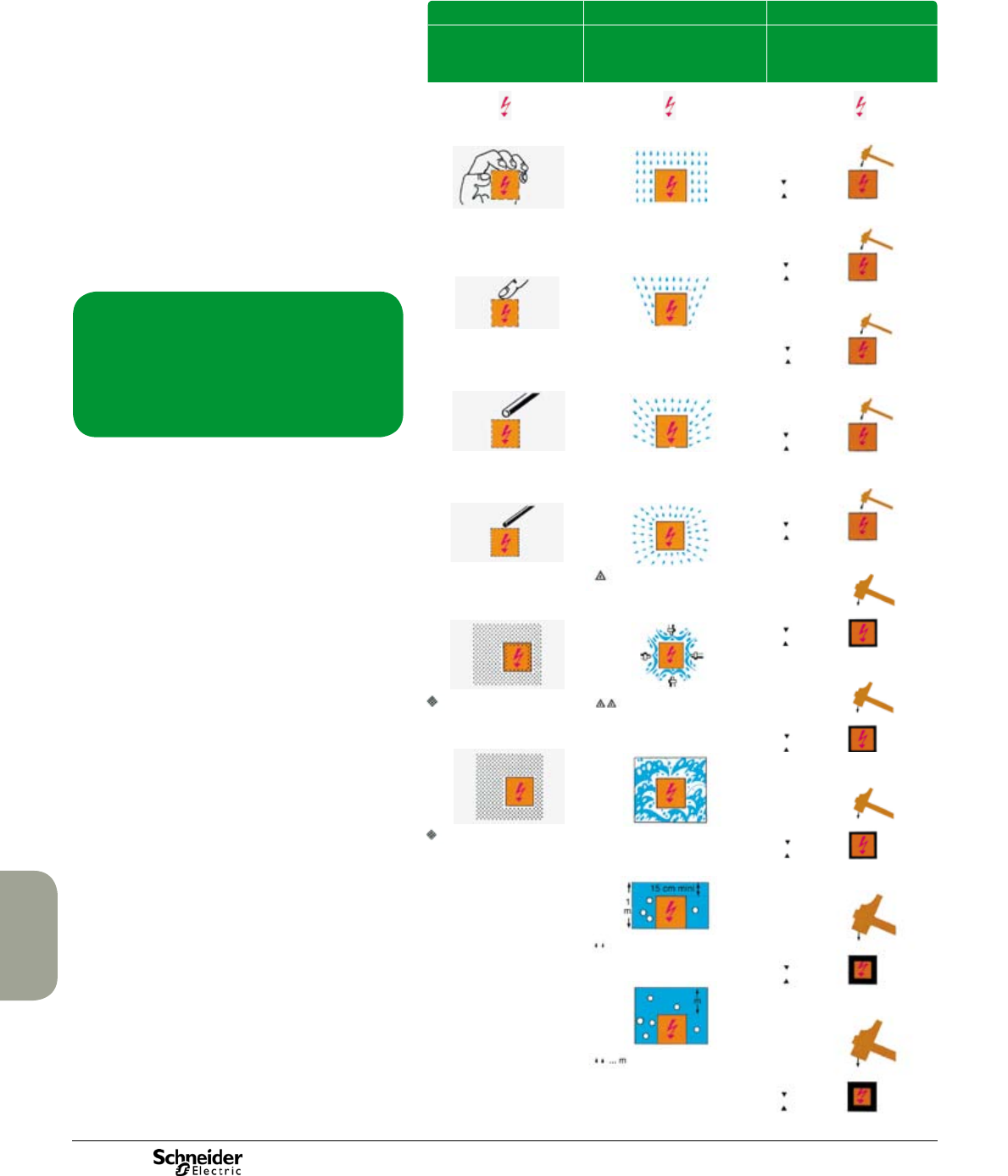

• Degrees of protection: IK and IP

• Material properties

Spacial Steel

Please contact us for further information on our desk, modular, customised,

exchangers and cooling unit offers

ClimaSys

Thermal

management

CV-CA

Ventilation/Airing

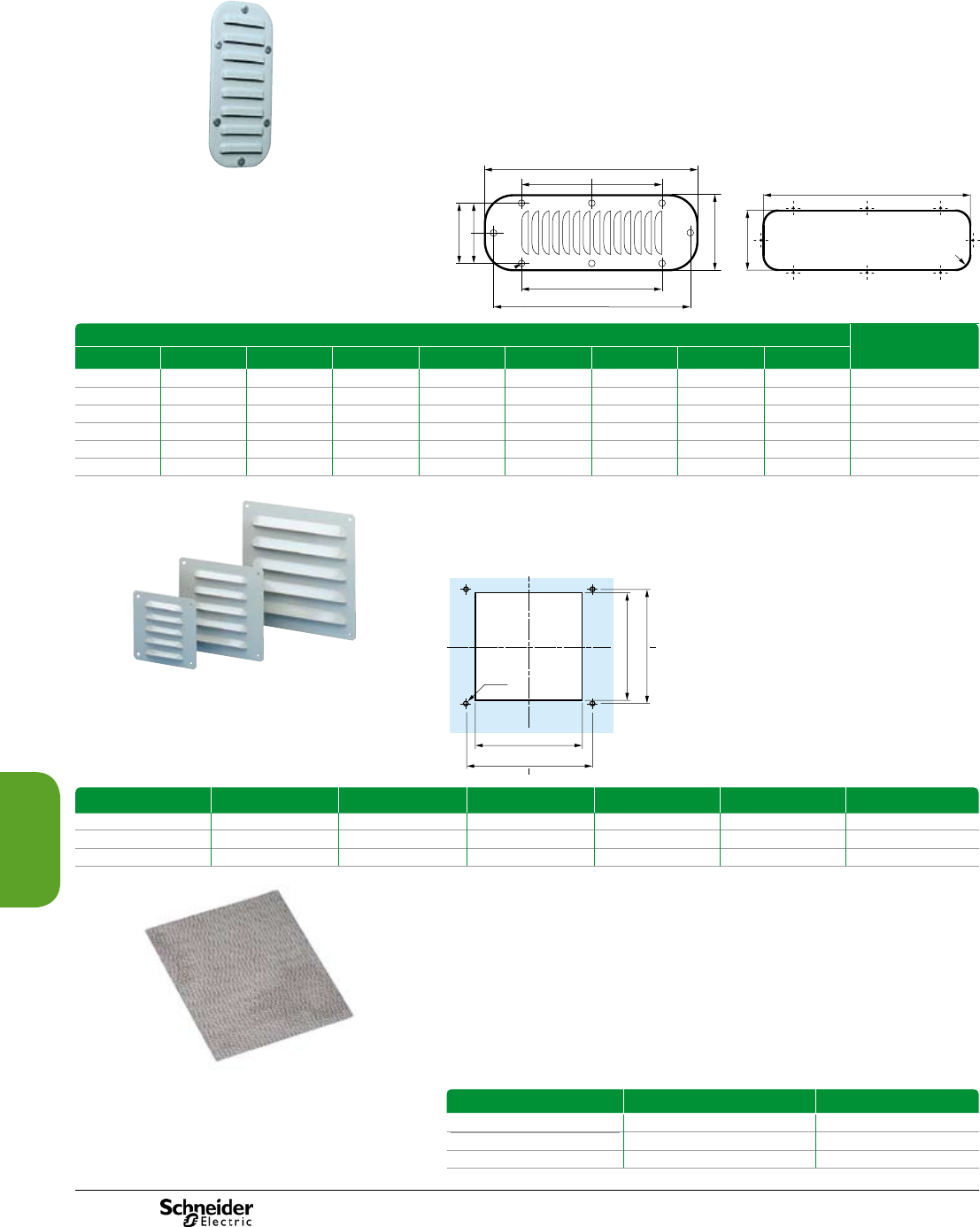

Metal louvre

plate

Metal louvre

Accessories

Door

Switches

Viewing Mounting

S44 Industrial boxes IP 66

S57 Screw fixed cover boxes IP 66

S24 Safety boxes IP 55

SDB Derivation boxes

PLS Insulating modular boxes

TBP Polycarbonate industrial boxes

TBS ABS industrial boxes

S3D Wall-mounting steel

S3DEX Potentially explosive atmospheres

Selection guide for application wall

mounting enclosure

S44 Wall-mounting

S3XEX Potentially explosive

atmosphere

PLM Wall-mounting polyester

PLMEX Potentially explosive atmosphere

SM Floor-standing compact

SF Floor-standing suitable

SMX Floor-standing

monobloc

• PC rack

SFX Floor-standing

suitable

PLA Floor-standing polyester

enclosures

PLD Floor-standing DIN polyester

enclosures

Boxes

From 74 x 74 mm

To 500 x 300mm

Wall-mounting

enclosures

From 300mm x 500mm

To 1200mm x 1000mm

Floor-standing

enclosures

From 500mm x 500mm

To 2200mm x 1600mm

Spacial Steel Thalassa Insulating MaterialsSpacial Stainless-Steel

0870 608 8 608

ProClima 5.0

Thermal Software

Metal louvre

Resistance Heaters

Thermal Control

EarthingLighting &

Sockets

Door

Accessories

S44 Industrial boxes IP 66

S57 Screw fixed cover boxes IP 66

S24 Safety boxes IP 55

SDB Derivation boxes

PLS Insulating modular boxes

TBP Polycarbonate industrial boxes

TBS ABS industrial boxes

S3D Wall-mounting steel

S3DEX Potentially explosive atmospheres

Selection guide for application wall

mounting enclosure

S44 Wall-mounting

S3XEX Potentially explosive

atmosphere

PLM Wall-mounting polyester

PLMEX Potentially explosive atmosphere

SM Floor-standing compact

SF Floor-standing suitable

SMX Floor-standing

monobloc

• PC rack

SFX Floor-standing

suitable

PLA Floor-standing polyester

enclosures

PLD Floor-standing DIN polyester

enclosures

New referencing systems introduced for all our ranges except the Mureva modular and junction boxes

Product family

See the new names below.

Universal

enclosures

code

Specifications:

Dimensions, power, type of function...

Composition:

Type of door, material...

Additional accessories...

Understand our references

New product family names:

ClimaSys:

ClimaSys CV Ventilation system

ClimaSys CA Natural Airing

ClimaSys CU Cooling Units

ClimaSys CE Exchangers

ClimaSys CR Resistance Heaters

ClimaSys CC Thermal Control

Thalassa insulating

enclosures:

Thalassa TBP Industrial boxes PC (UL)

Thalassa TBS Industrial boxes in ABS

Thalassa PLS Insulating modular boxes

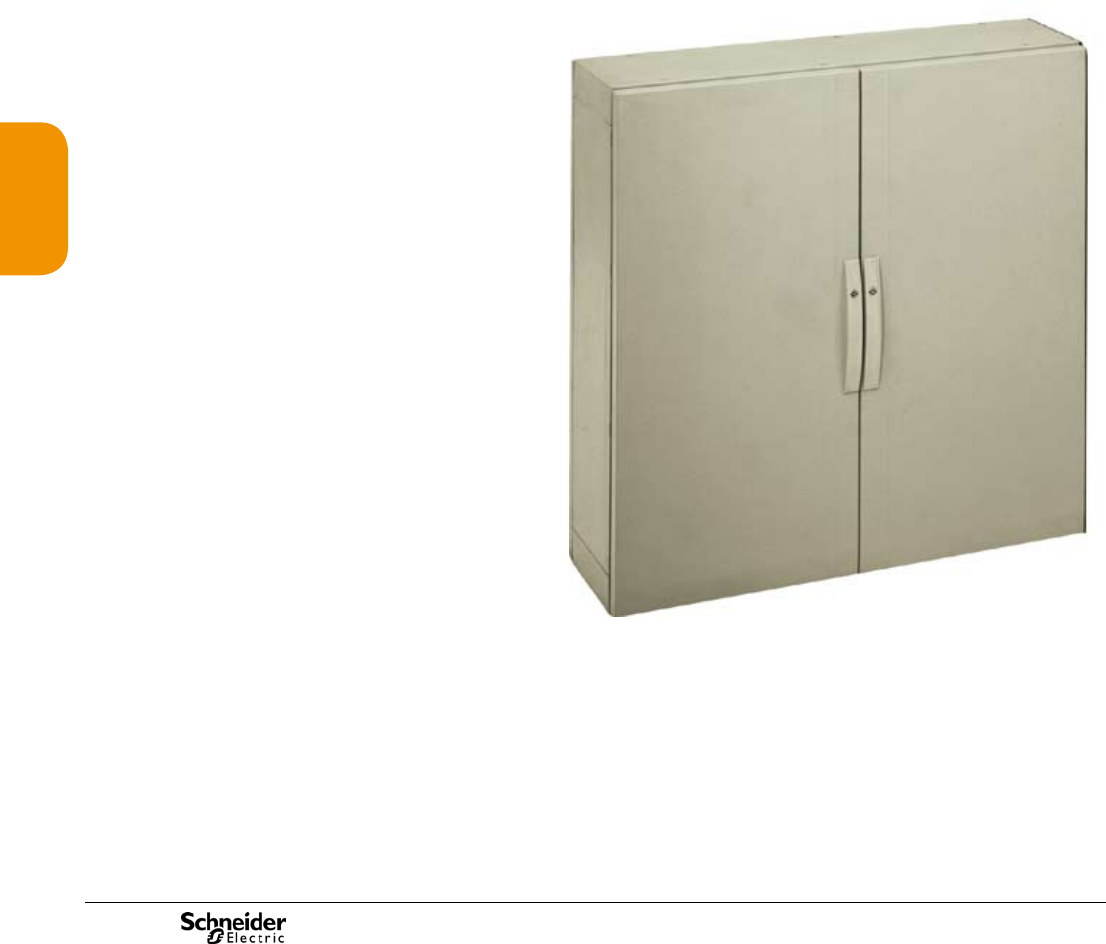

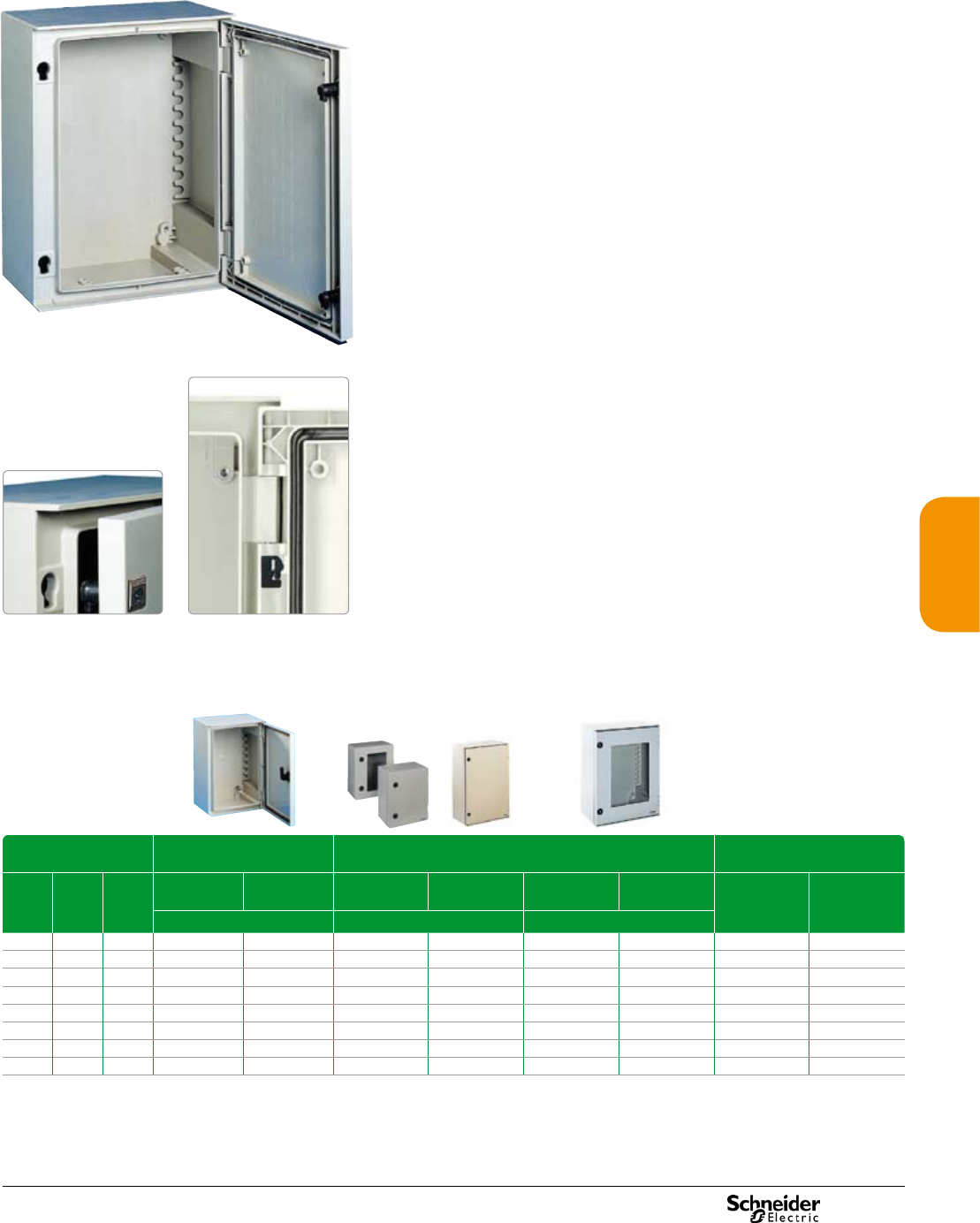

Thalassa PLM Wall-mounting in polyester

Thalassa PLA Floor-standing in polyester

Thalassa PLD Floor-standing DIN in polyester

Spacial metal enclosures:

Spacial S44 - S57 - S24 - SDB Steel

industrial boxes

Spacial S3D Steel Wall-mounting

Spacial SF Steel floor-standing suitable

Spacial SM Steel floor-standing compact

Spacial SD Steel Control desk

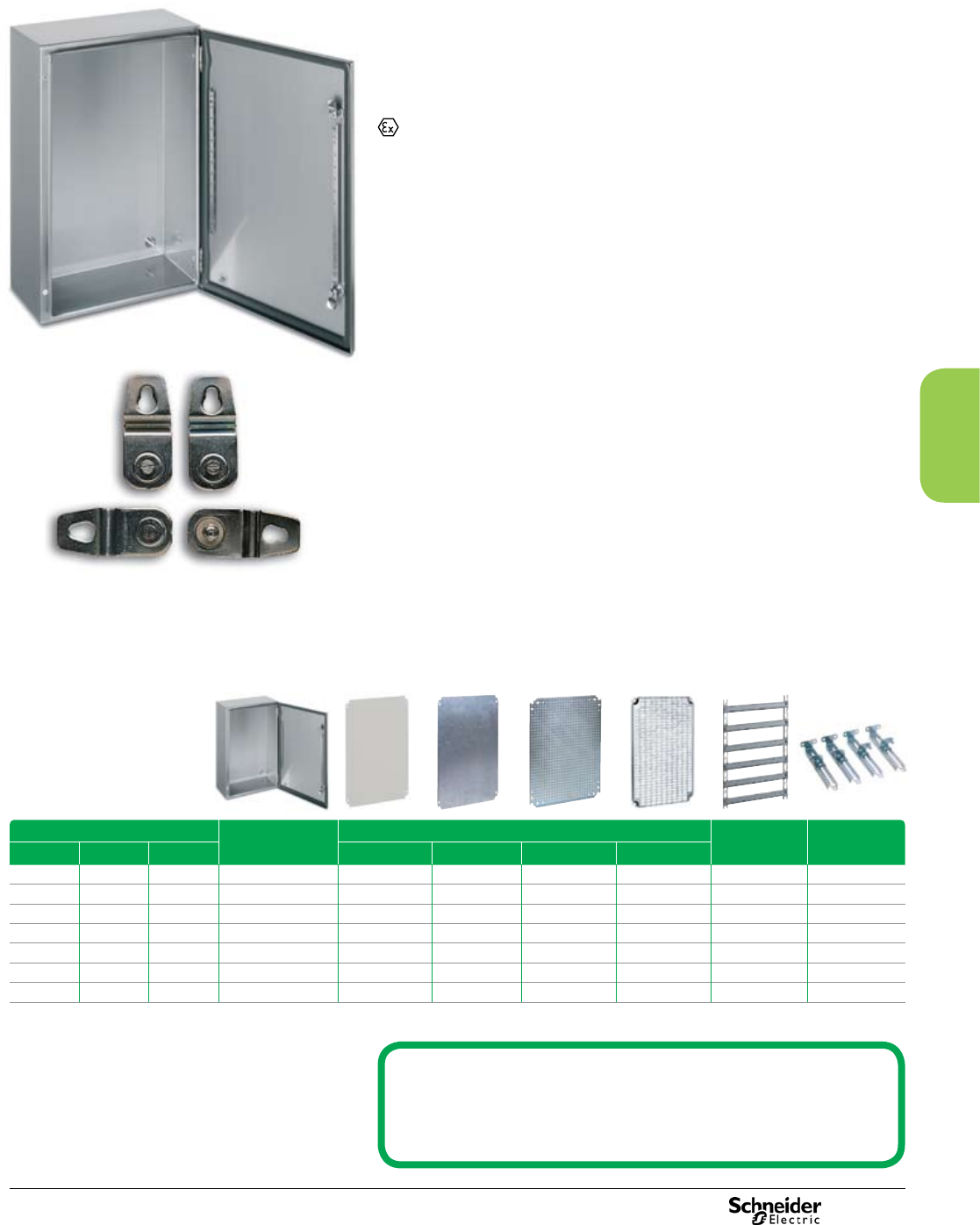

Spacial S3X Stainless-steel wall-mounting

Spacial SMX Stainless-steel floor-standing

monobloc

Spacial SFX Stainless-steel floor-standing

suitable

Spacial SDX Stainless-steel control desk

SN Y 81 8 5 0 TSFS

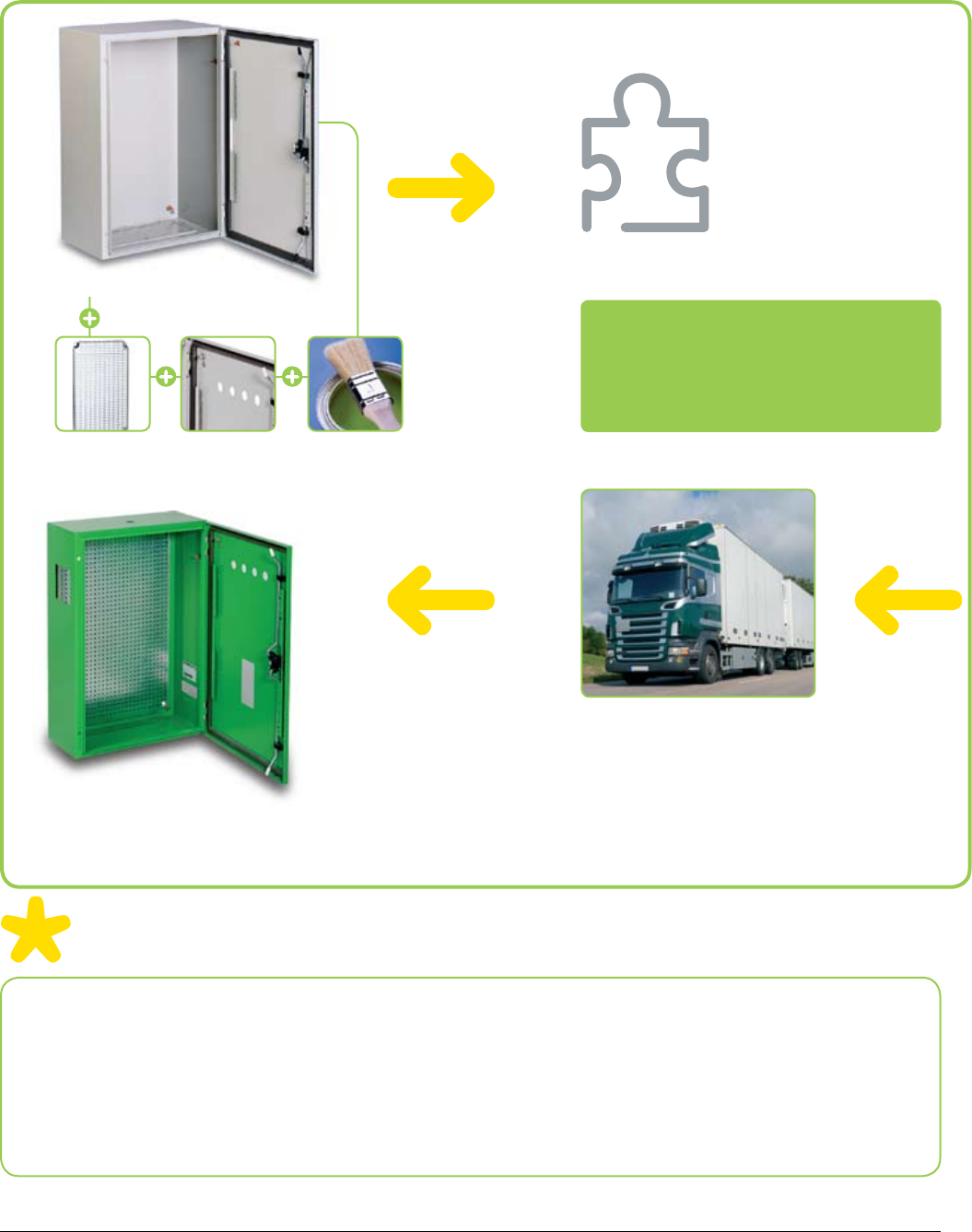

The configured offer

Assembly of standard accessories and claddings,

cut-outs and painting.

Transport

Our ﬂexible organisation allow us

to manage all orders according

to your needs, with a guaranteed

delivery time.

The standard offer enhanced with two levels of service:

Mounted ‘‘assembled to order’’ offer:

> Conﬁgurations with the most common claddings and accessories in RAL 7035.

Configured

Modifying your standard enclosure

without modifying your delivery date...

... time saving and improved

quality for you!

If needed, our standard products can also be assembled to order and adapted to your

requests, ensuring that you don’t have to sacrifice lead-time for a customised solution that’s

ready to use right out of the box.

Standard enclosure

Your configured solutions

delivered ready to use!

If you need more information on our conﬁgured offer, please call us on 0870 608 8 608

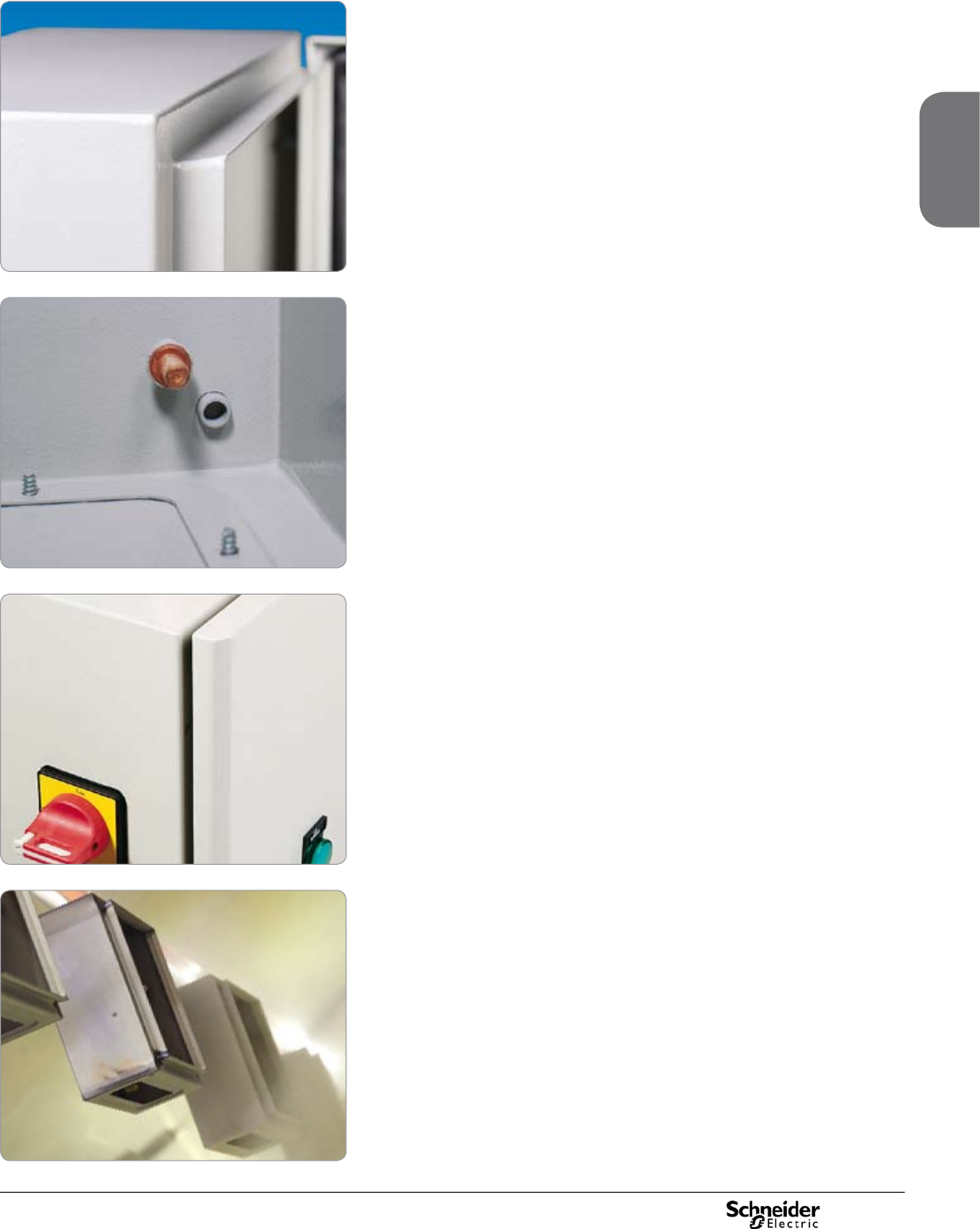

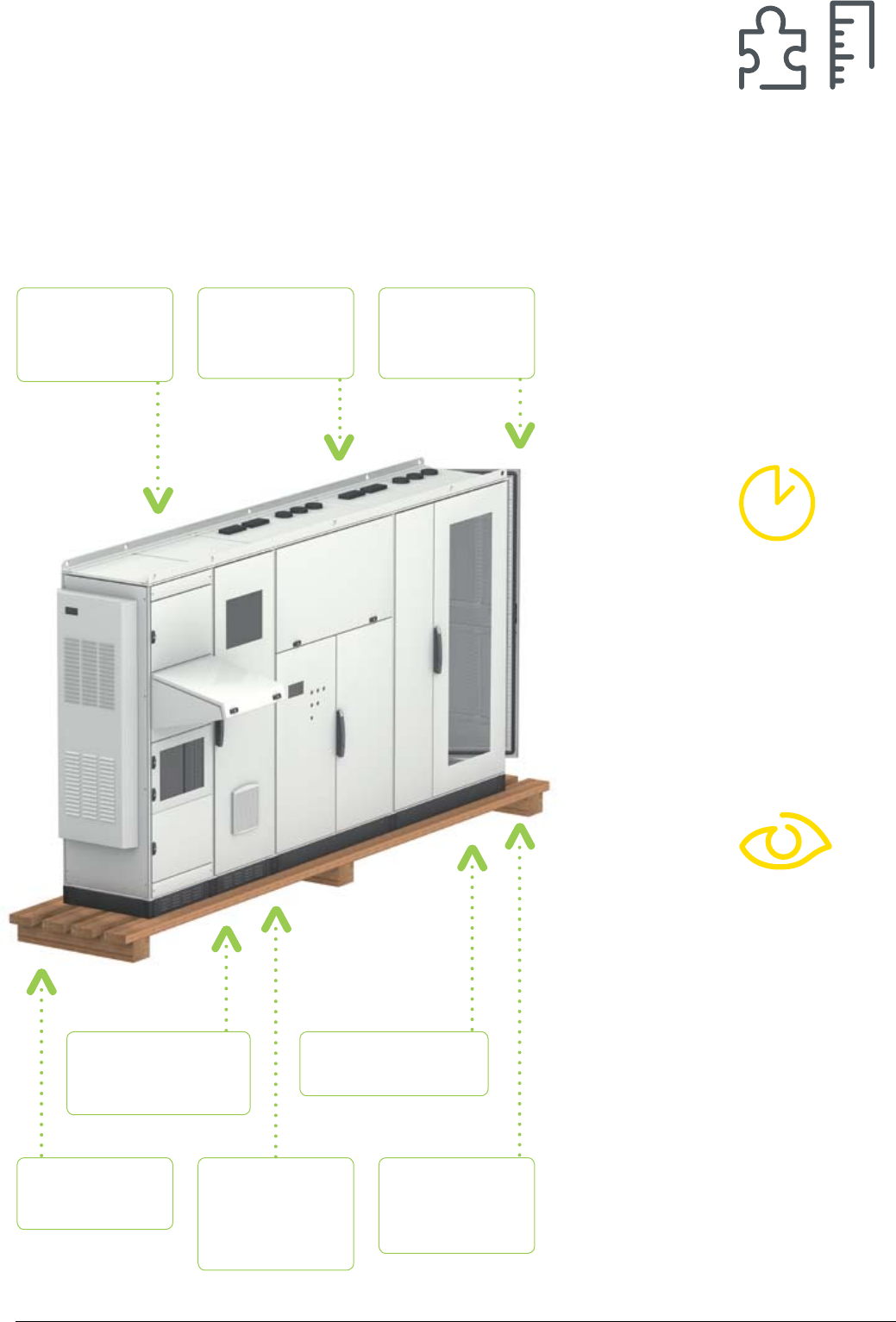

The customised offer

Two customised services to cover all your needs:

Easier

handling

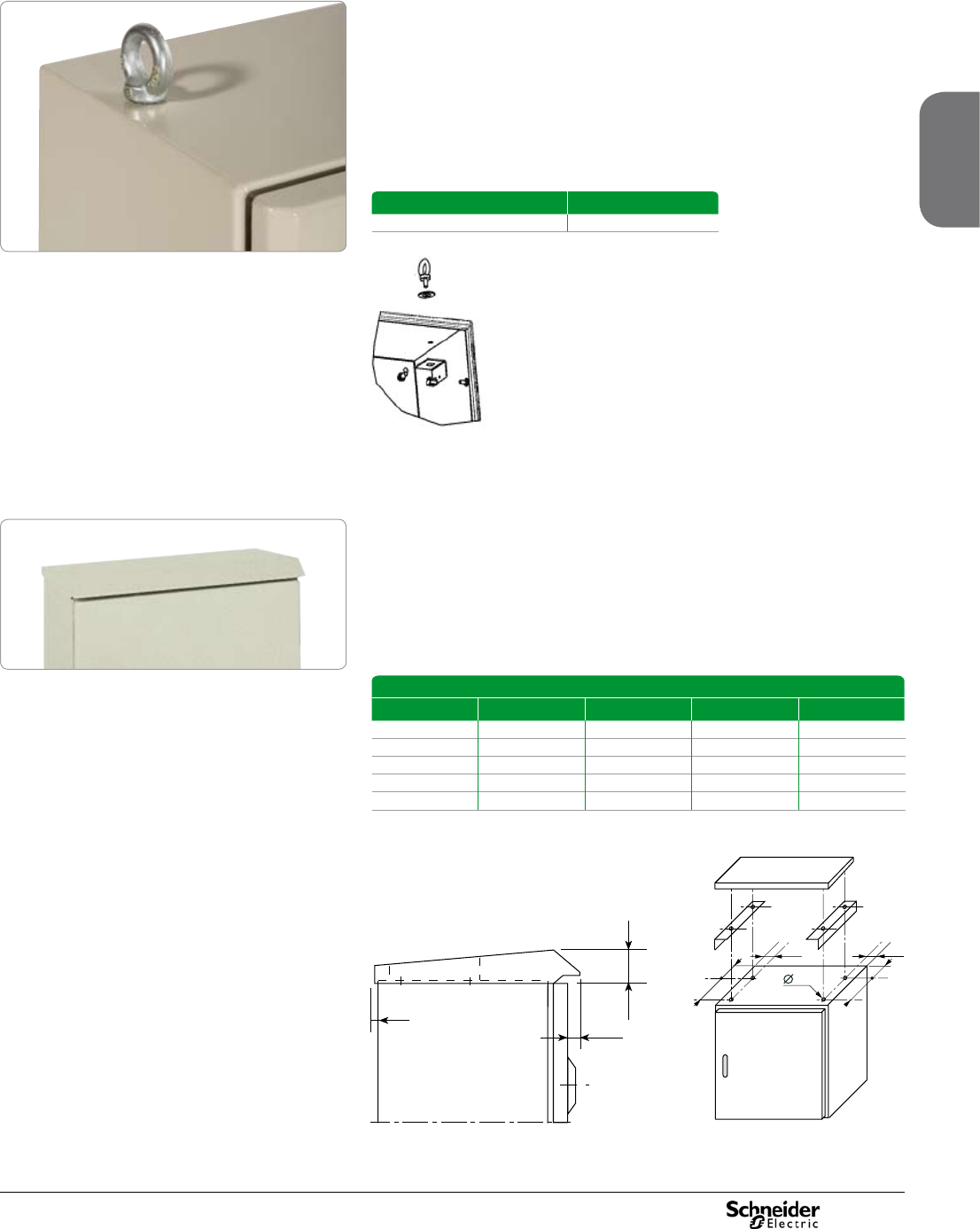

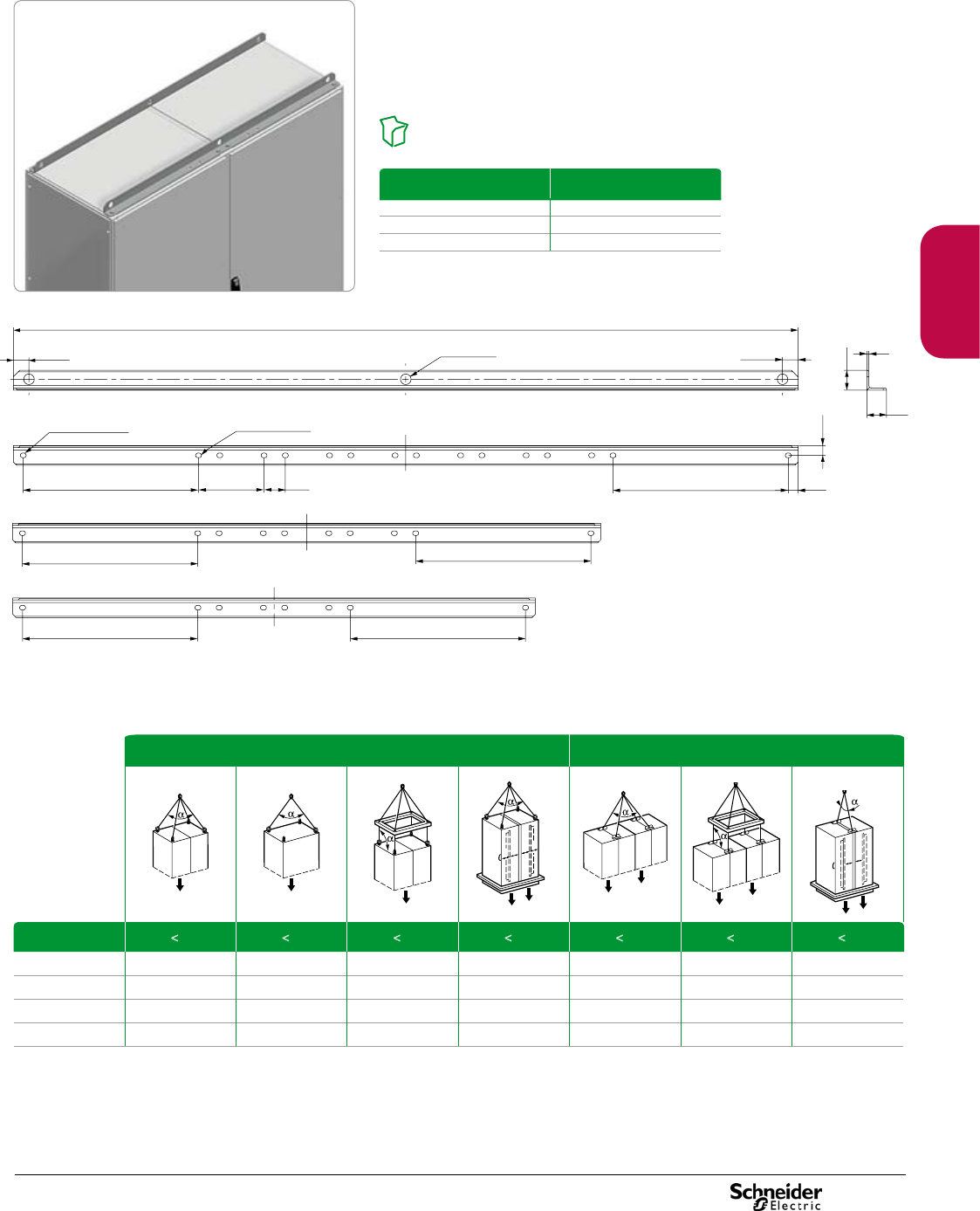

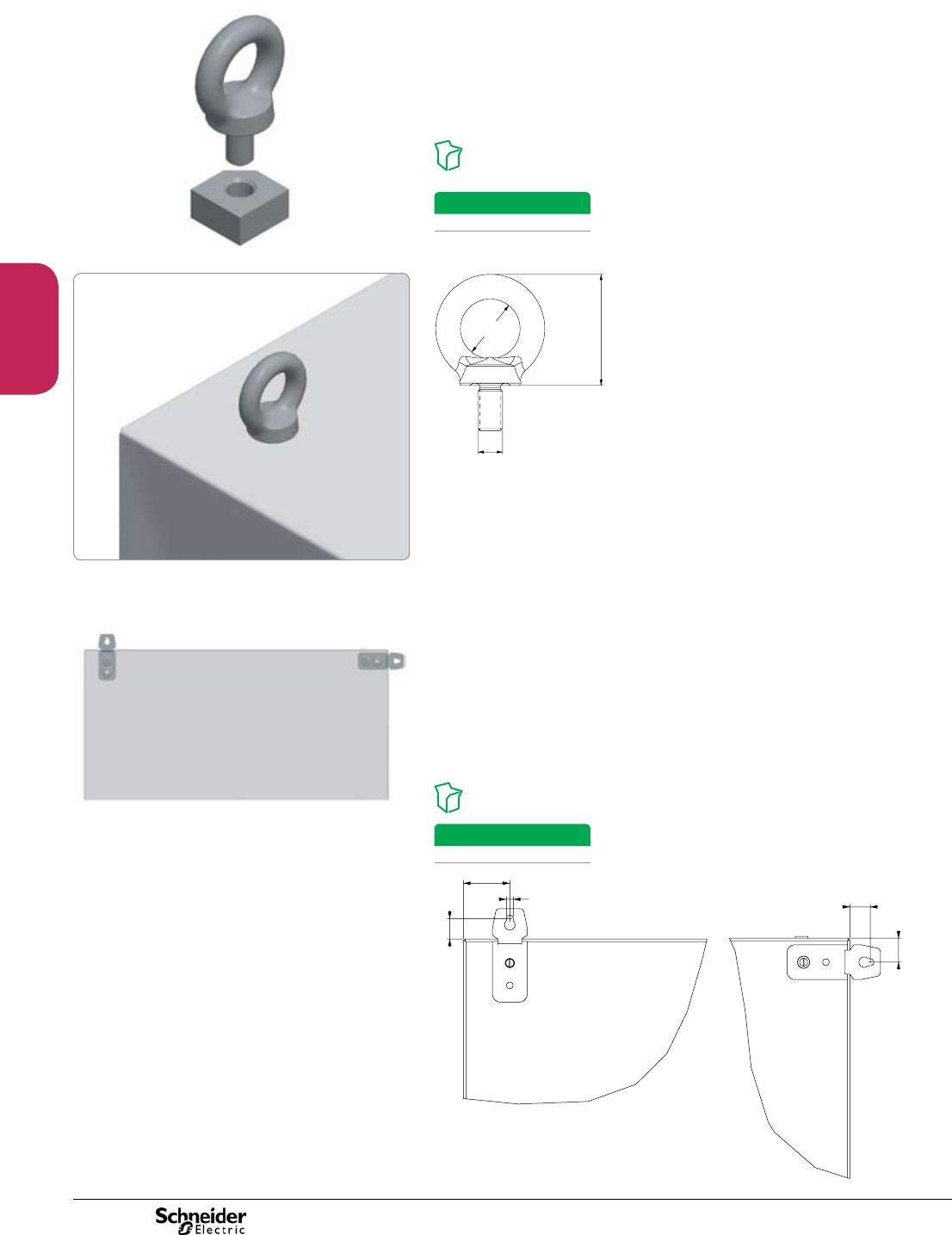

• Hoisting

Improved quality

• Cut-outs before painting

Time-saving

• Factory suite

assemblies

Mounting

• Accessories

mounted in our

factory

Increased

useful life of

the equipment

• Thermal

Aesthetics

• Colours

Safety

• Dedicated

packaging

Efficiency and

ergonomics

• Cladding

Configured Specific

Time saving

We perform

machining, mounting

of accessories and

painting.

Improved quality

We manufacture

customised solutions

with our industrial tools

Example: cut-outs made

before painting, gasket

applied after painting.

Building the right enclosures for a wide variety of applications

is what we do best.

At Schneider Electric – Universal Enclosures we have developed two

customised services based on more than 50 years of experience in the market:

a Configured offer (standard modified), and a Specific solution (custom-built

enclosures) for a diverse range of industries.

If you need more information on our customised offer, please call us on 0870 608 8 608

Selection tools

Our international site allows you to access all the Schneider Electric products in just

two clicks with direct links to:

Spacial.pro

Our software suite

• A complete library of technical documents,

catalogues, FAQs brochures, etc.

• Certicates.

• 2D & 3D drawings.

• Selection Guides from the e-catalogue.

• Product discovery sites.

You may also ﬁnd illustrated overviews, news to which

you can subscribe, a list of country contacts and more

useful information.

ProClima

Spacial.ref

Thalassa.ref

Calculate the right choice for your thermal

management requirements, according to the

environment and the electrical/electronic devices

installed inside the enclosure.

These digital rules allow you to select the best

components from the current extensive product range

without the risk of any mistakes, since product and

accessory selection take place automatically, saving

you time and money.

Spacial.pro allows you to make switchboard proposals

based on the standard Spacial offer. A full project with

several sets of switchboards is quoted in minutes,

with automatic creation of the Bill of Material and 2D

drawings for front/side views.

Please contact us for more information on the

Spacial.pro.

www.schneider-electric.com

1/1

Industrial boxes

Spacial S44 - S57 - S24 - SDB Steel industrial boxes

Spacial S44: Steel industrial boxes IP 66 1/2

Spacial S57: Steel screw xed cover boxes IP 66 1/4

Spacial S24: Steel safety boxes IP 55 1/5

Spacial SDB: Steel derivation boxes IP 55 1/7

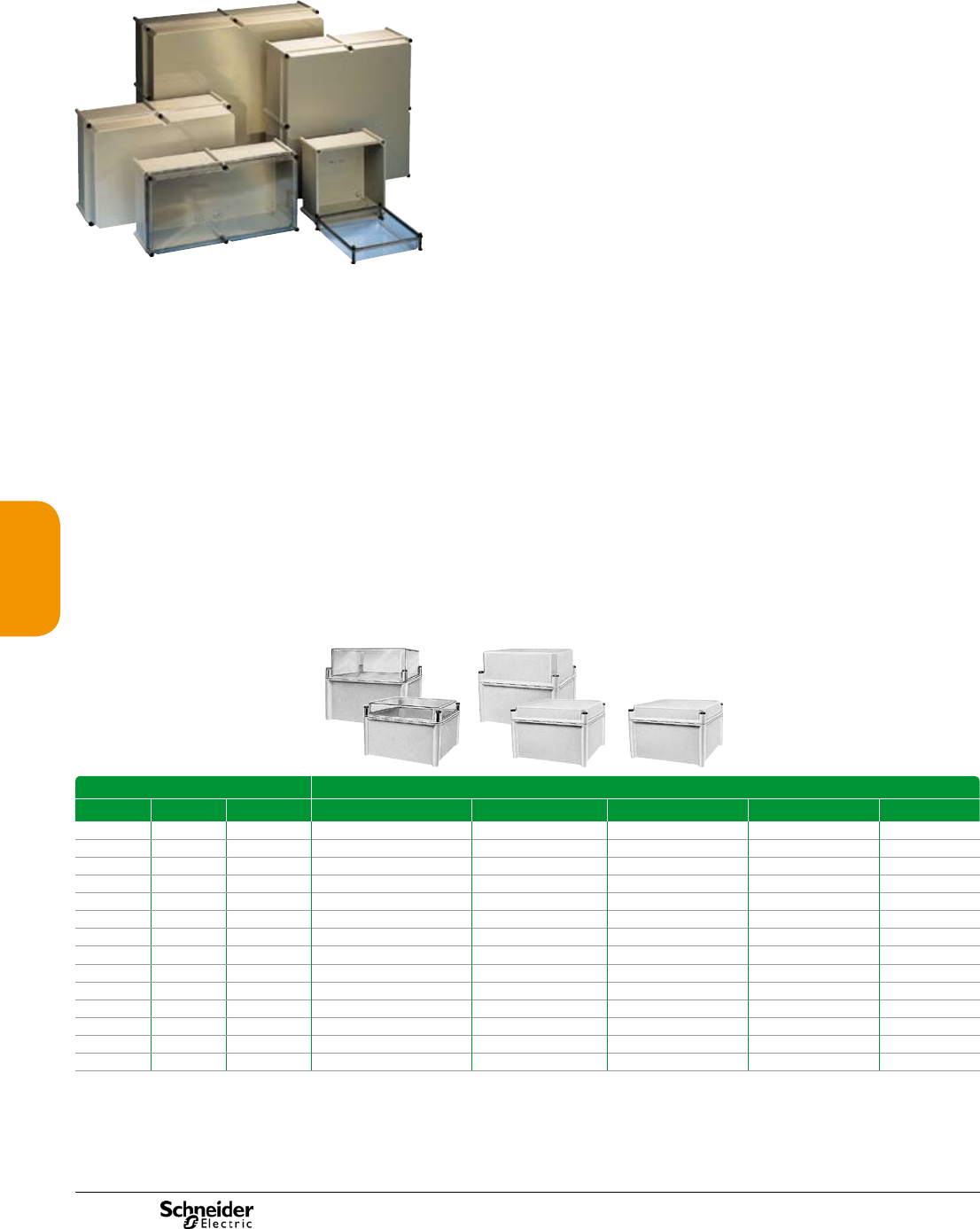

Thalassa TBS - TBP Insulating industrial boxes

Thalassa TBP: Industrial boxes in polycarbonate (UL) 1/8

Thalassa TBS: Industrial boxes in ABS

Selection guide 1/9

Dimensions 1/10

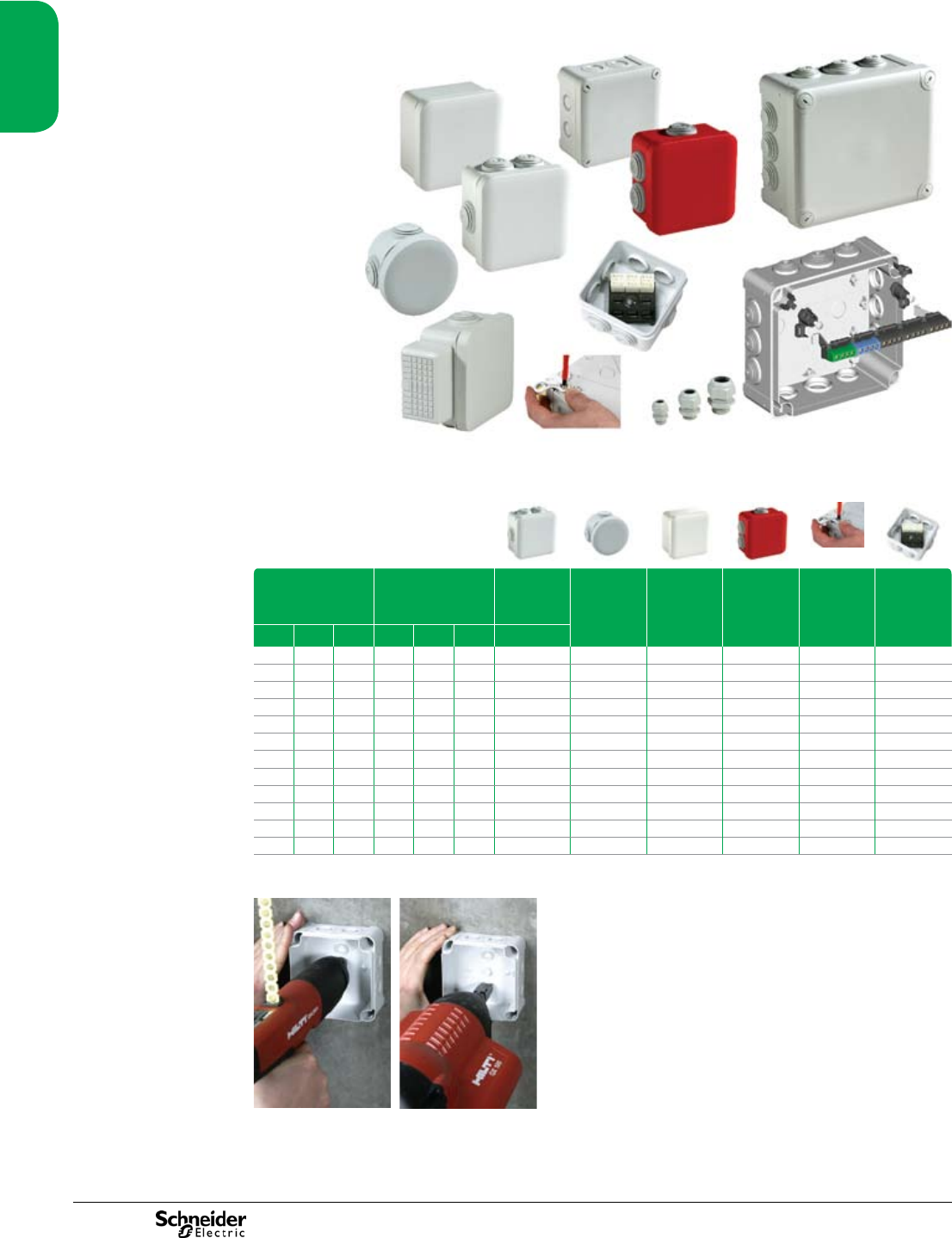

Mureva Insulating modular and junction boxes

Modular boxes 1/13

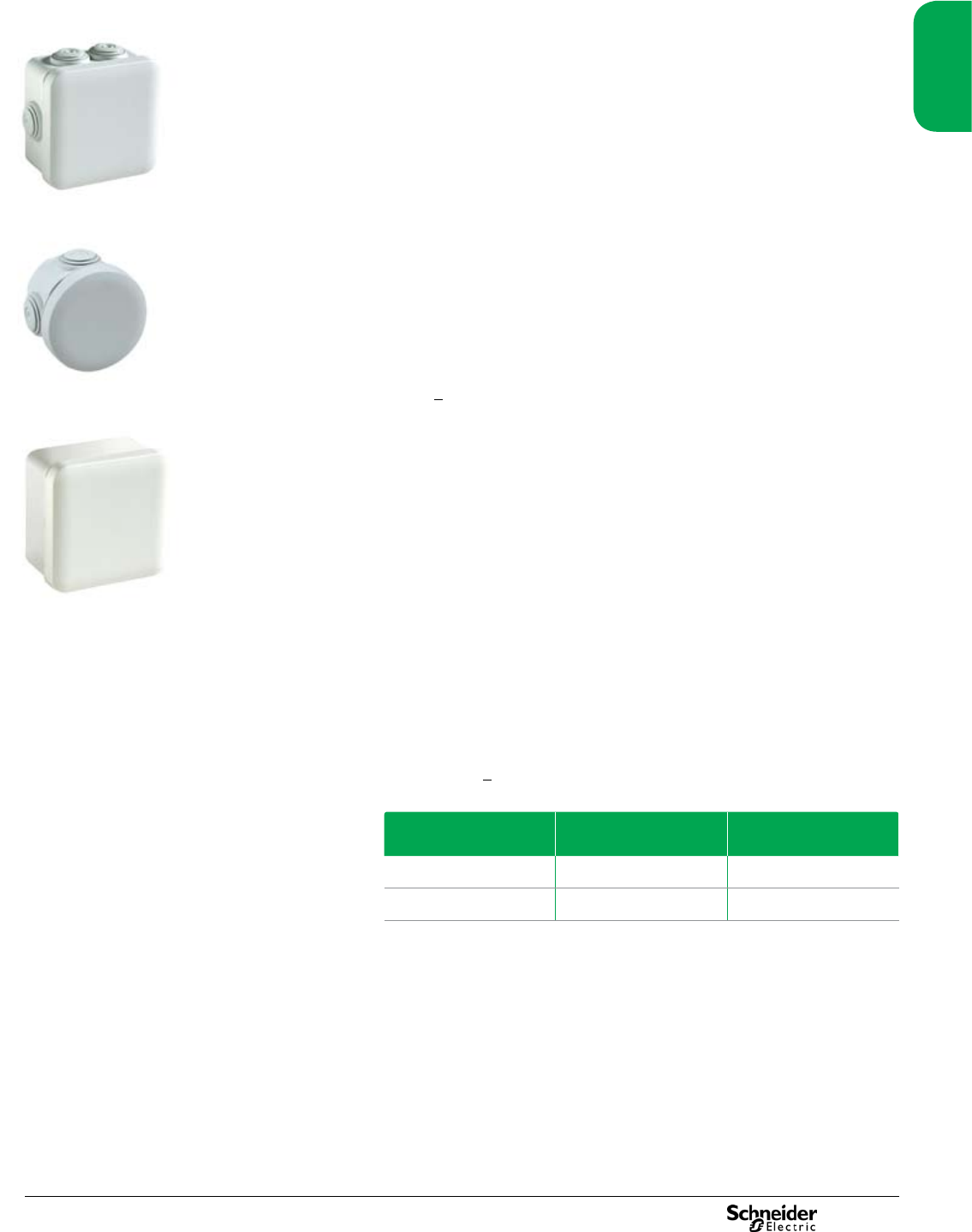

Junction boxes 1/19

Selection guide 1/20

Dimensions 1/21

1/2

Spacial S44

IP 66 steel industrial boxes

Internal dimensions (mm) IP 66 box reference

Reference

plates

Height Width Depth Empty Plate Uprights

80 80 45 NSYSBS884 - - -

100 100 55 NSYSBS10105 - - -

130 130 60 NSYSBS13136 - - -

160 160 65 NSYSBS16166 - - -

165 120 65 NSYSBS16126 NSYSBS16126S - NSYAMPM1612SB

200 200 90 NSYSBS20209 NSYSBS20209S - NSYAMPM2020SB

250 250 100 NSYSBS252510 NSYSBS252510S - NSYAMPM2525SB

300 200 110 - NSYSBS302011R -

300 300 100 NSYSBS303010 NSYSBS303010S - NSYAMPM3030SB

400 200 110 - NSYSBS402011R -

400 400 110 NSYSBS404011 NSYSBS404011S - NSYAMPM4040SB

500 200 110 - NSYSBS502011R -

500 300 110 - NSYSBS503011R -

600 200 110 - NSYSBS602011R -

600 300 110 - NSYSBS603011R -

Steel industrial boxes IP 66

Introduction

IP 66 boxes

Technical characteristics

● Resistance to external mechanical impacts: IK 08.

● Structured finish, epoxy-polyester powder paint, RAL 7035 grey colour.

● Cover fixing by 4 screws.

● Polyurethane sealing gasket applied.

● Wall fixing: by welded lugs.

● Earthing screws on the body and cover for earth continuity.

● 3 versions:

– Empty boxes, without internal fixing studs,

– Boxes with fixing studs for plate.

– Boxes with markings with a pitch of 12.5 mm for rails, on the width side.

Applications

● Applications requiring good water and dust protection.

1/3

Spacial S44

12.5

11 5

� 8.5

Steel industrial boxes IP 66

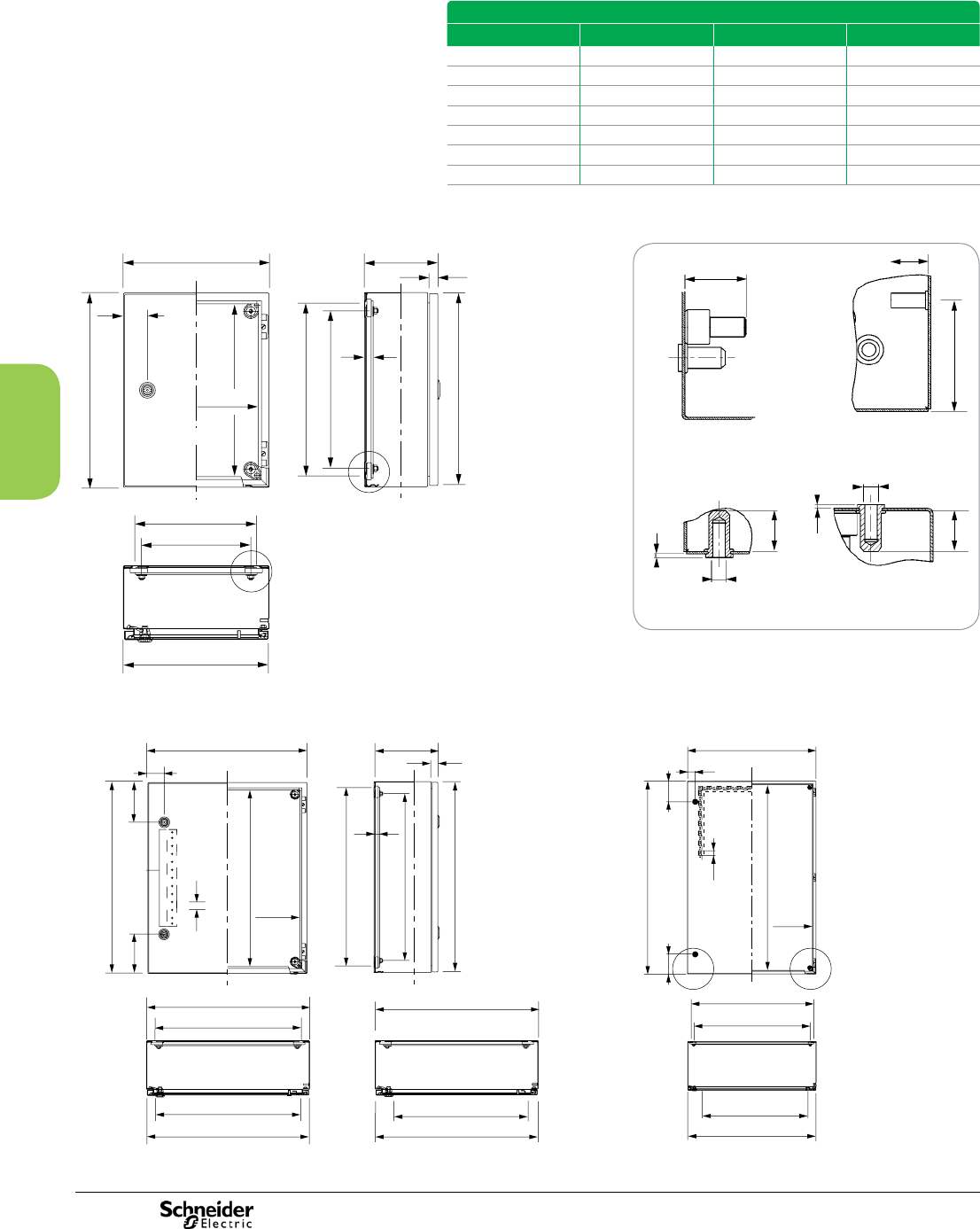

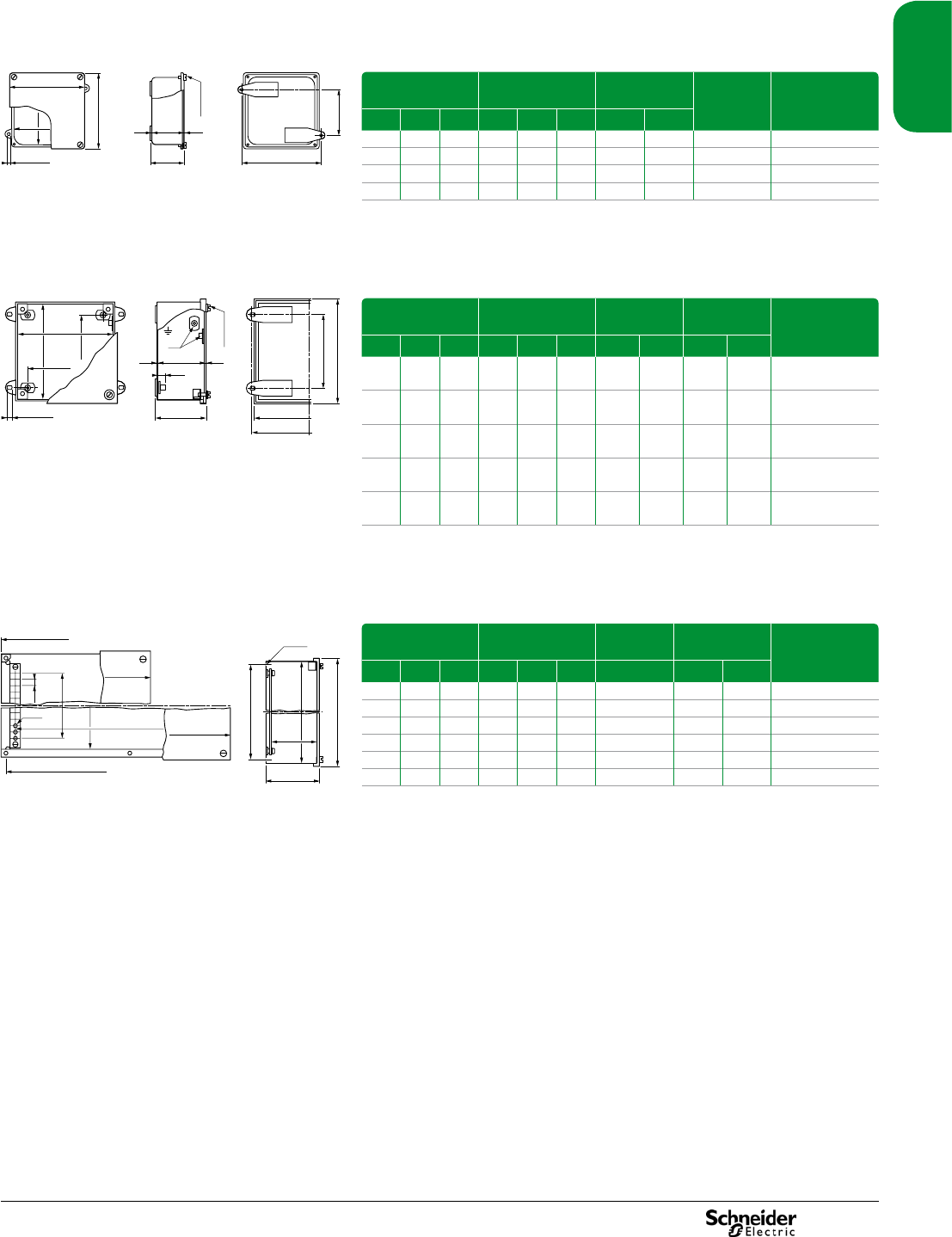

Dimensions

IP 66 steel industrial boxes without knock-outs

Bare boxes and boxes with 4 plate-fixing points, IP 66

Boxes with uprights, IP 66

Internal

dimensions (mm) Dimensions (mm) Fixing (mm) Gross

weight (kg) Reference

A B C D E F G H

80 80 45 96 96 48 50 100 0.190 NSYSBS884

100 100 55 116 116 58 70 120 0.270 NSYSBS10105

130 130 60 142 142 63 100 144 0.300 NSYSBS13136

160 160 65 174 174 68 130 178 0.590 NSYSBS16166

Internal

dimensions (mm) Dimensions (mm) Box fixing

(mm)

Plate

fixing (mm) Reference

A B C D E F G H I J

120 165 65 131 176 72 137 137 90 140 NSYSBS16126

NSYSBS16126S

200 200 96 211 211 97 174 217 170 170 NSYSBS20209

NSYSBS20209S

250 250 100 262 262 107 224 267 220 220 NSYSBS252510

NSYSBS252510S

300 300 100 312 312 107 274 317 270 270 NSYSBS303010

NSYSBS303010S

400 400 110 412 412 117 374 417 370 370 NSYSBS404011

NSYSBS404011S

Internal

dimensions (mm) Dimensions (mm) Uprights

(mm) Box fixing (mm) Reference

A B C D E F G H I

200 300 - 211 311 125 250 184 284 NSYSBS302011R

200 400 - 211 411 125 350 184 384 NSYSBS402011R

200 500 172 211 511 125 450 184 484 NSYSBS502011R

200 600 172 211 611 125 550 184 584 NSYSBS602011R

300 500 272 312 512 225 450 284 484 NSYSBS503011R

300 600 272 312 612 225 550 284 584 NSYSBS603011R

 8  6

0.80.6

M4  10

C 1.5

8.5

1.5

 8  6

M5  16

NSYSBS302011R

NSYSBS402011R

NSYSBS502011R

NSYSBS602011R

NSYSBS503011R

NSYSBS603011R

1/4

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

B-45

A-45

B-38

B-75

A-75

A-22

105

30 (2)

23 (3) (1) (2)

� 10

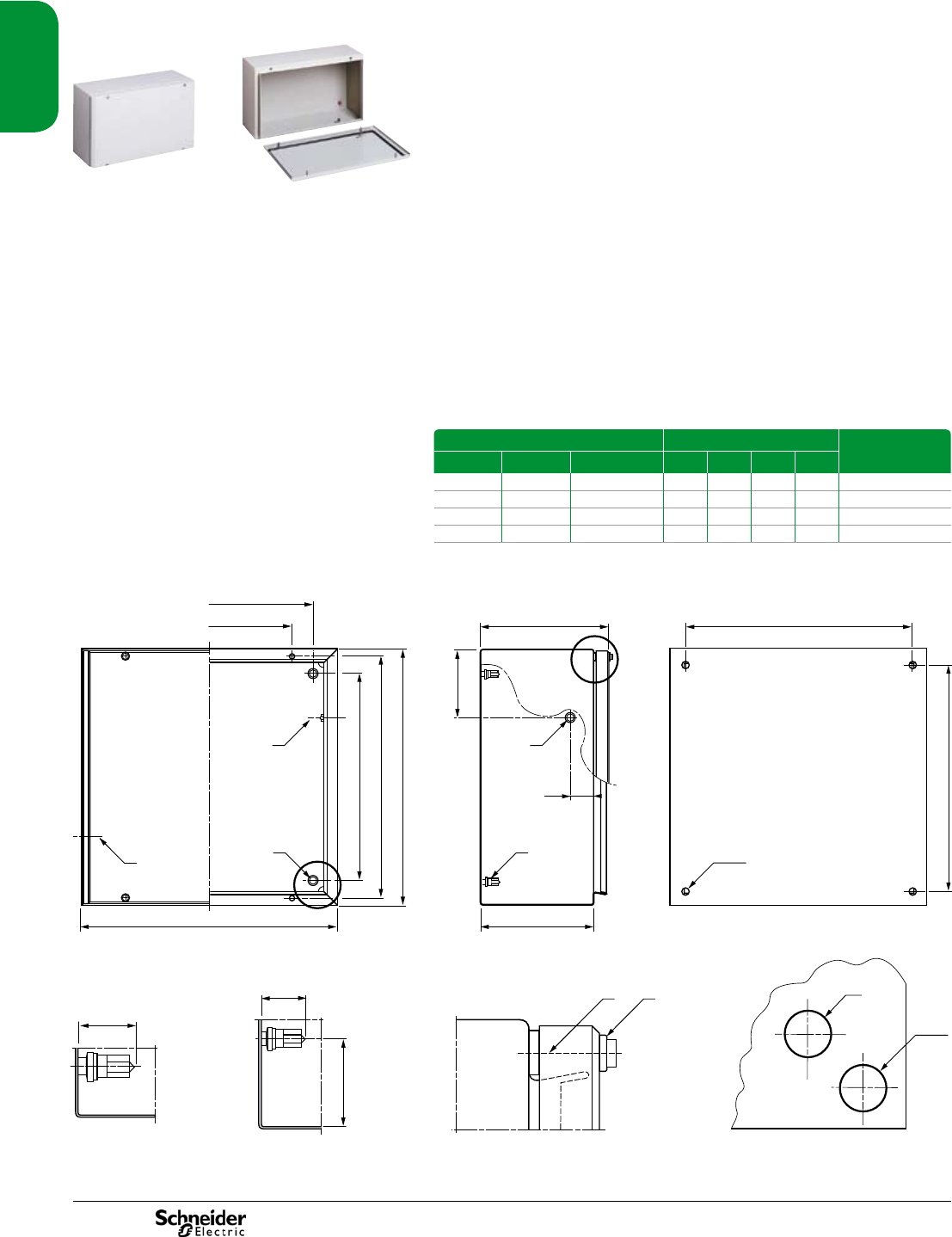

Spacial S57

1Technical characteristics

● Sheet-steel enclosure.

● Degree of protection: IP 66 according to IEC 60529.

● Resistance to external mechanical impacts: IK 10.

● Structured finish, polyester powder paint, RAL 7035 grey colour.

● Fixing of the cover with 4 CHc M5 x 35 shouldered captive screws.

● The enclosures are equipped with 4 backstuds for fixing the mounting plate.

● Polyurethane sealing gasket.

● Earthing screws on the body and cover for earth continuity.

Special versions

● On request, the industrial boxes can be delivered with:

– Other finishes (zinc chromate, metallised, etc.).

– Other colours.

– Etc.

See our Customised offer.

Applications

● Use in environments with a considerable risk of dust and/or liquid deposit

creation.

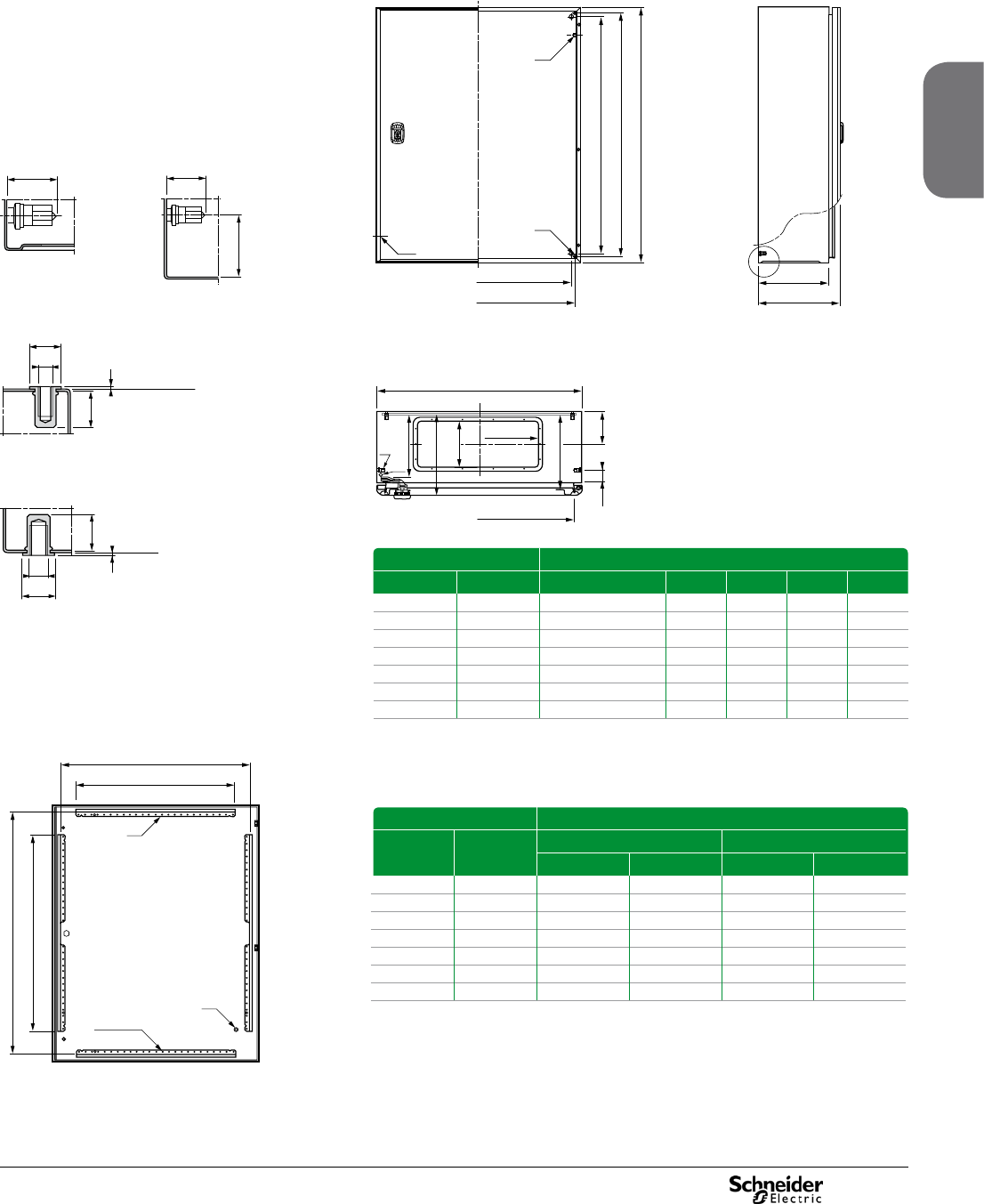

External dimensions (mm) (mm) Reference

Height Width Depth A B C D

200 300 150 200 300 150 127 NSYSBS302015

300 300 150 300 300 150 127 NSYSBS303015

300 400 150 300 400 150 127 NSYSBS403015

300 500 200 300 500 200 177 NSYSBS503020

Detail a Detail b Detail c

(1) CHc M5 x 35 shouldered screw.

(2) Sealing washer.

Detail d

Fixing hole

Dimensions

Steel screw fixed cover boxes

IP 66

Introduction

1/5

Spacial S24

12,55,5

M6�8

110

M6�8

5,5

M6�8

32 5

R39

Ref.

enclosures

Dimensions (mm) Weight

(kg)

Ref.

plates

A B C D E F G H I J K L M

NSYSBS18139F 182 132 107 168 118 140 90 95 52 107 77 160 110 1 NSYAMPM1612SB

NSYSBS18169F 182 167 107 168 153 140 125 95 52 108 97 160 145 1.2 NSYAMPM1816SB

NSYSBS232112F 232 212 137 218 198 190 170 125 67 157 137 210 190 2 NSYAMPM2321SB

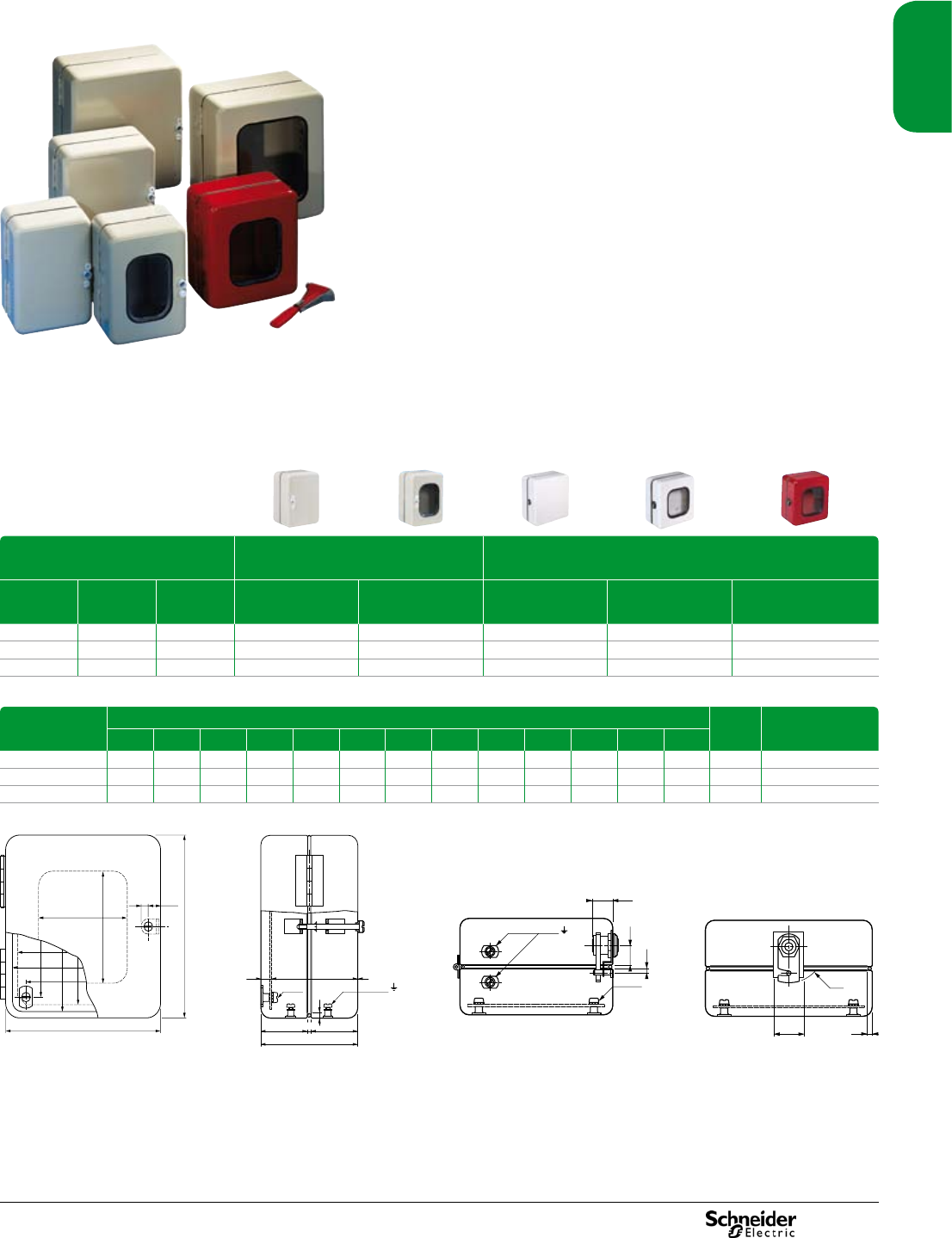

Technical characteristics

● Degree of protection IP 55 according to IEC 60529.

● Resistance to external mechanical impacts: IK 07.

● Structured finish, epoxy-polyester powder paint, RAL 7035 grey or RAL 3000 red

for security applications.

● Locking by screws or by side lock with 3-mm double-bar insert. Option

of installing a handle, ref. NSYTHL1242EPLM or NSYTHPLM with insert

ref. NSYTT8CRN (to be ordered).

● Plumbable with a cap installed at the plant.

● The enclosures are equipped with 4 nuts welded to the rear. They allow the fixing

of a mounting plate (as an accessory) or a personalised mounting plate.

● Polyurethane sealing gasket.

● M6 x 8 earthing screws on the body and cover for earth continuity.

Applications

● Security and alarm systems (such as a fire alarm) that can accommodate modular

plates and equipment.

Internal dimensions (mm) Enclosure reference

locking by screws

Reference of enclosures with side

3-mm double-bar lock

Height Width Depth Plain

door

Door

with window

Plain

door

Door

with window

Door with glass window

thickness 3 mm

180 130 96 NSYSBS18139F NSYSBS18139FT NSYSBS18139K NSYSBS18139KT NSYSBS18139KTH

180 165 96 NSYSBS18169F NSYSBS18169FT NSYSBS18169K NSYSBS18169KT NSYSBS18169KTH

230 210 126 NSYSBS232112F NSYSBS232112FT NSYSBS232112K NSYSBS232112KT NSYSBS232112KTH

Steel safety boxes IP 55

12.55.5

M6�8

110

M6�8

5.5

M6�8

32 5

R39

1/6

Spacial S24

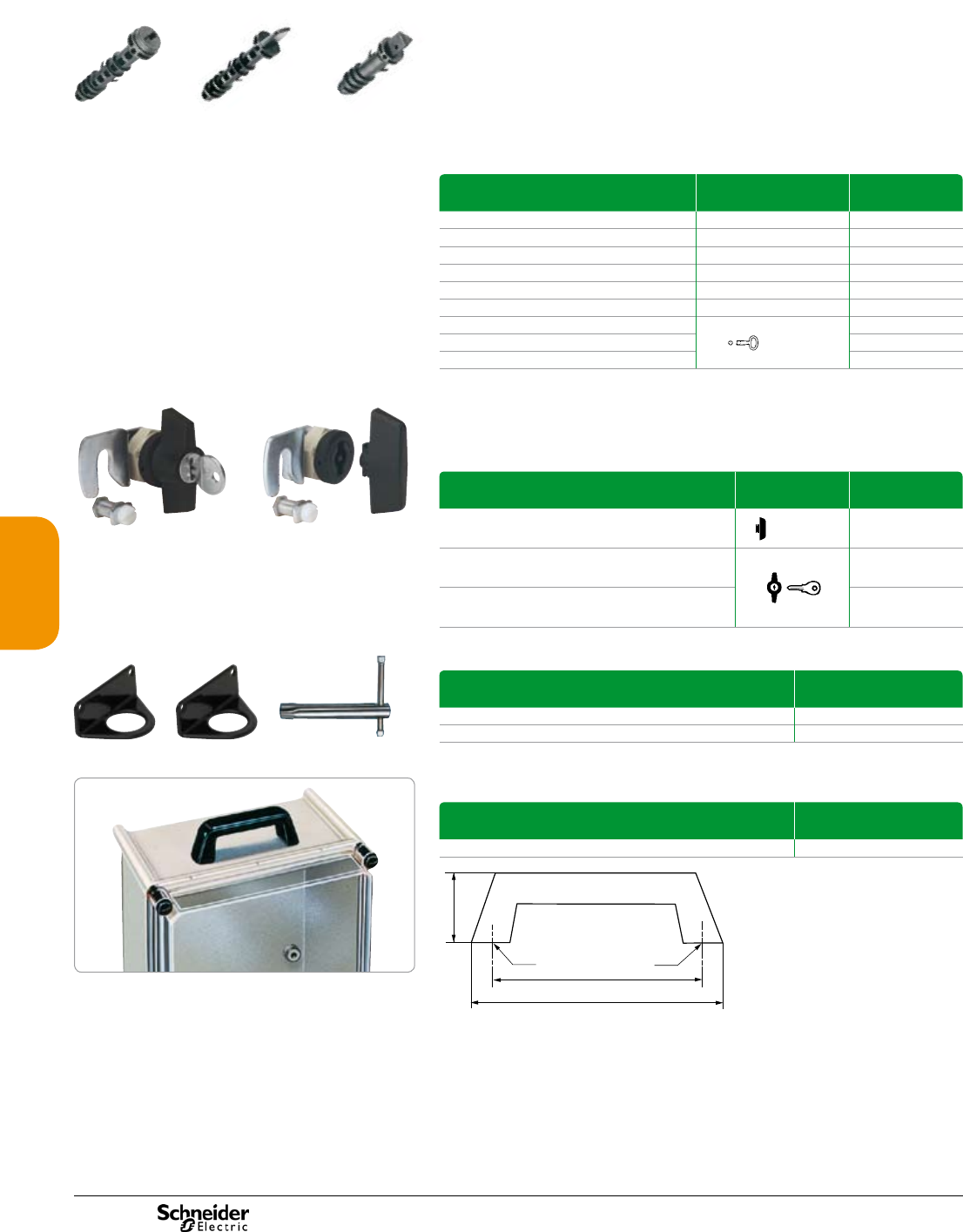

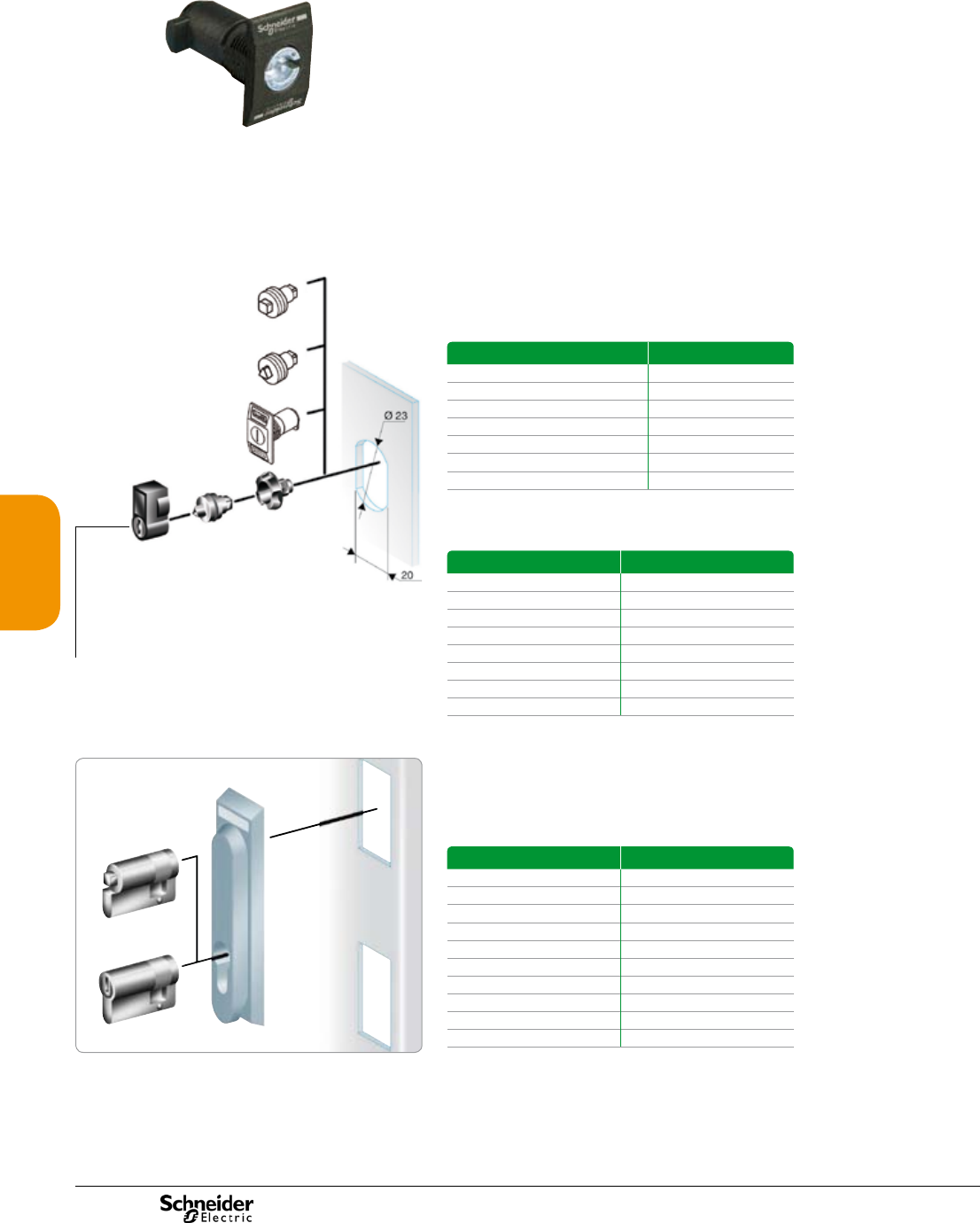

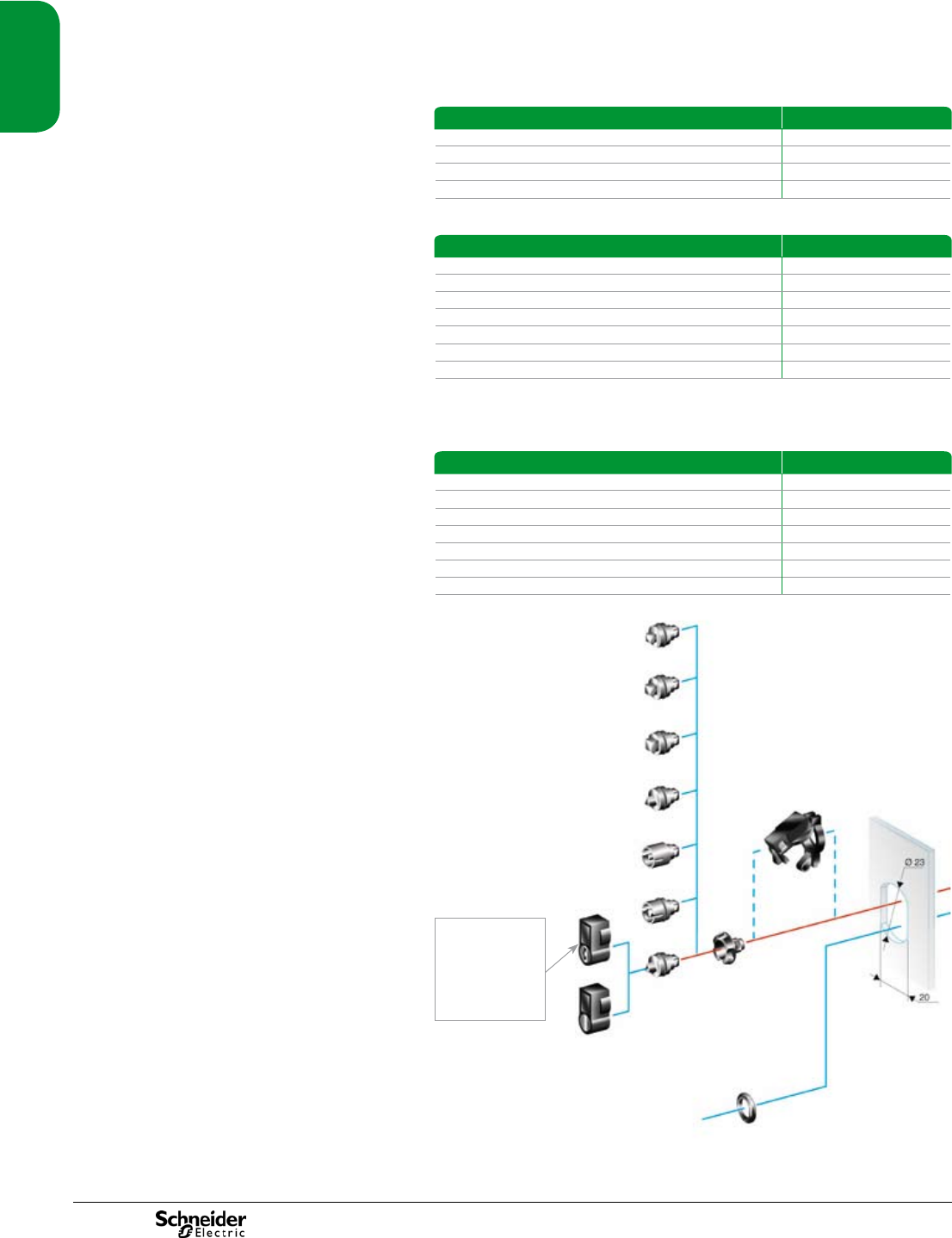

Description Reference

Handle without lock NSYTHPLM

Sealing or padlocking cap NSYTBC

Replacement spare lock NSYTK1

EDF/RONIS kit NSYTK2

Kit

Description Reference

Square 6 mm NSYTC6CRN

Square 7 mm NSYTC7CRN

Square 8 mm NSYTC8CRN

Double bar 3 mm (standard) NSYTDBCRN

Double bar 5 mm NSYTDB5PLA

Triangular 6.5 mm CNOMO NSYTT6CRN

Triangular 8 mm NSYTT8CRN

Insert shape/type

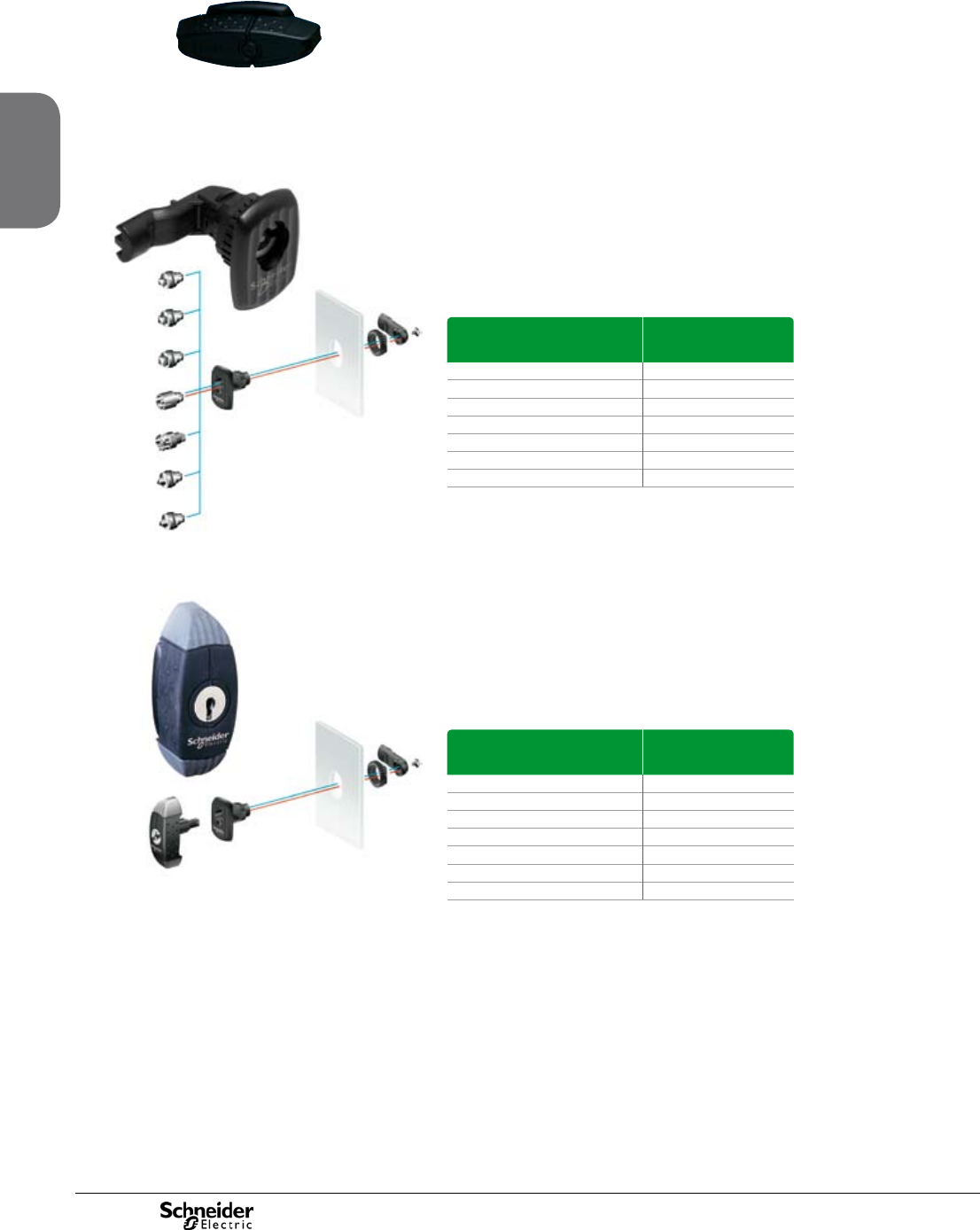

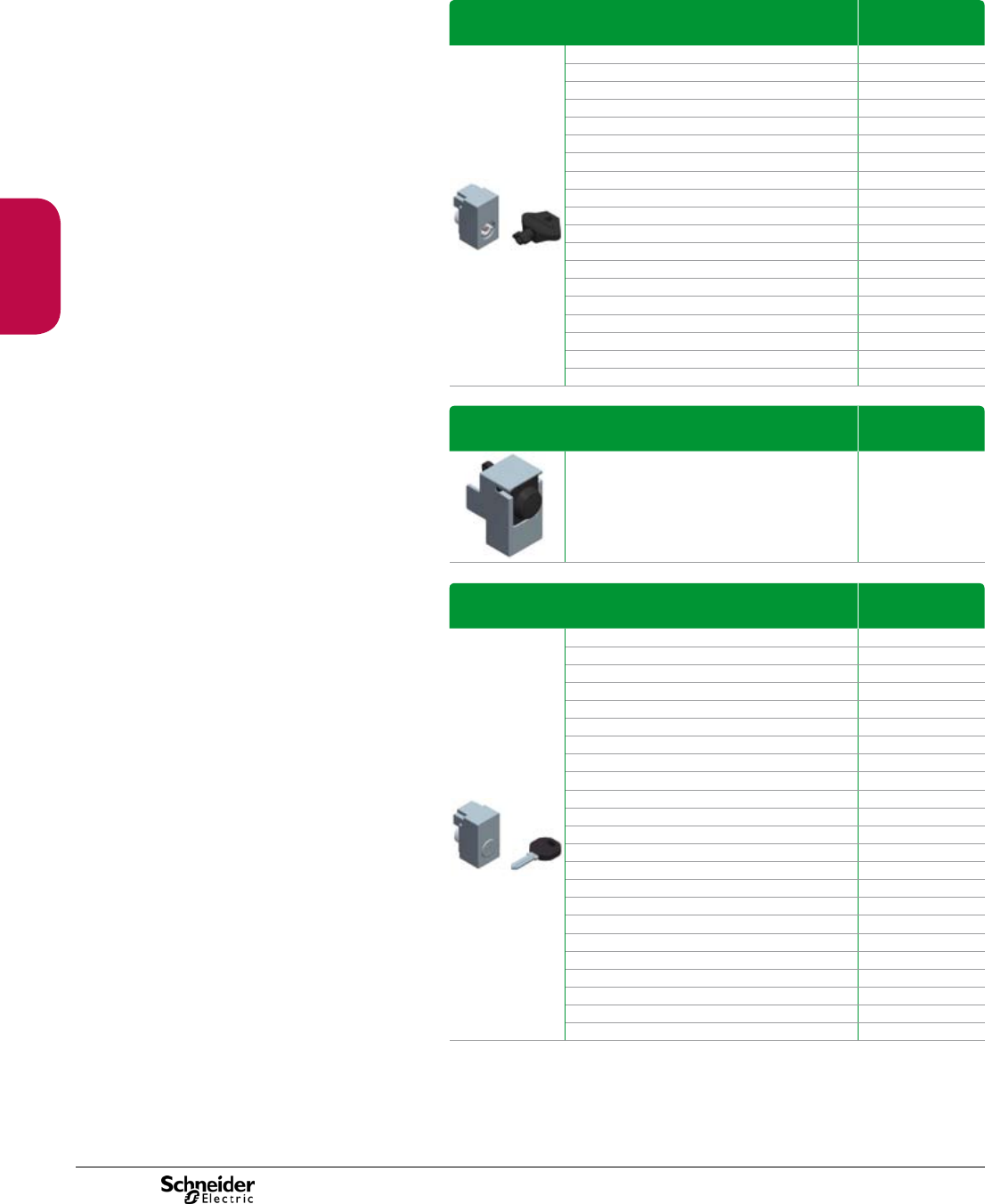

Description Reference

Key lock 1242 E NSYTHL1242EPLM

Key lock 405 NSYTHL405PLM

Key lock 421 NSYTHL421PLM

Key lock 455 NSYTHL455PLM

Key lock 2331 A NSYTHL2331APLM

Key lock 2433 A NSYTHL2433APLM

Key lock 3113 A NSYTHL3113APLM

Handles with push-button release

(delivered with insert ref. NSYTT8CRN)

Accessories

NSYTC6CRN

NSYTC7CRN

NSYTC8CRN

NSYTT6CRN

NSYTDBCRN

NSYTDB5PLA

NSYTHL1242EPLM

NSYTHL405PLM

NSYTHL421PLM

NSYTHL455PLM

NSYTHL2331APLM

NSYTHL2433APLM

NSYTHL3113APLM

NSYTBC (1)

NSYTK1

NSYTT8CRN

NSYTK2

NSYTHPLM

(1) Incompatible with locking handle.

(2) Locks not referenced, to special order only.

Consult our local sales office.

Note: the locks are not adaptable on lock screw

models.

Kit comprises 2 rings and 6 cams

with assembly instruction sheet

for another type of cylindrical

lock (2).

Locks

1/7

Spacial SDB

NSYDA2520M

NSYDBN1510

Metallic junction boxes

IP 55 (IEC 60529)

Metallic boxes made of sheet-steel protected inside and outside with textured

epoxy-polyester paint in RAL 7035 grey.

The SDB series consists of 4 basic models:

● Without knock-outs: NSYDBN with low cover and NSYDAN with high cover.

● With knock-outs: NSYDB●●●M with low cover and NSYDA●●●M with high cover.

● PVC sealing gasket on sizes up to 20/15 and a rubber gasket for > 25/20.

● IBack ready for threaded drill holes for fixing equipment. From size 15/10 and up,

there are four M4 threaded holes fitted with removable plugs for direct fixing of

the mounting plate.

● Direct wall-fixing by means of drill holes fitted with plastic plugs to ensure

sealing.

NSYDBN NSYDAN NSYDB●●●M NSYDA●●●M

Models, dimensions and references

External dimensions

(mm)

Models without

knock-outs

Models with knock-outs, n° of drill holes,

knock-outs and group Dimensions (mm)

Plain mounting

plate

Weight

(kg)

Height

(A)

Width

(B)

Depth

Low cover

models

85 85 49 NSYDBN88 NSYDB88M 1 n° 1 1 n° 1 58 58 - -0.18

105 105 49 NSYDBN1010 NSYDB1010M 2 n° 1 1 n° 1 76 76 - -0.25

155 105 61 NSYDBN1510 NSYDB1510M 3 n° 1 1 n° 2 124 74 56 NSYPMD1510 0.38

206 156 83 NSYDBN2015 NSYDB2015M 3 n° 3 2 n° 3 172 122 78 NSYPMD2015 1

256 206 93 NSYDBN2520 NSYDB2520M 3 n° 4 2 n° 4 220 170 88 NSYPMD2520 1.5

307 257 116 NSYDBN3025 NSYDB3025M 2 n° 3, 2 n° 4 3 n° 4 268 218 110 NSYPMD3025 3.3

357 307 136 NSYDBN3530 NSYDB3530M 2 n° 3, 3 n° 4 2 n° 3, 2 n° 4 318 268 130 NSYPMD3530 4.8

High cover

models

155 105 88 NSYDAN1510 NSYDA1510M 3 n° 2 1 n° 2 124 74 83 NSYPMD1510 0.45

206 156 122 NSYDAN2015 NSYDA2015M 3 n° 3 2 n° 3 172 122 121 NSYPMD2015 1.2

256 206 140 NSYDAN2520 NSYDA2520M 3 n° 4 2 n° 4 220 170 131 NSYPMD2520 1.9

Dimensions (mm)

1/8

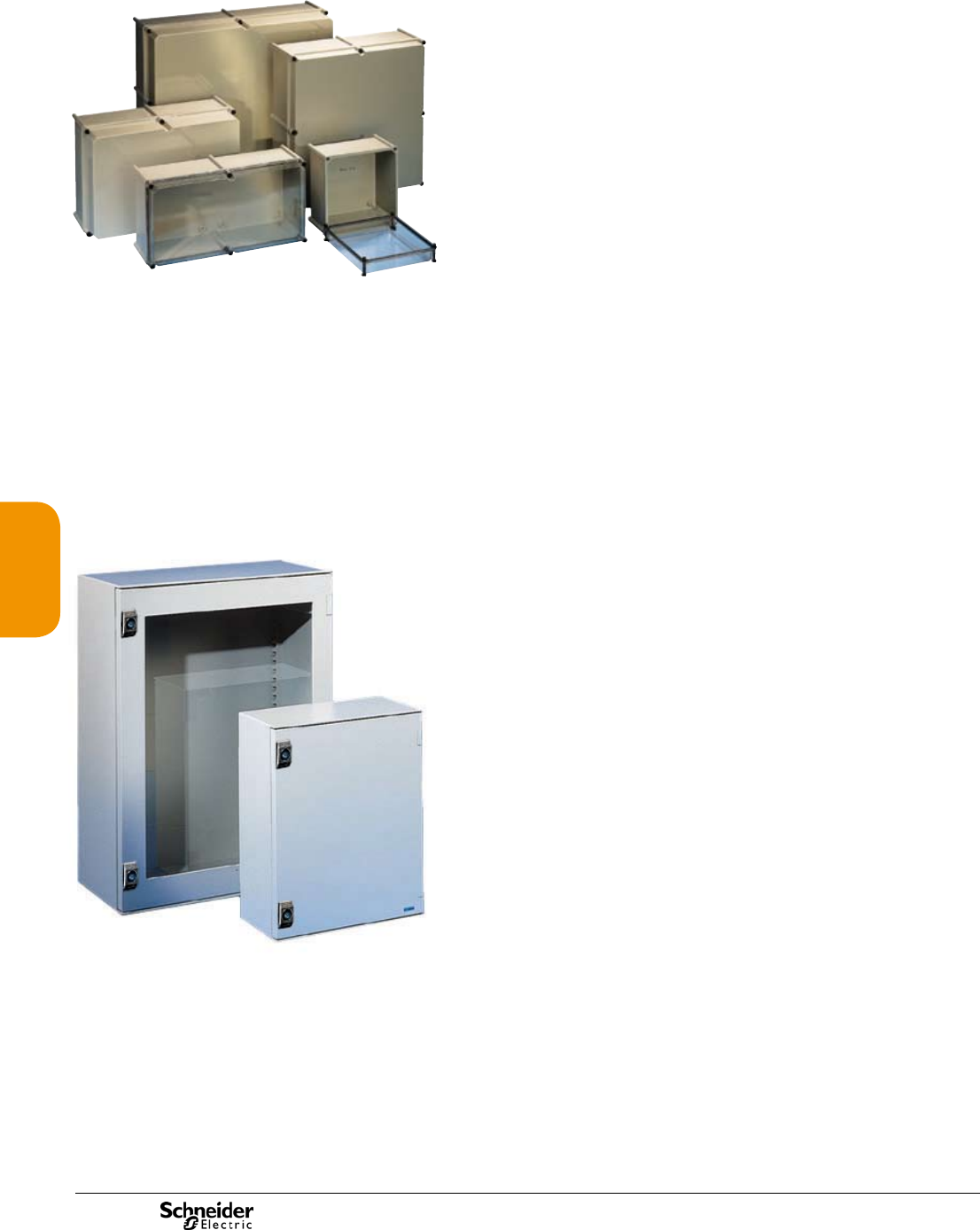

Thalassa TBS - TBP

1General features

● Large range of dimensions (H, W, D).

● High or low, opaque or transparent cover.

● Boxes that can be coupled (exactly the same dimensions) with kit ref. 13934AB.

● Locks from box size of 116 x 116 x 62 mm:

– Cover locking by 4 plastic captive screws with coarse thread outside the sealed

area.

– Plumbable lock.

● Locks from box size of 138 x 93 x 72 mm:

– The standard screws (flat screwdriver) can be replaced with other standardised

screws.

● The 4 “legs” of the cover ensure its robustness and perfect support during

customisation operations.

● Adaptable hinges on all the 20- and 40-mm covers (page 1/12).

Materials

● ABS boxes:

– IK 07 (2J) according to IEC 62262.

– Glow wire resistance: 650 °C according to IEC 60695-2-11.

– Usage temperature: –25 °C...+60 °C.

– Installation temperature: –15 °C...+40 °C.

● Polycarbonate boxes:

– IK 08 (5J) according to IEC 62262.

– Glow wire resistance: 960 °C.

– Usage temperature: –25 °C...+80 °C.

– Installation temperature: –15 °C...+60 °C.

– Certified according to UL 508A.

Fixing the box

● Outside the sealed sensitive volume by the 4 chimneys in the corners from box

size of 138 x 93 x 72 mm.

● Through the rear of the box by 2 or 4 elongated holes to be perforated.

● With fixing lugs from box size of 116 x 116 x 62 mm (ref. NSYAEFTB).

Equipment installation

● Studs for fixing the equipment in the body and the cover of the box by means of

a x 4-mm self-tapping screw (ref. NSYAMFSTB, screw x 4 x 10 mm with Pozidriv

and slotted head).

● Option of installing rails, plates or other types of supports

(card, etc.).

● Spacers and stand-offs to be installed on the studs, for adjusting the height of

the equipment.

Technical features

● IP 66 according to IEC 60529.

● NEMA 4.4X according to Nema 250.

● Class II according to IEC 61140.

● Colour:

– Body: RAL 7035 grey.

– Cover: RAL 7035 grey or tinted transparent.

● Insulating, halogen-free plastic materials.

● Resistance to chemical and atmospheric agents: see technical appendices.

Thermal dissipation

● Use a suitable calculation method according to IEC 60890.

● Anti-condensation valves available as an accessory, prevent the build-up of

moisture inside the box.

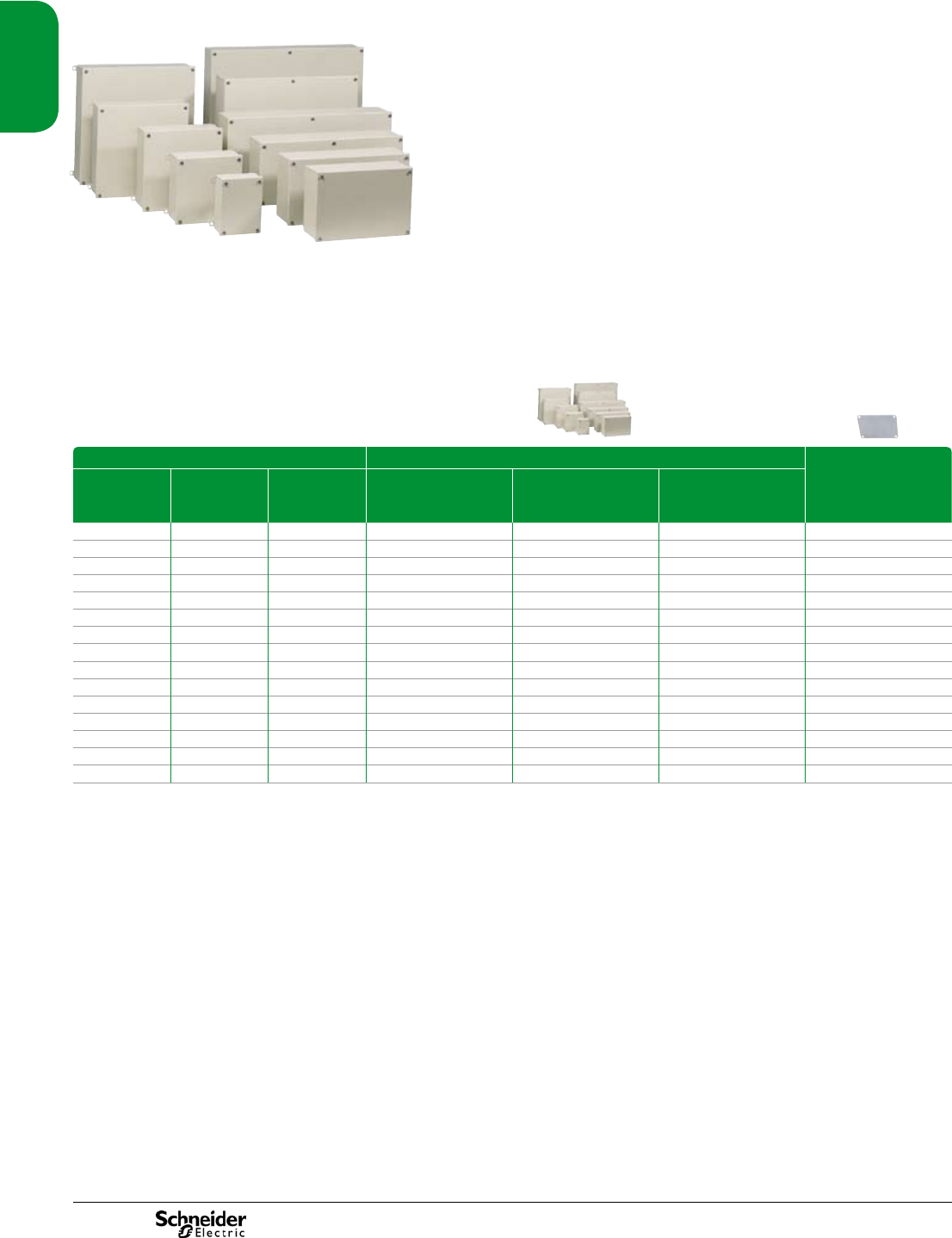

Thermoplastic industrial boxes

Introduction

1/9

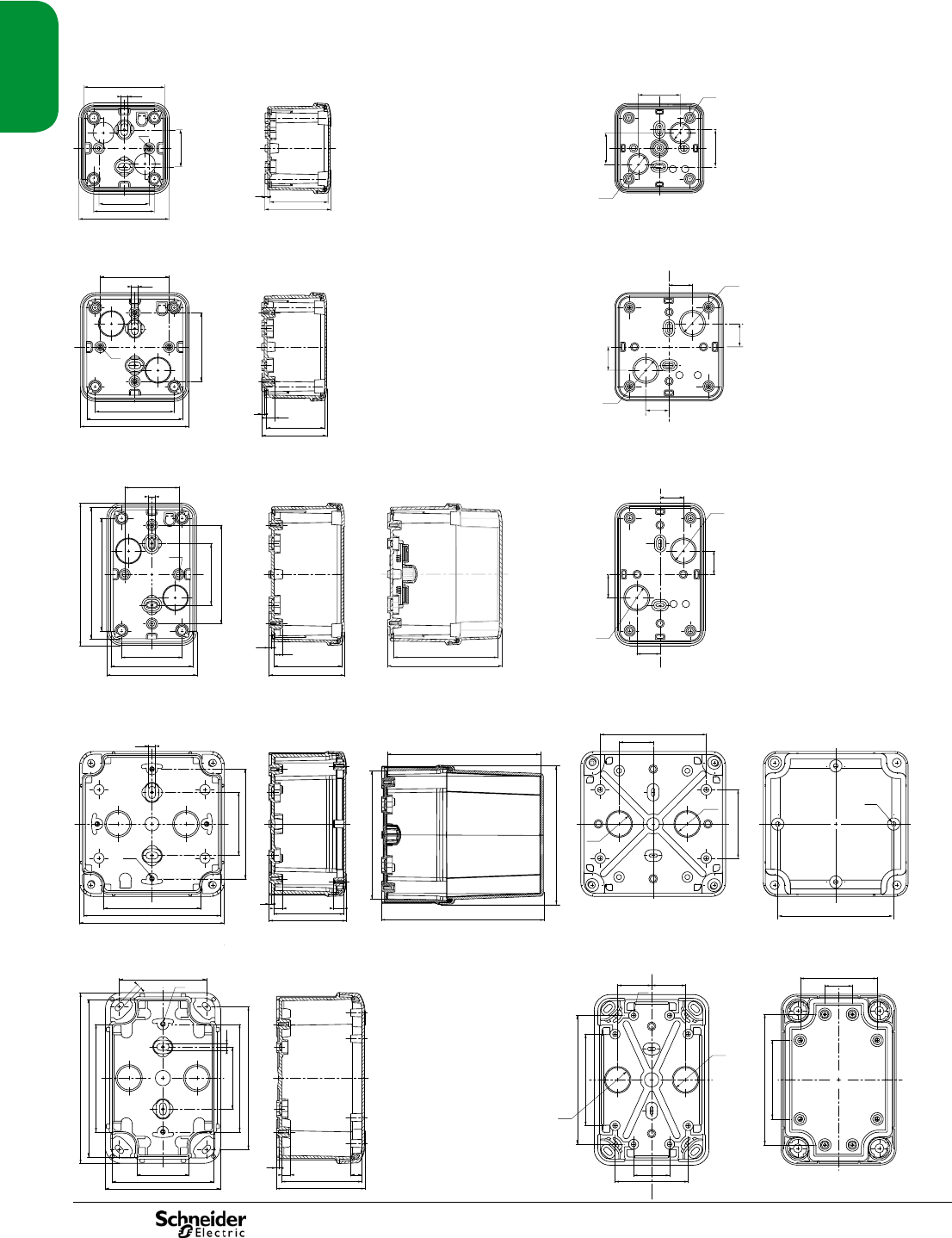

Thalassa TBS - TBP

Overall external

dimensions (mm)

Overall internal

dimensions (mm) Body

(mm)

Cover

(mm)

Minor

pack.

Cover

screw

ABS boxes

IP 66 - IK 07

PC-UL boxes

IP 66 - IK 08

Cover Cover

Height Width Depth Height Width Depth Opaque Transparent Opaque Transparent

74 74 54 65 65 47 37 10 5 Metal NSYTBS775 - NSYTBP775 -

89 89 54 80 80 47 37 10 5 Metal NSYTBS885 - NSYTBP885 -

116 74 62 105 65 55 45 10 5 Metal NSYTBS1176 - NSYTBP1176 -

116 116 62 105 105 55 45 10 5 Plastic NSYTBS11116 - NSYTBP11116 -

138 93 72 125 80 65 45 20 2 Plastic NSYTBS1397 NSYTBS1397T NSYTBP1397 NSYTBP1397T

164 121 87 150 105 80 60 20 2 Plastic NSYTBS16128 NSYTBS16128T NSYTBP16128 NSYTBP16128T

192 121 87 175 105 80 60 20 2 Plastic NSYTBS19128 NSYTBS19128T NSYTBP19128 NSYTBP19128T

192 164 87 175 150 80 60 20 1 Plastic NSYTBS19168 NSYTBS19168T NSYTBP19168 NSYTBP19168T

241 194 87 225 175 80 60 20 1 Plastic NSYTBS24198 NSYTBS24198T NSYTBP24198 NSYTBP24198T

241 194 107 225 175 100 80 20 1 Plastic NSYTBS241910 NSYTBS241910T NSYTBP241910 NSYTBP241910T

291 241 88 275 225 80 60 20 1 Plastic NSYTBS29248 NSYTBS29248T NSYTBP29248 NSYTBP29248T

291 241 128 275 225 120 100 20 1 Plastic NSYTBS292412 NSYTBS292412T NSYTBP292412 NSYTBP292412T

341 291 128 325 275 120 100 20 1 Plastic NSYTBS342912 NSYTBS342912T NSYTBP342912 NSYTBP342912T

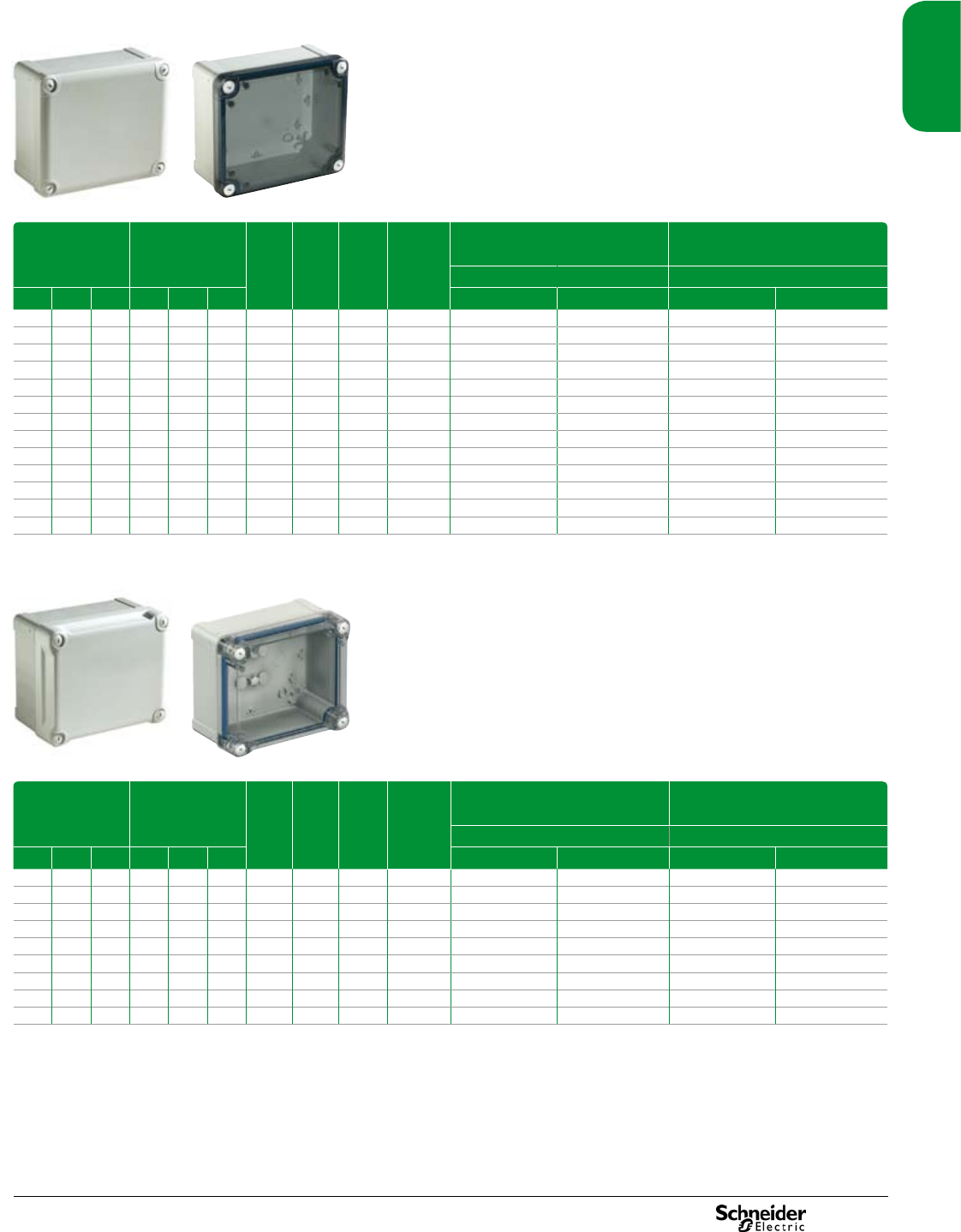

ABS or polycarbonate boxes

with low cover

● IP 66 - NEMA 4.4X.

● IK 07 (ABS) - IK 08 (PC).

● RAL 7035 grey.

● Boxes 54 to 128 mm deep with 10- to 20-mm covers.

● Opaque or transparent cover.

● Hinges: as accessories and only for the 20-mm covers.

Overall

external

dimensions (mm)

Overall internal

dimensions (mm) Body

(mm)

Cover

(mm)

Minor

pack.

Cover

screw

ABS boxes

IP 66 - IK 07

PC-UL boxes

IP 66 - IK 08

Cover Cover

Height Width Depth Height Width Depth Opaque Transparent Opaque Transparent

116 74 94 105 65 85 45 40 3 Metal

NSYTBS1179H

- - -

116 116 133 105 105 125 45 80 2 Plastic

NSYTBS111113H

- - -

192 121 105 175 105 100 60 40 2 Plastic

NSYTBS191210H NSYTBS191210HT NSYTBP191210H NSYTBP191210HT

192 164 105 175 150 100 60 40 1 Plastic

NSYTBS191610H NSYTBS191610HT NSYTBP191610H NSYTBP191610HT

241 194 107 225 175 100 60 40 1 Plastic

NSYTBS241910H NSYTBS241910HT NSYTBP241910H NSYTBP241910HT

241 194 127 225 175 120 80 40 1 Plastic

NSYTBS241912H NSYTBS241912HT NSYTBP241912H NSYTBP241912HT

291 241 128 275 225 120 60 60 1 Plastic

NSYTBS292412H NSYTBS292412HT NSYTBP292412H NSYTBP292412HT

291 241 168 275 225 160 100 60 1 Plastic

NSYTBS292416H NSYTBS292416HT NSYTBP292416H NSYTBP292416HT

341 291 168 325 275 160 100 60 1 Plastic

NSYTBS342916H NSYTBS342916HT NSYTBP342916H NSYTBP342916HT

ABS or polycarbonate boxes

with high cover

● IP 66 - NEMA 4.4X.

● IK 07 (ABS) - IK 08 (PC).

● RAL 7035 grey.

● Boxes 94 to 168 mm deep with 40- to 80-mm covers.

● Opaque or transparent cover.

● Hinges: as accessories and only for the 40-mm covers.

Thermoplastic industrial boxes

1/10

Thalassa TBS - TBP

� 20

5.4

115.5

107

91.5

49.5

55.2

61.5

73.5

� 4

5.4

73.5

49.5

� 16

53.5

47.2

� 4

� 20

5.4

88.5

64.5

80 2

53.5

47.2

� 4

5.4

73.5

49.5

� 16

53.5

47.2

� 4

5.4

73.5

49.5

� 16

53.5

47.2

� 20

5.4

115.5

107

91.5

49.5

55.2

61.5

73.5

� 4

� 20

5.4

115.5

107

91.5

49.5

55.2

61.5

73.5

� 4

� 20

5.4

88.5

64.5

80 2

53.5

47.2

� 4

� 20

5.4

88.5

64.5

80 2

53.5

47.2

87.4

93.6

� 20

55.5

2 7

107

11 5

� 4

5.4

� 4

� 4 � 4

� 20

27.5 27.5

2.1

4.2

138

106

125

5.4

116

104

� 20

55.5

2 7

107

11 5

� 4

5.4

� 4

� 20

55.5

2 7

107

11 5

� 4

5.4

� 4

� 20

55.5

2 7

107

11 5

� 4

5.4

� 4

� 4 � 4

� 20

27.5 27.5

2.1

4.2

138

106

125

5.4

116

104

� 4 � 4

� 20

27.5 27.5

2.1

4.2

138

106

125

5.4

116

104

� 4 � 4

� 20

27.5 27.5

2.1

4.2

138

106

125

5.4

116

104

133.2

127

115

105.6

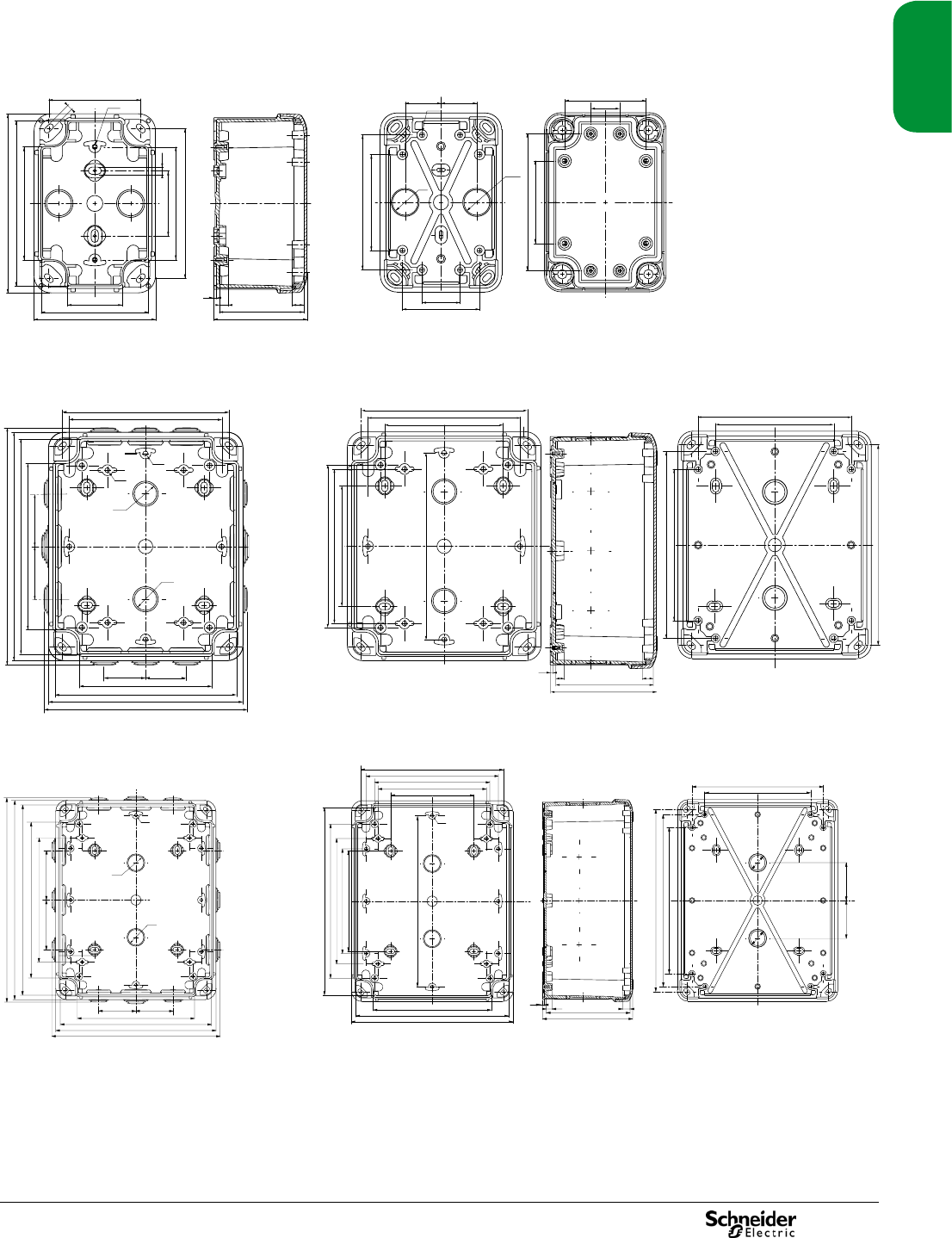

Box of 89 x 89 x 54 mm (external dimensions) NSYTB...885

Box of 116 x 74 x 62 or 94 mm (external dimensions) NSYTB...1176 or NSYTB...1179

Interior Side Rear

Box of 74 x 74 x 54 mm (external dimensions) NSYTB...775

Interior Side

Interior Side Rear

Rear

Thermoplastic industrial boxes

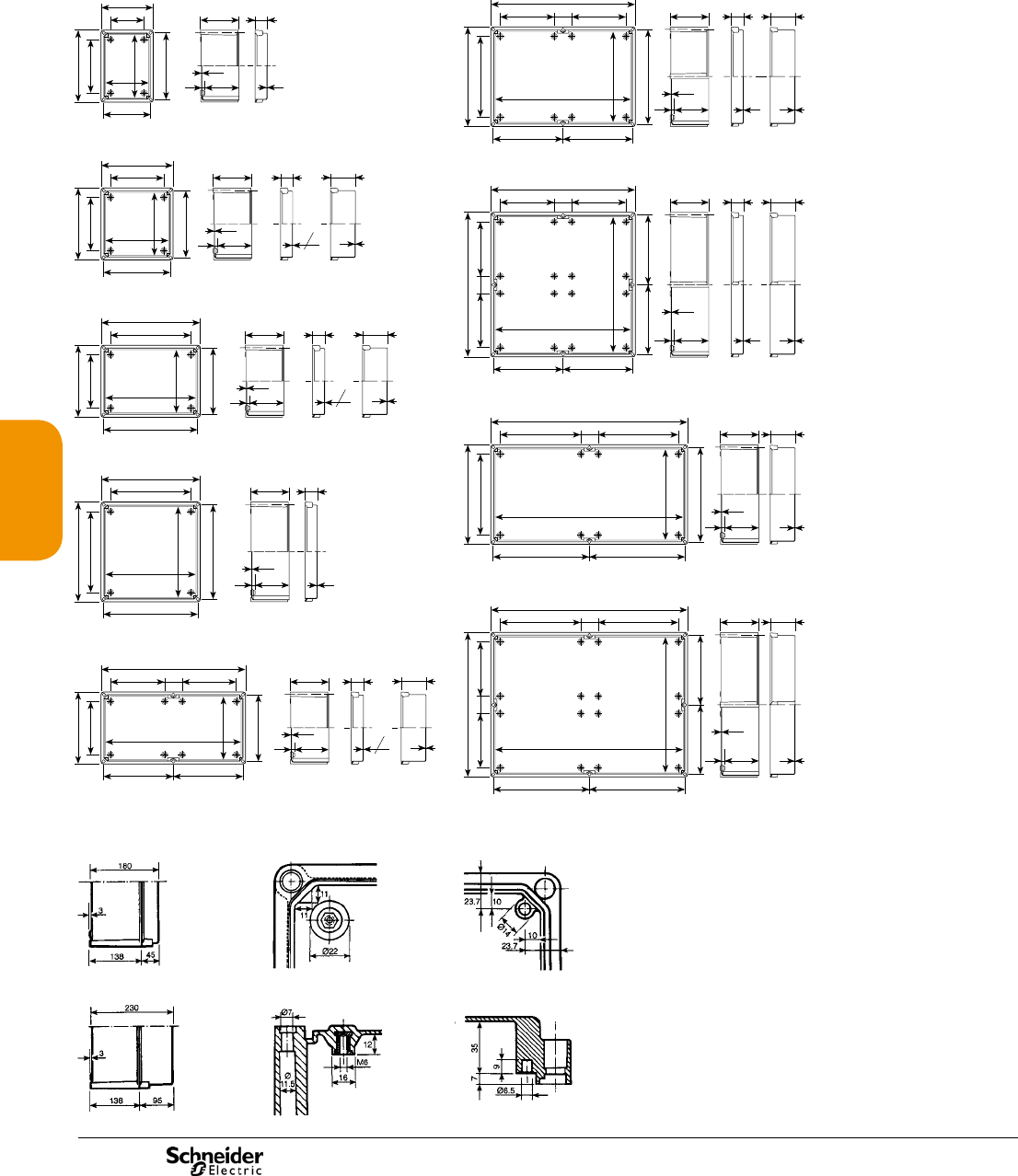

Dimensions

Box of 116 x 116 x 62 or 133 mm (external dimensions) NSYTB...11116 or NSYTB...111113

Box of 138 x 93 x 72 mm (external dimensions) NSYTB...1397

Interior Side Rear Cover

1\11

Thalassa TBS - TBP

Internal

dimensions (mm)

Fixing of the box (mm)

(marking on the outside)

Fixing of accessories (mm)

(marking on the inside) Box reference base

with and without transparent cover*

H L P A B C D E F G X Y

65 65 47 30 - - - - 41 - - - NSYTBS775 NSYTBP775

80 80 47 30 - - - 56 56 - - - NSYTBS885 NSYTBP885

105 65 55 50 - - - 80 44 - - - NSYTBS1176 NSYTBP1176

105 65 85 50 - - - 80 44 - - - NSYTBS1179H -

105 105 55 50 - - - 87 87 - - - NSYTBS11116 NSYTBP11116

105 105 125 50 - - - 87 87 - - - NSYTBS111113H -

125 80 65 50 - 116 71 87 - - - - NSYTBS1397 NSYTBP1397

150 105 80 50 - 141 98 130 87 - 95 - NSYTBS16128 NSYTBP16128

175 105 80 100 - 170 98 158.5 87 - 136 - NSYTBS19128 NSYTBP19128

175 105 100 100 - 170 98 158.5 87 - 136 - NSYTBS191210H NSYTBP191210H

175 150 80 100 100 170 141 158.5 130 - 136 65 NSYTBS19168 NSYTBP19168

175 150 100 100 100 170 141 158.5 130 - 136 65 NSYTBS191610H NSYTBP191610H

225 175 80 120 100 218 171.5 205 158.5 125 150 130 NSYTBS24198 NSYTBP24198

225 175 100 120 100 218 171.5 205 158.5 125 150 130 NSYTBS241910H NSYTBP241910H

225 175 100 120 100 218 171.5 205 158.5 125 150 130 NSYTBS241910 NSYTBP241910

225 175 120 120 100 218 171.5 205 158.5 125 150 130 NSYTBS241912H NSYTBP241912H

275 225 80 200 120 268.5 218.5 255 205 125 221 161 NSYTBS29248 NSYTBP29248

275 225 120 200 120 268.5 218.5 255 205 125 221 161 NSYTBS292412H NSYTBP292412H

275 225 120 200 120 268.5 218.5 255 205 125 221 161 NSYTBS292412 NSYTBP292412

275 225 160 200 120 268.5 218.5 255 205 125 221 161 NSYTBS292416H NSYTBP292416H

325 275 120 200 200 319 269 305 255 125 250 210 NSYTBS342912 NSYTBP342912

325 275 160 200 200 319 269 305 255 125 250 210 NSYTBS342916H NSYTBP342916H

*Identical features for the boxes with transparent covers. Add a T at the end of the reference.

H: Height

L: Width

P: Depth

For box dimensions 125 x 80 x 65 to 325 x 275 x 160

(internal dimensions)

Thermoplastic industrial boxes

Dimensions summary table

1/12

Thalassa TBS - TBP

M12 M16 M20 M25 M32 M40

IP 68 cable glands (1)

ISM71501 ISM71502 ISM71503 ISM71504 ISM71505 ISM71506

IP 67 quick entries (2)

IMT36179 IMT36180 IMT36181 IMT36182 IMT36183 IMT36184

Terminal blocks Ref. Ref. Ref.

4-hole terminal

blocks Black (live) Blue (neutral) Green (earth)

2 X 102 + 2 X 162IMT34003 IMT34005 IMT34007

3 X 162 + 1 X 252IMT34004 IMT34006 IMT34008

Stand-offs and spacers Ref.

Set of four 15-mm spacers NSYAMFEP154TB

Set of four 20-mm spacers NSYAMFEP204TB

Set of four 30-mm spacers NSYAMFEP304TB

Set of four 15-mm self-tapping stand-offs NSYAMFET154TB

Set of four 20-mm self-tapping stand-offs NSYAMFET204TB

Set of four 30-mm self-tapping stand-offs NSYAMFET304TB

Batch of 50 M4 screws for stand-offs

and spacers NSYAMFESTB

Screws for accessories Ref.

Pack of 100 4-mm Pozidrive and

slotted self-tapping screws NSYAMFSTB

IP66 ventilation and

coupling accessories Ref.

Valve, 16 litres/h, Ø 12 NSYCAG12LPH1

Valve, 120 litres/h, Ø 12 NSYCAG12LPH2

Coupling kit, Ø 32 13934

Cable glands and quick entriesAnti-corrosion valve

and coupling kit

Terminal

blocks

Fixings

(1) Other dimensions.

(2) Other dimensions.

Screw

NSYAMFESTB

Stand-offs or

spacer

Overall external

dimensions (mm)

Overall internal

dimensions (mm) Set of 2

hinges

Set of 4

fixing lugs

Galvanised-steel

plate Insulating plate Terminal-block

support bar

Height Width Depth Height Width Depth

74 74 54 65 65 47

- - - - -

89 89 54 80 80 47

- - - - -

116 74 62 105 65 55

- - - - -

116 116 62 105 105 55

- NSYAEFTB - - -

138 93 72 125 80 65

NSYAEDH20TB NSYAEFTB - - -

164 121 87 150 105 80

NSYAEDH20TB NSYAEFTB - - -

192 121 87 175 105 80

NSYAEDH20TB NSYAEFTB - - IMT34000

192 121 105 175 105 100

NSYAEDH40TB NSYAEFTB - - IMT34000

192 164 87 175 150 80

NSYAEDH20TB NSYAEFTB NSYAMPM1916TB NSYAMPA1916TB IMT34000

192 164 105 175 150 100

NSYAEDH40TB NSYAEFTB NSYAMPM1916TB NSYAMPA1916TB IMT34000

241 194 87 225 175 80

NSYAEDH20TB NSYAEFTB NSYAMPM2419TB NSYAMPA2419TB IMT34000 or IMT34001

241 194 107 225 175 100

(1) NSYAEDH20TB

or NSYAEDH40TB NSYAEFTB NSYAMPM2419TB NSYAMPA2419TB IMT34000 or IMT34001

241 194 127 225 175 120

NSYAEDH40TB NSYAEFTB NSYAMPM2419TB NSYAMPA2419TB IMT34000 or IMT34001

291 241 88 275 225 80

NSYAEDH20TB NSYAEFTB NSYAMPM2924TB NSYAMPA2924TB IMT34001 or IMT34002

291 241 128 275 225 120

- NSYAEFTB NSYAMPM2924TB NSYAMPA2924TB IMT34001 or IMT34002

291 241 128 275 225 120

(1) NSYAEDH20TB

or - NSYAEFTB NSYAMPM2924TB NSYAMPA2924TB IMT34001 or IMT34002

291 241 168 275 225 160

- NSYAEFTB NSYAMPM2924TB NSYAMPA2924TB IMT34001 or IMT34002

341 291 128 325 275 120

NSYAEDH20TB NSYAEFTB NSYAMPM3429TB NSYAMPA3429TB IMT34002

341 291 168 325 275 160

- NSYAEFTB NSYAMPM3429TB NSYAMPA3429TB IMT34002

(1) Several cover depths for the same external dimensions.

Thermoplastic industrial boxes

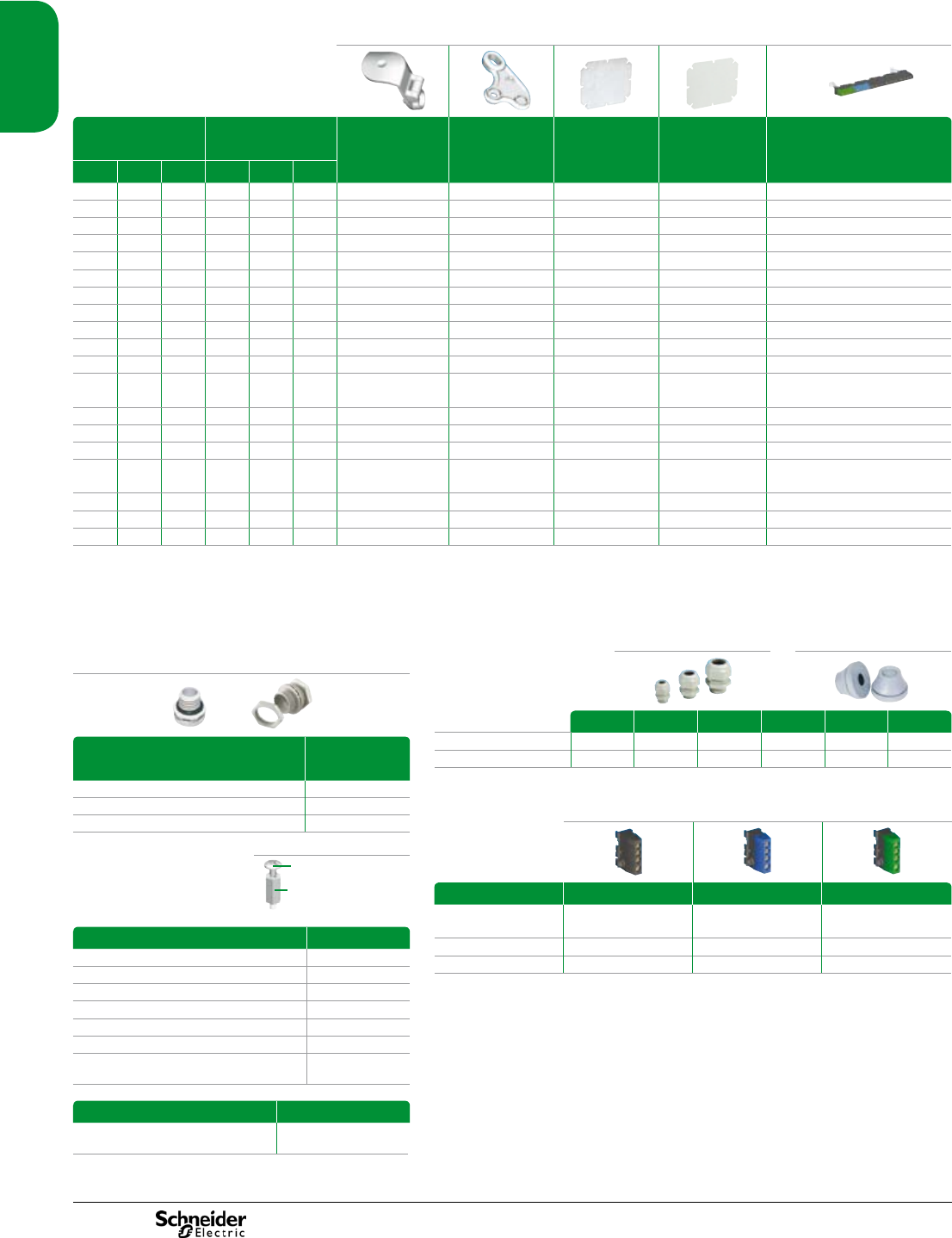

Accessory selection guide

1/13

Mureva

Modular boxes

Complete range of weatherproof and versatile enclosures, from economical

mini-enclosures of reduced dimensions, up to 54 modules available.

Material

Self-extinguishing insulating material (polystyrol), flame and abnormal heat

resistance: 650oC - 750oC as per IEC 60695-2-1.

Surface finish

● Colour: light grey RAL 7035

● Semi-transparent door

Protection category

● IP 65 as per IEC 60529

External mechanical impact resistance

● IK 09 as per EN 50102

Technical characteristics

● Total insulation: class 2

● Operating temperature: -2500C to +600C

● Provisions of earthing terminals in all models

● Resistance to chemical and atmospheric agents

● Possibility of coupling of two enclosures while maintaining IP 65 and allowing the

cable passage

● Back with PG and ISO concentric knock-outs

Accessories

● Association kit

● Wall fixing brackets

● Terminal block support

● Terminal blocks

● IP2 covers

● Sealing

● Keylock insert

● Wiring strap

● Blanking plate

● Plain chassis

● Perforated plate

● Clip nut

● Selftapping screws

● IP 67 and IP 55 cable entries

● Cable guard

1/14

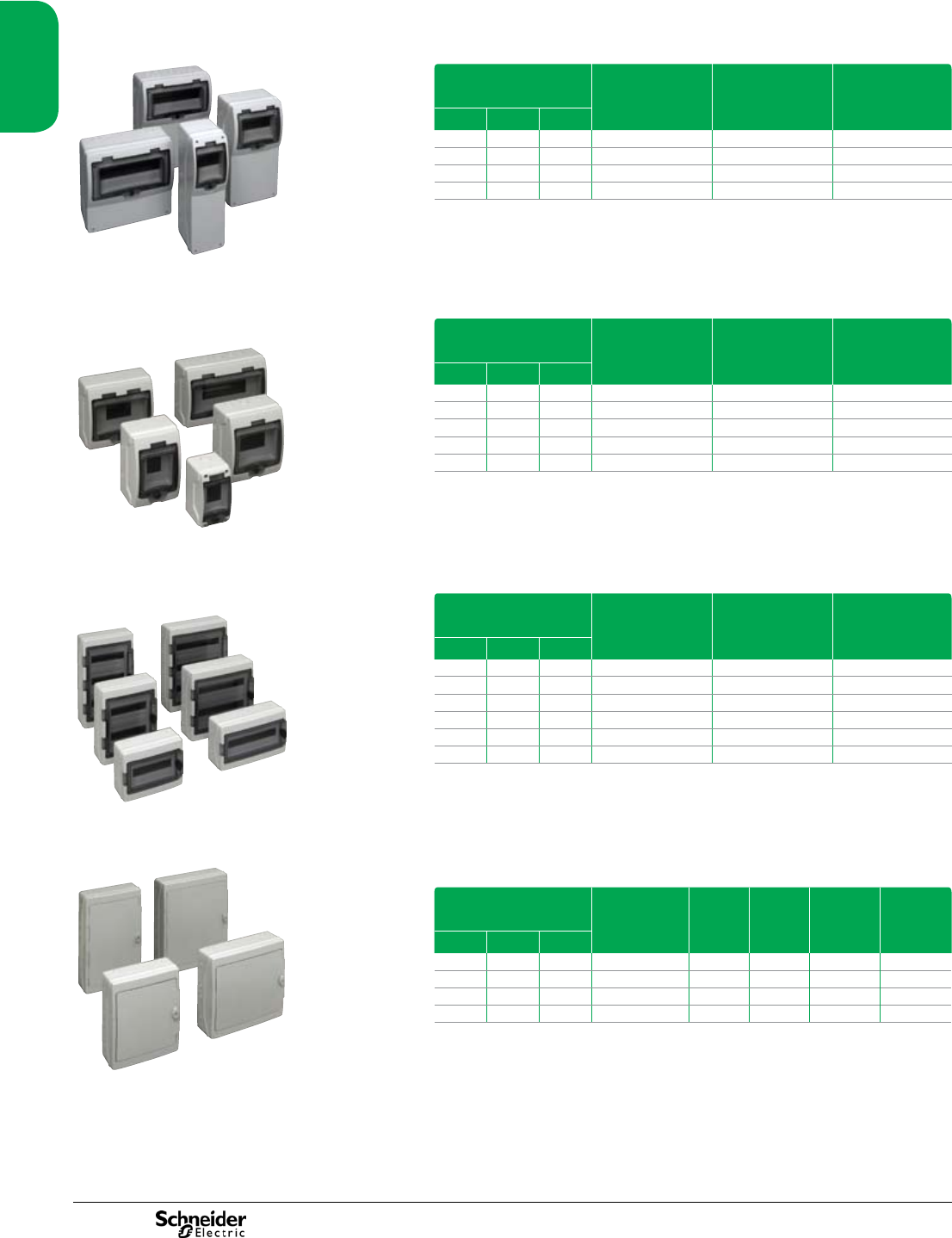

Mureva Modular boxes

External

dimensions (mm)

Reference Plain plate Perforated plate

H W D

460 340 160 ENN82060 ENN82600 ENN82610

460 340 160 ENN82061 ENN82601 ENN82611

460 340 160 ENN82062 ENN82602 ENN82612

460 340 160 ENN82063 ENN82603 ENN82613

Mixte

External

dimensions (mm)

Reference Number

of modules

Number

of rows

H W D

150 80 98 ENN82001 3 1

200 123 112 ENN82002 4 1

200 159 112 ENN82003 6 1

200 195 112 ENN82004 8 1

200 267 112 ENN82005 12 1

Mini-Ed

External

dimensions (mm)

Reference Number

of modules

Number

of rows

H W D

280 340 160 ENN82010 12 1

280 448 160 ENN82020 18 1

460 340 160 ENN82011 24 2

460 448 160 ENN82021 36 2

610 340 160 ENN82012 36 3

610 448 160 ENN82022 54 3

External

dimensions (mm)

Reference Number

modules

Number

of rows

Plain

plate

Perforatted

plate

H W D

335 340 160 ENN82052 12 1

460 138 160 ENN82050 18 1 ENN82604 ENN82614

460 236 160 ENN82051 24 2 ENN82604 ENN82614

460 340 160 ENN82053 36 2 ENN82604 ENN82614

Universal

1/15

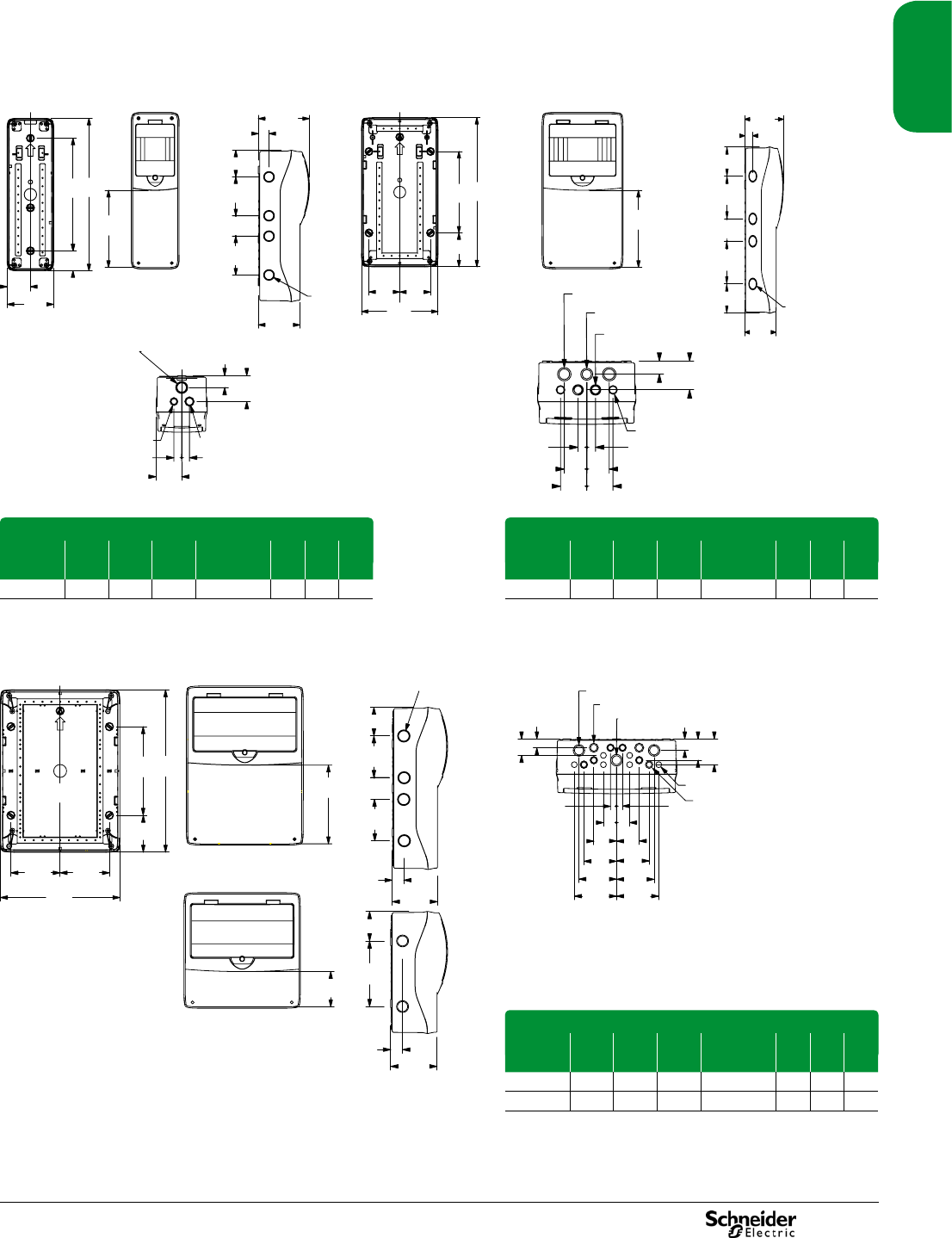

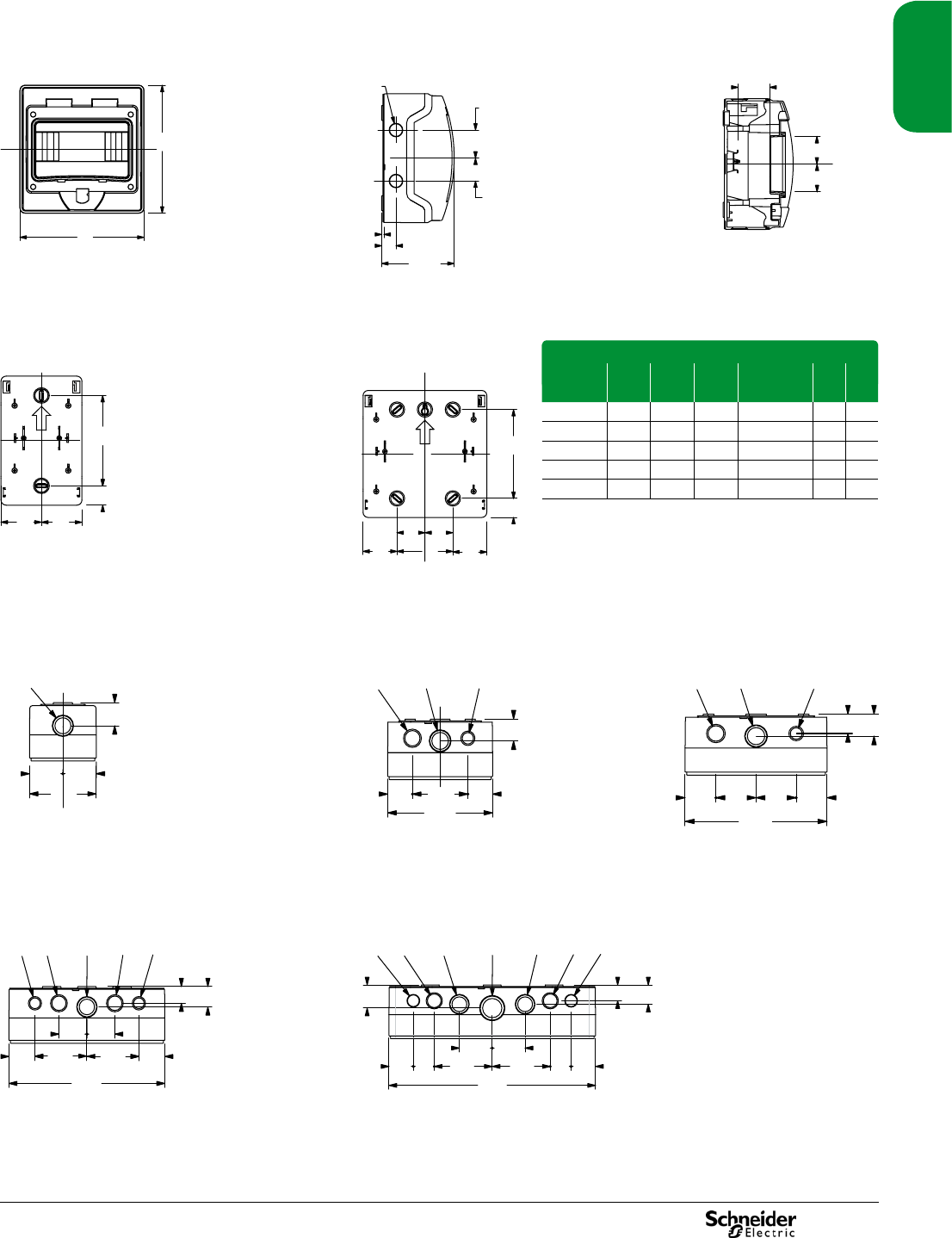

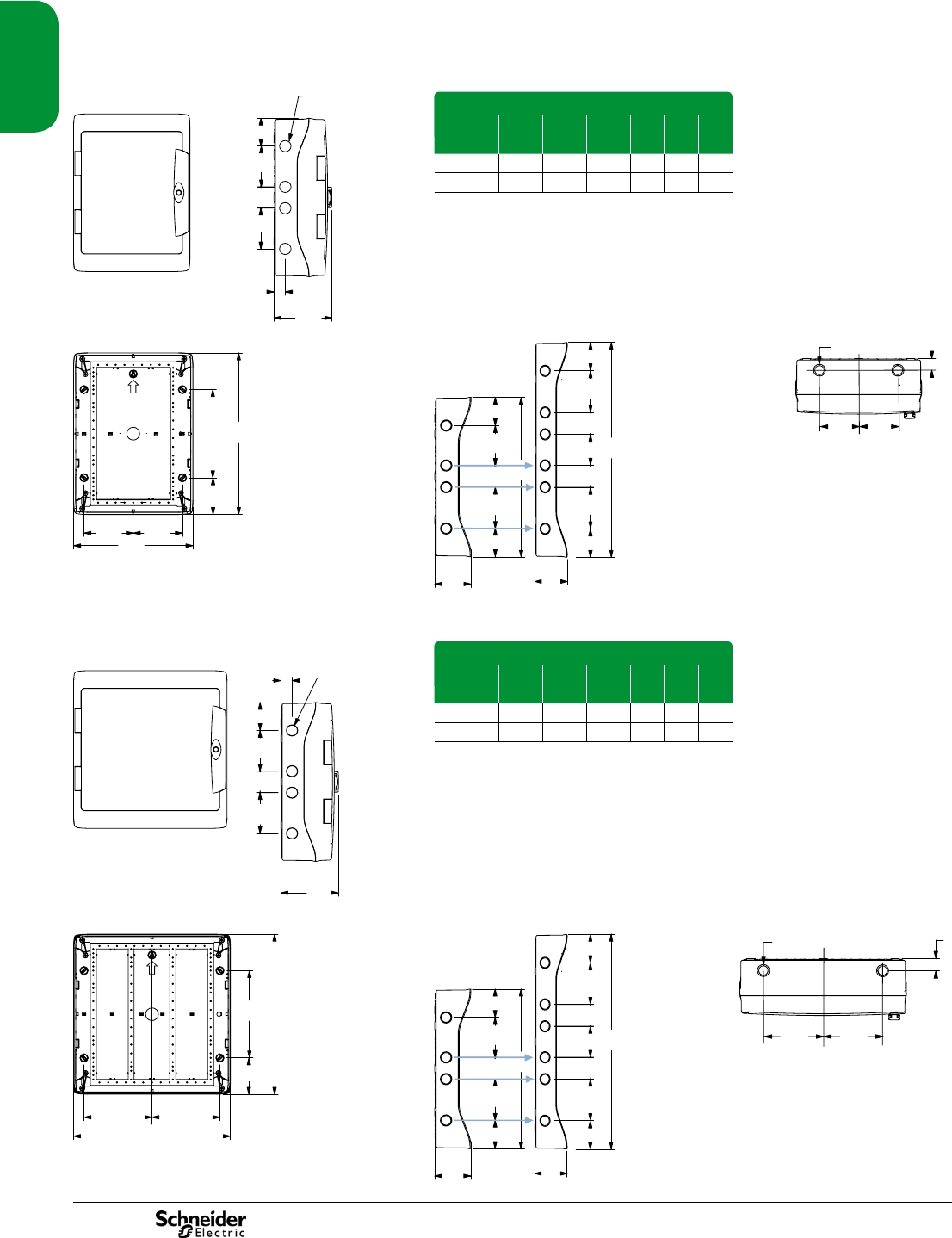

Mureva

Modular mini-enclosures

IP 65 Enclosures

Dimensions

42.4

35.5

98/112

43.5

3.5

M20

140

= =

140

M25/Pg16

27.5

M20 M16M25/Pg16

= =65

123

159

= =4545

M20 M16

M25/Pg16

195

65 =

M16

M20

M25/Pg16M20

M16

20.5 25

42.5 42.5

267

7527= 75 27 =

M16 M25/Pg16 M32/Pg21

M20 M25/Pg16 M20 M16

20.5 25

8 modules 12 modules

3 modules 4 modules 6 modules

3, 4 and 6 modules 8 and 12 modules External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D Load

(g)

82001 150 80 98 3 - 300

82002 200 123 112 4 - 450

82003 200 159 112 6 - 500

82004 200 195 112 8 88 700

82005 200 267 112 12 160 900

1/16

280

101

118

460

101

118

101

118

610

164

118

M32(*)

140140

340

106

119

17 17

106

119

M32/Pg21(*)

M25/Pg16

M32/Pg21

M16

24.5

M20/Pg11

194194

448

118

160

169

47 47

118

169

160

M32/Pg21(*)

M25/Pg16

M50/Pg36/Pg29

M20/Pg11

280

101

118

460

101

118

101

118

610

164

118

32 M32(*)

12 modules

18 modules

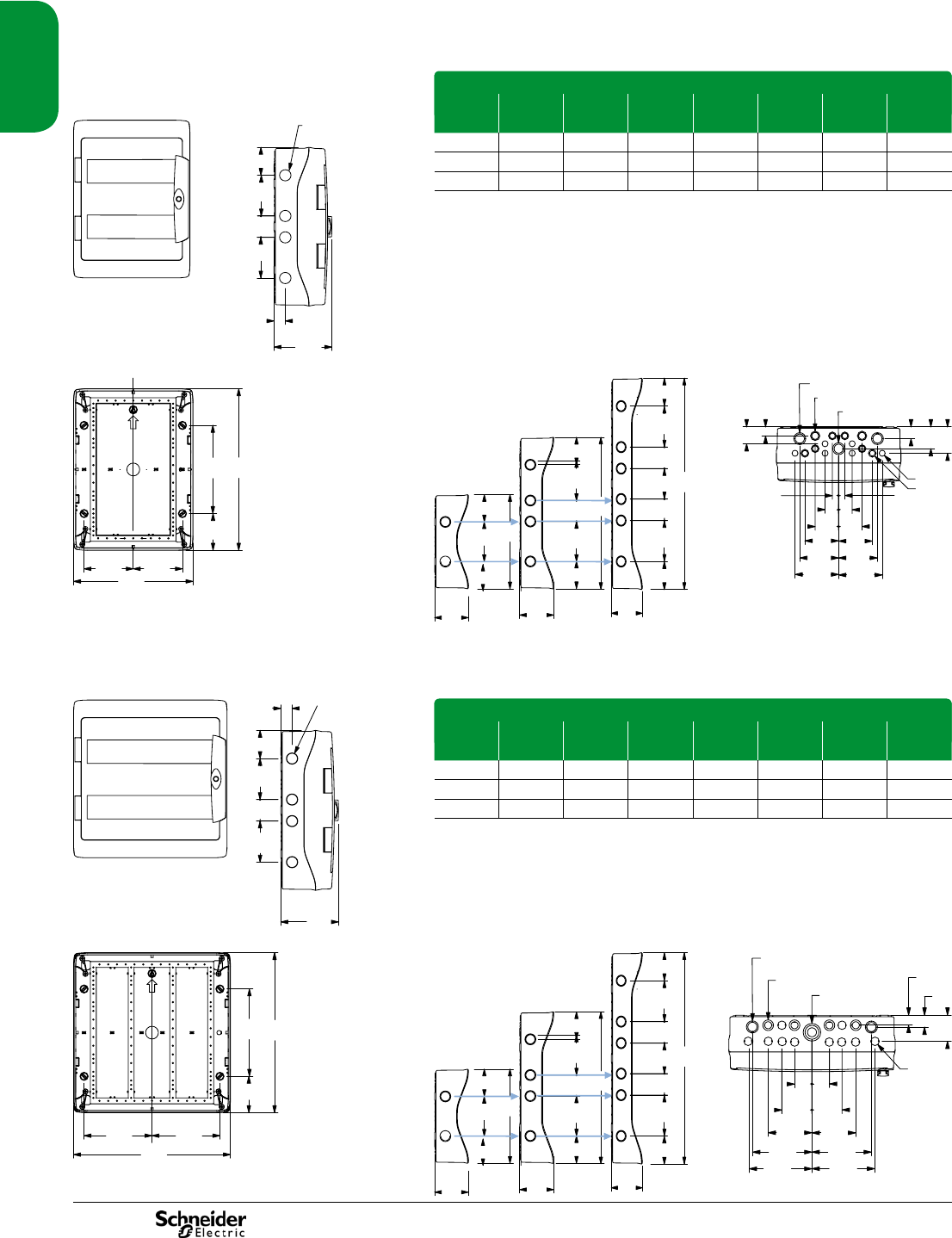

Large-capacity modular enclosures

Mureva IP 65 Enclosures

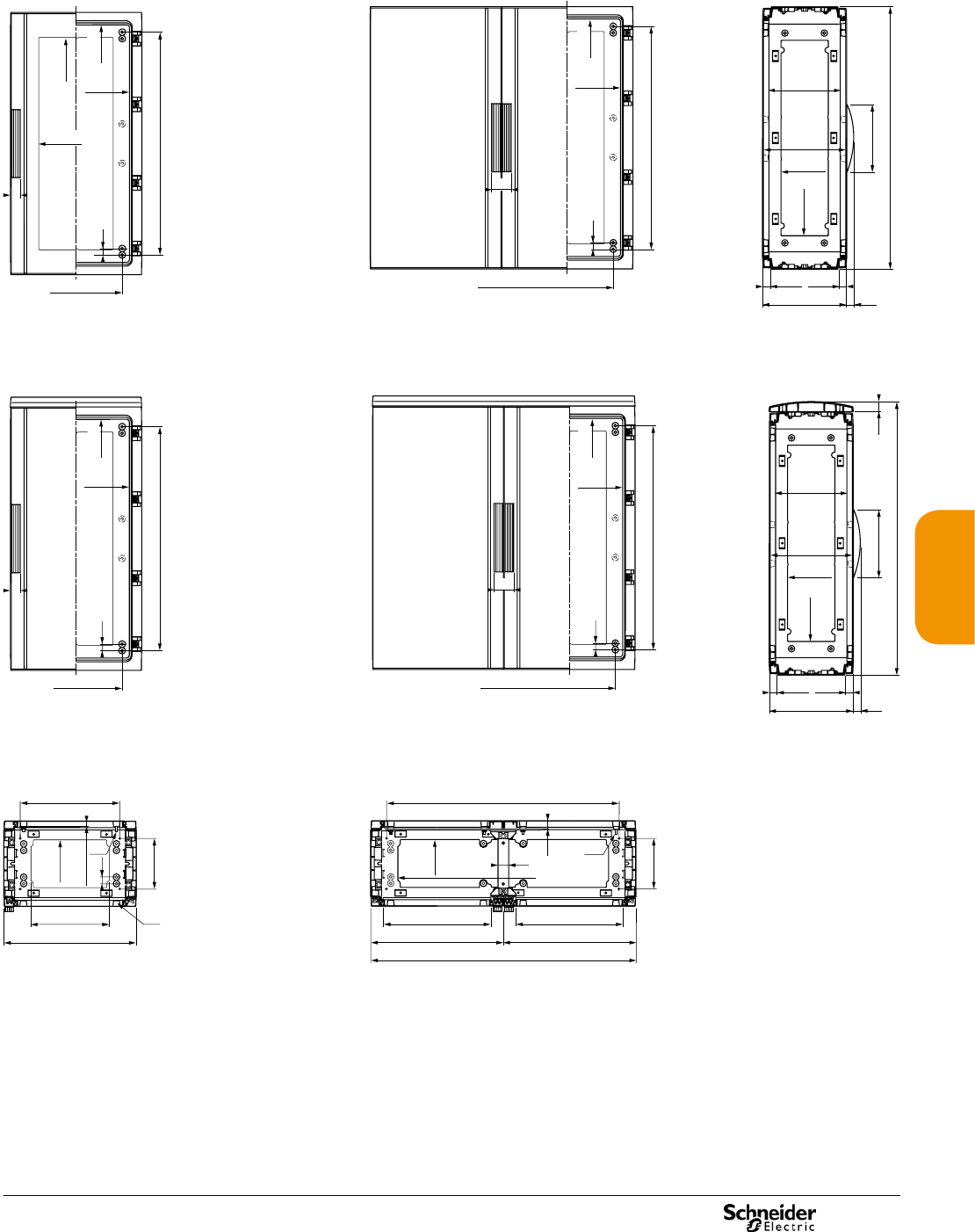

Dimensions

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D E Load

(g)

82010 280 340 160 12 118 81 1900

82011 460 340 160 24 251 104.5 3100

82012 610 340 160 36 401 104.5 4100

*) Prepared cut-outs for coupling two enclosures.

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D E Load

(g)

82020 280 448 160 18 118 81 2400

82021 460 448 160 36 251 104.5 3850

82022 610 448 160 54 401 104.5 4150

*) Prepared cut-outs for coupling two enclosures.

1/17

Mureva

Mixed enclosures

IP 65 Enclosures

Dimensions

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D E Load

(g)

82050 460 138 160 5 340 60 1200

(*) Prepared cut-outs for coupling two enclosures.

227

118

125.2

153.5

M32(*)

138

M32/Pg21(*)

M25/Pg16

M20/Pg11

227

118

M32(*)

153.5

125.2

236

95 95

21 21

5454

63 63

32 70

M32/Pg21

M32/Pg21(*)

M20/Pg11

M25/Pg16

227

102.5

125.2

118

M32(*)

340

140140

M32/Pg21(*)

M25/Pg16

M32/Pg21

M16

119 119

106 106

92 92

64 64

37 37

24.5

M20/Pg11

125.2

180

5 modules

13 modules

8 modules

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D E Load

(g)

82051 460 236 160 8 251 104.5 1600

(*) Prepared cut-outs for coupling two enclosures.

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

Number of

modules

D E Load

(g)

82052 335 340 160 13 170 82.5 1800

82053 460 340 160 13 251 104.5 2500

(*) Prepared cut-outs for coupling two enclosures.

1/18

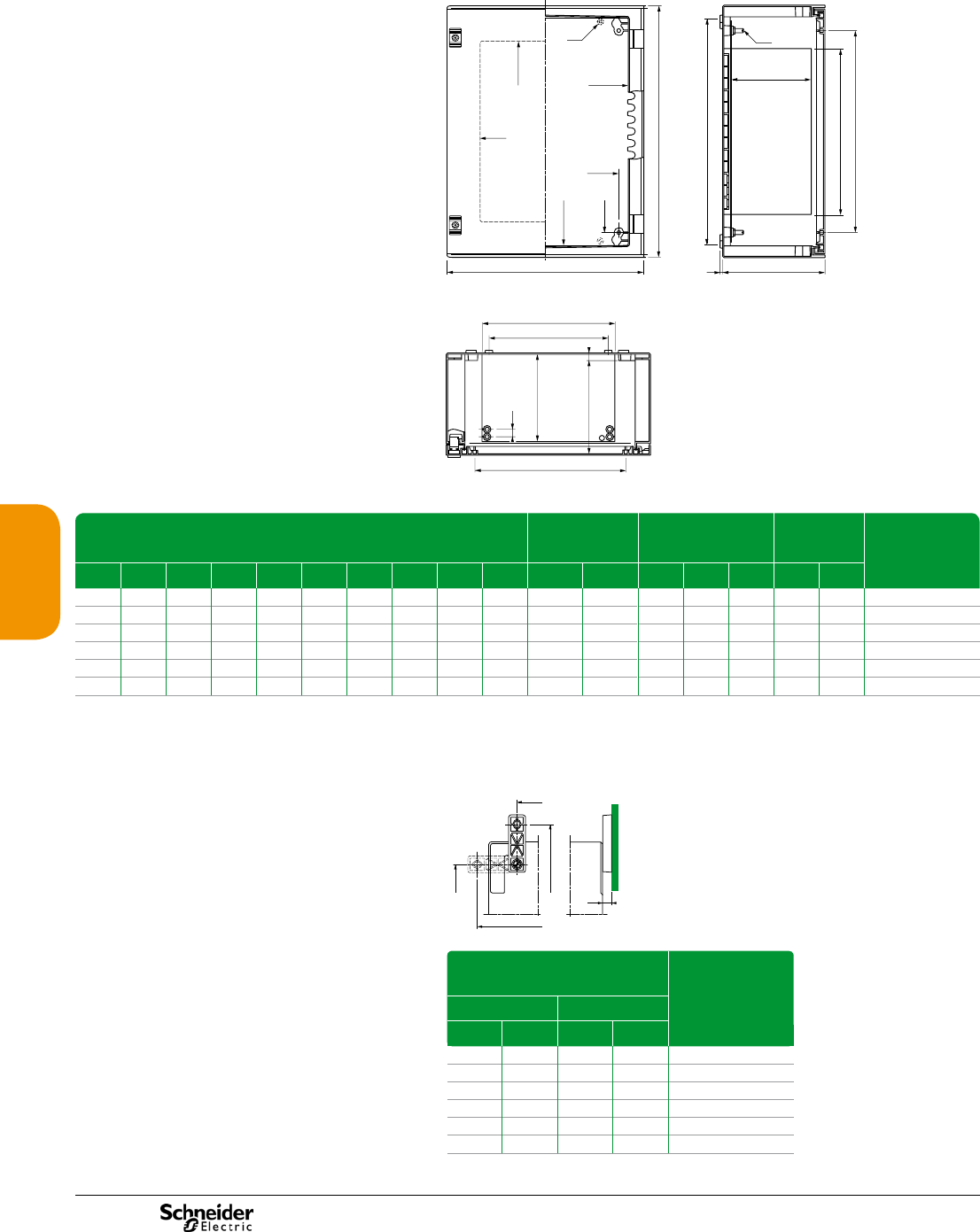

Mureva IP 65 Enclosures

Dimensions

164

118

M32(*)

140140

340

106 106

M32/Pg21(*)

101

118

610

460

101

118

164

118

32 M32(*)

194194

448

160 160

M32/Pg21(*)

101

118

610

460

101

118

12 modules

18 modules

Non-modular universal enclosures

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

D E Load

(g)

82060 460 340 160 251 104.5 2500

82062 460 340 160 401 104.5 3500

(*) Prepared cut-outs for coupling two enclosures.

External dimensions (mm)

Reference Height

(A)

Width

(B)

Depth

(C)

D E Load

(g)

82061 460 448 160 251 104.5 3250

82063 610 448 160 401 104.5 3650

(*) Prepared cut-outs for coupling two enclosures.

1/19

Mureva

Junction boxes

Wide range

● Dimensional (H, W, D)

● Functional: boxes with cable entries, for cable gland, with smooth faces

● Applications: for connection of safety circuits, boxes pre-equipped with terminal

blocks

Installation system

● Consistency of dimensions enabling association of boxes between themselves

and with other products of the MUREVA family (equipment, enclosures)

Ease of installation

● Captive cover, retained by link

● Fixing with positioning compensation (oblong holes)

● Several solutions for box ﬁxing on support to adapt to all work situations and

habits

● For the most common size boxes

(sizes < 105 x 105 mm):

Single point ﬁxing:

- via central stud using Muraﬁx plug ref. 48934 and 48935, or using standard plug

and screw,

- via this same central stud using HILTI powder or gas nailer through oblong

holes

2-point ﬁxing through oblong holes with plugs and standard screws or using HILTI

gas nailer

● For large size boxes (sizes > 105 x 105 mm):

2 or 4-point ﬁxing:

- outside usable volume via chimneys,

- through oblong holes with plugs and standard screws using HILTI gas nailer,

- external to box using ﬁxing lugs ref. 08161

● Simple box marking using felt pen or label

Technical characteristics

● IP 55 to IEC 60529

● IK 07 (2J) to EN 50102

● Class II to IEC 536 assured by protection plugs (supplied) and ﬁxing screws

● Flame resistance to IEC 60695-2-11:

650°C, boxes < 105 x 105 mm,

750°C, boxes > 105 x 105 mm,

960°C, red boxes

Size box Composition Operating temperature

< 100 x 65 body in ABS,

cover in polypropylene (PP) -25... +400C

< 100 x 100 body and cover in

polypropylene (PP) -30... +600C

● Colour: grey RAL 7035, white RAL 9010 or red RAL 3000

● Self-extinguishing plastics material, halogen-free or slightly halogenated (red boxes)

Certiﬁcations

● EN 60670 certiﬁed by TÜV

● IMQ

● Product Environmental Proﬁle

1/20

Mureva Junction boxes

Internal

dimensions (mm)

Internal

dimensions (mm)

(without entry)

Boxes with

entries

Boxes with

knock-outs

Boxes with

smooth

faces

Boxes

for safety

circuits

(red) 9600C

Accessories Boxes pre-

equipped

with

terminal

H W D H W D IP 55 - IK 07

60 40 69 49 l l

65 65 45 74 74 54 l l l

80 80 45 89 89 51 l l l l l l

105 65 55 116 74 62 l l l l

105 55 116 116 62 l l l l l

125 80 65 138 93 72 l

150 105 80 193 121 87 l l l l

175 105 80 193 121 87 l

150 80 193 164 87 l l l

225 175 100 241 194 107 l l l

275 225 120 291 241 128 l l l

325 275 120 341 291 128 l l l

Selection guide

HILTI nailers are particularly adapted to fixing MUREVA boxes.

1/21

Mureva

Boxes

Dimensions

Ø 4

Ø 20

27,5 27,5

2,1

4,2

138

106

127

5,4

116

104

Ø 20

130

100

141

130

141

164

150

113

175

100

136,5

158,5

130

2,1 9

Ø 4

178,5

141

193

200

159

129

130

100

170

Ø 20

130

100

141

130

141

164

150

113

175

100

136,5

158,5

130

2,1 9

Ø 4

178,5

141

193

200

159

129

130

100

170

207

177

45 45

143

178,5

194

218

100

107

2.1

160

130

185

150

125

120

171

159

138

130

100

Ø 4 Ø 4

Ø 20

45 45

138

178,5

194

204

150

185

225

241

248

205

225

207

177

45 45

143

178,5

194

218

100

107

2.1

160

130

185

150

125

120

171

159

138

130

100

Ø 4 Ø 4

Ø 20

45 45

138

178,5

194

204

150

185

225

241

248

205

225

Ø 4

Ø 20

27,5 27,5

2,1

4,2

138

106

127

5,4

116

104

Ø 20

130

100

141

130

141

164

150

113

175

100

136,5

158,5

130

2,1 9

Ø 4

178,5

141

193

200

159

129

130

100

170

With entries With ISO entries

With entries

With ISO entries

Interior Side Back Lid

Boxes 125 x 80 x 65 mm

Boxes 175 x 150 x 80 mm

Boxes 225 x 175 x 100 mm

Steel wall-mounting

enclosures

S3D Steel wall-mounting enclosures 2/2

Selection guide 2/4

Dimensions 2/8

Accessories 2/9

Applications 2/16

Spacial S3DEX for potentially explosive atmospheres (ATEX) 2/18

2/1

2/2

2 2

Delivered in a reusable

cardboard box with

assembly instructions

enclosed and wall-mounting

template on the cardboard.

Double-bar lock.

The Spacial S3D steel enclosure universal offer.

Three steel enclosure definitions are available:

● Enclosure with plain door.

● Enclosure with plain door delivered with a galvanised plain mounting plate, not

installed.

● Enclosure with glazed door, 4-mm-thick Securit® glass.

Structured finish, epoxy-polyester powder, RAL 7035 grey colour.

● Selection guide, page 2/4

Technical description:

Enclosure body:

● Single-piece body (cross-shaped structure). Gutter-shaped front profile with

double fold. Flat rear.

● 4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step

slides, leaving a space of 10 mm behind them.

● M6 x 16 earthing screws for equipotential connection between the door and the

body of the enclosure.

● Cable-gland plate with marking for easy drilling and to guarantee the maximum

access surface; delivered with the enclosure. This plate is flush with the body of

the enclosure.

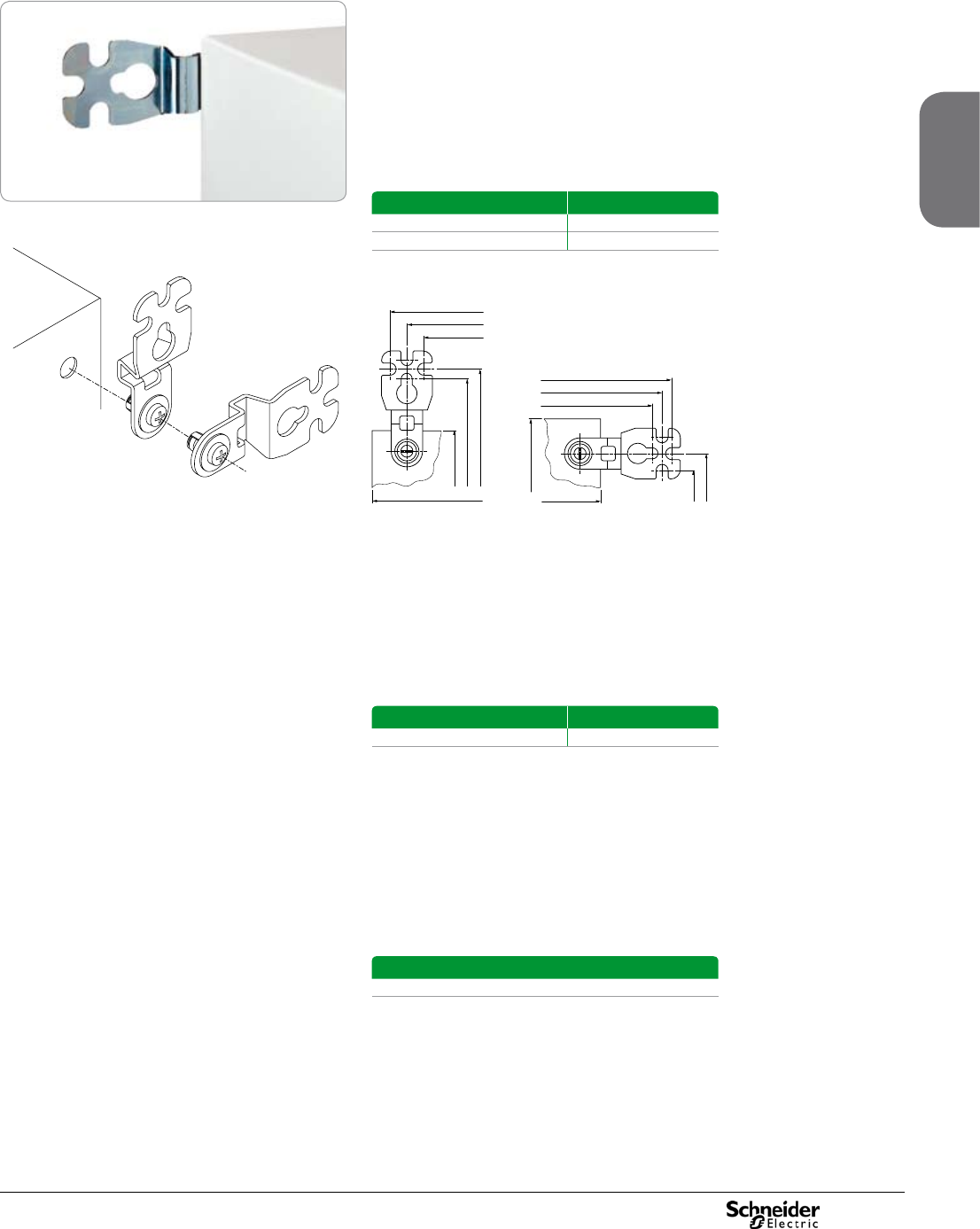

● Direct wall-mounting (4 x 10 holes for the sealing plugs guaranteeing the IP) or

with the help of fixing lugs installed from the outside.

Enclosure door:

● Wall-mounting enclosure supplied with 3-mm double-bar lock as standard.

● Polyurethane door gasket.

● M6 x 16 earthing screws for equipotential connection between the door and the

body of the enclosure.

● Easily removable and reversible, with 20-mm return with double thickness

granting excellent rigidity, opening to 120°, equipped with 2 or 3 invisible hinges*.

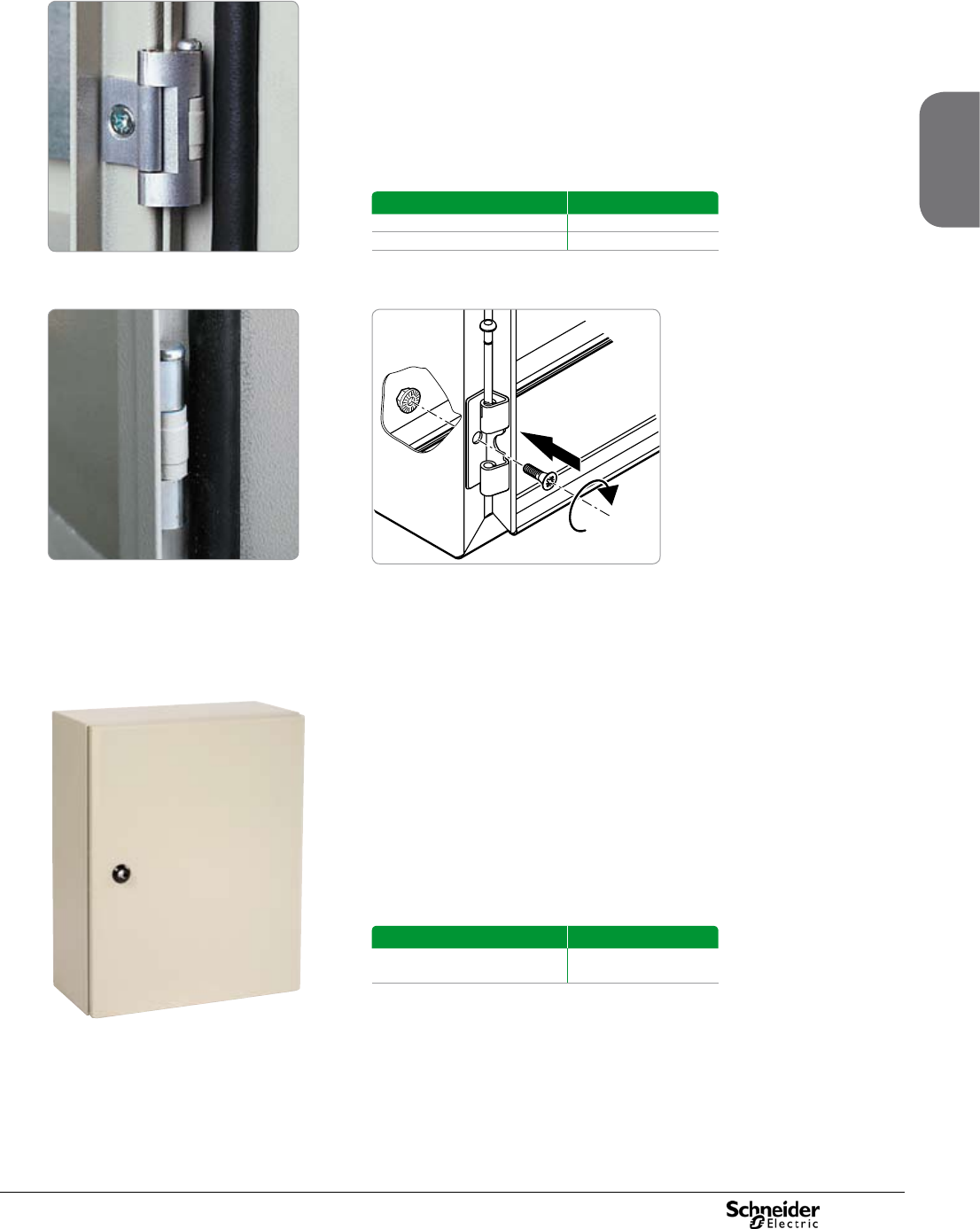

● Door opening to 180° with optional hinges.

● For heights from 600 mm, three locking points with linkage, with a single control

point. Simple reversal of linkage. Maximum load: 50 kg/m2.

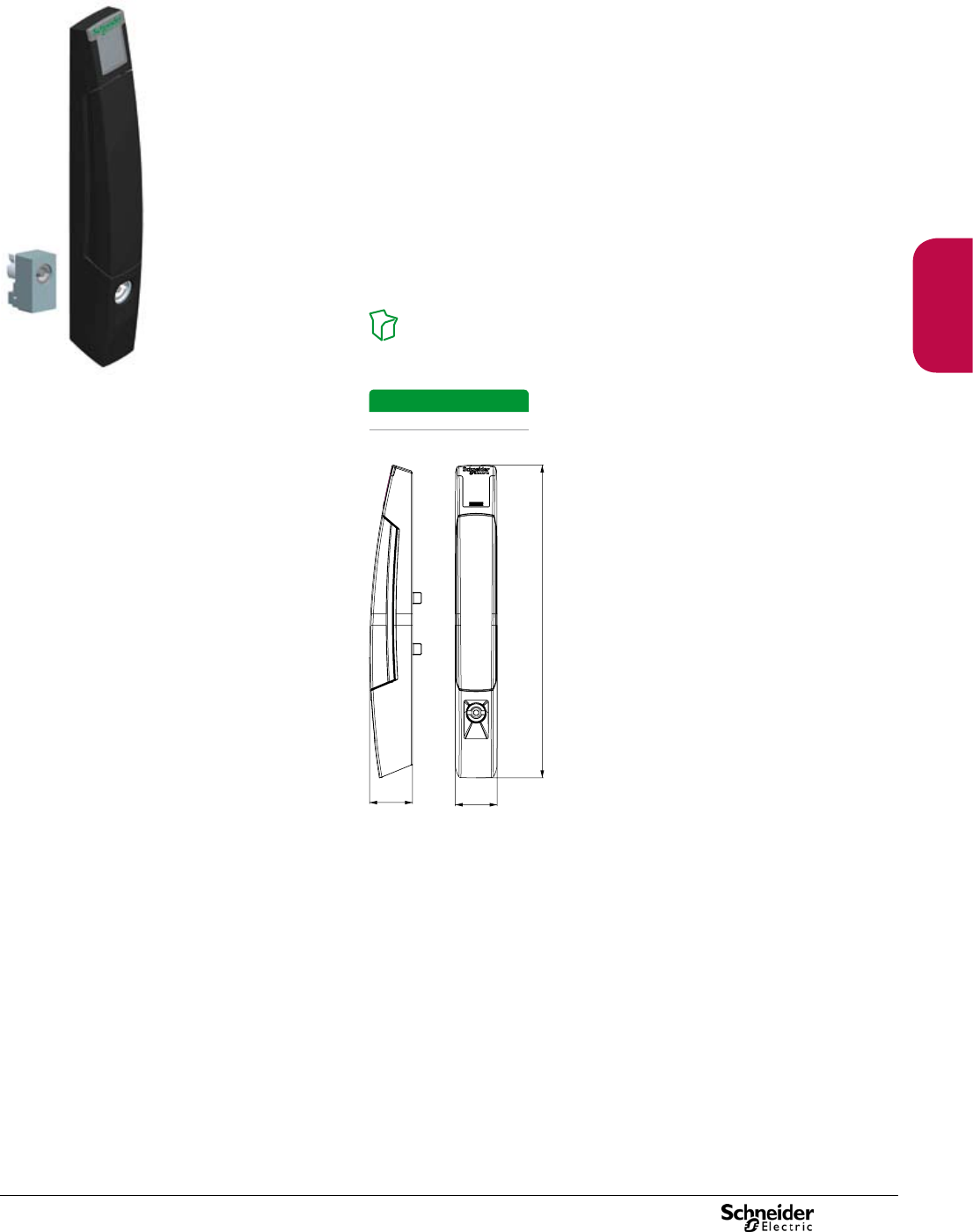

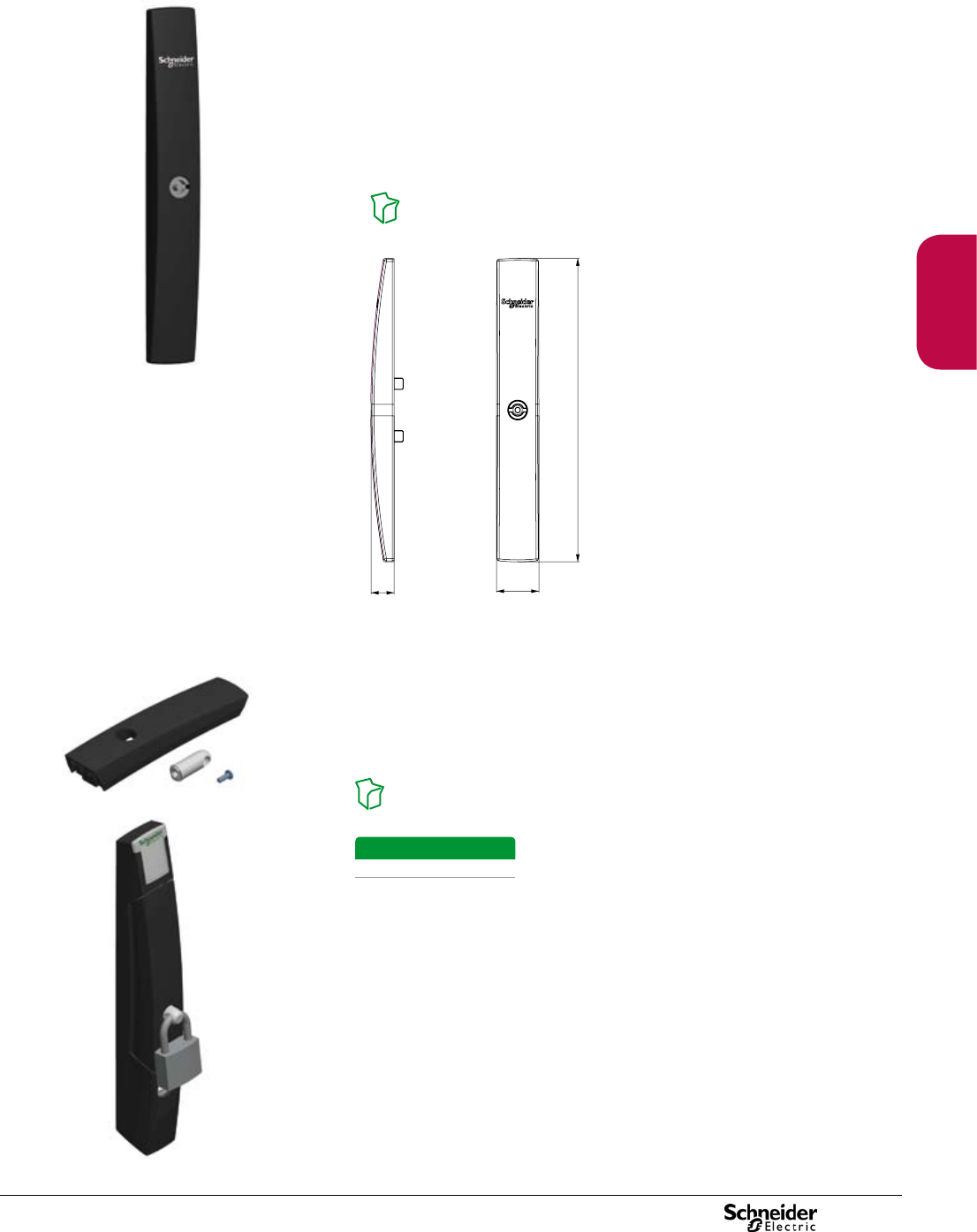

● A handle is delivered which provides 2 functions:

– Operating key.

– Tool for loosening the stud protection caps. This handle can be solidly attached

to the locking system by means of a captive element.

● Perforated rails on the door, with drill holes with a diameter of 4.2 mm in steps of

25 mm:

– 2 vertical rails from the height of 400 mm,

– 2 vertical rails and 2 horizontal rails from the width of 800 mm.

* From the height of 800 mm.

** Widths of 1000 and 1200 mm.

Standards

Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV, GL,

ATEX (modified enclosure).

The Spacial S3D wall-mounting enclosures are compliant with the RoHS directive.

Certifications

Certification table page 8/2

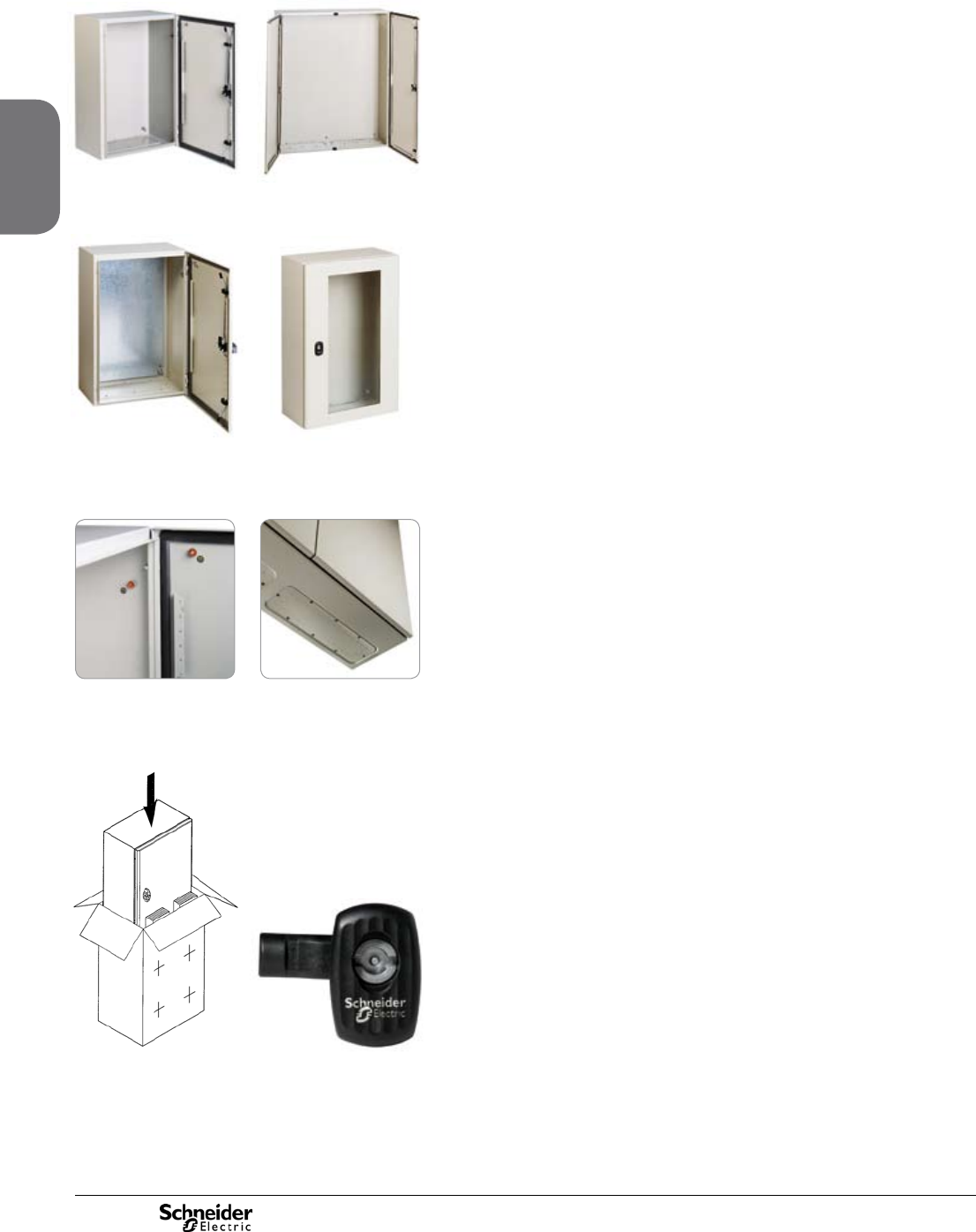

Spacial S3D

Single-door enclosure. Double-door enclosure.

Enclosure with galvanised

plain mounting plate.

Enclosure with glazed door.

Introduction

Our certificates can

be downloaded from

our website.

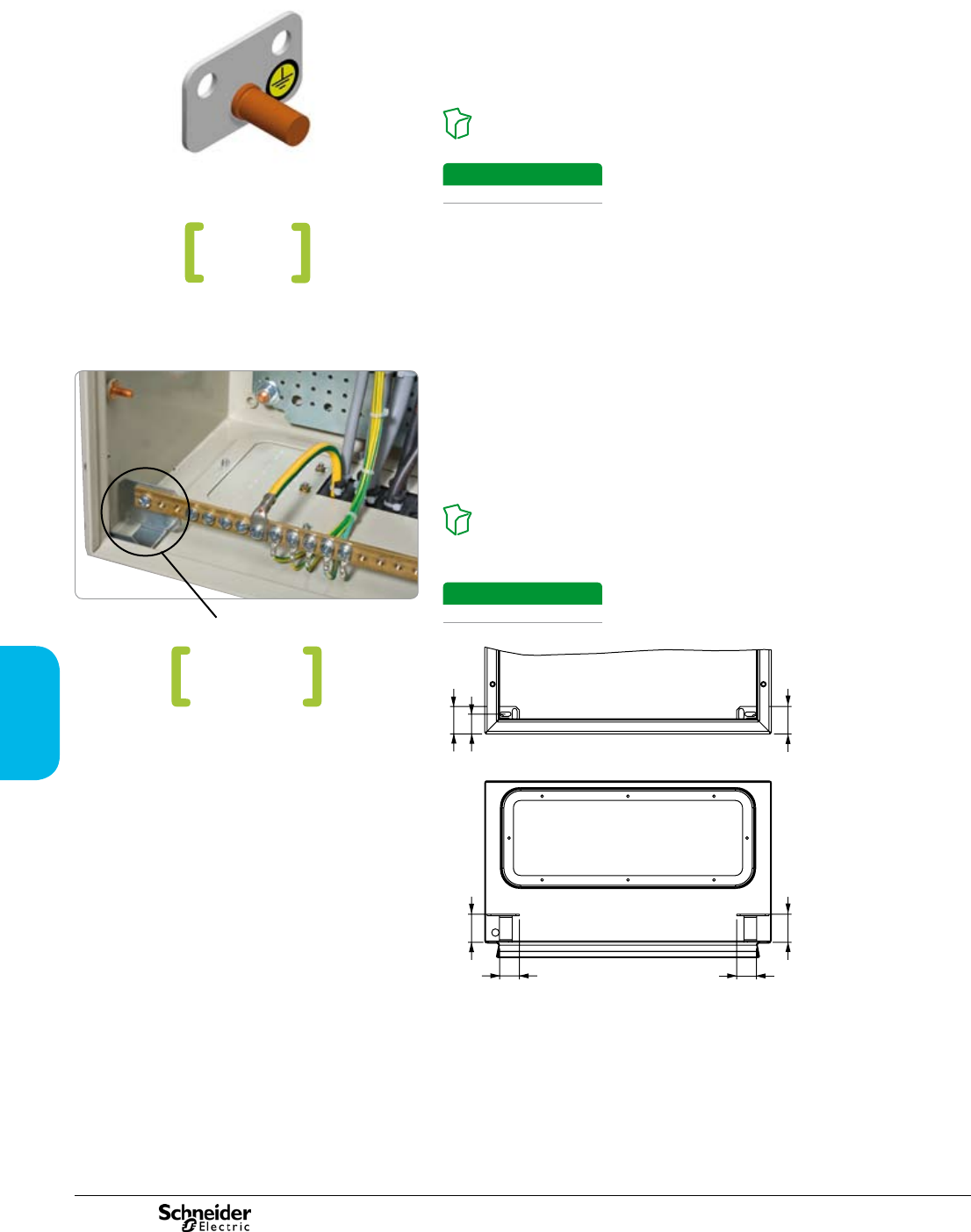

Welded studs for the earth

connection.

Cable-gland plate with

marking.

2/3

2 2

Our empty enclosures are marked CE according to the Low-Voltage Directive (LVD).

It is the responsibility of the final equipment manufacturer to respect the regulations

in force.

Technical characteristics

Protection degree:

● IP 66 for the single-door enclosures and IP 55 for the double-door enclosures,

according to IEC 60529.

● Nema Type 4, 4X for the single-door enclosures and Nema Type 12, 12K, 13 for

the double-door enclosures according to NEMA 250 standard.

Resistance to external mechanical impacts:

● IK 10 for the plain-door enclosures, according to IEC 62262.

● IK 08 for the glazed-door enclosures.

Mechanical characteristics

Fixing of mounting accessories

● 4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step

slides, leaving a space of 10 mm behind them.

** 6 studs for widths 1000 and 1200.

Personnel protection

Earth connection: Spacial S3D steel enclosures are equipped with M6 x 16 earth

studs welded in the body and the door for equipotential connection. Earth braid to

be ordered separately

Closing the enclosure: the enclosures are equipped from the height of 600 mm

with three locking points with linkage, with a single control point, preventing the

enclosures from being left ajar. Locks and inserts, page 2/14

Coating properties

Colour: RAL 7035 grey; finish: structured.

Coating thickness: 60 μm.

Fire class: M0.

Resistance to corrosion: compliance with standard IEC 62208 for outdoor

installation: 288 h of humid heat and 336 h of salt mist.

Note: the Spacial S3D is specially designed for indoor installations. For outdoor

installations, it is advisable to install a canopy or consult us.

Nuclear decontamination: RAL 7035 and AFNOR A550 tests available on

demand.

Spacial S3D

For further

information, see the

Technical Annexes

2/4

2 2

Spacial S3D Wall-mounting steel enclosures

Selection guide

Specifications Electricity distribution

Spacial S3D Mounting plate Modular mounting plate

Dimensions (1) Nº of

doors IP Weight

(kg)*

Plain door Glazed door Plain mounting

plate

Micro-

perforated

mounting plate

Telequick

mounting

plate

Bakelite

mounting

plate

DIN rail

chassis Type

Aluminium

vertical rails

(3)

Modular mounting

plate Nº of modules Plain front panel Plain mounting

plate

With mounting plate

Without mounting plate Without mounting plate

HWD

300 200 150 1 66 3.02 NSYS3D3215P NSYS3D3215 NSYMM32 NSYMF32 NSYMR32 NSYMB32 NSYMDVR3

300 250 150 1 66 3.48 NSYS3D32515P NSYS3D32515 NSYS3D32515T NSYMM3025 NSYMR3025 NSYMB3025 NSYMDVR3

300 300 150 1 66 3.90 NSYS3D3315P NSYS3D3315 NSYS3D3315T NSYMM33 NSYMF33 NSYMR33 NSYMB33 NSYMD33 BNSYMDVR3

300 300 200 1 66 4.50 NSYS3D3320P NSYS3D3320 NSYS3D3320T NSYMM33 NSYMF33 NSYMR33 NSYMB33 NSYMD33 BNSYMDVR3

300 400 150 1 66 4.82 NSYS3D3415P NSYS3D3415 NSYS3D3415T NSYMM43 NSYMF43 NSYMR34 NSYMB43 NSYMDVR3

300 400 200 1 66 5.60 NSYS3D3420P NSYS3D3420 NSYS3D3420T NSYMM43 NSYMF43 NSYMR34 NSYMB43 NSYMDVR3

400 300 150 1 66 4.90 NSYS3D4315P NSYS3D4315 NSYS3D4315T NSYMM43 NSYMF43 NSYMR43 NSYMB43 NSYMD43 BNSYMDVR4 NSYDLM24 24 NSYCTL300DLM NSYPMP300DLM

400 300 200 1 66 5.00 NSYS3D4320P NSYS3D4320 NSYS3D4320T NSYMM43 NSYMF43 NSYMR43 NSYMB43 NSYMD43 BNSYMDVR4 NSYDLM24 24 NSYCTL300DLM NSYPMP300DLM

400 400 200 1 66 6.50 NSYS3D4420P NSYS3D4420 NSYS3D4420T NSYMM44 NSYMF44 NSYMR44 NSYMDVR4

400 600 200 1 66 10.50 NSYS3D4620P NSYS3D4620 NSYS3D4620T NSYMM64 NSYMF64 NSYMR46 NSYMB64 NSYMDVR4

400 600 250 1 66 12.00 NSYS3D4625P NSYS3D4625 NSYS3D4625T NSYMM64 NSYMF64 NSYMR46 NSYMB64 NSYMDVR4

500 300 200 1 66 7.50 NSYS3D5320P NSYS3D5320 NSYS3D5320T NSYMM53 NSYMF53 NSYMR53 NSYMDVR5

500 400 200 1 66 9.30 NSYS3D5420P NSYS3D5420 NSYS3D5420T NSYMM54 NSYMF54 NSYMR54 NSYMB54 NSYMD54 BNSYMDVR5 NSYDLM48 48 NSYCTL400DLM NSYPMP400DLM

500 400 250 1 66 10.20 NSYS3D5425P NSYS3D5425 NSYS3D5425T NSYMM54 NSYMF54 NSYMR54 NSYMB54 NSYMD54 BNSYMDVR5 NSYDLM48 48 NSYCTL400DLM NSYPMP400DLM

500 500 200 1 66 11.18 NSYS3D5520P NSYS3D5520 NSYS3D5520T NSYMM55 NSYMF55 NSYMR55 NSYMDVR5

500 500 250 1 66 12.06 NSYS3D5525P NSYS3D5525 NSYS3D5525T NSYMM55 NSYMF55 NSYMR55 NSYMDVR5

600 400 200 1 66 11.00 NSYS3D6420P NSYS3D6420 NSYS3D6420T NSYMM64 NSYMF64 NSYMR64 NSYMB64 NSYMD64 BNSYMDVR6 NSYDLM48P 48 NSYCTL400DLM NSYPMP400DLM

600 400 250 1 66 12.00 NSYS3D6425P NSYS3D6425 NSYS3D6425T NSYMM64 NSYMF64 NSYMR64 NSYMB64 NSYMD64 BNSYMDVR6 NSYDLM48P 48 NSYCTL400DLM NSYPMP400DLM

600 500 250 1 66 16.20 NSYS3D6525P NSYS3D6525 NSYS3D6525T NSYMM65 NSYMF65 NSYMR65 NSYMB65 NSYMDVR6

600 600 200 1 66 14.00 NSYS3D6620P NSYS3D6620 NSYS3D6620T NSYMM66 NSYMF66 NSYMR66 NSYMD66 ANSYMDVR6 NSYDLM84 84 NSYCTL600DLM NSYPMP600DLM

600 600 250 1 66 15.00 NSYS3D6625P NSYS3D6625 NSYS3D6625T NSYMM66 NSYMF66 NSYMR66 NSYMD66 ANSYMDVR6 NSYDLM84 84 NSYCTL600DLM NSYPMP600DLM

600 600 300 1 66 17.00 NSYS3D6630P NSYS3D6630 NSYS3D6630T NSYMM66 NSYMF66 NSYMR66 NSYMD66 ANSYMDVR6 NSYDLM84 84 NSYCTL600DLM NSYPMP600DLM

600 600 400 1 66 19.00 NSYS3D6640P NSYS3D6640 NSYS3D6640T NSYMM66 NSYMF66 NSYMR66 NSYMD66 ANSYMDVR6 NSYDLM84 84 NSYCTL600DLM NSYPMP600DLM

600 800 300 1 66 25.50 NSYS3D6830P NSYS3D6830 NSYS3D6830T NSYMM86 NSYMF86 NSYMR68 NSYMB86

NSYMD86**

ANSYMDVR6

700 500 250 1 66 15.00 NSYS3D7525P NSYS3D7525 NSYS3D7525T NSYMM75 NSYMF75 NSYMR75 NSYMB75 NSYMD75 BNSYMDVR7 NSYDLM66 66 NSYCTL500DLM NSYPMP500DLM

800 600 200 1 66 21.00 NSYS3D8620P NSYS3D8620 NSYS3D8620T NSYMM86 NSYMF86 NSYMR86 NSYMB86 NSYMD86 ANSYMDVR8 NSYDLM84P 84* NSYCTL600DLM NSYPMP600DLM

800 600 250 1 66 23.00 NSYS3D8625P NSYS3D8625 NSYS3D8625T NSYMM86 NSYMF86 NSYMR86 NSYMB86 NSYMD86 ANSYMDVR8 NSYDLM112 112* NSYCTL600DLM NSYPMP600DLM

800 600 300 1 66 25.00 NSYS3D8630P NSYS3D8630 NSYS3D8630T NSYMM86 NSYMF86 NSYMR86 NSYMB86 NSYMD86 ANSYMDVR8 NSYDLM112 112* NSYCTL600DLM NSYPMP600DLM

800 600 400 1 66 29.00 NSYS3D8640P NSYS3D8640 NSYS3D8640T NSYMM86 NSYMF86 NSYMR86 NSYMB86 NSYMD86 ANSYMDVR8 NSYDLM112 112* NSYCTL600DLM NSYPMP600DLM

800 800 250 1 66 30.00 NSYS3D8825P NSYS3D8825 NSYS3D8825T NSYMM88 NSYMF88 NSYMR88 NSYMDVR8

800 800 300 1 66 32.00 NSYS3D8830P NSYS3D8830 NSYS3D8830T NSYMM88 NSYMF88 NSYMR88 NSYMDVR8

800 1000 300 1 66 38.00 NSYS3D81030P NSYS3D81030 NSYMM108 NSYMF108 NSYMR810 NSYMB108 NSYMDVR8

800 1000 300 2 55 43.50 NSYS3D81030DP NSYS3D81030D NSYMM108 NSYMF108 NSYMR810 NSYMB108 NSYMDVR8

800 1200 300 2 55 46.00 NSYS3D81230DP NSYS3D81230D NSYMM128 NSYMF128

NSYMR86+ 2

NSYMB86+ 2

NSYMB86+

ANSYMDVR8

1000 600 250 1 66 28.00 NSYS3D10625P NSYS3D10625 NSYS3D10625T NSYMM106 NSYMF106 NSYMR106 NSYMB106 NSYMDVR10 NSYDLM168 168** NSYCTL600DLM NSYPMP600DLM

1000 600 300 1 66 30.60 NSYS3D10630P NSYS3D10630 NSYS3D10630T NSYMM106 NSYMF106 NSYMR106 NSYMB106 NSYMDVR10 NSYDLM168 168** NSYCTL600DLM NSYPMP600DLM

1000 600 400 1 66 33.00 NSYS3D10640P NSYS3D10640 NSYS3D10640T NSYMM106 NSYMF106 NSYMR106 NSYMB106 NSYMDVR10 NSYDLM168 168** NSYCTL600DLM NSYPMP600DLM

1000 800 250 1 66 35.00 NSYS3D10825P NSYS3D10825 NSYS3D10825T NSYMM108 NSYMF108 NSYMR108 NSYMB108 NSYMD108 ANSYMDVR10 NSYDLM240 240 NSYCTL800DLM NSYPMP800DLM

1000 800 300 1 66 38.00 NSYS3D10830P NSYS3D10830 NSYS3D10830T NSYMM108 NSYMF108 NSYMR108 NSYMB108 NSYMD108 ANSYMDVR10 NSYDLM240 240 NSYCTL800DLM NSYPMP800DLM

1000 800 400 1 66 42.00 NSYS3D10840P NSYS3D10840 NSYS3D10840T NSYMM108 NSYMF108 NSYMR108 NSYMB108 NSYMD108 ANSYMDVR10 NSYDLM240 240 NSYCTL800DLM NSYPMP800DLM

1000 1000 300 1 66 46.00 NSYS3D101030P NSYS3D101030 NSYS3D101030T NSYMM1010 NSYMF1010 NSYMR1010 NSYMDVR10

1000 1000 300 2 55 46.00 NSYS3D101030DP NSYS3D101030D NSYS3D101030DT NSYMM1010 NSYMF1010 NSYMR1010 NSYMDVR10

1000 1200 300 2 55 53.00 NSYS3D101230DP NSYS3D101230D NSYMM1210 NSYMF1210 NSYMR1012 NSYMB1210 NSYMDVR10

1000 1200 400 2 55 60.00 NSYS3D101240DP NSYS3D101240D NSYMM1210 NSYMF1210 NSYMR1012 NSYMB1210 NSYMDVR10

1200 600 300 1 66 37.00 NSYS3D12630P NSYS3D12630 NSYS3D12630T NSYMM126 NSYMF126 NSYMDVR12

1200 600 400 1 66 42.00 NSYS3D12640P NSYS3D12640 NSYS3D12640T NSYMM126 NSYMF126 NSYMDVR12

1200 800 300 1 66 45.00 NSYS3D12830P NSYS3D12830 NSYS3D12830T NSYMM128 NSYMF128 NSYMR128 NSYMD128 ANSYMDVR12

1200 800 400 1 66 49.00 NSYS3D12840P NSYS3D12840 NSYS3D12840T NSYMM128 NSYMF128 NSYMR128 NSYMD128 ANSYMDVR12

1200 1000 300 1 66 53.00 NSYS3D121030P NSYS3D121030 NSYS3D121030T NSYMM1210 NSYMF1210 NSYMR1210 NSYMB1210 NSYMDVR12

1200 1000 300 2 55 54.00 NSYS3D121030DP NSYS3D121030D NSYS3D121030DT NSYMM1210 NSYMF1210 NSYMR1210 NSYMB1210 NSYMDVR12

1200 1000 400 2 55 61.00 NSYS3D121040DP NSYS3D121040D NSYMM1210 NSYMF1210 NSYMR1210 NSYMB1210 NSYMDVR12

1200 1200 300 2 55 64.00 NSYS3D121230DP NSYS3D121230D NSYMM1212

2 x NSYMF126+

NSYMR126+

NSYMDVR12

1200 1200 400 2 55 90.00 NSYS3D121240DP NSYS3D121240D NSYMM1212

2 x NSYMF126+

NSYMR126+

NSYMDVR12

1400 1000 300 2 55 80.00 NSYS3D141030DP NSYS3D141030D NSYMM1410 NSYMR1410

* Enclosure without mounting plate. + Order NSYCRNGSDR for double mounting of the mounting plates. (3) Order nuts ref. NSYAMCSF. Steel siderail ref. NSYMDVR12.

(1) For other dimensions, see our aplication offer.

(2) In inverted use, the marking is inverted.

2 2

2/5
