Section L

NV2 Series

Class I, Div.2; NEMA 4X

.........

2-5 XXX X

V Series

Standard Location

.................

6-8 X

Class I, Div. 2; NEMA 4

........

9-10 XX X

Accessories, Dimensions

....

11-13

DV Series

DV Dust Ignition Proof...................14 XX

NVPI Series

Wet Locations

Class II, Div. 2

Non-Metallic/Non-Glass

.............

15 XX X

EMI Series

Hazardous Location

NEMA 4X Groups C,D

60-300 Watt Incandescent

....

137-138 XX X X

E Series/H Series

Hazardous Location

Groups A,B

200-300 Watt Incandescent

....

H Series Replacement Parts

.....

16 XXX

XHL Series

Hazardous Location

Handlamps

100 Watt Incandescent

...........

14 X

INCANDESCENT

FIXTURES

COMPACT

FLUORESCENT

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

General Suitability —

See catalog pages for details

General Suitability —

See catalog pages for details

PRODUCT PAGE NO. PRODUCT PAGE NO.

NV2F Series

13-42 Watt Quad-Pin...............2-5 XXX X

NVPF Series

13-26 Watt

Class II, Div. 2

Non-Metallic/Non-Glass

..........

15 XX X

MBF Series

13-39 Watt for

Standard & Certain

Hazardous Locations

..........

22-23

Accessories ........................26-27 XXXX X

VQ1F/VQ2F Series

(Replaces VBF/VQF)

13-84 Watt for

Standard & Certain

Hazardous Locations..........43-50 XXX X

EBF/EQF Series

13-84 Watt for

Hazardous Location

........

137-138 XX X X

XHLF Series

Hazardous Location

Handlamps

26 Watt Fluorescent

................

14 XX

NWPFN Series

Surface Mount

Non-Metallic/Non-Glass

13-26 Watt

....................

206-207 XXX X

Section L

Lii

HID AND INDUCTION

FIXTURES

LED FIXTURES

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

General Suitability —

See catalog pages for details

General Suitability —

See catalog pages for details

PRODUCT PAGE PRODUCT PAGE

MB Series

Medium Base HID...............22,24-25 XX X X

Accessories......................................26-27

Temperature Data................................28

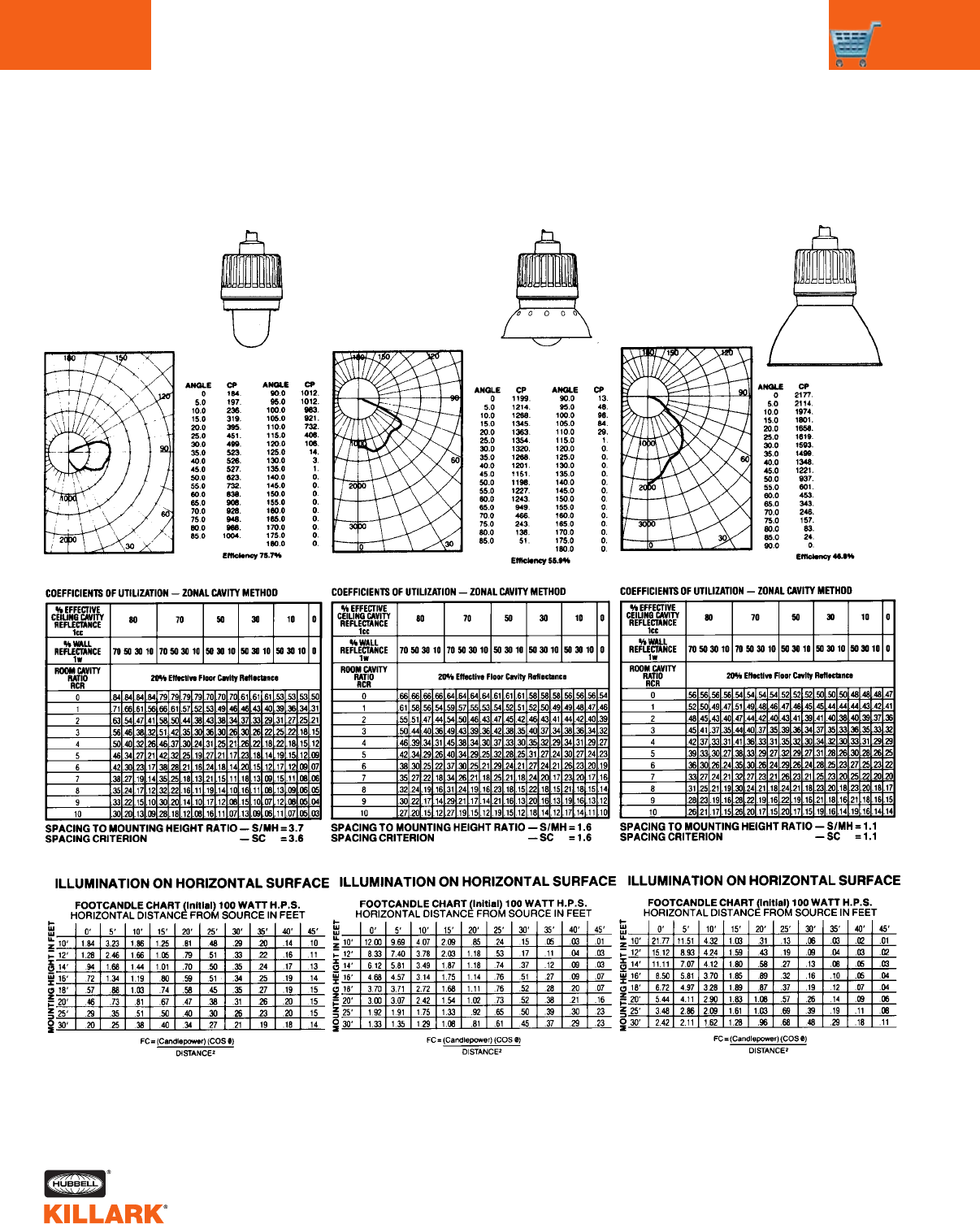

Photometrics ....................................29-35

Series

Medium Base HID.........................57-65 XXX X

Mogul Base HID .............................66-89 XX X X

Induction System .......................90-92 XXX X

Introduction ....................................51-56

Quick Locator Table ........................52

“3rd Hand” Accessories ...............53

Restricted Breathing.............................54 XXXX X

Food Optics..........................................55

Dark Sky..................................................56

Accessories....................................93-97

Temperature Data .................104-113

Dimensions...............................100-103

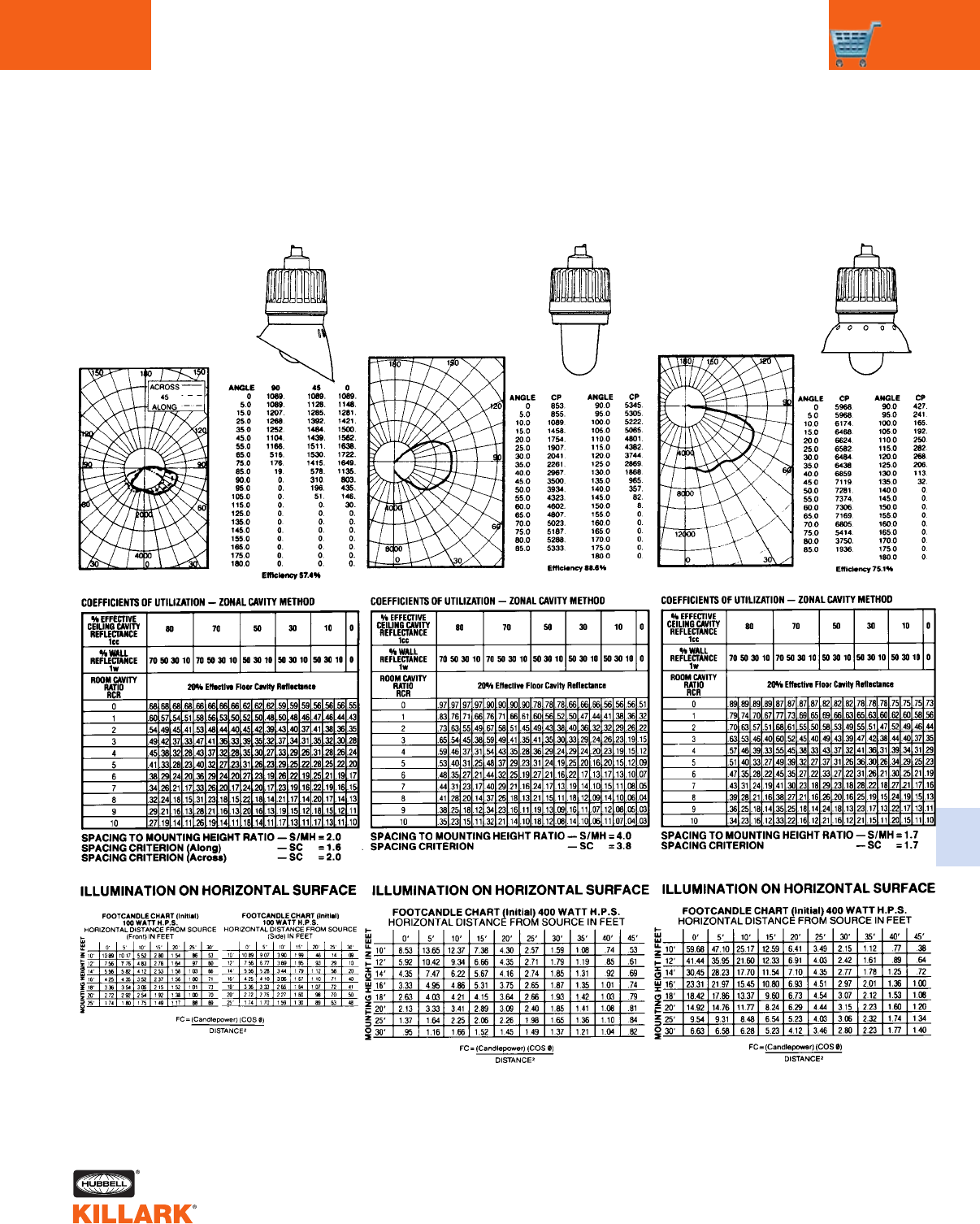

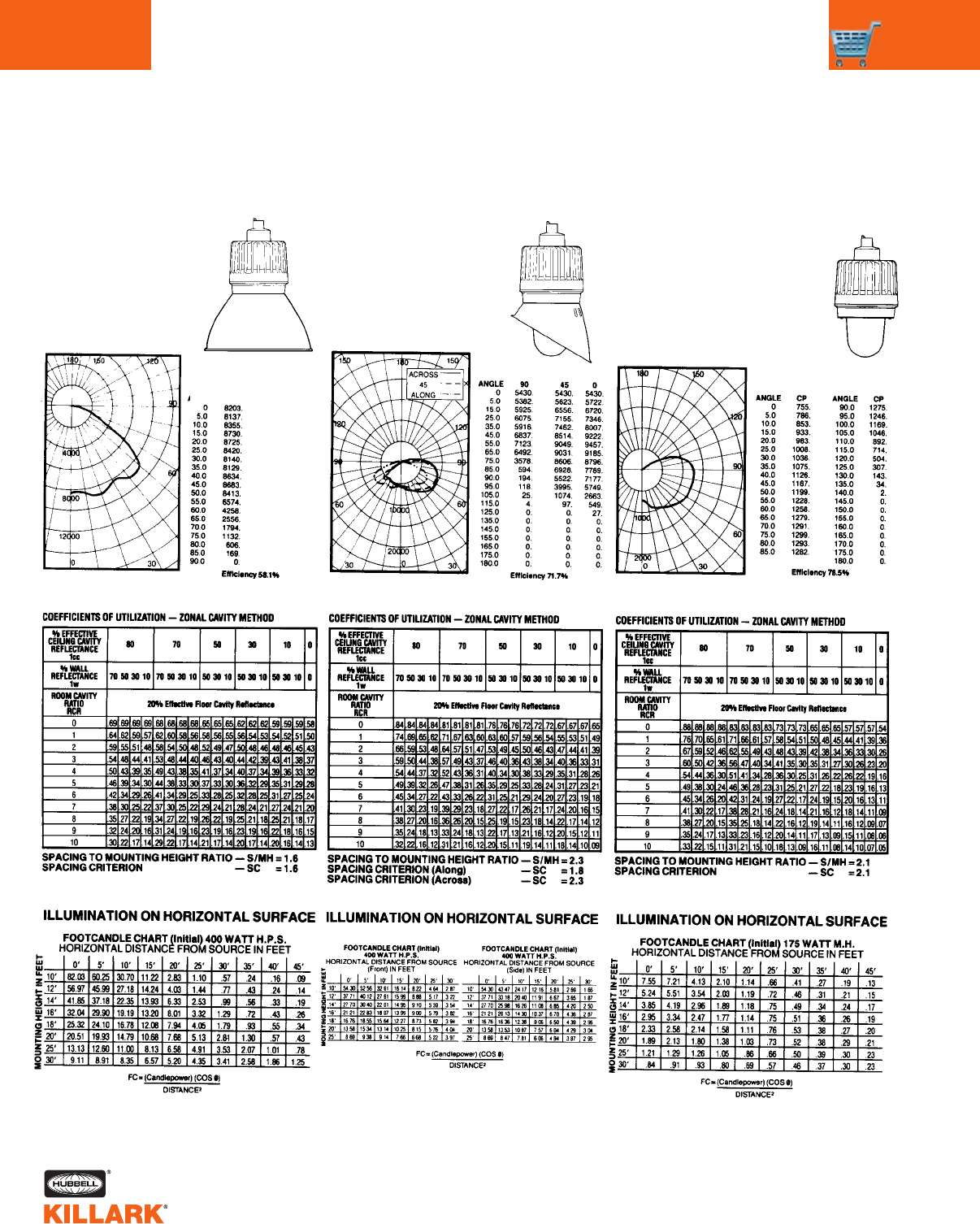

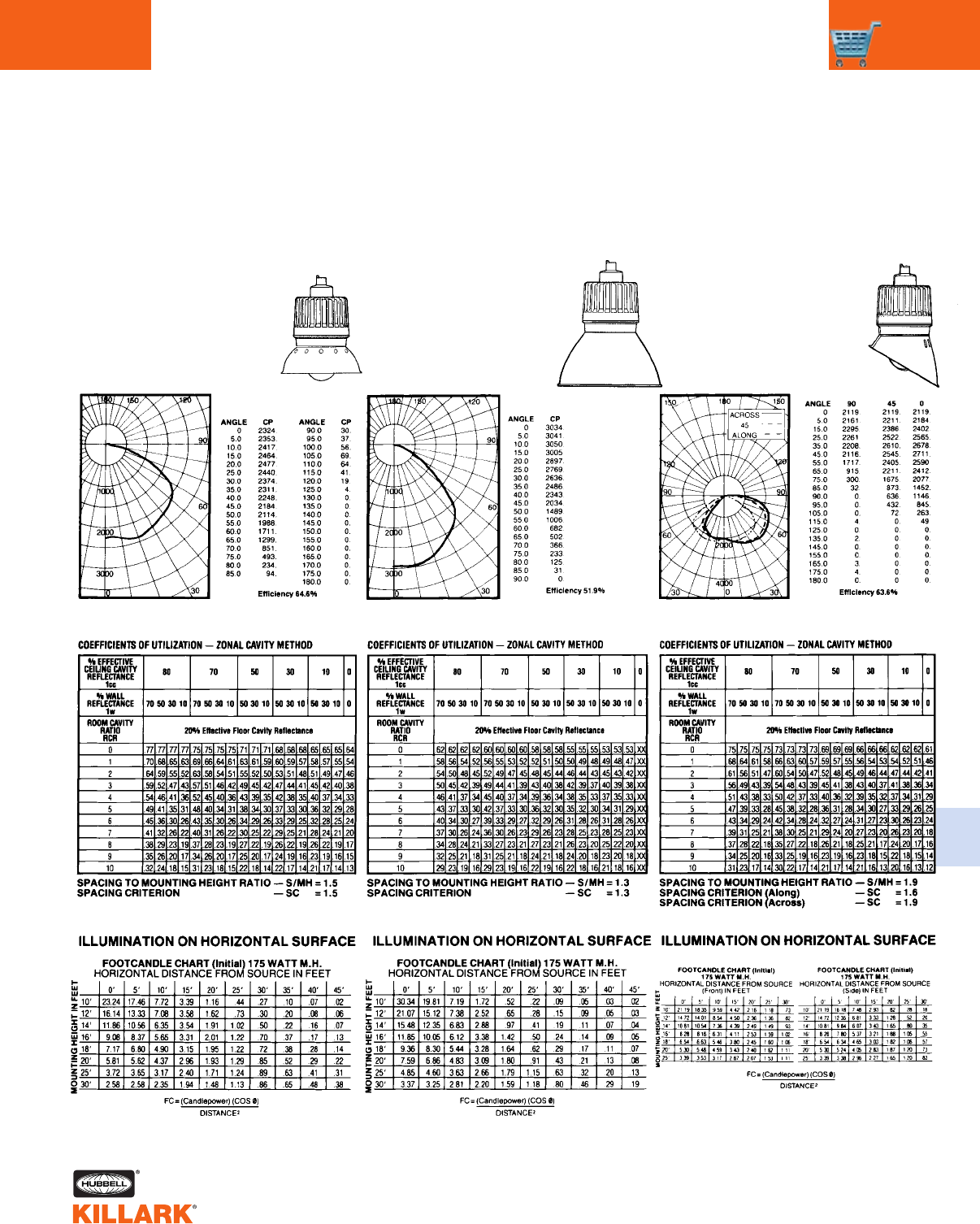

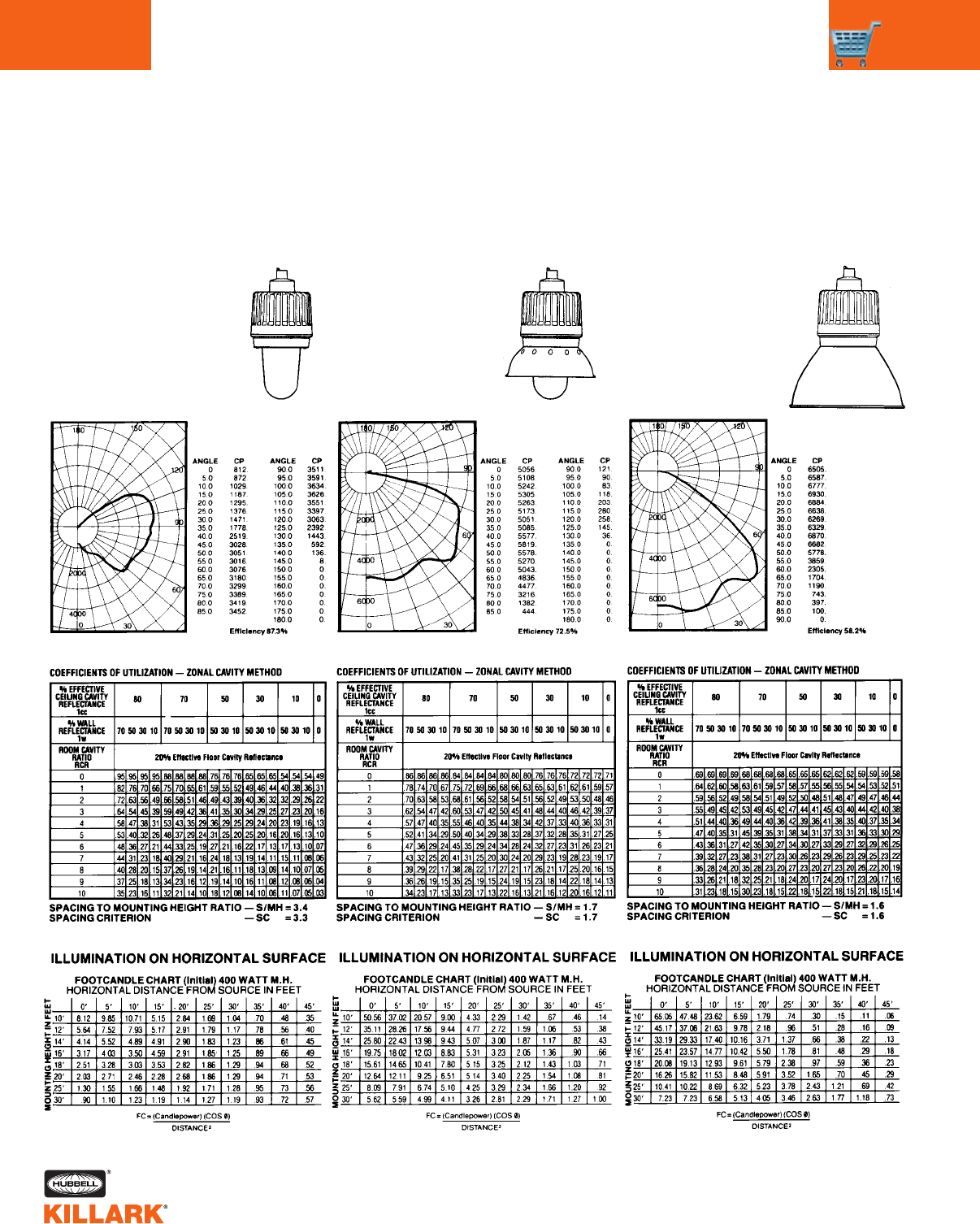

Photometrics ............................114-131

Cross Reference VM

to Certilite®V..........................................97

EM Series

Medium Base HID ...............137, 139 XX X X

Accessories .............................140-141

Temperature Data.................144-145

Photometric ..............................146-155

Cenelec Option................................144 XX X X X

EZ Series

Mogul Base HID....................156-159 XX X X

Accessories .............................160-162

Temperature Data

..................

164-165

Photometrics

..............................

166-171

Cenelec Option................................164 XX X X X

MBL Series

Compact LED

Introduction/Logic .. . . . . . . . . . . . .17 XXX X

Selection Grids .................18

Components/Accessories .....19

Dimensions .....................20

Photometrics................20-21

VM1L Series

Reduced Profile LED

Introduction/Logic .. . . . . . . . .36-37 XXX X

Selection Grids ..... . . . . . . . .38-39

Components/Accessories .....40

Dimensions .....................41

Photometrics ................41-42

EML Series

Explosion-Proof LED

CLI, Div.1, CL II, Div. 1, N4X

Introduction/Logic .. . . . . . . . . . .132 XX X X

Selection Grids ......... . . . . . .133

Components/Accessories ...134

Dimensions ...................135

Photometrics ......... . . . .135-136

NVSL Series LED Signals

CLI, Div.2, CL II, Div. 1, N4X

Non-Metallic, Non-Glass ..216-218 XXX X

LED

TECHNOLOGY

Section L

Liii

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

General Suitability —

See catalog pages for details

PRODUCT PAGE NO.

LINEAR FLUORESCENT

DBF Series

Fluorescent

Class l, Div. 2 .................172 XXX X

LZ2S Series

Fluorescent Stainless Steel ...173 XXX X

LZ2N Series

Fluorescent Non-Metallic

Class I, Div. 2

Class II, Div. I ......... . . . .174-177 XXX X

HFX-T Series

BIAXIAL Fluorescent

Class I, Div. I . . . . .........178-179 XX X X

HFX Series

Hazardous Location

Paint Spray Suitable .....180-185 XX X X

See L206-207

for emergency

backed models . . . . . . .206-207 XXX X

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

General Suitability —

See catalog pages for details

EMERGENCY SIGNALING

STROBE LIGHTING

ESX

Strobe Class I, Div. 1 .. . .214-215 XX X X

NVSL/NVSZ

LED and XENON

Non-Metallic, Non-Glass .216-218 XXX X

PRODUCT PAGE NO.

FLOODLIGHTS &

WALL MOUNT FIXTURES

KWP Series

Wallpack

for Class I, Div. 2 & N4 ..194-195 XXX

Quartz Floods . . . . . . . . . . . .186-187 X

KF Series

Floods Aluminum

Class I, Div. 2 Marine N4

150 to 1000 Watt . . . . . . . .189-191 XXX

KF-SS

MariGard Stainless

Class I, Div. 2 Marine N4

150-400 Watt .. . . . . . . . . . . .192-193 XXXX

EM/DM

Portable Floods . . . . . . .........188 XX X X

EZ-T Trunnion ...........196-197 XX X

Section L

Liv

FITTINGS & ADAPTERS

FKA & FHC ...................219 X

HOOK/LOOP .................219 X

FH HOOK .....................220 X

V Series

Fixture Hangers .. . . . . . . . . . . . . .220 X

HXB & XFH ...................221 XXX

EKJ Series

Flexible Couplings ......... . .221 XXXX

JL & JAL ......................222 XXX

ENY-2SET

Pendant Seals ................222 XXXX

VMCHVM

Adapter .......................223 XX XX X

EAC

Adapters ......................224 XX X X

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

Wet / Damp Location (or N3)

NEMA 4 (or 4X, or IP6x)

Class I, Div. 2 / Zone 2

Class I, Zone 2 Ex nR (option)

Class I, Div. 2 / Zone I

Class II / III Div. 1

Class II / III Div. 2

Class I, Div. 1 C,D / Zone I

Class I, Div. 1 A,B,C,D / Zone I

CENELEC Zone 2

CENELEC Zone 1

General Suitability —

See catalog pages for details

General Suitability —

See catalog pages for details

PRODUCT PAGE NO.

EMERGENCY LIGHTING

BATTERY-BACKED

DE3B/DE4B ..................198

Class II, Div. 1

Exit Accessory . . ......... . . . . 204 XX X

VE3B/VE4B

VE3Q/VE4Q

Class I, Div. 2/N4

Class ll/N4.....................198 XXX X

Exit Accessory . . ......... . . . . 204

EEQ

Class I, Div. 1 .................211 XXX

Exit Accessory ................211

EBB

Class I, D1/N3

Halogen Lamps...............212 XXX

BATTERY OPTION

FLUORESCENT

DBFE

Linear Fluorescent

Class I, D2/N4 ................208 XXX X

LZ2NE/LZ2SE (FRP or SS)

Class I, Div. 2

Class II, Div. 2 ................209 XXX X

HFXE

Class I, Div. 1 .................210 XXX X X

T-codes @ 40°C Max; with or without Reflector

Min. supply wire Fluor. 60oC, Incan. 90oC

NV2 SERIES •LIGHTING

NON-METALLIC CORROSION RESISTANT HAZARDOUS FIXTURES

FEATURES-SPECIFICATIONS

See page L15 for

NVP Series

with Lexan®Globes

Pendant

Incandescent

Pendant

Fluorescent

Ceiling

Incandescent

Ceiling

Fluorescent

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 2, Groups F,G

Class lII

Marine

NEMA 3, 4, 4X, IP66

ABS Type Approval

Certified - File LR11713

Applications

Designed specifically for corrosive & wet

NEMA 4X and hazardous environments.

Typical applications include manufactur-

ing plants, chemical and petrochemical

processing facilities, sewage treatment

plants, off-shore and dockside installa-

tions, agricultural, commercial/industrial,

mining and marine facilities.

Features

•NV2 Series non-metallic light fixtures

combine an outstanding balance of

strength, stiffness, toughness and

electrical properties

•Energy and labor saving fluorescent

or incandescent models

•Accessories include polycarbonate

dome reflectors and wall extension

•Molded from 30% glass-filled ther-

moset polyester for high strength

•Resists corrosive effects of most

chemicals, hydrocarbons and

solvents

•Designed for indoor and outdoor,

globe down applications.

to the following standards:

UL 1598 Standard for luminaires

UL 1598A Marine type luminaires

UL 844 Standard for lighting fixtures for

hazardous locations

CSA C22.2 no. 137-M1981 electric lumi-

naires for use in hazardous locations

Enclosed and gasketed

NEMA 3, 4X, IP66

Colored Globe Options**

Example: NV2IG15ASG-R for Ruby Standard Globe

or NV2IG15AHG-R for Ruby Tempered Globe

Suffix and available combinations

Color Standard Globe Tempered Globe

Amber AA

Blue BB

Ruby RR

Green G NA

Purple P NA

Blue- BG BG

Green

**Tempered globes are required for wet locations.

Pendant 3/4" Fixture w/clear Globe & Guard*

Type Standard Globe Tempered Globe

150A Incan.

13 W Fluor.

18 W Fluor.

26 W Fluor.

32 W Fluor.

42 W Fluor.

NV2IG15ASG

NV2FG13ASG

NV2FG18ASG

NV2FG26ASG

NV2FG32ASG

NV2FG42ASG

NV2IG15AHG

NV2FG13AHG

NV2FG18AHG

NV2FG26AHG

NV2FG32AHG

NV2FG42AHG

150A Incan.

13 W Fluor.

18 W Fluor.

26 W Fluor.

32 W Fluor.

42 W Fluor.

150A Incan.

13 W Fluor.

18 W Fluor.

26 W Fluor.

32 W Fluor.

42 W Fluor.

NV2IG15XSG

NV2FG13XSG

NV2FG18XSG

NV2FG26XSG

NV2FG32XSG

NV2FG42XSG

NV2IG15XHG

NV2FG13XHG

NV2FG18XHG

NV2FG26XHG

NV2FG32XHG

NV2FG42XHG

NV2IG15BSG

NV2FG13BSG

NV2FG18BSG

NV2FG26BSG

NV2FG32BSG

NV2FG42BSG

NV2IG15BHG

NV2FG13BHG

NV2FG18BHG

NV2FG26BHG

NV2FG32BHG

NV2FG42BHG

*Notes:

•Tempered Globes are required for Wet

Location applications

•All assemblies are unit packed with

required components (not assembled)

•Fluorescent unit pack models (only) include

the lamp

•Reflector is sold separately. For wall mount-

ing with reflector, the NVEXTG extension is

required and sold separately

•Fluorescent models use “world voltage”

ballasts for 120VAC through 277VAC

50/60Hz applications

•Incandescent models 277VAC max.

•For M20 ceiling units change “X” in part #

to “M”. For wall units change “B” to “W”.

M20 Pendant not available.

Ceiling 3/4" Fixture w/clear Globe & Guard*

Type Standard Globe Tempered Globe

75A

100A

150A

13 Fluor

18 Fluor

26 Fluor

32 Fluor

42 Fluor

Class I Div.2 Class II Div.2 Minimum Start

Globe Type Clear Color Clear Color oCoF

Wall 3/4" Fixture w/clear Globe & Guard*

Type Standard Globe Tempered Globe

T2C

T2A

T2B

T3C

T3B

T2D

T2B

T3C

T3A

T2C

T3C

T4A

-20

-4

Fluorescent Operating Max. Amps

Type 120 VAC 277 VAC

13W Fluor .144 .067

18W Fluor .158 .073

26W Fluor .22 .097

32W Fluor .285 .128

42W Fluor .38 .166

NV2AG Pendant 3/4" NPT Pendant splice box includes a 316 stainless steel set screw at

the conduit connection

NV2XG1Ceiling 3/4" NPT

NV2MG1Box M20

NV2BG Wall Bracket Use with NV2XG or NV2MG for wall mount

1NV2 ceiling (wall) boxes have 4 10-32 brass inserts with 2 ground screws. May be used for wet locations, as

terminal/junction, boxes ,or instruments using ‘clear’ blank cover.

2See page L12 for colored globes; use tempered for wet locations.

NV2 SERIES •LIGHTING

NON-METALLIC CORROSION RESISTANT HAZARDOUS FIXTURES L3

COMPONENT PARTS

ABS Type Approval

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 2, Groups F,G

Class lII

Marine

NEMA 3, 4, 4X, IP66

Wall Mount

Incandescent

Pendent

Wall Mount

Fluorescent

Wall Mount with

Extension and Dome

Reflector accessories

Ceiling/Wall

Wall Elbow Ceiling/Wall

(Interior Detail)

Incandescent Fluorescent

Globe Guard

Reflector Extension

Gray Blank Clear

NV2 SPLICE BOXES - INCLUDES SILICONE GASKETS & BRASS SCREWS

CATALOG NUMBER DESCRIPTION

NV2 BODIES

CATALOG NUMBER DESCRIPTION

NV2IG15 Incandescent Body with E-26 medium base socket; fixture rated voltage 277VAC max.

NV2FG13 13 W Fluorescent Body World Voltage 120V - 277V 50/60Hz

NV2FG18 18 W Fluorescent Body World Voltage 120V - 277V 50/60Hz

NV2FG26 26 W Fluorescent Body World Voltage 120V - 277V 50/60Hz

NV2FG32 32 W Fluorescent Body World Voltage 120V - 277V 50/60Hz

NV2FG42 42 W Fluorescent Body World Voltage 120V - 277V 50/60Hz

NV2 GLASS GLOBES & GUARDS2

CATALOG NUMBER DESCRIPTION

VCG-100 Clear

VCGP-100 Clear, Tempered

NV2GG Guard

Ceiling

Box

150 watt Lamp size A-21 max.

NV2 REFLECTORS AND EXTENSION

CATALOG NUMBER DESCRIPTION

NVPSD12 White Polycabonate Reflector (secured by guard)

NVEXTG Extension (for wall mount fixture with reflector)

BLANK COVERS FOR NV2XG CEILING BOXES

CATALOG NUMBER DESCRIPTION

NV2CG Gray Cover

NV2CC1Clear Cover

NV2F FLUORESCENT REPLACEMENT LAMPS AND BALLASTS

MQL13 13 W Quad-Pin Lamp 900 Lumens

MQL18 18 W Quad-Pin Lamp 1200 Lumens

MQL26 26 W Quad-Pin Lamp 1800 Lumens

MQL32 32 W Quad-Pin Lamp 2400 Lumens

MQL42 42 W Quad-Pin Lamp 3200 Lumens

Ceiling box vol. 24 cu. inches

BKF131830 13/18 Watt Rep. Ballast

BKF26324230 26/32/42 Watt Rep. Ballast

Certified - File LR11713

NV2IG15 Incandescent

With Globe & Guard

Candlepower - 150 Watt

A-21 lamp 2850 lumens

For 75 Watt multiply by .42

For 100 Watt multiply by .61

NV2XG

5.19

(132)

Volume

24 Cu.In.

њ.33

TYP

(0)

NV2 SERIES •LIGHTING

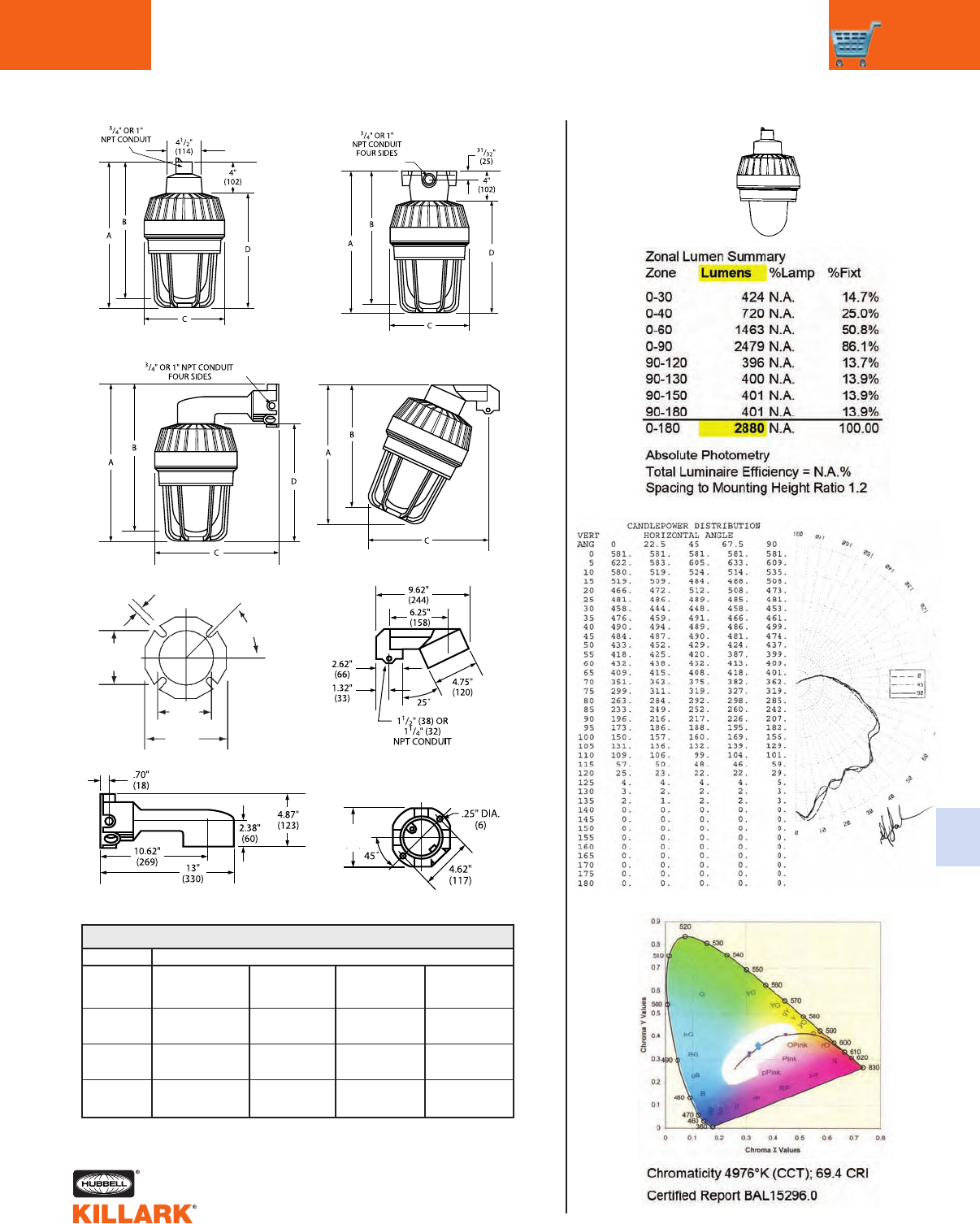

DIMENSIONS, CROSS REFERENCE, PHOTOMETRIC DATA

Pendant

Dimensions* NV To NV2 Cross Reference Photometrics

Ceiling

Wall

Wall mount with optional reflector and with

extension. Extension required only for wall

mount units using reflector.

*NOTE: Dimensional diagrams show incan-

descent models, but include height also for

fluorescent.

11.20

Incandescent

(285)

12.31

Fluorescent

(340)

4.53 DIA.

(115)

11.69 DIA.

(297)

10.84

Incandescent

(275)

11.95

Fluorescent

(304)

4.75

(121)

12.26

Incandescent

(311)

13.37

Fluorescent

(340)

7.30

(185)

12.26 Incandescent

(311)

13.37 Fluorescent

(340)

13.78

(350)

Complete Fixtures

NVA15GG NV2IG15ASG INC 150W PEND STD GLOBE/GRD

NVA15GHG NV2IG15AHG INC 150W PEND TEMPER GLB/GRD

NVX15GG NV2IG15XSG INC 150W CEIL STD GLOBE/GRD

NVX15GHG NV2IG15XHG INC 150W CEIL TEMPER GLB/GRD

NVB15GG NV2IG15BSG INC 150W WALL STD GLOBE/GRD

NVB15GHG NV2IG15BHG INC 150W WALL TEMPER GLB/GRD

NVQA18GG NV2FG18ASG FL18 120-277 PEND STD GLOB/GRD

NVQA18GHG NV2FG18AHG FL18 120-277 PEND TEM GLOB/GRD

NVQX18GG NV2FG18XSG FL18 120-277 CEIL STD GLOB/GRD

NVQX18GHG NV2FG18XHG FL18 120-277 CEIL TEM GLB/GRD

NVQB18GG NV2FG18BSG FL18 120-277 WALL STD GLOB/GRD

NVQB18GHG NV2FG18BHG FL18 120-277 WALL TEM GLOB/GRD

Components

NVA NV2AG 3/4" Pendant

NVX NV2XG 3/4" Ceiling (Wall) Box

NVB NV2BG Elbow, use with Ceiling Box

NVQFC NV2FG18 Fluorescent Body 120-277VAC

50/60Hz

NVQFC184 (1) NV2FG18 Fluorescent Body 120-277VAC

50/60Hz

NVFC NV2IG15 Incandescent Body

NVFC-LT (2) NV2IG15 Incandescent Body

NVG NV2GG Guard

NVQ-18 MQL18 18W Compact Fluor. Lamp

NVBC NV2CG Blank Cover w/Two Gaskets

NVSG NV2CG Use Blank Cover’s extra gasket

(1) “4” for 277VAC Fluorescent no longer required

(2) Insulated socket incandescent no longer needed for 90c wire

Key New Features:

•Certified for Hostile Locations: Class I Div 2;

Class II Div 2; N4X; IP66

•ABS Approval

•120-277VAC 50/60Hz World Voltage Ballasts on Fluorescents

•Four new Fluorescent Wattages: 13, 26, 32, 42

•Only 90° C wire for Incandescent suitable for Marine with 150A

•New Dome Reflector

•Colored “100” Series globes can be ordered in assemblies

•M20 Metric ceiling/wall box

•Four 10-32 bosses in ceiling box for user applications

•Clear Blank covers available for user applications

Backward Compatability:

•NVG & NV2GG are interchangeable

•Globes are interchangeable

•Old NV Incandescent and Fluorescent bodies will fit new

NV2 Boxes and Elbow, but assembly is Wet Location listed only

•New NV2IG15 Incandescent will fit old NV Boxes and Elbow

•New NV2FGx Fluorescent will fit old NVX box, not pendant

or elbow

•Reflectors will fit old bodies for pendant or ceiling applications

OLD NEW# NEW DESCRIPTION

C US

% EFFECTIVE

FLOOR CAVITY

REFLECTANCE

0.20

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .79 .79 .79 .79 .74 .74 .74 .74 .64 .64 .64 .54.54 .54 .45 .45 .45 .41

1 .69 .64 .59 .55 .63 .59 .55 .51 .50 .47 .44 .41 .39 .37 .34 .32.30 .26

2 .61 .53 .47 .42 .56 .49.44 .39 .41 .37 .33 .34.31 .28 .27 .25 .23 .19

3 .55 .46 .39 .33 .50 .42.36 .31 .35 .30 .26 .29.25 .22 .23 .20 .18 .14

4 .49 .40 .33 .27 .45 .37.30 .25 .31 .26 .21 .25.21 .18 .20 .17 .14 .11

5 .45 .35 .28 .23 .41 .23.26 .21 .27 .22 .18 .22.18 .15 .18 .14 .12 .09

6 .41 .31 .24 .19 .38 .29.22 .18 .24 .19 .15 .20.16 .12 .16 .12 .10 .08

7 .38 .28 .21 .16 .35 .26.20 .15 .22 .17 .13 .18 .14 .11 .14 .11 .08 .06

8 .35 .25 .19 .14 .32 .23.17 .13 .20 .15 .11 .16 .12 .09 .13 .10 .07 .06

9 .33 .23 .17 .12 .30 .21.15 .12 .18 .13 .10 .15.11 .08 .12 .09 .06 .05

10 .30 .21 .15 .11 .28 .19 .14 .10 .16 .12 .09 .14 .10 .07 .11 .08 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCRW

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING CRITERION = 2.3

TEST NO. 1716

1.15

(29)

5.37

(137)

2.12

(54)

1.15

(29)

1.15

(29)

NV2 SERIES •LIGHTING

PHOTOMETRIC DATA L5

% EFFECTIVE

FLOOR CAVITY

REFLECTANCE

0.20

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .65 .65 .65 .65 .63 .63.63 .63 .60 .60 .60 .58.58 .58 .55 .55 .55 .54

1 .58 .56 .53 .51 .57 .54 .52 .50 .52 .50 .48 .50 .48 .47 .48 .47 .45 .44

2 .53 .48 .43 .40 .51 .47.43 .40 .45 .41 .39 .43.40 .38 .41 .39 .37 .36

3 .47 .41 .36 .32 .46 .40.36 .32 .39 .35 .31 .37.34 .31 .36 .33 .30 .29

4 .43 .36 .31 .27 .42 .35.30 .27 .34 .29 .26 .32.29 .26 .31 .28 .25 .24

5 .39 .32 .26 .23 .38 .31.26 .22 .30 .25 .22 .29.25 .22 .28 .24 .12 .20

6 .36 .28 .23 .19 .35 .28.23 .19 .27 .22 .19 .26.22 .19 .25 .21 .19 .17

7 .33 .25 .20 .17 .32 .25.20 .17 .24 .20 .17 .23.19 .16 .23 .19 .16 .15

8 .31 .23 .18 .15 .30 .23.18 .15 .22 .18 .15 .27.17 .14 .21 .17 .14 .13

9 .29 .21 .16 .13 .28 .21.16 .13 .20 .16 .13 .19 .16 .13 .19 .15 .13 .12

10 .27 .19 .15 .12 .26 .19 .15 .12 .18 .14 .12 .18.14 .12 .17 .14 .12 .11

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCRW

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING CRITERION = 1.5

TEST NO. 1717

*Full cutoff distribution

Photometrics

NV2FG26 Fluorescent

With Globe & Guard

Candlepower - 26 Watt

CF26 lamp 1800 lumens

For 13 Watt multiply by .50

For 18 Watt multiply by .67

For 32 Watt multiply by 1.33

For 42 Watt multiply by 1.78

% EFFECTIVE

FLOOR CAVITY

REFLECTANCE

0.20

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .86 .86 .86 .86 .80 .80.80 .80 .69 .69 .69 .59.59 .59 .50 .50 .50 .46

1 .73 .68 .63 .58 .68 .63.58 .54 .53 .50 .47 .45.42 .39 .37 .35 .33 .29

2 .65 .57 .50 .44 .60 .52.46 .41 .44 .39 .35 .36.33 .29 .30 .27 .24 .20

3 .58 .48 .41 .34 .53 .44.38 .32 .37 .32 .27 .31.26 .23 .25 .21 .18 .15

4 .52 .42 .34 .28 .48 .38.31 .26 .32 .27 .22 .27.22 .18 .21 .18 .15 .12

5 .48 .37 .29 .23 .44 .34.27 .21 .28 .23 .18 .23.19 .15 .19 .15 .12 .09

6 .44 .32 .25 .19 .40 .30.23 .18 .25 .19 .15 .21.16 .13 .17 .13 .10 .08

7 .40 .29 .22 .16 .37 .27.20 .15 .22 .17 .13 .19.14 .11 .15 .11 .08 .06

8 .37 .26 .19 .14 .34 .24.18 .13 .20 .15 .11 .17 .12 .09 .14 .10 .07 .05

9 .34 .24 .17 .12 .32 .22.16 .11 .18 .13 .10 .15 .11 .08 .12 .09 .06 .05

10 .32 .21 .15 .11 .30 .20.14 .10 .17 .12 .09 .14.10 .07 .11 .08 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCRW

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING CRITERION = 3.5

TEST NO. 1720

% EFFECTIVE

FLOOR CAVITY

REFLECTANCE

0.20

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .64 .64 .64 .64 .63 .63.63 .63 .60 .60 .60 .58.58 .58 .55 .55 .55 .54

1 .59 .56 .54 .52 .57 .55.53 .51 .53 .51 .49 .50.49 .48 .48 .47 .46 .45

2 .53 .48 .45 .41 .52 .47.44 .41 .45 .42 .40 .44.41 .39 .42 .40 .38 .37

3 .48 .42 .37 .34 .47 .41.37 .34 .40 .36 .33 .38.35 .32 .37 .34 .32 .31

4 .44 .37 .32 .28 .42 .36.32 .28 .35 .31 .28 .34.30 .27 .32 .29 .27 .26

5 .40 .33 .28 .24 .39 .32.27 .24 .31 .27 .23 .30.26 .23 .29 .26 .23 .22

6 .37 .29 .24 .21 .36 .29.24 .20 .28 .23 .20 .27.23 .20 .26 .23 .20 .19

7 .34 .26 .21 .18 .33 .26 .21 .18 .25 .21 .18 .24.20 .18 .23 .20 .17 .16

8 .32 .24 .19 .16 .31 .24.19 .16 .23 .19 .16 .22.18 .16 .21 .18 .15 .14

9 .29 .22 .17 .14 .29 .22.17 .14 .21 .17 .14 .20.17 .14 .20 .16 .14 .13

10 .27 .20 .16 .13 .27 .20.16 .13 .19 .15 .13 .19.15 .13 .18 .15 .12 .11

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCRW

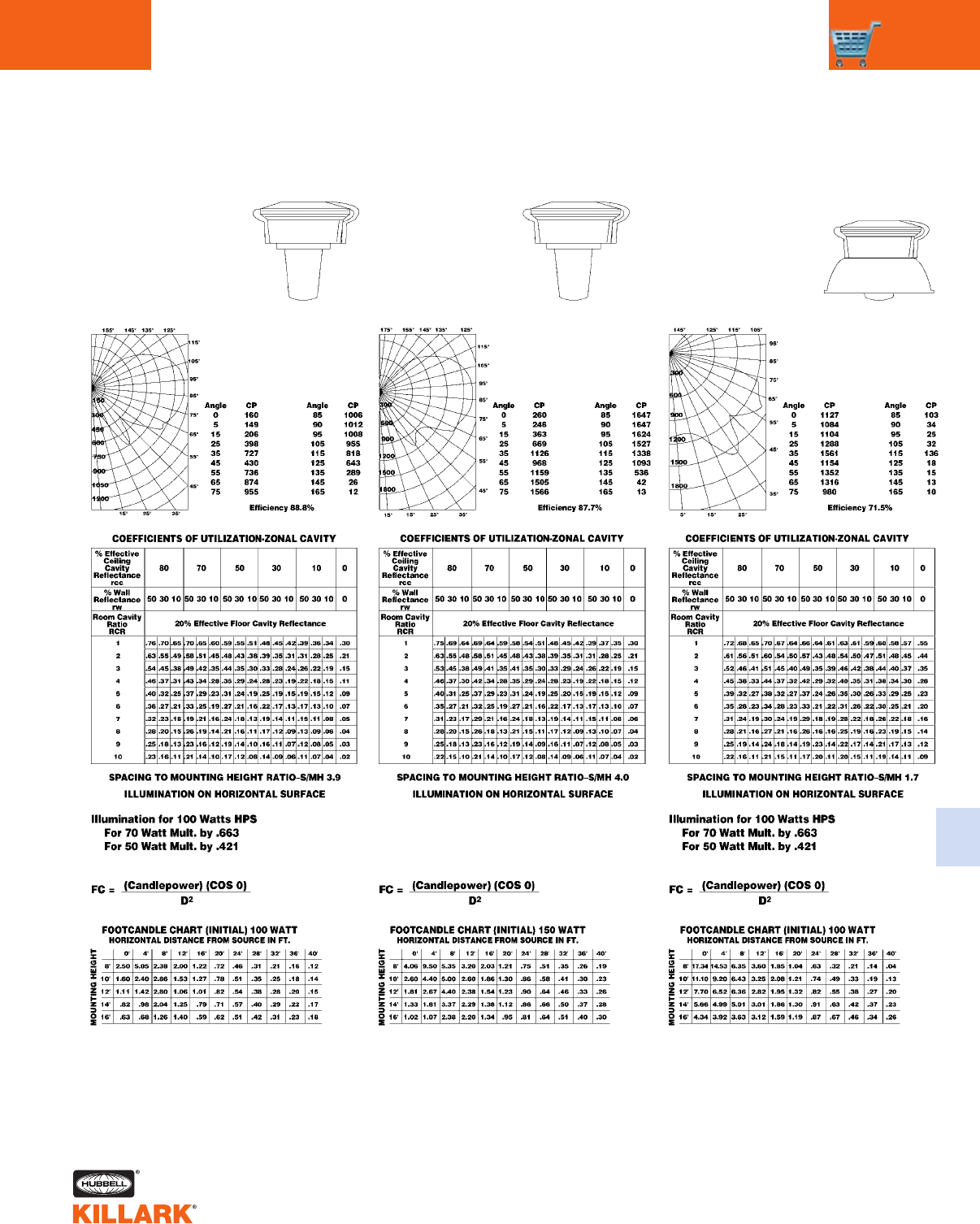

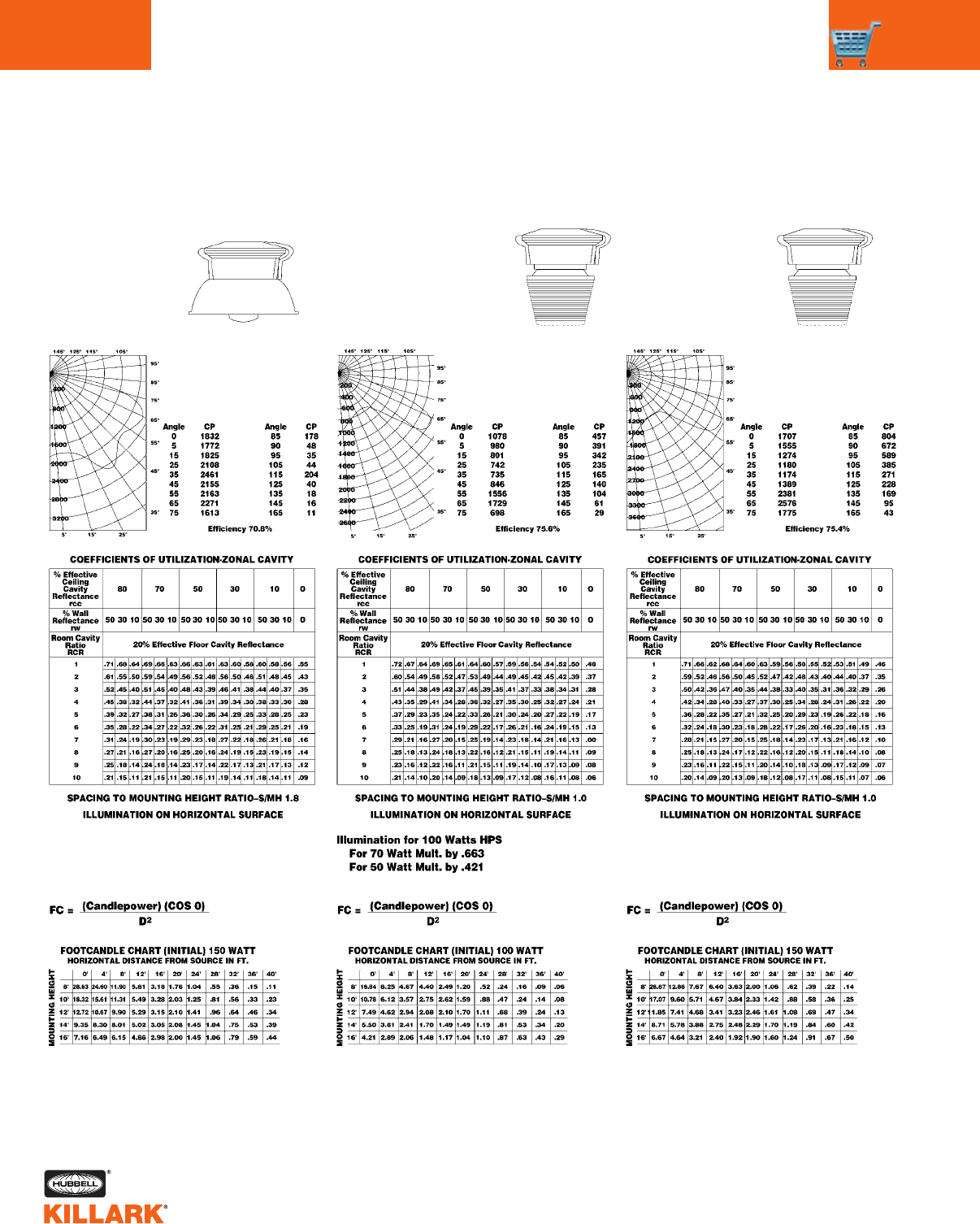

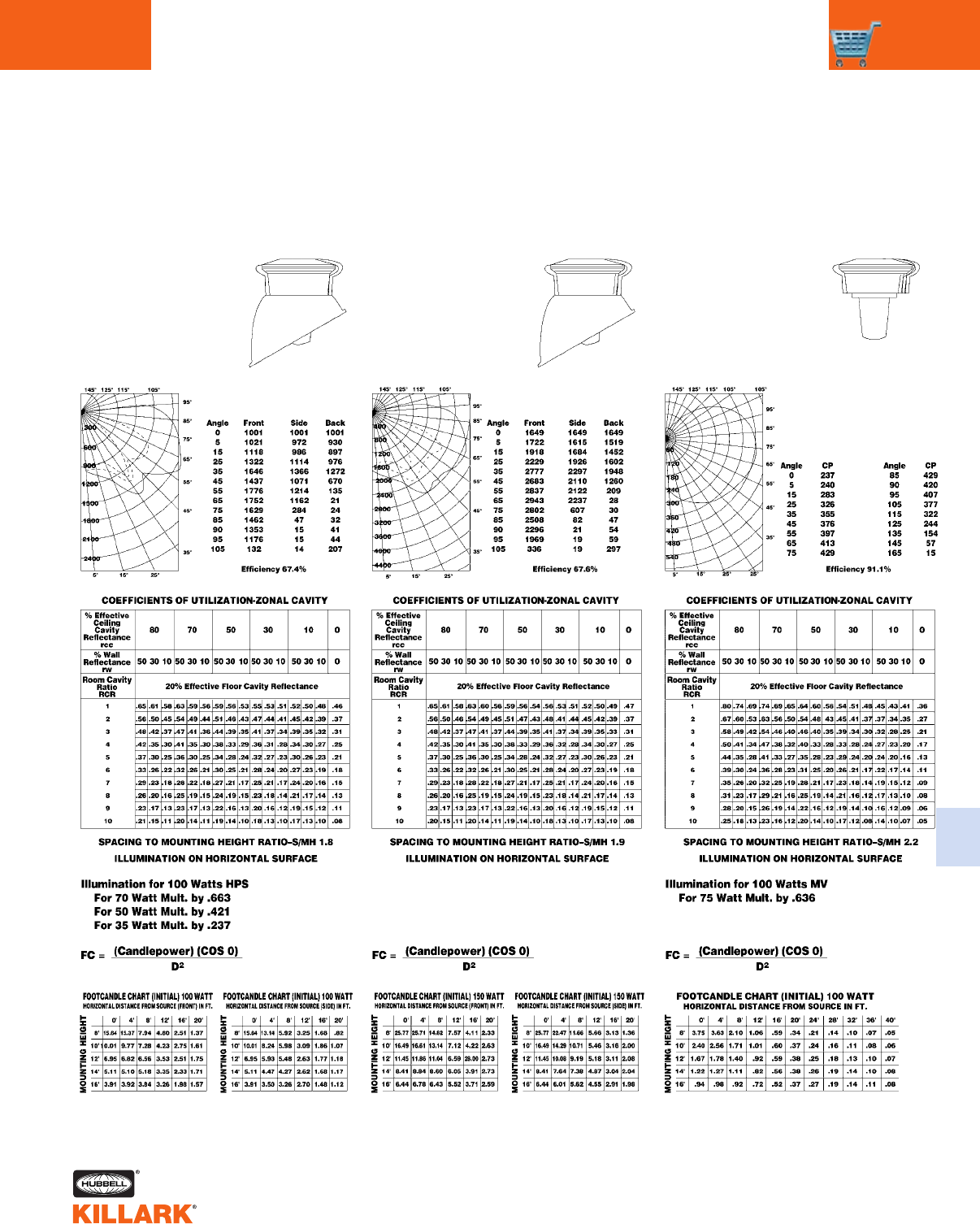

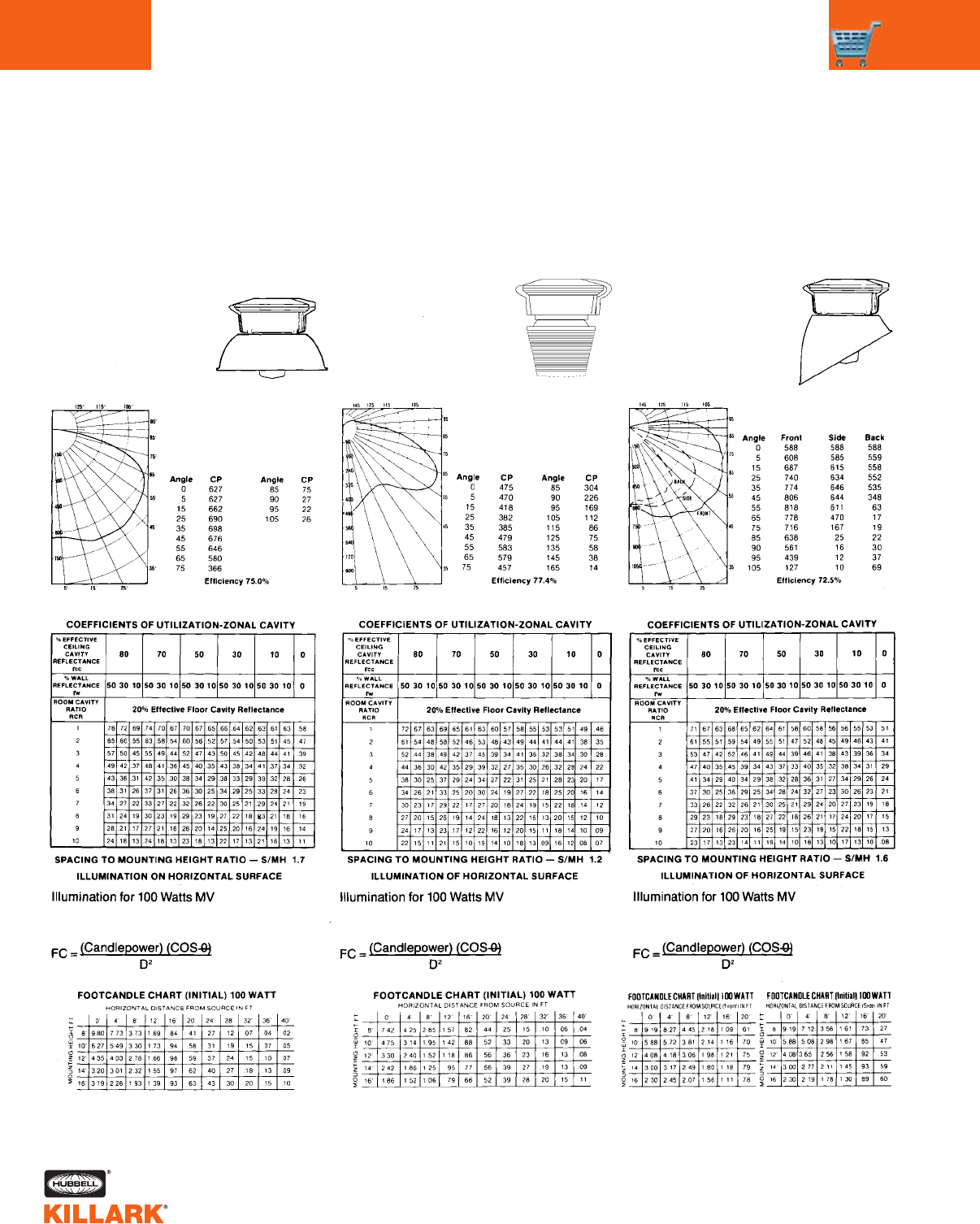

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING CRITERION = 1.4

TEST NO. 1724

*Full cutoff distribution

NV2FG26 Fluorescent

With Globe, Guard & Reflector

Candlepower - 26 Watt

CF26 lamp 1800 lumens

For 13 Watt multiply by .50

For 18 Watt multiply by .67

For 32 Watt multiply by 1.33

For 42 Watt multiply by 1.78

NV2IG15 Incandescent

With Globe, Guard & Reflector

Candlepower - 150 Watt

A-21 lamp 2850 lumens

For 75 Watt multiply by .42

For 100 Watt multiply by .61

V SERIES •WEATHERPROOF

INCANDESCENT COPPER-FREE ALUMINUM FIXTURES

INTRODUCTION AND ORDERING INFORMATION

Listed - File E27731

Certified - File LR11851

Enclosed & Gasketed

CATALOG NUMBER

PENDANT MOUNT WITH VGA SPLICE BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX

VGA-1

VGA-2

VGA-1

VGA-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VUAGG-1-100 1

VUAGG-2-100 1

VUAGG-1-200 2

VUAGG-2-200 2

FIXTURE W/

GLOBE

VUAG-1-100 2

VUAG-2-100 2

VUAG-1-200 2

VUAG-2-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH VGX SPLICE BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX

VGX-1

VGX-2

VGX-1

VGX-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VUXGG-1-100 2

VUXGG-2-100 2

VUXGG-1-200 2

VUXGG-2-200 2

FIXTURE W/

GLOBE

VUXG-1-100 2

VUXG-2-100 2

VUXG-1-200 2

VUXG-2-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH FEET USING VBC SPLICE BOX AND VBA ADAPTER

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX/ADAPTER

VBC-1+VBA

VBC-2 + VBA

VBC-1+VBA

VBC-2 + VBA

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VUXBGG-1-100 1

VUXBGG-2-100 1

VUXBGG-1-200 2

VUXBGG-2-200 2

FIXTURE W/

GLOBE

VUXBG-1-100 1

VUXBG-2-100 1

VUXBG-1-200 2

VUXBG-2-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH VGC SPLICE BOX - FEED THROUGH

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX

VGC-1

VGC-2

VGC-1

VGC-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VUCGG-1-100 1

VUCGG-2-100 2

VUCGG-1-200 2

VUCGG-2-200 2

FIXTURE W/

GLOBE

VUCG-1-100 2

VUCG-2-100 2

VUCG-1-200 2

VUCG-2-200 2

CONSISTS OF

*For other colors, order globes and fixture components separately.

1Fixture supplied as component unit pack when ordered by this catalog number.

2Catalog number for ordering convenience; fixture is shipped as components as listed in catalog

number table.

V Series

Enclosed &

Gasketed

Applications

Locations requiring durable,

protected lighting fixtures

Wet and dirt laden locations

Industrial environments

requiring enclosed and gas-

keted (vapor tight) fixtures

Fixtures intended for base-up

mounting

Heat resistant glass globes

recommended for wet loca-

tions

Features

•Electrostatically applied

epoxy/polyester finish

•Modular design

•Hubs are threaded for

attachment to conduit

•Set screws in pendant fix-

tures

•Copper-free aluminum (less

than 4/10 of 1%)

Class I, Div. 2, NEMA 4 mod-

els available - see VXFC

Series lighting assemblies

& components, pages L9-

L12. Dimensions page L13.

V SERIES •WEATHERPROOF

INCANDESCENT COPPER-FREE ALUMINUM FIXTURES L7

ORDERING INFORMATION

Listed - File E27731

Certified - File LR11851

Enclosed & Gasketed

CATALOG NUMBER

CEILING MOUNT WITH VBA ADAPTER FOR ROUND OUTLET BOX

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

HUB

SIZE

1/2"

3/4"

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

BOX

ADAPTER

VBA

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VOBG-100 1

VOBG-200 1

FIXTURE W/

GLOBE

VOB-100 1

VOB-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH VFPS ADAPTER FOR SQUARE OR OCTAGON OUTLET BOX

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

HUB

SIZE

1/2"

3/4"

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

BOX

ADAPTER

VFPS

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VFCAG-100 2

VFCAG-200 2

FIXTURE W/

GLOBE

VFCA-100 1

VFCA-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH VGH SPLICE BOX - DEAD END

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX

VGH-1

VGH-2

VGH-1

VGH-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VUHGG-1-100 2

VUHGG-2-100 2

VUHGG-1-200 2

VUHGG-2-200 2

FIXTURE W/

GLOBE

VUHG-1-100 2

VUHG-2-100 2

VUHG-1-200 2

VUHG-2-200 2

CONSISTS OF

CATALOG NUMBER

CEILING MOUNT WITH VXA DEEP 5-HUB SPLICE BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX

VXA-1

VXA-2

VXA-1

VXA-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VXAGG-110 1

VXAGG-210 2

VXAGG-120 2

VXAGG-220 2

FIXTURE W/

GLOBE

VXAG-110 2

VXAG-210 2

VXAG-120 2

VXAG-220 2

CONSISTS OF

NOTES: Mounts directly to VJ ,VB or steel 3-1/2" or 4" outlet boxes. Supplied with gasket.

NOTES: Mounts directly to steel 4" square and 3-1/2" or 4" octagon outlet box. Supplied with gasket.

*For other colors, order globe and fixture components separately.

1Fixture supplied as component unit pack when ordered by this catalog number.

2Catalog number for ordering convenience; fixture is shipped as components as listed in catalog number table.

LAMP

WATT

150

300

LAMP

WATT

150

300

V SERIES •WEATHERPROOF

INCANDESCENT COPPER-FREE ALUMINUM FIXTURES

ORDERING INFORMATION

CATALOG NUMBER

STANCHION MOUNT FOR 1-1/4" THREADED PIPE

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

HUB

SIZE

1-1/4"

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

ARM

VD-4

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VD-410GG 1

VD-420GG 2

FIXTURE W/

GLOBE

VD-410G 1

VD-420G 2

CONSISTS OF

CATALOG NUMBER

WALL MOUNT WITH VB ELBOW TO MOUNT TO 4" OUTLET BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

ELBOW

VB-1

VB-2

VB-1

VB-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VFBGG-110 1

VFBGG-210 1

VFBGG-120 2

VFBGG-220 2

FIXTURE W/

GLOBE

VFBG-110 2

VFBG-210 2

VFBG-120 2

VFBG-220 2

CONSISTS OF

CATALOG NUMBER

WALL MOUNT WITH FEET USING VBC SPLICE BOX AND VB ELBOW

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

LAMP

WATT

150

300

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

BOX/ELBOW

VBC-1+VB-1

VBC-2+VB-2

VBC-1+VB-1

VBC-2+VB-2

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VFBGG-1-100 1

VFBGG-2-100 1

VFBGG-1-200 2

VFBGG-2-200 2

FIXTURE W/

GLOBE

VFBG-1-100 1

VFBG-2-100 1

VFBG-1-200 2

VFBG-2-200 2

CONSISTS OF

CATALOG NUMBER

WALL MOUNT-WITH VFL ELBOW FOR DIRECT MOUNT TO V SERIES SPLICE BOXES

FIXTURE

TYPE

100

200

LAMP

WATT

150

300

HUB

SIZE

—

GUARD

(if selected)

VAG-100

VAG-200

FIXTURE

BODY

VFC-100

VFC-200

MOUNTING

ELBOW

VFL

CLEAR

GLOBE*

VCG-100

VCG-200

FIXTURE W/

GLOBE & GUARD

VOBLG-100 1

VOBLG-200 2

FIXTURE W/

GLOBE

VOBL-100 2

VOBL-200 2

CONSISTS OF

Mounts directly to V Series splice boxes, not to VBC box.

Mounts directly to VJ or VB Series or 4" steel outlet boxes. One hub in back, supplied with gasket.

*For other colors, order globe and fixture components separately.

1Fixture supplied as component unit pack when ordered by this catalog number.

2Catalog number for ordering convenience; fixture is shipped as components as listed in catalog

number table.

Listed - File E27731

Certified - File LR11851

Enclosed & Gasketed

V SERIES •LIGHTING

INCANDESCENT NEMA 4 - CLASS I, DIV. 2 ALUMINUM FIXTURES L9

FEATURES-SPECIFICATIONS

* Wet location when used with tempered glass.

Listed - File E10514

Certified - File LR11713

UL-1571 Standard for incandescent fixtures

UL-844 Standard for hazardous location fixtures

Class I, Div. 2, Groups A,B,C,D

Class I, Zone 2, Groups IIC,IIB,IIA

NEMA 3, 4*

1Suitability based on base up installation

APPLICATION DATA1

FIXTURE

TYPE

100

200

LAMP

SIZE

A-19

60W

A-19

70W

A-19

100W

A-21

100W

A-21

150W

A-23

150W

PS-25

150W

A-23

200W

PS-25

200W

PS-25

300W

GLOBE

TYPE

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

colored &

clear

TEMPERATURE

CODE @ 40°C

T2C

(230°C)

T2D

(215°C)

T2A

(280°C)

T2B

(260°C)

(300°C)

T2A

(280°C)

T2B

(260°C)

(300°C)

T2A

(280°C)

(350°C)

See dimensions page L13.

Applications

Killark “V” Series Vaportight fixtures are

now available Third Party Certified for

use in certain hazardous as well as wet

locations which require durable, pro-

tected lighting fixtures.

Wet and dirt laden industrial environ-

ments such as walkways, tunnels,

loading docks, stairwells, etc. made

hazardous by the presence of flammable

vapors as defined by the NEC.

Fixtures intended for base-up mounting

only.

Heat resistant (tempered) glass globes

recommended for wet locations.

Features

Killark Vaportight assemblies using VXFC

bodies & tempered glass have all the

features & advantages of “V” Enclosed &

Gasketed” models plus:

•Heavy-duty silicone gasketing for

NEMA 4 requirements

•Third party tested & labeled for use

in C1D2 areas

•Modular design permits selection of

splice box, fixture body, globe, guard

and reflector for specific or custom

applications

•Existing V Series mounting boxes may

be retrofitted to upgrade to NEMA 4;

C1D2 suitability

Copper-free aluminum construction with

electrostatically applied epoxy/polyester

finish resists corrosion

Pendant

Ceiling

V SERIES •LIGHTING

INCANDESCENT NEMA 4 - CLASS I, DIV. 2 ALUMINUM FIXTURES

L10

FEATURES-SPECIFICATIONS

CATALOG NUMBER

PENDANT MOUNT WITH VGA SPLICE BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

VAG-100

VAG-200

FIXTURE

BODY

VXFC-100 N34

VXFC-200 N34

MOUNTING

BOX

VGA-1

VGA-2

VGA-1

VGA-2

CLEAR

GLOBE*

VCGP-100

VCGP-200

FIXTURE W/

GLOBE & GUARD

VUAGG-1-100PX 1

VUAGG-2-100PX 1

VUAGG-1-200PX 1

VUAGG-2-200PX 1

CONSISTS OF

CATALOG NUMBER

CEILING FIXTURE WITH VGX SPLICE BOX

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

VAG-100

VAG-200

FIXTURE

BODY

VXFC-100 N34

VXFC-200 N34

MOUNTING

BOX

VGX-1

VGX-2

VGX-1

VGX-2

CLEAR

GLOBE*

VCGP-100

VCGP-200

FIXTURE W/

GLOBE & GUARD

VUXGG-1-100PX 1

VUXGG-2-100PX 1

VUXGG-1-200PX 1

VUXGG-2-200PX 1

CONSISTS OF

CATALOG NUMBER

CEILING FIXTURE WITH MOUNTING FEET USING VBC SPLICE BOX & VBA ADAPTER

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

FIXTURE

BODY

VXFC-100 N34

VXFC-200 N34

MOUNTING

BOX/ADAPTER

VBC-1+VBA

VBC-2+VBA

VBC-1+VBA

VBC-2+VBA

CLEAR

GLOBE*

VCGP-100

VCGP-200

FIXTURE W/

GLOBE & GUARD

VUXBGG-1-100PX 1

VUXBGG-2-100PX 1

VUXBGG-1-200PX 1

VUXBGG-2-200PX 1

CONSISTS OF

*For other colors, order globes and mounting components separately.

1Fixture supplied as component unit pack when ordered by this catalog number.

2See page L9 for temperature codes; NEMA 3, 4 when used with tempered glass.

CATALOG NUMBER

WALL FIXTURE WITH MOUNTING FEET USING VBC SPLICE BOX & VB ELBOW

HUB

SIZE

1/2"

3/4"

1/2"

3/4"

FIXTURE

TYPE

100

200

GUARD

VAG-100

VAG-200

FIXTURE

BODY

VXFC-100 N34

VXFC-200 N34

MOUNTING

BOX/ELBOW

VBC-1 + VB-1

VBC-2 + VB-2

VBC-1 + VB-1

VBC-2 + VB-2

CLEAR

GLOBE*

VCGP-100

VCGP-200

FIXTURE W/

GLOBE & GUARD

VFBGG-1-100PX 1

VFBGG-2-100PX 1

VFBGG-1-200PX 1

VFBGG-2-200PX 1

CONSISTS OF

Listed - File E10514

Certified - File LR11713

UL-1571 Standard for incandescent fixtures

UL-844 Standard for hazardous location fixtures

Class I, Div. 2, Groups A,B,C,D2

Class I, Zone 2, Groups IIC,IIB,IIA

NEMA 3, 4

GUARD

VAG-100

VAG-200

LAMP

WATT

150

300

LAMP

WATT

150

300

LAMP

WATT

150

300

CATALOG NUMBER

STANCHION MOUNT FOR 1-1/4" THREADED PIPE

HUB

SIZE

1-1/4"

FIXTURE

TYPE

100

200

FIXTURE

BODY

VFC-100 N34

VFC-200 N34

MOUNTING

BOX/ADAPTER

VD-4

CLEAR

GLOBE*

VCGP-100

VCGP-200

FIXTURE W/

GLOBE & GUARD

VD-410GGPX 1

VD-420GGPX 1

CONSISTS OF

GUARD

VAG-100

VAG-200

LAMP

WATT

150

300

LAMP

WATT

150

300

V SERIES •LIGHTING

COMPONENT PARTS/ACCESSORIES •INCANDESCENT FIXTURES L11

VFC Fixture Bodies

Fixture bodies contain lamp receptacle

and are threaded to accept globes,

guards and reflectors. These fixture

bodies are designed for metallic boxes

and mount directly to V Series splice

boxes. They may also be mounted to VJ

Series, VB Series or other 4" outlet

boxes with the use of the appropriate

adapter plate. Each fixture body is

supplied with gaskets.

Listed - File E27731

Certified - File LR11851

V Splice Boxes

For use with types 100 and 200

fixture bodies

VFC-100

VXFC-1001

VGA

VGC

VXA

VGX

VB VD

VFL

CATALOG NUMBER HUB SIZE & QTY.

VGA-1 1/2"

VGA-2 3/4"

VGH-1 1/2"

VGH-2 3/4"

VGC-1 1/2"

VGC-2 3/4"

VGX-1 1/2"

VGX-2 3/4"

VXA-1 1/2"

VXA-2 3/4"

VBC-1* 1/2"

VBC-2* 3/4"

VXAB _

V SPLICE BOXES

DESCRIPTION

Pendant mount

Ceiling mount

Ceiling mount, deep box

Ceiling mount, with 3 close-up plugs (requires VBA Adapter)

Blank close-up plate (less gasket)

CATALOG NUMBER HUB SIZE QTY.

VB-1 1/2"

VB-2 3/4"

VFL —

VD-4 1-1/4"

V MOUNTING BRACKETS

DESCRIPTION

Wall mount to VJ or VB boxes

Wall mount to V boxes directly or to VJ, VB boxes with VBA adapter

Stanchion mount

CATALOG NUMBER

VFC-100

VFC-200

VXFC-100 N34

VXFC-200 N34

V FIXTURE BODIES

DESCRIPTION

150W max. Enclosed & Gasketed Fixture Boby

300W max. Enclosed & Gasketed Fixture Boby

150W max. NEMA 3,4 - Class I, Div. 2 Fixture Body1

300W max. NEMA 3,4 - Class I, Div. 2 Fixture Body1

1Use VXFC body with tempered globe for NEMA 3, 4 - Class I, Div. 2 applications. VXFC body is

Class I, Div. 2 only (not N3, N4) when used with standard globes. Consult temperature table, page

L9 for suitability.

* Volume cu. in. is 18.

VBC

VBA

VFPS

V ADAPTER MOUNTING PLATES

Adapts fixture body to VB, VJ or steel 3-1/2" & 4" splice boxes. Supplied with gasket.

Adapts fixture body to steel 4" square outlet boxes or 3-1/2" or 4" octagon boxes

VBA VFPS

VGH

VFC-200

VXFC-2001

—

CATALOG NUMBER DESCRIPTION

V SERIES •LIGHTING

COMPONENT PARTS/ACCESSORIES •INCANDESCENT FIXTURES

L12

150 W A-21 LAMP

VCG-100

VCGP-100

VCGPT-100

VAMG-100

VAMGP-100

VGG-100

VGGP-100

VRG-100

VRGP-100

VRSG-100

VPG-100

300 W PS-25 LAMP

VCG-200

VCGP-200

—

VAMG-200

—

VGG-200

VGGP-200

—

VRG-200

VRGP-200

—

V GLASS GLOBES

CATALOG NUMBER

500 W PS-35 LAMP

75 W A-19 LAMP

VPLCG-100

150 W A-21 LAMP

VPLCG-200

VCG-500

VCGP-500

CATALOG NUMBER

VAG-100

VAG-200

V GUARDS

DESCRIPTION

100 Series Vaport i te guard

200 Series Va p ortite g u ard

VPRSD-100

VPRSD-200

V REFLECTORS

100 Series Reflector 16 3/8" Dia. 5 5/8" High. White polypropylene for pendant & ceiling

200 Series Reflector applications. Not for use with wall or stanchion models.

V SERIES GASKETS

Fixture body to splice box

Silicone, Fixture body to splice box

Replacement Gaskets for VB-1/VB-2 and VBA

Globe gasket

Silicone, globe gasket

VRME

V LAMP SOCKET

For fixture types 100 and 200

Listed - File E27731

Certified - File LR11851

150 W Max.

Lamp Size A-21

Polycarbonate 500 W Max.

Lamp Size PS-35

Globe Gasket

100 Series Standard - 15871AABB

200 Series Standard - VTGG (pictured)

100 Series Silicone - VTGG1-S

200 Series Silicone - VTGG2-S

300 W Max.

Lamp Size PS-25

VBG-100

VBGP-100 —

1Recommended for use with VXFC fixture basis.

2TM Thomas Manufacturing.

CATALOG NUMBER

TYPE DESCRIPTION

DESCRIPTION

100 SERIES 200 SERIES

15871AABB VTGG

VTGG1-S V T G G2-S

VTG

VTG-S

VBNB

CATALOG NUMBER DESCRIPTION

VFC

VXFC

—

VFC

VFXC

DESCRIPTION

Clear

Clear Tempered. Thermal and shock resistant1

Clear Tempered with Tuffskin®coating2

Amber

Amber Tempered1

Blue Green

Blue Green Tempered1

Blue

Blue Tempered1

Ruby

Ruby Tempered1

Green

Purple

Polycarbonate. Cannot be used with guard or in high ambient

temperature locations (40°C/104°F max.) Not UL Listed.

Clear (for replacement) Formerly DCG-20

Tempered. Thermal and shock resistant (for replacement).

Body To Splice Box

Gasket

100 or 200 Series

VTG Standard

VTG-S Silicone (pictured)

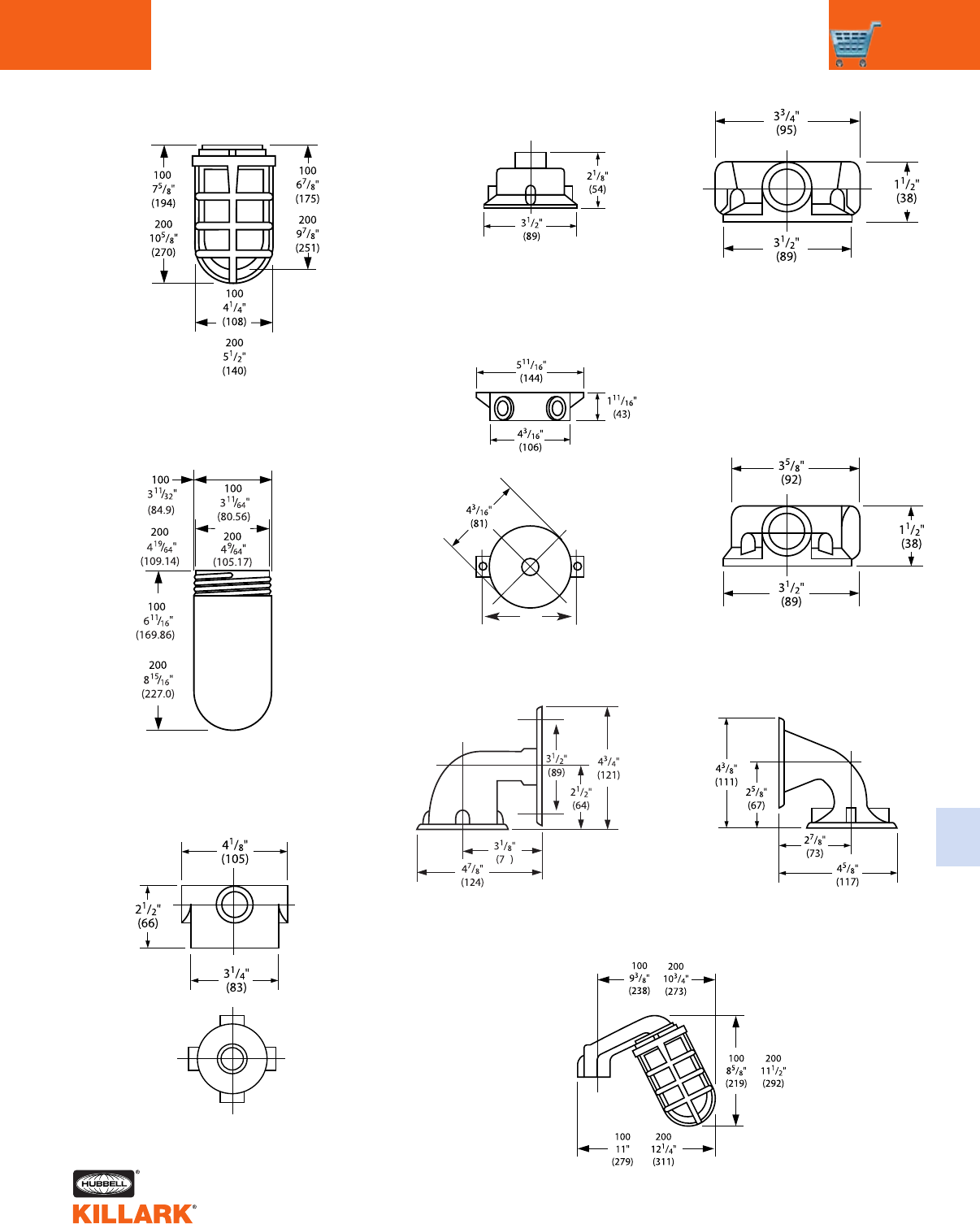

V SERIES •LIGHTING

DIMENSIONS L13

VGC VGX

V Stanchion

V Fixture

w/o Splice Box

VGH

VGA

VBC-1 & VBC-2

VXA

V Fixture

Globes

VFL

hole

.28"dia.

(11)

DV/XHL/XHLF SERIES •LIGHTING

SPECIAL APPLICATION INCANDESCENT FIXTURES AND HAND LAMPS

L14

FEATURES-SPECIFICATIONS

DV DUST-IGNITION PROOF

Dimensions

Applications

For hazardous locations where sus-

pended metal, carbon (coal, etc.)

and grain dusts create explosive or

ignitable mixtures with the air

Features

Cast of corrosion resistant aluminum

alloy with electrostatically applied

epoxy/polyester finish

Ceiling mounted units supplied with

4 hubs.

LAMP HUB

SIZE PENDANT C E ILING

100 Watt A-21 1/2" DVA-110 DVX-110

150 Watt A-23 3/4" DVA-210 DVX-210

150 Watt PS-25 1/2" DVA-120 DVX-120

200 Watt PS-25 3/4" DVA-220 DVX-220

DV 100/200

FIXTURE

GLASS WIRE REPLACEMENT

TYPE

GLOBE GUARD SOCKET

100 DCGE-10 DAG-100 VRME

200 DCGE-20 DAG-200 VRME

ACCESSORIES/REPLACEMENT PARTS

MODEL

SIZE

TYPE

100

TYPE

200

Ceiling 100-200

Pendant 100-200

Class II, Div. 1 & 2 Groups E,F,G1

Class III

CATALOG NUMBER

Listed - File E12976

Certified - File LR11713

1Temperature code T3B, use supply wire

suitable for 150° C.

DAG Guard

XHL

XHLF

XHL SERIES HAND LAMPS

Features XHLF Fluorescent (120 VAC)

•No exposed metal parts

•Furnished with 26 watt 1800 Lumen

fluorescent lamp and light shield

•Supplied with grommet for use with

16/3 user furnished SO cable

Listed File No. E97760

XHLF Fluorescent

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB,llA

Class lI, Div. 1 & 2, Groups F,G

XHLF26 Fluorescent hand lamp

XHLF26-50KP

Fluorescent hand lamp with

- 50' of 16/3 SOW cord and

15A Acceptor plug

Features XHL Incandescent

•Phenolic handle for long service in

rugged conditions

•Aluminum guard

•Heat and impact resistant globe

•Supplied with an A-21 100 Watt

(100A/RS) Rough Service lamp

•Supplied with 2 grommets for use

with either 14/3 or 16/3 user fur-

nished SO cable

XHL-100

XHL-GL

XHLG

XHLS

Handlamp

Replacement Globe

Replacement Guard

Replacement Socket

CATALOG NUMBER DESCRIPTION

XHL Incandescent

Class I, Div. 1 & 2, Groups C, D

Class I, Zones 1 & 2, Groups llB,llA

Listed File No. E97760

Certified File No. LR10019

CATALOG NUMBER

XHL Series Hand Lamps are a handy accessory to the ACCEPTOR®Series. Used

as a supplemental illumination source for areas where flammable materials are

present such as processed finished goods, storage vats or handling areas.

DESCRIPTION

NVPI/NVPF SERIES •LIGHTING

NON-METALLIC/NON-GLASS FIXTURES L15

FEATURES-SPECIFICATIONS

Applications

Designed specifically for corrosive &

wet NEMA 4X and hazardous dust

environments.

Typical applications include food pro-

cessing, sewage treatment plants, off-

shore and dockside installations and

agricultural.

Features

•NVP Series non-metallic light fixtures

comine an outstanding balance of

strength, stiffness, toughness and

electrical properties

•Polycarbonate lens

•Energy and labor saving fluorescent

or incandescent models

•Molded from 30% glass-filled ther-

moset polyester for high strength

•Resists corrosive effects of most

chemicals, hydrocarbons and sol-

vents

•Designed for indoor and outdoor

globe down applications

•All assemblies are unit packed with

required components (not assembled)

• Fluorescent unit pack models (only)

include the lamp

•Fluorescent models use “world volt-

age” ballasts for 120VAC through

277VAC 50/60Hz applications

•For M20 ceiling units change “X” in

part # to “M”. For wall units change

“B” to “W”. M20 Pendant not available

Pendant Fluorescent Wall Mount Fluorescent

Class II, Div. 2, Groups F,G

NEMA 3,4,4X

NVPIG75 1

NVPFG13

NVPFG18

NVPFG26

NV2AG

NV2XG

NV2BG

NV2GG

VPLCG100

VPLCG100R

VPLCG100G

Incandescent Body with E26 socket; 75W Max1

13W Fluor Body & 120 - 277VAC 50/60Hz Ballast (less lamp)

18W Fluor Body & 120 - 277VAC 50/60Hz Ballast (less lamp)

26W Fluor Body & 120 - 277VAC 50/60Hz Ballast (less lamp)

3/4" Pendant splice box

3/4" Ceiling splice box

Elbow (used between NV2XG and Fixture Body)

Guard

Clear Poly Globe

Red Poly Globe

Green Poly Globe

COMPONENTS**

Ceiling Incandescent

CATALOG NUMBER DESCRIPTION

•Photometrics “similar” to those shown

on L4-L5.

•See dimensions on L4

Pendant 3/4" Clear Polycarbonate Globe & Guard*

75A Incan.1

13 W Fluor.

18 W Fluor.

26 W Fluor.

NVPIG75AG

NVPFG13AG

NVPFG18AG

NVPFG26AG

Ceiling 3/4" Clear Polycarbonate Globe & Guard*

75A Incan.1

13 W Fluor.

18 W Fluor.

26 W Fluor.

NVPIG75XG

NVPFG13XG

NVPFG18XG

NVPFG26XG

Wall 3/4" Clear Polycarbonate Globe & Guard*

75A Incan.1

13 W Fluor.

18 W Fluor.

26 W Fluor.

NVPIG75BG

NVPFG13BG

NVPFG18BG

NVPFG26BG

to the following standards:

UL 1598 Standard for luminaires

UL 844 Standard for lighting fixtures for

hazardous locations

CSA C22.2 no. 137-M1981 electric lumi-

naires for use in hazardous locations

Enclosed and gasketed

NEMA 3, 4X

1Incandescent models w/medium base socket

marked for 75W 277V Max or self-ballasted

CFL’s to 26W max, lamps F.O.B.

APPLICATION DATA1

75A 1F, G —— — —

13 Fluor F, G -20°C -4°F .144 .067

18 Fluor F, G -20°C -4°F .158 .073

26 Fluor F, G -20°C -4°F .220 .097

CLASS II

DIV.2

CLEAR OR

COLOR

MIN. START

C° F°

WATTAGE

& TYPE

CURRENT

FLUOR. VAC

120V 277V

* Reflectors shown on L3 are not recommended - globe taper prevents guard from holding reflector securely.

** For 13-26W Quad Pin Lamps and Replacement Ballasts see page L3.

Polycarbonate Globe Options for ASSEMBLIES: Red or Green

For RED polycarbonate add -R e.g. NVPIG75AG-R

For GREEN polycarbonate add -G e.g. NVPIG75AG-G

Self-ballasted

CFL’s for 26W 1

NEW!

NON-GLASS

Certified* - File LR11713

E/H SERIES •LIGHTING

INCANDESCENT FIXTURES

L16

E INCANDESCENT

Applications

For hazardous locations including where

Group A or Group B gases are present,

indoors or outdoors.

General, local or supplementary lighting

in areas where Group A or Group B

gases are manufactured, used or han-

dled.

Features

•Cast of corrosion resistant aluminum

alloy with electrostatically applied

epoxy/polyester finish

•For 200 watt or 300 watt PS-30 medi-

um base lamps. Fixture for

lamp base-up mounting only

•Omit “G” in catalog number to omit

guard

CATALOG NUMBER DESCRIPTION

EPG-2-200 Pendant 3/4" hub

EXG-2-200 Ceiling 3/4" hub

EBG-2-200 Bracket 3/4" hub

E INCANDESCENT FIXTURE

CATALOG NUMBER DESCRIPTION

HG-200 Guard

EGSA-200 Globe w/ support assembly

HRME* Replacement socket

ERSD30 Dome reflector

ERA30 Angle reflector

E ACCESSORIES

EXG-2-200

Note: For 200 watt or 300 watt PS-30 lamps.

Fixture for lamp base-up mounting only.

* Also fits discontinued H series

medium base fixtures

EPG-2-200 EBG-2-200 HG-200

200

300

150

T3C

A, B, C, D

T3C

T3A

EFG

E, F

YES

E APPLICATION DATA

LAMP

WATTS

CLASS III

SUITABILITY

SUPPLY

WIRE °C

RATED

AMBIENT °C

CLASS I, DIV. 1 & 2

T-CODE GROUPS

CLASS II, DIV. 1 & 2

T-CODE GROUPS

Class I, Div. 1 & 2, Groups A,B,C,D

Class I, Zones 1 & 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Groups A,B Rated

HP-2 HB-2HX-2

HRD-400

HGSA-500F HRMO

EZG1G

HP-2

HX-2

HB-2

HGSA-500F

EZG1G

HRMO

HRD-400

AVAILABLE REPLACEMENT PARTS

3/4" Pendant Mount

3/4" Ceiling Mount

3/4" Wall Mount

Globe with Support Assembly

Guard

Replacement Mogul Socket

Deep Reflector 21-1/8" dia.

E INCANDESCENT

H INCANDESCENT

CATALOG NUMBER DESCRIPTION

SERIES DISCONTINUEDSERIES DISCONTINUED

500W MOGUL BASE

Listed - File E12976

Certified - File LR11713

L17

FEATURES-SPECIFICATIONS

MBL SERIES •LIGHTING

C O M PA C T L E D 2 2 & 4 5 WAT T

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

Marine

NEMA 3, 4X

Applications

CERTILITE®MBL LED fixtures are

designed for installations where mois-

ture, dirt, dust, corrosion and vibration

may be present, or NEMA 3 and 4X

areas where wind, water, snow or high

ambients can be expected. They can

be used in locations made hazardous

by the presence of flammable vapors

or gases or combustible dusts as

defined by the NEC.

Typical applications include manufac-

turing plants, and certain chemical and

petrochemical processing facilities,

sewage treatment plants, off-shore and

dockside installations, garages and

storage facilities.

Compliances

•UL-8750 for LED lighting

•UL Marine type lighting fixtures (HID

models) UL-844 Standard for lighting

fixtures for hazardous locations,

Class I, Division 2; Class II, Divisions

1 and 2; Class III

•CSA C22.2 no. 137-M1981 electric

luminaries for use in hazardous loca-

tions

•Enclosed and gasketed

•NEMA 3, 4X

Materials

•Ballast tank, splice box and guards

(MBAG, VMAG) corrosion resistant

copper-free aluminum alloy

•Baked powder epoxy/polyester finish,

electrostatically applied for complete,

uniform corrosion protection

•All external hardware - stainless steel

•Reflectors - Polyester reinforced

fiberglass

LED Luminaire Features and Standards

•Compact in Size with Traditional Industrial

Appearance and Suitability

•Wide variety of optics including globes,

globes with reflectors, all-glass refractors,

and spin-top refractors

•Optional Mounting arrangements including

Pendant, Wall, Ceiling, and Stanchion

•MBL LED Housings can be retrofitted to

existing MB splice boxes; upgrade from

Fluorescent or HID

•Energy Savings - less than 50 Watts of

Power; 25 Watts for MBL2230

•Long Life - 50,000 - 60,000 maintenance

free hours to 70% initial lumens

•Crisp White Light for Excellent Color Render-

ing - Chromaticity 5000°K (CCT); 70 CRI

•Ambient suitability -40°C to 40°C (to

55°C for MBL2230)

•Instant on - including after power interruption

•“World Voltage” 120-277VAC 50/60Hz

•Solder-LESS LED Board Connections –

Vibration Resistant

•Dual Drivers - Redundant Systems (built-in

backup), or for additional energy savings

half of MBL4530 can be turned off

•LM80-08* Measurement of lumen mainte-

nance for LED light sources

•LM79-08* Certified "Absolute" Photometry,

including Chromaticity Color for Solid

State Lighting

•L70 Values - Industry Nomenclature for

Hours of use to 70% of Initial Lumens

Catalog Number Logic

Housing Series

LED Wattage

22 - 22 Watt

45 - 45 Watt

Guard

N— No Guard

G— Guard

MBL 45 30 A 2 R5 G

Mounting Style

A— Pendant

X— Ceiling

B— Wall

D— Stanchion 25o

Entry

2— 3/4" NPT (A, X, B)

3— 1" NPT (A, X, B)

4— 1-1/4" NPT (D only)

5— 1-1/2" NPT (D only)

8— M20 4 hub (X only)

LED

* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures

among test labs and manufacturers. For more information go to www.ies.org

Voltage

30 - 120-277VAC

Options

CP - Component Pack (housing, mount, optic, guard if

selected)

AN - Assembled Fixture (components as selected)

1Teflon® is a registered trademark of DuPont, Inc.

Optic

GL —Globe

R1 —Type 1 Glass Refractor

R5 —Type 5 Glass Refractor

S8 — 8" Spin-top Type V Refractor

S5 —12" Spin-top V Refractor

FG —Silicone Coated Globe

T1 —Teflon® 1coated Type 1

Glass Refractor

T5 —Teflon® coated Type V

Glass Refractor

T8 —8" Teflon® Spin-top V Refractor

TV —12" Teflon® Spin-top V Refractor

LED

TECHNOLOGY

Certified - File LR11713

MBL SERIES •LIGHTING

C O M PA C T L E D 2 2 & 4 5 WAT T

L18

ORDERING INFORMATION

1Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. MBL2230A2GLN

2Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. MBL2230A3GLG

3120VAC through 277VAC 50/60Hz

4Catalog numbers shown are with 1-1/4" conduit openings; change “4” to “5” for 1-1/2" e.g. MBL2230D5GLG

MBL SERIES PENDANT WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

22 3/4" 120-277VAC MBL2230A2GLG MBL2230A2R1G MBL2230A2R5G MBL2230A2S8G MBL2230A2S5G

45 3/4" 120-277VAC MBL4530A2GLG MBL4530A2R1G MBL4530A2R5G MBL4530A2S8G MBL4530A2S5G

MBL SERIES CEILING WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

22 3/4" 120-277VAC MBL2230X2GLG MBL2230X2R1G MBL2230X2R5G MBL2230X2S8G MBL2230X2S5G

45 3/4" 120-277VAC MBL4530X2GLG MBL4530X2R1G MBL4530X2R5G MBL4530X2S8G MBL4530X2S5G

MBL SERIES WALL WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

22 3/4" 120-277VAC MBL2230B2GLG MBL2230B2R1G MBL2230B2R5G MBL2230B2S8G MBL2230B2S5G

45 3/4" 120-277VAC MBL4530B2GLG MBL4530B2R1G MBL4530B2R5G MBL4530B2S8G MBL4530B2S5G

MBL SERIES 25oSTANCHION WITH OPTIC AND GUARD1

WATTS HUB SIZE4VOLTAGE5GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

22 1-1/4" 120-277VAC MBL2230D4GLG MBL2230D4R1G MBL2230D4R5G MBL2230D4S8G MBL2230D4S5G

45 1-1/4" 120-277VAC MBL4530D4GLG MBL4530D4R1G MBL4530D4R5G MBL4530D4S8G MBL4530D4S5G

CEILING

PENDANT WALL

STANCHION

MBL SERIES •LIGHTING

COMPONENT PARTS / ELECTRICAL & TEMPERATURE DATA L19

Wall

Pendant Ceiling Stanchion

MBG

* MBX-8 furnished with 3 non-metallic plugs

HUB SIZE

3/4"

M20

1-1/4"

1-1/2"

CATALOG NUMBER

PENDANT CEILING WALL STANCHION

MBA-2 MBX-2 MBB-2 —

MBA-3 MBX-3 MBB-3 —

— MBX-8* ——

—— — MBD-4

—— — MBD-5

MB MOUNTING BRACKETS

VMRWG85

VZRG1550 VZRG2550

VMAG17

VMR175

VMR171

VMRWGS5

VMPA-17

VMPSD-17 VMFSPC1

MBAG

DESCRIPTION OPTIC LOGIC GUARD

MBL LED OPTICS AND ACCESSORIES

Globe (glass)

Refractor (all glass) Type I

Refractor (all glass) Type V

Refractor (spin top) 8" Type V

Refractor (spin top) 12" Type V

Globe (Silicone coated)

Refractor Teflon®1coated (all glass) Type I

Refractor Teflon®coated (all glass) Type V

Refractor (spin top) 8" Type V

Refractor (spin top) 12" Type V

Reflector for MBG Globe - DOME 2

Reflector for MBG Globe - ANGLE 2

120VAC Photocell with FS Style Cover

208-277VAC Photocell with FS Style Cover

3-sided EXIT Accessory (use without guard)

MBG (GL)

VMR171 (R1)

VMR175 (R5)

VZRG1550 (S8)

VZRG2550 (S5)

MBGT (FG)

VMR171T (T1)

VMR175T (T5)

VZRG1550T (T8)

VZRG2550T (TV)

VMPSD-17

VMPA-17

VMFSPC1

VMFSPC2

VEXA100B

MBAG

VMAG17

VMRWG8

VMRWGS

MBAG

VMAG17

VMRWG8

VMRWGS

1Teflon is a registered trademark of DuPont, Inc.

2Reflectors for use with MBG/MBAG only; VMG17 globe with VMAG17 guard will fit without reflector.

CAT. NO. VOLTAGE 50/60HZ WATTAGE AMPS 120/277 CIL3WEIGHT

MBL LED HOUSINGS WITH DRIVERS AND LEDS - ELECTRICAL RATINGS

MBL2230 120-277VAC 25.8 .215/.093 1980 8 LBS

MBL4530 120-277VAC 48.4 .416/.180 3960 15.5 LBS

CAT. NO. AMBIENT C1D2 C2D1 L70 SUPPLY WIRE

THERMAL PERFORMANCE DATA (ANY OPTIC)

MBL2230 40OC T4A T4 (EFG) 60,000 HRS 75OC

MBL2230 55OC T4 T4(EFG) 50,000 HRS 90OC

MBL4530 40OC T4A T4(EFG) 55,000 HRS 90OC

3CIL = Calculated Initial Lumens of LED component based on mfg. data and driver current INSIDE the optic. This value is provided as a reference only for com-

parison to traditional light sources such as incandescent, HID, or fluorescent which use initial values in “relative” photometry. KILLARK LED luminaires are tested

using the Absolute photometry method (LM79-08), which calculates delivered lumens only. KILLARK’s LED luminaires provide very bright white 5000OK (CCT)

color and can appear brighter than traditional light sources with higher lumen values under both photopic and scotopic conditions.

4Driver THD < 20%, Powerfactor 99% @ 120V; Line Regulation 2%; Load regulation 5%; Protected against Over-voltage and Over-current.

5VMRWG8 Plated Steel, VMRWGS 316 Stainless Steel.

VEXA100B

MBL SERIES •LIGHTING

DIMENSIONS / PHOTOMETRIC DATA

L20

MBA Pendant

1.29

9.90

4.63 4.56

9.63 10.95

8.38

2.04 1.69

2.90

10.60

10.84

9.82

4.88

2.90

9.59

10.22

9.90

.89

1.00

2.90

11.15

9.82

4.63

8.16 DIA.

1.00

.94

45o

1.31

13.32

9.31

1.05

.94

MBX Ceiling

MBL Pendant, Globe, Guard

MBL & MBG Globe Only

MBL & 8" Type V Spin-top

MBB Wall Mount

LED 45 Watt Globe Only1

122W model values approx. 50% of 45W

MBD Stanchion

MBL Pendant, Refractor, Guard

MBL & VMR Refractor

MBL & 12" Type V Spin-top

2.90

13.13

4.63

9.32

10.68

2.90

9.82

4.63

9.90

4.56

2.50

13.28

7.32

4.63

3.04

4.96

11.69

2.90

11.85

12.19 DIA.

5.31 DIA.

1.00

2.25 25o

9.9

MBL SERIES •LIGHTING

PHOTOMETRIC DATA L21

LED 45Watt Globe & Dome Reflector1LED 45Watt Glass Type V Refractor1LED 45Watt 8" Spin-top Type V Refractor1

122W model values approx. 50% of 45W

MB SERIES •LIGHTING

FLUORESCENT BI-PIN/MEDIUM BASE HID

L22

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D*

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G*

Class III

Suitable for wet locations

Marine

NEMA 3, 4X

Pendant Ceiling Wall Stanchion

Applications

CERTILITE®MB fixtures are designed

for installations where moisture, dirt,

dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas

where wind, water, snow or high ambi-

ents can be expected. They can be

used in locations made hazardous by

the presence of flammable vapors or

gases or combustible dusts as defined

by the NEC.

Typical applications include manufac-

turing plants, and certain chemical and

petrochemical processing facilities,

sewage treatment plants, off-shore and

dockside installations, garages and

storage facilities.

Compliances

•UL-1572 Standard for HID lighting

fixtures

•UL-1570 Standard for Fluorescent

fixtures

•UL Marine type lighting fixtures (HID

models) UL-844 Standard for lighting

fixtures for hazardous locations,

Class I, Division 2; Class II, Divisions

1 and 2; Class III

•CSA C22.2 no. 137-M1981 electric

luminaries for use in hazardous

locations

•Enclosed and gasketed

•NEMA 3, 4X

Features

•Ballast tank and splice box —

corrosion resistant copper-free

aluminum alloy

•Baked powder epoxy/polyester finish,

electrostatically applied for complete,

uniform corrosion protection

•All external hardware — stainless

steel

•Guard — copper-free aluminum alloy

•Normally shipped as components for

quick delivery

•Refractor guard — steel with corro-

sion resistant finish

•Reflector — lightweight, corrosion

resistant fiberglass reinforced

polyester

•Fluorescent models furnished with

lamps. Energy efficient instant on

white light (2700K). 10,000 hour

lamp life

•HID lamp holders are E26 medium

base

Catalog Number Logic

Series Constant

Lamp Type

F—Fluorescent

L—High Pressure Sodium

H—Metal Halide

K—MV Mercury Vapor

Lamp Wattage

13—(1) 13 Watt PL Lamp

26—(2) 13 Watt PL Lamp

39—(3) 13 Watt PL Lamp

50—50 Watt—HPS/MH

70—70 Watt—HPS/MH

10—100 Watt—HPS/MH

15—150 Watt—HPS Voltage V

0—Quad - 120/208/240/277 Volts 60 Hz (50, 70 HPS/MH)

1—120 Volts 60 Hz (HPS/Fluorescent)

4—277 Volts 60 Hz (13, 26 Watt Fluorescent)

Optic

G—Fluted Glass Globe

GG—Globe and Guard

R5—Glass Refractor Type V

R5G—Glass Refractor & Guard

MB 0 00 0 - 000 00

Consult factory for available lamp and voltage combinations.

* See Hazardous Location Application Data on page L28 for limitations.

Mounting Style

A2—3/4" Pendant

A3—1" Pendant

X2—3/4" Ceiling

X3—1" Ceiling

B2—3/4" Wall Bracket

B3—1" Wall Bracket

D4—1-1/4" Stanchion

D5—1-1/2" Stanchion

Options

SU103—Assembled

w/Lamp

MB SERIES •LIGHTING

COMPACT BI-PIN FLUORESCENT, 13-39 WATT L23

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D*

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G*

Class III

Suitable for wet locations

NEMA 3, 4X

1Fixtures supplied with Bi-Pin fluorescent lamps. Replacement number MPL13.

2Catalog numbers shown are with 3/4" conduit openings (1-1/4" on stanchion mount) and include

globe and guard. See catalog logic for other possible configurations.

3Catalog numbers are shown with 120V ballasts. 1 & 2 lamp fixtures are available with 277V ballasts

Change 6th character from “1” to “4”; e.g. MBF264-GGA2.

* See Hazardous Location Application Data on page L28 for limitations.

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

3/4" 120 MBF131-GGA2 MBF131-R5GA2

Bi-Pin 3/4" 120 MBF261-GGA2 MBF261-R5GA2

3/4" 120 MBF391-GGA2 MBF391-R5GA2

PENDANT FLUORESCENT

LAMP LAMP/1HUB

TYPE WATTS SIZE1

CEILING

PENDANT

STANCHION

WALL

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

3/4" 120 MBF131-GGX2 MBF131-R5GX2

Bi-Pin 3/4" 120 MBF261-GGX2 MBF261-R5GX2

3/4" 120 MBF391-GGX2 MBF391-R5GX2

CEILING FLUORESCENT

LAMP LAMP/1HUB

TYPE WATTS SIZE2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

3/4" 120 MBF131-GGB2 MBF131-R5GB2

Bi-Pin 3/4" 120 MBF261-GGB2 MBF261-R5GB2

3/4" 120 MBF391-GGB2 MBF391-R5GB2

WALL FLUORESCENT

LAMP LAMP/1HUB

TYPE WATTS SIZE2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

1-1/4" 120 MBF131-GGD4 MBF131-R5GD4

Bi-Pin 1-1/4" 120 MBF261-GGD4 MBF261-R5GD4

1-1/4" 120 MBF391-GGD4 MBF391-R5GD4

STANCHION FLUORESCENT

LAMP LAMP/1HUB

TYPE WATTS SIZE2

13 Watt

(1 x 13)

26 Watt

(2 x 13)

39 Watt

(3 x 13)

13 Watt

(1 x 13)

26 Watt

(2 x 13)

39 Watt

(3 x 13)

13 Watt

(1 x 13)

26 Watt

(2 x 13)

39 Watt

(3 x 13)

13 Watt

(1 x 13)

26 Watt

(2 x 13)

39 Watt

(3 x 13)

VOLTAGE

60 HZ3

VOLTAGE

60 HZ3

VOLTAGE

60 HZ3

VOLTAGE

60 HZ3

MB SERIES •LIGHTING

HIGH PRESSURE SODIUM, 50-150W MEDIUM BASE HID

L24

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D*

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G*

Class III

Suitable for wet locations

UL Marine

NEMA 3, 4X

1Catalog numbers shown are 120. Consult factory for other available voltages.

2Catalog numbers shown with 3/4" conduit openings (1-1/4" on stanchion mount) and includes globe and

guard or IES type V 8" glass refractor and guard. See catalog logic for other possible configurations.

* See Hazardous Location Application Data on page L28 for limitations.

PENDANT 50-150W HIGH PRESSURE SODIUM

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

CEILING 50-150W HIGH PRESSURE SODIUM

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

WALL 50-150W HIGH PRESSURE SODIUM

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

STANCHION 50-150W HIGH PRESSURE SODIUM

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

CEILING

STANCHION

WALL

PENDANT

VOLTAGE

60 HZ1

VOLTAGE

60 HZ1

VOLTAGE

60 HZ1

VOLTAGE

60 HZ1

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (S68) 3/4" 120 MBL501-GGA2 MBL501-R5GA2

HPS 70 (S62) 3/4" 120 MBL701-GGA2 MBL701-R5GA2

100 (S54) 3/4" 120 MBL101-GGA2 MBL101-R5GA2

150 (S55) 3/4" 120 MBL151-GGA2 MBL151-R5GA2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (S68) 3/4" 120 MBL501-GGX2 MBL501-R5GX2

HPS 70 (S62) 3/4" 120 MBL701-GGX2 MBL701-R5GX2

100 (S54) 3/4" 120 MBL101-GGX2 MBL101-R5GX2

150 (S55) 3/4" 120 MBL151-GGX2 MBL151-R5GX2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (S68) 3/4" 120 MBL501-GGB2 MBL501-R5GB2

HPS 70 (S62) 3/4 120 MBL701-GGB2 MBL701-R5GB2

100 (S54) 3/4" 120 MBL101-GGB2 MBL101-R5GB2

150 (S55) 3/4" 120 MBL151-GGB2 MBL151-R5GB2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (S68) 1-1/4" 120 MBL501-GGD4 MBL501-R5GD4

HPS 70 (S62) 1-1/4" 120 MBL701-GGD4 MBL701-R5GD4

100 (S54) 3/4" 120 MBL101-GGD4 MBL101-R5GD4

150 (S55) 1-1/4" 120 MBL151-GGD4 MBL151-R5GD4

150 1-1/4" 120 MBL151-GGD4 MBL151-R5GD4

MB SERIES •LIGHTING

METAL HALIDE, 50-100W MEDIUM BASE HID L25

ORDERING INFORMATION

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D*

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G*

Class III

Suitable for wet locations

UL Marine

NEMA 3, 4X

PENDANT 50-100W METAL HALIDE

CEILING 50-100W METAL HALIDE

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

WALL 50-100W METAL HALIDE

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

STANCHION 50-100W METAL HALIDE

CEILING

STANCHION

WALL

PENDANT

1Metal Halide MB fixtures use quad-volt ballasts.

2Catalog numbers shown with 3/4" conduit openings (1-1/4" on stanchion mount) and include globe and

guard or IES type V 8" glass refractor and guard. See catalog logic for other possible configurations.

350,70, 100 MH Ballasts include a separate ignitor and are PULSE circuits.

* See Hazardous Location Application Data on page L28 for limitations.

VOLTAGE

60 HZ1

VOLTAGE

60 HZ1

VOLTAGE

60 HZ1

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (M110) 3/4" 120/208/240/277 MBH500-GGA2 MBH500-R5GA2

70 (M98) 3/4" 120/208/240/277 MBH700-GGA2 MBH700-R5GA2

100 (M90) 3/4" 120/208/240/277 MBH100-GGA2 MBH100-R5GA2

VOLTAGE

60 HZ1

LAMP LAMP HUB

TYPE WATTS/ANSI SIZE2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (M110) 1-1/4" 120/208/240/277 MBH500-GGD4 MBH500-R5GD4

70 (M98) 1-1/4" 120/208/240/277 MBH700-GGD4 MBH700-R5GD4

100 (M90) 1-1/4" 120/208/240/277 MBH100-GGD4 MBH100-R5GD4

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (M110) 3/4" 120/208/240/277 MBH500-GGB2 MBH500-R5GB2

70 (M98) 3/4" 120/208/240/277 MBH700-GGB2 MBH700-R5GB2

100 (M90) 3/4" 120/208/240/277 MBH100-GGB2 MBH100-R5GB2

CATALOG NUMBER2

GLOBE AND GUARD REFRACTOR AND GUARD

50 (M110) 3/4" 120/208/240/277 MBH500-GGX2 MBH500-R5GX2

70 (M98) 3/4" 120/208/240/277 MBH700-GGX2 MBH700-R5GX2

100 (M90) 3/4" 120/208/240/277 MBH100-GGX2 MBH100-R5GX2

MB SERIES •LIGHTING

COMPONENT PARTS/BALLAST DATA

L26

Wall

Pendant Ceiling Stanchion

4Catalog numbers shown are 120 volt (except

Metal Halide). Consult catalog number logic

on page L22 and change sixth character to

indicate other available voltages.

* MBX-8 furnished with 3 non-metallic plugs

LAMP TYPE OPEN INPUT MINIMUM

STARTING OPERATING CIRCUIT WATTS START

LAMP WATTS VOLTS - VAC AMPS AMPS AMPS MAX TEMPERATURE

FL113 120/277 .30/.3 — 16 0°F -18°C

50 120 .55 .90 60 -40°F -40°C

HPS 70 120 .75 1.30 82 -40°F -40°C

100 120 1.05 1.80 115 -40°F -40°C

150 120 1.50 2.35 170 -40°F -40°C

50 120/208 .6/.35/.3/.25 1.6/.67/.57/.5 67 -20°F -30°C

240/277

MH 70 120/208 .85/.5/.43/.37 1.7/1.04/.87/.78 95 -20°F -30°C

240/277

100 120/208 1.15/.66/.58/.5 2.3/1.4/1.15/1.0 129 -20°F -30°C

240/277

MB BALLAST DATA

1Per lamp, max available lamps @ 120 volt is .3; max @ 277 volt is .2.

2Ballasts are High Power Factor 90%+.

3Lamp watts within ANSI Trapezoid limitations.

HUB SIZE

3/4"

M20

1-1/4"

1-1/2"

CATALOG NUMBER

PENDANT CEILING WALL STANCHION

MBA-2 MBX-2 MBB-2 —

MBA-3 MBX-3 MBB-3 —

— MBX-8* ——

——— MBD-4

—— — MBD-5

120

120/208/240/277

MB BALLAST TANK4

CATALOG

NUMBER

MBF131

MBF261

MBF391

MBL501

MBL701

MBL101

MBL151

MBH500

MBH700

MBH100

LAMP

TYPE

HPS

LAMP

WATTAGE

100

150

100

MB MOUNTING BRACKETS

ENY-2SET

EMRS

EBRS

.39/.35

.75

.85

1.50

2.20

.87/.51/.47/.39

.8/.5/.43/.39

1.2/.8/.65/.6

BALLAST

CIRCUIT REGULATIONS

—

±5% Line voltage3

±12% Lamp watts3

±5% Line voltage3

±12% Lamp watts3

±5% Line voltage3

±12% Lamp watts3

EMRS

EBRS

MPL13

ENY-2SET

ENY-3SET

MB medium base replacement socket (E26)

MB Bi-Pin base replacement socket

Replacement lamp for MBF and EBF series

3/4" ENY seal with set screw for sealed (Ex nR) pendant installations

1" ENY seal with set screw for sealed (Ex nR) pendant installations

MB ACCESSORIES

CATALOG NUMBER DESCRIPTION

VOLTAGE

60 HZ

NPF

HX-HPF2

MB SERIES •LIGHTING

ACCESSORIES/DIMENSIONS L27

ORDERING INFORMATION

MBG

Globe

VZRG1550

Refractor

MBAG VMRWG8 VMPSD-17 VMPA-17

ReflectorsGuards

Dimensions

MBG

VZRG1550

MBAG

VMRWG8

VMPSD-17

VMPA-17

Heat and impact resistant globe

(I.E.S. Type V) closed bottom 8" glass refractor

Globe guard - Epoxy/polyester painted aluminum

Refractor guard - plated steel

Standard dome reflector (fiberglass reinforced polyester)

Angle reflector (fiberglass reinforced polyester)

MB ACCESSORIES

CATALOG NUMBER DESCRIPTION

CLASS I, DIV. 2, GROUPS A, B, C, D1CLASS II, DIV. 1 & 2, GROUPS E, F, G35

LAMP RATED LAMP TEMPERATURES MAXIMUM SURFACE TEMPERATURES CLASS III, DIV. 1 & 23

AMBIENT

°C WITHOUT4WITH2WITH WITHOUT4WITH2WITH WITHOUT4WITH2WITH

TYPE WATTAGE REFLECTOR REFLECTOR REFRACTOR REFLECTOR REFLECTOR REFRACTOR REFLECTOR REFLECTOR REFRACTOR

50 40 215°C(T2D) 215°C(T2D) 215°C(T2D) 120°C(T4A) 135°C(T4) 120°C(T4A) YES YES YES 75

50 55 230°C(T2C) 230°C(T2C) 230°C(T2C) 135°C(T4) 160°C(T3C) 135°C(T4) YES YES YES 90

50 65 230°C(T2C) 230°C(T2C) 230°C(T2C) 160°C(T3C) 160°C(T3C) 160°C(T3C) YES YES YES 90

HPS 70 40 260°C(T2B) 260°C(T2B) 230°C(T2C) 120°C(T4A) 135°C(T4) 120°C(T4A) YES YES YES 75

100 40 280°C(T2A) 280°C(T2A) 280°C(T2A) 160°C(T3C) 160°C(T3C) 160°C(T3C) YES YES YES 90

150 40 325°C(T1) 325°C(T1) 325°C(T1) ——160°C(T3C) NO NO YES 110

150 40 325°C(T1) 325°C(T1) 325°C(T1) 180°C(T3A) 200°C(T3) — NO NO NO 110

50 40 230°C(T2C) 230°C(T2C) 230°C(T2C) 160°C(T3C) 160°C(T3C) 160°C(T3C) YES YES YES 90

MH 70 40 230°C(T2C) 230°C(T2C) 230°C(T2C) 160°C(T3C) 160°C(T3C) 160°C(T3C) YES YES YES 90

100 40 280°C(T2A) 280°C(T2A) 280°C(T2A) 160°C(T3C) 160°C(T3C) 160°C(T3C) YES YES YES 85

MB SERIES •LIGHTING

A P P L I C AT I O N D ATA

L28

1Verify temperatures for suitability for intended use.

2Includes both standard dome and angle reflectors.

3Guard required for Class II, Division 1 and Class III applications.

4Based on luminaire with globe and guard only.

5150 watt HPS—Groups E, F only with or without reflector and Groups E, F and G with refractor.

LAMP

TYPE

RATED

AMBIENT°C

CLASS I, DIVISION 2

GROUPS A, B, C, D1

LAMP TEMP, W/GLOBE,

GLOBE & REFLECTOR2

OR 8" GLASS REFRACTOR

CLASS II, DIVISION 1 & 21

MAXIMUM SURFACE

TEMPERATURE W/GLOBE,

GUARD3& REFLECTOR2

OR 8" GLASS REFRACTOR4

CLASS III, DIV. 1 & 21

W/GLOBE, W/GUARD3&

REFLECTOR2

OR 8" GLASS REFRACTOR

UL/CSA

TEMP I.D.

(T3B) 165°C

(T3A) 180°C

GROUP

E,F&G

UL/CSA

YES

UL/CSA

TEMP I.D.

(T4) 135°C

LAMPS/

WATTS

26 (2x13)

39 (3x13)

MBF HAZARDOUS LOCATION DATA

1Verify temperatures for suitability for intended use.

2Includes both standard dome and angle reflectors.

3Guard required for Class II, Division 1 and Class III, Division 1 applications.

4Note: 8 inch glass refractor not CSA certified for Class II, Division 1 and Class III, Divisions 1 installations.

SUPPLY WIRE

SUITABLE

FOR °C

SUPPLY

WIRE

SUITABLE

FOR °C

MB HAZARDOUS LOCATION DATA

MB SERIES •LIGHTING

PHOTOMETRIC DATA L29

CANDLEPOWER–100 WATT

B-17 Clear Lamp

(9500 Lumens)

For CP of a 70 Watt

Luminaire multiply by .663;

For a 50 Watt Luminaire

multiply by .421

CANDLEPOWER–150 WATT

B-17 Clear Lamp

(16000 Lumens)

CANDLEPOWER–100 WATT

B-17 Clear Lamp

(9500 Lumens)

For CP of a 70 Watt

Luminaire multiply by .663;

For a 50 Watt Luminaire

multiply by .421

HIGH PRESSURE SODIUM

With Globe Only

50 – 100 Watt Medium Base

HIGH PRESSURE SODIUM

With Globe Only

150 Watt Medium Base

HIGH PRESSURE SODIUM

With Globe and Dome Reflector

50 – 100 Watt Medium Base

Test No. HP-03126 Test No. HP-03128 Test No. HP-03125

CANDLEPOWER–150 WATT

B-17 Clear Lamp

(16000 Lumens)

CANDLEPOWER–100 WATT

B-17 Clear Lamp

(9500 Lumens)

For CP of a 70 watt luminaire

multiply by .663;

For a 50 watt luminaire

multiply by .421

CANDLEPOWER–150 WATT

B-17 Clear Lamp

(16000 Lumens)

HIGH PRESSURE SODIUM

With Globe and Dome Reflector

150 Watt Medium Base

HIGH PRESSURE SODIUM

With Type V 8" Refractor

50 – 100 Watt Medium Base

HIGH PRESSURE SODIUM

With Type V 8" Refractor

150 Watt Medium Base

Test No. HP-03130 Test No. HP-03127 Test No. HP-03129

MB SERIES •LIGHTING

PHOTOMETRIC DATA

L30

HIGH PRESSURE SODIUM

With Globe and 30° Angle Reflector

50 – 100 Watt Medium Base

HIGH PRESSURE SODIUM

With Globe and 30° Angle Reflector

150 Watt Medium Base

METAL HALIDE

With Globe Only

50 – 100 Watt Medium Base

Test No. HP-03124 Test No. HP-03131 Test No. HP-03138

See above for other values

CANDLEPOWER–100

B-17 Clear Lamp

(9500 Lumens)

For CP of a 70 Watt Luminaire

multiply by .663;

For a 50 Watt Luminaire

multiply by .421

WATT CANDLEPOWER–150 WATT

B-17 Clear Lamp

(16000 Lumens)

CANDLEPOWER–100 WATT MV

B-17 Clear Lamp

(4400 Lumens)

For a 50 Watt MH Luminaire

multiply by .77;

For a 70 Watt MH Luminaire

multiply by 1.36

For a 100 Watt MH Luminaire

multiply by 1.93

MB SERIES •LIGHTING

PHOTOMETRIC DATA L31

MB SERIES •LIGHTING

PHOTOMETRIC DATA

L32

CANDLEPOWER–100 WATT MV

B-17 Clear Lamp

For a 50 Watt MH Luminaire multiply by .77;

For a 70 Watt MH Luminaire

multiply by 1.36

For a 100 Watt MH Luminaire

multiply by 1.93

METAL HALIDE

With Globe and Dome Reflector

50 – 100 Watt Medium Base

METAL HALIDE

With Type V 8" Refractor

50 – 100 Watt Medium Base

METAL HALIDE

With Globe and 30° Angle Reflector

50 – 100 Watt Medium Base

Test No. HP-03139 Test No. HP-03141 Test No. HP-03140

See above for other values See above for other values See above for other values

CANDLEPOWER–100 WATT MV

B-17 Clear Lamp

(4400 Lumens)

For a 50 Watt MH Luminaire multiply by .77;

For a 70 Watt MH Luminaire

multiply by 1.36

For a 100 Watt MH Luminaire

multiply by 1.93

CANDLEPOWER–100 WATT MV

B-17 Clear Lamp

(4400 Lumens)

For a 50 Watt MH Luminaire multiply by .77;

For a 70 Watt MH Luminaire

multiply by 1.36

For a 100 Watt MH

Luminaire multiply

by 1.93

MBF SERIES •LIGHTING

PHOTOMETRIC DATA L33

FLUORESCENT

With Globe Only—13 Watt

CANDLEPOWER

—13 WATT

(900 Lumens

One Lamp)

FLUORESCENT

With Globe Only—26 Watt

CANDLEPOWER

—26 WATT

(1800 Lumens

Two Lamps)

FLUORESCENT

With Globe Only—39 Watt

CANDLEPOWER

—39 WATT

(2700 Lumens

Three Lamps)

Test No. 5659.1 Test No. 5658.0 Test No. 5657.0

Efficiency 92.4% Efficiency 76.7% Efficiency 70.6%

MBF SERIES •LIGHTING

PHOTOMETRIC DATA

L34

Test No. 5689.0 Test No. 5692.0 Test No. 5691.0

FLUORESCENT

With Globe and Dome

Reflector—26 Watt

CANDLEPOWER

—26 WATT

(1800 Lumens

Two Lamp)

For CP of a 13 Watt

Luminaire Multiply by .50

FLUORESCENT

With Globe and Dome

Reflector—39 Watt

CANDLEPOWER

—39 WATT

(2700 Lumens

Three Lamps)

FLUORESCENT

With Type V “8”

Refractor—26 Watt

CANDLEPOWER

—26 WATT

(1800 Lumens

Two Lamps)

For CP of a 13 Watt

Luminaire multiply by .50

Efficiency 62.8% Efficiency 60.9% Efficiency 58.4%

MBF SERIES •LIGHTING

PHOTOMETRIC DATA L35

CANDLEPOWER

–26 WATT

(1800 Lumens

Two Lamps)

For CP of a 13 Watt

Luminaire multiply by .50

Test No. 5694.0 Test No. 5690.0 Test No. 5693.0

FLUORESCENT

With Globe and 30° Angle Reflector

—26 Watt

FLUORESCENT

With Globe and 30° Angle Reflector

—39 Watt

CANDLEPOWER

–39 WATT

(2700 Lumens

Three Lamps)

Efficiency 54.7%

Efficiency 57.2% Efficiency 58.3%

FLUORESCENT

With Type V “8” Refractor—39 Watt

CANDLEPOWER

–39 WATT

(2700 Lumens

Three Lamps)

VM1L SERIES •LIGHTING

REDUCED PROFILE LED 45 WATT

L36

FEATURES-SPECIFICATIONS

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

Marine

NEMA 3, 4X

Applications

CERTILITE®V VM1L LED fixtures are

designed for installations where mois-

ture, dirt, dust, corrosion and vibration

may be present, or NEMA 3 and 4X

areas where wind, water, snow or high

ambients can be expected. They can

be used in locations made hazardous

by the presence of flammable vapors

or gases or combustible dusts as

defined by the NEC.

Typical applications include manufac-

turing plants, and certain chemical and

petrochemical processing facilities,

sewage treatment plants, off-shore and

dockside installations, garages and

storage facilities.

Compliances

•UL-8750 for LED lighting

•UL Marine type lighting fixtures (HID

models) UL-844 Standard for lighting

fixtures for hazardous locations,

Class I, Division 2; Class II, Divisions

1 and 2; Class III

•CSA C22.2 no.137-M1981 electric lumi-

naries for use in hazardous locations

•Enclosed and gasketed

•NEMA 3, 4X

Materials

•Ballast tank, splice box and cast

guards corrosion resistant copper-free

aluminum alloy

•Baked powder epoxy/polyester finish,

electrostatically applied for complete,

uniform corrosion protection

•All external hardware - stainless steel

•Reflectors - Polyester reinforced

fiberglass

LED Luminaire Features and Standards

•Reduced profile with Traditional

Industrial Appearance and Suitability

•Wide variety of optics including

globes, globes with reflectors, all-glass

refractors, and spin-top refractors

•Swing-Barrel Nut patented tank

mounting system

•Optional Mounting arrangements

including Pendant, Wall, Ceiling,

Stanchion and others

•VM1L LED Housings can be retrofitted

to existing VM splice boxes; upgrade

from HID sources

•Energy Savings - less than 50 Watts

of Power

•Long Life - 50,000 - 55,000 mainte-

nance free hours to 70% initial lumens

•Crisp White Light for Excellent Color Render-

ing - Chromaticity 5000°K (CCT); 70 CRI

•Ambient suitability -40°C to 55°C

•Instant on - including after power interruption

•“World Voltage” 120-277VAC 50/60Hz

•Solder-LESS LED Board Connections –

Vibration Resistant

•Dual Drivers - Redundant Systems (built-in

backup), or for additional energy savings

half of VM1L4530 can be turned off

•LM80-08* Measurement of lumen

maintenance for LED light sources

•LM79-08* Certified “Absolute” Photometry,

including Chromaticity Color for Solid

State Lighting

•L70 Values - Industry Nomenclature for

Hours of use to 70% of Initial Lumens

LED

* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing

procedures among test labs and manufacturers. For more information go to www.ies.org

Swing-Barrel Nut

123

Hang

Fixture Swing into Place Tighten

Sealed Optic Zone 2

AEx nAR Restricted

Breathing (suffix NR)

No External Seals. Lower T-codes. Suitable for

Class I Div. 2 Classified areas per the NEC®

Earthquake Tab - Built-in

attachment point for safety

cables.

Available as Field or Factory Installed to save

energy when light not required.

Photo controls - Class I

Div. 2 / N4X areas

For easy fixture relocation or repair due to

impact damage.

Safety: Secures fixture to structure in case of

conduit failure.

“EZ” Mount Adapter

HIGH WATTAGE VM4L

AVAILABLE 2011

LED

TECHNOLOGY

Certified - File LR11713

VM1L SERIES •LIGHTING

REDUCED PROFILE LED 45 WATT L37

Options

F—Single Fuse5

FF—Double Fuse5

TBX—Terminal Blocks

X= Variations

(May be alphanumeric

to indicate terminals)

P1—Photocell 120V6

Factory Installed

P2—Photocell 208-277V6

Factory Installed

QD—QD Wired at Ballast7

CP—Component Pack

(Tank w/mount,

optic, guard - LED’s

included in tank)

AN—Assembled

(Tank w/mount,

optic, guard- LED’s

included in tank)

CertiL i t e ®VLED Catalog Number Logic

Housing Series

5-1/2" thread w/driver

and LED’s

Voltage

30—120-277VAC 50/60 Hz

Mounting Type

A—Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

E—EZ Mount Adapter1

D—Stanchion 25°

S—Stanchion Straight 90°

N—None (mount ordered separately)2

Lamp Wattage

45—approx. VA (wattage)

of driver and LED’s

Guard

G—Guard

(Globes & Glass refractors)

N—No Guard

Optic

GL—Globe

R1—Type I Refractor (all glass)

R5—Type V Refractor (all glass)

S8—Type V 8" Spin-Top Refractor

S5—Type V12" Spin-Top Refractor

TG—Teflon®3Coated Globe

T1—Teflon®3Coated Type I Refractor (all glass)

T5—Teflon®3Coated Type V Refractor (all glass)

T8—Teflon®3Coated Type V 8" Spin-Top Refractor

TV—Teflon®Coated Type V 12" Spin-Top Refractor

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter1

N—None (mount ordered separately)2

VM1L 45 30 0 0 00 0 (NR4) 00

1Completes as “EZ”, conduit mounting boxes ordered separately -

See L39.

2NN mount ordered separately.

3Teflon®is a registered trademark of DuPont, Inc.

4Restricted Breathing - See L39 for more information.

5Fusing not for Marine or Canadian installations.

6Photo cells for Class I, Div. 2 only.

7QD = Quick Disconnect. Allows easy tank removal for maintenance.

Electrician simply unplugs tank from mount for fixture relocation or

repair due to impact damage.

VM1L SERIES •LIGHTING

REDUCED PROFILE LED 45 WATT

L38

ORDERING INFORMATION

CEILING

PENDANT WALL CONE

1Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530A2GLN

2Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1L4530A3GLG

3120VAC through 277VAC 50/60Hz

VM1L SERIES PENDANT WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 3/4" 120-277VAC VM1L4530A2GLG VM1L4530A2R1G VM1L4530A2R5G VM1L4530A2S8G VM1L4530A2S5G

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 3/4" 120-277VAC VM1L4530X2GLG VM1L4530X2R1G VM1L4530X2R5G VM1L4530X2S8G VM1L4530X2S5G

VM1L SERIES CEILING WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 3/4" 120-277VAC VM1L4530B2GLG VM1L4530B2R1G VM1L4530B2R5G VM1L4530B2S8G VM1L4530B2S5G

VM1L SERIES WALL WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 3/4" 120-277VAC VM1L4530C2GLG VM1L4530C2R1G VM1L4530C2R5G VM1L4530C2S8G VM1L4530C2S5G

VM1L SERIES CONE WITH OPTIC AND GUARD1

VM1L SERIES •LIGHTING

REDUCED PROFILE LED 45 WATT L39

ORDERING INFORMATION

STANCHION STRAIGHT

STANCHION 25° EZ ADAPTER

1Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530D5GLN

2Catalog numbers shown are with 1-1/2" conduit openings; change “5” to “4” for 1-1/4" e.g. VM1L4530D4GLG

3120VAC through 277VAC 50/60Hz

4VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately (see below).

VM1L SERIES 25° STANCHION WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 1-1/2" 120-277VAC VM1L4530D5GLG VM1L4530D5R1G VM1L4530D5R5G VM1L4530D5S8G VM1L4530D5S5G

WATTS HUB SIZE2VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 1-1/2" 120-277VAC VM1L4530S5GLG VM1L4530S5R1G VM1L4530S5R5G VM1L4530S5S8G VM1L4530S5S5G

VM1L SERIES STRAIGHT STANCHION WITH OPTIC AND GUARD1

WATTS HUB SIZE4VOLTAGE3GLOBE & GUARD TYPE I GLASS TYPE V GLASS 8" SPIN-TOP TYPE V 12" SPIN-TOP TYPE V

REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD REFRACTOR & GUARD

45 4120-277VAC VM1L4530EZGLG VM1L4530EZR1G VM1L4530EZR5G VM1L4530EZS8G VM1L4530EZS5G

VM1L SERIES EZ ADAPTER WITH OPTIC AND GUARD1

HUB SIZE

3/4"

1-1/4"/1-1/2"*

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 —

EZA3 EZX3 EZB3 —

—— — EZD4A*

MOUNTING BOXES FOR EZ ADAPTER

Wall Bracket 25° Stanchion

Pendant Ceiling

*1-1/2" furnished with 1-1/2"-1-1/4" reducer and extension.

VM1L SERIES •LIGHTING

COMPONENT PARTS / ELECTRICAL & TEMPERATURE DATA

L40

CERTILITE®VVM MOUNTING SPLICE BOXES

3/4"

1-1/4"

1-1/2"

M-20

HUB SIZE

VMA2B

VMA3B

—

PENDANT

VMX2B

VMX3B

—

VMX8B**

CEILING 4 HUB

VMX6B

VMX7B

—

VMX9B

CEILING 5 HUB

VMB2B

VMB3B

—

WALL

VMC2B

VMC3B

—

CONE TOP

—

VMD4B

VMD5B

—

25 DEGREE STANCHION

—

VMS4B

VMS5B

—

90 DEGREE STANCHION

CATALOG NUMBER

Pendant Ceiling Wall

25° Stanchion

Cone Top

Straight Stanchion EZ Adapter*

VMEZA

*VMEZA is used between a ballast tank and an EZ mount-ordered separately. See L39 for more info.

**VMX8B furnished with 3 non-metallic plugs.

VMG17

VMRWG85

VZRG1550 VZRG2550

VMAG17

VMR175

VMR171

VMRWGS5

VMPA40

VMPSD40 VMFSPC1

DESCRIPTION OPTIC LOGIC GUARD

VM1L LED OPTICS AND ACCESSORIES

Globe (glass)

Refractor (all glass) Type I

Refractor (all glass) Type V

Refractor (spin top) 8" Type V

Refractor (spin top) 12" Type V

Globe Teflon®1coated

Refractor Teflon®coated (all glass) Type I

Refractor Teflon®coated (all glass) Type V

Refractor (spin top) Teflon®coated 8" Type V

Refractor (spin top) Teflon®coated 12" Type V

DOME REFLECTOR (fiberglass reinforced polyester)

ANGLE REFLECTOR (fiberglass reinforced polyester)

120VAC Photocell with FS Style Cover

208-277VAC Photocell with FS Style Cover

3-sided EXIT Accessory (use without guard)

Tank adapter to Crouse-Hinds®VM Series mounts*

VMG17 (GL)

VMR171 (R1)

VMR175 (R5)

VZRG1550 (S8)

VZRG2550 (S5)

VMG17T

VMR171T (T1)

VMR175T (T5)

VZRG1550T (T8)

VZRG2550T (TV)

VMPSD40

VMPA40

VMFSPC1

VMFSPC2

VEXA100B

VMCHVM

VMAG17

VMRWG8

VMRWGS

VMAG17

VMRWG8

VMRWGS

1Teflon is a registered trademark of DuPont, Inc.

* See page L223 for more information.

CAT. NO. VOLTAGE 50/60HZ WATTAGE AMPS 120/277 CIL3WEIGHT

VM1L LED HOUSINGS WITH DRIVERS AND LEDS - ELECTRICAL RATINGS

VM1L4530 120-277VAC 48.4 .416/.180 3960 15.5 LBS

CAT. NO. AMBIENT C1D2 C1Z2 NR C2D1 L70 SUPPLY WIRE

THERMAL PERFORMANCE DATA (ANY OPTIC)

VM1L4530 40OC T4A T6 T4(EFG) 55,000 HRS 75OC

VM1L4530 55OC T4 T6 T4(EFG) 50,000 HRS 90OC

3CIL = Calculated Initial Lumens of LED component based on mfg. data and driver current INSIDE the optic. This value is provided as a reference only for compari-

son to traditional light sources such as incandescent, HID, or fluorescent which use initial values in “relative” photometry. KILLARK LED luminaires are tested using

the Absolute photometry method (LM79-08), which calculates delivered lumens only. KILLARK’s LED luminaires provide very bright white 5000OK (CCT) color and

can appear brighter than traditional light sources with higher lumen values under both photopic and scotopic conditions.

4Driver THD < 20%, Powerfactor 99% @ 120V; Line Regulation 2%; Load regulation 5%; Protected against Over-voltage and Over-current.

5VMRWG8 Plated Steel, VMRWGS 316 Stainless Steel.

VEXA100B

Tank Adapter

VMAG17

VM1L SERIES •LIGHTING

DIMENSIONS / PHOTOMETRIC DATA L41

hole dia. .30"

(7.62)

13.55

(344)

13.67

(347)

6.88

(175)

1.70

(43)

2.56

(65)

6.38

(162)

4.33

(110)

12.07

(307)

5.31 DIA.

(135)

1.25

(32)

11.35 DIA.

(299)

6.38

(162)

10.77

(274)

8.21

(208)

7.74

(197)

10.77

(274)

6.75

(171)

13.58

(345)

6.38

(162)

8.21

(208)

7.74

(197)

2.63

(67)

10.78

(274)

10.77

(274) 8.21

(208)

7.74

(197)

5.62

(143)

13.58

(345)

6.38

(162)

13.34

(339)

14.75 DIA

(375)

16.87 DIA.

(428)

hole dia.

.34"

(8.63)

VM1L Tank with 8" Spin-top Refractor

VM1L Tank with 12" Spin-top Refractor

VM1L Tank with Angle Refractor

VM1L Tank Globe & Guard

VM1L Tank with Dome Refractor

VM1L Tank w/Pendant Mount & Globe

LED 45 Watt Globe Only

8.82

(275) 8.25

(210)

12.73

(323)

10.17

(258)

13.58

(345)

6.38

(162)

12.19

(310)

11.87 DIA.

(301)

8.16 DIA.

(207)

VM1L SERIES •LIGHTING

PHOTOMETRIC DATA

L42

LED 45 Watt

Globe & Dome Reflector

LED 45 Watt

Globe & Type V Refractor

LED 45 Watt 12" Spin-top

Type V Refractor

VQ1F/VQ2F SERIES •LIGHTING

CERTILITE®COMPACT FLUORESCENT FIXTURES 13-84 WATT L43

FEATURES-SPECIFICATIONS

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option2

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Applications:

CertiLite®VQ1F/VQ2F Series are designed for installations

where moisture, dirt, dust, corrosion and vibration may be pre-

sent, or NEMA 3 and 4X areas and where wind, water, snow or

high ambients can be expected. They can be used in locations

made hazardous by the presence of flammable vapors and

gases or combustible dusts, as defined by the NEC®. Typical

applications include manufacturing plants and certain chemical

and petrochemical processing facilities, sewage treatment

plants, off-shore and dockside installations, garages and ware-

houses.

Standard Materials:

•Ballast tank and splice box – corrosion resistant copper-free alu-

minum alloy with baked powder epoxy/polyester finish, electrosta-

tically applied for complete, uniform corrosion protection.

•All external hardware – 316 stainless steel.

•Guards – Painted copper-free aluminum alloy or 316SS for 7-3/4"

glass optics and Enclosed Reflectors.

•Reflectors – lightweight, corrosion resistant fiberglass reinforced

polyester, or copper-free aluminum.

Features:

•“World Voltage” Ballast 120 through 277 VAC 50/60Hz

•Six mounting splice box types: Pendant, Ceiling, Wall bracket,

Cone Top, 25° Angle Stanchion, Straight Stanchion – in a variety

of entry sizes, including M20 for the VMX ceiling style.

•Elevated ambients to 55°C 13W–64W

•Two lamp models have 2 ballasts for separate switching or system

redundancy

•Normally shipped as components for fast delivery, or may be

ordered factory assembled.

•Options for Fuses and Quick Disconnect

•Tank assemblies include quad-pin lamp

Compliances

•UL1598 Standard for luminaires

•UL1598A Marine type luminaire

•UL-844 Standard for lighting fixtures for hazardous locations

•CSA C22.2 no. 137-M1981 electric luminaries for use in

hazardous locations

F E AT U R E S BENEFITS

Swing-Barrel Nut

Patented Tank

Mounting System

• Stainless-to-Stainless securement

• Takes load off during installation

• Uses ordinary tools

• Saves time and labor

Sealed Optic Zone 2

AEx nAR Restricted

Breathing (suffix NR)

NO External Seals. Lower T-codes, Suitable

for Class I Div. 2 Classified areas per the

NEC®. See L54 for more info.

All glass refractors Compact (5-1/2" thread size, types I & V)

Standard (7-3/4", thread size,types I, III, V)

Enhances user selection flexibility

“EZ” mount adapter Easier Maintenance, saves labor, move

fixture from the ladder to the workbench

Photo controls -

Class I Div. 2 /

N4X areas

Available as Field or Factory Installed to

save energy when light not required

Earthquake Tab -

Built-in attachment

point for safety cables

Safety: Secures fixture to structure in case

of conduit failure. “3rd hand” acces-

sories for lamp change out. See L53

for more info.

“FULL CUTOFF” &

CUTOFF Optics

For “Dark Sky” Requirements. Helps to

minimize offending light pollution. See L56

for more info.

VMEP40

“Food Optic”

VQ2F

Expanded Offering for Food or Grain

Handling Applications to minimize

contamination. See L55 for more info.

I III V

Certified - File LR11713

VM1/Wall

Globe & Guard

VM1/Pendant

Globe & Guard

VM2/Ceiling

Globe & Guard

VM2/Stanchion 25°

Refractor & Guard

Compliances Continued:

•Enclosed and gasketed

•NEMA 3, 4X IP66

•UL 60079-15 - Electrical apparatus for Explosive Gas

Atmospheres with Type of Protection “n” (Restricted Breathing

and non-sparking).

Note: VQ1F dimensions are the same as VM1 and VQ2F are same as VM2 -

See L100-L103.

Replaces

VBF/VQF

Series

NEW!

VQ1F/VQ2F SERIES •LIGHTING

CATALOG ORDERING LOGIC

L44

CertiL i t e ®Catalog Number Logic; 13-84 W Compact Fluorescent Fixtures

Series Constant

Optic Thread Size

1F—5 1/2"

2F—7 3/4"

Voltage

30—120/277VAC

Mounting Type

A—Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

E—EZ Mount Adapter1

D—Stanchion 25°

S—Stanchion Straight 90°

N—None (mount ordered

separately)2

Lamp Wattage

13—1 x 13

18—1 x 18

26S—1 x 26

32—1 x 32

42—1 x 42

26—2 x 13

36—2 x 18

52—2 x 26

64—2 x 32

84—2 x 42

Options

NR—7

F—Single Fuse5

FF—Double Fuse5

TBx—Terminal Blocks5

P1—Photocell 120V6

P2—Photocell 208-277V6

QD—Quick Disconnect9

CP—Component Pack

AN—Assembled–no lamps

Optic

GL—Globe (VQ1F, VQ2F)

R1—Type I Glass Refractor (VQ1F,

VQ2F)

R3—Type III Glass Refractor (VQ2F)

R5—Type V Glass Refractor (VQ1F,

VQ2F)

ER—Enclosed Reflector (VQ2F)

EP—Poylcarbonate Shielded

Enclosed Reflector (VQ2F)8

S2—Type II 12" Spin-Top Refractor

(VQ1F, VQ2F)

S8—Type V 8" Spin-Top Refractor

(VQ1F)

S5—Type V 12" Spin-Top Refractor

(VQ1F, VQ2F)

P5—Type V 12" Plastic Spin-Top

Refractor (VQ1F)

FG—Silicone3Coated Globe

(VQ1F, VQ2F)

TG—Teflon®4Coated Globe (VQ1F,

VQ2F)

T1—Teflon®4Coated Globe Type I

Glass Refractor (VQ1F, VQ2F)

T3—Teflon®4Coated Globe Type III

Glass Refractor (VQ2F)

T5—Teflon®4Coated Globe Type V

Glass Refractor (VQ1F, VQ2F)

T2—Teflon®4Coated Type II 12"

Spin-Top Refractor (VQ1F,

VQ2F)

T8—Teflon®4Coated Type V 8"

Spin-Top Refractor (VQ1F)

TV—Teflon®4Coated Type V 12"

Spin-Top Refractor (VQ1F,

VQ2F)

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter1

N—None (mount ordered

separately)2

VQ 1F 84 30 A 3 R1 G (NR7)

1Completes as “EZ”, conduit mounting boxes ordered separately - See L83.

2NN mount ordered separately.

3Silicone coated globe for additional impact protection.

4Teflon®is a registered trademark of DuPont, Inc.

5Fusing not for Marine or Canadian installations.

6Photo cells for Class I, Div. 2 only

7Restricted Breathing - See L54 for more information.

8Not for use with wall or straight (90°) Stanchion.

9QD = Quick Disconnect. Allows easy tank removal for maintenance.

Electrician simply unplugs de-energized ballast from supply circuit.

Guard

G—With Guard

N—Without Guard

VQ1F/VQ2F SERIES •LIGHTING

CERTILITE®COMPACT FLUORESCENT FIXTURES L45

VM1 Ceiling

w/5-1/2"

Globe & Guard

VM1 Pendant

w/5-1/2"

Globe & Guard

VM2 Pendant

w/7-3/4"

Globe & Guard

VM2 Ceiling

w/7-3/4"

Globe & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Certified - File LR11713

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - CEILING

WATTS

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

13 1X13 3/4" VQ1F1330X2GLG VQ1F1330X2R1G VQ1F1330X2R5G VQ2F1330X2GLG VQ2F1330X2R1G VQ2F1330X2R5G VQ2F1330X2S5G

18 1X18 3/4" VQ1F1830X2GLG VQ1F1830X2R1G VQ1F1830X2R5G VQ2F1830X2GLG VQ2F1830X2R1G VQ2F1830X2R5G VQ2F1830X2S5G

26 1X26 3/4" VQ1F26S30X2GLG VQ1F26S30X2R1G VQ1F26S30X2R5G VQ2F26S30X2GLG VQ2F26S30X2R1G VQ2F26S30X2R5G VQ2F26S30X2S5G

32 1X32 3/4" VQ1F3230X2GLG VQ1F3230X2R1G VQ1F3230X2R5G VQ2F3230X2GLG VQ2F3230X2R1G VQ2F3230X2R5G VQ2F3230X2S5G

42 1X42 3/4" VQ1F4230X2GLG VQ1F4230X2R1G VQ1F4230X2R5G VQ2F4230X2GLG VQ2F4230X2R1G VQ2F4230X2R5G VQ2F4230X2S5G

26 2X13 3/4" VQ1F2630X2GLG VQ1F2630X2R1G VQ1F2630X2R5G VQ2F2630X2GLG VQ2F2630X2R1G VQ2F2630X2R5G VQ2F2630X2S5G

36 2X18 3/4" VQ1F3630X2GLG VQ1F3630X2R1G VQ1F3630X2R5G VQ2F3630X2GLG VQ2F3630X2R1G VQ2F3630X2R5G VQ2F3630X2S5G

52 2X26 3/4" VQ1F5230X2GLG VQ1F5230X2R1G VQ1F5230X2R5G VQ2F5230X2GLG VQ2F5230X2R1G VQ2F5230X2R5G VQ2F5230X2S5G

64 2X32 3/4" VQ1F6430X2GLG VQ1F6430X2R1G VQ1F6430X2R5G VQ2F6430X2GLG VQ2F6430X2R1G VQ2F6430X2R5G VQ2F6430X2S5G

84 2X42 3/4" VQ1F8430X2GLG VQ1F8430X2R1G VQ1F8430X2R5G VQ2F8430X2GLG VQ2F8430X2R1G VQ2F8430X2R5G VQ2F8430X2S5G

120VAC

THROUGH

227VAC

50/60Hz

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - PENDANT

WATTS

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

13 1X13 3/4" VQ1F1330A2GLG VQ1F1330A2R1G VQ1F1330A2R5G VQ2F1330A2GLG VQ2F1330A2R1G VQ2F1330A2R5G VQ2F1330A2S5G

18 1X18 3/4" VQ1F1830A2GLG VQ1F1830A2R1G VQ1F1830A2R5G VQ2F1830A2GLG VQ2F1830A2R1G VQ2F1830A2R5G VQ2F1830A2S5G

26 1X26 3/4" VQ1F26S30A2GLG VQ1F26S30A2R1G VQ1F26S30A2R5G VQ2F26S30A2GLG VQ2F26S30A2R1G VQ2F26S30A2R5G VQ2F26S30A2S5G

32 1X32 3/4" VQ1F3230A2GLG VQ1F3230A2R1G VQ1F3230A2R5G VQ2F3230A2GLG VQ2F3230A2R1G VQ2F3230A2R5G VQ2F3230A2S5G

42 1X42 3/4" VQ1F4230A2GLG VQ1F4230A2R1G VQ1F4230A2R5G VQ2F4230A2GLG VQ2F4230A2R1G VQ2F4230A2R5G VQ2F4230A2S5G

26 2X13 3/4" VQ1F2630A2GLG VQ1F2630A2R1G VQ1F2630A2R5G VQ2F2630A2GLG VQ2F2630A2R1G VQ2F2630A2R5G VQ2F2630A2S5G

36 2X18 3/4" VQ1F3630A2GLG VQ1F3630A2R1G VQ1F3630A2R5G VQ2F3630A2GLG VQ2F3630A2R1G VQ2F3630A2R5G VQ2F3630A2S5G

52 2X26 3/4" VQ1F5230A2GLG VQ1F5230A2R1G VQ1F5230A2R5G VQ2F5230A2GLG VQ2F5230A2R1G VQ2F5230A2R5G VQ2F5230A2S5G

64 2X32 3/4" VQ1F6430A2GLG VQ1F6430A2R1G VQ1F6430A2R5G VQ2F6430A2GLG VQ2F6430A2R1G VQ2F6430A2R5G VQ2F6430A2S5G

84 2X42 3/4" VQ1F8430A2GLG VQ1F8430A2R1G VQ1F8430A2R5G VQ2F8430A2GLG VQ2F8430A2R1G VQ2F8430A2R5G VQ2F8430A2S5G

120VAC

THROUGH

227VAC

50/60Hz

1See hazardous application data on page L49 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VQ1F1330A2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1"; e.g. VQ1F1330A3GLG.

4Ballasts are electronic for included Quad-Pin Lamps and 120VAC through 277VAC operation.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

VQ1F/VQ2F SERIES •LIGHTING

CERTILITE®COMPACT FLUORESCENT FIXTURES

L46

VM1 EZ Adapter

w/5-1/2"

Globe & Guard

VM1 Wall

w/5-1/2"

Globe & Guard

VM2 Wall

w/7-3/4"

Globe & Guard

VM2 EZ Adapter

w/7-3/4"

Globe & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Certified - File LR11713

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - EZ ADAPTER6

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - WALL

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

1See hazardous location data on page L49 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VQ1F1330B2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1"; e.g. VQ1F1330B3GLG.

4Ballasts are electronic for included Quad-Pin Lamps and 120VAC through 277VAC operation.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

6VMEZA tank adapters “classified” as an assembly for use between VM type tanks and EZ mounts. Order EZ mounts separately.

WATTS

13 1X13 3/4" VQ1F1330B2GLG VQ1F1330B2R1G VQ1F1330B2R5G VQ2F1330B2GLG VQ2F1330B2R1G VQ2F1330B2R5G VQ2F1330B2S5G

18 1X18 3/4" VQ1F1830B2GLG VQ1F1830B2R1G VQ1F1830B2R5G VQ2F1830B2GLG VQ2F1830B2R1G VQ2F1830B2R5G VQ2F1830B2S5G

26 1X26 3/4" VQ1F26S30B2GLG VQ1F26S30B2R1G VQ1F26S30B2R5G VQ2F26S30B2GLG VQ2F26S30B2R1G VQ2F26S30B2R5G VQ2F26S30B2S5G

32 1X32 3/4" VQ1F3230B2GLG VQ1F3230B2R1G VQ1F3230B2R5G VQ2F3230B2GLG VQ2F3230B2R1G VQ2F3230B2R5G VQ2F3230B2S5G

42 1X42 3/4" VQ1F4230B2GLG VQ1F4230B2R1G VQ1F4230B2R5G VQ2F4230B2GLG VQ2F4230B2R1G VQ2F4230B2R5G VQ2F4230B2S5G

26 2X13 3/4" VQ1F2630B2GLG VQ1F2630B2R1G VQ1F2630B2R5G VQ2F2630B2GLG VQ2F2630B2R1G VQ2F2630B2R5G VQ2F2630B2S5G

36 2X18 3/4" VQ1F3630B2GLG VQ1F3630B2R1G VQ1F3630B2R5G VQ2F3630B2GLG VQ2F3630B2R1G VQ2F3630B2R5G VQ2F3630B2S5G

52 2X26 3/4" VQ1F5230B2GLG VQ1F5230B2R1G VQ1F5230B2R5G VQ2F5230B2GLG VQ2F5230B2R1G VQ2F5230B2R5G VQ2F5230B2S5G

64 2X32 3/4" VQ1F6430B2GLG VQ1F6430B2R1G VQ1F6430B2R5G VQ2F6430B2GLG VQ2F6430B2R1G VQ2F6430B2R5G VQ2F6430B2S5G

84 2X42 3/4" VQ1F8430B2GLG VQ1F8430B2R1G VQ1F8430B2R5G VQ2F8430B2GLG VQ2F8430B2R1G VQ2F8430B2R5G VQ2F8430B2S5G

120VAC

THROUGH

227VAC

50/60Hz

VQ1F1330EZGLG VQ1F1330EZR1G VQ1F1330EZR5G VQ2F1330EZGLG VQ2F1330EZR1G VQ2F1330EZR5G VQ2F1330EZS5G

VQ1F1830EZGLG VQ1F1830EZR1G VQ1F1830EZR5G VQ2F1830EZGLG VQ2F1830EZR1G VQ2F1830EZR5G VQ2F1830EZS5G

VQ1F26S30EZGLG VQ1F26S30EZR1G VQ1F26S30EZR5G VQ2F26S30EZGLG VQ2F26S30EZR1G VQ2F26S30EZR5G VQ2F26S30EZS5G

VQ1F3230EZGLG VQ1F3230EZR1G VQ1F3230EZR5G VQ2F3230EZGLG VQ2F3230EZR1G VQ2F3230EZR5G VQ2F3230EZS5G

VQ1F4230EZGLG VQ1F4230EZR1G VQ1F4230EZR5G VQ2F4230EZGLG VQ2F4230EZR1G VQ2F4230EZR5G VQ2F4230EZS5G

VQ1F2630EZGLG VQ1F2630EZR1G VQ1F2630EZR5G VQ2F2630EZGLG VQ2F2630EZR1G VQ2F2630EZR5G VQ2F2630EZS5G

VQ1F3630EZGLG VQ1F3630EZR1G VQ1F3630EZR5G VQ2F3630EZGLG VQ2F3630EZR1G VQ2F3630EZR5G VQ2F3630EZS5G

VQ1F5230EZGLG VQ1F5230EZR1G VQ1F5230EZR5G VQ2F5230EZGLG VQ2F5230EZR1G VQ2F5230EZR5G VQ2F5230EZS5G

VQ1F6430EZGLG VQ1F6430EZR1G VQ1F6430EZR5G VQ2F6430EZGLG VQ2F6430EZR1G VQ2F6430EZR5G VQ2F6430EZS5G

VQ1F8430EZGLG VQ1F8430EZR1G VQ1F8430EZR5G VQ2F8430EZGLG VQ2F8430EZR1G VQ2F8430EZR5G VQ2F8430EZS5G

120VAC

THROUGH

227VAC

50/60Hz

13 1X13 6

18 1X18 6

26 1X26 6

32 1X32 6

42 1X42 6

26 2X13 6

36 2X18 6

52 2X26 6

64 2X32 6

84 2X42 6

VQ1F/VQ2F SERIES •LIGHTING

CERTILITE®COMPACT FLUORESCENT FIXTURES L47

1See hazardous location data on page L49 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VQ1F1330D5GLN.

3Catalog numbers shown are with 1-1/2" conduit openings; change “5” to “4” for 1-1/4"; e.g. VQ1F1330D4GLG.

4Ballasts are electronic for included Quad-Pin Lamps and 120VAC through 277VAC operation.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

VM1 Stanchion 25°

w/5-1/2"

Globe & Guard

VM2 Stanchion 25°

w/7-3/4"

Globe & Guard

VM2 Stanchion

Straight

w/7-3/4"

Globe & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Certified - File LR11713

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - STANCHION 25° ANGLE

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

13 1X13 3/4" VQ1F1330D5GLG VQ1F1330D5R1G VQ1F1330D5R5G VQ2F1330D5GLG VQ2F1330D5R1G VQ2F1330D5R5G VQ2F1330D5S5G

18 1X18 3/4" VQ1F1830D5GLG VQ1F1830D5R1G VQ1F1830D5R5G VQ2F1830D5GLG VQ2F1830D5R1G VQ2F1830D5R5G VQ2F1830D5S5G

26 1X26 3/4" VQ1F26S30D5GLG VQ1F26S30D5R1G VQ1F26S30D5R5G VQ2F26S30D5GLG VQ2F26S30D5R1G VQ2F26S30D5R5G VQ2F26S30D5S5G

32 1X32 3/4" VQ1F3230D5GLG VQ1F3230D5R1G VQ1F3230D5R5G VQ2F3230D5GLG VQ2F3230D5R1G VQ2F3230D5R5G V12F3230D5S5G

42 1X42 3/4" VQ1F4230D5GLG VQ1F4230D5R1G VQ1F4230D5R5G VQ2F4230D5GLG VQ2F4230D5R1G VQ2F4230D5R5G VQ2F4230D5S5G

26 2X13 3/4" VQ1F2630D5GLG VQ1F2630D5R1G VQ1F2630D5R5G VQ2F2630D5GLG VQ2F2630D5R1G VQ2F2630D5R5G VQ2F2630D5S5G

36 2X18 3/4" VQ1F3630D5GLG VQ1F3630D5R1G VQ1F3630D5R5G VQ2F3630D5GLG VQ2F3630D5R1G VQ2F3630D5R5G VQ2F3630D5S5G

52 2X26 3/4" VQ1F5230D5GLG VQ1F5230D5R1G VQ1F5230D5R5G VQ2F5230D5GLG VQ2F5230D5R1G VQ2F5230D5R5G VQ2F5230D5S5G

64 2X32 3/4" VQ1F6430D5GLG VQ1F6430D5R1G VQ1F6430D5R5G VQ2F6430D5GLG VQ2F6430D5R1G VQ2F6430D5R5G VQ2F6430D5S5G

84 2X42 3/4" VQ1F8430D5GLG VQ1F8430D5R1G VQ1F8430D5R5G VQ2F8430D5GLG VQ2F8430D5R1G VQ2F8430D5R5G VQ2F8430D5S5G

120VAC

THROUGH

227VAC

50/60Hz

VQ1F - VQ2F 13 - 84 WATT COMPACT FLUORESCENT - STANCHION STRAIGHT

DESCRIPTION

LAMPS

INCL.

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE

V REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

13 1X13 1-1/2" VQ1F1330S5GLG VQ1F1330S5R1G VQ1F1330S5R5G VQ2F1330S5GLG VQ2F1330S5R1G VQ2F1330S5R5G VQ2F1330S5S5G

18 1X18 1-1/2" VQ1F1830S5GLG VQ1F1830S5R1G VQ1F1830S5R5G VQ2F1830S5GLG VQ2F1830S5R1G VQ2F1830S5R5G VQ2F1830S5S5G

26 1X26 1-1/2" VQ1F26S30S5GLG VQ1F26S30S5R1G VQ1F26S30S5R5G VQ2F26S30S5GLG VQ2F26S30S5R1G VQ2F26S30S5R5G VQ2F26S30S5S5G

32 1X32 1-1/2" VQ1F3230S5GLG VQ1F3230S5R1G VQ1F3230S5R5G VQ2F3230S5GLG VQ2F3230S5R1G VQ2F3230S5R5G VQ2F3230S5S5G

42 1X42 1-1/2" VQ1F4230S5GLG VQ1F4230S5R1G VQ1F4230S5R5G VQ2F4230S5GLG VQ2F4230S5R1G VQ2F4230S5R5G VQ2F4230S5S5G

26 2X13 1-1/2" VQ1F2630S5GLG VQ1F2630S5R1G VQ1F2630S5R5G VQ2F2630S5GLG VQ2F2630S5R1G VQ2F2630S5R5G VQ2F2630S5S5G

36 2X18 1-1/2" VQ1F3630S5GLG VQ1F3630S5R1G VQ1F3630S5R5G VQ2F3630S5GLG VQ2F3630S5R1G VQ2F3630S5R5G VQ2F3630S5S5G

52 2X26 1-1/2" VQ1F5230S5GLG VQ1F5230S5R1G VQ1F5230S5R5G VQ2F5230S5GLG VQ2F5230S5R1G VQ2F5230S5R5G VQ2F5230S5S5G

64 2X32 1-1/2" VQ1F6430S5GLG VQ1F6430S5R1G VQ1F6430S5R5G VQ2F6430S5GLG VQ2F6430S5R1G VQ2F6430S5R5G VQ2F6430S5S5G

84 2X42 1-1/2" VQ1F8430S5GLG VQ1F8430S5R1G VQ1F8430S5R5G VQ2F8430S5GLG VQ2F8430S5R1G VQ2F8430S5R5G VQ2F8430S5S5G

VM1 Stanchion

Straight

w/5-1/2"

Globe & Guard

120VAC

THROUGH

227VAC

50/60Hz

VQ1F/VQ2F SERIES •LIGHTING

COMPONENTS/TECHNICAL DATA

L48

MOUNTING SPLICE BOXES

3/4"

1-1/4"

1-1/2"

M-20

HUB SIZE

VMA2B

VMA3B

—

PENDANT

VMX2B

VMX3B

—

VMX8B**

CEILING 4 HUB

VMX6B

VMX7B

—

VMX9B

CEILING 5 HUB

VMB2B

VMB3B

—

WALL

VMC2B

VMC3B

—

CONE TOP

—

VMD4B

VMD5B

—

25 DEGREE STANCHION

—

VMS4B

VMS5B

—

90 DEGREE STANCHION

CATALOG NUMBER

*VMEZA is used between a ballast tank and an EZ mount-ordered separately. See L94 for more info.

**VMX8B furnished with 3 non-metallic plugs.

OPTICS AND GUARDS

Globe (glass) VMG17 VMAG17 VMG25 VMAG25S

Refractor (all glass) Type V VMR175 VMAG17 VMR255 VMAG25S

Refractor (all glass) Type I VMR1717VMAG17 VMR251 VMAG25S

Refractor (all glass) Type III ——VMG25 VMAG25S

Refractor (spin top glass) 8" Type V VZRG1550 VMRWG8 ——

Refractor (spin top glass) 12" Type V VZRG2550 VMRWG VZRG4050 VMRWG

Refractor (spin top glass) 12" Type II VZRG2520 VMRWG VZRG4020 VMRWG

Refractor (spin top plastic) 12" Type V VZRP175 VMRWG ——

Enclosed Refractor (glass lens) ——VMER40 VMERG

Enclosed Refractor (plastic lens) ——VMEP40 —

VQ1F LOW WATTAGE VQ2F LOW WATTAGE

5-1/2" OPTIC THREAD SIZE 7-3/4" OPTIC THREAD SIZE

DESCRIPTION OPTICS GUARD OPTICS GUARD

* See L95 for full selection and information.

BALLAST TANKS ONLY 120VAC THROUGH 277VAC 50/60HZ

VQIF1330 VQ2F1330 13 1X13

VQIF1830 VQ2F1830 18 1X18

VQIF26S30 VQ2F26S30 26 1X26

VQIF3230 VQ2F3230 32 1X32

VQIF4230 VQ2F4230 42 1X42

VQIF2630 VQ2F2630 26 2X13

VQIF3630 VQ2F3630 36 2X18

VQIF5230 VQ2F5230 52 2X26

VQIF6430 VQ2F6430 64 2X32

VQIF8430 VQ2F8430 84 2X42

2Order splice box, optic and guard separately.

3See pages L98, L99 for ballast data.

CATALOG NUMBER

5-1/2" OPTIC 7-3/4" OPTIC WATTS LAMPS INCL.

REPLACEMENT LAMPS

MQL13 13W Quad-Pin

MQL18 18W Quad-Pin

MQL26 26W Quad-Pin

MQL32 32W Quad-Pin

MQL42 42W Quad-Pin

CATALOG NUMBER D E SCRIPTION

LUMEN OUTPUT

13 Watt (1X13) 900

18 Watt (1X18) 1200

26 Watt (1X26) 1800

32 Watt (1X32) 2400

42 Watt (1X42) 3200

26 Watt (2X13) 1800

36 Watt (2X18) 2400

52 Watt (2X26) 3600

64 Watt (2X32) 4800

84 Watt (2X42) 6400

LAMP SOURCE LUMEN OUTPUT

VBF/VBQ BALLAST DATA

13 Watt (1X13) 120-277 .144 (120)/.067 (277) HPF Electronic 5°F (-20°C)

18 Watt (1X18) .158 (120)/.073 (277) 5°F (-15°C)

26 Watt (1X26) .24 (120)/.11 (277)

32 Watt (1X32) 120-277 .31 (120)/.13 (277) HPF Electronic -4°F (-20°C) Watt

42 Watt (1X42) .38 (120)/.18 (277)

26 Watt (2X13) 120-277 .288 (120)/.134 (277) HPF Electronic

36 Watt (2X18) .316 (120)/.146 (277) 5°F (-15°C)

52 Watt (2X26) .48 (120)/.11 (277)

64 Watt (2X32) 120-277 .62 (120)/.26 (277) HPF Electronic -4°F (-20°C)

84 Watt (2X42) .76 (120)/.36 (277)

LAMP SOURCE LAMP WATTS/TYPE VOLTAGE 60HZ OPERATING (AMPS) BALLAST CIRCUIT REGULATION MIN. START

Quad-Pin

Fluorescent

NOTE: VQ1F dimensions are

the same as VMI; VQ2F dimen-

sions are the same as VM2. See

L100-L102.

T1 350 325 T2 T2A T2B T2C T2D T3 T3A T3B T3C T4 T4A T5 T6

351-450 326-350 301-325 281-300 261-280 231-260 216-230 201-215 181-200 166-180 161-165 136-160 121-135 101-120 86-100 <=85

VQ1F/VQ2F SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS L49

VQ1F/VQ2F SERIES THERMAL PERFORMANCE DATA1

CLASS I DIVISION 2 GROUPS A,B,C,D / ZONE 2 GROUPS IIC, IIB, IIA / CLASS II E,F,G / CLASS III

CATALOG

NUMBER*

LAMP

WATTS

AMBIENT

DEGREES C

VQ1F1330 13 (1X13)

VQ1F1830 18 (1X18)

VQ1F26S30 26 (1X26)

VQ1F3230 32 (1X32)

VQ1F4230 42 (1X42)

VQ1F2630 26 (2X13)

VQ1F3630 36 (2X18)

VQ1F5230 52 (2X26)

VQ1F6430 64 (2X32)

VQ1F8430 84 (2X42)

VQ2F1330 13 (1X13)

VQ2F1830 18 (1X18)

VQ2F26S30 26 (1X26)

VQ2F3230 32 (1X32)

VQ2F4230 42 (1X42)

VQ2F2630 26 (2X13)

VQ2F3630 36 (2X18)

VQ2F5230 52 (2X26)

VQ2F6430 64 (2X32)

VQ1F8430 84 (2X42)

40 T3C T3C T6 T6 T3C (EFG) T3C (EFG) 75

55 T3C T3C T6 T6 T3C (EFG) T3C (EFG) 75

40 T3C T3C T6 T6 T3C (EFG) T3C (EFG) 75

55 T3C T3C T6 T6 T3C (EFG) T3C (EFG) 75

40 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

55 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

40 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

55 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

40 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

55 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

40 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 60

55 T3A T3A T5 T5 T3C (EFG) T3C (EFG) 75

40 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 60

55 T3A T3A T6 T6 T3C (EFG) T3C (EFG) 75

40 T3 T2D T6 T5 T3C (EFG) T3C (EFG) 75

55 T2D T2D T4 T4 T3C (EFG) T3C (EFG) 75

40 T3 T2D T6 T5 T3C (EFG) T3C (EFG) 75

55 T2D T2D T4 T4 T3C (EFG) T3C (EFG) 75

40 T2B T2B T4 T4 T3C (EFG) T3C (EFG) 75

55 XXX XXX XXX XXX XXX XXX XXX

40 T3C T3C T6 T6 T4A (EFG) T4A (EFG) 60

55 T3C T3C T6 T6 T4A (EFG) T4A (EFG) 75

40 T3C T3C T6 T6 T4A (EFG) T4A (EFG) 60

55 T3C T3C T6 T6 T4A (EFG) T4A (EFG) 75

40 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 60

55 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 75

40 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 60

55 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 75

40 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 60

55 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 75

40 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 60

55 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 75

40 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 60

55 T3A T3A T6 T6 T4A (EFG) T4A (EFG) 75

40 T3 T3 T6 T6 T4A (EFG) T4A (EFG) 60

55 T3 T3 T6 T6 T4A (EFG) T4A (EFG) 75

40 T3 T3 T6 T6 T4A (EFG) T4A (EFG) 60

55 T3 T3 T6 T6 T4A (EFG) T4A (EFG) 75

40 T2C T2C T6 T6 T4A (EFG) T4A (EFG) 75

55 XXX XXX XXX XXX XXX XXX XXX-

CLASS I DIVISION 2 CLASS I ZONE 2 NR II CLASS II DIVISION 1 (3)

GLOBE OR

REFRACTOR 1

GLOBE +

REFLECTOR

GLOBE OR

REFRACTOR 1

GLOBE +

REFLECTOR

TEMP.

MIN. °C

SUPPLY WIRE

GLOBE OR

REFRACTOR 2

GLOBE +

REFLECTOR

T-CODE & TEMPERATURE RANGE CONVERSION TABLE ˚C

1C1D2 & T-codes for Refractors include VMR “All Glass” and VZ Spin-Top Types. Also applies for VMER40 and

VMEP40 in VQ2F models.

2T-codes for Ex nR Refractors are for VMR “All Glass” Types. Also applies for VMER40 and VMEP40 in VQ2F models.

3Models suitable for Class II Div. 1 are also suitable for Class III.

* VQ1F models use 5-1/2" CertiLite®V VM optics; VQ2F models use 7-3/4" VM optics.

VQ1F/VQ2F SERIES •LIGHTING

PHOTOMETRIC DATA

L50

VQ1F 64Watt

Globe Only

VQ1F 64Watt

Globe & Dome Reflector

VQ1F 64Watt

Type V Glass Refractor

Certified Report LSI25349 Certified Report LSI25351 Certified Report LSI25357

C E R T I L I T E®V SERIES HID & INDUCTION •LIGHTING

INTRODUCTION L51

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option2

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

VM3 VM4

KILLARK®CertiLite®VSeries sets a new standard for industrial

grade HID luminaires. Designed for installations where moisture,

dirt, dust, corrosion and vibration may be present, these fixtures

are suitable for NEMA 3 and 4X areas and where wind, water,

snow or high ambients can be expected. They also can be

used in locations made hazardous by the presence of flamma-

ble vapors and gases or combustible dusts, as defined by the

NEC®. Typical applications include manufacturing sites, chemi-

cal and petrochemical processing facilities, sewage treatment

plants, off-shore and dockside installations, garages and ware-

houses.

Standard Materials:

•Ballast tank and splice box – corrosion resistant copper-free alu-

minum alloy with baked powder epoxy/polyester finish, electrosta-

tically applied for complete, uniform corrosion protection.

•All external hardware – 316 stainless steel.

•Guards – Painted copper-free aluminum alloy or 316SS for 7-3/4"

glass optics and Enclosed Reflectors.

•Spin-top Refractor Guards are Plated Steel.

•Reflectors – lightweight, corrosion resistant fiberglass reinforced

polyester, or copper-free aluminum.

Additional Features:

•Seven mounting splice box types; Pendant, Flex Pendant, Ceiling,

Wall bracket, Cone Top, 25° Angle Stanchion, Straight Stanchion

– in a variety of entry sizes, including M20 for the VMX ceiling style.

•Quartz auxiliary, HPS instant restart, Ballast Protectors

•Minimum starting temperature: HPS – 40°C; MV, MH & MHP – 30°C

•Normally shipped as components for fast delivery, or may be

ordered factory assembled with or without lamps.

•Options for fuses and Quick Disconnect

Compliances

•UL1598 Standard for luminaires

•UL1598A Marine type luminaire

•UL-844 Standard for lighting fixtures for hazardous locations

•CSA C22.2 no. 137-M1981 electric luminaries for use in haz-

ardous locations

•Enclosed and gasketed

•NEMA 3, 4X IP66

•UL 60079-15 - Electrical apparatus for Explosive Gas

Atmospheres with Type of Protection “n” (Restricted Breathing and

non-sparking).

FEATURES BENEFITS

Swing-Barrel Nut

Patented Tank

Mounting System

• Stainless-to-Stainless securement

• Takes load off during installation

• Uses ordinary tools

• Saves time and labor

Cover a wider range of wattage sizes and

socket types (will include five total) for

maximum user selection flexibility

Sealed Optic Zone 2

AEx nAR Restricted

Breathing (suffix NR)

NO External Seals. Lower T-codes, Suitable

for Class I Div. 2 Classified areas per the

NEC®

All glass refractors Compact (5-1/2" thread size, types I & V)

Standard (7-3/4", thread size,types I, III, V)

Enhances user selection flexibility

New “EZ” mount

adapter

Easier Maintenance, saves labor, move

fixture from the ladder to the workbench

Photo controls -

Class I Div. 2 /

N4X areas

Available as Field or Factory Installed to

save energy when light not required

Earthquake Tab -

Built-in attachment

point for safety cables

Safety: Secures fixture to structure in case

of conduit failure. “3rd hand” acces-

sories for lamp change out

“FULL CUTOFF” &

CUTOFF Optics

For “Dark Sky” Requirements. Helps to min-

imize offending light pollution

VMEP40

“Food Optic”

Expanded Offering

for Food or Grain Handling

Applications to minimize contamination

NEMA Decals Easier Maintenance, Saves labor

“Have the right lamp in hand

before going up the ladder”.

Expanded lamp

types and wattages

Philips®QL Induction type and 600Watt HPS

available for long life or high lumen require-

ments

CertiLite

Software

sed to determine number of fixtures

required and their proper layout for various

tasks and applications.

Listed - File E10514 (Hazardous & Marine)

15 17 17P

I III V

VM5

Philips®is a registered trademark of Koninklijke Philips Electronics N.V.

12 See Thermal Performance Tables beginning L104.

New ballast tank sizes

Certified - File LR11713

FEATURES-SPECIFICATIONS

VM1 VM2

VM3

5 1/2" Optic

Low Wattage

Mogul Base

CERTILITE®V SERIES •LIGHTING

INTRODUCTION

SWING-BARREL NUT

VM1

5 1/2" Optic

Reduced Profile

Medium Base

VM2

7 3/4" Optic

Reduced Profile

Medium Base

VM4

7 3/4" Optic

Low Wattage

Mogul Base

VM5

7 3/4" Optic

High Wattage

Mogul Base

•The CertiLite®VSwing-Barrel Nut System provides a

Stainless-to-Stainless securement between tank and mounting

box. No more Stainless-to-Aluminum connections or need for

Stainless inserts.

•Users can easily lift the tank into place and “take the load off”,

then tighten. Saves time and labor.

•Only the patented Swing-Barrel Nut Stainless System can be

tightened with a common screwdriver or nut driver; others are

either stainless-to-aluminum, or require a wrench or special

deep socket.

NOTE: CertiLite®Vseries tanks are backwardly compatible with older CertiLite®

mounts. Simply remove Barrel Nut and thread into old mount.

Or turn the page for more features/comparisons

123

QUICK LOCATOR TABLE

Hang

Fixture Swing into Place Tighten

HPS

MHP

35-150

50-100

200-600

50-100

70-250

400

125-175

125-200

250-400

165

VM1 & VM2

VM3 & VM4

VM5

VM1 & VM2

VM3 & VM4

VM5

VM1 & VM2

VM3 & VM4

VM5

VM1

VM4

VM5

L58

L67

L80

L62

L71

L84

L62

L75

L86

L91

L93

L100

L104

L114

L57

L66

L79

L90

L97

Lamp Type Wattage Range Luminaire Tank Begins on Page

Accessories

Dimensional Information

Temperature Data

Photometrics

VM1 & VM2 Logic Tree

VM3 & VM4 Logic Tree

VM5 Logic Tree

QL Logic Tree

Cross-reference guide CertiLite®to CertiLite®V

L52

Maintenance personnel are often in

awkward positions when relamping: trying to

simultaneously hold on to a ladder, a globe

and the lamp. Available “3rd Hand” suspen-

sion cables support 5-1/2" VMG17/VMR17x

optics, utilizing the VMAG17 guard. 7-3/4"

VMG25/VMR25x/VMG40 optics utilize the

VMAGxxS guard and VMAGBC bottom clo-

sure. Cables attach to a special “Earthquake

Tab” built into the ballast tank housing. See

Suspension Accessories page L96.

CertiLite®Vtanks as standard have a built-in

“Earthquake Tab”. The tab is used to hold optic

suspension devices, and can simultaneously

be used to add a safety cable linked to the

building superstructure.

To enable easy and safe removal of CertiLite®Vfixtures for maintenance, install with the

new VMEZA ballast tank to EZ mount adapter.

The complete assembly is removed for maintenance at the workbench.

Large facilities often keep spares so that a “new” fixture is put in at the time one needs

maintenance – thus eliminating the need to set up access equipment multiple times.

HAVE THE RIGHT LAMP IN HAND

BEFORE GOING UP THE LADDER.

For Personnel Safety

15 17

YELLOW

150W HPS

RED

175W MH

RED

175W MHP

NEMA Decals

for Lamp Type

& Wattage

* “P” designates newer Pulse Start Metal Halide lamps:

150, 175, 200, 250, 320, 350 and 400 watt models.

17P

Attach to

Building

Structure.

Need a Hand?

CERTILITE®V SERIES •LIGHTING

INTRODUCTION L53

EZ MOUNT & LAMP INDENTIFICATION

CERTILITE®V SERIES •LIGHTING

INTRODUCTION

NEW “Sealed Optic” construction, option “NR”. Rated for

Class I, Zone 2 AEx nAnR/Ex nR II Restricted Breathing.

“Sealed Entry” is no longer required to obtain significantly lower T-codes.

•CertiLite®Vluminaires with the NR option

are factory sealed to save installation

time and labor costs.

•AEx nAnR/Ex nR II is covered under

NEC®Article 505, and indicates Non-

Arcing and Non-Breathing.

•North American Class I Division 2 desig-

nated locations may use properly

marked Zone 2 rated equipment per

NEC Article 501.5.

•The CertiLite®VNR option is available

for VMG, VMR, and VMER40 optics, but

not VZRG Type “Spin-top” Refractors.

•Permits the use of fewer higher wattage

luminaires for a given application.

No labor intensive conduit seals

or sealed cable glands required

for installation

Factory seal above lamp

chamber restricts air flow,

preventing hazardous vapors

from reaching the lamp. This

allows temperature code

measurement at the globe vs.

the lamp, allowing lower

T-codes for a given lamp size

and type.

150 HPS

400 HPS

175 MH

400 MH

VM3 w/VMG or VMR

VM4 w/VMG or VMR

VM5 w/VMG

VM5 w/VMER40

VM3 w/VMG or VMR

VM4 w/VMG or VMR

VM5 w/VMG40

VM5 w/VMER40

T2B (260°C)

350° C

T2A (280°C)

T2B (260°C)

325° (300°C)

T2 (300°C)

T4 (135°C)

T3 (200°C)

T4 (135°C)

T3 (200°C)

-125°C

-150°C

-80°C

-125°C

-100°C

Lamp Type

and

Wattage

Examples at 40c ambient.

See thermal performance

charts beginning L84 for

more information

Class I Div. 2/

Zone 2

Globe only

Class I Zone 2

AEX nAnR II

Reduction

in Applied

T-Code

For Lower T-Codes

See the Benefit!

1Based on Lamp temperature data

2Based on Globe temperature data

L54

CERTILITE®V SERIES •LIGHTING

INTRODUCTION L55

•CertiLite®VVM4 or VM5 series luminaires with the new

VMEP40 Optic have a strong non-glass polycarbonate

shield protecting food from potential broken glass contam-

ination, as could be the case even with heat-resistant

heavy duty globes.

•Unique design incorporates internal glass lens to seal out

dust and vapors from the lamp, with a polycarbonate

shield banded tightly at the bottom.

•Copper-free aluminum reflector has anodized finish

for easy cleaning; threaded portion at top is natural

aluminum to prevent paint dust contamination during

maintenance (from attaching/detaching).

•Polycarbonate shield is replaceable and must always

be used to maintain ratings. Order part number

VMEP40-LENS.

•CertiLite®Vnow offers additional all-glass threaded

refractors, and many are available with a Teflon coating.

•Teflon®coating helps to reduce the likelihood of glass

breakage, and if broken, reduces the area of contamination.

Also enhances cleanability.

Teflon®is a registered trademark of Dupont, Inc.

EXPANDED TEFLON®COATED OPTICS

VMG17T

Listed and Certified

Class I Div. 2; Class II Div. 1;

N4X

Grain Area

Food Area

VMEP40 Optic

For Food & Grain Safety

and Low Bay Applications

SAFETY COATING

CERTILITE®V SERIES •LIGHTING

INTRODUCTION

L56

For Dark Sky Needs

CertiLiteV

KILLARK vs. COMPETITION

Swing-barrel nut (patented)

Stainless-to-Stainless securement

between tank and mounting box.

Can be tightened with a common

screwdriver or nut driver.

Either not stainless, or

require a wrench or

special deep socket.

Earthquake tab

Built in securement location for

safety cables, optic “3rd Hand”

or to building structure.

Maintenance Safety Optic

suspension systems

Suspension safety cable to

building superstructure

“Sealed Optic”

Instead of more costly “Sealed Entry”

Meets AEx nAR Requirements

VMEP40

Food Area Suitable Optic

Dark Sky

Optics Available

316 Stainless Guards

For 7 3/4" All Glass Optics.

Optional Bottom Closure.

Not

Available

Not

Available

Not

Available

Only Glass

Optics Offered

“Sealed Entry” requires extra parts

(conduit seals) and labor to

install, and block pulling of

replacement wiring.

Limited, if any, solutions for light

pollution, a problem in many areas.

“Ordinary” stainless & open bottom type

only. Provides less protection

from bottom impact or corrosion.

COMPETITIVE COMPARISONS

•The CertiLite®VVMER40 Enclosed Reflector meets the “Full Cuttoff”

photometric requirement in many areas, such as observatories, to

minimize offending light pollution. Fits VM4 and VM5 Series tanks.

•Use VMDARK1 gasket kit to enable the deep HRD Series Reflectors

to meet the “Full Cutoff” requirement over globes on the VM4, or

“Cutoff” on VM5 Series tanks. See L96 for more information.

L57

CertiL i t e ®VCatalog Number Logic; 35-175 Low Wattage (Medium Base) HID Fixtures

Series Constant

Optic Thread Size

1—5 1/2"

2—7 3/4"

Lamp Type

S—HPS (35, 50, 70, 100, 150)

H—MH (50, 70, 100)

P—MHP (1251, 150, 175)

Voltage @ 60 Hertz

1—120V

0—Quadri-Volt (120, 208, 240, 277)

5—480V

6—Tri - 120, 277, 347 (Canada)

7—220V

8—220/240 50 Hz

Mounting Type

A—Pendant

F—Flexible Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

E—EZ Mount Adapter2

D—Stanchion 25°

S—Stanchion Straight 90°

N—None (mount ordered

separately)3

Lamp Wattage

03—35W, (HPS)

05—50W, (HPS, MH)

07—70W, (HPS, MH)

10—100W, (HPS, MH)

12—125W, (MHP1)

15—150W, (HPS, MHP)

17—175W, (MHP)

Guard

G—Guard (Globes & Glass

refractors)

N—No Guard8

Options

IR—Instant Restrike - 50-150

HPS

QA—Quartz Auxiliary9

BP—Ballast Protector -

70-150 HPS

F1—Fusing 120V

F2—Fusing 208V

F3—Fusing 240V

F4—Fusing 277V

F5—Fusing 480V

F6—Fusing 347V

F7—Fusing 220V

F8—Fusing 240V 50 Hz

P1—Photocell 120V

P2—Photocell 208-277V

P3—Photocell 347V

Q1—QD Wired to 120V

Q2—QD Wired to 208V

Q3—QD Wired to 240V

Q4—QD Wired to 277V

Q5—QD Wired to 480V

Q6—QD Wired to 347V

Q7—QD 220V

Q8—QD 240V (50Hz)

TBx—Terminal Blocks

x= Voltage Code

AS—Assembled Fixture with

Standard Lamp

AD—Assembled Fixture with

Dual Arc Tube Lamp 70,

100, 150 HPS only

AN—Assembled, no lamp

CP—Component Pack-No

Lamp

CS—Component Pack with

Standard Lamp

Optic

GL—Globe (VM1, VM2)

R1—Type I Glass Refractor (VM1,

VM2)

R3—Type III Glass Refractor (VM2)

R5—Type V Glass Refractor (VM1,

VM2)

ER—Enclosed Reflector (VM2)

EP—Poylcarbonate Shielded

Enclosed Reflector (VM2)

S2—Type II 12" Spin-Top Refractor

(VM14, VM2)

S8—Type V 8" Spin-Top Refractor

(VM1)

S5—Type V 12" Spin-Top Refractor

(VM14, VM2)

P5—Type V 12" Plastic Spin-Top

Refractor (VM1-175W Max.)

FG—Silicone5Coated Globe (VM1,

VM2)

TG—Teflon®6Coated Globe (VM1,

VM2)

T1—Teflon®6Coated Globe Type I

Glass Refractor (VM1, VM2)

T3—Teflon®6Coated Globe Type III

Glass Refractor (VM2)

T5—Teflon®6Coated Globe Type V

Glass Refractor (VM1, VM2)

T2—Teflon®6Coated Type II 12"

Spin-Top Refractor (VM14,

VM2)

T8—Teflon®6Coated Type V 8"

Spin-Top Refractor (VM1)

TV—Teflon®6Coated Type V 12"

Spin-Top Refractor (VM14,

VM2)

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter2

N—None (mount ordered

separately)3

VM 0 0 00 0 0 0 00 0 (NR7) 00

1Special order lamp type/wattage not shown in grids, minimums apply.

2Completes as “EZ”, conduit mounting boxes ordered separately - See L83.

3NN mount ordered separately.

412" Spintops for use with VM3 tanks ship with a Mogul to Mogul socket

extender for enhanced photometrics vs. 7 3/4", which are used on VM5,

but will fit VM4.

5Silicone coated globe for additional impact protection.

6Teflon®is a registered trademark of DuPont, Inc.

Consult factory for available lamp and voltage combinations.

7Restricted Breathing - See L54 for more information.

8Order Guards for Spin-Tops & VMER40 separately.

9QA not suitable for Class I, Div. 2/Zone 2 applications; consult factory

for other hazardous applications.

Fusing not for Marine or Canadian installations.

Photo cells for Class I, Div. 2 only, or C1Z2 nR , not Class II.

Field connection to proper tap in case of Multitap Ballasts.

Not for use with wall or straight (90°) Stanchion.

QD = Quick Disconnect. Allows easy tank removal for maintenance.

Electrician simply unplugs de-energized ballast from supply circuit.

220V 60Hz or 230V 50Hz used with QA-requires VM5 tank.

IR and BP cannot be ordered together.

11 12

CERTILITE®V SERIES •LIGHTING

VM1/VM2 CATALOG ORDERING LOGIC

1See hazardous location data pages L104-107 for application suitability

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1S050A2GLN

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1S050A3GLG

4Consult catalog logic for other available voltage & lamp combinations

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 35-150W MEDIUM BASE HID

L58

VM 35-150 HIGH PRESSURE SODIUM-PENDANT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 3/4" 120V VM1S031A2GLG VM1S031A2R1G VM1S031A2R5G VM2S031A2GLG VM2S031A2R1G VM2S031A2R5G VM2S031A2S5G

50 S68 3/4" Quad VM1S050A2GLG VM1S050A2R1G VM1S050A2R5G VM2S050A2GLG VM2S050A2R1G VM2S050A2R5G VM2S050A2S5G

Quad VM1S070A2GLG VM1S070A2R1G VM1S070A2R5G VM2S070A2GLG VM2S070A2R1G VM2S070A2R5G VM2S070A2S5G

70 S62 3/4" Tri VM1S076A2GLG VM1S076A2R1G VM1S076A2R5G VM2S076A2GLG VM2S076A2R1G VM2S076A2R5G VM2S076A2S5G

480 VM1S075A2GLG VM1S075A2R1G VM1S075A2R5G VM2S075A2GLG VM2S075A2R1G VM2S075A2R5G VM2S075A2S5G

Quad VM1S100A2GLG VM1S100A2R1G VM1S100A2R5G VM2S100A2GLG VM2S100A2R1G VM2S100A2R5G VM2S100A2S5G

100 S54 3/4" Tri VM1S106A2GLG VM1S106A2R1G VM1S106A2R5G VM2S106A2GLG VM2S106A2R1G VM2S106A2R5G VM2S106A2S5G

480 VM1S105A2GLG VM1S105A2R1G VM1S105A2R5G VM2S105A2GLG VM2S105A2R1G VM2S105A2R5G VM2S105A2S5G

Quad VM1S150A2GLG VM1S150A2R1G VM1S150A2R5G VM2S150A2GLG VM2S150A2R1G VM2S150A2R5G VM2S150A2S5G

150 S55 3/4" Tri VM1S156A2GLG VM1S156A2R1G VM1S156A2R5G VM2S156A2GLG VM2S156A2R1G VM2S156A2R5G VM2S156A2S5G

480 VM1S155A2GLG VM1S155A2R1G VM1S155A2R5G VM2S155A2GLG VM2S155A2R1G VM2S155A2R5G VM2S155A2S5G

VM1

Flexible Pendant

w/5-1/2"

Refractor & Guard

VM1 Pendant

w/5-1/2"

Globe & Guard

VM2 Pendant

w/7-3/4"

Globe & Guard

VM2

Flexible Pendant

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 35-150 HIGH PRESSURE SODIUM-FLEX PENDANT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 3/4" 120V VM1S031F2GLG VM1S031F2R1G VM1S031F2R5G VM2S031F2GLG VM2S031F2R1G VM2S031F2R5G VM2S031F2S5G

50 S68 3/4" Quad VM1S050F2GLG VM1S050F2R1G VM1S050F2R5G VM2S050F2GLG VM2S050F2R1G VM2S050F2R5G VM2S050F2S5G

Quad VM1S070F2GLG VM1S070F2R1G VM1S070F2R5G VM2S070F2GLG VM2S070F2R1G VM2S070F2R5G VM2S070F2S5G

70 S62 3/4" Tri VM1S076F2GLG VM1S076F2R1G VM1S076F2R5G VM2S076F2GLG VM2S076F2R1G VM2S076F2R5G VM2S076F2S5G

480 VM1S075F2GLG VM1S075F2R1G VM1S075F2R5G VM2S075F2GLG VM2S075F2R1G VM2S075F2R5G VM2S075F2S5G

Quad VM1S100F2GLG VM1S100F2R1G VM1S100F2R5G VM2S100F2GLG VM2S100F2R1G VM2S100F2R5G VM2S100F2S5G

100 S54 3/4" Tri VM1S106F2GLG VM1S106F2R1G VM1S106F2R5G VM2S106F2GLG VM2S106F2R1G VM2S106F2R5G VM2S106F2S5G

480 VM1S105F2GLG VM1S105F2R1G VM1S105F2R5G VM2S105F2GLG VM2S105F2R1G VM2S105F2R5G VM2S105F2S5G

Quad VM1S150F2GLG VM1S150F2R1G VM1S150F2R5G VM2S150F2GLG VM2S150F2R1G VM2S150F2R5G VM2S150F2S5G

150 S55 3/4" Tri VM1S156F2GLG VM1S156F2R1G VM1S156F2R5G VM2S156F2GLG VM2S156F2R1G VM2S156F2R5G VM2S156F2S5G

480 VM1S155F2GLG VM1S155F2R1G VM1S155F2R5G VM2S155F2GLG VM2S155F2R1G VM2S155F2R5G VM2S155F2S5G

1See hazardous location data pages L104-107 for application suitability

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1S050X2GLN

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1S050X3GLG

4Consult catalog logic for other available voltage & lamp combinations

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 35-150W MEDIUM BASE HID L59

VM 35-150 HIGH PRESSURE SODIUM-CEILING

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 3/4" 120V VM1S031X2GLG VM1S031X2R1G VM1S031X2R5G VM2S031X2GLG VM2S031X2R1G VM2S031X2R5G VM2S031X2S5G

50 S68 3/4" Quad VM1S050X2GLG VM1S050X2R1G VM1S050X2R5G VM2S050X2GLG VM2S050X2R1G VM2S050X2R5G VM2S050X2S5G

Quad VM1S070X2GLG VM1S070X2R1G VM1S070X2R5G VM2S070X2GLG VM2S070X2R1G VM2S070X2R5G VM2S070X2S5G

70 S62 3/4" Tri VM1S076X2GLG VM1S076X2R1G VM1S076X2R5G VM2S076X2GLG VM2S076X2R1G VM2S076X2R5G VM2S076X2S5G

480 VM1S075X2GLG VM1S075X2R1G VM1S075X2R5G VM2S075X2GLG VM2S075X2R1G VM2S075X2R5G VM2S075X2S5G

Quad VM1S100X2GLG VM1S100X2R1G VM1S100X2R5G VM2S100X2GLG VM2S100X2R1G VM2S100X2R5G VM2S100X2S5G

100 S54 3/4" Tri VM1S106X2GLG VM1S106X2R1G VM1S106X2R5G VM2S106X2GLG VM2S106X2R1G VM2S106X2R5G VM2S106X2S5G

480 VM1S105X2GLG VM1S105X2R1G VM1S105X2R5G VM2S105X2GLG VM2S105X2R1G VM2S105X2R5G VM2S105X2S5G

Quad VM1S150X2GLG VM1S150X2R1G VM1S150X2R5G VM2S150X2GLG VM2S150X2R1G VM2S150X2R5G VM2S150X2S5G

150 S55 3/4" Tri VM1S156X2GLG VM1S156X2R1G VM1S156X2R5G VM2S156X2GLG VM2S156X2R1G VM2S156X2R5G VM2S156X2S5G

480 VM1S155X2GLG VM1S155X2R1G VM1S155X2R5G VM2S155X2GLG VM2S155X2R1G VM2S155X2R5G VM2S155X2S5G

VM1 Wall

w/5-1/2"

Refractor & Guard

VM1 Ceiling

w/5-1/2"

Globe & Guard

VM2 Ceiling

w/7-3/4"

Globe & Guard

VM2 Wall

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 35-150 HIGH PRESSURE SODIUM-WALL

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 3/4" 120V VM1S031B2GLG VM1S031B2R1G VM1S031B2R5G VM2S031B2GLG VM2S031B2R1G VM2S031B2R5G VM2S031B2S5G

50 S68 3/4" Quad VM1S050B2GLG VM1S050B2R1G VM1S050B2R5G VM2S050B2GLG VM2S050B2R1G VM2S050B2R5G VM2S050B2S5G

Quad VM1S070B2GLG VM1S070B2R1G VM1S070B2R5G VM2S070B2GLG VM2S070B2R1G VM2S070B2R5G VM2S070B2S5G

70 S62 3/4" Tri VM1S076B2GLG VM1S076B2R1G VM1S076B2R5G VM2S076B2GLG VM2S076B2R1G VM2S076B2R5G VM2S076B2S5G

480 VM1S075B2GLG VM1S075B2R1G VM1S075B2R5G VM2S075B2GLG VM2S075B2R1G VM2S075B2R5G VM2S075B2S5G

Quad VM1S100B2GLG VM1S100B2R1G VM1S100B2R5G VM2S100B2GLG VM2S100B2R1G VM2S100B2R5G VM2S100B2S5G

100 S54 3/4" Tri VM1S106B2GLG VM1S106B2R1G VM1S106B2R5G VM2S106B2GLG VM2S106B2R1G VM2S106B2R5G VM2S106B2S5G

480 VM1S105B2GLG VM1S105B2R1G VM1S105B2R5G VM2S105B2GLG VM2S105B2R1G VM2S105B2R5G VM2S105B2S5G

Quad VM1S150B2GLG VM1S150B2R1G VM1S150B2R5G VM2S150B2GLG VM2S150B2R1G VM2S150B2R5G VM2S150B2S5G

150 S55 3/4" Tri VM1S156B2GLG VM1S156B2R1G VM1S156B2R5G VM2S156B2GLG VM2S156B2R1G VM2S156B2R5G VM2S156B2S5G

480 VM1S155B2GLG VM1S155B2R1G VM1S155B2R5G VM2S155B2GLG VM2S155B2R1G VM2S155B2R5G VM2S155B2S5G

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1S050C2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1S050C3GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

6VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately. See page L83.

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 35-150W MEDIUM BASE HID

L60

VM1 EZ Adapter

w/5-1/2"

Refractor & Guard

VM1 Cone

w/5-1/2"

Globe & Guard

VM2 Cone

w/7-3/4"

Globe & Guard

VM2 EZ Adapter

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 35-150 HIGH PRESSURE SODIUM-CONE

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 3/4" 120V VM1S031C2GLG VM1S031C2R1G VM1S031C2R5G VM2S031C2GLG VM2S031C2R1G VM2S031C2R5G VM2S031C2S5G

50 S68 3/4" Quad VM1S050C2GLG VM1S050C2R1G VM1S050C2R5G VM2S050C2GLG VM2S050C2R1G VM2S050C2R5G VM2S050C2S5G

Quad VM1S070C2GLG VM1S070C2R1G VM1S070C2R5G VM2S070C2GLG VM2S070C2R1G VM2S070C2R5G VM2S070C2S5G

70 S62 3/4" Tri VM1S076C2GLG VM1S076C2R1G VM1S076C2R5G VM2S076C2GLG VM2S076C2R1G VM2S076C2R5G VM2S076C2S5G

480 VM1S075C2GLG VM1S075C2R1G VM1S075C2R5G VM2S075C2GLG VM2S075C2R1G VM2S075C2R5G VM2S075C2S5G

Quad VM1S100C2GLG VM1S100C2R1G VM1S100C2R5G VM2S100C2GLG VM2S100C2R1G VM2S100C2R5G VM2S100C2S5G

100 S54 3/4" Tri VM1S106C2GLG VM1S106C2R1G VM1S106C2R5G VM2S106C2GLG VM2S106C2R1G VM2S106C2R5G VM2S106C2S5G

480 VM1S105C2GLG VM1S105C2R1G VM1S105C2R5G VM2S105C2GLG VM2S105C2R1G VM2S105C2R5G VM2S105C2S5G

Quad VM1S150C2GLG VM1S150C2R1G VM1S150C2R5G VM2S150C2GLG VM2S150C2R1G VM2S150C2R5G VM2S150C2S5G

150 S55 3/4" Tri VM1S156C2GLG VM1S156C2R1G VM1S156C2R5G VM2S156C2GLG VM2S156C2R1G VM2S156C2R5G VM2S156C2S5G

480 VM1S155C2GLG VM1S155C2R1G VM1S155C2R5G VM2S155C2GLG VM2S155C2R1G VM2S155C2R5G VM2S155C2S5G

VM 35-150 HIGH PRESSURE SODIUM-EZ ADAPTER6

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 6120V VM1S031EZGLG VM1S031EZR1G VM1S031EZR5G VM2S031EZGLG VM2S031EZR1G VM2S031EZR5G VM2S031EZS5G

50 S68 6Quad VM1S050EZGLG VM1S050EZR1G VM1S050EZR5G VM2S050EZGLG VM2S050EZR1G VM2S050EZR5G VM2S050EZS5G

Quad VM1S070EZGLG VM1S070EZR1G VM1S070EZR5G VM2S070EZGLG VM2S070EZR1G VM2S070EZR5G VM2S070EZS5G

70 S62 6Tri VM1S076EZGLG VM1S076EZR1G VM1S076EZR5G VM2S076EZGLG VM2S076EZR1G VM2S076EZR5G VM2S076EZS5G

480 VM1S075EZGLG VM1S075EZR1G VM1S075EZR5G VM2S075EZGLG VM2S075EZR1G VM2S075EZR5G VM2S075EZS5G

Quad VM1S100EZGLG VM1S100EZR1G VM1S100EZR5G VM2S100EZGLG VM2S100EZR1G VM2S100EZR5G VM2S100EZS5G

100 S54 6Tri VM1S106EZGLG VM1S106EZR1G VM1S106EZR5G VM2S106EZGLG VM2S106EZR1G VM2S106EZR5G VM2S106EZS5G

480 VM1S105EZGLG VM1S105EZR1G VM1S105EZR5G VM2S105EZGLG VM2S105EZR1G VM2S105EZR5G VM2S105EZS5G

Quad VM1S150EZGLG VM1S150EZR1G VM1S150EZR5G VM2S150EZGLG VM2S150EZR1G VM2S150EZR5G VM2S150EZS5G

150 S55 6Tri VM1S156EZGLG VM1S156EZR1G VM1S156EZR5G VM2S156EZGLG VM2S156EZR1G VM2S156EZR5G VM2S156EZS5G

480 VM1S155EZGLG VM1S155EZR1G VM1S155EZR5G VM2S155EZGLG VM2S155EZR1G VM2S155EZR5G VM2S155EZS5G

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1S050D5GLN.

3Catalog numbers shown are with 1-1/2" conduit openings; change “5” to “4” for 1-1/4" e.g. VM1S050D4GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 35-150W MEDIUM BASE HID L61

VM1 Stanchion

Straight

w/5-1/2"

Refractor & Guard

VM1 Stanchion 25°

w/5-1/2"

Globe & Guard

VM2 Stanchion 25°

w/7-3/4"

Globe & Guard

VM2 Stanchion

Straight

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 35-150 HIGH PRESSURE SODIUM - STANCHION 25° ANGLE

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 1-1/2" 120V VM1S031D5GLG VM1S031D5R1G VM1S031D5R5G VM2S031D5GLG VM2S031D5R1G VM2S031D5R5G VM2S031D5S5G

50 S68 1-1/2" Quad VM1S050D5GLG VM1S050D5R1G VM1S050D5R5G VM2S050D5GLG VM2S050D5R1G VM2S050D5R5G VM2S050D5S5G

Quad VM1S070D5GLG VM1S070D5R1G VM1S070D5R5G VM2S070D5GLG VM2S070D5R1G VM2S070D5R5G VM2S070D5S5G

70 S62 1-1/2" Tri VM1S076D5GLG VM1S076D5R1G VM1S076D5R5G VM2S076D5GLG VM2S076D5R1G VM2S076D5R5G VM2S076D5S5G

480 VM1S075D5GLG VM1S075D5R1G VM1S075D5R5G VM2S075D5GLG VM2S075D5R1G VM2S075D5R5G VM2S075D5S5G

Quad VM1S100D5GLG VM1S100D5R1G VM1S100D5R5G VM2S100D5GLG VM2S100D5R1G VM2S100D5R5G VM2S100D5S5G

100 S54 1-1/2" Tri VM1S106D5GLG VM1S106D5R1G VM1S106D5R5G VM2S106D5GLG VM2S106D5R1G VM2S106D5R5G VM2S106D5S5G

480 VM1S105D5GLG VM1S105D5R1G VM1S105D5R5G VM2S105D5GLG VM2S105D5R1G VM2S105D5R5G VM2S105D5S5G

Quad VM1S150D5GLG VM1S150D5R1G VM1S150D5R5G VM2S150D5GLG VM2S150D5R1G VM2S150D5R5G VM2S150D5S5G

150 S55 1-1/2" Tri VM1S156D5GLG VM1S156D5R1G VM1S156D5R5G VM2S156D5GLG VM2S156D5R1G VM2S156D5R5G VM2S156D5S5G

480 VM1S155D5GLG VM1S155D5R1G VM1S155D5R5G VM2S155D5GLG VM2S155D5R1G VM2S155D5R5G VM2S155D5S5G

VM 35-150 HIGH PRESSURE SODIUM - STANCHION STRAIGHT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

35 S76 1-1/2" 120V VM1S031S5GLG VM1S031S5R1G VM1S031S5R5G VM2S031S5GLG VM2S031S5R1G VM2S031S5R5G VM2S031S5S5G

50 S68 1-1/2" Quad VM1S050S5GLG VM1S050S5R1G VM1S050S5R5G VM2S050S5GLG VM2S050S5R1G VM2S050S5R5G VM2S050S5S5G

Quad VM1S070S5GLG VM1S070S5R1G VM1S070S5R5G VM2S070S5GLG VM2S070S5R1G VM2S070S5R5G VM2S070S5S5G

70 S62 1-1/2" Tri VM1S076S5GLG VM1S076S5R1G VM1S076S5R5G VM2S076S5GLG VM2S076S5R1G VM2S076S5R5G VM2S076S5S5G

480 VM1S075S5GLG VM1S075S5R1G VM1S075S5R5G VM2S075S5GLG VM2S075S5R1G VM2S075S5R5G VM2S075S5S5G

Quad VM1S100S5GLG VM1S100S5R1G VM1S100S5R5G VM2S100S5GLG VM2S100S5R1G VM2S100S5R5G VM2S100S5S5G

100 S54 1-1/2" Tri VM1S106S5GLG VM1S106S5R1G VM1S106S5R5G VM2S106S5GLG VM2S106S5R1G VM2S106S5R5G VM2S106S5S5G

480 VM1S105S5GLG VM1S105S5R1G VM1S105S5R5G VM2S105S5GLG VM2S105S5R1G VM2S105S5R5G VM2S105S5S5G

Quad VM1S150S5GLG VM1S150S5R1G VM1S150S5R5G VM2S150S5GLG VM2S150S5R1G VM2S150S5R5G VM2S150S5S5G

150 S55 1-1/2" Tri VM1S156S5GLG VM1S156S5R1G VM1S156S5R5G VM2S156S5GLG VM2S156S5R1G VM2S156S5R5G VM2S156S5S5G

480 VM1S155S5GLG VM1S155S5R1G VM1S155S5R5G VM2S155S5GLG VM2S155S5R1G VM2S155S5R5G VM2S155S5S5G

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1H050A2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1H050A3GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

** 50, 70, & 100 Watt “Traditional Metal Hallide” ballasts include a Pulse Ignitor, as do 150 & 175W Metal Halide Pulse models.

CERTILITE®V SERIES •LIGHTING

METAL HALIDE/METAL HALIDE PULSE, 50-175W MEDIUM BASE HID

L62

VM1 Flexible Pendant

w/5-1/2"

Refractor & Guard

VM1 Pendant

w/5-1/2"

Globe & Guard

VM2 Pendant

w/7-3/4"

Globe & Guard

VM2 Flexible Pendant

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 50-175 METAL HALIDE (PULSE**) - PENDANT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 3/4" Quad VM1H050A2GLG VM1H050A2R1G VM1H050A2R5G VM2H050A2GLG VM2H050A2R1G VM2H050A2R5G VM2H050A2S5G

Tri VM1H056A2GLG VM1H056A2R1G VM1H056A2R5G VM2H056A2GLG VM2H056A2R1G VM2H056A2R5G VM2H056A2S5G

Quad VM1H070A2GLG VM1H070A2R1G VM1H070A2R5G VM2H070A2GLG VM2H070A2R1G VM2H070A2R5G VM2H070A2S5G

70 M98 3/4" Tri VM1H076A2GLG VM1H076A2R1G VM1H076A2R5G VM2H076A2GLG VM2H076A2R1G VM2H076A2R5G VM2H076A2S5G

480 VM1H075A2GLG VM1H075A2R1G VM1H075A2R5G VM2H075A2GLG VM2H075A2R1G VM2H075A2R5G VM2H075A2S5G

Quad VM1H100A2GLG VM1H100A2R1G VM1H100A2R5G VM2H100A2GLG VM2H100A2R1G VM2H100A2R5G VM2H100A2S5G

100 M90 3/4" Tri VM1H106A2GLG VM1H106A2R1G VM1H106A2R5G VM2H106A2GLG VM2H106A2R1G VM2H106A2R5G VM2H106A2S5G

480 VM1H105A2GLG VM1H105A2R1G VM1H105A2R5G VM2H105A2GLG VM2H105A2R1G VM2H105A2R5G VM2H105A2S5G

M102 Quad VM1P150A2GLG VM1P150A2R1G VM1P150A2R5G VM2P150A2GLG VM2P150A2R1G VM2P150A2R5G VM2P150A2S5G

150 3/4" Tri VM1P156A2GLG VM1P156A2R1G VM1P156A2R5G VM2P156A2GLG VM2P156A2R1G VM2P156A2R5G VM2P156A2S5G

M142 480 VM1P155A2GLG VM1P155A2R1G VM1P155A2R5G VM2P155A2GLG VM2P155A2R1G VM2P155A2R5G VM2P155A2S5G

M137 Quad VM1P170A2GLG VM1P170A2R1G VM1P170A2R5G VM2P170A2GLG VM2P170A2R1G VM2P170A2R5G VM2P170A2S5G

175 3/4" Tri VM1P176A2GLG VM1P176A2R1G VM1P176A2R5G VM2P176A2GLG VM2P176A2R1G VM2P176A2R5G VM2P176A2S5G

M152 480 VM1P175A2GLG VM1P175A2R1G VM1P175A2R5G VM2P175A2GLG VM2P175A2R1G VM2P175A2R5G VM2P175A2S5G

VM 50-175 METAL HALIDE (PULSE**) - FLEX PENDANT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 3/4" Quad VM1H050F2GLG VM1H050F2R1G VM1H050F2R5G VM2H050F2GLG VM2H050F2R1G VM2H050F2R5G VM2H050F2S5G

Tri VM1H056F2GLG VM1H056F2R1G VM1H056F2R5G VM2H056F2GLG VM2H056F2R1G VM2H056F2R5G VM2H056F2S5G

Quad VM1H070F2GLG VM1H070F2R1G VM1H070F2R5G VM2H070F2GLG VM2H070F2R1G VM2H070F2R5G VM2H070F2S5G

70 M98 3/4" Tri VM1H076F2GLG VM1H076F2R1G VM1H076F2R5G VM2H076F2GLG VM2H076F2R1G VM2H076F2R5G VM2H076F2S5G

480 VM1H075F2GLG VM1H075F2R1G VM1H075F2R5G VM2H075F2GLG VM2H075F2R1G VM2H075F2R5G VM2H075F2S5G

Quad VM1H100F2GLG VM1H100F2R1G VM1H100F2R5G VM2H100F2GLG VM2H100F2R1G VM2H100F2R5G VM2H100F2S5G

100 M90 3/4" Tri VM1H106F2GLG VM1H106F2R1G VM1H106F2R5G VM2H106F2GLG VM2H106F2R1G VM2H106F2R5G VM2H106F2S5G

480 VM1H105F2GLG VM1H105F2R1G VM1H105F2R5G VM2H105F2GLG VM2H105F2R1G VM2H105F2R5G VM2H105F2S5G

M102 Quad VM1P150F2GLG VM1P150F2R1G VM1P150F2R5G VM2P150F2GLG VM2P150F2R1G VM2P150F2R5G VM2P150F2S5G

150 3/4" Tri VM1P156F2GLG VM1P156F2R1G VM1P156F2R5G VM2P156F2GLG VM2P156F2R1G VM2P156F2R5G VM2P156F2S5G

M142 480 VM1P155F2GLG VM1P155F2R1G VM1P155F2R5G VM2P155F2GLG VM2P155F2R1G VM2P155F2R5G VM2P155F2S5G

M137 Quad VM1P170F2GLG VM1P170F2R1G VM1P170F2R5G VM2P170F2GLG VM2P170F2R1G VM2P170F2R5G VM2P170F2S5G

175 3/4" Tri VM1P176F2GLG VM1P176F2R1G VM1P176F2R5G VM2P176F2GLG VM2P176F2R1G VM2P176F2R5G VM2P176F2S5G

M152 480 VM1P175F2GLG VM1P175F2R1G VM1P175F2R5G VM2P175F2GLG VM2P175F2R1G VM2P175F2R5G VM2P175F2S5G

CERTILITE®V SERIES •LIGHTING

METAL HALIDE/METAL HALIDE PULSE, 50-175W MEDIUM BASE HID L63

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1H050X2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1H050X3GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

** 50, 70, & 100 Watt “Traditional Metal Hallide” ballasts include a Pulse Ignitor, as do 150 & 175W Metal Halide Pulse models.

VM1 Wall

w/5-1/2"

Refractor & Guard

VM1 Ceiling

w/5-1/2"

Globe & Guard

VM2 Ceiling

w/7-3/4"

Globe & Guard

VM2 Wall

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 50-175 METAL HALIDE (PULSE**) - CEILING

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 3/4" Quad VM1H050X2GLG VM1H050X2R1G VM1H050X2R5G VM2H050X2GLG VM2H050X2R1G VM2H050X2R5G VM2H050X2S5G

Tri VM1H056X2GLG VM1H056X2R1G VM1H056X2R5G VM2H056X2GLG VM2H056X2R1G VM2H056X2R5G VM2H056X2S5G

Quad VM1H070X2GLG VM1H070X2R1G VM1H070X2R5G VM2H070X2GLG VM2H070X2R1G VM2H070X2R5G VM2H070X2S5G

70 M98 3/4" Tri VM1H076X2GLG VM1H076X2R1G VM1H076X2R5G VM2H076X2GLG VM2H076X2R1G VM2H076X2R5G VM2H076X2S5G

480 VM1H075X2GLG VM1H075X2R1G VM1H075X2R5G VM2H075X2GLG VM2H075X2R1G VM2H075X2R5G VM2H075X2S5G

Quad VM1H100X2GLG VM1H100X2R1G VM1H100X2R5G VM2H100X2GLG VM2H100X2R1G VM2H100X2R5G VM2H100X2S5G

100 M90 3/4" Tri VM1H106X2GLG VM1H106X2R1G VM1H106X2R5G VM2H106X2GLG VM2H106X2R1G VM2H106X2R5G VM2H106X2S5G

480 VM1H105X2GLG VM1H105X2R1G VM1H105X2R5G VM2H105X2GLG VM2H105X2R1G VM2H105X2R5G VM2H105X2S5G

M102 Quad VM1P150X2GLG VM1P150X2R1G VM1P150X2R5G VM2P150X2GLG VM2P150X2R1G VM2P150X2R5G VM2P150X2S5G

150 3/4" Tri VM1P156X2GLG VM1P156X2R1G VM1P156X2R5G VM2P156X2GLG VM2P156X2R1G VM2P156X2R5G VM2P156X2S5G

M142 480 VM1P155X2GLG VM1P155X2R1G VM1P155X2R5G VM2P155X2GLG VM2P155X2R1G VM2P155X2R5G VM2P155X2S5G

M137 Quad VM1P170X2GLG VM1P170X2R1G VM1P170X2R5G VM2P170X2GLG VM2P170X2R1G VM2P170X2R5G VM2P170X2S5G

175 3/4" Tri VM1P176X2GLG VM1P176X2R1G VM1P176X2R5G VM2P176X2GLG VM2P176X2R1G VM2P176X2R5G VM2P176X2S5G

M152 480 VM1P175X2GLG VM1P175X2R1G VM1P175X2R5G VM2P175X2GLG VM2P175X2R1G VM2P175X2R5G VM2P175X2S5G

VM 50-175 METAL HALIDE (PULSE**) - WALL

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 3/4" Quad VM1H050B2GLG VM1H050B2R1G VM1H050B2R5G VM2H050B2GLG VM2H050B2R1G VM2H050B2R5G VM2H050B2S5G

Tri VM1H056B2GLG VM1H056B2R1G VM1H056B2R5G VM2H056B2GLG VM2H056B2R1G VM2H056B2R5G VM2H056B2S5G

Quad VM1H070B2GLG VM1H070B2R1G VM1H070B2R5G VM2H070B2GLG VM2H070B2R1G VM2H070B2R5G VM2H070B2S5G

70 M98 3/4" Tri VM1H076B2GLG VM1H076B2R1G VM1H076B2R5G VM2H076B2GLG VM2H076B2R1G VM2H076B2R5G VM2H076B2S5G

480 VM1H075B2GLG VM1H075B2R1G VM1H075B2R5G VM2H075B2GLG VM2H075B2R1G VM2H075B2R5G VM2H075B2S5G

Quad VM1H100B2GLG VM1H100B2R1G VM1H100B2R5G VM2H100B2GLG VM2H100B2R1G VM2H100B2R5G VM2H100B2S5G

100 M90 3/4" Tri VM1H106B2GLG VM1H106B2R1G VM1H106B2R5G VM2H106B2GLG VM2H106B2R1G VM2H106B2R5G VM2H106B2S5G

480 VM1H105B2GLG VM1H105B2R1G VM1H105B2R5G VM2H105B2GLG VM2H105B2R1G VM2H105B2R5G VM2H105B2S5G

M102 Quad VM1P150B2GLG VM1P150B2R1G VM1P150B2R5G VM2P150B2GLG VM2P150B2R1G VM2P150B2R5G VM2P150B2S5G

150 3/4" Tri VM1P156B2GLG VM1P156B2R1G VM1P156B2R5G VM2P156B2GLG VM2P156B2R1G VM2P156B2R5G VM2P156B2S5G

M142 480 VM1P155B2GLG VM1P155B2R1G VM1P155B2R5G VM2P155B2GLG VM2P155B2R1G VM2P155B2R5G VM2P155B2S5G

M137 Quad VM1P170B2GLG VM1P170B2R1G VM1P170B2R5G VM2P170B2GLG VM2P170B2R1G VM2P170B2R5G VM2P170B2S5G

175 3/4" Tri VM1P176B2GLG VM1P176B2R1G VM1P176B2R5G VM2P176B2GLG VM2P176B2R1G VM2P176B2R5G VM2P176B2S5G

M152 480 VM1P175B2GLG VM1P175B2R1G VM1P175B2R5G VM2P175B2GLG VM2P175B2R1G VM2P175B2R5G VM2P175B2S5G

CERTILITE®V SERIES •LIGHTING

METAL HALIDE/METAL HALIDE PULSE, 50-175W MEDIUM BASE HID

L64

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1H050C2GLN.

3Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. VM1H050C3GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

** 50, 70, & 100 Watt “Traditional Metal Hallide” ballasts include a Pulse Ignitor, as do 150 & 175W Metal Halide Pulse models.

VM1 EZ Adapter

w/5-1/2"

Refractor & Guard

VM1 Cone

w/5-1/2"

Globe & Guard

VM2 Cone

w/7-3/4"

Globe & Guard

VM2 EZ Adapter

w/7-3/4"

Refractor & Guard

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 50-175 METAL HALIDE (PULSE**) - CONE

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 3/4" Quad VM1H050C2GLG VM1H050C2R1G VM1H050C2R5G VM2H050C2GLG VM2H050C2R1G VM2H050C2R5G VM2H050C2S5G

Tri VM1H056C2GLG VM1H056C2R1G VM1H056C2R5G VM2H056C2GLG VM2H056C2R1G VM2H056C2R5G VM2H056C2S5G

Quad VM1H070C2GLG VM1H070C2R1G VM1H070C2R5G VM2H070C2GLG VM2H070C2R1G VM2H070C2R5G VM2H070C2S5G

70 M98 3/4" Tri VM1H076C2GLG VM1H076C2R1G VM1H076C2R5G VM2H076C2GLG VM2H076C2R1G VM2H076C2R5G VM2H076C2S5G

480 VM1H075C2GLG VM1H075C2R1G VM1H075C2R5G VM2H075C2GLG VM2H075C2R1G VM2H075C2R5G VM2H075C2S5G

Quad VM1H100C2GLG VM1H100C2R1G VM1H100C2R5G VM2H100C2GLG VM2H100C2R1G VM2H100C2R5G VM2H100C2S5G

100 M90 3/4" Tri VM1H106C2GLG VM1H106C2R1G VM1H106C2R5G VM2H106C2GLG VM2H106C2R1G VM2H106C2R5G VM2H106C2S5G

480 VM1H105C2GLG VM1H105C2R1G VM1H105C2R5G VM2H105C2GLG VM2H105C2R1G VM2H105C2R5G VM2H105C2S5G

M102 Quad VM1P150C2GLG VM1P150C2R1G VM1P150C2R5G VM2P150C2GLG VM2P150C2R1G VM2P150C2R5G VM2P150C2S5G

150 3/4" Tri VM1P156C2GLG VM1P156C2R1G VM1P156C2R5G VM2P156C2GLG VM2P156C2R1G VM2P156C2R5G VM2P156C2S5G

M142 480 VM1P155C2GLG VM1P155C2R1G VM1P155C2R5G VM2P155C2GLG VM2P155C2R1G VM2P155C2R5G VM2P155C2S5G

M137 Quad VM1P170C2GLG VM1P170C2R1G VM1P170C2R5G VM2P170C2GLG VM2P170C2R1G VM2P170C2R5G VM2P170C2S5G

175 3/4" Tri VM1P176C2GLG VM1P176C2R1G VM1P176C2R5G VM2P176C2GLG VM2P176C2R1G VM2P176C2R5G VM2P176C2S5G

M152 480 VM1P175C2GLG VM1P175C2R1G VM1P175C2R5G VM2P175C2GLG VM2P175C2R1G VM2P175C2R5G VM2P175C2S5G

VM 50-175 METAL HALIDE (PULSE**) - EZ ADAPTER6

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 6Quad VM1H050EZGLG VM1H050EZR1G VM1H050EZR5G VM2H050EZGLG VM2H050EZR1G VM2H050EZR5G VM2H050EZS5G

Tri VM1H056EZGLG VM1H056EZR1G VM1H056EZR5G VM2H056EZGLG VM2H056EZR1G VM2H056EZR5G VM2H056EZS5G

Quad VM1H070EZGLG VM1H070EZR1G VM1H070EZR5G VM2H070EZGLG VM2H070EZR1G VM2H070EZR5G VM2H070EZS5G

70 M98 6Tri VM1H076EZGLG VM1H076EZR1G VM1H076EZR5G VM2H076EZGLG VM2H076EZR1G VM2H076EZR5G VM2H076EZS5G

480 VM1H075EZGLG VM1H075EZR1G VM1H075EZR5G VM2H075EZGLG VM2H075EZR1G VM2H075EZR5G VM2H075EZS5G

Quad VM1H100EZGLG VM1H100EZR1G VM1H100EZR5G VM2H100EZGLG VM2H100EZR1G VM2H100EZR5G VM2H100EZS5G

100 M90 6Tri VM1H106EZGLG VM1H106EZR1G VM1H106EZR5G VM2H106EZGLG VM2H106EZR1G VM2H106EZR5G VM2H106EZS5G

480 VM1H105EZGLG VM1H105EZR1G VM1H105EZR5G VM2H105EZGLG VM2H105EZR1G VM2H105EZR5G VM2H105EZS5G

M102 Quad VM1P150EZGLG VM1P150EZR1G VM1P150EZR5G VM2P150EZGLG VM2P150EZR1G VM2P150EZR5G VM2P150EZS5G

150 6Tri VM1P156EZGLG VM1P156EZR1G VM1P156EZR5G VM2P156EZGLG VM2P156EZR1G VM2P156EZR5G VM2P156EZS5G

M142 480 VM1P155EZGLG VM1P155EZR1G VM1P155EZR5G VM2P155EZGLG VM2P155EZR1G VM2P155EZR5G VM2P155EZS5G

M137 Quad VM1P170EZGLG VM1P170EZR1G VM1P170EZR5G VM2P170EZGLG VM2P170EZR1G VM2P170EZR5G VM2P170EZS5G

175 6Tri VM1P176EZGLG VM1P176EZR1G VM1P176EZR5G VM2P176EZGLG VM2P176EZR1G VM2P176EZR5G VM2P176EZS5G

M152 480 VM1P175EZGLG VM1P175EZR1G VM1P175EZR5G VM2P175EZGLG VM2P175EZR1G VM2P175EZR5G VM2P175EZS5G

CERTILITE®V SERIES •LIGHTING

METAL HALIDE/METAL HALIDE PULSE, 50-175W MEDIUM BASE HID L65

1See hazardous location data pages L104-107 for application suitability.

2Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1H050D4GLN.

3Catalog numbers shown are with 1-1/2" conduit openings; change “5” to “4” for 1-1/4" e.g. VM1H050D4GLG.

4Consult catalog logic for other available voltage & lamp combinations.

5Add suffix NR for AEx nR Restricted Breathing; see page L54 for more information.

** 50, 70, & 100 Watt “Traditional Metal Hallide” ballasts include a Pulse Ignitor, as do 150 & 175W Metal Halide Pulse models.

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 50-175 METAL HALIDE (PULSE**) - STANCHION 25° ANGLE

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 1-1/2" Quad VM1H050D5GLG VM1H050D5R1G VM1H050D5R5G VM2H050D5GLG VM2H050D5R1G VM2H050D5R5G VM2H050D5S5G

Tri VM1H056D5GLG VM1H056D5R1G VM1H056D5R5G VM2H056D5GLG VM2H056D5R1G VM2H056D5R5G VM2H056D5S5G

Quad VM1H070D5GLG VM1H070D5R1G VM1H070D5R5G VM2H070D5GLG VM2H070D5R1G VM2H070D5R5G VM2H070D5S5G

70 M98 1-1/2" Tri VM1H076D5GLG VM1H076D5R1G VM1H076D5R5G VM2H076D5GLG VM2H076D5R1G VM2H076D5R5G VM2H076D5S5G

480 VM1H075D5GLG VM1H075D5R1G VM1H075D5R5G VM2H075D5GLG VM2H075D5R1G VM2H075D5R5G VM2H075D5S5G

Quad VM1H100D5GLG VM1H100D5R1G VM1H100D5R5G VM2H100D5GLG VM2H100D5R1G VM2H100D5R5G VM2H100D5S5G

100 M90 1-1/2" Tri VM1H106D5GLG VM1H106D5R1G VM1H106D5R5G VM2H106D5GLG VM2H106D5R1G VM2H106D5R5G VM2H106D5S5G

480 VM1H105D5GLG VM1H105D5R1G VM1H105D5R5G VM2H105D5GLG VM2H105D5R1G VM2H105D5R5G VM2H105D5S5G

M102 Quad VM1P150D5GLG VM1P150D5R1G VM1P150D5R5G VM2P150D5GLG VM2P150D5R1G VM2P150D5R5G VM2P150D5S5G

150 1-1/2" Tri VM1P156D5GLG VM1P156D5R1G VM1P156D5R5G VM2P156D5GLG VM2P156D5R1G VM2P156D5R5G VM2P156D5S5G

M142 480 VM1P155D5GLG VM1P155D5R1G VM1P155D5R5G VM2P155D5GLG VM2P155D5R1G VM2P155D5R5G VM2P155D5S5G

M137 Quad VM1P170D5GLG VM1P170D5R1G VM1P170D5R5G VM2P170D5GLG VM2P170D5R1G VM2P170D5R5G VM2P170D5S5G

175 1-1/2" Tri VM1P176D5GLG VM1P176D5R1G VM1P176D5R5G VM2P176D5GLG VM2P176D5R1G VM2P176D5R5G VM2P176D5S5G

M152 480 VM1P175D5GLG VM1P175D5R1G VM1P175D5R5G VM2P175D5GLG VM2P175D5R1G VM2P175D5R5G VM2P175D5S5G

VM 50-175 METAL HALIDE (PULSE**) - STANCHION STRAIGHT

DESCRIPTION

ANSI

HUB

SIZE3VOLTAGE4

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE I GLASS

REFRACTOR

& GUARD

12" SPIN-TOP TYPE V

REFRACTOR

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

50 M110 1-1/2" Quad VM1H050S5GLG VM1H050S5R1G VM1H050S5R5G VM2H050S5GLG VM2H050S5R1G VM2H050S5R5G VM2H050S5S5G

Tri VM1H056S5GLG VM1H056S5R1G VM1H056S5R5G VM2H056S5GLG VM2H056S5R1G VM2H056S5R5G VM2H056S5S5G

Quad VM1H070S5GLG VM1H070S5R1G VM1H070S5R5G VM2H070S5GLG VM2H070S5R1G VM2H070S5R5G VM2H070S5S5G

70 M98 1-1/2" Tri VM1H076S5GLG VM1H076S5R1G VM1H076S5R5G VM2H076S5GLG VM2H076S5R1G VM2H076S5R5G VM2H076S5S5G

480 VM1H075S5GLG VM1H075S5R1G VM1H075S5R5G VM2H075S5GLG VM2H075S5R1G VM2H075S5R5G VM2H075S5S5G

Quad VM1H100S5GLG VM1H100S5R1G VM1H100S5R5G VM2H100S5GLG VM2H100S5R1G VM2H100S5R5G VM2H100S5S5G

100 M90 1-1/2" Tri VM1H106S5GLG VM1H106S5R1G VM1H106S5R5G VM2H106S5GLG VM2H106S5R1G VM2H106S5R5G VM2H106S5S5G

480 VM1H105S5GLG VM1H105S5R1G VM1H105S5R5G VM2H105S5GLG VM2H105S5R1G VM2H105S5R5G VM2H105S5S5G

M102 Quad VM1P150S5GLG VM1P150S5R1G VM1P150S5R5G VM2P150S5GLG VM2P150S5R1G VM2P150S5R5G VM2P150S5S5G

150 1-1/2" Tri VM1P156S5GLG VM1P156S5R1G VM1P156S5R5G VM2P156S5GLG VM2P156S5R1G VM2P156S5R5G VM2P156S5S5G

M142 480 VM1P155S5GLG VM1P155S5R1G VM1P155S5R5G VM2P155S5GLG VM2P155S5R1G VM2P155S5R5G VM2P155S5S5G

M137 Quad VM1P170S5GLG VM1P170S5R1G VM1P170S5R5G VM2P170S5GLG VM2P170S5R1G VM2P170S5R5G VM2P170S5S5G

175 1-1/2" Tri VM1P176S5GLG VM1P176S5R1G VM1P176S5R5G VM2P176S5GLG VM2P176S5R1G VM2P176S5R5G VM2P176S5S5G

M152 480 VM1P175S5GLG VM1P175S5R1G VM1P175S5R5G VM2P175S5GLG VM2P175S5R1G VM2P175S5R5G VM2P175S5S5G

VM1 Stanchion

Straight

w/5-1/2"

Refractor & Guard

VM1 Stanchion 25°

w/5-1/2"

Globe & Guard

VM2 Stanchion 25°

w/7-3/4"

Globe & Guard

VM2 Stanchion

Straight

w/7-3/4"

Refractor & Guard

CERTILITE®V SERIES •LIGHTING

VM3/VM4 CATALOG ORDERING LOGIC

L66

CertiLite®VCatalog Number Logic; 50-250 Low Wattage (Mogul Base) HID Fixtures

Series Constant

Optic Thread Size

3—5 1/2"

4—7 3/4"

Lamp Type

S—HPS (50, 70, 100, 150)

H—MH (70, 100, 175, 250)

P—MHP (1251, 150, 175, 200)

Voltage @ 60 Hertz

0—Quadri-Volt (120, 208, 240, 277)

5—480V

6—Tri - 120, 277, 347 (Canada)

7—220V

8—220/240 50 Hz

Mounting Type

A—Pendant

F—Flexible Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

E—EZ Mount Adapter2

D—Stanchion 25°

S—Stanchion Straight 90°

N—None (mount ordered

separately)3

Lamp Wattage

05—50W, (HPS)

07—70W, (HPS, MH)

10—100W, (HPS, MH)

12—125W, (MHP1)

15—150W, (HPS, MHP)

17—175W, (MH, MHP)

20—200W, (MHP)

25—250W, (MH)

Guard

G—Guard (Globes & Glass

refractors)

N—No Guard8

Options

IR—Instant Restrike - 50-150

HPS

QA—Quartz Auxiliary9

BP—Ballast Protector -

70-150 HPS

F1—Fusing 120V

F2—Fusing 208V

F3—Fusing 240V

F4—Fusing 277V

F5—Fusing 480V

F6—Fusing 347V

F7—Fusing 220V

F8—Fusing 240V 50 Hz

P1—Photocell 120V

P2—Photocell 208-277V

P3—Photocell 347V

Q1—QD Wired to 120V

Q2—QD Wired to 208V

Q3—QD Wired to 240V

Q4—QD Wired to 277V

Q5—QD Wired to 480V

Q6—QD Wired to 347V

Q7—QD 220V

Q8—QD 240V (50Hz)

TBx—Terminal Blocks

x= Voltage Code

AS—Assembled Fixture with

Standard Lamp

AD—Assembled Fixture with

Dual Arc Tube Lamp 70,

100, 150 HPS only

AN—Assembled, no lamp

CP—Component Pack-No

Lamp

CS—Component Pack with

Standard Lamp

Optic

GL—Globe (VM3, VM4)

R1—Type I Glass Refractor (VM3,

VM4)

R3—Type III Glass Refractor (VM4)

R5—Type V Glass Refractor (VM3,

VM4)

ER—Enclosed Reflector (VM4)

EP—Poylcarbonate Shielded

Enclosed Reflector (VM4)

S2—Type II 12" Spin-Top Refractor

(VM34, VM4)

S8—Type V 8" Spin-Top Refractor

(VM3)

S5—Type V 12" Spin-Top Refractor

(VM34, VM4)

P5—Type V 12" Plastic Spin-Top

Refractor (VM3-175W Max.)

FG—Silicone5Coated Globe (VM3,

VM4)

TG—Teflon®6Coated Globe (VM3,

VM4)

T1—Teflon®6Coated Globe Type I

Glass Refractor (VM3, VM4)

T3—Teflon®6Coated Globe Type III

Glass Refractor (VM4)

T5—Teflon®6Coated Globe Type V

Glass Refractor (VM3, VM4)

T2—Teflon®6Coated Type II 12"

Spin-Top Refractor (VM34,

VM4)

T8—Teflon®6Coated Type V 8"

Spin-Top Refractor (VM3)

TV—Teflon®6Coated Type V 12"

Spin-Top Refractor (VM34,

VM4)

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter2

N—None (mount ordered

separately)3

VM 0 0 00 0 0 0 00 0 (NR7) 00

1Special order lamp type/wattage not shown in grids, minimums apply.

2Completes as “EZ”, conduit mounting boxes ordered separately - See L83.

3NN mount ordered separately.

412" Spintops for use with VM3 tanks ship with a Mogul to Mogul socket

extender for enhanced photometrics vs. 7 3/4", which are used on VM5,

but will fit VM4.

5Silicone coated globe for additional impact protection.

6Teflon®is a registered trademark of DuPont, Inc.

Consult factory for available lamp and voltage combinations.

7Restricted Breathing - See L54 for more information.

8Order Guards for Spin-Tops & VMER40 separately.

9QA not suitable for Class I, Div. 2/Zone 2 applications; consult factory

for other hazardous applications.

Fusing not for Marine or Canadian installations.

Photo cells for Class I, Div. 2 only, or C1Z2 nR , - not Class II.

Field connection to proper tap in case of Multitap Ballasts.

Not for use with wall or straight (90°) Stanchion.

QD = Quick Disconnect. Allows easy tank removal for maintenance.

Electrician simply unplugs de-energized ballast from supply circuit.

220V 60Hz or 230V 50Hz used with QA-requires VM5 tank.

IR and BP cannot be ordered together.

11 12

175-250W

Old Style

MH are

Export only

EISA LAW

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 50-150W MOGUL BASE HID L67

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Pendant

w/ Enclosed Reflector

Pendant

w/ 5-1/2"

Globe & Guard

Pendant

w/ 7-3/4"

Globe & Guard

Flexible Pendant

w/ 5-1/2"

Refractor & Guard

Flexible Pendant

w/ 7-3/4"

Refractor & Guard

VM 50-150 WATT HIGH PRESSURE SODIUM PENDANT

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050A2GLG

VM3S070A2GLG

VM3S076A2GLG

VM3S075A2GLG

VM3S100A2GLG

VM3S106A2GLG

VM3S105A2GLG

VM3S150A2GLG

VM3S156A2GLG

VM3S155A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050A2R1G

VM3S070A2R1G

VM3S076A2R1G

VM3S075A2R1G

VM3S100A2R1G

VM3S106A2R1G

VM3S105A2R1G

VM3S150A2R1G

VM3S156A2R1G

VM3S155A2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050A2R5G

VM3S070A2R5G

VM3S076A2R5G

VM3S075A2R5G

VM3S100A2R5G

VM3S106A2R5G

VM3S105A2R5G

VM3S150A2R5G

VM3S156A2R5G

VM3S155A2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050A2GLG

VM4S070A2GLG

VM4S076A2GLG

VM4S075A2GLG

VM4S100A2GLG

VM4S106A2GLG

VM4S105A2GLG

VM4S150A2GLG

VM4S156A2GLG

VM4S155A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050A2R1G

VM4S070A2R1G

VM4S076A2R1G

VM4S075A2R1G

VM4S100A2R1G

VM4S106A2R1G

VM4S105A2R1G

VM4S150A2R1G

VM4S156A2R1G

VM4S155A2R1G

ENCLOSED

REFLECTOR

VM4S050A2ERN

VM4S070A2ERN

VM4S076A2ERN

VM4S075A2ERN

VM4S100A2ERN

VM4S106A2ERN

VM4S105A2ERN

VM4S150A2ERN

VM4S156A2ERN

VM4S155A2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050A2R5G

VM4S070A2R5G

VM4S076A2R5G

VM4S075A2R5G

VM4S100A2R5G

VM4S106A2R5G

VM4S105A2R5G

VM4S150A2R5G

VM4S156A2R5G

VM4S155A2R5G

VM 50-150 WATT HIGH PRESSURE SODIUM FLEXIBLE PENDANT

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE 3

3/4"

VOLTAG4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050F2GLG

VM3S070F2GLG

VM3S076F2GLG

VM3S075F2GLG

VM3S100F2GLG

VM3S106F2GLG

VM3S105F2GLG

VM3S150F2GLG

VM3S156F2GLG

VM3S155F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050F2R1G

VM3S070F2R1G

VM3S076F2R1G

VM3S075F2R1G

VM3S100F2R1G

VM3S106F2R1G

VM3S105F2R1G

VM3S150F2R1G

VM3S156F2R1G

VM3S155F2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050F2R5G

VM3S070F2R5G

VM3S076F2R5G

VM3S075F2R5G

VM3S100F2R5G

VM3S106F2R5G

VM3S105F2R5G

VM3S150F2R5G

VM3S156F2R5G

VM3S155F2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050F2GLG

VM4S070F2GLG

VM4S076F2GLG

VM4S075F2GLG

VM4S100F2GLG

VM4S106F2GLG

VM4S105F2GLG

VM4S150F2GLG

VM4S156F2GLG

VM4S155F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050F2R1G

VM4S070F2R1G

VM4S076F2R1G

VM4S075F2R1G

VM4S100F2R1G

VM4S106F2R1G

VM4S105F2R1G

VM4S150F2R1G

VM4S156F2R1G

VM4S155F2R1G

ENCLOSED

REFLECTOR

VM4S050F2ERN

VM4S070F2ERN

VM4S076F2ERN

VM4S075F2ERN

VM4S100F2ERN

VM4S106F2ERN

VM4S105F2ERN

VM4S150F2ERN

VM4S156F2ERN

VM4S155F2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050F2R5G

VM4S070F2R5G

VM4S076F2R5G

VM4S075F2R5G

VM4S100F2R5G

VM4S106F2R5G

VM4S105F2R5G

VM4S150F2R5G

VM4S156F2R5G

VM4S155F2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3S050A2GLN

3Catalog numbers shown are with 3/4" conduit openings; change 2 to 3 for 1"; e.g. VM3S050A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 50-150W MOGUL BASE HID

L68

Ceiling

w/ 5-1/2"

Globe & Guard

Ceiling

w/ 7-3/4"

Globe & Guard

Wall

w/ 5-1/2"

Refractor & Guard

Wall

w/ 7-3/4"

Refractor & Guard

Ceiling

w/ Enclosed Reflector

VM 50-150 WATT HIGH PRESSURE SODIUM CEILING

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

3/4"

VOLTAGE3

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050X2GLG

VM3S070X2GLG

VM3S076X2GLG

VM3S075X2GLG

VM3S100X2GLG

VM3S106X2GLG

VM3S105X2GLG

VM3S150X2GLG

VM3S156X2GLG

VM3S155X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050X2R1G

VM3S070X2R1G

VM3S076X2R1G

VM3S075X2R1G

VM3S100X2R1G

VM3S106X2R1G

VM3S105X2R1G

VM3S150X2R1G

VM3S156X2R1G

VM3S155X2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050X2R5G

VM3S070X2R5G

VM3S076X2R5G

VM3S075X2R5G

VM3S100X2R5G

VM3S106X2R5G

VM3S105X2R5G

VM3S150X2R5G

VM3S156X2R5G

VM3S155X2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050X2GLG

VM4S070X2GLG

VM4S076X2GLG

VM4S075X2GLG

VM4S100X2GLG

VM4S106X2GLG

VM4S105X2GLG

VM4S150X2GLG

VM4S156X2GLG

VM4S155X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050X2R1G

VM4S070X2R1G

VM4S076X2R1G

VM4S075X2R1G

VM4S100X2R1G

VM4S106X2R1G

VM4S105X2R1G

VM4S150X2R1G

VM4S156X2R1G

VM4S155X2R1G

ENCLOSED

REFLECTOR

VM4S050X2ERN

VM4S070X2ERN

VM4S076X2ERN

VM4S075X2ERN

VM4S100X2ERN

VM4S106X2ERN

VM4S105X2ERN

VM4S150X2ERN

VM4S156X2ERN

VM4S155X2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050X2R5G

VM4S070X2R5G

VM4S076X2R5G

VM4S075X2R5G

VM4S100X2R5G

VM4S106X2R5G

VM4S105X2R5G

VM4S150X2R5G

VM4S156X2R5G

VM4S155X2R5G

VM 50-150 WATT HIGH PRESSURE SODIUM WALL

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050B2GLG

VM3S070B2GLG

VM3S076B2GLG

VM3S075B2GLG

VM3S100B2GLG

VM3S106B2GLG

VM3S105B2GLG

VM3S150B2GLG

VM3S156B2GLG

VM3S155B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050B2R1G

VM3S070B2R1G

VM3S076B2R1G

VM3S075B2R1G

VM3S100B2R1G

VM3S106B2R1G

VM3S105B2R1G

VM3S150B2R1G

VM3S156B2R1G

VM3S155B2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050B2R5G

VM3S070B2R5G

VM3S076B2R5G

VM3S075B2R5G

VM3S100B2R5G

VM3S106B2R5G

VM3S105B2R5G

VM3S150B2R5G

VM3S156B2R5G

VM3S155B2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050B2GLG

VM4S070B2GLG

VM4S076B2GLG

VM4S075B2GLG

VM4S100B2GLG

VM4S106B2GLG

VM4S105B2GLG

VM4S150B2GLG

VM4S156B2GLG

VM4S155B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050B2R1G

VM4S070B2R1G

VM4S076B2R1G

VM4S075B2R1G

VM4S100B2R1G

VM4S106B2R1G

VM4S105B2R1G

VM4S150B2R1G

VM4S156B2R1G

VM4S155B2R1G

ENCLOSED

REFLECTOR

VM4S050B2ERN

VM4S070B2ERN

VM4S076B2ERN

VM4S075B2ERN

VM4S100B2ERN

VM4S106B2ERN

VM4S105B2ERN

VM4S150B2ERN

VM4S156B2ERN

VM4S155B2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050B2R5G

VM4S070B2R5G

VM4S076B2R5G

VM4S075B2R5G

VM4S100B2R5G

VM4S106B2R5G

VM4S105B2R5G

VM4S150B2R5G

VM4S156B2R5G

VM4S155B2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard, to omit guard (except enclosed reflector); change ending G to N; e.g. VM3S050X2GLN

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3S050X3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 50-150W MOGUL BASE HID L69

Cone

w/ 5-1/2"

Globe & Guard

Cone

w/ 7-3/4"

Globe & Guard

EZ Adapter

w/ 5-1/2"

Refractor & Guard

EZ Adapter

w/ 7-3/4"

Refractor & Guard

Cone

w/ Enclosed Reflector

VM 50-150 WATT HIGH PRESSURE SODIUM CONE

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050C2GLG

VM3S070C2GLG

VM3S076C2GLG

VM3S075C2GLG

VM3S100C2GLG

VM3S106C2GLG

VM3S105C2GLG

VM3S150C2GLG

VM3S156C2GLG

VM3S155C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050C2R1G

VM3S070C2R1G

VM3S076C2R1G

VM3S075C2R1G

VM3S100C2R1G

VM3S106C2R1G

VM3S105C2R1G

VM3S150C2R1G

VM3S156C2R1G

VM3S155C2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050C2R5G

VM3S070C2R5G

VM3S076C2R5G

VM3S075C2R5G

VM3S100C2R5G

VM3S106C2R5G

VM3S105C2R5G

VM3S150C2R5G

VM3S156C2R5G

VM3S155C2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050C2GLG

VM4S070C2GLG

VM4S076C2GLG

VM4S075C2GLG

VM4S100C2GLG

VM4S106C2GLG

VM4S105C2GLG

VM4S150C2GLG

VM4S156C2GLG

VM4S155C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050C2R1G

VM4S070C2R1G

VM4S076C2R1G

VM4S075C2R1G

VM4S100C2R1G

VM4S106C2R1G

VM4S105C2R1G

VM4S150C2R1G

VM4S156C2R1G

VM4S155C2R1G

ENCLOSED

REFLECTOR

VM4S050C2ERN

VM4S070C2ERN

VM4S076C2ERN

VM4S075C2ERN

VM4S100C2ERN

VM4S106C2ERN

VM4S105C2ERN

VM4S150C2ERN

VM4S156C2ERN

VM4S155C2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050C2R5G

VM4S070C2R5G

VM4S076C2R5G

VM4S075C2R5G

VM4S100C2R5G

VM4S106C2R5G

VM4S105C2R5G

VM4S150C2R5G

VM4S156C2R5G

VM4S155C2R5G

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE6

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050EZGLG

VM3S070EZGLG

VM3S076EZGLG

VM3S075EZGLG

VM3S100EZGLG

VM3S106EZGLG

VM3S105EZGLG

VM3S150EZGLG

VM3S156EZGLG

VM3S155EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050EZR1G

VM3S070EZR1G

VM3S076EZR1G

VM3S075EZR1G

VM3S100EZR1G

VM3S106EZR1G

VM3S105EZR1G

VM3S150EZR1G

VM3S156EZR1G

VM3S155EZR1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050EZR5G

VM3S070EZR5G

VM3S076EZR5G

VM3S075EZR5G

VM3S100EZR5G

VM3S106EZR5G

VM3S105EZR5G

VM3S150EZR5G

VM3S156EZR5G

VM3S155EZR5G

7-3/4" OPTIC THREAD SIZE 3

GLOBE

& GUARD

VM4S050EZGLG

VM4S070EZGLG

VM4S076EZGLG

VM4S075EZGLG

VM4S100EZGLG

VM4S106EZGLG

VM4S105EZGLG

VM4S150EZGLG

VM4S156EZGLG

VM4S155EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050EZR1G

VM4S070EZR1G

VM4S076EZR1G

VM4S075EZR1G

VM4S100EZR1G

VM4S106EZR1G

VM4S105EZR1G

VM4S150EZR1G

VM4S156EZR1G

VM4S155EZR1G

ENCLOSED

REFLECTOR

VM4S050EZERN

VM4S070EZERN

VM4S076EZERN

VM4S075EZERN

VM4S100EZERN

VM4S106EZERN

VM4S105EZERN

VM4S150EZERN

VM4S156EZERN

VM4S155EZERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050EZR5G

VM4S070EZR5G

VM4S076EZR5G

VM4S075EZR5G

VM4S100EZR5G

VM4S106EZR5G

VM4S105EZR5G

VM4S150EZR5G

VM4S156EZR5G

VM4S155EZR5G

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 50-150 WATT HIGH PRESSURE SODIUM EZ ADAPTER6

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3S050C2GLN

3Cone top catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3S050C3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately. See page L83.

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 50-150W MOGUL BASE HID

L70

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Stanchion 25°

w/ 5-1/2"

Globe & Guard

Stanchion 25°

w/ 7-3/4"

Globe & Guard

Stanchion Straight

w/ 5-1/2"

Refractor & Guard

Stanchion Straight

w/ 7-3/4"

Refractor & Guard

Stanchion 25°

w/ Enclosed Reflector

VM 50-150 WATT HIGH PRESSURE SODIUM STANCHION 25° ANGLE

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050D5GLG

VM3S070D5GLG

VM3S076D5GLG

VM3S075D5GLG

VM3S100D5GLG

VM3S106D5GLG

VM3S105D5GLG

VM3S150D5GLG

VM3S156D5GLG

VM3S155D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050D5R1G

VM3S070D5R1G

VM3S076D5R1G

VM3S075D5R1G

VM3S100D5R1G

VM3S106D5R1G

VM3S105D5R1G

VM3S150D5R1G

VM3S156D5R1G

VM3S155D5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050D5R5G

VM3S070D5R5G

VM3S076D5R5G

VM3S075D5R5G

VM3S100D5R5G

VM3S106D5R5G

VM3S105D5R5G

VM3S150D5R5G

VM3S156D5R5G

VM3S155D5R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050D5GLG

VM4S070D5GLG

VM4S076D5GLG

VM4S075D5GLG

VM4S100D5GLG

VM4S106D5GLG

VM4S105D5GLG

VM4S150D5GLG

VM4S156D5GLG

VM4S155D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050D5R1G

VM4S070D5R1G

VM4S076D5R1G

VM4S075D5R1G

VM4S100D5R1G

VM4S106D5R1G

VM4S105D5R1G

VM4S150D5R1G

VM4S156D5R1G

VM4S155D5R1G

ENCLOSED

REFLECTOR

VM4S050D5ERN

VM4S070D5ERN

VM4S076D5ERN

VM4S075D5ERN

VM4S100D5ERN

VM4S106D5ERN

VM4S105D5ERN

VM4S150D5ERN

VM4S156D5ERN

VM4S155D5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050D5R5G

VM4S070D5R5G

VM4S076D5R5G

VM4S075D5R5G

VM4S100D5R5G

VM4S106D5R5G

VM4S105D5R5G

VM4S150D5R5G

VM4S156D5R5G

VM4S155D5R5G

VM 50-150 WATT HIGH PRESSURE SODIUM STANCHION STRAIGHT

WATTS

100

150

DESCRIPTION

ANSI

S68

S62

S54

S55

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3S050S5GLG

VM3S070S5GLG

VM3S076S5GLG

VM3S075S5GLG

VM3S100S5GLG

VM3S106S5GLG

VM3S105S5GLG

VM3S150S5GLG

VM3S156S5GLG

VM3S155S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3S050S5R1G

VM3S070S5R1G

VM3S076S5R1G

VM3S075S5R1G

VM3S100S5R1G

VM3S106S5R1G

VM3S105S5R1G

VM3S150S5R1G

VM3S156S5R1G

VM3S155S5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3S050S5R5G

VM3S070S5R5G

VM3S076S5R5G

VM3S075S5R5G

VM3S100S5R5G

VM3S106S5R5G

VM3S105S5R5G

VM3S150S5R5G

VM3S156S5R5G

VM3S155S5R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4S050S5GLG

VM4S070S5GLG

VM4S076S5GLG

VM4S075S5GLG

VM4S100S5GLG

VM4S106S5GLG

VM4S105S5GLG

VM4S150S5GLG

VM4S156S5GLG

VM4S155S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4S050S5R1G

VM4S070S5R1G

VM4S076S5R1G

VM4S075S5R1G

VM4S100S5R1G

VM4S106S5R1G

VM4S105S5R1G

VM4S150S5R1G

VM4S156S5R1G

VM4S155S5R1G

ENCLOSED

REFLECTOR

VM4S050S5ERN

VM4S070S5ERN

VM4S076S5ERN

VM4S075S5ERN

VM4S100S5ERN

VM4S106S5ERN

VM4S105S5ERN

VM4S150S5ERN

VM4S156S5ERN

VM4S155S5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4S050S5R5G

VM4S070S5R5G

VM4S076S5R5G

VM4S075S5R5G

VM4S100S5R5G

VM4S106S5R5G

VM4S105S5R5G

VM4S150S5R5G

VM4S156S5R5G

VM4S155S5R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3S050D5GLN

3Catalog numbers shown are with 1-1/2" conduit openings, change 5 to 4 for 1-1/4"; e.g. VM3S050D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

VM 70-250 WATT METAL HALIDE FLEXIBLE PENDANT

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070F2GLG

VM3H076F2GLG

VM3H075F2GLG

VM3H100F2GLG

VM3H106F2GLG

VM3H105F2GLG

VM3H170F2GLG

VM3H176F2GLG

VM3H175F2GLG

VM3H250F2GLG

VM3H256F2GLG

VM3H255F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070F2R1G

VM3H076F2R1G

VM3H075F2R1G

VM3H100F2R1G

VM3H106F2R1G

VM3H105F2R1G

VM3H170F2R1G

VM3H176F2R1G

VM3H175F2R1G

VM3H250F2R1G

VM3H256F2R1G

VM3H255F2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070F2R5G

VM3H076F2R5G

VM3H075F2R5G

VM3H100F2R5G

VM3H106F2R5G

VM3H105F2R5G

VM3H170F2R5G

VM3H176F2R5G

VM3H175F2R5G

VM3H250F2R5G

VM3H256F2R5G

VM3H255F2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070F2GLG

VM4H076F2GLG

VM4H075F2GLG

VM4H100F2GLG

VM4H106F2GLG

VM4H105F2GLG

VM4H170F2GLG

VM4H176F2GLG

VM4H175F2GLG

VM4H250F2GLG

VM4H256F2GLG

VM4H255F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070F2R1G

VM4H076F2R1G

VM4H075F2R1G

VM4H100F2R1G

VM4H106F2R1G

VM4H105F2R1G

VM4H170F2R1G

VM4H176F2R1G

VM4H175F2R1G

VM4H250F2R1G

VM4H256F2R1G

VM4H255F2R1G

ENCLOSED

REFLECTOR

VM4H070F2ERN

VM4H076F2ERN

VM4H075F2ERN

VM4H100F2ERN

VM4H106F2ERN

VM4H105F2ERN

VM4H170F2ERN

VM4H176F2ERN

VM4H175F2ERN

VM4H250F2ERN

VM4H256F2ERN

VM4H255F2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070F2R5G

VM4H076F2R5G

VM4H075F2R5G

VM4H100F2R5G

VM4H106F2R5G

VM4H105F2R5G

VM4H170F2R5G

VM4H176F2R5G

VM4H175F2R5G

VM4H250F2R5G

VM4H256F2R5G

VM4H255F2R5G

CERTILITE®V SERIES •LIGHTING

METAL HALIDE, 70-250W MOGUL BASE HID L71

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070A2GLG

VM3H076A2GLG

VM3H075A2GLG

VM3H100A2GLG

VM3H106A2GLG

VM3H105A2GLG

VM3H170A2GLG

VM3H176A2GLG

VM3H175A2GLG

VM3H250A2GLG

VM3H256A2GLG

VM3H255A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070A2R1G

VM3H076A2R1G

VM3H075A2R1G

VM3H100A2R1G

VM3H106A2R1G

VM3H105A2R1G

VM3H170A2R1G

VM3H176A2R1G

VM3H175A2R1G

VM3H250A2R1G

VM3H256A2R1G

VM3H255A2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070A2R5G

VM3H076A2R5G

VM3H075A2R5G

VM3H100A2R5G

VM3H106A2R5G

VM3H105A2R5G

VM3H170A2R5G

VM3H176A2R5G

VM3H175A2R5G

VM3H250A2R5G

VM3H256A2R5G

VM3H255A2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070A2GLG

VM4H076A2GLG

VM4H075A2GLG

VM4H100A2GLG

VM4H106A2GLG

VM4H105A2GLG

VM4H170A2GLG

VM4H176A2GLG

VM4H175A2GLG

VM4H250A2GLG

VM4H256A2GLG

VM4H255A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070A2R1G

VM4H076A2R1G

VM4H075A2R1G

VM4H100A2R1G

VM4H106A2R1G

VM4H105A2R1G

VM4H170A2R1G

VM4H176A2R1G

VM4H175A2R1G

VM4H250A2R1G

VM4H256A2R1G

VM4H255A2R1G

ENCLOSED

REFLECTOR

VM4H070A2ERN

VM4H076A2ERN

VM4H075A2ERN

VM4H100A2ERN

VM4H106A2ERN

VM4H105A2ERN

VM4H170A2ERN

VM4H176A2ERN

VM4H175A2ERN

VM4H250A2ERN

VM4H256A2ERN

VM4H255A2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070A2R5G

VM4H076A2R5G

VM4H075A2R5G

VM4H100A2R5G

VM4H106A2R5G

VM4H105A2R5G

VM4H170A2R5G

VM4H176A2R5G

VM4H175A2R5G

VM4H250A2R5G

VM4H256A2R5G

VM4H255A2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3H070A2GLN

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3H070A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6175W M57 & 250W M58 Fixtures are EXPORT ONLY (EISA LAW).

Pendant

w/ Enclosed Reflector

Pendant

w/ 5-1/2"

Globe & Guard

Pendant

w/ 7-3/4"

Globe & Guard

Flexible Pendant

w/ 5-1/2"

Refractor & Guard

Flexible Pendant

w/ 7-3/4"

Refractor & Guard

VM 70-250 WATT METAL HALIDE PENDANT

CERTILITE®V SERIES •LIGHTING

METAL HALIDE, 70-250W MOGUL BASE HID

L72

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

3/4"

VOLTAGE3

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070X2GLG

VM3H076X2GLG

VM3H075X2GLG

VM3H100X2GLG

VM3H106X2GLG

VM3H105X2GLG

VM3H170X2GLG

VM3H176X2GLG

VM3H175X2GLG

VM3H250X2GLG

VM3H256X2GLG

VM3H255X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070X2R1G

VM3H076X2R1G

VM3H075X2R1G

VM3H100X2R1G

VM3H106X2R1G

VM3H105X2R1G

VM3H170X2R1G

VM3H176X2R1G

VM3H175X2R1G

VM3H250X2R1G

VM3H256X2R1G

VM3H255X2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070X2R5G

VM3H076X2R5G

VM3H075X2R5G

VM3H100X2R5G

VM3H106X2R5G

VM3H105X2R5G

VM3H170X2R5G

VM3H176X2R5G

VM3H175X2R5G

VM3H250X2R5G

VM3H256X2R5G

VM3H255X2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070X2GLG

VM4H076X2GLG

VM4H075X2GLG

VM4H100X2GLG

VM4H106X2GLG

VM4H105X2GLG

VM4H170X2GLG

VM4H176X2GLG

VM4H175X2GLG

VM4H250X2GLG

VM4H256X2GLG

VM4H255X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070X2R1G

VM4H076X2R1G

VM4H075X2R1G

VM4H100X2R1G

VM4H106X2R1G

VM4H105X2R1G

VM4H170X2R1G

VM4H176X2R1G

VM4H175X2R1G

VM4H250X2R1G

VM4H256X2R1G

VM4H255X2R1G

ENCLOSED

REFLECTOR

VM4H070X2ERN

VM4H076X2ERN

VM4H075X2ERN

VM4H100X2ERN

VM4H106X2ERN

VM4H105X2ERN

VM4H170X2ERN

VM4H176X2ERN

VM4H175X2ERN

VM4H250X2ERN

VM4H256X2ERN

VM4H255X2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070X2R5G

VM4H076X2R5G

VM4H075X2R5G

VM4H100X2R5G

VM4H106X2R5G

VM4H105X2R5G

VM4H170X2R5G

VM4H176X2R5G

VM4H175X2R5G

VM4H250X2R5G

VM4H256X2R5G

VM4H255X2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3H070X2GLN

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3H070X3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6175W M57 & 250W M58 Fixtures are EXPORT ONLY (EISA LAW).

VM 70-250 WATT METAL HALIDE WALL

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070B2GLG

VM3H076B2GLG

VM3H075B2GLG

VM3H100B2GLG

VM3H106B2GLG

VM3H105B2GLG

VM3H170B2GLG

VM3H176B2GLG

VM3H175B2GLG

VM3H250B2GLG

VM3H256B2GLG

VM3H255B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070B2R1G

VM3H076B2R1G

VM3H075B2R1G

VM3H100B2R1G

VM3H106B2R1G

VM3H105B2R1G

VM3H170B2R1G

VM3H176B2R1G

VM3H175B2R1G

VM3H250B2R1G

VM3H256B2R1G

VM3H255B2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070B2R5G

VM3H076B2R5G

VM3H075B2R5G

VM3H100B2R5G

VM3H106B2R5G

VM3H105B2R5G

VM3H170B2R5G

VM3H176B2R5G

VM3H175B2R5G

VM3H250B2R5G

VM3H256B2R5G

VM3H255B2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070B2GLG

VM4H076B2GLG

VM4H075B2GLG

VM4H100B2GLG

VM4H106B2GLG

VM4H105B2GLG

VM4H170B2GLG

VM4H176B2GLG

VM4H175B2GLG

VM4H250B2GLG

VM4H256B2GLG

VM4H255B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070B2R1G

VM4H076B2R1G

VM4H075B2R1G

VM4H100B2R1G

VM4H106B2R1G

VM4H105B2R1G

VM4H170B2R1G

VM4H176B2R1G

VM4H175B2R1G

VM4H250B2R1G

VM4H256B2R1G

VM4H255B2R1G

ENCLOSED

REFLECTOR

VM4H070B2ERN

VM4H076B2ERN

VM4H075B2ERN

VM4H100B2ERN

VM4H106B2ERN

VM4H105B2ERN

VM4H170B2ERN

VM4H176B2ERN

VM4H175B2ERN

VM4H250B2ERN

VM4H256B2ERN

VM4H255B2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070B2R5G

VM4H076B2R5G

VM4H075B2R5G

VM4H100B2R5G

VM4H106B2R5G

VM4H105B2R5G

VM4H170B2R5G

VM4H176B2R5G

VM4H175B2R5G

VM4H250B2R5G

VM4H256B2R5G

VM4H255B2R5G

Ceiling

w/ 5-1/2"

Globe & Guard

Ceiling

w/ 7-3/4"

Globe & Guard

Wall

w/ 5-1/2"

Refractor & Guard

Wall

w/ 7-3/4"

Refractor & Guard

Ceiling

w/ Enclosed Reflector

VM 70-250 WATT METAL HALIDE CEILING

CERTILITE®V SERIES •LIGHTING

METAL HALIDE, 70-250W MOGUL BASE HID L73

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070C2GLG

VM3H076C2GLG

VM3H075C2GLG

VM3H100C2GLG

VM3H106C2GLG

VM3H105C2GLG

VM3H170C2GLG

VM3H176C2GLG

VM3H175C2GLG

VM3H250C2GLG

VM3H256C2GLG

VM3H255C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070C2R1G

VM3H076C2R1G

VM3H075C2R1G

VM3H100C2R1G

VM3H106C2R1G

VM3H105C2R1G

VM3H170C2R1G

VM3H176C2R1G

VM3H175C2R1G

VM3H250C2R1G

VM3H256C2R1G

VM3H255C2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070C2R5G

VM3H076C2R5G

VM3H075C2R5G

VM3H100C2R5G

VM3H106C2R5G

VM3H105C2R5G

VM3H170C2R5G

VM3H176C2R5G

VM3H175C2R5G

VM3H250C2R5G

VM3H256C2R5G

VM3H255C2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070C2GLG

VM4H076C2GLG

VM4H075C2GLG

VM4H100C2GLG

VM4H106C2GLG

VM4H105C2GLG

VM4H170C2GLG

VM4H176C2GLG

VM4H175C2GLG

VM4H250C2GLG

VM4H256C2GLG

VM4H255C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070C2R1G

VM4H076C2R1G

VM4H075C2R1G

VM4H100C2R1G

VM4H106C2R1G

VM4H105C2R1G

VM4H170C2R1G

VM4H176C2R1G

VM4H175C2R1G

VM4H250C2R1G

VM4H256C2R1G

VM4H255C2R1G

ENCLOSED

REFLECTOR

VM4H070C2ERN

VM4H076C2ERN

VM4H075C2ERN

VM4H100C2ERN

VM4H106C2ERN

VM4H105C2ERN

VM4H170C2ERN

VM4H176C2ERN

VM4H175C2ERN

VM4H250C2ERN

VM4H256C2ERN

VM4H255C2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070C2R5G

VM4H076C2R5G

VM4H075C2R5G

VM4H100C2R5G

VM4H106C2R5G

VM4H105C2R5G

VM4H170C2R5G

VM4H176C2R5G

VM4H175C2R5G

VM4H250C2R5G

VM4H256C2R5G

VM4H255C2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3H070C2GLN

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3H070C3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6175W M57 & 250W M58 Fixtures are EXPORT ONLY (EISA LAW).

7VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately.

See page L83.

VM 70-250 WATT METAL HALIDE EZ ADAPTER

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE6

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070EZGLG

VM3H076EZGLG

VM3H075EZGLG

VM3H100EZGLG

VM3H106EZGLG

VM3H105EZGLG

VM3H170EZGLG

VM3H176EZGLG

VM3H175EZGLG

VM3H250EZGLG

VM3H256EZGLG

VM3H255EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070EZR1G

VM3H076EZR1G

VM3H075EZR1G

VM3H100EZR1G

VM3H106EZR1G

VM3H105EZR1G

VM3H170EZR1G

VM3H176EZR1G

VM3H175EZR1G

VM3H250EZR1G

VM3H256EZR1G

VM3H255EZR1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070EZR5G

VM3H076EZR5G

VM3H075EZR5G

VM3H100EZR5G

VM3H106EZR5G

VM3H105EZR5G

VM3H170EZR5G

VM3H176EZR5G

VM3H175EZR5G

VM3H250EZR5G

VM3H256EZR5G

VM3H255EZR5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070EZGLG

VM4H076EZGLG

VM4H075EZGLG

VM4H100EZGLG

VM4H106EZGLG

VM4H105EZGLG

VM4H170EZGLG

VM4H176EZGLG

VM4H175EZGLG

VM4H250EZGLG

VM4H256EZGLG

VM4H255EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070EZR1G

VM4H076EZR1G

VM4H075EZR1G

VM4H100EZR1G

VM4H106EZR1G

VM4H105EZR1G

VM4H170EZR1G

VM4H176EZR1G

VM4H175EZR1G

VM4H250EZR1G

VM4H256EZR1G

VM4H255EZR1G

ENCLOSED

REFLECTOR

VM4H070EZERN

VM4H076EZERN

VM4H075EZERN

VM4H100EZERN

VM4H106EZERN

VM4H105EZERN

VM4H170EZERN

VM4H176EZERN

VM4H175EZERN

VM4H250EZERN

VM4H256EZERN

VM4H255EZERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070EZR5G

VM4H076EZR5G

VM4H075EZR5G

VM4H100EZR5G

VM4H106EZR5G

VM4H105EZR5G

VM4H170EZR5G

VM4H176EZR5G

VM4H175EZR5G

VM4H250EZR5G

VM4H256EZR5G

VM4H255EZR5G

Cone

w/ 5-1/2"

Globe & Guard

Cone

w/ 7-3/4"

Globe & Guard

EZ Adapter

w/ 5-1/2"

Refractor & Guard

EZ Adapter

w/ 7-3/4"

Refractor & Guard

Cone

w/ Enclosed Reflector

VM 70-250 WATT METAL HALIDE CONE

CERTILITE®V SERIES •LIGHTING

METAL HALIDE, 70-250W MOGUL BASE HID

L74

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070D5GLG

VM3H076D5GLG

VM3H075D5GLG

VM3H100D5GLG

VM3H106D5GLG

VM3H105D5GLG

VM3H170D5GLG

VM3H176D5GLG

VM3H175D5GLG

VM3H250D5GLG

VM3H256D5GLG

VM3H255D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070D5R1G

VM3H076D5R1G

VM3H075D5R1G

VM3H100D5R1G

VM3H106D5R1G

VM3H105D5R1G

VM3H170D5R1G

VM3H176D5R1G

VM3H175D5R1G

VM3H250D5R1G

VM3H256D5R1G

VM3H255D5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070D5R5G

VM3H076D5R5G

VM3H075D5R5G

VM3H100D5R5G

VM3H106D5R5G

VM3H105D5R5G

VM3H170D5R5G

VM3H176D5R5G

VM3H175D5R5G

VM3H250D5R5G

VM3H256D5R5G

VM3H255D5R5G

GLOBE

& GUARD

VM4H070D5GLG

VM4H076D5GLG

VM4H075D5GLG

VM4H100D5GLG

VM4H106D5GLG

VM4H105D5GLG

VM4H170D5GLG

VM4H176D5GLG

VM4H175D5GLG

VM4H250D5GLG

VM4H256D5GLG

VM4H255D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070D5R1G

VM4H076D5R1G

VM4H075D5R1G

VM4H100D5R1G

VM4H106D5R1G

VM4H105D5R1G

VM4H170D5R1G

VM4H176D5R1G

VM4H175D5R1G

VM4H250D5R1G

VM4H256D5R1G

VM4H255D5R1G

ENCLOSED

REFLECTOR

VM4H070D5ERN

VM4H076D5ERN

VM4H075D5ERN

VM4H100D5ERN

VM4H106D5ERN

VM4H105D5ERN

VM4H170D5ERN

VM4H176D5ERN

VM4H175D5ERN

VM4H250D5ERN

VM4H256D5ERN

VM4H255D5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070D5R5G

VM4H076D5R5G

VM4H075D5R5G

VM4H100D5R5G

VM4H106D5R5G

VM4H105D5R5G

VM4H170D5R5G

VM4H176D5R5G

VM4H175D5R5G

VM4H250D5R5G

VM4H256D5R5G

VM4H255D5R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3H070D5GLN

3Catalog numbers shown are with 3/4" conduit openings, change 5 to 4 for 1-1/4"; e.g. VM3H070D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6175W M57 & 250W M58 Fixtures are EXPORT ONLY (EISA LAW).

VM 70-250 WATT METAL HALIDE STANCHION STRAIGHT

WATTS

100

175

250

DESCRIPTION

ANSI

M98

M143

M90

M140

M57

M58

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3H070S5GLG

VM3H076S5GLG

VM3H075S5GLG

VM3H100S5GLG

VM3H106S5GLG

VM3H105S5GLG

VM3H170S5GLG

VM3H176S5GLG

VM3H175S5GLG

VM3H250S5GLG

VM3H256S5GLG

VM3H255S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3H070S5R1G

VM3H076S5R1G

VM3H075S5R1G

VM3H100S5R1G

VM3H106S5R1G

VM3H105S5R1G

VM3H170S5R1G

VM3H176S5R1G

VM3H175S5R1G

VM3H250S5R1G

VM3H256S5R1G

VM3H255S5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3H070S5R5G

VM3H076S5R5G

VM3H075S5R5G

VM3H100S5R5G

VM3H106S5R5G

VM3H105S5R5G

VM3H170S5R5G

VM3H176S5R5G

VM3H175S5R5G

VM3H250S5R5G

VM3H256S5R5G

VM3H255S5R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4H070S5GLG

VM4H076S5GLG

VM4H075S5GLG

VM4H100S5GLG

VM4H106S5GLG

VM4H105S5GLG

VM4H170S5GLG

VM4H176S5GLG

VM4H175S5GLG

VM4H250S5GLG

VM4H256S5GLG

VM4H255S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4H070S5R1G

VM4H076S5R1G

VM4H075S5R1G

VM4H100S5R1G

VM4H106S5R1G

VM4H105S5R1G

VM4H170S5R1G

VM4H176S5R1G

VM4H175S5R1G

VM4H250S5R1G

VM4H256S5R1G

VM4H255S5R1G

ENCLOSED

REFLECTOR

VM4H070S5ERN

VM4H076S5ERN

VM4H075S5ERN

VM4H100S5ERN

VM4H106S5ERN

VM4H105S5ERN

VM4H170S5ERN

VM4H176S5ERN

VM4H175S5ERN

VM4H250S5ERN

VM4H256S5ERN

VM4H255S5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4H070S5R5G

VM4H076S5R5G

VM4H075S5R5G

VM4H100S5R5G

VM4H106S5R5G

VM4H105S5R5G

VM4H170S5R5G

VM4H176S5R5G

VM4H175S5R5G

VM4H250S5R5G

VM4H256S5R5G

VM4H255S5R5G

Stanchion 25°

w/ 5-1/2"

Globe & Guard

Stanchion 25°

w/ 7-3/4"

Globe & Guard

Stanchion Straight

w/ 5-1/2"

Refractor & Guard

Stanchion Straight

w/ 7-3/4"

Refractor & Guard

Stanchion 25°

w/ Enclosed Reflector

VM 70-250 WATT METAL HALIDE STANCHION 25° ANGLE

7-3/4" OPTIC THREAD SIZE 2

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 150-200W MOGUL BASE HID L75

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Pendant

w/ Enclosed Reflector

Flexible Pendant

w/ 7-3/4"

Refractor & Guard

Pendant

w/ 7-3/4"

Globe & Guard

VM 150-200 WATT METAL HALIDE PULSE PENDANT

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150A2GLG

VM3P156A2GLG

VM3P155A2GLG

VM3P170A2GLG

VM3P176A2GLG

VM3P175A2GLG

VM3P200A2GLG

VM3P206A2GLG

VM3P205A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150A2R1G

VM3P156A2R1G

VM3P155A2R1G

VM3P170A2R1G

VM3P176A2R1G

VM3P175A2R1G

VM3P200A2R1G

VM3P206A2R1G

VM3P205A2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150A2R5G

VM3P156A2R5G

VM3P155A2R5G

VM3P170A2R5G

VM3P176A2R5G

VM3P175A2R5G

VM3P200A2R5G

VM3P206A2R5G

VM3P205A2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150A2GLG

VM4P156A2GLG

VM4P155A2GLG

VM4P170A2GLG

VM4P176A2GLG

VM4P175A2GLG

VM4P200A2GLG

VM4P206A2GLG

VM4P205A2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150A2R1G

VM4P156A2R1G

VM4P155A2R1G

VM4P170A2R1G

VM4P176A2R1G

VM4P175A2R1G

VM4P200A2R1G

VM4P206A2R1G

VM4P205A2R1G

ENCLOSED

REFLECTOR

VM4P156A2ERN

VM4P155A2ERN

VM4P170A2ERN

VM4P176A2ERN

VM4P175A2ERN

VM4P200A2ERN

VM4P206A2ERN

VM4P205A2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150A2R5G

VM4P156A2R5G

VM4P155A2R5G

VM4P170A2R5G

VM4P176A2R5G

VM4P175A2R5G

VM4P200A2R5G

VM4P206A2R5G

VM4P205A2R5G

VM 150-200 WATT METAL HALIDE PULSE FLEXIBLE PENDANT

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150F2GLG

VM3P156F2GLG

VM3P155F2GLG

VM3P170F2GLG

VM3P176F2GLG

VM3P175F2GLG

VM3P200F2GLG

VM3P206F2GLG

VM3P205F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150F2R1G

VM3P156F2R1G

VM3P155F2R1G

VM3P170F2R1G

VM3P176F2R1G

VM3P175F2R1G

VM3P200F2R1G

VM3P206F2R1G

VM3P205F2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150F2R5G

VM3P156F2R5G

VM3P155F2R5G

VM3P170F2R5G

VM3P176F2R5G

VM3P175F2R5G

VM3P200F2R5G

VM3P206F2R5G

VM3P205F2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150F2GLG

VM4P156F2GLG

VM4P155F2GLG

VM4P170F2GLG

VM4P176F2GLG

VM4P175F2GLG

VM4P200F2GLG

VM4P206F2GLG

VM4P205F2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150F2R1G

VM4P156F2R1G

VM4P155F2R1G

VM4P170F2R1G

VM4P176F2R1G

VM4P175F2R1G

VM4P200F2R1G

VM4P206F2R1G

VM4P205F2R1G

ENCLOSED

REFLECTOR

VM4P156F2ERN

VM4P155F2ERN

VM4P170F2ERN

VM4P176F2ERN

VM4P175F2ERN

VM4P200F2ERN

VM4P206F2ERN

VM4P205F2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150F2R5G

VM4P156F2R5G

VM4P155F2R5G

VM4P170F2R5G

VM4P176F2R5G

VM4P175F2R5G

VM4P200F2R5G

VM4P206F2R5G

VM4P205F2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3P150A2GLN

3Catalog numbers shown are with 3/4" conduit openings; change 2 to 3 for 1"; e.g. VM3P150A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

Pendant

w/ 5-1/2"

Globe & Guard

Flexible Pendant

w/ 5-1/2"

Refractor & Guard

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 150-200W MOGUL BASE HID

L76

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Ceiling

w/ 5-1/2"

Globe & Guard

Ceiling

w/ 7-3/4"

Globe & Guard

Wall

w/ 5-1/2"

Refractor & Guard

Wall

w/ 7-3/4"

Refractor & Guard

Ceiling

w/ Enclosed Reflector

VM 150-200 WATT METAL HALIDE PULSE CEILING

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

3/4"

VOLTAGE3

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150X2GLG

VM3P156X2GLG

VM3P155X2GLG

VM3P170X2GLG

VM3P176X2GLG

VM3P175X2GLG

VM3P200X2GLG

VM3P206X2GLG

VM3P205X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150X2R1G

VM3P156X2R1G

VM3P155X2R1G

VM3P170X2R1G

VM3P176X2R1G

VM3P175X2R1G

VM3P200X2R1G

VM3P206X2R1G

VM3P205X2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150X2R5G

VM3P156X2R5G

VM3P155X2R5G

VM3P170X2R5G

VM3P176X2R5G

VM3P175X2R5G

VM3P200X2R5G

VM3P206X2R5G

VM3P205X2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150X2GLG

VM4P156X2GLG

VM4P155X2GLG

VM4P170X2GLG

VM4P176X2GLG

VM4P175X2GLG

VM4P200X2GLG

VM4P206X2GLG

VM4P205X2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150X2R1G

VM4P156X2R1G

VM4P155X2R1G

VM4P170X2R1G

VM4P176X2R1G

VM4P175X2R1G

VM4P200X2R1G

VM4P206X2R1G

VM4P205X2R1G

ENCLOSED

REFLECTOR

VM4P150X2ERN

VM4P156X2ERN

VM4P155X2ERN

VM4P170X2ERN

VM4P176X2ERN

VM4P175X2ERN

VM4P200X2ERN

VM4P206X2ERN

VM4P205X2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150X2R5G

VM4P156X2R5G

VM4P155X2R5G

VM4P170X2R5G

VM4P176X2R5G

VM4P175X2R5G

VM4P200X2R5G

VM4P206X2R5G

VM4P205X2R5G

VM 150-200 WATT METAL HALIDE PULSE WALL

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

GLOBE

& GUARD

VM3P150B2GLG

VM3P156B2GLG

VM3P155B2GLG

VM3P170B2GLG

VM3P176B2GLG

VM3P175B2GLG

VM3P200B2GLG

VM3P206B2GLG

VM3P205B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150B2R1G

VM3P156B2R1G

VM3P155B2R1G

VM3P170B2R1G

VM3P176B2R1G

VM3P175B2R1G

VM3P200B2R1G

VM3P206B2R1G

VM3P205B2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150B2R5G

VM3P156B2R5G

VM3P155B2R5G

VM3P170B2R5G

VM3P176B2R5G

VM3P175B2R5G

VM3P200B2R5G

VM3P206B2R5G

VM3P205B2R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150B2GLG

VM4P156B2GLG

VM4P155B2GLG

VM4P170B2GLG

VM4P176B2GLG

VM4P175B2GLG

VM4P200B2GLG

VM4P206B2GLG

VM4P205B2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150B2R1G

VM4P156B2R1G

VM4P155B2R1G

VM4P170B2R1G

VM4P176B2R1G

VM4P175B2R1G

VM4P200B2R1G

VM4P206B2R1G

VM4P205B2R1G

ENCLOSED

REFLECTOR

VM4P150B2ERN

VM4P156B2ERN

VM4P155B2ERN

VM4P170B2ERN

VM4P176B2ERN

VM4P175B2ERN

VM4P200B2ERN

VM4P206B2ERN

VM4P205B2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150B2R5G

VM4P156B2R5G

VM4P155B2R5G

VM4P170B2R5G

VM4P176B2R5G

VM4P175B2R5G

VM4P200B2R5G

VM4P206B2R5G

VM4P205B2R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflectors); to omit guard, change ending G to N; e.g. VM3P050X2GLN

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM3P150X3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

5-1/2" OPTIC THREAD SIZE 2

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 150-200W MOGUL BASE HID L77

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Cone

w/ 5-1/2"

Globe & Guard

Cone

w/ 7-3/4"

Globe & Guard

EZ Adapter

w/ 5-1/2"

Refractor & Guard

EZ Adapter

w/ 7-3/4"

Refractor & Guard

Cone

w/ Enclosed Reflector

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

3/4"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150C2GLG

VM3P156C2GLG

VM3P155C2GLG

VM3P170C2GLG

VM3P176C2GLG

VM3P175C2GLG

VM3P200C2GLG

VM3P206C2GLG

VM3P205C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150C2R1G

VM3P156C2R1G

VM3P155C2R1G

VM3P170C2R1G

VM3P176C2R1G

VM3P175C2R1G

VM3P200C2R1G

VM3P206C2R1G

VM3P205C2R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150C2R5G

VM3P156C2R5G

VM3P155C2R5G

VM3P170C2R5G

VM3P176C2R5G

VM3P175C2R5G

VM3P200C2R5G

VM3P206C2R5G

VM3P205C2R5G

GLOBE

& GUARD

VM4P150C2GLG

VM4P156C2GLG

VM4P155C2GLG

VM4P170C2GLG

VM4P176C2GLG

VM4P175C2GLG

VM4P200C2GLG

VM4P206C2GLG

VM4P205C2GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150C2R1G

VM4P156C2R1G

VM4P155C2R1G

VM4P170C2R1G

VM4P176C2R1G

VM4P175C2R1G

VM4P200C2R1G

VM4P206C2R1G

VM4P205C2R1G

ENCLOSED

REFLECTOR

VM4P150C2ERN

VM4P156C2ERN

VM4P155C2ERN

VM4P170C2ERN

VM4P176C2ERN

VM4P175C2ERN

VM4P200C2ERN

VM4P206C2ERN

VM4P205C2ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150C2R5G

VM4P156C2R5G

VM4P155C2R5G

VM4P170C2R5G

VM4P176C2R5G

VM4P175C2R5G

VM4P200C2R5G

VM4P206C2R5G

VM4P205C2R5G

VM 150-200 WATT METAL HALIDE PULSE EZ ADAPTER

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE6

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150EZGLG

VM3P156EZGLG

VM3P155EZGLG

VM3P170EZGLG

VM3P176EZGLG

VM3P175EZGLG

VM3P200EZGLG

VM3P206EZGLG

VM3P205EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150EZR1G

VM3P156EZR1G

VM3P155EZR1G

VM3P170EZR1G

VM3P176EZR1G

VM3P175EZR1G

VM3P200EZR1G

VM3P206EZR1G

VM3P205EZR1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150EZR5G

VM3P156EZR5G

VM3P155EZR5G

VM3P170EZR5G

VM3P176EZR5G

VM3P175EZR5G

VM3P200EZR5G

VM3P206EZR5G

VM3P205EZR5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150EZGLG

VM4P156EZGLG

VM4P155EZGLG

VM4P170EZGLG

VM4P176EZGLG

VM4P175EZGLG

VM4P200EZGLG

VM4P206EZGLG

VM4P205EZGLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150EZR1G

VM4P156EZR1G

VM4P155EZR1G

VM4P170EZR1G

VM4P176EZR1G

VM4P175EZR1G

VM4P200EZR1G

VM4P206EZR1G

VM4P205EZR1G

ENCLOSED

REFLECTOR

VM4P150EZERN

VM4P156EZERN

VM4P155EZERN

VM4P170EZERN

VM4P176EZERN

VM4P175EZERN

VM4P200EZERN

VM4P206EZERN

VM4P205EZERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150EZR5G

VM4P156EZR5G

VM4P155EZR5G

VM4P170EZR5G

VM4P176EZR5G

VM4P175EZR5G

VM4P200EZR5G

VM4P206EZR5G

VM4P205EZR5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflector); to omit guard change ending G to N; e.g. VM3P150C2GLN

3Catalog numbers shown are with 3/4" conduit openings; change 2 to 3 for 1"; e.g. VM3P150C3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6VMEZA tank adapters UL “Classified” as an assembly for use between VM Tanks and EZ mounts. Order EZ mounts separately, see page L83.

VM 150-200 WATT METAL HALIDE PULSE CONE

7-3/4" OPTIC THREAD SIZE 2

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 150-200W MOGUL BASE HID

L78

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Stanchion 25°

w/ 5-1/2"

Globe & Guard

Stanchion 25°

w/ 7-3/4"

Globe & Guard

Stanchion Straight

w/ 5-1/2"

Refractor & Guard

Stanchion Straight

w/ 7-3/4"

Refractor & Guard

Stanchion 25°

w/ Enclosed Reflector

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150D5GLG

VM3P156D5GLG

VM3P155D5GLG

VM3P170D5GLG

VM3P176D5GLG

VM3P175D5GLG

VM3P200D5GLG

VM3P206D5GLG

VM3P205D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150D5R1G

VM3P156D5R1G

VM3P155D5R1G

VM3P170D5R1G

VM3P176D5R1G

VM3P175D5R1G

VM3P200D5R1G

VM3P206D5R1G

VM3P205D5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150D5R5G

VM3P156D5R5G

VM3P155D5R5G

VM3P170D5R5G

VM3P176D5R5G

VM3P175D5R5G

VM3P200D5R5G

VM3P206D5R5G

VM3P205D5R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150D5GLG

VM4P156D5GLG

VM4P155D5GLG

VM4P170D5GLG

VM4P176D5GLG

VM4P175D5GLG

VM4P200D5GLG

VM4P206D5GLG

VM4P205D5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150D5R1G

VM4P156D5R1G

VM4P155D5R1G

VM4P170D5R1G

VM4P176D5R1G

VM4P175D5R1G

VM4P200D5R1G

VM4P206D5R1G

VM4P205D5R1G

ENCLOSED

REFLECTOR

VM4P150D5ERN

VM4P156D5ERN

VM4P155D5ERN

VM4P170D5ERN

VM4P176D5ERN

VM4P175D5ERN

VM4P200D5ERN

VM4P206D5ERN

VM4P205D5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150D5R5G

VM4P156D5R5G

VM4P155D5R5G

VM4P170D5R5G

VM4P176D5R5G

VM4P175D5R5G

VM4P200D5R5G

VM4P206D5R5G

VM4P205D5R5G

VM 150-200 WATT METAL HALIDE PULSE STANCHION STRAIGHT

WATTS

150

175

200

DESCRIPTION

ANSI

M102

M142

M137

M152

M136

HUB

SIZE3

1-1/2"

VOLTAGE4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM3P150S5GLG

VM3P156S5GLG

VM3P155S5GLG

VM3P170S5GLG

VM3P176S5GLG

VM3P175S5GLG

VM3P200S5GLG

VM3P206S5GLG

VM3P205S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM3P150S5R1G

VM3P156S5R1G

VM3P155S5R1G

VM3P170S5R1G

VM3P176S5R1G

VM3P175S5R1G

VM3P200S5R1G

VM3P206S5R1G

VM3P205S5R1G

TYPE V GLASS

REFRACTOR

& GUARD

VM3P150S5R5G

VM3P156S5R5G

VM3P155S5R5G

VM3P170S5R5G

VM3P176S5R5G

VM3P175S5R5G

VM3P200S5R5G

VM3P206S5R5G

VM3P205S5R5G

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

VM4P150S5GLG

VM4P156S5GLG

VM4P155S5GLG

VM4P170S5GLG

VM4P176S5GLG

VM4P175S5GLG

VM4P200S5GLG

VM4P206S5GLG

VM4P205S5GLG

TYPE I GLASS

REFRACTOR

& GUARD

VM4P150S5R1G

VM4P156S5R1G

VM4P155S5R1G

VM4P170S5R1G

VM4P176S5R1G

VM4P175S5R1G

VM4P200S5R1G

VM4P206S5R1G

VM4P205S5R1G

ENCLOSED

REFLECTOR

VM4P150S5ERN

VM4P156S5ERN

VM4P155S5ERN

VM4P170S5ERN

VM4P176S5ERN

VM4P175S5ERN

VM4P200S5ERN

VM4P206S5ERN

VM4P205S5ERN

TYPE V GLASS

REFRACTOR

& GUARD

VM4P150S5R5G

VM4P156S5R5G

VM4P155S5R5G

VM4P170S5R5G

VM4P176S5R5G

VM4P175S5R5G

VM4P200S5R5G

VM4P206S5R5G

VM4P205S5R5G

1See hazardous application data on pages L108-L111 for limitations.

2Catalog numbers shown are with guard (except enclosed reflectors); to omit guard change ending G to N; e.g. VM3P150D5GLN

3Catalog numbers shown are with 1-1/2" conduit openings, change 5 to 4 for 1-1/4"; e.g. VM3P150D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

VM 150-200 WATT METAL HALIDE PULSE STANCHION 25° ANGLE

CERTILITE®V SERIES •LIGHTING

VM5 CATALOG ORDERING LOGIC L79

CertiL i t e ®VCatalog Number Logic; 200-400 High Wattage (Mogul Base) HID Fixtures

Series Constant

Optic Thread Size

5—7 3/4"

Lamp Type

S—HPS (200, 250, 400, 600)

H—MH (250, 400)

P—MHP (Pulse Start 250, 320,

350, 400)

Voltage @ 60 Hertz

0—Quadri-Volt (120, 208, 240, 277)

5—480V

6—Tri - 120, 277, 347 (Canada)

7—220V

8—220/240 50 Hz

Mounting Type

A—Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

D—Stanchion 25°

S—Stanchion Straight 90°

E—EZ Mount Adapter1

N—None (mount ordered

separately)2

Lamp Wattage

20—200 (HPS)

25—250 (HPS, MHP)

32—320 (MHP)

35—350 (MHP)

40—400 (HPS, MH , MHP)

60—600 (HPS)

Guard

G—Globe Guard

N—No Guard6

Options

QA—Quartz Auxiliary7

BP—Ballast Protector 250-

400W HPS only

F1—Fusing 120V8

F2—Fusing 208V8

F3—Fusing 240V8

F4—Fusing 277V8

F5—Fusing 480V8

F6—Fusing 347V8

F7—Fusing 220V8

F8—Fusing 240V 50 Hz8

P1—Photocell 120V9

P2—Photocell 208-277V9

P3—Photocell 347V9

Q1—QD Wired to 120V

Q2—QD Wired to 208V

Q3—QD Wired to 240V

Q4—QD Wired to 277V

Q5—QD Wired to 480V

Q6—QD Wired to 347V

Q7—QD 220V

Q8—QD 240V (50Hz)

TBx—Terminal Blocks

x= Voltage Code

AS—Assembled Fixture with

Standard Lamp

AD—Assembled Fixture with

Dual-Arc-Tube Lamp 250,

400 HPS only

AN—Assembled, no lamp

CS—Component Pack with

Standard Lamp

CP—Component Pack-No

Lamp

Optic

GL—Globe

ER—Enclosed Reflector

EP—Poylcarbonate Shielded

Enclosed Reflector

S2—Type II Spin-Top Refractor

S5—Type V Spin-Top Refractor

FG—Silicone3Coated Globe

TG—Teflon®4Coated Globe

T2—Teflon®4Coated Type II

12" Spin-Top Refractor

TV—Teflon®4Coated Type V

12" Spin-Top Refractor

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter1

N—None (mount ordered

separately)2

VM 0 0 00 0 0 0 00 0 (NR5) 00

1Completes as “EZ”, conduit mounting boxes ordered separately -

See L83.

2NN mount ordered separately.

3Silicone coated globe for additional impact protection.

4Teflon®is a registered trademark of DuPont, Inc.

5Restricted Breathing - See L54 for more information.

6Order Guards for Spin-Tops & VMER40 separately.

Consult factory for available lamp and voltage combinations.

7QA not suitable for Class I, Div. 2/Zone 2 applications; consult factory

for other hazardous applications.

8Fusing not for Marine or Canadian installations.

9Photo cells for Class I, Div. 2 only, or C1Z2 nR , not Class II.

Field connection to proper tap in case of Multitap Ballasts.

Not for use with wall or straight (90°) Stanchion.

QD = Quick Disconnect. Allows easy tank removal for maintenance.

Electrician simply unplugs de-energized ballast from supply circuit.

400W M59 fixtures and EXPORT ONLY (EISA LAW).

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 200-600W MOGUL BASE HID

L80

Pendant

w/ Globe &

Guard

Pendant

w/ Spin-Top

Refractor

Ceiling

w/ Enclosed

Reflector

VM 200-600 WATT HIGH PRESSURE SODIUM PENDANT

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200A2GLG

VM5S206A2GLG

VM5S205A2GLG

VM5S250A2GLG

VM5S256A2GLG

VM5S255A2GLG

VM5S400A2GLG

VM5S406A2GLG

VM5S405A2GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200A2S5N

VM5S206A2S5N

VM5S205A2S5N

VM5S250A2S5N

VM5S256A2S5N

VM5S255A2S5N

VM5S400A2S5N

VM5S406A2S5N

VM5S405A2S5N

—

ENCLOSED

REFLECTOR

VM5S200A2ERN

VM5S206A2ERN

VM5S205A2ERN

VM5S250A2ERN

VM5S256A2ERN

VM5S255A2ERN

VM5S400A2ERN

VM5S406A2ERN

VM5S405A2ERN

VM5S600A2ERN

VM5S606A2ERN

VM5S605A2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5S200A2EPN

VM5S206A2EPN

VM5S205A2EPN

VM5S250A2EPN

VM5S256A2EPN

VM5S255A2EPN

VM5S400A2EPN

VM5S406A2EPN

VM5S405A2EPN

—

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5S200A2GLN. Order spin top and enclosed reflec-

tor guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM5S200A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

VM 200-600 WATT HIGH PRESSURE SODIUM CEILING

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200X2GLG

VM5S206X2GLG

VM5S205X2GLG

VM5S250X2GLG

VM5S256X2GLG

VM5S255X2GLG

VM5S400X2GLG

VM5S406X2GLG

VM5S405X2GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200X2S5N

VM5S206X2S5N

VM5S205X2S5N

VM5S250X2S5N

VM5S256X2S5N

VM5S255X2S5N

VM5S400X2S5N

VM5S406X2S5N

VM5S405X2S5N

—

ENCLOSED

REFLECTOR

VM5S200X2ERN

VM5S206X2ERN

VM5S205X2ERN

VM5S250X2ERN

VM5S256X2ERN

VM5S255X2ERN

VM5S400X2ERN

VM5S406X2ERN

VM5S405X2ERN

VM5S600X2ERN

VM5S606X2ERN

VM5S605X2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5S200X2EPN

VM5S206X2EPN

VM5S205X2EPN

VM5S250X2EPN

VM5S256X2EPN

VM5S255X2EPN

VM5S400X2EPN

VM5S406X2EPN

VM5S405X2EPN

—

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 200-600W MOGUL BASE HID L81

Wall

w/ Globe &

Guard

Wall

w/ Spin-Top

Refractor

Cone

w/ Enclosed

Reflector

VM 200-600 WATT HIGH PRESSURE SODIUM WALL

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200B2GLG

VM5S206B2GLG

VM5S205B2GLG

VM5S250B2GLG

VM5S256B2GLG

VM5S255B2GLG

VM5S400B2GLG

VM5S406B2GLG

VM5S405B2GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200B2S5N

VM5S206B2S5N

VM5S205B2S5N

VM5S250B2S5N

VM5S256B2S5N

VM5S255B2S5N

VM5S400B2S5N

VM5S406B2S5N

VM5S405B2S5N

—

ENCLOSED

REFLECTOR

VM5S200B2ERN

VM5S206B2ERN

VM5S205B2ERN

VM5S250B2ERN

VM5S256B2ERN

VM5S255B2ERN

VM5S400B2ERN

VM5S406B2ERN

VM5S405B2ERN

VM5S600B2ERN

VM5S606B2ERN

VM5S605B2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

—

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5S200B2GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM5S200B3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

VM 200-600 WATT HIGH PRESSURE SODIUM CONE

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200C2GLG

VM5S206C2GLG

VM5S205C2GLG

VM5S250C2GLG

VM5S256C2GLG

VM5S255C2GLG

VM5S400C2GLG

VM5S406C2GLG

VM5S405C2GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200C2S5N

VM5S206C2S5N

VM5S205C2S5N

VM5S250C2S5N

VM5S256C2S5N

VM5S255C2S5N

VM5S400C2S5N

VM5S406C2S5N

VM5S405C2S5N

—

ENCLOSED

REFLECTOR

VM5S200C2ERN

VM5S206C2ERN

VM5S205C2ERN

VM5S250C2ERN

VM5S256C2ERN

VM5S255C2ERN

VM5S400C2ERN

VM5S406C2ERN

VM5S405C2ERN

VM5S600C2ERN

VM5S606C2ERN

VM5S605C2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5S200C2EPN

VM5S206C2EPN

VM5S205C2EPN

VM5S250C2EPN

VM5S256C2EPN

VM5S255C2EPN

VM5S400C2EPN

VM5S406C2EPN

VM5S405C2EPN

—

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 200-600W MOGUL BASE HID

L82

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Stanchion 25°

w/ Globe &

Guard

Stanchion 25°

w/ Spin-Top

Refractor

Stanchion Straight

w/ Enclosed

Reflector

VM 200-600 WATT HIGH PRESSURE SODIUM STANCHION 25° ANGLE

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

1-1/2"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200D5GLG

VM5S206D5GLG

VM5S205D5GLG

VM5S250D5GLG

VM5S256D5GLG

VM5S255D5GLG

VM5S400D5GLG

VM5S406D5GLG

VM5S405D5GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200D5S5N

VM5S206D5S5N

VM5S205D5S5N

VM5S250D5S5N

VM5S256D5S5N

VM5S255D5S5N

VM5S400D5S5N

VM5S406D5S5N

VM5S405D5S5N

—

ENCLOSED

REFLECTOR

VM5S200D5ERN

VM5S206D5ERN

VM5S205D5ERN

VM5S250D5ERN

VM5S256D5ERN

VM5S255D5ERN

VM5S400D5ERN

VM5S406D5ERN

VM5S405D5ERN

VM5S600D5ERN

VM5S606D5ERN

VM5S605D5ERN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5S200D5GLN. Order

spin top and enclosed reflector guards separately.

3Catalog numbers shown are with 1-1/2" conduit openings, change 5 to 4 for 1-1/4"; e.g. VM5S200D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

VM 200-600 WATT HIGH PRESSURE SODIUM STANCHION STRAIGHT

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE3

1-1/2"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200S5GLG

VM5S206S5GLG

VM5S205S5GLG

VM5S250S5GLG

VM5S256S5GLG

VM5S255S5GLG

VM5S400S5GLG

VM5S406S5GLG

VM5S405S5GLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200S5S5N

VM5S206S5S5N

VM5S205S5S5N

VM5S250S5S5N

VM5S256S5S5N

VM5S255S5S5N

VM5S400S5S5N

VM5S406S5S5N

VM5S405S5S5N

—

ENCLOSED

REFLECTOR

VM5S200S5ERN

VM5S206S5ERN

VM5S205S5ERN

VM5S250S5ERN

VM5S256S5ERN

VM5S255S5ERN

VM5S400S5ERN

VM5S406S5ERN

VM5S405S5ERN

VM5S600S5ERN

VM5S606S5ERN

VM5S605S5ERN

CERTILITE®V SERIES •LIGHTING

HIGH PRESSURE SODIUM, 200-600W MOGUL BASE HID L83

EZ Adapter

w/ Globe &

Guard

EZ Adapter

w/ Spin-Top

Refractor

EZ Adapter

w/ Enclosed

Reflector

VM 200-600 WATT HIGH PRESSURE SODIUM EZ ADAPTER

WATTS

200

250

400

600

DESCRIPTION

ANSI

S66

S50

S51

S106

HUB

SIZE 3

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5S200EZGLG

VM5S206EZGLG

VM5S205EZGLG

VM5S250EZGLG

VM5S256EZGLG

VM5S255EZGLG

VM5S400EZGLG

VM5S406EZGLG

VM5S405EZGLG

—

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5S200EZS5N

VM5S206EZS5N

VM5S205EZS5N

VM5S250EZS5N

VM5S256EZS5N

VM5S255EZS5N

VM5S400EZS5N

VM5S406EZS5N

VM5S405EZS5N

—

ENCLOSED

REFLECTOR

VM5S200EZERN

VM5S206EZERN

VM5S205EZERN

VM5S250EZERN

VM5S256EZERN

VM5S255EZERN

VM5S400EZERN

VM5S406EZERN

VM5S405EZERN

VM5S600EZERN

VM5S606EZERN

VM5S605EZERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR6

VM5S200EZEPN

VM5S206EZEPN

VM5S205EZEPN

VM5S250EZEPN

VM5S256EZEPN

VM5S255EZEPN

VM5S400EZEPN

VM5S406EZEPN

VM5S405EZEPN

—

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5S200EZGLN. Order spin top and enclosed

reflector guards separately.

3VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. See above for separate

ordering information

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6VMEP40 not for use with EZ wall bracket.

HUB SIZE

3/4"

1-1/4"/1-1/2"*

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 —

EZA3 EZX3 EZB3 —

—— — EZD4A*

MOUNTING BOXES

Wall Bracket 25° Stanchion

Pendant Ceiling

*1-1/2" furnished with 1-1/2"-1-1/4" reducer and extension. Extension only part number EZDVMA.

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 400W MOGUL BASE HID

L84

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Pendant

w/ Globe &

Guard

Ceiling

w/ Globe &

Guard

Wall

w/ Spin-Top

Refractor

VM 400 WATT METAL HALIDE PENDANT

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400A2GLG

VM5H406A2GLG

VM5H405A2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400A2S5N

VM5H406A2S5N

VM5H405A2S5N

ENCLOSED

REFLECTOR

VM5H400A2ERN

VM5H406A2ERN

VM5H405A2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5H400A2EPN

VM5H406A2EPN

VM5H405A2EPN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5H400A2GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM5H400A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6400W M59 Fixtures are EXPORT ONLY (EISA LAW).

Cone

w/ Enclosed

Reflector

VM 400 WATT METAL HALIDE CEILING

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400X2GLG

VM5H406X2GLG

VM5H405X2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400X2S5N

VM5H406X2S5N

VM5H405X2S5N

ENCLOSED

REFLECTOR

VM5H400X2ERN

VM5H406X2ERN

VM5H405X2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5H400X2EPN

VM5H406X2EPN

VM5H405X2EPN

V M 4 0 0 W AT T M E TA L H A L I D E W A L L

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

3/4"

VOLTAGE4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400B2GLG

VM5H406B2GLG

VM5H405B2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400B2S5N

VM5H406B2S5N

VM5H405B2S5N

ENCLOSED

REFLECTOR

VM5H400B2ERN

VM5H406B2ERN

VM5H405B2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

—

VM 400 WATT METAL HALIDE CONE

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400C2GLG

VM5H406C2GLG

VM5H405C2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400C2S5N

VM5H406C2S5N

VM5H405C2S5N

ENCLOSED

REFLECTOR

VM5H400C2ERN

VM5H406C2ERN

VM5H405C2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5H400C2EPN

VM5H406C2EPN

VM5H405C2EPN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5H400D5GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown with 1-1/2" conduit openings; change 5 to 4 for 1-1/4"; e.g. VM5H400D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6400W M59 Fixtures are EXPORT ONLY (EISA LAW).

7VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately.

See page L83.

8VMEP40 not for use with EZ wall bracket.

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 400W MOGUL BASE HID L85

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

Stanchion 25°

w/ Globe &

Guard

Stanchion 90°

w/ Spin-Top

Refractor

VM 400 WATT METAL HALIDE STANCHION 25° ANGLE

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

1-1/2"

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400D5GLG

VM5H406D5GLG

VM5H405D5GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400D5S5N

VM5H406D5S5N

VM5H405D5S5N

ENCLOSED

REFLECTOR

VM5H400D5ERN

VM5H406D5ERN

VM5H405D5ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

—

EZ Adapter

w/ Enclosed

Reflector

VM 400 WATT METAL HALIDE STANCHION STRAIGHT

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 3

1-1/2"

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400S5GLG

VM5H406S5GLG

VM5H405S5GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400S5S5N

VM5H406S5S5N

VM5H405S5S5N

ENCLOSED

REFLECTOR

VM5H400S5ERN

VM5H406S5ERN

VM5H405S5ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

—

VM 400 WATT METAL HALIDE EZ ADAPTER

WATTS

400

DESCRIPTION

ANSI

M59

HUB

SIZE 7

VOLTAGE 4

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5H400EZGLG

VM5H406EZGLG

VM5H405EZGLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5H400EZS5N

VM5H406EZS5N

VM5H405EZS5N

ENCLOSED

REFLECTOR

VM5H400EZERN

VM5H406EZERN

VM5H405EZERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR8

VM5H400EZEPN

VM5H406EZEPN

VM5H405EZEPN

L86 CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 400W MOGUL BASE HID

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 250-400 WATT METAL HALIDE PULSE PENDANT

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250A2GLG

VM5P256A2GLG

VM5P255A2GLG

VM5P320A2GLG

VM5P326A2GLG

VM5P325A2GLG

VM5P350A2GLG

VM5P356A2GLG

VM5P355A2GLG

VM5P400A2GLG

VM5P406A2GLG

VM5P405A2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250A2S5N

VM5P256A2S5N

VM5P255A2S5N

VM5P320A2S5N

VM5P326A2S5N

VM5P325A2S5N

VM5P350A2S5N

VM5P356A2S5N

VM5P355A2S5N

VM5P400A2S5N

VM5P406A2S5N

VM5P405A2S5N

ENCLOSED

REFLECTOR

VM5P250A2ERN

VM5P256A2ERN

VM5P255A2ERN

VM5P320A2ERN

VM5P326A2ERN

VM5P325A2ERN

VM5P350A2ERN

VM5P356A2ERN

VM5P355A2ERN

VM5P400A2ERN

VM5P406A2ERN

VM5P405A2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5P250A2EPN

VM5P256A2EPN

VM5P255A2EPN

VM5P320A2EPN

VM5P326A2EPN

VM5P325A2EPN

VM5P350A2EPN

VM5P356A2EPN

VM5P355A2EPN

VM5P400A2EPN

VM5P406A2EPN

VM5P405A2EPN

VM 250-400 WATT METAL HALIDE PULSE CEILING

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250X2GLG

VM5P256X2GLG

VM5P255X2GLG

VM5P320X2GLG

VM5P326X2GLG

VM5P325X2GLG

VM5P350X2GLG

VM5P356X2GLG

VM5P355X2GLG

VM5P400X2GLG

VM5P406X2GLG

VM5P405X2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250X2S5N

VM5P256X2S5N

VM5P255X2S5N

VM5P320X2S5N

VM5P326X2S5N

VM5P325X2S5N

VM5P350X2S5N

VM5P356X2S5N

VM5P355X2S5N

VM5P400X2S5N

VM5P406X2S5N

VM5P405X2S5N

ENCLOSED

REFLECTOR

VM5P250X2ERN

VM5P256X2ERN

VM5P255X2ERN

VM5P320X2ERN

VM5P326X2ERN

VM5P325X2ERN

VM5P350X2ERN

VM5P356X2ERN

VM5P355X2ERN

VM5P400X2ERN

VM5P406X2ERN

VM5P405X2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5P250X2EPN

VM5P256X2EPN

VM5P255X2EPN

VM5P320X2EPN

VM5P326X2EPN

VM5P325X2EPN

VM5P350X2EPN

VM5P356X2EPN

VM5P355X2EPN

VM5P400X2EPN

VM5P406X2EPN

VM5P405X2EPN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5P250A2GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM5P250A3GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

Pendant

w/ Globe &

Guard

Pendant

w/ Spin-Top

Refractor

Ceiling

w/ Enclosed

Reflector

L87

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 400W MOGUL BASE HID

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 250-400 WATT METAL HALIDE PULSE WALL

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250B2GLG

VM5P256B2GLG

VM5P255B2GLG

VM5P320B2GLG

VM5P326B2GLG

VM5P325B2GLG

VM5P350B2GLG

VM5P356B2GLG

VM5P355B2GLG

VM5P400B2GLG

VM5P406B2GLG

VM5P405B2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250B2S5N

VM5P256B2S5N

VM5P255B2S5N

VM5P320B2S5N

VM5P326B2S5N

VM5P325B2S5N

VM5P350B2S5N

VM5P356B2S5N

VM5P355B2S5N

VM5P400B2S5N

VM5P406B2S5N

VM5P405B2S5N

ENCLOSED

REFLECTOR

VM5P250B2ERN

VM5P256B2ERN

VM5P255B2ERN

VM5P320B2ERN

VM5P326B2ERN

VM5P325B2ERN

VM5P350B2ERN

VM5P356B2ERN

VM5P355B2ERN

VM5P400B2ERN

VM5P406B2ERN

VM5P405B2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

—

VM 250-400 WATT METAL HALIDE PULSE CONE

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

3/4"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250C2GLG

VM5P256C2GLG

VM5P255C2GLG

VM5P320C2GLG

VM5P326C2GLG

VM5P325C2GLG

VM5P350C2GLG

VM5P356C2GLG

VM5P355C2GLG

VM5P400C2GLG

VM5P406C2GLG

VM5P405C2GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250C2S5N

VM5P256C2S5N

VM5P255C2S5N

VM5P320C2S5N

VM5P326C2S5N

VM5P325C2S5N

VM5P350C2S5N

VM5P356C2S5N

VM5P355C2S5N

VM5P400C2S5N

VM5P406C2S5N

VM5P405C2S5N

ENCLOSED

REFLECTOR

VM5P250C2ERN

VM5P256C2ERN

VM5P255C2ERN

VM5P320C2ERN

VM5P326C2ERN

VM5P325C2ERN

VM5P350C2ERN

VM5P356C2ERN

VM5P355C2ERN

VM5P400C2ERN

VM5P406C2ERN

VM5P405C2ERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR

VM5P250C2EPN

VM5P256C2EPN

VM5P255C2EPN

VM5P320C2EPN

VM5P326C2EPN

VM5P325C2EPN

VM5P350C2EPN

VM5P356C2EPN

VM5P355C2EPN

VM5P400C2EPN

VM5P406C2EPN

VM5P405C2EPN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5P250B2GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM5P250B3GLG.

4Consult catalog logic for other available voltages.

4Add suffix NR for restricted breathing; see page L54 for more information.

Wall

w/ Globe &

Guard

Wall

w/ Spin-Top

Refractor

Cone

w/ Enclosed

Reflector

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 250-400W MOGUL BASE HID

L88

VM 250-400 WATT METAL HALIDE PULSE STANCHION 25° ANGLE

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

1-1/2"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250D5GLG

VM5P256D5GLG

VM5P255D5GLG

VM5P320D5GLG

VM5P326D5GLG

VM5P325D5GLG

VM5P350D5GLG

VM5P356D5GLG

VM5P355D5GLG

VM5P400D5GLG

VM5P406D5GLG

VM5P405D5GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250D5S5N

VM5P256D5S5N

VM5P255D5S5N

VM5P320D5S5N

VM5P326D5S5N

VM5P325D5S5N

VM5P350D5S5N

VM5P356D5S5N

VM5P355D5S5N

VM5P400D5S5N

VM5P406D5S5N

VM5P405D5S5N

ENCLOSED

REFLECTOR

VM5P250D5ERN

VM5P256D5ERN

VM5P255D5ERN

VM5P320D5ERN

VM5P326D5ERN

VM5P325D5ERN

VM5P350D5ERN

VM5P356D5ERN

VM5P355D5ERN

VM5P400D5ERN

VM5P406D5ERN

VM5P405D5ERN

VM 250-400 WATT METAL HALIDE PULSE STANCHION STRAIGHT

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

1-1/2"

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250S5GLG

VM5P256S5GLG

VM5P255S5GLG

VM5P320S5GLG

VM5P326S5GLG

VM5P325S5GLG

VM5P350S5GLG

VM5P356S5GLG

VM5P355S5GLG

VM5P400S5GLG

VM5P406S5GLG

VM5P405S5GLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250S5S5N

VM5P256S5S5N

VM5P255S5S5N

VM5P320S5S5N

VM5P326S5S5N

VM5P325S5S5N

VM5P350S5S5N

VM5P356S5S5N

VM5P355S5S5N

VM5P400S5S5N

VM5P406S5S5N

VM5P405S5S5N

ENCLOSED

REFLECTOR

VM5P250S5ERN

VM5P256S5ERN

VM5P255S5ERN

VM5P320S5ERN

VM5P326S5ERN

VM5P325S5ERN

VM5P350S5ERN

VM5P356S5ERN

VM5P355S5ERN

VM5P400S5ERN

VM5P406S5ERN

VM5P405S5ERN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5P250D5GLN. Order spin

top and enclosed reflector guards separately.

3Catalog numbers shown with 1-1/2" conduit openings; change 5 to 4 for 1-1/4"; e.g. VM5P250D4GLG.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

Stanchion 25°

w/ Globe &

Guard

Stanchion 25°

w/ Spin-Top

Refractor

Stanchion Straight

w/ Enclosed

Reflector

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

CERTILITE®V SERIES •LIGHTING

METAL HALIDE PULSE, 250-400W MOGUL BASE HID L89

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4X; IP66

NR Restricted Breathing Option5

Class I, Zone 2 AEx nAnR

Class I, Zone 2 Ex nR

Listed - File E10514 (Hazardous & Marine)

Certified - File LR11713

VM 250-400 WATT METAL HALIDE PULSE EZ ADAPTER

WATTS

250

320

350

400

DESCRIPTION

ANSI

M138

M153

M132

M154

M131

M135

M155

HUB

SIZE 3

VOLTAGE 4

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

Quad

Tri

480

7-3/4" OPTIC THREAD SIZE2

GLOBE

& GUARD

VM5P250EZGLG

VM5P256EZGLG

VM5P255EZGLG

VM5P320EZGLG

VM5P326EZGLG

VM5P325EZGLG

VM5P350EZGLG

VM5P356EZGLG

VM5P355EZGLG

VM5P400EZGLG

VM5P406EZGLG

VM5P405EZGLG

TYPE V

SPIN-TOP GLASS

REFRACTOR

VM5P250EZS5N

VM5P256EZS5N

VM5P255EZS5N

VM5P320EZS5N

VM5P326EZS5N

VM5P325EZS5N

VM5P350EZS5N

VM5P356EZS5N

VM5P355EZS5N

VM5P400EZS5N

VM5P406EZS5N

VM5P405EZS5N

ENCLOSED

REFLECTOR

VM5P250EZERN

VM5P256EZERN

VM5P255EZERN

VM5P320EZERN

VM5P326EZERN

VM5P325EZERN

VM5P350EZERN

VM5P356EZERN

VM5P355EZERN

VM5P400EZERN

VM5P406EZERN

VM5P405EZERN

POLYCARBONATE

SHIELDED

ENCLOSED REFLECTOR6

VM5P250EZEPN

VM5P256EZEPN

VM5P255EZEPN

VM5P320EZEPN

VM5P326EZEPN

VM5P325EZEPN

VM5P350EZEPN

VM5P356EZEPN

VM5P355EZEPN

VM5P400EZEPN

VM5P406EZEPN

VM5P405EZEPN

1See hazardous application data on pages L112-L113 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM5P250EZGLN.

Order spin top and enclosed reflector guards separately.

3VMEZA tank adapters UL “classified” as an assembly for use between VM tanks and EZ mounts.

See above for separate ordering information.

4Consult catalog logic for other available voltages.

5Add suffix NR for restricted breathing; see page L54 for more information.

6VMEP40 not for use with EZ wall bracket.

HUB SIZE

3/4"

1-1/4"/1-1/2"*

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 —

EZA3 EZX3 EZB3 —

—— — EZD4A*

MOUNTING BOXES

Wall Bracket 25° Stanchion

Pendant Ceiling

*1-1/2" furnished with 1-1/2"-1-1/4" reducer and extension. Extension only part number EZDVMA.

EZ Adapter

w/ Globe &

Guard

EZ Adapter

w/ Spin-Top

Refractor

EZ Adapter

w/ Enclosed

Reflector

CERTILITE®V SERIES •LIGHTING

QL INDUCTION, 55/85/165W

L90

CERTILITE®V LUMINAIRE WITH INDUCTION LIGHTING SYSTEM

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4x

A = Lamp

B = Power Coupler

C = HF generator

Listed - File LR11713

CertiL i t e ®VCatalog Number Logic; 85-165W QL Induction Fixtures

Series Constant

Optic Thread Size

1—5 1/2" Reduced Profile 55W

4—7 3/4" Medium Tank 85W

5—7 3/4" Large Tank 165W

Lamp Type

Q—QL Induction

Voltage @ 60 Hertz

1—120V (60 HZ)

32—200-277V (50/60 HZ)

Mounting Type

A—Pendant

X—Ceiling

B—Wall Bracket

C—Cone Top

D—Stanchion 25°

S—Stanchion 90°

E—EZ Mount Adapter4

N—None (mount ordered

separately)5

Lamp Wattage

05—55W (VM1)

08—85W (VM4)

16—165W (VM5)9

Guard

G—Guard (Globes & Glass

refractors)

N—No Guard3

Options

P1—Photocell 120V

P2—Photocell 208-277V

Optic

GL—Globe9

R1—Type I Glass Refractor

R3—Type III Glass Refractor

R5—Type V Glass Refractor

S2—Type II 12" Spin-Top Refractor

S5—Type V 12" Spin-Top Refractor

ER—Enclosed Reflector

EP—Poylcarbonate Shielded

Enclosed Reflector6

Entry (Mounts available)

2—3/4" NPT (A,B,C,X)

3—1" NPT (A,B,C,X)

4—1 1/4" NPT (D,S)

5—1 1/2" NPT (D,S)

6—3/4" NPT 5-Hub (X)

7—1" NPT 5-Hub (X)

8—M20 4-Hub (X)

9—M20 5-Hub (X)

Z—EZ Mount Adapter4

N—None (mount ordered

separately)5

VM 0 0 00 0 0 0 00 0 00

1See hazardous application data on pages L108-L111 for limitations.

2Must not exceed 40OC ambient.

3Order Guards for Spin-Tops & VMER40 separately.

4Completes as “EZ”, conduit mounts ordered separately - See L83.

5NN mount ordered separately.

6Not for use with wall or straight (90°) stanchion.

7At 100 hours; up to 75% of nominal value maintained at 60,000 hours.

8Lumens per watt.

9165W uses VMG25 in VM5 tank (or VMR25x all glass refractors).

APPLICATIONS

•Where long life lamp sources (up to 100,000 hours) 2are need-

ed.

•In areas that require “instant on” illumination.

•Where cool globe temperatures are required.

•In dificult-to-reach installations.

•In cold environment applications.

Philips®is a registered trademark of Koninklijke Philips Electronics N.V.

F E AT U R E S

•Almost maintenance-free Philips®QL Induction Lamp system.

•Includes lamp.

•Up to 100,000 hour life minimizes maintenance costs.

•Instant start and restart in low temperatures down to -40°C.

•White light with 80+ CRI (Color rendering Index).

•High lumen output & efficacy.

•Less than 10% THD (Total Hamonic Distortion) will not add

electrical noise to circuits.

QL SIZE INITIAL LUMENS NOMINAL LUMENS7EFFICACY8

55 WATT 3800 3500 63.5

85 WATT 6500 6000 70

165 WATT 12500 12000 72.5

CERTILITE®V SERIES •LIGHTING

QL INDUCTION, 55/85/165W L91

1See hazardous application data on pages L108-L111 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM4Q081A2GLN. Order spin top and enclosed

reflector guards separately.

3Catalog numbers shown are with 3/4" conduit openings, change 2 to 3 for 1"; e.g. VM4Q081A3GLG.

Pendant

w/ Globe &

Guard

Ceiling

w/ Globe &

Guard

Wall

w/ Spin-Top

Refractor

Cone

w/ Enclosed

Reflector

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4x

Listed - File LR11713

VM 55-165W QL INDUCTION PENDANT2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 3/4" 120 VM1 VM1Q051A2GLG VM1Q051A2R5G ———

200-277 VM1Q0532A2GLG VM1Q0532A2R5G ———

85 3/4" 120 VM4 ——VM4Q081A2GLG VM4Q081A2R5G VM4Q081A2ERN

200-277 ——VM4Q0832A2GLG VM4Q0832A2R5G VM4Q0832A2ERN

165 3/4" 120 VM5 — — VM5Q161A2GLG VM5Q161A2R5G VM5Q161A2ERN

200-277 ——VM5Q1632A2GLG VM5Q1632B2R5G VM5Q1632A2ERN

VM 55-165W QL INDUCTION CEILING2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 3/4" 120 VM1 VM1Q051X2GLG VM1Q051X2R5G ———

200-277 VM1Q0532X2GLG VM1Q0532X2R5G ———

85 3/4" 120 VM4 ——VM4Q081X2GLG VM4Q081X2R5G VM4Q081X2ERN

200-277 ——VM4Q0832X2GLG VM4Q0832X2R5G VM4Q0832X2ERN

165 3/4" 120 VM5 ——VM5Q161X2GLG VM5Q161X2R5G VM5Q161X2ERN

200-277 ——VM5Q1632X2GLG VM5Q1632X2R5G VM5Q1632X2ERN

VM 55-165W QL INDUCTION WALL2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 3/4" 120 VM1 VM1Q051B2GLG VM1Q051B2R5G ———

200-277 VM1Q0532B2GLG VM1Q0532B2R5G ———

85 3/4" 120 VM4 ——VM4Q081B2GLG VM4Q081B2R5G VM4Q081B2ERN

200-277 ——VM4Q0832B2GLG VM4Q0832B2R5G VM4Q0832B2ERN

165 3/4" 120 VM5 ——VM5Q161B2GLG VM5Q161B2R5G VM5Q161B2ERN

200-277 ——VM5Q1632B2GLG VM5Q1632B2R5G VM5Q1632B2ERN

VM 55-165W QL INDUCTION CONE2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 3/4" 120 VM1 VM1Q051C2GLG VM1Q051C2R5G ———

200-277 VM1Q0532C2GLG VM1Q0532C2R5G ———

85 3/4" 120 VM4 ——VM4Q081C2GLG VM4Q081C2R5G VM4Q081C2ERN

200-277 ——VM4Q0832C2GLG VM4Q0832C2R5G VM4Q0832C2ERN

165 3/4" 120 VM5 ——VM5Q161C2GLG VM5Q161C2R5G VM5Q161C2ERN

200-277 ——VM5Q1632C2GLG VM5Q1632C2R5G VM5Q1632C2ERN

CERTILITE®V SERIES •LIGHTING

QL INDUCTION, 55/85/165W

L92

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups IIC, llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III

Suitable for wet locations

NEMA 3, 4, 4x

Listed - File LR11713

1See hazardous application data on pages L108-L111 for limitations.

2Globe catalog number shown with guard. To omit guard, change G to N; e.g. VM4Q081D5GLN. Order spin top and enclosed

reflector guards separately.

3Stanchion catalog numbers shown are with 1-1/2" conduit openings, change “5” to “4” for 1-1/4"; e.g. VM4Q081D4GLG.

4VMEZA tank adapters are UL “classified” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately.

See page L83.

Stanchion 25°

w/ Globe &

Guard

Stanchion 90°

w/ Spin-Top

Refractor

EZ Adapter

w/ Enclosed

Reflector

VM 55-165W QL INDUCTION 25° STANCHION2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 1-1/2" 120 VM1 VM1Q051D5GLG VM1Q051D5R5G ———

200-277 VM1Q0532D5GLG VM1Q0532D5R5G ———

85 1-1/2" 120 VM4 ——VM4Q081D5GLG VM4Q081D5R5G VM4Q081D5ERN

200-277 ——VM4Q0832D5GLG VM4Q0832D5R5G VM4Q0832D5ERN

165 1-1/2" 120 VM5 — — VM5Q161D5GLG VM5Q161D5R5G VM5Q161D5ERN

200-277 ——VM5Q1632D5GLG VM5Q1632D5R5G VM5Q1632D5ERN

VM 55-165W QL INDUCTION STRAIGHT STANCHION2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 1-1/2" 120 VM1 VM1Q051S5GLG VM1Q051S5R5G ———

200-277 VM1Q0532S5GLG VM1Q0532S5R5G ———

85 1-1/2" 120 VM4 ——VM4Q081S5GLG VM4Q081S5R5G VM4Q081S5ERN

200-277 ——VM4Q0832S5GLG VM4Q0832S5R5G VM4Q0832S5ERN

165 1-1/2" 120 VM5 ——VM5Q161S5GLG VM5Q161S5R5G VM5Q161S5ERN

200-277 ——VM5Q1632S5GLG VM5Q1632S5R5G VM5Q1632S5ERN

VM 55-165W QL INDUCTION EZ ADAPTER2(INCLUDES LAMP)

DESCRIPTION

HUB

SIZE3

TANK

STYLEVOLTAGE

5-1/2" OPTIC THREAD SIZE 2

GLOBE

& GUARD

TYPE V GLASS

REFRACTOR

& GUARD

7-3/4" OPTIC THREAD SIZE 2

GLOBE

& GUARD

ENCLOSED

REFRACTOR

TYPE V GLASS

REFRACTOR

& GUARD

WATTS

55 4120 VM1 VM1Q051EZGLG VM1Q051EZR5G ———

200-277 VM1Q0532EZGLG VM1Q0532EZR5G ———

85 4120 VM4 ——VM4Q081EZGLG VM4Q081EZR5G VM4Q081EZERN

200-277 ——VM4Q0832EZGLG VM4Q0832EZR5G VM4Q0832EZERN

165 4120 VM5 ——VM5Q161EZGLG VM5Q161EZR5G VM5Q161EZERN

200-277 ——VM5Q1632EZGLG VM5Q1632EZR5G VM5Q1632EZERN

CERTILITE®V SERIES •LIGHTING

ACCESSORIES/OPTIONS L93

PHOTO CONTROL FOR STANDARD AND HAZARDOUS CLASS I DIVISION 2 AREAS2

HUB2PC120

HUB2PC2273

HUB2PC347

CATALOG NUMBER

120VAC

208-277VAC3

347VAC

VOLTS

50/60Hz

FREQUENCY

400

440

WATTS

Photo Control

(Field Installed

in Splice cap)

Photo Control1

(Factory Installed

in ballast tank)

Photo Control

Component

(Patented)

Photo Control

Component

UL/CSA

C1, DIV.2 & N4X

FACTORY SEALED

1Must be factory installed. Add P1 (for 120V), P2 (for 208-277V) or P3 (for 347V) suffixes are also for use

with KFxxx - 76 Floods and KWP Series Wallpack Luminaires.

2Photo control cells for Class 1 Division 2 only.

3Marked 220-277V, suitable for 208V.

140˚C ambient T3 Rated.

* Includes photo cell and factory drilled

cover and gasket.

1Order single gang FS box seperately.

240˚C ambient max. T3 to 400W max.

PHOTO CELL FIELD KITS*

HUB2PC120FK

HUB2PC277FK

HUB2PC347FK

CATALOG NUMBER1

120VAC

208-277VAC

347VAC

VOLTS

50/60Hz

FREQUENCY

HKB-GL PHOTO CELLS

VMHKPC1

VMHKPC2

VMHKPC3

CATALOG NUMBER1

120VAC

208-277VAC

347VAC

VOLTS

FS COVER MOUNTED PHOTO CELLS*

VMFSPC1

VMFSPC2

VMFSPC3

CATALOG NUMBER12

120VAC

208-277VAC

347VAC

VOLTS

Class I, DIV. 1 BCD

Class II, DIV. 1&2 EFG

CLASS III

NEMA 3, 4X IP66

CERTILITE®V PHOTO CELL ACCESSORY

Auxiliary Lighting

Momentary voltage outages or dips can tem-

porarily extinguish HID lamps which may

require up to ten (10) minutes to restrike. To

provide illumination during this period, about

10% of the fixtures should be specified with

auxiliary lighting.

Quartz Auxiliary

Quartz auxiliary is available for all Certilite®V

Series fixtures (except those with plastic

refractors) by adding the suffix “QA” to the

fixture catalog number. Example:

VM3S050A2GLG-QA.

Low wattage fixtures with this option use 100

or 150 watt quartz lamps. High wattage fix-

tures can use up to 250 watt quartz lamps.

Quartz lamps are not supplied with the fixture.

Use quartz lamp type Q100 CL/DC (100W) or

Q150 CL/DC (150W) DC Bayonet T-4 Base.

Due to the quartz envelope surface tempera-

ture (exceeding 600°C), fixtures with this option

are not suitable for Class I, Division 2, Class l,

Zone 2, some Class l, Zone 2 Ex nR, Class II

and Class Ill hazardous locations. Contact the

factory for specific fixture suitabilities.

Instant Restrike

Available for low wattage High Pressure

Sodium Fixtures by adding Suffix “IR” to cata-

log number Example: VM3S050A2GLG-IR.

Additional instant restrike interior circuitry may

decrease High Pressure Sodium lamp life.

Feature will not affect fixture suitability in

hazardous location applications.

Ballast Protection Circuit

Optional factory installed special ballast pro-

tector replaces the standard HPS ignitor and

applies starting pulse to the lamp for 10 to 15

seconds each time voltage is supplied to the

ballast. If the lamp has not ignited by the end

of the time period, the starter will cease puls-

ing. Used to eliminate the continuous high

voltage pulsing of the ignitor when end of life,

lamp cycling, or missing lamp conditions

exist. Available for HPS fixtures. Add suffix

“BP” to fixture catalog number.

Notes: BP and IR cannot be used together.

QTZ and IR cannot beused together.

* Includes instructions for KF/KWP Series.

140˚C ambient max. C1 D2 (T3) to 400W max.

CERTILITE®V SERIES •LIGHTING

COMPONENTS

L94

CERTILITE®VVM MOUNTING SPLICE BOXES

3/4"

1-1/4"

1-1/2"

M-20

HUB SIZE

VMA2B

VMA3B

—

PENDANT

VMF2B

VMF3B

—

FLEXIBLE PENDANT

VMX2B

VMX3B

—

VMX8B**

CEILING 4 HUB

VMX6B

VMX7B

—

VMX9B

CEILING 5 HUB

VMB2B

VMB3B

—

WALL

VMC2B

VMC3B

—

CONE TOP

—

VMD4B

VMD5B

—

25 DEGREE STANCHION

—

VMS4B

VMS5B

—

90 DEGREE STANCHION

CATALOG NUMBER

Pendant Ceiling Wall

Flexible Pendant

25° StanchionCone Top Straight Stanchion EZ Adapter*

VMEZA

VM3 Low Wattage

5-1/2" Optic Thread Size

VM2 Low Wattage

7-3/4" Optic Thread Size

VM1 Low Wattage

5-1/2" Optic Thread Size

VM4 Low Wattage

7-3/4" Optic Thread Size

VM5 High Wattage

7-3/4" Optic Thread Size

*VMEZA is used between a ballast tank and an EZ mount-ordered separately. See L83 for more information.

**VMX8B furnished with 3 non-metallic plugs.

CERTILITE®VVM 35-600W BALLAST TANK ASSEMBLIES CATALOG NUMBERS

WATTS

VOLTAGE

@ 60 Hz

MEDIUM BASE E26 MOGUL BASE E39 SOCKET

HPS MH-MHP HPS

5-1/2" 7-3/4"

MH -MHP

7-3/4"

MH PULSE

HIGH WATTAGE

LOW WATTAGE

5-1/2" 7-3/4" 7-3/4"

HIGH WATTAGE

LOW WATTAGE

5-1/2" 7-3/4" 7-3/4"

HIGH WATTAGE

LOW WATTAGE

5-1/2" 7-3/4"5-1/2" 7-3/4"

LOW WATTAGELOW WATTAGE

35 120 VM1S031 VM2S031 —— —— — — — — —— —

Quad VM1S050 VM2S050 VM1H050 VM2H050 VM3S050 VM4S050 ———————

50 Tri ——VM1H056 VM2H056 VM3S056 VM4S056 ———————

480 ————VM3S055 VM4S055 ———————

Quad VM1S070 VM2S070 VM1H070 VM2H070 VM3S070 VM4S070 — VM3H070 VM4H070 ————

70 Tri VM1S076 VM2S076 VM1H076 VM2H076 VM3S076 VM4S076 — VM3H076 VM4H076 ————

480 VM1S075 VM2S075 VM1H075 VM2H075 VM3S075 VM4S075 VM3H075 VM4H075 ————

Quad VM1S100 VM2S100 VM1H100 VM2H100 VM3S100 VM4S100 — VM3H100 VM4H100 ————

100 Tri VM1S106 VM2S106 VM1H106 VM2H106 VM3S106 VM4S106 — VM3H106 VM4H106 ————

480 VM1S105 VM2S105 VM1H105 VM2H105 VM3S105 VM4S105 VM3H105 VM4H105 ————

Quad VM1S150 VM2S150 VM1P150 VM2P150 VM3S150 VM4S150 ————VM3P150 VM4P150 —

150 Tri VM1S156 VM2S156 VM1P156 VM2P156 VM3S156 VM4S156 ————VM3P156 VM4P156 —

480 VM1S155 VM2S155 VM1P155 VM2P155 VM3S155 VM4S155 ————VM3P155 VM4P155 —

Quad ——VM1P170 VM2P170 —— —VM3H170 VM4H170 — VM3P150 VM4P150 —

175 Tri ——VM1P176 VM2P176 —— —VM3H176 VM4H176 — VM3P156 VM4P156 —

480 ——VM1P175 VM2P175 —— —VM3H175 VM4H175 — VM3P155 VM4P155 —

Quad ——————VM5S200 —— —VM3P200 VM4P200 —

200 Tri ———— ——VM5S206 —— —VM3P206 VM4P206 —

480 ——————VM5S205 —— —VM3P205 VM4P205 —

Quad ——————VM5S250 VM3H250 VM4H250 ———VM5P250

250 Tri ———— ——VM5S256 VM3H256 VM4H256 ———VM5P256

480 ——————VM5S255 VM3H255 VM4H255 ———VM5P255

Quad ———— —— — — — — ——VM5P320

320 Tri ———— —— — —— — ——VM5P326

480 ———— —— — — — — ——VM5P325

Quad ———— —— — — — — ——VM5P350

350 Tri ———— —— — —— — ——VM5P356

480 ———— —— — — — — ——VM5P355

Quad ——————VM5S400 ——VM5H400 ——VM5P400

400 Tri ———— ——VM5S406 ——VM5H406 ——VM5P406

480 ——————VM5S405 ——VM5H405 ——VM5P405

Quad ——————VM5S600 —— — —— —

600 Tri ———— ——VM5S606 —— — —— —

480 ——————VM5S605 —— — —— —

CERTILITE®V SERIES •LIGHTING

COMPONENTS L95

CERTILITE®VREFLECTORS

VMAG172VMRWG84

VMER40

VMG40

VMG25

VMAG25S3VMAG40S3

VMR255

VMR253

VMR251

VZRG1550 VZRG2550

VZRG2520

VZRP1756

VMEP408

CERTILITE®VOPTICS & GUARDS

DESCRIPTION

Globe (glass)

Refractor (all glass) Type V

Refractor (all glass) Type I

Refractor (all glass) Type III

Refractor (spin top glass) 8" Type V

Refractor (spin top glass) 12" Type V

Refractor (spin top glass) 12" Type II

Refractor (spin top plastic) 12" Type V

Enclosed Reflector (glass lens)

Enclosed Reflector (plastic lens)

Globe (Tuffskin®coated)5

Globe (Teflon®coated)5

Refractor (Teflon coated) Type V

Refractor (Teflon coated) Type I

Refractor (Teflon coated) Type III

Refractor (Spin Top Teflon coated) 8" Type V

Refractor (Spin Top Teflon coated) 12" Type V

Refractor (Spin Top Teflon coated) 12" Type II

OPTICS

VMG17

VMR175

VMR1717

—

VZRG1550

VZRG2550

VZRG2520

VZRP175

—

VMG17F

VMG17T

VMR175T

VMR171T

—

VZRG2550T

VZRG2520T

GUARD

VMAG17

—

VMRWG8

VMRWG

—

VMAG17

—

VMRWG8

VMRWG

OPTICS

VMG25

VMR255

VMR2517

VMR2537

—

VZRG40501

VZRG40201

—

VMER40

VMEP40

VMG25F

VMG25T

VMR255T

VMR251T

VMR253T

—

VZRG4050T1

VZRG4020T1

GUARD

VMAG25S

—

VMRWG

—

VMERG

—

VMAG25S

—

VMRWG

OPTICS

VMG40

—

VZRG4050

VZRG4020

—

VMER40

VMEP40

VMG40F

VMG40T

—

VZRG4050T

VZRG4020T

GUARD

VMAG40S

—

VMRWG

—

VMERG

—

VMAG40S

—

VMRWG

1For reference VM5 Spin Top optics fit VM4 tanks, but VM3 tanks and optics

are recommended for low wattage Spin Top applications. VM3 12" Spin Tops

ship with a mogul-to-mogul extender for improved photometrics.

2Standard material, copper-free aluminum painted.

3Standard material, 316 stainless steel.

4Standard material, plated steel.

5Tuffskin®is a registered trademark of Thomas Manufacturing, Co. Teflon®is a

registered trademark of DuPont, Inc. Alzak is a registered trademark of Alcoa.

6175W max; not hazloc listed

7Type I (III) all-glass refractors align with fixture hinge. Ceiling mount unit utiliz-

ing these optics must have offset conduit feed.

8For wall applications, mount must be spaced out.

HRD400

VMPSD40 VMPA40 HRD400ALZ

Standard Dome

Fiberglass White Reflector

Dia: 16"

30OAngle

Fiberglass White

Reflector Dia: 16"

Deep Aluminum

White Reflector

Dia: 21"

Deep Aluminum

Anodized Reflector

Dia: 21"

VMAG172

VMR175

VMR171

VMG17

VMRWGS3VMAG25S3VMERG3

VZRG4050

VZRG4020

VMRWG83

VM5 High Wattage

7-3/4" Optic Thread Size

VM2/VM4/VM5QL Low Wattage

7-3/4" Optic Thread Size

VM1/VM3 Low Wattage

5-1/2" Optic Thread Size

VMAGBC

Bottom Closure for

VMAG25S/VMAG40S

Attach to

Building

Structure.

Need a Hand?

CERTILITE®V SERIES •LIGHTING

ACCESSORIES/REPLACEMENT PARTS

L96

VMCHVM adapter for

upgrading existing

Crouse-Hinds®to Killark,

see page L223 for more

information.

See page

L56 for more

information.

SOCKET REPLACEMENTS

0735015B

VMBNKIT

Mogul Socket VM3, VM4, VM5

Barrel nut and long bolt adapts older CertiLite

tanks to newer CertiLiteV®mounts.

Crouse-Hinds is a registered trademark of Cooper Crouse-Hinds, LLC,

SUSPENSION DEVICES4

DESCRIPTION

“3rd hand” safety kits. 24" stainless cable holds globe using guard for lamp

change out. Attaches to tank’s built-in “Earthquake Tab”.

10' Stainless Steel Safety Cable with loop grip. Drop limit 1'. Attaches to

“Earthquake Tab” (L41) and to building structure (e.g. I-beam).

CATALOG NUMBER

See catalog logic for factory installed fuses, or page L98-99 for field installation kits.

TA NK

VM GLOBE &

GUARD UNITS

(ALL TANKS)

DARK SKY KITS

VMDARK1 Gasket Kit

VMER40 Enclosed Reflector

On VM2/VM4 “Full Cutoff” when used with HRD400 or HRD400ALZ

On VM5 “Cutoff” when used with HRD400 or HRD400ALZ

Enclosed Reflector “Full Cutoff” on VM2/VM4/VM5 as standard

4VM2,VM4 and VM5 units require VMAGBC bottom closure, sold separately, in addition to guard.

FUSE KITS

VMAGSC4

VMSC10

Note: CertiLite®Vluminaires may be configured for “Full Cutoff”, or Semi-Cutoff photometric distribution.

See page L56 for more information.

POWERFUL

Luminaire Layout

and Calculation

Software

Software is used to determine

number of fixtures required and

their proper layout for various

tasks and applications.

Contact you local Killark sales

representative for availability.

DESIGNDESIGN

LIGHTING DESIGN SOFTWARE

Existing box

VMCHVM adapter

shown in red

for illustration

New Killark VM

series fixture

VM SERIES •LIGHTING

CERTILITE®TO CERTILITE®VL97

GENERAL CROSS-REFERENCE FOR CERTILITE®TO CERTILITE®V***

WATTS

100

150

250

400

100

175

250

400

175

250

320

350

400

100

175

250

400

ANSI

LAMP TYPE

S68

S62

S54

S55

S50

S51

M98

M90

M57

M58

M59

M137

M138

M132

M131

M135

H38

H39

H37

H33

GLOBE

& GUARD

VML1-1-13GG

VM3S05211GLG

VML1-1-42GG

VM3S07211GLG

VML1-1-52GG

VM3S10211GLG

VML1-1-92GG

VM3S15211GLG

VMV1-1-72GG

VM5S25211GLG

VMV1-1-82GG

VM5S40211GLG

VMM1-1-42GG

VM3H07211GLG

VMM1-1-52GG

VM3H10211GLG

VMM1-1-62GG

VM3H17211GLG

VMM1-1-72GG

VM3H25211GLG

VMF1-1-82GG

VM5H40211GLG

VMU1-1-62GG

VM3P17211GLG

VMP1-1-72GG

VM5P25211GLG

VMP1-1-322GG

VM5P32211GLG

VMP1-1-352GG

VM5P35211GLG

VMP1-1-82GG

VM5P40211GLG

VMK1-1-52GG

VM3M10211GLG

VMK1-1-62GG

VM3M17211GLG

VMK1-1-72GG

VM3M25211GLG

VME1-1-82GG

VM5M40211GLG

HPS

MHP

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

Certilite®

Certilite®V

SPIN-TOP

REFRACTOR

VML1-1-12G58

VM3S05211S8N

VML1-1-42G58

VM3S07211S8N

VML1-1-52G58

VM3S10211S8N

VML1-1-92G58

VM3S15211S8N

VMV1-1-72G5

VM5S25211S5N

VMV1-1-82G5

VM5S40211S5N

VMM1-1-42G58

VM3H07211S8N

VMM1-1-52G58

VM3H10211S8N

VMM1-1-62G58

VM3H17211S5N

VMM1-1-72G58

VM3H25211S5N

VMF1-1-82G5

VM5H40211S5N

VMU1-1-62G58

VM3P17211S8N

VMP1-1-72G5

VM5P25211S5N

VMP1-1-322G5

VM5P32211S5N

VMP1-1-352G5

VM5P35211S5N

VMP1-1-82G5

VM5P40211S5N

VMK1-1-52G58

VM3M10211S8N

VMK1-1-62G58

VM3M17211S8N

VMK1-1-72G58

VM3M25211S8N

VME1-1-82G5

VM5M40211S5N

ENCLOSED

REFLECTOR

—

VMV1-1-72ER

VM5S25211ERN

VMV1-1-82ER

VM5S40211ERN

—

VMF1-1-82ER

VM5H40211ERN

—

VMP1-1-72ER

VM5P25211ERN

VMP1-1-322ER

VM5P32211ERN

VMP1-1-352ER

VM5P35211ERN

VMP1-1-82ER

VM5P40211ERN

—

VME1-1-82ER

VM5M40211ERN

TANK ONLY

VMLO-0-120

VM3S052

VMLO-0-420

VM3S072

VMLO-0-520

VM3S102

VMLO-0-920

VM3S152

VMVO-0-720

VM5S252

VMVO-0-820

VM5S402

VMMO-0-420

VM3H072

VMMO-0-520

VM3H102

VMMO-0-620

VM3H172

VMMO-0-720

VM3H252

VMFO-0-820

VM5H402

VMUO-0-620

VM3P172

VMPO-0-720

VM5P252

VMPO-0-3220

VM5P322

VMPO-0-3520

VM5P352

VMPO-0-820

VM5P402

VMKO-0-520

VM3M102

VMKO-0-620

VM3M172

VMKO-0-720

VM3M252

VMEO-0-820

VM5M402

*** See catalog logic for more information regarding additional conduit sizing and fixture options and accessories.

4175-400W MH Fixtures are EXPORT ONLY (EISA LAW).

MOUNT CODES 1 1

Certilite®

1-1

A-2

A-3

B-2

B-3

C-2

D-4

D-5

S-5

X-2

X-3

Certilite®V

DESCRIPTION

3/4" Pendant

1" Pendant

3/4" Wall Bracket

1" Wall Bracket

3/4" Cone Top

1-1/4" 25° Stanchion

1-1/2" 25° Stanchion

1-1/2" 90° Stanchion

3/4" Ceiling

1" Ceiling

VOLTAGE CODES 2

Certilite®

Certilite®V

DESCRIPTION

Quad-Tap 120, 208, 240, 277V 60Hz

Tri-Tap 120, 277, 347V 60Hz

480V 60Hz

220V 60Hz

240V 50Hz

OPTIONS

Certilite®

QTZ

SU103

Certilite®V

DESCRIPTION

Quartz Auxiliary

Instant Restart

Ballast Protector

Restricted Breathing

Assembled w/Standard Lamp

COMPONENTS

CertiLite®

VMA-2

VMA-3

VMB-2

VMB-3

VMC-2

VMD-4

VMD-5

VMDS-5

VMX-2

VMX-3

VMG-17

VMGT-17

VMGTC-17

VMG-40

VZRG-1550

VZRG-2550

VZRG-2510

VZRP-175

VZRG-4050

VZRG-4020

VMER40

VMAG-17

VMAG-40

VMRWG-8

VMRWG

VMPSD-17

VMPA-17

VMPSD-40

VMPA-40

HRD-400

HRD-400ALZ

CertiLite®V

VMA2B

VMA3B

VMB2B

VMB3B

VMC2B

VMD4B

VMD5B

VMS5B

VMX2B

VMX3B

VMG17

VMG17F

VMG17T

VMG40

VZRG1550

VZRG2550

VZRG2520

VZRP175

VZRG4050

VZRG4020

VMER40

VMAG17

VMAG40S

VMRWG8

VMRWG

VMPSD40

VMPA40

VMPSD40

VMPA40

HRD400

HRD400ALZ

DESCRIPTION

3/4" Pendant

1" Pendant

3/4" Wall Bracket

1" Wall Bracket

3/4" Cone Top

1-1/4" 25° Stanchion

1-1/2" 25° Stanchion

1-1/2" 90° Stanchion

3/4" Ceiling

1" Ceiling

5-1/2" GLOBE

TUFFSKIN GLOBE

TELFON GLOBE

7-3/4" HIGH WATT GLOBE

8" SPIN-TOP V REFRACTOR

12" SPIN-TOP V REFRACTOR

12" SPIN-TOP II REFRACTOR

12" POLY REFRACTOR

12" SPIN-TOP V REFRACTOR

12" SPIN-TOP II REFRACTOR

ENCLOSED REFLECTOR

5-1/2" GLOBE GUARD

HIGH WATT GLOBE GUARD

8" SPIN-TOP GUARD

12" SPIN-TOP GUARD

WHITE REFLECTOR3

WHITE ANGLE REFLECTOR3

WHITE REFLECTOR

WHITE ANGLE REFLECTOR

DEEP WHITE REFLECTOR

DEEP ALZAK REFLECTOR

3All Certilite®V tanks use “40” reflectors.

CertiLite®

VM Fixture

CertiLite®V

Fixture

VM & EZ SERIES • LIGHTING

HID FIXTURES • BALLAST/FUSE KIT DATA

L98

LAMP LAMP CURRENT (AMPS) INPUT BALLAST MIN.

SOURCE WATTS/TYPE VOLTAGE START OPERATING OPEN WATTS CIRCUIT2REGULATION STA RT

HID BALLAST DATA & FUSE KITS1

1Fuse kits, for field installation, must be used within guidelines of governing Electric Codes. Fuses not permitted by

CSA C22.2 no. 137 for Canada.

2All ballasts circuits are High Power Factor 90%+.

* Lamp watts: within ANSI trapezoid limitations.

Consult major lamp & ballast manufacturer catalogs if more detailed data is needed.

EZ FUSE KIT

HPS 35 120 .78 .38 .65 46 R/HPF ±5% VOLTAGE* -40C

S-76 ±5% WATTAGE -40F

120 .58 .58 1.24

HPS 50 208 .35 .33 .59 66 HX/HPF ±5% VOLTAGE* -40C

S-68 240 .30 .29 .50 ±12% WATTAGE -40F

277 .24 .25 .44

220-240/50 .32 .32 .55 66 HX/HPF ±10% VOLTAGE* -40C

±10% WATTAGE -40F

120 .75 .81 1.45

208 .45 .47 .85

240 .35 .40 .75 93 HX/HPF ±5% VOLTAGE* -40C

HPS 70 277 .37 .35 .65 ±12% WATTAGE -40F

S-62 480 .21 .21 .36

347 .28 .30 0.52

220-240/50 .45 .46 .75 94 HX/HPF ±5% VOLTAGE* -40C

±5% WATTAGE -40F

120 1.30 1.15 2.20

208 .76 .67 1.27

240 .66 .58 1.10

HPS 100 277 .60 .50 .85 130 HX/HPF ±5% VOLTAGE* -40C

S-54 480 0.35 0.29 .55 ±12% WATTAGE -40F

347 .44 .39 .70

220-240/50 .56/.51 .67/.62 1.28/1.17

120 2.00 1.65 2.80

208 1.15 .95 1.60

150 240 1.00 .83 1.40

HPS (55 VOLT LAMP) 277 .85 .72 1.25 188 HX/HPF ±5% VOLTAGE* -40C

S-55 480 .50 .42 .70 ±12% WATTAGE -40F

347 .52 .59 .92

220-240/50 1.27/1.16 .91/.83 1.52/1.40

120 1.50 2.2 1.3

208 .90 1.28 .75

HPS 200 240 .75 1.11 .65

S-66 277 .65 .96 .60 240 CWA ±10% VOLTAGE* -40C

480 .35 .58 .58 ±8% WATTAGE -40F

120 1.80 2.75 1.50

208 1.00 1.60 .87

240 .90 1.38 .75

HPS 250 277 .78 1.20 .65 295 CWA ±10% VOLTAGE* -40C

S-50 480 .38 .69 .37 ±5% WATTAGE -40F

347 .56 .93 .75

220-240/50 1.00/.90 .91/.83 .90/.80

120 2.82 4.30 1.83

208 1.56 2.48 1.15

240 1.36 2.15 .84 ±10% VOLTAGE* -40C

HPS 400 277 1.18 1.86 .71 464 CWA ±5% WATTAGE -40F

S-51 480 .60 1.00 .75

347 1.05 1.40 .75

220-240/50 1.65/1.50 2.30/2.10 1.20/1.10

120 5.25 5.50 3.0

208 3.00 3.25 1.75

600 240 2.60 2.85 1.80 ±10% VOLTAGE* -40C

HPS S-106 277 2.15 2.50 1.40 685 CWA ±10% WATTAGE -40F

480 1.2 1.43 .75

347 1.7 2.00 1.10

120 .46 .58 1.2

208 .27 .33 .68

MH 50 240 .17 .21 .59 67 HX-HPF ±5% VOLTAGE -30C

M-110 277 .20 .25 .51 ±10% WATTAGE -20F

347 .21 .24 .48

120 .80 .85 1.70

208 .50 .50 1.04

MH 70 240 .43 .43 .87 90 HX-HPF ±5% VOLTAGE -30C

M-98 277 .39 .39 .78 ±12% WATTAGE -20F

480 0.19 0.23 .50

347 .30 .30 .60

120 1.20 1.15 2.3

208 .70 1.50 .60

100 240 .61 1.30 .55 ±5% VOLTAGE -30C

MH M-90 277 .55 1.15 .45 129 HX-HPF ±12% WATTAGE -20F

480 0.30 0.30 0.55

347 .40 .90 .40

220-240/50 .45/.41 52/.51 .60/.85

120 .80 1.80 1.80

208 .42 1.04 1.04

240 .42 .90 .90

MH 175 277 .35 .78 .78 210 CWA ±10% VOLTAGE -30C

M-57 480 .22 .45 .45 ±5% WATTAGE -20F

347 .42 .62 .62

220-240/50 .60/.55 .98/.90 97/.89

120 1.25 2.60 2.50

208 .65 1.50 1.58

250 240 .60 1.30 1.25 ±10% VOLTAGE -30C

MH M-58 277 .50 1.12 1.10 295 CWA

480 .25 .65 .65 ±5% WATTAGE -20F

347 .90 .95 .65

220-240/50 .94/.86 1.35/1.24 1.20/1.10

120 1.10 4.00 3.80

208 .70 2.30 2.20

400 240 .52 2.00 1.90 ±10% VOLTAGE -30C

MH M-59 277 .45 1.75 1.65 458 CWA

480 .38 1.00 1.00 ±5% WATTAGE -20F

347 1.20 1.40 1.35

220-240/50 1.30/1.19 2.20/2.00 2.10/1.93

1VM-2

1VM-5

2VM-3

1VM-2

1VM-5

2VM-3

2VM-2

1VM-2

2VM-2

1VM-2

1VM-7

2VM-5

2VM-3

1VM-3

2VM-3

1VM-3

1VM-4

1VM-10

2VM-5

1VM-4

2VM-2

1VM-3

1VM-5

1VM-6

2VM-4

2VM-3

1VM-3

2VM-2

1VM-7

2VM-4

1VM-3

2VM-2

1VM-2

1VM-4

1VM-10

2VM-8

2VM-5

1VM-5

2VM-3

1VM-5

1VM-6

1VM-20

2VM-15

2VM-10

1VM-10

2VM-4

1VM-5

1VM-3

2VM-2

1VM-2

1VM-4

2VM-3

2VM-2

1VM-2

2VM-1

1VM-2

1VM-6

2VM-4

2VM-3

1VM-3

2VM-2

1VM-2

1VM-4

1VM-5

2VM-3

1VM-2

2VM-2

1VM-2

1VM-3

1VM-8

2VM-5

1VM-3

2VM-2

1VM-3

1VM-4

1VM-10

2VM-7

2VM-5

1VM-5

2VM-4

1VM-4

1VM-6

—

1FK-5

2FK-3

1FK-2

1FK-5

2FK-3

2FK-2

1FK-2

2FK-2

1FK-2

1FK-7

2FK-5

2FK-3

1FK-3

2FK-3

1FK-3

1FK-4

1FK-10

2FK-5

1FK-4

2FK-2

1FK-3

1FK-5

—

1FK-7

2FK-4

1FK-3

2FK-2

1FK-2

1FK-4

1FK-10

2FK-8

2FK-5

1FK-5

2FK-3

1FK-5

1FK-6

—

1FK-3

2FK-2

1FK-2

1FK-4

2FK-3

2FK-2

1FK-2

2FK-1

1FK-2

1FK-6

2FK-4

2FK-3

1FK-3

2FK-2

1FK-2

1FK-4

1FK-5

2FK-3

1FK-2

2FK-2

1FK-2

1FK-3

1FK-8

2FK-5

1FK-3

2FK-2

1FK-3

1FK-4

1FK-10

2FK-7

2FK-5

1FK-5

2FK-4

2FK-6

VM FUSE KIT

VM & EZ SERIES •LIGHTING

HID AND INDUCTION FIXTURES •BALLAST/FUSE KIT DATA L99

LAMP LAMP CURRENT (AMPS) INPUT BALLAST MIN.

SOURCE WATTS/TYPE VOLTAGE START OPERATING OPEN WATTS CIRCUIT2REGULATION STA RT

120 0.85 1.40 0.90

208 0.50 0.80 0.55

125 240 0.40 0.70 0.45

MHP M-150 277 0.35 0.60 0.40 1 55 CWA

480 0.20 0.35 0.25

347 0.30 0.45 0.25

120 1.75 1.60 3.65

208 1.30 1.00 2.10

150 240 0.85 0.80 1.80

MHP M-102 277 0.77 0.70 1.58 185 HX-HPF

480 0.45 0.42 0.81

347 0.30 0.62 0.98

120 0.95 1.80 1.80

208 0.55 1.05 1.05

MHP 175 240 0.45 0.90 0.90 208 CWA ±10% VOLTAGE

M-137 277 0.40 0.80 0.80 ±10% WATTAGE

480 0.25 0.50 0.45

347 0.40 0.70 0.60

120 2.30 2.50 1.40

208 1.30 1.45 0.80

250 240 1.15 1.25 0.70 2 91 C WA ±10% VOLTAGE

MHP M-138 277 1.00 1.10 0.60 ±10% WATTAGE

480 0.21 0.57 0.48

347 0.45 0.95 0.75

120 1.80 3.25 2.30

208 1.05 1.90 1.35

320 240 0.30 1.65 1.15

MHP M-132 277 0.80 1.40 1.00 368 CWA

480 0.45 0.80 0.60

347 0.70 1.10 0.80

120 2.20 3.40 2.20

208 1.30 2.00 1.30

350 240 1.10 1.70 1.10

MHP M-131 277 1.00 1.50 1.00 400 CWA

480 0.60 0.85 0.60

347 0.85 1.20 0.80

120 2.85 3.80 2.20

208 1.65 2.20 1.50

400 240 1.45 1.90 1.10

MHP M-135 277 1.25 1.65 0.95 452 CWA

480 0.75 1.00 0.60

347 1.10 1.35 0.75

HID BALLAST DATA & FUSE KIT1

VM FUSE KIT

1VM-4

2VM-3

2VM-2

1VM-2

2VM-1

1VM-1

1VM-10

2VM-5

1VM-4

2VM-3

1VM-3

1VM-5

2VM-3

1VM-2

2VM-2

1VM-2

1VM-8

2VM-5

1VM-3

2VM-2

1VM-3

1VM-8

2VM-6

2VM-5

1VM-3

2VM-5

1VM-3

1VM-10

2VM-7

2VM-5

1VM-5

2VM-3

1VM-3

1VM-10

2VM-7

2VM-5

1VM-5

2VM-3

1VM-4

EZ FUSE KIT

1FK-4

2FK-3

2FK-2

1FK-2

2FK-1

2FK-2

1FK-10

2FK-5

1FK-4

2FK-3

1FK-3

1FK-5

2FK-3

1FK-2

2FK-2

1FK-2

1FK-8

2FK-5

1FK-3

2FK-2

1FK-3

1FK-8

2FK-6

2FK-5

1FK-3

2FK-5

1FK-3

1FK-10

2FK-7

2FK-5

1FK-5

2FK-3

1FK-3

1FK-10

2FK-7

2FK-5

1FK-5

2FK-3

1FK-4

-30C

-20F

-30C

-20F

-30C

-20F

-30C

-20F

±10% VOLTAGE

±10% WATTAGE

±5% VOLTAGE

±12% WATTAGE

±10% VOLTAGE

±10% WATTAGE

±10% VOLTAGE

±10% WATTAGE

-30C

-20F

-30C

-20F

±10% VOLTAGE

±10% WATTAGE

1Fuse kits, for field installation, must be used within guidelines of governing Electric Codes. Fuses not permitted by CSA C22.2 no.137 for Canada.

2All ballasts circuits are High Power Factor 90%+.

3Nominal voltages measured at 115V or 230V.

* Lamp watts: within ANSI trapezoid limitations .

Consult major lamp & ballast manufacturer catalogs if more detailed data is needed.

-30C

-20F

LAMP LAMP VO LTAGE INRUSH CURRENT NOMINAL

SOURCE WATTS/TYPE .005 SEC OPERATING CURRENT THD REGULATION MIN. START

120

120 16A

16A .46A

.46A

< 1 0 %

<10% ± 2 0 V, ± 2 % W

±20V, ± 2 % W

Induction

Induct i o n 5 5

5 5

200-277

200-277 12A

12A .26A

.26A

1 2 0

120 16A

16A .73A

.73A

<10%

<10% ± 2 0 V, ± 2 % W

±20V, ± 2 % W

Induction

Induct i o n 8 5

8 5

200-277

200-277 12A

12A .40A

.40A

1 2 0

120 28A

28A 1.42A

1.42A

< 1 0 %

<10% ± 2 0 V, ± 2 % W

±20V, ± 2 % W

Induction

Induct i o n 165

165

200-277

200-277 24A

24A .74A

.74A

QL INDUCTION BALLAST DATA

-40C

-40F

-40C

-40F

-40C

-40F

CERTILITE®V SERIES •MOUNTING BOX AND FIXTURE

DIMENSIONS

L100

hole dia.

.30"

(7.62)

hole dia.

.34"

(8.63)

For VM1 & VM2 height,

deduct 1.56" (40mm) from

the VM3 or VM4 tank

respectively, or overall

dimensions with same

mount and optic. All other

dimensions are the same.

CERTILITE®V SERIES •FIXTURE

DIMENSIONS L101

For VM1 & VM2 height,

deduct 1.56" (40mm) from

the VM3 or VM4 tank

respectively, or overall

dimensions with same

mount and optic. All other

dimensions are the same.

CERTILITE®V SERIES •FIXTURE

DIMENSIONS

L102

For VM1 & VM2 height,

deduct 1.56" (40mm) from

the VM3 or VM4 tank

respectively, or overall

dimensions with same

mount and optic. All other

dimensions are the same.

CERTILITE®V SERIES •FIXTURE

DIMENSIONS L103

QL 165W uses VM5 tank

and VMG25 series optics,

VMAG25S guard

16.59 (421)

16.11 (409)

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L104

VM1/VM2 SERIES THERMAL PERFORMANCE DATA1

CLASS I DIVISION 2 GROUPS A,B,C,D / ZONE 2 GROUPS IIC, IIB, IIA

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

150/125

175

AMBIENT

°C

VM1 SERIES**

GLOBE

ONLY

T3C

T3B

T3A

T2C

T2B

T2C

—

325°C

—

T2D

T2C

T2B

T2A

350°C

—

450°C

—

T3C

—

GLOBE

W/ REFLECTOR

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

350°C

—

450°C

—

T3C

—

VM2 SERIES**

VMR

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

350°C

—

450°C

—

T3C

—

REFRACTORS

VZRG 8"

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

350°C

—

450°C

—

T3C

—

VZRG 12"

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

350°C

—

450°C

—

T3C

—

GLOBE

ONLY

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

325°C

—

450°C

—

GLOBE

W/ REFLECTOR

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

325°C

—

450°C

—

SUPPLY

WIRE °C

—

750

105

—

105

—

-75

—

ENCLOSED REFLECTORS

VMER40

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

325°C

—

450°C

—

VMEP40

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

325°C

—

450°C

—

REFRACTOR

VMR

T3C

T3B

T3A

T2C

T2B

—

325°C

—

T2D

T2C

T2B

T2A

325°C

—

450°C

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

The suitability of these fixtures for Class I Division 2 / Zone 2 locations must be determined for each

application based on NEC® Articles 501.125(B) or 505.

** VM1 Series accepts 5-1/2" threaded optics; VM2 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS L105

VM1/VM2 SERIES THERMAL PERFORMANCE DATA1

CLASS I ZONE 2 RESTRICTED BREATHING

LAMP

TYPE

HPS

MHP

HPS

DESCRIPTION

LAMP

WATTAGE

100

150

100

150/125

175

AMBIENT

°C

VM1 SERIES**

GLOBE

ONLY

—

GLOBE

W/ REFLECTOR

—

VM2 SERIES**

REFRACTOR

VMR

—

GLOBE

ONLY

—

GLOBE

W/ REFLECTOR

—

SUPPLY

WIRE °C

—

105

—

105

—

ENCLOSED REFLECTORS

VMER40

—

VMEP40

—

REFRACTOR

VMR

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

The suitability of these fixtures for Class I Zone 2 AEx nAR II locations must be determined for each

application based on NEC® Article 505.

** VM1 Series accepts 5-1/2" threaded optics; VM2 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L106

VM1/VM2 SERIES THERMAL PERFORMANCE DATA1

CLASS II DIVISIONS 1 & 2 GROUPS E,F,G & CLASS III*

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

150/125

175

AMBIENT

°C

VM1 SERIES**

GLOBE

ONLY

T4A

T3C

—

T3C

—

T4A

T3C

T4A

T3C

T3A

—

EFG

GLOBE

W/ REFLECTOR

T4A

T3C

—

T3C

—

T4A

T3C

T4A

T3C

T3A

—

EFG

VM2 SERIES**

VMR

T4A

T3C

—

T3C

—

T4A

T3C

T4A

T3C

T3A

—

EFG

REFRACTORS

VZRG 8"

T4A

T3C

—

T3C

—

T4A

T3C

T4A

T3C

T3A

—

EFG

VZRG 12"

T4A

T3C

—

T3C

—

T4A

T3C

T4A

T3C

T3A

—

EFG

GLOBE

ONLY

T4A

—

T3C

—

T4A

T3C

—

T3C

—

GLOBE

W/ REFLECTOR

T4A

—

T3C

—

T4A

T3C

—

T3C

—

SUPPLY

WIRE °C

—

105

—

105

—

ENCLOSED REFLECTORS

VMER40

T4A

—

T3C

—

T4A

T3C

—

T3C

—

VMEP40

T4A

—

T3C

—

T4A

T3C

—

T3C

—

REFRACTOR

VMR

T4A

—

T3C

—

T4A

T3C

—

T3C

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

2Limit for E & F.

3Limit for G & Class III.

* Luminaries rated for Group G (=<165°C), T3B are also suitable for Class III applications; Luminaries rated for E & F ≤ 200°C (T3).

** VM1 Series accepts 5-1/2" threaded optics; VM2 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS L107

VM1/VM2 SERIES THERMAL PERFORMANCE DATA1 2

“SIMULTANEOUS PRESENCE" CLASS I DIVISION 2 (LAMP TEMPERATURE IN DUST CONDITIONS) & CLASS II DIVISION I

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

150/125

175

AMBIENT

°C

VM1 SERIES**

GLOBE

ONLY

T3A

—

T2C

—

T2B

—

T2A

—

325°C

—

T2B

—

T2B

—

350°C

—

GLOBE

W/ REFLECTOR

T3A

—

T2C

—

T2B

—

T2A

—

325°C

—

T2B

—

T2B

—

350°C

—

VM2 SERIES**

VMR

T3A

—

T2C

—

T2B

—

T2A

—

325°C

—

T2B

—

T2B

—

350°C

—

REFRACTORS

VZRG 8"

T3A

—

T2C

—

T2B

—

T2A

—

325°C

—

T2B

—

T2B

—

350°C

—

VZRG 12"

T3A

—

T2C

—

T2B

—

T2A

—

325°C

—

T2B

—

T2B

—

350°C

—

GLOBE

ONLY

T2D

—

T2D

—

T2B

—

T2B

—

325°C

—

T2C

—

T2C

—

T2A

—

350°C

—

450°C

—

GLOBE

W/ REFLECTOR

T2D

—

T2D

—

T2B

—

T2B

—

325°C

—

T3C

—

T2C

—

T2A

—

350°C

—

450°C

—

SUPPLY

WIRE °C

—

ENCLOSED REFLECTORS

VMER40

T2D

—

T2D

—

T2B

—

T2B

—

325°C

—

T3C

—

T2C

—

T2A

—

350°C

—

450°C

—

VMEP40

T2D

—

T2D

—

T2B

—

T2B

—

325°C

—

T3C

—

T2C

—

T2A

—

350°C

—

450°C

—

REFRACTOR

VMR

T2D

—

T2D

—

T2B

—

T2B

—

325°C

—

T3C

—

T2C

—

T2A

—

350°C

—

450°C

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

2Table shows lamp temperature inside dust covered optic - see Class II table for Groups E, F, G and Class III data.

** VM1 Series accepts 5-1/2" threaded optics; VM2 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L108

VM3/VM4 SERIES THERMAL PERFORMANCE DATA1

CLASS I DIVISION 2 GROUPS A,B,C,D / ZONE 2 GROUPS IIC, IIB, IIA

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

175

250

125/150/175

200

AMBIENT

°C

VM3 SERIES**

GLOBE

ONLY

T3B

T3A

T2D

T2C

T2B

—

T3B

T2D

T2A

—

325°C

—

T2A

—

T2A

—

GLOBE

W/ REFLECTOR

T3B

T3A

T2D

T2C

T2B

—

T3A

T2D

T2A

—

325°C

—

T2A

—

T2A

—

VM4 SERIES**

VMR

T3B

T3A

T2D

T2C

T2B

—

T3B

T2D

T2A

—

325°C

—

T2A

—

T2A

—

REFRACTORS

VZRG 8"

T3B

T3A

T2D

T2C

T2B

—

T3A

T2D

T2B

—

T2B

T2A

—

T2B

—

VZRG 12"

T3B

T3A

T2C

T2B

—

T3C

T3A

T2D

T2B

—

T2B

T2A

—

T2B

—

GLOBE

ONLY

T3C

T3B

T3A

T2D

T2C

T2B

—

T3C

T3A

T2B

T2A

—

T2B

T2A

T2B

T2A

—

GLOBE

W/ REFLECTOR

T3C

T3B

T3A

T2D

T2C

T2B

—

T3C

T3B

T3A

T2B

T2A

—

T2B

T2A

T2B

T2A

—

SUPPLY

WIRE °C

110

—

110

—

110

—

ENCLOSED REFLECTORS

VMER40

T3C

T3B

T3A

T2D

T2C

T2B

—

T3C

T3A

T2B

T2A

—

T2B

T2A

T2B

T2A

—

VMEP40

T3C

T3B

T3A

T2D

T2C

T2B

—

T3C

T3A

T2B

T2A

—

T2B

T2A

T2B

T2A

—

REFRACTOR

VMR

T3C

T3B

T3A

T2D

T2C

T2B

—

T3C

T3A

T2B

T2A

—

T2B

T2A

T2B

T2A

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements. The

suitability of these fixtures for Class I Division 2 / Zone 2 locations must be determined for each applica-

tion based on NEC® Articles 501.125(B) or 505.

** VM3 Series accepts 5-1/2" threaded optics; VM4 accepts 7-3/4" threaded optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L109

VM3/VM4 SERIES THERMAL PERFORMANCE DATA1

CLASS I ZONE 2 RESTRICTED BREATHING

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

175

250

150/175

200

AMBIENT

°C

VM3 SERIES**

GLOBE

ONLY

—

GLOBE

W/ REFLECTOR

—

VM4 SERIES**

REFRACTOR

VMR

—

GLOBE

ONLY

—

GLOBE

W/ REFLECTOR

—

SUPPLY

WIRE °C

110

—

110

—

110

—

ENCLOSED REFLECTORS

VMER40

—

VMEP40

—

REFRACTOR

VMR

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

The suitability of these fixtures for Class I Zone 2 AEx nAR II locations must be determined for each

application based on NEC® Article 505. Restricted breathing fixture with photo cell T3 only.

** VM3 Series accepts 5-1/2" threaded optics; VM4 accepts 7-3/4" threaded optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L110

VM3/VM4 SERIES THERMAL PERFORMANCE DATA1

CLASS II DIVISIONS 1 & 2 GROUPS E,F,G & CLASS III*

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

175

250

150/175

200

AMBIENT

°C

VM3 SERIES**

GLOBE

ONLY

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

GLOBE

W/ REFLECTOR

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

VM4 SERIES**

VMR

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

REFRACTORS

VZRG 8"

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

VZRG 12"

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

GLOBE

ONLY

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

GLOBE

W/ REFLECTOR

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

SUPPLY

WIRE °C

—

ENCLOSED REFLECTORS

VMER40

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

VMEP40

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

REFRACTOR

VMR

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T3B

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

2Limit for E & F.

3Limit for G & Class III.

* Luminaries rated for Group G (=<165°C), T3B are also suitable for Class III applications; Luminaries

rated for E & F ≤ 200°C (T3).

** VM3 Series accepts 5-1/2" threaded optics; VM4 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS L111

VM3/VM4 SERIES THERMAL PERFORMANCE DATA1 2

“SIMULTANEOUS PRESENCE” CLASS I DIVISION 2 (LAMP TEMPERATURE IN DUST CONDITIONS) & CLASS II DIVISION I

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

100

150

100

175

250

150/175

200

AMBIENT

°C

VM3 SERIES**

GLOBE

ONLY

—

T2C

—

T2A

—

T3A

—

T2D

—

GLOBE

W/ REFLECTOR

T2D

—

T2D

—

T2C

—

T2A

—

T3A

—

T2D

—

VM4 SERIES**

VMR

—

T2C

—

T2A

—

T3A

—

T2D

—

REFRACTORS

VZRG 8"

—

T2C

—

T2A

—

T3A

—

T2D

—

VZRG 12"

—

T2C

—

T2A

—

T3A

—

T2D

—

GLOBE

ONLY

T3B

—

T2D

—

T2B

—

T3C

—

T2A

—

325°C

—

T2A

—

T2A

—

GLOBE

W/ REFLECTOR

T3A

—

T2D

—

T2B

—

T3B

—

T2A

—

325°C

—

T2A

—

T2A

—

SUPPLY

WIRE °C

—

ENCLOSED REFLECTORS

VMER40

T3A

—

T2D

—

T2B

—

T3C

—

T2A

—

325°C

—

T2A

—

T2A

—

VMEP40

T3A

—

T3A

—

T2B

—

T3C

—

T2A

—

325°C

—

T2A

—

T2A

—

REFRACTOR

VMR

T3B

—

T2D

—

T2B

—

T3C

—

T2A

—

325°C

—

T2A

—

T2A

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

2Table shows lamp temperature inside dust covered optic - see Class II table for Groups E, F, G and

Class III data.

** VM3 Series accepts 5-1/2" threaded optics; VM4 accepts 7-3/4" optics.

— Not available.

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS

L112

VM5 SERIES THERMAL PERFORMANCE DATA1

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

200

250

400

600

250

400

250

320

350

400

165

AMBIENT

°C

CLASS I DIVISION 2 GROUPS A, B, C, D / ZONE 2 GROUPS IIC, IIB, IIA

GLOBE

ONLY

325°C

350°C

—

325°C

350°C

450°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

GLOBE

W/ REFLECTOR

325°C

350°C

—

325°C

350°C

450°C

—

325°C

—

325°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

T2A

—

CLASS I ZONE 2, “RESTRICTED BREATHING”2

REFRACTOR

VZRG 12"

325°C

350°C

—

325°C

350°C

450°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

ENCLOSED REFLECTORS

VMER40

325°C

—

325°C

350°C

450°C

—

450°C

—

T2B

—

T2B

T2A

T2B

T2A

—

T2B

T2A

—

T3A

—

VMEP40

325°C

—

325°C

350°C

450°C

—

450°C

—

T2B

—

T2B

T2A

T2B

T2A

—

T2B

T2A

—

T3A

—

GLOBE

ONLY

—

GLOBE

W/ REFLECTOR

—

SUPPLY

WIRE °C

125

—

125

—

125

—

125

—

125

—

ENCLOSED REFLECTORS

VMER40

—

VMEP40

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

The suitability of these fixtures for Class I Zone 2 AEx nAR II locations must be determined for each application

based on NEC®Article 505. Restricted breathing fixture with photo cell T3 only.

2See L50 for Restricted Breathing Information.

3VM5Q uses VM4 optics including VMG25 and VMR25x all glass refractors.

— Not available

CERTILITE®V SERIES •LIGHTING

APPLICATION DATA FOR HAZARDOUS LOCATIONS L113

VM5 SERIES THERMAL PERFORMANCE DATA1 2

LAMP

TYPE

HPS

MHP

DESCRIPTION

LAMP

WATTAGE

200

250

400

250

400

250

320

350

400

165

AMBIENT

°C

CLASS II DIVISION 1 & 2 GROUPS E,F,G & CLASS III*

GLOBE

ONLY

T3C

—

T3C

—

T3B

—

T3C

—

GLOBE

W/ REFLECTOR

T3C

—

T3C

—

T3B

—

T3C

—

SIMULTANEOUS PRESENCE2LAMP TEMP. IN DUST CONDITIONS

REFRACTOR

VZRG 12"

T4A

—

T4A

T3C

—

T3C

—

T3C

—

T3C

—

T3C

—

ENCLOSED REFLECTORS

VMER40

T3C

—

T3C

T3B

—

T3C

—

T3C

—

T3C

—

T3C

—

VMEP40

T3C

—

T3C

T3B

—

T3C

—

T3C

—

T3C

—

T3C

—

GLOBE

ONLY

350°C

—

350°C

—

GLOBE

W/ REFLECTOR

350°C

—

350°C

—

SUPPLY

WIRE °C

125

—

125

—

125

—

125

—

ENCLOSED REFLECTORS

VMER40

325°C

350°C

—

325°C

350°C

—

325°C

—

325°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

T2A

—

VMEP40

325°C

350°C

—

325°C

350°C

—

325°C

—

325°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

T2A

—

REFRACTOR

VZRG 12"

325°C

350°C

—

325°C

350°C

—

325°C

—

325°C

—

T2B

T2A

—

T2B

T2A

—

T2A

—

T2A

—

T-CODE & TEMPERATURE RANGE CONVERSION TABLE °C

351-450

350

326-350

325

301-325

281-300

T2A

261-280

T2B

231-260

T2C

216-230

T2D

201-215

181-200

T3A

166-180

T3B

161-165

T3C

136-160

121-135

T4A

101-120

86-100

<=85

*** Table shows lamp temperature inside optic dust conditions, see Class II table for Groups E, F, G data.

1Data does not apply to luminaries with auxiliary quartz lighting; consult factory with requirements.

2Table shows lamp temperature inside dust covered optic - see Class II table for Groups E, F, G and Class III data.

3Limit for E & F.

4Limit for G & Class III.

5VM5Q uses VM4 optics including VMG25 and VMR25x all glass refractors.

* Luminares rated for Group G (=<165°C), T3B are also suitable for Class III applications; Luminaries rated for E & F ≤ 200°C (T3).

— Not available.

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L114

Test No. HPK09950

HIGH PRESSURE SODIUM-VM1, VM3

With Globe Only

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 84.0%

ANGLE CP ANGLE CP

0227. 95.0 974.

5.0 175. 100.0 946.

10.0 152. 105.0 925.

15.0 255. 110.0 880.

20.0 391. 115.0 803.

25.0 284. 120.0 706.

30.0 390. 125.0 273.

35.0 542. 130.0 22.

40.0 662. 135.0 12.

45.0 687. 140.0 9.

50.0 744. 145.0 7.

55.0 788. 150.0 5.

60.0 843. 155.0 2.

65.0 887. 160.0 1.

70.0 941. 165.0 1.

75.0 968. 170.0 0.

80.0 994. 175.0 0.

85.0 1001. 180.0 0.

90.0 990.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .91 .91 .91 .91 .85 .85.85 .85 .74 .74 .74 .64.64 .64 .55 .55 .55 .50

1 .77 .71 .66 .61 .72 .66.61 .57 .56 .52 .49 .47.44 .42 .39 .37 .35 .30

2 .68 .59 .52 .45 .63 .55.48 .42 .46 .41 .36 .39.34 .31 .31 .28 .25 .21

3 .61 .50 .42 .35 .56 .46.39 .33 .39 .33 .28 .32.28 .23 .26 .22 .19 .16

4 .55 .43 .35 .28 .50 .40.32 .26 .33 .27 .22 .28.22 .18 .22 .18 .15 .11

5 .50 .37 .29 .23 .45 .35.27 .21 .29 .23 .18 .24.19 .15 .19 .15 .12 .09

6 .45 .33 .25 .19 .41 .30.23 .17 .26 .19 .15 .21.16 .12 .17 .13 .09 .07

7 .41 .29 .21 .16 .38 .27.20 .14 .23 .17 .12 .19.14 .10 .15 .11 .08 .05

8 .38 .26 .18 .13 .35 .24.17 .12 .20 .14 .10 .17 .12 .08 .13 .09 .06 .04

9 .35 .23 .16 .11 .32 .22.15 .10 .18 .12 .08 .15.10 .07 .12 .08 .05 .03

10 .32 .21 .14 .09 .30 .19 .13 .08 .16 .11 .07 .13 .09 .05 .11 .07 .04 .02

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 3.3

Test No. HPK09951

HIGH PRESSURE SODIUM-VM1, VM3

With Globe & Dome Reflector

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 66.7%

ANGLE CP ANGLE CP

01126. 95.0 25.

5.0 1067. 100.0 23.

10.0 1025. 105.0 43.

15.0 1127. 110.0 138.

20.0 1241. 115.0 132.

25.0 1113. 120.0 31.

30.0 1178. 125.0 11.

35.0 1286. 130.0 10.

40.0 1357. 135.0 9.

45.0 1334. 140.0 9.

50.0 1347. 145.0 8.

55.0 1331. 150.0 7.

60.0 1325. 155.0 6.

65.0 1295. 160.0 6.

70.0 1233. 165.0 5.

75.0 647. 170.0 5.

80.0 228. 175.0 5.

85.0 105. 180.0 5.

90.0 21.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .78 .78 .78 .78 .76 .76 .76 .76 .72 .72 .72 .69.69 .69 .65 .65 .65 .64

1 .70 .67 .64 .61 .68 .65.62 .60 .62 .59 .57 .59.57 .55 .56 .54 .53 .51

2 .63 .57 .52 .48 .61 .56.51 .47 .53 .49 .46 .51.47 .45 .48 .46 .43 .42

3 .57 .49 .44 .39 .55 .48.43 .38 .46 .41 .37 .44.40 .36 .42 .38 .35 .34

4 .51 .43 .36 .31 .50 .41.36 .31 .39 .34 .30 .38.33 .29 .36 .32 .29 .27

5 .46 .37 .30 .26 .45 .36.30 .25 .34 .29 .25 .33.28 .24 .31 .27 .24 .22

6 .42 .33 .26 .22 .41 .32.26 .21 .30 .25 .21 .29.24 .21 .28 .24 .20 .19

7 .39 .29 .23 .18 .37 .28.22 .18 .27 .22 .18 .26.21 .17 .25 .20 .17 .16

8 .36 .26 .20 .15 .34 .25.19 .15 .24 .19 .15 .23.18 .15 .22 .18 .14 .13

9 .33 .23 .17 .13 .32 .23.17 .13 .22 .16 .13 .21.16 .13 .20 .16 .12 .11

10 .30 .20 .14 .11 .29 .20.14 .11 .19 .14 .10 .18.13 .10 .17 .13 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.8

Test No. HPK09952

HIGH PRESSURE SODIUM-VM1, VM3

With Globe & Angle Reflector

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 64.9%

Front Side

ANGLE CP ANGLE CP

01026. 01026.

5.0 985. 5.0 981.

15.0 1191. 15.0 995.

25.0 1210. 25.0 1019.

35.0 1503. 35.0 1200.

45.0 1585. 45.0 1296.

45.0 1719. 45.0 1337.

65.0 1681. 65.0 1219.

75.0 1626. 75.0 276.

85.0 1484. 85.0 61.

90.0 1377. 145.0 17.

95.0 1011. 95.0 13.

105.0 163. 105.0 10.

115.0 46. 115.0 10.

125.0 13. 125.0 9.

135.0 5. 135.0 8.

145.0 5. 145.0 7.

155.0 5. 155.0 5.

165.0 4. 165.0 4.

175.0 3. 175.0 3.

180.0 3. 180.0 3.

F ront

Side

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .76 .76 .76 .76. .74 .74 .74 .74 .69 .69 .69 .66.66 .66 .62 .62.62 .60

1 .67 .63 .59 .56 .65.61.57 .54 .57 .54 .52 .54.51 .49 .51 .49.47 .45

2 .60 .54 .48 .44 .58.52.47 .43 .49 .45 .41 .46.43 .40 .43 .41.38 .36

3 .54 .46 .40 .36 .52.45.39 .35 .42 .38 .34 .40.36 .33 .38 .34.31 .30

4 .49 .40 .34 .29 .47.39.33 .29 .37 .32 .28 .35.30 .27 .33 .29.26 .24

5 .45 .35 .29 .24 .43.34.28 .24 .32 .27 .23 .31.26 .22 .29 .25.22 .20

6 .41 .31 .25 .21 .39.31.25 .20 .29 .24 .20 .27.23 .19 .26 .22.19 .17

7 .38 .28 .22 .17 .36.27.21 .17 .26 .20 .17 .24.20 .16 .23 .19 .16 .14

8 .34 .25 .19 .15 .33.24.19 .15 .23 .18 .14 .22.17 .14 .21 .17 .13 .12

9 .32 .22 .17 .13 .31.22.16 .13 .21 .16 .12 .20.15 .12 .19 .15.12 .10

10 .29 .20 .14 .10 .28.19 .14 .10 .18 .13 .10 .17 .13 .10 .16 .12 .09 .08

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.7

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L115

Test No. HPK09954

HIGH PRESSURE SODIUM-VM1, VM3

With Type I All Glass Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 86.2%

2683

1342

4025

5366

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .99 .99 .99 .99 .95 .95.95 .95 .87 .87 .87 .81.81 .81 .74 .74 .74 .71

1 .83 .76 .70 .64 .79 .72.67 .61 .66 .61 .57 .60.56 .52 .54 .51 .48 .45

2 .72 .61 .52 .44 .68 .58.49 .42 .52 .45 .39 .46.41 .36 .42 .37 .33 .30

3 .63 .50 .40 .32 .59 .47.38 .31 .42 .34 .28 .38.31 .26 .33 .28 .23 .20

4 .56 .42 .32 .24 .52 .40.30 .23 .35 .27 .21 .31.24 .19 .28 .22 .17 .14

5 .50 .36 .26 .19 .47 .34.25 .18 .30 .22 .16 .27.20 .14 .23 .18 .13 .10

6 .46 .31 .22 .15 .43 .30.21 .14 .26 .19 .13 .23.17 .11 .21 .15 .10 .08

7 .42 .28 .19 .12 .39 .26.18 .12 .23 .16 .10 .21.14 .09 .18 .13 .08 .06

8 .39 .25 .16 .10 .36 .24.15 .10 .21 .14 .09 .19 .12 .08 .17 .11 .07 .05

9 .36 .23 .14 .09 .34 .21.14 .08 .19 .12 .07 .17.11 .07 .15 .10 .06 .04

10 .34 .21 .13 .08 .32 .20.12 .07 .18 .11 .06 .16 .10 .06 .14 .09 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 6.76 90-270°

Test No. HPK09953

HIGH PRESSURE SODIUM-VM1, VM3

With Type V All Glass Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 81.7%

ANGLE CP ANGLE CP

0519. 95.0 550.

5.0 354. 100.0 418.

10.0 307. 105.0 349.

15.0 358. 110.0 312.

20.0 467. 115.0 279.

25.0 446. 120.0 247.

30.0 370. 125.0 168.

35.0 340. 130.0 117.

40.0 343. 135.0 75.

45.0 450. 140.0 45.

50.0 676. 145.0 25.

55.0 1092. 150.0 7.

60.0 1760. 155.0 2.

65.0 1958. 160.0 1.

70.0 1857. 165.0 1.

75.0 1377. 170.0 0.

80.0 995. 175.0 0.

85.0 858. 180.0 0.

90.0 711.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .93 .93 .93 .93 .89 .89.89 .89 .81 .81 .81 .75.75 .75 .68 .68 .68 .65

1 .78 .72 .66 .61 .74 .68.63 .58 .62 .58 .54 .56.52 .49 .50 .48 .45 .42

2 .68 .58 .50 .43 .64 .55.48 .41 .49 .43 .38 .44.39 .35 .39 .35 .32 .29

3 .60 .48 .39 .32 .56 .45.37 .30 .40 .33 .28 .36.30 .25 .32 .27 .23 .20

4 .53 .40 .30 .23 .49 .38.29 .22 .33 .26 .20 .29.23 .19 .26 .21 .16 .13

5 .47 .34 .25 .18 .44 .32.23 .17 .28 .21 .15 .25.19 .14 .22 .16 .12 .09

6 .43 .30 .21 .14 .40 .28.20 .14 .25 .18 .12 .22.16 .11 .19 .14 .10 .07

7 .40 .26 .18 .12 .37 .25.17 .11 .22 .15 .10 .20.13 .09 .17 .12 .08 .06

8 .36 .24 .16 .10 .34 .22.15 .09 .20 .13 .08 .18.12 .07 .15 .10 .06 .04

9 .34 .22 .14 .09 .32 .20.13 .08 .18 .12 .07 .16.11 .07 .14 .09 .06 .04

10 .32 .20 .12 .07 .30 .19 .12 .07 .17 .11 .06 .15 .09 .06 .13 .08 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.1

Test No. HPK09483

HIGH PRESSURE SODIUM-VM1, VM3

With Type II 12" Spin-Top Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 64.9%

Front Side

ANGLE CP ANGLE CP

01504. 85.0

707

5.0

1329

.90.0

643

15.0

1094

.95.0

572

25.0

1057

.105.0

369

35.0

1306

.115.0

349

45.0

2230

.125.0

400

55.0

2482

.135.0

342

60.0

2089

.145.0

273

65.0

1477

.155.0

182

70.0

1148

.165.0

75.0

925

.175.0

80.0

798

.180.0

1241

1862

2482

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

621

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .84 .84 .84 .84 .80 .80.80 .80 .73 .73 .73 .66.66 .66 .60 .60 .60 .57

1 .75 .70 .66 .62 .71 .67.63 .60 .60 .57 .55 .54.52 .50 .49 .47 .45 .42

2 .67 .59 .53 .48 .63 .56.51 .46 .51 .46 .43 .46.42 .39 .41 .38 .36 .33

3 .60 .51 .44 .39 .56 .48.42 .37 .43 .38 .34 .39.35 .31 .35 .31 .29 .26

4 .54 .44 .37 .31 .51 .42.35 .30 .38 .32 .28 .34.29 .25 .30 .26 .23 .21

5 .49 .39 .31 .26 .46 .37.30 .25 .33 .27 .23 .30.25 .21 .26 .22 .19 .17

6 .45 .34 .27 .22 .42 .32.26 .21 .29 .23 .19 .26.21 .18 .23 .19 .16 .14

7 .41 .30 .23 .18 .39 .29.22 .18 .26 .20 .16 .23.19 .15 .21 .17 .14 .12

8 .38 .27 .20 .16 .36 .26.20 .15 .23 .18 .14 .21.16 .13 .19 .15 .12 .10

9 .35 .25 .18 .14 .33 .23.17 .13 .21 .16 .12 .19 .15 .11 .17 .13 .10 .09

10 .33 .22 .16 .12 .31 .21.16 .12 .19 .14 .11 .18.13 .10 .16 .12 .09 .08

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.36 0 -180°

ANGLE CP ANGLE CP

0213.

5250.

15 533.

25 506.

35 457.

45 839.

55 2742.

60 4365.

65 5265.

70 5304.

75 4269.

80 3162.

85 2652.

90 1969.

95 1301.

105 763.

115 602.

125 294.

135 107.

145 32.

155 3.

165 1.

175 0.

180 0.

Angle Vertical

CP 90° Horizontal

Angle Vertical

CP 75° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L116

Test No. HPK09472

HIGH PRESSURE SODIUM-VM1, VM3

With Type V 8" Spin-Top Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 69.1%

ANGLE CP ANGLE CP

01160. 95.0 312.

5.0 986. 100.0 258.

10.0 827. 105.0 204.

15.0 761. 110.0 169.

20.0 739. 115.0 149.

25.0 731. 120.0 136.

30.0 739. 125.0 135.

35.0 753. 130.0 133.

40.0 821. 135.0 123.

45.0 950. 140.0 109.

50.0 1366. 145.0 86.

55.0 1684. 150.0 59.

60.0 1595. 155.0 31.

65.0 1067. 160.0 5.

70.0 696. 165.0 1.

75.0 597. 170.0 0.

80.0 527. 175.0 0.

85.0 447. 180.0 0.

90.0 372.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .79 .79 .79 .79 .76 .76 .76 .76 .71 .71 .71 .65.65 .65 .61 .61 .61 .58

1 .70 .66 .62 .59 .67 .63.60 .57 .58 .56 .53 .54.52 .50 .50 .48 .46 .44

2 .63 .56 .50 .46 .60 .54.48 .44 .49 .45 .42 .45.42 .39 .42 .39 .37 .34

3 .56 .48 .41 .36 .53 .46.40 .35 .42 .37 .33 .39.34 .31 .36 .32 .29 .27

4 .51 .41 .34 .29 .48 .39.33 .28 .36 .31 .27 .33.29 .25 .31 .27 .24 .22

5 .46 .35 .28 .23 .43 .34.28 .23 .31 .26 .21 .29.24 .20 .26 .22 .19 .17

6 .41 .31 .24 .19 .39 .29.23 .18 .27 .21 .17 .25.20 .16 .23 .19 .15 .14

7 .37 .27 .20 .15 .35 .26.19 .15 .23 .18 .14 .22.17 .13 .20 .15 .12 .10

8 .34 .24 .17 .13 .32 .23.17 .12 .21 .16 .12 .19 .15 .11 .18 .14 .10 .09

9 .32 .21 .15 .11 .30 .21.15 .11 .19 .14 .10 .17 .13 .09 .16 .12 .09 .07

10 .29 .19 .13 .09 .28 .19 .13 .09 .17 .12 .09 .16.11 .08 .15 .11 .08 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 0.8

Test No. HPK09479

HIGH PRESSURE SODIUM-VM1, VM3

With Type V 12" Spin-Top Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 78.4%

ANGLE CP ANGLE CP

01555. 95.0 316.

5.0 1437. 100.0 258.

10.0 1254. 105.0 214.

15.0 1106. 110.0 213.

20.0 1045. 115.0 254.

25.0 1005. 120.0 268.

30.0 1212. 125.0 226.

35.0 1108. 130.0 179.

40.0 1291. 135.0 155.

45.0 1346. 140.0 133.

50.0 1449. 145.0 109.

55.0 1474. 150.0 80.

60.0 1414. 155.0 53.

65.0 1189. 160.0 27.

70.0 827. 165.0 9.

75.0 576. 170.0 0.

80.0 464. 175.0 0.

85.0 398. 180.0 0.

90.0 357.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .90 .90 .90 .90 .87 .87.87 .87 .80 .80 .80 .74 .74 .74 .68 .68 .68 .65

1 .80 .76 .72 .68 .77 .73.69 .66 .67 .64 .61 .62.59 .57 .57 .55 .53 .50

2 .72 .65 .59 .54 .69 .62.57 .52 .57 .53 .49 .53.49 .46 .49 .46 .43 .41

3 .65 .56 .49 .44 .62 .54.48 .42 .50 .44 .40 .46.41 .38 .42 .30 .35 .33

4 .59 .49 .41 .35 .56 .47.40 .34 .43 .37 .33 .40.35 .31 .36 .32 .29 .27

5 .53 .42 .35 .29 .51 .41.34 .28 .38 .31 .27 .35.29 .25 .32 .27 .24 .22

6 .49 .37 .30 .25 .46 .36.29 .24 .33 .27 .23 .31.25 .21 .28 .24 .20 .18

7 .45 .33 .26 .21 .42 .32.25 .20 .29 .23 .19 .27.22 .18 .25 .20 .17 .15

8 .41 .29 .22 .17 .39 .28.22 .17 .26 .20 .16 .24.19 .15 .22 .18 .14 .13

9 .38 .27 .20 .15 .36 .26.19 .15 .24 .18 .14 .22.17 .13 .20 .16 .12 .11

10 .35 .23 .27 .12 .33 .23.16 .12 .21 .15 .11 .19 .14 .11 .18 .13 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 0.9

Test No. HPK09478

HIGH PRESSURE SODIUM-VM1, VM3

With Type V 12" Spin-Top Poly

Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 70.6%

ANGLE CP ANGLE CP

0829. 95.0 267.

5.0 810. 100.0 239.

10.0 874. 105.0 202.

15.0 901. 110.0 181.

20.0 887. 115.0 165.

25.0 864. 120.0 145.

30.0 815. 125.0 123.

35.0 863. 130.0 102.

40.0 956. 135.0 84.

45.0 1370. 140.0 68.

50.0 2123. 145.0 51.

55.0 2162. 150.0 34.

60.0 1438. 155.0 19.

65.0 823. 160.0 6.

70.0 .556 165.0 1.

75.0 407. 170.0 0.

80.0 319. 175.0 0.

85.0 275. 180.0 0.

90.0 265.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .82 .82 .82 .82 .79.79.79 .79 .73 .73 .73 .68.68 .68 .63 .63 .63 .61

1 .73 .70 .66 .63 .70.67.64 .61 .62 .60 .57 .58.56 .54 .54 .52 .51 .49

2 .66 .60 .55 .50 .63.58.53 .49 .54 .50 .46 .50.47 .44 .47 .44 .42 .40

3 .60 .52 .46 .41 .57.50.44 .40 .47 .42 .38 .43.39 .36 .40 .37 .34 .32

4 .54 .45 .38 .33 .51.43.37 .32 .40 .35 .31 .37.33 .29 .35 .31 .28 .26

5 .49 .39 .32 .27 .46.37.31 .26 .35 .29 .25 .32.28 .24 .30 .26 .23 .21

6 .44 .34 .27 .22 .42.32.26 .21 .30 .25 .20 .28.23 .19 .26 .22 .19 .17

7 .40 .29 .22 .18 .38.28.22 .17 .26 .20 .16 .24.19 .16 .22 .18 .15 .13

8 .36 .25 .19 .14 .34.25.18 .14 .23 .17 .13 .21.16 .13 .20 .15 .12 .10

9 .33 .23 .17 .12 .32.22.16 .12 .21 .15 .11 .19 .14 .11 .18 .13 .10 .09

10 .30 .20 .14 .10 .29.19 .14 .10 .18 .13 .09 .17.12 .09 .15 .11 .08 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.8

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L117

Test No. HPK10116

HIGH PRESSURE SODIUM-VM1, VM3

With Globe & Full Cutoff Deep White Reflector*

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 65.2%

ANGLE CP ANGLE CP

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .75 .75 .75.75 .74 .74 .74 .74 .70 .70 .70 .67 .67 .67 .65.65 .65 .63

1 .70 .67 .64.62 .68 .65 .63 .61 .63 .61 .59 60 .59 .57 .58 .57 .56 .54

2 .64 .60 .56.53 .63 .58.55 .52 .56 .53 .51 .54 .52 .50 .52.50 .49 .47

3 .59 .53 .49.45 .58 .52.48 .45 .51 .47 .44 .49 .46 .43 .47.45 .43 .41

4 .54 .48 .42.39 .53 .47.42 .38 .45 .41 .38 .44 .40 .37 .42.39 .37 .36

5 .50 .43 .37.33 .49 .42.37 .33 .41 .36 .33 .39 .36 .33 .38.35 .32 .31

6 .46 .38 .33.29 .45 .38.33 .29 .37 .32 .29 .36 .32 .29 .35.31 .28 .27

7 .43 .34 .29.25 .42 .34.29 .25 .33 .28 .25 .32 .28 .25 .31.28 .25 .24

8 .39 .31 .26.22 .38 .31.26 .22 .30 .25 .22 .29 .25 .22 .28.24 .22 .20

9 .36 .28 .23.19 .35 .28.23 .19 .27 .22 .19 .26 .22 .19 .26.22 .19 .18

10 .33 .24 .19 .16 .32 .24.19 .16 .23 .19 .16 .23 .18 .16 .22 .18 .15 .14

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.5

*Values using Spacer Kit

Test No. HPK09935

Efficiency 81.0%

ANGLE CP ANGLE CP

0348. 95.0 1337.

5.0 297. 100.0 1306.

10.0 277. 105.0 1286.

15.0 411. 110.0 1269.

20.0 501. 115.0 1226.

25.0 430. 120.0 1128.

30.0 598. 125.0 616.

35.0 807. 130.0 56.

40.0 923. 135.0 20.

45.0 1007. 140.0 13.

50.0 1070. 145.0 10.

55.0 1120. 150.0 7.

60.0 1173. 155.0 3.

65.0 1235. 160.0 2.

70.0 1290. 165.0 2.

75.0 1327. 170.0 0.

80.0 1326. 175.0 0.

85.0 1328. 180.0 0.

90.0 1347.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .88 .88 .88 .88 .83 .83.83 .83 .72 .72 .72 .62.62 .62 .52 .52 .52 .48

1 .76 .70 .64 .60 .70 .65.60 .56 .55 .51 .48 .46.43 .41 .38 .36 .34 .30

2 .67 .58 .51 .45 .61 .54.47 .42 .45 .40 .36 .38.34 .30 .30 .27 .25 .21

3 .60 .49 .41 .35 .55 .46.38 .33 .38 .33 .28 .32.27 .23 .25 .22 .19 .15

4 .54 .42 .34 .28 .49 .39.32 .26 .33 .27 .22 .27.22 .18 .22 .18 .15 .11

5 .49 .37 .29 .23 .44 .34.27 .21 .29 .22 .18 .23.18 .15 .19 .15 .11 .09

6 .44 .33 .25 .19 .41 .30.23 .17 .25 .19 .15 .21.16 .12 .16 .12 .09 .07

7 .41 .29 .21 .16 .37 .27.20 .15 .22 .16 .12 .18.13 .10 .14 .11 .08 .05

8 .37 .26 .18 .13 .34 .24.17 .12 .20 .14 .10 .16 .12 .08 .13 .09 .06 .04

9 .35 .23 .16 .11 .32 .21.15 .10 .18 .12 .09 .15.10 .07 .12 .08 .05 .03

10 .32 .21 .14 .09 .29 .19 .13 .09 .16 .11 .05 .13 .09 .05 .10 .07 .04 .02

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 3.0

Test No. HPK09936

Efficiency 63.7%

ANGLE CP ANGLE CP

01624. 95.0 37.

5.0 1566. 100.0 35.

10.0 1536. 105.0 47.

15.0 1652. 110.0 148.

20.0 1719. 115.0 212.

25.0 1606. 120.0 63.

30.0 1717. 125.0 15.

35.0 1856. 130.0 13.

40.0 1906. 135.0 12.

45.0 1920. 140.0 11.

50.0 1902. 145.0 11.

55.0 1879. 150.0 9.

60.0 1837. 155.0 8.

65.0 1783. 160.0 7.

70.0 1677. 165.0 7.

75.0 885. 170.0 6.

80.0 324. 175.0 6.

85.0 137. 180.0 7.

90.0 35.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .75 .75 .75.75 .73.73.73.73 .69.69 .69 .66.66.66 .63 .63 .63 .61

1 .68 .64 .61.59 .66.63.60.57 .59.57 .55 .57.55.53 .54 .52 .51 .49

2 . 61 .55 .51.47 .59 .54 .50 .46 .51.48 .44 .49.46.43 .46 .44 .42 .40

3 .55 .48 .42.38 .53.47.41.37 .44.40 .36 .42.38.35 .40 .37 .34 .33

4 .50 .41 .35.30 .48.40.34.30 .38.33 .29 .36.32.29 .35 .31 .28 .26

5 .45 .36 .30.25 .43.35.29.25 .33.28 .24 .32.27.24 .30 .26 .23 .22

6 .41 .32 .26.21 .40.31.25.21 .30.24 .21 .28.24.20 .27 .23 .20 .18

7 .37 .28 .22 .18 .36.27.22 .18 .26.21 .17 .25.20.17 .24 .20 .17 .15

8 .34 .25 .19 .15 .33.24.19 .15 .23.18 .15 .22.18 .14 .21 .17 .14 .13

9 .32 .22 .17 .13 .31.22.17 .13 .21.16 .13 .20.16 .12 .19 .15 .12 .11

10 .29 .20 .14 .10 .28.19 .14 .10 .18 .14 .10 .18 .13 .10 .17 .13 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.8

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Globe and Dome Reflector

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Globe

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

01918.

5.0 1906.

10.0 1911.

15.0 1903.

20.0 1976.

25.0 1778.

30.0 1742.

35.0 1849.

40.0 1986.

45.0 1807.

50.0 1701.

55.0 1023.

60.0 757.

65.0 588.

70.0 438.

75.0 303.

80.0 181.

85.0 77.

90.0 0.

95.0 0.

100.0 0.

105.0 0.

110.0 0.

115.0 0.

120.0 0.

125.0 0.

130.0 0.

135.0 0.

140.0 0.

145.0 0.

150.0 0.

155.0 0.

160.0 0.

165.0 0.

170.0 0.

175.0 0.

180.0 0.

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L118

Test No. HPK09937 Test No. HPK09980 Test No. HPK09946

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Globe and

Angle Reflector

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 62.4%

Front Side

ANGLE CP ANGLE CP

0.0 1506. 0.0 1506.

5.0 1478. 5.0 1486.

15.0 1676. 15.0 1548.

25.0 1770. 25.0 1467.

35.0 2281. 35.0 1684.

45.0 2429. 45.0 1750.

55.0 2520. 55.0 1698.

65.0 2507. 65.0 1579.

75.0 2396. 75.0 409.

85.0 2149. 85.0 87.

90.0 1964. 90.0 24.

95.0 1523. 95.0 20.

105.0 240. 105.0 14.

115.0 64. 115.0 14.

125.0 18. 125.0 13.

135.0 6. 135.0 10.

145.0 6. 145.0 9.

155.0 6. 155.0 7.

165.0 5. 165.0 5.

175.0 4. 175.0 4.

180.0 4. 165.0 4.

1518

4554

6072

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

3036

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .73 .73 .73.73 .71 .71.71 .71 .67.67 .67 .63.63 .63 .60.60 .60 .58

1 .65 .61 .57.54 .63 .59.56 .53 .55.53 .50 .52.50 .48 .49.47 .46 .44

2 .58 .52 .47.43 .56 .50.46 .42 .47.44 .40 .45.41 .39 .42.39 .37 .35

3 .53 .45 .39.35 .51 .44.39 .34 .41.37 .33 .39.35 .32 .37.33 .31 .29

4 .48 .39 .33.29 .46 .38.32 .28 .36.31 .27 .34.30 .26 .32.28 .25 .24

5 .44 .35 .28.24 .42 .34.28 .23 .32.27 .23 .30.26 .22 .28.24 .21 .20

6 .40 .31 .25.20 .38 .30.24 .20 .28 .23 .19 .27.22 .19 .25 .21 .18 .17

7 .37 .27 .21.17 .35 .27.21 .17 .25.20 .17 .24.19 .16 .23 .19 .16 .14

8 .34 .24 .19 .15 .32 .24 .18 .14 .22 .18 .14 .21.17 .14 .20 .16 .13 .12

9 .31 .22 .16 .13 .30 .21 .16 .12 .20 .15 .12 .19.15 .12 .18 .14 .12 .10

10 .28 .19 .14 .10 .27 .19 .14 .10 .18 .13 .10 .17.13 .10 .16 .12 .09 .08

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.7

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Type I All

Glass Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 86.8%

ANGLE CP ANGLE CP

0433. 85.0 3813.

5.0 447. 90.0 3154.

15.0 703. 95.0 2185.

25.0 642. 105.0 1047.

35.0 598. 115.0 794.

45.0 1049. 125.0 389.

55.0 3738. 135.0 137.

60.0 5513. 145.0 40.

65.0 5774. 155.0 4.

70.0 6031. 165.0 2.

75.0 4991. 175.0 0.

80.0 4211. 180.0 0.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .99 .99 .99 .99 .95 .95.95 .95 .87 .87 .87 .80.80 .80 .73 .73 .73 .70

1 .83 .76 .69 .63 .79 .72.66 .61 .65 .60 .56 .58.54 .51 .52 .49 .46 .43

2 .72 .61 .52 .44 .67 .58.49 .42 .51 .44 .39 .46.40 .35 .40 .36 .32 .28

3 .63 .50 .40 .32 .59 .47.38 .31 .42 .34 .28 .37.31 .25 .32 .27 .22 .19

4 .56 .42 .32 .24 .52 .40.30 .23 .35 .27 .21 .31.24 .19 .27 .21 .17 .14

5 .51 .36 .26 .19 .47 .34.25 .18 .30 .22 .16 .27.20 .14 .23 .17 .13 .10

6 .46 .32 .22 .15 .43 .30.21 .15 .26 .19 .13 .23.17 .11 .20 .14 .10 .07

7 .42 .28 .19 .13 .39 .27.18 .12 .24 .16 .11 .21.14 .09 .18 .12 .08 .06

8 .39 .25 .17 .11 .37 .24.16 .10 .21 .14 .09 .19.12 .08 .16 .11 .07 .05

9 .36 .23 .15 .09 .34 .22.14 .09 .19 .12 .08 .17.11 .07 .15 .10 .06 .04

10 .34 .21 .13 .08 .32 .20.12 .07 .18 .11 .07 .16.10 .06 .14 .09 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 5.7 90-270°

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

with Type V All

Glass Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 79.7%

ANGLE CP ANGLE CP

0731. 95.0 927.

5.0 562. 100.0 673.

10.0 489. 105.0 542.

15.0 542. 110.0 475.

20.0 640. 115.0 420.

25.0 592. 120.0 370.

30.0 519. 125.0 256.

35.0 498. 130.0 171.

40.0 491. 135.0 106.

45.0 641. 140.0 65.

50.0 921. 145.0 35.

55.0 1545. 150.0 9.

60.0 2543. 155.0 3.

65.0 2730. 160.0 1.

70.0 2320. 165.0 1.

75.0 1789. 170.0 0.

80.0 1509. 175.0 0.

85.0 1367. 180.0 0.

90.0 1186.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .90 .90 .90.90 .86.86.86 .86 .79.79 .79 .72 .72.72 .66.66 .66 .63

1 .76 .70 .64 .59 .72.66.61 .57 .60.56 .52 .54 .50 .47 .48.45 .43 .40

2 .66 .57 .49.42 .62.54.46 .40 .48.42 .37 .43 .38.33 .38.34 .30 .27

3 .58 .47 .38.31 .55.44.36 .30 .39.33 .27 .35 .29.24 .30.26 .22 .19

4 .52 .39 .30 .23 .48.37.29 .22 .33.25 .20 .29 .23 .18 .25.20 .16 .13

5 .46 .33 .24.18 .43.31.23 .17 .28.20 .15 .24 .18 .13 .21.16 .12 .09

6 .42 .29 .21.14 .39.28.20 .14 .24.17 .12 .21 .15 .11 .18 .13 .09 .07

7 .39 .26 .18 .12 .36.25.17 .11 .22.15 .10 .19 .13 .09 .16 .11 .08 .05

8 .36 .23 .15 .10 .33.22.15 .09 .19 .13 .08 .17 .11 .07 .15 .10 .06 .04

9 .33 .21 .14 .09 .31.20.13 .08 .18 .12 .07 .16 .10 .06 .14 .09 .06 .04

10 .31 .19 .12 .08 .29.18 .12 .07 .16 .10 .06 .14 .09.05 .13 .08 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.1

Angle Vertical

CP 90° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L119

Test No. HPK09482 Test No. HPK09473 Test No. HPK09475

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Type II 12" Spin-Top

Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 75.1%

ANGLE CP ANGLE CP

1000

3000

4000

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .85 85 .85.85 .81 .81.81 .81 .74 .74 .74 .67.67.67 .60.60 .60 .57

1 .75 .71 .67.63 .71 .67.63 .60 .61.58 .55 .55.52.50 .49 .47 .46 .43

2 .67 .60 .54.49 .63 .57.51 .47 .51.47 .43 .46.42.39 .41 .38 .36 .33

3 .60 .51 .44.39 .57 .49.42 .37 .44.39 .34 .39.35.31 .35 .32 .29 .26

4 .54 .44 .37.31 .51 .42.35 .30 .38.32 .28 .34.29.26 .30 .27 .23 .21

5 .49 .39 .31 .26 .46 .37.30 .25 .33.27 .23 .30 .25.21 .27 .23 .19 .17

6 .45 .34 .27 .22 .42 .33.26 .21 .29.24 .19 .26 .22.18 .24 .19 .16 .14

7 .41 .31 .23 .19 .39 .29.23 .18 .26.21 .16 .24 .19 .15 .21 .17 .14 .12

8 .38 .27 .21 .16 .36 .26.20 .15 .24.18 .14 .21 .17 .13 .19 .15 .12 .10

9 .35 .25 .18 .14 .33 .24 .18 .13 .21.16 .12 .19 .15 .11 .17 .13 .10 .09

10 .33 .23 .16 .12 .31 .22.16 .12 .20.14 .11 .18 .13.10 .16 .12 .09 .08

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.48 0-180°

0.0 2111.

5.0 1908.

15.0 1598.

25.0 1521.

35.0 1810.

45.0 3016.

55.0 3608.

60.0 3065.

65.0 2257.

70.0 1712.

75.0 1367.

80.0 1182.

85.0 1076.

90.0 989.

95.0 888.

105.0 569.

115.0 522.

125.0 588.

135.0 498.

145.0 380.

155.0 239.

165.0 84.

175.0 0.

180.0 0.

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Type V 8" Spin-Top

Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 70.2%

ANGLE CP ANGLE CP

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .81 .81 .81 .81 .78 .78.78.78 .72 .72 .72 .66 .66 .66 .62.62 .62 .59

1 .71 .67 .63 .59 .68 .64.61.57 .59 .56 .54 .54 .52 .50 .50.48 .47 .44

2 .64 .57 .51 .46 .61 .54.49.45 .50 .46 .42 .46 .43 .40 .42.40 .37 .35

3 .57 .49 .42 .37 .54 .47.41.36 .43 .38 .34 .40 .35 .32 .36.33 .30 .28

4 .51 .42 .35 .29 .49 .40.34.29 .37 .31 .27 .34 .29 .25 .31.27 .24 .22

5 .46 .36 .29 .24 .44 .35.28.23 .32 .26 .22 .29 .24 .21 .27.23 .19 .17

6 .42 .32 .25 .20 .40 .30.24.19 .28 .22 .18 .26 .21 .17 .24.19 .16 .14

7 .38 .28 .21 .16 .36 .27.20.16 .24 .19 .15 .22 .17 .14 .21 .16 .13 .11

8 .35 .24 .18 .13 .33 .23 .17 .13 .22 .16 .12 .20 .15 .11 .18 .14 .11 .09

9 .32 .22 .16 .11 .31 .21.15 .11 .20 .14 .11 .18 .13 .10 .17 .12 .09 .08

10 .30 .20 .14 .09 .28 .19 .13 .09 .17 .12 .09 .16 .11 .08 .15 .11 .08 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.0

0.0 1574.

5.0 1427.

10.0 1229.

15.0 1147.

20.0 1116.

25.0 1109.

30.0 1125.

35.0 1151.

40.0 1243.

45.0 1455.

50.0 2116.

55.0 2565.

60.0 2223.

65.0 1469.

70.0 1089.

75.0 930.

80.0 809.

85.0 672.

90.0 560.

95.0 475.

100.0 396.

105.0 313.

110.0 257.

115.0 226.

120.0 203.

125.0 200.

130.0 194.

135.0 179.

140.0 159.

145.0 127.

150.0 88.

155.0 46.

160.0 7.

165.0 2.

170.0 0.

175.0 0.

180.0 0.

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Type V 12"

Spin-Top Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 78.8%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .91 .91 .91 .91 .87 .87.87 .87 .81 .81 .81 .74 .74 .74 .69 .69 .69 .66

1 .81 .76 .72 .69 .77 .73.70 .66 .68 .65 .62 .62.60 .58 .57 .55 .54 .51

2 .73 .66 .59 .54 .70 .63.57 .53 .58 .53 .50 .53.50 .47 .49 .46 .44 .41

3 .66 .57 .50 .44 .63 .54.48 .43 .50 .45 .40 .46.42 .38 .43 .39 .36 .34

4 .59 .49 .41 .36 .56 .47.40 .35 .43 .38 .33 .40.35 .31 .37 .33 .29 .27

5 .54 .43 .35 .29 .51 .41.34 .29 .38 .32 .27 .35.30 .26 .32 .28 .24 .22

6 .49 .38 .30 .25 .47 .36.29 .24 .34 .27 .23 .31.26 .22 .29 .24 .20 .18

7 .45 .33 .26 .21 .43 .32.25 .20 .30 .24 .19 .27.22 .18 .25 .21 .17 .15

8 .41 .30 .22 .18 .39 .29.22 .17 .26 .20 .16 .24.19 .15 .23 .18 .15 .13

9 .38 .27 .20 .15 .36 .26.19 .15 .24 .18 .14 .22.17 .13 .20 .16 .13 .11

10 .35 .24 .17 .13 .33 .23.16 .12 .21 .15 .12 .20.14 .11 .18 .14 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - .9

ANGLE CP ANGLE CP

0.0 2261.

5.0 2146.

10.0 1868.

15.0 1657.

20.0 1555.

25.0 1502.

30.0 1534.

35.0 1664.

40.0 1857.

45.0 1970.

50.0 2168.

55.0 2205.

60.0 2104.

65.0 1809.

70.0 1176.

75.0 845.

80.0 696.

85.0 604.

90.0 517.

95.0 451.

100.0 380.

105.0 314.

110.0 305.

115.0 368.

120.0 391.

125.0 321.

130.0 260.

135.0 222.

140.0 191.

145.0 155.

150.0 115.

155.0 80.

160.0 41.

165.0 12.

170.0 0.

175.0 0.

180.0 0.

Angle Vertical

CP 75° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L120

Test No. HPK09477

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

With Type V 12" Spin-

Top Poly Refractor

50-250 Watt

Mogul Base

CANDLEPOWER –

175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

Efficiency 71.9%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .83 .83 .83 .83 .80 .80.80 .80 .74 .74 .74 .69.69 .69 .64 .64 .64 .62

1 .74 .70 .67 .64 .71 .68.65 .62 .63 .60 .58 .58.56 .54 .54 .53 .51 .49

2 .67 .61 .55 .51 .64 .58.54 .49 .54 .50 .47 .50.47 .44 .47 .44 .42 .40

3 .61 .52 .46 .41 .58 .51.45 .40 .47 .42 .38 .44.40 .36 .41 .37 .35 .33

4 .54 .45 .38 .33 .52 .44.37 .32 .41 .35 .31 .38.33 .30 .35 .31 .28 .26

5 .49 .39 .32 .27 .47 .38.31 .26 .35 .30 .25 .33.28 .24 .30 .26 .23 .21

6 .45 .34 .27 .22 .42 .33.26 .22 .31 .25 .21 .28.24 .20 .26 .22 .19 .17

7 .40 .30 .23 .18 .38 .29.22 .18 .27 .21 .17 .25.20 .16 .23 .19 .15 .13

8 .37 .26 .19 .15 .35 .25.19 .14 .23 .18 .14 .22.17 .13 .20 .16 .12 .11

9 .34 .23 .17 .13 .32 .23.16 .12 .21 .16 .12 .19 .15 .11 .18 .14 .11 .09

10 .31 .21 .14 .10 .29 .20.14 .10 .18 .13 .09 .17.12 .09 .16 .12 .09 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.6

Test No. HPK10118

METAL HALIDE, METAL HALIDE

PULSE-VM1, VM3

with Globe and Full

Cutoff Deep White

Reflector*

50-250 Watt

Mogul Base

CANDLEPOWER –

175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH watt multiply by 0.64

For 250 MH watt multiply by 1.46

For 150 MHP watt multiply by 1.00

For 175 MHP watt multiply by 1.25

For 200 MHP watt multiply by 1.50

Efficiency 65.5%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .76 .76 .76 .76 .74 .74 .74 .74 .71 .71 .71 .68.68 .68 .65 .65 .65 .64

1 .70 .67 .65 .63 .68 .66.64 .62 .63 .61 .60 .61.59 .58 .58 .57 .56 .55

2 .65 .60 .56 .53 .63 .59.55 .52 .57 .54 .51 .55.52 .50 .53 .51 .49 .48

3 .60 .54 .49 .46 .58 .53.49 .45 .51 .48 .45 .49.46 .44 .48 .45 .43 .42

4 .55 .48 .43 .39 .54 .47.43 .39 .46 .42 .38 .44.41 .38 .43 .40 .37 .36

5 .51 .43 .38 .34 .49 .43.38 .34 .41 .37 .34 .40.36 .33 .39 .36 .33 .32

6 .47 .39 .34 .30 .46 .38.33 .30 .37 .33 .29 .36.32 .29 .35 .32 .29 .28

7 .43 .35 .30 .26 .42 .35.30 .26 .34 .29 .26 .33.29 .26 .32 .28 .25 .24

8 .40 .32 .26 .23 .39 .31.26 .23 .30 .26 .22 .29.25 .22 .29 .25 .22 .21

9 .37 .28 .23 .20 .36 .28.23 .20 .27 .23 .20 .27.23 .20 .26 .22 .19 .18

10 .33 .25 .20 .16 .32 .24.19 .16 .24 .19 .16 .23.19 .16 .23 .19 .16 .15

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.5

*Values using Dark Sky gasket kit

0.0 2879.

5.0 2911.

10.0 2938.

15.0 2913.

20.0 2914.

25.0 2678.

30.0 2648.

35.0 2810.

40.0 2926.

45.0 2682.

50.0 2492.

55.0 1443.

60.0 1107.

65.0 849.

70.0 637.

75.0 442.

80.0 265.

85.0 110.

90.0 0.

95.0 0.

100.0 0.

105.0 0.

110.0 0.

115.0 0.

120.0 0.

125.0 0.

130.0 0.

135.0 0.

140.0 0.

145.0 0.

150.0 0.

155.0 0.

160.0 0.

165.0 0.

170.0 0.

175.0 0.

180.0 0.

Test No. HPK09955

HIGH PRESSURE SODIUM-VM2,

VM4

With Globe

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 84.6%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .94 .94 .94 .94 .88 .88.88 .88 .78 .78 .78 .68.68 .68 .59 .59 .59 .55

1 .80 .74 .68 .63 .74 .69.64 .59 .59 .55 .52 .51.47 .45 .43 .40 .38 .34

2 .71 .61 .54 .47 .65 .57.50 .44 .49 .43 .38 .41.37 .33 .34 .31 .28 .24

3 .63 .52 .44 .37 .58 .48.41 .35 .41 .35 .30 .35.30 .26 .29 .25 .21 .18

4 .57 .45 .36 .29 .52 .42.34 .27 .36 .29 .24 .30.25 .20 .25 .20 .17 .14

5 .52 .39 .30 .24 .47 .36.28 .22 .31 .24 .19 .26.21 .16 .21 .17 .13 .11

6 .47 .34 .26 .20 .43 .32.24 .19 .27 .21 .16 .23.18 .13 .19 .14 .11 .08

7 .43 .30 .22 .17 .40 .28.21 .15 .24 .18 .13 .20.15 .11 .17 .12 .09 .07

8 .40 .27 .19 .14 .36 .25.18 .13 .22 .15 .11 .18.13 .09 .15 .11 .07 .05

9 .37 .24 .17 .12 .34 .23.16 .11 .19 .14 .09 .16.11 .08 .13 .09 .06 .04

10 .34 .22 .15 .10 .31 .20.14 .09 .17 .12 .08 .14.10 .06 .12 .08 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.9

1346.

1290.

1380.

1389.

1365.

1319.

1264.

1342.

1436.

1961.

3177.

3107.

2035.

1273.

892.

643.

501.

430.

394.

398.

361.

306.

268.

247.

217.

182.

151.

124.

101.

77.

51.

29.

614.

331.

265.

267.

325.

486.

501.

523.

599.

852.

903.

872.

849.

907.

970.

1006.

1026.

1036.

1035.

1007.

1004.

1035.

963.

649.

177.

37.

22.

15.

10.

ANGLE CP ANGLE CP ANGLE CP ANGLE CP ANGLE CP ANGLE CP

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0 .

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L121

Test No. HPK09956

HIGH PRESSURE SODIUM-VM2,

VM4

With Globe and

Dome Reflector

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 66.5%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .79 .79 .79 .79 .77 .77.77 .77 .73 .73 .73 .69.69 .69 .66 .66 .66 .64

1 .71 .68 .64 .61 .69 .66.63 .60 .62 .60 .58 .59.57 .56 .57 .55 .54 .52

2 .64 .58 .53 .49 .62 .57.52 .48 .54 .50 .47 .51.48 .45 .49 .46 .44 .42

3 .58 .50 .44 .39 .56 .49.43 .39 .46 .42 .38 .44.40 .37 .42 .39 .36 .34

4 .52 .43 .37 .32 .50 .42.36 .31 .40 .35 .31 .38.34 .30 .36 .33 .29 .28

5 .47 .38 .31 .26 .45 .37.31 .26 .35 .30 .25 .33.29 .25 .32 .28 .24 .23

6 .43 .33 .27 .22 .41 .32.26 .22 .31 .26 .21 .30.25 .21 .28 .24 .21 .19

7 .39 .29 .23 .19 .38 .29.23 .18 .27 .22 .18 .26.21 .18 .25 .21 .17 .16

8 .36 .26 .20 .16 .35 .26.20 .16 .24 .19 .15 .23.19 .15 .22 .18 .15 .13

9 .33 .23 .18 .13 .32 .23.17 .13 .22 .17 .13 .21.16 .13 .20 .16 .13 .11

10 .30 .20 .15 .11 .29 .20.14 .11 .19 .14 .11 .18 .14 .10 .18 .13 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.3

1399.

1123.

1052.

1049.

1100.

1227.

1205.

1197.

1235.

1452.

1441.

1358.

1268.

1248.

1217.

643.

232.

110.

32.

33.

32.

52.

138.

119.

21.

10.

Test No. HPK09957

HIGH PRESSURE SODIUM-VM2,

VM4

With Globe and

Angle Reflector

35-150 Watt

Mogul Base

CANDLEPOWER

– 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 65.7%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .78 .78 .78 .78 .76 .76 .76 .76 .71 .71 .71 .67.67 .67 .63 .63 .63 .62

1 .69 .64 .61 .57 .66 .62.59 .56 .59 .56 .53 .55.53 .51 .52 .50 .48 .47

2 .62 .55 .50 .45 .59 .53.48 .44 .50 .46 .42 .47.44 .41 .45 .42 .39 .37

3 .56 .48 .42 .37 .54 .46.41 .36 .44 .39 .35 .41.37 .34 .39 .35 .32 .31

4 .50 .42 .35 .30 .49 .40.34 .30 .38 .33 .29 .36.31 .28 .34 .30 .27 .25

5 .46 .37 .30 .25 .44 .35.29 .25 .34 .28 .24 .32.27 .23 .30 .26 .23 .21

6 .42 .32 .26 .21 .41 .32.25 .21 .30 .25 .20 .28.24 .20 .27 .23 .19 .18

7 .39 .29 .23 .18 .37 .28.22 .18 .27 .21 .17 .25.20 .17 .24 .20 .16 .15

8 .35 .26 .20 .15 .34 .25.19 .15 .24 .19 .15 .23.18 .14 .21 .17 .14 .13

9 .33 .23 .17 .13 .32 .23.17 .13 .21 .16 .13 .20.16 .12 .19 .15 .12 .11

10 .30 .20 .14 .11 .29 .20.14 .10 .19 .14 .10 .18 .13 .10 .17 .13 .10 .08

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.3

Front Side

ANGLE CP ANGLE CP

0.0 1312. 0.0 1312.

5.0 1131. 5.0 1060.

15.0 1124. 15.0 956.

25.0 1366. 25.0 1143.

35.0 1464. 35.0 1155.

45.0 1671. 45.0 1440.

55.0 1892. 55.0 1320.

65.0 2017. 65.0 1143.

75.0 1700. 75.0 339.

85.0 1372. 85.0 81.

90.0 1243. 90.0 30.

95.0 895. 95.0 20.

105.0 161. 105.0 12.

115.0 52. 115.0 10.

125.0 16. 125.0 10.

135.0 7. 135.0 8.

145.0 5. 145.0 6.

155.0 4. 155.0 5.

165.0 4. 165.0 4.

175.0 3. 175.0 3.

180.0 3. 165.0 3.

ANGLE CP ANGLE CP

Test No. HPK09960

HIGH PRESSURE SODIUM-VM2,

VM4

With Type I All

Glass Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 82.1%

2000

5000

8000

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .95 .95 .95 .95 .91 .91 .91 .91 .85 .85 .85 .79 .79 .79 .73 .73 .73 .71

1 .81 .74 .69 .63 .77 .71 .66 .61 .65 .61 .57 .60 .56 .53 .55 .52 .50 .47

2 .70 .60 .51 .44 .66 .57 .49 .43 .52 .45 .40 .47 .42 .37 .43 .38 .35 .32

3 .61 .49 .40 .32 .58 .47 .38 .31 .42 .35 .29 .38 .32 .27 .34 .29 .25 .22

4 .54 .41 .32 .24 .51 .39 .30 .23 .35 .28 .22 .32 .25 .20 .29 .23 .18 .16

5 .49 .35 .26 .19 .46 .34 .25 .18 .30 .23 .17 .27 .21 .15 .24 .19 .14 .12

6 .44 .31 .22 .15 .42 .29 .21 .15 .26 .19 .13 .24 .17 .12 .21 .16 .11 .09

7 .41 .27 .19 .12 .38 .26 .18 .12 .23 .16 .11 .21 .15 .10 .19 .13 .09 .07

8 .38 .24 .16 .10 .35 .23 .15 .10 .21 .14 .09 .19 .13 .08 .17 .12 .08 .06

9 .35 .22 .14 .09 .33 .21 .14 .09 .19 .13 .08 .17 .11 .07 .16 .10 .07 .05

10 .33 .20 .13 .08 .31 .19 .12 .07 .18 .11 .07 .16 .10 .06 .14 .09 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.64 90-270°

ANGLE CP ANGLE CP

0806. 85.0 2161.

5.0 561. 90.0 1446.

15.0 517. 95.0 1037.

25.0 669. 105.0 592.

35.0 921. 115.0 399.

45.0 777. 125.0 192.

55.0 2076. 135.0 105.

60.0 4845. 145.0 89.

65.0 6434. 155.0 34.

70.0 6638. 165.0 1.

75.0 4655. 175.0 0.

80.0 2893. 180.0 0.

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

Angle Vertical

CP 90° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L122

Test No. HPK09962

HIGH PRESSURE SODIUM-VM2, VM4

With Type III All Glass Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 79.2%

1555

4665

6220

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

3110

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .91 .91 .91 .91 .88 .88.88 .88 .81 .81 .81 .75.75 .75 .70 .70 .70 .67

1 .78 .71 .66 .61 .74 .68.63 .59 .63 .58 .55 .57.54 .51 .52 .50 .47 .44

2 .67 .57 .49 .43 .63 .55.47 .41 .50 .43 .38 .45.40 .35 .41 .37 .33 .30

3 .59 .47 .38 .31 .55 .45.36 .30 .40 .33 .28 .36.31 .26 .33 .28 .24 .21

4 .52 .40 .30 .23 .49 .38.29 .22 .34 .27 .21 .30.24 .19 .27 .22 .17 .15

5 .47 .34 .25 .18 .44 .32.24 .18 .29 .22 .16 .26.20 .15 .23 .18 .13 .11

6 .43 .30 .21 .15 .40 .28.20 .14 .25 .18 .13 .23.17 .12 .20 .15 .11 .08

7 .39 .26 .18 .12 .37 .25.17 .12 .23 .16 .11 .20.14 .10 .18 .13 .09 .07

8 .36 .24 .16 .10 .34 .22.15 .10 .20 .14 .09 .18 .12 .08 .16 .11 .07 .05

9 .34 .21 .14 .09 .32 .20.13 .08 .19 .12 .08 .17.11 .07 .15 .10 .06 .05

10 .31 .20 .12 .08 .30 .19 .12 .07 .17 .11 .07 .15 .10 .06 .14 .09 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 0.16 0-180°

ANGLE CP ANGLE CP

01341. 85.0 1905.

5.0 515. 90.0 1369.

15.0 670. 95.0 1002.

25.0 721. 105.0 610.

35.0 885. 115.0 507.

45.0 764. 125.0 235.

55.0 2033. 135.0 151.

60.0 4230. 145.0 123.

65.0 5791. 155.0 36.

70.0 6081. 165.0 1.

75.0 3906. 175.0 0.

80.0 2425. 180.0 0.

Test No. HPK09959

HIGH PRESSURE SODIUM-VM2, VM4

With Type V All Glass Refractor

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 77.1%

ANGLE CP ANGLE CP

0556. 95.0 338.

5.0 433. 100.0 262.

10.0 393. 105.0 196.

15.0 419. 110.0 184.

20.0 510. 115.0 174.

25.0 640. 120.0 152.

30.0 566. 125.0 134.

35.0 468. 130.0 113.

40.0 449. 135.0 101.

45.0 484. 140.0 86.

50.0 737. 145.0 75.

55.0 1105. 150.0 50.

60.0 2025. 155.0 18.

65.0 2255. 160.0 4.

70.0 1822. 165.0 1.

75.0 1107. 170.0 0.

80.0 767. 175.0 0.

85.0 612. 180.0 0.

90.0 458.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .88 .88 .88 .88 .84 .84.84 .84 .78 .78 .78 .73.73 .73 .68 .68 .68 .65

1 .75 .70 .65 .60 .72 .67.62 .58 .61 .58 .54 .56.53 .51 .52 .49 .47 .45

2 .66 .57 .49 .43 .62 .54.48 .42 .50 .44 .39 .45.41 .37 .41 .38 .34 .32

3 .58 .47 .38 .32 .54 .45.37 .31 .41 .34 .29 .37.31 .27 .34 .29 .25 .23

4 .51 .39 .30 .23 .48 .37.29 .23 .34 .27 .21 .30.24 .20 .27 .22 .18 .16

5 .45 .33 .24 .18 .43 .31.23 .17 .28 .21 .16 .25.19 .15 .23 .18 .13 .11

6 .41 .29 .20 .14 .39 .27.20 .14 .25 .18 .13 .22.16 .12 .20 .15 .11 .09

7 .38 .26 .18 .12 .36 .24.17 .12 .22 .16 .11 .20.14 .10 .18 .13 .09 .07

8 .35 .23 .15 .10 .33 .22.15 .10 .20 .14 .09 .18.12 .08 .16 .11 .08 .06

9 .33 .21 .14 .09 .31 .20.13 .09 .18 .12 .08 .17.11 .07 .15 .10 .07 .05

10 .30 .19 .12 .08 .29 .18 .12 .07 .17 .11 .07 .15 .10 .06 .14 .09 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.4

Test No. HPK09958

HIGH PRESSURE SODIUM-VM2, VM4

With Enclosed Reflector

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 66.1%

ANGLE CP ANGLE CP

04742. 95.0 0.

5.0 4454. 100.0 0.

10.0 5878. 105.0 0.

15.0 8942. 110.0 0.

20.0 8200. 115.0 0.

25.0 4433. 120.0 0.

30.0 1992. 125.0 0.

35.0 1141. 130.0 0.

40.0 881. 135.0 0.

45.0 769. 140.0 0.

50.0 156. 145.0 0.

55.0 49. 150.0 0.

60.0 27. 155.0 0.

65.0 16. 160.0 0.

70.0 10. 165.0 0.

75.0 6. 170.0 0.

80.0 4. 175.0 0.

85.0 2. 180.0 0.

90.0 0.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .80 .80 .80 .80 .78 .78.78 .78 .75 .75 .75 .72.72 .72 .69 .69 .69 .67

1 .77 .76 .75 .74 .76 .75.73 .72 .72 .71 .70 .69.69 .68 .67 .67 .66 .65

2 .75 .73 .71 .69 .74 .72.70 .68 .70 .68 .67 .68.67 .66 .66 .65 .64 .63

3 .73 .70 .68 .66 .72 .69.67 .65 .68 .66 .64 .66.65 .63 .65 .63 .62 .62

4 .71 .67 .65 .63 .70 .67.64 .62 .65 .63 .62 .64.62 .61 .63 .62 .60 .60

5 .69 .65 .62 .60 .68 .64.62 .60 .63 .61 .59 .62.60 .59 .61 .60 .59 .58

6 .67 .63 .60 .58 .66 .62.60 .58 .61 .59 .58 .61.59 .57 .60 .58 .57 .56

7 .65 .61 .58 .56 .64 .60.58 .56 .60 .57 .56 .59.57 .55 .58 .56 .55 .54

8 .63 .59 .56 .54 .62 .58.56 .54 .58 .55 .54 .57.55 .53 .56 .55 .53 .53

9 .61 .56 .54 .52 .60 .56.53 .52 .56 .53 .52 .55.53 .51 .55 .53 .51 .51

10 .57 .52 .49 .47 .57 .52.49 .47 .52 .49 .47 .51.49 .47 .51 .49 .47 .46

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.0

Angle Vertical

CP 75° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L123

Test No. HPK10125

HIGH PRESSURE SODIUM-VM2, VM4

With Globe & full Cutoff

Deep White Reflector*

35-150 Watt

Mogul Base

CANDLEPOWER – 100 WATT

9500 lumens

For 35 watt multiply by 0.236

For 50 watt multiply by 0.42

For 70 watt multiply by 0.68

For 150 watt multiply by 1.68

Efficiency 64.4%

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .76 .76 .76 .76 .74 .74 .74 .74 .71 .71 .71 .68.68 .68 .65 .65 .65 .64

1 .70 .67 .65 .62 .68 .66.63 .61 .63 .61 .59 .61.59 .58 .58 .57 .56 .55

2 .65 .60 .56 .53 .63 .59.55 .52 .57 .54 .51 .54.52 .50 .53 .51 .49 .47

3 .60 .54 .49 .45 .58 .53.48 .45 .51 .47 .44 .49.46 .43 .48 .45 .43 .41

4 .55 .48 .43 .39 .53 .47.42 .39 .45 .41 .38 .44.40 .38 .43 .40 .37 .36

5 .50 .43 .38 .34 .49 .42.37 .33 .41 .36 .33 .40.36 .33 .38 .35 .32 .31

6 .47 .39 .33 .29 .45 .38.33 .29 .37 .32 .29 .36.32 .29 .35 .31 .29 .27

7 .43 .35 .29 .26 .42 .34.29 .25 .33 .29 .25 .32.28 .25 .31 .28 .25 .24

8 .40 .31 .26 .22 .39 .31.26 .22 .30 .25 .22 .29.25 .22 .28 .25 .22 .21

9 .36 .28 .23 .19 .36 .28.23 .19 .27 .22 .19 .26.22 .19 .26 .22 .19 .18

10 .33 .24 .19 .16 .32 .24.19 .16 .23 .19 .16 .23.18 .16 .22 .18 .15 .14

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.3

*Values using Dark Sky gasket kit

Test No. HPK09919

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Globe

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.64

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 85.8%

ANGLE CP ANGLE CP

0741. 95.0 1439.

5.0 566. 100.0 1436.

10.0 466. 105.0 1501.

15.0 459. 110.0 1567.

20.0 521. 115.0 1273.

25.0 717. 120.0 435.

30.0 681. 125.0 87.

35.0 824. 130.0 39.

40.0 936. 135.0 27.

45.0 1289. 140.0 17.

50.0 1304. 145.0 13.

55.0 1231. 150.0 10.

60.0 1287. 155.0 7.

65.0 1359. 160.0 3.

70.0 1423. 165.0 2.

75.0 1457. 170.0 0.

80.0 1436. 175.0 0.

85.0 1423. 180.0 0.

90.0 1459.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .95 .95 .95 .95 .89 .89.89 .89 .78 .78 .78 .68.68 .68 .59 .59 .59 .54

1 .81 .75 .70 .65 .75 .70.65 .60 .60 .56 .53 .51.48 .45 .43 .41 .38 .34

2 .72 .63 .55 .49 .66 .58.51 .45 .50 .44 .39 .42.38 .34 .35 .31 .28 .24

3 .65 .53 .45 .38 .59 .50.42 .36 .42 .36 .31 .35.30 .26 .29 .25 .22 .18

4 .58 .46 .37 .30 .53 .43.35 .28 .36 .30 .25 .30.25 .21 .25 .21 .17 .14

5 .53 .40 .31 .25 .48 .37.29 .23 .32 .25 .20 .26.21 .17 .22 .17 .14 .11

6 .48 .35 .27 .21 .44 .33.25 .19 .28 .21 .17 .23.18 .14 .19 .15 .11 .09

7 .44 .31 .23 .17 .40 .29.22 .16 .25 .18 .14 .21.15 .12 .17 .13 .09 .07

8 .40 .28 .20 .15 .37 .26.19 .14 .22 .16 .12 .18.13 .10 .15 .11 .08 .05

9 .37 .25 .18 .12 .34 .23.16 .12 .20 .14 .10 .17 .12 .08 .14 .09 .06 .04

10 .34 .22 .15 .10 .32 .21.14 .10 .18 .12 .08 .15 .10 .07 .12 .08 .05 .03

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.3

Test No. HPK09920

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Globe &

Dome Reflector

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.64

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 67.1%

ANGLE CP ANGLE CP

01925. 95.0 49.

5.0 1750. 100.0 46.

10.0 1644. 105.0 64.

15.0 1626. 110.0 199.

20.0 1667. 115.0 225.

25.0 1816. 120.0 38.

30.0 1725. 125.0 17.

35.0 1811. 130.0 14.

40.0 1877. 135.0 13.

45.0 2180. 140.0 11.

50.0 2115. 145.0 11.

55.0 1952. 150.0 10.

60.0 1893. 155.0 9.

65.0 1839. 160.0 8.

70.0 1753. 165.0 7.

75.0 950. 170.0 7.

80.0 348. 175.0 6.

85.0 153. 180.0 7.

90.0 52.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .80 .80 .80 .80 .77 .77.77 .77 .73 .73 .73 .70.70 .70 .66 .66 .66 .65

1 .72 .68 .65 .62 .70 .66.63 .61 .63 .61 .58 .60.58 .56 .57 .55 .54 .52

2 .65 .59 .54 .49 .63 .57.52 .49 .54 .50 .47 .52.48 .46 .49 .46 .44 .42

3 .58 .51 .45 .40 .56 .49.44 .39 .47 .42 .38 .45.41 .37 .43 .39 .36 .35

4 .53 .44 .37 .32 .51 .43.37 .32 .41 .35 .31 .39.34 .30 .37 .33 .30 .28

5 .48 .38 .32 .27 .46 .37.31 .26 .35 .30 .26 .34.29 .25 .32 .28 .25 .23

6 .44 .34 .27 .23 .42 .33.27 .22 .31 .26 .22 .30.25 .21 .29 .24 .21 .19

7 .40 .30 .23 .19 .38 .29.23 .19 .28 .22 .18 .27.22 .18 .25 .21 .18 .16

8 .36 .24 .18 .14 .35 .26.20 .16 .25 .19 .16 .24.19 .15 .23 .18 .15 .14

9 .34 .24 .18 .14 .33 .23.18 .14 .22 .17 .13 .21.17 .13 .20 .16 .13 .12

10 .31 .21 .15 .11 .30 .20.15 .11 .19 .14 .11 .19 .14 .11 .18 .14 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.5

ANGLE CP ANGLE CP

02081.

5.0 863.

10.0 784.

15.0 1807.

20.0 1826.

25.0 1884.

30.0 1825.

35.0 1772.

40.0 1817.

45.0 1862.

50.0 1759.

55.0 1060.

60.0 736.

65.0 577

70.0 430.

75.0 298.

80.0 177.

85.0 75.

90.0 0.

95.0 0.

100.0 0.

105.0 0.

110.0 0.

115.0 0.

120.0 0.

125.0 0.

130.0 0.

135.0 0.

140.0 0.

145.0 0.

150.0 0.

155.0 0.

160.0 0.

165.0 0.

170.0 0.

175.0 0.

180.0 0.

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L124

Test No. HPK09921

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Globe &

Angle Reflector

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.64

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 65.0%

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .77 .77 .77 .77 .75 .75.75 .75 .70 .70 .70 .66.66 .66 .63 .63 .63 .61

1 .68 .64 .60 .57 .66 .62.59 .55 .58 .55 .53 .55.52 .50 .51 .50 .48 .46

2 .61 .55 .49 .45 .59 .53.48 .44 .50 .46 .42 .47.44 .41 .44 .41 .39 .37

3 .56 .48 .42 .37 .53 .46.41 .36 .43 .39 .35 .41.37 .34 .39 .35 .32 .31

4 .50 .42 .35 .30 .48 .40.34 .30 .38 .33 .29 .36.31 .28 .34 .30 .27 .25

5 .46 .37 .30 .25 .44 .36.29 .25 .34 .28 .24 .32.27 .23 .30 .26 .23 .21

6 .42 .33 .26 .22 .40 .32.26 .21 .30 .25 .21 .28.24 .20 .27 .23 .20 .18

7 .39 .29 .23 .18 .37 .28.22 .18 .27 .21 .18 .25.21 .17 .24 .20 .17 .15

8 .35 .26 .20 .16 .34 .25.19 .15 .24 .19 .15 .23.18 .15 .21 .17 .14 .13

9 .33 .23 .17 .13 .31 .23.17 .13 .21 .16 .13 .20.16 .13 .19 .15 .12 .11

10 .30 .20 .15 .11 .29 .20.14 .11 .19 .14 .10 .18.13 .10 .17 .13 .10 .09

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.6

Front Side

ANGLE CP ANGL CP

0.0 1795. 0.0 1795.

5.0 1573. 5.0 1595.

15.0 1676. 15.0 1484.

25.0 1997. 25.0 1649.

35.0 2244. 35.0 1694.

45.0 2722. 45.0 1980.

55.0 2726. 55.0 1764.

65.0 2660. 65.0 1451.

75.0 2656. 75.0 452.

85.0 2293. 85.0 109.

90.0 2050. 90.0 42.

95.0 1598. 95.0 28.

105.0 243. 100.0 16.

115.0 75. 115.0 14.

125.0 24. 125.0 13.

135.0 10. 135.0 11.

145.0 6. 145.0 8.

155.0 6. 155.0 6.

165.0 5. 165.0 5.

175.0 4. 175.0 4.

180.0 4. 180.0 4.

Test No. HPK09934

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Type I All

Glass Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.64

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 80.1%

ANGLE CP ANGLE CP

0931. 85.0 2901.

5.0 822. 90.0 1775.

15.0 765. 95.0 1272.

25.0 904. 105.0 746.

35.0 1163. 115.0 514.

45.0 1137. 125.0 267.

55.0 2712. 135.0 153

60.0 7019. 145.0 130.

65.0 9087. 155.0 48.

70.0 7767. 165.0 2.

75.0 5367. 175.0 0.

80.0 3839. 180.0 0.

2000

5000

8000

10,000

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .93 .93 .93 .93 .89 .89.89 .89 .83 .83 .83 .77.77 .77 .71 .71 .71 .68

1 .78 .72 .66 .61 .75 .69.64 .59 .63 .59 .55 .58.54 .51 .53 .50 .48 .45

2 .68 .58 .50 .43 .64 .55.48 .41 .50 .44 .38 .45.40 .36 .41 .37 .33 .30

3 .59 .47 .38 .31 .56 .45.37 .30 .41 .34 .28 .37.31 .26 .33 .28 .24 .21

4 .53 .40 .30 .23 .50 .38.29 .22 .34 .27 .21 .31.24 .19 .27 .22 .18 .15

5 .47 .34 .25 .18 .45 .33.24 .17 .29 .22 .16 .26.20 .15 .23 .18 .14 .11

6 .43 .30 .21 .15 .41 .28.20 .14 .26 .18 .13 .23.17 .12 .21 .15 .11 .08

7 .40 .26 .18 .12 .37 .25.17 .12 .23 .16 .11 .20.14 .10 .18 .13 .09 .07

8 .36 .24 .16 .10 .34 .23.15 .10 .20 .14 .09 .18.12 .08 .17 .11 .07 .05

9 .34 .21 .14 .09 .32 .20.13 .08 .19 .12 .08 .17.11 .07 .15 .10 .06 .04

10 .32 .20 .12 .08 .30 .19 .12 .07 .17 .11 .07 .15 .10 .06 .14 .09 .05 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.82 90-270°

Test No. HPK09930

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Type III All

Glass Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.64

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 79.6%

ANGLE CP ANGLE CP

01124. 85.0 3401.

5.0 892. 90.0 2106.

15.0 933. 95.0 1538.

25.0 999. 105.0 950.

35.0 1321. 115.0 775.

45.0 1435. 125.0 388.

55.0 4091. 135.0 234.

60.0 9397. 145.0 191.

65.0 10450. 155.0 52.

70.0 8609. 165.0 2.

75.0 5577. 175.0 0.

80.0 4262. 180.0 0.

2613

5225

8000

7838

10450

12,000

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .92 .92 .92 .92 .88 .88.88 .88 .82 .82 .82 .76 .76 .76 .70 .70 .70 .67

1 .78 .72 .66 .61 .74 .68.63 .59 .63 .58 .55 .57.54 .51 .52 .50 .47 .44

2 .67 .57 .49 .43 .64 .55.47 .41 .50 .44 .38 .45.40 .35 .41 .36 .33 .30

3 .59 .47 .38 .31 .56 .45.37 .30 .41 .33 .28 .36.31 .26 .33 .28 .24 .21

4 .52 .40 .30 .23 .49 .38.29 .23 .34 .27 .21 .30.24 .19 .27 .22 .17 .15

5 .47 .34 .25 .18 .44 .32.24 .18 .29 .22 .16 .26.20 .15 .23 .18 .13 .11

6 .43 .30 .21 .15 .40 .28.20 .14 .25 .18 .13 .23.17 .12 .20 .15 .11 .08

7 .39 .26 .18 .12 .37 .25.17 .12 .23 .16 .11 .20.14 .10 .18 .13 .09 .07

8 .36 .24 .16 .10 .34 .23.15 .10 .20 .14 .09 .18 .12 .08 .16 .11 .07 .05

9 .34 .21 .14 .09 .32 .20.13 .08 .19 .12 .08 .17.11 .07 .15 .10 .06 .04

10 .32 .20 .12 .08 .30 .19 .12 .07 .17 .11 .07 .15 .10 .06 .14 .09 .05 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - .74 0 -180°

Angle Vertical

CP 90° Horizontal

Angle Vertical

CP 75° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L125

Test No. HPK09929

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Type V All

Glass Refractor

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.68

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 81.2%

ANGLE CP ANGLE CP

0770. 95.0 565.

5.0 690. 100.0 429.

10.0 645. 105.0 325.

15.0 677. 110.0 291.

20.0 797. 115.0 272.

25.0 927. 120.0 234.

30.0 801. 125.0 203.

35.0 715. 130.0 171.

40.0 687. 135.0 150.

45.0 737. 140.0 129.

50.0 1105. 145.0 114.

55.0 1498. 150.0 75.

60.0 3262. 155.0 27.

65.0 3523. 160.0 6.

70.0 2597. 165.0 2.

75.0 1739. 170.0 0.

80.0 1325. 175.0 0.

85.0 1064. 180.0 0.

90.0 765.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .92 .92 .92 .92 .89 .89.89 .89 .82 .82 .82 .76 .76 .76 .71 .71 .71 .68

1 .79 .73 .67 .62 .75 .70.65 .60 .64 .60 .56 .59.55 .52 .54 .51 .49 .46

2 .69 .59 .51 .45 .65 .56.49 .43 .51 .46 .40 .47.42 .38 .43 .39 .35 .32

3 .60 .49 .40 .33 .57 .46.38 .32 .42 .35 .30 .38.32 .27 .34 .30 .25 .23

4 .53 .40 .31 .24 .50 .38.30 .23 .35 .27 .22 .31.25 .20 .28 .23 .18 .16

5 .47 .34 .25 .18 .45 .32.24 .18 .29 .22 .16 .26.20 .15 .24 .18 .14 .11

6 .43 .30 .21 .15 .41 .29.20 .14 .26 .19 .13 .23.17 .12 .21 .15 .11 .09

7 .40 .27 .18 .13 .37 .26.18 .12 .23 .16 .11 .21.15 .10 .19 .13 .09 .07

8 .37 .24 .16 .11 .35 .23.15 .10 .21 .14 .09 .19.13 .09 .17 .12 .08 .06

9 .34 .22 .14 .09 .32 .21.14 .09 .19 .13 .08 .17.12 .08 .16 .11 .07 .05

10 .32 .20 .13 .08 .30 .19 .12 .08 .17 .11 .07 .16 .10 .06 .14 .09 .06 .04

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.4

Test No. HPK09922

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Enclosed Reflector

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.68

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 66.0%

ANGLE CP ANGLE CP

07782. 95.0 0.

5.0 7098. 100.0 0.

10.0 8370. 105.0 0.

15.0 12328. 110.0 0.

20.0 11704. 115.0 0.

25.0 6692. 120.0 0.

30.0 3144. 125.0 0.

35.0 1799. 130.0 0.

40.0 1352. 135.0 0.

45.0 1136. 140.0 0.

50.0 253. 145.0 0.

55.0 86. 150.0 0.

60.0 47. 155.0 0.

65.0 29. 160.0 0.

70.0 19. 165.0 0.

75.0 12. 170.0 0.

80.0 7. 175.0 0.

85.0 4. 180.0 0.

90.0 0.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .80 .80 .80 .80 .78 .78.78 .78 .75 .75 .75 .71.71 .71 .69 .69 .69 .67

1 .77 .76 .75 .73 .76 .74 .73 .72 .72 .71 .70 .69.69 .68 .67 .66 .66 .65

2 .75 .73 .71 .69 .74 .71.70 .68 .69 .68 .67 .67.66 .65 .66 .65 .64 .63

3 .73 .70 .67 .65 .71 .69.67 .65 .67 .65 .64 .66.64 .63 .64 .63 .62 .61

4 .70 .67 .64 .62 .69 .66.64 .62 .65 .63 .61 .64.62 .61 .62 .61 .60 .59

5 .68 .64 .62 .60 .67 .64.61 .59 .63 .61 .59 .62.60 .58 .61 .59 .58 .57

6 .66 .62 .59 .57 .66 .62.59 .57 .61 .59 .57 .60.58 .57 .59 .58 .56 .56

7 .64 .60 .57 .55 .64 .60.57 .55 .59 .57 .55 .58.56 .55 .58 .56 .54 .54

8 .62 .58 .55 .53 .62 .58.55 .53 .57 .55 .53 .56.54 .53 .56 .54 .52 .52

9 .60 .56 .53 .51 .60 .55.53 .51 .55 .52 .51 .54.52 .51 .54 .52 .50 .50

10 .56 .51 .48 .46 .56 .51.48 .46 .51 .48 .46 .50.48 .46 .50 .48 .46 .45

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.0

Test No. HPK10129

METAL HALIDE, METAL HALIDE PULSE-

VM2, VM4

With Globe & Full Cutoff

50-250 Watt

Mogul Base

CANDLEPOWER – 175 WATT

14000 lumens

For 50 MH watt multiply by 0.29

For 70 MH watt multiply by 0.40

For 100 MH multiply by 0.68

For 250 MH multiply by 1.46

For 150 MHP multiply by 1.00

For 175 MHP multiply by 1.25

For 200 MHP multiply by 1.50

Efficiency 69.1%

ANGLE CP ANGLE CP

03208. 95.0 0.

5.0 3031. 100.0 0.

10.0 2916. 105.0 0.

15.0 2924. 110.0 0.

20.0 2947. 115.0 0.

25.0 2989. 120.0 0.

30.0 2841. 125.0 0.

35.0 2855. 130.0 0.

40.0 2923. 135.0 0.

45.0 3017. 140.0 0.

50.0 2745. 145.0 0.

55.0 1591. 150.0 0.

60.0 1147. 155.0 0.

65.0 889. 160.0 0.

70.0 665. 165.0 0.

75.0 464. 170.0 0.

80.0 278. 175.0 0.

85.0 116. 180.0 0.

90.0 0.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .81 .81 .81 .81 .79 .79.79 .79 .76 .76 .76 .73.73 .73 .70 .70 .70 .68

1 .75 .72 .70 .67 .73 .71.68 .66 .68 .66 .64 .65.64 .62 .63 .61 .60 .59

2 .69 .64 .60 .57 .68 .63.59 .56 .61 .58 .55 .59.56 .54 .57 .55 .53 .51

3 .64 .58 .53 .49 .63 .57.52 .49 .55 .51 .48 .53.50 .47 .51 .49 .46 .45

4 .59 .52 .46 .42 .57 .51.46 .42 .49 .45 .41 .48.44 .41 .46 .43 .40 .39

5 .54 .46 .41 .36 .53 .46.40 .36 .44 .39 .36 .43.39 .36 .42 .38 .35 .34

6 .50 .42 .36 .32 .49 .41.36 .32 .40 .35 .32 .39.35 .31 .38 .34 .31 .30

7 .46 .37 .32 .28 .45 .37.32 .28 .36 .31 .27 .35.31 .27 .34 .30 .27 .26

8 .43 .34 .28 .24 .42 .33.28 .24 .32 .27 .24 .31.27 .24 .31 .27 .24 .22

9 .39 .30 .25 .21 .38 .30.25 .21 .29 .24 .21 .28.24 .21 .28 .24 .21 .19

10 .35 .26 .21 .17 .35 .26 .21 .17 .25 .20 .17 .25.20 .17 .24 .20 .17 .16

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.4

*Values using Dark Sky gasket kit

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L126

Test No. HPK09924

HIGH PRESSURE SODIUM-VM5

With Globe

200-400 Watt

Mogul Base

CANDLEPOWER – 400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 89.6%

ANGLE CP ANGLE CP

0563. 95.0 5076.

5.0 518. 100.0 4976.

10.0 801. 105.0 4846.

15.0 1271. 110.0 4658.

20.0 1697. 115.0 4383.

25.0 1751. 120.0 4013.

30.0 2066. 125.0 3556.

35.0 2723. 130.0 3050.

40.0 3176. 135.0 2237.

45.0 3744. 140.0 1388.

50.0 4122. 145.0 653.

55.0 4341. 150.0 113.

60.0 4639. 155.0 32.

65.0 4708. 160.0 19.

70.0 4877. 165.0 9.

75.0 5015. 170.0 0.

80.0 5086. 175.0 0.

85.0 5124. 180.0 0.

90.0 5136.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .97 .97 .97 .97 .90 .90.90 .90 .77 .77 .77 .66.66 .66 .55 .55 .55 .50

1 .83 .77 .71 .66 .76 .71.66 .61 .59 .56 .52 .49.46 .43 .40 .37 .35 .30

2 .73 .64 .56 .50 .67 .59.52 .46 .49 .44 .39 .40.36 .32 .32 .28 .26 .21

3 .66 .55 .46 .39 .60 .50.42 .36 .42 .35 .30 .34.29 .25 .26 .23 .19 .16

4 .59 .47 .38 .31 .54 .43.35 .29 .36 .29 .24 .29.24 .19 .22 .18 .15 .12

5 .54 .41 .32 .25 .49 .37.29 .23 .31 .24 .19 .25.20 .16 .19 .15 .12 .09

6 .49 .36 .27 .21 .45 .33.25 .19 .27 .21 .16 .22.17 .13 .17 .13 .10 .07

7 .45 .32 .23 .18 .41 .29.22 .16 .24 .18 .13 .19.14 .10 .15 .11 .08 .05

8 .41 .28 .20 .15 .37 .26.19 .13 .21 .15 .11 .17 .12 .09 .13 .09 .06 .04

9 .38 .25 .18 .13 .35 .23.16 .12 .19 .13 .09 .16.11 .07 .12 .08 .05 .03

10 .35 .23 .15 .11 .32 .21.14 .10 .17 .12 .08 .14 .09 .06 .11 .07 .04 .02

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 4.3

Test No. HPK09928

HIGH PRESSURE SODIUM-VM5

With Globe & Angle Reflector

200-400 Watt

Mogul Base

CANDLEPOWER – 400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .83 .83 .83 .83 .80 .80.80 .80 .74 .74 .74 .69.69 .69 .64 .64 .64 .61

1 .72 .67 .63 .59 .69 .64.60 .57 .59 .56 .53 .55.52 .50 .50 .48 .46 .44

2 .64 .57 .50 .45 .61 .54.49 .44 .50 .45 .41 .46.42 .39 .42 .39 .36 .34

3 .58 .49 .42 .36 .55 .47.40 .35 .43 .38 .33 .40.35 .31 .36 .33 .29 .27

4 .52 .42 .35 .29 .49 .40.34 .28 .37 .31 .27 .34.29 .25 .31 .27 .24 .22

5 .47 .37 .29 .24 .45 .35.28 .23 .32 .27 .22 .30.25 .21 .27 .23 .20 .18

6 .43 .32 .25 .20 .41 .31.24 .20 .29 .23 .19 .26.21 .18 .24 .20 .17 .15

7 .39 .29 .22 .17 .37 .27.21 .16 .25 .20 .15 .23.18 .15 .22 .17 .14 .12

8 .36 .25 .19 .14 .34 .24.18 .14 .23 .17 .13 .21.16 .12 .19 .15 .12 .10

9 .33 .23 .16 .12 .32 .22.16 .12 .20 .15 .11 .19 .14 .11 .17 .13 .10 .08

10 .30 .20 .14 .10 .29 .19 .13 .09 .18 .13 .09 .17 .12 .08 .15 .11 .08 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.2

Front Side

ANGLE CP ANGL CP

0.0 3671.0.0 3671.

5.0 3848.5.0 3650.

15.0 4977.15.0 4318.

25.0 5665.25.0 4556.

35.0 6622.35.0 5230.

45.0 7632.45.0 5923.

55.0 8016.55.0 6362.

65.0 8138.65.0 6188.

75.0 7962.75.0 5540.

85.0 7360.85.0 2953.

90.0 6987.90.0 1639.

95.0 6468.95.0 566.

105.0 4805.100.0 97.

115.0 2021.115.0 80.

125.0 166.125.0 62.

135.0 60.135.0 48.

140.0 42.140.0 41.

145.0 30.145.0 45.

155.0 20.155.0 28.

165.0 15.165.0 18.

175.0 12.175.0 12.

180.0 0.180.0 0.

Test No. HPK09927

HIGH PRESSURE SODIUM-VM5

With Globe & Reflector

200-400 Watt

Mogul Base

CANDLEPOWER – 400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 75.3%

ANGLE CP ANGLE CP

03828. 95.0 1835.

5.0 3788. 100.0 692.

10.0 4046. 105.0 137.

15.0 4430. 110.0 135.

20.0 4752. 115.0 120.

25.0 4674. 120.0 246.

30.0 4837. 125.0 314.

35.0 5337. 130.0 302.

40.0 5676. 135.0 271.

45.0 6115. 140.0 93.

50.0 6352. 145.0 38.

55.0 6439. 150.0 37.

60.0 6562. 155.0 31.

65.0 6474. 160.0 25.

70.0 6419. 165.0 23.

75.0 6211. 170.0 20.

80.0 5784. 175.0 17.

85.0 4480. 180.0 0.

90.0 3031.

% EFFECTIVE

CEILINGCAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .88 .88 .88 .88 .85 .85.85 .85 .80 .80 .80 .76 .76 .76 .72 .72 .72 .70

1 .76 .70 .65 .60 .73 .68.63 .59 .63 .59 .56 .59.56 .53 .55 .53 .50 .48

2 .67 .58 .51 .45 .64 .56.50 .44 .52 .47 .42 .49.44 .40 .46 .42 .38 .36

3 .60 .49 .42 .35 .57 .48.40 .34 .44 .38 .33 .41.36 .32 .39 .34 .30 .28

4 .54 .42 .34 .28 .51 .41.33 .27 .38 .32 .26 .36.30 .25 .33 .28 .24 .22

5 .49 .37 .29 .23 .46 .36.28 .22 .33 .27 .21 .31.25 .21 .29 .24 .20 .18

6 .44 .33 .25 .19 .42 .31.24 .19 .29 .23 .18 .28.22 .17 .26 .21 .17 .15

7 .41 .29 .21 .16 .39 .28.21 .16 .26 .20 .15 .24.19 .14 .23 .18 .14 .12

8 .37 .26 .18 .13 .36 .25.18 .13 .23 .17 .13 .22.16 .12 .20 .15 .12 .10

9 .35 .23 .16 .11 .33 .22.16 .11 .21 .15 .11 .20.14 .10 .19 .14 .10 .08

10 .32 .20 .14 .09 .30 .20.13 .09 .19 .13 .09 .17.12 .08 .16 .12 .08 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.2

Efficiency 71.6%

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L127

Test No. HPK09932

HIGH PRESSURE SODIUM-VM5

With Type II 12" Spintop Refractor

200-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 78.7%

ANGLE CP ANGLE CP

05783. 85.0 8444.

5.0 5146. 90.0 5658.

15.0 4341. 95.0 4295.

25.0 4133. 105.0 2609.

35.0 4569. 115.0 1903.

45.0 7301. 125.0 2030.

55.0 10633. 135.0 1964.

60.0 11449. 145.0 1415.

65.0 11950. 155.0 764.

70.0 11914. 165.0 200.

75.0 11449. 175.0 0.

80.0 10538. 180.0 0.

2000

5000

10000

14000

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .89 .89 .89 .89 .85 .85.85 .85 .78 .78 .78 .71.71 .71 .64 .64 .64 .61

1 .77 .72 .67 .63 .73 .68.64 .60 .62 .58 .55 .55.53 .50 .50 .48 .45 .42

2 .68 .60 .53 .47 .64 .56.50 .45 .51 .45 .41 .45.41 .37 .40 .37 .34 .31

3 .61 .50 .42 .36 .57 .48.40 .34 .43 .37 .32 .38.33 .29 .34 .30 .26 .23

4 .54 .43 .35 .28 .51 .41.33 .27 .36 .30 .25 .32.27 .23 .29 .24 .21 .18

5 .49 .37 .29 .23 .46 .35.28 .22 .32 .25 .20 .28.23 .18 .25 .20 .17 .14

6 .45 .33 .25 .19 .42 .31.24 .18 .28 .21 .17 .25.19 .15 .22 .17 .14 .11

7 .41 .29 .21 .16 .39 .28.20 .15 .25 .19 .14 .22.17 .13 .20 .15 .11 .09

8 .38 .26 .19 .14 .36 .25.18 .13 .22 .16 .12 .20.15 .11 .18 .13 .10 .08

9 .35 .24 .17 .12 .33 .23.16 .11 .20 .14 .10 .18 .13 .09 .16 .12 .08 .07

10 .33 .22 .15 .10 .31 .21.14 .10 .19 .13 .09 .17.12 .08 .15 .10 .07 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.38 0-180°

Test No. HPK09931

HIGH PRESSURE SODIUM-VM5

With Type V 12" Spintop Reflector

200-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 83.6%

ANGLE CP ANGLE CP

06501. 95.0 2033.

5.0 6106. 100.0 1561.

10.0 5125. 105.0 1178.

15.0 4402. 110.0 1065.

20.0 4098. 115.0 1121.

25.0 3941. 120.0 1099.

30.0 4003. 125.0 955.

35.0 4315. 130.0 818.

40.0 4900. 135.0 688.

45.0 5411. 140.0 566.

50.0 5865. 145.0 433.

55.0 6247. 150.0 326.

60.0 6844. 155.0 237.

65.0 7429. 160.0 118.

70.0 7453. 165.0 32.

75.0 7142. 170.0 0.

80.0 6432. 175.0 0.

85.0 4703. 180.0 0.

90.0 2943.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .96 .96 .96 .96 .93 .93.93 .93 .86 .86 .86 .80.80 .80 .74 .74 .74 .71

1 .83 .77 .71 .67 .79 .74 .69 .64 .68 .64 .60 .62.59 .56 .57 .54 .52 .49

2 .73 .63 .55 .49 .69 .60.53 .47 .55 .49 .44 .50.45 .41 .46 .42 .38 .35

3 .64 .53 .44 .37 .61 .51.42 .36 .46 .39 .34 .42.36 .31 .38 .33 .29 .26

4 .58 .46 .37 .30 .55 .44.35 .29 .40 .33 .27 .36.30 .25 .33 .28 .24 .21

5 .53 .40 .31 .24 .50 .38.30 .23 .35 .27 .22 .32.25 .20 .29 .23 .19 .17

6 .48 .35 .26 .20 .45 .33.25 .19 .30 .23 .18 .28.22 .17 .25 .20 .16 .13

7 .44 .31 .22 .16 .41 .29.22 .16 .27 .20 .15 .25.18 .14 .22 .17 .13 .11

8 .41 .28 .20 .14 .38 .27.19 .14 .24 .18 .13 .22.16 .12 .20 .15 .11 .09

9 .38 .25 .17 .12 .36 .24.17 .12 .22 .16 .11 .20.14 .10 .18 .13 .10 .08

10 .35 .23 .15 .11 .33 .22.15 .10 .20 .14 .10 .18.13 .09 .17 .12 .08 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - .8

Test No. HPK09933

HIGH PRESSURE SODIUM-VM5

With Enclosed Reflector

200-600 Watt

Mogul Base

CANDLEPOWER –

400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

For 600 watt multiply by 1.76

Efficiency 71.1%

ANGLE CP ANGLE CP

06143. 95.0 0.

5.0 5212. 100.0 0.

10.0 5113. 105.0 0.

15.0 5867. 110.0 0.

20.0 8229. 115.0 0.

25.0 13084. 120.0 0.

30.0 16492. 125.0 0.

35.0 17256. 130.0 0.

40.0 16279. 135.0 0.

45.0 13771. 140.0 0.

50.0 10012. 145.0 0.

55.0 5931. 150.0 0.

60.0 2913. 155.0 0.

65.0 1160. 160.0 0.

70.0 263. 165.0 0.

75.0 128. 170.0 0.

80.0 60. 175.0 0.

85.0 27. 180.0 0.

90.0 0.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .85 .85 .85 .85 .83 .83.83 .83 .79 .79 .79 .76 .76 .76 .73 .73 .73 .71

1 .79 .77 .75 .72 .78 .75.73 .71 .72 .71 .69 .70.68 .67 .67 .66 .65 .64

2 .74 .70 .66 .63 .73 .68.65 .62 .66 .63 .61 .64.62 .59 .62 .60 .58 .57

3 .69 .63 .59 .55 .68 .62.58 .54 .60 .57 .54 .58.55 .53 .57 .54 .52 .51

4 .64 .56 .51 .47 .62 .56.51 .47 .54 .50 .46 .52.49 .46 .51 .48 .45 .44

5 .58 .51 .45 .41 .57 .50.45 .41 .48 .44 .40 .47.43 .40 .46 .42 .39 .38

6 .54 .45 .39 .35 .52 .44.39 .35 .43 .38 .35 .42.38 .34 .41 .37 .34 .33

7 .49 .40 .34 .30 .48 .39.34 .30 .38 .33 .29 .37.33 .29 .36 .32 .29 .28

8 .44 .35 .29 .25 .43 .34.29 .25 .34 .28 .25 .33.28 .25 .32 .28 .24 .23

9 .40 .31 .25 .21 .39 .30.25 .21 .29 .24 .21 .29.24 .20 .28 .24 .20 .19

10 .35 .25 .19 .15 .34 .25.19 .15 .24 .19 .15 .23.19 .15 .23 .18 .15 .14

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.3

Angle Vertical, CP 75° Horizontal

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L128

Test No. HPK09925

HIGH PRESSURE SODIUM-VM5

With Globe & Deep White Reflector

200-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 70.4%

ANGLE CP ANGLE CP

08039. 95.0 29.

5.0 7957. 100.0 36.

10.0 8160. 105.0 43.

15.0 8458. 110.0 49.

20.0 8642. 115.0 54.

25.0 8404. 120.0 59.

30.0 8416. 125.0 63.

35.0 8850. 130.0 64.

40.0 9018. 135.0 55.

45.0 9370. 140.0 43.

50.0 9428. 145.0 108.

55.0 9050. 150.0 88.

60.0 7641. 155.0 26.

65.0 5305. 160.0 15.

70.0 3143. 165.0 11.

75.0 1895. 170.0 0.

80.0 1073. 175.0 0.

85.0 448. 180.0 0.

90.0 30.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .84 .84 .84 .84 .82 .82.82 .82 .78 .78 .78 .75.75 .75 .72 .72 .72 .70

1 .77 .74 .71 .68 .75 .72.69 .67 .69 .67 .65 .66.64 .62 .63 .62 .60 .59

2 .70 .65 .60 .56 .68 .63.59 .55 .61 .57 .54 .58.55 .53 .56 .54 .51 .50

3 .64 .57 .51 .47 .62 .56.51 .46 .54 .49 .45 .52.48 .45 .50 .46 .44 .42

4 .58 .50 .43 .39 .57 .49.43 .38 .47 .42 .38 .45.41 .37 .44 .40 .37 .35

5 .53 .44 .37 .32 .51 .43.37 .32 .41 .36 .32 .40.35 .31 .38 .34 .31 .29

6 .48 .39 .32 .28 .47 .38.32 .28 .37 .31 .27 .35.31 .27 .34 .30 .27 .25

7 .44 .34 .28 .23 .43 .34.28 .23 .33 .27 .23 .31.26 .23 .30 .26 .23 .21

8 .41 .30 .24 .20 .39 .30.24 .20 .29 .23 .20 .28.23 .19 .27 .23 .19 .18

9 .37 .27 .21 .17 .36 .27.21 .17 .26 .21 .17 .25.20 .17 .24 .20 .17 .15

10 .34 .24 .18 .14 .33 .23.18 .14 .23 .17 .14 .22.17 .14 .21 .17 .13 .12

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.7

Test No. HPK09926

HIGH PRESSURE SODIUM-VM5

With Globe & Deep Alzak Reflector

200-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

51000 lumens

For 200 watt multiply by 0.43

For 250 watt multiply by 0.53

Efficiency 69.2%

ANGLE CP ANGLE CP

05167. 95.0 14.

5.0 5283. 100.0 14.

10.0 6074. 105.0 14.

15.0 6962. 110.0 15.

20.0 7637. 115.0 14.

25.0 7876. 120.0 14.

30.0 8220. 125.0 13.

35.0 9004. 130.0 12.

40.0 9663. 135.0 11.

45.0 10471. 140.0 13.

50.0 10790. 145.0 86.

55.0 10201. 150.0 74.

60.0 8174. 155.0 19.

65.0 5041. 160.0 15.

70.0 2326. 165.0 10.

75.0 1015. 170.0 0.

80.0 426. 175.0 0.

85.0 153. 180.0 0.

90.0 21.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .83 .83 .83 .83 .81 .81.81 .81 .77 .77 .77 .74 .74 .74 .71 .71 .71 .69

1 .76 .73 .70 .68 .74 .71.69 .67 .68 .66 .64 .66.64 .62 .63 .62 .60 .59

2 .70 .64 .60 .56 .68 .63.59 .55 .60 .57 .54 .58.55 .53 .56 .54 .52 .50

3 .64 .57 .51 .47 .62 .55.50 .46 .53 .49 .46 .51.48 .45 .50 .47 .44 .42

4 .57 .49 .43 .38 .56 .48.43 .38 .46 .42 .38 .45.41 .37 .43 .40 .37 .35

5 .52 .43 .37 .32 .51 .42.36 .32 .41 .35 .31 .39.35 .31 .38 .34 .31 .29

6 .47 .38 .31 .27 .46 .37.31 .27 .36 .30 .26 .35.30 .26 .33 .29 .26 .24

7 .43 .33 .27 .22 .42 .32.26 .22 .31 .26 .22 .30.25 .22 .29 .25 .21 .20

8 .39 .29 .23 .18 .38 .28.22 .18 .27 .22 .18 .27.22 .18 .26 .21 .18 .16

9 .36 .26 .20 .16 .35 .25.19 .15 .25 .19 .15 .24.19 .15 .23 .18 .15 .14

10 .32 .22 .16 .12 .31 .22.16 .12 .21 .16 .12 .20.15 .12 .20 .15 .12 .10

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.5

Test No. HPK09911

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Globe

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 92.4%

ANGLE CP ANGLE CP

0529. 95.0 3527.

5.0 538. 100.0 3475.

10.0 690. 105.0 3403.

15.0 896. 110.0 3325.

20.0 1223. 115.0 3203.

25.0 1288. 120.0 3026.

30.0 1074. 125.0 2854.

35.0 2101. 130.0 2667.

40.0 2807. 135.0 2379.

45.0 2718. 140.0 1779.

50.0 2770. 145.0 508.

55.0 2942. 150.0 55.

60.0 3133. 155.0 26.

65.0 3353. 160.0 15.

70.0 3493. 165.0 8.

75.0 3530. 170.0 0.

80.0 3489. 175.0 0.

85.0 3497. 180.0 0.

90.0 3523.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .100 .100.100 .100.92 .92.92 .92 .79 .79 .79 .66.66 .66 .55 .55 .55 .50

1 .86 .79 .73 .68 .78 .73.68 .63 .61 .57 .53 .50.47 .44 .40 .38 .36 .31

2 .76 .66 .58 .52 .69 .61.54 .48 .50 .45 .40 .41.37 .33 .32 .29 .26 .22

3 .68 .57 .48 .41 .62 .52.44 .38 .43 .37 .31 .35.30 .26 .27 .23 .20 .16

4 .61 .49 .40 .33 .56 .45.36 .30 .37 .30 .25 .29.24 .20 .23 .19 .15 .12

5 .55 .42 .33 .27 .50 .39.31 .24 .32 .25 .20 .26.20 .16 .20 .16 .12 .09

6 .51 .37 .28 .22 .46 .34.26 .20 .28 .22 .17 .23.17 .13 .17 .13 .10 .07

7 .46 .33 .25 .18 .42 .30.22 .17 .25 .19 .14 .20.15 .11 .15 .11 .08 .05

8 .43 .29 .21 .16 .39 .27.19 .14 .22 .16 .12 .18.13 .09 .14 .10 .07 .04

9 .39 .26 .19 .13 .36 .24.17 .12 .20 .14 .10 .16 .11 .08 .12 .08 .05 .03

10 .36 .24 .16 .11 .33 .22.15 .10 .18 .12 .08 .14 .10 .06 .11 .07 .04 .02

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 3.6

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L129

Test No. HPK09912

METAL HALIDE, METAL HALIDE PULSE -

VM5

With Globe & Guard

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 88.7%

ANGLE CP ANGLE CP

0844. 95.0 3523.

5.0 804. 100.0 3454.

10.0 877. 105.0 3290.

15.0 998. 110.0 3030.

20.0 1266. 115.0 2863.

25.0 1240. 120.0 2764.

30.0 1071. 125.0 2832.

35.0 1830. 130.0 2643.

40.0 2625. 135.0 2324.

45.0 2730. 140.0 1482.

50.0 2787. 145.0 191.

55.0 2934. 150.0 107.

60.0 2932. 155.0 106.

65.0 3052. 160.0 109.

70.0 3155. 165.0 110.

75.0 3309. 170.0 0.

80.0 3433. 175.0 0.

85.0 3465. 180.0 0.

90.0 3496.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .96 .96 .96 .96 .89 .89.89 .89 .76 .76 .76 .64.64 .64 .53 .53 .53 .48

1 .82 .76 .70 .65 .75 .70.65 .61 .58 .55 .51 .48.45 .42 .38 .36 .34 .29

2 .73 .64 .56 .50 .66 .58.52 .46 .48 .43 .39 .39.35 .32 .31 .28 .25 .21

3 .65 .54 .46 .39 .59 .50.42 .36 .41 .35 .30 .33.29 .25 .26 .22 .19 .15

4 .59 .47 .38 .31 .53 .43.35 .29 .35 .29 .24 .28.23 .19 .22 .18 .15 .12

5 .53 .41 .32 .26 .48 .37.29 .24 .31 .24 .20 .25.20 .16 .19 .15 .12 .09

6 .49 .36 .27 .21 .44 .33.25 .20 .27 .21 .16 .22.17 .13 .17 .13 .10 .07

7 .45 .32 .24 .18 .40 .29.22 .16 .24 .18 .14 .19 .14 .11 .15 .11 .08 .05

8 .41 .28 .20 .15 .37 .26.19 .14 .21 .16 .11 .17 .12 .09 .13 .09 .06 .04

9 .38 .26 .18 .13 .34 .23.17 .12 .19 .14 .10 .15 .11 .07 .12 .08 .05 .03

10 .35 .23 .16 .11 .32 .21.14 .10 .17 .12 .08 .14 .09 .06 .11 .07 .04 .02

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 3.2

Test No. HPK09918

METAL HALIDE, METAL HALIDE PULSE -

VM5

With Globe &

Dome Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 76.1%

ANGLE CP ANGLE CP

03088. 95.0 551.

5.0 3105. 100.0 125.

10.0 3239. 105.0 106.

15.0 3370. 110.0 95.

20.0 3603. 115.0 83.

25.0 3544. 120.0 70.

30.0 3218. 125.0 171.

35.0 4119. 130.0 441.

40.0 4720. 135.0 257.

45.0 4510. 140.0 35.

50.0 4417. 145.0 36.

55.0 4478. 150.0 25.

60.0 4526. 155.0 21.

65.0 4629. 160.0 18.

70.0 4602. 165.0 15.

75.0 4381. 170.0 14.

80.0 4047. 175.0 12.

85.0 3613. 180.0 11.

90.0 2234.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .90 .90 .90 .90 .87 .87.87 .87 .83 .83 .83 .78.78 .78 .74 .74 .74 .73

1 .76 .71 .65 .61 .74 .68.64 .59 .64 .60 .57 .61.57 .54 .57 .54 .52 .50

2 .68 .59 .51 .45 .65 .57.50 .44 .53 .48 .43 .50.45 .41 .47 .43 .40 .38

3 .61 .50 .42 .36 .58 .48.41 .35 .46 .39 .34 .43.37 .33 .40 .36 .32 .29

4 .54 .43 .35 .28 .52 .42.34 .28 .39 .32 .27 .37.31 .26 .35 .30 .25 .23

5 .49 .37 .29 .23 .47 .36.29 .23 .34 .27 .22 .32.26 .21 .30 .25 .21 .19

6 .45 .33 .25 .19 .43 .32.25 .19 .30 .24 .19 .29.23 .18 .27 .22 .18 .16

7 .41 .29 .22 .16 .40 .29.21 .16 .27 .20 .16 .25.20 .15 .24 .19 .15 .13

8 .38 .26 .19 .14 .36 .25.18 .13 .24 .18 .13 .23.17 .13 .22 .16 .12 .11

9 .35 .24 .16 .12 .34 .23.16 .12 .22 .16 .11 .21.15 .11 .20 .14 .11 .09

10 .32 .21 .14 .09 .31 .20.14 .09 .19 .13 .09 .18.13 .09 .17 .12 .09 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.0

Test No. HPK09917

METAL HALIDE, METAL HALIDE PULSE -

VM5

With Globe & Angle Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 73.3%

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .85 .85 .85 .85 .82 .82.82 .82 .76 .76 .76 .70.70 .70 .65 .65 .65 .63

1 .74 .69 .65 .61 .71 .66.62 .59 .61 .58 .55 .56.54 .51 .52 .50 .48 .46

2 .66 .59 .52 .47 .63 .56.50 .46 .52 .47 .43 .48.44 .40 .44 .41 .38 .36

3 .60 .50 .43 .38 .57 .48.42 .37 .45 .39 .35 .41.37 .33 .38 .34 .31 .29

4 .54 .44 .36 .30 .51 .42.35 .30 .39 .33 .28 .36.31 .27 .33 .29 .25 .23

5 .49 .38 .31 .25 .46 .37.30 .24 .34 .28 .23 .31.26 .22 .29 .24 .21 .19

6 .45 .34 .26 .21 .42 .32.26 .21 .30 .24 .20 .28.22 .19 .26 .21 .18 .16

7 .41 .30 .23 .18 .39 .29.22 .17 .27 .21 .16 .25.19 .16 .23 .18 .15 .13

8 .37 .26 .20 .15 .36 .25.19 .15 .24 .18 .14 .22.17 .13 .20 .16 .12 .11

9 .35 .24 .17 .13 .33 .23.17 .12 .21 .16 .12 .20.15 .11 .18 .14 .11 .09

10 .32 .21 .15 .10 .30 .20 .14 .10 .19 .13 .10 .17.12 .09 .16 .12 .08 .07

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.2

Front Side

ANGLE CP ANGL CP

0.0 2962. 0.0 2962.

5.0 3212. 5.0 2991.

15.0 3923. 15.0 3278.

25.0 4545. 25.0 3440.

35.0 5416. 35.0 3975.

45.0 5946. 45.0 4381.

55.0 6169. 55.0 4289.

65.0 6365. 65.0 4443.

75.0 6074. 75.0 4137.

85.0 5553. 85.0 1868.

90.0 5239. 90.0 502.

95.0 4849. 95.0 145.

105.0 3991. 100.0 76.

115.0 1680. 115.0 57.

125.0 83. 125.0 46.

135.0 41. 135.0 35.

145.0 33. 145.0 31.

155.0 13. 155.0 19.

165.0 10. 165.0 13.

175.0 8. 175.0 8.

180.0 6. 180.0 6.

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA

L130

Test No. HPK10081

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Type II 12" Spintop Refractor

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 78.8%

ANGLE CP ANGLE CP

03548. 85.0 3897.

5.0 3303. 90.0 3203.

15.0 2932. 95.0 2829.

25.0 2791. 105.0 1774.

35.0 3115. 115.0 1293.

45.0 5458. 125.0 1303.

55.0 8761. 135.0 1335.

60.0 10352. 145.0 1046.

65.0 10896. 155.0 621.

70.0 10085. 165.0 178.

75.0 8039. 175.0 0.

80.0 5379. 180.0 0.

2724

5448

8172

10896

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .89 .89 .89 .89 .85 .85.85 .85 .77 .77 .77 .70.70 .70 .64 .64 .64 .61

1 .78 .73 .68 .64 .74 .69.65 .61 .62 .59 .56 .56.53 .51 .50 .48 .46 .43

2 .69 .60 .53 .48 .65 .57.51 .46 .51 .46 .42 .46.42 .38 .41 .38 .35 .32

3 .61 .51 .43 .37 .57 .48.41 .35 .43 .37 .32 .38.33 .29 .34 .30 .27 .24

4 .55 .44 .35 .29 .51 .41.34 .28 .37 .30 .25 .33.27 .23 .29 .25 .21 .18

5 .50 .38 .30 .23 .46 .36.28 .22 .32 .25 .21 .28.23 .19 .25 .20 .17 .14

6 .45 .33 .25 .19 .42 .31.24 .19 .28 .22 .17 .25.19 .15 .22 .17 .14 .12

7 .41 .29 .22 .16 .39 .28.21 .16 .25 .19 .14 .22.17 .13 .20 .15 .11 .09

8 .38 .26 .19 .14 .36 .25.18 .13 .22 .16 .12 .20.15 .11 .18 .13 .10 .08

9 .35 .24 .17 .12 .33 .23.16 .11 .20 .14 .10 .18 .13 .09 .16 .12 .08 .07

10 .33 .22 .15 .10 .31 .20.14 .10 .18 .13 .09 .16.12 .08 .15 .10 .07 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.88 0-180°

Test No. HPK10078

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Type V 12" Spintop Refractor

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 82.3%

ANGLE CP ANGLE CP

04106. 95.0 1359.

5.0 3914. 100.0 1093.

10.0 3394. 105.0 856.

15.0 3010. 110.0 786.

20.0 2887. 115.0 823.

25.0 2709. 120.0 748.

30.0 2679. 125.0 621.

35.0 2886. 130.0 559.

40.0 3317. 135.0 511.

45.0 3681. 140.0 424.

50.0 3856. 145.0 316.

55.0 4557. 150.0 226.

60.0 5736. 155.0 161.

65.0 6936. 160.0 85.

70.0 6547. 165.0 26.

75.0 4564. 170.0 0.

80.0 3005. 175.0 0.

85.0 2015. 180.0 0.

90.0 1593.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .95 .95 .95 .95 .91 .91.91 .91 .84 .84 .84 .78.78 .78 .73 .73 .73 .70

1 .82 .77 .72 .67 .79 .74 .69 .65 .68 .64 .61 .62.59 .56 .57 .55 .53 .50

2 .73 .64 .56 .50 .69 .61.54 .48 .56 .50 .45 .51.46 .42 .47 .43 .40 .37

3 .64 .53 .45 .38 .61 .51.43 .37 .47 .40 .35 .43.37 .33 .39 .34 .30 .28

4 .57 .45 .36 .30 .54 .43.35 .29 .39 .32 .27 .36.30 .25 .33 .28 .23 .21

5 .52 .39 .30 .23 .49 .37.29 .23 .34 .27 .21 .31.25 .20 .28 .23 .18 .16

6 .47 .34 .26 .20 .45 .33.25 .19 .30 .23 .18 .27.21 .17 .25 .20 .15 .13

7 .43 .30 .22 .16 .41 .29.21 .16 .27 .20 .15 .24.18 .14 .22 .17 .13 .11

8 .40 .27 .19 .14 .38 .26.19 .13 .24 .17 .13 .22.16 .12 .20 .15 .11 .09

9 .37 .25 .17 .12 .35 .24.17 .12 .22 .15 .11 .20.14 .10 .18 .13 .09 .08

10 .34 .22 .15 .10 .32 .21.14 .10 .19 .13 .09 .18 .12 .08 .16 .11 .08 .06

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - .9

Angle Vertical

CP 75° Horizontal

Test No. HPK10077

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Enclosed Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 71.5%

ANGLE CP ANGLE CP

05576. 95.0 0.

5.0 5010. 100.0 0.

10.0 4513. 105.0 0.

15.0 4291. 110.0 0.

20.0 4758. 115.0 0.

25.0 6978. 120.0 0.

30.0 11554. 125.0 0.

35.0 15300. 130.0 0.

40.0 14033. 135.0 0.

45.0 9613. 140.0 0.

50.0 5974. 145.0 0.

55.0 3716. 150.0 0.

60.0 1324. 155.0 0.

65.0 521. 160.0 0.

70.0 295. 165.0 0.

75.0 143. 170.0 0.

80.0 60. 175.0 0.

85.0 21. 180.0 0.

90.0 0.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .86 .86 .86 .86 .84 .84.84 .84 .80 .80 .80 .77.77 .77 .74 .74 .74 .72

1 .81 .78 .76 .73 .79 .76 .74 .72 .73 .72 .70 .71.69 .68 .68 .67 .66 .65

2 .75 .71 .67 .64 .73 .69.66 .63 .67 .64 .62 .65.62 .60 .63 .61 .59 .58

3 .70 .64 .59 .56 .68 .63.59 .55 .61 .57 .54 .59.56 .53 .57 .55 .52 .51

4 .64 .57 .52 .48 .63 .56.51 .47 .54 .50 .47 .53.49 .46 .51 .48 .46 .44

5 .59 .51 .45 .41 .58 .50.45 .41 .49 .44 .40 .47.43 .40 .46 .43 .40 .38

6 .54 .45 .39 .35 .53 .44.39 .35 .43 .38 .35 .42.38 .34 .41 .37 .34 .33

7 .49 .40 .34 .29 .48 .39.33 .29 .38 .33 .29 .37.32 .29 .36 .32 .29 .27

8 .44 .35 .28 .24 .43 .34.28 .24 .33 .28 .24 .32.27 .24 .31 .27 .24 .22

9 .40 .30 .24 .20 .39 .29.24 .20 .29 .23 .20 .28.23 .19 .27 .23 .19 .18

10 .35 .25 .18 .14 .34 .24.18 .14 .23 .18 .14 .23.18 .14 .22 .17 .14 .13

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.1

CERTILITE®V SERIES •LIGHTING

PHOTOMETRIC DATA L131

Test No. HPK09915

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Globe & Deep White Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 71.6%

ANGLE CP ANGLE CP

06298. 95.0 21.

5.0 6273. 100.0 26.

10.0 6354. 105.0 30.

15.0 6408. 110.0 35.

20.0 6542. 115.0 39.

25.0 6352. 120.0 42.

30.0 5943. 125.0 44.

35.0 6787. 130.0 45.

40.0 7215. 135.0 37.

45.0 6823. 140.0 33.

50.0 6732. 145.0 183.

55.0 6471. 150.0 35.

60.0 5358. 155.0 20.

65.0 2951. 160.0 12.

70.0 2049. 165.0 8.

75.0 1303. 170.0 0.

80.0 706. 175.0 0.

85.0 272. 180.0 0.

90.0 18.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .84 .84 .84 .84 .82 .82.82 .82 .79 .79 .79 .75.75 .75 .72 .72 .72 .70

1 .78 .74 .71 .69 .76 .73.70 .68 .70 .67 .65 .67.65 .63 .64 .63 .61 .60

2 .71 .66 .61 .57 .69 .64.60 .57 .62 .58 .55 .59.56 .54 .57 .55 .52 .51

3 .65 .58 .53 .48 .63 .57.52 .48 .55 .50 .47 .53.49 .46 .51 .48 .45 .44

4 .59 .51 .45 .40 .58 .50.44 .40 .48 .43 .39 .47.42 .39 .45 .41 .38 .37

5 .54 .45 .39 .34 .53 .44.38 .34 .43 .38 .34 .41.37 .33 .40 .36 .33 .31

6 .50 .40 .34 .29 .48 .40.34 .29 .38 .33 .29 .37.32 .28 .36 .31 .28 .27

7 .45 .36 .29 .25 .44 .35.29 .25 .34 .28 .24 .33.28 .24 .32 .27 .24 .23

8 .42 .32 .25 .21 .40 .31.25 .21 .30 .25 .21 .29.24 .21 .28 .24 .20 .19

9 .38 .28 .22 .18 .37 .28.22 .18 .27 .22 .18 .26.21 .18 .25 .21 .18 .16

10 .35 .25 .19 .15 .34 .24.19 .15 .24 .18 .15 .23.18 .15 .22 .18 .14 .13

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.6

Test No. HPK09914

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Globe & Deep Alzak Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 70.8%

ANGLE CP ANGLE CP

03982. 95.0 9.

5.0 4067. 100.0 10.

10.0 4471. 105.0 10.

15.0 4949. 110.0 11.

20.0 5584. 115.0 10.

25.0 5932. 120.0 10.

30.0 5933. 125.0 10.

35.0 7123. 130.0 9.

40.0 7950. 135.0 8.

45.0 8017. 140.0 14.

50.0 8145. 145.0 173.

55.0 7441. 150.0 25.

60.0 5491. 155.0 16.

65.0 2411. 160.0 12.

70.0 1327. 165.0 7.

75.0 651. 170.0 0.

80.0 268. 175.0 0.

85.0 90. 180.0 0.

90.0 10.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .83 .83 .83 .83 .81 .81.81 .81 .78 .78 .78 .74 .74 .74 .71 .71 .71 .70

1 .77 .74 .71 .69 .75 .72.70 .68 .69 .67 .65 .67.65 .63 .64 .63 .61 .60

2 .71 .66 .61 .58 .69 .64.60 .57 .62 .58 .56 .59.57 .54 .57 .55 .53 .52

3 .65 .58 .53 .49 .63 .57.52 .48 .55 .51 .47 .53.49 .46 .51 .48 .46 .44

4 .59 .51 .45 .40 .57 .50.44 .40 .48 .43 .40 .47.42 .39 .45 .41 .38 .37

5 .54 .45 .39 .34 .52 .44.38 .34 .42 .37 .33 .41.36 .33 .40 .36 .32 .31

6 .49 .39 .33 .28 .47 .39.33 .28 .37 .32 .28 .36.31 .28 .35 .31 .27 .26

7 .44 .34 .28 .23 .43 .34.28 .23 .33 .27 .23 .31.27 .23 .30 .26 .23 .21

8 .40 .30 .24 .19 .39 .30.24 .19 .29 .23 .19 .28.23 .19 .27 .22 .19 .17

9 .37 .27 .21 .16 .36 .26.20 .16 .25 .20 .16 .25.20 .16 .24 .19 .16 .15

10 .33 .23 .17 .13 .32 .22.17 .13 .22 .16 .13 .21.16 .12 .20 .16 .12 .11

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 2.5

Test No. HPK09904

METAL HALIDE, METAL HALIDE PULSE-

VM5

With Enclosed Poly Shielded Reflector

250-400 Watt

Mogul Base

CANDLEPOWER –

400 WATT

36000 lumens

For 250 MH multiply by 0.61

For 250 MHP multiply by 0.66

For 320 MHP multiply by 0.92

For 350 MHP multiply by 1.00

For 400 MHP multiply by 1.22

Efficiency 63.4%

ANGLE CP ANGLE CP

07528. 95.0 542.

5.0 7607. 100.0 498.

10.0 7813. 105.0 463.

15.0 8263. 110.0 429.

20.0 8750. 115.0 365.

25.0 8768. 120.0 277.

30.0 7997. 125.0 174.

35.0 7518. 130.0 75.

40.0 7245. 135.0 12.

45.0 6107. 140.0 0.

50.0 4565. 145.0 0.

55.0 3680. 150.0 0.

60.0 2976. 155.0 0.

65.0 2334. 160.0 0.

70.0 1816. 165.0 0.

75.0 1408. 170.0 0.

80.0 1073. 175.0 0.

85.0 800. 180.0 .

90.0 614.

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .75 .75 .75 .75 .72 .72.72 .72 .68 .68 .68 .65.65 .65 .61 .61 .61 .59

1 .69 .66 .63 .61 .66 .64.61 .59 .60 .58 .57 .57.56 .54 .54 .53 .52 .50

2 .63 .59 .55 .51 .61 .57.54 .50 .54 .51 .49 .52.49 .47 .49 .47 .45 .44

3 .59 .53 .48 .44 .57 .51.47 .44 .49 .45 .43 .47.44 .41 .45 .42 .40 .39

4 .54 .47 .42 .38 .52 .46.41 .38 .44 .40 .37 .42.39 .36 .40 .37 .35 .34

5 .50 .43 .37 .34 .48 .42.37 .33 .40 .36 .33 .38.35 .32 .37 .34 .31 .30

6 .46 .39 .33 .30 .45 .38.33 .29 .36 .32 .29 .35.31 .28 .34 .30 .28 .27

7 .43 .35 .30 .26 .42 .34.29 .26 .33 .29 .26 .32.28 .25 .31 .27 .25 .23

8 .40 .32 .27 .23 .39 .31.26 .23 .30 .26 .23 .29.25 .22 .28 .24 .22 .21

9 .37 .29 .24 .21 .36 .28.24 .20 .27 .23 .20 .26.23 .20 .26 .22 .20 .18

10 .34 .25 .20 .17 .33 .25.20 .17 .24 .20 .17 .23.19 .16 .22 .19 .16 .15

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION --- ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.5

E M L S E R I E S •LIGHTING

EXPLOSION-PROOF LED 45 WATT

L132

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

LED

Technology

Catalog Number Logic

Tank & Globe with

Driver and LEDs

EMLC — Tank w/Clear Globe

EML — Tank w/Fluted Globe

Wattage

Voltage

30 — 120-277VAC 50/60Hz

Mounting Type

A2 — 3/4" Pendant

A3 — 1" Pendant

X2 — 3/4" Ceiling

X3 — 1" Ceiling

B2 — 3/4" Bracket

B3 — 1" Bracket

D4 — 1-1/4" / 1-1/2"

Stanchion

Guard

G= Guard

EMLC 45 30 A2 G AN - ASSEMBLED

Applications

HOSTILELITE®EML LED Series fix-

tures are designed for installations

where moisture, dirt, dust, corrosion

and vibration may be present, or

NEMA 3 and 4x areas where wind,

water, snow or high ambients can be

expected. They can be used in loca-

tions made hazardous due to the pres-

ence of flammable or explosive gases,

vapors and combustible dusts as

defined by the NEC.

Applications include classified areas

such as paint manufacturing plants,

ammunition facilities, oil and gas pro-

ducing and refining plants, off-shore

and dockside installations, tank farms,

pipeline pumping stations and marine

loading and fuel transfer terminals.

Compliances

•UL-8750 for LED lighting

•UL-844 Electric Lighting Fixtures for

use in Hazardous Locations

•UL Marine Type Electric Lighting

Fixtures

•CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous

Locations

•NEMA 3, 4, 4X, 7CD, 9EFG

Materials

•Ballast tank, splice box and guards

corrosion resistant copper-free alu-

minum alloy

•Baked powder epoxy/polyester finish,

electrostatically applied for complete,

uniform corrosion protection

•All external hardware - Stainless Steel

•Reflectors are aluminum with white

finish

LED Luminaire Features and Standards

•Compact Explosion-proof with Traditional

Industrial Appearance and Suitability

•Fluted or Exclusive Clear Globe; Dome or

Angle Reflectors

•Optional Mounting arrangements includ-

ing Pendant, Wall, Ceiling, and Stanchion

•EML LED Housings can be retrofitted to

existing EZ splice boxes; upgrade from

Incandescent, Fluorescent or HID

•Energy Savings - less than 50 Watts of

Power

•Long Life - 50,000 - 55,000 Maintenance

Free Hours to 70% Initial Lumens

•Crisp White Light for Excellent Color

Rendering - Chromaticity Avg. 4950°K

(CCT); 69 CRI

•Ambient suitability -40°C to 55°C

•Instant on - including after power

interruption

•“World Voltage” 120-277VAC 50/60Hz

• Solder-LESS LED Board Connections –

Vibration Resistant

• Dual Drivers - Redundant Systems (built-

in backup)

•LM80-08* Measurement of lumen mainte-

nance for LED light sources

•LM79-08* Certified "Absolute" Photometry,

including Chromaticity Color for Solid

State Lighting

•L70 Values - Industry Nomenclature for

Hours of use to 70% of Initial Lumens

•Factory Sealed Construction - no external

seal required, simply wire mounting cap

and thread-in fixture to install

Accessories (sold separately)

ERSD30 — Dome Reflector

ERA30 — Angle Reflector

* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among test

labs and manufacturers. For more information go to www.ies.org

LED

E M L S E R I E S •LIGHTING

EXPLOSION - PROOF LED 45 WATT L133

ORDERING INFORMATION

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

Pendant Ceiling Wall Stanchion

EML SERIES PENDANT WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE4FLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

45 3/4" 120-277VAC EML4530A2G EMLC4530A2G

EML SERIES CEILING WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE4FLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

45 3/4" 120-277VAC EML4530X2G EMLC4530X2G

EML SERIES WALL WITH OPTIC AND GUARD1

WATTS HUB SIZE2VOLTAGE4FLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

45 3/4" 120-277VAC EML4530B2G EMLC4530B2G

EML SERIES 25OSTANCHION WITH OPTIC AND GUARD1

WATTS HUB SIZE3VOLTAGE4FLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*

45 1-1/4"/1-1/2" 120-277VAC EML4530D4G EMLC4530D4G

1Catalog numbers shown are with Guard; Omit G if guard not required e.g. EML4530A2.

2Catalog numbers shown are with 3/4" conduit openings; change “2” to “3” for 1" e.g. EML4530A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting (refer to catalog logic).

4120VAC through 277VAC 50/60Hz.

* Exclusive from KILLARK; clear globe for maximum brightness.

E M L S E R I E S •LIGHTING

COMPONENT PARTS / ELECTRICAL & TEMPERATURE DATA

L134

Wall Bracket

Pendant Ceiling 25oStanchion

* 1-1/2" furnished with 1-1/2" - 1-1/4" reducer

HUB SIZE

3/4"

1-1/4" / 1-1/2"*

CATALOG NUMBER

PENDANT CEILING WALL STANCHION

EZA2 EZX2 EZB2 —

EZA3 EZX3 EZB3 —

—— — EZD4*

EZ MOUNTING BRACKETS

EMG2

ERA30 Angle Dome

ERSD30 Standard Dome

DESCRIPTION

EML - EMLC LED ACCESSORIES

Guard1EMG2

Dome Reflector2ERSD30

Angle Reflector2ERA30

CIDI C2D1 N4X Photocell 120VAC VMHKPC1

CIDI C2D1 N4X Photocell 208-277VAC VMHKPC2

Replacement Fluted Globe & Support EMGS3

Replacement Clear Globe & Support EMGS2

Adapter to old Killark “H” Series or Crouse Hinds®EAC/EACH3

1Guards are cast of copper-free aluminum with electrostatically applied epoxy/polyester.

2Reflectors are aluminum with white finish.

3Adapters for discontinued Killark “H” Series and Crouse Hinds®available. See page L200 for more

information.

CAT. NO. VOLTAGE 50/60HZ WATTAGE AMPS 120/277 CIL4WEIGHT

EML(C) LED HOUSINGS & GLOBE, DRIVERS AND LEDS - ELECTRICAL RATINGS

EML(C)4530 120-277VAC 49.4 .412/.178 3960 26 LBS

CAT. NO. AMBIENT C1D1/C1Z1 C2D1 L70 SUPPLY WIRE

THERMAL PERFORMANCE DATA

EML(C)4530 40OC T6 T4A (EFG) 55,000 HRS 75OC

EML(C)4530 55OC T5 T4 (EFG) 50,000 HRS 90OC

4CIL = Calculated Initial Lumens of LED component based on mfg. data and driver current

INSIDE the optic. This value is provided as a reference only for comparison to traditional

light sources such as incandescent, HID, or fluorescent which use initial values in “relative”

photometry. KILLARK LED luminaires are tested using the Absolute photometry method

(LM79-08), which calculates delivered lumens only. KILLARK’s LED luminaires provide very

bright white 5000O K (CCT) color and can appear brighter than traditional light sources

with higher lumen values under both photopic and scotopic conditions.

EML4530

EMLC4530

Factory Sealed

Photocell VMHKPC1

EMGS3

EMGS2

EAC/EACH

CATALOG NUMBER

E M L S E R I E S •LIGHTING

DIMENSIONS / PHOTOMETRIC DATA L135

Pendant Ceiling LED 45 Watt Fluted Globe Only

Wall

25° Stanchion

.31"

(8)

4.25"

(107)

4.75"

(120)

7.00"

(177)

5.25"

(133)

45°

TYPE ABCD

EML(C) DIMENSIONS1

1See L143 for reflector dimensions.

Pendant 15-15/16" 15-1/16" 8-13/16" 11-15/16"

(404) (382) (224) (303)

Ceiling 15-15/16" 15-1/16" 8-13/16" 11-15/16"

(404) (382) (224) (303)

Wall 16-13/16" 15-15/16" 15" 11-15/16"

(426) (404) (379) (303)

Stanchion 15-1/8" 14" 13-1/2"

(384) (356) (343)

E M L S E R I E S •LIGHTING

PHOTOMETRIC DATA

L136

LED 45 Watt Fluted

Globe & Dome Reflector

LED 45 Watt Fluted

Globe & Angle Reflector

LED 45 Watt Clear

Globe & Dome Reflector

EM/EB/EQ SERIES •LIGHTING

INCANDESCENT/COMPACT FLUORESCENT/MEDIUM BASE HID L137

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

Catalog Number Logic

Series Constant

Lamp Base

M—Medium Base

B—Bi-Pin Base

Q—Quad-Pin Base

Lamp Type

I—Incandescent

F—Fluorescent (lamp included)

S—HPS

H—MH

Voltage @ 60 Hertz

0—Quadri-Volt

(120, 208, 240, 277)

1—120

4—277

5—480

6—347 Canada (70,100MH/HPS)

30—120-277 50/60 Hz

EQF Series Only

Mounting Type

A2—3/4" Pendant

A3—1" Pendant

X2—3/4" Ceiling

X3—1" Ceiling

B2—3/4" Bracket

B3—1" Bracket

D4—1-1/4"/1-1/2" Stanchion

Lamp Wattage

15—150W, A-21, INC

20—300W, PS-25, INC

30—300W, PS-30, INC

13—(1) 13W, Bi-Pin FLUOR

26—(2) 13W Bi-Pin EBF or (1) Quad-Pin

EQF 26 Watt FLUOR

32—Quad-Pin FLUOR

42—Quad-Pin FLUOR

52—Quad-Pin FLUOR (2 X 26)

64—Quad-Pin FLUOR (2 X 32)

84—Quad-Pin FLUOR (2 X 42)

35—35W, HPS

05—50W, HPS, MH

07—70W, HPS, MH

10—100W, HPS, MH

15—150W, HPS

Guard

G—Omit G if guard is not

required

Options

ML—UL Marine Listing for

EMI. Standard on EMS,

EMM and EMH.

Not available on

EBF, EQF

SU103—Assembled w/Lamp

E 0 0 00 0 00 0 - 00 (CEN)*

Applications

HOSTILELITE®EM, EB, & EQ Series

fixtures are designed for installations

where moisture, dirt, dust, corrosion

and vibration may be present, or

NEMA 3 and 4x areas where wind,

water, snow or high ambients can be

expected. They can be used in loca-

tions made hazardous due to the

presence of flammable or explosive

gases, vapors and combustible dusts

as defined by the NEC.

Applications include classified areas

such as paint manufacturing plants,

ammunition facilities, oil and gas pro-

ducing and refining plants, off-shore

and dockside installations, tank farms,

pipeline pumping stations and marine

loading and fuel transfer terminals.

Features:

•Four light sources—Incandescent,

compact fluorescent, high pressure

sodium and metal halide

•Mounting choice—Pendant, ceiling,

25˚ stanchion or 90˚ wall mount, all

with “wireless” design that allows

fast, easy fixture installation

•Factory sealed—No external seal

needed. Simply wire mounting cap

and thread on fixture to install

•Compact size—Medium base

incandescent and HID lamps, plus

PL fluorescent lamps allow smaller

fixture design

•Corrosion resistant—Copper-free

aluminum die-cast construction.

Baked powder epoxy finish, electro-

statically applied. Exposed hardware

is 316 grade stainless steel

Accessories

•Available with or without guard, stan-

dard dome or 25˚ angle reflector, exit

sign and inner colored globes

Compliances

•UL-844 Electric Lighting Fixtures for

use in Hazardous Locations

•UL Marine Type Electric Lighting

Fixtures

•UL-1598 Standard for Fluorescent,

Incandescent and HID fixtures

•CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous

Locations

•NEMA 3, 4, 4X, 7CD, 9EFG

*CEN (CENELEC) approval option available on certain models. See page L144 for more information.

Consult factory for available lamp and voltage combinations.

L138

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

EM 60–300W MEDIUM BASE INCANDESCENT1

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

LAMP LAMP/WATTS LAMP SIZE CATALOG NUMBER4

TYPE PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

EMI15A2G

EMI20A2G

EMI30A2G

EMI15X2G

EMI20X2G

EMI30X2G

EMI15B2G

EMI20B2G

EMI30B2G

EMI15D4G

EMI20D4G

EMI30D4G

60, 75, 100, 150 A-19, A-21

INC 100, 150, 200, 300 A-23, PS-25

200, 300 PS-25, PS-30

EQF 26-42W WORLD VOLTAGE QUAD-PIN COMPACT FLUORESCENT1

Quad-Pin FLUORESCENT CATALOG NUMBER4

LAMP INCLUDED LINE VOLTAGE PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

EQF2630A2G

EQF3230A2G

EQF4230A2G

EQF5230A2G

EQF6430A2G

EQF8430A2G

EQF2630X2G

EQF3230X2G

EQF4230X2G

EQF5230X2G

EQF6430X2G

EQF8430X2G

EQF2630B2G

EQF3230B2G

EQF4230B2G

EQF5230B2G

EQF6430B2G

EQF8430B2G

EQF2630D4G

EQF3230D4G

EQF4230D4G

EQF5230D4G

EQF6430D4G

EQF8430D4G

26 Watt5120-277VAC 50-60Hz

32 Watt 5120-277VAC 50-60Hz

42 Watt 5120-277VAC 50-60Hz

52 Watt (2 X 26) 120-277VAC 50-60Hz

64 Watt (2 X 32) 120-277VAC 50-60Hz

84 Watt (2 X 42) 120-277VAC 50-60Hz

EBF 13-26W Bi-Pin COMPACT FLUORESCENT1

LAMP Bi-Pin FLUORESCENT CATALOG NUMBER4

TYPE LAMP INCLUDED LINE VOLTAGE @60Hz PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

120

13 (1 X 13) 277

26 (2 X 13) 120

277

EBF131A2G

EBF134A2G

EBF261A2G

EBF264A2G

EBF131X2G

EBF134X2G

EBF261X2G

EBF264X2G

EBF131B2G

EBF134B2G

EBF261B2G

EBF264B2G

EBF131D4G

EBF134D4G

EBF261D4G

EBF264D4G

1See Hazardous Location Application Data on pages L144-145 for specific suitabilities.

2For 1" pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EBF131A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting. (refer to catalog logic).

4Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.

5EQF 26-42 Watt fixtures use a tank extension ring and are 2.5" taller than EBF fixtures.

NOTE: Reflectors must be ordered separately (see page L140). All luminaires are designed for mounting with lamp in

base up position.

Pendant Ceiling Wall Stanchion

COMPACT

FLUOR.

COMPACT

FLUOR.

LAMP

TYPE

EM/EB/EQ SERIES •L I G H T I N G

INCANDESCENT, 60-300W MEDIUM BASE; COMPACT FLUORESCENT, 13-84W

EM/EB/EQ SERIES •LIGHTING

HID, 35-150W MEDIUM BASE L139

FEATURES-SPECIFICATIONS

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class I, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

Pendant Ceiling Wall Stanchion

1See Hazardous Location Application Data on page L144-145 for specific suitabilities.

2For 1" pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EMS351A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting. (refer to catalog logic).

4Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.

NOTE: Reflectors must be ordered separately (see page L140). All luminaires are designed for mounting with lamp in base

up position.

EMS351A2G

EMS050A2G

EMS070A2G

EMS075A2G

EMS100A2G

EMS105A2G

EMS151A2G

EMH050A2G

EMH070A2G

EMH100A2G

EMH050X2G

EMH070X2G

EMH100X2G

EMH050B2G

EMH070B2G

EMH100B2G

EMH050D4G

EMH070D4G

EMH100D4G

EMS351X2G

EMS050X2G

EMS070X2G

EMS075X2G

EMS100X2G

EMS105X2G

EMS151X2G

EMS351B2G

EMS050B2G

EMS070B2G

EMS075B2G

EMS100B2G

EMS105B2G

EMS151B2G

EMS351D4G

EMS050D4G

EMS070D4G

EMS075D4G

EMS100D4G

EMS105D4G

EMS151D4G

35 S-76 120

50 S-68 120, 208, 240, 277

70 S-62 120, 208, 240, 277

HPS 70 S-62 480

100 S-54 120, 208, 240, 277

100 S-54 480

150 S-55 120

EM 35-150W MEDIUM BASE HIGH PRESSURE SODIUM1 4

LAMP LAMP ANSI VOLTAGE CATALOG NUMBER4

TYPE WATTS LAMP TYPE @60 HERTZ PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

50 M-110 120, 208, 240, 277

MH 70 M-98 120, 208, 240, 277

100 M-90 120, 208, 240, 277

EM 50-100W MEDIUM BASE METAL HALIDE1 4

LAMP LAMP ANSI VOLTAGE CATALOG NUMBER4

TYPE WATTS LAMP TYPE @60 HERTZ PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

EM/EB/EQ SERIES •LIGHTING

COMPONENT PARTS/ACCESSORIES

L140

Housing, Globe and

Globe Support Assemblies1

Angle DomeStandard Dome

SERIES LAMP TYPE

EMI15 INC

EMI20 INC

EBF Bi-Pin

EQF (26, 32, 42) Quad-Pin

EMI30 INC

EMS HPS

EMH MH

ESX Strobe

EQF (52, 64, 84) Quad-Pin

CATALOG

NUMBER

EMG1

EMG2

GUARDS

Guards are cast of copper-free aluminum with

electrostatically applied epoxy/polyester finish.

1Assemblies may be ordered with the

CEN (CENELEC) suffix. See page L144 for

more information.

2Adapters for discontinued Killark “H” Series

and Crouse Hinds®available. See page L224

for more information.

3UL fixture rating; socket rated 600V.

* Consult factory for 52, 64 and 84 Watt

availability.

HUB SIZE

3/4"

1-1/4"/1-1/2"*

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2 EZB2 —

EZA3 EZX3 EZB3 —

—— — EZD4*

MOUNTING BOXES

Wall Bracket 25° Stanchion

SERIES

EMI15/EMI20

EBF

EQF

EMI30

EMS

EMH

EQF (52, 64, 84)

CATALOG NUMBER

STANDARD DOME ANGLE

ERSD15 ERA15

ERSD30 ERA30

REFLECTORS

VOLTS3

250 MAX.

VAC

250 MAX.

VAC

250 MAX.

VAC

INCANDESCENT

CATALOG

NUMBER

EMI15

EMI20

EMI30

LAMP TYPE

A-19

A-19, A-21

A-21

A-23, PS-25

PS-25

PS-30

WATTS

60, 75

100

150

200

300

200

300

HPS

CATALOG

NUMBER

EMS351

EMS050

EMS070

EMS075

EMS100

EMS105

EMS151

WATTS

100

150

VOLTS

120VAC

277VAC

120VAC

277VAC

120-277

VAC

50-60Hz

VOLTS

@60HZ.

120

Quadri-Volt

480

Quadri-Volt

480

120

FLUORESCENT with lamp(s)*

CATALOG

NUMBER

EBF131

EBF134

EBF261

EBF264

EQF2630

EQF3230

EQF4230

EQF5230

EQF6430

EQF8430

ANSI

LAMP TYPE

S-76

S-68

S-62

S-54

S-55

ANSI

LAMP TYPE

Bi-Pin

Fluorescent

Bi-Pin

Fluorescent

Quad Pin

Fluorescent

WATTS

26 (2x13)

52 (2X26)

64 (2X32)

84 (2X42)

VOLTS

@60HZ.

Quadri-Volt

METAL HALIDE

CATALOG

NUMBER

EMH050

EMH070

EMH100

ANSI

LAMP TYPE

M-110

M-98

M-90

WATTS

100

Pendant Ceiling

EMG1 EMG2 EAC2

Listed - Files E10514 and

E91793 (Marine)

Certified - File LR11713

EMI15/20/EBF EMI30 & HID

Reflectors are aluminum with white finish.

*1-1/2" furnished with 1-1/2"-1-1/4" reducer

EZCUP

Close up plug for

EZ mounting

boxes. Used for

maintenance when

fixture is removed

for service.

HIC-BEIGE

replacement

wiring plug

for EZBx

Wall Bracket

FACTORY SEALED

PHOTO CELL FIELD KITS

WITH HKB-GL BOX AND COVER

VMHKPC1

VMHKPC2

VMHKPC3

CATALOG NUMBER

120VAC

208-277VAC

347VAC

VOLTS

Class I, DIV. 1 BCD

Class II, DIV. 1&2 EFG

CLASS III

NEMA 3, 4X IP66

*40˚C ambient T3 Rated

EM/EB/EQ SERIES •LIGHTING

REPLACEMENT PARTS/ACCESSORIES L141

Hazardous Locations Exit Sign

Applications

For use in hazardous areas to mark

exits over doorways and in hallways.

Features

•Three sided illuminated sign visible

from all three sides

•EXIT printed in 6" high red letters

with 3/4" strokes as required by

OSHA. Sign has open bottom

providing light on exit area while

illuminating the panel

Replacement Globe & Support Assemblies

Exit Sign Accessory

KIT NO. GLOBE COLOR

KT-100SU41R RED

KT-100SU41G GREEN

Used to modify EMI20 Series only fixtures to accept a colored inner

globe. The kit includes the globe plus an adapter assembly and

mounting instructions.

2Maximum lamp size A-21 150 Watt.

COLORED GLOBE KITS FOR HAZARDOUS LOCATIONS2

EM Series EB Series

SERIES LAMP TYPE MAX. WATTAGE

EMI15 INC 150

EMI20 INC 300

EBF13/26 PL Bi-Pin Fluorescent 26

EQF PL Quad-Pin Fluorescent 26, 32, 42

EMI30 INC 300

EMS HPS 150

EMH MH 100

EQF PL Quad-Pin Fluorescent 52, 62, 84

CATALOG NUMBER1

EMGS1

EMGS22

EMGS3

REPLACEMENT GLOBE AND GLOBE SUPPORTS

REPLACEMENT CONNECTION BLOCKS

CATALOG NUMBER

EZTB

EZCB

DESCRIPTION

Female

Male

REPLACEMENT SOCKETS

CATALOG NUMBER

EMRS

EBRS

DESCRIPTION

EM Series E-26 Medium Base

EB Series

EXIT SIGN

CATALOG NUMBER

HEXA-100

DESCRIPTION

Fits EMI15, EMI20, EBF/EQF/EEQ

Series without guard *

(Fixture not included)

1EMGS1, EMGS3 are internally fluted glass.

2EMGS2 is smooth clear glass used for ESX strobe.

MPL13 13W Bi-Pin

MQL26 26W Quad-Pin

MQL32 32W Quad-Pin

MQL42 42W Quad-Pin

REPLACEMENT FLUORESCENT LAMPS

CATALOG NUMBER SIZE & TYPE

* EQF to 42W

Male

EZCB

Female

EZTB

EM/EB/EQ SERIES •LIGHTING

BALLAST DATA

L142

LAMP LAMP OPERATING OPEN

SOURCE WATTS/TYPE (AMPS) (AMPS) BALLAST CIRCUIT REGULATION MIN, START

(1) Bi-Pin .39

Fluorescent 13W (1 X 13) .35 .30 — NPF — 32°F (0°C)

(2) Bi-Pin .78

Fluorescent 26W (2 X 13) .70 .60 — NPF — 32°F (0°C)

0°F (-18°C)

HPS 35W S-76 .55 .40 .65 R-HPF1±5% Line Voltage* 0° F (-40°C)

.58 .58 1.24

HPS 50W S-68 .35 .33 .59

.30 .29 .50 HX-HPF1±5% Line Voltage* 0° F (-40°C)

.24 .25 .44

.75 .81 1.45

.45 .47 .85

HPS 70W S-62 .37 .40 .75 HX-HPF1±5% Line Voltage* 0°F (-40°C)

.35 .35 .65

.21 .21 .36

1.30 1.15 2.20

.76 .66 1.27

.66 .57 1.10 HX-HPF1±5% Line Voltage* 0°F ( - 40°C)

HPS 100W S-54 .60 .49 .85

.33 .28 .57

HPS 150W S-55 2.20 1.50 2.35 HX-HPF1±5% Line Voltage* 0°F ( -40°C)

.87 .60 1.16

MH 50W M-110 .51 .35 .67 HX-HPF1±5% Line Voltage -20°F (-30°C)

.47 .30 .57 ±12% Lamp Watts

.39 .25 .50

.80 .85 1.70

MH 70W M-98 .50 .50 1.04 HX-HPF1±5% Line Voltage -20°F (-30°C)

.43 .43 .87 ±12% Lamp Watts

.39 .37 .78

1.20 1.15 2.30

MH 100W M-90 .70 .60 1.30 HX-HPF1±5% Line Voltage -20°F (-30°C)

.61 .55 1.10 ±12% Lamp Watts

.55 .45 .95

EM/EB BALLAST DATA

* Lamp watts within ANSI Trapezoid limitations.

1Ballast circuits are High Power Factor 90%+.

START

(AMPS)

Quad-Pin

Fluorescent

26W

32W

42W

120-277

Quad-Pin

Fluorescent

52W (2X26)

64W (2X36)

84W (2X42)

120-277

.24(120)/.11(277)

.31(120)/.13(277)

.38(120)/.18(277)

—

HPF

.48(120)/.22(277)

.62(120)/.26(277)

.76(120)/.36(277)

— —

—ELECTRONIC

ELECTRONIC

HPF

VOLTAGE @

60 HERTZ

120

277

120

277

120

208

240

277

120

208

240

277

480

120

208

240

277

480

120

208

240

277

120

208

240

277

120

208

240

277

EM/EB/EQ/ESX/EEQ SERIES •LIGHTING

DIMENSIONS L143

FEATURES-SPECIFICATIONS

Pendant Ceiling Wall Stanchion

Pendant Ceiling Wall 25° Stanchion

PENDANT CEILING WALL STANCHION

SERIES A B C D A B C D A B C D A B C

EMI15

EMI20 14-5/16" 13-11/16" 7-7/16" 10-5/16" 14-5/16" 13-11/16" 7-7/16" 10-5/16" 15-13/16" 14-7/16" 14-1/2" 10-5/16" 14" 13-1/4" 13"

EBF13 (363) (346) (188) (261) (363) (347) (188) (261) (385) (366) (369) (26) (256) (337) (330)

EBF26

16-13/16" 16-3/16" 7-7/16" 12-5/8" 16-13/16" 16-3/16" 7-7/16" 12-5/8" 18-5/16" 16-15/16" 14-1/2" 12-5/8" 16-1/4" 15-3/4" 15-1/4"

(427) (411) (188) (321) (427) (411) (188) (321) (465) (430) (368) (321) (413) (400) (387)

EMI30

EMH 15-15/16" 15-1/16" 8-13/16" 11-15/16" 15-15/16" 15-1/16" 8-13/16" 11-15/16" 16-13/16" 15-13/16" 15" 11-15/16" 15-1/8" 14" 13-1/2"

EMS (404) (382) (224) (303) (404) (382) (224) (303) (426) (404) (379) (303) (384) (356) ( 343)

ESX

EQF 52, 64, 84

EM/EMB/ESX DIMENSIONS

Standard Dome

Angle

STANDARD DOME ANGLE

SERIES AB CABCD

7-3/8" 14" 3-3/4" 7" 11-1/2" 7-3/4" 1"

(187) (356) (95) (178) (292) (197) (25)

8-3/4" 16-1/8" 3-15/16" 8-3/4" 14-3/16" 7-3/4" 1"

(222) (409) (100) (222) (360) (197) (25)

REFLECTOR DIMENSIONS

.31"

(8)

4.25"

(107)

4.75"

(120)

7.00"

(177)

45°

EMI15/EMI20

EBF/EQF to 42W

EMI30/EMS

EMH

EQF 52, 64, 84

EQF to 42W

EEQ

5.25"

(133)

EM/EB/EQ SERIES •LIGHTING

A P P L I C AT I O N D ATA

L144

EM/EB/EQ HAZARDOUS LOCATION DATA–CLASS I, DIV. 1 & 21 2

SUPPLY CLASS I, DIVISIONS 1 & 2

WIRE MAXIMUM SURFACE TEMPERATURE °CLAMP RATED

SUITABLE UL/CSA

FIXTURE TYPE/SIZE LAMP AMBIENT

FOR °C WITH OR WITHOUT REFLECTOR

SERIES MAX. WATTS °C

MIN. TEMP. I.D. ACTUAL TEMP. UL/CSA GROUPS

40 75 T6 79 C,D

EMI15 INC A-19 60 55 75 T6 C,D

65 75 T4A C,D

40 75 T4A 103 C,D

EMI15 INC A-19 75 55 90 T4A C,D

65 90 T4 C,D

40 75 T4A 103 C,D

EMI15 INC A-19 100 55 90 T4A C,D

65 90 T4 C,D

40 75 T4A 101 C,D

EMI15 INC A-21 100 55 90 T4A C,D

65 90 T4 C,D

40 75 T4 123 C,D

EMI15 INC A-21 150 55 90 T3C C,D

65 90 T3C C,D

40 90 T4A 107 C,D

EMI20 INC A-23 100 55 90 T4 C,D

65 90 T4 C,D

40 90 T4 132 C,D

EMI20 INC A-23 150 55 90 T3C C,D

65 111 T3C C,D

40 90 T4 126 C,D

EMI20 INC PS-25 150 55 110 T3C C,D

65 110 T3C C,D

40 90 T3C 146 C,D

EMI20 INC A-23 200 55 90 T3B C,D

65 110 T3A C,D

40 90 T3C 154 C,D

EMI20 INC PS-25 200 55 90 T3A C,D

65 110 T3A C,D

40 90 T3 190 C,D

EMI20 INC PS-25 300 55 110 T2D C,D

65 C,D

40 110 T3C 146 C,D

EMI30 INC PS-25 200 55 110 T3B C,D

65 125 T3A C,D

40 110 T3C 143 C,D

EMI30 INC PS-25 300 55 110 T3B C,D

65 125 T3A C,D

40 110 T3C 146 C,D

EMI30 INC PS-30 200 55 110 T3B C,D

65 125 T3A C,D

40 110 T3C 146 C,D

EMI30 INC PS-30 300 55 110 T3B C,D

65 125 T3A C,D

40 75 T6 62 C,D

EBF13 1 13W Bi-Pin 13 55 90 T 6 C,D

65 90 T5 C,D

40 75 T6 62 C,D

EBF26 2 13W Bi-Pin 26 55 90 T 6 C,D

65 90 T5 C,D

EQF26 1 26W Quad-Pin 26 40 7 5 T6 75 C,D

EQF32 1 32W Quad-Pin 32 40 7 5 T6 75 C,D

EQF42 1 42W Quad-Pin 42 40 7 5 T6 75 C,D

EQF52 2 26W Quad-Pin 52 40 7 5 T6 85 C, D

EQF64 2 32W Quad-Pin 64 40 75 T6 85 C,D

EQF84 2 42W Quad-Pin 84 40 7 5 T6 85 C, D

40 75 T6 65 C,D

EMS35 HPS S-70 35 55 90 T5 C,D

65 90 T4A C,D

40 75 T6 68 C,D

EMS05 HPS S-68 50 55 75 T6 C,D

65 90 T5 C,D

40 75 T6 83 C,D

EMS07 HPS S-62 70 55 90 T5 C,D

65 90 T4A C,D

40 75 T5 99 C,D

EMS100 HPS S-54 100 55 90 T4A C,D

65 110 T4A C,D

40 75 T4A 119 C,D

EMS151 HPS S-55 150 55 90 T4 C,D

65 110 T3C C,D

40 75 T6 78 C,D

EMH05 MH M-110 50 55 90 T5 C,D

65 110 T4A C,D

40 75 T5 95 C,D

EMH07 MH M-98 75 55 90 T4A C,D

65 110 T4A C,D

40 75 T4A 101 C,D

EMH100 MH M-90 100 55 90 T4 C,D

65 110 T3C C,D

1Do not install where marked operating temperature exceeds

ignition temperature of hazardous atmosphere.

2See Class II table for simultaneous presence ratings.

CEN Option

Applications

Killark EM/EB/ESX series fixtures are

available with a European “Certificate of

Conformity” from PTB (Physikalisch-

Technische Bundesanstalt), the approval

agency based in Germany. Fixtures with

this rating will be useful for Original

Equipment Manufacturers and others

who build and ship apparatus into

European markets.

This approval is granted by PTB with the

use of a special ground lug and label.

Fixtures carrying an EEx d llB approval

are automatically granted an IP54

(ingress protection) rating. See

Temperature Code chart below for PTB

certified ratings. Killark EM/EB/ESX

fixtures with the PTB rating and labels

still carry all UL & CSA ratings.

Fixture housing/globe/globe support

assemblies (e.g. EM120 CEN) may be

ordered with the CEN suffix. Complete

fixture numbers, with the CEN suffix, will

be shipped with the mounting boxes,

guards and accessories as component

parts. Reflectors and other accessory

parts, as listed on pages L123-124, may

be used. Killark fixtures are NPT tapped

and plugged with at least one conduit

hole open.

Compliances

•EN 50014:1992

•EN 50018:1994

EEx d IIB T6 (or T5-T2)

PTB No. Ex-98.E.1076

MAXIMUM AMBIENT TEMPERATURE RANGE -20°C TO 40°C

TYPE OF

LUMINAIRE

EMI15

EMI20

EMI30

EMH05

EMH07

EMH10

EMS35

EMS05

EMS07

EMS10

EMS15

EBF13

EBF26

ESX( )120

ESX( )240

ESX( )1274

TYPE OF

ENCLOSURE

EMO20

EMO30

EMO20

EMO30

FORM OF

THE LAMP

A-19/A-21

A-23/PS-25

PS-25/PS-30

BD17/M-110

BD17/M-98

BD17/M-90

ED17/S-76

ED17/S-68

ED17/S-62

ED17/S-54

ED17/S-55

PL13

120V AC

240V AC

12 TO 74 V DC

MAXIMUM

WATTAGE

150W

300W

50W

70W

100W

35W

50W

70W

100W

150W

13W

26W

0.17 A

0.12 A

1.25 TI 0.2 A

TEMPERATURE

CLASS

EM/EB/EQ SERIES •LIGHTING

A P P L I C AT I O N D ATA L145

CLASS II, DIV. 1 & 2

SUPPLY MAXIMUM SURFACE TEMPERATURE °C

FIXTURE LAMP LAMP RATED WIRE UL/CSA UL/CSA UL/CSA

CLASS III UL/CSA UL/CSA

SERIES TYPE/SIZE WATTS AMBIENT SUITABLE WITHOUT REFLECTOR WITH REFLECTOR GROUPS

DIV. 1 & 2 UL U.L. PAINT TYPE 3 TYPE 4

MAX. °C FOR °C ACTUAL ACTUAL

UL/CSA MARINE SPRAY (RAIN- (HOSE-

MIN. TEMP. I.D. TEMP. °C TEMP. I.D. TEMP. °C

SUITABILITY LISTEDSUITABILITY TIGHT) DOWN)3

40 75 T3C 132 T3C 132 E,F,G YES YES NO YES YES

EMI15 INC A-19 60 55 75 T3A E,F NO YES NO YES YES

65 75 T3A E,F NO

40 75 T3A 163 T3A 162 E,F NO YES NO YES YES

EMI15 INC A-19 75 55 90 T3A T3A E,F NO YES NO YES YES

65 90 T3A T3A E,F NO YES NO YES YES

40 75 T3A 163 T3A 162 E,F NO YES NO YES YES

EMI15 INC A-19 100 55 90 T3A T3A E,F NO YES NO YES YES

65 90 T3A T3 E,F NO YES NO YES YES

40 75 T3A 172 T3A 172 E,F NO YES NO YES YES

EMI15 INC A-21 100 55 90 T3 E,F NO YES NO YES YES

65 90 T3 E,F NO YES NO YES YES

40 75 N/A 192 T3 192 E,F NO YES NO YES YES

EMI15 INC A-21 150 55 N/A

65 N/A

40 90 T3A 166 T3A 166 E,F NO YES NO YES YES

EMI20 INC A-23 100 55 90 T3 E,F NO YES NO YES YES

65 N/A

40 90 T3 196 T3A 178 E,F NO YES NO YES YES

EMI20 INC A-23 150 55 90 T3 E,F NO YES NO YES YES

65 N/A

40 90 N/A N/A N/A N/A NO NO YES NO YES YES

EMI20 INC PS-25 150 55 N/A

65 N/A

40 90 N/A N/A N/A N/A NO NO YES NO YES YES

EMI20 INC A-23 200 55 N/A

65 N/A

40 90 N/A N/A N/A N/A NO NO YES NO YES YES

EMI20 INC PS-25 200 55 N/A

65 N/A

40 90 N/A N/A N/A N/A NO NO YES NO YES YES

EMI20 INC PS-25 300 55 N/A

65 N/A

40 110 N/A N/A N/A N/A NO NO YES NO YES YES

EMI30 INC PS-25 200 55 N/A

65 N/A

40 110 N/A N/A N/A N/A NO NO YES NO YES YES

EMI30 INC PS-25 300 55 N/A

65 N/A

40 110 N/A N/A N/A N/A NO NO YES NO YES YES

EMI30 INC PS-30 200 55 N/A

65 N/A

40 110 N/A N/A N/A N/A NO NO YES NO YES YES

EMI30 INC PS-30 300 55 N/A

65 N/A

40 75 T6 69 T6 66 E,F,G YES NO YES YES YES

EBF13 1 13W Bi-Pin 13 55 90 T6 T6 E,F,G YES NO YES YES YES

65 90 T5 T5 E,F,G YES NO YES YES YES

40 75 T6 69 T6 66 E,F,G YES NO YES YES YES

EBF26 2 13W Bi-Pin 26 55 90 T6 T6 E,F,G YES NO YES YES YES

65 90 T5 T5 E,F,G YES NO YES YES YES

EQF26 1 26W Quad-Pin 26 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

EQF32 1 32W Quad-Pin 32 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

EQF42 1 42W Quad-Pin 42 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

EQF52 2 26W Quad-Pin 52 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

EQF64 2 32W Quad-Pin 64 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

EQF84 2 42W Quad-Pin 84 40 75 T4 135 T4 135 E,F,G YES NO YES YES YES

40 75 T4A 116 T4A 116 E,F,G YES YES YES YES YES

EMS35 HPS S-70 35 55 N/A

65 N/A

40 75 T4A 116 T4A 116 E,F,G YES YES YES YES YES

EMS05 HPS S-68 50 55 75 T4 E,F,G

65 90 T3C E,F,G

40 75 T4A 116 T4A 116 E,F,G YES YES YES YES YES

EMS07 HPS S-62 70 55 90 T4 E,F,G YES YES YES YES YES

65 90 T3C E,F,G YES YES YES YES YES

40 75 T3B 161 T3B 161 E,F,G YES YES NO YES YES

EMS100 HPS S-54 100 55 N/A

65 N/A

40 75 T3A 180 T3B 180 E,F NO YES NO YES YES

EMS150 HPS S-55 150 55 90 T3 T3A E,F NO YES NO YES YES

65 N/A

40 75 T4 121 T4 121 E,F,G YES YES YES YES YES

EMH05 MH M-110 50 55 90 T3C T3A E,F NO YES YES YES YES

65 110 T3B T3A E,F,G NO YES YES YES YES

40 75 T4 121 T4 121 E,F,G YES YES YES YES YES

EMH07 MH M-98 70 55 90 T3C T3C E,F,G YES YES YES YES YES

65 110 T3B T3C E,F,G YES YES YES YES YES

40 75 T3C 153 T3C 153 E,F,G YES YES NO YES YES

EMH100 MH M-90 100 55 90 T3A NO YES YES NO YES YES

65 N/A

1Do not install where marked operating temperature exceeds ignition temperature of hazardous atmosphere.

2Fixtures rated for simultaneous presence as shown in Class II table (unless marked with N/A).

3For UL-Marine and UL/CSA Type 4 listing add suffix “ML” to “EMI” Series fixture catalog number;

standard on “EMS” and “EMH” series. Not available on “EBF”, or “EQF” series.

EM/EB/EQ HAZARDOUS LOCATION DATA–CLASS II, III, DIVISIONS 1 & 2 1 2

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA

L146

Illumination on Horizontal Surface

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

72.

74.

86.

100.

109.

123.

148.

160.

155.

149.

146.

143.

130.

65.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.79

.68

.60

.53

.48

.44

.40

.36

.34

.31

.29

.79

.63

.52

.44

.38

.33

.29

.26

.23

.21

.19

.79

.58

.46

.37

.31

.26

.22

.19

.17

.15

.13

.74

.63

.56

.49

.45

.40

.37

.34

.31

.29

.27

.74

.59

.49

.41

.36

.31

.27

.24

.22

.20

.18

.74

.55

.43

.35

.29

.25

.21

.18

.16

.14

.12

.74

.51

.38

.30

.24

.20

.16

.13

.12

.10

.09

.79

.54

.40

.31

.25

.21

.17

.14

.12

.10

.09

.66

.52

.43

.36

.31

.27

.24

.21

.19

.17

.16

.66

.49

.38

.31

.26

.22

.18

.16

.14

.12

.11

.66

.46

.34

.26

.21

.17

.14

.12

.10

.09

.08

.59

.45

.37

.31

.27

.24

.21

.18

.17

.15

.14

.59

.43

.33

.27

.23

.19

.16

.14

.12

.11

.09

.59

.40

.30

.23

.19

.15

.13

.10

.09

.08

.07

.52

.40

.32

.27

.23

.20

.18

.16

.14

.13

.12

.52

.38

.29

.23

.20

.16

.14

.12

.10

.09

.08

.52

.36

.26

.20

.16

.13

.11

.09

.08

.06

.49

.33

.23

.18

.14

.11

.09

.07

.06

.05

.04

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 2.4

Test No. LTL-00676

100

150

200

250

130

120

110

100

0 10 20 30 40

200

150

100

190 180 170 160 150 140

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

1.12

.72

.50

.36

.28

.22

1.02

.71

.51

.39

.30

.23

.55

.43

.36

.29

.25

.21

.39

.35

.30

.27

.21

.19

.23

.29

.25

.22

.19

.16

.22

.21

.18

.16

.14

.16

.18

.17

.15

.14

.13

.12

.14

.12

.07

.08

.09

.04

.05

.06

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.70

.64

.58

.52

.48

.43

.39

.36

.33

.31

.29

.70

.61

.53

.46

.40

.35

.31

.28

.25

.22

.20

.70

.58

.49

.41

.35

.30

.26

.22

.20

.17

.15

.68

.62

.56

.51

.46

.42

.38

.35

.32

.30

.28

.68

.59

.52

.45

.40

.35

.31

.27

.24

.22

.20

.68

.57

.48

.40

.35

.29

.25

.22

.19

.17

.15

.68

.55

.45

.37

.31

.26

.22

.18

.16

.14

.12

.70

.56

.45

.37

.31

.26

.22

.18

.16

.14

.12

.65

.57

.50

.43

.38

.33

.30

.26

.24

.21

.19

.65

.55

.46

.39

.34

.29

.25

.22

.19

.17

.15

.65

.53

.44

.36

.30

.25

.21

.18

.16

.14

.12

.62

.55

.48

.42

.37

.32

.29

.25

.23

.21

.19

.62

.53

.45

.38

.33

.28

.24

.21

.19

.17

.15

.62

.52

.43

.35

.30

.25

.21

.18

.16

.14

.12

.60

.53

.46

.40

.35

.31

.28

.24

.22

.20

.18

.60

.51

.44

.37

.32

.28

.24

.21

.18

.16

.15

.60

.50

.42

.35

.29

.25

.21

.18

.16

.14

.12

.58

.49

.41

.33

.28

.23

.20

.17

.14

.12

.11

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.4

Test No. LTL-00677

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

261.

260.

254.

252.

236.

220.

221.

203.

72.

10.

100

150

200

250

120

110

100

0 10 20 30

150

100

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

4.07

2.61

1.81

1.33

1.01

.80

2.28

1.80

1.38

1.07

.86

.70

.83

.77

.71

.64

.57

.50

.58

.57

.54

.50

.46

.42

.40

.43

.42

.39

.37

.35

.28

.32

.33

.32

.30

.29

.21

.24

.26

.25

.24

.13

.18

.20

.21

.20

.04

.08

.11

.12

.13

.02

.03

.05

.07

.08

.09

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

209.

216.

241.

281.

291.

292.

304.

314.

296.

264.

238.

185.

63.

28.

209.

213.

222.

227.

206.

190.

149.

55.

25.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.63

.56

.50

.45

.41

.38

.35

.32

.30

.27

.26

.63

.52

.45

.39

.34

.31

.27

.24

.22

.20

.18

.63

.49

.41

.34

.29

.25

.22

.19

.17

.15

.14

.61

.54

.48

.44

.40

.36

.33

.31

.29

.26

.25

.61

.51

.44

.38

.34

.30

.26

.24

.21

.19

.18

.61

.48

.40

.33

.29

.25

.22

.19

.17

.15

.14

.61

.46

.36

.30

.25

.21

.18

.16

.14

.12

.11

.63

.47

.37

.30

.26

.22

.19

.16

.14

.12

.11

.57

.48

.41

.36

.32

.28

.25

.22

.20

.19

.17

.57

.46

.38

.32

.28

.24

.21

.18

.16

.15

.13

.57

.44

.35

.29

.24

.21

.18

.15

.13

.12

.11

.54

.45

.39

.34

.30

.27

.24

.21

.19

.18

.16

.54

.43

.36

.30

.27

.23

.20

.18

.16

.14

.13

.54

.42

.34

.28

.24

.20

.17

.15

.13

.12

.10

.51

.42

.36

.32

.28

.25

.23

.20

.19

.17

.16

.51

.41

.34

.29

.25

.22

.19

.17

.15

.14

.12

.51

.40

.32

.27

.23

.20

.17

.15

.13

.11

.10

.50

.38

.31

.25

.22

.18

.16

.13

.12

.10

.09

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.0 / 1.5

Test No. LTL-00678

100

150

200

250

120

110

100

0 10 20 30 40

200

150

100

180 170 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

3.26

2.09

1.45

1.06

.81

.64

2.74

2.01

1.46

1.09

.80

.66

1.13

1.03

.91

.80

.68

.58

.81

.78

.71

.64

.58

.51

.59

.56

.52

.48

.44

.43

.45

.43

.40

.37

.32

.35

.36

.35

.33

.31

.24

.27

.29

.28

.27

.13

.15

.17

.18

.08

.09

.10

.12

10'

12'

14'

16'

18'

3.26

2.09

1.45

1.06

.81

.64

2.09

1.62

1.23

.96

.76

.61

.64

.67

.62

.57

.52

.45

.37

.45

.44

.41

.36

.19

.28

.33

.34

.33

.30

.10

.19

.24

.25

.26

.25

.05

.11

.17

.19

.20

.21

.03

.07

.09

.14

.16

.02

.03

.06

.08

.09

.01

.02

.04

0˚

90˚

SIDE

FRONT

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

FOOTCANDLE CHART (Initial) 100 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 100 WATT INCANDESCENT

FOOTCANDLE CHART (Initial) 100 WATT INCANDESCENT

EMI15 INCANDESCENT

With Globe Only

60 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT

A-19 lamp 1740 lumens

For 60 watt multiply by .494

For 75 watt multiply by .678

EMI15 INCANDESCENT

With Globe and Angle Reflector

60 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT

A-19 lamp 1740 lumens

For 60 watt multiply by .494

For 75 watt multiply by .678

EMI15 INCANDESCENT

With Globe and Standard Dome Reflector

60 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT

A-19 lamp 1740 lumens

For 60 watt multiply by .494

For 75 watt multiply by .678

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA L147

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.87

.75

.67

.60

.55

.50

.45

.42

.38

.36

.33

.87

.70

.59

.50

.44

.39

.34

.30

.27

.25

.22

.87

.65

.52

.43

.36

.31

.26

.23

.20

.18

.16

.82

.70

.62

.56

.51

.46

.42

.38

.36

.33

.31

.82

.66

.55

.47

.41

.36

.32

.28

.26

.23

.21

.82

.61

.49

.40

.34

.29

.25

.22

.19

.17

.15

.82

.58

.44

.35

.29

.24

.20

.17

.15

.13

.11

.87

.61

.46

.37

.30

.25

.21

.18

.15

.13

.12

.72

.57

.48

.41

.36

.31

.28

.25

.22

.20

.18

.72

.54

.43

.35

.30

.26

.22

.19

.17

.15

.13

.72

.51

.39

.31

.25

.21

.18

.15

.13

.11

.10

.64

.50

.41

.35

.31

.27

.24

.21

.19

.17

.16

.64

.47

.37

.31

.26

.22

.19

.17

.15

.13

.12

.64

.45

.34

.27

.22

.18

.15

.13

.11

.10

.08

.56

.43

.35

.30

.26

.23

.20

.18

.16

.15

.14

.56

.41

.32

.26

.22

.19

.16

.14

.13

.11

.10

.56

.39

.29

.23

.19

.16

.13

.11

.10

.08

.07

.52

.35

.26

.20

.16

.13

.11

.09

.08

.07

.06

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.6

Test No. LTL-00679

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

214.

215.

214.

213.

218.

230.

242.

249.

251.

246.

242.

235.

212.

171.

100.

27.

100

150

200

250

120

110

100

0 10 20 30 40

150

100

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

3.34

2.14

1.48

1.09

.83

.66

2.05

1.65

1.17

.91

.73

.59

.90

.81

.70

.60

.51

.44

.65

.62

.56

.50

.44

.38

.47

.45

.41

.37

.33

.34

.36

.34

.32

.29

.26

.28

.29

.28

.27

.25

.20

.22

.23

.22

.11

.13

.14

.15

.07

.08

.09

.10

Illumination on Horizontal Surface

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

571.

559.

505.

455.

431.

405.

372.

327.

206.

35.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.79

.72

.65

.58

.53

.49

.45

.41

.38

.35

.32

.79

.68

.59

.51

.45

.40

.35

.31

.28

.26

.23

.79

.65

.54

.45

.39

.33

.29

.25

.22

.20

.18

.77

.70

.63

.57

.52

.47

.43

.40

.37

.34

.32

.77

.67

.58

.50

.44

.39

.35

.31

.28

.25

.23

.77

.64

.53

.45

.38

.33

.29

.25

.22

.20

.18

.77

.61

.49

.40

.34

.29

.24

.21

.18

.16

.14

.79

.62

.50

.41

.34

.29

.24

.21

.18

.16

.14

.74

.64

.55

.48

.42

.37

.33

.30

.27

.24

.22

.74

.62

.51

.43

.37

.32

.28

.24

.22

.19

.17

.74

.59

.48

.40

.34

.28

.24

.21

.18

.16

.14

.70

.61

.53

.46

.41

.36

.32

.29

.26

.24

.22

.70

.59

.50

.42

.37

.32

.27

.24

.21

.19

.17

.70

.58

.47

.39

.33

.28

.24

.20

.18

.16

.14

.67

.59

.51

.44

.39

.35

.31

.28

.25

.23

.21

.67

.57

.48

.41

.36

.31

.27

.23

.21

.19

.17

.67

.56

.46

.38

.33

.28

.24

.20

.18

.16

.14

.66

.54

.45

.37

.31

.26

.22

.19

.16

.14

.13

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.2

Test No. LTL-00680

100

200

300

400

500

600

120

110

100

0 10 20 30

200

100

180 170 160 150 140 130 0

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

8.92

5.71

3.96

2.91

2.23

1.76

4.17

3.17

2.57

2.05

1.68

1.39

1.47

1.43

1.32

1.18

1.04

.91

.98

1.02

.99

.93

.86

.76

.67

.72

.75

.73

.69

.65

.48

.51

.57

.56

.54

.33

.40

.44

.46

.45

.44

.23

.30

.33

.36

.37

.36

.11

.14

.19

.21

.22

.23

.06

.08

.10

.13

.14

.15

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.70

.63

.56

.51

.47

.43

.40

.36

.34

.31

.29

.70

.59

.51

.44

.39

.35

.31

.28

.25

.23

.21

.70

.56

.46

.39

.34

.29

.26

.23

.20

.18

.16

.68

.60

.54

.49

.45

.41

.38

.35

.33

.30

.28

.68

.57

.49

.43

.38

.34

.30

.27

.25

.22

.20

.68

.54

.45

.38

.33

.29

.25

.22

.20

.18

.16

.68

.52

.41

.34

.29

.25

.21

.18

.16

.14

.13

.70

.53

.42

.35

.30

.25

.22

.19

.16

.14

.13

.64

.54

.46

.40

.36

.32

.29

.26

.23

.21

.20

.64

.51

.43

.36

.32

.28

.24

.21

.19

.17

.15

.64

.49

.40

.33

.28

.24

.21

.18

.16

.14

.12

.60

.50

.43

.38

.34

.30

.27

.24

.22

.20

.19

.60

.48

.41

.35

.30

.26

.23

.20

.18

.16

.15

.60

.47

.38

.32

.27

.23

.20

.17

.15

.14

.12

.57

.47

.41

.36

.32

.29

.26

.23

.21

.19

.18

.57

.46

.38

.33

.29

.25

.22

.20

.18

.16

.14

.57

.44

.36

.30

.26

.23

.20

.17

.15

.13

.12

.55

.43

.35

.29

.25

.21

.18

.16

.14

.12

.11

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 1.8 / 1.4

Test No. LTL-00681

0˚

(FRONT)

ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

435.

451.

486.

504.

520.

525.

518.

502.

479.

438.

401.

348.

204.

72.

14.

435.

437.

428.

416.

399.

372.

291.

157.

52.

10.

150

250

350

450

550

120

110

100

0 10 20 30

350

250

150

180 170 160 150 140 130

Illumination on Horizontal Surface

FC = (Candlepower) (COS Ø)

DISTANCE2

90˚

(SIDE)

ANGLE CP

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

6.79

4.35

3.02

2.21

1.69

1.34

4.90

3.61

2.73

2.11

1.66

1.34

1.99

1.86

1.64

1.43

1.23

1.06

1.38

1.37

1.29

1.17

1.04

.92

.97

1.02

1.00

.95

.87

.79

.70

.77

.76

.73

.67

.53

.58

.61

.62

.60

.57

.40

.45

.48

.50

.48

.22

.25

.28

.30

.32

.28

.13

.15

.18

.19

.21

10'

12'

14'

16'

18'

6.79

4.35

3.02

2.22

1.70

1.34

3.86

2.98

2.29

1.80

1.45

1.18

1.26

1.32

1.21

1.10

.96

.84

.78

.87

.91

.86

.80

.70

.43

.57

.64

.67

.64

.60

.28

.39

.46

.51

.50

.16

.26

.34

.41

.36

.41

.09

.16

.21

.28

.32

.29

.04

.06

.08

.13

.16

.18

.01

.03

.04

.06

.09

0˚

90˚

SIDE

FRONT

FOOTCANDLE CHART (Initial) 150 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 150 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 150 WATT INCANDESCENT

EMI15 INCANDESCENT

With Globe Only

100 – 150 Watt Medium Base

CANDLEPOWER – 150 WATT

A-21 lamp 2880 lumens

For 100 watt multiply by .587

EMI15 INCANDESCENT

With Globe and Angle Reflector

100 – 150 Watt Medium Base

CANDLEPOWER – 150 WATT

A-21 lamp 2880 lumens

For 100 watt multiply by .587

EMI15 INCANDESCENT

With Globe and Standard Dome Reflector

100 – 150 Watt Medium Base

CANDLEPOWER – 150 WATT

A-21 lamp 2880 lumens

For 100 watt multiply by .587

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA

L148

Illumination on Horizontal Surface

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

127.

132.

177.

209.

235.

296.

370.

369.

351.

339.

332.

322.

241.

87.

11.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.76

.65

.57

.51

.46

.41

.38

.34

.32

.29

.27

.76

.60

.50

.42

.36

.31

.27

.24

.22

.19

.18

.76

.55

.43

.35

.29

.24

.21

.18

.15

.13

.12

.72

.61

.53

.47

.43

.39

.35

.32

.30

.27

.25

.72

.57

.47

.39

.34

.30

.26

.23

.20

.18

.17

.72

.53

.41

.33

.28

.23

.20

.17

.15

.13

.11

.72

.49

.36

.28

.23

.18

.15

.12

.10

.09

.08

.76

.51

.38

.29

.24

.19

.16

.13

.11

.09

.08

.65

.50

.41

.35

.30

.26

.23

.20

.18

.16

.15

.65

.47

.37

.30

.25

.21

.17

.15

.13

.11

.10

.65

.44

.33

.25

.20

.16

.13

.11

.09

.08

.07

.58

.45

.36

.30

.26

.23

.20

.18

.16

.14

.13

.58

.42

.33

.26

.22

.18

.15

.13

.11

.10

.09

.58

.40

.29

.23

.18

.15

.12

.10

.08

.07

.06

.52

.39

.32

.26

.23

.20

.17

.15

.14

.12

.11

.52

.37

.29

.23

.19

.16

.13

.11

.10

.09

.08

.52

.35

.26

.20

.16

.13

.10

.08

.07

.06

.05

.49

.33

.23

.17

.14

.11

.08

.07

.05

.04

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 3.0

Test No. LTL-00670

100

150

200

250

120

110

100

0 10 20 30 40

200

150

100

180 170 160 150 140 130

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

1.98

1.27

.88

.64

.49

.39

2.16

1.50

1.09

.82

.62

.49

1.30

1.05

.83

.65

.54

.46

.99

.87

.73

.59

.47

.40

.71

.73

.64

.53

.44

.37

.52

.55

.52

.46

.41

.34

.39

.42

.44

.41

.40

.32

.28

.33

.35

.36

.32

.29

.16

.19

.21

.22

.23

.09

.11

.13

.14

.15

.16

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.66

.61

.55

.50

.46

.41

.38

.34

.32

.29

.27

.66

.58

.51

.44

.39

.34

.30

.26

.24

.21

.19

.66

.56

.47

.40

.34

.29

.25

.21

.19

.16

.15

.65

.59

.54

.49

.44

.40

.37

.33

.31

.28

.26

.65

.55

.46

.39

.33

.28

.24

.21

.18

.16

.14

.65

.53

.43

.36

.30

.25

.21

.17

.15

.13

.11

.66

.54

.44

.36

.30

.25

.21

.17

.15

.13

.11

.62

.55

.48

.42

.37

.32

.28

.25

.22

.20

.18

.62

.53

.45

.38

.33

.28

.24

.20

.18

.16

.14

.62

.51

.42

.35

.29

.24

.21

.17

.15

.13

.11

.59

.52

.46

.40

.35

.31

.27

.24

.22

.20

.18

.59

.51

.44

.37

.32

.27

.23

.20

.18

.16

.14

.59

.50

.41

.34

.29

.24

.20

.17

.15

.13

.11

.57

.50

.44

.39

.34

.30

.26

.23

.21

.19

.17

.57

.49

.42

.36

.31

.27

.23

.20

.17

.15

.14

.57

.48

.40

.34

.29

.24

.20

.17

.15

.13

.11

.56

.47

.39

.33

.27

.23

.19

.16

.14

.12

.10

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.5

Test No. LTL-00671

100

200

300

400

500

120

110

100

0 10 20 30 40

300

200

100

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

517.

529.

534.

556.

519.

503.

531.

451.

108.

20.

.65

.57

.50

.43

.38

.33

.29

.26

.23

.21

.19

88'

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

8.08

5.17

3.59

2.64

2.02

1.60

5.06

3.98

3.00

2.32

1.83

1.47

1.97

1.78

1.61

1.43

1.26

1.11

1.42

1.36

1.24

1.14

1.04

.94

1.04

.99

.91

.85

.78

.61

.77

.78

.74

.69

.66

.47

.56

.63

.62

.59

.55

.28

.42

.46

.51

.49

.47

.09

.18

.25

.29

.32

.33

.03

.09

.12

.17

.20

.21

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

448.

473.

544.

590.

613.

641.

716.

700.

643.

563.

460.

316.

120.

58.

14.

448.

457.

486.

497.

460.

462.

353.

129.

59.

14.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.60

.53

.48

.43

.40

.36

.33

.30

.28

.26

.24

.60

.50

.43

.37

.33

.29

.26

.23

.21

.19

.17

.60

.48

.39

.33

.28

.24

.21

.18

.16

.15

.13

.58

.51

.46

.42

.38

.35

.32

.29

.27

.25

.23

.58

.49

.42

.36

.32

.28

.25

.23

.20

.18

.17

.58

.46

.38

.32

.28

.24

.21

.18

.16

.14

.13

.58

.44

.35

.29

.24

.20

.17

.15

.13

.11

.10

.60

.45

.36

.29

.25

.21

.18

.15

.13

.12

.10

.55

.46

.40

.34

.31

.27

.24

.21

.19

.18

.16

.55

.44

.36

.31

.27

.23

.20

.17

.16

.14

.12

.55

.42

.34

.28

.24

.20

.17

.15

.13

.11

.10

.52

.43

.37

.33

.29

.26

.23

.20

.19

.17

.15

.52

.42

.35

.29

.26

.22

.19

.17

.15

.13

.12

.52

.40

.33

.27

.23

.19

.17

.14

.13

.11

.10

.49

.41

.35

.31

.27

.24

.22

.20

.18

.16

.15

.49

.40

.33

.28

.25

.21

.19

.16

.15

.13

.12

.49

.39

.31

.26

.22

.19

.16

.14

.12

.11

.10

.48

.37

.30

.25

.21

.18

.15

.13

.11

.10

.09

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.0 / 1.6

Test No. LTL-00672

100

200

300

400

500

600

120

110

100

0 10 20 30 40

500

400

300

200

100

180 170 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

7.00

4.48

3.11

2.28

1.75

1.38

5.77

4.22

3.04

1.98

1.88

1.50

2.58

2.27

1.97

1.69

1.44

1.24

1.91

1.78

1.57

1.40

1.23

1.08

1.35

1.41

1.30

1.16

1.04

.94

.98

1.06

1.05

.97

.89

.81

.73

.81

.85

.82

.74

.70

.55

.63

.65

.69

.65

.61

.29

.34

.39

.42

.44

.17

.21

.23

.27

.29

.30

10'

12'

14'

16'

18'

7.00

4.48

3.11

2.28

1.75

1.38

4.50

3.56

2.69

2.09

1.67

1.26

1.55

1.63

1.45

1.26

1.12

.99

.94

1.07

1.13

1.03

.92

.83

.46

.69

.78

.83

.77

.70

.24

.46

.56

.63

.64

.59

.14

.27

.42

.44

.49

.50

.09

.15

.23

.34

.39

.40

.04

.06

.07

.14

.19

.22

.02

.03

.04

.05

.10

0˚

90˚

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 200 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 200 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 200 WATT INCANDESCENT

EMI20 INCANDESCENT

With Globe Only

150 – 200 Watt Medium Base

CANDLEPOWER – 200 WATT

A-23 lamp 4000 lumens

For 150 watt multiply by .695

EMI20 INCANDESCENT

With Globe and Angle Reflector

150 – 200 Watt Medium Base

CANDLEPOWER – 200 WATT

A-23 lamp 4000 lumens

For 150 watt multiply by .695

EMI20 INCANDESCENT

With Globe and Standard Dome Reflector

150 – 200 Watt Medium Base

CANDLEPOWER – 200 WATT

A-23 lamp 4000 lumens

For 150 watt multiply by .695

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA L149

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.58

.50

.44

.40

.36

.32

.30

.27

.25

.23

.21

.58

.46

.39

.33

.28

.25

.22

.19

.17

.16

.14

.58

.43

.34

.28

.23

.19

.17

.14

.12

.11

.10

.55

.47

.41

.37

.33

.30

.27

.25

.23

.21

.20

.55

.41

.32

.26

.22

.18

.16

.13

.12

.10

.09

.55

.38

.28

.22

.18

.15

.12

.10

.09

.07

.06

.58

.40

.30

.23

.19

.16

.13

.11

.09

.08

.07

.49

.38

.31

.27

.23

.20

.18

.16

.14

.13

.11

.49

.36

.28

.23

.19

.16

.14

.12

.10

.09

.08

.49

.34

.25

.19

.16

.13

.11

.09

.08

.06

.43

.33

.27

.23

.20

.17

.15

.13

.12

.11

.10

.43

.31

.24

.20

.16

.14

.12

.10

.09

.08

.07

.43

.29

.22

.17

.14

.11

.09

.08

.06

.05

.38

.28

.23

.19

.17

.15

.13

.11

.10

.09

.08

.38

.27

.21

.17

.14

.12

.10

.08

.07

.06

.38

.26

.19

.15

.12

.10

.08

.06

.05

.04

.35

.23

.17

.13

.10

.08

.06

.05

.04

.03

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 2.6

Test No. LTL-00673

125

200

275

325

400

120

110

100

0 10 20 30 40

200

125

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

165.

169.

206.

257.

298.

332.

380.

409.

405.

396.

388.

379.

348.

238.

66.

.55

.44

.36

.31

.27

.23

.20

.18

.16

.15

.13

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

2.58

1.65

1.15

.84

.64

.51

2.24

1.84

1.32

.98

.73

.57

1.36

1.17

.99

.82

.68

.57

1.01

.93

.82

.70

.60

.52

.75

.68

.60

.52

.46

.56

.57

.56

.50

.46

.41

.43

.45

.43

.40

.36

.33

.36

.37

.34

.32

.18

.21

.23

.24

.23

.11

.13

.14

.16

.17

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

725.

722.

675.

657.

646.

605.

580.

542.

255.

26.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.52

.48

.43

.39

.35

.32

.29

.27

.25

.23

.21

.52

.45

.39

.34

.30

.26

.23

.20

.18

.17

.15

.52

.44

.36

.30

.26

.22

.19

.16

.14

.13

.11

.51

.46

.42

.38

.34

.31

.28

.26

.24

.22

.21

.51

.44

.38

.33

.29

.26

.23

.20

.18

.16

.15

.51

.43

.36

.30

.26

.22

.19

.16

.14

.13

.11

.51

.41

.33

.27

.23

.19

.16

.13

.12

.10

.09

.52

.42

.34

.27

.23

.19

.16

.13

.12

.10

.09

.49

.43

.37

.32

.28

.25

.22

.19

.18

.16

.14

.49

.41

.35

.29

.25

.21

.18

.16

.14

.12

.11

.49

.40

.32

.27

.22

.19

.16

.13

.12

.10

.09

.47

.41

.35

.31

.27

.24

.21

.19

.17

.15

.14

.47

.40

.33

.28

.24

.21

.18

.16

.14

.12

.11

.47

.39

.32

.26

.22

.18

.16

.13

.12

.10

.09

.45

.39

.34

.30

.26

.23

.20

.18

.16

.15

.14

.45

.38

.32

.27

.24

.20

.18

.15

.14

.12

.11

.45

.37

.31

.26

.22

.18

.15

.13

.11

.10

.09

.44

.37

.30

.25

.21

.17

.14

.12

.11

.09

.08

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.4

Test No. LTL-00674

100

200

300

400

500

600

700

110

0 10 20 30

100

180 160 140 130 120

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

11.32

7.25

5.03

3.70

2.83

2.24

6.23

4.70

3.60

2.83

2.26

1.86

2.16

2.14

1.97

1.78

1.55

1.34

1.55

1.49

1.48

1.40

1.29

1.15

1.07

1.14

1.09

1.04

.97

.78

.85

.88

.83

.84

.81

.57

.64

.69

.66

.65

.66

.36

.49

.53

.56

.54

.53

.15

.23

.31

.33

.35

.36

.07

.13

.16

.21

.23

.24

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.47

.41

.37

.34

.31

.28

.26

.24

.22

.20

.19

.47

.39

.33

.29

.26

.23

.20

.18

.16

.15

.13

.47

.37

.30

.25

.22

.19

.16

.14

.13

.11

.10

.45

.40

.36

.32

.30

.27

.25

.23

.21

.20

.18

.45

.36

.30

.25

.21

.19

.16

.14

.13

.11

.10

.45

.34

.27

.22

.19

.16

.14

.12

.10

.09

.08

.47

.35

.28

.23

.19

.16

.14

.12

.10

.09

.08

.43

.36

.31

.27

.24

.21

.19

.17

.15

.14

.13

.43

.34

.28

.24

.21

.18

.16

.14

.12

.11

.10

.43

.33

.26

.21

.18

.15

.13

.11

.10

.09

.08

.40

.34

.29

.25

.22

.20

.18

.16

.14

.13

.12

.40

.32

.27

.23

.20

.17

.15

.13

.12

.10

.09

.40

.31

.25

.21

.18

.15

.13

.11

.10

.08

.07

.38

.32

.27

.24

.21

.19

.17

.15

.14

.12

.11

.38

.31

.26

.22

.19

.16

.14

.13

.11

.10

.09

.38

.30

.24

.20

.17

.15

.13

.11

.09

.08

.07

.37

.29

.23

.19

.16

.14

.12

.10

.09

.07

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.1 / 1.6

Test No. LTL-00675

100

150

200

250

120

110

100

0 10 20 30

150

100

180 170 160 150 140 130

Illumination on Horizontal Surface

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

536.

558.

633.

750.

795.

797.

808.

813.

778.

696.

625.

501.

195.

68.

15.

536.

544.

572.

602.

585.

541.

432.

208.

73.

22.

10.

.45

.38

.32

.28

.25

.22

.20

.18

.16

.14

.13

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

8.38

5.36

3.72

2.73

2.09

1.65

7.44

5.37

3.90

2.94

2.27

1.75

3.05

2.82

2.51

2.19

1.86

1.59

2.15

2.10

1.96

1.78

1.59

1.40

1.55

1.59

1.54

1.44

1.33

1.21

1.13

1.20

1.21

1.17

1.10

1.03

.85

.93

.96

.95

.92

.87

.64

.73

.77

.78

.76

.74

.35

.41

.46

.48

.50

.21

.25

.29

.31

.33

.34

10'

12'

14'

16'

18'

8.38

5.36

3.72

2.73

2.09

1.65

5.63

4.31

3.24

2.50

1.96

1.58

1.86

1.91

1.77

1.61

1.41

1.22

1.15

1.28

1.33

1.26

1.17

1.05

.61

.85

.93

.98

.94

.87

.29

.54

.62

.74

.75

.72

.22

.37

.51

.55

.58

.59

.13

.19

.30

.42

.46

.47

.05

.09

.12

.19

.25

.27

.02

.04

.06

.08

.13

0˚

90˚

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT

EMI20 INCANDESCENT

With Globe Only Reflector

150, 200 and 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 150 watt multiply by .421

For 200 watt multiply by .506

EMI20 INCANDESCENT

With Globe and Angle Reflector

150, 200 and 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 150 watt multiply by .421

For 200 watt multiply by .506

EMI20 INCANDESCENT

With Globe and Standard Dome Reflector

150, 200 and 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 150 watt multiply by .421

For 200 watt multiply by .506

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA

L150

Illumination on Horizontal Surface

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

.135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

139.

184.

213.

268.

364.

371.

381.

410.

402.

434.

488.

586.

573.

604.

585.

567.

566.

549.

515.

485.

389.

234.

80.

15.

11.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.72

.61

.54

.48

.43

.39

.35

.32

.30

.27

.25

.72

.57

.46

.39

.34

.29

.25

.23

.20

.18

.16

.72

.52

.40

.33

.27

.22

.19

.16

.14

.12

.11

.68

.58

.51

.45

.41

.36

.33

.30

.28

.26

.24

.68

.54

.44

.37

.32

.28

.24

.21

.19

.17

.16

.68

.50

.39

.31

.26

.21

.18

.16

.13

.12

.10

.68

.47

.34

.26

.21

.17

.14

.11

.10

.08

.07

.72

.49

.35

.28

.22

.17

.14

.12

.10

.08

.07

.63

.49

.40

.34

.29

.25

.22

.19

.17

.15

.14

.63

.46

.35

.29

.24

.19

.16

.14

.12

.11

.09

.63

.43

.31

.24

.19

.15

.13

.10

.09

.07

.06

.57

.44

.36

.30

.26

.22

.19

.17

.15

.14

.13

.57

.42

.32

.26

.21

.18

.15

.13

.11

.10

.08

.57

.39

.29

.22

.18

.14

.11

.09

.08

.07

.06

.52

.40

.32

.27

.23

.20

.17

.15

.14

.12

.11

.52

.38

.29

.23

.19

.16

.13

.11

.10

.08

.52

.36

.26

.20

.16

.13

.10

.08

.07

.06

.05

.50

.33

.24

.18

.14

.11

.09

.07

.06

.04

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 3.5

Test No. BALL-6769.1

100

200

300

400

500

120

110

100

0 10 20 30 40

400

300

200

100

180 170 160 150 140 130

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

2.17

1.39

.96

.71

.54

.43

3.67

2.65

1.97

1.55

1.01

.74

1.86

1.53

1.26

1.13

.92

.79

1.56

1.28

1.06

.90

.82

.67

1.09

1.15

.93

.78

.67

.62

.84

.85

.80

.69

.60

.52

.63

.66

.69

.66

.54

.47

.54

.56

.46

.43

.26

.30

.34

.35

.36

.15

.19

.21

.23

.24

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.61

.56

.51

.46

.42

.37

.34

.31

.28

.26

.24

.61

.53

.46

.41

.35

.30

.27

.24

.21

.19

.17

.61

.51

.43

.36

.31

.25

.22

.19

.16

.14

.13

.59

.54

.49

.45

.40

.36

.33

.30

.28

.25

.23

.59

.50

.42

.36

.30

.25

.22

.19

.16

.14

.12

.59

.49

.40

.33

.27

.22

.18

.15

.13

.11

.10

.61

.49

.40

.33

.27

.22

.18

.15

.13

.11

.10

.57

.50

.44

.38

.33

.29

.25

.22

.20

.18

.16

.57

.49

.41

.35

.30

.25

.21

.18

.16

.14

.12

.57

.47

.39

.32

.27

.21

.18

.15

.13

.11

.10

.54

.48

.42

.37

.32

.28

.24

.22

.19

.17

.16

.54

.47

.40

.34

.29

.24

.21

.18

.16

.13

.12

.54

.46

.38

.31

.26

.21

.18

.15

.13

.11

.09

.52

.46

.40

.35

.31

.27

.23

.21

.19

.17

.15

.52

.45

.39

.33

.28

.23

.20

.18

.15

.13

.12

.52

.44

.37

.31

.26

.21

.18

.15

.13

.11

.09

.51

.43

.36

.30

.25

.20

.17

.14

.12

.10

.08

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.7

Test No. BALL-6770.1

150

300

450

600

750

900

120

110

100

0 10 20 30 40

450

300

150

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

649.

647.

684.

747.

825.

842.

768.

754.

738.

693.

705.

749.

774.

735.

458.

132.

82.

32.

.59

.52

.46

.40

.35

.30

.26

.23

.21

.18

.17

AANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

10.14

6.49

4.51

3.31

2.53

2.00

7.26

6.02

4.57

3.51

2.63

2.06

2.68

2.45

2.32

2.07

1.81

1.58

2.00

1.85

1.70

1.65

1.51

1.36

1.48

1.47

1.35

1.25

1.23

1.14

1.06

1.13

1.03

1.02

.96

.95

.77

.89

.86

.80

.76

.42

.67

.73

.72

.67

.64

.16

.27

.41

.46

.47

.46

.03

.14

.18

.28

.32

Illumination on Horizontal Surface

%Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.52

.46

.41

.37

.34

.31

.28

.26

.24

.22

.20

.52

.43

.37

.32

.28

.24

.22

.19

.17

.16

.14

.52

.41

.33

.28

.23

.20

.17

.15

.13

.12

.10

.51

.45

.40

.36

.32

.29

.27

.25

.23

.21

.20

.51

.42

.36

.31

.27

.24

.21

.19

.17

.15

.14

.51

.40

.32

.27

.23

.19

.17

.15

.13

.11

.10

.51

.38

.29

.24

.20

.16

.14

.12

.10

.09

.08

.52

.39

.30

.24

.20

.16

.14

.12

.10

.09

.08

.48

.40

.33

.29

.25

.22

.20

.18

.16

.14

.13

.48

.38

.31

.26

.22

.19

.16

.14

.12

.11

.10

.48

.36

.28

.23

.19

.16

.13

.12

.10

.09

.08

.45

.37

.31

.27

.24

.21

.19

.17

.15

.14

.12

.45

.36

.29

.25

.21

.18

.15

.14

.12

.11

.09

.45

.34

.27

.22

.19

.15

.13

.11

.10

.08

.07

.42

.35

.30

.26

.23

.20

.18

.16

.14

.13

.12

.42

.34

.28

.23

.20

.17

.15

.13

.11

.10

.09

.42

.33

.26

.21

.18

.15

.13

.11

.09

.08

.07

.41

.32

.25

.20

.17

.14

.12

.10

.08

.07

.06

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC =2.14 / 1.5

Test No. BALL-6771.1

200

400

600

800

1000

1200

120

110

100

0 10 20 30 40

800

600

400

200

180 170 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

8.80

5.63

3.91

2.87

2.20

1.74

8.18

6.63

5.01

3.90

3.03

2.45

3.43

3.09

2.77

2.34

2.04

1.77

2.53

2.37

2.15

1.96

1.71

1.52

1.87

1.86

1.73

1.58

1.46

1.30

1.39

1.42

1.41

1.44

1.21

1.13

1.04

1.12

1.13

1.08

1.03

.95

.79

.89

.93

.91

.86

.83

.43

.50

.56

.58

.24

.31

.35

.38

.40

.41

10'

12'

14'

16'

18'

8.80

5.63

3.91

2.87

2.20

1.74

5.18

4.16

3.30

2.56

2.06

1.68

2.17

1.90

1.73

1.53

1.29

1.11

1.58

1.49

1.32

1.23

1.12

.99

.59

1.16

1.09

.97

.91

.84

.25

.80

.88

.82

.74

.71

.16

.36

.70

.68

.64

.59

.09

.16

.29

.57

.54

.52

.04

.08

.18

.36

.02

.03

.06

.13

0˚

90˚

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

563.

714.

888.

927.

853.

875.

950.

998.

890.

807.

561.

179.

96.

33.

563.

499.

608.

582.

558.

538.

592.

150.

68.

15.

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT FOOTCANDLE CHART (Initial) 300 WATT INCANDESCENT

EMI30 INCANDESCENT

With Globe Only

200 – 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 200 watt multiply by .597

EMI30 INCANDESCENT

With Globe and Angle Reflector

200 – 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 200 watt multiply by .597

EMI30 INCANDESCENT

With Globe and Standard Dome Reflector

200 – 300 Watt Medium Base

CANDLEPOWER – 300 WATT

PS-25 lamp 6360 lumens

For 200 watt multiply by .597

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA L151

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

13.

14.

21.

31.

48.

60.

66.

63.

57.

52.

48.

37.

24.

13.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.60

.52

.45

.40

.37

.33

.30

.27

.25

.23

.21

.60

.48

.40

.33

.29

.25

.22

.19

.17

.15

.14

.60

.44

.35

.28

.23

.19

.16

.14

.12

.10

.09

.57

.49

.43

.38

.34

.31

.28

.25

.23

.22

.20

.57

.45

.37

.31

.27

.23

.20

.18

.16

.14

.13

.57

.42

.33

.26

.22

.18

.15

.13

.11

.10

.09

.57

.39

.29

.22

.18

.14

.12

.10

.08

.07

.06

.60

.41

.31

.24

.19

.15

.12

.10

.08

.07

.06

.51

.40

.33

.28

.24

.21

.18

.16

.14

.13

.11

.51

.38

.29

.24

.20

.16

.14

.12

.10

.09

.08

.51

.35

.26

.20

.16

.13

.10

.08

.07

.06

.05

.46

.36

.29

.24

.21

.18

.16

.14

.12

.11

.10

.46

.34

.26

.21

.17

.14

.12

.10

.09

.08

.07

.46

.32

.24

.18

.14

.11

.09

.07

.06

.05

.04

.41

.31

.25

.21

.18

.16

.13

.12

.11

.09

.08

.41

.30

.23

.18

.15

.12

.10

.09

.08

.06

.41

.28

.21

.16

.13

.10

.08

.06

.05

.04

.39

.26

.19

.14

.11

.08

.06

.05

.04

.03

.02

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 3.8

Test No. LTL 00667

120

110

100

0 10 20 30 40

180 170 160 150 140 130

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

.20

.13

.09

.07

.05

.04

.40

.22

.15

.11

.08

.06

.24

.21

.17

.13

.10

.08

.18

.16

.15

.12

.10

.07

.12

.13

.12

.11

.09

.07

.09

.10

.09

.08

.07

.06

.05

.06

.03

.04

.02

.03

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.52

.48

.43

.39

.35

.32

.29

.27

.25

.23

.21

.52

.45

.39

.34

.30

.26

.23

.20

.18

.16

.15

.52

.43

.36

.30

.26

.22

.19

.16

.14

.12

.11

.51

.46

.42

.38

.34

.31

.28

.26

.24

.22

.20

.51

.43

.36

.30

.26

.22

.19

.16

.14

.12

.11

.51

.41

.33

.27

.23

.19

.16

.13

.11

.10

.08

.52

.42

.33

.27

.23

.19

.16

.13

.11

.10

.08

.49

.42

.37

.32

.28

.25

.22

.19

.17

.15

.14

.49

.41

.34

.29

.25

.21

.18

.16

.14

.12

.11

.49

.40

.32

.26

.22

.19

.16

.13

.11

.10

.08

.47

.41

.35

.31

.27

.24

.21

.19

.17

.15

.13

.47

.39

.33

.28

.24

.21

.18

.15

.13

.12

.10

.47

.38

.32

.26

.22

.18

.15

.13

.11

.10

.08

.45

.39

.34

.30

.26

.23

.20

.18

.16

.14

.13

.45

.38

.32

.27

.24

.20

.18

.15

.13

.12

.10

.45

.37

.31

.26

.22

.18

.15

.13

.11

.09

.08

.44

.36

.30

.25

.21

.17

.14

.12

.10

.09

.07

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.6

Test No. LTL 00668

110

100

0 10 20 30

180 160 150 130 120

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

92.

93.

86.

95.

97.

88.

64.

35.

.51

.44

.38

.33

.29

.26

.23

.20

.18

.16

.14

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

1.44

.92

.64

.47

.36

.28

.88

.61

.47

.37

.29

.24

.35

.34

.30

.26

.22

.18

.22

.24

.21

.19

.16

.14

.17

.18

.17

.16

.14

.10

.12

.14

.13

.12

.07

.10

.11

.10

.05

.06

.07

.08

.09

.02

.03

.04

.05

.00

.01

.02

.03

Test No. LTL 00669

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

36.

27.

35.

53.

81.

106.

121.

126.

123.

113.

106.

97.

77.

54.

32.

12.

36.

37.

46.

58.

70.

81.

68.

60.

52.

46.

41.

30.

19.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.50

.44

.39

.35

.31

.28

.26

.24

.22

.20

.19

.50

.41

.34

.29

.25

.22

.19

.17

.15

.14

.13

.50

.38

.30

.25

.21

.18

.15

.13

.11

.10

.09

.48

.41

.37

.33

.30

.27

.24

.22

.21

.19

.18

.48

.39

.32

.28

.24

.21

.18

.16

.15

.13

.12

.48

.36

.29

.24

.20

.17

.14

.12

.11

.10

.08

.48

.34

.26

.20

.17

.14

.11

.10

.08

.07

.06

.50

.36

.27

.21

.17

.14

.12

.10

.08

.07

.06

.44

.35

.29

.25

.22

.19

.17

.15

.13

.12

.11

.44

.33

.26

.22

.18

.15

.13

.11

.10

.09

.08

.44

.31

.24

.19

.15

.13

.11

.09

.08

.06

.40

.32

.26

.22

.19

.17

.15

.13

.12

.11

.10

.40

.30

.24

.20

.17

.14

.12

.10

.09

.08

.07

.40

.29

.22

.17

.14

.12

.10

.08

.07

.06

.05

.36

.28

.23

.20

.17

.15

.13

.12

.11

.10

.09

.36

.27

.22

.18

.15

.13

.11

.09

.08

.07

.06

.36

.26

.20

.16

.13

.11

.09

.07

.06

.05

.35

.24

.18

.14

.12

.09

.08

.06

.05

.04

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 3.2 / 2.7

100

120

110

100

0 10 20 30 40

180 170 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

.56

.36

.25

.18

.14

.11

.69

.38

.26

.19

.13

.10

.43

.37

.29

.22

.17

.14

.32

.30

.26

.21

.16

.13

.24

.22

.19

.15

.13

.17

.18

.16

.15

.12

.13

.14

.13

.11

.10

.11

.12

.11

.10

.05

.06

.07

.03

.04

.05

.04

10'

12'

14'

16'

18'

.56

.36

.25

.18

.14

.11

.63

.41

.29

.22

.17

.13

.31

.29

.24

.19

.16

.13

.22

.21

.20

.17

.14

.12

.14

.16

.15

.12

.11

.10

.12

.11

.10

.07

.08

.10

.09

.05

.06

.07

.08

.07

.03

.04

.05

.02

.03

0˚

90˚

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) (1) 13 WATT FLUORESCENT FOOTCANDLE CHART (Initial) (1) 13 WATT FLUORESCENT FOOTCANDLE CHART (Initial) (1) 13 WATT FLUORESCENT

EBF13/EQF SERIES FLUORESCENT

With Globe Only

One 13 Watt Bi-Pin Base

or one 26/32/42 Quad-Pin

CANDLEPOWER – (1) 13 WATT

PL lamp 900 lumens

For 26 watt quad-pin

multiply by 2.0

For 32 watt quad-pin

multiply by 2.66

For 42 watt quad-pin

multiply by 3.55

EBF13/EQF SERIES FLUORESCENT

With Globe and Angle Reflector

One 13 Watt Bi-Pin Base

or one 26/32/42 Quad-Pin

CANDLEPOWER – (1) 13 WATT

PL lamp 900 lumens

For 26 watt quad-pin

multiply by 2.0

For 32 watt quad-pin

multiply by 2.66

For 42 watt quad-pin

multiply by 3.55

EBF13/EQF SERIES FLUORESCENT

With Globe and Standard Dome Reflector

One 13 Watt Bi-Pin Base

or one 26/32/42 Quad-Pin

CANDLEPOWER – (1) 13 WATT

PL lamp 900 lumens

For 26 watt quad-pin

multiply by 2.0

For 32 watt quad-pin

multiply by 2.66

For 42 watt quad-pin

multiply by 3.55

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA

L152

Test No. LTL 00682

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.52

.44

.39

.35

.31

.28

.26

.23

.22

.20

.18

.52

.41

.34

.29

.25

.22

.19

.17

.15

.13

.12

.52

.38

.30

.24

.20

.17

.14

.12

.10

.09

.08

.49

.42

.37

.32

.29

.26

.24

.22

.20

.19

.17

.49

.36

.28

.23

.19

.16

.13

.11

.10

.09

.08

.49

.34

.25

.19

.16

.13

.10

.08

.07

.06

.05

.52

.36

.26

.20

.16

.13

.11

.09

.07

.06

.05

.44

.34

.28

.24

.21

.18

.16

.14

.12

.11

.10

.44

.32

.25

.20

.17

.14

.12

.10

.09

.08

.07

.44

.30

.23

.17

.14

.11

.09

.07

.06

.05

.04

.39

.30

.25

.21

.18

.16

.14

.12

.11

.10

.09

.39

.29

.22

.18

.15

.12

.10

.09

.08

.07

.06

.39

.27

.20

.15

.13

.10

.08

.07

.05

.04

.35

.27

.22

.18

.16

.13

.12

.10

.09

.08

.07

.35

.25

.20

.16

.13

.11

.09

.08

.07

.06

.05

.35

.24

.18

.14

.11

.09

.07

.06

.05

.04

.03

.33

.22

.16

.12

.09

.07

.06

.04

.03

.02

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 3.5

100

120

110

100

0 10 20 30 40

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

28.

29.

40.

58.

82.

100.

110.

111.

106.

96.

90.

82.

63.

44.

24.

.49

.39

.32

.27

.23

.20

.18

.16

.14

.12

.11

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

.44

.28

.19

.14

.11

.09

.71

.41

.28

.21

.15

.11

.40

.35

.29

.22

.17

.14

.29

.27

.24

.20

.16

.13

.21

.22

.20

.18

.15

.13

.15

.16

.15

.14

.12

.13

.12

.11

.09

.10

.09

.05

.06

.07

.03

.04

.05

Test No. LTL 00683

Illumination on Horizontal Surface

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

189.

193.

191.

190.

204.

205.

188.

136.

74.

15.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.56

.51

.46

.42

.38

.35

.31

.29

.26

.24

.22

.56

.49

.42

.36

.32

.28

.25

.22

.20

.17

.16

.56

.46

.39

.32

.28

.24

.20

.17

.15

.13

.12

.55

.50

.45

.40

.37

.33

.30

.28

.26

.24

.22

.55

.47

.41

.36

.31

.28

.24

.21

.19

.17

.16

.55

.46

.38

.32

.27

.23

.20

.17

.15

.13

.12

.55

.44

.36

.29

.24

.20

.17

.14

.12

.11

.09

.56

.45

.36

.39

.35

.20

.17

.14

.12

.11

.09

.52

.45

.39

.34

.30

.27

.23

.21

.19

.17

.15

.52

.44

.37

.31

.27

.23

.20

.17

.15

.13

.11

.52

.42

.35

.28

.24

.20

.17

.14

.12

.10

.09

.50

.44

.38

.33

.29

.26

.23

.20

.18

.16

.15

.50

.42

.36

.30

.26

.22

.19

.17

.15

.13

.11

.50

.41

.34

.28

.24

.20

.17

.14

.12

.10

.09

.48

.42

.36

.32

.28

.25

.22

.19

.17

.16

.14

.48

.41

.35

.29

.25

.22

.19

.16

.14

.13

.11

.48

.40

.33

.27

.23

.20

.17

.14

.12

.10

.09

.47

.39

.32

.26

.22

.19

.16

.13

.11

.09

.08

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.6

100

125

150

175

200

110

100

0 10 20 30

180 160 140 130 120

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

2.95

1.89

1.31

.96

.73

.58

1.85

1.36

1.04

.81

.65

.53

.75

.72

.64

.56

.46

.41

.50

.52

.50

.45

.41

.34

.31

.37

.38

.37

.34

.31

.21

.28

.29

.28

.26

.14

.18

.22

.23

.22

.09

.13

.15

.18

.19

.18

.04

.06

.08

.10

.12

.11

.02

.03

.04

.05

.06

.07

Test No. LTL 00684

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.49

.44

.40

.36

.33

.30

.27

.25

.23

.21

.20

.49

.41

.36

.31

.27

.24

.21

.19

.17

.15

.14

.49

.39

.32

.27

.23

.20

.17

.15

.13

.12

.10

.48

.42

.38

.34

.31

.29

.26

.24

.22

.21

.19

.48

.38

.32

.27

.23

.20

.17

.15

.13

.12

.10

.48

.36

.29

.24

.20

.17

.14

.12

.11

.09

.08

.49

.37

.30

.24

.20

.17

.15

.12

.11

.09

.08

.45

.38

.32

.28

.25

.22

.20

.18

.16

.14

.13

.45

.36

.30

.25

.22

.19

.16

.14

.13

.11

.10

.45

.35

.28

.23

.19

.16

.14

.12

.10

.09

.08

.42

.36

.31

.27

.24

.21

.19

.17

.15

.14

.12

.42

.34

.29

.24

.21

.18

.16

.14

.12

.11

.10

.42

.33

.27

.22

.19

.16

.14

.12

.10

.09

.08

.40

.33

.29

.25

.22

.20

.18

.16

.14

.13

.12

.40

.32

.27

.23

.20

.17

.15

.13

.12

.10

.09

.40

.31

.26

.21

.18

.15

.13

.11

.10

.09

.07

.39

.30

.25

.20

.17

.14

.12

.10

.09

.08

.07

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.3 / 1.8

100

150

200

250

120

110

100

0 10 20 30

150

100

180 170 160 150 140 130

Illumination on Horizontal Surface

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

155.

166.

190.

211.

242.

264.

274.

269.

238.

189.

161.

132.

75.

27.

155.

160.

171.

188.

174.

130.

78.

35.

10.

.48

.40

.35

.30

.27

.23

.21

.19

.17

.15

.14

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

2.42

1.55

1.08

.79

.60

.48

3.53

1.51

1.11

.85

.66

.30

1.02

.93

.80

.66

.55

.46

.73

.70

.65

.56

.48

.34

.52

.54

.51

.48

.42

.37

.38

.41

.39

.36

.33

.28

.32

.30

.29

.21

.24

.26

.25

.11

.13

.15

.16

.17

.06

.08

.09

.10

.11

10'

12'

14'

16'

18'

2.42

1.55

1.08

.79

.60

.48

1.73

1.22

.91

.70

.55

.44

.58

.61

.57

.52

.43

.37

.35

.40

.43

.40

.38

.32

.20

.25

.29

.31

.30

.29

.13

.18

.21

.23

.24

.23

.08

.12

.15

.17

.18

.19

.05

.10

.12

.14

.15

.02

.03

.04

.06

.07

.08

.00

.02

.03

.04

0˚

90˚

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) (2) 13 WATT FLUORESCENT FOOTCANDLE CHART (Initial) (2) 13 WATT FLUORESCENT

FOOTCANDLE CHART (Initial) (2) 13 WATT FLUORESCENT

EBF26 FLUORESCENT

With Globe Only

Two 13 Watt Bi-Pin Base

CANDLEPOWER – (2) 13 WATT

PL lamps

900 lumens per lamp

EBF26 FLUORESCENT

With Globe and Angle Reflector

Two 13 Watt Bi-Pin Base

CANDLEPOWER – (2) 13 WATT

PL lamps

900 lumens per lamp

EBF26 FLUORESCENT

With Globe and Standard Dome Reflector

Two 13 Watt Bi-Pin Base

CANDLEPOWER – (2) 13 WATT

PL lamps

900 lumens per lamp

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA L153

Illumination on Horizontal Surface

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

80.

84.

108.

148.

202.

262.

298.

321.

352.

397.

444.

467.

471.

540.

562.

603.

618.

633.

644.

651.

635.

624.

581.

505.

250.

23.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.85

.72

.64

.57

.51

.46

.42

.39

.36

.33

.31

.85

.67

.55

.47

.41

.35

.31

.27

.25

.22

.20

.85

.62

.48

.39

.33

.27

.23

.20

.18

.15

.14

.79

.67

.58

.52

.47

.42

.39

.36

.33

.30

.28

.79

.62

.51

.43

.37

.32

.28

.25

.23

.20

.19

.79

.58

.45

.36

.30

.25

.21

.19

.16

.14

.13

.79

.54

.39

.31

.25

.20

.16

.14

.12

.10

.09

.85

.57

.42

.33

.27

.21

.18

.15

.13

.11

.10

.69

.53

.43

.37

.32

.27

.24

.21

.19

.17

.16

.69

.50

.38

.31

.26

.21

.18

.16

.14

.12

.11

.69

.46

.34

.26

.21

.17

.14

.12

.10

.08

.07

.60

.45

.36

.30

.26

.22

.20

.18

.16

.14

.13

.60

.42

.32

.26

.21

.18

.15

.13

.11

.10

.09

.60

.40

.29

.22

.18

.14

.11

.09

.08

.07

.06

.51

.37

.30

.25

.21

.18

.16

.14

.13

.11

.10

.51

.35

.26

.21

.17

.14

.12

.10

.09

.08

.07

.51

.33

.24

.18

.14

.11

.09

.07

.06

.05

.04

.47

.29

.20

.15

.11

.08

.07

.05

.04

.03

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 4.3

Test No. BALL 6686.0

100

200

300

400

500

600

120

110

100

0 10 20 30 40

500

400

300

200

100

180 170 160 150 140 130

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

1.25

.80

.55

.41

.31

.25

2.94

1.87

1.21

.86

.57

.41

1.69

1.40

1.11

.88

.74

.61

1.24

1.16

.97

.77

.64

.55

.90

.92

.85

.71

.59

.50

.73

.70

.69

.62

.55

.45

.56

.54

.55

.54

.48

.43

.47

.44

.45

.42

.39

.25

.28

.30

.28

.29

.16

.18

.19

.21

.19

.20

Illumination on Horizontal Surface

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.66

.58

.52

.47

.42

.38

.35

.32

.30

.27

.25

.66

.54

.46

.39

.34

.30

.27

.24

.21

.19

.17

.66

.51

.41

.34

.29

.24

.21

.18

.16

.14

.12

.64

.55

.49

.44

.40

.36

.33

.31

.28

.26

.24

.64

.52

.44

.38

.33

.29

.26

.23

.20

.18

.17

.64

.49

.39

.33

.28

.23

.20

.18

.16

.14

.12

.64

.46

.35

.29

.24

.19

.16

.14

.12

.10

.09

.66

.48

.36

.29

.24

.20

.17

.14

.12

.11

.09

.59

.48

.40

.35

.31

.27

.24

.21

.19

.17

.16

.59

.46

.37

.31

.26

.22

.19

.17

.15

.13

.11

.59

.43

.33

.27

.22

.18

.16

.13

.12

.10

.09

.55

.44

.37

.32

.28

.25

.22

.20

.18

.16

.14

.55

.42

.34

.29

.24

.21

.18

.16

.14

.12

.11

.55

.40

.31

.26

.21

.18

.15

.13

.11

.09

.08

.51

.41

.34

.30

.26

.23

.20

.18

.16

.15

.13

.51

.39

.32

.27

.23

.19

.17

.15

.13

.11

.10

.51

.38

.30

.24

.20

.17

.14

.12

.10

.09

.08

.50

.36

.28

.22

.19

.15

.13

.11

.09

.08

.07

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.53 / 1.87

Test No. BALL 6688.0

150

300

450

600

750

120

110

100

0 10 20 30 40

600

450

300

150

180 170 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

7.33

4.69

3.26

2.39

1.83

1.45

9.07

6.05

4.11

3.11

2.31

1.81

3.67

3.44

3.04

2.57

2.27

1.97

2.69

2.53

2.39

2.16

1.87

1.69

1.89

1.98

1.85

1.76

1.61

1.43

1.39

1.50

1.46

1.40

1.34

1.25

1.04

1.13

1.20

1.15

1.10

1.03

.79

.89

.94

.97

.92

.89

.44

.51

.56

.59

.65

.62

.26

.31

.35

.38

.40

.42

10'

12'

14'

16'

18'

7.33

4.69

3.26

2.39

1.83

1.45

6.88

5.27

3.59

2.72

1.91

1.50

2.45

2.39

2.06

1.96

1.74

1.52

1.64

1.69

1.66

1.46

1.43

1.30

1.12

1.20

1.23

1.22

1.09

1.06

.81

.90

.93

.95

.93

.84

.60

.67

.73

.75

.74

.34

.52

.55

.59

.61

.59

.15

.17

.32

.35

.37

.38

.02

.12

.13

.22

.24

.25

0˚

90˚

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

469.

520.

655.

846.

937.

974.

1011.

993.

994.

955.

915.

786.

120.

39.

469.

479.

543.

736.

713.

677.

614.

578.

84.

21.

0˚

(FRONT)

ANGLE CP

90˚

(SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 70 WATT H.P.S. FOOTCANDLE CHART (Initial) 70 WATT H.P.S.

EMS HIGH PRESSURE SODIUM

With Globe Only

35 – 100 Watt Medium Base

CANDLEPOWER – 70 WATT

B-17 clear lamp 6300 lumens

For 35 watt multiply by .357

For 50 watt multiply by .635

For 100 watt multiply by 1.508

EMS HIGH PRESSURE SODIUM

With Globe and Angle Reflector

35 – 100 Watt Medium Base

CANDLEPOWER – 70 WATT

B-17 clear lamp 6300 lumens

For 35 watt multiply by .357

For 50 watt multiply by .635

For 100 watt multiply by 1.508

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.76

.69

.61

.55

.50

.45

.41

.38

.34

.32

.29

.76

.65

.55

.47

.41

.36

.31

.28

.25

.22

.20

.76

.62

.50

.41

.35

.29

.25

.22

.19

.16

.15

.74

.67

.59

.53

.48

.43

.40

.36

.33

.31

.29

.74

.61

.49

.41

.34

.29

.25

.22

.19

.16

.15

.74

.59

.45

.36

.30

.24

.20

.17

.15

.13

.11

.76

.60

.46

.37

.30

.24

.20

.17

.15

.13

.11

.71

.61

.52

.44

.39

.33

.30

.26

.24

.21

.19

.71

.59

.48

.40

.33

.28

.24

.21

.18

.16

.14

.71

.57

.44

.36

.29

.24

.20

.17

.15

.12

.11

.68

.59

.49

.42

.37

.32

.28

.25

.23

.20

.18

.68

.57

.46

.38

.33

.27

.24

.21

.18

.16

.14

.68

.55

.43

.35

.29

.24

.20

.17

.14

.12

.11

.65

.56

.47

.41

.36

.31

.27

.24

.22

.20

.18

.65

.55

.45

.37

.32

.27

.23

.20

.18

.15

.14

.65

.53

.42

.34

.28

.23

.20

.17

.14

.12

.11

.64

.52

.41

.33

.27

.22

.18

.15

.13

.11

.10

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.3

Test No. BALL 6687.0

150

300

450

600

750

900

1150

110

100

0 10 20 30

300

150

180 160 140 130 120

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

960.

933.

957.

902.

856.

808.

805.

789.

786.

812.

804.

766.

722.

740.

724.

689.

170.

31.

.74

.64

.54

.46

.40

.35

.31

.27

.24

.22

.20

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

15.00

9.60

6.67

4.89

3.75

2.96

7.63

5.78

4.54

3.65

2.97

2.49

3.06

2.87

2.47

2.17

2.14

1.66

2.04

2.11

1.99

1.75

1.58

1.41

1.38

1.50

1.54

1.46

1.31

1.19

1.02

1.11

1.18

1.12

1.01

.77

.83

.91

.92

.89

.58

.65

.68

.74

.76

.75

.31

.38

.42

.43

.45

.47

.18

.23

.26

.28

.29

.30

FOOTCANDLE CHART (Initial) 70 WATT H.P.S.

EMS HIGH PRESSURE SODIUM

With Globe and Standard Dome Reflector

35 – 100 Watt Medium Base

CANDLEPOWER – 70 WATT

B-17 clear lamp 6300 lumens

For 35 watt multiply by .357

For 50 watt multiply by .635

For 100 watt multiply by 1.508

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA

L154

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.82

.70

.61

.55

.49

.45

.41

.37

.34

.32

.30

.82

.64

.53

.45

.39

.34

.30

.26

.24

.21

.19

.82

.60

.46

.38

.31

.26

.22

.19

.17

.15

.13

.76

.65

.56

.50

.45

.41

.37

.34

.32

.29

.27

.76

.56

.43

.35

.29

.24

.21

.18

.16

.14

.12

.76

.52

.38

.29

.24

.19

.16

.13

.11

.10

.08

.82

.55

.40

.32

.25

.20

.17

.14

.12

.10

.09

.66

.51

.42

.35

.30

.26

.23

.21

.18

.17

.15

.66

.48

.37

.30

.25

.20

.17

.15

.13

.12

.10

.66

.45

.32

.25

.20

.16

.13

.11

.09

.08

.07

.57

.43

.35

.29

.25

.22

.19

.17

.15

.14

.12

.57

.41

.31

.25

.21

.17

.14

.12

.11

.09

.08

.57

.38

.27

.21

.17

.13

.11

.09

.08

.06

.05

.49

.36

.28

.24

.20

.17

.15

.13

.12

.11

.10

.49

.34

.25

.20

.17

.13

.11

.10

.08

.07

.06

.49

.32

.22

.17

.14

.10

.08

.07

.06

.05

.04

.45

.28

.19

.14

.11

.08

.06

.05

.04

.03

.02

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 4.3

Test No. BALL 6683.0

250

500

750

1000

1250

1500

1750

120

110

100

0 10 20 30 40

1000

750

500

250

180 170 160 150 140 130

Illumination on Horizontal Surface

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

195.

212.

267.

362.

480.

611.

701.

763.

864.

960.

1048.

1117.

1264.

1304.

1374.

1505.

1555.

1568.

1546.

1576.

1596.

1514.

1386.

1150.

685.

245.

25.

10.

.76

.60

.49

.42

.36

.31

.27

.24

.22

.20

.18

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

3.05

1.95

1.35

.99

.76

.60

7.35

4.37

2.76

2.04

1.31

1.00

3.99

3.39

2.72

2.10

1.70

1.44

2.98

2.75

2.36

1.93

1.53

1.27

2.41

2.19

2.01

1.73

1.44

1.19

1.78

1.71

1.65

1.50

1.32

1.11

1.36

1.45

1.32

1.25

1.18

1.05

1.09

1.14

1.19

1.07

1.00

.95

.62

.67

.73

.75

.70

.69

.40

.43

.48

.50

.51

.53

Illumination on Horizontal Surface

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

2289.

2296.

2282.

2117.

1981.

1921.

1911.

1888.

1898.

1940.

1959.

1898.

1869.

1851.

1763.

1469.

601.

93.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.71

.65

.58

.52

.47

.42

.38

.35

.32

.30

.28

.71

.61

.52

.45

.39

.34

.30

.26

.23

.21

.19

.71

.59

.47

.39

.33

.27

.24

.20

.18

.15

.14

.70

.63

.56

.50

.45

.41

.37

.34

.31

.29

.27

.70

.60

.51

.44

.38

.33

.29

.26

.23

.20

.19

.70

.57

.47

.39

.32

.27

.23

.20

.18

.15

.14

.70

.55

.43

.34

.28

.23

.19

.16

.14

.12

.10

.71

.56

.43

.35

.28

.23

.19

.16

.14

.12

.10

.67

.57

.49

.42

.36

.31

.28

.25

.22

.20

.18

.67

.55

.45

.37

.32

.26

.23

.20

.17

.15

.13

.67

.53

.42

.34

.28

.23

.19

.16

.14

.12

.10

.64

.55

.47

.40

.35

.30

.27

.24

.21

.19

.17

.64

.53

.44

.36

.31

.26

.22

.19

.17

.15

.13

.64

.52

.41

.33

.27

.22

.19

.16

.14

.12

.10

.61

.53

.45

.39

.34

.29

.26

.23

.21

.18

.17

.61

.52

.42

.35

.30

.25

.22

.19

.17

.14

.13

.61

.50

.40

.33

.27

.22

.19

.16

.14

.11

.10

.60

.49

.39

.31

.26

.21

.17

.15

.12

.10

.09

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 1.3

Test No. BALL 6684.0

300

600

900

1200

1500

1800

2100

2400

100

0 10 20 30

300

180 160 140 120

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

35.76

22.89

15.89

11.68

8.94

7.06

18.03

13.74

10.75

8.44

7.10

5.84

7.46

6.86

5.97

5.19

4.54

3.94

5.06

5.14

4.76

4.24

3.78

3.36

3.57

3.73

3.75

3.50

3.16

2.88

2.57

2.82

2.87

2.85

2.68

2.44

1.94

2.14

2.25

2.33

2.24

2.12

1.42

1.66

1.77

1.83

1.86

1.81

.75

.91

1.04

1.11

1.16

1.17

.39

.56

.63

.71

.76

.78

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.64

.56

.50

.45

.41

.37

.34

.31

.29

.26

.25

.64

.52

.44

.38

.33

.29

.26

.23

.21

.18

.17

.64

.49

.39

.33

.28

.23

.20

.18

.15

.13

.12

.62

.54

.47

.43

.39

.35

.32

.30

.27

.25

.23

.62

.47

.38

.32

.27

.23

.20

.17

.15

.13

.12

.62

.44

.34

.28

.23

.19

.16

.14

.12

.10

.09

.64

.46

.35

.28

.23

.19

.16

.14

.12

.10

.09

.57

.46

.39

.34

.29

.26

.23

.20

.18

.16

.15

.57

.44

.35

.29

.25

.21

.18

.16

.14

.12

.11

.57

.42

.32

.26

.22

.18

.15

.13

.11

.09

.08

.53

.43

.36

.31

.27

.24

.21

.19

.17

.15

.14

.53

.41

.33

.28

.23

.20

.17

.15

.13

.12

.10

.53

.39

.30

.25

.20

.17

.14

.12

.10

.09

.08

.50

.40

.33

.29

.25

.22

.20

.18

.16

.14

.13

.50

.38

.31

.26

.22

.19

.16

.14

.12

.11

.10

.50

.36

.28

.23

.19

.16

.14

.12

.10

.08

.07

.48

.35

.27

.21

.18

.14

.12

.10

.09

.07

.06

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.53 / 1.87

Test No. BALL 6685.0

500

1000

1500

2000

2500

120

110

100

0 10 20 30 40

1500

1000

500

180 170 160 150 140 130

Illumination on Horizontal Surface

FC = (Candlepower) (COS Ø)

DISTANCE2

.62

.50

.42

.37

.32

.28

.25

.22

.20

.18

.16

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

18.17

11.63

8.08

5.93

4.54

3.59

21.86

15.18

10.34

7.82

5.63

4.39

9.74

8.76

7.24

6.34

5.46

4.72

6.62

6.71

6.08

5.13

4.62

4.08

4.80

4.87

4.90

4.47

3.85

3.49

3.50

3.70

3.74

3.71

3.42

2.96

2.62

2.88

2.94

3.00

2.89

2.70

1.96

2.24

2.38

2.39

2.43

2.35

1.08

1.26

1.41

1.50

1.52

1.53

.68

.78

.88

.97

1.02

1.06

10'

12'

14'

16'

18'

18.17

11.63

8.08

5.93

4.54

3.59

16.06

11.99

8.62

6.63

4.63

3.63

5.59

5.38

4.76

4.49

4.02

3.50

3.92

3.85

3.74

3.37

3.27

2.93

2.78

2.88

2.81

2.75

2.51

2.44

1.91

2.18

2.20

2.15

2.10

1.95

1.40

1.67

1.74

1.73

1.67

1.66

.74

1.22

1.38

1.41

1.40

1.37

.31

.47

.75

.86

.90

.07

.26

.33

.52

.59

.61

0˚

90˚

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

1163.

1259.

1590.

2122.

2308.

2478.

2481.

2506.

2540.

2431.

2307.

1868.

584.

104.

1163.

1170.

1315.

1676.

1635.

1523.

1469.

1341.

256.

32.

0˚ (FRONT)

ANGLE CP

90˚ (SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 150 WATT H.P.S. FOOTCANDLE CHART (Initial) 150 WATT H.P.S. FOOTCANDLE CHART (Initial) 150 WATT H.P.S.

EMS HIGH PRESSURE SODIUM

With Globe Only Reflector

150 Watt Medium Base

CANDLEPOWER – 150 WATT

B-17 clear lamp

16000 lumens

EMS HIGH PRESSURE SODIUM

With Globe and Angle Reflector

150 Watt Medium Base

CANDLEPOWER – 150 WATT

B-17 clear lamp

16000 lumens

EMS HIGH PRESSURE SODIUM

With Globe and Standard Dome Reflector

150 Watt Medium Base

CANDLEPOWER – 150 WATT

B-17 clear lamp

16000 lumens

EM/EB/EQ SERIES •LIGHTING

PHOTOMETRIC DATA L155

Illumination on Horizontal Surface

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

55.0

50.0

65.0

60.0

75.0

70.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

155.0

160.0

165.0

170.0

175.0

180.0

173.

206.

188.

225.

290.

361.

403.

452.

492.

552.

610.

618.

658.

731.

796.

776.

787.

863.

874.

847.

846.

832.

750.

641.

440.

88.

14.

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.84

.72

.63

.57

.51

.46

.42

.39

.36

.33

.31

.84

.67

.55

.47

.41

.35

.31

.28

.25

.22

.20

.84

.62

.48

.39

.33

.27

.23

.20

.18

.16

.14

.79

.67

.58

.52

.47

.42

.39

.36

.33

.30

.28

.79

.62

.51

.43

.38

.32

.29

.25

.23

.21

.19

.79

.58

.45

.36

.30

.25

.22

.19

.16

.14

.13

.79

.53

.39

.31

.25

.20

.17

.14

.12

.10

.09

.84

.57

.42

.33

.27

.22

.18

.15

.13

.11

.10

.69

.53

.43

.37

.32

.27

.24

.21

.19

.17

.16

.69

.50

.38

.31

.26

.22

.18

.16

.14

.12

.11

.69

.46

.34

.27

.21

.17

.14

.12

.10

.09

.07

.60

.45

.36

.31

.26

.23

.20

.18

.16

.14

.13

.60

.42

.32

.26

.22

.18

.15

.13

.11

.10

.09

.60

.40

.29

.22

.18

.14

.12

.10

.08

.07

.06

.51

.38

.30

.25

.21

.18

.16

.14

.13

.11

.10

.51

.35

.27

.21

.18

.14

.12

.11

.09

.08

.07

.51

.33

.24

.18

.15

.11

.09

.08

.06

.05

.04

.47

.30

.20

.15

.12

.09

.07

.05

.04

.03

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

Spacing Criterion -- SC = 3.4

Test No. BALL 6689.0

150

300

450

600

750

120

110

100

0 10 20 30 40

600

450

300

150

180 170 160 150 140 130

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

FC = (Candlepower) (COS Ø)

DISTANCE2

ANGLE CP ANGLE CP

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

2.70

1.73

1.20

.88

.67

.53

3.93

2.58

1.66

1.23

.80

.62

2.32

1.95

1.55

1.24

.98

.83

1.65

1.60

1.35

1.10

.90

.73

1.25

1.21

1.17

.99

.82

.70

1.00

.93

.92

.87

.76

.63

.76

.75

.73

.72

.68

.60

.59

.64

.62

.59

.58

.55

.35

.38

.41

.39

.38

.21

.25

.26

.28

.27

Illumination on Horizontal Surface

% Effective

Ceiling Cavity

Reflectance 1cc

% Wall

Reflectance 1w

Room Cavity

Ratio RCR

.61

.54

.48

.43

.39

.36

.33

.30

.28

.25

.24

.61

.50

.42

.37

.32

.28

.25

.22

.20

.18

.16

.61

.47

.38

.32

.27

.23

.20

.17

.15

.13

.12

.59

.51

.46

.41

.37

.34

.31

.28

.26

.24

.23

.59

.48

.41

.35

.31

.27

.24

.21

.19

.17

.16

.59

.46

.37

.31

.26

.22

.19

.17

.15

.13

.11

.59

.43

.33

.27

.22

.18

.15

.13

.11

.10

.08

.61

.44

.34

.27

.23

.19

.16

.14

.12

.10

.09

.55

.45

.38

.33

.29

.25

.22

.20

.18

.16

.15

.55

.42

.34

.29

.24

.21

.18

.16

.14

.12

.11

.55

.40

.31

.25

.21

.17

.15

.13

.11

.09

.08

.51

.41

.35

.30

.26

.23

.21

.18

.17

.15

.14

.51

.40

.32

.27

.23

.19

.17

.15

.13

.11

.10

.51

.38

.29

.24

.20

.16

.14

.12

.10

.09

.08

.48

.38

.32

.28

.24

.21

.19

.17

.15

.14

.13

.48

.37

.30

.25

.21

.18

.16

.14

.12

.11

.10

.48

.35

.28

.23

.19

.16

.13

.11

.10

.08

.07

.46

.34

.26

.21

.17

.14

.12

.10

.09

.07

.06

20% Effective Floor Cavity Reflectance

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10

80 70 50 30 10 0

Coefficients of Utilization -- Zonal Cavity Method

0-DEG / 90-DEG

Spacing Criterion -- SC = 2.25 / 1.58

Test No. BALL 6703.0

150

300

450

600

750

1000

120

110

100

0 10 20 30 40

450

300

150

180 160 150 140 130

FC = (Candlepower) (COS Ø)

DISTANCE2

FOOTCANDLE CHART (Inital) 100 WATT H.P.S

Horizontal Distance From Source in Feet

Mounting Height in Feet

10'

12'

14'

16'

18'

0' 5' 10' 12' 14' 16' 18' 20' 25' 30'

11.58

7.41

5.14

3.78

2.89

2.29

11.82

7.86

5.61

4.31

3.21

2.56

4.86

4.38

3.81

3.43

2.96

2.55

3.48

3.35

3.04

2.70

2.50

2.22

2.39

2.56

2.44

2.23

2.02

1.88

1.75

1.93

1.95

1.85

1.71

1.56

1.32

1.43

1.55

1.52

1.45

1.35

1.01

1.12

1.18

1.26

1.22

1.17

.55

.64

.71

.74

.80

.32

.40

.45

.48

.51

.52

10'

12'

14'

16'

18'

11.58

7.41

5.14

3.78

2.89

2.29

7.52

6.40

4.54

3.47

2.57

2.05

2.73

2.74

2.38

2.13

1.88

1.62

2.04

1.88

1.90

1.69

1.55

1.40

1.32

1.50

1.37

1.40

1.26

1.17

.62

1.12

1.13

1.03

1.07

.97

.47

.79

.90

.86

.84

.85

.16

.40

.65

.73

.68

.67

.04

.11

.25

.41

.46

.47

.02

.04

.07

.17

.28

.29

0˚

90˚

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

5.0

15.0

25.0

35.0

45.0

55.0

65.0

75.0

85.0

90.0

95.0

105.0

115.0

125.0

135.0

145.0

155.0

165.0

175.0

180.0

741.

775.

928.

1099.

1249.

1239.

1305.

1258.

1218.

1262.

1119.

938.

163.

54.

741.

692.

744.

895.

776.

764.

454.

70.

0˚ (FRONT)

ANGLE CP

90˚ (SIDE)

ANGLE CP

SIDE

FRONT

FOOTCANDLE CHART (Initial) 100 WATT METAL HALIDE

EMH (MH)

With Globe Only

50 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT MH

B-17 clear lamp 8500 lumens

For 70 watt M.H. multiply by .647

For 50 watt M.H. multiply by .447

EMH (MH)

With Globe and Angle Reflector

50 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT MH

B-17 clear lamp 8500 lumens

For 70 watt M.H. multiply by .647

For 50 watt M.H. multiply by .447

Test No. BAL 6702

Test No. BAL 6689.0

EMH (MH)

With Globe and Standard Dome

Reflector 50 – 100 Watt Medium Base

CANDLEPOWER – 100 WATT MH

B-17 clear lamp 8500 lumens

For 70 watt M.H. multiply by .647

For 50 watt M.H. multiply by .447

Efficiency 60.6%

694

1041

1388

90˚

80˚

70˚

60˚

50˚

40˚30˚20˚10˚0˚

180˚ 160˚ 150˚ 140˚ 130˚ 120˚

110˚

100˚

347

% EFFECTIVE

CEILING CAVITY

REFLECTANCE

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .72 .72 .72 .72 .70 .70.70 .70 .67 .67 .67 .64.64 .64 .62 .62 .62 .61

1 .65 .61 .58 .55 .63 .60.57 .54 .57 .55 .53 .55.53 .51 .52 .51 .49 .48

2 .58 .52 .47 .43 .56 .50.46 .42 .48 .44 .41 .46.43 .40 .44 .41 .39 .38

3 .52 .44 .38 .34 .50 .43.38 .33 .41 .37 .33 .39.36 .32 .38 .34 .32 .30

4 .47 .38 .32 .28 .45 .37.32 .27 .36 .31 .27 .34.30 .27 .33 .29 .26 .25

5 .42 .34 .28 .23 .41 .33.27 .23 .32 .27 .23 .30.26 .22 .29 .25 .22 .21

6 .39 .30 .24 .20 .38 .29.24 .20 .28 .23 .19 .27.23 .19 .26 .22 .19 .18

7 .36 .27 .21 .17 .35 .26.21 .17 .25 .20 .17 .25.20 .17 .24 .20 .17 .15

8 .33 .24 .19 .15 .32 .24.19 .15 .23 .18 .15 .22.18 .15 .22 .18 .15 .13

9 .31 .22 .17 .13 .30 .22.17 .13 .21 .17 .13 .21.16 .13 .20 .16 .13 .12

10 .29 .21 .15 .12 .28 .20.15 .12 .20 .15 .12 .19 .15 .12 .18 .15 .12 .11

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

SPACING TO MOUNTING HEIGHT RATIO - 1.12

ANGLE CP ANGLE CP

01388. 95.0 2.

5.0 1323. 100.0 1.

10.0 1257. 105.0 0.

15.0 1225. 110.0 0.

20.0 1102. 115.0 0.

25.0 1032. 120.0 0.

30.0 1033. 125.0 0.

35.0 1037. 130.0 0.

40.0 1048. 135.0 0.

45.0 1075. 140.0 0.

50.0 1073. 145.0 0.

55.0 1006. 150.0 0.

60.0 982. 155.0 0.

65.0 999. 160.0 0.

70.0 992. 165.0 0.

75.0 792. 170.0 0.

80.0 210. 175.0 0.

85.0 48. 180.0 0.

90.0 7.

EZ SERIES •LIGHTING

MOGUL BASE HID FIXTURES

L156

FEATURES-SPECIFICATIONS

Applications

HOSTILELITE®EZ Series mogul base

fixtures are designed for installations

where moisture, dirt, dust, corrosion

and vibration may be present, or NEMA

3 and 4x areas where wind, water,

snow or high ambients can be ex-

pected. They can be used in locations

made hazardous due to the presence

of flammable or explosive gases,

vapors and combustible dusts as

defined by the NEC.

Typical applications include classified

areas such as paint manufacturing

plants, ammunition facilities, oil and

gas producing and refining plants,

off-shore and dockside installations,

tank farms, pipeline pumping stations

and marine loading and fuel transfer

terminals.

Features

•Three light sources—High Pressure

Sodium (50-400W), Metal Halide

(70-400W) and Pulse Start Metal

Halide (175-400W)

•HOSTILELITE®EZ fixtures are now

available with Pulse Start Metal

Halide ballasts

•Mounting choice—Pendant, ceiling,

25˚ stanchion or 90˚ wall mount, all

with “wireless” design that allows fast,

easy fixture installation or removal for

maintenance. See pages L196-197 for

trunnion mounted fixtures

•Factory sealed—No external seal

needed. Simply wire mounting cap

and thread on fixture to install

•Corrosion resistant—Copper-free alu-

minum die cast construction. Baked

powder epoxy finish, electrostatically

applied. Exposed hardware is 316

grade stainless steel

•Accessories—Available with or with-

out guard, standard dome or angle

reflector

•Options—EZ Series fixtures can be

specified with instant restart for HPS

lamps, auxiliary quartz circuit, ballast

Catalog Number Logic

Series Constant

Lamp Type

S—High Pressure Sodium

H—Metal Halide

P—Pulse Start Metal Halide

Lamp Wattage

05—50 Watt HPS

07—70 Watt HPS/MH

10—100 Watt HPS/MH

15—150 Watt HPS/MHP

17—175 Watt MH/MHP2

20—200 Watt HPS/MHP

25—250 Watt HPS/MH/MHP2

32—320 Watt MHP

35—350 Watt MHP

40—400 Watt HPS/MH/MHP2

Voltage

0—Quadri-Volt, 60 Hz. (120, 208, 240, 277)

5—480 Volts, 60 Hz.

6—TriTap Canada (120, 277, 347), 60 Hz.

7—220V, 60Hz

8—220/240 Volt, 50 Hz.

9—Special (Specify)

Options

Q—Auxiliary Quartz

Standby

R—Instant Restrike

(150W HPS Max)

BP—Ballast Protector

PS—Paint Spray

(50, 70, 100W HPS,

100W MV, 70, 100, MH)

EB—Eyebolts1

SU103—Assembled w/Lamp

Guard

G—Omit G if guard

is not required

Mounting Type

A2—3/4" Pendant

A3—1" Pendant

X2—3/4" Ceiling

X3—1" Ceiling

B2—3/4" Bracket

B3—1" Bracket

D4—1-1/4"/1-1/2" Stanchion

EZ 0 00 0 00 0 - 00 (CEN*)

protector, and fuse kits.

(See page L160 for details)

Compliances

•UL-844 Electric Lighting Fixtures for

use in Hazardous Locations

•UL Marine Type Electric Lighting

Fixtures

•UL-1598 Standard for HID Lighting

Fixtures

•CSA C22.2 no. 137-M1981 Electric

Luminaires for use in Hazardous

Locations

•CSA C22.2 no. 94-1976 Special

purpose enclosure

•NEMA 3, 4, 4x, 7CD, 9EFG

*CEN (CENELEC) Approved option available on some models. See page L164 for more information.

1Two eyebolts plus 12" of connecting chain included. 2175,250 and 400W MH EXPORT ONLY (EISA LAW).

Consult factory for available lamp and voltage combinations.

HOSTILELITE®EZ fixtures are now

available with Pulse Start Metal Halide

ballasts. Pulse Start systems provide

higher and better maintained light out-

put with longer life compared standard

metal halide systems. Pulse start and

standard Metal Halide lamps and

ballasts are not interchangeable.

Listed - File E10514 and E91793

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zone 1 & 2, Groups llB,llA

Class l, Zone 1, AEx d IIB

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

EZ SERIES •LIGHTING

HIGH PRESSURE SODIUM 50-400W MOGUL BASE HID L157

120, 208, 240, 277 EZS050A2G EZS050X2G EZS050B2G EZS050D4G

50 120, 277, 347 ————

480 ————

120, 208, 240, 277 EZS070A2G EZS070X2G EZS070B2G EZS070D4G

70 120, 277, 347 EZS076A2G EZS076X2G EZS076B2G EZS076D4G

480 EZS075A2G EZS075X2G EZS075B2G EZS075D4G

120, 208, 240, 277 EZS100A2G EZS100X2G EZS100B2G EZS100D4G

100 120, 277, 347 EZS106A2G EZS106X2G EZS106B2G EZS106D4G

480 EZS105A2G EZS105X2G EZS105B2G EZS105D4G

120, 208, 240, 277 EZS150A2G EZS150X2G EZS150B2G EZS150D4G

150 120, 277, 347 EZS156A2G EZS156X2G EZS156B2G EZS156D4G

480 EZS155A2G EZS155X2G EZS155B2G EZS155D4G

120, 208, 240, 277 EZS250A2G EZS250X2G EZS250B2G EZS250D4G

250 120, 277, 347 EZS256A2G EZS256X2G EZS256B2G EZS256D4G

480 EZS255A2G EZS255X2G EZS255B2G EZS255D4G

120, 208, 240, 277 EZS400A2G EZS400X2G EZS400B2G EZS400D4G

400 120, 277, 347 EZS406A2G EZS406X2G EZS406B2G EZS406D4G

480 EZS405A2G EZS405X2G EZS405B2G EZS405D4G

ANSI

LAMP

S-68

S-62

S-54

S-55

S-50

S-51

EZ 50-400 WATT, HIGH PRESSURE SODIUM 1 4

CATALOG NUMBER

PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

WATTS VOLTAGE @ 60Hz

1See Hazardous Location Application Data on pages L164-165 for specific suitabilities.

2For 1 inch pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EZS070A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting. (Refer to catalog logic).

4Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.

NOTE: Reflectors must be ordered separately (see page L161).

All luminaires are designed for mounting with lamp in base up position.

Pendant Ceiling Wall Stanchion

Listed - File E10514 and E91793 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zone 1 & 2, Groups llB,llA

Class l, Zone 1, AEx d IIB

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

FEATURES-SPECIFICATIONS

EZ SERIES •LIGHTING

METAL HALIDE 70-400W MOGUL BASE HID

158

ORDERING INFORMATION

Listed - File E10514 and E91793 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zone 1 & 2, Groups llB,llA

Class l, Zone 1, AEx d IIB

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

120, 208, 240, 277 EZH070A2G EZH070X2G EZH070B2G EZH070D4G

70 120, 277,347 EZH076A2G EZH076X2G EZH076B2G EZH076D4G

480 EZH075A2G EZH075X2G EZH075B2G EZH075D4G

120, 208, 240, 277 EZH100A2G EZH100X2G EZH100B2G EZH100D4G

100 120, 277,3 47 EZH106A2G EZH106X2G EZH106B2G EZH106D4G

480 EZH105A2G EZH105X2G EZH105B2G EZH105D4G

120, 208, 240, 277 EZH170A2G EZH170X2G EZH170B2G EZH170D4G

175 120, 277,3 47 EZH176A2G EZH176X2G EZH176B2G EZH176D4G

480 EZH175A2G EZH175X2G EZH175B2G EZH175D4G

120, 208, 240, 277 EZH250A2G EZH250X2G EZH250B2G EZH250D4G

250 120, 277,3 47 EZH256A2G EZH256X2G EZH256B2G EZH256D4G

480 EZH255A2G EZH255X2G EZH255B2G EZH255D4G

120, 208, 240, 277 EZH400A2G EZH400X2G EZH400B2G EZH400D4G

400 120, 277,3 47 EZH406A2G EZH406X2G EZH406B2G EZH406D4G

480 EZH405A2G EZH405X2G EZH405B2G EZH405D4G

ANSI

LAMP

M-98

M-90

M-575

M-58

M-59

EZ 70-400 WATT, METAL HALIDE 146

CATALOG NUMBER

PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

WATTS VOLTAGE @ 60HZ

1See Hazardous Location Application Data on pages L164-165 for specific suitabilities.

2For 1 inch pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EZH070A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting. (Refer to catalog logic).

4Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.

5Will also operate 150W M107 Metal Halide Lamps.

6175, 250, 400W MH EXPORT ONLY (EISA LAW).

NOTE: Reflectors must be ordered separately (see page L161).

All luminaires are designed for mounting with lamp in base up position.

Pendant Ceiling Wall Stanchion

EZ SERIES •LIGHTING

PULSE START METAL HALIDE 175-400W MOGUL BASE HID L159

ORDERING INFORMATION

Listed - File E10514 and E91793 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zone 1 & 2, Groups llB,llA

Class l, Zone 1, AEx d IIB

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

Suitable for wet locations

Marine

NEMA 3, 4, 4X

Factory Sealed

120, 208, 240, 277 EZP150A2G EZP150X2G EZP150B2G EZP150D4G

150 120,277,347 EZP156A2G EZP156X2G EZP156B2G EZP156D4G

480 EZP155A2G EZP155X2G EZP155B2G EZP155D4G

120, 208, 240, 277 EZP170A2G EZP170X2G EZP170B2G EZP170D4G

175 120,277,347 EZP176A2G EZP176X2G EZP176B2G EZP176D4G

480 EZP175A2G EZP175X2G EZP175B2G EZP175D4G

120, 208, 240, 277 EZP250A2G EZP250X2G EZP250B2G EZP250D4G

250 120,277,347 EZP256A2G EZP256X2G EZP256B2G EZP256D4G

480 EZP255A2G EZP255X2G EZP255B2G EZP255D4G

120, 208, 240, 277 EZP320A2G EZP320X2G EZP320B2G EZP320D4G

320 120,277,347 EZP326A2G EZP326X2G EZP326B2G EZP326D4G

480 EZP325A2G EZP325X2G EZP325B2G EZP325D4G

120, 208, 240, 277 EZP350A2G EZP350X2G EZP350B2G EZP350D4G

350 120,277,347 EZP356A2G EZP356X2G EZP356B2G EZP356D4G

480 EZP355A2G EZP355X2G EZP355B2G EZP355D4G

120, 208, 240, 277 EZP400A2G EZP400X2G EZP400B2G EZP400D4G

400 120,277,347 EZP406A2G EZP406X2G EZP406B2G EZP406D4G

480 EZP405A2G EZP405X2G EZP405B2G EZP405D4G

EZ 175-400 WATT, PULSE START METAL HALIDE 1 4

ANSI

LAMP

CATALOG NUMBER

VOLTAGE @ 60Hz PENDANT 3/4"2CEILING 3/4"2WALL 3/4"2STANCHION 1-1/4"3

1See Hazardous Location Application Data on pages L164-165 for specific suitabilities.

2For 1 inch pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EZP170A3G.

3Stanchion conduit hub size supplied is 1-1/2" with 1-1/2" to 1-1/4" reducer for 1-1/4" mounting. (Refer to catalog logic).

4Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.

NOTE: Reflectors must be ordered separately (see page L161).

All luminaires are designed for mounting with lamp in base up position.

Pendant Ceiling Wall Stanchion

WATTS

M-102

M-142

M-137

M-138

M-132

M-131

M-135

EZ SERIES •LIGHTING

COMPONENT PARTS/ACCESSORIES/OPTIONS •HID FIXTURES

L160

EZ Options

Instant Restart Option

Factory installed special ignitor provides hot lamp instant

restart of HPS lamps after power interruption of up to

1 minute. Available for 50, 70, 100 and 150 watt HPS lamps

only. Add suffix “R” to fixture catalog number (50/60 Hz).

Quartz Emergency Lamp

Factory installed special auxiliary quartz relay and D.C. bayo-

net base socket installed to accept 100 watt, 120 volt quartz

(100Q/DC) lamps only. Lamps not supplied. Refer to

Hazardous Location Application Data chart to verify suitability.

Add suffix “Q” to fixture catalog number.

Ballast Protection Cutout

Optional factory installed special ballast protector replaces

the standard HPS ignitor and applies starting pulse to the

lamp for 10 to 15 seconds each time voltage is supplied to

the ballast. If the lamp has not ignited by the end of the time

period, the starter will cease pulsing. Used to eliminate the

continuous high voltage pulsing of the ignitor when end of

life, lamp cycling, or missing lamp conditions exist. Available

for 70, 100, 150, 250 and 400 watt HPS fixtures. Add suffix

“BP” to fixture catalog number.

CATALOG NUMBER

EZGS1

EZGS2

LAMP TYPE

HPS

MHP

HPS

MHP

SERIES

EZS

EZH

EZP

EZS

EZH

EZP

WATTAGE

50-150

70-250

150, 175, 250

250, 400

400

320-400

REPLACEMENT GLOBE & GLOBE SUPPORT ASSEMBLY

CATALOG NUMBER

PENDANT CEILING BRACKET STANCHION

EZA2 EZX2** EZB2 —

EZA3 EZX3 EZB3 —

—— —EZD4*

HUB SIZE

3/4"

1-1/4"/1-1/2"

MOUNTING BOXES

25° Stanchion

Replacement Globe

& Support Assemblies

Wall Bracket

Mounting Boxes

EAC1

Pendant Ceiling

Notes:

BP & R cannot be used together.

Q & R cannot be used together.

* Supplied as 1-1/2" NPT with 1-1/2" x 1-1/4" reducer

** 25 cu. in. below EZTB tangs.

FACTORY SEALED

PHOTO CELL FIELD KITS

WITH HKB-GL BOX AND COVER

VMHKPC1

VMHKPC2

VMHKPC3

CATALOG NUMBER

120VAC

208-277VAC

347VAC

VOLTS

Class I, DIV. 1 BCD

Class II, DIV. 1&2 EFG

CLASS III

NEMA 3, 4X IP66

*40˚C ambient T3 Rated

EZCUP

Close up plug for EZ mounting boxes.

Used for maintenance when fixture is

removed for service.

HIC-BEIGE

replacement wiring

plug for EZBx

Wall Bracket

EZ SERIES •LIGHTING

COMPONENT PARTS/ACCESSORIES L161

CATALOG NUMBER DESCRIPTION

EZTB Female (goes in splice box)

EZCB Male (goes in top of fixture body)

EZMO Replacement lamp socket with gasket

REPLACEMENT CONNECTION BLOCKS AND LAMP SOCKET

CATALOG NUMBER DESCRIPTION

VMPSD40 Standard dome. fiberglass reinforced polyester

VMPA40 30°Angle fiberglass reinforced polyester

HRD400 Deep dome. Aluminum with white finish2

HRD400ALZ Deep dome with specular anaodized finish2

REFLECTORS

CATALOG NUMBER SERIES LAMP TYPE WATTAGE DESCRIPTION

EZS HPS 50-150

EZG1 EZH MH 70-250 Pai nted cast aluminum

EZP MHP 150, 175, 250

EZH MH 400 Cadmium plated steelVMAG40S EZP MHP 320-400

GUARDS

VMPSD-40

VMPA-40 HRD-400 (pictured)

HRD-400ALZ

EZTB

EZCB EZMO

EZG1 VMAG40S

2For clearance, wall mount models require standoff of 1/2" if not bottom feed;

1-1/2" if bottom feed.

1For VMAG40S with bottom

closure order part number

VMAG40SBC.

VMAGBC

Bottom Closure for

VMAG25S or VMAG40S1

EZ SERIES •LIGHTING

BALLAST HOUSING WITH GLOBE SUPPORT ASSEMBLY

L162

FEATURES-SPECIFICATIONS

CATALOG

NUMBER

EZS050

EZS058

EZS070

EZS075

EZS076

EZS078

EZS100

EZS105

EZS106

EZS108

EZS150

EZS155

EZS156

EZS158

EZS250

EZS255

EZS256

EZS258

EZS400

EZS405

EZS406

EZS408

VOLTAGE

120, 208, 240, 277/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347/60Hz

220, 240V/50Hz

WATTS

100

150

250

400

ANSI LAMP

TYPE

S-68/HPS

S-62/HPS

S-54/HPS

S-55/HPS

S-50/HPS

S-51/HPS

HPS HOUSING GLOBE & GLOBE SUPPORT ASSEMBLIES1

CATALOG

NUMBER

EZH070

EZH076

EZH075

EZH078

EZH100

EZH106

EZH108

EZH105

EZH170

EZH175

EZH176

EZH178

EZH250

EZH255

EZH256

EZH258

EZH400

EZH405

EZH406

EZH408

METAL HALIDE HOUSING GLOBE & GLOBE SUPPORT ASSEMBLIES1

Housing Globe & Globe Support

Assemblies

NOTE: See pages L98-99 for

ballast data & fuse kit information.

VOLTAGE

120, 208, 240, 277/60Hz

120, 277, 347V/60Hz

480 60Hz

220/240V/50Hz

120, 208, 240, 277/60Hz

120, 347V/60Hz

120, 220, 240V/50Hz

480 60Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347V/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347V/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480 60Hz

120, 277, 347V/60Hz

220, 240V/50Hz

WATTS

100

175

250

400

ANSI LAMP

TYPE

M-98/MH

M-90/MH

M-57/MH

M-58/MH

M-59/MH

CATALOG

NUMBER

EZP170

EZP175

EZP176

EZP178

EZP250

EZP255

EZP256

EZP258

EZP320

EZP325

EZP326

EZP328

EZP350

EZP355

EZP356

EZP358

EZP400

EZP405

EZP406

EZP408

VOLTAGE

120, 208, 240, 277/60Hz

480

120, 277, 347V/60Hz

220, 240V/50 Hz

120, 208, 240, 277/60Hz

480

120, 277, 347V/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480

120, 277, 347V/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480

120, 277, 347V/60Hz

220, 240V/50Hz

120, 208, 240, 277/60Hz

480

120, 277, 347V/60Hz

220, 240V/50Hz

WATTS

1752

250

320

350

400

ANSI LAMP

TYPE

M137/MHP

M138/MHP

M132/MHP

M131/MHP

M135/MHP

PULSE START HOUSING GLOBE & GLOBE SUPPORT ASSEMBLIES

1HPS and MH assemblies may be ordered with the CEN (CENELEC) suffix;

see page L164 for more information.

2For 150 Watt, change “7” to “5” in catalog number.

Example EZP150.

EZ SERIES •LIGHTING

DIMENSIONS L163

PENDANT CEILING BRACKET STANCHION

ABC DABCDABCDABC

50-250W* 22" 21-1/4" 11-1/4" 18" 22" 21-1/4" 11-1/4" 18" 22-7/8" 22-1/8" 16-3/4" 18" 24-7/8" 24" 19-13/16"

(558) (539) (285) (457) (558) (539) (285) (457) (580) (561) (425) (457) (631) (609) (503)

250-400W** 26-1/4" 24-1/4" 11-1/4" 22-1/4" 26-1/4" 24-1/4" 11-1/4" 22-1/4" 26-7/8" 24-7/8" 16-3/4" 22-1/4" 28-1/2" 26-11/16" 21-1/2"

(666) (615) (285) (565) (666) (615) (285) (565) (682) (631) (425) (565) (724) (678) (546)

MOUNTING DIMENSIONS

Pendant Ceiling Wall Bracket 25° Stanchion

Standard Dome Angle Deep Dome

Reflector Dimensions

* 50, 70, 100, and 150W HPS; 70, 100, 175 and 250W MH; 150, 175, 250W MHP.

** 250 and 400W HPS, 400W MH; 320, 350, 400W MHP.

.31"

(8) 5.25"

EZ SERIES •LIGHTING

CLASS I APPLICATION DATA FOR HAZARDOUS LOCATIONS

L164

SUPPLY CLASS I, DIVISIONS 1 & 2

LAMP RATED WIRE MAXIMUM SURFACE TEMPERATURE

AMBIENT SUITABLE UL/CSA

SERIES TYPE WATTS °C FOR °C TEMP. I.D. TEMP. I.D. UL/CSA

MIN. W/O QTZ. W/QTZ.3GROUPS

40 85 T5 T4 C,D

50 55 85 T5 N/A C,D

65 85 T4A N/A C,D

40 85 T5 T4 C,D

70 55 85 T5 N/A C,D

65 85 T4A N/A C,D

EZS HPS 40 85 T5 T4 C,D

100 55 85 T5 N/A C,D

65 85 T4A N/A C,D

40 85 T4A T4 C,D

150 55 85 T4A N/A C,D

65 85 T4 N/A C,D

250 40 85 T3C T3C C,D

55 85 T3C N/A C,D

400 40 85 T3C T3C C,D

40 85 T4A N/A C,D

70 55 85 T4A N/A C,D

65 85 T4A N/A C,D

40 85 T4A N/A C,D

100 55 85 T4A N/A C,D

EZH MH 65 85 T4A N/A C,D

40 85 T4 T3C C,D

175 55 85 T4 N/A C,D

40 85 T3C T3C C,D

250 55 85 T3C N/A C,D

400 40 85 T3A T3A C,D

40 85 T4 T3C C,D

55 85 T4 N/A C,D

40 85 T3C T3C C,D

EZP MHP 250 55 25 T3C N/A C,D

320 40 85 T3A T3A C,D

350 40 85 T3A T3A C,D

400 40 85 T3A T3A C,D

EZ HAZARDOUS LOCATION DATA—CLASS I, DIVISIONS 1 & 2124

See page L165 for Class II, III tables.

CEN Option

Applications

Killark EZ series fixtures are available with a

European “Certificate of Conformity” from

PTB (Physikalisch-Technische

Bundesanstalt), the approval agency

based in Germany. Fixtures with this rating

will be useful for Original Equipment

Manufacturers and others who build and

ship apparatus into European markets.

This approval is granted by PTB with the

use of a special ground lug and label.

Fixtures carrying an EEx d llB approval are

automatically granted an IP54 (ingress pro-

tection) rating. See Temperature Code

chart below for PTB certified ratings. Killark

EZ fixtures with the PTB rating and labels

still carry all UL & CSA ratings.

Fixture housing/globe/globe support

assemblies (e.g. EMS050 CEN) may be

ordered with the CEN suffix. Complete fix-

ture numbers, with the CEN suffix, will be

shipped with the mounting boxes, guards

and accessories as component parts.

Reflectors and other accessory parts, as

listed on pages L144-145, may be used.

Killark fixtures are NPT tapped and

plugged with at least one conduit

hole open.

Compliances

•EN 50014:1992

•EN 50018:1994

EEx d IIB T6 (or T5-T2)

PTB No. Ex-98.E.1076

Notes for Class I, II, III Application Data Tables.

1Instant restrike limited to 55°C ambient maximum.

2Temperature code ID marked with an asterisk on Class ll table are listed for simultaneous

use in Class I, Groups C, D, and Class II, Groups E, F, G or Groups E, F.

3Fixtures marked “N/A” not suitable for Class ll applications when supplied with auxiliary

quartz.

4See Class II table for fixtures suitable for locations having deposits of readily combustible

paint residue (paint spray booths).

Do not install where marked operating temperature exceeds ignition temperature of haz-

ardous atmosphere.

MAXIMUM AMBIENT TEMPERATURE RANGE -20°C TO 40°C

TYPE OF

LUMINAIRE

EZH50

EZH70

EZH10

EZH15

EZH17

EZH25

EZH40

EZS50

EZS70

EZS10

EZS15

EZS25

EZS40

TYPE OF

ENCLOSURE

EZO25

EZO40

EZO25

EZO40

FORM OF

THE LAMP

ED28/M-110

ED28/M-98

ED28/M-90

ED28/M-102

ED28/M-57

ED28/M-58

ED37/M-59

ED23-1/2/S-68

ED23-1/2/S-62

ED23-1/2/S-54

ED23-1/2/S-55

ED18/S-50

ED18/S-51

MAXIMUM

WATTAGE

50W

70W

100W

150W

175W

250W

400W

50W

70W

100W

150W

250W

400W

TEMPERATURE

CLASS

150 or 175

EZ SERIES •LIGHTING

CLASS II/III APPLICATION DATA FOR HAZARDOUS LOCATIONS L165

Notes for Class I, II, III Application Data Tables.

1Instant restrike limited to 55°C ambient maximum.

2Temperature code ID marked with an asterisk on Class ll table are listed for simultaneous use in Class I, Groups C, D, and Class II, Groups E, F, G or Groups E, F.

3Fixtures marked “NO” or “N/A” are not suitable for Class ll or II applications when supplied with auxiliary quartz.

4Suitability for locations having deposits of readily combustible paint residue (paint spray booths).

Do not install where marked operating temperature exceeds ignition temperature of hazardous atmosphere.

EZ HAZARDOUS LOCATION DATA1–CLASS II & III, DIVISIONS 1 & 21 2

E,F,G

N/A

E,F,G

N/A

E,F,G

N/A

E,F,G

N/A

E,F

N/A

SUPPLY

WIRE

SUITABLE

FOR C°

See page L164 for Class l data.

CLASS III, DIV. 1 & 2

UL/CSA SUITABILITY

W/O QTZ. WITH QTZ.3

YES YES YES YES YES

YES NO YES NO YES

YES NO YES YES YES

YES NO YES NO YES

YES YES YES NO YES

YES NO YES YES YES

YES NO YES NO YES

YES YES YES NO YES

NO NO YES NO YES

YES NO YES YES YES

YES NO YES NO YES

YES NO YES YES YES

YES NO YES NO YES

NO NO YES NO YES

YES NO YES NO YES

NO NO YES NO YES

YES

TEMP. I.D.

W/O QTZ. W/O QTZ.

TEMP. I.D.

WITH QTZ

CLASS II, DIV. 1 & 2, MAX. SURFACE

TEMP. UL/CSA SUITABILITY

GROUPS

I.D.

NUMBER

T2A

T2B

T2C

T2D

T3A

T3B

T3C

T4A

TABLE N.E.C. 500-5 (d)

DEGREES C

450

300

280

260

230

215

200

180

165

160

135

120

100

DEGREES F

842

572

536

500

446

419

392

356

329

320

275

248

212

185

LAMP

RATED

AMBIENT

°C

40 85 T3C* T3B* E,F

EZS HPS 50 55 85 T3C* N/A E,F,G

85 T3B* N/A E,F,G

85 T3C* T3B* E,F,G

EZS HPS 70 55 85 T3C* N/A E,F,G

65 85 T3B* N/A E,F,G

40 85 T3C* T3B* E,F,G

EZS HPS 100 55 85 T3C* N/A E,F,G

65 85 T3B N/A E,F,G

40 85 T3C* T3B* E,F,G

EZS HPS 150 55 85 T3C* N/A E,F,

65 85 T3B* N/A E,F,G

EZS HPS 250 40 85 T3 T3 E,F

EZS HPS 400 40 85 N/A N/A N/A

40 85 T4A N/A E,F,

EZH MH 70 55 85 T4 N/A E,F,G

65 85 T3C N/A E,F,

40 85 T4A N/A E,F,G

EZH MH 100 55 85 T4 N/A E,F,G

65 85 T3C N/A E,F,G

EZH MH 175 40 85 T3C* T3A* E,F,G

55 85 T3C* N/A E,F,G

EZH MH 250 40 85 N/A N/A N/A

EZH MH 400 40 85 N/A N/A N/A

EZP MHP 150 or 40 85 T3C* T3A* E,F,G

175 55 85 T3C* N/A E,F,G

EZP MHP 250 40 85 N/A N/A N/A

EZP MHP 320, 350 40 85 N/A N/A N/A

EZP MHP 400 40 85 N/A N/A N/A

UL-595

MARINE

UL/CSA

TYPE 3

(RAINTIGHT)

UL/CSA

TYPE 4

(HOSEDOWN)

U.L. PAINT

SPRAY

SUITABILITY4

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES

L166

Test No. LSI-9182

HIGH PRESSURE SODIUM

With Globe Only

50 – 150 Watt Mogul Base

CANDLEPOWER – 100 WATT

E-231⁄2clear lamp

9500 lumens

For 50 watt multiply by .42

For 70 watt multiply by .67

For 150 watt multiply by 1.68

HIGH PRESSURE SODIUM

With Globe and Standard Dome Reflector

50 – 150 Watt Mogul Base

CANDLEPOWER – 100 WATT

E-231⁄2clear lamp

9500 lumens

For 50 watt multiply by .42

For 70 watt multiply by .67

For 150 watt multiply by 1.68

Test No. LSI-9228 Test No. LSI-9230

HIGH PRESSURE SODIUM

With Globe and Deep Dome HRD-400 Reflector

50 – 150 Watt Mogul Base

CANDLEPOWER – 100 WATT

E-231⁄2clear lamp

9500 lumens

For 50 watt multiply by .42

For 70 watt multiply by .67

For 150 watt multiply by 1.68

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES

HIGH PRESSURE SODIUM

With Globe and Angle Reflector

50 – 150 Watt Mogul Base

CANDLEPOWER – 100 WATT

E-231⁄2clear lamp

9500 lumens

For 50 watt multiply by .42

For 70 watt multiply by .67

For 150 watt multiply by 1.68

HIGH PRESSURE SODIUM

With Globe Only

250 – 400 Watt Mogul Base

CANDLEPOWER – 400 WATT

E-18 clear lamp

50000 lumens

For 250 watt multiply by .60

HIGH PRESSURE SODIUM

With Globe and Standard Dome Reflector

250 – 400 Watt Mogul Base

CANDLEPOWER – 400 WATT

E-18 clear lamp

50000 lumens

For 250 watt multiply by .60

Test No. LSI-9229

Test No. LSI-9055 Test No. LSI-9056

L167

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES

L168

HIGH PRESSURE SODIUM

With Globe and Deep Dome HRD-400 Reflector

250 and 400 Watt Mogul Base

CANDLEPOWER – 400 WATT

E-18 clear lamp

50000 lumens

For 250 watt multiply by .60

HIGH PRESSURE SODIUM

With Globe and Angle Reflector

250 – 400 Watt Mogul Base

CANDLEPOWER – 400 WATT

E-18 clear lamp

50000 lumens

For 250 watt multiply by .60

Test No. LSI-9058 Test No. LSI-9057 Test No. LSI-9183

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Standard Dome Reflector

70 – 250 Watt Mogul Base

CANDLEPOWER – 175 WATT MH

E-28 coated MH (14000 lumens)

For CP of 70W MH multiply by .40

For CP of 100W MH multiply by .56

For CP of 150W MH multiply by .96

For CP of 250W MH multiply by 1.46

For CP of 175W MHP multiply by 1.14

For CP of 250W MHP multiply by 1.69

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES L169

L169

Test No. LSI-9231 Test No. LSI-9233 Test No. LSI-9232

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Standard Dome Reflector

70 – 250 Watt Mogul Base

CANDLEPOWER – 175 WATT MH

E-28 coated MH (14000 lumens)

For CP of 70W MH multiply by .40

For CP of 100W MH multiply by .56

For CP of 150W MH multiply by .96

For CP of 250W MH multiply by 1.46

For CP of 175W MHP multiply by 1.14

For CP of 250W MHP multiply by 1.69

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Deep Dome HRD-400 Reflector

70 – 250 Watt Mogul Base

CANDLEPOWER – 175 WATT MH

E-28 coated MH (14000 lumens)

For CP of 70W MH multiply by .40

For CP of 100W MH multiply by .56

For CP of 150W MH multiply by .96

For CP of 250W MH multiply by 1.46

For CP of 175W MHP multiply by 1.14

For CP of 250W MHP multiply by 1.69

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Angle Reflector

70 – 250 Watt Mogul Base

CANDLEPOWER – 175 WATT MH

E-28 coated MH (14000 lumens)

For CP of 70W MH multiply by .40

For CP of 100W MH multiply by .56

For CP of 150W MH multiply by .96

For CP of 250W MH multiply by 1.46

For CP of 175W MHP multiply by 1.14

For CP of 250W MHP multiply by 1.69

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES

L170

Test No. LSI-9051 Test No. LSI-9052 Test No. LSI-9054

METAL HALIDE,

PULSE START METAL HALIDE

With Globe Only

320 - 400 Watt Mogul Base

CANDLEPOWER – 400 WATT MH

E-37 coated MH

36000 lumens

For CP of MHP320 multiply by .87

For CP of MHP350 multiply by 1.05

For CP of MHP400 multiply by 1.22

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Standard Dome Reflector

320 - 400 Watt Mogul Base

CANDLEPOWER – 400 WATT MH

E-37 coated MH

36000 lumens

For CP of MHP320 multiply by .87

For CP of MHP350 multiply by 1.05

For CP of MHP400 multiply by 1.22

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Deep Dome Reflector

320 - 400 Watt Mogul Base

CANDLEPOWER – 400 WATT MH

E-37 coated MH

36000 lumens

For CP of MHP320 multiply by .87

For CP of MHP350 multiply by 1.05

For CP of MHP400 multiply by 1.22

EZ SERIES • LIGHTING

PHOTOMETRIC DATA • HID FIXTURES L171

L171

Test No. LSI-9053

METAL HALIDE,

PULSE START METAL HALIDE

With Globe and Angle Reflector

320 - 400 Watt Mogul Base

CANDLEPOWER – 400 WATT MH

E-37 coated MH

36000 lumens

For CP of MHP320 multiply by .87

For CP of MHP350 multiply by 1.05

For CP of MHP400 multiply by 1.22 POWERFUL

Luminaire Layout

and Calculation

Software

Software is used to determine number of fixtures required and their

proper layout for various tasks and applications.

Contact you local Killark sales representative for availability.

DESIGNDESIGN

LIGHTING DESIGN SOFTWARE

DBF SERIES • LIGHTING

FLUORESCENT FIXTURES

L172

FEATURES-SPECIFICATIONS

Listed - File E12976

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D1

Class l, Zone 2, Groups llC,llB,llA

Class II, Div. 1 & 2, Groups E,F,G5

Class III, Div. 1 & 2

Suitable for wet locations

NEMA 3, 4

Applications

LINEARLITE DBF fluorescent fixtures

are designed for general and task light-

ing of areas where flammable gases or

vapors or combustible dusts may exist

due to abnormal conditions resulting in

the creation of a Class I, Division 2 or

Class II or III, Div. 1 or 2, hazardous

location as defined in the NEC. Also

for lighting non-hazardous wet loca-

tions indoors and outdoors.

Features

•Sheet steel 20 ga. housing with con-

tinuous weld prevents foreign matter

from entering enclosure

•Lens frame assembly has silicon

rubber gasketing and heat tempered

glass lens

•Electrostatically applied

polyester finish

CATALOG CONDUIT NUMBER LINE

NUMBER SIZE3OF LAMPS VOLTAGE DESCRIPTION

DBF32302 120-277V 50/60 Hz 32W T8 electronic ballast 265 MA 0°F start

DBF40124120V 60 Hz

DBF4042 3/4" 2 277V 60 Hz 40W rapid start electronic F40T12 medium bi-pin 430MA

DBF60124120V 60 Hz 60W rapid start high output F48T12/HO recessed

DBF6042 277V 60 Hz double contact 800MA

DBF32303 120-277V 50/60 Hz 32W T8 electronic ballast 265 MA 0°F start

DBF4013

3/4" 3

120V 60 Hz 40W rapid start electronic F40T12 medium bi-pin 430MA

DBF4043 277V 60 Hz

DBF6013 120V 60 Hz 60W rapid start high output F48T12/HO recessed

DBF6043 277V 60 Hz double contact 800MA

DBF FLUORESCENT FIXTURES

CATALOG NUMBER DESCRIPTION

ABK Angle bar chain bracket

AFK 45° fixed angle bracket

AAK 45° adjustable angle bracket

DBF-HUB Replacement hub

DBF-DL Door & Lens

MOUNTING HARDWARE2

SUPPLY CLASS I, DIV. 2, CLASS II, DIV. 1 & 2,

NUMBER LAMP RATED WIRE GROUPS A, B, C, D GROUPS E, F, G CLASS III NEMA NEMA

OF AMBIENT MAX. LAMP MAX. SURFACE DIV. 1 & 2 TYPE 3 TYPE 4

LAMPS WATTS °C SUITABLE TEMP.°C TEMP. °CSUITABILITY UL/CSA (RAINTIGHT) (HOSEDOWN)

FOR °C MIN. UL/CSA TEMP/I.D. UL/CSA TEMP/I.D.

2 32/40 40 90 T6 (85°C/185°F) T6 (85°C/185°F) YES YES YES

3 32/40 40 90 T5 (100°C/212°F) T6 (85°C/185°F) YES YES YES

2 60 40 90 T4A (120°C/248°F) T6 (85°C/185°F) YES YES YES

3 60 40 90 T4 (138°C/275°F) T6 (85°C/185°F) YES YES YES

DBF HAZARDOUS LOCATION APPLICATION DATA15

• Standard ballast starting temperature for 40 watt is 50°F.

• Ballasts are Class P Type with internal, automatic, thermally-activated protective device.

• Optional external ballast fusing availability by adding suffix FB.

• For other voltages consult factory.

• 60 watt high output ballasts are standard -20°F start.

Fixtures are supplied without lamps. To order with lamps installed add suffix WL.

1UL/CSA Class I, Div. 2

3Hubs can be relocated in field to fixture end for feed-thru wiring.

4Change 1 to 8 for 230V 50 Hz.

5CSA Class II, Div. I

2Must be ordered separately. Brackets sold as sets.

AFK AAK

ABK

SEE PAGE L208

FOR DBFE

EMERGENCY MODELS

LZ2S SERIES • LIGHTING

316 STAINLESS FLUORESCENT FIXTURES L173

L173

Certified - File LR11713

Class I, Div. 2, Groups A,B,C,D

Class l, Zone 2, Groups llC, llB, llA

Class II, Div. 1 & 2, Group E,F,G

AEx nAII, Ex nAII

Wet Locations

NEMA 4X, IP66

Type Approval

ABS

LZ2S STAINLESS

Applications

LINEARLITE®rugged 316 stainless fluo-

rescent fixtures are suitable for wet, harsh,

corrosive and hazardous locations. The

LZ2S Series can be used in Class I, Divi-

sion 2 and Zone 2 hazardous vapors and

in Class II combustible dust areas typically

found in refineries, chemical plants, waste

water & sewage treatment facilities, as

well as in tunnels, food processing and

coastal areas.

ABS (American Bureau of Shipping) type

approval for use on decks, vessels, plat-

forms, barges, ships and boats. Also

suitable for docks and marinas.

Features

•NEMA 4X & IP66 rated stainless enclo-

sure with Lexan®impact resistant poly-

carbonate lens.

•Two 3/4" NPT stainless hubs - one at

each end (includes aluminum 3/4" close-

up plug and two 3/4" x 1/2" reducers for

maximum user flexibility).

•Two 1/4" - 20 stainless bushings furnished

in top of fixture for threaded rod.

Lexan®is a registered trademark of General Electric

Additional Data

L209 - Emergency models

L175 - Ballast data

L176 - Mounting accessories/

Replacement parts

L176 - L177 - Photometrics

150 Hz ballast is magnetic.

2Add suffix 55C for 2X 32W 120V-277V # L32S32230-55C.

3L32SE, 40°C max. battery models.

4T-code measured at 40°C.

NUMBER OF

LAMPS/WATTS

1-40W

1-55W

2-40W

4-40W

2-17W

3-17W

2-28W

3-28W

2-32W2

3-32W

2-40W

2-44W

2-54W

3-54W

2-60W

BIAXIAL LAMP TYPE FIXTURES

VOLTAGE

AC 60 H z

120-277V

50-60 Hz

120-277V

50-60 Hz

120-277V

347V

120-277V

347V

120V

277V

230V 50 Hz1

120V

277V

120-277V

DOUBLE-ENDED LAMP TYPE FIXTURES

DESCRIPTION

2' 1-Lamp Biaxial Electronic 50/60 Hz, 0°F Start 4-Pin

2' 2-Lamp Biaxial Electronic 50/60 Hz, 0°F Start 4-Pin

4' 4-Lamp Biaxial Electronic 50/60 Hz, 0°F Start 4-Pin

2' 2-Lamp T-8 Electronic 50/60 Hz, 0°F Start Medium Bi-Pin

2' 3-Lamp T-8 Electronic 50/60 Hz, 0°F Start Medium Bi-Pin

4' 2-Lamp T-5 Electronic 0°F Start Miniature Bi-Pin

4' 3-Lamp T-5 Electronic 0°F Start Miniature Bi-Pin

4' 2-Lamp T-8 Electronic 50/60 Hz 0°F Start Medium Bi-Pin

4' 3-Lamp T-8 Electronic 50/60 Hz 0°F Start Medium Bi-Pin

4' 2-Lamp T-12 Electronic Medium Bi-Pin Start 50°F 40W/60°F 34W

4' 2-Lamp T-8 Electronic -20°F Start High Output

Recessed Double Contact

4' 2-Lamp T5 Electronic 50/60 Hz, -20°F Start Miniature Bi-Pin

4' 2-Lamp T-12 Electronic -20°F Start High Output

Recessed Double Contact

NUMBER OF RAT ED SUITABLE CLASS I, DIV, 2 CLASS II, DIV. 1 & 2 CLASS III

AMBIENT FOR °C MAX. SURFACE TEMP. MAX. SURFACE TEMP. DIV. 1 & 2

LAMPS/WATTS °C SUPPLY WIRE TEMP. T-CODE GROUPS TEMP. T-CODE GROUPS SUITABILITY

1 X 40W BIAXIAL 40° 75 160°C T3C A, B, C, D 100°C T5 E, F, G Yes

1 X 55W BIAXIAL 40° 60 160°C T3C A, B, C, D 100°C T5 E, F, G Yes

2 X 40W BIAXIAL 40° 75 160°C T3C A, B, C, D 100°C T5 E, F, G Yes

4 X 40W BIAXIAL 40° 75 160°C T3C A, B, C, D 100°C T5 E, F, G Yes

2 X 17W 40° 60 85°C T5 A, B, C, D 100°C T5 E, F, G Yes

3 X 17W 40° 60 85°C T5 A, B, C, D 100°C T5 E, F, G Yes

2 X 28W 40° 60 120°C T4A A, B, C, D 100°C T5 E, F, G Yes

3 X 28W 40° 60 120°C T4A A, B, C, D 100°C T5 E, F, G Yes

2 X 32W 40° 60 85°C T6 A, B, C, D 100°C T5 E, F, G Yes

2 X 32W 55°390 100°C T5 A, B, C, D N/A N/A N/A Yes

3 X 32W 40° 60 85°C T6 A, B, C, D 100°C T5 E, F, G Yes

2 X 40W 40° 60 120°C T4A A, B, C, D 100°C T5 E, F, G Yes

2 X 44W 40° 60 120°C T4A A, B, C, D 100°C T5 E, F, G Yes

2 X 54W 40° 75 160°C T3C A, B, C, D 100°C T5 E, F, G Yes

3 X 54W 35°475 180°C T3A A, B, C, D N/A N/A N/A Yes

2 X 60W 40° 75 135°C T4 A, B, C, D 100°C T5 E, F, G Yes

LZ2S, LZ2SE HAZARDOUS LOCATION APPLICATION DATA

LZ2S

LZ2S40130

LZ2S55130

LZ2S40230

LZ2S40430

LZ2S17230

LZ2S17330

LZ2S28230

LZ2S28330

LZ2S32230

LZ2S32215

LZ2S32330

LZ2S32315

LZ2S40201

LZ2S40204

LZ2S40208

LZ2S44230

LZ2S54230

LZ2S54330

LZ2S60230

See LZ2N

Logic for

Options

LZ2N SERIES •LIGHTING

NON-METALLIC FLUORESCENT FIXTURES

L174

FEATURES-SPECIFICATIONS

Certified - File LR11713

Class I, Div. 2 Groups A,B,C,D

Class l, Zones 2, Groups IIC,llB,llA

Class II, Div. 1 & 2, Groups F,G

AEx nAII, Ex nAII

Wet Locations

NEMA 4X, IP66

4’ Nominal Style

2’ Nominal Style

Type Approval

ABS

Food Handling

NSF

Quick release diffuser clamp and hinged cover

requires no special tools.

Applications

LINEARLITE ®rugged Non-Metallic fluo-

rescent fixtures are suitable for wet, harsh

and hazardous locations. Use where

enclosed and gasketed fixtures are

required to withstand exposure to mois-

ture, dust and corrosives. The LZ2N

Series can also be used in Class I,

Division 2 and Zone 2 hazarous vapors

and in Class II areas where combustible

dusts may exist. Typical areas used are in

refineries, chemical plants, waste water &

sewage treatment facilities, as well as in

tunnels, food processing and coastal

areas.

ABS (American Bureau of Shipping) type

approval for use on decks, vessels, plat-

forms, barges, ships and boats. Also suit-

able for docks and marinas.

NSF (National Sanitation Foundation)

approved for “Food Handling” areas, typi-

cally requiring non-glass lighting.

Features

•Housing-one piece fiberglass reinforced

polyester, NEMA 4X & IP66 rated.

•Lexan®Clear Lens, impact resistant

polycarbonate

•Two 3/4" NTP aluminum hubs - one at

each end (includes one 3/4" close-up

plug and two 3/4" x 1/2" reducers for

maximum user flexibility)

•Two 1/4"-20 aluminum bushings fur-

nished in top of fixture for threaded rod

•2’ and 4’ luminaries

•Lamp types-

Linear 17, 28, 32, 40, 44, 54, 60W

Long compact 40, 55W (single ended)

•Electronic ballast standard

•World voltage (most models) 120 thru

277V, 50/60 Hz

Lexan®is a registered trademark of General Electric

Catalog Number Logic

Constant for LZ2N Series

1Emergency (Battery backed)

E1—40W BIAXIAL, 44W, 60W

E2—32W, 40W

Lamp Wattage

40-Linear & BIAXIAL

Voltage

30—120-277V 50/60 Hz

40, 55 - BIAXIAL

17, 28, 32, 44, 54W

01—120V 60 Hz

40W, 60W

04—277V 60 Hz

40W, 60W

08—230V 50 Hz

40W

15—347V 60 Hz

32W

LZ2N - (E0-) - 00 - 0 - 00 - F2

NUMBER OF RAT ED SUITABLE CLASS I, DIV, 2 CLASS II, DIV, 1 & 2 CLASS III NEMA 4X

AMBIENT FOR °C MAX. SURFACE TEMP. MAX. SURFACE TEMP. DIV. 1 & 2

LAMPS/WATTS °C SUPPLY WIRE TEMP. T-CODE GROUPS TEMP. T-CODE GROUPS SUITABILITY IP66

2 X 17W 40° 60 85°C T5 A, B, C, D 100°C T5 F, G Yes Yes

3 X 17W 40° 60 85°C T5 A, B, C, D 100°C T5 F, G Yes Yes

1 X 40W BIAXIAL 40° 60 100°C T5 A, B, C, D 100°C T5 F, G Yes Yes

1 X 55W BIAXIAL 40° 60 160°C T3C A, B, C, D 100°C T5 F, G Yes Yes

2 X 40W BIAXIAL 40° 60 100°C T5 A, B, C, D 100°C T5 F, G Yes Yes

4 X 40W BIAXIAL 40° 60 120°C T4A A, B, C, D 100°C T5 F, G Yes Yes

2 X 28W 40° 60 120°C T4A A, B, C, D 100°C T5 F, G Yes Yes

3 X 28W 40° 60 120°C T4A A, B, C, D 100°C T5 F, G Yes Yes

2 X 32W 40° 75 85°C T6 A, B, C, D 100°C T5 F, G Yes Yes

2 X 32W 55°190 100°C T5 A, B, C, D N/A N/A N/A Yes Yes

3 X 32W 40° 75 85°C T6 A, B, C, D 100°C T5 F, G Yes Yes

3 X 32W 55°190 100°C T5 A, B, C, D N/A N/A N/A Yes Yes

2 X 40W 40° 60 120°C T4A A, B, C, D 100°C T5 F, G Yes Yes

2 X 44W 40° 60 100°C T5 A, B, C, D 100°C T5 F, G Yes Yes

2 X 54W T5 40° 75 160°C T3C A, B, C, D 100°C T5 F, G Yes Yes

3 X 54W T5 40° 75 180°C T3A A, B, C, D 120°C T4A F, G Yes Yes

2 X 60W 40° 75 135°C T4 A, B, C, D 100°C T5 F, G Yes Yes

LZ2N, LZ2NE HAZARDOUS LOCATION APPLICATION DATA

1 lamp

2 lamps

3 lamps

4 lamps

F—single fuse2

FF—double fuse2

QD—Quick Disconnect

55C3

1See page L209 for complete catalog grid listing.

2Fuses not for marine or Canadian use.

355°C ambient suitability 2 or 3 lamp 32W C1D2 120V-277V only.

1LZ2NE, 40°C max. battery models.

LZ2N/LZ2S luminaires contain no exposed

glass and carry Class II, “G” ratings required

for many food proccessing areas.

LZ2N SERIES •LIGHTING

NON-METALLIC FLUORESCENT FIXTURES L175

L175

LZ2NAND LZ2S BALLAST DATA1

LZ2N NON-METALLIC

NUMBER OF

LAMPS/WATTS

1-40W

1-55W

2-40W

4-40W

2-17W

3-17W

2-28W

3-28W

2-32W

3-32W

2-40W

2-44W

2-54W

3-54W

2-60W

BIAXIAL LAMP TYPE FIXTURES

VOLTAGE

A C 6 0 H z

120-277V

347V

120-277V

347V

120V

277V

230V 50 Hz2

120-277V

DOUBLE-ENDED LAMP TYPE FIXTURES

DESCRIPTION

2' 1-Lamp Biaxial Electronic 50/60 Hz

0°F Start 4-Pin

2' 1-Lamp Biaxial Electronic 50/60 Hz

0°F Start 4-Pin

2' 2-Lamp Biaxial Electronic 50/60 Hz

0°F Start 4-Pin

4' 4-Lamp Biaxial Electronic 50/60 Hz

0°F Start 4-Pin

2' 2-Lamp T8 Electronic 50/60 Hz

0°F Start Medium Bi-Pin

2' 3-Lamp T8 Electronic 50/60 Hz

0°F Start Medium Bi-Pin

4' 2-Lamp T-5 Electronic 50/60 Hz

0°F Start Miniature Bi-Pin

4' 3-Lamp T-5 Electronic 50/60 Hz

0°F Start Miniature Bi-Pin

4' 2-Lamp T-8 Electronic 50/60 Hz

0°F Start Medium Bi-Pin

4' 3-Lamp T-8 Electronic 50/60 Hz

0°F Start Medium Bi-Pin

4' 2-Lamp T-12 Electronic, Medium Bi-Pin

Start 50°F 40W/60°F 34W

4' 2-Lamp T-8 Electronic -20°F Start High Output 50/60 Hz

Recessed Double Contact

4' 2-Lamp T-5 Electronic 50/60 Hz

-20°F Start Miniature Bi-Pin

4' 2-Lamp T-5 Electronic 50/60 Hz

-20°F Start Miniature Bi-Pin

4' 2-Lamp T-12 Electronic -20°F Start High Output 50/60 Hz

Recessed Double Contact

LZ2N

LZ2N40130

LZ2N55130

LZ2N40230

LZ2N40430

LZ2N17230

LZ2N17330

LZ2N28230

LZ2N28330

LZ2N322304

LZ2N32215

LZ2N323304

LZ2N32315

LZ2N40201

LZ2N40204

LZ2N40208

LZ2N44230

LZ2N54230

LZ2N54330

LZ2N60230

1Includes normal powered LZ2NE and LZ2SE models, lamps not included.

2Magnetic ballast.

350°C 34T12; 60°F 40T12.

4See LOGIC for 55°C ambient suitability.

NUMBER OF

LAMPS/WATTS

1 X 40W BIAXIAL

1 X 55W BIAXIAL

2 X 40W BIAXIAL

4 X 40W BIAXIAL

2 X 1 7 W

3 X 1 7 W

2 X 2 8 W

3 X 2 8 W

2 X 3 2 W

3 X 3 2 W

2 X 4 0 W

2 X 4 4 W

2 X 5 4 W

3 X 5 4 W

2 X 6 0 W

VOLTAGE

120-277V

.35 (120V)

.49 (120V)

.60 (120V)

1.32 (120V)

.32 (120V)

.39 (120V)

.55 (120V)

.83 (120V)

.54 (120V)

.71 (120V)

.62 (120V)

.84 (120V)

1.00 (120V)

1.52 (120V)

1.13 (120V)

.15 (277V)

.22 (277V)

.28 (277V)

.56 (277V)

.14 (277V)

.17 (277V)

.23 (277V)

.35 (277V)

.24 (277V)

.31 (277V)

.24 (277V)

.36 (277V)

.43 (277V)

.66 (277V)

.48 (277V)

LINE CURRENT AMPS

INPUT

W AT T S

3 9

5 8

7 8

156

3 8

4 8

6 6

9 9

6 5

8 5

7 1

9 9

120

182

125

STARTING

TEMPERATURE

0°F (-18°C)

50°F (10°C)3

-20°F (-29°C)

See page L209

for LZ2NE

Non-metallic

and LZ2SE

316 Stainless

Emergency

Models

LZ2N, LZ2S, LZ2NE, LZ2SE SERIES •LIGHTING

DIMENSIONS, ACCESSORIES, PHOTOMETRIC

L176

Test No. BAL12356

FLUORESCENT FIXTURE- LZ2N(S)40230

2’ – 2 40 Watt Biaxial

Lamp Type F40/2G11/835/RS

Lumens 3150 each

Total Bare Lamp

Lumens 6300

All data provided is for

F40/2G11/835/RS lamps

For LZ2N40130 1-lamp

models multiply x .50

For LZ2N55130

1-lamp models

multiply x .76

For LZ2N17230

multiply x .44

For LZ2N17330

multiply x .66

Efficiency 78.5%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

307

613

920

1226

90°

0°

SPACING TO MOUNTING HEIGHT RATIO - 1.28 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.88 90-270°

SPACING TO MOUNTING HEIGHT RATIO - 1.28 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.88 90-270°

ZONAL LUMENS

ZONE LUMENS

0-30 826

0-40 1447

0-60 2977

0-90 4638

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .92 .92 .92 .92 .90 .90.90 .90 .84 .84 .84 .80.80 .80 .76 .76 .76 .74

1 .81 .76 .72 .68 .79 .74 .70 .66 .70 .66 .63 .66.63 .61 .62 .60 .58 .56

2 .73 .65 .58 .53 .70 .63 .57 .52 .59 .54 .50 .56.52 .48 .53 .49 .46 .44

3 .65 .56 .48 .42 .63 .54 .47 .42 .51 .45 .40 .48.43 .39 .45 .41 .37 .35

4 .59 .49 .41 .35 .57 .47 .40 .34 .45 .38 .33 .42.37 .32 .40 .35 .31 .29

5 .54 .43 .35 .29 .52 .42 .34 .29 .39 .33 .28 .37.32 .27 .35 .30 .26 .24

6 .50 .38 .30 .25 .48 .37 .30 .25 .35 .29 .24 .33.28 .23 .32 .27 .23 .21

7 .46 .34 .27 .22 .44 .33 .26 .21 .32 .25 .21 .30.25 .20 .29 .24 .20 .18

8 .43 .31 .24 .19 .41 .30.24 .19 .29 .23 .18 .27.22 .18 .26 .21 .17 .16

9 .40 .28 .21 .17 .38 .28.21 .17 .26 .20 .16 .25.20 .16 .24 .19 .16 .14

10 .37 .26 .19 .15 .36 .25.19 .15 .24 .19 .15 .23.18 .14 .22 .17 .14 .12

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

0.0 948. 948. 948. 948. 948.

5.0 948. 951. 959. 958. 954. 91.20

10.0 937. 950. 977. 989. 989.

15.0 917. 944. 989. 1017. 1023. 277.80

20.0 889. 931. 1000. 1041. 1051.

25.0 855. 912. 1003. 1065. 1079. 456.80

30.0 809. 886. 1004. 1103. 1143.

35.0 757. 852. 1006. 1137. 1176. 622.10

40.0 698. 809. 1012. 1149. 1198.

45.0 635. 760. 1000. 1155. 1226. 744.40

50.0 559. 711. 981. 1175. 1206.

55.0 478. 667. 967. 1094. 1118. 791.00

60.0 395. 617. 896. 1002. 1069.

65.0 307. 552. 784. 928. 930. 715.20

70.0 224. 481. 707. 804. 834.

75.0 147. 383. 597. 712. 765. 568.30

80.0 88. 308. 520. 632. 670.

85.0 50. 236. 402. 472. 515. 379.80

90.0 19. 134. 244. 315. 341.

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

approx. 1-3/4“

(44.4)

1/4“ (20)

1/2“ (12)

*Mounting Centers are 1/4-20" tapped for

user all thread rod or below accessories.

1Dimensions in ( ) are millimeters.

2Product accessories have hardware for attachment

to fixture; hardware to attach to wall/ceiling F.B.O.

NOTE: Eyebolts are 316 Series, brackets are 300

Series Stainless Steel.

DIMENSIONS LZ2N, LZ2NE SERIES

Replacement Parts:

LZ2N4LENS 4' Lens only LZ2N/LZ2S

LZ2N2LENS 2' Lens only LZ2N/LZ2S

LZ2N4BAR 4' Locking Bar only LZ2N

LZ2N2BAR 2' Locking Bar only LZ2N

LZ2S-LATCH Latch and Spring

Mounting Accessories

For All LZ2N, LZ2S Series

Wall Bracket Set2

Part Number LZWB

Stainless Steel

(natural finish)

Adjustable

Wall Bracket Set2

Part Number LZAB

Stainless Steel bracket with ceramic

coated pivot bolt

Ceiling Bracket Set2

Part Number LZCB

Stainless Steel

(natural finish)

Eyebolt Set

Part Number LZEB

Stainless Steel bolt with lockwasher & nut

(natural finish)

Suspension Chains (2 required)

Part Number HFX-SC

36" length plated steel chain with snap link ends

For use with LZEB

LZ2N, LZ2S SERIES •LIGHTING

PHOTOMETRIC DATA L177

L177

Test No. BAL 12357

FLUORESCENT FIXTURE- LZ2N(S)40430

4' – 4 40 Watt BIAXIAL Lumens 3150 each

Lamp Type F40/2G11/835/RS

Total Bare Lamp Lumens 12600

All data provided is for F40/2G11/835/RS lamps

Efficiency 76%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

631

1261

1892

2522

90°

0°

SPACING TO MOUNTING HEIGHT RATIO - 1.28 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.94 90-270°

ZONAL LUMENS

ZONE LUMENS

0-30 1649

0-40 2863

0-60 5876

0-90 8993

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .89 .89 .89 .89 .87 .87.87 .87 .82 .82 .82 .77.77 .77 .73 .73 .73 .71

1 .79 .74 .70 .66 .76 .72.68 .65 .68 .65 .62 .64.61 .59 .61 .58 .57 .54

2 .71 .63 .57 .52 .68 .61.56 .51 .58 .53 .49 .54.50 .47 .51 .48 .45 .43

3 .64 .54 .47 .41 .61 .53.46 .41 .50 .44 .39 .47.42 .38 .44 .40 .37 .35

4 .58 .47 .40 .34 .56 .46.39 .34 .44 .37 .33 .41.36 .32 .39 .34 .31 .29

5 .53 .42 .34 .29 .51 .41.34 .28 .39 .32 .28 .36.31 .27 .35 .30 .26 .24

6 .48 .37 .30 .25 .47 .36.29 .24 .34 .28 .24 .33.27 .23 .31 .26 .22 .21

7 .45 .34 .26 .21 .43 .33.26 .21 .31 .25 .21 .30.24 .20 .28 .23 .20 .18

8 .41 .30 .23 .19 .40 .30.23 .19 .28 .22 .18 .27.22 .18 .26 .21 .17 .16

9 .39 .28 .21 .17 .37 .27.21 .16 .26 .20 .16 .25.19 .16 .24 .19 .15 .14

10 .36 .25 .19 .15 .35 .25.19 .15 .24 .18 .14 .23.18 .14 .22 .17 .14 .12

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

0.0 1852. 1852. 1852. 1852. 1852.

5.0 1852. 1852. 1860. 1870. 1876. 177.7

10.0 1876. 1889. 1932. 1971. 1987.

15.0 1840. 1873. 1957. 2032. 2061. 553.6

20.0 1808. 1874. 2022. 2143. 2196.

25.0 1693. 1790. 1978. 2145. 2193. 909.1

30.0 1588. 1730. 1991. 2172. 2269.

35.0 1475. 1650. 1943. 2229. 2340. 1213.9

40.0 1350. 1571. 1959. 2256. 2345.

45.0 1267. 1564. 2083. 2385. 2522. 1534.8

50.0 1073. 1394. 1895. 2288. 2380.

55.0 912. 1280. 1854. 2176. 2247. 1545.2

60.0 730. 1149. 1673. 1938. 2013.

65.0 571. 1038. 1541. 1785. 1833. 1381.1

70.0 400. 885. 1342. 1549. 1558.

75.0 250. 698. 1075. 1321. 1433. 1040.9

80.0 132. 533. 968. 1208. 1262.

85.0 56. 397. 726. 921. 983. 699.6

90.0 28. 212. 464. 619. 665.

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

Test No. BAL 12359

FLUORESCENT FIXTURE- LZ2N(S)32330

4' – 3 32W F32WT8/835/RS LAMPS

2950 Lumens Each

Total Bare Lamp Lumens 8850

For 28 Watt T5 Multiply By .98

For 54 Watt T5 HO Multiply By 1.69

Efficiency 77.5%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

475

950

1899

90°

0°

1424

SPACING TO MOUNTING HEIGHT RATIO - 1.26 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.48 90-270°

ZONAL LUMENS

ZONE LUMENS

0-30 1482

0-40 2470

0-60 4651

0-90 6562

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .91 .91 .91 .91 .89 .89.89 .89 .84 .84 .84 .80.80 .80 .76 .76 .76 .74

1 .82 .78 .74 .70 .79 .75.72 .69 .71 .68 .66 .68.65 .63 .64 .62 .61 .59

2 .74 .67 .61 .56 .71 .65.59 .55 .61 .57 .53 .58.55 .51 .55 .52 .50 .48

3 .67 .58 .51 .45 .64 .56.50 .45 .53 .48 .44 .51.46 .42 .48 .44 .41 .39

4 .61 .51 .44 .38 .59 .50.43 .37 .47 .41 .37 .45.40 .36 .43 .38 .35 .33

5 .56 .45 .38 .32 .54 .44.37 .32 .42 .36 .31 .40.35 .31 .38 .34 .30 .28

6 .51 .40 .33 .28 .50 .40.33 .28 .38 .32 .27 .36.31 .27 .35 .30 .26 .24

7 .47 .37 .29 .24 .46 .36.29 .24 .34 .28 .24 .33.27 .23 .31 .27 .23 .21

8 .44 .33 .26 .22 .43 .33.26 .21 .31 .25 .21 .30.25 .21 .29 .24 .20 .19

9 .41 .30 .24 .19 .40 .30.23 .19 .29 .23 .19 .28.22 .19 .27 .22 .18 .17

10 .39 .28 .22 .17 .37 .27 .21 .17 .26 .21 .17 .25.20 .17 .25 .20 .17 .15

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

0.0 1786. 1786. 1786. 1786. 1786.

5.0 1774. 1774. 1778. 1781. 1781. 169.6

10.0 1800. 183. 1819. 1834. 1840.

15.0 1751. 1761. 1794. 1822. 1834. 508.1

20.0 1745. 1771. 1827. 1879. 1899.

25.0 1609. 1644. 1724. 1790. 1814. 794.9

30.0 1517. 1571. 1679. 1748. 1784.

35.0 1391. 1458. 1590. 1684. 1714. 986.9

40.0 1272. 1364. 1520. 1632. 1674.

45.0 1194. 1315. 1507. 1643. 1687. 1143.4

50.0 1010. 1150. 1353. 1491. 1551.

55.0 856. 1014. 1248. 1402. 1420. 1077.2

60.0 685. 857. 1124. 1215. 1245.

65.0 534. 741. 978. 1092. 1121. 902.9

70.0 372. 610. 830. 956. 990.

75.0 229. 452. 671. 779. 824. 642.3

80.0 116. 340. 531. 617. 650.

85.0 53. 213. 356. 453. 489. 352.6

90.0 16. 108. 245. 342. 378.

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

Test No. BAL 12358

FLUORESCENT FIXTURE- LZ2N(S)32230

4' – 2 32W F32WT8/835/RS LAMPS

2950 Lumens Each

Total Bare Lamp Lumens 5900

For 28 Watt T5 Multiply By .98

For 34/40 Watt T12 Multiply By 1.07

For 44 Watt T8 Multiply By 1.36

For 54 Watt T5 Multiply By 1.69

For 60 Watt T12 Multiply By 1.46

Efficiency 80.9%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

306

611

1222

90°

0°

917

SPACING TO MOUNTING HEIGHT RATIO - 1.26 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.56 90-270°

ZONAL LUMENS

ZONE LUMENS

0-30 957

0-40 1608

0-60 3077

0-90 4521

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .95 .95 .95 .95 .93 .93.93 .93 .88 .88 .88 .83.83 .83 .79 .79 .79 .77

1 .85 .80 .76 .72 .82 .78.74 .70 .73 .70 .67 .69.67 .64 .66 .64 .62 .60

2 .76 .68 .62 .57 .73 .66.61 .56 .63 .58 .54 .59.55 .52 .56 .53 .50 .48

3 .69 .59 .52 .46 .66 .58.51 .45 .54 .49 .44 .52.47 .42 .49 .45 .41 .39

4 .63 .52 .44 .38 .60 .51.43 .38 .48 .42 .37 .45.40 .36 .43 .39 .35 .33

5 .57 .46 .38 .32 .55 .45.37 .32 .43 .36 .31 .40.35 .30 .39 .34 .30 .28

6 .53 .41 .33 .28 .51 .40.33 .28 .38 .32 .27 .36.31 .26 .35 .30 .26 .24

7 .49 .37 .30 .24 .47 .36.29 .24 .35 .28 .24 .33.27 .23 .32 .27 .23 .21

8 .45 .34 .27 .22 .44 .33.26 .21 .32 .25 .21 .30.25 .21 .29 .24 .20 .18

9 .42 .31 .24 .19 .41 .30.24 .19 .29 .23 .19 .28.22 .18 .27 .22 .18 .16

10 .40 .28 .22 .17 .38 .28 .21 .17 .27 .21 .17 .26.20 .17 .25 .20 .16 .15

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

0.0 1145. 1145. 1145. 1145. 1145.

5.0 1143. 1143. 1141. 1143. 1144. 109.1

10.0 1154. 1154. 1163. 1176. 1182.

15.0 1141. 1143. 1169. 1192. 1204. 331.4

20.0 1104. 1116. 1162. 1206. 1222.

25.0 1035. 1057. 1122. 1175. 1190. 516.8

30.0 971. 1008. 1096. 1146. 1182.

35.0 900. 949. 1035. 1134. 1166. 651.9

40.0 812. 881. 1005. 1100. 1138.

45.0 755. 849. 1003. 1109. 1150. 757.7

50.0 636. 739. 909. 1037. 1097.

55.0 538. 650. 845. 994. 1033. 734.4

60.0 432. 573. 771. 878. 928.

65.0 333. 488. 686. 792. 846. 634.2

70.0 230. 397. 595. 771. 817.

75.0 140. 302. 544. 638. 683. 501.3

80.0 71. 233. 437. 523. 557.

85.0 32. 170. 303. 397. 434. 300.9

90.0 11. 88. 205. 294. 330.

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

HFX-T SERIES •LIGHTING

BIAXIAL (LONG TWIN TUBE)

L178

FEATURES-SPECIFICATIONS

Listed - File E12976 and E89665 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2, Groups C,D

Class l, Zones 1 & 2, Groups llB, llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

NEMA 3, 4X, 7(C,D) 9(E,F,G)

Suitable for wet locations

Suitable for paint spray booths

2’ Nominal

Style

4’ Nominal

Style

Applications

Biaxial single ended lamp type HFX-T fix-

tures provide greater efficiency and

lumen output than standard models.

Designed for installations where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water and snow can be expected.

They can also be used in locations made

hazardous due to the presence of flam-

mable or explosive gases, vapors and

combustible ducts as defined by the

NEC.

Typical applications include classified

areas such as inside paint spray booths,

paint manufacturing plants, ammunition

facilities, oil and gas producing and

refining plants, off-shore and dockside

installations, tank farms, pipeline pump-

ing stations and marine loading and fuel

transfer terminals.

Features

•UL Listed and labeled for use inside

paint spray booths and rooms

•2’ nominal compact models facilitate

use in areas too small for nominal 4’

models, or where the light must be

confined

•Standard ballast is 120-277V

at 50/60 Hz1

•0°F starting temperature

•Construction is strong lightweight corro-

sion resistant copper-free aluminum alloy,

less than 4/10 of 1%

•All external hardware is corrosion resis-

tant 316 stainless steel

•UL Listed externally fused ballast option;

protects fixture on line side of ballast,

prevents ballast burnout

•Suitable for use in both indoor and

outdoor wet locations

•Relamping easily accomplished by

removing screw in cap and socket

•Factory sealed construction

•Extruded aluminum reflectors are easily

removable for cleaning. White baked

enamel finish

Compliances

•UL-1570, Standard for Fluorescent

Lighting Fixtures

•UL Marine Type Lighting Fixtures

•UL-844, Standard for Lighting Fixtures

for Hazardous Locations

•CSA C22.2 137-M1981

•Meets requirements of NFPA 70-1987

Article 516 and NFPA standard 33

Catalog Number Logic

Constant for HFX Series

Lamp Wattage

40—40 Watt BIAXIAL Type

55—55 Watt BIAXIAL Type

2 lamps (2’ Nominal)

4 lamps (4’ Nominal)

Voltage

30—120-277V 50/60 Hz.

HFX - 00 T - 00 - 0 - F

F1 Fuse 120V

F2 Fuse 277V

RATED SUITABLE CLASS I, DIV, 1 & 2 CLASS II, DIV, 1 & 2 CLASS III UL PAINT NEMA

DESCRIPTION AMBIENT FOR °C MAX. SURFACE TEMP. MAX. SURFACE TEMP. D IV. 1 & 2 SPR AY

°C SUPPLY WIRE TEMP. T-CODE GROUPS TEMP. T-CODE GROUPS SUITABILITY MARINE SUITABLE 3 & 4X

HFX-T 40W 2 LAMP 40 60 85°C T6 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX-T 55W 2 LAMP 40 60 85°C T6 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX-T 40W 4 LAMP 40 60 85°C T6 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX-T 55W 4 LAMP 40 60 85°C T6 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX-T, HFXE-T HAZARDOUS LOCATION APPLICATION DATA

CONDUIT LINE VOLTAGE DESCRIPTION PROFILE

SIZE

HFX-40T-302 2’ 2 Lamp 40W BIAXIAL T5

HFX-55T-302 3⁄4" 120V-277V 2’ 2 Lamp 55W BIAXIAL T5

HFX-40T-304 50/60 Hz 4’ 4 Lamp 40W BIAXIAL T5

HFX-55T-304 4’ 4 Lamp 55W BIAXIAL T5

HFX-T BIAXIAL TYPE LIGHT FIXTURES12

Two Glass Tubes

2’ or 4’ Nominal

1See page L182 for ballast current information.

2Consult HFX page L183 for dimensions and accessories. Photometrics on following page.

CATALOG

NUMBER

SEE PAGE L210

FOR HFXE

EMERGENCY MODELS

HFX-T SERIES •LIGHTING

BIAXIAL LONG TWIN TUBE ACCESSORIES, PHOTOMETRIC DATA L179

L179

Test No. BAL12360

FLUORESCENT FIXTURE-

HFX-40T-302

Lamp Type F40/2G11/835/RS

2' – 2 40 Watt Biaxial 3150 Lumens each.

Total Bare Lamp Lumens 6300

For 55W Biaxial multiply by 1.52.

Efficiency 83.2%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

90˚

386

772

1158

1544

0˚

SPACING TO MOUNTING HEIGHT RATIO - 1.28 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.50 90-270°

Test No. BAL12361

ZONAL LUMENS

ZONE LUMENS

0-30 1246

0-40 2102

0-60 3989

0-90 5237

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .99 .99 .99 .99 .97 .97 .97 .97 .92 .92 .92 .88.88 .88 .85 .85 .85 .83

1 .90 .86 .82 .79 .88 .84 .81 .78 .80 .78 .75 .77.75 .73 .74 .72 .71 .69

2 .81 .74 .68 .63 .79 .73.67 .63 .70 .65 .61 .67.63 .60 .64 .61 .58 .56

3 .74 .65 .58 .52 .72 .63.57 .51 .61 .55 .50 .58.54 .50 .56 .52 .49 .47

4 .67 .57 .49 .43 .65 .56 .49 .43 .54 .47 .42 .52.46 .42 .50 .45 .41 .39

5 .62 .50 .43 .37 .60 .50 .42 .37 .48 .41 .36 .46.40 .36 .44 .39 .35 .34

6 .57 .45 .37 .32 .55 .44 .37 .32 .43 .36 .31 .41.36 .31 .40 .35 .31 .29

7 .52 .41 .33 .28 .51 .40 .33 .28 .39 .32 .28 .38.32 .27 .36 .31 .27 .25

8 .49 .37 .30 .25 .47 .36 .30 .25 .35 .29 .24 .34.29 .24 .33 .28 .24 .23

9 .45 .34 .27 .22 .44 .33 .27 .22 .32 .26 .22 .32.26 .22 .31 .25 .22 .20

10 .43 .31 .24 .20 .41 .31.24 .20 .30 .24 .20 .29.24 .20 .28 .23 .20 .18

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

01530. 1530. 1530. 1530. 1530.

5.0 1533. 1524. 1520. 1533. 1531. 145.8

10.0 1515. 1509. 1515. 1527. 1536.

15.0 1484. 1486. 1508. 1531. 1544. 428.0

20.0 1435. 1453. 1492. 1526. 1543.

25.0 1379. 1410. 1464. 1511. 1540. 676.4

30.0 1310. 1355. 1427. 1485. 1530.

35.0 1227. 1286. 1377. 1448. 1490. 858.9

40.0 1132. 1209. 1313. 1403. 1440.

45.0 1026. 1123. 1242. 1354. 1389. 953.7

50.0 913. 1024. 1168. 1287. 1326.

55.0 783. 902. 1083. 1205. 1236. 941.8

60.0 649. 781. 982. 1094. 1090.

65.0 507. 667. 862. 875. 857. 765.8

70.0 346. 543. 641. 601. 600.

75.0 197. 396. 408. 425. 428. 407.7

80.0 72. 218. 224. 242. 240.

85.0 14. 74. 56. 52. 51. 58.8

90.0 1. 10. 6. 7. 8.

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

FLUORESCENT FIXTURE-

HFX-40T-304

Lamp Type F40/2G11/835/RS

4' – 4 40 Watt Biaxial 3150 Lumens each.

Total Bare Lamp Lumens 12600

For 55W Biaxial multiply by 1.52.

Efficiency 76%

90˚

80˚

70˚

60˚

50˚

40˚

30˚20˚10˚0˚

180˚ 140˚ 120˚ 110˚

100˚

90˚

698

1397

2095

2793

0˚

SPACING TO MOUNTING HEIGHT RATIO - 1.28 0-180°

SPACING TO MOUNTING HEIGHT RATIO - 1.52 90-270°

ZONAL LUMENS

ZONE LUMENS

0-30 2197

0-40 3685

0-60 7050

0-90 9559

% EFFECTIVE

CEILING CAVITY

REFLECTAN

1cc

80 70 50 30 10 0

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

20% Effective Floor Cavity Reflectance

0 .90 .90 .90 .90 .88 .88 .88 .88 .84 .84 .84 .81.81 .81 .77 .77 .77 .76

1 .82 .78 .74 .71 .80 .76 .73 .70 .73 .70 .68 .70.68 .65 .67 .65 .63 .62

2 .74 .67 .61 .57 .72 .66.60 .56 .63 .58 .55 .60.56 .53 .58 .55 .52 .50

3 .67 .58 .52 .46 .65 .57 .51 .46 .55 .49 .45 .52.48 .44 .50 .47 .43 .42

4 .61 .51 .44 .39 .59 .50 .43 .38 .48 .42 .38 .46.41 .37 .45 .40 .37 .35

5 .56 .45 .38 .33 .54 .44 .38 .33 .43 .37 .32 .41.36 .32 .40 .35 .31 .30

6 .51 .41 .33 .28 .50 .40 .33 .28 .38 .32 .28 .37.32 .28 .36 .31 .27 .26

7 .47 .37 .30 .25 .46 .36 .29 .25 .35 .29 .24 .34.28 .24 .33 .28 .24 .22

8 .44 .33 .27 .22 .43 .33 .26 .22 .32 .26 .22 .31.25 .22 .30 .25 .21 .20

9 .41 .30 .24 .20 .40 .30.24 .20 .29 .23 .19 .28.23 .19 .27 .23 .19 .18

10 .38 .28 .22 .18 .37 .28.22 .18 .27 .21 .17 .26.21 .17 .25 .21 .17 .16

% WALL

REFLECTANCE

ROOM CAVITY

RATIO

RCR

VERT. ZONAL

ANGLE 0 22.5 45 67.5 90 LUMENS

0.0 2625 2625 2625 2625 2625

5.0 2606 2607 2611 2617 2620 249.3

10.0 2661 2669 2692 2716 2726

15.0 2621 2641 2693 2738 2756 762.6

20.0 2559 2597 2692 2766 2793

25.0 2393 2450 2564 2653 2685 1181.0

30.0 2254 2335 2477 2590 2635

35.0 2102 2207 2381 2528 2587 1485.7

40.0 1959 2094 2306 2502 2571

45.0 1778 1951 2236 2473 2544 1707.9

50.0 1609 1793 2106 2325 2387

55.0 1404 1612 1966 2169 2234 1697.1

60.0 1140 1369 1701 1890 1942

65.0 928 1202 1542 1680 1698 1423.7

70.0 676 984 1268 1290 1277

75.0 425 735 871 860 889 825.8

80.0 204 473 548 623 643

85.0 58 202 256 248 251 234.9

90.0 15 36 44 53 60

COEFFICIENTS OF UTILIZATION ---ZONAL CAVITY METHOD

CATALOG

NUMBER DESCRIPTION

2HFX-G2 302 HFX-T Models

2HFX-G4 304 HFX-T Models

WIRE GUARD1

1316 Stainless Steel

Consult page L183 for dimensions

and accessories.

SEE PAGE L210

FOR HFXE

EMERGENCY MODELS

2’ Nominal

Style

4’ Nominal

Style

HFX SERIES •LIGHTING

FLUORESCENT FIXTURES

L180

FEATURES-SPECIFICATIONS

Listed - File E12976 and E89665 (Marine)

Class I, Div. 1 & 2 Groups C,D

Class l, Zones 1 & 2, Groups llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

NEMA 3, 4X, 7(C,D) 9(E,F,G)

Suitable for wet locations

Suitable for paint spray booths

Certified - File LR11713

Applications

HFX Series fluorescent fixtures are

designed for installations where moisture,

dirt, dust, corrosion and vibration may be

present, or NEMA 3 and 4X areas where

wind, water and snow can be expected.

They can also be used in locations made

hazardous due to the presence of flam-

mable or explosive gases, vapors and

combustible ducts as defined by the NEC.

Typical applications include classified

areas such as inside paint spray booths,

paint manufacturing plants, ammunition

facilities, oil and gas producing and

refining plants, off-shore and dockside

installations, tank farms, pipeline pump-

ing stations and marine loading and fuel

transfer terminals.

Features

•UL Listed and labeled for use inside

paint spray booths and rooms

•Construction is strong lightweight corro-

sion resistant copper-free aluminum

alloy, less than 4/10 of 1%

•Class P ballast(s) with internal automat-

ic thermally activated protective device

•All external hardware is corrosion

resistant 316 stainless steel to provide

maintenance free long life

•UL factory sealed construction (no

external seals required). Saves installa-

tion time and cost

•Electronic energy efficient ballasts

are standard on 430 MA fixtures and

meet the requirements of many states

•Extruded aluminum reflectors are easily

removable for cleaning. White baked

enamel finish

•Optional 316 stainless steel wire guard for

added protection

•Threaded O-Ring gasketed covers

provide easy access to lamp chambers,

ballast and wiring compartment

•UL Listed externally fused ballast option;

protects fixture on line side of ballast,

prevents ballast burnout

•Suitable for use in both indoor and

outdoor wet locations

•Relamping from either end permits easy

access, speed and flexibility in relamping

Catalog Number Logic

Constant for HFX Series

Lamp Current

265—265 MA, 32W T8 (0°F Starting,

Electronic)

430—430 MA, 40W RS (50°F Starting

Electronic)2

800—800 MA, 60W RS HO

(-20°F Starting)

1500—1500 MA, 110W RS VHO

(-20°F Starting)

Voltage

1—120V, 60 Hz.

4—277, 60 Hz.

7—220V, 60 Hz. 430 MA

8—220/240V, 50 Hz., 430 MA

(2 and 4 lamp models only)

30—120-277V 50/60 Hz 265 MA only.

Options

FB—Individually in-line fused

ballast (not Marine or CSA)

WL—With lamps supplied

Number of Lamps

2—2 lamps

3—3 lamps

4—4 lamps

HFX - 000 - 00 - 00

•Spring loaded sockets on both lamp

ends provide positive electrical contact

and improved vibration resistance

Compliances

•UL-1570, Standard for Fluorescent

Lighting Fixtures

•UL Marine Type Lighting Fixtures

•UL-844, Standard for Lighting Fixtures

for Hazardous Locations

•CSA C22.2 137-M1981

•Meets requirements of NFPA 70-1987

Article 516 and NFPA standard 33

FIXTURE LAMP RATED SUITABLE CLASS I, DIV, 1 & 2 CLASS II, DIV, 1 & 2 CLASS III UL PAINT NEMA

AMBIENT FOR °C MAX. SURFACE TEMP. MAX. SURFACE TEMP. DIV. 1 & 2 SPR AY

SERIES WATTS °C SUPPLY WIRE TEMP. T-CODE GROUPS TEMP. T-CODE GROUPS SUITABILITY MARINE SUITABLE 3&4

HFX 32 40 90 100°C T5 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX 40 40 90 100°C T5 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX 60 40 90 100°C T5 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX 110 40 90 100°C T5 C, D 120°C T4A E, F, G Yes Yes Yes Yes

HFX, HFXE HAZARDOUS LOCATION APPLICATION DATA1

1Ratings apply to all 2, 3, and 4 lamp models.

2430 MA ballasts 60°F start with 34 watt lamps.

SEE PAGE L210

FOR HFXE

EMERGENCY MODELS

HFX SERIES •LIGHTING

FLUORESCENT FIXTURES L181

L181

FEATURES-SPECIFICATIONS

Listed - File E12976 and E89665 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zones 1 & 2, Groups llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

NEMA 3, 4X, 7(C,D) 9(E,F,G)

Suitable for wet locations

Suitable for paint spray booths

CONDUIT LINE VOLTAGE DESCRIPTION NUMBER

SIZE @60 HERTZ OF LAMPS

HFX-265-302 120V-277V 50/60 Hz 32W T8 electronic ballast 265MA

HFX-430-12 120V 40W rapid start electronic F40T12

HFX-430-42 3/4" 277V medium Bi-Pin 430MA

HFX-800-12 120V 60W rapid start high output F48T12/HO

HFX-800-42 277V recessed double contact 800MA

HFX-1500-12 120V 110W rapid start VHO F48T12/VHO

HFX-1500-42 277V recessed double contact 1500MA

HFX-265-303 120V-277V 50/60 Hz 32W T8 electronic ballast 265MA

HFX-430-13 120V 40W rapid start electronic F40T12

HFX-430-43 277V medium Bi-Pin 430MA

HFX-800-13 3/4" 120V 60W rapid start high output F48T12/HO

HFX-800-43 277V recessed double contact 800MA

HFX-1500-13 120V 110w rapid start VHO F48T12/VHO

HFX-1500-43 277V recessed double contact 1500MA

HFX-265-304 120V-277V 50/60 Hz 32W T8 electronic ballast 265MA

HFX-430-14 120V 40W rapid start electronic F40T12

HFX-430-44 277V medium Bi-Pin 430MA

HFX-800-14 3/4" 120V 60W rapid start high output F48T12/HO

HFX-800-44 277V recessed double contact 800MA

HFX-1500-14 120V 110W rapid start VHO F48T12/VHO

HFX-1500-44 277V recessed double contact 1500MA

HFX FLUORESCENT LIGHT FIXTURES

Two Glass Tubes

4’ Nominal

Three Glass Tubes

4’ Nominal

1Standard ballasts starting temperatures:

32 Watt (265MA) Electronic 0°F

40 Watt (430MA) Electronic 50°F, 60°F with 34 Watt lamps

60 Watt (800MA) Electronic -20°F

110 Watt (1500MA) Electronic -20°F

Optional cold weather electromagnetic ballast (0°F starting 40 Watt 430MA) add suffix CW to catalog number.

2Optional UL listed in-line ballast fusing is available by adding suffix FB to catalog number (UL only).

3Safety chain accessory catalog number HFX-SC available, supplied standard with 4 lamp fixtures.

Four Glass Tubes

4’ Nominal

CATALOG NUMBER1 2

CATALOG DESCRIPTION

NUMBER

2HFX-G4 2-Lamp 316 grade stainless steel

3HFX-G4 3-Lamp 316 grade stainless steel

WIRE GUARD

4 lamp fixture requires two 2HFX-G4 guards.

SEE PAGE L210

FOR HFXE

EMERGENCY MODELS

HFX(T) SERIES •LIGHTING

BALLAST DATA

L182

FEATURES-SPECIFICATIONS

Listed - File E12976 and E89665 (Marine)

Certified - File LR11713

Class I, Div. 1 & 2 Groups C,D

Class l, Zones 1 & 2, Groups llB,llA

Class II, Div. 1 & 2, Groups E,F,G

Class III, Div. 1 & 2

NEMA 3, 4X, 7(C,D) 9(E,F,G)

Suitable for wet locations

Suitable for paint spray booths

CATALOG NO. OF LINE CURRENT INPUT STARTING

NUMBER LAMPS VOLTAGE AMPS WATTS TEMPERATURE

32 WATT T-8 ELECTRONIC 48" 265MA

HFX-265-302 2 120-277 .54 (120V) 71 0°F (-18°C)

.24 (277V)

HFX-265-30313 120-277 .71 (120V) 88 0°F (-18°C)

.31 (277V)

HFX-265-304 4 120-277 1.10 (120V) 142 0°F (-18°C)

.48 (277V)

40 WATT RAPID START ELECTRONIC T-12 MEDIUM BI-PIN 48" 430MA

HFX-430-12 2 120 .51260 60°F (16°C)

HFX-430-42 2 277 .22260 60°F (16°C)

HFX-430-1313 120 .69291 60°F (16°C)

HFX-430-4313 277 .30291 60°F (16°C)

HFX-430-14 4 120 1.022120 60°F (16°C)

HFX-430-44 4 277 .442120 60°F (16°C)

40 WATT BIAXIAL TYPE

HFX-40T-302 2120-277 .63 (120V) 76 0°F (-18°C)

50/60 Hz .27 (277V)

HFX-40T-304 4120-277 1.32 (120V) 156 0°F (-18°C)

50/60 Hz .54 (277V)

55 WATT BIAXIAL TYPE

HFX-55T-302 2120-277 .94 (120V) 112 -20°F (-29°C)

50/60 Hz .41 (277V)

HFX-55T-304 4120-277 1.97 (120V) 232 -20°F (-29°C)

50/60 Hz .84 (277V)

60 WATT RAPID START HIGH OUTPUT T-12 RECESSED DOUBLE CONTACT 48" 800MA

HFX-800-12 2 120 1.40 135 -20°F (-29°C)

HFX-800-42 2 277 .61 145 -20°F (-29°C)

HFX-800-13 3 120 2.40 260 -20°F (-29°C)

HFX-800-43 3 277 1.03 235 -20°F (-29°C)

HFX-800-14 4 120 2.80 270 -20°F (-29°C)

HFX-800-44 4 277 1.22 290 -20°F (-29°C)

110 WATT RAPID START VERY HIGH OUTPUT T-12 RECESSED DOUBLE CONTACT 48" 1500MA

HFX-1500-12 2 120 2.10 242 -20°F (-29°C)

HFX-1500-42 2 277 .92 242 -20°F (-29°C)

HFX-1500-13 3 120 3.38 376 -20°F (-29°C)

HFX-1500-43 3 277 1.48 377 -20°F (-29°C)

HFX-1500-14 4 120 4.20 484 -20°F (-29°C)

HFX-1500-44 4 277 1.84 484 -20°F (-29°C)

HFX BALLAST DATA

13 lamp 265MA and 430MA fixtures use a single ballast.

2Line current and 60°F start using 34 Watt lamps. Start temperature for

40 Watt lamps is 50°F (10°C). 40 Watt lamps current approximately

24% higher.

HFX(T) SERIES •LIGHTING

BALLAST DATA L183

L183

Typical installation using conduit hardware.

Dummy (non-powered) end lowers for

relamping clearance, which is required

when fixtures are mounted in close

proximity. Flexible mounting provides

free swing and impact protection.

1. Splice Box/Fixture Hanger (HXB)

2. Flexible Pendant Hanger (EKJ)

3. Union (GUM)

4. Rigid Support Saddle Bracket (KFHS)

5. Support Hook (KEFHM)

Note: Leave extra links to support

fixture in relamping position. Chain

furnished by others.

Dummy (non-powered) end lowers for

relamping clearance, which is required

when fixtures are mounted in close

proximity.

1. Splice Box/Fixture Hanger (XFH)

2. Swivel Hanger (KESD)

3. Union (GUM)

4. Rigid Support Saddle Bracket (KFHS)

5. Support Hook (KEFHM)

6. 3/4" Rigid Threaded Nipple

Note: Leave extra links to support

fixture in relamping position. Chain

furnished by others.

Rigid mounted—for installations where

relamping can be accomplished without

lowering dummy end.

1. Splice Box/Fixture Hanger (HXB)

2. Union (GUM)

3. Rigid Support Saddle Bracket (KFHS)

For wall mounting, use securely fas-

tened 3/4" pipe 6" or less in length.

Floor flange (furnished by others)

recommended for dummy end as well

as chain or cable providing vertical

strain relief from above fixture. Chain

furnished by others.

CATALOG

NUMBER HUB SIZE DESCRIPTION

XFH-22 3/4" XFH SERIES

Splice box/fixture hanger

KESD SERIES

KESD-75 3/4" Swivel Hanger

15° swivel drop from center and full 360° free swing

KFHS SERIES

KFHS-5075 3/4" Rigid support saddle bracket for fluorescent fixtures (dummy end)

Will support 350 lbs. and straddle Max. 1-1⁄4" conduit

KEFHM SERIES

KEFHM-75 3/4" Safety support hook with 3/4" male end For dummy end of fixture

Will support 200 lbs. screw closed 3/8" jaw opening

HFX-SC —HFX SERIES

Safety chain (36" length plated steel), standard on 4-tube fixture

MOUNTING HARDWARE

CATALOG HUB

NUMBER SIZE LENGTH DESCRIPTION

HXB-12 1/2" —

HXB-22 3/4" —

EKJ-24 3/4" 4

EKJ-26 3/4" 6

EKJ-28 3/4" 8

EKJ-210 3/4" 10

EKJ-212 3/4" 12

EKJ-215 3/4" 15

EKJ-218 3/4" 18

GUM-2 3/4"

MOUNTING HARDWARE

EKJ SERIES

Flexible

Pendant

Hanger

GU SERIES

Male Union

HXB SERIES

Splice Box/

3/4" Fixture

Hanger

HFX MODEL CONDUIT DIMENSIONS NET

SIZE ABCDE

WEIGHT

Nominal 2’ 2 Tubes 3/4-14 NPT 28-15/16" (735) 24-3/8" (619) 9-3/32" (231) 9-3/32" (231) 11" (279) 36.0 Lbs.

Nominal 4’ 2 Tubes 3/4-14 NPT 52-13/16" (1367) 48-3/8" (1229) 9-3/32" (231) 9-3/32" (231) 11" (279) 47.7 Lbs.

Nominal 4’ 3 Tubes 3/4-14 NPT 52-13/16" (1367) 48-3/8" (1229) 9-3/32" (231) 9-3/32" (231) 15-5/8" (397) 63.0 Lbs.

Nominal 4’ 4 Tubes 3/4-14 NPT 52-13/16" (1367) 48-3/8" (1229) 9-3/32" (231) 10-1/8" (257) 23" (584) 99.9 Lbs.

HFX DIMENSIONS

HFX SERIES •LIGHTING

PHOTOMETRIC DATA/CANDLEPOWER DISTRIBUTION

L184

VERTICAL HORIZONTAL ANGLE

ANGLE 0 22.5 45 67.5 90 ZONAL LUMENS

0.0 1325. 1325. 1325. 1325. 1325. —

5.0 1359. 1366. 1366. 1369. 1365. 130

10.0 1313. 1321. 1328. 1338. 1325. —

15.0 1309. 1315. 1323. 1333. 1333. 375

20.0 1288. 1302. 1318. 1331. 1333. —

25.0 1196. 1213. 1238. 1252. 1259. 571

30.0 1147. 1169. 1198. 1229. 1236. —

35.0 1037. 1065. 1104. 1145. 1160. 693

40.0 961. 1000. 1047. 1105. 1126. —

45.0 819. 857. 921. 990. 1019. 714

50.0 737. 784. 867. 950. 982. —

55.0 634. 690. 796. 899. 937. 711

60.0 518. 584. 711. 821. 836. —

65.0 412. 498. 645. 693. 699. 594

70.0 263. 363. 465. 485. 487. —

75.0 172. 281. 326. 339. 343. 318

80.0 80. 168. 189. 215. 223. —

85.0 25. 75. 89. 89. 84. 84

90.0 6. 11. 14. 20. 22. —

CANDLEPOWER 2-40/T12 RAPID START

VERTICAL HORIZONTAL ANGLE

ANGLE 0 22.5 45 67.5 90 ZONAL LUMENS

0.0 1971. 1971. 1971. 1971. 1971. —

5.0 1988. 1985. 1987. 1994. 1990. 190

10.0 1946. 1949. 1953. 1960. 1962. —

15.0 1929. 1934. 1944. 1959. 1963. 552

20.0 1897. 1907. 1926. 1947. 1961. —

25.0 1773. 1788. 1817. 1850. 1866. 842

30.0 1688. 1713. 1758. 1802. 1819. —

35.0 1551. 1580. 1640. 1701. 1722. 1030

40.0 1427. 1467. 1545. 1626. 1661. —

45.0 1232. 1281. 1376. 1487. 1528. 1070

50.0 1101. 1159. 1284. 1417. 1463. —

55.0 952. 1027. 1188. 1340. 1395. 1061

60.0 780. 871. 1068. 1233. 1254. —

65.0 620. 735. 961. 1042. 1049. 887

70.0 403. 540. 706. 739. 742. —

75.0 247. 414. 486. 512. 520. 475

80.0 120. 253. 290. 323. 323. —

85.0 30. 93. 92. 84. 81. 89

90.0 3. 9. 12. 19. 19. —

CANDLEPOWER 3-40/T12 RAPID START

VERTICAL HORIZONTAL ANGLE

ANGLE 0 22.5 45 67.5 90 ZONAL LUMENS

0.0 2650. 2650. 2650. 2650. 2650. —

5.0 2718. 2733. 2733. 2738. 2730. 261

10.0 2627. 2641. 2656. 2677. 2650. —

15.0 2617. 2630. 2646. 2665. 2665. 750

20.0 2577. 2604. 2635. 2663. 2666. —

25.0 2393. 2427. 2476. 2504. 2518. 1141

30.0 2294. 2338. 2396. 2458. 2472. —

35.0 2074. 2131. 2207. 2290. 2321. 1386

40.0 1922. 2000. 2095. 2209. 2252. —

45.0 1637. 1713. 1843. 1980. 2037. 1427

50.0 1474. 1567. 1734. 1901. 1963. —

55.0 1269. 1381. 1592. 1798. 1874. 1422

60.0 1035. 1168. 1422. 1643. 1672. —

65.0 823. 997. 1291. 1386. 1398. 1187

70.0 526. 726. 929. 970. 973. —

75.0 343. 562. 652. 678. 686. 636

80.0 159. 336. 378. 431. 446. —

85.0 50. 149. 177. 177. 168. 167

90.0 13. 22. 28. 41. 44. —

CANDLEPOWER 4-40/T12 RAPID START

Total Bare Lamp

Lumens 6400

All data provided is for

F40T12RS/WW lamps 40W

rapid start warm white. For

Candlepower/Lumen multipliers

of other lamps use the follow-

ing:

32W T8 (2850 lumen lamp) .89

34W T12 (2700 lumen lamp) .84

60W F48T12/WW/HO Warm

White High Output 1.35

110W F48T12/WW/VHO Warm

White Very High Output 1.97

ZONAL LUMENS

ZONE LUMENS

0-30 1076

0-40 1769

0-60 3194

0-90 4189

Total Bare Lamp

Lumens 9600

All data provided is for

F40T12RS/WW lamps 40W

rapid start warm white. For

Candlepower/Lumen multipliers

of other lamps use the follow-

ing:

32W T8 (2850 lumen lamp) .89

34W T12 (2700 lumen lamp) .84

60W F48T12/WW/HO Warm

White High Output 1.35

110W F48T12/WW/VHO Warm

White Very High Output 1.97

ZONAL LUMENS

ZONE LUMENS

0-30 1583

0-40 2613

0-60 4743

0-90 6194

Total Bare Lamp

Lumens 12800

All data provided is for

F40T12RS/WW lamps 40W

rapid start warm white. For

Candlepower/Lumen multipliers

of other lamps use the follow-

ing:

32W T8 (2850 lumen lamp) .89

34W T12 (2700 lumen lamp) .84

60W F48T12/WW/HO Warm

White High Output 1.35

110W F48T12/WW/VHO Warm

White Very High Output 1.97

ZONAL LUMENS

ZONE LUMENS

0-30 2152

0-40 3538

0-60 6388

0-90 8379

HFX SERIES •LIGHTING

PHOTOMETRIC DATA/COEFFICIENTS OF UTILIZATION

ZONAL CAVITY METHOD •FLUORESCENT FIXTURES

L185

% EFFECTIVE CEILING 20% EFFECTIVE FLOOR CAVITY REFLECTANCE

CAVITY REFLECTANCE rcc .80 .70 .50 .30 .10 .00

% WALL REFLECTANCE rw .70 .50 .30 .10 .70 .50 .30 .10 .50 .30 .10 .50 .30 .10 .50 .30 .10 .00

0 .77 .77 .77 .77 .75 .75 .75 .75 .72 .72 .72 .69 .69 .69 .66 .66 .66 .65

1 .71 .68 .65 .63 .69 .66 .64 .62 .63 .61 .60 .61 .59 .58 .59 .57 .56 .55

2 .64 .59 .55 .51 .63 .58 .54 .51 .56 .52 .49 .54 .51 .48 .52 .49 .47 .46

3 .59 .52 .47 .43 .57 .51 .46 .43 .49 .45 .42 .47 .44 .41 .46 .43 .40 .39

4 .54 .46 .41 .36 .52 .45 .40 .36 .44 .39 .36 .42 .38 .35 .41 .37 .35 .33

5 .49 .41 .35 .30 .47 .40 .34 .30 .38 .34 .30 .37 .33 .30 .36 .32 .29 .28

6 .45 .36 .30 .26 .44 .36 .30 .26 .34 .29 .26 .33 .29 .26 .32 .28 .25 .24

7 .41 .32 .27 .23 .40 .32 .26 .23 .31 .26 .22 .30 .25 .22 .29 .25 .22 .21

8 .38 .29 .23 .19 .37 .28 .23 .19 .28 .23 .19 .27 .22 .19 .26 .22 .19 .18

9 .35 .26 .20 .17 .34 .26 .20 .17 .25 .20 .17 .24 .20 .17 .23 .19 .16 .15

10 .32 .24 .18 .15 .32 .23 .18 .15 .23 .18 .15 .22 .18 .15 .21 .17 .14 .13

3 LAMP

ROOM CAVITY RATIOS

Spacing Criteria: End = 1.3 Diagonal = 1.3 Cross = 1.4

% EFFECTIVE CEILING 20% EFFECTIVE FLOOR CAVITY REFLECTANCE

CAVITY REFLECTANCE rcc .80 .70 .50 .30 .10 .00

% WALL REFLECTANCE rw .70 .50 .30 .10 .70 .50 .30 .10 .50 .30 .10 .50 .30 .10 .50 .30 .10 .00

0 .78 .78 .78 .78 .76 .76 .76 .76 .73 .73 .73 .70 .70 .70 .67 .67 .67 .65

1 .71 .68 .66 .63 .70 .67 .64 .62 .64 .62 .60 .62 .60 .58 .59 .58 .57 .55

2 .65 .60 .56 .52 .63 .59 .55 .51 .56 .53 .50 .54 .51 .49 .52 .50 .48 .46

3 .60 .53 .48 .43 .58 .52 .47 .43 .50 .46 .42 .48 .45 .42 .46 .43 .41 .39

4 .54 .47 .41 .37 .53 .46 .41 .36 .44 .40 .36 .43 .39 .35 .41 .38 .35 .34

5 .50 .41 .35 .31 .48 .40 .35 .31 .39 .34 .30 .38 .33 .30 .36 .33 .30 .28

6 .45 .37 .31 .26 .44 .36 .30 .26 .35 .30 .26 .34 .29 .26 .33 .29 .26 .24

7 .42 .33 .27 .23 .41 .32 .27 .23 .31 .26 .23 .30 .26 .22 .29 .25 .22 .21

8 .38 .29 .24 .20 .37 .29 .33 .20 .28 .23 .20 .27 .23 .19 .26 .22 .19 .18

9 .35 .26 .21 .17 .34 .26 .21 .21 .17 .25 .20 .17 .24 .20 .17 .24 .20 .17

10 .33 .24 .19 .15 .32 .24 .18 .15 .23 .18 .15 .22 .18 .15 .22 .18 .15 .14

2 LAMP
