Everyday you look for innovative ways to complete a project. At Kichler, we’re here to help. We think of the aesthetic

possibilities, application opportunities and ease of installation. Then we design around your needs. The result is layer

upon layer of rich light that’s truly ahead of its time — backed by our 70 years of proven experience and distinguished

customer service. With Kichler, you get an extensive selection of LED, linear, task and mood lighting solutions that add

depth and texture to your spaces with the utmost subtleness. You’ll discover extended life and energy efficient options,

low profile offerings and an array of designer finishes all backed by our premium and lifetime limited warranties and avail-

able when you need them through our authorized distribution network.

From the newest ultra-thin LED selection to flexible linear lighting, you’ll find we’re with you — every step of the way.

1520844_Lighting Systems Cat_FINALv16_Rev.indd 3 12/1/08 12:23:12 PM

4 Kichler® Lighting

12301 NI

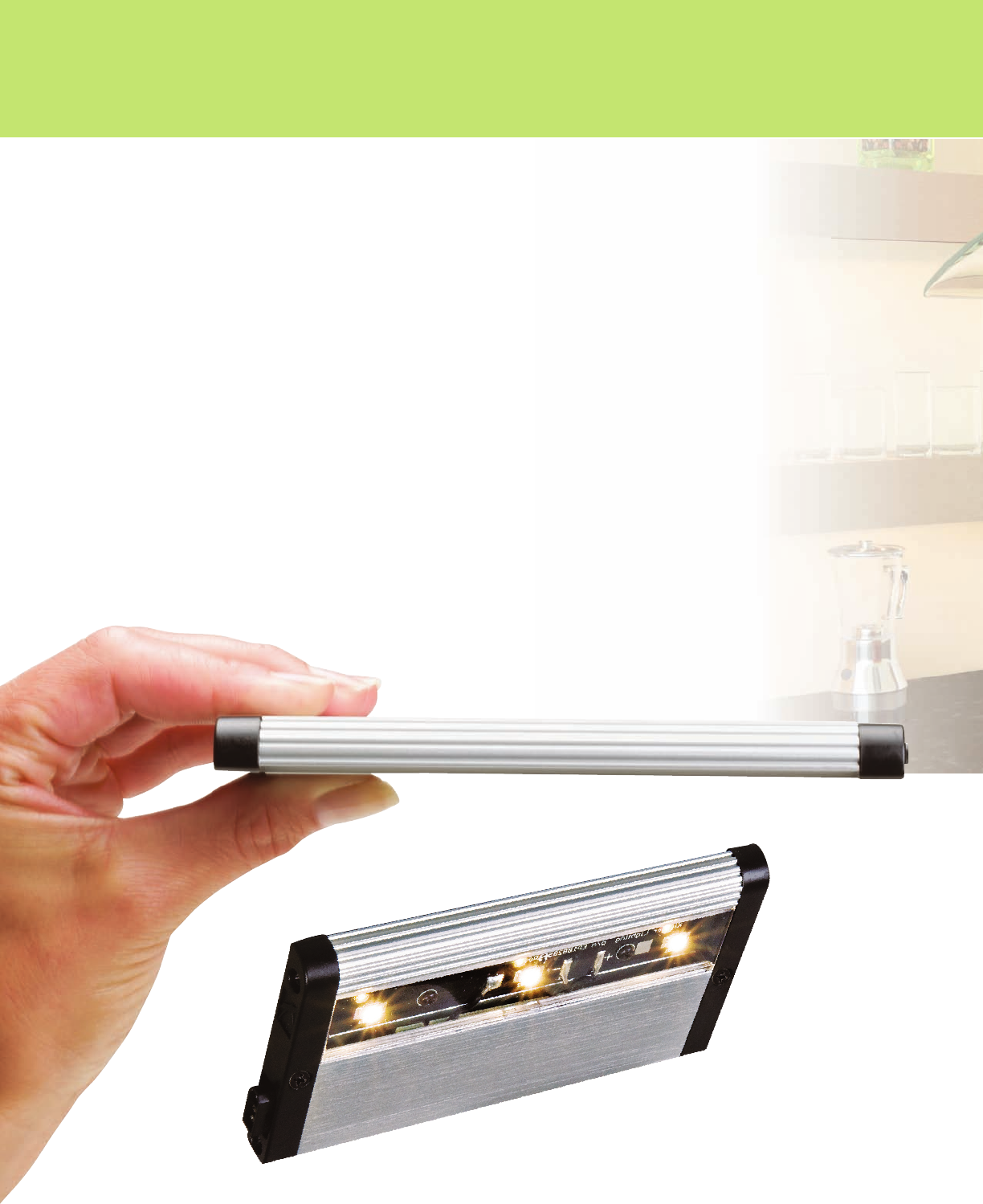

Actual Size: 6"L x 3-1/4"W x 1/2"H

shown in brushed nickel

Kichler technology

goes low profile

Design Pro LED

24 Volt DC Patent Pending

12301 NI

shown in brushed nickel

powered by

TECHNOLOGY

DESIGN PRO

KICHLER.COM 5

Advanced technology, superior optics and a pure, even flow of light are just few of the professional advancements you’ll

find with Kichler Design Pro LED. We’ve taken LED a step further than the rest, delivering high brightness, a cooler

operating temperature, superior color rendering LED (CRI >90) and premium energy efficiency. You get a long-life light

source (40,000 hours) that uses 75% less energy than incandescent fixtures. Plus, it’s high-tech meets high-style: a

beautifully sleek unit that brings futuristic LED into the present — and it installs simply and intuitively. The power to have

it all is in your hands.

limited lifetime

warranty

For more

details, visit

www.kichler.com

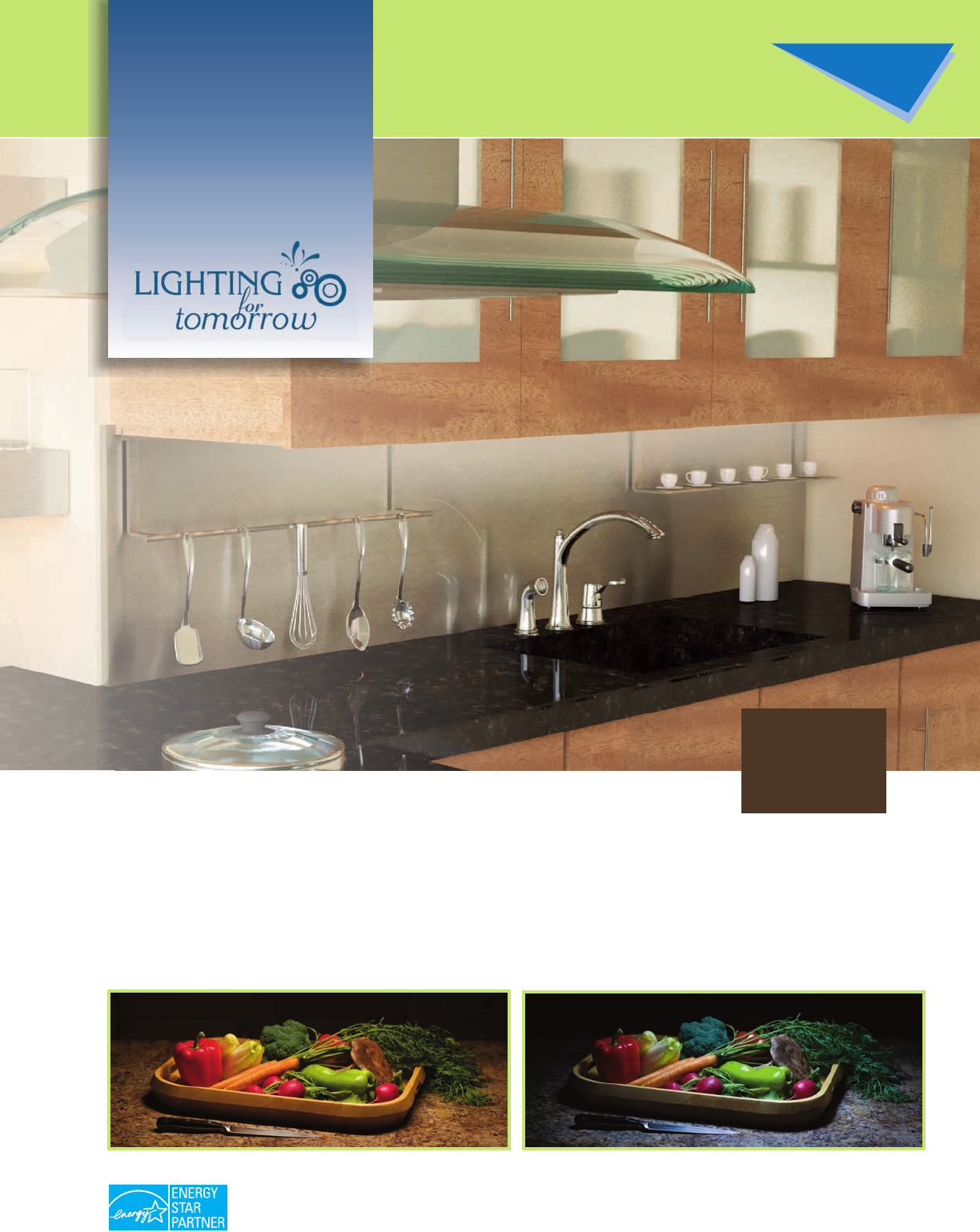

Competitor’s LED

Kichler’s LED > 90 Color Rendering Index vs.

2008

Award Winner

Kichler’s Design Pro under-cabinet and

new LED disc system were awarded the

Lighting industry’s highest honor in

recognition for aesthetic appearance,

superior color rendering, high energy

efficiency and overall innovation.

1520844_Lighting Systems Cat_FINALv16_Rev.indd 5 12/1/08 12:41:51 PM

WH

BRZ

NI

12305

12303

12301

6 Kichler® Lighting

Fixtures can be used individually,

snap directly together, or connect

via interconnect cables to

customize the lighting effect.

A B C D

12303 NI

Fixture

12351 BK

Nightlight

12350 BK

Dimming

Switch

Design Pro LED

24 Volt DC Patent Pending

C

A

ED

B

12"

6"

18"

Dimming Switch (optional)

12350 BK, WH

N4 Position (Off/Low/Medium/High)

Use to control light level

NInstalls directly to the supply lead

or inline with fixtures

Night Light Module (optional)

12351 BK, WH

NMust be used with 12350 Power Switch

NUse where low light level is desired for safety

or convenience

NPhoto sensor activation

NInstalls directly to the supply lead

or inline with fixtures

1

The interconnect cables are listed Class 2.

Interconnect Cables connects multiple

fixtures. Wire in accordance with

Article 725 of the National Electric Code.

12341 BK, WH - Interconnect 9 Inches

12342 BK, WH - Interconnect 14 Inches

12343 BK, WH - Interconnect 21 Inches

12345 BK, WH - Interconnect 10 Feet

12348 BK , WH - Female Connector

NFemale connectors join male ends

together where necessary

12349 BK, WH - Male Connector

NMale connectors join female ends

together where necessary

AVAILABLE FINISHES

Bronze (BRZ), Brushed Nickel (NI) and White (WH)

2DIMMING SWITCH &

NIGHTLIGHT ALLOW

FOR LIGHT LEVEL

CONTROL

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZES & FINISH 3INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

STEPSTEPSTEP

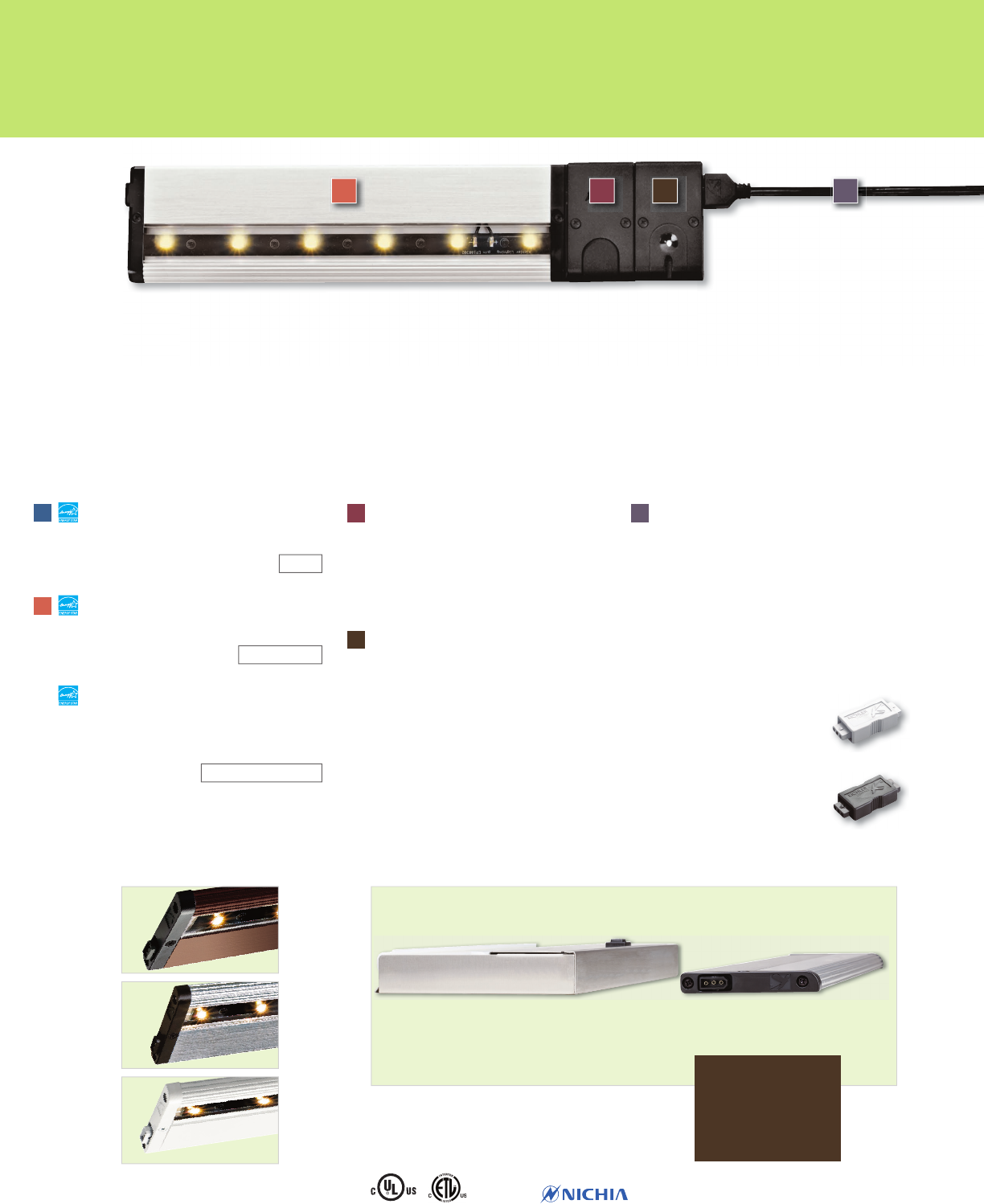

12301* BRZ, NI, WH

N3 High Brightness LEDs built in,

4 Watts

N6"L x 3-1/4"W x 1/2"H

12303* BRZ, NI, WH

N6 High Brightness LEDs built in,

7 Watts

N12"L x 3-1/4"W x 1/2"H

12305* BRZ, NI, WH

N9 High Brightness LEDs built in,

10 Watts

N18"L x 3-1/4"W x 1/2"H

ULTRA THIN PROFILE

Typical Cabinet Light Kichler Design Pro LED

Ultra Thin 1/2" profile

limited lifetime

warranty

For more

details, visit

www.kichler.com

powered by

TECHNOLOGY

DESIGN PRO

KICHLER.COM 7

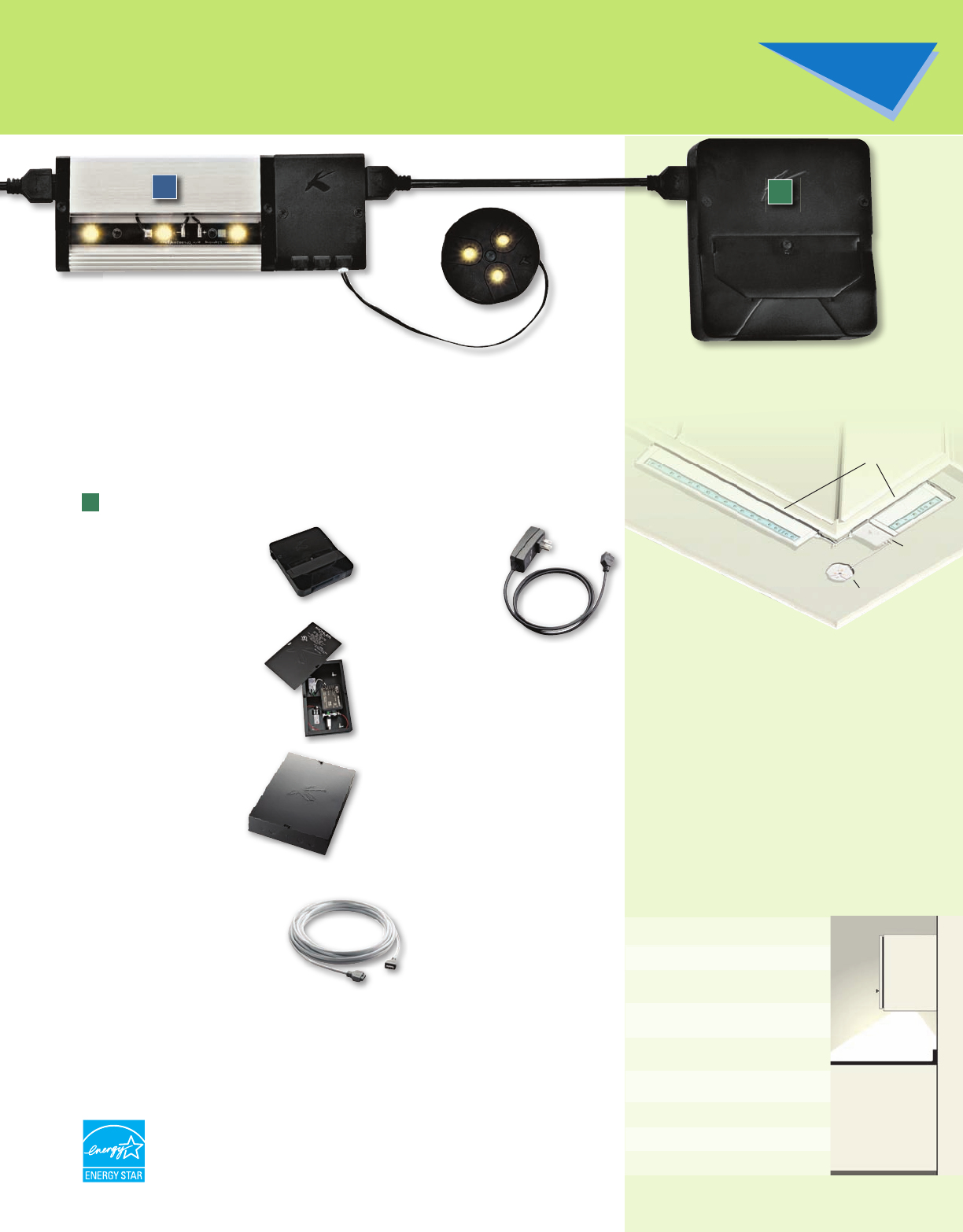

Undercabinet Mounted Power Supply

12353 BK, WH - 50 Watt

N1"H x 5-1.4"W x 5-1/2"D

NClass 2 / 24 Volt DC

NUse with sheathed cable

(12-2 or 14-2 with ground)

Remote Power Supply

12380* BK - 100 Watt

N11"H x 6-1/2"W x 3"D

NIncludes (1) 100 Watt

driver

NClass 2 / 24 Volt DC

12382* BK - 200 Watt

N15½ "H x 11"W x 3"D

NIncludes (2) 100 Watt

drivers

NClass 2 / 24 Volt DC

Power Supply Leads

12344 BK, WH – 25' length

12346 BK, WH – 8' length

N Should only be used to connect

to Remote Power Supplies

12380 BK and 12382 BK.

NConnect either the male or female

plug to fixture or switch. The plug on

the other end is cut off and the two

leads are connected to the terminals

on the Remote Power Supply.

NClass 2 jacket suitable to be run

behind walls (please check local

codes for compliance).

Plug-In Power Supply

12383 BK, WH -30 Watts

N4' length

N1 female connector,

12348 (included)

NClass 2 / 24 Volt DC

12384 BK, WH -60 Watts

N4' length

N1 female connector,

12348 (included)

NClass 2 / 24 Volt DC

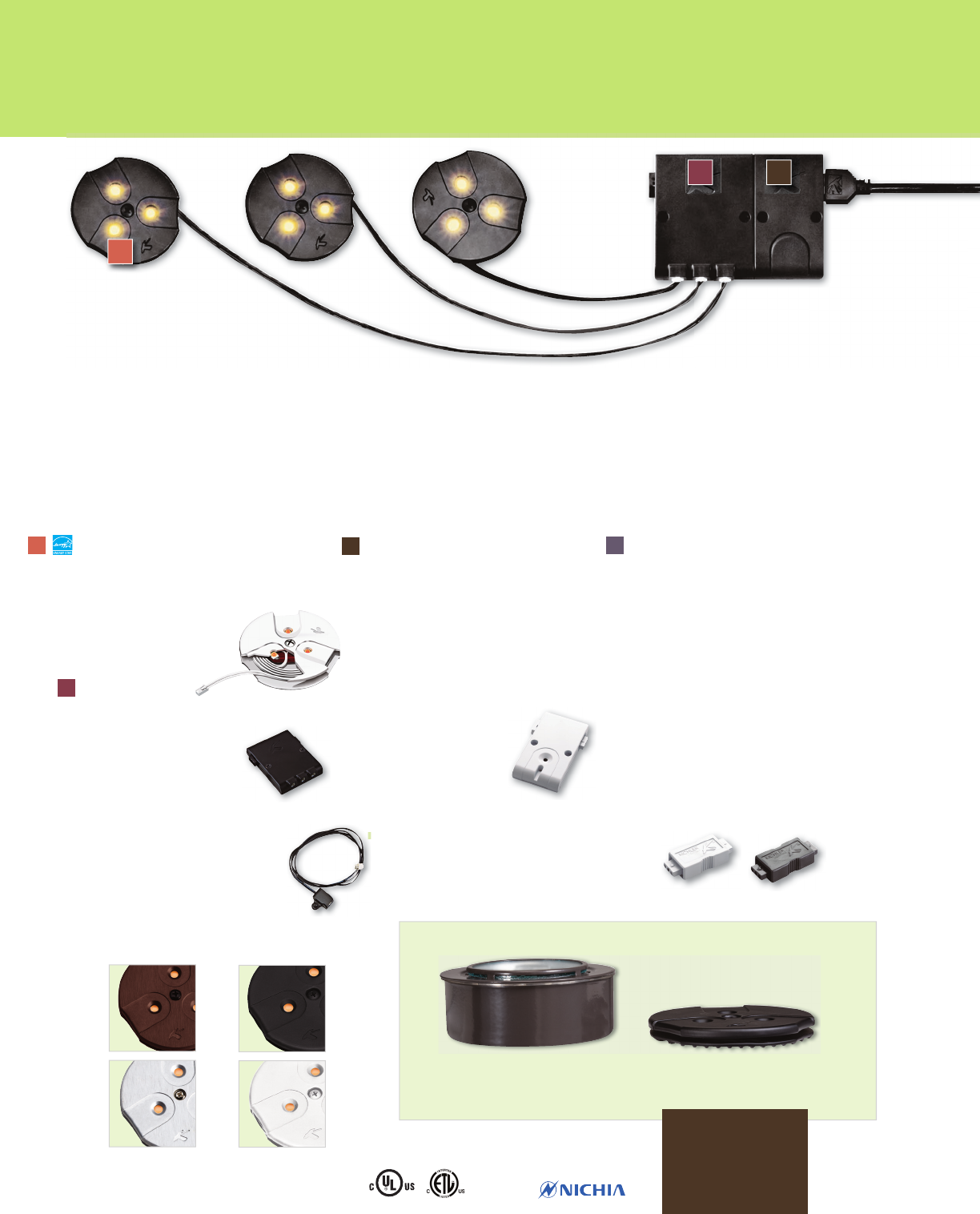

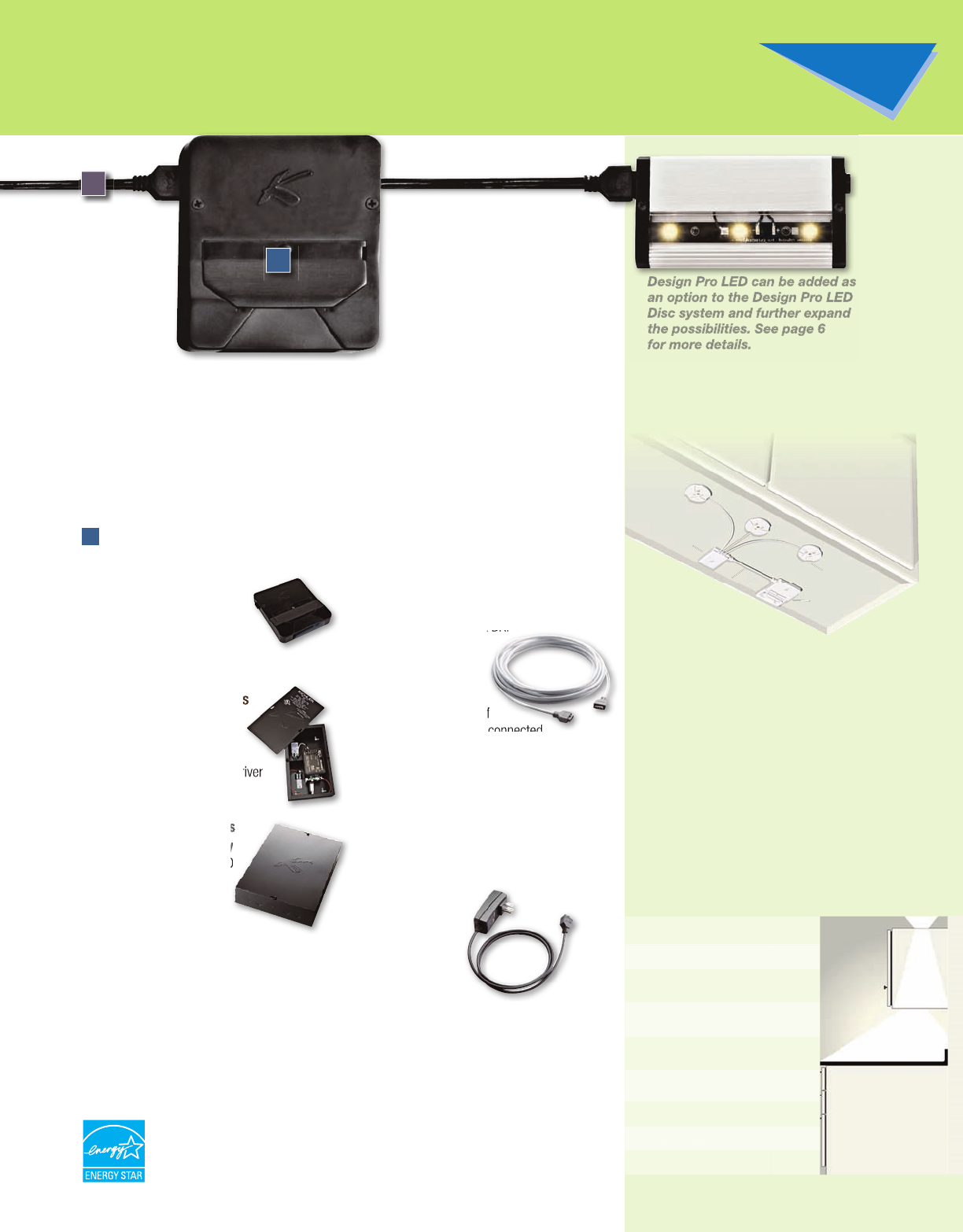

Design Pro LED Disc can be added

to the Design Pro LED system and

further expand the possibilities.

See page 10 for more details.

F

E

12301 NI

Fixture

12310 BK

Design Pro

LED Disc, see

page 10

A

B

C

D

7

42

9.6

27.6

32.1

30

>90

3000K avg.

40,000 hrs.

TOTAL WATTAGE

LUMENS/WATT

LIGHT OUTPUT FC

(COUNTER FRONT)

LIGHT OUTPUT FC

(COUNTER MIDDLE)

LIGHT OUTPUT FC

(COUNTER BACK)

LIGHT OUTPUT FC

(COUNTER WALL)

CRI (COLOR RENDERING)

CCT (COLOR TEMPERATURE)

LIGHT SOURCE LIFE

PERFORMANCE DATA (12303)

NUltra Thin 1/2" Profile

NColor Rendering Index >90 CRI

NHigh Brightness LED

NHigher Efficiency

N3000K Correlated Color Temperature Average

is similar to Xenon

NLong Life Light Source (40,000 Hours)

NAbility to snap fixtures together or interconnect

to create an even flow of light

NCaptive screws for ease of installation

NClass 2 Listed

FEATURES

FRONT MOUNT

DESIGN

F

4SELECT POWER

SUPPLY

STEP

12354 BK

Driver Module,

see page 10

Driver

Module

Design Pro

LED Disc

AB C

D

Kichler Design Pro LED Undercabinet and

Disc System meets ENERGY STAR Requirements

when used with our Remote Power Supplies

12380BK and 12382BK, a minimum of any

3 fixtures, and a minimum of 20 watts.

*

Design Pro

LED Fixture

12353 BK

Undercabinet

Mounted

Power Supply

(hard wire)

8 Kichler® Lighting

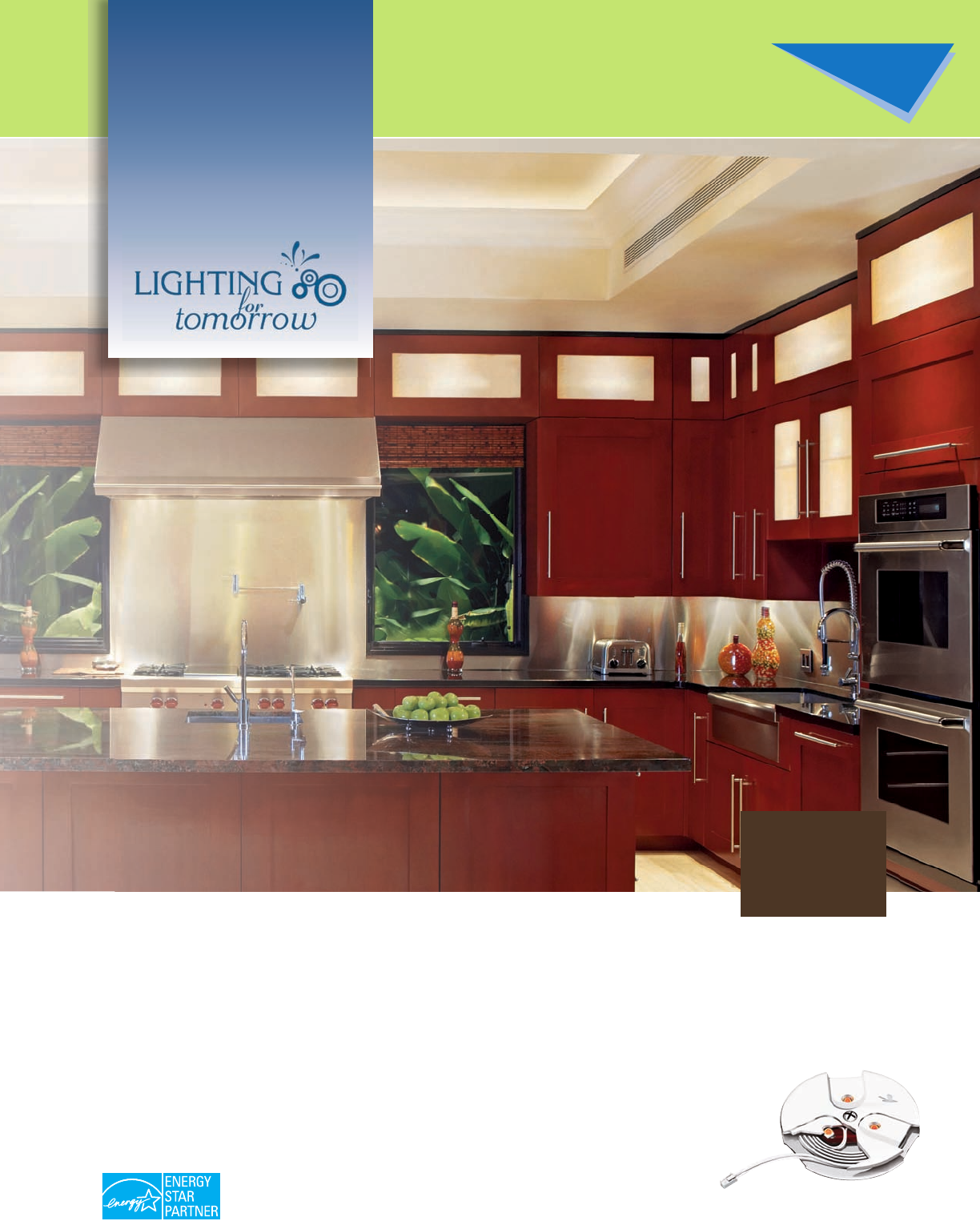

Design Pro LED Disc

24 Volt DC Patent Pending

Kichler innovation

comes full circle

12310 NI

shown in Brushed Nickel

12310 WH

shown in White

12310 BRZ

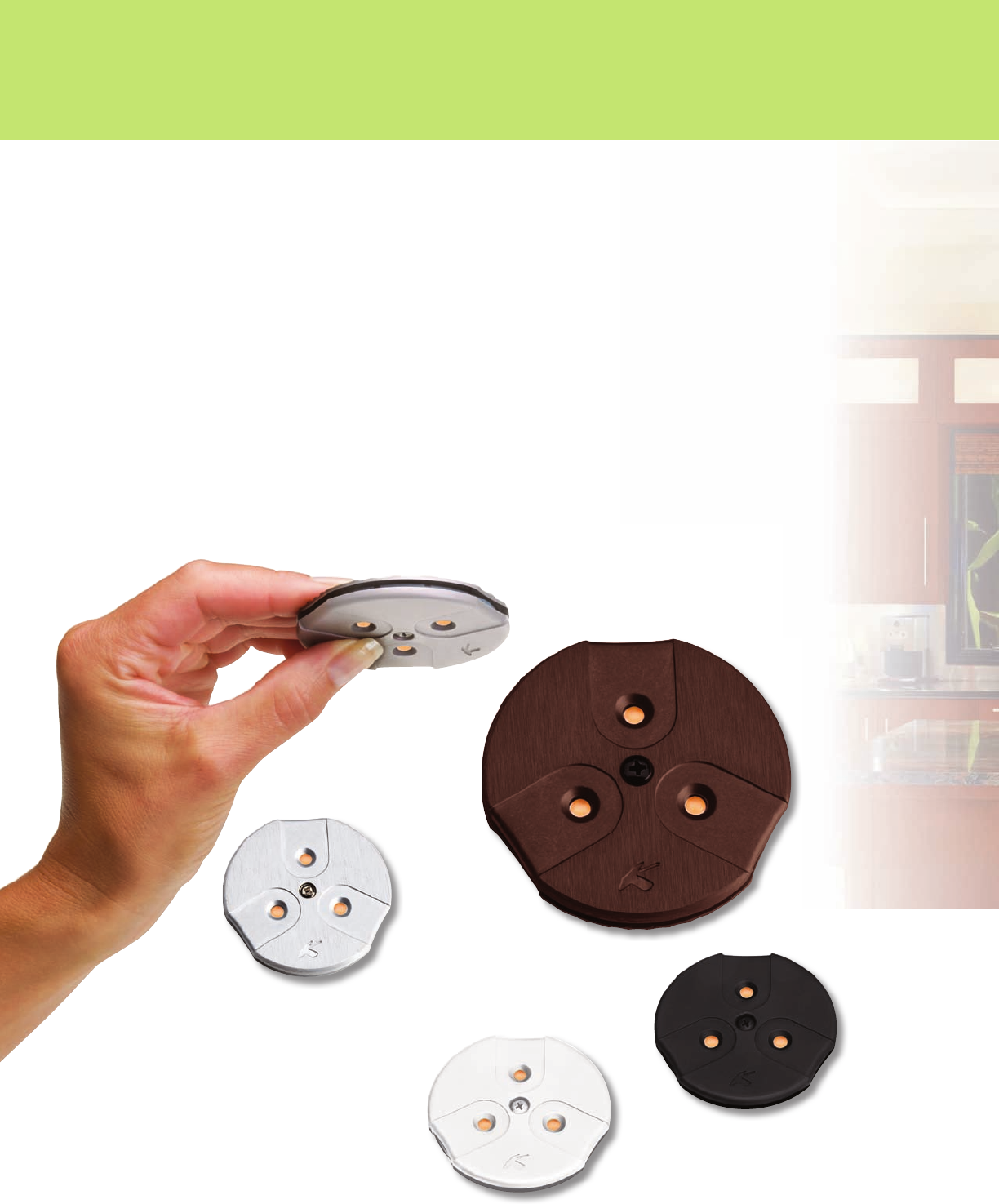

shown actual Size:

2-3/4" Dia. x 3/8" D,

in Bronze

12310 BK

shown in Black

KICHLER.COM 9

So sleek, they’re practically invisible. So versatile, you’ll find new application opportunities around and under every niche.

That’s the beauty of Kichler Design Pro LED Discs. An ultra thin 3/8" profile means there’s no need to recess the fixture.

Each unit is part of our Design Pro LED collection, offering you advanced technology, superior optics and a pure, even flow

of light. And, the cool operating temperature of the LED technology gives you a beautiful light source that can go virtually

anywhere — inside a curio, below a cabinet, you name it.

Of course, installation is just as versatile: wiring ties into any Design Pro lighting configuration

and each disc comes with the wiring pre-spooled. Just pull out the wire length you need,

and the rest will stay neatly tucked into place.

limited lifetime

warranty

For more

details, visit

www.kichler.com

2008

Award Winner

Kichler’s Design Pro under-cabinet and

new LED disc system were awarded the

Lighting industry’s highest honor in

recognition for aesthetic appearance,

superior color rendering, high energy

efficiency and overall innovation.

powered by

TECHNOLOGY

DESIGN PRO

1520844_Lighting Systems Cat_FINALv16_Rev.indd 9 12/1/08 2:33:08 PM

Dimming Switch (optional)

12350 BK, WH

N4 Position (Off/Low/Medium/High)

NUse to control light level

NInstalls directly to the supply lead or

inline with fixtures

N Use one per run

Night Light Module (optional)

12351 BK, WH

NMust be used with

12350 Power Switch

NUse where low light

level is desired for

safety or convenience

NPhoto sensor activation

NInstalls directly to the supply lead or

inline with fixtures

The interconnect cables are listed Class 2.

Interconnect cables connects multiple

fixtures. Wire in accordance with

Article 725 of the National Electric Code.

12341 BK, WH - Interconnect 9 Inches

12342 BK, WH - Interconnect 14 Inches

12343 BK, WH - Interconnect 21 Inches

12345 BK, WH - Interconnect 10 Feet

12348 BK , WH - Female Connector

NFemale connectors join male ends

together where necessary

12349 BK, WH - Male Connector

NMale connectors join female ends

together where necessary

BRZ

NI

BK

WH

10 Kichler® Lighting

ULTRA THIN PROFILE

limited lifetime

warranty

For more

details, visit

www.kichler.com

12310* BK, BRZ, NI, WH LED Disc

N3 High Brightness LEDs built in, 3 Watts

N2 3/4" Dia. x 3/8" D

NUnique spooled wire design (36")

NMust be used with

12354 BK, WH

Driver Module

Driver Module

12354 BK, WH - LED Disc

Connector/Driver

NConnects up to three

Design Pro LED Discs

NMust be used with 12310

Design Pro LED Discs

12347 BK, WH

LED Disc Wire Extension (optional)

NAdds 3' of length for greater

installation flexibility

21 DIMMING SWITCH &

NIGHTLIGHT ALLOW

FOR LIGHT LEVEL

CONTROL

SELECT

APPROPRIATE

NUMBER OF

DISCS & FINISH 3INTERCONNECT

CABLES CONNECT

MULTIPLE DESIGN PRO

DISCS OR FIXTURES

STEPSTEPSTEP

AVAILABLE FINISHES

Bronze (BRZ), Brushed Nickel (NI), Black (BK) and White (WH)

B C

12310 BK

Disc

shown in Black

12350 BK

Dimming

Switch

(optional)

12354 BK

Driver

Module

A

Design Pro LED Disc

24 Volt DC Patent Pending

CD

B

A

Typical 12V Xenon Disc Kichler Design Pro Disc

Ultra Thin 3/8" profile

N

Undercabinet Power Supplies

12353 BK, WH - 50 Watt

NCompact under cabinet

hard wire design

N5"L x 5 1/2"W x 1"D

NClass 2 / 24 Volt DC

NUse with sheathed cable

(12-2 or 14-2 with ground)

Remote Power Supplies

12380* BK - 100 Watts

Remote Power Supply

N11"H x 6-1/2"W x 3"D

NIncludes (1) 100 Watt driver

NClass 2 / 24 Volt DC

12382* BK - 200 Watts

Remote Power Supply

N15½ "H x 11"W x 3"D

NIncludes (2) 100

Watt drivers

NClass 2 / 24 Volt DC

Power Supply Leads

12344 BK, WH – 25' length

12346 BK, WH – 8' length

N Should only be used to connect

to Remote Power Supplies

12380 BK and 12382 BK.

NNote: Connect either

the male or female

plug to fixture or

switch. The plug on

the other end is cut off

and the two leads are connected

to the terminals on the

Remote Power Supply.

NClass 2 jacket suitable to be run

behind walls (please check local

codes for compliance).

Plug-In Power Supplies

12383 BK , WH -30 Watts

N4' length

N1 female

connector,

12348 included

NClass 2 / 24

Volt DC

12384 BK , WH - 60 Watts

N4' length

N1 female connector,

12348 included

NClass 2 / 24 Volt DC

KICHLER.COM 11

4

36.5

2.9

28.3

40.6

30

>90

3000K avg.

40,000 hrs

.

12310

LED DISC

TOTAL WATTAGE

LUMENS/WATT

LIGHT OUTPUT FC

(COUNTER FRONT)

LIGHT OUTPUT FC

(COUNTER MIDDLE)

LIGHT OUTPUT FC

(COUNTER BACK)

LIGHT OUTPUT FC

(COUNTER WALL)

CRI (COLOR RENDERING)

CCT (COLOR TEMPERATURE)

LIGHT SOURCE LIFE

LED VS. XENON

4SELECT POWER

SUPPLY

S

TEP

D

E

12353 BK

Undercabinet

Power Supply

(Hard Wire)

12301 NI

Fixture

NUltra Thin 3/8" Profile x 2-3/4" Diameter

NColor Rendering Index >90

NHigh Brightness LED

NHigher Efficiency

N3000K Correlated Color Temperature Average is

similar to Halogen but runs much cooler and safer

NLong Life Light Source (40,000 Hours)

NCaptive screws for ease of installation

NClass 2 Listed

DESIGN PRO LED DISC

E

Design Pro Discs

can be used over (F),

inside (E) and

under cabinets for

unmatched versatility.

A

B

C

D

PERFORMANCE DATA

E

F

AB C

D

FEATURES

Driver

Module

Design Pro

LED Disc

Power

Supply

Interconnect

Cable

powered by

TECHNOLOGY

DESIGN PRO

Kichler Design Pro LED Undercabinet and

Disc System meets ENERGY STAR Requirements

when used with our Remote Power Supplies

12380BK and 12382BK, a minimum of any

3 fixtures, and a minimum of 20 watts.

*

12 Kichler® Lighting

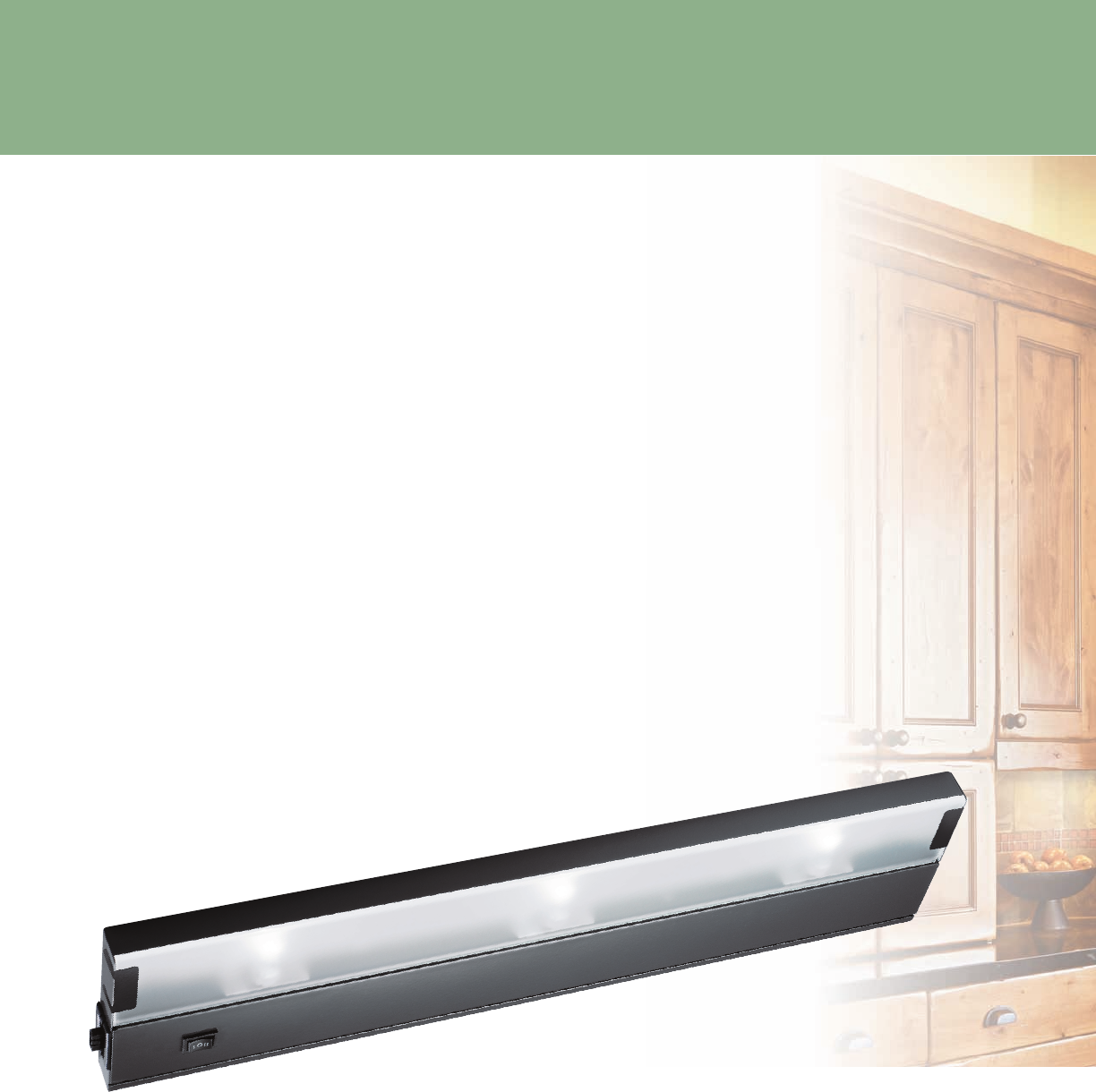

TaskWork Modular & Direct Wire

Xenon & Fluorescent

Innovative thinking

takes you

out of the box

12213 BZ

shown in Bronze

KICHLER.COM 13

Wherever you need to take light, our TaskWork Modular & Direct wire fixtures can accommodate. They feature

tried and true long life Xenon technology that offers both hard wire and plug-in configurations and easy installation

features, like push-in wiring. Plus, they come in multiple sizes and finishes for maximum design and application flexibility.

Our TaskWork Modular 120 Volt Xenon or Fluorescent and TaskWork Modular 12 Volt Xenon allow you to install one fixture

or several across multiple cabinet spans with ease. And, our TaskWork Direct 12 Volt & 120 Volt Xenon put warm, natural

task or ambient lighting where it’s needed — while staying within a budget.

1520844_Lighting Systems Cat_FINALv16_Rev.indd 13 12/1/08 12:49:21 PM

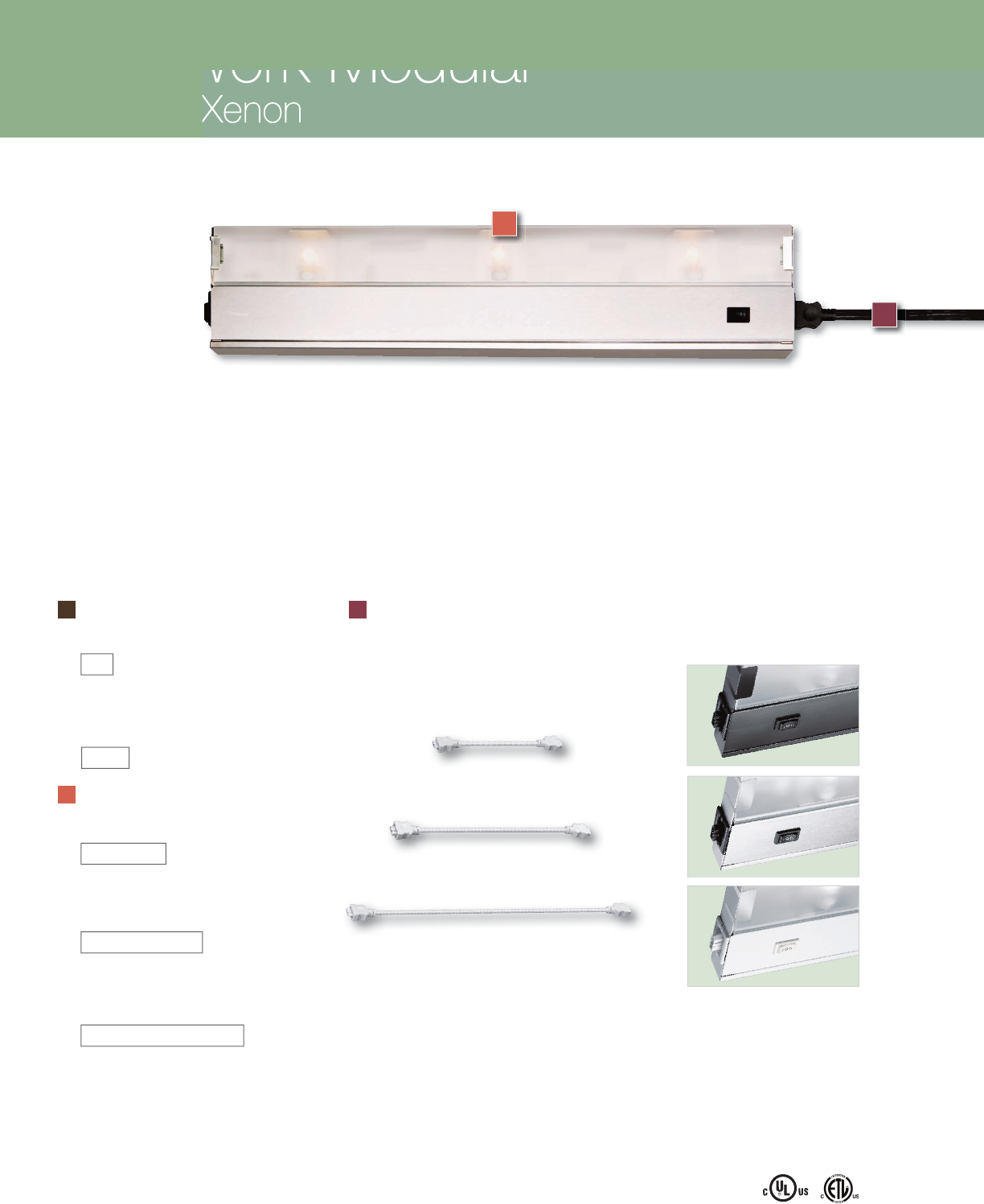

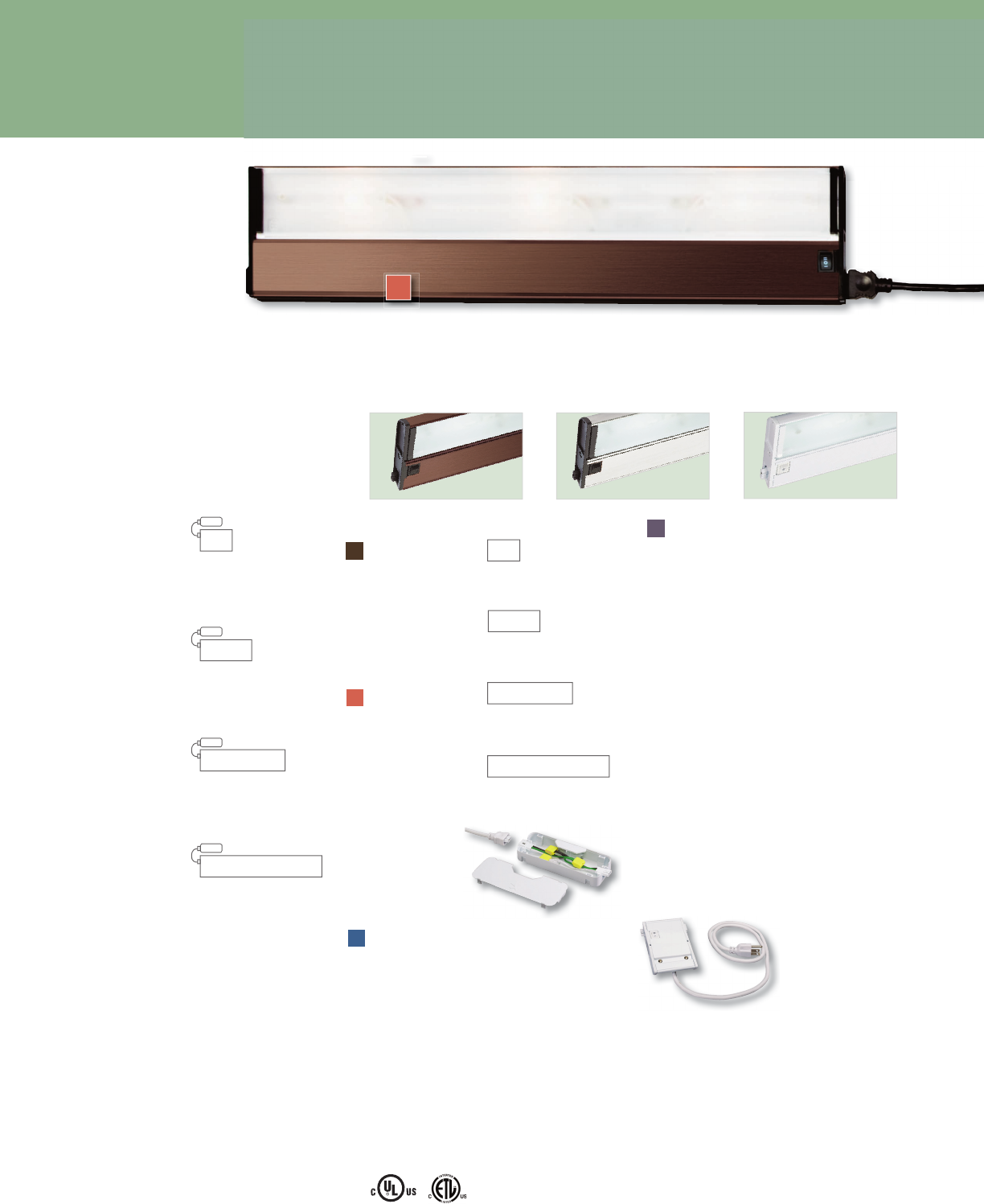

14 Kichler® Lighting

AVAILABLE FINISHES

Bronze (BRZ), Nickel (NI) and White (WH)

1

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH

STEP

Starter Kit

10568 BRZ, NI, WH

N1 light, 14" Interconnect

Cable and Wiring Module

N12 Volt, 18 Watt Xenon bulb included

N7"L x 5"W x 1"H

10567 BRZ, NI, WH

N2 light, 14" Interconnect

Cable and Wiring Module

N12 Volt, 18 Watt Xenon bulbs included

N13"L x 5"W x 1"H

10566 BRZ, NI, WH

N3 light, 21" Interconnect

Cable and Wiring Module

N12 Volt, 18 Watt Xenon bulbs included

N22"L x 5"W x 1"H

10585 BRZ, NI, WH

N4 light, 21" Interconnect

Cable and Wiring Module

N12 Volt, 18 Watt Xenon bulbs included

N30-1/2"L x 5"W x 1"H

Modular (Fixture Only) Xenon

10565 BRZ, NI, WH

N1 light, 7"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulb included

10564 BRZ, NI, WH

N2 light, 13"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

10563 BRZ, NI, WH

N3 light, 22"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

10587 BRZ, NI, WH

N4 light, 30-1/2"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

Modular Accessories

10570* BK, WH – Wire Module

N7-3/4"L x 2-5/8"W x 1"H

NProvides for safe, push-in wiring without

the use of wire connectors

NInterconnect cables easily join wire

module and fixtures

NIntegrated supply wire strain relief for

one or two wires

NSnap-on cover

NUse for hard-wire installation

NUse with sheathed cable

(12-2 or 14-2 with ground)

A

A

10563 BRZ

Fixture

shown in Bronze

30"

22"

13"

7"

7"

13"

30-1/2"

22"

10570 BK, WH

Wire Module

shown in White

WH

BRZ NI

C

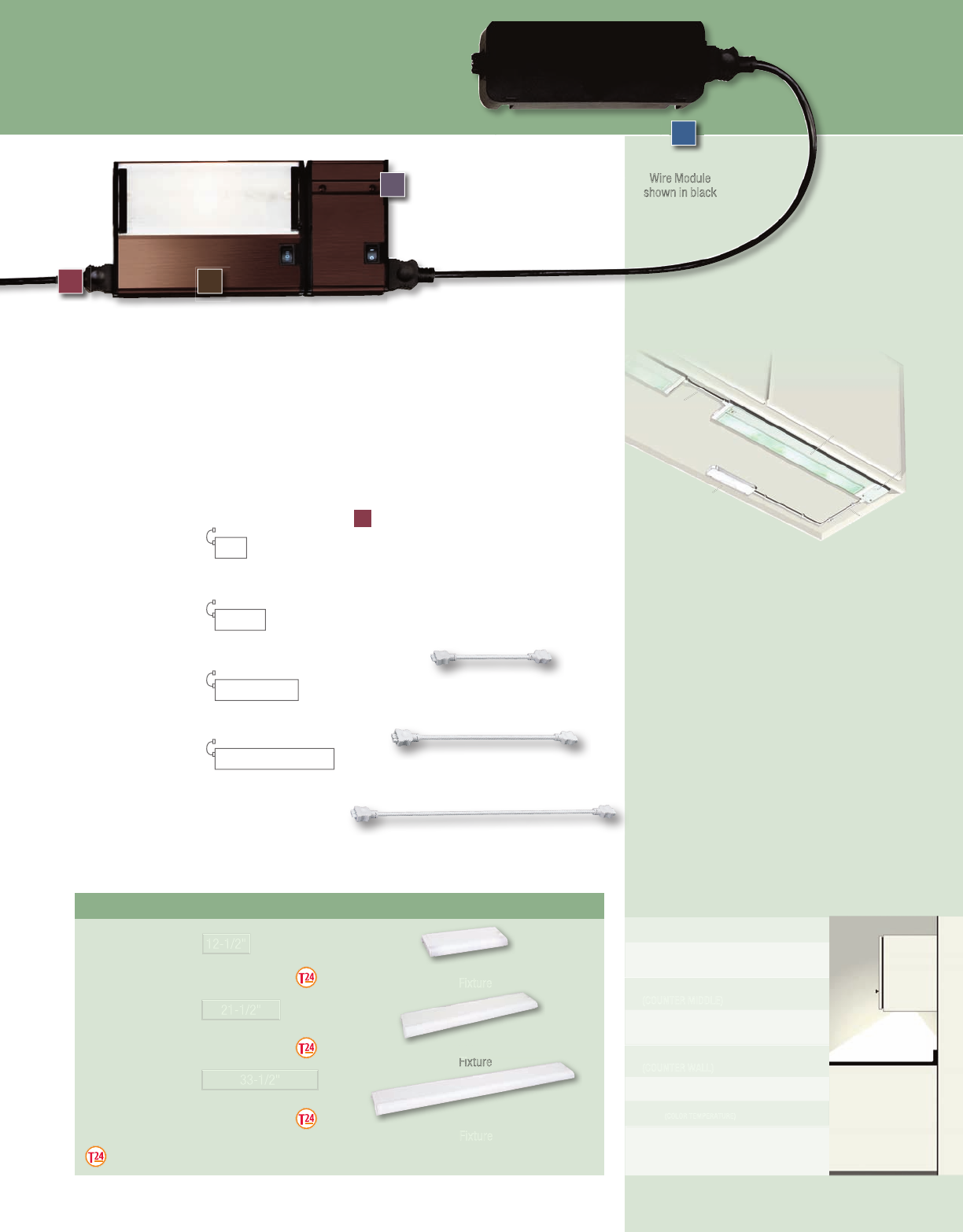

TaskWork Modular

12 Volt Xenon & 120 Volt Fluorescent

E

10569** BRZ, NI, WH

Master Switch (optional)

N3-1/2"L x 5"W x 1"H

NCan be installed between the wiring

module and the first fixture to control the

entire system. Or, it can be positioned

between fixtures to control those fixtures

located after it in line.

* For use only with Kichler interconnect cables as

part of TaskWork Modular systems

** For use only with Kichler interconnect cables

as part of TaskWork Modular systems. Note,

too, that switch assembly will plug directly into

the side of any TaskWork Modular fixture. This

eliminates the need to use an interconnect cable

check mounting location for adequate space

10575** BRZ, NI, WH

Plug-in Master Switch (optional)

N3-1/2"L x 5"W x 1"H

NAllows control of cabinet lighting without

accessing house wiring

D

10575 BRZ, NI, WH

Plug-In Master Switch

shown in White

Fixtures can be used individually, snapped

directly together, or connected via interconnect

cables to customize the lighting application.

KICHLER.COM 15

10570 BK

Wire Module

shown in black

10569 BRZ

Master Switch

(optional)

shown in bronze

N1" Profile x 5" Width

N12 Volt, 18 Watt Xenon bulb(s) included

NUnique front-mount design as recommended

by the American Lighting Association

NAbility to snap fixtures together to create an

even flow of light

NCaptive screws for ease of installation

NDurable, Anodized Brushed Bronze, Nickel or

Powder-Coated White Finish

NExtruded aluminum construction

NHinged tempered glass diffuser

NHigh/Low On/Off Switch

NBuilt-in electronic transformer

NcUL Listed

FEATURES

2INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

STEP

Cord & Plug

Fixture Xenon

10562 WH

N1 light, 7"L x 5"W x 1"H , 36" Power Cord

N12 Volt, 18 Watt Xenon bulb included

10561 WH

N2 light, 13"L x 5"W x 1"H , 36" Power Cord

N12 Volt, 18 Watt Xenon bulbs included

10560 WH

N3 light, 22"L x 5"W x 1"H, 36" Power Cord

N12 Volt, 18 Watt Xenon bulbs included

10586 WH

N4 light, 30-1/2"L x 5"W x 1"H 36" Power Cord

N12 Volt, 18 Watt Xenon bulbs included

Replacement Bulbs

10574 CLR - Replacement Bulb

N12 Volt, 18 Watt Xenon, clear

10571 BK, WH – Interconnect 9 Inches

10572 BK, WH – Interconnect 14 Inches

10573 BK, WH – Interconnect 21 Inches

NFor longer interconnect cable lengths,

multiple cables may be connected together

B

B

E

XENON FLUORESCENT

10564 10026

FRONT MOUNT

- USE WIRE MODULE AND

INTERCONNECT CABLES

PERFORMANCE DATA

33-1/2"

21-1/2"

12-1/2"

7"

13"

30-1/2"

22"

LUMENS/WATT 6 52

LIGHT OUTPUT FC 14.6 4.1

(COUNTER FRONT)

LIGHT OUTPUT FC 45 15.8

(COUNTER MIDDLE)

LIGHT OUTPUT FC 57.8 22.5

(COUNTER BACK)

LIGHT OUTPUT FC 43 14.9

(COUNTER WALL)

CRI (COLOR RENDERING) 100 80

CCT(COLOR TEMPERATURE) 2700K 4100

K

LIGHT SOURCE 10,000 7,500

LIFE (HRS)

A

B

C

D

10571

BK

,

WH

I

nterconnect Cable

shown in White

10572 BK, WH

I

nterconnect Cable

shown in White

10573 BK, WH

I

nterconnect Cable

shown in White

D

10571 BK

Interconnect

Cable

10026 WH

Fixture

10027 WH

Fixture

10028 WH

Fixture

TaskWork

Modular 12 Volt

Interconnect

Cable

Interconnect

Cable

Wire

Module

10565 BRZ

Fixture

shown in bronze

C

Master

Switch

AB C

D

Fluorescent Fixtures (bulb included)

10026 WH

N8 Watt Max. (T5) Fluorescent Light

N12-1/2"L x 4-3/4"W x 1"H

10027 WH

N13 Watt Max. (T5) Fluorescent Light

N21-1/2"L x 4-3/4"W x 1"H

10028 WH

N21 Watt Max. (T5) Fluorescent Light

N33-1/2"L x 4-3/4"W x 1"H

Remember to include Kichler Lighting Systems in your energy efficient and Title 24 kitchens.

TaskWork Modular

120 Volt Xenon

STEP

WH

BZ

SS

AVAILABLE FINISHES

Bronze (BZ), Brushed Stainless Steel (SS)

and White (WH)

TaskWork

Modular

TaskWork ModularTaskWork

Xenon

16 Kichler® Lighting

Fixtures can be used individually, snapped

directly together, or connected via interconnect

cables to customize the lighting effect.

B

A

12213 SS

Fixture shown in

Brushed Stainless Steel

10571 BK, WH – Interconnect 9 Inches

10572 BK, WH – Interconnect 14 Inches

10573 BK, WH – Interconnect 21 Inches

NFor longer interconnect cable lengths,

multiple cables may be connected together

12211 BZ, SS, WH

N1 light, 7"L x 5"W x 1"H

N120 Volt, 20 Watt Xenon bulb included

12212 BZ, SS, WH

N2 light, 13"L x 5"W x 1"H

N120 Volt, 20 Watt Xenon bulbs included

12213 BZ, SS, WH

N3 light, 22"L x 5"W x 1"H

N120 Volt, 20 Watt Xenon bulbs included

12214 BZ, SS, WH

N4 light, 30"L x 5"W x 1"H

N120 Volt, 20 Watt Xenon bulbs included

12215 BZ, SS, WH

N5 light, 40"L x 5"W x 1"H

N120 Volt, 20 Watt Xenon bulbs included

21 INTERCONNECT

CABLES CONNECTS

MULTIPLE FIXTURES

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH

3SELECT APPROPRIATE

LIGHT FIXTURE SIZE

& FINISH OF EACH

ADDITIONAL FIXTURE

STEPSTEP

40"

30"

22"

13"

7"

10571 BK, WH

Interconnect Cable

shown in white

10572 BK, WH

Interconnect Cable

shown in white

10573 BK, WH

Interconnect Cable

shown in white

10571 BK

Interconnect

Cable

BC

A

AB C

D

KICHLER.COM 17

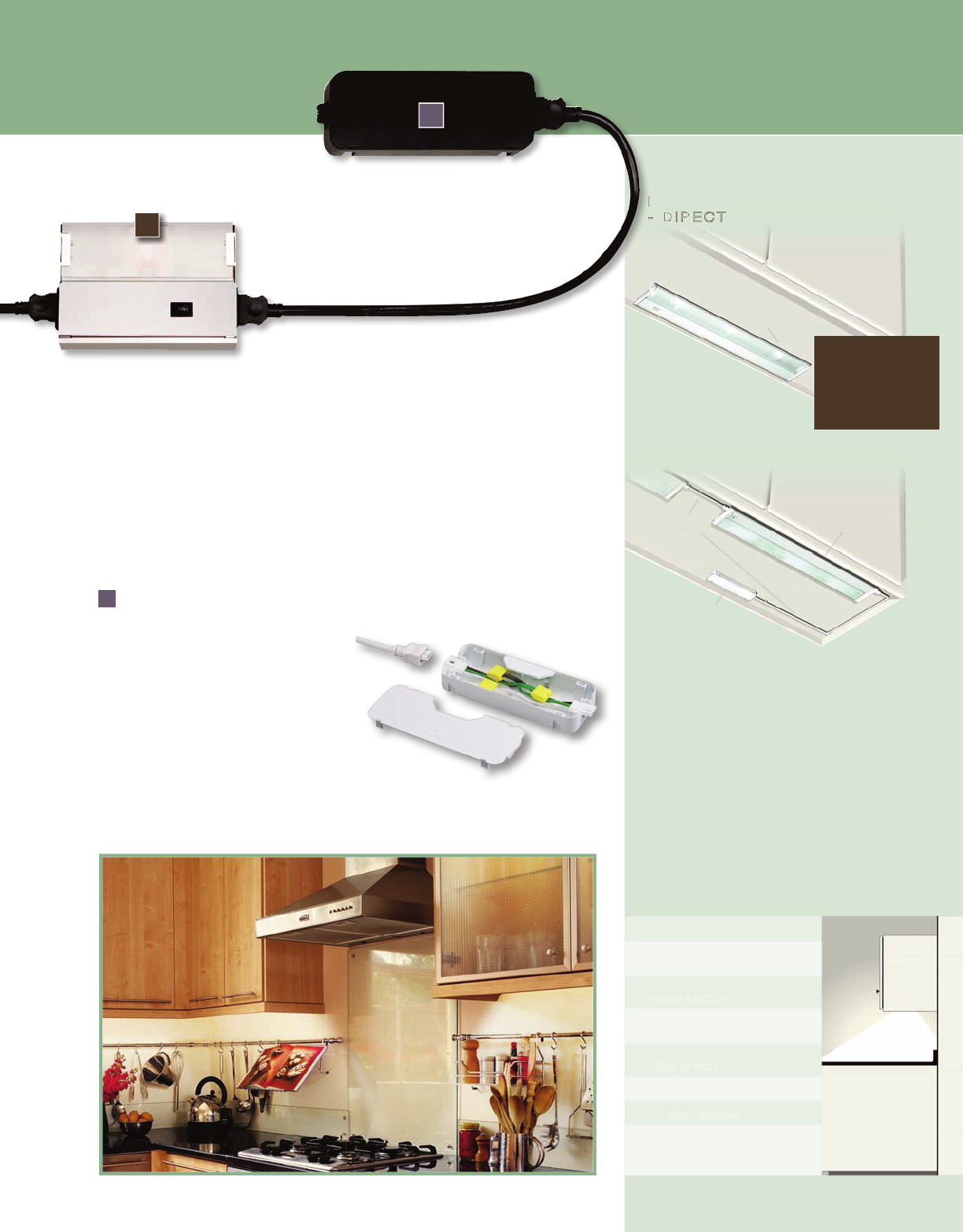

10570 BK

Wire Module

shown in Black

C

A

B

C

D

NLow profile 1" profile x 5" Width

N120 Volt, 20 Watt Xenon bulb(s)

NDirect wire or inter-connectability

NAbility to snap fixtures together to create

an even flow of light

NDurable Anodized Bronze, Brushed Stainless Steel

or Powder-Coated White finish

NHigh/Low On/Off Switch

NcUL Listed

NUL approved NM & BX single cable connector included

FEATURES

BACK OF WALL

- DIRECT WIRE CONNECT

FRONT MOUNT

- USE WIRE MODULE AND

INTERCONNECT CABLES

PERFORMANCE DATA (12212)

LUMENS/WATT 5

LIGHT OUTPUT FC 7.6

(COUNTER FRONT)

LIGHT OUTPUT FC 20.2

(COUNTER MIDDLE)

LIGHT OUTPUT FC 24.5

(COUNTER BACK)

LIGHT OUTPUT FC 28.5

(COUNTER WALL)

CRI(COLOR RENDERING) 100

CCT(COLOR TEMPERATURE) 2620K

LIGHT SOURCE 2,500

LIFE (HRS)

10570 BK, WH – Wire Module

7-3/4"L x 2-5/8"W x 1"H

NProvides for safe, push-in wiring without

the use of wire connectors

NInterconnect cables easily join wire module

and fixtures

NIntegrated supply wire strain relief for one

or two wires

NSnap-on cover

NUse for hard-wire installation

NUse with sheathed cable

(12/2 or 14/2 with ground)

4

STEP

POWER TO SYSTEM

WITH WIRE MODULE

(OPTIONAL)

10570 BK, WH

Wire Module

shown in White

D

12211 SS

Fixture shown in

Brushed Stainless Steel

TaskWork

Modular 120 Volt

TaskWork

Modular 120 Volt

Wire Module

Interconnect

Cables

D

Back of wall or unique

front-mount design

as recommended by

the American Lighting

Association

FEATURES

BACK MOUNT DESIGN

WH

BZ

SS

BC

D

AB C

D

18 Kichler® Lighting

NLow profile 1" profile x 5" Width

N12 Volt, 18 Watt Xenon bulb(s) included

NDurable, Brushed Stainless Steel or

Powder-Coated White or Bronze finishes

NFastener-free hinge assembly

NKeyhole mounting

NEasy-lock poly-tempered glass diffuser

NUL approved NM & BX single cable connector

included

NHigh/Low On/Off Switch

NBuilt-in electronic transformer

NcUL Listed

TaskWork Direct 12 Volt Xenon

offers you a simple installation

solution for illuminating a task

area or adding ambient lighting.

AVAILABLE FINISHES

Bronze (BRZ), Brushed Stainless Steel (SS)

and White (WH)

1

STEP

10584 BZ

Fixture

shown in Bronze

SELECT APPROPRIATE LIGHT

FIXTURE SIZE & FINISH.

DETERMINE DIRECT WIRE OR

CORD & PLUG POWER SUPPLY.

30"

22-1/2"

12-1/4"

7"

40"

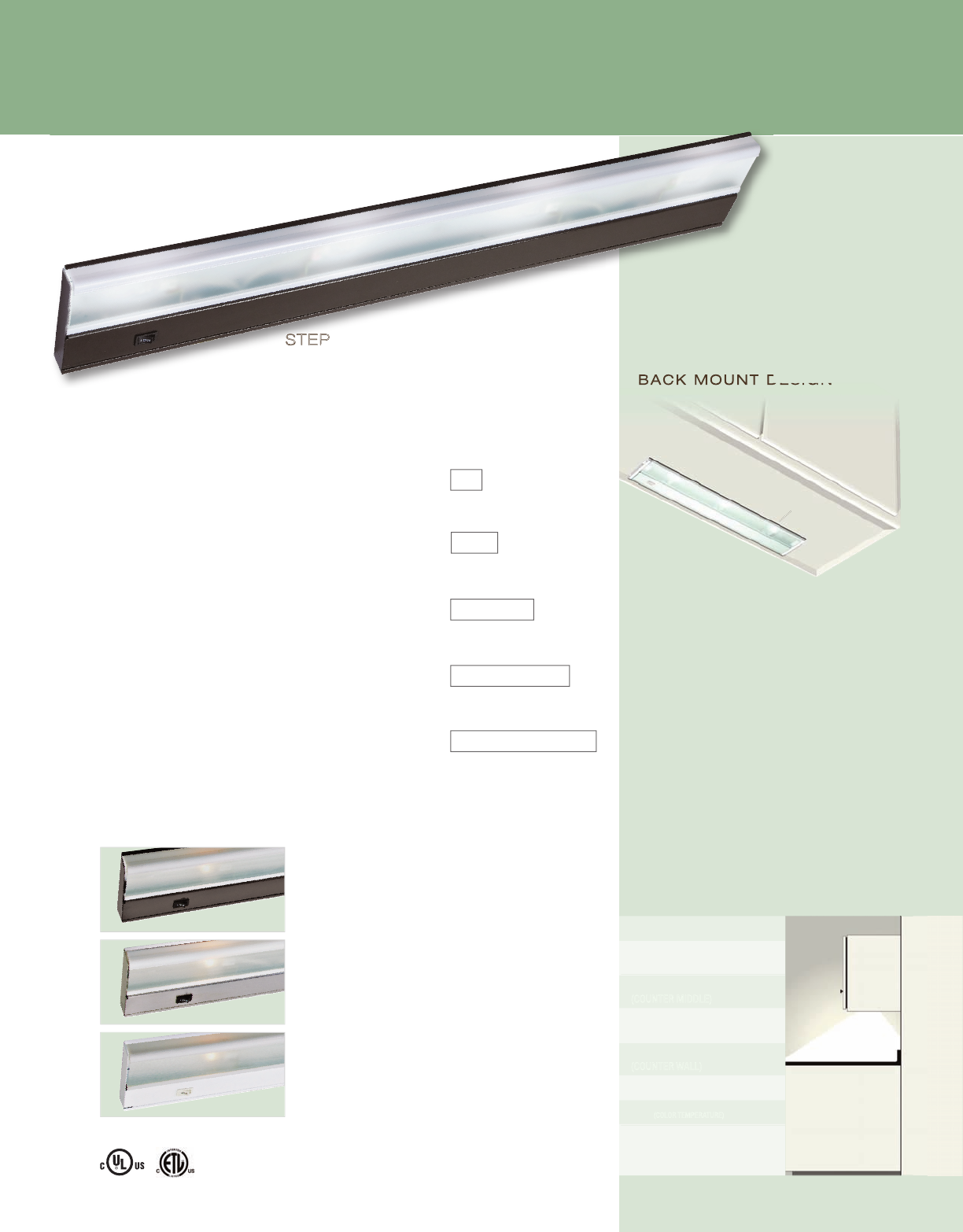

TaskWork Direct Wire

12 Volt Xenon

PERFORMANCE DATA (10580)

LUMENS/WATT 6.1

LIGHT OUTPUT FC 6.7

(COUNTER FRONT)

LIGHT OUTPUT FC 19

(COUNTER MIDDLE)

LIGHT OUTPUT FC 26.9

(COUNTER BACK)

LIGHT OUTPUT FC 16.5

(COUNTER WALL)

CRI(COLOR RENDERING) 100

CCT(COLOR TEMPERATURE) 2700K

LIGHT SOURCE 10,000

LIFE (HRS)

A

B

C

D

10579 BZ, SS, WH

N1 light, 7"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulb included

10580 BZ, SS, WH

N2 light, 12-1/4"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

10581 BZ, SS, WH

N3 light, 21-1/2"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

10584 BZ, SS, WH

N4 light, 30"L x 5"W x 1"H

N12 Volt, 18 Watt Xenon bulbs included

10595 BZ, SS, WH

N5 light, 40" L x 5" W x 1" H

N12 Volt, 18 Watt Xenon bulbs included

Accessories

10582 WH – 38" Power Cord and Plug

accessory (not shown)

10588 SI - Duplex BX Cable Connector

NConnects two cables to any convenient

wireway knockouts located on the fixture.

This allows for a group of fixtures in a series

in series using a single knockout. Connectors

listed for use with 14-2 steel armored cable,

3/8" trade size reduced wall flexible steel,

aluminum conduit or steel flexible metal

conduit (not shown)

10589 SI - Connector for NM & BX Cable

NUL approved for both non-metal (NM)

& BX cables

NConnects a single cable convenient wireway

knockouts located on the fixture (not shown)

Replacement Bulbs

10574 CLR - Replacement Bulb

N12 Volt, 18 Watt Xenon, clear

TaskWork Direct

Wire 12 Volt

30"

AVAILABLE FINISHES

painted Bronze (BZ), Silver (SI) and White (WH)

WH AB C

D

KICHLER.COM 19

12013 BZ

Fixture

shown in Bronze

NLow Profile 1 1/4" Profile x 5" Width

N120 Volt, 20 Watt Xenon bulb(s)

NPainted Bronze, Silver or White finish

NHigh/Low On/Off Switch

NcUL Listed

FEATURES

BACK MOUNT DESIGN

12011 BZ, SI, WH

N1 light, 7"L x 5"W x 1-1/4"H

N120 Volt, 20 Watt Xenon bulb included

12012 BZ, SI, WH

N2 light, 12"L x 5"W x 1-1/4"H

N120 Volt, 20 Watt Xenon bulbs included

12013 BZ, SI, WH

N3 light, 22"L x 5"W x 1-1/4"H

N120 Volt, 20 Watt Xenon bulbs included

12014 BZ, SI, WH

N4 light, 30"L x 5"W x 1-1/4"H

N120 Volt, 20 Watt Xenon bulbs included

Replacement Bulbs

12090 CLR – Replacement Bulb

N120 Volt, 20 Watt Xenon, clear

1

SELECT APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH

STEP

TaskWork Direct 120 Volt Xenon

design features large wiring

compartments and multiple

1/2" trade-size knockouts for

fast and easy installation.

BZ

SI

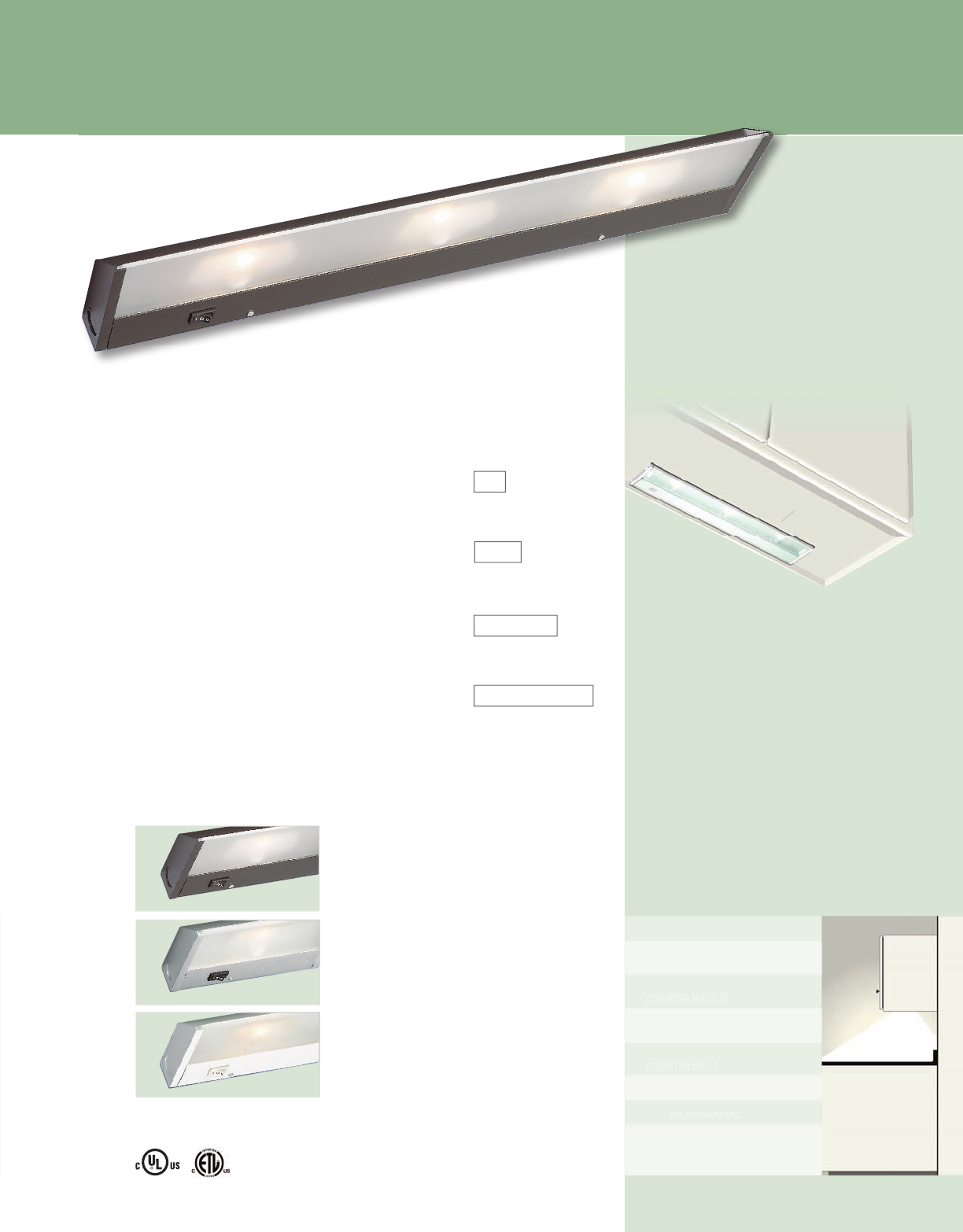

TaskWork Direct Wire

120 Volt Xenon

PERFORMANCE DATA (12012)

LUMENS/WATT 5

LIGHT OUTPUT FC 7.6

(COUNTER FRONT)

LIGHT OUTPUT FC 20.2

(COUNTER MIDDLE)

LIGHT OUTPUT FC 24.5

(COUNTER BACK)

LIGHT OUTPUT FC 28.5

(COUNTER WALL)

CRI(COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 2620K

LIGHT SOURCE 2,500

LIFE (HRS)

A

B

C

D

22"

12"

7" TaskWork Direct

Wire 120 Volt

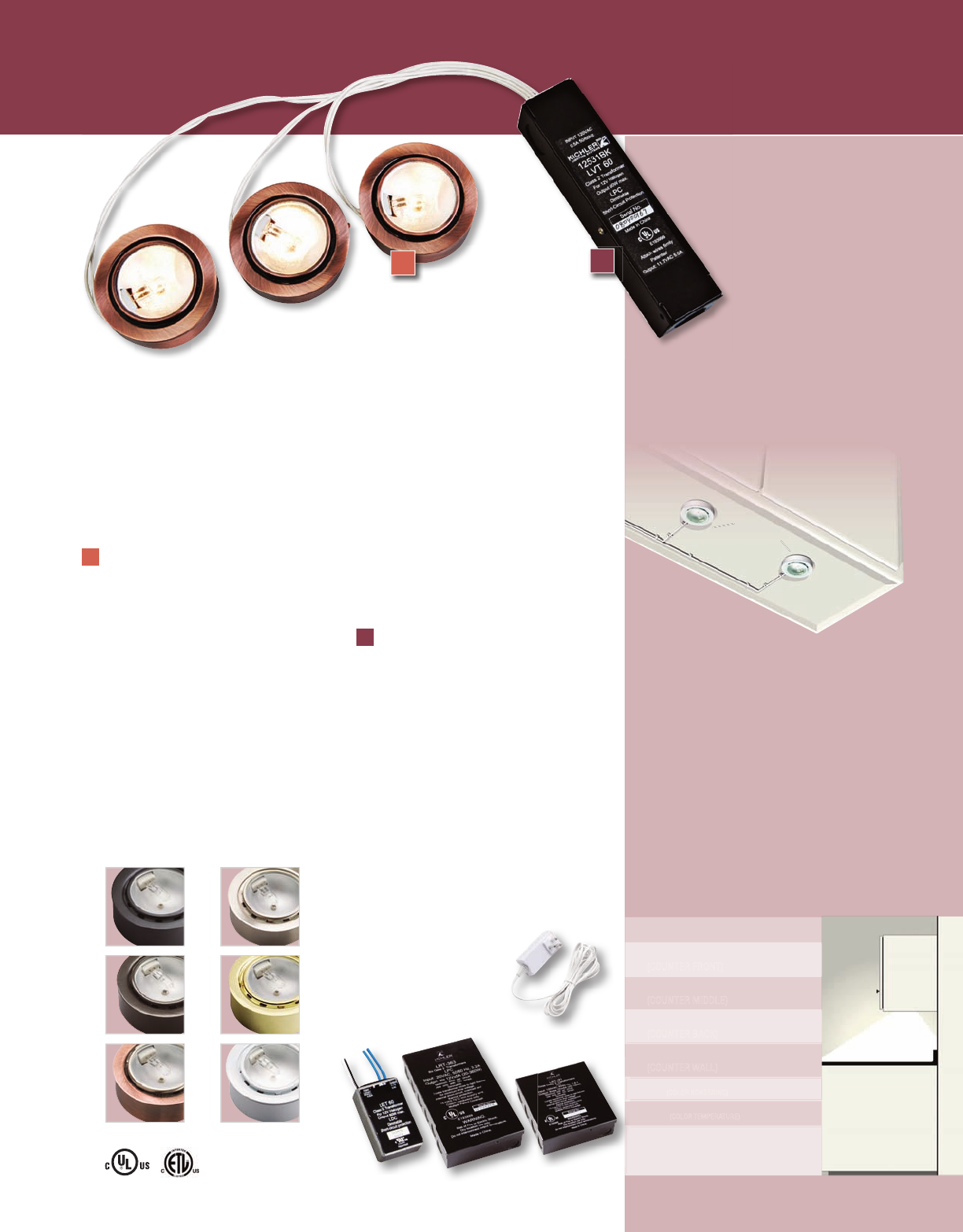

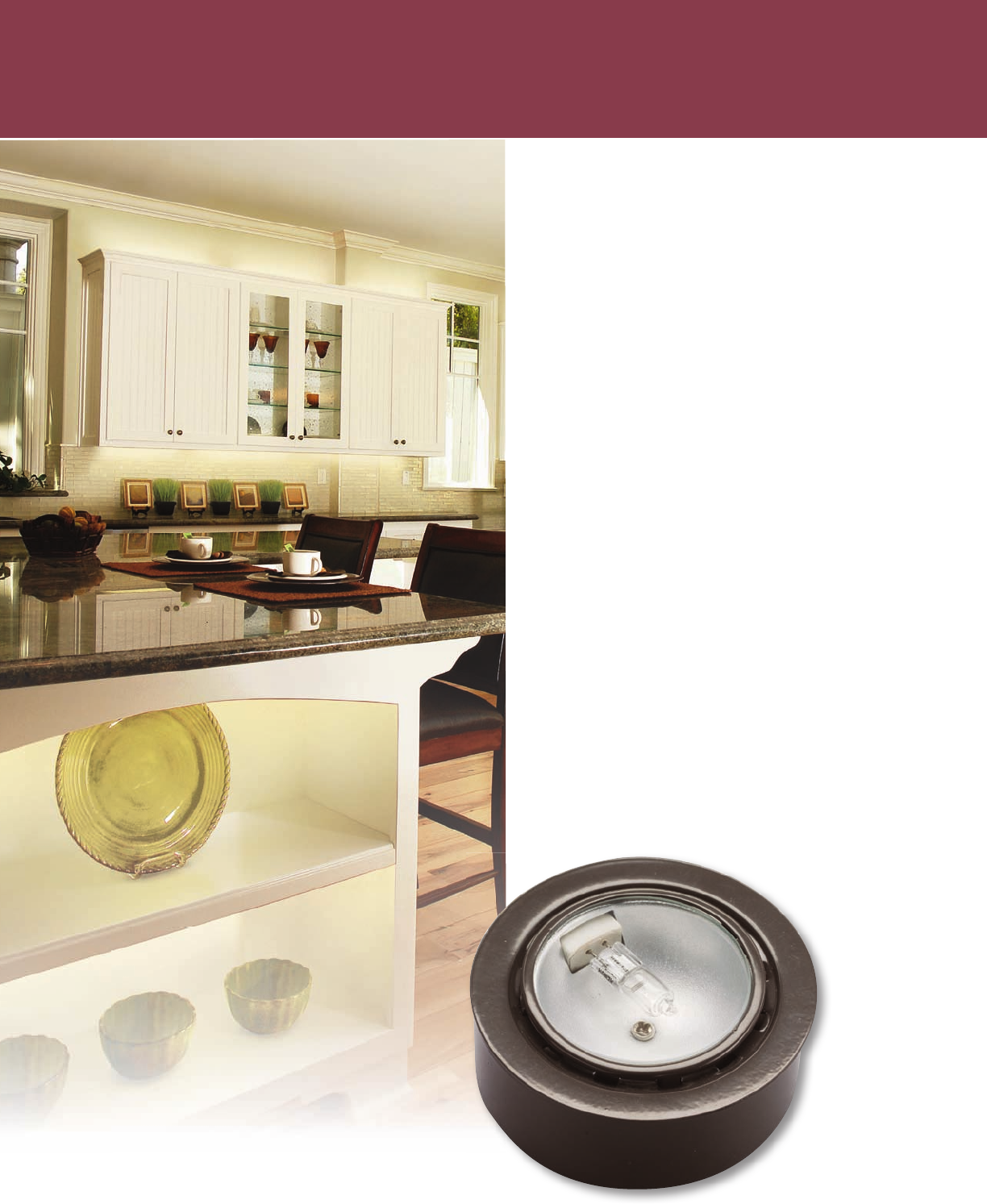

TaskWork Bright Disc

12 Volt Xenon

From under kitchen cabinets to inside an

open bookcase, TaskWork Bright Discs put

a soft touch of 20 Watt light where you need

it. They’re constructed with high quality,

all-metal casings in six popular finishes to

blend into any environment. And, versatile

Class 2 transformer choices simplify pro-

fessional installation in virtually any new

construction or remodeling application.

Put the

accent on

innovation

12501 BZ

shown Actual Size:

1" H x 3" D in Bronze

20 Kichler® Lighting Systems

AB C

D

KICHLER.COM 21

1

12533 BK

Transformer

SELECT NUMBER

OF BRIGHT DISCS

& FINISH 2SELECT POWER

SUPPLY

STEP

12501 BK –Black

12501 BZ –Bronze

12501 CO –Copper

12501 NI –Nickel

12501 PB –Polished Brass

12501 WH – White

N1 light, 1"H x 3"D

NSupplied with 72" of lead wire

N12 Volt, 20 Watt Xenon bulb included

Replacement Bulb

12590CLR - Replacement Bulb

N12 Volt, 20 Watt replacement bulb

Remote Transformer

12530 BK 60 Watt – 12 Volt

Non-Enclosed Electronic Transformer

NReplacement component for

transformer 12533, 12534

N2-1/8"H x 1-1/4" W x 3/4"D

12531 BK 60 Watt – 12 Volt

Enclosed Electronic Transformer

N6-1/2"H x 1-1/2"W x 1-1/2"D

NClass 2

12533 BK 3x60* (180) Watt 12 Volt

Enclosed Electronic Transformer

N5-1/4"H x 4-3/4"W x 1-3/4"D

NClass 2

12534 BK 6x60* (360) Watt 12 Volt

Enclosed Electronic Transformer

N8-1/2"H x 5-1/4"W x 1-3/4"D

NClass 2

Plug-In Transformer

12532 BK, WH 60* Watt 12 Volt

Electronic Transformer

NClass 2

* 20 Watt Minimum load

required for each

60 Watt transformer

STEP

B

A

A

B

N1" Profile x 3" Diameter

N12 Volt, 20 Watt Xenon bulb

NSuitable for recessed or flush mount

installations. Not suited for ceiling or

wall installation.

NDurable Nickel, Copper, Polished-Brass, Powder-

Coated White, Bronze or Black finishes available

NcUL Listed Class 2

FEATURES

UNIVERSAL MOUNT DESIGN

AVAILABLE FINISHES

Black (BK), Bronze (BZ), Copper (CO), Nickel (NI),

Polished Brass (PB) and White (WH)

BZ

BK NI

CO

PB

WH

PERFORMANCE DATA

LUMENS/WATT 4.9

LIGHT OUTPUT FC 14.5

(COUNTER FRONT)

LIGHT OUTPUT FC 57.7

(COUNTER MIDDLE)

LIGHT OUTPUT FC 73

(COUNTER BACK)

LIGHT OUTPUT FC 40.5

(COUNTER WALL)

CRI(COLOR RENDERING) 100

CCT(COLOR TEMPERATURE) 3000K

LIGHT SOURCE 5,000

LIFE (HRS)

A

B

C

D

12530 BK

Transformer

12534 BK

Transformer

12501 CO

TaskWork

Bright Disc

12531 BK

Remote

Transformer

TaskWork

Bright Disc

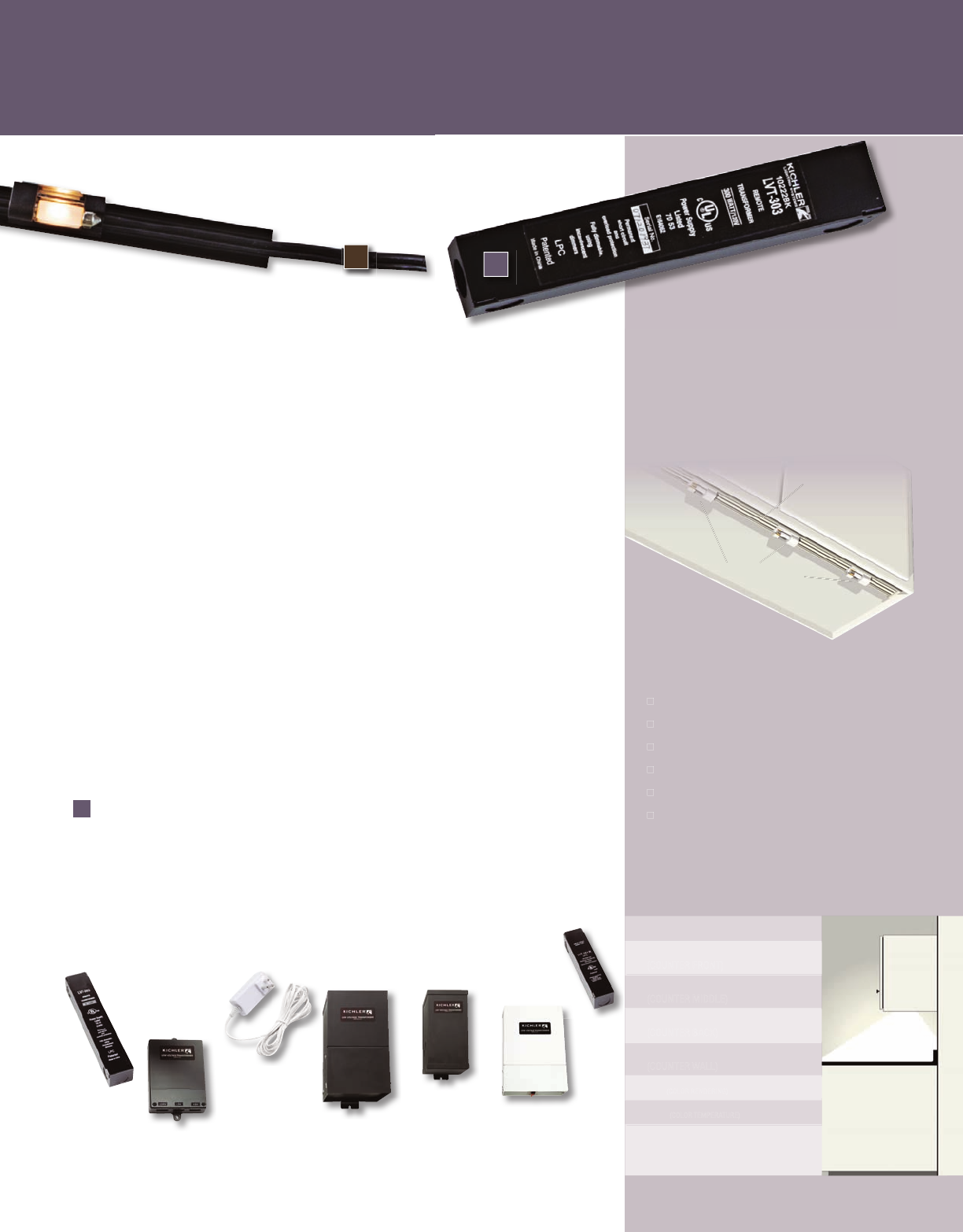

TaskWork Linear

12 Volt & 24 Volt Xenon

Innovation

takes flexibility

to the max

10215 BK

shown Actual Size:

1-15/16"L x 11/16"W x 3/4"H

in Black

10215 WH

shown Actual Size:

1-15/16"L x 11/16"W x 3/4"H

in White

KICHLER.COM 23

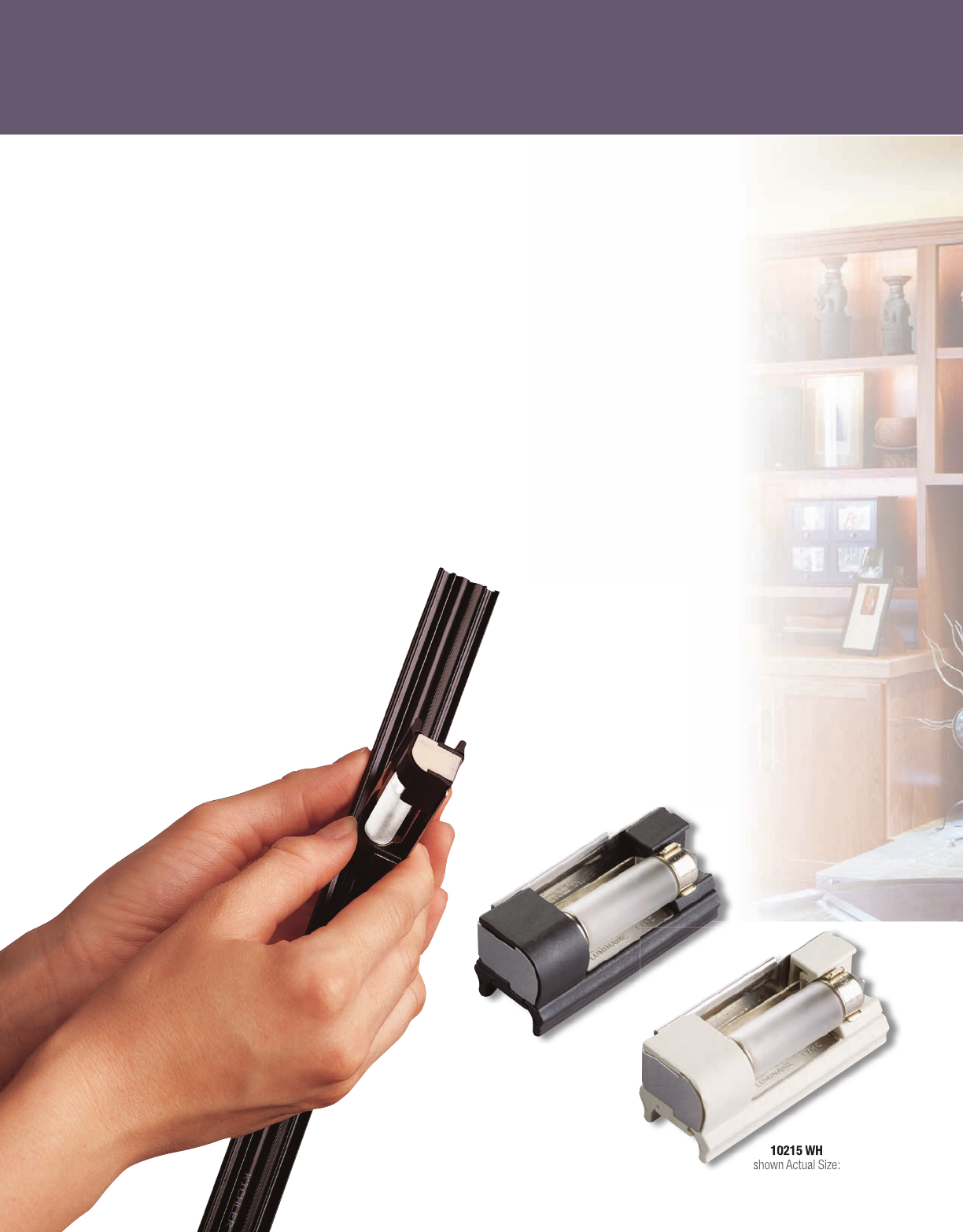

Put away the special tools. With Kichler TaskWork Linear Lighting, you’ll have versatile, low voltage Xenon lighting that

installs in a snap just about anywhere. Create a customized design under, above or inside cabinetry or architectural details

and produce instant lighting interest. The fixture’s narrow profile is virtually invisible once it’s installed.

1520844_Lighting Systems Cat_FINALv16_Rev.indd 23 12/1/08 12:55:42 PM

10241 BK, WH

Track End Caps

10244 BK, WH

Splicing Block

Connector

(listed enclosure

required)

10240 BK, WH

Wire End Caps

TaskWork Linear

12 Volt & 24 Volt Xenon

10241

BK,

10244

BK,

10261 BK, WH

Multi-Directional Fixture

with

10256 CLR

Multi-Directional Lamp

10254 BK, WH

Splicing Block

with Enclosure

10254

Splicing

with

24 Kichler® Lighting

AVAILABLE FINISHES

Black (BK) and White (WH)

AB

A

3

SELECT NUMBER OF

IN-LINE OR DIRECTIONAL

FIXTURES AND FINISH. FOR

IN-LINE, SELECT VOLTAGE & WATTAGE.

FOR DIRECTIONAL, SELECT 12º SPOT

OR 26º FLOOD & VOLTAGE.

STEP

In-Line Fixture

10215 BK, WH – 12 Volt/5 Watt

10216 BK, WH – 12 Volt/10 Watt

10217 BK, WH – 24 Volt/5 Watt

10218 BK, WH – 24 Volt/10 Watt

NShipped with frosted bulb pre-installed

NEasy to handle, no sharp edges,

no bent reflectors

NLess than width of track

In-Line Replacement Lamps

10245 – 12 Volt/5 Watt

10246 – 24 Volt/5 Watt

10247 – 12 Volt/10 Watt

10248 – 24 Volt/10 Watt

NBright Xenon bulb

NFrosted for no glare

N5 or 10 Watt options

Multi-Directional Fixture

10261 BK, WH

NOrder bulbs separately

NG4, MRC-11

NAdded versatility for your Linear Lighting

NHighlight architectural features

NOverall dimensions (with bulb)

2-1/4"H x 1-1/2"W x 1-1/2"H

NMaintain clearance of 3" from other

surfaces. Space no closer than 3" from

other lampholders

Multi-Directional Lamps

10256 CLR – 12 Volt, 12º spot (20-Watt)

10257 CLR – 12 Volt, 26º flood (20-Watt)

10258 CLR – 24 Volt, 12º spot (20-Watt)

10259 CLR – 24 Volt, 26º flood (20-Watt)

NRated life 2,000 hours

C

2LOW-VOLTAGE

CABLE

STEP

10230 BK, WH – Linear cable 25 feet

10232 BK, WH – Linear cable 100 feet

10233 BK, WH – Linear cable 500 feet

10234 BK, WH – Linear cable 1000 feet

Stabilizer Clip

10242 BK, WH

NDesigned to attach Kichler Linear SPT cable

to any wood surface

NPrevents cable from sagging

NAllows for making turns in cable in areas where

cable is not supported by track

Splicing Block Connector

10244 BK, WH (listed enclosure required)

10254 BK, WH - Splicing Block with Enclosure

NFour connections allow up to four rounds of

NM or Kichler’s SPT cable in any combination

NPossible combinations

1. NM cable in and up to three SPT cables out

2. SPT cable in and up to three SPT cables out

3. NM cable in and up to three NM cables out. All

wiring should be in accordance with local and

national codes

1

EASY-TO-INSTALL

TRACK

STEP

10243 BK, WH (50 pack)

10283 BK, WH (10 pack)

NSnaps on the score, every 6"

NCaptive screws every 6"

NWhite or Black finish

N4' linear track

Accessories

10240 BK, WH – Wire End Caps

10241 BK, WH – Track End Caps

10298 WH – Double-Sided Tape (1/2" x 15')

10299 – Box of Screws (100 pieces)

B

10243 BK or

10283 BK

Linear Track

10215 BK

In-Line Fixture

10215 BK

In-Line Fixture

10215 WH

In-Line Fixture

’

KICHLER.COM 25

D

4SELECT POWER

SUPPLY

MORE THAN ONE POWER

SUPPLY MAY BE NEEDED

STEP

NResettable short-circuit protection

NBuilt-in overload protection

NAll transformers are UL 2108 listed

NMagnetic Premium Transformers have screw

terminals for faster wiring, no wire nuts. Slim

profile allows for easily concealed mounting.

Electronic/Plug-In Transformers

10210 BK – 12 Volt/150 Watt

Electronic Hardwire Transformer

N35-Watt minimum load required

N1-1/2"D x 4"H x 4"L (not shown)

10214 BK, WH – 12 Volt/75 Watt

Electronic Plug-in Transformer

N10' of linear cable attached

N3"D x 9"H x 5"L

Remote Electronic Transformers

10221BK – 12 Volt/150 Watt Enclosed

Electronic, Hardwire Transformer

N20 Watt min. load required

N1-1/2"D x 1-1/2"H x 6-1/2"L

10222BK – 12 Volt/300 Watt Enclosed

Electronic, Hardwire Transformer

N50 Watt min. load required

N1-1/2"D x 1-1/2"H x 9-1/2"L

Remote Magnetic Transformers

10205 BK – 12 Volt/150 Watt Magnetic

N3-1/2"D x 6"H x 3"L

10204 BK – 12 Volt/300 Watt Magnetic

N4-1/8"D x 6"H x 3-1/2"L

10206 BK – 12 Volt/2 x 300 Watt Magnetic

N5"D x 9-1/2"H x 4-1/2"L

10208 BK – 24 Volt/300 Watt Magnetic

N4-1/8"D x 6"H x 3-1/2"L

10209 BK – 24 Volt/600 Watt Magnetic

N4-7/8"D x 9-1/2"H x 4-1/2"L

10219 BK – 24 Volt/2 x 600 Watt Magnetic

N6"D x 10-1/2"H x 5-1/2"L

Remote Magnetic Premium Transformers-

Exclusively by Kichler®

10207 WH – 12 Volt/150 Watt magnetic

N6-3/4"D x 2-5/16"H x 10"L

10213 WH – 12 Volt/300 Watt magnetic

N6-3/4"D x 2-5/16"H x 10"L

10211 WH – 12 Volt/2 x 300 Watt

N6-3/4"D x 2-5/16"H x 10"L

NLow profile

NFlexible installation

NBlack and White finish

N12 Volt and 24 Volt options

N5-Watt and 10 Watt options

NcUL Listed

FEATURES

FRONT MOUNT DESIGN

10219 BK (shown)

10208 BK

10209 BK

Magnetic Transformers

10206 BK

(shown)

10204 BK

10205 BK

Magnetic

Transformers

10207 WH (shown)

10213 WH

10211 WH

Magnetic Premium

Transformers

10210 BK

Hardwire Electronic

Transformers

10221 BK

Hardwire Electronic

Transformer

C

D

A

B

C

D

PERFORMANCE DATA

(10216 10 WATT ON 4" CENTER)

LUMENS/WATT 4.8

LIGHT OUTPUT FC 14

(COUNTER FRONT)

LIGHT OUTPUT FC 27

(COUNTER MIDDLE)

LIGHT OUTPUT FC 32

(COUNTER BACK)

LIGHT OUTPUT FC 28

(COUNTER WALL)

CRI(COLOR RENDERING) 100

CCT(COLOR TEMPERATURE) 2800K

LIGHT SOURCE 3,000

LIFE (HRS)

AB C

D

10222 BK

Remote Electronic

Transformer

10230 BK

Linear Cable

10214 BK, WH

Plug-In Electronic

Transformers

10222 BK

Hardwire Electronic

Transformer

Track and Cable

TaskWork Linear

Kichler Design Pro LED Undercabinet and Disc System meets ENERGY STAR

Requirements when used with our Remote Power Supplies 12380BK and 12382BK,

a minimum of any 3 fixtures, and a minimum of 20 watts.

MODEL PG

10571 BK 16

10571 WH 16

10572 BK 16

10572 WH 16

10573 BK 16

10573 WH 16

12211 BZ 16

12211 SS 16

12211 WH 16

12212 BZ 16

12212 SS 16

12212 WH 16

12213 BZ 16

12213 SS 16

12213 WH 16

12214 BZ 16

12214 SS 16

12214 WH 16

12215 BZ 16

12215 SS 16

12215 WH 16

10570 BK 17

10570 WH 17

MODEL PG

10563 BRZ 14

10563 NI 14

10563 WH 14

10564 BRZ 14

10564 NI 14

10564 WH 14

10565 BRZ 14

10565 NI 14

10565 WH 14

10566 BRZ 14

10566 NI 14

10566 WH 14

10567 BRZ 14

10567 NI 14

10567 WH 14

10568 BRZ 14

10568 NI 14

10568 WH 14

10569 BRZ 14

10569 NI 14

10569 WH 14

10570 BK 14

10570 WH 14

10575 BRZ 14

10575 NI 14

10575 WH 14

10585 BRZ 14

10585 NI 14

MODEL PG

10585 WH 14

10587 BRZ 14

10587 NI 14

10587 WH 14

10026 WH 15

10027 WH 15

10028 WH 15

10560 WH 15

10561 WH 15

10562 WH 15

10571 BK 15

10571 WH 15

10572 BK 15

10572 WH 15

10573 BK 15

10573 WH 15

10574 CLR 15

10586 WH 15

MODEL PG

12310 BK 10

12310 BRZ 10

12310 NI 10

12310 WH 10

12341 BK 10

12341 WH 10

12342 BK 10

12342 WH 10

12343 BK 10

12343 WH 10

12345 BK 10

12345 WH 10

12347 BK 10

12347 WH 10

12348 BK 10

12348 WH 10

12349 BK 10

12349 WH 10

12350 BK 10

12350 WH 10

12351 BK 10

12351 WH 10

12354 BK 10

12354 WH 10

12344 BK 11

12344 WH 11

12346 BK 11

12346 WH 11

MODEL PG

12353 BK 11

12353 WH 11

12380 BK 11

12382 BK 11

12383 BK 11

12383 WH 11

12384 BK 11

12384 WH 11

MODEL PG

12301 BRZ 6

12301 NI 6

12301 WH 6

12303 BRZ 6

12303 NI 6

12303 WH 6

12305 BRZ 6

12305 NI 6

12305 WH 6

12341 BK 6

12341 WH 6

12342 BK 6

12342 WH 6

12343 BK 6

12343 WH 6

12345 BK 6

12345 WH 6

12348 BK 6

12348 WH 6

12349 BK 6

12349 WH 6

12350 BK 6

12350 WH 6

12351 BK 6

12351 WH 6

12344 BK 7

12344 WH 7

12346 BK 7

MODEL PG

12346 WH 7

12353 BK 7

12353 WH 7

12380 BK 7

12382 BK 7

12383 BK 7

12383 WH 7

12384 BK 7

12384 WH 7

26 Kichler® Lighting

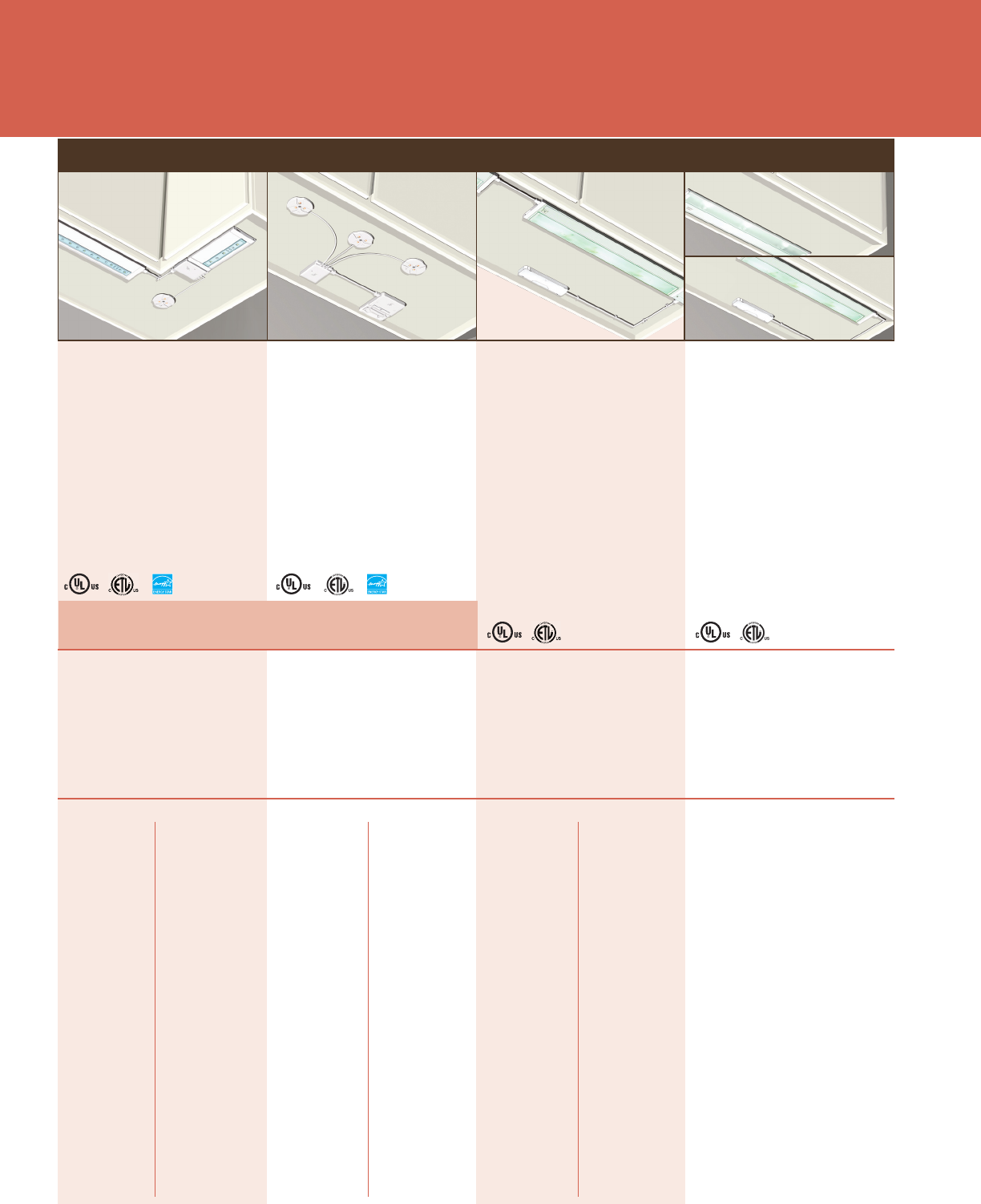

Key Features Key Features Key Features

InstallatIon InstallatIon InstallatIon InstallatIon

Index Index Index Index

desIgn pro led desIgn pro

BrIgHt led dIsC

n

Interconnect

n

Fixtures interconnect

n

Plug-in power supply available

n

Front mount

n

Easy to mount with captive screws

n

Class 2 rated

n

Remote power supply*

n

Xenon - interconnect,

Fluorescent - direct wire

& interconnect

n

Fixtures interconnect

n

Front mount

n

Direct wire

tasKWorK Modular

120 Volt xenon

tasKWorK Modular 12V xenon

& 120 Volt FluoresCent

Key Features

n

1" Profile x 5" Width

n

12 Volt, 18 Watt Xenon Bulb(s)

n

Unique Front-Mount Design as

Recommended by the American

Lighting Association

n

Ability to Snap Fixtures Together to

Create an Even Flow of Light

n

Captive Screws for Ease of Installation

n

Durable, Anodized Brushed Bronze,

Nickel or Powder-Coated White Finish

n

Extruded Aluminum Construction

n

Hinged Tempered Glass Diffuser

n

High/Low On/Off Switch

n

Built-in electronic transformer

n

Low profile 1" Profile x 5" Width

n

120 Volt, 20 Watt Xenon Bulb(s)

n

Direct Wire or Inter-Connectability

n

Back of Wall or Unique Front-Mount

Design as Recommended by the

American Lighting Association

n

Ability to snap fixtures together to

create an even flow of light

n

Durable Anodized Bronze, Brushed

Stainless Steel or Powder-Coated

White finish

n

High/Low On/Off Switch

n

Ultra-Thin 1/2" Profile

n

Color Rendering Index > 90 CRI

n

High brightness LED

n

Higher efficiency

n

3,000 K Correlated Color Temperature

Average is Similar to Xenon

n

Long Life Light Source (40,000 HRS)

n

Ability to snap fixtures together

or interconnect to create an even

flow of light

n

Captive screws for ease of installation

n

Class 2 Listed

Selection Guide & Index

n

Ultra-Thin 3/8" Profile x 2-3/4"

Diameter

n

Color Rendering Index > 90 CRI

n

High brightness LED

n

Higher efficiency

n

3,000K Correlated Color

Temperature Average is similar

to Halogen & Xenon

n

Long Life Light Source (40,000 HRS)

n

Captive screws for ease of installation

n

Class 2 Listed

n

Interconnect

n

Fixtures Interconnect

n

Plug-in power supply available

n

Center Mount

n

Easy to mount with captive screws

n

Class 2 rated

n

Remote power supply*

1520844_Lighting Systems Cat_FINALv16_Rev.indd 26 11/26/08 11:59:24 AM

MODEL PG

10215 BK 24

10215 WH 24

10216 BK 24

10216 WH 24

10217 BK 24

10217 WH 24

10218 BK 24

10218 WH 24

10230 BK 24

10230 WH 24

10232 BK 24

10232 WH 24

10233 BK 24

10233 WH 24

10234 BK 24

10234 WH 24

10240 BK 24

10240 WH 24

10241 BK 24

10241 WH 24

10242 BK 24

10242 WH 24

10243 BK 24

10243 WH 24

10244 BK 24

10244 WH 24

10245 24

10246 24

10247 24

MODEL PG

10248 24

10254 BK 24

10254 WH 24

10256 CLR 24

10257 CLR 24

10258 CLR 24

10259 CLR 24

10261 BK 24

10261 WH 24

10283 BK 24

10283 WH 24

10298 WH 24

10299 24

10204 BK 25

10205 BK 25

10206 BK 25

10207 BK 25

10208 BK 25

10209 BK 25

10210 BK 25

10211 BK 25

10213 BK 25

10214 BK 25

10214 WH 25

10219 BK 25

10221 BK 25

10222 BK 25

MODEL PG

12011 BZ 19

12011 SI 19

12011 WH 19

12012 BZ 19

12012 SI 19

12012 WH 19

12013 BZ 19

12013 SI 19

12013 WH 19

12014 BZ 19

12014 SI 19

12014 WH 19

12090 CLR 19

MODEL PG

10574 CLR 18

10579 BZ 18

10579 SS 18

10579 WH 18

10580 BZ 18

10580 SS 18

10580 WH 18

10581 BZ 18

10581 SS 18

10581 WH 18

10582 WH 18

10584 BZ 18

10584 SS 18

10584 WH 18

10588 SI 18

10589 SI 18

10595 BZ 18

10595 SS 18

10595 WH 18

KICHLER.COM 27

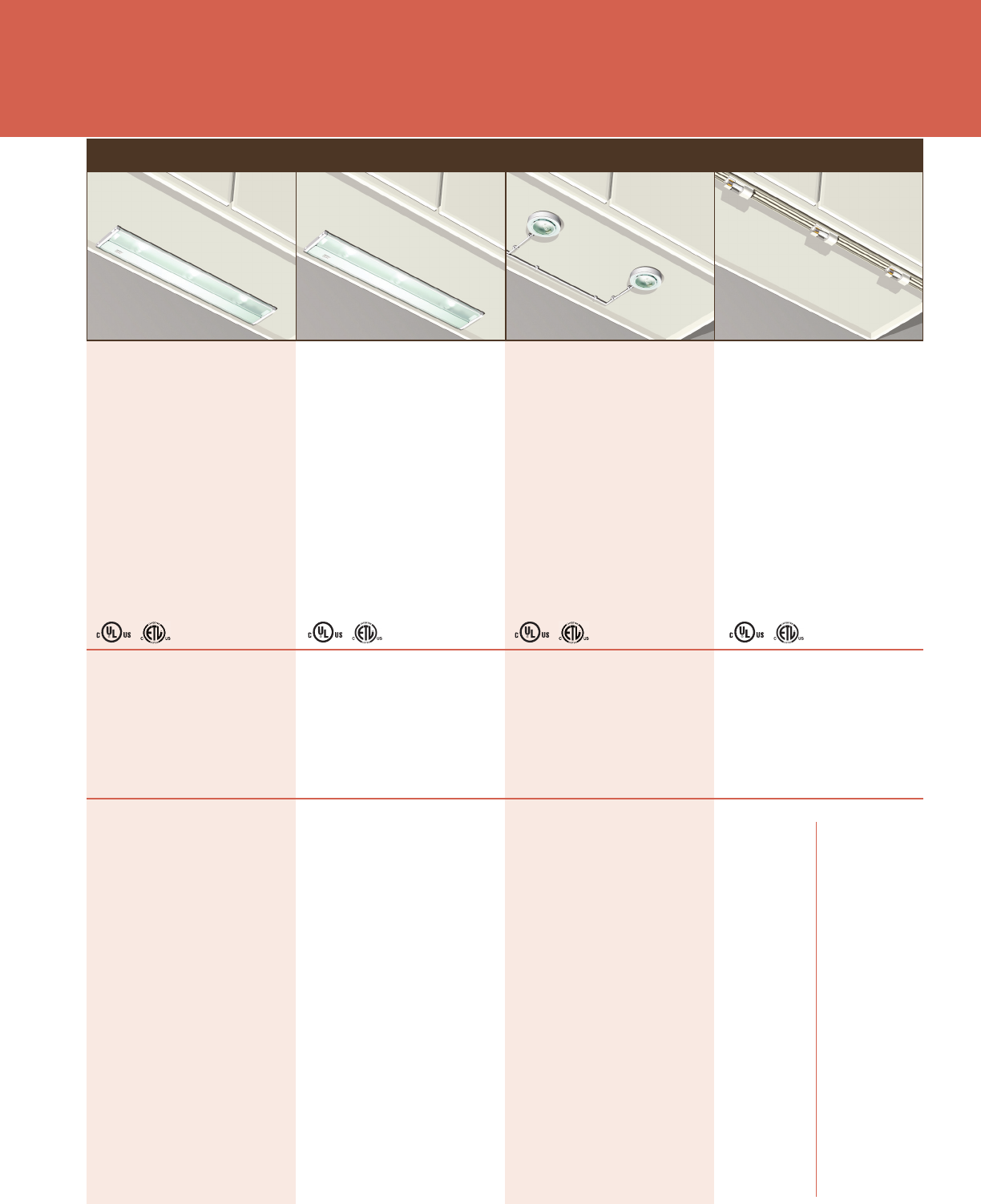

Key FeaturesKey Features Key Features

InstallatIon InstallatIon InstallatIon

Index Index Index

n

Low profile 1 1/4" Profile x 5" Width

n

120 Volt, 20 Watt Xenon Bulb(s)

n

Painted Bronze, Silver or

White finish

n

High/Low On/Off Switch

n

Low profile 1" Profile x 5" Width

n

12 Volt, 18 Watt Xenon Bulb(s)

n

Durable, Brushed Stainless Steel or

Powder-Coated White

or Bronze finishes

n

Fastener-free hinge assembly

n

Keyhole mounting

n

Easy-lock poly-tempered glass

diffuser.

n

Single BX Connector Included

n

High/Low On/Off Switch

n

Built-in electronic transformer

n

Direct wire

n

Built-in transformer*

n

Direct wire

n

Fixtures interconnect

n

Plug-in version available

n

Front mount

n

Easy to mount with captive screws

n

Direct wire

n

Front mount

n

Easy to mount with

captive screws

n

Remote Transformer*

tasKWorK dIreCt WIre

120 Volt xenon

tasKWorK dIreCt WIre

12 Volt xenon tasKWorK lInear

n

Low profile

n

Flexible installation

n

Black and White finish

n

12 Volt and 24 Volt Options

n

5 and 10 Watt Options

MODEL PG

12501 BK 21

12501 BZ 21

12501 CO 21

12501 NI 21

12501 PB 21

12501 WH 21

12530 BK 21

12531 BK 21

12532 BK 21

12532 WH 21

12533 BK 21

12534 BK 21

12590 CLR 21

Key Features

InstallatIon

Index

n

Direct wire

n

Center mount

n

Class 2 rated

n

Remote Transformer*

tasKWorK BrIGHt dIsC

n

1" Profile x 3" Diameter

n

12 Volt, 20 Watt Xenon Bulb

n

Suitable for recessed or flush mount

installations. Not suited for ceiling or

wall installation.

n

Durable Nickel, Copper, Polished-

Brass, Powder-Coated White,

Bronze or Black finishes available

n

UL Listed Class 2

* Installation Tip: To avoid frequency

interference, locate and install

Transformer/Power Supplies at least 3 ft.

from television, computer, radio or other

electronic receivers.

1520844_Lighting Systems Cat_FINALv16_Rev.indd 27 11/26/08 12:00:40 PM

B

C

A

A

CC

C

Design Pro LED

See pages 4-7

KICHLER® LIGHTING

World Headquarters

7711 E. Pleasant Valley Rd.

PO Box 31810

Cleveland, Ohio 44131-8010

www.kichler.com

Distribution Centers:

Atlanta, Georgia

Cleveland, Ohio

Las Vegas, Nevada

125M/08-LS-420

Catalog No. K1108

Printed in USA

© Copyright All rights reserved.

Kichler Lighting.

The majority of newer Kichler Lighting fixtures are U.S.

Patent Pending. Many are also Patent Pending in Canada.

A

Design Pro LED Discs

See pages 8-11

Linear Xenon

See pages 22-25

Design Pro LED & TaskWork System Applications

B CA
