Superbay Series

The Modular

Lighting System

For All Your

Industrial &

Retail Needs

• 15 reflector options to cover every need

• Compact die cast aluminum ballast housing

• Handles 150 to 1000 watt HID sources

• Great for light industrial, commercial and retail applications

• Full range of options and accessories

• 15 reflector options to cover every need

• Compact die cast aluminum ballast housing

• Handles 150 to 1000 watt HID sources

• Great for light industrial, commercial and retail applications

• Full range of options and accessories

now

available in

1000w HID

QUICK-ON

BRACKET SLICK-ON

BRACKET

FIFTEEN DIFFERENT OPTICS AND TWO RUGGED HOUSINGS

CREATE A REMARKABLY VERSATILE MODULAR LIGHTING SYSTEM

Designed for maximum flexibility and versatility, the Superbay Series offers a

modular solution to meet the most demanding industrial needs. Fifteen

different optical systems are available, ranging from highbays to lowbays to

prismatic acrylics in both new construction and retrofit lighting applications.

Superbay Series is a truly modular lighting system. Two ballast housings may

be mated with fifteen efficient, task-specific optics to meet the most demanding

industrial lighting requirements. Superbay is an extremely flexible lighting

family that easily adapts to changing lighting and inventory requirements and is

well suited to both new construction and retrofit lighting applications.

SLICK-ON®AND QUICK-ON®

MOUNTING BRACKETS

Two mounting arrangements are available for the Superbay Series. These may

be shipped with luminaires, or in advance for prewiring to building structure.

Fixtures are shipped standard with Quick-On®bracket for easy pendant

mounting. They are also available with Slick-On®for fast and balanced conduit

thru wire, ceiling, and fused fixture installations.

HUBBELL INDUSTRIAL LIGHTING

SUPERBAY SERIES

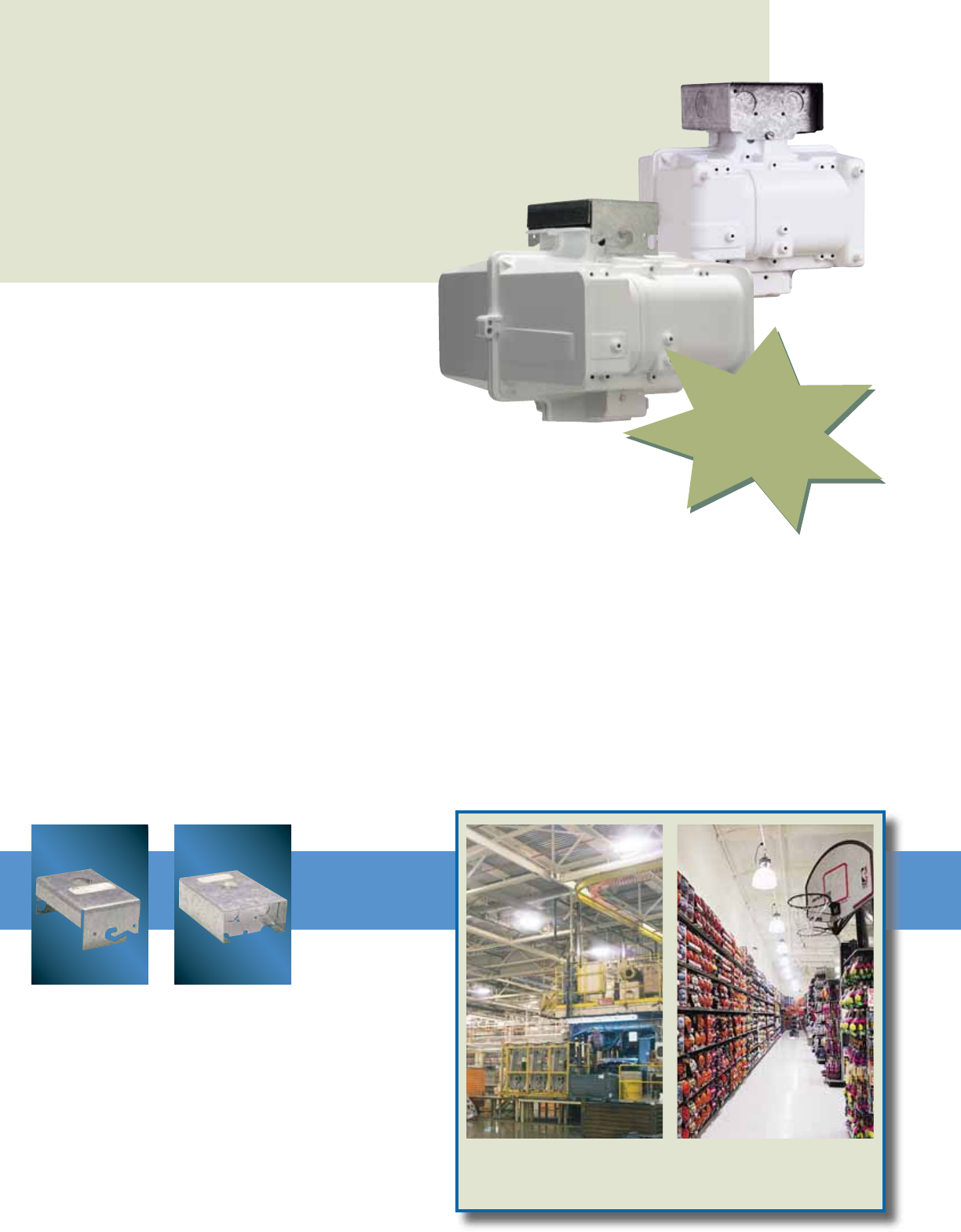

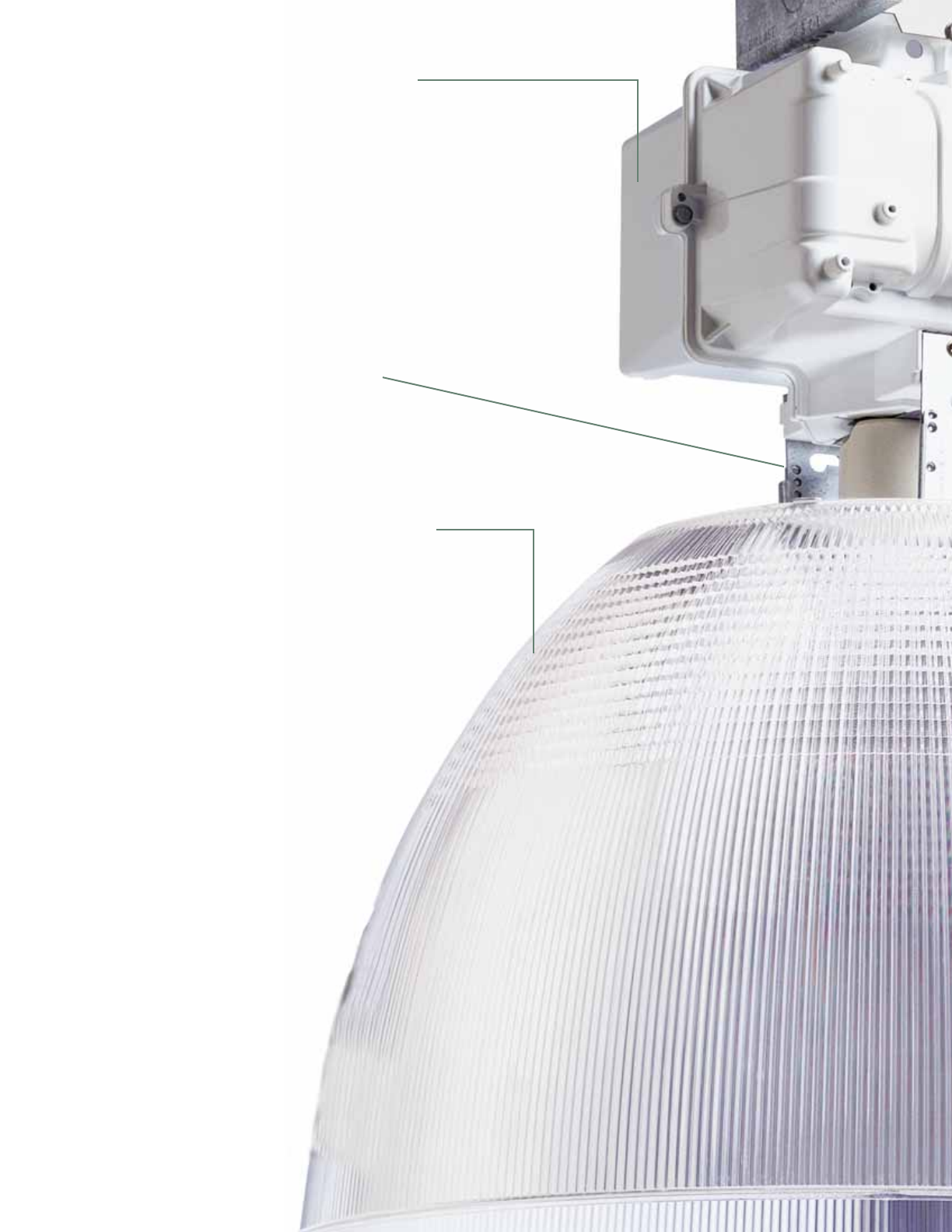

THE BALLAST MODULE

The rugged, two-piece, die cast aluminum housing provides long life and

reliable operation. All electrical components are mounted directly to the

cast aluminum ballast housing for maximum heat dissipation and cool

operation. The standard white-painted ballast housing features Hubbell’s

Lektrocote®electrostatically applied fused powder finish for added corrosion

resistance and cooler operation. Ballasts are regulated, high power factor

with Class H insulation. Fixtures are UL 1598 listed for 55°C ambient operation

and damp locations (35°C for 1000 watt versions).

now

available in

1000w HID

123

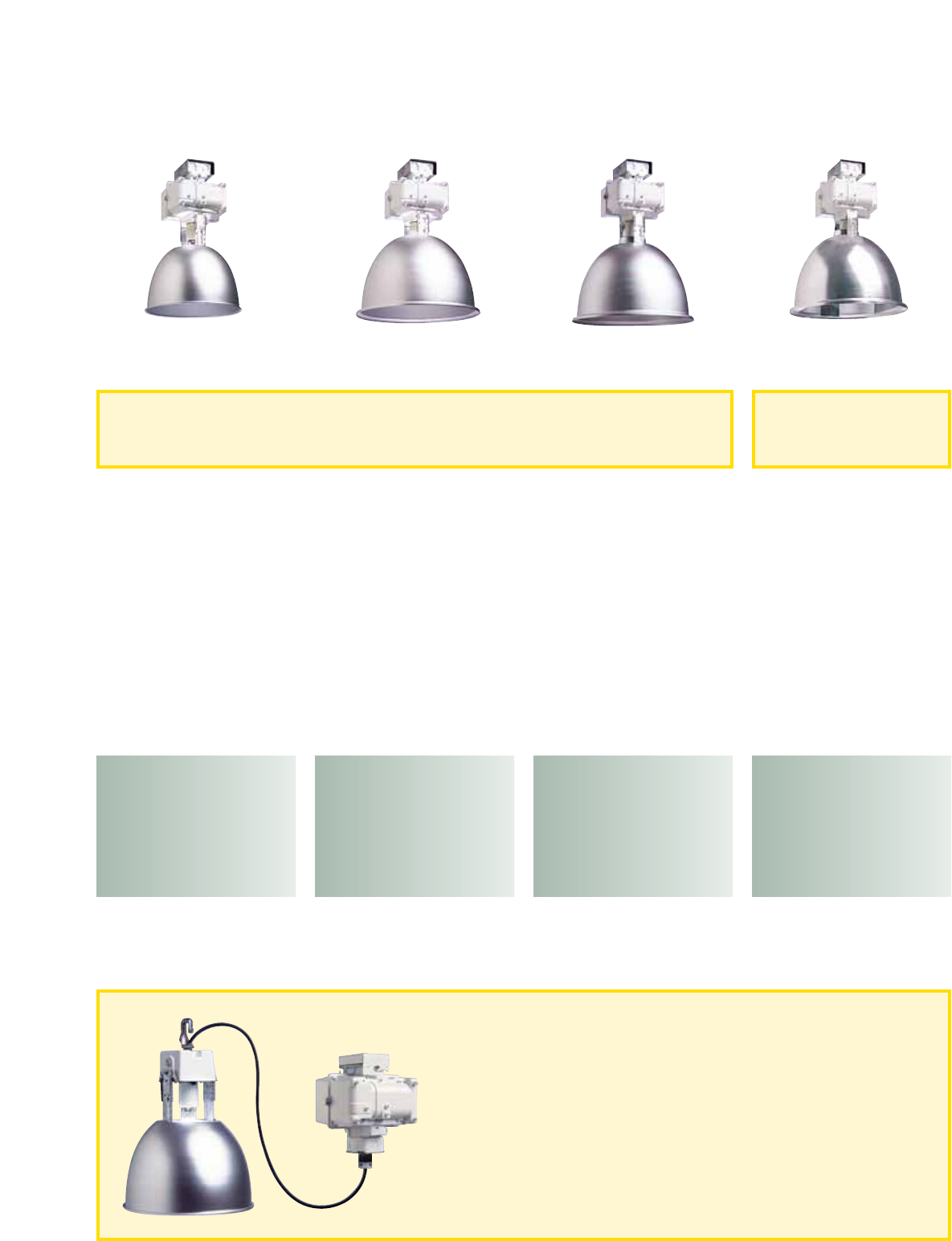

Hubbell offers a variety of highbay lighting systems to meet diverse industrial needs. Engineered for years of

maintenance-free service, these rugged highbays provide economical specification-quality optics, coupled with

the flexibility of field-adjustable lighting distributions.

BL-BI2

highbay reflector

DIAMETER

14"

WEIGHT

1.75lbs/.8kgs

BL-SU1

highbay reflector w/ uplight

DIAMETER

19"

WEIGHT

2.25lbs/1.0kgs

BL-SD1

highbay downlight reflector

DIAMETER

19"

WEIGHT

2.25lbs/1.0kgs

Highbay Lighting

The AL Series is designed to

meet specific lighting situa-

tions in the industrial setting.

Aisle Lighter

BL-BI2BL-SU1BL-SD1

1 Requires BL-LR19 when used with enclosed rated lamps (“E”).

2 Requires BL-LR14 when used with enclosed rated lamps (“E”).

Remote/Offset Mounting

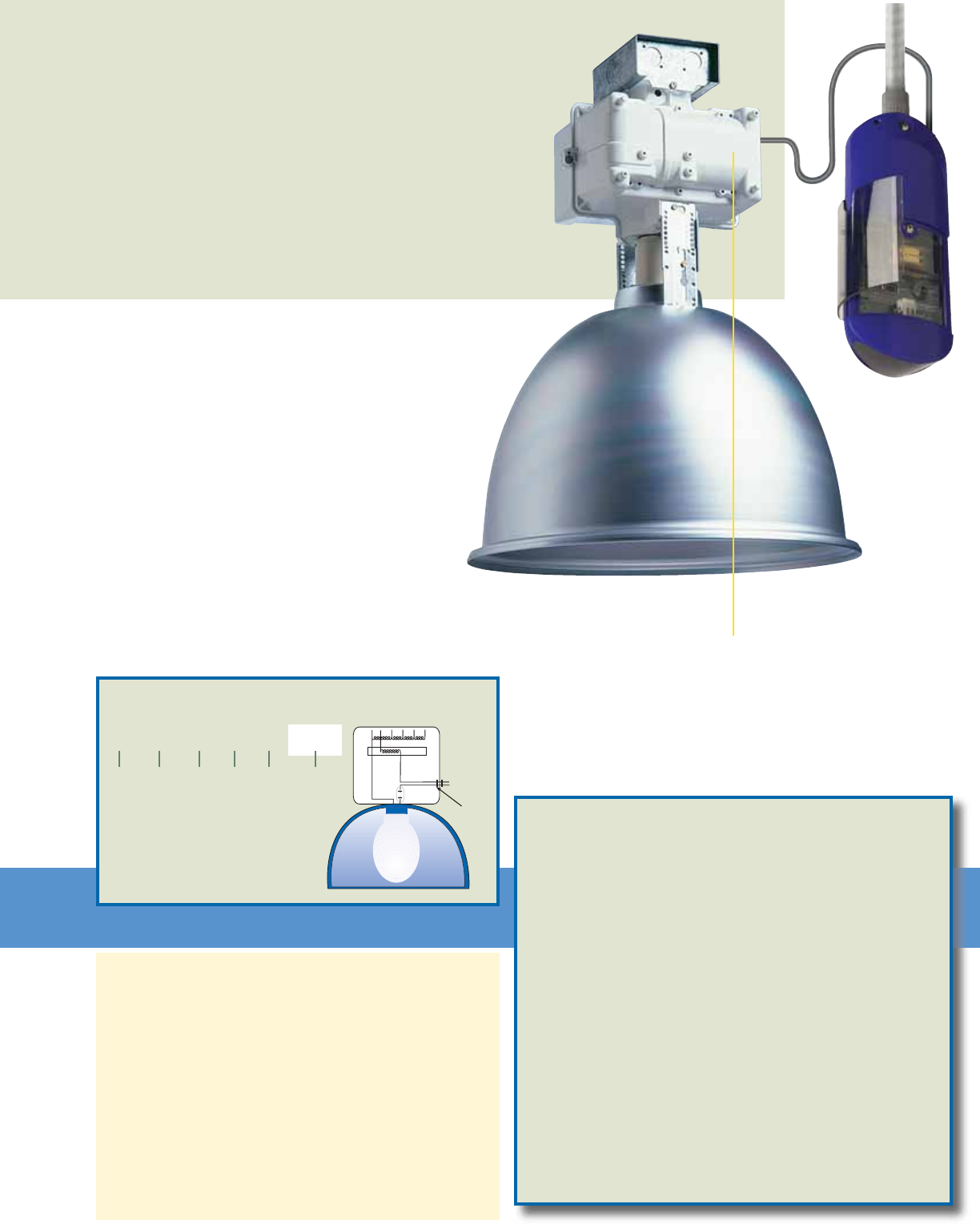

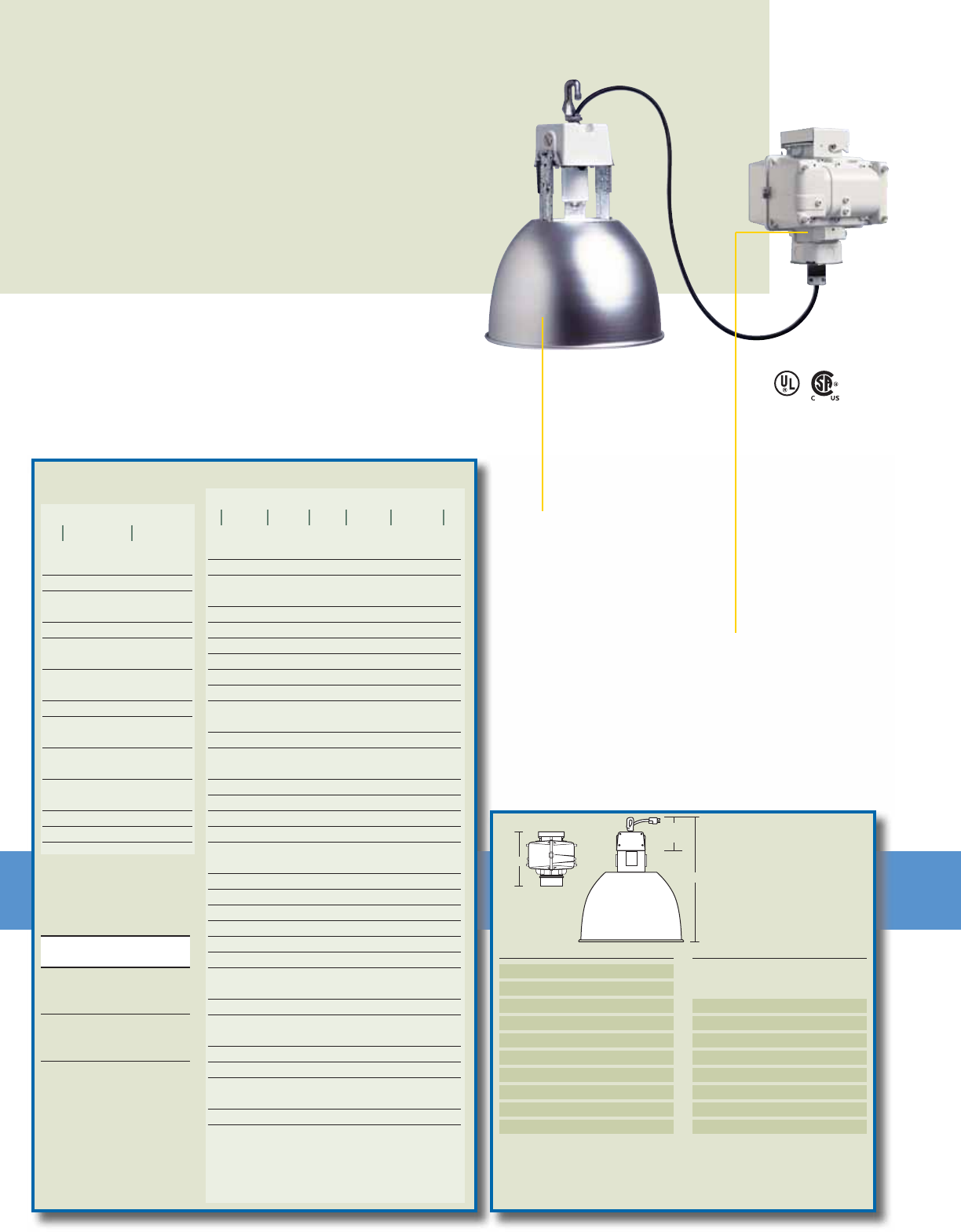

Superbay RO Series consists of a ballast module and a remote reflector/refractor mounting

module that accepts any of the fourteen Superbay optical systems. This series is ideal for

applications requiring low profile luminaires or remote mounting of ballasts – for highbays,

lowbays, prismatic refractors, aislelighters, and enclosed and gasketed fixtures.

The BL-BI Series provides a classic,

economical way to deliver highbay illu-

mination. It features an Anodal®fin-

ished 14" diameter spun aluminum

reflector, field-adjustable brackets in

narrow, medium and wide lighting

distributions for application flexibility.

The BL-SU Series has specification-

grade photometry with uplight com-

ponent. Its Anodal®finished 19"

diameter spun aluminum reflector

and field-adjustable brackets provide

narrow, medium and wide lighting

distributions for application flexibility.

Engineered for applications requiring

downlighting only, the BL-SD Series

is an Anodal®finished 19" diameter

spun aluminum reflector. Field-

adjustable brackets provide narrow,

medium and wide lighting distribu-

tions for application flexibility.

BL-AL1

aisle lighter reflector

DIAMETER

19"

WEIGHT

2.5lbs/1.1kgs

BL-AL1

The BL-AL Series luminaire is

designed to economically light the

vertical surfaces of warehouse and

storage area stacks. Typical mounting

heights range from 15 to 35 feet.This

fixture features an Anodal®finished

19" diameter spun aluminum reflector

and field-adjustable optics for

application flexibility.

UP TO 450 WATT

567

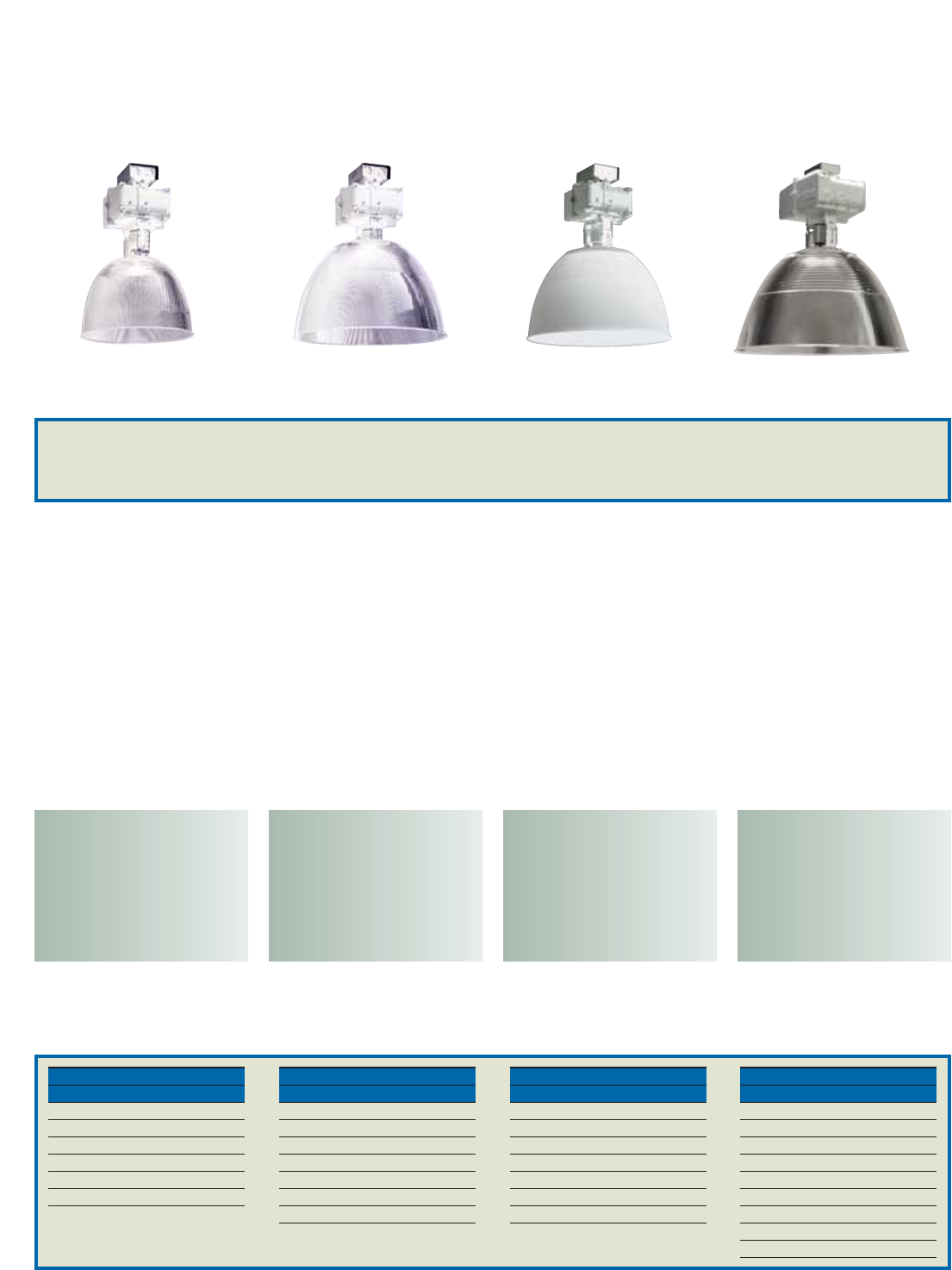

Hubbell’s prismatic acrylics offer the clarity of prismatic, injection-molded, crystal clear acrylic. The precision of these acrylic prisms produces superb

three-dimensional task lighting, resulting in excellent low brightness illumination – free from glare and harsh shadows for unsurpassed visual comfort.

BL-PA21

prismatic acrylic reflector

DIAMETER

16"

WEIGHT

3.0lbs/1.4kgs

BL-WA222

prismatic acrylic reflector

DIAMETER

22"

WEIGHT

6.5lbs/2.9kgs

BL-WW222

opaque prismatic acrylic

reflector

DIAMETER

22"

WEIGHT

6.5lbs/2.9kgs

Prismatic Acrylics

BL-PA21BL-WA222BL-WW222BL-WA253

1 Requires BL-PK-ENC enclosure for enclosed rated lamps (“E”).

2 Requires WA2-ENC enclosure for enclosed rated lamps (“E”).

3 Requires WA25-ENC enclosure for enclosed rated lamps (“E”).

Designed for lower mounting heights,

the BL-PA2 Series 16" diameter

acrylic reflector combines an attractive

appearance with superb performance.

Field-adjustable brackets allow for

medium to wide lighting distributions.

For best performance and visual com-

fort, coated lamps are recommended.

Our durable 22" diameter acrylic

reflector in the BL-WA Series is

designed for 15- to 30-foot mounting

heights in areas that call for efficient

three-dimensional illumination as

well as good looks. Field-adjustable

brackets allow for medium to wide

lighting distributions. For optimum

performance and visual comfort,

coated lamps are recommended. It is

UL listed for 55°C ambient operation

for lamps up to 400 watts.

The new WW22 reflector features a

highly reflective surface, which pro-

duces a soft, glowing appearance,

hides fingerprints, and blends with

light colored ceilings. The uplight

component of the WW22 reflector is

minimal, at 17% or lower, using just

the right amount of uplight to elimi-

nate the cave effect. Downlight levels

are increased, providing more down-

ward light for merchandise, aisles or

assembly lines.

BL-WA253

prismatic acrylic reflector

DIAMETER

25"

WEIGHT

7.5lbs/3.3kgs

Our durable 25" diameter acrylic

reflector in the WA Series is designed

for 15 to 30 foot mounting heights in

areas that call for efficient three-

dimensional illumination as well as

good looks. Field-adjustable brackets

allow for medium to wide lighting

distributions. For optimum perform-

ance and visual comfort, coated

lamps are recommended.

WATTAGE BL-PA2

OPEN ENCLOSED

150 HPS 55°C 55°C

250 HPS 55°C 50°C

400 HPS 50°C 40°C

175 MH 55°C 55°C

250 MH 55°C 50°C

400 MH 50°C 40°C

WATTAGE BL-WA22

OPEN ENCLOSED

150 HPS 55°C 55°C

250 HPS 55°C 50°C

400 HPS 50°C 40°C

175 MH 55°C 55°C

250 MH 55°C 50°C

400 MH 55°C 40°C

450 MH 40°C 35°C

WATTAGE BL-WW22

OPEN ENCLOSED

150 HPS 55°C 55°C

250 HPS 55°C 50°C

400 HPS 50°C 40°C

175 MH 55°C 55°C

250 MH 55°C 50°C

400 MH 55°C 40°C

450 MH 40°C 35°C

WATTAGE BL-WA25

OPEN ENCLOSED

250 HPS 55°C 55°C

400 HPS 55°C 40°C

175 MH 55°C 55°C

250 MH 55°C 55°C

400 MH 55°C 40°C

450 MH 55°C 35°C

750 MH 35°C 25°C

1000 MH 25°C N/A

UP TO 450 WATT UP TO 1000 WATT

HUBBELL’S RUGGED YET ATTRACTIVE SUPERBAY SERIES

BALLAST HOUSING ALLOWS FOR VARIOUS INSTALLATION

OPTIONS. THE WHITE LEKTROCOTE®FINISH BLENDS IN

WELL WITH MANY OF THE RETAIL STORE DESIGNS IN USE

TODAY. ALL ELECTRICAL COMPONENTS ARE MOUNTED

DIRECTLY TO THE CAST ALUMINUM BALLAST HOUSING FOR

MAXIMUM HEAT DISSIPATION AND COOL OPERATION.

FIELD-ADJUSTABLE REFLECTOR MOUNTING BRACKETS

PROVIDE MULTIPLE LIGHTING DISTRIBUTIONS FOR

MAXIMUM FLEXIBILITY, RANGING FROM NARROW TO

WIDE DISTRIBUTION.

LIGHTWEIGHT PRISMATIC ACRYLIC REFLECTOR GENERATES

WIDE, UNIFORM LIGHT DISTRIBUTION WITH MINIMUM

GLARE, WHILE REDUCING HARSH SHADOWS ON VERTICAL

WORK SURFACES. THE LIGHTWEIGHT DESIGN OF THE

REFLECTOR ENHANCES FACILITY SAFETY, MAKING THIS THE

IDEAL FIXTURE FOR RETAIL SETTINGS.

Hubbell’s new glass reflectors provide good uplight to eliminate the

“cave” effect and produces good 3D lighting

BL-HGX-161

glass reflector

DIAMETER

16"

WEIGHT

20lbs/9kgs

BL-HGX-222

glass reflector

DIAMETER

22"

WEIGHT

25lbs/11.4kgs

Glass Highbay Reflectors

BL-HGX-161BL-HGX-222

1 Requires HG-ENC16 when used with enclosed rated lamps (“E”).

2 Requires HG-ENC22 when used with enclosed rated lamps (“E”).

The open flow-through design pre-

vents the build-up of dust and other

industrial contaminants on the glass

surface, resulting in high lumen

maintenance for the life of the appli-

cation. The glass reflector has great

resistance to a wide variety of corro-

sive industrial chemicals. It’s easily

cleaned and maintained to ensure a

long trouble-free installation in your

most demanding applications.

Spun aluminum reflector with

uplight to eliminate the cave effect.

23" diameter, uses 1000W lamps.

BL-OU60

reflector with uplight

DIAMETER

23"

WEIGHT

6lbs/2.7kgs

Reflector w/ Uplight

BL-OU60

The open flow-through design of the

BL-OU60 prevents the build-up of

dust and other industrial contami-

nants, resulting in maintained high

lumen output. High quality 23" spun

aluminum reflector has adjustable

optics for high, medium, or low

mounting height applications.

Optional glass bottom lens (CH-LR-23)

is used for lamp containment if

necessary.

The open flow-through design pre-

vents the build-up of dust and other

industrial contaminants on the glass

surface, resulting in high lumen

maintenance for the life of the appli-

cation. The glass reflector has great

resistance to a wide variety of corro-

sive industrial chemicals. It’s easily

cleaned and maintained to ensure a

long trouble-free installation in your

most demanding applications.

SHOCK AND

IMPACT RESISTANT

BOROSILICATE GLASS

ZINC-PLATED, RIGID

WIRE FORM UPLIGHT COMPONENT

REDUCES “CAVE” EFFECT

EXCELLENT RESISTANCE TO

INDUSTRIAL CHEMICALS

UP TO 1000 WATT

1213 14

Engineered to meet the more visually demanding needs of lower mounting heights, Hubbell’s lowbay lighting systems

provide horizontal surface light level uniformity, coupled with high vertical surface illumination. The low brightness

refractor produces wide distribution of light without harsh shadows for optimum visual performance.

BL-LB1

lowbay reflector/refractor

DIAMETER

23"

WEIGHT

8.25lbs/3.7kgs

CH-LM

lowbay reflector/refractor

DIAMETER

29"

WEIGHT

10.75lbs/4.8kgs

CH-SW

enclosed & gasketed

Superwatt®

DIAMETER

22.5"

WEIGHT

7.0lbs/3.2kgs

* Limited to 400W

Lowbay Lighting

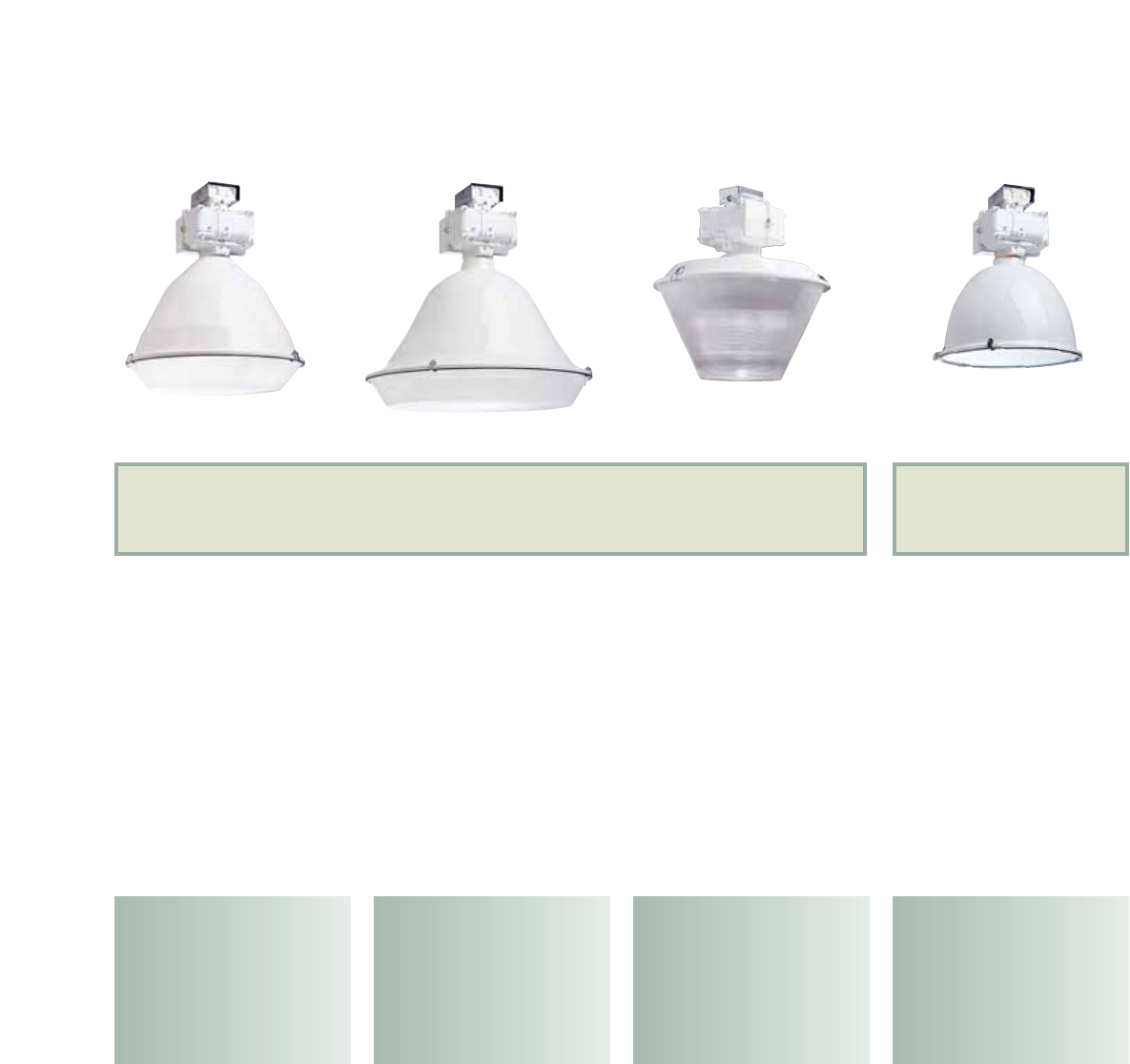

BL-LB1 CH-LM CH-SW* BL-EG

Ideally suited for low to medium

mounting heights, the BL-LB1 Series

offers classic, economical lowbay

lighting: wide distribution and high

vertical illumination. The heavy-

gauge 23" diameter aluminum

reflector features a white Lektrocote®

finish with an attractive acrylic pris-

matic refractor – hinged and latched

for easy relamping.

The 29" BL-LM Series provides

excellent illumination of three-

dimensional visual tasks – combining

low brightness with specification-

grade photometry. Blending the

attractiveness of acrylic with the

performance of lowbay lighting, the

hinged and latched prismatic refractor

provides great visual comfort.

Superwatt®2.0 is designed to deliver

comfortable, high efficiency illumination

for both vertical as well as horizontal

surfaces. With its 2.2:1 spacing-to-

mounting height ratio, it is well-suited

for low and medium mounting height

applications like machine shops,

assembly areas, aisle lighting and

areas requiring three-dimensional,

high illumination.

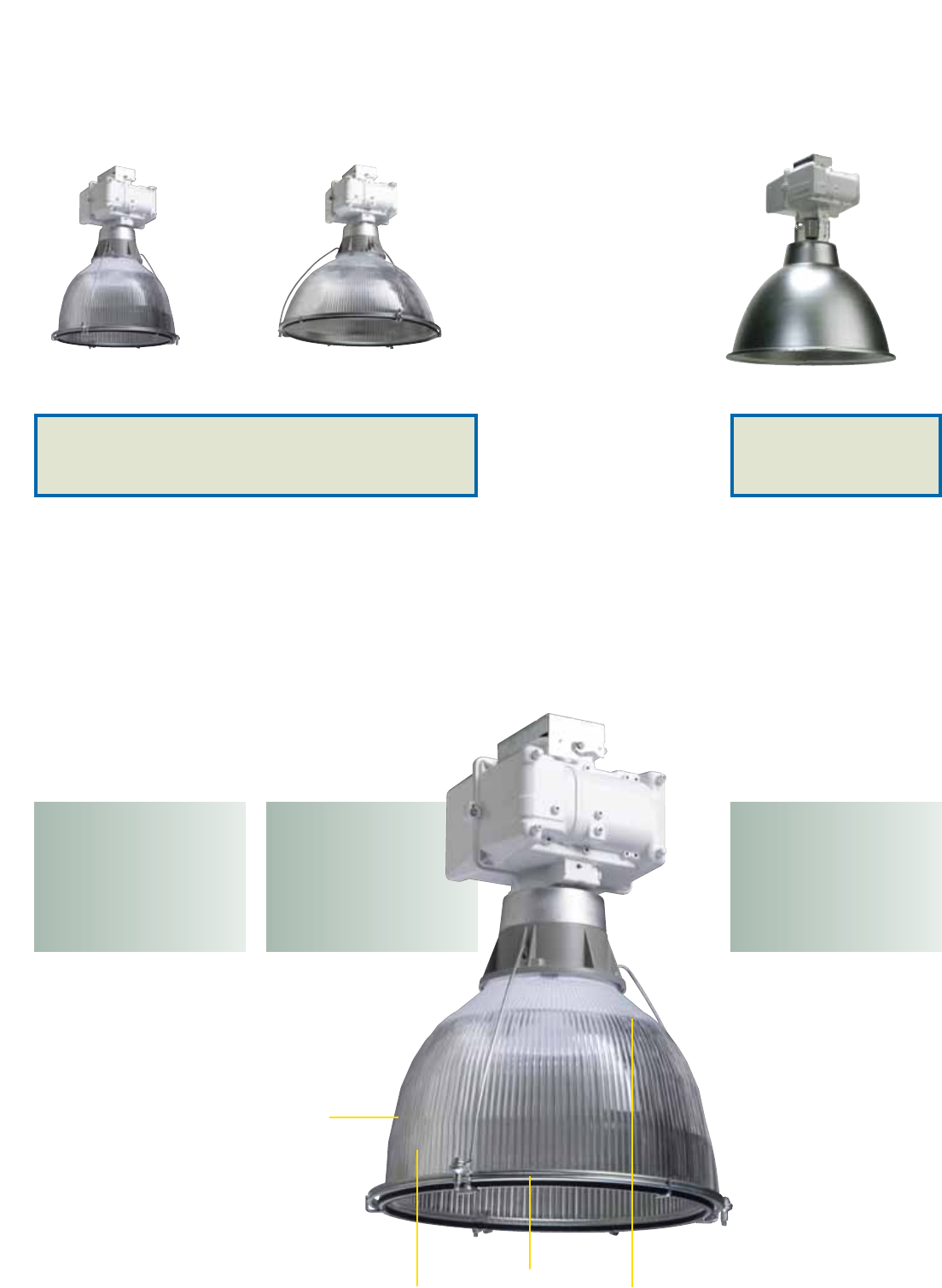

BL-EG

enclosed & gasketed

reflector

DIAMETER

19"

WEIGHT

6.75lbs/3.0kgs

Where dirt and dust particles are

present and can decrease luminaire

efficiency and light output, the BL-EG

Series is the solution. In IES-classified

“very dirty” areas, standard open high-

bay lighting levels can fall as much as

30% in six months. The BL-EG 19"

diameter reflector system blocks

dirt entry to help maintain desired

performance.

The EG Series is designed to

meet specific lighting situations

in the industrial setting.

Enclosed & Gasketed

UP TO 450 WATT

SUPERBAY BALLAST HOUSING

ORDERING INFORMATION

SPECIFICATIONS

• Rugged, two-piece, die cast aluminum ballast housing with corrosion

resistant Lektrocote®white finish.

• Electrical components are mounted directly to the aluminum housing

for cool operation and long life.

SPECIFICATIONS 150-450 WATT

• Fits with any of fifteen different optical systems.

• Ballasts are high power factor with 180° Class H insulation.

SPECIFICATIONS 750 WATT PULSE SMART

• Uses new 750 watt Pulse Start lamp.

• Fits with any of SEVEN different optical systems.

• Must use GE lamps: Hubbell #261-0726-9901 clear

#261-0722-9901 coated

SPECIFICATIONS 1000 WATT

• Fits with any of four different optical systems.

• Ballasts are high power factor with 180° Class H insulation.

LISTINGS

• Superbay ballast housings are certified to UL 1598, CSA 22.2

No. 250.0-00 and tested to 55°C ambient operation.

• 1000 watt Superbay ballast housing is certified to CSA 22.2 (35°C

ambient operation).

• Suitable for damp locations.

ORDERING INFORMATION 150-450 WATT

BLA - 400 - H - 8 - WH

ORDERING EXAMPLE

Series Source Voltage ColorWattage

SERIES

BLA Superbay Series

WATTAGE

150 150 watt Pulse Start MH or HPS

175 175 watt MH or Pulse Start MH

200 200 watt Pulse Start MH only

250 250 watt MH, Pulse Start MH or

HPS

320 320 watt Pulse Start MH only

350 350 watt Pulse Start MH or

Electro-Reg®

400 400 watt MH, Pulse Start MH,

HPS or Electro-Reg®

450 450 watt Pulse Start MH only

SOURCE

HMetal Halide

SHigh Pressure Sodium

WPulse Start Metal Halide

EElectro-Reg® (40°C)

VOLTAGE

1120V Electro-Reg®

2208V Electro-Reg®

3240V Electro-Reg®

4277V Electro-Reg®

5480V Electro-Reg®

6Tri-Tap®- 120/277/347V

(not available on Electro-Reg®

7600V (isolated secondary only)

8Quad-Tap®(multi-tap) -

120/208/240/277V

(not available on Electro-Reg®

F347V (single voltage only)

COLOR

WH White (standard)

GR Gray (optional)

NOTE: MV lamp will operate on MH ballast.

NOTE: Energy Saving Linear Reactor Pulse Start ballast available, consult factory. 277V only)

NOTE: Options must be added as suffix to Catalog Number. Accessories must be ordered separately.

ORDERING INFORMATION 1000 WATT

BLA - 1000 - H - 8 - WH

ORDERING EXAMPLE

Series Source Voltage ColorWattage

SERIES

BLA Superbay Series

WATTAGE

1000 1000 watt MH, Pulse Start MH

or HPS

SOURCE

HMetal Halide

SHigh Pressure Sodium

WPulse Start Metal Halide

VOLTAGE

5480V

6Tri-Tap®- 120/277/347V

8Quad-Tap®(multi-tap) -

120/208/240/277V

COLOR

WH White (standard)

GR Gray (optional)

NOTE: Options must be added as suffix to Catalog Number. Accessories must be ordered separately.

ORDERING INFORMATION 750 WATT PULSE SMART

BL - 750 - Q - 4 - LM - WH

ORDERING EXAMPLE

Series Source Voltage ColorWattage Optics

SERIES

BL Superbay Series

WATTAGE

750 750 watt Quasi Resonant MH

SOURCE

QQuasi Resonant Metal Halide

VOLTAGE

41277V

OPTICS

LM 29" Lowbay (40°C)

SD 19" Reflector with downlight

(55°C)

SU 19" Reflector with uplight

(55°C)

WA22 22" Clear Prismatic Acrylic

(30°C)

CH-OU60 23" Reflector with uplight

(55°C)

(requires BL-FLUSH-MT-KIT)

WA25 25" Clear Prismatic Acrylic

(35°C)

EG 19" Spun Aluminum Highbay

(55°C)

COLOR

WH White (standard)

GR Gray (optional)

FEATURES

Two-piece, die cast aluminum. Corrosion resistant Lektrocote®finish.All elec-

trical components mounted directly to the ballast module for maximum heat

dissipation and cooler operation.

Open 14" highbay, enclosed 23" lowbay or 22" acrylic. Field-adjustable

brackets provide multiple lighting distributions. Lamp standard MH or HPS.

400 watt MH - clear (coated with 22" acrylic). 400 watt HPS - clear (coated

with 22" acrylic).

Quad-Tap®ballast or new five tap (120/240/277/480V) ballast now available

on Superbay Unit Packs. UL and CSA approved for 55°C ambient operation.

Suitable for damp locations.

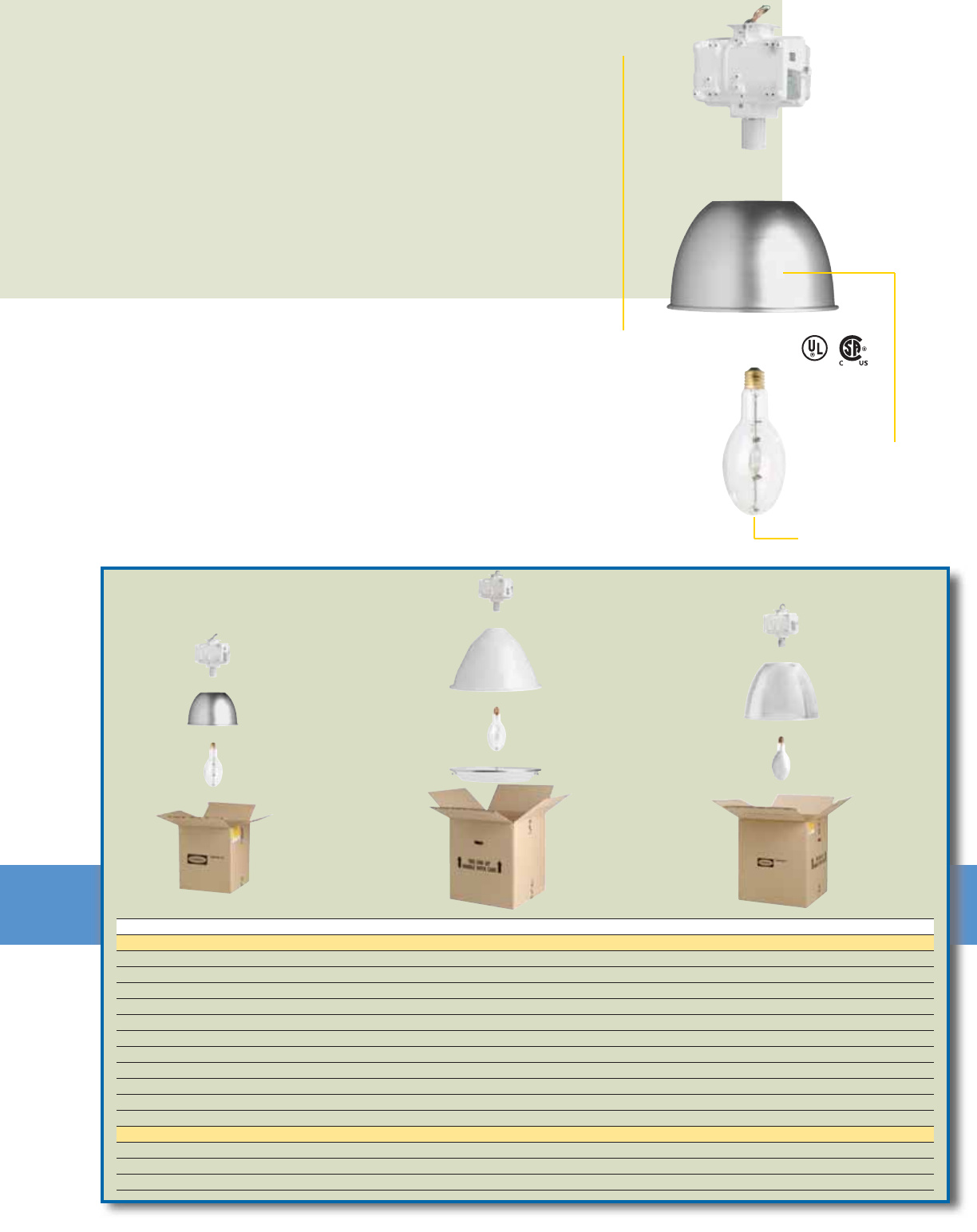

SUPERBAY

UNIT PACK WITH LAMP

400W MH OR

400W HPS LAMP

CHOICE OF 14" BI,

22" WA OR 23" LB1

400W QUAD-TAP®BALLAST

HOUSING WITH STANDARD

QUICK-ON®MOUNTING BOX

ORDERING INFORMATION

Aluminum Highbay

Enclosed Lowbay

LB1

Acrylic Highbay

mogul

lamp

base

ORDERING INFORMATION

Catalog Number Wattage Voltage Lamp Base Lamp Included

METAL HALIDE

BL400H8-BC-EX-UP 400 Quad-Tap®Exclusionary Mogul Less Lamp

BL400H8-BC-EX-UPL 400 Quad-Tap®Exclusionary Mogul Lamp Included

BL400H8-WA-EX-UP 400 Quad-Tap®Exclusionary Mogul Less Lamp

BL400H8-WA-EX-UPL 400 Quad-Tap®Exclusionary Mogul Lamp Included

BL400HV-BC-EX-UP 400 Five Tap Exclusionary Mogul Less Lamp

BL400HV-BC-EX-UPL 400 Five Tap Exclusionary Mogul Lamp Included

BL400HV-WA-EX-UP 400 Five Tap Exclusionary Mogul Less Lamp

BL400HV-WA-EX-UPL 400 Five Tap Exclusionary Mogul Lamp Included

BL400H8WHBCUPL 400 Quad-Tap®Mogul Lamp Included

BL400H8WHLB1UPL 400 Quad-Tap®Mogul Lamp Included

BL400H8WHWAUPL 400 Quad-Tap®Mogul Lamp Included

HIGH PRESSURE SODIUM

BL400S8WHBCUPL 400 Quad-Tap®Mogul Lamp Included

BL400S8WHLB1UPL 400 Quad-Tap®Mogul Lamp Included

BL400S8WHWAUPL 400 Quad-Tap®Mogul Lamp Included

FEATURES

Superbay RO Series consists of three parts detailed below.To make a complete

unit, you must order an optical assembly, a ballast assembly and a

remote/offset optical mounting bracket. It accepts any of the Superbay optical

systems. Ideal for applications requiring low profile luminaires or remote

mounting of ballasts. For highbays, lowbays, prismatic refractors, aisle

lighters, and enclosed and gasketed fixtures. All of the electrical and mechanical

features and benefits of Superbay luminaires are retained in the Superbay RO.

Up to 55°C ambient. Suitable for damp location.

SUPERBAY

REMOTE SERIES

SAME FEATURES AND

BENEFITS OF SUPERBAY

LUMINAIRES

CHOOSE FROM ONE OF

14 OPTICS AVAILABLE

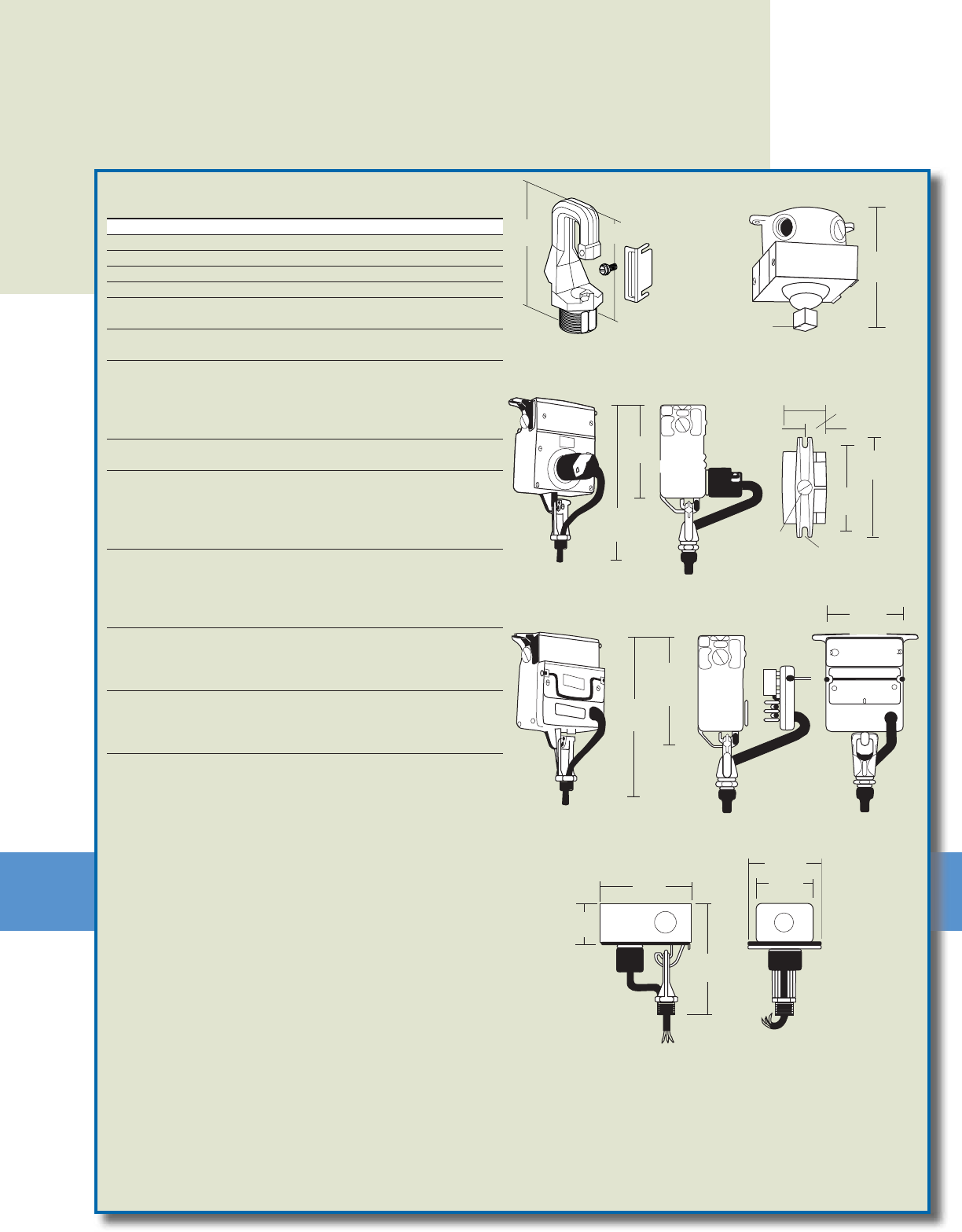

DIMENSIONS

179 mm

BALLAST 101/2"

267 mm

LM 261/2"

673 mm

PA2 201/4"-221/2"

514-571 mm

WA22, WD22, 231/4"-251/2"

WW22 591-648 mm

WA25 233/4"-26"

603-660 mm

AL, SD, SU 21"-231/4"

533-591 mm

BI 193/4"-22"

502-559 mm

EG 201/4"

514 mm

LB1 241/2"

622 mm

ORDERING INFORMATION

ORDERING EXAMPLE

OPTICAL ASSEMBLY

ORDERING EXAMPLE BALLAST ASSEMBLY

REMOTE/OFFSET OPTICAL

MOUNTING BRACKET

Catalog # Weight

lbs. (kg)

RO-XX-X-BL 5 (2.3)

All HPS & 175W,

250W & 320W MH

RO-40-H-BL

350W, 400W 450W 5 (2.3)

& 750W MH only

Series Optical

Assembly

BL - AL Series Source Color RemoteVoltageWattage

BL - 25 - E - 1 - WH - RO

SERIES

BL Superbay

OPTICAL ASSEMBLY

AL Aisle Lighter

BI 14" Spun Aluminum

Reflector

EG Enclosed and

Gasketed

LB1 23" Lowbay Optics

PA2 16" Clear Acrylic

Reflector

SD 19" Reflector with

downlight

SU 19" Reflector with

uplight

LM 29" Lowbay

WA 22" Acrylic Reflector

SERIES

BLA Superbay

WATTAGE

150 150 watt Pulse Start MH or HPS

175 175 watt MH or Pulse Start MH

200 200 watt Pulse Start MH only

250 250 watt MH, Pulse Start MH, or HPS

320 320 watt Pulse Start MH only

350 350 watt Pulse Start MH or Electro-Reg®

400 400 watt MH, Pulse Start MH, HPS or

Electro-Reg®

450 450 watt Pulse Start MH only

SOURCE

HMetal Halide

SHigh Pressure Sodium

WPulse Start Metal Halide

EElectro-Reg® (40°C)

VOLTAGE

1120V Electro-Reg®

2208V Electro-Reg®

3240V Electro-Reg®

4277V Electro-Reg® and Linear Reactor

5480V

6Tri-Tap®- 120/277/347V (not avail. on Electro-Reg)

Quad-Tap®(multi-tap) -120/208/240/277V

(not available on Electro-Reg®)

F347V (single voltage only)

COLOR

WH White (standard)

GR Gray (optional)

REMOTE

RO Remote Ballast Housing

NOTE: MV lamp will operate on MH ballast.

NOTE: Linear Reactor Pulse Start ballast available, 277V

only. Consult factory.

NOTE: Options must be added as suffix to Catalog Number.

Accessories must be ordered separately.

NOTE: Complete with Hook/Loop,

36" cord, and 15A

Twist-Lock

plug.

NOTE: Do not substitute for

mogul

lamp

base

Managing energy has become a vital activity for every business and the

installation of energy saving devices is not only necessary, but also essential to

any company’s bottom line. Hubbell’s Light Bat HID Dual-Level Switching

System is an effective and easy-to-implement solution to save energy and

significantly lower operating costs. Installations can achieve up to a 40%

reduction in electricity cost with extended ballast and capacitor life.

DIM HID LAMPS TO SAVE ENERGY AND THE ENVIRONMENT

Power to HID lamps can be safely reduced to 50% of nominal output with no

degradation of lamp life and then switched instantly to full power when

required. Hubbell offers a complete line of HID control products that operate

175 to 1,650 watt metal halide, pulse start metal halide, and high pressure

sodium lamps. Enormous savings are possible, especially in applications like

warehouses, where full lamp brilliance is only required occasionally.

Hubbell has designed a simple-to-install system that includes everything

required to have dual-level operation with occupancy sensing.Your lamps will only

operate at full power, instantly, when they are actually needed.

LIGHT BAT G2

DUAL-LEVEL CONTROL

AN HID FIXTURE THAT SAVES ENERGY

CONNECTS TO BALLAST

The Light Bat Dual-Level Control System

The Light Bat Dual-Level Control System is an integrated digital HID dual-level

switching controller and sensor. One sensor comes with every fixture and

is plugged into a Myzer port connector. Complex wiring and setup is eliminated,

and can thereby reduce the total installed cost (materials and labor) by

over 50%.

Energy savings can be maximized with sensors at every fixture. Only Hubbell’s

new advanced dual-level switching system will reliably operate with short,

one-minute timer settings. This is a key requirement to reduce energy by over

40%, even in the busiest of warehouses.The Light Bat Dual-Level Control features

the following:

• One sensor per fixture for maximum savings

• Best sensing performance

• Lowest installed cost for combination dual-level switching

and motion sensing

• Options available for easy interface to photocell controls

CONTROL DESCRIPTION

FIXTURE ORDERING INFORMATION

LB-1

• Controls the following lamp types and wattages at 65°C:

175W MH 175W, 200W pulse start MH

LB-2

• Controls the following lamp types and wattages:

250W, 320W, 350W, 400W MH @ 65°C

250W, 320W, 350W, 400W, 450W pulse start MH @ 65°C

250W HPS @ 65°C

400W HPS @ 55°C

LB-3

• Controls the following lamp types and wattages at 55°C, 30 minute

lamp warm up cycle:

1000W, 1500W, 1650W MH 750W, 1000W pulse start MH

600W, 1000W HPS

ORDERING EXAMPLE

XXXXX XXX

Series Wattage Source Optics

Color

Options

LIGHT BAT MYZER PORT IS

ORDERED AS AN INSTALLED

OPTION

HID Fixture

Capacitor

Myzer

Port

Connector

(MP)

OPTIONS

SUPERBAY SERIES

OPTIONS FOR SUPERBAY SERIES

Factory installed — order with fixture by adding suffix.

PLUGS ARE TWIST-LOCK

TYPE AS MANUFACTURED BY HUBBELL WIRING DEVICES.

Suffix Description

-CFB Charcoal filter breather

-EM Emergency Circuit Complete w/ Slick-On®hanger - D.C. bayonet

base, 120V quartz socket; for connection by customer to

separate power supply

-GR Gray Lektrocote®Finish on housing; replace -WH in catalog number

-JP Job Pack - master carton packaging of ballast housing to reduce

corrugated waste disposal; for shipment to jobsite only

-LRI1Lower Luminaire Retainer - a snap-in cable on housing secures

reflector to ballast housing

-NMM No Mounting Method - neither Slick-On®nor Quick-On®provided

w/ luminaire. Mounting method must be ordered as an accessory;

option used for applications requiring mounting method

supplied in advance of luminaire

-P High Strength Polycarbonate Refractor

-QSS Quartz Standby System - ON when power is restored,

OFF when HID lamp restrikes. Wattage of quartz lamp (not incl.) may not

exceed wattage of HID lamp (250W max. recommended).

Uses 120V DC bayonet base lamp. Factory wired.

-QST Quartz Standby with Time Delay - ON when power is restored,

OFF when HID lamp restrikes and is warmed up. Wattage

not to exceed wattage of HID lamp (250W max. recommended).

Uses 120V DC bayonet base lamp. Factory wired.

-SLD-1 Switch Level Dimming with 120V control

-SLD-2 Switch Level Dimming with 24V control

-SLD-3 Switch Level Dimming with 120 or 277V control (Direct Control)

-SO Slick-On®Thru Wire Outlet Box for 3/4" pendant or 1/2" or 3/4"

side entry conduit

SLICK-ON®THRU WIRE OUTLET BOX, SINGLE FUSE (incl.)

for 3/4" pendant or side entry conduit

X3= 120V 277V 347V

-SOF (X3)14F

SLICK-ON®THRU WIRE OUTLET BOX, DOUBLE FUSE (incl.)

for 3/4" pendant or side entry conduit (not for Canada)

X4= 208V 240V 480V

-SOFF (X4)235

-TRI(X) Top Luminaire Retainer - chain secures ballast housing to structure

when additional safety precautions are required.Shipped in housing

carton. Specify length (X), recommended maximum slack is 3"

1 Luminaire retainers/safety cables reduce risk of equipment falling

NOTE: For specific applications, bottom enclosures may be required. For more information, please see

specific lamp manufacturers’ data and the NEMA white paper “Best Practices for Metal Halide

Lighting Systems” posted on the NEMA web site (www.nema.org).

WARNING: Improper selection, installation, operation, servicing, removal, and disposal of lighting products

may create serious hazardous including fires, explosions, shock, burns, cuts, impaired vision, falling objects,

and environmental contamination. Reduce risks by using the guidance of licensed professionals throughout

the product life cycle, and following individual product, component, and accessory safety instructions and

labels.

We offer this in the interest of safety for our customers, who may not be aware of the potentially high risk

involved in the misuse of these products.

CORD

LENGTH

416/3 SO cord, four foot long

616/3 SO cord, six foot long

816/3 SO cord, eight foot long

10 16/3 SO cord, ten foot long

12 16/3 SO cord, twelve foot long

HOOK/LOOP

HL Die Cast fixture hook with loop

closure

PLUG

BLANK No plug required, only cord

and hook/loop

PHubbell Twist Loc Plug

MOUNTING BOX

BLANK Standard Quick On mounting

box

SO Optional Slick On mounting

box (must be picked with fuse)

FUSE

BLANK No Fuse

FSingle fuse mounted in

Slick On cover

FF Double fuse mounted in

Slick On cover

VOLTAGE

BLANK No plug required, only cord

and hook/loop

1120v Hubbell Twist loc Plug

2208v Hubbell Twist loc Plug

3240v Hubbell Twist loc Plug

4277v Hubbell Twist loc Plug

5480v Hubbell Twist loc Plug

C347v Canadian Hubbell

Twist loc Plug

PLUG AMPERAGE

BLANK 20 amp Hubbell Twist Loc Plug

15A 15 amp Hubbell Twist Loc Plug

NEMA CONFIGURATIONS

Voltage Description Plugs1Receptacles

NEMA # Plug # NEMA #

20 AMP PLUGS AND RECEPTACLES

120 2 pole, 3 wire grounding L5-20P 2311 L5-20R

208 2 pole, 3 wire grounding L6-20P 2321 L6-20R

240 2 pole, 3 wire grounding L6-20P 2321 L6-20R

277 2 pole, 3 wire grounding L7-20P 2331 L7-20R

480 2 pole, 3 wire grounding L8-20P 2341 L8-20R

15 AMP PLUGS AND RECEPTACLES

120 2 pole, 3 wire grounding L5-15P 4720C L5-15R

208 2 pole, 3 wire grounding L6-15P 4570C L6-15R

240 2 pole, 3 wire grounding L6-15P 4570C L6-15R

277 2 pole, 3 wire grounding L7-15P 4770C L7-15R

NOTE: All plugs used are manufactured by Hubbell Wiring Device Division.

1 CSA Certified.

DEAD FRONT PLUG OFFERINGS

DFP1SO F F2X Catalog

w/ Slick-On®Single Double Voltage Number

Hanger Fuse Fuse

DFP 1 (120V) DFP1

DFP 4 (277V) DFP4

DFP 5 (480V) DFP5

DFP SO 1 (120V) DFPSO1

DFP SO 4 (277V) DFPSO4

DFP SO 5 (480V) DFPSO5

DFP SO F 1 (120V) DFPSOF1

DFP SO F 4 (277V) DFPSOF4

DFP SO F 5 (480V) DFPSOF5

DFP SO F F 1 (120V) DFPSOFF1

DFP SO F F 4 (277V) DFPSOFF4

DFP SO F F 5 (480V) DFPSOFF5

1 Dead Front Plug includes Cord, Loop and Dead Front Disconnect Plug with Quick-On

Hanger –

15" SO cord factory wired to fixture; order with

PHS-XXXL

(see mounting accessories).

2 Not for Canada.

FIXTURE CORD LOGIC

- C4HLPSOF415A

ORDERING EXAMPLE

Cord Hook/Loop Plug Mounting

Box

Length Fuse Voltage Plug

Amperage

POPULAR CORD SET OPTIONS

C4HLP1

C4HLP4

C4HLP1-15A

C4HLP4-15A

ACCESSORIES

SUPERBAY SERIES

ORDERING INFORMATION

ACCESSORIES

(order separately)

Catalog # Description

B-LLR1Lower Luminaire Retainer - 2' cable secures reflector to

ballast housing

B-TLR(6)16' Top Luminaire Retainer - chain secures ballast housing to

structure when additional safety precautions are required

B-TLR(10)110' Top Luminaire Retainer - chain secures ballast housing to

structure when additional safety precautions are required

B-TLR(12)112' Top Luminaire Retainer - chain secures ballast housing to

structure when additional safety precautions are required

B-TLR(16)116' Top Luminaire Retainer - chain secures ballast housing to

structure when additional safety precautions are required

BL-Flush-Mt-Kit Adapter Bracket for mounting BL-WA22/WA22 or BL-WA25/WA25

reflector flush to the bottom of the Superbay ballast housing

BL-LR-142Tempered Glass Lens - thermal shock & impact resistant;

gasketed on corrosion-resistant steel lens ring (not dust tight)

required for 175, 250, 320 & 350 watt metal halide luminaires;

for BI reflector only

BL-LR-192Tempered Glass Lens - thermal shock & impact resistant;

gasketed on corrosion-resistant steel lens ring (not dust tight)

required for 175, 250, 320 & 350 watt metal halide luminaires;

for SU, SD & AL reflector only

BL-PK-ENC2Flat 1/8" Acrylic Lens for PA2 16" reflector; required with

175, 250, 320 & 350 watt metal halide

BL-QO Quick-On 3/4" pendant mount

BL-SO Slick-On Thru Wire Outlet Box for 3/4" pendant or

3/4,1/2 side entry conduit

BL-SOF Slick-On Single Fusing (fuse not incl.) thru wire outlet box for 3/4"

pendant or 3/4,1/2side entry conduit mount with single fuse holder

CH-ENC-23 Tempered Glass Lens Door for open 23"

FWG Full Wire Guard for acrylic reflectors

HG-FWG Full Wire Guard for glass reflectors

BL-SOFF Slick-On Double Fusing (fuses not incl.) thru wire outlet box for

3/4" pendant or 3/4,1/2 side entry conduit mount with double

fuse holder (not for Canada)

HGENC16 Flat Glass Bottom Enclosure for the HGE16 & HGO16

HGENC22 Flat Glass Bottom Enclosure for the HGE22 & HGO22

WA2-ENC 22" Flat Acrylic Lens for WA acrylic reflector - 1/8" acrylic lens

(40°C maximum operating temperature with lens in place in

reflector)

WA25-ENC225" Acrylic Lens, corrosion-resistant steel lens ring (not dust

tight) required for 175, 250, 320 & 350 watt metal halide

luminaires; for WA25 reflector only (not for 1000 watt)

WA22-CDL222" Conical Acrylic Lens - conical drop lens for WA acrylic

reflector (40°C maximum operating temperature with lens in

place in reflector)

WA22-DLR2Dropped Lowbay Refractor Lens - for 22" WA reflector (40°C

maximum operating temperature with lens in place in reflector)

WA25-DLR2Dropped Lowbay Refractor Lens - for 25" WA reflector (40°C

maximum operating temperature with lens in place in reflector)

WG-14 14" Wireguard - corrosion resistant, welded steel w/ center

lamp access; can be used in combination with BL-LR-14

WG-16 16" Wireguard - corrosion resistant, welded steel w/ center

lamp access

WG-19 19" Wireguard - corrosion resistant, welded steel w/ center

lamp access

WG-23 23" Wireguard - corrosion resistant, welded steel w/ center

lamp access

WG-25 25" Wireguard - corrosion resistant, welded steel w/ center

lamp access

WG-29 29" Wireguard - corrosion resistant, welded steel w/ center

lamp access

1 Luminaire retainers/safety cables reduce risk of equipment falling.

2 Bottom enclosures are required unless lamps designated as “suitable for open use” are used.

CDL

CONICAL ACRYLIC LENS

DLR

DROP LOWBAY REFRACTOR

TLR

TOP LUMINAIRE RETAINER

BL-LR

TEMPERED GLASS LENS

WIRE GUARD

ENC

FLAT ACRYLIC LENS

FWG

FULL WIRE GUARD

FOR ACRYLIC REFLECTORS

HG-FWG

FULL WIRE GUARD

FOR GLASS REFLECTORS

ORDERING INFORMATION

MOUNTING ACCESSORIES

(order separately)

PLUGS ARE TWIST-LOCK®TYPE AS MANUFACTURED BY HUBBELL WIRING DEVICES.

Catalog # Description

BLA-C4HLP-1 4' Cord, Hook/Loop and 120V 20A Twist-Lock®Plug

BLA-C4HLP-4 4' Cord, Hook/Loop and 277V 20A Twist-Lock®Plug

BLA-C4HLP1-15A 4' Cord, Hook/Loop and 120V 15A Twist-Lock®Plug

BLA-C4HLP4-15A 4' Cord, Hook/Loop and 277V 15A Twist-Lock®Plug

HOOK/LOOP1Hook - cast aluminum 3/4" NPS male; includes safety screw;

converts to Loop with strap included

H3/4AL3/41Swivel Aligner - complete with box for thru wiring; all hubs tapped

for 3/4" conduit - 25° swivel

PHE-XXX1Die Cast Aluminum Power Hook with 20A Twist-Lock®

Receptacle - ceiling or 3/4" pendant mount, with 3/4" side entry

for thru wiring 15" Cord, Hook/Loop & Twist-Lock® Plug

(20 amp) included
