12-1
© 2012 Schneider Electric
All Rights Reserved
12 BUSWAY

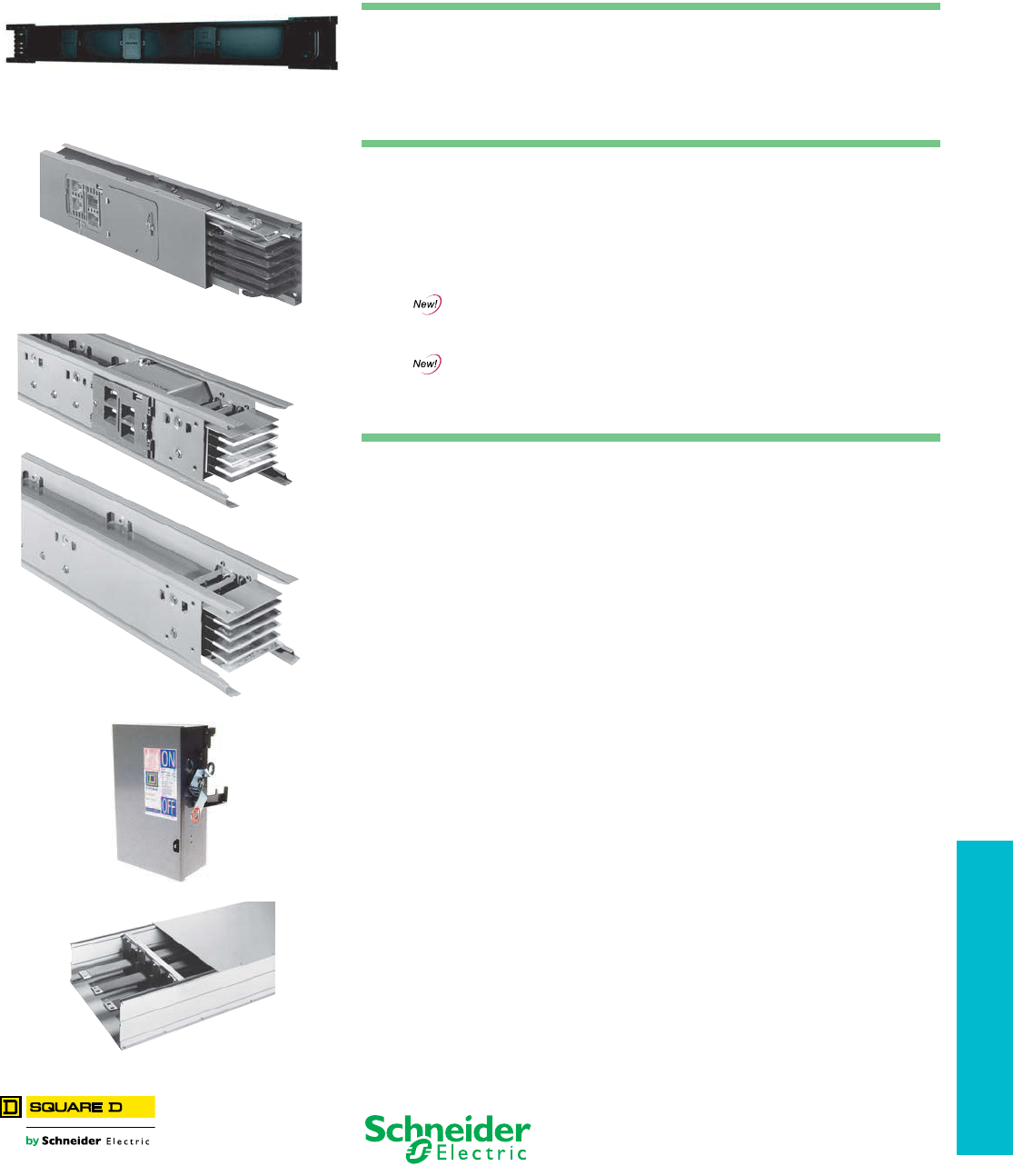

Table of Contents
Section 12
Busway
Distinct service advantages make your Busway installation “hassle-free”
Missing Link program guarantees shipment in a maximum of 5 working days of a small quantity
of indoor feeder straight lengths and fittings. Orders for outdoor busway or for international
destinations may require 2 extra days for processing.
Measurement Services are offered for your critical and complex projects. Schneider Electric
will assist with field measurement and assume responsibility for the layout and exact fit of all
components. Contact your local Schneider Electric sales office for exact details.
Emergency Service; we are on call 24 hours a day, 7 days a week, 365 days a year. For
emergencies, call 1-888-SquareD (1-888-778-2733).
Quick Ship program provides product availability for time sensitive orders. The program is
available through the product selectors and offers a limited selection of I-Line busway footage and
fittings. Contact your local Schneider Electric sales office for exact details.
Powerbus 100–400 A pp. 12-2
I-Line Plug-in Busway 225–600 A pp. 12-4
I-Line II Busway 800–5000 A pp. 12-5
I-Line Plug-In Units pp. 12-9
Power-Zone Busway pp.12-16
Feeder Style
Plug-in Style
PowerbusBusway
400 Ampere—600 Volt 12-2
225 Ampere—600 Volt 12-2
100 Ampere—600 Volt 12-2
Powerbus Plug-In Units 12-3, 12-20
I-Line/ I-Line II Busway
I-Line Busway Standard Components 12-4
I-Line II Busway Standard Components 12-5
I-Line II Pricing Instructions 12-6, 12-7
Accessories 12-8
Plug-In Units (Fusible and Circuit Breaker Types) 12-9, 12-10
PowerPactH- and J-Frame Plug-in Units 12-11
PowerPact H-, J-, and L-Frame Plug-in Units with
Electronic Trip
12-12
PowerPact M-Frame Plug-in Units 12-13
PowerPact P-Frame Plug-in Units 12-14
PowerPact R-Frame Plug-in Units 12-15
Power-Zone Busway
Non-Segregated Busway 12-16
Footage and Fittings 12-17
Options and Accessories 12-18
www.schneider-electric.us
12 BUSWAY
12-2 © 2012 Schneider Electric
All Rights Reserved

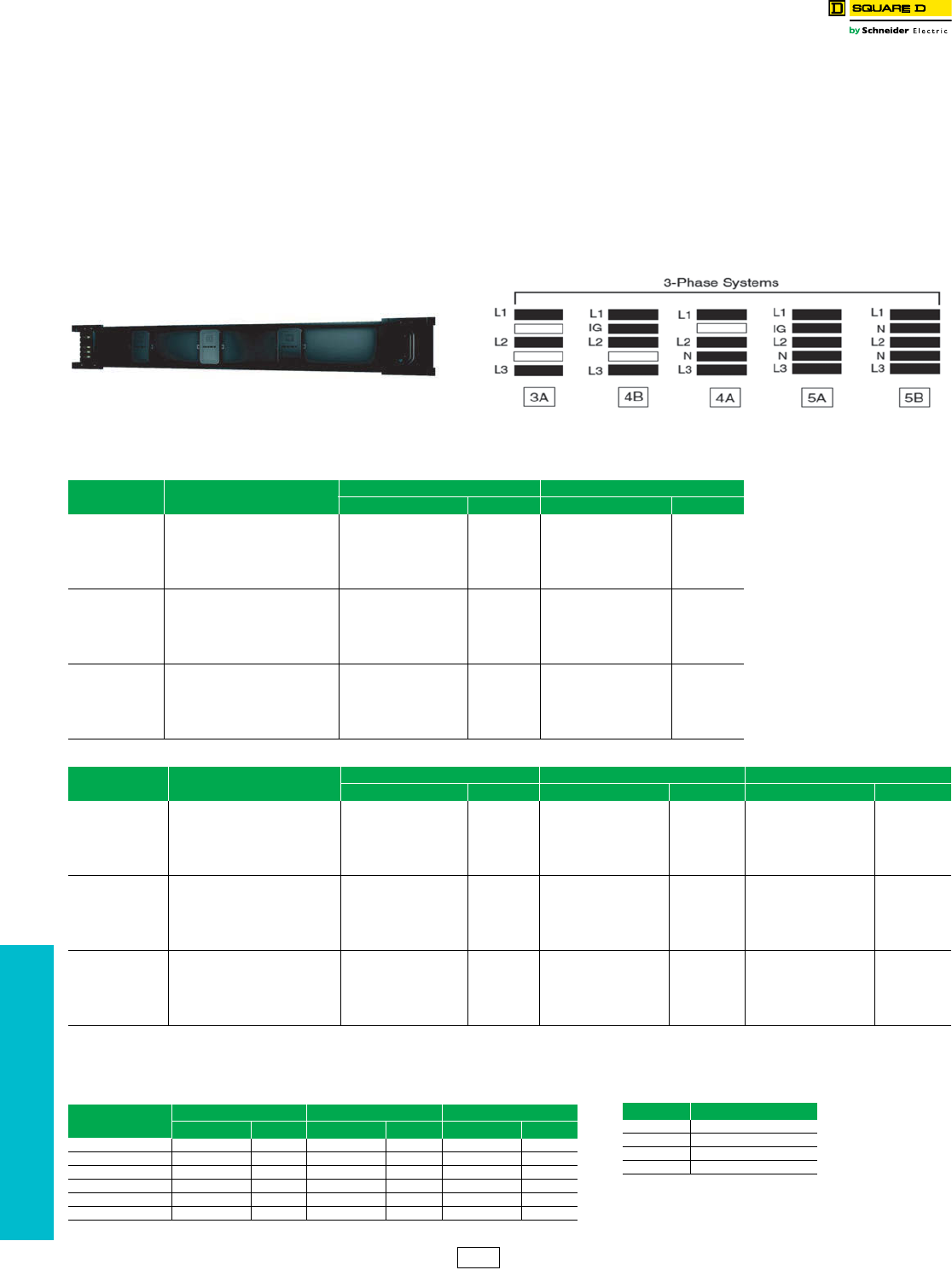

PowerbusTM Busway
Class 5600 / Refer to Catalog 5600CT9101
Powerbus Busway
Construction
Powerbus busway construction consists of a light-weight electrical grade all-aluminum housing with up to five (5) silver-plated copper conductor
bars for maximum electrical efficiency. The total product offer includes straight sections, fittings, accessories, and plug-in units for a total
installation. This busway is available in 400 A, 225 A and 100 A ratings. A 50% integral ground is standard.
Straight Sections
Straight sections of busway are available in 10 ft. and 4 ft. lenghts in a painted black finish. The Enhanced busway offer includes 10 plug-in
openings on each side of a 10 ft. section and 3 plug-in openings on each side of a 4 ft. section.
Metering and Communications Options
Powerbus busway tap boxes and plug-in units are available with optional metering and communication capabilities, which include an integrated
display and the ability to remotely monitor the busway.
Note: Also suitable for DC applications.
aBusway catalog numbers shown include a black painted finish. Contact your local Schneider Electric representative for a natural aluminum finish option.
bReplace the ( ) in the Tap Box w/Meter catalog number with the meter suffix number in the table below. The meter will be configured based on the system voltage.
cFor 100 A busway only, add an additional (L) for top cable access or a (U) for bottom cable access.
Table 12.1: 3Ø3W—Powerbus Straight Lengths and Fittingsa—600 V Maximum
Amperage Component Configuration 3A Configuration 4B
Catalog No. $ Price Catalog No. $ Price
100 A
Enhanced Straight 10 ft. PBCE3A100AST120B 1556.00 PBCE4B100AST120B 1860.00
Enhanced Straight 4 ft. PBCE3A100AST48B 887.00 PBCE4B100AST48B 1105.00
Elbow – Left PBCF3A100ALLB 1344.00 PBCF4B100ALLB 1406.00
Elbow – Right PBCF3A100ALRB 1344.00 PBCF4B100ALRB 1406.00
Cross Fitting PBCF3A100ACRB 1574.00 PBCF4B100ACRB 1660.00
Ta p B ox PBCF3A100ATBB 1962.00 PBCF4B100ATBB 2152.00
Ta p B ox w/ Me t e r bc PBCF3A100ATBM( )B 5207.00 PBCF4B100ATBM( )B 5397.00
225 A
Enhanced Straight 10 ft. PBCE3A225AST120B 2896.00 PBCE4B225AST120B 3570.00
Enhanced Straight 4 ft. PBCE3A225AST48B 1208.00 PBCE4B225AST48B 1475.00
Elbow – Left PBCF3A225ALLB 2044.00 PBCF4B225ALLB 2490.00
Elbow – Right PBCF3A225ALRB 2044.00 PBCF4B225ALRB 2490.00
Cross Fitting PBCF3A225ACRB 2510.00 PBCF4B225ACRB 3060.00
Ta p B ox PBCF3A225ATBB 2600.00 PBCF4B225ATBB 2954.00
Ta p B ox w/ Me t e r bPBCF3A225ATBM( )B 5845.00 PBCF4B225ATBM( )B 6199.00
400 A
Enhanced Straight 10 ft. PBCE3A400AST120B 4690.00 PBCE4B400AST120B 5850.00
Enhanced Straight 4 ft. PBCE3A400AST48B 1976.00 PBCE4B400AST48B 2340.00
Elbow – Left PBCF3A400ALLB 2867.00 PBCF4B400ALLB 3595.00
Elbow – Right PBCF3A400ALRB 2867.00 PBCF4B400ALRB 3595.00
Cross Fitting PBCF3A400ACRB 3760.00 PBCF4B400ACRB 4694.00
Ta p B ox PBCF3A400ATBB 4275.00 PBCF4B400ATBB 4750.00
Ta p B ox w/ Me t e r bPBCF3A400ATBM( )B 7520.00 PBCF4B400ATBM( )B 7995.00
Table 12.2: 3Ø4W—Straight Lengths and Fittingsa—600 V Maximum
Amperage Component Configuration 4A Configuration 5A Configuration 5B
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
100 A
Enhanced Straight 10 ft. PBCE4A100AST120B 1860.00 PBCE5A100AST120B 2319.00 PBCE5B100AST120B 2319.00
Enhanced Straight 4 ft. PBCE4A100AST48B 1105.00 PBCE5A100AST48B 1219.00 PBCE5B100AST48B 1219.00
Elbow – Left PBCF4A100ALLB 1406.00 PBCF5A100ALLB 2212.00 PBCF5B100ALLB 2212.00
Elbow – Right PBCF4A100ALRB 1406.00 PBCF5A100ALRB 2212.00 PBCF5B100ALRB 2212.00
Cross Fitting PBCF4A100ACRB 1660.00 PBCF5A100ACRB 2984.00 PBCF5B100ACRB 2984.00
Tap Box PBCF4A100ATBB 2152.00 PBCF5A100ATBB 2502.00 PBCF5B100ATBB 2502.00
Tap Box w/Meterbc PBCF4A100ATBM( )B 5397.00 PBCF5A100ATBM( )B 5747.00 PBCF5B100ATBM( )B 5747.00
225 A
Enhanced Straight 10 ft. PBCE4A225AST120B 3570.00 PBCE5A225AST120B 4650.00 PBCE5B225AST120B 4650.00
Enhanced Straight 4 ft. PBCE4A225AST48B 1475.00 PBCE5A225AST48B 2456.00 PBCE5B225AST48B 2456.00
Elbow – Left PBCF4A225ALLB 2490.00 PBCF5A225ALLB 3920.00 PBCF5B225ALLB 3920.00
Elbow – Right PBCF4A225ALRB 2490.00 PBCF5A225ALRB 3920.00 PBCF5B225ALRB 3920.00
Cross Fitting PBCF4A225ACRB 3060.00 PBCF5A225ACRB 5408.00 PBCF5B225ACRB 5408.00
Tap Box PBCF4A225ATBB 2954.00 PBCF5A225ATBB 4570.00 PBCF5B225ATBB 4570.00
Tap Box w/MeterbPBCF4A225ATBM( )B 6199.00 PBCF5A225ATBM( )B 7815.00 PBCF5B225ATBM( )B 7815.00
400 A
Enhanced Straight 10 ft. PBCE4A400AST120B 5850.00 PBCE5A400AST120B 7150.00 PBCE5B400AST120B 7150.00
Enhanced Straight 4 ft. PBCE4A400AST48B 2340.00 PBCE5A400AST48B 2860.00 PBCE5B400AST48B 2860.00
Elbow – Left PBCF4A400ALLB 3595.00 PBCF5A400ALLB 5145.00 PBCF5B400ALLB 5145.00
Elbow – Right PBCF4A400ALRB 3595.00 PBCF5A400ALRB 5145.00 PBCF5B400ALRB 5145.00
Cross Fitting PBCF4A400ACRB 4694.00 PBCF5A400ACRB 6565.00 PBCF5B400ACRB 6565.00
Tap Box PBCF4A400ATBB 4750.00 PBCF5A400ATBB 6705.00 PBCF5B400ATBB 6705.00
Tap Box w/MeterbPBCF4A400ATBM( )B 7995.00 PBCF5A400ATBM( )B 9950.00 PBCF5B400ATBM( )B 9950.00
Table 12.3: Accessories
Description 100 A 225 A 400 A
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
Standard Hanger PB100FH 50.00 PB225FH 80.00 PB400FH 100.00
Side Mount Hanger PB100HFW 120.00 PB225HFW 120.00 PB400HFW 120.00
Vertical Sway Brace PB100VSB 50.00 PB225VSB 80.00 PB400VSB 100.00
End Closure PB100AEC 120.00 PB225AEC 226.00 PB400AEC 298.00
Wall Flange PB100WF 140.00 PB225WF 196.00 PB400WF 244.00
Plug-in Opening Cover PBPIOCVR 60.00 PBPIOCVR 60.00 PBPIOCVR 60.00
NOTE: Single phase sysstems are also available. Contact your local Schneider Electric
representative.
Meter Suffix System Voltage
1 208Y/120 V 3Ø4W
2 240 V 3Ø3W
4 415/240 V 3Ø4W
5 480Y/277 V 3Ø4W
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-3

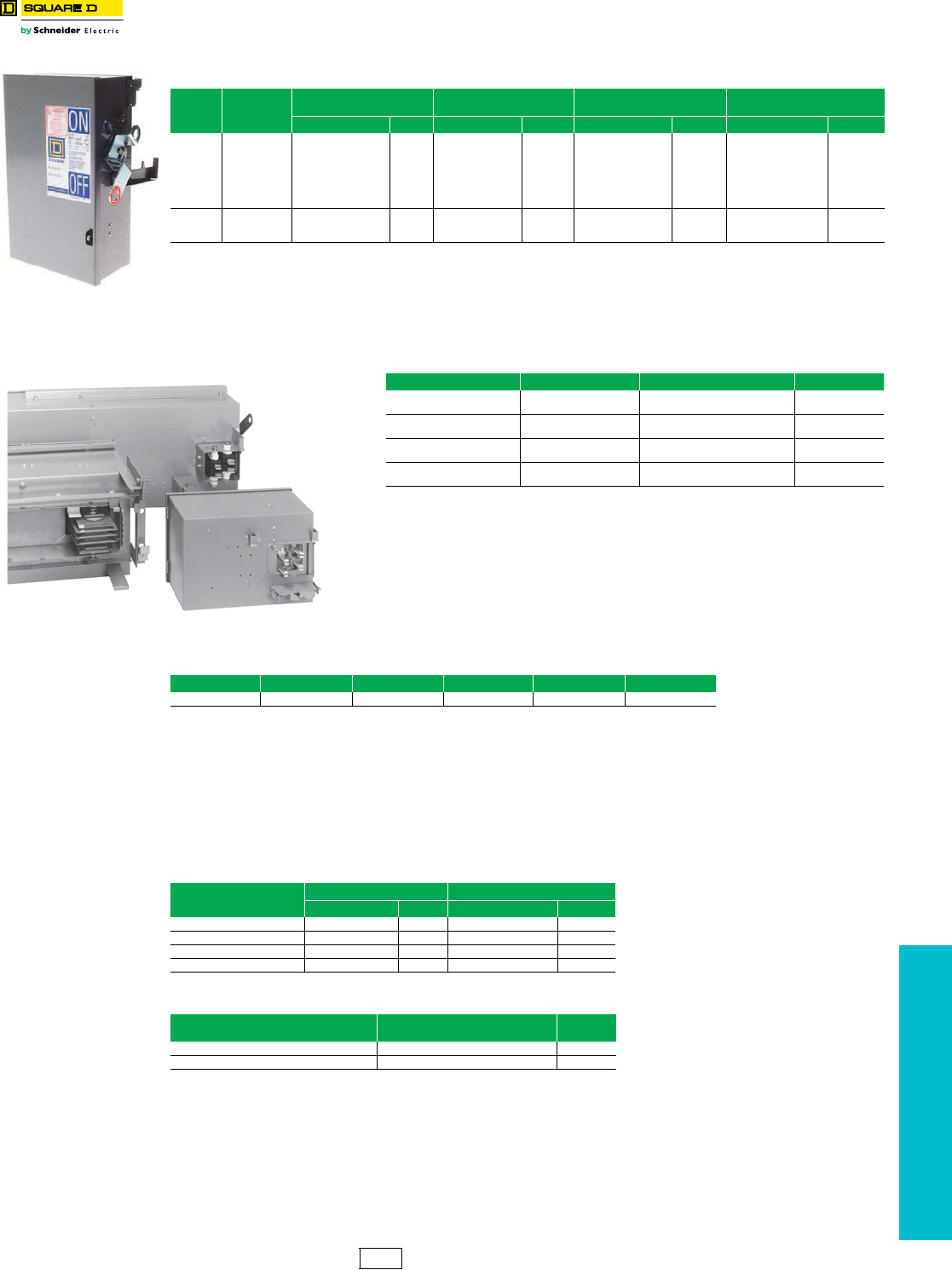

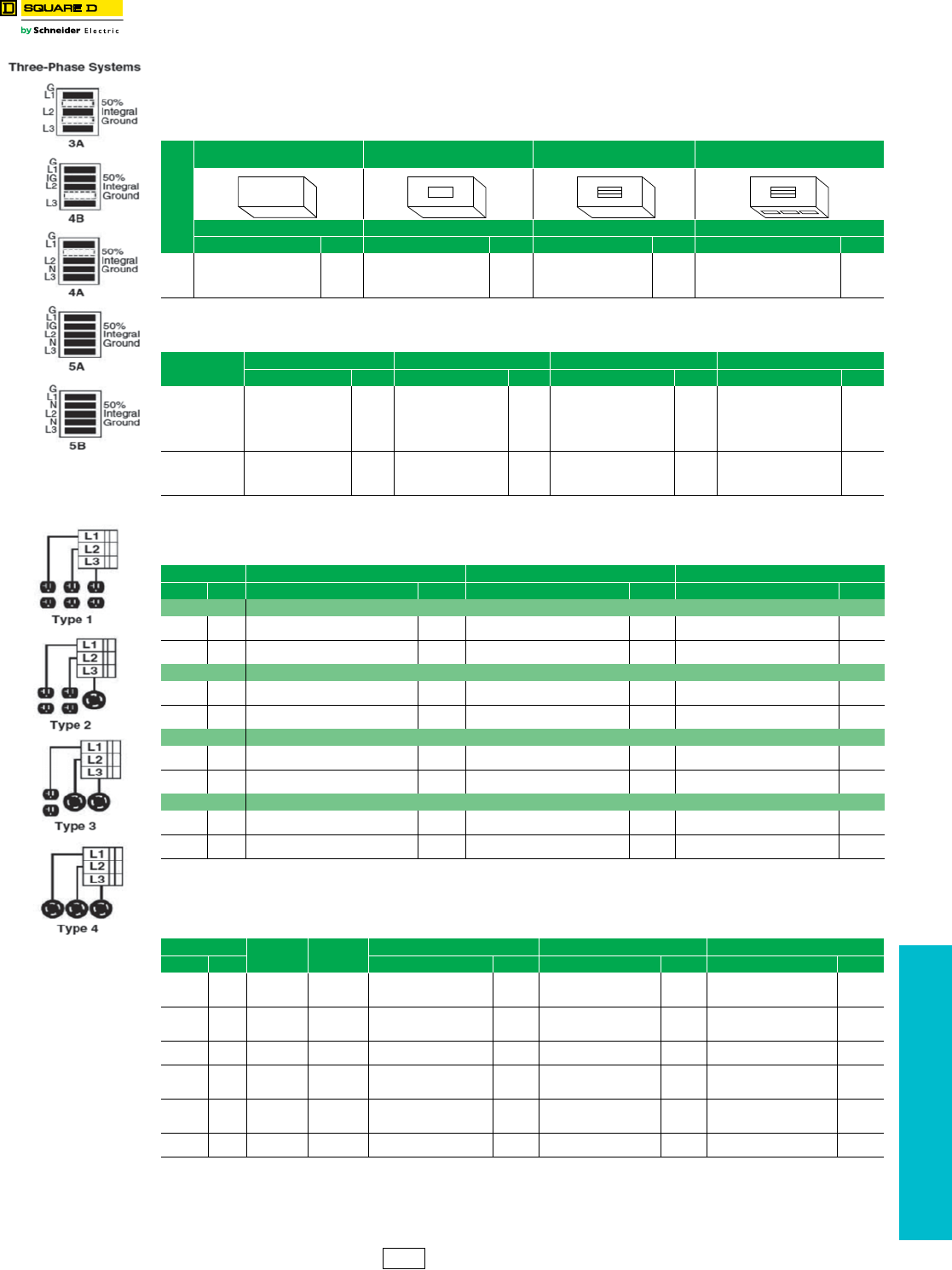

PowerbusTM Busway Plug-In Units
Class 5600 / Refer to Catalog 5600CT9101
Powerbus Plug-in Units
Powerbus plug-in units are rated maximum 100 A and may be offered as field installable or factory assembled units. All units
conform to NEMA type 1. An optional kit is available for FA and QO units to raise the protection to IP54. This kit raises the
QOR unit to moisture protection of IPX3.
Note: Plug-in tap box to be installed on 100 A and 225 A busways only.
aCertain NEMA receptacles can be field installed in this unit. Consult your local Schneider Electric representative.
Note: See Digest Section 7 for FA circuit breaker information.
aThe 4B configuration catalog numbers are also available and are priced the same as the 4A configuration.
NOTE: Factory Assembled Units with Metering for Powerbus has been moved to page 12-20.
Table 12.4: Plug-In Units— Circuit breakers not included
Busbar
Configuration
Space for One (1)
3 Phase FA Circuit Breaker
3 Spaces for
QO/QOB Circuit Breakers
3 Spaces for QO/QOB Circuit Breakers
3 Openings for ReceptaclesNote:
Tap Box FA Unit QO Unit QOR Unit
Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price
3A PBPTB3A100 614.00 PBPFA3A100 832.00 PBPQO3A100 424.00 PBPQOR3A100 566.00
4B PBPTB4B100 670.00 PBPFA4B100 870.00 PBPQO4B100 452.00 PBPQOR4B100 586.00
4A PBPTB4A100 670.00 PBPFA4A100 870.00 PBPQO4A100 452.00 PBPQOR4A100 586.00
5A PBPTB5A100 782.00 PBPFA5A100 946.00 PBPQO5A100 466.00 PBPQOR5A100 604.00
Table 12.5: Factory Assembled Units with FA Circuit Breakers—600 V max
Circuit Breaker
Rating
3A Configuration 4A Configurationa5A Configuration 5B Configuration
Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price
15 PBPFA3A100A015 1780.00 PBPFA4A100A015 1820.00 PBPFA5A100A015 1978.00 PBPFA5B100A015 1978.00
20 PBPFA3A100A020 1780.00 PBPFA4A100A020 1820.00 PBPFA5A100A020 1978.00 PBPFA5B100A020 1978.00
30 PBPFA3A100A030 1780.00 PBPFA4A100A030 1820.00 PBPFA5A100A030 1978.00 PBPFA5B100A030 1978.00
40 PBPFA3A100A040 1780.00 PBPFA4A100A040 1820.00 PBPFA5A100A040 1978.00 PBPFA5B100A040 1978.00
50 PBPFA3A100A050 1780.00 PBPFA4A100A050 1820.00 PBPFA5A100A050 1978.00 PBPFA5B100A050 1978.00
60 PBPFA3A100A060 1780.00 PBPFA4A100A060 1820.00 PBPFA5A100A060 1978.00 PBPFA5B100A060 1978.00
70 PBPFA3A100A070 1912.00 PBPFA4A100A070 1954.00 PBPFA5A100A070 2124.00 PBPFA5B100A070 2124.00
80 PBPFA3A100A080 1912.00 PBPFA4A100A080 1954.00 PBPFA5A100A080 2124.00 PBPFA5B100A080 2124.00
90 PBPFA3A100A090 1912.00 PBPFA4A100A090 1954.00 PBPFA5A100A090 2124.00 PBPFA5B100A090 2124.00
100 PBPFA3A100A100 1912.00 PBPFA4A100A100 1954.00 PBPFA5A100A100 2124.00 PBPFA5B100A100 2124.00
Table 12.6: 120 V Factory Assembled Units
1-pole QO/QOB circuit breakers with NEMA 5-15R or 5-20R receptaclesa
Circuit Breaker 4A Configuration 5A Configuration 5B Configuration
Rating Type Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price
Type 1 (3 circuit breakers w. 3 duplex receptacles)
15 QO PBPQOR4A100M115 850.00 PBPQOR5A100M115 950.00 PBPQOR5B100M115 950.00
15 QOB PBPQOR4A100M115B 886.00 PBPQOR5A100M115B 986.00 PBPQOR5B100M115B 986.00
20 QO PBPQOR4A100M120 850.00 PBPQOR5A100M120 950.00 PBPQORBA100M120 950.00
20 QOB PBPQOR4A100M120B 886.00 PBPQOR5A100M120B 986.00 PBPQOR5B100M120B 986.00
Type 2 (3 circuit breakers w. 2 duplex/1 locking recpt.)
15 QO PBPQOR4A100M215 862.00 PBPQOR5A100M215 962.00 PBPQOR5B100M215 962.00
15 QOB PBPQOR4A100M215B 898.00 PBPQOR5A100M215B 998.00 PBPQOR5B100M215B 998.00
20 QO PBPQOR4A100M220 862.00 PBPQOR5A100M220 962.00 PBPQOR5B100M220 962.00
20 QOB PBPQOR4A100M220B 898.00 PBPQOR5A100M220B 998.00 PBPQOR5B100M220B 998.00
Type 3 (3 circuit breakers w. 1 duplex/2 locking recpt.)
15 QO PBPQOR4A100M315 874.00 PBPQOR5A100M315 974.00 PBPQOR5B100M315 974.00
15 QOB PBPQOR4A100M315B 910.00 PBPQOR5A100M315B 1010.00 PBPQOR5B100M315B 1010.00
20 QO PBPQOR4A100M320 874.00 PBPQOR5A100M320 974.00 PBPQOR5B100M320 974.00
20 QOB PBPQOR4A100M320B 910.00 PBPQOR5A100M320B 1010.00 PBPQOR5B100M320B 1010.00
Type 4 (3 circuit breakers w. 3 locking receptacles)
15 QO PBPQOR4A100M415 886.00 PBPQOR5A100M415 986.00 PBPQOR5B100M415 986.00
15 QOB PBPQOR4A100M415B 922.00 PBPQOR5A100M415B 1022.00 PBPQOR5B100M415B 1022.00
20 QO PBPQOR4A100M420 886.00 PBPQOR5A100M420 986.00 PBPQOR5B100M420 986.00
20 QOB PBPQOR4A100M420B 922.00 PBPQOR5A100M420B 1022.00 PBPQOR5B100M420B 1022.00
Note: See Digest Section 7 for QOU circuit breaker information.
aMany more factory assembled units are availalbe using combinations of 1P/2P/3P circuit breakers with other NEMA receptacles. Maximum of 3 breaker
spacess available. Consult your local Schneider Electric representative.
Table 12.7: Factory Assembled Units
One (1) QOU circuit breaker and one (1) drop cord with connectora
Circuit Breaker NEMA
Connector
Drop Cord
Length (ft)
4A Configuration 5A Configuration 5B Configuration
Rating Poles Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price
15 A 1L5-15 3PBPQOU4A100COOL515 886.00 PBPQOU5A100COOL515 986.00 PBPQOU5B100COOL515 986.00
20 A 1L5-20 3PBPQOU4A100COOL520 886.00 PBPQOU5A100COOL520 986.00 PBPQOU5B100COOL520 986.00
30 A 1L5-30 3PBPQOU4A100COOL530 896.00 PBPQOU5A100COOL530 996.00 PBPQOU5B100COOL530 996.00
15 A 2L6-15 3PBPQOU4A100COOL615 948.00 PBPQOU5A100COOL615 1048.00 PBPQOU5B100COOL615 1048.00
20 A 2L6-20 3PBPQOU4A100COOL620 948.00 PBPQOU5A100COOL620 1048.00 PBPQOU5B100COOL620 1048.00
30 A 2L6-30 3PBPQOU4A100COOL630 958.00 PBPQOU5A100COOL630 1058.00 PBPQOU5B100COOL630 1058.00
20 A 3L21-20 3PBPQOU4A100COOL2120 1152.00 PBPQOU5A100COOL2120 1252.00 PBPQOU5B100COOL2120 1252.00
30 A 3L21-30 3PBPQOU4A100COOL2130 1162.00 PBPQOU5A100COOL2130 1262.00 PBPQOU5B100COOL2130 1262.00
15 A 1L5-15 6PBPQOU4A100FOOL515 946.00 PBPQOU5A100FOOL515 1046.00 PBPQOU5B100FOOL515 1046.00
20 A 1L5-20 6PBPQOU4A100FOOL520 946.00 PBPQOU5A100FOOL520 1046.00 PBPQOU5B100FOOL520 1046.00
30 A 1L5-30 6PBPQOU4A100FOOL530 956.00 PBPQOU5A100FOOL530 1056.00 PBPQOU5B100FOOL530 1056.00
15 A 2L6-15 6PBPQOU4A100FOOL615 1008.00 PBPQOU5A100FOOL615 1108.00 PBPQOU5B100FOOL615 1108.00
20 A 2L6-20 6PBPQOU4A100FOOL620 1008.00 PBPQOU5A100FOOL620 1108.00 PBPQOU5B100FOOL620 1108.00
30 A 2L6-30 6PBPQOU4A100FOOL630 1018.00 PBPQOU5A100FOOL630 1118.00 PBPQOU5B100FOOL630 1118.00
20 A 3L21-20 6PBPQOU4A100FOOL2120 1212.00 PBPQOU5A100FOOL2120 1312.00 PBPQOU5B100FOOL2120 1312.00
30 A 3L21-30 6PBPQOU4A100FOOL2130 1222.00 PBPQOU5A100FOOL2130 1322.00 PBPQOU5B100FOOL2130 1322.00
Note: See Digest Section 7 for QOU circuit breaker information. Catalog numbers shown have the breaker in the top slot in the front cover and the drop cord in
the left position in the base of the unit. Other combinations are available.
aFactory assembled units are availalbe using combinations of 1P/2P/3P circuit breakers with other NEMA and IEC type receptacles. Maximum of three drop
cords with six breaker spaces available. Consult your local Schneider Electric representative.
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
12-4 © 2012 Schneider Electric
All Rights Reserved

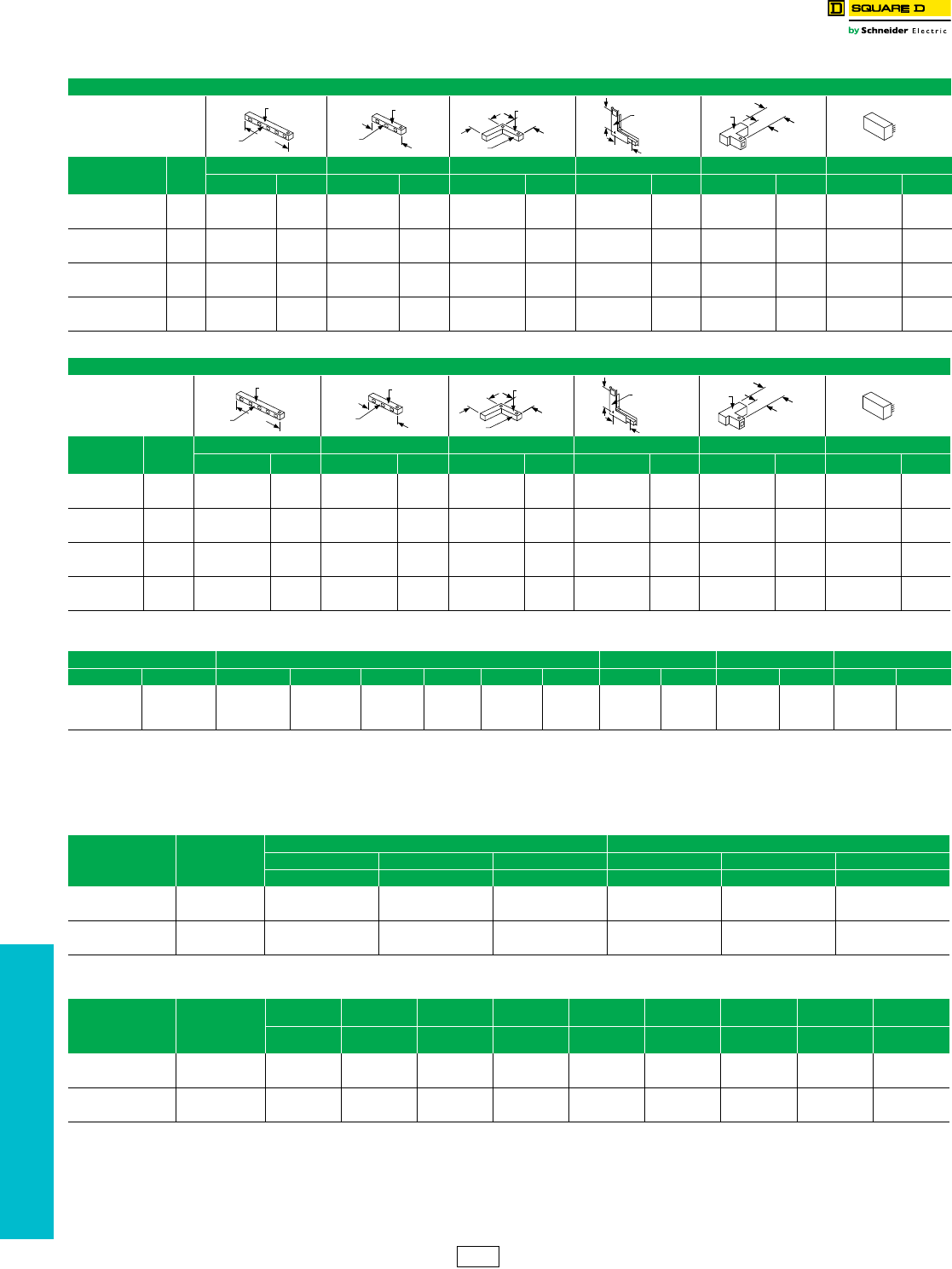

I-LineTM Busway Standard Components
Class 5600 / Refer to Catalog 5600CT9101
aFor seismic applications, seismic hangers must be used with horizontal mount flatwise or edgewise busway. Vertical mount busway may use standard fixed or spring hangers.
“Footage and Fittings” Method of Pricing
NOTE: For fast estimates not requiring catalog numbers, use these charts.
Table 12.8: Standard Components—Aluminum
Aluminum
Number
of Poles
and Voltage
Rating
(A)
10'-0" Length 6'-0" Length Front ElbowaTop ElbowaPlug-In Tee Plug-In Tap Box
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø3W
225
400
600
AP30210
AP30410
AP30610
1900.00
2320.00
2920.00
AP3026
AP3046
AP3066
1140.00
1392.00
1752.00
AP302LF( )
AP304LF( )
AP306LF( )
2048.00
2174.00
2354.00
AP302LT( )
AP304LT( )
AP306LT( )
2048.00
2174.00
2354.00
PTT23WG
PTT33WG
PTT43WG
3060.00
3060.00
3060.00
PTB302G
PBTB306G
PBTB306G
2134.00
4036.00
4036.00
3Ø4W
225
400
600
AP50210
AP50410
AP50610
2320.00
2920.00
3980.00
AP5026
AP5046
AP5066
1392.00
1752.00
2388.00
AP502LF( )
AP504LF( )
AP506LF( )
2496.00
2676.00
2994.00
AP502LT( )
AP504LT( )
AP506LT( )
2496.00
2676.00
2994.00
PTT24WG
PTT34WG
PTT44WG
3726.00
3726.00
3726.00
PTB502G
PBTB506G
PBTB506G
2588.00
4566.00
4566.00
3Ø3W
+ Integral Ground Bus
225
400
600
AP302G10
AP304G10
AP306G10
2520.00
2940.00
3580.00
AP302G6
AP304G6
AP306G6
1512.00
1764.00
2148.00
AP302GLF( )
AP304GLF( )
AP306GLF( )
2234.00
2360.00
2552.00
AP302GLT( )
AP304GLT( )
AP306GLT( )
2234.00
2360.00
2552.00
PTT23WG
PTT33WG
PTT43WG
3060.00
3060.00
3060.00
PTB302G
PBTB306G
PBTB306G
2134.00
4036.00
4036.00
3Ø4W
+ Integral Ground Bus
225
400
600
AP502G10
AP504G10
AP506G10
2940.00
3540.00
4640.00
AP502G6
AP504G6
AP506G6
1764.00
2124.00
2784.00
AP502GLF( )
AP504GLF( )
AP506GLF( )
2682.00
2862.00
3192.00
AP502GLT( )
AP504GLT( )
AP506GLT( )
2682.00
2862.00
3192.00
PTT24WG
PTT34WG
PTT44WG
3726.00
3726.00
3726.00
PTB502G
PBTB506G
PBTB506G
2588.00
4566.00
4566.00
Table 12.9: Standard Components—Copper
Aluminum
Number
of Poles
and Voltage
Rating
(A)
10'-0" Length 6'-0" Length Front ElbowaTop ElbowaPlug-In Tee Plug-In Tap Box
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø3W
225
400
600
CP30210
CP30410
CP30610
2280.00
3460.00
4460.00
CP3026
CP3046
CP3066
1368.00
2076.00
2676.00
CP302LF ( )
CP304LF ( )
CP306LF ( )
2162.00
2516.00
2816.00
CP302LT( )
CP304LT( )
CP306LT( )
2162.00
2516.00
2816.00
PTT23WG
PTT33WG
PTT33WG
3060.00
3060.00
3060.00
PTB302G
PBTB306G
PBTB306G
2134.00
4036.00
4036.00
3Ø4W
225
400
600
CP50210
CP50410
CP50610
3060.00
5080.00
5780.00
CP5026
CP5046
CP5066
1836.00
3048.00
3468.00
CP502LF ( )
CP504LF ( )
CP506LF ( )
2718.00
3324.00
3468.00
CP502LT( )
CP504LT( )
CP506LT( )
2718.00
3324.00
3534.00
PTT24WG
PTT34WG
PTT34WG
3726.00
3726.00
3726.00
PTB502G
PBTB506G
PBTB506G
2588.00
4566.00
4566.00
3Ø3W
+ Integral Ground
Bus
225
400
600
CP302G10
CP304G10
CP306G10
3260.00
4440.00
5480.00
CP302G6
CP304G6
CP306G6
1956.00
2664.00
3288.00
CP302GLF ( )
CP304GLF ( )
CP306GLF ( )
2456.00
2810.00
3122.00
CP302GLT( )
CP304GLT( )
CP306GLT( )
2456.00
2810.00
3122.00
PTT23WG
PTT33WG
PTT33WG
3060.00
3060.00
3060.00
PTB302G
PBTB306G
PBTB306G
2134.00
4036.00
4036.00
3Ø4W
+ Integral Ground
Bus
225
400
600
CP502G10
CP504G10
CP506G10
4040.00
6060.00
6800.00
CP502G6
CP504G6
CP506G6
2424.00
3636.00
4080.00
CP502GLF ( )
CP504GLF ( )
CP506GLF ( )
3012.00
3618.00
3840.00
CP502GLT( )
CP504GLT( )
CP506GLT( )
3012.00
3618.00
3840.00
PTT24WG
PTT34WG
PTT34WG
3726.00
3726.00
3726.00
PTB502G
PBTB506G
PBTB506G
2588.00
4566.00
4566.00
aAdd “I” for inside elbow; add “O” for outside elbow.
Table 12.10: Common Accessories
Ampere Rating Hanger End Closure Wall Flange Floor Flange
Aluminum Copper Flatwise Vertical Edgewise $ Price Seismica$ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
225
400
600
225
400
600
HP2F
HP3F
HP3F
HP5F
HP2V
HP3V
HP3V
HP4V
HP3E
HP3E
HP3E
HP5E
64.00
64.00
64.00
64.00
HP2SH
HP3SH
HP3SH
HP5SH
96.00
96.00
96.00
96.00
ACP2EC
ACP3EC
ACP3EC
ACP4EC
446.00
446.00
446.00
446.00
ACP2WF
ACP3WF
ACP3WF
ACP4WF
418.00
418.00
418.00
418.00
ACP2FF
ACP3FF
ACP3FF
ACP4FF
418.00
418.00
418.00
418.00
Table 12.11: Footage
Number of Poles
and Voltage
Ampere
Rating
Aluminum Busway Footage Copper Busway Footage
Standard High Short Circuit Ground Bus Standard High Short Circuit Ground Bus
$ Price Per Foot $ Price Per Foot $ Price Per Foot Adder $ Price Per Foot $ Price Per Foot $ Price Per Foot Adder
3Ø3W
600 V
225
400
600
190.00
232.00
292.00
292.00
346.00
62.00
62.00
66.00
228.00
346.00
446.00
404.00
500.00
98.00
98.00
102.00
3Ø4W
277/480 V
225
400
600
232.00
292.00
398.00
346.00
446.00
62.00
62.00
66.00
306.00
508.00
578.00
582.00
630.00
98.00
98.00
102.00
Table 12.12: Fittings
Number of Poles
and Voltage
Ampere
Rating
Flanged
End
Elbow
Right Angle Tap Box Tee Unfused
Reducer
Expansion
Fitting
Adapter Cubicle
C/B or Fus.
End
Closures
Fire
Barriers
$ Price
Labor Only
$ Price
Labor Only
$ Price
Labor Only
$ Price
Labor Only
$ Price
Labor Only
$ Price
Labor Only
$ Price
Each
$ Price
Each
$ Price
Each
3Ø3W
600 V
225
400
600
954.00
1098.00
1408.00
1478.00
1478.00
1478.00
2134.00
4036.00
4036.00
1800.00
1800.00
1800.00
930.00
1024.00
2486.00
2800.00
3038.00
10432.00
12312.00
18298.00
446.00
446.00
446.00
764.00
764.00
764.00
3Ø4W
277/480 V
225
400
600
982.00
1128.00
1454.00
1800.00
1800.00
1800.00
2588.00
4566.00
4566.00
2098.00
2098.00
2098.00
1288.00
1404.00
2936.00
3186.00
3634.00
10882.00
12700.00
18890.00
446.00
446.00
446.00
764.00
764.00
764.00
To p
Front 10'-0"
G
PH
PH
PH
N
To p
Front 6'-0"
G
PH
PH
PH
N
Front
To p
1'-6"
1'-6"
G
PH
PH
PH
N
G
PH
PH
PH
N
To p 1'-3"
10"
G
PH
PH
PH
N
G
PH
PH
PH
N
To p
Front 10'-0"
G
PH
PH
PH
N
To p
Front 6'-0"
G
PH
PH
PH
N
Front
To p
1'-6"
1'-6"
G
PH
PH
PH
N
G
PH
PH
PH
N
To p 1'-3"
10"
G
PH
PH
PH
N
G
PH
PH
PH
N
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-5

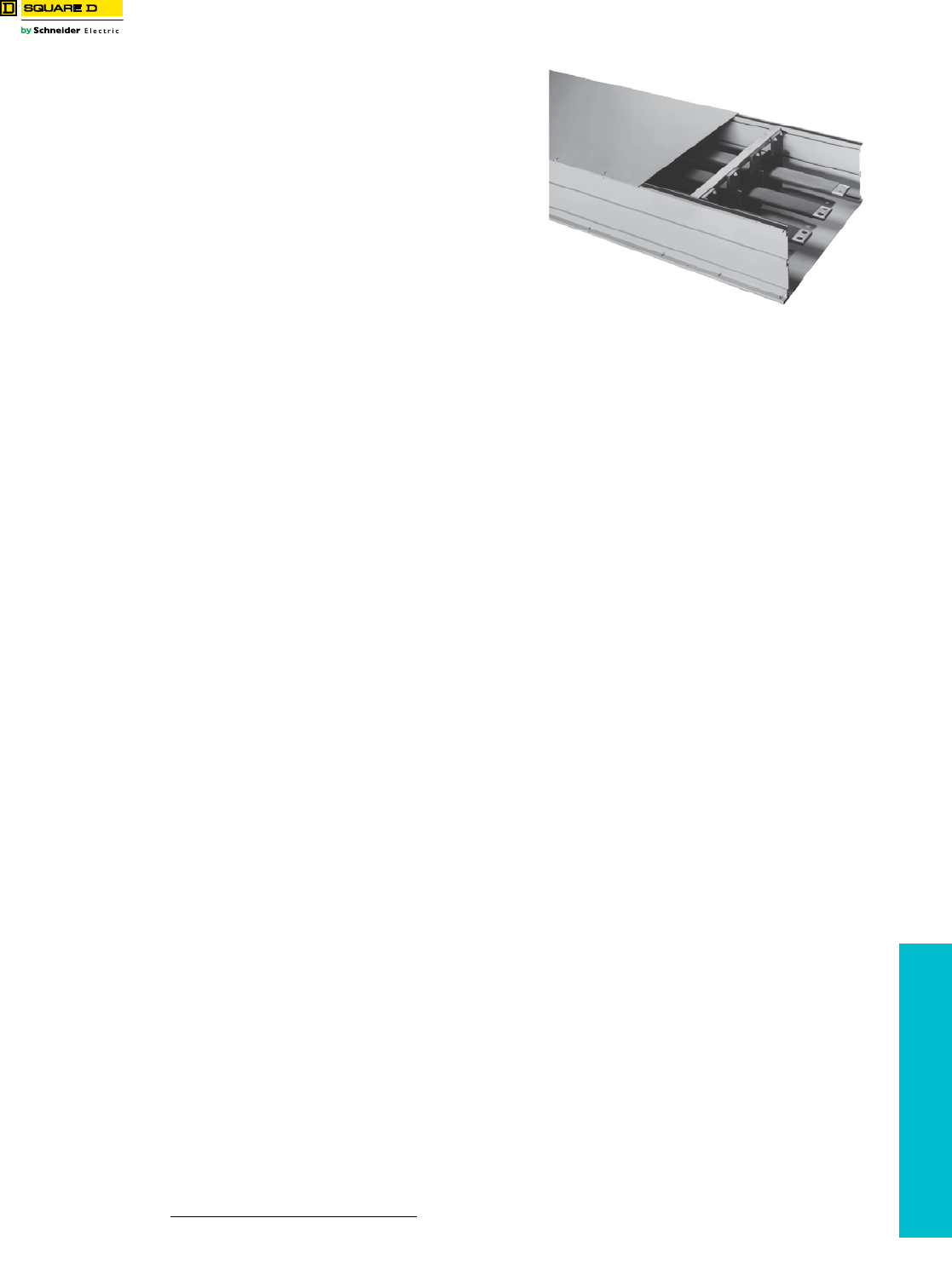

I-LineTM II Busway 800 A–5000 A Busway
Class 5615 / Refer to Catalog 5600CT9101
Table 12.13: Straight Lengths (10 ft.) and Plug-in Tap Box
Number
of Poles
Ampere
Rating
Aluminum Both Aluminum and Copper Copper
10'0" Length Plug-In Tap Boxcd 10'0" Length
Feeder StyleaPlug-In StylebFeeder StyleaPlug-In Styleb
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø3W
+ Integral
Ground Bus
800 AF2308G10ST 3940.00 AP2308G10ST 3940.00 PTB316G ( ) 4664.00 CF2308G10ST 6440.00 CP2308G10ST 6440.00
1000 AF2310G10ST 4400.00 AP2310G10ST 4400.00 PTB316G ( ) 4664.00 CF2310G10ST 6820.00 CP2310G10ST 6820.00
1200 AF2312G10ST 5920.00 AP2312G10ST 5920.00 PTB316G ( ) 4664.00 CF2312G10ST 8840.00 CP2312G10ST 8840.00
1350 AF2313G10ST 6820.00 AP2313G10ST 6820.00 PTB316G ( ) 4664.00 CF2313G10ST 10320.00 CP2313G10ST 10320.00
1600 AF2316G10ST 8380.00 AP2316G10ST 8380.00 PTB316G ( ) 4664.00 CF2316G10ST 11860.00 CP2316G10ST 11860.00
2000 AF2320G10ST 10040.00 AP2320G10ST 10040.00 ——CF2320G10ST 15140.00 CP2320G10ST 15140.00
2500 AF2325G10ST 12220.00 AP2325G10ST 12220.00 ——CF2325G10ST 19220.00 CP2325G10ST 19220.00
3000 AF2330G10ST 13980.00 AP2330G10ST 13980.00 ——CF2330G10ST 22880.00 CP2330G10ST 22880.00
4000 AF2340G10ST 19120.00 AP2340G10ST 19120.00 ——CF2340G10ST 29600.00 CP2340G10ST 29600.00
5000 — — — CF2350G10ST 35700.00 CP2350G10ST 35700.00
3Ø4W
+ Integral
Ground Bus
800 AF2508G10ST 4780.00 AP2508G10ST 4780.00 PTB516G ( ) 5324.00 CF2508G10ST 8340.00 CP2508G10ST 8340.00
1000 AF2510G10ST 5780.00 AP2510G10ST 5780.00 PTB516G( ) 5324.00 CF2510G10ST 9860.00 CP2510G10ST 9860.00
1200 AF2512G10ST 7220.00 AP2512G10ST 7220.00 PTB516G ( ) 5324.00 CF2512G10ST 11800.00 CP2512G10ST 11800.00
1350 AF2513G10ST 8260.00 AP2513G10ST 8260.00 PTB516G ( ) 5324.00 CF2513G10ST 13180.00 CP2513G10ST 13180.00
1600 AF2516G10ST 10000.00 AP2516G10ST 10000.00 PTB516G ( ) 5324.00 CF2516G10ST 15940.00 CP2516G10ST 15940.00
2000 AF2520G10ST 12220.00 AP2520G10ST 12220.00 ——CF2520G10ST 19620.00 CP2520G10ST 19620.00
2500 AF2525G10ST 15000.00 AP2525G10ST 15000.00 ——CF2525G10ST 24040.00 CP2525G10ST 24040.00
3000 AF2530G10ST 17440.00 AP2530G10ST 17440.00 ——CF2530G10ST 30620.00 CP2530G10ST 30620.00
4000 AF2540G10ST 23420.00 AP2540G10ST 23420.00 ——CF2540G10ST 38720.00 CP2540G10ST 38720.00
5000 — — — CF2550G10ST 46900.00 CP2550G10ST 46900.00
aFeeder style also available in lengths from 16 to 119 inches.
bPlug-in style also available in 4, 6, and 8 foot lengths.
cAdd “(H)” or “(V)” to catalog number based on horizontal or vertical mounting arrangement.
dCannot be used for 800 A copper busway.
10'0"
G
PH
PH
PH
N
To p
10'0"
G
PH
PH
PH
N
G
PH
PH
PH
N
10'0"
G
PH
PH
PH
N
To p
G
PH
PH
PH
N
Table 12.14: Fittings (All Feeder Style)
Number
of Poles
Ampere
Rating
Aluminum Copper
End Tap Box Edgewise Elbow Flatwise Elbow End Tap Box Edgewise Elbow Flatters Elbow
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø3W
with Integral
Ground Bus
800 AF2308GETBMB 4744.00 AF2308GLEM11 2186.00 AF2308GLFM11 2186.00 CF2308GETBMB 4953.00 CF2308GLEM11 2645.00 CF2308GLFM11 2645.00
1000 AF2310GETBMB 4919.00 AF2310GLEM11 2271.00 AF2310GLFM12 2344.00 CF2310GETBMB 5120.00 CF2310GLEM11 2714.00 CF2310GLFM11 2714.00
1200 AF2312GETBMB 5253.00 AF2312GLEM11 3051.00 AF2312GLFM12 3150.00 CF2312GETBMB 5497.00 CF2312GLEM11 3587.00 CF2312GLFM12 3734.00
1350 AF2313GETBMB 5444.00 AF2313GLEM11 3216.00 AF2313GLFM13 3444.00 CF2313GETBMB 5736.00 CF2313GLEM11 3858.00 CF2313GLFM12 4030.00
1600 AF2316GETBMB 5786.00 AF2316GLEM11 3502.00 AF2316GLFM13 3782.00 CF2316GETBMB 6076.00 CF2316GLEM11 4140.00 CF2316GLFM12 4338.00
2000 AF2320GETBMB 6257.00 AF2320GLEM11 3807.00 AF2320GLFM15 4476.00 CF2320GETBMB 6682.00 CF2320GLEM11 4742.00 CF2320GLFM13 5246.00
2500 AF2325GETBMB 7430.00 AF2325GLEM11 4206.00 AF2325GLFM17 5428.00 CF2325GETBMB 8014.00 CF2325GLEM11 5490.00 CF2325GLFM15 6771.00
3000 AF2330GETBMB 8003.00 AF2330GLEM11 4529.00 AF2330GLFM18 6160.00 CF2330GETBMB 8745.00 CF2330GLEM11 6161.00 CF2330GLFM16 8067.00
4000 AF2340GETBMB 9371.00 AF2340GLEM11 5983.00 AF2340GLFM22 9489.00 CF2340GETBMB 10260.00 CF2340GLEM11 7938.00 CF2340GLFM21 12901.00
5000 CF2350GETBMB 12869.00 CF2350GLEM11 9023.00 CF2350GLFM21 14973.00
3Ø4W
with Integral
Ground Bus
800 AF2508GETBMB 5408.00 AF2508GLEM11 2668.00 AF2508GLFM11 2668.00 CF2508GETBMB 5705.00 CF2508GLEM11 3321.00 CF2508GLFM11 3321.00
1000 AF2510GETBMB 5712.00 AF2510GLEM11 2852.00 AF2510GLFM12 2948.00 CF2510GETBMB 6052.00 CF2510GLEM11 3600.00 CF2510GLFM11 3600.00
1200 AF2512GETBMB 6052.00 AF2512GLEM11 3802.00 AF2512GLFM12 3922.00 CF2512GETBMB 6433.00 CF2512GLEM11 4641.00 CF2512GLFM12 4838.00
1350 AF2513GETBMB 6286.00 AF2513GLEM11 3992.00 AF2513GLFM13 4268.00 CF2513GETBMB 6696.00 CF2513GLEM11 4894.00 CF2513GLFM12 5114.00
1600 AF2516GETBMB 6679.00 AF2516GLEM11 4311.00 AF2516GLFM13 4645.00 CF2516GETBMB 7174.00 CF2516GLEM11 5400.00 CF2516GLFM12 5666.00
2000 AF2520GETBMB 7412.00 AF2520GLEM11 4718.00 AF2520GLFM15 5533.00 CF2520GETBMB 8029.00 CF2520GLEM11 6075.00 CF2520GLFM13 6729.00
2500 AF2525GETBMB 9006.00 AF2525GLEM11 5228.00 AF2525GLFM17 6728.00 CF2525GETBMB 9759.00 CF2525GLEM11 6885.00 CF2525GLFM15 8488.00
3000 AF2530GETBMB 9921.00 AF2530GLEM11 5675.00 AF2530GLFM18 7710.00 CF2530GETBMB 11020.00 CF2530GLEM11 8092.00 CF2530GLFM16 10643.00
4000 AF2540GETBMB 11628.00 AF2540GLEM11 7212.00 AF2540GLFM22 11505.00 CF2540GETBMB 12903.00 CF2540GLEM11 10017.00 CF2540GLFM21 16470.00
5000 CF2550GETBMB 14952.00 CF2550GLEM11 11516.00 CF2550GLFM21 19333.00
Table 12.15: Accessories
Ampere Rating Hangers End Closure Wall Flange
Al Cu Horizontal Mount Busway Vertical Mount Busway $ Price Seismica$ Price Catalog No. $ Price Catalog No. $ Price
Flatwise Edgewise Fixed Spring
—800HF38F HF43E HFV
See Table 12.18 on
page 12-8
64.00 HF38SH 96.00 ACF38EC 446.00 ACF38WF 418.00
800 1000 HF43F HF43E HFV 64.00 HF43SH 96.00 ACF43EC 446.00 ACF43WF 418.00
1000 1200 HF53F HF58E HFV 64.00 HF53SH 96.00 ACF53EC 446.00 ACF53WF 418.00
—1350HF58F HF58E HFV 64.00 HF58SH 96.00 ACF58EC 446.00 ACF58WF 418.00
1200 — HF63F HF67E HFV 64.00 HF63SH 96.00 ACF63EC 446.00 ACF63WF 418.00
—1600HF67F HF67E HFV 64.00 HF67SH 96.00 ACF67EC 446.00 ACF67WF 418.00
1350 — HF73F HF78E HFV 64.00 HF73SH 96.00 ACF73EC 446.00 ACF73WF 418.00
—2000HF78F HF78E HFV 64.00 HF78SH 96.00 ACF78EC 446.00 ACF78WF 418.00
1600 — HF88F HF88E HFV 64.00 HF88SH 96.00 ACF88EC 446.00 ACF88WF 418.00
2000 2500 HF13F HF13E HFV 64.00 HF13SH 96.00 ACF13EC 578.00 ACF13WF 418.00
—3000HF15F HF15E HFV 64.00 HF15SH 96.00 ACF15EC 578.00 ACF15WF 418.00
2500 3200 HF16F HF16E HFV 64.00 HF16SH 96.00 ACF17EC 578.00 ACF17WF 418.00
3000 — HF19F HF19E HFV 64.00 HF19SH 96.00 ACF19EC 578.00 ACF19WF 606.00
4000 — HF26F HF26E HFV 64.00 HF26SH 96.00 ACF26EC 732.00 ACF26WF 606.00
—4000HF24F HF24E HFV 64.00 HF24SH 96.00 ACF24EC 732.00 ACF24WF 606.00
—5000HF25F HF26E HFV 64.00 HF25SH 96.00 ACF25EC 732.00 ACF25WF 606.00
PE8 Discount
Schedule
aFor seismic applications, seismic hangers must be used with horizontal mount flatwise or edgewise busway. Vertical mount busway may use standard fixed or spring hangers.
12-6 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
I-LineTM II Busway 800 A–5000 A Pricing Instructions
Class 5615 / Refer to Catalog 5600CT9101
Pricing Instructions For “Factory Assembled” Busway Systems (or Components)
Standard Straight Lengths
The basic component of a busway system is a straight section with a “joint pak” factory-affixed to one end. Plug-in busway
is available in standard lengths of 4, 6, 8, and 10 feet. Feeder busway is available in lengths from 16” to 120” in
increments of 1”.
Riser Busway
We also offer a “Riser” Plug-In busway with openings on one side only for riser installations. This busway offers the
same short circuit ratings as our standard plug-in busway.
Indoor Drip Resistant and IP54 Splash Resistant Busway
These water resistant features are available as an option for indoor plug-in and feeder busway. Price the drip resistant
busway using the appropriate per foot price. Price the IP54 splash resistant busway using the outdoor per foot price.
Outdoor Construction (Feeder Busway Only)
Besides the additional charge for outdoor busway, you must also add a charge for a weather seal if the busway passes
through a building wall or roof from an interior to an exterior space (found under Miscellaneous Additions and
Accessories on page 12-8). Please indicate the thickness of the wall, roof or floor when entering order. Add the “labor
only” price for fittings and special features per general pricing instruction.
High Short Circuit Bracing
I-Line busway is available with either standard short circuit bracing or high short circuit bracing. Table 12.19 on 12-8 lists
maximum short circuit ratings for each busway type and rating.
General Pricing Instructions
Prepare a layout sketch of the busway run showing:
All dimensions in feet and inches
All wall and floor locations and thicknesses
All fittings (use top of page 12-7 as a checklist)
Add all dimensions together. Round up to the next foot.
Multiply this total by the appropriate price per foot according to the tables above.
To this, add the “labor only” charges for all fittings from page 12-7.
Add hangers per page 12-8 (quantities explained below)
Add for any other unit price items such as end closures, wall flanges, or special lug requirements from page 12-8.
Hangers
Hangers for the I-Line II busway should be priced from the table on page 12-8. Indoor horizontal busway requires one
hanger for every 10 feet of busway. Vertical indoor busway requires one hanger for every 16 feet. Outdoor feeder
busway requires one hanger for every 5 feet in either vertical or horizontal mounting.
Elbows
The elbow “labor only” charge applies to all types of 90o elbows within a particular rating of busway. The charge does
not include any busway footage (i.e. a charge for the appropriate amount of busway footage would have to be added to
the “labor only” charge to obtain a “complete device” charge). If elbow is other than 90o, double the labor only charge.
Tee
The labor charge for tees shown in applies to all factory assembled types of 90° tee fittings within a given rating.
Dimensions and catalog number suffix of flatwise tee fittings will be found in the Class 5600 Manual. Refer to factory for
edgewise tee dimensions. Crosses are also available.
Table 12.16: Footage
Number
of
Poles
and
Vol tage
Ampere
Rating
Aluminum Busway Copper Busway
Indoor Feeder/
Plug-In/Riser
Drip Resistant Feeder/
Plug-in/Riser Outdoor Feeder Indoor Feeder/
Plug-in Riser
Drip Resistant Feeder/
Plug-in/Riser Outdoor Feeder
Standard
Short
Circuit
High
Short
Circuit
Standard
Short
Circuit
High
Short
Circuit
Standard
Short
Circuit
High
Short
Circuit
Standard
Short
Circuit
High
Short
Circuit
Standard
Short
Circuit
High
Short
Circuit
Standard
Short
Circuit
High
Short
Circuit
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
$ Price
Per Foot
3Ø3W
600 V
50%
Integral
Ground
800 394.00 440.00 428.00 478.00 462.00 514.00 644.00 708.00 712.00 784.00 778.00 860.00
1000 440.00 496.00 488.00 548.00 536.00 598.00 682.00 736.00 754.00 814.00 826.00 892.00
1200 592.00 644.00 654.00 710.00 714.00 774.00 884.00 942.00 974.00 1036.00 1062.00 1130.00
1350 682.00 732.00 752.00 808.00 822.00 884.00 1032.00 1088.00 1118.00 1182.00 1204.00 1274.00
1600 838.00 894.00 926.00 990.00 1014.00 1084.00 1186.00 1282.00 1310.00 1416.00 1434.00 1550.00
2000 1004.00 1062.00 1100.00 1164.00 1194.00 1264.00 1514.00 1594.00 1670.00 1756.00 1824.00 1916.00
2500 1222.00 1282.00 1350.00 1416.00 1478.00 1550.00 1922.00 1972.00 2112.00 2168.00 2300.00 2362.00
3000 1398.00 1464.00 1540.00 1612.00 1682.00 1760.00 2288.00 2362.00 2520.00 2602.00 2752.00 2842.00
3200 1748.00 1830.00 1925.00 2015.00 2103.00 2200.00 2608.00 2692.00 2872.00 2966.00 3137.00 3240.00
4000 1912.00 2008.00 2106.00 2212.00 2300.00 2416.00 2978.00 3070.00 3274.00 3376.00 3570.00 3682.00
5000——————3570.00 3686.00 3928.00 4054.00 4284.00 4420.00
3Ø4W
277/480 V
50%
Integral
Ground
800 478.00 528.00 520.00 584.00 562.00 640.00 834.00 918.00 932.00 1024.00 1028.00 1130.00
1000 578.00 628.00 632.00 686.00 686.00 744.00 986.00 1046.00 1084.00 1152.00 1182.00 1256.00
1200 722.00 772.00 796.00 852.00 870.00 930.00 1180.00 1252.00 1298.00 1378.00 1416.00 1504.00
1350 826.00 884.00 914.00 978.00 1000.00 1070.00 1318.00 1394.00 1452.00 1538.00 1584.00 1680.00
1600 1000.00 1046.00 1094.00 1144.00 1186.00 1240.00 1594.00 1680.00 1754.00 1846.00 1912.00 2012.00
2000 1222.00 1282.00 1350.00 1416.00 1478.00 1550.00 1962.00 2024.00 2162.00 2230.00 2362.00 2434.00
2500 1500.00 1546.00 1648.00 1698.00 1796.00 1848.00 2404.00 2482.00 2648.00 2734.00 2892.00 2986.00
3000 1744.00 1810.00 1914.00 1986.00 2084.00 2162.00 3062.00 3124.00 3368.00 3436.00 3672.00 3746.00
3200——————3491.00 3561.00 3840.00 3917.00 4186.00 4270.00
4000 2342.00 2430.00 2572.00 2672.00 2802.00 2912.00 3872.00 3950.00 4256.00 4340.00 4640.00 4730.00
5000——————4690.00 4784.00 5156.00 5258.00 5622.00 5732.00
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-7
I-LineTM II Busway 800 A–5000 A Pricing Instructions
Class 5600 / Refer to Catalog 5600CT9101
Indoor Tap Boxes
Feeder cable tap boxes are used at the end (-ETBMB) or center (-CTB) of a busway run and incorporate a short
section of busway into their construction. See Catalog Class 5600 for the length of the tap box then add the “labor only”
charges shown above to complete the price.
Plug-in cable tap boxes are plugged into the side of the busway (at any opening except the very last opening of a run).
The price shown in the table on page 12-5 is the complete device price. No “labor only” charge is required.
Lugs other than standard mechanical lugs may be selected from the table on page 12-8.
Service Heads
Service heads are of outdoor construction and include Square Dbrand standard lugs. Price footage to end of busway
run including dimension of service head. Add service head labor charge.
Unfused Reducer
Unfused reducers are used to reduce from a higher amperage busway to a lower amperage. Price each rating of
busway to the centerline of reducer and include the “labor only” price of the higher rating.
NOTE: The National Electric Code does not allow the use of unfused reducers in vertical riser installations. Refer
to the NEC for restrictions in industrial installations.
Fused or Circuit Breaker Cubicle
These are used as in-line overcurrent protection devices. They can be used in conjunction with an unfused reducer to
offer a device which reduces a run of busway in ampacity and offers overcurrent protection.
I-Line to I-Line II Adapter
This adapter is used to join I-Line II busway (800 A–5000 A) to existing installations of original I-Line busway. If
connecting to an existing “slot end” of original I-Line, use a “bolt end” adapter (-12B), and vice versa. Price as four feet
of busway for 800 through 5000 A busway.
Expansion Fittings
Expansion fitting labor only charge does not include busway footage. The expansion fitting is built into a 3 ft. – 4 in.
straight length for 800 A–5000 A and a 5 feet – 0 inch straight length for 225 A–600 A. Limit of expansion or contraction
is ±1-1/2 inches. Not available in outdoor construction.
Bussed Transformer Connection
A bussed transformer connection is used when the busway physically attaches (other than cable) to a three phase
transformer. Price busway footage to the edge of transformer L.V. or H.V. terminal. To this, add labor only charge for a
“bussed transformer connection.” For power company vault termination charges, consult the factory.
Transformer Taps
Transformer taps are used to make cable connection to transformers. Calculate footage price to end of busway. Use
standard dimensions. Price of taps includes lugs; if lugs other than standard Square D brand lugs are required, add
charges from page 12-8. Note that taps need NOT be located directly above transformers for cable connections.
Finger Protection to IP2X
This feature provides improved protection from accidental contact with live parts during insertion and removal of plug-in
units. This feature meets the IP2X rating as defined by IEC529 standard. (Pricing on page 12-8.)
Connection to Competitive Busway
Consult your nearest Schneider Electric sales office.
Table 12.17: Fittings
Number of
Poles and
Vol tage
Ampere
Rating
“Labor Only” Charges for Each Component (Copper or Aluminum)
Elbow Right
Angle
Elbow Other
Than 90oTee Cross Flanged
End
Tap Box or
Service
Head
Unfused
Reducer
Fused or
C/B Cubicle
Expansion
FTG.
Phase
Transition
Bussed
XFMR Conn.
Transformer Taps
One 3Ø
XFMR
Y or a
Three 1Ø
XFMRS
Y or a
3Ø3W
600 V
50%
Ground
800
1000
1200
1350
1464.00
1464.00
1966.00
1966.00
2928.00
2928.00
3932.00
3932.00
1792.00
1792.00
2482.00
2482.00
3584.00
3584.00
4964.00
4964.00
1512.00
1722.00
1900.00
2016.00
4416.00
4552.00
4760.00
4876.00
1334.00
1512.00
2514.00
3256.00
20826.00
24108.00
28938.00
3950.00
4214.00
4330.00
4396.00
10890.00
11158.00
11274.00
11340.00
11164.00
12112.00
13270.00
13690.00
1968.00
2284.00
2492.00
2636.00
6440.00
6636.00
6944.00
7112.00
1600
2000
2500
1966.00
1966.00
1966.00
3932.00
3932.00
3932.00
2482.00
2482.00
2482.00
4964.00
4964.00
4964.00
2202.00
2624.00
3134.00
5088.00
5420.00
6412.00
3610.00
4578.00
4768.00
35192.00
41174.00
5926.00
6468.00
6944.00
12872.00
13404.00
13886.00
14654.00
15816.00
17594.00
2918.00
3342.00
3966.00
7420.00
7904.00
9144.00
3000
3200
4000
5000
1966.00
2478.00
2478.00
2478.00
3932.00
4956.00
4956.00
4956.00
2482.00
2918.00
2918.00
2918.00
4964.00
5836.00
5836.00
5836.00
3706.00
4447.00
4606.00
5384.00
6838.00
7612.00
7778.00
9894.00
7094.00
8512.00
8954.00
11084.00
8704.00
10229.00
10556.00
11092.00
15646.00
17172.00
17500.00
18030.00
19562.00
23474.00
25188.00
32432.00
4652.00
5304.00
5444.00
5950.00
10602.00
11891.00
12168.00
14072.00
3Ø4W
277/480 V
50%
Ground
800
1000
1200
1350
1792.00
1792.00
2478.00
2478.00
3584.00
3584.00
4956.00
4956.00
2084.00
2084.00
2918.00
2918.00
4168.00
4168.00
5836.00
5836.00
1598.00
1908.00
2046.00
2144.00
5010.00
5230.00
5450.00
5598.00
1722.00
2024.00
3454.00
4404.00
21232.00
24854.00
30526.00
4358.00
4958.00
5916.00
6552.00
11296.00
11902.00
12858.00
13496.00
12514.00
13700.00
15076.00
15566.00
2066.00
2458.00
2668.00
2806.00
6684.00
6982.00
7278.00
7470.00
1600
2000
2500
2478.00
2478.00
2478.00
4956.00
4956.00
4956.00
2918.00
2918.00
2918.00
5836.00
5836.00
5836.00
2482.00
2880.00
3486.00
5846.00
6394.00
7756.00
4778.00
6422.00
7932.00
37208.00
43144.00
7944.00
8436.00
9126.00
14882.00
15380.00
16070.00
16890.00
17996.00
20380.00
3186.00
3606.00
4326.00
7802.00
8532.00
9960.00
3000
3200
4000
5000
2478.00
2918.00
2918.00
2918.00
4956.00
5836.00
5836.00
5836.00
2918.00
3412.00
3412.00
3412.00
5836.00
6824.00
6824.00
6824.00
4130.00
4956.00
5136.00
6416.00
8468.00
9463.00
9676.00
11044.00
9538.00
11445.00
12754.00
14984.00
11978.00
13457.00
13774.00
14484.00
18922.00
20397.00
20714.00
21428.00
22350.00
26820.00
29248.00
36712.00
5074.00
5795.00
5950.00
7420.00
11622.00
13139.00
13464.00
15216.00
PE8 Discount
Schedule
12-8 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
I-LineTM II Busway Additions, Accessories, and Electrical Data
Class 5600 / Refer to Catalog 5600CT9101
Miscellaneous Additions and Accessories
Electrical Data for I-Line II Busway
a6 cycle and 30 cycle ratings are available. Please reference Catalog 5600CT9101.
Table 12.18: Additions and Accessories
Description $ Price
Integral Weather Seal Vapor Barrier
(Required when busway passes through an exterior wall or roof) 764.00
Roof Collar
(Required when busway penetrates an exterior roof) 870.00
Roof Flange Kit
(Optional when busway penetrates an exterior roof) 2346.00
Hanger, Horizontal Flatwise and Edgewise
(See "Table 12.15: Accessories" on page 5.) 64.00
Hangers, Vertical Fixed (HF-V) 64.00
Hangers, Vertical Spring
Aluminum Busway Copper Busway
800 A through 1200 A 800 A through 1200 A HFVS1 148.00
2000 A through 2500 A 1350 A through 2000 A HFVS2 292.00
3000 A through 4000 A 2500 A through 5000 A HFVS8 292.00
Lugs – Other than Square D Standard each lug 70.00
Lugs – Square D Standard added to flanged end each lug 70.00
Sway Brace Collar HP1SBC 82.00
Assembly Tool AT2 N/C
Finger Protection to IP2X
(For each plug-in opening) Plug-in Busway only per foot 17.00
Note: Finger protection can be ordered on I-Line II (800–5000 A) plug-in busway only.
Standards: UL857 (File Number E22182); CSA C22.2 No. 27-1994 (File Number LL-61778); IEC 439 Part 2
Systems: AC–3Ø3W, 3Ø4W, 1Ø2W, 1Ø3W. DC–2-pole. All neutrals are 100% capacity.
Voltage: 600 volts AC/DC, 50 Hz and 60 Hz
Integral Ground: 50% capacity as standard for 800 A to 5000 A, as an option on 225 A to 600 A
Enclosure: Indoor, indoor drip resistant and outdoor (indoor drip resistant and outdoor are available in I-Line II [800–5000 A] busway only)
Table 12.19: Short Circuit Ratings: UL 3 CycleaTest (KA, RMS Symmetrical)
Ampere
Rating
Aluminum Copper
AOF2
AF2
AOFH2
AFH2
AP
AP2/AR2
APH
APH2/ARH2
COF2
CF2
COFH2
CFH2
CP
CP2/CR2
CPH
CPH2/CRH2
225—— 22——— 22
400—2242—2242
600—2242—2242
8005085507550855075
1000 50 100 50 100 50 85 50 75
1200 50 100 50 100 50 100 50 100
1350 50 100 50 100 50 100 50 100
1600 50 100 50 100 50 100 50 100
2000 100 100 125 150 50 100 65 100
2500 100 150 125 150 100 150 125 150
3000 100 150 125 150 100 150 125 150
3200————100150125150
4000 150 200 200 150 200 200
5000————150200200
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-9
I-LineTM II Busway Plug-In Units
Class 5615, 5630 / Refer to Catalog 5600CT9101
Surge Protective Device Plug-In Units
All Busway SPD Plug-In Units include as standard:
Individually Fused Modules
Circuit Breaker Disconnect
Cover Mounted Diagnostic Panel
EMI/RFI Filter
Audible Alarm with Test/Disable/Enable
Note: For IP54 splash resistant construction, add an "M54" suffix. The IP54 price adder is 15%.
Table 12.20: Fusible Plug-In Units
Ampere
Rating
Type of
Connection
240 Vac
3-Pole, 3 Fuse + G
120/208 Vac, (240 Vac Max.)
4-Pole, 3 Fuse + G
600 Vac
3-Pole, 3 Fuse + G
277/480 Vac, (600 Vac Max.)
4-Pole, 3 Fuse + G
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
30
Plug-in
PQ3203G 972.00 PQ4203G 1136.00 PQ3603G 1042.00 PQ4603G 1182.00
60 PQ3206G 1042.00 PQ4206G 1182.00 PQ3606G 1110.00 PQ4606G 1230.00
100 PQ3210G 1478.00 PQ4210G 1604.00 PQ3610G 1512.00 PQ4610G 1734.00
200 PQ3220G 2462.00 PQ4220G 2728.00 PQ3620G 2566.00 PQ4620G 2866.00
200aPS3220G a2462.00 PS4220Ga2728.00 PS3620Ga2566.00 PS4620G a2866.00
400 PBQ3640G b6442.00 PBQ4640G b6996.00 PBQ3640Gb6442.00 PBQ4640Gb6996.00
600 PBQ3660G b9224.00 PBQ4660G b10090.00 PBQ3660Gb9224.00 PBQ4660Gb10090.00
800
Bolt-on
PTQ36080G ( ) c16014.00 PTQ46080G ( ) c19312.00
1000 PTQ36100G ( ) c18810.00 PTQ46100G( ) c19436.00
1200 PTQ36120G( ) c30042.00 PTQ46120G( ) c30168.00
Class J Fuses – Provisions for installing Class J fuses are included in 30 through 600 A fusible devices. Conversion to Class J fuse spacing requires relocating
the load side fuse base assembly from standard Class H fuse location to an alternate position in the enclosure.
aFor use on vertical riser applications only.
bFor vertical riser applications order auxiliary mounting kit—Catalog Number PBQ4060RMK. (Price $300.)
cThis device uses bolt-on connection. It may be used only on plug-in busway with same number of poles. Add suffix (H) for horizontal applications and
suffix (V) for vertical applications. Not for use on 800 A copper busway.
Note: For IP54 splash resistant construction, add “M54” suffix. IP54 price adder is 15%.
Table 12.21: Class R Fuse Kitsd
Switch Size (A) Voltag e R at i ng Kit d Catalog No. $ Price
30 250 Ve
600 Ve
QMB30R
QMB36R
31.20
32.60
60 250 Ve
600 Ve
QMB36R
QMB60R
32.60
32.60
100
200 All HRK1020 31.80
400
600 All QMB4060R 74.00
Class R Fuse Kits when installed reject all but class R fuses.
dKit must be field installed.
eContains parts to convert two units.
Table 12.22: Hooksticks
Length Catalog No. $ Price Length Catalog No. $ Price
8' 515608 452.00 14' 515614 778.00
Table 12.23: Surge Capacity
System Voltage 60,000 Amperes Per Phase 240,000 Amperes Per Phase
Catalog Number $ Price Catalog Number $ Price
208Y/120 Vac, 3Ø4W/Grd. PIU2IMA16 4472.00 PIU2IMA24 6407.00
240Y/120 Vac, 3Ø4W/Grd. PIU3IMA16 4472.00 PIU3IMA24 6407.00
480Y/277 Vac, 3Ø4W/Grd. PIU4IMA16 4740.00 PIU4IMA24 6792.00
600Y/347 Vac, 3Ø4W/Grd. PIU8IMA16 4919.00 PIU8IMA24 7048.00
Table 12.24: Options
Description When Required Add Suffix to Catalog
Number $ Price
Surge Counter and Dry Contacts STD.
Remote Monitor with Dry Contacts M 788.00
“Hook-Swing” Mounting
High Ampere Bolt-On
Connection Low Ampere Plug-In
Connection
High Ampere
Plug-In Connection
PE7 Discount
Schedule
12-10 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
I-LineTM II Busway PowerPactTM H-, and J-Frame Plug-in Units
Class 5600 / Refer to Catalog 5600CT9101
Table 12.25: H-Frame Circuit Breaker Plug-in Units—Standard (80%) Rated—3Ø3W
Trip Rating
Ampere
D Interrupting G Interrupting J Interrupting L Interrupting
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3W + G, 600 Vac 50/60 Hz
15 PHD36015G 1930.00 PHG36015G 2394.00 PHJ36015G 3184.00 PHL36015G 5171.00
20 PHD36020G 1930.00 PHG36020G 2394.00 PHJ36020G 3184.00 PHL36020G 5171.00
30 PHD36030G 1930.00 PHG36030G 2394.00 PHJ36030G 3184.00 PHL36030G 5171.00
40 PHD36040G 1930.00 PHG36040G 2394.00 PHJ36040G 3184.00 PHL36040G 5171.00
50 PHD36050G 1930.00 PHG36050G 2394.00 PHJ36050G 3184.00 PHL36050G 5171.00
60 PHD36060G 1930.00 PHG36060G 2394.00 PHJ36060G 3184.00 PHL36060G 5171.00
70 PHD36070G 2132.00 PHG36070G 2582.00 PHJ36070G 3718.00 PHL36070G 5715.00
80 PHD36080G 2132.00 PHG36080G 2582.00 PHJ36080G 3718.00 PHL36080G 5715.00
90 PHD36090G 2132.00 PHG36090G 2582.00 PHJ36090G 3718.00 PHL36090G 5715.00
100 PHD36100G 2132.00 PHG36100G 2582.00 PHJ36100G 3718.00 PHL36100G 5715.00
125 PHD36125G 4246.00 PHG36125G 6031.00 PHJ36125G 8266.00 PHL36125G 9987.00
150 PHD36150G 4246.00 PHG36150G 6031.00 PHJ36150G 8266.00 PHL36150G 9987.00
Table 12.26: H-Frame Circuit Breaker Plug-in Units—Standard (80%) Rated—3Ø4W
Trip Rating
Ampere
D Interrupting G Interrupting J Interrupting L Interrupting
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø4W + G, 277/480 Vac (600 Vac Max.) 50/60 Hz
15 PHD36015GN 2111.00 PHG36015GN 2578.00 PHJ36015GN 3428.00 PHL36015GN 5318.00
20 PHD36020GN 2111.00 PHG36020GN 2578.00 PHJ36020GN 3428.00 PHL36020GN 5318.00
30 PHD36030GN 2111.00 PHG36030GN 2578.00 PHJ36030GN 3428.00 PHL36030GN 5318.00
40 PHD36040GN 2111.00 PHG36040GN 2578.00 PHJ36040GN 3428.00 PHL36040GN 5318.00
50 PHD36050GN 2111.00 PHG36050GN 2578.00 PHJ36050GN 3428.00 PHL36050GN 5318.00
60 PHD36060GN 2111.00 PHG36060GN 2578.00 PHJ36060GN 3428.00 PHL36060GN 5318.00
70 PHD36070GN 2317.00 PHG36070GN 2784.00 PHJ36070GN 4008.00 PHL36070GN 5878.00
80 PHD36080GN 2317.00 PHG36080GN 2784.00 PHJ36080GN 4008.00 PHL36080GN 5878.00
90 PHD36090GN 2317.00 PHG36090GN 2784.00 PHJ36090GN 4008.00 PHL36090GN 5878.00
100 PHD36100GN 2317.00 PHG36100GN 2784.00 PHJ36100GN 4008.00 PHL36100GN 5878.00
125 PHD36125GN 4478.00 PHG36125GN 6267.00 PHJ36125GN 8510.00 PHL36125GN 10254.00
150 PHD36150GN 4478.00 PHG36150GN 6267.00 PHJ36150GN 8510.00 PHL36150GN 10254.00
Table 12.27: J-Frame Circuit Breaker Plug-in Units—Standard (80%) Rated—3Ø3W
Trip Rating
Ampere
D Interrupting G Interrupting J Interrupting L Interrupting
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3W + G, 600 Vac 50/60 Hz
175 PJD36175G 4618.00 PJG36175G 8056.00 PJJ36175G 9424.00 PJL36175G 11581.00
200 PJD36200G 4618.00 PJG36200G 8056.00 PJJ36200G 9424.00 PJL36200G 11581.00
225 PJD36225G 4618.00 PJG36225G 8056.00 PJJ36225G 9424.00 PJL36225G 11581.00
250 PJD36250G 6380.00 PJG36250G 9834.00 PJJ36250G 10816.00 PJL36250G 13292.00
Table 12.28: J-Frame Circuit Breaker Plug-in Units—Standard (80%) Rated—3Ø4W
Trip Rating
Ampere
D Interrupting G Interrupting J Interrupting L Interrupting
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
3Ø4W + G, 277/480 Vac (600 Vac Max.) 50/60 Hz
175 PJD36175GN 4950.00 PJG36175GN 8366.00 PJJ36175GN 9788.00 PJL36175GN 11910.00
200 PJD36200GN 4950.00 PJG36200GN 8366.00 PJJ36200GN 9788.00 PJL36200GN 11910.00
225 PJD36225GN 4950.00 PJG36225GN 8366.00 PJJ36225GN 9788.00 PJL36225GN 11910.00
250 PJD36250GN 6712.00 PJG36250GN 10144.00 PJJ36250GN 11158.00 PJL36250GN 13669.00
aAll these devices use plug-in connections.
Note: For IP54 splash resistant construction, add an "M54" suffix. The IP54 price adder is 15%.
Table 12.29: Circuit Breaker Interrupting Ratings
Interrupting Ratings (kA) D G J L
240 V 25 65 100 125
480 V 18 35 65 100
600 V 14 18 25 50
PE7 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-11
I-LineTM II Busway PowerPactTM H-, J-, and L-Frame Plug-in Units
Class 5600 / Refer to Catalog 5600CT9101
Table 12.30: H- and J-Frame Circuit Breaker Plug-in Units with Electronic Trip—Standard (80%) Rated—3Ø3W
Trip Rating
Ampere
Trip
FunctionaTrip Unit D Interrupting G Interrupting J Interrupting L Interrupting
Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price
Micrologic Standard Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
60
LI 3.2
PHD36060GU31X 2113.00 PHG36060GU31X 2577.00 PHJ36060GU31X 3367.00 PHL36060GU31X 5354.00
100 PHD36100GU31X 2315.00 PHG36100GU31X 2765.00 PHJ36100GU31X 3901.00 PHL36100GU31X 5898.00
150 PHD36150GU31X 4429.00 PHG36150GU31X 6214.00 PHJ36150GU31X 8449.00 PHL36150GU31X 10170.00
250 PJD36250GU31X 6641.00 PJG36250GU31X 10095.00 PJJ36250GU31X 11077.00 PJL36250GU31X 13553.00
60
LSI 3.2 S
PHD36060GU33X 2309.00 PHG36060GU33X 2773.00 PHJ36060GU33X 3563.00 PHL36060GU33X 5550.00
100 PHD36100GU33X 2511.00 PHG36100GU33X 2961.00 PHJ36100GU33X 4097.00 PHL36100GU33X 6094.00
150 PHD36150GU33X 4625.00 PHG36150GU33X 6410.00 PHJ36150GU33X 8645.00 PHL36150GU33X 10366.00
250 PJD36250GU33X 6920.00 PJG36250GU33X 10374.00 PJJ36250GU33X 11356.00 PJL36250GU33X 13832.00
Micrologic Ammeter Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
60
LSI 5.2 A
PHD36060GU43X 2968.00 PHG36060GU43X 3432.00 PHJ36060GU43X 4222.00 PHL36060GU43X 6209.00
100 PHD36100GU43X 3170.00 PHG36100GU43X 3620.00 PHJ36100GU43X 4756.00 PHL36100GU43X 6753.00
150 PHD36150GU43X 5284.00 PHG36150GU43X 7069.00 PHJ36150GU43X 9304.00 PHL36150GU43X 11025.00
250 PJD36250GU43X 7860.00 PJG36250GU43X 11314.00 PJJ36250GU43X 12296.00 PJL36250GU43X 14772.00
Table 12.31: H- and J-Frame Circuit Breaker Plug-in Units with Electronic Trip—Standard (80%) Rated—3Ø4W
Trip Rating
Ampere
Trip
Function aTrip Unit D Interrupting G Interrupting J Interrupting L Interrupting
Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price
Micrologic Standard Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
60
LI 3.2
PHD36060GNU31X 2294.00 PHG36060GNU31X 2761.00 PHJ36060GNU31X 3611.00 PHL36060GNU31X 5501.00
100 PHD36100GNU31X 2500.00 PHG36100GNU31X 2967.00 PHJ36100GNU31X 4191.00 PHL36100GNU31X 6061.00
150 PHD36150GNU31X 4661.00 PHG36150GNU31X 6450.00 PHJ36150GNU31X 8693.00 PHL36150GNU31X 10437.00
250 PJD36250GNU31X 6973.00 PJG36250GNU31X 10405.00 PJJ36250GNU31X 11419.00 PJL36250GNU31X 13930.00
60
LSI 3.2 S
PHD36060GNU33X 2490.00 PHG36060GNU33X 2957.00 PHJ36060GNU33X 3807.00 PHL36060GNU33X 5697.00
100 PHD36100GNU33X 2696.00 PHG36100GNU33X 3163.00 PHJ36100GNU33X 4387.00 PHL36100GNU33X 6257.00
150 PHD36150GNU33X 4857.00 PHG36150GNU33X 6646.00 PHJ36150GNU33X 8889.00 PHL36150GNU33X 10633.00
250 PJD36250GNU33X 7252.00 PJG36250GNU33X 10684.00 PJJ36250GNU33X 11698.00 PJL36250GNU33X 14209.00
Micrologic Ammeter Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
60
LSI 5.2 A
PHD36060GNU43X 3149.00 PHG36060GNU43X 3616.00 PHJ36060GNU43X 4466.00 PHL36060GNU43X 6356.00
100 PHD36100GNU43X 3355.00 PHG36100GNU43X 3822.00 PHJ36100GNU43X 5046.00 PHL36100GNU43X 6916.00
150 PHD36150GNU43X 5516.00 PHG36150GNU43X 7305.00 PHJ36150GNU43X 9548.00 PHL36150GNU43X 11292.00
250 PJD36250GNU43X 8192.00 PJG36250GNU43X 11624.00 PJJ36250GNU43X 12638.00 PJL36250GNU43X 15149.00
aIf alternate trip functions are required, contact your local Schneider Electric field office for pricing.
bAll these devices use plug-in connections.
Note: For IP54 splash resistant construction, add an "M54" suffix. The IP54 price adder is 15%.
Table 12.32: L-Frame Circuit Breaker Plug-in Units with Electronic Trip—Standard (80%) Rated—3Ø3W
Trip Rating
Ampere
Trip
FunctionaTrip Unit D Interrupting G Interrupting J Interrupting L Interrupting
Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price
Micrologic Standard Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
400 LI 3.3 PBLD36400GU31X 9398.00 PBLG36400GU31X 12846.00 PBLJ36400GU31X 14958.00 PBLL36400GU31X 17030.00
600 PBLD36600GU31X 13840.00 PBLG36600GU31X 16975.00 PBLJ36600GU31X 18600.00 PBLL36600GU31X 21326.00
400 LSI 3.3 S PBLD36400GU33X 10496.00 PBLG36400GU33X 14345.00 PBLJ36400GU33X 16676.00 PBLL36400GU33X 18049.00
600 PBLD36600GU33X 14939.00 PBLG36600GU33X 18320.00 PBLJ36600GU33X 21093.00 PBLL36600GU33X 22344.00
Micrologic Ammeter Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
400 LSI 5.3 A PBLD36400GU43X 12174.00 PBLG36400GU43X 15640.00 PBLJ36400GU43X 17605.00 PBLL36400GU43X 19608.00
600 PBLD36600GU43X 16617.00 PBLG36600GU43X 19377.00 PBLJ36600GU43X 21128.00 PBLL36600GU43X 23902.00
400 LSIG 6.3 A PBLD36400GU44X 15865.00 PBLG36400GU44X 19686.00 PBLJ36400GU44X 21247.00 PBLL36400GU44X 23536.00
600 PBLD36600GU44X 20309.00 PBLG36600GU44X 23904.00 PBLJ36600GU44X 24770.00 PBLL36600GU44X 27329.00
Table 12.33: L-Frame Circuit Breaker Plug-in Units with Electronic Trip—Standard (80%) Rated—3Ø4W
Trip Rating
Ampere
Trip
FunctionaTrip Unit D Interrupting G Interrupting J Interrupting L Interrupting
Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price Catalog Numberb$ Price
Micrologic Standard Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
400 LI 3.3 PBLD36400GNU31X 9890.00 PBLG36400GNU31X 13509.00 PBLJ36400GNU31X 15730.00 PBLL36400GNU31X 17910.00
600 PBLD36600GNU31X 14555.00 PBLG36600GNU31X 17851.00 PBLJ36600GNU31X 19560.00 PBLL36600GNU31X 22375.00
400 LSI 3.3 S PBLD36400GNU33X 10885.00 PBLG36400GNU33X 14875.00 PBLJ36400GNU33X 16942.00 PBLL36400GNU33X 18716.00
600 PBLD36600GNU33X 15490.00 PBLG36600GNU33X 18996.00 PBLJ36600GNU33X 20870.00 PBLL36600GNU33X 23130.00
Micrologic Ammeter Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
400 LSI 5.3 A PBLD36400GNU43X 12625.00 PBLG36400GNU43X 15956.00 PBLJ36400GNU43X 18256.00 PBLL36400GNU43X 20334.00
600 PBLD36600GNU43X 17232.00 PBLG36600GNU43X 19830.00 PBLJ36600GNU43X 21908.00 PBLL36600GNU43X 24748.00
400 LSIG 6.3 A PBLD36400GNU44X 16450.00 PBLG36400GNU44X 20485.00 PBLJ36400GNU44X 22030.00 PBLL36400GNU44X 24385.00
600 PBLD36600GNU44X 21055.00 PBLG36600GNU44X 24216.00 PBLJ36600GNU44X 25677.00 PBLL36600GNU44X 28294.00
aIf alternate trip functions are required, contact your local Schneider Electric field office for pricing.
bAll these devices use plug-in connections.
Note: For IP54 splash resistant construction, add an "M54" suffix. The IP54 price adder is 15%.
The 250 A with Standard Trip Unit is also available. Contact your local Schneider Electric field office for ordering information.
PE7 Discount
Schedule
12-12 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
I-LineTM II Busway PowerPactTM M-Frame Plug-in Units
Class 5600 / Refer to Catalog 5600CT9101
Table 12.34: M-Frame Circuit Breaker Plug-in Units with Basic Electronic Trip Unit (ET 1.0)—3Ø3W
Trip Rating Ampere G Interrupting J Interrupting
Catalog Numberabc $ Price Catalog Numberabc $ Price
3Ø3W + G, 600 Vac 50/60 Hz
300 PTMG36300G( ) 16014.00 PTMJ36300G( ) 17918.00
350 PTMG36350G( ) 16014.00 PTMJ36350G( ) 17918.00
400 PTMG36400G( ) 16014.00 PTMJ36400G( ) 17918.00
450 PTMG36450G( ) 16014.00 PTMJ36450G( ) 17918.00
500 PTMG36500G( ) 16014.00 PTMJ36500G( ) 17918.00
600 PTMG36600G( ) 16014.00 PTMJ36600G( ) 17918.00
700 PTMG36700G( ) 18810.00 PTMJ36700G( ) 20368.00
800 PTMG36800G( ) 18810.00 PTMJ36800G( ) 20368.00
Table 12.35: M-Frame Circuit Breaker Plug-in Units with Basic Electronic Trip Unit (ET 1.0)—3Ø4W
Trip Rating Ampere G Interrupting J Interrupting
Catalog Numberabc $ Price Catalog Numberabc $ Price
3Ø4W + G, 600 Vac 50/60 Hz
300 PTMG36300GN( ) 16640.00 PTMJ36300GN( ) 18536.00
350 PTMG36350GN( ) 16640.00 PTMJ36350GN( ) 18536.00
400 PTMG36400GN( ) 16640.00 PTMJ36400GN( ) 18536.00
450 PTMG36450GN( ) 16640.00 PTMJ36450GN( ) 18536.00
500 PTMG36500GN( ) 16640.00 PTMJ36500GN( ) 18536.00
600 PTMG36600GN( ) 16640.00 PTMJ36600GN( ) 18536.00
700 PTMG36700GN( ) 19436.00 PTMJ36700GN( ) 22082.00
800 PTMG36800GN( ) 19436.00 PTMJ36800GN( ) 22082.00
aThe ET 1.0 trip unit cannot be field replaced or have the long-time trip point setting adjusted.
bAll these devices use bolt-on connection. It may be used only on busway with same number of poles. Not for use on 800 A copper busway.
cTo complete the catalog number, replace the blank with an “H” for horizontal applications and “V” for vertical applications.
Note: For IP54 splash resistant construction, add "M54" suffix. IP54 price adder is 15%.
PE7 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-13
I-LineTM Busway PowerPactTM P-Frame Plug-in Units
Class 5600 / Refer to Catalog 5600CT9101
Table 12.36: P-Frame Circuit Breaker Plug-in Units—3Ø3W
Trip Rating Ampere Trip
Function
Trip
Unit
Interrupting Rating
G J
Catalog Numberabc $ Price Catalog Numberabc $ Price
80 % Rated 100 % Rated 80 % Rated 100 % Rated
Micrologic Standard Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
400
LI 3.0
PTPG36040G( )U31A 26760.00 37560.00 PTPJ36040G( )U31A 27995.00 38745.00
600 PTPG36060G( )U31A 26760.00 37560.00 PTPJ36060G( )U31A 27995.00 38745.00
800 PTPG36080G( )U31A 26760.00 37560.00 PTPJ36080G( )U31A 27995.00 38745.00
1000 PTPG36100G( )U31A 34637.00 45366.00 PTPJ36100G( )U31A 35929.00 46502.00
1200 PTPG36120G( )U31A 34637.00 PTPJ36120G( )U31A 35929.00
400
LSI 5.0
PTPG36040G( )U33A 27300.00 37900.00 PTPJ36040G( )U33A 28532.00 39400.00
600 PTPG36060G( )U33A 27300.00 37900.00 PTPJ36060G( )U33A 28532.00 39400.00
800 PTPG36080G( )U33A 27300.00 37900.00 PTPJ36080G( )U33A 28532.00 39400.00
1000 PTPG36100G( )U33A 35064.00 46168.00 PTPJ36100G( )U33A 36328.00 47934.00
1200 PTPG36120G( )U33A 35064.00 PTPJ36120G( )U33A 36328.00
Micrologic Ammeter Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
400
LI 3.0 A
PTPG36040G( )U41A 28072.00 38560.00 PTPJ36040G( )U41A 29295.00 40068.00
600 PTPG36060G( )U41A 28072.00 38560.00 PTPJ36060G( )U41A 29295.00 40068.00
800 PTPG36080G( )U41A 28072.00 38560.00 PTPJ36080G( )U41A 29295.00 40068.00
1000 PTPG36100G( )U41A 35826.00 46435.00 PTPJ36100G( )U41A 37055.00 48856.00
1200 PTPG36120G( )U41A 35826.00 PTPJ36120G( )U41A 37055.00
400
LSI 5.0 A
PTPG36040G( )U43A 30300.00 40430.00 PTPJ36040G( )U43A 31520.00 41695.00
600 PTPG36060G( )U43A 30300.00 40430.00 PTPJ36060G( )U43A 31520.00 41695.00
800 PTPG36080G( )U43A 30300.00 40430.00 PTPJ36080G( )U43A 31520.00 41695.00
1000 PTPG36100G( )U43A 38010.00 49424.00 PTPJ36100G( )U43A 39124.00 50342.00
1200 PTPG36120G( )U43A 38010.00 PTPJ36120G( )U43A 39124.00
400
LSIG 6.0 A
PTPG36040G( )U44A 33052.00 42760.00 PTPJ36040G( )U44A 34250.00 44330.00
600 PTPG36060G( )U44A 33052.00 42760.00 PTPJ36060G( )U44A 34250.00 44330.00
800 PTPG36080G( )U44A 33052.00 42760.00 PTPJ36080G( )U44A 34250.00 44330.00
1000 PTPG36100G( )U44A 40725.00 50824.00 PTPJ36100G( )U44A 41700.00 51910.00
1200 PTPG36120G( )U44A 40725.00 PTPJ36120G( )U44A 41700.00
Table 12.37: P-Frame Circuit Breaker Plug-in Units—3Ø4W
Trip Rating Ampere Trip
Function
Trip
Unit
Interrupting Rating
G J
Catalog Numberabc $ Price Catalog Numberabc $ Price
80 % Rated 100 % Rated 80 % Rated 100 % Rated
Micrologic Standard Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
400
LI 3.0
PTPG36040GN( )U31A 27760.00 38560.00 PTPJ36040GN( )U31A 28995.00 39745.00
600 PTPG36060GN( )U31A 27760.00 38560.00 PTPJ36060GN( )U31A 28995.00 39745.00
800 PTPG36080GN( )U31A 27760.00 38560.00 PTPJ36080GN( )U31A 28995.00 39745.00
1000 PTPG36100GN( )U31A 35637.00 46366.00 PTPJ36100GN( )U31A 36929.00 47502.00
1200 PTPG36120GN( )U31A 35637.00 PTPJ36120GN( )U31A 36929.00
400
LSI 5.0
PTPG36040GN( )U33A 28300.00 38900.00 PTPJ36040GN( )U33A 29532.00 40400.00
600 PTPG36060GN( )U33A 28300.00 38900.00 PTPJ36060GN( )U33A 29532.00 40400.00
800 PTPG36080GN( )U33A 28300.00 38900.00 PTPJ36080GN( )U33A 29532.00 40400.00
1000 PTPG36100GN( )U33A 36064.00 47168.00 PTPJ36100GN( )U33A 37328.00 48934.00
1200 PTPG36120GN( )U33A 36064.00 PTPJ36120GN( )U33A 37328.00
Micrologic Ammeter Trip Unit
3Ø4W + G, 600 Vac 50/60 Hz
400
LI 3.0 A
PTPG36040GN( )U41A 29072.00 39560.00 PTPJ36040GN( )U41A 30295.00 41068.00
600 PTPG36060GN( )U41A 29072.00 39560.00 PTPJ36060GN( )U41A 30295.00 41068.00
800 PTPG36080GN( )U41A 29072.00 39560.00 PTPJ36080GN( )U41A 30295.00 41068.00
1000 PTPG36100GN( )U41A 36826.00 47435.00 PTPJ36100GN( )U41A 38055.00 49856.00
1200 PTPG36120GN( )U41A 36826.00 PTPJ36120GN( )U41A 38055.00
400
LSI 5.0 A
PTPG36040GN( )U43A 31300.00 41430.00 PTPJ36040GN( )U43A 32520.00 42695.00
600 PTPG36060GN( )U43A 31300.00 41430.00 PTPJ36060GN( )U43A 32520.00 42695.00
800 PTPG36080GN( )U43A 31300.00 41430.00 PTPJ36080GN( )U43A 32520.00 42695.00
1000 PTPG36100GN( )U43A 39010.00 50424.00 PTPJ36100GN( )U43A 40124.00 51342.00
1200 PTPG36120GN( )U43A 39010.00 PTPJ36120GN( )U43A 40124.00
400
LSIG 6.0 A
PTPG36040GN( )U44A 34052.00 43760.00 PTPJ36040GN( )U44A 35250.00 45330.00
600 PTPG36060GN( )U44A 34052.00 43760.00 PTPJ36060GN( )U44A 35250.00 45330.00
800 PTPG36080GN( )U44A 34052.00 43760.00 PTPJ36080GN( )U44A 35250.00 45330.00
1000 PTPG36100GN( )U44A 41725.00 51824.00 PTPJ36100GN( )U44A 42700.00 52910.00
1200 PTPG36120GN( )U44A 41725.00 PTPJ36120GN( )U44A 42700.00
aThe standard rating plug supplied with a trip unit will be the "A" rating plug. To specify an alternative rating plug, replace the "A" at the end of the catalog
number with the applicable suffix letter. See the chart on page 7-45 for rating plug catalog suffix letters.
bAll these devices use bolt-on connection. It may be used only on busway with same number of poles. Not for use on 800 A copper busway. To complete
the catalog number, replace the blank with an “H” for horizontal applications and “V” for vertical applications.
cListed catalog numbers are for 80% rated circuit breakers. For 100% rated circuit breakers, replace the blank with an “HC” for horizontal applications and
“VC” for vertical applications. For example, the catalog number for a 100% standard trip unit with standard LI trip functions at 800 A 3Ø3W for a horizontal
application would be PTPG36080GHCU31A.
Notes:
For IP54 splash resistant construction, add a “M54” suffix. IP54 price adder is 15%.
The 250 A is available as a special device. Contact your local Schneider Electric field office for ordering information.
PE8 PE7 Discount
Schedule
www.schneider-electric.us
12-14 © 2012 Schneider Electric
All Rights Reserved
12 BUSWAY
PE8 PE7 Discount
Schedule
I-LineTM Busway PowerPactTM R-Frame Plug-in Units
Class 5600 / Refer to Catalog 5600CT9101
Table 12.38: R-Frame Circuit Breaker Plug-in Units—3Ø3W
Trip Rating
Ampere
Trip
Function Trip Unit
Interrupting Rating
G J L
Catalog Numberabc $ Price Catalog Numberabc $ Price Catalog Numberabc $ Price
80 % Rated 100 % Rated 80 % Rated 100 % Rated 80 % Rated 100 % Rated
Micrologic Standard Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
800
LI 3.0
PTRG36080G( )U31A 42232.00 48472.00 PTRJ36080G( )U31A 43800.00 50040.00 PTRL36080G( )U31A 45366.00 51606.00
1000 PTRG36100G( )U31A 42232.00 48472.00 PTRJ36100G( )U31A 43800.00 50040.00 PTRL36100G( )U31A 45366.00 51606.00
1200 PTRG36120G( )U31A 42232.00 48472.00 PTRJ36120G( )U31A 43800.00 50040.00 PTRL36120G( )U31A 45366.00 51606.00
1600 PTRG36160G( )U31A 42232.00 PTRJ36160G( )U31A 43800.00 PTRL36160G( )U31A 45366.00
800
LSI 5.0
PTRG36080G( )U33A 42686.00 48772.00 PTRJ36080G( )U33A 44254.00 50340.00 PTRL36080G( )U33A 45820.00 51906.00
1000 PTRG36100G( )U33A 42686.00 48772.00 PTRJ36100G( )U33A 44254.00 50340.00 PTRL36100G( )U33A 45820.00 51906.00
1200 PTRG36120G( )U33A 42686.00 48772.00 PTRJ36120G( )U33A 44254.00 50340.00 PTRL36120G( )U33A 45820.00 51906.00
1600 PTRG36160G( )U33A 42686.00 PTRJ36160G( )U33A 44254.00 PTRL36160G( )U33A 45820.00
Micrologic Ammeter Trip Unit
3Ø3W + G, 600 Vac 50/60 Hz
800
LI 3.0 A
PTRG36080G( )U41A 43368.00 49342.00 PTRJ36080G( )U41A 44936.00 50910.00 PTRL36080G( )U41A 46502.00 52476.00
1000 PTRG36100G( )U41A 43368.00 49342.00 PTRJ36100G( )U41A 44936.00 50910.00 PTRL36100G( )U41A 46502.00 52476.00
1200 PTRG36120G( )U41A 43368.00 49342.00 PTRJ36120G( )U41A 44936.00 50910.00 PTRL36120G( )U41A 46502.00 52476.00
1600 PTRG36160G( )U41A 43368.00 PTRJ36160G( )U41A 44936.00 PTRL36160G( )U41A 46502.00
800
LSI 5.0 A
PTRG36080G( )U43A 45366.00 51184.00 PTRJ36080G( )U43A 46934.00 52752.00 PTRL36080G( )U43A 48500.00 54318.00
1000 PTRG36100G( )U43A 45366.00 51184.00 PTRJ36100G( )U43A 46934.00 52752.00 PTRL36100G( )U43A 48500.00 54318.00
1200 PTRG36120G( )U43A 45366.00 51184.00 PTRJ36120G( )U43A 46934.00 52752.00 PTRL36120G( )U43A 48500.00 54318.00
1600 PTRG36160G( )U43A 45366.00 PTRJ36160G( )U43A 46934.00 PTRL36160G( )U43A 48500.00
800
LSIG 6.0 A
PTRG36080G( )U44A 47856.00 53426.00 PTRJ36080G( )U44A 49424.00 54994.00 PTRL36080G( )U44A 50990.00 56560.00
1000 PTRG36100G( )U44A 47856.00 53426.00 PTRJ36100G( )U44A 49424.00 54994.00 PTRL36100G( )U44A 50990.00 56560.00
1200 PTRG36120G( )U44A 47856.00 53426.00 PTRJ36120G( )U44A 49424.00 54994.00 PTRL36120G( )U44A 50990.00 56560.00
1600 PTRG36160G( )U44A 47856.00 PTRJ36160G( )U44A 49424.00 PTRL36160G( )U44A 50990.00
Table 12.39: R-Frame Circuit Breaker Plug-in Units—3Ø4W
Trip Rating
Ampere
Trip
Function Trip Unit
Interrupting Rating
G J L
Catalog Numberabc $ Price Catalog Numberabc $ Price Catalog Numberabc $ Price
80 % Rated 100 % Rated 80 % Rated 100 % Rated 80 % Rated 100 % Rated
Micrologic Standard Trip Unit
3Ø4W + G, 277/480 Vac (600 Vac Max.) 50/60 Hz
800
LI 3.0
PTRG36080GN( )U31A 43232.00 49472.00 PTRJ36080GN( )U31A 44800.00 51040.00 PTRL36080GN( )U31A 46366.00 52606.00
1000 PTRG36100GN( )U31A 43232.00 49472.00 PTRJ36100GN( )U31A 44800.00 51040.00 PTRL36100GN( )U31A 46366.00 52606.00
1200 PTRG36120GN( )U31A 43232.00 49472.00 PTRJ36120GN( )U31A 44800.00 51040.00 PTRL36120GN( )U31A 46366.00 52606.00
1600 PTRG36160GN( )U31A 43232.00 PTRJ36160GN( )U31A 44800.00 PTRL36160GN( )U31A 46366.00 —
800
LSI 5.0
PTRG36080GN( )U33A 43686.00 49772.00 PTRJ36080GN( )U33A 45254.00 51340.00 PTRL36080GN( )U33A 46820.00 52906.00
1000 PTRG36100GN( )U33A 43686.00 49772.00 PTRJ36100GN( )U33A 45254.00 51340.00 PTRL36100GN( )U33A 46820.00 52906.00
1200 PTRG36120GN( )U33A 43686.00 49772.00 PTRJ36120GN( )U33A 45254.00 51340.00 PTRL36120GN( )U33A 46820.00 52906.00
1600 PTRG36160GN( )U33A 43686.00 PTRJ36160GN( )U33A 45254.00 PTRL36160GN( )U33A 46820.00 —
Micrologic Ammeter Trip Unit
3Ø4W + G, 277/480 Vac (600 Vac Max.) 50/60 Hz
800
LI 3.0 A
PTRG36080GN( )U41A 44368.00 50342.00 PTRJ36080GN( )U41A 45936.00 51910.00 PTRL36080GN( )U41A 47502.00 53476.00
1000 PTRG36100GN( )U41A 44368.00 50342.00 PTRJ36100GN( )U41A 45936.00 51910.00 PTRL36100GN( )U41A 47502.00 53476.00
1200 PTRG36120GN( )U41A 44368.00 50342.00 PTRJ36120GN( )U41A 45936.00 51910.00 PTRL36120GN( )U41A 47502.00 53476.00
1600 PTRG36160GN( )U41A 44368.00 PTRJ36160GN( )U41A 45936.00 PTRL36160GN( )U41A 47502.00 —
800
LSI 5.0 A
PTRG36080GN( )U43A 46366.00 52184.00 PTRJ36080GN( )U43A 47934.00 53752.00 PTRL36080GN( )U43A 49500.00 55318.00
1000 PTRG36100GN( )U43A 46366.00 52184.00 PTRJ36100GN( )U43A 47934.00 53752.00 PTRL36100GN( )U43A 49500.00 55318.00
1200 PTRG36120GN( )U43A 46366.00 52184.00 PTRJ36120GN( )U43A 47934.00 53752.00 PTRL36120GN( )U43A 49500.00 55318.00
1600 PTRG36160GN( )U43A 46366.00 PTRJ36160GN( )U43A 47934.00 PTRL36160GN( )U43A 49500.00 —
800
LSIG 6.0 A
PTRG36080GN( )U44A 48856.00 54426.00 PTRJ36080GN( )U44A 50424.00 55994.00 PTRL36080GN( )U44A 51990.00 57560.00
1000 PTRG36100GN( )U44A 48856.00 54426.00 PTRJ36100GN( )U44A 50424.00 55994.00 PTRL36100GN( )U44A 51990.00 57560.00
1200 PTRG36120GN( )U44A 48856.00 54426.00 PTRJ36120GN( )U44A 50424.00 55994.00 PTRL36120GN( )U44A 51990.00 57560.00
1600 PTRG36160GN( )U44A 48856.00 PTRJ36160GN( )U44A 50424.00 PTRL36160GN( )U44A 51990.00 —
aThe standard rating plug supplied with a trip unit will be the "A" rating plug. To specify an alternative rating plug, replace the "A" at the end of the catalog number with the applicable suffix
letter. See the chart on page 7-45 for rating plug catalog suffix letters.
bAll these devices use bolt-on connection. It may be used only on busway with same number of poles. Not for use on 800 A copper busway. To complete the catalog number, replace the blank
with an “H” for horizontal applications and “V” for vertical applications.
cListed catalog numbers are for 80% rated circuit breakers. For 100% rated circuit breakers, replace the blank with an “HC” for horizontal applications and “VC” for vertical applications. For
example, the catalog number for a 100% standard trip unit with standard LI trip functions at 800 A 3Ø3W for a horizontal application would be PTRG36080GHCU31A.
Notes:
For IP54 splash resistant construction, add a "M54" suffix. IP54 price adder is 15%.
The 600 A is available as a special device. Contact your local Schneider Electric field office for ordering information.
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-15
Power-ZoneTM Busway Non-Segregated Bus
Class 6090 / Refer to Catalog 5600CT9101
Non-segregated phase bus
600 V through 15 kV (1200 A–4000 A) 1
Aluminum, steel or stainless steel housing
Aluminum or copper bus bars
Insulated with fluidized bed epoxy (5 kV–15 kV)
Complete line of fittings provides for any
configuration
Indoor trapeze and outdoor column supports
For use in utilities, industrial and commercial
facilities
Power-Zone bus is custom designed, manufactured and
tested per ANSI C37.23 standards to meet customer
specifications. The 600 V product is also UL Listed. It is
a completely coordinated package of equipment with all
the auxiliary material and supports for connecting
transformers, switchgear, MCCs, and motors, in all types
of utility, industrial, and commercial facilities.
General Pricing Instruction – Prepare a layout sketch
(if applicable) of the run(s) showing all dimensions in feet
and inches, all wall and floor locations and thicknesses
and all fittings such as elbows, tees, flanged ends, cable
tap boxes, expansion fittings, transformer connections,
etc. Add all dimensions together using the center line of
the bus and adjust the total to the higher whole foot.
Multiply this total by the per foot price as determined by
the type (indoor or weatherproof) (aluminum or copper)
and the number of poles and any optional accessories
(aluminum or steel enclosures, fiberglass or porcelain
conductor supports, etc.). To this add the charges for
each of the elbows, tees, flanged ends, cable tap boxes,
expansion fittings, transformer connections, etc. The
sum of these items plus the sum of any optional
accessory is the price of the entire bus run. NOTE:
Because the bus run is custom designed and built there
are no “Complete Device” prices.
Bus Footage – The per foot price of the bus may be a
combination of several prices depending on the job
specifications and requirements. Some of these options
are special momentary rating, special housing material
and/or finish, special conductor supports, heaters and
thermostats, and ground bus. The prices for these
options are shown on page 12-16. They should be
added to the per foot prices shown on page 12-16.
Weatherproof Bus – Priced the same as indoor. In
addition, all weatherproof runs must be equipped with
strip heaters to eliminate condensation and, if applicable,
a thermostat. A heater should be priced for every seven
(7) foot of bus and no more than 20 heaters can be
controlled by one thermostat. Also, each bus run should
have its own thermostat. The heaters are rated 240 V,
500 watts and operate at 120 V, 125 watts.
Flanged Ends – A flanged end is used to terminate the
bus into switchgear, motor control centers, switchboards,
or any rigid bus-to-bus connection. It consists of a
gasketed equipment flange, up to 1'-0" of 3Ø3W
conductor (3Ø4W as applicable), necessary insulation
tapes, and required bolting hardware. If additional
conductor length is required, add to the footage price on
a per foot basis.
Cable Tap Box – A cable tap box includes a gasketed
and accessible termination box, lugs, necessary
insulation tape (between bus and lugs only), and
required bolting hardware. Lug sizes and quantity should
be specified by purchaser.
Transformer/Generator Connection – This type of
termination should be priced whenever the bus is
connecting to a transformer, generator, motor, switch or
any connection where the bus bars are connecting to
porcelain mounted equipment terminals. It will include
the same components as a flanged end plus one set of
flexible braid type connectors and a terminal box (if
required).
Bushing Box (Weatherhead) – A bushing box is used
on service entrance run where the cable connection to
the bus must be made via porcelain bushings. It is
comprised of the same components as a transformer
connection plus 3 through stud type apparatus bushings,
bushing stud connectors (lug pads) and a strip heater.
Ground Bus – The bus housing is designed and
constructed to provide an electrically continuous ground
path. The side rails of the bus housings are capable of
carrying the full rated phase current continuously and,
under short circuit conditions, are capable of carrying up
to 60 kA RMS asymmetrical fault current for 3 seconds.
Consequently, a separate ground bus is not necessary
unless specified.
Wall Entrance Seal – A wall entrance seal consists of a
wall throat, wall flange (one side of wall only), and a
barrier which prevents air or vapor from passing from
one room to another or from outdoors to indoors. It also
carries a 1/2 hour fire rating. Consult factory for higher
fire ratings. If additional wall flanges are required, they
should be added at the prices given on page 12-18.
Equipment Entrance Seal – An equipment entrance
seal should be priced whenever a barrier is required to
prevent the passing of flame and/or gasses between the
bus housing and the terminating equipment.
Expansion Fittings – An expansion fitting is used to
counteract the strain placed on the bus due to the
expansion and contraction of the building or the bus
itself. One should be priced whenever the bus run
crosses a building expansion joint and whenever a
straight run of bus exceeds 60 feet.
Flexible Housing (Misalignment) Collar – Required at
terminations or wall penetrations when vibrations due to
seismic forces may cause damage to the bus. It may
also be used to adjust for the “settling” of terminating
equipment after installation.
1 For additional ratings, contact the factory.
www.schneider-electric.us
12-16 © 2012 Schneider Electric
All Rights Reserved
12 BUSWAY
Power-ZoneTM Busway Non-Segregated Bus
Class 6090 / Refer to Catalog 5600CT9101
Supporting Steel (Hangers) – Supports are not included in the “per foot” price of the bus and should be added on the
basis of one for every 10 ft. for indoor and one for every 12 ft. for outdoor. Indoor supports are a trapeze type hanger
while outdoor supports are a single or double column type support. Consult factory for other type supports.
Hazardous or Seismic Locations – Consult factory for bus runs which are to be installed in a location which is
classified as hazardous or in a seismic location.
Standard Construction – The prices on this page are based on standard Power-Zone construction. Page 12-18 should
be used to add any options or accessories. Standard construction is as follows:
Conductor (plating): Copper (silver) or Aluminum (tin)
Conductor Insulation (5 kV and 15 kV only): epoxy
Conductor Supports: Glass reinforced polyester blocks
Housing Material: Extruded Aluminum (1/8-inch Nominal)
Housing Construction: Totally Enclosed Non-ventilated
Joint Insulation: EPR and PVC tape
BIL Rating: 25 kV (600 V), 60 kV (5 kV) and 95 kV (15 kV)
Momentary (Short Circuit) Rating: 75 kA (600 V) and 60 kA (5 kV, 15 kV)
Ground Conductor: Housing (100% rated)
Table 12.40: Footage and Fittings
Cond.
Mtl.
No. of Poles,
Wires
Current
Rtg.
$ Price
Per
Foot a
Flanged
End
Vert.
Elb.
Horz.
Elb.
Cable
Tap
Box
Vert.
Tee
Horz.
Tee
Indr.
Exp.
Ftg.
Outdr.
Exp.
Ftg.
Wall
Entr.
Seal
Equip.
Entr.
Seal
Phase
Phase
Trans.
Xfrm
Conn.
Porc.
Bshg.
Box
600 V
Aluminum
3P, 3W
1200 A 1235. 4430. 4885. 4195. 14348. 6740. 6740. 6595. 13905. 5400. 3970. 8825. 15725. 34275.
1600 A 1315. 4535. 5005. 4265. 14838. 6760. 6760. 8075. 15610. 5410. 3975. 9150. 17265. 37510.
2000 A 1485. 4905. 5160. 4340. 17165. 7020. 7020. 8635. 16395. 5435. 3985. 9840. 19450. 42687.
2500 A 1635. 5120. 5420. 4390. 17777. 7190. 7190. 10895. 18950. 5450. 3995. 10145. 21755. 47865.
3200 A 1845. 5310. 5470. 4435. 18736. 7195. 7195. 12835. 20885. 5475. 4005. 10525. 23880. 54800.
3P, 4W
100%
Neutral
1200 A 1605. 5759. 6351. 5454. 18652. 8762. 8762. 8574. 18077. 7020. 5161. 11473. 20443. 44558.
1600 A 1710. 5895. 6507. 5545. 19290. 8788. 8788. 10498. 20293. 7033. 5168. 11895. 22445. 48763.
2000 A 1930. 6376. 6708. 5642. 22315. 9126. 9126. 11226. 21314. 7066. 5181. 12792. 25285. 53417.
2500 A 2125. 6656. 7046. 5707. 23110. 9347. 9347. 14164. 24635. 7085. 5194. 13189. 28282. 62225.
3200 A 2399. 6903. 7111. 5766. 24357. 9354. 9354. 16686. 27151. 7104. 5207. 13683. 31044. 71240.
Copper
3P, 3W
1200 A 1785. 5115. 5030. 4195. 15101. 6885. 6885. 6890. 14200. 5400. 3970. 10085. 16555. 34960.
1600 A 1985. 5320. 5192. 4230. 15702. 7007. 7007. 8310. 15615. 5410. 3975. 10505. 18180. 38250.
2000 A 2665. 6190. 5355. 4265. 18579. 7130. 7130. 8815. 16350. 5435. 3985. 12205. 20840. 41220.
2500 A 2950. 6645. 5455. 4340. 19454. 7320. 7320. 11160. 18920. 5450. 3995. 13105. 23410. 49420.
3200 A 4125. 8995. 6172. 4390. 22789. 8007. 8007. 16120. 24175. 5475. 4005. 16740. 29205. 59385.
4000 A 5970. 10680. 6890. 4435. 26693. 8695. 8695. 19690. 28680. 5527. 4050. 20215. 35905. 72125.
5000 A 6470. 11585. 7570. 4620. 29178. 9330. 9330. 24950. 34705. 5580. 4190. 22400. 42035. 80380.
6000 A 7335. 13895. 9815. 4590. 33649. 11060. 11060. 32305. 42055. 5610. 4235. 25960. 50735. 96635.
3P, 4W
100%
Neutral
1200 A 2320. 6650. 6539. 5454. 19632. 8951. 8951. 8957. 18460. 7020. 5161. 13111. 21522. 45448.
1600 A 2580. 6916. 6750. 5501. 20413. 9110. 9110. 10803. 20300. 7033. 5168. 13657. 23634. 49725.
2000 A 3464. 8047. 6962. 5595. 24153. 9269. 9269. 11460. 21255. 7066. 5181. 15867. 27092. 53586.
2500 A 3835. 8639. 7092. 5642. 25291. 9516. 9516. 14508. 24596. 7085. 5194. 17037. 30433. 64246.
3200 A 5362. 11694. 7779. 5707. 29626. 11492. 11492. 20956. 31428. 7104. 5207. 21762. 37967. 77201.
4000 A 7760. 13884. 9153. 5766. 34701. 11810. 11810. 25597. 37284. 7129. 5265. 26280. 46677. 93763.
5000 A 8411. 15061. 9841. 6006. 37932. 12129. 12129. 32435. 45117. 7254. 5447. 29120. 54646. 104494.
6000 A 9535. 18064. 12760. 6246. 43744. 14378. 14378. 41997. 54672. 7293. 5506. 33748. 65956. 125626.
5 kV
Aluminum
3P, 3Wb
1200 A 1410. 4550. 4495. 4175. 14480. 6730. 6730. 6635. 14690. 5500. 4265. 9385. 15835. 52874.
1600 A 1500. 4655. 4570. 4275. 14971. 6760. 6760. 8105. 16635. 5515. 4285. 9575. 17385. 56289.
2000 A 1690. 5020. 4640. 4405. 17292. 7020. 7020. 8635. 17625. 5525. 4315. 10065. 19560. 62104.
2500 A 1840. 5185. 4690. 4505. 17849. 7080. 7080. 10680. 19205. 5540. 4370. 10355. 21715. 68579.
3000 A 2120. 5505. 4760. 4685. 18951. 7195. 7195. 12835. 21825. 5590. 4425. 10910. 24070. 76874.
Copper
3P, 3Wb
1200 A 1815. 5025. 4495. 4325. 15003. 6885. 6885. 6940. 14995. 5500. 4265. 10230. 16465. 53499.
1600 A 2185. 5445. 4532. 4330. 15840. 7000. 7000. 8360. 16415. 5515. 4285. 11070. 18305. 57384.
2000 A 2870. 6300. 4570. 4615. 18700. 7115. 7115. 8825. 17350. 5525. 4310. 12620. 20935. 62494.
2500 A 3165. 6755. 4640. 4695. 19576. 7320. 7320. 11160. 20150. 5540. 4370. 13325. 23525. 71284.
3000 A 4340. 9180. 4715. 5493. 22993. 8840. 8840. 16120. 25110. 5590. 4425. 17115. 29395. 83604.
4000 A 6375. 10875. 6340. 6426. 26908. 9085. 9085. 19690. 28680. 5640. 4471. 20605. 36100. 98519.
5000 A 6965. 11825. 7435. 7519. 29448. 9330. 9330. 24950. 34705. 5740. 4590. 22880. 42280. 110539.
6000 A 8175. 14275. 10095. 8797. 34068. 11065. 11065. 32315. 42065. 5840. 4610. 26715. 51120. 133414.
15 kV
Aluminum
3P, 3Wb
1200 A 1445. 4655. 4495. 4175. 14596. 6820. 6820. 6815. 14870. 5500. 4280. 9510. 16035. 70042.
1600 A 1550. 4765. 4570. 4275. 15092. 6850. 6850. 8290. 16815. 5515. 4305. 9710. 17590. 74618.
2000 A 1745. 5190. 4640. 4405. 17479. 7160. 7160. 8910. 17900. 5525. 4345. 10265. 19865. 82879.
2500 A 1900. 5445. 4690. 4505. 17772. 7245. 7245. 10445. 18970. 5540. 4410. 10325. 21525. 89639.
3000 A 2205. 5700. 4760. 4685. 19165. 7330. 7330. 13105. 22095. 5590. 4485. 11170. 24405. 102938.
Copper
3P, 3Wb
1200 A 1850. 5130. 4495. 4325. 15118. 6975. 6975. 7125. 15180. 5500. 4280. 10350. 16660. 70854.
1600 A 2225. 5555. 4570. 4330. 15961. 7092. 7092. 8545. 16600. 5515. 4305. 11195. 18505. 76139.
2000 A 2915. 6415. 4640. 4615. 18827. 7210. 7210. 9005. 17535. 5525. 4345. 12756. 21140. 83152.
2500 A 3220. 6925. 4690. 4695. 19763. 7455. 7455. 11430. 20420. 5540. 4410. 13525. 23825. 95223.
3000 A 4385. 9380. 4760. 5493. 23213. 8975. 8975. 16395. 25385. 5590. 4485. 17370. 29725. 111960.
4000 A 6435. 11075. 6340. 6426. 27128. 9232. 9232. 19960. 28950. 5640. 4685. 20860. 36435. 132968.
5000 A 7305. 12065. 7435. 7519. 29712. 9490. 9490. 25270. 35025. 5740. 4900. 23195. 42680. 150018.
6000 A 8955. 14575. 10095. 8797. 34398. 11250. 11250. 32680. 42430. 5840. 6540. 27135. 51605. 181627.
aHangers, supports and heater prices not included. See page 12-17 for pricing.
bAdd 30% for 3Ø4W (half-neutral): add 45% for 3Ø4W (full-neutral).
PE8 Discount
Schedule
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-17
Power-ZoneTM Busway Non-Segregated Bus
Class 6090 / Refer to Catalog 5600CT9101
Space Heaters/Thermostats
Space heaters must be priced for all weatherproof applications. One heater should be priced for every 7 feet of outdoor
bus. If a thermostat is specified to control the heaters, at least one should be priced for each bus run. No more than 20
heaters can be controlled by each thermostat.
Hangers/Supports
Hangers and supports are not included in prices on page 12-16. Price one indoor hanger for every 10 feet (maximum)
of indoor bus and one outdoor support for every 12 feet (maximum) of outdoor bus (if required).
Construction Options
Table 12.41: Thermostats/Space Heaters
Description $ Price Each
Thermostat 800.00
120 V, 125 W space heater (240 V, 500 W rated) 680.00
Table 12.42: Hangers/Supports
Support Description Maximum Height $ Price Each
Indoor Trapeze Hanger 820.00
Outdoor, Single
Column Support
6 feet
8 feet
10 feet
12 feet
5709.00
6524.00
7340.00
8155.00
Outdoor, Double
Column Support
14 feet
16 feet
18 feet
20 feet
22 feet
14995.00
16495.00
17994.00
19494.00
20993.00
Table 12.43: Momentary (Asymmetrical Short Circuit) Ratings
Voltage Class Amperes $ Price Per Footc Multiplier
600 V
75 KA
100 KA
150 KA
Standard
1.25
1.50
5 kV
60 KA
80 KA
100 KA
Standard
1.05
1.25
15 kV
60 KA
80 KA
100 KA
150 KA
Standard
1.05
1.25
1.50
cInclude base price (page 12-17) plus all options.
Table 12.44: Bus Enclosures
Material and Finish Per Foot
$ Price Adder
Painted Aluminum (1/8” Nominal) Standard
Painted 14 Gauge Steel 680.00
Painted 11 Gauge Steel 800.00
Unpainted 14 Gauge 304 Stainless Steel 1600.00
Unpainted 14 Gauge 316 Stainless Steel 2160.00
PE8 Discount
Schedule
12-18 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
PE8 Discount
Schedule
Power-Zone Busway Non-Segregated Bus
Class 6090 / Refer to Catalog 5600CT9101
Miscellaneous Terminating Accessories
Miscellaneous terminating accessory prices should be added only if not already included in the price of the termination
(see pricing instruction for further information).
Table 12.45: Bushing Stud Connectors (Lug Pads)d
Amperes $ Price Each
1200 A
1600 A
2000 A
2500 A
3000 A
4000 A
5607.00
5904.00
6315.00
7221.00
8202.00
9528.00
dIf not included on terminating equipment.
Table 12.46: Flexible Connectors
Voltage
Class
$ Price Per Three Phase Connectione
1200 A 1600 A 2000 A 2500 A 3000 A 4000 A
600 V
5 kV
15 kV
7550.00
7706.00
7922.00
9175.00
9300.00
9405.00
10045.00
10155.00
10265.00
12425.00
12535.00
12705.00
16705.00
16890.00
17085.00
22245.00
22440.00
22635.00
eAdd 45% for 3Ø4W (100%) connection. Add 30% for 3Ø4W (50%).
Table 12.47: Terminal Boxes
Box Size 11 Gauge Steel 3/16” Aluminum
3' x 2' x 3'
3' x 3' x 4'
4' x 3' x 4'
4' x 4' x 5'
5' x 4' x 5'
5' x 5' x 5'
8350.00
9895.00
11195.00
11935.00
12740.00
14020.00
11690.00
13853.00
15673.00
16709.00
17836.00
19628.00
Table 12.48: Miscellaneous Additions
Description $ Price
PVC insulating boots: (optional)a
Splice (joint) (3Ø3W)
Termination (3Ø3W)
2000.00
2000.00
Wall Flange: (optional) (in addition to wall entrance seal)
Aluminum
14 Gauge Steel
14 Gauge 304 Stainless Steel
14 Gauge 316 Stainless Steel
1750.00
1250.00
2000.00
2600.00
Optional Conductor Support
High Alumina Porcelainb1150.00
Flexible Housing (Misalignment) Collar (optional) 3560.00
aAdd 45% for 3Ø4W (100%) connection. Add 30% for 3Ø4W (50%).
bPer foot
www.schneider-electric.us
12 BUSWAY
© 2012 Schneider Electric
All Rights Reserved 12-19
PowerbusTM Busway Plug-In Units
Class 5600 / Refer to Catalog 5600CT9101
Powerbus Plug-in Units With Metering
Powerbus plug-in units with metering are rated maximum 100 A and are offered as factory assembled units. All units conform to NEMA type 1.
Note: See Digest Section 9 for ED circuit breaker information. Catalog numbers shown have the breaker in the top slot in the front cover and the drop cord in the left position in the base of the unit.
Other combinations are available. The Power Meter display will be located below the breaker specs.
For remote monitoring capabilities, an EGX gateway is required. The EGX is located in the tap box with metering or in a separate EGX plug-in unit listed below. The units with metering can
be daisy-chained together back to the EGX gateway. A maximum of 30 units should be daisy-chained together to one EGX.
aFactory assembled units are availalbe using combinations of 1P/2P/3P circuit breakers with other NEMA and IEC type receptacles. Maximum of three drop cords with three breaker spaces
available. Consult your local Schneider Electric representative.
Note: For remote monitoring capabilities, an EGX gateway is required. The EGX is located in the tap box with metering or in a
separate EGX plug-in unit listed above. Units with metering can be daisy-chained together back to the EGX gateway.
A maximum of 30 units should be daisy-chained together to one EGX.
Note: Additional NEMA and IEC type receptacles and connectors are available.
Note: Replace ( ) in above table with the appropriate
meter suffix number. Connectors must be rated
for appropriate voltages.
Table 12.49: Factory Assembled Units with Metering
One (1) ED circuit breaker, one (1) drop cord with connectora, and one (1) PM5350 meter
Circuit Breaker NEMA
Connector
Drop Cord
Length (ft)
4A Configuration 5A Configuration 5B Configuration
Rating Poles Catalog Number $ Price Catalog Number $ Price Catalog Number $ Price
15 A 1L5-15 3PBPEDU4A100COOL515M( ) 1961.00 PBPEDU5A100COOL515M( ) 2061.00 PBPEDU5B100COOL515M( ) 2061.00
20 A 1L5-20 3PBPEDU4A100COOL520M( ) 1971.00 PBPEDU5A100COOL520M( ) 2071.00 PBPEDU5B100COOL520M( ) 2071.00
30 A 1L5-30 3PBPEDU4A100COOL530M( ) 1986.00 PBPEDU5A100COOL530M( ) 2086.00 PBPEDU5B100COOL530M( ) 2086.00
15 A 2L6-15 3PBPEDU4A100COOL615M( ) 2268.00 PBPEDU5A100COOL615M( ) 2368.00 PBPEDU5B100COOL615M( ) 2368.00
20 A 2L6-20 3PBPEDU4A100COOL620M( ) 2278.00 PBPEDU5A100COOL620M( ) 2378.00 PBPEDU5B100COOL620M( ) 2378.00
30 A 2L6-30 3PBPEDU4A100COOL630M( ) 2293.00 PBPEDU5A100COOL630M( ) 2393.00 PBPEDU5B100COOL630M( ) 2393.00
20 A 3L21-20 3PBPEDU4A100COOL2120M( ) 2482.00 PBPEDU5A100COOL2120M( ) 2582.00 PBPEDU5B100COOL2120M( ) 2582.00
30 A 3L21-30 3PBPEDU4A100COOL2130M( ) 2497.00 PBPEDU5A100COOL2130M( ) 2597.00 PBPEDU5B100COOL2130M( ) 2597.00
15 A 1L5-15 6PBPEDU4A100FOOL515M( ) 2021.00 PBPEDU5A100FOOL515M( ) 2121.00 PBPEDU5B100FOOL515M( ) 2121.00
20 A 1L5-20 6PBPEDU4A100FOOL520M( ) 2031.00 PBPEDU5A100FOOL520M( ) 2131.00 PBPEDU5B100FOOL520M( ) 2131.00
30 A 1L5-30 6PBPEDU4A100FOOL530M( ) 2046.00 PBPEDU5A100FOOL530M( ) 2146.00 PBPEDU5B100FOOL530M( ) 2146.00
15 A 2L6-15 6PBPEDU4A100FOOL615M( ) 2328.00 PBPEDU5A100FOOL615M( ) 2428.00 PBPEDU5B100FOOL615M( ) 2428.00
20 A 2L6-20 6PBPEDU4A100FOOL620M( ) 2338.00 PBPEDU5A100FOOL620M( ) 2438.00 PBPEDU5B100FOOL620M( ) 2438.00
30 A 2L6-30 6PBPEDU4A100FOOL630M( ) 2353.00 PBPEDU5A100FOOL630M( ) 2453.00 PBPEDU5B100FOOL630M( ) 2453.00
20 A 3L21-20 6PBPEDU4A100FOOL2120M( ) 2542.00 PBPEDU5A100FOOL2120M( ) 2642.00 PBPEDU5B100FOOL2120M( ) 2642.00
30 A 3L21-30 6PBPEDU4A100FOOL2130M( ) 2557.00 PBPEDU5A100FOOL2130M( ) 2657.00 PBPEDU5B100FOOL2130M( ) 2657.00
Table 12.50: EGX Plug-in Unit (480 V Max)
4A Configuration 5A Configuration 5B Configuration
Catalog No. $ Price Catalog No. $ Price Catalog No. $ Price
PBPEGX4A100T 2687.00 PBPEGX5A100T 2787.00 PBPEGX5B100T 2787.00
Table 12.51: NEMA Receptacles and Connectors
Wring Voltage NEMA Non-Locking NEMA Locking
15 A 20 A 30 A 15 A 20 A 30 A
2-pole, 3-wire grounding 120 5–15 5–20 5–30 L5–15 L5–20 L5–30
2-pole, 3-wire grounding 240 6–15 6–20 6–30 L6–15 L6–20 L6–20
3-pole, 4-wire grounding 120/240 14–15 14–20 14–30 L14–20 L14–30
3-pole, 4-wire grounding 3Ø 240 15–15 15–20 15–30 L15–20 L15–30
4-pole, 5-wire grounding 3ØY 120/208 L21–20 L21–30
Meter Suffix System Voltage
1 208Y/120 V 3Ø4W
2 240 V 3Ø3W
4 415/240 V 3Ø4W
5 480Y/277 V 3Ø4W
PE8 Discount
Schedule
12-20 © 2012 Schneider Electric
All Rights Reserved
www.schneider-electric.us
12 BUSWAY
PE8 Discount
Schedule
PowerbusTM Busway Plug-In Units
Class 5600 / Refer to Catalog 5600CT9101

Navigation menu
