USA CANADA INT’L
FAX 800.451.26 32 FAX 800.524.2853 FAX +1.815.397.9247
PHONE 800.435.0786 PHONE 866.384.8813 PHONE +1.815.397.7070
WWW.GREENLEE.COM
SAVE TIME AND MONEY
WITH EVERY PUNCH.
SPEED PUNCH™
MILD STEEL • STAINLESS STEEL • OILTIGHT • METRIC
SPEED PUNCH
FASTER. SAFER. EASIER.®

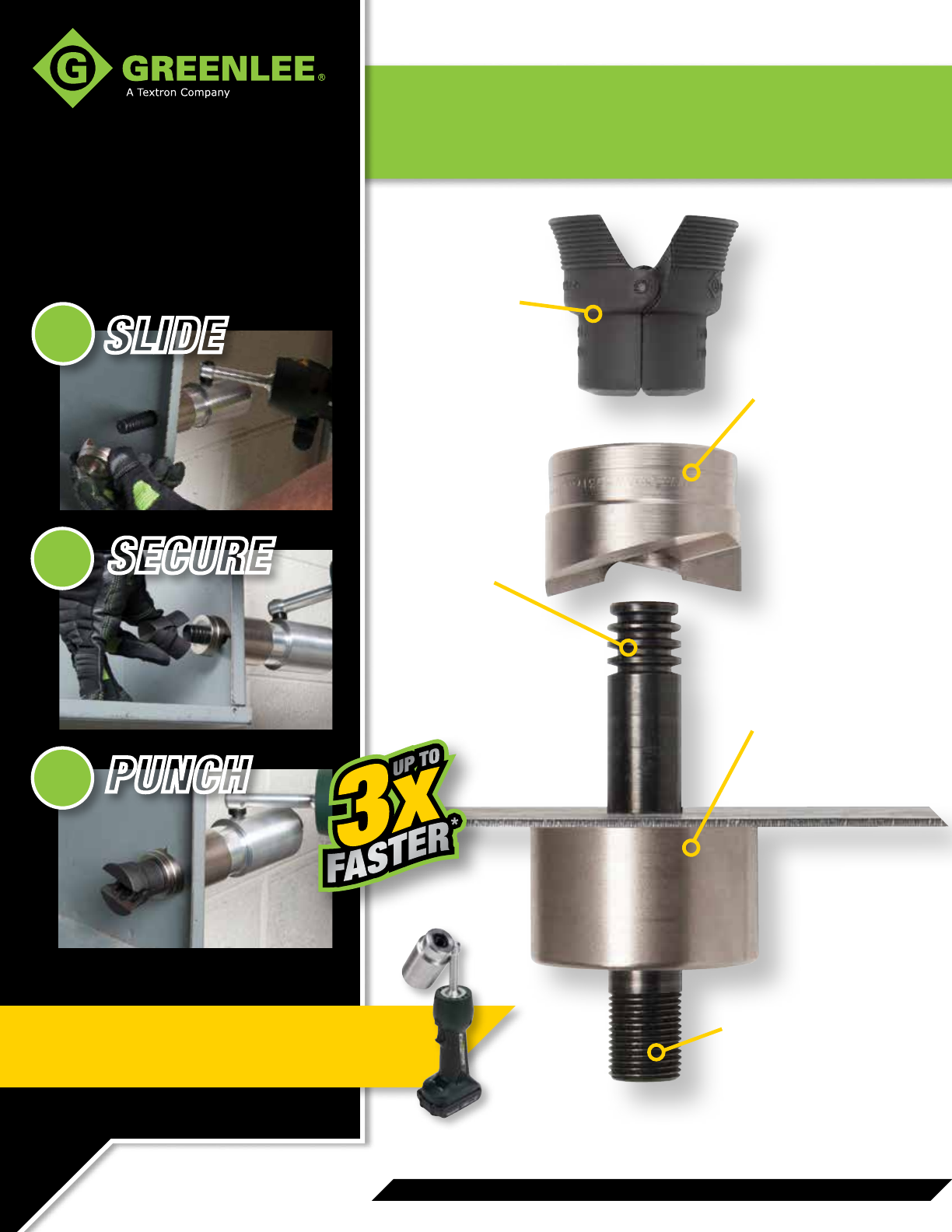

It’s as
easy as
2SECURE
3PUNCH
SLIDE
1
RUGGED
GROOVES
Holds up on
the job – no
more damaged
threads.
SPEED LOCK
Quickly secures
the system in
place - more
holes, less time. NO THREAD
PUNCH
Easily slides
on/off draw
stud.
STANDARD
DRAW STUD END
Works with existing
hydraulic and
battery-operated
punch drivers.
EXTENDED
DIE HEIGHT
No need for
spacers.
* Compared to standard threaded punch and draw stud set-up and disassembly.
Use with the LS50 battery-operated driver
for ultimate speed and performance.

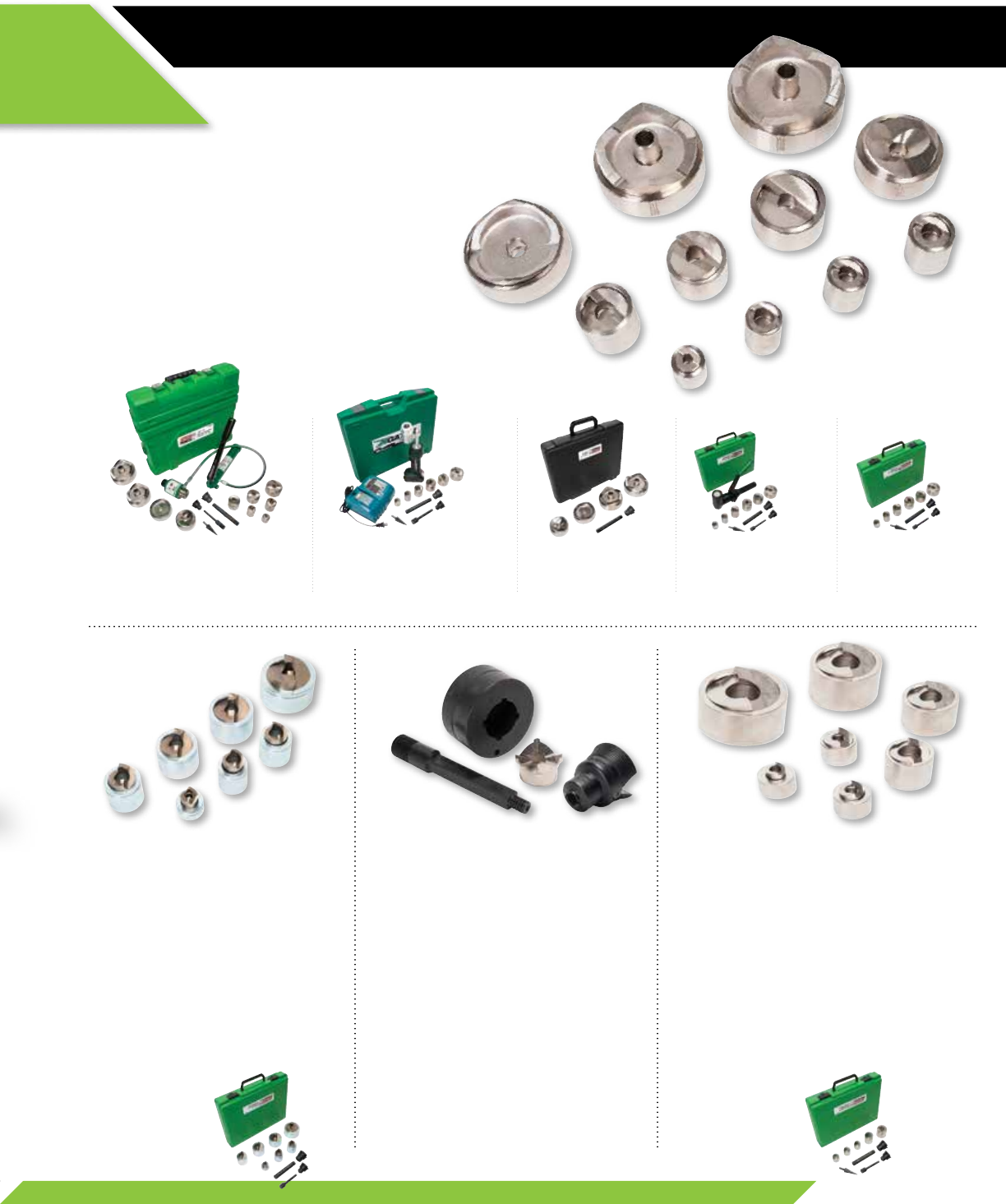

SPEED PUNCH A FULL LINE OF KNOCKOUTS FROM GREENLEE
www.greenlee.com
7307SP
MILD STEEL
½" TO 4"
• Available in ½" to 4" conduit sizes
• Punch up to 10 gauge (3.5 mm) mild steel,
aluminum, fiberglass and plastic
• Use with hydraulic and battery-powered drivers
7310SBSP
SPEED PUNCH Kit
with Hydraulic Pump and Ram
½" TO 4" CONDUIT
7304SP
SPEED PUNCH Kit
Large Diameter
2½" TO 4" CONDUIT
LS50L11SBSP
SPEED PUNCH Kit
with Battery-Powered Driver
½" TO 2" CONDUIT
7908SBSP
SPEED PUNCH Kit
with Quick Draw 90
½" TO 2" CONDUIT
7907SBSP+
SPEED PUNCH Kit
½" TO 2" CONDUIT
STAINLESS STEEL
½" TO 2"
• Available in ½" to 2"
conduit sizes
• Punch up to 10 gauge (3.5 mm)
stainless and mild steel
• Use with hydraulic and battery-
powered drivers
OILTIGHT PUNCHES
22MM & 30MM
• Available in 22mm & 30mm
notched hole sizes
• Punch up to 12 gauge (2.5 mm)
mild steel, aluminum, fiberglass
and plastic
• Use with hydraulic and battery-
powered drivers
METRIC
ISO-16 TO ISO-63
• Available in ISO-16 to ISO-63 (16.2 mm
to 63.5 mm) diameter hole sizes
• Punch up to 10 gauge (3.5 mm) mild
steel, aluminum, fiberglass and plastic
• Use with hydraulic and battery-powered
drivers
SPEED PUNCH Kit
Stainless Steel
½" TO 2" CONDUIT
7217SBSP
SPEED PUNCH Kit
Metric
ISO-16 TO ISO-40
www.greenlee.com MA6126 03/14
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
©2014 Greenlee Textron Inc. • An ISO 9001 Company • Printed in USA
Greenlee Textron Inc. is a subsidiary of Textron Inc.
FOR PRODUCT VIDEOS, DEMONSTRATIONS
AND MORE, SCAN THIS QR CODE OR VISIT:
www.youtube.com/GreenleeDEMO
LS50 – BATTERY-POWERED KNOCKOUT PUNCH DRIVER
• Fast. 2X faster than competitive models. Punch more holes in less time.
• Ergonomic. At only 5 lbs. the LS50 is designed for reduced fatigue and easy control.
• Versatile. 360° rotating head punches at any angle and fits in tight spaces.
ORDERING INFORMATION
CAT. NO. UPC DESCRIPTION
Mild Steel - U.S. CondUit SizeS
7212SP-1/2P 01652 1/2" Conduit, Punch
7212SP-1/2D 01653 1/2" Conduit, Die
7212SP-3/4P 00952 3/4" Conduit, Punch
7212SP-3/4D 09279 3/4" Conduit, Die
7212SP-1-7/32P 01658 1-7/32" (30.5 mm) Dia. Punch
7212SP-1-7/32D 01660 1-7/32" (30.5 mm) Dia. Die
7212SP-1P 00953 1" Conduit, Punch
7212SP-1D 09280 1" Conduit, Die
7212SP-1-1/4P 00955 1-1/4" Conduit, Punch
7212SP-1-1/4D 09281 1-1/4" Conduit, Die
7212SP-1-1/2P 09282 1-1/2" Conduit, Punch
7212SP-1-1/2D 00956 1-1/2" Conduit, Die
7212SP-2P 09283 2" Conduit, Punch
7212SP-2D 00957 2" Conduit, Die
7212SP-2-1/2P 01629 2-1/2" Conduit, Punch
7212SP-2-1/2D 01642 2-1/2" Conduit, Die
7212SP-3P 01644 3" Conduit, Punch
7212SP-3D 01645 3" Conduit, Die
7212SP-3-1/2P 01646 3-1/2" Conduit, Punch
7212SP-3-1/2D 01647 3-1/2" Conduit, Die
7212SP-4P 01650 4" Conduit, Punch
7212SP-4D 01651 4" Conduit, Die
SP-LOCK 09277 Speed Lock, 3/4"
7212SP11 10002 Draw Stud, Short, 3/4" x 4.8"
7212SP12‡00979 Draw Stud, Long, 3/4" x 5.6"
SP-LOCK2 01657 Speed Lock, 3/8"
7212SP13‡01654 Draw Stud, Long, 3/8" x 4.7"
7212SP14 01655 Draw Stud, Short, 3/8" x 3.8"
7310SBSP 01716 Speed Punch Kit, 1/2" to 4" Conduit, w/Hyd. Pump & Ram
7304SP 01715 Speed Punch Kit, 2-1/2" to 4" Conduit, Lg. Dia.
LS50L11SBSP 02257 Speed Punch Kit, 1/2" to 2" Conduit, w/LS50 Batt. Driver
7908SBSP 02258 Speed Punch Kit, 1/2" to 2" Conduit, w/Quick Draw 90
7907SBSP +02259 Speed Punch Kit, 1/2" to 2" Conduit
CAT. NO. UPC DESCRIPTION
StainleSS Steel - U.S. CondUit SizeS
745SP-1/2P 01661 1/2" Conduit, Stainless Steel, Punch
745SP-1/2D 01662 1/2" Conduit, Stainless Steel, Die
745SP-3/4P 01663 3/4" Conduit, Stainless Steel, Punch
745SP-3/4D 01665 3/4" Conduit, Stainless Steel, Die
745SP-1-7/32P 01667 1-7/32" (30.5 mm) Dia. Stainless Steel, Punch
745SP-1-7/32D 01668 1-7/32" (30.5 mm) Dia. Stainless Steel, Die
745SP-1P 01669 1" Conduit, Stainless Steel, Punch
745SP-1D 01670 1" Conduit, Stainless Steel, Die
745SP-1-1/4P 01671 1-1/4" Conduit, Stainless Steel, Punch
745SP-1-1/4D 01672 1-1/4" Conduit, Stainless Steel, Die
745SP-1-1/2P 02531 1-1/2" Conduit, Stainless Steel, Punch
745SP-1-1/2D 01678 1-1/2" Conduit, Stainless Steel, Die
745SP-2P 01679 2" Conduit, Stainless Steel, Punch
745SP-2D 01681 2" Conduit, Stainless Steel, Die
7212SP21‡01682 Draw Stud, Long, 3/4" x 5.8"
7212SP23 01724 Draw Stud, Short, 3/4" x 5.0"
7212SP22‡01683 Draw Stud, Long, 3/8" x 4.7"
7212SP24 02276 Draw Stud, Short, 3/8" x 3.8"
7307SP 01720 Speed Punch Kit, Stainless Steel, 1/2" to 2" Conduit
Mild Steel - oiltight PUnCheS with notCheS
7212SP-PB22P 01705 22 mm / 0.885" Dia. Pushbutton, Punch
60250 60250 22 mm / 0.885" Dia. Pushbutton, Die
7212SP-PB30P 01709 30 mm / 1.201" Dia. Pushbutton, Punch
60249 60249 30 mm / 1.201" Dia. Pushbutton, Die
7212SP-PB22U 02260 22 mm / 0.885" Dia. Pushbutton, Punch Unit
7212SP-PB30U 02263 30 mm / 1.201" Dia. Pushbutton, Punch Unit
7212SP32 02261 Draw Stud, Square, Short, 3/8" x 4.0"
Mild Steel - MetriC SizeS
7212SP-M16P 01684 ISO-16 (16.2 mm / 0.638") Dia. Punch
7212SP-M16D 01685 ISO-16 (16.2 mm / 0.638") Dia. Die
7212SP-M20P 01687 ISO-20 (20.4 mm / 0.803") Dia. Punch
7212SP-M20D 01688 ISO-20 (20.4 mm / 0.803") Dia. Die
7212SP-M25P 01689 ISO-25 (25.4 mm / 1.000") Dia. Punch
7212SP-M25D 01690 ISO-25 (25.4 mm / 1.000") Dia. Die
7212SP-M32P 01691 ISO-32 (32.5 mm / 1.280") Dia. Punch
7212SP-M32D 01692 ISO-32 (32.5 mm / 1.280") Dia. Die
7212SP-M40P 01693 ISO-40 (40.5 mm / 1.594") Dia. Punch
7212SP-M40D 01694 ISO-40 (40.5 mm / 1.594") Dia. Die
7212SP-M50P 01697 ISO-50 (50.8 mm / 2.000") Dia. Punch
7212SP-M50D 01701 ISO-50 (50.8 mm / 2.000") Dia. Die
7212SP-M63P 01703 ISO-63 (63.5 mm / 2.500") Dia. Punch
7212SP-M63D 01704 ISO-63 (63.5 mm / 2.500") Dia. Die
7217SBSP 01723 Speed Punch Kit, Metric, ISO-16 to ISO-40
+ Case accommodates Quick Draw® or Quick Draw 90® Drivers - sold separately.
‡ For use with the 746 Hydraulic Ram.
