TRANSMISSION PRODUCTS
INDEX
September 2013 HUBBELL® Power Systems
HARDWARE FITTINGS
DUCTILE IRON
CA .............................CLEVIS EYE .............................................................................................TG-5
CLEVIS-CLEVIS .......CLEVIS EYE .............................................................................................TG-9
CE .............................CLEVIS EYE .............................................................................................TG-6
CEEL ........................CLEVIS EYE EXTENSION LINK ............................................................TG-21
CEW .........................CLEVIS EYE .............................................................................................TG-7

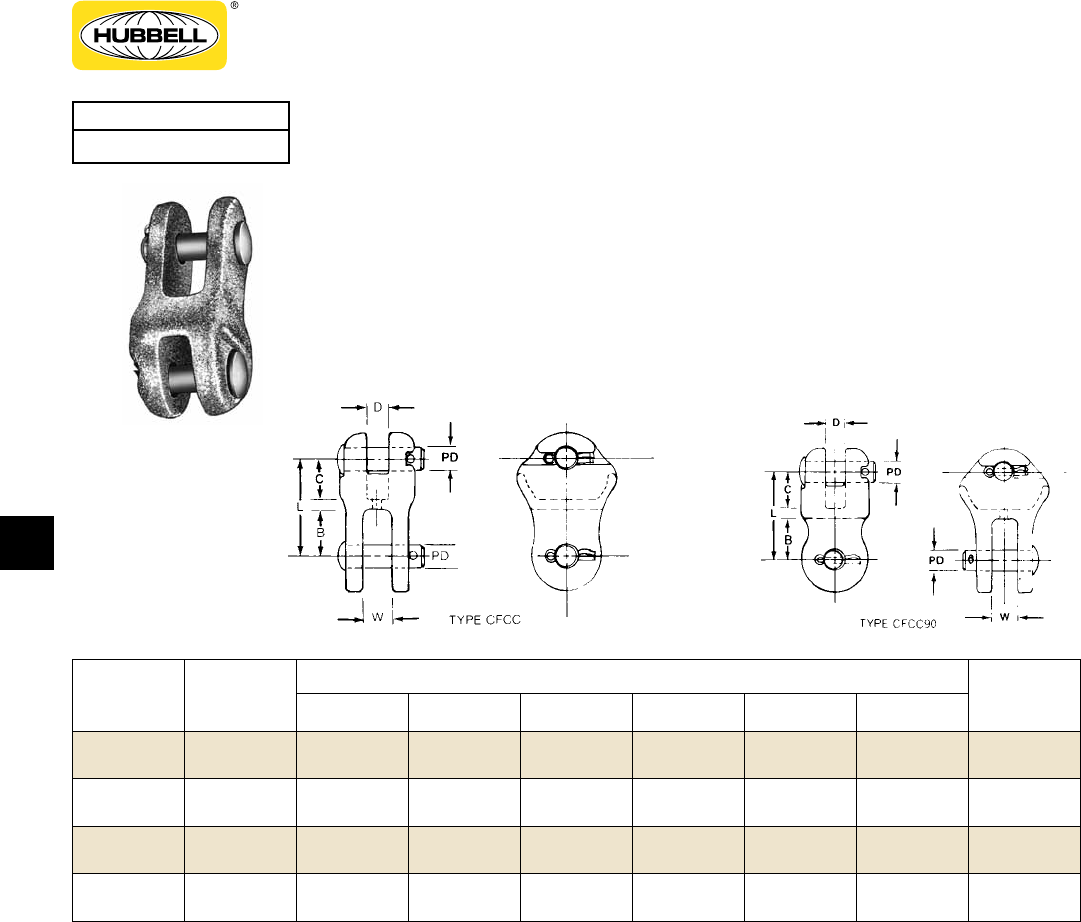

CFCC ........................CORONA FREE CLEVIS CLEVIS ..........................................................TG-10
HCC ..........................HOT LINE CLEVIS CLEVIS....................................................................TG-17
HCE ..........................HOT LINE EXTENSION CLEVIS EYE ...................................................TG-16

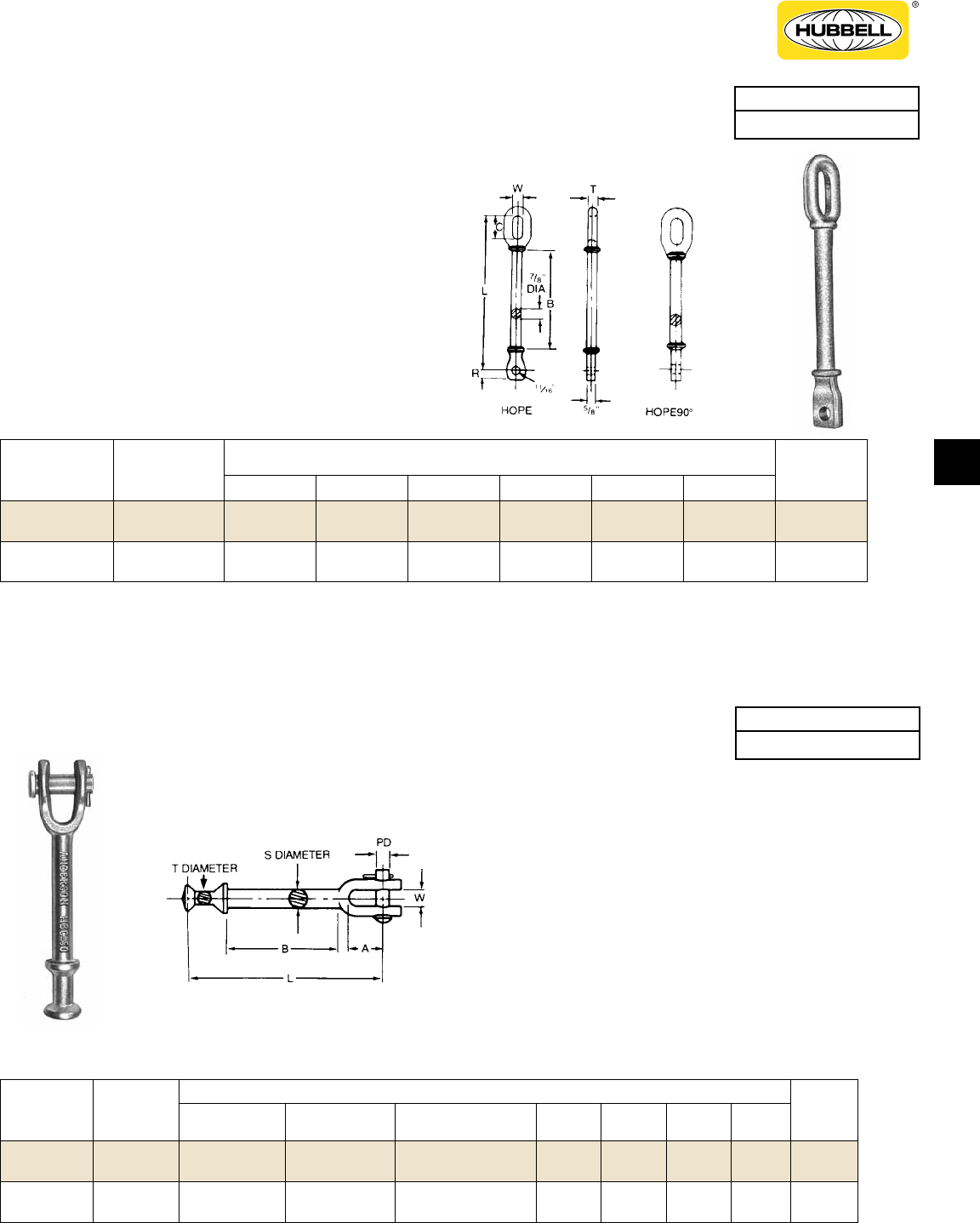

HOPE .......................HOT LINE OVAL EYE PAD EYE .............................................................TG-19
HSC ..........................HOT LINE SOCKET CLEVIS..................................................................TG-16
HSE ..........................HOT LINE SOCKET EYE .......................................................................TG-15
HSYC ........................HOT LINE SOCKET Y-CLEVIS ...............................................................TG-17

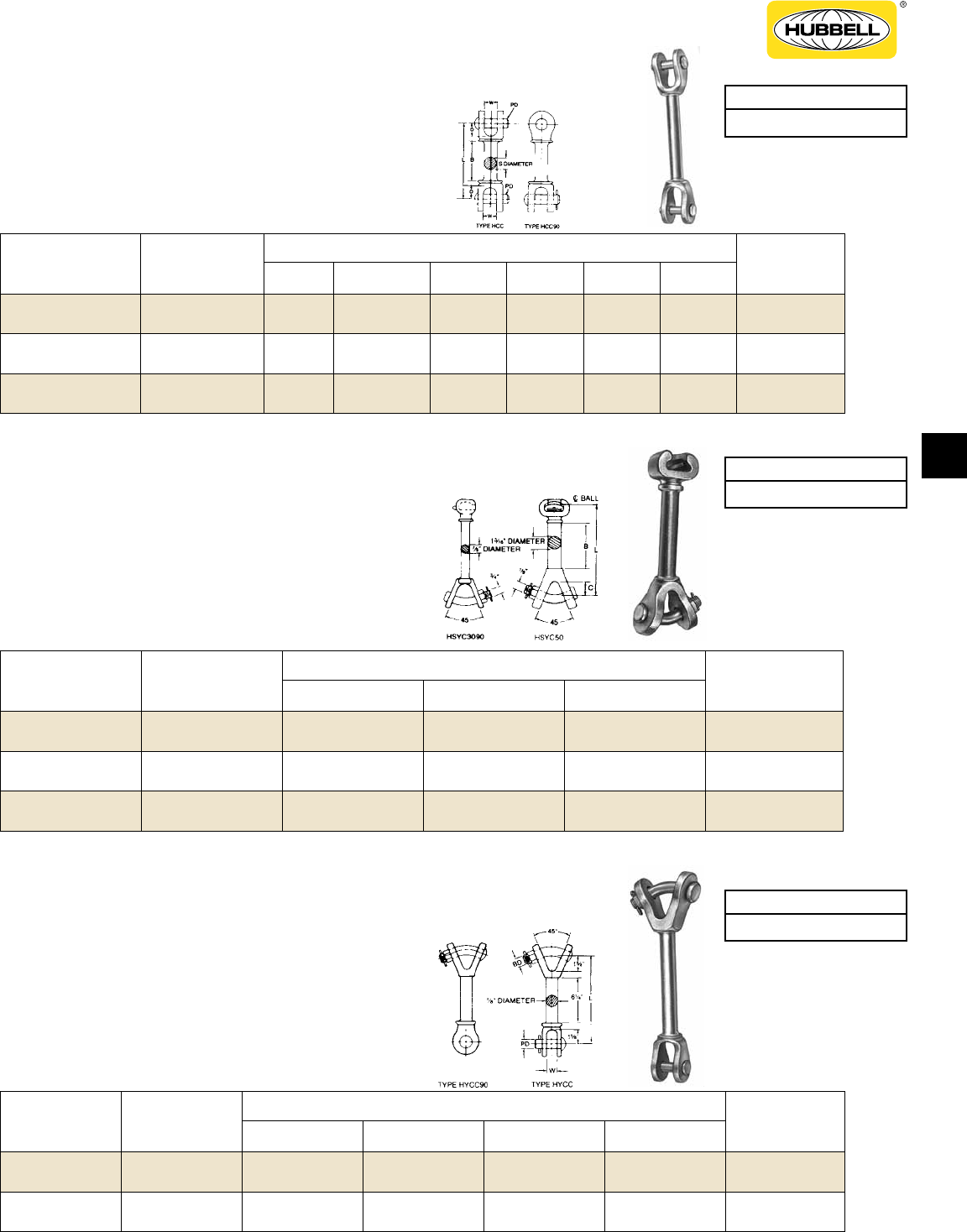

HYCC .......................HOT LINE Y-CLEVIS CLEVIS EYE .........................................................TG-17
HYCE ........................HOT LINE Y-CLEVIS EYE ......................................................................TG-18

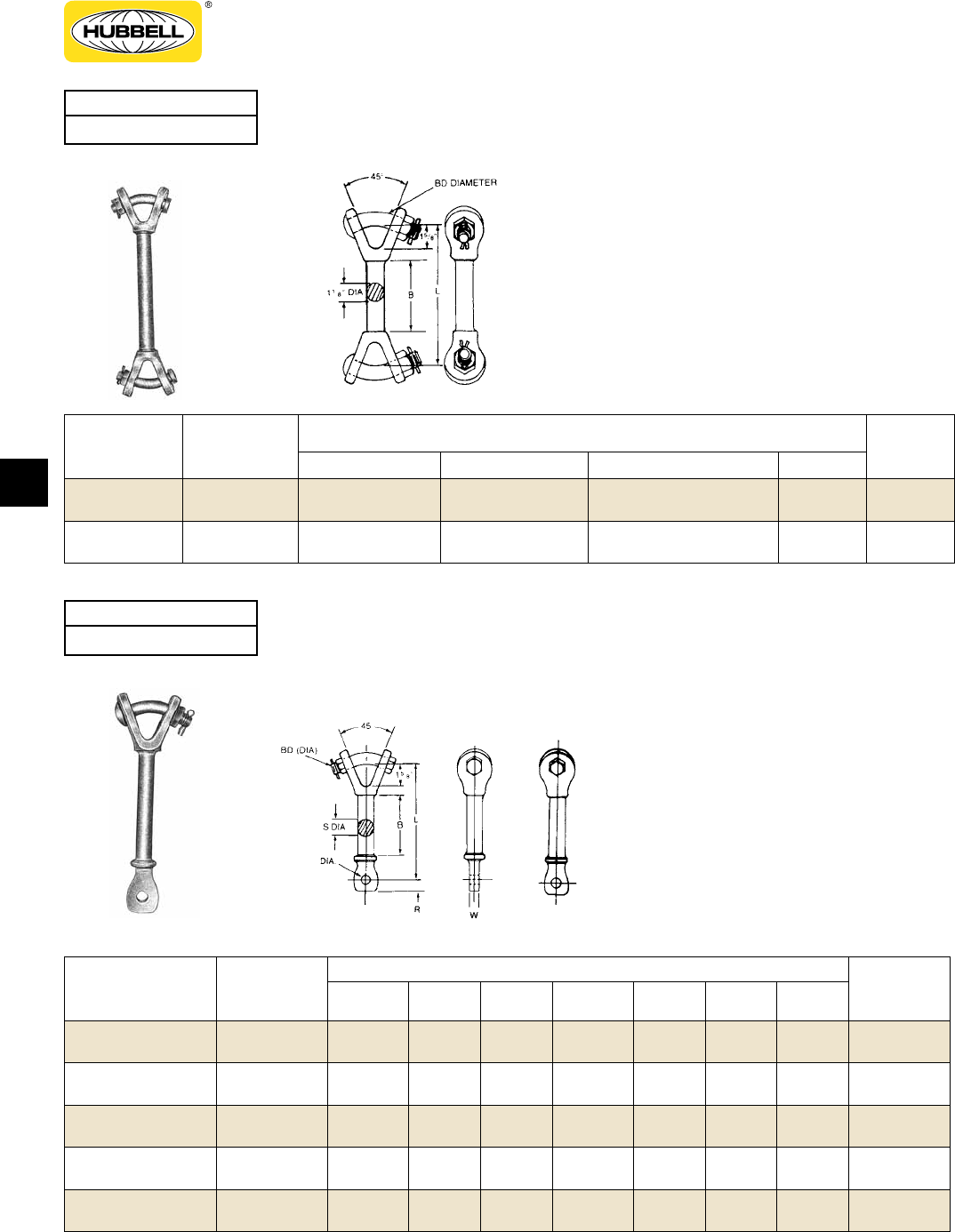

HYYC ........................HOT LINE Y-Y-CLEVIS ...........................................................................TG-18
SA .............................SOCKET EYE ...........................................................................................TG-2
SC .............................SOCKET CLEVIS .....................................................................................TG-4
SS .............................SOCKET-SOCKET ...................................................................................TG-3
SYC ..........................SOCKET Y-CLEVIS ..................................................................................TG-3
Y-CLEVIS-CLEVIS ....Y-CLEVIS EYE .........................................................................................TG-9

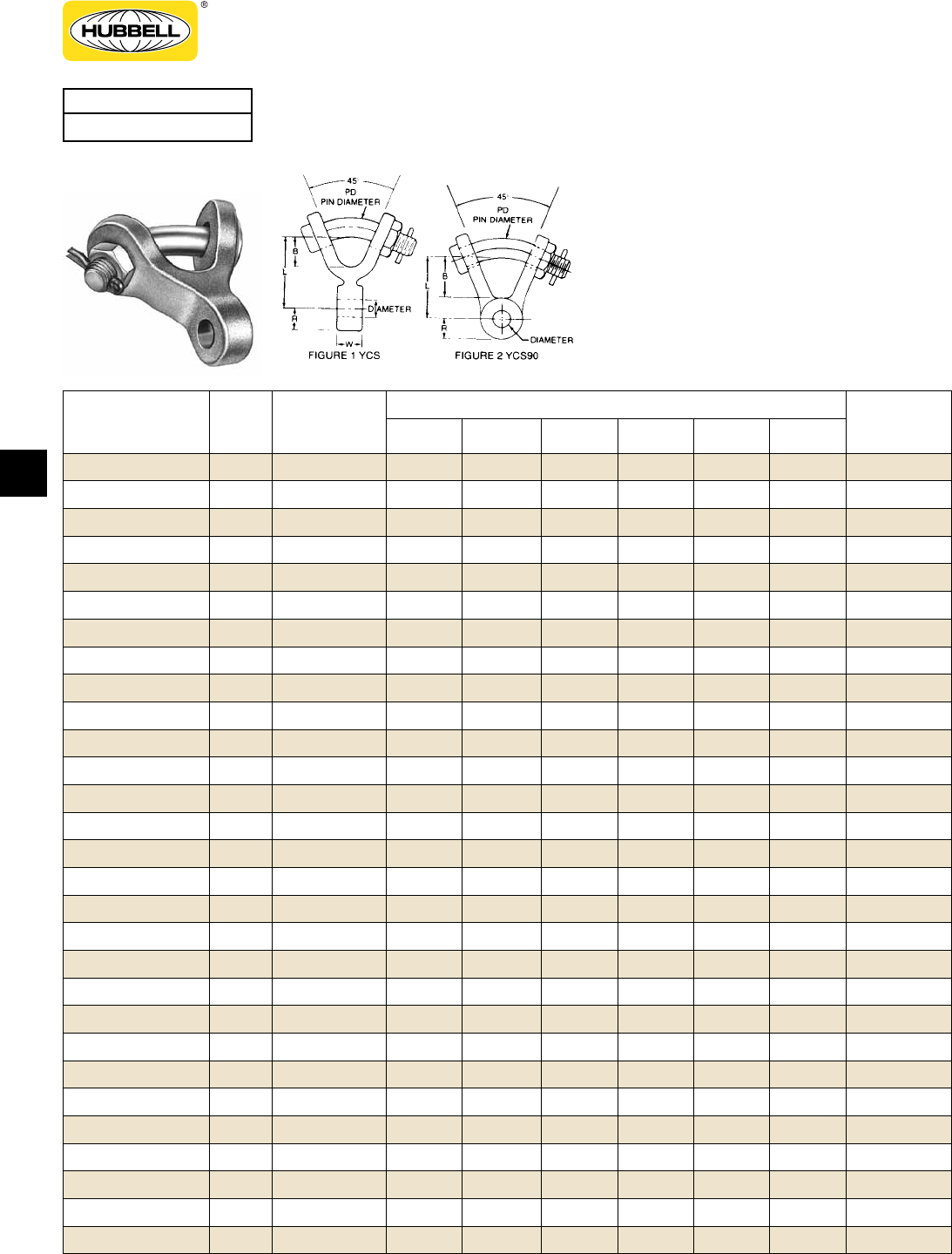

YCS ..........................Y-CLEVIS EYE .........................................................................................TG-8
FORGED STEEL

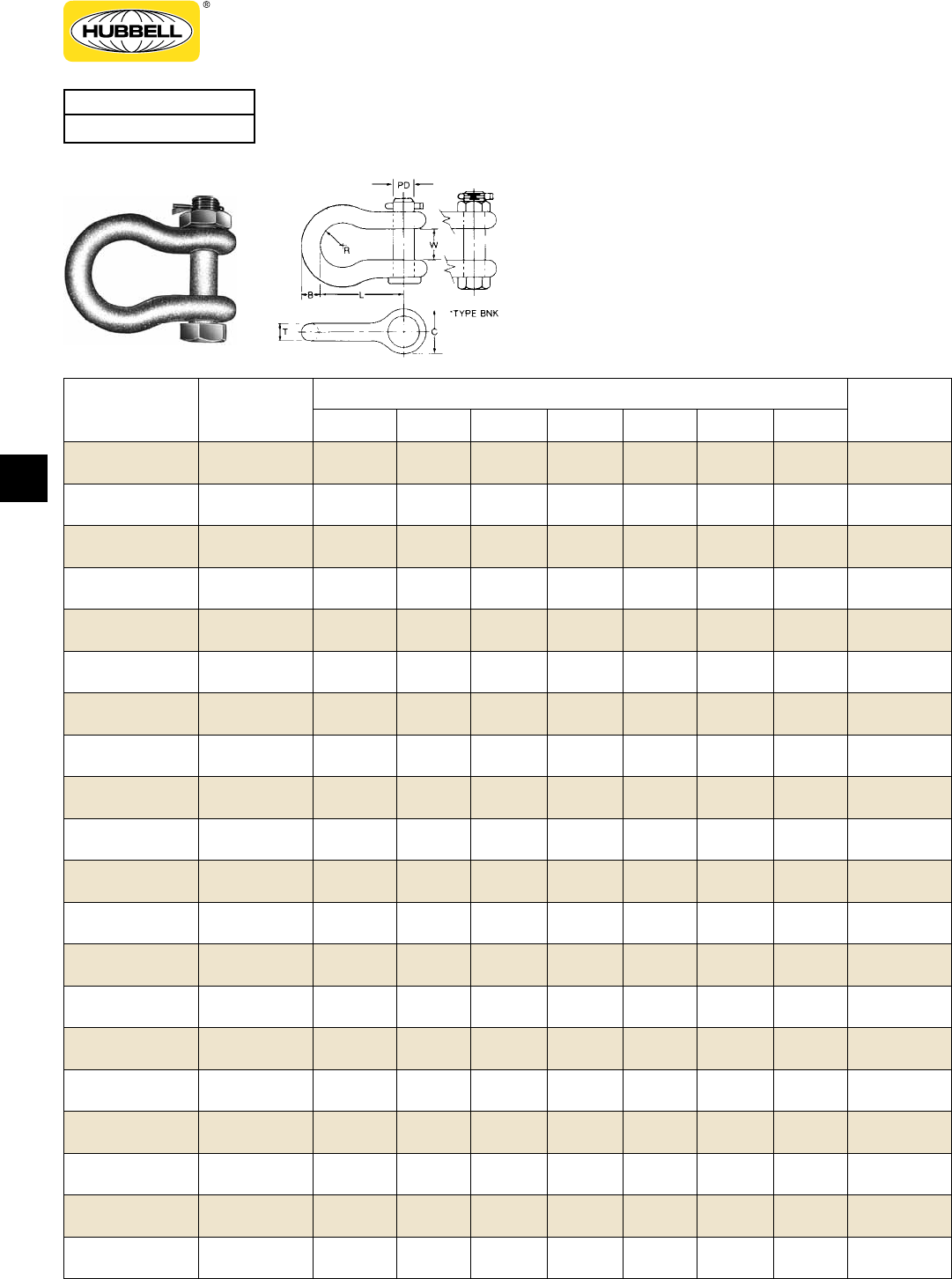

AS .............................ANCHOR SHACKLE ..............................................................................TG-12

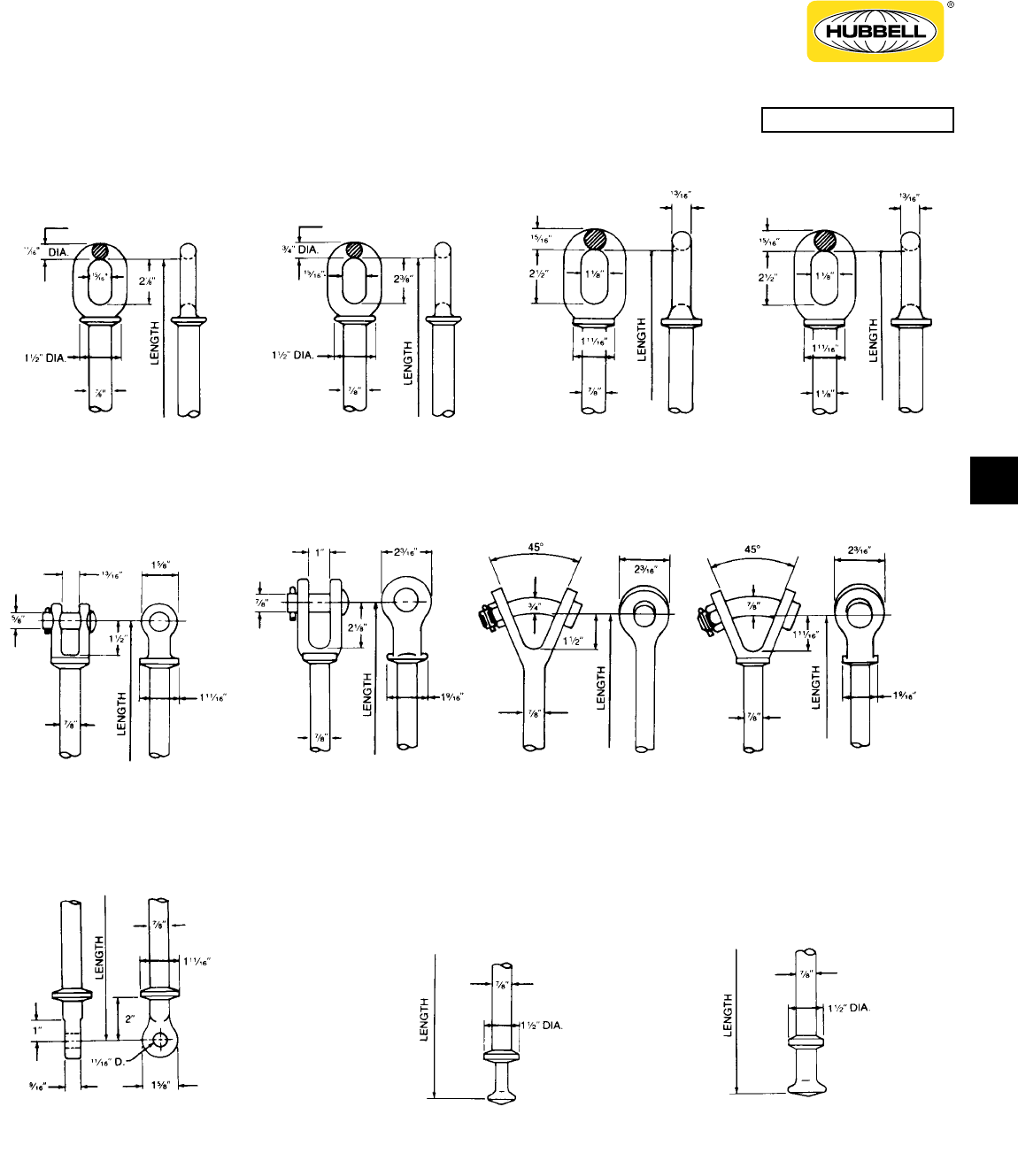

BC .............................BALL CLEVIS .........................................................................................TG-11

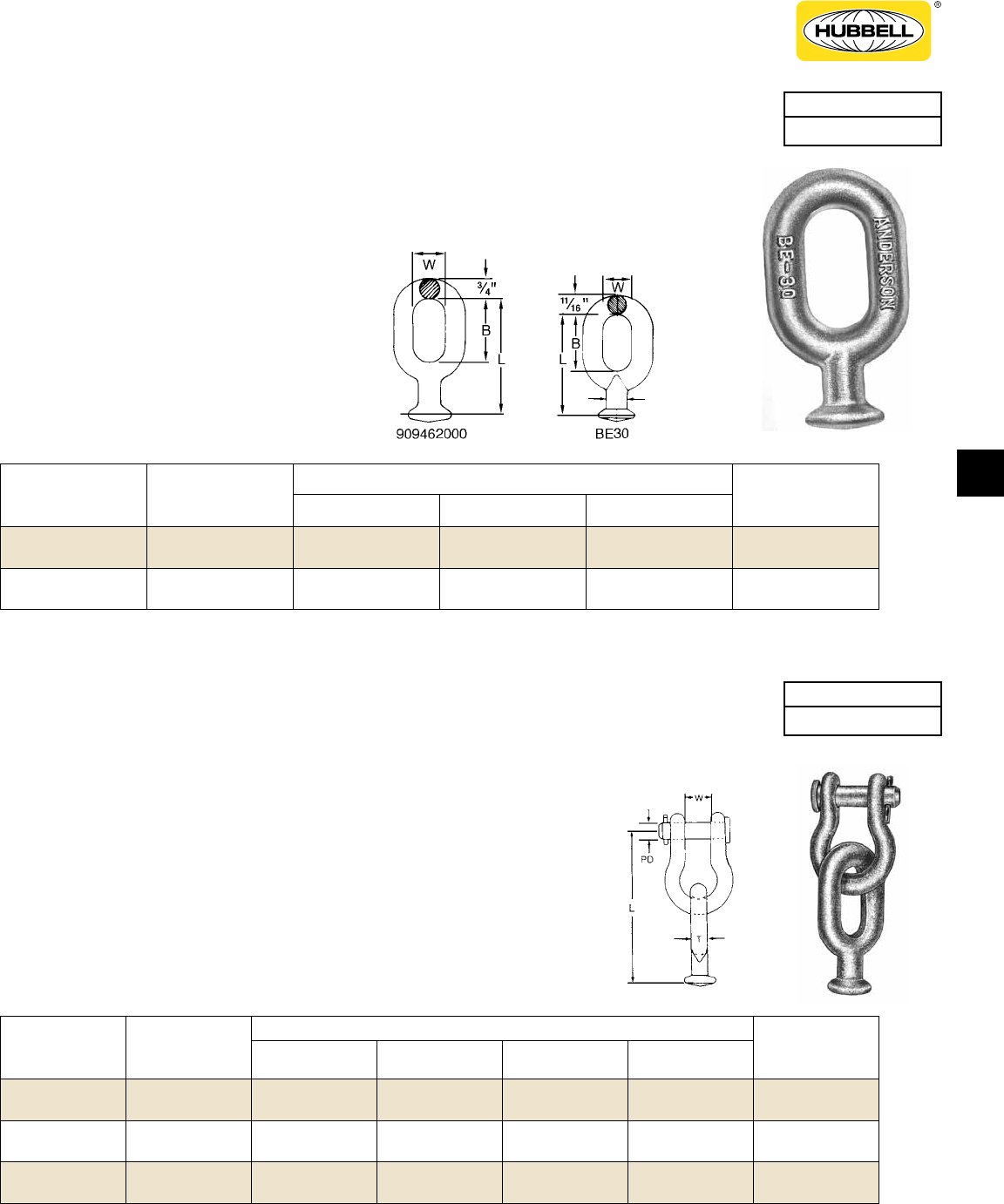

BE .............................BALL EYES ............................................................................................TG-13
BE-AS .......................BALL OVAL-EYE ANCHOR SHACKLE COMBINATION ........................TG-13
H/F ............................HOT LINE LINKS-SPECIFIED LENGTH ................................................TG-22
HBC ..........................HOT LINE BALL CLEVIS........................................................................TG-19
HOEB .......................HOT LINE OVAL-EYE BALL ...................................................................TG-20
HB/79272 ..................HOOKS ...................................................................................................TG-14
HYBC ........................HOTLINE Y-CLEVIS BALL ......................................................................TG-20

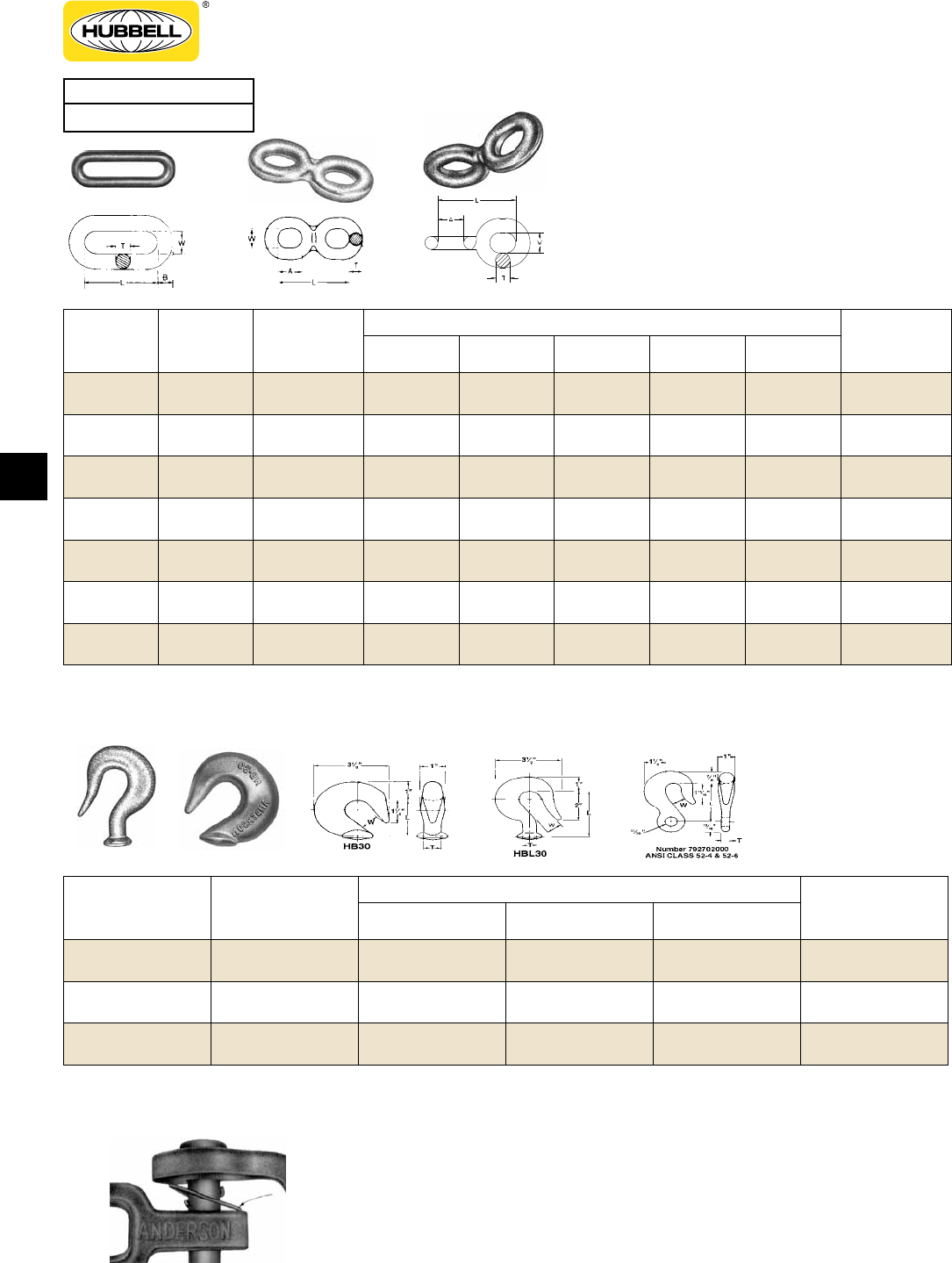

LK .............................CHAIN LINK ...........................................................................................TG-14
RIV CLIP ...................RIV CLIP .................................................................................................TG-14
YBC ..........................BALL Y-CLEVIS ......................................................................................TG-11

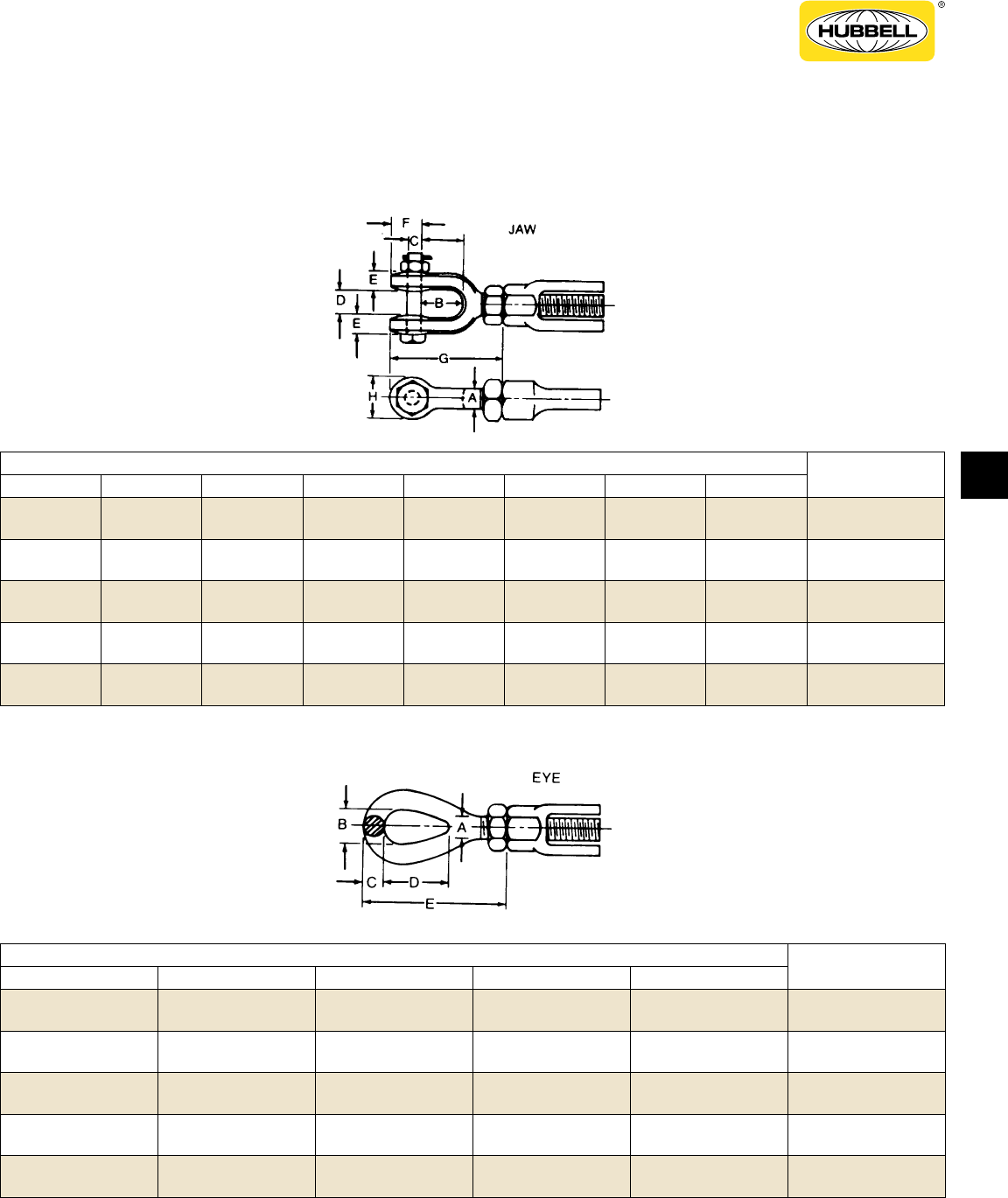

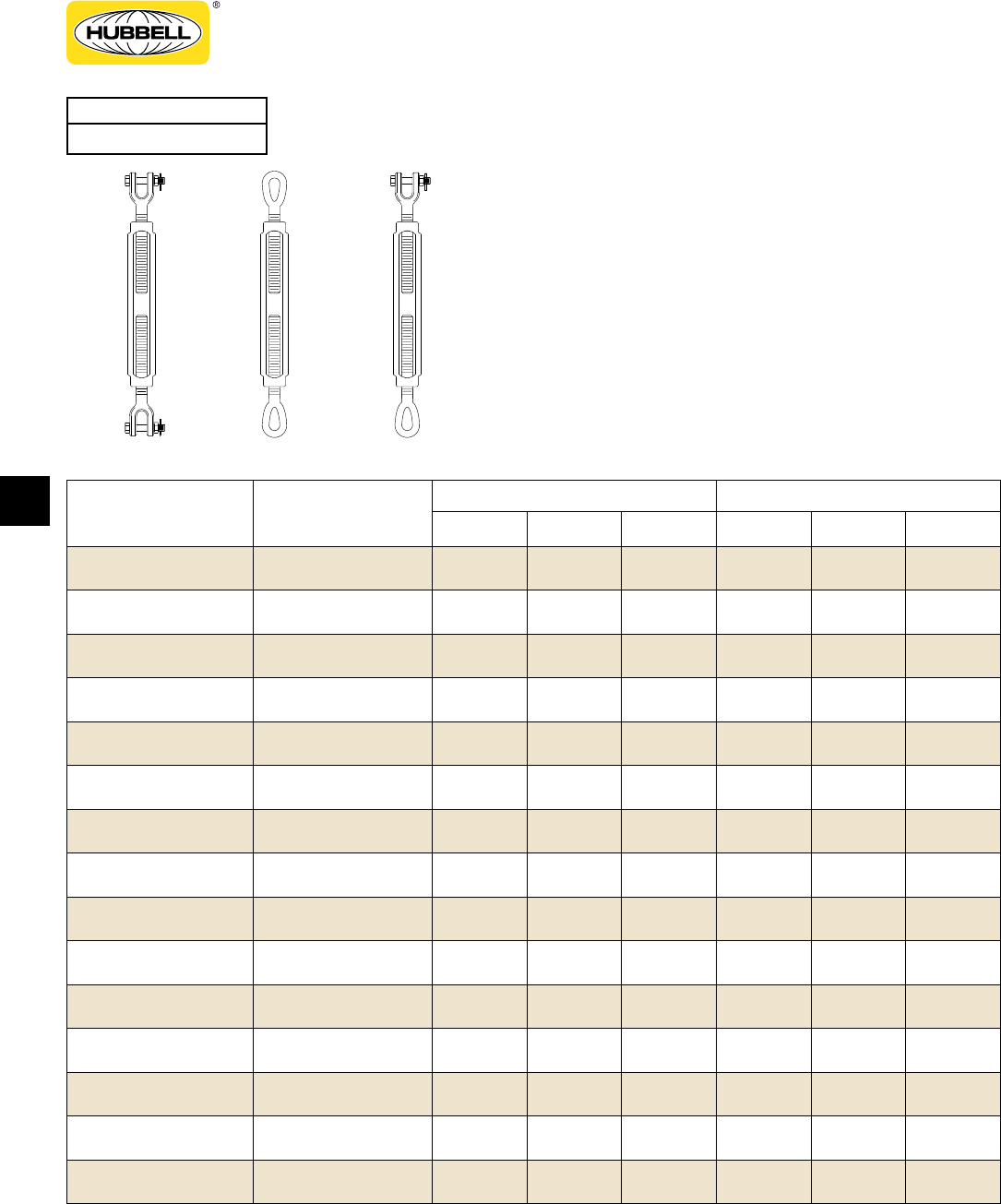

TB .............................TURNBUCKLES .....................................................................................TG-24
ALUMINUM

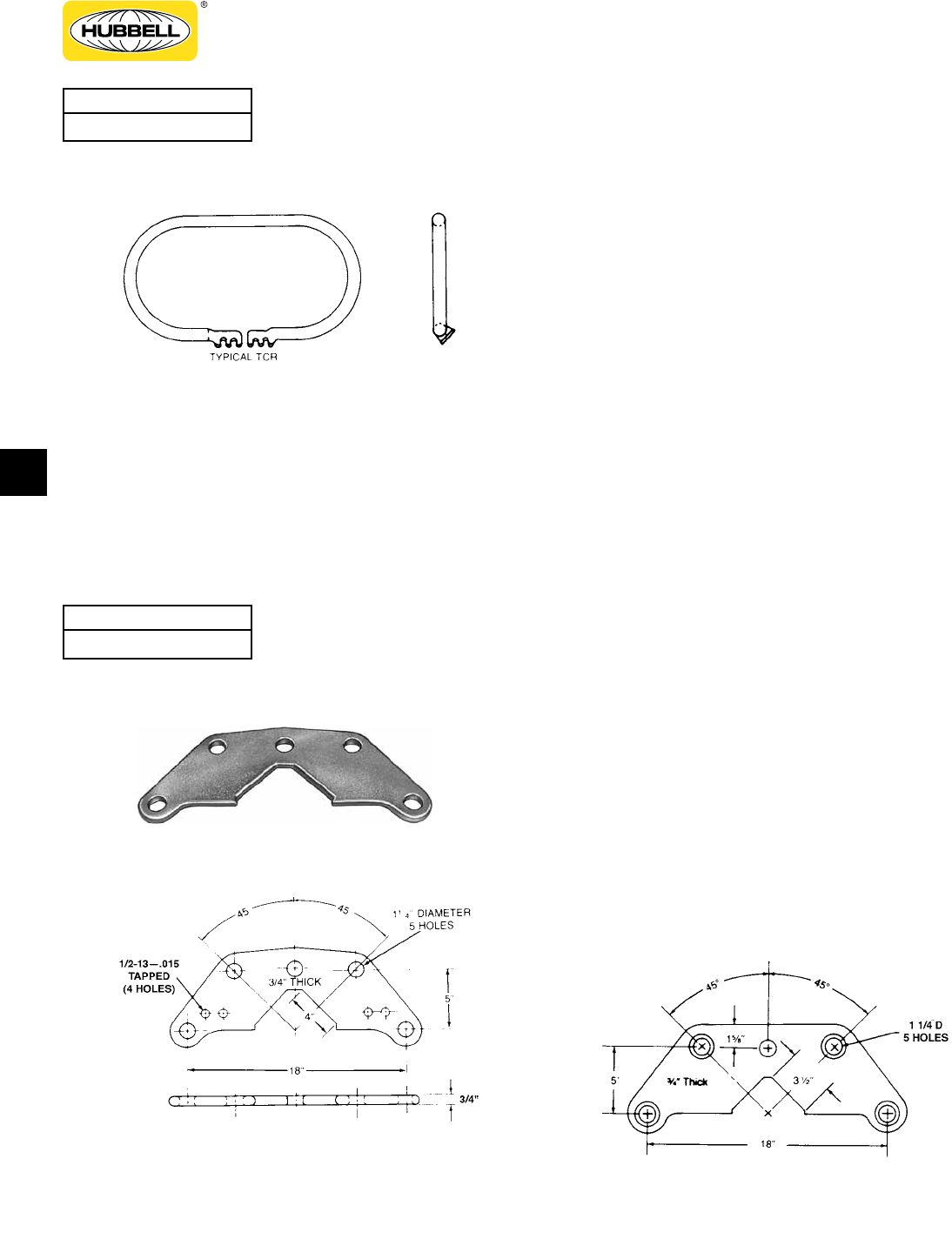

TCR ..........................TRANSMISSION CORONA RINGS .......................................................TG-28

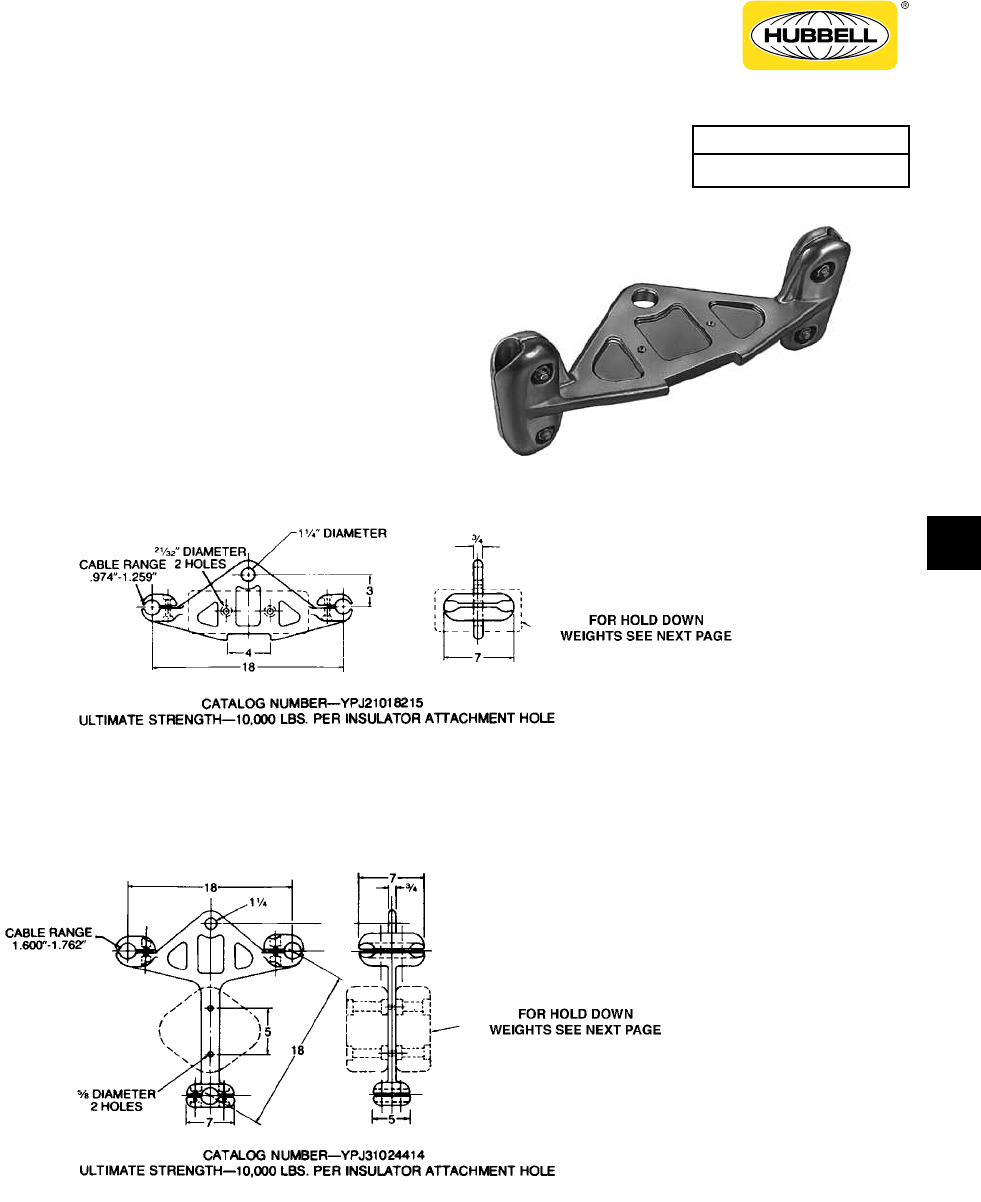

YPJ ...........................YOKE PLATE (JUMPER) ........................................................................TG-33
YPW .........................BUNDLING YOKE (WISHBONE CONFIGURATION) .............................TG-32
DUCTILE/STEEL

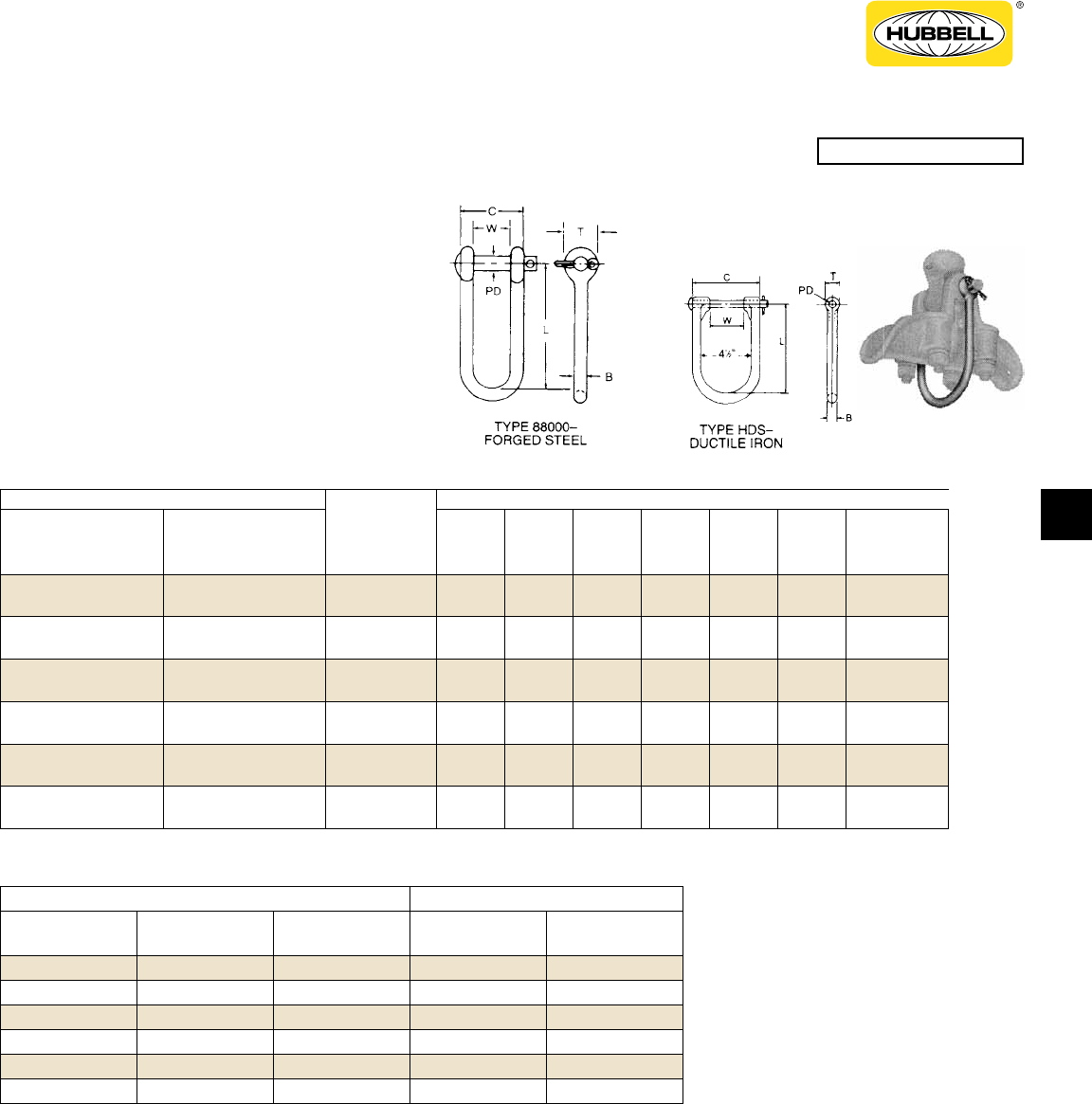

HDS ..........................HOLD DOWN SHACKLE ........................................................................TG-35

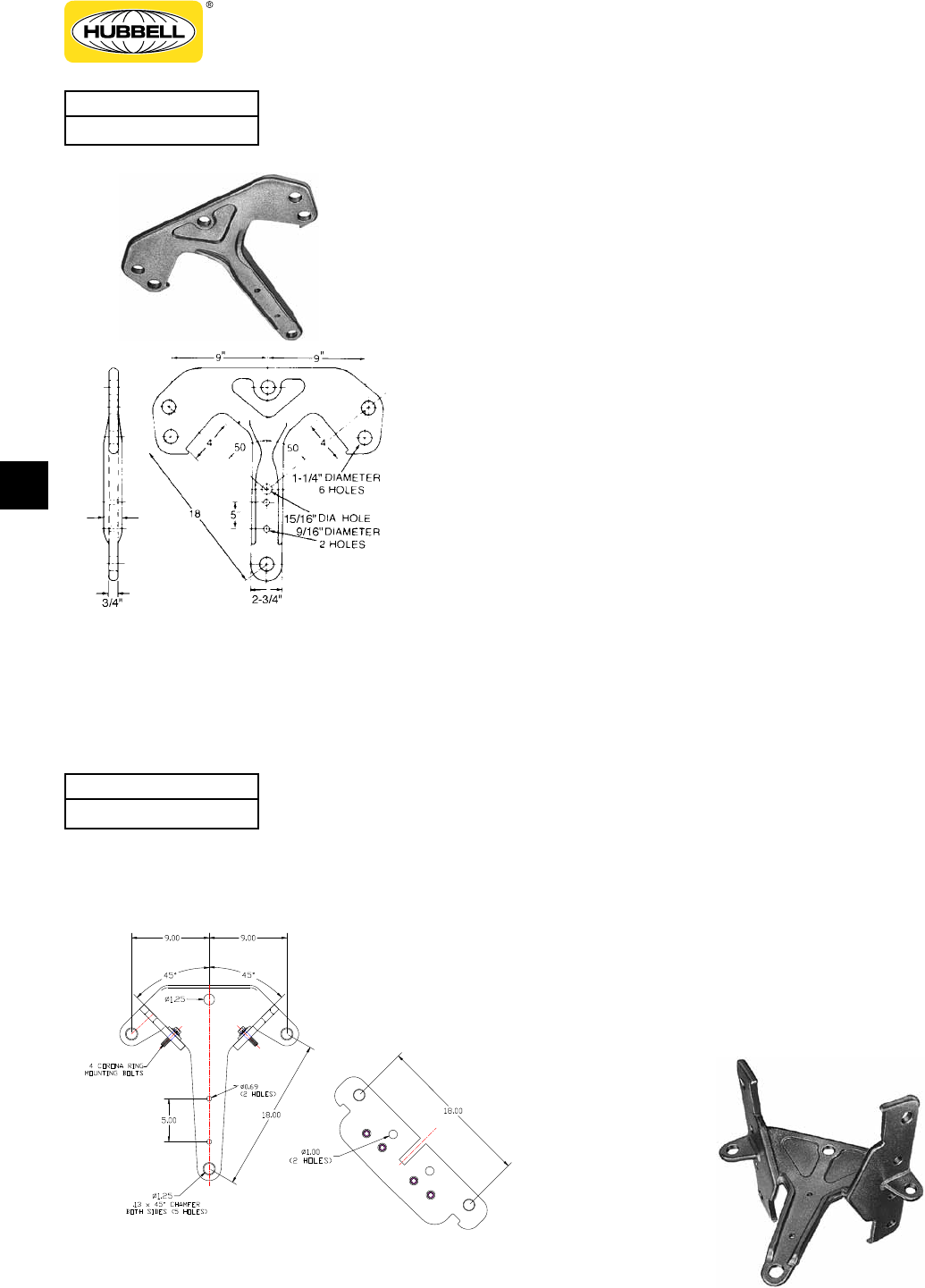

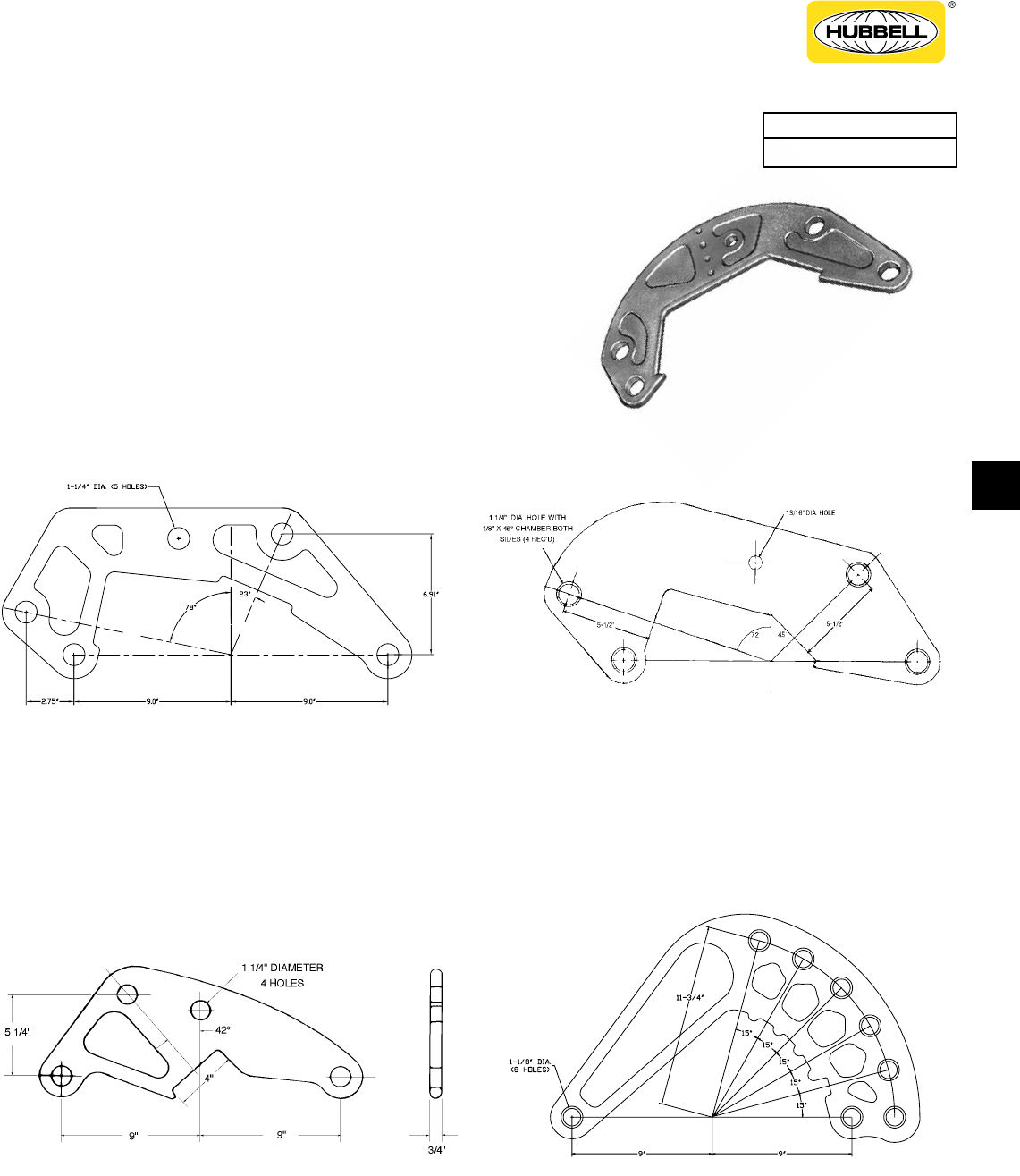

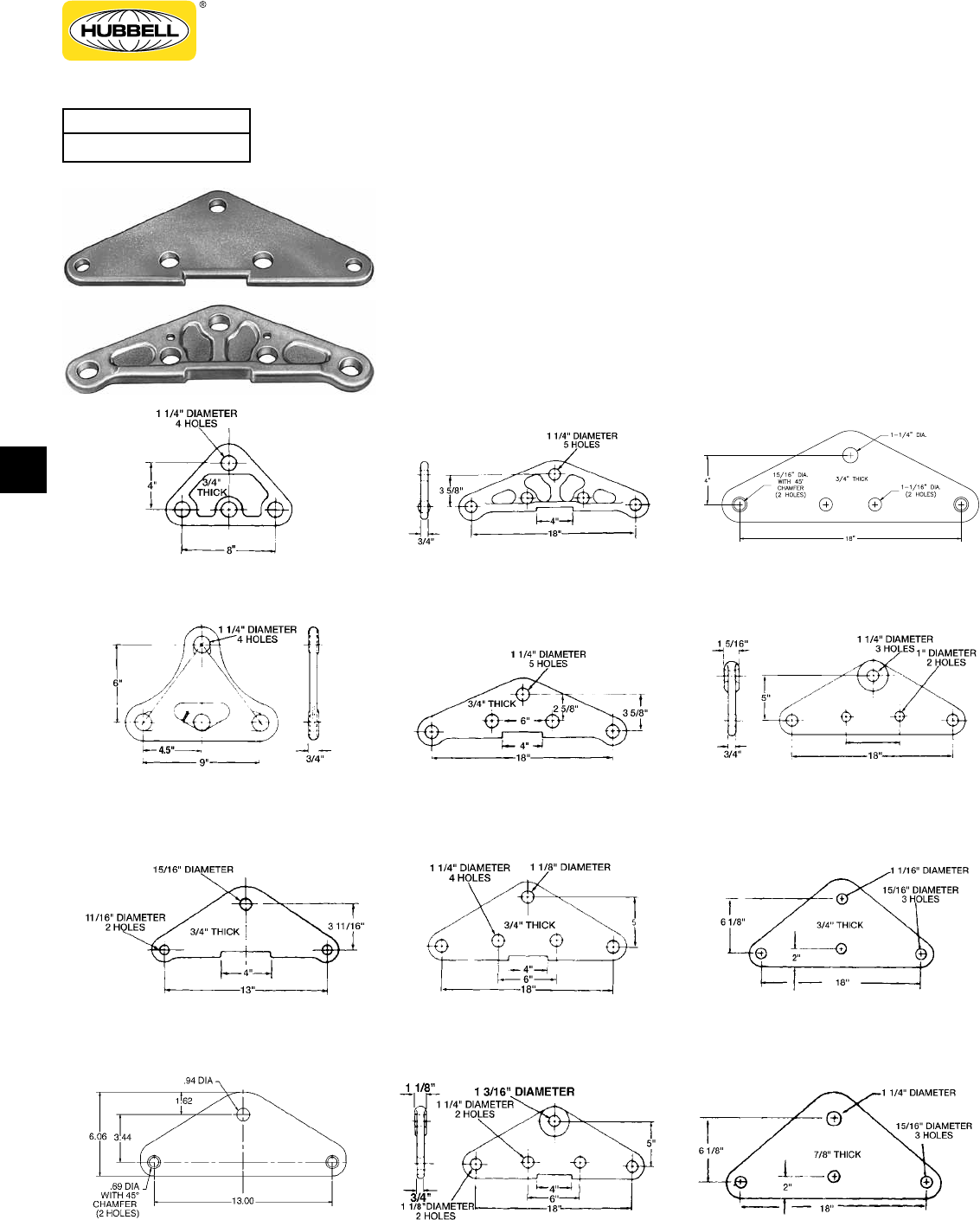

YPC ..........................YOKE PLATE (CRESCENT CONFIGURATION) ....................................TG-29

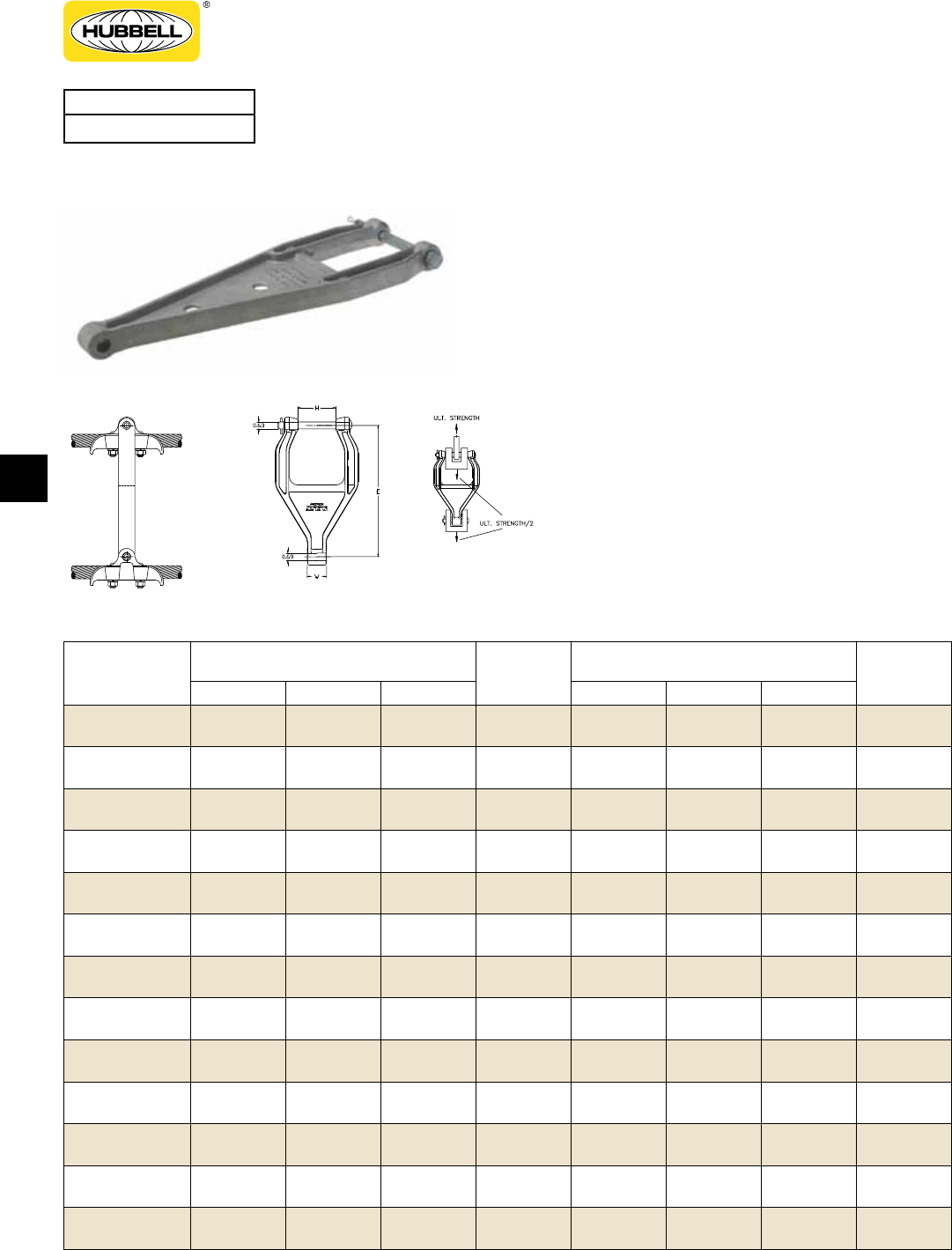

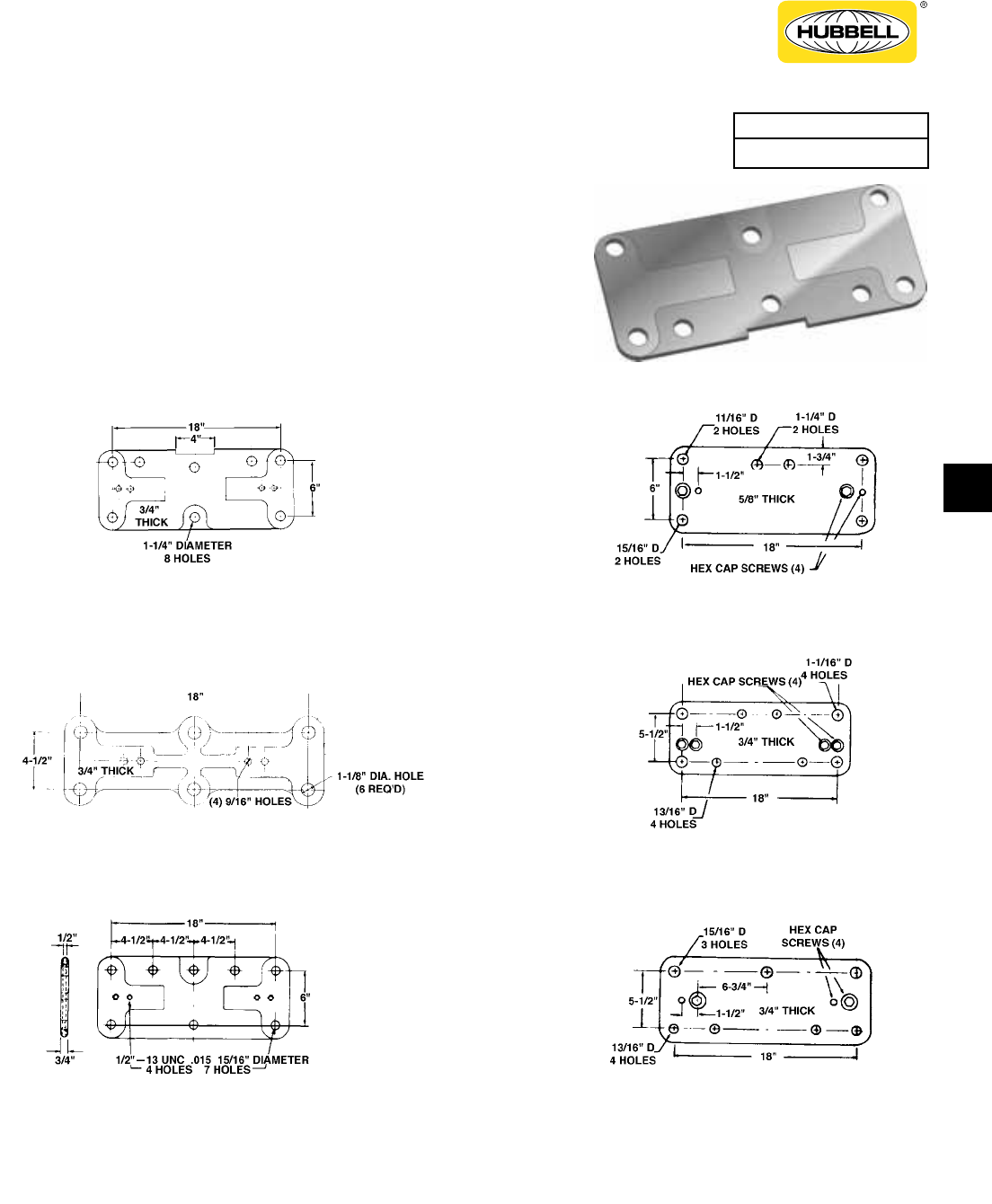

YPD ..........................YOKE PLATE ..........................................................................................TG-26
YPR ..........................YOKE PLATE ..........................................................................................TG-27
YPV ..........................YOKE PLATE (VEE CONFIGURATION) .................................................TG-28
YPT ...........................YOKE PLATE (TEE CONFIGURATION) .................................................TG-30
YPTA .........................YOKE PLATE (TENSION-ADJUSTMENT CONFIGURATION) ..............TG-31
YPTAC ......................YOKE PLATE (TENSION ADJUSTMENT CLEVIS) ................................TG-31
YPTB ........................YOKE PLATE (TEE-BATWING CONFIGURATION) ...............................TG-30
TRANSMISSION PRODUCTS
INDEX
September 2013 HUBBELL® Power Systems
HARDWARE FITTINGS
CAST IRON

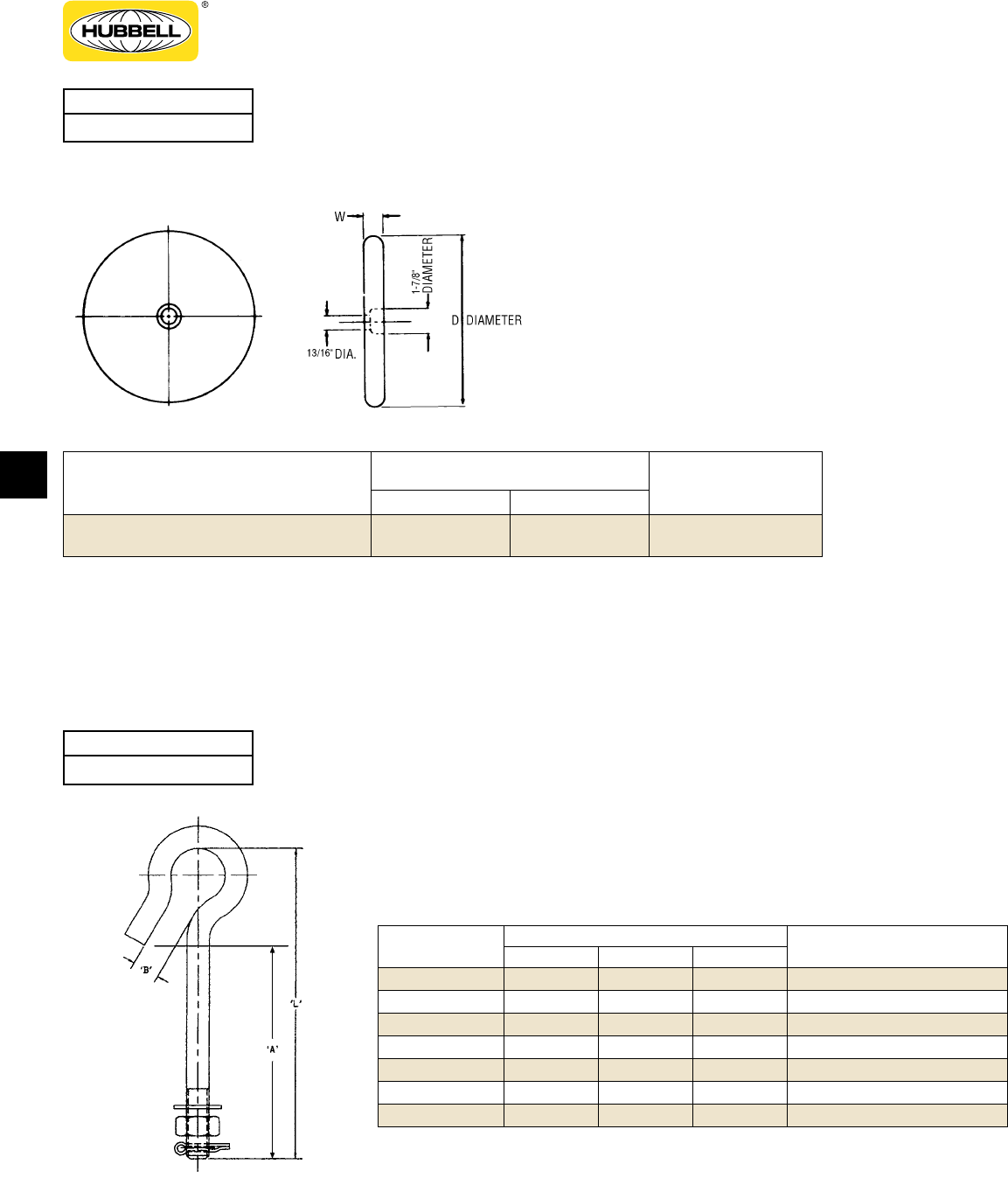

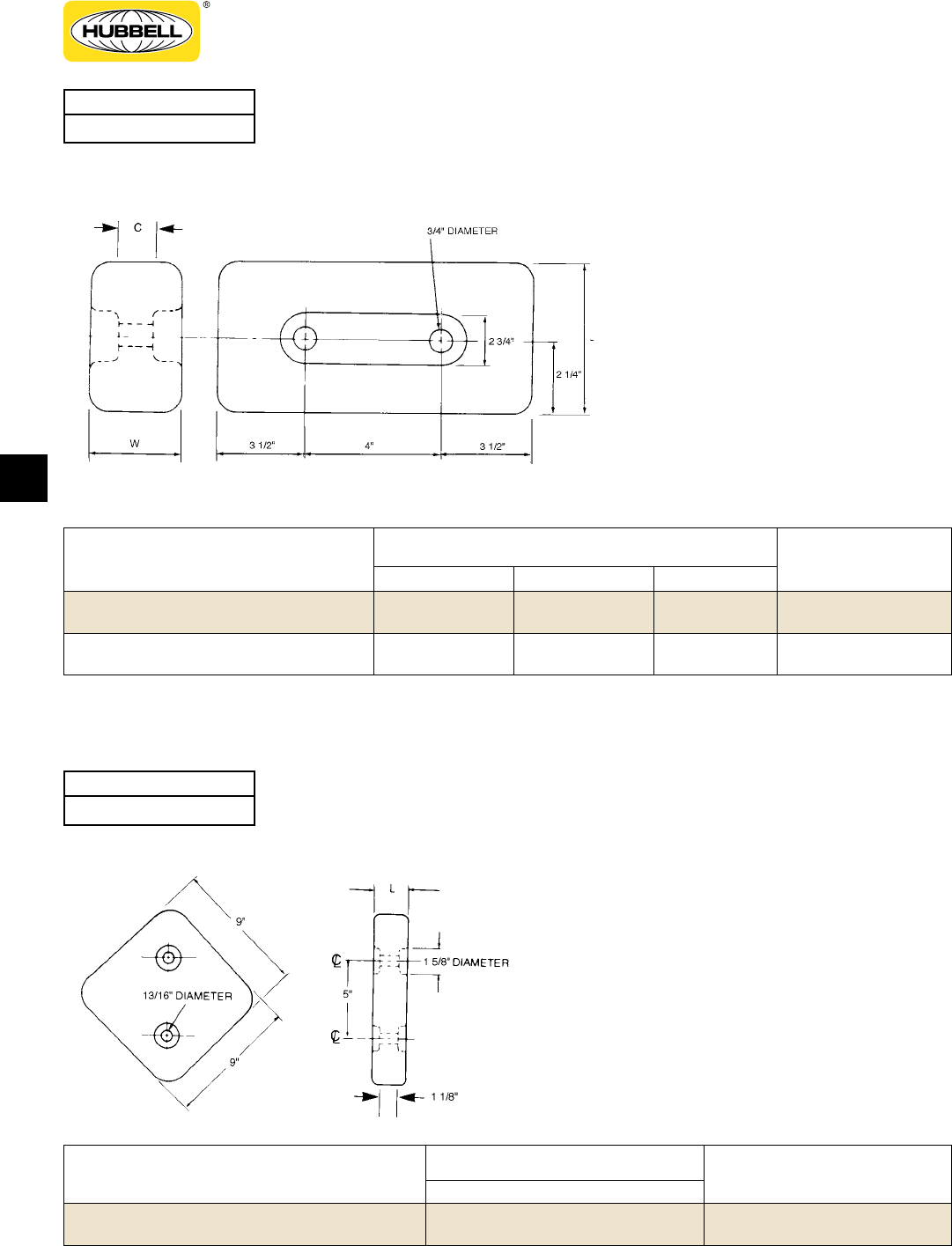

HDWC ................ HOLD DOWN WEIGHT (CIRCULAR CONFIGURATION) ...........................TG-36
HDWR ................ HOLD DOWN WEIGHT (RECTANGULAR CONFIGURATION) ..................TG-34
HDWS ................. HOLD DOWN WEIGHT (SQUARE CONFIGURATION) ..............................TG-34
STEEL
HDWH ................ HOOK BOLT ................................................................................................TG-36

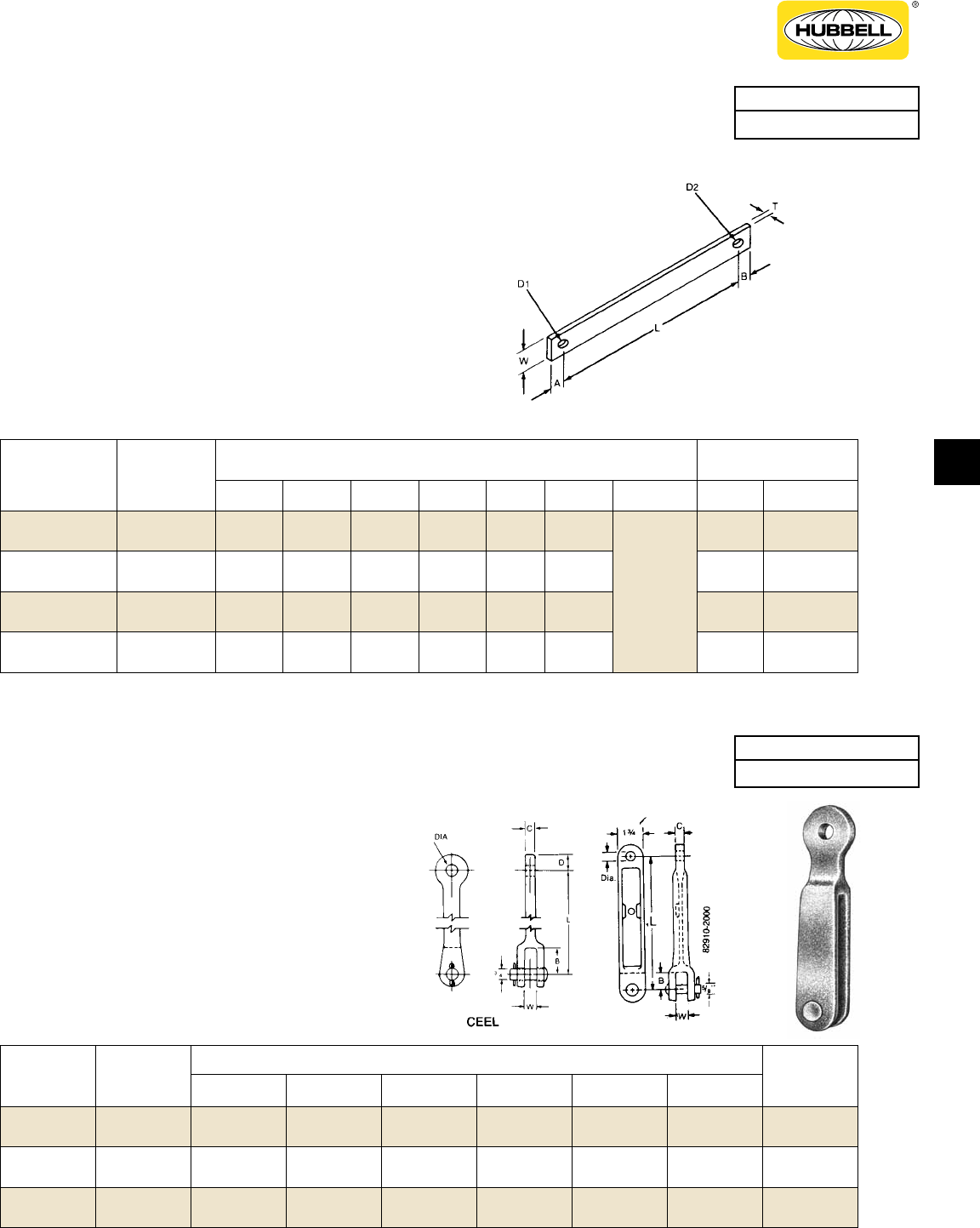

ES ....................... EXTENSION STRAP ...................................................................................TG-21

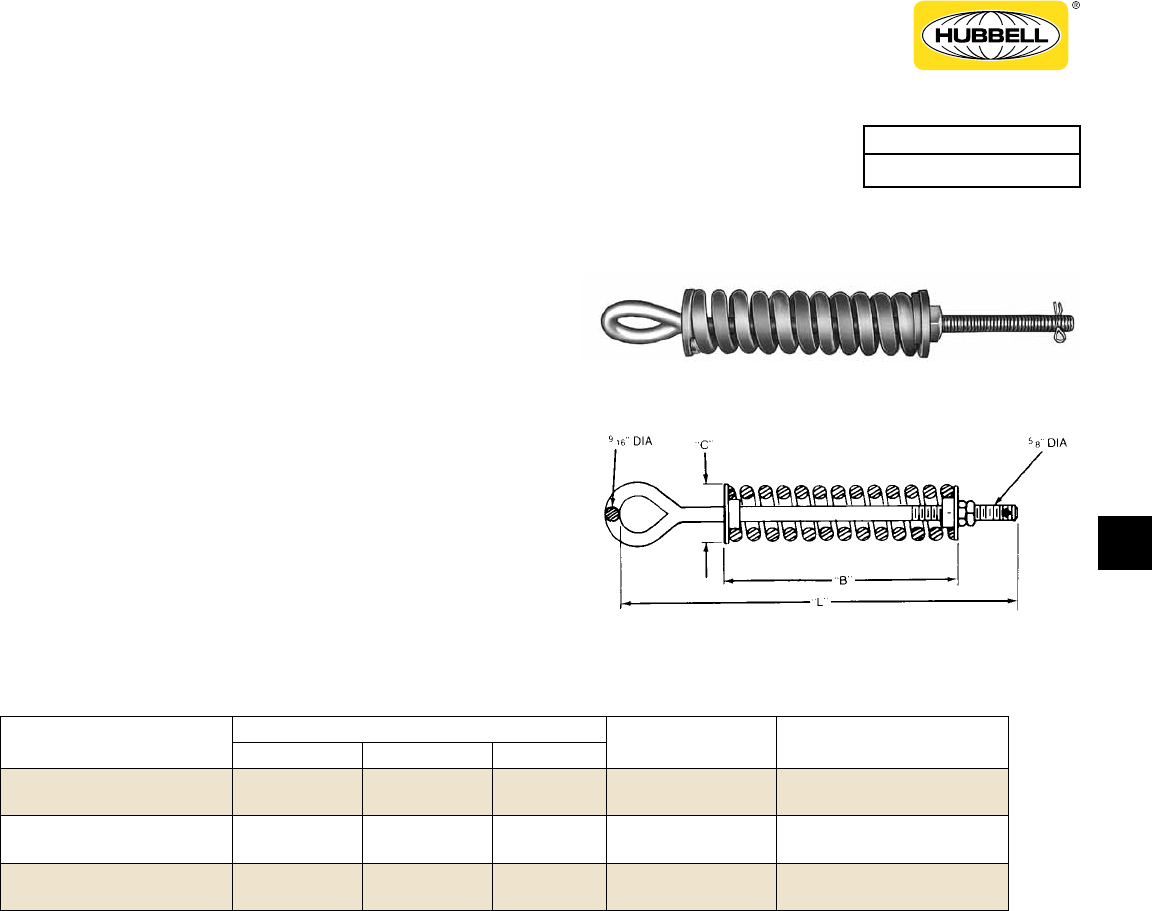

SBA .................... SPRING BOLT .............................................................................................TG-37
941...................... RIV CLIP ......................................................................................................TG-14
SECTION TG
TG-1
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
LINE AND TOWER HARDWARE
Anderson manufactures a complete line of quality
line and tower end hardware to meet all transmis-
sion line construc- tion needs. A variety of devices are
available to bundle con- ductors, attach conductors to
insulator strings and attach insulator strings to sup-
port arms.
Most of our line and tower end hardware is manu-
factured from ductile iron. Ductile iron castings offer
great design flexibility and freedom to utilize design
improvements without expensive tooling changes.
We also provide a line of forged steel tower end
fittings. Steel forgings are often required to provide
the necessary ultimate strength when dimensional re-
strictions are imposed such as with most ball fittings,
shackles and links.
Ball and socket fittings are specified under an ANSI
class with respect to insulators. We offer two types of
ball and socket fittings: Standard fittings (rated 30,000
pounds) for ANSI 52-3 and 52-5 class insulators, and
high strength fit- tings (rated 50,000 pounds) for ANSI
52-8 and 52-11 class insulators.
The ultimate strength rating of our line and tower end
hard- ware indicates the load where rupture can occur.
It is a fair- ly common industry practice to match the
ultimate strength of line and tower end hardware to
that of the associated in- sulators. Consequently, the
ultimate strengths should not be construed to be a rec-
ommended constant tension applied to a fitting. It is
expected that the customer will apply suit- able safety
factors.
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-2
HARDWARE FITTINGS
DUCTILE IRON

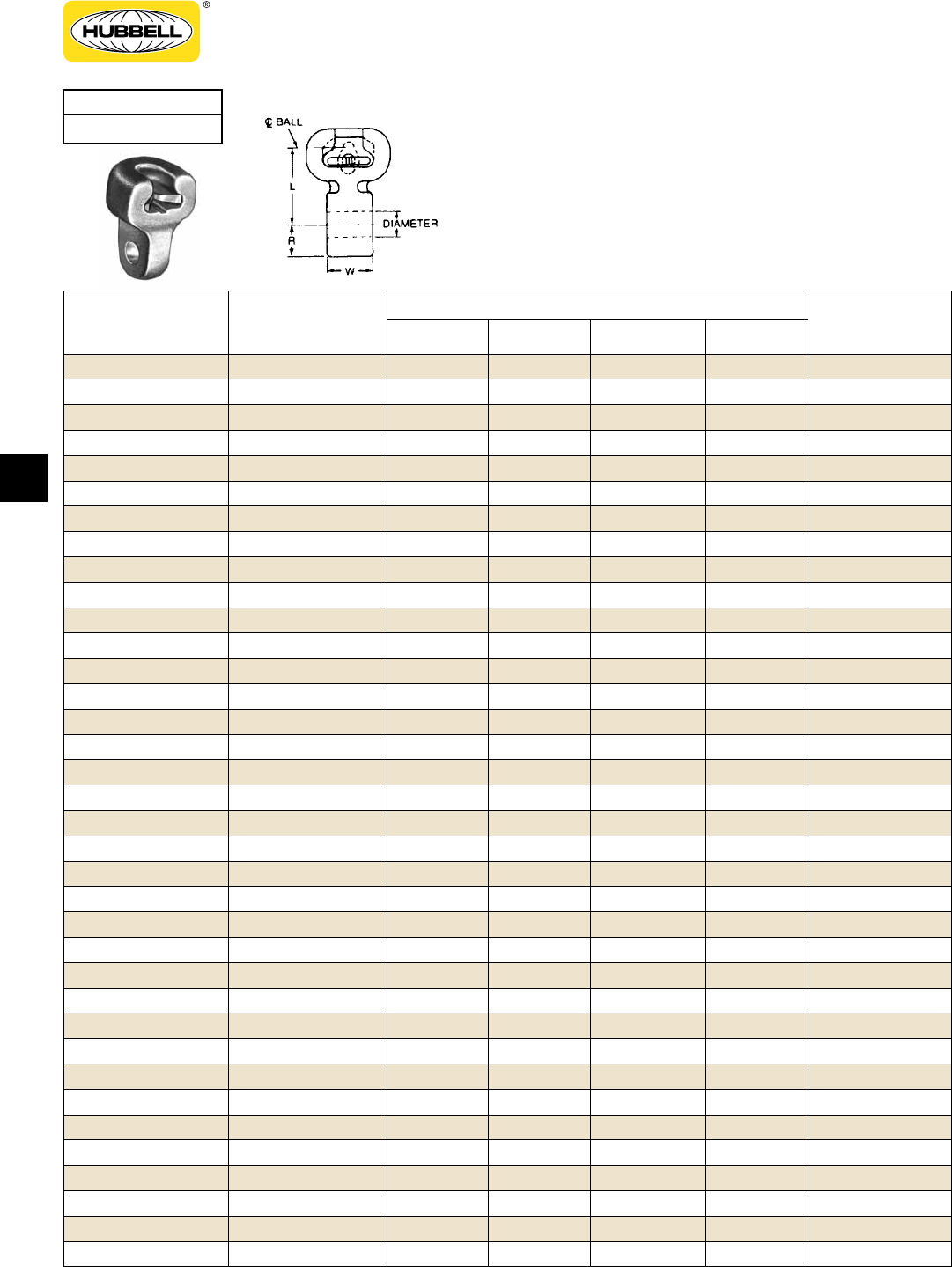

SOCKET EYE
Socket eyes can be used for connecting conductor clamp-
ing devices to ball and socket type insulators.
Material: Body—ductile iron, galvanized
Cotter Pin—stainless steel
DUCTILE IRON
SA
NOTE: (1) For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
*For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W R
L
DIA.
SA04
18,000 (80) 1/2 (12.7) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.25 (.57)
SA049
20,000 (89) 1/2 (12.7) 13/16 (20.6) 3-1/4 (82.6) 9/16 (14.3) 1.28 (.58)
SA05
20,000 (89) 5/8 (15.9) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.25 (.57)
SA06
25,000 (111) 3/4 (19.1) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.30 (.59)
936032000 27,000 (120) 3/4 (19.1) 1 (25.4) 3 (76.2) 13/16 (20.6) 2.2 (1.00)
SA07
30,000 (133) 7/8 (22.2) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.35 (.61)
SA10
30,000 (133) 1 (25.4) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.40 (.64)
SA10054
30,000 (133) 1 (25.4) 13/16 (20.6) 5-1/2 (139.7) 11/16 (17.5) 1.90 (0.86)
SA11
30,000 (133) 1-1/8 (28.6) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.50 (.68)
936062000 30,000 (133) 1-1/4 (31.8) 1 (25.4) 3 (76.2) 1-1/16 (27) 2.3 (1.04)
936063002 30,000 (133) 1-1/4 (31.8) 1 (25.4) 3 (76.2) 1-3/16 (30.2) 2.3 (1.04)
SA13
30,000 (133) 1-3/8 (34.9) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.70 (.77)
SA13054
30,000 (133) 1-3/8 (34.9) 13/16 (20.6) 5-1/2 (139.7) 11/16 (17.5) 2.00 (0.91)
*SA1550
50,000 (222) 1-5/8 (41.3) 1 (25.4) 3-9/32 (83.3) 1-1/16 (27) 3.00 (1.36)
*SA15501
30,000 (133) 1-5/8 (41.3) 1 (25.4) 3-9/32 (83.3) 11/16 (17.5) 3.00 (1.36)
*SA15502
30,000 (133) 3/4 (19.1) 1 (25.4) 3-9/32 (83.3) 11/16 (17.5) 2.75 (1.25)
*SA15503
36,000 (160) 1-5/16 (33.3) 1 (25.4) 3-9/32 (83.3) 13/16 (20.6) 2.90 (1.32)
SA16
30,000 (133) 1-3/4 (44.5) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.80 (.82)
SA20
30,000 (133) 2 (50.8) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.85 (.84)
SA22
30,000 (133) 2-1/4 (57.2) 13/16 (20.6) 2-1/16 (52.4) 11/16 (17.5) 1.85 (.84)
SA1013
30,000 (133) 1 (25.4) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 1.50 (.68)
SA10.513
30,000 (133) 1-1/16 (27) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 1.30 (.50)
SA1113
30,000 (133) 1-1/8 (28.6) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 1.50 (.68)
SA1313
30,000 (133) 1-3/8 (34.9) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 1.75 (.79)
SA1417
30,000 (133) 1-1/2 (38.1) 1 (25.4) 2-1/2 (63.5) 1-1/16 (27) 1.75 (.79)
SA1613
30,000 (133) 1-3/4 (44.5) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 1.85 (.84)
SA16054
30,000 (133) 1-3/4 (44.5) 13/16 (20.6) 5-1/2 (139.7) 11/16 (17.5) 2.10 (0.95)
SA2113
30,000 (133) 2-1/8 (54) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 2.00 (.91)
SA2213
30,000 (133) 2-1/4 (57.2) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 2.00 (.91)
SA2413
30,000 (133) 2-1/2 (63.5) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 2.25 (1.02)
SA2613
30,000 (133) 2-3/4 (69.9) 13/16 (20.6) 2-1/16 (52.4) 13/16 (20.6) 2.85 (1.29)
*909662000 50,000 (222) 1-1/16 (27) 1-1/8 (28.6) 5-1/2 (139.7) 1-1/16 (27) 5.8 (2.63)
*909642000 50,000 (222) 1-3/16 (30.2) 1-1/8 (28.6) 5-1/2 (139.7) 13/16 (20.6) 5.3 (2.40)
*909672000 50,000 (222) 1-7/32 (31) 1-1/8 (28.6) 5-1/2 (139.7) 1-3/16 (30.2) 5.6 (2.54)
*909622000 50,000 (222) 1-7/16 (36.5) 1-1/8 (28.6) 5-1/2 (139.7) 1-3/16 (30.2) 5.8 (2.63)
*909612000 50,000 (222) 1-1/2 (38.1) 1-1/8 (28.6) 5-1/2 (139.7) 13/16 (20.6) 6.0 (2.72)
TG-3
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON

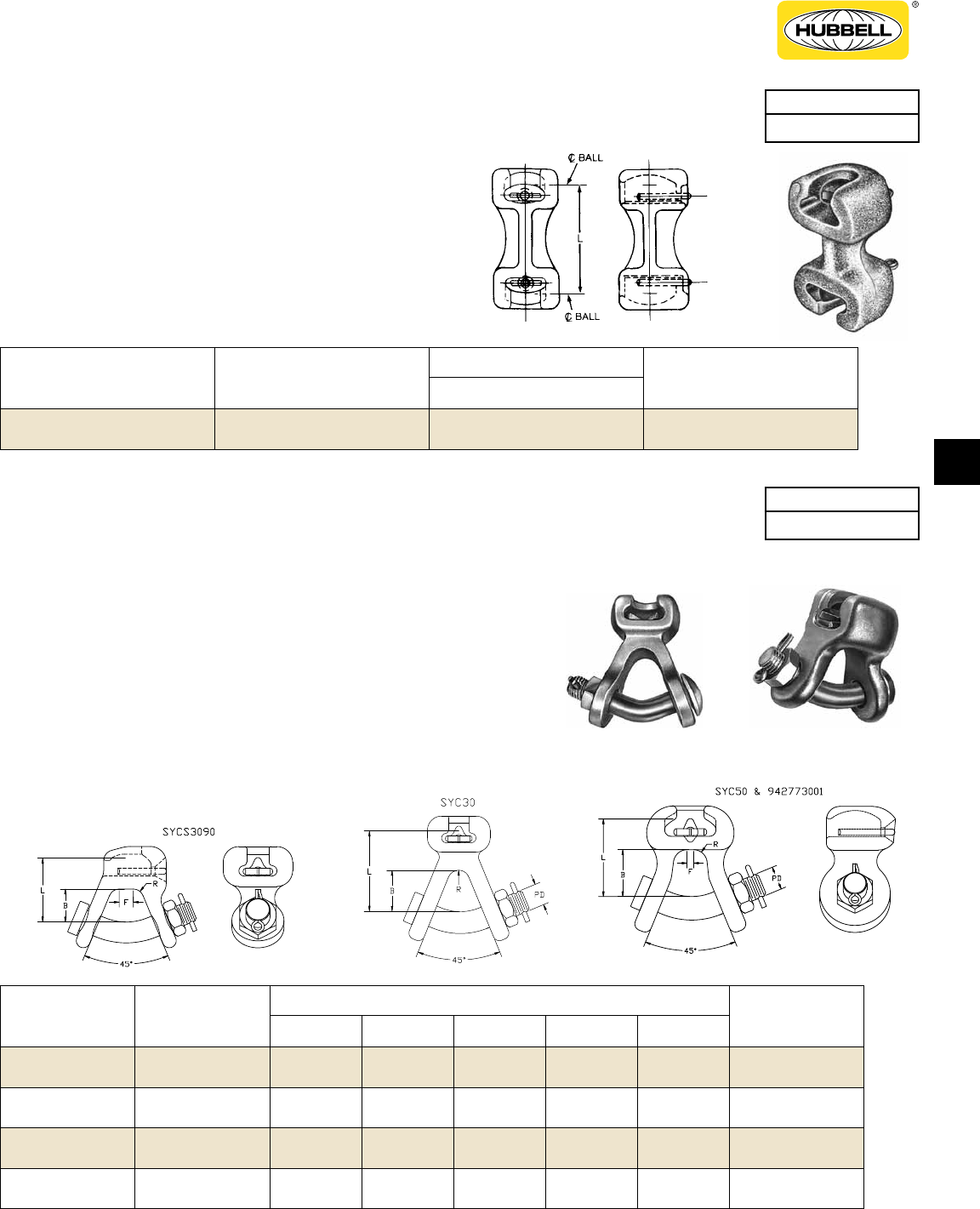

SOCKET-SOCKET
Socket-sockets are used to connect ball and socket insula-
tors to associated hardware within an insulator string.
Material: Body—ductile iron, galvanized
Cotter Pin—stainless steel
DUCTILE IRON
SS
DUCTILE IRON
SYC
Note: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C 29.2-71.
*For use with class 52-8 and 52-11 insulators per ANSI Spec. C 29.2-71.
Sphere nut can be supplied by adding suffix “SN” to catalog number. Example: SYC30SN.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
R F PD
SYC30 30,000
(133)
2-3/4
(69.9)
1-9/16
(39.7)
7/16
(11.1) -3/4
(19.2)
3.0
(1.36)
SYCS3090 30,000
(133)
2-9/32
(57.9)
1-3/16
(30.2)
3/8
(9.5)
1/2
(12.7)
3/4
(19.2)
2.5
(1.13)
*SYC50 50,000
(222)
2-7/8
(73)
1 5/8
(41.3)
1/2
(12.7)
1/4
(6.4)
7/8
(22.2)
5.0
(2.27)
*942773001 50,000
(222)
2-15/16
(74.6)
1 5/8
(41.3)
3/8
(9.5)
9/16
(14.3)
7/8
(22.2)
5.0
(2.27)
Socket Y-clevises are used to connect yoke plates or
associated hardware to ball and socket insulators. The
bent bolt in the Y-section provides an additional point of
articulation within an assembly.
Type SYCS is a short coupling version of Type SYC that of-
fers the same articulation advantages.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
HARDWARE FITTINGS
DUCTILE IRON
SOCKE Y-CLEVIS
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
SS30 30,000
(133)
3
(76.2) 2.00
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-4
DUCTILE IRON
SC
HARDWARE FITTINGS
DUCTILE IRON

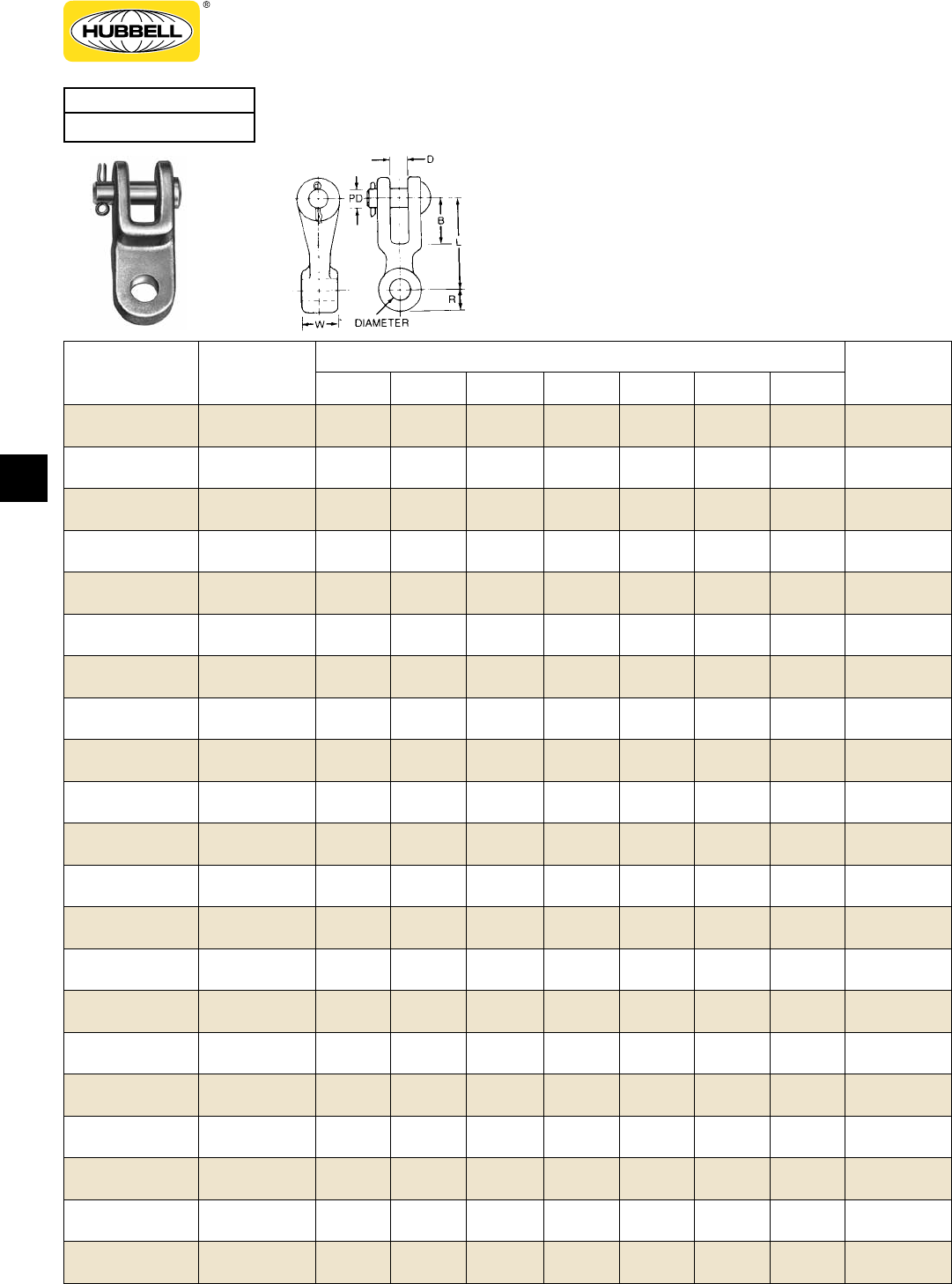

SOCKET CLEVIS
Socket clevises are used primarily for connecting associ-
ated hardware to ball and socket type insulators.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
*For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
† For use with class 52-3 insulators only per ANSI Spec. C-29.2-71.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W
L
B
PD
876032000 30,000
(133)
13/16
(20.6)
2-5/8
(66.7)
1-5/8
(41.3)
5/8
(15.9)
2.7
(1.22)
SC30 30,000
(133)
7/8
(22.2)
2-5/8
(66.7)
1-11/16
(42.9)
5/8
(15.9)
2.0
(.91)
SC30AHM
30,000
(133)
7/8
(22.2)
4-1/2
(114.3)
1-15/16
(49.2)
5/8
(15.9)
3.5
(1.58)
SC301 30,000
(133)
1-1/8
(28.6)
3-7/8
(98.4)
2-7/8
(72)
5/8
(15.9)
3.0
(1.36)
†115452000 18,000
(80)
13/16
(20.6)
2-1/8
(54)
1-3/16
(30.2)
5/8
(15.9)
1.35
(.61)
*SC501 50,000
(222)
1-1/8
(28.6)
3-9/32
(85.3)
2-1/16
(52.4)
7/8
(22.2)
4.6
(2.09)
TG-5
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON
CLEVIS EYE
DUCTILE IRON
CA
Clevis eyes are used to connect conductor clamping
devices to clevis tongue insulators.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
NOTE: *Furnished with 3/4” dia. clevis pin.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
R W
B
D
L
DIA.
CA04
18,000
(80)
13/16
(20.6)
1/2
(12.7)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.6
(.73)
CA05
20,000
(89)
13/16
(20.6)
5/8
(15.9)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.6
(.73)
CA05033
30,000
(133)
15/16
(23.8)
5/8
(15.9)
1-3/4
(44.5)
7/8
(22.2)
3-3/8
(85.7)
11/16
(17.5)
2.6
(1.18)
CA06
25,000
(111)
13/16
(20.6)
3/4
(19.1)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.7
(.77)
CA101
25,000
(111)
13/16
(20.6)
1
(25.4)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.7
(.77)
CA11
25,000
(111)
13/16
(20.6)
1-1/8
(28.6)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.7
(.77)
CA13
25,000
(111)
13/16
(20.6)
1-3/8
(34.9)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
1.8
(.82)
CA16
25,000
(111)
13/16
(20.6)
1-3/4
(44.5)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
2.0
(.91)
CA22
25,000
(111)
13/16
(20.6)
2-1/4
(57.2)
1-1/16
(27.1)
7/8
(22.2)
2-1/2
(63.5)
11/16
(17.5)
2.3
(1.04)
CA1013
25,000
(111)
13/16
(20.6) 1 (25.4) 1-1/16
(227.1)
7/8
(22.2)
2-1/2
(63.5)
13/16
(20.6)
2.0
(.91)
CA1313
25,000
(111)
13/16
(20.6)
1-3/8
(34.9)
1-1/16
(227.1)
7/8
(22.2)
2-1/2
(63.5)
13/16
(20.6)
2.0
(.91)
CA1517033* 30,000
(133)
1-1/32
(26.2)
1-5/8
(41.3)
1-3/4
(44.5)
13/16
(20.6)
3-3/8
(85.7)
1-1/16
(27.1)
2.3
(1.04)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-6
DUCTILE IRON
CE
HARDWARE FITTINGS
DUCTILE IRON
CLEVIS EYE
Type CE clevis eyes are used to connect quadrant type
deadends to clevis tongue insulators or yoke plates. The
eye of type CE is 90° from type CA.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
NOTE: Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
D W
L
B
R PD
DIA.
CE02504 20,000
(89)
7/8
(22.2)
1/2
(12.7)
2-5/8
(66.7)
1-1/4
(31.8)
13/16
(20.6)
5/8
(15.9)
11/16
(17.5)
1.7
(.77)
CE02506 25,000
(111)
7/8
(22.2)
3/4
(19.1)
2-5/8
(66.7)
1-1/4
(31.8)
13/16
(20.6)
5/8
(15.9)
11/16
(17.5)
1.7
(.77)
CE02513 25,000
(111)
7/8
(22.2)
1-3/8
(34.9)
2-5/8
(66.7)
1-1/4
(31.8)
13/16
(20.6)
5/8
(15.9)
11/16
(17.5)
2.2
(1.00)
CE025504 18,000
(80)
13/16
(20.6)
1/2
(12.7)
2-11/16
(68.3)
1-1/16
(27)
7/8
(22.2)
5/8
(15.9)
11/16
(17.5)
1.7
(.77)
CE03305 30,000
(133)
7/8
(22.2)
5/8
(15.9)
3-3/8
(85.7)
1-9/16
(39.7)
7/8
(22.2)
5/8
(15.9)
11/16
(17.5)
1.8
(.82)
CE03404 20,000
(89)
7/8
(22.2)
1/2
(12.7)
3-1/2
(88.9)
2-1/2
(63.5)
1
(25.4)
5/8
(15.9)
13/16
(20.6)
1.8
(.82)
CE0340611 36,000
(160)
1
(25.4)
3/4
(19.1)
3-1/2
(88.9)
1-1/2
(38.1)
1
(25.4)
3/4
(19.1)
11/16
(17.5)
2.2
(1.00)
CE0340615 36,000
(160)
1
(25.4)
3/4
(19.1)
3-1/2
(88.9)
1-1/2
(38.1)
1
(25.4)
3/4
(19.1)
15/16
(23.8)
2.1
(.95)
CE03410 30,000
(133)
7/8
(22.2)
1
(25.4)
3-1/2
(88.9)
2-1/2
(63.5)
1
(25.4)
5/8
(15.9)
13/16
(20.6)
2.0
(.91)
CE03413 30,000
(133)
7/8
(22.2)
1-3/8
(34.9)
3-1/2
(88.9)
2-1/2
(63.5)
1
(25.4)
5/8
(15.9)
13/16
(20.6)
2.5
(1.13)
CE03415 50,000
(222)
7/8
(22.2)
1-5/8
(41.3)
3-1/2
(88.9)
2-1/2
(63.5)
1
(25.4)
3/4
(19.1)
1-1/16
(27)
2.9
(1.32)
CE03616 25,000
(111)
7/8
(22.2)
1-3/4
(44.5)
3-3/4
(95.3)
2-3/4
(69.9)
1
(25.4)
5/8
(15.9)
11/16
(17.5)
2.7
(1.23)
879002000 36,000
(160)
7/8
(22.2)
3/4
(19.1)
5-1/2
(139.7)
2-1/8
(54)
1-1/4
(31.8)
3/4
(19.1)
13/16
(20.6)
3.9
(1.77)
CE054106 50,000
(222)
7/8
(22.2)
1-1/16
(27)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
3/4
(19.1)
13/16
(20.6)
3.0
(1.36)
CE05410 40,000
(178)
1
(25.4)
1
(25.4)
5-1/2
(139.7)
2-1/2
(63.5)
1
(25.4)
3/4
(19.1)
13/16
(20.6)
3.2
(1.45)
CE0541160 60,000
(267)
7/8
(22.2)
1-1/8
(28.6)
5-1/2
(139.7)
2-1/8
(54)
1-1/8
(28.6)
3/4
(19.1)
13/16
(20.6)
3.7
(1.68)
CE054125 30,000
(133)
7/8
(22.2)
1-5/16
(33.3)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
5/8
(15.9)
13/16
(20.6)
3.5
(1.59)
CE05414 50,000
(222)
7/8
(22.2)
1-1/2
(38.1)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
3/4
(19.1)
1-3/16
(30.2)
3.5
(1.59)
CE05415 50,000
(222)
7/8
(22.2)
1-5/8
(41.3)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
3/4
(19.1)
1-1/16
(27)
3.5
(1.59)
CE0541660 60,000
(267)
7/8
(22.2)
1-3/4
(44.5)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
7/8
(22.2)
13/16
(20.6)
3.7
(1.68)
CE05420 50,000
(222)
7/8
(22.2)
2
(50.8)
5-1/2
(139.7)
2-1/8
(54)
1
(25.4)
3/4
(19.1)
13/16
(20.6)
3.7
(1.68)
TG-7
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON
CLEVIS EYE
DUCTILE IRON

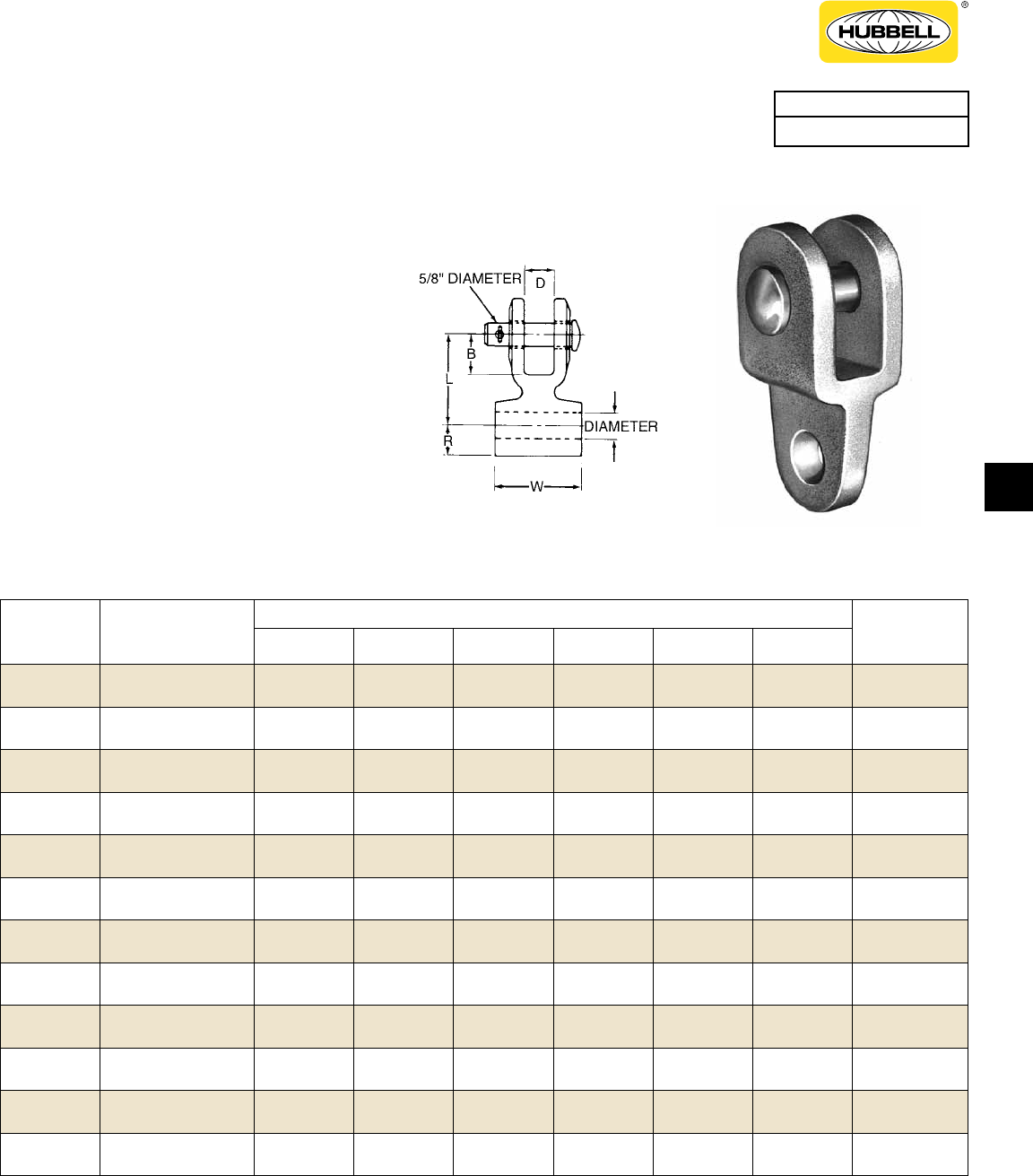

CEW
Wide clevis eyes are used to attach suspension clamps
to associated hardware in a single conductor VEE string
assembly.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
NOTE: Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
FIG. NO.
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W D
B
PD R
DIA.
CEW1030 1 30,000
(133)
1
(25.4)
2-1/4
(57.2)
1-15/16
(49.2)
5/8
(15.9)
1
(25.4)
11/16
(17.5)
2.6
(1.18)
CEW13530 1 30,000
(133)
1-7/16
(36.5)
2
(50.8)
1-13/16
(46)
5/8
(15.9)
1
(25.4)
11/16
(17.5)
2.6
(1.18)
CEW1630 1 30,000
(133)
1-3/4
(44.5)
2
(50.8)
1-13/16
(46)
5/8
(15.9)
1
(25.4)
11/16
(17.5)
2.8
(1.27)
CEW2230 1 30,000
(133)
2-1/4
(57.2)
2
(50.8)
1-13/16
(46)
5/8
(15.9)
1
(25.4)
11/16
(17.5)
3.2
(1.45)
CEW223013 1 30,000
(133)
2-1/4
(57.2)
2
(50.8)
1-13/16
(46)
5/8
(15.9)
1
(25.4)
13/16
(20.6)
3.2
(1.45)
CEW2330 2 30,000
(133)
2-3/8
(60.3)
2-1/4
(57.2)
1 7/16
(36.5)
5/8
(15.9)
13/16
(20.6)
11/16
(17.5)
3.5
(1.59)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-8
HARDWARE FITTINGS
DUCTILE IRON

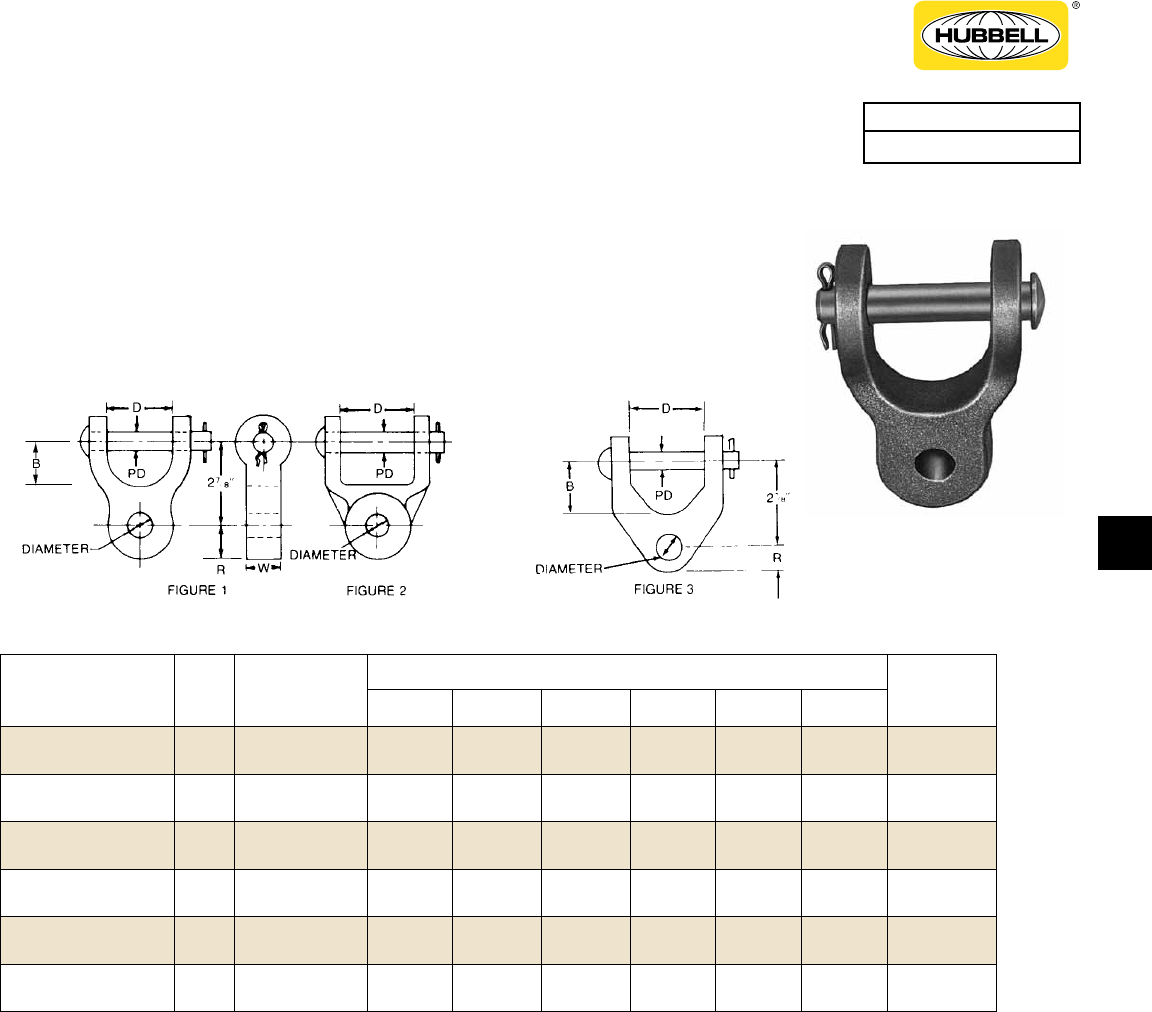

Y-CLEVIS EYE
Y-clevis eyes are primarily used to attach clamp-
ing devices to yoke plates or other associated
hardware in a bundle conductor assembly. The
bent bolt in the Y-section provides an additional
point of articulation within an assembly.
Material: Body—ductile iron or forged steel,
galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
DUCTILE IRON
YCS
*Forged Steel
CATALOG
NUMBER
FIG.
NO.
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
B
L
W R PD
DIA.
YCS04 1 19,000 (85) 1-3/8 (34.9) 2-13/16 (71.4) 1/2(12.7) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.75 (.79)
YCS0490 2 19,000 (85) 1-5/8 (41.3) 2-7/16 (62) 1/2 (12.7) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.75 (.79)
YCS04034 1 19,000 (85) 1-3/4 (44.5) 3-1/2 (88.9) 1/2 (12.7) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.7 (1.22)
854502000* 1 30,000 (133) 1-1/2 (38.1) 3-3/4 (95.3) 5/8 (15.9) 25/32 (19.8) 3/4 (19.1) 11/16 (17.5) 2.0 (.91)
854512000* 2 30,000 (133) 1-1/2 (38.1) 3-3/4 (95.3) 5/8 (15.9) 25/32 (19.8) 3/4 (19.1) 11/16 (17.5) 2.0 (.91)
YCS05 1 20,000 (89) 1-3/8 (34.9) 2-13/16 (71.4) 5/8 (15.9) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.85 (.84)
YCS0590 2 20,000 (89) 1-5/8 (41.3) 2-7/16 (62) 5/8 (15.9) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.85 (.84)
YCS059030 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 5/8 (15.9) 7/8 (22.2) 3/4 (19.1) 11/16 (17.5) 1.85 (.84)
YCS06 1 25,000 (111) 1-3/8 (34.9) 2-13/16 (71.4) 3/4 (19.1) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.90 (.86)
YCS0690 2 25,000 (111) 1-5/8 (41.3) 2-7/16 (62) 3/4 (19.1) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.90 (.86)
YCS069040 2 40,000 (178) 2 (50.8) 3-5/16 (84.1) 3/4 (19.1) 1 (25.4) 7/8 (22.2) 11/16 (17.5) 3.4 (1.54)
YCS07 1 30,000 (133) 1-3/8 (34.9) 2-13/16 (71.4) 7/8 (22.2) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.90 (.86)
YCS10 1 30,000 (133) 1-3/8 (34.9) 2-13/16 (71.4) 1 (25.4) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.95 (.88)
YCS1090 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1 (25.4) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 1.95 (.88)
YCS10590 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1-1/16 (27.1) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.00 (.91)
YCS1059013 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1-1/16 (27.1) 13/16 (20.6) 3/4 (19.1) 13/16 (20.6) 2.00 (.91)
YCS11 1 30,000 (133) 1-3/8 (34.9) 2-13/16 (71.4) 1-1/8 (28.6) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.00 (.91)
YCS119045 2 45,000 (200) 1-1/16 (27) 2-9/16 (65.1) 1-1/8 (28.6) 29/32 (23) 7/8 (22.2) 13/16 (20.6) 2.50 (1.13)
YCS1290 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1-1/4 (31.8) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.50 (1.13)
YCS129040 2 40,000 (178) 1-9/16 (39.7) 2-3/8 (60.3) 1-1/4 (31.8) 13/16 (20.6) 7/8 (22.2) 13/16 (20.6) 2.50 (1.13)
YCS1390 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1-3/8 (34.9) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.25 (1.02)
YCS1690 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 1-3/4 (44.5) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.30 (1.04)
YCS169040 2 40,000 (178) 1-9/16 (39.7) 2-3/8 (60.3) 1-3/4 (44.5) 13/16 (20.6) 7/8 (22.2) 13/16 (20.6) 2.50 (1.13)
YCS2090 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 2 (50.8) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.75 (1.25)
YCS209040 2 40,000 (178) 1-9/16 (39.7) 2-3/8 (60.3) 2 (50.8) 13/16 (20.6) 7/8 (22.2) 13/16 (20.6) 3.00 (1.36)
YCS219013 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 2-1/8 (54) 13/16 (20.6) 3/4 (19.1) 13/16 (20.6) 3.00 (1.36)
YCS2290 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 2-1/4 (57.2) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5) 2.75 (1.25)
YCS2490 2 30,000 (133) 1-5/8 (41.3) 2-7/16 (62) 2-1/2 (63.5) 13/16 (20.6) 3/4 (19.1) 11/16 (17.5 3.00 (1.36)
YCS269040 2 40,000 (178) 1-9/16 (39.7) 2-3/8 (60.3) 2-3/4 (69.9) 13/16 (20.6) 7/8 (22.2) 13/16 (20.6) 3.45 (1.47)
TG-9
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON

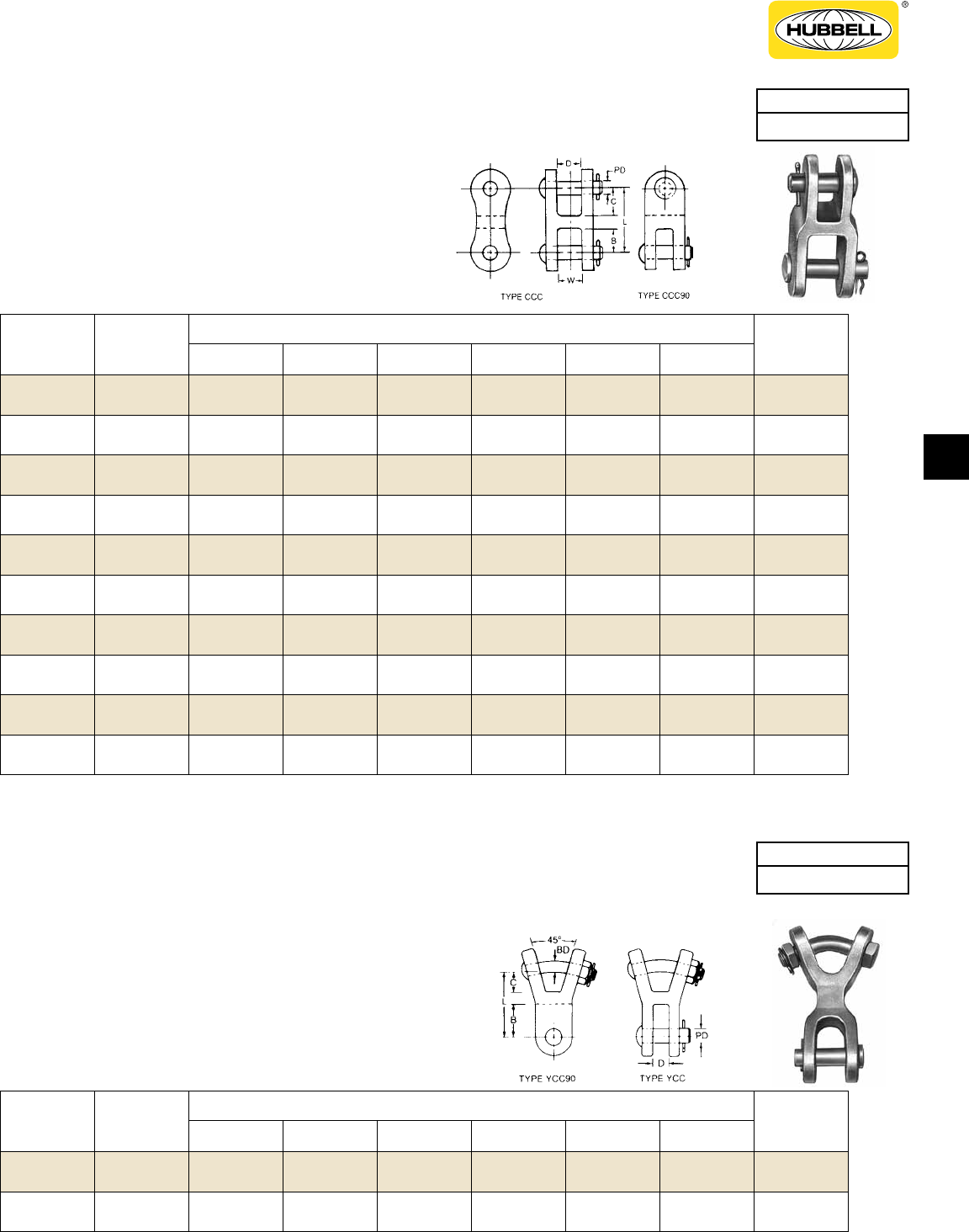

CLEVIS CLEVIS
Clevis clevises are used to attach clevis tongue insulators
to various associated hardware within an insulator string.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
DUCTILE IRON
CCC
DUCTILE IRON
YCC
NOTE: +Furnished with bolt, nut and cotter pin; 1” diameter bolt at “D” opening, 1-1/8” diameter bolt at “W” opening.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
Y-clevis clevises are used to attach clevis tongue insulators
to various associated hardware within an insulator string.
The bent bolt in the Y-clevis section provides an addition-
al point of articulation within an assembly.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
HARDWARE FITTINGS
DUCTILE IRON
Y-CLEVIS CLEVIS
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C W D PD
CCC25 25,000
(111)
3
(76.2)
1-1/16
(27)
1-1/2
(38.1)
11/16
(17.5)
1-3/16
(30.2)
5/8
(15.9)
2.5
(1.13)
CCC30 30,000
(133)
4
(101.6)
1-3/4
(44.5)
1-3/4
(44.5)
7/8
(22.2)
7/8
(22.2)
5/8
(15.9)
2.5
(1.13)
CCC30115 30,000
(133)
4
(101.6)
2
(50.8)
1-1/2
(38.1)
1-3/16
(30.2)
7/8
(22.2)
5/8
(15.9)
3.0
(1.36)
CCC3090 30,000
(133)
3
(76.2)
1-3/8
(34.9)
1-3/8
(34.9)
7/8
(22.2)
7/8
(22.2)
5/8
(15.9)
2.5
(1.13)
CCC309055 30,000
(133)
5-1/2
(139.7)
1-3/4
(44.5)
1-3/4
(44.5)
15/16
(23.8)
15/16
(23.8)
5/8
(15.9)
5.7
(2.59)
CCC40 40,000
(178)
4
(101.6)
1-3/4
(44.5)
1-3/4
(44.5)
7/8
(22.2)
7/8
(22.2)
3/4
(19.1)
3.2
(1.45)
CCC4090 40,000
(178)
3-1/2
(88.9)
1-1/2
(38.1)
1-1/2
(38.1)
7/8
(22.2)
7/8
(22.2)
3/4
(19.1)
3.2
(1.45)
CCC50 50,000
(222)
4-1/2
(114.3)
2
(50.8)
2
(50.8)
1
(25.4)
1
(25.4)
3/4
(19.1)
4.0
(1.81)
CCC5090 50,000
(222)
4-1/2
(114.3)
2
(50.8)
2
(50.8)
1
(25.4)
1
(25.4)
3/4
(19.1)
4.0
(1.81)
CCC80BNK
80,000
(356)
5-1/8
(130.2)
2-1/4
(57.2)
2-1/4
(57.2)
1-5/8
(41.3)
1-1/4
(31.8) +6.0
(2.72)
CATALOG
NUMBER
ULTIMATE
STRENGTH LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
D
L
B
C PD
BD
YCC30 30,000
(133)
7/8
(22.2)
3-1/4
(82.6)
1-3/8
(34.9)
1-3/8
(34.9)
5/8
(15.9)
3/4
(19.1)
2.5
(1.13)
YCC3090 30,000
(133)
7/8
(22.2)
3-1/4
(82.6)
1-3/8
(34.9)
1-1/2
(38.1)
5/8
(15.9)
3/4
(19.1)
2.5
(1.13)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-10
DUCTILE IRON
CFCC
HARDWARE FITTINGS
DUCTILE IRON
CORONA FREE CLEVIS
Corona free clevis clevises are used at EHV levels to
attach clevis tongue insulators to various associated
hardware within an insulator string.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C W D PD
CFCC30 30,000
(133)
3-1/8
(79.4)
1-19/32
(40.5)
1-7/32
(31)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
3.00
(1.36)
CFCC3090 30,000
(133)
3-1/8
(79.4)
1-19/32
(40.5)
1-7/32
(31)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
3.00
(1.36)
CFCC40 40,000
(178)
3-1/4
(82.6)
1-3/4
(44.5)
1-3/16
(30.2)
7/8
(22.2)
15/16
(23.8)
3/4
(19.1)
4.75
(2.15)
CFCC4090 40,000
(178)
3-1/4
(82.6)
1-3/4
(44.5)
1-3/16
(30.2)
7/8
(22.2)
15/16
(23.8)
3/4
(19.1)
4.75
(2.15)
TG-11
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
T DIAMETER
HARDWARE FITTINGS
FORGED STEEL

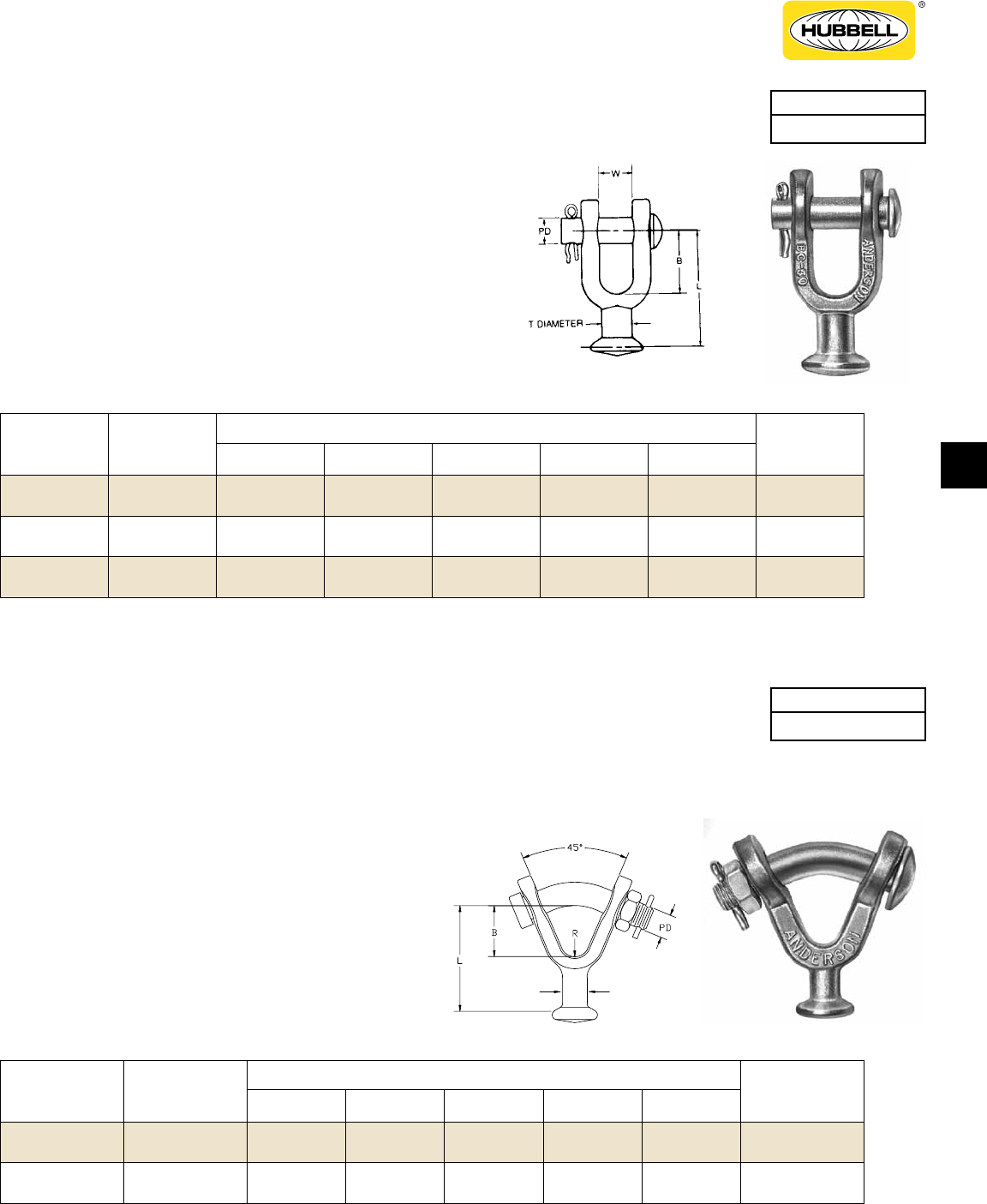

BALL CLEVIS
Ball clevises are used to attach ball and socket insulators
to other associated tower hardware.
Material: Body—galvanized steel
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
FORGED STEEL
BC
FORGED STEEL
YBC
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
* For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
Ball Y-clevises are used to attach ball and socket insula-
tors to other associated hardware. The bent bolt in the Y-
clevis section provides an additional point of articulation.
Material: Body—galvanized steel
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
HARDWARE FITTINGS
FORGED STEEL
BALL Y-CLEVIS
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
*For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W PD T
DIA.
BC30
30,000
(133)
2-7/8
(73)
1-9/16
(39.7)
15/16
(23.8)
5/8
(15.9)
23/32
(18.3)
.95
(.43)
*BC50
50,000
(222)
4-5/16
(109.5)
1-15/16
(49.2)
15/16
(23.8)
7/8
(22.2)
57/64
(22.6)
2.3
(1.04)
704882000 30,000
(133)
3-15/16
(100)
2-1/2
(63.5)
13/16
(20.6)
5/8
(15.9)
23/32
(18.3)
1.24
(.56)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
R PD T
DIA.
YBC30
30,000
(133)
3-3/32
(78.5)
1-1/2
(35.1)
0.406
(13.5)
3/4
(19.1)
23/32
(18.3)
1.90
(.86)
*YBC50
50,000
(222)
3-15/16
(100.2)
1-13/16
(46)
0.531
(10.3)
7/8
(22.2)
57/64
(22.6)
2.80
(1.27)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-12
HARDWARE FITTINGS
FORGED STEEL
ANCHOR SHACKLE
Anchor shackles are used to attach hardware to the tow-
er pad. Back to back anchor shackles are commonly used
at the tower attachment point to orient the plane of the
tower plate and the balance of the insulator hardware.
Material: Body—galvanized steel
Hardware—galvanized steel
Cotter Pin—stainless steel
FORGED STEEL
AS
NOTE: *These shackles are type BNK.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W C T R PD
AS25
30,000
(133)
2-3/8
(60.3)
5/8
(15.9)
7/8
(22.2)
1-3/8
(34.9)
1/2
(12.7)
11/16
(17.56)
5/8
(15.9)
.74
(.34)
AS25BNK
30,000
(133)
2-3/8
(60.3)
5/8
(15.9)
7/8
(22.2)
1-3/8
(34.9)
1/2
(12.7)
11/16
(17.5)
5/8
(15.9)
.86
(.39)
AS25L
30,000
(133)
2-25/32
(70.6)
5/8
(15.9)
7/8
(22.2)
1-3/8
(34.9)
1/2
(12.7)
21/32
(16.7)
5/8
(15.9)
1.00
(.45)
AS25LBNK
30,000
(133)
2-25/32
(70.6)
5/8
(15.9)
7/8
(22.2)
1-3/8
(34.9)
1/2
(12.7)
21/32
(16.7)
5/8
(15.9)
1.12
(.51)
AS25WBNK
30,000
(133)
3
(76.2)
5/8
(15.9)
1-3/4
(44.5)
1-11/16
(42.9)
5/8
(15.9)
1
(25.4)
5/8
(15.9)
1.65
(.75)
AS35
35,000
(156)
2-25/32
(70.6)
11/16
(17.5)
1-1/16
(27)
1-11/16
(42.9)
5/8
(15.9)
3/4
(19.1)
3/4
(19.1)
1.47
(.67)
AS35BNK
40,000
(178)
2-25/32
(70.6)
11/16
(17.5)
1-1/16
(27)
1-11/16
(42.9)
5/8
(15.9)
3/4
(19.1)
3/4
(19.1)
1.66
(.75)
AS50
50,000
(222)
3-1/2
(88.9)
7/8
(22.2)
7/8
(22.2)
1-7/8
(47.6)
3/4
(19.1)
3/4
(19.1)
3/4
(19.1)
2.25
(1.02)
AS50BNK
60,000
(267)
3-1/2
(88.9)
7/8
(22.2)
7/8
(22.2)
1-7/8
(47.6)
3/4
(19.1)
3/4
(19.1
3/4
(19.1)
2.44
(1.11)
970303001 60,000
(267)
5
(127)
5/8
(15.9)
1-1/8
(28.6)
1-7/8
(47.6)
3/4
(19.1)
9/16
(14.3)
3/4
(19.1)
2.4
(1.10)
*970303002 60,000
(267)
5
(127)
5/8
(15.9)
1-1/8
(28.6)
1-7/8
(47.6)
3/4
(19.1)
9/16
(14.3)
3/4
(19.1)
2.5
(1.13)
AS50W
50,000
(222)
3-1/2
(88.9)
7/8
(22.2)
1-1/4
(31.8)
1-15/16
(49.2)
3/4
(19.1)
1
(25.4)
7/8
(22.2)
2.25
(1.02)
AS50WBNK
60,000
(267)
3-1/2
(88.9)
7/8
(22.2)
1-1/4
(31.8)
1-15/16
(49.2)
3/4
(19.1)
1
(25.4)
7/8
(22.2)
2.75
(1.25)
AS60BNK
80,000
(356)
3-3/4
(95.3)
7/8
(22.2)
1-7/16
(36.5)
2-1/8
(54)
7/8
(22.2)
1-1/8
(28.6)
1
(25.4)
4.31
(1.96)
AS60875BNK
72,000
(320)
3-3/4
(95.3)
7/8
(22.2)
1-7/16
(36.5)
2-1/8
(54)
7/8
(22.2)
1-1/8
(28.6)
7/8
(22.2)
4.10
(1.86)
*974153001 120,000
(534)
6
(152.4)
1
(25.4)
1-1/2
(38.1)
2-3/8
(60.3)
1
(25.4)
1-1/16
(27)
1-1/8
(28.6)
6.20
(2.81)
974153002 100,000
(445)
6
(152.4)
1
(25.4)
1-1/2
(38.1)
2-3/8
(60.3)
1
(25.4)
1-1/16
(27)
1-1/8
(28.6)
6.00
(2.72)
*976743001 100,000
(445)
4-5/16
(109.5)
1
(25.4)
1-11/16
(42.9)
2-3/8
(60.3)
1
(25.4)
1-11/32
(34.1)
1-1/8
(28.6)
5.90
(2.69)
*946693001 100,000
(445)
4-5/16
(109.5)
1
(25.4)
1-3/16
(30.2)
2-3/8
(60.3)
1
(25.4)
1-11/32
(34.1)
1-1/8
(28.6)
5.70
(2.59)
AS135BNK
150,000
(667)
6
(152.4)
1-1/2
(38.1)
2-1/4
(57.2)
3-3/8
(85.7)
1-3/8
(34.9)
1-13/16
(46)
1-1/2
(38.1)
15.75
(7.14)
TG-13
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
FORGED STEEL
BALL CLEVIS
Ball eyes are used to attach ball and socket insulators
to other associated hardware. The use of the ball oval eye
and an anchor shackle is one of the most common distri-
bution tower attachment combinations.
Material: Galvanized steel
FORGED STEEL
BE
FORGED STEEL
BEAS
NOTE: ** For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
***For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
Ball oval-eye anchor shackle combinations are popular
combinations which are sold as assemblies to save field
assembly time. Contact factory for other pre-assembled
combinations.
Material: Body—galvanized steel
HARDWARE FITTINGS
FORGED STEEL
BALL OVAL-EYE ANCHOR SHACKLE COMBINATION
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. c-29.2-71.
Other combinations may be used, contact factory for additional information.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W
**BE30
30,000
(133)
3-23/32
(94.5)
2
(50.8)
1
(25.4)
1.00
(.45)
***909462000 50,000
(222)
4-1/2
(114.3)
2-1/2
(63.5)
1 1/4
(31.8)
1.55
(.70)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W
L
T PD
BE30AS25
30,000
(133)
7/8
(22.2)
5-29/32
(150)
11/16
(17.5)
5/8
(15.9)
1.74
(.79)
BE30AS35
30,000
(133)
1-1/16
(27)
6-1/2
(165.1)
11/16
(17.5)
3/4
(19.1)
2.47
(1.12)
BE30AS50
30,000
(133)
7/8
(22.2)
7-7/32
(183.4)
11/16
(17.5)
3/4
(19.1)
3.25
(1.47)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-14
HARDWARE FITTINGS
FORGED STEEL CHAIN LINK
Links are used to maintain proper tower
clearance and connect associated hardware
within an insulator string.
Material: Galvanized steel
FORGED STEEL
LK
HARDWARE FITTINGS
FORGED STEEL HOOKS
Hooks are used to attach ball
and socket or clevis insula-
tors directly to the tower at-
tachment pad. All hooks are
of the self-locking design.
HARDWARE FITTINGS - STEEL
Clevis connections, especially if working under light mechanical load, can develop
oxide films on their bearing surfaces. If these films are not fractured by weight and
movement, they are subject to puncture by line voltages whose small discharges
can create RIV. By establishing a shunt around the clevis joint, by means of RIV
clips, the condition is easily remedied. Clips are made of spring stainless steel wire
with ends cut flat and sharp to give good point contact. They are held securely by
snapping around the Clevis Pin. Clip weight is 0.845 pounds per hundred.
Hooks For Use With Class 52-3 And 52-5 Insulators Per ANSI Spec. C-29.2-71.
797202000 for use with class 52-4 and 52-6 clevis type insulators per ANSI Spec. C-29.2-71.
CATALOG
NUMBER
FIGURE NO.
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
A B
W T
LK30
130,000
(133)
2-1/4
(57.2) —1/2
(12.7)
1
(25.4)
1/2
(12.7)
.44
(.20)
LK60
160,000
(267)
3-1/2
(88.9) —3/4
(19.1)
1
(25.4)
3/4
(19.1)
1.5
(.68)
LK80
180,000
(356)
4
(101.6) —7/8
(22.2)
1-1/4
(31.8)
7/8
(22.2)
2.15
(.96)
LK150
1150,000
(667)
5-1/2
(139.7) —1-3/8
(34.9)
1-3/4
(44.5)
1-3/8
(34.9)
6.90
(3.13)
LK830
230,000
(133)
3-3/8
(85.7)
1-1/8
(28.6) —7/8
(22.2)
9/16
(14.3)
.75
(.34)
LK830T
330,000
(133)
3-3/8
(85.7)
1-1/8
(28.6) —7/8
(22.2)
9/16
(14.3)
.75
(.34)
792722000 1 45,000
(200)
3-1/4
(82.6) —11/16
(17.5)
1
(25.4)
11/16
(17.5)
.95
(.43)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
W T
HB30
30,000
(133)
2
(50.8)
13/16
(20.6)
23.32
(18.3)
1.05
(.48)
HB30L
30,000
(133)
3-1/8
(79.4)
7/8
(22.2)
23.32
(18.3)
1.33
(.60)
792702000 30,000
(133)
3
(76.2)
13/16
(20.6)
1/2
(12.7)
1.30
(.59)
RIV CLIP
CATALOG NUMBER 941104001
HBL HB
Type LK8 Type LK8T
Figure 1 Figure 2 Figure 3
TG-15
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON

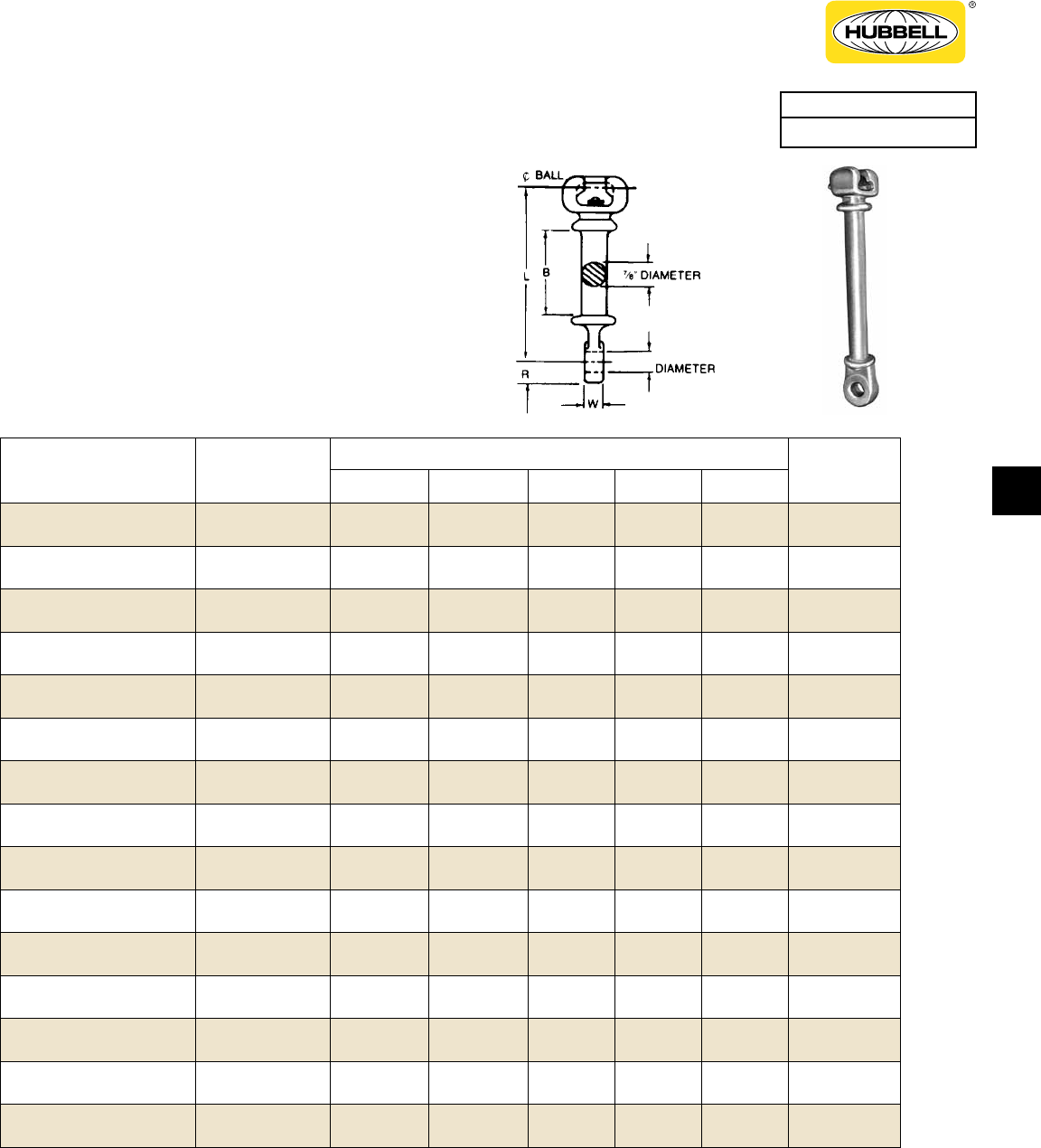

HOT LINE SOCKET EYE
DUCTILE IRON
HSE
Hot line socket eyes are used to connect ball and
socket insulators to other associated hardware.
Shoulders are provided to accommodate hot line
tools.
Material: Body—ductile iron, galvanized
Cotter Pin—stainless steel
NOTE: *These items for use with ANSI class 52-8 and 52-11 insulators.
Others for use with ANSI class 52-3 and 52-5 insulators.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W R
DIA.
HSE07712 30,000
(133)
7-7/8
(200)
4-1/8
(105)
1-1/4
(31.8)
1
(25.4)
11/16
(17.5)
3.23
(1.47)
HSE10004 19,000
(85)
10
(254)
6-1/4
(159)
1/2
(12.7)
13/16
(20.6)
11/16
(17.5)
2.78
(1.26)
HSE10005 30,000
(133)
10
(254)
6-1/4
(159)
5/8
(15.9)
7/8
(22.2)
11/16
(17.5)
2.87
(1.30)
HSE100055 30,000
(133)
10
(254)
6-1/4
(159)
11/16
(17.5)
7/8
(22.2)
11/16
(17.5)
2.9
(1.32)
HSE10006 30,000
(133)
10
(254)
6-1/4
(159)
3/4
(19.1)
7/8
(22.2)
11/16
(17.5)
2.97
(1.35)
HSE100065 30,000
(133)
10
(254)
6-1/4
(159)
13/16
(20.6)
15/16
(23.8)
13/16
(20.6)
3.00
(1.36)
HSE1000613 30,000
(133)
10
(254)
6-1/4
(159)
3/4
(19.1)
7/8
(22.2)
13/16
(20.6)
2.97
(1.35)
HSE10010 30,000
(133)
10
(254)
6-1/4
(159)
1
(25.4)
1
(25.4)
1-1/16
(27.1)
3.00
(1.36)
HSE100105 30,000
(133)
10
(254)
6-1/4
(159)
1-1/16
(27.1)
1-1/4
(31.8)
1-1/16
(27.1)
3.10
(1.41)
HSE10012 30,000
(133)
10
(254)
6-1/4
(159)
1-1/4
(31.8)
1
(25.4)
1-3/16
(30.2)
3.10
(1.41)
HSE100121116 30,000
(133)
10
(254)
6-1/4
(159)
1-1/4
(31.8)
1
(25.4)
11/16
(17.5)
3.20
(1.45)
HSE10016 30,000
(133)
10
(254)
6-1/4
(159)
1-3/4
(44.5)
13/16
(20.6)
11/16
(17.5)
3.90
(1.77)
HSE12560613 30,000
(133)
12-9/16
(319.1)
8-13/16
(224)
3/4
(19.1)
1
(25.4)
13/16
(20.6)
3.36
(1.52)
*HSE1001550 50,000
(222)
10
(254)
6-1/2
(165)
1-5/8
(41.3)
2
(50.8)
1-1/16
(27.1)
5.15
(2.34)
*HSE10015501 50,000
(222)
10
(254)
6-1/2
(165)
1-11/32
(34.1)
2
(50.8)
1-1/16
(27.1)
4.90
(2.22)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-16
HARDWARE FITTINGS
DUCTILE IRON

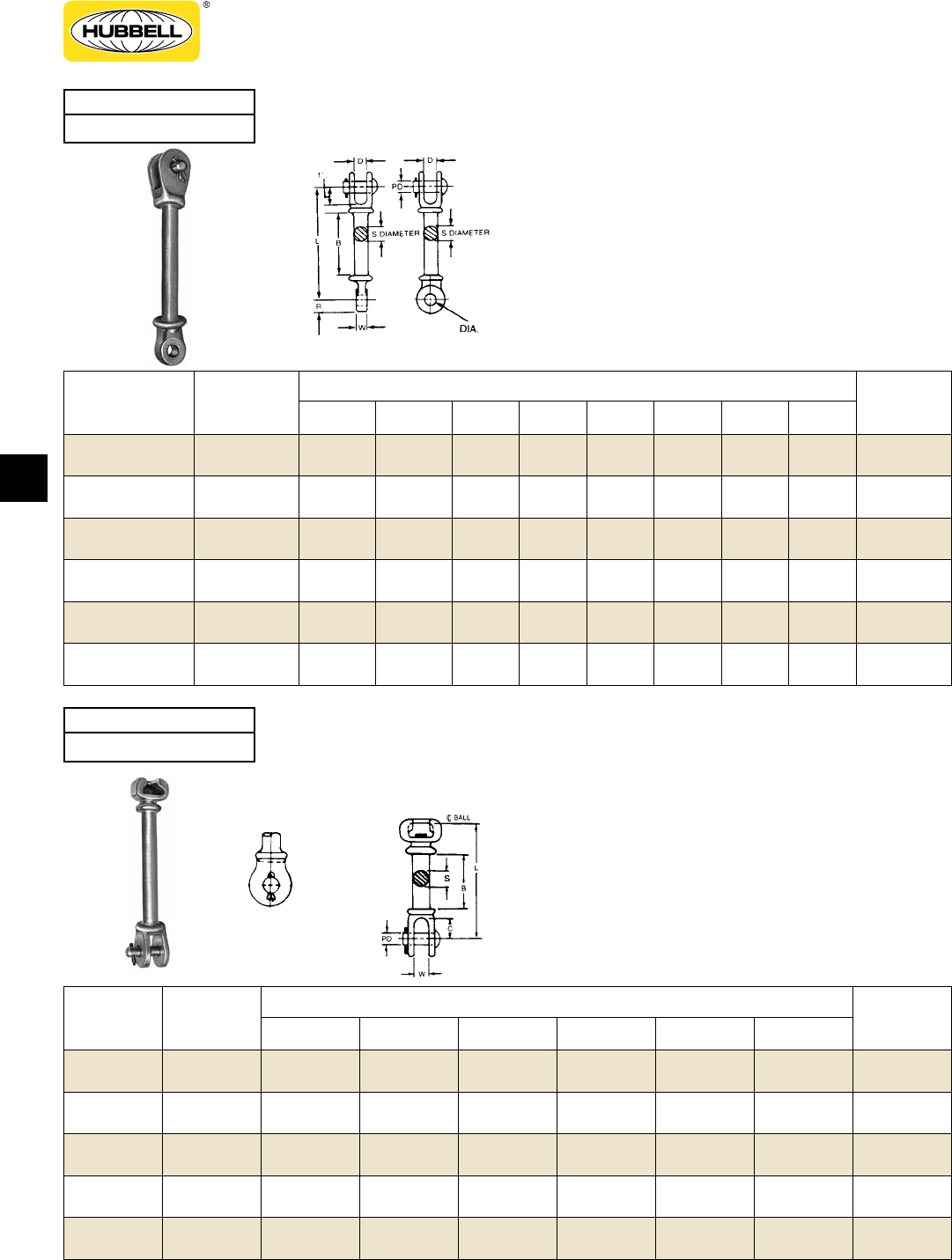

HOT LINE EXTENSION CLEVIS EYE
Hot line clevis eyes are used to connect clevis tongue
insulators to various associated hardware. Shoulders are
provided to accommodate hotline tools.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
DUCTILE IRON
HCE
HARDWARE FITTINGS
DUCTILE IRON
HOT LINE EXTENSION SOCKET CLEVIS
Hot line socket clevis are used to connect ball and socket
insulators to other associated hardware. Shoulders are
provided to accommodate hot line tools.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
TYPE HCE TYPE HCE90
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
D W R
DIA.
PD S
HCE0705 30,000
(133)
7
(177.8)
3
(76.2)
13/16
(20.6)
5/8
(15.9)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
7/8
(22.2)
2.5
(1.13)
HCE10005 30,000
(133)
10
(254)
6
(152.4)
13/16
(20.6)
5/8
(15.9)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
7/8
(22.2)
2.7
(1.22)
HCE1000590 30,000
(133)
10
(254)
6
(152.4)
1
(25.4)
5/8
(15.9)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
7/8
(22.2)
2.8
(1.27)
HCE10006 30,000
(133)
10
(254)
6
(152.4)
13/16
(20.6)
3/4
(19.1)
7/8
(22.2)
11/16
(17.5)
5/8
(15.9)
7/8
(22.2)
3.1
(1.41)
HCE1000613 30,000
(133)
10
(254)
6
(152.4)
13/16
(20.6)
3/4
(19.1)
7/8
(22.2)
13/16
(20.6)
5/8
(15.9)
7/8
(22.2)
3.1
(1.41)
HCE1101240 40,000
(178)
11
(279.4)
6
(152.4)
7/8
(22.2)
1-1/4
(31.8)
1-1/4
(31.8)
1-3/16
(30.2)
3/4
(19.1)
1-1/8
(28.6)
3.52
(1.60)
DUCTILE IRON
HSC
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
* For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C W PD S
HSC083 30,000
(133)
8-3/8
(212.7)
4-5/8
(117.5)
1-1/2
(38.1)
1
(25.4)
5/8
(15.9)
7/8
(22.2)
3.0
(1.36)
HSC100 30,000
(133)
10
(254)
6-1/4
(158.8)
1-1/2
(38.1)
1
(25.4)
5/8
(15.9)
7/8
(22.2)
3.5
(1.59)
HSC10035 35,000
(156)
10
(254)
6-3/32
(154.8)
1-5/8
(41.3)
1
(25.4)
3/4
(19.1)
1-1/32
(26.2)
4.5
(2.04)
*HSC110501 50,000
(222)
11
(279.4)
6-13/16
(173)
2
(50.8)
1-5/16
(33.3)
7/8
(22.2)
1-3/16
(30.2)
7.0
(3.18)
*HSC110503 50,000
(222)
11
(279.4)
6-13/16
(173)
2
(50.8)
15/16
(23.8)
7/8
(22.2)
1-3/16
(30.2)
6.6
(3.0)
HSC110501
TG-17
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HOT LINE CLEVIS CLEVIS
TYPE HCC DUCTILE IRON
HCC
A hot line clevis clevis is used to connect associated
hardware within an insulator string. Shoulders are pro-
vided to accommodate hot line tools.
Material: Body—ductile iron, galvanized
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS—INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W D S
DIA
PD
HCC30 30,000
(133)
10
(254)
5-7/8
(149.2)
1
(25.4)
1-5/8
(41.3)
7/8
(22.2)
5/8
(15.9)
3.4
(1.54)
HCC3090 30,000
(133)
10
(254)
6
(152.4)
1
(25.4)
1-5/8
(41.3)
7/8
(22.2)
5/8
(15.9)
3.4
(1.54)
HCC4015 40,000
(178)
15
(381)
9-3/4
(247.6)
1-1/16
(27)
2
(50.8)
1-1/8
(28.6)
3/4
(19.1)
4.5
(2.04)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSION—INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C
HSYC30 30,000
(133)
9-11/16
(246.1)
6
(152.4)
1-9/16
(39.7)
3.6
(1.63)
HSYC3090 30,000
(133)
9-11/16
(246.1)
6
(152.4)
1-9/16
(39.7)
3.6
(1.63)
*HSYC50 50,000
(222)
10-5/16
(261.9)
5-29/32
(150)
1-5/8
(41.3)
7.5
(3.40)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS—INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
W PD
BD
HYCC30 30,000
(133)
10-3/8
(263.5)
1
(25.4)
5/8
(15.9)
3/4
(19.1)
3.5
(1.59)
HYCC3090 30,000
(133)
10-3/8
(263.5)
1
(25.4)
5/8
(15.9)
3/4
(19.1)
3.5
(1.59)
HOT LINE SOCKET Y-CLEVIS
TYPE HSYC DUCTILE IRON
HSYC
Hot line socket Y-clevises are used to attach ball
and socket insulators to other associated hard-
ware. Shoulders are provided to accommodate
hot line tools and the bent bolt in the Y-section
provides an additional point of articulation
within an assembly.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
HOT LINE Y-CLEVIS CLEVIS
TYPE HYCC DUCTILE IRON
HYCC
Hot line Y-clevis clevises are used to connect associ-
ated hardware within an insulator string. Shoulders
are provided to accommodate hot line tools and the
bent bolts in the Y-clevises provide additional points
of articulation within an assembly.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
* For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
NOTE: Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-18
HARDWARE FITTINGS
DUCTILE IRON
HOT LINE Y-Y-CLEVIS
Hot line Y-Y-clevis is used to connect associated
hardware within an insulator string or connecting
deadend clamps to yoke plates providing clearances for
jumper ends. Shoulders are provided to accommodate
hot line tools and the bent bolts in the Y-clevises provide
additional points of articulation within an assembly.
Material: Body—ductile iron, galvanized.
Hardware—galvanized steel
Cotter Pin—stainless steel
DUCTILE IRON
HYYC
HARDWARE FITTINGS
DUCTILE IRON
HOT LINE Y-CLEVIS EYE
Hot line Y-clevis eyes are used to connect as-
sociated hardware within an insulator string.
Shoulders are provided to accommodate
hot line tools. The bent bolt in the Y-section
provides an additional point of articulation
within an assembly.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
TYPE HYCE TYPE HYCE90
DUCTILE IRON
HYCE
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
BD
(DIA.)
S
DIA.
HYYC3015 30,000
(133)
15
(381)
10-3/8
(263.7)
3/4
(19.1)
7/8
(22.2)
4.3
(1.98)
HYYC50157 50,000
(222)
15
(381)
10-1/8
(257.2)
7/8
(22.2)
1-1/8
(28.6)
9.0
(4.08)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
R S.
DIA.
B
DIA.
W
BD
HYCE1512 15,000
(67)
12
(304.8)
15/16
(23.8)
5/8
(15.9)
7-3/8
(187.3)
11/16
(17.5)
1/2
(12.7)
3/4
(19.1)
3.4
(1.54)
HYCE3011 30,000
(133)
11
(279.4)
15/16
(23.8)
7/8
(22.2)
6-3/8
(161.9)
11/16
(17.5)
5/8
(15.9)
3/4
(19.1)
4.2
(1.91)
HYCE301190 30,000
(133)
11
(279.4)
15/16
(23.8)
15/16
(23.8)
6-3/8
(161.9)
11/16
(17.5)
5/8
(15.9)
3/4
(19.1)
4.57
(2.07)
HYCE301590 30,000
(133)
15
(381)
15/16
(23.8)
15/16
(23.8)
10-3/8
(263.5)
11/16
(17.5)
5/8
(15.9)
3/4
(19.1)
5.09
(2.31)
HYCE401190 40,000
(178)
11
(279.4)
1-1/32
(26.2)
1-1/8
(28.6)
6-5/8
(168.3)
13/16
(20.6)
25/32
(19.8)
7/8
(22.2)
4.87
(2.20)
TG-19
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON
HOT LINE OVAL EYE PAD EYE
DUCTILE IRON
HOPE
Hot line oval-eye, pad-eye extension link is used to
maintain proper tower clearance and can be used to
connect clevis tongue insulators to various associated
hardware.
Material: Body—ductile iron, galvanized
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C R W T
HOPE3012 30,000
(133)
12
(304.8)
7
(177.8)
2 1/8
(54)
15/16
(23.8)
15/16
(23.8)
23/32
(18.3)
2.8
(1.27)
HOPE301290 30,000
(133)
12
(304.8)
7
(177.8)
2 1/8
(54)
15/16
(23.8)
15/16
(23.8)
13/16
(20.6)
2.8
(1.27)
HARDWARE FITTINGS
FORGED STEEL
HOT LINE BALL CLEVIS
Hot line ball clevises are used to attach ball and socket
insulators to other associated hardware within an insula-
tor string. Shoulders are provided to accommodate hot
line tools. Add “BNK” suffix to specify link with Bolt, Nut
and Cotter Key.
Material: Body—galvanized steel
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
FORGED STEEL
HBC
NOTE: Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
A
L
B
W PD S
DIA
T
DIA
HBC30
30,000
(133)
1-3/4
(44.5)
9-9/16
(242.9)
5-7/8
(149.2)
15/16
(23.8)
5/8
(15.9)
7/8
(22.2)
23/32
(18.3)
2.45
(1.11)
*HBC50
50,000
(222)
1-7/8
(47.6)
10-1/16
(255.6)
5-3/8
(136.5)
15/16
(23.8)
7/8
(22.2)
7/8
(22.2)
57/64
(22.6)
3.50
(1.59)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-20
HARDWARE FITTINGS
FORGED STEEL

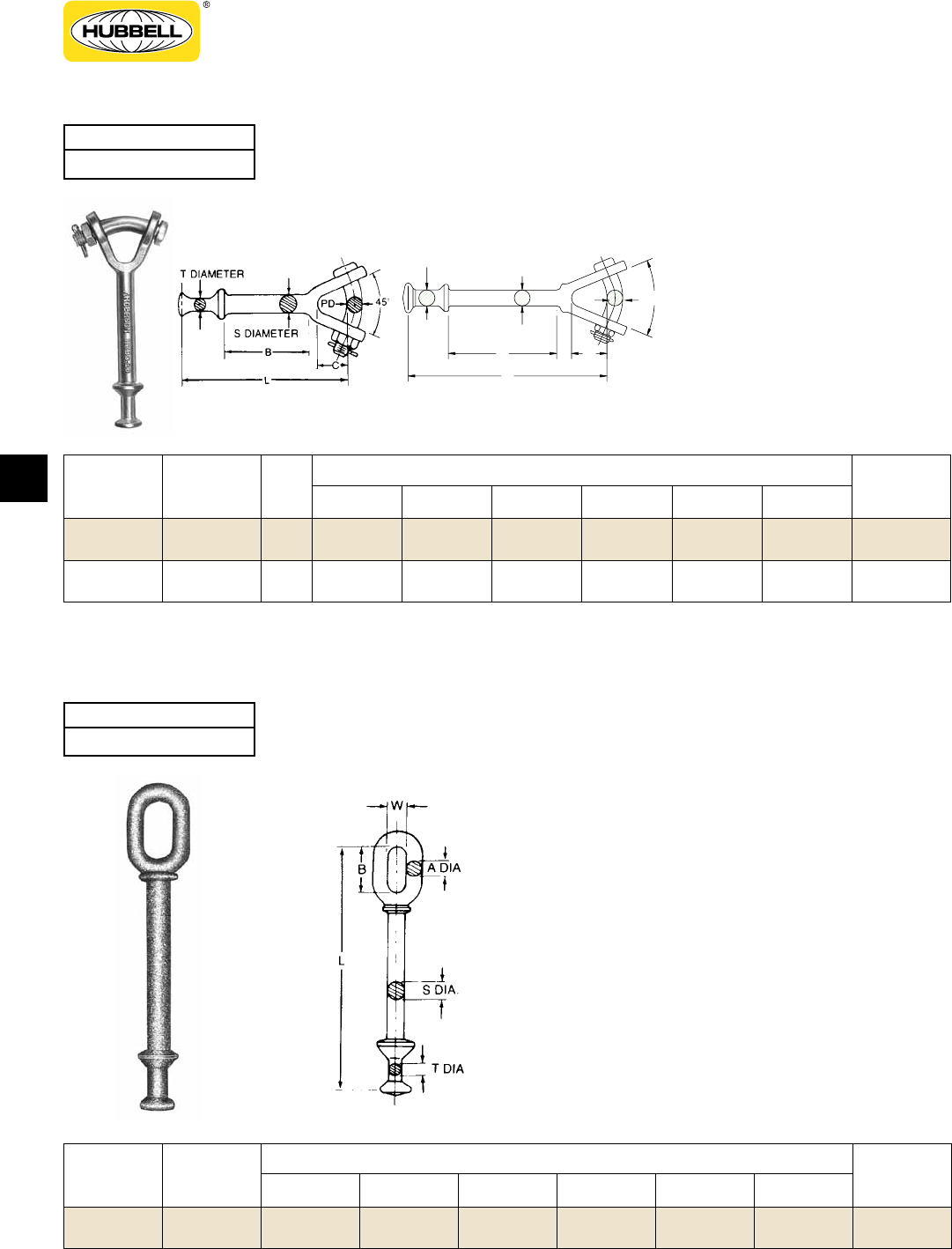

HOT LINE Y-CLEVIS BALL
Hot line Y-clevis balls are used to at-
tach ball and socket insulators to other
associated hardware within an insulator
string. Shoulders are provided to accom-
modate hot line tools and the bent bolt
in the Y-section provides an additional
point of articulation within an assembly.
Material: Body—galvanized steel
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
Fig. 1 Fig. 2
FORGED STEEL
HYBC
CATALOG
NUMBER
ULTIMATE
STRENGTH LBS.
(KN)
Fig
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
C PD S
DIA
T
DIA
HYBC30
30,000
(133) 19-5/16
(236.5)
5-3/8
(136.5)
1-1/2
(38.1)
3/4
(19.1)
7/8
(22.2)
23/32
(18.3)
2.8
(1.27)
*HYBC5011
50,000
(222) 211
(279.4)
6-13/16
(173)
1-11/16
(42.9)
7/8
(22.2)
7/8
(22.2)
57/64
(22.6)
4.42
(2.00)
HARDWARE FITTINGS
FORGED STEEL
HOT LINE OVAL-EYE BALL
FORGED STEEL
HOEB
Hot line oval-eye ball is used to attach ball and sock- et
insulators to other associated hardware within an insula-
tor string. Shoulders are provided to accommodate hot
line tools.
Material: Galvanized steel
NOTE: For use with class 52-3 and 52-5 insulators per ANSI Spec. C-29.2-71.
* For use with class 52-8 and 52-11 insulators per ANSI Spec. C-29.2-71.
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
A B
L
W S
DIA
T
DIA
HOEB30
30,000
(133)
11/16
(17.5)
2
(50.8)
11
(279.4)
1
(25.4)
7/8
(22.2)
23/32
(18.3)
2.31
(1.05)
L
45°
PD
C
S DIAMETER
T DIAMETER
B
TG-21
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
STEEL
EXTENSION STRAP
STEEL
ES
Extension straps are used to attach associated hard-
ware and maintain proper tower clearance within a
transmission assembly. Because extension straps may be
furnished in a variety of lengths, widths, thicknesses, as
well as hole spacings, please contact factory for dimen-
sional variations and different ultimate strengths.
Material: Galvanized steel
To specify catalog number, replace “L” with required
length in inches. Example: ES40781936 for
40K strap 36” between hole centers.
CATALOG
NUMBER
ULTIMATE
STENGTH LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX. WT. EACH
LBS.
(KG)
A B
D1 D2 W T
L
MIN.
L
ADD PER INCH
ES307819L
30,000
(133)
1-1/8
(28.6)
1-1/8
(28.6)
15/16
(23.8)
15/16
(23.8)
2
(50.8)
3/4
(19.1)
MIN. “L”
4” PLEASE
SPECIFY
2.62
(1.19)
.44
(.60)
ES407819L
40,000
(178)
1-1/2
(38.1)
1-1/2
(38.1)
15/16
(23.8)
15/16
(23.8)
2-1/2
(63.5)
3/4
(19.1)
3.67
(1.66)
.55
(.25)
ES607819L
60,000
(267)
2
(50.8)
2
(50.8)
1-1/8
(28.6)
1-1/8
(28.6)
2-1/2
(63.5)
1
(25.4)
5.60
(2.54)
.73
(.33)
ES807819L
80,000
(356)
2
(50.8)
2
(50.8)
1-1/4
(31.8)
1-1/4
(31.8)
3
(76.2)
1
(25.4)
6.72
(3.05)
.87
(.39)
CATALOG
NUMBER
ULTIMATE
STRENGTH LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
L
B
W C D
DIA.
829102000 20,000
(89)
10
(254)
1-1/8
(28.6)
13/16
(20.6)
5/8
(15.9)
7/8
(22.2)
11/16
(17.5)
3.9
(1.77)
CEEL093065 50,000
(222)
9-3/8
(238.1)
6
(152.4)
1
(25.4)
13/16
(20.6)
1-3/8
(34.9)
13/16
(20.6)
6.0
(2.72)
CEEL15506
50,000
(222)
15-5/8
(396.9)
2-1/8
(54)
1
(25.4)
3/4
(19.1)
1-3/8
(34.9)
13/16
(20.6)
7.0
(3.18)
HARDWARE FITTINGS
DUCTILE IRON
CLEVIS EYE EXTENSION LINK
DUCTILE IRON
CEEL
Clevis eyes are used to connect clevis tongue insula-
tors to various associated hardware and maintain
conductor spacing in deadend assemblies.
Material: Body—ductile iron, galvanized
Hardware—galvanized steel
Cotter Pin—stainless steel
NOTE: Bolt and nut may be substituted for clevis pin by adding suffix “BNK” to catalog number.
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-22
HARDWARE FITTINGS
FORGED STEEL
HOT LINE EXTENSION LINKS
Extension links are forged from high-strength steel and contain no welded joints. Because of the variety of
fittings and lengths, links are made only to order. Please specify by catalog number and length required.
Material: Galvanized Steel.
NOTE: Link length available 1/2 in. increments. Use letter “D” to represent decimal point in catalog number
when applicable. Example: HOO3020D5 for 20-1/2 inch length.
Normal manufacturing tolerances: Up to 50 inches – ±0.5 inch.
Above 50 inches – ±1%.
FORGED STEEL
H/F
* For links longer than minimum length, add to packed weight per 100 pieces, 28 pounds per inch for number HOO80L and HOOT80L.
All others, add 17 pounds per inch.
Refer to next page for dimensions.
IDENTIFICATION
ULTIMATE
STRENGTH
LBS.
(KN)
SHAPE
AND
ORIENTATION OF ENDS
CATALOG
NUMBER
FIGURE
AVAILABLE
RANGE
OF
LENGTHS
APPROX.
PACKED
WEIGHT* PER 100
MINIMUM
LENGTH
POUNDS
(KG)
MINIMUM
INCHES (MM)
MAXIMUM
INCHES (MM)
Chain Eye/Chain Eye
30,000
(133)
HOO30L
112
(304.8)
144
(3,658)
383
(174)
HOOT30L
40,000
(178)
HOO40L
212
(304.8)
144
(3,658)
383
(174)
HOOT40L
60,000
(267)
HOO50L
313
(330.2)
144
(3,658)
536
(243)
HOOT50L
80,000
(356)
HOO80L
414
(355.6)
144
(3,658)
616
(279)
HOOT80L
Clevis Eye 30,000
(133)
FHCE30L
5 & 9 11
(279.4)
144
(3,658)
366
(166)
FHCE30L90
Y-Clevis Eye 30,000
(133)
FHYCE30L
7 & 9 11
(279.4)
144
(3,658)
369
(167)
FHYCE30L90
Chain Eye/Eye 30,000
(133)
FOPE30L
2 & 9 11
(279.4)
144
(3,658)
294
(133)
FOPE30L90
Clevis/Clevis 30,000
(133)
FHCC30L
512
(304.8)
144
(3,658)
372
(169)
FHCC30L90
Chain Eye/Clevis
30,000
(133)
FHOEC30L
2 & 5 11
(279.4)
144
(3,658)
357
(162)
FHOEC30L90
50,000
(222)
FHOEC50L
3 & 6 12
(304.8)
144
(3,658)
527
(239)
FHOEC50L90
Chain Eye/Y-Clevis
30,000
(133)
HYCOE30L
2 & 7 11
(279.4)
144
(3,658)
451
(205)
HYCOE30L90
50,000
(222)
HYCOE50L
3 & 8 14
(355.6)
144
(3,658)
451
(205)
HYCOE50L90
Clevis/Ball 30,000
(133)
HBC30L
5 & 10 10
(254)
144
(3,658)
272
(123)
Y-Clevis/Ball
30,000
(133)
HYBC30L
7 & 10 11
(279.4)
144
(3,658)
342
(155)
50,000
(222)
HYBC50L
8 & 11 11
(279.4)
144
(3,658)
442
(200)
Chain Eye/Ball
30,000
(133)
HOEB30L
1 & 10 11
(279.4)
144
(3,658)
323
(147)
50,000
(222)
HOEB50L
3 & 11 11
(279.4)
144
(3,658)
430
(195)
TG-23
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
FORGED STEEL
Chain Eye
Ultimate Strength – 30,000 Lbs.
FIGURE 1
Chain Eye
Ultimate Strength – 40,000 Lbs.
FIGURE 2
Chain Eye
Ultimate Strength – 60,000 Lbs.
FIGURE 3
Chain Eye
Ultimate Strength – 80,000 Lbs.
FIGURE 4
Clevis
Ultimate Strength – 30,000 Lbs.
Will connect with ANSI Class
52-4 and Class 52-6 insulators.
FIGURE 5
Clevis
Ultimate Strength – 50,000 Lbs.
Will connect with ANSI Class
52-12 insulators.
FIGURE 6
Y-Clevis
Ultimate Strength – 30,000 Lbs.
FIGURE 7
Y-Clevis
Ultimate Strength – 50,000 Lbs.
FIGURE 8
Eye
Ultimate Strength – 30,000 Lbs.
Will connect with ANSI Class
52-4 and Class 52-6 insulators.
FIGURE 9
Ball
Ultimate Strength – 30,000 Lbs.
ANSI Class 52-3 and Class 52-5.
FIGURE 10
Ball
Ultimate Strength – 50,000 Lbs.
ANSI Class 52-8 and Class 52-11.
FIGURE 11
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-24
HARDWARE FITTINGS
FORGED STEEL
TURNBUCKLES
Turnbuckles are used as adjustable extension links to main-
tain proper tower clearance on assemblies at tower end.
Jaw ends are supplied with bolt, nut, and humpback cotter
pin.
Material: Galvanized forged steel
Note: When ordering replace XX with Type in Cat. No.
Example: TB34JJ6BNK for jaw-jaw end fittings with
6” take up.
Add “LN” suffix if jam nuts are required. (1)
BNK suffix not valid for Type EE turnbuckles.
Type
JJ
Type
EE
FORGED STEEL
TB
Type
JE
(1) Locking Nuts add cost and lead time and may provide no benefit under the typical constant-tension, overhead line, utility application. The
torque required to rotate the boss of a turnbuckle under tension can be calculated by the formula:
T = 2(kdW/12) ft-lbs.
Where: k = Friction factor (0.16)
d = Nominal thread diameter (inches)
W = Applied tension load (lbs)
Example:
3/4 turnbuckle under 4,000 lb tension
T = 2(0.16 x 0.75 x 4,000/12) = 80 ft-lbs.
CATALOG
NUMBER
DIAMETER
&
TAKE UP—IN. (MM)
CLOSED COUPLING LENGTH – IN. (MM) WT. EACH—POUNDS
(KG)
TYPE
JJ
TYPE EE TYPE
JE
EYE-EYE
JAW-EYE
JAW-JAW
TB34XX6BNK
3/4 X 6
(19.1) (152.4)
15.1
(384)
17.2
(437)
16.2
(411)
3.89
(1.75)
3.87
(1.74)
4.11
(1.85)
TB34XX12BNK
12
(304.8)
21.5
(546)
23.6
(599)
22.6
(574)
5.43
(2.44)
5.36
(2.41)
5.65
(2.54)
TB34XX18BNK
18
(457.2)
27.5
(699)
29.6
(752)
28.6
(726)
7.25
(3.26)
7.00
(3.15)
7.00
(3.15)
TB78XX12BNK
7/8 X 12
(22.2) (304.8)
22.7
(577)
24.7
(627)
23.7
(602)
8.1
(3.65)
8.00
(3.6)
8.17
(3.68)
TB78XX18BNK
18
(457.2)
29.1
(739)
31.2
(792)
30.2
(767)
9.25
(4.16)
9.75
(4.39)
9.13
(4.11)
TB1XX6BNK
1 X 6
(25.4) (152.4)
17.8
(452)
20.2
(513)
19.0
(483)
9.33
(4.2)
8.92
(4.01)
9.75
(4.39)
TB1XX12BNK
12
(304.8)
23.8
(605)
26.2
(665)
25.0
(635)
11.93
(5.37)
11.20
(5.04)
12.00
(5.40)
TB1XX18BNK
18
(457.2)
29.8
(757)
32.2
(818)
31.0
(787)
14.00
(6.30)
13.30
(6.00)
14.00
(6.30)
TB1XX24BNK
24
(609.6)
36.4
(925)
38.8
(986)
37.6
(955)
17.25
(7.76)
17.00
(7.65)
17.00
(7.65)
TB114XX12BNK
1-1/4 X 12
(31.8) (304.8)
27.4
(696)
30.1
(765)
28.8
(732)
16.50
(7.43)
20.00
(9.0)
21.50
(9.68)
TB114XX18BNK
18
(457.2)
33.4
(848)
36.1
(917)
34.8
(884)
23.00
(10.35)
24.18
(10.88)
24.25
(10.91)
TB114XX24BNK
24
(609.6)
39.9
(1013)
42.7
(1085)
41.3
(1049)
24.00
(10.80)
28.40
(12.78)
28.00
(12.60)
TB112XX12BNK
1-1/2 X 12
(38.1) (304.8)
28.8
(732)
32.2
(818)
30.5
(775)
27.50
(12.4)
28.99
(13.05)
30.05
(13.52)
TB112XX18BNK
18
(457.2)
37.8
(960)
38.2
(970)
36.5
(927)
31.00
(13.95)
35.00
(15.75)
36.75
(16.54)
TB112XX24BNK
24
(609.6)
41.4
(1052)
44.9
(1140)
43.1
(1095)
37.50
(16.88)
39.18
(17.63)
40.67
(18.36)
TG-25
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
FORGED STEEL
TURNBUCKLES
(CONTINUED)
DIMENSIONS INCHES (MM) ULT. STR. RATING
LBS.
(KN)
A B
C D E
3/4
(19.1)
1
(25.4)
5/8
(15.9)
2-1/8
(54)
4-11/16
(119.1)
26,000
(116)
7/8
(22.2)
1-1/4
(31.8)
3/4
(19.1)
2-3/8
(60.3)
5-1/4
(133.4)
36,000
(160)
1
(25.4)
1-7/16
(36.5)
7/8
(22.2)
3
(76.2)
6-3/8
(161.9)
50,000
(222)
1-1/4
(31.8)
1-13/16
(46)
1-1/8
(28.6)
3-9/16
(90.5)
7-3/4
(196.9)
76,000
(338)
1-1/2
(38.1)
2-1/8
(54)
1-1/4
(31.8)
4-1/8
(104.8)
8-5/8
(219.1)
107,000
(476)
DIMENSIONS INCHES (MM) ULT. STR. RATING
LBS.
(KN)
A B
C D E F G H
3/4
(19.1)
1-1/2
(38.1)
5/8
(15.9)
15/16
(23.8)
9/16
(14.3)
1-9/32
(32.5)
4-1/8
(104.8)
1-5/8
(41.3)
26,000
(116)
7/8
(22.2)
1-3/4
(44.5)
3/4
(19.1)
1-1/8
(28.6)
11/16
(17.5)
1-15/32
(37.3)
4-27/32
(123)
1-7/8
(47.6)
36,000
(160)
1
(25.4)
2-1/16
(52.8)
7/8
(22.2)
1-3/16
(30.2)
25/32
(19.8)
1-21/32
(42.1)
5-17/32
(140.5)
2-1/8
(54)
50,000
(222)
1-1/4
(31.8)
2-13/16
(71.4)
1-1/8
(28.6)
1-3/4
(44.5)
1
(25.4)
2-3/32
(53.2)
7-3/16
(182.6)
2-5/8
(66.7)
76,000
(338)
1-1/2
(38.1)
2-13/16
(71.4)
1-3/8
(34.9)
2-1/16
(52.8)
1-1/16
(27)
2-15/32
(64.3)
7-7/8
(200)
3-1/8
(79.4)
107,000
(476)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-26
HARDWARE FITTINGS
DUCTILE/STEEL
YOKE PLATE
(DELTA CONFIGURATION)
These yoke plates may be used to bundle two conductors
in suspension application with a single string of insula-
tors. They also may be used in deadend applications with
two strings of insulators and one deadend clamp.
Type YPD may be furnished in a variety of sizes, hole
spacings, ultimate strengths. For yokes with corona ring
mounting provision, consult factory.
Material: Ductile iron, galvanized or steel galvanized.
DUCTILE STEEL
YPD
CATALOG NUMBER YPD7211574
ULTIMATE STRENGTH—72,000 LBS. (APEX HOLE)
STEEL
CATALOG NUMBER YPD3018437-3
ULTIMATE STRENGTH—30,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER YPD5024685
ULTIMATE STRENGTH—50,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER YPD8018475
ULTIMATE STRENGTH—80,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER YPD4018342-4
ULTIMATE STRENGTH—40,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER YPD3015238-2
ULTIMATE STRENGTH—30,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER 947604001
ULTIMATE STRENGTH—90,000 LBS. (APEX HOLE)
STEEL
CATALOG NUMBER YPD5018549-1
ULTIMATE STRENGTH—50,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER YPD4024465
ULTIMATE STRENGTH—40,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER 951544001
ULTIMATE STRENGTH—100,000 LBS. (APEX HOLE)
STEEL
CATALOG NUMBER YPD60183771
ULTIMATE STRENGTH—60,000 LBS. (APEX HOLE)
DUCTILE
CATALOG NUMBER 796034001
ULTIMATE STRENGTH—60,000 LBS. (APEX HOLE)
STEEL
TG-27
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE/STEEL
YOKE PLATE
(RECTANGULAR CONFIGURATION)
These yoke plates are used with a double string of in-
sulators to deadend a two conductor bundle.
Type YPR yoke plates may be furnished in a variety of
sizes, hole spacings, ultimate strengths and provisions for
mounting corona rings.
Material: Ductile iron, galvanized or steel galvanized.
DUCTILE/STEEL
YPR
CONTACT FACTORY FOR OTHER
SIZES AND VARIATIONS
Ductile
CATALOG NUMBER YPR30187221
ULTIMATE STRENGTH – 30,000 LBS.
PER INSULATOR ATTACHMENT HOLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Ductile
CATALOG NUMBER YPR30173512
ULT. STR. PER ATTACHMENT HOLE – 30,000 LBS.
LIFTING HOLE RATING – 30,000 LBS.
Ductile
CATALOG NUMBER YPR6019401
ULTIMATE STRENGTH – 60,000 LBS.
PER INSULATOR ATTACHMENT HOLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Steel
CATALOG NUMBER 950213002
ULTIMATE STRENGTH – 50,000 LBS.
PER INSULATOR ATTACHMENT HOLE
Steel
CATALOG NUMBER 929333002
ULTIMATE STRENGTH – 40,000 LBS.
PER INSULATOR ATTACHMENT HOLE
Steel
CATALOG NUMBER 976113002
ULTIMATE STRENGTH – 30,000 LBS.
PER INSULATOR ATTACHMENT HOLE
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-28
HARDWARE FITTINGS
ALUMINUN
TRANSMISSION CORONA RINGS
Type TCR corona rings are primarily used on deadend
assemblies to grade the lower insulators on a string and
shield the associated hot line hardware from corona and
RIV. Type TCR corona rings are fabricated in a variety of
sizes, shapes and mounting angles, depending on the
system voltage and deadend assembly type.
Contact factory, with deadend assembly details, for as-
sistance in specifying a specific TCR ring catalog number.
Material: Sandblasted 6061-T1 or 6063-T4 aluminum
ALUMINUM
TCR
HARDWARE FITTINGS
DUCTILE/STEEL
YOKE PLATE
(VEE CONFIGURATION)
These yoke plates are used with a VEE string of insulators
to attach a two conductor bundle.
Type YPV yoke plates may be furnished in a variety of
sizes, hole spacing, ultimate strengths, insulator attach-
ment angles and provisions for mounting corona rings.
Material: Ductile iron, galvanized or steel, galvanized.
DUCTILE IRON
YPV
Ductile
CATALOG NUMBER YPV30172591
(with (4) 1/2” - 13 holes)
CATALOG NUMBER YPV30172592
(without (4) 1/2” - 13 holes)
ULTIMATE STRENGTH – 30,000 LBS. PER INSULATOR
ATTACHMENT HOLE AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Steel
CATALOG NUMBER 930064004
ULTIMATE STRENGTH – 40,000 LBS.
PER INSULATOR ATTACHMENT HOLE
AT INDICATED ANGLE
TG-29
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE STEEL
YOKE PLATE
(CRESCENT CONFIGURATION)
These yoke plates are used to bundle two conductors
with a single and v-string, or single string, of insulators
and maintain the proper running angle of the line.
Type YPC yoke plates may be furnished in a variety of
sizes, hole spacing, ultimate strengths and insulator at-
tachment angles.
Material: Ductile iron, galvanized or steel, galvanized.
DUCTILE STEEL
YPC
Ductile
CATALOG NUMBER – YPC30174241
ULTIMATE STRENGTH–30,000 LBS. PER INSULATOR
ATTACHMENT HOLE AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Steel
CATALOG NUMBER – 945834005
ULTIMATE STRENGTH–50,000 LBS. PER INSULATOR
ATTACHMENT HOLES AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Ductile
CATALOG NUMBER – YPC4024534
ULTIMATE STRENGTH–40,000 LBS. PER INSULATOR
ATTACHMENT HOLES AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
Ductile
CATALOG NUMBER – YPC5026001
ULTIMATE STRENGTH–50,000 LBS. PER INSULATOR
ATTACHMENT HOLES AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-30
HARDWARE FITTINGS
DUCTILE IRON
YOKE PLATE
(TEE CONFIGURATION)
These yoke plates are used to bundle three conductors
with a VEE string of insulators.
Type YPT yoke plates may be furnished in a variety
of sizes, hole spacing, ultimate strengths, and insulator
attachment angles.
Material: Ductile iron, galvanized
DUCTILE IRON
YPT
HARDWARE FITTINGS
STEEL
YOKE PLATE
(TEE-BATWING CONFIGURATION)
These yoke plates are used to bundle three conductors
with a double VEE string of insulators.
Type YPTB yoke plates may be furnished in a variety
of sizes, hole spacing, ultimate strengths, and insulator
attachment angles.
Material: Galvanized Steel
STEEL
YPTB
CATALOG NUMBER — YPTB40114894
ULTIMATE STRENGTH — 40,000 LBS. PER INSULATOR
ATTACHMENT HOLE AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
CATALOG NUMBER — YPT40236673
ULTIMATE STRENGTH — 40,000 LBS. PER INSULATOR
ATTACHMENT HOLE AT INDICATED ANGLE
CONTACT FACTORY FOR LIFTING HOLE RATING
TG-31
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE IRON
YOKE PLATE
(TENSION-ADJUSTMENT CONFIGURATION)
Type YPTA tension-adjusting yoke plates are used
to attach associated deadend hardware and maintain
desired line tension. Adjustments are made by varying
the assembly attachment point with the use of a
CEEL093065 or similar part.
Material: Ductile iron galvanized
DUCTILE STEEL
YPTA
HARDWARE FITTINGS
DUCTILE IRON
YOKE PLATE
(TENSION-ADJUSTMENT CLEVIS)
Type YPTAC tension adjusting yoke plates are used
to attach associated deadend hardware and main-
tain desired line tension. Clevis type deadend clamps
attach directly to yoke and can then be attached to
associated hardware.
Material: Body—ductile iron
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
DUCTILE STEEL
YPTAC
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
A B
TOTAL
ADJUSTMENT
STEP
YPTA4025052 40,000
(178)
2-1/2
(63.5)
5
(127)
2-1/2
(63.5)
1/2
(12.7)
6.9
(3.13)
CATALOG
NUMBER
ULTIMATE
STRENGTH
LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
A B
C W PD
DIA.
TOTAL
ADJUSTMENT
STEP
YPTAC5024658 50,000
(222)
5-1/2
(139.7)
4-1/2
(114.3)
2
(50.8)
1
(25.4)
3/4
(19.1)
1
(25.4)
1/2
(12.7)
7.5
(3.40)
YPTAC5012927* 50,000
(222)
10-1/4
(260.4)
7-3/4
(196.9)
3-7/16
(87.3)
7/8
(22.2)
3/4
(19.1)
2-1/2
(63.5)
1/2
(12.7)
12.5
(5.68)
* Yoke has 6 adjustment holes.
0.81 DIA.
7 HOLES
OTHER HOLES
NOT SHOWN
FOR CLARITY
B
A
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-32
HARDWARE FITTINGS
ALUMINUM
BUNDLING YOKE
(WISHBONE CONFIGURATION)
Type YPW yokes are used to vertically bundle con- duc-
tors on new or rebuilt lines...consequently, information as
to conductor sizes, types of armor rod, if used, conductor
spacing, ultimate strengths and ex- isting clamp details
must be given at time of ordering. YPW yokes are de-
signed for use with Anderson clamps. Because YPW yokes
may be furnished in a variety of sizes, conductor spacing,
and ultimate strengths for both low voltage and EHV ap-
plication, please contact factory for more details.
Material: Yoke Plate—356-T6 aluminum alloy
Clevis Pin—galvanized steel
Cotter Pin—stainless steel
ALUMINUM
YPW
NOTES: (1) Refer to catalog section TB for suspension clamp details.
(2) For vertical bundling yoke designs not covered above, consult factory.
(3) Add “BNK” suffix to catalog number for Bolt, Nut and cotter Key option.
CATALOG
NUMBER
SUSPENSION CLAMP (1) CATALOG NUMBER
SERIES / SIZE
ULTIMATE
STRENGTH LBS.
(KN)
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)HAS
CFS CFSHT E H W
YPW121189 118 – –
12,000
(53)
9
(229)
2.56
(65.1)
1.00
(25.4)
1.9
(.86)
YPW1513912 139 139 –
15,000
(67)
12
(305)
2.63
(69.9)
1.19
(30.2)
1.8
(.82)
YPW1514712 147 – – 15,000
(67)
12
(305)
2.63
(69.9)
1.18
(30.0)
2.5
(1.1)
YPW1516212 162 – – 15,000
(67)
12
(305)
2.84
(72.2)
1.63
(41.3)
2.5
(1.1)
YPW1520412 204 204 – 15,000
(67)
12
(305)
3.31
(84.1)
1.75
(44.5)
2.9
(1.3)
YPW3020412 182 & 204 182 & 204 182 30,000
(133)
12
(305)
3.50
(88.9)
1.75
(44.5)
3.2
(1.4)
YPW3021312 213 213 & 227 213 30,000
(133)
12
(305)
4.06
(103)
1.75
(44.5)
3.7
(1.7)
YPW3011818 118 118 – 30,000
(133)
18
(457)
2.63
(66.8)
1.06
(27.0)
4.5
(2.0)
YPW3013912 139 & 147 139 – 30,000
(133)
12
(305)
2.87
(72.9)
1.38
(35.1)
3.5
(1.6)
YPW3013918 139 & 147 139 – 30,000
(133)
18
(457)
2.87
(72.9)
1.38
(35.1)
4.5
(2.0)
YPW3018218 182 & 204 182 & 204 182 30,000
(133)
18
(457)
3.63
(92.1)
1.75
(44.5)
4.2
(1.9)
YPW3021318 213 213 & 227 213 30,000
(133)
18
(457)
4.13
(105)
1.75
(44.5)
4.7
(2.1)
YPW3025218 252 – – 30,000
(133)
18
(457)
4.24
(108)
2.25
(57.2)
5.0
(2.3)
TG-33
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
ALUMINUM
YOKE PLATE
(JUMPER)
These jumper yokes are used to bundle two, three, or
four conductors with a single string of insulators on
a deadend tower. All jumper yokes have the provision
for adding hold down weights.
Type YPJ Yoke plates may be furnished in a variety
of conductor sizes and configurations.
Material: 356-T6 Aluminum Alloy
ALUMINUM
YPJ
CONTACT FACTORY FOR OTHER
SIZES AND VARIATIONS
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-34
HARDWARE FITTINGS
CAST IRON
HOLD DOWN WEIGHT
(RECTANGULAR CONFIGURATION)
Rectangular hold down weights may be
attached to jumper yokes to add weight to
the jumper assembly in various increments.
Material: Cast iron, galvanized
CAST IRON
HDWR
HARDWARE FITTINGS
CAST IRON
HOLD DOWN WEIGHT
(SQUARE CONFIGURATION)
Square hold down weights may be attached to jumper
yokes or three conductor T yokes to add weight to
the assembly. Square hold down weights can be used
in increments of 50 lbs.
Material: Cast iron, galvanized.
CAST IRON
HDWS
CATALOG
NUMBER
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W
L
C
HDWR50182041 2-1/2
(63.5)
8-5/8
(219.1)
5/8
(15.9)
50
(22.68)
HDWR75182045 4-3/4
(120.7)
6-7/8
(174.6)
1
(25.4)
75
(34.02)
CATALOG
NUMBER
DIMENSION INCHES WT.
EACH
LBS.
(KG)
L
HDWS5023648 2-5/8
(66.7)
50
(22.68)
TG-35
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
DUCTILE/STEEL
HOLD DOWN SHACKLE
Hold down shackles are attached to suspension
clamps to provide an attachment point to hook
bolt or eye bolt. The HDWC type circular hold
down weights can be attached in the desired
increments to provide a means of controlling
conductor position by preventing excessive uplift
and sway.
Material: Ductile iron or forged steel
Clevis pin—galvanized steel
Cotter pin—stainless steel
DUCTILE STEEL
SUSPENSION CLAMP (1) CATALOG NUMBER SERIES / SIZE RECOMMENDED HOLD DOWN
SHACKLE
HAS
CFS CFSHT WITH CLEVIS PIN
AND COTTER
KEY
WITH BOLT, NUT AND
COTTER
KEY
85 TO 162 118 TO 147 - 880152000 900112000
104 TO 182 118 TO 162 120 HDS1024675
HDS1024675BNK
118 TO 204 139 TO 204 120 TO 139 880162000 900122000
139 TO 227 147 TO 227 139 TO 182 880172000 900132000
204 TO 252 182 TO 227 182 TO 213 880182000 900142000
— 280 252 880192000 900152000
CATALOG NUMBER ULTIMATE
STRENGTH
LBS. (KN)
DIMENSIONS INCHES (MM)
WITH CLEVIS PIN
AND COTTER KEY
WITH BOLT, NUT
AND COTTER KEY B C L T W PD
APPROX.
WT. EACH
LBS (KG)
880152000 900112000 10,000
(44)
1/2
(12.7)
3-7/8
(98.4)
5-1/16
(128)
1-1/4
(31.8)
2-7/8
(73)
5/8
(15.9)
1.3
(.59)
HDS1024675 HDS1024675BNK 10,000
(44)
11/16
(17.5)
5-5/16
(134)
7-1/8
(181)
1-3/8
(34.9)
3-1/8
(79.5)
5/8
(15.9)
3.10
(1.41)
880162000 900122000 10,000
(44)
1/2
(12.7)
4-1/4
(108)
6
(152)
1-1/4
(31.8)
3-1/4
(82.6)
5/8
(15.9)
1.4
(0.64)
880172000 900132000 10,000
(44)
1/2
(12.7)
4-5/8
(117)
5-7/8
(149)
1-1/4
(31.8)
3-5/8
(92.1)
5/8
(15.9)
1.4
(0.64)
880182000 900142000 10,000
(44)
1/2
(12.7)
5-1/8
(130)
5-3/4
(146)
1-1/4 (
31.8)
4-1/8
(105)
5/8
(15.9)
1.4
(0.64)
880192000 900152000 10,000
(44)
1/2
(12.7)
5-1/2
(140)
6
(152)
1-1/4
(31.8)
4-1/2
(114)
5/8
(15.9)
1.5
(0.68)
SEPTEMBER2013 ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®
TG-36
HARDWARE FITTINGS
CAST IRON
HOLD DOWN WEIGHT
(CIRCULAR CONFIGURATION)
Circular hold down weights are suspended below
a clamp and used to add weight to a jumper or
suspension assembly in 50 lb. increments.
Material: Cast iron, galvanized
Note: For hook bolt see below.
CAST IRON
HDWC
HARDWARE FITTINGS
STEEL
HOOK BOLT
Hook bolts for attachment of HDWC circular
weights to suspension clamp hold down shackle
shown above
STEEL
HDWH
CATALOG
NUMBER
DIMENSIONS INCHES (MM)
APPROX.
WT.
EACH
LBS.
(KG)
W
D
HDWC5023868 1-3/4
(44.5)
12
(304)
50
(22.68)
CATALOG
NUMBER
DIMENSIONS INCHES (MM) MAX. NUMBER OF CAT. NO.
HDWC-5023868 WEIGHTS
A B
L
HDWH502 6 (152) 0.75 (19.1) 9.00 (229) 2
HDWH503 7.5 (191) 0.75 (19.1) 10.50 (267) 3
HDWH504 9 (229) 1 (25.4) 12.00 (305) 4
HDWH505 11 (279) 0.75 (19.1) 14.00 (356) 5
HDWH506 12 (305) 1 (25.4) 15.00 (381) 6
HDWH507 14 (356) 0.75 (19.1) 17.00 (432) 7
HDWH508 15.75 (400) 1 (25.4) 18.75 (476) 8
TG-37
ANDERSON™ HUBBELL®POWERSYSTEMS FARGO®SEPTEMBER2013
HARDWARE FITTINGS
STEEL
SPRING BOLT
Spring bolts are used to maintain controlled tension with-
in a span. Associated hardware can be used to connect
the assembly to the insulation string and structure.
Material: Spring—Galvanized steel
Eyebolt—Galvanized steel
Bearing Plate—Ductile iron, galvanized
Nuts—Galvanized steel
Cotter Pin—Stainless steel
STEEL
SBA
CONTACT FACTORY FOR OTHER LENGTHS AND VARIATIONS
CATALOG
NUMBER
DIMENSIONS INCHES (MM) TENSION
RANGE
DEFLECTION
RATE
(LBS)
L
B
C
SBA5831725
17-1/4
(438.2)
9
(228.6)
2 1/2
(63.5) 0-3000 LBS 1500# PER INCH
SBA5861725
17-1/4
(438.2)
11-1/4
(285.8)
3-3/4
(95.3) 0-6000 LBS 3000# PER INCH
SBA5862475
24-3/4
(628.7)
11-1/4
(285.8)
3-3/4
(95.3) 0-6000 LBS 3000# PER INCH

Navigation menu
