CONTENTS
A
REA LI
G
HTIN
G
A
rchitect
u
r
a
l
...............................................................................
5
2
0
-
5
2
3
S
peci
cation
...............................................................................
52
4-5
32
G
enera
l
Purpose
..........................................................................
-5
5
Co
ntr
a
ct
o
r Se
l
ect St
o
c
k
......................................................................
536
BO
LLARD
S
A
rc
h
itectura
l
...............................................................................
53
7-5
38
S
peci
cation
...............................................................................
539
-541
W
ALL M
OU
NTED
A
rc
h
itectura
l
...............................................................................
5
4
2
-54
6
S
peci
cation
......................................................................................
547
G
enera
l
Pur
p
ose
..........................................................................
4
-
Co
ntr
a
ct
o
r Select St
o
c
k
...............................................................
556
-
558
P
ARKIN
G
G
ARA
G
E
&
C
AN
O
PY
S
peci
cation
...............................................................................
5
5
9
-5
62
F
L
OO
DLI
G
HTIN
G
A
rc
h
itectura
l
...............................................................................
563
-5
6
4
S
peci
cation
...............................................................................
56
5-5
69
G
enera
l
Pur
p
ose
..........................................................................
5
7
0
-
5
7
3
S
portsli
g
hter
...............................................................................
74-
7
Co
ntr
a
ct
o
r Select St
o
c
k
...............................................................
5
7
6
-
5
7
8
O
PTI
O
N
S
&
A
CC
E
SSO
RIE
S
............................................
5
7
9
-5
83
N
I
G
HTTIME FRIENDLY LI
G
HTIN
G
...............................
4-5
5
D
E
S
I
G
N
GU
IDELINE
S
........................................................
586
-
58
7
PO
LE
S
G
eneral In
f
ormation
....................................................................
588
-5
89
Stee
l
............................................................................................
590
-
596
A
l
u
min
u
m
...................................................................................
-
F
i
b
erg
l
ass
....................................................................................
606
-
60
7
C
oncrete
......................................................................................
608
-
609
W
oo
d
................................................................................................
.
6
11
Op
tions & Accessories
...............................................
5
97
,
610
,
612-615
L
ITH
O
NIA
OU
TD
OOR
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
520
AREA LIGHTING
Architectural
AS
AST
Aeris™
Series Lamp type1Distribution1Voltage Ballast Mounting14
AS1
AS2
AST1
AST2
High pressure
sodium2
35S3
50S4
70S
100S
150S
200S
250S
400S
Metal
halide
50M2, 5
70M2, 5
100M2
150M
175M6
200M7
250M
320M7
400M
Metal halide
ceramic8
50MHC2, 5
70MHC2, 5
100MHC2
150MHC
Compact
uorescent
2/32TRT9
42 TRT
2/42TRT9
57TRT
70TRT
SR2 Type II segmented
SR3 Type III segmented
SR4SC Type IV segmented,
FT, sharp cuto
SR4W Type IV segmented,
FT, wide
SR5S Type V segmented,
square
120
20810
24010
277
347
48010
TB11
23050HZ12
MVOLT13
(blank) Magnetic
ballast
CWI Constant
wattage
isolated12
SCWA Super CWA
ballast
Ships included
SPA Square pole mounting
block
RPA Round pole mounting
block
WBA Wall bracket (up or down)15
Ships separately16, 17
ASKMA1 AS1 mast arm adaptor
ASKMA2 AS2 mast arm adaptor
DCAS1 AS1 Deco arm for
square pole
DCAS1R AS1 Deco arm for
round pole
DCAS2 AS2 Deco arm for
square pole
DCAS2R AS2 Deco arm for
round pole
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V18
DF Double fuse, 208V, 240V, 480V18
GMF Internal slow-blow fusing
ELDW Bodine emergency battery backup18
EC Emergency circuit18, 19
QRS Quartz restrike system18, 19
PER NEMA twist-lock receptacle only20
HS House-side shield21
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping
outside the U.S.
Ships separately16
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard22
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
Intended Use
For streets, walkways, parking
lots and surrounding areas.
Construction
Housing: Rugged, die-cast,
single-piece aluminum
housing with nominal 1/8"
wall thickness.
Door Assembly: Die-cast
doorframe, impact-resistant,
tempered glass lens, 3/16"
thick, fully sealed with one-
piece tubular silicone gasket.
Finish: Standard nish is dark
bronze polyester powder
nish. Additional architec-
tural colors available; see
www.lithonia.com/archcolors.
Optics
Anodized segmented reec-
tors for superior uniformity
and control. Reectors attach
with tool-less fasteners
and are rotatable and
interchangeable. Four full
cuto distributions available:
Type II (roadway), Type
III (asymmetric), Type IV
(forward throw), and Type V
(symmetric square).
Electrical
Ballasts: Mounted on remov-
able power tray and have
positive locking disconnect
plugs. All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only. CSA,
NOM or INTL required for
probe start shipments outside
the U.S. Compact uorescent
uses an electronic high-
frequency ballast.
Socket: Porcelain, medium-
base socket for AS1, mogul-
base socket for AS2, with
copper alloy nickel-plated
screw shell and center con-
tact. Ceramic metal halide
lamps are recommended for
use in applications where
superior color rendition,
lumen maintenance and
longer lamp life are desired.
Fluorescent is four-pin posi-
tive latching thermoplastic.
LPI is standard 35K for CFL.
Installation
Heavy-duty easy-mount
block attaches to pole or wall
to provide ease of installation
as well as ensured alignment
and leveling. Additional
backing plate and receiver
used to mount AST suspend
tension rod. AST1 mounts
9.64" lower than specied
pole height. AST2 mounts
13.89" lower than specied
pole height.
Listings
UL Listed (standard). CSA Cer-
tied or NOM Certied (see
Options). UL Listed for 25 °C
ambient and wet locations.
U.S. Patent No. D447, 590.
Canadian Patent No. 94324.
IP65 Rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: AS1 150M SR2 TB SPA LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
6-1/4
(15.9)
22-1/4
(56.5)
13
(33.0)
AS1/AST1
EPA: 0.7ft2 (.07 m2)
Max. weight: 25.9 lbs (11.7 kg)
8-1/4
(21.0)
28-1/2
(72.4)
17
(43.2)
AS2/AST2
EPA: 1.2ft2 (1.1 m2)
Max. weight: 40 lbs (18.2 kg)
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 Not available with SCWA.
3 120V only.
4 120V and 277V only.
5 Not available with 480V.
6 Not available AS1/AST1 SCWA.
7 Must be ordered with SCWA.
8 Not applicable with L/LP.
9 Available in SR3 only.
10 Must specify CWI for use in Canada.
11 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V, 347V;
ships as 120V/347V.
12 Consult factory for available wattages.
13 Multi-volt electronic ballast (compact
uorescent only) capable of operating on
any line voltage between 120V and 277V.
14 Mounting block included standard.
15 Mounted in lens up orientation, xture
is damp location rated. AST available in
down orientation only.
16 May be ordered as accessory. Not available
with AST.
17 Must specify nish.
18 SF, DF, QRS, EC, or ELDW options cannot be
ordered together.
19 Maximum allowable wattage lamp
included.
20 Photocell not included.
21 SR2, SR3, SR4W only.
22 Prex with xture name and size (e.g.,
AS1VG).
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
AS1, AST1 35S, 50S, 50M, 50MHC, 70S, 70M, 70MHC,
100S, 100M, 100MHC,150S, 150M, 150MHC,
175M, 42TRT, 57TRT, 70TRT SR2, SR3,SR4SC, SR5S
AS1, AST1 2/32TRT, 2/42TRT SR3
AS2, AST2 175M, 200S, 200M, 250S, 250M, 320M,
350M, 400S, 400M SR2, SR3, SR4SC, SR4W,
SR5S
DRILLING PATTERNS
SEE POLE ORDERING, PAGE 588
DM19AS 1 at 90°
DM28AS 2 at 180°
DM29AS 2 at 90°
DM39AS 3 at 90°
DM49AS 4 at 90°
DM32AS 3 at 120° (round poles only)
Drawings are for dimensional detail only and may not represent actual mechanical
conguration. Dimensions are shown in inches (centimeters) unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
521
www.lithonia.com | 1-800-279-8041PSG10
Architectural
AREA LIGHTING
M R
MRT
Omero™
Series Lamp type1Distribution1Voltage Ballast Mounting14
MR1
MR2
MRT1
MRT2
High Pressure
Sodium2
35S3
50S4
70S
100S
150S
200S
250S
400S
Metal Halide
50M2, 5
70M2, 5
100M2
150M
175M6
200M7
250M
320M7
350M7
400M
Metal halide
ceramic8
50MHC2, 5
70MHC2, 5
100MHC2
150MHC
Compact
uorescent
2/32TRT9
42 TRT
2/42TRT9
57TRT
70TRT
Induction
100IL
150IL
SR2 Type II segmented
SR3 Type III segmented
SR4SC Type IV segmented, FT,
sharp cuto
SR4W Type IV segmented,
FT, wide
SR5S Type V segmented,
square
120
20810
24010
277
347
48010
TB11
23050HZ12
MVOLT13
(blank) Magnetic ballast
CWI Constant
wattage
isolated12
SCWA Super CWA
ballast
Ships included
SPA Square pole mounting block
RPA Round pole mounting block
WBA Wall bracket (up or down)15
Ships separately16, 17
DCMR1 MR1 Deco arm for square pole
DCMR1R MR1 Deco arm for round pole
DCMR2 MR2 Deco arm for square pole
DCMR2R MR2 Deco arm for round pole
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
QRS Quartz restrike system18
EC Emergency circuit18
PER NEMA twist-lock receptacle only19
TP Tamperproof
HS House-side shield20
CSA Meets Canadian standards
NOM Meets Mexican standards (consult
factory)
INTL Available for MH probe start shipping
outside the U.S.
Ships separately16
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard21
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
Intended Use
Streets, walkways, parking
lots and surrounding areas.
Construction
Housing: Rugged, die-cast,
single-piece aluminum
housing with nominal wall
thickness of 1/8".
Door assembly: Die-cast door-
frame has impact-resistant,
tempered glass lens (3/16"
thick), fully gasketed with
one-piece tubular silicone.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available, see
www.lithonia.com/archcolors.
Optics
MIRO nish, segmented
reectors for superior unifor-
mity and control. Reectors
attach with tool-less fastener
and are rotatable and inter-
changeable. Four full cuto
distributions available.
Electrical
Ballasts: Mounted on remov-
able power tray and have
positive locking disconnect
plugs. All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option) for
U.S. shipments only. CSA, NOM
or INTL required for probe
start shipments outside the
U.S. Compact uorescent uses
an electronic high-frequency
ballast. High-frequency
generator for Induction.
Socket: Porcelain,
medium-base socket for MR1,
mogul-base socket for MR2,
with copper alloy nickel-
plated screw shell and center
contact. Ceramic metal halide
lamps are recommended for
use in applications where
superior color rendition,
lumen maintenance and
longer lamp life are desired.
Fluorescent is four-pin posi-
tive latching thermoplastic.
LPI is standard 35K for CFL.
Installation
Heavy-duty easy-mount
block attaches to pole or wall
to provide ease of installation
as well as ensured alignment
and leveling. Additional
backing plate and receiver
used to mount MRT suspend
tension rod. MRT1 mounts
9.64" lower than specied
pole height. MRT2 mounts
13.89" lower than specied
pole height.
Listings
Listed and labeled to UL stan-
dards for wet locations. Listed
and labeled to CSA standards
(see Options). NOM Certied
(see Options). IP65 Rated.
U.S. Patent No. D556,357.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: MR1 150M SR3 TB SPA LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
MR1, MRT1 35S, 50S, 50M, 50MHC, 70S, 70M, 70MHC, 100S,
100M, 100MHC, 150S, 150M, 150MHC, 175M, 42TRT,
57TRT, 70TRT SR2, SR3, SR4SC, SR5S
MR1, MRT1 2/32TRT, 2/42TRT SR3
MR1, MRT1 100IL Not applicable
MR2, MRT2 175M, 200S, 200M, 250S, 250M, 320M, 350M, 400S, 400M SR2, SR3, SR4SC, SR4W, SR5S
MR2, MRT2 150IL Not applicable
DRILLING PATTERNS
SEE POLE ORDERING, PAGE 588
DM19AS 1 at 90°
DM28AS 2 at 180°
DM29AS 2 at 90°
DM39AS 3 at 90°
DM49AS 4 at 90°
DM32AS 3 at 120° (round poles only)
25
(63.5)
8-1/4
(21.0)
18-5/8
(47.3)
24-1/2
(62.2)
33
(83.8)
6-3/8
(16.2)
MR1/MRT1 MR2/MRT2
EPA: 0.54ft2 (0.05 m2) 0.91ft2 (0.08 m2)
Max. weight: 27 lbs (12.2 kg) 46 lbs (20.9 kg)
Induction weight: 35 lbs (15.9 kg)
Notes
1 Specify lamp type and distribu-
tion. See Congurations table.
2 Not available with SCWA.
3 120V only.
4 120V and 277V only.
5 Not available with 480V.
6 Not available MR1/MRT1 SCWA.
7 Must be ordered with SCWA.
8 Not applicable with L/LP.
9 Available in SR3 only.
10 Must specify CWI for use in
Canada.
11 Optional multi-tap ballast
(120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V;
ships as 120V/347V.
12 Consult factory for available
wattages.
13 Multi-volt electronic ballast
(Compact uorescent and
Induction only) capable of
operating on any line voltage
between 120V and 277V.
14 Mounting block included
standard.
15 Mounted in lens up orientation,
xture is damp location rated.
MRT available in down orienta-
tion only.
16 May be ordered as accessory. Not
available with MRT.
17 Must specify nish.
18 Maximum allowable wattage
lamp included.
19 Photocell not included.
20 SR2, SR3, SR4W only.
21 Prex with xture name and
size (e.g., MR1VG).
Drawings are for dimensional detail only and may not
represent actual mechanical conguration. Dimensions are
shown in inches (centimeters) unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
522
Architectural
AREA LIGHTING
Series Lamp type1Distribution1Voltage Balast Mounting
MRP High pressure
sodium2
50S
70S
100S
150S
Metal halide
70M2,3
100M2
150M
175M4
Metal halide
ceramic5
70MHC2,3
100MHC2
150MHC
Compact
uorescent
2/32TRT6
42 TRT
2/42TRT6
57TRT
70TRT
Induction
100IL
SR2 Type II segmented
SR3 Type III segmented
SR4SC Type IV segmented, FT,
sharp cuto
SR5S Type V segmented, square
120
2087
2407
277
347
4807
TB8
23050HZ9
MVOLT10
(blank) Magnetic ballast
CWI Constant wattage
isolated9
SCWA Super CWA
ballast11
Ships installed
(blank) 4" round open-top pole
Ships separately12, 13
MRPF3 4" to 3" O.D. round open-top pole  tter
MRPF5 4" to 5" O.D. round open-top pole  tter
MRPT20 MRP 2-3/8" tenon slip tter
MRPT25 MRP 2-7/8" tenon slip tter
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
EC Emergency circuit14
QRS Quartz restrike system14
PER NEMA twist lock receptacle only15
TP Tamperproof
HS House-side shield16
CSA Meets Canadian standards
NOM Meets Mexican standards
(consult factory)
INTL International shipment for
175M
Ships separately12
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard17
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
MRP
Omero™
Intended Use
Streets, walkways, parking
lots and surrounding areas.
Construction
Rugged, die-cast, single-piece
aluminum housing with nomi-
nal wall thickness of 1/8".
Die-cast, top-access door-
frame has impact-resistant,
tempered glass lens (3/16"
thick). Doorframe is fully
gasketed with one-piece
tubular silicone.
Finish: Standard  nish is dark
bronze corrosion-resistant
polyester powder finish.
Additional architectural
colors are available; see
www.lithonia.com/archcolors.
Optics
MIRO  nish, segmented
re ectors for superior
uniformity and control. Re-
ectors attach with tool-less
fastener and are rotatable
and interchangeable. Four
full cuto distributions
available: Type II (roadway),
Type III (asymmetric), Type
IV (forward throw) and Type
V (symmetric square). Not ap-
plicable with Induction.
Electrical
Ballasts: Mounted on remov-
able power tray and have
positive locking disconnect
plugs. All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W. MH: CSA, NOM or
INTL required for probe start
shipments outside of the
US for 175M. Not available
175M SCWA. Compact
uorescent uses an electronic
high-frequency ballast. High-
frequency generator for
Induction.
Socket: Porcelain, medium-
base socket with copper
alloy nickel-plated screw
shell and center contact.
Ceramic metal halide lamps
are recommended for use in
applications where superior
color rendition, lumen main-
tenance and longer lamp
life are desired. Fluorescent
is four-pin positive latching
thermoplastic. LPI is standard
35K for CFL.
Installation
Mounts to a 4" round
open-top pole. Optional
mounting available.
Listings
Listed and labeled to UL
standards for wet locations.
Listed and labeled to CSA
standards (see Options).
NOM Certi ed (see Options).
Optical chamber is IP65 rated.
U.S. Patent No. D553,779.
ORDERING INFORMATION For shortest lead times, con gure products using bolded options. Example: MRP 150M SR3 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
MRP 50S, 70S, 70M, 70MHC, 100S, 100M,
100MHC, 150S, 150M, 150MHC, 175M,
42TRT, 57TRT, 70TRT SR2, SR3, SR4SC, SR5S
MRP 2/32TRT, 2/42TRT SR3
MRP 100IL Not applicable
Notes
1 Specify lamp type and distribution. See Con gurations table.
2 Not available with SCWA.
3 Not available with 480V.
4 Not available with SCWA. Requires CSA, NOM, or INTL.
5 Not applicable with L/LP.
6 Available in SR3 only.
7 Must specify CWI for use in Canada.
8 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
9 Consult factory for available wattages.
10 Multi-volt electronic ballast (Compact  uorescent and Induction only)
capable of operating on any line voltage between 120V and 277V.
11 Only available with 150M or 150MHC.
12 May be ordered as accessory.
13 Must specify  nish.
14 Maximum allowable wattage lamp included.
15 Photocell not included.
16 SR2, SR3 only.
17 Order as MR1VG as an accessory.
6-3/8
(16.2)
32
(81.3)
18
(45.7)
Weight: 33 lbs (15.0 kg)
EPA: 1.125 ft 2
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
523
www.lithonia.com | 1-800-279-8041PSG10
LITHONIA OUTDOOR
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
AREA LIGHTING
Series Lumen output Distribution Voltage Mounting2Options Finish
ALX1
ALX2
7000L
14000L
21000L
28000L
SR3 Type III asymmetric
SR4 Type IV forward throw
SR5 Type V symmetric
480
MVOLT1
SPA Square pole mounting block
RPA Round pole mounting block
WBA Wall bracket (down only)3
Installed
PER NEMA twist-lock receptacle
only
HS House-side shield
DS Dual-switching
Shipped separately4
SC Shorting cap for PER option
DSSPE127 NEMA solid state twist-lock
PE (120V/240V/277V)
(blank) Dark bronze (std.)
DBL Black
DNA Natural aluminum
DWH White
ALX
Intended Use
Streets, walkways, parking
lots, and surrounding areas.
Construction
Rugged, die-cast, single-
piece aluminum housing.
Unique  ow-through
design for optimized thermal
management. Modular
design allows for ease of
maintenance and potential
for future system upgrades.
Integral arm provides easy
installation to a pole or wall
(ALX1 only). Metallic screen
covers the top of the housing
preventing debris buildup
while allowing for air ow.
Housing completely sealed
against moisture or environ-
mental contaminants. Low
pro le design minimizes
wind loading.
Door assembly: Die-cast
doorframe enclosing driver
chambers. Doorframe is fully
gasketed with one-piece
tubular silicone.
Finish: Standard  nish is dark
bronze (DDB) corrosion-
resistant polyester powder
coat. Additional architectural
colors available, see
www.lithonia.com/archcolors.
Optics
Individual, precision molded
lens assemblies provide
optimal luminaire spacing and
improved uniformity. Three
full cuto systems available:
Type III (asymmetric), Type
IV (forward throw), Type V
(symmetric). House side shield
available to limit light trespass.
Electrical
Utilizes high-e ciency LEDs
mounted to a metal core
circuit board and aluminum
heat sink, ensuring optimal
thermal management. 5100°
Kelvin temperature, CRI>70.
Standard drivers are 120v
through 277v, 50 hz to 60 hz
operation. Contact factory
for other voltages. Electronic
drivers are accessible through
hinged door. LED drivers
have power factor >90%
and THD <20%. 28000L
and 14000L lumen package
luminaires can be wired for
two circuit operation.
Installation
Heavy duty mounting block
attaches to pole or wall to
provide ease of installation
as well as ensured alignment
and leveling. ALX pole mount
luminaires utilize the Aeris
Series pole drilling pattern.
Listings
UL Listed for 25°C ambient
and wet locations. IP65 rated
(pending). Down orientation
only. Patents pending.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: ALX1 7000L SR5 MVOLT SPA
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com
Notes
1 Multi-volt electronic ballast capable of operating on any line voltage
from 120V-277V.
2 Refer to technical data section in Outdoor binder for drilling template.
3 Available with the ALX1 only.
4 May be ordered as an accessory.
Speci cation subject to change. Consult www.lithonia.com/ALX-LED
for latest information.
Architectural
ALX2
ALX1
23-1/2
(59.7)
18-3/8
(46.7)
5-7/8
(14.7)
ALX1
35-3/8
(89.7)
18-3/8
(46.7)
5-7/8
(14.7)
ALX2
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
524
Specication
AREA LIGHTING
KSF
Spec-Form®
Series Lamp type1Distribution Voltage Ballast Mounting
KSF1
KSF2
KSF3
High
pressure
sodium2
70S
100S
150S
250S
400S
1000S
Metal
halide
100M2
150M
175M3
200M4
250M
320M4, 5
350M4, 5
400M5
1000M6
Metal
halide
ceramic7
100MHC2
150MHC
R2 Type II roadway8
R3 Type III asymmetric
R4 Type IV, FT9, 10
R4SC Type IV, FT, sharp
cuto8
R4W Type IV, FT, wide8, 9
R5S Type V symmetric
square9
120
20811
24011
277
347
48011
TB12
23050HZ13
(blank) Magnetic
ballast
CWI Constant
wattage
isolated13
SCWA Super CWA
ballast
Arm mounting
SP04 4" arm for square pole14
RP04 4" arm for round pole14
WB04 4" arm for wall
WW04 4" arm for wood pole
or wall
SP09 9" arm for square pole14
RP09 9" arm for round pole14
WB09 9" arm for wall
WW09 9" arm for wood
pole or wall
SP12 12" arm for
square pole
RP12 12" arm for
round pole
WB12 12" arm for wall
WW12 12" arm for wood
pole or wall
Optional mounting, ships
separately15, 16
KMA External mast arm
adaptor
DA12P 12" degree arm
for pole
DA12WB 12" degree arm
for wall
KTMB Twin mounting bar
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit17
QRS Quartz restrike system17
PER NEMA twist-lock receptacle only18
KW1 Kilowatch 120V control19
KW4 Kilowatch 277V control19
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside
the U.S.
Ships separately15
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for
PER option
HS House-side
shield20
VG Vandal guard20
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less
lamp
Intended Use
For car lots, street lighting or
parking areas.
Construction
Housing: Rugged,
heavy-gauge, aluminum
rectilinear housing. All seams
continuously welded for
weathertight integrity.
Doorframe: Natural anod-
ized, extruded aluminum
frame with mitered corners,
retained with two hinge
pins and secured with one
quarter-turn, quick-release
fastener. Integrally designed,
extruded silicone gasket
provides weatherproof seal
between housing and frame.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Optics: Anodized segmented
reectors provide superior
uniformity and control. KSF1/
KSF2 reectors are rotatable
and interchangeable. KSF3
Type IV is rotatable. Five cut-
o distributions available: R2
(roadway), R3 (asymmetric),
R4SC (forward throw, sharp
cuto), R4W (wide, forward
throw), R5S (square).
Lens: .125" thick, impact-
resistant tempered glass
with thermally applied, silk-
screened power door shield.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All bal-
lasts are 100% factory
tested. High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Horizontally oriented,
mogul-base porcelain socket
for 175W and above, medium
base for 150W and below,
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W-
600V, 4KV pulse rated.
Installation
Mounting: Extruded alu-
minum arm for square pole
mounting shipped in xture
carton as standard. Optional
mountings available.
Listings
UL Listed (standard). CSA Cer-
tied or NOM Certied (see
Options). UL Listed for 25°C
ambient and wet locations.
IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KSF1 250S R3 TB SP09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 Not available with SCWA.
3 Universal, mogul base lamp allows KSF
to be available with SCWA.
4 Must be ordered with SCWA.
5 Must use ED28 lamp.
6 Must use BT37 lamp with R5S.
7 Not applicable with L/LP.
8 Not available KSF3.
9 Not available KSF1.
10 Not available KSF2.
11 Must specify CWI for use in Canada.
12 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V,
347V; ships as 120V/347V.
13 Consult factory for available wattages.
14 KSF1, KSF2 must use 9" arm, KSF3
must use 12" arm when mounting two
luminaires at 90°.
15 May be ordered as accessory.
16 Must specify nish.
17 Maximum allowable wattage lamp
included.
18 Photocell not included.
19 Available with 150S, 250S and 400S only.
20 Prex with xture name and size. VG:
KSF1VG, KSF2VG. HS: KSF1HS, KSF2HS
(for use with R2 or R3); KSF3HS (for use
with R3 or R4).
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KSF1 70S, 100S, 100M, 100MHC, 150S,
150M, 150MHC, 175M, 200M, 250M R2, R3, R4SC
KSF2 250S, 320M, 350M, 400S, 400M R2, R3, R4SC, R4W, R5S
KSF3 1000S, 1000M R3, R4, R5S
H
LW
KSF1 KSF2 KSF3
EPA: 1.5 ft2 (0.14 m2) 2.0 ft2 (0.19 m2) 3.0 ft2 (0.28m2)
Length: 21-1/4 (54.0) 24-5/8 (62.5) 29-5/8 (75.2)
Width: 15-1/2 (39.3) 17-3/4 (45.1) 23-5/8 (59.9)
Height: 7-1/4 (18.4) 8-3/8 (21.1) 10-1/2 (26.7)
Max. weight: 35 lbs (15.9 kg) 52 lbs (23.6 kg) 80 lbs (36.3 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
525
www.lithonia.com | 1-800-279-8041PSG10
AREA LIGHTING
Speci cation
KSF POLE COMBO
Spec-Form®
Intended Use
For parking areas, street
lighting, walkways and
car lots.
Construction
Housing: Rugged, .063" thick,
aluminum rectilinear hous-
ing. Formed for weather-
tight seal and integrity.
Doorframe: Naturally anod-
ized, extruded, aluminum
door frame with mitered
corners is retained with two
hinge pins and secured with
a quarter-turn fastener.
Impact-resistant, tempered
glass lens is fully gasketed
with one-piece tubular silicone.
Finish: Dark bronze polyester
powder  nish.
Optics
Anodized aluminum
segmented re ectors. IES
cuto distributions: R3
(asymmetric), R4SC (forward
throw, sharp cuto ), or
R4W (forward throw, wide).
Optional houseside shield
(HS) available.
Electrical
Ballast: All ballasts are 100%
factory tested. Super CWA
Pulse Start ballasts, 88%
e cient and EISA legislation
compliant, are required; must
order SCWA option.
Socket: Porcelain, horizon-
tally oriented mogul base
socket with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W, 600V. Lamp included.
Installation
Extruded aluminum arm for
square pole mounting.
Listings
UL Listed (standard). UL
Listed for 25°C ambient and
wet locations. IP65 Rated.
Series/Lamp type/Pole height Distribution Pole diameter Arm length Ballast Options
Series Lamp type Pole height
KS1 1  xture 250M 16C 16-foot "C" pole
KS2 2  xtures 320M 20C 20-foot "C" pole
400M 25C 25-foot "C" pole
30C 30-foot "C" pole1
R3 Type III asymmetric
R4SC Type IV, FT, sharp cuto
R4W Type IV, FT, wide
4C
5C1
(blank) 4 inches
09 9 inches
SCWA Super CWA ballast2HS House-side shield3
ORDERING INFORMATION For shortest lead times, con gure products using bolded options. Example: KS2400M25C R3 4C SCWA
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
K S 2 4 0 0 M 2 5 C R 3 4 C S C W A C O N S I S T S O F
QUANTITY CI CODE DESCRIPTION
1 SSS 25 4C DM28 PL DDB SHAFT
2 KSF2 400M R3 TB SCWA SP04 LPI
1 SBC4 DDB U
1 ABSSS-4C
1 STC-4 U

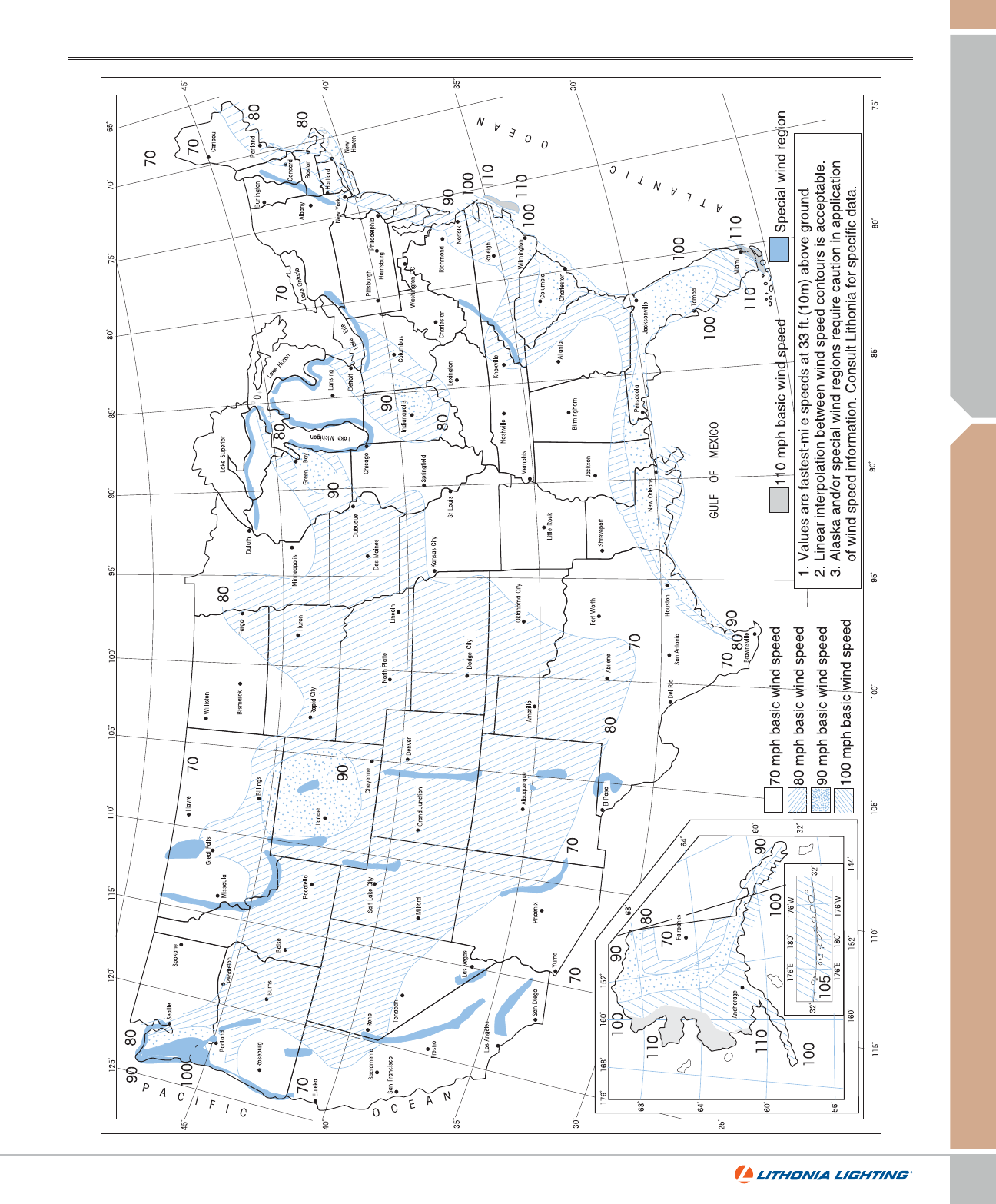

MAXIMUM M.P.H. WIND LOAD WITH 1.4 GUSTS
POLE KS1 SINGLE KS2 DOUBLE
16' 4C 4" or 9" arm 100 100
20' 4C 4" or 9" arm 100 100
25' 4C 4" or 9" arm 90 80
30' 5C 4" or 9" arm 90 80
Notes
1 Only available 30'/5C.
2 Must be speci ed.
3 Ships separately. Not available with R4SC.
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
KSF POLE COMBO
EPA: 2.0 ft2 (0.19 m2)
Length: 24-5/8 (62.5)
Width: 17-3/4 (45.1)
Height: 8-3/8 (21.3)
Max. weight: 52 lbs (23.6 kg)
H
LW
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
526
AREA LIGHTING
Specication
KSE
Symmetra™
Series Lamp type1Distribution1Voltage Ballast Mounting
KSE1
KSE2
High
pressure
sodium2
70S
100S
150S
250S
400S
Metal
halide
100M2
150M
175M3
200M4
250M
320M4
350M4, 5
400M5
Metal halide
ceramic6
100MHC2
150MHC
R2 Type II roadway
R3 Type III asymmetric
R4SC Type IV, FT, sharp
cuto
R4W Type IV, FT, wide7
R5S Type V symmetric
square7
120
2088
2408
277
347
4808
TB9
23050HZ10
(blank) Magnetic ballast
CWI Constant wattage
isolated10
SCWA Super CWA ballast
Ships included
SP04 4" arm for square
pole11
RP04 4" arm for round pole11
WB04 4" arm for wall
SP09 9" arm for square pole
RP09 9" arm for round pole
WB09 9" arm for wall
Ships separately12, 13
KMA External mast arm adaptor
DA12P 12" degree arm for pole
DA12WB 12" degree arm for wall
KTMB Twin mounting bar
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit14
QRS Quartz restrike system14
PER NEMA twist-lock receptacle only15
KW1 Kilowatch 120V control16
KW4 Kilowatch 277V control16
CSA Meets Canadian standards
NOM Meets Mexican standards (consult
factory)
INTL Available for MH probe start
shipping outside the U.S.
Ships separately12
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
HS House-side shield16
VG Vandal guard16
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
Intended Use
For car lots, street lighting or
parking areas.
Construction
Housing: Rugged, heavy-
gauge, extruded aluminum
housing. Square shape,
seam-welded and internally
sealed for weathertight in-
tegrity.
Doorframe: Natural anod-
ized, extruded aluminum
doorframe sealed to housing
by silicone closed-cell
gasket and secured with one
quarter-turn closing screw.
Can be hinged from any of
the four sides.
Finish: Standard nish is dark
bronze polyester powder.
Additional architectural colors
and striping available, see
www.lithonia.com/archcolors.
Optics
Anodized, segmented
reectors for uniformity
and control. Reectors are
tool-less, rotatable and
interchangeable. Five cuto
distributions available: R2
(roadway), R3 (asymmetric),
R4SC (forward throw, sharp
cuto), R4W (wide, forward
throw) and R5S (symmetric).
Lens: 0.125"-thick, impact-
resistant tempered glass.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All bal-
lasts are 100% factory
tested. High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Horizontally oriented,
mogul-base porcelain socket
for 175W and above, medium
base for 150W and below,
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W-
600V, 4KV pulse rated.
Installation
Mounting: Extruded 4" alu-
minum arm for square pole
mounting, shipped in xture
carton as standard. Optional
mountings available.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KSE1 150M R3 277 SP09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KSE1 70S, 100S, 100M, 100MHC, 150S, 150M,
150MHC, 175M, 200M R2, R3, R4SC
KSE2 250S, 250M, 320M, 350M, 400S, 400M R2, R3, R4SC, R4W, R5S Notes
1 Specify lamp type and distribution.
See Congurations table.
2 Not available with SCWA.
3 Universal, mogul base lamp allows KSE
to be available with SCWA.
4 Must be ordered with SCWA.
5 Must use ED28 lamp.
6 Not applicable with L/LP.
7 Not available KSE1.
8 Must specify CWI for use in Canada.
9 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V,
347V; ships as 120V/347V.
10 Consult factory for available wattages.
11 Use 9" arm when mounting two
luminaires at 90°.
12 May be ordered as an accessory.
13 Must specify nish.
14 Maximum allowable wattage lamp
included.
15 Photocell not included.
16 Available with 150S, 250S and 400S
only.
17 Prex with xture name and size.
VG: KSE1VG, KSE2VG. HS: KSE1HS,
KSE2HS (for use with R2 or R3).
Square
Arm
H
KSE1 KSE2
EPA: 1.3 ft2 (.12m2) 1.9 ft2 (.18m2)
Square: 15-3/4 (40.0) 19 (48.3)
Height: 8-3/4 (22.2) 11 (27.9)
Max. weight: 26.6 lbs (12.1 kg) 39.9 lbs (18.1 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
527
www.lithonia.com | 1-800-279-8041PSG10
AREA LIGHTING
Specication
Series Lamp type1Distribution1Voltage Ballast Mounting
KVE2
KVE3
High
pressure
sodium2
250S
400S
750S
1000S
Metal
halide
175M3
200M4
250M
320M4
350M4
400M
750M4
1000M
Horizontal lamp5
R2 Type II
roadway6
R3 Type III
asymmetric6
R4SC Type IV, FT,
sharp cuto6
R4W Type IV, FT,
wide7
R5S Type V
symmetric
square7
Vertical lamp
SYM Symmetric
SYMC Symmetric, cuto
ASY Asymmetric
ASYC Asymmetric,
cuto5
120
2088
2408
277
347
4808
TB9
23050HZ10
(blank) Magnetic ballast
CWI Constant wattage
isolated10
SCWA Super CWA ballast
Arm mounting11
SPV04 4" square
pole arm
RPV04 4" round
pole arm
SPV06 6" square
pole arm
RPV06 6" round
pole arm
SPV09 9" square
pole arm
RPV09 9" round
pole arm
SPV12 12" square
pole arm
RPV12 12" round
pole arm
SPV14 14" square
pole arm
RPV14 14" round
pole arm
WBV09 9" wall
bracket
WWV09 9" wood
pole or wall
arm
Post-top mounting
PT4 Post top 4" OD
open top pole
PT45 Post top, 4-½"
OD open-top
pole
PT5 Post top, 5" OD
open-top pole
PT6 Post top, 6" OD
open-top pole
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit12
QRS Quartz restrike system12
PER NEMA twist-lock receptacle only
KW1 Kilowatch 120V control13
KW4 Kilowatch 277V control13
GFL Glass at lens14
LS Lamp support (size 3 horizontal optics only)
HS House-side shield
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside
the U.S.
Ships separately15
PE1 NEMA twist-lock PE
(120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
KVE
Intended Use
For streets, parking lots and
surrounding areas.
Construction
Housing: Square, rugged,
heavy-gauge, extruded alumi-
num housing. Fully gasketed
for weather-tight integrity.
Finish: Dark bronze polyester
powder nish standard. Ad-
ditional architectural colors
and striping available, see
www.lithonia.com/archcolors.
Optics
Segmented, anodized alumi-
num optics are interchange-
able and rotatable. Vertically
lamped sealed optics include
symmetric, symmetric cuto,
asymmetric and asymmetric
cuto. Design redirects light
around arc-tube for optimum
lamp life and maximum
eciency. Five horizontal
lamp cuto distributions
available: R2 (roadway), R3
(asymmetric), R4SC (forward
throw, sharp cuto) R4W
(wide, forward throw) and
R5S (symmetric).
Lens: Impact-resistant,
clear, 3/16 " thick, tempered
drop lens.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All ballasts
are 100% factory tested.
Constant wattage autotrans-
former 175W and above.
Super CWA Pulse Start bal-
lasts, 88% ecient and EISA
legislation compliant, are
required for 175-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Mogul-base porcelain
socket with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V, 4KV pulse rated
(5KV for 1000S).
Installation
Mounting: Extruded
aluminum arm with integral
splice compartment for wall
or pole mounting is shipped
in xture carton. Optional
mountings available.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations. U.S. Patent No.
D417,026.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KVE2 400S SYM TB SPV12 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KVE2 175M, 200M, 250S,
250M, 320M, 350M,
400S, 400M
SYM, SYMC, ASY, ASYC, R2,
R3, R4SC, R5S
KVE3 400S, 400M, 750S,
1000S SYM, ASY, ASYC, R5S
KVE3 750M, 1000M SYM, SYMC, ASY, ASYC, R2,
R3, R4SC, R5S, R4W
Notes
1 Specify lamp type and distribution.
See congurations table.
2 Not available with SCWA.
3 Universal, moguel base lamp allows
KVE to be available with SCWA.
4 Must be ordered with SCWA.
5 KVE2 320W, 350W, 400W MH
requires ED28 lamp; KVE3 1000W MH
requires BT37 lamp. Not available
with KVE3 1000S.
6 Not available KVE3 high pressure
sodium.
7 Only available KVE3 metal halide;
1000M requires BT37 lamp.
8 Must specify CWI for use in Canada.
9 Optional multi-tap ballast (120V,
208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
10 Consult factory for available watt-
ages.
11 KVE2 must use 12" arm, KVE3 must
use 14" arm when mounting two
luminaires at 90°.
12 Maximum allowable wattage lamp
included.
13 Available only with 200M, 400M
SCWA: ASY or SYM; 250S or 400S: all
distributions.
14 400W maximum.
15 May be ordered as accessory.
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
L/W
KVE2 (arm) KVE3 (arm) KVE2 (post) KVE3 (post)
EPA: 3.3 ft2 (0.31 m2) 4.2 ft2 (0.39 m2) 3.4 ft2 (0.32 m2) 4.5 ft2 (0.42 m2)
Length/width: 25 (63.5) 29 (73.7) 25 (63.5) 29 (73.7)
Overall Height: N/A N/A 23-7/8 (60.6) 29-1/4 (74.3)
Height: 16-3/4 (42.5) 18-1/2 (47.0) 16-3/4 (42.5) 18-1/2 (47.0)
Max. weight: 77 lbs (34.9 kg) 87 lbs (39.5 kg) 87 lbs (39.5 kg) 97 lbs (44.0 kg)
H
OH
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
528
Specication
AREA LIGHTING
KVF
Series Lamp type1Distribution1,9 Voltage Ballast Mounting15
KVF1
KVF2
High
pressure
sodium2
70S
100S
150S
250S
400S
1000S4
Metal
halide
50M2,3
70M2,3
100M2
150M
175M5
200M5, 6
250M
320M6
350M6
400M
450M6
1000M7
Metal halide
ceramic8
50MHC2, 3
70MHC2, 3
100MHC2
150MHC
Compact
uorescent2
2/26DTT
2/26TRT
2/32TRT
42 TRT
57TRT
70TRT
Induction2
55IL
85IL
Horizontal lamp
R2 Type II roadway
R3 Type III asymmetric
SR2 Type II segmented
SR3 Type III segmented
SR4SC Type IV segmented,
FT, sharp cuto
SR4W Type IV
segmented,
FT, wide
SR5S Type V
segmented,
square
Vertical lamp
SYM Symmetric
ASY Asymmetric
VFA Vertical FT,
automotive
120
20810
24010
277
347
48010
TB11
23050HZ12
MVOLT13
TVOLT14
(blank) Magnetic
ballast
CWI Constant
wattage
isolated12
SCWA Super
CWA
ballast
Arm mounting
SP09 9" arm for square pole
RP09 9" arm for round pole
SP12 12" arm for square pole
RP12 12" arm for round pole
WB12 12" arm for wall
Post-top mounting
PT4 Post top, 4" OD open-top
pole
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V,
347V
DF Double fuse, 208V, 240V,
480V
EC Emergency circuit16
QRS Quartz restrike system16
QRSTD QRS time delay16
DC12 Emergency circuit 12V;
35W lamp included
2DC12 Emergency circuit 12V; two 35W
lamps included
DC2012 Emergency circuit 12V; 20W
lamp included
2DC2012 Emergency circuit 12V; two 20W
lamps included
PE Photoelectric cell - button type17
PER NEMA twist-lock receptacle
only18
EA Embossed accents
KW1 KiloWatch 120V control19
KW4 KiloWatch 277V control19
TLS Tool-less access
EHS External house-side shield
EHSB External house-side shield black
CSA Meets Canadian standards
NOM Meets Mexican standards (consult
factory)
INTL Available for MH probe start
shipping outside the U.S.
Ships separately20
PE1 NEMA twist-lock PE
(120V-240V)
PE3 NEMA twist-lock PE
(347V)
PE4 NEMA twist-lock PE
(480V)
PE7 NEMA twist-lock PE
(277V)
SC Shorting cap for PER
option
VG Vandal guard21
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion
resistance
CRT Non-stick protective
coating (black)
LPI Lamp
included
L/LP Less
lamp
Intended Use
For car lots, street lighting or
parking areas.
Construction
Heavy-gauge, die-formed
aluminum housing,
fabricated using robotic con-
tinuous seam-weld process
for weathertight integrity.
Integral structural support
plate for mounting arm
and electrical components.
Hinged aluminium door-
frame with stainless steel
hardware. Thermal, shock-
resistant, tempered at or
drop glass lens. Continuous
silicone gasketing surrounds
lens for weather tight seal.
Finish: Dark bronze polyester
powder nish standard.
Optional linear embossed
accent reveals are available.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Vertical-lamp reectors
are one-piece spun and
formed anodized aluminum.
Horizontal-lamp reectors
also available. Horizontal
position-oriented for types
R2, R3 and R4. Reectors are
rotatable and interchangable.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All ballasts
are 100% factory tested.
High reactance, high power
factor for 150W and below.
Constant wattage autotrans-
former for 175W and above.
MH: 150W and below are
standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required for
151-450W (must order SCWA
option) for U.S. shipments only.
CSA, NOM or INTL required for
probe start shipments outside
the U.S. Compact uorescent
uses an electronic high-
frequency ballast.
Socket: Mogul-base porcelain
socket for KVF2 (1000S is 5K
pulse rated), medium base
for KVF1 with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V, 4KV pulse
rated. LPI is standard 35K
for CFL.
Installation
Extruded aluminum arm with
integral splice compartment.
Standard arm is 9" in length.
(12" arm is required for
xtures mounted at 90°.)
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient
and wet locations. Optical
chamber is IP65 rated for
ingress protection per IEC529
international standards.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KVF2 1000M SYMDL 480 SP09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 Not available with SCWA.
3 Not available 480V.
4 Available with SYMDL, ASYDL and VFADL
standard E-25 lamp.
5 Not available KVF1 SCWA with horizontal
distributions.
6 Must be ordered with SCWA. 450M only
available in vertical distribution.
7 Must use reduced jacket lamp.
8 Not applicable with L/LP.
9 Designate DL (drop lens) or FL (at lens) after
distribution (ie SR2FL). SR4W only available
with FL.
10 Must specify CWI for use in Canada.
11 Optional multi-tap ballast (120V, 208V, 240V,
277V). In Canada 120V, 277V, 347V; ships as
120V/347V.
12 Consult factory for available wattages.
13 Multi-volt electronic ballast (compact
uorescent only) capable of operating on any
line voltage between 120V and 277V.
14 Tri-volt electronic ballast capable of operat-
ing any line voltage between 200V and 277V.
15 Use 12" arm when mounting two luminaires
at 90°.
16 Maximum allowable wattage lamp included.
17 Not available 347, 480, or TB. Not available
KVF2.
18 Not available KVF1. Photocell not included.
19 Available with 200M-400M SCWA: ASY, SYM
or VFA; 250S or 400S: all distributions.
20 May be ordered as an accessory.
21 Prex with xture name and size (e.g.,
KVF1VG).
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KVF1 55IL, 85IL Not Required
KVF1 2/26DTT, 2/26TRT, 2/32TRT SYMDL, SYMFL, ASYDL, ASYFL, SR3DL, SR3FL
KVF1 57TRT, 70TRT SR2DL, SR3DL, SR4SCDL, SR5SDL
KVF1
42TRT, 50M, 50MHC, 70S,
70M, 70MHC, 100S, 100M,
100MHC, 150S, 150M,
150MHC, 175M
SYMDL, SYMFL, ASYDL, ASYFL, SR2DL,
SR2FL, SR3DL, SR3FL, SR4SCDL, SR4SCFL,
SR5SDL, SR5SFL
KVF1 175M SCWA, 200M SYMDL, SYMFL, ASYDL, ASYFL
KVF2 250S, 250M, 320M, 350M,
400S, 400M
SYMDL, SYMFL, ASYDL, ASYFL, VFADL,
VFAFL, R2DL, R2FL, R3FL, R3DL, SR2FL,
SR3FL, SR4SCFL, SR4WFL
KVF2 450M SYMDL, SYMFL, ASYDL, ASYFL, VFADL, VFAFL
KVF2 1000M SYMDL, SYMFL, ASYDL, ASYFL, VFADL,
VFAFL, R2DL, R2FL, R3FL, R3DL
KVF2 1000S ASYDL, SYMDL, VFADL
DH
S
OH
S
A
KVF1 KVF2
EPA ARM: 1.2 ft2 (0.11m2) 2.8 ft2 (0.25 m2)
EPA PT: 1.3 ft2 (0.12m2) 2.8 ft2 (0.25 m2)
Square: 16-1/8 (40.9) 21-1/2 (54.6)
Flat lens height: 9-3/8 (23.8) 14 (35.6)
Drop lens height: 11-3/8 (29.0) 17 (43.2)
PT overall height: 18 (45.7) 22-3/4 (57.8)
Weight: 29 lbs (13.2 kg) 55 lbs (24.9 kg)
Drawings are for dimensional detail only and may
not represent actual mechanical conguration.
Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
529
www.lithonia.com | 1-800-279-8041PSG10
AREA LIGHTING
14
(35.6)
21-1/2 (54.6)Arm
KVF POLE COMBO
Intended Use
For parking areas, street
lighting, walkways and
car lots.
Construction
Heavy-gauge, die-formed
aluminum housing is
fabricated using robotic con-
tinuous seam-weld process
for weather-tight integrity.
Integral structural support
plate for mounting arm
and electrical components
ensures rigidity and strength.
Hinged aluminum doorframe
incorporates stainless steel
hardware. Continuous
silicone gasketing surrounds
lens for weather-tight seal.
Finish: Standard nish is dark
bronze (DDB).
Optics
Flat lens congurations meet
full-cuto criteria. Vertical-
lamp reectors are one-piece
spun and formed anodized
aluminum. Reectors are
independently designed to
optimize light output for the
lens type.
Electrical
Ballast: All ballasts are 100%
factory tested. Super CWA
Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required; must
order SCWA option.
Socket: Porcelain, vertically
oriented, mogul-base socket
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W,
600V. Lamp included.
Installation
Extruded aluminum arm for
square pole mounting.
Listings
UL Listed (standard). UL
Listed for 25°C ambient and
wet locations. IP65 Rated.
Series/Lamp type/Pole height Distribution Pole diameter Arm length Ballast
Series Lamp type Pole height
KV1 1 xture 250M 25C 25-foot "C" pole
KV2 2 xtures 320M 30G 30-foot "G" pole
400M
SYMFL Symmetric
ASYFL Asymmetric
5C
5G
09 9 inches
12 12 inches
SCWA Super CWA ballast1
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KV2400M25C ASYFL 5C 09 SCWA
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
KV2400M25C ASYFL 5C 09 SCWA CONSISTS OF:
QUANTITY CI CODE DESCRIPTION
1 SSS 25 5C DM28 PL DDB SHAFT
2 KVF2 400M ASYFL TB SCWA SP09 LPI
1 SBC5 DDB U
1 ABSSS-5
1 STC-5 U
MAXIMUM M.P.H. WIND LOAD WITH 1.4 GUSTS
POLE KV1 SINGLE KV2 DOUBLE
25' 5C 100 90
30' 5G 100 90
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Must be specied.
Specication
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
530
Specication
AREA LIGHTING
KVR
Series Lamp type1Distribution1, 9 Voltage Ballast Mounting
KVR1
KVR2
High
pressure
sodium2
70S
100S
150S
250S
400S
1000S3
Metal
halide
50M2, 4
70M2, 4
100M2
150M
175M5
200M5, 6
250M
320M6
350M6
400M
450M6
1000M7
Metal halide
ceramic8
50MHC2, 4
70MHC2, 4
100MHC2
150MHC
Compact
uorescent2
2/26DTT
2/26TRT
2/32TRT
42 TRT
57TRT
70TRT
Induction2
55IL
85IL
Horizontal lamp
R2 Type II roadway
R3 Type III asymmetric
SR2 Type II segmented
SR3 Type III segmented
SR4SC Type IV segmented,
FT, sharp cuto
SR4W Type IV segm, FT,
wide10
Vertical lamp
SYM Symmetric
ASY Asymmetric
VFA Vertical FT,
automotive10
120
20811
24011
277
347
48011
TB12
23050HZ13
MVOLT14
TVOLT15
(blank) Magnetic
ballast
CWI Constant
wattage
isolated13
SCWA Super CWA
ballast
Arm mounting16
SPD09 9" arm for square pole
RPD09 9" arm for round pole
WBD09 9" arm for wall
WWD09 9" arm for wood pole
or wall
SPD12 12" arm for square pole
RPD12 12" arm for round pole
Mounting (continued) Options Finish Lamped
WBD12 12" arm for
wall
WWD12 12" arm for
wood pole or
wall
Post-top mounting
PT4 Post top, 4" OD
open-top pole
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit17
QRS Quartz restrike system17
QRSTD QRS time delay17
PE Photoelectric cell - button type18
PER NEMA twist-lock receptacle only19
KW1 KiloWatch 120V control relay20
KW4 KiloWatch 277V control relay20
TLS Tool-less access
EHS External house-side shield
EHSB External house-side shield black
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately21
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock
PE (347V)
PE4 NEMA twist-lock
PE (480V)
PE7 NEMA twist-lock
PE (277V)
SC Shorting cap for
PER option
VG Vandal guard22
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion
resistance
CRT Non-stick protective
coating (black)
LPI Lamp
included
L/LP Less
lamp
Intended Use
For streets, parking lots and
surrounding areas.
Construction
Housing: Cylindrically shaped,
rugged, heavy-gauge, spun alu-
minum housing. Fully gasketed
for weathertight integrity.
Finish: Dark bronze polyester
powder nish standard.
Optional linear embossed
accent reveals are available.
Arm-mounted KVR2 standard
doorframe is natural aluminum
(DNA). Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
KVR vertical-lamp reectors
are one-piece spun and
formed around anodized alu-
minum. KVR horizontal-lamp
hydroformed and segmented
reectors also available. KVR
reectors are rotatable and
interchangeable.
Lens: Impact-resistant, clear,
3/16 " thick, tempered drop
or at lens.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All ballasts
are 100% factory tested.
High reactance, high power
factor for 150W and below.
Constant wattage autotrans-
former 175W and above.
MH: Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-450W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S. Compact
uorescent uses an electronic
high-frequency ballast.
High-frequency generator
for induction.
Socket: Mogul-base porcelain
socket for KVR2 (1000S is 5K
pulse rated), medium base
for KVR1 with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V, 4KV pulse rated.
LPI is standard 35K for CFL.
Installation
Mounting: Extruded-alu-
minum contoured arm with
integral splice compartment
for wall or pole mounting is
shipped in xture carton. Op-
tional mountings available.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient and
wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KVR2 250M SYMDL 120 SCWA RPD09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KVR1 55IL, 85IL Not Required
KVR1 2/26DTT, 2/26TRT,
2/32TRT SYMDL, SYMFL, ASYDL,
ASYFL, SR3DL, SR3FL
KVR1 57TRT, 70TRT SR2DL, SR3DL, SR4SCDL,
SR5SDL
KVR1
42TRT, 50M, 50MHC,
70S, 70M, 70MHC, 100S,
100M, 100MHC, 150S,
150M, 150MHC, 175M
SYMDL, SYMFL, ASYDL,
ASYFL, SR2DL, SR2FL,
SR3DL, SR3FL, SR4SCDL,
SR4SCFL, SR5DL, SR5FL
KVR1 175M SCWA, 200M SYMDL, SYMFL, ASYDL,
ASYFL
KVR2 175M, 250S, 250M,
320M, 350M, 400S,
400M
SYMDL, SYMFL, ASYDL,
ASYFL, VFADL, VFAFL,
R2DL, R2FL, R3DL, R3FL,
SR2FL, SR3FL, SR4SCFL,
SR4WFL
KVR2 1000M, 1000S SYMDL, SYMFL, ASYDL,
ASYFL
Notes
1 Specify lamp type and distribution.
See Congurations table.
2 Not available with SCWA.
3 Drop lens uses standard E25 lamp.
Flat lens uses reduced jacket lamp.
4 Not available in 480V.
5 KVR1 175M SCWA and 200M SCWA are
only available with ASY or SYM.
6 Must be ordered with SCWA.
7 Must use reduced jacket lamp.
8 Not applicable with L/LP.
9 Designate DL (drop lens) of FL (at
lens) after distribution (e.g., SR2FL).
KVR2 with SR2, SR3, SR4SC, SR4W
only available with at lens.
10 Not available with KVR1.
11 Must specify CWI for use in Canada.
12 Optional multi-tap ballast (120V,
208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
13 Consult factory for available wattages.
14 Multi-volt electronic ballast (compact
uorescent only) capable of operating
on any line voltage between 120V
and 277V.
15 Tri-volt electronic ballast (induction
only) capable of operating any line
voltage between 200V and 277V.
16 Use 12" arm when mounting two
luminaires at 90°.
17 Maximum allowable wattage lamp
included.
18 Not available 347, 480, or TB. Only
available with KVR1.
19 Only available KVR2. Photocell not
included.
20 Available with 200M-400M SCWA:
SYM, AS or VFA; 250S or 400S: all
distributions.
21 May be ordered as an accessory.
22 Prex with xture name and size
(e.g., KVR1VG).
H
Dia.
H
Dia.
KVR1 KVR2
EPA arm: 1.0 ft2 (0.09 m2) 2.1 ft2 (0.20 m2)
EPA PT: 1.2 ft2 (0.11 m2) 2.5 ft2 (0.23 m2)
Diameter: 17 (43.1) 26 (66.0)
Flat lens height: 9-1/4 (23.5) 14 (35.6)
Drop lens height: 10 (25.4) 17 (43.2)
PT overall height: 18- 3/4 (47.6) 23-1/2 (59.7)
Weight: 35 lbs (15.9 kg) 56 lbs (25 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
531
www.lithonia.com | 1-800-279-8041PSG10
Specication
AREA LIGHTING
KAR
Series Lamp type1Distribution1Voltage Ballast Mounting10,11
KAR1
KAR2
KAR3
High
pressure
sodium2
150S
250S
400S
1000S
Metal
halide
100M2
150M
175M3
200M4
250M
320M4
350M4
400M
1000M
Metal halide
ceramic5
100MHC2
150MHC
R2 Type II roadway
R3 Type III
asymmetric6
R4 Type IV, FT6
R5S Type V symmetric
square
120
2087
2407
277
347
4807
TB8
23050HZ9
(blank) Magnetic ballast
CWI Constant wattage
isolated9
SCWA Super CWA ballast
Ships separately12
SPD09 9" contoured arm for square
pole
RPD09 9" contoured arm for round
pole
WBD09 9" contoured arm for wall
SPD12 12" contoured arm for
square pole
RPD12 12" contoured arm for
round pole
WBD12 12" contoured arm for
wall
DAD12P 12" contoured degree
arm for pole
DAD12WB 12" contoured degree
arm for wall
KTMB Twin mounting bar
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V,
347V
DF Double fuse, 208V, 240V,
480V
EC Emergency circuit13
QRS Quartz restrike system13
QRSTD QRS time delay13
PER NEMA twist-lock receptacle only14
HS House-side shield
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately10
PE1 NEMA twist-lock PE (120V-
240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard15
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion
resistance
CRT Non-stick protective
coating (black)
LPI Lamp included
L/LP Less lamp
Intended Use
For parking lots, plazas
or entrances.
Construction
Housing: Rugged, heavy-
gauge, spun-aluminum hous-
ing in centriform shape.
Doorframe: Aluminum door
frame standard with 1/8 "
impact-resistant, tempered-
glass lens. Stainless steel ex-
ternal hardware. One-piece
EPT closed-cell gasket.
Finish: Dark bronze polyes-
ter powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Anodized, hydroformed alu-
minum reectors. Four cuto
distributions available: R2
(roadway), R3 (asymmetric),
R4 (forward throw) and R5S
(symmetric). R4 reector is
eld-rotatable. Reectors
hinge out for easy installa-
tion and maintenance.
Electrical
All ballasts are 100% factory
tested. High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Horizontally ori-
ented mogul-base porcelain
socket (100M and 150M are
medium-base) with copper
alloy, nickel-plated screw
shell and center contact. UL
Listed 1500W-600V. 4KV
pulse rated. (1000S is 5KV
pulse rated.)
Installation
Mounting: Contoured,
extruded-aluminum 9"
(KAR1/KAR2) and 12" (KAR3)
arms with integral splice
compartment for pole or wall
mounting. Optional mount-
ings available.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KAR3 1000S R4 TB RPD12 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KAR1 100M, 100MHC, 150S, 150M,
150MHC, 175M, 200M, 250M R2, R3
KAR2 250S, 320M, 350M, 400S, 400M R2, R3, R4, R5S
KAR3 1000S, 1000M R3, R4, R5S
Dia.Arm
H
KAR1 KAR2 KAR3
EPA6: 1.2ft2 (.11m2) 1.5ft2 (.14m2) 2.2ft2 (.20m2)
Diameter: 19-1/2 (49.5) 21-1/2 (54.6) 30 (75.6)
Height: 9-1/2 (24.1) 11 (27.9) 12-1/2 (31.8)
Arm length: 9 (22.9) 9 (22.9) 12 (30.5)
Max. weight: 36 lbs (15 kg) 45 lbs (20 kg) 53 lbs (24 kg)
Notes
1 Specify lamp type and distribution.
See Congurations table.
2 Not available with SCWA.
3 Universal, mogul base lamp allows
KAR1 and KAR2 to be available with
SCWA.
4 Must be ordered with SCWA.
5 Not applicable with L/LP.
6 HS option available.
7 Must specify CWI for us in Canada.
8 Optional multi-tap ballast (120V,
208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
9 Consult factory for available
wattages.
10 May be ordered as accessory.
11 Must specify nish.
12 KAR1, KAR2 uses 9" arm, KAR3
uses 12" arm when mounting two
luminaries at 90°.
13 Maximum allowable wattage lamp
included.
14 Photocell not included.
15 Prex with xture name and size
(e.g., KAR1VG). Not available with
KAR3.
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
532
AREA LIGHTING
Specication
Series Lamp type1Distribution1Voltage Ballast Mounting
KVS1
KVS3
High
pressure
sodium2
70S
100S
150S
250S
400S
1000S
Metal
halide
100M2
150M
175M3
200M4
250M
320M4
350M4
400M
1000M5
Metal
halide
ceramic6
100MHC2
150MHC
R2 Type II
roadway
R3 Type III
asymmetric
R4 Type IV, FT
R5 Type V
symmetric
120
2087
2407
277
347
4807
TB8
23050HZ9
(blank) Magnetic
ballast
CWI Constant
wattage
isolated9
SCWA Super CWA
ballast
Ships separately
SP09 9" arm for square pole
RP09 9" arm for round pole
WB09 9" arm for wall
WW09 9" arm for wood pole
or wall
SP12 12" arm for square pole
RP12 12" arm for round pole
WB12 12" arm for wall
WW12 12" arm for wood pole
or wall
Optional mounting (ships
installed)
MA Internal mast arm
adaptor10
Optional mounting (ships
separately)
KMA External mast arm
adaptor11, 12
DA12P 12" degree arm
for pole
DA12WB 12" degree arm
for wall
KTMB Twin mounting
bar11
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit13
QRS Quartz restrike system13
PER NEMA twist-lock receptacle only14
MED Medium-base socket11
HS House-side shield15
CSA Meets Canadian standards
NOM Meets Mexican standards
(consult factory)
INTL Available for MH probe start
shipping outside the U.S.
Ships separately16
PE1 NEMA twist-lock PE (120V-
240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard17
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
KVS Intended Use
For lighting shopping center
or stadium parking lots.
Construction
Housing: Rugged, heavy-
gauge aluminum housing.
Square shape, continuously
welded seams for weather-
tight integrity. EPDM closed-
cell housing gasket.
Doorframe: Extruded
aluminum hinged door
frame. All exposed hardware
is stainless steel.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
One-piece, anodized, hydro-
formed aluminum reector.
Four cuto distributions
available: R2 (roadway), R3
(asymmetric), R4 (forward
throw) and R5 (symmetric).
Reectors hinge out for easy
removal during installation/
maintenance. Reectors not
rotatable. R5 is vertically
lamped; R2, R3, and R4 are
horizontally lamped.
Lens: Impact-resistant at
glass is standard for KVS1, R2,
R3 and R4. Convex glass lens
is standard with all KVS3 and
KVS1 R5.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All bal-
lasts are 100% factory
tested. High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Mogul-base porcelain
socket (100M and 150M are
medium-base) with copper
alloy, nickel-plated screw
shell and center contact. UL
Listed 1500W-600V. 4KV
pulse rated. (1000S is 5KV
pulse rated.)
Installation
Mounting: Extruded 9"
(KVS1) and 12" (KVS3)
arms with integral splice
compartment for wall or pole
mounting. Optional mount-
ing available.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KVS1 250S R3 TB SP09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 Not available with SCWA.
3 Universal mogul base lamp allows KVS to
be available with SCWA.
4 Must be ordered with SCWA.
5 Must use BT37 reduced jacket lamp for
1000M, R2 and R3; R5 uses BT56 standard
lamp.
6 Not applicable with L/LP.
7 Must specify CWI for use in Canada.
8 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V, 347V;
ships as 120V/347V.
9 Consult factory for available wattages.
10 KVS3 only. Single/twin, 180° congura-
tion.
11 KVS1 only.
12 For use with 6" minimum 2-3/8" OD pipe.
13 Maximum allowable wattage lamp
included.
14 Photocell not included.
15 Not available R2.
16 May be ordered as accessory.
17 KVS1 only. Not available with R5. (To
order as an accessory: KVS1VG)
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KVS1 70S, 100S, 100M, 100MHC, 150S,
150M, 150MHC, 175M, 250S, 250M R2, R3, R4, R5
KVS3 320M, 350M, 400S, 400M, 1000M R2, R3, R5
KVS3 1000S R5
Arm Square
H
KVS1 KVS3
EPA8: 1.8 ft2 (.17 m2) 3.9 ft2 (.36 m2)
Sqaure: 16-3/4 (42.0) 24 (61.0)
Height: 10-1/2 (26.0) 16-1/2 (42.0)
Max. weight: 33 lbs (15.0 kg) 74 lbs (34.0 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
533
www.lithonia.com | 1-800-279-8041PSG10
LITHONIA OUTDOOR
General Purpose
Series
Lamp
type Voltage Ballast Mounting Options Finish Lamped
KT1 Low
pressure
sodium
55L
90L
2/90L
120
2081
2401
277
4801,2
(blank) Magnetic
ballast Ships separately
SP04 4" square pole
arm
SP06 6" square pole
arm3
RP04 4" round pole arm
RP06 6" round pole
arm3
WB04 4" wall bracket
WB06 6" wall bracket
KMA Mast arm
adapter
KTMB Twin mounting
bar
Ships installed
PER NEMA twist-lock
receptacle only4
SF Single fuse, 120V,
277V, 347V
DF Double fuse,
208V, 240V, 480V
CSA Meets Canadian
standards
Ships separately5
PE1 NEMA twist-lock
PE (120V-240V)
PE3 NEMA
twist-lock
PE (347V)
PE4 NEMA
twist-lock
PE (480V)
PE7 NEMA
twist-lock
PE (277V)
SC Shorting
cap for PER
option
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural
aluminum
DWH White
CR Corrosion-
resistant nish
LPI Lamp included
LPIC Lamp included
(deluxe/coated)
L/LP Less lamp
KT1
Intended Use
For parking lots, walkways,
building facades, indus-
trial sites and entrances.
Designated for intrinsically
dark areas, such as those
surrounding observatories
and sea turtle habitats.
Construction
Housing: Heavy-gauge alu-
minum housing, rectilinear
shape, continuously welded
seams for weather-tight in-
tegrity. Dark bronze polyester
powder nish (DDB) standard;
additional architectural
colors available; see
www.lithonia.com/archcolors.
Doorframe: Natural, anod-
ized, extruded aluminum
frame with mitered corners,
retained with two hinge pins
and secure with one, quarter-
turn quick-release fastener.
Integrally designed, extruded
silicone gasket provides
weather-proof seal between
housing and frame.
Optics
Lens: Clear glass lens standard.
Electrical
High-reactance autotrans-
former, 100% factory tested
standard.
Listings
UL Listed (standard). CSA
Certied (see Options).
Suitable for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KT1 90L 120 SP04 PER LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
8-1/4
(21.0)
29-3/4
(75.6)
15-3/4
(40.0)
EPA: 2.3 ft2 (0.21m2) (includes arm)
Weight: 42 lbs (19 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Consult factory for availability in Canada.
2 Reactor ballast.
3 SP06 or RP06, must be used when two or more luminaires are oriented
on a 90° drilling pattern.
4 Photocell not included.
5 May be ordered as accessory.
AREA LIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
534
PRODUCT INFORMATION General Purpose
AREA LIGHTING
Series Lamp type Distribution Voltage Ballast Mounting11
KAC
KAD
KADT
High pressure
sodium1
70S
100S
150S
250S
400S
Metal halide
70M1, 2
100M1
150M
175M3
200M4
250M
320M4
350M4
400M5
Metal
halide
ceramic6
70MHC1, 2
100MHC1
150MHC
KAD/KADT
R2 Type II
roadway7
R3 Type III
asymmetric7
R4 Type IV, FT7
R5S Type V
symmetric
square
SR2 Type II
segmented7
SR3 Type III
segmented7
SR4SC Type IV
segmented, FT,
sharp cuto
KAC - Lens
FP Flat C73T
DPA Drop acrylic
DPP Drop
polycarbonate
120
2088
2408
277
347
4808
TB9
23050HZ10
(blank) Magnetic
ballast
CWI Constant
wattage
isolated10
SCWA Super
CWA
ballast
Ships included
SPD04 4" contoured arm for
square pole
RPD04 4" contoured arm for
round pole
WBD04 4" contoured arm for wall
SPD09 9" contoured arm for
square pole
RPD09 9" contoured arm for
round pole
WBD09 9" contoured arm for wall
Ships separately12, 13
KMA External mast arm
adaptor
DAD12P 12" contoured
degree arm for pole
DAD12WB 12" contoured
degree arm for wall
KTMB Twin mounting bar
KADWBA Decorative wall
bracket (up or
down)
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit14
QRS Quartz restrike system14
QRSTD QRS time delay14
PER NEMA twist-lock receptacle only15
PD Power tray16
WTB Terminal block16
HS House-side shield
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping
outside the U.S.
Ships separately17
PE1 NEMA twist-lock PE (120V-240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap for PER option
VG Vandal guard18
WG Wire guard18
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
Intended Use
For parking areas, street
lighting, walkways and
car lots.
Construction
Housing: Rugged, die-cast,
soft-corner aluminum hous-
ing with 0.12" nominal wall
thickness.
Doorframe: KAD die-cast
doorframe has impact-re-
sistant, tempered glass lens
that is fully gasketed with
one-piece tubular silicone.
KAC die-cast aluminum
doorframe has prismatic,
impact-resistant, tempered
glass, drop dish acrylic lens or
drop dish polycarbonate lens.
Door frame is fully gasketed
with one-piece silicone.
Finish: Dark bronze
polyester powder finish.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
KAD: anodized aluminum
hydro-formed or segmented
reectors. Four full cuto
distributions available: R2
(roadway), R3 (asymmetric),
R4 (forward throw) and
R5 (symmetric). High-
performance, segmented
reectors are rotatable and
eld-interchangable. KAC
reector is optical-quality
aluminum that works in
tandem with a light-diusing
prismatic lens.
Electrical
All ballasts are 100% factory
tested. High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for US
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the US.
Socket: Porcelain, horizon-
tally oriented medium-base
socket for 70-150W and
mogul-base socket for 175W
and above with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V. 4KV pulse rated.
Installation
Extruded aluminum arm for
square pole mounting. KADT
mounts with SPDO4 with
an additional backing plate
and receiver used to mount
suspend tension rod. KADT
mounts 11.27" lower than
specied pole height.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). KAD UL Listed
for 25°C ambient and wet
locations. IP65 Rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KAD 400M R3 TB SCWA SPD09 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Not available with SCWA.
2 Not available with 480V.
3 Universal mogul base lamp allows KAD, KADT
and KAC to be available with SCWA.
4 Must be ordered with SCWA.
5 Reduced jacket ED28 required for SR2, SR3, &
SR4SC optics.
6 Not applicable with L/LP.
7 HS Option available
8 Must specify CWI for us in Canada.
9 Optional multi-tap ballast (120V, 208V, 240V,
277V). In Canada 120V, 277V, 347V.
10 Consult factory for available wattages.
11 9" arm required when two or more luminaries
are oriented @90°. KADT only available with
SPDO4 and only available at 180° orientations.
12 May be ordered as accessory. Not available with
KADT.
13 Must specify nish.
14 Maximum allowable wattage lamp included.
15 Photocell not included.
16 Only available with SR2, SR3, & SR4SC optics.
17 May be ordered as accessory.
18 Prex with xture name and size (e.g., KADWG).
17-1/2
(44.5)
7-1/8
(18.1) 11-1/8
(28.3)
KAD/KAC (flat) KAC (drop)
EPA: 1.2 ft2 (0.11 m2) 1.4 ft2 (0.13 m2)
Max. weight: 35.9 lbs (16.3 kg) 34 lbs (15.4 kg)
Drawings are for dimensional detail only and may not represent
actual mechanical conguration. Dimensions are shown in inches
(centimeters) unless otherwise noted.
17-1/2
(44.5)
7-1/8
(18.1)
KADT
EPA: 1.2 ft2 (0.11 m2)
Max. weight: 35.9 lbs (16.3 kg)
K A D
K A C
KADT
Contour®
LITHONIA OUTDOOR
535
www.lithonia.com | 1-800-279-8041PSG10
PRODUCT INFORMATION General Purpose
AREA LIGHTING
KAD POLE
COMBO
Contour®
Intended Use
For parking areas, street
lighting, walkways and
car lots.
Construction
Housing: Rugged, die-cast,
soft-corner aluminum hous-
ing with 0.12" nominal wall
thickness.
Doorframe: KAD die-cast
doorframe has impact-re-
sistant, tempered glass lens
that is fully gasketed with
one-piece tubular silicone.
Finish: Dark bronze polyester
powder nish.
Optics
Anodized aluminum
hydroformed reectors.
IES cuto distributions: R3
(asymmetric) or R4 (forward
throw). Optional houseside
shield (HS) available.
Electrical
Ballast: All ballasts are 100%
factory tested. Super CWA
Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required; must
order SCWA option.
Socket: Porcelain, horizon-
tally oriented mogul-base
socket with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W, 600V. Lamp included.
Installation
Extruded aluminum
contoured arm for square
pole mounting.
Listings
UL Listed (standard). UL
Listed for 25°C ambient and
wet locations. IP65 Rated.
Series/Lamp type/Pole height Distribution Pole diameter Arm length Ballast Options
Series Lamp type Pole height
KC1 1 xture 250M 16C 16-foot "C" pole
KC2 2 xtures 400M 20C 20-foot "C" pole
25C 25-foot "C" pole
R3 Type III asymmetric
R4 Type IV, FT
4C (blank) 4 inches
09 9 inches1
SCWA Super CWA ballast HS House-side shield2
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KC2400M25C R3 4C SCWA
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
KC2400M25C R3 4C SCWA CONSISTS OF:
QUANTITY CI CODE DESCRIPTION
1 SSS 25 4C DM28 PL DDB SHAFT
2 KAD 400M R3 TB SCWA SPD04 LPI
1 SBC4 DDB U
1 ABSSS-4C
1 STC-4 U
MAXIMUM M.P.H. WIND LOAD WITH 1.4 GUSTS
POLE KC1 SINGLE KC2 DOUBLE
16' 4C 4" or 9" arm 100 100
20' 4C 4" or 9" arm 100 100
25' 4C 4" arm 90 90
25' 4C 9"arm 90 80
17-1/2
(44.5)
7-1/8
(18.1)
KAD
EPA: 1.2 ft2 (0.11 m2)
Max. weight: 35.9 lbs (16.3 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 9" arm available only with 400M.
2 Ships separately.
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
536
AREA LIGHTING
Contractor Select Stock
SECURITY
LIGHTING
Intended Use
Arm-mounted security light
for yards and lots, service roads
and building perimeters.
Construction
Housing: Rugged, die-cast alu-
minum head with photocell.
Optics
Formed aluminum reectors
and open bottom refractor for
ease of maintenance and lamp
replacement. Prismatic refrac-
tor provides uniform symmetri-
cal Type V distribution.
Installation
Mounting arm (24" or 18"
with TDD65) and all mount-
ing hardware is included in
carton. Photocell and lamp
are included in carton. 120V.
Listings
Listed and labeled to UL
standards for wet locations.
Listed and labeled to CSA
standards. Fixtures are
covered by Lithonia Light-
ing 12-month warranty
against mechanical defects
in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP VOLTAGE MOUNTING ARM
LENGTH LAMP INCLUDED APPROXIMATE
WEIGHT (LBS)
STANDARD CARTON
QUANTITY
TDD 100ML 120 M2 12" security light 100 MH 120 24" Y 12 2
TDD 100SL 120 M2 12" security light 100 HPS 120 24" Y 12 2
TDD 150SL 120 M2 12" security light 150 HPS 120 24" Y 12 2
TDD 65L 120 M2 10" security light 65 Fluorescent 120 18" Y 4 2
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
12
(30.5)
17
(43.2)
TDD HID
10-3/4
(27.3)
16
(40.6)
TDD Fluorescent
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
537
www.lithonia.com | 1-800-279-8041PSG10
BOLLARDS
Architectural
Series Lamp type Distribution Voltage Ballast
ASBX
ASBY
ASBZ
High pressure sodium
50S
70S
100S
150S
Metal halide1
70M
100M
Incandescent
I2
Standard ared cone
R5 Type V distribution
Optional cylindrical reector
CYA Specular alzak
CYB Black alzak
CYG Gold alzak
CYF Flat black
120
2083
2403
277
347
TB4
(blank) Magnetic ballast
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
H24 24" overall height
H30 30" overall height
H36 36" overall height
FD Festoon outlet
FG Festoon outlet with duplex ground fault
receptacle5
CSA Meets Canadian standards
Ships separately6
S8S Half-shield (8" square)
KBAB Anchor bolts
(blank) Textured dark bronze (std.)
DBL Black
DNA Natural aluminum
CR Enhanced corrosion resistance
DSST Textured sandstone
DNAT Textured natural aluminum
DWHG Textured white
DBLB Textured black
LPI Lamp included
L/LP Less lamp
ASB
Aeris™
Intended Use
For walkways, plazas or
pedestrian areas.
Construction
Housing: Bottom housing is
0.188" extruded aluminum.
Decorative Aeris™ top cover is
sand-cast with 0.188"mini-
mum wall thickness. 42"
overall height standard.
Flush-tting lens is 1/4",
clear, 100% virgin acrylic.
Exposed hardware is tamper-
resistant stainless steel.
Four 1/4" x 11" anchor bolts
with double nuts/washers
and 4-1/2" diameter bolt
circle template provided for
mounting (shipped sepa-
rately). Dark bronze textured
(DDBT) corrosion-resistant
polyester powder nish stan-
dard. Additional architectural
colors available, see
www.lithonia.com/archcolors.
Optics
Reector system incorporates
an anodized, spun aluminum
ared cone and an anodized,
hydroformed, uted upper
reector providing a Type V
(symmetric) cuto distribu-
tion. Optional cylindrical
lower reector available.
Electrical
Electrical components are
unitized on removable
power module and accessible
through bottom of bollard.
Positive-locking, quick-
disconnect on secondary
circuit. Ballast: All ballasts
are 100% factory tested. High
reactance, high power factor.
Socket: Porcelain, medium-
base socket, 4KV pulse rated.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: ASBX 70M R5 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
42*
(106.7)
8
(20.3) 8
(20.3)
8
(20.3)
42*
(106.7)
42*
(106.7)
Max. weight: 43.2 lbs (19.6 kg)
* Also available in 24” (H24), 30” (H30) and 36” (H36).
ASBX ASBY ASBZ
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Requires coated lamp.
2 120V only. 150W max.; lamp not provided.
3 Consult factory for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
5 Cover ships separately.
6 May be ordered as accessory.
Standard
flared cone
Optional
cylindrical reflector
ASBX ASBY ASBZ
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
538
Architectural
BOLLARDS
Series Lamp type Distribution Voltage Ballast
MRBX High pressure sodium
35S1
50S
70S
100S
Metal halide2
50M
70M
100M
Incandescent3
I
Compact uorescent
13DTT
26TRT
32TRT
SYM Type V symmetric distribution
ASY Asymmetric distribution
120
2084
2404
277
3475
TB6
MVOLT7
(blank) Magnetic ballast
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
GLR Internal fast-blow fusing
GMF Internal slow-blow fusing
H24 24" overall height
H30 30" overall height
H36 36" overall height
ELDWC Cold weather emergency battery pack (-20° C start
temp)8
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
Ships separately9
HS Internal half shield10
MRAB Anchor bolts
(blank) Textured dark bronze (std.)
DDBT Textured dark bronze
DSST Textured sandstone
DNAT Textured natural aluminum
DWHG Textured white
DBLB Textured black
LPI Lamp included
L/LP Less lamp
Intended Use
For walkways, plazas or
pedestrian areas.
Construction
Extruded one-piece alumi-
num, 0.156" wall thickness.
Molded top cover, 0.156" wall
thickness. 42" overall height
standard. 8" nominal diam-
eter tube standard. Three 1/2"
x 11" anchor bolts with double
nuts and washers (shipped
separately). 3-3/4" bolt circle
template included.
Standard nish is textured
dark bronze (DDBT) polyester
powder, electrostatically
applied and oven-cured.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Two reector options are
available: Type V symmetric
and asymmetric distribution.
Asymmetric reector is
adjustable independent of
bollard orientation and can
be adjusted without remov-
ing top cover. Lens is clear,
seamless 100% virgin acrylic,
1/4" wall, ush tting.
Coated lamp is standard.
Electrical
Electrical components are
unitized on removable
power module and acces-
sible through top of bollard.
Positive-locking, quick-
disconnect on secondary
circuit. Ballast: All ballasts
are 100% factory tested.
High reactance, high power
factor for 100W and below.
MH: 100W and below are
standard with pulse-start
ignitor technology. Compact
uorescent electronic high-
frequency multi-volt ballast,
starting temperature 0° F
(-18° C), <10% THD.
Socket: Vertically oriented,
medium-base, pulse-rated
porcelain socket with copper
alloy, nickel-plated shell and
center contact. Compact
uorescent has four-pin,
white thermoplastic body
with quick-connect push-in
wiring terminals. LPI is
standard 35K for CFL.
Listings
Listed and labeled to UL
standards for wet locations.
Listed and labeled to CSA
standards for wet locations
(see Options.) NOM Certied
(see Options).
U.S. Patent No. D550,881.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: MRBX 70M ASY 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
8
(20.3)
42*
(106.7)
Max. weight: 45 lbs (20.4 kg)
* Also available in 24” (H24), 30” (H30) and 36” (H36)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 120V only.
2 Requires coated lamp.
3 120V only. 100W max. A19 lamps only.
4 Consult factory for use in Canada.
5 347V not available in 50S.
6 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
7 Optional multi-volt electronic ballast (compact
uorescent only) capable of operating any line
voltage from 120-277V.
8 Must specify voltage. 120V or 277V only.
9 May be ordered as an accessory.
10 Ships as: MRBX HS U
MRBX
Omero™
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
539
www.lithonia.com | 1-800-279-8041PSG10
BOLLARDS
Specication
Notes
1 Specify lamp type and distribution. See Congurations table.
2 120V only.
3 Requires coated lamp.
4 KB-6: 116W/TS, lamp not included.
5 KB-8: 150W max., lamp not included.
6 Louver must be used. Multi-volt electronic ballast (for compact
uorescent lamps only) capable of operating on any line voltage
from 120V-277V.
7 Consult factory for use in Canada.
8 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
9 Cover ships separately.
10 Choose primary xture nish and stripe color if desired.
Series Lamp type1Distribution1Voltage Ballast Options
KBA6
KBA8
KBD6
KBD8
High pressure
sodium
35S2
50S
70S
100S
150S
Metal halide3
50M
70M
100M
Incandescent2, 4, 5
I
Compact
uorescent6
26TRT
32TRT
Standard ared cone
R5 Type V distribution
Optional cylindrical reector
CYA Specular alzak
CYB Black alzak
CYG Gold alzak
Louvers (8" only)
LV Louvers
120
2087
2407
277
347
TB8
MVOLT6
(blank) Magnetic ballast Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
H24 24" overall height
H30 30" overall height
H36 36" overall height
FD Festoon outlet
FG Festoon outlet with duplex
ground fault receptacle9
CSA Meets Canadian
standards
Ships separately
R6S Half-shield (6" round)
R8S Half-shield (8" round)
KBAB Anchor bolts
Finish10 Lamped
(blank) Dark bronze (std.)
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
DGC Charcoal gray
DTG Tennis green
DBR Bright red
DSB Steel blue
CR Enhanced corrosion resistance
SDDB Dark bronze stripe
SDWH White stripe
SDBL Black stripe
SDNA Natural aluminum stripe
SDTG Tennis green stripe
SDBR Bright red stripe
SDBUA Dark blue stripe
SDYLB Yellow stripe
LPI Lamp included
L/LP Less lamp
K B A
KBD
Intended Use
For walkways, plazas or
pedestrian areas.
Construction
Housing: KB_6: Bottom
housing is 0.125" extruded
aluminum. Top cover is
0.156" cast aluminum. KB_8:
Bottom housing is 0.156"
extruded aluminum. 42"
overall height standard on
KBD and KBA6. 43" overall
height standard on KBA8.
Flush-tting lens is 1/4 ",
clear, 100% virgin acrylic. All
exposed hardware is tamper-
resistant stainless steel. Four
1/2" x 11" anchor bolts with
double nuts/washers and 4-
1/2" diameter bolt circle tem-
plate provided for mounting
(shipped separately).
Finish: Dark bronze (DDB)
corrosion-resistant polyester
powder finish standard.
Additional architectural
colors available, see
www.lithonia.com/archcolors.
Optics
Reector system incorporates
an anodized, spun aluminum,
ared cone and an anodized,
hydroformed, uted upper
reector providing a Type V
(symmetric) cuto distribu-
tion. Optional cylindrical
lower reector or cast alumi-
num louvers available.
Electrical
Electrical components are
unitized on removable
power module and accessible
through bottom of bollard.
Positive-locking, quick-
disconnect on secondary
circuit. Ballast: All ballasts
are 100% factory tested. High
reactance, high power factor
for 150W and below. Compact
uorescent uses an electronic
high-frequency ballast.
Socket: Medium-base porce-
lain socket, 4KV pulse rated.
Compact uorescent has
four-pin, white thermoplastic
body with quick-connect
push-in wiring terminals. LPI
is standard 35K for CFL.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KBA8 70M R5 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KBA6, KBD6 35S, 50S, 50M, 70S, 70M, I R5, CYA, CYB, CYG, CYF
KBA8, KBD8 50S, 70S, 70M, 100S, 100M, 150S, I R5, CYA, CYB, CYG, CYF, LV
KBA8, KBD8 26TRT, 32TRT LV
42*
(106.7) 42*
(106.7)
KBD6 KBD8-LV
KBA6 KBA8-LV
* Also available in 24" (H24), 30" (H30) and 36" (H36).
6
(15.2)
8
(20.3) 6
(15.2)
8
(20.3)
Max. weight: 34.9 lbs (15.9 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Standard
flared cone
Optional
cylindrical reflector
Louver
KBD KBA
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
540
Specication
BOLLARDS
Series Lamp type1Distribution1Voltage Ballast Options
KBC6
KBC8
KBR6
KBR8
High pressure
sodium
35S2
50S
70S
100S
150S
Metal halide3
50M
70M
100M
Incandescent
I2, 4, 5
Compact
uorescent6
26TRT
32TRT
Standard ared cone
R5 Type V distribution
Optional cylindrical reector
CYA Specular alzak
CYB Black alzak
CYG Gold alzak
CYF Flat black
Louvers (8" only)
LV Louvers
120
2087
2407
277
347
TB8
MVOLT6
(blank) Magnetic
ballast Installed
DF Double fuse, 208V, 240V
H24 24" overall height
H30 30" overall height
H36 36" overall height
FD Festoon outlet9
FG Festoon outlet with duplex
ground fault receptacle9
CSA Meets Canadian Standards
Options (continued) Finish10 Lamped
Shipped separately
R6S Half-shield (6" round)
R8S Half-shield (8" round)
(blank) Dark bronze (std.)
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
DGC Charcoal gray
DTG Tennis green
DBR Bright red
DSB Steel blue
CR Enhanced corrosion resistance
SDDB Dark bronze stripe
SDWH White stripe
SDBL Black stripe
SDNA Natural aluminum stripe
SDTG Tennis green stripe
SDBR Bright red stripe
SDBUA Dark blue stripe
SDYLB Yellow stripe
LPI Lamp included
L/LP Less lamp
Intended Use
For walkways, plazas or
pedestrian areas.
Construction
Housing: KB_6: Bottom
housing is 0.125" extruded
aluminum. Top cover is
0.156" cast aluminum. KB_8:
Bottom housing is 0.156" ex-
truded aluminum. 42" overall
height standard. Flush-tting
lens is 1/2", clear, 100%
virgin acrylic. All exposed
hardware is tamper-resistant
stainless steel. Four 1/2" x
11" anchor bolts with double
nuts/washers and 4-1/2"
diameter bolt circle template
provided for mounting
(shipped separately).
Finish: Standard nish is dark
bronze polyester powder n-
ish. Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Reector system incorporates
an anodized, spun aluminum,
ared cone and an anodized,
hydroformed, uted upper
reector providing a Type V
(symmetric) cuto distribu-
tion. Optional cylindrical lower
reector or cast-aluminum
louvers are available.
Electrical
All ballasts are 100% factory
tested. Electrical components
unitized on removable
power module and accessible
through bottom of bollard.
Positive-locking, quick-dis-
connect on secondary circuit.
Compact uorescent uses an
electronic high-frequency
multi-volt ballast.
Socket: Medium-base porce-
lain socket, 4KV pulse rated.
Compact uorescent has
four-pin, white thermoplastic
body with quick-connect
push-in wiring terminals. LPI
is standard 35K for CFL.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KBR8 100M R5 120 CR LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KBC6, KBR6 35S, 50S, 50M, 70S, 70M, I R5, CYA, CYB, CYG, CYF
KBC8, KBR8 50S, 70S, 70M, 100S, 100M, 150S, I R5, CYA, CYB, CYG, CYF, LV
KBC8, KBR8 26TRT, 32TRT LV
Notes
1 Specify lamp type and distribution. See Congurations table.
2 120V only.
3 Use coated lamp.
4 KB-6: 116W/TS, lamp not included.
5 KB-8: 150W max., lamp not included.
6 Louver must be used. Multi-volt electronic ballast (for
compact uorescent lamps only) capable of operating on
any line voltage from 120V-277V.
7 Consult factory for use in Canada.
8 Optional multi-tap ballast (120V, 208V, 240V, 277V). In
Canada 120V, 277V, 347V; ships as 120V/347V.
9 Cover ships separately.
10 Choose primary xture nish and stripe color if desired.
KBR6 KBR8-LV
KBC6 KBC8-LV
42*
(106.7) 42*
(106.7)
* Also available in 24" (H24), 30" (H30) and 36" (H36).
6
(15.2)
8
(20.3) 6
(15.2)
8
(20.3)
Max. weight: 34.9 lbs (15.9 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Standard
flared cone
Optional
cylindrical reflector
Louver
KBC KBR
KBC
KBR
PRODUCT INFORMATION
LITHONIA OUTDOOR
541
www.lithonia.com | 1-800-279-8041PSG10
BOLLARDS
Specication
Series Lamp type1Distribution1Voltage Ballast Options
KBS6
KBS8
KBE6
KBE8
High pressure
sodium
35S2
50S
70S
100S
150S
Metal halide3
50M
70M
100M
Incandescent
I2, 4, 5
Standard ared cone
R5 Type V distribution
Optional cylindrical reector
CYA Specular alzak
CYB Black alzak
CYG Gold alzak
CYF Flat black
120
2086
2406
277
347
TB7
(blank) Magnetic
ballast Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
H24 24" overall height
H30 30" overall height
H36 36" overall height
FD Festoon outlet
FG Festoon outlet with duplex ground
fault receptacle8
CSA Meets Canadian standards
Ships separately
S6S Half-shield (6" square)
S8S Half-shield (8" square)
KBAB Anchor bolts
Finish9Lamped
(blank) Dark bronze (std.)
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
DGC Charcoal gray
DTG Tennis green
DBR Bright red
DSB Steel blue
CR Enhanced corrosion resistance
SDDB Dark bronze stripe
SDWH White stripe
SDBL Black stripe
SDNA Natural aluminum stripe
SDTG Tennis green stripe
SDBR Bright red stripe
SDBUA Dark blue stripe
SDYLB Yellow stripe
LPI Lamp included
L/LP Less lamp
K B S
KBE
Intended Use
For walkways, plazas or
pedestrian areas.
Construction
Housing: Bottom housing is
0.188" extruded aluminum.
Top cover is a weldment of
0.188" aluminum extrusion
and 0.250" aluminum plate.
42" overall height standard.
Flush-tting lens is 1/4",
clear, 100% virgin acrylic.
Exposed hardware is tamper-
resistant stainless steel. Four
1/2" x 11" anchor bolts with
double nuts/washers and 4-
1/2" diameter bolt circle tem-
plate provided for mounting
(shipped separately).
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Reector system incorporates
an anodized, spun aluminum
ared cone and an anodized,
hydroformed, uted upper
reector providing a Type
V (symmetric) distribution.
Optional cylindrical lower
reector available.
Electrical
Ballasts are 100% factory
tested. Electrical components
are unitized on removable
power module and accessible
through bottom of bollard.
Positive-locking, quick-
disconnect on secondary cir-
cuit. Medium-base porcelain
socket, 4KV pulse rated.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KBS6 70M R5 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KBE6, KBS6 35S, 50S, 50M, 70S, 70M, I R5, CYA, CYB, CYG, CYF
KBE8, KBS8 50S, 70S, 70M, 100S, 100M, 150S, I R5, CYA, CYB, CYG, CYF
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 120V only.
3 Requires coated lamp.
4 KB-6: 116W/TS, lamp not included.
5 KB-8: 150W max., lamp not included.
6 Consult factory for use in Canada.
7 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
8 Cover ships separately.
9 Choose primary xture nish and stripe color if desired.
KBE6 KBE8
KBS6 KBS8
* Also available in 24" (H24), 30" (H30) and 36" (H36).
Max. weight: 43.2 lbs (19.6 kg)
42*
(106.7) 42*
(106.7)
6
(15.2)
8
(20.3)
6
(15.2)
8
(20.3)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
KBS KBE
Standard
flared cone
Optional
cylindrical reflector
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
542
Architectural
WALL MOUNTED
Series Lamp type1Distribution1Voltage Ballast Mounting Options
ASW1
ASW2
High
pressure
sodium2
70S
100S
150S
200S
250S
400S
Metal halide
70M2, 3
100M2
150M
175M4
200M5
250M
320M5
350M5
400M
Metal halide
ceramic6
70MHC2, 3
100MHC2
150MHC
Compact
Fluorescent2
2/26DTT7
32TRT
2/32TRT7
42TRT
2/42TRT7
57TRT
70TRT
Induction2
70IL
SR2 Segmented type II, roadway8
SR3 Segmented type III,
asymmetric8
SR4SC Segmented type IV, FT, sharp
cuto
SR4W Segmented type IV wide, FT
(ASW2 only)8
GZ Wall grazing9, 10
SP Spot10, 11, 12
120
20813
24013
277
347
48013
TB14
MVOLT15
23050HZ16
(blank) Magnetic
ballast
CWI Constant
wattage
isolated16
SCWA Super
CWA
ballast
Ships installed
(blank) Mounting
plate (std.)
Ships separately17, 18, 19
BBW Surface-
mounted
back box
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
ELDW Bodine emergency battery pack20
ELDWR Fixture wired ready for Bodine
B30 battery pack21
ELDWRPS Fixture wired ready for PS1400
or PSDL battery pack21, 22
EC Emergency circuit11, 23
Options (continued) Finish Lamped
QRS Quartz restrike system11, 23
QRSTD QRS time delay (ASW2 only)11, 23
DC12 Emergency circuit 12V; 35W lamp included9, 11
2DC12 Emergency circuit 12V; two 35W lamps included9, 11
DC2012 Emergency circuit 12V; 20W lamp included9, 11
2DC2012 Emergency circuit 12V; two 20W lamps included9, 11
PE Photoelectric cell - button type24
HS House-side shield25
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately17, 19
VG Vandal guard
WG Wire guard
(blank) Dark bronze, textured (std.)
DSST Sandstone-textured
DNAT Natural aluminum-textured
DWHG White-textured
DBLB Black-textured
DDB Dark bronze
DNA Natural aluminum
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
ASW
Aeris™
Intended Use
For building- and wall-
mounted applications.
Construction
Housing: Rugged, die-cast,
single-piece aluminum hous-
ing. Die-cast door frame has
impact-resistant, tempered
glass lens. Door frame is
fully sealed with a closed
cell silicone gasket. Standard
nish is textured dark bronze
(DDBT) polyester powder.
Additional architectural
colors are available; see
www.lithonia.com/archcolors.
Optics
High-performance,
segmented reectors provide
superior uniformity and
control. Specialty anodized
aluminum spot and grazer
optics also are available. Re-
ectors are interchangeable
and have eld degree aiming
capability up to 10° without
tools. Reectors allow for
tool-less access to electrical
components. All optics meet
IES full cuto criteria in lens-
down orientation.
Electrical
Ballast: All ballasts are
100% factory tested.
HPS: High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Compact uorescent uses an
electronic high-frequency
ballast.
High-frequency generator for
induction.
Socket: Porcelain, medium-
base socket for ASW1,
mogul-base socket for
ASW2, with copper alloy,
nickel-plated screw shell and
center contact. Fluorescent
is four-pin positive latching
thermoplastic. UL Listed.
Compact uorescent uses an
electronic high-frequency
ballast. LPI is standard 35K
for CFL.
Installation
Universal mounting plate
with integral mounting bolts
supports the xture for easy
one-person installation. Can
mount facing up.
Listings
UL Listed to U.S. and Cana-
dian safety standards. CSA
Certied or NOM Certied
(see Options). UL Listed suit-
able for wet locations in up or
down orientation. IP65 rated.
U.S. Patent No. D500,569.
Other patents pending.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: ASW1 100M SR3 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
H
DW
ASW1 ASW2
Width: 15 (38.1) 20-1/4 (51.4)
Depth: 13-3/4 (34.9) 18-3/4 (47.6)
Height: 9-1/4 (25.5) 12-1/2 (31.8)
Weight: 35 lbs (15.9 kg) 49 lbs (22.2 kg)
Notes
1 Specify lamp type and distribution.
See Congurations table.
2 Not available with SCWA.
3 Not available with 480V.
4 Not available ASW1 SCWA.
5 Must be ordered with SCWA.
6 Not applicable with L/LP.
7 Available with SR3 only.
8 HS Option available.
9 DC options and GZ cannot be ordered
together (ASW1 only).
10 Not available with compact uorescent.
11 EC, QRS, QRSTD, DC options or SP
cannot be ordered together.
12 Not available with HPS.
13 Must specify CWI for use in Canada
14 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V,
347V; ship as 120/347V.
15 Optional multi-volt electronic ballast
(compact uorescent only) capable of
operating on any line voltage between
120V and 277V.
16 Consult factory for available wattages.
17 May be ordered as accessory.
18 Must specify nish.
19 Prex with xture name and size (e.g.,
ASW2VG) when ordered as accessory.
20 Available for compact uorescent
units only; not available with 2/32TRT,
2/42TRT, 57TRT or 70TRT.
21 Battery pack (not included) to be
mounted external to luminaire.
Pilot light/test switch mounting
plate included. 32°F min. operating
temperature.
22 Not available with 2/42TRT.
23 Maximum allowable wattage lamp
included.
24 Must be ordered with xture; cannot
be eld installed. Not available 347V,
480V, or TB.
25 Only available with SR2 & SR3; SR4W
(size 2 only).
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
ASW1 70S, 100S, 150S SR2, SR3, SR4SC, GZ
ASW1 26TRT, 2/32TRT, 2/42TRT SR3
ASW1 32TRT, 42TRT, 57TRT, 70TRT SR2, SR3, SR4SC
ASW1 70M, 70MHC, 100M, 100MHC,
150M, 150MHC, 175M SR2, SR3, SR4SC, GZ, SP
ASW2 175M, 200M, 250M, 320M,
350M, 400M SR2, SR3, SR4SC,
SR4W, SP
ASW2 200S, 250S, 400S SR2, SR3, SR4SC, SR4W
LAMP/FIXTURE DATA
LAMP TYPE CIRCUIT TYPE LAMP SHAPE BASE
70S, 100S, 150S HX-HPF E17 Medium
250S, 400S CWA ET18 Mogul
70M, 100M,
150M, 70MHC,
100MHC, 150MHC HX-HPF E17 Medium
175M, 175MHC CWA E17 Medium
250M, 250MHC CWA BT28 Mogul
400M, 400MHC CWA ED28 Mogul
26DTT Electronic, HPF T4 G24Q-3
32TRT Electronic, HPF T4 GX24Q-3
42TRT Electronic, HPF T4 GX24Q-4
57TRT Electronic, HPF T4 GX24Q-5
70DTT Electronic, HPF T4 GX24Q-6
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
543
www.lithonia.com | 1-800-279-8041PSG10
Architectural
WALL MOUNTED
Series Lamp type Distribution Voltage Ballast Mounting Options
MRW High pressure
sodium1
35S2
50S
70S
100S
150S
Metal
halide
50M1, 3
70M1, 3
100M1
150M
175M4
Metal halide
ceramic5
50MHC1, 3
70MHC1, 3
100MHC1
150MHC
Compact
uorescent1
26DTT
2/26DTT
26TRT
2/26TRT
32TRT
2/32TRT
42TRT
2/42TRT
FT Forward
Throw
MD Medium
throw
WT Wide
throw
120
2086
2406
277
347
4806
TB7
MVOLT8
23050HZ9
(blank) Magnetic
ballast
CWI Constant
wattage
isolated9
SCWA Super CWA
ballast10
Ships installed
(blank) Mounting plate
(std.)
Ships separately11, 12
BBW Surface-
mounted back
box13
UT5 Uptilt 5 degrees
bracket14
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
ELDW Bodine emergency battery pack15, 16, 17
ELDWR Fixture wired ready for Bodine B30 battery
pack15, 16, 18
ELDWRPS Fixture wired ready for PS1400 or PSDL
battery pack15, 16, 18, 19
EC Emergency circuit16, 20
QRS Quartz restrike system16, 20
Options (continued) Finish Lamped
ELED LED emergency single16, 21, 22
2ELED LED emergency double16, 21, 22
DC12 Emergency circuit 12V; 35W lamp included16, 23
2DC12 Emergency circuit 12V; two 35W lamps included16, 23
DC2012 Emergency circuit 12V; 20W lamp included16, 23
2DC2012 Emergency circuit 12V; two 20W lamps included16, 23
PE Photoelectric cell - button type24
DFL Di using lens
IBS Internal backlight shield25
WLU Wet location door for up orientation
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL International shipment for 175M.
Ships separately11, 26
VG Vandal guard
WG Wire guard
(blank) Dark bronze, textured (std.)
DSST Sandstone-textured
DNAT Natural aluminum-textured
DWHG White-textured
DBLB Black-textured
DDB Dark bronze
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included27
L/LP Less lamp
MRW
Omero™
Intended Use
For building- and wall-
mounted applications.
Construction
Rugged, die-cast, single-
piece aluminum housing.
Die-cast doorframe has a
1/8" thick tempered glass
lens. Doorframe is fully
gasketed with one-piece
solid silicone.
Standard  nish is textured
dark bronze (DDBT)
corrosion-resistant polyester
powder  nish. Additional
architectural colors are
available; see
www.lithonia.com/archcolors.
Striping is also available.
Optics
Segmented re ectors
provide superior uniformity
and control. Re ectors are
interchangeable. Three full
cuto distributions available:
FT (forward throw), MD
(medium throw) and WT
(wide throw).
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W. MH: 150W and below
are standard with pulse-start
ignitor technology. CSA, NOM
or INTL required for probe
start shipments outside the
U.S. for 175M. Not available
with 175M SCWA. Compact
uorescent uses an electronic
high-frequency ballast.
Socket: Porcelain, medium-
base socket for MRW with
copper alloy, nickel-plated
screw shell and center con-
tact. Fluorescent is four-pin
positive latching thermo-
plastic. UL Listed. Compact
uorescent uses an electronic
high-frequency ballast. LPI is
standard 35K for CFL.
Installation
Universal mounting mecha-
nism with integral mounting
support allows  xture to
hinge down. Bubble level
provides correct alignment
with every installation.
Listings
UL Listed to U.S. and Canadian
safety standards. NOM Certi-
ed (see Options). UL listed
suitable for wet locations
(damp location listed in lens
up orientation). WLU option
o ers wet location listing in
up orientation (see Options).
IP65 rated. 25°C ambient.
U.S. patent No. D565.232.
ORDERING INFORMATION For shortest lead times, con gure products using bolded options. Example: MRW 100M FT TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
18
(45.7)
9
(22.8)
7-1/4
(18.2)
Weight: 35 lbs (15.9 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 120V, NPF only.
3 Not available with 480V.
4 Not available with SCWA. Requires CSA, NOM, or INTL.
5 Not applicable with L/LP.
6 Must specify CWI for use in Canada.
7 Optional multi-tap ballast (120, 208, 240, 277V); (120, 277, 347V in
Canada; ships as 120V/347V).
8 Optional multi-volt electronic ballast (compact  uorescent only)
capable of operating any line voltage from 120V-277V.
9 Consult factory for available wattages.
10 Only available with 150M or 150MHC.
11 May be ordered as an accessory.
12 Must specify  nish.
13 Order WSBBW when needed as an accessory.
14 Order WSUT5 when needed as an accessory.
15 Available for compact  uorescent units only. Must specify voltage.
16 Only one emergency option available per  xture.
17 Not available with 2/32TRT or 2/42TRT.
18 Battery pack (not included) to be mounted external to luminaire.
Pilot light/test switch mounting plate included. 32°F min. operating
temperature.
19 Not available with 2/42TRT.
20 Maximum allowable wattage lamp included.
21 Available in 120V or 277V only.
22 Maximum wattage 100M or 70S.
23 Not available with fusing.
24 Must be ordered with  xture; cannot be  eld installed. Not available
347V, 480V, or TB.
25 Not available with medium throw.
26 Pre x with  xture name and size (e.g., MRWVG)
27 For medium throw distribution, lamp is coated.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
544
Series Lamp type Distribution Voltage Ballast Mounting
WSQ Quarter
sphere
WSR Half round
WST Trapezoid
High pressure sodium1
35S2
50S
70S
100S
150S
Metal halide
50M1, 3
70M1, 3
100M1
150M
175M4
Metal halide
ceramic5
50MHC1, 3
70MHC1, 3
100MHC1
150MHC
Compact
uorescent1, 6
26DTT
2/26DTT
32TRT
2/32TRT
42TRT
2/42TRT
Downlight distribution
FT Forward throw
MD Medium throw
WT Wide throw
Up/Down distribution7, 8
FTU Forward throw with 10% uplight
MDU Medium throw with 10% uplight
MDU5 50% Up/down medium throw
WTU Wide throw with 10% uplight9
120
20810
24010
277
347
48010
TB11
MVOLT12
23050HZ13
(blank) Magnetic ballast
CWI Constant wattage
isolated13
SCWA Super CWA ballast
Ships installed
(blank) Mounting plate (std.)
Ships separately14, 15
BBW Surface-mounted back
box16
UT5 Uptilt 5 degrees bracket17
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing18
ELDW Bodine emergency battery pack18, 19, 20, 21
ELDWR Fixture wired ready for Bodine B30
battery pack18, 19, 20, 22
ELDWRPS Fixture wired ready for PS1400 or PSDL
battery pack18, 19, 20, 22, 23
EC Emergency circuit20, 24
QRS Quartz restrike system20, 24
ELED LED emergency single20, 25
2ELED LED emergency double20, 25
DC12 Emergency circuit 12V; 35W lamp
included20, 26
2DC12 Emergency circuit 12V; two 35W
lamps included20, 26
DC2012 Emergency circuit 12V; 20W lamp
included20, 26
2DC2012 Emergency circuit 12V; two 20W
lamps included20, 26
PE Photoelectric cell - button type19, 27
DFL Di using lens
IBS Internal backlight shield28
UCS Uplight component shield29
WLU Wet location door for up orientation
CSA Meets Canadian standards
NOM Meets Mexican standards (consult
factory)
INTL International shipment for 175M
Ships separately14, 30
VG Vandal guard
WG Wire guard
(blank) Dark bronze, textured (std.)
DNAT Natural aluminum-textured
DWHG White-textured
DBLB Black-textured
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
LPI Lamp
included31
L/LP Less lamp
WALL MOUNTED
Architectural
WST
WSR
WSQ
Intended Use
For building- and wall-
mounted applications.
Construction
Housing: Rugged, die-cast,
single-piece housing. Die-cast
doorframe has 1/8" thick tem-
pered glass lens. Doorframe is
fully gasketed with one-piece
solid silicone. Standard  nish
is textured dark bronze (DDBT)
corrosion-resistant polyester
powder. Additional architec-
tural colors are available; see
www.lithonia.com/archcolors.
Striping is also available.
Optics
Interchangeable, segmented
re ectors for superior unifor-
mity and control. Three full
cuto distributions available:
FT (forward throw), MD (me-
dium throw) and WT (wide
throw). Four uplight distribu-
tions available in WSR only:
FTU (forward throw, 10% up),
MDU (medium throw, 10%
up), WTU (wide throw, 10%
up) and MDU5 (up/down,
medium throw, 50% up, 50%
down). Compact  uorescent
MD (medium throw) only.
Electrical
Ballast: All ballasts are 100%
factory tested. Reactor
high power factor for 35S.
High reactance, high power
factor for 50-150W. Constant
wattage autotransformer for
175W. MH: 150W and below
are standard with pulse-start
ignitor technology. CSA, NOM
or INTL required for probe
start shipments outside the
U.S. for 175M. Not available
175M SCWA. Compact
uorescent uses an electronic
high-frequency ballast.
Socket: HID is porcelain,
medium-base copper alloy,
nickel-plated screw shell and
center contact. (UL Listed
660W, 600V 4KV pulse rated).
Fluorescent is four-pin posi-
tive latching thermoplastic.
LPI is standard 35K for CFL.
Installation
Universal mounting mecha-
nism with integral mounting
support allows  xture to
hinge down. Bubble level
provides correct alignment
with each installation.
Listings
UL Listed suitable for wet
locations (damp location
listed in lens-up orientation).
CSA Certi ed (see Options).
IP65 rated.
ORDERING INFORMATION For shortest lead times, con gure products using bolded options. Example: WST 100M FT 120 PE LPI
WST
16-1/4
(41.2)
7-1/4
(18.4)
9-1/8
(23.2)
Drawings are for dimensional detail only and may not represent
actual mechanical con guration. Dimensions are shown in inches
(centimeters) unless otherwise noted.
18
(45.7)
7-1/4
(18.4)
9
(22.8)
WSR
Max. weight: 30 lbs (13.6 kg)
18
(45.7)
9-3/8
(23.8)
9
(22.8)
WSQ
Notes
1 Not available with SCWA.
2 120V only.
3 Not available with 480V.
4 Not available with SCWA. Requires CSA, NOM, or INTL.
5 Not applicable with L/LP.
6 Only available with MD, MDU and MDU5 distributions.
7 Available on WSR  xture only.
8 Must be ordered with  xture; no  eld modi cations.
9 Colored uplight lens available. See www.lithonia.com. Only available with
WTU distribution.
10 Must specify CWI for use in Canada.
11 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V, 277V,
347V; ships as 120V/347V.
12 Optional multi-volt electronic ballast (compact  uorescent only) capable of
operating on any line voltage from 120V-277V.
13 Consult factory for available wattages.
14 May be ordered as an accessory.
15 Must specify  nish.
16 Order as WSBBW for accessory.
17 Order as WSUT5 for accessory.
18 Available for compact  uorescent units only.
19 Must specify voltage.
20 Only one emergency option available per  xture.
21 Not available with 2/32TRT or 2/42TRT.
22 Battery pack (not included) to be mounted external to luminaire. Pilot light/
test switch mounting plate included. 32°F min. operating temperature.
23 Not available 2/42TRT.
24 Maximum allowable wattage lamp included.
25 Available 120V or 277V only. Maximum wattage 100M or 70S.
26 Not available with fusing.
27 Not available 347V, 480V, or TB.
28 Not available with medium throw.
29 For WSR, inverted orientation, with FTU and WTU distributions only.
30 Pre x with  xture name (e.g., WSRVG) for accessory. WSQ ships same as WSR.
31 For medium throw distribution, lamp is coated.
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
WST
WSR
WSQ
PRODUCT INFORMATION
LITHONIA OUTDOOR
545
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
Architectural
Series Lamp type Distribution Voltage Ballast Mounting Options
WSTM High pressure
sodium
35S1
50S
70S
Metal halide
50M
70M
Metal halide
ceramic2
50MHC
70MHC
Compact
uorescent
26DTT
26TRT
32TRT
42TRT
MD Medium throw 120
2083
2403
277
347
TB4
MVOLT5
23050HZ6
(blank) Magnetic ballast
CWI Constant wattage
isolated6
Ships installed
(blank) Mounting plate
(std.)
Ships separately
UT5 Uptilt 5 degrees
bracket7
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
GMF Internal slow-blow fusing8
EC Emergency circuit9
QRS Quartz restrike system9
DC12 Emergency circuit 12V; 35W
lamp included10, 11
DC2012 Emergency circuit 12V; 20W
lamp included10, 11
Options (continued) Finish Lamped
PE Photoelectric cell - button type12, 13
DFL Di using lens
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
Ships separately
WG Wire guard12
Fixture
(blank) Dark bronze, textured
(std.)
DSST Sandstone-textured
DNAT Natural aluminum-
textured
DWHG White-textured
DBLB Black-textured
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
Optional stripe
SDDB Dark bronze stripe
SDWH White stripe
SDBL Black stripe
SDNA Natural aluminum stripe
SDSS Sandstone stripe
SDTG Tennis green stripe
SDBR Bright red stripe
SDBUA Dark blue stripe
SDYLB Yellow stripe
LPI Lamp included14
L/LP Less lamp
WSTM
Intended Use
For building- and wall-
mounted applications.
Construction
Rugged, die-cast, single-
piece aluminum housing.
Die-cast doorframe has a
1/8" thick tempered glass
lens. Doorframe is fully
gasketed with one-piece
solid silicone.
Standard  nish is textured
dark bronze (DDBT)
corrosion-resistant polyester
powder  nish. Additional
architectural colors are
available; see
www.lithonia.com/archcolors.
Striping is also available.
Optics
Hydroformed re ector for
superior uniformity and
control. Medium throw (MD)
full cut o distribution only.
Electrical
Ballast: All ballasts are 100%
factory tested. Reactor high
power factor for 35S. High
reactance, high power factor
for 50-70W. MH: 70W and
below are standard with
pulse-start ignitor technol-
ogy. Compact  uorescent
utilizes an electronic, high-
frequency ballast.
Socket: Porcelain, medium-
base socket with copper alloy,
nickel-plated screw shell and
center contact. Fluorescent
is four-pin positive latching
thermoplastic. LPI is standard
35K for CFL. UL Listed.
Installation
Easily installed using provid-
ed mounting strap. Mount to
any non-combustible vertical
surface or to a 4" round or
square outlet box. Back access
through slotted gasket.
Listings
Listed and labeled to UL
standards. Listed and
labeled to CSA standards (see
Options). NOM Certi ed (see
Options). IP65 rated. Wet
location listed.
ORDERING INFORMATION For shortest lead times, con gure products using bolded options. Example: WSTM 70M MD 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
12-1/2
(31.8)
5-3/4
(14.6)
7-1/2
(19.1)
Max. weight: 14 lbs. (6.35 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 120V only.
2 Not applicable with L/LP.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
5 Multi-volt electronic ballast (compact  uorescent only) capable of
operating on any line voltage between 120V and 277V.
6 Consult factory for available wattages.
7 May be ordered as an accessory. Must specify  nish. Order as WSUT5.
8 CFL only. Must specify voltage. Not available with MVOLT.
9 Maximum wattage lamp included.
10 Available for HID only.
11 Not available with SF or DF.
12 Must be ordered with  xture; cannot be  eld installed.
13 Not available in 347V or TB.
14 For medium throw distribution, lamp is coated.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
546
WALL MOUNTED
Architectural
WFL
Series Lamp type1Distribution1Voltage Ballast Mounting
WFL2
WFL3
High pressure sodium2
70S
100S
150S
250S
400S
Metal halide
70M2, 3
100M2
150M
175M4
200M5
250M
320M5
350M5, 6
400M6
Metal halide ceramic7
70MHC2, 3
100MHC2
150MHC
GZ Wall grazing
SP Spot
BP Bi-peak
symmetric8
FT Forward
throw
HPM Medium
asymmetric
HPN Narrow
asymmetric
HPW Wide asymmetric
RM Medium
symmetric
RN Narrow
symmetric
RW Wide symmetric
120
2089
2409
277
347
4809
TB10
23050HZ11
(blank) Magnetic ballast
CWI Constant wattage
isolated11
SCWA Super CWA ballast
Ships installed
(blank) Mounting plate (std.)
Ships separately12, 13, 14
BBW Surface-mounted
back box
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit15
QRS Quartz restrike system15
PE Photoelectric cell - button type16
LC90 Lock at 90 degrees for full cuto
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start
shipping outside the U.S.
Ships separately12, 17
BD Barn door13
BV Bottom visor13
BVG Bubble vandal guard
EV Eggcrate visor (black only)
FV Full visor13
UV Upper visor13
UV/BVG Upper visor and bubble
vandal guard13
VG Vandal guard
WG Wire guard13
(blank) Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DGYL Gray
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
LPI Lamp included
L/LP Less lamp
Intended Use
For building- and wall-
mounted applications.
Construction
Housing: Extruded aluminum
body with cast end caps is
mounted with 1/4" bolts, to
formed steel wall bracket.
Housing body can be rotated
and locked in any position
along horizontal axis. Cast
aluminum lens frame is
hinged and secured by
stainless steel fasteners.
Closed cell silicone gasket
prevents the penetration
of dust and moisture. Clear,
impact-resistant, tempered
glass lens with silkscreen.
Finish: Standard nish is dark
bronze (DDB) corrosion-
resistant polyester powder.
Additional architectural
colors are available; see
www.lithonia.com/archcolors.
Optics
Anodized aluminum
reectors: Segmented,
specular or hammertone
nish. Reectors are eld
interchangeable.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S.
Socket: Horizontal porcelain
socket (WFL2 medium-base,
WFL3 mogul-base) with
copper alloy, nickel-plated
screw shell and center con-
tact. UL Listed 660W, 600V
4KV pulse rated.
Installation
Steel mounting plate attaches
directly to industry standard
junction box. Mounting
plate includes provision for
attachment independent of
junction box (required for
WFL3). Optional backbox wall
mounting available for surface
conduit applications.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient and
wet locations. IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: WFL2 100M FT 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
WFL2 70S, 70M, 70MHC, 100S, 100M,
100MHC, 150S, 150M, 150MHC,
175M
SP, BP, RN, RM, RW, HPN, HPM,
HPW, FT, GZ
WFL3 175M, 200M, 250S, 250M, 320M,
350M, 400S, 400M SP, RN, RM, RW, HPN, HPM, HPW,
FT, GZ
LAMP/FIXTURE DATA
LAMP
TYPE NEMA
DIST. CIRCUIT LAMP
SHAPE BASE BEAM
SPREAD H° x V°
150S SP HX-HPF E17 Medium 142x127 7x6
150S HPW HX-HPF E17 Medium 39x12 3x1
400S SP CWA ET18 Mogul 60x13 4x1
400S HPW CWA ET18 Mogul 144x140 7x7
175M SP CWA ED17 Medium 27x15 2x1
175M HPW CWA ED17 Medium 147x127 7x6
400M SP CWA BT28 Mogul 42x17 3x1
400M HPW CWA BT28 Mogul 146x140 7x7
WD
H
WFL2 WFL3
EPA: 1.3 ft2 (0.12 m2) 2.0 ft2 (0.19 m2)
Height: 6-3/4 (17.1) 8-3/4 (22.3)
Width: 18-1/2 (47.0) 21-1/2 (54.6)
Depth: 11-3/4 (26.6) 14-3/4 (37.5)
Max weight: 25 lbs (11.3 kg) 39 lbs (17.7 kg)
Notes
1 Specify lamp type and distribu-
tion. See Congurations table.
2 Not available with SCWA
3 Not available with 480V.
4 Not available with WFL2 SCWA.
5 Must be ordered with SCWA.
6 Requires ED-28 reduced jacket
lamp.
7 Not applicable with L/LP.
8 WFL2 only.
9 Must specify CWI for use in
Canada.
10 Optional multi-tap ballast
(120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V;
ships as 120V/347V.
11 Consult factory for available
wattages.
12 May be ordered as an
accessory.
13 Must specify nish.
14 Prex with WFL and size
(e.g., WFL2BBW).
15 WFL3 only. Maximum allow-
able wattage lamp included.
16 Must be ordered with xture;
cannot be eld installed.
Not available 347V, 480V, or TB.
17 Prex with KFLWFL and size
(e.g., KFLWFL2BVG).
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
547
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
Specication
Series Lamp type1Distribution Voltage Ballast Mounting
KL High pressure sodium
50S
70S
100S
Metal halide
70M
100M
Incandescent
I2
AArea
D Directional
120
2083
2403
277
347
TB4
23050HZ5
(blank) Magnetic ballast
CWI Constant wattage
isolated5
(blank) Stud wall mount BBS (std.)
BBW Surface-mounted back box
BBF Pendant mount (at surface)
BBR Recessed BBR (ceiling, sot mount)
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
EC Emergency circuit6
QRS Quartz restrike system6
PE Photoelectric cell - button type7
CSA Meets Canadian standards
(blank) Dark bronze
DWH White
DBL Black
DNA Natural aluminum
LPI Lamp included8
L/LP Less lamp
KL
Intended Use
For use in site walls or as
stair lighting.
Construction
Housing: One-piece, cast-
aluminum housing (alloy con-
tains less than 0.2% copper)
with integral splice compart-
ment (46 cu. in.); four 3/4"
NPT conduit entries. Lens is
one-piece, injection-molded,
UV-stabilized polycarbonate,
.125" minimum thickness.
Tooled-in, stippled texture
on non-optical portions. Die-
cut, closed-cell EPDM gasket.
Housing is shipped separately
from lens/reector/power
module. Stainless steel, cap-
tive, Philips-type fasteners
(tamper-resistant fasteners
also provided). Standard lens
nish is dark bronze enamel
(painted on both inside
and outside of non-optical
portion). Black, white and
natural aluminum nishes
also available. Housing nish
is clear polyester powder
for corrosion protection.
Recessed concrete cast in
place is standard; optional
mountings available.
Optics
Optics: Reectors are
anodized, hydroformed
aluminum. Two distributions
available: A (for uniform
symmetrical area lighting)
and D (for left or right
directional-throw area
lighting, featuring a unique
bi-adjustable socket assem-
bly that can be eld-adjusted
up or down to provide
maximum light distribution
on stairway plane).
Electrical
Electrical: All ballasts are
100% factory-tested. Electri-
cal components are unitized
on removable power module.
Positive-locking disconnect
on primary and secondary cir-
cuits. Medium-base porcelain
socket, 4KV pulse rated.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KL 100M A TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
12-1/4
(31.1)
14-1/4
(36.2)
6
(15.2) 2-1/4
(5.6)
Max weight: 15 lbs (7 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 For inverted mounting application, 70W max.
2 150W A21 max. in A distribution. 100W A21 max.
in D distribution. 120V only.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada120V, 277V, 347V; ships as 120V/347V.
5 Consult factory for available wattages.
6 Maximum allowable wattage lamp included.
7 Must specify voltage. Only available with BBW, BBF.
Not available in 347V or TB.
8 Not available with incandescent.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
548
WALL MOUNTED
General Purpose
TWF Intended Use
For building- and wall-
mounted applications.
Construction
Rugged, die-cast, single-
piece aluminum housing.
Die-cast doorframe has
impact-resistant, tempered,
glass lens, Doorframe is
fully sealed with a closed-cell
silicone gasket.
Finish: Standard nish is
textured dark bronze (DDBT)
polyester powder nish,
with additional architectural
colors available; see
www.lithonia.com/archcolors
Optics
Hydroformed reector for su-
perior uniformity and control.
Vertical lamp orientation for
improved lamp output and life.
Electrical
Ballast: HID 70W-150W
utilizes a high reactance, high
power factor ballast. 175W-
400W utilizes a constant-
wattage autotransformer
ballast. HEB maximum
wattage is 100M. Super CWA
Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required for
151-400W (must order SCWA
option) for U.S. shipments
only. CSA, NOM or INTL
required for probe start
shipments outside the U.S..
Compact uorescent uses an
electronic high-frequency
ballast.
Installation
A universal mounting plate
with integral mounting bolts
supports the xture for easy,
one-person installation.
Listings
CSA listed to U.S. and
Canadian safety standards
suitable for wet locations in
the down orientation. NOM
Certied. IP65 rated. 175W
and below - listed to 40° C
ambient. CFL-2/42 and below
and 250W and above - listed
to 30° C ambient. Emergency
options in all wattages,
200W, and 70W and 57W CFL
- listed to 25° C ambient.
Series Lamp type Voltage Ballast Options
TWF11
TWF22
High pressure sodium
70S
100S
150S
200S
250S
400S
Metal halide
70M
100M
150M
175M
200M3
250M
320M3
350M3
400M
Metal halide
ceramic4
70MHC
100MHC
150MHC
Compact uorescent
26DTT
2/26DTT
32TRT
2/32TRT
42TRT
2/42TRT
57TRT
70TRT
120
2085
2405
277
347
4805
TB6
MVOLT7
(blank) Magnetic ballast
CWI Constant wattage
isolated ballast8
SCWA Super CWA ballast9
HEB Electronic ballast9, 21
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing (not available with MVOLT; CFL only)
ELDW Bodine emergency battery pack10, 11
ELDWC Cold-weather emergency battery pack10, 12
ELDWR Fixture wired ready for Bodine B30 battery pack10, 13, 14
ELDWRPS Fixture wired ready for PS1400 or PSDL battery pack10, 14, 15
EC Emergency circuit10, 16
Options (continued) Finish Lamped
QRS Quartz restrike system10, 16
QRSTD QRS time delay10, 16
ELED LED emergency single10, 17, 18
2ELED LED emergency double10, 17, 18
DC12 Emergency circuit 12V; 35W lamp included10, 19
2DC12 Emergency circuit 12V; two 35W lamps included10, 19
DC2012 Emergency circuit 12V; 20W lamp included10, 19
2DC2012 Emergency circuit 12V; two 20W lamps included10, 19, 20
PE Photoelectric cell - button type (not available TB,
MVOLT or 480V)16, 18
PER NEMA twist-lock receptacle
only (no photocell)16, 22
CSA Meets Canadian standards
NOM Meets Mexican standards
(consult factory)
INTL Available for MH probe start
shipping outside the U.S.
2/1 Two 1-lamp ballasts23
DS Dual switching23
Shipped separately24
TWF1BBW Surface mounted back box
TWF1WG Wire guard
TWF1VG Vandal guard
TWF2BBW Surface mounted back box
TWF2VG Vandal guard
TWF2WG Wire guard
PE1 NEMA twist-lock PE (120,
208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
(blank) Dark bronze,
textured (std.)
DNAT Natural aluminum-
textured
DWHG White-textured
DBLB Black-textured
CR Enhanced corrosion
resistance
CRT Non-stick
protective coating
(black)
LPI Lamp included
L/LP Less lamp
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: TWF1 100M TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Available up to 150S, 200M, and 70TRT compact uorescent.
2 Available in 250-400W HPS and MH.
3 Must be ordered with SCWA.
4 Must be ordered with lamp included (LPI).
5 Consult factory for availability in Canada.
6 Optional multi-tap ballast (120, 208, 240, 277V; 120, 277, 347V in
Canada--ships as 120/347 in Canada).
7 Optional multi-volt electronic ballast (for compact uorescent only)
capable of operating on any line voltage from 120V-277V.
8 Consult factory for availability.
9 SCWA: Not available with HPS and 70M or 100M; HEB: Only available
with 70M or 100M.
10 Cannot be ordered with any other emergency option.
11 Available for compact uorescent only; not available with 2/32TRT,
2/42TRT, 57TRT, or 70TRT.
12 Available for compact uorescent only; not available with 57TRT or 70TRT.
13 Available for compact uorescent only.
14 Pilot light/test switch mounting plate included.
15 Available for compact uorescent only; not available with 2/42TRT,
57TRT, or 70TRT.
16 Must be ordered with xture; cannot be eld installed.
17 Maximum wattage 100M and 70S. Must specify 120V or 277V.
18 Must specify voltage.
19 Not available with SF, DF or GMF.
20 Consult factory for maximum HID wattage available with this option.
21 Available with the TWF1 only.
22 Available with the TWF2 only.
23 Available for compact uorescent only; available with 2/26DTT,
2/32TRT, and 2/42TRT.
24 May be ordered as an accessory.
TWF1 TWF2
Depth: 9-5/8 (24.4) 12-3/8 (31.4)
Width: 16 (40.6) 18 (45.7)
Height: 10-1/8 (25.7) 11-1/2 (29.2)
Max. weight: 24 lbs (10.8 kg) 39 lbs (17.6 kg)
D
W
H
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
549
www.lithonia.com | 1-800-279-8041PSG10
General Purpose
TWH
Intended Use
For outdoor storage areas,
warehouse and factory pe-
rimeters, and loading docks.
Not recommended for
applications with fre-
quent exposure to harsh
chemicals or commercial
cleaning uids (e.g., car
washes). Installations in
such environments may
lead to premature failure
of the luminaire and void
the warranty.
Construction
Housing: Rugged, die-cast
aluminum housing.
Corrosion-resistant captive
external hardware includes
slotted hex-head fasteners.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Reector is specular anod-
ized aluminum. Refractor
is prismatic borosilicate
glass. Lens is sealed and
gasketed to inhibit entrance
of outside contaminants.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH:150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S. Compact
uorescent uses an electronic
high-frequency ballast.
High-frequency generator
for induction.
Socket: Horizontally oriented,
mogul-base porcelain socket
for 175W and above, medium
base for 150W and below,
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W-
600V, 4KV pulse rated. Fluo-
rescent is four-pin positive
latching thermoplastic. LPI is
standard 35K for CFL.
Installation
Back housing is separated
from front housing, eliminat-
ing ballast weight and pro-
moting easy handling. Top
3/4" threaded wiring access.
Back access through remov-
able 3/4" knockout. Mount
on any at, non-combustible
vertical surface.
Listings
UL Listed (standard). CSA or
NOM Certied (see Options).
UL Listed for 25°C ambient
and wet locations. IP65 rated
(250W and below) or IP54
rated (400W).
Series Lamp type Voltage Ballast
TWH High pressure sodium1
70S
100S
150S
200S
250S
400S
Metal halide
70M1, 2
100M1
150M
175M3
200M4
250M
320M4, 5
350M4, 5
400M5
Metal halide ceramic6
70MHC1, 2
100MHC1
150MHC
Compact uorescent1
2/26DTT
2/26TRT
2/32TRT
2/42TRT
Induction1
70IL
100IL
Low pressure sodium1, 7
35L
Incandescent1, 8
300I
120
2089
2409
277
347
4809
TB10
MVOLT11
23050HZ12
(blank) Magnetic ballast
CWI Constant wattage isolated12
SCWA Super CWA ballast
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
EC Emergency circuit13
QRS Quartz restrike system13
QRSTD QRS time delay13
PE Photoelectric cell - button type14
PER NEMA twist-lock receptacle only15
FS Full shield
TP Tamperproof fasteners
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside
the U.S.
Ships separately16
VG Vandal guard
WG Wire guard
(blank) Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included17
L/LP Less lamp
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWH 250S TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Not available with SCWA.
2 Not available 480V.
3 Universal, mogul base lamp allows TWH to
be available with SCWA.
4 Must be ordered with SCWA.
5 Requires ED or BT 28 reduced jacket lamp.
6 Not applicable with L/LP.
7 Not available TB.
8 120V only, A21 lamp (not included).
9 Must specify CWI for use in Canada.
10 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V, 347V;
ships as 120V/347V.
11 Optional multi-volt electronic ballast (for
compact uorescent or induction wattages
only) capable of operating on any line
voltage from 120V-277V.
12 Consult factory for available wattages.
13 Maximum allowable wattage lamp
included.
14 Must be ordered with xture; cannot be eld
installed. Not available with 347, 480 or TB.
15 Photocell not included.
16 May be ordered as accessory. Prex with
xture name (e.g., TWHWG).
17 Not available with incandescent.
Weight: 26-42 lbs (11.7-19 kg)
15-3/4
(40.0)
16-1/4
(41.3) 8
(20.3)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
LAMP/FIXTURE DATA
LAMP TYPE CIRCUIT LAMP SHAPE BASE
70S HX-HPF E17 Medium
100S HX-HPF E17 Medium
150S HX-HPF E17 Medium
250S CWA BT28 Mogul
400S CWA BT28 Mogul
150M HX-HPF E17 Medium
175M CWA BT28 Mogul
250M CWA BT28 Mogul
400M CWA ED or BT28 Mogul
WALL MOUNTED
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
550
WALL MOUNTED
General Purpose
TWP
Series Lamp type1Voltage Ballast
TWP High pressure sodium
35S2
50S
70S
100S
150S
Metal halide
70M1, 3
100M1
150M
175M4
Metal halide ceramic5
70MHC1, 3
100MHC1
150MHC
Low pressure sodium
35L3
Incandescent
200I6
Compact Fluorescent
26DTT
2/26DTT
26TRT
2/26TRT
32TRT
2/32TRT
42TRT
2/42TRT
120
2087
2407
277
347
4807
TB8
MVOLT9
23050HZ10
(blank) Magnetic ballast
CWI Constant wattage isolated10
SCWA Super CWA ballast11
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing12
ELDWC Cold-weather emergency battery pack13
EC Emergency circuit14
QRS Quartz restrike system14
QRSTD QRS time delay14
PE Photoelectric cell - button
type15
FS Full shield
CSA Meets Canadian standards
NOM Meets Mexican standards
(consult factory)
INTL International shipment for
175M.
Ships separately16
WG Wire guard
(blank) Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
Intended Use
For entrances, loading docks,
walkways and vehicle ramps.
Not recommended for
applications with fre-
quent exposure to harsh
chemicals or commercial
cleaning uids (e.g., car
washes). Installations in
such environments may
lead to premature failure
of the luminaire and void
the warranty.
Construction
Housing: Rear housing is
rugged, die-cast aluminum.
Corrosion-resistant, captive
external hardware includes
slotted hex-head and
tamperproof fasteners.
Finish is dark bronze (DDB)
corrosion-resistant polyes-
ter powder.
Optics
Reector is aluminum, n-
ished in white enamel. Front
housing and refractor are
one-piece, injection-molded,
UV-stabilized polycarbonate.
Standard nish: front cover
has an opaque lower portion
and dark bronze painted
upper portion; back housing
is dark bronze polyester. Re-
fractor is sealed and gasketed
to inhibit the entrance of
outside contaminants.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer for
175W. MH: 150W and below
are standard with pulse-start
ignitor technology. CSA, NOM
or INTL required for probe
start shipments outside the
U.S. for 175M. Not available
in 175M with SCWA. Compact
uorescent uses an electronic
high-frequency ballast.
Socket: Glazed porcelain
medium based (mogul based
175W), horizontally oriented
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 660W,
600V for medium base;
1500W, 600V for mogul base.
4KV pulse rated. Fluorescent
is four-pin positive latching
thermoplastic. LPI is standard
35K for CFL.
Installation
Top 3/4" threaded wiring
access. Back access through
3/4" opening. For feed-thru
wiring, use condulet tee
(not included). Mount on
any flat, non-combustible
vertical surface.
Listings
UL Listed (standard). CSA or
NOM Certied (see Options).
UL Listed for 25°C ambient
and wet locations. IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWP 150M TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
15-1/2
(39.4)
16-1/8
(41.0)
7-3/4
(19.7)
Weight: 17.9 lbs (8.1 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 120V only.
3 Not available with 480V.
4 Not available with SCWA. Requires CSA,
NOM, or INTL.
5 Not applicable with L/LP.
6 120V only. A21 lamp (not included).
7 Must specify CWI for use in Canada; n/a 35S
or 50S.
8 Optional multi-tap ballast (120V, 208V,
240V, 277V). In Canada 120V, 277V, 347V;
ships as 120V/347V.
9 Multi-volt electronic ballast (compact
uorescent only) capable of operating on
any line voltage between 120V and 277V.
10 Consult factory for available wattages.
11 Only available with 150M or 150MHC.
12 CFL only. Must specify voltage. Not available
with MVOLT.
13 Must specify voltage. -20°C to 55°C
operation. Not available with DC or EC.
14 Maximum allowable wattage lamp
included.
15 Not available with 347V, 480V, or TB.
16 May be ordered as accessory: TWPWG.
LAMP/FIXTURE DATA
LAMP TYPE CIRCUIT LAMP SHAPE BASE
35S RHP E17 Medium
50S RHP E17 Medium
70S XHP E17 Medium
100S XHP E17 Medium
150S XHP E17 Medium
50M HX-HPF E17 Medium
70M HX-HPF E17 Medium
100M HX-HPF E17 Medium
150M HX-HPF E17 Medium
175M CWA BT28 Mogul
35L HPF-LAG T17 Medium
PRODUCT INFORMATIONPRODUCT INFORMATION
LITHONIA OUTDOOR
551
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
General Purpose
Series Lamp type Voltage Ballast
TWA High pressure sodium
35S1
50S2
70S2
100S2
Metal halide
50M
70M
100M
Metal halide ceramic3
50MHC
70MHC
100MHC
Compact uorescent
26DTT
26TRT
32TRT
42TRT
120
2084
2404
277
347
TB5
MVOLT6
23050HZ7
(blank) Magnetic ballast
CWI Constant wattage isolated1
XHP High reactance (lag), high power factor
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
GMF Internal slow-blow fusing8
EC Emergency circuit9
QRS Quartz restrike system9
PE Photoelectric cell - button type10
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
Ships separately
WG Wire guard11
(blank) Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
TWA
Contour®
Intended Use
For entrances, stairwells,
corridors and other pedes-
trian areas.
Not recommended for
applications with fre-
quent exposure to harsh
chemicals or commercial
cleaning uids (e.g. car
washes). Installations in
such environments may
lead to premature failure
of the luminaire and void
the warranty.
Construction
Housing: Rear housing is
rugged, die-cast aluminum.
Front cover is one-piece,
UV-resistant, injection-
molded polycarbonate,
internally painted. Captive
external hardware is treated
for corrosion resistance and
includes slotted hex-head
and tamper-proof fasten-
ers. Finish is dark bronze
(DDB) corrosion-resistant
polyester powder.
Optics
Front housing and
refractor are one-piece,
injection-molded, UV-
stabilized polycarbonate.
High-performance optical
system consists of specular
anodized segmented reec-
tor and computer-designed
prism pattern. Standard
nish is dark bronze
polyester enamel. Front
cover sealed with one-piece,
high-temperature silicone
gasket to inhibit entrance of
outside contaminants.
Electrical
Components are mounted to
the cast-aluminum housing,
promoting maximum heat
dissipation. Ballast: All
ballasts are 100% factory
tested. MH: High reactance,
high power factor for 150W
and below. 150W and below
are standard with pulse-start
ignitor technology. HPS:
Reactor normal power
factor standard for 120V,
HPF available (XHP option).
Other voltages are high power
factor standard. Fluorescent
ballasts are electronic HPF (26
DTT and TRT).
Socket: HID is porcelain, hori-
zontally oriented, medium-
base socket with copper
alloy, nickel-plated screw
shell and center contact. (UL
Listed 660W, 600V and 4KV
pulse rated.) Fluorescent is
four-pin positive latching
thermoplastic. LPI is standard
35K for CFL.
Installation
Top 1/2" threaded wiring
access. Back access through
3/4" opening. For feed-thru
wiring, use condulet tee
(not included). Mount on
any flat, non-combustible
vertical surface.
Listings
UL Listed (standard). CSA or
NOM Certied (see Options).
UL Listed for wet locations.
IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWA 100M 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
LAMP/FIXTURE DATA
LAMP TYPE CIRCUIT LAMP SHAPE BASE
35S RNPF E17 Medium
50S RNPF E17 Medium
70S RNPF E17 Medium
100S RNPF E17 Medium
50M HX-HPF E17 Medium
70M HX-HPF E17 Medium
100M HX-HPF E17 Medium
26DTT Electronic, HPF T4 GX32D-3
32TRT Electronic, HPF T4 GX24Q-3
42TRT Electronic, HPF T4 GX24Q-3
10
(25.4)
11-1/2
(29.2)
9
(22.7)
Max weight: 10 lbs (4.5 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 120V, NPF only.
2 120V RNPF is standard; 208V, 240V, 277V, 347V, and TB are high-
reactance power factor.
3 Not applicable with L/LP.
4 Must specify CWI for use in Canada.
5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
6 Optional multi-volt electronic ballast (compact uorescent only)
capable of operating on any line voltage from 120V-277V.
7 Consult factory for available wattages.
8 CFL only. Must specify voltage. Not available with MVOLT.
9 Maximum wattage lamp included.
10 Must specify voltage. Not available in 347V or TB.
11 May be ordered as an accessory: TWAWG.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
552
WALL MOUNTED
General Purpose
Series Lamp type Voltage Ballast Options
TWAC High pressure sodium
35S1
50S2
70S2
100S2
Metal halide
50M
70M
100M
Compact uorescent
26DTT
32TRT
42TRT
120
2083
2403
277
347
TB4
MVOLT5
23050HZ6
(blank) Magnetic ballast
CWI Constant wattage isolated6
XHP High reactance (lag), high power factor7
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V
GMF Internal slow-blow fusing8
EC Emergency circuit9
QRS Quartz restrike system9
Options (continued) Finish Lamped
DC12 Emergency circuit 12V; 35W lamp included10
2DC12 Emergency circuit 12V; two 35W lamps included10
DC2012 Emergency circuit 12V; 20W lamp included10
2DC2012 Emergency circuit 12V; two 20W lamps included10
PE Photo electric cell - button type11
CSA Meets Canadian safety standards
NOM Meets Mexican standards (consult factory)
Ships separately12
WG Wire guard
(blank) Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
DSS Sandstone
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
TWAC
Contour®
Intended Use
For entrances, stairwells, cor-
ridors and other pedestrian
areas. Not recommended
for applications with fre-
quent exposure to harsh
chemicals or commercial
cleaning uids (e.g., car
washes). Installations in
such environments may
lead to premature failure
of the luminaire and void
the warranty.
Construction
Housing: Rear housing is
rugged, die-cast aluminum.
Front cover is one-piece,
UV-resistant, injection-
molded polycarbonate,
internally painted. Captive
external hardware is treated
for corrosion resistance and
includes slotted hex-head
and tamper-proof fasten-
ers. Finish is dark bronze
(DDB) corrosion-resistant
polyester powder.
Optics
Front housing and refractor
are one-piece, injection-
molded, UV stabilized
polycarbonate. One-piece,
die-formed reflector is
diffused aluminum. Refrac-
tor is clear polycarbon-
ate, providing IES cutoff
distribution and maximum
lateral light output. Stan-
dard finish is dark bronze
polyester enamel. Front
cover sealed with one-piece,
high temperature silicone
gasket to inhibit entrance of
outside contaminants.
Electrical
Components are mounted to
the cast-aluminum housing,
promoting maximum heat
dissipation. Ballast: All
ballasts are 100% factory
tested. MH: High reactance,
high power factor for 150W
and below. 150W and below
are standard with pulse-start
ignitor technology. HPS:
Reactor normal power
factor standard for 120V,
HPF available (XHP option).
Other voltage are high power
factor standard. Fluorescent
ballasts are electronic HPF
(26 DTT and TRT).
Socket: HID is porcelain, hori-
zontally oriented, medium-
base socket with copper
alloy, nickel-plated screw
shell and center contact. (UL
Listed 660W, 600V and 4KV
pulse rated.) Fluorescent is
four-pin positive latching
thermoplastic. LPI is standard
35K for CFL.
Installation
Top 1/2" threaded wiring
access. Back access through
3/4" opening. For feed-thru
wiring, use condulet tee
(not included). Mount on
any flat, non-combustible
vertical surface.
Listings
UL Listed (standard). CSA or
NOM Certied (see Options).
UL Listed for wet locations.
IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWAC 100S 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
LAMP/FIXTURE DATA
LAMP TYPE CIRCUIT LAMP SHAPE BASE
35S RNPF E17 Medium
50S RNPF E17 Medium
70S RNPF E17 Medium
100S RNPF E17 Medium
50M HX-HPF E17 Medium
70M HX-HPF E17 Medium
100M HX-HPF E17 Medium
26DTT Electronic, HPF T4 GX32D-3
32TRT Electronic, HPF T4 GX24Q-3
42TRT Electronic, HPF T4 GX24Q-3
Max. weight: 10 lbs (4.5 kg)
11-1/2
(29.2)
9
(22.7)
10
(25.4)
Notes
1 120V, NPF only.
2 120V RNPF is standard; 208/240/277/347V and TB are high reactance,
high power factor.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
5 Optional multi-volt electronic ballast (compact uorescent only)
capable of operating any line voltage from 120V-277V.
6 Consult factory for available wattages.
7 Only available with 120V.
8 CFL only. Must specify voltage. Not available with MVOLT.
9 Maximum wattage lamp included.
10 HID only, n/a QRS, EC or NOM.
11 Must specify voltage. Not available 347 or TB.
12 May be ordered as an accessory: TWACWG
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
553
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
General Purpose
Series Lamp type1Voltage Ballast Options Finish Lamped
TWR1
TWR2
High pressure
sodium
70S
100S
150S
250S
400S
Metal halide
70M
100M
150M
250M2
400M2
Compact
uorescent
2/42TRT3
120
TB4
MVOLT5
120/3476
(blank) Magnetic ballast
SCWA Super CWA ballast7
PE Photoelectric cell - button type8
CSA Meets Canadian standards
WG Wire guard9
(blank) Dark bronze LPI Lamp
included
Intended Use
For mounting above entry-
ways and loading docks.
Contact with a direct
forceful spray of water
during operation can
result in glass breakage.
Not recommended for car
wash applications.
Construction
Housing: Rugged, die-cast
aluminum back housing and
hinged doorframe. Castings
are sealed with a one-piece
gasket to inhibit the entrance
of external contaminants.
Finish is bronze polyester
powder paint standard.
Optics
(TWR1, TWR2) Refractor is
prismatic borosilicate glass.
Reector is die-formed anod-
ized stippled aluminum. TWR1
medium-base lamp and TWR2
mogul-base lamp included in
carton as standard.
Electrical
Ballast: All ballasts are
100% factory tested.
HPS: High reactance, high
power factor for 150W and
below. Constant wattage
autotransformer 250W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option). Compact
uorescent uses an electronic
high-frequency ballast.
Socket: Porcelain, medium-
base socket for TWR1,
mogul-base socket for
TWR2, with copper alloy
nickel-plated screw shell and
center contact. Fluorescent
is four-pin positive latching
thermoplastic. LPI is standard
35K for CFL.
Installation
Housing congured for
mounting directly over a
standard 4" outlet box or
for surface wiring via any
of three convenient 3/4"
threaded conduit entry hubs.
Listings
UL Listed standard to
U.S. and Canadian safety
standards. CSA Certied (see
Options). UL/C-UL Listed for
wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWR1 150S TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE
TWR1 70S, 70M, 100S, 100M, 150S, 150M, 2/42TRT
TWR2 250S, 250M, 400S, 400M
ACCESSORIES
ORDER SEPARATELY
TWR1WG Wireguard
TWR2WG Wireguard
RK1 TWR1FA Lens repair kit
RK1 TWR2FA Lens repair kit
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
9
(22.9)
7-3/8
(18.8)
13
(33.0)
Weight: 18 lbs (8.1 kg)
TWR1
9-1/4
(23.5)
D
17-7/8
(45.4)
250W 400W
Depth: 9-3/8 (23.8) 12-1/2 (31.8)
Weight: 26 lbs (11.8 Kg) 31 lbs (14Kg)
TWR2
Notes
1 Specify lamp type. See Congurations table.
2 Must be ordered with SCWA option.
3 Available with MVOLT or 120V with PE only.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V).
5 Only available with 2/42TRT.
6 Only available with CSA.
7 Only available for 250M and 400M.
8 Available with 250M, 400M, 2/42TRT (120V) only.
Consult factory for other wattage/voltage availability.
9 May be ordered as an accessory. Prex with xture name and size
(e.g., TWR1WG).
TWR
TWR1
TWR2
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
554
WALL MOUNTED
General Purpose
PRODUCT INFORMATION
Series Lamp type1Voltage Ballast Options Lamped
TWR1C
TWR2C
High pressure sodium
70S
100S
150S
250S
400S
Metal halide
70M
100M
150M
250M2
400M2
120
TB3
120/3474
(blank) Magnetic ballast
SCWA Super CWA
ballast5
Ships installed
PE Photoelectric cell - button type6
CSA Meets Canadian standards
Ships separately
FCV Full cuto visor7
WG Wire guard7
LPI Lamp included
Intended Use
For building- and wall- mount-
ed applications. Contact with
a direct forceful spray of
water during operation can
result in glass breakage.
Not recommended for car
wash applications. Cannot
be inverted.
Construction
Housing: Rugged, die-cast
aluminum back housing and
hinged doorframe. Castings are
sealed with a one-piece gasket
to inhibit the entrance of
external contaminants. Finish
is bronze polyester powder
paint standard.
Optics
Tempered glass lens and
one-piece anodized aluminum
reector provide IES cuto
distribution. Optional full cut-
o visor available. Lens tilted
30° up horizontal.
Electrical
Ballast: All ballasts are 100%
factory tested. HPS: High
reactance, high power factor
for 150W and below. Constant
wattage autotransformer
250W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant, are
required for 151-400W (must
order SCWA option).
Socket: Porcelain, medium-
base socket for TWR1C,
mogul-base socket for TWR2C,
with copper alloy nickel-plated
screw shell and center contact.
Installation
Housing congured for mount-
ing directly over a standard 4"
outlet box or for surface wiring
via any of three convenient 3/4"
threaded conduit entry hubs
(tops and sides).
Listings
UL Listed to U.S. and Canadian
safety standards. CSA Certied
(see Options). UL/C-UL Listed
for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWR1C 100M TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
PRODUCT INFORMATION General Purpose
Series Lamp type Voltage Lamped
TWR1S High pressure sodium
150S
Metal halide
100M
TB1LPI Lamp included
Intended Use
For building- and wall-
mounted applications.
Contact with a direct
forceful spray of water
during operation can
result in glass breakage.
Not recommended for car
wash applications.
Construction
Housing: Rugged, die-cast
aluminum back housing and
hinged door frame. Castings
are sealed with a one-piece
gasket to inhibit the entrance
of external contaminants.
Finish is bronze polyester
powder paint standard.
Optics
Tempered glass lens and one-
piece anodized aluminum
reector provide IES full
cuto distribution. Medium-
base lamp included in carton
as standard.
Electrical
Quad-tap, high reactance,
high power factor is 100%
factory tested.
Installation
Housing congured for
mounting directly over a
standard 4" outlet box or
for surface wiring via any
of three convenient 3/4"
threaded conduit entry hubs.
Listings
UL Listed to U.S and Canadian
safety standards. UL/C-UL
Listed for wet locations. Not
available in Canada.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWR1S 100M TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Optional multi-tap ballast (120V, 208V, 240V, 277V).
CONFIGURATIONS
SERIES LAMP TYPE
TWR1C 70S, 70M, 100S, 100M, 150S, 150M
TWR2C 250S, 250M, 400S, 400M
DIMENSIONS
Dimensions are shown in inches (centimeters) unless otherwise noted.
TWR1C TWR2C
Height 10-1/4 (26.0) 14-1/2 (36.8)
Width 13 (33.0) 17-7/8 (45.4)
Depth 8-1/2 (21.6) 10 (25.4)
Max. weight 18 lbs (8.1kg) 25 lbs (11.3kg)
ACCESSORIES
ORDER SEPARATELY
TWR1CWG Size 1 wireguard
TWR2CWG Size 2 wireguard
RK1 TWR1CFA Size 1 lens repair kit
RK1 TWR2CFA Size 2 lens repair kit
TWRIC FCV Size 1 full cuto visor
TWR2C FCV Size 2 full cuto visor
Notes
1 Specify lamp type. See congurations table.
2 Must be ordered with SCWA option.
3 Optional multi-tap ballast (120V, 208V, 240V,
277V).
4 Only available with CSA.
5 Only available for 250M and 400M.
6 Available with 250M, 400M, 400S (120V) only.
Consult factory for other wattage/voltage
availability.
7 May be ordered as an accessory. Prex with
xture name and size (e.g., TWR1CWG or
TWR1C FCV).
DIMENSIONS
Dimensions are shown in inches (centimeters) unless otherwise noted.
Height 16-1/2 (41.9)
Width 12-1/4 (31.2)
Depth 10-3/4 (27.3)
Max. weight 15.5 lbs (7.0kg)
TWRC
TWRS
PRODUCT INFORMATION
LITHONIA OUTDOOR
555
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
General Purpose
Series Lamp type Voltage Options Finish Lamped5Packaging
TWS High pressure sodium
35S
50S
70S
Metal halide
50M
Compact uorescent
13TT
26TRT1
32TRT1
42TRT1
120
MVOLT2
Ships installed
PE Photoelectric cell - button type3
Ships separately
WG Wire guard4
(blank) Dark bronze
DWH White
LPI Lamp included
L/LP Less lamp
M6
TWS
Intended Use
For entrances, stairwells,
corridors and other pedes-
trian areas.
Construction
Housing: Cast aluminum
backplate on which electrical
components are mounted for
maximum heat dissipation.
Gasketing between backplate
and front cover prevents entry
of water and comtaminants.
External hardware includes
Phillips head and tamperproof
hex-head fasteners. Finish is
dark bronze.
Optics
Front cover/refractor is
injection-molded, one-
piece, UV stabilized polycar-
bonate. The optical system
is sealed and gasketed
to inhibit the entrance of
outside contaminants.
Electrical
35-70W HPS and 50W MH
use a 120V normal power
factor ballast, and lamp is
included as standard. The
13W compact uorescent
uses a 120V electro-magnetic
ballast and includes a twin-
tube uorescent lamp as
standard. The 26-42W
compact uorescent uses a
multi-volt electronic ballast.
Options include 120-277V
operation and 26W, 32W or
42W triple-tube uorescent
lamp (not included).
Socket: HID: Medium-base
porcelain socket, vertically
oriented with copper alloy
nickel-plated screw shell and
center contact. (UL Listed
660W, 600V). CFL: The 26-42W
uorescent uses a universal
4-pin socket for 26W, 32W or
42W operation based on lamp
choice. The 13W uorescent
uses a 2-pin socket.
Installation
Units for wall mounting
include two 3/4" knockouts
for routing electrical conduit
back and bottom.
Listings
UL Listed to U.S. and Canadi-
an safety standards. UL/C-UL
Listed for wet locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TWS 50M 120 PE LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
ACCESSORIES
ORDER SEPARATELY
RK1 PEB1 Photocell kit, (120V only)
TWSWG Wireguard
11
(27.9)
6-7/8
(17.4)
Weight: 4.9 lbs (2.2 kg)
5-1/4
(13.3)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Ships as 26/42TRT. Operates 26-42W as standard base on lamp choice.
Lamp not included.
2 Not available with MH, HPS or 13TT.
3 Not available with MVOLT.
4 May be ordered as an accessory: TWSWG.
5 LPI standard for HID or 13TT; L/LP standard for 26-42TRT.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
556
WALL MOUNTED
Contractor Select Stock
BUILDING
MOUNTED
Intended Use
Building-mounted light for
entrances, stairwells, corridors
and other pedestrian areas.
Construction
W: Cast aluminum backplate
with polycarbonate cover.
WC: Rugged, corrosion-resis-
tant, die-cast aluminum back
housing and hinged door
frame. Dark bronze nish.
Optics
Anodized aluminum reector.
Electrical
Ballast: W: 120V normal power
factor. WC: Quad tap, high
reactance, high power factor.
Medium-base lamp included.
Installation
Housing congured for
mounting directly over a
standard 4" outlet box or
for surface wiring via any
of the convenient conduit
entry hubs (W: Two 3/4"
unthreaded knockouts, one
each on bottom and back.
WC: Four threaded 1/2"
plugs, one each side, top,
and bottom.)
Listings
Listed and labeled to UL
standards for wet locations.
Listed and labeled to CSA
standards. 25°C maximum
ambient temperature. Fix-
tures are covered by Lithonia
Lighting 12-month warranty
against mechanical defects
in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP VOLTAGE FINISH LAMP
INCLUDED
PHOTOCELL
INCLUDED
APPROXIMATE
WEIGHT (LBS)
STANDARD CARTON
QUANTITY
W70SPL 120 M6 Non-cuto 70 HPS 120 Dark bronze Y Y 5 6
WC100ML M4 Cuto 100 MH 120/208/240/277 Dark bronze Y N 10 4
TWR1 150M TB LPI Non-cuto 150 MH 120/208/240/277 Dark bronze Y -- 18 1
TWR1C 150M TB LPI Cuto 150 MH 120/208/240/277 Dark bronze Y -- 18 1
TWR2 250M TB SCWA LPI Non-cuto 250 MH 120/208/240/277 Dark bronze Y -- 26 1
TWR2C 250M TB SCWA LPI Cuto 250 MH 120/208/240/277 Dark bronze Y -- 21 1
TWR2 400M TB SCWA LPI Non-cuto 400 MH 120/208/240/277 Dark bronze Y -- 31 1
TWR2C 400M TB SCWA LPI Cuto 400 MH 120/208/240/277 Dark bronze Y -- 25 1
11
(27.9)
6-7/8
(17.4)
5-1/4
(13.3)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
W70SPL
8-5/8
(21.9)
11-7/8
(30.2)
8-3/8
(21.3)
WC100ML
9
(22.9)
7-3/8
(
18.8
)
13
(
33.0
)
TWR1
13
(33.0)
10-1/4
(26.0)
9-1/2
(24.1)
TWR1C
9-1/4
(23.5)
D
17-7/8
(45.4)
250W 400W
Depth: 9-3/8 (23.8) 12-1/2 (31.8)
Weight: 26 lbs (11.8 Kg) 31 lbs (14Kg)
TWR2
14-1/2
(36.8)
17-7/8
(45.4) 10
(25.4)
TWR2C
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
PRODUCT INFORMATION
LITHONIA OUTDOOR
557
www.lithonia.com | 1-800-279-8041PSG10
WALL MOUNTED
Contractor Select Stock
VAPOR TIGHTS &
CEILING MOUNT
UTILITY
Intended Use
Utility wall-, ceiling-, or
pendant-mounted xtures for
general-purpose applications.
Incandescent, uorescent,
metal halide, or high pressure
sodium sources.
Construction
Vapor tights: Rugged,
die-cast aluminum housing.
Gray nish.
VRC: Rugged, die-cast
aluminum housing. Dark
bronze nish.
Optics
Vapor tights: Prismatic globe
for even distribution.
VRC: Clear prismatic polycar-
bonate lens.
Electrical
Junction box included on
vapor tights. Ballast: 120V for
vapor tights; 120/277 for VRC.
Installation
Designed for easy installation
and maintenance.
Vapor tights: 3/4" threaded
knockouts allow for side or
top conduit entry.
VRC: Three threaded 1/2" NPS
plugs allow for conduit entry,
or housing may be mounted
over the outlet box.
Listings
Listed and labeled to UL stan-
dards for wet locations. Listed
and labeled to CSA standards.
Fixtures are covered by
Lithonia Lighting 12-month
warranty against mechanical
defects in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP VOLTAGE LAMP
INCLUDED
APPROX.
WEIGHT (LBS)
STANDARD CARTON
QUANTITY
VC150I M12 Vapor tight ceiling mount 150 Incandescent 120 N 2 12
VP150I M12 Vapor tight pendant mount 150 Incandescent 120 N 2 12
VW150I M12 Vapor tight wall mount 150 Incandescent 120 N 2 12
VC300I M6 Vapor tight ceiling mount 300 Incandescent 120 N 2 6
VP300I M6 Vapor tight pendant mount 300 Incandescent 120 N 2 6
VW300I M6 Vapor tight wall mount 300 Incandescent 120 N 2 6
VC42L M6 Vapor tight ceiling mount 42 Fluorescent 120 Y 6 6
VP42L M6 Vapor tight pendant mount 42 Fluorescent 120 Y 6 6
VW42L M6 Vapor tight wall mount 42 Fluorescent 120 Y 6 6
VC100ML M6 Vapor tight ceiling mount 100 MH 120 Y 9 6
VP100ML M6 Vapor tight pendant mount 100 NH 120 Y 8 6
VW100ML M6 Vapor tight wall mount 100 MH 120 Y 10 6
VC150SL M6 Vapor tight ceiling mount 150 HPS 120 Y 9 6
VP150SL M6 Vapor tight pendant mount 150 HPS 120 Y 8 6
VW150SL M6 Vapor tight wall mount 150 HPS 120 Y 10 6
VRC70ML 120/277 M6 Ceiling mount 70 MH 120/277 Y 9 6
VRC70SL 120/277 M6 Ceiling mount 70 HPS 120/277 Y 9 6
W
H
VC150SL
VC150I VC300I VC100ML
Height: 9 (22.9) 11-3/8 (28.9) 14-7/8 (37.8)
Width: 4-1/2 (11.4) 5-3/4 (14.6) 7 (17.8)
VC42L
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
W
H
VW150SL
VW150I VW300I VW100ML
Height: 10 (25.4) 11-7/8 (30.2) 15-1/2 (39.4)
Width: 7-1/4 (18.4) 8-3/4 (22.2) 8-3/4 (22.2)
VW42L
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
9
(22.9)
9
(22.9)
7-1/2
(19.1)
VRC70
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
558
WALL MOUNTED
Contractor Select Stock
ENTRY LIGHTS Intended Use
For entrances in motels,
condominiums and other
pedestrian areas.
Construction
Die-cast aluminum housing
with electrostatically applied
dark bronze polyester powder
nish. White nish available.
Optics
Both white polycarbonate
globe and cylinder-shaped lens
are included with each xture.
Electrical
Ballast: 120V.
Socket: Medium-base
porcelain socket, vertically
oriented with copper alloy,
nickel-plated screw shell and
center contact. Fluorescent
2-pin socket.
Installation
Building-mounted over
junction box.
Listings
Listed and labeled to UL stan-
dards for wet locations. Listed
and labeled to CSA standards.
Fixtures are covered by
Lithonia Lighting 12-month
warranty against mechanical
defects in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE VOLTAGE FINISH LAMP
INCLUDED
APPROXIMATE
WEIGHT (LBS)
STANDARD CARTON
QUANTITY
JJ100I M6 Incandescent entry light 100 120 Dark bronze N 3 6
JJ100IW M6 Incandescent entry light 100 120 White N 3 6
JJ13L 120 M6 Fluorescent entry light 13 120 Dark bronze Y 3 6
JJ13IW 120 M6 Fluorescent entry light 13 120 White Y 3 6
JJ50SL 120 M6 HPS entry light 50 120 Dark bronze Y 4 6
JJ50SLW 120 M6 HPS entry light 50 120 White Y 4 6
7-1/4
(18.4)
6-3/8
(16.2)
4-3/8
(11.1)
6
(15.2)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
6-3/8
(16.2)
6-1/8
(15.6)
4-3/8
(11.1)
7-3/8
(18.7)
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
PRODUCT INFORMATION
LITHONIA OUTDOOR
559
www.lithonia.com | 1-800-279-8041PSG10
PARKING GARAGE & CANOPY
Specication
Series Lamp type Voltage Ballast Mounting Options
PGR High pressure
sodium1
70S
100S
150S
Metal halide
50M1, 2
70M1, 2
100M1
150M
175M
200M3
Metal halide
ceramic4
50MHC1, 2
70MHC1, 2
100MHC1
150MHC
Electronic metal
halide1, 2, 5
50M
70M
Compact uorescent
2/42TRT
2/57TRT
2/70TRT
85TRT
Induction6
85IL
85IL/40
120
2087, 8
2407, 8
2778
3478
4807, 8, 9, 10
TB10,11
23050HZ12
MVOLT13
TVOLT14
(blank) Magnetic
ballast
CWI Constant
wattage
isolated12
SCWA Super CWA
ballast
HEB Electronic
metal
halide
Ships separately15
YK Yoke
OJB Oset junction box
OJBHK Oset junction box
(for use with HEB,
CFL, IL)
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
EC Emergency circuit16
QRS Quartz restrike system16
QRSTD QRS time delay16, 17
KW1 KiloWatch 120V control18
KW4 KiloWatch 277V control18
Options (continued) Finish Lamped
TP Tamperproof
HS House-side shield19, 20
HSR House-side glare shield ready19, 20
HA High ambient (40°C)20, 21, 22
FLR Frosted lower lens
DN Downlight focused8, 10, 19, 21
PC Polycarbonate refractor/lower housing/lens
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately15
BDS Bird deterrent shroud
(blank) White (std.)
DDB Dark bronze
DBL Black
DGC Charcoal gray
DNA Natural aluminum
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
LPI Lamp included
L/LP Less lamp
LP Lamp factory
installed
PGR
Intended Use
For parking garage applications.
Construction
Upper housing: Rugged,
die-cast aluminum with
one-piece silicone gasketing.
Standard nish is white,
corrosion-resistant polyester
powder paint. Other archi-
tectural colors available as
listed below.
Lower Assembly: Precision
injection-molded, UV stabilized
acrylic. Hinged and secured
with four stainless steel screws.
Polycarbonate available.
Optics
Lower semi-specular,
faceted, vacuum metalized
aluminum reector and
upper-precision, injection-
molded, prismatic acrylic
refractor. Polycarbonate
refractor available.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-200W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S. Electronic
MH: 180°C Class H insulation
system. Ballast is high
power factor, <15% THD with
starting temperature of -22°F
(-30°C). Compact Fluorescent:
Ballast is Class P, electronic,
high power factor, <10% THD
with starting temperature of
0°F (-18°C). Induction: High-
Frequency Generator - Sup-
plies high-frequency power
to the discharge vessel (lamp)
to initiate and maintain a gas
discharge for a rated 100,000
hours of life (optimized for
ambient temperatures rang-
ing from -40° to 25°C; higher
ambient temperatures may
reduce lamp life). Power Cou-
pler - Induction coil transfers
energy from the generator
to the discharge vessel.
Discharge Vessel - Glass bulb
contains a mixture of low-
pressure mercury vapor and
inert buer gas. The wall of
the discharge vessel is coated
with a uorescent powder
which produces light at
3000K color and 80+ CRI.
Socket: Medium-base,
UL Listed 660W, 600V, 4K
socket. CFL sockets are high
temperature thermoplastic
with integral retention clip.
LPI is standard 35K for CFL.
Installation
Mounting: Fully silicone-
gasketed, galvanized steel
plate. Surface mounts to
recessed box or pendant
mounts to industry standard
J-boxes. The quick-mounting
bracket doubles as a hanger
for the xture, allowing
for trouble-free electrical
connections. The xture
twist-locks into place in a
rm, secure fashion.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
25°C ambient operation and
wet locations. U.S. Patent
No. D402,075. Canadian
patent No. 86779.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: PGR 100M TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Max. weight: 20 lbs (9.0 kg)
15
(38.1)
11-3/4
(29.8)
Notes
1 Not available with SCWA.
2 Not available with 480V.
3 Must be ordered with SCWA option.
4 Not applicable with L/LP.
5 Must be ordered with HEB option. (For ceramic lamp, order as 50MHC
or 70MHC).
6 Must be ordered with LP option. Optimized for use in areas
where ambient temperature does not exceed 20°C. Higher ambient
temperatures may reduce lamp life.
7 Must specify CWI for use in Canada.
8 Not available with induction.
9 Available in 150S, 175M and 200M only.
10 Not available with compact uorescent.
11 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
12 Consult factory for available wattages.
13 Optional multi-volt electronic ballast capable of operating on any
line voltage from 120V-277V. Use for both compact uorescent and
electronic HID.
14 Optional tri-volt electronic ballast capable of operating on any line
voltage from 200V-277V. Available with induction only.
15 May be ordered as an accessory. Must specify nish. Prex with xture
name and size (e.g. PGRYK U).
16 Maximum allowable wattage lamp included.
17 Not available with KiloWatch.
18 Available with 175M, 200M and 150S only.
19 Not available with HA (high ambient) option.
20 Not available with DN (downlight focused) option.
21 Not available with HS (house-side glare shield).
22 Not available with 200M.
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
560
PARKING GARAGE & CANOPY
Specication
TGL
TGR
Acrylume®
Intended Use
For areas that require
optimum vertical illumina-
tion with glare control at
low mounting heights. Ideal
for parking garages, green-
houses, garden centers and
low-prole industrial aisles.
Certain airborne contami-
nants can diminish integrity
of acrylic. Refer to Acrylic
Environmental Compatibil-
ity tables on pages 794-795
for suitable uses.
Construction
Housing: Rugged, heavy, die-
cast aluminum housing. Stan-
dard nish is natural aluminum
polyester powder nish.
Induction lighting: High-
frequency generator/ballast
supplies high-frequency cur-
rent to the lamp to initiate and
maintain a gas discharge for a
rated 100,000 hours of life.
Optics
One-piece, injection-molded,
100% virgin acrylic refractor.
TGL Type V (A165), Type II (A162),
TGR Type V (A125) and Type 1
(A121) distributions are avail-
able. Polycarbonate refractor
available. Consult factory.
Electrical
Ballast: All ballasts are 100%
factory tested. HPS: Constant
wattage autotransformer.
MH: 175-200W xtures
shipped within the U.S.
require super CWA pulse
start ballasts which are 88%
ecient and EISA-legislation
compliant (must specify
SCWA option). CSA, NOM
or INTL options required
for probe start shipments
outside the U.S.
Socket: Vertically oriented
mogul base protected exclu-
sionary "PINK" socket with
copper alloy, nickel-plated
screw shell and center contact.
For use with O-rated, protected
metal halide lamps only.
Installation
Standard quick-mount
attachment plate mounts
to 4" square or octagonal
J-box. Factory installed
pendant mount option
(PM) available.
Listings
TGL: UL Listed to U.S. and
Canadian safety standards.
NOM Certied. TGR: UL
Listed and CSA Certied. NOM
Certied. UL Listed for damp
locations. Ambient operation:
-30°C to 40°C (100M); -30°C
to 25°C (250M); -40°C to
25°C (85IL). UL wet location
standard for 150W metal
halide TGL / TGR. Optional for
all other wattages.
Series Lamp type6Reector Voltage Ballast Options
TGL
TGR
Protected metal halide
100MP
150MP
200MP
High pressure sodium
70S
100S
150S
Induction
55IL
85IL
A165
A162
A125
A121
TB4
120
2081,2,3
2401,2
277
347
480
TVOLT7
Pulse start metal halide
For shipments to U.S. territories, SCWA must be specied to comply with EISA.
SCWA Super constant wattage autotransformer
RLB Regulated Lag ballast
Non-EISA ballast
(blank) Standard magnetic ballast5
CWA Constant wattage5
CWI Constant wattage isolated 5
MRB Magnetic regular ballast
For options and accessories,
see page 439.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TGL 200MP A165 TB SCWA
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
SERIES REFLECTOR LAMP TYPE
TYPE V TYPE II
TGL A165 A162 100MP, 150MP, 200MP, 70S, 100S, 150S, 55IL, 85IL
TGR A125 A121 100MP, 70S, 100S, 150S
TGL A165 A162 55IL, 85IL
16-3/4
(42.5)
15-1/2
(39.4)
Pendant
mount
13
(34.0)
Surface
mount
13-3/8
(34.0)
Pendant
mount
12-1/2
(31.8)
11-1/4
(28.6)
Surface
mount
TGR
Notes
1 Requires CWI or RLB option in Canada for metal halide. Available
for 175-250W only.
2 Requires CWI or MRB option in Canada for high pressure sodium.
Available for 70-150W only.
3 220V and 240V, 50Hz and 60Hz ballasts available for use with U.S.
protected metal halide lamps.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V; 120V, 277V,
347V in Canada).
5 Available for shipments outside of U.S. only. 150, 200W metal
halide only.
6 Specify lamp type and reector, see congurations table.
7 55IL and 85IL only.
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
TGL
PRODUCT INFORMATION
LITHONIA OUTDOOR
561
www.lithonia.com | 1-800-279-8041PSG10
PARKING GARAGE & CANOPY
Specication
Series Lamp type Distribution Voltage Ballast Mounting
KPS High pressure sodium1
50S
70S
100S
150S
Metal halide
100M1
150M
175M
Metal halide ceramic2
100MHC1
150MHC
R2 Type II roadway
R3 Type III asymmetric
R4 Type IV, FT
R5 Type V symmetric
120
2083
2403
277
347
4803
TB4
23050HZ5
(blank) Magnetic ballast
CWI Constant wattage isolated5
SCWA Super CWA ballast
Ships installed
(blank) Ceiling mount (std.)
RMG Recessed mount 2"x2" (grid ceiling)6
Ships separately
YK Yoke7, 8, 9
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit10
QRS Quartz restrike system10
KW1 KiloWatch 120V control11
KW4 KiloWatch 277V control11
MOG Mogul base socket12
WL Wet location7
SS Stainless steel housing6
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL International shipment
for 175M
Ships separately
VG Vandal guard8
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
KPS
Intended Use
For parking garage applications.
Construction
Housing: Rugged, heavy-
gauge aluminum housing.
Square shape, continuous
welded seams for weather-
tight integrity.
Door Assembly: Extruded-
aluminum doorframe has an
impact-resistant, tempered
glass lens. Doorframe is
sealed to housing by EPDM
closed-cell gasket.
Finish: Dark bronze (DDB)
corrosion-resistant polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Stainless steel housing also
available.
Optics
Reectors are anodized,
hydroformed aluminum.
Four cuto distributions
available: Type II (roadway),
Type III (asymmetric), Type
IV (forward throw) and
Type V (symmetric). Type V
reector is vertically lamped;
all others horizontally
lamped. Reectors are eld-
interchangeable and hinge
out for easy removal during
installation/maintenance.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W. MH: 150W and below
are standard with pulse-start
ignitor technology. CSA, NOM
or INTL required for probe
start shipments outside
the U.S. for 175M. Electrical
components are unitized on
removable power module.
Positive-locking, quick-
disconnect on primary and
secondary circuits.
Socket: Medium-base
porcelain socket standard.
Mogul-base porcelain socket
for 175W metal halide. 4KV
pulse rated.
Installation
Direct mounting to recessed
J-box is standard; yoke or
recessed mountings optional.
Housing will accommodate
both top and side branch-
circuit wiring and has internal
splice compartment.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
damp locations. SS option:
UL Listed for 25°C ambient
and damp location. RMG
option: UL Listed for recessed
mounting, wet locations and
covered ceilings only.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KPS 100M R3 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
16-3/4
(42.6)
10-1/2
(26.7)
Max. weight: 36 lbs (16 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 Not applicable with L/LP.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
5 Consult factory for available wattages.
6 SS and RMG cannot be ordered together.
7 Not available with RMG.
8 May be ordered as an accessory. Prex with xture name
(e.g., KPSYK U).
9 Must specify nish.
10 Maximum allowable wattage lamp included.
11 Available with 175M SCWA only.
12 Not available with metal halide.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
562
Specication
PARKING GARAGE & CANOPY
KACM Intended Use
For parking garages,
convenience stores, hotels
and walkways.
For covered ceiling, mount on
concrete, steel or aluminum.
Not for use in dwellings.
Construction
Housing: Rugged, die-cast,
soft-corner aluminum hous-
ing with 0.12" nominal wall
thickness. Die-cast aluminum
doorframe has prismatic,
impact-resistant, tempered
glass; drop dish acrylic lens or
drop dish polycarbonate lens.
Doorframe is fully gasketed
with one-piece tubular sili-
cone. Surface mounted utiliz-
ing four 0.5" mounting holes
and one 0.875" wire-entry
hole (mounting hardware not
included). Dark bronze (DDB)
corrosion-resistant polyester
powder nish is standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Reector is optical-quality
aluminum that works in
tandem with a light-diusing
prismatic lens.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S. Induction:
High-Frequency Generator
- Supplies high-frequency
power to the discharge
vessel (lamp) to initiate and
maintain a gas discharge
for a rated 100,000 hours of
life (optimized for ambient
temperatures ranging from
-40° to 25°C; higher ambient
temperatures may reduce
lamp life).
Socket: Mogul-base porcelain
socket, 4KV pulse rated.
Position-oriented socket stan-
dard on all metal halide units.
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations. UL Listed for
25°C ambient temperature.
Series Lamp type Distribution Voltage Ballast Mounting
KACM High pressure sodium1
150S
250S
400S
Metal halide
100M1
150M
175M2
200M3
250M
320M3
400M
Metal halide ceramic4
100MHC1
150MHC
Induction
165IL5
FP Flat C73T6
DPA Drop acrylic
DPP Drop polycarbonate
120
2087
2407
277
347
4807
TB8
23050HZ9
TVOLT10
(blank) Magnetic ballast
CWI Constant wattage isolated9
SCWA Super CWA ballast
Ships installed
(blank) Ceiling mount (std.)
TC Thru-wire condulet
tee
Ships separately11
YK Yoke12, 13
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit14
QRS Quartz restrike system14
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately11
VG Vandal guard15
WG Wire guard16
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
LP Lamp factory installed
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KACM 400M DPA TB SCWA LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
17-1/2
(44.5)
7-1/8
(18.1)
Max. weight: 40 lbs. (18.1 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Flat Lens
17-1/2
(44.5)
Max. wei
g
ht: 40 lbs.
(
18.1 k
g)
11-1/8
(28.3)
Drop Lens
Notes
1 Not available with SCWA.
2 Universal mogul base lamp allows KACM to be available with SCWA.
3 Must be ordered with SCWA.
4 Not applicable with L/LP.
5 Must be ordered with LP option.
6 Not available with 165IL.
7 Must specify CWI for use in Canada.
8 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
9 Consult factory for available wattages.
10 Induction only.
11 May be ordered as an accessory.
12 Order accessory as KACMYK.
13 Must specify nish.
14 Maximum allowable wattage lamp included.
15 FP lens only. Order accessory as KACVG.
16 Order accessory as KACWG.
PRODUCT INFORMATION
LITHONIA OUTDOOR
563
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Architectural
Series Lamp type1Distribution Voltage Ballast Mounting
ASF1
ASF2
High pressure
sodium2
50S
70S
100S
150S
200S
250S
400S3
Metal
halide
50M2, 4
70M2, 4
100M2
150M
175M5
200M6
250M
320M6
350M6, 7
400M7
Metal halide
ceramic8
50MHC2, 4
70MHC2, 4
100MHC2
150MHC
Compact
uorescent2, 9
26DTT
2/26DTT
32TRT
2/32TRT
42 TRT
2/42TRT
57TRT
70TRT
NSP Narrow spot
SP Spot
HSP Horizontal
spot
MDF Medium
ood
WDF Wide ood
VFW Vertical
ood-wide
VFN Vertical
ood-
narrow
120
20810
24010
277
347
48010
TB11
MVOLT12
23050HZ13
(blank) Magnetic
ballast
CWI Constant
wattage
isolated13
SCWA Super
CWA
ballast
Ships installed
(blank) ASF1 3/4" threaded
knuckle (std.)
(blank) ASF2 swivel (std.)
YK Yoke mount
Ships separately14, 15
AFTM Tenon base mount
AFSTM Stanchion mount
AFWMA Wall-mount arm
AFTMB Twin mounting bar
AFTS Architectural tenon sliptter for
3/4" THK option
AFSTMTHK Stanchion mount for 3/4" THK
option
AFWMATHK Wall-mount arm for 3/4" THK
option
AFWMPTHK Wall-mount plate for 3/4" THK
option
AFTMBTHK Twin mounting bar for 3/4" THK
option
AFJB Architectural J-box for 3/4" THK
option
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
GMF Internal slow-blow fusing
EC Emergency circuit16
QRS Quartz restrike system16
QRSTD Quartz restrike time delay16
PE Photoelectric cell, button type17
2/1 Two 1-lamp ballasts18
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately14, 19
FV/BVG Full visor and vandal guard15
VG Vandal guard
BD Barn door15
FV Full visor15
EV Eggcrate visor (black only)
GS Glare shield (upper or bottom
visor)15
(blank) Textured dark bronze
DSST Textured sandstone
DNAT Textured natural aluminum
DWHG Textured white
DBLB Textured black
DDB Dark bronze
LPI Lamp
included
L/LP Less
lamp
ASF
Aeris™
Intended Use
For landscape and facade
lighting.
Construction
Rugged, die-cast, single-
piece low copper alloy alumi-
num housing.
Door Assembly: Die-cast door-
frame has impact-resistant,
tempered glass lens. Door
frame is fully sealed with a
closed cell silicone gasket.
Finish: Standard nish is
textured dark bronze polyester
powder. Additional archi-
tectural colors available; see
www.lithonia.com/archcolors
for more information.
Optics
Anodized aluminum reec-
tors; segmented, specular or
hammertone nish. Reec-
tors are interchangeable and
allow for tool-less access to
electrical components.
Electrical
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S. Compact
uorescent uses an electronic
high-frequency ballast.
Socket: Porcelain, medium-
base socket for ASF1, mogul-
base socket for ASF2, with
copper alloy, nickel-plated
screw shell and center con-
tact (UL Listed 660W, 600V,
4KV pulse rated). Fluorescent
is four-pin positive latching
thermoplastic. UL listed. LPI
is standard 35K for CFL.
Installation
ASF1 standard mounting is
cast 3/4" threaded knuckle.
ASF2 standard mounting is
heavy-duty, cast-aluminum
swivel that ts over standard
1-1/2" (1.9" O.D.) to 2" (2.38"
O.D.). Optional yoke mount-
ing available in both sizes.
Listings
UL Listed suitable for wet
locations in all orientations
and 25°C ambient. UL Listed
to U.S. and Canadian safety
standards. NOM Certied
(see Options). IP66 rated.
Patents pending.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: ASF1 100M WDF 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
ASF1 50S, 50M, 50MHC, 70S, 70M,
70MHC, 100S, 100M, 100MHC,
150S, 150M, 150MHC, 175M
NSP, SP, HSP, MDF, WDF,
VFW, VFN
ASF1
26DTT, 2/26DTT, 26TRT,
2/26TRT, 32TRT, 2/32TRT,
42TRT, 2/42TRT, 57TRT,
2/57TRT, 70TRT
WDF
ASF2 175M, 200S, 200M, 250S,
250M, 320M, 350M, 400M NSP, SP, HSP, MDF, WDF,
VFW, VFN
ASF2 400S HSP, MDF, WDF, VFW, VFN
LAMP/FIXTURE DATA
LAMP
TYPE DISTRIBUTION CIRCUIT
TYPE LAMP
SHAPE BASE
TYPE NEMA
DIST.
150S HSP HX-HPF E17 Medium 5 x 3
150S WDF HX-HPF E17 Medium 7 x 6
400S HSP CWA ET18 Mogul 7 x 3
400S WDF CWA ET18 Mogul 7 x 6
175M NSP CWA E17 Medium 1 x 2
175M HSP CWA E17 Medium 5 x 3
175M WDF CWA E17 Medium 7 x 6
400M NSP CWA ED28 Mogul 1 x 3
400M HSP CWA ED28 Mogul 7 x 5
400M WDF CWA ED28 Mogul 7 x 6
57TRT WDF Electronic,
HPF T4 GX24Q-5 7 x 6
70TRT WDF Electronic,
HPF T4 GX24Q-6 7 x 6
ASF1 ASF2
EPA: 1.2 ft2 (0.11m2) 2.0 ft2 (0.19m2)
Depth: 7-5/8 (19.3) 11 (27.9)
Width: 15-1/2 (39.4) 21-1/2 (54.6)
Height: 10-7/8 (27.6) 18-1/2 (47.0)
Max. weight: 20 lbs (9.0 kg) 35 lbs (15.8 kg)
D
W
H
Notes
1 Specify lamp type and distribution. See
Congurations table.
2 Not available with SCWA.
3 Not available with NSP or SP distributions.
4 Not available with 480V
5 Not available ASF1 SCWA.
6 Must be ordered with SCWA.
7 ED-28 reduced jacket lamp required.
Drawings are for
dimensional detail only and
may not represent actual
mechanical conguration.
Dimensions are shown in
inches (centimeters) unless
otherwise noted.
8 Not applicable with L/LP.
9 Available with ASF1 WDF distribution only.
10 Must specify CWI for use in Canada.
11 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
12 Optional multi-volt electronic ballast (for compact
uorescent lamps only) capable of operating on any
line voltage from 120V-277V.
13 Consult factory for available wattages
14 May be ordered as accessory.
15 Must specify nish.
16 ASF2 only. EC, QRS, and QRSTD options cannot be
ordered together. Maximum allowable wattage
lamp included.
17 Must be ordered with xture; cannot be eld
installed. Not available in 347V, 480V, or TB.
18 ASF1 with CFL only. Not available with PE.
19 Prex with xture name and size (e.g., ASF2FV).
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
564
Architectural
FLOODLIGHTING
Series Lamp type1Distribution1Voltage Ballast Mounting
KFL2
KFL3
High
pressure
sodium2
70S
100S
150S
250S
400S
Metal
halide
70M2, 3
100M2
150M
175M4
200M5
250M
320M5
350M5, 6
400M6
Metal halide
ceramic7
70MHC2, 3
100MHC2
150MHC
SP Spot
BP Bi-peak symmetric
FT Forward throw
HPM Medium
asymmetric
HPN Narrow
asymmetric
HPW Wide asymmetric
RN Narrow symmetric
RW Wide symmetric
120
2088
2408
277
347
4808
TB9
23050HZ10
(blank) Magnetic
ballast
CWI Constant
wattage
isolated10
SCWA Super
CWA
ballast
Ships installed
(blank) Swivel sliptter
(std.)
YK Yoke mount
THK Threaded
knuckle mount
Ships separately11, 12
AFTM Tenon base
mount13
AFSTM Stanchion
mount13
AFWMA Wall-mount arm13
AFTMB Twin mounting bar13
AJB Architectural J-box for 1/2" THK option14
KFLSTMTHK Stanchion mount for 1/2" THK option14
KFLTMBTHK Twin mounting bar for 1/2" THK option14
KFLWMATHK Wall mount for 1/2" THK option14
TS Tenon sliptter (2-3/8" OD max.)15
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit16
QRS Quartz restrike system16
PE Photoelectric cell, button type17
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping
outside the U.S.
Ships separately11, 18
UV/BVG Upper visor and bubble vandal guard12
WG Wire guard
BVG Bubble vandal guard
BD Barn door12
FV Full visor12
UV Upper visor12
BV Bottom visor12
EV Eggcrate visor (black
only)
HLV Horizontal louver12
VLV Vertical louver12
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp
included
L/LP Less lamp
KFL Intended Use
For landscape and facade
lighting.
Construction
Housing: Extruded
aluminum body with cast
end caps. Cast aluminum
doorframe is hinged and
secured by stainless steel
fasteners. Closed-cell
silicone gasket prevents
entrance of contaminants.
Clear, impact-resistant,
tempered glass lens with
silk screen.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Anodized aluminum
reectors; segmented,
specular or hammertone
nish. Reectors are eld
interchangeable.
Electrical
Ballasts: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S.
Socket: Horizontal porcelain
socket (KFL2 medium base,
KFL3 mogul base) with copper
alloy, nickel-plated screw shell
and center contact. UL Listed
660W, 600V 4KV pulse rated.
Installation
Standard mount is two-piece,
heavy-duty, cast-aluminum
swivel with integral wiring
compartment (pictured).
Swivel ts over standard
1-1/2" (1.9" OD) to 2" (2.38"
OD) tenon. Corrosion-
resistant painted steel yoke
with 3-foot, 16/3 SEO cable
or threaded knuckle mount
(1/2" NPT) are optional.
Listings
UL Listed (standard). CSA Cer-
tied or NOM Certied (see
Options). UL Listed for 25°C
ambient and wet locations.
IP66 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: KFL2 100M HPW 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Specify lamp type. See
Congurations table.
2 Not available with SCWA.
3 Not available with 480V.
4 Not available KFL2 SCWA.
5 Must be ordered with SCWA.
6 ED-28 reduced jacket lamp
required.
7 Not applicable with L/LP.
8 Must specify CWI for use in
Canada.
9 Optional multi-tap ballast
(120V, 208V, 240V, 277V). In
Canada 120V, 277V, 347V;
ships as 120V/347V.
10 Consult factory for available
wattages.
11 May be ordered as an acces-
sory.
12 Must specify nish.
13 For use with swivel mounting
only. Must include swivel
mount option on xture.
14 For use with THK mounting
only. Must include THK mount
option on xture.
15 For use with yoke mounting
only. Must include yoke
mount option on xture.
16 Maximum allowable wattage
lamp included. KFL3 only.
17 Must be ordered with xture;
cannot be eld installed. Not
available 347V, 480V, or TB.
18 Prex with KFLWFL and size
(e.g., KFLWFL2BVG).
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
KFL2 70S, 70M, 70MHC, 100S, 100M,
100MHC, 150S, 150M, 150MHC, 175M SP, BP, RN, RM, RW, HPN, HPM, HPW, FT
KFL3 175M, 200M, 250S, 250M, 320M,
350M, 400S, 400M SP, RN, RM, RW, HPN, HPM, HPW, FT
LAMP/FIXTURE DATA
LAMP
TYPE DISTRIBUTION CIRCUIT
TYPE LAMP
SHAPE BEAM SPREAD
H° x V° NEMA DIST.
150S SP HX-HPF E17 142 x 127 3 x 1
150S HPW HX-HPF E17 39 x 12 7 x 6
400S SP CWA ET18 60 x 13 4 x 1
400S HPW CWA ET18 144 x 140 7 x 7
175M SP CWA ED17 27 x 15 2 x 1
175M HPW CWA ED17 147 x127 7 x 6
400M SP CWA BT28 42 x 17 3 x 1
400M HPW CWA BT28 146 x 140 7 x 7
W
HOH
D
KFL2 KFL3
EPA: 1.3ft2 (0.12m2) 2.0ft2 (0.19m2)
Width: 17 (43.2) 20 (50.8)
Depth: 8-1/8 (20.6) 9-1/8 (23.2)
Height: 9-7/8 (25.1) 13-1/8 (33.3)
Overall height: 14 (35.6) 16-7/8 (42.9)
Max. weight: 29 lbs (13.1 kg) 44 lbs (19.9 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
565
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Specication
170S
Intended Use
For airport aprons or
parking areas.
Construction
Housing: Rugged, heavy-
gauge, aluminum housing.
Continuous welded seams
for weather-tight integrity.
Aluminum door frame se-
cured with four stainless
steel latches. Thermal-
resistant and shock-resistant
tempered at lens.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Anodized aluminum reector
with internal glare control
louver, painted matte black
to provide an asymmetrical
beam pattern with sharp
vertical cuto.
Electrical
Electrical components mount-
ed to heavy-gauge plate to
maximize heat dissipation and
structural integrity.
Ballast: All ballasts are 100%
factory tested. Constant
wattage autotransformer.
Super CWA Pulse Start bal-
lasts, 88% ecient and EISA
legislation compliant, are
required for 320-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Horizontal, mogul-
base porcelain socket with
copper alloy, nickel-plated
screw shell and center con-
tact. UL Listed 1500W-600V,
4KV pulse rated.
Installation
Painted steel yoke, complete
with vertical angle selector,
retaining stop and 3-foot,
14/3 cable, is standard.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient and
wet locations.
Series Lamp type Distribution Voltage Ballast Mounting
170S High pressure sodium
250S
400S
1000S
Metal halide
320M1
350M1
400M
1000M2
HPN Narrow asymmetric 120
2083
2403
277
347
4803
TB4
23050HZ5
Ships installed
(blank) Magnetic ballast
CWI Constant wattage isolated5
SCWA Super CWA ballast
Ships separately6
HRBW HID remote ballast weatherproof (black)
HRB HID remote ballast (white)
Ships installed
(blank) Yoke (std.)
Ships separately
TS Tenon sliptter (2-3/8" OD max.)6, 7
MPB29 Mounting pole bracket for 2 xtures at 90 degrees8
MPB39 Mounting pole bracket for 3 xtures at 90 degrees8
MPB49 Mounting pole bracket for 4 xtures at 90 degrees8
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
QRS Quartz restrike system9
PER NEMA twist-lock receptacle only10
CSA Meets Canadian standards
INTL Available for MH probe start shipping outside the U.S.
Ships separately6
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap
UV Upper visor7
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: 170S 400S HPN 120 SF LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
LAMP/FIXTURE DATA
LAMP TYPE DIST. BALLAST LAMP SHAPE BEAM SPREAD
H° x V° NEMA
DIST.
250S HPN CWA ET18 128 x 55 6 x 4
400S HPN CWA ET18 129 x 52 6 x 4
1000S HPN CWA E25 132 x 56 7 x 4
400M HPN CWA BT37 139 x 68 7 x 4
1000M HPN CWA BT37 138 x 63 7 x 4
20
(50.8)
EPA: 2.7 ft2 (0.25 m2)
Max. weight: 83 lbs (37.6 kg)
20-1/2
(52.1)
19-7/8
(50.5)
Drawings are for dimensional detail only and may not represent
actual mechanical conguration. Dimensions are shown in inches
(centimeters) unless otherwise noted.
Notes
1 Must be ordered with SCWA.
2 Requires a BT-37 reduced jacket lamp.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
5 Consult factory for available wattages.
6 May be ordered as an accessory.
7 Must specify nish.
8 MPB bracket ships separately with junction box and hinge mecha-
nisms. Bracket weight: 12 lbs. Must be ordered with xture.
9 Maximum allowable wattage lamp included.
10 Photocell not included.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
566
Specication
FLOODLIGHTING
Series Lamp type Distribution Voltage Ballast
95
95V
High pressure sodium
1000S
Metal halide
1000M
Horizontal lamp
RMH Medium horizontal lamp
RNH Narrow horizontal lamp1
RWH Wide horizontal lamp
BPH Bi-peak symmetric horizontal lamp2
SPH Spot horizontal lamp2
Vertical lamp
RMV Medium vertical lamp
RNV Narrow vertical lamp3
RWV Wide vertical lamp
BPV Bi-peak symmetric vertical lamp2
SPV Spot vertical lamp2
120
2084
2404
277
347
4804
TB5
23050HZ6
Ships installed
(blank) Magnetic ballast
CWI Constant wattage isolated6
SCWA Super CWA ballast
Ships separately7
HRBW HID remote ballast weatherproof (black)
HRB HID remote ballast (white)
Mounting Options Finish Lamped
Ships installed
(blank) Yoke (std.)
Ships separately7, 8
TS Tenon sliptter (2-3/8" OD max.)
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
PER NEMA twist-lock receptacle
only9
CSA Meets Canadian standards
Ships separately7
PE1 NEMA twist-lock PE (120, 208,
240V)
PE3 NEMA twist-lock PE
(347V)
PE4 NEMA twist-lock PE
(480V)
PE7 NEMA twist-lock PE
(277V)
SC Shorting cap
VG Vandal guard10
FV Full visor8, 10
UV Upper visor8, 10
BV Bottom visor8, 10
CV Concentric visor8, 10
GV Glare visor (three
sided)8, 10
(blank) Dark bronze (std.)
DBL Black
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
LPI Lamp included
L/LP Less lamp
95 Intended Use
For large area facade or
monument oodlighting.
Construction
Housing: Rugged, heavy-
gauge, aluminum housing,
horizontal (95) or vertical
(95V) lamp orientation. Con-
tinuous welded seams, fully
gasketed for weathertight in-
tegrity. Aluminum doorframe
secured with four stainless
steel latches. Thermal-
resistant and shock-resistant
tempered at lens.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Segmented anodized
aluminum, precisely
formed to provide varying
rectangular beam patterns
(non-rotatable).
Electrical
Electrical components mounted
to heavy-gauge plate to
maximize heat dissipation and
structural integrity. Ballast:
All ballasts are 100% factory
tested. Constant wattage
autotransformer.
Socket: Mogul-base porcelain
socket with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V. 4KV pulse
rated. Uses BT 56 lamp.
Installation
Painted steel yoke complete
with vertical angle selector
stop, re-aiming, and 3-foot,
14/3 cable is standard.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient and
wet locations.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: 95 1000S RMH 120 SF LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
DISTRIBUTION DATA
95 95V
DISTRIBUTION 1000M 1000S 1000M 1000S
RMH 4 x 1 5 x 2 3 x 5 6 x 6
RNH 3 x 1 - 3 x 3 5 x 6
RWH 5 x 1 5 x 1 3 x 5 6 x 6
BPH - - 4 x 5 6 x 6
SPH 2 x 1 4 x 1 - -
RMV 5 x 3 6 x 6 1 x 4 2 x 5
RNV 3 x 3 6 x 5 1 x 3 -
RWV 5 x 4 6 x 6 1 x 4 1 x 5
BPV 5 x 4 6 x 6 - -
SPV - - 1 x 2 1 x 4
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
EPA: 4.7 ft2 (0.44 m2)
Max. weight: 90 lbs (40.8 kg)
24-1/2
(62.5)
30
(77.0)
12-1/2
(31.8)
95
17
(43.0)
30
(77.0)
21
(53.5)
EPA: 4.3 ft2 (0.40 m2)
Max. weight: 90 lbs (40.8 kg)
95V
Notes
1 Not available with 95 1000S.
2 BPH and SPV for use with 95V only. SPH and
BPV for use with 95 only.
3 Not available with 95V 1000S.
4 Must specify CWI for use in Canada.
5 Multi-tap ballast (120V, 208V, 240V, 277V). In
Canada 120V, 277V, 347V; ships as 120V/347V.
6 Consult factory for available wattages.
7 May be ordered as an accessory.
8 Must specify nish.
9 Photocell not included.
10 Prex with xture name and size (e.g., 95UV).
PRODUCT INFORMATION
LITHONIA OUTDOOR
567
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Specication
55
Intended Use
For large area facade or
monument oodlighting.
Construction
Housing: Rugged, heavy-
gauge, aluminum housing,
horizontal (55) or vertical
lamp (55V) orientation.
Continuous welded seams,
fully gasketed for weather-
tight integrity. Aluminum
doorframe secured with
four stainless steel latches.
Thermal-resistant, tempered
at lens.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Anodized aluminum reec-
tor. Seven distributions
available to provide varying
rectangular beam patterns
(non-rotatable).
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All bal-
lasts are 100% factory
tested. Constant wattage
autotransformer. Super CWA
Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required for
320-400W (must order SCWA
option) for U.S. shipments
only. CSA, NOM or INTL
required for probe start ship-
ments outside the U.S.
Socket: Mogul-base porcelain
socket with copper alloy,
nickel-plated screw shell
and center contact. UL Listed
1500W-600V. 4KV pulse rated.
Installation
Painted, steel yoke complete
with angle selector, aiming
stop, and 3-foot, 14/3 cable
is standard.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed for 25°C ambient and
wet locations.
Series Lamp type Distribution Voltage Ballast Mounting
55
55V
High pressure sodium
1000S
Metal halide
320M1
350M1
400M
1000M
RMA Medium A2
RNA Narrow A2
RWA Wide A2
RME Medium E3
RNE Narrow E3
RWE Wide E3
RPN Narrow peak3
120
2084
2404
277
347
4804
TB5
23050HZ6
Ships installed
(blank) Magnetic ballast
CWI Constant wattage isolated6
SCWA Super CWA ballast
Ships separately7
HRBW HID remote ballast weatherproof (black)
HRB HID remote ballast (white)
Ships installed
(blank) Yoke (std.)
Ships separately7, 8
TS Tenon sliptter (2-3/8" OD max.)
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
QRS Quartz restrike system9
PER NEMA twist-lock receptacle only10
CSA Meets Canadian standards
INTL Available for MH probe start shipping outside
the U.S.
Ships separately7
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap
VG Vandal guard11
WG Wire guard11
FV Full visor8, 11
UV Upper visor8, 11
BV Bottom visor8, 11
GV Glare visor (three sided)8, 11
(blank) Dark bronze (std.)
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: 55 1000S RPN TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
DISTRIBUTION DATA
55 55V
DISTRIBUTION 1000M 400M 1000S 1000M 400M 1000S
RME 6 x 5 6 x 5 6 x 5 4 x 6 5 x 6 5 x 6
RNE 6 x 4 6 x 4 6 x 4 4 x 6 4 x 6 4 x 6
RPN 6 x 2 6 x 2 5 x 1 1 x 6 1 x 6 1 x 5
RWE 6 x 5 6 x 5 6 x 5 5 x 6 5 x 6 5 x 6
RNA 5 x 1 - - 1 x 5 - -
RMA 6 x 6 - - 6 x 6 - -
RWA 6 x 5 - - 6 x 7 - -
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
EPA: 3.5
ft2 (0.33 m2)
Max. weight: 98 lbs (44.3 kg)
23-1/4
(59.1) 17-1/3
(44.0)
23-1/4
(59.1)
55
17-3/8
(44.1)
12-1/2
(31.8)
32-1/2
(82.6)
EPA: 3.8
ft2 (0.35 m2)
Max. weight: 98 lbs (44.3 kg)
55V
Notes
1 Must be ordered with SCWA.
2 RMA, RNA, RWA are for use with 1000M only
and require standard BT-56 lamp.
3 RME, RNE, RPN, RWE require reduced jacket
BT-37 lamp with 1000M.
4 Must specify CWI for use in Canada.
5 Optional multi-tap ballast (120V, 208V, 240V,
277V). In Canada 120V, 277V, 347V; ships as
120V/347V.
6 Consult factory for available wattages.
7 May be ordered as an accessory.
8 Must specify nish.
9 Maximum allowable wattage lamp included.
10 Photocell not included.
11 May be ordered as accessory. Prex with
xture name (e.g., 55UV).
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
568
Speci cation
FLOODLIGHTING
Series Lamp type1Distribution1Voltage Ballast Mounting
HFA
HFL
High pressure sodium2
250S
400S
Metal halide
250M
400M3
HFA
TA Horizontal
RN Narrow symmetric
HFL
RA2 Rectangular beam
120
2084
2404
277
347
4804
TB5
(blank) Magnetic ballast
SCWA Super CWA ballast
(blank) Yoke (std.)
Options Finish Lamped
Ships installed
TP Tamperproof latches6
CSA Meets Canadian standards
INTL Available for MH probe start shipping outside the U.S.
(blank) Dark bronze (std.)
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
HFA
HFL
Intended Use
For general to heavy indus-
trial applications, including
Class 1, Division 2 classi ed
hazardous locations, marine
and corrosive environments,
or wherever excessive vibra-
tion and dirt may exist.
Construction
Housing: NEMA heavy-duty
constructed housing. Die-cast
copper-free (<.4%) aluminum
housing with round corners
and front bezel. Front bezel is
removable via position-
oriented hinge-cam design.
Lens is thermal- and shock-
resistant, clear, tempered
glass with no metal-to-
glass contact. Hardware is
corrosion-resistant. Standard
nish is dark bronze (DDB)
corrosion-resistant polyester
powder. Additional architec-
tural colors available; see
www.lithonia.com/archcolors.
Optics
Computer-designed,
precision-formed re ectors
for high performance and
e cency. Premium one-piece
silicone gasket seals optical
chamber to inhibit entrance
of contaminants. HFL 400W
metal halide requires an ED28
reduced jacketed lamp.
Electrical
Electrical components are
mounted to cast aluminum
housing, promoting
maximum heat dissipa-
tion. Electrical: Ballast: All
ballasts are 100% factory
tested. Constant wattage
autotransformer 250W and
above. Super CWA Pulse Start
ballasts, 88% e cient and
EISA legislation compliant,
are required for 250-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S..
Socket: Porcelain, horizontally
oriented mogul-base socket
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W,
600V, 4KV pulse rated.
Installation
HFA: front bezel is latched
for easy tool-less internal
access to optical and electrical
compartments. Corrosion-re-
sistant, heavy-duty, painted
steel mounting yoke. Three-
quarter-inch female threaded
conduit hub provided.
Listings
UL Listed (standard). CSA
Certi ed (see Options). UL
Listed Class 1, Division 2,
Groups A, B, C and D for haz-
ardous locations. UL Listed
for marine outside locations.
IP65 rated.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: HFA 400S TA 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
HFA 250S, 250M, 400S, 400M TA, RN
HFL 400S, 400M RA2
TEMPERATURE CODES
SERIES LAMP TYPE TCODE OR
TEMP. MAX. INTERNAL
TEMP.
HFA 250M T1 336°C
HFA 400M T1 343°C
HFA 250S T1 301°C
HFA 400S T1 352°C
HFL 400M T1 433°C
HFL 400S T1 426°C
Notes
1 Specify lamp type and distribution. See Con gurations table.
2 Not available with SCWA.
3 HFL 400M must use reduced jacket ED-28 lamp.
4 Consult factory for availability in Canada.
5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
6 HFA only.
Drawings are for dimensional detail only and may not represent actual
mechanical con guration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
EPA: 2.6 ft2 (0.24 m2)
Max. weight: 65 lbs (29.5 kg)
24
(61.0)
10
(25.4)
24-3/8
(61.9)
HFA
15-3/4
(40.0)
16-1/8
(40.9)
6-1/8
(15.5)
EPA: 1.3 ft2 (.12 m2)
Max. weight: 27 lbs (12.3 kg)
HFL
PRODUCT INFORMATION
LITHONIA OUTDOOR
569
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Specication
Series Lamp type1Distribution1Voltage Ballast Mounting Options Finish Lamped
HFM
HFR
High pressure
sodium2
100S
150S
250S
400S
Metal halide
175M3
250M
400M
RG Horizontal
TA Horizontal
RB Vertical
RC Vertical
120
2084
2404
277
347
4805
TB6
(blank) Magnetic
ballast
SCWA Super CWA
ballast
(blank) Yoke
(std.) Ships installed
CSA Meets Canadian standards
INTL Available for MH probe start shipping
outside the U.S.
(blank) Dark bronze (std.)
CR Enhanced corrosion
resistance
CRT Non-stick protective
coating (black)
LPI Lamp
included
L/LP Less lamp
Intended Use
For general to heavy indus-
trial applications, including
Class 1, Division 2 classied
hazardous locations, marine
and corrosive environments,
or where excessive vibration
and dirt may exist.
Construction
Housing: NEMA heavy-duty
constructed housing. Die-cast
copper-free (<.4%) aluminum
housing with rounded corners
and front bezel. Front bezel is
removable via position-
oriented hinge-cam design.
Lens is thermal- and shock-
resistant, clear, tempered
glass with no metal-to-
glass contact. Hardware is
corrosion-resistant. Standard
nish is dark bronze (DDB)
corrosion-resistant polyester
powder. Additional architec-
tural colors available; see
www.lithonia.com/archcolors.
Optics
Computer-designed,
precision-formed reector
for high performance and ef-
ciency. Premium one-piece
silicone gasket seals optical
chamber to inhibit entrance
of outside contaminants.
Electrical
Electrical components
mounted to cast aluminum
housing, promoting
maximum heat dissipation.
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. Super CWA
Pulse Start ballasts, 88%
ecient and EISA legislation
compliant, are required for
151-400W (must order SCWA
option) for U.S. shipments
only. CSA, NOM or INTL
required for probe start ship-
ments outside the U.S..
Socket: Porcelain, horizontally
oriented, mogul-base (HFR)
or medium-base (HFM) socket
with copper alloy, nickel-
plated screw shell and center
contact. UL Listed 1500W,
600V, 4KV pulse rated.
Installation
Corrosion-resistant, heavy-
duty, painted steel mount-
ing yoke. Three-quarter-inch
female threaded conduit
hub provided.
Listings
UL Listed (standard). CSA
Certied (see Options). UL
Listed, Class 1, Division 2,
Groups A, B, C and D for haz-
ardous locations. UL Listed
for marine outside locations.
IP65 rated.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative. Example: HFR 400S TA 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
AVAILABLE CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
HFR 150S, 175M, 250S, 250M, 400S,
400M TA, RB, RC
HFM 100S, 150S RB, RG
TEMPERATURE CODES
SERIES LAMP TYPE TCODE OR
TEMP. MAX. INTERNAL
TEMP.
HFR 250M T1 347°C
HFR 400M T1 359°C
HFR 150S T2B 238°C
HFR 250S T1 332°C
HFR 400S T1 376°C
HFM 100S 280 280°C
HFM 150S 350 341°C
WD
H
HFR HFM
EPA: 1.3 ft2 (0.12 m2) 0.5 ft2 (0.05 m2)
Width: 17-5/8 (44.8) 10-1/2 (26.9)
Depth: 10-3/4 (32.4) 6-3/4 (17.5)
Height: 10-7/8 (27.4) 18-1/2 (47.0)
Weight: 20 lbs (9.0 kg) 35 lbs (15.8 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Specify lamp type and distribution. See Congurations table.
2 Not available with SCWA.
3 Not available with HFM SCWA.
4 Consult factory for availability in Canada.
5 Not available in Canada.
6 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,
277V, 347V; ships as 120V/347V.
HFR
HFM
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
570
General Purpose
FLOODLIGHTING
TFA
Contour®
Intended Use
For industrial yards, parking
lots, construction sites,
streets and recreational areas.
Construction
Housing: Heavy-duty
construction. Contoured die-
cast aluminum housing and
front bezel. Bezel hinged and
latched for fast, easy tool-
less internal access to optical
and electrical compartments.
Lens is heavy-duty, thermal-
and shock-resistant, clear,
tempered glass with no
metal-to-glass contact.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Computer-designed, preci-
sion die-formed, specular
anodized aluminum reector
provides high eciencies.
Premium, one-piece silicone
gasket seals optical chamber
to inhibit entrance of outside
contaminants.
Electrical
Electrical components
mounted to heavy-gauge
plate to maximize heat
dissipation and structural
integrity. Ballast: All ballasts
are 100% factory tested.
Constant wattage autotrans-
former 250W and above.
Super CWA Pulse Start bal-
lasts, 88% ecient and EISA
legislation compliant, are
required for 250-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Porcelain, horizon-
tally or vertically oriented,
mogul-base socket with cop
per alloy, nickel-plated screw
shell and center contact. UL
Listed 1500W, 600V.
Installation
Tool-less latches on front
bezel can be opened while
wearing gloves. Corrosion-
resistant, painted steel yoke.
Listings
UL Listed (standard) (ambi-
ent temperature 25°C for
750W and above, 40°C for
400W and below). CSA Certi-
ed or NOM Certied (see
Options). UL Listed for wet
locations. IP65 rated.
Series Lamp type1Distribution1Voltage Ballast Mounting
TFA High pressure sodium2
250S
400S
750S3
1000S
Metal halide
250M
320M4
350M4
400M
750M4
1000M
RN Horizontal
TA Horizontal
RB Vertical
RC Vertical
RE Vertical
RM Vertical
TA2 Vertical
120
2085
2405
277
347
4805
TB6
23050HZ7
(blank) Magnetic ballast
CWI Constant wattage isolated7
SCWA Super CWA ballast
Ships installed
(blank) Yoke (std.)
IS Integral sliptter (2-3/8" OD tenon)
Ships separately8, 9
AFTM Tenon mount
FRWB Radius wall bracket
FSPB Steel square pole bracket
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit10
QRS Quartz restrike system10
QRSTD Quartz restrike time delay10
PER NEMA twist-lock receptacle only11
C22 2' 12-3 cord prewired12
C42 2' 14-3 cord prewired12
C62 2' 16-3 cord prewired12
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately8
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap
VG Vandal guard13
WG Wire guard13
FV Full visor9, 13
UV Upper visor9, 13
BV Bottom visor9, 13
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TFA 1000M TA TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
CONFIGURATIONS
SERIES LAMP TYPE DISTRIBUTION
TFA 250S, 250M, 320M, 350M, 400S, 400M RN, TA, RB, RC, TA2, RM
TFA 750M RN, TA
TFA 750S, 1000S RN, TA, RB, TA2, RM
TFA 1000M RN, TA, RB, RE, TA2, RM
Notes
1 Specify lamp type and distribution. See Congurations table.
2 Not available with SCWA.
3 Not available in multi-tap ballast.
4 Must be ordered with SCWA.
5 Must specify CWI for use in Canada.
6 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
7 Consult factory for available wattages.
8 May be ordered as an accessory.
9 Must specify nish.
10 Maximum allowable wattage lamp included.
11 Photocell not included.
12 Yoke-mount only.
13 Prex with xture name (e.g., TFAUV).
LAMP/FIXTURE DATA
LAMP
TYPE DIST. CIRCUIT LAMP
SHAPE BEAM SPREAD
H° x V° NEMA
DIST.
400S TA CWA ET18 140 x 134 7 x 7
400S RN CWA ET18 127 x 30 6 x 3
400S TA2 CWA ET18 138 x 112 7 x 6
400S RB CWA ET18 126 x 106 6 x 6
1000S TA CWA E25 139 x 133 7 x 7
1000S RN CWA E25 127 x 21 6 x 2
1000S TA2 CWA E25 144 x 119 7 x 6
1000S RB CWA E25 128 x 114 6 x 6
400M TA CWA BT37 143 x 133 7 x 7
400M RN CWA BT37 129 x 35 6 x 3
400M TA2 CWA BT37 135 x 111 7 x 6
400M RB CWA BT37 124 x 100 6 x 6
1000M TA CWA BT56 146 x 135 7 x 7
1000M RN CWA BT56 130 x 45 6 x 3
1000M TA2 CWA BT56 144 x 119 7 x 6
1000M RB CWA BT56 126 x 109 6 x 6 9-3/4
(24.8)
22-1/2
(57.2)
22
(55.9)
EPA: 2.6 ft2 (0.24 m2)
Max. weight: 65 lbs (29.5 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
571
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
General Purpose
Series Lamp type Distribution Voltage Ballast Mounting
TFL High
pressure
sodium1
70S
100S
150S
200S
250S
400S
Metal
halide
150M
175M2
200M3
250M
320M3
350M3, 4
400M4
Metal
halide
ceramic5
150MHC
RA2 Rectangular
beam
TA2 Vertical
(max 250W)
120
2086
2406
277
347
4806
TB7
23050HZ8
(blank) Magnetic
ballast
CWI Constant
wattage
isolated8
SCWA Super CWA
ballast
Ships installed
(blank) Yoke (std.)
IS Integral sliptter
(2-3/8" OD tenon)
Ships separately9, 10
AFTM Tenon mount11
FRWB Radius wall
bracket11
FSPB Steel square pole bracket11
FTS Tenon sliptter (2-3/8" to
2-7/8" OD tenon)12
FCRA Crossarm adaptor12
FCRA45 Crossarm adaptor (45
degrees from horizontal)12
FPMB Wall/pole mounting
bracket12
FSAB Steel angle bracket12
FCX2 2-Light wood pole
crossarm12
FCX3 3-Light wood pole
crossarm12
FCX4 4-Light wood pole
crossarm12
FWPB Wall/wood pole/pipe
bracket12
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit13
QRS Quartz restrike system13
PER NEMA twist-lock receptacle only14
C22 2' 12-3 cord prewired15
C42 2' 14-3 cord prewired15
C62 2' 16-3 cord prewired15
CF Charcoal lter
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately9
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap
VG Vandal guard16
WG Wire guard16
FV Full visor10, 16
UV Upper visor10, 16
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating
(black)
LPI Lamp included
L/LP Less lamp
TFL
Contour®
Intended Use
For recreation areas, parking
lots, building facades and
car lots.
Construction
Housing: Compact, soft-
corner, die-cast aluminum
housing and front cover.
Front bezel is fully sealed
with one-piece, bonded
silicone gasket. Lens is
thermal- and shock-resistant,
clear, tempered glass.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
TA2: vertical lamp with one-
piece, hydro-formed, anodized
aluminum reector. Two-
position adjustable socket.
RA2: Horizontal lamp with
anodized specular aluminum
reector. Both have sealed op-
tic chamber to inhibit entrance
of outside contaminants.
Electrical
Components mounted to
cast-aluminum housing for
maximum heat-dissipation.
Ballast: All ballasts are 100%
factory tested. High reac-
tance, high power factor for
150W and below. Constant
wattage autotransformer
175W and above. MH: 150W
and below are standard with
pulse-start ignitor technol-
ogy. Super CWA Pulse Start
ballasts, 88% ecient and
EISA legislation compliant,
are required for 151-400W
(must order SCWA option)
for U.S. shipments only.
CSA, NOM or INTL required
for probe start shipments
outside the U.S.
Socket: Porcelain, verti-
cally or horizontally oriented
mogul-base socket with
copper alloy, nickel-plated
screw shell and center con-
tact. UL Listed 1500W, 600V,
4KV pulse rated.
Installation
Corrosion-resistant, heavy-
duty, painted steel yoke.
External screws treated for
corrosion resistance. Above-
horizontal aiming standard.
Listings
UL Listed (standard) (ambi-
ent temperature 25°C for
320W and above and 200S,
40°C for 250W and below).
CSA Certied or NOM Certi-
ed (see Options). UL Listed
for wet locations. IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TFL 400S RA2 TB LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Notes
1 Not available with SCWA.
2 Universal mogul base lamp allows TFL to be available with SCWA.
3 Must be ordered with SCWA.
4 Requires T-15, ED or BT28 reduced jacket lamp.
5 Not applicable with L/LP.
6 Must specify CWI for use in Canada.
7 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
8 Consult factory for available wattages.
9 May be ordered as accessory.
10 Must specify nish.
11 For use with sliptter.
12 For use with yoke.
13 Maximum allowable wattage lamp included.
14 Photocell not included.
15 Yoke mount only.
16 May be ordered as accessory. Prex with xture name (ie TFLUV).
LAMP/FIXTURE DATA
LAMP
TYPE DIST. CIRCUIT LAMP
SHAPE BEAM SPREAD
H° x V° NEMA
DIST.
100S TA2 HX-HPF E17 148 x 123 7 x 6
150S TA2 HX-HPF E17 155 x 119 7 x 6
250S RA2 CWA BT28 143 x 111 7 x 6
400S RA2 CWA BT28 143 x 111 7 x 6
175M TA2 CWA BT28 147 x 122 7 x 6
250M RA2 CWA BT28 140 x 104 7 x 6
400M RA2 CWA BT28 145 x 100 7 x 6
EPA: 1.3 ft2 (0.12 m2)
Weight: 27 lbs (11.8 kg)
15-3/4
(40.0) 6-1/8
(15.6)
16-1/8
(40.9)
6
(15.2)
2
(5.1)
1-1/4
(3.2)
1-1/4
(3.2)
5/8
(1.6)
1/2
(1.3)
1/2
(1.3)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
572
General Purpose
FLOODLIGHTING
Notes
1 Not available with SCWA.
2 Universal mogul base lamp allows TFL to be
available with SCWA.
3 Must be ordered with SCWA.
4 Not applicable with L/LP.
5 Not available with 150S.
6 Must specify CWI for use in Canada.
7 Optional multi-tap ballast (120V, 208V, 240V,
277V). In Canada 120V, 277V, 347V; ships as
120V/347V.
8 Consult factory for available wattage.
9 May be ordered as accessory.
10 Must specify nish.
11 Requires IS or FTS sliptter.
12 Yoke mounting only.
13 Prex with xture name (e.g., TFREY) when
ordered as accessory.
14 Maximum allowable wattage lamp included.
15 Photocell not included.
Series Lamp type Distribution Voltage Ballast Mounting
TFR High pressure sodium1
150S
250S
400S
Metal halide
150M
175M2
200M3
250M
320M3
350M3
400M
Metal halide ceramic
150MHC4
RB Horizontal
RC Horizontal
TA Horizontal5
120
2086
2406
277
347
4806
TB7
23050HZ8
(blank) Magnetic ballast
CWI Constant wattage
isolated8
SCWA Super CWA ballast
Ships installed
(blank) Yoke (std.)
IS Integral sliptter
(2-3/8" OD
tenon)
Ships separately9, 10
AFTM Tenon mount11
FRWB Radius wall bracket11
FSPB Steel square pole bracket11
FTS Tenon sliptter (2-3/8" to 2-7/8"
OD tenon)12
EY Extended yoke12, 13
FWPB Wall/wood pole/pipe bracket12
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
EC Emergency circuit14
QRS Quartz restrike system14
PER NEMA twist-lock receptacle only15
C22 2' 12-3 cord prewired12
C42 2' 14-3 cord prewired12
C62 2' 16-3 cord prewired12
CF Charcoal lter
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
Ships separately9
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE (480V)
PE7 NEMA twist-lock PE (277V)
SC Shorting cap
VG Vandal guard13
WG Wire guard13
FV Full visor10, 13
UV Upper visor10, 13
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
TFR
Contour®
Intended Use
For recreation areas, parking
lots, building facades and
car lots.
Construction
Housing: Compact, soft
corner, die-cast aluminum
housing and front cover.
Front bezel is removable via
position-oriented hinge-cam
design and is fully sealed
with one-piece, bonded
silicone gasket. Lens is
thermal- and shock-resistant
clear, tempered glass.
Finish: Dark bronze polyester
powder finish standard.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Die-formed, anodized
aluminum reectors
provide rectangular, uniform
distributions. Three available
beam distributions for
maximum exibility in area
lighting applications.
Electrical
Components mounted to
cast-aluminum housing,
promoting maximum heat
dissipation. Ballast: High
reactance, high power factor
for 150W. Constant wattage
autotransformer 175W and
above. MH: 150W and below
are standard with pulse-start
ignitor technology. Super
CWA Pulse Start ballasts,
88% ecient and EISA
legislation compliant, are
required for 151-400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket - Porcelain (medium
base: 150M; mogul base: all
others), horizontally oriented
with copper alloy, nickel
plated screw shell and center
contact. UL Listed 1500W,
600V, 4KV pulse rated.
Installation
Corrosion-resistant,
heavy-duty, painted steel
mounting yoke. External
screws treated for corrosion
resistance. Above-horizontal
aiming standard.
Listings
UL Listed (standard) (ambi-
ent temperature 25°C for
320W and above, 40°C for
250W and below). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations. IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TFR 400M TA TB SCWA LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
6
(15.2)
2
(5.1)
1-1/4
(3.2)
1-1/4
(3.2)
5/8
(1.6)
1/2
(1.3)
1/2
(1.3)
LAMP/FIXTURE DATA
LAMP
TYPE DIST. CIRCUIT LAMP
SHAPE BEAM SPREAD
H° x V° NEMA
DIST.
150S RB XHP E17 114 x 107 6 x 6
150S RC XHP E17 100 x 92 5 x 5
250S TA CWA ET18 132 x 118 7 x 6
250S RB CWA ET18 110 x 104 6 x 6
250S RC CWA ET18 99 x 97 5 x 5
400S TA CWA ET18 132 x 118 7 x 6
400S RB CWA ET18 110 x 104 6 x 6
400S RC CWA ET18 99 x 97 5 x 5
175M TA CWA BT28 132 x 111 7 x 6
175M RB CWA BT28 121 x 91 6 x 5
175M RC CWA BT28 100 x 90 5 x 5
250M TA CWA BT28 132 x 111 7 x 6
250M RB CWA BT28 121 x 91 6 x 5
250M RC CWA BT28 100 x 90 5 x 5
400M TA CWA BT37 138 x 119 7 x 6
400M RB CWA BT37 124 x 107 6 x 6
400M RC CWA BT37 96 x 100 5 x 5
17-5/8
(44.8)
12-3/4
(32.4)
10-3/4
(27.3)
EPA: 1.3 ft2 (0.12 m2)
Weight: 29 lbs (13.2 kg)
PRODUCT INFORMATION
LITHONIA OUTDOOR
573
www.lithonia.com | 1-800-279-8041PSG10
LAMP/FIXTURE DATA
LAMP
TYPE DISTRIBUTION CIRCUIT LAMP
SHAPE BEAM SPREAD
H° x V° NEMA DIST.
70S RB RNP or XHP E17 94 x 104 5 x 6
70S RG RNP or XHP E17 42 x 35 3 x 3
70S TA RNP or XHP E17 131 x 103 7 x 6
150S RB RNP or XHP E17 88 x 95 5 x 5
150S RG RNP or XHP E17 57 x 65 4 x 4
150S TA RNP or XHP E17 131 x 103 7 x 6
100M RB XHP E17 83 x 108 5 x 6
100M RG XHP E17 58 x 60 4 x 4
100M TA XHP E17 128 x 107 6 x 6
175M RB CWA ED17 97 x 105 5 x 6
175M RG CWA ED17 42 x 35 4 x 4
26DTT RB electronic, HPF T4 125 x 132 6 x 6
42TRT RB electronic, HPF T4 120 x 122 6 x 6
FLOODLIGHTING
General Purpose
Series Lamp type Distribution Voltage Ballast Mounting
TFM High pressure sodium1
35S2
50S
70S
100S
150S
Metal halide
50M1, 3
70M1, 3
100M1
150M
175M4, 5
Metal halide ceramic6
50MHC1, 3
70MHC1, 3
100MHC1
150MHC
Compact uorescent5
13DTT
18DTT
26DTT
32TRT
42 TRT
RB Horizontal
RG Horizontal
TA Vertical7
120
2088
2408
277
347
4808
TB9
MVOLT10
23050HZ11
(blank) Magnetic ballast
CWI Constant wattage isolated11
SCWA Super CWA ballast
XHP High reactance (lag), high power
factor12
Ships installed
(blank) 1/2" threaded knuckle (std.)
YK Yoke mount
Ships separately13, 14
AFTM Tenon mount
TFMTS Tenon sliptter
Options Finish Lamped
Ships installed
SF Single fuse, 120V, 277V, 347V5
DF Double fuse, 208V, 240V, 480V5
GMF Internal slow-blow fusing5
PE Photoelectric cell, button type15
C22 2' 12-3 cord prewired16
C42 2' 14-3 cord prewired16
C62 2' 16-3 cord prewired16
CSA Meets Canadian standards
NOM Meets Mexican standards (Consult
factory)
INTL International shipment for 175M probe
start
Ships separately17
VG Vandal guard
WG Wire guard
FV Full visor14
UV Upper visor14
(blank) Dark bronze
DBL Black
DGC Charcoal gray
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
LPI Lamp included
L/LP Less lamp
TFM
Contour®
Intended Use
For signs, ags, building
facades and landscaping.
Construction
Housing: Compact, heavy-
duty construction. Die-cast
aluminum housing and
removable front bezel. Lens is
thermal- and shock-resistant,
clear, tempered glass.
Standard nish is dark
bronze (DDB) corrosion-
resistant polyester powder.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Hydroformed, anodized
aluminum, faceted parabolic
(RB, RG) or die-formed (TA)
construction provides high
eciencies.
Electrical
Ballast: All ballasts are 100%
factory tested. HPS: 120V is
reactor normal-power factor
standard (XHP available).
208V, 240V, 347V, 480V,
and TB are high reactance,
high power factor standard.
MH: High reactance high
power factor for 150W and
below. Constant wattage
autotransformer for 175M.
150W and below are standard
with pulse-start ignitor
technology. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
for 175M. Not available 175M
SCWA. Compact uorescent
uses an electronic high-
frequency ballast.
Socket: Porcelain, medium-
base, horizontally-oriented
(RB, RG) or vertically-orient-
ed (TA) socket with copper al-
loy, nickel-plated screw shell
and center contact. UL Listed
1500W, 600V. 4-pin socket
for compact uorescent. LPI
is standard 35K for CFL.
Installation
Die-cast aluminum 1/2 "
NSPM threaded mounting
knuckle is standard.
Corrosion-resistant, painted
steel yoke optional. Above-
horizontal aiming standard.
External screws treated for
corrosion resistance.
Listings
UL Listed (standard) (ambient
temperature 25°C for 150M
and above; 40°C for 100M and
below, 150S and below). CSA
Certied or NOM Certied
(see Options). UL Listed for
wet locations. IP65 rated.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TFM 100M RB 120 LPI
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
10-1/2
(26.7)
10-5/8
(26.6)
EPA: 0.5 ft2 (0.05 m2)
Weight: 15 lbs (6.8 kg)
6-7/8
(17.5)
Drawings are for dimensional detail only and may
not represent actual mechanical conguration.
Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 120V only, n/a XHP.
3 Not available with 480V.
4 Not available with SCWA. Requires CSA, NOM, or INTL.
5 Not available with TA distribution.
6 Not applicable with L/LP.
7 TA distribution not available with 175M, compact uorescent lamps or fusing.
8 Must specify CWI for use in Canada.
9 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
10 Optional multi-volt electronic ballast (for compact uorescent lamps only)
capable of operating on any line voltage from 120V-277V.
11 Consult factory for available wattages.
12 Available for 120V only. Standard for 208V, 240V, 277V, 347V and TB. HPS only.
13 May be ordered as accessory.
14 Must specify nish.
15 Must be ordered with xture; cannot be eld installed.
Not available 347, 480, or TB.
16 Yoke mounting only.
17 Prex with xture name (e.g., TFMUV) when ordered as accessory.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
574
Sportslighter
FLOODLIGHTING
TSP
Tru-Sport®
Intended Use
For stadiums, elds, arenas,
tracks or courts.
Construction
Housing: Two-piece, die-cast
aluminum ballast housing
mounted to steel trunnion.
Removable ballast is hinged
with captive fastener. Steel
trunnion features both verti-
cal and horizontal aiming
scale with vertical reposition-
ing stop. Standard nish
is white (DWH) corrosion-
resistant polyester powder.
Additional architectural
colors available; see
www.lithonia.com/archcolors.
Optics
Heavy-gauge anodized re-
ector with ve distributions
available. Transverse mount-
ing of lamp. Lamp support
included. Optical chamber is
sealed to inhibit entrance of
contaminants. Heavy-duty
hinged lens is thermal-re-
sistant, shock-resistant and
impact-resistant tempered
glass. Lens frame is secured
by spring clips for servicing
of lamp. "Flux manager"
(NFX, WFX, MFX) available
for optimal glare and spill
light control. Choice of gen-
eral purpose or heavy-duty
(shrouded) reectors.
Electrical
All electrical components
are thermally isolated from
optical assembly, promoting
longer life. All bal-
lasts are 100% factory
tested. Constant wattage
autotransformer 400W and
above. Super CWA Pulse Start
ballast, 88% ecient and
EISA legislation compliant,
is required for 400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Die-cast socket hous-
ing. Porcelain, mogul-base
socket with copper alloy,
nickel-plated screw shell and
spring-loaded center contact.
UL Listed 1500W-600V, 4KV
pulse rated.
Installation
Fixture is mounted by secur-
ing trunnion directly to cros-
sarm. Mounting hardware is
provided. Below horizontal
aiming only. All external
hardware is treated for corro-
sion resistance.
Listings
UL Listed (standard). CSA Certi-
ed (see Options). UL Listed for
25°C ambient and wet loca-
tions. US Patent No. 6,190,023.
Canadian Patent No. 2,212,014.
Other patents pending.
Wattage Lamp type Distribution Voltage Ballast Mounting
TSP 400M
1000M
1500M1
General
purpose
GP24N
GP24NFX
GP24M
GP24MFX
GP24W
GP24WFX
Heavy
duty2
HD24N
HD24NFX
HD24M
HD24MFX
HD24W
HD24WFX
120
2083
2403
277
347
4803
TB4
23050HZ5
(blank) Magnetic ballast
CWI Constant wattage
isolated5
SCWA Super CWA ballast
Ships installed
(blank) Yoke (std.)
Ships separately6
FRWB Radius wall bracket
FTS Tenon sliptter (2-3/8" to 2-7/8" OD tenon)
FCRA Crossarm adaptor
FCRA45 Crossarm adaptor (45° from horizontal)
FPMB Wall/pole mounting bracket
FSAB Steel angle bracket
FCX2 2-Light wood pole crossarm
FCX3 3-Light wood pole crossarm
FCX4 4-Light wood pole crossarm
Options Finish
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
QRS Quartz restrike system7
C22 2' 12-3 cord prewired
C42 2' 14-3 cord prewired
C62 2' 16-3 cord prewired
CV3P 3' of 16-3 cord prewired with 3-prong plug for use with prewired cages8
CF Charcoal lter9
SLR Stainless steel lens ring
WC Mounting bolt for wooden crossarm
CSA Meets Canadian standards
NOM Meets Mexican standards (consult factory)
INTL Available for MH probe start shipping outside the U.S.
(blank) White (std.)
DDB Dark bronze
DBL Black
DMB Medium bronze
DNA Natural aluminum
CR Enhanced corrosion resistance
CRT Non-stick protective coating (black)
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TSP 1500M GP24N TB
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
20
(50.8)
24-1/2
(62.2)
EPA: 3.3 ft2 (0.91m2)
Max weight: 55 lbs (24.9 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 Heavy-duty anodized aluminum shroud painted to match xture.
3 Must specify CWI for use in Canada.
4 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
5 Consult factory for available wattages.
6 May be ordered as an accessory. Must specify nish.
7 Maximum allowable wattage lamp included.
8 Must use mating receptacle, provided by others (N/A 1500M 120V).
9 HD option must be ordered.
PRODUCT INFORMATION
LITHONIA OUTDOOR
575
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Sportslighter
Series Lamp type Distribution Voltage Ballast Mounting
TV High pressure
sodium1
400S
1000S
Metal halide
400M
1000M
1500M1
General purpose
GP22
GP32
GP4
GP5
GP6
Heavy duty3
HD2
HD3
HD4
HD5
HD6
120
2084
2404
277
347
4804
TB5
23050HZ6
Ships installed
(blank) Magnetic ballast
CWI Constant wattage isolated6
SCWA Super CWA ballast
Ships separately6, 7
HRBW HID remote ballast weatherproof (black)
HRB HID remote ballast (white)
Ships separately7, 8
FRWB Radius wall bracket9
TVTS Tenon sliptter
FSAB Steel angle bracket
FCX2 2-Light wood pole crossarm
FCX3 3-Light wood pole crossarm
FCX4 4-Light wood pole crossarm
Options Finish
Ships installed
SF Single fuse, 120V, 277V, 347V
DF Double fuse, 208V, 240V, 480V
QRS Quartz restrike system10
PER NEMA twist-lock receptacle only11
C22 2' 12-3 cord prewired
C42 2' 14-3 cord prewired
C62 2' 16-3 cord prewired
CV3P 3' of 16-3 cord prewired with 3-prong
plug for use with prewired cages12
CF Charcoal lter13
SLR Stainless steel lens ring
WC Mounting bolt for wooden crossarm
LS Lamp support
AH Above horizontal aiming
IBL Internal bottom louver
CSA Meets Canadian standards
NOM Meets Mexican standards (consult
factory)
INTL Available for MH probe start shipping
outside the U.S.
Ships separately7
PE1 NEMA twist-lock PE (120, 208, 240V)
PE3 NEMA twist-lock PE (347V)
PE4 NEMA twist-lock PE
(480V)
PE7 NEMA twist-lock PE
(277V)
SC Shorting cap
UV Upper visor8
(blank) Dark bronze (std.)
DBL Black
DMB Medium bronze
DNA Natural aluminum
DWH White
CR Enhanced corrosion
resistance
CRT Non-stick protective
coating (black)
TV
Intended Use
Ideal for recreational or com-
petitive sports elds, parking
areas and industrial yards.
Construction
Housing: Heavy-gauge,
hydroformed aluminum
ballast housing mounted to
integral die-cast monoframe
with horizontal degree aim-
ing scale and repositioning
locator. Die-cast aluminum
socket housing provides
vertical aiming adjustment
with degree aiming scale and
repositioning stop.
Finish: Standard nish is dark
bronze polyester powder. Ad-
ditional architectural colors
available; see
www.lithonia.com/archcolors.
Optics
Heavy-gauge anodized
aluminum reectors provide
a range of NEMA beam
spreads. Optical chamber
sealed to inhibit entrance of
contaminants. Hinged lens
is heavy-duty, thermal-,
shock- and impact-resistant
tempered glass.
Electrical
All electrical components
are thermally isolated from
optical assembly, promoting
longer life. All bal-
lasts are 100% factory
tested. Constant wattage
autotransformer 400W and
above. Super CWA Pulse Start
ballast, 88% ecient and
EISA legislation compliant,
is required for 400W (must
order SCWA option) for U.S.
shipments only. CSA, NOM or
INTL required for probe start
shipments outside the U.S.
Socket: Porcelain, mogul-
base socket with copper
alloy, nickel-plated screw
shell and center contact. UL
Listed 1500W, 600V.
Installation
Mounted by securing integral
cross arm mounting bracket
directly to cross arm. No
additional adaptors are
required. A 5/8" 11UNC
mounting bolt provided.
Exposed bolt length: 1-1/2".
Listings
UL Listed (standard). CSA
Certied or NOM Certied
(see Options). UL Listed
for 25°C ambient and wet
locations.
ORDERING INFORMATION For shortest lead times, congure products using bolded options. Example: TV 1000M GP4 TB
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Heavy-Duty Shroud (HD)
General Purpose Reflector (GP)
GO DAWGS
L
D
NEMA 2, 3 NEMA 4, 5, 6
EPA: 2.9 ft2 (0.27m2) 2.5 ft2 (0.23 m2)
Diameter: 23-1/8 (58.7) 21-1/2 (54.6)
Length: 30 (76.2) 31-1/2 (80.0)
Weight: 53 lbs (24.0 kg) 53 lbs (24.0 kg)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Notes
1 Not available with SCWA.
2 Not available with 1000S.
3 Heavy-duty anodized aluminum shroud painted to match xture.
4 Must specify CWI for use in Canada.
5 Optional multi-tap ballast (120V, 208V, 240V, 277V).
In Canada 120V, 277V, 347V; ships as 120V/347V.
6 Consult factory for available wattages.
7 May be ordered as an accessory.
8 Must specify nish.
9 For use with sliptter.
10 Maximum allowable wattage lamp included.
11 Photocell not included. Not available 1500M.
12 Must use mating receptacle, provided by others (n/a 1500M 120V).
13 HD option must be ordered.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
576
Contractor Select Stock
FLOODLIGHTING
Intended Use
Floodlight for commercial
or residential signs, entry
monuments or facades.
HID, quartz, and compact
uorescent sources.
Construction
Rugged, die-cast aluminum
housing is ribbed for maxi-
mum heat dissipation. Die-
cast aluminum doorframes.
F500QL lens attaches with
clips. FP is polycarbonate.
Finish is dark
Optics
Anodized aluminum reec-
tors with high eciency and
wide beam spread. F150MSL
features a spot distribution.
Electrical
120 volt reactor, normal
power factor for 50-150 HPS
and 70-100MH. Quad tap,
high reactance, high power
factor for 150M. Medium
base socket.
Quad tap, super CWA for 250M
and 400M. Mogul-base socket.
120V for 13W (for CFL) or
500W (for quartz). Lamps
included. 13W compact uo-
rescent lamp is a twin-tube.
Double-ended 1500W
voltage determined by lamp
(not included).
Installation
Floodlights feature adjust-
able mounting knuckle with
1/2" NPS threaded stem.
Mounts to standard outlet
boxes. Medium oods (250M
and 400M) are yoke mount.
Listings
Listed and labeled to UL
standards for wet locations.
Listed and labeled to CSA
standards. 25°C maximum
ambient temperature. Fix-
tures are covered by Lithonia
Lighting 12-month warranty
against mechanical defects
in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP TYPE VOLTAGE FINISH LAMP INCLUDED APPROX.
WEIGHT (LBS)
STANDARD
CARTON QTY.
F50SL 120 M6 Micro oodlight 50S HPS 120 Dark bronze Y 7 6
F70SL 120 M6 Micro oodlight 70S HPS 120 Dark bronze Y 7 6
F100SL 120 M6 Micro oodlight 100S HPS 120 Dark bronze Y 7 6
F150SL 120 M6 Micro oodlight 150S HPS 120 Dark bronze Y 7 6
F70ML 120 M6 Micro oodlight 70M MH 120 Dark bronze Y 7 6
F100ML 120 M6 Micro oodlight 100M MH 120 Dark bronze Y 7 6
F150ML M4 Small oodlight 150M MH 120/208/240/277 Dark bronze Y 14 4
F150MSL M4 Spot, small oodlight 150M MH 120/208/240/277 Dark bronze Y 14 4
F250ML SCWA Medium oodlight 250M MH 120/208/240/277 Dark bronze Y 29 1
F400ML SCWA Medium oodlight 400M MH 120/208/240/277 Dark bronze Y 29 1
F13L 120 M12 Cast-glass oodlight 13 CFL 120 Dark bronze Y 6 12
F213L 120 M12 Cast-glass oodlight 13 CFL 120 Dark bronze Y 6 12
FP213L 120 M12 Polycarbonate oodlight 13 CFL 120 Dark bronze Y 2 12
F500QL 120 M12 Cast-glass oodlight 500Q Quartz 120 Dark bronze Y 3 12
F500QLD 120 M12 Cast-glass oodlight 500Q Quartz 120 Dark bronze Y 3 12
F1500QD M6 Cast-glass oodlight 1500Q Quartz -- Dark bronze N 6 6
6-1/2
(16.5)
8-7/8
(22.5) 6-1/8
(15.5)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
Micro 16-1/2
(41.9)
7
(17.8)
17-1/2
(43.5)
Medium
13
(33.0)
7-1/8
(18.1)
9
(22.9)
9
(22.9)
Small
8-1/2
(21.6)
4-1/2
(11.4)
4-1/8
(10.5)
FP213L
8-7/8
(22.5)
6-1/2
(16.5)
3-1/2
(8.9)
F500
13
(33.0)
8-1/4
(21.0)
6
(15.2)
F1500QD
FLOODLIGHTS
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
F50-150
FP213L
F13L/F213L
F500
F250-400
PRODUCT INFORMATION
LITHONIA OUTDOOR
577
www.lithonia.com | 1-800-279-8041PSG10
FLOODLIGHTING
Contractor Select Stock
WORKLIGHTS
Intended Use
Temporary work light for
residential or commercial ap-
plications. Portable unit uses
one 500W quartz lamp; tripod
unit uses two 500W quarts
lamps. Lamp(s) included.
Construction
Rugged, die-cast aluminum
housing is ribbed for
maximum heat dissipation.
Die-cast aluminum door-
frame. Tempered glass lens.
Yellow nish.
Installation
Protective wire guard.
Adjustable stand for tripod
conguration. 5' cord set with
grounded plug for portable
unit; 7' for tripod unit. Pad-
ded, insulated handlebar.
Listings
UL Listed to U.S. and Canadi-
an safety standards. UL/C-UL
Listed for wet locations.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP TYPE VOLTAGE LAMP INCLUDED APPROX.WEIGHT (LBS) STANDARD CARTON QUANTITY
F500QPL M6 Portable worklight 500 Quartz 120 Y 4 6
F2/500QTL M2 Tripod stand worklight 500 Quartz 120 Y 11 2
8-1/4
(21.0)
10-7/8
(27.6)
12-1/4
(31.1)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
F500QPL 61
(154.9)
22-7/8
(58.1)
9
(22.9)
F2/500QTL
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
F2/500QTL
F500QPL
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
578
Contractor Select Stock
FLOODLIGHTING
LANDSCAPE
FLOODLIGHTING
Intended Use
Ideal for commercial or
residential landscape, sign or
facade applications.
Construction
Rugged, die-cast aluminum
housing. Landscape post is
constructed of heavy-wall
extruded aluminum.
Electrical
Fixtures are 120V incandescent
only. Lamp is not included.
Installation
Adjustable mounting
knuckle with 1/2" NPS
threaded stem. Mounting
post provides a stable plat-
form for ease of installation.
Listings
Listed and labeled to UL stan-
dards for wet locations. Listed
and labeled to CSA standards.
Fixtures are covered by
Lithonia Lighting 12-month
warranty against mechanical
defects in manufacture.
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION WATTAGE LAMP TYPE VOLTAGE FINISH LAMP INCLUDED APPROX.
WEIGHT (LBS)
STANDARD
CARTON QTY.
FB50I M12 PAR20 bullet ood 50 Incandescent 120 Black N 1 12
FB50IG M12 PAR20 bullet ood 50 Incandescent 120 Green N 1 12
FB50IW M12 PAR20 bullet ood 50 Incandescent 120 White N 1 12
FB75I M12 PAR30 bullet ood 75 Incandescent 120 Black N 1 12
FB75IG M12 PAR30 bullet ood 75 Incandescent 120 Green N 1 12
FB75IW M12 PAR30 bullet ood 75 Incandescent 120 White N 1 12
FB150I M12 PAR38 bullet ood 150 Incandescent 120 Black N 2 12
FB150IG M12 PAR38 bullet ood 150 Incandescent 120 Green N 2 12
FB150IW M12 PAR38 bullet ood 150 Incandescent 120 White N 2 12
LT60I M12 Tiered pagoda 60 Incandescent 120 Black N 1 12
LT60IG M12 Tiered pagoda 60 Incandescent 120 Green N 1 12
LT60IW M12 Tiered pagoda 60 Incandescent 120 White N 1 12
LFP M6 Landscape post -- -- -- Black -- 2 6
LFPG M6 Landscape post -- -- -- Green -- 2 6
LFPW M6 Landscape post -- -- -- White -- 2 6
6
(15.2)
3-1/2
(8.9)
3-1/2
(
8.9
)
Drawings are for dimensional detail only and may not represent actual
mechanical conguration. Dimensions are shown in inches (centimeters)
unless otherwise noted.
FB50
7
(17.8)
4-5/8
(11.7)
4-5/8
(11.7)
FB75
8-1/2
(21.6)
5-1/2
(14.0)
5-1/2
(14.0)
FB150 6
(15.2)
11
(27.9)
LT60I
17-1/4
(43.8)
5-1/4
(13.3)
LFP
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
PRODUCT INFORMATION
LITHONIA OUTDOOR
579
www.lithonia.com | 1-800-279-8041PSG10
OPTIONS & ACCESSORIES
Area Lighting
HS – KAD
35-3/4
(90.8)
KTMB
Tenon Sliptters for Arm-Mounted Luminaires
Use with all arm-mounted luminaires. When ordered, xture must include round pole arm (RPx ) or pole degree aiming arm
(DA12P or DAD12P). To order, locate catalog number from chart below based on tenon size and mounting conguration.
Example: For 3 xtures at 120°, using a 2-7/8” tenon, catalog number is T25-320. Shipped separately. Order as separate
catalog numbers. For Aeris™ and OMERO™ xture specify with prex AS. Example: AS T20-190.
Notes
1 Size one housing only.
2 Size two housing only.
3 Only available with FP option.
4 Only available in KVS1 (R2, R3 and R4).
5 Specify family as prex when ordering as a separate line item.
For arm and/or bracket lengths, see product specication sheet or
specic product page in this catalog.
DA12P
6
(15.2) 14
(35.5)
DAD12P
5-1/2
(14.0)
10-5/8
(26.9)
Slipfitter
Set
Tenon
RP09
Tenon 2 xtures 2 xtures 3 xtures 3 xtures 4 xtures
OD 1 xture at 180° at 90° at 120° at 190° at 90°
2-3/8” T20-190 T20-280 T20-290* T20-320* T20-390* T20-490*
2-7/8” T25-190 T25-280 T25-290* T25-320* T25-390* T25-490*
4” T35-190 T35-280 T35-290* T35-320 T35-390* T35-490*
* See product page for size restrictions.
SPx/RPx
VG–KAD
Wall bracket size:
5-1/2” x 7-1/4”
WBx
Mounting bolts (4) by others.
Minimum fastener size is 1/2” diameter.
WBA
NOMENCLATURE DESCRIPTION AS KSE KSF KAD KAC KVE KVR KVS KAR KVF MR MRP
DA12P Degree mounting arm. 30° max. uptilt in 5° increments. Single or twin 180° cong. for KVS. OO O
DA12WB Degree arm for wall. 30° max. uptilt in 5° increments. Single or twin 180° cong. for KVS. OO O
DAD12P Degree mounting arm. 30° max. uptilt, 5° increments. OO O
DAD12WB Degree arm for wall. 30° max. uptilt, 5° increments. OO O
EHS External house-side shield. OO
HS House-side shield (consult factory). (Ships separate for KVE R2, R3). NOOO NNNNN
KMA Mast arm mounting for area lighting, 6” min. arm length. Use for 2-3/8" OD pipe. OOOOO OO
1OO
KTMB Twin mounting bar square mounting arms. (EPA=1.1, wt.=41lbs) Mounts on T25 (2-7/8" OD tenon by 5” tall minimum). OOOO OOOO
MA Master arm for single/twin 180° conguration, internal tter (Size 3 only). N
PT4 Post-top (4” OD open-top pole). NN N N
PT45 Post-top (4-1/2” OD open-top pole). NN N
PT5 Post-top (5” OD open-top pole). NN N
PT6 Post-top. Must use with round pole only for KVR (6" OD open-top pole). NN2N2
RPx Round pole mounting arm. (14" arm ships separate). NNNNNNNOONN
RPF20 Round pole tter (2-3/8” OD tenon). OO O
2
RPF25 Round pole tter (2-7/8” OD tenon). OO O
2
MRPF3 4" to 3" O.D. round open-top pole lter. O
MRPF5 4" to 5" O.D. round open-top pole lter. O
MRPT20 MRP round pole tter (2-3/8" tenon). O
MRPT25 MRP round pole tter (2-7/8" tenon). O
MRPT30 MRP round pole tter (3-1/2" tenon). O
MRPT35 MRP round pole tter (4" tenon). O
SPx Square pole mounting arm. (14" arm ships separate). NNNNNNNOONN
SPF20 Square pole tter (2-3/8” OD tenon). OO
2O
SPF25 Square pole tter (2-7/8” OD tenon). OO
2O
VG5Vandal guard. NOOOO
3OO
4OONN
WBx Wall mount for J-box. (Aeris™ only order WBA.) (14" ships separate). NNNNNN OONN
WWx Wall for conduit stub. (14" ships separate). NNNNNNOON
DC_ Deco curved arm. OO
KMA
HS – KSF
N= Available as an option, shipped included
O= Available as an accessory, shipped separately AREA LIGHTING
EHS-KVF
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
580
Bollards & Wall Mounted
OPTIONS & ACCESSORIES
NOMENCLATURE
DESCRIPTION ASB ASW KBA KBC KBD KBE KBR KBS KL MRW MRBX TWH TWP TWA/
TWAC TWR TWRC TWS WFL
WSR/
WST/
WSQ
BBF Backbox for at surfaces. N
BBR Backbox, recessed (ceiling, sot mount). N
BBW1Backbox for surface wall installation. ONOOO
FS Full shield for IES cuto. NN
FCV Full cuto visor. O
PC Polycarbonate lens. OOOO
R6S/R8S Half-shield, not for use with louvered bollards. OOO O O
S6S/S8S Half-shield, not for use with louvered bollards. OOO
WG1Wireguard. O O OOOO O OOO
VG1Vandal guard. O O OO OO
UT5 Uptilt 5 degrees. OO
DFL Diusing lens. NN
WLU Wet location door for up orientation. NN
IBS Internal backlight shield. NN
LC90 Lock at 90° for full cuto. N
UCS Uplight component shield for WSR, inverted orientation with FTU or
WTU distribution. N
HS House-side shield for SR2,SR3 or SR4W (size 2). N
KL (Standard) KLBBF KLBBW
TWHWG TWPWGTWHVG TWAWG
Notes
1 Specify family prex.
TWRCFCV ASWHS
ASWxBBW
UT5 5
TO
WALL
N= Available as an option, shipped included
O= Available as an accessory, shipped separately
BOLLARDS & WALL
MOUNTED LIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
581
www.lithonia.com | 1-800-279-8041PSG10
OPTIONS & ACCESSORIES
Floodlighting, Garage & Sportslighting
NOM. DESCRIPTION
GARAGE SPORTS FLOODLIGHTING
PGR KPS KACM TSP TV ASF KFL 55 95 170S TFA TFR TFL TFM
HS House-side shield (glare shield). N
BDS Bird-deterrent shroud. O
OJB Oset junction box. O
RMG Recessed mount in grid ceiling. N
SS Stainless steel, ceiling-mount housing (alloy 304 stainless steel). N
AH Above horizontal aiming. N
CF Charcoal lter; must use with heavy-duty shroud. NN
FCRA1Crossarm adapter for horizontal mounting (use with yoke mount only). O OO OOOO
FCRA451Crossarm adapter for horizontal mounting 45° (use with yoke mount only). N2OO OOOO
SLR Stainless steel lens rings. NN
IBL Internal bottom louver; cannot order IBL and TVUV together. N
FRWB1Radius wall bracket; 2-3/8 diameter (use with sliptter mount only). OOOOOOOOOOO
FSAB1Steel angle bracket (use with yoke mount only). O OOOOOOOOO
FSPB1Steel square pole bracket (for use with existing poles). 2-3/8” diameter (use with sliptter mount only). OOOOOOOOOOO
FPMB1Pipe/wood/pole/wall mounting bracket. Mounts to 2” schedule 40 pipe (use with yoke mount only). O OO OOOO
FWPB1Wall bracket (pipe) (use with yoke mount or standard TV mount). OOOOOOOOOOO
FTS1Tenon sliptter; ts 2-3/8” to 2-7/8” OD tenon (use with yoke mount only). O OO OOOO
TVTS1Tenon sliptter; ts 2-3/8” to 2-7/8” OD tenon. OO
TFMTS1Tenon sliptter for 1/2” threaded knuckle; ts 1-1/4” to 2-3/8” OD tenon. For ground mount only. OO
TVUV Upper visor; cannot be used with IBL. O
FCX212-light wood pole crossarm (use with yoke mount or standard TV mount). OOOOOOOOOO
FCX313-light wood pole crossarm (use with yoke mount or standard TV mount). OOOOOOOOOO
FCX414-light wood pole crossarm (use with yoke mount or standard TV mount). OOOOOOOOOO
YK Yoke mount, painted. NN N NNNNNNNNN
EY Extended yoke. NN
THK Threaded knuckle mount. (Size 1 only for ASF). NN
IS Integral sliptter; ts 2-7/8” max. OD with TFA, 2-3/8” with TFL and TFR. NNN
FRWB FSPB
FSAB
9/16”(1.4)
FWPB
4"
(10.2)
1-1/4"
(3.2)
4-1/2"
(11.4)
FPMB
IS
7"
12"
13"
9/16" Dia.
3-3/4"
7"
12"
13"
9/16" Dia.
7"
Notes
1 Order as separate catalog number. Must specify nish.
2 Ships standard with TSP. Order as separate catalog number for other families.
RMG
FCX2
EPA: 1.4 sq. ft.
Weight: 20 lbs.
EPA: 3.9 sq. ft.
Weight: 56 lbs.
EPA: 4.8 sq. ft.
Weight: 64 lbs.
TFMTS
Pivot slot
for 1/2" bolt
Degree markings
Pivot hole for 5/8" bolt
(not provided)
5/8" x 1" hex bolt
and lockwasher
furnished
Floodlight
yoke
00
00
00
00
00
00
00
4-3/4"
(12.1)
1/2" x 1-1/2"
hex bolt and
flat washer
furnished
(2) 3/8" U-bolts
furnished with
nuts and
washers
3-3/8"
(8.6)
5/8" x 1" hex bolt and
lockwasher furnished
8-3/4"
(22.1)
4-1/4"
(10.6)
Fits 2" or
2-1/2" pipe
(horizontal
or vertical)
00
00
00
Degree
markings
Pivot hole for
5/8" bolt
Pivot slot for
1/2" bolt
(not provided)
5/8" x 1" hex bolt and lockwasher furnished
6"
(15.2)
1-1/4"
(3.2)
Fixture
yoke
4-1/2"
(11.4)
(not provided)
FCRA45
4
(10.2)
3-1/4
(8.3)
4-7/8
(12.4)
FTS
lockwasher
and
nut furnished
20-1/8"
(51.1)
12-1/2"
(31.8)
4"
(10.2)
11
/
fo
r
36
(91.4)
66
(167.6)
96
(243.8)
Front view
TFA
Front view
TFL, TFR
FCX3
FCX4
5/8” clearance
hole
Furnished with weather-tight
cord grip for 14-3 SO cord (grip
for 12 3 SO optional).
Wire access
7/16” (1.1)
5/8” x 1-1/2” bolt,
lock-washer and nut
furnished
9/16” diameter
holes for lag bolts
(not provided)
11/16”
diameter
hole for 5/8"
thru-bolt
5/8" x 1-1/2" bolt,
lockwasher and nut
furnished
4-3/4”
(12.1)
8-1/4”
(21.0)
18-5/8”
(47.3)
3-1/8
2-3/8
1/2-14 NPT
5/16-18 NPT
(3 places)
N= Available as an option, shipped included
O= Available as an accessory, shipped separately
FCRA
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
582
Floodlighting
OPTIONS & ACCESSORIES
Notes
1 Vandal guards are compatible with all wattages.
2 Specify family as prex.
BD – Barn doors (KFL and ASF)
BV – Bottom visor (KFL) BV – Bottom visor (55/95) FV – Full visor (KFL and ASF) FV – Full visor (55/95)
UV – Upper visor (170)VLV – Vertical louver (KFL)
WG – Wireguard (KFL)TFMWG/TFRWGASFGS
TFLWG UV – Upper visor (55/95)
TFAUV TFAFVTFAVG
TFLFV TFLUV
TFMVG/TFRVG TFMUV/TFRUV TFLVG TFMFV/TFRFVTFAWG UV – Upper visor (KFL)
BVG – Vandal guard (KFL and ASF)
HLV – Horizontal louver (KFL) CV – Concentric visor (95) GV – Glare visor (55/95)
EV – Eggcrate visor (KFL and ASF)
NOMENCLATURE DESCRIPTION ASF KFL/WFL 55 95 170S TFA TFR TFL TFM
BD2Barn doors OO
BV2Bottom visor OO O O
BVG2Bubble vandal guard OO
CV2Concentric visor O
EV2Eggcrate visor (black nish) OO
FV2Full visor OOOO O O OO
FV/BVG2Full visor and bubble vandal guard O
GS2 Glare shield (upper or bottom visor) O
GV2 Glare visor OO
HLV2 Horizontal louver (black nish) O
VG1, 2 Vandal guard OOOO
UV2 Upper visor OO O OO O OO
UV/BVG2 Upper visor and bubble vandal guard O
VLV2Vertical louver (black nish) O
WG2 Wire guard OOOOO
O= Available as an accessory, shipped separately
FLOODLIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
583
www.lithonia.com | 1-800-279-8041PSG10
OPTIONS & ACCESSORIES
Floodlighting
Notes
1 When used with TFM yoke a 3/8” bolt, two lockwashers and nuts must be
furnished by others.
2 For use with TFMTS.
EWB – Extended wall bracket AFWMA – Wall mount for tenon sliptter
mounting
AFWMATHK and KFLWMATHK – Wall-mount
arm for threaded knuckle
AFWMPTHK – Wall mounting plate for 3/4”
NPT threaded knuckle
AFTS – Tenon sliptter for 3/4” NPT threaded
knuckle
AFTMBTHK and KFLTMBTHK – Twin mounting
bar for threaded knuckle
AFTMB – Twin mounting bar for tenon slipt-
ter mounting
AFSTMTHK and KFLSTMTHK – Stanchion
mount for threaded knuckle
AFSTM – Stanchion mount for tenon sliptter
mounting
2-3/8"
Wire
access
cover
8"
8"
2-3/8" OD
21-5/8" OH
AFTM – Tenon base mount STM – Stanchion mount, general purpose
2-3/8" OD
21-1/2" OH
6"
6"
NOMENCLATURE DESCRIPTION ASF1 ASF2 KFL 55 95 170S TFA TFR TFL TFM
AJB Architectural J-box, accepts 1/2” NPT THK. O
AFJB Architectural J-box, accepts ASF1 standard mounting (3/4” NPT THK). O
EWB Extended wall bracket, yoke mount only. OOOOOOOOOO
AFTMB Twin mounting bar. Requires tenon sliptter mounting (2-3/8” OD tenon). OOO OOO
AFTMBTHK Twin mounting bar, accepts ASF1 standard mounting (3/4” NPT THK). O
KFLTMBTHK Twin mounting bar for THK option. Only compatible with KFLTHK (1/2” NPT). O
AFSTM Stanchion mount. Requires tenon sliptter mounting (2-3/8” OD tenon). OOOOOOOOOO
2
AFSTMTHK Stanchion mount, accepts ASF1 standard mounting (3/4” NPT THK). O
KFLSTMTHK Stanchion mount, accepts 1/2” NPT THK O
AFTM Tenon-base mount. Requires tenon sliptter mounting (2-3/8” OD tenon). OOOOOOOOOO
2
AFWMA Wall-mount arm. Requires tenon sliptter mounting (2-3/8” OD tenon). OOOOOOOOOO
2
AFWMATHK Wall-mount arm, accepts ASF1 standard mounting (3/4” NPT THK). O
KFLWMATHK Wall-mount arm, accepts 1/2" NPT THK O
AFWMPTHK Wall-mount plate, accepts ASF1 standard mounting (3/4” NPT THK). O
TS Tenon sliptter. Fits 2-3/8” OD tenon (use with 2-1/2" wide yoke only). OOO
AFTS Tenon sliptter, accepts ASF1 standard mounting (3/4” NPT THK). O
STM Stanchion mount – general purpose (2-3/8” OD tenon). OOOOOOOOOO
2
O= Available as an accessory, shipped separately. Must specify nish.
AFJB and AJB – Architectural
junction box
FLOODLIGHTING
TS – Tenon Sliplter
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
584
Nighttime Friendly Lighting
NIGHTTIME FRIENDLY LIGHTING
Traditional Forward
Throw Light Reector
SR4SC - Forward Throw
Notes
1 May not meet Nighttime Friendly™ standards with HS option.
2 Will not meet Nighttime Friendly™ standards with DL or EHS options.
AS
KAD
KSE
KVF
LUMINAIRE MEETS NIGHTTIME
FRIENDLY™ CRITERIA FULL CUTOFF PSG PAGE COMMENTS TRESPSS SOLUTIONS:
SHARP CUTOFF OPTICAL SYSTEM
AS 1520 Aeris™ die-cast housing, dedicated optical platform, 2 housing sizes, at lens, 400W max. SR4SC
AST 1520 Aeris™ die-cast housing, dedicated optical platform, aesthetically pleasing tension rod assembly,
2 housing sizes, at lens, 400W max. SR4SC
KAD 
534 Square die-cast housing, at lens, 400W max. SR4SC
KADT 
534 Square die-cast housing, aesthetically pleasing tension rod assembly, at lens, 400W max. SR4SC
KSF 
524 Rectangular housing, 3 housing sizes, at lens, 1000W max. R4SC
KSE 
526 Crisp square housing, 2 housing sizes, at lens, 400W max. R4SC
KVF 2528 Square vertical lamp, at lens, 1000W max. SR4SC
KAR 1531 Round housing, 3 housing sizes, at lens, 1000W max.
MR 1521 MR die-cast housing, dedicated optical platform, 2 housing sizes, at lens, 400W max. SR4SC
MRT 1521 MRT die-cast housing, dedicated optical platform, aesthetically pleasing tension rod assembly, 2
housing sizes, at lens, 400W max. SR4SC
Lithonia Lighting is a leader in
providing a variety of outdoor
luminaires devoted to energy
and environmental concerns.
Many communities are
interested in maintaining
nighttime visibility, safety
and security while preserving
the night sky. Quality outdoor
lighting considers the visual
needs of the application while
reducing glare and light
trespass onto neighboring
properties, therefore minimiz-
ing sky glow and overall
energy usage. Listed below
are several Lithonia Lighting
product families that include a
wide range of cuto and full-
cuto luminaires that produce
quality lighting and minimize
night sky glow.
The Illuminating Engineering
Society of North America
(IESNA, or IES) provides
classications for luminaires
according to their glare control
and high-angle brightness.
These classications, along
with their benets and
limitations, are described
in the Technical and Design
Considerations section on
page 776.
Acuity Brands Lighting
uses Nighttime Friendly™
to identify products that
reduce negative impacts on
the nighttime environment.
Products designated with
the Nighttime Friendly logo
have no uplight, meet the
IESNA denition for full cuto
optics and reduce high angle
brightness. These measures
of luminaire performance
are consistent with sustain-
ability standards for light
pollution reduction.
For applications where
there is a concern with light
trespass on neighboring
properties, consider products
that limit light behind the
pole, such as the Type 4
sharp cuto optical system or
house-side shielding.
Spill light or light trespass
is the light that illuminates
surfaces beyond the property
line. An example is the light
on a bedroom wall coming
through the window from the
ball eld across the street. A
number of ordinances place
limits on spill light near the
property line as the sole
means of controlling light
trespass. The most eective
way to minimize spill light
from a location is to apply for-
ward throw optics around the
perimeter. Lithonia Lighting’s
optic is designed specically
for this application.
For more information on sharp cuto,
visit www.lithonia.com/CutoLighting/AreaLuminaires.htm.
Sharp Cuto & Light Trespass
AREA LIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
585
www.lithonia.com | 1-800-279-8041PSG10
NIGHTTIME FRIENDLY LIGHTING
Nighttime Friendly Lighting
IESNA
The Illuminating Engineering Society of North
America provides a variety of reference material
on eective outdoor lighting design. Both the
IESNA Lighting Handbook, 9th edition, and Recom-
mended Practice No. 33 (RP-33-99), Lighting for
Exterior Environments, oer discussions on design
practices and suggested spill light limitations.
WFL
NEMA
The Luminaire Section of the National Electrical
Manufacturers Association published a document
entitled “White Paper on Outdoor Lighting Code
Issues”. This paper highlights the pros and cons of
methods to control light trespass.
The NEMA Statement of Principles on Outdoor
Lighting Codes also provides general guidance in the
establisement of local lighting ordinances.
IDA
The International Dark-Sky Association is a grass-
roots organization that promotes quality outdoor
lighting practices. Of particular interest to IDA is
the reduction of sky glow. Their guidelines are of
signicant benet for lighting installations near
astronomical observatories or intrinsically dark areas
such as national parks.
Lithonia Lighting has a diverse
selection of wall mounted
luminaires to complement our
various Nighttime Friendly™
area luminaires. Listed below
are several product families
that include a wide range of
cuto and full-cuto lumi-
naires that produce quality
lighting and minimize night
sky glow.
Design Recommendations From Industry Associations
Lithonia Lighting is a member of, and participates in the activities of all the associations below.
Notes
1 WSR is downlight only.
2 May depend on optical selection. Consult factory.
3 Does not meet Nighttime Friendly™ standards with uplight
distribution options.
LUMINAIRE MEETS NIGHTTIME
FRIENDLY™ CRITERIA FULL CUTOFF CUTOFF PSG PAGE COMMENTS
ASW 2542 Aeris™ die-cast housing, architectural style, 2 housing sizes, 400W max.
WSR1,WST, WSQ 3544 Decorative die-cast housing, 175W max.
WFL 2546 Architectural style, 2 housing sizes, 400W max., can be ordered with LC90 option to prevent eld adjustment.
TWAC 552 Vandal-resistant, polycarbonate lens,100W max.
TWRC 554 General purpose, die-cast aluminum and tempered glass, 400W max., optional full cuto visor (FCV)
TWR1S  554 General purpose, die-cast aluminum and tempered glass, 175W max.
MRW 2543 Omero™ die-cast housing, architectural style, 175W max.
WALL MOUNTED
LIGHTING
TWR1S
ASW
WST
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
586
DESIGN GUIDELINES
IES Beamspread Classications
for general-purpose oodlighting
The IES classication was formerly referred to as NEMA Type.
The following outdoor design tips provide general guidelines for lighting
design. These guidelines may not apply to all applications.
Facade Lighting
When lighting building facades with ground-
mounted oodlights, there are three considerations:
1. Setback
2. Spacing
3. Aiming
Sign Lighting
When lighting a sign with ground-mounted ood-
lights, there are three considerations:
1. Setback
2. Spacing
3. Aiming
1. Setback
The recommended setback is three-fourths the
building height. If a building is 30 feet tall, the rec-
ommended setback is 22.5 feet from the building.
Locating the oodlight closer to the building will
sacrice uniformity; setting it farther back will result
in a loss of eciency.
1. Setback
When using ground-mounted oodlights to light a
sign, the recommended setback is a distance equal
to three-fourths the sign height. For example, the
setback distance for a 12-foot by 6-foot sign would
be 4.5 feet. Locating the oodlight closer will sacrice
uniformity while setting it farther back will result in a
loss of eciency.
2. Spacing
The rule of thumb for spacing oodlights is not
to exceed two times the setback distance. If the
setback is 22.5 feet, the oodlights should not be
placed more than 45 feet apart.
2. Spacing
The rule of thumb for spacing oodlights is not
to exceed two times the setback distance. If the
setback is 4.5 feet, the oodlights should not be
placed more than 9 feet apart.
3. Aiming
The oodlight should be aimed at least two-thirds
the height of the building. For example, if a building
is 30 feet high, the recommended aiming point
is approximately 20 feet high. After installation is
complete, aiming can be adjusted to produce the
best appearance. Mounting a full or upper visor to the
oodlight can reduce unwanted spill light.
3. Aiming
The oodlight should be aimed at least two-thirds
up the sign. For example, if a sign is 6 feet tall, then
the oodlight will be aimed approximately 4 feet
high. After installation is completed, aiming can be
adjusted to produce the best appearance. Mounting
a full or upper visor to the oodlight can reduce
unwanted glare.
22.5'
setback
10'
20'
30'
12'
4-1/2'
6'
4'
2'
45'
spacing
22.5'
setback
10'
20'
30'
12'
4-1/2'
9'
4-1/2'
6'
4'
2'
20'
3/4
building
height
10'
20'
30'
45'
spacing
12'
4-1/2'
6'
4-1/2'
6'
4'
2'
The IES beam spreads indicate the angular ranges
(horizontally and vertically) through which the
intensity of the oodlight is greater than 10% of its
maximum intensity. This angular range is referred to
as the ‘Field Angle’.
For example:
FIELD ANGLE DEGREES IES TYPE BEAM DESCRIPTION
10° up to 18° 1 Very narrow
18° up to 29° 2 Narrow
29° up to 46° 3 Medium narrow
46° up to 70° 4 Medium
70° up to 100° 5 Medium wide
100° up to 130° 6 Wide
130° and up 7 Very wide
Setback distance = 3/4 x building height
3/4 (30 ft.) = 22.5 ft.
Setback distance = 3/4 x sign height
3/4 (6 ft.)= 4.5 ft.
Spacing = 2 x setback distance
2 x 22.5 ft.= 45 ft. apart
Spacing = 2 x setback distance
4.5 ft. x 2 = 9 ft. apart
Aiming point=2/3 x building height
2/3 (30 ft.)=20 ft. high
Aiming point = 2/3 x sign height
2/3 (6 ft.) = 4 ft. high
Asymmetrical beam spread
138° (H) x 119° (V)
Horizontal Vertical
= IES 7 X 6
Floodlighting Design Guide
FLOODLIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
587
www.lithonia.com | 1-800-279-8041PSG10
Floodlighting Design Guide
DESIGN GUIDELINES
90° Aiming
point
Aiming line
Aiming line
Aim at least 30º to avoid glare.
13'
40'
27'
Flag Lighting
When using ground-mounted oodlights to
light ags there are three considerations:
1. Setback
2. Spacing
3. Aiming
Pole Mounted Floodlights
Pole-mounted oodlights are commonly used for
general area lighting applications such as parking
lots and storage yards. When using pole-mounted
oodlights, there are four considerations:
1. Mounting height
2. Spacing
3. Vertical aiming
4. Horizontal aiming
1. Setback
The recommended setback for lighting a ag
is one-third times the pole height. If the pole
is 30 feet tall, the oodlight should be set back
a distance of 10 feet away from the pole.
2. Spacing
When more than one pole is added, pole placement
is a concern. The “4 times“ rule of thumb for spacing
indicates that a pole should be placed four times
the mounting height from the adjacent poles. If a
ood is mounted on a 20-foot pole, space the poles
80 feet apart.
1. Mounting Height
The recommended mounting height is one half the
distance across the area to be lighted. If the area
to be lighted is 40 feet across, the lowest recom-
mended mounting height is 20 feet.
2. Spacing
Ideally, three oodlights are recommended to
light a ag. The oodlights should be placed
approximately 120° apart.
3. Vertical Aiming
A single oodlight uses the two-thirds rule of thumb
for vertical aiming. The xture is aimed two-thirds
of the distance across the area to be lighted and at
least 30° below horizontal. If the area to be lighted
is 40 feet across, the recommended aiming point
is 27 feet.
Additionally, to minimize glare, the recommended
aiming point distance should never exceed twice the
mounting height. If a pole is 20 feet high, the verti-
cal aiming point should not exceed 40 feet out.
2 (20 ft. mtg. ht.) = 40 ft.
3. Aiming
The recommended aiming point for each
oodlight is the center of the ag or the top of
the pole. Mounting a full or upper visor to the
oodlight can reduce unwanted spill light.
4. Horizontal Aiming
When an additional oodlight is added to a single
pole, horizontal aiming also must be considered.
First, each oodlight should be vertically aimed
according to the two-thirds rule. As long as the
oodlight has a horizontal NEMA 6 or 7 beamspread,
the oodlights can be aimed up to 90° apart.
30
10
Aim at least 30º to avoid glare
13'
40'
27'
40
20
Setback distance = 1/3 x pole height
1/3 (30 ft.) = 10 ft.
Pole spacing = 4 x mounting height
4 (20-ft. pole) = 80 feet between poles
Aiming point = 2/3 across distance to be lighted
2/3 (40 ft.) = 27 ft. aiming point
Mounting height = 1/2 distance to be lighted
1/2 (40ft.) = 20 ft.
3 oodlights spaced 120° apart



FLOODLIGHTING
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
588
POLES
General Information
All luminaire/pole assemblies require proper evaluation to ensure that
the structural integrity of the assembly is not compromised when applied
in specic wind conditions. Therefore, the basis for pole selection in this
catalog is total weight and eective projected area, EPA (ft2), shown
on the individual pole catalog pages. Determination of maximum EPA
(ft2) and weight loading must include all luminaires, bracketry, signs,
decoration, overhead wire or other equipment that will be mounted to
the subject pole. Luminaire EPA (ft2) and weight data are found on their
respective product pages.
The total eective projected area of the luminaires and brackets
shall not exceed the EPA (ft2) listed for the pole selected at a given
wind velocity. Poles that are to be located in areas of known abnormal
conditions will require special consideration. Please consult factory if
poles are required for Florida Building Code or other special wind load
requirements. The map on page 589 gives the wind velocities to be used
in determining luminaire pole compatibility.
NOTE: If during the pole warranty period of one year, the product proves
defective in material or workmanship, the company shall correct, at its
option, by repairing or replacing at no charge to the purchaser, if the pur-
chaser promptly noties the company. This warranty specically excludes
fatigue failure or similar phenomena resulting from induced vibration
harmonic oscillation or resonance associated with the movement of air
currents around the product.
(Poles are available only in U.S.)
Notes
1 Finish must be specied (poles do NOT ship DDB as standard).
2 Additional architectural colors available; see pages 796-799 or see
Achitectural Colors brochure on www.lithonia.com.
3 Aluminum poles only.
4 SSA, SSCA, RSA, RTA, RTAU, RSAH, SSAH only.
5 Must include original order number.
Pole Selection Procedure
Step 1. Select the luminaire and decide how many will be mounted per pole. Determine the eective
projected area, EPA (ft2), which is given on the dimensional information table.
Step 2. Determine the appropriate mounting method for the luminaire. Options include arm, bracket or
wall mounting.
Step 3. Add together the EPAs (ft2) of the luminaire and arm/bracket. Multiply by number of xtures to
be mounted on one pole.
Step 4. Consult the wind map on page 589 to determine the basic wind velocity for your area.
Step 5. Select the material (steel or aluminum) and shape (square or round) of the pole. Refer to the
“Technical Information” chart on the appropriate pole page.
A. Find the desired nominal mounting height in the second column.
B. Verify that the xture weight does not exceed the maximum weight listed for the desired pole.
C. Compare your total EPA (ft2) loading with the maximum EPA (ft2) value found in the wind
speed column for your area. Check that the equipment you are using will not exceed this value.
D. If both the weight and EPA (ft2) values do not exceed the value for which the pole is rated,
you have selected the correct pole. If, however, either one of those numbers exceeds the
maximum rated values, compare the EPA (ft2) and xture weight loads to the next larger
pole of the same mounting height.
NOTES: “Call Before Number” and complete pole description MUST be included before order can be processed. Bolt templates will be shipped
with anchor bolts. To pre-ship templates, place an order for the appropriate template number.
CAUTION: This pole selection process is a guideline only. Lithonia Lighting assumes no responsibility for selection and recommends consulta-
tion with qualied individuals for verication of luminaire/pole assembly selection.
Shaft type
Nominal
mounting height
Nominal shaft base size/Wall
thickness Fixture mounting method Options Finish1
SSS Square straight steel
RSS Round straight steel
STS Square tapered steel
RTS Round tapered steel
RTSU Round tapered steel with arm(s)
STSH Square tapered steel hinged
SPRTS Round tapered steel sportslighting
SSA Square straight aluminum
SSCA Square straight aluminum, cruciform
RSA Round straight aluminum
RTA Round tapered aluminum
RTAU Round tapered aluminum with arm(s)
RSAH Round straight aluminum hinged
SSAH Square straight aluminum hinged
RTF Round tapered berglass
RTFDB Round tapered berglass direct burial
SSF Square straight berglass
STC Square tapered concrete
SPRTC Round tapered concrete sportslighting
SSWDB Square straight wood direct burial
8-50'; sportslighting
poles up to 115’.
See submittal sheets for
specic information.
Nominal shaft
base size
Wall
thickness
3B0.120"
4C0.125"
5E0.156"
6G0.188"
7J0.250"
8K0.312"
9L0.219"
10 P 0.375"
PT Open-top
Tenon mounting
T20 2-3/8” OD (2” NPS)
T25 2-7/8” OD (2-1/2” NPS)
T30 3-1/2” OD (3” NPS)
T35 4” OD (3-1/2” NPS)
Drill mounting
DM19 1 at 90°
DM28 2 at 180°
DM29 2 at 90°
DM39 3 at 90°
DM49 4 at 90°
DM32 3 at 120° (round poles)
Aeris drill mounting
DM19AS 1 at 90°
DM28AS 2 at 180°
DM29AS 2 at 90°
DM39AS 3 at 90°
DM49AS 4 at 90°
DM32AS 3 at 120° (round poles)
See pages 612-613
MAEX Match existing5
Architectural colors2
Polyester powder
Standard colors
DDB Dark bronze
DWH White
DBL Black
DMB Medium bronze
DNA Natural aluminum
BA Brushed aluminum3
Classic colors
DSS Sandstone
DGC Charcoal gray
DTG Tennis green
DBR Bright red
DSB Steel blue
Class 1 architectural anodized4
ABL Black
ADB Dark bronze
ANA Natural
ORDERING INFORMATION Example: SSA 16 4G DM19 DMB
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Lead times will vary depending on options selected. Consult with your sales representative.
POLES
PRODUCT INFORMATION
LITHONIA OUTDOOR
589
www.lithonia.com | 1-800-279-8041PSG10
General Information
POLES
WIND MAP
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
590
POLES
Steel
SSS
Square Straight Steel
Intended Use
Square straight steel general
purpose pole for up to 39-
foot mounting heights.
Construction
Shaft: Weldable grade, hot-
rolled, commercial-quality
carbon steel tubing with a
minimum yield of 55,000
psi (11-gauge) or 50,000
psi (7-gauge). Uniform wall
thickness of .125" or .188".
Shaft is one piece with a
full-length longitudinal high-
frequency electric resistance
weld. Uniformly square
in cross-section with at
sides, small corner radii and
excellent torsional qualities.
Available shaft widths are 4,
5 and 6 inches.
Anchor base: Fabricated
from hot-rolled carbon steel
plate conforming to ASTM
A36 that meets or exceeds a
minimum-yield strength of
36,000 psi. Base plate and
shaft are circumferentially
welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced hand-
hole rim having nominal
dimensions of 3" x 5" for all
shafts. Includes steel cover
with attachment screws.
Hardware: All fasteners are
high-strength, galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes full-base
cover nished to match pole.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT. HT.
FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK. IN. GAUGE 80
MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X IN.
APPROX.
SHIP WT.
LBS.
SSS 10 4C 10 4 x 10 0.125 11 30.6 765 23.8 595 18.9 473 8 - 9 3/4 x 18 x 3 75
SSS 12 4C 12 4 x 12 0.125 11 24.4 610 18.8 470 14.8 370 8 - 9 3/4 x 18 x 3 90
SSS 14 4C 14 4 x 14 0.125 11 19.9 498 15.1 378 11.7 293 8 - 9 3/4 x 18 x 3 100
SSS 16 4C 16 4 x 16 0.125 11 15.9 398 11.8 295 8.9 223 8 - 9 3/4 x 18 x 3 115
SSS 18 4C 18 4 x 18 0.125 11 12.6 315 9.2 230 6.7 168 8 - 9 3/4 x 18 x 3 125
SSS 20 4C 20 4 x 20 0.125 11 9.6 240 6.7 167 4.5 150 8 - 9 3/4 x 18 x 3 140
SSS 20 4G 20 4 x 20 0.188 7 14.0 350 11.0 275 8.0 200 8 - 9 3/4 x 30 x 3 198
SSS 20 5C 20 5 x 20 0.125 11 17.7 443 12.7 343 9.4 235 10 - 12 1 x 36 x 4 185
SSS 20 5G 20 5 x 20 0.188 7 28.1 703 21.4 535 16.2 405 10 - 12 1 x 36 x 4 265
SSS 25 4C 25 4 x 25 0.125 11 4.8 150 2.6 100 1.0 50 8 - 9 3/4 x 18 x 3 170
SSS 25 4G 25 4 x 25 0.188 7 10.8 270 7.7 188 5.4 135 8 - 9 3/4 x 30 x 3 245
SSS 25 5C 25 5 x 25 0.125 11 9.8 245 6.3 157 3.7 150 10 - 12 1 x 36 x 4 225
SSS 25 5G 25 5 x 25 0.188 7 18.5 463 13.3 333 9.5 238 10 - 12 1 x 36 x 4 360
SSS 30 4G 30 4 x 30 0.188 7 6.0 150 4.0 100 2.5 75 8 - 9 3/4 x 30 x 3 295
SSS 30 5C 30 5 x 30 0.125 11 4.7 150 2.0 50 - - 10 - 12 1 x 36 x 4 265
SSS 30 5G 30 5 x 30 0.188 7 10.7 267 6.7 167 3.9 100 10 - 12 1 x 36 x 4 380
SSS 30 6G 30 6 x 30 0.188 7 19.0 475 13.2 330 9.0 225 11 - 13 1 x 36 x 4 520
SSS 35 5G 35 5 x 35 0.188 7 5.9 150 2.5 100 - - 10 - 12 1 x 36 x 4 440
SSS 35 6G 35 6 x 35 0.188 7 12.4 310 7.6 190 4.2 105 11 - 13 1 x 36 x 4 540
SSS 39 6G 39 6 x 39 0.188 7 7.2 180 3.0 75 - - 11 - 13 1 x 36 x 4 605
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures installed.
If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
A
C
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
POLE DATA
SHAFT
BASE SIZE BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
ANCHOR BOLT
AND TEMPLATE
DESCRIPTION
4"C 8.5" 2.75" - 4.00" 8" ABTEMPLATE PJ50004 AB18-0 ABSSS-4C
4"G 8.5" 2.75" - 4.00" 8" ABTEMPLATE PJ50004 AB30-0 ABSSS-4G
5" 10" - 12" 3.375" - 4.00" 11" ABTEMPLATE PJ50010 AB36-0 ABSSS-5
6" 11" - 13" 3.375" - 4.00" 12.5" ABTEMPLATE PJ50011 AB36-0 NA
18”
PRODUCT INFORMATION
LITHONIA OUTDOOR
591
www.lithonia.com | 1-800-279-8041PSG10
POLES
Steel
RSS
Round Straight Steel
Intended Use
Round straight steel general
purpose pole for up to 30-
foot mounting heights.
Construction
Shaft: Weldable grade, hot
rolled, commercial-quality
carbon steel tubing with
minimum yield of 42,000 psi.
Uniform wall thickness of
.120". Shaft is one piece with
a full-length, longitudinal,
high-frequency electric resis-
tance weld. Uniformly round
in cross-section down length
of shaft with no taper.
Anchor base: Fabricated from
hot-rolled carbon steel plate
with 3/4" thickness conform-
ing to ASTM A36. Base plate
and shaft are circumferen-
tially welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced hand-
hole rim located 18" above
base. Includes cover with
attachment screws.
Hardware: All fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes full-base
cover nished to match pole.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
POLE DATA
SHAFT BASE
SIZE BOLT CIRCLE
ABOLT PROJECTION
BBASE SQUARE
CTEMPLATE
DESCRIPTION
ANCHOR BOLT
DESCRIPTION
3" 8" 3.25" - 3.50" 8" ABTEMPLATE PJ50041 AB18-0
4" 8" 3.25" - 3.50" 8" ABTEMPLATE PJ50041 AB18-0
4.5" 8" 3.25" - 3.50" 8" ABTEMPLATE PJ50041 AB18-0
5" 8" 3.25" - 3.50" 8" ABTEMPLATE PJ50041 AB18-0
A
C
B
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
RSS 8 4-5B 8 4.5 x 8 0.120 24.7 630 19.7 495 16.0 430 8 3/4 x 18 x 3 55
RSS 10 3B 10 3 x 10 0.120 10 250 7.7 190 6.0 175 8 3/4 x 18 x 3 55
RSS 10 4B 10 4 x 10 0.120 19.1 480 15.0 375 12.2 305 8 3/4 x 18 x 3 70
RSS 10 4-5B 10 4.5 x 10 0.120 24.5 615 19.5 490 15.8 395 8 3/4 x 18 x 3 75
RSS 12 3B 12 3 x 12 0.120 7.7 195 5.8 145 4.4 130 8 3/4 x 18 x 3 60
RSS 12 4B 12 4 x 12 0.120 15.0 390 11.8 300 9.5 240 8 3/4 x 18 x 3 80
RSS 12 4-5B 12 4.5 x 12 0.120 19.8 495 15.7 395 12.7 320 8 3/4 x 18 x 3 85
RSS 14 3B 14 3 x 14 0.120 6.0 175 4.4 130 3.3 90 8 3/4 x 18 x 3 70
RSS 14 4B 14 4 x 14 0.120 12.2 305 9.4 250 7.6 195 8 3/4 x 18 x 3 90
RSS 14 4-5B 14 4.5 x 14 0.120 16.2 405 12.8 320 10.3 260 8 3/4 x 18 x 3 95
RSS 15 4-5B 15 4.5 x 15 0.120 12.0 300 9.5 250 7.5 200 8 3/4 x 18 x 3 96
RSS 16 3B 16 3 x 16 0.120 4.6 125 3.2 100 2.3 60 8 3/4 x 18 x 3 80
RSS 16 4B 16 4 x 16 0.120 9.6 250 7.4 185 5.9 150 8 3/4 x 18 x 3 100
RSS 16 4-5B 16 4.5 x 16 0.120 13.1 330 10.2 265 8.2 205 8 3/4 x 18 x 3 105
RSS 18 3B 18 3 x 18 0.120 3.4 90 2.3 60 1.4 70 8 3/4 x 18 x 3 90
RSS 18 4B 18 4 x 18 0.120 7.6 190 5.7 180 4.5 130 8 3/4 x 18 x 3 110
RSS 18 4-5B 18 4.5 x 18 0.120 10.5 265 8.2 210 6.5 165 8 3/4 x 18 x 3 115
RSS 20 3B 20 3 x 20 0.120 2.4 100 1.4 75 - - 8 3/4 x 18 x 3 100
RSS 20 4B 20 4 x 20 0.120 6.0 150 4.45 150 3.45 125 8 3/4 x 18 x 3 120
RSS 20 4-5B 20 4.5 x 20 0.120 8.5 215 6.6 165 5.2 130 8 3/4 x 18 x 3 130
RSS 20 5B 20 5 x 20 0.120 11.75 300 9.1 230 7.25 180 8 3/4 x 18 x 3 145
RSS 22 4-5B 22 4.5 x 22 0.120 6.0 150 4.5 125 3.75 100 8 3/4 x 18 x 3 134
RSS 25 4B 25 4 x 25 0.120 2.85 100 1.95 75 1.35 75 8 3/4 x 18 x 3 145
RSS 25 4-5B 25 4.5 x 25 0.120 4.8 130 3.6 90 2.7 90 8 3/4 x 18 x 3 145
RSS 25 5B 25 5 x 25 0.120 7.25 180 5.5 150 4.25 150 8 3/4 x 18 x 3 180
RSS 30 4-5B 30 4.5 x 30 0.120 2.3 80 1.5 75 1.0 60 8 3/4 x 18 x 3 185
RSS 30 5B 30 5 x 30 0.120 4.2 150 3 125 2.25 100 8 3/4 x 18 x 3 210
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for incorrect
anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures installed. If poles are
stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage. Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
18"
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
592
Steel
POLES
STS
Square Tapered Steel
Intended Use
Square tapered steel general
purpose pole for up to 50-
foot mounting heights.
Construction
Shaft: Weldable-grade
(ASTM A-595 Grade A) hot-
rolled commercial-quality
carbon steel tubing with
minimum yield of 55,000
psi. Uniform wall thickness
of 11-gauge (0.1196") or
7-gauge (0.1793"). Shaft is
one piece with a full-length
longitudinal high-frequency
resistance weld and is square
in cross-section having at
sides, radiused corners and
a uniform taper of approxi-
mately .11" per foot.
Anchor base: Fabricated
from hot-rolled carbon steel
plate conforming to ASTM
A36 that meets or exceeds a
minimum-yield strength of
36,000 psi. Base plate and
shaft are circumferentially
welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Rectangular, rein-
forced hand-hole rim having
nominal dimensions of 3" x
5" for shafts less than 6.375"
square and oval shaped 4"
x 6.5" for all other shafts.
Steel cover with attachment
screws included. Hand hole is
located 18" above base.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes full base
cover nished to match pole.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE SHAFT
SIZE BASE IN. X
TOP IN. X FT.
WALL
THICK.
IN. GAUGE 80
MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX
SHIP WT.
LBS.
STS 20 5-2B 20 5.25 x 3.05 x 20 0.125 11 18.0 452 13.8 345 10.7 268 10.75 1 x 36 x 4 155
STS 20 5-5F 20 5.50 x 3.30 x 20 0.188 7 30.5 764 24.0 602 19.0 477 11 1 x 36 x 4 235
STS 25 6-0B 25 6.00 x 3.25 x 25 0.125 11 16.8 422 12.6 315 9.5 238 12 1 x 36 x 4 205
STS 25 6-4F 25 6.41 x 3.66 x 25 0.188 7 28.5 713 22.5 563 18.2 455 12.5 1 x 36 x 4 310
STS 30 6-4B 30 6.41 x 3.11 x 30 0.125 11 13.6 340 9.8 245 7.0 175 12.5 1 x 36 x 4 260
STS 30 6-4F 30 6.41 x 3.11 x 30 0.188 7 23.6 590 17.9 448 13.7 343 12.5 1 x 36 x 4 375
STS 35 6-8B 35 6.81 x 2.96 x 35 0.125 11 10.7 269 7.3 184 4.8 120 13 1 x 36 x 4 305
STS 35 7-1F 35 7.13 x 3.28 x 35 0.188 7 23.4 585 17.4 435 13.0 325 13.5 1 x 36 x 4 475
STS 39 7-1B 39 7.18 x 2.92 x 39 0.125 11 8.6 215 5.4 135 3.0 75 13.5 1 x 36 x 4 345
STS 39 7-1F 39 7.13 x 2.87 x 39 0.188 7 19.3 483 14.2 355 10.4 260 13.5 1 x 36 x 4 500
STS 45 7-8F 45 7.88 x 2.93 x 45 0.188 7 16.0 400 11.1 278 7.4 187 14.5 1 x 36 x 4 620
STS 45 8-7F 45 8.75 x 3.80 x 45 0.188 7 23.5 588 16.6 415 11.4 287 15.75 1-1/4 x 42 x 6 730
STS 50 8-8F 50 8.81 x 3.31 x 50 0.188 7 19.4 485 13.2 332 8.7 218 16 1-1/4 x 42 x 6 780
18”
A
C
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITEFTDSJCFEBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
POLE DATA
SHAFT BASE
SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
5.2" B 10.75" 3.50"-4.25" 10.75" ABTEMPLATE PJ50095 AB36-0
5.5" F 11" 3.75"-4.50" 11" ABTEMPLATE PJ50096 AB36-0
6.0" B 12" 3.50"-4.25" 11.5" ABTEMPLATE PJ50097 AB36-0
6.4" F 12.5" 4.00"-4.75" 11.875" ABTEMPLATE PJ50098 AB36-0
6.4" B 12.5" 3.50"-4.25" 11.875" ABTEMPLATE PJ50099 AB36-0
6.8" B 13" 3.50"-4.25" 12.25" ABTEMPLATE PJ50101 AB36-0
7.1" F 13.5" 4.25"-5.00" 12.625" ABTEMPLATE PJ50102 AB36-0
7.1" B 13.5" 3.50"-4.25" 12.625" ABTEMPLATE PJ50103 AB36-0
7.8" F 14.5" 4.00"-4.75" 13.375" ABTEMPLATE PJ50105 AB36-0
8.7" F 15.75" 4.75"-5.50" 14.25" ABTEMPLATE PJ50106 AB42-0
8.8" F 16" 4.50"-5.25" 15.5" ABTEMPLATE PJ50107 AB42-0
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept
claim for incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without
having xtures installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to
prevent nish damage.
PRODUCT INFORMATION
LITHONIA OUTDOOR
593
www.lithonia.com | 1-800-279-8041PSG10
POLES
Steel
RTS
Round Tapered Steel
Intended Use
Round tapered steel general
purpose pole for up to 50-
foot mounting heights.
Construction
Shaft: Weldable-grade
(ASTM A-595 Grade A), hot-
rolled, commercial-quality
carbon steel tubing with
minimum yield of 55,000
psi. Uniform wall thickness
of 11-gauge (0.1196") or
7-gauge (0.1793"). Shafts are
one piece construction with
a full-length, longitudinal,
high-frequency resistance
weld. Round in cross-section,
having uniform taper of ap-
proximately .14" per foot.
Anchor base: Fabricated
from hot-rolled carbon steel
plate conforming to ASTM
A36 that meets or exceeds a
minimum-yield strength of
36,000 psi. Base plate and
shaft are circumferentially
welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Rectangular,
reinforced hand-hole rim
having nominal dimensions
of 3" x 5" for 5.9" shafts and
oval-shaped 4" x 6.5" hand
hole for all other shafts.
Steel cover with attachment
screws included. Hand hole is
located 18" above base.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Bolt cover: Bolt covers are
zinc diecast and fasten to
shaft by a 0.25" stainless
steel, self-tapping, hex-head
screw. Full base cover avail-
able as option.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE SHAFT
SIZE BASE IN.
X TOP IN. X FT.
WALL
THICK.
IN. GAUGE 80
MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
RTS 20 5-9B 20 5.9 x 3.1 x 20 0.125 11 19.3 482 15.1 377 12.2 305 9.0 1 x 36 x 4 140
RTS 20 6-5B 20 6.5 x 3.7 x 20 0.125 11 24.2 605 19.3 482 15.6 390 9.5 1 x 36 x 4 160
RTS 25 5-9B 25 5.9 x 2.4 x 25 0.125 11 12.5 312 9.9 247 8 200 9.0 1 x 36 x 4 155
RTS 25 7-0B 25 7.0 x 3.5 x 25 0.125 11 20.3 507 16.2 405 13.1 327 10.0 1 x 36 x 4 200
RTS 25 7-0F 25 7.0 x 3.5 x 25 0.188 7 30.5 760 24.0 625 19.8 495 10.0 1 x 36 x 4 280
RTS 30 6-6B 30 6.6 x 2.4 x 30 0.125 11 11.7 292 9.3 232 7.5 187 9.5 1 x 36 x 4 200
RTS 30 8-0B 30 8.0 x 3.8 x 30 0.125 11 18.9 473 14.9 373 12 300 11.0 1 x 36 x 4 265
RTS 30 8-0F 30 8.0 x 3.8 x 30 0.188 7 33.5 838 27.0 675 22.0 550 11.0 1-1/4 x 42 x 6 380
RTS 35 7-3B 35 7.3 x 2.4 x 35 0.125 11 11.2 280 8.9 222 7.1 177 10.5 1 x 36 x 4 250
RTS 35 8-5B 35 8.5 x 3.6 x 35 0.125 11 18.9 472 15.1 377 12.2 305 11.5 1 x 36 x 4 315
RTS 35 9-5B 35 9.5 x 4.6 x 35 0.125 11 23.2 580 18.2 455 14.5 363 13.0 1 x 36 x 4 370
RTS 39 7-8B 39 7.8 x 2.4 x 39 0.125 11 10.7 267 8.5 212 6.6 165 11.0 1 x 36 x 4 285
RTS 39 9-0B 39 9.0 x 3.6 x 39 0.125 11 17.2 430 13.5 338 10.8 270 12.5 1 x 36 x 4 355
RTS 39 9-0F 39 9.0 x 3.6 x 39 0.188 7 28.5 715 23.0 575 19.0 475 12.5 1-1/4 x 42 x 6 515
RTS 45 10-0B 45 10.0 x 3.7 x 45 0.125 11 17.4 435 13.5 338 10.6 265 13.5 1 x 36 x 4 450
RTS 45 10-0F 45 10.0 x 3.7 x 45 0.188 7 28.5 715 23.0 575 19.0 475 13.5 1-1/4 x 42 x 6 650
RTS 50 10-0B 50 10.0 x 3.0 x 50 0.125 11 13.2 330 10.6 265 8.3 208 13.5 1 x 36 x 4 475
RTS 50 10-0F 50 10.0 x 3.0 x 50 0.188 7 20.5 512 16.5 412 13.6 340 13.5 1¼ x 42 x 6 680
A
C
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITEFTDSJCFEBSFOPNJOBMBDUVBMMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t 5ISFFCPMUBODIPSCBTFBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
POLE DATA
SHAFT BASE
SIZE BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
5.9" B 9" 3.50" - 4.25" 10" ABTEMPLATE PJ50075 AB36-0
6.5" B 9.5" 3.50" - 4.25" 10.5" ABTEMPLATE PJ50074 AB36-0
7.0" B 10" 3.50" - 4.25" 10.875" ABTEMPLATE PJ50077 AB36-0
7.0" F 10" 3.75" - 4.50" 10.875" ABTEMPLATE PJ50076 AB36-0
6.6" B 9.5" 3.50" - 4.25" 10.5" ABTEMPLATE PJ50078 AB36-0
8.0" B 11" 3.50" - 4.25" 11.5" ABTEMPLATE PJ50079 AB36-0
8.0" F 11" 4.50" - 5.25" 11.5" ABTEMPLATE PJ50080 AB42-0
7.3" B 10.5" 3.50" - 4.25" 11.25" ABTEMPLATE PJ50081 AB36-0
8.5" B 11.5" 3.75" - 4.50" 12" ABTEMPLATE PJ50082 AB36-0
9.5" B 13" 3.75" - 4.50" 13" ABTEMPLATE PJ50083 AB36-0
7.8" B 11" 3.75" - 4.50" 11.5" ABTEMPLATE PJ50084 AB36-0
9.0" B 12.5" 3.75" - 4.50" 12.375" ABTEMPLATE PJ50085 AB36-0
9.0" F 12.5" 4.50" - 5.25" 12.375" ABTEMPLATE PJ50086 AB42-0
10.0" B 13.5" 3.75" - 4.50" 14" ABTEMPLATE PJ50087 AB36-0
10.0" F 13.5" 4.50" - 5.25" 14" ABTEMPLATE PJ50088 AB42-0
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept
claim for incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without
having xtures installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to
prevent nish damage.
B
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
594
Steel
POLES
RTSU
Round Tapered Steel with Upsweep
Mast Arms
Intended Use
Round tapered steel roadway
pole with upsweep mast
arm(s) for up to 40-foot
mounting heights including
rise of arm.
Construction
Shaft: Weldable-grade
(ASTM A-595 Grade A), hot-
rolled, commercial-quality
carbon steel tubing with
minimum yield of 55,000
psi. Uniform wall thickness
of 11-gauge (0.1196") or
7-gauge (0.1793"). Shafts are
one-piece construction with
a full-length, longitudinal,
high-frequency resistance
weld. Round in cross-section,
having uniform taper of ap-
proximately .14" per foot.
Arm: Body is 2-3/8 " O.D.
(2" NPS, Schedule 40)
galvanized steel tube with
minimum yield strength of
36,000 psi. Welding follows
AWS standards. Arms are
galvanized and/or painted af-
ter fabrication. Arm mounts
to shaft via 1/2" steel bolt
Simplex mount.
Anchor base: Fabricated
from hot-rolled carbon steel
plate conforming to ASTM
A36 that meets or exceeds a
minimum-yield strength of
36,000 psi. Base plate and
shaft are circumferentially
welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Rectangular,
reinforced hand-hole rim
having nominal dimensions
of 3" x 5" for 5.9" shafts and
oval-shaped 4" x 6.5" hand
hole for all other shafts.
Steel cover with attachment
screws included. Hand hole is
located 18" above base.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided.
Bolt cover: Bolt covers are
zinc diecast and fasten to
shaft by a 0.25" stainless
steel, self-tapping, hex-head
screw. Full base cover avail-
able as option.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
POLE DATA
SHAFT
BASE SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
C
TEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
5.9' 9" 3.50" - 4.25" 10" ABTEMPLATE PJ50075 AB36-0
6.5" 9.5" 3.50" - 4.25" 10.5" ABTEMPLATE PJ50074 AB36-0
7.0" 10" 3.50" - 4.25" 10.875" ABTEMPLATE PJ50077 AB36-0
7.3" 10.5" 3.50" - 4.25" 11.25" ABTEMPLATE PJ50133 AB36-0
7.5" 10.5" 3.50" - 4.25" 11.25" ABTEMPLATE PJ50133 AB36-0
8.0" 11" 3.50" - 4.25" 11.5" ABTEMPLATE PJ50079 AB36-0
8.5" 11.5" 3.75" - 4.50" 12" ABTEMPLATE PJ50082 AB36-0
9.0" 12.5" 3.75" - 4.50" 12.375" ABTEMPLATE PJ50085 AB36-0
9.5" 13" 4.00" - 4.50" 13" ABTEMPLATE PJ50134 AB36-0
10.0" 13.5" 4.00" - 4.50" 14" ABTEMPLATE PJ50135 AB36-0
10.5" 14" 4.50" - 5.00" 14.5" ABTEMPLATE PJ50136 AB42-0
A
C
Notes
t 'JYUVSFhTOPNJOBMNPVOUJOHIFJHIUJTUIFTVNPGTIBGUMFOHUI
plus rise of upsweep arm.
t 5ISFFBOEGPVSBSNDPOöHVSBUJPOTBWBJMBCMFDPOTVMUGBDUPSZ
t 5SVTTBOEEBWJUBSNTBWBJMBCMFDPOTVMUGBDUPSZ
t .PVOUJOHPQUJPOT5YYUFOPOBOEPS%.YYESJMMJOHNBZCF
added, consult factory.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 5SBOTGPSNFSCBTFTBOECSFBLBXBZDPVQMJOHTBWBJMBCMF
consult factory.
t 5ISFFCPMUTMJQCBTFTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
TECHNICAL INFORMATION
CATALOG NUMBER NOM.
MOUNT.
HT. FT.
MTG. ARM
LENGTH
FT.
POLE
SHAFT BASE
DIA. IN.
WALL
THICK.
IN.
EPA FT2 W/1.3
GUST UP TO 100
MPH PER ARM
MAX. WT.
PER ARM
LBS.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X IN.
APPROX.
SHIP WT.
LBS.
SINGLE-
ARM
POLES
RTSU 20 5-9B SMP US4 20 4 5.9 0.120 2 76 9.0 1 x 36 x 4 140
RTSU 20 5-9B SMP US6 20 6 5.9 0.120 2 76 9.0 1 x 36 x 4 140
RTSU 20 5-9B SMP US8 20 8 5.9 0.120 2 76 9.0 1 x 36 x 4 140
RTSU 25 5-9B SMP US4 25 4 5.9 0.120 2 76 9.0 1 x 36 x 4 205
RTSU 25 5-9B SMP US6 25 6 5.9 0.120 2 76 9.0 1 x 36 x 4 205
RTSU 25 5-9B SMP US8 25 8 5.9 0.120 2 76 9.0 1 x 36 x 4 205
RTSU 30 6-6B SMP US4 30 4 6.5 0.120 2 76 9.5 1 x 36 x 4 250
RTSU 30 6-6B SMP US6 30 6 6.5 0.120 2 76 9.5 1 x 36 x 4 250
RTSU 30 6-6B SMP US8 30 8 6.5 0.120 2 76 9.5 1 x 36 x 4 250
RTSU 35 7-3B SMP US4 35 4 7.3 0.120 2 76 10.5 1 x 36 x 4 300
RTSU 35 7-3B SMP US6 35 6 7.3 0.120 2 76 10.5 1 x 36 x 4 300
RTSU 35 7-3B SMP US8 35 8 7.3 0.120 2 76 10.5 1 x 36 x 4 300
RTSU 40 9-0B SMP US4 40 4 9 0.120 2 76 12.5 1 x 36 x 4 405
RTSU 40 9-0B SMP US6 40 6 9 0.120 2 76 12.5 1 x 36 x 4 405
RTSU 40 9-0B SMP US8 40 8 9 0.120 2 76 12.5 1 x 36 x 4 405
DOUBLE-
ARM
POLES
RTSU 20 5-9B SMP 2US4 20 4 5.9 0.120 2 76 9.0 1 x 36 x 4 240
RTSU 20 5-9B SMP 2US6 20 6 5.9 0.120 2 76 9.0 1 x 36 x 4 240
RTSU 20 5-9B SMP 2US8 20 8 5.9 0.120 2 76 9.0 1 x 36 x 4 240
RTSU 25 5-9B SMP 2US4 25 4 5.9 0.120 2 76 9.0 1 x 36 x 4 255
RTSU 25 5-9B SMP 2US6 25 6 5.9 0.120 2 76 9.0 1 x 36 x 4 255
RTSU 25 5-9B SMP 2US8 25 8 5.9 0.120 2 76 9.0 1 x 36 x 4 255
RTSU 30 6-6B SMP 2US4 30 4 6.5 0.120 2 76 9.5 1 x 36 x 4 300
RTSU 30 6-6B SMP 2US6 30 6 6.5 0.120 2 76 9.5 1 x 36 x 4 300
RTSU 30 6-6B SMP 2US8 30 8 6.5 0.120 2 76 9.5 1 x 36 x 4 300
RTSU 35 7-3B SMP 2US4 35 4 7.3 0.120 2 76 10.5 1 x 36 x 4 350
RTSU 35 7-3B SMP 2US6 35 6 7.3 0.120 2 76 10.5 1 x 36 x 4 350
RTSU 35 7-3B SMP 2US8 35 8 7.3 0.120 2 76 10.5 1 x 36 x 4 350
RTSU 40 9-0B SMP 2US4 40 4 9 0.120 2 76 12.5 1 x 36 x 4 455
RTSU 40 9-0B SMP 2US6 40 6 9 0.120 2 76 12.5 1 x 36 x 4 455
RTSU 40 9-0B SMP 2US8 40 8 9 0.120 2 76 12.5 1 x 36 x 4 455
INSTALLATION NOTES: Factory-supplied
templates must be used when setting
anchor bolts. Lithonia Lighting will not
accept claim for incorrect anchorage
placement due to failure to use Lithonia
Lighting factory templates. Do not
erect poles without having xtures
installed. If poles are stored outside, all
protective wrapping must be removed
immediately upon delivery to prevent
nish damage.
B
PRODUCT INFORMATION
LITHONIA OUTDOOR
595
www.lithonia.com | 1-800-279-8041PSG10
POLES
Steel
STSH
Square Tapered Steel, Hinged
Intended Use
Square tapered steel hinged
pole with 20- to 39-foot
mounting heights. Good ap-
plication where maintenance
access is limited.
Construction
Shaft: Weldable-grade,
hot-rolled, commercial-
quality carbon steel having
a guaranteed minimum
yield strength of 55,000 psi
and is supplied in 11-gauge
(.1196") or 7-gauge (.1793")
nominal thickness. Pole is
one-piece construction with
a full-length, longitudinal,
high-frequency, electric-
resistance weld. Shaft is
square in cross-section
having at sides, radi used
corners, and uniform taper of
approximately 0.11 inches per
foot (4-inch square poles are
not tapered).
Hinge: Hinge pin is stainless
steel. A exible wiring guide
is provided, passing through
the hinge area for wiring
protection. Hinge is external.
Anchor base: Fabricated
from hot-rolled carbon steel
plate conforming to ASTM
A36 that meets or exceeds a
minimum-yield strength of
36,000 psi. Base plate and
shaft are circumferentially
welded top and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Rectangular, rein-
forced hand-hole rim having
nominal dimensions of 3" x 5"
for 4" shafts and oval shaped
4" x 6.5" for all other shafts.
Steel cover with attachment
screws included. Hand hole is
located 18" above base.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes full-base
cover nished to match pole.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT. HT.
FT.
POLE SHAFT SIZE
BASE IN. X TOP IN. X FT.
WALL
THICK.
IN. GAUGE 80 MPH MAX. WT. 90 MPH MAX. WT. 100 MPH MAX. WT. BOLT
CIRCLE IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS
STSH 20 4F 20 4 x 4 x 20 0.188 7 11.6 217 8.5 217 6.2 217 8.5 - 10 3/4 x 18 x 3 300
STSH 25 4F 25 4 x 4 x 25 0.188 7 7.1 160 4.8 160 3.1 160 8.5 - 10 3/4 x 18 x 3 370
STSH 25 6-4B 25 6.41 x 3.63 x 25 0.125 11 18.0 254 13.0 254 9.3 254 12.5 1 x 36 x 4 355
STSH 30 4F 30 4 x 4 x 30 0.188 7 4.0 120 2.1 120 0.8 120 8.5 - 10 3/4 x 18 x 3 435
STSH 30 6-4B 30 6.41 x 3.08 x 30 0.125 11 12.5 230 8.3 230 5.1 230 12.5 1 x 36 x 4 440
STSH 35 7-1B 35 7.18 x 2.88 x 35 0.125 11 7.1 160 3.2 160 - - 13.5 1 x 36 x 4 540
STSH 35 7-1F 35 7.13 x 2.87 x 35 0.188 7 22.0 155 16.9 155 12.1 155 13.5 1 x 36 x 4 700
STSH 39 7-1F 39 7.13 x 2.87 x 39 0.188 7 19.5 110 13.5 110 9.2 110 13.5 1 x 36 x 4 740
POLE DATA
SHAFT
BASE SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
4.0" F 8.5" - 10" 3.50" - 4.25" 9.75" ABTEMPLATE PJ50091 AB18-0
6.4" B 12.5" 3.75" - 4.50" 11.875" ABTEMPLATE PJ50092 AB36-0
7.1" B 13.5" 3.50" - 4.25" 12.625" ABTEMPLATE PJ50094 AB36-0
7.1" F 13.5" 4.00" - 4.75" 12.625" ABTEMPLATE PJ50093 AB36-0
Removable
Winch detail (accessory)
A
Bolt
slots
C
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 1PMFMFOHUITDBOOPUCFNPEJöFE
t )JOHFQPJOUJTMPDBUFEBQQSPYJNBUFMZUXPUIJSETGSPNCPUUPNPGQPMF
t 8JODIBTTFNCMZPSEFSFETQFQBSBUFMZSFRVJSFEUPMPXFSQPMFTIBGU
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
WINCH ORDERING
WINCH NOMENCLATURE SHAFT SIZE
STSHWCH 4F 4F
STSHWCH 6-4B 6-4B
STSHWCH 7-1B 7-1B
STSHWCH 7-1F 7-1F
External hinge detail
Hinge pin
Shroud
Wiring
protection
Bottom
Top assembly
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia
Lighting will not accept claim for incorrect anchorage placement due to failure to use Lithonia Lighting
factory templates. Do not erect poles without having fixtures installed. If poles are stored outside, all
protective wrapping must be removed immediately upon delivery to prevent finish damage.
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
596
Steel
POLES
SPRTS
Round Tapered Steel Sportlighting
Intended Use
Round tapered steel sports
lighting pole with 40- to
80-foot mounting heights.
60 foot and longer are two
section poles.
Construction
Shaft: Pole shaft sections
are high-strength low-alloy
steel conforming to ASTM
A572 Grade 65 or ASTM
A595 Grade A. Cross-section
is round or 16-sided with a
4" bend radius. Each pole is
a constant tapered hollow
steel section up to 55 feet in
length with a minimum 1-1/2
times diameter slip joint as
standard for two section pole.
Shaft plate is single thickness
without laminations.
Anchor base: Fabricated
from hot-rolled carbon steel
plate that conforms to ASTM
A36 or ASTM A572 Grade
42. Base plate and shaft are
circumferentially welded top
and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Hand hole: Oval shaped,
reinforced hand-hole rim
having a nominal dimension
of 4" x 6.5". Steel cover with
attachment screws included.
Hand hole is located 18"
above base.
Top cap: Removable top
cap provided with all drill-
mount poles.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION
BOTTOM SECTION TOP SECTION EPA FT2 WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT. HT.
FT.
BASE DIA.
IN.
WALL
THICK.
IN.
BASE DIA.
IN.
WALL
THICK.
IN.
80
MPH. MAX. WT. 90 MPH. MAX.
WT. 100 MPH. MAX. WT. BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
# OF
ANCHOR
BOLTS
APPROX.
SHIP WT.
LBS.
SPRTS 40 HT01 40 9 0.1193 - - 17.2 430 13.5 338 10.8 270 12.5 1 x 36 x 4 4 366
SPRTS 40 HT02 40 9 0.1793 - - 26.1 654 20.6 517 16.7 419 12.5 1-1/4 x 42 x 6 4 514
SPRTS 40 HT03 40 10 0.1793 - - 38.6 965 30.6 765 24.6 615 13.5 1-1/4 x 42 x 6 4 604
SPRTS 50 HT01 50 10 0.1193 - - 13.2 330 10.6 265 8.3 208 13.5 1 x 36 x 4 4 486
SPRTS 50 HT02 50 10 0.1793 - - 20.5 512 16.5 412 13.6 340 13.5 1-1/4 x 42 x 6 4 684
SPRTS 50 HT03 50 11 0.1793 - - 29.9 748 23.5 588 18.6 465 15 1-1/4 x 42 x 6 4 813
SPRTS 50 HT04 50 13 0.1793 - - 50.4 1,260 39.7 992 31.4 785 17 1-1/2 x 54 x 6 4 1024
SPRTS 50 HT05 50 13 0.2391 - - 69.2 1,730 55.0 1,375 44.2 1,105 17.5 1-3/4 x 84 x 6 4 1339
SPRTS 60 HT01 60 11.5 0.1793 5 0.1196 20.0 600 16.0 480 13.0 390 16 1-1/4 x 42 x 6 4 907
SPRTS 60 HT02 60 13 0.1793 6.5 0.1196 36.0 1,080 29.0 870 22.0 660 17 1-1/4 x 42 x 6 6 1110
SPRTS 60 HT03 60 13 0.2391 6.6 0.1793 49.0 1,470 40.0 1,200 32.0 960 17 1-1/2 x 54 x 6 6 1467
SPRTS 60 HT04 60 15.87 0.1875 12 0.1793 78.0 2,340 62.0 1,860 50.0 1,500 21 1-1/2 x 54 x 6 6 1651
SPRTS 70 HT01 70 13 0.1793 6.6 0.1793 20.6 515 16.7 417 13.7 342 17 1-1/2 x 54 x 6 4 1228
SPRTS 70 HT02 70 13 0.2391 6.6 0.1793 23.8 595 19.3 482 15.9 397 17.5 1-3/4 x 84 x 6 4 1547
SPRTS 70 HT03 70 14.57 0.1875 12 0.1793 39.0 1,170 30.0 900 23.0 690 19 1-1/4 x 42 x 6 6 1597
SPRTS 70 HT04 70 15.87 0.1875 12 0.1793 52.0 1,560 41.0 1,230 33.0 990 21 1-1/2 x 54 x 6 6 1801
SPRTS 70 HT05 70 16.82 0.1875 12 0.1793 65.0 1,950 53.0 1,590 42.0 1,260 22.75 1-1/2 x 54 x 6 6 1984
SPRTS 80 HT01 80 15.87 0.1875 12 0.1793 37.0 1,110 29.0 870 23.0 690 21 1-1/2 x 54 x 6 6 1899
SPRTS 80 HT02 80 16.82 0.1875 12 0.1793 45.0 1,350 36.0 1,080 28.0 840 22.75 1-1/2 x 54 x 6 6 2137
SPRTS 80 HT03 80 17.53 0.2092 13 0.1875 58.0 1,740 46.0 1,380 35.0 1,050 23 1-1/2 x 54 x 6 6 2350
SPRTS 80 HT04 80 18.7 0.1875 12 0.1793 70.0 2,100 56.0 1,680 44.0 1,320 23 1-1/2 x 54 x 6 8 2447
Notes
t #PMUMFOHUITEFTDJCFEBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 1MBUGPSNDBHFTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t "CPWFGPPUNPVOUJOHIFJHIUDPOTVMUGBDUPSZ
t )JHIXJOE[POFBOEPSIJHI&1"BOEXFJHIUMPBEJOHDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
18"
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia
Lighting will not accept claim for incorrect anchorage placement due to failure to use Lithonia Lighting
factory templates. Do not erect poles without having xtures installed. If poles are stored outside, all protective
wrapping must be removed immediately upon delivery to prevent nish damage.
4-bolt
Hand hole
A
DB
C
Hand hole
A
DB
C
8-bolt
Hand hole
A
DB
C
6-bolt
PRODUCT INFORMATION
LITHONIA OUTDOOR
597
www.lithonia.com | 1-800-279-8041PSG10
POLES
ACR3, 3-Fixture Angle Arm
3.0"
3'6"
1'-5"8"
1.75"
2.0"
1'-5"
ACR2, 2-Fixture Angle Arm
CR4, 4-Fixture Crossarm
10'-0"
3'-0"
3" Sched
40 pipe
CR3, 3-Fixture Crossarm
7'-0"
3'-0"
3" Sched
40 pipe
CR2, 2-Fixture Crossarm
7'-0"
3'-0"
3" Sched
40 pipe
Projected area is for the crossarm only. The crossarm projected area is added to the luminaire projected area to get a total eective projected area (EPA).
2.6"
10'-6"
4'-11"
8"
1.75"
2.0"
4'-11"
ACR5, 5-Fixture Angle Arm
2.6"
8'-0"
2'-5"
8"
1.75"
2.0"
2'-5"
ACR4, 4-Fixture Angle Arm
30”
3”
30”
69-3/16”
32”
32”
30”
156”
30” 30”
ACR6, 6-Fixture Angle Arm
Notes
Angle iron crossarms can be used with other poles if ordered with the pole.
CATALOG
NUMBER
ARM EPA
(SQ. FT.)
WEIGHT
(LBS.)
ACR2 1.98 34.0
ACR3 3.12 54.0
ACR4 4.53 78.0
ACR5 5.95 103.0
ACR6 7.37 127.0
Projected area is for the crossarm only. The crossarm projected area is added to the luminaire projected area to get a total eective projected area (EPA).
CR8, 8-Fixture Crossarm
22'-0"
3'-0" 3" Sched 40 pipe
CR5, 5-Fixture Crossarm
13'-0"
3'-0" 3" Sched 40 pipe
CR6, 6-Fixture Crossarm
16'-0"
3'-0" 3" Sched 40 pipe
CR7, 7-Fixture Crossarm
19'-0"
3'-0" 3" Sched 40 pipe
Notes
Tubular crosswarms can be used with other poles if ordered with the pole.
CATALOG
NUMBER
ARM EPA
(SQ. FT.)
WEIGHT
(LBS.)
ACR2 1.28 44.0
ACR3 2.45 65.0
ACR4 3.21 98.0
ACR5 4.17 116.0
ACR6 5.13 150.0
ACR7 6.10 176.0
ACR8 7.06 271.0
Options & Accessories
TUBULAR CROSSARMS
FOR STEEL POLES
PRODUCT INFORMATION
Intended Use
For use on SPRTS sportslighting poles.
Intended Use
For use on SPRTS sportslighting poles.
5'-6"
8"25"
17-3/8"
25"
30"
3"30"
Options & Accessories
ANGLE IRON CROSSARMS
FOR STEEL POLES
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
598
POLES
Aluminum
SSA
Square Straight Aluminum
Intended Use
Square straight aluminum
general purpose pole for up
to 35-foot mounting heights.
Construction
Shaft: Made from extruded
6063-T6 or 6061-T6 alumi-
num alloy, square tube is
uniform in cross-section
down length of shaft with
no taper.
Anchor base: Cast from
A356 aluminum alloy and
heat treated to T6 temper.
Base plate and shaft are
circumferentially welded
top and bottom. Anchor bolt
holes are recessed and are
covered by tamper-resistant
aluminum nut-cover discs
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced rect-
angular hand hole is located
18" above base. 4" poles have
2" x 4" hand hole; 5" and 6"
poles have 2.5" x 4" hand
hole. Hand-hole cover plate
made from aluminum alloy
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Bolt covers: Nut-cover discs
provided.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X IN.
APPROX.
SHIP WT.
LBS.
SSA 8 4C 8 4 x 8 0.125 16.5 12.6 9.9 300 8.5 - 9.625 3/4 x 18 x 3 32
SSA 10 4C 10 4x 10 0.125 11.5 8.6 6.5 230 8.5 - 9.625 3/4 x 18 x 3 37
SSA 12 4C 12 4 x 12 0.125 12.4 9.2 6.9 160 8.5 - 9.625 3/4 x 18 x 3 40
SSA 14 4C 14 4 x 14 0.125 9.3 6.7 4.8 120 8.5 - 9.625 3/4 x 18 x 3 50
SSA 15 4C 15 4 x 15 0.125 8.0 5.6 3.9 100 8.5 - 9.625 3/4 x 18 x 3 52
SSA 16 4C 16 4 x 16 0.125 6.9 4.7 3.1 90 8.5 - 9.625 3/4 x 18 x 3 54
SSA 16 4G 16 4 x 16 0.188 11.8 8.5 6.2 130 8.5 - 9.625 3/4 x 30 x 3 74
SSA 16 5G 16 5 x 16 0.188 15.0 11.1 7.5 280 10.5 - 11.5 3/4 x 30 x 3 83
SSA 18 4C 18 4 x 18 0.125 4.9 3.0 1.7 70 8.5 - 9.625 3/4 x 18 x 3 57
SSA 18 4G 18 4 x 18 0.188 9.2 6.4 4.4 100 8.5 - 9.625 3/4 x 30 x 3 80
SSA 18 5G 18 5 x 18 0.188 16.8 12.2 8.9 230 10.5 - 11.5 3/4 x 30 x 3 91
SSA 20 4C 20 4 x 20 0.125 3.3 1.7 0.5 40 8.5 - 9.625 3/4 x 18 x 3 62
SSA 20 4G 20 4 x 20 0.188 7.0 4.6 2.9 80 8.5 - 9.625 3/4 x 30 x 3 85
SSA 20 5G 20 5 x 20 0.188 13.6 9.5 6.6 180 10.5 - 11.5 3/4 x 30 x 3 107
SSA 20 6G 20 6 x 20 0.188 22.0 15.9 11.6 230 12 - 13 1 x 36 x 4 155
SSA 20 6J 20 6 x 20 0.250 30.4 22.6 17.0 300 12 - 13 1 x 36 x 4 202
SSA 25 5G 25 5 x 25 0.188 7.2 4.2 2.0 110 10.5 - 11.5 3/4 x 30 x 3 130
SSA 25 6G 25 6 x 25 0.188 13.2 8.6 5.4 180 12 - 13 1 x 36 x 4 180
SSA 25 6J 25 6 x 25 0.250 19.7 13.8 9.5 250 12 - 13 1 x 36 x 4 224
SSA 30 6G 30 6 x 30 0.188 7.0 3.4 0.8 130 12 - 13 1 x 36 x 4 210
SSA 30 6J 30 6 x 30 0.250 12.2 7.5 4.1 170 12 - 13 1 x 36 x 4 258
SSA 32 6J 32 6 x 32 0.250 9.7 5.4 2.3 160 12 - 13 1 x 36 x 4 272
SSA 35 6J 35 6 x 35 0.250 6.4 2.6 - 200 12 - 13 1 x 36 x 4 294
SSA 35 7J 35 6.75 x 35 0.250 7.6 3.1 - 150 14.625 1 x 36 x 4 290
POLE DATA
SHAFT BASE
SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
4"C 8.5" - 9.625" 3.125" 9.938" ABTEMPLATE PJ50045 AB18-0
4"G 8.5" - 9.625" 3.125" 9.938" ABTEMPLATE PJ50045 AB30-0
5" 10.5" - 11.5" 3.25" 11.563" ABTEMPLATE PJ50046 AB30-0
6" 12" - 13" 4" 12.25" ABTEMPLATE PJ50044 AB36-0
7" 14.625" 4.125" 15" ABTEMPLATE PJ50130 AB36-0
Nut cover disc
Tapped 3/8”
for ground
connector
18"
A
C
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 4QFDJBMBMMPZGPSIJHIXJOEMPBEDPOEJUJPOTBWBJMBCMFDPOTVMUGBDUPSZ
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t 'VMMCBTFDPWFSBWBJMBCMFBTPQUJPODPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having fixtures
installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
PRODUCT INFORMATION
LITHONIA OUTDOOR
599
www.lithonia.com | 1-800-279-8041PSG10
POLES
AluminumAluminum
SSCA
Square Straight Cruciform Aluminum
Intended Use
Square straight cruciform
pole for up to 30-foot mount-
ing heights.
Construction
Shaft: Made from extruded
seamless 6000 series alloy
aluminum tubing, square
cruciform tube is uniform in
cross-section down length of
shaft with no taper.
Anchor base: Cast from
A356 aluminum alloy and
heat treated to T6 temper.
Base plate and shaft are
circumferentially welded
top and bottom. Anchor bolt
holes are recessed and are
covered by tamper-resistant
aluminum nut-cover discs.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced rect-
angular hand hole is located
18" above base. 2" x 4" hand-
hole cover plate made from
aluminum alloy.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Bolt covers: Nut cover discs
provided.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH
MAX. WT.
IN. X IN.
X IN.
APPROX.
BOLT CIRCLE
IN. BOLT SIZE SHIP WT.
LBS.
SSCA 8 4G 8 4 x 8 0.188 30.2 23.5 18.6 350 8.5 - 9.625 3/4 x 18 x 4 45
SSCA 10 4G 10 4 x 10 0.188 23.5 18 14.1 260 8.5 - 9.625 3/4 x 18 x 4 50
SSCA 12 4G 12 4 x 12 0.188 18.4 13.9 10.7 260 8.5 - 9.625 3/4 x 18 x 4 56
SSCA 15 4G 15 4 x 15 0.188 10.6 7.7 5.6 200 8.5 - 9.625 3/4 x 18 x 4 67
SSCA 18 4G 18 4 x 18 0.188 7.2 4.9 3.2 200 8.5 - 9.625 3/4 x 18 x 4 77
SSCA 18 6G 18 6 x 18 0.188 21.7 15.9 11.7 260 12 - 13 1 x 36 x 4 139
SSCA 20 4G 20 4 x 20 0.188 5.8 3.6 2 100 8.5 - 9.625 3/4 x 18 x 4 84
SSCA 20 6G 20 6 x 20 0.188 18.3 13 9.2 150 12 - 13 1 x 36 x 4 149
SSCA 25 6G 25 6 x 25 0.188 11 6.8 3.7 150 12 - 13 1 x 36 x 4 175
SSCA 30 6G 30 6 x 30 0.188 4.5 1.4 - 260 12 - 13 1 x 36 x 4 201
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures installed.
If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
POLE DATA
SHAFT BASE
SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
C
TEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
4" 8.5" - 9.625" 3.125" 9.938" ABTEMPLATE PJ50131 AB18-0
6" 12" - 13" 4" 12.75" ABTEMPLATE PJ50132 AB36-0
$
&
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
B
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
600
Aluminum
POLES
RSA
Round Straight Aluminum
18”
Intended Use
Round straight aluminum
general purpose pole for up
to 30-foot mounting heights.
Construction
Shaft: One-piece extruded
6063-T6 aluminum alloy with
T6 temper. Circumferential
satin-brushed nish. Round
straight tube is uniform in
cross-section down length of
shaft with no taper.
Anchor base: Cast from A356
aluminum alloy and heat
treated to T6 temper. Base
plate and shaft are circum-
ferentially welded top and
bottom. The anchor base is
provided with slotted holes.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced 2" x
4" hand hole is located 18"
above base. (4.5" and 5"
poles have either 2" x 4" or 3"
x 5" hand hole; 6" poles have
a 3" x 5" hand hole). Cover
and attachment hardware
furnished.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Bolt covers: A356 bolt covers
included with anchor base
unless otherwise specied.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
NUMBER
OF BOLTS CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH MAX.
WT. BOLT CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
4-BOLT
BASE
RSA 8 4C 8 4 x 8 0.125 11.2 8.6 6.8 125 6.5 - 8.25 3/4 x 18 x 3 22
RSA 10 4C 10 4 x 10 0.125 8.2 6.1 4.7 100 6.5 - 8.25 3/4 x 18 x 3 26
RSA 12 4C 12 4 x 12 0.125 6.0 4.3 3.2 110 6.5 - 8.25 3/4 x 18 x 3 30
RSA 12 4-5C 12 4.5 x 12 0.125 8.1 6.0 4.8 80 7.125 - 8.375 3/4 x 18 x 3 38
RSA 14 4C 14 4 x 14 0.125 4.1 2.8 1.9 75 6.5 - 8.25 3/4 x 18 x 3 35
RSA 14 4-5C 14 4.5 x 14 0.125 5.8 4.2 3.3 60 7.125 - 8.375 3/4 x 18 x 3 42
RSA 14 5C 14 5 x 14 0.125 7.8 6.0 4.7 100 7.5 - 9.5 3/4 x 18 x 3 39
RSA 16 4C 16 4 x 16 0.125 2.8 1.6 1.0 150 6.5 - 8.5 3/4 x 18 x 3 38
RSA 16 4-5C 16 4.5 x 16 0.125 4.2 2.8 2.1 50 7.125 - 8.375 3/4 x 18 x 3 46
RSA 16 4-5G 16 4.5 x 16 0.188 7.5 5.5 4.3 155 7.125 - 8.375 3/4 x 18 x 3 62
RSA 16 5C 16 5 x 16 0.125 5.9 4.4 3.4 175 7.5 - 9.5 3/4 x 18 x 3 46
RSA 16 5E 16 5 x 16 0.156 8.0 6.1 4.8 190 7.5 - 9.5 3/4 x 18 x 3 53
RSA 18 4-5G 18 4.5 x 18 0.188 5.7 4.0 3.1 123 7.125 - 8.375 3/4 x 18 x 3 68
RSA 18 5C 18 5 x 18 0.125 4.3 3.1 2.4 150 7.5 - 9.5 3/4 x 18 x 3 48
RSA 18 5E 18 5 x 18 0.156 6.1 4.6 3.5 175 7.5 - 9.5 3/4 x 18 x 3 58
RSA 18 5G 18 5 x 18 0.188 8.0 6.8 4.7 225 7.5 - 9.5 3/4 x 18 x 3 68
RSA 20 4-5G 20 4.5 x 20 0.188 4.3 2.9 2.1 95 7.125 - 8.375 3/4 x 18 x 3 74
RSA 20 5C 20 5 x 20 0.125 3.0 2.1 1.5 150 7.5 - 9.5 3/4 x 18 x 3 54
RSA 20 5E 20 5 x 20 0.156 4.7 3.4 2.6 150 7.5 - 9.5 3/4 x 18 x 3 68
RSA 20 5G 20 5.x 20 0.188 6.4 4.8 3.6 150 7.5 - 9.5 3/4 x 18 x 3 82
RSA 20 6E 20 6.x 20 0.156 9.3 7.1 5.5 175 8.75 - 10.25 3/4 x 30 x 3 95
RSA 25 4-5G 25 4.5 x 25 0.188 1.3 - - 100 7.125 - 8.375 3/4 x 18 x 3 89
RSA 25 6E 25 6 x 25 0.156 5.2 3.8 2.8 150 8.75 - 10.25 3/4 x 30 x 3 108
RSA 25 6G 25 6.x 25 0.188 7.1 5.3 4.0 150 8.75 - 10.25 3/4 x 30 x 3 128
RSA 30 6G 30 6 x 30 0.188 3.5 2.4 1.6 200 8.75 - 10.25 3/4 x 30 x 3 146
3-BOLT
BASE
3RSA 8 3C 8 3 x 8 0.125 5.8 4.3 3.3 75 5.5 - 7 3/4 x 18 x 3 22
3RSA 10 3C 10 3 x 10 0.125 4.0 2.9 2.1 75 5.5 - 7 3/4 x 18 x 3 26
3RSA 10 4C 10 4 x 10 0.125 8.2 6.1 4.7 75 6.3125 - 7.375 3/4 x 18 x 3 26
3RSA 12 3C 12 3 x 12 0.125 2.7 1.8 1.2 75 5.5 - 7 3/4 x 18 x 3 30
3RSA 12 4C 12 4 x 12 0.125 5.8 4.2 3.1 150 6.3125 - 7.375 3/4 x 18 x 3 30
3RSA 12 5C 12 5 x 12 0.125 10.3 8 6.3 150 7.375 - 8.5 3/4 x 18 x 3 36
3RSA 14 3C 14 14 x 3 0.125 1.7 1.0 0 75 5.5 - 7 3/4 x 18 x 3 35
3RSA 14 4C 14 14 x 4 0.125 4.1 2.8 1.9 150 6.3125 - 7.375 3/4 x 18 x 3 35
3RSA 14 5C 14 14 x 5 0.125 7.9 6.0 4.7 150 7.375 - 8.5 3/4 x 18 x 3 39
3RSA 16 4C 16 4 x 16 0.125 2.8 1.6 1.0 150 6.3125 - 7.375 3/4 x 18 x 3 38
3RSA 16 5E 16 5 x 16 0.156 8.0 6.1 4.8 150 7.375 - 8.5 3/4 x 18 x 3 53
3RSA 18 5C 18 5 x 18 0.125 4.3 3.1 2.4 150 7.375 - 8.5 3/4 x 18 x 3 48
3RSA 20 5C 20 5 x 20 0.125 2.9 2.0 1.4 150 7.375 - 8.5 3/4 x 18 x 3 54
3RSA 20 5E 20 5 x 20 0.156 4.6 3.3 2.5 150 7.375 - 8.5 3/4 x 18 x 3 68
INSTALLATION NOTES: Factory-supplied templates must be used when
setting anchor bolts. Lithonia Lighting will not accept claim for incorrect
anchorage placement due to failure to use Lithonia Lighting factory
templates. Do not erect poles without having fixtures installed. If
poles are stored outside, all protective wrapping must be removed
immediately upon delivery to prevent nish damage.
C
A
C
A
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
t 5ISFFCPMUQPMFTIBWFESJMMJOHMPDBUFENJEXBZCFUXFFOBODIPSCPMUT)BOEIPMF
is located on opposite side of drilling. For special drillings, consult factory.
POLE DATA
NUMBER
OF BOLTS SHAFT
BASE SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
4-BOLT
BASE
4" 6.5" - 8.25" 3.25" 8.75" ABTEMPLATE PJ50057 AB18-0
4.5" 7" - 8.5" 3.25" 8.5" ABTEMPLATE PJ50040 AB18-0
5" 7.5" - 9.5" 3.25" 9.25" ABTEMPLATE PJ50058 AB18-0
6" 8.75" - 10.25" 3.50" 10.25" ABTEMPLATE PJ50059 AB30-0
3-BOLT
BASE
3" 5.5" - 7" 3.25" 7.5" ABTEMPLATE PJ50125 AB18-0
4" 6.3125" - 7.375" 3.25" 8.875" ABTEMPLATE PJ50126 AB18-0
5" 7.375" - 8.5" 3.25" 10.25" ABTEMPLATE PJ50127 AB18-0
B
PRODUCT INFORMATION
LITHONIA OUTDOOR
601
www.lithonia.com | 1-800-279-8041PSG10
POLES
Aluminum
RSAO
Round Straight Aluminum with
OMEROTM Decorative Base Cover
RSALP
Round Straight Aluminum with
Low-Profile Base Cover
Intended Use
Round straight aluminum
general purpose pole for up
to 20-foot mounting heights.
Construction
Shaft: One-piece extruded
6063-T6 aluminum alloy with
T6 temper. Circumferential
satin-brushed nish. Round
straight tube is uniform in
cross-section down length of
shaft with no taper.
Anchor base: Cast from
A356 aluminum alloy and
heat treated to T6 temper.
Base plate and shaft are
circumferentially welded top
and bottom. RSAO: Base plate
bolt circle is 7.5". RSALP: The
anchor base is provided with
slotted holes.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with hex nut,
washer and leveling shims.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: Reinforced 2"x 5"
hand hole is located 18" above
base. Cover and attachment
hardware furnished.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
RSAO: Decorative base. Made
of die-cast aluminum the
decorative base slides over
the pole, matching a key slot
in the pole baseplate allow-
ing a reveal between the
baseplate and the decorative
base cover. The decorative
base cover is 17.5" tall which
is combined with the height
of the matching baseplate for
a total height of 20.25".
RSALP: Low-prole base
cover. Made of die-cast alu-
minum, the base slides over
the pole tting over the pole,
baseplate for a smooth one-
piece design. The base cover
is 5" tall with a step contour
3-1/2" above the base.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
NUMBER
OF BOLTS CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
RSAO
4-BOLT
BASE
RSAO 8 4C 8 4 x 8 0.125 11.2 8.6 6.8 125 7.5 3/4 x 18 x 3 22
RSAO 10 4C 10 4 x 10 0.125 8.2 6.1 4.7 100 7.5 3/4 x 18 x 3 26
RSAO 12 4C 12 4 x 12 0.125 6.0 4.3 3.2 110 7.5 3/4 x 18 x 3 30
RSAO 12 4-5C 12 4.5 x 12 0.125 8.1 6.0 4.8 80 7.5 3/4 x 18 x 3 38
RSAO 14 4C 14 4 x 14 0.125 4.1 2.8 1.9 75 7.5 3/4 x 18 x 3 35
RSAO 14 4-5C 14 4.5 x 14 0.125 5.8 4.2 3.3 60 7.5 3/4 x 18 x 3 42
RSAO 14 5C 14 5 x 14 0.125 7.8 6.0 4.7 100 7.5 3/4 x 18 x 3 39
RSAO 16 4C 16 4 x 16 0.125 2.8 1.6 1.0 150 7.5 3/4 x 18 x 3 38
RSAO 16 4-5C 16 4.5 x 16 0.125 4.2 2.8 2.1 50 7.5 3/4 x 18 x 3 46
RSAO 16 5C 16 5 x 16 0.125 5.9 4.4 3.4 175 7.5 - 9.5 3/4 x 18 x 3 46
RSAO 18 4-5G 18 4.5 x 18 0.188 5.7 4.0 3.1 123 7.125 - 8.375 3/4 x 18 x 3 68
RSAO 18 5C 18 5 x 18 0.125 4.3 3.1 2.4 150 7.5 - 9.5 3/4 x 18 x 3 48
RSAO 20 4-5G 20 4.5 x 20 0.188 4.3 2.9 2.1 95 7.125 - 8.375 3/4 x 18 x 3 74
RSAO 20 5C 20 5 x 20 0.125 3.0 2.1 1.5 150 7.5 - 9.5 3/4 x 18 x 3 54
RSALP
4-BOLT
BASE
RSALP 8 4C 8 4 x 8 0.125 11.2 8.6 6.8 125 6.5 - 8.25 3/4 x 18 x 3 22
RSALP 10 4C 10 4 x 10 0.125 8.2 6.1 4.7 100 7.125 - 8.375 3/4 x 18 x 3 26
RSALP 12 4C 12 4 x 12 0.125 6.0 4.3 3.2 110 6.5 - 8.25 3/4 x 18 x 3 30
RSALP 12 4-5C 12 4.5 x 12 0.125 8.1 6.0 4.8 80 7.125 - 8.375 3/4 x 18 x 3 38
RSALP 14 4C 14 4 x 14 0.125 4.1 2.8 1.9 75 7.5 - 9.5 3/4 x 18 x 3 35
RSALP 14 4-5C 14 4.5 x 14 0.125 5.8 4.2 3.3 60 6.5 - 8.5 3/4 x 18 x 3 42
RSALP 14 5C 14 5 x 14 0.125 7.8 6.0 4.7 100 7.125 - 8.375 3/4 x 18 x 3 39
RSALP 16 4C 16 4 x 16 0.125 2.8 1.6 1.0 150 7.125 - 8.375 3/4 x 18 x 3 38
RSALP 16 4-5C 16 4.5 x 16 0.125 4.2 2.8 2.1 50 7.5 - 9.5 3/4 x 18 x 3 46
RSALP 16 5C 16 5 x 16 0.125 5.9 4.4 3.4 175 7.5 - 9.5 3/4 x 18 x 3 46
RSALP 18 4-5G 18 4.5 x 18 0.188 5.7 4.0 3.1 123 7.125 - 8.375 3/4 x 18 x 3 68
RSALP 18 5C 18 5 x 18 0.125 4.3 3.1 2.4 150 7.5 - 9.5 3/4 x 18 x 3 48
RSALP 20 4-5G 20 4.5 x 20 0.188 4.3 2.9 2.1 95 7.125 - 8.375 3/4 x 18 x 3 74
RSALP 20 5C 20 5 x 20 0.125 3.0 2.1 1.5 150 7.5 - 9.5 3/4 x 18 x 3 54
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having fixtures
installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
RSAO Base Cover RSALP Base Cover
A
C
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
t #SVTIFEBMVNJOVNPSBOPEJ[FEöOJTIJTOPUSFDPNNFOEFE
POLE DATA
NUMBER
OF BOLTS SHAFT BASE
SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE
C
TEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
RSAO
4-BOLT
BASE
4" 7.5" 3.25" 13" ABTEMPLATE PJ50070 AB18-0
4.5" 7.5" 3.25" 8.5" ABTEMPLATE PJ50070 AB18-0
5" 7.5" 3.25" 9.25" ABTEMPLATE PJ50070 AB18-0
RSALP
4-BOLT
BASE
4" 6.5" - 8.25" 3.25" 8.75" ABTEMPLATE PJ50057 AB18-0
4.5" 7" - 8.5" 3.25" 8.5" ABTEMPLATE PJ50040 AB18-0
5" 7.5" - 8" 3.25" 7.5" ABTEMPLATE PJ50071 AB18-0
B
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
602
POLES
Aluminum
RTA
Round Tapered Aluminum
Intended Use
Round tapered aluminum
general purpose pole for up
to 39-foot mounting heights.
Construction
Shaft: The shaft is spun
tapered from seamless
6063 alloy aluminum tubing
and heat treated to a T6
temper. Circumferential
satin-brushed nish. Round
in cross-section down length
of shaft and cone tapered to
the butt diameter.
Anchor base: Cast from
A356 aluminum alloy and
heat treated to T6 temper.
Base plate and shaft are
circumferentially welded top
and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: A nominal 3" x
5" or 4" x 6" reinforced ush
covered hand hole is centered
18" above the base.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Bolt covers: A356 bolt covers
included with anchor base
unless otherwise specied.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
NUMBER
OF BOLTS
CATALOG
NUMBER
NOM.
MOUNT
HT. FT.
POLE SHAFT
SIZE BASE IN. X
TOP IN. X FT.
WALL
THICKNESS
IN.
80
MPH 90
MPH 100
MPH MAX.
WT. BOLT CIRCLE
IN. BOLT SIZE IN.
X IN. X IN.
APPROX
SHIP WT.
LBS.
4-BOLT
BASE
RTA 20 5C 20 5 x 3 x 19.66 0.125 3.9 2.5 1.6 100 7.5 - 9.5 3/4 x18 x 3 62
RTA 20 5G 20 5 x 3 x 19.66 0.188 7.4 5.2 3.8 100 7.5 - 9.5 3/4 x 18 x 3 72
RTA 20 6G 20 6 x 4 x 19.66 0.188 12.2 9.2 7.2 214 9 - 10 3/4 x 30 x 3 107
RTA 20 7E 20 7 x 4 x 19.66 0.156 15.0 11.4 9.0 256 9.875 - 11.25 1 x 36 x 4 103
RTA 25 6E 25 6 x 4 x 24.66 0.156 5.3 3.6 2.6 114 9 - 10 3/4 x 30 x 3 106
RTA 25 7E 25 7 x 4 x 24.66 0.156 9.5 7.0 5.4 162 9.875 - 11.25 1 x 36 x 4 120
RTA 25 8E 25 8 x 4.5 x 24.66 0.156 14.2 10.9 8.5 220 11 - 12 1 x 36 x 4 130
RTA 25 8G 25 8 x 4.5 x 24.66 0.188 18.0 13.8 10.9 261 11 - 12 1 x 36 x 4 153
RTA 30 7E 30 7 x 4 x 29.66 0.156 5.5 3.8 2.7 111 9.875 - 11.25 1 x 36 x 4 135
RTA 30 8E 30 8 x 4.5 x 29.66 0.156 9.4 7.0 5.3 151 11 - 12 1 x 36 x 4 150
RTA 30 8G 30 8 x 4.5 x 29.66 0.188 12.4 9.4 7.3 179 11 - 12 1 x 36 x 4 175
RTA 30 10G 30 10 x 6 x 29.66 0.188 23.8 18.3 14.3 377 14.25 - 16.25 1 x 40 x 4 235
RTA 35 8E 35 8 x 4.5 x 34.66 0.156 5.8 4.1 2.9 119 11 - 12 1 x 36 x 4 185
RTA 35 8G 35 8 x 4.5 x 34.66 0.188 8.3 6.0 4.5 141 11 - 12 1 x 36 x 4 220
RTA 35 8J 35 8 x 4.5 x 34.66 0.250 12.9 9.7 7.5 183 11 - 12 1 x 36 x 4 251
RTA 35 10G 35 10 x 6 x 34.66 0.188 17.9 13.6 10.4 295 14.25 - 16.25 1 x 40 x 4 268
RTA 39 8G 39 8 x 4.5 x 38.66 0.188 5.6 3.9 2.7 122 11 - 12 1 x 36 x 4 250
RTA 39 8J 39 8 x 4.5 x 38.66 0.250 9.7 7.1 5.4 158 11 - 12 1 x 36 x 4 280
RTA 39 10G 39 10 x 6 x 38.66 0.188 14.2 10.5 7.8 253 14.25 - 16.25 1 x 40 x 4 295
RTA 39 10J 39 10 x 6 x 38.66 0.250 20.4 15.5 11.9 300 14.5 - 16 11/4 x 48 x 5 373
3-BOLT
BASE
3RTA 8 4C 8 4 x 3 x 8 0.125 12.1 9.3 7.3 75 6.5 - 7.25 3/4 x 18 x 3 23
3RTA 10 4C 10 4 x 3 x 10 0.125 8.8 6.7 5.2 75 6.5 - 7.25 3/4 x 18 x 3 27
3RTA 12 4C 12 4 x 3 x 12 0.125 6.6 4.8 3.6 75 6.5 - 7.25 3/4 x 18 x 3 31
3RTA 14 4C 14 4 x 3 x 14 0.125 4.9 3.4 2.4 75 6.5 - 7.25 3/4 x 18 x 3 34
3RTA 16 4C 16 4 x 3 x 16 0.125 3.5 2.3 1.5 75 6.5 - 7.25 3/4 x 18 x 3 38
3RTA 16 5C 16 5 x 3 x 16 0.125 6.9 5.0 3.8 75 7.5 - 8.5 3/4 x 18 x 3 43
3RTA 18 5C 18 5 x 3 x 18 0.125 5.0 3.5 2.5 150 7.5 - 8.5 3/4 x 18 x 3 47
3RTA 18 5E 18 5 x 3 x 18 0.156 7.0 5.0 3.7 150 7.5 - 8.5 3/4 x 18 x 3 57
3RTA 20 5C 20 5 x 3 x 20 0.125 3.8 2.5 1.6 150 7.5 - 8.5 3/4 x 18 x 3 50
3RTA 20 5E 20 5 x 3 x 20 0.156 5.5 3.8 2.6 150 7.5 - 8.5 3/4 x 18 x 3 62
18”
C
A
C
A
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for incorrect anchorage
placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures installed. If poles are stored outside, all protective
wrapping must be removed immediately upon delivery to prevent nish damage.
POLE DATA
NUMBER
OF BOLTS SHAFT BASE SIZE BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
C
TEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
4-BOLT
BASE
5" 7.5" - 9.5" 3.25" 9.25" ABTEMPLATE PJ50032 AB18-0
6" 9" - 10" 3.50" 10" ABTEMPLATE PJ50033 AB30-0
7" 9.875" - 11.25" 4.125" 10.5" ABTEMPLATE PJ50034 AB36-0
8" 11" - 12" 4.25" 11.5" ABTEMPLATE PJ50035 AB36-0
10"G 14.25" - 16.25" 4.50" 14.5" ABTEMPLATE PJ50036 AB40-0
10"J 14.5" - 16" 5.00" 14.5" ABTEMPLATE PJ50063 AB48-0
3-BOLT
BASE
4" 6.5" - 7.25" 3.25" 8.875" ABTEMPLATE PJ50128 AB18-0
5" 7.5" - 8.5" 3.25" 10.25" ABTEMPLATE PJ50129 AB18-0
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS
(DMxx) side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t YIBOEIPMFVTFEPOBOETPNFTIBGUT
t YIBOEIPMFBWBJMBCMFPOTIBGUTDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBO
specications.
t 5ISFFCPMUQPMFTIBWFESJMMJOHMPDBUFENJEXBZCFUXFFO
anchor bolts. Hand hole is located on opposite side of drill-
ing. For special drillings, consult factory.
PRODUCT INFORMATION
LITHONIA OUTDOOR
603
www.lithonia.com | 1-800-279-8041PSG10
Aluminum
POLES
RTAU
Round Tapered Aluminum
with Upsweep Mast Arms
Intended Use
Round tapered aluminum
roadway pole with upsweep
mast arm(s) for up to 40-foot
mounting heights including
rise of arm.
Construction
Shaft: Shaft is spun tapered
from seamless 6063 alloy
aluminum tubing and heat
treated to a T6 temper.
Circumferential satin-brushed
nish. Round in cross-section
down length of shaft and cone
tapered to the base diameter.
Arm: Body of the mounting
arm is tapered aluminum
alloy 6063-T6 tube with
2-3/8 " OD (2" NPS) pipe size
at luminaire end. The pole
end of the arm is welded to
an aluminum alloy 6063-T6
mounting plate.
Mounting: Arm mounting
plate bolts to the shaft using
stainless steel bolts, nuts and
washers. A grommet is pro-
vided for the 1-1/4" diameter
wiring hole between the pole
shaft and the bracket arm.
Anchor base: Cast from
A356 aluminum alloy and
heat treated to T6 temper.
Base plate and shaft are
circumferentially welded top
and bottom.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Provision located
inside hand hole rim. Ground-
ing hardware is not included
(provided by others).
Hand hole: A nominal 3" x
5" or 4" x 6" reinforced ush
covered hand hole is centered
18" above the base.
Hardware: Stainless steel.
Top cap: Removable top cap
provided.
Bolt covers: A356 bolt covers
included with anchor base
unless otherwise specied.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
POLE DATA
SHAFT
BASE SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
C
TEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
6" 9" - 10" 4.75" 9.75" ABTEMPLATE PJ50033 AB30-0
7" 10" - 11" 4.75" 10.5" ABTEMPLATE PJ50034 AB36-0
8" 11" - 12" 4.75" 11.25" ABTEMPLATE PJ50035 AB36-0
10" 14" - 15" 5.25" 14" ABTEMPLATE PJ50481 AB481-0
18”
A
B
Notes
t 'JYUVSFhTOPNJOBMNPVOUJOHIFJHIUJTUIFTVNPGTIBGUMFOHUIQMVTSJTFPG
upsweep arm.
t 5ISFFBOEGPVSBSNDPOöHVSBUJPOTBWBJMBCMFDPOTVMUGBDUPSZ
t 5SVTTBOEEBWJUBSNTBWBJMBCMFDPOTVMUGBDUPSZ
t .PVOUJOHPQUJPOT5YYUFOPOBOEPS%.YYESJMMJOHNBZCFBEEFE
consult factory.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 5SBOTGPSNFSCBTFTBOECSFBLBXBZDPVQMJOHTBWBJMBCMFDPOTVMUGBDUPSZ
t 5ISFFCPMUTMJQCBTFTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for incorrect
anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures installed. If poles are
stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
TECHNICAL INFORMATION
CATALOG NUMBER NOM.
MOUNT.
HT. FT.
MTG.
ARM
LENGTH
FT.
POLE
SHAFT SIZE
BASE IN. X
TOP IN.
WALL
THICK.
IN.
EPA FT2
W/1.3 GUST
UP TO 100
MPH PER
ARM
MAX.
WT.
LBS.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
SINGLE
-ARM
POLES
RTAU 20 6E BMA US4 20 4 6 x 4.5 0.156 2 65 9" - 10" 3/4 x 30 x 3 90
RTAU 20 6G BMA US6 20 6 6 x 4.5 0.188 2 65 9" - 10" 3/4 x 30 x 3 100
RTAU 20 6G BMA US8 20 8 6 x 4.5 0.188 1.74 65 9" - 10" 3/4 x 30 x 3 105
RTAU 25 7E BMA US4 25 4 7 x 4.5 0.156 2 65 10" - 11" 1 x 36 x 4 120
RTAU 25 7G BMA US6 25 6 7 x 4.5 0.188 2 65 10" - 11" 1 x 36 x 4 140
RTAU 25 8E BMA US8 25 8 8 x 4.5 0.156 1.74 65 11" - 12" 1 x 36 x 4 135
RTAU 30 8E BMA US4 30 4 8 x 4.5 0.156 2 65 11" - 12" 1 x 36 x 4 150
RTAU 30 8G BMA US6 30 6 8 x 4.5 0.188 2 65 11" - 12" 1 x 36 x 4 170
RTAU 30 8G BMA US8 30 8 8 x 4.5 0.188 1.74 65 11" - 12" 1 x 36 x 4 175
RTAU 35 8G BMA US4 35 4 8 x 4.5 0.188 2 65 11" - 12" 1 x 36 x 4 190
RTAU 35 8J BMA US6 35 6 8 x 4.5 0.250 2 65 11" - 12" 1 x 36 x 4 240
RTAU 35 8J BMA US8 35 8 8 x 4.5 0.250 1.74 65 11" - 12" 1 x 36 x 4 245
RTAU 40 8J BMA US4 40 4 8 x 4.5 0.250 2 65 11" - 12" 1 x 36 x 4 255
RTAU 40 8J BMA US6 40 6 8 x 4.5 0.250 2 65 11" - 12" 1 x 36 x 4 260
RTAU 40 10G BMA US8 40 8 10 X 6 0.188 1.74 65 14" - 15" 1 x 48 x 4 265
DOUBLE
-ARM
POLES
RTAU 20 6G BMA 2US4 20 4 6 x 4.5 0.188 2 65 9" - 10" 3/4 x 30 x 3 105
RTAU 20 7E BMA 2US6 20 6 7 x 4.5 0.156 2 65 10" - 11" 1 x 36 x 4 120
RTAU 20 7G BMA 2US8 20 8 7 x 4.5 0.188 1.74 65 10" - 11" 1 x 36 x 4 140
RTAU 25 8E BMA 2US4 25 4 8 x 4.5 0.156 2 65 11" - 12" 1 x 36 x 4 140
RTAU 25 8E BMA 2US6 25 6 8 x 4.5 0.156 2 65 11" - 12" 1 x 36 x 4 145
RTAU 25 8G BMA 2US8 25 8 8 x 4.5 0.188 1.74 65 11" - 12" 1 x 36 x 4 170
RTAU 30 8G BMA 2US4 30 4 8 x 4.5 0.188 2 65 11" - 12" 1 x 36 x 4 175
RTAU 30 8J BMA 2US6 30 6 8 x 4.5 0.250 2 65 11" - 12" 1 x 36 x 4 215
RTAU 30 8J BMA 2US8 30 8 8 x 4.5 0.250 1.74 65 11" - 12" 1 x 36 x 4 220
RTAU 35 10G BMA 2US4 35 4 10 x 6 0.188 2 65 14" - 15" 1 x 48 x 4 270
RTAU 35 10G BMA 2US6 35 6 10 x 6 0.188 2 65 14" - 15" 1 x 48 x 4 280
RTAU 35 10J BMA 2US8 35 8 10 x 6 0.250 1.74 65 14" - 15" 1 x 48 x 4 350
RTAU 40 10L BMA 2US4 40 4 10 x 6 0.219 2 65 14" - 15" 1 x 48 x 4 320
RTAU 40 10L BMA 2US6 40 6 10 x 6 0.219 2 65 14" - 15" 1 x 48 x 4 325
RTAU 40 10J BMA 2US8 40 8 10 x 6 0.250 1.74 65 14" - 15" 1 x 48 x 4 365
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
604
POLES
Aluminum
RSAH
Round Straight Aluminum, Hinged
Intended Use
Round straight aluminum
hinged pole with 10-to 20-
foot mounting heights. Good
application where mainte-
nance access is limited.
Construction
Shaft: One-piece extruded
6063-T6 aluminum alloy with
T6 temper. Circumferential
satin-brushed nish. Round
straight tube is uniform in
cross-section down length of
shaft with no taper.
Hinged anchor base: Cast
from A356 aluminum
alloy and heat treated to T6
temper. Shaft and tilting
section of the hinged base
are circumferentially welded
top and bottom. The tilting
and anchored sections of
the hinged base are joined
by a 3/4" diameter solid
aluminum pivot rod. The
tilting section of the hinged
base is held in a vertical
position by three 1/2"-13 x
2" stainless steel hex head
bolts that attach to stainless
steel inserts cast into the
aluminum base.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Anchor base
plate is tapped for 3/8"-16
UNC grounding bolt (pro-
vided by others).
Hand hole: Available as an
option; Located 90° to the
right of the hinge.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes cast-
aluminum two-piece cover.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION - EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS
RSAH 10 4C 10 4 x 10 0.125 8.2 6.1 4.7 100 8.5 - 10 3/4 x 18 x 3 43
RSAH 14 4C 14 4 x 14 0.125 4.4 3.0 2.1 100 8.5 - 10 3/4 x 18 x 3 50
RSAH 14 5E 14 5 x 14 0.156 10.6 8.2 6.5 100 8.5 - 10 3/4 x 18 x 3 66
RSAH 16 4C 16 4 x 16 0.125 3.1 1.9 1.2 100 8.5 - 10 3/4 x 18 x 3 54
RSAH 16 5C 16 5 x 16 0.125 6.2 4.7 3.6 100 8.5 - 10 3/4 x 18 x 3 60
RSAH 16 6E 16 6 x 16 0.156 13.8 10.7 8.5 100 8.5 - 10 3/4 x 30 x 3 88
RSAH 18 5C 18 5 x 18 0.125 4.5 3.3 2.5 130 8.5 - 10 3/4 x 18 x 3 65
RSAH 18 5G 18 5 x 18 0.188 8.2 6.2 4.9 130 8.5 - 10 3/4 x 18 x 3 90
RSAH 20 5C 20 5 x 20 0.125 3.2 2.2 1.6 130 8.5 - 10 3/4 x 18 x 3 69
RSAH 20 5G 20 5 x 20 0.188 6.4 4.8 3.7 130 8.5 - 10 3/4 x 18 x 3 97
RSAH 20 6G 20 6 x 20 0.188 11.7 9.0 7.1 130 8.5 - 10 3/4 x 30 x 3 110
POLE DATA
SHAFT BASE
SIZE BOLT CIRCLE
ABOLT PROJECTION
BBASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
4" 8.5" - 10" 3.50" 12.625" ABTEMPLATE PJ50060 AB18-0
5" 8.5" - 10" 3.50" 12.625" ABTEMPLATE PJ50061 AB18-0
6" 8.5" - 10" 3.50" 12.625" ABTEMPLATE PJ50062 AB30-0
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 1PMFIJOHFTBUCBTF
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept
claim for incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without
having xtures installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to
prevent nish damage.
Hinge base poles without handholes will be drilled for the rst xture 90 degrees to the right of the hinge. When a handhole is
specied as an adder, the rst xture drilling will be 90 degreees to the right of the handhole. If the customer has dierent xture
drilling orientation requirements, please specify that on the purchase order.
A
C
3/4" Solid aluminum pivot rod
B
Two-piece cast
aluminum cover
Trapped 3/8" - 16 for ground connector
Two piece cast
Aluminum cover
Hinge direction "A" side of pole
PRODUCT INFORMATION
LITHONIA OUTDOOR
605
www.lithonia.com | 1-800-279-8041PSG10
POLES
Aluminum
SSAH
Square Straight Aluminum, Hinged
Intended Use
Square straight aluminum
hinged pole with 10- to 20-
foot mounting heights. Good
application where mainte-
nance access is limited.
Construction
Shaft: Made from extruded
6063-T6 aluminum alloy,
square tube is uniform in
cross-section down length of
shaft with no taper.
Hinged anchor base: Cast
from A356 aluminum
alloy and heat-treated to
T6 temper. Shaft and tilting
section of the hinged base
are circumferentially welded
top and bottom. The tilting
and anchored sections of
the hinged base are joined
by a 3/4" diameter solid
aluminum pivot rod. The
tilting section of the hinged
base is held in a vertical
position by three 1/2"-13 x
2" stainless steel hex-head
bolts that attach to stainless
steel inserts cast into the
aluminum base.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Grounding: Anchor base
plate is tapped for 3/8"-16
UNC grounding bolt (pro-
vided by others).
Hand hole: Available as an
option; located 90° to the
right of the hinge.
Hardware: Stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes cast-
aluminum two-piece cover.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. FT.
POLE
SHAFT SIZE
IN. X FT.
WALL
THICK.
IN.
80
MPH 90
MPH 100
MPH MAX.
WT.
BOLT
CIRCLE
IN.
BOLT SIZE
IN. X IN. X
IN.
APPROX.
SHIP WT.
LBS.
SSAH 10 4C 10 4 x 10 0.125 13.1 9.9 7.5 100 8.5 - 10 3/4 x 18 x 3 48
SSAH 12 4C 12 4 x 12 0.125 9.6 7.0 5.1 100 8.5 - 10 3/4 x 18 x 3 53
SSAH 14 4C 14 4 x 14 0.125 7.0 4.9 3.3 100 8.5 - 10 3/4 x 18 x 3 57
SSAH 15 4C 15 4 x 15 0.125 6.0 4.0 2.6 100 8.5 - 10 3/4 x 18 x 3 60
SSAH 16 4C 16 4 x 16 0.125 5.0 3.2 1.9 100 8.5 - 10 3/4 x 18 x 3 62
SSAH 16 4G 16 4 x 16 0.188 8.9 6.2 4.3 150 8.5 - 10 3/4 x 30 x 3 86
SSAH 18 4C 18 4 x 18 0.125 3.4 1.8 0.7 100 8.5 - 10 3/4 x 18 x 3 67
SSAH 18 4G 18 4 x 18 0.188 6.8 4.5 2.9 100 8.5 - 10 3/4 x 30 x 3 93
SSAH 18 5G 18 5 x 18 0.188 12.6 8.8 6.1 150 9.312 - 10 3/4 x 30 x 3 108
SSAH 20 4G 20 4 x 20 0.188 5.0 3.0 1.6 150 8.5 - 10 3/4 x 30 x 3 100
SSAH 20 5G 20 5 x 20 0.188 9.9 6.6 4.2 175 9.312 - 10 3/4 x 30 x 3 117
POLE DATA
SHAFT BASE
SIZE
BOLT CIRCLE
A
BOLT PROJECTION
B
BASE SQUARE
CTEMPLATE DESCRIPTION ANCHOR BOLT
DESCRIPTION
4"C 8.5" - 10" 3.5" 11.688" ABTEMPLATE PJ50055 AB18-0
4"G 8.5" - 10" 3.5" 11.688" ABTEMPLATE PJ50055 AB30-0
5" 9.312" - 10" 3.5" 11.688" ABTEMPLATE PJ50056 AB30-0
B
Two-piece cast
aluminum cover
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHF
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 1PMFIJOHFTBUCBTF
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures
installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
Hinge base poles without handholes will be drilled for the rst xture 90 degrees to the right of the hinge. When a handhole is specied as
an adder, the rst xture drilling will be 90 degreees to the right of the handhole. If the customer has dierent xture drilling orientation
requirements, please specify that on the purchase order.
C
A
3/4" Solid aluminum pivot rod
Hinge direction "A" side of pole
Trapped 3/8" - 16 for ground connector
Two-piece cast
aluminum cover
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
606
POLES
Fiberglass
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHFT
t %FDPSBUJWFCBTFTISPVETBWBJMBCMFDPOTVMUGBDUPSZ
t .BTUBSNTBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
RTFDB
Round Tapered Fiberglass,
Direct Burial
Intended Use
Round tapered direct-burial
(embedded) berglass gen-
eral purpose pole for up to
35-foot mounting heights.
Construction
Shaft: Reinforced composite
shaft incorporating "E" type
berglass and pigmented,
UV inhibiting, thermosetting
polyester resin. Shaft is paint-
ed with a polyurethane top
coat providing a minimum
1.5 mil dry lm thickness and
smooth surface nish.
Hand hole: Standard 2-1/2"
x 5" hand hole opening with
non-metallic oval shaped
covers secured with vandal-
resistant stainless steel 1/4"
socket head screws.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top cap
provided with drill-mount poles.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER NOM. MOUNT.
HT. FT. POLE SHAFT SIZE
BASE IN. X TOP IN. X FT. 80 MPH 90 MPH 100 MPH MAX. WT.
LBS. APPROX. SHIP
WT. LBS.
RTFDB 18 6X 14 6.5 x 4.1 x 18 14.0 10.4 7.9 150 34
RTFDB 20 6-6X 16 6.7 x 4.1 x 20 10.0 7.4 5.5 100 38
RTFDB 24 6-7X 20 6.7 x 4.1 x 24 8.2 5.8 4.1 150 46
RTFDB 30 8-3X 25 8.2 x 4.5 x 30 6.2 4.7 3.6 100 71
RTFDB 30 8-4X 25 8.4 x 4.7 x 30 14.5 11.2 8.9 200 98
RTFDB 35 8-4X 30 8.4 x 4.7 x 35 10.5 8.0 6.2 200 116
RTFDB 35 8-5X 30 8.5 x 4.9 x 35 14.8 11.4 9.0 300 153
RTFDB 41 11-8X 35 11.8 x 6.4 x 41 14.3 10.8 7.8 300 218
INSTALLATION NOTES: Do not erect poles without having xtures installed. If poles are stored outside,
all protective wrapping must be removed immediately upon delivery to prevent nish damage.
18"
24"
Hand hole
Finish grade
Wiring access
PRODUCT INFORMATIONPRODUCT INFORMATION Fiberglass
RTF
Round Tapered Fiberglass
Intended Use
Round tapered berglass
general purpose pole for up
to 45 foot mounting heights.
Construction
Shaft: Reinforced composite
shaft incorporating "E" type
berglass and pigmented,
UV inhibiting, thermoset-
ting polyester resin. Shaft is
painted with a polyurethane
top coat providing a mini-
mum 1.5 dry lm thickness
and smooth surface nish.
Anchor base: Heavy-duty
metal base plate is perma-
nently bonded to the outside
of the berglass shaft.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Hand hole: Standard 2-1/2"
x 5" hand hole opening with
non-metallic oval shaped
covers secured with vandal-
resistant stainless steel 1/4"
socket head screws.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Not included;
Available as an optional
accessory.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information see page 588 .For additional product information, visit www.lithonia.com.
B
18”
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YY
side drilling.
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHFT
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t 4UBOEBSEBOEEFDPSBUJWFCBTFTISPVETBWBJMBCMFDPOTVMUGBDUPSZ
t .BTUBSNTBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-
supplied templates must be
used when setting anchor bolts.
Lithonia Lighting will not accept
claim for incorrect anchorage
placement due to failure to
use Lithonia Lighting factory
templates. Do not erect poles
without having xtures installed.
If poles are stored outside, all
protective wrapping must be
removed immediately upon
delivery to prevent nish damage.
TECHNICAL INFORMATION EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER NOM. MOUNT.
HT. FT. POLE SHAFT SIZE BASE
IN. X TOP IN. X FT. 80 MPH 90 MPH 100
MPH MAX.
WT. BOLT
CIRCLE IN. BOLT SIZE IN.
X IN. X IN. APPROX. SHIP
WT. LBS.
RTF 10 5-4X 10 5.4 x 4.1 x 10 19.0 14.6 11.4 150 8 5/8 x 21 x 3 23
RTF 12 5-6X 12 5.6 x 4.1 x 12 16.0 12.1 9.3 150 8.5 5/8 x 21 x 3 28
RTF 14 5-9X 14 5.9 x 4.1 x 14 14.0 10.4 7.9 150 8.5 5/8 x 21 x 3 32
RTF 16 6-1X 16 6.1 x 4.1 x 16 10.0 7.4 5.5 100 8.5 5/8 x 21 x 3 36
RTF 20 6-6X 20 6.6 x 4.1 x 20 8.2 5.8 4.1 100 9.5 5/8 x 21 x 3 45
RTF 20 7-3X 20 7.3 x 4.6 x 20 14.4 11.1 8.9 200 11.5 1 x 36 x 4 62
RTF 25 6-7X 25 6.7 x 4.1 x 25 5.4 3.4 2.0 100 9.5 5/8 x 21 x 3 55
RTF 25 7-3X 25 7.3 x 4.6 x 25 9.6 7.3 5.7 200 11.5 1 x 36 x 4 75
RTF 30 8-4X 30 8.4 x 4.7 x 30 11.2 8.5 6.7 100 11.5 1 x 36 x 4 106
RTF 30 8-5X 30 8.5 x 4.9 x 30 15.6 12.0 9.5 200 11.5 1 x 36 x 4 140
RTF 30 10-5X 30 10.5 x 6.6 x 30 28.7 22.4 17.4 300 14.5 1-1/4 x 42 x 6 202
RTF 35 8-4X 35 8.4 x 4.7 x 35 5.5 3.8 2.7 100 11.5 1 x 36 x 4 125
RTF 35 8-5X 35 8.5 x 4.9 x 35 8.5 6.2 4.7 200 11.5 1 x 36 x 4 161
RTF 35 11-2X 35 11.2 x 6.6 x 35 21.8 16.6 12.5 300 15 1-1/4 x 42 x 6 248
RTF 40 11-7X 40 11.7 x 6.2 x 40 6.4 4.3 2.4 300 15.5 1-1/4 x 42 x 6 165
RTF 40 11-8X 40 11.8 x 6.4 x 40 12.2 8.8 6.0 300 15.5 1-1/4 x 42 x 6 227
RTF 40 12X 40 12.0 x 6.9 x 40 25.8 19.3 14.3 300 15.5 1-1/4 x 42 x 6 317
RTF 45 11-7X 45 11.7 x 6.2 x 45 3.9 2.2 0.6 300 15.5 1-1/4 x 42 x 6 183
RTF 45 11-9X 45 11.9 x 6.6 x 45 15.2 10.9 7.6 300 15.5 1-1/4 x 42 x 6 295
For pole data, see page 607.
PRODUCT INFORMATION
LITHONIA OUTDOOR
607
www.lithonia.com | 1-800-279-8041PSG10
POLES
Fiberglass
SSF
Square Straight Fiberglass
Intended Use
Square straight berglass
general purpose pole for up
to 30-foot mounting heights.
Construction
Shaft: Reinforced composite
shaft incorporating "E" type
berglass and pigmented,
UV-inhibiting, thermoset-
ting polyester resin. Shaft
is formed by the pultrusion
process with berglass
strands traversing the length
of the pole.
Anchor base: Heavy-duty
metal base plate is perma-
nently bonded to the outside
of the berglass shaft.
Anchor bolts: Fabricated
from carbon steel bar with
minimum-yield strength of
55,000 psi. Bolts have an "L"
bend on lower end and are
galvanized a minimum of 12
inches on the threaded end
per ASTM A-153. Each anchor
bolt is furnished with two hex
nuts and two at washers.
Hand hole: Standard 2-1/2"
x 5" hand hole opening with
non-metallic oval-shaped
covers secured with vandal-
resistant stainless steel 1/4"
socket-head screws.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Top cap: Removable top
cap provided with drill-
mount poles.
Base cover: Includes full-base
cover nished to match pole.
Finish: Must specify nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT.
HT. (FT.)
POLE
SHAFT SIZE
(IN. X FT.) 80 MPH 90 MPH 100
MPH
MAX.
WT.
(LBS.)
BOLT
CIRCLE
(IN.)
BOLT SIZE
(IN. X IN. X IN.)
APPROX.
SHIP WT.
(LBS.)
SSF 6 4X 6 4 x 6 20.0 20.0 20.0 150 8 5/8 x 21 x 3 18
SSF 8 4X 8 4 x 8 20.0 20.0 20.0 150 8 5/8 x 21 x 3 23
SSF 10 4X 10 4 x 10 20.0 20.0 16.1 150 8 5/8 x 21 x 3 27
SSF 12 4X 12 4 x 12 20.0 16.4 12.8 150 8 5/8 x 21 x 3 31
SSF 14 4X 14 4 x 14 14.2 10.7 8.2 150 8 5/8x 21 x 3 35
SSF 16 4X 16 4 x 16 11.9 8.8 6.5 150 8 5/8 x 21 x 3 39
SSF 20 4X 20 4 x 20 8.3 5.8 4.0 150 8 5/8 x 21 x 3 47
SSF 20 5X 20 5 x 20 14.9 11.1 8.4 300 11 1 x 36 x 4 102
SSF 25 4X 25 4 x 25 5.0 3.0 1.5 150 8 5/8 x 21 x 3 57
SSF 25 5X 25 5 x 25 10.6 7.6 5.4 300 11 1 x 36 x 4 125
SSF 30 5X 30 5 x 30 5.7 3.4 1.7 300 11 1 x 36 x 4 148
SSF 30 5XHD 30 5 x 30 8.6 5.1 2.6 300 11 1 x 36 x 4 164
SSF POLE DATA
SHAFT BASE
SIZE BOLT CIRCLE
ABOLT PROJECTION
BBASE SQUARE
CTEMPLATE
DESCRIPTION ANCHOR BOLT
DESCRIPTION
4" 8" 3" 7.41" ABTEMPLATE PJ50123 AB21-0
5" 11" 4" 11.125" ABTEMPLATE PJ50124 AB36-0
A
13/16” dia. hole
C
SSF 4" Shaft
A
1-1/4” x 2” slot
C
SSF 5" Shaft
B
Notes
t .PVOUJOHBSSBOHFNFOU15PQFOUPQPS5YYUFOPOBOEPS%.YYTJEFESJMMJOH
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHFT
t #PMUMFOHUITBSFOPNJOBMBDUVBMCPMUMFOHUITNBZWBSZ
t 'VMMZHBMWBOJ[FEBODIPSCPMUTBWBJMBCMFDPOTVMUGBDUPSZ
t %JSFDUCVSJBMPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
INSTALLATION NOTES: Factory-supplied templates must be used when setting anchor bolts. Lithonia Lighting will not accept claim for
incorrect anchorage placement due to failure to use Lithonia Lighting factory templates. Do not erect poles without having xtures
installed. If poles are stored outside, all protective wrapping must be removed immediately upon delivery to prevent nish damage.
RTF POLE DATA
SHAFT BASE
SIZE BOLT CIRCLE
ABOLT PROJECTION
BBASE SQUARE
CTEMPLATE
DESCRIPTION
5.4" 8" 3" 7.75" PJ50108
5.6" 8.5" 3" 8.125" PJ50109
5.9" 8.5" 3" 8.125" PJ50110
6.1" 8.5" 3" 8.125" PJ50111
6.6" 9.5" 3" 8.8" PJ50112
6.7" 9.5" 3" 8.8" PJ50113
7.3" 11.5" 4" 11" PJ50114
8.4" 11.5" 4" 11" PJ50115
8.5" 11.5" 4" 11" PJ50116
10.5" 14.5" 4" 13.3" PJ50117
11.2" 15" 4" 13.5" PJ50118
11.7" 15.5" 4" 14" PJ50119
11.8" 15.5" 4" 14" PJ50120
11.9" 15.5" 4" 14" PJ50121
12.0" 15.5" 4" 14" PJ50122
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
608
POLES
Concrete
STC
Square Tapered Concrete
Intended Use
Square tapered direct-bury
(embedded) concrete pole
for up to 40-foot mounting
heights.
Construction
Shaft: Concrete mix has a
minimum 28-day compres-
sive strength of 8500 psi and
conforms with ASTM-C150.
Prestressing steel reinforce-
ment is uncoated 7-wire,
stress-relieved strand per
ASTM-A416. Steel spiral
reinforcement conforms to
ASTM-A82 and is not less
than .120-inch (11-gauge)
diameter with a maximum
pitch of 6 inches. Poles have
a continuous taper of 0.165
inches per foot.
Grounding: An 18" long, #4
stranded copper pigtail, con-
nected to reinforced strand,
is provided at pole top and at
cable entrance below grade.
Hand hole: A 3" x 5" hand
hole is located 24" above
ground line and a 2-1/2" x 7"
or larger conduit entrance
is located 18" below ground
line. Inserts for the hand
hole and conduit entrance
are non-corrosive and
weatherproof. Hand-hole
frames and covers conform to
ASTM-B240.
Hardware: Fasteners are
high-strength galvanized,
zinc-plated or stainless steel.
Finish: Natural concrete nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER NOM. MOUNT.
HT. FT. POLE SHAFT SIZE
BASE IN. X TOP IN. X FT. 80 MPH 90 MPH 100 MPH APPROX. SHIP
WT. LBS.
STC 20 7-24X 15 7.24 x 4.0 x 20 22 16 13 680
STC 20 9-24X 16 9.24 x 6.0 x 20 48 37 29 1,110
STC 24 6-40X 20 6.4 x 6.4 x 24 3.5 3.5 3.5 917
STC 25 8-05X 20 8.05 x 4.0 x 25 21 16 12 985
STC 25 10-05X 20 10.05 x 6.0 x 25 44 34 26 1,530
STC 30 8-86X 25 8.86 x 4.0 x 30 20 15 11 1350
STC 30 10-86X 25 10.86 x 6.0 x 30 49 33 28 2,000
STC 35 9-67X 29 9.67 x 4.0 x 35 17 12 8 1,800
STC 35 11-67X 29 11.67 x 6.0 x 35 43 32 24 2540
STC 35 6-40X 30 6.4 x 6.4 x 35 3.5 N/A N/A 1,337
STC 35 7-25X 30 7.25 x 7.25 x 35 3.5 3.5 N/A 1,685
STC 36 8X 30 8.0 x 8.0 x 36 3.5 3.5 3.5 2,145
STC 40 12-48X 34 12.48 x 6.0 x 40 42 30 22 3,130
STC 45 13-29X 38 13.29 x 6.0 x 45 41 31 22 3,795
STC 46 8X 40 8.0 x 8.0 x 46 3.5 N/A N/A 2,740
STC 47 9-25X 40 9.25 x 9.25 x 47 3.5 3.5 N/A 3,813
INSTALLATION NOTES: Do not erect poles without having xtures installed. If poles are stored outside, all protective wrapping
must be removed immediately upon delivery to prevent nish damage.
3” x 5” hand hole
with cover
Finish grade
Pigtail
Cast in 1-1/2”
hole @ 45°
24”
18”
Notes
t .PVOUJOHBSSBOHFNFOU5YYUFOPONPVOU
t 8IFOVTJOHESJMMNPVOUöYUVSFTSFGFSUPPQUJPOTQBHFGPSUFOPONPVOUTMJQöUUFST
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHFT
t 4UBJOFEDPMPSöOJTIBWBJMBCMFDPOTVMUGBDUPSZ
t "EEJUJPOBM&1"NBZCFBDIJFWFECBTFEPOJOEJWJEVBMBQQMJDBUJPO
t "DUVBMCVSJBMEFQUIEFQFOETPOTPJMDPOEJUJPOT
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
PRODUCT INFORMATION
LITHONIA OUTDOOR
609
www.lithonia.com | 1-800-279-8041PSG10
POLES
Concrete
SPRTC
Round Tapered Concrete Sportslighting
Intended Use
Round tapered direct bury
(embedded) concrete sports
lighting pole for up to 100
foot mounting heights.
Construction
Shaft: Concrete mix has a
minimum 28-day compres-
sive strength of 11,000 PSI
and conforms with ASTM-
C150. Prestressing steel
reinforcement is uncoated
7-wire, stress relieved strand
per ASTM-A416. Steel spiral
reinforcement conforms to
ASTM-A82 and is not less
than .203 (5-gauge wire)
diameter. Poles have a
continuous taper of 0.216
inches per foot. Poles are
centrifugally spun and round
in cross-section with a hol-
low center.
Grounding: A continuous
solid or stranded copper
ground wire is cast into the
pole. Wire terminates at
top of pole to accept a 1/2"
x24" lightning rod. Copper
coupling, approximately 12"
below grade, provides a 1/2 "
tapped insert at pole face for
grounding hardware.
Hand hole: 4" x 8" hand hole
is located 24" above ground
line. 4" x 8" conduit entrance
is located 18" below ground
line. A 2-1/2" x 8" reinforced
hand hole with ush cover
is located at cage/crossarm
locations. 1-1/2" coupling
wire inlet/outlet is located
opposite this hand hole.
Inserts for hand hole and
conduit entrance are non-
corrosive and weatherproof.
Hand-hole frames and covers
conform to ASTM-B240.
Hardware: Fasteners are
high-strength galvanized or
zinc-plated or stainless steel.
Finish: Natural concrete nish.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG NUMBER NOM.
MOUNT.
HT. FT.
POLE SHAFT SIZE
BASE IN. X TOP IN.
X FT. 80 MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
APPROX.
SHIP WT.
LBS.
SPRTC C6 45 7-17 38 16.47 x 6.75 x 45 31 620 24 480 18 360 3,400
SPRTC C5 45 7-17 38 16.47 x 6.75 x 45 39 780 30 600 23 460 3,400
SPRTC C4 45 7-17 38 16.47 x 6.75 x 45 52 1,040 40 800 31 589 3,450
SPRTC C4 60 7-20 50 19.71 x 6.75 x 60 47 893 35 665 26 520 5,450
SPRTC C2 60 9-22 50 21.78 x 8.82 x 60 85 1,615 65 1,235 48 912 7,950
SPRTC H1 60 9-22 50 21.78 x 8.82 x 60 138 2,622 101 1,919 80 1,520 8,100
SPRTC C3 70 9-24 60 23.94 x 8.82 x 70 56 1,064 42 798 32 608 9,900
SPRTC C1 70 9-24 60 23.94 x 8.82 x 70 90 1,710 69 1,311 52 988 10,100
SPRTC H2 70 10-24 60 23.94 x 8.82 x 70 139 2,641 103 1,957 81 1,539 10,400
SPRTC C2 80 9-26 68 26.1 x 8.82 x 80 63 1,197 45 855 34 646 12,300
SPRTC C1 80 9-26 68 26.1 x 8.82 x 80 85 1,445 65 1,105 48 816 12,300
SPRTC H2 80 10-26 68 26.1 x 8.82 x 80 136 2,584 101 1,919 79 1,501 12,800
SPRTC C2 90 9-28 77 28.26 x 8.82 x 90 54 1,026 39 741 28 532 14,850
SPRTC C1 90 9-28 77 28.26 x 8.82 x 90 78 1,482 56 1,064 42 798 14,950
SPRTC H2 90 10-28 77 28.26 x 8.82 x 90 132 2,508 97 1,843 75 1,425 15,350
SPRTC C1 105 9-32 91 31.5 x 8.82 x 105 70 1,330 49 931 35 665 19,250
SPRTC H1 105 9-32 91 31.5 x 8.82 x 105 99 1,881 74 1,406 54 1,026 19,450
SPRTC H3 105 11-34 91 33.68 x 11.0 x 105 144 2,736 105 1,995 80 1,520 22,050
SPRTC C1 115 9-34 100 33.66 x 8.82 x 115 65 1,235 45 855 31 589 22,350
SPRTC H1 115 9-34 100 33.66 x 8.82 x 115 96 1,824 70 1,330 50 950 22,550
SPRTC H2 115 10-34 100 33.66 x 8.82 x 115 125 2,375 91 1,729 69 1,311 22,800
INSTALLATION NOTES: Do not erect poles without having xtures installed. If poles are stored outside, all protective wrapping must be
removed immediately upon delivery to prevent nish damage.
1/2” ground
coupling at
6” below
groundline
24"
18"
Cast in 4" x 8" hand-hole
frame and cover
Cast in 4" x 8" slot
Notes
t $SPTTBSNTTFFQBHF
t 0QUJPOTTFFQBHFT
t #SBDLFUTTFFQBHFT
t 1MBUGPSNDBHFTXJUIQPMFTUFQTBWBJMBCMFDPOTVMUGBDUPSZ
t 4UBJOFEDPMPSöOJTIBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
610
POLES
Options & Accessories
ANGLE IRON
CROSSARMS
ORDERING INFORMATION
ORDERING INFORMATION
ORDERING INFORMATION
Notes
1 Angle iron crossarms can be used with other poles if ordered with the pole.
Notes
1 Pre-wired tubular crossarms can be used with other poles if ordered with the pole.
CATALOG
NUMBER ARM EPA (SQ. FT.) WEIGHT
(LBS.)
ACRCW2 1.80 50.0
ACRCW3 3.00 86.0
ACRCW4 4.50 121.0
ACRCW5 5.70 157.0
ACRCW6 7.00 193.0
CATALOG
NUMBER ARM EPA (SQ. FT.) WEIGHT
(LBS.)
SPXCW2 1.00 23.5
SPXCW3 1.80 40.0
SPXCW4 2.50 56.5
SPXCW5 3.20 73.0
SPXCW6 3.90 89.5
PRE-WIRED
TUBULAR
CROSSARMS
PRODUCT INFORMATION Options & Accessories
Concrete or Wood Sportslighting Poles
Concrete or Wood Sportslighting Poles
Intended Use
For use on round, tapered con-
crete or wood sportslighting
poles. Projected area is for the
crossarm only. The crossarm
projected area is added to the
luminaire projected area to
get a total eective projected
area (EPA).
Intended Use
For use on round, tapered
concrete or wood sportslight-
ing poles. Projected area is for
the crossarm only. The cros-
sarm projected area is added
to the luminaire projected
area to get a total eective
projected area (EPA). Use
in conjunction with CV3P
luminaire options.
8’6" 4’3"
Pole and mounting hardware1
3.5" x 5.0" x 0.25" angle
(8.9 x 12.7 x .64 angle) 2’6"
(6.6) 6"
6.5"
3.5" x 5.0" x 0.25" angle
2’6" 6.0"
6’ 1’9"
6.5"
Pole and mounting hardware1
Pole and mounting hardware1
ACRCW2, 2-Fixture Angle Arm ACRCW3, 3-Fixture Angle Arm
3.5" x 5.0" x 0.25" angle 6.0"
3’6" 1’9"
6.5"
ACRCW4, 4-Fixture Angle Arm
ACRCW5, 5-Fixture Angle Arm ACRCW6, 6-Fixture Angle Arm
3.5" x 5.0" x 0.25" angle 2’6" 6.0"
11’ 4’3"
6.5"
Pole and mounting hardware1Pole and mounting hardware1
3.5" x 5.0" x 0.25" angle 2’6" 6.0"
13’6" 6’9"
6.5"
SPXCW2, 2-Fixture Angle Arm SPXCW3, 3-Fixture Angle Arm SPXCW4, 4-Fixture Angle Arm
Pole and mounting
hardware1
Gusset (4 places)
6.0"
3’6" 1’9"
6.5"
2.5" Sched. 40 pipe
(2.88 OD)
Pole and mounting
hardware1
Gusset (4 places)
2’6" 6.0"
6’ 1’9"
6.5"
2.5" Sched. 40 pipe
(2.88 OD)
Pole and mounting
hardware1
Gusset
(4 places) 2’6" 6.0"
8’6" 4’3"
6.5"
SPXCW5, 5-Fixture Angle Arm SPXCW6, 6-Fixture Angle Arm
Gusset
(4 places) 2’6" 6.0"
13’6" 6’9"
6.5"
3.5" x 5.0" x 0.25" angle
Pole and mounting
hardware1
Gusset
(4 places) 2’6" 6.0"
11’ 4’3"
6.5"
2.5" Sched. 40 pipe
(2.88 OD)
Pole and mounting
hardware1
PRODUCT INFORMATION
LITHONIA OUTDOOR
611
www.lithonia.com | 1-800-279-8041PSG10
Wood
POLES
SSWDB
Square Straight Wood, Direct Burial
Intended Use
Square straight laminated
wood pole for up to 35 foot
mounting heights. Espe-
cially suited for residential,
recreational and resort
developments, parks,
playgrounds and paths to
provide functional lighting
by night and attractive
landscaping by day.
Construction
Shaft: L1 laminate grade
West Coast Douglas Fir for
strength and appearance.
Construction grade on
all exposed wide faces
per WCLIB Grading Rules.
Lamination utilizes adhesives
meeting or exceeding
the exterior durability
performance requirements of
most recent revision of U.S.
Commercial Standard ANSI/
AITC A190.1-1983. A raceway
access hole for underground
wiring is centered 2'6" below
ground line and rises 30° to
vertical. If required, above
ground juction boxes of
various types can be used.
Available shaft widths are 4,
5, 6 and 7 inches.
Surface nish, appearance
and tolerance: Laminations
are kiln dried to average
moisture content of 14.5%
+/- 2.5% before surfacing.
Open defects such as knot
holes exceeding 1/2" in
diameter or wane exceeding
1/4" x 12" are lled with
woodller. Sides are surfaced
four faces with edges eased
to 3/8" radius. Tolerances are
from +0 to -1/8" for width
and thickness and +/- 1/4"
in length.
Preservative treatment:
Standards are treated with
6% pentachlorophenol borne
in light hydrocarbon solvent
in conformance with AWPA
Standards to a minimum net
retention of 0.60 pounds per
cubic foot of penta. All Stan-
dards are incised on all four
sides to 3/4" in depth from
butt to 12" above indicated
ground mark.
Wrapping: Lighting
standards are individually
wrapped using 2-ply laminat-
ed paper lumber wrap with
waterproof ply on outside to
protect poles.
Top cap: Metal top cap is
provided unless xture is
tenon mounted.
ADDITIONAL INFORMATION For ordering information, see page 588. For additional product information, visit www.lithonia.com.
TECHNICAL INFORMATION- EPA (FT2) WITH 1.3 GUST
CATALOG
NUMBER
NOM.
MOUNT
HT. (FT.)
POLE SHAFT SIZE
(IN. X IN. X FT.) 80 MPH MAX.
WT. 90
MPH MAX.
WT. 100
MPH MAX.
WT.
APPROX.
SHIP WT.
(LBS.)
SSWDB 10 4X 10 4.5 x 5.125 x 13.5 16.42 150 11.62 150 9.22 150 80
SSWDB 12 4X 12 4.5 x 5.125 x 15.5 12.62 150 6.72 150 6.62 150 85
SSWDB 15 4X 15 4.5 x 5.125 x 19 8.52 150 5.32 150 3.72 150 110
SSWDB 15 5X 15 5.125 x 6 x 19.5 19.42 150 13.9 150 10.22 150 130
SSWDB 20 4X 20 4.5 x 5.125 x 24.5 3.92 150 - - - - 140
SSWDB 20 5X 20 5.125 x 6 x 25 11.62 150 7.02 150 4.72 150 200
SSWDB 20 6X 20 6 x 6.75 x 30 21.42 150 14.22 150 10.62 150 260
SSWDB 25 5X 25 5.125 x 6 x 30 6.32 150 2.62 150 - - 250
SSWDB 25 6X 25 6 x 6.75 x 30 13.82 150 8.02 150 5.12 150 300
SSWDB 30 6X 30 6 x 6.75 x 36 8.02 150 3.22 150 - - 400
SSWDB 35 7X 35 6.75 x 7.5 x 41.5 8.02 150 2.32 150 - - 730
WOODEN CROSSARM
CATALOG
NUMBER DESCRIPTION EPA
(FT2)WEIGHT
(LBS.)
WA12 2' single-xture arm 0.86 33
WA13 3' single-xture arm 1.29 37
WA14 4' single-xture arm 1.72 42
WA22 2' two-xture arm 1.51 42
WA23 3' two-xture arm 2.37 50
WA24 4' two-xture arm 3.23 59
INSTALLATION NOTES: Do not erect poles without
having xtures installed. Metal cap must be installed
unless xture is top mounted. Poles are directly
embedded in rm soil. Under heavy load, or in poor
soil conditions, concrete embedment may be required.
For parking lot installations, poles can be tted
with bumper protection devices or a concrete collar.
Embedment depth determined by local codes and soil
conditions; designed by others.
2 3/4"
4'
4'-9"
WA12
WA13
One-Way Crossarms
2'-9"
2'
3'-9"
3'
9"
9"
4 1/2"
WA14
4 1/2"
9"
(typ.)
(typ.)
Two-Way Crossarms
4'
2'
6'
3'
4 1/2"4 1/2"
8'
4'
WA22
2'
WA24
3'
4'
WA23
2 3/4"
Notes
t .PVOUJOHBSSBOHFNFOU5YYUFOPO%.YYTJEFESJMMFEPS
crossarm.
t 4UBOEBSEBOEDVTUPNTUBJOFEöOJTIFTBWBJMBCMFDPOTVMUGBDUPSZ
t 4UBOEBSEBOEDVTUPNDPMPSTGPSIBSEXBSFBWBJMBCMFDPOTVMUGBDUPSZ
t /BUVSBMVOUSFBUFEDFEBSQPMFTBWBJMBCMFDPOTVMUGBDUPSZ
t )FYBHPOBMDVSWFEUPQBOESFWFBMQPMFTBWBJMBCMFDPOTVMUGBDUPSZ
t "ODIPSCBTFPQUJPOBWBJMBCMFDPOTVMUGBDUPSZ
t $POTVMUGBDUPSZJGQSPEVDUNVTUNFFU#VZ"NFSJDBOTQFDJöDBUJPOT
2'-6"
Raceway
Entrance
See
Section A-A
A
A
Ground Line
Mark
1-1/4"
R3/8"
30°
1-1/4"
Ground
Line
2' 6"
L
C
L
C
SCALE: 3" = 1'
Section A-A
1"
Pole Detail Top Profile
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
612
POLES
Options & Accessories
SSS HHC: Order as hand-hole cover for full pole description. Also
specify if pole is existing.
CATALOG
NUMBER DESCRIPTION
FDL Festoon duplex outlet, less electric
Provision provided for mounting duplex outlet. When ordering,
specify location in height and feet above base of pole and orienta-
tion from the hand hole.
Four nut covers are standard for RSA, RTAU, RTS, RTSU and RTA
poles only.
TENON MOUNTING SLIPFITTERS ORDER SEPARATELY
NUMBER OF FIXTURES
ONE TWO
@180°
TWO
@90°
TWO
@120°
THREE
@90°
FOUR
@90°
TENON
OD
2-3/8" T20-190 T20-280 T20-290 T20-320 T20-390 T20-490
2-7/8" T25-190 T25-280 T25-290 T25-320 T25-390 T25-490
4" T35-190 T35-280 T35-290 T35-320 T35-390 T35-490
AERIS™
2-3/8" AST20-190 AST20-280 AST20-290 AST20-320 AST20-390 AST20-490
2-7/8" AST25-190 AST25-280 AST25-290 AST25-320 AST25-390 AST25-490
4" AST35-190 AST35-280 AST35-290 AST35-320 AST35-390 AST35-490
CATALOG
NUMBER DESCRIPTION CATALOG
NUMBER DESCRIPTION
CPL12 1/2" threaded coupling NPL12 1/2" threaded nipple
CPL34 3/4" threaded coupling NPL34 3/4" threaded nipple
CPL1 1" threaded coupling NPL1 1" threaded nipple
Threaded couplings and/or nipples must be factory installed. When ordering, specify location in height and
feet above base of pole and orientation from the hand hole.
Anchor Bolts
Base Covers
Festoon Outlets
Hand-Hole Cover Plates
Tenon Dimensions
Horizontal Arm Bracket
VD-Vibration Damper
Nut Covers
Bolt-On Tenon
Tamperproof Screws
Available in various sizes for use with Lithonia lighting poles.
Set includes hex nuts and washers. Anchor bolt is partially
galvanized for exposed threads per ASTM-A153. Bolts have
minimum-yield strength rating of 55,000 psi, AASHTO M314
GR55. See individual pole catalog pages for anchor bolt sizes
and description.
CATALOG
NUMBER POLE SQUARE X DEPTH
SBC4 SSS 4" 8.75" x 5.0"
SBC5 SSS 5" 11.50" x 6.0"
SBC6 SSS 6" 12.75" x 5.6"
For full-base cover on other poles, must order FBC. When ordering
separately, specify full pole nomenclature; i.e., FBC for RTA 25 7E. Also
specify if pole is existing.
Two-piece, full-base cover. Four fasteners provided to secure
pieces together. Finished to match pole. Shipped separately.
Standard with steel poles only.
CATALOG
NUMBER MATERIAL EPA (FT2)WEIGHT
(LBS)
H1-18A Aluminum .43 7
H1-18S Steel .50 11
H1-18F Fiberglass .45 8
H1-18C Concrete .55 9
Notes
SSS and SSA arm attachment is slightly dierent from RTA. Arm
modications located on pole to accept arms. Arms shipped as
separate item.
Single or twin side-mounted horizontal arm brackets for ad-
ditional luminaires. Made from 2-3/8" pipe. Upright is 18" from
pole; special arm lengths may be available upon request. Arms
are rated for luminaires up to 4.5 sq. ft. EPA and 100 lbs. per
arm. When ordering, specify location in height and feet above
base of pole and orientation from the hand hole.
Order as TP. Tamperproof screws provided
with hand-hole covers.
CATALOG
NUMBER AB C S
WEIGHT
(LBS)
SBT-4S 2-3/8" 3" 13-3/4" 5" 7
SBT-5S 2-3/8" 4" 13-3/4" 5" 8
SBT-6S 2-3/8" 5" 13-3/4" 5" 17
Notes
If ordering for existing pole, must order as MAEX and include original
order number.
A
D
C
B
It has been found that low steady winds sometimes induce sec-
ond mode vibration in lighting poles. Second mode vibration
is characterized by the maximum periodic motion occurring at
approximately the mid-height of the pole. This type of vibration
can result in failure of the pole and/or luminaire. There is no
method of predicting destructive light pole vibration.
Notes
1 FVD – Field installable vibration damper available upon
request. Consult factory.
2 For more information on the eects of vibrations, visit www.
lithonia.com.
Field Installed
Vibration
Damper
Handhole
Opening
Foundation
Couplings & Nipples
PRODUCT INFORMATION
LITHONIA OUTDOOR
613
www.lithonia.com | 1-800-279-8041PSG10
POLES
Options & Accessories
Drill Mounting Options1
DMA393
DM39AS3
DM39AST13
DM39AST23
DM39KADT3
DM28
DM28AS
DM28AST1
DM28AST2
DM28KADT
DM293
DM29AS3
DM29AST13
DM29AST23
DM29KADT3
DM19
DM19AS
DM19AST1
DM19AST2
DM19KADT
DB
C
Hand hole A
Square
DB
C
Hand hole A
Round
DM493
DM49AS3
DM49AST13
DM49AST23
DM49KADT3
DM322
DM32AS2
DM32AST12
DM32AST22
DM32KADT2
ADDITIONAL INFORMATION For additional product information, visit www.lithonia.com.
Examples:
1. SSS 25 5G with one arm-mount xture and two oodlights on
horizontal arm brackets. Floodlights are to be 180° from each
other, 90° from the shoebox and 12 feet above the base.
2. RTA 30 8G with two arm-mount xtures at 180°, one oodlight
on a horizontal arm bracket and a 1/2" coupling. Floodlight is
to be opposite hand hole and 6 feet from top of pole. Coupling
should be 10 feet from top, same side as oodlight.
3. SSS 20 4C with a 2-3/8” tenon and festoon outlet 90° left of
the hand hole, 5 feet above the base.
Order as: SSS 25 5G DM19 HA12A HA12C Order as: RTA 30 8G DM28 HA24C 12CP20C Order as: SSS 20 4C T20 FDL5D
Series/Height/Orientation
Series Height Orientation
HA Horizontal arm Height from base in ft. A Side of the pole with the hand hole
FDL Festoon outlet- less electrical Determined by application. B Side of the pole 90° counterclockwise from the hand hole (right)
CPL12 1/2” coupling C Side of the pole 180° counterclockwise from the hand hole (opposite)
CPL34 3/4” coupling D Side of the pole 270° counterclockwise (or 90° clockwise) from the hand hole (left)
CPL1 1” coupling
NPL12 1/2” threaded nipple
NPL34 3/4” threaded nipple
NPL1 1” threaded nipple
EHH Extra hand hole
PT Open top
T20 2-3/8” tenon
T25 2-7/8” tenon
T30 3-1/2” tenon
T35 4” tenon
MAEX Match existing
Notes
1 AS denotes Aeris™ luminaire, AST1/AST2 denotes Aeris suspend size 1
or 2 and KADT denotes KAD suspend.
2 Available with round pole only.
3 Reference xture page for minimum arm length required when
mounting 2 or more xtures at 90°.
Some pole options require designating the orientation from the
hand hole and height from the pole base must be specied when
ordering the pole. The orientation from the hand hole is designated
by the pole sides A, B, C or D. The height on the pole shaft is
designated by the distance from the pole base.
Example: HA12B
POLE ORIENTATION
ORDERING INFORMATION
PRODUCT INFORMATION
LITHONIA OUTDOOR
PSG101-800-279-8041 | www.lithonia.com
614
POLES
Options & Accessories
RBA38
RBA28
15"
15"
12"
30"
30"
12"
SBA38
6"
3"Sq.
2-3/8"O.D.
30"
30"
ORDERING INFORMATION
Projected area is for bracket
only. Bracket projected area is
added to luminaire projected
area to get total eective
projected area (EPA).
All brackets have a maximum
luminaire rating per tenon as
specied in the data table.
Finish: Natural aluminum.
Optional painted nishes
available. Plastic cap supplied.
Brackets mount to T25 tenon
2-7/8" OD, or pole top that is
2-7/8"OD.
ORDERING INFORMATION
ALUMINUM
BRACKETS
Round Poles Only
PRODUCT INFORMATION Options & Accessories
Projected area is for bracket
only. Bracket projected area is
added to luminaire projected
area to get total eective
projected area (EPA).
All brackets have a maximum
luminaire rating per tenon as
specied in the data table.
Finish: Natural aluminum.
Optional painted nishes
available.
Plastic cap supplied. Brackets
ush mount on 4", 5" and 6"
square poles. For use with inter-
nal sleeve, plain open-top poles,
Lithonia Lighting poles only.
Must be ordered with pole
to ensure proper t.
ALUMINUM
BRACKETS
Square Poles Only
CATALOG
NUMER
BRACKET
EPA (FT2)
BRACKET
WEIGHT (LBS)
MAX FIXTURE
WEIGHT/ARM (LBS)
MAX FIXTURE
EPA/ARM @ 80 MPH
MAX FIXTURE
EPA/ARM @ 90 MPH
MAX FIXTURE
EPA/ARM @ 100 MPH
RBA28 1.3 8.4 100 6.0 6.0 5.3
RBA32 1.7 14.3 100 6.0 6.0 4.8
RBA38 2.0 11.9 100 6.0 5.2 4.1
RBA48 2.8 16.2 75 3.5 2.6 2.0
RBA49 2.2 17.5 100 6.0 6.0 4.8
CATALOG
NUMER
BRACKET
EPA (FT2)
BRACKET
WEIGHT (LBS)
MAX FIXTURE
WEIGHT/ARM (LBS)
MAX FIXTURE
EPA/ARM @ 80 MPH
MAX FIXTURE
EPA/ARM @ 90 MPH
MAX FIXTURE
EPA/ARM @ 100 MPH
SBA28-4 0.9 12.0 100 6.0 6.0 6.0
SBA28-5 0.9 12.0 100 6.0 6.0 6.0
SBA28-6 0.9 12.0 100 6.0 6.0 6.0
SBA38-4 1.5 17.0 100 6.0 6.0 6.0
SBA38-5 1.5 17.0 100 6.0 6.0 6.0
SBA38-6 1.5 17.0 100 6.0 6.0 6.0
SBA48-4 2.3 22.0 75 4.0 4.0 4.0
SBA48-5 2.3 22.0 75 4.0 4.0 4.0
SBA48-6 2.3 22.0 75 4.0 4.0 4.0
SBA49-4 1.7 22.0 100 6.0 6.0 6.0
SBA49-5 1.7 22.0 100 6.0 6.0 6.0
SBA49-6 1.7 22.0 100 6.0 6.0 6.0
RBA48
30"
30"
15" 15"
24"
RBA32
41-1/2"
12"
12"
34"
24"
RBA49
12"
SBA48
2-3/8"O.D.
30"
30"
3"Sq.
15"
15"
6"
SBA49
2-3/8"O.D.
6"
34"
24"
3"Sq.
SBA28
2-3/8"O.D.
6" 18"
18"
3"Sq.
PRODUCT INFORMATION
LITHONIA OUTDOOR
615
www.lithonia.com | 1-800-279-8041PSG10
POLES
Options & Accessories
ORDERING INFORMATION
CATALOG
NUMBER
BRACKET
EPA (FT2)
BRACKET
WEIGHT (LBS)
MAX FIXTURE
WEIGHT /ARM
(LBS)
MAX FIXTURE
EPA /ARM
@ 80 MPH
MAX FIXTURE
EPA /ARM
@ 90 MPH
MAX FIXTURE
EPA /ARM
@ 100 MPH
BS28 1.0 21.0 150 11.0 8.5 7.3
BS32 1.3 34.0 150 7.2 5.5 4.7
BS38 1.6 32.0 150 7.1 5.5 4.7
BS48 2.3 44.0 125 5.4 4.1 3.4
BS49 1.6 44.0 150 5.3 4.1 3.5
Projected area is for bracket
only. Bracket projected area is
added to luminaire projected
area to get total eective pro-
jected area (EPA). All brackets
have a maximum luminaire
rating per tenon as specied
in the data table.
Finish: Dark bronze, standard.
Other colors available (consult
factory). Plastic cap supplied.
Requires T20 Tenon OD 2-3/8"
– I.D. 2".
ORDERING INFORMATION
CATALOG
NUMER
BRACKET
EPA (FT2)
BRACKET
WEIGHT (LBS)
MAX FIXTURE
WEIGHT/ARM (LBS)
MAX FIXTURE
EPA/ARM @ 80 MPH
MAX FIXTURE
EPA/ARM @ 90 MPH
MAX FIXTURE
EPA/ARM @ 100 MPH
SBS28 1.1 30.0 250 13.0 10.2 8.2
SBS38 1.7 42.0 150 8.5 6.6 5.5
SBS49 2.1 45.0 150 6.3 5.0 4.0
STEEL
BRACKETS
STEEL
BRACKETS
Round Poles Only
PRODUCT INFORMATION Options & Accessories
Projected area is for bracket
only. Bracket projected area is
added to luminaire projected
area to get total eective pro-
jected area (EPA). All brackets
have a maximum luminaire
rating per tenon as specied
in the data table.
Finish: Dark bronze, standard.
Requires T20 (2-3/8" max OD)
tenon on pole for mounting.
Square Poles Only
Standard Hub
2-3/8" O.D.Tubing
(3) 3/8" x 1/2"
set screws @120°
30"
30"
12"
BS48
30"
30"
15" 15"
12"
BS32
120°
24"
41"
12"
BS49
90°
34"
24"
12"
Tenon
4" x 2-3/8" Dia.
42"
SBS49
(4)3/8"-16
Set Screws
Removable
Front Cap
30"
30"
SBS38
(4) 3/8"-16
Set Screws
Tenon
4" x 2-3/8" Dia.
Removable
Front Cap
36"
12"
Removable
Cap
2-3/8" O.D.Tubing
(3) 3/8" x 1/2"
set screws @120°
BS28
BS38
30"
SBS28
(4) 3/8"-16
Set Screws
Tenon
4" x 2-3/8" Dia.
Removable
Front Cap
PRODUCT INFORMATION

Navigation menu
