Catalog
Spare parts
for block contactors, R contactors,
softstarters and arc guard
11
3
2
4
Contents
Overview
Spare parts block contactors
Spare parts R contactors
Spare parts softstarters
Spare parts arc guard
1
Block contactors
Active products
Main contact sets 1/2
Arc chutes 1/2
Contactor coils 1/3
Spare parts cover 1/4
Spare parts bottom 1/5
Classic products
3-pole contactors type EH 1/6
Drive contactors type EHDB 1/7
Main contact sets 1/8
Connection sets 1/9
Arc Chute 1/10
Terminal shrouds (LT... ) 1/10
Terminal extensions (LX...) 1/11
Terminal enlargements (LW...) 1/11
Terminal connecting strips ((LY) 1/11

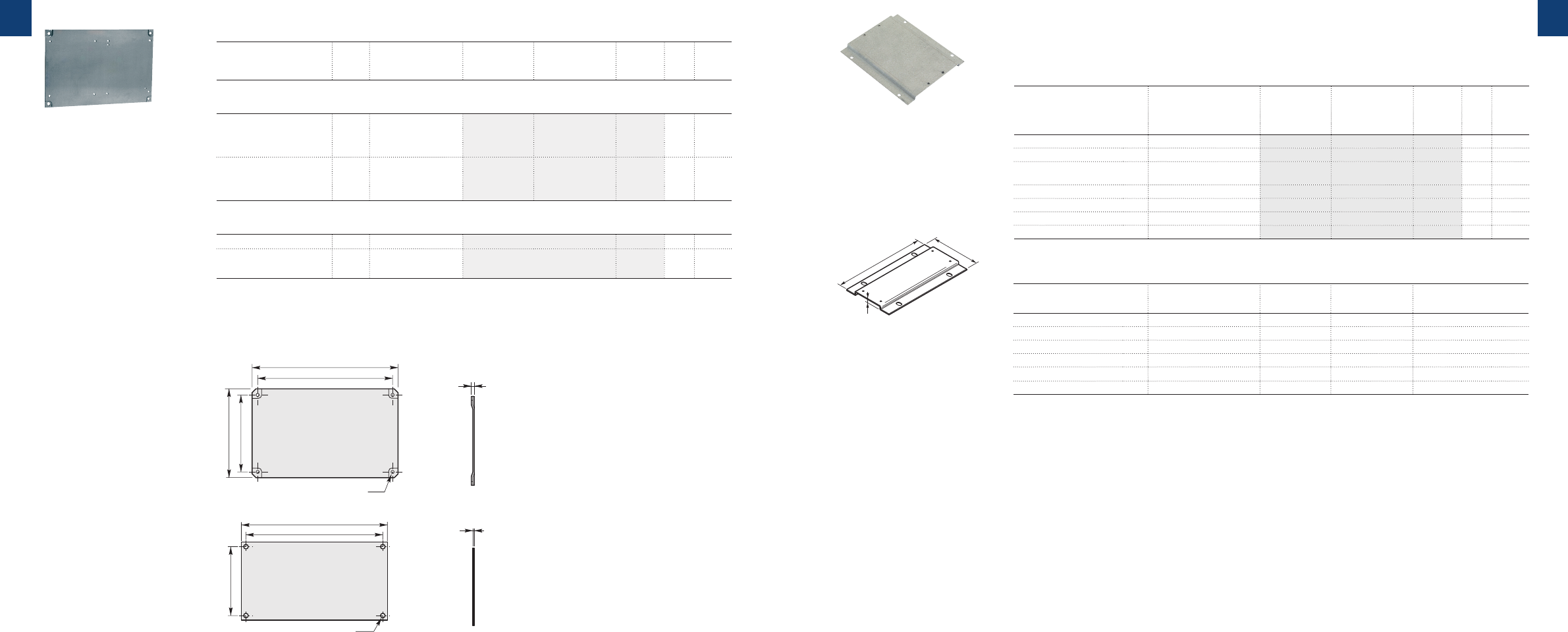

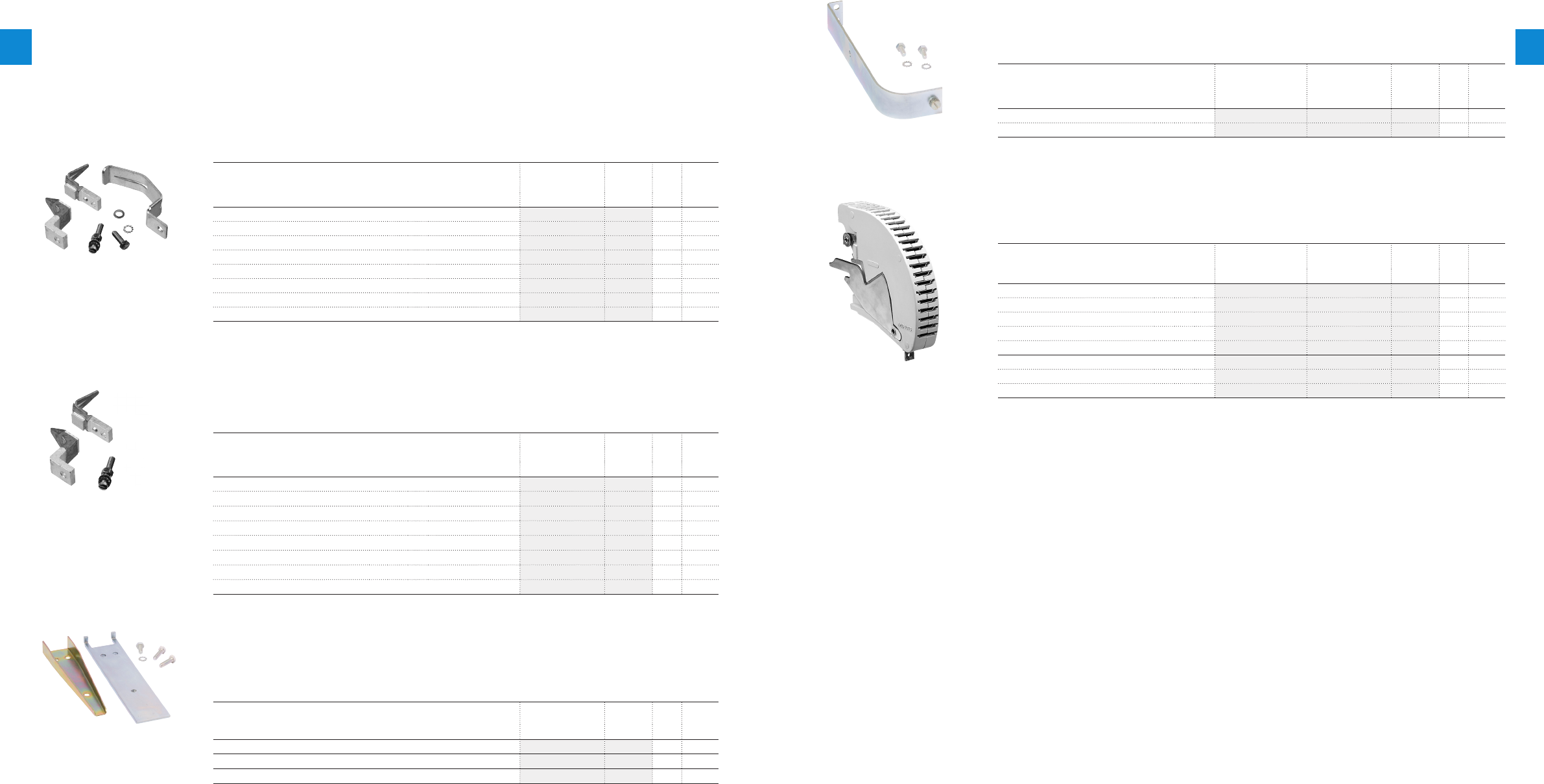

Mounting plates 1/12
Adapter plates 1/13
Mechanical and electrical interlocking units 1/14
Mechanical latching units 1/14
Contactor coils 1/15

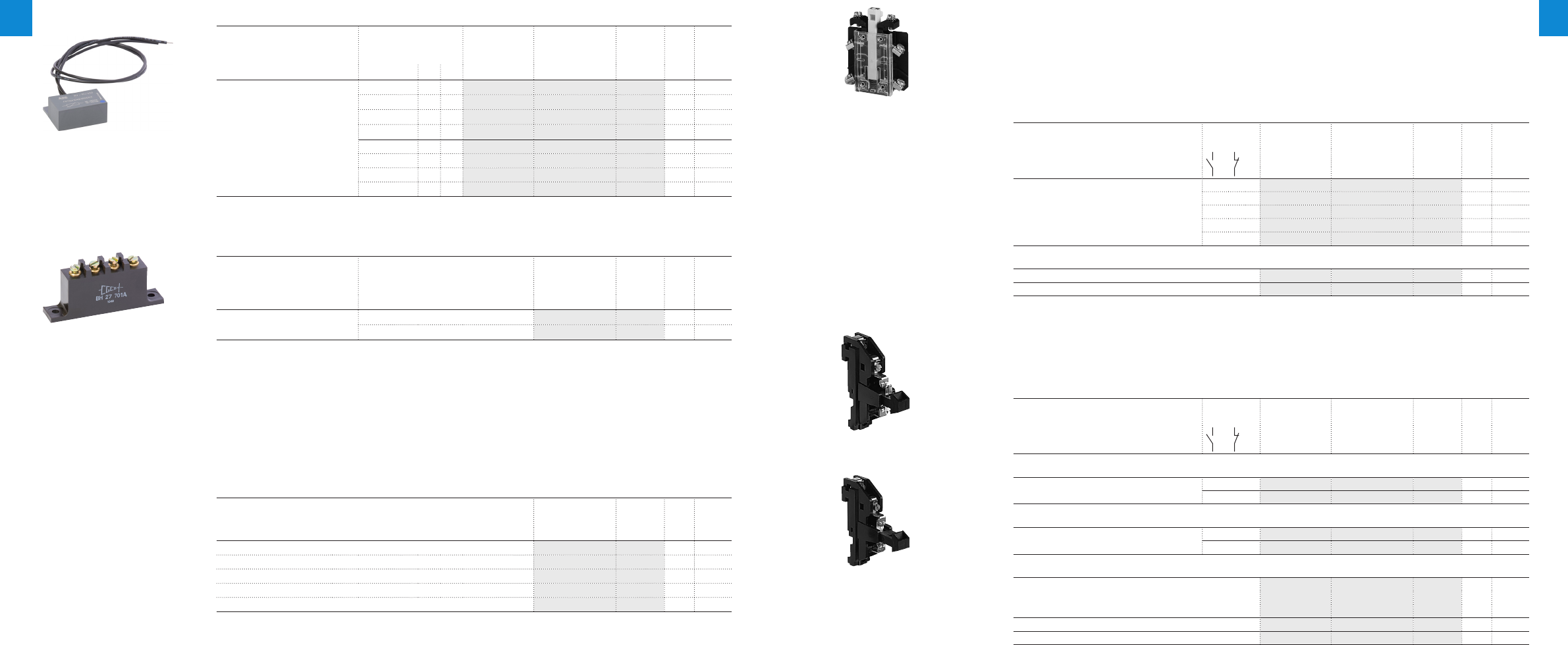

Surge suppressors 1/16
Auxiliary contact blocks 1/17
1/2 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/3
11
Active products
Main contact sets
Description
The contact sets for 3-pole contactors consists of six fixed contacts, three moving contacts,
springs and the required screws.
Ordering details
For contactors Type Order code Pkg
qty
Weight
(1 pce)
kg
A/AF95-30 ZL95 1SFN164303R1000 10.190
A/AF110-30 ZL110 1SFN164503R1000 10.190
A/AF145 ZL145 1SFN164703R1000 10.380
A/AF185 ZL185 1SFN164903R1000 10.380
A/AF210 ZL210 1SFN165103R1000 10.670
A/AF260 ZL260 1SFN165303R1000 10.670
A/AF300 ZL300 1SFN165503R1000 10.670
AF400 ZL400 1SFN165703R1000 11.320
AF460 ZL460 1SFN165903R1000 11.320
AF580 ZL580 1SFN166103R1000 11.840
AF750 ZL750 1SFN166303R1000 11.840
AF1250 ZL1250 1SFN166403R1000 11.840
AF1350 ZL1350 1SFN166503R1000 12.500
AF1650 ZL1650 1SFN166703R1000 13.500
AF2050 ZL2050 1SFN167003R1000 13.500
AF2650 (1) ZL2650 1SFN166603R1000 11.200
1) Do not include fixed parts or screws
Arc chutes
Ordering details
For contactors Type Order code Pkg
qty
Weight
(1 pce)
kg
A145 ... A185 and AF145 ... AF185 ZW185 1SFN164710R1000 10.360
A210 ... A300 and AF210 ... AF300 ZW300 1SFN165110R1000 10.410
AF400, AF460 ZW460 1SFN165710R1000 11.380
AF580, AF750, AF1250 ZW750 1SFN166110R1000 11.500
AF1350, AF1650, AF2050 ZW1650 1SFN166510R1000 14.000
AF2650 ZW2650 1SFN166610R1000 14.000
Contactor coils type ZA
Description
Coils for A95 ... A300 AC operated contactors
Ordering details
For contactors Rated control circuit Type Order code Pkg
qty
Weight
(1 pce)
Votage
Uc (1)
V 50 Hz V 60 Hz kg
A 95, A 110 24 24 ZA110 1SFN154310R8106 10.170
UA 95, UA 110 48 48 ZA110 1SFN154310R8306 10.170
UA 95..RA, UA 110..RA 110 110 … 120 ZA110 1SFN154310R8406 10.170
220 … 230 230 … 240 ZA110 1SFN154310R8006 10.170
230 .. 240 240 … 260 ZA110 1SFN154310R8806 10.170
380 … 400 400 … 415 ZA110 1SFN154310R8506 10.170
400 … 415 415 … 440 ZA110 1SFN154310R8606 10.170
A 145 … A 185 24 24 ZA185 1SFN154710R8106 10.180
48 48 ZA185 1SFN154710R8306 10.180
110 110 … 120 ZA185 1SFN154710R8406 10.180
220 … 230 230 … 240 ZA185 1SFN154710R8006 10.180
230 .. 240 240 … 260 ZA185 1SFN154710R8806 10.180
380 … 400 400 … 415 ZA185 1SFN154710R8506 10.180
400 … 415 415 … 440 ZA185 1SFN154710R8606 10.180
A 210 … A 300 24 24 ZA300 1SFN155110R8106 10.400
48 48 ZA300 1SFN155110R8306 10.400
110 110 … 120 ZA300 1SFN155110R8406 10.400
220 … 230 230 … 240 ZA300 1SFN155110R8006 10.400
230 .. 240 240 … 260 ZA300 1SFN155110R8806 10.400
380 … 400 400 … 415 ZA300 1SFN155110R8506 10.400
400 … 415 415 … 440 ZA300 1SFN155110R8606 10.400
Contactor coils type ZAF
Description
Coils for AF95 ... AF2050 AC/DCoperated contactors
Ordering details
For contactors Rated control circuit Type Order code Pkg
qty
Weight
(1 pce)
Votage
Uc (1)
V 50/60 Hz V DC kg
AF95, AF110 -20 … 60 ZAF110 1SFN154370R7206 10.200
48 … 130 48 … 130 ZAF110 1SFN154370R6906 10.200
100 … 250 100 … 250 ZAF110 1SFN154370R7006 10.200
AF145, AF185 -20 … 60 ZAF185 1SFN154770R7206 10.225
48 … 130 48 … 130 ZAF185 1SFN154770R6906 10.225
100 … 250 100 … 250 ZAF185 1SFN154770R7006 10.225
AF210 ... AF300 -20 … 60 ZAF300 1SFN155170R7206 10.450
48 … 130 48 … 130 ZAF300 1SFN155170R6906 10.450
100 … 250 100 … 250 ZAF300 1SFN155170R7006 10.450
AF400, AF460 -24 … 60 ZAF460 1SFN155770R6806 10.525
48 … 130 48 … 130 ZAF460 1SFN155 770R6906 10.525
100 … 250 100 … 250 ZAF460 1SFN155770R7006 10.525
250 … 500 250 … 500 ZAF460 1SFN155770R7106 10.525
AF580 ... AF1250 -24 … 60 ZAF750 1SFN156170R6806 11.335
48 … 130 48 … 130 ZAF750 1SFN156170R6906 11.335
100 … 250 100 … 250 ZAF750 1SFN156170R7006 11.335
250 … 500 250 … 500 ZAF750 1SFN156170R7106 11.335
AF1350 ... AF2050 100 … 250 100 … 250 ZAF1650 (1) 1SFN156570R7026 1 set 0.900
ZP1650 (2) 1SFN166521R1070 10.300
(1) One set of two coil
(2) Printed circuit board
1SFT98099-010C3
ZA185
Active products
1SBC578683F0302
ZAF110
1SFT98001-13
ZAF300
1SFC101007F0201
ZAF1650
1/4 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/5
11
Active products Active products
Spare part cover
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
A145 1SFN165503R9201 0.365
A185 1SFN165503R9203 0.365
A210 1SFN165503R9205 0.520
A260 1SFN165503R9207 0.520
A300 1SFN165503R9209 0.520
AF145 1SFN165503R9202 0.365
AF185 1SFN165503R9204 0.365
AF210 1SFN165503R9206 0.520
AF260 1SFN165503R9208 0.520
AF300 1SFN165503R9210 0.520
AF400 1SFN165503R9211 1.455
AF460 1SFN165503R9212 1.455
AF580 1SFN165503R9213 1.655
AF750 1SFN165503R9214 1.655
AF1250 1SFN165503R9215 1.655
AF1350
1SFN165503R9216 2.475
AF1350T
1SFN165503R9217 2.475
AF1650
1SFN165503R9218 2.475
AF1650T
1SFN165503R9219 2.475
AF2050
1SFN165503R9220 2.475
AF2050T
1SFN165503R9221 2.475
AF2650 1SFN165503R9222 2.475
AF2650T 1SFN165503R9223 2.475
Spare part bottom
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
A145 Incl. terminal bars 1SFN165503R9231 1.310
A185 Incl. terminal bars 1SFN165503R9233 1.310
A210 Incl. terminal bars 1SFN165503R9235 1.960
A260 Incl. terminal bars 1SFN165503R9237 1.960
A300 Incl. terminal bars 1SFN165503R9239 1.960
AF145 Incl. terminal bars 1SFN165503R9232 1.310
AF185 Incl. terminal bars 1SFN165503R9234 1.310
AF210 Incl. terminal bars 1SFN165503R9236 1.960
AF260 Incl. terminal bars 1SFN165503R9238 1.960
AF300 Incl. terminal bars 1SFN165503R9240 1.960
AF400 Incl. terminal bars 1SFN165503R9241 4.635
AF460 Incl. terminal bars 1SFN165503R9241 4.635
AF580 Incl. terminal bars 1SFN165503R9243 5.135
AF750 Incl. terminal bars 1SFN165503R9243 5.135
AF1250 Incl. terminal bars and fixed contacts 1SFN165503R9245 6.215
AF1350 Incl. terminal bars and fixed contacts 1SFN165503R9246 18.060
AF1650 Incl. terminal bars and fixed contacts 1SFN165503R9246 18.060
AF2050 Incl. terminal bars and fixed contacts 1SFN165503R9248 18.305
AF2650 (1) Base part (plastic) 1SFN165503R9249 9.300
(1) No terminal bars or fixed contacts included.
1/6 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/7
11
Classic products
3-pole contactors type EH
Ordering details
Type code Type Order code Pkg
qty
Weight
(1 pce)
kg
EH175-30-11 EH175 SK825401-qq 4.700
EH175-30-21 EH175 SK825401-Eq4.700
EH175-30-22 EH175 SK825411-qq 4.700
EH210-30-11 EH210 SK825402-qq 4.700
EH210-30-21 EH210 SK825402-qq 4.700
EH210-30-22 EH210 SK825412-Eq4.700
EH260-30-11 EH260 SK826402-qq 6.200
EH260-30-21 EH260 SK826402-Eq6.200
EH260-30-22 EH260 SK826412-qq 6.200
EH300-30-11 EH300 SK826401-qq 6.250
EH300-30-21 EH300 SK826401-Eq6.250
EH300 30-22 EH300 SK826411- qq 6.250
EH370-30-11 EH370 SK827004-qq 12.400
EH370-30-22 EH370 SK827030-qq 12.400
EH550-30-11 EH550 SK827005-qq 12.400
EH550-30-22 EH550 SK827031-qq 12.400
EH700-30-11 EH700 SK828004-qq 17.100
EH700-30-22 EH700 SK828030-qq 17.100
EH800-30-11 EH800 SK828005-qq 17.300
EH800-30-22 EH800 SK828031-qq 17.300
EH1200-30-11 EH1200 SK828006-qq 18.000
EH1200-30-22 EH1200 SK828032-qq 18.000
Standard voltages
Contactor Code
types V (50 Hz) V (60 Hz) q q
EH175...EH800
EK110...EK550
–110 A E
110 120 A F
–208 A Z
190 220 A H
–240 A K
220-230 – 1) A L
230-240 – A M
380-400 440 A P
400-415 – A R
–480 A S
440 – A T
1) Read 240 V for EH370...EH800 and EK370...EK550
Contactor Code
types V d.c. q q
24 D B
EH370...EH1200 110 D E
EK110...EK550 125 D U2)
220 D F2)
2) N/A for EH1200
Dual frequency coils
2 auxiliary contact blocks maximum
per contactor, ambient temperature
≥ 50° C and mounting positions
2 and 6 excluded.
Contactor Code
types V (50 Hz) V (60 Hz) q q
EH370...EH1200
EK370...EK550
220 220-240 E L
220-230 230-255 E M2)
–208 A Z
2) N/A for EH1200
Multi-frequency coils
Contactor Code
types V (40-400 Hz) q q
EH175...EH300
EK110...EK210
220-230 E L
230-240 E M
Coil voltage codes
Classic products
Drive contactors type EHDB
Ordering details
Type code Type Order code Pkg
qty
Weight
(1 pce)
kg
2-pole contactors (2NO)
EHDB220-20-11 EHDB220 SK825484-qq 4.000
EHDB280-20-11 EHDB280 SK825486-qq 4.000
EHDB360-20-11 EHDB360 SK826484-qq 5.700
EHDB520-20-11 EHDB520 SK827084-qq 12.100
EHDB650-20-11 EHDB650 SK827086-qq 12.100
EHDB800-20-11 EHDB800 SK828084-qq 16.800
EHDB960-20-11 EHDB960 SK828086-qq 17.000
3-pole contactors (2NO + 1NC) 300 V DC dynamic braking
EHDB220-21-11 EHDB220 SK825485-qq 4.000
EHDB280-21-11 EHDB280 SK825487-qq 4.000
EHDB360-21-11 EHDB360 SK826485-qq 5.700
EHDB520-21-11 EHDB520 SK827085-qq 12.100
EHDB650-21-11 EHDB650 SK827087-qq 12.100
EHDB800-21-11 EHDB800 SK828085-qq 16.800
EHDB960-21-11 EHDB960 SK828087-qq 17.000
Standard voltages
Contactor Code
types V (50 Hz) V (60 Hz) q q
110 120 A F
–208 A Z
–240 A K
EHDB 220-230 240 A L
230-240 – A M
400-415 – A R
110-115 – G G (1)
(1) Include surge suppressor and 2NO+2NC forceable
controlled auxiliary contacts.
Coil voltage codes
1/8 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/9
11
Classic products
Main contact sets
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
Main contact sets for 3-pole contactors type EH
EH175 KZ175 SK825200-B 0.500
EH210 KZ210 SK825200-A 0.500
EH260 KZ260 SK826200-B 0.600
EH300 KZ300 SK826200-A 0.600
EH370 KZ370 SK827200-D 1.800
EH55 KZ550 SK827200-C 1.800
EH700 KZ700 SK828200-D 2.000
EH800 KZ800 SK828200-C 2.000
EH1200 KZ1200 SK828200-E
Main contact sets for single pole NC contactors type EHDB
EHDB220 KZD220NC SK825202-A 1 set
EHDB280 KZD280NC SK825202-B 1 set
EHDB360 KZD360NC SK826202-A 1 set
EHDB520 KZD520NC SK827202-A 1 set
EHDB650 KZD650NC SK827202-B 1 set
EHDB800 KZD800NC SK828202-A 1 set
EHDB960 KZD960NC SK828202-B 1 set
Main contact sets for 2-pole NO contactors type EHDB
EHDB220 KZD220NO SK825203-A 1 set
EHDB280 KZD280NO SK825203-B 1 set
EHDB360 KZD360NO SK826203-A 1 set
EHDB520 KZD520NO SK827203-A 1 set
EHDB650 KZD650NO SK827203-B 1 set
EHDB800 KZD800NO SK828203-A 1 set
EHDB960 KZD960NO SK828203-B 1 set
Main contact sets for 4-pole contactors type EK
EK110 KZK110 SK824204-A 0.450
EK150 KZK150 SK824204-B 0.450
EK175 KZK175 SK825204-A 0.700
EK210 KZK210 SK825204-B 0.700
EK370 KZK370 SK827204-A 2.400
EK550 KZK550 SK827204-B 2.400
EK1000 KZK1000 SK827204-F
Classic products
Connection sets
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
Connection for reversing contactors
EH175, EH210 BSH210 SK829091-D 1.100
EH260, EH300 BSH300 SK829091-E 2.500
EH370, EH550 BSH550 SK829091-F 5.600
EH700 BSH700 SK829091-G 6.400
EH800 BSH800 SK829091-H 6.400
EH1200
Connection for 4-pole chageover contactor
s
EK110 BSS100 SK829090-B 0.400
EK150 BSS145 SK829090-F 0.700
EK175, EK210 BSS210 SK829090-G 1.000
EK370, EK550 BSS550 SK829090-E 3.600
EK1000 BSS1000 SK829090-H 5.500
Connection for 4-pole start-delta starters
EH145 > A110 BED145 SK820092-L 0.700
EH175 > EH145 BSD210 SK829092-E 1.200
EH210 > EH175 1.200
EH300 > EH210 BSD300 SK829092-F 2.000
EH370 > EH260 BSD550 SK829092-G 4.800
EH550 > EH300 4.800
EH700 > EH550 BSD700 SK829092-H 6.600
EH800 > EH550 BSD800 SK829092-K 6.600
1/10 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/11
11
Classic products Classic products
Arc chute
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
Arc chute for 3-pole contactors type EH
EH175 KW175 5223351-AD 0.820
EH210 KW210 5223351-AE 0.820
EH260 KW260 5223351-AF 1.070
EH300 KW300 5223351-AG 1.070
EH370 KW370 5223351-L 2.360
EH550 KW550 5223351-M 2.360
EH700 KW700 5223351-N 2.890
EH800 KW800 5223351-P 2.890
EH1200 KW1200 5223354-H
Arc chute for 2-pole contactors type EHDB
EHDB220 KWD220-2P 5223353-B 1 set
EHDB280 KWD280-2P 5223353-C 1 set
EHDB360 KWD360-2P 5223353-D 1 set
EHDB520 KWD520-2P 5223353-E 1 set
EHDB650 KWP650-2P 5223353-F 1 set
EHDB800 KWP800-2P 5223353-G 1 set
EHDB960 KWP960-2P 5223353-H 1 set
Arc chute for 3-pole contactors type EHDB
EHDB220 KWD220-3P 5223352-B 1 set
EHDB280 KWD280-3P 5223352-C 1 set
EHDB360 KWD360-3P 5223352-D 1 set
EHDB520 KWD520-3P 5223352-E 1 set
EHDB650 KWP650-3P 5223352-F 1 set
EHDB800 KWP800-3P 5223352-G 1 set
EHDB960 KWP960-3P 5223352-H 1 set
Arc chute for 4-pole contactors type EK
EK110 KWK110 5223351-AH 0.660
EK150 KWK150 5223351-AK 0.660
EK175 KWK175 5223351-AL 1.260
EK210 KWK210 5223351-AM 1.260
EK370 KWK370 5223351-Y 3.170
EK550 KWK550 5223351-Z 3.170
EK1000 KWK1000 5223351-AN 3.170
Terminal shrouds
Ordering details
Mounting on contactors Type Order code Pkg
qty
Weight
(1 pce)
kg
EH145 ... EH210 LT210-EL SK178001-CB 0.060
EH145 ... EH210 LT210-EC SK178003-CB 0.057
EH260, EH300 LT300-E SK178001-DB 0.157
EH370, EH550 LT550-E SK178001-EB 0.157
EH700 LT700-E SK178001-FB 0.168
EH800 LT800-E SK178001-GB 0.182
EK110, EK150 LT150-EK SK178001-HB 0.182
EK175, EK210 LT210-EK SK178001-KB 0.139
EK370, EK550 LT550-EK SK178001-LB 0.190
EK1000 LT1000-EK SK178001-MB 0.200
Terminal extensions
Ordering details
Mounting on contactors Dimensions Type Order code Pkg
qty
Weight
(1 pce)
hole Ø
mm
bar
mm kg
EH145 ... EH210 11 20 x 5 LX210 SK879902-C 0.150
EH260 ... EH550 11 25 x 6 LX550 SK879902-D 0.300
EH700 11 40 x 6 LX700 SK879902-E 0.700
Terminal enlargements
Ordering details
Mounting on contactors Dimensions Type Order code Pkg
qty
Weight
(1 pce)
hole Ø
mm
bar
mm kg
EH145 ... 210 11 20 x 5 LW210 SK879901-C 0.300
Terminal connecting strips
Ordering details
For contactor Type Order code Pkg
qty
Weight
(1 pce)
kg
EH210
EH210 LY210 26310243-6 0.100
EH260
EH300
LY300 26310243-4 0.200
EH370
EH500
LY550 26310243-5 0.250
1/12 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/13
11
Classic products Classic products
Mounting plates
Ordering details
To use with left hand contactor Mecha Right hand contactor Type Order code Pkg Weight
qty (1 pce)
kg
Plates for two horizontal mounted contactors with or without a mechanical interlock unit
and/or thermal overload relay
EH175, EH210 VH250A EH145 PN210-22 SK829075-C 1.400
EH175, EH210 VH300 EH175, EH210
EK110, EK150 VH45 EK175, EK210
EH260, EH300 VH300 EH175, EH210 PN300-22 SK829075-E 2.070
EH260, EH300 VH300 EH260, EH300
EK175, EK210 VH300 EK175, EK210
Plates for two horizontal mounted contactors with or without a mechanical interlock unit
and/or thermal overload relay
EH370, EH550 –EH370, EH550 PN550-21 21750297-5 4.100
EH700, EH800 –EH700, EH800 PN800-22 21750297-6 5.000
EH370, EH550 –EH370, EH550
Main dimensions mm
320
340
ø 6.8
180
200
E0750D4
5
E0750D3
430
400
ø 15
200
E0748D1
3
E0748D3
1SBC585663F0302
PN ...
Adapter plates
Description
Adapter plates with fixing holes for specified old contactors to new contactors.
Ordering details
From old contactor To new contactor Type Order code Pkg
qty
Weight
(1 pce)
kg
EH65, EH75, EH80, EH90, EG80 A95, A110 PR110-1 1SFN094500R1000 10.270
EH100, EH145 A110, A145 PR145-1 1SFN094700R1000 10.360
EH150, EH160, EH175, EH210,
EG160 A185, A210 PR210-1 1SFN094900R1000 10.440
EH250, EH260, EH300 A210...A300 PR300-1 1SFN095300R1000 10.560
EH370, EH550, EG315 AF400...AF580 PR460-1 1SFN095700R1000 10.900
EH700, EH800 AF750 PR750-1 1SFN096100R1000 10.500
EH550, EG630 AF580, AF750 PR750-2 1SFN096100R1001 11.100
Note: The adapter plates provided for the A ... contactors can also be used for the AF ... contactors.
1SFT98001-015C3
PR300-1
E2119D
h
l
L
Dimensions (mm)
Type of the plate Dimensions Fixing holes
L I h mm
PR110-1 151 106 11.2 2 x ø 7
PR145-1 180 122 11.5 4 x ø 7
PR210-1 200 132 11.5 4 x ø 7
PR300-1 200 172 11.5 4 x ø 7
PR460-1 278 198 11.5 4 x ø 7
PR750-1 283 244 11.5 4 x ø 7
Note: The adapter plates provided for the A ... contactors can also be used for the AF ... contactors.
Fixing holes according to the plate types
1/14 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/15
11
Classic products
Mechanical and electrical interlocking units
Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
on left on right kg
Mechanical interlock units of two horizontal mounted contactors
EH370, EH550 EH260 ... EH550 VH550 SK829070-E 15.000
EHDB520 ... EHDB650 EHDB520 ... EHDB650
EH700, EH800
EH370, EH550
EH370 ... EH800
EK370, EK550
VH800 SK829070-F 16.000
EHDB800, EHDB960 EHDB800, EHDB960
EH145 EH145 VH145W SK829070-B 12.300
EH175, EH210 EH175, EH210 VH210W SK829070-C 12.400
EH260, EH300 EH260, EH300 VH300W SK829070-D 12.800
Mechanical and electrical interlock units of two horizontal mounted contactors
EH175, EH210 EK175, EK210 VH300 SK829071-B 10.130
EHDB220 ... EHDB360 EHDB220 ... EHDB360
Mechanical interlock units of two horizontal mounted contactors
EK370 ... EK1000 EK370 ... EK1000 VH800 SK829070-F 6.00
Mechanical and electrical interlock units of two vertical mounted contactors
EK110, EK150 EK110, EK150 VKV150 SK829072-B 0.250
EH260, EH300 EH260, EH300 VHV300 SK829072-D 0.430
EK175, EK210 EK175, EK210
EK175, EK210 EH145 VHV210A SK829072-F 0.220
EH145 EH145 VHV145 SK829072-A 0.430
EK175, EK210 EH260, EH300 VHV210 SK829072-C 0.600
Mechanical latching units
Ordering details
For contactor
type
Type Order code Pkg
qty
Weight
(1 pce)
kg
Mechanical latching units, righthand side contactor
EH175, EH210 WH210R-X SK829062-qq 1.070
EH260, EH300 WH300R-X SK829063-qq 1.090
EH370, EH550 WH550R-X SK829064-qq 2.300
EH700, EH800 WH800R-X SK829065-qq 2.400
Mechanical latching units, lefthand side contactor
EH175, EH210 WH210 L-X SK829082-qq 1.070
EH260, EH300 WH 3 0 0 L-X SK829083-qq 1.090
EH370, EH550 WH550 L-X SK829084-qq 2.300
EH700, EH800 W H 8 0 0 L-X SK829055-qq 2.400
Classic products
Contactor coils
Ordering details
For contactor type Type Order code Pkg
qty
Weight
(1 pce)
kg
A.C. or D.C. operated coils for EH and EK contactors
EH175, EH210 KH210 SK825400-qq 0.360
EK110, EK150
EHDB220, EHDB280
EH300 KH250 SK825100-qq 0.440
EH260, EH300 KH300 SK826400-qq 0.440
EK175, EK210
EHDB300
EK370, EK550 KH550 SK827100-qq 0.780
EHDB250, EHDB650
EH700, EH800 KH800 SK828100-qq 0.950
EK370, EK550
EGDB800, EHDB960
EK1200 KH1200 SK828101-qq
Sets including a D.C. coil, an economy resistor and an inertion contact
EH175, EH210 KP210 SK825450-qq 0.360
EK110, EK150
EH260, EH300 KP300 SK826450-qq 0.440
EK175, EK210
EH370, EH550 KP550 SK827150-qq 0.780
EH700 ... EH800 KP800 SK828150-qq
0
.950
Sets including a multi-frequency coil and an nsertion contact for contactor with built-in rectifier
EH175, EH210 KP210 SK825450-E q0.300
EK110, EK150
EH260, EH300 KP300 SK826450-E q0.400
EK175, EK210
a.c. and d.c. operated coils for the mechanical latching units on EH145 ... EH800 contactors
D.C. operated KX800X SK829100-qq 0.090
Standard voltages
Contactor Code
types V (50 Hz) V (60 Hz) q q
EH175...EH800
EK110...EK550
–110 A E
110 120 A F
–208 A Z
190 220 A H
–240 A K
220-230 – 1) A L
230-240 – A M
380-400 440 A P
400-415 – A R
–480 A S
440 – A T
1) Read 240 V for EH370...EH800 and EK370...EK550
Coil voltage codes
Contactor Code
types V d.c. q q
24 D B
EH370...EH1200 110 D E
EK110...EK550 125 D U2)
220 D F2)
2) N/A for EH1200
1/16 Spare parts for block contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for block contactos 1/17
11
Classic products
0
1000
100
(V)
()
0
1000
100

Surge suppressors for contactor coils
Description
The operation of inductive circuits causes overvoltages, in particular on opening of the contactor coil.
The electromagnetic energy stored in the coil during contactor closing is restored on opening in the form of
surges, the slope and amplitude of which may rise to several kilovolts. A number of drawbacks are observed
ranging from interference on the electronic devices to breakdown of insulators and even destruction of cer-
tain sensitive components.

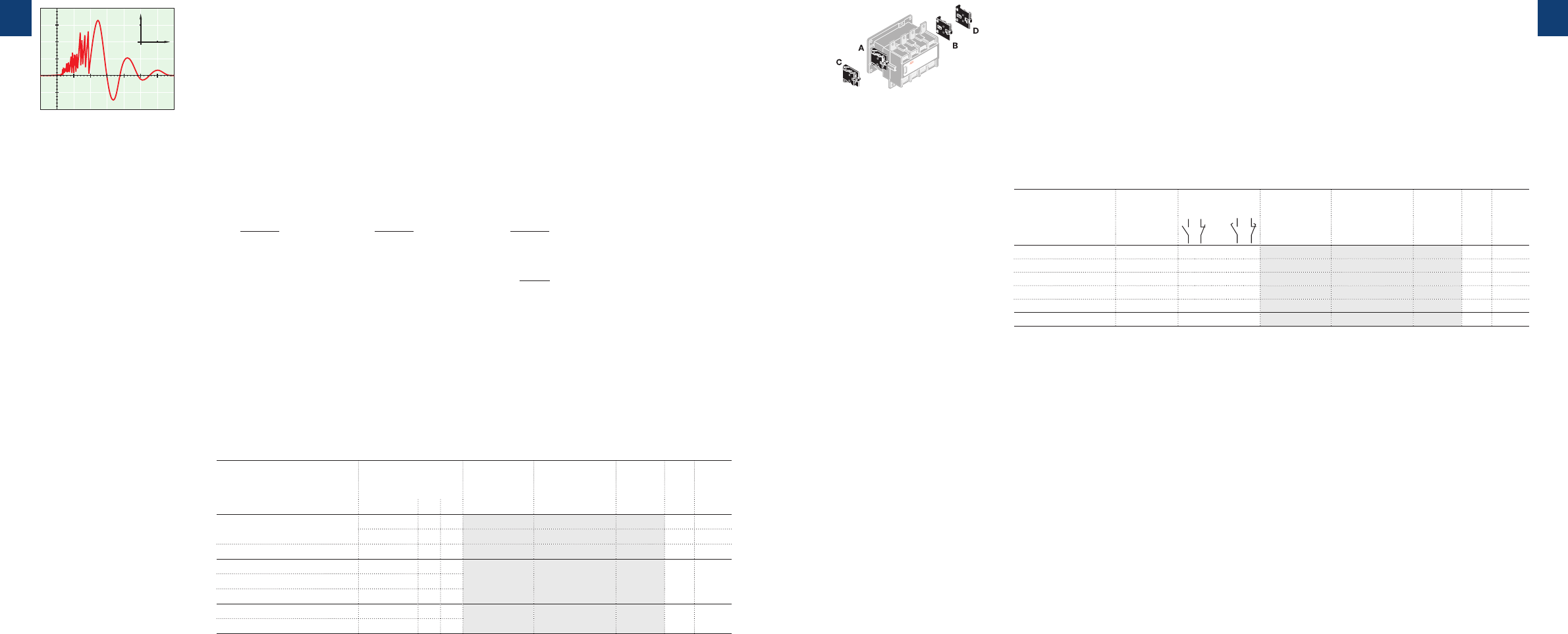

The graph opposite reproduces the oscillogram showing voltage discharges at the terminals of a 42V / 50Hz
coil without peak clipping. The coil was switched by 8 series-connected poles of a contactor relay.
Following a burst of discharges with a very steep slope a damped oscillation emerges with a peak value of
3500V.
Overvoltage Factor
The overvoltage factor k is defined as the ratio of the maximum overvoltage peak value Ûs to the peak value
Ûc of the coil rated control voltage Uc:
Ûs max.
Ûs max.
Ûs max.
k = in DC: k = or in AC: k =
Ûc Uc
Uc√2
3500
For example the following is obtained for the above graph: k = ≈ 60
42 √2
To reduce the harmful effects of these overvoltages, ABB has developed a range of surge suppressors de-
signed to reduce the k factor defined above and to limit or even completely eliminate the high pre-damping
voltage frequencies.
Each case is different, but the technical data tolerances and the generous sizing of parts have enabled us to
reduce the number of variants.
We have chosen the following solutions: transil diodes, varistors and RC blocks.
Note: A varistor is a resistor whose value decreases to a very large extent when a certain voltage is applied
at its terminals.
Ordering details
For contactors Rated control circuit
voltage
Uc
Type Order code Pkg
qty
Weight
(1 pce)
V AC DC kg
EH175 ... EH300, EK100 ... EK210 24...48
●
–RC-EH300/48 SK829007-A 20.015
110...415
●
–RC-EH300/416 SK829007-B 20.015
EHDB130 ... EHDB360 110...415 –
●
RC-EH300/415 SK829007-B 0.015
EH370 ... EH800, EK370 ... EK550 48...100
●
–RC-EH800/110 SK829007-C 20.015
EHDB520 ... EHDB960 –
●
EH175 ... EH800, EK110 ... EK550 24...125 –
●
EH370 ... EH800, EK370 ... EK1000 220...600
●
–RC-EH800/600 SK829007-D 20.015
EHDB520 ... EHDB960 –
●
Classic products
Auxiliary contact blocks
Classic products
Auxiliary contact blocks
Description
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits.
Types of auxiliary contact blocks for standard industrial environments:
– CAL instantaneous with N.O. + N.C. contacts
– CCL N.O. leading contact + N.C. lagging contact.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
protected against accidental direct contact, and bear the corresponding function marking.
Mounting: Screwed onto the right and / or lefthand side of the EK110 ... EK1000 contactors.
Ordering details
For contactors Number
of blocks
Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
EK, EHDB 1 1 1 – –
CAL16-11A SK829002-A 10.050
EK, EHDB 1 1 1 – –
CAL16-11B SK829002-B 10.050
EK, EHDB 1 1 1 – –
CAL16-11C SK829002-C 10.050
EK,EHDB 1 1 1 – –
CAL16-11D SK829002-D 10.050
EK 1 1 – – 1
CCL16-11E (1) SK829002-E 10.050
(1) Mounting of CCL16-11E blocks does not allow an additional second block to be added on top of it.
All DC operated EK... contactors are equipped with one CCL16-11E on the right side.
E2074D
Mounting positions
of the CAL16-11
2
R contactors
Spare parts for main poles
Contact sets 2/2
Arcing horns 2/2
Equipotential connections 2/3
Arc chutes 2/3
Spare parts for control circuits
Surge suppressors 2/4
Rectifiers 2/4
Magnet circuits 2/4
Spare parts for auxiliary contact
Auxiliary contact blocks CA12 2/5
Auxiliary contacts CA15 2/5
Mounting kits 2/5
R contactors
2/2 Spare parts for R contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for R contactos 2/3
22
Spare parts for main poles
Contact sets for main poles with arcing horn
Description
The contact sets include 1 fixed contact, 1 moving contact, 1 arcing horn (except for ratings
≥ 800 A) and screws.
The quantities needed are defined per ratings as follow:
1 set per pole for 63….800, 1000, 1400, 1700, 2100 A
2 sets per pole for 1250,1500, 2500, 3200, 3800 A
3 sets per pole for 2000, 4500, 5100 A
4 sets per pole for 3150, 5800 A
5 sets per pole for 4000 A
Ordering details
For R contactors type Order code Pkg
qty
Weight
(1 pce)
IOR, NOR , JOR and FOR
kg
63, 85 A FPTN410389R0001 1 set 0.050
125, 170 A FPTN410389R0002 1 set 0.150
200, 260 A FPTN410389R0003 1 set 0.250
315, 420 A FPTN410389R0004 1 set 0.400
500, 550 A FPTN410389R0005 1 set 0.480
800, 1000, 1250, 1500, 2000, 3150, 4000 A 1) FPTN410391R0001 1 set 0.520
1400, 2500 A 1) FPTN410503R0001 1 set 0.520
1700, 2100, 380, 4500, 5100, 5800 A1) FPTN410506R0001 1 set 0.830
1) Arcing horn must be ordered separately
Contact sets for main poles without arcing horn
Description
The contact sets include 1 fixed contact, 1 moving contact and screws.
Ordering details
For R contactors type Order code Pkg
qty
Weight
(1 pce)
LOR (1)
kg
63, 85 A FPTN410390R0001 1 set 0.040
125, 170 A FPTN410390R0002 1 set 0.090
200, 260 A FPTN410390R0003 1 set 0.180
315, 420 A FPTN410390R0004 1 set 0.250
500, 550 A FPTN410390R0005 1 set 0.470
800, 1000, 1250, 1500, 2000, 3150, 4000 A FPTN410391R0001 1 set 0.520
1400, 2500 A FPTN410503R0001 1 set 0.520
1700, 2100, 380, 4500, 5100, 5800 A FPTN410506R0001 1 set 0.830
(1) And for R contactors type IOR, NOR, JOR and FOR with contacts in parallel (1250 A, 1500 A, 2000 A, 3150 A, 4000 A)
Arcing horns
Description
Arcing horns must be ordered separately for ratings ≥ 800 A
Ordering details
For R contactors type
IOR, NOR, JOR and FOR
Order code Pkg
qty
Weight
(1 pce)
kg
800, 1000, 1250, 1500, 2000, 3150, 4000 A FPTN410446R0001 10.200
1400, 2500 A FPTN410446R0001 10.200
1700, 2100, 3800, 4500, 5100, 5800 A FPTN410508R0001 10.280
Spare parts for main poles
Equipotential connections
Description
Equipotential connections must be ordered separately for ratings ≥ 800 A
Ordering details
For R contactors type Type Order code Pkg
qty
Weight
(1 pce)
IOR, NOR, JOR and FOR
kg
800 ... 5800 A NO poles FPTN410176R0006 0.500
800 ... 4000 A NC poles FPTN410176R0007 0.530
Arc chutes
Description
De-ion arc chutes replace basic arc chutes except for 315 and 420 A ratings.
Ordering details
For R contactors type
IOR, NOR, JOR and FOR
Type Order code Pkg
qty
Weight
(1 pce)
kg
63, 85 A De-ion arc chute FPTN401938R0002 0.470
125, 170 A De-ion arc chute FPTN401939R0002 0.930
200, 260 A De-ion arc chute FPTN401940R0002 1.360
315, 420 A Basic arc chute FPTN401936R0002 1.300
400, 500, 550 A De-ion arc chute FPTN401941R0002 3.600
800, 100, 1250, 1500, 2000, 3150, 4000 A De-ion arc chute FPTN410067R0002 2.570
1400, 2500 A De-ion arc chute FPTN410067R0002 2.570
1700, 2100, 3800, 4500, 5100, 5800 A De-ion arc chute FPTN410507R0001 3.150
Pressure springs, insulated supports, complete poles
and other spare parts
Please contact your local sales organisation (order code for R contactor needed).
1SBC104032F0014
1SBC104033F0014 1SBC388134F0302NB
1SBC388134F0302NB2
1SBC387943F0302
2/4 Spare parts for R contactors | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for R contactos 2/5
22
Spare parts for control circuits
Surge suppressors for contactor coils
Ordering details
For R contactors type
IOR, NOR , JOR, LOR and FOR
Rated control circuit
voltage
Uc
Type Order code Pkg
qty
Weight
(1 pce)
V AC DC kg
63 ... 5800 A 24...60
●
–RV-R1/60 FPTN410463R6001 10.050
60...133
●
–RV-R1/133 FPTN410463R6002 10.050
110...250
●
–RV-R1/250 FPTN410463R6003 10.050
250...440
●
–RV-R1/440 FPTN410463R6004 10.050
24...90 –
●
RV-R1/60 FPTN410463R6001 10.050
60...180 –
●
RV-R1/133 FPTN410463R6002 10.050
110...320 –
●
RV-R1/250 FPTN410463R6003 10.050
250...550 –
●
RV-R1/440 FPTN410463R6004 10.050
Rectifiers
Ordering details
For R contactors type
IORR, NORR, JORR,
LORR and FORR
Rated control circuit
voltage
Uc
Order code Pkg
qty
Weight
(1 pce)
kg
63 ... 5800 A < 440 V AC TRE2614501 10.050
≥ 440 V AC TRE2720801 10.050
Complete control circuit kit
Including:
– 1 coil
– 1 economy resistor
– 1 surge suppressor
– 1 rectifier
For complete kit, please contact your local sales organization (order code of R contactor needed)
Magnet circuits
Ordering details
For R contactors type
IOR, NOR, JOR, LOR, and FOR Order code Pkg
qty
Weight
(1 pce)
kg
63, 85 A FPTN410437R0001 11.500
125, 170 A FPTN410438R0001 11.500
200, 260 A FPTN410439R0001 11.500
400 ... 550 A FPTN410441´R0001 12.500
≥ 800 A FPTN410200R0001 18.000
For tripping electro-magnet circuit AME or AM(F)-CC > 800 A: use 63, 85 A electro-magnet circuit.
For IOR and AMA versions, please consult your local sales organization (order code of R contactor needed)
Coils, economy resistors and other specific parts
Please contact your local sales organization (order code of R contactor needed).
Spare parts for auxiliary contacts
Auxiliary contact blocks type CA12
Description
CA12 auxiliary contact blocks 2- or 4-pole are mounted on a support bracket, above the electro-
magnet.
The R contactors type R and RE can be equipped with:
- 1 or 2 x 2-pole blocks
- 1 x 2-pole block + 1 x 4-pole blocks.
The R contactors type RR can be equipped with 1 or 2 x 2-pole blocks.
Ordering details
For R contactors type
R, RE, RR
(RC excluded)
Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
63...550 A
1 1
CA12-1 FPTN410004R0001
1
0.050
2 0
CA12-2 FPTN410005R0001
1
0.050
2 2
CA12-11 FPTN410013R0001
1
0.090
1 3
CA12-12 FPTN410016R0001
1
0.090
4 0
CA12-22 FPTN410012R0001
1
0.090
Support bracket
63 …260 A Support bracket FPTN410056R0001
1
0.060
315 … 550 A Support bracket FPTN410056R0002
1
0.060
Auxiliary contacts type CA15
Description
CA15 auxiliary contacts are mounted on a mounting kit, on the frame.
Ordering details
For R contactors type
R, RE, RR,
RC
Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
Auxiliary contact with screw terminals
63 ... 5800 A 1 0 CA15-F FPTN410008R0004
1
0.070
0 1 CA15-O FPTN410007R0006
1
0.070
Auxiliary contact for railway
63 ... 5800 A 1 0 CA15-F FPTN210382R0003
1
0.070
0 1 CA15-O FPTN210382R0004
1
0.070
Mounting kit
63 …170 A
315 … 550 A universal
Auxiliary frame ≥ 800 A mounting kit FPTN410054R0016
1
200 … 260 A Mounting kit FPTN410054R0017
1
Main frame ≥ 800 A Mounting kit FPTN410213R0006
1
For special auxiliary contact blocks: please contact your local sales organization (order code
of R contactor needed).
1SBC104030F00141SBC104029F0014
1SBC373832F0301
CA12
1SBC388052F0302
CA15-F
1SBC38042F0302
CA15-O
3
Softstarters
type PSE, PSS, PST and PSTB
HMI module 3/2
Printed circuit board 3/2
Cooling fan 3/2
Thyristors 3/3
Thyristors 3/4
Kit for changing thyristors 3/5
Semiconductor fuses and holders type Bussmann 3/6
Current transformers 3/7
Bypass relay and contactor 3/8
USB-cable for SoftstarterCare 3/8
Display 3/8
Keypad 3/8
3/2 Spare parts for softstarters | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for Softstarters 3/3
3 3
Accessories
HMI-module
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PSE18 ... PSE105 1PSEHMI-1 1SFA899219R7001 10.560
PSE142 ... PSE170 1PSEHMI-2 1SFA899219R7002 10.560
PSE210 ... PSE370 1PSEHMI-3 1SFA899219R7003 10.560
PST30... PST300 1PSHMI-1 1SFA899019R7001 11.000
PSTB370 ... PSTB1050 1PSHMI-2 1SFA899019R7002 11.000
PST30-T ... PST300-T 1PSHMI-1-T 1SFA899019R7021 11.000
PSTB370-T ... PSTB1050-T 1PSHMI-2-T 1SFA899019R7022 11.000
Printed circuit board
Ordering details
For softstarter type Type Order code Pkg
qty
Weight
(1 pce)
kg
PSS18 ... PSS300 1) Main PCB230 ... 500 V PSPCB-500/S 1SFA899020R1500 0.370
PSS18...PSS300-C 2) Main PCB230 ... 500 V PSPCB-500C/S 1SFA899020R2500 0.370
PSS18 ... PSS300 1) Main PCB380 ... 690 V PSPCB-690/S 1SFA899020R1690 0.470
PSS18...PSS300-C 2) Main PCB380 ... 690 V PSPCB-690C/S 1SFA899020R2690 0.470
PST30 ... PST300 LV board PSPCB-LV/T 1SFA899020R7000 0.360
PSTB370 ... PSTB1050
PST30-T ... PST300-T LV board PSPCB-LV/T-T 1SFA899020R7020 0.360
PSTB370-T ... PSTB1050-T
PST30 ... PST300 HV board PSPCB-690/T 1SFA899020R7690 0.190
PSTB370 ... PSTB1050
PST30-T ... PST300-T HV board PSPCB-690/T-T 1SFA899020R7691 0.190
PSTB370-T ... PSTB1050-T
1) Printed circuit board with fault signal contact normally open (N.O.)
2) Printed circuit board with fault signal contact normally closed (N.C.)
Cooling fan
Ordering details
For softstarter type Main
Voltage
Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
(V) kg
PSE18 ... PSE105 2PSFA-40 1SFA899215R1040 0.025
PSE142 ... PSE170 2PSFA-60 1SFA899215R1060 0.055
PSE210 ... PSE370 2PSFA-80 1SFA899215R1080 0.070
PSS18 ... PSS44 500 V 1PSFA-12 1SFA899015R1012 0.020
PSS50 ... PSS72 500 V 2PSFA-12 1SFA899015R1012 0.020
PSS18 ... PSS44 690 V 2PSFA-12 1SFA899015R1012 0.020
PSS85 ... PSS142 500/690 V 2PSFA-115 1SFA899015R1115 0.250
PSS175 ... PSS300 500/690 V 4PSFA-115 1SFA899015R1115 0.250
PST30 ... PST72 500/690 V 2PSFA-024 1SFA899015R7024 0.020
PST85 ... PST142 500/690 V 2PSFA-224 1SFA899015R7224 0.020
PST175 ... PST300 500/690 V 4PSFA-224 1SFA899015R7224 0.020
PSTB370... PSTB1050 500/690 V 3PSFA-224 1SFA899015R7224 0.020
Thyristors
For softstarters type PSE
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PSE18 2PSTHM-26/16 1SFA899210R1026 10.090
PSE25 2PSTHM-26/16 1SFA899210R1026 10.090
PSE30 2PSTHM-44/16 1SFA899210R1044 10.090
PSE37 2PSTHM-44/16 1SFA899210R1044 10.090
PSE45 2PSTHM-56/16 1SFA899210R1056 10.090
PSE60 2PSTHM-95/16 1SFA899210R1095 10.090
PSE72 2PSTHM-95/16 1SFA899210R1095 10.090
PSE85 2PSTHM-132/16
1SFA899210 R1132 10.125
PSE105 2PSTHM-162/16 1SFA899210R1162 10.125
PSE142 2PSTHM-162/16 1SFA899210R1162 10.125
PSE170 2PSTHM-200/16 1SFA899210R1200 10.125
PSE210 2PSTHM-312/16 1SFA899210R1312 10.750
PSE250 2PSTHM-501/16 1SFA899210R1501 11.500
PSE300 2PSTHM-501/16 1SFA899210R1501 11.500
PSE370 2PSTHM-501/16 1SFA899210R1501 11.500
For softstarters type PSS
Ordering details
For softstarter type Main
Voltage
Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
(V) kg
PSS18 <= 600 V 3PSTM-27/16 1SFA899010R1027 10.100
PSS30 <= 600 V 3PSTM-42/16 1SFA899010R1042 10.100
PSS37 <= 600 V 3PSTM-57/16 1SFA899010R1057 10.100
PSS44 <= 600 V 3PSTM-92/16 1SFA899010R1092 10.100
PSS50 <= 600 V 3PSTM-92/16 1SFA899010R1092 10.100
PSS60 <= 600 V 3PSTM-132/16 1SFA899010 R1132 10.250
PSS72 <= 600 V 3PSTM-172/16 1SFA899010R1172 10.250
PSS85 <= 600 V 3PSTM-172/16 1SFA899010R1172 10.250
PSS105 <= 600 V 3PSTM-210/16 1SFA899010R1210 10.940
PSS142 <= 600 V 3PSTM-250/16 1SFA899010R1250 10.940
PSS175 <= 600 V 3PSTM-250/16 1SFA899010R1250 10.940
PSS250 <= 600 V 3PSTM-500/16 1SFA899010R1500 11.420
PSS300 <= 600 V 3PSTM-500/16 1SFA899010R1500 11.420
PSS18 <= 690 V 3PSTM-27/18 1SFA899011R1027 10.100
PSS30 <= 690 V 3PSTM-42/18 1SFA899011R1042 10.100
PSS37 <= 690 V 3PSTM-57/18 1SFA899011R1057 10.100
PSS44 <= 690 V 3PSTM-92/18 1SFA899011R1092 10.100
PSS50 <= 690 V 3PSTM-92/18 1SFA899 011R1092 10.100
PSS60 <= 690 V 3PSTM-132/18 1SFA899011R1132 10.250
PSS72 <= 690 V 3PSTM-172/18 1SFA899011R1172 10.250
PSS85 <= 690 V 3PSTM-172/18 1SFA899 011R1172 10.250
PSS105 <= 690 V 3PSTM-210/18 1SFA899011R1210 10.940
PSS142 <= 690 V 3PSTM-250/18 1SFA899011R1250 10.940
PSS175 <= 690 V 3PSTM-250/18 1SFA899011R1250 10.940
PSS250 <= 690 V 3PSTM-500/18 1SFA899011R1500 11.420
PSS300 <= 690 V 3PSTM-500/18 1SFA899011R1500 11.420
3/4 Spare parts for softstarters | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for Softstarters 3/5
3 3
Thyristors
For softstarters type PST
Ordering details
For softstarter type Main
Voltage
Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
(V) kg
PST30 <= 600 V 3PSTM-42/16 1SFA899010R1042 0.100
PST37 <= 600 V 3PSTM-57/16 1SFA899010R1057 0.100
PST44 <= 600 V 3PSTM-92/16 1SFA899010R1092 0.100
PST50 <= 600 V 3PSTM-92/16 1SFA899010R1092 0.100
PST60 <= 600 V 3PSTM-132/16 1SFA899010R1132 0.250
PST72 <= 600 V 3PSTM-172/16 1SFA899010R1172 0.250
PST85 <= 600 V 3PSTM-172/16 1SFA899010R1172 0.250
PST105 <= 600 V 3PSTM-210/16 1SFA899010R1210 0.940
PST142 <= 600 V 3PSTM-250/16 1SFA899010R1250 0.940
PST175 <= 600 V 3PSTM-250/16 1SFA899010R1250 0.940
PST210 <= 600 V 3PSTM-330/16 1SFA899010R1330 0.750
PST250 <= 600 V 3PSTM-500/16 1SFA899010R1500 1.420
PST300 <= 600 V 3PSTM-500/16 1SFA899010R1500 1.420
PST30 <= 690 V 3PSTM-42/18 1SFA899011R1042 0.100
PST37 <= 690 V 3PSTM-57/18 1SFA899011R1057 0.100
PST44 <= 690 V 3PSTM-92/18 1SFA899011R1092 0.100
PST50 <= 690 V 3PSTM-92/18 1SFA899011R1092 0.100
PST60 <= 690 V 3PSTM-132/18 1SFA899011R1132 0.250
PST72 <= 690 V 3PSTM-172/18 1SFA899011R1172 0.250
PST85 <= 690 V 3PSTM-172/18 1SFA899011R1172 0.250
PST105 <= 690 V 3PSTM-210/18 1SFA899011R1210 0.940
PST142 <= 690 V 3PSTM-250/18 1SFA899011R1250 0.940
PST175 <= 690 V 3PSTM-250/18 1SFA899011R1250 0.940
PST210 <= 690 V 3PSTM-330/18 1SFA899011R1330 0.750
PST250 <= 690 V 3PSTM-500/18 1SFA899011R1500 1.420
PST300 <= 690 V 3PSTM-500/18 1SFA899011R1500 1.420
Thyristors
Kit for changing thyristors
Thyristorts for softstarters type PSTB
Ordering details
For softstarter type Main
Voltage
Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
(V) kg
PSTB370 <= 600 V 6PSTP-280/16 1SFA899008R1280 0.090
PSTB470 <= 600 V 6PSTP-370/16 1SFA899008R1370 0.340
PSTB570 <= 600 V 6PSTP-370/16 1SFA899008R1370 0.340
PSTB720 <= 600 V 6PSTP-540/16 1SFA899008R1540 0.510
PSTB840 <= 600 V 6PSTP-600/16 1SFA899008R1600 0.510
PSTB1050 <= 600 V 6PSTP-990/16 1SFA899008R1990 1.000
PSTB370 <= 690 V 6PSTP-280/18 1SFA899009R1280 0.090
PSTB470 <= 690 V 6PSTP-370/18 1SFA899009R1370 0.340
PSTB570 <= 690 V 6PSTP-370/18 1SFA899009R1370 0.340
PSTB720 <= 690 V 6PSTP-540/18 1SFA899009R1540 0.510
PSTB840 <= 690 V 6PSTP-760/18 1SFA899009R1760 1.000
PSTB1050 <= 690 V 6PSTP-1400/18 1SFA899009R2400 1.700
Kit for changing thyristors for softstarters type PSE, PSS,
PST and PSTB
Ordering details
For softstarter type Remark Type Order code Pkg
qty
Weight
(1 pce)
kg
PSE18…370 Sufficient for
replacing 10
thyristor blocks
PSPB-1 1SFA899012R1001 0.050
PSS18…300 Sufficient for
replacing 10
thyristor blocks
PSPB-1 1SFA899012R1001 0.05
PST30…300 Sufficient for
replacing 10
thyristor blocks
PSPB-1 1SFA899012R1001 0.050
PSTB370…1050 Sufficient for
replacing 20
thyristor disc
PSPB-2 1SFA899012R1002 0.050
3/6 Spare parts for softstarters | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for Softstarters 3/7
3 3
Semiconductor fuses and holders type Bussmann
For stoftstarters type PSS, PST and PSTB
Ordering details
Softstarter Fuses Holders
Type Main
Voltage
Pcs/
soft-
starter
Rating
current
Bussmann Pkg
qty
Weight
(1 pce)
(V) unit A Type Order code Type Type kg
PSS18 500/690 350 PSFU-50 1SFA899005R1364 170M1364 10.140
PSS30 500/690 380 PSFU-80 1SFA899005R1366 170M1366 10.140
PSS37 500/690 3125 PSFU-125 1SFA899005R1368 170M1368 10.140
PSS44 500/690 3160 PSFU-160 1SFA899005R1369 170M1369 10.140
PSS50 500/690 3160 PSFU-160 1SFA899005R1369 170M1369 10.140
PSS60 500/690 3200 PSFU-200 1SFA899005R1370 170M1370 10.140
PSS72 500/690 3250 PSFU-250 1SFA899005R1371 170M1371 10.140
PSS85 500/690 3315 PSFU-315 1SFA899005R1372 170M1372 10.140
PSS105 500/690 3400 PSFU-400 1SFA899005R3019 170M3019 20.300
PSS142 500/690 3450 PSFU-450 1SFA899005R3020 170M3020 20.300
PSS175 500/690 3500 PSFU-500 1SFA899005R3021 170M3021 20.300
PSS250 500/690 3700 PSFU-700 1SFA899005R5013 170M5013 20.600
PSS300 500/690 3900 PSFU-900 1SFA899005R5015 170M5015 20.600
PST30 600/690 380 PSFU-80 1SFA899005R1366 170M1366 10.140
PST37 600/690 3125 PSFU-125 1SFA899005R1368 170M1368 10.140
PST44 600/690 3160 PSFU-160 1SFA899005R1369 170M1369 10.140
PST50 600/690 3160 PSFU-160 1SFA899005R1369 170M1369 10.140
PST60 600/690 3200 PSFU-200 1SFA899005R1370 170M1370 10.140
PST72 600/690 3250 PSFU-250 1SFA899005R1371 170M1371 10.140
PST85 600/690 3315 PSFU-315 1SFA899005R1372 170M1372 10.140
PST105 600/690 3400 PSFU-400 1SFA899005R3019 170M3019 20.140
PST142 600/690 3450 PSFU-450 1SFA899005R3020 170M3020 20.300
PST175 600/690 3500 PSFU-500 1SFA899005R3021 170M3021 20.300
PST210 600/690 3630 PSFU-630 1SFA899005R5012 170M5012 20.300
PST250 600/690 3700 PSFU-700 1SFA899005R5013 170M5013 20.600
PST300 600/690 3900 PSFU-900 1SFA899005R5015 170M5015 20.600
PSTB370 600/690 3700 PSFU-700 1SFA899005R5013 170M5013 20.600
PSTB470 600/690 3900 PSFU-900 1SFA899005R5015 170M5015 20.600
PSTB570 600/690 3900 PSFU-900 1SFA899005R5015 170M5015 20.600
PSTB720 600/690 31250 PSFU-1250 1SFA899005R5018 170M5018 20.600
PSTB840 600/690 31500 PSFU-1500 1SFA899005R6018 170M6018 20.830
PSTB1050 600 31800 PSFU-1800 1SFA899005R6020 170M6020 20.830
PSTB1050 690 31600 PSFU1600 1SFA899005R6019 170M6019 20.830
Holders
Ordering details
Holders
type
Pcs / softstarter unit Type Order code Bussmann type Pkg
qty
Weight
(1 pce)
kg
13PSFH-1 1SFA899006R1007 170H1007 0.240
23PSRH-2 1SFA899006R3004 170H3004 1.420
Current transformers
For softstarters type PSS, PST and PSTB
Ordering details
For softstarter type Current transf.
pcs / softstarter
unit
Ratio Type Order code Pkg
qty
Weight
(1 pce)
kg
PSS18 130/1 PSCT-30 1SFA 899001R1030 0.200
PSS30 140/1 PSCT-40 1SFA 899001R1040 0.200
PSS37 150/1 PSCT-50 1SFA 899001R1050 0.200
PSS44 160/1 PSCT-60 1SFA 899001R1060 0.200
PSS50 175/1 PSCT-75 1SFA 899001R1075 0.200
PSS60 175/1 PSCT-75 1SFA 899001R1075 0.200
PSS72 1100/1 PSCT-100 1SFA 899001R1100 0.150
PSS85 1125/1 PSCT-125 1SFA 8990 01R1125 0.150
PSS105 1150/1 PSCT-150 1SFA 899001R1150 0.150
PSS142 1200/1 PSCT-200 1SFA 899001R1200 0.250
PSS175 1250/1 PSCT-250 1SFA 899001R1250 0.250
PSS250 1400/1 PSCT-400 1SFA 899001R1400 0.200
PSS300 1400/1 PSCT-400 1SFA 899001R1400 0.200
PST30 330/1 PSCT-30 1SFA 899001R1030 0.200
PST37 340/1 PSCT-40 1SFA 899001R1040 0.200
PST44 350/1 PSCT-50 1SFA 899001R1050 0.200
PST50 350/1 PSCT-50 1SFA 899001R1050 0.200
PST60 360/1 PSCT-60 1SFA 899001R1060 0.200
PST72 375/1 PSCT-75 1SFA 899001R1075 0.200
PST85 3100/1 PSCT-100 1SFA 899001R1100 0.150
PST105 3125/1 PSCT-125 1SFA 899 001R1125 0.150
PST142 3150/1 PSCT-150 1SFA 899001R1150 0.150
PST175 3200/1 PSCT-200 1SFA 899001R1200 0.250
PST210 3250/1 PSCT-250 1SFA 899001R1250 0.250
PST250 3250/1 PSCT-250 1SFA 899001R1250 0.250
PST300 3300/1 PSCT-300 1SFA 899001R1300 0.300
PSTB370 3400/1 PSCT-400 1SFA 899001R1400 0.200
PSTB470 3500/1 PSCT-500 1SFA 899001R1500 0.300
PSTB570 3600/1 PSCT-600 1SFA 899001R1600 0.300
PSTB720 3750/1 PSCT-750 1SFA 899001R1750 0.300
PSTB840 31000/1 PSCT-1000 1SFA 899001R2000 0.300
PSTB1050 31200/1 PSCT-1200 1SFA 899001R2200 0.300
3/8 Spare parts for softstarters | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for Softstarters 3/9
3 3
Other accessories
for softstarter type PSE, PST and PSTB
Bypass relay and contactor
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PSE18 ... PSE105 1PSBP-120 1SFA899201R1120 20.170
PSE142 ... PSE170 2PSBP-200 1SFA899201R1200 10.330
PSE210 ... PSE370 1AF110-30-00 1SFL457001R7000 12.100
USB-cable for SoftstarterCare
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PSE18 ... PSE370 1PSECA 1SFA897201R1001 10.130
Display
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PST30 .. PST300 1PSDP-1 1SFA899017R1000 10.040
PSTB370 ... PSTB1050
Keypad
Ordering details
For softstarter type Pcs/
unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
PST30 .. PST300 1PSKP-1 1SFA899018R1000 10.010
PSTB370 ... PSTB1050
4
Contents
Arc guard system TVOC
Arc monitor 4/2
Detector 4/2
Optical cable 4/3
Mounting bracket 4/3
Mounting kit 4/3
Label 4/3
Flush mounting set 4/3
Current transformers 4/3
4/3 Spare parts for arc guard | 1SFC001013C0201, Rev. E 1SFC001013C0201, Rev. E | Spare parts for arc guard 4/4
44
Arc monitor
Detectors
Arc monitor
Ordering details
For power supply voltage Type Order code Pkg
qty
Weight
(1 pce)
kg
60...220 V, DC or 60...240 V, 50/60 Hz 1SFA663001R1001 1.680
24...48 V, DC 1SFA663001R1002 1.680
Arc monitor - simplified version
60...220 V, DC or 60...240 V, 50/60 Hz 1SFA663001R1003
24...48 V, DC 1SFA663001R1004
Detectors with optical cable of plastic fibre
Ordering details
Cable length Order code Pkg Weight
qty (1 pce)
kg
1 m 1SFA663003R1010 0.020
2 m 1SFA663003R1020 0.020
4 m 1SFA663003R1040 0.040
6 m 1SFA663003R1060 0.060
8 m 1SFA663003R1080 0.080
10 m 1SFA663003R1100 0.100
15 m 1SFA663003R1150 0.150
20 m 1SFA663003R1200 0.200
25 m 1SFA663003R1250 0.200
30 m 1SFA663003R1300 0.300
other lengths on request
Accessories
Optical cables
Ordering details
Cable length Order code Pkg Weight
qty (1 pce)
kg
0.5 m 1SFA663004R1000 0.010
1 m 1SFA663004R1010 0.010
2 m 1SFA663004R1020 0.020
4 m 1SFA663004R1040 0.040
6 m 1SFA663004R1060 0.060
8 m 1SFA663004R1080 0.080
10 m 1SFA663004R1100 0.100
15 m 1SFA663004R1150 0.150
20 m 1SFA663004R1200 0.200
25 m 1SFA663004R1250 0.250
30 m 1SFA663004R1300 0.300
Mounting bracket set
Ordering details
Order code Pkg Weight
qty (1 pce)
kg
One set including 5 pcs of bracket and
10 pcs if cable strap
1SFA663006R1010 0.250
Mounting kit
600 mm 1SFA663006R1001 0.350
800/1000 mm 1SFA663006R1002 0.600
Label
One set including 10 pcs 1SFA663005R1001 0.020
Flush mounting set
Consisting of mounting bracket,
gasket and screws
1SFA663006R1015 0.530
Contact us
Catalog 1SFC001013C0201, Rev. E, Nov.ember 2013. Prod. ABB AB, Low Voltage Productsl/XM
ABB AB
Low Voltage Products
Control Products
SE-721 61 VÄSTERÅS, Sweden
ABB France
Low Voltage Products Division
3, rue Jean Perrin
F-69687 Chassieu cedex, France
www.abb.com/lowvoltage
Note
We reserve the right to make technical changes or
modify the contents of this document without prior
notice. With regard to purchase orders, the agreed
particulars shall prevail. ABB does not accept any re-
sponsibility whatsoever for potential errors or possible
lack of information in this document.
We reserve all rights in this document and in the
subject matter and illustrations contained therein. Any
reproduction, disclosure to third parties or utilization of
its contents - in whole or in parts – is forbidden without
prior written consent of ABB.
Copyright© 2013 ABB
All rights reserved

Navigation menu
