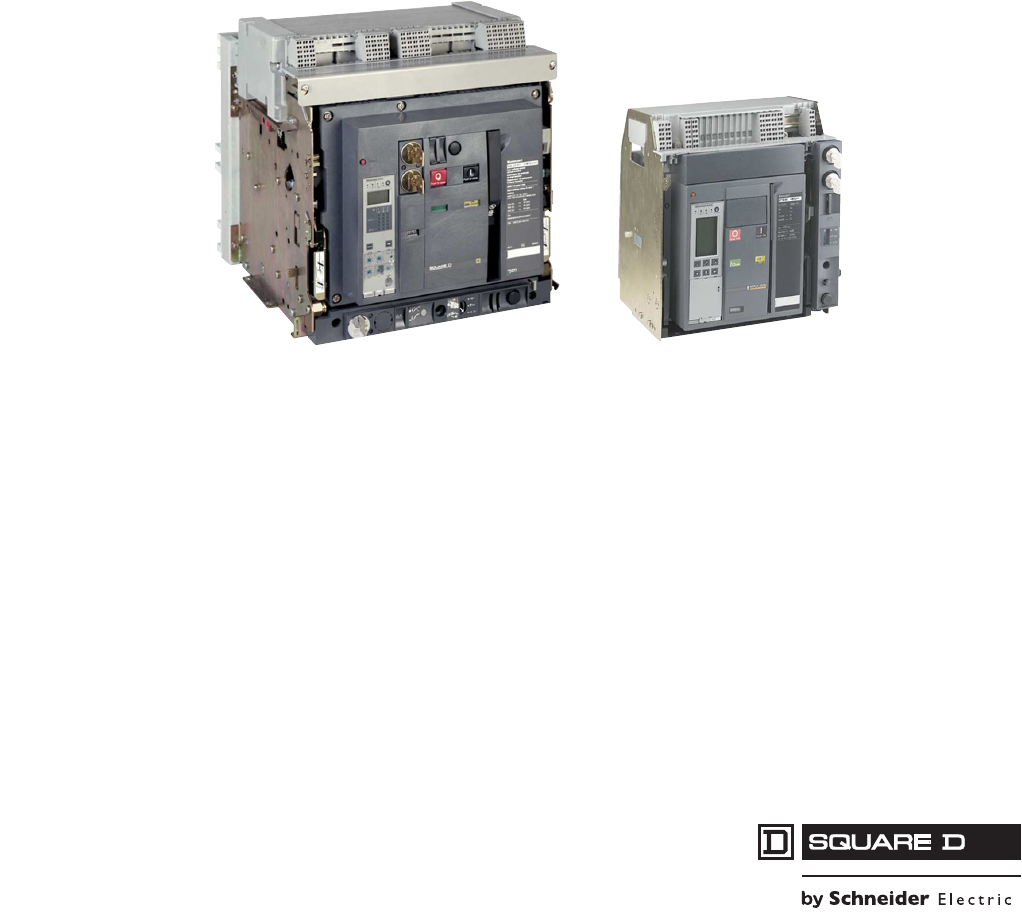

Masterpact NT/NW
Universal Power Circuit Breakers
Tested to IEC 60947-2 Certified to ABS-NVR
(American Bureau of Shipping-Naval Rules)
Pricing Guide
0613PL0601R05/09
2009
Class 613
CONTENTS
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IEC 60947-2 Rated (ABS-NVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Circuit Breaker/Cradle Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Trip Unit and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Circuit Breaker Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cradle Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Miscellaneous Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
®
2
© 2000-2009 Schneider Electric All Rights Reserved
Prices subject to change without notice.
06/2009
www.schneider-electric.us
Pricing Guide Masterpact
®
NT/NW Universal Power Circuit Breakers
Introduction
Introduction
This document is intended to provide pricing for a complete circuit breaker with cradle and required accessories, as
well as field-installable accessory kits. Refer to the MASTERPACT NT/NW Universal Power Circuit Breaker Certified to
ABS-NVR Catalog (0613CT0601R4/08) for product descriptions.
For assistance in creating a complete breaker and
cradle catalog number, please contact your nearest Square D/Schneider Electric sales office.
To price a complete circuit breaker; include:
1. Basic Block
2. Cradle (for drawout circuit breaker)
3. Circuit Breaker/Cradle Connectors
4. Trip Unit and Options (page 6)
Optional:
1. Circuit Breaker Accessories (page 8)
2. Cradle Accessories (page 9)
3. Miscellaneous Accessories (page 11)
Please see Appendix A (pages 13–14) for a request for quotation form.
DE2F
Discount
Schedule
www.schneider-electric.us
© 2000-2009 Schneider Electric All Rights Reserved
Prices subject to change without notice.
06/2009
3
Pricing Guide Masterpact
®
NT/NW Universal Power Circuit Breakers
IEC 60947-2 Rated (ABS-NVR)
Basic Block
a
Includes sensor plug.
a
Switches are IEC 60947-3 rated.
b
The withstand rating is the fault current (at rated voltage) that the switch
will withstand without damage when protected by a circuit breaker with
an equal continuous current rating.
c
Includes sensor plug.
.
a
Switches are IEC 60947-3 rated.
b
Includes sensor plug.
c
When used in conjunction with an overcurrent relay, circuit breaker,
or fuse.
d
0.5s for T-Frame.
Table 1: T-, W- and Y-Frame Fixed
Circuit Breaker
Frame
Rating
(A)
Model
Number
Interrupting
Rating (kA) Sensor
Plug
(A)
$ Price
a
240 V 440 V 690 V 3-Pole 4-Pole
T-Frame
800
NT08H1 42 42 42 250,
400,
630,
800
9026.00 12592.00
NT08H2 50 50 42
10036.00 13906.00
NT08L1 150 130 25
11046.00 15218.00
1000
NT10H1 42 42 42 400,
630,
800,
1000
9612.00 13356.00
NT10H2 50 50 42
10586.00 14620.00
NT10L1 150 130 25
11558.00 15884.00
1250 NT12H1 42 42 42 630,
800,
1000,
1250
10202.00 15202.00
NT12H2 50 50 42
10798.00 14896.00
1600 NT16H1 42 42 42 800,
1000,
1250,
1600
11392.00 15668.00
NT16H2 50 50 42
11988.00 16442.00
W-Frame
800
NW08N1 42 42 42 400,
630,
800
10744.00 14990.00
NW08H1 65 65 65
12072.00 16714.00
NW08H2 100 100 85
13148.00 18116.00
1000
NW10N1 42 42 42 400,
630,
800,
1000
11444.00 15900.00
NW10H1 65 65 65
12840.00 17714.00
NW10H2 100 100 85
13758.00 18908.00
1250
NW12N1 42 42 42 630,
800,
1000,
1250
12146.00 16812.00
NW12H1 65 65 65
13610.00 18714.00
NW12H2 100 100 85
14368.00 19702.00
1600
NW16N1 42 42 42 800,
1000,
1250,
1600
13564.00 18654.00
NW16H1 65 65 65
15168.00 20742.00
NW16H2 100 100 85
16012.00 21834.00
2000
NW20H1 65 65 65 1000,
1250,
1600,
2000
18142.00 24606.00
NW20H2 100 100 85
19148.00 25914.00
2500
NW25H1 65 65 65 1250,
1600,
2000,
2500
31258.00 42326.00
NW25H2 100 100 85
35054.00 46594.00
3200
NW32H1 65 65 65 1600,
2000,
2500,
3200
38870.00 51552.00
NW32H2 100 100 85
44702.00 59136.00
4000
NW40H1 65 65 65 2000,
2500,
3200,
4000
63796.00 98354.00
NW40H2 100 100 85
73128.00 96086.00
Y-Frame
5000
NW50H1 100 100 100 2500,
3200,
4000,
5000
95852.00 106348.00
NW50H2 150 150 100
115146.00 128332.00
6300
NW63H1 100 100 100 3200,
4000,
5000,
6300
129022.00 143668.00
NW63H2 150 150 100
165382.00 183868.00
Table 2: W- and Y-Frame Fixed
Automatic Switch
a
Frame
Rating
(A)
Model
Number
Withstand
Rating (kA RMS)
b
Instantaneous
Override
(kA RMS)
$ Price
c
240 V 440 V 690 V 3-Pole 4-Pole
W-Frame
800 NW08HF 85 85 85 85
15872.00 20838.00
1000 NW10HF 85 85 85 85
16480.00 21630.00
1250 NW12HF 85 85 85 85
17090.00 22424.00
1600 NW16HF 85 85 85 85
18734.00 24558.00
2000 NW20HF 85 85 85 85
21870.00 28636.00
2500 NW25HF 85 85 85 85
37778.00 49316.00
3200 NW30HF 85 85 85 85
47424.00 61858.00
4000 NW40HF 85 85 85 85
75850.00 98808.00
Table 3: T-, W- and Y-Frame Fixed
Non-automatic Switch
a
Frame
Rating
(A)
Model
Number
Interrupting
Rating (kA RMS)
c
Short-time (1s)
Rating
(kA RMS)
d
$ Price
b
240 V 440 V 690 V 3-Pole 4-Pole
T-Frame
800 NT08HA 42 42 42 42
9932.00 13770.00
1000 NT10HA 42 42 42 42
10594.00 14632.00
1250 NT12HA 42 42 42 42
11260.00 15492.00
1600 NT16HA 42 42 42 42
11704.00 16074.00
W-Frame
800 NW08NA 42 42 42 42
11826.00 16392.00
NW08HA 50 50 50 50
13242.00 19382.00
1000 NW10NA 42 42 42 42
12612.00 17418.00
NW10HA 50 50 50 50
14126.00 20530.00
1250 NW12NA 42 42 42 42
13402.00 18444.00
NW12HA 50 50 50 50
15012.00 21680.00
1600 NW16NA 42 42 42 42
13932.00 19136.00
NW16HA 50 50 50 50
15604.00 22452.00
2000 NW20HA 50 50 50 50
19626.00 26534.00
2500 NW25HA 50 50 50 50
27304.00 36518.00
3200 NW32HA 50 50 50 50
34310.00 45624.00
4000 NW40HA 50 50 50 50
54898.00 72388.00
Y-Frame
5000 NW50HA 85 85 85 85
84930.00 111432.00
6300 NW63HA 85 85 85 85
124060.00 162298.00
