Lamp catalogue
GE
Lighting
2012/2013 Lamp catalogue
2012/2013 Lamp catalogue
GE Innovation History
Nowadays GE Lighting has become one of the biggest
lighting solution suppliers in the world.
Invented double coil auto head light
in 1924
Invented Incandescent in 1879
Invented Mercury lamp in 1931
Introduced Linear Fluorescent
lamp in 1938
Introduced halogen in 1958
Invented High Pressure Sodium
in 1962
Introduced metal halide lamp
in 1964
Invented world first LED in 1969
Introduced energy saving
fluorescent lamp in 1974
Introduced low-wattage
metal halide lamp in 1982
Introduced 40W compact
fluorescent lamp in 1987
Introduced constantcolor MR16
in 1991
Introduced high-efficient compact
fluorescent lamp in 1992
Invented Genura in 1994
Promoted 2D compact fluorescent
floor lamp in 1998
Promoted Covguard fluorescent lamp
in 1999
Initiate high-wattage ceramic metal
halide lamp globally in 2002
1
2011
2011 America’s and World’s Most Admired Companies
2010 Best Global Brand
Ranked #1
2010 Company for Leaders
2010 World's Most Innovative Companies
2007 World’s Best R&D Companies
2009 Most Respected Global Company
Throughout our 100-year history, GE Lighting has been committed to extending the life of lamps, increasing overall
lighting efficiency and reducing energy consumption. We achieve this through our innovation, spirit and unremitting
efforts that we inherited from our founder, Thomas Edison. GE Lighting divides it's business into three areas, Light Emitting
Diodes (LED's), Lamps and Fixtures. Combining a professional background with our market leadership in Lighting, LED has
emphasis on providing a complete set of world leading LED systems and solutions that focus on environmental sustainability.
Our range of LED lighting systems include sinage, architectural lighting, transportation lighting, displaying lighting
and general lighting. Our lamp business covers the complete range of lamp varieties including incandescent, halogen,
fluorescent, compact fluorescent, high intensity discharge, automotive and specialty lighting. GE Specialty lighting
manufactures products for the aircraft and transportation industries along with projector lamps which satisfy front, rear
and video projection, medical, architectural, fibre optic, stage & studio, entertainment and theatre lighting. The business
also covers a wide range of lighting systems, including commercial lighting, industrial lighting, roadway and tunnel
Lighting, flood lighting, area lighting and ballasts. All of our lighting products are in accordance with Six Sigma control
insuring that GE's lighting products are of the highest quality standards offering unlimited lighting and enjoyment.
2
ECOMAGINATION WORDING
MAKING RENEWABLE ENERGY A REALITY.
–
4.Reduce water use
and improve water reuse
1. Continue to increase revenuse from ecomagination products 2. Double investment in R&D
3. Reduce greenhouse gas
emissions and improve
energy efficiency of GE
5.Keep the public informed
Ecomagination is a business initiative to help meet the world’s demand for more energy-efficient products and to drive
reliable growth for GE.
It’s GE’s commitment to invest in innovative solutions to environmental challenges, delivering valuable products and
services to customers while generating profitable growth for the company.
Already, GE Lighting has produced over 800 products of Ecomagination, and that number will continue to grow with the
introduction of new products in the future.
3
Any update of data in this leaet will not be informed. Please contact GE Lighting for detailed information.
Halogen Lamps 5
Linear Fluorescent Lamps 20
Compact Fluorescent Lamps Non-Integrated 27
Compact Fluorescent Lamps Integrated 42
High Intensity Discharge Lamps 59
SHOWBIZ Lamps 85

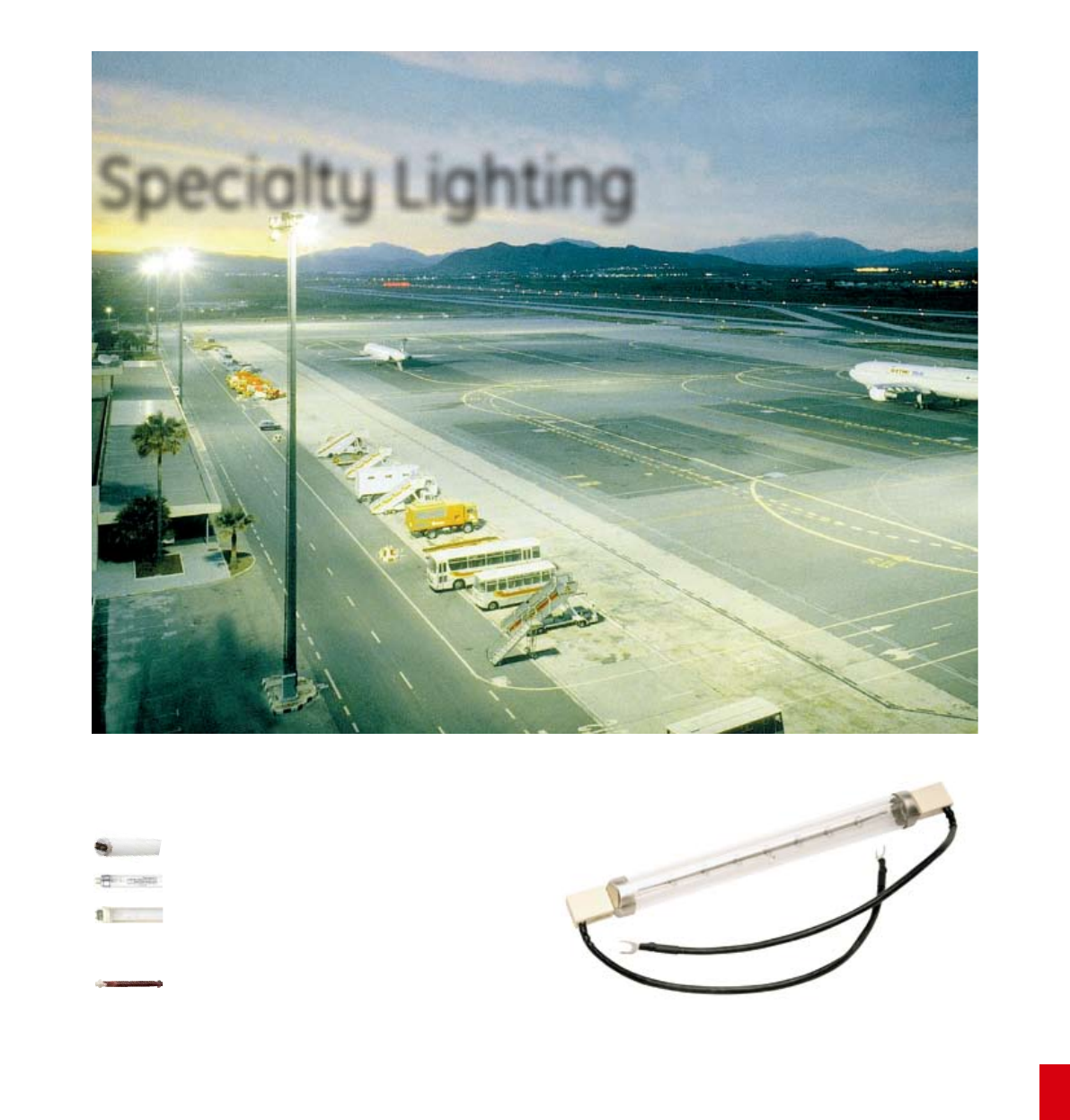

Specialty Lamps 99
Ballast 107
Contents
4
5
Halogen Lamps
MR 11 Low Voltage 13
MR 16 Low Voltage 13
AR111 Aluminium Reector 15
MR 16 & MR 20 Mains Voltage GU10 Cap 15
G9 Mains Voltage 16
Single Ended Halogen Capsules 16
Double Ended Linear 17
PAR 16, 20, 25, 30 18
Energy Efcient Halogen Incandescent Shapes 18
6
指指指指
Halogen Lamps
By using halogen gas which allows the lamp
to burn more brightly without sacrificing life,
they are more efficient than incandescent
lamps at converting electricity into light,
therefore giving more light for less energy
and from a smaller physical size.
Why halogen?
• Crisp white light (CCT 2800K+)
• Excellent colour rendering, light close to
natural (100% CRI)
• Long lasting bright light – more than 90%
lumen maintenance
• Instant (re-)start – full light output
immediately after switch on
• Dimmable
• Environmentally friendly technology
– mercury and lead free, no
electromagnetic emission

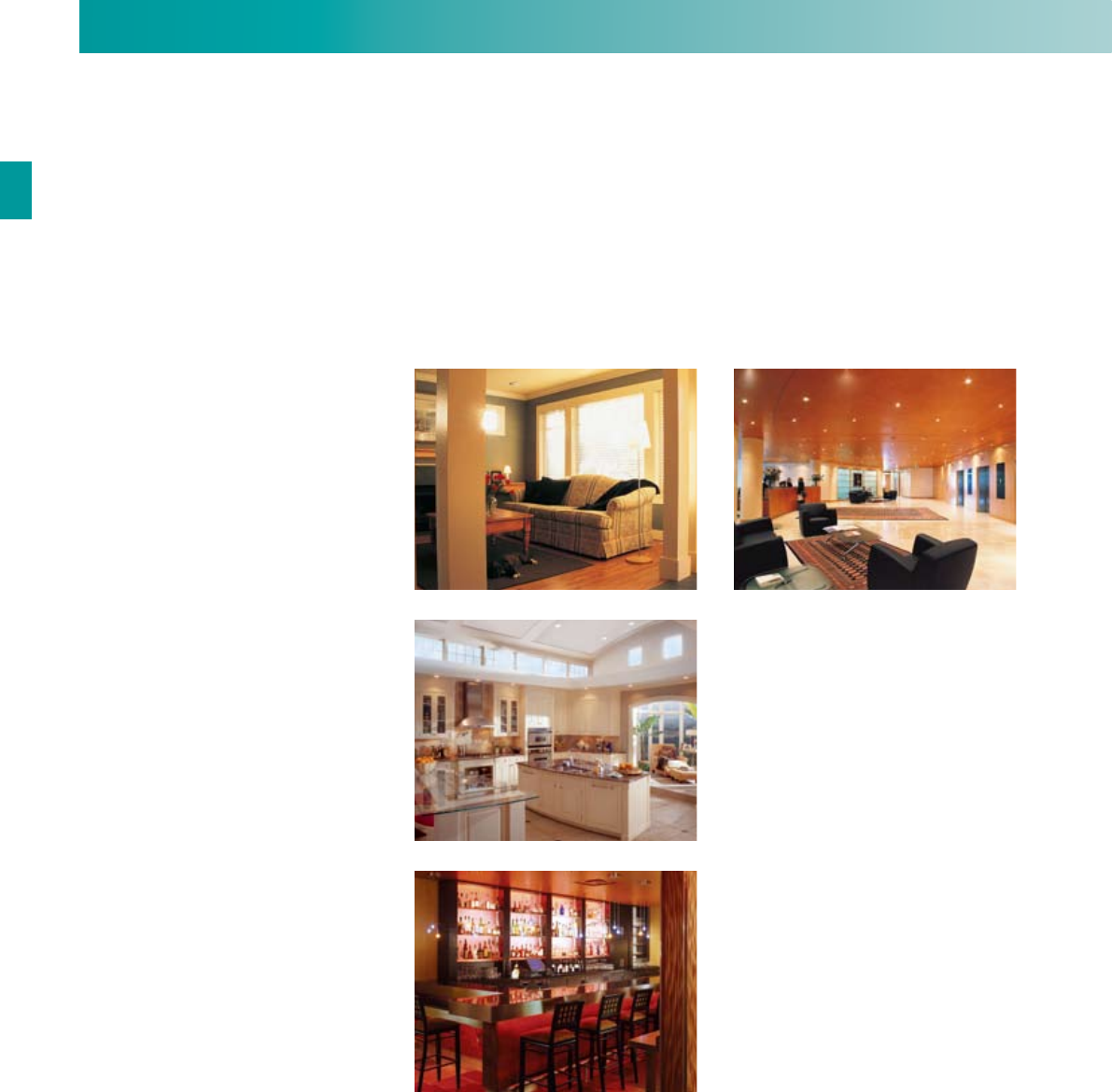

Popular for accent, display and general
lighting applications in a wide variety of
commercial, industrial and residential
environments.
Halogen lamps – clean, bright, white light.
Invented in 1958 by GE, halogen lamps
provide a compact, high output, crisp,
white light that delivers superior colour
reproduction.
7
Advanced lighting technologies
The ‘new incandescent’ lamps
• Exactly same size and appearance as an
incandescent lamp
• Provides full light strength at start-up
• 30% energy saving
• Dimmable
• 2,000 hours life
• Environmentally friendly – mercury and lead free
• Excellent colour rendering, light close to natural
(100% CRI)
• More than 90% lumen maintenance over life
HaloGLS, HaloCandle,
HaloSpherical, HaloReflector
Energy Efficient Halogen range (up to
C energy class). 18, 28, 42, 70, 100W
For Energy Saving
upgrade
to
Premium performance product alternatives for more efficient lighting
Base Watt New Watt
25W 18W No Yes Yes No
40W 28W Yes Yes Yes Yes
60W 42W Yes Yes Yes Yes
100W 75W Yes No No Yes
150W 100W Yes No No No
Infra Red MR16 – Energy Saving solution
• Up to 40% energy saving
• 5,000 hours life
• Premium quality light
• Replacement for standard MR16 lamp
C class Double Ended Linear
• Increased efficiency – C energy class
• More than 30% energy saving
• Retrofit to standard Double Ended Linear
• Full range 100-330W to replace 150-500W standard range
MR16 Standard Double Ended Linear
150, 200, 300 and 500W
Precise MR16 IR C energy class Double
Ended Linear 100, 130, 200
and 330W
For Energy Saving For Energy Saving
upgrade
to upgrade
to
Base Watt New MR16 IR
Watt Saved Watt Saved Energy Cost
through total life
35W 20W 15W 7,5 EUR
50W 35W 15W 7,5 EUR
~65W 45W 20W ~10 EUR
Base Watt New Watt Saved Watt Saved Energy Cost /
1000hrs
150W 100W 50W 5 EUR
200W 130W 70W 7 EUR
300W 200W 100W 10 EUR
500W 330W 170W 17 EUR
8
Halogen Lamps
GE halogen IR (infrared) range of low voltage
reflector lamps provide up to 43% energy
savings over conventional MR16 lamps
and – with the addition of the patented GE
reflector coating technology – unparalleled
colour rendering throughout life.
Available in two versions, the high
performance MR16 ConstantColor IR offers
low energy use, superior lumen and color
maintenance, while the MR16 IR delivers
savings using a standard dichroic reflector.
Halogen-IR Technology?
The Precise IR halogen capsule has multiple
layers of very durable, thin, interference film
which redirects heat, which would otherwise
be wasted, back onto the lamp filament.
This increases the filament temperature and
allows it to give off more visible light for the
same input power.

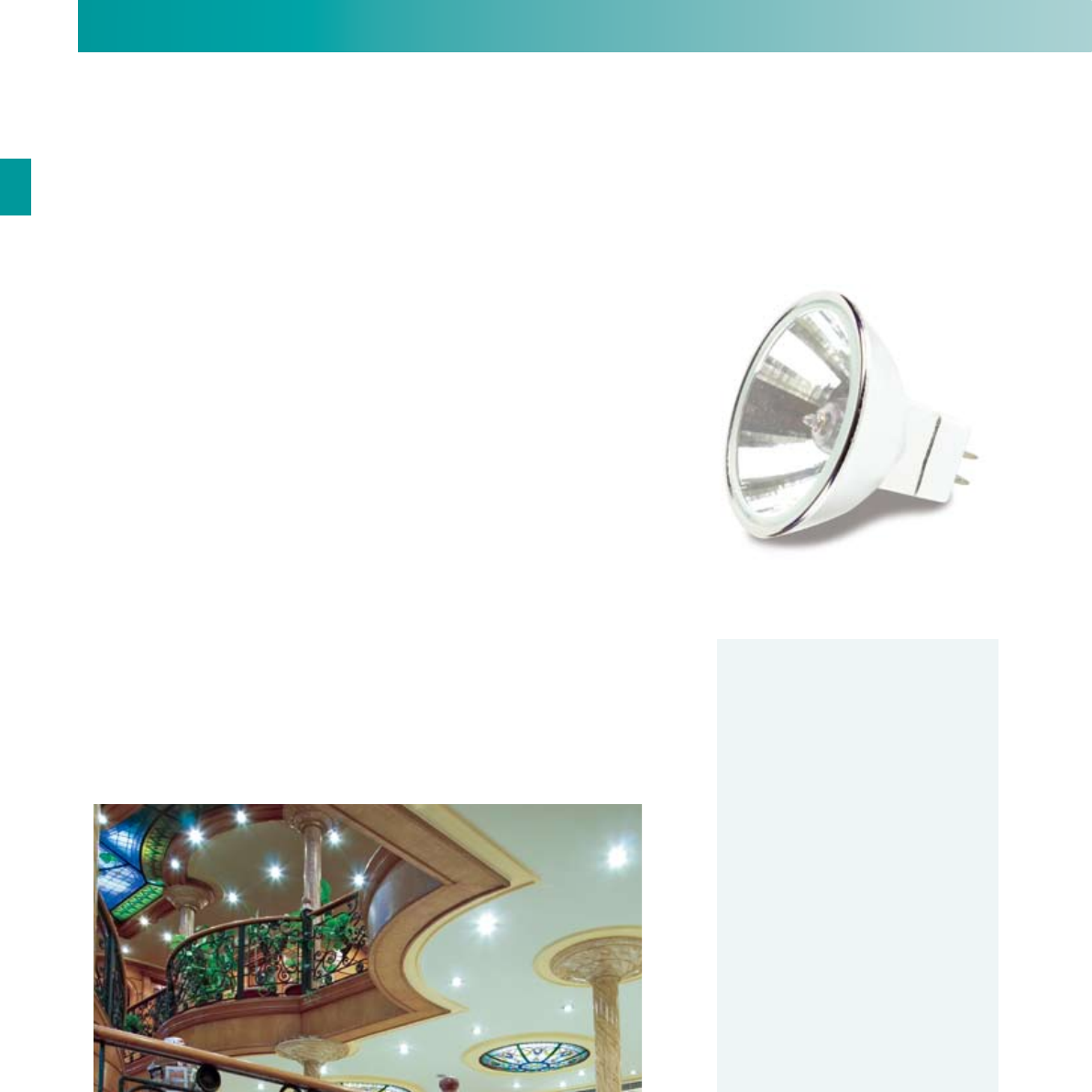

Precise ConstantColor MR16 IR
Energy efficient low voltage dichroic mirror halogen
reflector lamps from GE
GE ConstantColor halogen lamps
have a unique glass reflector coating
technology that provide consistent colour
performance throughout their rated life.
Conventional MR16 halogen lamps utilize
reflector coating that is gradually degraded
by the heat emitted by the filament. Unlike
any other product on the market, the GE
ConstantColor MR16 IR lamp coated with
durable titania and silica oxides withstand
temperatures of 500°C without a change
in reflector qualities. The result is close to
90% maintained light output over life and
identical colour temperature from lamp to
lamp. With coating applied to both inside
and outside the reflector, wasted backlight is
virtually eliminated.
The benefits of Precise
ConstantColor IR
• Up to 43% energy savings compared
to standard products
• Cool beam
• Long 5000 hour life, 2.5x longer than
standard MR16’s
• Eliminates backlight
• Long-term reliability
• Precise optical control
• Close to 90% lumen maintenance
• Evenly lit surfaces
• Environmentally friendly technology
- UV control
- Mercury free
- Can be disposed with
household waste
9
Energy efficient halogen
solutions from GE
Familiar shape and light
GE’s Energy Efficient Halogen (EEH)
range is a direct replacement for
regular incandescent lamps offering
a crisp white light with 30% energy
saving and similar lumens.
Available in standard GLS, candle,
spherical and reflector shapes, GE EEH
lamps are the environmentally friendly
solution for those who prefer the
features and light quality associated
with incandescent bulbs.
• Last twice as long and consume 30%
less electricity than corresponding
incandescent lamps.
• Provide instant–on, full light output
at start-up and lumens are maintained
throughout the life of the product.
• Unlike some compact fluorescent
products, EEH lamps are size 100%
retrofit with the incandescent lamps
they replace.
• Can be used with dimming switches.
• Environmentally friendly with no
lead or mercury.
Standard GLS
40W
60W
100W
150W
Standard Candle
25W
40W
60W
Standard Spherical
25W
40W
60W
Standard R50
40W
Standard R63
60W
Standard R80
60W
100W
HaloGLS
28W
42W
70W
100W
HaloCandle
18W
28W
42W
HaloSpherical
18W
28W
42W
HaloR50
28W
HaloR63
42W
HaloR80
42W
70W
D
C
D
D
C
D
D
C
C
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
10
Halogen Lamps
G9 Mains Voltage
Clear
Cap: G9
Wattages: 25-75W
Life: 1,500-3,000Hrs
Page: 16
MR 11 Low Voltage
Standard
Cap: GU4
Wattages: 12-35W
Volts: 12
Beam Spread:
8-26°
Front: Open or Closed
Life: 3,500Hrs
Page: 13
Start
Cap: GU4
Wattages: 20-35W
Volts: 12
Beam Spread:
26°
Front: Closed
Life: 2,000Hrs
Page: 13
MR 16 Low Voltage
MR16 IR
Cap: GU5.3
Wattages: 20-45W
Volts: 12
Beam Spread:
10-36°
Life (hrs): 5,000Hrs
Page: 13
Alutech
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
36-60°
Feature:
For heat sensitive
halogen fixtures
Life: 3,000Hrs
Page: 14
Precise
ConstantColor
Cap: GU5.3
Wattages: 20-71W
Volts: 12
Beam Spread:
12-55°
Feature:
Consistent light quality
and exceptional long life
Life: 4,000-6,000Hrs
Page: 13
Precise Bright
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
18-60°
Feature:
Outstanding light output
in a mid range lamp
Life: 5,000Hrs
Page: 14
Start
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
12-55°
Feature:
Budget lamp with
reliable GE quality
Life: 2,000Hrs
Page: 14
AR111 Aluminium
Reflector
Standard
Cap: G53
Wattages: 35-100W
Volts: 12
Beam Spread:
8-45°
Life: 3,000Hrs
Page: 15
MR 16 & MR 20 Mains
Voltage GU10 Cap
Alutech
Cap: GU10
Wattages: 20-50W
Volts: 230-240
Beam Spread:
36°
Life: Up to 3,000Hrs
Page: 15
Coloured
Cap: GU10
Wattages: 50W
Volts: 240
Beam Spread:
36°
Finish:
Red, Yellow or Blue
Life: 1,500Hrs
Page: 15
MR 20 Mains Tech
Cap: GU10
Wattages: 75W
Volts: 240
Beam Spread:
36°
Life: 2,000Hrs
Page: 15
11
Single Ended
Halogen Capsules
Selector
Transversal
and Axial
Filament
Cap: G4 or GY6.35
Wattages: 5-100W
Life: up to 4,000Hrs
Page: 16
Low Pressure
Cap: G4 or GY6.35
Wattages: 10-75W
Life: 2,000Hrs
Page: 16
Start
Cap: G4 or GY6.35
Wattages: 10-100W
Life: 1,000Hrs
Page: 16
Double Ended
Linear
IR
Cap: R7s
Wattages: 225-375W
Life: 2,000Hrs
Page: 17
Energy Saver
Cap: R7s
Wattages: 100-330W
Life: 1,000Hrs
Page: 17
Standard and Start
Cap: R7s
Wattages: 60-2000W
Life: 1,000-2,000Hrs
Page: 17
PAR 16
Cap: E14
Wattages: 40W
Life: 2,000Hrs
Page: 18
PAR 20
Cap: E27
Wattages: 50W
Beam Choice: Spot or Flood
Life: 2,000Hrs
Page: 18
PAR 25
Cap: E27
Wattages: 75W
Beam Choice: Flood
Life: 3,000Hrs
Page: 18
PAR 30
Cap: E27
Wattages: 75-100W
Beam Choice: Spot or Flood
Life: 2,000-3,000Hrs
Page: 18
PAR 16, 20, 25, 30
Energy Efficient Halogen
Incandescent Shapes
HaloCandle
Cap: E14, E27, B15, B22
Wattages: 18-42W
Life: 2,000Hrs
Page: 18
HaloReflector
Cap: E14, E27
Wattages: 28-70W
Life: 2,000Hrs
Page: 18
HaloGLS
Cap: E27, B22
Wattages: 28-100W
Life: 2,000Hrs
Page: 18
HaloSpherical
Cap:
E14, B15, E27, B22
Wattages: 18-42W
Life: 2,000Hrs
Page: 18
12
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage. The Product Description can be used as a quick
reference to each product’s attributes. Where Life or Average Life are stated we
refer to the industry standard definition of how many hours of operation 50% of
a given installation will exceed.
Product identification
Halogen Lamps
Product
Code
Product
Description
Wattage
[W] Volts [V] Cap Candela
[cd]
Beam
Angle [°] CCT [K] Life [h] Diameter
[mm]
Length
[mm] Pack Qty
19626 M62/FTD 20 12 GU4 550 26 2900 3,500 35.3 40 10
19635 M66/FTF 35 12 GU4 2300 21 2900 3,500 35.3 40 10
19634 M199/FTH 35 12 GU4 1300 26 2900 3,500 35.3 40 10
Precise MR11 - Open
Class M
Numerical
index, industry
code specifying
lamp type
FTD - ANSI code
Industry code
specifying lamps
type defined by
the American
National Standard
Institute
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operation at
rated voltage
Life:
The point in time when
50% of installed lamps
are still burning
Peak Beam Candelas:
For reflector type lamps.
Luminous intensity
of the lamp beam
expressed in candelas
Length:
Lamp length in mm
CCT [K]: Colour
Temperature - Kelvins:
A measure of the visual
“warmth” or “coolness” of
the light from the lamp. The
higher the value the whiter or
“cooler” the light appears
Diameter:
Bulb diameter in mm
Pack quantity:
Number of product
units packed in a case
Beam Spread Degrees:
For reflector type lamps.
The angle of the cone
of light produced by a
reflector lamp at 50% of
its intensity
M62 / FTD
Additional parameters:
Lumens: Light output
EEC: Energy Efficiency Class
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
13
17200 FTD/M262/CG 20 12 GU4 490 26 2900 2,000 35 40
17201 FTF/M199/CG 35 12 GU4 1150 26 2900 2,000 35 40
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life [h] Diameter
[mm]
Length
[mm]
19626 M62/FTD 20 12 GU4 550 26 2900 3,500 35 40
19635 M66/FTF 35 12 GU4 2300 21 2900 3,500 35 40
19634 M199/FTH 35 12 GU4 1300 26 2900 3,500 35 40
19639 M264/FTA/CG 12 12 GU4 3960 8 2900 2,000 35 45
19636 M251/FTC/CG 20 12 GU4 1800 17 2900 3,500 35 45
19625 M262/FTD/CG 20 12 GU4 490 26 2900 3,500 35 45
19627 M266/FTF/CG 35 12 GU4 2070 21 2900 3,500 35 45
20841 EYJ/CC 71 12 GU5.3 5500 25 3000 4,000 51 46
20840 EYC/CC 71 12 GU5.3 2000 42 3000 4,000 51 46
20858 ESX/CG 20 12 GU5.3 3150 15 3000 5,000 51 51
20857 BAB/CG 20 12 GU5.3 475 40 3000 5,000 51 51
20864 FRB/CG 35 12 GU5.3 7500 12 3000 5,000 51 51
20860 FRA/CG 35 12 GU5.3 3200 20 3000 5,000 51 51
20859 FMW/CG 35 12 GU5.3 900 40 3000 5,000 51 51
20872 EXT/CG 50 12 GU5.3 8400 15 3000 6,000 51 51
20871 EXZ/CG 50 12 GU5.3 2900 25 3000 6,000 51 51
20867 EXN/CG 50 12 GU5.3 1500 40 3000 6,000 51 51
20865 FNV/CG 50 12 GU5.3 850 55 3000 6,000 51 51
20876 EYF/CG 71 12 GU5.3 10400 15 3000 4,000 51 51
20874 EYJ/CG 71 12 GU5.3 4550 25 3000 4,000 51 51
20873 EYC/CG 71 12 GU5.3 2000 40 3000 4,000 51 51
Precise MR11 - Open
Precise ConstantColor MR16 - Open
Precise MR11 - Closed
Precise ConstantColor MR16 - Closed
MR11 Start - Closed
lamp name: Halogen — Precise MR11/Open
lamp name: Halogen — Precise MR11/Closed
lamp name: Halogen — Precise MR11/Closed
lamp name: Halogen — Precise MR16/Open�
— Lightstream MR16/Open
77900 Q20MR16HIR/CCG10 20 12 GU5.3 6000 10 2900 5000 51 51
77901 Q20MR16HIR/CCG24 20 12 GU5.3 2300 24 2900 5000 51 51
77902 Q20MR16HIR/CCG36 20 12 GU5.3 1000 36 2900 5000 51 51
79584 Q30MR16HIR/CCG10 30 12 GU5.3 10000 10 2950 5000 51 51
79585 Q30MR16HIR/CCG24 30 12 GU5.3 3350 24 2950 5000 51 51
79586 Q30MR16HIR/CCG36 30 12 GU5.3 1600 36 2950 5000 51 51
77904 Q35MR16HIR/CCG10 35 12 GU5.3 12000 10 2950 5000 51 51
77905 Q35MR16HIR/CCG24 35 12 GU5.3 4200 24 2950 5000 51 51
77906 Q35MR16HIR/CCG36 35 12 GU5.3 2000 36 2950 5000 51 51
77907 Q45MR16HIR/CCG10 45 12 GU5.3 14000 10 3000 5000 51 51
77908 Q45MR16HIR/CCG24 45 12 GU5.3 5200 24 3000 5000 51 51
77909 Q45MR16HIR/CCG36 45 12 GU5.3 2300 36 3000 5000 51 51
77657 MR16 IR 20W 12V WFL 20 12 GU5.3 1000 36 2900 5,000 51 51
77658 MR16 IR 35W 12V WFL 35 12 GU5.3 2000 36 2950 5,000 51 51
Precise ConstantColor MR16 IR
Precise MR16 IR
14
Halogen Lamps
88235 M269/BAB/CG 20 12 GU5.3 450 36 2900 5,000 51 51
88236 M281/FMW/CG 35 12 GU5.3 1300 36 2900 5,000 51 51
88237 M250/EXZ/CG 50 12 GU5.3 4750 18 2900 5,000 51 51
88239 M258/EXN/CG 50 12 GU5.3 2100 36 2900 5,000 51 51
88238 M280/FNV/CG 50 12 GU5.3 950 60 2900 5,000 51 51
71624 MR16 12V 20W 8D /open 5000 hours 20 12 GU5.3 4280 8 2800 5,000 50 48
71625 MR16 12V 20W 36D /BAB /open 5000 hours 20 12 GU5.3 480 36 2800 5,000 50 48
71618 MR16 12V 50W 8D /open 5000 hours 50 12 GU5.3 8560 8 3000 5,000 50 48
71619 MR16 12V 50W 18D /open 5000 hours 50 12 GU5.3 5080 18 3000 5,000 50 48
71620 MR16 12V 50W 36D /ENX /open 5000 hours 50 12 GU5.3 2250 36 3000 5,000 50 48
71621 MR16 12V 50W 60D /FNV /open 5000 hours 50 12 GU5.3 1070 60 3000 5,000 50 48
71616 MR16 12V 20W 8D /CG 5000 hours 20 12 GU5.3 4000 8 2800 5,000 50 48
71617 MR16 12V 20W 36D /BAB /CG 5000 hours 20 12 GU5.3 450 36 2800 5,000 50 48
71610 MR16 12V 50W 8D /CG 5000 hours 50 12 GU5.3 8000 8 3000 5,000 50 48
71611 MR16 12V 50W 18D /CG 5000 hours 50 12 GU5.3 4750 18 3000 5,000 50 48
71612 MR16 12V 50W 36D /ENX /CG 5000 hours 50 12 GU5.3 2100 36 3000 5,000 50 48
71613 MR16 12V 50W 60D /FNV /CG 5000 hours 50 12 GU5.3 1000 60 3000 5,000 50 48
38000 M69/BAB/EC 20 12 GU5.3 500 36 2900 2,000 51 48
38001 M81/FMW/EC 35 12 GU5.3 925 36 2900 2,000 51 48
38002 M58/EXN/EC 50 12 GU5.3 1500 36 2900 2,000 51 48
89677 Q20MR16/FL 20 12 GU5.3 500 36 2900 1,000 50 48
89678 Q20MR16/SP 20 12 GU5.3 3500 12 2900 1,000 50 48
89679 Q35MR16/FL 35 12 GU5.3 925 36 2900 1,000 50 48
89680 Q35MR16/M(FMV) 35 12 GU5.3 1950 24 2900 1,000 50 48
89681 Q50MR16/FL 50 12 GU5.3 1500 36 3000 1,000 50 48
89682 Q50MR16/M 50 12 GU5.3 3000 24 3000 1,000 50 48
38012 M268/ESX/CG/EC 20 12 GU5.3 3150 12 2900 2,000 51 51
38006 M269/BAB/CG/EC 20 12 GU5.3 450 36 2900 2,000 51 51
38013 FRB/CG/EC 35 12 GU5.3 6750 12 2900 2,000 51 51
38007 M281/FMW/CG/EC 35 12 GU5.3 830 36 2900 2,000 51 51
38014 M249/EXT/CG/EC 50 12 GU5.3 8550 12 2900 2,000 51 51
39611 M250/EXZ/CG/EC 50 12 GU5.3 2700 24 2900 2,000 51 51
38011 M258/EXN/CG/EC 50 12 GU5.3 1350 36 2900 2,000 51 51
39236 M280/FNV/CG/EC 50 12 GU5.3 630 55 2900 2,000 51 51
89683 Q20MR16/FL/CG 20 12 GU5.3 450 36 2800 1,000 50 48
89684 Q20MR16/SP/CG 20 12 GU5.3 3500 12 2800 1,000 50 48
89685 Q35MR16/FL/CG 35 12 GU5.3 832 36 2900 1,000 50 48
89686 Q35MR16/M(FMV) CG 35 12 GU5.3 1750 24 2900 1,000 50 48
89687 Q50MR16/FL/CG 50 12 GU5.3 1350 36 3000 1,000 50 48
89688 Q50MR16/M/CG 50 12 GU5.3 2700 24 3000 1,000 50 48
MR16 Start - Open
MR16 Start - Closed
88216 M269/BAB/CG/AL 20 12 GU5.3 450 36 2900 3,000 51 51
88217 M281/FMW/CG/AL 35 12 GU5.3 1300 36 2900 3,000 51 51
88215 M258/EXN/CG/AL 50 12 GU5.3 1800 36 2900 3,000 51 51
88214 M280/FNW/CG/AL 50 12 GU5.3 700 60 2900 3,000 51 51
Precise Alutech MR16 - Closed
lamp name: Halogen — Lightstream MR16/Closed
lamp name: Halogen — Precise MR16/Open�
— Lightstream MR16/Open
lamp name: Halogen — Lightstream MR16/Closed
lamp name: Halogen — Lightstream MR16/Closed
Product
Code
Product
Description
Wattage
[W]
Volts
[V] Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
88231 M69/BAB 20 12 GU5.3 480 36 2900 5,000 51 46
88229 M81/FMW 35 12 GU5.3 1390 36 2900 5,000 51 46
88234 M58/EXN 50 12 GU5.3 2250 36 2900 5,000 51 46
88232 M80/FNV 50 12 GU5.3 1070 60 2900 5,000 51 46
Precise Bright 5000 MR16 - Open
lamp name: Halogen — Precise MR16/Open�
— Lightstream MR16/Open
Precise Bright 5000 MR16 - Closed
PrecisePlus MR16 (5000hr) - Open
PrecisePlus MR16 (5000hr) - Closed
15
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
10774 AR111 35W12V SP 35 12 G53 14000 8 2900 2,000 111 67
10775 AR111 35W12V FL 35 12 G53 2500 24 2900 2,000 111 67
10766 AR111 50W12V SP 50 12 G53 17800 8 2900 3,000 111 67
10767 AR111 50W12V FL 50 12 G53 3500 24 2900 3,000 111 67
10768 AR111 75W12V SP 75 12 G53 23500 8 2900 3,000 111 67
10769 AR111 75W12V FL 75 12 G53 5300 24 2900 3,000 111 67
10771 AR111 75W12V WFL 75 12 G53 1700 45 2900 3,000 111 67
41915 AR111 100W12V SP 100 12 G53 40000 8 2900 3,000 111 67
41922 AR111 100W12V FL 100 12 G53 8000 24 2900 3,000 111 67
41923 AR111 100W12V WFL 100 12 G53 2300 45 2900 3,000 111 67
25152 AR111 50W 12V SP 50 12 G53 17800 8 2900 3,000 111 67
25154 AR111 50W 12V FL 50 12 G53 3500 24 2900 3,000 111 67
25155 AR111 75W 12V SP 75 12 G53 23500 8 2900 3,000 111 67
25156 AR111 75W 12V FL 75 12 G53 5300 24 2900 3,000 111 67
25157 AR111 75W 12V WFL 75 12 G53 1700 45 2900 3,000 111 67
40402 Q50MR16/230/25° 50 230 GU10 950 25 2800 3,000 51 55
40403 Q50MR16/230/36° 50 230 GU10 600 36 2800 3,000 51 55
40404 Q50MR16/240/25° 50 240 GU10 950 25 2800 3,000 51 55
40405 Q50MR16/240/36° 50 240 GU10 600 36 2800 3,000 51 55
10898 Q20MR16/230/FL 20 230 GU10 200 36 2700 1,500 51 55
10896 Q35MR16/230/FL 35 230 GU10 400 36 2700 1,500 51 55
92729 Q50MR16/230/FL 50 230 GU10 600 36 2700 1,500 51 55
10859 Q20MR16/240/FL 20 240 GU10 200 36 2700 1,500 51 55
10857 Q35MR16/240/FL 35 240 GU10 400 36 2700 1,500 51 55
92730 Q50MR16/240/FL 50 240 GU10 600 36 2700 1,500 51 55
MR16 Mains Alutech Long Life
AR111 - Low Pressure Capsule With Aluminium Reflector
Product
Code
Product
Description
Colour Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
12988 Q50MR16/240/FL START Red 50 240 GU10 600 36 2700 1,500 51 55
12995 Q50MR16/240/FL START Blue 50 240 GU10 600 36 2700 1,500 51 55
13003 Q50MR16/240/FL START Yellow 50 240 GU10 600 36 2700 1,500 51 55
MR16 Mains Alutech - Coloured
MR16 Mains Alutech
16
Halogen Lamps
34728 M42/Q10 G4 10 6 G4 140 2800 2,000 9 33
34712 M76/Q20/GY6.35 20 12 GY6.35 300 2900 3,000 11 44
34710 M75/Q35/GY6.35 35 12 GY6.35 600 2900 4,000 11 44
34703 M74/Q50/GY6.35 50 12 GY6.35 900 2900 4,000 11 44
34683 M73/Q75/GY6.35 75 12 GY6.35 1350 2900 4,000 11 44
34664 M180/Q100/GY6.35 100 12 GY6.35 2150 2900 4,000 11 44
35705 Q10T2,5/12V G4 10 12 G4 140 2800 2,000 9 33
35710 Q20T2,5/12V G4 20 12 G4 320 2900 2,000 9 33
35696 Q20T3/12V GY6.35 20 12 GY6.35 300 2900 2,000 11 44
35699 Q35T3/12V GY6.35 35 12 GY6.35 600 2900 2,000 11 44
35700 Q50T3/12V GY6.35 50 12 GY6.35 900 2900 2,000 11 44
35701 Q75T3/12V GY6.35 75 12 GY6.35 1350 2900 2,000 11 44
12708 M11/Q10/G4 ST 10 12 G4 100 2800 1,000 10 33
12711 M47/Q20/G4 ST 20 12 G4 250 2900 1,000 10 33
12712 M95/Q35/GY6.35 ST 35 12 GY6.35 480 2900 1,000 11 44
12713 M32/Q50/GY6.35 ST 50 12 GY6.35 800 2900 1,000 11 44
12718 Q100/GY6.35 ST 100 12 GY6.35 1950 2900 1,000 11 44
Single ended low voltage capsule - Axial Filament
Single ended low voltage capsule - Low Pressure, Axial Filament
Single ended low voltage capsule Start - Transversal Filament
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
45692 SHORTG9 25W CL 230V 25 230 G9 260 2800 1,500 13 43
22504 SHORTG9 40W CL 230V 40 230 G9 460 2800 3,000 13 43
88941 SHORTG9 25W CL 240V 25 240 G9 260 2800 1,500 13 43
22498 SHORTG9 40W CL 240V 40 240 G9 460 2800 3,000 13 43
75979 OT SHORTG9 25W CL 240V GE HFBL2/20 TRAY 25 240 G9 255 2650 2,000 12.5 41.8
88305 OT SHORTG9 40W CL 240V GE HFBL2/20 TRAY 40 240 G9 470 2700 2,000 12.5 42.8
75980 OT SHORTG9 60W CL 240V GE HFBL2/20 TRAY 60 240 G9 790 2700 1,500 12.5 44.8
75983 OT SHORTG9 75W CL 240V GE HFBL2/20 TRAY 75 240 G9 1040 2750 1,500 12.5 44.8
Single ended mains voltage capsule short G9 - Clear
34720 M29/Q10 G4 10 6 G4 200 2800 100 9 33
34718 M30/ESB/Q20 G4 20 6 G4 450 2900 100 9 33
34719 M34/FHE/Q20 G4 20 6 G4 350 2900 2,000 9 33
42959 M9/H5 G4 5 12 G4 60 2800 2,000 9 33
34674 M11/H10 G4 10 12 G4 140 2800 2,000 9 33
34714 M35/Q20 G4 20 12 G4 400 2900 250 9 33
34715 M47/Q20 G4 20 12 G4 380 2900 2,000 9 33
34708 M95/Q35/GY6.35 35 12 GY6.35 550 2900 3,000 11 44
34702 M32/Q50 GY6.35 50 12 GY6.35 930 2900 4,000 11 44
34682 M313/Q75/GY6.35 75 12 GY6.35 1350 2900 2,000 11 44
34676 M28/Q100 GY6.35 100 12 GY6.35 2200 2900 3,000 11 44
34663 M67/Q100 GY6.35 24V 100 24 GY6.35 2000 2900 2,000 11 44
88311 OT SHORTG9 25W FR 240V GE HFBL2/20 TRAY 25 240 G9 240 2600 1,500 12.5 41.8
88307 OT SHORTG9 40W FR 240V GE HFBL2/20 TRAY 40 240 G9 425 2700 1,500 12.5 42.8
75982 OT SHORTG9 60W FR 240V GE HFBL2/20 TRAY 60 240 G9 730 2700 1,500 12.5 44.8
75984 OT SHORTG9 75W FR 240V GE HFBL2/20 TRAY 75 240 G9 965 2700 1,500 12.5 44.8
Single ended low voltage capsule - Transversal Filament
Single ended mains voltage capsule short G9 - frosted
17
91515 K9/Q225 T3/230V HIR 225 230 R7s 5000 3000 2,000 10 117.6 C
31598 K1/Q375 T3/230V HIR 375 230 R7s 9400 3000 2,000 10 117.6 C
43299 K9/Q225 T3/240V HIR 225 240 R7s 5000 3000 2,000 10 117.6 C
31612 K1/Q375 T3/240V HIR 375 240 R7s 9400 3000 2,000 10 117.6 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
EEC
76210 K12 C100W 230V R7S 100 230 R7s 1900 2800 1,000 8 78 C
76209 K11 C130W 230V R7S 130 230 R7s 2440 2800 1,000 8 117.6 C
76208 K9 C200W 230V R7S 200 230 R7s 4000 2800 1,000 8 117.6 C
76207 K1 C330W 230V R7S 330 230 R7s 7400 2800 1,000 8 117.6 C
76530 K12 C100W 240V R7S 100 240 R7s 1900 2800 1,000 8 78 C
76529 K11 C130W 240V R7S 130 240 R7s 2440 2800 1,000 8 117.6 C
76528 K9 C200W 240V R7S 200 240 R7s 4000 2800 1,000 8 117.6 C
76527 K1 C330W 240V R7S 330 240 R7s 7400 2800 1,000 8 117.6 C
29161 K1/Q500 T2.5/CL 500 120 R7s 11000 2900 2,000 8 117.6 C
29165 K1/Q500 T2.5/CL 500 230 R7s 9800 2900 2,000 8 117.6 D
29180 K4/Q1000 T3/CL 1000 230 R7s 21000 2900 2,000 10 189.1 N/A
29184 K5/Q1500 T3/CL 1500 230 R7s 32000 2900 1,000 10 254.1 N/A
30886 K8/Q2000 T3/CL 2000 230 R7s 44000 2900 1,000 10 330.8 N/A
29168 K1/Q500 T2.5/CL 500 240 R7s 9800 2900 2,000 8 117.6 D
29181 K4/Q1000 T3/CL 1000 240 R7s 21000 2900 2,000 10 189.1 N/A
43712 K10/1000 T3/CL 1000 240 R7s 21000 2900 2,000 10 254.1 N/A
23830 K5/Q1500 T3/CL 1500 240 R7s 33000 2900 1,000 10 254.1 N/A
29187 K5/Q1500 T3/CL 1500 240 R7s 32000 2900 1,000 10 254.1 N/A
23832 K5/Q1500 T3/CL 1500 277 R7s 33000 2900 2,000 10 254.1 N/A
Double ended linear Halogen IR
Double ended linear Halogen Energy Saver
Double ended linear Halogen
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
lamp name: Halogen — Standard Double Ended Linear/without Backbone
18
Halogen Lamps
Product
Code
Product
Description
Wattage
[W] Volts [V] Cap Candela
[cd]
Beam
Angle [°] CCT [K] Life [h] Diameter
[mm]
Length
[mm]
27826 40PAR16/230/FL 40 230 E14 950 25 2800 2,000 51 79
27845 40PAR16/240/FL 40 240 E14 950 25 2800 2,000 51 79
40363 50PAR20/230/SP 50 230 E27 3000 10 2800 2,000 64.5 91
40362 50PAR20/230/FL 50 230 E27 1000 25 2800 2,000 64.5 91
40364 50PAR20/240/SP 50 240 E27 3000 10 2800 2,000 64.5 91
40365 50PAR20/240/FL 50 240 E27 1000 25 2800 2,000 64.5 91
95700 50PAR20 FL-230V 50 230 E27 1000 25 2650 2,100 65 85
95701 50PAR20 SP-230V 50 230 E27 2200 10 2650 2,100 65 85
95775 50PAR20/240/SP 50 240 E27 1000 10 2600 2,100 65 85
95776 50PAR20/240/FL 50 240 E27 2200 25 2600 2,100 65 85
91775 75PAR25/230/FL 75 230 E27 1300 25 2800 3,000 81 108
92165 75PAR25/240/FL 75 240 E27 1300 25 2800 3,000 81 108
40366 75PAR30/230/SP 75 230 E27 6200 10 2800 2,000 97 90.5
40349 75PAR30/230/FL 75 230 E27 2000 30 2800 2,000 97 90.5
32484 100PAR30/230/FL 100 230 E27 3100 30 2800 3,000 97 90.5
40367 75PAR30/240/SP 75 240 E27 6200 10 2800 2,000 97 90.5
40361 75PAR30/240/FL 75 240 E27 2000 30 2800 2,000 97 90.5
32482 100PAR30/240/FL 100 240 E27 3100 30 2800 3,000 97 90.5
95702 75PAR30 FL-230V 75 230 E27 1400 30 2700 3,000 97 93
95703 75PAR30 SP-230V 75 230 E27 5800 10 2700 3,000 97 93
95777 75PAR30/240/SP 75 240 E27 5800 10 2700 3,000 97 93
95778 75PAR30/240/FL 75 240 E27 1400 30 2700 3,000 97 93
95779 100PAR30/240/SP 100 240 E27 8500 10 2750 2,100 97 93
95780 100PAR30/240/FL 100 240 E27 2100 30 2750 2,100 97 93
10302 50PAR30/110/K9N 50 110 E26NP 12000 - 2800 3,000 95 88
10301 50PAR30/110/K9N 50 110 E26NP 2800 - 2800 3,000 95 88
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] Life [h] Diameter
[mm]
Length
[mm]
EEC
76957 28W HALO A CL E27 230V 28 230 E27 340 2900 2,000 50 96 D
76953 42W HALO A CL E27 230V 42 230 E27 630 2900 2,000 50 96 C
76948 70W HALO A CL E27 230V 70 230 E27 1300 2900 2,000 50 96 C
76944 100W HALO A CL E27 230V 100 230 E27 1800 2900 2,000 50 104 C
76954 28W HALO A CL E27 240V 28 240 E27 340 2900 2,000 50 96 D
76950 42W HALO A CL E27 240V 42 240 E27 630 2900 2,000 50 96 C
76945 70W HALO A CL E27 240V 70 240 E27 1300 2900 2,000 50 96 C
76941 100W HALO A CL E27 240V 100 240 E27 1800 2900 2,000 50 104 C
76955 28W HALO A CL B22 240V 28 240 B22 340 2900 2,000 50 96 D
76951 42W HALO A CL B22 240V 42 240 B22 630 2900 2,000 50 96 C
76946 70W HALO A CL B22 240V 70 240 B22 1300 2900 2,000 50 96 C
76942 100W HALO A CL B22 240V 100 240 B22 1800 2900 2,000 50 104 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
32108 Halo T38/1000W/E40/230 1000 230 E40 21000 2900 2,000 38 280
32109 Halo T38/1000W/E40/240 1000 240 E40 21000 2900 2,000 38 280
Halogen PAR 16
Halogen PAR 30 HIR
Energy Efficient HaloGLS
Halogen PAR 20
Halogen PAR 25
Halogen PAR 30
lamp name: Halogen — PAR 20
lamp name: Halogen — PAR 30
HaloTubular T38
19
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
MOL
[in]
Lumen
[lm]
Life
[h]
Warning and
Caution Notices
Additional
Information
78795 29A/CL/H-2PK 29 120 4.43 310 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
78796 43A/CL/H-2PK 43 120 4.43 750 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
78797 53A/CL/H-2PK 53 120 4.43 1050 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
82137 60A/CL/H/RVL-CD 60 120 4.43 675 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal® Clear, Halogen, Carded
72373 60A/CRY/H/RVL-CD 60 120 4.43 800 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal® Crystal, Halogen, Carded
78798 72A/CL/H-2PK 72 120 4.43 1490 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
82138 75A/CL/H/RVL-CD 75 120 4.43 850 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal® Clear, Halogen, Carded
82139 100A/CL/H/RVL-CD 100 120 4.43 1275 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal® Clear, Halogen, Carded
72374 100A/CRY/H/RVL-CD 100 120 4.43 140 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal® Crystal, Halogen, Carded
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
EEC
76940 18W HALO C CL E14 230V 18 230 E14 170 2900 2,000 36 100 D
76936 28W HALO C CL E14 230V 28 230 E14 340 2900 2,000 36 100 D
76575 42W HALO C CL E14 230V 42 230 E14 630 2900 2,000 36 100 C
76934 28W HALO C CL E27 230V 28 230 E27 340 2900 2,000 36 100 D
76573 42W HALO C CL E27 230V 42 230 E27 630 2900 2,000 36 100 C
76937 18W HALO C CL E14 240V 18 240 E14 170 2900 2,000 36 100 D
76930 28W HALO C CL E14 240V 28 240 E14 340 2900 2,000 36 100 D
76569 42W HALO C CL E14 240V 42 240 E14 630 2900 2,000 36 100 C
76929 28W HALO C CL E27 240V 28 240 E27 340 2900 2,000 36 100 D
76568 42W HALO C CL E27 240V 42 240 E27 630 2900 2,000 36 100 C
76932 28W HALO C CL B15 240V 28 240 B15 340 2900 2,000 36 100 D
76571 42W HALO C CL B15 240V 42 240 B15 630 2900 2,000 36 100 C
76938 18W HALO C CL B22 240V 18 240 B22 170 2900 2,000 36 100 D
76931 28W HALO C CL B22 240V 28 240 B22 340 2900 2,000 36 100 D
76570 42W HALO C CL B22 240V 42 240 B22 630 2900 2,000 36 100 C
76567 18W HALO S CL E14 230V 18 230 E14 170 2900 2,000 45 78 D
76561 28W HALO S CL E14 230V 28 230 E14 340 2900 2,000 45 78 D
76553 42W HALO S CL E14 230V 42 230 E14 630 2900 2,000 45 78 C
76565 18W HALO S CL E27 230V 18 230 E27 170 2900 2,000 45 78 D
76559 28W HALO S CL E27 230V 28 230 E27 340 2900 2,000 45 78 D
76551 42W HALO S CL E27 230V 42 230 E27 630 2900 2,000 45 78 C
76562 18W HALO S CL E14 240V 18 240 E14 170 2900 2,000 45 78 D
76555 28W HALO S CL E14 240V 28 240 E14 340 2900 2,000 45 78 D
76548 42W HALOS CL E14 240V 42 240 E14 630 2900 2,000 45 78 C
76554 28W HALO S CL E27 240V 28 240 E27 340 2900 2,000 45 78 D
76547 42W HALOS CL E27 240V 42 240 E27 630 2900 2,000 45 78 C
76557 28W HALO S CL B15 240V 28 240 B15 340 2900 2,000 45 78 D
76563 18W HALO S CL B22 240V 18 240 B22 170 2900 2,000 45 78 D
76556 28W HALO S CL B22 240V 28 240 B22 340 2900 2,000 45 78 D
76549 42W HALOS CL B22 240V 42 240 B22 630 2900 2,000 45 78 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
76546 28W HALO R50 E14 230V 28 230 E14 220 2900 2,000 50 86
76543 42W HALO R63 E27 230V 42 230 E27 600 2900 2,000 63.5 101
76540 42W HALO R80 E27 230V 42 230 E27 230 2900 2,000 80 121
76537 70W HALO R80 E27 230V 70 230 E27 TBD 2900 2,000 80 121
76544 28W HALO R50 E14 240V 28 240 E14 220 2900 2,000 50 86
76541 42W HALO R63 E27 240V 42 240 E27 600 2900 2,000 63.5 101
76538 42W HALO R80 E27 240V 42 240 E27 230 2900 2,000 80 121
A-19
Energy Efficient HaloCandle
Energy Efficient HaloSpherical
Energy Efficient HaloReflector
— Reflector (Diffuse)/E27/63.5mm�
�
— Coloured Reflector /E27/Red, Y ellow , Green,
Blue, Amber
lamp name: Incandescent
20
Linear Fluorescent Lamps
Linear Fluorescent
Lamps
T8 TriTeah Plus 24
T8 Polylux XLR 25
T8 Standard 25
T5 Starcoat 23
T5 StarV 24
T5 Miniature 24
T9 Circline 26
T5 Circline 26
T8
T5
Circline
21
Linear Fluorescent Lamps
Thecharacteristicsofuorescentlamps
vary widely according to the lamp type.
Ingeneral,uorescentlampshavethe
following advantages:
• Efcient installation and reduced running
costs with our Watt-Miser lamps
• Long life – life ratings for uorescent
lamps are now up to 42,000 hours
with our LongLast lamps, based on the
industry standard of 3-hour burning
cycles
• Light quality – high colour rendering and
high lumen maintenance
• Flexibility – many combinations of
wattage and length, provide exibility of
xture design and ceiling layout
Whether its long life, energy savings, or
quality of light, GE’s linear fluorescent lamps
have your application covered. Delivering
excellent colour rendering and high lumen
maintenance, for more high quality light.
Looking to the future, we will continue to
bring you new technology and improve the
efciency and performance of our portfolio,
in line with technology advancements.
22
Product description:
Lamp reference –
describes the lamp’s
main characteristics
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Length:
Lamp length
in mm
Base:
The type of
cap fitted. See
page 134-135
for Base
drawings
CRI:
Colour rendering
index, the higher the
number (1-100), the
more natural the lit
subject appears
Initial Lumen
(at 25°C):
Light output after the
initial 100 hours of
operation
Initial Lumen
(at 35°C):
Light output after the
initial 100 hours of
operation
Rated Average Life
(3-hr cycle):
The point in time
when 50% of
installed lamps
are still burning
Rated Average Life
(12-hr cycle):
The point in time
when 50% of
installed lamps
are still burning
Pack quantity:
The number of lamps
in one outer case
CCT:
Colour temperature –
Kelvin [K].
The visual warmth or
coolness of the light.
The higher the
number the whiter or
cooler the light appears
Product identification
T5 Solutions
Linear Fluorescent Lamps
Identifies
Lamp’s
wattage
Identifies
lamp as
fluorescent
Identifies
lamp type
Colour
temperature code
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
F 14W T5 / 830 / WM
Identifies
the lamp as
Watt-Miser
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarCoat Watt-Miser
71632 F14T5/830/WM/ECO 14 549 G5 1350 1230 3000 85 25,000 30,000 40
71633 F14T5/835/WM/ECO 14 549 G5 1350 1230 3500 85 25,000 30,000 40
71634 F14T5/841/WM/ECO 14 549 G5 1350 1230 4000 85 25,000 30,000 40
• 36,000 hour extra long life
• Superior lumen maintenanec - 90%
• Excellent colour rendering – 85Ra
• 5% energy savion with existion system
• 30,000 hour long life
• Reduces CO2 and other greenhouse
gas emissions
• 20,000 hour rated life
• superior lumen maintenance
GE T5 Watt-Miser GE T5 StarV
For maintenance saving
GE T5 StarCoat LongLast
For energy Saving For Best in Value
23
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarCoat Watt-Miser
71632 F14T5/830/WM/ECO 14 549 G5 1350 1230 3000 85 25,000 30,000 40
71633 F14T5/835/WM/ECO 14 549 G5 1350 1230 3500 85 25,000 30,000 40
71634 F14T5/841/WM/ECO 14 549 G5 1350 1230 4000 85 25,000 30,000 40
71636 F14T5/865/WM/ECO 14 549 G5 1250 1140 6500 85 25,000 30,000 40
71637 F21T5/830/WM/ECO 21 549 G5 2100 1910 3000 85 25,000 30,000 40
71638 F21T5/835/WM/ECO 21 849 G5 2100 1910 3500 85 25,000 30,000 40
71639 F21T5/841/WM/ECO 21 849 G5 2100 1910 4000 85 25,000 30,000 40
71641 F21T5/865/WM/ECO 21 849 G5 1950 1770 6500 85 25,000 30,000 40
71642 F28T5/830/WM/ECO 28 849 G5 2900 2640 3000 85 25,000 30,000 40
71643 F28T5/835/WM/ECO 28 849 G5 2900 2640 3500 85 25,000 30,000 40
71644 F28T5/841/WM/ECO 28 1,149 G5 2900 2640 4000 85 25,000 30,000 40
71646 F28T5/865/WM/ECO 28 1,149 G5 2700 2450 6500 85 25,000 30,000 40
71627 F54T5/830/WM/ECO 54 1,149 G5 5000 4460 3000 85 25,000 30,000 40
71628 F54T5/835/WM/ECO 54 1,149 G5 5000 4460 3500 85 25,000 30,000 40
71629 F54T5/841/WM/ECO 54 1,149 G5 5000 4460 4000 85 25,000 30,000 40
71631 F54T5/865/WM/ECO 54 1,449 G5 4750 4100 6500 85 25,000 30,000 40
71647 F35T5/830/WM/ECO 35 1,449 G5 3650 3320 3000 85 25,000 30,000 40
71648 F35T5/835/WM/ECO 35 1,449 G5 3650 3320 3500 85 25,000 30,000 40
71649 F35T5/841/WM/ECO 35 1,449 G5 3650 3320 4000 85 25,000 30,000 40
71657 F35T5/865/WM/ECO 35 1,449 G5 3400 3090 6500 85 25,000 30,000 40
Product Code
40 pc industrial
pack
Product Code
30 pc sleeve
pack
Product Code
30 pc sleeve pack
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
T5 StarCoat - High Efficiency
71632 73296 73296TW F14W/T5/830/Starcoat/40 14 549 G5 1350 1230 3000 85 30,000 36,000
71633 73297 73297TW F14W/T5/840/Starcoat/40 14 549 G5 1350 1230 4000 85 30,000 36,000
71634 73298 73298TW F14W/T5/865/Starcoat/40 14 549 G5 1250 1140 6500 85 30,000 36,000
71636 73299 73299TW F21W/T5/830/Starcoat/40 21 849 G5 2100 1910 3000 85 30,000 36,000
71637 73300 73300TW F21W/T5/840/Starcoat/40 21 849 G5 2100 1910 4000 85 30,000 36,000
71638 73301 73301TW F21W/T5/865/Starcoat/40 21 849 G5 1950 1770 6500 85 30,000 36,000
71639 73302 73302TW F28W/T5/830/Starcoat/40 28 1149 G5 2900 2640 3000 85 30,000 36,000
71641 73303 73303TW F28W/T5/840/Starcoat/40 28 1149 G5 2900 2640 4000 85 30,000 36,000
71642 73304 73304TW F28W/T5/865/Starcoat/40 28 1149 G5 2700 2450 6500 85 30,000 36,000
71643 F35W/T5/830/Starcoat/40 35 1449 G5 3650 3320 3000 85 30,000 36,000
71644 F35W/T5/840/Starcoat/40 35 1449 G5 3650 3320 4000 85 30,000 36,000
71646 F35W/T5/865/Starcoat/40 35 1449 G5 3400 3090 6500 85 30,000 36,000
T5 StarCoat - High Output
72420 F24W/T5/830/Starcoat/40 24 549 G5 2000 1750 3000 85 30,000 36,000
72421 F24W/T5/840/Starcoat/40 24 549 G5 2000 1750 4000 85 30,000 36,000
72422 F24W/T5/865/Starcoat/40 24 549 G5 1900 1600 6500 85 30,000 36,000
72423 F39W/T5/830/Starcoat/40 39 849 G5 3500 3200 3000 85 30,000 36,000
72424 F39W/T5/840/Starcoat/40 39 849 G5 3500 3200 4000 85 30,000 36,000
72425 F39W/T5/865/Starcoat/40 39 849 G5 3330 2950 6500 85 30,000 36,000
72429 F54W/T5/830/Starcoat/40 54 1149 G5 5000 4460 3000 85 30,000 36,000
72430 F54W/T5/840/Starcoat/40 54 1149 G5 5000 4460 4000 85 30,000 36,000
72431 F54W/T5/865/Starcoat/40 54 1149 G5 4750 4100 6500 85 30,000 36,000
72426 73317 73317TW F49W/T5/830/Starcoat/40 49 1449 G5 4900 4450 3000 85 30,000 36,000
72427 73318 73318TW F49W/T5/840/Starcoat/40 49 1449 G5 4900 4450 4000 85 30,000 36,000
72428 73319 73319TW F49W/T5/865/Starcoat/40 49 1449 G5 4650 4100 6500 85 30,000 36,000
72432 F80W/T5/830/Starcoat/40 80 1449 G5 7000 6450 3000 85 30,000 36,000
72433 F80W/T5/840/Starcoat/40 80 1449 G5 7000 6450 4000 85 30,000 36,000
72434 F80W/T5/865/Starcoat/40 80 1449 G5 6650 5950 6500 85 30,000 36,000
24
Linear Fluorescent Lamps
Product Code Product Code
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarV
62694E 62694TW F14W/830 T5/StarV/SL30 14 549 G5 1350 1230 3000 82 17,000 20,000 30
62695E 62695TW F14W/840 T5/StarV/SL30 14 549 G5 1350 1230 4000 82 17,000 20,000 30
62696E 62696TW F14W/865 T5/StarV/SL30 14 549 G5 1250 1140 6500 82 17,000 20,000 30
62697E 62697TW F21W/830 T5/StarV/SL30 21 849 G5 2100 1910 3000 82 17,000 20,000 30
62698E 62698TW F21W/840 T5/StarV/SL30 21 849 G5 2100 1910 4000 82 17,000 20,000 30
62699E 62699TW F21W/865 T5/StarV/SL30 21 849 G5 1950 1770 6500 82 17,000 20,000 30
62700E 62700TW F28W/830 T5/StarV/SL30 28 1149 G5 2900 2640 3000 82 17,000 20,000 30
62701E 62701TW F28W/840 T5/StarV/SL30 28 1149 G5 2900 2640 4000 82 17,000 20,000 30
62702E 62702TW F28W/865 T5/StarV/SL30 28 1149 G5 2700 2450 6500 82 17,000 20,000 30
Product
Code
Product Code
For Theilard On
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T8 TriTeah Plus
79462/F F18W/T8/WW/Tri-Tech plus 18 600 G13 1350 Warm White 3000 82 15,000 18,000 25
79463/F 79463T F18W/T8/CW/Tri-Tech plus 18 600 G13 1350 Cool White 4000 82 15,000 18,000 25
79464/F 79464T F18W/T8/DL/Tri-Tech plus 18 600 G13 1250 Daylight 6500 82 15,000 18,000 25
79465/F F30W/T8/WW/Tri-Tech plus 30 900 G13 2450 Warm White 3000 82 15,000 18,000 25
79466/F F30W/T8/CW/Tri-Tech plus 30 900 G13 2450 Cool White 4000 82 15,000 18,000 25
79469/F F30W/T8/DL/Tri-Tech plus 30 900 G13 2300 Daylight 6500 82 15,000 18,000 25
79470/F F36W/T8/WW/Tri-Tech plus 36 1200 G13 3200 Warm White 3000 82 15,000 18,000 25
79471/F 79471T F36W/T8/CW/Tri-Tech plus 36 1200 G13 3200 Cool White 4000 82 15,000 18,000 25
79472/F 79472T F36W/T8/DL/Tri-Tech plus 36 1200 G13 3100 Daylight 6500 82 15,000 18,000 25
66410 F58W/T8/830/Tri-Tech 58 1500 G13 5000 Warm White 3000 82 10,000 12,000 25
66411 F58W/T8/840/Tri-Tech 58 1500 G13 5000 Cool White 4000 82 10,000 12,000 25
66412 F58W/T8/865/Tri-Tech 58 1500 G13 4930 Daylight 6500 82 10,000 12,000 25
39446 F4W/T5/35/SL 4 150.1 16 G5 130 White 3450 54 5,000 25
10004 F4W/T5/CW 4 150.1 16 G5 130 Cool White 4040 58 5,000 25
39442 F6W/T5/35/SL 6 226.3 16 G5 260 White 3450 54 5,000 25
39445 F6W/T5/33/SL 6 226.3 16 G5 260 Cool White 4040 58 5,000 25
10028 F6W/T5/D 6 226.3 16 G5 230 Day light 6500 75 5,000 25
37754 F8W/T5/29/SL 8 302.5 16 G5 385 Warm White 2940 51 5,000 25
37756 F8W/T5/35/SL 8 302.5 16 G5 385 White 3450 54 5,000 25
10059 F8W/T5/CW 8 302.5 16 G5 385 Cool White 4040 58 5,000 25
10055 F8W/T5/D 8 302.5 16 G5 330 Day light 6500 70 5,000 25
10089 F13W/T5/WW 13 531.1 16 G5 850 Warm White 2950 51 6,000 25
10086 F13W/T5/CW 13 531.1 16 G5 800 Cool White 4040 58 6,000 25
T5 Miniature - Standard
lamp name: Fluorescent
— T5 Miniature�
— Blacklite Blue/4-8W
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Base Initial
Lumen (at
25°C) [lm]
Colour Type CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Pack Qty
37008 F8W/T5/827/IND 8 302.5 16 G5 460 Extra Warm White 2720 80+ 5,000 100
37009 F8W/T5/840/IND 8 302.5 16 G5 460 Cool White 4040 80+ 5,000 100
39447 F13W/T5/827/SL 13 531.1 16 G5 1000 Extra Warm White 2700 80+ 6,000 25
T5 Miniature - Triphosphor
lamp name: Fluorescent
— T5 Miniature�
— Blacklite Blue/4-8W
25
Product Code Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Life Pack Qty
T8 Standard - G13 Cap
81412 F10T8/33 10 300 G13 420 Cool White 4000 60 5,000 25
17272 F10T8/54 10 300 G13 400 Day light 6500 75 5,000 25
61516 F15W/33 15 450 G13 825 Cool White 4000 60 7,500 25
61517 F15W/54 15 450 G13 700 Day light 6500 75 7,500 25
65152 F18T8/WW 18 600 G13 1050 - 3000 51 10,000 30
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Initial
Lumen (at
25°C) [lm]
Colour Type CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Pack Qty
T8 Polylux XLR - G13 Cap
23248 F15W/T8/830/POLYLUX 15 451.6 26 1000 Warm White 2940 85 15,000 25
78133 F15W/T8/835 POLYLUX 15 451.6 26 1000 White 3450 85 15,000 25
23249 F15W/T8/840/POLYLUX 15 451.6 26 1000 Cool White 4040 85 15,000 25
78131 F15W/T8/860/POLYLUX 15 451.6 26 900 Daylight 6400 85 15,000 25
62560 F18W/T8/827/POLYLUX 18 604 26 1350 Extra Warm White 2720 85 15,000 25
62559 F18W/T8/830/POLYLUX 18 604 26 1350 Warm White 2940 85 15,000 25
62534 F18W/T8/835/POLYLUX 18 604 26 1350 White 3450 85 15,000 25
62558 F18W/T8/840/POLYLUX 18 604 26 1350 Cool White 4040 85 15,000 25
62557 F18W/T8/860/POLYLUX 18 604 26 1300 Daylight 6400 85 15,000 25
18141 F30W/T8/830/POLYLUX 30 908.8 26 2450 Warm White 2940 85 15,000 25
78132 F30W/T8/835/POLYLUX 30 908.8 26 2450 White 3450 85 15,000 25
18142 F30W/T8/840/POLYLUX 30 908.8 26 2450 Cool White 4040 85 15,000 25
62554 F36W/T8/827/POLYLUX 36 1,213.6 26 3350 Extra Warm White 2720 85 15,000 25
62553 F36W/T8/830/POLYLUX 36 1,213.6 26 3350 Warm White 2940 85 15,000 25
62532 F36W/T8/835/POLYLUX 36 1,213.6 26 3350 White 3450 85 15,000 25
62551 F36W/T8/840/POLYLUX 36 1,213.6 26 3350 Cool White 4040 85 15,000 25
62552 F36W/T8/860/POLYLUX 36 1,213.6 26 3250 Daylight 6400 85 15,000 25
93330 F58W/T8/827/POLYLUX 58 1,514.2 26 5200 Extra Warm White 2720 85 15,000 25
93334 F58W/T8/830/POLYLUX 58 1,514.2 26 5200 Warm White 2940 85 15,000 25
93331 F58W/T8/835/POLYLUX 58 1,514.2 26 5200 White 3450 85 15,000 25
93333 F58W/T8/840/POLYLUX 58 1,514.2 26 5200 Cool White 4040 85 15,000 25
12943 F58W/T8/860/POLYLUX 58 1,514.2 26 5000 Daylight 6400 85 15,000 25
62572 F70W/T8/835/POLYLUX 70 1,778 26 6300 White 3450 85 15,000 25
62573 F70W/T8/840/POLYLUX 70 1,778 26 6300 Cool White 4040 85 15,000 25
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
Product Code Product Code
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Initial Lumen
(at 35°C)
[lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
[h]
Pack Qty
T8 Standard
73335 73335T F18T8/CW 18 600 1050 4000 58 10,000 30
73336 73336T F18T8/DL 18 600 900 6500 76 10,000 30
65153 F36T8/WW 36 900 2750 3000 51 10,000 30
73337 73337T F36T8/CW 36 900 2750 4000 58 10,000 30
73338 73338T F36T8/DL 36 900 2350 6500 76 10,000 30
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Initial
Lumen (at
25°C) [lm]
Colour Type CCT [K] CRI [Ra] Rated
Average Life (3-hr
cycle) [h]
Pack Qty
62567 F18/T8/830/POLYLUX/LL 18 604 26 1350 Warm White 3000 85 24,000 25
62566 F18/T8/840/POLYLUX/LL 18 604 26 1350 Cool White 4000 85 24,000 25
62565 F36/T8/830/POLYLUX/LL 36 1,200 26 3350 Warm White 3000 85 24,000 25
62564 F36/T8/840/POLYLUX/LL 36 1,200 26 3350 Cool White 4000 85 24,000 25
62563 F58/T8/830/POLYLUX/LL 58 1,500 26 5200 Warm White 3000 85 24,000 25
62562 F58/T8/840/POLYLUX/LL 58 1,500 26 5200 Cool White 4000 85 24,000 25
T8 Polylux XLR LongLast - G13 Cap
26
Linear Fluorescent Lamps
Product Code Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Base Initial
Lumen (at
25°C) [lm]
Colour Type CCT [K] CRI [Ra] Rated
Average Life
(3-hr cycle) [h]
Pack Qty
T5 Circline - Triphosphor
75709 FC22W/T5/830 22 225 16 2Gx13 1900 Warm White 3000 82 12,000 10
75720 FC22W/T5/840 22 225 16 2Gx13 1900 Cool White 4000 82 12,000 10
75712 FC40W/T5/830 40 300 16 2Gx13 3300 Warm White 3000 82 12,000 10
75713 FC40W/T5/840 40 300 16 2Gx13 3300 Cool White 4000 82 12,000 10
75717 FC55W/T5/830 55 300 16 2Gx13 4200 Warm White 3000 82 12,000 10
75718 FC55W/T5/840 55 300 16 2Gx13 4200 Cool White 4000 82 12,000 10
Product Code Product
Description
Wattage
[W]
Diam.
[mm]
Base CCT
[K]
Initial Lumens
[lm]
CRI
[Ra]
Avg.Life
[Hr]
Pack Qty.
T9 Circline - Triphosphate
61607 FCL22W/827 22 216 G10q 2700 1400 80 6000 30
61608 FCL22W/840 22 216 G10q 4000 1400 80 6000 30
61609 FCL22W/850 22 216 G10q 5000 1300 80 6000 30
24847 FCL22/HO/DL/860 22 216 G10q 6500 1300 80 6000 30
61610 FCL32W/827 32 305 G10q 2700 2480 80 6000 30
61611 FCL32W/840 32 305 G10q 4000 2480 80 6000 30
61612 FCL32W/850 32 305 G10q 5000 2300 80 6000 30
24848 FCL32/HO/DL/860 32 305 G10q 6500 2300 80 6000 30
61613 FCL40W/827 40 406 G10q 2700 3200 80 6000 20
61614 FCL40W/840 40 406 G10q 4000 3200 80 6000 20
61615 FCL40W/850 40 406 G10q 5000 3000 80 6000 20
24849 FCL40/HO/DL/W/860 40 406 G10q 6500 3000 80 6000 20
Product Code Product
Description
Wattage
[W]
Diam.
[mm]
Base CCT
[K]
Initial Lumens
[lm]
CRI
[Ra]
Avg.Life
[Hr]
Pack Qty.
T9 Circline - Standard
95543 Edison FCL22/DL 22 216 G10q 6500 1050 75 6000 30
95544 Edison FCL32/DL 32 305 G10q 6500 1750 75 6000 30
95545 Edison FCL40/DL 40 406 G10q 6500 2440 75 6000 20
Product Code Product
Description
Wattage
[W]
Length
[mm]
Cap Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Rated life
[h]
Pack Qty
T8 Standard for Philippines Only - G13 Cap
61535 F18T8/WW 18 600 G13 1150 Warm White 3000 51 10000 25
61536 F18T8/CW 18 600 G13 1100 Cool White 4000 58 10000 25
61537 F18T8/DL 18 600 G13 960 Daylight 6500 76 10000 25
61538 F30T8/WW 30 900 G13 2100 Warm White 3000 51 10000 25
61539 F30T8/CW 30 900 G13 2025 Cool White 4000 58 10000 25
61540 F30T8/DL 30 900 G13 1720 Daylight 6500 76 10000 25
61541 F36T8/WW 36 1200 G13 2760 Warm White 3000 51 10000 25
61542 F36T8/CW 36 1200 G13 2650 Cool White 4000 58 10000 25
61543 F36T8/DL 36 1200 G13 2400 Daylight 6500 76 10000 25
T12 Standard
71708S F20WT12/DL 20 600 G13 1100 Daylight 6500 76 15,000 36
71709S F40WT12/DL 40 1200 G13 2640 Daylight 6500 76 10,000 36
Product Code Product
Description
Wattage
[W]
Base Initial
Lumen
Burn
Position
CCT
[K]
CRI
[Ra]
Life
[h]
Current
[mA]
Control Gear
T8 Standard - LongLast, G13 Cap
79462 F10W/DL XL 10 G13 377 Universal 6500 76 5000 230 T8 ELB/EMB
79463 F18W/WW XL 18 G13 1200 Universal 3000 51 15000 370 T8 ELB/EMB
79464 F18W/CW XL 18 G13 1150 Universal 4000 58 15000 370 T8 ELB/EMB
79465 F18W/DL XL 18 G13 960 Universal 6500 76 15000 370 T8 ELB/EMB
79466 F36W/WW XL 36 G13 2760 Universal 3000 51 15000 430 T8 ELB/EMB
79469 F36W/CW XL 36 G13 2650 Universal 4000 58 15000 430 T8 ELB/EMB
79470 F36W/DL XL 36 G13 2400 Universal 6500 76 15000 430 T8 ELB/EMB
27
Compact Fluorescent
Lamps
Biax S-2 pin 35
Biax D-2 pin 35
Biax D/E-4 pin 36
Biax D-D -2 pin 37
Biax D-D -4 pin 37
Biax S 2-pin, Internal Starter 38
Biax S/E 4-pin, External Starter Required 38
Biax D 2-pin, Internal Starter 38
Biax D/E LongLast 4-pin 39
Biax T 2-pin with Amalgam 39
Biax T/E LongLast 4-pin with Amalgam 39
Biax Q/E LongLast 4-pin 40
Biax L LongLast 4-pin 40
2D Watt-Miser 41
Biax 2D 41
T3 Stick - Ultralife 47
T3&T4 Stick - Economizer 48
T3&T4 Economizer Plus 49
T4 Stick - Sensor 49
Electronic Stick T3 Mini 50
T2 Spiral 50
Electronic LongLast Spiral T2 52
T3 Spiral 53
T5 Spiral 54
Decor 55
Compact Fluorescent Lamps
Non-Integrated
Compact Fluorescent Lamps
Integrated
28
Compact Fluorescent Lamps Non-Integrated
GE lighting has one of the most extensive
range of compact uorescent light sources
available, providing extra energy saving
with the Watt-Miser concept and long life
performance with the LongLast range, which
can be ideal for almost every application.
Since compact uorescent bulbs use less
energy, these products save you money
on your electricity bill and help protect the
environment.
In response to the demand from the market
for a lower energy consumption GE has
developed the extra energy saving
2DM Watt-Miser.
GE Watt-Miser is a new generation of lamp
family where end users can save additional
energy versus regular compact uorescent
lamps on the market. Currently this unique
GE 2D range has this extra feature where
extra energy saving can reach up to 12%.
GE LongLast plug-in range is over the
standard, and can last up to 20,000 hours.
The smart way for an efficient professional
lighting application with GE non-integrated
compact fluorescent lamps.
The range is wide, having this long life
performance from 10-70W in variety of
different product shapes.
GEBiaxlampsoers:
• Extra energy saving – up to 12%
• Long life – up to 20,000 hours
• High industry standard efcacy level
• Wide range of colour, wattage
• Suitable for dimming and motion
detection
• Robust technical design
• High quality product
• Low running cost
• Warranty
• Environmentally friendly
29
Advanced lighting technologies
Plug-In CFL
HLBX Biax L: 36/40/55W
• 6000 hrs rated life
• Compact size, high wattage
• Round tube end, no dark area
• 36W is only with GE, fitting in
600mm*600mm fixture
Application
• Down light
• Commercial & Industrial lighting
• Hotel, restaurant, airport
Biax S-2 pin Biax D-2 pin Biax D-4 pin
• 8000hr to 10000hr rated life, which is 8 to
10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
• Lumen maintenance keep 90% for
2000hr
• 8000hr to 10000hr rated life, which is 8
to 10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
• Lumen maintenance keep 90% for
2000hr
• 8000hr to 10000hr rated life, which is 8
to 10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
•
Lumen maintenance keep 90% for
2000hr
30
Compact Fluorescent Lamps Non-Integrated
Standard Biax D&T
upgraded to LongLast
Standard 2D upgraded
to Watt-Miser
For Maintenance Saving For Energy Saving
Our new compact fluorescent LongLast lamps provide increased
service life which significantly reduces replacement and
maintenance costs. They are ultra compact energy saving
fluorescent lamps with new, innovative double and triple tube
designs giving an ideal light source for small fixtures and
downlighters.
GE LongLast guarantees the same light output in any burning
position. It can be used in closed luminaires and outdoor
applications too without significant light loss due to
GE Amalgam technology providing stable lumen performance
within a wide temperature range.
• Standard product has been upgraded to LongLast
• Retrofit – can be used with existing fittings and control gears
• 20% life increase on 2-pin and 60% life increase on
4-pin range
• Reduces replacement and maintenance costs
• Best in class versus competition – standard price at
premium performance
• Further energy saving with dimming possibilities
• Available in warm to cool temperatures (2700 – 6500K)
New 2D Watt-Miser lamps are energy saving compact
fluorescent tubes formed into a “2D” shape. All types are
available with a 4-pin cap which permits use with
conventional or electronic control gear, dimming and emergency
lighting circuits.
2D lamps use rare earth triphosphors to give high efficacy with
good colour rendering properties.
This new range of GE 2D Watt-Miser compact fluorescent lamps
give additional energy savings, even on standard
control gear.
• Direct replacements for 16-21-28-38W standard 2D range
• Unique shape suitable for broad range of applications
• Interchangeable – can be used with existing fittings and
control gear
• Excellent for circular light distribution
•
Extra 5-12% energy saving depending on lamp/gear/environment
• The only 'A' class energy 2D lamp on the market
• Highest saving of 12% using 28W in high frequency operation
– fast payback
• Best performance at the best running cost on the market!
2D
31
2D Watt-Miser
The next generation of 2D lamps
The new 2D Watt-Miser lamps are energy saving compact fluorescent
tubes. Available in either 16W, 21W, 28W, or 38W versions, in a wide
choice of colour temperatures. These lamps are a direct replacement for
existing 2D lamps, delivering market leading life, with excellent energy
saving performance that is unique to GE!
2D Watt-Miser lamps provide similar lumen output as standard
2D lamps, with an energy saving of up to 12% dependent upon
ballast and wattage.
Key benefits
• Reduced energy consumption
• The only ‘A’ Class energy
rated 2D lamp
• Maintains market leading lumen
maintenance
• Retrofit products to existing
fittings and ballasts
• 2 and 4 pin versions
Application areas
2D Watt-Miser lamps are suitable for
a wide range of exterior and interior
applications:
• Residential
• Domestic
• Utility areas
• Task lighting
• Hotels/offices/restaurants
• Emergency lighting
• Decorative installations
Energy saving possibilities
2D
Advanced lighting technologies
16W 21W 28W 38W
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
2D Watt-Miser 14.05 14.84 1100 18.76 19.61 1350 24.24 26.74 2150 34 37.41 3000
Standard GE 2D lamp 15.4 15.75 1150 20.17 21.17 1450 27.57 28.05 2250 37.28 38.68 3000
Saving 8.8% 5.8% 7% 7.4% 12.1% 4.7% 8.8% 3.3%
32
Compact Fluorescent Lamps Non-Integrated
Biax S
Biax S - 2 pin
Cap: G23
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 35
Biax D
Biax D - 2pin
Cap: G24d
Wattages: 10-13-18-26W
Colours: 2700 - 6500K
Life: 7,000 - 10,000Hrs
Page: 35
Biax D/E - 4pin
Cap: G24q
Wattage: 10-13-18-26W
Colors: 2700 - 6500K
Life: 7,000 - 10,000Hrs
Page: 36
Biax D-D
Biax D-D -2 pin
Cap: GR-8
Wattages: 16W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 37
Biax D-D -2 pin
Cap: GR-10q
Wattages: 16-28-38W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 37
33
Selector
2D
Biax 2D Intergral
Cap:
GRZ10d, GRZ10t
Wattages: 18-30W
Colours: 2700 - 6000K
Life: 10,000Hrs
Page: 41
Biax S
Biax S - 2pin
Cap: G23
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 38
Biax S/E - 4pin
Cap: 2G7
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 38
Biax D
Biax D - 2pin
Cap: G24d
Wattages: 10-13-18-26W
Colours: 2700 - 6500K
Life: 12,000Hrs
Page: 38
Biax D/E - 4pin
Cap: G24q
Wattage: 10-13-18-26W
Colors: 2700 - 6500K
Life: 20,000Hrs
Page: 39
Biax T
Biax T - 2pin
Cap: GX24d
Wattages: 13-18-26-32W
Colours: 2700 - 6500K
Life: 12,000Hrs
Page: 39
Biax T/E - 4pin
Cap: GX24q
Wattages: 13-18-26-
32-42W
Colours: 2700 - 6500K
Life: 20,000Hrs
Pages: 39
Biax Q
Biax Q/E - 4pin
Cap: GX24q
Wattages: 57-70W
Colours: 2700 - 5000K
Life: 20,000Hrs
Page: 39
Biax L
Biax L - 4pin
Cap: 2G11
Wattages: 18-26-36-
40-55W
Colours: 2700 - 6500K
Life:
12,000-20,000Hrs
Page: 40
Biax 2D - 2pin
Cap: GR8
Wattages: 16-28W
Colours: 2700 - 6000K
Life: 12,000Hrs
Page: 41
2 D
2 D
2D - 4pin
Cap: GR10q, GRY10q
Wattages: 10-16-28-
38-55W
Colours: 2700 - 6000K
Life:
8,000-15,000Hrs
Page: 41
2 D
*10W and 55W versions are not Watt-Miser type
34
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
EEC Pack Qty
37654 F5BX/SPX27/827 5 35 G23 265 2700 82 10,000 32 107.5 A 10
37661 F5BX/SPX41/840 5 35 G23 265 4000 82 10,000 32 107.5 A 10
37846 F7BX/SPX27/827 7 47 G23 425 2700 82 10,000 32 136.5 A 10
Product identification
Compact Fluorescent Lamps Non-Integrated
Lamp’s
wattage
Biax S 2-pin, Internal Starter
The following glossary of terms will help you when selecting lamps in this section. Within
each product line, lamps are divided into families – within these families, lamps are listed
by wattage. The Product Description can be used as a quick reference to each product’s
attributes. Where Life or Average Life are stated we refer to the industry standard
definition of how many hours of operation 50% of a given installation will exceed.
All Biax CFL lamps manufactured with the high quality Polylux triphosphor technology.
Identifies
lamp as
fluorescent
Product type
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Colour temperature
XX=First 2 digits
of temperature in
Kelvin - XX00K
Eg. 27 is 2700K
Colour definition
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
Colour rendering
Ra 60-69 (group 2B)
Ra 70-79 (group 2A)
Ra 80-89 (group 1B)
Ra 90-99 (group 1A)
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data is based on
operation at rated
voltage
Life:
The point in time when
50% of installed lamps
are still burning
CCT:
Colour temperature – Kelvin [K].
The visual warmth or coolness
of the light. The higher the
number the whiter or cooler the
light appears
Length:
Total length including the
length of the pin in mm
Lumens:
Light output after
the initial 100 hours
of operation
Diameter:
Bulb diameter in mm
EEC:
Energy Efficiency Class
Pack quantity:
Number of product
units packed in a case
CRI:
Colour rendering index,
the higher the number
(1-100), the more natural
the lit subject appears
F 5 B X / S P X 2 7 / 8 2 7
American standard coding
of colour temperature
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
35
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT [K] Lumen [lm] CRI
[Ra]
Length
[mm]
Country COO
Biax S-2 pin
47201E F7BX/NCO/840/2P/STD 7 G23 8000 4000 400 80 137 Australia China
47231E F9BX/NCO/827/2P/STD 9 G23 8000 2700 550 80 167 Australia China
47232E F9BX/NCO/840/2P/STD 9 G23 8000 4000 550 80 167 Australia China
47285E F11BX/NCO/827/2P/STD 11 G23 8000 2700 850 80 235 Australia China
47286E F11BX/NCO/840/2P/STD 11 G23 8000 4000 850 80 235 Australia China
47200N F7BX/827/2P 7 G23 8000 2700 400 80 137 MY/PH/SG/TH China
47201N F7BX/840/2P 7 G23 8000 4000 400 80 137 MY/PH/SG/TH China
47202N F7BX/865/2P 7 G23 8000 6500 400 80 137 MY/PH/SG/TH China
47231N F9BX/827/2P 9 G23 8000 2700 550 80 167 MY/PH/SG/TH China
47232N F9BX/840/2P 9 G23 8000 4000 550 80 167 MY/PH/SG/TH China
47284N F9BX/865/2P 9 G23 8000 6500 550 80 167 MY/PH/SG/TH China
47285N F11BX/827/2P 11 G23 8000 2700 850 80 235 MY/PH/SG/TH China
47286N F11BX/840/2P 11 G23 8000 4000 850 80 235 MY/PH/SG/TH China
47287N F11BX/865/2P 11 G23 8000 6500 850 80 235 MY/PH/SG/TH China
85182E F10DBX/827/2P/STD 10 G24d-1 10000 2700 560 80 112 Australia China
85183E F10DBX/840/2P/STD 10 G24d-1 10000 4000 520 80 112 Australia China
85185E F13DBX/827/2P/STD 13 G24d-1 10000 2700 760 80 136 Australia China
85186E F13DBX/840/2P/STD 13 G24d-1 10000 4000 740 80 136 Australia China
85194E F18DBX/827/2P/STD 18 G24d-2 10000 2700 1100 80 156 Australia China
85195E F18DBX/840/2P/STD 18 G24d-2 10000 4000 990 80 156 Australia China
65396E F26DBX/827/2P/G24d-3 26 G24d-3 7000 2700 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65397E F26DBX/830/2P/G24d-3 26 G24d-3 7000 3000 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65398E F26DBX/835/2P/G24d-3 26 G24d-3 7000 3500 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65399E F26DBX/840/2P/G24d-3 26 G24d-3 7000 4000 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65405E F26DBX/865/2P/G24d-3 26 G24d-3 7000 6500 1485 78 180
Australia/ID/PH/SG/MY/TH
China
47288 F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 PH China
47290 F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 PH China
47291 F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 PH China
47296 F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 PH China
47300 F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 PH China
47303 F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 PH China
47306 F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 PH China
47318 F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 PH China
47319 F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 PH China
85194N F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 PH China
85195N F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 PH China
85196N F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 PH China
Biax D-2 pin
36
Compact Fluorescent Lamps Non-Integrated
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT
[K]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Country COO
Biax D-2 pin
85182N F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 SG/MY China
72838N F10DBX/830/2P 10 G24d-1 10000 3000 560 80 112 SG/MY China
85183N F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 SG/MY China
85184N F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 SG/MY China
85185N F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 SG/MY China
72840N F13DBX/830/2P 13 G24d-1 10000 3000 760 80 136 SG/MY China
85186N F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 SG/MY China
85191N F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 SG/MY China
85194N F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 SG/MY China
72842N F18DBX/830/2P 18 G24d-2 10000 3000 1100 80 156 SG/MY China
85195N F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 SG/MY China
85196N F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 SG/MY China
95824EN F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 TH China
95825EN F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 TH China
95826EN F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 TH China
95827EN F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 TH China
95828EN F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 TH China
95829EN F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 TH China
95830EN F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 TH China
95831EN F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 TH China
95832EN F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 TH China
85214E F13DBX/840/4P/STD 13 G24q-1 10000 4000 740 80 130 Australia China
85216E F13DBX/865/4P/STD 13 G24q-1 10000 6500 720 78 130 Australia China
72848E F18DBX/ 830/4P/STD 18 G24q-2 10000 3000 1100 80 150 Australia China
85232E F18DBX/840/4P/STD 18 G24q-2 10000 4000 990 80 150 Australia China
85236E F18DBX/865/4P/STD 18 G24q-2 10000 6500 920 78 150 Australia China
65407E F26DBX/827/4P/G24q-3 26 G24q-3 7000 2700 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65409E F26DBX/830/4P/G24q-3 26 G24q-3 7000 3000 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65411E F26DBX/835/4P/G24q-3 26 G24q-3 7000 3500 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65413E F26DBX/840/4P/G24q-3 26 G24q-3 7000 4000 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65415E F26DBX/865/4P/G24q-3 26 G24q-3 7000 6500 1485 78 175 Australia/
ID/MY/PH/SG/TH
China
85197N GE F10DBX/827/4P 10 G24q-1 10000 2700 560 80 106
MY/PH/SG/TH
China
72844N GE F10DBX/830/4P 10 G24q-1 10000 3000 560 80 106
MY/PH/SG/TH
China
85198N GE F10DBX/840/4P 10 G24q-1 10000 4000 520 80 106
MY/PH/SG/TH
China
85199N GE F10DBX/865/4P 10 G24q-1 10000 6500 505 78 106
MY/PH/SG/TH
China
85211N GE F13DBX/827/4P 13 G24q-1 10000 2700 760 80 130
MY/PH/SG/TH
China
72846N GE F13DBX/830/4P 13 G24q-1 10000 3000 760 80 130
MY/PH/SG/TH
China
85214N GE F13DBX/840/4P 13 G24q-1 10000 4000 740 80 130
MY/PH/SG/TH
China
85216N GE F13DBX/865/4P 13 G24q-1 10000 6500 720 78 130
MY/PH/SG/TH
China
85221N GE F18DBX/827/4P 18 G24q-2 10000 2700 1100 80 150
MY/PH/SG/TH
China
72848N GE F18DBX/830/4P 18 G24q-2 10000 3000 1100 80 150
MY/PH/SG/TH
China
85232N GE F18DBX/840/4P 18 G24q-2 10000 4000 990 80 150
MY/PH/SG/TH
China
85236N GE F18DBX/865/4P 18 G24q-2 10000 6500 920 78 150
MY/PH/SG/TH
China
Biax D/E-4 pin
37
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT [K] Lumen [lm] CRI [Ra] Dimension
[mm]
Country COO
Biax D-D - 2 pin
86354N F16DDT4/827/2P 16 GR8 8000 2700 950 82 141x138 SG China
86361N F16DDT4/840/2P 16 GR8 8000 4000 950 82 141x138 SG China
86376N F16DDT4/865/2P 16 GR8 8000 6500 903 82 141x138 SG China
86391N F16DDT4/827/4P 16 GR10q 8000 2700 950 82 141x138 SG China
86406N F16DDT4/865/4P 16 GR10q 8000 6500 903 82 141x138 SG China
86421N F28DDT6/827/4P 28 GR10q 8000 2700 1950 82 207x205 SG China
86436N F28DDT6/840/4P 28 GR10q 8000 4000 1950 82 207x205 SG China
86451N F28DDT6/865/4P 28 GR10q 8000 6500 1853 82 207x205 SG China
86466N F38DDT6/827/4P 38 GR10q 8000 2700 2700 82 207x205 SG China
86481N F38DDT6/840/4P 38 GR10q 8000 4000 2700 82 207x205 SG China
86496N F38DDT6/865/4P 38 GR10q 8000 6500 2565 82 207x205 SG China
Biax D-D - 4 pin
38
Compact Fluorescent Lamps Non-Integrated
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax S 2-pin, Internal Starter
37654 F5BX/SPX27/827 5 35 G23 265 2700 82 10,000 32 107.5 Hungary
37661 F5BX/SPX41/840 5 35 G23 265 4000 82 10,000 32 107.5 Hungary
37846 F7BX/SPX27/827 7 47 G23 425 2700 82 10,000 32 136.5 Hungary
38930 F7BX/830 7 47 G23 425 3000 82 10,000 32 136.5 Hungary
37659 F7BX/SPX35/835 7 47 G23 425 3500 82 10,000 32 136.5 Hungary
37660 F7BX/SPX41/840 7 47 G23 425 4000 82 10,000 32 136.5 Hungary
38984 F7BX/865 7 47 G23 425 6500 82 10,000 32 136.5 Hungary
37651 F9BX/827 9 60 G23 600 2700 82 10,000 32 167 Hungary
38929 F9BX/830 9 60 G23 600 3000 82 10,000 32 167 Hungary
37652 F9BX/SPX35/835 9 60 G23 600 3500 82 10,000 32 167 Hungary
37653 F9BX/SPX41/840 9 60 G23 600 4000 82 10,000 32 167 Hungary
38985 F9BX/865 9 60 G23 600 6500 82 10,000 32 167 Hungary
37663 F11BX/827 11 91 G23 900 2700 82 10,000 32 237 Hungary
38928 F11BX/830 11 91 G23 900 3000 82 10,000 32 237 Hungary
37666 F11BX/835 11 91 G23 900 3500 82 10,000 32 237 Hungary
37664 F11BX/840 11 91 G23 900 4000 82 10,000 32 237 Hungary
38986 F11BX/840 11 91 G23 900 6500 82 10,000 32 237 Hungary
37714 F5BX/827/4P 5 35 2G7 265 2700 82 10,000 37.5 92 Hungary
37715 F5BX/840/4P 5 35 2G7 265 4000 82 10,000 37.5 92 Hungary
37658 F7BX/827/4P 7 47 2G7 425 2700 82 10,000 37.5 121 Hungary
37716 F7BX/840/4P 7 47 2G7 425 4000 82 10,000 37.5 121 Hungary
37710 F9BX/827/4P 9 60 2G7 600 2700 82 10,000 37.5 151 Hungary
37711 F9BX/840/4P 9 60 2G7 600 4000 82 10,000 37.5 151 Hungary
37717 F11BX/827/4P 11 91 2G7 900 2700 82 10,000 37.5 222 Hungary
37713 F11BX/840/4P 11 91 2G7 900 4000 82 10,000 37.5 222 Hungary
12603 F11BX/865/4P 11 91 2G7 900 6500 82 10,000 37.5 222 Hungary
78211 F10DBX/T3/827/2P 10 64 G24D-1 600 2700 82 12000 34.4 108 Hungary
78212 F10DBX/T3/830/2P 10 64 G24D-1 600 3000 82 12000 34.4 108 Hungary
78213 F10DBX/T3/835/2P 10 64 G24D-1 600 3500 82 12000 34.4 108 Hungary
78214 F10DBX/T3/840/2P 10 64 G24D-1 600 4000 82 12000 34.4 108 Hungary
78215 F10DBX/T3/865/2P 10 64 G24D-1 600 6500 82 12000 34.4 108 Hungary
78221 F13DBX/T3/827/2P 13 91 G24D-1 900 2700 82 12000 34.4 139 Hungary
78222 F13DBX/T3/830/2P 13 91 G24D-1 900 3000 82 12000 34.4 139 Hungary
78223 F13DBX/T3/835/2P 13 91 G24D-1 900 3500 82 12000 34.4 139 Hungary
78224 F13DBX/T3/840/2P 13 91 G24D-1 900 4000 82 12000 34.4 139 Hungary
78225 F13DBX/T3/865/2P 13 91 G24D-1 900 6500 82 12000 34.4 139 Hungary
12860 F18DBXT4/SPX27/827 18 100 G24d-2 1200 2700 82 12,000 34.4 154 Hungary
12861 F18DBXT4/SPX30/830 18 100 G24d-2 1200 3000 82 12,000 34.4 154 Hungary
12863 F18DBXT4/SPX35/835 18 100 G24d-2 1200 3500 82 12,000 34.4 154 Hungary
12864 F18DBXT4/SPX41/840 18 100 G24d-2 1200 4000 82 12,000 34.4 154 Hungary
13017 F18DBXT4/SPX65/865 18 100 G24d-2 1200 6500 82 12,000 34.4 154 Hungary
35250 F26DBXT4/SPX27/827 26 105 G24d-3 1800 2700 82 12,000 34.4 169.5 Hungary
35237 F26DBXT4/SPX30/830 26 105 G24d-3 1800 3000 82 12,000 34.4 169.5 Hungary
35251 F26DBXT4/SPX35/835 26 105 G24d-3 1800 3500 82 12,000 34.4 169.5 Hungary
35252 F26DBXT4/SPX41/840 26 105 G24d-3 1800 4000 82 12,000 34.4 169.5 Hungary
35305 F26DBXT4/SPX65/865 26 105 G24d-3 1630 6500 82 12,000 34.4 169.5 Hungary
Biax S/E 4-pin, External Starter Required
Biax D 2-pin, Internal Starter
lamp name: Compact

39
lamp name: Compact — Biax D/E
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax D/E LongLast 4-pin, External Starter Required
78217 F10DBX/T3/827/4P 10 51 G24Q-1 600 2700 82 20000 34.4 100.5 Hungary
78218 F10DBX/T3/830/4P 10 51 G24Q-1 600 3000 82 20000 34.4 100.5 Hungary
78219 F10DBX/T3/835/4P 10 51 G24Q-1 600 3500 82 20000 34.4 100.5 Hungary
78220 F10DBX/T3/840/4P 10 51 G24Q-1 600 4000 82 20000 34.4 100.5 Hungary
78231 F10DBX/T3/865/4P 10 51 G24Q-1 600 6500 82 20000 34.4 100.5 Hungary
78226 F13DBX/T3/827/4P 13 77 G24Q-1 900 2700 82 20000 34.4 131.5 Hungary
78227 F13DBX/T3/830/4P 13 77 G24Q-1 900 3000 82 20000 34.4 131.5 Hungary
78228 F13DBX/T3/835/4P 13 77 G24Q-1 900 3500 82 20000 34.4 131.5 Hungary
78229 F13DBX/T3/840/4P 13 77 G24Q-1 900 4000 82 20000 34.4 131.5 Hungary
78232 F13DBX/T3/865/4P 13 77 G24Q-1 900 6500 82 20000 34.4 131.5 Hungary
12865 F18DBX/SPX27/827/4P 18 80 G24q-2 1200 2700 82 20,000 34.4 146.5 Hungary
12866 F18DBX/SPX30/830/4P 18 80 G24q-2 1200 3000 82 20,000 34.4 146.5 Hungary
12869 F18DBX/SPX35/835/4P 18 80 G24q-2 1200 3500 82 20,000 34.4 146.5 Hungary
12870 F18DBX/SPX41/840/4P 18 80 G24q-2 1200 4000 82 20,000 34.4 146.5 Hungary
35247 F26DBX/SPX27/827/4P 26 80 G24q-3 1800 2700 82 20,000 34.4 162 Hungary
35235 F26DBX/SPX30/830/4P 26 80 G24q-3 1800 3000 82 20,000 34.4 162 Hungary
35248 F26DBX/SPX35/835/4P 26 80 G24q-3 1800 3500 82 20,000 34.4 162 Hungary
35236 F26DBX/SPX41/840/4P 26 80 G24q-3 1800 4000 82 20,000 34.4 162 Hungary
42798 F26DBX/SPX65/865/4P 26 80 G24q-3 1710 6500 82 12,000 34.40 162 Hungary
Biax T 2-pin with Amalgam, Internal Starter
35940 F13TBX/827/A/2P 13 91 GX24d-1 900 2700 82 12,000 49.3 112.9 Hungary
35966 F13TBX/SPX30/830/A/2P 13 91 GX24d-1 900 3000 82 12,000 49.3 112.9 Hungary
35941 F13TBX/SPX41/A/2P 13 91 GX24d-1 900 4000 82 12,000 49.3 112.9 Hungary
35945 F18TBX/SPX27/827/A/2P 18 100 GX24d-2 1200 2700 82 12,000 49.3 127.4 Hungary
35944 F18TBX/SPX30/830/A/2P 18 100 GX24d-2 1200 3000 82 12,000 49.3 127.4 Hungary
35937 F18TBX/SPX35/835/A/2P 18 100 GX24d-2 1200 3500 82 12,000 49.3 127.4 Hungary
35939 F18TBX/SPX41/840/A/2P 18 100 GX24d-2 1200 4000 82 12,000 49.3 127.4 Hungary
35959 F26TBX/SPX27/827/A/2P 26 105 GX24d-3 1800 2700 82 12,000 49.3 139.9 Hungary
35952 F26TBX/SPX30/830/A/2P 26 105 GX24d-3 1800 3000 82 12,000 49.3 139.9 Hungary
35963 F26TBX/SPX35/835/A/2P 26 105 GX24d-3 1800 3500 82 12,000 49.3 139.9 Hungary
35964 F26TBX/SPX41/840/A/2P 26 105 GX24d-3 1800 4000 82 12,000 49.3 139.9 Hungary
Biax T/E LongLast 4-pin with Amalgam, External Starter Required
34391 F13TBX/SPX27/827/A/4P 13 91 GX24q-1 900 2700 82 12,000 49.3 112.9 Hungary
34395 F13TBX/SPX30/830/A/4P 13 91 GX24q-1 900 3000 82 12,000 49.3 112.9 Hungary
34400 F13TBX/SPX35/835/A/4P 13 91 GX24q-1 900 3500 82 12,000 49.3 112.9 Hungary
34387 F13TBX/SPX41/840/A/4P 13 91 GX24q-1 900 4000 82 12,000 49.3 112.9 Hungary
34392 F18TBX/SPX27/827/A/4P 18 100 GX24q-2 1200 2700 82 12,000 49.3 127.4 Hungary
34396 F18TBX/SPX30/830/A/4P 18 100 GX24q-2 1200 3000 82 12,000 49.3 127.4 Hungary
34405 F18TBX/SPX35/835/A/4P 18 100 GX24q-2 1200 3500 82 12,000 49.3 127.4 Hungary
34385 F18TBX/SPX41/840/A/4P 18 100 GX24q-2 1200 4000 82 12,000 49.3 127.4 Hungary
34393 F26TBX/SPX27/827/A/4P 26 105 GX24q-3 1800 2700 82 12,000 49.3 139.9 Hungary
34397 F26TBX/SPX30/830/A/4P 26 105 GX24q-3 1800 3000 82 12,000 49.3 139.9 Hungary
34406 F26TBX/SPX35/835/A/4P 26 105 GX24q-3 1800 3500 82 12,000 49.3 139.9 Hungary
34381 F26TBX/SPX41/840/A/4P 26 105 GX24q-3 1800 4000 82 12,000 49.3 139.9 Hungary
40
Compact Fluorescent Lamps Non-Integrated
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax T/E LongLast 4-pin with Amalgam, External Starter Required
39377 F32TBX/SPX27/827/AP4P 32 100 GX24q-3 2400 2700 82 17,000 49.3 141.2 Hungary
39378 F32TBX/SPX30/830/AP4P 32 100 GX24q-3 2400 3000 82 17,000 49.3 141.2 Hungary
39379 F32TBX/SPX35/835/A/4P 32 100 GX24q-3 2400 3500 82 17,000 49.3 141.2 Hungary
39380 F32TBX/SPX41/840/A/4P 32 100 GX24q-3 2400 4000 82 17,000 49.3 141.2 Hungary
46312 F42TBX/827/A/4P 42 135 GX24q-4 3200 2700 82 17,000 49.3 163.2 Hungary
46313 F42TBX/830/A/4P 42 135 GX24q-4 3200 3000 82 17,000 49.3 163.2 Hungary
46314 F42TBX/835/A/4P 42 135 GX24q-4 3200 3500 82 17,000 49.3 163.2 Hungary
46315 F42TBX/841/A/4P 42 135 GX24q-4 3200 3000 82 17,000 49.3 163.2 Hungary
Biax Q/E LongLast 4-pin
45213 F57QBX/827/A/4P/LL 57 175 GX24q-5 4300 2700 82 20,000 58.3 180.7 Hungary
45204 F57QBX/830/A/4P/LL 57 175 GX24q-5 4300 3000 82 20,000 58.3 180.7 Hungary
45202 F57QBX/835/A/4P/LL 57 175 GX24q-5 4300 3500 82 20,000 58.3 180.7 Hungary
45201 F57QBX/840/A/4P/LL 57 175 GX24q-5 4300 4000 82 20,000 58.3 180.7 Hungary
45208 F70QBX/830/A/4P/LL 70 219 GX24q-6 5200 3000 82 20,000 58.3 208.2 Hungary
45219 F70QBX/835/A/4P/LL 70 219 GX24q-6 5200 3500 82 20,000 58.3 208.2 Hungary
45218 F70QBX/840/A/4P/LL 70 219 GX24q-6 5200 4000 82 20,000 58.3 208.2 Hungary
Biax L LongLast 4-pin, External Starter Required
41087 F18BX/827 18 58 2G11 1250 2700 82 10,000 43.8 231.3 Hungary
41088 F18BX/830 18 58 2G11 1250 3000 82 10,000 43.8 231.3 Hungary
41089 F18BX/835 18 58 2G11 1250 3500 82 10,000 43.8 231.3 Hungary
41090 F18BX/840 18 58 2G11 1250 4000 82 10,000 43.8 231.3 Hungary
41128 F24BX/827 24 87 2G11 1800 2700 82 10,000 43.8 326.8 Hungary
41134 F24BX/830 24 87 2G11 1800 3000 82 10,000 43.8 326.8 Hungary
41145 F24BX/835 24 87 2G11 1800 3500 82 10,000 43.8 326.8 Hungary
41155 F24BX/840 24 87 2G11 1800 4000 82 10,000 43.8 326.8 Hungary
41163 F34BX/830 34 120 2G11 2800 3000 82 10,000 43.8 538.8 Hungary
41166 F34BX/835 34 120 2G11 2800 3500 82 10,000 43.8 538.8 Hungary
41167 F34BX/840 34 120 2G11 2800 4000 82 10,000 43.8 538.8 Hungary
41307 F36BX/827 36 106 2G11 2900 2700 82 10,000 43.8 421.8 Hungary
41168 F36BX/830 36 106 2G11 2900 3000 82 10,000 43.8 421.8 Hungary
41169 F36BX/835 36 106 2G11 2900 3500 82 10,000 43.8 421.8 Hungary
41170 F36BX/840 36 106 2G11 2900 4000 82 10,000 43.8 421.8 Hungary
75694 F36BX/865 36 106 2G11 2750 6500 82 10000 43.8 421.8 Hungary
41171 F40BX/830 40 126 2G11 3500 3000 82 20,000 43.8 538.8 Hungary
41172 F40BX/835 40 126 2G11 3500 3500 82 20,000 43.8 538.8 Hungary
41173 F40BX/840 40 126 2G11 3500 4000 82 20,000 43.8 538.8 Hungary
41174 F55BX/830 55 101 2G11 4800 3000 82 20,000 43.8 538.8 Hungary
41260 F55BX/835 55 101 2G11 4800 3500 82 20,000 43.8 538.8 Hungary
41298 F55BX/840 55 101 2G11 4800 4000 82 20,000 43.8 538.8 Hungary
75695 F55BX/865 55 101 2G11 4550 6500 82 20000 43.8 538.8 Hungary
41
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
41744 F162D/827 16 103 GR8 1100 2700 82 12,000 138 142 Hungary
41745 F162D/835 16 103 GR8 1100 3500 82 12,000 138 142 Hungary
41746 F162D/827/4P 16 103 GR10q 1100 2700 82 12,000 138 142 Hungary
75066 F162D/830/4P 16 103 GR10q 1100 3000 82 12,000 138 142 Hungary
41747 F162D/835/4P 16 103 GR10q 1100 3500 82 12,000 138 142 Hungary
41749 F162D/860 16 103 GR8 1050 6000 82 12,000 138 142 Hungary
41794 F212D/827/4P 21 103 GR10q 1375 2700 82 12,000 138 142 Hungary
41806 F212D/835/4P 21 103 GR10q 1375 3500 82 12,000 138 142 Hungary
41808 F212D/860/4P 21 103 GR10q 1375 6000 82 12,000 138 142 Hungary
10546 F282DT5/827/2P 28 108 GR8 2150 2700 82 15,000 202 204 Hungary
10547 F282DT5/827/4P 28 108 GR10q 2150 2700 82 15,000 202 204 Hungary
75068 F282DT5/830/4P 28 108 GR10q 2150 3000 82 18,000 202 204 Hungary
10567 F282DT5/835/4P 28 108 GR10q 2150 3500 82 15,000 202 204 Hungary
10548 F282DT5/840/4P 28 108 GR10q 2150 4000 82 15,000 202 204 Hungary
10550 F382DT5/827/4P 38 110 GR10q 3000 2700 82 18,000 202 204 Hungary
75067 F382DT5/830/4P 38 110 GR10q 3000 3000 82 18,000 202 204 Hungary
10566 F382DT5/835/4P 38 110 GR10q 3000 3500 82 18,000 202 204 Hungary
2D Watt-Miser
88105 F10W/2D/827/4P 10 60 GR10q 680 2700 82 8,000 92 95 Hungary
88106 F10W/2D/835/4P 10 60 GR10q 680 3500 82 8,000 92 95 Hungary
Biax 2D
18122 FLE18W2D/827 GRZ10D 18 220-240 GRZ10d 1200 2700 80 10,000 138 142 Hungary
18123 FLE18W2D/835 GRZ10D 18 220-240 GRZ10d 1200 3500 80 10,000 138 142 Hungary
18120 FLE18W2D/840 GRZ10D 18 220-240 GRZ10d 1200 4000 80 10,000 138 142 Hungary
Biax 2D Watt-Miser with Integral Control Gear
42
Compact Fluorescent Lamps Integrated
GE’s new compact fluorescent lamps give you
the energy saving benefits you want and the
high quality lighting you expect. These lamps
are the perfect alternatives to incandescent
lamps.
Save money on energy bills and lose
nothinginquality.ThebenetsofGE’s
compactuorescentrangeare:
• 80% energy efcient vs incandescent
from our ‘A’ energy labeled products
• Available in small incandescent sizes
and look-a-like shapes – they t almost
everywhere!
• Guaranteed outstanding light quality
throughout the lamps’ life, available in
various colour temperatures
• Provide quick and icker-free start, fast
warm-up
• Last long years in service from 6,000 up to
15,000 hours
• Available in a wide range of shapes – from
stick, spiral to decorative form
• Meeting specic requirements with
special lamps that offer dimmability, dusk
to dawn operation and high switching
endurance.
• Environmentally friendly solutions – WEEE,
RoHS and EUP compliant products with
minimized mercury content.
Get Your shape back!
GE’s brand new top performance
Energy Smart compact uorescent lamp
is now your true look-a-like replacement
of a frosted incandescent bulb – providing
excellent light quality and energy savings for
up to 10 years.
43
Advanced lighting technologies
Incandescent
Product Group
Compact Fluorescent
Standard Substitute
Compact Fluorescent
Premium Substitute
Compact Fluorescent
High Performance Substitute
Incandescent Upgrade
Stick T3 Mini Eco 6,000 hours
Stick T3 Mini Eco 6,000 hours
Stick T3 Mini Eco 6,000 hours
Stick T3 Extra Mini 15,000 hours*
LongLast Spiral T2 8,000 hours
Spiral T2 8,000 hours
Candle T2 6,000 hours
GLS T2 6,000 hours
GLS T2 6,000 hours
Energy Smart T2 10,000 hours
Spiral T2 8,000 hours
Spherical T2 6,000 hours
Stick T3 Mini 10,000 hours
Stick T3 Mini 10,000 hours
Stick T3 Mini 10,000 hours
GLS
Krypton
Mushroom
Globe
Candle
Spherical
These premium compact fluorescent
lamps are dimmable: this means that
lighting can be adjusted to suit mood and
also extra energy savings can be made.
Small size premium quality lamp providing
fast light and long life.
Key features
• 20W T3
• Fast warm-up
• 10,000 hours life
• Reduced mercury content <2mg
• 15-100% continuous dimming
T3 Dimmable
Key features
• Full range from 8-23W
• Fast warm-up
• 15,000 hours life
• 20,000 switching endurance
• Ecolabel certified quality
LongLast Spiral
T2 15,000 hours
Energy Smart T2 10,000 hours
Energy Smart T2 10,000 hours
Energy Smart T2 10,000 hours
Dimmable Spiral T3 10,000 hours
Dimmable Spiral T3 10,000 hours
Dimmable Spiral T3 10,000 hours
LongLast Spiral T2 15,000 hours
LongLast Spiral T2 15,000 hours
LongLast Spiral T2 15,000 hours
Spiral T2 15,000 hours
44
Compact Fluorescent Lamps Integrated
Miniaturized electronics developed by GE engineers are the enabling
technology of a new covered Energy Smart compact fluorescent
lamp featuring the “T2 GE Spiral” inside the glass bulb. With this new
lamp – an exclusive design achievement that GE has protected with
more than 16 patents – the electronics fit in the neck of the frosted-
glass bulb. The result is a profile that’s virtually identical to a
standard incandescent light bulb – same size and shape.
The new premium Energy Smart compact fluorescent bulb is
available only from GE, has instant-on technology,
consists of eco-friendly components and provides excellent light
quality combined with massive energy savings for
up to 10 years.
Key features
• Traditional soft light bulb
• The first glass frosted compact
fluorescent lamp, compliant with
European Legislation
•9, 11, 15 and 20W versions
•80% energy saving
•10,000 hours lifetime
• Unique GE innovation using
16 patents
• Minimized mercury content, <0.8 mg
Energy Smart
At last, the NEW energy saving lamp
that everyone’s been waiting for
With a T2 tube inside
a product of
45
Stick
T3 Stick - Ultralife
Cap: E27, E14, B22
Wattages: 6-20W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 47
T3 Spiral - Econo-
mizer Plus
Cap: E27, E14
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 54
T3&T4 Economizer
Plus
Cap: E27, E14
Wattages: 5-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 49
T4 Stick - Sensor
Cap: E27
Wattages: 15W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 49
T3 Mini
Cap: E27, E14, B22
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 50
Spiral
T2 Spiral - Tiny
Cap: E27, E14, B22, B15
Wattages: 8-20W
Colours: 2700 - 6500K
Life: 8,000Hrs,
15,000Hrs
Page: 50
T3 Spiral - Dim-
mable
Cap: E27, B22
Wattages: 13W, 20W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 54
T5 Spiral-High
Power
Cap: E27
Wattages: 45W, 60W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 54
T3 Spiral-Ultralife
Plus
Cap: E27, B22
Wattages: 14-24W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 53
*Range will be replaced by LongLast Spiral T2 15,000 hours in Q2 2010
Selector
T3&T4 Stick -
Economizer
Cap: E27
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 48
T2 Candle
Cap: E27, E14, B22, B15
Wattages: 5W, 7W
Colours: 2700 - 4000K
Life: 6,000-10,000Hrs
Page: 56
T2 REF
Cap: E27, E14, B22
Wattages: 7W, 11W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 57
T2 Spherical
Cap: E27, E14, B22, B15
Wattages: 5W, 7W
Colours: 2700 - 6500K
Life: 6,000-10,000Hrs
Page: 56
T2 SOFT
Cap: E27, E14, B22
Wattages: 8W, 12W
Colours: 2700K
Life: 6,000Hrs
Page: 57
PAR38
Cap: E27, B22
Wattages: 23W
Colours: 2700K
Life: 8,000Hrs
Page: 58
R80
Cap: E27, B22
Wattages: 15W
Colours: 2700K
Life: 8,000Hrs
Page: 58
Décor
T2 All Glass
Cap: E27, B22
Wattages: 9-20W
Colours: 2700 - 6500K
Life: 8,000-10,000Hrs
Page: 55
T2&T3 GLS
Cap: E27, E14, B22
Wattages: 8-20W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 57
T2 Buglite GLS
Cap: E27, B22
Wattages: 11W
Colours: 2700K
Life: 6,000Hrs
Page: 58
T3 GG
Cap: E27
Wattages: 20W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 58
T2 GU10
Cap: GU10
Wattages: 7W, 9W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 58
46
Compact Fluorescent Lamps Integrated
The following glossary of terms will help you when selecting lamps in this section. Within
each product line, lamps are divided into families – within these families, lamps are listed
by wattage. The Product Description can be used as a quick reference to each product’s
attributes. Where Life or Average Life are stated we refer to the industry standard definition
of how many hours of operation 50% of a given installation will exceed.
Product identification
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen [lm] CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
EEC Pack Qty
76153 FLE8HLX/T2/827/E14 8 220-240 E14 460 2700 80 15,000 100.5 46 A 8
76154 FLE8HLX/T2/827/E27 8 220-240 E27 460 2700 80 15,000 88.5 46 A 8
76155 FLE12HLX/T2/827/E14 12 220-240 E14 700 2700 80 15,000 112.5 53 A 6
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operation at
rated voltage
Life:
The point in time when
50% of installed lamps
are still burning
CCT:
Colour temperature –
Kelvin [K]. The visual
warmth or coolness
of the light. The
higher the number
the whiter or cooler
the light appears
Length:
Lamp length in mm
Lumens:
Light output after
the initial 100 hours
of operation
Diameter:
Bulb diameter in mm
EEC:
Energy Efficiency Class
Pack quantity:
Number of product
units packed in a case
CRI:
Colour rendering index,
the higher the number
(1-100), the more natural
the lit subject appears
8 Identifies
the lamp’s
wattage
FLE
Identifies as
Fluorescent
Electronic
(Screw-in
lamp)
T2/T3/T4/T5
refers to the
size of the tube
E14/E27/B15/B22
Identifies the
lamp cap
827 Colour definition
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
HLX Identifies as the lamp type
TBX = Triple-Biax Stick (3U)
QBX = Quad-Biax Stick (4U)
HLX = Heliax (Spiral)
CDL = Candle
SPH = Spherical
R50/R63/R80 = Reflector lamp types
AG = All Glass
FLE 8 HLX / T2 / 827 / E14
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
Electronic Spiral T2 - 15,000 hours
47
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Stick - Ultralife
11241 FLE9TBX/827/B22/T3 BP1 9 220-240 B22 8000 2700 480 80 107 45 Australia
74663 FLE9TBX/827/E27/T3 BX 9 220-240 E27 8000 2700 480 80 107 45 Australia
74699 FLE9TBX/827/B22/T3 BX2 9 220-240 B22 10000 2700 480 82 116 44.5 Australia
74700 FLE9TBX/827/E27/T3 BX2 9 220-240 E27 10000 2700 480 82 117 44.5 Australia
95836 FLE9TBX/840/B22/T3 9 220-240 B22 8000 4000 480 80 107 45 Australia
95837 FLE9TBX/840/E27/T3 9 220-240 E27 8000 4000 480 80 107 45 Australia
74671 FLE12TBX/827/B22/T3 BX 12 220-240 B22 8000 2700 700 80 117 46 Australia
74672 FLE12TBX/827/E27/T3 BX 12 220-240 E27 8000 2700 700 80 117 46 Australia
48191 FLE12TBX/840/E27/T3 12 220-240 E27 8000 4000 700 80 117 46 Australia
48192 FLE12TBX/840/B22/T3 12 220-240 B22 8000 4000 700 80 117 46 Australia
95761P FLE15TBX/827/B22/T3 BP1 15 220-240 B22 8000 2700 872 82 138 44.5 Australia
74680 FLE15TBX/827/E27/T3 BX 15 220-240 E27 8000 2700 872 82 138 44.5 Australia
74701 FLE15TBX/827/B22/T3 BX2 15 220-240 B22 10000 2700 850 82 135 44.5 Australia
74702 FLE15TBX/827/E27/T3 BX2 15 220-240 E27 10000 2700 850 82 136 44.5 Australia
95800P FLE15TBX/840/B22/T3 15 220-240 B22 8000 4000 800 76 138 44.5 Australia
95804P FLE15TBX/840/E27/T3 15 220-240 E27 8000 4000 800 76 138 44.5 Australia
74705 FLE15TBX/840/B22/T3 BX2 15 220-240 B22 10000 4000 800 82 139 44.5 Australia
74706 FLE15TBX/840/E27/T3 BX2 15 220-240 E27 10000 4000 800 82 140 44.5 Australia
81025 FLE15TBX/865/B22/T3 15 220-240 B22 8000 6500 800 76 138 44.5 Australia
81026 FLE15TBX/865/E27/T3 15 220-240 E27 8000 6500 800 76 138 44.5 Australia
74681 FLE18TBX/827/B22/T3 BX 18 220-240 B22 8000 2700 1096 82 139 44.5 Australia
74684 FLE18TBX/827/E27/T3 BX 18 220-240 E27 8000 2700 1096 82 140 44.5 Australia
95802P FLE18TBX/840/B22/T3 18 220-240 B22 8000 4000 1010 76 151 44.5 Australia
95805P FLE18TBX/840/E27/T3 18 220-240 E27 8000 4000 1010 76 151 44.5 Australia
74703 FLE20TBX/827/B22/T3 BX2 20 220-240 B22 10000 2700 1200 82 151 44.5 Australia
74704 FLE20TBX/827/E27/T3 BX2 20 220-240 E27 10000 2700 1200 82 152 44.5 Australia
74707 FLE20TBX/840/B22/T3 BX2 20 220-240 B22 10000 4000 1152 82 151 44.5 Australia
74708 FLE20TBX/840/E27/T3 BX2 20 220-240 E27 10000 4000 1152 82 152 44.5 Australia
24879E FLE9TBX/865/E27/T3 9 220-240 E27 8000 6500 460 80 107 45 ID
24880E FLE9TBX/827/E27/T3 9 220-240 E27 8000 2700 480 80 107 45 ID
95414E FLE6DBX/827/E27/T3 6 220-240 E27 8000 2700 300 82 108 40 PH
95416E FLE6DBX/864/E27/T3 6 220-240 E27 8000 6500 280 76 108 40 PH
89584E FLE9DBX/827/E27/T3 9 220-240 E27 8000 2700 497 82 126 40 PH
89587E FLE9DBX/864/E27/T3 9 220-240 E27 8000 6500 440 76 126 40 PH
11236E FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 PH
11238E FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 PH
11349E FLE9TBX/827/E14 9 220-240 E14 8000 2700 480 80 109 45 PH
11350E FLE9TBX/865/E14 9 220-240 E14 8000 6500 460 80 109 45 PH
89588E FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 PH
89590E FLE11DBX/864/E27 11 220-240 E27 8000 6500 590 76 144 44.5 PH
48189EP FLE12TBX/827/E27 12 220-240 E27 8000 2700 700 80 117 46 PH
48191EP FLE12TBX/840/E27 12 220-240 E27 8000 4000 700 80 117 46 PH
48193EP FLE12TBX/865/E27 12 220-240 E27 8000 6500 650 80 117 46 PH
89591E FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 PH
89593E FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 PH
89594E FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 PH
89596E FLE18TBX/864/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 PH
48
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Stick - Ultralife
95414EN FLE6DBX/827/E27 6 220-240 E27 8000 2700 300 82 108 40 SG/MY China
95416EN FLE6DBX/865/E27 6 220-240 E27 8000 6500 280 76 108 40 SG/MY China
89637EN FLE6DBX/827/E14 6 220-240 E14 8000 2700 300 82 108 40 SG/MY China
89639EN FLE6DBX/865/E14 6 220-240 E14 8000 6500 280 76 108 40 SG/MY China
89584EN FLE9DBX/827/E27 9 220-240 E27 8000 2700 497 82 126 40 SG/MY China
89585EN FLE9DBX/840/E27 9 220-240 E27 8000 4000 440 76 126 40 SG/MY China
89587EN FLE9DBX/865/E27 9 220-240 E27 8000 6500 440 76 126 40 SG/MY China
11236EN FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 SG/MY China
11238EN FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 SG/MY China
11349EN FLE9TBX/827/E14 9 220-240 E14 8000 2700 480 80 109 45 SG/MY China
11350EN FLE9TBX/865/E14 9 220-240 E14 8000 6500 460 80 109 45 SG/MY China
89588EN FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 SG/MY China
89589EN FLE11DBX/840/E27 11 220-240 E27 8000 4000 590 76 144 44.5 SG/MY China
89590EN FLE11DBX/865/E27 11 220-240 E27 8000 6500 590 76 144 44.5 SG/MY China
89591EN FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 SG/MY China
89592EN FLE15TBX/840/E27 15 220-240 E27 8000 4000 800 76 138 44.5 SG/MY China
89593EN FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 SG/MY China
89594EN FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 SG/MY China
89595EN FLE18TBX/840/E27 18 220-240 E27 8000 4000 1010 76 151 44.5 SG/MY China
89596EN FLE18TBX/865/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 SG/MY China
95414ET FLE6DBX/827/E27 6 220-240 E27 8000 2700 300 82 108 40 TH China
95416ET FLE6DBX/864/E27 6 220-240 E27 8000 6500 280 76 108 40 TH China
89637ET FLE6DBX/827/E14 6 220-240 E14 8000 2700 300 82 108 40 TH China
89639ET FLE6DBX/865/E14 6 220-240 E14 8000 6500 280 76 108 40 TH China
11236ET FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 TH China
11237ET FLE9TBX/840/E27 9 220-240 E27 8000 4000 480 80 107 45 TH China
11238ET FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 TH China
89584ET FLE9DBX/827/E27 9 220-240 E27 8000 2700 497 82 126 40 TH China
89585EN FLE9DBX/840/E27 9 220-240 E27 8000 4000 440 76 126 40 TH China
89587EN FLE9DBX/865/E27 9 220-240 E27 8000 6500 440 76 126 40 TH China
89588ET FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 TH China
89589ET FLE11DBX/840/E27 11 220-240 E27 8000 4000 590 76 144 44.5 TH China
89590ET FLE11DBX/865/E27 11 220-240 E27 8000 6500 590 76 144 44.5 TH China
89591ET FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 TH China
89592ET FLE15TBX/840/E27 15 220-240 E27 8000 4000 800 76 138 44.5 TH China
89593ET FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 TH China
89594ET FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 TH China
89595ET FLE18TBX/840/E27 18 220-240 E27 8000 4000 1010 76 151 44.5 TH China
89596ET FLE18TBX/865/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 TH China
T3&T4 Stick - Economizer
24875E FLE9DBX/827/E27/220-240V 9 220-240 E27 6000 2700 490 80 135 42 ID China
95595EID FLE9DBX/865/E27/220-240V 9 220-240 E27 6000 6500 460 80 135 42 ID China
24876E FLE15DBX/827/E27/220-240V 15 220-240 E27 6000 2700 875 80 168 46 ID China
95596EID FLE15DBX/865/E27/220-240V 15 220-240 E27 6000 6500 810 80 168 46 ID China
95650EID FLE20TBX/827/E27/220-240V 20 220-240 E27 6000 2700 1200 80 165 49 ID China
95597EID FLE20TBX/865/E27/220-240V 20 220-240 E27 6000 6500 1120 81 165 49 ID China
24877E FLE23W/QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 ID China
24878E FLE23W/QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 ID China
11305ET FLE9DBX/827/E27/6k 9 220-240 E27 6000 2700 490 80 135 42 TH China
11321ET FLE9DBX/864/E27/6K 9 220-240 E27 6000 6500 460 80 135 42 TH China
11324ET FLE11DBX/827/E27/6K 11 220-240 E27 6000 2700 640 80 152 42 TH China
11328ET FLE11DBX/865/E27/6K 11 220-240 E27 6000 6500 590 80 152 42 TH China
11332ET FLE15TBX/827/E27/6k 15 220-240 E27 6000 2700 920 80.5 144 49 TH China
11335ET FLE15TBX/864/E27/6K 15 220-240 E27 6000 6500 830 80 144 49 TH China
11336ET FLE20TBX/827/E27 20 220-240 E27 6000 2700 1200 80 165 49 TH China
11342ET FLE20TBX/865/E27 20 220-240 E27 6000 6500 1120 81 165 49 TH China
95600ET FLE23QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 TH China
95602ET FLE23QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 TH China
49
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3&T4 Economizer Plus
78168E FLE5DBX/827/E27/T3 220-240V 5 220-240 E27 6000 2700 200 80 109 38 SG/MY/PH China
78169E FLE5DBX/865/E27/T3 220-240V 5 220-240 E27 6000 6500 180 80 109 38 SG/MY/PH China
78170E FLE8DBX/827/E27/T3 220-240V 8 220-240 E27 6000 2700 430 80 135 38 SG/MY/PH China
78171E FLE8DBX/865/E27/T3 220-240V 8 220-240 E27 6000 6500 390 80 135 38 SG/MY/PH China
78172E FLE11DBX/827/E27/T3 220-240V 11 220-240 E27 6000 2700 520 80 145 38 SG/MY/PH China
78173E FLE11DBX/865/E27/T3 220-240V 11 220-240 E27 6000 6500 480 80 145 38 SG/MY/PH China
78174E FLE14TBX/827/E27/T4 220-240V 14 220-240 E27 6000 2700 820 80 140 44 SG/MY/PH China
78175E FLE14TBX/865/E27/T4 220-240V 14 220-240 E27 6000 6500 760 80 140 44 SG/MY/PH China
78176E FLE20TBX/827/E27/T4 220-240V 20 220-240 E27 6000 2700 1100 80 160 48 SG/MY/PH China
78177E FLE20TBX/865/E27/T4 220-240V 20 220-240 E27 6000 6500 1020 80 160 48 SG/MY/PH China
78178E FLE23TBX/827/E27/T4 220-240V 23 220-240 E27 6000 2700 1260 80 170 48 SG/MY/PH China
78179E FLE23TBX/865/E27/T4 220-240V 23 220-240 E27 6000 6500 1170 80 170 48 SG/MY/PH China
64556E FLE6DBX/827/E27/T3 6 220-240 E27 6000 2700 240 80 111 40 SG/MY/PH China
64557E FLE6DBX/865/E27/T3 6 220-240 E27 6000 6500 216 80 111 40 SG/MY/PH China
64558E FLE8DBX/827/E27/T3 8 220-240 E27 6000 2700 430 80 126.5 40 SG/MY/PH China
64559E FLE8DBX/865/E27/T3 8 220-240 E27 6000 6500 390 80 126.5 40 SG/MY/PH China
64560E FLE11DBX/827/E27/T3 11 220-240 E27 6000 2700 532 80 146 44.5 SG/MY/PH China
64561E FLE11DBX/865/E27/T3 11 220-240 E27 6000 6500 480 80 146 44.5 SG/MY/PH China
64562E FLE14TBX/827/E27/T3 14 220-240 E27 6000 2700 820 80 140 44.5 SG/MY/PH China
64563E FLE14TBX/865/E27/T3 14 220-240 E27 6000 6500 760 80 140 44.5 SG/MY/PH China
64564E FLE20TBX/827/E27/T3 20 220-240 E27 6000 2700 1100 80 158 44.5 SG/MY/PH China
64565E FLE20TBX/865/E27/T3 20 220-240 E27 6000 6500 1020 80 158 44.5 SG/MY/PH China
64566E FLE23TBX/827/E27/T3 23 220-240 E27 6000 2700 1260 80 158 44.5 SG/MY/PH China
64567E FLE23TBX/865/E27/T3 23 220-240 E27 6000 6500 1170 80 158 44.5 SG/MY/PH China
95600EN FLE23QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 SG/MY/PH China
95601EN FLE23QBX/840/E27 23 220-240 E27 6000 4000 1380 80 167 56 SG/MY/PH China
95602EN FLE23QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 SG/MY/PH China
65031E FLE6DBX/827/E14/T3 6 220-240 E14 6000 2700 240 80 108.5 40 SG/MY/TH China
65032E FLE6DBX/865/E14/T3 6 220-240 E14 6000 6500 216 80 108.5 40 SG/MY/TH China
65033E FLE8DBX/827/E14/T3 8 220-240 E14 6000 2700 430 80 125.5 40 SG/MY/TH China
65034E FLE8DBX/865/E14/T3 8 220-240 E14 6000 6500 390 80 125.5 40 SG/MY/TH China
65035E FLE11DBX/827/E14/T3 11 220-240 E14 6000 2700 532 80 144.5 44.5 SG/MY/TH China
65036E FLE11DBX/865/E14/T3 11 220-240 E14 6000 6500 480 80 144.5 44.5 SG/MY/TH China
78168T FLEBX/827/E27/T3 220-240V 6 220-240 E27 6000 2700 240 80 111 40 TH China
78169T FLEBX/865/E27/T3 220-240V 6 220-240 E27 6000 6500 216 80 111 40 TH China
78170T FLE8DBX/827/E27/T3 220-240V 8 220-240 E27 6000 2700 430 80 126.5 40 TH China
78171T FLE8DBX/865/E27/T3 220-240V 8 220-240 E27 6000 6500 390 80 126.5 40 TH China
78172T FLE11DBX/827/E27/T3 220-240V 11 220-240 E27 6000 2700 532 80 146 44.5 TH China
78173T FLE11DBX/865/E27/T3 220-240V 11 220-240 E27 6000 6500 480 80 146 44.5 TH China
78174T FLE14TBX/827/E27/T3 220-240V 14 220-240 E27 6000 2700 820 80 140 44.5 TH China
78175T FLE14TBX/865/E27/T3 220-240V 14 220-240 E27 6000 6500 760 80 140 44.5 TH China
78176T FLE20TBX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 158 44.5 TH China
78177T FLE20TBX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 158 44.5 TH China
78178T FLE23TBX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1260 80 158 44.5 TH China
78179T FLE23TBX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1170 80 158 44.5 TH China
T4 Stick - Sensor
66839TH FLE15TBX/827/E27 SENSOR 15 220-240 E27 6000 2700 800 80 148 56 TH China
66841TH FLE15TBX/865/E27 SENSOR 15 220-240 E27 6000 6500 800 80 148 56 TH China
50
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Length
[mm]
Diameter
[mm]
EEC COO
Electronic Stick T3 Mini - 10,000 hours
88697 FLE9TBX/T3/827/E14 9 220-240 E14 480 2700 82 10,000 117 45 A China
88695 FLE9TBX/T3/827/E27 9 220-240 E27 480 2700 82 10,000 115 45 A China
88696 FLE9TBX/T3/827/B22 9 220-240 B22 480 2700 82 10,000 114 46 A China
88700 FLE9TBX/T3/840/E14 9 220-240 E14 455 4000 82 10,000 117 45 A China
88698 FLE9TBX/T3/840/E27 9 220-240 E27 455 4000 82 10,000 115 45 A China
88703 FLE9TBX/T3/865/E14 9 220-240 E14 455 6500 82 10,000 117 45 A China
88701 FLE9TBX/T3/865/E27 9 220-240 E27 455 6500 82 10,000 115 45 A China
78690 FLE11TBX/T3/827/E14 11 220-240 E14 660 2700 82 10,000 126 45 A China
72689 FLE11TBX/T3/827/E27 11 220-240 E27 660 2700 82 10,000 124 45 A China
72690 FLE11TBX/T3/827/B22 11 220-240 B22 660 2700 82 10,000 123 45 A China
88709 FLE11TBX/T3/840/E14 11 220-240 E14 620 4000 82 10,000 126 45 A China
88712 FLE11TBX/T3/865/E14 11 220-240 E14 620 6500 82 10,000 126 45 A China
75730 FLE11TBX/T3/865/E27 11 220-240 E27 620 6500 82 10,000 124 45 A China
72688 FLE15TBX/T3/827/E27 15 220-240 E27 850 2700 82 10,000 139.5 46 A China
88713 FLE15TBX/T3/827/B22 15 220-240 B22 850 2700 82 10,000 138.5 45 A China
88714 FLE15TBX/T3/840/E27 15 220-240 E27 800 4000 82 10,000 139.5 46 A China
88716 FLE15TBX/T3/865/E27 15 220-240 E27 800 6500 82 10,000 139.5 46 A China
88718 FLE20TBX/T3/827/E27 20 220-240 E27 1200 1200 82 10,000 153 46 A China
88719 FLE20TBX/T3/827/B22 20 220-240 B22 1200 1200 82 10,000 153 46 A China
88720 FLE20TBX/T3/840/E27 20 220-240 E27 1152 4000 82 10,000 153 46 A China
88722 FLE20TBX/T3/865/E27 20 220-240 E27 1152 6500 82 10,000 153 46 A China
88723 FLE20TBX/T3/865/B22 20 220-240 B22 1152 6500 82 10,000 153 46 A China
75039 FLE23QBX/T3/827/B22 23 220-240 B22 1450 2700 82 10,000 147 50 A China
75268 FLE23QBX/T3/827/E27 23 220-240 E27 1450 2700 82 10,000 147 50 A China
97000 FLE23QBX/T3/840/E27 23 220-240 E27 1450 4000 82 10,000 147 50 A China
97006 FLE23QBX/T3/865/E27 23 220-240 E27 1380 6500 82 10,000 147 50 A China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T2 Spiral - Tiny 15000Hrs
89514 FLE10HLX/827/E27/XL 10 220-240 E27 15000 2700 520 80 117 44 Australia China
89517 FLE10HLX/827/B22/XL 10 220-240 B22 15000 2700 520 80 117 44 Australia China
89520 FLE15HLX/827/E27/XL 15 220-240 E27 15000 2700 900 80 128 53 Australia China
89523 FLE15HLX/827/B22/XL 15 220-240 B22 15000 2700 900 80 128 53 Australia China
89526 FLE20HLX/827/E27/XL 20 220-240 E27 15000 2700 1200 80 127 60 Australia China
89529 FLE20HLX/827/B22/XL 20 220-240 B22 15000 2700 1200 80 127 60 Australia China
51
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T2 Spiral - Tiny 8000Hrs
74658 FLE8HLX/827/B15/T2 8 220-240 B15 8000 2700 460 80 101.5 46 Australia China
74659 FLE8HLX/827/B22/T2 8 220-240 B22 8000 2700 460 80 85 46 Australia China
74660 FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 Australia China
74661 FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 Australia China
47375 FLE8HLX/840/E27/T2 8 220-240 E27 8000 4000 460 80 85 46 Australia China
47382 FLE8HLX/840/E14/T2 8 220-240 E14 8000 4000 460 80 103 46 Australia China
47385 FLE8HLX/840/B22/T2 8 220-240 B22 8000 4000 460 80 85 46 Australia China
47386 FLE8HLX/840/B15/T2 8 220-240 B15 8000 4000 460 80 101.5 46 Australia China
74668 FLE12HLX/827/B15/T2 12 220-240 B15 8000 2700 700 80 110.5 46 Australia China
74669 FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 Australia China
30472 FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 Australia China
30490 FLE12HLX/827/B22/T2 12 220-240 B22 8000 2700 700 80 95 46 Australia China
47389 FLE12HLX/840/E27/T2 12 220-240 E27 8000 4000 700 80 95 46 Australia China
47392 FLE12HLX/840/E14/T2 12 220-240 E14 8000 4000 700 80 112 46 Australia China
47393 FLE12HLX/840/B22/T2 12 220-240 B22 8000 4000 700 80 95 46 Australia China
47394 FLE12HLX/840/B15/T2 12 220-240 B15 8000 4000 700 80 110.5 46 Australia China
30474 FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 Australia China
30492 FLE12HLX/865/B22/T2 12 220-240 B22 8000 6500 660 80 95 46 Australia China
74677 FLE15HLX/827/B22/T2 15 220-240 B22 8000 2700 900 80 100 53 Australia China
74678 FLE15HLX/827/E27/T2 15 220-240 E27 8000 2700 900 80 101 53 Australia China
71040 FLE15HLX/840/E27/T2 15 220-240 E27 8000 4000 900 80 101 53 Australia China
71308 FLE15HLX/840/B22/T2 15 220-240 B22 8000 4000 900 80 100 53 Australia China
61414 FLE15HLX/865/T2/B22 15 220-240 B22 8000 6500 850 80 100 53 Australia China
61415 FLE15HLX/865/T2/E27 15 220-240 E27 8000 6500 850 80 101 53 Australia China
74687 FLE20HLX/827/B22/T2 20 220-240 B22 8000 2700 1100 80 104 57 Australia China
74689 FLE20HLX/827/E27/T2 20 220-240 E27 8000 2700 1100 80 105 57 Australia China
71043 FLE20HLX/840/E27/T2 20 220-240 E27 8000 4000 1100 80 105 57 Australia China
71311 FLE20HLX/840/B22/T2 20 220-240 B22 8000 4000 1100 80 104 57 Australia China
61412 FLE20HLX/865/T2/B22 20 220-240 B22 8000 6500 1040 80 104 57 Australia China
61413 FLE20HLX/865/T2/E27 20 220-240 E27 8000 6500 1040 80 105 57 Australia China
30431ID FLE8HLX/827/E27/T2 8 220~240 E27 8000 2700 460 80 85 46 ID China
30433ID FLE8HLX/865/E27/T2 8 220~240 E27 8000 6500 430 80 85 46 ID China
30472ID FLE12HLX/827/E27/T2 12 220~240 E27 8000 2700 700 80 95 46 ID China
30474ID FLE12HLX/865/E27/T2 12 220~240 E27 8000 6500 660 80 95 46 ID China
30431EP FLE8HLX/827E27/T2 8 220~240 E27 8000 2700 460 80 85 46 PH China
30433EP FLE8HLX865E27/T2 8 220~240 E27 8000 6500 430 80 85 46 PH China
47738EP FLE8HLX/827/E14/T2 8 220~240 E14 8000 2700 460 80 103 46 PH China
47740EP FLE8HLX/865/E14/T2 8 220~240 E14 8000 6500 430 80 103 46 PH China
30472EP FLE12HLX/827/E27/T2 12 220~240 E27 8000 2700 700 80 95 46 PH China
30474EP FLE12HLX/865/E27/T2 12 220~240 E27 8000 6500 660 80 95 46 PH China
47742EP FLE12HLX/827/E14/T2 12 220~240 E14 8000 2700 700 80 112 46 PH China
47755EP FLE12HLX/865/E14/T2 12 220~240 E14 8000 6500 660 80 112 46 PH China
71039EN FLE15HLX/827/T2/E27 15 220~240 E27 8000 2700 900 80 101 53 PH/SG/MY China
71040EN FLE15HLX/840/T2/E27 15 220~240 E27 8000 4000 900 80 101 53 PH/SG/MY China
71041EN FLE15HLX/865/T2/E27 15 220~240 E27 8000 6500 850 80 101 53 PH/SG/MY China
71042EN FLE20HLX/827/T2/E27 20 220~240 E27 8000 2700 1100 80 105 57 PH/SG/MY China
71043EN FLE20HLX/840/T2/E27 20 220~240 E27 8000 4000 1100 80 105 57 PH/SG/MY China
71044EN FLE20HLX/865/T2/E27 20 220~240 E27 8000 6500 1040 80 105 57 PH/SG/MY China
52
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T2 Spiral - Tiny 8000Hrs
30431EN FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 SG/MY China
47375EN FLE8HLX/840/E27/T2 8 220-240 E27 8000 4000 460 80 85 46 SG/MY China
30433EN FLE8HLX/865/E27/T2 8 220-240 E27 8000 6500 430 80 85 46 SG/MY China
47738EN FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 SG/MY China
47382EN FLE8HLX/840/E14/T2 8 220-240 E14 8000 4000 460 80 103 46 SG/MY China
47740EN FLE8HLX/865/E14/T2 8 220-240 E14 8000 6500 430 80 103 46 SG/MY China
30472EN FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 SG/MY China
47389EN FLE12HLX/840/E27/T2 12 220-240 E27 8000 4000 700 80 95 46 SG/MY China
30474EN FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 SG/MY China
47742EN FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 SG/MY China
47392EN FLE12HLX/840/E14/T2 12 220-240 E14 8000 4000 700 80 112 46 SG/MY China
47755EN FLE12HLX/865/E14/T2 12 220-240 E14 8000 6500 660 80 112 46 SG/MY China
30431ET FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 SG/MY China
30433ET FLE8HLX/865/E27/T2 8 220-240 E27 8000 6500 430 80 85 46 SG/MY China
47738ET FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 TH China
47740ET FLE8HLX/865/E14/T2 8 220-240 E14 8000 6500 430 80 103 46 TH China
30472ET FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 TH China
30474ET FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 TH China
47742ET FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 TH China
47755ET FLE12HLX/865/E14/T2 12 220-240 E14 8000 6500 660 80 112 46 TH China
71039T FLE15HLX/827/E27/T2 15 220-240 E27 8000 2700 900 80 101 53 TH China
71040T FLE15HLX/840/E27/T2 15 220-240 E27 8000 4000 900 80 101 53 TH China
71041T FLE15HLX/865/E27/T2 15 220-240 E27 8000 6500 850 80 101 53 TH China
71042T FLE20HLX/827/E27/T2 20 220-240 E27 8000 2700 1100 80 105 57 TH China
71043T FLE20HLX/840/E27/T2 20 220-240 E27 8000 4000 1100 80 105 57 TH China
71044T FLE20HLX/865/E27/T2 20 220-240 E27 8000 6500 1040 80 105 57 TH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Length
[mm]
Diameter
[mm]
EEC COO
Electronic LongLast Spiral T2 - 15,000 hours
76153 FLE8HLX/T2/827/E14 8 220-240 E14 470 2700 80 15,000 100.5 46 A China
76154 FLE8HLX/T2/827/E27 8 220-240 E27 470 2700 80 15,000 88.5 46 A China
78156 FLE8HLX/T2/827/B22 8 220-240 B22 470 2700 80 15,000 88.5 46 A China
78157 FLE8HLX/T2/840/E14 8 220-240 E14 460 4000 80 15,000 100.5 46 A China
78188 FLE8HLX/T2/840/E27 8 220-240 E27 460 4000 80 15,000 88.5 46 A China
78189 FLE8HLX/T2/865/E27 8 220-240 E27 430 6500 80 15,000 88.5 46 A China
76155 FLE12HLX/T2/827/E14 12 220-240 E14 715 2700 80 15,000 112.5 53 A China
76157 FLE12HLX/T2/827/E27 12 220-240 E27 715 2700 80 15,000 100 53 A China
78190 FLE12HLX/T2/827/B22 12 220-240 B22 715 2700 80 15,000 100 53 A China
78191 FLE12HLX/T2/840/E14 12 220-240 E14 700 4000 80 15,000 112.5 53 A China
78192 FLE12HLX/T2/840/E27 12 220-240 E27 700 4000 80 15,000 100 53 A China
78193 FLE12HLX/T2/865/E14 12 220-240 E14 665 6500 80 15,000 112.5 53 A China
78194 FLE12HLX/T2/865/E27 12 220-240 E27 665 6500 80 15,000 100 53 A China
76156 FLE15HLX/T2/827/E27 15 220-240 E27 950 2700 80 15,000 100 53 A China
78195 FLE15HLX/T2/827/B22 15 220-240 B22 950 2700 80 15,000 100 53 A China
78196 FLE15HLX/T2/840/E27 15 220-240 E27 950 4000 80 15,000 100 53 A China
78197 FLE15HLX/T2/865/E27 15 220-240 E27 900 6500 80 15,000 100 53 A China
76158 FLE20HLX/T2/827/E27 20 220-240 E27 1220 2700 80 15,000 108 57 A China
78198 FLE20HLX/T2/827/B22 20 220-240 B22 1220 2700 80 15,000 108 57 A China
78199 FLE20HLX/T2/840/E27 20 220-240 E27 1200 4000 80 15,000 108 57 A China
78200 FLE20HLX/T2/865/E27 20 220-240 E27 1152 6500 80 15,000 108 57 A China
76159 FLE23HLX/T2/827/E27 23 220-240 E27 1500 2700 80 15,000 127 58 A China
78202 FLE23HLX/T2/840/E27 23 220-240 E27 1380 4000 80 15,000 127 58 A China
78203 FLE23HLX/T2/865/E27 23 220-240 E27 1380 6500 80 15,000 127 58 A China
53
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Spiral-Ultralife Plus
85940 FLE14HLX/827/B22/T3 14 220-240 B22 8000 2700 950 80 128 53 Australia China
85942 FLE14HLX/827/E27/T3 14 220-240 E27 8000 2700 950 80 128 53 Australia China
74709 FLE14HLX/827/B22/T3 BX2 14 220-240 B22 8000 2700 950 80 128 53 Australia China
74710 FLE14HLX/827/E27/T3 BX2 14 220-240 E27 8000 2700 950 80 128 53 Australia China
90147 FLE14HLX/840/E27/T3 14 220-240 E27 8000 4000 950 80 128 53 Australia China
90148 FLE14HLX/840/B22/T3 14 220-240 B22 8000 4000 950 80 128 53 Australia China
74715 FLE14HLX/840/B22/T3 BX2 14 220-240 B22 8000 4000 950 80 128 53 Australia China
74716 FLE14HLX/840/E27/T3 BX2 14 220-240 E27 8000 4000 950 80 128 53 Australia China
85956 FLE20HLX/827/B22/T3 20 220-240 B22 8000 2700 1350 80 124 60 Australia China
85966 FLE20HLX/827/E27/T3 20 220-240 E27 8000 2700 1350 80 124 60 Australia China
74711 FLE20HLX/827/B22/T3 BX2 20 220-240 B22 8000 2700 1350 80 124 60 Australia China
74712 FLE20HLX/827/E27/T3 BX2 20 220-240 E27 8000 2700 1350 80 124 60 Australia China
90145 FLE20HLX/840/E27/T3 20 220-240 E27 8000 4000 1300 80 124 60 Australia China
90146 FLE20HLX/840/B22/T3 20 220-240 B22 8000 4000 1300 80 124 60 Australia China
74717 FLE20HLX/840/B22/T3 BX2 20 220-240 B22 8000 4000 1300 80 124 60 Australia China
74718 FLE20HLX/840/E27/T3 BX2 20 220-240 E27 8000 4000 1300 80 124 60 Australia China
76598 FLE23HLX/827/B22/T2 BX2 23 220-240 B22 8000 2700 1380 80 127 57 Australia China
76599 FLE23HLX/827/E27/T2 BX2 23 220-240 E27 8000 2700 1380 80 128 57 Australia China
76600 FLE23HLX/840/B22/T2 BX2 23 220-240 B22 8000 4000 1380 80 127 57 Australia China
76601 FLE23HLX/840/E27/T2 BX2 23 220-240 E27 8000 4000 1380 80 128 57 Australia China
81262 FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 8000 2700 950 80 128 53 ID China
81263 FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 8000 6500 900 80 128 53 ID China
81264 FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 8000 2700 1350 80 124 60 ID China
81265 FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 8000 6500 1260 80 124 60 ID China
81266 FLE24HLX/827/E27/T3 220-240V 24 220-240 E27 8000 2700 1750 80 136 60 ID China
81267 FLE24HLX/865/E27/T3 220-240V 24 220-240 E27 8000 6500 1650 80 136 60 ID China
24172E FLE14HLX/827/T3 14 220-240 E27 8000 2700 950 80 128 53 PH China
24173E FLE14HLX/865/E27/T3 14 220-240 E27 8000 6500 900 80 128 53 PH China
24174E FLE20HLX/827/T3 20 220-240 E27 8000 2700 1350 80 124 60 PH China
24175E FLE20HLX/865/E27/T3 20 220-240 E27 8000 6500 1260 80 124 60 PH China
24176E FLE24HLX/827/T3 24 220-240 E27 8000 2700 1750 80 136 60 PH China
24177E FLE24HLX/E27/T3 24 220-240 E27 8000 6500 1650 80 136 60 PH China
24172EN FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 8000 2700 950 80 128 53 SG/MY China
71402EN FLE14HLX/840/E27/T3 220-240V 14 220-240 E27 8000 4000 950 80 128 53 SG/MY China
24173EN FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 8000 6500 900 80 128 53 SG/MY China
24174EN FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 8000 2700 1350 80 124 60 SG/MY China
80961EN FLE20HLX/840/E27/T3 220-240V 20 220-240 E27 8000 4000 1300 80 124 60 SG/MY China
24175EN FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 8000 6500 1260 80 124 60 SG/MY China
24176EN FLE24HLX/827/E27/T3 220-240V 24 220-240 E27 8000 2700 1750 80 136 60 SG/MY China
71400EN FLE24HLX/840/E27/T3 220-240V 24 220-240 E27 8000 4000 1700 80 136 60 SG/MY China
24177EN FLE24HLX/865/E27/T3 220-240V 24 220-240 E27 8000 6500 1650 80 136 60 SG/MY China
24172ET FLE14HLX/827/E27/T3 EDIS 14 220-240 E27 8000 2700 950 80 128 53 TH China
24173ET FLE14HLX/865/E27/T3 EDIS 14 220-240 E27 8000 6500 900 80 128 53 TH China
24174ET FLE20HLX/827/E27/T3 EDIS 20 220-240 E27 8000 2700 1350 80 124 60 TH China
24175ET FLE20HLX/865/E27/T3 EDIS 20 220-240 E27 8000 6500 1260 80 124 60 TH China
24176ET FLE24HLX/827/E27/T3 EDIS 24 220-240 E27 8000 2700 1750 80 136 60 TH China
24177ET FLE24HLX/865/E27/T3 EDIS 24 220-240 E27 8000 6500 1650 80 136 60 TH China
54
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Spiral - Economizer Plus
64568E FLE9HLX/827/E27/T3 9 220-240 E27 6000 2700 430 80 116 44 SG/MY/PH China
64569E FLE9HLX/865/E27/T3 9 220-240 E27 6000 6500 390 80 116 44 SG/MY/PH China
64570E FLE14HLX/827/E27/T3 14 220-240 E27 6000 2700 820 80 129 52 SG/MY/PH China
64571E FLE14HLX/865/E27/T3 14 220-240 E27 6000 6500 760 80 129 52 SG/MY/PH China
64572E FLE20HLX/827/E27/T3 20 220-240 E27 6000 2700 1100 80 126 59 SG/MY/PH China
64573E FLE20HLX/865/E27/T3 20 220-240 E27 6000 6500 1020 80 126 59 SG/MY/PH China
64574E FLE23HLX/827/E27/T3 23 220-240 E27 6000 2700 1320 80 139.5 59 SG/MY/PH China
64575E FLE23HLX/865/E27/T3 23 220-240 E27 6000 6500 1224 80 139.5 59 SG/MY/PH China
78180E FLE9HLX/827/E27/T3 220-240V 9 220-240 E27 6000 2700 430 80 110 52 SG/MY/PH China
78181E FLE9HLX/865/E27/T3 220-240V 9 220-240 E27 6000 6500 390 80 110 52 SG/MY/PH China
78182E FLE15HLX/827/E27/T3 220-240V 15 220-240 E27 6000 2700 820 80 126 52 SG/MY/PH China
78183E FLE15HLX/865/E27/T3 220-240V 15 220-240 E27 6000 6500 760 80 126 52 SG/MY/PH China
78184E FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 125 62 SG/MY/PH China
78185E FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 125 62 SG/MY/PH China
78186E FLE23HLX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1260 80 137 62 SG/MY/PH China
78187E FLE23HLX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1170 80 137 62 SG/MY/PH China
65037E FLE9HLX/827/E14/T3 9 220-240 E14 6000 2700 430 80 117 44 SG/MY/TH China
65038E FLE9HLX/865/E14/T3 9 220-240 E14 6000 6500 390 80 117 44 SG/MY/TH China
78180T FLE9HLX/827/E27/T3 220-240V 9 220-240 E27 6000 2700 430 80 116 44 TH China
78181T FLE9HLX/865/E27/T3 220-240V 9 220-240 E27 6000 6500 390 80 116 44 TH China
78182T FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 6000 2700 820 80 129 52 TH China
78183T FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 6000 6500 760 80 129 52 TH China
78184T FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 126 59 TH China
78185T FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 126 59 TH China
78186T FLE23HLX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1320 80 139.5 59 TH China
78187T FLE23HLX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1224 80 139.5 59 TH China
T3 Spiral - Dimmable
30606a FLE13HLX/827/B22/DIM BP1 13 220-240 B22 8000 2700 850 80 133 60 Australia China
74674 FLE13HLX/827/E27/DIM BP1 13 220-240 E27 8000 2700 850 80 133 60 Australia China
74675 FLE13HLX/865/B22/DIM 13 220-240 B22 8000 6500 765 80 133 60 Australia China
74676 FLE13HLX/865/E27/DIM 13 220-240 E27 8000 6500 765 80 133 60 Australia China
30608a FLE20HLX/827/E27/DIM BP1 20 220-240 E27 8000 2700 1350 80 138 60 Australia China
30616A FLE20HLX/827/B22/DIM BP1 20 220-240 B22 8000 2700 1350 80 138 60 Australia China
30544A FLE20HLX/865/B22/DIM 20 220-240 B22 8000 6500 1215 80 138 60 Australia China
30540A FLE20HLX/865/E27/DIM 20 220-240 E27 8000 6500 1215 80 138 60 Australia China
30493N FLE13HLX/827/E27/T3DIM* 13 230 E27 8000 2700 850 80 133 60 SG/MY/TH China
30494N FLE13HLX/865/E27/T3DIM* 13 230 E27 8000 6500 765 80 133 60 SG/MY/TH China
30523N FLE20HLX/827/E27/T3DIM* 20 230 E27 8000 2700 1350 80 138 60 SG/MY/TH China
30540N FLE20HLX/865/E27/T3DIM* 20 230 E27 8000 6500 1215 80 138 60 SG/MY/TH China
T5 Spiral-High Power
24666EN FLE45HLX/864/E27/220-240V 45 220-240 E27 6000 6500 2900 83 211 80 Indonesia China
95495EN FLE60HLX/864/E27/220-240V 60 220-240 E27 6000 6500 3400 82 218 80 Indonesia China
24666E FLE45HLX/864/E27 45 220-240 E27 6000 6500 2900 83 211 80 PH China
24668E FLE60HLX/864/E27 60 220-240 E27 6000 6500 3400 82 218 80 PH China
95520 FLE60HLX/827/E27 220-240V 60 220-240 E27 6000 2700 3600 82 218 80 SG/MY China
95495 FLE60HLX/865/E27 220-240V 60 220-240 E27 6000 6500 3400 82 218 80 SG/MY China
61429T FLE45HLX/827/E27 220V 45 220-240 E27 6000 2700 2900 83 211 80 Thailand China
61430T FLE45HLX/865/E27 220V 45 220-240 E27 6000 6500 2900 83 211 80 Thailand China
61431T FLE60HLX/827/E27 220V 60 220-240 E27 6000 2700 3600 82 218 80 Thailand China
61432T FLE60HLX/865/E27 220V 60 220-240 E27 6000 6500 3400 82 218 80 Thailand China
55
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - T2 All Glass
61001E FLE9AG/T2/830/E27 9 220-240 E27
10000
3000 450 80 115.7 62 SG/MY China
61002E FLE9AG/T2/840/E27 9 220-240 E27
10000
4000 450 80 115.7 62 SG/MY China
61003E FLE9AG/T2/865/E27 9 220-240 E27
10000
6500 450 80 115.7 62 SG/MY China
61004E FLE11AG/T2/830/E27 11 220-240 E27
10000
3000 590 80 115.7 62 SG/MY China
61005E FLE11AG/T2/840/E27 11 220-240 E27
10000
4000 550 80 115.7 62 SG/MY China
61006E FLE11AG/T2/865/E27 11 220-240 E27
10000
6500 532 80 115.7 62 SG/MY China
61007E FLE15AG/T2/830/E27 15 220-240 E27
10000
3000 800 80 115.7 62 SG/MY China
61008E FLE15AG/T2/840/E27 15 220-240 E27
10000
4000 800 80 115.7 62 SG/MY China
61009E FLE15AG/T2/865/E27 15 220-240 E27
10000
6500 800 80 115.7 62 SG/MY China
61010E FLE20AG/T3/830/E27 20 220-240 E27
8000
3000 1152 80 137.9 69 SG/MY China
61011E FLE20AG/T3/840/E27 20 220-240 E27
8000
4000 1152 80 137.9 69 SG/MY China
61012E FLE20AG/T3/865/E27 20 220-240 E27
8000
6500 1152 80 137.9 69 SG/MY China
61013E FLE9AG/T2/830/B22 9 220-240 B22
10000
3000 450 80 118 62 SG/MY China
61014E FLE9AG/T2/840/B22 9 220-240 B22
10000
4000 450 80 118 62 SG/MY China
61015E FLE9AG/T2/865/B22 9 220-240 B22
10000
6500 450 80 118 62 SG/MY China
61016E FLE11AG/T2/830/B22 11 220-240 B22
10000
3000 590 80 118 62 SG/MY China
61017E FLE11AG/T2/840/B22 11 220-240 B22
10000
4000 550 80 118 62 SG/MY China
61018E FLE11AG/T2/865/B22 11 220-240 B22
10000
6500 532 80 118 62 SG/MY China
61019E FLE15AG/T2/830/B22 15 220-240 B22
10000
3000 800 80 118 62 SG/MY China
61020E FLE15AG/T2/840/B22 15 220-240 B22
10000
4000 800 80 118 62 SG/MY China
61021E FLE15AG/T2/865/B22 15 220-240 B22
10000
6500 800 80 118 62 SG/MY China
61022E FLE20AG/T3/830/B22 20 220-240 B22
8000
3000 1152 80 140.2 69 SG/MY China
61023E FLE20AG/T3/840/B22 20 220-240 B22
8000
4000 1152 80 140.2 69 SG/MY China
61024E FLE20AG/T3/865/B22 20 220-240 B22
8000
6500 1152 80 140.2 69 SG/MY China
61001T FLE9AG/T2/830/E27 9 220-240 E27
10000
3000 450 80 115.7 62 TH China
61002T FLE9AG/T2/840/E27 9 220-240 E27
10000
4000 450 80 115.7 62 TH China
61003T FLE9AG/T2/865/E27 9 220-240 E27
10000
6500 450 80 115.7 62 TH China
61004T FLE11AG/T2/830/E27 11 220-240 E27
10000
3000 590 80 115.7 62 TH China
61005T FLE11AG/T2/840/E27 11 220-240 E27
10000
4000 550 80 115.7 62 TH China
61006T FLE11AG/T2/865/E27 11 220-240 E27
10000
6500 532 80 115.7 62 TH China
61007T FLE15AG/T2/830/E27 15 220-240 E27
10000
3000 800 80 115.7 62 TH China
61008T FLE15AG/T2/840/E27 15 220-240 E27
10000
4000 800 80 115.7 62 TH China
61009T FLE15AG/T2/865/E27 15 220-240 E27
10000
6500 800 80 115.7 62 TH China
61010T FLE20AG/T3/830/E27 20 220-240 E27
8000
3000 1152 80 137.9 69 TH China
61011T FLE20AG/T3/840/E27 20 220-240 E27
8000
4000 1152 80 137.9 69 TH China
61012T FLE20AG/T3/865/E27 20 220-240 E27
8000
6500 1152 80 137.9 69 TH China
61013T FLE9AG/T2/830/B22 9 220-240 B22
10000
3000 450 80 118 62 TH China
61014T FLE9AG/T2/840/B22 9 220-240 B22
10000
4000 450 80 118 62 TH China
61015T FLE9AG/T2/865/B22 9 220-240 B22
10000
6500 450 80 118 62 TH China
61016T FLE11AG/T2/830/B22 11 220-240 B22
10000
3000 590 80 118 62 TH China
61017T FLE11AG/T2/840/B22 11 220-240 B22
10000
4000 550 80 118 62 TH China
61018T FLE11AG/T2/865/B22 11 220-240 B22
10000
6500 532 80 118 62 TH China
61019T FLE15AG/T2/830/B22 15 220-240 B22
10000
3000 800 80 118 62 TH China
61020T FLE15AG/T2/840/B22 15 220-240 B22
10000
4000 800 80 118 62 TH China
61021T FLE15AG/T2/865/B22 15 220-240 B22
10000
6500 800 80 118 62 TH China
61022T FLE20AG/T3/830/B22 20 220-240 B22
8000
3000 1152 80 140.2 69 TH China
61023T FLE20AG/T3/840/B22 20 220-240 B22
8000
4000 1152 80 140.2 69 TH China
61024T FLE20AG/T3/865/B22 20 220-240 B22
8000
6500 1152 80 140.2 69 TH China
56
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - Candle
88852A FLE5CDL//827/E27/T2 5 220-240 E27 10000 2700 200 80 107 38 Australia China
88853A FLE5CDL//827/B22/T2 5 220-240 B22 10000 2700 200 80 106 38 Australia China
73406A FLE5CDL//827/E14/T2 5 220-240 E14 10000 2700 200 80 110 38 Australia China
78005A FLE5CDL/827/B15/T2 5 220-240 B15 10000 2700 200 80 110 38 Australia China
73411A FLE7CDL//827/E14/T2 7 220-240 E14 10000 2700 300 80 110 38 Australia China
88855A FLE7CDL//827/E27/T2 7 220-240 E27 10000 2700 300 80 107 38 Australia China
88856A FLE7CDL//827/B22/T2 7 220-240 B22 10000 2700 300 80 106 38 Australia China
78006A FLE7CDL/827/B15/T2 7 220-240 B15 10000 2700 300 80 110 38 Australia China
79935E FLE5CDL/T2/827/E14 5 220-240 E14 10000 2700 200 80 110 38 ID/MY/SG/PH China
79936E FLE5CDL/T2/840/E14 5 220-240 E14 10000 4000 200 80 110 38 ID/MY/SG/PH China
79937E FLE5CDL/T2/827/E27 5 220-240 E27 10000 2700 200 80 107 38 ID/MY/SG/PH China
79938E FLE5CDL/T2/840/E27 5 220-240 E27 10000 4000 200 80 107 38 ID/MY/SG/PH China
79939E FLE5CDL/T2/827/B22 5 220-240 B22 10000 2700 200 80 106 38 ID/MY/SG/PH China
79940E FLE7CDL/T2/827/E14 7 220-240 E14 10000 2700 300 80 110 38 ID/MY/SG/PH China
79941E FLE7CDL/T2/840/E14 7 220-240 E14 10000 4000 300 80 110 38 ID/MY/SG/PH China
79942E FLE7CDL/T2/827/E27 7 220-240 E27 10000 2700 300 80 107 38 ID/MY/SG/PH China
79943E FLE7CDL/T2/840/E27 7 220-240 E27 10000 4000 300 80 107 38 ID/MY/SG/PH China
79944E FLE7CDL/T2/827/B22 7 220-240 B22 10000 2700 300 80 106 38 ID/MY/SG/PH China
Decor - Spherical
88839A FLE5SPH//827/E14/T2 5 220-240 E14 10000 2700 200 80 102 46 Australia China
88841A FLE5SPH//827/B22/T2 5 220-240 B22 10000 2700 200 80 90 46 Australia China
73386A FLE5SPH//827/E27/T2 5 220-240 E27 10000 2700 200 80 91 46 Australia China
78012A FLE5SPH/827/B15/T2 5 220-240 B15 10000 2700 200 80 100 46 Australia China
88842A FLE7SPH//827/E14/T2 7 220-240 E14 10000 2700 310 80 102 46 Australia China
88844A FLE7SPH//827/B22/T2 7 220-240 B22 10000 2700 310 80 90 46 Australia China
73396A FLE7SPH//827/E27/T2 7 220-240 E27 10000 2700 310 80 91 46 Australia China
78013A FLE7SPH/827/B15/T2 7 220-240 B15 10000 2700 310 80 100 46 Australia China
79945E FLE5SPH/T2/827/E14 5 220-240 E14 10000 2700 200 80 102 46 ID/MY/SG/PH China
79946E FLE5SPH/T2/840/E14 5 220-240 E14 10000 4000 200 80 102 46 ID/MY/SG/PH China
79947E FLE5SPH/T2/827/E27 5 220-240 E27 10000 2700 200 80 91 46 ID/MY/SG/PH China
79948E FLE5SPH/T2/840/E27 5 220-240 E27 10000 4000 200 80 91 46 ID/MY/SG/PH China
79949E FLE5SPH/T2/865/E27 5 220-240 E27 10000 6500 190 80 91 46 ID/MY/SG/PH China
79950E FLE5SPH/T2/827/B22 5 220-240 B22 10000 2700 200 80 90 46 ID/MY/SG/PH China
79951E FLE7SPH/T2/827/E14 7 220-240 E14 10000 2700 310 80 102 46 ID/MY/SG/PH China
79952E FLE7SPH/T2/840/E14 7 220-240 E14 10000 4000 310 80 102 46 ID/MY/SG/PH China
79953E FLE7SPH/T2/827/E27 7 220-240 E27 10000 2700 310 80 91 46 ID/MY/SG/PH China
79954E FLE7SPH/T2/840/E27 7 220-240 E27 10000 4000 310 80 91 46 ID/MY/SG/PH China
79955E FLE7SPH/T2/827/B22 7 220-240 B22 10000 2700 310 80 90 46 ID/MY/SG/PH China
57
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - GLS
45850A FLE8GLS//827/E27/T2 8 220-240 E27
6000
2700 370 80 102 53.5 Australia China
45849A FLE8GLS//827/B22 /T2 8 220-240 B22
6000
2700 370 80 101 53.5 Australia China
45848A FLE8GLS//827/E14/T2 8 220-240 E14
6000
2700 370 80 105.5 53.5 Australia China
45837A FLE12GLS//827/E27/T2 12 220-240 E27
6000
2700 625 80 112 57 Australia China
45836A FLE12GLS//827/B22/T2 12 220-240 B22
6000
2700 625 80 111 57 Australia China
45835A FLE12GLS//827/E14/T2 12 220-240 E14
6000
2700 625 80 115.5 57 Australia China
45830A FLE15GLS//827/B22/T3 15 220-240 B22
6000
2700 830 80 122 62 Australia China
45831A FLE15GLS//827/E27/T3 15 220-240 E27
6000
2700 830 80 123 62 Australia China
80375 FLE11GLS/O/B22 BP1 11 220-240 B22
6000
2700 530 80 132 62 Australia China
80376 FLE11GLS/O/E27 BP1 11 220-240 E27
6000
2700 530 80 132 62 Australia China
80389 FLE20GLS/O/B22 BP1 20 220-240 B22
6000
2700 1050 82 158 72.5 Australia China
80390 FLE20GLS/O/E27 BP1 20 220-240 E27
6000
2700 1050 82 158 72.5 Australia China
79972E FLE8GLS/T2/827/E14 8 220-240 E14
6000
2700 370 80 105.5 53.5 ID/MY/SG/PH China
79973E FLE8GLS/T2/840/E14 8 220-240 E14
6000
4000 370 80 105.5 53.5 ID/MY/SG/PH China
79974E FLE8GLS/T2/827/E27 8 220-240 E27
6000
2700 370 80 102 53.5 ID/MY/SG/PH China
79975E FLE8GLS/T2/840/E27 8 220-240 E27
6000
4000 370 80 102 53.5 ID/MY/SG/PH China
79976E FLE8GLS/T2/827/B22 8 220-240 B22
6000
2700 370 80 101 53.5 ID/MY/SG/PH China
79977E FLE12GLS/T2/827/E27 12 220-240 E27
6000
2700 625 80 112 57 ID/MY/SG/PH China
79978E FLE12GLS/T2/827/E14 12 220-240 E14
6000
2700 625 80 115.5 57 ID/MY/SG/PH China
79979E FLE12GLS/T2/840/E14 12 220-240 E14
6000
4000 600 80 115.5 57 ID/MY/SG/PH China
79980E FLE12GLS/T2/840/E27 12 220-240 E27
6000
4000 600 80 112 57 ID/MY/SG/PH China
79981E FLE12GLS/T2/827/B22 12 220-240 B22
6000
2700 625 80 111 57 ID/MY/SG/PH China
79982E FLE15GLS/T3/827/E27 15 220-240 E27
6000
2700 830 80 123 62 ID/MY/SG/PH China
79983E FLE15GLS/T3/840/E27 15 220-240 E27
6000
4000 825 80 123 62 ID/MY/SG/PH China
79984E FLE15GLS/T3/827/B22 15 220-240 B22
6000
2700 830 80 122 62 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - SOFT
79964E FLE8SOFT/T2/827/E14 8 220-240 E14
6000
2700 360 80 109.5 54.5 ID/MY/SG/PH China
79965E FLE8SOFT/T2/827/E27 8 220-240 E27
6000
2700 360 80 106 54.5 ID/MY/SG/PH China
79966E FLE8SOFT/T2/827/B22 8 220-240 B22
6000
2700 360 80 105 54.5 ID/MY/SG/PH China
79967E FLE12SOFT/T2/827/E14 12 220-240 E14
6000
2700 600 80 119.5 57 ID/MY/SG/PH China
79968E FLE12SOFT/T2/827/E27 12 220-240 E27
6000
2700 600 80 116 57 ID/MY/SG/PH China
79969E FLE12SOFT/T2/827/B22 12 220-240 B22
6000
2700 600 80 115 57 ID/MY/SG/PH China
79970E FLE15SOFT/T3/827/E27 15 220-240 E27
6000
2700 825 80 123 62 ID/MY/SG/PH China
79971E FLE15SOFT/T3/827/B22 15 220-240 B22
6000
2700 825 80 122 62 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - REF
79956E FLE7R50/T2/827/E14 7 220-240 E14
6000
2700 65 90 80 93 51 ID/MY/SG/PH China
79957E FLE7R50/T2/840/E14 7 220-240 E14
6000
4000 65 90 80 93 51 ID/MY/SG/PH China
79958E FLE7R50/T2/827/E27 7 220-240 E27
6000
2700 65 90 80 93 51 ID/MY/SG/PH China
79959E FLE7R50/T2/827/B22 7 220-240 B22
6000
2700 65 90 80 92 51 ID/MY/SG/PH China
79960E FLE11R63/T2/827/E14 11 220-240 E14
6000
2700 85 185 80 107 64 ID/MY/SG/PH China
79961E FLE11R63/T2/840/E14 11 220-240 E14
6000
4000 85 185 80 107 64 ID/MY/SG/PH China
79962E FLE11R63/T2/827/E27 11 220-240 E27
6000
2700 85 185 80 107 64 ID/MY/SG/PH China
79963E FLE11R63/T2/827/B22 11 220-240 B22
6000
2700 85 185 80 106 64 ID/MY/SG/PH China
58
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - PAR38
72480 FLE23PAR38/827/E27 23 220-240 E27
8000
2700 339 80 157 121 Australia China
72481 FLE23PAR38/827/B22 23 220-240 B22
8000
2700 339 80 156 121 Australia China
61742T FLE23/827/E27/PAR38 220-240V 23 220-240 E27
8000
2700 339 80 157 121 Thailand China
61744T FLE23/865/E27/PAR38 220-240V 23 220-240 E27
8000
6500 288.15 80 157 121 Thailand China
Decor - R80
72478 FLE15R80/827/E27 15 220-240 E27
8000
2700 210 82 140 80 Australia China
72479 FLE15R80/827/B22 15 220-240 B22
8000
2700 210 82 139 80 Australia China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - GU10
79985E FLE7GU10/T2/827 7 220-240 GU10
6000
2700 62 75 80 86.5 51 ID/MY/SG/PH China
79986E FLE7GU10/T2/840 7 220-240 GU10
6000
4000 62 75 80 86.5 51 ID/MY/SG/PH China
79987E FLE9GU10/T2/827 9 220-240 GU10
6000
2700 96 140 80 86.5 51 ID/MY/SG/PH China
79988E FLE9GU10/T2/840 9 220-240 GU10
6000
4000 96 140 80 86.5 51 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - Buglite GLS
74667 FLE11GLS/O/B22/BUG BX 11 220-240 E27 6000
Anti-Insect
380 80 132 62 Australia China
74666 FLE11GLS/O/E27/BUG BX 11 220-240 B22 6000
Anti-Insect
380 80 132 62 Australia China
Decor - GG
11368EN FLE20HLX/GG/827/E27 Edison 20 220-240 E27 6000 2700 1100 82 147 91 SG/MY China
11371EN FLE20HLX/GG/865/E27 Edison 20 220-240 E27 6000 6500 1000 82 147 91 SG/MY China
59
High Intensity Discharge
Lamps
CMH Single Ended Super Mini 71
CMH MR16 71
CMH Single Ended "Mini" 71
CMH Single Ended G12 71
CMH Ultra 71
CMH PAR20/PAR30/PAR38 72
CMH Double Ended 72
CMH Tubular 72
CMH Elliptical 73
CMH DIMMABLE 73
CMH DIMMABLE StreetWise 73
CMH OPEN RATED 73
CMH China Made 74
EU Standard High CRI 75
EU Standard 75
70W-400W Mid End China Made 75
ANSI Standard Multi-Vapor 76
ANSI Standard High Qutput 76
ANSI Standard Watt-Miser 77
ANSI Standard Protected 77
ANSI Standard HPM-Retrot 77
ANSI Standard Low-watt Double-Ended 77
Colored Double Ended 77
Double Ended China Made 78
Sportlight 78
Standard 79
Standard China Made 79
High Output China Made 79
Xtra Output 80
Standby 80
Internal Ignitor 80
Lucalox E-ZLux 80
Ceramic Metal Halide
Quartz Metal Halide
High Pressure Sodium
EU Standard Std 81
EU Standard Deluxe 81
ANSI Standard Std 81
ANSI Standard Deluxe 81
Mixlight Lamps 81
Mercury
60
High Intensity Discharge Lamps
When considering lamp life, light efficiency
and excellent colour rendering, GE’s
Ceramic Metal Halide range is the perfect
solution in terms of energy saving without
compromising quality of light. From retail,
decorative or industrial applications to
outdoor applications like floodlighting or
city beautification the wide range of GE
Ceramic Metal Halide products has been
designed to provide the highest standard
of quality lighting with the widest flexibility
for all design needs. Ceramic Metal Halide
lamps today represent the most advanced
technology to deliver unbeatable product
reliability and performance.
GE also provides a wide range of Lucalox
High Pressure Sodium products for street
lighting and industrial applications. GE’s
Lucalox range offers outstanding efficacy,
extremely long life and reliability to meet
increasing performance expectations and
new regulations in these market segments.
The Lucalox XO (Extra Output) and Lucalox
XO Superlife lamps offer the highest energy
efficient solutions with long lifetime.
Benefits of Ceramic Metal Halide (CMH)
• Highly controllable point source of light
• Wide range of wattages from 20W to
400W in elliptical, tubular, linear single
and double ended and reflector shapes
• High efficacy – up to 110 lm/W
• Long life – up to 24,000 hours
• Bright light and excellent colour rendering
• Consistent colour over life
• Two colour temperatures:
3000K, 3500K and 4200K
• UV control
• Direct replacement of High Pressure
Sodium and Quartz Metal Halide lamps
• High reliability
• Universal burning position for most lamp
types
Benefits of High Pressure Sodium (HPS)
• Energy efficiency up to 150lm/W
• Lumen output up to 130,000 lumens
• Lifetime up to 55,000 hours
• Wide product range from
50W to 1000W
High Intensity Discharge Lamps
– the most efficient light sources.
Solutions for quality of light
and reliability.
61
Advanced lighting technologies
Indoor Lighting
Quality of Light Energy Saving
ConstantColor CMH –
Single Ended, Double Ended and
Reflectors
ConstantColor Ceramic Metal Halide (CMH) lighting offers a high
quality light source for a wide range of applications.
• High colour rendering
– Allows merchandise to be seen in the best lighting
conditions and reveals features, detail, colour and texture
• Stable colour through life
– Merchandise looks more attractive for longer
– Instills confidence in store’s fashion or quality awareness
• High lumen output
– High luminance levels to attract customers into stores
– Creates lively visual environment
• Long life – to reduce maintenance cost
ConstantColor CMH Miniature – Su-
permini & MR16
GE technology has always been at the forefront of CMH lighting
with products that deliver the best possible energy efficiency as
well as excellent performance:
• Outstanding efficiency: >80lm/W for 3000K
• 20W available in 830, 35W available in 930 and 942
• Robust design for reliability
• Compact size for fixture flexibility and better optical efficiency
• More stable colour through life
• Improved life performance
• Easy to fit
• Multiple beam spreads for MR16: 12°, 25°, 40°
62
High Intensity Discharge Lamps
The power of CMH
From the leader in
miniature CMH technology
Energy saving is not only a cost saving but is also a social responsibility, and the
lighting industry is constantly researching products that produce more light using
less electricity. GE is in the vanguard of this research and the company’s CMH
Supermini range is exceptionally efficient. Coupled with an efficient spotlight fixture,
Superminis yield massive energy saving because they generate extremely high
luminous flux in a very small space. In the retail environment, in particular, this
provides a significant saving with no loss of lighting quality.
Key features
• Outstanding efficiency: four times
better than halogen
• Compact capsule, or reflector
version
• Outstanding long life – up to
12,000 hours
• Robust and reliable
• Colour uniformity lamp to lamp
• Stable colour throughout lamp life
• Small size enables better
optical design
• Simple ballast and lamp
holder change
Applications
• Display lighting
• Spot and track lighting
• Mini floodlighting
• Indoor/outdoor
NEW for 2011
Ultra versions launched
Ultra versions of the 35W Supermini
and MR16 lamps have been released
– the benefits of
Ultra combined with the benefits
of miniaturisation.
• 20% of beam heat
• Three times the life
• 80% more light
• 4.5 times better efficiency
• Reduced air conditioning costs
• Reduced replacement costs
• More design potential
• Reduced energy costs
Energy Efficient
If we compare CMH 20W with a 50W halogen lamp, there are four primary attributes to
consider. These are: life, lumen, efficacy and heat. CMH 20W wins in every area!
CMH 20W vs 50W Halogen
End User
Benets
Life [h] Lumens [lm] Ecacy[lm/w] Heat [W]
50W Halogen Capsule 4,000 900 18 33W
CMH 20W Supermini 12,000 1615 80.8 7W
x3 x1.8 x4.6 20%
63
Advanced lighting technologies
ConstantColor CMH Ultra
The new generation of CMH
Our next generation of CMH lamps are the ultimate light source for retail applications where quality of light, colour and efficacy
are important. Now, anyone with critical colour needs can enjoy the outstanding energy efficiency and the savings that CMH
lamps provide.
Key features
• 35W and 70W 3000K CMH lamps
in G12, G8.5, G6.5, MR16 formats
• New arctube design – lumen
maintenance and colour rendering
(CRI) are both significantly
improved vs. standard CMH, while
maintaining our industry leading
18,000 hours life
• The 930 colour gives a true
representation of all colours in
the spectrum
• These lamps will operate in any
existing CMH70 and 35 G12, G8.5,
G6.5, MR16 systems. In addition,
they are compatible with both
electronic and magnetic ballasts
Applications
• Retail and accent lighting
• General retail display
• Wherever current generation
CMH 35&70W G12, G8.5, G6.5,
MR16 products are in use
Benefits
• Extended service life and lamp
replacement cycles
• Creates a higher level product
offering through improved lumen
maintenance and colour rendering
• Improved lumen maintenance
keeps stores brighter longer
64
High Intensity Discharge Lamps
Advanced lighting technologies
CMH Supermini
With ULTRA efficient lighting
• Allows miniaturisation of fixtures
(only 52mm long)
• Available in 20W and 35W versions
• 35W available in 930 & 942 colours
• 35W Ultra version released
• Outstanding long life up to 16,500
hours
CMH Single Ended Mini
G8.5
With ULTRA efficient lighting
• New generation - more usable light
over life, 33% more lumen output at
end of life vs. standard CMH lamps
• Excellent 930 colour
• Outstanding long life up to 18,000
hours
CMH Single Ended G12
With ULTRA efficient lighting
• New generation - more usable light
over life, 33% more lumen output at
end of life vs. standard CMH lamps
• Excellent 930 colour
• Outstanding long life up to 18,000
hours
CMH 250W
Performance Upgrade
• A leading combination of quality
and efficient light versus other HID
lamps
• Lamp life – 24,000 hours
• Colour consistency and 80+ CRI
CMH 400W
Performance Upgrade
• Highest wattage CMH available
• Lamp life – 20,000 hours
• Colour consistency and 80+ CRI
CMH Open Rated
Performance Upgrade
• Protective shroud allows for use in
open-fixtures
• 10-20% more efficient than standard
metal halide
• Fits standard HPS and metal halide
sockets
CMH PAR 20 & 30
Design upgrade
• New design without metal ring
• The 3000k, 3500k, 4200K colour
temperature offers flexibility to
lighting designers
CMH TD Range
Unique Range
• New 35W added to 70W
and 150W range
• 35W allows energy saving in wall-
wash fixtures
Dimmable CMH
StreeWise
Energy Savers
• New generation tubular 50 - 150W
launched in 2011
• Very efficient, up to 110 LPW
• Direct retrofit to HPS
• Lamp is dimmable to 65% without
significant impact to lamp colour
• Lamp life - 24,000 hours
CMH Tubular 70-400W
Improved Versatility
• Quality of light
• Lamp life up to 24,000 hours
• Colour consistency and 80+ CRI
CMH Elliptical 70-400W
Improved Versatility
• Quality of light
• Lamp life up to 24,000 hours
• Colour consistency and 80+ CRI
CMH Precise MR16
With ULTRA efficient lighting
• World’s smallest CMH reflector lamp.
Beam angles: 12°, 25° & 40°
• Industry standard GX10 base
• 35W available in 930 & 942 colours
• 35W Ultra version released
• Outstanding long life up to 16,500
hours
65
Outdoor Lighting
Prime Requirements
• High efficacy and long service life to minimize cost
• Create high uniform lighting on the road for safety reasons
• Better colour appearance and rendering for visual needs of pedestrians
Quality of Light Solution for Reliability
CMH – street lighting – bright, safe
white light
It is generally observed that white light makes it easier for
drivers to recognize shapes and colour, particularly in the
peripheral vision. For pedestrians white light promotes a feeling
of security and confidence, much more than under yellow or
orange street lighting.
A comprehensive range of CMH lamps are
available and provide excellent benefits:
• High efficacy and long life to minimize cost and reduce
emission of CO2 for better environment
• Compact source, allowing flexible optical design to achieve
high illumination uniformity on the road
• Better colour appearance and rendering for visual needs of
pedestrians
• Improved feeling of security
• Dimmable Mesopic CMH lamp – is able to achieve a brighter
level of light output better matched to human eye sensitivity
and at a reduced power
A brand new range of CMH outdoor lighting
StreetWise is available Since 2011.
Lucalox XO – solution for reliability in
street lighting
GE Lucalox XO High Pressure Sodium lamps offer outstanding
luminous efficacy, lumen maintenance and long life, thus
reducing energy and maintenance costs.
These lamps deliver a new level of reliability
by a comprehensive redesign of the lamp
construction:
• Revolutionary arc tube design (monolithic) – for simpler, more
robust construction
• Precise arc tube sealing process
• New getter material improves vacuum protection
• New starting aid GRS (GE Reliable Starting Technology)
improves lumen maintenance
• Direct replacement for standard Lucalox
• Up to 150 lm/W – currently the most efficient lamp within the
HID range
• Life up to 32,000 hours – the longest life lamp in the HID
range in single arctube design
• Dimmable on electromagnetic and GE approved
electronic ballasts
66
High Intensity Discharge Lamps
GE ConstantColor
CMH StreetWise
Naturally better, naturally safer.
GE ConstantColor CMH StreetWise ceramic metal halide lamps have been designed
as the easy-fit replacement for outdated technologies. They are also the logical first
choice for new installations.
They are fitted with standard E27/E40 bases and can be dimmed, they outperform
most standard HID systems. And with high reliability and sustained lumen output
across a longer working life of 24,000 hours, they are supremely cost effective.
They support electronic and electromagnetic ballasts and are compatible with the
major street light ballasts, retrofitting the existing HPS systems. Approved ballasts
included Tridonic and Harvard and the ballast testing process is
on-going with other major manufacturers. If you have any particular needs please
contact your GE sales representative.
When to specify
StreetWise
In applications where lighting class
reduction using lamps above Ra8 60
can be considered, StreetWise is a clear
leader. Its excellent Ra8 value of 70
provides improved colour rendering over
similar systems of comparable life and
efficacy.
StreetWise ceramic metal halide lamps
are the excellent white light energy
efficient choice, offering:
• Lowest total cost of ownership
• Wide range: 50/70/100/150 Watts
• Dimmable for all wattages for
further energy saving
• System flexibility, operating on both
electronic and electromagnetic
ballasts
• Standard E27/E40 bases for
simplicity
• Compatible with existing fixtures
and optics
• Same size and LCL as current HPS
• Horizontal burning position
Applications include:
CMH StreetWise range can
be applied ...
• Specify in new installations. Achieve
very high efficiency with standard
bases and flexible ballast choices.
• Replace HPS or mercury applications.
Dimmable CMH will
achieve lowest cost and most efficient
white light.
• Choose instead of HPS. Benefits
include white light and lower energy
at similar lumen output for same
wattage.
• Replace mercury vapour
installations. Lower Watt CMH will
maintain white light at similar lumen
and save the most energy.
NEW
for 2011
StreetWise
StreetWise
StreetWise
StreetWise
StreetWise
67
Advanced lighting technologies
GE Lucalox XO
Extra Output
The ideal lamp for road lighting. Improved
quality brings down life-cycle costs by
reducing spot replacements. Extended lamp
life means less lamps for disposal and
further cost savings as stricter waste
legislation becomes imposed.
Improved reliability
The simplicity of the design
Lucalox XO lamps are of very robust and
reliable construction, designed to meet the
most demanding requirements. There are
fewer parts and only 5 critical welds.
Simplicity and robustness deliver higher
reliability, even for exposed, vibration
prone roadway situations.
In addition, they are compatible with both
electronic* and magnetic ballasts.
*GE approved electronic ballast
• Lucalox XO lamps reach luminous efficacy
up to 150 lumens/watt
• Lucalox XO lamps, due to their high
efficacy, are an outstanding economical
solution to combat rising energy costs
• Lucalox XO lamps combine excellent
lumen maintenance with extended life
• Lucalox XO lamps combine long life and
excellent luminous efficacy to reduce
their impact on the global environment
Monolithic construction
More robust
GE reliable starting technology
Improves lumen maintenance
Higher transparency ceramic
More light output
Zirconium-Iron getter
Improves lumen maintenance
68
High Intensity Discharge Lamps
CostantColor CMH
(Ceramic Metal Halide) T, TC, TD
Single Ended
Mini Ultra and
Standard
Cap: G8.5
Wattages: 20 -70W
Colours: 830, 930, 942
Life:
12,000 -18,000Hrs
Page: 71
PAR30
Cap: E27
Wattages: 20-70W
Colours: 830, 835, 942
Life:
10,000 -13,000Hrs
Page: 72
Tubular
Cap: E27, E40
Wattages: 70-400W
Colours: 830, 942
Finish: Clear
Life:
10,000 -24,000Hrs
Page: 72
StreetWise
Cap: E27, E40
Wattages: 50-150W
Colours: 730
Finish: Clear
Life:
24,000Hrs
Page: 73
Open Rated
Tubular
Cap: E40
Wattages: 150W
Colours: 830, 942
Finish: Clear
Life: 12,000Hrs
Page: 73
Single Ended G12
Ultra and Standard
Cap: G12
Wattages: 20-150W
Colours: 830, 842, 930,
942
Life:
12,000 -18,000Hrs
Page: 71
Double Ended
Cap: RX7s or RX7s-24
Wattages: 35-150W
Colours: 830, 942
Life:
10,000 -15,000Hrs
Page: 72
Single Ended
Supermini Ultra
and Standard
Cap: G6.5
Wattages: 20-35W
Colours: 830, 930, 942
Life:
10,000 -16,500Hrs
Page: 71
CostantColor CMH (Ceramic
Metal Halide) Reflectors
MR16 Ultra and
Standard
Cap: GX10
Wattages: 20-35W
Colours: 830, 930, 942
Life:
10,000 -16,500Hrs
Page: 71
PAR20
Cap: E27
Wattages: 20-35W
Colours: 830, 942
Life:
10,000 -12,000Hrs
Page: 72
CostantColor CMH (Ceramic Metal
Halide) Elliptical and Tubular
Open Rated
Elliptical
Cap: E27
Wattages: 70-150W
Colours: 940, 942
Finish: Clear or Diffuse
Life: 15,000Hrs
Page: 73
Elliptical
Cap: E27, E40
Wattages: 70-400W
Colours: 830, 942
Finish: Clear or Diffuse
Life:
15,000 -24,000Hrs
Page: 73
Tubular
Cap: E40
Wattages: 150-400W
Colours: 4000-6000K
CRI: 63-90
Finish: Clear
Life: 8,000-12,000Hrs
Page:
Elliptical
Cap: E40, E27
Wattages: 70-250W
Colours: 4000-6000K
CRI: 65-90
Finish: Clear or Diffuse
Life:
8,000 -14,000Hrs
Page:
Arcstream Metal Halide
Operates on suitable metal halide/high pressure
sodium ballast and metal halide ignitor
Double Ended
Cap: Rx7s-Fc2
Wattages: 70-250W
Colours: 3000-6500K
CRI: 70-90
Life: 9,000Hrs
Page:
Double Ended
Coloured
Cap: RX7s-24
Wattages: 150W
Colours:
Green, Blue,
Orange, Magenta
Life: 6,000Hrs
Page:
69
Selector
Kolorarc Metal Halide
Operates from suitable mercury or metal halide
ballast rated 3.5A and metal halide ignitor
Elliptical
Cap: E40
Wattages: 250-400W
Colours: 4000-6000K
CRI: 63-90
Finish: Clear or Diffuse
Life:
8,000 -14,000Hrs
Page:
Tubular
Cap: E40
Wattages: 250-400W
Colours: 4000-6000K
CRI: 63-90
Finish: Clear
Life: 8,000-10,000Hrs
Page:
Sportlight Metal Halide
For sports and floodlighting
Linear
Cap: RX7s - spec
Wattages: 1500-2000W
Colours: 5200K
CRI: 65
Life: 6,000Hrs
Page:
Tubular Clear
Cap: E40
Wattages: 1000-2000W
Colours: 4000-6000K
CRI: 65-93
Life: 2,000 -8,000Hrs
Page:
Internal Ignitor
Cap: E40
Wattages: 2000W
Colours: 6000K
CRI: 93
Life: 5,000Hrs
Page:
Multi-Vapour Metal Halide
Operates from CWA Control Gear
Standard – Elliptical
Cap: E40, E26, E39
Wattages: 175-1500W
Colours: 3700-4200K
CRI: 65-70
Finish: Clear or Diffuse
Life:
10,000 -20,000Hrs
Page:
High Output –
Elliptical
Cap: POSMpg, E39
Wattages: 175-1000W
Colours: 3000-4000K
CRI: 65-70
Finish: Clear or Diffuse
Life: 20,000Hrs
Page:
Lucalox
Cap: E27, E40
Wattages: 50-1000W
Finish: Tubular Clear
or Elliptical
Diffuse
Life:
24,000 -28,500Hrs
Page:
Lucalox XO
Cap: E27, E40
Wattages: 50-600W
Feature: Extra high
lumen output
Finish:
Tubular Clear or
Elliptical Diffuse
Life:
28,500 -32,000Hrs
Page:
Lucalox HO
Cap: E40
Wattages: 150-600W
Feature: China-made high
lumen output
Finish: Tubular Clear
Life: 24,000Hrs
Page:
High Pressure
Sodium
Lucalox ANSI
Standard
Cap: E26, E39, E40
Wattages: 150-1000W
Life: 24,000Hrs
Page: 80
Lucalox E-Z Lux
Cap: E27
Wattages: 110W
Feature:
Direct
replacement for
mercury lamps
Life: 24,000Hrs
Page: 80
Lucalox
Internal Ignitor
Cap: E27
Wattages: 50-70W
Feature: Internal ignitor
Finish: Elliptical Clear
or Diffuse
Life: 12,000Hrs
Page: 80
Lucalox XO Superlife
Cap: E27, E40
Wattages: 70-400W
Feature: Extra high lumen
output and Twin
Arctubes for extra life
Finish: Tubular Clear or
Elliptical Diffuse
Life: 50,000 -55,000Hrs
Page:
Lucalox Superlife
Cap: E27, E40
Wattages: 50-400W
Feature: Twin Arctubes
for extra life
Finish:
Tubular Clear or
Elliptical Diffuse
Life:
40,000 -55,000Hrs
Page:
High Pressure
Sodium – Others
Mercury Lamps
EU Standard
Cap: E27, E40
Wattages: 50-400W
Life: 20,000Hrs
Page: 81
EU standard
Deluxe
Cap: E27, E40
Wattages: 50-400W
Life: 20,000Hrs
Page: 81
Mixed Light
Cap: E27, E40
Wattages: 160-500W
Voltage: 230-240V or
240-250V
Life: 8,000Hrs
Page: 18
ANSI Standard
Cap: E39, E40
Wattages: 150-400W
Life: 20,000Hrs
Page: 81
ANSI standard
Deluxe
Cap: E26, E39
Wattages: 100-400W
Life: 20,000Hrs
Page: 81
70
The following glossary of terms will help you when selecting lamps in this section. Within
each product line, lamps are divided into families – within these families, lamps are listed
by wattage. The Product Description can be used as a quick reference to each product’s
attributes. Where Life or Average Life are stated we refer to the industry standard definition
of how many hours of operation 50% of a given installation will exceed.
Additional parameters:
CCT [K]: Colour Temperature – Kelvins
A measure of the visual “warmth” or “coolness” of the light
from the lamp. The higher the value the whiter or “cooler”
the light appears.
CRI [Ra]: Colour Rendering Index
An indication of the ability of the lamp to render object
colours in a normal, natural way. The higher the number
(0-100), the better the colour appearence.
Product identification
High Intensity Discharge Lamps
Product
Code
Wattage
[W] Volts [V] Cap Product
Description
Lumen
[lm] Colour Operating
position
Life (Vertical)
[h]
Life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm] Pack Qty
ConstantColor - CMH Supermini
40399 20 95 GU6.5 CMH20/T/UVC/830/GU6.5 1615 830 U 12,000 12,000 52 13 12
88656 35 95 GU6.5 CMH35/T/UVC/930/GU6.5 3400 930 U 10000* 10,000* 52 13 12
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Nominal
Volts:
Lamp data
is based on
operation at
rated voltage
Life (Vertical):
Rated average life
in vertical burning
position
Colour:
Combination of
colour rendering
and colour
temperature
Length:
Lamp length
in mm
Lumens:
Initial Lumens - light
output at 100 hours
Diameter:
Bulb diameter in mm
Life (Horizontal):
Rated average life in
horizontal burning
position
Pack quantity:
Number of product
units packed in a case
Operating position:
U - Universal
HOR - Horizontal
BU - Base Up
VBU - Vertical Base Up
(70)
Identies
Lamp’s
wattage
(CMH) Product Family
CMH -
ConstantColor CMH
ARC - Arcstream
KRC - Kolorarc
MPR/MVR - Multi-Vapor
SPL - Sportlight
LU - Lucalox
H - Mercury
ML - Blended Light
BLS - Ballast
(T) Identies the
lamp format.
TD - Double Ended
E - Elliptical Clear
D - Elliptical Diused
L - Linear
PARxx - PAR + size
T - Tubular Clear
(30) Colour
temperature
XX = First 2 digits
of temperature in
Kelvin - XX00K
Example: 30 is 3000K
(9) Colour rendering
6 - Ra 58 to 67 (Group 2B)
7 - Ra 68 to 77 (Group 2A)
8 - Ra 78 to 87 (Group 1B)
9 - Ra 88 to 97 (Group 1A)
CMH 70 / T / UVC / U / 9 30 / G12 ULTRA
(G12):
Identies the
cap type
(U)
Operating
Position
(UVC) UV
Control
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
71
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Initial Lumens
(lm)
CBCP Beam
Spread
Avg.Life
(Hr)
Pack Qty.
CMH MR16
40400 CMH20/MR16/UVC/830/GX10/SP 20 0.2A 3000K 80 GX10 54.5 1000 9000 12° 12000 1/12
40401 CMH20/MR16/UVC/830/GX10/FL 20 0.2A 3000K 80 GX10 54.5 1000 2900 25° 12000 1/12
42691 CMH20/MR16/UVC/830/GX10/WFL 20 0.2A 3000K 80 GX10 54.5 1000 1500 40° 12000 1/12
88658 CMH35/MR16/UVC/930/GX10/SP 35 0.5A 3000K 90 GX10 54.5 2200 16000 12° 10000 1/12
88659 CMH35/MR16/UVC/930/GX10/FL 35 0.5A 3000K 90 GX10 54.5 2200 5500 25° 10000 1/12
88660 CMH35/MR16/UVC/930/GX10/WFL 35 0.5A 3000K 90 GX10 54.5 2200 3000 40° 10000 1/12
88661 CMH35/MR16/UVC/942/GX10/SP 35 0.5A 4200K 92 GX10 54.5 2200 16000 12° 12000 1/12
88662 CMH35/MR16/UVC/942/GX10/FL 35 0.5A 4200K 92 GX10 54.5 2200 5500 25° 12000 1/12
88663 CMH35/MR16/UVC/942/GX10/WFL 35 0.5A 4200K 92 GX10 54.5 2200 3000 40° 12000 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
CMH Single Ended Super Mini
40399 CMH20/TC/UVC/U/830/GU6.5 20 0.2A 3000K 81+ GU6.5 52 1615 12000 1/12
88656 CMH35/T/UVC/930/GU6.5 35 0.5A 3000K 88 GU6.5 52 3400 10000 1/12
88657 CMH35/T/UVC/942/GU6.5 35 0.5A 4200K 90 GU6.5 52 3400 12000 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
CMH Single Ended G12
42708 CMH20/T/UVC/U/830/G12 PLUS 20 0.2A 3000K 80+ T6 G12 90 Universal 1650 12000 1/12
92141 CMH35/T/UVC/U/942/G12 35 0.5A 4200K 85+ T6 G12 90 Universal 3200 18000 1/12
43272 CMH35/T/UVC/U/830/G12 PLUS 35 0.5A 3000K 80+ T6 G12 90 Universal 3400 16500 1/12
20005 CMH70/T/UVC/U/830/G12 70 0.98A 3000K 80+ T6 G12 90 Universal 6200 15000 1/12
20013 CMH70/T/UVC/U/942/G12 70 0.98A 4200K 90+ T6 G12 90 Universal 6300 15000 1/12
20012 CMH150/T/UVC/U/830/G12 150 1.8A 3000K 80+ T7 G12 100 Universal 14000 12000 1/12
20014 CMH150/T/UVC/U/942/G12 150 1.8A 4200K 90+ T7 G12 100 Universal 13000 12000 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
CMH Single Ended "Mini's"
39858 CMH20/T/UVC/U/830/G8.5 PLUS 20 0.2A 3000K 80+ T4.5 G8.5 85 Universal 1650 12000 1/12
43273 CMH35/TC/UVC/U/830/G8.5 PLUS 35 0.5A 3000K 80+ T4.5 G8.5 85 Universal 3400 16500 1/12
26348 CMH35/TC/UVC/U/942/G8.5 35 0.5A 4200K 88+ T4.5 G8.5 85 Universal 3200 18000 1/12
43274 CMH70/TC/UVC/U/830/G8.5 PLUS 70 0.98A 3000K 80+ T4.5 G8.5 85 Universal 6450 15000 1/12
26349 CMH70/TC/UVC/U/942/G8.5 70 0.98A 4200K 90+ T4.5 G8.5 85 Universal 6200 15000 1/12
Ceramic Metal Halide
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
CBCP Avg.Life
(Hr)
Pack
Qty.
CMH Ultra
76120 CMH35/TC/UVC/U/930/G8.5 Ultra 35 0.5A 3000K 87 T4.5 G8.5 85 Universal 3500 - 16500 1/12
76121 CMH35/T/UVC/U/930/G12 Ultra 35 0.5A 3000K 87 T6 G12 90 Universal 3500 - 16500 1/12
76122 CMH35/T/UVC/930/GU6.5 Ultra 35 0.5A 3000K 88 - GU6.5 52 Universal 3500 - 16500 1/12
76123 CMH35/MR16/UVC/930/GX10/SP Ultra 35 0.5A 3000K 90 - GX10 54.5 Universal 2200 16000 16500 1/12
76124 CMH35/MR16/UVC/930/GX10/FL Ultra 35 0.5A 3000K 90 - GX10 54.5 Universal 2200 5500 16500 1/12
76125 CMH35/MR16/UVC/930/GX10/WFL Ultra 35 0.5A 3000K 90 - GX10 54.5 Universal 2200 3000 16500 1/12
96751 CMH70/TC/UVC/U/930/G8.5 Ultra 70 0.98A 3000K 88 T4.5 G8.5 85 Universal 6200 - 18000 1/12
96752 CMH70/TC/UVC/U/930/G12 Ultra 70 0.98A 3000K 87 T6 G12 90 Universal 6400 - 18000 1/12
63595 CMH70/TC/UVC/U/930/G8.5 Ultra White 70 0.98A 3000K 88 T4.5 G8.5 85 Universal 6700 - 18000 1/12
63596 CMH70/TC/UVC/U/930/G12 Ultra White 70 0.98A 3000K 88 T6 G12 90 Universal 6600 - 18000 1/12
72
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
CBCP Beam
Spread
Avg.Life
(Hr)
Pack
Qty.
CMH PAR30
26497 CMH20/PAR30/UVC/830/E27/SP10 20 0.2A 3000K 80+ E27 124 Universal 1200 19800 10° 12000 1/6
26518 CMH20/PAR30/UVC/830/E27/FL25 20 0.2A 3000K 80+ E27 124 Universal 1200 4900 25° 12000 1/6
21689 CMH35/PAR30/UVC/830/E27/SP 35 0.5A 3000K 80+ E27 124 Universal 2400 39600 10° 10000 1/6
21690 CMH35/PAR30/UVC/830/E27/FL 35 0.5A 3000K 80+ E27 124 Universal 2400 11000 25° 10000 1/6
44939 CMH35/PAR30/UVC/942/E27/SP10 35 0.5A 4200K 89 E27 124 Universal 2225 36700 10° 10000 1/6
44942 CMH35/PAR30/UVC/942/E27/FL25 35 0.5A 4200K 89 E27 124 Universal 2225 10200 25° 10000 1/6
21683 CMH70/PAR30/UVC/830/E27/SP 70 0.98A 3000K 80+ E27 124 Universal 4700 43000 15° 13000 1/6
21682 CMH70/PAR30/UVC/830/E27/FL 70 0.98A 3000K 80+ E27 124 Universal 4700 10000 40° 13000 1/6
74620 CMH70/PAR30/UVC/942/E27/SP 70 0.98A 4200K 89 E27 124 Universal 4300 33500 15° 10000 1/6
74619 CMH70/PAR30/UVC/942/E27/FL 70 0.98A 4200K 89 E27 124 Universal 4300 9000 40° 10000 1/6
High Intensity Discharge Lamps
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
CBCP Beam
Spread
Avg.Life
(Hr)
Pack Qty.
CMH PAR38
45675 CMH70/PAR38/830/SP15 70 0.98A 3000K 80+ E26 120 Universal 4800 40000 15° 10000 1/6
45677 CMH70/PAR38/830/FL15 70 0.98A 3000K 80+ E26 120 Universal 4800 14000 25° 10000 1/6
45679 CMH70/PAR38/830/WFL 70 0.98A 3000K 80+ E26 120 Universal 4800 4400 40° 10000 1/6
45680 CMH100/PAR38/830/SP15 100 1.1A 3000K 80+ E26 120 Universal 6500 45000 15° 10000 1/6
45681 CMH100/PAR38/830/FL15 100 1.1A 3000K 80+ E26 120 Universal 6500 15000 25° 10000 1/6
45682 CMH100/PAR38/830/WFL 100 1.1A 3000K 80+ E26 120 Universal 6500 5500 40° 10000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
CBCP Beam
Spread
Avg.Life
(Hr)
Pack
Qty.
CMH PAR20
26478 CMH20/PAR20/UVC/830/E27/SP 20 0.2A 3000K 80+ E27 92 Universal 1000 13000 10° 12000 1/6
26481 CMH20/PAR20/UVC/830/E27/FL 20 0.2A 3000K 80+ E27 92 Universal 1000 3750 25° 12000 1/6
21684 CMH35/PAR20/UVC/830/E27/SP 35 0.5A 3000K 80+ E27 92 Universal 2100 22000 10° 10000 1/6
21685 CMH35/PAR20/UVC/830/E27/FL 35 0.5A 3000K 80+ E27 92 Universal 2100 7500 25° 10000 1/6
44890 CMH35/PAR20/UVC/942/E27/SP10 35 0.5A 4200K 90+ E27 92 Universal 1950 19450 10° 10000 1/6
44919 CMH35/PAR20/UVC/942/E27/FL25 35 0.5A 4200K 90+ E27 92 Universal 1950 6950 25° 10000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
Horizontal
(Hr)
Avg.Life
Vertical (Hr)
Pack Qty.
CMH Double Ended
43278 CMH35/TD/UVC/830/RX7s 35 0.5A 3000K 80+ T6 Rx7s 118 horizontal±45 3400 15000 - 1/12
36910 CMH70/TD/UVC/830/RX7s 70 0.98A 3000K 80+ T6 Rx7s 118 horizontal±45 7000 15000 - 1/12
38698 CMH70/TD/UVC/942/RX7s 70 0.98A 4200K 90+ T6 Rx7s 118 horizontal±45 6200 15000 - 1/12
36912 CMH150/TD/UVC/830/RX7s-24 150 1.8A 3000K 80+ T7 Rx7s-24 135 horizontal±45 14500 15000 - 1/12
38692 CMH150/TD/UVC/942/RX7s-24 150 1.8A 4200K 90+ T7 Rx7s-24 135 horizontal±45 12500 15000 - 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
Horizontal
(Hr)
Avg.Life
Vertical (Hr)
Pack
Qty.
CMH Tubular
38752 CMH70/TT/UVC/830/E27 70 0.98A 3000K 80+ Clear E27 156 Universal 6400 20000 15000 1/12
92478 CMH100/TT/UVC/830/E40 100 1.1A 3000K 80+ Clear E40 207 Universal 9200 15000 10000 1/12
38749 CMH150/TT/UVC/830/E40 150 1.8A 3000K 80+ Clear E40 207 Universal 14000 20000 15000 1/12
20302 KRC250/CMH/830/T/H/E40 250 2.3A 3000K 80+ Clear E40 251 Universal 20000 24000 - 1/12
10589 CMH250/TT/U/830/E40 250 2.7A 3000K 80+ Clear E40 251 Universal 25000 24000 24000 1/12
62356 CMH250/T/U/942/E40 250 2.9A 4200K 90 Clear E40 251 Universal 25000 16000** 16000** 1/12
13067 CMH400/TT/UVC/U/830/E40 400 4.2A 3000K/3600K* 80+ Clear E40 270 Universal 41000 20000 20000 1/12
73
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
Horizontal
(Hr)
Avg.Life
Vertical (Hr)
Pack
Qty.
CMH Elliptical
46189 CMH70/E/UVC/U/830/E27/C 70 0.98A 3000K 80+ Clear E27 137 Universal 6300 15000 15000 1/6
46187 CMH70/E/UVC/U/830/E27/D 70 0.98A 3000K 80+ Diuse E27 137 Universal 6000 15000 15000 1/6
46194 CMH100/E/UVC/U/830/E27/D 100 1.1A 3000K 80+ Diuse E27 137 Universal 8700 10000 10000 1/6
46191 CMH100/E/UVC/U/830/E27/C 100 1.1A 3000K 80+ Clear E27 137 Universal 9200 15000 15000 1/6
10591 CMH250/E/UVC/U/830/E40/D 250 2.7A 3000K 80+ Diuse E40 251 Universal 23500 24000 24000 1/6
13087 CMH400/E/UVC/U/830/E40/D 400 4.2A 3000K/3600K* 80+ Diuse E40 280 Universal 39000 20000 20000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
Horizontal (Hr)
Avg.Life
Vertical (Hr)
Pack
Qty.
CMH DIMMABLE
21514 CMH150/UVC/T/U/842/E40 150 1.8A 4000K 89 Tubular E40 207 Universal 14500 15000 15000 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(EL/EM) (lm)
Avg.Life
Horizontal (Hr)
Avg.Life
Vertical
(Hr)
Pack
Qty.
CMH DIMMABLE StreetWise
64982 CMH50/TT/UVC/730/E27/ECG STREETWISE 50 0.76A 3000K 70+ Tubular E27 156 horizontal±15° -/5000 24000** 16000** 1/12
77400 CMH50/TT/UVC/730/E27/EM STREETWISE 50 0.76A 3000K 67 Tubular E27 156 horizontal±15° 4500/- 24000** 16000** 1/12
77401 CMH70/TT/UVC/730/E27 STREETWISE 70 0.95A 3000K 70+ Tubular E27 156 horizontal±15° 7640/7300 24000** 16000** 1/12
77399 CMH100/TT/UVC/730/E40 STREETWISE 100 1.16A 3000K 70+ Tubular E40 211 horizontal±15° 10900/10100 24000** 16000** 1/12
77402 CMH150/TT/UVC/730/E40 STREETWISE 150 1.8A 3000K 68 Tubular E40 211 horizontal±15° 16200/16300 24000** - 1/12
* Horizontal Burning Position - 3000K CCT, Vertical burning Position - 3600K CCT
** Testing still on going, will upgrade.
Ceramic Metal Halide
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
Horizontal (Hr)
Avg.Life
Vertical (Hr)
Pack
Qty.
CMH OPEN RATED
43282 CMH70/UVC/O/U/940/E27/D 70 0.98A 4000K 90+ Diuse E27 137 Universal 5300 15000 15000 1/6
21516 CMH150/UVC/O/T/U/830/E40 150 1.8A 3000K 80+ Tubular E40 207 Universal 14000 12000 12000 1/6
43286 CMH150/UVC/O/U/940/E27/D 150 1.8A 4000K 90+ Diuse E27 137 Universal 12300 15000 15000 1/6
43285 CMH150/UVC/O/U/942/E27/C 150 1.8A 4200K 90+ Elliptical E27 137 Universal 13200 15000 15000 1/6
21517 CMH150/UVC/O/T/U/942/E40 150 1.8A 4200K 90+ Tubular E40 207 Universal 14000 12000 12000 1/6
74
High Intensity Discharge Lamps
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
CBCP Beam
Spread
Avg.Life
(Hr)
Pack
Qty.
CMH China Made - CMH PAR30
63441E CMH35/PAR30/UVC/830/E27/SP10 35 0.5A 3000K 81 E27 125 Universal 2400 39600 10° 10000 1/6
63442E CMH35/PAR30/UVC/830/E27/FL25 35 0.5A 3000K 81 E27 125 Universal 2400 11060 25° 10000 1/6
64950E CMH35/PAR30/UVC/835/E27/SP10 35 0.5A 3500K 80 E27 125 Universal 2400 29100 10° 10000 1/6
64951E CMH35/PAR30/UVC/835/E27/FL25 35 0.5A 3500K 80 E27 125 Universal 2400 10000 25° 10000 1/6
63443E CMH35/PAR30/UVC/942/E27/SP10 35 0.5A 4200K 89 E27 125 Universal 2225 36700 10° 10000 1/6
63444E CMH35/PAR30/UVC/942/E27/FL25 35 0.5A 4200K 89 E27 125 Universal 2225 10200 25° 10000 1/6
73683E CMH70/PAR30/UVC/830/E27/FL15 70 0.98A 3000K 80 E27 125 Universal 4700 43000 15° 13000 1/6
73684E CMH70/PAR30/UVC/830/E27/SP40 70 0.98A 3000K 80 E27 125 Universal 4700 10000 40° 13000 1/6
64952E CMH70/PAR30/UVC/835/E27/SP15 70 0.98A 3500K 80 E27 125 Universal 4300 33100 15° 10000 1/6
64953E CMH70/PAR30/UVC/835/E27/FL40 70 0.98A 3500K 80 E27 125 Universal 4300 7900 40° 10000 1/6
63439E CMH70/PAR30/UVC/942/E27/SP15 70 0.98A 4200K 89 E27 125 Universal 4300 33500 15° 10000 1/6
63440E CMH70/PAR30/UVC/942/E27/FL40 70 0.98A 4200K 89 E27 125 Universal 4300 9000 40° 10000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
CMH China Made - CMH Single Ended Mini
73685E CMH20/TC/UVC/830/G8.5 20 0.2A 3000K 81 T4.5 G8.5 85 Universal 1650 12000 1/12
73686E CMH35/TC/UVC/U/830/G8.5 35 0.5A 3000K 84 T4.5 G8.5 85 Universal 3400 15000 1/12
63434E CMH35/TC/UVC/U/942/G8.5 35 0.5A 4200K 88 T4.5 G8.5 85 Universal 3200 12000 1/12
73687E CMH70/TC/UVC/U/830/G8.5 70 0.98A 3000K 83 T4.5 G8.5 85 Universal 6200 15000 1/12
63433E CMH70/TC/UVC/U/942/G8.5 70 0.98A 4200K 90 T4.5 G8.5 85 Universal 6200 15000 1/12
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
CMH China Made - CMH Single Ended G12
63437E CMH35/T/UVC/U/830/G12 Plus 35 0.5A 3000K 84 T6 G12 90 Universal 3400 15000 1/12
63438E CMH35/T/UVC/U/942/G12 35 0.5A 4200K 88 T6 G12 90 Universal 3200 12000 1/12
63435E CMH70/T/UVC/U/830/G12 70 0.98A 3000K 83 T6 G12 90 Universal 6200 15000 1/12
63436E CMH70/T/UVC/U/942/G12 70 0.98A 4200K 91 T6 G12 90 Universal 6300 15000 1/12
75
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
EU Standard High CRI
73033 ARC250/T/H/960/E40 250 2.75A 6000K 90 Tubular E40 220 horizontal±45° 19000 12000 1/12
32665 ARC250/T/VBU/960/E40 250 2.75A 6000K 90 Tubular E40 220 Vertical±45° 19000 12000 1/12
30052 KRC400/T/H/960/E40 400 3.5A 6000K 90 Tubular E40 270 horizontal±45° 25000 10000 1/12
30704 KRC400/T/VBU/960/E40 400 3.5A 6000K 90 Tubular E40 270 Vertical±45° 28000 10000 1/12
30047 ARC250/D/H/960/E40 250 3.0A 6000K 90 Diuse E40 227 horizontal±45° 17000 12000 1/12
32666 ARC250/D/VBU/960/E40 250 3.0A 6000K 90 Diuse E40 227 Vertical±45° 17000 12000 1/12
10834 KRC400/D/H/960/E40 400 3.5A 6000K 90 Diuse E40 282 horizontal±45° 24000 10000 1/6
10837 KRC400/D/VBU/960/E40 400 3.5A 6000K 90 Diuse E40 282 Vertical±45° 26000 10000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
EU Standard
42357 ARC250/T/H/742/E40 250 2.75A 4200K 70 Tubular E40 220 horizontal±15° 21000 12000 1/12
42369 ARC400/T/H/742/E40 400 4.35A 4200K 70 Tubular E40 260 horizontal±15° 35000 10000 1/12
16871 KRC400/E/VBU/645/E40 400 3.5A 4500K 65 Elliptical E40 286 Vertical±30° 30500 14000 1/10
16870 ARC250/D/H/740/E40 250 3.0A 4000K 70 Diuse E40 227 horizontal±15° 19500 14000 1/10
16872 KRC400/D/VBU/740/E40 400 3.5A 4000K 70 Diuse E40 286 Vertical±30° 32000 14000 1/10
16875 KRC400/D/H/740/E40 400 3.5A 4000K 70 Diuse E40 286 horizontal±15° 34000 14000 1/10
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
70W-400W Mid End China Made
65117E ARC70/E/U/740/E27 70 0.98A 4000K 65 Elliptical E27 141 Universal 4700 8000 1/20
65114E ARC100/E/U/740/E27 100 1.1A 4000K 65 Elliptical E28 141 Universal 8100 5000 1/20
65118E ARC150/E/U/740/E27 150 1.8A 4000K 65 Elliptical E29 141 Universal 11500 8000 1/20
65115E ARC150/T/U/740/E40 150 1.8A 4000K 65 Tubular E40 210 Universal 11500 5000 1/20
65116E ARC250/T/U/740/E40 250 3.0A 4000K 65 Tubular E40 255 Universal 18000 8000 1/20
65119E ARC400/T/U/740/E40 400 4.2A 4000K 63 Tubular E40 271 Universal 34000 8000 1/20
65120E KRC250/T/U/740/E40 250 2.1A 4000K 65 Tubular E40 271 Universal 22000 8000 1/20
65121E KRC250/D/U/740/E40 250 2.1A 4000K 64 Diuse E40 211 Universal 19000 8000 1/12
65122E KRC400/T/U/740/E40 400 3.25A 4000K 63 Tubular E40 271 Universal 39000 8000 1/20
65123E KRC400/D/U/740/E40 400 3.25A 4000K 63 Diuse E40 283 Universal 36000 8000 1/6
Quartz Metal Halide
76
Product
Code
Description Watts ANSI
Code
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
CBCP Avg.Life
(Hr)
Pack
Qty.
ANSI Standard Multi-Vapor
25218 MVR175/PAR38/FL1 175 M57 3800K 65 PAR38 E26 142.7 Universal 12000 6500 7500 1/6
18902 MVR175/U/MED 175 M57 4000K 65 Elliptical E26 146 Universal 11700H/13600V* - 6000H/10000V 1/6
19976 MVR175/C/U/MED 175 M57 3900K 65 Diuse E26 146 Universal 11900H/12900V - 6000H/10000V 1/6
47760 MVR175/U 175 M57 4000K 65 Elliptical E39 209.5 Universal 11700H/13600V - 6000H/10000V 1/12
47761 MVR175/C/U 175 M57 3900K 70 Diuse E39 209.5 Universal 11900H/12900V - 6000H/10000V 1/12
17634 MVR175/SP30/U 175 M57 3000K 70 Diuse E39 209.5 Universal 10300H/12000V - 6000H/10000V 1/12
47762 MVR175/U/40 175 M57 4000K 65 Elliptical E40 209.5 Universal 11700H/13600V - 10000 1/12
47763 MVR175/C/U/40 175 M57 3900K 70 Diuse E40 209.5 Universal 11900H/12900V - 10000 1/12
42729 MVR250/U 250 M58 4200K 65 Elliptical E39 209.5 Universal 19100H/20800V - 6000H/10000V 1/12
42731 MVR250/C/U 250 M58 3900K 70 Diuse E39 209.5 Universal 18200H/19800V - 6000H/10000V 1/12
17633 MVR250/SP30/U 250 M58 3000K 70 Diuse E39 209.5 Universal 16600H/18000V - 6000H/10000V 1/12
44542 MVR250/U/40 250 M58 4200K 65 Elliptical E40 209.5 Universal 19100H/20800V - 10000 1/12
44543 MVR250/C/U/40 250 M58 3900K 70 Diuse E40 209.5 Universal 18200H/19800V - 10000 1/12
43828 MVR400/U 400 M59 4000K 65 Elliptical E39 292.1 Universal 33100H/36000V - 15000H/20000V 1/6
43829 MVR400/C/U 400 M59 3700K 70 Diuse E39 292.1 Universal 32200H/35000V - 15000H/20000V 1/6
17632 MVR400/SP30/U 400 M59 3000K 70 Diuse E39 292.1 Universal 28500H/31000V - 15000H/20000V 1/6
18904 MVR400/U/ED28 400 M59 4000K 65 Elliptical E39 209.5 Universal 33100H/36000V - 15000H/20000V 1/12
19979 MVR400/C/U/ED28 400 M59 4000K 65 Diuse E39 209.5 Universal 32200H/35000V - 15000H/20000V 1/12
43907 MVR400/U/40 400 M59 4000K 65 Elliptical E40 292.1 Universal 33100H/36000V - 20000 1/6
43908 MVR400/C/U/40 400 M59 3700K 70 Diuse E40 292.1 Universal 32200H/35000V - 20000 1/6
49860 MVR400/VBU/40 400 M59 4000K 65 Elliptical E40 292.1 Vertical±15° 41000 - 20000 1/6
49857 MVR400/C/VBU/40 400 M59 3700K 70 Diuse E40 292.1 Vertical±15° 40000 - 20000 1/6
41826 MVR1000/U 1000 M47 4000K 65 Elliptical E39 390.4 Universal 100280H/108000V - 11000H/15000V 1/6
41827 MVR1000/C/U 1000 M47 3700K 65 Diuse E39 390.4 Universal 96600H/105000V - 11000H/15000V 1/6
18205 MVR1000/U/BT37 1000 M47 3700K 65 Elliptical E39 292.1 Universal 105000H/115000V - 9000H/12000V 1/6
41828 MVR1000/U/40 1000 M47 4000K 65 Elliptical E40 390.4 Universal 100280H/108000V - 11000H/15000V 1/6
41829 MVR1000/C/U/40 1000 M47 3700K 65 Diuse E40 390.4 Universal 96600H/10500V - 11000H/15000V 1/6
47326 MVR1500/U 1500 M48 4000K 65 Elliptical E39 390.4 Universal 162000H/170000V - 3000 1/6
37405 MVR1500/HBU 1500 M48 3900K 65 Elliptical E39 390.4 Universal 155000H/165000V - 3000 1/6
Product
Code
Description Watts ANSI Code CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
ANSI Standard High Qutput
18104 MVR175/HOR 175 M57 4000K 65 Elliptical PosMpg 209.5 horizontal±15° 15000 10000 1/12
18105 MVR175/C/HOR 175 M57 3500K 70 Diuse PosMpg 209.5 horizontal±15° 14100 10000 1/12
18101 MVR250/HOR 250 M58 4200K 65 Elliptical PosMog 209.5 horizontal±15° 21000 15000 1/12
18103 MVR250/C/HOR 250 M58 3600K 70 Diuse PosMog 209.5 horizontal±15° 19700 15000 1/12
49657 MVR400/VBU/HO 400 M59 4000K 65 Elliptical E39 292.1 Vertical±15° 41000 20000 1/6
13923 MVR400/VBU/XHO 400 M59 4000K 65 Elliptical E39 292.1 Vertical±15° 43000 20000 1/6
13924 MVR400/C/VBU/XHO 400 M59 3700K 70 Diuse E39 292.1 Vertical±15° 42000 20000 1/6
49655 MVR400/VBD 400 M59 4000K 65 Elliptical E39 292.1 Vertical±15° 41000 20000 1/6
20931 MVR400/SP30/VBU/HO 400 M59 3200K 70 Diuse E39 292.1 Vertical±15° 34000 20000 1/6
40335 MVR400/VBU/ED28/HO 400 M59 4000K 65 Elliptical E39 211 Vertical±15° 41000 20000 1/6
40201 MVR400/HOR/BT28 400 M59 4200K 65 Elliptical E39 209.5 horizontal±15° 37000 20000 1/6
26218 MVR400/HOR/MOG 400 M59 4200K 65 Elliptical E39 292.1 horizontal±15° 38000 20000 1/6
26219 MVR400/C/HOR/MOG 400 M59 3900K 70 Diuse E39 292.1 horizontal±15° 36800 20000 1/6
44835 MVR1000/VBU/HO 1000 M47 3800K 65 Elliptical E39 390.4 Vertical±15° 111000 15000 1/6
13137 MVR1000/C/VBU/HO 1000 M47 3700K 70 Diuse E39 390.4 Vertical±15° 107000 15000 1/6
* H - Horizontal burning position, V - vertical burning position
High Intensity Discharge Lamps
77
Product
Code
Description Watts ANSI
Code
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
ANSI Standard Watt-Miser
13481 MVR150/U/WM 150 M107 4000K 65 Elliptical E39 209.5 Universal 11500H/13500V 10000 1/12
13490 MVR150/C/U/WM 150 M107 3700K 70 Diuse E39 209.5 Universal 10900H/12800V 10000 1/12
13495 MVR360/U/WM/HO 360 M59 4300K 65 Elliptical E39 292.1 Universal 36000 20000 1/6
40053 MVR360/VBU/WM/XHO 360 M59 4200K 65 Elliptical E39 292.1 Vertical±15° 37000 20000 1/6
40055 MVR360/C/VBU/WM/XHO 360 M59 4000K 70 Diuse E39 292.1 Vertical±15° 35000 20000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Low-watt Double-Ended
34530 ARC70/TD/UVC/730/Rx7s 70 0.98A 3000K 75 T6 Rx7s 114 horizontal±45° 5500 6000 1/12
34536 ARC70/TD/UVC/742/Rx7s 70 0.98A 4200K 75 T6 Rx7s 114 horizontal±45° 5500 6000 1/12
34527 ARC150/TD/UVC/732/Rx7s-24 150 1.8A 3200K 75 T7 Rx7s-24 132 horizontal±45° 12000 6000 1/12
34535 ARC150/TD/UVC/742/Rx7s-24 150 1.8A 4200K 75 T7 Rx7s-24 132 horizontal±45° 12000 6000 1/12
93772 ARC150/TD/952/Rx7s-24 150 1.8A 5200K 90 - Rx7s-24 132 horizontal±45° 11000 6000 1/12
35284 ARC150/UVC/AQUA/TD/865/Rx7s-24 150 1.8A 6500K 85 - Rx7s-24 132 horizontal±45° 11000 6000 1/12
30099 ARC250/TD/832/Fc2 250 3.0A 3200K 75 T8 Fc2 163 horizontal±45° 20000 6000 1/12
73032 ARC250/TD/842/Fc2 250 3.0A 4200K 80 T8 Fc2 163 horizontal±45° 20000 6000 1/12
Product
Code
Description Watts ANSI
Code
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial
Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
ANSI Standard Protected
40056 MPR360/VBU/WM/HO/O 360 M59 4000K 65 Elliptical EX39 292.1 Vertical±15° 36000 20000 1/6
11685 MPR360/C/VBU/WM/HO/O 360 M59 3700K 70 Diuse EX39 292.1 Vertical±15° 35000 20000 1/6
18709 MPR400/VBU/O/40 400 M59 3400K 65 Elliptical E40 292.1 Vertical±15° 40000 20000 1/6
27738 MPR400/C/VBU/O/40 400 M59 3200K 70 Diuse E40 292.1 Vertical±15° 38000 20000 1/6
18708 MPR400/VBU/HO/O 400 M59 3400K 65 Elliptical EX39 292.1 Vertical±15° 40000 20000 1/6
13582 MPR400/C/VBU/HO/O 400 M59 3200K 70 Diuse EX39 292.1 Vertical±15° 38000 20000 1/6
41433 MPR1000/VBU/HO/O 1000 M47 3500K 65 Elliptical EX39 390.4 Vertical±15° 110000 12000 1/6
Product
Code
Description Watts ANSI Code CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
ANSIStandardHPM-Retrot
10687 MVR325/I/U/WM 325 H33 4000K 65 Elliptical E39 292.1 Universal 25800H/28000V 10000H/20000V 1/6
10688 MVR325/C/I/U/WM 325 H33 3700K 70 Diuse E39 292.1 Universal 24200H/26300V 10000H/20000V 1/6
43817 MVR400/I/U 400 H33/M59 4000K 65 Elliptical E39 292.1 Universal 33100H/36000V 10000H/15000V 1/6
43818 MVR400/C/I/U 400 H33/M59 3700K 70 Diuse E39 292.1 Universal 32200H/35000V 10000H/15000V 1/6
39097 MVR950/I/VBU/WM 950 H36/M47 3800K 65 Elliptical E39 382.5 Vertical±15° 100000 12000 1/6
Quartz Metal Halide
Product
Code
Description Watts Lamp
Current
Colour Base Length
(mm)
Burn
Position
Avg.Life
(Hr)
Pack Qty.
Colored Double Ended
12181 ARC150/UVC/TD/GREEN/Rx7s-24 150 1.8A GREEN Rx7s-24 132 horizontal±45° 6000 1/12
12182 ARC150/UVC/TD/BLUE/Rx7s-24 150 1.8A BLUE Rx7s-24 132 horizontal±45° 6000 1/12
12183 ARC150/UVC/TD/ORANGE/Rx7s-24 150 1.8A ORANGE Rx7s-24 132 horizontal±45° 6000 1/12
12184 ARC150/UVC/TD/MAGENTA/Rx7s-24 150 1.8A MAGENTA Rx7s-24 132 horizontal±45° 6000 1/12
78
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Double Ended China Made
89133E ARC70/UVC/TD/730/Rx7s 70 0.98A 3000K 73 Rx7s 117.6 horizontal 6000 9000 1/20
89136E ARC70/UVC/TD/742/Rx7s 70 0.98A 4200K 75 Rx7s 117.6 horizontal 6100 9000 1/20
71170E ARC70/UVC/TD/760/Rx7s 70 0.98A 6000K 67 Rx7s 117.6 horizontal 5000 9000 1/20
89137E ARC150/UVC/TD/730/Rx7s-24 150 1.8A 3000K 70 Rx7s-24 135.4 horizontal 13000 9000 1/20
89138E ARC150/UVC/TD/742/Rx7s-24 150 1.8A 4200K 70 Rx7s-24 135.4 horizontal 13000 9000 1/20
71175E ARC150/UVC/TD/960/Rx7s-24 150 1.8A 6000K 88 Rx7s-24 135.4 horizontal 10500 9000 1/20
Product
Code
Description Watts Lamp
Current
CCT CRI Finish Blub Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack
Qty.
Sportlight
16920 SPL1500/L/H/652/Rx7SM 1500 4.2A 5200K 65 Double Ended Rx7SM 256 horizontal±15° 120000 6000 1/1
88882 SPL1000/T/H/960/E40 1000 9.5A 6000K 90 Tubular E40 340 horizontal±60° 80000 8000 1/4
16922 SPL2000/L/H/654/spec 2000 10.3A 5200K 65 Double Ended spec. 311 horizontal±15° 200000 6000 1/1
30102 SPL2000/T/H/960/E40 2000 10.3A 6000K 93 Tubular E40 430 horizontal±60° 170000 5000 1/4
33148 SPL2000/I/T/H/640/E40 2000 8.8A 4000K 65 Tubular E40 430 horizontal±75° 190000 2000 1/4
30103 SPL2000/I/T/H/960/E40 2000 10.3A 6000K 93 Tubular E40 430 horizontal±60° 170000 5000 1/4
36078 SPL2000/220V/T/H/640/E40 2000 16.5A 4000K 65 Tubular E40 430 horizontal±75° 180000 2000 1/4
High Intensity Discharge Lamps
79
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Standard China Made
10979E LU70T/E27 70 0.98A 2000K 21 Tubular E27 156 Universal 6100 24000 1/20
10980E LU100T/E27 100 1.2A 2000K 21 Tubular E27 190 Universal 9100 24000 1/20
10982E LU100T/E40 100 1.2A 2000K 21 Tubular E40 190 Universal 9100 24000 1/20
74041E LU150/100/T/E40 150 1.8A 2000K 21 Tubular E40 211 Universal 15000 24000 1/12
74042E LU150/100/D/E40 150 1.8A 2000K 21 Diuse E40 227 Universal 14500 24000 1/12
74043E LU250/T/E40 250 3.0A 2000K 21 Tubular E40 260 Universal 28000 24000 1/9
74044E LU250/D/E40 250 3.0A 2000K 21 Diuse E40 227 Universal 26000 24000 1/9
74045E LU400/T/E40 400 4.6A 2000K 21 Tubular E40 292 Universal 48000 24000 1/6
74046E LU400/D/E40 400 4.6A 2000K 21 Diuse E40 292 Universal 48000 24000 1/6
Product
Code
Description Watts Lamp
Current
CCT CRI Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Standard - EU Standard Tubular Clear
88553* LU50/85/MO/T/E27 1/25 50 0.76A 2000K 25 E27 156 Universal 3400 28500 1/25
46221 LU70/90/MO/T/E27 1/25 70 0.98A 2000K 25 E27 156 Universal 6000 28500 1/25
93767 LU100/100/MO/T/40 100 1.2A 2000K 25 E40 211 Universal 9600 28500 1/12
44244 LU150/100/T/40 150 1.8A 2000K 25 E40 211 Universal 15000 28500 1/12
22453 LU250/T/40 250 3.0A 2000K 25 E40 260 Universal 27500 28500 1/12
11678 LU400/T/40 400 4.6A 2000K 25 E40 283 Universal 48000 28500 1/12
45751 LU1000/110/T/40 1000 10.6A 2000K 25 E40 372 Universal 130000 24000 1/4
Standard-EUStandardEllipticalDiuse
88554* LU50/85/MO/D/E27 1/12 50 0.76A 2000K 25 E27 156 Universal 3300 28500 1/12
46217 LU70/90/MO/D/E27 1/12 70 0.98A 2000K 25 E27 156 Universal 5800 28500 1/12
93766 LU100/100/MO/40 100 1.2A 2000K 25 E40 211 Universal 9200 28500 1/12
44245 LU150/100/D/40 150 1.8A 2000K 25 E40 227 Universal 14500 28500 1/12
44052 LU250/D/40 250 3.0A 2000K 25 E40 227 Universal 26000 28500 1/12
44057 LU400/D/40 400 4.45A 2000K 25 E40 282 Universal 48000 28500 1/6
Standard - ANSI Standard
13252 LU150/MED/ECO 150 2000K 22 E26 146 Universal 16000 24000 1/6
13253 LU150/D/MED/ECO 150 2000K 22 E26 146 Universal 15000 24000 1/6
85371 LU150/55/H/ECO 150 2000K 22 E39 196.8 Universal 16000 24000 1/12
85380 LU150/55/D/H/ECO 150 2000K 22 E39 196.8 Universal 15000 24000 1/12
72607 LU150/55/40/ECO 150 3.3A 2000K 22 E40 196.8 Universal 16000 24000 1/12
85377 LU250/H/ECO 250 2100K 22 E39 247.6 Universal 28000 24000 1/12
85381 LU250/D/H/ECO 250 2100K 22 E39 228.6 Universal 26000 24000 1/12
76204 LU250/40/H/ECO 250 2100K 22 E40 247.6 Universal 28000 24000 1/12
85379 LU400/H/ECO 400 2100K 22 E39 247.6 Universal 51000 24000 1/12
76205 LU400/40/ECO 400 4.6A 2100K 22 E40 228.6 Universal 51000 24000 1/12
76998 LU400/D/H/ECO 400 2100K 22 E39 287.2 Universal 47500 24000 1/6
14682 LU750 750 2100K 22 E39 292.1 Universal 110000 24000 1/6
44058 LU1000/ECO 1000 2100K 22 E39 382.5 Universal 130000 24000 1/6
44059 LU1000/40 1000 4.7A 2100K 22 E40 382.5 Universal 130000 24000 1/6
* Products will be phased out from April 2012
High Pressure Sodium
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
High Output China Made
78659E LU150/100/HO/T/E40 150 1.8A 2000K 19 Tubular E40 211 Universal 17400 24000 1/12
78660E LU250/HO/T/E40 250 2.95A 2000K 19 Tubular E40 260 Universal 32500 24000 1/12
78661E LU400/HO/T/E40 400 4.5A 2000K 19 Tubular E40 283 Universal 56200 24000 1/12
78663E LU600/HO/T/E40 600 6.0A 2000K 19 Tubular E40 283 Universal 83000 24000 1/12
80
High Intensity Discharge Lamps
Product
Code
Description Watts Lamp
Current
CCT CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Xtra Output
93373 LU50/85/XO/T/27 50 0.76A 2100K 25 Tubular E27 156 Universal 4400 28500 1/25
45696 LU50/85/XO/D/27 50 0.76A 2100K 25 Diuse E27 156 Universal 3600 28500 1/12
93375 LU70/90/XO/T/27 70 0.98A 2100K 25 Tubular E27 156 Universal 6600 33000 1/25
45697 LU70/90/XO/D/27 70 0.98A 2100K 25 Diuse E27 156 Universal 6000 33000 1/12
93376 LU100/100/XO/T/40 100 1.2A 2100K 25 Tubular E40 211 Universal 10700 35000 1/12
93379 LU100/100/XO/D/40 100 1.2A 2100K 25 Diuse E40 186 Universal 10200 35000 1/12
93377 LU150/100/XO/T/40 150 1.8A 2100K 25 Tubular E40 211 Universal 17500 35000 1/12
93380 LU150/100/XO/D/40 150 1.8A 2100K 25 Diuse E40 227 Universal 16900 35000 1/12
93378 LU250/XO/T/40 250 2.95A 2100K 25 Tubular E40 260 Universal 33000 32000 1/12
93381 LU250/XO/D/40 250 2.95A 2100K 25 Diuse E40 227 Universal 31200 32000 1/12
93269 LU400/XO/T/40 400 4.5A 2100K 25 Tubular E40 283 Universal 56500 32000 1/12
93296 LU400/XO/D/40 400 4.4A 2100K 25 Diuse E40 282 Universal 54000 32000 1/6
93270 LU600/XO/T/40 600 6.0A 2100K 25 Tubular E40 283 Universal 90000 32000 1/12
Product
Code
Description Watts Lamp
Current
CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Standby
88558* LU50/85/MO/SBY/T/E27 1/25 50 0.76A 25 Tubular E27 156 Universal 3400 40000 1/25
88557* LU50/85/MO/SBY/D/E27 1/12 50 0.76A 25 Diuse E27 156 Universal 3300 40000 1/12
88268* LU70/90/MO/SBY/T/E27 GE 1/25 70 0.98A 25 Tubular E27 156 Universal 6000 40000 1/25
88269* LU70/90/MO/SBY/D/E27 GE 1/12 70 0.98A 25 Diuse E27 156 Universal 5800 40000 1/12
88257 LU70/XO/SBY/D/E27 70 0.98A 25 Diuse E27 156 Universal 6000 50000 1/25
88258 LU70/XO/SBY/T/E27 70 0.98A 25 Tubular E27 156 Universal 6600 50000 1/25
17899* LU100/100/MO/SBY/T/40 100 1.2A 25 Tubular E40 211 Universal 9600 50000 1/12
88255 LU100/XO/SBY/D/E40 100 1.2A 25 Diuse E40 186 Universal 10000 60000 1/12
88256 LU100/XO/SBY/T/E40 100 1.2A 25 Tubular E40 211 Universal 10700 60000 1/12
35594* LU150/100/SBY/T/40 150 1.8A 25 Tubular E40 211 Universal 15000 50000 1/12
35589* LU150/100/SBY/D/40 150 1.8A 25 Diuse E40 227 Universal 14500 50000 1/12
78737 LU150/XO/SBY/T/E40 150 1.8A 25 Tubular E40 211 Universal 17500 60000 1/12
35586* LU250/SBY/T40 250 3.0A 25 Tubular E40 260 Universal 27500 55000 1/12
35590 LU250/SBY/D/40 250 3A 25 Diuse E40 227 Universal 26000 55000 1/12
78738 LU250/XO/SBY/T/E40 250 2.9A 25 Tubular E40 260 Universal 33000 55000 1/12
35582* LU400/SBY/T40 400 4.6A 25 Tubular E40 283 Universal 50000 55000 1/12
35591 LU400/SBY/D/40 400 4.45A 25 Diuse E40 282 Universal 47500 55000 1/6
78739 LU400/XO/SBY/T/E40 400 4.5A 25 Tubular E40 283 Universal 55800 55000 1/12
* Products will be phased out from April 2012
Product
Code
Description Watts Lamp
Current
CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Internal Ignitor
88556* LU50/85/MO/D/I/E27 1/12 50 0.76A 25 Diuse E27 156 Universal 3300 12000 1/12
46186 LU70/90/MO/D/I/E27 1/12 70 0.98A 25 Diuse E27 156 Universal 5800 12000 1/12
46209 LU70/90/MO/I/E27 1/12 70 0.98A 25 Tubular E27 156 Universal 6000 12000 1/12
71053 LU70/90/D/I/E27 70 0.98A 21 Diuse E27 165 Universal 4930 12000 1/12
* Products will be phased out from April 2012
Product
Code
Description Watts Lamp
Current
CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Lucalox E-Z Lux
39512 LUH110/D/27-SHx 110 - 25 Diuse E27 175 Universal 8000 24000 1/40
81
Product
Code
Description Watts Lamp
Current
CRI Finish
Bulb
Base Length
(mm)
Burn
Position
Initial Lumens
(lm)
Avg.Life
(Hr)
Pack Qty.
Mercury - EU Standard Std
76987E H50/27 50 -45 E55 E27 130 Universal 1800 16000 1/24
76985E H80/27 80 -45 E70 E27 166 Universal 3800 20000 1/24
74781E H125/27 125 -45 E75 E27 178 Universal 6300 20000 1/24
74782E H250/40 250 -45 ED90 E40 228 Universal 13000 20000 1/12
76986E H400/40 400 -40 ED120 E40 292 Universal 22500 20000 1/12
Mercury - EU Standard Deluxe
77042E H50NDX/27 50 -53 E55 E27 130 Universal 1800 16000 1/24
77043E H80NDX/27 80 -53 E70 E27 166 Universal 3800 20000 1/24
77044E H125NDX/27 125 -53 E75 E27 178 Universal 6600 20000 1/24
77045E H250NDX/40 250 -50 ED90 E40 228 Universal 13800 20000 1/12
77046E H400NDX/40 400 -47 ED120 E40 292 Universal 24400 20000 1/12
Mercury - ANSI Standard Std
78021E HR100A38 100 -17 ED23.5 E39 191 Universal 3850 20000 1/5
78022E HR175A39 175 -17 ED28 E39 211 Universal 7850 20000 1/12
78025E HR250A37 250 -17 ED28 E39 211 Universal 11000 20000 1/12
78030E HR400A33 400 -17 ED37 E39 292 Universal 21000 20000 1/6
Mercury - ANSI Standard Deluxe
78035E HR100DX38 100 -46 ED23.5 E39 191 Universal 4000 20000 1/12
78039E HR100DX38MED 100 -46 ED17 E26 139 Universal 4000 20000 1/5
78040E HR175DX39 175 -46 ED28 E39 211 Universal 7800 20000 1/12
78061E HR250DX37 250 -46 ED28 E39 211 Universal 11200 20000 1/12
78062E HR400DX33 400 -41 ED37 E39 292 Universal 22600 20000 1/6
Mercury - Mixlight Lamps
76468E ML160W/220-230V/E27 160 -52 Diuse E27 170 Vertical±30° 3100 8000 1/20
76470E ML250W/220-230V/E27 250 -52 Diuse E27 227 Universal 5600 8000 1/20
76471E ML250W/220-230V/E40 250 -52 Diuse E40 227 Universal 5600 8000 1/20
76472E ML500W/220-230V/E40 500 -40 Diuse E40 292 Universal 14000 8000 1/10
Mercury
82
High Intensity Discharge Lamps
GE OSRAM PHILIPS
ConstantColor CMH
CMH20/TC/UVC/830/GU6.5 HCI-TF 20W/830 WDL PB GU6.5 CDM-Tm Mini PGJ5 20W/830*
CMH20/TC/UVC/U/830/G8.5 Plus HCI-TC 20W/830 WDL PB G8.5 CDM-TC 20W/830 G8.5 1CT*
CMH35/T/UVC/930/GU6.5 – CDM-Tm Mini PGJ5 35W/830
CMH35/T/UVC/942/GU6.5 – –
CMH35/TC/UVC/U/830/G8.5 Plus HCI-TC 35W/830 WDL PB G8.5 CDM-TC 35W/830 G8.5
CMH35/TC/UVC/U/942/G8.5 HCI-TC 35W/942 NDL PB UVS G8.5 CDM-TC 35W/942 G8.5
CMH35/TC/UVC/U/930/G8.5 ULTRA – CDM-T Elite 35W/930 G8.5 1CT*
CMH70/TC/UVC/U/830/G8.5 Plus HCI-TC 70W/830 WDL PB G8.5 CDM-TC 70W/830 G8.5
CMH70/TC/UVC/U/942/G8.5 HCI-TC 70W/942 NDL PB G8.5 CDM-TC 70W/942 G8.5
CMH70/TC/UVC/U/930/G8.5 ULTRA HCI-TC 70/930 WDL PB Shop G8.5* CDM-TC Elite 70W/930 G8.5*
CMH20/T/UVC/U/830/G12 Plus – CDM-T 20W/830 G12 1CT*
CMH35/T/UVC/U/830/G12 Plus HCI-T 35W/830 WDL PB G12 CDM-T 35W/830 G12
CMH35/T/UVC/U/942/G12 HCI-T 35W/942 NDL PB UVS G12 CDM-T 35W/942 G12
CMH35/T/UVC/U/930/G12 ULTRA – CDM-T Elite 35W/930 G12 1CT*
CMH70/T/UVC/U/830/G12 HCI-T 70W/830 WDL PB G12 CDM-T 70W/830 G12
CMH70/T/UVC/U/942/G12 HCI-T 70W/942 NDL PB UVS G12 CDM-T 70W/942 G12
CMH70/T/UVC/U/930/G12 ULTRA HCI-TC 70/930 WDL PB Shop G12 CDM-T Elite 70W/930 G12*
CMH150/T/UVC/U/830/G12 HCI-T 150W/830 WDL PB G12 CDM-T 150W/830 G12
CMH150/T/UVC/U/942/G12 HCI-T 150/NDL PB UVS G12 CDM-T 150W/942 G12
CMH35/TD/UVC/830/RX7s – –
CMH70/TD/UVC/830/Rx7s HCI-TS 70W/830 WDL PB UVS RX7S CDM-TD 70W/830 RX7s
CMH70/TD/UVC/942/Rx7s HCI-TS 70W/942 NDL PB UVS RX7S CDM-TD 70W/942 RX7s
CMH150/TD/UVC/830/Rx7s-24 HCI-TS 150W/830 WDL PB RX7S-24 CDM-TD 150W/830 RX7s-24
CMH150/TD/UVC/942/Rx7s-24 HCI-TS 150W/942 NDL PB RX7S-24 CDM-TD 150W/942 RX7s-24
CMH20/MR16/UVC/830/GX10/SP12 HCI-R16 20/830 WDL PB 12D MASTERColour CDM-R Mini 20W/830 GX10 MR16 10D 1CT
CMH20/MR16/UVC/830/GX10/FL25 HCI-R16 20/830 WDL PB 24D MASTERColour CDM-R Mini 20W/830 GX10 MR16 25D 1CT
CMH20/MR16/UVC/830/GX10/WFL40 HCI-R16 20/830 WDL PB 40D MASTERColour CDM-R Mini 20W/830 GX10 MR16 40D 1CT
CMH35/MR16/UVC/930/GX10/SP12 – –
CMH35/MR16/UVC/930/GX10/FL25 – –
CMH35/MR16/UVC/930/GX10/WFL40 – –
CMH35/MR16/UVC/942/GX10/SP12 – –
CMH35/MR16/UVC/942/GX10/FL25 – –
CMH35/MR16/UVC/942/GX10/WFL40 – –
CMH20/PAR20/UVC/830/E27/SP10 – –
CMH20/PAR20/UVC/830/E27/FL25 – –
CMH35/PAR20/830/E27/SP10 HCI-PAR20 35W/830 WDL SP E27 CDM-R 35W/830 E27 PAR20L10D
CMH35/PAR20/830/E27/FL25 HCI-PAR20 35W/830 WDL FL E27 CDM-R 35W/830 E27 PAR20L30D
CMH35/PAR20/UVC/942/E27/SP10 HCI-PAR20 35W/942 NDL PB SP 10D CDM-R 35W/9420 E27 PAR20L30D
CMH35/PAR20/UVC/942/E27/FL25 HCI-PAR20 35W/942 NDL PB SP 30D CDM-R 35W/942 E27 PAR20L30D
CMH20/PAR30/UVC/830/E27/SP10 HCI-PAR30 20W/830 WDL SP E27 –
CMH20/PAR30/UVC/830/E27/FL25 HCI-PAR30 20W/830 WDL FL E27
CMH35/PAR30/UVC/830/E27/SP10 HCI-PAR30 35W/830 WDL SP E27 CDM-R 35W/830 E27 PAR20L10D
CMH35/PAR30/UVC/830/E27/FL25 HCI-PAR30 35W/830 WDL FL E27 CDM-R 35W/830 E27 PAR20L30D
CMH35/PAR30/UVC/942/E27/SP10 HCI-PAR30 35W/942 NDL PB SP 10D –
CMH35/PAR30/UVC/942/E27/FL25 HCI-PAR30 35W/942 NDL PB SP 30D –
CMH70/PAR30/UVC/830/E27/SP15 HCI-PAR30 70W/830 WDL SP E27 CDM-R 70W/830 E27 PAR30L10D
CMH70/PAR30/UVC/830/E27/FL40 HCI-PAR30 70W/830 WDL FL E27 CDM-R 70W/830 E27 PAR30L40D
CMH70/PAR30/UVC/942/E27/FL15 HCI-PAR30 70W/942 NDL PB SP 10D CDM-R 70W/942 E27 PAR30L10D
CMH70/PAR30/UVC/942/E27/SP40 HCI-PAR30 70W/942 NDL PB FL 30D CDM-R 70W/942 E27 PAR30L40D
CMH70/E/UVC/U/830/E27/C HCI-E/P 70/830 WDL PB E27 clear CDM-ET 70W /830 E27
CMH100/E/UVC/U/830/E27/C HCI-E/P 100/830 WDL PB clear CDM-ET 100W /830 E40
CMH150/UVC/O/U/942/E27/C HCI-E/P 150W/942 NDL PBMO CL E27 –
CMH70/E/UVC/U/830/E27/D HCI-E/P 70W/830 NDL PB COE27 CDO-ET Coated 70W/828 E27
CMH70/UVC/O/U/940/E27/D HCI-E/P 70W/942 NDL Coated E27 –
CMH100/E/UVC/U/830/E27/D HCI-E/P 100W/830 WDL PB Coated E27 CDO-ET Coated 100W/828 E40
CMH150/UVC/O/U/940/E27/D HCI-E/P 150W/942 NDL PB MO E27 CDO-ET Coated 150W/828 E40
CMH250/E/UVC/U/830/E40/D HCI-E 250W/830 WDL PB E40 –
CMH400/E/UVC/U/830/E40/D – –
The following pages show GE and alternative brand Order Codes. These cross references are provided as a quick guide and may only
represent a near equivalent to other brands. The table contains data from alternative brands’ catalogues and website.
83
Brand cross reference
GE OSRAM PHILIPS Havells Sylvania
ConstantColor CMH
CMH70/TT/UVC/830/E27 HCI-T/P 70W/830 WDL PB E27 CDO-TT 70W /828 E27* –
CMH100/TT/UVC/830/E40 – CDO-TT 100W /828 E27* –
CMH150/TT/UVC/830/E40 HCI-T/P 150W/830 WDL PB E40 CDO-TT 150W/828 E40* –
CMH150/UVC/T/U/842/E40 – CDO-TT 150W/828 E40* –
CMH150/UVC/O/T/U/830/E40 HCI-T/P 150W/830 NDL PB E40 – –
CMH150/T/UVC/O/U/942/E40 HCI-T/P 150W/942 NDL PB E40 – –
CMH250/TT/UVC/U/830/E40 HCI-T 250W/830 WDL PB E40 CDO-TT 250W /828 E27 –
KRC250/CMH/830/T/H/E40 – – –
CMH400/TT/UVC/U/830/E40 – – –
Arcstream
ARC70/T/U/730/G12 HQI T 70/WDL MHN-T70W/830 HSI-T 70W/WDL
ARC70/T/U/842/G12 HQI T 70/NDL MHN-T70W/942 HSI-T 70W/NDL
ARC150/G12/830 –––
ARC150/G12/842 –––
ARC70/UVC/TD/730/Rx7s HQI TS 70/WDL UVS MHW-TD70W HSI-TD 75W/WDL 3K UVS
ARC70/UVC/TD/742/Rx7s HQI TS 70/NDL UVS MHN-TD70W HSI-TD 75W/NDL 4K UVS
ARC150/UVC/TD/732/Rx7s-24 HQI TS 150/WDL UVS MHW-TD150W HSI-TD 150W/WDL 3K UVS
ARC150/UVC/TD/742/Rx7s-24 HQI TS 150/NDL UVS MHN-TD150W HSI-TD 150W/NDL 4K UVS
ARC150/TD/952/Rx7s-24 – –
ARC150/UVC/AQUA/TD/865/Rx7s-24 – –
ARC250/TD/832/Fc2 HQI TS 250/WDL UVS MHW-TD250W HSI-TD 250W/NDL 3K UVS
ARC250/TD/842/Fc2 HQI TS 250/NDL UVS MHN-TD250W HSI-TD 250W/NDL 4K UVS
ARC150/UVC/TD/GREEN/RX7S-24 –––
ARC150/UVC/TD/BLUE/RX7S-24 –––
ARC150/UVC/TD/ORANGE/RX7S-24 –––
ARC150/UVC/TD/MAGENTA/RX7S-24 –––
ARC250/T/VBU/960/E40 HQI-T 250/D – –
ARC250/T/H/960/E40 –––
ARC400/T/H/742/E40 –––
ARC250/D/H/740/E40 –––
ARC250/D/H/960/E40 HQI-E 250/D – –
ARC250/D/VBU/960/E40 HQI-E 250/D CDO-TT 100W /828 E27* –
Kolorarc
KRC400/T/H/960/E40 –––
KRC400/T/VBU/960/E40 –––
KRC400/E/VBU/645/E40 – – HSI-T 400W/4K
KRC400/D/VBU/740/E40 –––
KRC400/D/H/740/E40 –––
KRC400/D/VBU/960/E40 –––
KRC400/D/H/960/E40 –––
Multi-vapor
MVR250/U/40 –––
MVR400/U/40 –––
MVR1000/U/40 –––
MVR250/C/U/40 –––
MVR400/C/U/40 –––
MVR400/VBU/40 –––
MVR400/C/VBU/40 – – HSI-MP 400W/C/BU
MPR400/C/VBU/0/40 –––
Sportlight
SPL1500/L/H/652/Rx7SM –––
SPL2000/L/H/654 –––
SPL2000/T/H/960/E40 HQI-T 2000/D MASTER HPI-T PRO /646 –
SPL2000/I/T/H/640/E40 HQI-T 2000 /N MASTER HPI-T PRO /646 –
SPL2000/I/T/H/960/E40 HQI-T 2000 /D/I – –
SPL1000/T/H/960/E40 1/4 –––
Blended Light
ML 160/230-240V E27 HWL 160 235V ML 160W ES 235-245 HSB-BW 160W 240V E27
ML 160/230-240V B22 – ML 160W B22 235-245 –
ML 160/240-250V – – –
ML 250/230-240V E40 HWL 250 235V ML 250W ES 235-245 E40 HSB-BW 250W 240V E40
ML 250/230-240V E27 – ML 250W ES 235-245 E27 –
ML 250/ 240-250V E40 – – –
ML 500/230-240V E40 HWL 500 235V ML 500W ES 235-245 E40 HSB-BW 500W 240V E40
*Similar type. Information is gathered from relevant official web sites as of October, 2009
84
High Intensity Discharge Lamps
GE OSRAM PHILIPS Havells Sylvania
Lucalox Standard
LU50/85/D/27 NAV-E 50/E SON Pro 50W E SHP 50W/CO-E
LU70/90/D/27 NAV-E 70/E SON Pro 70W E SHP 70W/CO-E
LU100/100/MO/D/40 NAV-E 100 SON Pro 100W E SHP 100W
LU150/100/D/40 NAV-E 150 SON Pro 150W E SHP 150W
LU250/D/40 NAV-E 250 SON Pro 250W E SHP 250W
LU400/D/40 NAV-E 400 SON Pro 400W E SHP 400W
LU1000/110/D/40 NAV-E 1000 SON Pro 1000W E –
LU50/85/T/27 – – –
LU70/90/T12/27 NAV-T 70 SON- T Pro 70W SHP-T 70W
LU100/100/MO/T/40 NAV-T 1000 SON- T Pro 100W –
LU150/100/T /40 NAV-T 150 SON-T Pro 150W SHP-T 150W
LU250/T/40 NAV-T 250 SON-T Pro 250W SHP-T 150W
LU400/T/40 NAV-T 400 SON-T Pro 400W SHP-T 400W
LU1000/110/T/40 NAV-T 1000 SON-T Pro 1000W SHP-T 1000W
Lucalox XO
LU50/85/XO/D/27 – – –
LU70/90/XO/D/27 – MASTER SON PIA PLUS 70W –
LU100/100/XO/D/40 NAV-E 100 SUPER 4Y – –
LU250/XO/D/40 NAV-E 250 SUPER 4Y MASTER SON PIA PLUS 250W –
LU400/XO/D/40 NAV-E 400 SUPER 4Y MASTER SON PIA PLUS 400W –
LU50/85/XO/T/27 NAV-T 50 SUPER 4Y MASTER SON-T PIA PLUS 50W –
LU70/90/XO/T/27 NAV-T 70 SUPER 4Y MASTER SON-T PIA PLUS 70W –
LU100/100/XO/T/40 NAV-T 100 SUPER 4Y MASTER SON-T PIA PLUS 100W –
LU150/150/XO/T/40 NAV-T 150 SUPER 4Y MASTER SON-T PIA PLUS 150W –
LU250/XO/T/40 NAV-T 250 SUPER 4Y MASTER SON-T PIA PLUS 250W –
LU400/XO/T/40 NAV-T 400 SUPER 4Y MASTER SON-T PIA PLUS 400W –
LU600/XO/T/40 NAV-T 600 SUPER 4Y MASTER SON-T PIA PLUS 600W –
Lucalox l
LU50/85/D/I/27 NAV-E 50/I SON Pro 50W I SHP 50W/CO-I
LU70/90/D/I/27 NAV-E 70/I SON Pro 70W I SHP 70W/CO-I
LU70/90/I/27 – SON Pro70W I CLEAR SHP 70W/CL-I
Lucalox E-Z lux
LUH110/D/27 - SHx NAV-E 110 SON-H Pro 110W SHx 110W E27
Lucalox TD
LU250/TD NAV-TS 250 – –
LU400/TD NAV-TS 400 – –
LU1000/TD –––
Lucalox SUPERLIFE
LU50/85/SBY/T/27 – – –
LU70/90/SBY/T/27 – – –
LU70/90/XO/SBY/T12/E27 – – SHP-TS 70w Twinarc
LU100/100/SBY/T/40 – – –
LU100/100/XO/SBY/T/E40 – – SHP-TS 100w Twinarc
LU150/100/SBY/T/40 – – SHP-T 150W SBY
LU250/SBY/T/40 – – SHP-T 250W SBY
LU400/SBY/T/40 – – SHP-T 400W SBY
LU50/85/SBY/D/27 – – –
LU70/90/SBY/D/27 – – SHP 70W SBY
LU70/90/XO/SBY/D/E27 – – SHP-S 70w Twinarc
LU100/100/XO/SBY/D/E40 – – SHP-S 100w Twinarc
LU150/100/SBY/D/40 – – SHP 150W SBY
LU250/SBY/D/40 – – SHP 250W SBY
LU400/SBY/D/40 – – SHP 400W SBY
Kolorlux Standard
H125/27 HQL 125 HPL-N 125W HSL-BW 125W E27
H250/40 HQL 250 HPL-N 250W HSL-BW 250W E40
85
Brand cross reference
SHOWBIZ Lamps
CSR & CSD 89
Cinema Fluorescent 90
Blacklight Blue 91
PAR Halogen 91
Single Ended Halogen 93
Double Ended Halogen 96
Projection 96
86
SHOWBIZ Lamps
GE is a full line supplier to the entertainment
industry offering a range of lamp
technologies for use in applications including
stage, studio,
lm and event lighting.
This section details the current range
available, however as GE continues its
pioneering work in the development of new
and innovative light sources some new
lamps may not appear.
Discharge Lamps
• Full range of single and double ended
lamps
• Wattages from 125 to 24,000 Watts
• UV control lamps with easy identiable
blue base
• Reliable compact double ended range for
both lm and event lighting
• Cold start lamps for event lighting
• Cinema uorescent for studio and lm
GE SHOWBIZ lamps – performance tested,
performance proven.
PAR Lamps
• GE PAR lamps for all events
• Robust, exible lighting solution
• Extensive range from PAR36 to PAR64
• European made 1000W PAR64 (CP60,
CP61 & CP62)
Single Ended Studio Halogen Lamps
• Extensive range of Quartzline lamps
• Full range up to 24,000 Watts
• Range of bases to meet the needs
of OEM’s
• Chromised seal protection to 500° C
Linear Halogen Lamps
• A range from 650 to 2,000W
87
CSR TAL Lamps
New ‘Turn And Lock’ Technology
for Easier Lamp Installation
These single–ended metal halide lamps are especially useful for
moving–light applications that call for high colour temperatures
and brighter light sources.
The ‘Turn And Lock’ technology provides easy installation.
These products offer a very short arc gap which allow for higher
beam intensity. This enables good system performance, colour
stability and superior lumen maintenance over life. A range of
power options are available to meet the needs of fixture
designers.
Key benefits
•Easy release base (Turn And Lock)
enabling quick lamp change
at events
•High lumen output
•Range
- CSR 1500/TAL PGJX50
- CSR 700/TAL PGJX50
- CSR700/TAL PGJX28
- CSR 300/TAL PGJX28
•Outstanding beam performance
88
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
48461 CSR125/SE/HR 125 80 GZX9.5 9,400 5600 U 200 75 10
48462 CSR200/SE/HR 200 80 GZY9.5 15,000 5600 U 200 80 10
21853 CSR400/SE/HR 400 70 GZZ9.5 32,000 5900 U 750 110 10
Discharge - Single Ended Hot Restrike
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage.
(CSR) High
Intensity
Discharge
lamp brand
name code
(125) Identifies
the lamp’s
wattage
Hot
Restrike
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operating
voltage
Life:
Rated average life
CCT [K]:
Colour Temperature -
Kelvins
A measure of the visual
“warmth” or “coolness”
of the light from the
lamp. The higher
the value the whiter
or “cooler” the light
appears
Length:
Lamp length in mm
Lumens:
Initial amount of
light output
Pack quantity:
Number of product
units packed in a case
Operating position:
U - Universal
HOR - Horizontal
VBD - Vertical Base Down
BDTH - Base Down to
Horizontal
BDTHCH - Base Down to
Horizontal with filament
coil axis horizontal
BD45 - within 45° of
vertical base down
Product identification
Identifies
the lamp
as single
ended
CSR125 / SE / HR
SHOWBIZ Lamps
Additional parameters:
LIF Code: common lamp ID within Europe
ANSI Code: common lamp ID within North America
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
89
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
48461 CSR125/SE/HR 125 80 GZX9.5 9,800 5400 U 200 75 10
48462 CSR200/SE/HR/UV-C 200 70 GZY9.5 17,500 5600 U 200 80 10
21853 CSR400/SE/HR/UV-C 400 70 GZZ9.5 32,000 6000 U 750 110 10
45238 CSR400/SE/HR/75 400 70 GZZ9.5 28,000 7500 U 750 110 10
48463 CSR575/SE/HR 575 95 G22 50,000 5600 U 750 145 10
40460 CSR575/SE/HR/UV-C 575 95 G22 48,000 5600 U 750 145 10
22495 CSR800/SE/HR/UV-C 800 95 G22 64,000 5600 U 750 145 6
48464 CSR1200/SE/HR 1200 100 G38 105,000 5600 U 750 200 6
27764 CSR1200/SE/HR/UV-C 1200 100 G38 110,000 5600 U 750 200 6
77390 CSR1800/SE/HR/UV-C 1800 140 G38 165,000 6000 U 750 200 4
48465 CSR2500/SE/HR 2500 115 G38 220,000 6000 U 500 240 6
40482 CSR2500/SE/HR/UV-C 2500 115 G38 220,000 5600 U 500 240 6
48466 CSR4000/SE/HR 4000 200 G38 370,000 6000 U 500 260 6
27765 CSR4000/SE/HR/UV-C 4000 200 G38 380,000 5600 U 500 260 6
48467 CSR6000/SE/HR 6000 130 G38 540,000 5900 U 300 360 6
40492 CSR6000/SE/HR/UV-C 6000 130 G38 540,000 5600 U 300 360 6
48468 CSR12000/SE/HR 12000 160 G38 1,100,000 6000 U 250 450 4
22496 CSR18000/SE/HR 18000 225 G51 1,650,000 6000 U 250 470 1
27817 CSD250/2/SE 250 94 GY9.5 17,700 9000 U 3,000 108 10
21328 CSD250/2/SE BULK 250 94 GY9.5 17,700 9000 U 3,000 108 100
49492 CSR575/2/T/SE 575 97 GX9.5 42,000 7500 U 1,000 125 10
15378 CSR575/2/SE 575 97 GX9.5 46,000 7200 U 1,000 125 10
49491 CSR700/2/SE 700 70 G22 55,000 6500 U 1,000 155 10
49490 CSR1200/2/SE 1200 100 G22 110,000 7000 U 800 175 6
76160 CSR300/2/TAL 300 95 PGJX28 23,000 7800 U 750 126 4
76161 CSR700/TAL/60/PGJX50 700 70 PGJX50 59,000 6000 U 750 130 4
78718 CSR700/TAL/60/PGJX28 700 70 PGJX28 59,000 6000 U 750 130 4
74873 CSR1500/TAL/60/S 1500 100 PGJX50 TBA 6000 U 750 130 4
Discharge - Single Ended Hot Restrike
Discharge - Single Ended Cold Start
Discharge - CSR Turn and Lock (TAL)
48450 CSR200/DE 200 80 X515 15,000 5600 HOR±15° 300 75 10
45232 CSR400/S/DE/90 400 49 SFc 10-4 Sl/M4 24,000 9000 U 750 138 10
22478 CSR400/S/DE/70 400 49 SFc 10-4 Sl/M4 26,000 7000 U 1000 138 10
70979 CSR575/DE 575 95 SFc 10-4 SI/M4 40,000 7000 U 750 138 10
70978 CSR575/DE/70 BULK 575 95 SFc 10-4 SI/M4 40,000 7000 U 750 138 100
45231 CSR575/SS/DE/75 575 100 SFc 10-4 Sl/M4 44,000 7500 HOR±15° 500 92 10
22493 CSR700/S/DE/60 700 70 SFc 10-4 Sl/M4 59,000 6000 U 750 138 10
41357 CSR700/S/DE/72 700 70 SFc 10-4 Sl/M4 51,000 7200 U 750 138 10
22494 CSR1200S/DE/60 1200 100 SFc 10-4 Sl/M4 110,000 6000 U 750 138 10
96802 CSR1200/S/DE/60/STB 1200 100 SFc 10-4 Sl/M4 105,000 6000 U 750 135 10
96800 CSR1500/S/DE/STB 1500 115 SFc 10-4 Sl/M4 132,000 6000 HOR±15° 500 138 10
48453 CSR1200/DE 1200 100 SFc 10-5-6 Sl/M6 110,000 6000 HOR±15° 750 220 10
48454 CSR2500/DE 2500 115 SFa21-12 240,000 6000 HOR±15° 500 355 6
48455 CSR4000/DE 4000 200 SFa21-12 400,000 6000 HOR±15° 500 405 6
48456 CSR6000/DE 6000 125 25X51 Cyl 165mm 570,000 6000 HOR±15° 300 450 10
48457 CSR12000/DE 12000 160 30x70 Cyl 165mm 1,100,000 6000 HOR±15° 300 470 10
48459 CSR18000/DE 18000 225 30x70 Cyl 165mm 1,650,000 5600 HOR±15° 500 500 4
78710 CSR24000/DE 24000 270 30x70 Cyl 165mm 2,300,000 6000 HOR±15° 500 500 1
Discharge - Double Ended Hot Restrike
90
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
15380 CSR700SA 700 70 GY9.5 58,000 6200 U 500 85 10
45234 CSR700SA/72 700 70 GY9.5 58,000 7200 U 500 85 10
21849 CSR1200SA 1200 100 GY22 100,000 5800 U 750 135 6
21801 CSR2000SA 1800 100 GY22 155,000 6000 U 750 135 6
73579 CMH400/932/GX9.5 400 135 GX9.5 40,000 3200 U 5,000 135 4
73580 CMH400/941/GX9.5 400 135 GX9.5 40,000 4100 U 5,000 135 4
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88545 CMH150/PAR64/830/GX16d/SP 150 95 GX16d 154,000 Narrow 9x9 4x4 3000 U 8,000 152 6
88537 CMH150/PAR64/830/GX16d/MFL 150 95 GX16d 47,000 Medium 18x15 13x11 3000 U 8,000 152 6
16960 CMH150/PAR64/830/GX16d/WFL 150 95 GX16d 16,000 WFL 62x36 46x23 3000 U 3,000 152 6
88543 CMH150/PAR64/942/GX16d/SP 150 100 GX16d 154,000 Narrow 9x9 4x4 4200 U 8,000 152 6
88542 CMH150/PAR64/942/GX16d/MFL 150 100 GX16d 47,000 Medium 18x15 13x11 4200 U 8,000 152 6
88541 CMH150/PAR64/942/GX16d/WFL 150 100 GX16d 16,000 Wide 25x20 18x15 4200 U 8,000 152 6
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88495 99-0201 CSI 400 100 Special 32,000 - - 4000±400 VBD±90 500 55 1
88494 99-0221 CSI 1000 77 G22 90,000 - - 4000±400 VBD±90 500 115 1
88514 99-1222 CSI CS 1000 77 G38 1,350,000 18 6 3800±500 U 3,500 80 1
88513 99-1422 CSI HR 1000 77 G38 1,350,000 18 6 3800±500 U 3,500 80 1
88493 99-0222 CID 1000 77 G22 70,000 - - 5500±400 BDTH 500 115 1
Product Code Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
41869 F55BX/StudioBiax32 55 2G11-4 Pin 4,100 3200 U 8,000 55 10
41873 F55BX/StudioBiax56 55 2G11-4 Pin 4,100 5600 U 8,000 55 10
41903 F55BX/CINPLUS/32 55 2G11-4 Pin 2,400 3200 U 2,000 55 10
41911 F55BX/CINPLUS/55 55 2G11-4 Pin 2,400 5600 U 2,000 55 10
Discharge - Short Arc
ConstantColor - CMH Single Ended GX9.5
ConstantColor CMH - PAR64
CSI/CID
Cinema Studio Biax
Cinema Plus Biax
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88485 CSS150/850/GY9.5 140 85 GY9.5 10,000 5000 VBD±90 1,000 48 10
CSS
91
Product
Code
Product
Description
Wattage
[W]
Cap Lumen [lm] CCT [K] Operating
position
Life [h] Length
[mm]
Diameter
[mm]
Pack Qty
72658 F24T8CINEMA32/CVG 28 G-13 Med BiPin 1,250 3200 U 2,000 600 26 24
72659 F24T8CINEMA55/CVG 28 G-13 Med BiPin 1,200 5500 U 2,000 600 26 24
81207 F48T8/Cinema32/CVG 55 G-13 Med BiPin 2,750 3200 U 2,000 1200 26 24
81208 F48T8/Cinema55/CVG 55 G-13 Med BiPin 2,750 5500 U 2,000 1200 26 24
Product Code Product
Description
Wattage
[W]
Volts [V] Cap Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
34747 F20T12/BLB 20 57 G-13 Med BiPin U 9000 600 38 6
25618 F40T12/BLB 40 101 G-13 Med BiPin U 20000 1,200 38 6
88832 F18T8/BLB 18 57 G-13 Med BiPin U 12,000 600 26 25
88833 F36T8/BLB 36 103 G-13 Med BiPin U 12,000 1200 26 25
15775 F20T12/CINEMA32/HO/CVG 35 G-13 Med BiPin 1,130 3200 U 2,000 600 38 24
15776 F20T12/CINEMA55/HO/CVG 35 G-13 Med BiPin 1,100 5500 U 2,000 600 38 24
15782 F40T12/CINEMA32/HO/CVG 75 G-13 Med BiPin 2,900 3200 U 2,000 1200 38 30
15783 F40T12/CINEMA55/HO/CVG 75 G-13 Med BiPin 2,820 5500 U 2,000 1200 38 30
Cinema T8
Blacklight Blue
Cinema T12
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap ANSI
Code
Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
41673 FCX 650 120 Ferrule FCX 24,000 MFL - 40 X 30 3200 HOR±15° 100 69.8 114.3 12
14553 25PAR36 25 5.5 Scr. Term. - 30,000 VNSP - 5 x 5 3000 U 1,000 69.8 114.3 12
14555 25PAR36/WFL 25 12 Scr. Term. - 500 WFL 49 x 41 37 x 26 - U 2,000 69.8 114.3 12
24425 4405 30 12.8 Scr. Term. - 50,000 VNSP 6 x 5 - - U 100 69.8 114.3 12
24663 4511 30 6.2 Scr. Term. - 2,300 - - - - U 300 69.8 114.3 12
15133 H4515 30 6.4 Scr. Term. - 67,000 VNSP 5.5 x 4 - - U 100 69.8 114.3 12
24673 4515 30 6.4 Scr. Term. - 55,000 VNSP 5 x 5 - - U 100 69.8 114.3 12
43576 H7604 50 12.8 Scr. Term. - 100,000 NSP 7 x 5 - - U 100 69.8 114.3 12
12892 50PAR36/VNSP 50 12 Scr. Term. - 25,000 VNSP - 6 x 6 - U 2,000 69.8 114.3 12
16540 50PAR36/NSP 50 12 Scr. Term. - 9,200 NSP - 10 x 10 - U 2,000 69.8 114.3 12
16541 50PAR36/WFL 50 12 Scr. Term. - 1,300 WFL 48 x 41 36 x 28 - U 2,000 69.8 114.3 12
19880 50PAR36/WFL/H 50 12 Scr. Term. - 1,300 WFL - 30 x 30 3050 U 4,000 69.8 114.3 12
16542 50PAR36/VWFL 50 12 Scr. Term. - 600 VWFL - 55 x 55 - U 2,000 69.8 114.3 12
24627 4502 50 28 Scr. Term. - 10,000 WFL 40 x 7 - - U 400 69.8 114.3 12
24640 4505 50 28 Scr. Term. - 45,000 NSP 11 x 5 - - U 400 69.8 114.3 12
24650 4509 100 13 Scr. Term. - 110,000 NSP 12 x 6 - - U 25 69.8 114.3 12
41503 4509X 100 13 Scr. Term. - 110,000 NSP 12 x 6 - - U 25 69.8 114.3 12
24887 4593 50 28 Scr. Term. - 1,500 VWFL 80 x 30 - - U 400 69.8 114.3 12
24891 4594 100 28 Scr. Term. - 70,000 NSP 13 x 7 - - U 300 69.8 114.3 12
24964 4626 150 28 Scr. Term. - 25,000 WFL 40 x 9 - - U 300 69.8 114.3 12
24966 4627 100 28 Scr. Term. - 3,000 VWFL 80 x 30 - - U 300 69.8 114.3 12
24867 4587 250 28 Scr. Term. - 4,000 WFL 40 x 13 - - U 25 69.8 114.3 12
24898 4596 250 28 Scr. Term. - 150,000 NSP 11 x 12 - 3000 U 25 69.8 114.3 12
41667 DWE 650 120 Scr. Term. DWE 24,000 MFL - 40 X 30 3200 HOR±15° 100 69.8 114.3 12
41671 FBO 650 120 Scr. Term. FBO 75,000 SP - 25 X 15 3400 HOR±15° 30 69.8 114.3 12
PAR 36
92
指指指指指指指
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT [K] Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
24768 4545 100 12 Scr. Term 225,000 NSP - 9 x 5 - U 100 127 177.8 12
19024 120PAR56/MFL 120 12 Scr. Term 19,000 MFL 18 x 9 29 x 15 - U 2,000 127 177.8 12
19025 120PAR56/WFL 120 12 Scr. Term 5,625 WFL 35 x 18 50 x 25 - U 2,000 127 177.8 12
20122 200PAR 200 30 Scr. Term 270,000 SP - 9 x 9 - U 350 127 177.8 12
20575 240PAR56/VNSP 240 12 Scr. Term 140,000 VNSP 9 x 6 7 x 10 - U 2,000 127 177.8 12
20577 240PAR56/WFL 240 12 Scr. Term 13,000 WFL 35 x 18 50 x 27 - U 2,000 127 177.8 12
23427 300PAR56/WFL 300 12 Scr. Term NA WFL - - - U 1,000 127 177.8 12
20803 300PAR56/NSP 300 120 Mog End Pr GX16d 68,000 NSP 10 x 8 20 x 14 2750 U 2,000 127 177.8 12
20836 300PAR56/MFL 300 120 Mog End Pr GX16d 24,000 MFL 23 x 11 34 x 19 2750 U 2,000 127 177.8 12
20849 300PAR56/WFL 300 120 Mog End Pr GX16d 11,000 WFL 37 x 18 57 x 27 2750 U 2,000 127 177.8 12
20853 300PAR56/NSP 300 230 ExMogEndPr GX16d 40,000 NSP - - - U 2,000 127 177.8 12
20852 300PAR56/MFL 300 230 ExMogEndPr GX16d 30,000 MFL - - - U 2,000 127 177.8 12
20854 300PAR56/WFL 300 230 ExMogEndPr GX16d 10,000 WFL - - - U 2,000 127 177.8 12
18676 300PAR56/NSP 300 240 ExMogEndPr GX16d 40,000 NSP - - - U 2,000 127 177.8 12
18677 300PAR56/MFL 300 240 ExMogEndPr GX16d 30,000 MFL - - - U 2,000 127 177.8 12
18678 300PAR56/WFL 300 240 ExMogEndPr GX16d 10,000 WFL - - - U 2,000 127 177.8 12
43494 Q500PAR56/NSP 500 120 Mog End Pr GX16d 96,000 NSP 13 x 8 32 x 15 2950 U 4,000 127 177.8 6
43495 Q500PAR56/MFL 500 120 Mog End Pr GX16d 43,000 MFL 26 x 10 42 x 20 2950 U 4,000 127 177.8 6
43496 Q500PAR56/WFL 500 120 Mog End Pr GX16d 19,000 WFL 44 x 20 66 x 34 2950 U 4,000 127 177.8 6
PAR 56
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam Type Beam 50% Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
43591 H7635 50 12.8 Scr. Term 160,000 VNSP 6.5 x 4 U 100 95.2 146 12
40822 4537-2 100 13 Scr. Term 200,000 SP 11 x 6 U 25 95.2 146 12
24799 4553 250 28 Scr. Term 300,000 SP 11 x 12 U 25 95.2 146 12
24859 4580 450 28 Scr. Term 400,000 SP 13 x 14 U 10 95.2 146 12
24862 4581 450 28 Scr. Term 400,000 SP 13 x 14 U 10 95.2 146 12
37706 Q4554 450 28 Scr. Term 65,000 WFL 50 x 11 U 100 95.2 146 12
36271 Q4681 450 28 Scr. Term 310,000 SP 15 x 9 U 50 95.2 146 12
PAR 46
93
指指指指指指指
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF
Code
ANSI
Code
Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
40576 4552 250 28 Scr. Term - - 500,000 SP - 7 X 8 - U 25 152.4 203.2 12
40578 4559 600 28 Scr. Term - - 600,000 SP - 11 X 12 - U 25 152.4 203.2 12
40579 Q4559 600 28 Scr. Term - - 600,000 SP - 12 X 8 - U 100 152.4 203.2 12
42552 Q4559X 600 28 Scr. Term - - 765,000 SP 11x7.5 - - U 100 152.4 203.2 12
73581 CP86 PAR64/VNSP 500 230 GX16d CP86 - 240,000 VNSP 16x13 10x7 3200 U 300 152.4 203.2 6
99944 CP86 PAR64/VNSP 500 240 GX16d CP86 - 240,000 VNSP 16x13 10x7 3200 U 300 152.4 203.2 6
25504/99945 CP87 PAR64/NSP 500 230 GX16d CP87 - 140,000 NSP 19x16 11x9 3200 U 300 152.4 203.2 6
99946 CP87 PAR64/NSP 500 240 GX16d CP87 - 140,000 NSP 19x16 11x9 3200 U 300 152.4 203.2 6
99947 CP88 PAR64/MFL 500 230 GX16d CP88 - 65,000 MFL 32x19 21x10 3200 U 300 152.4 203.2 6
99948 CP88 PAR64/MFL 500 240 GX16d CP88 - 65,000 MFL 32x19 21x10 3200 U 300 152.4 203.2 6
39411 500/PAR64/MFL 500 230 ExMogEndPr GX16d - - - MFL 21 X 10 32 x 19 2700 U 2,000 152.4 203.2 12
39414 500/PAR64/W FL 500 230 ExMogEndPr GX16d - - - WFL 42 X 20 55 x 32 2700 U 2,000 152.4 203.2 12
88425 CP60 EXC SUPER 1000 230 GX16d CP60 - 352,000 VNSP 12x9 20x17 3200 U 300 152.4 203.2 6
88551 CP60 EXC SUPER 1000 240 GX16d CP60 - 352,000 VNSP 12x9 20x17 3200 U 300 152.4 203.2 6
88535 CP61 EXD SUPER 1000 230 GX16d CP61 - 297,000 NSP 14x10 22x20 3200 U 300 152.4 203.2 6
88550 CP61 EXD SUPER 1000 240 GX16d CP61 - 297,000 NSP 14x10 22x20 3200 U 300 152.4 203.2 6
88549 CP62 EXE SUPER 1000 230 GX16d CP62 - 138,000 MFL 24x11 38x20 3200 U 300 152.4 203.2 6
88536 CP62 EXE SUPER 1000 240 GX16d CP62 - 138,000 MFL 24x11 38x20 3200 U 300 152.4 203.2 6
88511 CP95 1000 230 ExMogEndPr GX16d CP95 - 15,000 VWFL 70 X 70 125 x 95 3200 U 300 152.4 203.2 6
88510 CP95 1000 240 ExMogEndPr GX16d CP95 - 15,000 VWFL 70 X 70 125 x 95 3200 U 300 152.4 203.2 6
88480 EXG/PAR64/WFL 1000 230 ExMogEndPr GX16d - EXG 38,000 WFL 57 X 21 73 x 36 3200 U 300 152.4 203.2 6
88479 EXG/PAR64/WFL 1000 240 ExMogEndPr GX16d - EXG 38,000 WFL 57 X 21 73 x 36 3200 U 300 152.4 203.2 6
39409 500PAR64/MFL 500 120 ExMogEndPr GX16d - - 37,000 MFL 23 X 11 35 x 19 2800 U 2,000 152.4 203.2 12
13233 FFN 1000 120 ExMogEndPr GX16d - FFN 400,000 VNSP 12 X 6 24 x 10 3200 U 800 152.4 203.2 6
13229 FFP 1000 120 ExMogEndPr GX16d - FFP 330,000 NSP 14 X 7 26 x 14 3200 U 800 152.4 203.2 6
13228 FFR 1000 120 ExMogEndPr GX16d - FFR 125,000 MFL 28 X 12 44 x 21 3200 U 800 152.4 203.2 6
13227 FFS 1000 120 ExMogEndPr GX16d - FFS 40,000 WFL 48 X 24 71 x 45 3200 U 800 152.4 203.2 6
43497 Q1000PAR64/NSP 1000 120 ExMogEndPr GX16d NA NA 200,000 NSP 15 X 8 31 X 14 3000 U 4,000 152.4 203.2 6
43498 Q1000PAR64/MFL 1000 120 ExMogEndPr GX16d - - 80,000 MFL 28 X 12 45 x 22 3000 U 4,000 152.4 203.2 6
43499 Q1000PAR64/WFL 1000 120 ExMogEndPr GX16d - - 33,000 WFL 48 X 24 72 x 45 3000 U 4,000 152.4 203.2 6
PAR 64
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen [lm] CCT [K] Operating
position
Life [h] Length
[mm]
Diameter
[mm]
Pack Qty
88478 HPL 575 575 230 G9.5/Heat Sink 14,900 3200 U 300 106 19 12
88477 HPL 575 575 240 G9.5/Heat Sink 14,900 3200 U 300 106 19 12
88436 HPL 575-C 575 120 G9.5/Heat Sink 16,520 3250 U 300 106 19 12
88438 HPL 575-C 575 115 G9.5/Heat Sink 16,520 3250 U 300 106 19 12
88476 HPL 575-X LL 575 230 G9.5/Heat Sink 11,780 3050 U 1,500 106 19 12
88475 HPL 575-X LL 575 240 G9.5/Heat Sink 11,780 3050 U 1,500 106 19 12
88434 HPL 575-C LL-X 575 120 G9.5/Heat Sink 12,360 3050 U 2,000 106 19 12
88435 HPL 575-C LL-X 575 115 G9.5/Heat Sink 12,360 3050 U 2,000 106 19 12
88474 HPL 750 750 230 G9.5/Heat Sink 19,750 3200 U 300 106 19 12
88473 HPL 750 750 240 G9.5/Heat Sink 19,750 3200 U 300 106 19 12
88437 HPL 750-C 750 115 G9.5/Heat Sink 22,000 3250 U 300 106 19 12
88428 HPL 750-C-XLL 750 115 G9.5/Heat Sink 16,400 3050 U 2,000 106 19 12
88430 HPL 750-X-LL 750 230 G9.5/Heat Sink 15,600 3050 U 1,500 106 19 12
88429 HPL 750-X-LL 750 240 G9.5/Heat Sink 15,600 3050 U 1,500 106 19 12
Single Ended Halogen - HPL
94
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88624 EHD 500 120 G9.5 - EHD 10,000 2900 U 2,000 105 24
88548 FLK 575 115 G9.5 - FLK 16,500 3200 U 300 105 24
88452 FLK-LL 575 115 G9.5 - EHD 10,000 3100 U 2000 105 50
88448 GKV 600 230 G9.5 - GKV 14,000 3200 U 250 105 24
88447 GKV 600 240 G9.5 - GKV 14,000 3200 U 250 105 24
88446 GKV/LL 600 230 G9.5 - GKV 11,000 3000 U 1,500 105 24
88445 GKV/LL 600 240 G9.5 - GKV 11,000 3000 U 1,500 105 24
88450 FKR 650 230-240 G9.5 - FKR 15,000 3100 U 300 105 24
88627 EHF 750 120 G9.5 - EHF 20,000 3200 U 300 105 24
88626 EHG 750 120 G9.5 - FLK 16,500 3000 U 300 105 24
88432 HX800 800 230-240 G9.5 HX800 - 20,000 3200 U 250 105 24
88625 FEL 1000 120 G9.5 CP77 FEL 27,500 3200 U 300 105 24
88449 CP77 FEP 1000 230-240 G9.5 CP77 FEP 25,000 3200 U 300 105 24
88443 CP81 FKW 300 120 GY9.5 CP81 FKW 6,900 3200 BDTH 50 90 24
88433 CP81 FSL 300 230 GY9.5 CP81 FSL 6,900 3200 BDTH 150 90 24
88444 CP81 FSK 300 240 GY9.5 CP81 FSK 6,900 3200 BDTH 150 90 24
88467 CP82 FRG 500 120 GY9.5 CP82 FRG 13,000 3200 BDTH 150 90 24
88466 CP82 FRH 500 230 GY9.5 CP82 FRH 12,500 3200 BDTH 150 90 24
88464 CP82 FRJ 500 240 GY9.5 CP82 FRJ 12,500 3200 BDTH 150 90 24
88465 T18 GCW 500 230-240 GY9.5 T18 GCW 11,000 3050 BDTH 400 90 24
88470 T25 GCW 500 230-240 GY9.5 T25 GCW 11,000 3000 BDTH 360 90 24
88469 T27 GCS 650 230-240 GY9.5 T27 GCS 14,500 3050 BDTH 400 90 24
88463 T26 GCS 650 230-240 GY9.5 T26 GCS 15,500 3100 BDTH 400 90 24
88462 CP89 FRK 650 120 GY9.5 CP89 - 16,900 3200 BDTH 200 90 24
88461 CP89 FRM 650 230-240 GY9.5 CP89 FRM 16,250 3200 BDTH 150 90 24
88504 FMR 600 120 GY9.5 FMR - 12,600 3050 BDTHCH 2,000 85 24
Single Ended Halogen
95
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88431 T12 650 230-240 GX9.5 T12 - 13,500 3000 BDTH 750 110 12
72680 CP23 650 230 GX9.5 CP23 - 16,900 3200 BDTH 100 110 12
88455 CP23 650 230-240 GX9.5 CP23 - 16,900 3200 BDTH 100 110 12
88459 CP24 1000 230-240 GX9.5 CP24 - 26,000 3200 BDTH 200 110 12
88515 T11 Q1000T8/CL 1000 115/120 GX9.5 T11 - 23,500 3050 BDTH 750 110 24
88456 T11 1000 240 GX9.5 T11 - 23,000 3050 BDTH 750 110 12
88457 T19 FWR 1000 230-240 GX9.5 T19 FWR 21,000 3050 BDTH 750 110 12
88472 CP70 FVA 1000 230 GX9.5 CP70 FVA 25,000 3200 BDTH 200 110 12
88471 CP70 FVA 1000 240 GX9.5 CP70 FVB 25,000 3200 BDTH 200 110 12
88454 T29 FWT 1200 230-240 GX9.5 T29 FWT 29,000 3050 BDTH 400 110 12
88453 CP90 1200 230-240 GX9.5 CP90 - 33,000 3200 BDTH 200 110 12
96735 CP43 FTL 2000 230 GY16 CP43 FTM 54,000 3200 BDTH 400 145 12
88533 CP43 FTL 2000 230-240 GY16 CP43 FTL 54,000 3200 BDTH 400 145 12
88503 CP79 2000 230-240 GY16 CP79 - 54,000 3200 BDTH 350 145 12
88439 CP110 OC1200 1200 80 G22 - - 37,500 3300 BDTH 300 140 12
88509 EGN 500 120 G22 - EGN 13,000 3200 BDTH 150 140 12
88531 CP39 FKH 650 230-240 G22 CP39 FKH 16,900 3200 BDTH 100 140 12
88622 EGT 1000 120 G22 - EGT 28,500 3200 BDTH 250 127 12
88458 CP40 FKJ 1000 230 G22 CP40 FKJ 26,000 3200 BDTH 200 140 12
88538 CP40 FKJ 1000 240 G22 CP40 FKJ 26,000 3200 BDTH 200 140 12
88508 CP93 1200 230-240 G22 CP93 - 33,000 3200 BDTH 200 140 12
88507 CP92 2000 120 G22 CP92 - 55,000 3200 BDTH 400 175 12
88506 CP92 2000 230-240 G22 CP92 - 52,000 3200 BDTH 400 175 12
88505 CP91 2500 230-240 G22 CP91 - 67,500 3200 BDTH 400 175 12
88617 EGE 500 120 P28s - EGE 10450 2950 U 2,000 152 12
88546 BTM 500 120 P28s - BTM 13000 3200 BDTH 150 130 12
88498 T17 FKF 500 230-240 P28s T17 - 9,500 2950 BDTH 750 130 12
88451 T28 500 230-240 P28s T28 - 11,000 3000 BDTH 300 130 12
88497 T13 FKB 650 230-240 P28s T13 - 13,500 3000 BDTH 750 130 12
88530 CP51 FKM 650 240 P28s CP51 - 16900 3200 BDTH 200 130 12
88615 EGJ 1000 120 P28s - EGJ 27500 3200 U 500 152 12
88529 T14 FKD 1000 230-240 P28s T14 - 23,000 3050 BDTH 750 130 12
88499 FKE 1000 230-240 P28s T15 FKE 23,000 3050 BDTH 750 160 12
88496 CP52 FKN 1000 230-240 P28s CP52 FKN 26,000 3200 BDTH 200 121 12
88610 CYX 2000 120 G38 HX270 CYX 59000 3200 BDTH 400 216 6
88489 CP41 FKK 2000 230 G38 CP41 FKK 54,000 3200 BDTH 400 216 12
88488 CP41 FKK 2000 240 G38 CP41 FKK 54,000 3200 BDTH 400 216 12
88502 CP94 2500 230-240 G38 CP94 - 67500 3200 BDTH 400 210 12
88874 HX48 3000 230-240 G38 HX48 - 82000 3200 BDTH 400 210 12
88875 CP29 5000 230 G38 CP29 - 135000 3200 BDTH 500 279 12
88876 CP29 5000 240 G38 CP29 - 135,000 3200 BDTH 500 279 12
12036 CP83 10000 220-230 G38 CP83 - 280,000 3200 BDTH 250 405 1
12037 CP83 10000 240 G38 CP83 - 280,000 3200 BDTH 250 405 1
48771 Q12MT26/4CL 12000 230 GX38 - - 420,000 3400 BD45 130 410 1
48779 Q12MT26/4CL 12000 240 GX38 - - 420,000 3400 BD45 130 410 1
48773 BCM-020MT324CL 20000 230 GX38 - BCM 580,000 3200 BD45 400 560 1
48774 BCM-020MT324CL 20000 240 GX38 - BCM 580,000 3200 BD45 400 560 1
48777 Q24MT32/4CL 24000 240 GX38 - - 800,000 3400 BD45 150 560 1
Single Ended Halogen
96
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88880 CP105 1250/650 230-240 GX38q CP105 - 27000/13000 3050 BD45 250 220 1
88877 CP30 1250/1250 230-240 GX38q CP30 - 27M/56M 3200 BD45 300 220 1
88878 CP58 1250/2500 230-240 GX38q CP58 - 27M/91M 3200 BD45 300 220 1
88879 CP32 2500/2500 230-240 GX38q CP32 - 5900/127000 3200 BD45 300 220 1
88512 CP59 2000 240 R7s FAD - 16,500 3200 U 100 191 1
19926 DKZ/DSE 1000 120 E39 - DSE 28,000 3200 U 750 330 10
88500 T16 1500 120 P40s T16 DTA 41000 3200 BDTH 750 180 6
88532 CP53 2000 230-240 P40s CP53 - 54,000 3200 BDTH 400 200 12
30325 FAD 650 120 R7s P2/6 FAD 16,500 3200 U 100 80 24
36952 DXX 800 230 R7s P2/13 DXX 21,400 3200 U 75 80 24
36953 DXX 800 240 R7s P2/13 DXX 21,400 3200 U 75 80 24
30157 DXW 1000 120 R7s - DXW 28,000 3200 U 150 95 24
30374 FBY 1000 120 R7s - FBY 26,000 3200 U 150 95 24
23756 EJG 750 120 R7s - EJG 20,600 3200 HOR±15° 400 119 12
23760 P2/11 EME/Clear 800 240 R7s P2/11 EME 22,000 3200 HOR±15° 150 119 12
23761 P2/11 EMF/Frosted 800 240 R7s P2/11 EMF 21,400 3200 HOR±15° 150 119 12
23797 P2/28 FCM 1000 120 R7s P2/28 FCM 28,000 3200 HOR±15° 400 119 12
88482 P2/27 FEX 2000 230 R7s P2/27 FEX 50,000 3200 HOR±15° 300 143 12
88481 P2/27 FEX 2000 240 R7s P2/27 FEX 50,000 3200 HOR±15° 300 143 12
88629 FEY 2000 120 R7s P2/27 FEY 57,000 3200 HOR±15° 400 143 12
19697 P2/10 625 230 R7s P2/10 - 16,900 3200 HOR±15° 300 189 12
19698 P2/10 625 240 R7s P2/10 - 16,900 3200 HOR±15° 300 189 12
20249 P2/7 EKM 1000 230 R7s P2/7 EKM 28,000 3200 HOR±15° 300 189 12
20253 P2/7 EKM 1000 240 R7s P2/7 EKM 28,000 3200 HOR±15° 300 189 12
19695 P2/12 1250 230 R7s P2/12 - 35,000 3200 HOR±15° 300 189 12
19696 P2/12 1250 240 R7s P2/12 - 35,000 3200 HOR±15° 300 189 12
37346 DZA 30 10.8 G5.3 - DZA 530 3100 BDTHCH 400 51 24
18234 BRL A1/220 50 12 G6.35 A1/220 BRL 1,400 3400 BDTH 50 44 100
14876 FCR A1/215 100 12 GY6.35 A1/215 FCR 3,500 3300 BDTH 50 44 100
18235 BRJ/EVB A1/234 150 15 G6.35 A1/234 BRJ/EVB 5,000 3400 BDTH 50 44 100
37695 DZE/FDS A1/262 150 24 GZ9.5 A1/262 DZE/FDS 5,000 3250 BDTH 100 68 24
13598 FCS A1/216 150 24 G6.35 A1/216 FCS 4,500 3300 BDTH 50 51 100
14874 EHJ A1/223 250 24 G6.35 A1/223 EHJ 9,000 3400 BDTH 50 57 100
18241 FNT 275 24 G6.35 – FNT 10,000 3400 BDTH 50 57 100
41164 EVD A1/239 400 36 GY6.35 A1/239 EVD 16,000 3200 BDTH 50 60 25
26895 DYR A1/233 650 240 GZ9.5 A1/233 DYR 16,500 3200 U 50 64 24
88484 HX185 800 230-240 GX9.5 HX185 - 19,000 3050 BDTH 300 100 24
88492 A1/248 150 230-240 G6.35 A1/248 - 3,000 NA BDTH 50 62 50
88491 A1/249 300 230-240 G6.35 A1/249 - 7,200 NA BDTH 50 62 50
88460 A1/244 500 230-240 GY9.5 A1/244 - 13,000 NA BDTH 75 62 24
Single Ended Halogen
Double Ended Quartzline
Specialist Projector
97
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
34720 M29/ESA 10 6 G4 M29/ESA 200 3200 BDTH 100 30 20
34718 M30/ESB 20 6 G4 M30/ESB 450 3200 BDTH 100 30 20
34702 M32 50 12 GY6.35 M32 930 3000 BDTH 4,000 44 20
34676 M28/EVA 100 12 GY6.35 M28/EVA 2,400 3000 BDTH 2,000 44 20
34768 M33 250 24 G6.35 M33 8,600 3000 BDTH 300 55 100
88516 M36 250 24 G6.35 M36 5,750 3000 BDTH 2,000 58 100
88442 M38 300 230-240 GY9.5 M38 5,000 2900 BDTH 2,000 80 24
78343 M38 300 120 GY9.5 M38 TBA 2900 BDTH 2,000 80 24
88468 M40 500 230-240 GY9.5 M40 8,500 2900 BDTH 2,000 85 24
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code CCT
[K]
Operating
position
Life
[h]
Pack Qty
36902 EKZ 30 10.8 GX5.3 – EKZ 3100 BDTH 200 20
43988 DDS 80 21 GX5.3 – DDS 3125 BDTH 1000 20
43950 DED 85 13.8 GX5.3 – DED 3150 BDTH 1000 20
43537 DDL 150 20 GX5.3 – DDL 3150 BDTH 500 20
38306 ELD/EJN 150 21 GX5.3 – ELD/EJN 3350 BDTH 40 20
35200 EKE 150 21 GX5.3 – EKE 3250 BDTH 200 20
29150 EJL A1/252 200 24 GX5.3 A1/252 EJL 3400 BDTH 50 20
37462 ELC A1/259 250 24 GX5.3 A1/259 ELC 3400 BDTH 50 20
15377 ELC500 250 24 GY5.3 – ELC500 3250 BDTH 500 20
38686 ENH 250 120 GY5.3 – ENH 3250 BDTH 175 20
38476 ELH 300 120 GY5.3 – ELH 3350 BDTH 35 10
32882 EJA 150 21 GX5.3 – EJA 3350 BDTH 40 20
Single Ended Tungsten Halogen
Multi-Mirror Quartzline Projection - MR16
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap ANSI Code CCT
[K]
Operating
position
Life
[h]
Pack Qty
41729 EPT 42 10.8 GX5.3 EPT 2900 BDTH 8000 20
25475 ENL 50 12 GX5.3 ENL 3050 BDTH 4000 20
41882 EPV 90 14.5 GX5.3 EPV 3150 BDTH 500 20
42614 EPX 90 14.5 GX5.3 EPX 3150 BDTH 500 20
41874 ERV 340 36 GX5.3 ERV 3300 BDTH 75 20
41705 ENX 360 82 GY5.3 ENX 3300 BDTH 75 20
21613 FXL 410 82 GY5.3 FXL 3300 BDTH 38 20
12097 EXY 250 82 GX5.3 EXY 3200 BDTH 200 10
12092 EXR 300 82 GX5.3 EXR 3350 BDTH 35 10
25261 FLT 28 13.8 GZ4 FLT 3050 BDTH 500 10
Multi-Mirror Quartzline Projection - MR16
Multi-Mirror Quartzline Projection - MR13
Multi-Mirror Quartzline Projection - MR11
98
SHOWBIZ Lamps
GE OSRAM PHILIPS
Discharge CSR/CSD (Daylight) Metal Halide, Turn and Lock GE Product Code
CSR300/2/TAL 76160 - MSR 300/2 MiniFastFit
CSD300/2/TAL TBA HSD300W/80/P28 MSD 300/2 MiniFastFit
CSR700/TAL/60/PGJX50 76161 HTI 700W/75/P50 MSR 700 FastFit
CSR700/TAL/60/PGJX28 78718 HTI 700W/75/P28 MSR 700/2 MiniFastFit
CSR1500/TAL/60/S 74873 HTI 1500W/60/P50 MSR 1500 FastFit
Discharge CSR/CSD (Daylight) Metal Halide, Single End Cold Start
CSD250/2/SE 27817 HSD250/80 MSD250/2
CSR575/2/T/SE 49492 - -
CSR575/2/SE 15378 HSR575/2 MSR575/2
CSR700/2/SE 49491 HSR700/2 MSR700/2
CSR1200/2/SE 49490 HSR1200/2 MSR1200/2
Discharge CSR (Daylight) Metal Halide, Single End Short Arc
CSR700/SA 15380 HTI705W/SE MSR700/SA
CSR700/SA/72 45234 - -
CSR1200/SA 21849 HTI1200W/SE MSR1200/SA
CSR2000/SA 21801 HTI1800W/SE MSR2000/SA
Discharge CSR (Daylight) Metal Halide, Single End Hot Restrike
CSR125/SE/HR 48461 HMI125W MSR125/HR
CSR400/SE/HR/75 45238 - -
CSR575/SE/HR 48463 HMI575W/SE MSR575/HR
CSR1200/SE/HR 48464 HMI1200W/SE MSR1200/HR
CSR2500/SE/HR 48465 HMI2500W/SE MSR2500/HR
CSR4000/SE/HR 48466 HMI4000W/SE MSR4000/HR
CSR6000/SE/HR 48467 HMI6000W/SE MSR6000/HR
CSR12000/SE/HR 48468 HMI12000W/SE MSR12000/HR
CSR18000/SE/HR 22496 HMI18000W/SE MSR18000/HR
Discharge CSR (Daylight) Metal Halide, Single End Hot Restrike, UV Control
CSR200/SE/HR/UVC 48462 HMI200W/SE MSR200/HR
CSR400/SE/HR/UVC 21853 HMI400W/SE MSR400/HR
CSR575/SE/HR/UVC 40460 HMI575W/SE MSR575/HR
CSR800/SE/HR/UVC 22495 - -
CSR1200/SE/HRUVC 27764 HMI1200W/SE MSR1200/HR
CSR1800/SE/HRUVC 77390 HMI1800W/SE/XS -
CSR2500/SE/HRUVC 40482 HMI2500W/SE MSR2500/HR
CSR4000/SE/HRUVC 27765 HMI4000W/SE MSR4000/HR
CSR6000/SE/HRUVC 40492 HMI6000W/SE MSR6000/HR
The following pages show GE and alternative brand Order Codes. These cross references are provided as a quick guide and may only
represent a near equivalent to other brands. The table contains data from alternative brands’ catalogues and website.
Discharge CSR (Daylight) Metal Halide, Linear Double End Hot Restrike
CSR200/DE 48450 HMI200W -
CSR400/S/DE/70 22478 HTI400W/D3/75 MSR400/SA/2/DE
CSR400/S/DE/90 45232 - -
CSR575/S/DE/70 70979 HTI575W/D4/75 MSR575/SA/2/DE
CSR575/SS/DE/75 45231 - -
CSR700/S/DE/60 22493 HTI700W/D4/60 -
CSR700/S/DE/72 41357 HTI700W/D4/75 MSR700/SA/2/DE
CSR1200/S/DE/60 22494 HTI1200W/D7/60 MSR1200/SA/DE
CSR1200/S/DE/72 41361 HTI1200W/D7/75 MSR1200/SA/2/DE
CSR1200/S/DE/60/STB 96802 - -
CSR200/DE 48453 HMI1200W/GS MSI1200
CSR1500/S/DE/60/STB 96800 HTI1500 D7/60 -
CSR2500/DE 48454 HMI2500W/GS MSI2500
CSR4000/DE 48455 HMI4000W/GS MSI4000
CSR6000/DE 48456 HMI6000W MSI6000
CSR12000/DE 48457 HMI12000W/GS MSI12000
CSR18000/DE 48459 HMI18000W -
CSR24000/DE 78710 HMI24000W/DXS -
99
Specialty Lighting
Blacklight Blue 103
UVA & UVC Germicidal 103
covRguard 104
Aquarium 105
Quarts Heat 106
Aireld Lighting 106
100
Specialty Lamps
GE has a wide range of lamps for
a variety of special applications.
These applications include:
Fly and insect control
• Special Phosphor – Black Light (BL)
• UVA 315-400nm
• Lamps to attract y and insects
• Effect UV irradiance over life
• For use in y traps
• Common use in food production areas
Inspectionandeect
• Special Phosphor – Black Light
Blue (BLB)
• UVA lamps with special Blue
cobalt glass
• Used where ne detail or trace evidence is
examined
• Create glow effect for club and
event lighting
Bacterial destruction
• UVC 200-280 nm
• For water, air and surface sterilisation
• Destroys micro-organisms via absorption
of UV light
Shatter protection
• Lamp encased in high quality
plastic sleeve
• Used where avoidance of glass
contamination is critical
Aquarium
• Various colours and UV outputs
• Promotes coral, invertebrate and
plant growth
• For use with tropical sh and reptiles
Space and industrial heating
• Turning light to heat
• Directional instant radiant heat
• Heats objects and people not the
air between
• Ideal for space heating outside bars and
restaurants
• Many industrial applications from paint
drying to plastic bottle making
Aireld
• Range of lamps for use on airelds
• Runway and taxiway lighting
101
GE UV Lamps
GE provides the very best in product innovation, reliability, and
quality. As one of the largest lamp manufacturers in the world,
we offer customers our extensive knowledge and a
comprehensive portfolio of UV lamps.
As our society demands a cleaner
environment to live and work in, GE provides
a safer and more efficient sterilisation
technique. UVC Germicidal lamps’ special
glass transmits a spectral band of UV light
effective for sterilisation. The UVC
wavelength of 254 nm is proven to destroy
air-borne bacteria, viruses, and mold spores
by preventing DNA replication, effective even
if the organism has become immune to
other disinfection methods.
Blacklight lamps consist of a regular
fluorescent tube with a special
phosphor coating to emit in the UVA
range.
These phosphors contain rare earth
components that enable the lamp to
last over a complete insect season.
Blacklight Blue lamps are made of
cobalt blue glass which absorbs most
visible light.
Application areas
•Sterilisation
•Insecttraps
•Nightclubsandevents
•Diazocopymachines
•Marine/aquarium
•Filmmaking
Application areas
•Healthcare
•HVACSystemsincommercial
buildings
•Foodprocessing
•Scientificlabs
•Industrial,municipal,andresidential
water and pond treatment
•Biotechindustry
Application areas
•Specialeffectsinnightclubs
and events
•Insecttraps
•Inspectionandauthentication
•Foodprocessingplants
•Supermarkets/butchers/bakeries
•Restaurants
UVC Germicidal, UVA Blacklight,
Blacklight Blue
UVC Germicidal
Water, air, and surface
sterilisation
Blacklight & Blacklight Blue
102
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
39882 F4W/BLB 4 29 G5 368 5,000 150 25
39883 F6W/BLB 6 42 G5 368 5,000 225 25
39884 F8W/BLB 8 57 G5 368 5,000 300 25
Blacklight Blue T5
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage. The Product Description can be used as a quick
reference to each product’s attributes. Where Life or Average Life are stated we
refer to the industry standard definition of how many hours of operation 50% of
a given installation will exceed.
(F) Identifies
the lamp as
Fluorescent
(4W)
Identifies
the lamp’s
wattage
(BLB)
Identifies
product
type
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operating
voltage
Life:
Rated average life
Length:
Lamp length in mm
Pack quantity:
Number of product
units packed in a case
Peak Wavelength [nm]
Product identification
F4W / BLB
Specialty Lamps
Additional parameters:
UV Output [Watts]: The initial UV Output at 100 hours
Initial UVA Irradiance [mW/cm2 @ 20cm]: UV Output at
1 m after 100 hours
Lumens: Initial amount of light output
CCT [K]: Colour Temperature - Kelvins
A measure of the visual “warmth” or “coolness” of the light
from the lamp. The higher the value the whiter or “cooler”
the light appears.
CRI [Ra]: Colour Rendering Index
An indication of the ability of the lamp to render object
colours in a normal, natural way. The higher the number
(0-100), the better the colour appearance.
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
103
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
39882 F4W/T5/BLB 4 29 G5 368 5,000 150 25
39883 F6W/T5/BLB 6 42 G5 368 5,000 225 25
39884 F8W/T5/BLB 8 57 G5 368 5,000 300 25
88832 F18/T8/BLB 18 57 G13 368 12,000 600 25
88833 F36/T8/BLB 36 103 G13 368 12,000 1,200 25
34747 F20W/T12/BLB 20 57 G13 368 9,000 600 6
25618 F40W/T12/BLB 40 101 G13 368 20,000 1200 6
16941 F15WBL 350 15 55 G13 350 7,500 450 25
72939 F15WBLCVG 15 55 G13 368 7,500 450 6
Blacklight Blue T5
Blacklight Blue T8
Blacklight Blue T12
Black Light T8
covRguard Blacklight
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Initial UVA Irradiance1
[mW/cm2
@ 20cm]
Peak
Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
42935 F9BX BL G23 9 60 G23 440 368 440 167 10
42936 F11BX BL G23 11 91 G23 670 368 670 237 10
42937 F13BX BL GX23 13.4 58 GX23 630 368 630 177.5 10
42939 F24BX BL 2G11 24 87 2G11 980 368 980 326.8 10
42940 F36BX BL 2G11 36 107 2G11 1280 368 1,280 421.8 10
42941 F55BX BL 2G11 55 101 2G11 1630 368 1,630 541.8 10
UVA Blacklight Biax - Internal Starter
UVA Blacklight Biax L - External Starter
lamp name: Fluorescent
— T5 Miniature�
— Blacklite Blue/4-8W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
Product Code Product
Description
Wattage
[W]
Volts [V] Cap UV Output
[Watts]
Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
15872 G4T5 4 29 Miniature Bi-pin 0.8 254 6,000 150 24
15873 G6T5 6 42 Miniature Bi-pin 1.7 254 6,000 226 24
11077 G8T5 8 57 Miniature Bi-pin 2.3 254 8,000 302 24
29495 G11T5 11 37 Miniature Bi-pin 2.2 254 8,000 226 24
16494 G16T5 16 50 Miniature Bi-pin 3.2 254 8,000 302 24
15874 G36T5 39 107 Single-pin (Fa8) 12 254 9,000 865 24
15864 G64T5 65 180 Single-pin (Fa8) 18 254 7,500 1575 24
29504 G64T5/4P/SE 65 250 Single 4 pin end cap 25 NA 8,000 1556 24
Germicidal T5
lamp name: Fluorescent
— T5 Miniature�
— Blacklite Blue/4-8W
104
Specialty Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap UV Output
[Watts]
Life
[h]
Length
[mm]
Pack Qty
11078 G15T8 15 55 G13 Medium Bi-pin 4.8 8,000 451 24
11082 G25T8 25 46 G13 Medium Bi-pin 6.9 8,000 451 24
11080 G30T8 30 90 G13 Medium Bi-pin 12.4 8,000 908 24
15875 G55T8HO 55 83 G13 Medium Bi-pin 18 8,000 908 24
40695 GBX5/UVC G23 5 35 G23 2-pin 1.0 8,000 85 10
40696 GBX9/UVC G23 9 59 G23 2-pin 2.4 8,000 145 10
40700 GBX11/UVC G23 11 89 G23 2-pin 3.6 8,000 215 10
40703 GBX13/UVC GX23 13 59 GX23 2-pin 3.6 8,000 170 10
40704 GBX18/UVC/2G11 18 58 2G11 4-pin 5.3 8,000 225 10
40705 GBX36/UVC/2G11 36 106 2G114-pin 12 8,000 415 10
40706 GBX55/UVC/2G11 55 101 2G114-pin 16.5 8,000 535 10
72761 G15T8/CVG 15 55 G13 Medium Bi-pin 4.8 8,000 451 24
72762 G25T8/CVG 25 46 G13 Medium Bi-pin 6.9 8,000 451 24
72763 G30T8/CVG 30 90 G13 Medium Bi-pin 12.4 8,000 908 24
72764 G55T8/CVG 55 83 G13 Medium Bi-pin 18 8,000 908 24
Product
Code
Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
17203 F18W/830CVG 18 G13 1300 2950 85 15,000 600 25
17204 F18W/835CVG 18 G13 1300 3400 85 15,000 600 25
17205 F18W/840CVG 18 G13 1300 4000 85 15,000 600 25
17208 F36W/830CVG 36 G13 3250 2950 85 15,000 1200 25
17202 F36W/835CVG 36 G13 3250 3400 85 15,000 1200 25
17209 F36W/840CVG 36 G13 3250 4000 85 15,000 1200 25
12403 F58W/830CVG 58 G13 5050 2950 85 15,000 1500 25
12405 F58W/835CVG 58 G13 5050 3400 85 15,000 1500 25
12407 F58W/840CVG 58 G13 5050 4000 85 15,000 1500 25
12423 F70W/835CVG 70 G13 6100 3400 85 15,000 1800 25
12424 F70W/840CVG 70 G13 6100 4000 85 15,000 1800 25
Germicidal T8
T8 covRguard Polylux XLR
Germicidal T4 Biax
Germicidal T6 Biax
covRguard Germicidal
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Compact

105
Product
Code
Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
71000 F24W/T5/830/ECO/CVG 24 G5 1950 3000 85 30,000 549 40
70998 F24W/T5/835/ECO/CVG 24 G5 1950 3500 85 30,000 549 40
70997 F24W/T5/841/ECO/CVG 24 G5 1950 4100 85 30,000 549 40
70999 F24W/T5/850/ECO/CVG 24 G5 1850 5000 85 30,000 549 40
70996 F24W/T5/865/ECO/CVG 24 G5 1800 6500 85 30,000 549 40
70995 F39W/T5/830/ECO/CVG 39 G5 3400 3000 85 30,000 849 40
70994 F39W/T5/835/ECO/CVG 39 G5 3400 3500 85 30,000 849 40
70993 F39W/T5/841/ECO/CVG 39 G5 3400 4100 85 30,000 849 40
70991 F39W/T5/850/ECO/CVG 39 G5 3250 5000 85 30,000 849 40
70990 F39W/T5/865/ECO/CVG 39 G5 3200 6500 85 30,000 849 40
48433 F54T5/830/HO/ECO/CVG 54 G5 4560 3000 85 30,000 1149 40
48436 F54T5/835/HO/ECO/CVG 54 G5 4560 3500 85 30,000 1149 40
48458 F54T5/841/HO/ECO/CVG 54 G5 4560 4100 85 30,000 1149 40
80311 F54T5/850/HO/ECO/CVG 54 G5 4465 5000 85 30,000 1149 40
48469 F54T5/865/HO/ECO/CVG 54 G5 4465 6500 85 30,000 1149 40
72985 F54T5/830//ECO/WM/CVG 54 G5 4330 3000 85 25,000 1149 40
72986 F54T5/835//ECO/WM/CVG 54 G5 4330 3500 85 25,000 1149 40
72987 F54T5/841/ECO/WM/CVG 54 G5 4330 4100 85 25,000 1149 40
72988 F54T5/850//ECO/WM/CVG 54 G5 4120 5000 85 25,000 1149 40
72989 F54T5/865//ECO/WM/CVG 54 G5 3980 6500 85 25,000 1149 40
Product
Code
Product
Description
Wattage
[W]
Cap Additional Informa-
tion
Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
44212 F15T8 F&SA 15 G13 Fresh & Salt Aqua 700 10000 60 9,000 450 6
16987 /44230 F15T8 SW 15 G13 Salt Water 210 - - 7,500 450 10/6
44239 F15T8 REP 15 G13 Reptile 400 6400 82 7,500 450 6
44213 F18T8 F&SA 18 G13 Fresh & Salt Aqua 950 10000 60 10,000 450 6
44231 F18T8 SW 18 G13 Salt Water 430 - - 9,000 600 6
44240 F18T8 REP 18 G13 Reptile 550 6400 82 7,500 600 6
16968 F25T8 F&SA 25 G13 Fresh & Salt Aqua 1350 10000 60 15,000 760 10
16991 F25T8 SW 25 G13 Salt Water 430 - - 7,500 762 10
16969 /44218 F30T8 F&SA 30 G13 Fresh & Salt Aqua 1700 10000 60 15,000 910 10/6
16992 /44235 F30T8 SW 30 G13 Salt Water 540 - - 7,500 910 10/6
44241 F30T8 REP 30 G13 Reptile 1100 6400 82 7,500 910 6
16970 /44219 F36T8 F&SA 36 G13 Fresh & Salt Aqua 2350 10000 60 15,000 1200 10/6
16995 /44236 F36T8 SW 36 G13 Salt Water 700 - - 7,500 1200 10/6
44242 F36T8 REP 36 G13 Reptile 1250 6400 82 7,500 1200 6
44220 F38T8 F&SA 38 G13 Fresh & Salt Aqua 2200 10000 60 15,000 1060 6
16984 F38T8 FA 38 G13 Fresh Aqua 1320 5000 70 7,500 1060 10
16999 F38T8 SW 38 G13 Salt Water 650 - - 7,500 1060 10
T5 covRguard Starcoat High Output (HO)
T8 Aquarium and Reptile*
T5 Watt-Miser covRguard
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
*This range is in transition from a 10 pack to a 6 pack.
lamp name: Fluorescent
— T5 Miniature�
— Blacklite Blue/4-8W
106
Specialty Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap CCT
[K]
Life
[h]
Length
[mm]
Pack Qty
21788 QH500T3/CL 500 120 Slv 2400 5,000 223.8 12
21787 QH500T3/CL/7 500 120 R7S 2400 5,000 220.5 12
22355 QH1000T3/CL 1000 200-220 Slv 2400 5,000 351 12
22357 QH1000T3/CL 1000 230-250 Slv 2400 5,000 351 12
21377 QH1MT3/CL/R/MS-235V 1000 235 Slv 2500 5,000 483 12
22357 QH1000T3/CL 1000 230-250 Slv 2400 5,000 351 12
22531 QH1200T3/CL 1200 144 Slv 2450 5,000 223.8 12
22532 QH1200T3/CL/HT 1200 144 Slv 2450 5,000 223.8 12
22691 QH1600T3/CL/7 1600 230-250 R7S 2400 5,000 498.4 12
22688 QH1600T3/CL 1600 230-250 Slv 2400 5,000 503 12
22789 QH2M/T3/1CL/HT 2000 230 Slv 2450 5,000 303 12
15551 QH2M/T3/1CL/HT/VB 2000 230-250 Slv 2450 5,000 303 12
18668 QH2MT3/CL/VB 2000 220-250 Slv 2450 5,000 350.5 12
22790 QH2M/T3/CL/HT 2000 230-250 Slv 2450 5,000 350.8 12
12716 QH2MT3/CL/HT/R 2000 230-250 CER 2450 5,000 352.5 12
22838 QH2500T3/CL 2500 460-500 Slv 2400 5,000 731 12
10872 QH3650/CL/5 3650 480 Slv 2500 5,000 1057 6
22875 QH3800/CL 3800 550-600 Slv 2500 5,000 1062 6
22900 QH5M/T3/1CL/HT 5000 575-625 Slv 2500 5,000 731.8 12
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap CCT
[K]
Life
[h]
Length
[mm]
Pack Qty
20092 HH 451 1500W RUBY 230-240V 1500 230-240 Special 2450 5,000 348 10
20093 HH 804 2000W RUBY 230-240V 2000 230-240 Special 2450 5,000 348 10
40723 QH 750W 230-240V Ruby Slim 750 230-240 RX7s 2450 5000 202.8 10
42740 QH 1300W 230-240V Ruby Slim 1300 230-240 RX7s 2450 5000 254 10
Quartz Heat
Jacketed Quartz Heat
Infrared Quartz Heat – Ruby Slim
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Life
[h]
Length
[mm]
Pack Qty
11478 EXL 30 6.6A Gz9.5 2 Pin 375 1000 44.5 24
11482 EXM 45 6.6A Gz9.5 2 Pin 750 1000 44.5 24
80583 Q6.6A45PK30d male 45 6.6A PK30d 800 1000 13.5 10
88420 AF6/2 6.6A 45W 45 6.6A Mycalex cap & Prefocus collar 760 600 54 100
32917 Q65T2 1/2/1/CL 65 6.6A Special 1200 1000 200
88417 AF 6/5T 6.6A 100W 100 6.6A Mycalex cap & Prefocus collar 2100 600 60 100
80584 Q6.6A100PK30d male 100 6.6A PK30d 2700 1000 13.5 10
80588 Q6.6A100PK30d female 100 6.6A PK30d 2700 1000 13.5 10
80585 Q6.6A150PK30d male 150 6.6A PK30d 3600 1000 13.5 10
80589 Q6.6A150PK30d female 150 6.6A PK30d 3600 1000 13.5 10
80586 Q6.6A200PK30d male 200 6.6A PK30d 4800 1000 13.5 10
80590 Q6.6A200PK30d female 200 6.6A PK30d 4800 1000 13.5 10
23857 Q6.6A/T4/5CL 200 6.6A Special 1" Ribbon Leads 5000 500 76 12
23860 Q6.6AT4/DCR 200 6.6A D.C.Bay 5150 500 64 12
33279 Q6.6A/PAR56/3 200 6.6A Scrw Term NA 1000 114 12
88413 AF7/2 6.6A 200W 200 6.6A Mycalex cap & Prefocus collar 4800 600 54 100
15482 Q20A/PAR56/C 300 20A Mog End Pr GX16d NA 500 127 12
23863 Q20A/PAR56/3 499 20A Scrw Term NA 500 114 12
88525 IM T20BP 1000 120 G38 Mog BiPost 22000 500 241 12
88523 1200T20 1200 115 G38 Mog BiPost 29600 750 241 12
Airfield Lighting
107
Ballast
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
1.1 HID Electromagnetic Ballast
1.1.1 HID Electromagnetic Ballast (with thermal protector) 109
1.1.2 HID Electromagnetic Ballast (without thermal protector) 113
1.1.3 CSI Electromagnetic Ballast 117
1.1.4 HID Electromagnetic Ballast (Al Line) 118
1.2 HID Capacitor
1.2.1 Capacitor with line 120
1.2.2 Capacitor with clamp 120
1.3 Ignitor 121
2. Bi-Level for HPS Electromagnetic System 122
3. CWA Electromagnetic Ballast & Control Gear for HID Lamp
3.1 CWA Electromagnetic Ballast 124
3.2 CWA Capacitor 126
3.2.1 Capacitor with line 126
3.2.2 Capacitor with clamp 126
4. Electronic Ballast for HID Lamp
4.1 Miniature eHID 127
4.2 Standard eHID 128
4.3 Economics eHID 129
5. IElectronic Ballast for T5 LFL
5.1 High Performance T5 Electronic Ballast 130
5.2 Economic Electronic T5 Ballast 131
6. Ballast for T8/T10 LFL
6.1 High Performance T8/T10 Electronic Ballast 132
6.2 Economic Electronic T8/T10 Ballast 133
6.3 High Performance T8/T10 Electromagnetic Ballast 134
6.4 Standard Performance T8/T10 Electromagnetic Ballast 135
6.5 Starter 136
7. Ballast for Plug-in CFL
7.1 Plug-in CFL Electromagnetic Ballast 137
7.2 Plug-in CFL Electronic Ballast 138
8. 12V Electronic Transformer 139
108
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981C MSB35/220V/50Hz/T 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982C MSB50/220V/50Hz/T 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981C MSB35/220V/50Hz/T 0.53 0.30 0.23 6 8.0 45 MSI/400 70 130 A
70982C MSB50/220V/50Hz/T 0.76 0.39 0.30 8 12 60 MSI/400 70 130 A
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Voltage/Frequency:
The ballast’s Rated
input voltage and
frequency
Lamp Wattage:
The rated wattage of
ballast’s matching lamp
Carton Quantity:
Number of product
units packed in a case
Package Size:
Dimmension of
carton in mm
Lamp Type:
The ballast’s
matching lamp type
Dimensions:
Ballast dimensions
in mm
Carton Weight:
Gross weight of
one carton
Cosφ≥0.9:
working with capacitor, the
power factor (Cosφ)≥0.9
Circuit Current:
The ballast’s input current
System Power:
System power
consuming
Temp Rise:
The potential allowable
maximum temperature
rise under normal
operation condition
or rated voltage or
maximum value of rated
voltage range
Wiring Diagram:
The ballast’s wiring
diagram
Description:
The ballast’s
identification code
Lamp current:
lamp working
current
Max Loss:
The max power
loss of ballast
Ignitor:
The bsllast’s
matching Ignitor
Max Operating Temp:
The max operation case
temperature
Who needs a ballast?
Product Identification
LFL CFL
HID
LED
Halogen
Power line
input
High
efficiency
ballast
Automative
109
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981C MSB35/220V/50Hz/T 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982C MSB50/220V/50Hz/T 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
70983C MSB70/220V/50Hz/T 220V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 255*150*170
70986C MSB100/220V/50Hz/T 220V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.4 255*150*170
70987C MSB150/220V/50Hz/T 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
70988C MSB250/220V/50Hz/T 220V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
70989C MSB400/220V/50Hz/T 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
70991C MSB600/220V/50Hz/T 220V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
70992C MSB1000/220V/50Hz/T 220V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 18.0 260*220*115
25816C MHB80/220V/50Hz/T 220V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25817C MHB125/220V/50Hz/T 220V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25818C MHB250/220V/50Hz/T 220V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12.0 255*150*170
70990C MHB400/220V/50Hz/T 220V/50Hz HPM/MH 400W 150 104 75 45 64 R3 6 17.0 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981C MSB35/220V/50Hz/T 0.53 0.30 0.23 6 8.0 45 MSI/400 70 130 A
70982C MSB50/220V/50Hz/T 0.76 0.39 0.30 8 12 60 MSI/400 70 130 A
70983C MSB70/220V/50Hz/T 0.98 0.56 0.43 12 14 86 MSI/400 70 130 A
70986C MSB100/220V/50Hz/T 1.20 0.78 0.58 12 17 114 MSI/400 70 130 A
70987C MSB150/220V/50Hz/T 1.80 1.12 0.86 20 21 170 MSI/400 70 130 A
70988C MSB250/220V/50Hz/T 3.00 1.82 1.40 32 35 277 MSI/400 70 130 A
70989C MSB400/220V/50Hz/T 4.60 3.08 2.20 50 54 435 MSI/400 70 130 A
70991C MSB600/220V/50Hz/T 6.20 4.58 3.27 60 65 647 MSI/1000 80 130 A
70992C MSB1000/220V/50Hz/T 10.30 6.46 5.38 100 98 1065 MSI/1000 80 130 A
25816C MHB80/220V/50Hz/T 0.80 0.70 0.45 8 11 90 N/A 70 130 B
25817C MHB125/220V/50Hz/T 1.15 1.10 0.71 10 18 140 N/A 70 130 B
25818C MHB250/220V/50Hz/T 2.15/2.10 2.12 1.37 20 21 272 N/A for HPM 70 130 B
2.15/2.10 2.12 1.37 20 21 272 MSI/400 for MH 70 130 A
70990C MHB400/220V/50Hz/T 3.25 3.35 2.16 28 31 428 N/A for HPM 70 130 B
3.25 3.35 2.16 28 31 428 MSI/400 for MH 70 130 A
Dimension (mm)
Wiring Diagram
A
B
220V/50Hz
1.1.1 HID Electromagnetic Ballast (with thermal protector)
1.1 HID Electromagnetic Ballast
Features:
• Full voltage range offering for Asia countries
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• With thermal protection to prevent overheat of ballast at the end of lamp life
• Low loss, low temperature rise, superior silicon steel sheet, 180°C copper wire
• Compact size, suitable for various fixture design, easy installation
• PF>0.9 with capacitor (working with standard lamp)
Applications:
• Roadway, Tunnel
• Factory, Warehouse
• Architect flood lighting, Sports
• Department store, High Bay
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
110
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
78671 MSB35/220V/60Hz/T 220V/60Hz MH 35W 108 86 60 36 52 R3 8 7 255*150*170
28810 MSB70/220V/60Hz/T 220V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
78672 MSB100/220V/60Hz/T 220V/60Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
28812 MSB150/220V/60Hz/T 220V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28814 MSB250/220V/60Hz/T 220V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
78673 MSB400/220V/60Hz/T 220V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
99720 MSB1000/220V/60Hz/T 220V/60Hz HPS/MH 1000W 200 178 114 81 97 R3 2 17.6 260*220*115
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
78671 MSB35/220V/60Hz/T 0.53 0.30 0.23 6 8 45 MSI/400 70 170
28810 MSB70/220V/60Hz/T 0.98 0.60 0.43 12 14 86 MSI/400 70 130
78672 MSB100/220V/60Hz/T 1.20 0.87 0.58 12 17 114 MSI/400 70 170
28812 MSB150/220V/60Hz/T 1.80 1.12 0.86 20 21 170 MSI/400 70 130
28814 MSB250/220V/60Hz/T 3.00 1.88 1.39 32 35 276 MSI/400 70 130
78673 MSB400/220V/60Hz/T 4.60 2.97 2.20 50 54 436 MSI/400 70 170
99720 MSB1000/220V/60Hz/T 10.30 6.73 5.38 100 98 1065 MSI/1000 80 130
220V/60Hz
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28789 MSB35/230V/50Hz/T 230V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 250*150*170
95859T MSB50/230V/50Hz/T 230V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.7 250*150*170
28790 MSB70/230V/50Hz/T 230V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 250*150*170
28796 MSB100/230V/50Hz/T 230V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.7 250*150*170
28797 MSB150/230V/50Hz/T 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11 250*150*170
28798 MSB250/230V/50Hz/T 230V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.8 260*175*170
95864C MSB400/230V/50Hz/T 230V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
95866T MSB600/230V/50Hz/T 230V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
99721 MSB1000/230V/50Hz/T 230V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 19.3 260*220*115
25819T MHB80/230V/50Hz/T 230V/50Hz HPM 80W 108 86 60 36 52 R3 8 9 255*150*170
25822T MHB125/230V/50Hz/T 230V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25823T MHB250/230V/50Hz/T 230V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 13.2 255*150*170
95865C MHB400/230V/50Hz/T 230V/50Hz HPM/MH 400W 155 133 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28789 MSB35/230V/50Hz/T 0.53 0.28 0.23 6 9 45 MSI/400 70 130 A
95859T MSB50/230V/50Hz/T 0.76 0.41 0.30 8 13 60 MSI/400 70 130 A
28790 MSB70/230V/50Hz/T 0.98 0.58 0.43 12 15 86 MSI/400 70 130 A
28796 MSB100/230V/50Hz/T 1.2 0.78 0.58 12 18 114 MSI/400 70 130 A
28797 MSB150/230V/50Hz/T 1.8 1.08 0.86 20 22 170 MSI/400 70 130 A
28798 MSB250/230V/50Hz/T 3 1.82 1.40 32 37 278 MSI/400 70 130 A
95864C MSB400/230V/50Hz/T 4.6 2.97 2.20 50 45 436 MSI/400 70 130 A
95866T MSB600/230V/50Hz/T 6.2 4.40 3.26 60 69 645 MSI/1000 80 130 A
99721 MSB1000/230V/50Hz/T 10.3 6.46 5.38 100 104 1065 MSI/1000 for HPS 80 130 A
9.5 6.46 5.38 100 104 1065 MSI/1000 for MH 80 130 A
25819T MHB80/230V/50Hz/T 0.8 0.68 0.45 8 12 90 N/A 70 130 B
25822T MHB125/230V/50Hz/T 1.15 1.07 0.71 10 19 140 N/A 70 130 B
25823T MHB250/230V/50Hz/T 2.15 2.04 1.36 20 23 270 N/A for HPM 70 130 B
2.1 2.04 1.36 20 23 270 MSI/400 for MH 70 130 A
95865C MHB400/230V/50Hz/T 3.25 3.24 2.16 25 33 428 N/A for HPM 70 130 B
3.25 3.24 2.16 25 33 428 MSI/400 for MH 70 130 A
230V/50Hz
Dimension (mm)
Wiring Diagram
A
B
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
111
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28815 MSB70/230V/60Hz/T 230V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 9 255*150*170
28817 MSB150/230V/60Hz/T 230V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28818 MSB250/230V/60Hz/T 230V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.8 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28815 MSB70/230V/60Hz/T 0.98 0.57 0.42 12 15 86 MSI/400 70 130
28817 MSB150/230V/60Hz/T 1.80 1.11 0.82 20 22 170 MSI/400 70 130
28818 MSB250/230V/60Hz/T 3.00 1.88 1.34 32 37 278 MSI/400 70 130
230V/60Hz Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28800 MSB35/240V/50Hz/T 240V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 255*150*170
28801 MSB70/240V/50Hz/T 240V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.4 255*150*170
28807 MSB100/240V/50Hz/T 240V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
28808 MSB150/240V/50Hz/T 240V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28809 MSB250/240V/50Hz/T 240V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 18.3 260*175*170
95874C MSB400/240V/50Hz/T 240V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.7 210*190*198
99722 MSB1000/240V/50Hz/T 240V/50Hz HPS/MH 1000W 220 198 114 81 97 R3 2 21.4 260*240*115
95875C MHB400/240V/50Hz/T 240V/50Hz HPM/MH 400W 160 138 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28819 MSB70/240V/60Hz/T 240V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.7 255*150*170
28821 MSB150/240V/60Hz/T 240V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 10.9 255*150*170
28823 MSB250/240V/60Hz/T 240V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.3 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28819 MSB70/240V/60Hz/T 0.98 0.52 0.40 12 16 86 MSI/400 70 130
28821 MSB150/240V/60Hz/T 1.80 1.08 0.80 20 23 173 MSI/400 70 130
28823 MSB250/240V/60Hz/T 3.00 1.68 1.29 32 39 278 MSI/400 70 130
240V/60Hz
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28800 MSB35/240V/50Hz/T 0.53 0.28 0.21 6 10 45 MSI/400 70 130 A
28801 MSB70/240V/50Hz/T 0.98 0.56 0.40 12 16 86 MSI/400 70 130 A
28807 MSB100/240V/50Hz/T 1.20 0.77 0.53 12 19 114 MSI/400 70 130 A
28808 MSB150/240V/50Hz/T 1.80 1.03 0.79 20 23 171 MSI/400 70 130 A
28809 MSB250/240V/50Hz/T 3.00 1.68 1.29 32 39 278 MSI/400 70 130 A
95874C MSB400/240V/50Hz/T 4.60 2.83 2.02 50 60 436 MSI/400 70 130 A
99722 MSB1000/240V/50Hz/T 10.30 6.16 4.93 100 111 1065 MSI/400 80 130 A
95875C MHB400/240V/50Hz/T 3.25 3.17 1.98 25 36 428 N/A for HPM 70 130 B
3.25 3.17 1.98 25 36 428 MSI/400 for MH 70 130 A
240V/50Hz
Dimension (mm)
Wiring Diagram
A
B
Dimension (mm)
Wiring Diagram
112
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating Temp
(°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
99719 MHB2000/380V/50Hz/T 11.3 8.49 6.29 60 164 2150 MSI/2000 85 130
99723 MHB2000/380V/60Hz/T 11.3 7.98 6.14 60 164 2100 MSI/2000 85 130
99724 MHB2000/400V/50Hz/T 11.3 8.75 5.83 60 164 2100 MSI/2000 80 130
99725 MHB2000/415V/50Hz/T 11.3 8.43 5.62 60 185 2100 MSI/2000 80 130
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Picture Dimensions (mm) Carton
Quantity (PCS)
Carton
Weight (Kg)
Package Size
(mm)
A B C D E F G H
99719 MHB2000/380V/50Hz/T 380V/50Hz SPL 2000W A235 213 127 94 112 R3 - - 1 15.7 255*150*135
99723 MHB2000/380V/60Hz/T 380V/60Hz SPL 2000W A235 213 127 94 112 R3 - - 1 15.8 255*150*135
99724 MHB2000/400V/50Hz/T 400V/50Hz SPL 2000W B153 125 98 176 148 147 195 R4 1 17.5 260*175*170
99725 MHB2000/415V/50Hz/T 415V/50Hz SPL 2000W B153 125 98 176 148 147 195 R4 1 18.9 260*175*170
(others)
Dimension (mm)
Wiring Diagram
A
B
113
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981 MSB35/220V/50Hz 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982 MSB50/220V/50Hz 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
70983 MSB70/220V/50Hz 220V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9 255*150*170
70986 MSB100/220V/50Hz 220V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.4 255*150*170
70987 MSB150/220V/50Hz 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
70988 MSB250/220V/50Hz 220V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
70989 MSB400/220V/50Hz 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
70991 MSB600/220V/50Hz 220V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
70992 MSB1000/220V/50Hz 220V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 18 260*220*115
25816 MHB80/220V/50Hz 220V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25817 MHB125/220V/50Hz 220V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25818 MHB250/220V/50Hz 220V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12 255*150*170
70990 MHB400/220V/50Hz 220V/50Hz HPM/MH 400W 150 104 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981 MSB35/220V/50Hz 0.53 0.30 0.23 6 8 45 MSI/400 70 A
70982 MSB50/220V/50Hz 0.76 0.39 0.30 8 12 60 MSI/400 70 A
70983 MSB70/220V/50Hz 0.98 0.56 0.43 12 14 86 MSI/400 70 A
70986 MSB100/220V/50Hz 1.2 0.78 0.58 12 17 114 MSI/400 70 A
70987 MSB150/220V/50Hz 1.8 1.12 0.86 20 21 170 MSI/400 70 A
70988 MSB250/220V/50Hz 3 1.82 1.40 32 35 277 MSI/400 70 A
70989 MSB400/220V/50Hz 4.6 3.08 2.20 50 54 435 MSI/400 70 A
70991 MSB600/220V/50Hz 6.2 4.58 3.27 60 65 647 MSI/1000 80 A
70992 MSB1000/220V/50Hz 10.3 6.46 5.38 100 98 1065 MSI/1000 80 A
25816 MHB80/220V/50Hz 0.8 0.70 0.45 8 11 90 N/A 70 B
25817 MHB125/220V/50Hz 1.25 1.10 0.71 10 18 140 N/A 70 B
25818 MHB250/220V/50Hz 2.15 2.12 1.37 18 21 272 N/A for HPM 70 B
2.1 2.12 1.37 18 21 272 MSI/400 for MH 70 A
70990 MHB400/220V/50Hz 3.25 3.35 2.16 25 31 428 N/A for HPM 70 B
3.25 3.35 216.00 25 31 428 MSI/400 for MH 70 A
220V/50Hz
1.1.2 HID Electromagnetic Ballast (without thermal protector)
Dimension (mm)
Wiring Diagram
A
B
Features:
• Full voltage range offering for Asia countries
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• Low loss, low temperature rise, superior silicon steel sheet, 180°C copper wire
• Compact size, suitable for various fixture design, easy installation
• PF>0.9 with capacitor (working with standard lamp)
Applications:
• Roadway, Tunnel
• Factory, Warehouse
• Architect flood lighting, Sports
• Department store, High Bay
Certifications & Regulations:
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
114
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
78669 MSB35/220V/60Hz 220V/60Hz MH 35W 108 86 60 36 52 R3 8 7 255*150*170
11212 MSB70/220V/60Hz 220V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
78670 MSB100/220V/60Hz 220V/60Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
11215 MSB150/220V/60Hz 220V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
11221 MSB250/220V/60Hz 220V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
11222 MSB400/220V/60Hz 220V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
25827 MHB400/220V/60Hz 220V/60Hz HPM/MH 400W 150 128 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
78669 MSB35/220V/60Hz 0.53 0.30 0.23 6 8 45 MSI/400 70 A
11212 MSB70/220V/60Hz 0.98 0.60 0.43 12 14 86 MSI/400 70 A
78670 MSB100/220V/60Hz 1.20 0.87 0.58 12 17 114 MSI/400 70 A
11215 MSB150/220V/60Hz 1.80 1.12 0.86 20 21 170 MSI/400 70 A
11221 MSB250/220V/60Hz 3.00 1.88 1.39 32 35 276 MSI/400 70 A
11222 MSB400/220V/60Hz 4.60 2.97 2.20 50 54 436 MSI/400 70 A
25827 MHB400/220V/60Hz 3.25 3.35 2.16 25 31 427 N/A for HPM 70 B
3.25 3.35 2.16 25 31 427 MSI/400 for MH 70 A
220V/60Hz
Dimension (mm)
Wiring Diagram
A
B
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95858 MSB35/230V/50Hz 230V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 250*150*170
95859 MSB50/230V/50Hz 230V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.7 250*150*170
95860 MSB70/230V/50Hz 230V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 250*150*170
95861 MSB100/230V/50Hz 230V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.7 250*150*170
95862 MSB150/230V/50Hz 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11 250*150*170
95863 MSB250/230V/50Hz 230V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.8 260*175*170
95864 MSB400/230V/50Hz 230V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
95866 MSB600/230V/50Hz 230V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
95867 MSB1000/230V/50Hz 230V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 19.3 260*220*115
25819 MHB80/230V/50Hz 230V/50Hz HPM 80W 108 86 60 36 52 R3 8 9 255*150*170
25822 MHB125/230V/50Hz 230V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25823 MHB250/230V/50Hz 230V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 13.2 255*150*170
95865 MHB400/230V/50Hz 230V/50Hz HPM/MH 400W 155 133 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95858 MSB35/230V/50Hz 0.53 0.28 0.23 6 9 45 MSI/400 70 A
95859 MSB50/230V/50Hz 0.76 0.41 0.30 8 13 60 MSI/400 70 A
95860 MSB70/230V/50Hz 0.98 0.58 0.43 12 15 86 MSI/400 70 A
95861 MSB100/230V/50Hz 1.2 0.78 0.58 12 18 114 MSI/400 70 A
95862 MSB150/230V/50Hz 1.8 1.08 0.86 20 22 170 MSI/400 70 A
95863 MSB250/230V/50Hz 3 1.82 1.40 32 37 278 MSI/400 70 A
95864 MSB400/230V/50Hz 4.6 2.97 2.20 50 45 436 MSI/400 70 A
95866 MSB600/230V/50Hz 6.2 4.40 3.26 60 69 645 MSI/1000 80 A
95867 MSB1000/230V/50Hz 10.3 6.46 5.38 100 104 1065 MSI/1000 for HPS 80 A
9.5 6.46 5.38 100 104 1065 MSI/1000 for MH 80 A
25819 MHB80/230V/50Hz 1.15 0.68 0.45 8 12 90 N/A 70 B
25822 MHB125/230V/50Hz 1.25 1.07 0.71 10 19 140 N/A 70 B
25823 MHB250/230V/50Hz 2.15 2.04 1.36 20 23 270 N/A for HPM 70 B
2.15 2.04 1.36 20 23 270 MSI/400 for MH 70 A
95865 MHB400/230V/50Hz 3.25 3.24 2.16 25 33 428 N/A for HPM 70 B
3.25 3.24 2.16 25 33 428 MSI/400 for MH 70 A
230V/50Hz
Dimension (mm)
Wiring Diagram
A
B
115
Dimension (mm)
Wiring Diagram
A
B
Dimension (mm)
Wiring Diagram
A
B
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95868 MSB35/240V/50Hz 240V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 255*150*170
95869 MSB50/240V/50Hz 240V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
95870 MSB70/240V/50Hz 240V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.4 255*150*170
95871 MSB100/240V/50Hz 240V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
95872 MSB150/240V/50Hz 240V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
95873 MSB250/240V/50Hz 240V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 18.3 260*175*170
95874 MSB400/240V/50Hz 240V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.7 210*190*198
95876 MSB600/240V/50Hz 240V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
95877 MSB1000/240V/50Hz 240V/50Hz HPS/MH 1000W 200 198 114 81 97 R3 2 21.4 260*240*115
25824 MHB80/240V/50Hz 240V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25825 MHB125/240V/50Hz 240V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25826 MHB250/240V/50Hz 240V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12 255*150*170
95875 MHB400/240V/50Hz 240V/50Hz HPM/MH 400W 160 138 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95868 MSB35/240V/50Hz 0.53 0.30 0.23 6 9 45 MSI/400 70 A
95869 MSB50/240V/50Hz 0.76 0.39 0.30 8 13 60 MSI/400 70 A
95870 MSB70/240V/50Hz 0.98 0.56 0.43 12 16 86 MSI/400 70 A
95871 MSB100/240V/50Hz 1.20 0.78 0.58 12 19 114 MSI/400 70 A
95872 MSB150/240V/50Hz 1.80 1.12 0.86 20 23 171 MSI/400 70 A
95873 MSB250/240V/50Hz 3.00 1.82 1.40 32 39 278 MSI/400 70 A
95874 MSB400/240V/50Hz 4.60 3.08 2.20 50 60 436 MSI/400 70 A
95876 MSB600/240V/50Hz 6.20 4.58 3.27 60 73 647 MSI/1000 80 A
95877 MSB1000/240V/50Hz 10.30 6.46 5.38 100 111 1065 MSI/1000 for HPS 80 A
9.50 6.46 5.38 100 111 1065 MSI/1000 for MH 80 A
25824 MHB80/240V/50Hz 0.80 0.70 0.45 8 13 90 N/A 70 B
25825 MHB125/240V/50Hz 1.25 1.10 0.71 10 20 140 N/A 70 B
25826 MHB250/240V/50Hz 2.15 2.12 1.37 18 25 272 N/A for HPM 70 B
2.10 2.12 1.37 18 25 272 MSI/400 for MH 70 A
95875 MHB400/240V/50Hz 3.25 3.35 2.16 25 36 428 N/A for HPM 70 B
3.25 3.35 2.16 25 36 428 MSI/400 for MH 70 A
240V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11049 MSB70/230V/60Hz 230V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
11050 MSB150/230V/60Hz 230V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
11053 MSB250/230V/60Hz 230V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
11223 MSB400/230V/60Hz 230V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
25828 MHB400/230V/60Hz 230V/60Hz HPM/MH 400W 150 128 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11049 MSB70/230V/60Hz 0.98 0.567 0.42 12 15 86 MSI/400 70 A
11050 MSB150/230V/60Hz 1.80 1.107 0.82 20 22 170 MSI/400 70 A
11053 MSB250/230V/60Hz 3.00 1.876 1.34 32 37 278 MSI/400 70 A
11223 MSB400/230V/60Hz 4.60 3.08 2.2 50 57 435 MSI/400 70 A
25828 MHB400/230V/60Hz 3.25 3.348 2.16 25 33 428 N/A for HPM 70 B
3.25 3.348 2.16 25 33 428 MSI/400 for MH 70 A
230V/60Hz
116
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11224 MSB70/240V/60Hz 240V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.7 255*150*170
11225 MSB150/240V/60Hz 240V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 10.9 255*150*170
11226 MSB250/240V/60Hz 240V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.3 260*175*170
11227 MSB400/240V/60Hz 240V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
25839 MHB400/240V/60Hz 240V/60Hz HPS/MH 400W 150 128 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11224 MSB70/240V/60Hz 0.98 0.52 0.40 12 14 86 MSI/400 70
11225 MSB150/240V/60Hz 1.80 1.08 0.80 20 23 173 MSI/400 70
11226 MSB250/240V/60Hz 3.00 1.68 1.29 32 39 278 MSI/400 70
11227 MSB400/240V/60Hz 4.60 3.08 2.20 50 60 435 MSI/400 70
25839 MHB400/240V/60Hz 3.25 3.35 2.16 25 36 428 MSI/400 70
240V/60Hz
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
89192 MHB1000/380V/50Hz 380V/50Hz SPL 1000W 185 163 114 81 97 R3 2 25.4 285*220*135
89191 MHB1500/380V/50Hz 380V/50Hz SPL 1500W 200 178 127 94 112 R3 2 17.2 260*220*115
89190 MHB2000/380V/50Hz 380V/50Hz SPL 2000W 235 213 127 94 112 R3 1 15.1 255*150*135
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
89192 MHB1000/380V/50Hz 4.2 4.65 3.10 21 60 1050 MSI/2000 80
89191 MHB1500/380V/50Hz 6.7 7.35 4.90 35 86 1680 MSI/2000 80
89190 MHB2000/380V/50Hz 10.3 9.15 6.10 60 130 2100 MSI/2000 80
380V/50Hz
Dimension (mm)
Wiring Diagram
117
1.1.3 CSI Electromagnetic Ballast
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Picture Dimensions (mm) Carton
Quantity (PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F G H
99664 CSI 1000/220V/50Hz 220V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.5 260*175*170
89186 CSI 1000/220V/60Hz 220V/60Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.4 260*175*170
89187 CSI 1000/230V/50Hz 230V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.6 260*175*170
89188 CSI 1000/230V/60Hz 230V/60Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.5 260*175*170
89189 CSI 1000/240V/50Hz 240V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.7 260*175*170
CSI Electromagnetic Ballast
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp
(°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
99664 CSI 1000/220V/50Hz 15 6.3 5.5 160 119 1090 MSI/1000/CSI 80 CCC, CB
89186 CSI 1000/220V/60Hz 15 6.2 5.4 160 119 1090 MSI/1000/CSI 80 CB
89187 CSI 1000/230V/50Hz 15 6.0 5.2 160 126 1090 MSI/1000/CSI 80 CCC, CB
89188 CSI 1000/230V/60Hz 15 6.0 5.2 160 126 1090 MSI/1000/CSI 80 CB
89189 CSI 1000/240V/50Hz 15 5.8 5.0 160 132 1090 MSI/1000/CSI 80 CCC, CB
Features:
• Designed for CSI/CID MH Lamp
• Full voltage range offering for Asia countries
• Long life, high reliability, Tw 130°C
• Low loss, low temperature rise, superior silicon steel sheet, 180°C copper wire
• PF>0.9 with capacitor (working with standard lamp)
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
118
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
1.1.4 HID Electromagnetic Ballast (Al Line)
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
65869 MSB35/220V/50Hz/A/T 220V/50Hz MH 35W 117 95 60 36 52 R3 8 6.9 255*150*170
65870 MSB50/220V/50Hz/A/T 220V/50Hz HPS 50W 117 95 60 36 52 R3 8 9 255*150*170
65871 MSB70/220V/50Hz/A/T 220V/50Hz HPS/MH 70W 117 95 60 36 52 R3 8 9.5 255*150*170
65872 MSB100/220V/50Hz/A/T 220V/50Hz HPS/MH 100W 140 118 60 36 52 R3 6 11.8 260*175*170
65873 MSB150/220V/50Hz/A/T 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 15.5 255*150*170
65874 MSB250/220V/50Hz/A/T 220V/50Hz HPS/MH 250W 155 133 75 45 64.5 R3 4 20.8 260*175*170
65875 MSB400/220V/50Hz/A/T 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 2 19.3 210*190*198
65876 MSB600/220V/50Hz/A/T 220V/50Hz HPS 600W 200 178 96 61 82 R3 8 12.4 240*220*104
65877 MHB50/220V/50Hz/A/T 220V/50Hz HPM 50W 117 95 60 36 52 R3 8 8.5 255*150*170
65878 MHB80/220V/50Hz/A/T 220V/50Hz HPM 80W 117 95 60 36 52 R3 8 9 255*150*170
65879 MHB125/220V/50Hz/A/T 220V/50Hz HPM 125W 140 118 60 36 52 R3 8 11.6 260*175*170
65880 MHB175/220V/50Hz/A/T 220V/50Hz HPM/MH 175W 126 104 75 45 64.5 R3 6 8.9 255*150*170
65881 MHB250/220V/50Hz/A/T 220V/50Hz HPM/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
65882 MHB400/220V/50Hz/A/T 220V/50Hz HPM/MH 400W 160 138 75 45 64.5 R3 6 17.9 260*175*170
65883 MSB100/70/220V/50Hz/A/T 220V/50Hz HPS 100W 126 104 75 45 64.5 R3 6 9.6 255*150*170
65884 MSB150/100/220V/50Hz/A/T 220V/50Hz HPS 150W 150 128 75 45 64.5 R3 6 14.1 260*175*170
65885 MSB250/150/220V/50Hz/A/T 220V/50Hz HPS 250W 165 143 96 61 82 R3 4 13.3 210*190*198
65886 MSB400/250/220V/50Hz/A/T 220V/50Hz HPS 400W 200 178 96 61 82 R3 2 12.3 240*220*104
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
65869 MSB35/220V/50Hz/A/T 0.53 0.30 0.25 6 9.3 46 MSI/150 or MSI/400 70 A
65870 MSB50/220V/50Hz/A/T 0.76 0.42 0.32 8 10 60 MSI/150 or MSI/400 70 A
65871 MSB70/220V/50Hz/A/T 0.98 0.60 0.46 12 16 86 MSI/150 or MSI/400 70 A
65872 MSB100/220V/50Hz/A/T 1.2 0.82 0.63 12 17 117 MSI/150 or MSI/400 70 A
65873 MSB150/220V/50Hz/A/T 1.8 1.20 0.92 20 22 172 MSI/150 or MSI/400 70 A
65874 MSB250/220V/50Hz/A/T 3 1.95 1.50 32 30 280 MSI/400 80 A
65875 MSB400/220V/50Hz/A/T 4.6 3.04 2.34 50 37 437 MSI/400 70 A
65876 MSB600/220V/50Hz/A/T 6.2 4.52 3.48 60 50 650 MSI/1000 80 A
65877 MHB50/220V/50Hz/A/T 0.62 0.46 0.32 8 10 60 N/A 70 B
65878 MHB80/220V/50Hz/A/T 0.8 0.71 0.49 8 11 91 N/A 70 B
65879 MHB125/220V/50Hz/A/T 1.15 1.09 0.75 10 15 140 N/A 70 B
65880 MHB175/220V/50Hz/A/T 1.5 1.49 1.03 12 17 192 N/A 70 B
65881 MHB250/220V/50Hz/A/T 2.1 2.13 1.47 20 24 274 MSI/400 for MH 70 A
2.15 2.13 1.47 20 24 274 N/A for HPM 70 B
65882 MHB400/220V/50Hz/A/T 3.25 3.35 2.31 28 32 432 MSI/400 for MH 80 A
3.25 3.35 2.31 28 32 432 N/A for HPM 80 B
65883 MSB100/70/220V/50Hz/A/T 1.2/1.0 0.75 0.62/0.43 12 17 117/86 MSI/400 70 C
65884 MSB150/100/220V/50Hz/A/T 1.8/1.4 1.10 0.92/0.68 20 22 172/120 MSI/400 70 C
65885 MSB250/150/220V/50Hz/A/T 3.0/2.2 1.80 1.49/0.90 32 30 280/178 MSI/400 70 C
65886 MSB400/250/220V/50Hz/A/T 4.6/3.6 2.80 2.33/1.43 50 37 437/285 MSI/400 70 C
220V/50Hz
Applications:
• Roadway, Tunnel
• Architect flood lighting, Sports
• Department store, High Bay
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
A
B
C
Features:
• Different voltage range for 220V/50Hz, 230V/50Hz
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• With thermal protection to prevent overheat of ballast at the end
of lamp life
• Low loss, low temperature rise, superior silicon steel sheet, 180°C
copper wire
• Compact size, suitable for various fixture design, easy installation
• PF>0.9 with capacitor (working with standard lamp)
119
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
65890 MSB35/230V/50Hz/A/T 230V/50Hz MH 35W 117 95 60 36 52 R3 8 8.5 255*150*170
65891 MSB50/230V/50Hz/A/T 230V/50Hz HPS 50W 117 95 60 36 52 R3 8 9 255*150*170
65892 MSB70/230V/50Hz/A/T 230V/50Hz HPS/MH 70W 117 95 60 36 52 R3 8 9.8 255*150*170
65893 MSB100/230V/50Hz/A/T 230V/50Hz HPS/MH 100W 140 118 60 36 52 R3 8 12.9 260*175*170
65894 MSB150/230V/50Hz/A/T 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 12.2 255*150*170
65895 MSB250/230V/50Hz/A/T 230V/50Hz HPS/MH 250W 165 143 96 61 82 R3 4 12.6 260*175*170
65896 MSB400/230V/50Hz/A/T 230V/50Hz HPS/MH 400W 170 148 96 61 82 R3 4 10.3 210*190*198
65897 MSB600/230V/50Hz/A/T 230V/50Hz HPS 600W 200 178 96 61 82 R3 2 12.8 240*220*104
65898 MHB50/230V/50Hz/A/T 230V/50Hz HPM 50W 117 95 60 36 52 R3 8 8.5 255*150*170
65899 MHB80/230V/50Hz/A/T 230V/50Hz HPM 80W 117 95 60 36 52 R3 8 9.5 255*150*170
65900 MHB125/230V/50Hz/A/T 230V/50Hz HPM 125W 140 118 60 36 52 R3 8 11 260*175*170
65901 MHB175/230V/50Hz/A/T 230V/50Hz HPM 175W 126 104 75 45 64.5 R3 6 11.1 255*150*170
65902 MHB250/230V/50Hz/A/T 230V/50Hz HPM/MH 250W 150 128 75 45 64.5 R3 6 14.3 260*175*170
65904 MHB400/230V/50Hz/A/T 230V/50Hz HPM/MH 400W 165 143 96 61 82 R3 4 12.6 260*175*170
65905 MSB100/70/230V/50Hz/A/T 230V/50Hz HPS 100W 126 104 75 45 64.5 R3 6 10.2 255*150*170
65906 MSB150/100/230V/50Hz/A/T 230V/50Hz HPS 150W 150 128 75 45 64.5 R3 6 14.9 260*175*170
65907 MSB250/150/230V/50Hz/A/T 230V/50Hz HPS 250W 165 143 96 61 82 R3 4 14.3 210*190*198
65908 MSB400/250/230V/50Hz/A/T 230V/50Hz HPS 400W 200 178 96 61 82 R3 2 12.3 240*220*104
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
65890 MSB35/230V/50Hz/A/T 0.53 0.280 0.230 6 9.3 46 MSI/150 or MSI/400 70 A
65891 MSB50/230V/50Hz/A/T 0.76 0.390 0.300 8 10 60 MSI/150 or MSI/400 70 A
65892 MSB70/230V/50Hz/A/T 0.98 0.550 0.420 12 16 86 MSI/150 or MSI/400 70 A
65893 MSB100/230V/50Hz/A/T 1.2 0.750 0.580 12 17 117 MSI/150 or MSI/400 70 A
65894 MSB150/230V/50Hz/A/T 1.8 1.110 0.850 20 22 172 MSI/150 or MSI/400 70 A
65895 MSB250/230V/50Hz/A/T 3 1.790 1.380 32 30 280 MSI/400 70 A
65896 MSB400/230V/50Hz/A/T 4.6 2.810 2.160 50 37 437 MSI/400 70 A
65897 MSB600/230V/50Hz/A/T 6.2 4.170 3.210 60 50 650 MSI/1000 80 A
65898 MHB50/230V/50Hz/A/T 0.62 0.440 0.300 8 10 60 N/A 70 B
65899 MHB80/230V/50Hz/A/T 0.8 0.650 0.450 8 11 91 N/A 70 B
65900 MHB125/230V/50Hz/A/T 1.15 1.000 0.690 10 15 140 N/A 70 B
65901 MHB175/230V/50Hz/A/T 1.5 1.380 0.950 12 17 192 N/A 70 B
65902 MHB250/230V/50Hz/A/T 2.13 1.960 1.350 20 24 274 MSI/400 for MH 70 A
2.13 1.960 1.350 20 24 274 N/A for HPM 70 B
65904 MHB400/230V/50Hz/A/T 3.25 3.090 2.130 25 32 432 MSI/400 for MH 70 A
3.25 3.090 2.130 25 32 432 N/A for HPM 70 B
65905 MSB100/70/230V/50Hz/A/T 1.2/1.0 0.690 0.58/0.41 12 17 117/86 MSI/400 70 C
65906 MSB150/100/230V/50Hz/A/T 1.8/1.4 1.020 0.85/0.57 20 22 172/120 MSI/400 70 C
65907 MSB250/150/230V/50Hz/A/T 3.0/2.2 1.660 1.38/0.85 32 30 280/178 MSI/400 70 C
65908 MSB400/250/230V/50Hz/A/T 4.6/3.6 2.590 2.16/1.37 50 37 437/285 MSI/400 70 C
230V/50Hz
Dimension (mm)
Wiring Diagram
A
B
C
120
Dimension (mm)
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Mounting
(mm)
Case
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
Case
A B C D E
70993 6μF/250V 6 250V/50-60Hz M8 -40~100 62 12 350 30 M8 80 5.7 453*292*184 A
70994 8μF/250V 8 250V/50-60Hz M8 -40~100 62 12 350 30 M8 80 5.7 453*292*184 A
82017 10μF/250V 10 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.1 453*292*184 A
70995 12μF/250V 12 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.18 453*292*184 A
70996 18μF/250V 18 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.66 453*292*184 A
71009 25μF/250V 25 250V/50-60Hz M8 -40~100 82 12 350 45 M8 40 6.2 453*292*184 A
70997 32μF/250V 32 250V/50-60Hz M8 -40~100 82 12 350 45 M8 40 6.42 453*292*184 A
72090 36μF/250V 36 250V/50-60Hz M8 -40~100 92 12 350 50 M8 40 8.15 453*292*184 A
70998 50μF/250V 50 250V/50-60Hz M8 -40~100 92 12 350 50 M8 40 8.37 453*292*184 A
89197 25μF/540V 25 540V/50-60Hz M8 -40~105 105 10 250 55 M8 28 8.4 453*292*184 B
89200 35μF/540V 35 540V/50-60Hz M8 -40~105 105 10 250 60 M8 28 9.4 453*292*184 B
Capacitor with line
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
1. IEC Electromagnetic Ballast & Control Gear for HID Lamp
1.2.1 Capacitor with line
1.2 HID Capacitor
1.2.2 Capacitor with clamp
Features:
• Working with HID Electromagnetic Ballast
• Plastic case, over temperature protection device
• Easy installation with 25cm length heat-resistance wiring
• Wide ambient temperature range: -40°C-105°C
Features:
• Working with HID Electromagnetic Ballast
• Clamp connector, suitable for various situation
• Self-healing, low loss
• Highly reliable aluminum case, anti-explosion design
• Wide ambient temperature range: -40°C-105°C
Dimension (mm)
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Mounting
(mm)
Case
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28243 6μF/250V/C 6 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 80 9.6 453*292*184
28244 8μF/250V/C 8 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 80 9.5 453*292*184
28246 10μF/250V/C 10 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 40 9.5 453*292*184
28253 12μF/250V/C 12 250V/50-60Hz M8 -40~105 73 10 12 40 M8 16 40 6 453*292*184
28255 18μF/250V/C 18 250V/50-60Hz M8 -40~105 83 10 12 40 M8 16 40 6.5 453*292*184
28256 25μF/250V/C 25 250V/50-60Hz M8 -40~105 83 10 12 45 M8 18 40 7.5 453*292*184
28257 32μF/250V/C 32 250V/50-60Hz M8 -40~105 93 10 12 45 M8 18 40 8.5 453*292*184
28258 50μF/250V/C 50 250V/50-60Hz M8 -40~105 103 10 12 50 M8 18 40 10 453*292*184
Capacitor with clamp
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
121
1.3 Ignitor
Ignitor
Product
Code
Description Voltage/
Frequency
Lamp Type Lamp Wattage Max load
Capacitor(pF)
Max current
(A)
Wiring
Diagram
65954 MSI/150 220V-240V/50-60Hz HPS/MH 35-150W 20 2 A
11233 MSI/400 220V-240V/50-60Hz HPS/MH 35-400W 150 5 A
11234 MSI/1000 220V-240V/50-60Hz HPS/MH 600-1000W/575-1000W 150 12 A
11235 MSI/400/L 220V-240V/50-60Hz HPS/MH 35-400W 150 5 A
95883 MSI/1000/L 220V-240V/50-60Hz HPS/MH 600-1000W/575-1000W 1000 12 A
81303* MSIA1000 220V-240V/50-60Hz S52 1000W 1000 12 B
89193 MSI/1000/CSI/Aluminum 220V-240V/50-60Hz CSI 1000W 100 18 A
89195 MSI/2000 380V/50Hz HPS/MH 1000W/1000-2000W 100 12 A
Product
Code
Dimensions (mm) Max casing temperature
(°C)
Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
Certication
Picture A B C D E
65954 C 17 51 12 29 32 105 100 15 385*190*180 CQC
11233 A 65 82 32 29 - 105 100 15.8 385*190*180 CQC, CE
11234 A 76 93 48 40 - 105 50 18.5 270*225*240 CQC
11235 A 65 82 32 29 - 105 100 15.8 385*190*180 CQC
95883 A 76 93 48 40 - 105 50 18.5 270*225*240 CQC
81303* A 65 82 32 29 - 105 100 12.3 385*210*210 CQC
89193 B 20 85 14 M12 60 105 36 27.5 385*260*210 CE
89195 B 21 75 70 M8 50 105 50 19.3 283*230*280 CE
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61347-2-1, IEC 61347-1
Features:
• Interactive multi-pulse design to guarantee lamp start
• Ignite both HPS and MH Lamp
• Series connection, safe design by preventing harm to ballast during ignition
• Max case temperature: 105°C
• MSI series
MSI 400, for ballast wattage <=400W;
MSI 1000, for ballast wattage <=1000W;
• MSI/L series, Long Distance Ignitor
MSI 400/L, for ballast wattage <=400W;
MSI 1000/L, for ballast wattage <=1000W;
Dimension (mm)
Wiring Diagram
A
A
B
B
C
* Suitable for the CWA1000 Lamp
* Suitable for the CWA1000 Lamp
122
2. Bi-Level for HPS Electromagnetic System
Centralized control
• Bi-level Ballast
• Ignitor
• Capacitor
• Power Switch
• Timer
Feature
• Lamp group control mode
• Auto/Manual Switch, adjustable transition timing
• Need control line (embedded)
Certifications & Regulations:
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max
Loss
(W)
System
Power
(W)
Ignitor* Temp
Rise
(K)
Max
Operating
Temp (°C)
Certication
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
89165 MSB100/70/220V/50Hz/T 1.2/0.98 0.70/0.56 0.59/0.42 12 17/14 116/84 MSI/400 70 130 CCC, CB
89160 MSB150/100/220V/50Hz/T 1.8/1.4 1.03/0.77 0.86/0.57 20 21/16 170/116 MSI/400 70 130 CCC, CB
89155 MSB250/150/220V/50Hz/T 3/2.5 1.69/1.16 1.40/0.86 32 35/24 278/174 MSI/400 70 130 CCC, CB
89144 MSB400/250/220V/50Hz/T 4.6/3.4 2.64/1.89 2.20/1.40 50 54/40 435/283 MSI/400 70 130 CCC, CB
89168 MSB100/70/220V/60Hz/T 1.2/0.98 0.70/0.56 0.59/0.42 12 17/14 116/84 MSI/400 70 130 CB
89163 MSB150/100/220V/60Hz/T 1.8/1.4 1.03/0.77 0.86/0.57 20 21/16 170/116 MSI/400 70 130 CB
99658 MSB250/150/220V/60Hz/T 3/2.5 1.69/1.16 1.40/0.86 32 35/24 278/174 MSI/400 70 130 CB
89153 MSB400/250/220V/60Hz/T 4.6/3.4 2.64/1.89 2.20/1.40 50 54/40 435/283 MSI/400 70 130 CB
89166 MSB100/70/230V/50Hz/T 1.2/0.98 0.67/0.54 0.56/0.40 12 18/15 116/84 MSI/400 70 130 CB
89161 MSB150/100/230V/50Hz/T 1.8/1.4 0.99/0.74 0.82/0.55 20 22/17 170/116 MSI/400 70 130 CB
89156 MSB250/150/230V/50Hz/T 3/2.5 1.61/1.11 1.34/0.82 32 27/28 278/174 MSI/400 70 130 CB
89151 MSB400/250/230V/50Hz/T 4.6/3.4 2.52/1.80 2.10/1.33 50 57/42 435/283 MSI/400 70 130 CB
89169 MSB100/70/230V/60Hz/T 1.2/0.98 0.67/0.54 0.56/0.40 12 18/15 116/84 MSI/400 70 130 CB
89164 MSB150/100/230V/60Hz/T 1.8/1.4 0.99/0.74 0.82/0.55 20 22/17 170/116 MSI/400 70 130 CB
99659 MSB250/150/230V/60Hz/T 3/2.25 1.61/1.11 1.34/0.82 32 37/28 278/174 MSI/400 70 130 CB
89154 MSB400/250/230V/60Hz/T 4.6/3.4 2.52/1.80 2.10/1.33 50 57/42 435/283 MSI/400 70 130 CB
89167 MSB100/70/240V/50Hz/T 1.2/0.98 0.64/0.51 0.54/0.38 12 19/16 116/84 MSI/400 70 130 CB
99660 MSB150/100/240V/50Hz/T 1.8/1.4 0.94/0.71 0.79/0.53 20 23/18 170/116 MSI/400 70 130 CB
89157 MSB250/150/240V/50Hz/T 3/2.5 1.54/1.06 1.29/0.79 32 39/29 278/174 MSI/400 70 130 CB
89152 MSB400/250/240V/50Hz/T 4.6/3.4 2.42/1.73 2.00/1.29 50 60/44 435/283 MSI/400 70 130 CB
Bi-Level Electromagnetic Ballast
Dimension (mm)
*Ignitor details in HID Ignitor Group
Features:
• Auto/Manual switch
• Save energy and money by lowing down the wattage of the HPS
lamp in appropriate period of time
• Two different control methods and systems
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
Systems
Systems Independent control
• Bi-level Ballast
• Ignitor
• Capacitor
• Power Switch
Feature
• Preset timer for single lamp, wattage transition after 5 hours (cus-
tomization available)
• Simple system, no extra controls and wirings
• Accurate wattage transition time control, easy operation and main-
tenance.
Wiring Diagram
123
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
89165 MSB100/70/220V/50Hz/T 220V/50Hz HPS 100W 126 104 75 45 64 R3 6 10.8 255*150*170
89160 MSB150/100/220V/50Hz/T 220V/50Hz HPS 150W 126 104 75 45 64 R3 6 13.7 255*150*170
89155 MSB250/150/220V/50Hz/T 220V/50Hz HPS 250W 130 108 96 61 82 R3 4 12.8 210*190*205
89144 MSB400/250/220V/50Hz/T 220V/50Hz HPS 400W 145 123 114 81 97 R3 2 10.4 260*185*115
89168 MSB100/70/220V/60Hz/T 220V/60Hz HPS 100W 126 104 75 45 64 R3 6 10.7 255*150*170
89163 MSB150/100/220V/60Hz/T 220V/60Hz HPS 150W 126 104 75 45 64 R3 6 13.4 255*150*170
99658 MSB250/150/220V/60Hz/T 220V/60Hz HPS 250W 130 108 96 61 82 R3 4 12.7 210*190*205
89153 MSB400/250/220V/60Hz/T 220V/60Hz HPS 400W 145 123 114 81 97 R3 2 10.3 260*185*115
89166 MSB100/70/230V/50Hz/T 230V/50Hz HPS 100W 126 104 75 45 64 R3 6 10.9 255*150*170
89161 MSB150/100/230V/50Hz/T 230V/50Hz HPS 150W 126 104 75 45 64 R3 6 13.6 255*150*170
89156 MSB250/150/230V/50Hz/T 230V/50Hz HPS 250W 130 108 96 61 82 R3 4 13.1 210*190*205
89151 MSB400/250/230V/50Hz/T 230V/50Hz HPS 400W 145 123 114 81 97 R3 2 10.5 260*185*115
89169 MSB100/70/230V/60Hz/T 230V/60Hz HPS 100W 126 104 75 45 64 R3 6 10.8 255*150*170
89164 MSB150/100/230V/60Hz/T 230V/60Hz HPS 150W 126 104 75 45 64 R3 6 13.7 255*150*170
99659 MSB250/150/230V/60Hz/T 230V/60Hz HPS 250W 130 108 96 61 82 R3 4 12.8 210*190*205
89154 MSB400/250/230V/60Hz/T 230V/60Hz HPS 400W 145 123 114 81 97 R3 2 10.4 260*185*115
89167 MSB100/70/240V/50Hz/T 240V/50Hz HPS 100W 126 104 75 45 64 R3 6 11.4 255*150*170
99660 MSB150/100/240V/50Hz/T 240V/50Hz HPS 150W 126 104 75 45 64 R3 6 14 255*150*170
89157 MSB250/150/240V/50Hz/T 240V/50Hz HPS 250W 130 108 96 61 82 R3 4 13.2 210*190*205
89152 MSB400/250/240V/50Hz/T 240V/50Hz HPS 400W 145 123 114 81 97 R3 2 11.3 260*185*115
Product
Code
Description Loss
(W)
Max Operating
Temp (°C)
Dimension
Diagram
Wiring
Diagram
Dimensions (mm) Carton
Quantity(PCS)
Carton
Weight (Kg)
Package
Size (mm)
A B C D E F
89170 MSB/Dual/PS 3 80 A D 132 102 10 M8 φ45 - 50 18.6 283*242*265
75251 MSB/Dual/PS/Timer 3 80 B E 65 75 84 M8 32 29 100 10 385*190*180
89176 Timer/PS 3 -30~50 C F 125 70 50 - - - 1 0.354 125*70*157
Bi-Level Electromagnetic Ballast
Power Switch/Timer
Dimension (mm)
Wiring Diagram
A
A
B C
B C
124
3.1 CWA Electromagnetic Ballast
Dimension (mm)
Wiring Diagram
Features:
• GE special design
• Stable power output , excellent choice for high line voltage fluctuation areas
• PF>0.9 with capacitor
• Low start current, minimized disturbing to line voltage
• Ignitor not required, saving cost for system
Applications:
• Factory, Warehouse
• Architect flood lighting, Sports
• Harbor, Square
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
10987 CWA175/220V/50Hz 1.5 0.88 1.03 13 38 210 N/A 75
10988 CWA250/220V/50Hz 2.1 1.22 1.44 19 45 295 N/A 80
10989 CWA400/220V/50Hz 3.25 1.89 2.23 28 58 458 N/A 80
10991 CWA1000/220V/50Hz 4.1 4.50 5.30 30 85 1085 N/A 80
10992 CWA1500/220V/50Hz 6.2 6.70 7.90 41 125 1625 N/A 80
220V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
10987 CWA175/220V/50Hz 220V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.7 210*190*250
10988 CWA250/220V/50Hz 220V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 10.2 260*185*115
10989 CWA400/220V/50Hz 220V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
10991 CWA1000/220V/50Hz 220V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
10992 CWA1500/220V/50Hz 220V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95878 CWA175/230V/50Hz 1.5 0.830 0.98 13 38 210 N/A 80
95879 CWA250/230V/50Hz 2.1 1.170 1.38 19 45 295 N/A 80
95880 CWA400/230V/50Hz 3.25 1.830 2.15 28 60 460 N/A 80
95881 CWA1000/230V/50Hz 4.1 4.300 5.07 30 85 1085 N/A 80
95882 CWA1500/230V/50Hz 6.2 6.500 7.64 41 135 1635 N/A 90
230V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95878 CWA175/230V/50Hz 230V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.4 210*190*250
95879 CWA250/230V/50Hz 230V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 8.6 260*185*115
95880 CWA400/230V/50Hz 230V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
95881 CWA1000/230V/50Hz 230V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
95882 CWA1500/230V/50Hz 230V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
3. CWA Electromagnetic Ballast & Control Gear for HID Lamp
125
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11228 CWA175/240V/50Hz 1.5 0.85 0.94 13 35 210 N/A 80
11229 CWA250/240V/50Hz 2.1 1.10 1.32 19 45 295 N/A 80
11230 CWA400/240V/50Hz 3.25 1.75 2.06 28 60 460 N/A 80
11231 CWA1000/240V/50Hz 4.1 4.10 4.86 30 85 1085 N/A 80
11232 CWA1500/240V/50Hz 6.2 6.50 7.30 41 135 1635 N/A 90
240V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11228 CWA175/240V/50Hz 240V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.4 210*190*250
11229 CWA250/240V/50Hz 240V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 8.6 260*185*115
11230 CWA400/240V/50Hz 240V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
11231 CWA1000/240V/50Hz 240V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
11232 CWA1500/240V/50Hz 240V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor* Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
81302 CWA1000/S52/220V/50Hz 4.7 4.20 5.20 30 115 1100 MSIA/1000 80
85922 CWA1000/S52/220V/60Hz 4.7 3.60 5.10 26 105 1085 MSIA/1000 80
85923 CWA1000/S52/230V/50Hz 4.7 4.00 5.00 30 115 1100 MSIA/1000 80
85926 CWA1000/S52/230V/60Hz 4.7 3.40 4.90 26 105 1085 MSIA/1000 80
85921 CWA1000/S52/240V/50Hz 4.7 3.80 4.80 30 115 1100 MSIA/1000 80
CWA1000
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
Package Size
(mm)
A B C D E F
81302 CWA1000/S52/220V/50Hz 220V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.4 14 210*190*160
85922 CWA1000/S52/220V/60Hz 220V/60Hz ANSI HPS 1000W 95 150 108 98 136 152 1 12.67 12.27 210*190*160
85923 CWA1000/S52/230V/50Hz 230V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.01 13.71 210*190*160
85926 CWA1000/S52/230V/60Hz 230V/60Hz ANSI HPS 1000W 95 150 108 98 136 152 1 12.63 12.23 210*190*160
85921 CWA1000/S52/240V/50Hz 240V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.07 13.67 210*190*160
*Ignitor details in HID Ignitor Group
126
3. CWA Electromagnetic Ballast & Control Gear for HID Lamp
Dimension (mm)
Features:
• Working with HID Electromagnetic Ballast
• Highly reliable aluminum case, anti-explosion design
• Easy installation with 25cm length heat-resistance wiring
• Wide ambient temperature range: -40°C-105°C
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Case Temp
(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E
10993 13μF/540V 13 540V/50~60Hz -40~105 95 10 250 45 M8 40 8 453*292*184
10994 19μF/540V 19 540V/50~60Hz -40~105 95 10 250 50 M8 40 10 453*292*184
10995 28μF/540V 28 540V/50~60Hz -40~105 105 10 250 55 M8 28 8.5 453*292*184
10996 30μF/540V 30 540V/50~60Hz -40~105 115 10 250 55 M8 28 9 453*292*184
10997 41μF/540V 41 540V/50~60Hz -40~105 115 10 250 60 M10 28 10.5 453*292*184
89625 26μF/540V 26 540V/50~60Hz -40~105 105 10 250 55 M8 28 8 453*292*184
Capacitor with line
3.2.1 Capacitor with line
3.2 CWA Capacitor
3.2.2 Capacitor with clamp
Capacitor with clamp
Dimension (mm)
Features:
• Working with HID Electromagnetic Ballast
• Clamp connector, suitable for various situation
• Self-healing, low loss
• Highly reliable aluminum case, anti-explosion design
• Wide ambient temperature range: -40°C-105°C
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Case Temp
(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
31599 13μF/540V/C 13 540V/50~60Hz -40~105 93 10 12 45 M8 18 40 8 453*292*184
31614 19μF/540V/C 19 540V/50~60Hz -40~105 93 10 12 50 M8 18 40 10 453*292*184
31625 28μF/540V/C 28 540V/50~60Hz -40~105 103 10 12 55 M8 20 28 8.5 453*292*184
31638 30μF/540V/C 30 540V/50~60Hz -40~105 113 10 12 55 M8 20 28 9 453*292*184
31647 41μF/540V/C 41 540V/50~60Hz -40~105 113 10 12 60 M10 20 28 10.5 453*292*184
Capacitor with clamp
127
4. Electronic Ballast for HID Lamp
Features:
• Bright new design with more compact size, ideal
selection for delicate lighting fixtures and various
system needs, maximum flexibility to lighting design
• Up to 15% energy saving vs. standard magnetic control gear, and
up to 70% energy savings vs. standard HAL/transformer system
• Flicker-free to bring lighting comfort and excellence
• Constant electronically controlled output to resist fluctuations of
line voltage and prolong lamp life
• High power factor, low power loss, ‘Green’ product
• Potting technology to enhance thermal emission performance and
to prolong ballast life
• Lamp EOL (End of life) shutdown protection, and short circuit
protection
• Working with GE star product CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
• Airport
Certifications & Regulations:
• CQC, CE, CB, S-MARK, KC
• Harmonic: IEC 61000-3-2 , IEC 61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC 61347-1
• Housing meets UL94V0 flame retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead to neutral/common or
earth/safety ground
• The ballast case temperature must be less than the
indicated Tc temperature
• Neutral line is required to be flawlessly connected when
use AC power
Product
Code
Description Input Power
(W)
Input Current
(A)
SPower Factor
(PF)
EEI Tc Point
(°C)
Ambient
Temperature
Range (°C)
THD Case
78711 BLS/E/20W/CMH 23 0.1 0.95 A2 80 -20~55 <15% A
78712 BLS/E/20W/CMH/R CC 23 0.1 0.95 A2 80 -20~55 <15% B
78713 BLS/E/20W/CMH/R LP 23 0.1 0.95 A2 80 -20~55 <15% C
78714 BLS/E/35W/CMH 44 0.19 0.95 A2 85 -20~55 <15% A
78715 BLS/E/35W/CMH/R CC 44 0.19 0.95 A2 85 -20~55 <15% B
78716 BLS/E/35W/CMH/R LP 44 0.19 0.95 A2 85 -20~55 <15% C
Miniature eHID
Product
Code
Description Lamp
Type
Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
78711 BLS/E/20W/CMH CMH 20W 1 220-240V/50-60Hz 97.3 43.3 30 12 165
78712 BLS/E/20W/CMH/R CC CMH 20W 1 220-240V/50-60Hz 162 43.3 30 12 180
78713 BLS/E/20W/CMH/R LP CMH 20W 1 220-240V/50-60Hz 162 43.3 30 12 240
78714 BLS/E/35W/CMH CMH 35W 1 220-240V/50-60Hz 97.3 43.3 30 12 165
78715 BLS/E/35W/CMH/R CC CMH 35W 1 220-240V/50-60Hz 162 43.3 30 12 180
78716 BLS/E/35W/CMH/R LP CMH 35W 1 220-240V/50-60Hz 162 43.3 30 12 240
Case
Wiring Diagram
A
B
C
NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 6-7 mm
4.1 Miniature eHID
128
128
Features:
• GE designed eHID product brings both guaranteed
long life and compact size, to give the most mainte-
nance-free system and excellent design flexibility.
• Up to 15% energy saving vs. standard magnetic
control gear, and up to 70% energy savings vs.
standard HAL/transformer system
• Flicker-free to bring lighting comfort and excellence
• Constant electronically controlled output to resist fluctuations of
line voltage and prolong lamp life
• High power factor, low power loss, ‘Green’ product
• Potting technology to enhance thermal emission performance and
to prolong ballast life
• Lamp EOL (End of life) shutdown protection, and short circuit
protection
• Working with GE star product CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
• Airport
4. Electronic Ballast for HID Lamp
4.2 Standard eHID
Certifications & Regulations:
• CQC, CE, CB, S-MARK, KC
• Harmonic: IEC 61000-3-2 , IEC 61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC 61347-1
• Housing meets UL94V0 flame retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead to neutral/common or earth/
safety ground
• The ballast case temperature must be less than the indicated Tc
temperature
• Neutral line is required to be flawlessly connected when use AC
power
NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 6-7 mm
Wiring Diagram
Case
A
B
Product Code Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
61487 BLS/ES/35W/CMH CMH/QMH 35W 1 220-240V/50-60Hz 110 70 31 10 350
61488 BLS/ES/35W/CMH/R CC CMH/QMH 35W 1 220-240V/50-60Hz 140 70 31 10 370
61376 BLS/ES/70W/CMH CMH/QMH 70W 1 220-240V/50-60Hz 110 70 31 10 350
61569 BLS/ES/70W/CMH/R CC CMH/QMH 70W 1 220-240V/50-60Hz 140 70 31 10 370
Product Code Description Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Ambient Temperature
Range (°C)
Case
61487 BLS/ES/35W/CMH 44 0.19 0.95 < 10% A2 85 -20~55 A
61488 BLS/ES/35W/CMH/R CC 44 0.19 0.95 < 10% A2 85 -20~50 B
61376 BLS/ES/70W/CMH 81 0.35 0.95 < 10% A2 85 -20~55 A
61569 BLS/ES/70W/CMH/R CC 81 0.35 0.95 < 10% A2 85 -20~50 B
Standard eHID
129
Features:
• Bright new design with more compact size, ideal
selection for delicate lighting fixtures and various
system needs, maximum flexibility to lighting design
• Up to 15% energy saving vs. standard magnetic control gear, and
up to 70% energy savings vs. standard HAL/transformer system
• Flicker-free to bring lighting comfort and excellence
• Constant electronically controlled output to resist fluctuations of
line voltage and prolong lamp life
• High power factor, low power loss, ‘Green’ product
• Potting technology to enhance thermal emission performance and
to prolong ballast life
• Lamp EOL (End of life) shutdown protection, and short circuit
protection
• Working with GE star product CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
Certifications & Regulations:
• CQC, CE, CB
• Harmonic: IEC 61000-3-2 , IEC 61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC 61347-1
• Housing meets UL94V0 flame retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead to neutral/common or
earth/safety ground
• The ballast case temperature must be less than the
indicated Tc temperature
• Neutral line is required to be flawlessly connected when
use AC power
Case
Wiring Diagram
NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 8.5-9.5 mm
Product Code Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
64581 BLS/EE/35W/CMH CMH/QMH 35W 1 220-240V/50-60Hz 110 70 31 10 300
64582 BLS/EE/70W/CMH CMH/QMH 70W 1 220-240V/50-60Hz 110 70 31 10 310
Product Code Description Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point (°C) Ambient Temperature
Range (°C)
64581 BLS/EE/35W/CMH 44 0.19 0.95 < 10% A2 75 -20~55
64582 BLS/EE/70W/CMH 80 0.35 0.95 < 10% A2 75 -20~55
Economics eHID
4.3 Economics eHID
130
Features:
• Pre-heated start ballasts increase lamp life significantly, especially
when used in frequent on/off applications
• High power factor up to 0.98, low THD (<10%), ide-
ally suitable for mega public buildings like airport,
subway and railway stations
• ‘Green’ product, Energy Efficiency Index meets A2 class
• High frequency operation, Flicker-free to bring lighting comfort
• Working with T5 LFL to offer efficient and long life Linear lighting
system solution
• Lamp EOL (End of Life) shutdown protection and re-lamp auto
restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 50,000 hours
5. IElectronic Ballast for T5 LFL
5.1 High Performance T5 Electronic Ballast
Wiring Diagram
Product Code Description Lamp Type Lamp Wattage Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
61386 ELB114S T5 14W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61387 ELB214S T5 14W 2 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61395 ELB314S T5 14W 3 220-240V/50-60Hz 360 348.5 30 27 4.5 30 350
61396 ELB414S T5 14W 4 220-240V/50-60Hz 288 276.5 30 27 4.5 30 290
61394 ELB121S T5 21W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61388 ELB128S T5 28W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61389 ELB228S T5 28W 2 220-240V/50-60Hz 288 276.5 30 27 4.5 30 290
61390 ELB328S T5 28W 3 220-240V/50-60Hz 425 413.5 30 26 4.5 20 420
61391 ELB135S T5 35W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61392 ELB235S T5 35W 2 220-240V/50-60Hz 359 347.5 30 21 4.5 30 320
62107 ELB149S T5 49W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 280
62108 ELB249S T5 49W 2 220-240V/50-60Hz 359 347.5 30 27 4.5 30 340
61393 ELB154S T5 54W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61385 ELB254/258S T5 54/58W* 2 220-240V/50-60Hz 359 347.5 30 27 4.5 30 330
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
61386 ELB114S Preheat Start 16.5 0.07 0.98 < 10% A2 70 -15~50 A
61387 ELB214S Preheat Start 31.5 0.14 0.98 < 10% A2 70 -15~50 B
61395 ELB314S Preheat Start 48 0.21 0.98 < 10% A2 70 -15~50 C
61396 ELB414S Preheat Start 62 0.27 0.98 < 10% A2 70 -15~50 F
61394 ELB121S Preheat Start 24 0.11 0.98 < 10% A2 70 -15~50 A
61388 ELB128S Preheat Start 31.5 0.14 0.98 < 10% A2 70 -15~50 A
61389 ELB228S Preheat Start 62 0.27 0.98 < 10% A2 70 -15~50 B
61390 ELB328S Program Start 92 0.41 0.98 < 10% A2 70 -15~50 E
61391 ELB135S Preheat Start 38 0.17 0.98 < 10% A2 70 -15~50 A
61392 ELB235S Program Start 77 0.34 0.98 < 10% A2 70 -15~50 B
62107 ELB149S Preheat Start 53 0.23 0.98 < 10% A2 70 -15~50 A
62108 ELB249S Program Start 106 0.46 0.98 < 10% A2 70 -15~50 D
61393 ELB154S Preheat Start 57 0.25 0.98 < 10% A2 70 -15~50 A
61385 ELB254/258S Program Start 105 0.45 0.98 < 10% A2 70 -15~50 D
High Performance T5 Electronic Ballast
Dimension (mm)
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3,
IEC 61347-1
* Work with both T5 54W and T8 58W lamp
131
Features:
• Metal case design with good thermal performance and high reli-
ability
• High power factor 0.98
• Lamp EOL (End of Life) shutdown protection and re-lamp auto
restarting
• Working with T5 LFL to offer efficient and stable Linear lighting
system solution
• High frequency operation, Flicker-free to bring lighting comfort
• Rated voltage 220~240Vac, 50/60Hz
• Design life 20,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Product Code Description Lamp Type Lamp
Wattage
Number of
Lamps
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
62623 ELB114E T5 14W 1 220-240V/50~60Hz 265 254 30.5 29 4.5 20 260
62624 ELB214E T5 14W 2 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62625 ELB314E T5 14W 3 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62626 ELB414E T5 14W 4 220-240V/50~60Hz 280 270 42 29 4.5 20 380
62627 ELB121E T5 21W 1 220-240V/50~60Hz 264 254 30.5 29 4.5 20 260
62630 ELB224E T5 24W 2 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62628 ELB128E T5 28W 1 220-240V/50~60Hz 264 254 30.5 29 4.5 20 260
62629 ELB228E T5 28W 2 220-240V/50~60Hz 362 352 30.5 30 4.5 20 320
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Ambient Temperature
Range (°C))
Wiring
Diagram
62623 ELB114E Instant Start 15.5 0.07 0.98 < 15% A3 70 -10~50 A
62624 ELB214E Instant Start 32 0.14 0.98 < 15% A3 70 -10~50 B
62625 ELB314E Instant Start 46 0.21 0.98 < 15% A3 70 -10~50 D
62626 ELB414E Instant Start 64 0.29 0.98 < 15% A3 70 -10~50 E
62627 ELB121E Instant Start 24 0.11 0.98 < 15% A3 70 -10~50 A
62630 ELB224E Instant Start 52 0.23 0.98 < 15% A3 70 -10~50 C
62628 ELB128E Instant Start 31 0.14 0.98 < 15% A3 70 -10~50 A
62629 ELB228E Instant Start 61 0.27 0.98 < 15% A3 70 -10~50 B
Economic Electronic T5 Ballast
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
5.2 Economic Electronic T5 Ballast
Dimension (mm) Wiring Diagram
132
6. Ballast for T8/T10 LFL
Dimension (mm) Wiring Diagram
Features:
• Pre-heated start ballasts increase lamp life significantly, especially
when used in frequent on/off applications
• High power factor , low THD
• High frequency operation, Flicker-free to bring lighting comfort
• Working with T8/T10 LFL to offer efficient and long life Linear light-
ing system solution
• Lamp EOL (End of Life) shutdown protection and re-lamp auto
restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 30,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Product Code Description Lamp
Type
Lamp
Wattage*
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
61378 ELB118S T8/T10 18W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61379 ELB218S T8/T10 18W 2 220-240V/50~60Hz 288 276.5 30 27 4.5 30 250
61380 ELB318S T8/T10 18W 3 220-240V/50~60Hz 360 348.5 30 27 4.5 30 330
61381 ELB136S T8/T10 36W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61382 ELB236S T8/T10 36W 2 220-240V/50~60Hz 288 276.5 30 27 4.5 30 250
61383 ELB336S T8/T10 36W 3 220-240V/50~60Hz 360 348.5 30 27 4.5 30 380
61384 ELB158S T8/T10 58W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61385 ELB254/258S T8/T10 54/58W** 2 220-240V/50~60Hz 359 347.5 30 27 4.5 30 330
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
61378 ELB118S Preheat Start 18 0.08 0.98 < 10% A3 70 -10~50 A
61379 ELB218S Preheat Start 36 0.16 0.98 < 10% A3 70 -10~50 B
61380 ELB318S Instant Start 54 0.24 0.98 < 10% A3 70 -10~50 C
61381 ELB136S Preheat Start 36 0.16 0.98 < 10% A3 70 -10~50 A
61382 ELB236S Preheat Start 72 0.32 0.98 < 10% A3 70 -10~50 B
61383 ELB336S Instant Start 108 0.48 0.98 < 10% A3 70 -10~50 C
61384 ELB158S Preheat Start 57 0.26 0.98 < 10% A3 70 -10~50 A
61385 ELB254/258S Program Start 105 0.45 0.98 < 10% A3 70 -10~50 D
High Performance T8/T10 Electronic Ballast
*T8 lamp wattage
*Work with both T5 54W and T8 58W lamp
6.1 High Performance T8/T10 Electronic Ballast
133
6. Ballast for T8/T10 LFL
6.2 Economic T8/T10 Electronic Ballast
Features:
• Metal case design with good thermal performance and high reliability
• High power factor 0.98
• Lamp EOL (End of Life) shutdown protection and re-lamp auto
restarting
• Working with T8/T10 LFL to offer efficient and stable Linear lighting
system solution
• High frequency operation, Flicker-free to bring lighting comfort
• Rated voltage 220~240Vac, 50/60Hz
• Design life 20,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Dimension (mm) Wiring Diagram
Product
Code
Description Lamp
Type
Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
62640 ELB118E T8/T10 18W 1 220-240V/50-60Hz 264 254 30.5 29 4.5 20 260
62641 ELB218E T8/T10 18W 2 220-240V/50-60Hz 264 254 30.5 29 4.5 20 260
62642 ELB318E T8/T10 18W 3 220-240V/50-60Hz 280 270 38 29 4.5 20 350
62643 ELB418E T8/T10 18W 4 220-240V/50-60Hz 280 270 42 29 4.5 20 380
62644 ELB136E T8/T10 36W 1 220-240V/50-60Hz 264 254 30.5 29 4.5 20 230
62645 ELB236E T8/T10 36W 2 220-240V/50-60Hz 280 270 38 29 4.5 20 295
Product
Code
Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
62640 ELB118E Instant Start 18.5 0.08 0.98 < 15% A3 70 -10~50 A
62641 ELB218E Instant Start 36 0.16 0.98 < 15% A3 70 -10~50 B
62642 ELB318E Instant Start 54 0.24 0.98 < 15% A3 70 -10~50 D
62643 ELB418E Instant Start 70 0.31 0.98 < 15% A3 70 -10~50 E
62644 ELB136E Instant Start 36 0.16 0.98 < 15% A3 70 -10~50 A
62645 ELB236E Instant Start 72 0.32 0.98 < 15% A3 70 -10~50 C
Economic Electronic Ballast For T8/T10 LFL
134
6. Ballast for T8/T10 LFL
6.3 High Performance T8/T10 Electromagnetic Ballast
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76509 MB15/220V/50Hz 130 150 130 41 26.5 55 20 10.5 10.2
76510 MB18/20/220V/50Hz 130 150 130 41 26.5 55 20 10.22 9.92
76511 MB30/220V/50Hz 130 150 130 41 26.5 60 20 11.12 10.82
76512 MB36/40/220V/50Hz 130 150 130 41 26.5 65 20 12.08 11.78
76514 MB58/65/220V/50Hz 130 190 170 41 26.5 110 20 18.82 18.52
76515 MB22/220V/50Hz 130 150 130 41 26.5 62 20 11.38 11.08
76516 MB32/220V/50Hz 130 150 130 41 26.5 65 20 11.94 11.64
Dimension (mm) Wiring Diagram
Features:
• Stable power output , excellent choice for high line voltage
fluctuation areas
• Fireproof materials ensures safe and reliable operation
• Low Loss, efficient
• Vacuum saturation technology, keep noise level within 25db
• Rated voltage 220,50Hz
• Temp rise:△t55°C, Tw130°C
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Product
Code
Description Voltage/Frequency Lamp
Type
Lamp
Wattage
Power
Factor
Capacitor
(μF)
Max Loss
(W)
Temp
Rise(K)
76509 MB15/220V/50Hz 220V/50Hz T8/T10 15W 0.33 4 8 55
76510 MB18/20/220V/50Hz 220V/50Hz T8/T10 18/20W 0.33 4 8 55
76511 MB30/220V/50Hz 220V/50Hz T8/T10 30W 0.45 4 9 55
76512 MB36/40/220V/50Hz 220V/50Hz T8/T10 36/40W 0.51 4.7 9 55
76514 MB58/65/220V/50Hz 220V/50Hz T8/T10 58/65W 0.51 6 11 55
76515 MB22/220V/50Hz 220V/50Hz T8/T10 22W 0.33 4 9 55
76516 MB32/220V/50Hz 220V/50Hz T8/T10 32W 0.45 5 9 55
High Performance T8/T10 Electromagnetic Ballast
135
6.4 Standard Performance T8/T10 Electromagnetic Ballast
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76517 EMB18/20/220V/50Hz 120 150 130 41 26.5 55 20 10.32 10.02
76518 EMB30/220V/50Hz 120 150 130 41 26.5 60 20 11.04 10.74
76519 EMB36/40/220V/50Hz 120 150 130 41 26.5 65 20 12.02 11.72
76520 EMB22/220V/50Hz 120 150 130 41 26.5 62 20 11.4 11.1
76521 EMB32/220V/50Hz 120 150 130 41 26.5 65 20 11.9 11.6
Dimension (mm) Wiring Diagram
Features:
• Fireproof materials ensures safe and reliable operation
• Stable power output , excellent choice for high line voltage
fluctuation areas
• Vacuum saturation technology, keep noise level within 25db
• Rated voltage 220,50Hz
• Temp rise:△t55°C, Tw130°C
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Power
Factor
Capacitor
(μF)
Max Loss
(W)
Temp Rise
(K)
76517 EMB18/20/220V/50Hz 220V/50Hz T8/T10 18/20W 0.33 4 8 60
76518 EMB30/220V/50Hz 220V/50Hz T8/T10 30W 0.45 4 8.5 60
76519 EMB36/40/220V/50Hz 220V/50Hz T8/T10 36/40W 0.51 4.7 9 60
76520 EMB22/220V/50Hz 220V/50Hz T8/T10 22W 0.33 4 9 60
76521 EMB32/220V/50Hz 220V/50Hz T8/T10 32W 0.45 4.4 9 60
Standard Performance T8/T10 Electromagnetic Ballast
136
6. Ballast for T8/T10 LFL
6.5 Starter
Features:
• Voltage: 220-240V
• Lamp wattage: 4-65W/4-22W
• Starters: 20,000
Certifications & Regulations:
• VDE, UL, CE
Product
Code
Description Voltage
(V)
Wattage
(W)
Case Carton Quantity
(PCS)
Carton Weight
(Kg)
Avg. cycle life
(switching cycles)
Package
24975 Starter FU 10 (155/500 4-65W 220-240V) 220-240 4-65 PP 1500 12 8000 color
81024 FU10 155/500 4W-65W 220-240V 220-240 4-65 PP 1500 12 8000 color
81850 STARTERS FU10 155/500 4-65W 220-240V PC 220-240 4-65 PC 1500 12 8000 Industrial
89698 STARTERS FU10 155/200 4-22W 220-240V Series RoHS 220-240 4-22 PC 1500 12 8000 color
89699 STARTERS FU10 155/200 4-22W 220-240V Series 220-240 4-22 PC 2000 15 8000 Industrial
Lamp type Lamp Wattage (W) Nominal Dimension (mm)
T5 Linear
4 16*150
6 16*225
8 16*300
13 16*525
T8 Linear
15 26*450
18 26*600
30 26*900
36 26*1200
58 26*1500
T10 Linear 20 32*600
40 32*1200
T12 Linear
20 38*600
40 38*1200
65 38*1500
Circular
22 28*210
32 28*298
40 28*400
Lamp type Lamp Wattage (W) Nominal Dimension (mm)
T5 Linear
4 16*150
6 16*225
8 16*300
T8 Linear 15 26*450
18 26*600
T10 Linear 20 32*600
T12 Linear 20 38*600
Circular 22 28*210
Starter
155/500 (4-65W) Starter suitable for lamps 155/500 (4-22W) Starter suitable for lamps
137
Features:
• Stable power output , excellent choice for high line voltage
fluctuation areas
• Low temperate rise, long life design
• Low Loss, efficient
• Working with plug-in CFL 2 pin
• Vacuum saturation technology, keep noise level within 25db
• Fireproof materials ensures safe and reliable operation
• Compact size, easy for installation
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Dimension (mm) Wiring Diagram
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76522 EMB10/220V/50Hz 120 86 66 41 26.5 33 40 13.26 12.96
76523 EMB13/220V/50Hz 120 86 66 41 26.5 33 40 13.22 12.92
76524 EMB18/220V/50Hz 120 86 66 41 26.5 33 40 16.5 16.2
Product
Code
Description Voltage/Frequency Lamp Type Lamp
Wattage
Power
Factor
Capacitor
(μF)
Loss
(W)
Temp Rise
(K)
76522 EMB10/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 10W 0.35 2 5 60
76523 EMB13/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 13W 0.48 2 6 60
76524 EMB18/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 18W 0.40 2 7 60
Plug-in CFL Electromagnetic Ballast
7.1 Plug-in CFL Electromagnetic Ballast
7. Ballast for Plug-in CFL
138
7. Ballast for Plug-in CFL
Dimension (mm) Wiring Diagram
Product
Code
Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L1 L2 W W1 H
62660 CEB110E Plug-in CFL 4pin 10W 1 220V/50-60Hz 103 91 80 74 33 30 140
62662 CEB111E Plug-in CFL 4pin 11W 1 220V/50-60Hz 103 91 80 74 33 30 140
62663 CEB211E Plug-in CFL 4pin 11W 2 220V/50-60Hz 103 91 80 74 33 30 180
79050 CEB113E Plug-in CFL 4pin 13W 1 220V/50-60Hz 103 91 80 74 33 30 150
79051 CEB213E Plug-in CFL 4pin 13W 2 220V/50-60Hz 103 91 80 74 33 30 150
79052 CEB118E Plug-in CFL 4pin 18W 1 220V/50-60Hz 103 91 80 74 33 30 140
79053 CEB218E Plug-in CFL 4pin 18W 2 220V/50-60Hz 103 91 80 74 33 30 160
62661 CEB210E Plug-in CFL 4pin 20W 2 220V/50-60Hz 103 91 80 74 33 20 180
62666 CEB126E Plug-in CFL 4pin 26W 1 220V/50-60Hz 103 91 80 74 33 30 150
62667 CEB226E Plug-in CFL 4pin 26W 2 220V/50-60Hz 103 91 80 74 33 30 190
62668 CEB132E Plug-in CFL 4pin 32W 1 220V/50-60Hz 103 91 80 74 33 30 135
62669 CEB232E Plug-in CFL 4pin 32W 2 220V/50-60Hz 103 91 80 74 33 30 290
Product
Code
Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
62660 CEB110E Instant Start 11 0.05 0.98 < 15% A3 70 -10~50 A
62662 CEB111E Instant Start 12.5 0.06 0.98 < 15% A3 70 -10~50 A
62663 CEB211E Instant Start 24 0.11 0.98 < 15% A3 70 -10~50 B
79050 CEB113E Instant Start 14 0.07 0.98 < 15% A3 70 -10~50 A
79051 CEB213E Instant Start 28 0.13 0.98 < 15% A3 70 -10~50 B
79052 CEB118E Instant Start 18 0.09 0.98 < 15% A3 70 -10~50 A
79053 CEB218E Instant Start 36 0.17 0.98 < 15% A3 70 -10~50 B
62661 CEB210E Instant Start 23 0.11 0.98 < 15% A3 70 -10~50 B
62666 CEB126E Instant Start 27 0.13 0.98 < 15% A3 70 -10~50 A
62667 CEB226E Instant Start 52 0.24 0.98 < 15% A3 70 -10~50 B
62668 CEB132E Instant Start 32 0.15 0.98 < 15% A3 70 -10~50 A
62669 CEB232E Instant Start 64 0.3 0.98 < 15% A3 70 -10~50 B
Plug-in CFL Electronic Ballast
Features:
• High power factor 0.98
• Working with plug-in CFL to offer efficient and stable Linear lighting
system solution
• High frequency operation, Flicker-free to bring lighting comfort
• Lamp EOL (End of Life) shutdown protection and re-lamp auto
restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 20,000 hours
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-1, IEC 61347-2-3
7.2 Plug-in CFL Electronic Ballast
139
8. 12V Electronic Transformer
Product
Code
Description Laod Range
(W)
THD Input Voltage Range for
Safety Operation (V)
Input Power
(W)
Max Power loss
(W)
Power
Factor
Operating
Frequency (KHz)
Dimmer Dimming
range
65631 SET60LV 20-60 < 15% 176-264 58.5 4 0.97 40-55 Traiing edge 20-60W
65632 SET60LTD 20-60 < 15% 176-264 58.5 4 0.97 40-55 Traiing&Leading edge 20-60W
Dimension (mm) Wiring Diagram
Max distance between transformer and the lamp is: 2m
Terminal wire cross section: 0.75-1.5mm2
Features:
• Terminal connector to shorten operation lead time
• Brand new design of compact size, idea selection for delicate light-
ing fixture
• High efficiency, high reliability
• High power factor, low THD
• Design life 20,000 hours
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
Certifications & Regulations:
• CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-1, IEC 61347-2-3
Product
Code
Description Lamp
Type
Lamp Wattage
(W)
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
A B C D
65631 SET60LV Halogen 20W-60W 220V-240V 50/60Hz 109 40 20.5 103.6 50 76
65632 SET60LTD Halogen 20W-60W 220V-240V 50/60Hz 109 40 20.5 103.6 126 76
12V Electronic Transformer
Index By Product Description
19626 M62/FTD 13
19635 M66/FTF 13
19634 M199/FTH 13
19639 M264/FTA/CG 13
19636 M251/FTC/CG 13
19625 M262/FTD/CG 13
19627 M266/FTF/CG 13
17200 FTD/M262/CG 13
17201 FTF/M199/CG 13
77900 Q20MR16HIR/CCG10 13
77901 Q20MR16HIR/CCG24 13
77902 Q20MR16HIR/CCG36 13
79584 Q30MR16HIR/CCG10 13
79585 Q30MR16HIR/CCG24 13
79586 Q30MR16HIR/CCG36 13
77904 Q35MR16HIR/CCG10 13
77905 Q35MR16HIR/CCG24 13
77906 Q35MR16HIR/CCG36 13
77907 Q45MR16HIR/CCG10 13
77908 Q45MR16HIR/CCG24 13
77909 Q45MR16HIR/CCG36 13
77657 MR16 IR 20W 12V WFL 13
77658 MR16 IR 35W 12V WFL 13
20841 EYJ/CC 13
20840 EYC/CC 13
20858 ESX/CG 13
20857 BAB/CG 13
20864 FRB/CG 13
20860 FRA/CG 13
20859 FMW/CG 13
20872 EXT/CG 13
20871 EXZ/CG 13
20867 EXN/CG 13
20865 FNV/CG 13
20876 EYF/CG 13
20874 EYJ/CG 13
20873 EYC/CG 13
88231 M69/BAB 14
88229 M81/FMW 14
88234 M58/EXN 14
88232 M80/FNV 14
71624 MR16 12V 20W 8D /open 5000 hours 14
71625 MR16 12V 20W 36D /BAB /open 5000 hours 14
71618 MR16 12V 50W 8D /open 5000 hours 14
71619 MR16 12V 50W 18D /open 5000 hours 14
71620 MR16 12V 50W 36D /ENX /open 5000 hours 14
71621 MR16 12V 50W 60D /FNV /open 5000 hours 14
71616 MR16 12V 20W 8D /CG 5000 hours 14
71617 MR16 12V 20W 36D /BAB /CG 5000 hours 14
71610 MR16 12V 50W 8D /CG 5000 hours 14
71611 MR16 12V 50W 18D /CG 5000 hours 14
71612 MR16 12V 50W 36D /ENX /CG 5000 hours 14
71613 MR16 12V 50W 60D /FNV /CG 5000 hours 14
88235 M269/BAB/CG 14
88236 M281/FMW/CG 14
88237 M250/EXZ/CG 14
88239 M258/EXN/CG 14
88238 M280/FNV/CG 14
38000 M69/BAB/EC 14
38001 M81/FMW/EC 14
38002 M58/EXN/EC 14
89677 Q20MR16/FL 14
89678 Q20MR16/SP 14
89679 Q35MR16/FL 14
89680 Q35MR16/M(FMV) 14
89681 Q50MR16/FL 14
89682 Q50MR16/M 14
38012 M268/ESX/CG/EC 14
38006 M269/BAB/CG/EC 14
38013 FRB/CG/EC 14
38007 M281/FMW/CG/EC 14
38014 M249/EXT/CG/EC 14
39611 M250/EXZ/CG/EC 14
Halogen Lamps
38011 M258/EXN/CG/EC 14
39236 M280/FNV/CG/EC 14
89683 Q20MR16/FL/CG 14
89684 Q20MR16/SP/CG 14
89685 Q35MR16/FL/CG 14
89686 Q35MR16/M(FMV) CG 14
89687 Q50MR16/FL/CG 14
89688 Q50MR16/M/CG 14
88216 M269/BAB/CG/AL 14
88217 M281/FMW/CG/AL 14
88215 M258/EXN/CG/AL 14
88214 M280/FNW/CG/AL 14
10774 AR111 35W12V SP 15
10775 AR111 35W12V FL 15
10766 AR111 50W12V SP 15
10767 AR111 50W12V FL 15
10768 AR111 75W12V SP 15
10769 AR111 75W12V FL 15
10771 AR111 75W12V WFL 15
41915 AR111 100W12V SP 15
41922 AR111 100W12V FL 15
41923 AR111 100W12V WFL 15
25152 AR111 50W 12V SP 15
25154 AR111 50W 12V FL 15
25155 AR111 75W 12V SP 15
25156 AR111 75W 12V FL 15
25157 AR111 75W 12V WFL 15
40402 Q50MR16/230/25° 15
40403 Q50MR16/230/36° 15
40404 Q50MR16/240/25° 15
40405 Q50MR16/240/36° 15
10898 Q20MR16/230/FL 15
10896 Q35MR16/230/FL 15
92729 Q50MR16/230/FL 15
10859 Q20MR16/240/FL 15
10857 Q35MR16/240/FL 15
92730 Q50MR16/240/FL 15
12988 Q50MR16/240/FL START 15
12995 Q50MR16/240/FL START 15
13003 Q50MR16/240/FL START 15
45692 SHORTG9 25W CL 230V 16
22504 SHORTG9 40W CL 230V 16
88941 SHORTG9 25W CL 240V 16
22498 SHORTG9 40W CL 240V 16
75979
OT SHORTG9 25W CL 240V GE HFBL2/20 TRAY
16
88305
OT SHORTG9 40W CL 240V GE HFBL2/20 TRAY
16
75980
OT SHORTG9 60W CL 240V GE HFBL2/20 TRAY
16
75983
OT SHORTG9 75W CL 240V GE HFBL2/20 TRAY
16
88311
OT SHORTG9 25W FR 240V GE HFBL2/20 TRAY
16
88307
OT SHORTG9 40W FR 240V GE HFBL2/20 TRAY
16
75982
OT SHORTG9 60W FR 240V GE HFBL2/20 TRAY
16
75984
OT SHORTG9 75W FR 240V GE HFBL2/20 TRAY
16
34720 M29/Q10 G4 16
34718 M30/ESB/Q20 G4 16
34719 M34/FHE/Q20 G4 16
42959 M9/H5 G4 16
34674 M11/H10 G4 16
34714 M35/Q20 G4 16
34715 M47/Q20 G4 16
34708 M95/Q35/GY6.35 16
34702 M32/Q50 GY6.35 16
34682 M313/Q75/GY6.35 16
34676 M28/Q100 GY6.35 16
34663 M67/Q100 GY6.35 24V 16
34728 M42/Q10 G4 16
34712 M76/Q20/GY6.35 16
34710 M75/Q35/GY6.35 16
34703 M74/Q50/GY6.35 16
34683 M73/Q75/GY6.35 16
34664 M180/Q100/GY6.35 16
35705 Q10T2,5/12V G4 16
35710 Q20T2,5/12V G4 16
35696 Q20T3/12V GY6.35 16
35699 Q35T3/12V GY6.35 16
35700 Q50T3/12V GY6.35 16
35701 Q75T3/12V GY6.35 16
12708 M11/Q10/G4 ST 16
12711 M47/Q20/G4 ST 16
12712 M95/Q35/GY6.35 ST 16
12713 M32/Q50/GY6.35 ST 16
12718 Q100/GY6.35 ST 16
76210 K12 C100W 230V R7S 17
76209 K11 C130W 230V R7S 17
76208 K9 C200W 230V R7S 17
76207 K1 C330W 230V R7S 17
76530 K12 C100W 240V R7S 17
76529 K11 C130W 240V R7S 17
76528 K9 C200W 240V R7S 17
76527 K1 C330W 240V R7S 17
91515 K9/Q225 T3/230V HIR 17
31598 K1/Q375 T3/230V HIR 17
43299 K9/Q225 T3/240V HIR 17
31612 K1/Q375 T3/240V HIR 17
29161 K1/Q500 T2.5/CL 17
29165 K1/Q500 T2.5/CL 17
29180 K4/Q1000 T3/CL 17
29184 K5/Q1500 T3/CL 17
30886 K8/Q2000 T3/CL 17
29168 K1/Q500 T2.5/CL 17
29181 K4/Q1000 T3/CL 17
43712 K10/1000 T3/CL 17
23830 K5/Q1500 T3/CL 17
29187 K5/Q1500 T3/CL 17
23832 K5/Q1500 T3/CL 17
32108 Halo T38/1000W/E40/230 18
32109 Halo T38/1000W/E40/240 18
27826 40PAR16/230/FL 18
27845 40PAR16/240/FL 18
40363 50PAR20/230/SP 18
40362 50PAR20/230/FL 18
40364 50PAR20/240/SP 18
40365 50PAR20/240/FL 18
95700 50PAR20 FL-230V 18
95701 50PAR20 SP-230V 18
95775 50PAR20/240/SP 18
95776 50PAR20/240/FL 18
91775 75PAR25/230/FL 18
92165 75PAR25/240/FL 18
40366 75PAR30/230/SP 18
40349 75PAR30/230/FL 18
32484 100PAR30/230/FL 18
40367 75PAR30/240/SP 18
40361 75PAR30/240/FL 18
32482 100PAR30/240/FL 18
95702 75PAR30 FL-230V 18
95703 75PAR30 SP-230V 18
95777 75PAR30/240/SP 18
95778 75PAR30/240/FL 18
95779 100PAR30/240/SP 18
95780 100PAR30/240/FL 18
10302 50PAR30/110/K9N 18
10301 50PAR30/110/K9N 18
76957 28W HALO A CL E27 230V 18
76953 42W HALO A CL E27 230V 18
76948 70W HALO A CL E27 230V 18
76944 100W HALO A CL E27 230V 18
76954 28W HALO A CL E27 240V 18
76950 42W HALO A CL E27 240V 18
76945 70W HALO A CL E27 240V 18
76941 100W HALO A CL E27 240V 18
76955 28W HALO A CL B22 240V 18
76951 42W HALO A CL B22 240V 18
76946 70W HALO A CL B22 240V 18
76942 100W HALO A CL B22 240V 18
78795 29A/CL/H-2PK 19
78796 43A/CL/H-2PK 19
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
62532 F36W/T8/835/POLYLUX 25
62551 F36W/T8/840/POLYLUX 25
62552 F36W/T8/860/POLYLUX 25
93330 F58W/T8/827/POLYLUX 25
93334 F58W/T8/830/POLYLUX 25
93331 F58W/T8/835/POLYLUX 25
93333 F58W/T8/840/POLYLUX 25
12943 F58W/T8/860/POLYLUX 25
62572 F70W/T8/835/POLYLUX 25
62573 F70W/T8/840/POLYLUX 25
62567 F18/T8/830/POLYLUX/LL 25
62566 F18/T8/840/POLYLUX/LL 25
62565 F36/T8/830/POLYLUX/LL 25
62564 F36/T8/840/POLYLUX/LL 25
62563 F58/T8/830/POLYLUX/LL 25
62562 F58/T8/840/POLYLUX/LL 25
81412 F10T8/33 25
17272 F10T8/54 25
61516 F15W/33 25
61517 F15W/54 25
65152 F18T8/WW 25
73335 F18T8/CW 25
73336 F18T8/DL 25
65153 F36T8/WW 25
73337 F36T8/CW 25
73338 F36T8/DL 25
79462 F10W/DL XL 26
79463 F18W/WW XL 26
79464 F18W/CW XL 26
79465 F18W/DL XL 26
79466 F36W/WW XL 26
79469 F36W/CW XL 26
79470 F36W/DL XL 26
61535 F18T8/WW 26
61536 F18T8/CW 26
61537 F18T8/DL 26
61538 F30T8/WW 26
61539 F30T8/CW 26
61540 F30T8/DL 26
61541 F36T8/WW 26
61542 F36T8/CW 26
61543 F36T8/DL 26
71708S F20WT12/DL 26
71709S F40WT12/DL 26
95543 Edison FCL22/DL 26
95544 Edison FCL32/DL 26
95545 Edison FCL40/DL 26
61607 FCL22W/827 26
61608 FCL22W/840 26
61609 FCL22W/850 26
24847 FCL22/HO/DL/860 26
61610 FCL32W/827 26
61611 FCL32W/840 26
61612 FCL32W/850 26
24848 FCL32/HO/DL/860 26
61613 FCL40W/827 26
61614 FCL40W/840 26
61615 FCL40W/850 26
24849 FCL40/HO/DL/W/860 26
75709 FC22W/T5/830 26
75720 FC22W/T5/840 26
75712 FC40W/T5/830 26
75713 FC40W/T5/840 26
75717 FC55W/T5/830 26
75718 FC55W/T5/840 26
71632 F14T5/830/WM/ECO 23
71633 F14T5/835/WM/ECO 23
71634 F14T5/841/WM/ECO 23
71636 F14T5/865/WM/ECO 23
71637 F21T5/830/WM/ECO 23
71638 F21T5/835/WM/ECO 23
71639 F21T5/841/WM/ECO 23
71641 F21T5/865/WM/ECO 23
71642 F28T5/830/WM/ECO 23
71643 F28T5/835/WM/ECO 23
71644 F28T5/841/WM/ECO 23
71646 F28T5/865/WM/ECO 23
71627 F54T5/830/WM/ECO 23
71628 F54T5/835/WM/ECO 23
71629 F54T5/841/WM/ECO 23
71631 F54T5/865/WM/ECO 23
71647 F35T5/830/WM/ECO 23
71648 F35T5/835/WM/ECO 23
71649 F35T5/841/WM/ECO 23
71657 F35T5/865/WM/ECO 23
71632 F14W/T5/830/Starcoat/40 23
71633 F14W/T5/840/Starcoat/40 23
71634 F14W/T5/865/Starcoat/40 23
71636 F21W/T5/830/Starcoat/40 23
71637 F21W/T5/840/Starcoat/40 23
71638 F21W/T5/865/Starcoat/40 23
71639 F28W/T5/830/Starcoat/40 23
71641 F28W/T5/840/Starcoat/40 23
71642 F28W/T5/865/Starcoat/40 23
71643 F35W/T5/830/Starcoat/40 23
71644 F35W/T5/840/Starcoat/40 23
71646 F35W/T5/865/Starcoat/40 23
72420 F24W/T5/830/Starcoat/40 23
72421 F24W/T5/840/Starcoat/40 23
72422 F24W/T5/865/Starcoat/40 23
72423 F39W/T5/830/Starcoat/40 23
72424 F39W/T5/840/Starcoat/40 23
72425 F39W/T5/865/Starcoat/40 23
72429 F54W/T5/830/Starcoat/40 23
72430 F54W/T5/840/Starcoat/40 23
72431 F54W/T5/865/Starcoat/40 23
72426 F49W/T5/830/Starcoat/40 23
72427 F49W/T5/840/Starcoat/40 23
72428 F49W/T5/865/Starcoat/40 23
72432 F80W/T5/830/Starcoat/40 23
72433 F80W/T5/840/Starcoat/40 23
72434 F80W/T5/865/Starcoat/40 23
62694E F14W/830 T5/StarV/SL30 24
62695E F14W/840 T5/StarV/SL30 24
62696E F14W/865 T5/StarV/SL30 24
62697E F21W/830 T5/StarV/SL30 24
62698E F21W/840 T5/StarV/SL30 24
62699E F21W/865 T5/StarV/SL30 24
62700E F28W/830 T5/StarV/SL30 24
62701E F28W/840 T5/StarV/SL30 24
62702E F28W/865 T5/StarV/SL30 24
37008 F8W/T5/827/IND 24
37009 F8W/T5/840/IND 24
39447 F13W/T5/827/SL 24
39446 F4W/T5/35/SL 24
10004 F4W/T5/CW 24
39442 F6W/T5/35/SL 24
39445 F6W/T5/33/SL 24
10028 F6W/T5/D 24
37754 F8W/T5/29/SL 24
37756 F8W/T5/35/SL 24
10059 F8W/T5/CW 24
10055 F8W/T5/D 24
10089 F13W/T5/WW 24
10086 F13W/T5/CW 24
79462/F F18W/T8/WW/Tri-Tech plus 24
79463/F F18W/T8/CW/Tri-Tech plus 24
79464/F F18W/T8/DL/Tri-Tech plus 24
79465/F F30W/T8/WW/Tri-Tech plus 24
79466/F F30W/T8/CW/Tri-Tech plus 24
79469/F F30W/T8/DL/Tri-Tech plus 24
79470/F F36W/T8/WW/Tri-Tech plus 24
79471/F F36W/T8/CW/Tri-Tech plus 24
79472/F F36W/T8/DL/Tri-Tech plus 24
66410 F58W/T8/830/Tri-Tech 24
66411 F58W/T8/840/Tri-Tech 24
66412 F58W/T8/865/Tri-Tech 24
23248 F15W/T8/830/POLYLUX 25
78133 F15W/T8/835 POLYLUX 25
23249 F15W/T8/840/POLYLUX 25
78131 F15W/T8/860/POLYLUX 25
62560 F18W/T8/827/POLYLUX 25
62559 F18W/T8/830/POLYLUX 25
62534 F18W/T8/835/POLYLUX 25
62558 F18W/T8/840/POLYLUX 25
62557 F18W/T8/860/POLYLUX 25
18141 F30W/T8/830/POLYLUX 25
78132 F30W/T8/835/POLYLUX 25
18142 F30W/T8/840/POLYLUX 25
62554 F36W/T8/827/POLYLUX 25
62553 F36W/T8/830/POLYLUX 25
78797 53A/CL/H-2PK 19
82137 60A/CL/H/RVL-CD 19
72373 60A/CRY/H/RVL-CD 19
78798 72A/CL/H-2PK 19
82138 75A/CL/H/RVL-CD 19
82139 100A/CL/H/RVL-CD 19
72374 100A/CRY/H/RVL-CD 19
76940 18W HALO C CL E14 230V 19
76936 28W HALO C CL E14 230V 19
76575 42W HALO C CL E14 230V 19
76934 28W HALO C CL E27 230V 19
76573 42W HALO C CL E27 230V 19
76937 18W HALO C CL E14 240V 19
76930 28W HALO C CL E14 240V 19
76569 42W HALO C CL E14 240V 19
76929 28W HALO C CL E27 240V 19
76568 42W HALO C CL E27 240V 19
76932 28W HALO C CL B15 240V 19
76571 42W HALO C CL B15 240V 19
76938 18W HALO C CL B22 240V 19
76931 28W HALO C CL B22 240V 19
76570 42W HALO C CL B22 240V 19
76567 18W HALO S CL E14 230V 19
76561 28W HALO S CL E14 230V 19
76553 42W HALO S CL E14 230V 19
76565 18W HALO S CL E27 230V 19
76559 28W HALO S CL E27 230V 19
76551 42W HALO S CL E27 230V 19
76562 18W HALO S CL E14 240V 19
76555 28W HALO S CL E14 240V 19
76548 42W HALOS CL E14 240V 19
76554 28W HALO S CL E27 240V 19
76547 42W HALOS CL E27 240V 19
76557 28W HALO S CL B15 240V 19
76563 18W HALO S CL B22 240V 19
76556 28W HALO S CL B22 240V 19
76549 42W HALOS CL B22 240V 19
76546 28W HALO R50 E14 230V 19
76543 42W HALO R63 E27 230V 19
76540 42W HALO R80 E27 230V 19
76537 70W HALO R80 E27 230V 19
76544 28W HALO R50 E14 240V 19
76541 42W HALO R63 E27 240V 19
76538 42W HALO R80 E27 240V 19
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Linear Fluorescent Lamps
Index By Product Description
47201E F7BX/NCO/840/2P/STD 35
47231E F9BX/NCO/827/2P/STD 35
47232E F9BX/NCO/840/2P/STD 35
47285E F11BX/NCO/827/2P/STD 35
47286E F11BX/NCO/840/2P/STD 35
47200N F7BX/827/2P 35
47201N F7BX/840/2P 35
47202N F7BX/865/2P 35
47231N F9BX/827/2P 35
47232N F9BX/840/2P 35
47284N F9BX/865/2P 35
47285N F11BX/827/2P 35
47286N F11BX/840/2P 35
47287N F11BX/865/2P 35
85182E F10DBX/827/2P/STD 35
85183E F10DBX/840/2P/STD 35
85185E F13DBX/827/2P/STD 35
85186E F13DBX/840/2P/STD 35
85194E F18DBX/827/2P/STD 35
85195E F18DBX/840/2P/STD 35
65396E F26DBX/827/2P/G24d-3 35
65397E F26DBX/830/2P/G24d-3 35
65398E F26DBX/835/2P/G24d-3 35
65399E F26DBX/840/2P/G24d-3 35
65405E F26DBX/865/2P/G24d-3 35
47288 F10DBX/827/2P 35
47290 F10DBX/840/2P 35
47291 F10DBX/865/2P 35
47296 F13DBX/827/2P 35
47300 F13DBX/840/2P 35
47303 F13DBX/865/2P 35
47306 F18DBX/827/2P 35
47318 F18DBX/840/2P 35
47319 F18DBX/865/2P 35
85194N F18DBX/827/2P 35
85195N F18DBX/840/2P 35
85196N F18DBX/865/2P 35
85182N F10DBX/827/2P 36
72838N F10DBX/830/2P 36
85183N F10DBX/840/2P 36
85184N F10DBX/865/2P 36
85185N F13DBX/827/2P 36
72840N F13DBX/830/2P 36
85186N F13DBX/840/2P 36
85191N F13DBX/865/2P 36
85194N F18DBX/827/2P 36
72842N F18DBX/830/2P 36
85195N F18DBX/840/2P 36
85196N F18DBX/865/2P 36
95824EN F10DBX/827/2P 36
95825EN F10DBX/840/2P 36
95826EN F10DBX/865/2P 36
95827EN F13DBX/827/2P 36
95828EN F13DBX/840/2P 36
95829EN F13DBX/865/2P 36
95830EN F18DBX/827/2P 36
95831EN F18DBX/840/2P 36
95832EN F18DBX/865/2P 36
85216E F13DBX/865/4P/STD 36
85214E F13DBX/840/4P/STD 36
72848E F18DBX/ 830/4P/STD 36
85232E F18DBX/840/4P/STD 36
85236E F18DBX/865/4P/STD 36
65407E F26DBX/827/4P/G24q-3 36
65409E F26DBX/830/4P/G24q-3 36
65411E F26DBX/835/4P/G24q-3 36
65413E F26DBX/840/4P/G24q-3 36
65415E F26DBX/865/4P/G24q-3 36
85197N GE F10DBX/827/4P 36
72844N GE F10DBX/830/4P 36
85198N GE F10DBX/840/4P 36
85199N GE F10DBX/865/4P 36
85211N GE F13DBX/827/4P 36
72846N GE F13DBX/830/4P 36
85214N GE F13DBX/840/4P 36
85216N GE F13DBX/865/4P 36
85221N GE F18DBX/827/4P 36
72848N GE F18DBX/830/4P 36
85232N GE F18DBX/840/4P 36
85236N GE F18DBX/865/4P 36
86354N F16DDT4/827/2P 37
86361N F16DDT4/840/2P 37
86376N F16DDT4/865/2P 37
86391N F16DDT4/827/4P 37
86406N F16DDT4/865/4P 37
86421N F28DDT6/827/4P 37
86436N F28DDT6/840/4P 37
86451N F28DDT6/865/4P 37
86466N F38DDT6/827/4P 37
86481N F38DDT6/840/4P 37
86496N F38DDT6/865/4P 37
37654 F5BX/SPX27/827 38
37661 F5BX/SPX41/840 38
37846 F7BX/SPX27/827 38
38930 F7BX/830 38
37659 F7BX/SPX35/835 38
37660 F7BX/SPX41/840 38
38984 F7BX/865 38
37651 F9BX/827 38
38929 F9BX/830 38
37652 F9BX/SPX35/835 38
37653 F9BX/SPX41/840 38
38985 F9BX/865 38
37663 F11BX/827 38
38928 F11BX/830 38
37666 F11BX/835 38
37664 F11BX/840 38
38986 F11BX/840 38
37714 F5BX/827/4P 38
37715 F5BX/840/4P 38
37658 F7BX/827/4P 38
37716 F7BX/840/4P 38
37710 F9BX/827/4P 38
37711 F9BX/840/4P 38
37717 F11BX/827/4P 38
37713 F11BX/840/4P 38
12603 F11BX/865/4P 38
78211 F10DBX/T3/827/2P 38
78212 F10DBX/T3/830/2P 38
78213 F10DBX/T3/835/2P 38
78214 F10DBX/T3/840/2P 38
78215 F10DBX/T3/865/2P 38
78221 F13DBX/T3/827/2P 38
78222 F13DBX/T3/830/2P 38
78223 F13DBX/T3/835/2P 38
78224 F13DBX/T3/840/2P 38
78225 F13DBX/T3/865/2P 38
12860 F18DBXT4/SPX27/827 38
12861 F18DBXT4/SPX30/830 38
12863 F18DBXT4/SPX35/835 38
12864 F18DBXT4/SPX41/840 38
13017 F18DBXT4/SPX65/865 38
35250 F26DBXT4/SPX27/827 38
35237 F26DBXT4/SPX30/830 38
35251 F26DBXT4/SPX35/835 38
35252 F26DBXT4/SPX41/840 38
35305 F26DBXT4/SPX65/865 38
78217 F10DBX/T3/827/4P 39
78218 F10DBX/T3/830/4P 39
78219 F10DBX/T3/835/4P 39
78220 F10DBX/T3/840/4P 39
78231 F10DBX/T3/865/4P 39
78226 F13DBX/T3/827/4P 39
78227 F13DBX/T3/830/4P 39
78228 F13DBX/T3/835/4P 39
78229 F13DBX/T3/840/4P 39
78232 F13DBX/T3/865/4P 39
12865 F18DBX/SPX27/827/4P 39
12866 F18DBX/SPX30/830/4P 39
12869 F18DBX/SPX35/835/4P 39
12870 F18DBX/SPX41/840/4P 39
35247 F26DBX/SPX27/827/4P 39
35235 F26DBX/SPX30/830/4P 39
35248 F26DBX/SPX35/835/4P 39
35236 F26DBX/SPX41/840/4P 39
42798 F26DBX/SPX65/865/4P 39
35940 F13TBX/827/A/2P 39
35966 F13TBX/SPX30/830/A/2P 39
35941 F13TBX/SPX41/A/2P 39
35945 F18TBX/SPX27/827/A/2P 39
35944 F18TBX/SPX30/830/A/2P 39
35937 F18TBX/SPX35/835/A/2P 39
35939 F18TBX/SPX41/840/A/2P 39
35959 F26TBX/SPX27/827/A/2P 39
35952 F26TBX/SPX30/830/A/2P 39
35963 F26TBX/SPX35/835/A/2P 39
35964 F26TBX/SPX41/840/A/2P 39
34391 F13TBX/SPX27/827/A/4P 39
34395 F13TBX/SPX30/830/A/4P 39
34400 F13TBX/SPX35/835/A/4P 39
34387 F13TBX/SPX41/840/A/4P 39
34392 F18TBX/SPX27/827/A/4P 39
34396 F18TBX/SPX30/830/A/4P 39
34405 F18TBX/SPX35/835/A/4P 39
34385 F18TBX/SPX41/840/A/4P 39
34393 F26TBX/SPX27/827/A/4P 39
34397 F26TBX/SPX30/830/A/4P 39
34406 F26TBX/SPX35/835/A/4P 39
34381 F26TBX/SPX41/840/A/4P 39
39377 F32TBX/SPX27/827/AP4P 40
39378 F32TBX/SPX30/830/AP4P 40
39379 F32TBX/SPX35/835/A/4P 40
39380 F32TBX/SPX41/840/A/4P 40
46312 F42TBX/827/A/4P 40
46313 F42TBX/830/A/4P 40
46314 F42TBX/835/A/4P 40
46315 F42TBX/841/A/4P 40
45213 F57QBX/827/A/4P/LL 40
45204 F57QBX/830/A/4P/LL 40
45202 F57QBX/835/A/4P/LL 40
45201 F57QBX/840/A/4P/LL 40
45208 F70QBX/830/A/4P/LL 40
45219 F70QBX/835/A/4P/LL 40
45218 F70QBX/840/A/4P/LL 40
41087 F18BX/827 40
41088 F18BX/830 40
41089 F18BX/835 40
41090 F18BX/840 40
41128 F24BX/827 40
41134 F24BX/830 40
41145 F24BX/835 40
41155 F24BX/840 40
41163 F34BX/830 40
41166 F34BX/835 40
41167 F34BX/840 40
41307 F36BX/827 40
41168 F36BX/830 40
41169 F36BX/835 40
41170 F36BX/840 40
75694 F36BX/865 40
41171 F40BX/830 40
41172 F40BX/835 40
41173 F40BX/840 40
41174 F55BX/830 40
41260 F55BX/835 40
41298 F55BX/840 40
75695 F55BX/865 40
41744 F162D/827 41
41745 F162D/835 41
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Compact Fluorescent Lamps
Non-Integrated
41746 F162D/827/4P 41
75066 F162D/830/4P 41
41747 F162D/835/4P 41
41749 F162D/860 41
41794 F212D/827/4P 41
41806 F212D/835/4P 41
41808 F212D/860/4P 41
10546 F282DT5/827/2P 41
10547 F282DT5/827/4P 41
75068 F282DT5/830/4P 41
10567 F282DT5/835/4P 41
10548 F282DT5/840/4P 41
10550 F382DT5/827/4P 41
75067 F382DT5/830/4P 41
10566 F382DT5/835/4P 41
88105 F10W/2D/827/4P 41
88106 F10W/2D/835/4P 41
18122 FLE18W2D/827 GRZ10D 41
18123 FLE18W2D/835 GRZ10D 41
18120 FLE18W2D/840 GRZ10D 41
Product
Code Product Description Page
No.
Compact Fluorescent Lamps
Integrated
64558E FLE8DBX/827/E27/T3 49
64559E FLE8DBX/865/E27/T3 49
64560E FLE11DBX/827/E27/T3 49
64561E FLE11DBX/865/E27/T3 49
64562E FLE14TBX/827/E27/T3 49
64563E FLE14TBX/865/E27/T3 49
64564E FLE20TBX/827/E27/T3 49
64565E FLE20TBX/865/E27/T3 49
64566E FLE23TBX/827/E27/T3 49
64567E FLE23TBX/865/E27/T3 49
95600EN FLE23QBX/827/E27 49
95601EN FLE23QBX/840/E27 49
95602EN FLE23QBX/865/E27 49
65031E FLE6DBX/827/E14/T3 49
65032E FLE6DBX/865/E14/T3 49
65033E FLE8DBX/827/E14/T3 49
65034E FLE8DBX/865/E14/T3 49
65035E FLE11DBX/827/E14/T3 49
65036E FLE11DBX/865/E14/T3 49
78168T FLEBX/827/E27/T3 220-240V 49
78169T FLEBX/865/E27/T3 220-240V 49
78170T FLE8DBX/827/E27/T3 220-240V 49
78171T FLE8DBX/865/E27/T3 220-240V 49
78172T FLE11DBX/827/E27/T3 220-240V 49
78173T FLE11DBX/865/E27/T3 220-240V 49
78174T FLE14TBX/827/E27/T3 220-240V 49
78175T FLE14TBX/865/E27/T3 220-240V 49
78176T FLE20TBX/827/E27/T3 220-240V 49
78177T FLE20TBX/865/E27/T3 220-240V 49
78178T FLE23TBX/827/E27/T3 220-240V 49
78179T FLE23TBX/865/E27/T3 220-240V 49
66839TH FLE15TBX/827/E27 SENSOR 49
66841TH FLE15TBX/865/E27 SENSOR 49
88697 FLE9TBX/T3/827/E14 50
88695 FLE9TBX/T3/827/E27 50
88696 FLE9TBX/T3/827/B22 50
88700 FLE9TBX/T3/840/E14 50
88698 FLE9TBX/T3/840/E27 50
88703 FLE9TBX/T3/865/E14 50
88701 FLE9TBX/T3/865/E27 50
78690 FLE11TBX/T3/827/E14 50
72689 FLE11TBX/T3/827/E27 50
72690 FLE11TBX/T3/827/B22 50
88709 FLE11TBX/T3/840/E14 50
88712 FLE11TBX/T3/865/E14 50
75730 FLE11TBX/T3/865/E27 50
72688 FLE15TBX/T3/827/E27 50
88713 FLE15TBX/T3/827/B22 50
88714 FLE15TBX/T3/840/E27 50
88716 FLE15TBX/T3/865/E27 50
88718 FLE20TBX/T3/827/E27 50
88719 FLE20TBX/T3/827/B22 50
88720 FLE20TBX/T3/840/E27 50
88722 FLE20TBX/T3/865/E27 50
88723 FLE20TBX/T3/865/B22 50
75039 FLE23QBX/T3/827/B22 50
75268 FLE23QBX/T3/827/E27 50
97000 FLE23QBX/T3/840/E27 50
97006 FLE23QBX/T3/865/E27 50
89514 FLE10HLX/827/E27/XL 50
89517 FLE10HLX/827/B22/XL 50
89520 FLE15HLX/827/E27/XL 50
89523 FLE15HLX/827/B22/XL 50
89526 FLE20HLX/827/E27/XL 50
89529 FLE20HLX/827/B22/XL 50
74658 FLE8HLX/827/B15/T2 51
74659 FLE8HLX/827/B22/T2 51
74660 FLE8HLX/827/E14/T2 51
74661 FLE8HLX/827/E27/T2 51
47375 FLE8HLX/840/E27/T2 51
47382 FLE8HLX/840/E14/T2 51
47385 FLE8HLX/840/B22/T2 51
47386 FLE8HLX/840/B15/T2 51
11241 FLE9TBX/827/B22/T3 BP1 47
74663 FLE9TBX/827/E27/T3 BX 47
74699 FLE9TBX/827/B22/T3 BX2 47
74700 FLE9TBX/827/E27/T3 BX2 47
95836 FLE9TBX/840/B22/T3 47
95837 FLE9TBX/840/E27/T3 47
74671 FLE12TBX/827/B22/T3 BX 47
74672 FLE12TBX/827/E27/T3 BX 47
48191 FLE12TBX/840/E27/T3 47
48192 FLE12TBX/840/B22/T3 47
95761P FLE15TBX/827/B22/T3 BP1 47
74680 FLE15TBX/827/E27/T3 BX 47
74701 FLE15TBX/827/B22/T3 BX2 47
74702 FLE15TBX/827/E27/T3 BX2 47
95800P FLE15TBX/840/B22/T3 47
95804P FLE15TBX/840/E27/T3 47
74705 FLE15TBX/840/B22/T3 BX2 47
74706 FLE15TBX/840/E27/T3 BX2 47
81025 FLE15TBX/865/B22/T3 47
81026 FLE15TBX/865/E27/T3 47
74681 FLE18TBX/827/B22/T3 BX 47
74684 FLE18TBX/827/E27/T3 BX 47
95802P FLE18TBX/840/B22/T3 47
95805P FLE18TBX/840/E27/T3 47
74703 FLE20TBX/827/B22/T3 BX2 47
74704 FLE20TBX/827/E27/T3 BX2 47
74707 FLE20TBX/840/B22/T3 BX2 47
74708 FLE20TBX/840/E27/T3 BX2 47
24879E FLE9TBX/865/E27/T3 47
24880E FLE9TBX/827/E27/T3 47
95414E FLE6DBX/827/E27/T3 47
95416E FLE6DBX/864/E27/T3 47
89584E FLE9DBX/827/E27/T3 47
89587E FLE9DBX/864/E27/T3 47
11236E FLE9TBX/827/E27 47
11238E FLE9TBX/865/E27 47
11349E FLE9TBX/827/E14 47
11350E FLE9TBX/865/E14 47
89588E FLE11DBX/827/E27 47
89590E FLE11DBX/864/E27 47
48189EP FLE12TBX/827/E27 47
48191EP FLE12TBX/840/E27 47
48193EP FLE12TBX/865/E27 47
89591E FLE15TBX/827/E27 47
89593E FLE15TBX/865/E27 47
89594E FLE18TBX/827/E27 47
89596E FLE18TBX/864/E27 47
95414EN FLE6DBX/827/E27 48
95416EN FLE6DBX/865/E27 48
89637EN FLE6DBX/827/E14 48
89639EN FLE6DBX/865/E14 48
89584EN FLE9DBX/827/E27 48
89585EN FLE9DBX/840/E27 48
89587EN FLE9DBX/865/E27 48
11236EN FLE9TBX/827/E27 48
11238EN FLE9TBX/865/E27 48
11349EN FLE9TBX/827/E14 48
11350EN FLE9TBX/865/E14 48
89588EN FLE11DBX/827/E27 48
89589EN FLE11DBX/840/E27 48
89590EN FLE11DBX/865/E27 48
89591EN FLE15TBX/827/E27 48
89592EN FLE15TBX/840/E27 48
89593EN FLE15TBX/865/E27 48
89594EN FLE18TBX/827/E27 48
89595EN FLE18TBX/840/E27 48
89596EN FLE18TBX/865/E27 48
95414ET FLE6DBX/827/E27 48
95416ET FLE6DBX/864/E27 48
89637ET FLE6DBX/827/E14 48
89639ET FLE6DBX/865/E14 48
11236ET FLE9TBX/827/E27 48
11237ET FLE9TBX/840/E27 48
11238ET FLE9TBX/865/E27 48
89584ET FLE9DBX/827/E27 48
89585EN FLE9DBX/840/E27 48
89587EN FLE9DBX/865/E27 48
89588ET FLE11DBX/827/E27 48
89589ET FLE11DBX/840/E27 48
89590ET FLE11DBX/865/E27 48
89591ET FLE15TBX/827/E27 48
89592ET FLE15TBX/840/E27 48
89593ET FLE15TBX/865/E27 48
89594ET FLE18TBX/827/E27 48
89595ET FLE18TBX/840/E27 48
89596ET FLE18TBX/865/E27 48
24875E FLE9DBX/827/E27/220-240V 48
95595EID FLE9DBX/865/E27/220-240V 48
24876E FLE15DBX/827/E27/220-240V 48
95596EID FLE15DBX/865/E27/220-240V 48
95650EID FLE20TBX/827/E27/220-240V 48
95597EID FLE20TBX/865/E27/220-240V 48
24877E FLE23W/QBX/865/E27 48
24878E FLE23W/QBX/827/E27 48
11305ET FLE9DBX/827/E27/6k 48
11321ET FLE9DBX/864/E27/6K 48
11324ET FLE11DBX/827/E27/6K 48
11328ET FLE11DBX/865/E27/6K 48
11332ET FLE15TBX/827/E27/6k 48
11335ET FLE15TBX/864/E27/6K 48
11336ET FLE20TBX/827/E27 48
11342ET FLE20TBX/865/E27 48
95600ET FLE23QBX/827/E27 48
95602ET FLE23QBX/865/E27 48
78168E FLE5DBX/827/E27/T3 220-240V 49
78169E FLE5DBX/865/E27/T3 220-240V 49
78170E FLE8DBX/827/E27/T3 220-240V 49
78171E FLE8DBX/865/E27/T3 220-240V 49
78172E FLE11DBX/827/E27/T3 220-240V 49
78173E FLE11DBX/865/E27/T3 220-240V 49
78174E FLE14TBX/827/E27/T4 220-240V 49
78175E FLE14TBX/865/E27/T4 220-240V 49
78176E FLE20TBX/827/E27/T4 220-240V 49
78177E FLE20TBX/865/E27/T4 220-240V 49
78178E FLE23TBX/827/E27/T4 220-240V 49
78179E FLE23TBX/865/E27/T4 220-240V 49
64556E FLE6DBX/827/E27/T3 49
64557E FLE6DBX/865/E27/T3 49
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
78181E FLE9HLX/865/E27/T3 220-240V 54
78182E FLE15HLX/827/E27/T3 220-240V 54
78183E FLE15HLX/865/E27/T3 220-240V 54
78184E FLE20HLX/827/E27/T3 220-240V 54
78185E FLE20HLX/865/E27/T3 220-240V 54
78186E FLE23HLX/827/E27/T3 220-240V 54
78187E FLE23HLX/865/E27/T3 220-240V 54
65037E FLE9HLX/827/E14/T3 54
65038E FLE9HLX/865/E14/T3 54
78180T FLE9HLX/827/E27/T3 220-240V 54
78181T FLE9HLX/865/E27/T3 220-240V 54
78182T FLE14HLX/827/E27/T3 220-240V 54
78183T FLE14HLX/865/E27/T3 220-240V 54
78184T FLE20HLX/827/E27/T3 220-240V 54
78185T FLE20HLX/865/E27/T3 220-240V 54
78186T FLE23HLX/827/E27/T3 220-240V 54
78187T FLE23HLX/865/E27/T3 220-240V 54
30606a FLE13HLX/827/B22/DIM BP1 54
74674 FLE13HLX/827/E27/DIM BP1 54
74675 FLE13HLX/865/B22/DIM 54
74676 FLE13HLX/865/E27/DIM 54
30608a FLE20HLX/827/E27/DIM BP1 54
30616A FLE20HLX/827/B22/DIM BP1 54
30544A FLE20HLX/865/B22/DIM 54
30540A FLE20HLX/865/E27/DIM 54
30493N FLE13HLX/827/E27/T3DIM* 54
30494N FLE13HLX/865/E27/T3DIM* 54
30523N FLE20HLX/827/E27/T3DIM* 54
30540N FLE20HLX/865/E27/T3DIM* 54
24666EN FLE45HLX/864/E27/220-240V 54
95495EN FLE60HLX/864/E27/220-240V 54
24666E FLE45HLX/864/E27 54
24668E FLE60HLX/864/E27 54
95520 FLE60HLX/827/E27 220-240V 54
95495 FLE60HLX/865/E27 220-240V 54
61429T FLE45HLX/827/E27 220V 54
61430T FLE45HLX/865/E27 220V 54
61431T FLE60HLX/827/E27 220V 54
61432T FLE60HLX/865/E27 220V 54
61001E FLE9AG/T2/830/E27 55
61002E FLE9AG/T2/840/E27 55
61003E FLE9AG/T2/865/E27 55
61004E FLE11AG/T2/830/E27 55
61005E FLE11AG/T2/840/E27 55
61006E FLE11AG/T2/865/E27 55
61007E FLE15AG/T2/830/E27 55
61008E FLE15AG/T2/840/E27 55
61009E FLE15AG/T2/865/E27 55
61010E FLE20AG/T3/830/E27 55
61011E FLE20AG/T3/840/E27 55
61012E FLE20AG/T3/865/E27 55
61013E FLE9AG/T2/830/B22 55
61014E FLE9AG/T2/840/B22 55
61015E FLE9AG/T2/865/B22 55
61016E FLE11AG/T2/830/B22 55
61017E FLE11AG/T2/840/B22 55
61018E FLE11AG/T2/865/B22 55
61019E FLE15AG/T2/830/B22 55
61020E FLE15AG/T2/840/B22 55
61021E FLE15AG/T2/865/B22 55
61022E FLE20AG/T3/830/B22 55
61023E FLE20AG/T3/840/B22 55
61024E FLE20AG/T3/865/B22 55
61001T FLE9AG/T2/830/E27 55
61002T FLE9AG/T2/840/E27 55
61003T FLE9AG/T2/865/E27 55
61004T FLE11AG/T2/830/E27 55
61005T FLE11AG/T2/840/E27 55
61006T FLE11AG/T2/865/E27 55
61007T FLE15AG/T2/830/E27 55
61008T FLE15AG/T2/840/E27 55
61009T FLE15AG/T2/865/E27 55
61010T FLE20AG/T3/830/E27 55
76157 FLE12HLX/T2/827/E27 52
78190 FLE12HLX/T2/827/B22 52
78191 FLE12HLX/T2/840/E14 52
78192 FLE12HLX/T2/840/E27 52
78193 FLE12HLX/T2/865/E14 52
78194 FLE12HLX/T2/865/E27 52
76156 FLE15HLX/T2/827/E27 52
78195 FLE15HLX/T2/827/B22 52
78196 FLE15HLX/T2/840/E27 52
78197 FLE15HLX/T2/865/E27 52
76158 FLE20HLX/T2/827/E27 52
78198 FLE20HLX/T2/827/B22 52
78199 FLE20HLX/T2/840/E27 52
78200 FLE20HLX/T2/865/E27 52
76159 FLE23HLX/T2/827/E27 52
78202 FLE23HLX/T2/840/E27 52
78203 FLE23HLX/T2/865/E27 52
85940 FLE14HLX/827/B22/T3 53
85942 FLE14HLX/827/E27/T3 53
74709 FLE14HLX/827/B22/T3 BX2 53
74710 FLE14HLX/827/E27/T3 BX2 53
90147 FLE14HLX/840/E27/T3 53
90148 FLE14HLX/840/B22/T3 53
74715 FLE14HLX/840/B22/T3 BX2 53
74716 FLE14HLX/840/E27/T3 BX2 53
85956 FLE20HLX/827/B22/T3 53
85966 FLE20HLX/827/E27/T3 53
74711 FLE20HLX/827/B22/T3 BX2 53
74712 FLE20HLX/827/E27/T3 BX2 53
90146 FLE20HLX/840/B22/T3 53
90145 FLE20HLX/840/E27/T3 53
74717 FLE20HLX/840/B22/T3 BX2 53
74718 FLE20HLX/840/E27/T3 BX2 53
76598 FLE23HLX/827/B22/T2 BX2 53
76599 FLE23HLX/827/E27/T2 BX2 53
76600 FLE23HLX/840/B22/T2 BX2 53
76601 FLE23HLX/840/E27/T2 BX2 53
81262 FLE14HLX/827/E27/T3 220-240V 53
81263 FLE14HLX/865/E27/T3 220-240V 53
81264 FLE20HLX/827/E27/T3 220-240V 53
81265 FLE20HLX/865/E27/T3 220-240V 53
81266 FLE24HLX/827/E27/T3 220-240V 53
81267 FLE24HLX/865/E27/T3 220-240V 53
24172E FLE14HLX/827/T3 53
24173E FLE14HLX/865/E27/T3 53
24174E FLE20HLX/827/T3 53
24175E FLE20HLX/865/E27/T3 53
24176E FLE24HLX/827/T3 53
24177E FLE24HLX/E27/T3 53
24172EN FLE14HLX/827/E27/T3 220-240V 53
71402EN FLE14HLX/840/E27/T3 220-240V 53
24173EN FLE14HLX/865/E27/T3 220-240V 53
24174EN FLE20HLX/827/E27/T3 220-240V 53
80961EN FLE20HLX/840/E27/T3 220-240V 53
24175EN FLE20HLX/865/E27/T3 220-240V 53
24176EN FLE24HLX/827/E27/T3 220-240V 53
71400EN FLE24HLX/840/E27/T3 220-240V 53
24177EN FLE24HLX/865/E27/T3 220-240V 53
24172ET FLE14HLX/827/E27/T3 EDIS 53
24173ET FLE14HLX/865/E27/T3 EDIS 53
24174ET FLE20HLX/827/E27/T3 EDIS 53
24175ET FLE20HLX/865/E27/T3 EDIS 53
24176ET FLE24HLX/827/E27/T3 EDIS 53
24177ET FLE24HLX/865/E27/T3 EDIS 53
64568E FLE9HLX/827/E27/T3 54
64569E FLE9HLX/865/E27/T3 54
64570E FLE14HLX/827/E27/T3 54
64571E FLE14HLX/865/E27/T3 54
64572E FLE20HLX/827/E27/T3 54
64573E FLE20HLX/865/E27/T3 54
64574E FLE23HLX/827/E27/T3 54
64575E FLE23HLX/865/E27/T3 54
78180E FLE9HLX/827/E27/T3 220-240V 54
74668 FLE12HLX/827/B15/T2 51
74669 FLE12HLX/827/E14/T2 51
30472 FLE12HLX/827/E27/T2 51
30490 FLE12HLX/827/B22/T2 51
47389 FLE12HLX/840/E27/T2 51
47392 FLE12HLX/840/E14/T2 51
47393 FLE12HLX/840/B22/T2 51
47394 FLE12HLX/840/B15/T2 51
30474 FLE12HLX/865/E27/T2 51
30492 FLE12HLX/865/B22/T2 51
74677 FLE15HLX/827/B22/T2 51
74678 FLE15HLX/827/E27/T2 51
71040 FLE15HLX/840/E27/T2 51
71308 FLE15HLX/840/B22/T2 51
61414 FLE15HLX/865/T2/B22 51
61415 FLE15HLX/865/T2/E27 51
74687 FLE20HLX/827/B22/T2 51
74689 FLE20HLX/827/E27/T2 51
71043 FLE20HLX/840/E27/T2 51
71311 FLE20HLX/840/B22/T2 51
61412 FLE20HLX/865/T2/B22 51
61413 FLE20HLX/865/T2/E27 51
30431ID FLE8HLX/827/E27/T2 51
30433ID FLE8HLX/865/E27/T2 51
30472ID FLE12HLX/827/E27/T2 51
30474ID FLE12HLX/865/E27/T2 51
30431EP FLE8HLX/827E27/T2 51
30433EP FLE8HLX865E27/T2 51
47738EP FLE8HLX/827/E14/T2 51
47740EP FLE8HLX/865/E14/T2 51
30472EP FLE12HLX/827/E27/T2 51
30474EP FLE12HLX/865/E27/T2 51
47742EP FLE12HLX/827/E14/T2 51
47755EP FLE12HLX/865/E14/T2 51
71039EN FLE15HLX/827/T2/E27 51
71040EN FLE15HLX/840/T2/E27 51
71041EN FLE15HLX/865/T2/E27 51
71042EN FLE20HLX/827/T2/E27 51
71043EN FLE20HLX/840/T2/E27 51
71044EN FLE20HLX/865/T2/E27 51
30431EN FLE8HLX/827/E27/T2 52
47375EN FLE8HLX/840/E27/T2 52
30433EN FLE8HLX/865/E27/T2 52
47738EN FLE8HLX/827/E14/T2 52
47382EN FLE8HLX/840/E14/T2 52
47740EN FLE8HLX/865/E14/T2 52
30472EN FLE12HLX/827/E27/T2 52
47389EN FLE12HLX/840/E27/T2 52
30474EN FLE12HLX/865/E27/T2 52
47742EN FLE12HLX/827/E14/T2 52
47392EN FLE12HLX/840/E14/T2 52
47755EN FLE12HLX/865/E14/T2 52
30431ET FLE8HLX/827/E27/T2 52
30433ET FLE8HLX/865/E27/T2 52
47738ET FLE8HLX/827/E14/T2 52
47740ET FLE8HLX/865/E14/T2 52
30472ET FLE12HLX/827/E27/T2 52
30474ET FLE12HLX/865/E27/T2 52
47742ET FLE12HLX/827/E14/T2 52
47755ET FLE12HLX/865/E14/T2 52
71039T FLE15HLX/827/E27/T2 52
71040T FLE15HLX/840/E27/T2 52
71041T FLE15HLX/865/E27/T2 52
71042T FLE20HLX/827/E27/T2 52
71043T FLE20HLX/840/E27/T2 52
71044T FLE20HLX/865/E27/T2 52
76153 FLE8HLX/T2/827/E14 52
76154 FLE8HLX/T2/827/E27 52
78156 FLE8HLX/T2/827/B22 52
78157 FLE8HLX/T2/840/E14 52
78188 FLE8HLX/T2/840/E27 52
78189 FLE8HLX/T2/865/E27 52
76155 FLE12HLX/T2/827/E14 52
Index By Product Description
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
63596 CMH70/TC/UVC/U/930/G12 Ultra White 71
26478 CMH20/PAR20/UVC/830/E27/SP 72
26481 CMH20/PAR20/UVC/830/E27/FL 72
21684 CMH35/PAR20/UVC/830/E27/SP 72
21685 CMH35/PAR20/UVC/830/E27/FL 72
44890 CMH35/PAR20/UVC/942/E27/SP10 72
44919 CMH35/PAR20/UVC/942/E27/FL25 72
26497 CMH20/PAR30/UVC/830/E27/SP10 72
26518 CMH20/PAR30/UVC/830/E27/FL25 72
21689 CMH35/PAR30/UVC/830/E27/SP 72
21690 CMH35/PAR30/UVC/830/E27/FL 72
44939 CMH35/PAR30/UVC/942/E27/SP10 72
44942 CMH35/PAR30/UVC/942/E27/FL25 72
21683 CMH70/PAR30/UVC/830/E27/SP 72
21682 CMH70/PAR30/UVC/830/E27/FL 72
74620 CMH70/PAR30/UVC/942/E27/SP 72
74619 CMH70/PAR30/UVC/942/E27/FL 72
45675 CMH70/PAR38/830/SP15 72
45677 CMH70/PAR38/830/FL15 72
45679 CMH70/PAR38/830/WFL 72
45680 CMH100/PAR38/830/SP15 72
45681 CMH100/PAR38/830/FL15 72
45682 CMH100/PAR38/830/WFL 72
43278 CMH35/TD/UVC/830/RX7s 72
36910 CMH70/TD/UVC/830/RX7s 72
38698 CMH70/TD/UVC/942/RX7s 72
36912 CMH150/TD/UVC/830/RX7s-24 72
38692 CMH150/TD/UVC/942/RX7s-24 72
38752 CMH70/TT/UVC/830/E27 72
92478 CMH100/TT/UVC/830/E40 72
38749 CMH150/TT/UVC/830/E40 72
20302 KRC250/CMH/830/T/H/E40 72
10589 CMH250/TT/U/830/E40 72
62356 CMH250/T/U/942/E40 72
13067 CMH400/TT/UVC/U/830/E40 72
46189 CMH70/E/UVC/U/830/E27/C 73
46187 CMH70/E/UVC/U/830/E27/D 73
46194 CMH100/E/UVC/U/830/E27/D 73
46191 CMH100/E/UVC/U/830/E27/C 73
10591 CMH250/E/UVC/U/830/E40/D 73
13087 CMH400/E/UVC/U/830/E40/D 73
21514 CMH150/UVC/T/U/842/E40 73
64982 CMH50/TT/UVC/730/E27/ECG STREETWISE 73
77400 CMH50/TT/UVC/730/E27/EM STREETWISE 73
77401 CMH70/TT/UVC/730/E27 STREETWISE 73
77399 CMH100/TT/UVC/730/E40 STREETWISE 73
77402 CMH150/TT/UVC/730/E40 STREETWISE 73
43282 CMH70/UVC/O/U/940/E27/D 73
21516 CMH150/UVC/O/T/U/830/E40 73
43286 CMH150/UVC/O/U/940/E27/D 73
43285 CMH150/UVC/O/U/942/E27/C 73
21517 CMH150/UVC/O/T/U/942/E40 73
73685E CMH20/TC/UVC/830/G8.5 74
73686E CMH35/TC/UVC/U/830/G8.5 74
63434E CMH35/TC/UVC/U/942/G8.5 74
73687E CMH70/TC/UVC/U/830/G8.5 74
63433E CMH70/TC/UVC/U/942/G8.5 74
63437E CMH35/T/UVC/U/830/G12 Plus 74
63438E CMH35/T/UVC/U/942/G12 74
63435E CMH70/T/UVC/U/830/G12 74
63436E CMH70/T/UVC/U/942/G12 74
63441E CMH35/PAR30/UVC/830/E27/SP10 74
63442E CMH35/PAR30/UVC/830/E27/FL25 74
64950E CMH35/PAR30/UVC/835/E27/SP10 74
64951E CMH35/PAR30/UVC/835/E27/FL25 74
63443E CMH35/PAR30/UVC/942/E27/SP10 74
63444E CMH35/PAR30/UVC/942/E27/FL25 74
73683E CMH70/PAR30/UVC/830/E27/FL15 74
73684E CMH70/PAR30/UVC/830/E27/SP40 74
64952E CMH70/PAR30/UVC/835/E27/SP15 74
64953E CMH70/PAR30/UVC/835/E27/FL40 74
63439E CMH70/PAR30/UVC/942/E27/SP15 74
63440E CMH70/PAR30/UVC/942/E27/FL40 74
79982E FLE15GLS/T3/827/E27 57
79983E FLE15GLS/T3/840/E27 57
79984E FLE15GLS/T3/827/B22 57
79956E FLE7R50/T2/827/E14 57
79957E FLE7R50/T2/840/E14 57
79958E FLE7R50/T2/827/E27 57
79959E FLE7R50/T2/827/B22 57
79960E FLE11R63/T2/827/E14 57
79961E FLE11R63/T2/840/E14 57
79962E FLE11R63/T2/827/E27 57
79963E FLE11R63/T2/827/B22 57
79964E FLE8SOFT/T2/827/E14 57
79965E FLE8SOFT/T2/827/E27 57
79966E FLE8SOFT/T2/827/B22 57
79967E FLE12SOFT/T2/827/E14 57
79968E FLE12SOFT/T2/827/E27 57
79969E FLE12SOFT/T2/827/B22 57
79970E FLE15SOFT/T3/827/E27 57
79971E FLE15SOFT/T3/827/B22 57
79985E FLE7GU10/T2/827 58
79986E FLE7GU10/T2/840 58
79987E FLE9GU10/T2/827 58
79988E FLE9GU10/T2/840 58
74667 FLE11GLS/O/B22/BUG BX 58
74666 FLE11GLS/O/E27/BUG BX 58
11368EN FLE20HLX/GG/827/E27 Edison 58
11371EN FLE20HLX/GG/865/E27 Edison 58
72480 FLE23PAR38/827/E27 58
72481 FLE23PAR38/827/B22 58
61742T FLE23/827/E27/PAR38 220-240V 58
61744T FLE23/865/E27/PAR38 220-240V 58
72478 FLE15R80/827/E27 58
72479 FLE15R80/827/B22 58
61011T FLE20AG/T3/840/E27 55
61012T FLE20AG/T3/865/E27 55
61013T FLE9AG/T2/830/B22 55
61014T FLE9AG/T2/840/B22 55
61015T FLE9AG/T2/865/B22 55
61016T FLE11AG/T2/830/B22 55
61017T FLE11AG/T2/840/B22 55
61018T FLE11AG/T2/865/B22 55
61019T FLE15AG/T2/830/B22 55
61020T FLE15AG/T2/840/B22 55
61021T FLE15AG/T2/865/B22 55
61022T FLE20AG/T3/830/B22 55
61023T FLE20AG/T3/840/B22 55
61024T FLE20AG/T3/865/B22 55
88852A FLE5CDL//827/E27/T2 56
88853A FLE5CDL//827/B22/T2 56
73406A FLE5CDL//827/E14/T2 56
78005A FLE5CDL/827/B15/T2 56
73411A FLE7CDL//827/E14/T2 56
88855A FLE7CDL//827/E27/T2 56
88856A FLE7CDL//827/B22/T2 56
78006A FLE7CDL/827/B15/T2 56
79935E FLE5CDL/T2/827/E14 56
79936E FLE5CDL/T2/840/E14 56
79937E FLE5CDL/T2/827/E27 56
79938E FLE5CDL/T2/840/E27 56
79939E FLE5CDL/T2/827/B22 56
79940E FLE7CDL/T2/827/E14 56
79941E FLE7CDL/T2/840/E14 56
79942E FLE7CDL/T2/827/E27 56
79943E FLE7CDL/T2/840/E27 56
79944E FLE7CDL/T2/827/B22 56
88839A FLE5SPH//827/E14/T2 56
88841A FLE5SPH//827/B22/T2 56
73386A FLE5SPH//827/E27/T2 56
78012A FLE5SPH/827/B15/T2 56
88842A FLE7SPH//827/E14/T2 56
88844A FLE7SPH//827/B22/T2 56
73396A FLE7SPH//827/E27/T2 56
78013A FLE7SPH/827/B15/T2 56
79945E FLE5SPH/T2/827/E14 56
79946E FLE5SPH/T2/840/E14 56
79947E FLE5SPH/T2/827/E27 56
79948E FLE5SPH/T2/840/E27 56
79949E FLE5SPH/T2/865/E27 56
79950E FLE5SPH/T2/827/B22 56
79951E FLE7SPH/T2/827/E14 56
79952E FLE7SPH/T2/840/E14 56
79953E FLE7SPH/T2/827/E27 56
79954E FLE7SPH/T2/840/E27 56
79955E FLE7SPH/T2/827/B22 56
45850A FLE8GLS//827/E27/T2 57
45849A FLE8GLS//827/B22 /T2 57
45848A FLE8GLS//827/E14/T2 57
45837A FLE12GLS//827/E27/T2 57
45836A FLE12GLS//827/B22/T2 57
45835A FLE12GLS//827/E14/T2 57
45830A FLE15GLS//827/B22/T3 57
45831A FLE15GLS//827/E27/T3 57
80375 FLE11GLS/O/B22 BP1 57
80376 FLE11GLS/O/E27 BP1 57
80389 FLE20GLS/O/B22 BP1 57
80390 FLE20GLS/O/E27 BP1 57
79972E FLE8GLS/T2/827/E14 57
79973E FLE8GLS/T2/840/E14 57
79974E FLE8GLS/T2/827/E27 57
79975E FLE8GLS/T2/840/E27 57
79976E FLE8GLS/T2/827/B22 57
79977E FLE12GLS/T2/827/E27 57
79978E FLE12GLS/T2/827/E14 57
79979E FLE12GLS/T2/840/E14 57
79980E FLE12GLS/T2/840/E27 57
79981E FLE12GLS/T2/827/B22 57
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
High Intensity Discharge
Lamps
40399 CMH20/TC/UVC/U/830/GU6.5 71
88656 CMH35/T/UVC/930/GU6.5 71
88657 CMH35/T/UVC/942/GU6.5 71
40400 CMH20/MR16/UVC/830/GX10/SP 71
40401 CMH20/MR16/UVC/830/GX10/FL 71
42691 CMH20/MR16/UVC/830/GX10/WFL 71
88658 CMH35/MR16/UVC/930/GX10/SP 71
88659 CMH35/MR16/UVC/930/GX10/FL 71
88660 CMH35/MR16/UVC/930/GX10/WFL 71
88661 CMH35/MR16/UVC/942/GX10/SP 71
88662 CMH35/MR16/UVC/942/GX10/FL 71
88663 CMH35/MR16/UVC/942/GX10/WFL 71
39858 CMH20/T/UVC/U/830/G8.5 PLUS 71
43273 CMH35/TC/UVC/U/830/G8.5 PLUS 71
26348 CMH35/TC/UVC/U/942/G8.5 71
43274 CMH70/TC/UVC/U/830/G8.5 PLUS 71
26349 CMH70/TC/UVC/U/942/G8.5 71
42708 CMH20/T/UVC/U/830/G12 PLUS 71
92141 CMH35/T/UVC/U/942/G12 71
43272 CMH35/T/UVC/U/830/G12 PLUS 71
20005 CMH70/T/UVC/U/830/G12 71
20013 CMH70/T/UVC/U/942/G12 71
20012 CMH150/T/UVC/U/830/G12 71
20014 CMH150/T/UVC/U/942/G12 71
76120 CMH35/TC/UVC/U/930/G8.5 Ultra 71
76121 CMH35/T/UVC/U/930/G12 Ultra 71
76122 CMH35/T/UVC/930/GU6.5 Ultra 71
76123 CMH35/MR16/UVC/930/GX10/SP Ultra 71
76124 CMH35/MR16/UVC/930/GX10/FL Ultra 71
76125 CMH35/MR16/UVC/930/GX10/WFL Ultra 71
96751 CMH70/TC/UVC/U/930/G8.5 Ultra 71
96752 CMH70/TC/UVC/U/930/G12 Ultra 71
63595 CMH70/TC/UVC/U/930/G8.5 Ultra White 71
Product
Code Product Description Page
No.
73033 ARC250/T/H/960/E40 75
32665 ARC250/T/VBU/960/E40 75
30052 KRC400/T/H/960/E40 75
30704 KRC400/T/VBU/960/E40 75
30047 ARC250/D/H/960/E40 75
32666 ARC250/D/VBU/960/E40 75
10834 KRC400/D/H/960/E40 75
10837 KRC400/D/VBU/960/E40 75
42357 ARC250/T/H/742/E40 75
42369 ARC400/T/H/742/E40 75
16871 KRC400/E/VBU/645/E40 75
16870 ARC250/D/H/740/E40 75
16872 KRC400/D/VBU/740/E40 75
16875 KRC400/D/H/740/E40 75
65117E ARC70/E/U/740/E27 75
65114E ARC100/E/U/740/E27 75
65118E ARC150/E/U/740/E27 75
65115E ARC150/T/U/740/E40 75
65116E ARC250/T/U/740/E40 75
65119E ARC400/T/U/740/E40 75
65120E KRC250/T/U/740/E40 75
65121E KRC250/D/U/740/E40 75
65122E KRC400/T/U/740/E40 75
65123E KRC400/D/U/740/E40 75
25218 MVR175/PAR38/FL1 76
18902 MVR175/U/MED 76
19976 MVR175/C/U/MED 76
47760 MVR175/U 76
47761 MVR175/C/U 76
17634 MVR175/SP30/U 76
47762 MVR175/U/40 76
47763 MVR175/C/U/40 76
42729 MVR250/U 76
42731 MVR250/C/U 76
17633 MVR250/SP30/U 76
44542 MVR250/U/40 76
44543 MVR250/C/U/40 76
43828 MVR400/U 76
43829 MVR400/C/U 76
17632 MVR400/SP30/U 76
18904 MVR400/U/ED28 76
19979 MVR400/C/U/ED28 76
43907 MVR400/U/40 76
43908 MVR400/C/U/40 76
49860 MVR400/VBU/40 76
49857 MVR400/C/VBU/40 76
41826 MVR1000/U 76
41827 MVR1000/C/U 76
18205 MVR1000/U/BT37 76
41828 MVR1000/U/40 76
41829 MVR1000/C/U/40 76
47326 MVR1500/U 76
37405 MVR1500/HBU 76
18104 MVR175/HOR 76
18105 MVR175/C/HOR 76
18101 MVR250/HOR 76
18103 MVR250/C/HOR 76
49657 MVR400/VBU/HO 76
13923 MVR400/VBU/XHO 76
13924 MVR400/C/VBU/XHO 76
49655 MVR400/VBD 76
20931 MVR400/SP30/VBU/HO 76
40335 MVR400/VBU/ED28/HO 76
40201 MVR400/HOR/BT28 76
26218 MVR400/HOR/MOG 76
26219 MVR400/C/HOR/MOG 76
44835 MVR1000/VBU/HO 76
13137 MVR1000/C/VBU/HO 76
13481 MVR150/U/WM 77
13490 MVR150/C/U/WM 77
13495 MVR360/U/WM/HO 77
40053 MVR360/VBU/WM/XHO 77
40055 MVR360/C/VBU/WM/XHO 77
40056 MPR360/VBU/WM/HO/O 77
11685 MPR360/C/VBU/WM/HO/O 77
18709 MPR400/VBU/O/40 77
27738 MPR400/C/VBU/O/40 77
18708 MPR400/VBU/HO/O 77
13582 MPR400/C/VBU/HO/O 77
41433 MPR1000/VBU/HO/O 77
10687 MVR325/I/U/WM 77
10688 MVR325/C/I/U/WM 77
43817 MVR400/I/U 77
43818 MVR400/C/I/U 77
39097 MVR950/I/VBU/WM 77
34530 ARC70/TD/UVC/730/Rx7s 77
34536 ARC70/TD/UVC/742/Rx7s 77
34527 ARC150/TD/UVC/732/Rx7s-24 77
34535 ARC150/TD/UVC/742/Rx7s-24 77
93772 ARC150/TD/952/Rx7s-24 77
35284 ARC150/UVC/AQUA/TD/865/Rx7s-24 77
30099 ARC250/TD/832/Fc2 77
73032 ARC250/TD/842/Fc2 77
12181 ARC150/UVC/TD/GREEN/Rx7s-24 77
12182 ARC150/UVC/TD/BLUE/Rx7s-24 77
12183 ARC150/UVC/TD/ORANGE/Rx7s-24 77
12184 ARC150/UVC/TD/MAGENTA/Rx7s-24 77
89133E ARC70/UVC/TD/730/Rx7s 78
89136E ARC70/UVC/TD/742/Rx7s 78
71170E ARC70/UVC/TD/760/Rx7s 78
89137E ARC150/UVC/TD/730/Rx7s-24 78
89138E ARC150/UVC/TD/742/Rx7s-24 78
71175E ARC150/UVC/TD/960/Rx7s-24 78
16920 SPL1500/L/H/652/Rx7SM 78
88882 SPL1000/T/H/960/E40 78
16922 SPL2000/L/H/654/spec 78
30102 SPL2000/T/H/960/E40 78
33148 SPL2000/I/T/H/640/E40 78
30103 SPL2000/I/T/H/960/E40 78
36078 SPL2000/220V/T/H/640/E40 78
88553* LU50/85/MO/T/E27 1/25 79
46221 LU70/90/MO/T/E27 1/25 79
93767 LU100/100/MO/T/40 79
44244 LU150/100/T/40 79
22453 LU250/T/40 79
11678 LU400/T/40 79
45751 LU1000/110/T/40 79
88554* LU50/85/MO/D/E27 1/12 79
46217 LU70/90/MO/D/E27 1/12 79
93766 LU100/100/MO/40 79
44245 LU150/100/D/40 79
44052 LU250/D/40 79
44057 LU400/D/40 79
13252 LU150/MED/ECO 79
13253 LU150/D/MED/ECO 79
85371 LU150/55/H/ECO 79
85380 LU150/55/D/H/ECO 79
72607 LU150/55/40/ECO 79
85377 LU250/H/ECO 79
85381 LU250/D/H/ECO 79
76204 LU250/40/H/ECO 79
85379 LU400/H/ECO 79
76205 LU400/40/ECO 79
76998 LU400/D/H/ECO 79
14682 LU750 79
44058 LU1000/ECO 79
44059 LU1000/40 79
10979E LU70T/E27 79
10980E LU100T/E27 79
10982E LU100T/E40 79
74041E LU150/100/T/E40 79
74042E LU150/100/D/E40 79
74043E LU250/T/E40 79
74044E LU250/D/E40 79
74045E LU400/T/E40 79
74046E LU400/D/E40 79
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Index By Product Description
78659E LU150/100/HO/T/E40 79
78660E LU250/HO/T/E40 79
78661E LU400/HO/T/E40 79
78663E LU600/HO/T/E40 79
93373 LU50/85/XO/T/27 80
45696 LU50/85/XO/D/27 80
93375 LU70/90/XO/T/27 80
45697 LU70/90/XO/D/27 80
93376 LU100/100/XO/T/40 80
93379 LU100/100/XO/D/40 80
93377 LU150/100/XO/T/40 80
93380 LU150/100/XO/D/40 80
93378 LU250/XO/T/40 80
93381 LU250/XO/D/40 80
93269 LU400/XO/T/40 80
93296 LU400/XO/D/40 80
93270 LU600/XO/T/40 80
88558* LU50/85/MO/SBY/T/E27 1/25 80
88557* LU50/85/MO/SBY/D/E27 1/12 80
88268* LU70/90/MO/SBY/T/E27 GE 1/25 80
88269* LU70/90/MO/SBY/D/E27 GE 1/12 80
88257 LU70/XO/SBY/D/E27 80
88258 LU70/XO/SBY/T/E27 80
17899* LU100/100/MO/SBY/T/40 80
88255 LU100/XO/SBY/D/E40 80
88256 LU100/XO/SBY/T/E40 80
35594* LU150/100/SBY/T/40 80
35589* LU150/100/SBY/D/40 80
78737 LU150/XO/SBY/T/E40 80
35586* LU250/SBY/T40 80
35590 LU250/SBY/D/40 80
78738 LU250/XO/SBY/T/E40 80
35582* LU400/SBY/T40 80
35591 LU400/SBY/D/40 80
78739 LU400/XO/SBY/T/E40 80
88556* LU50/85/MO/D/I/E27 1/12 80
46186 LU70/90/MO/D/I/E27 1/12 80
46209 LU70/90/MO/I/E27 1/12 80
71053 LU70/90/D/I/E27 80
39512 LUH110/D/27-SHx 80
76987E H50/27 81
76985E H80/27 81
74781E H125/27 81
74782E H250/40 81
76986E H400/40 81
77042E H50NDX/27 81
77043E H80NDX/27 81
77044E H125NDX/27 81
77045E H250NDX/40 81
77046E H400NDX/40 81
78021E HR100A38 81
78022E HR175A39 81
78025E HR250A37 81
78030E HR400A33 81
78035E HR100DX38 81
78039E HR100DX38MED 81
78040E HR175DX39 81
78061E HR250DX37 81
78062E HR400DX33 81
76468E ML160W/220-230V/E27 81
76470E ML250W/220-230V/E27 81
76471E ML250W/220-230V/E40 81
76472E ML500W/220-230V/E40 81
88550 CP61 EXD SUPER 93
88549 CP62 EXE SUPER 93
88536 CP62 EXE SUPER 93
88511 CP95 93
88510 CP95 93
88480 EXG/PAR64/WFL 93
88479 EXG/PAR64/WFL 93
39409 500PAR64/MFL 93
13233 FFN 93
13229 FFP 93
13228 FFR 93
13227 FFS 93
43497 Q1000PAR64/NSP 93
43498 Q1000PAR64/MFL 93
43499 Q1000PAR64/WFL 93
88478 HPL 575 93
88477 HPL 575 93
88436 HPL 575-C 93
88438 HPL 575-C 93
88476 HPL 575-X LL 93
88475 HPL 575-X LL 93
88434 HPL 575-C LL-X 93
88435 HPL 575-C LL-X 93
88474 HPL 750 93
88473 HPL 750 93
88437 HPL 750-C 93
88428 HPL 750-C-XLL 93
88430 HPL 750-X-LL 93
88429 HPL 750-X-LL 93
88624 EHD 94
88548 FLK 94
88452 FLK-LL 94
88448 GKV 94
88447 GKV 94
88446 GKV/LL 94
88445 GKV/LL 94
88450 FKR 94
88627 EHF 94
88626 EHG 94
88432 HX800 94
88625 FEL 94
88449 CP77 FEP 94
88443 CP81 FKW 94
88433 CP81 FSL 94
88444 CP81 FSK 94
88467 CP82 FRG 94
88466 CP82 FRH 94
88464 CP82 FRJ 94
88465 T18 GCW 94
88470 T25 GCW 94
88469 T27 GCS 94
88463 T26 GCS 94
88462 CP89 FRK 94
88461 CP89 FRM 94
88504 FMR 94
88431 T12 95
72680 CP23 95
88455 CP23 95
88459 CP24 95
88515 T11 Q1000T8/CL 95
88456 T11 95
88457 T19 FWR 95
88472 CP70 FVA 95
88471 CP70 FVA 95
88454 T29 FWT 95
88453 CP90 95
96735 CP43 FTL 95
88533 CP43 FTL 95
88503 CP79 95
88439 CP110 OC1200 95
88509 EGN 95
88531 CP39 FKH 95
88622 EGT 95
48461 CSR125/SE/HR 89
48462 CSR200/SE/HR/UV-C 89
21853 CSR400/SE/HR/UV-C 89
45238 CSR400/SE/HR/75 89
48463 CSR575/SE/HR 89
40460 CSR575/SE/HR/UV-C 89
22495 CSR800/SE/HR/UV-C 89
48464 CSR1200/SE/HR 89
27764 CSR1200/SE/HR/UV-C 89
77390 CSR1800/SE/HR/UV-C 89
48465 CSR2500/SE/HR 89
40482 CSR2500/SE/HR/UV-C 89
48466 CSR4000/SE/HR 89
27765 CSR4000/SE/HR/UV-C 89
48467 CSR6000/SE/HR 89
40492 CSR6000/SE/HR/UV-C 89
48468 CSR12000/SE/HR 89
22496 CSR18000/SE/HR 89
27817 CSD250/2/SE 89
21328 CSD250/2/SE BULK 89
49492 CSR575/2/T/SE 89
15378 CSR575/2/SE 89
49491 CSR700/2/SE 89
49490 CSR1200/2/SE 89
76160 CSR300/2/TAL 89
76161 CSR700/TAL/60/PGJX50 89
78718 CSR700/TAL/60/PGJX28 89
74873 CSR1500/TAL/60/S 89
48450 CSR200/DE 89
45232 CSR400/S/DE/90 89
22478 CSR400/S/DE/70 89
70979 CSR575/DE 89
70978 CSR575/DE/70 BULK 89
45231 CSR575/SS/DE/75 89
22493 CSR700/S/DE/60 89
41357 CSR700/S/DE/72 89
22494 CSR1200S/DE/60 89
96802 CSR1200/S/DE/60/STB 89
96800 CSR1500/S/DE/STB 89
48453 CSR1200/DE 89
48454 CSR2500/DE 89
48455 CSR4000/DE 89
48456 CSR6000/DE 89
48457 CSR12000/DE 89
48459 CSR18000/DE 89
78710 CSR24000/DE 89
15380 CSR700SA 90
45234 CSR700SA/72 90
21849 CSR1200SA 90
21801 CSR2000SA 90
73579 CMH400/932/GX9.5 90
73580 CMH400/941/GX9.5 90
88545 CMH150/PAR64/830/GX16d/SP 90
88537 CMH150/PAR64/830/GX16d/MFL 90
16960 CMH150/PAR64/830/GX16d/WFL 90
88543 CMH150/PAR64/942/GX16d/SP 90
88542 CMH150/PAR64/942/GX16d/MFL 90
88541 CMH150/PAR64/942/GX16d/WFL 90
88485 CSS150/850/GY9.5 90
88495 99-0201 CSI 90
88494 99-0221 CSI 90
88514 99-1222 CSI CS 90
88513 99-1422 CSI HR 90
88493 99-0222 CID 90
41869 F55BX/StudioBiax32 90
41873 F55BX/StudioBiax56 90
41903 F55BX/CINPLUS/32 90
41911 F55BX/CINPLUS/55 90
72658 F24T8CINEMA32/CVG 91
72659 F24T8CINEMA55/CVG 91
81207 F48T8/Cinema32/CVG 91
81208 F48T8/Cinema55/CVG 91
15775 F20T12/CINEMA32/HO/CVG 91
15776 F20T12/CINEMA55/HO/CVG 91
15782 F40T12/CINEMA32/HO/CVG 91
15783 F40T12/CINEMA55/HO/CVG 91
34747 F20T12/BLB 91
25618 F40T12/BLB 91
88832 F18T8/BLB 91
88833 F36T8/BLB 91
41673 FCX 91
14553 25PAR36 91
14555 25PAR36/WFL 91
24425 4405 91
24663 4511 91
15133 H4515 91
24673 4515 91
43576 H7604 91
12892 50PAR36/VNSP 91
16540 50PAR36/NSP 91
16541 50PAR36/WFL 91
19880 50PAR36/WFL/H 91
16542 50PAR36/VWFL 91
24627 4502 91
24640 4505 91
24650 4509 91
41503 4509X 91
24887 4593 91
24891 4594 91
24964 4626 91
24966 4627 91
24867 4587 91
24898 4596 91
41667 DWE 91
41671 FBO 91
43591 H7635 92
40822 4537-2 92
24799 4553 92
24859 4580 92
24862 4581 92
37706 Q4554 92
36271 Q4681 92
24768 4545 92
19024 120PAR56/MFL 92
19025 120PAR56/WFL 92
20122 200PAR 92
20575 240PAR56/VNSP 92
20577 240PAR56/WFL 92
23427 300PAR56/WFL 92
20803 300PAR56/NSP 92
20836 300PAR56/MFL 92
20849 300PAR56/WFL 92
20853 300PAR56/NSP 92
20852 300PAR56/MFL 92
20854 300PAR56/WFL 92
18676 300PAR56/NSP 92
18677 300PAR56/MFL 92
18678 300PAR56/WFL 92
43494 Q500PAR56/NSP 92
43495 Q500PAR56/MFL 92
43496 Q500PAR56/WFL 92
40576 4552 93
40578 4559 93
40579 Q4559 93
42552 Q4559X 93
73581 CP86 PAR64/VNSP 93
99944 CP86 PAR64/VNSP 93
25504/99945 CP87 PAR64/NSP 93
99946 CP87 PAR64/NSP 93
99947 CP88 PAR64/MFL 93
99948 CP88 PAR64/MFL 93
39411 500/PAR64/MFL 93
39414 500/PAR64/W FL 93
88425 CP60 EXC SUPER 93
88551 CP60 EXC SUPER 93
88535 CP61 EXD SUPER 93
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
SHOWBIZ Lamps
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Index By Product Description
88458 CP40 FKJ 95
88538 CP40 FKJ 95
88508 CP93 95
88507 CP92 95
88506 CP92 95
88505 CP91 95
88617 EGE 95
88546 BTM 95
88498 T17 FKF 95
88451 T28 95
88497 T13 FKB 95
88530 CP51 FKM 95
88615 EGJ 95
88529 T14 FKD 95
88499 FKE 95
88496 CP52 FKN 95
88610 CYX 95
88489 CP41 FKK 95
88488 CP41 FKK 95
88502 CP94 95
88874 HX48 95
88875 CP29 95
88876 CP29 95
12036 CP83 95
12037 CP83 95
48771 Q12MT26/4CL 95
48779 Q12MT26/4CL 95
48773 BCM-020MT324CL 95
48774 BCM-020MT324CL 95
48777 Q24MT32/4CL 95
88880 CP105 96
88877 CP30 96
88878 CP58 96
88879 CP32 96
88512 CP59 96
19926 DKZ/DSE 96
88500 T16 96
88532 CP53 96
30325 FAD 96
36952 DXX 96
36953 DXX 96
30157 DXW 96
30374 FBY 96
23756 EJG 96
23760 P2/11 EME/Clear 96
23761 P2/11 EMF/Frosted 96
23797 P2/28 FCM 96
88482 P2/27 FEX 96
88481 P2/27 FEX 96
88629 FEY 96
19697 P2/10 96
19698 P2/10 96
20249 P2/7 EKM 96
20253 P2/7 EKM 96
19695 P2/12 96
19696 P2/12 96
37346 DZA 96
18234 BRL A1/220 96
14876 FCR A1/215 96
18235 BRJ/EVB A1/234 96
37695 DZE/FDS A1/262 96
13598 FCS A1/216 96
14874 EHJ A1/223 96
18241 FNT 96
41164 EVD A1/239 96
26895 DYR A1/233 96
88484 HX185 96
88492 A1/248 96
88491 A1/249 96
88460 A1/244 96
34720 M29/ESA 97
34718 M30/ESB 97
34702 M32 97
34676 M28/EVA 97
34768 M33 97
88516 M36 97
88442 M38 97
78343 M38 97
88468 M40 97
36902 EKZ 97
43988 DDS 97
43950 DED 97
43537 DDL 97
38306 ELD/EJN 97
35200 EKE 97
29150 EJL A1/252 97
37462 ELC A1/259 97
15377 ELC500 97
38686 ENH 97
38476 ELH 97
32882 EJA 97
41729 EPT 97
25475 ENL 97
41882 EPV 97
42614 EPX 97
41874 ERV 97
41705 ENX 97
21613 FXL 97
25261 FLT 97
12097 EXY 97
12092 EXR 97
39882 F4W/T5/BLB 103
39883 F6W/T5/BLB 103
39884 F8W/T5/BLB 103
88832 F18/T8/BLB 103
88833 F36/T8/BLB 103
34747 F20W/T12/BLB 103
25618 F40W/T12/BLB 103
16941 F15WBL 350 103
72939 F15WBLCVG 103
42935 F9BX BL G23 103
42936 F11BX BL G23 103
42937 F13BX BL GX23 103
42939 F24BX BL 2G11 103
42940 F36BX BL 2G11 103
42941 F55BX BL 2G11 103
15872 G4T5 103
15873 G6T5 103
11077 G8T5 103
29495 G11T5 103
16494 G16T5 103
15874 G36T5 103
15864 G64T5 103
29504 G64T5/4P/SE 103
11078 G15T8 104
11082 G25T8 104
11080 G30T8 104
15875 G55T8HO 104
40695 GBX5/UVC G23 104
40696 GBX9/UVC G23 104
40700 GBX11/UVC G23 104
40703 GBX13/UVC GX23 104
40704 GBX18/UVC/2G11 104
40705 GBX36/UVC/2G11 104
40706 GBX55/UVC/2G11 104
72761 G15T8/CVG 104
72762 G25T8/CVG 104
72763 G30T8/CVG 104
72764 G55T8/CVG 104
17203 F18W/830CVG 104
17204 F18W/835CVG 104
17205 F18W/840CVG 104
17208 F36W/830CVG 104
17202 F36W/835CVG 104
17209 F36W/840CVG 104
12403 F58W/830CVG 104
12405 F58W/835CVG 104
12407 F58W/840CVG 104
12423 F70W/835CVG 104
12424 F70W/840CVG 104
71000 F24W/T5/830/ECO/CVG 105
70998 F24W/T5/835/ECO/CVG 105
70997 F24W/T5/841/ECO/CVG 105
70999 F24W/T5/850/ECO/CVG 105
70996 F24W/T5/865/ECO/CVG 105
70995 F39W/T5/830/ECO/CVG 105
70994 F39W/T5/835/ECO/CVG 105
70993 F39W/T5/841/ECO/CVG 105
70991 F39W/T5/850/ECO/CVG 105
70990 F39W/T5/865/ECO/CVG 105
48433 F54T5/830/HO/ECO/CVG 105
48436 F54T5/835/HO/ECO/CVG 105
48458 F54T5/841/HO/ECO/CVG 105
80311 F54T5/850/HO/ECO/CVG 105
48469 F54T5/865/HO/ECO/CVG 105
72985 F54T5/830//ECO/WM/CVG 105
72986 F54T5/835//ECO/WM/CVG 105
72987 F54T5/841/ECO/WM/CVG 105
72988 F54T5/850//ECO/WM/CVG 105
72989 F54T5/865//ECO/WM/CVG 105
44212 F15T8 F&SA 105
16987 /44230
F15T8 SW 105
44239 F15T8 REP 105
44213 F18T8 F&SA 105
44231 F18T8 SW 105
44240 F18T8 REP 105
16968 F25T8 F&SA 105
16991 F25T8 SW 105
16969 /44218
F30T8 F&SA 105
16992 /44235
F30T8 SW 105
44241 F30T8 REP 105
16970 /44219
F36T8 F&SA 105
16995 /44236
F36T8 SW 105
44242 F36T8 REP 105
44220 F38T8 F&SA 105
16984 F38T8 FA 105
16999 F38T8 SW 105
21788 QH500T3/CL 106
21787 QH500T3/CL/7 106
22355 QH1000T3/CL 106
22357 QH1000T3/CL 106
21377 QH1MT3/CL/R/MS-235V 106
22357 QH1000T3/CL 106
22531 QH1200T3/CL 106
22532 QH1200T3/CL/HT 106
22691 QH1600T3/CL/7 106
22688 QH1600T3/CL 106
22789 QH2M/T3/1CL/HT 106
15551 QH2M/T3/1CL/HT/VB 106
18668 QH2MT3/CL/VB 106
22790 QH2M/T3/CL/HT 106
12716 QH2MT3/CL/HT/R 106
22838 QH2500T3/CL 106
10872 QH3650/CL/5 106
22875 QH3800/CL 106
22900 QH5M/T3/1CL/HT 106
20092 HH 451 1500W RUBY 230-240V 106
20093 HH 804 2000W RUBY 230-240V 106
40723 QH 750W 230-240V Ruby Slim 106
42740 QH 1300W 230-240V Ruby Slim 106
11478 EXL 106
11482 EXM 106
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Specialty Lamps
80583 Q6.6A45PK30d male 106
88420 AF6/2 6.6A 45W 106
32917 Q65T2 1/2/1/CL 106
88417 AF 6/5T 6.6A 100W 106
80584 Q6.6A100PK30d male 106
80588 Q6.6A100PK30d female 106
80585 Q6.6A150PK30d male 106
80589 Q6.6A150PK30d female 106
80586 Q6.6A200PK30d male 106
80590 Q6.6A200PK30d female 106
23857 Q6.6A/T4/5CL 106
23860 Q6.6AT4/DCR 106
33279 Q6.6A/PAR56/3 106
88413 AF7/2 6.6A 200W 106
15482 Q20A/PAR56/C 106
23863 Q20A/PAR56/3 106
88525 IM T20BP 106
88523 1200T20 106
Product
Code Product Description Page
No.
Ballast
65875 MSB400/220V/50Hz/A/T 118
65876 MSB600/220V/50Hz/A/T 118
65877 MHB50/220V/50Hz/A/T 118
65878 MHB80/220V/50Hz/A/T 118
65879 MHB125/220V/50Hz/A/T 118
65880 MHB175/220V/50Hz/A/T 118
65881 MHB250/220V/50Hz/A/T 118
65882 MHB400/220V/50Hz/A/T 118
65883 MSB100/70/220V/50Hz/A/T 118
65884 MSB150/100/220V/50Hz/A/T 118
65885 MSB250/150/220V/50Hz/A/T 118
65886 MSB400/250/220V/50Hz/A/T 118
65890 MSB35/230V/50Hz/A/T 119
65891 MSB50/230V/50Hz/A/T 119
65892 MSB70/230V/50Hz/A/T 119
65893 MSB100/230V/50Hz/A/T 119
65894 MSB150/230V/50Hz/A/T 119
65895 MSB250/230V/50Hz/A/T 119
65896 MSB400/230V/50Hz/A/T 119
65897 MSB600/230V/50Hz/A/T 119
65898 MHB50/230V/50Hz/A/T 119
65899 MHB80/230V/50Hz/A/T 119
65900 MHB125/230V/50Hz/A/T 119
65901 MHB175/230V/50Hz/A/T 119
65902 MHB250/230V/50Hz/A/T 119
65904 MHB400/230V/50Hz/A/T 119
65905 MSB100/70/230V/50Hz/A/T 119
65906 MSB150/100/230V/50Hz/A/T 119
65907 MSB250/150/230V/50Hz/A/T 119
65908 MSB400/250/230V/50Hz/A/T 119
70993 6μF/250V 120
70994 8μF/250V 120
82017 10μF/250V 120
70995 12μF/250V 120
70996 18μF/250V 120
71009 25μF/250V 120
70997 32μF/250V 120
72090 36μF/250V 120
70998 50μF/250V 120
89197 25μF/540V 120
89200 35μF/540V 120
28243 6μF/250V/C 120
28244 8μF/250V/C 120
28246 10μF/250V/C 120
28253 12μF/250V/C 120
28255 18μF/250V/C 120
28256 25μF/250V/C 120
28257 32μF/250V/C 120
28258 50μF/250V/C 120
65954 MSI/150 121
11233 MSI/400 121
11234 MSI/1000 121
11235 MSI/400/L 121
95883 MSI/1000/L 121
81303* MSIA1000 121
89193 MSI/1000/CSI/Aluminum 121
89195 MSI/2000 121
89165 MSB100/70/220V/50Hz/T 122
89160 MSB150/100/220V/50Hz/T 122
89155 MSB250/150/220V/50Hz/T 122
89144 MSB400/250/220V/50Hz/T 122
89168 MSB100/70/220V/60Hz/T 122
89163 MSB150/100/220V/60Hz/T 122
99658 MSB250/150/220V/60Hz/T 122
89153 MSB400/250/220V/60Hz/T 122
89166 MSB100/70/230V/50Hz/T 122
89161 MSB150/100/230V/50Hz/T 122
89156 MSB250/150/230V/50Hz/T 122
89151 MSB400/250/230V/50Hz/T 122
89169 MSB100/70/230V/60Hz/T 122
89164 MSB150/100/230V/60Hz/T 122
99659 MSB250/150/230V/60Hz/T 122
89154 MSB400/250/230V/60Hz/T 122
70981C MSB35/220V/50Hz/T 109
70982C MSB50/220V/50Hz/T 109
70983C MSB70/220V/50Hz/T 109
70986C MSB100/220V/50Hz/T 109
70987C MSB150/220V/50Hz/T 109
70988C MSB250/220V/50Hz/T 109
70989C MSB400/220V/50Hz/T 109
70991C MSB600/220V/50Hz/T 109
70992C MSB1000/220V/50Hz/T 109
25816C MHB80/220V/50Hz/T 109
25817C MHB125/220V/50Hz/T 109
25818C MHB250/220V/50Hz/T 109
70990C MHB400/220V/50Hz/T 109
78671 MSB35/220V/60Hz/T 110
28810 MSB70/220V/60Hz/T 110
78672 MSB100/220V/60Hz/T 110
28812 MSB150/220V/60Hz/T 110
28814 MSB250/220V/60Hz/T 110
78673 MSB400/220V/60Hz/T 110
99720 MSB1000/220V/60Hz/T 110
28789 MSB35/230V/50Hz/T 110
95859T MSB50/230V/50Hz/T 110
28790 MSB70/230V/50Hz/T 110
28796 MSB100/230V/50Hz/T 110
28797 MSB150/230V/50Hz/T 110
28798 MSB250/230V/50Hz/T 110
95864C MSB400/230V/50Hz/T 110
95866T MSB600/230V/50Hz/T 110
99721 MSB1000/230V/50Hz/T 110
25819T MHB80/230V/50Hz/T 110
25822T MHB125/230V/50Hz/T 110
25823T MHB250/230V/50Hz/T 110
95865C MHB400/230V/50Hz/T 110
28815 MSB70/230V/60Hz/T 111
28817 MSB150/230V/60Hz/T 111
28818 MSB250/230V/60Hz/T 111
28800 MSB35/240V/50Hz/T 111
28801 MSB70/240V/50Hz/T 111
28807 MSB100/240V/50Hz/T 111
28808 MSB150/240V/50Hz/T 111
28809 MSB250/240V/50Hz/T 111
95874C MSB400/240V/50Hz/T 111
99722 MSB1000/240V/50Hz/T 111
95875C MHB400/240V/50Hz/T 111
28819 MSB70/240V/60Hz/T 111
28821 MSB150/240V/60Hz/T 111
28823 MSB250/240V/60Hz/T 111
99719 MHB2000/380V/50Hz/T 112
99723 MHB2000/380V/60Hz/T 112
99724 MHB2000/400V/50Hz/T 112
99725 MHB2000/415V/50Hz/T 112
70981 MSB35/220V/50Hz 113
70982 MSB50/220V/50Hz 113
70983 MSB70/220V/50Hz 113
70986 MSB100/220V/50Hz 113
70987 MSB150/220V/50Hz 113
70988 MSB250/220V/50Hz 113
70989 MSB400/220V/50Hz 113
70991 MSB600/220V/50Hz 113
70992 MSB1000/220V/50Hz 113
25816 MHB80/220V/50Hz 113
25817 MHB125/220V/50Hz 113
25818 MHB250/220V/50Hz 113
70990 MHB400/220V/50Hz 113
78669 MSB35/220V/60Hz 114
11212 MSB70/220V/60Hz 114
78670 MSB100/220V/60Hz 114
11215 MSB150/220V/60Hz 114
11221 MSB250/220V/60Hz 114
11222 MSB400/220V/60Hz 114
25827 MHB400/220V/60Hz 114
95858 MSB35/230V/50Hz 114
95859 MSB50/230V/50Hz 114
95860 MSB70/230V/50Hz 114
95861 MSB100/230V/50Hz 114
95862 MSB150/230V/50Hz 114
95863 MSB250/230V/50Hz 114
95864 MSB400/230V/50Hz 114
95866 MSB600/230V/50Hz 114
95867 MSB1000/230V/50Hz 114
25819 MHB80/230V/50Hz 114
25822 MHB125/230V/50Hz 114
25823 MHB250/230V/50Hz 114
95865 MHB400/230V/50Hz 114
11049 MSB70/230V/60Hz 115
11050 MSB150/230V/60Hz 115
11053 MSB250/230V/60Hz 115
11223 MSB400/230V/60Hz 115
25828 MHB400/230V/60Hz 115
95868 MSB35/240V/50Hz 115
95869 MSB50/240V/50Hz 115
95870 MSB70/240V/50Hz 115
95871 MSB100/240V/50Hz 115
95872 MSB150/240V/50Hz 115
95873 MSB250/240V/50Hz 115
95874 MSB400/240V/50Hz 115
95876 MSB600/240V/50Hz 115
95877 MSB1000/240V/50Hz 115
25824 MHB80/240V/50Hz 115
25825 MHB125/240V/50Hz 115
25826 MHB250/240V/50Hz 115
95875 MHB400/240V/50Hz 115
11224 MSB70/240V/60Hz 116
11225 MSB150/240V/60Hz 116
11226 MSB250/240V/60Hz 116
11227 MSB400/240V/60Hz 116
25839 MHB400/240V/60Hz 116
89192 MHB1000/380V/50Hz 116
89191 MHB1500/380V/50Hz 116
89190 MHB2000/380V/50Hz 116
99664 CSI 1000/220V/50Hz 117
89186 CSI 1000/220V/60Hz 117
89187 CSI 1000/230V/50Hz 117
89188 CSI 1000/230V/60Hz 117
89189 CSI 1000/240V/50Hz 117
65869 MSB35/220V/50Hz/A/T 118
65870 MSB50/220V/50Hz/A/T 118
65871 MSB70/220V/50Hz/A/T 118
65872 MSB100/220V/50Hz/A/T 118
65873 MSB150/220V/50Hz/A/T 118
65874 MSB250/220V/50Hz/A/T 118
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Index By Product Description
Product
Code Product Description Page
No.
89167 MSB100/70/240V/50Hz/T 122
99660 MSB150/100/240V/50Hz/T 122
89157 MSB250/150/240V/50Hz/T 122
89152 MSB400/250/240V/50Hz/T 122
89170 MSB/Dual/PS 123
75251 MSB/Dual/PS/Timer 123
89176 Timer/PS 123
10987 CWA175/220V/50Hz 124
10988 CWA250/220V/50Hz 124
10989 CWA400/220V/50Hz 124
10991 CWA1000/220V/50Hz 124
10992 CWA1500/220V/50Hz 124
95878 CWA175/230V/50Hz 124
95879 CWA250/230V/50Hz 124
95880 CWA400/230V/50Hz 124
95881 CWA1000/230V/50Hz 124
95882 CWA1500/230V/50Hz 124
11228 CWA175/240V/50Hz 125
11229 CWA250/240V/50Hz 125
11230 CWA400/240V/50Hz 125
11231 CWA1000/240V/50Hz 125
11232 CWA1500/240V/50Hz 125
81302 CWA1000/S52/220V/50Hz 125
85922 CWA1000/S52/220V/60Hz 125
85923 CWA1000/S52/230V/50Hz 125
85926 CWA1000/S52/230V/60Hz 125
85921 CWA1000/S52/240V/50Hz 125
10993 13μF/540V 126
10994 19μF/540V 126
10995 28μF/540V 126
10996 30μF/540V 126
10997 41μF/540V 126
89625 26μF/540V 126
31599 13μF/540V/C 126
31614 19μF/540V/C 126
31625 28μF/540V/C 126
31638 30μF/540V/C 126
31647 41μF/540V/C 126
78711 BLS/E/20W/CMH 127
78712 BLS/E/20W/CMH/R CC 127
78713 BLS/E/20W/CMH/R LP 127
78714 BLS/E/35W/CMH 127
78715 BLS/E/35W/CMH/R CC 127
78716 BLS/E/35W/CMH/R LP 127
61487 BLS/ES/35W/CMH 128
61488 BLS/ES/35W/CMH/R CC 128
61376 BLS/ES/70W/CMH 128
61569 BLS/ES/70W/CMH/R CC 128
64581 BLS/EE/35W/CMH 129
64582 BLS/EE/70W/CMH 129
61386 ELB114S 130
61387 ELB214S 130
61395 ELB314S 130
61396 ELB414S 130
61394 ELB121S 130
61388 ELB128S 130
61389 ELB228S 130
61390 ELB328S 130
61391 ELB135S 130
61392 ELB235S 130
62107 ELB149S 130
62108 ELB249S 130
61393 ELB154S 130
61385 ELB254/258S 130
62623 ELB114E 131
62624 ELB214E 131
62625 ELB314E 131
62626 ELB414E 131
62627 ELB121E 131
62630 ELB224E 131
62628 ELB128E 131
62629 ELB228E 131
61378 ELB118S 132
61379 ELB218S 132
61380 ELB318S 132
61381 ELB136S 132
61382 ELB236S 132
61383 ELB336S 132
61384 ELB158S 132
61385 ELB254/258S 132
62640 ELB118E 133
62641 ELB218E 133
62642 ELB318E 133
62643 ELB418E 133
62644 ELB136E 133
62645 ELB236E 133
76509 MB15/220V/50Hz 134
76510 MB18/20/220V/50Hz 134
76511 MB30/220V/50Hz 134
76512 MB36/40/220V/50Hz 134
76514 MB58/65/220V/50Hz 134
76515 MB22/220V/50Hz 134
76516 MB32/220V/50Hz 134
76517 EMB18/20/220V/50Hz 135
76518 EMB30/220V/50Hz 135
76519 EMB36/40/220V/50Hz 135
76520 EMB22/220V/50Hz 135
76521 EMB32/220V/50Hz 135
24975 Starter FU 10 (155/500 4-65W 220-240V) 136
81024 FU10 155/500 4W-65W 220-240V 136
81850
STARTERS FU10 155/500 4-65W 220-240V PC
136
89698
STARTERS FU10 155/200 4-22W 220-240V Series RoHS
136
89699
STARTERS FU10 155/200 4-22W 220-240V Series
136
76522 EMB10/220V/50Hz 137
76523 EMB13/220V/50Hz 137
76524 EMB18/220V/50Hz 137
62660 CEB110E 138
62662 CEB111E 138
62663 CEB211E 138
79050 CEB113E 138
79051 CEB213E 138
79052 CEB118E 138
79053 CEB218E 138
62661 CEB210E 138
62666 CEB126E 138
62667 CEB226E 138
62668 CEB132E 138
62669 CEB232E 138
65631 SET60LV 139
65632 SET60LTD 139
Glossary
A
Accent Lighting
Directional lighting to emphasize a particular
object or draw attention to a display item.
Adaptation
The process by which the human eye adjusts to a
change in light level.
Ambient Lighting
The general lighting present in an area -excluding
task lighting and accent lighting but including
general lighting and daylight streaming in.
Ambient Temperature
The surrounding temperature within an
environment.
Amperes (“Amps.”)
A measure of electrical current. In incandescent
lamps, the current is related to voltage and power
as follows: Watts (power) = Volts x Amps (current).
American National Standards Institute (ANSI)
A consensus-based organization which
coordinates voluntary standards for the physical,
electrical and performance characteristics of
lamps, ballasts, luminaires and other lighting and
electrical equipment.
Anode
The “positive” terminal of a diode.
ANSI Ballast Type
Ballast type used to operate lamp in accordance
with ANSI standard.
ANSI Codes
These are 3-letter codes assigned by the American
National Standards Institute. They provide a
system of assuring mechanical and electrical
interchangeability among similarly coded lamps
from various manufacturers. General Electric uses
the assigned ANSI Codes as Lamp Ordering Codes
for most Projection Lamps.
Application
Also called “lighting application,” it refers to
the particular use the lamp is being put to. (e.g.
high-bay industrial application or retail lighting
application.) The term can also refer in a general
way to “application engineering” which deals with
specic parameters and usage of light sources.
(e.g. how to do a lighting layout, where to place
xtures and so on.)
Arc
A general term for a high intensity electrical
discharge occurring between two electrodes in
a gaseous medium, usually accompanied by the
generation of heat and the emission of light (See
ELECTRICAL DISCHARGE).
Arc Lamp
A light source containing an arc (see above). Also
called a discharge lamp, or an arc discharge lamp
(See ELECTRICAL DISCHARGE).
Arc Length
In High Intensity Discharge lamps this is
the distance between the electrode tips,
which represents the physical length of the
electrical discharge.
Atmosphere
This eld designates the type of gas or vacuum
lling a volume or chamber of the lamp. This
chamber might contain a lament or it might refer
to the bulb which contains the arc tube.
Auto Reset Shutdown Circuit
Circuit senses lamp end life and will automatically
shut off power to the lamp(s). When a new lamp is
inserted in the socket, the ballast resets, and turns
on the lamp automatically. Some shutdown circuits
require the power to be cycled before a new lamp
will re-light.
B
Ballast
An auxiliary piece of equipment required to start
and to properly control the ow of current to gas
discharge light sources such as uorescent and
high intensity discharge (HID) lamps.
BallastEcacyFactor(BEF)
Dened as ballast factor x 100 divided by input
watts. The value is used to evaluate various lighting
systems based on light output and power input.
The BEF can only be used to compare systems
operating the same type and quantityof lamps.
Ballast Factor (BF)
This is the percentage of a lamp’s rated lumen
output that can be expected when operated on
a specic, commercially available ballast. For
example, a ballast with a ballast factor of 0.93 will
result in the lamp’s emitting 93% of its rated lumen
output. A ballast with a lower BF results in less light
output and also generally consumes less power.
Ballast Hum
Sound generated by the vibration of laminations in
the iron core of the transformer or inductor present
in the ballast.
Ballast Losses
Power or energy dissipated in the ballast as heat
and not converted to lamp energy.
Base or Socket
The socket is the receptacle connected to the
electrical supply; the base is the end of the lamp
that ts into the socket. There are many types of
bases used in lamps, screw bases being the most
common for incandescent and HID lamps, while
bipin bases are common for linear uorescent
lamps.
Base Temperature (Maximum)
The maximum operating temperature permitted
for the base in Celsius. Fixture manufacturers need
to ensure that these conditions are satised in their
xture.
Bayonet
A style of bulb base which uses keyways instead
of threads to connect the bulb to the xture base.
The bulb is locked in place by pushing it down and
turning it clockwise.
Beam Angle
The angular dimension of the cone of light from
reectorized lamps (such as R and PAR types)
encompassing the central part of the beam out to
the angle where the intensity is 50% of maximum.
The beam angle sometimes called “beam
spread” is often part of the ordering code for the
reectorized lamps. Example: The 50PAR30/HIR/
NFL25 is a 50 watt PAR30 narrow ood lamp with a
beam angle of 25 degrees (See FIELD ANGLE).
Beam Lumens
The total lumens present within the portion of the
beam contained in the beam angle.
Beam Spread (Approximate)
For reector type lamps. The total angle of
the directed beam (in degrees horizontal or vertical)
to where the intensity of the beam
falls to 50% or 10% of the maximum candlepower
value as indicated.
Bi-Pin
Any base with two metal pins for electrical contact.
This is the typical base for a uorescent tube of 1
to 4 feet in length. It consists of 2 prong contacts
which connect into the xture. Medium bi-pins are
used with type T-8 and T-12 tubular uorescent
lamps, and miniature bi-pins are used for tubular
T-5 uorescent lamps.
Biax
GE trademark for its biaxial family of high-
efciency and long-life compact uorescent lamps.
DBX (Double Biax), TBX (Triple Biax) and QBX (Quad
Biax) refer to the number of U-shaped legs present
in the lamp.
Blackbody
A hot body with an incandescent black surface
at a certain temperature used as a standard for
comparison. Note that a black surface is the best
radiator possible. A tungsten lament will emit
slightly less radiation than a blackbody at the
same temperature.
Black Light
A popular term referring to a light source emitting
mostly near UV (320 to 400 nm) and very little
visible light.
Blacktop
Whether or not the top of the miniature lamp has
a blacktop coating. The coating is used to control
unwanted brightness or glare.
Bollard
A short, thick post with a light at its top, used for
grounds and outdoor walkway lighting.
Bottom Exit Studs (BES)
(LFL plug-in ballasts) A conguration with screw
studs mounted on the base plate or bottom of the
ballast. The screws are 3/8” inches long with a
#8-32 thread size (#8-32 nut). They are mounted
on a two-inch center. The studs are usually used
to mount the ballast directly onto a junction box
plate.
Bulb
A loose way of referring to a lamp. “Bulb” refers to the
outer glass bulb containing the light source.
Bulb Material or Coating
The type of glass (or quartz) used in the glass
envelope surrounding the light source. The
material can also have coatings applied to achieve
particular performances.
Glossary
Bulb Size
Bulb shape followed by its size (the maximum
diameter of the bulb expressed in eighths of an
inch). For Compact Fluorescent products, “S”, “D”,
“T”, and “Q” are used to represent Single, Double,
Triple and Quad Biax sizes. The code also includes
a reference such as T4 to represent the size of the
tube. Rectangular headlamps are designated as
“Rect” and the number of millimeters horizontally.
C
Canadian Energy Standards
Indicates ballast complies with Canadian Energy
Standards and meets the requirements of CAN/CSA
C654-M91.
Canadian Standards Association (CSA)
An organization that writes standards and tests
lighting equipment for performance as well as
electrical and re safety. Canadian provincial
laws generally require that all products sold
for consumer use in Canada must have CSA or
equivalent approval.
Candela [cd]
The measure of luminous intensity of a source in a
given direction. The term has been retained from
the early days of lighting when a standard candle
of a xed size and composition was dened as
producing one candela in every direction. A plot
of intensity versus direction is called a candela
distribution curve and is often provided for
reectorized lamps and for luminaires with a lamp
operating in them.
Candlepower
An obsolete term for luminous intensity; current
practice is to refer to this simply as candelas (see
CANDELA).
Candlepower (Mean Spherical)
Initial mean spherical candlepower at the design
voltage. Mean spherical candlepower is the
generally accepted method of rating the total light
output of miniature lamps. To convert this rating to
lumens, multiply it by 12.57 (4 pi).
Candlepower Distribution Curve
A graphical presentation of the distribution of light
intensity of a light source, usually a reector lamp
or luminaire.
Capacitor
Device in an electronic circuit (part of ballast or a
separate element) that stores electrical energy.
Often used for power factor correction and lamp
regulation.
Cathode
The “negative” terminal of a diode/arc.
Cathode Resistance
Resistance of the cathode in a Fluorescent lamp.
It is measured “cold” before the lamp is turned on
(Rc) or “hot” after the lamp is turned on (Rh). The
ratio of the hot resistance to the cold resistance is
also measured (Rh/Rc).
Center Beam Candlepower (CBCP)
Refers to the luminous intensity at the center of the
beam of a blown or pressed reector lamp (such as
a PAR lamp). Measured in candelas.
Ceramic Metal Halide (CMH)
A type of metal halide lamp that uses a
ceramic material for the arc tube instead of glass
quartz, resulting in better colour rendering
(>80 CRI) and improved lumen maintenance.
GE ConstantColor CMH lamps feature a 3-piece
arc tube design that delivers excellent colour
consistency and lamp reliability.
Chip
A very small square of semi-conducting material.
Also known as a “die,” it is the “active” light-
emitting component of an LED.
Chromaticity
Measure to identify the colour of a light source,
typically expressed as (x,y) coordinates on a
chromaticity chart (See COLOUR TEMPERATURE).
Chromaticity Coordinates
A system for measuring the colour of the light
emitted from a light source-either a primary
source like a lamp or a secondary source like an
illuminated object. Usually two numbers,
x and y coordinates ranging from 0 to 1 specify the
chromaticity.
Class P Thermal Protector
A switching device sensitive to current and heat
that automatically disconnects ballast if the
temperature exceeds UL temperature limitations.
CoecientofUtilization(CU)
In general lighting calculations, the fraction of
initial lamp lumens that reach the work plane. CU
is a function of luminaire efciency, room surface
reectances and room shape.
Coil
Windings of copper or aluminum wire surrounding
the steel core in ballast. Also refers to the entire
assembly comprising the inductor or transformer.
Colour Bin
LEDs are often sorted according to their CIE
chromaticity coordinates into different groupings
or “bins.”
Colour Rendering Index (CRI)
An international system used to rate a lamp’s ability
to render object colours. The higher the CRI (based
upon a 0-100 scale) the richer colours generally
appear. CRI ratings of various lamps may be
compared, but a numerical comparison is only valid
if the lamps are close in colour temperature. CRI
differences among lamps are not usually signicant
(visible to the eye) unless the difference is more than
3-5 points.
Colour Rendering Indicator
Draws attention to the fact that this is a lamp with
high colour rendering, which helps objects and
persons illuminated to appear more true to life.
Colour Temperature (Correlated Colour
Temperature - CCT)
A number indicating the degree of “yellowness”
or “blueness” of a white light source. Measured
in Kelvins, CCT represents the temperature an
incandescent object (like a lament) must reach
to mimic the colour of the lamp. Yellowish-white
(“warm”) sources, like incandescent lamps, have
lower colour temperatures in the 2700K-3000K
range; white and bluish-white (“cool”) sources, such
as cool white (4100K) and natural daylight (6000K),
have higher colour temperatures. The higher the
colour temperature the whiter, or bluer, the light
will be (See CHROMATICITY).
Compact Fluorescent Lamp (CFL)
The general term applied to uorescent lamps that
are single-ended and that have smaller diameter
tubes that are bent to form a compact shape.
Some CFLs have integral ballasts and medium or
candelabra screw bases for easy replacement of
incandescent lamps.
ConstantColor
A GE registered name for lamp families that show
very little colour shift over life, such as GE’s Precise
MR16 lamps and GE’s ceramic metal halide (CMH)
lamps.
Coolbeam
(See DICHROIC REFLECTOR)
Cool White
A term loosely used to denote a colour
temperature of around 4100 K or higher. The Cool
White (CW) designation is used specically for T12
and other uorescent lamps using halophosphors
and having a CRI of 62.
Core
Component of electromagnetic ballast that is
surrounded by the coil. Core is comprised of steel
laminations or solid ferrite material.
Core & Coil Ballast
A ballast that uses a “Core & Coil” assembly to
operate uorescent or HID lamps. Refers to copper
or aluminum windings on a steel core.
Cosine-Corrected
An illuminance meter that measures the light
level correctly irrespective of the angle the light is
coming from. (See ILLUMINANCE METER)
Cost of Light
Usually refers to the cost of operating and
maintaining a lighting system on an ongoing basis.
The 88-8-4 rule states that (typically) 88% is the
cost of electricity, 8% is labor and only 4% is the
cost of lamps.
covRguard
A lamp encased by a plastic sleeve or coating to
help contain glass fragments if the lamp breaks.
Crest Factor (Max Current)
The ratio of the peak lamp current to average lamp
operating current (RMS). The lower the current crest
factor is, the gentler the ballast is on the lamp.
Current Type (AC/DC)
Whether the operational voltage is based on
Alternating Current or Direct Current.
D
Daylight Harvesting
Lighting design for building interiors that
makes of daylight as a way of reducing energy
consumption.
Daylight Lamp
A lamp resembling the colour of daylight, typically
with a colour temperature of 5500 K to 6500K.
Declaration of Conformity (DoC)
A self-declaration of a product on its compliance to
the Electromagnetic Compatibility Directive and the
Low Voltage Directive and it can bare CE conformity
marking (EU).
DichroicReector(orFilter)
A reector (or lter) that reects one region of the
spectrum while allowing the other region(s) to pass
through. A reector lamp with a dichroic reector
will have a “cool beam” i.e. most of the heat has
been removed from the beam by allowing it to
pass through the reector while the light has been
reected.
Die
See Chip.
Dimmable
Whether or not the lamp lumens can be varied
while maintaining reliability.
Dimmer, Dimming Control
A device used to lower the light output of a
source, usually by reducing the wattage it is being
operated at. Dimming controls are increasing in
popularity as energy conserving devices.
Discharge Lamp
A lamp where light is emitted from an electrical
discharge between two electrodes as opposed to a
lament lamp. Examples are: Fluorescent lamps and
HID (High Intensity Discharge) lamps like Metal Halide,
Mercury and High Pressure Sodium.
All discharge lamps require some kind of current
limiting device, e.g. a ballast, to operate them.
Driver
Control gear for LED-based products. Can be
either constant current or constant voltage. For
LED lamps the driver is often integral (see ‘Self-
Ballasted Lamps’).
E
Eccentricity (Maximum)
In High Intensity Discharge lamps the Bulb to Arc
Angle is the angle off of center between electrodes
and bulb. The Bulb to Base Angle is the angle off of
center that the bulb is from the base.
Edison Award
An annual competition where lighting designers
submit their best projects. The entries are judged
by an international panel and awards are
presented at a banquet accompanying Light Fair,
the North American trade show for the lighting
industry.
Ecacy
A measurement of how effective the light source is
in converting electrical energy to LUMENS of visible
light. Expressed in LUMENS-PER-WATT [LPW] this
measure gives more weight to the yellow region of
the spectrum and less weight to the blue and red
region where the eye is not as sensitive.
Eciency
The efciency of a light source is simply the
fraction of electrical energy converted to light,
i.e. watts of visible light produced for each watt
of electrical power with no concern about the
wavelength where the energy is being radiated. For
example, a 100 watt incandescent lamp converts
7% of the electrical energy into light; discharge
lamps convert 25% to 40% into light.
The efciency of a luminaire or xture is the
percentage of the lamp lumens that actually
comes out of the xture (See LUMINOUS EFFICACY).
EciencyofBallast
The ratio of output power divided by input power. A
premium ballast would have an electrical efciency
greater than 90%. The efciency of a luminaire or
xture is the percentage of the lamp lumens that
actually comes out of the xture.
e-HID ballast
(see ELECTRONIC HID BALLAST).
ELC (European Lamp Companies Federation)
Created in 1985, the European Lamp Companies
Federation (ELC) is both the forum and the voice
of the lamp industry in Europe. It represents the
leading European lamp manufacturers, which
collectively directly employ 50,000 people,
and account for 95 percent of total European
production, with an annual turnover in Europe of
€5 billion.From the outset, ELC objectives have
been to promote efcient lighting practice for a
sustainable environment and the advancement of
human comfort, health and safety. To this end, ELC
monitors, advises and co-operates with legislative
bodies in developing European Directives and
Regulations relevant to the European lamp
industry.
Electrical Discharge
A condition under which a gas becomes electrically
conducting and becomes capable of transmitting
current, usually accompanied by the emission
of visible and other radiation. An electric spark
in air is an example of an electrical discharge, as
is a welder’s arc and a lightning bolt. (See ARC,
ELECTRODELESS LAMPS)
Electrical Testing Laboratory (ETL)
Independent testing laboratory that performs
ballast tests and certies accuracy of performance
data.
Electrode
Any metal terminal emitting or collecting
charged particles, typically inside the chamber
of a gas discharge lamp. In a uorescent lamp,
the electrodes are typically metal laments
coated with special powders called emission mix.
Negatively charged free electrons emitted by one
electrode are attracted to the positive electrode
(anode), creating an electric current and arc
between electrodes.
Electrodeless Lamps
Light sources where the discharge occurs in a
chamber with no electrodes (no metal). The energy
for the discharge is supplied by radio frequency
excitation, e.g. microwaves (See GENURA).
Electromagnetic Ballast
(See MAGENTIC BALLASTS).
Electromagnetic Inference (EMI)
High frequency electronic ballasts and other
electronic devices can produce a small amount
of radio waves which can interfere with radio
and TV. Federal mandated requirements must be
met for EMI levels before an electronic device is
considered FCC compliant (US). (FCC is the Federal
Communications Commission).
Electromagnetic Spectrum
A continuum of electric and magnetic radiation
that can be characterized by wavelength or
frequency. Visible light encompasses a small part
of the electromagnetic spectrum in the region from
about 380 nanometers (violet) to 770 nanometers
(red) by wavelength.
Electronic Ballast
A short name for a uorescent high frequency
electronic ballast. Electronic ballasts use solid
state electronic components and typically operate
uorescent lamps at frequencies in the range
of 25-35 kHz. The benets are: increased lamp
efcacy, reduced ballast losses and lighter, smaller
ballasts compared to electromagnetic ballasts.
Electronic ballasts may also be used with HID (high
intensity discharge) lamps (See ELECTROMAGNETIC
BALLAST).
Electronic HID Ballast
An electronic ballast capable of operating an
HID lamp. GE’s UltraMax (electronic HID ballast)
operates PulseArc (metal halide) and CMH (ceramic
metal halide) lamps between 250W and 400W
and provides higher efciency and signicantly
improved lumen maintenance over magnetic
ballasts.
EllipticalReector(ER)Lamp
An incandescent lamp with a built-in elliptically-
shaped reecting surface. This shape produces
a focal point directly in front of the lamp which
reduces the light absorption in some types of
luminaires . It is particularly effective at increasing
the efcacy of bafed downlights.
Enclosed Fixtures
(See OPEN FIXTURE RATED)
Energy Policy Act (EPACT)
Comprehensive energy legislation passed by the U.
S. Congress in 1992. The lighting portion includes
lamp labeling and minimum energy efcacy
(lumens/watt) requirements for many commonly
used incandescent and uorescent lamp types.
Federal Canadian legislation sets similar minimum
energy efcacy requirements for incandescent
reector lamps and common linear uorescent
lamps.
Energy Policy Act (EPACT) Indicator
Means this lamp is Federally regulated for Energy
Efciency (US) (See ENERGY POLICY ACT).
EoL (End-of-Life Protection)
A circuit that senses that a lamp has reached
end of life (compact uorescent lamps and small
diameter linear uorescent lamps) and turns off
power to the lamp. Continuing to power the lamp
beyond end of life can result in overheating of the
lamp ends.
Energy-Using Products (EuP)
The EuP Directive establishes a framework
for the setting of eco-design requirements
for energy-using products. It aims to improve
the environmental performance of products
throughout the life-cycle, by systematic integration
of environmental aspects at a very early stage in
the product design.
Glossary
Eye Sensitivity
A curve depicting the sensitivity of the human eye
as a function of wavelength (or colour). The peak of
human eye sensitivity is in the yellow-green region
of the spectrum. The normal curve refers to photopic
vision or the response of the cones. (See Photopic,
Scotopic, Fovea, Foveal vision)
F
Federal Communications Commission (FCC)
The U. S. Federal agency that regulates
emissions in the radio frequency portion of the
electromagnetic spectrum. Part 18 of the FCC rules
species electromagnetic interference (EMI) from
lighting devices operating at frequencies greater
than 9 kilohertz (kHz). Typical electronically-
ballasted compact uorescent lamps operate in
the 24 - 100 kHz frequency range.
Field Angle
The angular dimension of the cone of light from
reectorized lamps (such as R and PAR types)
encompassing the central part of the beam out to
the angle where the intensity is 10% of maximum
(See BEAM ANGLE).
Filament Design
Filaments are designated by a letter combination
in which C is a coiled wire lament, CC is a coiled
wire that is itself wound into a larger coil, and SR is
a straight ribbon lament. Numbers represent the
type of lament-support arrangement.
Fixture Requirements
Describes xture requirements for HID lamps.
O = Open or Enclosed Fixtures
E = Enclosed Fixtures Only
S = Lamps operated in a vertical position (Base
Up or Down) ±15º, can be used in an open xture.
Lamps burned in any other orientation must be
used in “enclosed xtures only”.
Flicker
The periodic variation in light level caused by AC
operation that can lead to strobe effects.
Flood
Used to refer to the beam pattern of a reector
lamp, which disperses the light over a wide beam
angle, typically 20 degrees or more. (“Flood” as
opposed to “Spot”)
Floodlight
A luminaire used to light a scene or object to a
level much brighter than its surroundings. Usually
oodlights can be aimed at the object or area of
interest.
Fluorescence
A physical phenomenon whereby an atom of a
material absorbs a photon of light an immediately
emits a photon of longer wavelength. If there
is a signicant delay the phenomenon is called
phosphorescence rather than uorescence. It is
interesting that “phosphors” used in lamps exhibit
“uorescence,” not “phosphorescence.”
(See PHOSPHOR).
Fluorescent HO
Fluorescent HO and VHO lamps require special
ballasts that generate higher currents than
standard ballasts and operate the lamps at higher
wattage than standard lamps. These lamps are
generally less efcient than the standard product.
Metal Halide HO and XHO lamps operate on the
same ballasts as standard lamps and at the same
wattage but are more efcient and produce higher
light output than standard lamps.
Fluorescent Lamp
A high efciency lamp utilizing an electric
discharge through low pressure mercury vapour
to produce ultraviolet (UV) energy. The UV excites
phosphor materials applied as a thin layer on the
inside of a glass tube which makes up the structure
of the lamp. The phosphors transform the UV to
visible light.
Footcandle (fc)
A unit of illuminance or light falling onto a surface.
It stands for the light level on a surface one foot
from a standard candle. One footcandle is equal to
one lumen per square foot. See also Lux.
Footcandle Meter
(See ILLUMINANCE METER).
Footlambert
An obsolete term referring to a luminance of 1/?
candelas per square foot.
Forward Current
Current through an LED in the direction of its
greatest conduction.
Forward Voltage (VF)
The voltage across an LED for a given forward
current.
Four-Pin Compact Fluorescent Lamps
A “plug-in” compact uorescent lamp with 4
pins in the base to make electrical contact with
the ballast. Four-pin lamps can be dimmed on
appropriate dimming ballasts while two-pin lamps
cannot.
Frequency
Rate of alternation in an AC current. Expressed in
cycles per second or Hertz (Hz).
Fovea, Foveal Vision
A small region of the retina corresponding to what
an observer is looking straight at. This region is
populated almost entirely with cones, while the
peripheral region has increasing numbers of rods.
Cones have a sensitivity peaking in the yellow
and corresponding to the eye response curve (See
PHOTOPIC, SCOTOPIC, EYE SENSITIVITY).
Full Spectrum Lighting
A marketing term, typically associated with
light sources that are similar to some forms of
natural daylight (5000K and above, 90+ CRI), but
sometimes more broadly used for lamps that have
a smooth and continuous colour spectrum.
G
Genura
GE’s electrodeless compact uorescent lamp,
Genura, uses induction to power the discharge.
The chamber generates UV (just like a discharge
in a regular uorescent lamp) that is converted by
phosphors to visible light. Because Genura uses no
electrodes, the life
of this unique reector lamp is longer than typical
compact uorescent products (see INDUCTION
LIGHTING).
Glare
Visual discomfort caused by excessive brightness
is called discomfort glare. If task performance is
affected it is called disability glare. Glare can be
direct glare or indirect (reected) glare (See VEILING
REFLECTIONS and VISUAL COMFORT PROBABILITY).
Group Relamping
The practice of replacing all the lamps at an
installation at one time with new lamps when the
lamps have operated for (typically) 65% to 70%
of rated life. The two benets of group relamping
are: (1) reduced maintenance costs because of the
expense and inconvenience of replacing failing
lamps one at a time, and (2) improved appearance
and performance since older lamps are often
degrading in brightness and colour as they age.
H
Halogen Lamp
A halogen lamp is an incandescent lamp with a
lament that is surrounded by halogen gases, such
as iodine or bromine. Halogen gases allow the
laments to be operated at higher temperatures
and higher efcacies. The halogen participates in a
tungsten transport cycle, returning tungsten to the
lament and prolonging lamp life.
Halogen-IR (HIR) Lamp
GE designation for high-efciency tungsten
halogen lamps. HIR lamps utilize shaped lament
tubes coated with numerous layers of materials
that transmit light but reect the heat (infrared)
back into the lament. This reduces the power
needed to keep the lament hot.
High-Eciency(EnergySaving)Electromagnetic
Ballast
Ballast with core & coils, designed to minimize
ballast losses compared to the “standard” ballast.
High-Bay Lighting
Lighting designed for (typically) industrial locations
with a ceiling height of 25 feet and above.
High Intensity Discharge (HID) Lamp
A general term for mercury, metal halide and
high-pressure sodium lamps. HID lamps contain
compact arc tubes which enclose various gases
and metal salts operating at relatively high
pressures and temperatures.
High Output/Very High Output (HO, VHO) Lamps
Designation for lamps generating more light than
standard lamps.
High Power Factor
A ballast or lamp with integral electronics whose
power factor is corrected to 90% or greater.
High-Pressure Sodium (HPS) Lamp
HPS lamps are high intensity discharge light
sources that produce light by an electrical
discharge through sodium vapor operating at
relatively high pressures and temperatures.
GE markets these lamps under the trade
name of Lucalox.
Hot Restart Time
Time it takes for a High Intensity Discharge lamp
to reach 90% of light output after going from on
to off to on.
I
I-Line
A GE designation for a family of metal halide lamps
which will operate on a mercury ballast. Designed
as a simple retrot for mercury lamp.
Ignitor
An electronic device providing a high voltage pulse
to initiate an electrical discharge. Typically, the
ignitor is paired with or is a part of the ballast (See
STARTER).
Illuminance
The “density” of light (lumens/area) incident on a
surface; i.e. the light level on a surface. Illuminance
is measured in footcandles or lux.
Illuminance Meter
A device that measures the illuminance at a
location calibrated either in footcandles or in
lux. (Also know as a light meter - See COSINE
CORRECTED).
Incandescent Lamp
A light source that generates light utilizing a thin
lament wire (usually of tungsten) heated to white
heat by an electric current passing through it.
Indirect Lighting
The method of lighting a space by directing the
light from luminaires upwards towards the ceiling.
The light scattered off the ceiling produces a soft,
diffuse illumination for the entire area.
Induction Lighting
Gases can be excited directly by radio-frequency
or microwaves from a coil that creates induced
electromagnetic elds. This is called induction
lighting and it differs from a conventional
discharge, which uses electrodes to carry current
into the arc. Induction lamps have no electrodes
inside the chamber and generally, therefore, have
longer life than standard lamps.
Infrared Radiation
Electromagnetic energy radiated in the wavelength
range of about 770 to 1,000,000 nanometers.
Energy in this range cannot be seen by the human
eye, but can be sensed as heat by the skin.
Input Voltage
Power supply voltage required for proper operation
of uorescent or HID ballast.
Input Watts
The total power input to the ballast that includes
lamp watts and ballast losses. The total power
input to the xture is the input watts to the ballast
or ballasts and is the value to be used when
calculating cost of energy and air conditioning
loads. More than 90% of the input watts is wattage
or power delivered to the lamp load with typical
ballast.
Instant Start
A type of ballast designed to start uorescent
lamps as soon as the power is applied. Most T8
uorescent lamps are being operated on electronic
instant-start ballasts.
Slimline uorescent lamps operate only on instant-
start circuits.
Instant-Start Lamp
A uorescent lamp, usually with a single pin at
each end, approved to operate on instant-start
ballasts. The lamp is ignited by a high voltage
without any lament heating.
Integral
A popular term for a lamp which includes a built-in
ballast (CFL or HID), driver (LED) or transformer
(halogen).
Intensity Bin
LEDs are often sorted according to their luminous
intensity values into different groupings or “bins”.
Inverse Square Law
Formula stating that if you double the distance
from the light source, the light level goes down by
a factor of 4, if you triple the distance, it goes down
by a factor of 9, and so on.
Isocandela Plot
A plot with lines connecting points of equal
luminous intensity around a source.
Isolux Plot (or Isofootcandle Plot)
A line plotted to show points of equal illuminance
(lux or footcandles) on a surface illuminated by a
source or sources.
K
Kelvin
A unit of temperature starting from absolute zero,
parallel to the Celsius (or Centigrade) scale. 0C is
273K.
Kilowatt [kW]
The measure of electrical power equal to
1000 watts.
Kilowatt Hour [kWh]
The standard measure of electrical energy and
the typical billing unit used by electrical utilities for
electricity use. A 100-watt lamp operated for 10
hours consumes 1000 watt-hours (100 x 10) or one
kilowatt-hour. If the utility charges $.10/kWh, then
the electricity cost for the 10 hours of operation
would be 10 cents (1 x $.10)
L
Laminations
Layers of steel, making up the “core” that is
surrounded by the coils in a core & coil ballast.
Lamp
The term used to refer to the complete light source
package, including the inner parts as well as
the outer bulb or tube. “Lamp”, of course, is also
commonly used to refer to a type of small light
xture such as a table lamp.
Lamp Current Crest Factor
Ratio of peak lamp current to RMS or average lamp
operating current.
Lamp Height
Referenced by IEC as Dimension C. Also referred to
as “Base Face to Top of Lamp”.
Lamp Types
Filament lamps: Incandescent, Halogen, Halogen-
IR.
Discharge Lamps: Fluorescent, HID (High Intensity
Discharge)
HID Lamps: Mercury, HPS (High Pressure Sodium),
MH (Metal Halide) and CMH (Ceramic Metal Halide)
LED Lamps
Lamp Width
Referenced by IEC as Dimension A.
Leadframe
A metallic frame used for mounting and
connecting LED chips. The leadframe functions as
the electrical leads of the device.
Lens
A transparent or semi-transparent element which
controls the distribution of light by redirecting
individual rays. Luminaires often have lenses in
addition to reectors.
Life
(See RATED LAMP LIFE).
Light
Radiant energy that can be sensed or seen by the
human eye. Visible light is measured in lumens.
Light Center Length (L.C.L.)
The distance between the center of the lament,
or arc tube, and a reference plane - usually the
bottom of the lamp base. Refer to the following
chart for reference plane locations.
Light Emitting Diode (LED)
A solid that directly converts electrical impulses
into light. Most white light LEDs incorporate
phosphors to change the colour characteristics of
the emitted light.
Lighting Industry Federation (LIF) Code
For Stage & Studio lamps, these are assigned by
Base type L.C.L Reference Plane
Location
All screw bases
(except Mini-Can)
Bottom of base contact
Mini-Can Where diameter of ceramic
base insulator is .531 inches
3-Contact Medium Bottom of base contact
Mogul Medium
Prefocus
Top of base ns
Mogul Prefocus Top of base ns
Medium BiPost Base end of bulb (Glass
lamps)
Bottom of ceramic base
(Quartz lamps)
Mogul BiPost
Shoulder of posts (Glass
lamps)
Bottom of ceramic base
(Quartz lamps)
2-Pin Prefocus Bottom of ceramic base
S.C. or D.C. Bayonet
Candelabra
Top of base pins
Medium Bayonet Top of base pins
S.C. or D.C. Prefocus Plane of locating bases on
prefocus collar
Medium 2-Pin Bottom of metal base shell
Glossary
the Lighting Federation of London U.K. They ensure
electrical and mechanical interchangeability of
similarly coded lamps.
LIF codes are divided into groups according to the
primary application of the lamps.
Light Loss Factor
The product of all factors that contribute to
lowering the illumination level including reector
degradation, dirt, lamp depreciation over time,
voltage uctuations, etc.
Light Meter
(See ILLUMINANCE METER)
Light Pollution
Light that is directed to areas where it is not
needed, and thereby interferes with some visual
act. Light pollution directed or reected into the
sky creates a “dome” of wasted light and makes it
difcult to see stars above cities.
Light Trespass (Spill Light)
Light that is not aimed properly or shielded
effectively can spill out at into areas that don’t
want it: it can be directed towards drivers,
pedestrians or neighbors. It is distracting and
annoying and can sometimes be disabling.
Lucalox
The GE brand name for high-pressure sodium
lamps.
Lumens
A measure of the luminous ux or quantity of light
emitted by a source. For example, a dinner candle
provides about 12 lumens. A 60-watt Soft White
incandescent lamp provides about 840 lumens.
Lumen Depreciation, Lumen Maintenance
A measure of how well a lamp maintains its light
output over time. It may be expressed numerically
or as a graph of light output vs. time. The “mean
lumens” of a lamp is the lumens at 40% of rated
life (50% for HPS lamp).
Lumens Per Watt (LPW)
A ratio expressing the luminous efcacy of a
lightsource.
Typical lamp efcacies:
Edison’s rst lamp 1.4 LPW
Incandescent lamps 10-20
Halogen lamps 15-30
Fluorescent lamps 35-105
Mercury lamps 50-60
Metal halide lamps 60-120
High-pressure sodium lamps 60-140
Note: The values above for discharge lamps do
not include the effect of the ballasts, which must
be used with those lamps. Taking ballast losses
into account reduces “system” or lamp ballast
efcacies typically by 10-20% depending upon the
type of ballast used.
Luminaire
A complete lighting unit consisting of a lamp (or
lamps), ballast (or ballasts) as required together
with the parts designed to distribute the light,
position and protect the lamps and connect them
to the power supply. A luminaire is often referred
to as a xture.
LuminaireEciency
The ratio of total lumens emitted by a luminaire to
those emitted by the lamp or lamps used in that
luminaire. Also commonly referred to as ‘Light
Output Ratio’ or LOR.
Luminance
A measure of “surface brightness” when an
observer is looking in the direction of the surface.
It is measured in candelas per square meter (or
per square foot) and was formerly referred to as
“photometric brightness.”
LuminousEcacy
The light output (lumens) of a light source divided
by the total power input (watts) to that source. It
is expressed in lumens per watt (see LUMENS PER
WATT).
Luminous Intensity
A measure of the visibility of a light source
generally expressed in candelas. It is dened as
luminous ux per unit solid angle (steradian) in a
given direction.
Lux (lx)
A unit of illuminance or light falling onto a surface.
One lux is equal to one lumen per square meter.
Ten lux approximately equals one footcandle. (See
FOOTCANDLE)
M
Magnetic Ballast
A ballast used with discharge lamps that consists
primarily of transformer-like copper or aluminum
windings on a steel or iron core. Also called “Core &
Coil” (see ELECTRONIC BALLASTS).
Maximum Overall Length (M.O.L.)
The end-to-end measurement of a lamp, expressed
in inches or millimeters.
Mean Lumens
The average light output of a lamp over its rated
life. Based on the shape of the lumen depreciation
curve, for uorescent and metal halide lamps,
mean lumens are measured at 40% of rated
lamp life. For mercury, high-pressure sodium and
incandescent lamps , mean lumen ratings refer
to lumens at 50% of rated lamp life (See LUMEN
MAINTENANCE).
Medium Base
Usually refers to the screw base typically used in
household incandescent lamps. There is also the
medium bipin base commonly used in T12 and T8
uorescent lamps.
Mercury Lamp
A high-intensity discharge light source operating
at a relatively high pressure (about 1 atmosphere)
and temperature in which most of the light is
produced by radiation from excited mercury
vapor. Phosphor coatings on some lamp types add
additional light and improve colour rendering.
Metal Cases
Case design used in both magnetic and electronic
ballasts. These ballasts are grounded once they
are mounted to the xture. They meet all safety
codes, some of which do not allow plastic in open
plenum areas.
Metal Halide Lamp
A high-intensity discharge light source in which the
light is produced by the radiation from mercury,
plus halides of metals such as sodium, scandium,
indium and dysprosium. Some lamp types may
also utilize phosphor coatings.
Mesopic
Typically referring to nighttime outdoor lighting
conditions, the region between PHOTOPIC and
SCOTOPIC vision (See SCOTOPIC).
Mogul Base
A screw base used on larger lamps, e.g. many HID
lamps.
Monochromatic Light
Light with only one wavelength (i.e. colour) present.
Mortality Curve
Lamps have a rated or expected life but individual
failures occur earlier and some lamps will last longer.
The mortality curve depicts the expected percent
surviving in a group of lamps at various points
between zero hours and rated life or beyond. The
curve starts with 100% at zero hours and goes to
50% surviving at the rated life (e.g. 3000 hours or
20,000 hours, etc.) However, the shape of the curve
between these two end points can vary depending
on the lamp type.
Mounting Height
Distance from the bottom of the xture to either
the oor or work plane, depending on usage.
Multi-Vapor
A GE brand name for metal halide lamps.
N
Nanometer
A unit of wavelength equal to one billionth of a
meter.
National Energy Standards for Fluorescent
Ballasts
A federal law enacted in 1988 that sets energy
standards for ballasts consistent throughout the
United States.
National Electric Code (NEC)
A nationally accepted electrical installation code
to reduce the risk of re, developed by the National
Fire Protection Association (US).
National Stock Number
The standardized part number used by the US
Government for procurement.
Non-PCB Capacitor
Capacitor used in ballasts to help provide power
factor correction. Contains no polychlorinated
biphenyls and meets EPA requirements.
Normal Power Factor
Ballasts with power factor less than .90 and do not
incorporate any means of Power Factor Correction.
O
Open Circuit Voltage (OCV)
Open Circuit Voltage measured across the socket
the lamp screws into, with the ballast powered
on. It is dangerous to stick a voltmeter into such
a socket without precise knowledge of the ballast
because exceedingly high voltages could be
present.
Open Fixture Rated
Lamps that are approved for burning in open
xtures (as opposed to enclosed xtures which
have an acrylic lens or plate glass enclosure).
Operating Position or Burn Position
Mercury and High Pressure Sodium lamps may
be operated in any burn position and will still
maintain their rated performance specications.
Metal Halide and Low Pressure Sodium lamps,
however, are optimized for performance in specic
burn positions, or may be restricted to certain burn
positions for safety reasons.
U = Universal burning position
HBU = Horizontal -15º to Base Up
HBD = Horizontal +15º to Base Down
HOR = Horizontal ±15º
H45 = Horizontal to -45º only
VBU = Vertical Base Up ±15º
VBD = Vertical Base Down ±15º
If no special burn position is noted, the burn
position is universal.
Operating Voltage
For electrical discharge lamps, this is the voltage
measured across the discharge when the lamp
is operating. It is governed by the contents of the
chamber and is somewhat independent of the
ballast and other external factors.
P
PAR Lamp
PAR is an acronym for parabolic aluminized
reector. A PAR lamp, which may utilize either an
incandescent lament, a halogen lament tube
or a HID arc tube, is a precision pressed-glass
reector lamp. PAR lamps rely on both the internal
reector and prisms in the lens for control of the
light beam.
Parallel Lamp Operation/Parallel Wiring
Refers to ballasts that employ multiple output
current paths from a single ballast to allow lamps
to operate independent of one another, allowing
other lamps operated by the ballast to remain lit
should companion lamp(s) fail (see SERIES LAMP
OPERATION).
PCB (Polychlorinated Biphenyls)
Chemical pollutant formerly used in ballast
capacitors that were part of ballasts. It is now
illegal to use PCBs and most such ballasts have
been replaced over time.
Peak Wavelength
The maximum wavelength of an LED.
Phosphor
An inorganic chemical compound processed into a
powder and deposited on the inner glass surface
of uorescent tubes and some mercury and
metal-halide lamp bulbs. Phosphors are designed
to absorb short wavelength ultraviolet radiation
and to transform and emit it as visible light (See
FLUORESCENCE). Phosphors are also used in
LED devices to create white light when used in
combination with LEDs of certain wavelengths.
Photometry
The measurement of light and related quantities.
Photopic
Vision for which the cones in the eye are
responsible; typically at high brightness and in the
foveal or central region (See SCOTOPIC , FOVEA,
FOVEAL VISON).
Plug-In
(See CFL).
Potting
Material used to completely surround and cover
components of some magnetic and electronic
ballasts. Potting compound fullls functions of
protecting components, dampening sound, and
dissipating heat.
Power Factor (PF)
A measure of the phase difference between
voltage and current drawn by an electrical device,
such as a ballast or motor. Power factors can
range from 0 to 1.0, with 1.0 being ideal. Power
factor is sometimes expressed as a percent.
Incandescent lamps have power factors close to
1.0 because they are simple “resistive” loads. The
power factor of a uorescent and HID lamp system
is determined by the ballast used. “High” power
factor usually means a rating of 0.9 or greater.
Power companies may penalize users for using low
power factor devices.
Power Factor Corrected
Ballasts that incorporate a means of Power Factor
Correction yielding power factor of 90% or greater.
Precise
The GE trade name for the compact MR-16 and
MR-11 low-voltage halogen dichroic cool beam
reectorized spot and ood lamps.
Preheat Circuit
A type of uorescent lamp-ballast circuit used with
the rst commercial uorescent lamp products. A
push button or automatic switch is used to preheat
the lamp cathodes to a glow state. Starting the
lamp can then be accomplished using simple
“choke” or reactor ballasts.
Product Code
It is important to use this ve-digit code when
ordering to ensure that you receive the exact
product you require.
Programmed Rapid Start
Lamp starting method which preheats the lamp
laments while not allowing the lamp to ignite
and then applies the open circuit voltage (OCV) to
start the lamp. The user may experience a half- to
one-second delay after turning on the lamps while
the preheating takes place. This type of starting
circuit keeps lamp end blackening to a minimum
and improves lamp life performance, especially
in applications where the lamps are frequently
switched on and off.
Pulse Start
An HID ballast with a high voltage ignitor to start
the lamp.
Q
Quad
Generally refers to a compact uorescent lamp
containing 4 U-shaped tubes.
Quartz
A name for fused silica or melted sand from which
many high-temperature containers are fashioned
in the lighting industry. Quartz looks like glass but
can withstand the high temperatures needed to
contain high intensity arc discharges.
Quartz-Halogen Lamp
(See HALOGEN LAMPS).
Quartzline
A GE registered trademark term for some types of
halogen lamps.
R
Radiation
A general term for the release of energy in a
“wave” or “ray” form. All light is radiant energy or
radiation, as is heat, UV, microwaves, radio waves,
etc.
Rapid Start
Lamp starting method in which lamp laments are
heated while open circuit voltage (OCV) is applied
to facilitate lamp ignition. A Rapid Start uorescent
lamp has two pins at each end connected to the
lament. Some rapid start lamps may be instant-
started without lament heat, for example, the
F32T8 lamp.
Rapid Start Circuit
A uorescent lamp-ballast circuit that utilizes
continuous cathode heating, while the system is
energized, to start and maintain lamp light output
at efcient levels. Rapid start ballasts may be
either electromagnetic, electronic or of hybrid
designs. Full-range uorescent lamp dimming
is only possible with rapid start systems (See
INSTANT START).
Rated Lamp Life
For most lamp types, rated lamp life is the length
of time of a statistically large sample between rst
use and the point when 50% of the lamps have
died. It is possible to dene “useful life” of a lamp
based on practical considerations involving lumen
depreciation and colour shift and also on the need
to reduce lamp replacement costs (See GROUP
RELAMPING).
For GE LED products, rated life is quoted (unless
where indicated otherwise), as the ‘L70’ value.
This refers to the time taken to reach 70% of
initial lumen output. This is the emerging industry
standard for LED products.
Reectance
The ratio of light reected from a surface to that
incident upon it.
ReectorLamp(R)
A light source with a built-in reecting surface.
Sometimes, the term is used to refer specically
to blown bulbs like the R and ER lamps; at other
times, it includes all reectorized lamps like PAR
and MR. Most LED lamps are also replacements for
reector lamps, even if they do not physically have
a reector as part of their construction.
Reverse Voltage (VR)
Glossary
Voltage across the diode for a given reverse
current.
RoHS (Restriction of Hazardous Substances)
The Restriction of Hazardous Substances (RoHS)
Directive aims to minimise the environmental
impact of waste electrical and electronic
equipment by reducing the quantities of four
heavy metals and two brominated ame
retardants that it may contain.
Room Cavity Ratio (RCR)
A shape factor (for a room, etc.) used in lighting
calculations.
RCR = 5H (L+W) / L x W, or, alternately,
RCR = (2.5) Total Wall Area / Floor Area.
Where H = height, L = length and W = width of the
room. A cubical room will have an RCR of 10; the
atter the room the lower the RCR.
S
State and County Code (SCC)
The full 14 digit case code used on GE’s content
label.
Scotopic
Vision where the rods of the retina are exclusively
responsible for seeing, typically like the light levels
in the countryside on a moonless, starlit night (See
also PHOTOPIC , FOVEA, FOVEAL VISION MESOPIC).
Scotopic/Photopic (S/P) Ratio
This measurement accounts for the fact that of
the two light sensors in the retina, rods are more
sensitive to blue light (scotopic vision) and cones to
yellow light (photopic vision). The scotopic/photopic
(S/P) ratio is an attempt to capture the relative
strengths of these two responses. S/P is calculated
as the ration of scotopic lumens to photopic
lumens for the light source on an ANSI reference
ballast. Cooler sources (higher colour temperatures
lamps) tend to have higher values of the S/P ratio
compared to warm sources.
Screw-In
(See CFL ).
Seal Temperature (Maximum)
The maximum operating temperature of the seal of
the lamp in Celsius.
Self-Ballasted Lamps
A lamp with an integral ballasting device allowing
the lamp to be directly connected to a socket
providing line voltage (See CFL).
Series Lamp Operation
Refers to ballasts that employ a single current path
passing through all lamps operated by the ballast.
If one lamp should fail, companion lamps operated
by the same ballasts will also extinguish or dim.
Source Size
For Projection lamps, this is dened as the
dimensions of the rectangular area, centered on
the lamp axis, within which all luminous parts of
the lament lie, when viewed perpendicular to the
axis of the lament coil or to the plane of C-13 and
C-13D laments.
Spacing to Mounting Height Ratio
Ratio of xture spacing (distance apart) to
mounting height above the work plane; sometimes
called spacing criterion. It is OK to have xture
spaced closer than the spacing criterion suggested
by the manufacturer but not farther, or you will get
dark spots in-between xtures.
SpecicationSeries(SP)Colours
Energy-efcient, all-purpose, tri- phosphor
uorescent lamp colours that provide good colour
rendering. The CRI for SP colours is 70 or above
and varies by specic lamp type.
SpecicationSeriesDeluxe(SPX)Colours
Energy-efcient, all-purpose, tri- phosphor
uorescent lamp colours that provide better colour
rendering than Specication Series (SP) colours.
The CRI for SPX colours is 80 or above and varies
by specic lamp type. All GE CFL products use SPX
phosphors.
SpecicationSeriesDeluxeeXtreme(SPXX)
Colours
A colour designation for GE ceramic metal halide
lamps with superior colour rendering ~ 90.
Spectral Power Distribution (SPD)
A graph of the radiant power emitted by a light
source as a function of wavelength. SPDs provide
a visual prole or “nger print” of the colour
characteristics of the source throughout the visible
part of the spectrum.
Spectrum
See SPECTRAL POWER DISTRIBUTION (SPD) .
SpecularReection
Reection from a smooth, shiny surface, as
opposed to diffuse reection.
Spiral Lamp
GE trademark for its helical family of high
efciency, long-life compact uorescent lamps.
Spot
A colloquial term referring to a reector lamp with
a tight beam of light, typically around 10 degrees
or less. It comes from the fact that such a lamp
produces a narrow spot of light as opposed to a
wide ood of light.
SPXX
A Colour Designation for GE Ceramic Metal Halide
Lamps with superior Colour Rendering ~ 90.
Starcoat
GE’s special barrier coating applied on the inside
of all GE T8 uorescent lamps, as well as some
other lamp types, to enhance lamp life and deliver
superior lumen maintenance.
Starter
An electronic module or device used to assist in
starting a discharge lamp, typically by providing a
high-voltage surge (See IGNITOR).
Starting Temperature (Minimum)
The minimum ambient temperature at which the
lamp will start reliably.
Sunburn
Skin reddening and inammation caused by
overexposure to sources containing UV-B
and/or UV-C.
System
A term referring to the lamp and ballast
combination, and sometimes to the entire lighting
delivery system including the xture, the optics,
the thermal management system, the particular
layout and the lighting controls.
T
T12, T8, T5
A designation for the diameter of a tubular bulb in
eighths of an inch; T12 is 12 eighths of an inch, or
1-1/2 inches; T8 is 1 inch, and so on.
Task Lighting
Supplemental lighting provided to assist in
performing a localized task, e.g. a table lamp for
reading or an inspection lamp for fabric inspection.
Terminal-to-Terminal Starting Lamp Voltage
(VRMS) (Minimum or Maximum)
The minimum or maximum voltage allowed into
lamp from ballast under varying conditions as
specied.
Total Harmonic Distortion (THD)
A measure of the distortion caused by ballasts
and other inductive loads of the input current on
alternating current (AC) power systems caused
by higher order harmonics of the fundamental
frequency (60Hz in North America). THD is
expressed in percent and may refer to individual
electrical loads (such as ballast) or a total electrical
circuit or system in a building. ANSI C82.77
recommends THD not exceed 32% for individual
commercial electronic ballasts, although some
electrical utilities may require lower THDs on some
systems. Excessive THDs on electrical systems can
cause efciency losses as well as overheating and
deterioration of system components.
Transients
High voltage surges through an electrical system
caused by lightning strikes to nearby transformers,
overhead lines or the ground. May also be caused
by switching of motors or compressors, as well as
by short circuits or utility system switching. Can
lead to premature ballast failure (see TVSS).
Troer
A long, recessed lighting unit, usually installed in
an opening in the ceiling.
Tungsten-Halogen Lamp
(See HALOGEN LAMP).
TVSS
Transient Voltage Surge Suppressors, which will
protect ballasts and other electronic equipment
from transient high-voltage spikes that may be
present in the power line.
Two-Pin Compact Fluorescent Lamps
Type of lamps that have the glow bottle starter
built into the base of the lamp. Traditionally 2-pin
lamps are designed to work with electromagnetic
ballasts (see FOUR-PIN COMPACT FLUORESCENT
LAMPS).
U
Uniform Code Council (UCC)
The 12 digit case code derived from the last 12
digits of the 14 digit SCC code on GE’s case content
label.
Uniform Product Code (UPC)
The 12 digit code on the saleable unit that is used
for scanning at the register.
Ultra
A common way of referring to high-efciency.
Ultraviolet (UV) Radiation
For practical purposes, any radiant energy within
the range of 100–380 nanometers. It is beyond
the blue or violet region of the spectrum, and is
invisible to the eye just like the silent “ultrasound”
dog whistle is inaudible to the ear.
UV is divided into 3 regions:
UVA 100 to 280 nm
UVB 280 to 315 nm
UVC 315 to 400 nm
Some wavelengths (180–220) produce ozone,
some (220–300) are bactericidal, some (280–320)
erythemal (redden human skin); others (320–400)
cause secondary luminance (black light).
V
Valance Lighting
Lighting from light sources on a wall typically
above eye level, shielded by horizontal panels. The
light may be upward or downward directed.
VeilingReection
Effective reduction in contrast between task and
its background caused by the reection of light
rays; sometimes called “reected glare”. You might
have dealt with veiling reections when you have
to tilt a shiny magazine to avoid glare so as to read
it, or struggled with reading a computer monitor
because of the reection of a window or a light
xture (See GLARE).
Vio
GE’s unique LED platform that provides best in
class quality and stability of light from LED’s, due
to its unique use of violet chips combined with
proprietary phosphors.
Visual Comfort Probability (VCP)
For a given lighting scheme, VCP is a ratio
expressed as a percent of people who, when
viewing from a specic location and in a specied
direction, nd the system acceptable in terms of
glare (See GLARE).
Visual Task
The task associated with seeing; objects and
details that must be seen to perform an activity.
Volt
A measure of “electrical pressure” between two
points. The higher the voltage, the more current will
be pushed through a resistor connected across the
points. The volt specication of an incandescent
lamp is the electrical “pressure” required to drive
it at its designed point. The “voltage” of a ballast
(e.g. 277 V) refers to the line voltage it must be
connected to.
Voltage
A measurement of the electromotive force in
an electrical circuit or device expressed in volts.
Voltage can be thought of as being analogous to
the pressure in a waterline.
Voltage (Design)
For Automotive lamps, voltage at which the lamp
is designed to provide the amperes, candlepower,
and laboratory life characteristics. For Projection
lamps, the voltage shown is the design voltage of
the lamp, on which the life and wattage ratings are
based. Lamps for which 115-120 is shown in the
Volts column are designed at 118 volts. Lamps are
available only in the design voltage(s) shown. When
ordering lamps listed for more than one voltage,
be sure to specify the voltage required. (Supply
voltage variation can signicantly affect lamp life.)
Voltage Surge
Transient spikes in line voltage that can be harmful
to electronic equipment like computers and
electronic ballasts. Surge suppressors are often
used to protect against such transients.
W
Wall Temperature (Maximum Bulb)
The maximum operating bulb wall temperature in
Celsius.
Warm-Up Time
HID lamps typically take a few minutes to warm up
to full brightness after starting.
Warm Up Time to 90%
The time it takes for a High Intensity Discharge
lamp to reach 90% of light output after being
turned on.
Warm White
Refers to a colour temperature around 3000K,
providing a yellowish-white light.
Watt
A unit of electrical power. Lamps are rated in watts
to indicate the rate at which they consume energy
(See KILOWATT HOUR).
Wattage Indicator Reduced
Indicates that this is a reduced wattage option for
lamps normally used in this application. Be sure to
check wattage, lumens and life to determine which
lamp is best suited to your needs.
Watt-Miser
A Watt-Miser lamp is a term used by GE to indicate
a reduced-wattage lamp with performance
characteristics (life, light output, etc.) such that
it can usually directly replace a higher-wattage
product. Watt-Miser lamps are available in a wide
range of incandescent and uorescent lamp types.
Wavelength
The distance between two neighboring crests of a
traveling wave. The wavelength of light is between
400 and 700 nanometers.
WEEE (Waste Electrical and Electronic
Equipment)
The Waste Electrical and Electronic Equipment
Directive (WEEE Directive) aims to minimise the
impact of electrical and electronic goods on the
environment, by increasing re-use and recycling
and reducing the amount of WEEE going to landll.
It seeks to achieve this by making producers
responsible for nancing the collection, treatment,
and recovery of waste electrical equipment, and
by obliging distributors to allow consumers to
return their waste equipment free of charge.
Work Plane
Plane at which work is done and at which
illumination is specied and measured; unless
otherwise indicated, it is assumed to be a horizontal
plane 30 inches above the oor (table-top height)
having the same area as the oor.
Working Distance (Typical)
The Working Distance shown is the distance from
the front surface of the reector rim to the lm
plane, in the optical system for which the lamp was
rst designed. In most cases, it provides a uniform
plane of light for the intended aperture.
Printing Code: C-ALL0-1-EN-2012Q2
