Packet Tracer - Documenting the Network

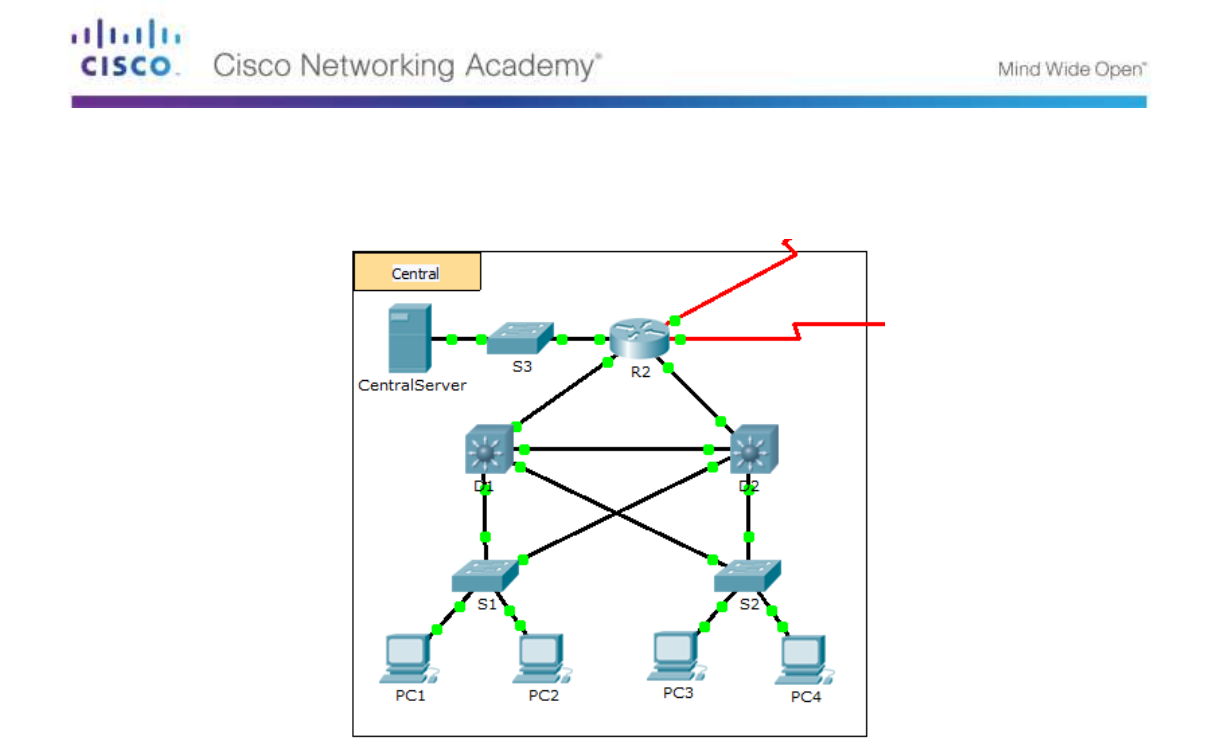

Topology
Background
In this activity, your job is to document the addressing scheme and connections used in the Central portion of
the network. You must use a variety of commands to gather the required information.
Note: The user EXEC password is cisco. The privileged EXEC password is class.
Requirements
Access the command line of the various devices in Central.
Use commands to gather the information required in the Addressing Scheme and Device Connection
Documentation table.
If you do not remember the necessary commands, you can use the IOS built-in help system.
If you still need additional hints, refer to the Hints page. In Packet Tracer, click the right arrow (>) on the
bottom right side of the instruction window. If you have a printed version of the instructions, the Hints
page is the last page.
Packet Tracer - Document the Network
© 2013 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 2 of 3
Addressing Scheme and Device Connection Documentation
Device
Name
Interface
Address
Subnet Mask
Connecting Device
Device
Name
Interface
R2
G0/0
G0/1
G0/2
S0/0/0
64.100.100.1
255.255.255.252
Internet
N/A
S0/0/1.1
64.100.200.2
255.255.255.252
Intranet
N/A
S3
VLAN 1
10.10.10.254
255.255.255.0
N/A
N/A
F0/1
N/A
N/A
CentralServer
NIC
G0/1
N/A
N/A
CentralServer
NIC
D1
VLAN2
10.2.0.1
255.255.255.0
N/A
N/A
G0/1
G0/2
F0/23
N/A
N/A
F0/24
N/A
N/A
S1
VLAN 2
10.2.0.2
255.255.255.0
N/A
N/A
F0/23
N/A
N/A
G0/1
N/A
N/A
D2
F0/23
N/A
N/A
S1
F0/23
F0/24
G0/1
G0/2
S2
VLAN 1
10.3.0.2
255.255.255.0
N/A
N/A
F0/23
N/A
N/A
G0/1
N/A
N/A
Packet Tracer - Document the Network
© 2013 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 3 of 3
Hints
Use the following commands to gather the information you need to document the network:
show ip interface brief
show interfaces
show running-config
ipconfig
