Made in

the USA

The Rubber industry

brings Edward Oscar

Ericson (founder of

Ericson Manufacturing) to Akron, Ohio

where his awareness of worksite safety

hazards brought forth inspiration to

develop products for a safer workplace.

1929

Ericson’s invention of the first “Dead-Front,

Back-Wired” electrical plug revolutionizes

the wiring device industry.

Ericson designs a plug suitable for the

needs of Ontario’s Hydro Electrical

Power Commission Dept. of Engineering

establishing international business

in Canada.

1936

Patent for first Dead-Front-Back-

Wired Plug and Connector

awarded, the NEC and OSHA

still require its use today.

1939

Introduction of first

explosion and vapor

proof handlamp.

1945

Ericson Manufacturing is recognized

for supplying the Armed Forces with

electrical equipment to help win WWII

Cord reels with handlamp

accessories introduced

1959

Ericson introduces the first

4-way insulated electrical box.

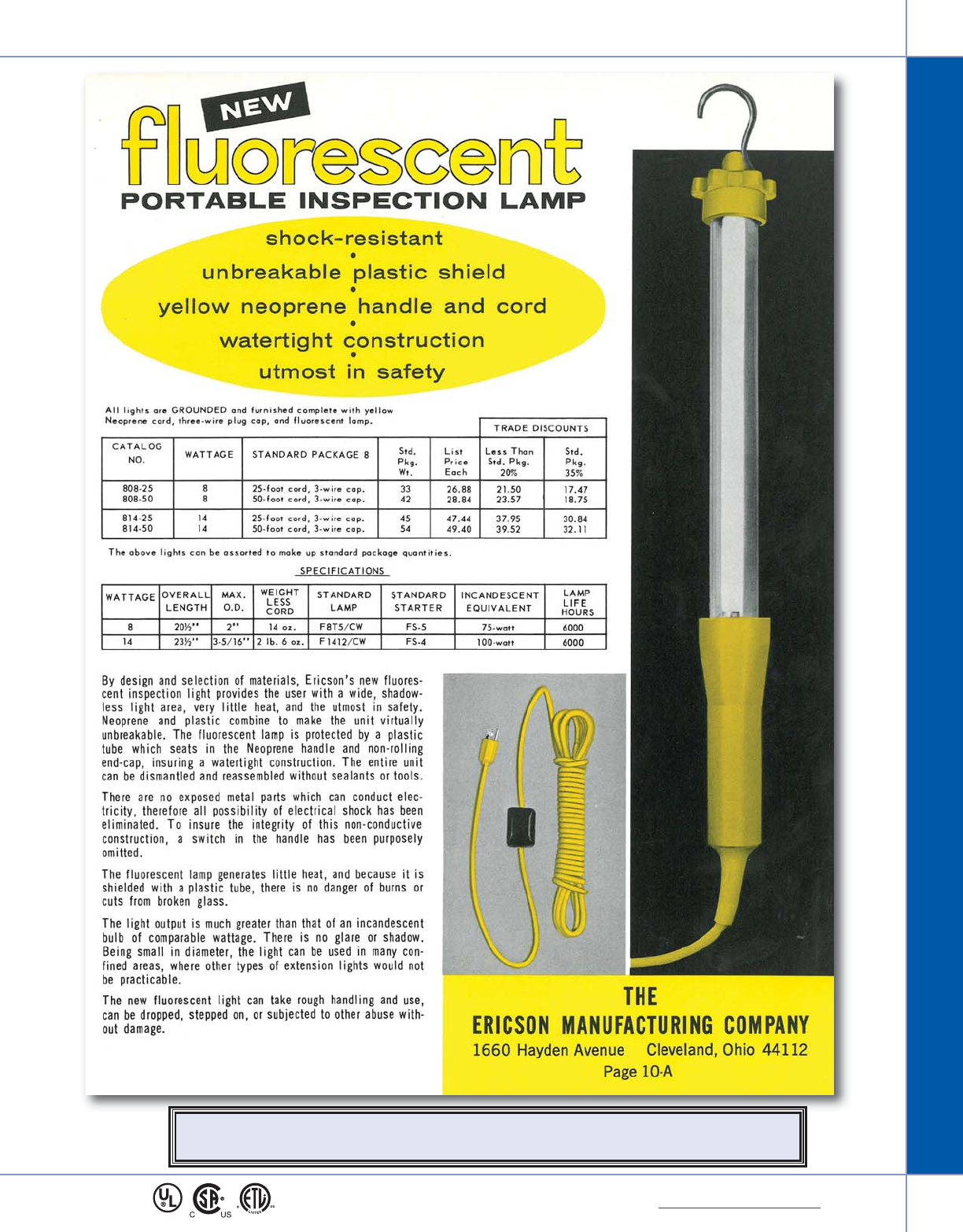

Ericson introduces new

fluorescent inspection

lamps.

Ericson’s handlamps and

wiring devices become

yellow… “Yellow for Safety”.

1970

Ericson’s Patent on

the industries’

first portable

GFCI awarded.

The Oscar is introduced

to the market, named

after Ericson’s founder.

Ericson’s patent for the first

Voltage Monitor for Ground

Fault Circuit Interrupters

awarded.

2012

96 years and counting of

manufacturing the industries’

safest and most reliable

temporary power, lighting,

and engineered solutions.

Ericson’s insulated

Handlamp Guard

revolutionizes

the industry.

The US Navy Department of

Engineering standardizes on

Ericson rubber handlamp for

improved safety performance.

1918

With Edward Oscar Ericson’s patent

for first Rubber Handlamp awarded

in 1918, Ericson Manufacturing

Company is officially born. Which

also operated under the name of

C&E Sales.

2007

The award winning E-cart™

family of mobile power

transformation equipment

introduced to the marketplace.

Ericson patent of Ground and

Continuity Monitor (GCM)

Wiring Devices awarded.

Ericson manufacturers the

“Go Anywhere” inline and

plug style GFCI.

Edward O. Ericson (top)

John Ericson I (bottom)

Edward O. Ericson (top)

John Ericson Sr. (bottom)

Ericson Manufacturing: The Evolution

Our story is built around you. Our customer. We believe in listening, implementing

and adapting to become a customer driven, sales driven, innovative industry

leader committed to “exceeding customer expectations.”

We are YOUR PARTNER – With on time shipments of 96% or better, ISO Certification of Quality, a helpful technical team, dedication

to solve your individual issues, ease of doing business and follow up customer care after the sale…Ericson is and will always be your

best choice…

We are FAMILY –Since 1918, The Ericson family continues to bring quality products and the promise of customer satisfaction

to a growing customer base. With the flexibility of a mid-sized U.S. company with autonomy to operate in the best manner to

satisfy your needs.

We are READY – Our dedication to your satisfaction starts with a “Yes we can…” attitude and the willingness to offer 24/7

Emergency Service to cover your operating hours, not ours. We are ready to ship your product quickly to meet your schedule.

We are INNOVATION – We design and build innovative, safe and cost effective temporary power and lighting systems solutions.

Our award winning designs and patents granted through the years are proof positive that Ericson consistently brings innovation

to you.

We are QUALITY –We are certified to the latest ISO 9001 certified Quality Standards and are known throughout the industry

for manufacturing the highest quality products available. We constantly test and measure the quality of our products to

meet or exceed your expectations.

We are SAFETY – Ericson emphasizes 3rd party NRTL Agencies to demonstrate our commitment to safety. UL, ETL, CSA and

QPS listings as well as NEC/CEC and OSHA/Workers Compensation Code Compliance are integrated into every design.

We are SOLUTIONS – Our in-house Applications Engineering team is available to assist you in providing design and layout

solutions. We have an impressive history of providing solutions with custom applications.

New Products. ............................................................................................................................................................ 5

Temporary Power .............................................................................................................................................. 6-63

Big-E™ Series ..................................................................................................................................................14-19

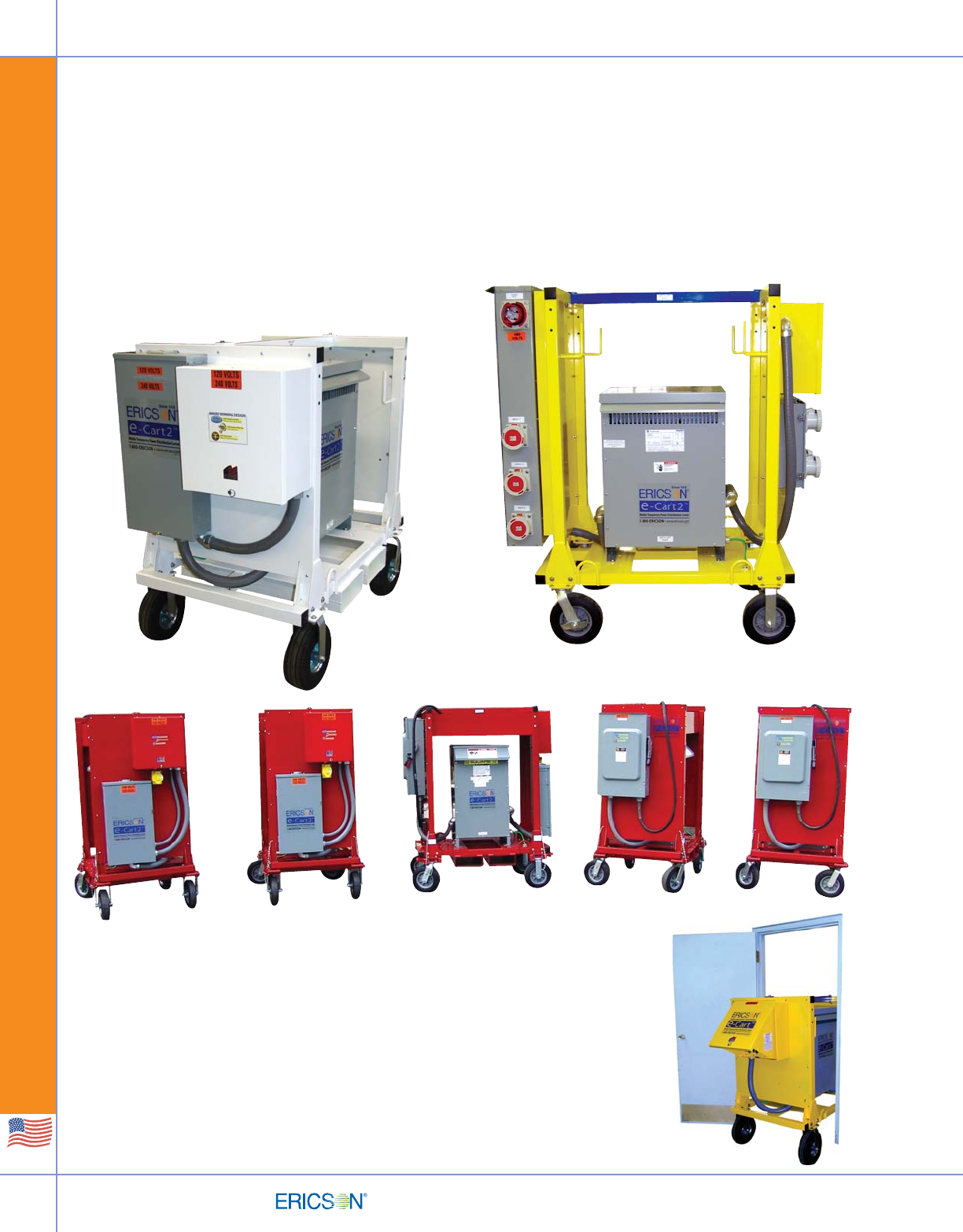

e-Cart™ Series................................................................................................................................................ 22-29

Oscar® Series .................................................................................................................................................. 30-43

Emergency Generator GFCI Cordsets........................................................................................................44

Heavy Duty W & Y Cordsets ............................................................................................................................45

Contractor Grade Molded End Cordsets..................................................................................................46

Hog Hide™ Rubber Cordsets ........................................................................................................................47

Factory Assembled Cord Sets ...................................................................................................................... 48

50, 60 & 100 Amp Cordsets .......................................................................................................................... 49

CP5 Series Cable Protectors .................................................................................................................. 50-51

6000 Series Outlet Boxes ........................................................................................................................ 52-55

6100 Series Outlet Boxes.......................................................................................................................... 56-58

7000 Series Outlet Boxes ................................................................................................................................ 59

8000 Series Outlet Boxes.......................................................................................................................... 60-61

3-Phase Alternate-Wired Stringers ............................................................................................................ 62

Temporary Lighting .................................................................................................................................... 64-117

Stringlight Selection Guide ......................................................................................................................68-69

Stringlights... ....................................................................................................................................................68-79

Baylite™ Metal Halide Fixture .............................................................................................................. 80-81

Handlamp Selection Guide ............................................................................................................................82

Handlamps .. ..................................................................................................................................82-92, 98-105

47 Series In-Room Lights..................................................................................................................................93

Industrial Extension Lights ............................................................................................................................ 95

Low Voltage Transformers ...................................................................................................................... 95-96

Task & Work Wide Area Lighting ...................................................................................................... 106-116

Sun Tower Wide Area Lighting..........................................................................................................106-107

Wide Area Rough Service Fluorescent..........................................................................................108-109

Wide Area High Pressure Sodium ............................................................................................................110

Wide Area Fluorescent....................................................................................................................................111

Emergency Egress Lighting ...................................................................................................................... 112

Magnet Mount Work Lighting ....................................................................................................................113

Heavy Duty Tube Fluorescent Work Lights .............................................................................. 114-115

Boiler Lights. ........................................................................................................................................................116

Wiring Devices ..............................................................................................................................................118-145

NEMA Configuration ............................................................................................................................ 122-123

Smart Monitor Series .......................................................................................................................... 124-125

Perma-Tite® 2 Devices .................................................................................................................................. 126

Perma-Grip™ Devices .................................................................................................................................. 127

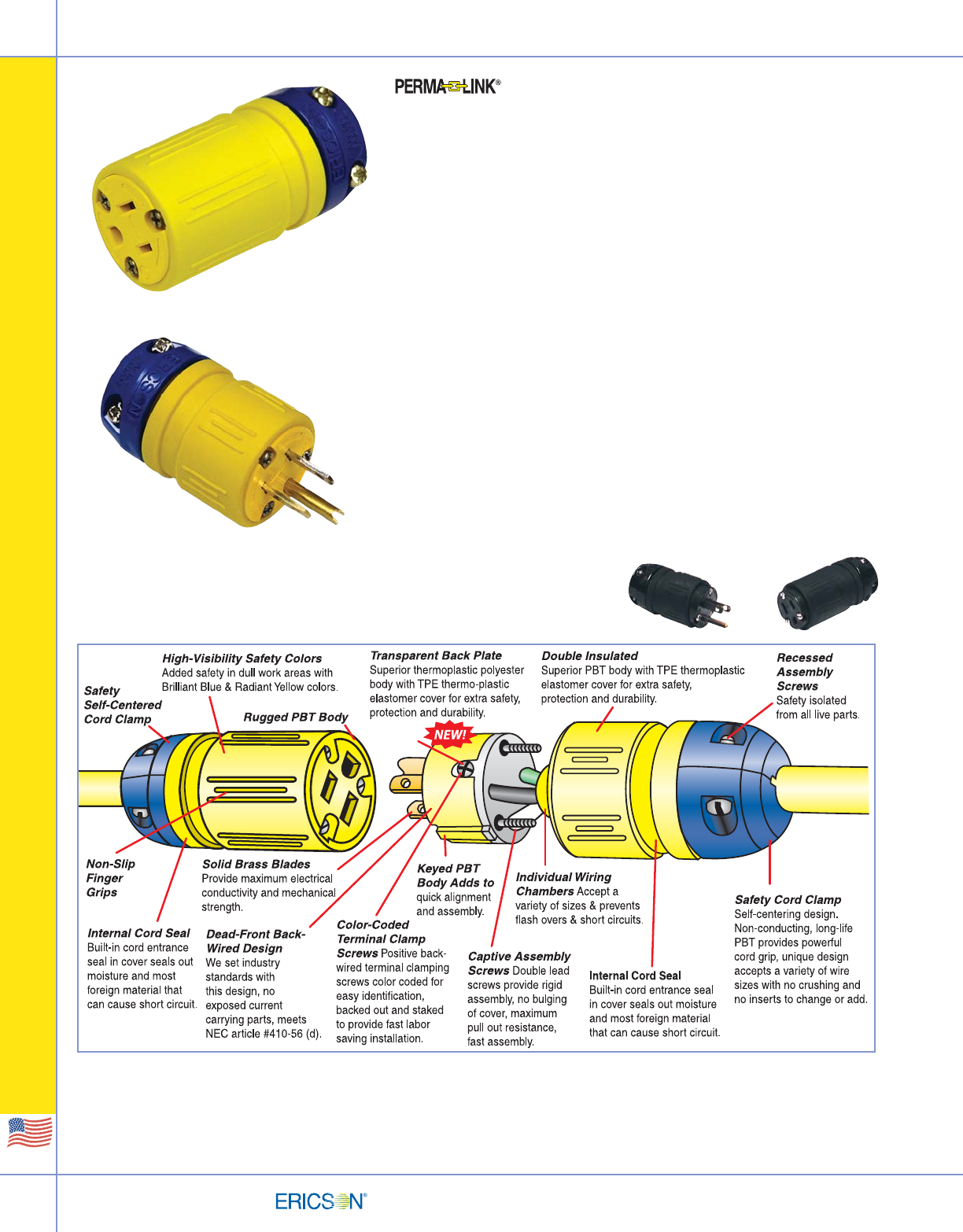

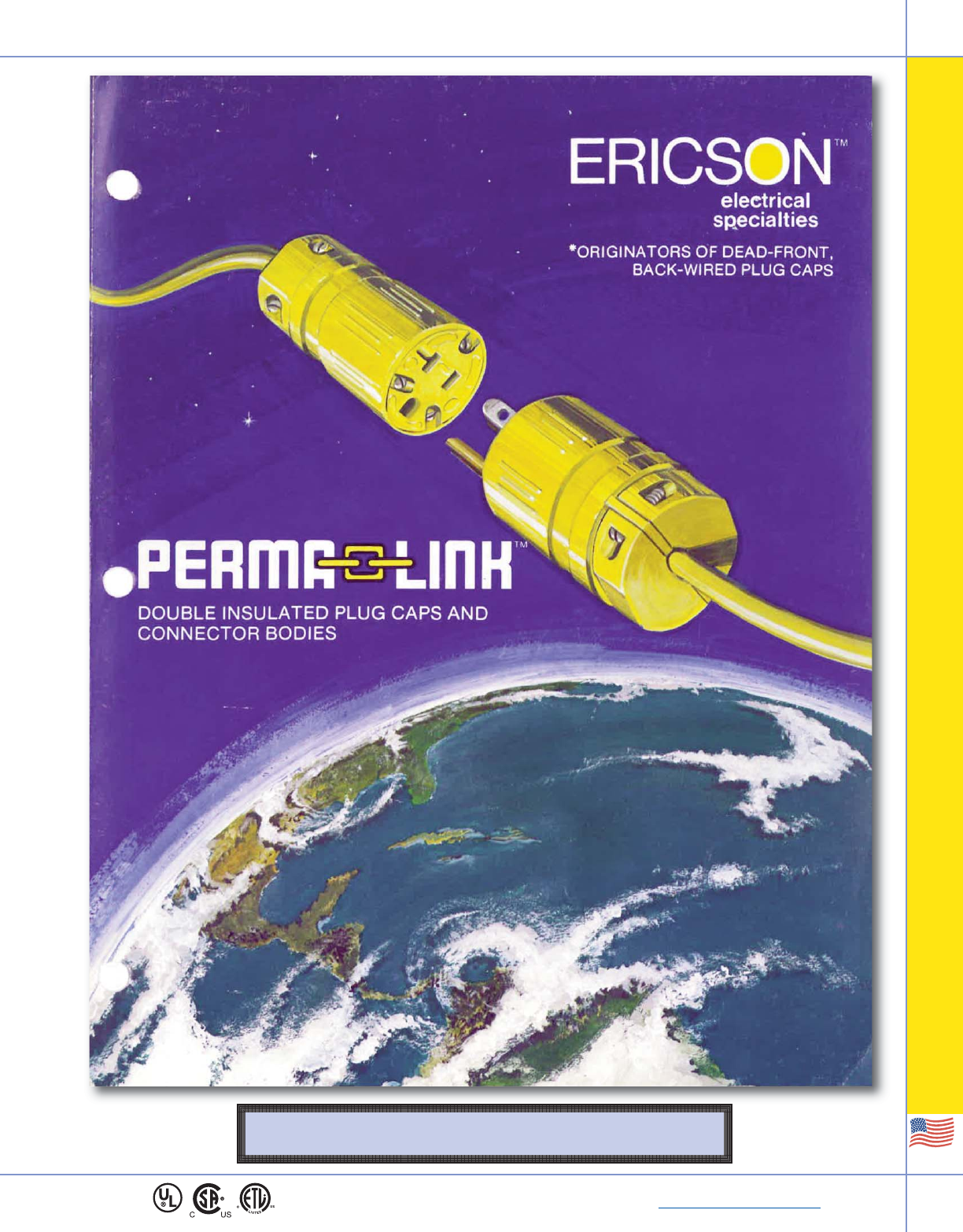

Perma-Link® Devices ............................................................................................................................ 128-129

Non-NEMA “Crowsfoot” Devices .............................................................................................................. 130

5266 Economy Devices ................................................................................................................................ 131

PWDX Series Heavy Duty Outlet Receptacles ..........................................................................134-137

Perma-Tite® 2 FS Series Cover Plates .......................................................................................... 138-140

Configuration Adapters ................................................................................................................................ 141

Light Industrial Perma-Link® Devices .......................................................................................... 142-143

Grommet Sizes..........................................................................................................................................144-145

MINI-SYNC™ & MICRO-SYNC™ Devices ......................................................................................146-169

MINI-SYNC™ Devices ............................................................................................................................148-157

MICRO-SYNC™ Devices ........................................................................................................................158-169

GFCI .................................................................................................................................................................... 170-181

Custom GFCI ........................................................................................................................................................173

How a GFCI Works ................................................................................................................................ 174-175

XG2 Series..... ..............................................................................................................................................176-178

1075 Panel Mount GFCI .............................................................................................................................. 179

1060 Series .. ........................................................................................................................................................180

Reels................................................................................................................................................................... 182-197

Reel Construction ............................................................................................................................................ 184

Specify Your Cable Reel ................................................................................................................................ 185

3000 Series - Light Duty Cord Reels ...................................................................................................... 186

Industrial Reels .................................................................................................................................................. 187

4000 Series - Industrial Grade Cord Reels .................................................................................. 188-189

5000 Series Large Cable Cord Reels ...................................................................................................... 190

6000/7000 Series Extra Long Cord Reels ............................................................................................ 191

8000 Series - Hazardous Location Reels .................................................................................... 192-193

SDR Series Static Discharge Reels ............................................................................................................194

Reel Accessories .............................................................................................................................................. 195

Reel Dimensions ......................................................................................................................................196-197

Pendant Stations ........................................................................................................................................198-217

Pendant Stations - Uses..................................................................................................................................200

Switch Operations ............................................................................................................................................201

Applications ........................................................................................................................................................202

5500 Series... ..............................................................................................................................................204-212

5500 Replacement Parts & Legend ........................................................................................................ 211

5500/5502/5503 Dimensions ............................................................................................................212-213

5500 Custom Ordering ..................................................................................................................................214

5700 Series Heavy Duty ...................................................................................................................... 216-217

e-Grips................. ..............................................................................................................................................218-253

e-Grips - Uses ......................................................................................................................................................220

Support Grips ............................................................................................................................................221-234

Pulling Grips ..............................................................................................................................................235-238

Strain Relief Grips ....................................................................................................................................239-248

e-Grip Technical Reference..................................................................................................................249-252

Technical Reference ................................................................................................................................254-277

Portable Electrical Cord Reference ........................................................................................................ 256

Lamp Comparison Chart ............................................................................................................................ 257

NEMA Type Designation .............................................................................................................................. 258

IP Rating System .............................................................................................................................................. 259

Hazardous Locations ............................................................................................................................ 260-262

Temperature Conversion ............................................................................................................................ 263

Metric Conversion Chart .............................................................................................................................. 264

Electrical Formulas .......................................................................................................................................... 265

Glossary of Terms ................................................................................................................................ 266 - 269

Metal Gang Box Danger................................................................................................................................ 270

Industrial Wiring Device Innovations .................................................................................................... 271

OSHA Product Match ..........................................................................................................................272-275

Do’s & Don’ts - Temporary Lighting ................................................................................................276-277

Numerical Listing .................................................................................................................................... 278-287

Table of Contents

Looking for us ?

At Ericson, we value the listing marks of 3rd party NRTL or International Underwriting Safety Agencies and understand the

importance of up-to-date Listing Information to you, our customer. In order to properly keep up-to-date Agency Listing

Information available 24/7, we have not placed any listing marks in this printed catalog. Why is this? There are two main reasons:

1.) New products shown at the time of printing may be undergoing the final Agency approvals and we are unable to mark that product

until approval is given, and

2.) During the life of many products, we seek additional approvals to meet changing market demands. To get the latest agency

approval information, please use any of the following steps:

1. Contact your local Ericson Rep for a listing lookup

2. Contact Customer Service at 1-800-ERICSON (374-2766) M-F 8-6 EST

3. 24/7 Web Search - TO SEARCH A PART - SEE THE FULL LISTING ON OUR WEBSITE WWW.ERICSON.COM/AGENCY

What’s This

The square barcode you see on certain pages are called 2D or QR barcodes.

This latest barcode technology allows the encoding of valuable product

information that would be impossible to show in a printed catalog.

Examples of this information are product videos, website links and

special spec downloads.

How to use these: Use your Smartphone with camera (Android, Blackberry, iPhone) and

download any free QR or 2D Barcode scanning application software. They are free

downloads and many varieties are available. Start the application and follow the

instructions. Normally you hold the camera over the QR code and wait for the

smartphone to respond. That’s it…easy and enjoy the show.

Origin of Products

Made in the USA - This symbol is shown on products that

all or nearly all parts are made and assembled in the USA.

Assembled in the USA - This symbol is shown on products that

most of the parts are from US Origin and assembled in the USA.

Assembled

in USA

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

Small Business

CAGE 82832

GSA #

GS-07F-0313Y

TABLE OF CONTENTS

Wire Mesh e-Grips

• Strain relief grips

• Pulling grips

• Support grips

See page 218

All Weather Double Outlet Receptacle

with Cover Plates - PWDX

•Weather resistant boot seals around plug to provide

weather resistant protection*

•Impact, chemical & corrosion resistant

construction stands up to demanding

environments

•Mounts easily to 6200 series FS/FD/FT

boxes and any flat panel surface

See page 134

UL Listed SunTower™

Wide Area Lighting

•Suntower : 3 base models to choose

from… Single and Dual Lights with winch

operations and generator model – Bright

as the Sun

See page 106

Clear Perma-Tite® 2 SmartMonitor™

Water Tight Style Wiring Device

All Weather - NEMA 6P rated

Smart Monitor plug and connec-

tor now with an improved clear

body to make ground continuity

monitoring easy.

See page 124

Heavy Duty Grade W & Y Cordsets

•Provides multiple outlets from a single power source

•Available in "Y" and "W" configurations

•Manufactured using heavy-duty 600V cord

See page 45

Specialty Use - Boiler Lights

500 Watt “Boiler Inspection” Light – 90 deg and straight

tube that fits into a small opening for inspections – can be

used in a variety of applications

See page 116

UL Listed e-Cart® Series

MINI-SYNC™ & MICRO-SYNC™ Devices

•NEMA 6P and IP68 protection

•High-impact resistant contact carriers

•Highly accurate machined contacts

•Corrosion resistant gold

plated contacts

•Stress and harsh

environment

resistant

See page 146

New Products

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

NEW!

e-Cart2™

•UL Listed to 1640C

•480 or 600V, 3ø or 1ø 60Hz

power input

•350kVA transformer

•Combo load center with GFCI

circuit breakers

•NEMA TYPE 3R main disconnect

switch

•NEMA 3R fused primary

disconnect, sized per

transformer

e-Cart Jr.™

•UL Listed to 1640C

•600 or 480V, 3 phase or single

phase 60Hz power input

•15kVA encapsulated transformer

•Output power options: 120Y/208V

with 3ø transformer or 120V/240V

with 1ø transformer

•Combo load center with GFCI

circuit breakers

•NEMA TYPE 3R main disconnect

switch

See page 22

NEW PRODUCTS

61-800-ERICSON (374-2766) •www.ericson.com

Temporary Power

TEMPORARY POWER

Temporary Power

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY POWER

See the Video

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

81-800-ERICSON (374-2766) •www.ericson.com

Product Overview

TEMPORARY POWER

Big-E™ PDU

Now available from Ericson...The Big E™ Series, Mobile Temporary Power

Distribution Centers for your jobsite.

The basic construction consists of:

•600, 480 or 208 or 240 volt power distribution

•All connections and circuit breakers under one NEMA 3R rain proof cover

•Up to 400 Amp

•3R rainproof tested

•Camlok main power connected or rear panel entry

•Welder power distribution 480V (select models)

•Powder coated for corrosion resistance

•Easy to move and store

•Frames stack & lock together for storage

e-Cart2™ Transformer Based PDU

Now available from Ericson...The e-Cart 2™ Mobile Temporary Power Distribution

Centers for your jobsite.

The basic configuration consists of:

•Industrial duty powder coated steel frame with lifting eyes, wheels or stands

•Three phase or single phase NEMA 3R 480V or 600V 60Hz ventilated transformer

•NEMA 3R load center with GFCI breakers installed, sized per transformer

•NEMA 3R fused primary disconnect, sized per transformer

•EZ to move and store

•Code compliant

•Patent pending design

e-Cart™ Jr. Transformer Based PDU

Now available from Ericson...The e-Cart Jr.™, Mobile Temporary Power Distribution

Centers for your jobsite.

The basic construction consists of:

•600 or 480V, 3 phase or single phase 60Hz power input

•15kVA encapsulated transformer

•Output power options: 120Y/208V with 3-phase transformer or 120V/240V with

single-phase transformer

•Combo load center with GFCI circuit breakers

•NEMA TYPE 3R main disconnect switch

•Code compliant

*(most models - see section for details)

*(some models - see section for details)

AWARD WINNING

DESIGN

AWARD WINNING

DESIGN

Product Overview

TEMPORARY POWER

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Big-E™ Jr. PDU

The Big E Jr. ™, Mobile Temporary

Power Distribution Center

The basic construction consists of:

• Up to 200 amp

•120/208V or 240V

•IEC or camlok In

•Up to (18) 20A GFCI circuits out

•Many styles to choose from

• 50A 240V input

•(8) receptacles out

•Full GFCI compliance

Engineered Solutions

Need a custom temporary power or lighting solution? Ericson can

design and build a variety of custom application items to meet

your needs. The Ericson Team of Sales Application and Engineering

Professionals will help determine your requirements and find a

solution to your unique application.

We Specialize In:

•Temporary Power Distribution

•Temporary Custom Lighting Solutions

•Cordset and Custom Stringlights

•Custom GFCI Solutions

Contact one of our Factory Trained Representatives in your area with

your detailed application needs. Current listings can be found on

www.ericson.com or call us 1-800-ERICSON

Oscar II PDU

When you need a temporary power distribution box that will

meet your requirements, look to the Oscar® 2 Series from

Ericson. The flexible design platform of the new Oscar® 2 allows

you to configure a Temporary Power Distribution Center that is

right for you. The Oscar® 2 Expo Series picks up where the

1066/1067 leaves off.

Typical Applications Include:

•Convention Centers

•Outdoor Events

•Festivals

•Carnivals, etc.

•Concerts

•Stage & Studio

6000, 7000 & 8000 Boxes

Rugged and durable, these outlet boxes are

engineered to provide protection against

electric shock while using portable power cords.

Cordsets

Ericson offers a complete line of high

quality jobsite style cordsets for a

range of applications. From light tool

and generator connection to heavy

duty #10/3 size cord, the Ericson line

of safety cordsets is the right answer

to your power cord needs.

Bonus: Custom factory cord jacket

printing available

* not available on some models.

Cable Protectors

Protect expensive cables from foot-traffic and equipment

damage while eliminating tripping hazards caused by cables

with Ericson's CP5 Series GP Cable Protectors. Made from

rugged, all-weather polyurethane construction known for its

resilience, hardness and impact resistance for demanding

environments.

Oscar® Boxes - 1066/1067 Series

Available from Ericson...Oscar® Box Temporary Power Distribution

Units. Versatile protection for your jobsite, the Oscar® box is avail-

able in many standard GFCI protected configurations or contact

the factory for a custom need.

1068 Series 3 Phase 208V Features:

•Choice of main inlet types - IEC309 power-inlet and

power-outlet or camlok

•Exclusive IPDM module installed

•GFCI or non-gfci circuit breakers available

•Receptacles protected by Ericson's FS Series flip seal covers

•Camlok inputs available

Use instead of

all metal boxes

10 1-800-ERICSON (374-2766) •www.ericson.com

Temporary Power - Do’s & Don’ts

TEMPORARY POWER

Need temporary power at a fair or festival? Plug into Ericson’s NEC/CEL & OSHA compliant

Power products to avoid accidents and costly fines from code violations.

SEE NEXT PAGE

For the RIGHT WAY to use temporary

power at an outdoor event.

NEC Codes 2011

A.525.22 (A) “…shall be of weatherproof construction…”

B. 525.23 (A)(2) GFCI Protection is Required “… readily accessible to the general public…”

C. 525.10 (A) “…Equipment shall not be installed…accessible to unqualified persons…”

D. 525.10 (B) “Service equipment shall be mounted on solid backing…protected from weather…”

E. 525.20 (G) “Flexible cords…accessible to the public…shall be arranged to avoid a tripping hazard…”

F. 525.32 Grounding Assurance “…shall be verified each time that portable electrical equipment is connected.”

Notes on these NEC codes:

NEMA 1 indoor panels are not suitable for outdoor temp power.

GFCI protection for personnel and the public is a must. Life saving devices.

Electrical service panels and temp power distribution should not be accessible by the public attending the event.

Hanging a panel from a tent pole is a violation. So is using plywood backing as plywood can be water soaked and now conductive.

Flexible power cords at the local fair are everywhere. They should be covered in walk areas (and not with plywood) to prevent the public touching any cord. Nicks and cuts are common with

cords and the public touching a live conductor can happen. Or, in the event of rain, puddles can become live with nicked cords and non-weatherproof connectors.

Once the temp power is on, a ground check must be performed. However, if that temp power system is disturbed, it should be rechecked.

GFCI

Protection

Public

Access

to Panel

NEMA 1

Indoor Panel

WRONG WAY

Panel Hanging

From

Tent Pole

NEMA 1

Old Work

Permanent Boxes

Protection

of Cords

Grounding

Assurance?

Temporary Power - Do’s & Don’ts

TEMPORARY POWER

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

SAFE SOLUTION

RIGHT WAY

Power Smart…Ericson’s full line of Temp Power Distribution Panels is the answer to your local Festival or

Fair. Contact your local Ericson stocking distributor for assistance in designing your temp power needs.

•Code Compliance for Temp Power

•NEMA 3R Rainproof Design

•Designed for Ease of Use

•Built to Last

•Custom Layouts for Your Power Needs

•Temp Power – Cordsets – Cord Management

BEI-CAMCL3180 shown

SEE Our

Great Line Up of

Temporary Power

e-Cart2™ Big-E Big E Jr. Oscar® Cordsets Cable Protection Watertight Connections

480/120V

600/120V 400 Amp 200 Amp 50 Amp 10/3 or 12/3 Cable Protectors 1510-PW6P & 1610-CW6P

Cart Design

Easy to Move

NEMA 3R Rain

Tested Design

GFCI

Protection

is Standard

Rain Side Flaps

Fold in for Easy

Compact Storage All Connections

Under One

Rain Cover

Customer Application:

Application allows safe

routing of cords for the

elimination of trip hazards

Camlok Input

Connections Reduce

Stress on Cord

Connections

Safety Monitor Device

Gives 24/7

Ground Assurance

It All Works Together

1-800-ERICSON • www.ericson.com

Oscar™ - 1066FS

• 120/240V 50A

• 6 GFCI 20A Duplexes

• 6 circuits GFCI

• L6-30

• 50A CS Feed thru

CS Style Receptacle

BSO/DSO

Cable

120/240V

14kVA Generator (G14)

Usually single phase only. 56 Amps available at 120/240. (3) 20A duplex GFCIs,

(1) L14-30 & (1) CS6369 240V 50A twist terminal block connection

100

Feet

123D-TT

Tri-Tap

Extension Cord

120/208V

6050

Terminal Block

SC20F50

Blunt Cam

SC20MF25

Cam In Cam Out

Cam In

70kVA Generator (G70)

Usually single phase and 3 phase outputs available

242A at 120/240 or 200A at 120Y208 or 87A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (2) CS6369 240V 50A twist

Terminal block connection

L21-20

BE2-CAM2CL3240 200Amp

• (24) 5-20 DPLX GFCI

• CAM IN/OUT

(1) BE1-CAM2CL3060L

• Cam In/Cam out w/6 L21-20

Duplex Power stringers

• (3) 6050-125F8 30 ft

• 9 GFCI duplexes total

CP5-36-GP

Oscar™ - 1066FS

• 120/240V 50A

• 6 GFCI 20A Duplexes

• 6 circuits GFCI

• L6-30

• 50A CS Feed thru

BSO/DSO

Cable

Generator Cordset

(8Z3104508GB)

• 25A

• 4 Duplexes

120/240V

25kVA Generator (G25)

Usually single phase and 3 phase outputs available

75A at 120/240 or 63A at 120Y208 or 27A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (1) CS6369 240V 50A twist

Terminal block connection

100

Feet 123D-TT

Tri-Tap

Extension Cord

7000 Series

Tri-Tap Multiple

Outlet Box Perma-Tite™ 2

Factory Assembled Cordset

• Extreme industrial use

• Water tight connection

• Rated NEMA 3R & 6P

CP5 Cable Protectors

• Large capacity 5-slot sections

• “T” locks hold under load stress

6050

12 1-800-ERICSON (374-2766) •www.ericson.com

The Ericson System - It All Works Together

TEMPORARY POWER

Generator Capacity & Receptacles are for Estimation Purposes Only.

Be Sure to Check Your Specific Unit for Exact Equipment Specs!

Oscar™ - 1066FS

• 120/240V 50A

• 6 GFCI 20A Duplexes

• 6 circuits GFCI

• L6-30

• 50A CS Feedthru

Duplex Power stringers

• (3) 6050-125G8 60 ft.

• 18 duplexes total

Terminal Block

SC2F Cordset

Cam In

Blunt Cam

120/208V

Big E Jr.

BE1-CAMCL3040L

(4) L21-20s

6050

25kVA Generator (G25)

Usually single phase and 3 phase outputs available

75A at 120/240 or 63A at 120Y208 or 27A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (1) CS6369 240V 50A twist

Terminal block connection

BSO

Cable

Oscar™ - 1066FS

• 120/240V 50A

• 6 GFCI 20A Duplexes

• 6 circuits GFCI

• L6-30

• 50A CS Feedthru

120/240V

Connect

Up To 6

Oscars™

BSO

Cable

BE4-CAMCL1008T

• 400A PDU w/ (8) CS6369

• 240V 50A twistlocks

Terminal Block

SC40F25

Blunt Cam

Cam In

85kVA Generator (G85)

Usually single phase and 3 phase outputs available

279A at 120/240 or 233A at 120Y208 or 101A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (2) CS6369 240V 50A twist

Terminal block connection

L21-20

480V

2324P124D

Terminal Block

SC2F25

Cam In

85kVA Generator (G85)

Usually single phase and 3 phase outputs available

279A at 120/240 or 233A at 120Y208 or 101A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (2) CS6369 240V

50A twist Terminal block connection

BE4 480V 200A PDU

• Part number 09100807

• (8) L16-20 480V recepts

120/240V

Terminal Block

SC20F Cord

Cam In

Blunt Cam

BSO/DSO Cable

50kVA Generator (G50)

Usually single phase and 3 phase outputs available

158A at 120/240 or 133A at 120Y208 or 58A at 277/480

(2) 20A Duplex GFCIs, (1) L14-30 & (1) CS6369 240V 50A twist

Terminal block connection

Up to (5) 15kVA Ecart Jrs

• Each w/ (6) 20A duplex GFCIs

Big E Jr.

BE1-CAM2CL1063 (CAM in & out)

(6) 20A GFCI duplex, (3) CS Oscar feeds

The Ericson System - It All Works Together

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY POWER

14 1-800-ERICSON (374-2766) •www.ericson.com

Big-E™ Series - 400 Amp Power Distribution

Now available from Ericson...The Big E ™ Series, Mobile Temporary Power Distribution Centers for your jobsite.

The basic construction consists of:

•600, 480 V or 120/208V or 240 volt power distribution

•All connections and circuit breakers under one NEMA 3R rain proof cover

•Up to 400 Amp

•3R rainproof tested

•Camlok main power connected In

•Welder power distribution 480V (select models)

•Powder coated for corrosion resistance

•Easy to move and store

•Frames stack & lock together for storage

Heavy Duty Welded

Metal Frame

Multiple Outlet Receptacles

Available See Chart

Handles for Easy

Maneuverability

Lifting Eyes

Cover folds flat when

unit is not in use

Camlok input

connections

Hinged folding

front panel

Standard

circuit

breakers

allow easy

repair

Rain

side

flaps

fold

in for

storage

All connections

under one

rain cover

Camlok Output

connections

on back

Hinged Cover

Folds Up

All Steel

Enclosure

Large

Wheels

48” H

Made in

the USA See the Video

Made in

the USA

TEMPORARY POWER

Big-E™ Series - 400 Amp Power Distribution

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Big-E™

See following

page for cable

assemblies

INPUT POWER OUTPUT CONNECTIONS

Voltage Phase Inlet Type

Mains Feed

Thru Receptacles Installed

Circuit & Personnel

Protection

BE4-CAM2CL3062CL 208 3

CAM SET

(5)

CAM SET

(5) (6) L21-20 & (2 SETS) CAMLOCK (6) 20A 3P C.B. Non-GFCI

BE4-CAM2CL3122C 208 3

CAM SET

(5)

CAM SET

(5) (12) 5-20 DPLX & (2 SETS) CAMLOCK (12) 20A GFCI C.B.

BE4-CAMCL1008T 240 1

CAM SET

(4) -- (8) CS6369 "Oscar Feeder" (8) 50A 2P C.B.

BE4-CAMCL3004C 208 3

CAM SET

(5) -- (4 SETS) CAMLOCK (4) 100A 3P C.B.

BE4-CAMCL3062CL 208 3

CAM SET

(5) -- (6) L21-20 & (2 SETS) CAMLOCK (6) 20A 3P C.B. Non-GFCI

BE4-CAMCL3122C 208 3

CAM SET

(5) -- (12) 5-20 DPLX & (2 SETS) CAMLOCK (12) 20A GFCI C.B.

BE4-480CAM2CL3002C 480 3

CAM SET

(4)

CAM SET

(4) (2 SETS) CAMLOCK 480V (4) 100A 3P C.B.

BE4-480CAMCL3004C 480 3

CAM SET

(4) -- (4 SETS) CAMLOCK 480V (4) 100A 3P C.B.

BE4-480CAMCL3004I 480 3

CAM SET

(4) -- (4 ) 100A IEC 4100RA7 Angled 480V (4) 100A 3P C.B.

BE4-600CAM2CL1004C 600 1

CAM SET

(4)

CAM SET

(4) (4 SETS) CAMLOCK (1 Phase) 600V (4) 100A 3P C.B.

BE4-600CAM2CL3004C 600 3

CAM SET

(4)

CAM SET

(4) (4 SETS) CAMLOCK 600V (4) 100A 3P C.B.

BE4-600CAMCL3004C 600 3

CAM SET

(4) -- (4 SETS) CAMLOCK 600V (4) 100A 3P C.B.

BE4-CAMCL3122C BE4-CAMCL3004C BE4-CAMCL3012T Made in

the USA

TEMPORARY POWER

16 1-800-ERICSON (374-2766) •www.ericson.com

Big-E™ Series - Cable Assemblies

TEMPORARY POWER

Camlok Colors

Black = Hot A

Red = Hot B Ø

Blue = Hot C Ø

White = Neutral

Green = Ground

2 = #2 AWG SC (140 Amps Max)

20 = #2/0 AWG SC (225 Amps Max)

40 = #4/0 AWG SC (400 Amps Max)

Example:

SC2MF3-R

3 ft. Single Conductor Cord, With Male and Female CAMLOK Ends Installed, Red Color Ends, #2 SC Cordage, 190 Amps Max.

CAMLOK Devices

F= Female End Installed Only

- Blunt Other End

MF = Female & Male Ends Installed

3= 3 ft. OAL

10 = 10 ft. OAL

25 = 25 ft. OAL

50 = 50 ft. OAL

100 = 100 ft. OAL

CAMLOKS

BK = Black

R = Red

BL = Blue

W = White

G = Green

Size Devices Length Color

Single Conductor Cable Assemblies

Multiple Conductor Cable Assemblies

Catalog No. Plug (male) Connector (female) OAL ft Cord Amps Camlok Color Code

PC4MF25-C

Camlok Camlok

25 #4 W 600V

All - Black, Red,

Blue, White, Green

PC4MF50-C 50 #4 W 600V

PC4MF100-C 100 #4 W 600V

PC2MF25-C 25 #2 W 600V

120PC2MF50-C 50 #2 W 600V

PC2MF100-C 100 #2 W 600V

PC4MF_-C

Multi-Conductor

Single Conductor

Blunt

Single Conductor

Camlok Ends

SC2MF3-_ SC2F3-_

Black

Red

Blue

White

Green

Ericson Literature

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY POWER

Original Cover for 1990’s Literature

18 1-800-ERICSON (374-2766) •www.ericson.com

Big-E Jr™ Series - 200 Amp Power Distribution

Big power in a small compact sized PDU is what the Big-E Jr. is all about. Designed for quick, easy-to-connect, code compliant

distribution for indoor or outdoor venues and jobsites, the Big-E Jr. Portable PDU is the choice for your power needs. The award

winning Combo Panel design is NEMA 3R In Use Rain rated and withstands heavy and windblown rain environments.

With all the configurations of circuits to choose from, you are sure to find the PDU that meets your needs.

• NEMA 3R Rain In Use Rated

• Exclusive Combo Panel Design puts receptacles and breakers under one cover

• No small flip covers to break

• All Steel construction with powder coating inside and out

• Heavy Duty, yet light, steel welded frame lasts event after event

• 24/7 Safety Monitoring with the Exclusive I.P.D.M. module

• Camlok input connection on rear panel makes hookup easy and quick

Rain Flaps Fold Into

Top For Storage

I.P.D.M. Safety Monitor

Advanced circuitry monitors and indicates

(through LEDs) many common connection

and safety issues with Temp Power. Safety

earth ground and mis-connection issues

are easily corrected to ensure compliance

to electrical codes.

DON’T SEE

THE PANEL

YOU NEED?

Just contact us

for a custom

Big-E Jr. to meet

your needs.

TESTED

IN USE

Heavy Duty

Welded Metal

Frame

Powder Coated For

Outdoor Exposure

All Steel

Enclosure

NEMA 3R Tested

Side Rain Flaps

Twist Lock

Closure

Compact

Size

Power Input

(See chart for details)

Large Wheels

Exclusive IPDM

Monitors

Incoming Power

Multiple

Receptacle

Combinations

See Chart

36” H

Made in

the USA

Exclusive!

See the Video

4 Panel Option

Available

Please Call

Factory for

Details

Made in

the USA

TEMPORARY POWER

Big-E Jr™ Series - 200 Amp Power Distribution

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Catalog Number Voltage Phase

Male

Inlet Type

Female

Mains Feed

Thru

MCB

Installed

(See

important

note below)

Safety

Monitor

IPDM

Installed Receptacles Installed

Circuit & Personnel

Protection

BE1-T50CM1080 240 1

CS6375

Twistlock -- YES YES (4 LED) (8) NEMA 5-15/20 T Slot GFI DPLX (8) GFCI DPLX

BE1-T50CM1120 240 1

CS6375

Twistlock -- YES YES (4 LED) (12) NEMA 5-15/20 T Slot DPLX (12) GFCI C.B.

BE1-CAMCL1061 240 1 CAM SET (4) -- n/r YES (4 LED)

(6) NEMA 5-15/20

T Slot DPLX (1) CS6369

(6) GFCI C.B. &(1)

50A C.B.

BE1-CAMCL1062 240 1 CAM SET (4) -- n/r YES (4 LED)

(6) NEMA 5-15/20 T Slot DPLX (2)

CS6369

(6) GFCI C.B. &(2)

50A C.B.

BE1-CAMCL1120 240 1 CAM SET (4) -- n/r YES (4 LED) (12) NEMA 5-15/20 T Slot GFI DPLX (12) GFCI DPLX

BE1-CAMCL1180 240 1 CAM SET (4) -- n/r YES (4 LED) (18) NEMA 5-15/20 T Slot DPLX (18) GFCI C.B.

BE1-CAM2CL1063 240 1 CAM SET (4) CAM SET (4) n/r YES (4 LED)

(6) NEMA 5-15/20

T Slot DPLX (3) CS6369

(6) GFCI C.B.,(3)

50A C.B.

BE1-CAM2CL1120 240 1 CAM SET (4) CAM SET (4) n/r YES (4 LED) (12) NEMA 5-15/20 T Slot GFI DPLX (12) GFCI DPLX

BE1-CAM2CL1180 240 1 CAM SET (4) CAM SET (4) n/r YES (4 LED) (18) NEMA 5-15/20 T Slot DPLX (18) GFCI C.B.

BE1-CAMCL3003 208 3 CAM SET (5) -- n/r YES (5 LED) (3) CS6369 "Oscar Feeder" (3) 50A C.B.

BE1-CAMCL3006 208 3 CAM SET (5) -- n/r YES (5 LED) (6) CS6369 "Oscar Feeder" (6) 50A C.B.

BE1-CAMCL3040L 208 3 CAM SET (5) -- n/r YES (5 LED) (4) L21-20 (4) 3P 20A C.B.

BE1-CAMCL3060L 208 3 CAM SET (5) -- n/r YES (5 LED) (6) L21-20 (6) 3P 20A C.B.

BE1-CAMCL3060TT 208 3 CAM SET (5) -- n/r YES (5 LED) (6) TT-30 (6) 30A 2P C.B.

BE1-CAMCL3061 208 3 CAM SET (5) -- n/r YES (5 LED)

(6) NEMA 5-15/20

T Slot DPLX(1) CS6369

(6) GFCI C.B. &(1)

50A C.B.

BE1-CAMCL3062 208 3 CAM SET (5) -- n/r YES (5 LED)

(6) NEMA 5-15/20

T Slot DPLX(2) CS6369

(6) GFCI C.B. &(2)

50A C.B.

BE1-CAMCL3063 208 3 CAM SET (5) -- n/r YES (5 LED)

(6) NEMA 5-15/20 T Slot DPLX(3)

CS6369

(6) GFCI C.B. &(3)

50A C.B.

BE1-CAMCL3120 208 3 CAM SET (5) -- n/r YES (5 LED) (12) NEMA 5-15/20 T Slot GFI DPLX (12) GFCI DPLX

BE1-CAMCL3180 208 3 CAM SET (5) -- n/r YES (5 LED) (18) NEMA 5-15/20 T Slot DPLX (18) GFCI C.B.

BE1-CAM2CL3006 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED) (6) CS6369 (6) 50A C.B.

BE1-CAM2CL3060L 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED) (6) L21-20 (6) 3P C.B.

BE1-CAM2CL3060TT 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED) (6) TT-30 (6) 30A 2P C.B.

BE1-CAM2CL3063 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED)

(6) NEMA 5-15/20 T Slot DPLX (3)

CS6369

(6) GFCI C.B. &(3)

50A C.B.

BE1-CAM2CL3120 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED) (12) NEMA 5-15/20 T Slot GFI DPLX (12) GFCI DPLX

BE1-CAM2CL3180 208 3 CAM SET (5) CAM SET (5) n/r YES (5 LED) (18) NEMA 5-15/20 T Slot DPLX (18) GFCI C.B.

* MCB = Main Circuit Breaker - n/r = Not Required due to the calculation that the installed number of fully loaded circuits will not overload the

incoming power. Protect the PDU upstream at the feeder panel.

For complete detail drawings

see our website

Big-E™ Jr.

Made in

the USA

TEMPORARY POWER

20 1-800-ERICSON (374-2766) •www.ericson.com

Emergency Preparedness Guide

TEMPORARY POWER

History Teaches That a Lack of Awareness and Preparations

are Common Threads Among All Major Disasters

Ericson is Ready

24/7

1-877-OSCAR99

(1-877-672-2799)

Ericson Can

Supply You

With a Total

System

•Cords

•PDU’s

•Lights

All

Plug-N-Play

Emergency Preparedness Guide

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY POWER

•HURRICANES

•TORNADOS

•FLOODS

•EARTHQUAKES

Big-E™ Jr.

1066 FS

•200+ Amp Panel

•BIG POWER/compact size

•GFCI protection

•NEMA 3R rainproof - tested in use

•Exclusive front cover with folding

side flaps design

•Plug-N-Play design

•Exclusive IPDM power indicator

•Wheeled EZ moving frame design

•Many standard models

to choose from or custom designs

•NEMA 3R rated for outdoor use

•Each NEMA 5-20 outlet is

individually GFCI protected with

open neutral protection

•Flip covers protects outlets from

damage & the weather.

•Heavy duty powder coated body

•Flip up door protects circuit

breakers from damage & weather

•50A cordset for Oscar®

Stringlights 1000-MH

•Meets OSHA construction site

requirements 1926.405(a)(2)(ii)(E&F)

•Meets NEC requirements for

temporary lighting

•Easy relamping with non-

conductive, snap-open cage guard

•Built-in hanger for easy installation

with messenger cable or hooks

•Many styles to choose from

- indoor or outdoor

•120V/60Hz, 70W metal halide

•UL & cUL listed

•Suitable for wet locations

•Rugged, die-cast aluminum housing

•6ft. #14/3 oil-resistant cable with

molded-on 5-15 plug

•Heavy-duty magnet provides secure

mounting on metal surfaces for

hands-free operation

•Built-in carry handle

•Impact resistant, high-temperature lens

with inner surface prisms for optimum

light diffusion

Generator GFCI Cordset

832 Series

•Rubberized Box eliminates “hot”

un-grounded dangerous metal

quad boxes

•Heavy Duty Perma-Link™ Plug

with rubberized body and nickel

plated blades

•Heavy Duty SJ & SO cord

•GFCI Protection - GFCI 5-20

Duplexes protecting 5-20 duplex

receptacles

•Heavy Duty cord strain relief at box

stands up to rough duty

• 2, 25, 50 and 100 ft cord lengths

•32 Watt miser green T8

•OSHA Compliant - Meets OSHA

regulations for wet locations

•Rated for demanding outdoor and

in-plant environments

•Cool, glare-free light

•Lightweight-Construction with

impact resistant tube shield.

•Ballast in handle, so it's easy to move

around the jobsite

•Rubberized non-conductive design

Wiring Devices

123 with Rain Guard

Site Planning

& 24/7 Service

•24/7 Hotline service

• Quick response and

local support

•We can help you plan and

layout your needs

•We are Temp Power and

Lighting Experts

•On the job since 1918

•All NEMA types

•Locking & straight

•Dust tight to 6P submersible

•All weather

•Smart monitor devices

•Solid brass connections

•Award winning designs.

U-Pick Components

22 1-800-ERICSON (374-2766) •www.ericson.com

e-Cart 2™ - Mobile Transformer Power Distribution Center

Narrow frame fits

through a standard

36” doorway

EASY

TO MOVE!

*Extend the Power! Order Separately

(4)

Cable

hooks

NEMA 3R

transformer

up to

350KVA size

1ø or 3ø

(4) tie

down lift

eyes

Choice of:

•10” rough terrain

semi-pneumatic

tires(2 steering

with brakes, 2 fixed)

•Hard legs

Heavy-duty steel frame

powder coated for

long service life

Optional extra

“welder” 480

or 600V

receptacles

Optional

extra NEMA

3R fused

disconnect

NEMA 3R

fused

primary

disconnect 63DSO 1066FS

The basic configuration consists of a:

•Industrial duty powder coated steel frame with lifting eyes, wheels or stands

•Three phase or single phase NEMA 3R 480V or 600V 60Hz ventilated transformer

•NEMA 3R load center with GFCI breakers installed, sized per transformer

•NEMA 3R fused primary disconnect, sized per transformer

The e-Cart 2™Mobile Temporary Power Distribution Centers for your jobsite.

6 ft. of Cable Installed on Primary

Disconnect Sized for Transformer

(not shown)

See the Video

Made in

the USA

TEMPORARY POWER

e-Cart 2™ - Mobile Transformer Power Distribution Center

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

1/4 turn latch

Fold down rain

side panels

Frame Selection

1. Most configurations require the standard frame.

2. During the quoting process, we will advise you if the

taller frame is required.

3. Wheels and legs are easily interchanged on site with

simple tools.

4. Leg stands can also be bolted down at jobsite.

Standard

frame with

push handle

installed

Standard frame

with hard legs

Standard frame

without push handle

* Tall frame

34.5” 48.0”

48.0”

8.8”

47.0”

52”

34.5”

50”

12”

8” Leg stands

Leg bottom

plate drilled

for floor

mounting

* Sometimes required for larger panels

Frame Choices

65”

58”

10” Semi-pneumatic tires

Combo Style Load Center

Features:

•All-In-One design with one NEMA 3R

rain proof flip lid

•IN USE NEMA 3R rainproof design

•GFCI circuit breaker adjacent to receptacle

•Duplex receptacles offer more electrical

connections for maximum jobsite power

•With or without MCB

MCB

GFCI circuit

breakers

50 Amp feed

20 Amp

receptacles

Rainproof

“in-use”

Steel power coated

GFCI circuit

breaker & duplex

Ericson

Exclusive!

Many combinations available. See charts

Made in

the USA

TEMPORARY POWER

24 1-800-ERICSON (374-2766) •www.ericson.com

e-Cart 2™ - Mobile Transformer Power Distribution Center

* Duplex 5-20R on combo panels

3Ø

120/208V

OUT

3 Phase 120/208V Secondary Configuration Selections

Secondary Output

Configuration

Panel or Ericson

Combo Enclosure

Secondary Panel

Main Circuit Breaker

# of 20 amp 120V

Circuits NEMA 5-20R

# of 50 amp Oscar Feed

circuits C56369 Twistlock

Sized for Transformer

KVA

CL3120

Combo No

12 * 0 30 KVA

CL3031 3 * 1 30 KVA

CL3180 18 * 0 45 KVA

CL3121 12 * 1 45 KVA

CL3032 3 * 2 45 KVA

CL3122 12 * 2 75 KVA

CL3063 6 * 3 75 KVA

CM3120

Combo Yes

12 * 0 30 KVA

CM3031 3 * 1 30 KVA

CM3061 6 * 1 45 KVA

CM3032 3 * 2 45 KVA

CM3062 6 * 2 75 KVA

Non-UL

Option

CL3120 CL3032 CM3032 CL3121 CL3063

CM3062 CL3122 CM3120 CM3033 CL3180

CM3031 CL3031 CM3061

Made in

the USA

TEMPORARY POWER

e-Cart 2™ - Mobile Transformer Power Distribution Center

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

1Ø

120/240V

OUT

1 Phase 120/240V Secondary Selections

Secondary Output

Configuration

Panel or Ericson

Combo Enclosure

Secondary Main

Circuit Breaker

# of 20 amp

120V circuits

# of 50 amp Oscar™

Feed circuits Sized for

Transformer KVA

CL1100

Combo No

10 0 25 KVA

CL1041 4 1 25 KVA

CL1140 14 0 37.5 KVA

CL1101 10 1 37.5 KVA

CL1042 4 2 37.5 KVA

CL1180 18 0 50 KVA

CL1121 12 1 50 KVA

CL1102 10 2 50 KVA

CL1043 4 3 50 KVA

CM1100

Combo Yes

10 0 25 KVA

CM1041 4 1 25 KVA

CM1120 12 0 37.5 KVA

CM1061 6 1 37.5 KVA

CM1042 4 2 37.5 KVA

CM1062 6 2 50 KVA

CM1043 4 3 50 KVA

Non-UL

Option

CL1042 CL1043 CL1041 CL1180 CM1042

CM1100 CM1041 CL1140 CL1121 CM1062

CL1100 CM1061 CL1101 CL1102 CM1043

4 PANEL ENGINEERED SOLUTION AVAILABLE

Made in

the USA

TEMPORARY POWER

26 1-800-ERICSON (374-2766) •www.ericson.com

e-Cart 2™ - Engineered Solutions

Fits Through a

Standard 36”

Doorway!

e-Cart 2™

Need a custom e-cart2? We can modify our base design and build a custom e-cart2 to your specifications.

Provide us with the changes and any customization specs you would like and let us provide you with a solution today!

Call us for details and own your own customized quality built e-cart2.

Customizations available:

• Input Primary switchgear

• Output Secondary Panels and receptacles

• Color

• Labeling and Branding

• Much, much, more…

Made in

the USA

TEMPORARY POWER

e-Cart 2™ - Mobile Transformer Power Distribution Center

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Name: ________________________________________________________________ Contact Phone:____________________________________________

Company: ________________________________________________________Ericson Rep if known: ____________________________________________

Job/Project: ____________________________________________________________________________________________________________________

Address: ______________________________________________________________________________________________________________________

City: __________________________________________________________________ State: ______________________Zip: ________________________

Frame

S- Standard

H - Hi-boy tall

Wheels/Legs

S - Solid 10” rubber

L - 8” leg stands

Push Handle

H - With handle

X - No handle

(Note: Handle not available on tall frame models)

Secondary Outlet Selection Code

6 Digit Code From previous pages

3 Phase - See previous chart

1 Phase - See previous chart

Fax This Sheet

1-440-951-1867

e-mail to:

quotes@ericson.com

Delivery Date

Required:

______________

Quantity:

______________

www.ericson.com

1-800-ERICSON

* Requires main circuit breaker in secondary selections.

Power

Input

Main

Feed

Phase

Extra

Primary

Disconnect

Or Welder

Receptacles

480V

480V, 30 KVA w/60A Main Disconnect Switch 43030XX

480V, 45 KVA w/ 100A Main Disconnect Switch 43045XX

480V, 75 KVA w/ 200A Main Disconnect Switch 43075XX

480V, 112.5 KVA w/ 200A Main Disconnect Switch 43112XX

600V

600V, 30 KVA w/ 60A Main Disconnect Switch 63030XX

600V, 45 KVA w/ 60A Main Disconnect Switch 63045XX

600V, 75 KVA w/ 100A Main Disconnect Switch 63075XX

600V, 112.5 KVA w/ 200A Main Disconnect Switch 63112XX

With

Extra

Primary

Disconnect

and/or

Welder

Receptacles*

480V

480V, 30 KVA w/ 100A Main Disconnect Switch, 30A AUX Switch* 43030A3

480V, 30 KVA w/ 100A Main Disconnect Switch, 30A AUX Switch, 30A Welding Recpt 43030W3

480V, 45 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 43045A3

480V, 45 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 43045A6

480V, 45 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch, 30A Welding Recpt 43045W3

480V, 45 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch, 60A Welding Recpt 43045W6

480V, 75 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 43075A6

480V, 75 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch, 60A Welding Recpt 43075W6

600V

600V, 30 KVA w/ 100A Main Disconnect Switch, 30A AUX Switch 63030A3

600V, 45 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 63045A3

600V, 45 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 63045A6

600V, 75 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 63075A3

600V, 75 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 63075A6

Power

Input

Main

Feed

Phase

No Extra

Primary

Disconnect

or Welder

Receptacles

480V

480V, 25 KVA w/ 100A Main Disconnect Switch 41025XX

480V, 37.5 KVA w/ 100A Main Disconnect Switch 41037XX

480V, 50 KVA w/ 200A Main Disconnect Switch 41050XX

600V

600V, 25 KVA w/ 60A Main Disconnect Switch 61025XX

600V, 37.5 KVA w/ 100A Main Disconnect Switch 61037XX

600V, 50 KVA w/ 100 Main Disconnect Switch 61050XX

With Extra

Primary

Disconnect

and/or Welder

Receptacles*

480V

480V, 25 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 41025A3

480V, 37.5 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 41037A3

480V, 37.5 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 41037A6

600V

600V, 25 KVA w/ 100A Main Disconnect Switch, 30A AUX Switch 61025A3

600V, 37.5 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 61037A3

600V, 50 KVA w/ 200A Main Disconnect Switch, 30A AUX Switch 61050A3

600V, 50 KVA w/ 200A Main Disconnect Switch, 60A AUX Switch 61050A6

600V, 50 KVA w/ 200A Main Disconnect Switch, 100A AUX Switch 61050A1

Questions?

Call Us

1-800-ERICSON

(374-2766)

ALL INFORMATION BELOW MUST BE COMPLETE

How To Order

Made in

the USA

TEMPORARY POWER

28 1-800-ERICSON (374-2766) •www.ericson.com

e-Cart™ Jr. - Mobile Transformer Power Distribution Center

The e-Cart Jr.™, Mobile Temporary Power Distribution Centers for your jobsite.

The basic construction consists of a:

•480V or 600V, 3 phase or single phase 60Hz power input

•15kVA encapsulated transformer

•Output power options: 120Y/208V with 3-phase transformer or 120V/240V with single-phase transformer

•Combo load center with GFCI circuit breakers

•NEMA TYPE 3R main disconnect switch

Rain Guard flaps fold into cover

Epoxy encapsulated

15kVA NEMA TYPE

3R transformer

480 or 600V

Ericson reserves the right to interchange GFCI

circuit breakers with GFCI receptacles

Easy-rolling

wheels

50A Receptacle

Heavy-Duty cart with handle for easy

maneuvering around job site

480V OUT

120V

e-Cart™ Jr.

Inside View

Twist lock

closure

NEMA TYPE 3R Fused

Safety Disconnect switch

STANDARD

Order with 50A output

to power Oscar® boxes.

EXCLUSIVE!

NEMA type 3R Ericson engineered

circuit breaker/ receptacle “combo”

enclosure panel combines circuit breaker

panel with receptacle operation in one

heavy duty enclosure with NEMA 3R

rainproof “in use” flip top assembly.

See the Video

Note: 6 feet of cable installed on primary disconnect

sized to transformer. UL Models Only (not shown).

Made in

the USA

TEMPORARY POWER

e-Cart™ Jr. - Mobile Transformer Power Distribution Center

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

480 or 600 Volt**

(*For Oscar® + power)

INPUT POWER Secondary Info OUTPUT CONNECTIONS

Catalog No.

Voltage

IN Phase

Primary

Connection

Transformer

Size (kVA)

Secondary

Voltage

OUT

Secondary

Panel MCB

Installed*

Panel and

Connections

Style**

Receptacles Installed

Circuit & Personnel

Protection

Listed

480 1 6 ft SOW Blunt 15 120/240 n/r C (6) 5-15/20 T Slot GFCI DPLX (6) 20A STD BRKRS YES

480 1 6 ft SOW Blunt 15 120/240 YES C (6 )5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A 50A ZP C.B

(6) 20A STD BRKRS YES

480 3 6 ft SOW Blunt 15 120/208Y n/r C (6) 5-15/20 T Slot GFCI DPLX (6) 20A STD BRKRS YES

480 3 6 ft SOW Blunt 15 120/208Y YES C

(3) 5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A

(3) 20A STD BRKRS & (1)

50A 2P C.B. YES

480 3 6 ft SOW Blunt 15 120/208Y YES C

(6) 5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A

(6) 20A STD BRKRS & (1)

50A 2P C.B. YES

480 3 6 ft SOW Blunt 15 120/208Y YES C (12) 5-15/20 T Slot DPLX (12) 20A GFCI C.B. YES

480 1 Hardwire In 15 120/240 n/r C (6) 5-15/20 T Slot GFCI DPLX (6) 20A STD BRKRS Mfg*

480 1 Hardwire In 15 120/240 YES C

(6) 5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A 50A ZP C.B

(6) 20A STD BRKRS Mfg*

480 1 Hardwire In 15 120/240 n/r P

(6) 5-15/20R T Slot

(1612-CW6P) PGTLS (6) 20A GFCI C.B. Mfg*

480 3 Hardwire In 15 120/208Y n/r C (6) 5-15/20 T Slot GFCI DPLX (6) 20A STD BRKRS Mfg*

480 3 Hardwire In 15 120/208Y YES C

(3) 5-15/20 T Slot GFCI DPLX & (1)

CS6369

(3) 20A STD BRKRS & (1)

50A 2P C.B. Mfg*

480 3 Hardwire In 15 120/208Y YES C

(6) 5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A

(6) 20A STD BRKRS & (1)

50A 2P C.B. Mfg*

480 3 Hardwire In 15 120/208Y YES C (12) 5-15/20 T Slot DPLX (12) 20A GFCI C.B. Mfg*

480 3 Hardwire In 15 120/208Y n/r P

(6) 5-15/20R T Slot

(1612-CW6P) PGTLS (6) 20A GFCI C.B. Mfg*

480 3 Hardwire In 15 120/208Y n/r P (6) L5-20R LKG PGTLS (6) 20A GFCI C.B. Mfg*

480 3 Hardwire In 15 120/208Y YES P

(3) 5-15/20 T Slot GFCI DPLX

& (1) CS6369 50A9

(3) 20A GFCI C.B. & (1)

50A 2P C.B. Mfg*

480 3 Hardwire In 15 120/208Y YES P

(12) 5-15/20R T Slot

(1612-CW6P) PGTLS (12) 20A GFCI C.B. Mfg*

480 3 Hardwire In 15 120/208Y YES P (12) L5-20R LKG PGTLS (12) 20A GFCI C.B. Mfg*

*MFG = Assembled from listed or certified components - assembled cart is not listed.

**Panel type: C = Combo, P = Panel

**change the “4” to “6” in the catalog number for 600 volt input

Combo Styles

P Type

Made in

the USA

TEMPORARY POWER

30 1-800-ERICSON (374-2766) •www.ericson.com

Oscar® Selection Guide

1066 Series Basic Contractor PDU Features:

·CS6375 50Amp, 125/250V power inlet.

·Six(6) NEMA 5-20 (20A,125V) straight blade duplex receptacles with circuit breaker and GFCI protection.

·Each NEMA 5-20 outlet is individually GFCI protected.

·One(1) NEMA L6-30(30A,250V) locking outlet with circuit breaker protection.

·50A, 125/250V power outlet.

·Indoor & outdoor models.

1067 Series Deluxe Electronic Industrial PDU Features:

·CS6375 50Amp, 125/250V power inlet.

·Input power diagnostic module (IPDM), adjacent to power inlet, provides visual

indication of supply power status - easy to read chart for quick reference. Standard

on all models and field replaceable.

·Exclusive voltage monitor modules (VMM) continuously monitors voltage - if supply

voltage falls outside of safe operating range VMM disconnects power to GFCIs/outlets.

·Each NEMA 5-20 outlet is individually GFCI protected.

1068 Series 3 Phase 208V PDU Features:

·Choice of main inlet types - IEC309 power-inlet and power-outlet or camlok

·Exclusive IPDM module installed

·GFCI or non-gfci circuit breakers available

·Receptacles protected by Ericson's FS Series flip seal covers

·Camlok inputs available

1067-LC Series Industrial PDU Features:

· CS6375 50Amp, 125/250V power inlet.

· FS series weather-resistant flip seal outlet covers protect each outlet. Use with Ericson’s

Perma-Tite® plug to provide maximum weather resistance.

·Six(6) NEMA 5-20 (20A,125V) straight blade receptacles with circuit breaker and GFCI protection.

·Each NEMA 5-20 outlet is individually GFCI protected.

·One(1) NEMA L6-30(30A,250V) locking outlet with circuit breaker protection.

·50A, 125/250V power outlet.

·Indoor & outdoor models.

Available from Ericson...Oscar® Box Temporary Power Distribution Units

Versatile protection for your jobsite, the Oscar® box is available in many standard GFCI protected configurations or

contact the factory for a custom need.

Typical Applications Include:

·Industrial, commercial and residential construction projects

·General maintenance and repair work (MRO) in industrial facilities

·Temporary power distribution at carnivals, circuses, fairs & similar events

·Convention centers to distribute power for exhibitions & maintenance

·Photo studios to distribute power to flash & other photographic equipment

Made in

the USA

TEMPORARY POWER

Oscar® Selection Guide

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Ericson

P/N Electrical Rating Receptacle

Flip Covers

GFCI &

C.B.

Protected

20A

Circuits

NON-

GFCI

30A

C.B.

GFCI

C.B.

For

30A

Circuit

5-20R

Duplexes

L6-30R

Single

Recpt

5-20R

Straight

Recpts

L5-20R

Recpts

(Single)

Daisy

Chain

Feed

Thru

Recpt W/

Flip

Cover

IPDM

module

VMM

modules

1066 125/250V 1PH 4W

50A 61

1066-B 125/250V 1PH 4W

50A 61

1066FS 125/250V 1PH 4W

50A 61

1066-BFS 125/250V 1PH 4W

50A 61

1067-LC 125/250V 1PH 4W

50A 16

1067-ALC 125/250V 1PH 4W

50A 16

1067-BLC 125/250V 1PH 4W

50A 16

1067-CLC 125/250V 1PH 4W

50A 16

1067-

LCNF

125/250V 1PH 4W

50A 16

1067-

ALCNF

125/250V 1PH 4W

50A 16

1067-

BLCNF

125/250V 1PH 4W

50A 16

1067-

CLCNF

125/250V 1PH 4W

50A 16

1067 125/250V 1PH 4W

50A 16

1067-A 125/250V 1PH 4W

50A 16

1067-B 125/250V 1PH 4W

50A 16

1067-C 125/250V 1PH 4W

50A 16

3 PHASE L21-20 5-20 L5-20

1068 208Y/120V 3PH 5W

60A 6

1068-A 208Y/120V 3PH 5W

60A 6

1068-C 208Y/120V 3PH 5W

125A 6

1068-1 208Y/120V 3PH 5W

100A 24

1068-1A 100A 24

1068-1C 125A 6

Made in

the USA

TEMPORARY POWER

32 1-800-ERICSON (374-2766) •www.ericson.com

1068 Magnum - 3 Phase 208V Oscar Box

1068 Magnum 3 Phase Oscar Box

Features:

•IEC309 power-inlet and power-outlet or camlok

•Receptacles protected by Ericson's FS Series flip seal covers

•Clear polycarbonate window allows visual identification of circuit breaker status

Wide choice

of receptacles

Choice of

main inlet

types

Up to

100 Amp

3 phase

208Y 120V

Heavy duty

steel leg skids

EXCLUSIVE

Input power

diagnostic

module (IPDM)

(details below)

1068 shown

Powder coated to

prevent corrosion

All steel heavy

duty construction

Feed-thru

main power

Spring loaded

flip lid with

internal seal

GFCI circuit

breakers available Camlok Input

Available

3ØY 120/208

60 & 100 Amp

Inlets

Input power diagnostic module

(IPDM), adjacent to power inlet,

provides visual indication of supply

power status - easy to read chart for

quick reference. Standard on all

models and field replaceable.

IPDM

Made in

the USA

TEMPORARY POWER

1068 Magnum - 3 Phase 208V Oscar® Box

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Cat. Number Rating Length

(ft)

Cord

Size

Cord

Type Plug Connector

IEC Style Cordsets

65BSO

60 A

#6/5 SO

4P 5W 60 Amp IEC 560P9E or equiv

4P 5W 60 Amp IEC 560C9E or equiv

65DSO 100

65PGTL-50 50 Blunt - ROJ 8"

65PGTL-100 100

45BSO

90 A

#4/5 G

4P 5W 100 Amp IEC 5100P9E or equiv

4P 5W 100 Amp IEC 5100C9E or equiv

45DSO 100

45PGTL-25 25

Blunt - ROJ 8"45PGTL-50 50

45PGTL-100 100

65DSO

65PGTL

Catalog Number 1068 1068-A 1068-C 1068-1 1068-1A 1068-1C

Electrical Rating

3 Ph 208Y/120 60A 3 Ph 208Y/120 60A 3 Ph 208Y/120 125A 3 Ph 208Y/120 100A

3 Ph 208Y/120 100A 3 Ph 208Y/120 125A

Enclosure

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Steel Welded Powder

Coated

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Environmental/NEMA Rating

Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R

Special Electronics

Features Installed

IPDM (Input Power

Diagnostic Module) 24/7 LED

indication of correct MAIN

POWER connection

Yes - 1 per box - 5

LED

(4 green and 1

Red)

Yes - 1 per box -

5 LED

(4 green and 1 Red)

Yes - 1 per box - 5

LED (4 green and 1

Red)

Yes - 1 per box - 5

LED (4 green and 1

Red)

Yes - 1 per box - 5

LED (4 green and

1 Red)

Yes - 1 per box - 5

LED (4 green and

1 Red)

Receptacles

A Type

NEMA 5-20

T Slot Single

(125V 20A)

NEMA L5-20

Locking Single

(125V 20A)

NEMA L5-20

Locking Single

(125V 20A)

NEMA 5-20 T

Slot Single

(125V 20A)

NEMA L5-20

Locking Single

(125V 20A)

NEMA L5-20

Locking Single

(125V 20A)

Qty. 6 6 6 4 4 6

GFCI Protection Yes Yes Yes Yes Yes Yes

Overload Protection

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Flip Covers* Yes Yes Yes Yes Yes Yes

B Type n/a n/a n/a

NEMA L21-20R

(208V 3PH 5W

20A)

NEMA L21-20R

(208V 3PH 5W

20A) n/a

Qty. n/a n/a n/a 2 2 n/a

GFCI Protection n/a n/a n/a No No n/a

Overload Protection n/a n/a n/a

Yes - 3P C.B.

per circuit

Yes - 3P C.B.

per circuit n/a

Flip Covers* n/a n/a n/a Yes Yes n/a

Main Power Inlet

5W 208V 60A IEC

5 pin 560I9

Configuration

5W 208V 60A IEC 5

pin 560I9

Configuration

CAMLOKS (150 Amp

size) 5 color Male

L1,L2,L3,N,G

5W 208V 100A IEC

5 pin 5100I9

Configuration

5W 208V 100A IEC

5 pin 5100I9

Configuration

CAMLOKS, LARGE

(400 Amp size) 5

color Male

L1,L2,L3,N,G

Inlet Flip Cover No No No No No No

Main Power Outlet

(Mains Feed Thru)

5W 208V 60A IEC

5 pin 560R9

Configuration

5W 208V 60A IEC 5

pin 560R9

Configuration

CAMLOKS (150 Amp

size) 5 color Female

L1,L2,L3,N,G

5W 208V 100A IEC

5 pin 5100R9

Configuration

5W 208V 100A IEC

5 pin 5100R9

Configuration

CAMLOKS, LARGE (400

Amp size) 5 color

Female L1,L2,L3,N,G

Mains Feed thru Flip Cover Yes Yes Yes - Individual

flips per camlok Yes Yes Yes - Individual

flips per camlok

Weight (lbs.) 42 42 44 44 44 46

Dimensions 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W

x 16.25"H x 16.25"H x 16.25"H x 16.25"H x 16.25"H x 16.25"H

Selection Guide

Note: #2/5 also available - call for details. Made in

the USA

TEMPORARY POWER

34 1-800-ERICSON (374-2766) •www.ericson.com

Oscar® Deluxe Temporary Power Distribution Centers - 1067 Series

•Unit is field repairable by qualified personnel. Parts list and wiring diagram appear on underside of lid.

The 1067 Oscar® Box, Temporary Power Distribution Unit for your jobsite.

Typical Applications Include:

·Industrial, commercial and residential construction projects

·General maintenance and repair work (MRO) in industrial facilities

·Temporary power distribution at carnivals, circuses, fairs & similar events

·Convention centers to distribute power for exhibitions & maintenance

·Photo studios to distribute power to flash & other photographic equipment

FS series weather-

resistant flip seal outlet

covers protect each

outlet. Use with Ericson’s

Perma-Tite plug to

provide maximum

weather resistance.

Power inlet & outlet

clearly marked on lid

for quick identification.

Input power

diagnostic

module (IPDM)

(details below)

Input power diagnostic module

(IPDM), adjacent to power inlet,

provides visual indication of supply

power status - easy to read chart for

quick reference. Standard on all

models and field replaceable.

Heavy-duty safety, yellow powder-

coated enclosure provides NEMA

3R weather resistance protection

for circuitry.

Each NEMA 5-20

outlet is individually

GFCI protected.

Yellow flip seal covers

are labeled for quick

identification of

electrical ratings.

Automatic power-up GFCIs

are ready immediately.

Only need to push reset

after a trip.

Threaded studs spot welded to inside of

enclosure for mounting GFCIs minimizing

screw-heads on outside which reduces

number of areas to snag cords & clothing.

Flip up door protects circuit

breakers from damage &

the weather.

IPDM VMM

Heavy-duty powder-

coated steel skids to

insure rugged,

dependable jobsite

performance.

CS6375 50Amp,

125/250V power inlet.

Exclusive voltage

monitor

modules (VMM)

(details below)

Exclusive voltage monitor modules

(VMM) continuously monitors

voltage - if supply voltage falls

outside of safe operating range

VMM disconnects power to GFCIs/

outlets.

FEATURE

CS6369

50A,

125/250V

power

outlet.

Made in

the USA

TEMPORARY POWER

Oscar® Deluxe Temporary Power Distribution Centers - 1067 Series

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

63DSO

Accessories

(1) Also available as a secondary cable assembly - cord with connector

only - to hard wire into your power source.

SR50

Cat. Number Description

63DS0(1) Cord set, 100’, #6/3 - 8/1 SO 50A 125V/250V

63BS0(1) Cord set, 50’, #6/3 - 8/1 SO 50A 125V/250V

63YSTW Cord set, 3 ft. “Y”#6/3 & #8/1 (Gnd) 50A

SR50 Power Outlet Receptacle in weatherproof box

with lift cover and 24” leads 50A, 125V/250V

See Our Complete Line of

50Amp Power Cords in the

Power Cord Section

63YSTW

Catalog Number 1067 1067-A 1067-B 1067-C

Electrical Rating 50A 125/250V 50A 125/250V 50A 125/250V 50A 125/250V

6250W/12500W 6250W/12500W

Enclosure

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Steel Welded

Powder Coated

Environmental/NEMA Rating Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R

Special Electronics Features Installed

IPDM (Input Power Diagnostic Module) 24/7 LED

indication of correct MAIN POWER connection

Yes - 1 per box - 4 LED

(3 green and 1 Red)

Yes - 1 per box - 4 LED

(3 green and 1 Red)

Yes - 1 per box - 4 LED

(3 green and 1 Red)

Yes - 1 per box - 4 LED

(3 green and 1 Red)

VMM (Voltage Monitor Module per phase)

Causes GFCI circuits to open if voltage exceeds

150V or below 90V to protect equipment.

Yes - 2 per box (1 per

hot line) each VMM

controls 3 GFCI circuits

Yes - 2 per box (1 per

hot line) each VMM

controls 3 GFCI circuits

Yes - 2 per box (1 per

hot line) each VMM

controls 3 GFCI circuits

Yes - 2 per box (1 per

hot line) each VMM

controls 3 GFCI circuits

Receptacles

A Type (6 per box)

NEMA 5-20 T Slot

Single (125V 20A)

NEMA L5-20 Locking

Single (125V 20A)

NEMA 5-20 T Slot

Single (125V 20A)

NEMA L5-20 Locking

Single (125V 20A)

Qty. 6666

GFCI Protection Yes Yes Yes Yes

Overload Protection

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Flip Covers No No Yes Yes

B Type (1 Per Box) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V)

Qty. 1111

240V GFCI Protection No No Yes Yes

Overload Protection Yes - 2P NON-GFCI Yes - 2P NON-GFCI Yes - 2P GFCI Yes - 2P GFCI

Flip Covers Yes Yes Yes Yes

Power Inlet

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

Inlet Flip Cover Yes Yes Yes Yes

Power Outlet (Mains Feed Thru)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

Mains Feed thru Flip Cover Yes Yes Yes Yes

Weight (lbs.) 35353737

Dimensions 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W

x 11.75"H x 11.75"H x 11.75"H x 11.75"H

Selection Guide

Made in

the USA

TEMPORARY POWER

36 1-800-ERICSON (374-2766) •www.ericson.com

Oscar® Temporary Power Distribution Centers - 1067LC Series

•Unit is field repairable by qualified personnel. Parts list and wiring diagram appear on underside of lid.

The 1067-LC Oscar® Box, Temporary Power Distribution Unit for your jobsite.

Typical Applications Include:

·Industrial, commercial and residential construction projects

·General maintenance and repair work (MRO) in industrial facilities

·Temporary power distribution at carnivals, circuses, fairs & similar events

·Convention centers to distribute power for exhibitions & maintenance

·Photo studios to distribute power to flash & other photographic equipment

FS series weather-

resistant flip seal

outlet covers pro-

tect each outlet.

Use with Ericson’s

Perma-Tite plug to

provide maximum

weather resistance.

Power inlet & outlet

clearly marked on lid

for quick identification.

Heavy-duty safety yellow powder-

coated enclosure provides NEMA

3R weather resistance protection

for circuitry.

Each NEMA 5-20

outlet is individually

GFCI protected.

Blue flip seal covers

are labeled for quick

identification of

electrical ratings.

Automatic power-up GFCIs are ready immediately.

Only need to push reset after a trip.

Flip up door protects circuit

breakers from damage &

the weather.

Heavy-duty powder-coated steel skids

to insure rugged, dependable jobsite

performance.

CS6375 50Amp,

125/250V power

inlet.

•Product label with clear

markings for easy

identification of model

number, serial number

and specifications.

Meets OSHA & NEC Codes

for jobsites and carnivals,

fairs and outdoor events.

Power Option: Can be daisy chained together!

CS6369

50A,

125/250V

power

outlet.

1067LC

CS6375 50Amp,

125/250V power

inlet.

Made in

the USA

TEMPORARY POWER

Catalog Number 1067-LC* 1067-ALC* 1067-BLC* 1067-CLC*

Electrical Rating 50A 125/250V 50A 125/250V 50A 125/250V 50A 125/250V

6250W/12500W 6250W/12500W

Enclosure

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Environmental/NEMA Rating Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R Indoor/Outdoor 3R

Receptacles

A Type (6 per box)

NEMA 5-20 T Slot Single

(125V 20A)

NEMA L5-20 Locking

Single (125V 20A)

NEMA 5-20 T Slot Single

(125V 20A)

NEMA L5-20 Locking

Single (125V 20A)

Qty. 6 6 6 6

GFCI Protection Yes Yes Yes Yes

Overload Protection

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Yes - 1P 20A C.B.

(1 per Receptacle)

Flip Covers Yes Yes Yes Yes

B Type (1 Per Box) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V)

Qty. 1 1 1 1

240V GFCI Protection No No Yes Yes

Overload Protection Yes - 2P NON-GFCI Yes - 2P NON-GFCI Yes - 2P GFCI Yes - 2P GFCI

Flip Covers Yes Yes Yes Yes

Main Power Inlet

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

Inlet Flip Cover Yes Yes Yes Yes

Main Power Outlet (Mains Feed

Thru)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

Mains Feed thru Flip Cover Yes Yes Yes Yes

Weight (lbs.) 35 35 37 37

Dimensions 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W

x 11.75"H x 11.75"H x 11.75"H x 11.75"H

Oscar® Temporary Power Distribution Centers - 1067LC Series

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Accessories

(1) Also available as a secondary cable assembly - cord with connector only

- to hard wire into your power source.

* NF models are rated for INDOOR ONLY and do not have flip covers installed.

Cat. Number Description

63DS0(1) Cord set, 100’, #6/3 - 8/1 SO 50A 125V/250V

63BS0(1) Cord set, 50’, #6/3 - 8/1 SO 50A 125V/250V

SR50 Power Outlet Receptacle in weatherproof box

with lift cover and 24” leads 50A, 125V/250V

63DSO 63YSTW

SR50

See Our Complete Line of 50Amp Power Cords in the Power Cord Section

Selection Guide

Made in

the USA

TEMPORARY POWER

38 1-800-ERICSON (374-2766) •www.ericson.com

Oscar® Temporary Power Distribution Centers - 1066 Series

The 1066 Oscar® Box, Temporary Power Distribution Unit for your jobsite.

•Unit is field repairable by qualified personnel. Parts

list and wiring diagram appear on underside of lid.

•Product label with clear markings for easy identification

of model number, serial number and specifications.

Typical Applications Include:

·Industrial, commercial and residential construction projects

·General maintenance and repair work (MRO) in industrial facilities

·Temporary power distribution at carnivals, circuses, fairs & similar events

·Convention centers to distribute power for exhibitions & maintenance

·Photo studios to distribute power to flash & other photographic equipment

™

Power inlet & outlet

clearly marked on lid

for quick identification.

Heavy-duty safety yellow

powder-coated enclosure .

Each NEMA 5-20 outlet is

individually GFCI protected

with open neutral protection. 50A, 125/250V

power inlet.

Automatic power-up GFCIs

are ready immediately.

Only need to push reset

after a trip.

Heavy-duty

powder-coated

steel skids to

insure rugged,

dependable

jobsite

performance.

Flip covers protects

outlets from damage

& the weather.

CS6375

50Amp

125/250V

power inlet

Flip up door protects

circuit breakers from

damage & weather

•A variety of accessories

are available.

CS6369

50A,

125/250V

power

outlet.

Made in

the USA

TEMPORARY POWER

Oscar® Temporary Power Distribution Centers - 1066 Series

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

63DSO 63YSTW

Accessories

(1) Also available as a secondary cable assembly - cord with connector

only - to hard wire into your power source. SR50

Selection Guide

Cat. Number Description

63DS0(1) Cord set, 100’, #6/3 - 8/1 SO 50A 125V/250V

63BS0(1) Cord set, 50’, #6/3 - 8/1 SO 50A 125V/250V

SR50 Power Outlet Receptacle in weatherproof box

with lift cover and 24” leads 50A, 125V/250V

See Our Complete Line of 50Amp Power Cords in the Power Cord Section

1. Contact factory for custom assemblies

Catalog Number 1066 1066-B 1066-FS 1066-BFS

Electrical Rating 50A 125/250V 50A 125/250V 50A 125/250V 50A 125/250V

6250W/12500W 6250W/12500W 6250W/12500W 6250W/12500W

Enclosure

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Steel Welded Powder

Coated

Environmental/NEMA Rating Indoor Use Only Indoor Use Only Indoor/Outdoor 3R Indoor/Outdoor 3R

Receptacles

A Type (6 per box)

NEMA 5-20 T Slot Duplex

(125V 20A)

NEMA 5-20 T Slot Duplex

(125V 20A)

NEMA 5-20 T Slot Duplex

(125V 20A)

NEMA 5-20 T Slot Duplex

(125V 20A)

Qty. 6666

GFCI Protection Yes Yes Yes Yes

Overload Protection

Yes - 1P 20A C.B.

(1 per Duplex)

Yes - 1P 20A C.B.

(1 per Duplex)

Yes - 1P 20A C.B.

(1 per Duplex)

Yes - 1P 20A C.B.

(1 per Duplex)

Flip Covers No No Yes Yes

B Type (1 Per Box) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V) L6-30 (30A, 250V)

Qty. 1111

240V GFCI Protection No Yes No Yes

Overload Protection Yes - 2P NON-GFCI Yes - 2P GFCI Yes - 2P NON-GFCI Yes - 2P GFCI

Flip Covers No No Yes Yes

Main Power Inlet

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

4W CS6375

(50A,125/250V)

Inlet Flip Cover No No Yes Yes

Main Power Outlet (Mains

Feed Thru)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

4W CS6369

(50A,125/250V)

Mains Feed thru Flip Cover Yes Yes Yes Yes

Weight (lbs.) 34 34 36 36

Dimensions 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W 22.5"L x 16.25"W

x 11.75"H x 11.75"H x 11.75"H x 11.75"H

Made in

the USA

TEMPORARY POWER

When you need a temporary power distribution box that will meet your requirements, look to the Oscar® 2 Series from Ericson.

The flexible design platform of the new Oscar® 2 allows you to configure a Temporary Power Distribution Center that is right for

you. The Oscar® 2 Expo Series picks up where the 1066/1067 leaves off.

Optional removable leg assemblies enable the panel to

be used in a variety of configurations

*12 standard side slots

**Main feed thru receptacle is optional and not standard on this series

Two side panels

accommodate a

wide range of

devices

Main

power

feed thru

option**

Up to 19* available

slots accommodate a

variety of devices

OS2E03100C4CNLE

Indoor version

OS2E03100XPML D

Outdoor version

Custom Oscar® 2 Expo Series with

color-coded duplex receptacles

Choice of metal flip top or smoke clear

removable top enables visual inspection

without entering the panel

Ericson exclusive IPDM (input

power diagnostic module)

monitors incoming power &

tests for 7 commonly found

wiring problems & provides

visual Indication of power

status with easy to read LEDs

125A, 120/208V, 4P5W,

IEC309 power inlet

shown

Front & rear panels

accommodate a wide

range of standard

devices

Other power input options include

single-phase and CAM type devices

Typical Applications Include:

·Convention Centers ·Outdoor Events ·Festivals ·Carnivals, etc. ·Concerts ·Stage & Studio

• Meets NEC 525 for venue temporary power

• Meets OSHA requirements for public venue power

40 1-800-ERICSON (374-2766) •www.ericson.com

Oscar® 2 - Expo Series Temporary Power Distribution Centers

Meets NEC Code

For Outdoor

Events

IPDM

Made in

the USA

TEMPORARY POWER

Notes:

1. Selection of 50 Amp is for 1 phase 4W 120/240V feed only. CS6375 Twistlock inlet will be used.

2. Selection of 60 Amp is for 3 phase 5W 208/120V feed only. IEC 560B9X inlet will be used.

3. Selection of the Indoor Plastic cover will automatically place non-flip cover face covers over the receptacles.

4. Selection of the Outdoor Metal Cover will automatically select FS style flip covers with internal plug grip seals.

5. Leg assemblies required for all outdoor events per NEC 525.

Oscar® 2 Expo Series Catalog Number Structure

OS2E 03 060 P M L B -F Power Feed

Thru Option

(leave blank for

standard models)

Oscar® 2 Expo Series Power

Distribution Box =OS2E

Phase

01 = Single Phase

03 = Three Phase

Amperage

050 = 50 Amp1

060 = 60 Amp2

100 = 100 Amp

150 = 150 Amp

Power Inlet Type

P = IEC Type 309 Pin-n-Sleeve 60 & 100 A

P5 = 50 Amp CS Twistlock

C1 = 150 Amp round base Camloks

C4 = 400 Amp style square base Camloks

*Power Feed Thru Option

Add - F to have a female receptacle

of the same type and rating as the inlet

added - no C.B. protection

Oscar®2 - Expo Series Temporary Power Distribution Centers

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Cover Type

C = Clear Indoor Plastic3,

4 screw mounting

M = Metal Flat, hinged outdoor4

Leg Assembly5

NL = No Legs Attached

L = Leg Skids Attached

Receptacle/ Breaker

Configuration Package

A- 12 each 20A standard duplexes

with GFCI 1 20A 1P circuit breakers

B- 12 each 20A GFCI duplexes

with standard 20A 1P circuit

breakers

C- 10 each 20A GFCI duplexes with

non-gfci circuit breakers with

2 each L21-20 Receptacles and

non-GFCI 3P circuit breakers

D- 12 each 20A L5-20 locking

receptacles with GFCI 20A 1P

circuit breakers

E- 6 each L21-20 receptacles

with non-gfci 3P circuit breakers

F- 6 each L21-30 receptacles

with non-gfci 3P circuit breakers

G- 12 each 5-20 single with flip

with GFCI 1 20A 1P circuit breakers

Made in

the USA

TEMPORARY POWER

42 1-800-ERICSON (374-2766) •www.ericson.com

Military Temporary Power Distribution Center

Convenient hinged lid

for easy interior access

to circuit breakers.

Tactical Oscar® (Jungle)

OS2T-SB Full Green

Tactical Oscar® (desert)

Custom OS2T-SB Sand

Oscar® 2 Tactical Cord Sets Selection Guide

Ericson’s Oscar® 2-Tactical Temporary Power Distribution Center is built to Military Requirements. Based on the award-winning

Oscar® box, the Oscar® 2 has been customized to meet the demands of Military personnel. It features a military style Class L

Inlet and Feed thru, Ericson exclusive Input Power Diagnostic Module (IPDM) both GFCI and non-GFCI outlets and all steel

construction.

APPROVED

FOR ALL

MILITARY UNITS!

Can Be Purchased with a

Government Purchase Card

ALL WEATHER

Input Electrical Rating1Device2Ratings Protection GFCI Catalog Number

Qty. Overload

60A, 3-phase, 120/208V

5-wire

Single Outlet Straight Blade Receptacle NEMA 5-20, 20A/125V 6Yes 2 of 6

OS2T-SB*Class “L” Inlet 60A, 3-phase Y, 120/208V 1No No

Class “L” Outlet 60A, 3-phase Y, 120/208V 1No No

60A, 3-phase, 120/208V

5-wire

Single Outlet Locking Receptacle NEMA L5-20, 20A/125V 6Yes 2 of 6

OS2T-LK*Class “L” Inlet 60A, 3-phase Y, 120/208V 1No No

Class “L” Outlet 60A, 3-phase Y, 120/208V 1No No

60A, 3-phase, 120/208V

5-wire

Single Outlet Straight Blade Receptacle NEMA 5-20, 20A/125V 12 Yes

No OS2T-SB* FullClass “L” Inlet 60A, 3-phase Y, 120/208V 1No

Class “L” Outlet 60A, 3-phase Y, 120/208V 1No

60A, 3-phase, 120/208V

5-wire

Single Outlet Locking Receptacle NEMA L5-20, 20A/125V 12 Yes

No OS2T-LK* FullClass “L” Inlet 60A, 3-phase Y, 120/208V 1No

Class “L” Outlet 60A, 3-phase Y, 120/208V 1No

Description Ratings Catalog Number

Cordset, Pigtail, 6ft., #6/5

60A, 120/208V-5wire

65MIL PGTL

Cordset, 50ft., #6/5 65BSOM

Cordset, 100ft., #6/5 65DSOM

Selection Guide

Notes: 1. 100 Amp available - Contact factory

* Pick color scheme - green or sand

Tactical Oscar® 2

1. Military style class L inlet & feed through

(60 or 100 Amp, 3ph or 1ph)

•Ground lug for grounding rod use

•Tactical color schemes (sand or green)

2. Outdoor use- wet or dry locations

•Enclosure rated NEMA Type 3R- rainproof,

suitable for use in damp locations

3. IPDM indicator lights are recessed for

tactical situations

65DSOM

Class L Mil Type

Made in

the USA

TEMPORARY POWER

Military Temporary Power Distribution Center

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Deployment Temporary Power Distribution Kit

GEN SET

Part #: OS2T-SB Full ECU*

60A 208V 3Ø

Mil Class L 5W Input

ECU

HVAC

Hardwire IN

60 Amp 208V Receptacle

Feed Thru

with 60A 3P Breaker

Input Power Diagnostic Module

• LEDs indictate power 24/7

• Detects missing neutral or grounding

• EZ to diagnose problems

Custom ECU Connection Cordset

50 feet- Part #: 10082604

100 feet - Part #: 10082605

#6/5 SOW

Mil Class L 60A Plug

60 Amp 208V Input

with 60A Feed Thru

12 each 20A Circuits

All Weather

IPDM Installed

100 Amp Oscar™

Model 1068 Available

Part # 05060801-F

100% MADE IN THE USA

123D-TT

Gen Set Cordset

Part # - 65 Mil Pigtail

6Ft. 5-Wire

#6/5 SOW

Mil Class L 60A

Cordset

Part #: 65DSOM

100 feet

5-wire

#6/5 SOW

Hardwire IN

*Sand *Green

See Our Website For Complete Details

www.ericson.com 123D-TT

(100 Feet)

123B-TT

(50 Feet)

Add Extension Cords

to Your Order

Made in

the USA

TEMPORARY POWER

FOB/TOC Power Distribution (100 AMP)

Using Mil Type 1068 Oscar™ Box

44 1-800-ERICSON (374-2766) •www.ericson.com

Emergency Generator GFCI Cordsets

120 & 240V, 3 & 4 Wire 20 & 30 AMP (L5-20, L5-30, L14-20 & L14-30 Plugs)

Ericson offers these Heavy Duty Emergency Power Cordsets with these features:

•Rubberized Box eliminates “hot” un-grounded dangerous metal quad boxes

•Heavy Duty Perma-Link™ Plug with rubberized body and nickel plated blades

•Heavy Duty SJ & SO cord for long service life

•GFCI Protection - GFCI 5-20 Duplexes protecting 5-20 duplex receptacles

•Heavy Duty cord strain relief at box stands up to rough duty

• 2, 25, 50 and 100 ft cord lengths keeps generator away

from family and work area

8Z3104SO8GA

Rear View

Side A

Side B

Duplexes protected

by side A GFCIs.

3 Wire Systems

Catalog

Number Rating Plug Cord Type Box Config Length

8V2123SJB6G2

120V 20 AMP L5-20 #12/3 SJT Black 6000 Box w/ (1) GFCI 5-20 Duplex & (1) Protected 5-20 Duplex

8V2123SJB6GA 25

8V2123SJB6GB 50

8V3103SE6G2

120V 30 AMP L5-30 #10/3 SEO Yellow 6000 Box w/ (1) GFCI 5-20 Duplex & (1) Protected 5-20 Duplex

8V3103SE6GA 25

8V3103SE6GB 50

8V3103SE6GD 100

4 Wire Systems

8Z2124SE8G2

240V 20 AMP L14-20 #12/4 SEO Black 8000 Box w/ (2) GFCI 5-20 Duplex & (2) Protected 5-20 Duplex

8Z2124SE8GA 25

8Z2124SE8GB 50

8Z3104SO8G2

240V 30 AMP L14-30 #10/4 SO Yellow 8000 Box w/ (2) GFCI 5-20 Duplex & (2) Protected 5-20 Duplex

8Z3104SO8GA 25

8Z3104SO8GB 50

8Z3104SO8GD 100

Other configurations available - call for pricing.

NOTICE:

The NEC restricts the use of metal

job boxes as temporary power cords

Made in

the USA

TEMPORARY POWER

Heavy Duty W & Y Cordsets

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Heavy Duty Grade W & Y Cordsets

•Provides multiple outlets from a single power source

•Available in "Y" and "W" configurations

•Manufactured using heavy-duty 600V cord

•Standard models available with 18" primary and secondary

•Available with Ericson's Perma-Link or Perma-Tite plugs

and connectors

•Custom configurations available with your choice of

primary length, secondary length and plug/connectors

•Easy to hang - hanging loop tab

Contractor Grade

Y& W-Adapter Features 600V STW Cable

Y-Adapter provides two outlets so

you can keep two tools plugged in.

Made from heavy-duty #12/3 STW

yellow cable with molded-on plug, connector & Y/W-junction.

2634 - A1 Z10

Y & W-Adapter Selection Guide

123 Y

SOW, SOOW, SEOW 600V Rated only. New styles shown in RED

Catalog

Number

Electrical Ratings

Length Gauge Type Amps Volts Plug/Connector Face View

123Y 2' #12/3 STW 15A 120V NEMA 5-15 Straight Blade

123Y-L 20A NEMA L5-20

Plug/Conn Amp Volts AWG Cord Size

1 2

A = 1510P & 1610-C 15 120 14/3 12/3

B = 1510-PW6P & 1610-CW6P 15 120 14/3 12/3

C = 1520-P & 1620-C 15 120 14/3 12/3

D = 1520-PW6P & 1620-CW6P 15 120 14/3 12/3

E = 2310-P & 2410-C 20 120 12/3 10/3

F = 2310-CW6P & 2410-CW6P 20 120 12/3 10/3

G = 2510-P & 2610-C 30 120 10/3

H = 2510-PW6P & 2610-CW6P 30 120 10/3

I = 2320-P & 2420-C 20 120/240 12/4

J = 2320-PW6P & 2420-CW6P 20 120/240 12/4

M = L21-20P & L21-20C 20 208 12/5

Base Model

2634 = Y

2636 = W

Length

Blank = std 3’ OAL

Zxx = any length up to 100’ OAL

63YSTW

50 Amp “Y”

(On Page 46)

NEW!

Hanging

Tab

Made in

the USA

TEMPORARY POWER

46 1-800-ERICSON (374-2766) •www.ericson.com

Contractor Grade Molded End Cordsets - 10/3 - 12/3

L5-20 Also Available

End Glows!

Molded End Cordsets

Ericson offers a complete line of high quality jobsite style cordsets for a range of applications. From light tool and generator

connection to heavy duty #10/3 size cord, the Ericson line of safety cordsets is the right answer to your power cord needs. In

both straight blade and twistlock version with cord types ranging from #14/3 to #10/3, these cordsets are built to last job after

job. Molded and bonded clear connection ends come standard with power on indication* and make inspection easy. Thick

outer jacket material from SJTW cordage resists jobsite abrasion and is water resistant. Safety yellow color makes them easy to

see on crowded jobs and under low light situations.

Bonus: Custom Factory Cord Jacket Printing Available – See your local Ericson Rep for details on getting your cords marked.

* not available on some models.

Light Duty Normal Duty General Purpose

BONUS - CORD PRINTING AVAILABLE

See Your Local Ericson Representative For Details.

123D-TT123D 123DL

103B

Face View

Single

Molded Ends Length (ft) Cord Size Type Plug Connector Amps Wattage Volts

123B 50 #12/3 SJTW 5-15P 5-15C 15 1875 125

103B 50 #10/3 SJTW 5-15P 5-15C 15 1875 125

103D 100 #10/3 SJTW 5-15P 5-15C 15 1875 125

123D 100 #12/3 SJTW 5-15P 5-15C 15 1875 125

123BL 50 #12/3 SJTW L5-20P L5-20C 20 2500 125

123DL 100 #12/3 SJTW L5-20P L5-20C 20 2500 125

Molded Tri-Tap Length (ft) Cord Size Type Plug Connector Amps Wattage Volts

123B-TT 50 #12/3 SJTW 5-15P 5-15C 15 1875 125

123D-TT 100 #12/3 SJTW 5-15P 5-15C 15 1875 125

#12/3 #10/3

TEMPORARY POWER

HOG HIDE™ - Rubber Cordsets

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

SUPERIOR RUBBER OUTDOOR CORD WITH

MAXIMUM LOW TEMPERATURE FLEXIBILITY.

FEATURES

Flexible Cord Made with a special 12/3 SJOW cord;

Hog Hide’s™ superior rubber

technology allows cord to stay

flexible in tough conditions.

Molecularly Bonded Hog Hide™ cord features

Cap & Connector heat bonded plug and

connector ends with a built in

strain relief for extra strength

which prevents cord pull out.

Shocking Pink Color Highly visible bright pink

color helps reduce theft while

increasing visibility.

Identification System Permanently mark your

Hog Hide™ cord with your

name, reduces theft.

Limited Lifetime Hog Hide™ cordsets

Warranty satisfaction guaranteed!

Specifications Hog Hide™ is RoHS

compliant, UL Listed and

meets all appropriate OSHA

requirements.

Extras Plug & Connectors lights up

to indicate power is on.

Catalog

Number

Electrical Ratings

Length

Gauge

Type

Amps Volts

Plug/Connector

Face View

123B-H

50’

#12/3

SJOW

15A 120V

NEMA 5-15 Plug/Connector

123D-H

100’

NEMA 5-15 Plug/Connector

Limited

Lifetime

Warranty

Power On

Indication

FLEXIBLE

to -40° C!

Shrink Tube

Included

Clear Ends For Easy

Inspection

Lighted Ends

• Mark on cable

• Heat shrink

tubing

Electrical Components

Bonded For Strength

You can’t do this

with other cable!

EXTRA LOW

TEMPERATURE

FLEXIBILITY

Made in

the USA

TEMPORARY POWER

48 1-800-ERICSON (374-2766) •www.ericson.com

Factory Assembled Cord Sets

•Factory assembled to meet the most demanding industrial

and construction applications

•Available with Ericson's Perma-Link®, Perma-Grip™

or Perma-Tite™ plugs and connectors

•Manufactured using heavy-duty SOW cord for maximum

durability and longevity

•High visibility dual color safety system, Brilliant Blue and

Radiant Yellow

Industrial Extreme Industrial

1510 P143 A *

(Use for numerical

length only when

Z code is used)

Cord Size1

103 = 10/3 SOW

104 = 10/4 SOW

123 = 12/3 SOW

124 = 12/4 SOW

143 = 14/3 SOW

163 = 16/3 SOW

Length

A = 25 ft. OAL

B= 50 ft. OAL

D= 100 ft. OAL

Z= Custom1

OAL = Overall length

Overall Environmental Grade

(based on plug/connector style)

P= Industrial Light

PG = Industrial Medium

PW6P = Extreme Industrial

Water Tight Ends

1Note: Some of the plug/connector amp ratings to cord size configurations

are not recommended due to basic electrical safety rules. Customers

are responsible for checking local codes and proper usage of any

factory built cordset.

Cordsets with Smart Monitor Devices are shown on 125

(PW6P) Perma-Tite2™ All Weather

Cord Grip Nut Style features:

·All weather - NEMA 6P rated

·Super sealing rings

·Connector includes cover

(PG) Perma-Grip™ Cord Grip

Nut Style Features:

·Nickel plated solid brass blades

·Super sealing cord grip nut design

(P) Perma-Link™ Cord Clamp

Style Features:

·Internal cord seal

·Dual screw self-centering clamp

Plug/Connector

NEMA Designator1

(select part code)

Face

View

NEMA

Electrical Ratings Plugs/Connectors

Code

Configuration Amps Volts

5-15

125

1510

5-20

125

1512

6-15

250

1514

6-20

250

1516

L5-15

125

1520

L6-15

250

1522

L7-15

277

1524

L5-20

125

2310

L6-20

250

2312

L7-20

277

2314

Non-NEMA

125/250

2316

Non-NEMA

205

600

2317

Non-NEMA

15A

10A

125V

250V

1507

L14-20

125/250

2320

L15-20

250, 3Ø

2322

L16-20

480, 3Ø

2324

L5-30

125

2510

L6-30

250

2512

L7-30

277

2514

Non-NEMA

125/250

2516

L14-30

125/250, 3Ø

2520

L15-30

250, 3Ø

2522

L16-30

480, 3Ø

2524

L17-30

600, 3Ø

2526

L18-30

120/208 3Ø wye

2530

Non-NEMA

120/208 3Ø wye

2528

Made in

the USA

TEMPORARY POWER

63YSTW

50, 60 & 100 Amp Cordsets

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

50 Amp Cordsets

Ericson's complete line of 50 Amp cordsets for use with Oscar Temporary Power Distribution Centers are the best built in the

industry. Assembled in the USA with high standards to produce the best cordsets available. Call for custom lengths.

Minimum order size required.

• For use with Oscar Series 1066 and 1067

•Can connect e-Cart Jr and e-Cart2 Series to Oscars

•Blunt pigtail versions make hard wiring into a panel easy and quick (PGTL)

•Available in SOW cord types

•50 Amp "Y" available

60 & 100 Amp Cordsets

Ericson manufactured cordsets are built to the highest quality standards for durability and long service. Our cordsets use the

best plugs and connectors possible and are constructed to meet the high demands of industrial and military environments.

• Extra Hard Usage SOW cord

• Highest quality Internationally rated IEC plugs and Connectors

• Military cordsets use exact match Military plug-n-play Class L wiring devices

• Pigtail cordsets allow for hard wiring into panels with tinned ends

• For use with Oscar® 1068, Oscar® 2 and Tactical Oscar® Military Style distribution centers

63DSO 63PGTLSO-50

SR50

Cat. Number Rating Length

(ft)

Cord

Size

Cord

Type Plug Connector

IEC Style Cordsets*

65BSO

60 A

#6/5 SOW

4P 5W 60 Amp IEC 560P9E or equiv

4P 5W 60 Amp IEC 560C9E

or equiv

65DSO 100 4P 5W 60 Amp IEC 560P9E or equiv

65PGTL-50 50 Blunt - ROJ 12"

65PGTL-100 100 Blunt - ROJ 12"

45BSO

90 A

#4/5 W

4P 5W 100 Amp IEC 5100P9E or equiv

4P 5W 100 Amp IEC

5100C9E or equiv

45DSO 100 4P 5W 100 Amp IEC 5100P9E or equiv

45PGTL-25 25 Blunt - ROJ 12"

45PGTL-50 50 Blunt - ROJ 12"

45PGTL-100 100 Blunt - ROJ 12"

Military Style Cordsets

65BSOM

60 A

#6/5 SOW

4P 5W 60 Amp Military Class L or equiv

4P 5W 60 Amp Military

Class L or equiv

65DSOM 100 4P 5W 60 Amp Military Class L or equiv

65MIL PIGTAIL 6 Blunt - ROJ 12" - Tinned 1" each

65MIL PGTL-50 50 Blunt - ROJ 12" - Tinned 1" each

65MIL PGTL-100 100 Blunt - ROJ 12" - Tinned 1" each

45BSOM

100 A

#2/4

with

Ground

4P 5W 100 Amp Military Class L or equiv

4P 5W 100 Amp Military

Class L or equiv

45DSOM 100 4P 5W 100 Amp Military Class L or equiv

45BSOMPGTL 10 Blunt - ROJ 12" - Tinned 1" each

45MIL PGTL-50 50 Blunt - ROJ 12" - Tinned 1" each

45MIL PGTL-100 100 Blunt - ROJ 12" - Tinned 1" each

Cat. Number Rating Length (ft) Cord Size Cord Type Plug Connector

63ASO

50 A

#6/3 & #8/1 (Gnd) SOW

Twistlock 50 Amp CS6365-P or equiv

Twistlock 50 Amp CS6364-C or equiv

63BSO 50 Twistlock 50 Amp CS6365-P or equiv

63DSO 100 Twistlock 50 Amp CS6365-P or equiv

63PGTLSO 6 Blunt - 12" ROJ - 1" Tin

63PGTLSO-50 50 Blunt - 12" ROJ - 1" Tin

63PGTLSO-100 100 Blunt - 12" ROJ - 1" Tin

63YSTW 3 ft "Y" STW (1) Twistlock 50 Amp CS6365-P or equiv ( 2 each ) Twistlock 50 Amp CS6364-C or equiv

65DSOM

Class L Mil Type

*Note: #2/5 cordsets available - call for details.

TEMPORARY POWER

50 1-800-ERICSON (374-2766) •www.ericson.com

- Cable Protectors

TEMPORARY POWER

Ericson’s TuffTraxx™ Series of Cable Protectors deliver unmatched security and protection against cable and hose damage. Easy

to install and reconfigure, the non-metallic TuffTraxx™ Series shields interconnect cabling from harmful equipment traffic,

thus minimizing expensive down-time and repairs.

Protecting pedestrian traffic from dangerous trip hazards, whether at the work site or during public events, has never been

easier than with this safe and affordable solution. Constructed from durable polyurethane and tested to rigorous quality

and operational standards, these products are designed to withstand years of punishing service without compromised

performance.

Featuring a compact, flexible design that is easy to setup and transport, TuffTraxx™ are ideal for a wide range of

applications including:

•Oil / Gas Exploration •Oil / Gas Refineries •Construction •Entertainment Venues

•Digital / Communications •Defense / Safety •Utility Maintenance •Sporting Events

•Mining Operations •Carnivals and Fairs •Rental Services •Transportation

CP5-36-GP

FEATURES:

• Non-conductive shock barrier protection

• Rounded dividers protect cables from snags and tears

• T-style connector interlocks for secure operation

• Hinged lid for easy cable loading

• Rugged, all-weather polyurethane construction

• Tread plate surface for increased traction

• Clearly identifiable molded safety warning symbols

• Tapered end caps provide gradual egress

• Compact design for easy handling and storage

• Meets NEC & OSHA requirements

• 21,000 lbs/axle (10,500 lbs/tire) Load capacity

• Large capacity (1.3 inch) 5-slot linear sections

21,000

lbs/axle

Weight

Rated

Ideal For

Temporary

Cable &

Hose Runs

CP5 Series - Cable Protectors

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY POWER

Material: UV Stabilized Polyurethane

Hinge Pin Material: Reinforced Fiberglass

Operating Temperature Range: -40 °F to +120 °F (-40 °C to +49 °C)

Maximum Load per Tire: 10,500 lbs. At 70 °F (4,763 kg. At 21 °C):

For straight section

Note:

Center channel width =

1.704” (43.3 mm)

Catalog

Number Description A-Length B-Width C-Height D-Channel Ht. E-Channel Ht. Weight

CP5-36-GP 5-slot, 36" straight section 36”

(914.4 mm)

17.25"

(438.2 mm)

1.95"

(50 mm)

1.3"

(33 mm)

1.3"

(33 mm)

22 lbs.

(9.97903 kg)

CP5-45Y-GP 5-Channel “Y”-Adapter 19.75 “

(501.7 mm)

17.25 “

(438.2 mm)

1.95”

(50 mm)

1.3”

(33 mm)

1.3”

(33 mm)

9.4 lbs.

(4.3 g)

CP5-ECP-GP 5-Channel End Caps 4.75”

(120.7 mm)

17.25”

(438.2 mm)

1.95”

(50 mm)

1.3”

(33 mm)

1.3”

(33 mm)

5.4 lbs.

(2.4 kg)

52 1-800-ERICSON (374-2766) •www.ericson.com

6000 Series - Portable Outlet Boxes

6000 Series Portable Outlet Boxes

•Rugged and durable, these outlet boxes are engineered to

provide protection against electric shock while using

portable power cords

•Molded of thermoplastic elastomer (TPE) these

non-conductive boxes are crush proof and resistant

to jobsite oils

•High-visibility dual-color safety system for easy

identification on the jobsite

•Cover plates and clamps are molded of impact resistant

nylon and resistant to jobsite oils

•Built-in TPE cord entrance seals out dirt, dust and

other contaminants

•Accommodates wide range of devices

•Extra-deep box provides additional wiring space - perfect

for use with #12/3 cord and larger

•Available as pendant and feed-through boxes

•Available with a wide range of cover plates and a full

range of replacement parts

•Available with Ericson's in-line type GFCIs

for added protection and code compliance

6000

6002

Standard depth box= 3-3/16”

Extra deep box = 4-5/32”

* All 6000 Series feed-throughs have cord grip nuts and grommets (see photo of 6000-F above)

* No feed thru box available with cord clamp style

Cord Clamp*

Style Box

With Open

Covers

For (2) Duplex Receptacles For (2) Single Receptacles:

1.390” dia. Hole

For (2) Single Receptacles:

1.572” dia. Hole

Standard

Depth Extra

Deep Standard

Depth Extra

Deep Standard

Depth Extra

Deep

Pendant 6000 6002 6005 6006 6010 6011

6000 Series Portable Outlet Boxes Selection Guide

Cord Grip

Feed Thru *

Style Box

With Open

Covers

For (2) Duplex Receptacles For (2) Single Receptacles:

1.390” dia. Hole

For (2) Single Receptacles:

1.572” dia. Hole

Standard

Depth Extra

Deep Standard

Depth Extra

Deep Standard

Depth Extra

Deep

*Feed-Through 6000-F 6002-F 6005-F 6006-F 6010-F 6011-F

6000 Series Portable Outlet Boxes Selection Guide

NOTICE:

The NEC restricts the use of metal

job boxes as temporary power cords

Made in

the USA

TEMPORARY POWER

Standard Depth

Box = 3.16

Extra Deep

Box = 4.17

2.50

4.004.71

6000 Series - Replacement Parts & Box Dimensions

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

* No feed thru box available with cord clamp style

6000 Series Replacement Boxes

6000 Series Replacement Cover Plates

Standard Depth Box

Catalog Number - 6030

Standard Depth Box

Catalog Number - 6030B

Extra Deep Box

Catalog Number - 6029

Catalog # - 6031 Catalog # - 6031B

Catalog # - 6035 Catalog # - 6035B

Duplex Receptacle Cover Plates

GFCI Duplex Receptacle Cover Plates Blank Cover Plates

Single Receptacle Cover Plates

1.390” Dia. Opening

Single Receptacle Cover Plates

1.572” Dia. Opening

Catalog # - 6034 Catalog # - 6034B

Catalog # - 6033 Catalog # - 6033BCatalog # - 6032 Catalog # - 6032B

6000 Series

Dimensions

Made in

the USA

TEMPORARY POWER

54 1-800-ERICSON (374-2766) •www.ericson.com

6000 Series - Factory Wired Outlet Boxes

Notes: 1. Contact factory for custom assemblies

6000 Series Factory Wired Portable Outlet Boxes Selection Guide

These factory assembled outlet boxes save assembly time

in the field and assembly cost; plus they give the assurance

of proper component matching of cord, box and plug.

Factory

Wired Box

Box w/

Receptacles

NEMA

Configuration

Cord

Length

SOW

Cord Size

Factory wired with (2) duplex receptacles

6000 box w/ (2) duplex 5-15 receptacles, 1’ cord w/ 5-15 plug 60001 5-15 1’ 14/3

6000 box w/ (2) duplex 5-15 receptacles, 25’ cord w/ 5-15 plug 60025 5-15 25’ 14/3

6000 box w/ (2) duplex 5-15 receptacles, 50’ cord w/ 5-15 plug 60050 5-15 50’ 14/3

6000 box w/ (2) duplex 5-20 receptacles, 1’ cord w/ 5-20 plug 60101 5-20 1’ 12/3

6000 box w/ (2) duplex 5-20 receptacles, 25’ cord w/ 5-20 plug 60125 5-20 25’ 12/3

6000 box w/ (2) duplex 5-20 receptacles, 50’ cord w/ 5-20 plug 60150 5-20 50’ 12/3

6000 Box w/(2) Duplex 5-15 Recepts, No Cord 6001-1 5-15 U-Add

6000 Box w/ (2) Duplex 5-20 Recepts, No Cord 6001-2 5-20 U-Add

6000 box w/ (2) duplex L5-15 receptacles, 1’ cord w/ L5-15 plug 60201 L5-15 1’ 14/3

6000 box w/ (2) duplex L5-15 receptacles, 25’ cord w/ L5-15 plug 60225 L5-15 25’ 14/3

6000 box w/ (2) duplex L5-15 receptacles, 50’ cord w/ L5-15 plug 60250 L5-15 50’ 14/3

Factory wired with (2) single receptacles

6006 box w/(2) L5-15 Outlets, 6’ cord w/ L5-15 plug 6006-143C2

L5-15

6’ 14/3

6006 box w/(2) L5-15 Outlets, 25’ cord w/ L5-15 plug 6006-143A2 25’ 14/3

6006 box w/(2) L5-15 Outlets, 50’ cord w/ L5-15 plug 6006-143B2 50’ 14/3

6006 box w/(2) L5-15 Outlets 6006-2

6011 w/ (2) L5-20, 6’ #12/3 cord w/L5-20 plug 6011-123C3

L5-20

6’ 12/3

6011 w/ (2) L5-20, 25’ #12/3 cord w/L5-20 plug 6011-123A3 25’ 12/3

6011 w/ (2) L5-20, 50’ #12/3 cord w/L5-20 plug 6011-123B3 50’ 12/3

6011 w/ (2) L5-20 receptacles 6011-3

6011 w/ (2) L6-20, 6’ #12/3 cord w/L6-20 plug 6011-123C4

L6-20

6’ 12/3

6011 w/ (2) L6-20, 25’ #12/3 cord w/L6-20 plug 6011-123A4 25’ 12/3

6011 w/ (2) L6-20, 50’ #12/3 cord w/L6-20 plug 6011-123B4 50’ 12/3

6011 w/ (2) L6-20 receptacles 6011-4

6001-1

60025

Made in

the USA

TEMPORARY POWER

6000 Series - GFCI Protected Portable Outlet Boxes

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Notes:

1. Contact factory for custom assemblies

6000 Series GFCI Protected Portable Outlet Boxes Selection Guide

6000 Series Boxes Factory wired with (2) duplex receptacles

Primary

Cord Length

Secondary

Cord Length SJTW Cord

Factory

Wired Box

w/ In-Line GFCI

6000 box w/ (2) duplex 5-20 receptacles, w/molded 5-20 plug 1’ 1’

12/3

XG2-12-2B-15

6000 box w/ (2) duplex 5-20 receptacles, w/molded 5-20 plug 1’ 24’ XG2-12-25B-15

6000 box w/ (2) duplex 5-20 receptacles, w/molded 5-20 plug 1’ 49’ XG2-12-50B-15

6000 box w/ (2) duplex 5-15 receptacles, 1’ cord w/ 5-15 plug 1’ 1’ XG2-12-2B

6000 box w/ (2) duplex 5-15 receptacles, 25’ cord w/ 5-15 plug 1’ 25’ XG2-12-25B

6000 box w/ (2) duplex 5-15 receptacles, 50’ cord w/ 5-15 plug 1’ 50’ XG2-12-50B

TEMPORARY POWER

56 1-800-ERICSON (374-2766) •www.ericson.com

6100 Series - Weather Resistant Portable Outlet Boxes

6100 Series Weather Resistant

Portable Outlet Boxes

•Non-metallic, non-conductive design provides protection against

electric shock while using portable power cords

•Spring-loaded flip seal covers protect receptacle when not in use

•Heavy-duty stainless steel springs provides dependable,

long service life

•Molded of thermoplastic elastomer (TPE) these non-conductive

boxes are crush proof and resistant to jobsite oils

•Supplied with cord grip bushings that accommodate #16/3 SO

through #12/3 SO cord

•High-visibility dual-color safety system for easy identification

on the jobsite

•Cover plates and flip seals are molded of impact resistant PBT

thermoplastic

•Accommodates a wide range of devices

•Extra-deep box provides additional wiring space

•Available as pendant and feed-through boxes

•Available with a wide range of cover plates and a full range of

replacement parts

•Available with Ericson's in-line GFCIs for added protection

and code compliance

6100

6102

6100 Series Weather Resistant Portable Outlet Boxes Selection Guide

Standard depth box= 3-3/16”

Extra deep box = 4-5/32”

Now available in black for Stage,

Studio & Entertainment

Molded black box with black cover plates

blends into the background Ideal for stage, studio,

entertainment and other applications where you

want the box to not attract attention

All Black

Box With

Covers

For 2 Duplex Receptacles

Standard Depth Extra Deep

Pendant 6100B 6102B

Feed-Thru 6100B-F 6102B-F

Selection Guide

Cord Grip

Style Box

With Flip

Covers

For (2) Duplex Receptacles For (2) Single Receptacles:

1.390” dia. Hole

For (2) Single Receptacles:

1.572” dia. Hole

Standard

Depth

Extra

Deep

Standard

Depth

Extra

Deep

Standard

Depth

Extra

Deep

Pendant 6100 6102 6105 6106 6110 6111

Feed-Through 6100-F 6102-F 6105-F 6106-F 6110-F 6111-F

Made in

the USA

TEMPORARY POWER

6100 Series - Replacement Parts & Box Dimensions

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

6100 Series Replacement Boxes

Standard Depth

Catalog Number - 6130

Standard Depth Box with

Feed Through (not shown)

Catalog Number - 6130-F

Extra Deep Box

Catalog Number - 6129

Extra Deep Box with Feed

Through (not shown)

Catalog Number - 6129-F

Standard Depth

Catalog Number - 6130B

Standard Depth Box with

Feed Through (not shown)

Catalog Number - 6130B-F

Extra Deep

Catalog Number - 6129B

Extra Deep Box with Feed

Through (not shown)

Catalog Number - 6129B-F

Catalog Number - 6135

Blank Cover plate

Catalog Number - 6034

6100 Series Replacement Cover Plates

For Duplex Receptacles

Catalog Number - 6131

For Single Receptacles

1.390” Dia. Opening

Catalog Number - 6132

For Single Receptacles

1.572” Dia. Opening

Catalog Number - 6133

Catalog Number - 6131B Catalog Number - 6034B

For GFCI Receptacles

Catalog Number - 6135Y

6100 Series

Dimensions

5.27

2.504.17

4.00

Standard Depth

Box = 3.16

Extra Deep

Box = 4.17

Made in

the USA

TEMPORARY POWER

58 1-800-ERICSON (374-2766) •www.ericson.com

6100 Series - Factory Wired Portable Outlet Boxes

6100 Series Factory Wired Portable Outlet Boxes Selection Guide

Notes:

1. Contact factory for custom assemblies

These factory assembled outlet boxes save assembly time in

the field and assembly cost, plus they give the assurance of

proper component matching of cord, box and plug.

Factory

Wired Box

Box

w/Receptacles NEMA Config. Cord Length SOW Cord Size

Factory wired with (2) duplex receptacles

6100 box w/ (2) duplex 5-15 receptacles, 1’ cord w/ 5-15 plug 61001 5-15 1’ 14/3

6100 box w/ (2) duplex 5-15 receptacles, 25’ cord w/ 5-15 plug 61025 5-15 25’ 14/3

6100 box w/ (2) duplex 5-15 receptacles, 50’ cord w/ 5-15 plug 61050 5-15 50’ 14/3

6100 box w/ (2) duplex 5-20 receptacles, 1’ cord w/ 5-20 plug 61101 5-20 1’ 12/3

6100 box w/ (2) duplex 5-20 receptacles, 25’ cord w/ 5-20 plug 61125 5-20 25’ 12/3

6100 box w/ (2) duplex 5-20 receptacles, 50’ cord w/ 5-20 plug 61150 5-20 50’ 12/3

6100 box w/ (2) duplex 5-15 receptacles, no cord 6101-1 U-Add

6100 box w/ (2) duplex 5-20 receptacles, no cord 6101-2 U-Add

6100 box w/ (2) duplex L5-15 receptacles, 1’ cord w/ L5-15 plug 61201 L5-15 1’ 14/3

6100 box w/ (2) duplex L5-15 receptacles, 25’ cord w/ L5-15 plug 61225 L5-15 25’ 14/3

6100 box w/ (2) duplex L5-15 receptacles, 50’ cord w/ L5-15 plug 61250 L5-15 50’ 14/3

Factory wired with (2) single receptacles

6106 box w/(2) L5-15 Outlets, 6’ cord w/ L5-15 plug 6106-143C2 L5-15 6’ 14/3

6106 box w/(2) L5-15 Outlets, 25’ cord w/ L5-15 plug 6106-143A2 L5-15 25’ 14/3

6106 box w/(2) L5-15 Outlets, 50’ cord w/ L5-15 plug 6106-143B2 L5-15 50’ 14/3

6106 box w/(2) L5-15 Outlets 6106-2 L5-15

6111 w/ (2) L5-20, 6’ #12/3 cord w/L5-20 plug 6111-123C3 L5-20 6’ 12/3

6111 w/ (2) L5-20, 25’ #12/3 cord w/L5-20 plug 6111-123A3 L5-20 25’ 12/3

6111 w/ (2) L5-20, 50’ #12/3 cord w/L5-20 plug 6111-123B3 L5-20 50’ 12/3

6111 w/ (2) L5-20 receptacles 6111-3 L5-20

6111 w/ (2) L6-20, 6’ #12/3 cord w/L6-20 plug 6111-123C4 L6-20 6’ 12/3

6111 w/ (2) L6-20, 25’ #12/3 cord w/L6-20 plug 6111-123A4 L6-20 25’ 12/3

6111 w/ (2) L6-20, 50’ #12/3 cord w/L6-20 plug 6111-123B4 L6-20 50’ 12/3

6111 w/ (2) L6-20 receptacles 6111-4 L6-20

6101-1

Made in

the USA

TEMPORARY POWER

7000 Series - Tri-Tap Multiple Outlet Boxes

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

7000 Series Tri-Tap Multiple Outlet Boxes

•Available in a variety of amperages and voltages

•Standard NEMA configurations insure compatibility

with existing equipment

•Molded of rugged thermoplastic elastomer (TPE) to provide

maximum resistance to oils, chemical and impact

•Non-conductive housing eliminates possibility of box

becoming energized

•Cover plate and non-conductive cord clamp molded from

impact and chemical resistant polybutylene terepthalate (PBT)

•Molded of Blue and Radiant Yellow colors for added

safety through greater visibility in dull work environments

Notes:

1. Consult factory for custom assemblies

7000 Series Tri-Tap Multiple Outlet Boxes

Notes:

1. Consult factory for custom assemblies

7000 Series Tri-Tap Outlet Boxes with GFCI Protection

7000 Series Tri-Tap Outlet

Boxes with GFCI Protection

• The features of the 7000 series boxes plus GFCI

protection for that added degree of safety

1.74

10.25

Amperage Voltage

NEMA

Configuration Box Only

Factory Wired Boxes

#12/3 SOW

25’ 50’

15 125 5-15 7000 7000-25-2 7000-50-2

20 125 5-20 7002 7002-25-2 7002-50-2

15 250 6-15 7004 7004-25-2 7004-50-2

15 125 L5-15 7008 7008-25-2 7008-50-2

20 250 L6-15 7010 7010-25-2 7010-50-2

20 125 L5-20 7020 7020-25-2 7020-50-2

20 250 L6-20 7022 7022-25-2 7022-50-2

20 277 L7-20 7024 7024-25-2 7024-50-2

Amperage Voltage

NEMA

Configuration GFCI

Factory Wired Boxes

#12/3 SJTW

25’ 50’

125

5-15

In-line20 5-20 7002-25-2GF 7002-50-2GF

20 L5-20 7020-25-2GF 7020-50-2GF

NOTICE:

The NEC restricts the use of metal

job boxes as temporary power cords

Made in

the USA

TEMPORARY POWER

60 1-800-ERICSON (374-2766) •www.ericson.com

8000 Series - Portable Industrial Grade Outlet Boxes

Now available from Ericson Manufacturing Company…

8000 Series portable electrical enclosures with large internal wiring area which allows for cords from 18/3 to 6/4 cable.

Rugged

and durable, these outlet boxes are engineered to provide protection against electric shock under harsh conditions.

Catalog # Description

8005 Box with 1 x 1/2” npt hole

8005F Box with 2 x 1/2” npt holes (1 hole at each end)

8034 Box with 1 x 3/4” npt hole

8034F Box with 2 x 3/4” npt holes (1 hole at each end)

8010 Box with 1 x 1” npt hole

8010F Box with 2 x 1” npt holes (1 hole at each end)

Selection Guide How To Order

8205 cover

TT 30 RV,

2.385" dia. Hole

8201FS cover

(2) Duplex

1075 GFCI Module

Use 8202 Plate

8208FS cover

Combo 1.56” & Duplex

8206FS 1.56” Round

Features:

•Extra-deep box provides additional wiring space - perfect for use with all cords up to 6/4

•Molded of thermoplastic elastomer (TPE) these non-conductive boxes are crush

proof and resistant to jobsite oils

•Plates (sold separately) accommodate a wide range of devices (screw kits included)

•Available with a wide range of cover plates and a full range of replacement parts

•Plate available for use with Ericson's 1075 GFCI module (not included) for added

protection and code compliance (class A open neutral protection)

•Cover plates and cord grips are molded of impact resistant nylon and resistant to jobsite oils

•Available as pendant and feed-through boxes

•Wire mesh cord grips available

Catalog # Plates

8200 Plate Blank

8201 Plate, 2 Duplex - No Flip Covers

8201FS Plate, 2 Duplex With Flip Covers

8202 Plate, 1 GFCI 1075 No Flip Req'd

8203 Plate, 1 GFCI Duplex Receptacle No Flip

8203FS Plate, 1 GFCI Receptacle With Flip

8204 Plate, 2 GFCI Receptacle - No Flip Covers

8204FS Plate, 2 GFCI Receptacle With Flip Covers

8205 Plate, 1 LG Recpt RV TT-30 - No Flip Cover

8206 Plate, 2 Single 1.56" Round Recpt- No Flip Cover

8206FS PLate, 2 Single 1.56" Round Recpt With Flip Covers

8207 Plate, 1 Single 1.56" Round Recpt - No Flip- 1/2 Blank

8207FS Plate, 1 Single 1.56" Round Recpt With Flip Cover - 1/2 Blank

8208 Plate, 1 Single 1.56" Round & 1 Duplex Recpt - No Flip

8208FS Plate, 1 Single 1.56" Round & 1 Duplex Recpt With Flip Covers

Catalog # Strain Relief Kits

82005 Strain Relief, Cord 1/2 IN NPT W/ Grommets

82034 Strain Relief, Cord, 3/4 IN NPT

82010 Strain Relief, Cord, 1 IN NPT

82005W Strain Relief, Wire, Cord .5 IN 1/2 NPT

82034W Strain Relief, Wire, Cord, 3/4 IN NPT

82010W Strain Relief, Wire, Cord, 1IN NPT

Catalog # Screw Kits*

80SCPKG Screw kit, 8000 Series ENCL (replacement)

82SCPKGPL Screw kit, 8200 Plates (replacement)

* Each box comes with (1) 805CPKG screw kit. Each plate has (1) 825CPKGPL screw kit

8005

Made in

the USA

TEMPORARY POWER

8000 Series - Catalog Offerings

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Pre-Punched Boxes

Strain Relief Kits

Cable Ranges (strain relief) Catalog Number Cable Ranges (wire mesh) Catalog Number

1/2” NPT

Fits Cable Ranges

.37 - .61

82005

1/2” NPT

Fits Cable Ranges

.375 - .500

82005W WIRE MESH

1/2” NPT

Fits Cable Ranges

.500 - .625

82005W-1 WIRE MESH

3/4” NPT

Fits Cable Ranges

.45 - .70

82034

3/4” NPT

Fits Cable Ranges

.625 - .750

82034W WIRE MESH

3/4” NPT

Fits Cable Ranges

.750 - .875

82034W-1 WIRE MESH

1” NPT

Fits Cable Ranges

.59 - 1.00

82010

1.0” NPT

Fits Cable Ranges

.875 - 1.000

82010W WIRE MESH

LARGE

SIZE

Hole Ø Inches:

8205 = 2.40

8206 = 1.57

8207 = 1.57

8208 = 1.57 Made in

the USA

TEMPORARY POWER

62 1-800-ERICSON (374-2766) •www.ericson.com

Factory Wired 3-Phase Alternate-Wired Power Stringer

120/208 Volt

3-Phase Alternate-Wired

Portable Outlet Box Power Stringer

•Code compliant

•Perfect for events requiring temporary power such as:

conventions, carnivals, circuses, fairs and sporting events

•Available with Ericson's non-metallic, non-conductive outlet boxes

•Molded of thermoplastic elastomer (TPE) these non-conductive

boxes are crush proof and resistant to jobsite oils

•High-visibility dual-color safety system for easy identification on

the jobsite

•Available with a wide range of cover plates and a full range of

replacement parts

Notes:

1. Contact factory for custom assemblies

2. Add ”BLK” to catalog number for all black boxes & cable. Example: 6050-125F8 becomes 6050-125F8BLK

3. One color-coded duplex outlet per box

4. Indoor use only without snap covers

3-Phase Alternate Wired Power Stringer Selection Guide. 10’ leader. Boxes 10’ on Center

60’ Streamer

30’ Streamer

All Black

Available!

Catalog

Number Plug Receptacles Overall

Length

SOW

Cord Size Box 1 Box 2 Box 3 Box 4 Box 5 Box 6

20 Amp 3Ø

w/ (3) 6002 boxes 6050 -125F8

L21-20 5-20

30’ 12/5

A-phase B-phase C-phase

---

w/ (6) 6002 boxes 6050 -125G8 60’ 12/5 A-phase B-phase C-phase

w/ (3) 6002 boxes 6050 -105F8 30’ 10/5 - - -

w/ (6) 6002 boxes 6050 -105G8 60’ 10/5 A-phase B-phase C-phase

Custom Print

Your Name Here*

*Custom Box Printing. Some restrictions apply. Quantity restrictions apply. Call us for details.

Made in

the USA

TEMPORARY POWER

Custom Lengths and Cord Printing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

BONUS - CORD PRINTING AVAILABLE

See Your Local Ericson Representative For Details.

Custom Lengths

Need power outlets at specific space intervals? Ericson can customize your stringer to your specs.

Need Custom Lengths?

CALL US!

Custom Cord Printing

Ericson offers custom cord printing for most cordsets and stringers. Helps prevent theft and identifies your temporary

power investment.

Made in

the USA

TEMPORARY POWER

Temporary Lighting

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

Original Ad from 1918

Temporary Lighting

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY LIGHTING

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

Product Overview

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

Stringlights

Comply with OSHA and Canadian worker’s comp regulations and the

NEC/CEC with these stringlights. Available in many styles to suit your jobsite

needs.

GOOD - Construct-O-Lite® – 2-Wire Contractor Grade Molded Stringlights

BETTER -E-LiteTM 3-Wire Commercial Grade Molded Stringlights

BEST - 3-Wire Heavy Duty Molded Stringlights

EXTREME - Hazardous Location Explosion Proof Stringlights

High Bay Temporary Lighting

Baylite™ 400 & 250 Watt Pulse Start Metal Halide

•Pulse Start ballast meets the requirements of the Energy

Independance Act of 2007

•CUL Listed - suitable for damp locations

•Open-air ballast for cooler operation

•Multi-Tap ballast: 120V, 208V, 240V, 277V: Factory wired at 120V

•Base models have 3 ft 18/3 power cord with 5-15P molded plug.

Feed thru models have 14/3 molded primary and secondary cords attached.

(CSA certified on feed thru models)

•Clear metal halide pulse type O lamp included (NEC 2008 Compliant)

•Average rated lamp life of over 10,000 hours

•Super bright metal halide lamp has a color temperature of 4000K

•EZ hook with locking feature

•(2) ¾" knock-outs for optional conduit access

(on base models only)

Wide Area Lighting

Ericson offers many styles of medium to large area lighting for many applications.

From the versatile Magnet Mountable Model 1000, (still Made in the USA), to the

Emergency Battery Ballast version of our popular model 1000-F series Heavy Duty

Fluorescent Magnet lights, we have your medium area lighting covered with code

compliant products. Rounding out our product offering with the SunTower™

which brings bright twin 750 Watt Stadium Lights on an easy to assemble unit

with power distribution built right in, (and even a generator powered model!).

•Model 1000 : 70 Watt HPS and MH high brightness in a NEMA 3R rain rated

design with magnet mounting and power receptacles built right in.

•Model 1000-F : Same great design and features of the popular 1000 with

multiple fluorescent tube cool lighting

•Model 1000-EMBT : Housed in the popular model 1000-F is a 120 minute

battery backup in the event of power failure – great for confined spaces and

safe operations

•Model 1000-MH & 1003-HPS : the large 6” magnet and die cast housing make this

model a rugged contender for your lighting needs

•Suntower : 3 base models to choose from… Single and Dual Lights with winch

operations and generator model – Bright as the Sun

Product Overview

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY LIGHTING

Task, Tent & Work Heavy Duty

From the versatile T8 All electronic-ballasted Model 800 Series, (Made in the USA),

to the new greener version of our popular model 1100 series Heavy Duty All

Weather Rubberized T8 lights, we have your Tent, Shelter, Task & Work Area light-

ing handled. Ericson makes a wide variety of all-weather, high brightness lights

for many applications. Easy to use and built to last job after job, Ericson has the

lighting products you need for your application.

Model 800 Series: Superior T8 tube lighting in a ruggedly designed rubberized

housing which withstands lots of abuse. 2 ft to 5 ft models are available.

•Model 1140: New electronic auto Multi-Voltage ballast operates from 120

to 277 V 50/60 Hz without modification. Green T8 bulbs with miser

ballast housed in the ultimate harsh environment design.

•Model 1239 : Same great features as the 1140 Series in a compact 2 ft

light with BX tubes and high lumen output in a compact design. 120V only

Hand Lamps

•Commercial and light duty handlamps

•Industrial duty incandescent handlamps

•Vapor-Gard® handlamps

•Industrial fluorescent handlamps

•Industrial low voltage fluorescent handlamps

•13W fluorescent handlamps with battery pack

•Low voltage handlamps with in-line transformer

Hazardous Location

Need lighting for Classified and Hazardous locations? We have the lighting

you need to meet your safety and code conditions. With a long history of

Hazardous location lighting safety, Ericson has the products and quality

reputation as an original manufacturer of heavy duty Class 1 & 2, Div 1 & 2

Certified and Listed Products.

•12 Volt Spot and Flood 2200 series mates with our popular low voltage

transformers to ensure compliance in Classified areas

•Our 26W Fluorescent Model 2500 Handlamp comes as a handlamp alone

(for your cord) or with 25 or 50 ft of cord and plug ready to go

•The Best Selling 2600 Series XP handlamp can operate with two types of

bulbs, with or without cord and the ease of quick field repairs

Specialty Use

Our specialty lights meet the needs of special lighting situations. If you

have a particular situation that needs lighting innovation and a solution,

contact Ericson today. We can help.

•500 Watt “Boiler Inspection” Light – 90 deg and straight tube that fits

into a small opening for inspections – can be used in a variety of

applications

Stringlights - Types

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

Types of Stringlights:

There are several types of stringlights available. These types differ in construction and the environments for which they are

designed to operate. The basic design of a stringlight set is a medium Edison base lamp socket electrically connected to a

cord via several methods:

1. Mechanically Attached Sockets – Like our model X-142100, these indoor rated stringlights use lamp sockets with insulation

displacement or piercing pins to make the electrical connection through the cord jacket insulation. The socket is then

held on with mechanical means and the stringlight is supported by hanger hooks at each socket location. Economically

priced, these stringlights are normally used only a few times and then discarded.

2. Molded Sockets – The design of these stringlights varies, but the basic design is a medium Edison base socket that is

held in an overmolded material area attached to the cord. The electrical connections and socket are protected from the

environments and this reduces corrosion and electrical faults. The cord jacket and the overmold material vary from

manufacturer to manufacturer and the durability depends on this material formulation to ensure a watertight bond.

Rules for Use:

There are many rules governing the use of stringlights. These are a few of the more common questions that arise. Consult

your local inspection authority before installing stringlights.

1. Length of Time - Stringlights are normally used in Temporary Use Locations (defined by NEC Article 590) and the length

of time is defined in that article.

2. Article 590.4 of the NEC 2008 states that all lamps will have protection from accidental contact or damage.

3. Two wire stringlights (no ground wire) must use non-conductive lamp guards.

4. Three wire stringlights can use metallic or non-metallic guards, but the metallic guards must be grounded with a

continuous ground wire through the stringlight.

5. Depending on your local inspector, stringlights can be “hard wired” to a panel as long as there is no strain on the connection.

6. Stringlights must be held aloft by the hanging tabs located at each lamp socket and not by the cord/conductors unless

permission by the manufacturer is given.

7. According to article 590 of the 2008 NEC, lighting circuits and power circuits in temporary locations should not be

mixed. You should not protect a stringlight circuit with GFCI protection.

Do’s and Don’ts

1. Never use indoor rated stringlights in outdoor situations

2. Never install lamps with wattage greater than the manufacturer’s specifications for that stringlight

3. Never operate stringlights without lamp guards in place – replace any broken guards

4. Use hang tabs or a “messenger wire” to suspend stringlights over the work area

Stringlight Selection Guide

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Contractor Grade

Stringlights Length Wire Type Guard Type

(included)

Primary

Plug

Secondary

Connector

142100 100 Ft. 14/2 SJT

300V Plastic Lattice 04201 Molded

NEMA 1-15P

Molded

NEMA 1-15C

X-142100 100 Ft. 14/2 Flat

300V Plastic Lattice Snap-on blunt blunt

E-Lite Commercial Grade Stringlights

143100STWY-1L

100 Ft. 14/3 STW

600V

Plastic Lattice 04201 Molded 5-15P Molded 5-15C

143100STWY-2L Plastic Lattice 04201 Molded L5-15P Molded L5-15C

143100STWY-1W Welded Wire 211 Molded 5-15P Molded 5-15C

143100STWY-2W Welded Wire 211 Molded L5-15P Molded L5-15C

143100STWY-1WP Vinyl Coated Wire 211-P Molded 5-15P Molded 5-15C

143100STWY-2WP Vinyl Coated Wire 211-P Molded L5-15P Molded L5-15C

143100STWY-1C Clear Rain 212** Molded 5-15P Molded 5-15C

143100STWY-2C Clear Rain 212** Molded L5-15P Molded L5-15C

122100STW 100 Ft. 12/2 STW

600V

Plastic Lattice 04201 Molded 1-15P Molded L5-15C

122100STW-C Clear Rain 212** Molded 1-15P Molded L5-15C

123100STWY-1L

100 Ft. 12/3 STW

600V

Plastic Lattice 04201 Molded 5-15P Molded 5-15C

123100STWY-3L Plastic Lattice 04201 Molded L5-20P Molded L5-20C

123100STWY-1W Welded Wire 211 Molded 5-15P Molded 5-15C

123100STWY-3W Welded Wire 211 Molded L5-20P Molded L5-20C

123100STWY-1WP Vinyl Coated Wire 211-P Molded 5-15P Molded 5-15C

123100STWY-3WP Vinyl Coated Wire 211-P Molded L5-20P Molded L5-20C

123100STWY-1C Clear Rain 212** Molded 5-15P Molded 5-15C

123100STWY-3C Clear Rain 212** Molded L5-20P Molded L5-20C

* 50 ft. available - change 100 to 50 ** Does not include bottom snap-on cover

Industrial Grade Stringlights

143100Y-1

100 Ft.

14/3 SEOW

Order Separately 1510-PW6P

(NEMA 5-15P)

1610-CW6P

(NEMA 5-15C)

143100Y-2 Order Separately 1520-PW6P

(NEMA L5-15P)

1620-CW6P

(NEMA L5-15C)

123100Y-1

12/3 SEOW

Order Separately 1510-PW6P

(NEMA 5-15P)

1610-CW6P

(NEMA 5-15C)

123100Y-2 Order Separately 1520-PW6P

(NEMA L5-15P)

1620-CW6P

(NEMA L5-15C)

123100Y-3 Order Separately 2310-PW6P

(NEMA L5-20P)

2410-CW6P

(NEMA L5-20C)

* 50 ft. available - change 100 to 50

TEMPORARY LIGHTING

Contractor Grade 2 - Wire Stringlights

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

Construct-O-Lite® – 2-Wire Contractor Grade Molded Stringlights

Comply with OSHA regulations and the NEC with these molded stringlights. No more open conductors that

can be cut into by metal studs posing and extreme safety hazard. Several different models to choose from.

•Meets OSHA & Canadian WC construction site requirements

•Meets NEC/CEC requirements for temporary lighting

•Designed for applications that require rapid set-up/tear-down and an economy stringlight

•Full threaded screwshell to ensure proper contact

•Easy relamping with non-conductive, snap-open cage guard

•Built-in hanger for easy installation with messenger cable or hooks

•Standard models supplied with15Amp, 2-wire straight-blade (NEMA 1-15) plug & NEMA 1-15 connection

•#14/2 and #12/2 cord types

Re-lamping is easy

with the snap-open

cage guard.

212 Rain Guards

included with model

122100STW-C

Detail of plug end

#14/2 300V

#12/2 600V

Cord Types

#14/2 AWG #12/2 AWG

Item Number 142100 122100STW 122100STW-C

Specifications:

Electrical 120V/60Hz 120V/60Hz 120V/60Hz

Overall Length 100 ft.* 100 ft.* 100 ft.*

Cable gauge & type 14/2 SJTW 300V 12/2 STW 600V 12/2 STW 600V

Guard 04201 snap on lattice 04201 snap on lattice 212 Rain Guard

Number of sockets 10 10 10

Socket spacing 10 ft. centers 10 ft. centers 10 ft. centers

Max watts per socket 150 150 150

Primary NEMA 1-15 plug NEMA 1-15 plug NEMA 1-15 plug

Secondary NEMA 1-15 connection NEMA 1-15 connection NEMA 1-15 connection

Heavy duty molded-on

hang tab with hole

Super strong

bond to cord

Full metal

bulb threads

Strong lattice

guard snaps

on easily

Best

Seller

NOTES:

* 50 ft available - call for details Not for use with short A19 type bulbs

Meets

2008 NEC

Requirements

Universal Stringlight Hook Kit

10 S hooks per bag (order seperately)

SLHK-01

Construct-O-Lite® II - Light-Duty Flat Wire Stringlights

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Construct-O-Lite® II – Light-Duty Flat Wire Stringlights

Comply with OSHA regulations and the 2008 NEC with these light duty stringlights. No more open conductors that

can be cut into by metal studs posing an extreme safety hazard.

•Meets OSHA construction site requirements

•Meets NEC requirements for temporary lighting

•Designed for applications that require rapid set-up/tear-down and an economy stringlight

•Easy relamping with non-conductive, snap-open cage guard

•Built-in hanger for easy installation with messenger cable or hooks

•Accommodates one Type A-19 or one Type A-23 Lamp per socket max 150W

Re-lamping is

easy with the

snap-open

cage guard.

For use indoors

or under roof

8.20

4.90

Catalog Number X-142100

Specifications:

Electrical 120V, 12.5A, 1500W

Overall length 100 ft.

Cable gauge & type AWG #14/2

Guard Snap on lattice

Number of sockets 10

Socket spacing 10 ft. centers

Max watts per socket 150W

Primary 9’ Blunt

Secondary 1’ Blunt with shrink tube cap

Metal hanger hook

Tough lamp socket

Opens easily

for re-lamping

Guard is

easy

to snap

open

TEMPORARY LIGHTING

Universal Stringlight Hook Kit

10 S hooks per bag (order seperately)

SLHK-01

216

End Cap

Order Separately

3-Wire Commercial Grade Stringlights

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

E-LiteTM 3-Wire Commercial Grade Molded Stringlights

•Meets OSHA construction site requirements – 1926.405(a)(2)(ii)(E&F)

•Meets NEC requirements for temporary lighting – 525.21(B), 527.4(F), 527.4(H)

•Designed for applications that require rapid set-up/tear-down and a 3-wire stringlight

•Full threaded screwshell to ensure proper contact

•Available with non-conductive, snap-open cage guard grounded wire guard or clear rain guards

•Built-in hanger for easy installation with messenger cable or hooks

•Units come standard with Extra-Hard-Usage ST cord in 50 ft. and 100 ft. lengths

•Stringlights come standard with Ericson’s molded plugs and connectors.

Ordering is EASY!

1. Select 14/3 or 12/3 wire

2. Select Length 50 or 100 ft.*

3. Select bulb guard type EZ

Relamping

211-P

Vinyl Coated Wire Guard

“WP”

“C”

Models

212

Clear Lexan Guard

211

Zinc Coated Wire Guard

“W”

211-BG

Zinc Coated

Wire Guard

Snap on Bottom

04201

Rugged Plastic Guard

“L”

Super tight

bond to cord

Strong molded

in mounting tab

600V STW cord

Bonded grounding

tab for metal guards.

Full metal

threaded

socket

*50 ft is 5 socket

100 ft is 10 socket (standard)

Snaps

together

Snaps

Screws on

Grounds

When

Installed

Indoor/Outdoor

Use

Meets

2008 NEC

Requirements

Detail of plug and

connector ends

Not for use with short A19 type bulbs

Universal Stringlight Hook Kit

10 S hooks per bag (order seperately)

SLHK-01

Use up to 150W bulbs

3-Wire Commercial Grade Stringlights

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY LIGHTING

CONTACT ERICSON FOR YOUR CUSTOM STRINGLIGHT CONFIGURATIONS!

E-LiteTM 3-Wire Commercial Grade Molded Stringlights Selection Guide

Standard products come with 9 ft. primary (lead) and 1 ft. secondary (tail)

Stringlights with #12/3 STW Cable:

NOTES:

* For vinyl coated wire guards add “P”. Example 123I00STWY-1WP

** 216 End caps ordered separately

***50 ft. stringlight sets come with mechanically attached plugs. 100 ft stringlight sets come with molded on plugs and connectors

Stringlights with #14/3 STW Cable:

* For vinyl coated wire guards add “P”. Example 123I00STWY-1WP

** 216 End caps ordered separately

***50 ft. stringlight sets come with mechanically attached plugs. 100 ft stringlight sets come with molded on plugs and connectors

#12/3 STW w/ Plastic Lattice Guard #12/3 STW w/ Wire Cage Guard* 12/3 STW w/Clear Lexan Rain Guard**

50 ft. Overall Length 12350STWY-1L 12350STWY-3L 12350STWY-1W 12350STWY-3W 12350STWY-1C 12350STWY-3C

100 ft. Overall Length 123100STWY-1L 123100STWY-3L 123100STWY-1W 123100STWY-3W 123100STWY-1C 123100STWY-3C

Specifications:

Electrical 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz

Overall Length see above see above see above see above see above see above

Cable gauge & type 12/3 STW 12/3 STW 12/3 STW 12/3 STW 12/3 STW 12/3 STW

Guard 04201 snap on lattice 04201 snap on lattice 211 Wire guard 211 Wire guard 212/216 Guard 212/216 Guard

Number of sockets:

50 ft. stringlights 5 5 5 5 5 5

100 ft. stringlights 10 10 10 10 10 10

Socket spacing 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers

Max watts per socket:

50 ft. stringlights 200 200 200 200 200 200

100 ft. stringlights 150 150 150 150 150 150

Plug*** (NEMA 5-15)

(NEMA L5-20)

(NEMA 5-15)

(NEMA L5-20)

(NEMA 5-15) (NEMA L5-20)

Connector***

(NEMA 5-15) (NEMA L5-20)

(NEMA 5-15)

(NEMA L5-20)

(NEMA 5-15) (NEMA L5-20)

#14/3 STW w/ Plastic Lattice Guard #14/3 STW w/ Wire Cage Guard* 14/3 STW w/Clear Lexan Rain Guard**

50 ft. Overall Length 14350STWY-1L 14350STWY-2L 14350STWY-1W 14350STWY-2W 14350STWY-1C 14350STWY-2C

100 ft. Overall Length 143100STWY-1L 143100STWY-2L 143100STWY-1W 143100STWY-2W 143100STWY-1C 143100STWY-2C

Specifications:

Electrical 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz

Overall Length see above see above see above see above see above see above

Cable gauge & type 14/3 STW 14/3 STW 14/3 STW 14/3 STW 14/3 STW 14/3 STW

Guard 04201 snap on lattice 04201 snap on lattice 211 Wire guard 211 Wire guard 212/216 Guard 212/216 Guard

Number of sockets:

50 ft. stringlights 5 5 5 5 5 5

100 ft. stringlights 10 10 10 10 10 10

Socket spacing 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers

Max watts per socket:

50 ft. stringlights 200 200 200 200 200 200

100 ft. stringlights 150 150 150 150 150 150

Plug*** (NEMA 5-15) (NEMA L5-15) (NEMA 5-15) (NEMA L5-15) (NEMA 5-15) (NEMA L5-15)

Connector*** (NEMA 5-15) (NEMA L5-15) (NEMA 5-15) (NEMA L5-15) (NEMA 5-15) (NEMA L5-15)

Heavy Duty 3-Wire Industrial Molded Stringlights

1-800-ERICSON (374-2766) •www.ericson.com

3-Wire Heavy Duty Molded Stringlights

•UL Listed and CSA Certified

•Meets OSHA construction site requirements – 1926.405(a)(2)(ii)(E&F)

• Meets NEC requirements for temporary lighting – 525.21(B), 527.4(F), 527.4(H)

•Designed for demanding industrial applications

•Full threaded screwshell to ensure proper contact

•Available with non-conductive, rain-guard or wire guard

• Built-in hanger for easy installation with messenger cable or hooks

•Units come standard with Extra-Hard-Usage SEOW cord in 50 ft. and 100 ft. lengths

•Stringlights come standard with Ericson’s Perma-Tite® plugs and connectors

ALL INDUSTRIAL

GRADE STRINGLIGHTS

COME WITH WATER-

TIGHT NEMA 6P RATED

PLUG & CONNECTOR

Custom Lengths

Socket Spacing

Available

New & Improved

Also available in black,

See chart notes

Full metal socket

600 V Extra hard use

rated SEOW cord

Super strong

hanging tab

Full metal threaded

med based socket

Ground tab bonded

for metal guards*

*Guards sold separately

Molded bond of cord

jacket to socket

Not for use with

A19 type bulbs

Not for use with short A19 type bulbs

Guards & end caps

sold separately on

Heavy Duty stringlights

Universal Stringlight Hook Kit

10 S hooks per bag (order seperately)

SLHK-01

Made in

the USA

TEMPORARY LIGHTING

Order Guards Seperately

See page 73

Heavy Duty 3-Wire Industrial Molded Stringlights

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Heavy-Duty Industrial 3-Wire Molded Stringlights Selection Guide

Standard products come with 9 ft. primary (lead) and 1 ft. secondary (tail)

216

End Cap

All Wire

Guards

Ground

When

Installed

123 100 Y - 1

Wire Gauge

143 = 14/3

123 = 12/3

124 = 12/4

125 = 12/5

Overall

Length

Feet

Yellow

or Black

Plug/Connector

1= 5-15 Straight

2= L5-15 Locking

3= L5-20 Locking*

4= L14-20*

5= L21-20*

* Not available on 14/3 cable

Part Number Chart - How To Order

Part #

Guard Type

211

Welded wire zinc coated

211-P

Vinyl coated welded wire

214

Clear rain

216

Rain guard snap-on bottom

Drop with 214 Guard

Drop with 211-P Guard

Guards & end caps

sold separately on

Heavy Duty stringlights

#14/3 SEOW Cable #12/3 SEOW Cable 240V #12/4 Cable 208V 3 Ph #12/5 Cable

50 ft. Overall Length 14350Y-1 14350Y-2 12350Y-1 12350Y-2 12350Y-3 12460Y-4 12560Y-5

100 ft. Overall Length 143100Y-1 143100Y-2 123100Y-1 123100Y-2 123100Y-3 124100Y-4 12590Y-5

Specifications:

Electrical 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz 240V 208Y/120V

Overall Length 50 = 50 ft

100 = 100 ft 50 = 50 ft

100 = 100 ft 60 = 60 ft

100 = 100 ft 60 = 60 ft 90 = 90 ft

Cable gauge & type 14/3 SEOW 14/3 SEOW 12/3 SEOW 12/3 SEOW 12/3 SEOW 12/4 SEOW 12/5 SEOW

Guard Not included

see note 1 Not included

see note 1 Not included see note 1

Number of sockets:

Short stringlights 55 555 6 6

Long stringlights 10 10 10 10 10 10 9

Socket spacing 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers 10 ft. centers

Max watts per socket: See note 2 See note 2 See note 2 See note 2 See note 2 See note 2 See note 2

Plug* -1 -2 -1 -2 -3 -4 -5

Connector* -1 -2 -1 -2 -3 -4 -5

Color Yellow** Yellow** Yellow** Yellow** Yellow** Yellow** Yellow**

* Connections PLUG CONNECTOR

-1 = 1510-PW6P (NEMA 5-15) 1610-CW6P (NEMA 5-15)

-2 = 1520-PW6P (NEMA L5-15) 1620-CW6P (NEMA L5-15)

-3 = 2310-PW6P(NEMA L5-20) 2410-CW6P (NEMA L5-20)

-4 = L14-20P - 2320-PW6P L14-20C - 2420-CW6P

-5 = L21-20P (non water tight) L21-20C (non water tight)

** Color = Yellow is standard - Replace "Y" with "B" in part number for all black. Example: 123100B-1

Notes

1: Order guards seperately - wire, coated or clear rain

2: For 10 skt strings 150 Watts is max per socket. For short strings up to 200 Watts per socket is permissable although socket may be marked 150W.

3: 214 Guard max is 150W bulb for any string.

OUTDOOR

USE

Made in

the USA

TEMPORARY LIGHTING

Heavy Duty Stringlight Lamp Guards

1-800-ERICSON (374-2766) •www.ericson.com

Lamp Guards for Stringlights

•Heavy-Duty Rain-Guard®

•Meets OSHA requirements for temporary lighting: Temporary lights shall be equipped with guards to prevent

accidental contact with bulb

•One-piece molded high-impact polycarbonate

•Prevents accidental contact with bulb

•Transparent to let light shine through while protecting bulb from jobsite debris and moisture

•Built-in vents dissipate heat and allow air-flow around bulb for cooling

•Matching polycarbonate end-cap available to provide complete bulb protection

Length 6- 5

/8”. Diameter 4-11

/16”

Accommodates up to 150 watt rough service lamps.

*214 guards fit heavy duty grade stringlights

212 guards fit commercial grade E-Lite stringlights

Universal style plated or vinyl coated

Heavy Duty Wire Lamp Guards Selection Guide

NOTES:

1. For use with E-Lite™ Series stringlights & heavy-duty molded stringlights.

Snaps On!

211-BG

Fits:

•211

•220

•211-P

•220-P

Collar Diameter

Description 1-3/4”* 1-1/2”*

Guard Only #214 #212

Guard with end cap #215 #226

End cap only #216 #216

Guard Style #211 #220 #222 #224

Lamp Size up to 150 watt

A-23-RS or 200 watt

A-23/Std.

150 watt PS25

or 200 watt

PS30-RS

150 watt

A-23/RS or 200 watt

A-23/Std.

PAR-38

R-4

Plated #211 #220 #222-L #224

Vinyl coated #211-P #220-P #222-LP #224-P

Collar Diameter* 1-3/4”* 1-3/4”* 1-3/4”* 1-3/4”*

Dimensions Length 7”

Diameter 4-3/4” Length 10”

Diameter 5” Length 6-1/2”

Diameter 4” Length 7-1/2”

Diameter 6-1/2”

USE WITH INCANDESCENT, CFL OR LED BULBS

Made in

the USA

TEMPORARY LIGHTING

Stringlight Accessory

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

•Can be used with Ericson’s plated, vinyl-coated & plastic lattice

guards. Not recommended for use with 214 or 212 RainGuard®

•Side cutouts provided for use with metal grounding tabs.

1/16” thick for

durability

Design allows for

wire guard mounting

High temperature

silicon rubber

Grounding tab

for wire guards

Provides weather tight

seal around lamp base

Keeps out water, salt spray & sludge

•High Temp material

for use up to 600 °F

(315.5 °C)

Socket Sleeve

The Socket Sleeve adds an extra layer of environmental protection between the elements and the socket. It slips easily over the

socket and seals tight around the lamp. The socket sleeve is available for the E-Lite and the heavy-duty industrial string lights.

Sleeve fits snuggly around socket & bulb!

Just Add

A Wire Guard!

FITS ALL

STRINGLIGHTS!

Keeps Electrical

Contacts

Dry & Clean

Description Catalog Number Qty

Socket Sleeve for use with E-Lite & Construct-O-Lite® string lights 11/2”SS-E-LITE 10/Bag

Socket Sleeve for use with heavy-duty string light 13/4”SS-HD 10/Bag

See the Video

Made in

the USA

TEMPORARY LIGHTING

Stringlight Assembly Configurator

Overall Length: ____________________________________

Primary (Lead) Length: ______________________________

Secondary (Tail) Length: ____________________________

Plug (ex: 1510-PW6P): ______________________________

Connector (ex: 1610-CW6P): __________________________

Cable Size/Type (ex: #12/3 SEO): ______________________

(Note: Wire guards require ground wire)

Cable Color: ______________________________________

Total Number of Lamp Sockets: ______________________

Spacing between Sockets:____________________________

Lamp Guard Type (select from list below):

211 214 220 222-L 224

211-P 212 220-P 222-LP 224-P

The drawing below is intended to serve as a reference tool to assist in the specification of your custom assembly.

Name: ____________________________________________________________

Company: __________________________________________________________

Phone: ____________________________________________________________

e-mail: ____________________________________________________________

Stringlight Assembly Configurator

1-800-ERICSON (374-2766) •www.ericson.com

Color

E-LIte Style

Black “T” with Yellow Cord

Black “T” with Black Cord

Easy as 1-2-3

1. Fill in all information

2. Select grade & colors

3. Fax: 1-440-951-1867

Scan/e-mail:

info@ericson.com

Heavy Duty Style

Yellow “T” With Yellow Cord

Black “T” With Black Cord

Yellow “T” With Black Cord

Black “T” With Black Cord

Grade of Stringlights

Commercial Grade (STW 600V Cable & E-Lite Sockets)

Industrial Grade (Heavy Duty Sockets & SEOW 600V Cable)

E-Lite Socket Heavy Duty Socket

Primary (lead) Secondary Length

Plug

Overall Length

Length Socket

Spacing Connector

Cable

Size/Type

•150W Rated

•Medium Duty

•Good All Around Performance

•1-1/2” Guard Collar Diameter

•200W Rated

•Heavy Duty Rubberized Feel

•Great Low Temp Operation

• 1-3/4” Guard Collar Diameter

Note: Add “-P” to part number to indicate vinyl coated, grounded wire.

214 has a 1-3/4” diameter collar • 212 has a 1-1/2” diameter collar.

Note: NEC 590 does not allow the

mixing of power & lighting taps on

a single GFCI protected circuit.

211 Guard 212/214 Guard 220 Guard 222-L Guard 224 Guard *A complete list of Factory

Reps can be found on our

website

Made in

the USA

TEMPORARY LIGHTING

Hazardous Location Explosion Proof Stringlights

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

•Available in 50 and 100 ft. lengths

•5 light (50’) and 10 light (100’)

•Can use incandescent or self-ballasted CFL bulbs (included)

•Tough molded “T” drop bonds to SEOW cord

•#12/3 cord SEOW standard

•10 ft. spacing on lamps drops

•Class 1 & 2 Div 1 & 2

•Groups C, D, F & G

Heavy-duty

thick hang tab

Tough

molded

“T” drop

Super

strong

extension

Aluminum

anti-spark

guard

Tempered glass

globe provides 360

Illumination

Union style nut

holds lamp

assembly firmly

to “T” drop

EZ to remove

& repair

Rubber bumper

protects lamps

during storage

and installation

Snap-on bumper

protects employees from

overhead injuries

Can be

replaced

with hook

EXPLOSION

PROOF!

Class 1 & 2

Div 1 & 2

CERTIFIED

NOTES:

1. Plug is not explosion proof and is intended to be used outside of the hazardous area

- do not connect to live powered circuit

2. 75W 120V incandescent

3. 23 Watt self-ballasted CFL bulb included

4. Contact factory for custom assemblies

Hazardous Duty Stringlight Selection Guide

Replacement Parts

Model

Overall

Length (ft)

# of

Lamps

Installed

Lamp Center

Spacing (ft)

Lead Cord

Length (ft)

Plug

Connector1

12350XPI-BL

120V Incandescent

blunt u-add

123100XPI-BL

100

blunt u-add

12350XPI-1

5-15P (1510-PW6P)

5-15C (1610-CW6P)

123100XPI-1

100

5-15P (1510-PW6P)

5-15C (1610-CW6P)

12350XPI-3

L5-20P (2310-PW6P)

L5-20C (2410-CW6P)

123100XPI-3

100

L5-20P (2310-PW6P)

L5-20C (2410-CW6P)

12345XPI-1-LP

5-15P (1510-PW6P)

5-15C (1610-CW6P)

12365XPI-1-LP

5-15P (1510-PW6P)

5-15C (1610-CW6P)

12350CFLXPI-BL

120V CFL Edison Base

blunt u-add

123100CFLXPI-BL

100

blunt u-add

12350CFLXPI-1

5-15P (1510-PW6P)

5-15C (1610-CW6P)

123100CFLXPI-1

100

5-15P (1510-PW6P)

5-15C (1610-CW6P)

Model Description

2611-handle Replacement handle for stringlight

Use standard

incandescent bulbs

for traditional

lighting

Use self-ballasted

CFL bulbs to reduce

power & temperature

LAMP CAN USE BOTH

TYPES OF LIGHT BULBS

FEATURE

Class 1, Div. 1

Style

Plug & Connector

Available Made in

the USA

TEMPORARY LIGHTING

Baylite™ - Metal Halide Temporary Light Fixture

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

Model

1004-MHXPS

Easy internal

taps for 208,

240, 277 volts

“One hand” easy to hang

locking spring hook

Heavy duty steel,

powder coated

enclosure

Standard

3 ft cord

Approved

Molded

5-15P

Snap-on bottom guard

Hangs to change bulb

Pink socket

assures

compliance

rejects old

style bulbs

More efficient

Pulse Start

Ballast

Rugged welded

mounting ring

attaches to

ballast body

Locking

spring

EZ hook

Easy to assemble

guard mount ring

Durable

welded

guard

Type O

pulse bulb

included!

Double

envelope

bulb

stops

ruptures

at end

of life

400 & 250 Watt Pulse Start Metal Halide Temporary Light Fixture

Assemble Guard

Install Lamp

Hang & Connect

SETTING UP IS

AS EASY AS:

Model

1004-MHX-R16PS

16” Reflector

•Pulse Start ballast meets the requirements of the Energy Independance Act of 2007

•CULUS Listed - suitable for damp locations

•Open-air ballast for cooler operation

•Multi-Tap ballast: 120V, 208V, 240V, 277V: Factory wired at 120V

•Base models have 3 ft 18/3 power cord with 5-15P molded plug.

Feed thru models have 14/3 molded primary and secondary cords attached.

(see chart)

•Clear metal halide pulse type O lamp included (NEC 2008 Compliant)

•Average rated lamp life of over 10,000 hours

•Super bright metal halide lamp has a color temperature of 4000K

•EZ hook with locking feature - fixture mounts in seconds, no tools required

•(2) ¾" knock-outs for optional conduit access (on base models only)

DAMP

LOCATION

RATED

Baylite™ - Metal Halide Temporary Light Fixture

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY LIGHTING

Old style

Only new type O pulse bulbs

will operate in Baylites™

New NEC

Approved Type O

New NEC

Approved Type O

Flat

1. Extended Electrode Tip

2. Check For Second Plasma Tube

Old Style VS

New NEC Approved Type O Bulb

Dimensions:

4.25” 6.07”

7.71”

9.84”

23.25””

3.5”

ø9.92”

2.21”

400 & 250 Watt

Models Available

NEC 2008

Code

Compliant

Model 1004-MHXPS-25

50’ also available

(1004-MHX-50PS)

Model

1004-MHX-R16PS

16” Reflector

Specifications

Model Wattage Guard Primary Feed Secondary feed

1004-MHXPS 400 Open Cage 18/3 3ft 5-15P N/A

1004-MHX-R16PS* 400 16" alum reflector 18/3 3ft 5-15P N/A

**1004-MHX-50PS 400 Open Cage 14/3 1ft 5-15P 50 ft 14/3 5-15C

1002-MHXPS 250 Open Cage 14/3 1ft 5-15P N/A

Catalog Number

Description

1004-MHX-LPS

Type O 400W M155 E Pulse Start Bulb

1002-MHX-LPS

Type O 250W M155 E Pulse Start Bulb

1004-MHX-G Wire guard for 1004-MHXPS

1004-REFL 16” reflector guard kit (retro fit)

1004-MHX-BG Bottom snap-on guard

Replacement Parts

NOTES:

* Sold in 2 pack cartons - add “-2” to each order. **CSA only

Need Help

with Lighting

Lay Out?

See page 276

Handlamp Selection Guide

1-800-ERICSON (374-2766) •www.ericson.com

70-NGQL

Descriptions Page

Light

Duty

Medium

Duty

Commercial

Heavy

Duty

Industrial

Vapor

Proof

Industrial

Explosion

Proof -

Hazardous

Location

120

Volt

Models

12 V

Models

Incandescent

Bulb Models

Fluorescent

Bulb

Models

U Add-

a-Cord

Models

Pre-wired

Cord

Connected

Models

2900 Series ••••

••••

400 Series Angle ••••

500 Series Pivot ••••

7 Series Single Bulb •••••

9 Series Single Bulb •••••

700 DHH Dual Bulb

Series •••••

70-NG Series •••• ••

900 Series Fluorescent ••••••

926 Series Fluorescent ••••••

1917 Series 30 Watt •••••

1918 Series 30 Watt •••••

1950 Series 30 Watt ••••

1924 Series •••• •

1926 Series ••• • •

2200 Series •• • •

2500 Series •• •••

2600 Series ••• • • ••

744 926-25 918 2500

Made in

the USA

TEMPORARY LIGHTING

Commercial & Light Duty Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Light Duty Incandescent Handlamps:

2900 Series

For many applications the 2900 Series hand lamp offers an

economical alternative and proven performance. Typical

applications include general maintenance, construction,

remodeling, demolition and repair work.

2900 Series Hand Lamps

•UL & CUL Listed

•Lightweight and compact

•Handle constructed of

high-impact black nylon

•Includes switch

•50’ cord length with molded

on NEMA 5-15 plug

•Receptacle in handle

2900 Series

with 25’ cord 2925

with 50’ cord 2950

Specifications:

Electrical Ratings 120V, 60Hz

Max. Wattage 100 watt

Cord Size/# Conductors #16/3

Cord Type SJTW

Plug Molded NEMA 5-15 plug

Switch Yes

Outlet in Handle Yes (NEMA 5-15)

Reflector Guard Yes

Swing Open Guard Yes

Swivel Hook No

400 Series

Angle Lights

• Magnet Mount

• Receptacle

• On/Off Switch

500 Series

Pivot Lights

• Magnet Base

• On/Off Switch

• Folds

• Receptacle

13-watt AC 13-watt AC

with 25’ cord 413-25 513-25

with 50’ cord 413-50

Electrical Ratings 120V, 60Hz 120V 60HZ

Cord Size/# Conductors #16/3 #16/3

Cord Type SJTOW SJTOW

Ballast Location Handle Base

Power Inlet Molded NEMA 5-15 plug Molded NEMA 5-15 Plug

Power Receptacle Rating NEMA 5-15 120V, 13Amps NEMA 5-15 120V, 13Amps

Light Duty Fluorescent Handlamps

•Cool glare-free light ideal for close-up work

•Fluorescent tube protected by clear butyrate lens

•Lamp secured by shock-absorbing retainers

•Flexible hook for easy positioning

•Shatter-resistant plastic housing

15-watt

with 25’ cord 801-25

Specifications:

Electrical Ratings 120V, 60Hz

Replacement lamp F15T8/CW

Ballast Location Integral with plug

Plug NEMA 5-15

Switch Yes

Overall Length 26

Max. O.D. 2-1/8

Weight 2.5 lbs.

801-25

2900

400 & 500 Series Fluorescent Handlamps

Clear lense Work hook On/off

switch

Multi position

flip action

Receptacle

Magnet

Magnet base

On/off switch

Clear lense

TEMPORARY LIGHTING

Material

•Proprietary Rubber

•Lampholder/Cord Entry Seal: Rubber

•Screwshell: Tin-plated brass

•Side Outlet: NEMA 5-15R (900 Series only)

Electrical

•Operating voltage: 120V or 12V (bulb choice)

Mechanical

•Color: Yellow

•Cord Types: SOW

•Up to 14/3 SOW

Need to ensure that your

handlamps stay on the

jobsite?

Customize with:

• Color

• Handle marking

• Cord marking

Rubberized

Heavy Duty

Design

CUSTOMIZE

Industrial Duty Incandescent Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

•UL Listed and CSA Certified, ETL and CETL Listed

•Molded flexible handle impervious to impact and resistant to jobsite chemicals

•Standard with NEMA 5-15 side outlet (9 Series only)

•Available with optional switch

•Wide selection of pre-wired handlamps and component parts

•Ericson’s exclusive Safety Yellow and Blue color combination for easy identification

•Prewired models come with #16/3 SOW cord and Ericson’s 1510-PG Perma-GripTM plug

7 & 9 Series Industrial Duty Incandescent Handlamps

7425-R

shown

9425-R

shown

*These lamps have one or more approvals

SPECIFICATIONS

Weather resistant socket

Superior low temperature performance

One-piece encapsulated

cover molded around

screw shell and wire

leads.

Code compliant grounding

clip is furnished standard

on all hand lamps to

provide safety ground

for wire guards.

Optional switch available

on all hand lamps.

Internal fiber strain relief

disc removes tension on

wiring connections.

6” long leads

#14 AWG

Flexible neck seals around

lamp bulb to resist entry of

moisture and dirt.

Restricted cord opening

resists entry of moisture

and dirt, accommodates

wire sizes # 18/2 SJO

through #14/3 SO.

One-piece smooth molded

handle insulates and resists

grease, oils solvents, extreme

temperatures and moisture;

smooth surface cleans easily

retains radiant yellow safety

color over its long life.

USE WITH

INCANDESCENT

OR CFL BULBS

Made in

the USA

TEMPORARY LIGHTING

Complete

Ready To Wire

Cord Supplied Lamps

7 Series 9 Series

Handlamp Handles w/Guard

Closed-end Closed-end Closed-end Closed-end

Cord

Reflector Switch Length

No No N/A 744 718 944 918

No No N/A 744-I 718-I 944-I 918-I

Yes No N/A 744-R 718-R 944-R 918-R

Yes Yes N/A 744-RS 718-RS 944-RS 918-RS

No Yes N/A 744-S 718-S 944-S 918-S

Pre-Wired Models with SOW cord and NEMA 5-15 Plug

No No 25’ 7425 7825 9425 9825

No No 25’ 7425-I 7825-I 9425-I 9825-I

Yes No 25’ 7425-R 7825-R 9425-R 9825-R

No No 50’ 7450 7850 9450 9850

No No 50’ 7450-I 7850-I 9450-I 9850-I

Yes No 50’ 7450-R 7850-R 9450-R 9850-R

No Yes 25’ 7425-S 7825-S 9425-S 9825-S

Yes Yes 25’ 7425-RS 7825-RS 9425-RS 9825-RS

No Yes 50’ 7450-S 7850-S 9450-S 9850-S

Yes Yes 50’ 7450-RS 7850-RS 9450-RS 9850-RS

Specifications:

Electrical Ratings 120V, 60Hz 120V, 60Hz

Cord Size/# Conductors #16/3 #14/3

Cord Type SOW SOW

Plug NEMA 5-15 NEMA 5-15

Notes:

1. Consult factory for custom assemblies

2. Bulbs are not furnished with handlamps

3. Vinyl insulated guards available: Add ”I” to catalog number to specify (not on R models).

4. Switch available: Add “S” to catalog Number to specify. Example 7425-R becomes 7425-RS

Vinyl

Insulated

Guards

Available

Industrial Duty Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

All Weather Switch

Models Available

Made in

the USA

TEMPORARY LIGHTING

•Molded plug end

•With ground tab for wire guards

•Socket wired

•Just add guard

7 Style Handle

•Receptacle in handle

•Molded cord plug

•With ground tab for wire guard

•Socket wired

•Just add guard

9 Style Handle

Industrial Duty Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

Replacement parts

7 Series Handles 9 Series Handles Socket, Ground Clip & Switch for use

with 7 and 9 Series Handles

No Switch With Switch No Switch

with Receptacle

With Switch

with Receptacle

Socket

with 6” leads

Ground Clip

with lead

Switch

with weather boot

Handle Only

-S99-S

44-W 710 79

Handle Assembly (with socket & ground clip)

7-A 7-SA 9-A 9-SA

Lamp Guards for 7 and 9 Series Handlamps

Closed End

Wire Guards

No Reflector 104 104-I 118 118-I

With Reflector 104-R 118-R

Max Wattage 100W 150W

Open End

Wire Guards

No Reflector 107 107-I 119 150 150-I

With Reflector 107-R 119-R

Max Wattage 150W 300W 150W PAR38 or 300W type R

9 Style Handle Pre-Wired Cat. #

Handle With 25 Ft #16/3 SOOW Cord & 5-15 Plug - No Switch 9-A25

Handle With 50 Ft #16/3 SOOW Cord & 5-15 Plug - No Switch 9-A50

Handle With 25 Ft #16/3 SOOW Cord & 5-15 Plug - With Switch 9-SA25

Handle With 50 Ft #16/3 SOOW Cord & 5-15 Plug - With Switch 9-SA50

7 Style Handle Pre-Wired Cat. #

Handle With 25 Ft #16/3 SOOW Cord & 5-15 Plug - No Switch 7-A25

Handle With 50 Ft #16/3 SOOW Cord & 5-15 Plug - No Switch 7-A50

Handle With 25 Ft #16/3 SOOW Cord & 5-15 Plug - With Switch 7-SA25

Handle With 50 Ft #16/3 SOOW Cord & 5-15 Plug - With Switch 7-SA50

For

PS25

Bulb

For

PS25

Bulb

For

PS25

Bulb

For

PS25

Bulb

For

PS25

Bulb

For

PAR

Bulb

For

PAR

Bulb

Just Add

a Guard

Note - These open end guards are no longer certified or listed, per UL 153 Standard.

Adding these guards to a handlamp constitutes a product that can’t be UL listed.

Made in

the USA

TEMPORARY LIGHTING

Low Voltage Transformers

Ericson’s Heavy duty isolation-type low voltage transformers feature

low voltage safety and extreme weather resistance. Designed for

demanding environments, these

transformers withstand long

periods of rugged use. Available

in 12 Volt models with either 2 or

4 outlets. Each outlet is covered

by Ericson’s flip seal cover to pro-

vide added protection against

the most extreme environments

such as: boiler inspection, work inside drums, tanks and vessels. In damp,

confined locations it is imperative that line voltage be reduced to eliminate

the hazards of shorts and shock and to meet the requirements of

OSHA/NEC/CEC.

Low voltage hand lamps Model

with 50’ cord (5-15 plug) 1946-12

with 50’ cord (CF plug) 1946-12CF

Primary Voltage 12-14 VAC

Maximum Wattage 100 watts

Cord Type #14/3 SOW

12 Volt AC

Consult factory for custom assemblies

Requires 12-14 VAC source

Industrial Duty Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

12VAC Model (744 Style)

1946-12

Rubberized Handlamp

Without Transformer

See the complete details of these

transformers on page 96

1940-12

1941-12

Made in

the USA

TEMPORARY LIGHTING

70-N Vapor-Gard® Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

EZ to replace

socket

Can Use Both

Lamp Types

Material

•Proprietary Rubber

•Lampholder/Cord Entry Seal: TPE

•Screwshell: Tin-plated brass

•Lamp Guard Plating: Zinc-chromate

Electrical

•Operating voltage: 120V or 12V

Mechanical

•Can use cord types:

up to 12/3 SOW

SPECIFICATIONS

Vapor-Gard® Hand Lamps Are Grounded

Not Available With Switch

Meet OSHA Requirements:

1926.403(g) 1926.405(j)(iii)

Meet National Electrical Code Requirements.

410-42(a) (b) 410-44

410.82 410.62

Swivel

hook

Guard is constructed

out of heavy-gauge

steel wire

Glass globe is

heat & impact resistant, threads

into handle sealing bulb &

socket from the environment

Rugged molded

lamp holder is

easy to replace

Cord entry provides

strain relief.

Seals out

moisture & dirt

Exclusive molded

plug seals to FS

flip cover

Molded, impact &

chemical resistant

TPE/TVP handle

Standard models come

with 16/3 SOW cordset

Screw-on or Quik

latch guard

attachment options

VAPOR

PROOF!

Vapor-Gard® Handlamps: 70N Series

•Molded handle impervious

to impact and resistant to jobsite chemicals

•Glass globe is heat and impact resistant and threads

into handle sealing bulb and socket

•Guard is constructed out of heavy-gauge steel wire and

finished with a Zinc-Chromate plating to resist corrosion

•Optional Quik-Latch guard makes bulb changes

easy – No tools required

•Cord entry provides strain relief and seals out moisture

and dirt

•Wide selection of pre-wired handlamps and

component parts

•Ericson’s exclusive Safety Yellow and Blue color

combination for easy identification

•Prewired models come with #16/3 SOW cord and

Ericson’s molded sealing plug

1948-12

75W

(12V bulb included)

12VAC Model

Lamp

globe

screws

into base

See chart

for other

12V models

Made in

the USA

TEMPORARY LIGHTING

70-N Vapor-Gard® Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Replacement Parts

Description

Catalog

Number

Screw-release guard, no reflector 702

Quik-Latch guard 703

Screw-release guard, vinyl coating 704

Glass globe 707

Handle only, no socket, no cord nut/grommets 708

Socket with pigtails 44-W

Repair Kit with socket tool 712

12V 75W incandescent bulb 1935-12

44-W 1935-12

* Ericson uses Extra Hard Use 600V cord to ensure long lasting performance and sized to the electrical load ampacity

** Voltage is determined by the bulb used. - Bulbs not included with "70" series handlamps

*** 12 Volt Incandescent Bulb included - "1948" models only

712 repair kit.

70NG Series Handlamps

702 703 704 707 708

Catalog

Number Cord Length Cord Type * Plug Guard Type Reflector

Vinyl

Coated Voltage**

70-NG u-add u-add u-add 702 No No 12 - 240V

70-NGR u-add u-add u-add 702-R Yes No 12 - 240V

70-NGQL u-add u-add u-add 703 No No 12 - 240V

70-NI u-add u-add u-add 704 No Yes 12 - 240V

70-NI25 25 #16/3 SOW Molded-on 5-15P 704 No Yes 125V

70-NI50 50 #16/3 SOW Molded-on 5-15P 704 No Yes 125V

70-NG25 25 #16/3 SOW Molded-on 5-15P 702 No No 125V

70-NG50 50 #16/3 SOW Molded-on 5-15P 702 No No 125V

70-NG100 100 #16/3 SOW Molded-on 5-15P 702 No No 125V

70-NGR25 25 #16/3 SOW Molded-on 5-15P 702-R Yes No 125V

70-NGR50 50 #16/3 SOW Molded-on 5-15P 702-R Yes No 125V

70-NGR100 100 #16/3 SOW Molded-on 5-15P 702-R Yes No 125V

70-NGQL25 25 #16/3 SOW Molded-on 5-15P 703 No No 125V

70-NGQL50 50 #16/3 SOW Molded-on 5-15P 703 No No 125V

70-NGQL100 100 #16/3 SOW Molded-on 5-15P 703 No No 125V

1948-12 50 #14/3 SOW Molded-on 5-15P 703 No No 12 Volt***

1948-12CF 50 #14/3 SOW 1507-P Crowsfoot 703 No No 12 Volt***

1948-12CFR 50 #14/3 SOW 1507-P Crowsfoot 702-R Yes No 12 Volt***

Made in

the USA

TEMPORARY LIGHTING

Industrial Fluorescent Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

Ericson’s Portable Fluorescent Hand Lamps are ruggedly constructed for service in industrial applications, construction,

shipbuilding, public utilities, paper mills, food processing, chemical plants and other areas where a rugged cool, non-glare

lamp is needed.

Features

•OSHA Compliant - Meets OSHA regulations for wet and other conductive locations.

•Cool, Glare - Free Light - Ideal for those applications where hot, glaring light can be a hazard.

•Switch (optional) - Heavy duty rubber boot, push on/off operation, seals out water.

•Field Serviceable - Field repairs are quick and convenient with a wide-range of replacement parts.

•Rubberized Handle - is non-conductive, non-corrosive and easy to grip.

•Flex Strain Relief - Provides added protection for cord at critical bending points.

•High -Visibility dual-color safety system for easy identification on the jobsite

•Lightweight - Non-conductive construction with high-impact lens.

•Ballast -Enclosed in handle, so it’s easy to move around the jobsite.

•Plug - Molded on sealing plug mates with water tight.

Ballast

Protected

In Handle

Magnet with

Adjustable Velcro

strap holds lamp

securely for a hands

free light source.

926-25

26 Watt 13 Watt

900-25

7MH001

Order separately

NO INLINE

BALLAST

TO DAMAGE

Low Voltage

Model Available

Made in

the USA

TEMPORARY LIGHTING

Industrial Fluorescent Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

13 Watts 26 Watts

with 25 ft. cord - no switch 900-25

with 50 ft. cord - no switch 900-50

without Cord - no switch 900-L0 926-L0

with 25 ft. cord and switch 900-25S 926-25

with 50 ft. cord and switch 900-50S 926-50

without Cord - switch 900-L0S 926-L0

Specifications

Electrical Ratings 120V, 60Hz 120V, 60Hz

Primary Cord Length see above see above

Ballast Location Handle Handle

Cable Gauge/Type (Base Units Only) #16/3 S00W #16/3 S00W

Molded on Plug NEMA 5-15 NEMA 5-15

Bulb Type F13DBX23T4/SPX41 F26DBX/SPX41

Initial Lumens 825 1710

Color Rendition Index (CRI) (2) 82 82

Color Temperature (K) (3) 4100 4100

Avg. Rated Bulb Life (Hours) 10000 10000

Low Temp Start 32 °F (0 °C) 10 °F (-12 °C)

Fixture Weight (w/ 25ft cable) 2.5 lb 1.87 lb

Replacement Parts 900 Style 926 Style

End cap with hook, replacement 901 926-EC

Tubeshield, replacement 902 926-TS

Lamp T5 13W OR 26W, replacement 903 926-CF

Cushion, lamp, kit (Model lamp specific) 904 926-RS

Handle w/ ballast & socket - 25' cord set 905 926-BAL25

Handle w/ ballast & socket - 50' cord set 906 926-BAL50

Cordset replacement, both models 120V 25' 926-CRD120V25 926-CRD120V25

Cordset replacement, both models 120V 50' 926-CRD120V50 926-CRD120V50

900 Series-Fluorescent Work Lights

Notes:

1. Consult factory for custom assemblies

2. Based on a scale from 1 to 100 where 100 represents sunlight. The higher the number the more true the color appears (ie grey vs green)

3. Sunlight is simulated with a light that is about 5000 K. The higher the number the whiter the light

4. LO models are not UL listed

926-25900-25

Swivel metal hook

TPE/TPV end caps

Heavy duty clear tube shield

Protected ballast in molded TPV/TPE handle

Reflector built in

Molded cord plugs

16/3 SOOW

Made in

the USA

TEMPORARY LIGHTING

26 Watt Low-Voltage Fluorescent Handlamps

w/ 25 ft. cord 926-25LV(3)

w/ 50 ft. cord 926-50LV(3)

Specifications:

Electrical Ratings 12VAC/26 Watt

Ballast Location In Handle

Switch Location In Handle

Cable Gauge/Type #16/3 SOOW

Plug (Crowsfoot ) 1507-PW6P

Bulb Type F26DBX/SPX41

Initial Lumens 1710

Color Rendition Index (CRI) (1) 82

Color Temperature (K) (2) 4100

Avg. Rated Bulb Life 10,000 hours

Low Temp Start 10F (-12C)

Fixture Weight: 1.87 lbs

Industrial Low Voltage Fluorescent Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

The next generation of OSHA Compliant temporary lighting is now available. Low Voltage Fluorescent

Fixtures are an ideal alternative to the hot, glaring light produced by incandescent fixtures.

OSHA 1926.405(a)(2)(ii)(G): “Portable electric lighting used in wet and/or other

conductive locations, as for example, drums, tanks, and vessels, shall be operated

at 12 volts or less.

926 Series Low-Voltage Fluorescent Handlamps

•OSHA Compliant - Meets OSHA regulations for confined space requirements.

•Outdoor Use - Fixture is rated or demanding outdoor & in-plant environments.

•Cool, Glare-Free Light - Ideal for those applications where hot, glaring light can be a hazard.

•Switch (optional) - Heavy duty rubber boot, push on/off operation, seals out water.

•Field Serviceable - Field repairs are quick and convenient with a wide-range of replacement parts.

•Rubberized Handle - is non-conductive, non-corrosive and easy to grip.

•Flex Strain Relief - provides added protection for cord at critical bending points.

•High-visibility dual-color safety system for easy identification on the jobsite

•Lightweight - non-conductive construction with high-impact lens.

•Ballast - Enclosed in handle, so it’s easy to move around the jobsite.

Notes:

1. Based on a scale from 1 to 100 where 100

represents sunlight. The higher the number the

more true the color appears (ie grey vs. green)

2. Sunlight is simulated with a light that is about

5000 K. The higher the number the whiter the light

3. For use with 12VAC power source; Ericson CF Series

transformers

4. Also available in a DC version. Consult factory

for custom assemblies

926-25 LV

26 Watts

of White

Glare-Free

Light!

Volts

Requires

low voltage

transformer

120V to 12V

Transformer Can

Operate 2 Lamps

Factory-wired with water tight

crowsfoot plug to mate with CF

series transformers.

1940-12CF

Made in

the USA

TEMPORARY LIGHTING

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Construction EMT Rigid Lighting

47 Series In-Room Lights

Ericson introduces an alternative to mid construction lighting with our 47 Series of single in-room lights for construction sites.

If the rigid is in place, wired and you need lighting for other trades, here is a quick easy answer.

•Easy to hang with a 3/4" rigid clamp or attach to existing job box

•Fluorescent units come with an electronic smart ballast

•Smart ballast has long bulb life compensation and cold temp compensation

•Open wire guard protects bulb and meets OSHA requirements

•Edison base unit can use CFL bulb for lower "green" energy conservation

Bulb included

Fits standard 4” job box

Socket without job box

Up to

150 watt

Bulb not

included

Part # Description

47FL Single Drop Light, 26W Fluorescent, Complete Assembly w/ Job Box and Hanger

47F Single Drop Light, 26W Fluorescent, w/o Job Box

4780F Single Drop Light, Edison Socket Base, Complete Assembly w/ Job Box and Hanger

4780 Single Drop Light, Edison Socket Base, w/Guard, w/o Job Box

4744 Single Drop Light, Edison Socket Base, w/6” Leads

44W Single Socket w/6” Leads

211 Bulb Guard, Welded Wire, Zinc Coated, Screw Clamp

04201 Plastic Bulb Guard, Snap On

26 Watt

Fluorescent

Fixture

47FL

Single Bulb

Fixture

4780F

4780

44-W

4744

47F

Use standard

incandescent bulbs

for traditional

lighting

Use self-ballasted

CFL bulbs to reduce

power & temperature

CAN USE BOTH TYPES

OF LIGHT BULBS

211 04201

TEMPORARY LIGHTING

Industrial Low Voltage Handlamps, Spot Lights/Floodlights

1-800-ERICSON (374-2766) •www.ericson.com

Consult factory for custom assemblies

1.81

1.5

9.06

Ø5.77

12 Volt, 30 Watts

w/out switch w/ switch

Spotlights 1917-12 1917-12S

Floodlights 1918-12 1918-12S

Specifications:

Primary Voltage 120VAC, 60Hz 120VAC, 60Hz

Secondary Voltage 12VAC 12VAC

Maximum Wattage 30 watts 30 watts

Primary cord gauge & type #16/3 SOW #16/3 SOW

Primary cord length 4 ft. 4 ft.

Secondary cord gauge & type #16/3 SOOW #16/3 SOOW

Secondary cord length 50 ft. 50 ft.

Plug NEMA 5-15 NEMA 5-15 1917-12

Ericson’s Industrial Low voltage Spot and Flood handlamp has many features for specific applications that require the

highest quality rugged lighting.

• All non-metallic construction

• Non-glass lens for food & beverage processing work

• Can be mounted to an electric cord reel (call for details)

• Large rubberized cushion will not mare or scratch surfaces

• Drop and abuse resistant design and construction

• Switch has all weather boot covering for water tight operation

• Rubberized sealed inline transformer assembly converts 120 to 12 VAC

• High output 50,000 candle power lamp draws only 30 watts

120V to 12V120V to 12V

Rubberized

Encapsulated

Transformer

50,000

Candle

Power Bulb

Lexan, Non-Glass

Clear Protective

Lens

Protective

Rubber Ring

1917-LENS

1917-BULB

1917-BUMP

1917-HAND

1917-HAND-S

Nylon

Body

Catalog Number Description

1917-LENS Lens - Lexan, non-glass

1917-CORD Complete cord & transformer assembly (both 1917 & 1918)

1917-HAND Handle assembly without cord assembly

1917-HAND-S Handle assembly with switch without cord assembly

1917-BULB 50K candle power spot 30W 12V

1917-BUMP Bumper protective ring

1918-BULB 50K candle power flood 30W 12V

Replacement Parts

GREAT FOR:

•Food processing

•Beverage tanks

•Beer, wine, spirit distilling

WET LOCATION RATED

Made in

the USA

TEMPORARY LIGHTING

Industrial Extension Lights for Low Volt Transformers

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Extension Lights for Secondary Side of Transformers

Tough non-metallic design and non-glass lens makes this 12V Extension Light an excellent choice for all food and

beverage processing facilities that require low voaltage confined space tank entry and inspection. 2 Models are

available with standard NEMA 5-15 and Ericson’s Exclusive “Crowsfoot” plug for low voltage operations. The lights

connect to our 1940 & 1941 Series Low Volatge Transformers for easy plug–n-play operation. Built tough to last job

after job.

1950-12 1950-12 CF2

Specifications:

Input (primary) voltage 12 VAC 12 VAC

Cord gauge/type #16/3 SOW #16/3 SOW

Cord length 50 ft. 50 ft.

Plug NEMA 5-15 Crowsfoot

Included lamp 12 V/30 watt 12 V/30 watt

NOTES: 1. Contact factory for custom assemblies

2. Factory wired with water tight crowsfoot plug to mate with CF series transformers

Single-Tap In-line Low-Voltage Transformer

•Ideal for when you need only one outlet

•Converts 120VAC/60Hz to 12VAC (30VA max)

•Compact size is easy to use, store and transport

•Complies with OSHA requirement 1926.405(a)(2)(ii)(G)

•For use with 1950 or 926LV series handlamps

Single-Tap In-line

low-voltage

transformer

CF Series transformers feature

non-NEMA crowsfoot receptacles.

CF Model has

crowsfoot plug

1950-12

Catalog Number Description

LVT-12-ST Low voltage transformer, 12Volt, 5-15 plug & single tap

LVT-12-STCF Low voltage transformer, 12Volt, 5-15 plug & single tap non-NEMA crowfoot connector

1940-12

See next page

for larger 12V

transformers

Made in

the USA

TEMPORARY LIGHTING

Low Voltage Transformers

Ericson’s Heavy duty isolation-type low voltage transformers feature

low voltage safety and extreme weather resistance. Designed for

demanding environments,

these transformers withstand

long periods of rugged use.

Available in 12 Volt models

with either 2 or 4 outlets.

Each outlet is covered by

Ericson’s flip seal cover to pro-

vide added protection

against the most extreme environments such as: boiler inspection, work

inside drums, tanks and vessels. In damp, confined locations it is imperative

that line voltage be reduced to eliminate the hazards of shorts and shock

and to meet the requirements of OSHA/NEC/CEC.

Low Voltage Transformers

1-800-ERICSON (374-2766) •www.ericson.com

•Transformers convert 120VAC/60Hz line voltage to12VAC

•Corrosion resistant enclosures are made from nonconductive engineering

resin so they are resistant to impacts, and jobsite chemicals such as acids, alkalines, oils and salts

•NEMA 5-15 outlets are rated at 100va each (CF models use crows foot style)

•Outlets operate independently of each other - 4 x 100va outputs

•Circuit breakers wired individually to each receptacle and operate independently

of each other – if one circuit opens the other continues to operate

NOTES: 1. Contact factory for custom assemblies

NEMA

5-15P

Heavy duty

SOW cord

Many Low Voltage Lamps To Choose From...

1940-12

CF Series transformers feature

non-NEMA crowsfoot receptacles.

12 Volt Transformers

With NEMA 5-15 Outlets

1940-12 1941-12

With Non-NEMA Crowsfoot Outlet

1940-12CF 1941-12CF

Specifications:

200 VA 400 VA

Number of Outlets (lamps)

Outlet Configuration (1)

NEMA 5-15 Crowsfoot

Input (primary) voltage

120V/60Hz 120V/60Hz

Output (secondary) voltage

12V, 200VA (2 x 100VA) 12V,400VA (4 x 100VA)

Outlet Rating (each)

10Amp/100VA 10Amp/100VA

Cord gauge/type

14/3 SOW 14/3 SOW

Cord length

6 ft. 6 ft.

Plug (1)

NEMA 5-15 NEMA 5-15

Enclosure Environmental Rating

TYPE 4 TYPE 4

Dimensions (in) (LxWxH)

7 x 7 x 6-1/2 11 x 9 x 6-1/2

Weight (lbs)

13.5 22.5

1948-12 1950-12 926-25 LV

FS style

flip covers

Carry handle

Circuit

breaker

4 X 100VA

transformer

Non-metallic

enclosure

1941-12

Made in

the USA

TEMPORARY LIGHTING

Low Voltage Transformers

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Replacement Parts

Description Cat. No.

12 volt transformer only for 1940-12 1943-12

12 volt transformer only for 1941-12 1945-12

Flip assembly with receptacle (5-15R) 2715-FS10

Flip assembly with receptacle (crowsfoot) 2715-FS07

Circuit breaker (12.5 amp) 194XCB

1943-12 1945-12 2715-FS10194XCB

Note: Replacement parts must be installed by a qualified electrician. Replacement pats are for OEM repair and not for use in any other

device or manner. User assumes all responsibility for any use other than repair of original Ericson equipment. Misuse may lead to

damage of other equipment.

Made in

the USA

TEMPORARY LIGHTING

Low Voltage Handlamps with In-Line Transformer

1-800-ERICSON (374-2766) •www.ericson.com

70N Series

Handlamp

2600 Series

Handlamp

Explosion Proof* Lamp

1924 Series

Vapor Proof

1926 Series

•Ericson’s handlamps meet OSHA regulations and create a safer working environment

•Step-down transformers reduce 120VAC line voltage to 12VAC

•Extra-thick walled rubber housing with non-corrosive stainless steel hardware protects transformer from jobsite contaminants

•Transformers incorporate a grounded metal shield between primary and secondary windings to ensure the two voltages are

isolated providing an added degree of protection

•Each transformer is subjected to a factory dielectric test of 1600 volts between primary and secondary windings and between

each winding and ground to ensure safety

•High-visibility dual-color safety system for easy identification on the jobsite

•1924 Series is vapor proof only

Low-Voltage Handlamps: Incandescent

Series (In-line Transformer)

OSHA 1926.405(a)(2)(ii)(G): “Portable electric lighting

used in wet and/or other conductive locations, as for exam-

ple, drums, tanks, and vessels, shall be operated at 12 volts

or less. However, 120-volt lights may be used if protected

by a ground-fault circuit interrupter.

Isolation Transformer

WEATHERPROOF COVER

GROUNDED SHIELD

SECONDARY (12vac 100VAMAX)

LOAD

(12V LAMP)

NEUTRAL (WHITE)

120VAC

60HZ (GREEN)GROUND)

HOT (BLACK)

1924-12A

120V to 12VAC

VAPOR

PROOF!

Shock

resistant

EZ carry

handle Stainless steel

hardware

Environmentally

sealed

Rubberized

TPE/TPV

enclosure

NOTES: *1926 lamp assembly only is certified Class 1 & 2, Div 1 & 2. Transformer is not hazardous location rated.

Consult factory for custom assemblies

Made in

the USA

TEMPORARY LIGHTING

Low-Voltage Handlamps With In-Line Transformer

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Low Voltage Lighting: Incandescent Series

120 Volt AC

12 Volt AC

Low voltage hand lamps Vapor Proof Explosion Proof*

with 25’ secondary cord 1924-12A 1926-12A

with 50’ secondary cord 1924-12B 1926-12B

Specifications:

Primary Voltage 120V, 60Hz 120V, 60Hz

Secondary Voltage 12V 12V

Maximum Wattage 100 watts 75 watts

Primary cord gauge & type #16/3 SOW #16/3 SOW

Primary cord length 10 ft. 10 ft.

Secondary cord gauge & type #14/3 SOW #14/3 SOW

Plug NEMA 5-15 NEMA 5-15

NOTES: *1926 lamp assembly only is certified Class 1 & 2, Div 1 & 2. Transformer is not hazardous location rated.

Consult factory for custom assemblies

Replacement Parts

Description Catalog Number

12V transformer only - 100VA 1931-12

Transformer housing only: 1932

includes stainless steel bolts

& cord grip bushings

Carrying handle with straps 1933

12V, 75 watt incandescent bulb, A-21 1935-12

for use with 1922, 1924 & 1926 Series

1931-12 1932 1933 1935-12

NEED AN

ENGINEERED

SOLUTION?

Call Us Today!

HAVE THE CORD MARKED FOR

YOUR LOCATION

Call for details

Made in

the USA

TEMPORARY LIGHTING

2200 Series 2500 Series 2600 Series

•Spot bulb

•Lightweight

•Hook for light placement

•Class 1, Div 1 Group D

•100,000 candle power

•50 watts

•Ballast in handle

•26W QuadT5 CFL bulb

•Long thin design for hard to reach areas

•Class 1 & 2

• Div 1 & 2

• Groups C, D, F, G

•Incandescent or CFL bulb

•EZ to replace parts

•New cord grip & strain relief

•Up to #12/3 SO cord

•12 volt or 120 volt

•Class 1 & 2

• Div 1 & 2

• Groups C, D, F, G

12 Volt 120 Volt 120 or 12 Volt*

2200 Series 2500 Series 2600 Series

100

Explosion Proof Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

Can Use CFL*

or Incandescent

*CFL = 120V only

Made in

the USA

TEMPORARY LIGHTING

101

Explosion Proof Spot Light

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Low Voltage Hazardous Duty

Handlamps Selection Guide

2200 Series

15.62

Ø5.44 Ø1.63

Class I, DIV 1 Group D

•UL Listed and CSA Certified

•Lightweight construction features non-sparking aluminum guard

and non-conductive, high-impact glass reinforced handle

•Designed for applications requiring weather resistant or spark resistant construction

•Unique cord restraint seal system includes flex relief and cable

cord clamp to provide superior water resistance at cord entry

•Cable cord clamp can be inspected or adjusted without disassembly of handle

•High-impact tempered glass globe threads directly into specially designed handle

•Handle construction provide superior strength and high insulation properties

•Resistant to heat up to 300° F and withstands chemicals, acids and chipping

•Heavy-duty aluminum guard features 360° swivel hook

2200 Series

2200 Series Spotlight

Handlamp Only 2200

w/ 25 ft. cord, 16/3 SOOW 2225

w/ 50 ft. cord, 16/3 SOOW 2250

Specifications:

Environments Class I, Group D

Primary Voltage (3) 12 V

Maximum Wattage 5 0 watts

Primary cord gauge & type #16/3 SOOW

Plug (1) Molded 5-15P

Guard Cast Aluminum

Globe Tempered Glass

Handle Glass reinforced phenolic

2201 Replacement lens only

2202 Replacement guard assembly (no lens)

NOTES:

1. Plug is not explosion proof and is intended to be used

outside of the hazardous area.

2. Contact factory for custom assemblies

3. Requires 12-14V AC source

1940-12

120V to 12V

12 Volt

Requires a

12-14VAC

Source

Replacement Parts

50 WATTS

100,000 CANDLE

POWER

T3C RATED

Use one of our

transformers to

power this lamp

Made in

the USA

TEMPORARY LIGHTING

102

26 W Fluorescent XP Handlamp

1-800-ERICSON (374-2766) •www.ericson.com

2500 Series Fluorescent

Hazardous Duty Incandescent and Fluorescent Handlamps

•UL Listed for Class 1 & 2, Div 1 & 2 locations

•Lightweight construction features non-sparking aluminum guard

and non-conductive, high-impact glass reinforced handle

•Designed for applications requiring weather resistant or spark resistant construction

•Unique cord restraint seal system includes flex relief and cord clamp to provide superior water

resistance at cord entry

•Cable cord clamp can be inspected or adjusted without disassembly of handle

•Handle construction provide superior strength and high insulation properties

•Resistant to heat up to 300° F and withstands chemicals, acids and chipping

•Heavy-duty aluminum guard features 360° swivel hook

Non-sparking

heavy-duty

work hook

Lightweight

aluminum alloy

guard assembly

Cool bright

compact

fluorescent T5

quad tube bulb

(26W)

Rubber shock

bumpers

Slim

lightweight

design

Extra thick

explosion

proof glass

Rugged handle

houses ballast

assembly

360°

Illumination

Super strong cord

clamp assembly

Fits up to

#14/3 cord

O ring seals

Tough cord

strain relief

Class 1 & 2

Div1&2

CERTIFIED

EXPLOSION

PROOF!

Temp Rating T6

Made in

the USA

TEMPORARY LIGHTING

103

26 W Fluorescent XP Handlamp

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

NOTES:

1. Plug is not explosion proof and is intended to be used outside of the hazardous area

2. Contact factory for custom assemblies

* Note: Due to the extremely tight tolerances and special tools required to seal the

globe to the aluminum guard, we cannot offer the glass globe as a single replacement

part. Only certified factory rebuild of the guard/globe assembly maintains the

hazardous location certification.

Hazardous Duty Handlamps Selection Guide

2500 Series

Handlamp Only 2500

Handlamp with 25’ cord 2525

Handlamp with 50’ cord 2550

Specifications:

Environments Class I, Divs 1 & 2, Group C, D

Class II, Divs 1 & 2, Group F, G

Electrical 120V/60Hz

Maximum Wattage 26 watts

Cord gauge & type #16/3 SOW

Plug (1) NEMA 5-15

Guard Cast Aluminum

Globe Tempered Glass

Handle Glass reinforced phenolic

Replacement Parts

2401* 2502 2407 24092503

2500 Series

Guard / Globe Assembly (all models)* 2401

Handle Assembly w/ ballast & socket 26 W 2503

Lamp, 26 Watt 4 Pin 2502

Cord Grip Assembly w/ tool (all models) 2409

Inner Plug assembly only (all models) 2407

Guard Bumper Set (all models) 2406

Need a

Different

Cord

Length?

HAVE THE CORD MARKED FOR

YOUR LOCATION

Call for details

Made in

the USA

TEMPORARY LIGHTING

104

Hazardous Duty Incandescent & Fluorescent Handlamps

1-800-ERICSON (374-2766) •www.ericson.com

2600 Series

Hazardous Duty Incandescent and Fluorescent Handlamps

•ETL Listed & certified

•Lightweight construction features non-sparking aluminum guard

and non-conductive, high-impact glass reinforced handle

•Designed for applications requiring weather resistant or spark resistant construction

•Unique cord restraint seal system includes flex relief to provide superior water resistance at cord entry

•Accommodates #14/3 to #12/3 types S, SO, ST or STO cords

•High-impact tempered glass globe threads directly into specially designed guard assembly

•Handle construction provides superior strength and high insulation properties

•Resistant to heat up to 300° F and withstands chemicals, acids and chipping

•Heavy-duty aluminum guard features swivel hook

•Incandescent handlamp accommodates up to 100 watt bulb

•Easy to replace parts

•Class 1 & 2 Div 1 & 2

•Groups C, D, F & G

Strong

aluminum

guard

Large non-sparking

alloy hook

Thick glass globe

allows 360°

illumination

Incandescent

light bulb

120 or 12V

Self Ballasted

Fluorescent

light bulb**

120V only

Strong handle

with no slip

grip

Rubber bumper

absorbs jobsite

abuse 100 W Max

A-21

** Check size of bulb

Cut-As-U-Go cord

grip strain relief

allows cord from

#16/3 to #12/3 SO

Lamp can

use both

types of

Light bulbs

EXPLOSION

PROOF!

Best

Seller

EZ TO REPAIR

OR REPLACE

Temp Rating T3C with

100 Watt Incandescent

-20ºC to 40ºC Ambient

WET LOCATION RATED

Made in

the USA

TEMPORARY LIGHTING

105

Hazardous Duty Incandescent & Fluorescent Handlamps

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Replacement Parts

Also Available:

Explosion proof

stringlights

(see stringlight section)

NOTES:

1. Plug is not explosion proof and is intended to be used outside of the hazardous area

2. 12V bulb included

3. 23 Watt self-ballasted bulb included

4. Contact factory for custom assemblies

5. Ericson uses extra hard usage cord to ensure long life and sized to the electrical load

Hazardous Duty Handlamps Selection Guide

2600 Series 2600 Low Voltage22600 Fluorescent 3

Handlamp Only 2600 2600-LV 2600-CFL

Handlamp with 25’ cord (1) 16/3 SOOW 2625 2625-LV 2625-CFL

Handlamp with 50’ cord (1) 16/3 SOOW 2650 2650-LV 2650-CFL

Handlamp with 100’ cord (1) 16/3 SOOW 26100 26100-LV 26100-CFL

Specifications:

Electrical 120VAC 12VAC 120VAC

Maximum Wattage 100 W 75W 23 Watt Self Ballast CFL

Cord gauge & types #16/3 SOOW #16/3 SOOW #16/3 SOOW

Plug (1) 5-15 5-15 5-15

2600 Series

Fluorescent

Guard & globe assembly 2601

Lamp, SB 23W CFL Edison base* (6 pk) 2602

2600 handle only 2603

2600 cord strain relief kit 2604

2600 replacement base & socket assembly 2605

Snap-on reflector 2606

Hook assembly 2607

12 V incandescent bulb 75W 1935-12

2601 2602*2603 2604 2605 1935-12

12V

*NOTES: Sold in packs of 6 lamps only

Other Plug Options For XP Service

Crouse Hinds BP49

Killark UGP-15231

Killark UGP-15231MG

Made in

the USA

TEMPORARY LIGHTING

•cULus Listed (SL1NM & SL15NW)

•120VAC 60 Hz 1500W MH

(Twin 750W unit – SL15NW)

•120VAC 60 Hz 1000W MH

(Single 1000W unit – SL1NM)

•1 5/8” 12 Ga. SQ. tube heavy

duty welded frame

•10” all terrain tires

•Detachable telescopic tower

adjustable up to 12 feet

•Automatic brake winch

(SL15NW or SL15GM models only)

•All weather construction

•MH ballasts in NEMA 3R

rainproof enclosures

•Fixtures are fully adjustable and locking

•Independent weatherproof

ON/OFF switch for each fixture

•Locking safety pins to secure

desired height

•Cable storage hooks

•GFCI protected 5-20 receptacle

(SL1NM model only)

•Integrated safety tip

over system

•Compact design fits

through standard door

•Optional 3KW generator set

(gas or diesel) available

Up to 12’ High

Corded

Model

Requires

120 VAC 15 Amp

Locking

Safety Pin

Requires

120 VAC

20 Amp

Gas or Diesel

Generator

Model

Key

Start

GFCI receptacle

on Rear of

Single Units

only

BONUS

RAIN RATED

1500W

(2X750)

1500W

(2X750)

1000W

cULus Listed

SL1NM

Manual

cULus Listed

SL15NW

Winch

SL15GW (gas)

(Contact Factory for Diesel Model)

106

Wide Area Lighting - SunTower™

1-800-ERICSON (374-2766) •www.ericson.com

TEMPORARY LIGHTING

SunTower™

Your Portable Wide Area Lighting Solution in one easy to use assembly -The SunTower™ Light System. All units include a durable

mobile base & large stadium style fixtures which are available with twin 750W MH lamps (SL15NW model) or single 1000W MH lamp

(SL1NM model). Fully adjustable weatherproof fixtures can be directed 360 degrees to where you need ample light most and are

mounted on a telescopic tower raising up to 12 ft. The twin SL15NW model includes an easy to operate automatic brake winch to

adjust tower height and independent weatherproof ON/OFF switches for each fixture. The SL1NM model has a weatherproof ON/OFF

switch plus a GFCI protected receptacle for your power needs. Both models are cULus listed, meet OSHA standards and include an

industry first integrated safety system shutting off lamps in case of tip over preventing potential fire hazard.

See the video

See The Video http://www.ericson.com/product_videos.html

SL1WG

Optional:

Wire Guards

Available

107

Wide Area Lighting - SunTower™

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TEMPORARY LIGHTING

Selection Guide

Cat. #

Description

Generator Set

Tower Type

SL1NM

SunTower Light, Single 1000W MH, Manual Lift Tower 2 Wheeled Cart,

No Generator - cULus Listed

n/a

12' Manual

Extension Tower

SL15NW

SunTower Light, Dual 750W MH, Winch Lift Tower 2 Wheeled Cart, No

Generator -

cULus Listed

n/a

12' Winch

Extension Tower

SL15GW

SunTower Light, Dual 750W MH, Winch Lift Tower 2 Wheeled Cart,

w/3KW Generator

3KW

12' Winch

Extension Tower

SL-L1000

1000 Watt Replacement Lamp For Suntower

n/a

Single Lamp Models

SL-L-750

750 Watt Replacement For Suntower

n/a

Twin

Lamp Models

SL1WG

Wire Guard

n/a

All Models

SL-REFL

Replacement Reflector

n/a

All Models

SL-FIXT

Light Assembly Replacement - includes light fixture and

U bracket for SL1NM or SL15NW

n/a

All Models

SL1NM

Base Replacement Base for Single MH lamp Model - includes main

power cord & connector cord

n/a

12' Manual

Extension Tower

SL1NMMast

Replacement Mast for Single MH lamp Model - includes

(2) safety locking pins

n/a

12' Manual

Extension Tower

SL1NMFixture

Replacement Fixture for Single MH lamp Model - includes light fix-

ture, U bracket, connecor cord and T-bar

n/a

12' Manual

Extension Tower

SL15NW

Base Replacement Base for Twin MH Lamp Model - includes main

power cord & connector cord

n/a

12' Winch

Extension Tower

SL15NWMast

Replacement Mast for Twin MH Lamp Model - includes winch

n/a

12' Winch

Extension Tower

SL15NWFixture

Replacement Fixture for Twin MH Lamp Model - includes light

fixture, U bracket, connecor cord and T-bar

n/a

12' Winch

Extension Tower

108

Wide Area Lighting - Rough Service Fluorescent

1-800-ERICSON (374-2766) •www.ericson.com

1100 and 1200 Series Wide Area Lighting

These portable overhead lights have been engineered to meet the need for safe, temporary, economical lighting for large area.

Their versatility provides for base unit and feed-through unit use to meet virtually any wide area lighting requirement. Heavy-duty

construction and high lumen output make these lights ideal for a broad range of applications including manufacturing plants,

airline maintenance hangers, ship building, food processing plants, utilities, breweries, general maintenance and construction

plus many more. The 1100 Series uses high output T8 fluorescent tubes while the 1200 Series uses long-life biaxial tubes for a

smaller unit where space is major concern.

•Overhead fluorescent lighting designed for temporary lighting in large areas

•Variety of models available including feed-through units that allows you to “daisy-chain” several lights in a row

•Heavy-duty construction and high lumen output

•Lower operating costs versus incandescent lighting means savings for you

•Industry proven cord grip provides strain relief and seals out water, dust and other jobsite contaminants

•Safety yellow and blue for easy identification

•Rapid start lamps and electronic ballast (1140 is multivoltage)

•Impact resistant tube-shield

•Moisture and dust resistant construction seals out contaminants

•One inch wide nylon straps serve as heavy duty hangers and are flexible and adjustable

•Each hanger comes with nickel-plated heavy hooks for corrosion resistance

Feed-thru unit

available on

both styles

Hanging strap included

Heavy duty rubber

ends protect

against impact

4 feet of bright

work light!

Superior sealing

against lens

Bulbs held

securely to

withstand

shock

Low

temperature

New electronic

ballast operates

120 to 277V (auto)

Tube shield

protects

lamp and

difusses light

Dual T8 high

output Lamps

Super bright lamps

Internal all metal

construction

1239-4F

Compact Size!

300V SJOW hard

use cord with

Ericson plug

installed

MULTIVOLTAGE

Automatically Operates

at 120 to 277 VAC

50 or 60 Hz

*1142 only

Model

Number

Electrical

Ratings

Primary

Cord

Length (ft)

Secondary

Cord

Length (ft)

Primary

Plug

(NEMA)

Secondary

Connector

(NEMA)

Bulb

Type Lumens CRI

Weight

(lbs)

1140 Series

1140-4 120V* 60Hz 4 n/a 5-15 -- T8 32W 6000 86 14

1140-4F 120V* 60Hz 4 1 5-15 5-15 T8 32W 6000 86 14.5

1140-25 120V* 60Hz 25 n/a 5-15 -- T8 32W 6000 86 18

1140-25F 120V* 60Hz 25 1 5-15 5-15 T8 32W 6000 86 18.5

1140-50 120V* 60Hz 50 n/a 5-15 -- T8 32W 6000 86 20

1140-50F 120V* 60Hz 50 1 5-15 5-15 T8 32W 6000 86 20.5

1142-25 120 to 277V* 50/60 Hz 25 n/a (1) (1) T8 32W 6000 86 18

1142-25F 120 to 277V* 50/60 Hz 25 1 (1) (1) T8 32W 6000 86 18.5

Current Draw: .46 @ 120V .2Amp @ 277V

1239 Series

1239-4 120V* 60Hz 4 n/a 5-15 -- F39BX 5700 86 8

1239-4F 120V* 60Hz 4 1 5-15 5-15 F39BX 5700 86 8.5

1239-25 120V* 60Hz 25 n/a 5-15 -- F39BX 5700 86 11

1239-25F 120V* 60Hz 25 1 5-15 5-15 F39BX 5700 86 11.5

1239-50 120V* 60Hz 50 n/a 5-15 -- F39BX 5700 86 14

1239-50F 120V* 60Hz 50 1 5-15 5-15 F39BX 5700 86 14.5

* The electronic ballast in the 1140/1142 series automatically adjusts to any voltage level within

the range 120 to 277 Volts.

(1) shipped without the plug and connector

Made in

the USA

TEMPORARY LIGHTING

Stand

Hang

1140-25

Base unit

109

Wide Area Lighting - Rough Service Fluorescent

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

1100 Series

Replacement Parts

39 IN. REF.

6.55

3.50

8.20

3.50 8.20

24.75”

New lamp end

caps allow lamp

to stand upright!

No-Worries

Upright Use Will

Not Crush Cord!

1100 Series 1200 Series

Tubeshield 1140-TS 1239-TS

Replacement Fluorescent Tube 1140-FT 1239-FT

End cap with cord grip bushing for

1100 & 1200 Series. Can be used

for primary side and secondary side

with feed through

1100-P 1100-P

End cap less cord grip bushing for

1100 and 1200 Series. Can be used

for secondary side of base units only

1100-S 1100-S

Made in

the USA

TEMPORARY LIGHTING

1000 Series High Pressure Sodium Wide Area Magnet Mount Light

For the ultimate in durability, choose from Ericson’s Premier™ line of High Pressure Sodium Lighting Fixtures.

Choose from a variety of standard models or specify a custom fixture to meet your exact requirements.

•UL listed and CSA certified

•Impact-resistant molded polycarbonate housing

•Impact-resistant, high temperature clear lens

•Blondel Prisms on inner surface to provide optimum light diffusion

•Available with a 70 watt high-pressure-sodium

•Dual magnets for secure mounting on metal surfaces

•Integral eye-hook for overhead mounting

•#14/3 SJOW cord supplied standard

•HPS model available with optional receptacle, GFCI or both

•Supplied with 70W lamp

110

Wide Area Lighting - High Pressure Sodium

1-800-ERICSON (374-2766) •www.ericson.com

•Available with or

without Receptacle

and Ground Fault

Circuit Interrupter

•Versatile

•Energy Efficient

Inside view

70 Watt HPS

Dual Magnet

Mounting

System for

mounting

on metal

surfaces1

Optional GFCI

protected

receptacle with

Perma-Tite

Flip-Seal Cover

1000 Series HPS Wide Area

Model Voltage

Cord

Length

Location

Rating

With Non-

GFCI Side

Receptacle

With Side Receptacle

with GFCI Class A Open

Neutral Protection

1000 120/ 60 Hz 6 Wet n/a n/a

1000-25 120/ 60 Hz 25 Wet n/a n/a

1000-50 120/ 60 Hz 50 Wet n/a n/a

1000-R 120/ 60 Hz 6 Dry Installed n/a

1000-R25 120/ 60 Hz 25 Dry Installed n/a

1000-R50 120/ 60 Hz 50 Dry Installed n/a

1000-RG 120/ 60 Hz 6 Wet n/a Installed

1000-RG25 120/ 60 Hz 25 Wet n/a Installed

1000-RG50 120/ 60 Hz 50 Wet n/a Installed

Specifications:

Cord: #14/3 SJOW or Equiv

Plug: Nema 5-15P (1510-P)

Lamp: 70 Watt HPS Clear

Bulb: B17 shape med base

CRI: 22

Lumens: 5450

K Temp: 1900

Avg Life Hrs: 24,000

Replacement Parts

Lens & gasket 1000-LRK

Magnet 1000-MAG

Ballast & ingniter 1000-Bal

Replacement bulb 1010

Lens cover

1000-LRK

Large hang

hook

Non-metallic

enclosure

Fully prism

difused lens FS style

flip cover

(1)Use chain or cable if mounted overhead

Made in

the USA

TEMPORARY LIGHTING

111

Wide Area Lighting - Fluorescent

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

•Light weight design

•3 separate ballast/bulb light systems in each lamp

provides triple redundant light for emergency operations

•Available with a variety of options:

•Switch

•Receptacle

•GFCI

Inside view

Energy efficient

CFL technology

3 separate 13W

lamp/ballast

circuits

3 x 13 Watt

super bright

bulbs

Bulb

cushion

Cushion

protects

lamps

Optional Receptacle

with Perma-Tite

Flip-Seal Cover

Dual

magnets

1000F Series Wide Area Light

Model Voltage Cord Length Location Rating

With Non-GFCI Side

Receptacle

1000F 120/ 60 Hz 6 Wet n/a

1000F-25 120/ 60 Hz 25 Wet n/a

1000F-50 120/ 60 Hz 50 Wet n/a

1000F-R 120/ 60 Hz 6 Dry Installed

1000F-R25 120/ 60 Hz 25 Dry Installed

1000F-R50 120/ 60 Hz 50 Dry Installed

Specifications:

Cord: #16/3 SOOW or Equiv

Plug: Nema 5-15P (1510-P)

Lamp: 3 x 13 watt Quad GX23T4 CFL

CRI: 82

Lumens: 900 x 3 = 2200

K Temp: 4100K

Avg Life Hrs: 10,000

Low Temp Start: 32 Deg F

Large hang

hook

Non-metallic

enclosure

1000F Series Fluorescent Wide Magnet Mount Light

Ericson’s field-proven 1000 Series wide area lighting fixtures are now available with energy-saving

high-CRI, high-color temperature fluorescent lamps.

Available in 120VAC

•Impact-resistant molded polycarbonate housing

•Impact-resistant, high temperature clear lens with Blondel

Prisms on inner surface to provide optimum light diffusion

•Dual magnets for secure mounting on metal surfaces

•Integral eye-hook for overhead mounting

•#16/3 SOOW cord supplied standard

•Supplied with (3) 13W T4 Quad fluorescent bulbs

Made in

the USA

TEMPORARY LIGHTING

112

Emergency Egress Lighting

1-800-ERICSON (374-2766) •www.ericson.com

•Automatically stays on in the event of power loss

•Over 90 minutes of egress lighting

•Auto charges battery/ballast assembly

•Test and main on/off switches

•2 separate 13W lamp/ballast assemblies

Emergency Battery Backup Egress Lighting

*During normal 120V operation

Meets OSHA

Confined Space

Requirements

For Egress

120VAC

w/ 6' cord 1000F - EMBT

w/ 25' cord 1000F - EMBT-25

w/ 50' cord 1000F - EMBT-50

Specifications

Electrical Ratings 120VAC 43WATT

Environmental Ratings NEMA 3R

Cord Gauge/Type 16/3 SOOW

Plug Type NEMA 5-15P

1000 Series Fluorescents Selection Guide

Notes:

1. Contact factory for custom assemblies 2. Use chain or cable if mounted overhead

Energy efficient

2 separate 13W

lamp/ballast

circuits

Strong

hanger

hook

Internal battery

ballast combo

Test and main

switches

(not shown)

Dual

magnets

Battery

Back Up

How it works

Conditions Normal Lamp

Operation

Normal Lamp Operation

Testing Battery Backup

Emergency Loss of

Power at Cord

Lamp Off

for Storage

Main Switch (Toggle ON/OFF) ON ON ON OFF

Test Switch ( Momentary) OFF PUSH & HOLD OFF OFF

120V Power at Cord ON ON OFF OFF

Lamps On 2 lamps On

Charge Lamp On 2 to 1 when TEST is pushed 1 lamp for 90+ minutes ALL OFF

Backup Battery Charging AUTO switchover ON Holding Charge

Made in

the USA

TEMPORARY LIGHTING

113

Magnet Mount Work Lighting

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Notes:

1. Use secondary safety chain or cable if mounted overhead

2. Based on a scale from 1 to 100 where 100 represents sunlight. The higher the number the truer the color appears

3. Sunlight is simulated with a light that is about 5000 K. The higher the number the whiter the light

Metal Halide(1) High Pressure Sodium(1)

70 Watt 70 Watt

6 ft. Cord 1000-MH 1003-HPS

Specifications

Electrical Ratings 120V/60Hz 120V/60Hz

Environmental Rating WET LOCATION WET LOCATION

Cord Gauge/Type #14/3 SJTOW #14/3 SJTOW

Plug Type NEMA 5-15 NEMA 5-15

Bulb Type 70W MH/E26/ED/Clear 70W HPS/E26/ED/Clear

Avg. Rated Bulb Life 8000 hr. 16000 hr.

Initial Lumens 5500 5160

Color Rendition Index (CRI)(2) 65 <40

Color Temperature (K)(3) 4000K 2100K

Low Temp Start -20 ° C -20 ° C

Replacement Parts

Lens 1000-MH-LENS 1000-MH-LENS

Handle 1000-HAN 1000-HAN

Bulb 1010-MH (70W MH) 1010 (70W HPS)

Magnet 1000-MH-MAG 1000-MH-MAG

EZ™ Series Metal Halide and HPS Fixtures Selection Guide

•Available with High Pressure Sodium or Metal Halide

Lamp-Choice of light source that is right for you

•Metal Halide Lamp-Provides bright, white light for

color-rendering applications

•High Pressure Sodium Lamp-Long-life for extended

lighting applications

•UL & cUL Listed-Assurance of quality by independent testing

agency-Safety, performance and reduced downtime

•Die-cast aluminum housing-Lightweight, rugged dependability

in demanding environments combined with excellent

surface finish

•6ft. #14/3 oil-resistant cable with molded-on 5-15 plug-Resists

jobsite oils with out deterioration

•Heavy-duty magnet-Secure mounting on metal surfaces for

hands-free operation (1)

•Built-in carry handle with integral “eye”-Provides for

overhead mounting and easy-carry, even when wearing

work gloves

•Impact resistant, high-temperature lens with inner

surface prisms for optimum light diffusion

Large 6”

magnet

Strong cast

body

Prism lens

EZ™ Series Is The Economical Alternative To Expensive Fixtures

Choose either the 70Watt High Pressure Sodium or the 70Watt Metal Halide version and go…it’s that easy.

SUPER

STRONG

MAGNET

WET

LOCATION

RATED

TEMPORARY LIGHTING

114

Heavy Duty Tube Fluorescent Work Lights

1-800-ERICSON (374-2766) •www.ericson.com

Feed-thru option

817 Series - 17 watt

825 Series - 25 watt

832 Series - 32 watt (miser 40w)

840 Series - 40 watt high output

800 Series Work Lights - T8 Tube

These portable work lights are designed to meet the need for safe, temporary, economical task lighting.

Their versatility provides for base and feed-thru units to meet a variety of lighting applications:

•Tent Lighting •Tunnel Lighting •Work Shop Lighting •Task Lighting •And More…

•Variety-Available in different wattages and as a base or feed-thru unit that can be "daisy-chained"

to cover larger areas.

•OSHA Compliant - Meets OSHA regulations for wet and other conductive locations.

•Outdoor Use-Fixture is rated NEMA TYPE 4X for demanding outdoor and in-plant environments.

•Cool, glare-free light-Ideal for those applications where hot, glaring light can be a hazard.

•Rubberized Handle-Non-conductive, non-corrosive and easy to grip.

•Flex Strain Relief-Provides added protection for cord at critical bending points.

•High Visibility-Dual Color safety system for easy identification on the jobsite.

•Lightweight-Construction with impact resistant tube shield.

•Ballast-Enclosed in handle, so it's easy to move around the jobsite.

•Switch(optional) - Heavy duty rubber boot, push on/off operation, seals out water.

2.20

6.09

Feed-Thru

ø1.50

Ballast

Handle

Series L

817 25.25”

825 43.25”

832 55.0”

840 66.50”

Low Temp

Rating 0º F

Made in

the USA

TEMPORARY LIGHTING

115

Heavy Duty Tube Fluorescent Work Lights

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

17 Watts 25 Watts 32 Watts 40 Watts

Base Units with 25 ft. cord 817-25 825-25 832-25 840-25

with 50 ft. cord 817-50 825-50 832-50 840-50

Feed-Thru Units with 25 ft. cord 817-25F 825-25F 832-25F 840-25F

with 50 ft. cord 817-50F 825-50F 832-50F 840-50F

Specifications

Electrical Ratings 120V, 60Hz 120V, 60Hz 120V, 60Hz 120V, 60Hz

Amperage Draw 0.25A 0.35A 0.43A 0.48A

Primary Cord Length 25 ft. 25 ft. 25 ft. 25 ft.

Secondary Cord Length (Feed-Thru Units Only) 10 in. 10 in. 10 in. 10 in.

Max Units Connected(Applies to Feed-Thru Models Only)(2) 12 12 12 12

Ballast Location Handle Handle Handle Handle

NEMA TYPE Rating 4X 4X 4X 4X

Cable Gauge/Type (Base Units Only) #16/3 SOOW #16/3 SOOW #16/3 SOOW #16/3 SOOW

Cable Gauge/Type (Feed-Thru Units Only) #14/3 SJOW #14/3 SJOW #14/3 SJOW #14/3 SJOW

Plug(Base units equipped with molded PW6P feed thru) NEMA 5-15

1510-PW6P

NEMA 5-15

1510-PW6P

NEMA 5-15

1510-PW6P

NEMA 5-15

1510-PW6P

Connector (Feed-Thru Units Only) NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

NEMA 5-15

1610-CW6P

Bulb Type F17T8SPX41 F25T8SPX41 F32T8SPX41 F40T8SPX41

Initial Lumens 1325 2150 2950 3725

Color Rendition Index (CRI) (3) 86 86 86 84

Color Temperature (K)(4) 4100 4100 4100 4100

Avg. Rated Bulb Life (Hours) 20000 20000 20000 20000

Low Temp Start 0 °F 0 °F 0°F 0 °F

Fixture Weight 3.2 lb 3.8 lb 4.2 lb 4.6 lb

800 Series Work Lights Selection Guide

Notes:

1. Consult factory for custom assemblies, add “S” to end of catalog number for switch

2. Based on nominal primary length of 25ft. and secondary length of 10in. with #16/3 cable operating from a single 15A supply receptacle

3. Based on a scale from 1 to 100 where 100 represents sunlight. The higher the number the truer the color appears

4. Sunlight is simulated with a light that is about 5000 K. The higher the number the whiter the light

Connect up to 12

Units Together To

Light Your Jobsite.

Great For:

•Tunnels

•Construction Site

•Scaffolding Walkways

•Tents

•Portable Shelters

•And much more...

Made in

the USA

TEMPORARY LIGHTING

116 1-800-ERICSON (374-2766) •www.ericson.com

Specialty Lighting - Boiler Lights

Selection Guide

Item Description Product Picture Cord Length Length Bulb Wattage

BL500S Boiler light, straight

5 feet

32”

500W

BL500 Boiler light, 90° 25” & 9”

BL500M Boiler light, with magnet 32”

Features

These super bright boiler lights allow for easy

inspection though site glass hole.

•Extra bright light - 500 watt tungsten

•8800 lumens

•Curved handle allows light to reach into the farthest corner

•Small diameter fits through site hole (1.8” Dia. Max)

•NEMA 5-15 plug molded cord

•120 volt operation

•Bulb cage protects bulb

•Grounded metal tube handle

•Not for hazardous explosion areas

•Use GFCI inline for confined space use

BL-500S

BL-500

Molded 5-15P Plug

Fits Through

1.8” Site Hole

25”

1.80”

Dia

Max

90°

Curved

Rubberized Heat

Insulator Keeps

Handle Cool

Corrosion

Resistant Handle

5’ SOW Cord

for Long

Service Life

BL-500M

Features a

Heavy Duty

Large 6”

Magnet

9”

Welded Steel

Bulb Cage

INSPECTION

MADE EASY

Optional

Reflector

Guard

P/N 104-R

Selection Guide

Item Description Product Picture

104-R Alternate reflector guard (optional)

BL500-G Replacement Guard

BL500-L Replacement Bulb, 500 Watt

BL500-MAG* Replacement Magnet Kit

* Not for retrofit of non-magnet lights

Made in

the USA

TEMPORARY LIGHTING

117

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Old Ericson Advertising

Original Ad from the 1960’s

TEMPORARY LIGHTING

118

Wiring Devices

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Original 1950’s Advertisement

119

Wiring Devices

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

120

Wiring Devices - Overview

1-800-ERICSON (374-2766) •www.ericson.com

Ericson Manufacturing Company offers a wide

variety of plugs and connectors to fit your needs.

•Two-screw cable clamp secures cord and provides superior strain-relief

•Withstand high impact, corrosion, oils, greases, solvents and other

chemicals across -20 °C to + 100°C

•Individual wire pockets help prevent flashovers

•Rubberized outer housing for superior grip and impact resistance

•Flexibility of reverse-cover design creates weather-resistant

connections by interchanging covers

•Internal cord seals keep out water/mud/dust

•Available in all black

•Quick field assembly with cord grip nut

•Superior water/mud/dust resistance provided by safety compression cord grips

•Withstand high impact, corrosion, oils, greases, solvents and other chemicals

across -20 °C to + 100°C

•Flexibility of reverse-cover design (straight blade devices) creates

weather-resistant connections by interchanging covers

•Custom marking available on cord grip nut

•Available in all black

•Tongue & groove sealing system provides extreme environmental protection of:

·NEMA Type 4, 4X, 6, 6P & IP67

•Devices resist high-pressure hose down of 1,500 psi.

•Withstand high impact, corrosion, oils, greases, solvents and other chemicals

across -20 °C to + 100°C

•Removable/replaceable self-retained sealing cap provided with connector

to keep out contaminants when not in use (plug cap also available)

•Custom marking available on cord grip nut

•Available in all black

• Translucent body allows device to glow from power on lamp (EL Models)

• Wide open “suitcase” style construction makes wiring easy

• Fits 10/3 to 18/3 cord diameters

• Rugged design withstands abuse on the jobsite

• Color coded termination screws for ground, hot and neutral

• Combo screw heads speed up installation

•Rubberized “grip” cushions and surrounds device

•Economy priced

•Rugged nylon construction resists impact, corrosion and jobsite oils/chemicals

•Quick field assembly, with color coded markings

•Nickel plated blades and stainless steel screws provide optimum corrosion resistance

•Boots can be threaded together with the optional sealing collar system to provide

maximum environmental protection

•Available in plugs, connectors, inlets and receptacles

•Rubberized grey “Twist-Grip” for ease of connection

50 Amp Devices

Commercial Grade

Made in

the USA

WIRING DEVICES

121

Wiring Devices - Overview

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

SmartMonitor™

FS Series Single Receptacles & Male Inlets Under All Weather Flip Covers

Adapters

New From Ericson… Industrial application SmartCords factory built to last and

last. Models with Smart Connector (Economy Safe) and both Smart Plug and

connector are available. 24/7 monitoring with Assured Grounding Compliance

to NEC and OSHA standards. Built with the highest quality materials to with-

stand your environment.

•Weather resistant boot seals around Ericson Perma-Tite plug to provide weather resistant

protection

•Spring-loaded flip-lid covers the receptacle when not in use

•Two independent fully rated receptacles in one easy to install assembly

•Impact, chemical & corrosion resistant construction stands up to demanding environments

•Mounts easily to 6200 series FS/FD boxes and any flat surface

Double Outlet Receptacle with Cover Plates - PWDX Series

Smart Cords

NEW!

•Super bright 2-color LED technology

•SmartMonitor™ Module

•Easy to wire

•Clear internal wiring cover

•Multiple cord grommets included

•Makes OSHA safety compliance easy

and cost effective

3 Styles to Pick From:

•Perma-Link®

•Perma-Grip™

•Perma-Tite® 2

24/7 Monitoring of These 7 Events

•No Ground

•Loss of Ground In Cord

•Hot/Neutral Swap

•Reverse Polarity

•Hot on Ground

•Open Neutral

Features of All SmartMonitor™ Plugs & Connectors:

•Weather resistant boot seals around Ericson Perma-Tite plug to provide

weather resistant protection

•Spring-loaded flip-lid covers receptacle when not in use

•Includes cover plate, rubber boot, stainless steel mounting plate/mounting screws

•Impact, chemical & corrosion resistant construction stands up to demanding environments

•Mounts easily to 6200 or 6300 series FS/FD boxes and any flat surface

•Collar plug seals and grips all types of round plugs or connectors

NEMA Change Adapters

Now make quick, secure connections between straight-blade and locking

plugs and connectors with Ericson's NEMA configuration adapters.

•Heavy-duty non-conducting housing and using heavy gauge

solid brass blades

•Compact size makes them easy to use and transport

•Available in molded style or short cords

WIRING DEVICES

122

NEMA Chart

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Ericson

NEMA Chart

NEMA Electrical Ratings PERMA-TITE® 2 PERMA-GRIP™

Face View Configuration Amps Volts Plugs Connectors Plugs Connectors

2-pole, 3-Wire Grounding

5-15 15 125 1510-PW6P 1610-CW6P 1510-PG 1610-CG

5-20 20 125 1512-PW6P 1612-CW6P 1512-PG 1612-CG

6-15 15 250 1514-PW6P 1614-CW6P 1514-PG 1614-CG

6-20 20 250 1516-PW6P 1616-CW6P 1516-PG 1616-CG

L5-15 15 125 1520-PW6P 1620-CW6P 1520-PG 1620-CG

L6-15 15 250 1522-PW6P 1622-CW6P 1522-PG 1622-CG

L7-15 15 277 1524-PW6P 1624-CW6P 1524-PG 1624-CG

L5-20 20 125 2310-PW6P 2410-CW6P 2310-PG 2410-CG

L6-20 20 250 2312-PW6P 2412-CW6P 2312-PG 2412-CG

L7-20 20 277 2314-PW6P 2414-CW6P 2314-PG 2414-CG

3-Pole, 3-Wire Non-Grounding

Non-NEMA 20 125/250 2316-PW6P 2416-CW6P 2316-PG 2416-CG

Non-NEMA 20/10 250/600 2317-PW6P 2417-CW6P 2317-PG 2417-GC

Non-NEMA 15A/10A 125V/250V 1507-PW6P 1607-CW6P 1507-PG 1607-CG

3-Pole, 4-Wire Grounding

L14-20 20 125/250 2320-PW6P 2420-CW6P

L15-20 20 250, 3Ø 2322-PW6P 2422-CW6P

L16-20 20 480, 3Ø 2324-PW6P 2424-CW6P

2-Pole, 3-Wire Grounding

L5-30 30 125 2510-PW6P 2610-CW6P 2510-PG 2610-CG

L6-30 30 250 2512-PW6P 2612-CW6P 2512-PG 2612-GC

L7-30 30 277 2514-PW6P 2614-CW6P 2514-PG 2614-CG

3-Pole, 3-Wire Non-Grounding

Non-NEMA 30 125/250 2516-PW6P 2616-CW6P

3-Pole, 4-Wire Grounding

L14-30 30 125/250

3Ø 2520-PW6P 2620-CW6P

L15-30 30 250, 3Ø 2522-PW6P 2622-CW6P

L16-30 30 480, 3Ø 2524-PW6P 2624-CW6P

L17-30 30 600, 3Ø 2526-PW6P 2626-CW6P

4-Pole, 4-Wire

L18-30 30 120/208

3Ø wye 2530-PW6P 2630-CW6P

4-Pole, 4-Wire Non-Grounding

Non-NEMA 30 120/208

3Ø wye 2528-PW6P 2628-CW6P

EXTREME BEST

123

NEMA Chart

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

PERMA-LINK® Economy Grade* SmartMonitor™* Single Outlet Male Inlets Dual Recept (PWDX)

Face View Plugs Connectors Plugs Connectors Plugs Connectors FS Cover Plates Receptacle with Cover

2-pole, 3-Wire Grounding

1510-P 1610-C 5266-E 5269-E 1510-PXX 1610-CXX 2715-FS10 2705-15/A 1610-PWDX

1512-P 1612-C 1512-PXX 1612-CXX 2715-FS12 2705-20/A 1612-PWDX

1514-P 1614-C

Note: Lighted

power-on glow

models also:

5266-EL

& 5269-EL

2715-FS14 1614-PWDX

1516-P 1616-C 2715-FS16 1616-PWDX

1520-P 1620-C 2715-FS20 2705-L15/A 1620-PWDX

1522-P 1622-C 2715-FS22 1622-PWDX

1524-P 1624-C 2715-FS24 1624-PWDX

2310-P 2410-C 2310-PXX 2410-CXX 2820-FS10 2705-L20 6200 Series Boxes

For FS Series &

PWDX Series

·Rubberized

·Fully Enclosed

·Single and Double

Sided

·Standard and Deep

2312-P 2412-C 2820-FS12

2314-P 2414-C 2820-FS14

3-Pole, 3-Wire Non-Grounding

*Part Number

Note for

Smart Monitors:

PLUGS (-PXX)

PML

Perma-Link® Style

PMGL

Perma-Grip™ Style

PW6PL

Perma-Tite®2 Style

CONNECTORS (-CXX)

CML

Perma-Link® Style

CMGL

Perma-Grip™ Style

CW6PL

Perma-Tite®2 Style

2316-P 2416-C 2820-FS16

2317-P 2417-C 2820-FS17

1507-P 1607-C 2715-FS07

3-Pole, 4-Wire Grounding

2320-P 2420-C 2920-FS20 2705-L142

2322-P 2422-C 2920-FS22

2324-P 2424-C 2920-FS24 2705-L162

2-Pole, 3-Wire Grounding

2510-P 2610-C 2830-FS10

2512-P 2612-C 2830-FS12

2514-P 2614-C 2830-FS14

3-Pole, 3-Wire Non-Grounding

2516-P 2616-C 2830-FS16

3-Pole, 4-Wire Grounding

2520-P 2620-C 2930-FS20

2522-P 2622-C 2930-FS22

2524-P 2624-C 2930-FS24

2526-P 2626-C 2930-FS26

4-Pole, 4-Wire

2530-P 2630-C 2930-FS30

4-Pole, 4-Wire Non-Grounding

2528-P 2628-C 2930-FS28

NEW!

BETTER GOOD SMART

124

SmartMonitor™ Series

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

SmartMonitor™ Plugs & Connectors Constantly Monitors These Conditions:

·No Ground ·Loss of Ground In Cord ·Hot/Neutral Swap ·Reverse Polarity ·Hot on Ground ·Open Neutral

·No Ground

·Loss of Ground In Cord

·Hot/Neutral Swap

·Reverse Polarity

·Hot on Ground

·Open Neutral

How It Works - Diagnostic Safety Cords

Full Diagnostic Safety Cords*

Using SmartMonitor™

with Tool Cords

Cordset is OK to Use

•Safety earth ground is OK

•power polarity is OK

Do Not Use

•Check power source for proper

wiring and ground

•Check cord for cuts, nicks etc.

•Check plug wiring

•Check connector wiring

Do Not Use

•Check power source for wiring

or missing earth ground

Do Not Use

•Source power is OK

•Check cord for cuts, nicks etc.

•Check connector wiring

Blue LED On

Blue OK to use tool**

Red STOP!

•Check power source for wiring

or missing earth ground

•Check for miswired receptacle

Red LED OnBlue

Red Red

Red LED On

Economy Safe Cords

Plug

Monitors

Power

Source

THESE SMART DEVICES WATCH

SO YOU DON’THAVETO.

Connector

Monitors Cordset

After Plug

·Super Bright LED Technology

·SmartMonitor™ Module

·Keyed body and cover

·Easy to wire

·Clear internal wiring cover

·Non-slip finger grips

·Color coded terminal screws

·Multiple cord grommets included

·Rubberized outer body

·Safety Yellow and Blue body

Features Of All SmartMonitor™ Plugs & Connectors:

BLUE

OK TO USE

LEDs light up to let you know power is O.K.

24/7

Monitoring

RED

STOP, CALL AN

ELECTRICIAN!

LEDs light up to let you know there is a problem

ERICSON EXCLUSIVE

“LIKE HAVING A METER

IN EVERY PLUG...”

1510-P

1610CML123B

Shown

1510PML123B

Shown

* Full diagnostic safety cords give easy-to-understand indications which

saves time tracking down electrical safety issues.

**This device does not diagnose any tool internal issues. This device is

an indication that the power and safety earth ground are present.

1610-CML

1510-P 1610-CML

125

SmartMonitor™ Series

Made in

the USA

Cord

Tough 600V rated SOW cordage for

long lasting wear

SmartMonitor™ Connector

Checks entire cordset from the plug

to the connector

Plug & Connector Selection Guide

Cordset Selection Guide

Face View NEMA

Configuration

Electrical Ratings Perma-Link® Perma-Grip® Perma-Tite® 2

Amps Volts Plugs Connectors Plugs Connectors Plugs Connectors

Straight Blade, 2-pole, 3-wire Grounding Devices

5-15 15 125 1510-PML 1610-CML 1510-PMGL 1610-CMGL 1510-PW6PL 1610-CW6PL

5-20 20 125 1512-PML 1612-CML 1512-PMGL 1612-CMGL 1512-PW6PL 1612-CW6PL

Locking, 2-pole, 3-wire Grounding

L5-20 20 125 2310-PML 2410-CML 2310-PMGL 2410-CMGL 2310PW6PL 2410-CW6PL

L5-15 15 125 1520-PML 1620-CML 1520-PMGL 1620-CMGL 1520-PW6PL 1620-CW6PL

Cord Clamp Style Cord Grip Style Water Tight Style

Perma-Tite2™ All Weather

Cord Grip Nut Style features:

·All weather - NEMA 6P rated

·Super sealing rings

·Nickel plated solid brass blades

·Super sealing cord grip nut design

·Connector includes cover

·360˚ indication

XXXX-CW6PL

Perma-Grip™ Cord Grip

Nut Style Features:

·Nickel plated solid brass blades

·Super sealing cord grip

nut design

XXXX-PMGL

Perma-Link™ Cord

Clamp Style Features:

·Internal cord seal

·Dual screw self-centering clamp

·Rubberized outer body

XXXX-PML

Economy Safe SmartCords P/N* Length

Non-smart

PLUG Smart

Connector Cord Size Rating

1610XXX143 A= 25ft B= 50Ft D=100ft 1510-___ 1610-__L #14/3 SOW 15A

1610XXX123 1510-___ 1610-__L #12/3 SOW 15A

1612XXX123 1510-___ 1610-__L #12/3 SOW 20A

2410XXX123 2310-___ 2410-__L #12/3 SOW 20A

Note: plug and connector type will be based on selection made of the master cordset part number - style will match

Full Diagnostic Safety SmartCords P/N** Length Smart PLUG Smart

Connector Cord Size Rating

1510XXX143 A= 25ft B= 50Ft D=100ft 1510-___L 1610-__L #14/3 SOW 15A

1510XXX123 1510-___L 1610-__L #12/3 SOW 15A

1512XXX123 1512-___L 1610-__L #12/3 SOW 20A

2310XXX123 2310-___L 2410-__L #12/3 SOW 20A

Note: plug and connector type will be based on selection made of the master cordset part number

* Replace XXX with: (Economy Cordsets Only)

CML = PermaLink Style Light Industrial Wiring Devices ( non-smart Plug and Smart Connector installed)

CMGL = PermaGrip Style Industrial Wiring Devices with nickel plated blades (non-smart Plug and Smart Connector installed)

CW6PL = PermaTite Style Industrial All-Weather Wiring Devices (non-smart Plug and Smart Connector installed)

** Replace XXX with: (Full Diag Cordsets Only)

PML = PermaLink Style Light Industrial Wiring Devices (Smart Plug and Smart Connector installed)

PMGL = PermaGrip Style Industrial Wiring Devices with nickel plated blades (Smart Plug and Smart Connector installed)

PW6PL = PermaTite Style Industrial All-Weather Wiring Devices (Smart Plug and Smart Connector installed)

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

1510PML123A shown

New From Ericson… Industrial application SmartCords factory

built to last and last. Models with Smart Connector (Economy

Safe) and both Smart Plug and Connector are available. 24/7

monitoring with Assured Grounding Compliance to NEC and

OSHA standards. Built with the highest quality materials to

withstand your environment.

2 Plugs and Connectors

Perma-Tite®2 plugs and connectors are engineered and manufactured to

the highest quality standards to provide the ultimate in electrical service

and protection. They are designed and proven to do their best under the

worst conditions in a broad array of the most severe food processing,

industrial, marine, construction and petro-chemical work environments.

Typical Applications

•Food processing

•Pulp and paper mills

•Refineries and

Petro Chem Facilities

•Ship yards

•Utilities

•Marine

EXTRA GROMMETS Color coded rubber cord sealer

grommets supplied for a variety of diameters.

UNIQUE WATER/DUST WIPER

Seals out moisture, mud and particles. ORIGINAL DEAD-FRONT

BACK-WIRED CONSTRUCTION

We set industry standards with

this design with no exposed

current carrying parts.

CORROSION RESISTANT ASSEMBLY SCREWS

Stainless double lead assembly screws made for

plastics exclusively to insure fast assembly and

withstand high torque and pullout

PBT BODY

Rugged thermoplastic polyester

body in plug and connector.

CORROSION

RESISTANT NICKEL

PLATED BLADES

Current carrying

blades and contacts

of high conductivity

copper alloy with

nickel plating for

corrosion resistance.

FINGER GRIPS

Non-slip finger grips

aid in assembly

CORD

JACKET

SEAL

SAFETY

COMPRESSION

CORD GRIP

Non-conductive, long life

rugged PBT, powerful

cord grip, unique design

accepts a variety of wire

sizes with no crushing

and no inserts to change

or add.

EIGHT POINT SEALING

Unique rubber to rubber tongue

and groove eight point seal-tite

system when mated.

DOUBLE INSULATED

Superior PBT body

with TPE thermoplastic

elastomer cover for

extra safety, protection

and durability.

•UL Listed & CSA Certified, some ETL Listed

•Tongue & groove sealing system provides environmental protection of:

·NEMA Type 4, 4X, 6, 6P & IP67

•Devices resist high-pressure hose down of 1,500 psi.

•Plug & Connector bodies made with PBT chosen for its high resistance to

moisture absorption, high voltage arcing and carbon tracking

•Keyed body and cover for easy alignment/assembly

•Color coded sealing bushings are provided to fit a variety of cord diameters

•Removable/replaceable self-retained sealing cap provided with connector

to keep out contaminants when not in use

•Nickel plated blades for corrosion resistance

•Transparent back-plate makes for quick visual wiring checks

•Ericson's new brilliant Blue and Radiant Yellow High Visibility Dual

Color Safety System symbolizes that legendary Ericson Quality

NEMA TYPE

4X, 6, 6P & IP67

•Excels in demanding

outdoor & in-plant

environments

•Resists hose directed water,

the entry of water during

prolonged submersion at a

limited depth & damage

from external ice

formation

126

Perma-Tite® 2 Devices - Extreme Conditions

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

WATER

SNOW

MUD

15PW

Plug Cover

Available

16CW

Connector

Cover

Available

All Black

Available

Note: Add - BLK for all black as available.

127

Perma-Grip™ Devices - Industrial

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Plugs and Connectors

Ericson's industry exclusive design combines the Perma-Tite® cord

grip with the industry proven design of its Perma-Link® devices to

provide a line of incredibly tough plugs and connectors that stand

up to the most demanding industrial and construction environments.

•UL Listed and CSA Certified, some ETL Listed

•Quick field assembly, no cable clamp screws to

tighten, simply twist on the cord grip nut

•Water/mud/dust resistance provided by safety

compression cord grips

•Keyed body and cover for easy alignment/assembly

•Color coded rubber cord-seal bushings

accommodate a wide range of cable diameters

•Molded-in non-slip fingers grips makes devices easy

to assemble and handle

•Withstand high impact, corrosion, oils, greases,

solvents and other chemicals across -20 °C - +65 °C

•Nickel plated brass blades and ground pin stops

corrosion and keeps solid electrical contact

•Individual wire pockets help prevent flashovers

•Transparent back plate speeds wiring inspection

•Selected models available with Ground Continuity

Monitor

•Available individually or on factory assembled

cord sets

•Flexibility of reverse-cover design (straight blade

devices) creates weather-resistant connections by

interchanging covers

•Ericson's exclusive Brilliant Blue and Radiant

Yellow High Visibility Dual Color Safety System

Combo

Head

EXTRA GROMMETS Color coded rubber cord sealer

grommets supplied for a variety of diameters.

FEATURE

ERICSON EXCLUSIVE

All Black

Available

Complete Kit as Shown

Note: Add - BLK for all black as available.

128

Perma-Link® Devices- Light Industrial

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Combo

Head

Plugs and Connectors

United States patent number 4,021,092 was assigned to today's Perma-

Link® plugs and connectors which are classified among the most rugged

and safest wiring devices available. They incorporate many of the same

features as Ericson Perma-Tite® 2 and Perma-Grip™ devices and utilize a

two-screw cable clamp. Perma-Link® plugs and connectors are designed

to provide many years of trouble-free service in the most demanding

industrial and construction environments.

•UL Listed and CSA Certified

•Two-screw cable clamp secures

wire and provides strain-relief

•Solid brass blades for optimum

electrical and mechanical

performance

•Keyed body and cover for easy

alignment/assembly

•Molded-in non-slip finger-grips

makes devices easy to assemble

and handle

•Withstand high impact, corrosion,

oils, greases, solvents and other

chemicals across -20 °C to 100 °C

•Individual wire pockets help

prevent flashovers

•Transparent back plate speeds

wiring inspection

•Selected models available with

Ground Continuity Monitor

•Available individually or on

factory assembled cord sets

•Flexibility of reverse-cover design

creates weather-resistant

connections by interchanging

covers

•Ericson's exclusive Brilliant

Blue and Radiant Yellow High

Visibility Dual Color Safety System

Note: Add - BLK for all black as available.

All Black Available

129

Perma-Link® - Conversion For Weather Resistance

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Versatile Weather-Resistant Field Conversion

Our Perma-Link® plugs and connectors (as listed below) are designed so they can easily be converted to create weather-

resistant connections by interchanging the internal assemblies. Insert the plug body into the connector cover, and the

connector body into the plug cover. There are no extra parts to purchase.

Step 1:

Disassemble The Plug & Connector As Shown

Step 2:

Swap Plug & Connector Assemblies

Step 3:

Assemble Cords Per Bag Instructions

Now Your Perma-Link® Plugs & Connectors

Are More Weather Resistant!

SWAP

1510-P

After conversion

1610-C

After conversion

Convertible Parts

1510-P 1610-C

1512-P 1612-C

1514-P 1614-C

130

“Crowsfoot” Devices - Non-NEMA

Made in

the USA

1507-PG

1607-CG 1507-PW6P 1607-CW6P

Perma-Grip™ plug and connector

with industry exclusive cord grip

nut for rapid field assembly

Perma-Tite®

plug and connector

Perma-Grip™ & Perma-Tite®2 plugs & connectors come

with color coded rubber cord seal bushings for

a variety of cable diameters.

This Non-NEMA configuration, commonly called the “crowsfoot”, is widely used in critical applications that require

equipment to be plugged into a specific electrical system to ensure proper function or to prevent equipment damage.

Typical Applications

•Low-voltage hand lamps and matching transformers

•Data acquisition/logging equipment to detect level and flow measurements on tanks and valves

•Sensitive electronic equipment that must be used on voltage regulated circuits

Features Guide

•Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption, high voltage arcing

and carbon tracking.

•Transparent back-plate makes for quick visual wiring checks.

•Keyed body and cover for easy alignment/assembly.

•Color-coded sealing bushings are provided to fit a variety of cord diameters.

•Perma-Tite® 2 devices have the eight-point rubber tongue and groove sealing system to provide environmental protection.

•Rubber sealing cap provided with Perma-Tite® 2 connector to keep out contaminants when not in use.

•Optional plug cover available - order catalog number 15PW.

•Ericson's exclusive Brilliant Blue and Radiant Yellow High Visibility Dual Color Safety System.

• Perma-Tite® 2 devices rated NEMA 4, 4X, 6, 6P & IP67.

Face View NEMA Config. Electrical Ratings Perma-Grip™ Perma-Tite® 2

Non-NEMA

15A 125V

1507-PG 1607-CG 1507-PW6P 1607-CW6P

10A 250V

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

131

Wiring Devices - Commercial Grade

Made in

the USA

EL Models

Translucent

Body

“Glows”

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Devices Selection Guide

Commercial Grade Plugs & Connectors

The Ericson 5266 and 5269 Series of Commercial Grade plugs offer the latest in design innovation and quality in an economy

grade wiring device. The demands of today’s electrical industry are met with this new design with features never before

seen in a commercial device. Designed to provide years of trouble free service in demanding industrial, construction and

rental environments. Available in 2 styles, with and without the power on “glow” module to light up the entire device.

•2 styles – with and without internal

lamp module (see chart)

• Translucent body allows device

to glow from power on lamp

• Tough, soft feel, rubber overmold

grip surrounds device body

• Wide open “suitcase” style

construction makes wiring easy

• Two captive screw body clamp

design is easy to assemble

• Cord diameter matching inserts fit a

wide range of cord sizes

• Solid brass blades for optimum

electrical contact

• Fits 10/3 to 18/3 cord diameters*

• Rugged design withstands abuse on

the jobsite

• Clear internal conductor cover

allows visual inspection

• Color coded termination screws for

ground, hot and neutral

• Combo screw head

Face

View NEMA

Configuration

Electrical Ratings

With Internal Glow Light Without Internal Glow Light

Amps Volts Plugs Connectors Plugs Connectors

Straight Blade, 2-pole, 3-wire Grounding Devices

5-15 15 125 5266-EL 5269-EL 5266-E 5269-E

5266-EL

(lighted)

5269-EL

(lighted)

Notes:

*Cord diameters - .3 to .6 inch

**Slot - Phillips

Built-in internal

secondary cord

clamps

5266-EL Lighted

Inserts allow a

wide range of

cord sizes

#16/3 to #10/3

Clear terminal cover Color coded

terminal screws**

Cord diameter inserts*

1 Piece Design - EZ To Wire

1. Available on - EL models only

Power on

360° glow

module1

Tough, soft feel, rubber

overmold grip

Exclusive!

Tough nylon translucent body allows

glow module to illuminate entire device1

Heavy duty ground pin

Solid brass blades

132

Wiring Devices

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

Ericson can customize our offering of wiring devices to meet your individual needs. The custom solution can be as simple

as the popular printing on the back of the cord grip nut to fully custom colored and labeled product. Minimum order

sizes will apply as well as some setup fees. Contact us to discuss your needs and custom design details.

How to order: Contact you local Ericson Factory Representative or call us at 1-800-Ericson (374-2766)

Custom Cord

Nut Printing

Notes:

1. Some customization can void certain agency safety listings or warranty.

2. Minimum quantities will apply. Other design and tooling fees may apply.

Cord nut

available in

custom colors

Custom

cord nut

printing

Available in

custom colors

Custom blade

non-NEMA

configuration

WIRING DEVICES

CONTACT ERICSON FOR CUSTOM

PRINTING OR COLORS

133

Plugs and Connectors

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Original 1930’s Advertisement

134

PWDX Series - All Weather Heavy Duty Receptacles

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

All Weather Heavy Duty Wet Location

Double Outlet Receptacle with Cover

Plates

WET LOCATION TESTED & APPROVED

NEW!

See the

Video

FEATURES:

•SafetyFirst™ UL Listed to American and

Canadian Standards for wet or damp locations

•Impact, chemical and corrosion resistant

•Superior interior splash and hose down protection

•Exceptional all weather outdoor protection

•Simplified, flexible mounting alternatives

•Secure power access lockout / tagout capability

•Popular NEMA configuration alternatives

•Pre-wired for quick installation

•Rubberized box with stainless steel hardware

•Non-metallic cord grip

•Spring loaded flip covers

Ericson’s PWDX Series of all weather, heavy duty double outlet receptacles are ideal for a wide range of demanding

applications where splash and hose-down protection is required. A perfect t for food and liquid processing

facilities, the non-metallic enclosure and optional cord grip construction guards against metal and glass fragments

that can pose health and safety risks, while the extra deep internally sealed spring-loaded ip covers provide

protection when not in use.

The versatile PWDX Series receptacles, when mated with Ericson’s Perma-Tite2 plugs, provide NEMA 4X levels of

protection against dust, rain, hose/spray, chemical, and snow/ice. The 8-point seal-tite mating design seals

around the plug to provide unmatched weather resistance.

Flexible mounting congurations, including pendant, rigid conduit, wall and “stringer” cordset, make this an ideal

solution for a wide range of applications including:

•Food Processing •Beverage Processing •Marina Ship-to-shore •Petro-Chemical

•Vehicle / Engine Heater •Pulp / Paper Mills •Utilities •Reneries

•Venue Landscape •Outdoor Events •Automotive •Harsh Environments

135

PWDX Series - All Weather Heavy Duty Receptacles

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Double

6234WFS with

1610-PWDX

pendant style

6212NFS Box with

1610-PWDX “pendant

non-metallic” style

Double 1610-PWDX

on 6234WFT

enclosure

6234WFS

with

1610-PWDX

pendant style

6212 NFSF box with 1610-PWDX assembly

NOTICE:

*The NEC restricts the use of metallic “job”

boxes for use in temporary relocateable power

cords. Only use non-metallic enclosures

designed and tested to meet compliance.

Part Number

Description

NEMA

Config

Amps

Volts

PWDX Dual Receptacle & Cover Assembly/ Prewired

Straight

1610-PWDX

Receptacle & Flip Cover, Duplex, All Weather, 5-15

5-15

125

1612-PWDX

Receptacle & Flip Cover, Duplex, All Weather, 5-20

5-20

125

1614-PWDX

Receptacle & Flip Cover, Duplex, All Weather, 6-15

6-15

250

1616-PWDX

Receptacle & Flip Cover, Duplex, All Weather, 6-20

6-20

250

Locking

1620-PWDX

Receptacle & Flip Cover, Duplex, All Weather, L5-15

L5-15

125

1622-PWDX

Receptacle & Flip Cover, Duplex, All Weather, L6-15

L6-15

250

1624-PWDX

Receptacle & Flip Cover, Duplex, All Weather, L7-15

L7-15

277

NEMA NEMA NEMA NEMA NEMA NEMA NEMA

1610-PWDX 1612-PWDX 1614-PWDX 1616-PWDX 1620-PWDX 1622-PWDX 1624-PWDX

136

PWDX Series - Accessories

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Ericson Perma-Tite®2 Series Mating Plugs

PWDX

Part Number

Mating Plug

Perma-Tite 2®

Series Plug Plug Bushing Kit

1610-PWDX

1520-PW6P

1612-PWDX

1512-PW6P

1614-PWDX

1514-PW6P

1616-PWDX

1516-PW6P

1620-PWDX

1520-PW6P

1622-PWDX

1522-PW6P

1624-PWDX

1528-PW6P

Rubberized FS & FD Boxes

6212FS 6234FD 6234FT 6234WFS

6212NFS 6212NFD 6212NFT 6212WFD

6234NFS 6234NFD 6234NFT 6234WFT

82005 - 1/2” Kit

Wall/Post Mount Kit 6260WK (NM) Non Metallic Bushing Kits

Wire Mesh Grips

Optional Wall Mount Kit 82034 - 3/4” 82010 - 1”

82005W = 1/2”

82034W = 3/4”

82010W = 1”

82005W-1

82034W-1

137

PWDX Series - Accessories

Made in

the USA

WIRING DEVICES

NEW!

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Boxes for PWDX - Punched - No Bushing Kit

Part Number Description

6212FS Box, Std Depth, PWDX, No bushing, 1/2" NPT

6234FS Box, Std Depth, PWDX, No bushing, 3/4" NPT

6210FS Box, Std Depth, PWDX, No bushing, 1" NPT

6212FD Box, Deep, PWDX, No bushing, 1/2" NPT

6234FD Box, Deep, PWDX, No bushing, 3/4" NPT

6210FD Box, Deep, PWDX, No bushing, 1" NPT

6212FT Box, OPEN, PWDX, No bushing, 1/2" NPT

6234FT Box, OPEN, PWDX, No bushing, 3/4" NPT

6210FT Box, OPEN, PWDX, No bushing, 1" NPT

6212FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 1/2" NPT

6234FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 3/4" NPT

6210FSF Box, Std Depth, PWDX, No Bushing, Feed thru, 1" NPT

6212FDF Box, Deep, PWDX, No Bushing, Feed thru, 1/2" NPT

6234FDF Box, Deep, PWDX, No Bushing, Feed thru, 3/4" NPT

6210FDF Box, Deep, PWDX, No Bushing, Feed thru, 1" NPT

6212FTF Box, OPEN, PWDX, No Bushing, Feed thru, 1/2" NPT

6234FTF Box, OPEN, PWDX, No Bushing, Feed thru, 3/4" NPT

6210FTF Box, OPEN, PWDX, No Bushing, Feed thru, 1" NPT

Boxes for PWDX - 1/2" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6212NFS Box, Std Depth, PWDX, NM Bushing, 1/2" NPT

6212NFD Box, Deep, PWDX, NM Bushing, 1/2" NPT

6212NFT Box, OPEN, PWDX, NM Bushing, 1/2" NPT

6212NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 1/2" NPT

6212NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 1/2" NPT

6212NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 1/2" NPT

6212WFS Box, Std Depth, PWDX, WireMesh Bushing, 1/2" NPT

6212WFD Box, Deep, PWDX, WireMesh Bushing, 1/2" NPT

6212WFT Box, OPEN, PWDX, WireMesh Bushing, 1/2" NPT

6212WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

6212WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

6212WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 1/2" NPT

Boxes for PWDX - 3/4" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6234NFS Box, Std Depth, PWDX, NM Bushing, 3/4" NPT

6234NFD Box, Deep, PWDX, NM Bushing, 3/4" NPT

6234NFT Box, OPEN, PWDX, NM Bushing, 3/4" NPT

6234NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 3/4" NPT

6234NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 3/4" NPT

6234NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 3/4" NPT

6234WFS Box, Std Depth, PWDX, WireMesh Bushing, 3/4" NPT

6234WFD Box, Deep, PWDX, WireMesh Bushing, 3/4" NPT

6234WFT Box, OPEN, PWDX, WireMesh Bushing, 3/4" NPT

6234WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

6234WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

6234WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 3/4" NPT

Boxes for PWDX - 1" NPT Bushing Installed (N = Non Metallic W = Wire Mesh)

6210NFS Box, Std Depth, PWDX, NM Bushing, 1" NPT

6210NFD Box, Deep, PWDX, NM Bushing, 1" NPT

6210NFT Box, OPEN, PWDX, NM Bushing, 1" NPT

6210NFSF Box, Std Depth, PWDX, NM Bushing, Feed thru, 1" NPT

6210NFDF Box, Deep, PWDX, NM Bushing, Feed thru, 1" NPT

6210NFTF Box, OPEN, PWDX, NM Bushing, Feed thru, 1" NPT

6210WFS Box, Std Depth, PWDX, WireMesh Bushing, 1" NPT

6210WFD Box, Deep, PWDX, WireMesh Bushing, 1" NPT

6210WFT Box, OPEN, PWDX, WireMesh Bushing, 1" NPT

6210WFSF Box, Std Depth, PWDX, WireMesh Bushing, Feed thru, 1" NPT

6210WFDF Box, Deep, PWDX, WireMesh Bushing, Feed thru, 1" NPT

6210WFTF Box, OPEN, PWDX, WireMesh Bushing, Feed thru, 1" NPT

138

Perma-Tite®2 - FS Series Receptacle with Cover Plates

Made in

the USA

NOTES:

1. Does not include receptacle. Use with standard receptacles of same electrical ratings.

Single Outlet Receptacle with Cover Plates - FS Series

•Weather resistant boot seals around Ericson Perma-Tite plug to

provide weather resistant protection

•Spring-loaded flip-lid covers receptacle when not in use

•Includes cover plate, rubber boot, stainless steel mounting plate/mounting screws

•Impact, chemical & corrosion resistant construction stands up to demanding environments

•Mounts easily to any FS and FD boxes and any flat surface

Mate the FS cover with

Perma-Tite®2 for all

weather sealing Also Available in:

•Green

•Black

•Sand

Rubberized

Seal

All Weather

Connection

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

See

Page

for

6200

Boxes

Single Outlet Cover Plates - FS Series

Face

View

NEMA

Configuration

Electrical Ratings FS Female

Receptacle

2705

Male Inlet

Std Opening

2705

Male Inlet

Large Opening

Amps Volts

15A Straight Blade & Locking 20A Straight Blade

Flip Seal Cover w/ weatherproof boot only 2700-FS (1) 1 7/16” Dia. 2” Dia.

Non-NEMA 10/15 Amp 125/250 Volt 2715FS07

5-15 15 Amp 125 Volt 2715-FS10 2705-15 2705-15A

5-20 20 Amp 125 Volt 2715-FS12 2705-20 2705-20A

6-15 15 Amp 250 Volt 2715-FS14

6-20 20 Amp 250 Volt 2715-FS16

L5-15 15 Amp 125 Volt 2715-FS20 2705-L15 2705-L15A

L6-15 15 Amp 250 Volt 2715-FS22

L7-15 15 Amp 277 Volt 2715-FS24

20A & 30A Locking, 3-Wire

Flip Seal Cover w/ weatherproof boot only 2800-FS (1) 2 1/8” Dia.

L5-20 20 Amp 125 Volt 2820-FS10 2705-L20

L6-20 20 Amp 250 Volt 2820-FS12

L7-20 20 Amp 277 Volt 2820-FS14

Non-NEMA 20 Amp 125/250 Volt 2820-FS16

Non-NEMA 20 Amp/10 Amp 250 Volt/600 Volt 2820-FS17

L5-30 30 Amp 125 Volt 2830-FS10

L6-30 30 Amp 250 Volt 2830-FS12

L7-30 30 Amp 277 Volt 2830-FS14

Non-NEMA 30 Amp 125/250 Volt 2830-FS16

20A & 30A Locking, 4-Wire

Flip Seal Cover w/ weatherproof boot only 2900-FS(1) 2 1/8” Dia.

L14-20 20 Amp 125/250 Volt 2920-FS20 2705-L142

L15-20 20 Amp 250 Volt, 3

2920-FS22

L16-20 20 Amp 480 Volt, 3

2920-FS24 2705-L162

L14-30 30 Amp 125/250 Volt 2930-FS20

L15-30 30 Amp 250 Volt, 3

2930-FS22

L16-30 30 Amp 480 Volt, 3

2930-FS24

L17-30 30 Amp 600 Volt, 3

2930-FS26

L18-30 30 Amp 120/208 Volt, 3

wye 2930-FS30

Non-NEMA 30 Amp 120/208 Volt, 3

wye 2930-FS28

WHEN USED WITH

PERMA-TITE®2 PLUG

Wet Location

Tested &

Approved

(Female Only)

139

FS Series

Made in

the USA

6200 Series Boxes for FS Series Mounting

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

Single Male Inlet Assemblies with Cover Plates - 2705 FS Series

•Weather resistant boot seals around the connector to provide weather resistant protection

•Spring-loaded flip-lid covers inlet when not in use

•Includes cover plate, rubber boot, stainless steel mounting plate/mounting screws

•Impact, chemical & corrosion resistant construction stands up to demanding environments

•Mounts easily to any 6200 series FS/FD boxes or any flat surface

•Spring Loaded SS hardware flip cover

2705-15 2705-15A 2705-L142 2705-L15 2705-L20

Application Notes:

The 2705 FS series of male inlets is designed for all weather power inlet on a variety of applications. The heavy duty flip cover

assembly and superior round sealing collar provides a superior seal against the elements. Use for inlet power only. Never use

these devices for power output or receptacle. These devices must be wired dead and cannot be accidentally energized without

a connector in place.

•Power inlet for powered food trolley carts

•Power charging inlet for fire trucks, ambulances and electric service vehicles

• Power charging port for electric battery cars or golf carts

• Power inlet for machines in tough environments

• Power inlet for portable temporary power panels

Also available in all black or

customized - call Ericson

for details

Part Number Description

6212FSK Box, Std Depth, No bushing, 1/2" NPT

6234FSK Box, Std Depth, No bushing, 3/4" NPT

6210FSK Box, Std Depth, No bushing, 1" NPT

6212FDK Box, Deep, No bushing, 1/2" NPT

6234FDK Box, Deep, No bushing, 3/4" NPT

6210FDK Box, Deep, No bushing, 1" NPT

Boxes for 2705 - 1/2" NPT Bushing Installed (N=Non Metallic W = Wire Mesh)

6212NFSK Box, Std Depth, NM Bushing, 1/2" NPT

6212NFDK Box, Deep, NM Bushing, 1/2" NPT

6212WFSK Box, Std Depth, WireMesh Bushing, 1/2" NPT

6212WFDK Box, Deep, WireMesh Bushing, 1/2" NPT

6234NFSK Box, Std Depth, NM Bushing, 3/4" NPT

6234NFDK Box, Deep, NM Bushing, 3/4" NPT

6234WFSK Box, Std Depth, WireMesh Bushing, 3/4" NPT

6234WFDK Box, Deep, WireMesh Bushing, 3/4" NPT

6210NFSK Box, Std Depth, NM Bushing, 1" NPT

6210NFDK Box, Deep, NM Bushing, 1" NPT

6210NFTK Box, OPEN, NM Bushing, 1" NPT

6210WFSK Box, Std Depth, WireMesh Bushing, 1" NPT

6210WFDK Box, Deep, WireMesh Bushing, 1" NPT

6210WFTK Box, OPEN, WireMesh Bushing, 1" NPT

140

Physical Box Sizes

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

FS Standard BoxFD Deep BoxFT Feed Thru Box

6260 WK Wall Kit

Mounting Templates

2700, 2800 or 2900

series on flat panel

PWDX on flat panel

141

Configuration Adapters & Perma-Tite® 2 Plug Cover

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

NEMA Configuration Adapters

Now make quick, secure connections between straight-blade

and locking plugs and connectors with Ericson's NEMA

configuration adapters.

•Heavy-duty non-conducting housing and using heavy gauge

solid brass blades

•Compact size makes them easy to use and transport

•Available in four of the most popular models

2 Plug Cover

•Use with Ericson's Perma-Tite® plugs to seal out water,

dust and other contaminants and to protect blades

from damage when plug is not in-use

•Eight-point rubber tongue and groove sealing system

provides environmental protection

•Additional protection provided by a unique internal

water/dust wiper

•Easy to assemble

•Ericson's Radiant Yellow for High Visibility on job sites

16CW - Fits 16XXCW6P Connectors 24CW - Fits 24XXCW6P Connectors

26CW - Fits 26XXCW6P Connectors

2 Plug Cover Selection Guide

Catalog

Number Description

15PW Male closure cap, for use with 15A Straight Blade

& Locking devices and 20A Straight Blade devices.

16CW Female replacement cover for CW6P connectors

24CW Female Large replacement cover for CW6P connectors

26CW Female 30 Amp Large replacement cover for CW6P connectors

NEMA Configuration Adapters Selection Guide

123-20P15C

123-15P20C

Catalog

Number

NEMA

Configuration Description

Male Female

1705 Male 15A, 125V twist (L5-15P) to 20A, 125V straight (5-20R)

1712 Male 15A, 125V straight (5-15P) to 15A, 125V twist (L5-15R)

1740 Male 20A, 125V twist (L5-20P) to 20A, 125V straight (5-20R)

1744 Male 15A, 125V straight (5-15P) to 20A, 125V twist (L5-20R)

123-20P15C Male 20A, 125V twist (L5-20P) to 15A, 125V straight (5-15R)

123-15P20C Male 15A, 125V straight (5-15P) to 20A, 125V twist (L5-20R)

Heavy Duty

#12/3 Cord

600V Rated

15PW with

1510-PW6P Plug

WIRING DEVICES

L6-30

EML630R

L5-20

EML520R

142

Perma-Link® Devices - Light Industrial

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Hospital Grade Selection Guide

INSULATED/INSTITUTION GRAY RUBBER COVER

White and light “institution” gray colors identify this style

which provides superior insulation. They are clearly

marked “Hospital Grade” and clearly marked with a green

dot to signify UL Hospital Grade. Non-conductive cord

clamp to accommodate cord sizes #16/3 SJ through

#12/3 SO.

FAST WIRING CHECK THROUGH CLEAR COVER

White PBT and transparent polycarbonate housing identify

this type which permits visual inspection of wiring terminations

without disassembly. Impact resistance, and non-conductive.

Cord clamp has removable insert to accommodate #16/3 SJTW

through #12/3 SO cord sizes.

Hospital Grade Perma-Link® Plugs and Connectors

The same rugged internal construction as our standard Perma-Link line is found in these units, and in addition they meet UL

Hospital Grade standards. Designed for reliable long life, built to withstand exceptional abuse, these dead-front, back-wired

devices save installation time, provide maximum protection and can be used for straight blade installations in hospitals,

schools, and extended care facilities. Constructed of rugged polybutylene therephthalate (PBT) and a high-tech thermoplastic

elastomer (TPE), they have passed tests for ground pin retention, ground resistance, face impact, ground temperature contact,

fault current, line blade retention and abrupt removal.

EML520R & EML630R

Ericson offers our same heavy duty receptacles that we use in our own Temporary Power Panels. These wiring devices are

primarily used in our OSCAR series and can be used as replacement parts for those products. Features such as color coded

screw terminals with combo heads for ease of wiring makes these superior devices the best choice.

Hospital Grade Devices with Gray Covers

Face View NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PH 1630-CH

5-20 20 125 1532-PH 1632-CH

Hospital Grade Devices with Clear Covers

Straight Blade, 2-pole, 3-wire Grounding

Face View NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PHC 1630-CHC

5-20 20 125 1532-PHC 1632-CHC

143

Perma-Link® 50 Amp Devices - Light Industrial

Made in

the USA

50Amp Locking Plugs and Connectors

Ericson's 50 Amp plugs and connectors incorporate the latest technologies to

provide wiring devices that are safer, faster to wire, lighter and easier to identify.

These devices are available as plugs, connectors, inlets and receptacles and are

available in 3 and 4 wire configurations.

•UL Listed, CSA Certified, CETLUS Listed

•Rugged nylon construction resists impact, corrosion and jobsite oils/chemicals

•Quick field assembly, no need to disassemble the entire device

•Nickel plated blades and stainless steel screws provide optimum corrosion resistance

•Optional heavy-duty weather-proof boots are available and provide added environmental protection and UV resistance

•Boots can be threaded together with the optional sealing collar system to provide maximum environmental protection

•Available in plugs, connectors, inlets and receptacles

Sealing Collar System

Our exclusive sealing collar system is available to provide maximum moisture protection between cordsets.

The two boots are securely sealed together with threaded polycarbonate rings.

7717

510-RR

7717

SR50

Notes:

1. For replacement use only, not recommended for new installations

2. Contact factory for custom assemblies

7788-CR

Perma-Link® 50-Amp Accessories Cat. Number

Weatherproof boot for plug or connector 7717

Sealing Collar for weatherproof boots 510-RR

Weatherproof receptacle cover 7788-CR

50-Amp Devices

Selection Guide

Face View

NEMA Electrical Ratings Perma-Link® Receptacles Flanged

Inlets

Inlet with

Flip Cover

Configuration Amps Volts Plugs Connectors

Locking, 2-pole, 3-wire Grounding

Non-NEMA 50 250VDC, 600VAC 3763-P 3762-C 3771 3777

Locking, 3-pole, 4-wire Grounding

Non-NEMA 50 250VDC, 600VAC 3765-P 3764-C 3769 3775

250VDC, 600VAC 7765-P(1) 7764-C(1) 7379 7958

Locking, California Style, 2-pole, 3-wire Grounding

Non-NEMA 50

125 CS6361-P CS6360-C - -

250 CS8265-P CS8264-C CS8269 CS8275

480 CS8465-P - CS8469 -

Locking, California Style, 3-pole, 4-wire Grounding

Non-NEMA 50 125/250 CS6365-P CS6364-C CS6369 CS6375 CS6375-F

480, 3

CS8165-P CS8164-C CS8169 CS8175

7717 Provides A

Superior Seal With

Our SR-50 Receptacle

Plug into Oscar™

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

144

Grommet Sizes

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

WIRING DEVICES

Devices

Commercial

Grade

Commercial Grade

Insert Used Cord Diameter

Both Less than .220 - .450”

None Over .460 - .650”

Self centering cord clamp

accommodates cord diameters

Small .335 - .720”

Med/Large .360 - 1.0”

.50 .50

.75 1.0

.50 1.0

O.D. O.D.

UF Cable

Large

Small

Large

Commercial Grade Only

For Grommet

Sizing

See Chart

Perma-Link®, Perma-Grip™

& Perma-Tite® 2

SmartMonitor™ Devices Only

3 Wire

Round

Strip Lengths

Dimensions in inches

Round Cord Only

4 Wire

Round

145

Grommet Sizes

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

WIRING DEVICES

White

OVAL

# 24

Orange

OVAL

# 25

Yellow

# 21

White

# 20

Red

# 16

Blue

# 18

White

# 91

Yellow

# 90

Black

# 89

Blue #

Gray

# 87

Red

# 86

Orange

# 85

MAX

CORD

DIA.

(inch)

OVAL (UF)

.160

x .360

OVAL

(UF) .230

x .440

0.370 0.450 0.560 0.610 0.450 0.560 0.630 0.690 0.750 0.830 0.900

WIRE

Plug

Connector

Yellow White* Red Blue White* Yellow Black Blue Gray Red Orange 3 4 3Ø

1510 1610

Optional **

1512 1612 X

1514 1614 X

1516 1616 X

1520 1620 X

1522 1622 X

1524 1624 X

2310 2410 X

2312 2412 X

2314 2414 X

2316 2416 X X

2317 2417 X

2320 2420 X

2322 2422 X X

2324 2424 X X

2510 2610 X

2512 2612 X

2514 2614 X

2516 2616 X X

2520 2620 X

2522 2622 X X

2524 2624 X X

2526 2626 X X

2528 2628 X X

2530 2630 X X

* May also appear as light tan

** May be ordered separately - Call Ericson for details

= Included in package

Diameter Ranges of Portable Electrical Cord

In Accordance with UL 62

Type AWG Size 2 Conductors 3 Conductors 4 Conductors

SJ,SJE, SJOO,

SJO, SJEO, SJT,

SJTO, SJTOO

18 0.280-0.315 0.300-0.335 0.325-0.365

16 0.305-0.340 0.325-0.360 0.350-0.395

14 0.335-0.375 0.360-0.395 0.390-0.435

12 0.405-0.455 0.425-0.475 0.465-0.520

10 0.540-0.605 0.565-0.635 0.625-0.700

S, SE, SOO, SO

SEO, ST, STOO,

STO

18 0.340-0.385 0.360-0.400 0.385-0.430

16 0.365-0.410 0.385-0.430 0.410-0.460

14 0.495-0.550 0.520-0.575 0.560-0.620

12 0.565-0.625 0.590-0.655 0.640-0.710

10 0.615-0.685 0.650-0.720 0.700-0.775

80.780-0.880 0.830-0.930 0.925-1.050

60.920-1.050 0.970-1.100 1.050-1.200

41.060-1.210 1.130-1.280 1.250-1.450

21.210-1.400 1.300-1.500 1.450-1.650

B10200XX B10220XX

146

MINI-SYNC™ & MICRO-SYNC™ Devices

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

MINI & MICRO

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

147

MINI-SYNC™ & MICRO-SYNC™ Devices

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

MINI & MICRO

Ericson’s family of MINI-SYNC™ and MICRO-SYNC™ connectors, cable assemblies and receptacles offer the flexibility,

vibration resistance and product configuration options necessary for today’s challenging manufacturing

environments. These connectors have been designed for low amperage AC or DC control systems, and are

compatible with the pin configurations used by major U.S. and European sensor manufacturers.

MINI-SYNC™ and MICRO-SYNC™ plugs and cable assemblies are excellent for use where flexibility and resistance

to stress, abuse, and harsh physical environments is essential. A wide range of configuration alternatives are

available including male and female connections, 2 thru 12 pole pin-outs, straight or 90º configurations, and

single or dual keyway.

Flexible connector configurations make these products ideal for applications where proximity switches, limit

switches, photoelectric switches and solenoids are used including:

• Automotive Assembly • Conveyor Sensors • Packaging Machinery

• Automated Machinery • Material Handling • Automated Assembly

• Packaging Equipment • Robotics • Automated Inspection

FEATURES:

• NEMA 6P and IP68 protection

• Made in the USA

• Compatible with U.S. and European sensors

• High-impact resistant contact carriers

• Highly accurate machined contacts

• Corrosion resistant gold plated contacts

• Secure pin and contact crimp termination

• Mechanically keyed

• Field installable

• Stress and harsh environment resistant

• Vibration resistant

Flexible MINI-SYNC™ and

MICRO-SYNC™ Connectors,

Cable Assemblies and

Receptacles

NEW!

148

MINI-SYNC™ - 2- 6 Pole - Male & Female - Straight & 90º

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

MINI & MICRO

Straight Connector

90º Plug Connector

SPECIFICATIONS

Materials

Body: PVC

Contact Carrier: Nitrile Rubber

Contact Sleeve: Stainless Steel

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum,

Black Anodized

Cable: #16 AWG Type PVC, 65 x #34

stranding 105° C

Other cables available

Cable Diameters: 2/C-.37", 3/C-.39”, 4/C-.42” ,

5/C-.50",6/C-53"

Electrical

Voltage Rating: 600 VAC

Contact Resistance: <;5m Ω

Environmental

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

Certifications

OPTIONS

#18 AWG (PVC) Plug Assemblies

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length

and a full range of wire management

product accessories.

149

MINI-SYNC™ - 2- 6 Pole - Male & Female - Straight & 90º

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

MINI & MICRO

Poles Face View Rating Wiring Code

Overall Length

(ft./m)

MINI-SYNC™

Straight

Male

MINI-SYNC™

Male

90°

MINI-SYNC™

Female

Straight

MINI-SYNC™

Female

90°

213A 1-White

600V 2-Black

3 ft./0.91m 82MS003A 82M9003A 82FS003A 82F9003A

6 ft./1.83m 82MS006A 82M9006A 82FS006A 82F9006A

12 ft./3.66m 82MS012A 82M9012A 82FS012A 82F9012A

15 ft./4.57m 82MS015A 82M9015A 82FS015A 82F9015A

20 ft./6.10m 82MS020A 82M9020A 82FS020A 82F9020A

313A 1-Green

600V 2-Black

3-White

3 ft./0.91m 83MS003A 83M9003A 83FS003A 83F9003A

6 ft./1.83m 83MS006A 83M9006A 83FS006A 83F9006A

12 ft./3.66m 83MS012A 83M9012A 83FS012A 83F9012A

15 ft./4.57m 83MS015A 83M9015A 83FS015A 83F9015A

20 ft./6.10m 83MS020A 83M9020A 83FS020A 83F9020A

10A 1-Black

600V 2-White

3-Red

4-Green

3 ft./0.91m 84MS003A 84M9003A 84FS003A 84F9003A

6 ft./1.83m 84MS006A 84M9006A 84FS006A 84F9006A

12 ft./3.66m 84MS012A 84M9012A 84FS012A 84F9012A

15 ft./4.57m 84MS015A 84M9015A 84FS015A 84F9015A

20 ft./6.10m 84MS020A 84M9020A 84FS020A 84F9020A

8A 1-White

600V 2-Red

3-Green

4-Orange

5-Black

3 ft./0.91m 85MS003A 85M9003A 85FS003A 85F9003A

6 ft./1.83m 85MS006A 85M9006A 85FS006A 85F9006A

12 ft./3.66m 85MS012A 85M9012A 85FS012A 85F9012A

15 ft./4.57m 85MS015A 85M9015A 85FS015A 85F9015A

20 ft./6.10m 85MS020A 85M9020A 85FS020A 85F9020A

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

3 ft./0.91m 86MS003A 86M9003A 86FS003A 86F9003A

6 ft./1.83m 86MS006A 86M9006A 86FS006A 86F9006A

12 ft./3.66m 86MS012A 86M9012A 86FS012A 86F9012A

15 ft./4.57m 86MS015A 86M9015A 86FS015A 86F9015A

20 ft./6.10m 86MS020A 86M9020A 86FS020A 86F9020A

Male

Female

Male

Female

Male

Female

Male

Female

Male

Female

150

MINI-SYNC™ - 6B- 12 Pole - Male & Female - Straight & 90º

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

MINI & MICRO

6-8 POLE

Straight Connector

90º Connector

9-12 POLE

Straight Connector

SPECIFICATIONS

Materials

Body: PVC

Contact Carrier: Nitrile Rubber

Contact Sleeve: Stainless Steel

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum,

Black Anodized

Cable: #16 AWG Type PVC, 65 x #34

stranding 105° C

Other cables available

Cable Diameters: 2/C-.37", 3/C-.39”, 4/C-.42” ,

5/C-.50",6/C-53"

Electrical

Voltage Rating: 600 VAC

Contact Resistance: <;5m Ω

Environmental

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

Certifications

OPTIONS

#18 AWG (PVC) Plug Assemblies

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length

and a full range of wire management

product accessories.

90º Connector

151

MINI-SYNC™ - 6B- 12 Pole - Male & Female - Straight & 90º

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

MINI & MICRO

Poles Male

Face View Rating Wiring Code Overall Length

(ft./m)

MINI-SYNC™

Straight

Male

MINI-SYNC™

Male

90°

MINI-SYNC™

Female

Straight

MINI-SYNC™

Female

90°

6 B

Size

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

3 ft./0.91m 86BMS003A 86BM9003A 86BFS003A 86BF9003A

6 ft./1.83m 86BMS006A 86BM9006A 86BFS006A 86BF9006A

12 ft./3.66m 86BMS012A 86BM9012A 86BFS012A 86BF9012A

15 ft./4.57m 86BMS015A 86M9015A 86FBS015A 86BF9015A

20 ft./6.10m 86BMS020A 86BM9020A 86BFS020A 86BF9020A

7A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

3 ft./0.91m 87MS003A 87M9003A 87FS003A 87F9003A

6 ft./1.83m 87MS006A 87M9006A 87FS006A 87F9006A

12 ft./3.66m 87MS012A 87M9012A 87FS012A 87F9012A

15 ft./4.57m 87MS015A 87M9015A 87FS015A 87F9012A

20 ft./6.10m 87MS020A 87M9020A 87FS020A 87F9020A

7A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

8-White-Blk. Tr.

3 ft./0.91m 88MS003A 88M9003A 88FS003A 88F9003A

6 ft./1.83m 88M9006A 88M9006A 88FS006A 88F9006A

12 ft./3.66m 88MS012A 88M9012A 88FS012A 88F9012A

15 ft./4.57m 88MS015A 88M9015A 88FS015A 88F9015A

20 ft./6.10m 88MS020A 88M9020A 88FS020A 88FS020A

7A 1-Orange

600V 2-Blue

3-Red-Blk.Tr.

4-Green-Blk.Tr.

5-White

6-Red

7-Green

8-White-Blk.Tr.

9-Black

3 ft./0.91m 89MS003A 89M9003A 89FS003A 89F9003A

6 ft./1.83m 89MS006A 89M9006A 89FS006A 89F9006A

12 ft./3.66m 89MS012A 89M9012A 89FS012A 89F9012A

15 ft./4.57m 89MS015A 89M9015A 89FS015A 89F9015A

20 ft./6.10m 89MS020A 89M9020A 89FS020A 89F9020A

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr.

5-Green-Blk.Tr.

6-Orange-Blk.Tr.

7-Red

8-Green

9-Black

10-White

3 ft./0.91m 810MS003A 810M9003A 810FS003A 810F9003A

6 ft./1.83m 810MS006A 810M9006A 810FS006A 810F9006A

12 ft./3.66m 810MS012A 810M9012A 810FS012A 810F9012A

15 ft./4.57m 810MS015A 810M9015A 810FS015A 810F9015A

20 ft./6.10m 810MS020A 810M9020A 810FS020A 810F9020A

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr.

5-Green-Blk.Tr.

6-Orange-Blk.Tr.

7-Blue-Blk.Tr.

8-Black-Wht.Tr.

9-Green

10-Red

11-White

12-Black

3 ft./0.91m 812MS003A 812M9003A 812FS003A 812F9003A

6 ft./1.83m 812MS006A 812M9006A 812FS006A 812F9006A

12 ft./3.66m 812MS012A 812M9012A 812FS012A 812F9012A

15 ft./4.57m 812MS015A 812M9015A 812FS015A 812F9015A

20 ft./6.10m 812MS020A 812M9020A 812FS020A 812F9020A

152

MINI-SYNC™ - 2-6 Pole Receptacles

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

MINI & MICRO

DIMENSIONS

Receptacle

SPECIFICATIONS

MATERIALS

Insert Material: Nitrile Rubber

Contact: Brass, Gold Plated over

Nickel

Sleeve: Stainless Steel

Shell: Machined Aluminum, Black

Anodized (stainless steel available)

Wire: #16 AWG/600 Volts 26 x

#30 Stranding

“O" Ring: Viton

Lock nut: Plated Steel (not pictured)

ELECTRICAL

Voltage Rating: 600 VAC

Contact Resistance: ≤5m Ω

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -50°C to 90°C (UL),

-34°C to 90°C (CSA)

CERTIFICATIONS

OPTIONS

Stainless Steel Hardware can be

specified - add “SS" after Part Number;

to specify 18 AWG Wire add “-18" after

the Part Number.

Not available in stainless steel.

153

MINI-SYNC™ - 2-6 Pole Receptacles

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating Wiring Code

Overall Length

(ft./m)

Male Straight

Receptacle

12 in. Leads

Female Straight

Receptacle

12 in. Leads

213A 1-White

600V 2-Black 12 in. 82MRC 82FRC

313A 1-Green

600V 2-Black

3-White

12 in. 83MRC 83FRC

10A 1-Black

600V 2-White

3-Red

4-Green

12 in. 84MRC 84FRC

8A 1-White

600V 2-Red

3-Green

4-Orange

5-Black

12 in. 85MRC 85FRC

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

12 in. 86MRC 86FRC

154

MINI-SYNC™ - 6B-12 Pole Receptacles

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

Specifications

MATERIALS

Insert Material: Nitrile Rubber

Contact: Brass, Gold Plated over

Nickel

Sleeve: Stainless Steel

Shell: Machined Aluminum, Black

Anodized (stainless steel available)

Wire: #16 AWG/600 Volts 26 x

#30 Stranding

“O" Ring: Viton

Lock nut: Plated Steel (not pictured)

ELECTRICAL

Voltage Rating: 600 VAC

Contact Resistance: ≤5m Ω

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -50°C to 90°C (UL),

-34°C to 90°C (CSA)

CERTIFICATIONS

OPTIONS

Stainless Steel Hardware can be

specified - add “SS" after Part Number; to specify 18

AWG Wire add “-18" after the Part Number.

Not available in stainless steel.

DIMENSIONS

6B-12 POLE

Receptacle

6B-8 POLE

Receptacle

155

MINI-SYNC™ - 6B-12 Pole Receptacles

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating Wiring Code Overall Length

(ft./m)

Male Straight

Receptacle

12 in. Leads

Female Straight

Receptacle

12 in. Leads

6 B

Size

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

12 inches 86BMRC 86BFRC

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

8-White-Blk.Tr.

12 inches 88MRC 88FRC

7A 1-Orange

600V 2-Blue

3-Red-Blk.Tr.

4-Green-Blk.Tr.

5-White

6-Red

7-Green

8-White-Blk.Tr.

9-Black

12 inches 89MRC 89FRC

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr.

5-Green-Blk.Tr.

6-Orange-Blk.Tr.

7-Red

8-Green

9-Black

10-White

12 inches 810MRC 810FRC

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr.

5-Green-Blk.Tr.

6-Orange-Blk.Tr.

7-Blue-Blk.Tr.

8-Black-Wht.Tr.

9-Green

10-Red

11-White

12-Black

12 inches 812MRC 812FRC

156

MINI-SYNC™ - PVC Cable Assemblies

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

MINI & MICRO

SPECIFICATIONS

MATERIALS

Body: PVC

Contact Carrier: Nitrile Rubber

Contact Sleeve: Stainless Steel

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum, Black Anodized

Cable: #16 AWG Type PVC, 65 x

#34 stranding, 105° C

Other cables available

Cable Diameters: 2/C-.37", 3/C-.39",

4/C-.42", 5/C-.50", 6/C-.53"

ELECTRICAL

Voltage Rating: 600 VAC

Contact Resistance: ≤5m Ω

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Plug Assemblies

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length and a full

range of wire management product accessories

DIMENSIONS

Female/Male Cordset

157

MINI-SYNC™ - PVC Cable Assemblies

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

MINI & MICRO

Poles Face Views Rating

Overall

Wiring

Code Length

(ft./m)

MINI-SYNC™

Male/Female

Straight

MINI-SYNC™

Male 90°/Female

Straight MINI-SYNC™

Male 90°/Female 90°

MINI-SYNC™

Female 90° / Male

Straight

213A 1-White

600V 2-Black

3 ft./0.91m 82FMS003A 82M9FS003A 82F9M9003A 82F9MS003A

6 ft./1.83m 82FMS006A 82M9FS006A 82F9M9006A 82F9MS006A

12 ft./3.66m 82FMS012A 82M9FS012A 82F9M9012A 82F9MS012A

15 ft./4.57m 82FMS015A 82M9FS015A 82F9M9015A 82F9MS015A

20 ft./6.10m 82FMS020A 82M9FS020A 82F9M9020A 82F9MS020A

313A 1-Green

600V 2-Black

3-White

3 ft./0.91m 83FMS003A 83M9FS003A 83F9M9003A 83F9MS003A

6 ft./1.83m 83FMS006A 83M9FS006A 83F9M9006A 83F9MS006A

12 ft./3.66m 83FMS012A 83M9FS012A 83F9M9012A 83F9MS012A

15 ft./4.57m 83FMS015A 83M9FS015A 83F9M9015A 83F9MS015A

20 ft./6.10m 83FMS020A 83M9FS020A 83F9M9020A 83F9MS020A

10A 1-Black

600V 2-White

3-Red

4-Green

3 ft./0.91m 84FMS003A 84M9FS003A 84F9M9003A 84F9MS003A

6 ft./1.83m 84FMS006A 84M9FS006A 84F9M9006A 84F9MS006A

12 ft./3.66m 84FMS012A 84M9FS012A 84F9M9012A 84F9MS012A

15 ft./4.57m 84FMS015A 84M9FS015A 84F9M9015A 84F9MS015A

20 ft./6.10m 84FMS020A 84M9FS020A 84F9M9020A 84F9MS020A

8A 1-White

600V 2-Red

3-Green

4-Orange

5-Black

3 ft./0.91m 85FMS003A 85M9FS003A 85F9M9003A 85F9MS003A

6 ft./1.83m 85FMS006A 85M9FS006A 85F9M9006A 85F9MS006A

12 ft./3.66m 85FMS012A 85M9FS012A 85F9M9012A 85F9MS012A

15 ft./4.57m 85FMS015A 85M9FS015A 85F9M9015A 85F9MS015A

20 ft./6.10m 85FMS020A 85M9FS020A 85F9M9020A 85F9MS020A

8A 1-White

600V 2-Red

3-Green

4-Orange

5-Black

6-Blue

3 ft./0.91m 86FMS003A 86M9FS003A 86F9M9003A 86F9MS003A

6 ft./1.83m 86FMS006A 86M9FS006A 86F9M9006A 86F9MS006A

12 ft./3.66m 86FMS012A 86M9FS012A 86F9M9012A 86F9MS012A

15 ft./4.57m 86FMS015A 86M9FS015A 86F9M9015A 86F9MS015A

20 ft./6.10m 86FMS020A 86M9FS020A 86F9M9020A 86F9MS020A

Closure Caps for Plugs and Receptacles

Plug

Receptacle

Adapter for Joining Two Cable Assemblies

Male

Female

Male

Female

Male

Female

Male

Female

Male

Female

Number of Poles Plugs Receptacles

2, 3, 4, 5, or 6 (A Size) 826AETCC 826AITCC

6 (B Size), 7, or 8 86B8ETCC 86B8ITCC

9, 10, or 12 8912ETCC 8912ITCC

Number of Poles Part Number

2, 3, 4, 5, or 6 (A Size) 826AJAD

6 (B Size), 7, or 8 86B8JAD

9, 10, or 12 8912JAD

158

MICRO-SYNC™ - Single Key (DC) Male & Female - Straight & 90º

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Body: PVC

O-Ring: Nitrile Rubber

Contact Carrier: Zytel ST801

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum, Clear Anodized

Cable: #22 AWG PVC 26 x #36 stranding, 105°C,

Or #18 AWG PVC 41 x #34 stranding, 105°C,

UL Recognized, CSA Certied

Cable Diameters: #22 AWG PVC w/o braid, 2/C-.17",

3/C-.18”, 4/C-.19”, 5/C-.21",6/C-22"

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG 2 to 5 Pole – 4A,

6 Pole – 3A, #18 AWG – 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

Certications

OPTIONS

#18 AWG (PVC) Plug Assemblies (2-5) Poles

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length and a full

range of wire management product accessories

DIMENSIONS

Female Plugs

Male Plugs

Poles Face View Rating

Wiring

Code

OveralLength

(m/ft.)

MICRO-SYNC™

Straight

Male

MICRO-SYNC™

Male

90°

MICRO-SYNC™

Female

Straight

MICRO-SYNC™

Female

90°

34A

300V

1-Brown

2-N/A

3-Blue

4- Black

2m / 6.6 ft. 93MSE2G 93M9E2G 93FS2G 93F92G

4m / 13.1 ft. 93MSE4G 93M9E4G 93FS4G 93F94G

5m / 16.3 ft. 93MSE5G 93M9E5G 93FS4G 93F95G

44A

300V

1-Brown

2-White

3-Blue

4-Black

2m / 6.6 ft. 94MSE2G 94M9E2G 94FS2G 94F92G

4m / 13.1 ft. 94MSE4G 94M9E4G 94FS4G 94F94G

5m / 16.3 ft. 94MSE5G 94M9E5G 94FS5G 94F95G

54A

300V

1-Brown

2-White

3-Blue

4-Black

5-Grey

2m / 6.6 ft. 95MSE2G 95M9E2G 95FS2G 95F92G

4m / 13.1 ft. 95MSE4G 95M9E4G 95FS4G 95F94G

5m / 16.3 ft. 95MSE5G 95M9E5G 95FS5G 95F95G

159

MICRO-SYNC™ - Single Key (DC) Male & Female - Straight & 90º

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Male

Female

Male

Female

160

MICRO-SYNC™ - Single Key (DC) Cable Assemblies

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Body: PVC

O-Ring: Nitrile Rubber

Contact Carrier: Zytel ST801

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum, Clear Anodized

Cable: #22 AWG PVC 26 x #36 stranding, 105°C, Or

#18 AWG PVC 41 x #34 stranding, 105°C,

UL Recognized, CSA Certied

Cable Diameters: #22 AWG PVC w/o braid,

2/C-.17", 3/C-.18”, 4/C-.19”, 5/C-.21",6/C-22"

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG 2 to 5 Pole – 4A,

6 Pole – 3A, #18 AWG – 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Plug Assemblies (2-5) Poles

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length and a full

range of wire management product accessories

DIMENSIONS

161

MICRO-SYNC™ - Single Key (DC) Cable Assemblies

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating Wiring Code

Overall Length

(ft./m)

MICRO-SYNC™ DC

Female / Male

Straight

4A 1-Brown

300V 2-N/A

3-Blue

4-Black

6 ft. / 1.8 m 93FMSE2G

12 ft. / 3.6 m 93FMSE4G

20 ft / 6.1 m 93FMSE5G

4A 1-Brown

300V 2-White

3-Blue

4-Black

6 ft. / 1.8 m 94FMSE2G

12 ft. / 3.6 m 94FMSE4G

20 ft / 6.1 m 94FMSE5G

4A 1-Brown

300V 2-White

3-Blue

4-Black

5-Grey

6 ft. / 1.8 m 95FMSE2G

12 ft. / 3.6 m 95FMSE4G

20 ft / 6.1 m 95FMSE5G

Male

Female

Male

Female

Male

Female

162

MICRO-SYNC™ - Single Key (DC) Receptacles

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Insert Material: Zytel ST801

O-Ring: Nitrile Rubber

Contact: Brass, Gold Plated over Nickel

Shell: Machine Aluminum, Black Anodized

Lock Nut: Plated Steel

Wire: #22 AWG PVC Insulated 26 x #36

stranding, 80°C

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG 2- 4A,

#18 AWG - 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 80°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Leads

Stainless Steel Shells

Not available on back panel mount styles

DIMENSIONS

Male Receptacles

1/2” NPT

M14 x 1

1/4” NPT

Back Panel Mount

Female Receptacles

163

MICRO-SYNC™ - Single Key (DC) Receptacles

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating

Wiring

Code

Overall

Length

(ft./m)

MICRO-SYNC™

DC Male

1/2" NPT

MICRO-SYNC™

DC Male

M14 x 1

MICRO-SYNC™

DC Female

1/4" NPT

MICRO-SYNC™

DC Female

Back Panel

4A 1-Brown

300V 2-N/A

3-Blue

4-Black

12 inches 93MRK2 93MRK4 93FRK1 93FRK3

44A 1-Brown

300V 2-White 12 inches 94MRK2 94MRK4 94FRK1 94FRK3

4A 1-Brown

300V 2-White

3-Blue

4-Black

5-Grey

12 inches 95MRK2 95MRK4 95FRK1 95FRK3

Male

Female

Male

Female

164

MICRO-SYNC™ - Dual Key (AC) Male & Female - Straight & 90º

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Body: PVC

O-Ring: Nitrile Rubber

Contact Carrier: Zytel ST801

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum, Clear Anodized

Cable: #22 AWG PVC 26 x #36 stranding, 105°C,

Or #18 AWG PVC 41 x #34 stranding, 105°C,

UL Recognized, CSA Certied

Cable Diameters: #22 AWG PVC w/o braid, 2/C-.17",

3/C-.18”, 4/C-.19”, 5/C-.21",6/C-22"

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG 2 to 5 Pole – 4A,

6 Pole – 3A, #18 AWG – 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Plug Assemblies (2-5) Poles

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length and a full

range of wire management product accessories

DIMENSIONS

Female Plugs

Male Plugs

165

MICRO-SYNC™ - Dual Key (AC) Male & Female - Straight & 90º

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating Wiring Code

Overall

Length

(ft./m)

MICRO-SYNC™

Male

Straight

MICRO-SYNC™

Male

90°

MICRO-SYNC™

Female

Straight

MICRO-SYNC™

Female

90°

24A 1-Brown

300V 2-Blue

6 ft. / 1.8 m 72MSE006F 72M9E006F 72FS006F 72F9006F

12 ft. / 3.6 m 72MSE012F 72M9E012F 72FS012F 72F9012F

20 ft / 6.1 m 72MSE020F 72M9E020F 72FS020F 72F9020F

34A 1-Brown

300V 2-Red/Black

3-Red/White

6 ft. / 1.8 m 73MSE006F 73M9E006F 73FS006F 73F9006F

12 ft. / 3.6 m 73MSE012F 73M9E012F 73FS012F 73F9012F

20 ft / 6.1 m 73MSE020F 73M9E020F 73FS020F 73F9020F

4A 1-Red/Black

300V 2-Red/White

3-Red

4-Green

6 ft. / 1.8 m 74MSE006F 74M9E006F 74FS006F 74F9006F

12 ft. / 3.6 m 74MSE012F 74M9E012F 74FS012F 74F9012F

20 ft / 6.1 m 74MSE020F 74M9E020F 74FS020F 74F9020F

4A 1-Red/White

300V 2-Red

3-Green

4-Red/Yellow

5-Red/Black

6 ft. / 1.8 m 75MSE006F 75M9E006F 75FS006F 75F9006F

12 ft. / 3.6 m 75MSE012F 75M9E012F 75FS012F 75F9012F

20 ft / 6.1 m 75MSE020F 75M9E020F 75FS020F 75F9020F

4A 1-Red/White

300V 2-Red

3-Green

4-Red/Yellow

5-Red/Black

6-Red/Blue

6 ft. / 1.8 m 76MSE006F 76M9E006F 76FS006F 76F9006F

12 ft. / 3.6 m 76MSE012F 76M9E012F 76FS012F 76F9012F

20 ft / 6.1 m 76MSE020F 76M9E020F 76FS020F 76F9020F

Male

Female

Male

Female

Male

Female

Male

Female

Male

Female

166

MICRO-SYNC™ - Dual Key (AC) Cable Assemblies

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Body: PVC

O-Ring: Nitrile Rubber

Contact Carrier: Zytel ST801

Contact: Brass, Gold Plated over Nickel

Coupling Nut: Machined Aluminum,

Clear Anodized

Cable: #22 AWG PVC 26 x #36 stranding, 105°C,

Or #18 AWG PVC 41 x #34 stranding, 105°C,

UL Recognized, CSA Certied

Cable Diameters: #22 AWG PVC w/o braid, 2/C-

.17", 3/C-.18”, 4/C-.19”, 5/C-.21",6/C-22"

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG 2 to 5 Pole – 4A,

6 Pole – 3A, #18 AWG – 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 105°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Plug Assemblies (2-5) Poles

Stainless Steel Couplers

Plastic Couplers

Consult the factory for custom wire length and a full

range of wire management product accessories

DIMENSIONS

167

MICRO-SYNC™ - Dual Key (AC) Cable Assemblies

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Poles Face View Rating Wiring Code

Overall Length

(ft./m)

MICRO-SYNC™ AC

Female / Male Straight

24A 1-Brown

300V 2-Blue

6 ft. / 1.8 m 72FMSE006F

12 ft. / 3.6 m 72FMSE012F

20 ft / 6.1 m 72FMSE020F

4A 1-Brown

300V 2-N/A

3-Blue

4-Black

6 ft. / 1.8 m 73FMSE006F

12 ft. / 3.6 m 73FMSE012F

20 ft / 6.1 m 73FMSE020F

4A 1-Brown

300V 2-White

3-Blue

4-Black

6 ft. / 1.8 m 74FMSE006F

12 ft. / 3.6 m 74FMSE012F

20 ft / 6.1 m 74FMSE020F

4A 1-Brown

300V 2-White

3-Blue

4-Black

5-Grey

6 ft. / 1.8 m 75FMSE006F

12 ft. / 3.6 m 75FMSE012F

20 ft / 6.1 m 75FMSE020F

4A 1-Red/White

300V 2-Red

3-Green

4-Red/Yellow

5-Red/Black

6-Red/Blue

6 ft. / 1.8 m 76FMSE006F

12 ft. / 3.6 m 76FMSE012F

20 ft / 6.1 m 76FMSE020F

Male

Female

Male

Female

Male

Female

Male

Female

Male

Female

168

MICRO-SYNC™ - Dual Key (AC) Receptacles

1-800-ERICSON (374-2766) •www.ericson.com

Made in

the USA

MINI & MICRO

SPECIFICATIONS

MATERIALS

Insert Material: Zytel ST801

O-Ring: Nitrile Rubber

Contact: Brass, Gold Plated over Nickel

Shell: Machine Aluminum, Clear Anodized

Lock Nut: Plated Steel

Wire: #22 AWG PVC Insulated 26 x #36

stranding, 80°C

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: #22 AWG – 2 to 5 Pole

– 4A, 6 Pole – 3A / #18 AWG – 5A

Contact Resistance: <5mΩ

ENVIRONMENTAL

Protection: IP68, NEMA 6P

Operating Temp: -20°C to 80°C

CERTIFICATIONS

OPTIONS

#18 AWG (PVC) Leads

Stainless Steel Shells

DIMENSIONS

Male Receptacles

Female Receptacles

1/4” NPT

1/2” NPT

1/4” NPT

Back Panel Mount

169

MICRO-SYNC™ - Dual Key (AC) Receptacles & Wire Management Accessories

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Made in

the USA

MINI & MICRO

Wire Management Accessories

Poles Face View Rating

Wiring

Code

Overall Length

(ft./m)

MICRO-SYNC™

AC Male

1/2" NPT

MICRO-SYNC™

AC Male

1/4" NPT

MICRO-SYNC™

AC Female

1/4" NPT

MICRO-SYNC™

AC Female

Back Panel

24A 1-Brown

300V 2-Blue 12 inches 72MRK2 72MRK1 72FRK1 72FRK3

34A 1-Brown

300V 2-Red/Black

3-Red/White

12 inches 73MRK2 73MRK1 73FRK1 73FRK3

4A 1-Red/Black

300V 2-Red/White

3-Red

4-Green

12 inches 74MRK2 74MRK1 74FRK1 74FRK3

4A 1-Red/White

300V 2-Red

3-Green

4-Red/Yellow

5-Red/Black

12 inches 75MRK2 75MRK1 75FRK1 75FRK3

4A 1-Red/White

300V 2-Red

3-Green

4-Red/Yellow

5-Red/Black

6-Red/Blue

12 inches 76MRK2 76MRK1 76FRK1 N/A

Closure Caps for Plugs and Receptacles With Internal Threads

Closure Caps for Plugs and Receptacles With External Threads

Male

Female

Male

Female

Male

Female

Male

Female

Male

Female

Single Key (M12) Dual Key (1/2-20)

9ETSKCC 7ETDKCC

Single Key (M12) Dual Key (1/2-20)

9ITSKCC 7ITDKCC

170

Ground Fault Circuit Interrupters

1-800-ERICSON (374-2766) •www.ericson.com

GFCI

171

Ground Fault Circuit Interrupters

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

GFCI

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

172

Product Overview

1-800-ERICSON (374-2766) •www.ericson.com

GFCI

XG2 Series - Inline GFCI

• Heavy duty, industrial, portable GFCI - sealed base

• Indoor/outdoor use: superior design provides increased resistance to

impact, heat, UV exposure, and is water tight

• New and improved TEST and RESET buttons are easier to operate and

provide enhanced tactile feel and audible feedback

• Redesigned circuit conforms to the NEW UL 943

standard for safety governing GFCIs

•Corrosion test ensures greater immunity to damp,

corrosive environments

• Many configurations to choose from

1075 Panel Mount GFCI

•UL & cUL recognized to UL943 - 2003

•Quick and easy field installation into temporary panels and workboxes

•Compact & portable, this unit is easy to use, store and transport

•NEMA 3R rain rated face

•Meets NEC & OSHA construction site requirements

•Fast response trip time; less than .025 seconds

•Manual & automatic power-up models available

•Test and Reset Buttons are clearly marked for easy identification and

each is protected from accidental activation

1060 Series Multiple Outlet GFCI

•Polycarbonate, Impact resistant enclosure retains its properties

under the most extreme environmental conditions

•Unit comes standard with extra hard usage #12/3 SEO cable

•Meets OSHA construction site requirements

•Fast response trip time; less than .025 seconds

•High intensity NEON indicator lamp glows bright when power is on

for easy identification of power status

Generator GFCI Cordsets

•Rubberized Box eliminates “hot” un-grounded dangerous metal

quad boxes

•Heavy Duty Perma-Link™ Plug with rubberized body and nickel

plated blades

•Heavy Duty cord for long service life

•GFCI Protection - GFCI 5-20 Duplexes protecting 5-20 duplex receptacles

•Heavy Duty cord strain relief at box stands up to rough duty

• 2, 25, 50 and 100 ft cord lengths keeps generator noise away

from work area

173

Custom GFCIs

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

GFCI

Looking for the best GFCI in the industry? Look at the Ericson XG2 line of GFCIs for your job needs. Tough, fully sealed,

NEMA 6P submersible GFCI body with all-weather pushbuttons makes this GFCI the right choice. Many options to order

for your particular needs and environments. Customizable with many options to suit.

174

How a Ground Fault Circuit Interrupter Works

1-800-ERICSON (374-2766) •www.ericson.com

How a Ground Fault Circuit Interrupter (GFCI) works…

A GFCI is a fast acting circuit opening or breaking device that stops the flow of dangerous current in the event of electrical

shock. The GFCI uses precise electronic circuitry to sense the imbalance of the load from the hot and neutral lines. In other

words, the GFCI monitors the current flow leaving and coming on both the hot and neutral lines of the circuit. In the event

of an imbalance, the GFCI immediately releases the holding relay and breaks both the hot and neutral lines simultaneously

thereby stopping the current flow and preventing human injury. The GFCI is not a circuit breaker in that it does not sense

the overall load and disconnect in the event of full or excess balanced current flow. The imbalance in current flow can be

very small to “trip” a GFCI. Whenever the current flow “going” and “returning” differs more than 5 mA ( +/- 1 mA), the GFCI

opens the relay stopping the current flow.

Beware of “Open Neutrals” and “Reverse Phasing”…

Normally, GFCI receptacles (like those found in your

bathroom) can sense ground-faults. However, if the

line-side neutral conductor is opened or lifted at a panel,

the circuitry in the GFCI receptacles will not have the

necessary complete circuit path from which to operate.

That means that GFCI is no longer capable of sensing

and disengaging. This is called an “open neutral.” Anyone

using the receptacles protected by the disabled GFCI

will not have GFCI protection. And if a faulted tool is

connected to the now-unprotected receptacle, the user

will be exposed to a shock or electrocution hazard.

Agency Safety Testing (UL) for Portable Temporary

GFCIs and Residential GFCIs is different…

UL 943 is the test standard for GFCIs. However, there is a

difference in the requirements for temporary Jobsite GFCIs

and the standard residential duplex wall mounted GFCI

receptacle. These duplex receptacles are not designed for

temporary jobsite power and personnel protection under

OSHA, NEC or Canadian C22.2 safety workplace rules. The

residential GFCI duplex can still operate with an open neutral condition due to the unlikely condition that the neutral line

in a residential permanently wired home will not be loose or removed at the panel. The likelihood of a temporary panel on

a jobsite having an incomplete neutral system is more likely and therefore jobsite portable GFCIs need to be able to handle

reverse wiring and open neutral conditions.

Normal balanced current

No ground fault

Imbalanced current = ground fault

An Ericson GFCI will disengage (or “trip”) to

stop all current flow eliminating this hazard

SAFE CURRENT VALUES

Milliamperes - 1 or less

Effect on Average Human

Causes no sensation - not felt, is at threshold of perception.

1 to 8

Sensation of shock. Not painful. Individual can let go at will, as muscular control is not lost.

(5mA is accepted as maximum harmless current intensity.)

UNSAFE CURRENT VALUES

Milliamperes - 8 to 15

Effect on Average Human

Painful shock. Individual can let go at will, as muscular control is not lost.

16 to 20

Painful shock. Muscular control of adjacent muscles lost. Cannot let go.

21 to 99

Painful. Severe muscular contractions. Breathing is difficult.

100 to 200

Ventricular fibrillation. (A heart condition that may result) Disrupts or changes rhythm of the

heart.

200 & over

Severe burns. Severe muscular contractions - so severe that chest muscles clamp heart and

stop it during duration of shock. (This prevents ventricular fibrillation.)

GFCI

175

How a Ground Fault Circuit Interrupter Works

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Where and How to properly use a GFCI…

GFCIs only sense an imbalance on the load

side of the circuit. If the imbalance or path to

ground occurs BEFORE the GFCI, then the

sensing circuit will not release the relay stop-

ping the current. Because of this fact, you

should always place the GFCI as close as possi-

ble to the voltage source. Ericson encourages

the placement of any GFCI on a cordset to

within 1 foot of the primary power plug. This

way, there is little cord exposed to damage

and not being sensed by the GFCI.

OSHA and the NEC call for the use of GFCIs in all 125 volt 15,20 and 30 amp circuits. Consult your local safety codes for

additional GFCI use regulations.

What is the difference between AUTO and MANUAL GFCIs?

The GFCI terms “auto” and “manual” have been in the electrical industry for years. These simple terms refer to the operation of the

GFCI when first plugged into a voltage source. These terms have nothing to do with the “tripping and

subsequent resetting” of the GFCI. Separate the two main events for a GFCI: (1) Power up mode and (2) Trip and Reset Mode.

Power up mode is the condition of the GFCI after being plugged into a correct voltage source.

AUTO - The “auto” GFCI will immediately energize the relay and allow protected voltage to be available at the “load” side of

the GFCI. The GFCI has automatically powered up and is ready for use without the assistance of the human pressing any

buttons. Think plug-n-play.

MANUAL - On the “manual” GFCI, the RESET button has a dual role in functionality. (1)Powering up the unit and (2)resetting

after a fault. The “manual” GFCI operates slightly different in that it requires the human to press the “RESET” (which is oper-

ating as a power up button on this unit) so the GFCI can close the relay and operate as required.

RESET - After a “trip” situation, both styles of GFCI require the pressing of the reset button to re-start the GFCI. CAUTION:

Only reset a GFCI after an investigation as to the fault cause has been identified and repaired. GFCIs cannot, nor are ever

designed to reset themselves automatically.

Metal Gang Box Danger

The “traditional” metal gang box on the end of a cord has been a danger for many years.

There are several reasons for the danger:

• Metal boxes are designed for permanently wired installations, not portable temp power.

• No weatherproofing except for outdoor location FS types.

• HOT box danger. (See below)

• Hand Hazard with sharp edges

The GFCI False Sense of Security

As the diagram shows, the metal gang

box can have a common situation in

which the earth ground is poor or not

connected. There can be a hot short to

the metal box in which you now have a

“hot” box. The short will not trip the cir-

cuit breaker nor will the GFCI trip. The

GFCI sensor only watches the “load” side

of the receptacle, not the line side. The

GFCI is worthless in this situation.

GFCI

176

XG2 Series - In-Line Industrial Grade GFCI

1-800-ERICSON (374-2766) •www.ericson.com

GFCI

XG2 Series In-Line GFCI

Looking for the best GFCI in the industry? Look at the Ericson XG2 line of GFCIs for your job

needs. Tough, fully sealed, NEMA 6P submersible GFCI body with

all-weather pushbuttons makes this GFCI the right choice. Many

options to order for your particular needs and environments.

Customizable with many options to suit.

• Indoor/outdoor use: provides increased resistance

to impact, heat, UV exposure, and is water tight

• New and improved TEST and RESET buttons are easier to

operate and provide enhanced tactile feel and audible

feedback

• Redesigned circuit conforms to the NEW UL 943

standard for safety governing GFCIs:

•A more stringent voltage surge test ensures

the GFCI can handle higher surge current

•Corrosion test ensures greater immunity to damp,

corrosive environments

•Enhanced immunity to conducted radio

frequency noise reduces nuisance trips.

Meets NEC & OSHA construction site requirements

Compact & portable,

this unit is easy to

use, store

& transport.

Automatic &

manual power-up

models are

available.

NEMA TYPE 6P

polycarbonate enclosure is corrosion,

impact, UV and water tight.

Test & Reset

buttons clearly

marked for easy

identification

& recessed to

prevent accidental

activation.

Oversized test & reset

buttons are easier to

operate and provide

enhanced tactile feel

& audible feedback.

Model XG2-12-2BW

shown

Available with

factory-wired

& molded-on

devices.

Works on two-wire or

three-wire circuits.

A wide variety

of outlets are

available; from

molded-on single

connector &

Tri-Tap™ to

Perma-Tite2®

devices & Ericson

outlet boxes.

High intensity neon

lamp glows bright

when power is on for

easy identification

of power status.

• Available

in 15A & 20A

models.

• Up to 1.5

horse-power

switch rating

Engineered strain relief protects cord

from excessive bending & pulling.

XG2-14-2S

XG2-12-2BW

NEMA TYPE

4X & 6P

GFCI Enclosure

XG2-12-2TT XG2-12-2W

Custom configurations are available for your jobsite or OEM applications.

Contact your nearest representative or the factory today!

XG2-12-2B

NEMA TYPE 4X & 6P Enclosure:

• Excels in demanding outdoor

& in-plant environments

• Provides added protection against

ground fault shock hazards in

high-risk areas

• Resists hose-directed

water

Assembled

in the USA

177

XG2 Series - In-Line Industrial Grade GFCI

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

GFCI

XG2-12-2W

XG2-12-2G

XG2-12-2TTXG2-14-2S XG2-12-2G-15

XG2 Series Selection Guide

Foot Note: 1. All cord is SJT. 2. All product is rated 120 volts.

Cat. Number

POWER UP TYPE

LENGTH

PLUG

CONNECTOR

AMPS

WATTS

With Molded-On Plug & Connector

XG2-14-2S

AUTO

MLD 5-15

1875

XG2-14-25S

MLD 5-15

XG2-12-2TT

MLD 5-15 TRI

XG2-12-50TT

MLD 5-15 TRI

With Factory-Wired Perma-Grip™ Plug & Connector or Molded Plug

XG2-12-2G

AUTO

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-2G-15

AUTO

MLD 5-15

5-15 1610-CG

1875

XG2-12-2G-MR-15

MANUAL

MLD 5-15

5-15 1610-CG

1875

XG2-12-2G-LKG

AUTO

5-20 2310-PG

5-20 2410-CG

2500

XG2-12-2G-MR-LKG

MANUAL

5-20 2310-PG

5-20 2410-CG

2500

XG2-12-2G-MR

MANUAL

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-10G

AUTO

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-10G-MR

MANUAL

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-25G

AUTO

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-25G-15

AUTO

MLD 5-15

5-15 1610-CG

1875

XG2-12-25G-MR-15

MANUAL

MLD 5-15

5-15 1610-CG

1875

XG2-12-25G-LKG

AUTO

5-20 2310-PG

5-20 2410-CG

2500

XG2-12-25G-MR-LKG

MANUAL

5-20 2310-PG

5-20 2410-CG

2500

XG2-12-25G-MR

MANUAL

5-20 1512-PG

5-20 1612-CG

2500

XG2-12-50G

AUTO

5-20 1512-PG

5-20 1612-CG

2500

With Factory-Wired Perma-Tite® Plug & Connector

XG2-12-2W

AUTO

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-2W-15

AUTO

5-15 1510-PW6P

5-15 1610-CW

1875

XG2-12-2W-MR-15

MANUAL

5-15 1510-PW6P

5-15 1610-CW

1875

XG2-12-2W-LKG

AUTO

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-2W-MR-LKG

MANUAL

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-2W-MR

MANUAL

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-10W

AUTO

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-10W-MR

MANUAL

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-10W-MR-15

MANUAL

5-15 1510-PW6P

5-15 1610-CW

1875

XG2-12-10W-LKG

AUTO

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-10W-MR-LKG

MANUAL

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-25W

AUTO

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-25W-15

AUTO

5-15 1510-PW6P

5-15 1610-CW

1875

XG2-12-25W-MR-15

MANUAL

5-15 1510-PW6P

5-15 1610-CW

1875

XG2-12-25W-LKG

AUTO

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-25W-MR-LKG

MANUAL

L5-20 2310-PW6P

L5-20 2410-CW

2500

XG2-12-25W-MR

MANUAL

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-50W

AUTO

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-50W-MR

MANUAL

5-20 1512-PW6P

5-20 1612-CW

2500

XG2-12-50W-LKG

AUTO

L5-202310-PW6P

L5-20 2410-CW

2500

XG2-12-50W-MR-LKG

MANUAL

L5-20 2310-PW6P

L5-20 2410-CW

2500

All “W” Models

Have Perma-Tite®

Water Tight

Plugs & Connectors

178

XG2 Series - In-Line Industrial Grade GFCI

1-800-ERICSON (374-2766) •www.ericson.com

GFCI

XG2R-12-_BS-15

XG2-12-2BW

XG2-12-2B XG2-12-2B-15 XG2-12-2BW - 15

Cat. Number

POWER UP TYPE

LENGTH

PLUG

CONNECTOR

AMPS

WATTS

With Molded-On Plug & Connector

With Factory-Wired 6000 Box, Two Duplex Receptacles & Perma-Grip™ Plug or Molded Plug

XG2-12-2B

AUTO

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-2B-15

AUTO

MLD 5-15

(2) 5-15 DUPLX

1875

XG2-12-2B-MR-15

MANUAL

MLD 5-15

(2) 5-15 DUPLX

1875

XG2-12-2B-MR

MANUAL

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-10B

AUTO

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-10B-MR

MANUAL

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-25B

AUTO

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-25B-15

AUTO

MLD 5-15

(2) 5-15 DUPLX

1875

XG2-12-25B-MR-15

MANUAL

MLD 5-15

(2) 5-15 DUPLX

1875

XG2-12-25B-MR

MANUAL

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-50B

AUTO

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-50B-MR

MANUAL

5-20 1512-PG

(2) 5-20 DUPLX

2500

XG2-12-50B-15

AUTO

MLD 5-15

(2) 5-15 DUPLX

1875

XG2-12-50B-MR-15

MANUAL

MLD 5-15

(2) 5-15 DUPLX

1875

With Factory-Wired 6100 Box, Two Duplex Receptacles & Perma-Tite® Plug

XG2-12-2BW

AUTO

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-2BW-15

AUTO

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

XG2-12-2BW-MR-15

MANUAL

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

XG2-12-2BW-MR

MANUAL

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-10BW

AUTO

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-10BW-MR

MANUAL

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-25BW

AUTO

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-25BW-15

AUTO

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

XG2-12-25BW-MR-15

MANUAL

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

XG2-12-25BW-MR

MANUAL

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-50BW

AUTO

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-50BW-MR

MANUAL

5-20 1512-PW6P

(2) 5-20 DUPLX

2500

XG2-12-50BW-15

AUTO

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

XG2-12-50BW-MR-15

MANUAL

5-15 1510-PW6P

(2) 5-15 DUPLX

1875

Molded Plug with blunt end for equipment wiring

XG2R-12-2BS-15

AUTO

MLD5-15

BLUNT

15*

1875

XG2R-12-10BS-15

XG2R-12-25BS-15

XG2R-12-50BS-15

XG2 Series Selection Guide

*Due to plug rating

Plug can be removed.

Unit rated for 20A max.

179

1075 Panel Mount GFCI

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

GFCI

Features

•UL & cUL recognized to UL943

•Quick and easy field installation into temporary panels

and workboxes

•Compact & portable, this unit is easy to use, store

and transport

•Works on two or three wire circuits

•Meets OSHA construction site requirements

•Fast response trip time; less than .025 seconds

•Molded polycarbonate enclosure is corrosion and

impact resistant, and stands up to the toughest jobsite

conditions

•Manual & automatic power-up models available

•Test and Reset Buttons are clearly marked for easy

identification and each is protected from accidental

activation

•High intensity NEON indicator lamp glows bright when

power is on for easy identification of power status

Safety Note: Although receptacle GFCIs appear to

provide full-protection, they do not protect against

open-neutral hazards! When the line-side neutral is open

(which is not an unusual occurrence in temporary wiring

installations) receptacle GFCI contacts are mechanically

closed and the "hot" wire is still conducting electricity

through the load side, which means you risk serious in-

jury. Ericson's panel mount GFCIs DO protect against

open neutral hazards, which is why they - and ALL Ericson

GFCIs - meet UL, NEC and OSHA requirements.

Specifications:

Material

•Enclosure: UV rated Polycarbonate

Electrical

•Power-up type: Manual or automatic

•Trip level: 4-6mA

•Trip time: less than 25ms (0.025 seconds)

•Leakage current in 93% relative humidity: Zero

•Operating voltage: 120VAC nominal rating (85% to

110% of rated voltage: 102V-132V)

•Low voltage let go: 40% rated voltage

•Grounded neutral detection: 2 ohms or less

•Frequency: 60Hz

•Overload current: 120Amps, inductive 50% Power factor, 1 second

•Radio frequency noise susceptibility: Operates normally

with 0.5 VRMS, 10-450Mhz, injected on power lines

• Voltage surge withstand: 6KV impulse, 0.5 microsecond rise time,

100Khz ringing frequency with 40% decay per cycle

•Dielectric voltage withstand:

•1500 VRMS between line & load (across contacts)

•2500 VRMS between current carrying conductors

and ground conductor

•4000 VRMS between current carrying conductors and enclosure

Mechanical

•Color: Black Enclosure

•Power Status Indicator: Lighted NEON

•Contact Size: 0.200" dia.

•Contact Latching: Electro-mechanical

Environmental

•Operating Temperature Range: -35 °C to +66 °C

•UL94 5V flammability

Listings

•UL & cUL recognized

NEMA

4 & 4X

Front Face

Catalog Number Type* Description Volts Amps Watts

1075-MR Manual Panel mount GFCI 120V 20A 2400

1075-AR Auto Panel mount GFCI

Selection Guide

*Power up mode

Made in

the USA

Rugged 600V SOOW Cord

Spring loaded

flip covers

Tamper proof

enclosure

180

1060 Series - Multiple Outlet GFCI 120V/20 Amp

1-800-ERICSON (374-2766) •www.ericson.com

GFCI

Selection Guide

Catalog

Number Type Outlets

Primary Cord

Plug Volts Amps Watts

Length Type

1060 Auto (4) NEMA 5-15 15A,

120Volt Straight Blade 6' #12/3 SOOW 5-15 120 15 1800

1061 Auto (4) NEMA L5-15

15A, 120Volt Locking 6' #12/3 SOOW L5-15 120 15 1800

1062 Auto (4) NEMA 5-20 20A,

120Volt Straight Blade 6' #12/3 SOOW 5-20 120 20 2400

1060 Series

1 GFCI & 2 Duplexes

Custom Cord

Printing Available

Need a Custom Version?

Features

•Polycarbonate, Impact resistant enclosure retains its properties under the most extreme environmental conditions

• Spring-loaded flip lids protect outlets from jobsite contaminants when not in use

•Unit comes standard with extra hard usage #12/3 SOOW cable

•Meets OSHA construction site requirements

•Fast response trip time; less than .025 seconds

•Test and Reset Buttons are clearly marked for easy identification and each is protected from accidental activation

•High intensity NEON indicator lamp glows bright when power is on for easy identification of power status (1060)

Class A With Open Neutral Protection

Note: 1. The 1060 Series is factory congured with Automatic Power-up.

2. Contact customer service if manual power-up is required.

181

Ericson Advertising

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

Original 1950’s Advertisement

GFCI

182

Reels

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

183

Product Overview

Made in

the USA

3000 Series - Light Duty Reels

•Commercial duty black cord reel

•High impact, corrosion resistant non-metallic housing

•Ideal for use in commercial/industrial workshops, auto garage & machine shops

•Reel mounts to wall or ceiling

•Reel swivels 180° to cover wide range work area

•Compact size allows mounting in tight spaces- Only 6” wide x 11” diameter

•Available with NEMA 5-15 Tri-TapTM outlets or fluorescent handlamp

2900 Series - Light Duty Cord Reels

•Light duty bright yellow cord reel with steel housing

•Ideal for use in machine shops, automotive garages and commercial and light

industrial workshops

•Reel mounts to wall or ceiling

•2 ft. primary cord with molded-on NEMA 5-15 plug provides wide reach to

plug in to nearest receptacle

4000 Series - Industrial

•UL Listed & CSA certified

•Ideal for Indoor and Outdoor Use - NEMA 4 Rated

•Compact Size (12.75” H x 7.75”W - 18 lbs. less cable)

•Heavy Formed Steel Stand (5/16” - thick)

•Available in 3 and 4 Conductors (incl. dedicated ground)

•All-Steel Pawl and Ratchet with 4 Locking Positions

•Automatic Locking Ratchet With lockout Lever Option

5000 Series - Large Cable Cord Reels

•Ideal for Indoor and Outdoor use (wet or dry)

•Weatherproof NEMA 4X Slip Ring Enclosure

•Heavy All-Steel Construction

•Formed Steel Stand with Multiple Mounting Holes

•35 Amp/600 Volt Slip Ring

•Available in Welding & Grounding Reel Version

•Supplied with Type SOW or SOOW Cable installed

6000/7000 Series - Extra Long Cord Reels

•Excellent performance in industrial indoor and outdoor applications (wet or dry)

•Built to NEMA 4 Standards/CSA certified

•Standard two-piece roller-guide design for maintainability, with a 345º mounting range

•Reels are sized to handle Type SOW, Type W or Type G cable

•Add an extra 7 feet of cable for hookup/safety wrap, as well as an extra 10% of total travel

length for stretch applications

8000 Series - Hazardous Location Reels

Enclosures are designed to comply with requirements for Class I, Div 1 - Groups

C & D and Class II, Groups F & G but are not certified by any regulatory body

•Built to NEC standards

•Indoor or outdoor use

•Rugged fabricated steel and cast aluminum construction

•30 Amp / 600 Volt advanced slip ring assembly

EXPLOSION

PROOF!

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

135

184

Reel Construction

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

Five Basic Parts:

Base/Stand: Supports and mounts the reel

Spring Motor: Motor which rotates the spool

Spool: Composed of a Drum and two Flanges

Definition of Terms:

Active Length: The difference between the minimum and maximum payout of cable

Safety Wrap: Cable that stays on the reel at maximum payout (Usually 2 complete wraps)

Sag Factor: The effect of gravity on actual travel length during stretch applications (6% - 10%)

Lift Height: The distance between where the cable lays to the center line of spool

Payout: Pulling cable out of the reel

Retract or Rewind: Rewinding cable back into the reel

Slip Ring: Transfers power from a stationary source to rotating source

Roller Guide: Guides the cable during payout and rewind

Components of a Cable Reel

Ratchet

(Optional)

Base (aka Frame/Stand)

Flange

Entrance Ring

Spool Drum

Slip Ring Enclosure

Slip

Ring

Optional

Ball Stop

Roller

Guide

Spring

Motor

Quick Index & Application Guide

Reel Series

Typical Applications

Commercial Facilities

Dry environments

where no rain, spray or

other moisture is present

such as workshops

& auto garages.

Light Industrial

Dry environments

where no rain, spray or

other moisture is pres-

ent such as schools

and firehouses.

General Industrial

Dry environments where

subject to frequent use

to supply light or power

to portable or moving

equipment.

Heavy-Duty Industrial

Dry or wet areas where rain,

spray or other moisture is

present. Reel used to supply

light or power to portable or

moving equipment.

Hazardous Locations

Classified per NEC article

500 & where rain, spray or

other moisture is present.

3000 Commercial Duty •

2900 Light Duty •

4000 Industrial Duty • • •

5000 Industrial Duty • • • •

6000 Heavy Duty Industrial • • • •

7000 Heavy Duty Industrial • • • •

8000 Hazardous Location •

SDR Grounding Reels • • • •

136

185

Specifying Your Cable Reel

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

Follow these three steps to make sure you get the best

reel for your application needs. Your local representative

or the sales team at our factory are glad

to help if you need additional assistance.

Step 1: Mechanical Requirements:

•How will the reel be used? Stretch, Lift, Drag, or

Retrieve? (See left for guidance)

•What type of environment will the reel be located in?

(Indoors, outdoors, corrosive environment)

•What is the Duty Cycle? (How often will be reel payout

and retract?)

•What is the maximum speed of equipment?

(Maximum recommended speed is 150 feet per minute)

Step 2: Electrical Requirements:

•How much amperage is the cable expected to handle?

•At what voltage?

•What will the reel be required to handle: power, control,

or communication signals?

•How many total conductors are required? (Please

include one conductor for dedicated ground)

•What gauge (AWG) cable is required? The amperage

and total number of conductors required will

determine the gauge

Step 3: Cable Length Requirements:

•ADD: Active Length: The difference between the

minimum operating payout

•PLUS: Inactive Length: Cable that always stays out of

the reel, even at full retraction

•PLUS: Safety Wrap:* Cable that stays on the reel at

maximum payout - See note below for details

•PLUS: Sag Factor - (Stretch Only): Add 10% to Active

and Inactive Length total

•Lift Height - (Drag/Retrieve): The distance between

where the cable lays up to the spool center line. Max 4’

•Hook up Length: Cable required for termination at both

ends - 2-3’ Spool End

* NOTE: •Series 4000 = 2’

•Series 5000 = 2’

•Series 6000 = 5’

•Series 7000 = 5’

•Series 8000 = 3’

Stretch

The cable is “stretched” horizontally and is unsupported. The reel may be

stationary mounted or mounted onto moving equipment. Cable is pulled

out by machine. An extra 6% -10% in cable beyond active travel is

required for cable sag.

Lift

The reel needs to “lift” the cable vertically. The reel is usually stationary.

Cable is pulled out of the reel by machine or by hand (as with an overhead

light source or a pendant station.)

Retrieve

The reel needs to pickup (“retrieve”) the cable. The reel is mounted

on moving equipment. Cable is pulled out by machine.

Drag

The reel needs to “drag” the cable through supports or along the ground

horizontally. The reel is usually stationary. Cable can be pulled out by hand

or by machine. Note: This application is the hardest on cable life.

137

186

3000 Series - Light Duty Cord Reels

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

•Commercial duty black cord reel

•High impact, corrosion resistant non-metallic housing

•Ideal for use in commercial/industrial workshops,

automotive garage & machine shops

•Reel mounts to wall or ceiling

•Reel swivels 180° to cover wide range work area

•Compact size allows mounting in tight spaces-

Only 6” wide x 11” diameter

•Ratchet lock holds cord at desired position

•Available with NEMA 5-15 Tri-TapTM outlets or

fluorescent handlamp

•Installation kit comes complete with instruction

sheet, mounting bracket and all the hardware

needed for a complete installation

•Circuit breaker to prevent overload

3000 Series Cord Reel Selection Guide

Angle Light Tri-Tap Outlet

Non-metallic Housing with:

With 50-ft. of cable 3163-50-AL 3163-50-TT

SPECIFICATIONS:

Cord Size #16/3 #16/3

Cord Type SJTOW SJTW

Circuit Breaker 8 Amps 8 Amps

Cord Outlets N/A (3) NEMA 5-15

Primary: Cord Length 2 ft. 2 ft.

Power Switch in

Handlamp Handle Yes _

Side Outlet in

Handlamp Handle (1) NEMA 5-15 _

Bulb Wattage 13 watt _

Bulb Included Yes _

Ballast Location Handle _

2900 Series - Light Duty Cord Reels

•Light duty bright yellow cord reel with steel housing

•Ideal for use in machine shops, automotive garages

and commercial and light industrial workshops

•Reel mounts to wall or ceiling

•2 ft. primary cord with molded-on NEMA

5-15 plug provides wide reach to plug in

to nearest receptacle

•Reel comes with incandescent

or fluorescent handlamp

•Ratchet lock holds cord at

desired position

2900 Series Selection Guide

Cord GA.,

#Cond. & Type Length

#16/3 SJT 30’ 2900

#18/2 SJT 40’ 2910

Specifications:

Volts 120 120

Amps 10 7

Handlamp:

Wattage 100 watt 13 watt

Switch Yes Yes

Side Outlet Yes

2900

2910

138

187

Industrial Reels

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

6000 Series

4000 Series

5000 Series

7000 Series

Standard Reel Offering 4000 5000 6000 7000 8000

Lift/Drag Application Standard Standard Standard Standard Standard

Ball Stop included Yes Yes Yes Yes Yes

Ratchet Installed Yes Yes Yes Yes Yes

Primary Power Cord & Plug

attached to Reel

Yes - Molded plug

matches amp rating of

cord/reel

No - must

run conduit

and hardwire

No - must

run conduit

and hardwire

No - must

run conduit

and hardwire

No - must

run conduit a

nd hardwire

SJ Cord Type Standard Not available Not available Not available Not available

SO Cord Type

By part number

designation only -SO Standard Standard Standard

Standard - XP

locations must have

SO cable per NEC

Blunt Secondary Standard Standard Standard Standard Standard

Add-ons installed - Lights -

Power Boxes - Single

Connectors

Per part number

& cord size

limitations

Per part number

& cord size

limitations

Per part number

& cord size

limitations

Per part number

& cord size

limitations

XP Type only - Per part

number & cord size

limitations

Stretch/Retrieve No Ball Stop

No Ratchet installed Not available Custom RFQ Only Custom RFQ Only Custom RFQ Only Custom RFQ Only

Cord Type - Standard #16/3 SJOW to #12/4

#16/3 SOW

to #10/6

#16/3 SOW

#10/4

#16/4 SOW

to #10/4

#16/3 SOW

to #14/4

Electrical Rating

(Amps @ 120V) 10A to 20A 5A to 25A 8A to 25A 12A to 25A 8A to 20A

Lengths Available 25 to 50 Ft 20 to 70 ft 70 to 150 ft 125 to 150 Ft 20 to 50 ft

SPECIFICATIONS

139

188

4000 Series - Industrial Grade Cord Reels

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

•UL Listed & CSA certified

•Ideal for Indoor and Outdoor Use - NEMA 4 Rated (wet or

dry - less electrical options & molded plug which are NEMA 2)

•Safety-Yellow Powder-Coated Finish

•Compact Size (12.75” H x 7.75”W - 18 lbs. less cable)

•Heavy Formed Steel Stand (5/16” - thick)

•Available in 3 and 4 Conductors (incl. dedicated ground)

•All-Steel Pawl and Ratchet with 4 Locking Positions

•Automatic Locking Ratchet With lockout Lever Option

•Adjustable / Removable Steel Cable Guide (3/16” - thick)

•Low-Friction, 4-roller cable guide

4000 Series Cord Reel Selection Guide

12 Gauge = SJOOW 14 Gauge = SJOOW

16 Gauge = SOW Only

Reel w/ Cable Only 944-RS

Handlamp

744-RS

Handlamp

900

Handlamp

See Table SOW Cable

Reels with 3-Conductor Cable

with 25-ft. of #16/3 AWG 4163-25 4163-25SO 4163-25-HSS 4163-25-HS

with 35-ft. of #16/3 AWG 4163-35 4163-35SO 4163-35-HSS 4163-35-HS

with 50-ft. of #16/3 AWG 4163-50 4163-50SO 4163-50-HSS 4163-50-HS

with 30-ft. of #14/3 AWG 4143-30 4143-30SO 4143-30-HSS 4143-30-HS 4143-30-F

with 40-ft. of #14/3 AWG 4143-40 4143-40SO 4143-40-HSS 4143-40-HS 4143-40-F

with 50-ft. of #14/3 AWG 4143-50 See 5000 Series Reels 4143-50-HSS 4143-50-HS 4143-50-F

with 25-ft. of #12/3 AWG 4123-25 See 5000 Series Reels 4123-25-HSS 4123-25-HS 4123-25-F

with 50-ft. of #12/3 AWG 4123-50 4123-30-50 4123-50-HSS 4123-50-HS 4123-50-F

Reels with 4-Conductor Cable

with 35-ft. of #16/4 AWG 4164-35 4164-35SO

with 50-ft. of #16/4 AWG 4164-50 4164-50SO

with 35-ft. of #14/4 AWG 4144-35

with 25-ft. of #12/4 AWG 4124-25 4124-25SO

with 35-ft. of #12/4 AWG 4124-35

SPECIFICATIONS:

Electrical Ratings 300V 600V

Reels with AWG #16/3,#16/4 10A, 8A 10A, 8A 125v/10A 125v/10A 125v/2A

Reels with AWG #14/3, #14/4 15A,12A 15A,12A 125v/15A 125v/15A 125v/2A

Reels with AWG #12/3, #12/4 20A,16A 20A, 16A 125v/20A 125v/20A 125v/2A

Cord Type SJOW SOW SJOW SJOW SJOW

Power Switch in Handlamp Handle _ _ Yes Yes Yes

Side Outlet in Handlamp Handle _ _ Yes No No

Guard Material _ _ Zinc Plated Steel Zinc Plated Steel Non-Metallic

Handle Material _ _ Vinyl Nitrile Rubber Vinyl Nitrile Rubber Vinyl Nitrile Rubber

Bulb Wattage _ _ 100 Watt 13 Watt Fluorescent

Bulb Included _ _

GREAT FOR

SCHOOLS,

FIREHOUSES

& PULL DOWN

DISPLAY POWER + + +

ADD

ONE OF

THESE

GREAT

OPTIONS

Orange = NEMA 2 Green = NEMA 4

140

189

4000 Series - Industrial Grade Cord Reels

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

•Adjustable Ball Stop Included

•6’ Feeder Cord (Note: Molded plug included on all 3 conductor cables, 4 conductor cable supplied without plug)

•Slip Ring: 30 Amps, 600 Volts

•Available with and without handlamps or receptacle box pre-installed

Ball Stop

Ratchet

Included

6000 Outlet Box

(2) NEMA 5-15

Duplex Receptacles

(Non-GFCI)

6000 Outlet Box

(2) NEMA 5-20R Duplex

Receptacles

(Non-GFCI)

6029 Extra-Deep Outlet Box

(1) NEMA 5-15 Duplex Recpt.

& (1) NEMA 5-15 GFCI

duplex Recpt.

NEMA 5-15C

Connector

Perma-Link®

NEMA 5-20C

Connector

Perma-Grip™

4163-25-B

4163-35-B

4163-30-B

4143-30-B 4143-30-BG 4143-30-1610

4143-40-B 4143-40-BG 4143-40-1610

4143-50-B 4143-50-BG 4143-50-1610

4123-25-B 4123-25-B20 4123-25-BG 4123-25-1610 4123-25-1612CG

4123-3050-B

4123-50-B 4123-50-B20 4123-50-BG 4123-50-1610 4123-50-1612CG

125v/10A 125v/10A 125v/10A

125v/15A 125v/15A 125v/15A

125v/20A 125v/20A 125v/20A

SJOW SJOW SJOW

___

_ _ _

CTS* - Cord gauge is too small *Two independent GFCI circuits

ADD

ONE OF

THESE

GREAT

OPTIONS

141

190

5000 Series - Large Cable Cord Reels

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

•Ideal for indoor and outdoor use (wet or dry)

•Weatherproof NEMA 4 slip ring enclosure

•Heavy all-steel construction

•Safety-yellow powder-coated finish

•Numbered terminal blocks for simplified hookup

•Formed steel stand with multiple mounting holes

•Guide arm (4-roller, adjustable to 12 positions for

efficient cable storage)

•Ratchet - positive lock including constant tension feature

•35 Amp/600 volt slip ring

•Available in welding & grounding reel version

•Supplied with Type SOW or SOOW cable installed

•Primary feeder cord supplied with reel

5000 Series Cord Reels Selection Guide

For Reel Dimensions, refer to the end of this section.

SOW Cable Gauge & Conductors - 600V

Amp Rating 20’ 30’ 40’ 50’ 60’

16/3 10A 5163-20 5163-30 5163-40 5163-50 5163-60

16/4 8A 5164-20 5164-30 5164-40 5164-50 5164-60

16/6 8A 5166-20 5166-30 5166-40 5166-50

16/8 7A 5168-20 5168-30 5168-40 5168-50

16/10 5A 51610-20 51610-30 51610-40

16/12 5A 51612-20 51612-30 51612-40

14/3 15A 5143-20 5143-30 5143-40 5143-50 5143-60

14/4 12A 5144-20 5144-30 5144-40 5144-50 5144-60

14/6 12A 5146-20 5146-30 5146-40 5146-50

14/8 10.5A 5148-20 5148-30

14/10 7.5A 51410-20

12/3 20A 5123-20 5123-30 5123-40 5123-50 5123-60

12/4 16A 5124-20 5124-30 5124-40 5124-50

12/6 16A 5126-20 5126-30

12/8 14A 5128-20

10/3 25A 5103-20 5103-30 5103-40 5103-50

10/4 20A 5104-20 5104-30 5104-40 5104-50

10/6 20A 5106-20 5106-30

Ratchet & ball stop

included

-HSS

Handlamp for

any 3-wire cord

(Not for #16 AWG)

-F

13 watt

Fluorescent

Handlamp

-1612-PWDX

20 Amp

5-20R T

Slot 1612-PWDX

(Not for #16 AWG)

-BG-20

Not for #16 AWG

ADD

ONE OF

THESE

GREAT

OPTIONS

191

6000/7000 Series - Extra Long Cord Reels

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

•Our 6000 Series and 7000 Series reels are your top-quality,

low-cost alternative to other spring reels of this capacity.

These reels offer heavy-duty performance at some of the

most attractive prices in the market.

•Excellent performance in industrial indoor and outdoor

applications (wet or dry)

•Built to NEMA 4 Standards/CSA certified

•Heavy all-steel construction

•Safety-yellow powder-coated finish

•Standard two-piece roller-guide design for maintainability,

with a 345º mounting range

•Safety-sealed, lifetime lubricated spring motor canister

•Generously sized slip ring housing with fully articulating

brushes for flawless contact in adverse conditions

•Variety of ring amp ratings from 35-150 Amps

•Reels are sized to handle Type SOW, Type W or Type G cable

•Add an extra 7 feet of cable for hookup/safety wrap, as well as

an extra 10% of total travel length for stretch applications

•Primary power conductors supplied with reel

For Reel Dimensions, refer to the end of this section.

SOW Cable Gauge & Conductors

Amp Rating 70’ 80’ 90’ 100’ 125’ 150’

16/3 10 6163-70 6163-80 6163-90 6163-100 6163-125 6163-150

16/4 86164-70 6164-80 6164-90 6164-100 6164-125 7164-150

14/3 15 6143-70 6143-80 6143-90 6143-100 6143-125 7143-150

14/4 12 6144-70 6144-80 6144-90 6144-100 7144-125 7144-150

12/3 20 6123-70 6123-80 6123-90 6123-100 7123-125 7123-150

12/4 16 6124-70 6124-80 6124-90 6124-100 7124-125

10/3 25 6103-70 6103-80 6103-90 6103-100 7103-125

10/4 20 6104-70 6104-80 6104-90 6104-100 7104-125

6000 & 7000 Series Cord Reels Selection Guide

6000 Box

GFCI

944-RS 900

Add-Ons - Add to Base Part Number (Call for Details)

6000 Box1612-PWDX

NEMA 5-20 T Slot

++ + +

Ratchet & ball stop

included

-1612-PWDX -B -BG20 -HSS -F

(not for #16 AWG) (not for #16 AWG)

143

192

8000 Series - Hazardous Location Cord Reels

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

•Enclosures are designed to comply with requirements for

Class I, Div 1 - Groups C & D and Class II, Groups F & G

but are not certified by any regulatory body

•Built to NEC standards

•Indoor or outdoor use

•Rugged fabricated steel and cast aluminum construction

•30 Amp / 600 Volt advanced slip ring assembly

•Threaded junction box and slip ring enclosure

•SOW-A cable on factory assembled models

•Spring activated ratchet

•4-roller adjustable cable guide

•Maximum dimensions: 14 1/2” H x 14 1/2” W x 17” D

•Note: 5 additional feet of cable required for safety wrap

and hookup

Guab Box

All Explosion Proof Reels Come with Feeder for Listing

Threaded Slip Ring Cover into Entrance Housing

Solderless Connectors Attaching Slip

Ring Leads to Sealed Shaft Leads

Watertight Cable Connector

Furnished with Entrance Housing

Hazardous Duty (Explosion-Proof) Sealing Compound Seals

Brush Leads in the Hazardous Duty (Explosion Proof ) Housing

Slip Ring Brush Leads from Spooled Cable

Hazardous Duty (Explosion Proof)

Sealing Compound around Slip

Ring Leads

Slip Ring Leads

from Slip Ring

EXPLOSION

PROOF!

144

193

8000 Series - Hazardous Location Cord Reels

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

8000 Series Hazardous Duty Reel Selection Guide

Reel & Handlamps Meet or Exceed

Hazardous Location Requirements

•Class I, Div. I, Groups C & D

•Class II, Groups F & G

SOW Cable

Gauge &

Conductors

Length of

Cable

Reel with

Cable Only

Reel w/ Hazardous Duty Handlamp

2600 2500

16/3 20’ 8163-20 8163-20-XPI 8163-20-XPF

16/3 40’ 8163-40 8163-40-XPI 8163-40-XPF

16/3 50’ 8163-50 8163-50-XPI 8163-50-XPF

16/4 20’ 8164-20

16/4 40’ 8164-40

16/4 50’ 8164-50

14/3 20’ 8143-20 8143-20-XPI 8143-20-XPF

14/3 40’ 8143-40 8143-40-XPI 8143-40-XPF

14/3 50’ 8143-50 8143-50-XPI 8143-50-XPF

14/4 20’ 8144-20

14/4 40’ 8144-40

14/4 50’ 8144-50

Add a Hazardous Handlamp for a Complete System

2600

100W Incandescent

2500

26W Fluorescent

145

194

SDR Series Static Discharge Grounding Reel

1-800-ERICSON (374-2766) •www.ericson.com

REELS

Made in

the USA

•Built to NEC Standards

•For indoor use only

•Rugged all steel construction

•Compact Design

•Mounts in any position

•Red epoxy coated finish

•Feet are unfinished for maximum electrical contact

•Resistance not exceeding 0.3 OHMS

•Includes aircraft type cable: 3/32” diameter standard steel

•Includes 100 Amp grounding clamp

•Includes automatic locking ratchet with lockout feature

for constant tension

Areas used for fuel handling, mines and other places where airborne flammables may exist, require reliable static

discharge systems...and Ericson has them. Ericson grounding reels are perfect for discharging dangerous static

electricity build-up in hazardous environments.

Small size

Coated cable

Selection Guide

•Ericson 5000 Series Reels are now available

for grounding applications where longer

cables are needed

•Ball stop included

•4-roller guide adjustable cable guide

•Auto locking ratchet for constant tension

•100 amp grounding clamp included

•Resistance not exceeding 2 Ohms

Cable Length Resistance

(ohms) Description Catalog

Number

50 ft. 0.3 Single Cable SDR-50

Cable Length Description Catalog Number

100 ft. Single Cable with orange nylon jacket SDR-100

Refueling Grounding

Handles Static Charges Safely

SC-2

146

195

Reel Accessories

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

Selection Guide

Ball Stops

•Also referred to as “cable stops”, “bumper stops”, or “hose stops”

•Generally used for manually operated lift and drag applications to

govern retraction length. Stops are required when accessories such as

handlamps and receptacle boxes are installed on cable reels

•Suitable for all Ericson Cable reels

Selection Guide

345º Pivot Base

•Use our pivot base to customize your reel

mounting for your specific application

•All steel base

•Lifetime bearing (never needs lubrication)

•Swing can be restricted to 90º, 180º, and 270º

•Anodized clear finish

PB-45

SC-3

SC-4

SC-5

SC-6

SC-7

(4) 0.44 DIA Holes

PB-45 Shown

2.06

1.19

1.62

5.75

7.00

1.62

6.00 4.75

(3) 0.38-16 UL

SC-1

Catalog Number Reels

PB-45 4000-5000

PB-67 6000-7000

Catalog Number Description

SC-1 For cable O.D. ranges 0.188” to 0.438”

SC-2 For cable O.D. ranges 0.188” to 0.438”

with shock absorbing spring bumper

SC-3 For cable ranges 0.438” to 0.624”

SC-4 For cable ranges 0.625” to 0.749”

SC-5 .75” to 1.05”

SC-6 1.06” to 1.38

SC-7 1.39 to 1.55

Made in

the USA

147

196

Dimensions

1-800-ERICSON (374-2766) •www.ericson.com

REELS

12.00

13.83

12.75 6.70

1.53

2.25

1.63

TYP

5.50

3.25 .72

3x0.406 x

0.813 SLOT

Mounting

Pattern

6.25

4.5

4000 Series

5000 Series

9.25

3.88

0.63

2.25

8.25

3.25 3.88

5.00

15.00

8.25

4.50

13.50 1.0

A = 3” TO 6”

B = 3.5” TO 8.5”

C = 13” TO 18”

6.25

(8)

0.437

148

197

Dimensions

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

REELS

6000 Series

7000 Series

8000 Series

19.0 A

9.5

(6)

0.56

(6)

0.56

11.9

OPTIONAL

JUNCTION

BOX

OPTIONAL

JUNCTION

BOX

2.5

B D

13.4

1.75

1” NPT

INTERNAL

THREADS

11.0

0.89

20.5

13.0

24.0

(A) 15

14.25

3.25

2.94

1.63

1.63 3.50

2.25

1.94

2.25

3.63

7.75

0.406 HOLES

(B)

13.0

13.4

25.5

13.5

0.89 A

9.5

2.5 4.0 4.0

3 AND 4 CONDUCTOR REELS HAVE

THE SMALLEST DIMENSIONS

3 AND 4 CONDUCTOR REELS HAVE

THE SMALLEST DIMENSIONS

A = 15.7 TO 26.7

B = 8 TO 17.8

C = 5.5 OR 7.9

D = 6 OR 7.3

JUNCTION BOX DEPTH = 2.25 TO 5.25

A = 15.7 TO 26.7

B = 8 TO 17.8

C = 5.5 OR 7.9

D = 6 OR 7.3

JUNCTION BOX DEPTH = 2.25 TO 5.25

DIM. A = 14.27 TO 16.95

DIM. B = 2.73 TO 4.92

4.0 4.0

1” NPT

INTERNAL

THREADS

0.75

NPT

198 1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

Pendant Stations

Original 1950’s Advertisement

199

PUSH BUTTON PENDANT STYLE CONTROL STATIONS

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

200

Push Button Pendant Stations - What Are They Used For?

Enclosure Fasteners

Self-captive stainless steel

hardware and threaded

inserts in housing to

prevent thread stripping.

Electrical Switches

See Next Section

for Details.

Enclosure

Ergonomic design, visible safety yellow,

shock and vibration resistant, rugged

ABS plastic. 2 thru 12 button. Regular or

deep style. Two piece enclosure simplifies

field wiring.

Rear Cover or Housing

Hanger Ring (not shown)

For external strain relief connection. ‘S’ hook

is available for strain relief cable connection.

Cable Gland & Bushings

Bushing Collar

Two sizes for cable

diameters from .30

in to 1.16 in. (7.5mm

to 29.5 mm)

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

Terms & Definitions:

What is a Push Button Pendant Control Station? Pendant Stations or Pendant Controls are

a series of simple switches that control much larger electrical loads through various means

such as relays, Programmable Logic Controllers ( PLCs) or other automation circuitry.

These switches are housed in a special weather proof enclosure that attaches to and

hangs from the electrical cable which the control signals flow back and forth. These sim-

ple switches are described in terms of motion and switching characteristics.

Ericson's Pendant Stations are typically used to control industrial cranes and hoists or the

remote control of industrial machines. Pendant control stations are specifically designed

for lifting and handling applications, they enable direct control of motors and can be

used for direct motor switching.

• Cranes/Hoists • Food Processing • Motor Control

• Mixers/Grinders • PLC Inputs • Pumps

• Automation Inputs • Conveyors/Sorters

Button Covers

Button covers

pop off to

change legend

labels

Labels

A complete

label sheet

comes with

each unit.

You can also

make your

own custom

labels or

symbols

Enclosure Seal

Electrical Jumper

Electrical Contacts

Switches

Tough, rugged switches with

mechanical movement and

contacts built to last. Easy to

replace in the field.

55CG2

201

Switch Operations

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

Interlocking Switches

Most switches are actually two buttons together in a single switch body. This illustration shows the definition of INTER-

LOCKED ( joined together) or NON-INTERLOCKED ( independent operation). INTERLOCKED switches only allow one of the

two switches to be used at a time. Like a playground seesaw, only one can be up or down. This prevents accidents and

equipment damage. For example: a motor will not be allowed to turn CCW and CW at the same time or the overhead

crane gantry can only move forward then reverse. These INTERLOCKED switches can be used in conjunction with other

switches to close the cover on a food mixer before allowing the motor to spin the blades.

Speed Selection Switches

Some equipment can have more than one action or “speed”. For example, a mixer can mix slow then faster during a

process or a crane boom can move very slow and have a faster speed for rapid relocation. Speed switches are “add” type

or progressive meaning the N.O. contacts add to each other as shown in this illustration. Pressing the button down to

the first “click” closes the first set of N.O. contacts and then pressing further to the 2nd or 3rd click will then close the 2nd

and 3rd set of N.O. contacts. 2 speed switches have 2 sets of N.O. contacts and 3 speed have 3 sets.

Ampacity Rating of Switches

It is good installation practice to know the amp rating of the equipment you are trying to control and ensure that the

switch selected meets or exceeds that rating. This is normally why a pendant control station is used with low voltage

(relay or PLC) systems (such as 12, 24 or 48 volt) when controlling large amp or higher voltage circuits.

Basic Switch Operations:

The illustrations shown here demonstrate the difference between Normally Open (N.O.) and Normally Closed (N.C.)

switch contacts. The term “normally” refers to the switch at rest or no physical influence. A closed contact set completes

a circuit and an open contact set breaks the circuit. The last illustration shows the main difference between MOM

(momentary) and MAINT (maintained). These terms describe the secondary action of the switch AFTER the human

releases the button. A MOM switch will return to the original position when released, (think spring loaded), and a MAINT

switch will remain changed when released until another action ( 2nd switch or actuator) releases it back to the original

position (think latched).

1 2 3

202

Applications

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

5502/5500-PG Series Compact Pistol Grip Pendant Station

Applications Include simple ON & OFF operations. Normally “opposite” operations are used with this type.

Any operation can be performed as wired correctly. UP, Down, Left, Right, Start, Stop, MIX,POUR are all

examples of opposite operations.

• Two button and two button with E-Stop

• Nema 4 rated

• Not food grade or hose down rated

• Not rated for hazardous location or refueling use

• Internal seals on buttons

• Button covers pop off to change legend labels

• Lightweight and economy priced simple switching

• 1 year limited warranty

5500 Series Single, Dual & Variable Speed Pendant Stations

The 5500 Series uses sets of two buttons to build ever increasing sized stations. From 2 button to 12 button

pendants, this series is the work horse of the 5500 Series. The design is more rugged than the 5500-PG series

with rubber button boots and housing seals. NEMA 4X rated, these pendants can be used outdoors with

confidence. With a wide variety of switches and controls that can be installed, this series is the best of

rugged design and economically priced pendants.

• Rubber booted buttons keeps out rain, dirt and debris

• Large choice of switches

• EZ to repair and replace switches

• Sealed housings with gasket and stainless steel fasteners

• Can be customized with indicators, lights and warning horn button

• Not rated for hazardous locations or refueling use

• Bright yellow enclosure ensures visible recognition

• Tough electrical contacts rated for thousands of operations

• Button cover legends are easy to change

• Each unit comes complete with:

o Two cable glands for popular sized cables

o Complete legend sheet with all popular operations

o Electrical ring crimp terminals for wire connection to switches

• 1 year limited warranty

• UL listed

5700 Series Rubber Enclosure Pendant Stations

The Heavy Duty Sealed 5700 series Pendant Control stations feature steel

reinforced rubber construction with tongue and groove rear cover to protect

the contacts from many elements. The full rubberized construction adds to

the rugged use and long life while sealing the inside terminations and contacts

from the environment. Switches are individual (no interlocked dual switch

sets) with a variety of single, dual and special contact speed sets. The metal

hang plate attached to the cord grip (metal CGB style) is designed to hang the

pendant from wire rope or coated cable. The legend labels for each button are

placed in recessed areas next to each switch.

• NEMA 1, 3, 4 and 12

•Use for hose down areas

•Use for high splash areas

•Can be used with some chemicals

•Rubberized sealed design

•Not for Hazardous locations

•UL listed and CSA approved

•1 year limited warranty

203

5500 Pistol Grip Pendant Station

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

5502 PG Series Compact Pistol Grip Pendant Station

Ericson's pistol grip pendant stations are ideal for controlling industrial

cranes and hoists and for remote jog operation of industrial machines.

•Single speed 5A, 125V contact block

•Compact, lightweight, ergonomic design

•Weighs only 10 ounces

•Less than 2" wide

•Made of high impact ABS resin

•High visibility safety yellow color

•Internal button seals

•NEMA TYPE 4 waterproof rating

•Internal and external strain relief

•Variable diameter cable bushing with clamp

accommodates a wide range of cable sizes

•Easy-to-push pressure switches

•50 g shock resistance

•5 A switch rating

General Specifications

Standards

Ambient Temperature -15° C - +50°C

Enclosure ABS Safety Yellow

Vibration Resistance 10g From 10-55 Hz

Shock Resistance 50g

Environmental Protection NEMA Type 4

Mechanical Life AC15 2A & 110V-500,000 Operations

Electrical Rating General Purpose, 120V, 5A

Pilot Rating UL Pilot Duty B150

Insulation Withstand 2500VAC/1 Min.

Contact Resistance Less Than 100 Milli-OHM

Weight 10 oz.

Legends Standard Up/Down. Others Available

Push Button Force 2 Lbs.

5503 - Pistol Grip Style with E-Stop Features:

•Compact design, ergonomically designed with operators comfort in mind.

•Available with 1, 2, or 3, speed buttons

•High impact ABS resin, safety yellow, NEMA 4 enclosure

•Multi-diameter cable busing inlet

•Equipped with interior and exterior anchor for either internal

or external strain relief wire

Part #

Switch Positions

1 2 3

5502-PG 1 NO 1NO

mom mom

Interlocked

5503-PG 1 NC 1 NO 1NO

maint mom mom

e-stop button Interlocked

Switch # 55S26 55S08

5503-PG-2 1 NC 2 NO 2 SPD 2 NO

maint mom mom

e-stop button Interlocked

Switch # 55S26 55S15

5503-PG-3 1 NC 1 NC + 3 NO 3 SPD 1 NC + 3NO

maint mom mom

e-stop button Interlocked

Switch # 55S26 55S17

5502-PG

5503-PG

204

5500 Series - General Duty

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

5500 Series Single, Dual & Variable

Speed Pendant Stations

•Available in 2 to 12 button configurations

•Single- and two-speed models

•Neoprene boots surround buttons to seal

out dirt and moisture

•Two-piece enclosure simplifies field wiring

•Soft pressure and positive indent switches provide

optimum tactile feedback so you can feel when

switch has been engaged

•Contacts rated at 5A/120VAC and 5A/240VAC

•NEMA TYPEs 1, 3, 4, 4X and 12 along with IP65

suitability enclosure ratings

•Double insulated 2500V withstand voltage

•100 g shock resistance

Jumpers

Included with

preassembled

pendants only.

Buttons

Neoprene booted

buttons. Seals out

dirt & moisture.

Available in red,

green, and black.

Pilot Light & Horn Switch

Knock-out holes in .47 in (12mm) dia.

and .75 in. (19mm) dia. are available

for a pilot light and horn switch on

6 through 12 button pendants.

5506 model & up

Button Legends

Button legends are

included. Verticle

legends are available.

Easy to read.

Fasteners

Self-captive stainless

steel hardware and

threaded inserts in

housing to prevent

thread stripping.

Enclosure

Ergonomic design, visible safety yellow, shock

and vibration resistant, rugged polycarbonate.

2 thru 12 button. Regular or deep style. Two

piece enclosure simplifies field wiring.

Hanger Ring (‘S” Hook)

For external strain relief

connection. ‘S’ hook is

available for strain relief

cable connection.

Bushing Collar

Two sizes for cable

diameters from .30

in to 1.16 in. (7.5mm

to 29.5 mm)

Cable Bushings

Available in 8 sizes

from .30 in. to 1.16 in.

(7.5 mm to 29.5 mm)

Cable Packing Gland

Furnished with bushing

insures water tight seal.

205

5500 Series Complete Pendants

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

POSITIONS

Part # 1 2 3 4 5 6 7 8 9 10 11 12

5502

1 NO 1 NO This chart shows the common complete ready-

to-use 5500 pendant stations. The switches

and their actions (mechanical and electrical) are

shown with each button position. Use this chart

to select full pendants. Use the custom pendant

page for building your own pendant.

mom mom

Interlocked

55S08

5502-2

2 NO 25PD 2 NO

mom mom

Interlocked

55S15

5504

1 NO 1NO 1 NO 1NO

mom mom mom mom

Interlocked Interlocked

55S08 55S08

5504-A

1 NO Start Stop 1 NO+1NC 1 NO+1NC

maint mom mom mom

Interlocked Interlocked

55S01 55S09

5504-E

1 NC blank 1 NO+1NC 1 NO+1NC

maint mom mom

e-stop button Interlocked

55S26 55S09

5506

1 NO Start Stop 1 NO 1NO 1 NO 1NO

maint mom mom mom mom mom

Interlocked Interlocked Interlocked

55S01 55S08 55S08

5506-A

1 NO Start Stop 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC

maint mom mom mom mom mom

Interlocked Interlocked Interlocked

55S01 55S09 55S09

5506-E

1 NC blank 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC

maint mom mom mom mom

e-stop button Interlocked Interlocked

55S26 55S09 55S09

5508

1 NO Start Stop 1 NO 1NO 1 NO 1NO 1 NO 1NO

maint mom mom mom mom mom mom mom

Interlocked Interlocked Interlocked Interlocked

55S01 55S08 55S08 55S08

5508-A

1 NO Start Stop 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC

maint mom mom mom mom mom mom mom

Interlocked Interlocked Interlocked Interlocked

55S01 55S09 55S09 55S09

5508-E

1 NC blank 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC 1 NO+1NC

maint mom mom mom mom mom mom

e-stop button Interlocked Interlocked Interlocked

55S26 55S09 55S09 55S09

5510

1 NO Start Stop 1 NO 1NO 1 NO 1NO 1 NO 1NO 1 NO 1NO

maint mom mom mom mom mom mom mom mom mom

Interlocked Interlocked Interlocked Interlocked Interlocked

55S01 55S08 55S08 55S08 55S08

5512

1 NO Start Stop 1 NO 1NO 1 NO 1NO 1 NO 1NO 1 NO 1NO 1 NO 1 NO

maint mom mom mom mom mom mom mom mom mom mom mom

Interlocked Interlocked Interlocked Interlocked Interlocked Interlocked

55S01 55S08 55S08 55S08 55S08 55S08

Complete pendants come

with all items shown

Pendant

Part # Bushing

Part# Cable

Diameter.

5502 55CG1 0.30 - 0.41

5502-2 55CG1 0.30 - 0.41

5504 55CG2 0.30 - 0.41

5504-A 55CG2 0.41 - 0.53

5504-E 55CG2 0.41 - 0.53

5506 55CG3 0.52 - 0.65

5506-A 55CG3 0.52 - 0.65

5506-E 55CG3 0.52 - 0.65

5508 55CG3 0.52 - 0.65

5508-A 55CG3 0.52 - .065

5508-E 55CG4 0.64 - 0.77

5510 55CG4 0.64 - 0.77

5512 55CG4 0.64 - 0.77

Bushing Sizes

Note: Please refer to the following

page for more bushing sizes

206

5500 - Switches

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

EMC Pn# Buttons Contact Config Speed Action

2 Button

Interlock

Electrical

Contact

Schematic

55S01 21 NO / OFF 1MAINT YES

55S02 21 NC + 1 NO / OFF 1MAINT YES

55S03 21 NO / 1 NC 1 MOM NO

55S04 21 NO / 1 NO 1 MOM NO

55S05 21 NC + 1 NO / 1 NC + 1 NO 1 MOM NO

55S06 22 NO / 2 NO 1 MOM YES

55S07 22 NC + 2 NO / 2 NC + 2 NO 1 MOM YES

55S08 21 NO / 1 NO 1 MOM YES

55S09 21 NC + 1 NO / 1 NC + 1 NO 1 MOM YES

55S10 11 NC 1 MOM

55S11 11 NO 1 MOM

55S12 11 NC + 1 NO 1 MOM

55S08 55S01

207

5500 - Switches

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

EMC Pn# Buttons Contact Config Speed Action

2 Button

Interlock

Electrical

Contact

Schematic

55S13 12 NC 1 MOM

55S14 12 NO 1 MOM

55S15 22 NO 2 SPD / 2NO 2 MOM YES

55S16 22 NO + 2 NC 2 SPD / 2 NO + 2 NC 2 MOM YES

55S17 21NC + 3 NO 3 SPD / 1NC + 3 NO 3 MOM YES

55S18 SELECTOR 1 NC 2 POS MAINT SELECT

55S19 SELECTOR 1 NO 2 POS MAINT SELECT

55S20 SELECTOR 1 NO + 1 NC 2 POS MAINT SELECT

55S21 SELECTOR 2 NO 2 POS MAINT SELECT

55S22 SELECTOR 2 NC 3 POS CNTR OFF MAINT SELECT

55S23 SELECTOR 2 NO 3 POS CNTR OFF MAINT SELECT

55S24 SELECTOR 2 NC 2 POS MAINT SELECT

55S08 55S01

208

5500 - Switches

EMC Pn# Buttons Contact Config Speed Action

Electrical

Contact

Schematic

55S25 SELECTOR 1 NO 1 NC 3 POS CNTR OFF MAINT SELECT

55S26 e-STOP 1 NC PUSH LOCK - Twist Release

55S27 e-STOP 1 NO PUSH LOCK - Twist Release

55S28 e-STOP 1 NO + 1 NC PUSH LOCK - Twist Release

55S29 e-STOP 2 NC PUSH LOCK - Twist Release

55S30 e-STOP 2 NO PUSH LOCK - Twist Release

55S31 VAR POT RES 1K OHMS VARIABLE TURN

55S32 VAR POT RES 2K OHMS VARIABLE TURN

55S33 BLANK BLANK PLATE

55S26 55S31 55S33

E-Stop Variable Pot Iometer Blank Plate

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

209

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

EMC CATALOG

P/N DESCRIPTION

55J1 80-1 Small jumper for use with 34294 & 34295 - connects 1 to 5

55J2

80-2 Speed switch common jumper - used to connect commons between 1, 2, 3 spd

and on/off switches

55J3 80-3 2 Speed jumper - used on 2 spd switches to connect 6 to 4 and 14 to 16

55J4 80-4 3 Speed jumper - used on 3 spd switches to connect term 18 of two adjacent

55J5 80-12 2 Speed common jumper - used to connect 5 to 15 on 2 spd switches

5500 Electrical Jumpers

55J255J1

5500 - Electrical Jumpers

210

5500 - Enclosures

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

EMC CATALOG

P/N

BUTTON

SPACING Description

BUSHING

COLLAR

SIZE

55EN02 22 BUTTON ENCLOSURE A

55EN04 44 BUTTON ENCLOSURE A

55EN06 66 BUTTON ENCLOSURE A

55EN06D 66 BUTTON DEEP BACK ENCLOSURE A

55EN06H 66 BUTTON LARGE HOLE ENCLOSURE D

55EN06HD 66 BUTTON LG HOLE & DEEP BACK ENCLOSURE D

55EN08 88 BUTTON ENCLOSURE A

55EN08D 88 BUTTON DEEP BACK ENCLOSURE A

55EN08H 88 BUTTON LARGE HOLE ENCLOSURE D

55EN08HD 88 BUTTON LG HOLE & DEEP BACK ENCLOSURE D

55EN10 10 10 BUTTON ENCLOSURE A

55EN10D 10 10 BUTTON DEEP BACK ENCLOSURE A

55EN10H 10 10 BUTTON LARGE HOLE ENCLOSURE D

55EN10HD 10 10 BUTTON LG HOLE & DEEP BACK ENCLOSURE D

55EN12 12 12 BUTTON ENCLOSURE A

55EN12D 12 12 BUTTON DEEP BACK ENCLOSURE A

55EN12H 12 12 BUTTON LARGE HOLE ENCLOSURE D

55EN12HD 12 12 BUTTON LG HOLE & DEEP BACK ENCLOSURE D

Notes on ordering enclosures for 5500 Series:

1. Deep Enclosures – use these for multi-wire cords ( ie 12 or more conductors) with size over 20AWG (16AWG is most typical).

2. Enclosures come complete with front and back covers, seal and capture screws.

3. Enclosures do not come with top strain relief assemblies – order separately.

4. These enclosures are for replacement only.

5. Pendant repair should be performed only by an authorized repair electrician or technician.

Standard Back

Cable 0.D.

7.5 -19.5mm

.29 - .76 in

Deep Back

Cable 0.D.

7.5 -19.5mm

.29 - .76 in

Standard Back

Cable 0.D.

19.3 - 29.5mm

.75 - 1.16 in

Deep Back

Cable 0.D.

19.3-29.5mm

.75 - 1.16 in

211

5500 - Replacement Parts

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

EMC CATALOG P/N DESCRIPTION

55CG1 CABLE GLAND .34 - .41*

55CG2 CABLE GLAND .41 - .53*

55CG3 CABLE GLAND .52 - .65*

55CG4 CABLE GLAND .64 - .77*

55CG5 CABLE GLAND .76 - .89**

55CG6 CABLE GLAND .88 - 1.0**

55CG7 CABLE GLAND 1.0 - 1.12**

55CG8 CABLE GLAND 1.11 - 1.16**

5500 Lights

5500 Glands & Bushing Kits

5500 Legend Sheets

EMC CATALOG P/N DESCRIPTION

For small location 1

55LD1D SM RED LED PILOT 12MM 12VDC

For larger location 2 - not button location

55LN1A SM RED NEON PILOT 19MM 110VAC

55LN2A SM RED NEON PILOT 19MM 220VAC

55LN1D SM RED NEON PILOT 19MM 12VDC

55LN2D SM RED NEON PILOT 19MM 24VDC

Button Location style*

55PL1A LG RED LED PILOT 110VAC

55PL2A LG RED LED PILOT 220VAC

55PL1D LG RED LED PILOT 12VDC

55PL2D LG RED LED PILOT 24VDC

* fits in 1 button space only

EMC CATALOG P/N DESCRIPTION

LS1 55 Series Push Button Legend sheet

LS2 55 Series Selector Sw Legend Sheet*

55PL1A

55CG2

55LD1D

55LN1A

55LP1A

Indicator

Placement

LS1

55LN1A

Replacement Button Boots & Label Cover

5500 black

boots

55BB

5500 red

boots

55RB

5500 green

boots

55GB

Clear Button Label

Cover

55LC

*Vertical sheet - not under button cover

*For use with type “A” enclosures

**For use with type “D” enclosures

212

5500 General Duty - Dimensions

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

5500 General Duty

17.5

12.5

4.5 DIA.

Bushing

collar can

be mounted

facing front or

rear.

Number of Positions A Dim. B Dim. C Dim.

24.49 in. (114 mm) 3.07 in. (78 mm) 1.46 in. (37 mm)

47.09 in. (180 mm) 3.07 in. (78 mm) 1.46 in. (37 mm)

610.31 in. (262 mm) 3.07 in. (82 mm) 1.48 in. (37.5 mm)

812.68 in. (322 mm) 3.23 in. (82 mm) 1.48 in. (37.5 mm)

10 15.24 in. (387 mm) 3.43 in. (87 mm) 1.48 in. (37.5 mm)

12 17.60 in. (447 mm) 3.43 in. (87 mm) 1.48 in. (37.5 mm)

213

5502/5503 Pistol Grip- Dimensions

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

2.535 (64.39)

2.988 (75.88)

11.059 (280.90)

1.980 (50.30) 1.526 (38.75)

3.305 (83.95)

2.24 (57mm)

REF

2.84 (72mm) REF External strain Relief

anchor

0.67 (17mm)

7.40 (188mm) REF

1.61 (14 mm) REF

1.97

(50mm) REF

5502 Pistol Grip

5503 Pistol Grip with Emergency Stop

214

Custom Ordering - 5500 Series

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

Number of switchs

(button holes) required

(Round up to even #)

List switches inserts

& lamp/horn inserts as

needed by Part. No. below.

24/7 Emergency

Assistance Hotline:

1-877-OSCAR99

(672-2799)

Total No. of conductors required (sum of above)

# of “Commons” Req’d:

Cable O.D.:

Bushing and Cable Gland Part No.

List number of

conductors per

switch

Request Date:__________________________

Company: __________________________________________________________

Name: ______________________________________________________________

Title: ______________________________________________________________

Phone: ____________________________________________________________

Fax: ______________________________________________________________

E-mail: ______________________________________________________________

Delivery Date Needed: ________________________________________________

HOW TO REQUEST A

CUSTOM PENDANT

STATION:

1. Determine your

electrical needs

and circuits.

2. Determine your

number of conductors

and conductor size.

3. Select your switches

by part number that

will operate your circuits.

a. Remember that most

switches required two

button locations in

the housing

4. Fill in the form areas

1 through 5

5. Fax or scan/email the

completed form to your

local distributor or

Ericson Factory

USE THE

ONLINE FORM

Button Legend Sheet A downloadable copy of this form is located at: www.ericson.com/technical-resource.html

215

Additional Custom Notes

These Custom Form Pages May

Also be Downloaded From:

www.ericson.com/technical-resource.html

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

216

Heavy Duty - 5700 Series

1-800-ERICSON (374-2766) •www.ericson.com

PENDANT STATIONS

5700 Ready to Use Pendants

5700 Series Heavy Duty Rubber

Enclosure Pendant Stations

•Available in 2 to 8 button configurations

•Single- and two-speed models

•Built-in strain relief bracket

•Rubber enclosure covers buttons to prevent

outside contaminants from entering enclosure

•Standard legend plates and cord grip included

with each pendant station

•Two-piece enclosure simplifies field wiring

•Soft pressure and positive indent switches provide

optimum tactile feedback wo you can feel when

switch has been engaged

•Contacts rated at 10A/125VAC

•NEMA Types 1, 3, 4 & 12

Lip & groove sealing

system molded into

enclosure

Heavy duty switches

have strong positive

snap action

Large terminal

screws with wire

capture washers

All steel

heavy duty

hang tab

Heavy duty cord clamp and

grommet 3/4” or 1” NPT

Safety ground for hang tab

(connect to earth ground or -DC)

Stainless steel enclosure

screws and screw guides

All steel “backbone”

for switch mounting

and common ground

Deep “bath tub”

solid molded

enclosure for

large AWG wires

Legend Labels

Item

Number DESCRIPTION Buttons Switch Contacts

(each switch) Switch

Action Speed

Replacement

Cable Dia Cable Cord

Clamp Size

5702 Pendant, 1 SPD, 2 Button, 2X5700 22 NO 2 NC MOM 1 5700 .437 - .740 in. 3/4 NPT

5702-2A Pendant, 2 SPD, 2 Button, 2X5700-2A, CUML 2

1NC + 2 NO CUML

MOM

2 Spd Cuml

5700-2A .437 - .740 in. 3/4 NPT

5704 Pendant, 1 SPD, 4 Button, 4X5700 42 NO 2 NC MOM 1 5700 .437 - .740 in. 3/4 NPT

5704-2A Pendant, 2 SPD, 4 Button, 4X5700-2A, CUML 4

1NC + 2 NO CUML

MOM

2 Spd Cuml

5700-2A .437 - .740 in. 3/4 NPT

5706 Pendant, 1 SPD, 6 Button, 6X5700 62 NO 2 NC MOM 1 5700 .437 - .740 in. 3/4 NPT

5706-2A Pendant, 2 SPD, 6 Button, 6X5700-2A, CUML 6

1NC + 2 NO CUML

MOM

2 Spd Cuml

5700-2A .437 - .740 in. 3/4 NPT

5708 Pendant, 1 SPD, 8 Button, 8X5700 82 NO 2 NC MOM 1 5700 .640 - .875 in. 1" NPT

5708-2A Pendant, 2 SPD, 8 Button, 8X5700-2A, CUML 8

1NC + 2 NO CUML

MOM

2 Spd Cuml

5700-2A .640 - .875 in. 1" NPT

Replacement Switches

5700 Switch, Replacement, 5700 Series, 2 NO 2 NC MOM 12 NO 2 NC MOM 1

5700-1 Switch, Replacement, 5700 Series, 1 NO MAINT ON/OFF 11 NO MAINT 1

5700-1A Switch, Replacement, 5700 Series, 1 NO MOM 11 NO MOM 1

5700-2 Switch, Replacement, 5700 Series,2 SPD Non-Cumulative* 11NC + 2 NO CUML MOM 2

5700-2A Switch, Replacement, 5700 Series, 2 SPD Cumulative* 11NC + 2 NO CUML MOM 2

* Note - Cumulative are MAKE + MAKE; Non-Cumulative are BREAK BEFORE 2ND MAKE

217

Heavy Duty - 5700 Series Schematic & Operation Diagrams

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

PENDANT STATIONS

WARNING

MAKE CERTAIN POWER SUPPLY IS DISCONNECTED BEFORE INSTALLING, REPAIRING, OR WORKING IN THE PROXIMITY OF

ANY ELECTRICAL SYSTEM. ONLY QUALIFIED ELECTRICAL PERSONNEL SHOULD INSTALL OR REPAIR THESE PRODUCTS.

NOT DESIGNED FOR DC CIRCUITS

Start/Stop Inserts

Maintained Momentary

5700-1 5700-1A

Schematic & Operation Diagrams

Cumulative

Two Required Per Motion

5700-2A

10A Contacts

Interlocked

Two Required Per Motion

5700

20A Contacts

Start/Stop

Two Required

5700

20A Contacts

218

E-Grips - Wire Mesh Products

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

Pulling

Grips

Support

Grips

Strain

Relief

Grips

NEW!

219

E-Grips - Wire Mesh Products

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

220

Introduction To E-Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

E-Grips (wire mesh grips) are braided wire tubes that aid in the installation and support of electrical

cables as well as non-electrical tubing and hose. E-Grips are used to eliminate direct tension on termi-

nations. Gripping action increases in porportion to the tension applied.

E-Grips are used for pulling overhead or underground cable, stringing service or communications lines,

pulling wire through conduit and for general underground construction use. E-grips are reusable and

prevent wire damage by creating a uniform tension during wire pulling. E-grips are easy to install as

well as remove and do not require any tools.

• Industrial Plants •Utilities

•Construction Sites • Transportation

•Maintenance & Repair Operations • OEM

•Automation •Maintenance Repair Operations

•Lighting • Renewable Energy

Support Grips:

To hold and support cables, metal rods and tubing in verticle ,

sloped or horizontal position to prevent cable pull-out by

supporting the weight of the cable.

Pulling Grips:

Reusable pulling tool for heavy to light cable.

Strain Relief & Deluxe Strain Relief Grips:

Prevents cable pull out and prevents tension from b eing

transmitted to joints reducing stress and strain on conductors

at the point of wire termination caused by pulling or bending

the cable.

Cord Grips:

For use where cable is exposed to moisture or submersion.

Eliminated fatique points.indoor/outdoor use, prevents cord

pull-out.

I-Grips:

Grips are easy to attach, will control cable-arc-of bend, and

provide heavy duty strain relief for plugs and connectors

used on portable equipment where abnormal high strain

abuse occurs.

221

Support Grips - Standard Support, Heavy Duty Support, Service Drop, Conduit Riser Grips, and Bus Drops

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

Solid eye assemblies provide superior

reinforcement designed to hold the weight

for electrical cables as it hangs in vertical,

sloping, or horizontal positions.

EYE STYLE:

Four different eye styles are available per your method of

utilizing the support grip. Single, Double (shown), Offset,

and Universal Bale.

Ericson E-Grip Support Grips are designed to hold the weight of cable in a vertical,

horizontal, or sloping position. Support grips serve an important function as electrical

cables must be supported or their dead weight can cause excessive strain or pullout

at the connections resulting in a power failure. Ericson E-Grips are used within any

application that requires the mechanical support of cable, metal rods, hose, and tub-

ing. Specific applications include buildings, utility poles, excavations, mine shafts,

towers, elevators, terminators, or other structures.

MESH STYLE:

Three different mesh styles of nonmagnetic tinned bronze are available for anything

from light to heavy duty supporting requirements. Closed Mesh are for fitting over a

cable end when exposed and a Split Mesh (Lace or Rod) is utilized when the cable end

is not exposed.

An endless mesh weave provides installation ease onto the cable, allows for adjust-

ments, and provides a reusable support grip without the need for special skills or

tools. Conforms to shape of cable or object being supported and permits cable to

expand and contract without loss of holding action.

Flag label shows catalog num-

ber, full description containing

diameter range, barcode, mfg

date, and MADE IN USA!

222

Selecting The Correct Support Grip

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

How to Select the Correct Support Grip

Step 1 Refer to the chart below to determine the Support Grip style

that is best suited for your application.

Step 2 Where available, select an Eye style that is best suited for

your supporting application.

Step 3 Determine your cable outside diameter. Refer to Technical

Reference section.

Step 4 Find the mesh grip size that encompasses your cable diameter.

Step 5 Select a Mesh style from chart below. Whenever possible, use

a closed mesh that assembles over the cable end. If the cable

end is not available, use a split mesh such as Lace or Rod Closing.

Step 6 IMPORTANT! Estimate the tension to be put on the grip, establish

the working load you require and compare this to the listed

approximate breaking strength of the grip to insure that the grip

will be strong enough. For Support Grips, use a Safety Factor of

10. Refer to Technical Reference section for safety and working

load considerations.

Support Grip Styles

Standard Support

Grips

Support Vertical Runs to 99 ft. Loads to 600lbs. Electrical cables must be supported or their dead weight

can cause excessive strain or pullout at the connections resulting in a power failure.

(Diameter Range = .5 to 3.99" and Breaking Strength Range = 500 to 4900 lbs.)

Heavy Duty Grips Support Vertical Runs over 100 ft. Loads Over 600lbs. Electrical cables must be supported or their dead

weight can cause excessive strain or pullout at the connections resulting in a power failure.

(Diameter Range = .75 to 4.49" and Breaking Strength Range = 2820 to 12070 lbs.)

Service Drop Light Duty to Support Service Entrance Cable in sloping, vertical, or horizontal positions.

(Diameter Range = .23 to 1.25" and Breaking Strength Range = 290 to 1790 lbs.)

Bus Drop

Light Duty Support, Indoors Only, On Bus Drop Cable that relieves tension and absorbs vibration which

protects the cable. Safety Springs can be used in conjunction to relieve sudden strain on cord or cable

overhead systems.

(Diameter Range = .22 to 1.25" and Breaking Strength Range = 350 to 1800 lbs.)

Conduit Riser Support Cable Runs in Rigid (Sched. 40) Conduit.

(Diameter Range = .50 to 3.99" and Breaking Strength Range = 290 to 5380 lbs.)

Single

Universal

Bale

Double

Eye Styles

Offset

223

Selecting The Correct Support Grip

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

Eye Styles

Single For use when cable is vertical and for applications where cable bends or for where a single attachment is more

advantageous for positioning.

Double For use when cable is vertical and extends through the grip without bending. Eyes may be fastened to open hooks,

but should not be more than 15 degrees from the axis of the vertical cable. When the eyes are supported equally, this

attachment provides a fully balanced load.

Offset Similar to single eye applications, but for use when offset positioning is required.

Universal

Bale Adjustable and self-locking, this attachment fits around a beam, pipe, or other continuous structural object. The bale

wraps around the object and is securely anchored in the bar.

Mesh Styles

Closed Permanent support when cable end is available for support grip installation.

Split Lace Closing Permanent support when cable end is not available for support grip installation.

Split Rod Closing Temporary support when cable end is not available for support grip installation

Split Lace

Split Rod

Closed

Mesh Styles

224

Support Grips - Standard Duty - Double Eye

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Stranded tinned bronze wire.

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-CM-050-DE .50-.62 530 LBS. 410

SG-CM-062-DE .63-.74 790 LBS. 410

SG-CM-075-DE .75-.99 1020 LBS. 413

SG-CM-100-DE 1.00-1.24 1610 LBS. 514

SG-CM-125-DE 1.25-1.49 1610 LBS. 515

SG-CM-150-DE 1.50-1.74 1610 LBS. 517

SG-CM-175-DE 1.75-1.99 2150 LBS. 619

SG-CM-200-DE 2.00-2.49 3260 LBS. 621

SG-CM-250-DE 2.50-2.99 3260 LBS. 623

SG-CM-300-DE 3.00-3.49 4900 LBS. 825

SG-CM-350-DE 3.50-3.99 4900 LBS. 827

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-LC-050-DE .50-.62 530 LBS. 410

SG-LC-062-DE .63-.74 790 LBS. 410

SG-LC-075-DE .75-.99 1020 LBS. 413

SG-LC-100-DE 1.00-1.24 1610 LBS. 514

SG-LC-125-DE 1.25-1.49 1610 LBS. 515

SG-LC-150-DE 1.50-1.74 1610 LBS. 517

SG-LC-175-DE 1.75-1.99 2150 LBS. 619

SG-LC-200-DE 2.00-2.49 3260 LBS. 621

SG-LC-250-DE 2.50-2.99 3260 LBS. 623

SG-LC-300-DE 3.00-3.49 4900 LBS. 825

SG-LC-350-DE 3.50-3.99 4900 LBS. 827

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-RC-050-DE .50-.62 530LBS. 410

SG-RC-062-DE .63-.74 790LBS. 410

SG-RC-075-DE .75-.99 1020LBS. 413

SG-RC-100-DE 1.00-1.24 1610LBS. 514

SG-RC-125-DE 1.25-1.49 1610LBS. 515

SG-RC-150-DE 1.50-1.74 1610LBS. 517

SG-RC-175-DE 1.75-1.99 2150LBS. 619

SG-RC-200-DE 2.00-2.49 3260LBS. 621

SG-RC-250-DE 2.50-2.99 3260LBS. 623

SG-RC-300-DE 3.00-3.49 4900LBS. 825

SG-RC-350-DE 3.50-3.99 4900LBS. 827

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

DE = Double Eye

SE = Single Eye

OFS = Offset Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

SG = Support Grips

SGHD = Support Grips

Heavy Duty

(Double Weave)

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Support Grip Number Structure

Product Type Mesh Eye StyleMesh Diameter

---

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference

section for safety and working load factors.

DOUBLE EYE, ROD

CLOSING

DOUBLE EYE, LACE

CLOSING

DOUBLE EYE,

CLOSED MESH

225

Support Grips - Standard Duty - Single Eye

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

• Stranded tinned bronze wire.

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-CM-050-SE .50-.62 530LBS. 710

SG-CM-062-SE .63-.74 790LBS. 810

SG-CM-075-SE .75-.99 1020LBS. 813

SG-CM-100-SE 1.00-1.24 1610LBS. 914

SG-CM-125-SE 1.25-1.49 1610LBS. 10 15

SG-CM-150-SE 1.50-1.74 1610LBS. 12 17

SG-CM-175-SE 1.75-1.99 2150LBS. 14 19

SG-CM-200-SE 2.00-2.49 3260LBS. 16 21

SG-CM-250-SE 2.50-2.99 3260LBS. 18 23

SG-CM-300-SE 3.00-3.49 4900LBS. 21 25

SG-CM-350-SE 3.50-3.99 4900LBS. 24 27

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-RC-050-SE .50-.62 530LBS. 710

SG-RC-062-SE .63-.74 790LBS. 810

SG-RC-075-SE .75-.99 1020LBS. 813

SG-RC-100-SE 1.00-1.24 1610LBS. 914

SG-RC-125-SE 1.25-1.49 1610LBS. 10 15

SG-RC-150-SE 1.50-1.74 1610LBS. 12 17

SG-RC-175-SE 1.75-1.99 2150LBS. 14 19

SG-RC-200-SE 2.00-2.49 3260LBS. 16 21

SG-RC-250-SE 2.50-2.99 3260LBS. 18 23

SG-RC-300-SE 3.00-3.49 4900LBS. 21 25

SG-RC-350-SE 3.50-3.99 4900LBS. 24 27

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-LC-050-SE .50-.62 530LBS. 710

SG-LC-062-SE .63-.74 790LBS. 810

SG-LC-075-SE .75-.99 1020LBS. 813

SG-LC-100-SE 1.00-1.24 1610LBS. 914

SG-LC-125-SE 1.25-1.49 1610LBS. 10 15

SG-LC-150-SE 1.50-1.74 1610LBS. 12 17

SG-LC-175-SE 1.75-1.99 2150LBS. 14 19

SG-LC-200-SE 2.00-2.49 3260LBS. 16 21

SG-LC-250-SE 2.50-2.99 3260LBS. 18 23

SG-LC-300-SE 3.00-3.49 4900LBS. 21 25

SG-LC-350-SE 3.50-3.99 4900 LBS. 24 27

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

DE = Double Eye

SE = Single Eye

OFS = Offset Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

CM = Closed

Mesh LC = Lace Closing

RC = Rod Closing

Support Grip Number Structure

Product Type Mesh Eye StyleMesh Diameter

---

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical

Reference section for safety and working load factors.

SINGLE EYE, CLOSED

MESH

SINGLE EYE, LACE

CLOSING

SINGLE EYE, ROD

CLOSING

SG = Support Grips

SGHD = Support Grips

Heavy Duty

(Double Weave)

226

Support Grips - Standard Duty - Offset Eye

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Stranded tinned bronze wire.

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-CM-050-OFS .50-.62 500LBS. 410

SG-CM-062-OFS .63-.74 750LBS. 410

SG-CM-075-OFS .75-.99 950LBS. 413

SG-CM-100-OFS 1.00-1.24 1500LBS. 514

SG-CM-125-OFS 1.25-1.49 1500LBS. 515

SG-CM-150-OFS 1.50-1.74 1500LBS. 517

SG-CM-175-OFS 1.75-1.99 2000LBS. 619

SG-CM-200-OFS 2.00-2.49 3100LBS. 621

SG-CM-250-OFS 2.50-2.99 3100LBS. 623

SG-CM-300-OFS 3.00-3.49 3800LBS. 925

SG-CM-350-OFS 3.50-3.99 3800LBS. 927

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-LC-050-OFS .50-.62 500LBS. 410

SG-LC-062-OFS .63-.74 750LBS. 410

SG-LC-075-OFS .75-.99 950LBS. 413

SG-LC-100-OFS 1.00-1.24 1500LBS. 514

SG-LC-125-OFS 1.25-1.49 1500LBS. 515

SG-LC-150-OFS 1.50-1.74 1500LBS. 517

SG-LC-175-OFS 1.75-1.99 2000LBS. 619

SG-LC-200-OFS 2.00-2.49 3100LBS. 621

SG-LC-250-OFS 2.50-2.99 3100LBS. 623

SG-LC-300-OFS 3.00-3.49 3800LBS. 925

SG-LC-350-OFS 3.50-3.99 3800LBS. 927

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-RC-050-OFS .50-.62 500LBS. 410

SG-RC-062-OFS .63-.74 750LBS. 410

SG-RC-075-OFS .75-.99 950LBS. 413

SG-RC-100-OFS 1.00-1.24 1500LBS. 514

SG-RC-125-OFS 1.25-1.49 1500LBS. 515

SG-RC-150-OFS 1.50-1.74 1500LBS. 517

SG-RC-175-OFS 1.75-1.99 2000LBS. 619

SG-RC-200-OFS 2.00-2.49 3100LBS. 621

SG-RC-250-OFS 2.50-2.99 3100LBS. 623

SG-RC-300-OFS 3.00-3.49 3800LBS. 925

SG-RC-350-OFS 3.50-3.99 3800LBS. 927

DE = Double Eye

SE = Single Eye

OFS = Offset Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

SG = Support Grips

SGHD = Support Grips

Heavy Duty

(Double Weave)

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Support Grip Number Structure

Product Type Mesh Eye StyleMesh Diameter

---

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference

section for safety and working load factors.

OFFSET EYE,

CLOSED MESH

OFFSET EYE,

LACE CLOSING

OFFSET EYE,

ROD CLOSING

227

Support Grips - Standard Duty - Universal

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-CM-050-UB .50-.62 530LBS. 18 10

SG-CM-062-UB .63-.74 790LBS. 18 10

SG-CM-075-UB .75-.99 1020LBS. 18 13

SG-CM-100-UB 1.00-1.24 1610LBS. 18 14

SG-CM-125-UB 1.25-1.49 1610LBS. 18 15

SG-CM-150-UB 1.50-1.74 1610LBS. 18 17

SG-CM-175-UB 1.75-1.99 2150LBS. 18 19

SG-CM-200-UB 2.00-2.49 3260LBS. 18 21

SG-CM-250-UB 2.50-2.99 3260LBS. 18 23

SG-CM-300-UB 3.00-3.49 4900LBS. 18 25

SG-CM-350-UB 3.50-3.99 4900LBS. 18 27

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-RC-050-UB .50-.62 530LBS. 18 10

SG-RC-062-UB .63-.74 790LBS. 18 10

SG-RC-075-UB .75-.99 1020LBS. 18 13

SG-RC-100-UB 1.00-1.24 1610LBS. 18 14

SG-RC-125-UB 1.25-1.49 1610LBS. 18 15

SG-RC-150-UB 1.50-1.74 1610LBS. 18 17

SG-RC-175-UB 1.75-1.99 2150LBS. 18 19

SG-RC-200-UB 2.00-2.49 3260LBS. 18 21

SG-RC-250-UB 2.50-2.99 3260LBS. 18 23

SG-RC-300-UB 3.00-3.49 4900LBS. 18 25

SG-RC-350-UB 3.50-3.99 4900LBS. 18 27

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SG-LC-050-UB .50-.62 530LBS. 18 10

SG-LC-062-UB .63-.74 790LBS. 18 10

SG-LC-075-UB .75-.99 1020LBS. 18 13

SG-LC-100-UB 1.00-1.24 1610LBS. 18 14

SG-LC-125-UB 1.25-1.49 1610LBS. 18 15

SG-LC-150-UB 1.50-1.74 1610LBS. 18 17

SG-LC-175-UB 1.75-1.99 2150LBS. 18 19

SG-LC-200-UB 2.00-2.49 3260LBS. 18 21

SG-LC-250-UB 2.50-2.99 3260LBS. 18 23

SG-LC-300-UB 3.00-3.49 4900LBS. 18 25

SG-LC-350-UB 3.50-3.99 4900LBS. 18 27

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

DE = Double Eye

SE = Single Eye

OFS = Offset Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

SG = Support Grips

SGHD = Support Grips

Heavy Duty

(Double Weave)

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Support Grip Number Structure

Product Type Mesh Eye StyleMesh Diameter

---

• Stranded tinned bronze wire.

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to

Technical Reference section for safety and working load factors.

UNIVERSAL BALE,

CLOSED MESH

UNIVERSAL BALE,

LACE CLOSING

UNIVERSAL BALE,

ROD CLOSING

228

Support Grips - Heavy Duty

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Ericson Heavy Duty Support Grips are designed to withstand greater

loads and increased stress

• Stranded tinned bronze wire.

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SGHD-CM-075-SE .75-.99 2820LBS. 10 25

SGHD-CM-100-SE 1.00-1.24 4280LBS. 10 28

SGHD-CM-125-SE 1.25-1.49 4280LBS. 10 30

SGHD-CM-150-SE 1.50-1.99 4280LBS. 10 34

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SGHD-CM-075-DE .75-.99 2820LBS. 10 25

SGHD-CM-100-DE 1.00-1.24 4280LBS. 10 28

SGHD-CM-125-DE 1.25-1.49 4280LBS. 10 30

SGHD-CM-150-DE 1.50-1.99 4280LBS. 10 34

SGHD-CM-200-DE 2.00-2.49 8050LBS. 10 36

SGHD-CM-250-DE 2.50-2.99 8050LBS. 10 38

SGHD-CM-300-DE 3.00-3.49 10060LBS. 10 40

SGHD-CM-350-DE 3.50-3.99 12070LBS. 10 44

SGHD-CM-400-DE 4.00-4.49 12070LBS. 10 46

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

DE = Double Eye

SE = Single Eye

OFS = Offset Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

SG = Support Grips

SGHD = Support Grips

Heavy Duty

(Double Weave)

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Support Grip Number Structure

Product Type Mesh Eye StyleMesh Diameter

---

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference

section for safety and working load factors.

SINGLE EYE, CLOSED MESH,

DOUBLE WEAVE

DOUBLE EYE, CLOSED MESH,

DOUBLE WEAVE

229

Support Grips - Light Duty Service Drops

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

• Ericson Service Drop Grips are used in a wide variety of light duty electrical applications such as service entrance,

cable tv, telephone, fiber optics, etc., in sloping, vertical, or horizontal positions.

• High grade non-magnetic tin coated bronze wire.

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SD-23-SE .23-.31 290LBS. 4 3

SD-32-SE .32-.43 290LBS. 4 4

SD-43-SE .43-.56 380LBS. 6 5

SD-56-SE .56-.73 600LBS. 7 6

SD-73-SE .73-.85 790LBS. 7 6

SD-85-SE .85-1.00 1020LBS. 8 8

SD-100-SE 1.00-1.25 1020LBS. 9 9

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SD-23-UB .23-.31 290LBS. 8 3

SD-32-UB .32-.43 290LBS. 10 4

SD-43-UB .43-.56 380LBS. 12 5

SD-56-UB .56-.73 600LBS. 13 6

SD-73-UB .73-.85 790LBS. 14 6

SD-85-UB .85-1.00 1020LBS. 14 8

SD-100-UB 1.00-1.25 1020LBS. 15 9

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SDHD-23-SE .23-.31 500LBS. 5 5

SDHD-32-SE .32-.43 500LBS. 6 6

SDHD-43-SE .43-.56 870LBS. 6 8

SDHD-56-SE .56-.73 1050LBS. 7 9

SDHD-73-SE .73-.85 1390LBS. 810

SDHD-85-SE .85-1.00 1790LBS. 812

SDHD-100-SE 1.00-1.25 1790LBS. 914

HEAVY DUTY,

UNIVERSAL BALE

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

SDHD-23-UB .23-.31 500LBS. 9 5

SDHD-32-UB .32-.43 500LBS. 10 6

SDHD-43-UB .43-.56 870LBS. 12 8

SDHD-56-UB .56-.73 1050LBS. 13 9

SDHD-73-UB .73-.85 1390LBS. 14 10

SDHD-85-UB .85-1.00 1790LBS. 14 12

SDHD-100-UB 1.00-1.25 1790LBS. 15 14

SE = Single Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

SD = Service Drops

SDHD = Service Drops

Heavy Duty

(Double Weave)

Bus Drops & Service Drops Number Structure

Product Type Eye StyleMesh Diameter

STANDARD, SINGLE EYE

STANDARD,

UNIVERSAL BALE

HEAVY DUTY, SINGLE EYE

Caution: When selecting a grip,

never use to their approximate

breaking strength. Refer to

Technical Reference section for

safety and working load factors.

230

Support Grips - Conduit Riser Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Ericson Conduit Riser Support

Grips are used to support cable

runs in vertical or sloping

standard rigid conduit.

• They are designed to prevent

cable creep in conduit and help

prevent cable pullouts.

• Ericson Conduit Riser Support

Grips install quickly and easily

with no damage to electrical

cable.

• The mesh is attached to a

support ring, which sits on the

conduit requiring no extra

hardware to attach.

• Fittings, bushings, or couplings

may be threaded on the

conduit with the grip in place.

• Stranded tinned bronze wire.

CABLE SIZE

INCHES .50-.62 .63-.74 .75-.99 1.00-1.24 1.25-1.49

LENGTH 8” 9” 10” 11” 12”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

530

290

790

435

1030

560

1610

890

1610

890

3/4” CAT. NO. CRG-C.75-CM-050

1” CAT. NO. CRG-C1-CM-050 CRG-C1-CM-062

1-1/4” CAT. NO. CRG-C1.25-CM-050 CRG-C1.25-CM-062 CRG-C1.25-CM-075

1-1/2” CAT. NO. CRG-C1.50-CM-050 CRG-C1.50-CM-062 CRG-C1.50-CM-075 CRG-C1.50-CM-100

2” CAT. NO. CRG-C2-CM-050 CRG-C2-CM-062 CRG-C2-CM-075 CRG-C2-CM-100 CRG-C2-CM-125

2-1/2” CAT. NO. CRG-C2.50-CM-050 CRG-C2.50-CM-062 CRG-C2.50-CM-075 CRG-C2.50-CM-100 CRG-C2.50-CM-125

3” CAT. NO. CRG-C3-CM-050 CRG-C3-CM-062 CRG-C3-CM-075 CRG-C3-CM-100 CRG-C3-CM-125

3-1/2” CAT. NO. CRG-C3.50-CM-062 CRG-C3.50-CM-075 CRG-C3.50-CM-100 CRG-C3.50-CM-125

4” CAT. NO. CRG-C4-CM-062 CRG-C4-CM-075 CRG-C4-CM-100 CRG-C4-CM-125

4-1/2”” CAT. NO. CRG-C4.50-CM-075 CRG-C4.50-CM-100 CRG-C4.50-CM-125

5” CAT. NO. CRG-C5-CM-075 CRG-C5-CM-100 CRG-C5-CM-125

6” CAT. NO. CRG-C6-CM-075 CRG-C6-CM-100 CRG-C6-CM-125

For permanent support when cable end is available to be installed through the grip.

SINGLE WEAVE, CLOSED

MESH

CABLE SIZE

INCHES 1.50-1.74 1.75-1.99 2.00-2.49

LENGTH 13” 14” 17”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

1610

890

2150

1180

3260

1795

3/4” CAT. NO.

1” CAT. NO.

1-1/4” CAT. NO.

1-1/2” CAT. NO.

2” CAT. NO.

2-1/2” CAT. NO. CRG-C2.50-CM-150 CRG-C2.50-CM-175

3” CAT. NO. CRG-C3-CM-150 CRG-C3-CM-175 CRG-C3-CM-200

3-1/2” CAT. NO. CRG-C3.50-CM-150 CRG-C3.50-CM-175 CRG-C3.50-CM-200

4” CAT. NO. CRG-C4-CM-150 CRG-C4-CM-175 CRG-C4-CM-200

4-1/2”” CAT. NO. CRG-C4.50-CM-150 CRG-C4.50-CM-175 CRG-C4.50-CM-200

5” CAT. NO. CRG-C5-CM-150 CRG-C5-CM-175 CRG-C5-CM-200

6” CAT. NO. CRG-C6-CM-150 CRG-C6-CM-175 CRG-C6-CM-200

CABLE SIZE

INCHES 2.50-2.99 3.00-3.49 3.50-3.99

LENGTH 18” 20” 21”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

3260

1795

4080

2245

4080

2245

3/4” CAT. NO.

1” CAT. NO.

1-1/4” CAT. NO.

1-1/2” CAT. NO.

2” CAT. NO.

2-1/2” CAT. NO.

3” CAT. NO.

3-1/2” CAT. NO. CRG-C3.50-CM-250

4” CAT. NO. CRG-C4-CM-250 CRG-C4-CM-300

4-1/2”” CAT. NO. CRG-C4.50-CM-250 CRG-C4.50-CM-300 CRG-C4.50-CM-350

5” CAT. NO. CRG-C5-CM-250 CRG-C5-CM-300 CRG-C5-CM-350

6” CAT. NO. CRG-C6-CM-250 CRG-C6-CM-300 CRG-C6-CM-350

231

Support Grips - Conduit Riser Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

• Stranded tinned bronze wire.

CABLE SIZE

INCHES .75-.99 1.00-1.24 1.25-1.49 1.50-1.74 1.75-1.99

LENGTH 10” 11” 12” 13” 14”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

1580

870

2040

1125

2040

1125

2040

1125

2730

1500

1-1/4” CAT. NO. CRG-C1.25-LC-075

1-1/2” CAT. NO. CRG-C1.5-LC-075 CRG-C1.5-LC-100

2” CAT. NO. CRG-C2-LC-075 CRG-C2-LC-100 CRG-C2-LC-125

2-1/2” CAT. NO. CRG-C2.5-LC-075 CRG-C2.5-LC-100 CRG-C2.5-LC-125 CRG-C2.5-LC-150 CRG-C2.5-LC-175

3” CAT. NO. CRG-C3-LC-075 CRG-C3-LC-100 CRG-C3-LC-125 CRG-C3-LC-150 CRG-C3-LC-175

3-1/2” CAT. NO. CRG-C3.5-LC-075 CRG-C3.5-LC-100 CRG-C3.5-LC-125 CRG-C3.5-LC-150 CRG-C3.5-LC-175

4” CAT. NO. CRG-C4-LC-075 CRG-C4-LC-100 CRG-C4-LC-125 CRG-C4-LC-150 CRG-C4-LC-175

4-1/2” CAT. NO. CRG-C4.5-LC-075 CRG-C4.5-LC-100 CRG-C4.5-LC-125 CRG-C4.5-LC-150 CRG-C4.5-LC-175

5” CAT. NO. CRG-C5-LC-075 CRG-C5-LC-100 CRG-C5-LC-125 CRG-C5-LC-150 CRG-C5-LC-175

6” CAT. NO. CRG-C6-LC-075 CRG-C6-LC-100 CRG-C6-LC-125 CRG-C6-LC-150 CRG-C6-LC-175

DOUBLE WEAVE, SPLIT

MESH, LACE CLOSING

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Lower Diameter

Range of Mesh

CRG = Conduit Riser Grips 0.75" thru 6"

Conduit Riser Grips Number Structure

Product Type Mesh StyleConduit Size Mesh Diameter

---

For permanent support when cable end is not available.

CABLE SIZE

INCHES 2.00-2.49 2.50-2.99 3.00-3.49 3.50-3.99

LENGTH 17” 18” 20” 21”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

4300

2365

4300

2365

5380

2955

5380

2955

1-1/4” CAT. NO.

1-1/2” CAT. NO.

2” CAT. NO.

2-1/2” CAT. NO.

3” CAT. NO. CRG-C3-LC-200

3-1/2” CAT. NO. CRG-C3.5-LC-200 CRG-C3.5-LC-250

4” CAT. NO. CRG-C4-LC-200 CRG-C4-LC-250 CRG-C4-LC-300

4-1/2” CAT. NO. CRG-C4.5-LC-200 CRG-C4.5-LC-250 CRG-C4.5-LC-300 CRG-C4.5-LC-350

5” CAT. NO. CRG-C5-LC-200 CRG-C5-LC-250 CRG-C5-LC-300 CRG-C5-LC-350

6” CAT. NO. CRG-C6-LC-200 CRG-C6-LC-250 CRG-C6-LC-300 CRG-C6-LC-350

232

Support Grips - Conduit Riser Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Stranded tinned bronze wire.

CABLE SIZE

INCHES .75-.99 1.00-1.24 1.25-1.49 1.50-1.74 1.75-1.99

LENGTH 11” 12” 13” 14” 15”

CONDUIT

SIZE

APX. BRK.

STR. LBS.

1020

560

1610

890

1610

890

1610

890

2150

1180

1-1/4” CAT. NO. CRG-C1.25-RC-075

1-1/2” CAT. NO. CRG-C1.5-RC-075 CRG-C1.5-RC-100

2” CAT. NO. CRG-C2-RC-075 CRG-C2-RC-100 CRG-C2-RC-125

2-1/2” CAT. NO. CRG-C2.5-RC-075 CRG-C2.5-RC-100 CRG-C2.5-RC-125 CRG-C2.5-RC-150 CRG-C2.5-RC-175

3” CAT. NO. CRG-C3-RC-075 CRG-C3-RC-100 CRG-C3-RC-125 CRG-C3-RC-150 CRG-C3-RC-175

3-1/2” CAT. NO. CRG-C3.5-RC-075 CRG-C3.5-RC-100 CRG-C3.5-RC-125 CRG-C3.5-RC-150 CRG-C3.5-RC-175

4” CAT. NO. CRG-C4-RC-075 CRG-C4-RC-100 CRG-C4-RC-125 CRG-C4-RC-150 CRG-C4-RC-175

4-1/2” CAT. NO. CRG-C4.5-RC-075 CRG-C4.5-RC-100 CRG-C4.5-RC-125 CRG-C4.5-RC-150 CRG-C4.5-RC-175

5” CAT. NO. CRG-C5-RC-075 CRG-C5-RC-100 CRG-C5-RC-125 CRG-C5-RC-150 CRG-C5-RC-175

6” CAT. NO. CRG-C6-RC-075 CRG-C6-RC-100 CRG-C6-RC-125 CRG-C6-RC-150 CRG-C6-RC-175

SINGLE WEAVE, SPLIT

MESH, ROD CLOSING

For temporary support when cable end is not available.

CABLE SIZE

INCHES 2.00-2.49 2.50-2.99 3.00-3.49 3.50-3.99

LENGTH 16” 17” 19” 20

CONDUIT

SIZE

APX. BRK.

STR. LBS.

3260

1795

3260

1795

4080

2245

4080

2245

1-1/4” CAT. NO.

1-1/2” CAT. NO.

2” CAT. NO.

2-1/2” CAT. NO.

3” CAT. NO. CRG-C3-RC-200

3-1/2” CAT. NO. CRG-C3.5-RC-200 CRG-C3.5-RC-250

4” CAT. NO. CRG-C4-RC-200 CRG-C4-RC-250 CRG-C4-RC-300

4-1/2” CAT. NO. CRG-C4.5-RC-200 CRG-C4.5-RC-250 CRG-C4.5-RC-300CRG-C4.5-RC-350

5” CAT. NO. CRG-C5-RC-200 CRG-C5-RC-250 CRG-C5-RC-300 CRG-C5-RC-350

6” CAT. NO. CRG-C6-RC-200 CRG-C6-RC-250 CRG-C6-RC-300 CRG-C6-RC-350

233

Conduit Riser

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

CM = Closed Mesh

LC = Lace Closing

RC = Rod Closing

Lower Diameter

Range of Mesh

CRG = Conduit Riser Grips 0.75" thru 6"

Conduit Riser Grips Number Structure

Product Type Mesh StyleConduit Size Mesh Diameter

---

For Ericson Conduit Riser Grips only use to determine grip size

when multiple cables are held in a Single Conduit Riser Grip

• Under "Number of cables in one grip," find diameter of your cable in vertical column.

• Read grip size and grip diameter range to the right.

• If your diameter is the maximum of the range shown, go to

the next larger size for split grips, stay with the same size for closed grips.

• Example: 3 cables, each with .85 diameter, for a closed grip

select the 1.50 - 1.74 range, for a split grip use 1.75 - 1.99.

Conduit Rings

Select Conduit Ring Dimension from chart to the right.

Conduit Rings are cast bronze, zinc plated to resist corrosion.

Conduit Ring Dimensions

For Cables Of Equal Diameters

CONDUIT

SIZE RING NO. O.D. I.D. S T

3/4”

1”

1-1/4”

C-3/4”

C-1

C-1-1/4

.94

1.31

1.50

.62

.93

1.03

1.31

.19

.16

1-1/2”

2”

2-1/2”

C-1-1/2

C-2

C-2-1/2

1.76

2.23

2.67

1.23

1.55

2.05

1.52

1.97

2.40

.16

3”

3-1/2”

4”

C-3

C-3-1/2

C-4

3.20

3.80

4.30

2.55

3.05

3.55

2.97

3.47

3.94

.22

4-1/2”

5”

6”

C-4-1/2

C-5

C-6

4.80

5.30

6.30

4.03

4.46

5.36

4.45

4.96

5.96

.22

.25

NUMBER OF EQUAL DIAMETER CABLES IN ONE GRIP

23456 and789

GRIP

DIAM.

RANGE

.29-.36 .24-.30 .21-.25 .18-.22 .16-.20 .15-.18 .14-.17 .50-.62

.37-.43 .31-.36 .26-.30 .23-.27 .21-.24 .19-.22 .18-.20 .63-.74

.44-.58 .37-.48 .31-.41 .28-.36 .25-.32 .23-.29 .21-.27 .75-.99

.59-.72 .49-.60 .42-.51 .37-.45 .33-.40 .30-.36 .28-.34 1.00-1.24

.73-.87 .61-.72 .52-.61 .46-.54 .41-.48 .37-.43 .35-.40 1.25-1.49

.88-1.01 .73-.85 .62-.71 .55-.63 .49-.56 .44-.51 .41-.47 1.50-1.74

1.02-1.16 .86-.96 .72-.81 .64-.72 .57-.64 .52-.58 .48-.54 1.75-1.99

1.17-1.44 .97-1.20 .82-1.02 .73-.90 .65-.80 .59-.72 .55-.67 2.00-2.49

1.45-1.73 1.21-1.45 1.03-1.22 .91-1.08 .81-.96 .73-.87 .68-.81 2.50-2.99

1.74-2.02 1.46-1.69 1.23-1.43 1.09-1.26 .97-1.11 .83-1.01 .82-.94 3.00-3.49

2.03-2.31 1.70-1.93 1.44-1.63 1.27-1.44 1.12-1.27 1.02-1.15 .95-1.08 3.50-3.9

234

Support Grips - Bus Drop Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

DRY LOCATION ONLY

• High strength galvanized steel strand.

• Ericson Bus Drop Grips are easily installed and absorb tension, vibration, and pull with no damage.

• They support flexible cord or Bus Drop Cable at bus duct or industrial areas.

• Single eye can be used with springs by disassembling draw bar from coil, placing through eye and replacing draw bar.

• Hook eyes available, please consult factory.

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

* Dim with Bale Fully Extended

** Not UL Listed

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

E* M

*BD-022-SE .22-.32 350LBS. 33-1/2**

*BD-030-SE .30-.43 450LBS. 4 4

*BD-041-SE .41-.56 550LBS. 64-3/4

*BD-053-SE .53-.73 1000LBS. 7 6

*BD-070-SE .70-.85 1400LBS. 76-3/4

*BD-082-SE .82-1.00 1400LBS. 8 8

*BD-096-SE .96-1.25 1500LBS. 99-1/2

BD-125-SE 1.25-1.50 1800LBS. 10 12-1/2**

SINGLE EYE, WIDE RANGE

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

E* M

BD-022-UB .22-.32 350LBS. 93-1/2**

*BD-030-UB .30-.43 450LBS. 10 4

*BD-041-UB .41-.56 550LBS. 12 4-3/4

*BD-053-UB .53-.73 1000LBS. 13 6

*BD-070-UB .70-.85 1400LBS. 13 6-3/4

*BD-082-UB .82-1.00 1400LBS. 14 8

*BD-096-UB .96-1.25 1500LBS. 15 9-1/2

UNIVERSAL BALE, WIDE RANGE

CATALOG

NUMBER

MAXIMUM

DEFLECTION

APPROX.

BREAKING

STRENGTH

LENGTH

(NO LOAD)

40LB SPRING 2-1/8 @40 LBS. SPRING 600 LBS. 8-1/4

80LB SPRING 3-1/8 @80 LBS. SPRING 850 LBS. 8-1/4

BUS DROP SAFETY SPRINGS

SE = Single Eye

UB = Universal Bale

Lower Diameter

Range of Mesh

BD = Bus Drops

SD = Service Drops

SDHD = Service Drops

Heavy Duty

(Double Weave)

Bus Drops & Service Drops Number Structure

Product Type Eye StyleMesh Diameter

*Except Where Noted

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference section

for safety and working load factors.

235

Pullling Grips - Light Duty and Utility Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

Flexible eyes will mate easily with line stringing swivels and links for attachment

to pulling lines. They have great strength for trouble free pulling jobs.

When using a Pulling Grip, these shoulder protectors contain the cable inside of the grip and

allow for a smooth passage of the grip through conduit bends.

All Ericson Pulling Grips utilize galvanized steel mesh strand that provides

superior pulling grip strength and flexibility to follow the cable path of the installation.

Double weave construction is available for added strength with greater mesh

contact on the cable to handler longer or heavier pulling requirements.

Closed Mesh weave allows for easy installation onto cable and is designed to be a

reusable tool.

Flag label shows catalog number, full description containing

diameter range, barcode, mfg date, and MADE IN USA!

236

Pulling Grips - Light Duty / Low Tension and Utility Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

How To Select The Correct Pulling Grip

Step 1

Choose a pulling grip style that is best suited for your application.

Junior Pulling Grips cable diameter range =

.25 to 1.25" and Breaking Strength = 450 to 3900 lbs.

Light Duty Grips cable diameter range =

.50 to 3.99" and Breaking Strength = 2800 to 14700 lbs.

Utility Pulling Grips cable diameter range =

.50 to 6.99" and Breaking Strength range = 4500 to 48000 lbs.

Step 2 Determine your cable outside diameter. Refer to Technical Reference section.

Step 3 Find the mesh grip size that encompasses your cable diameter.

Step 4

IMPORTANT! Estimate the tension to be put on the grip, establish the working load you

require and compare this to the listed approximate breaking strength of the grip to insure

that the grip will be strong enough. For Pulling Grips, use a Safety Factor of 5.

Refer to Refer to Technical Reference section for safety

and working load considerations.

237

Pulling Grips - Light Duty/Low Tension

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

• High grade galvanized steel strand.

• They are single weave with a flexible eye for easy attachment to a pulling line.

• Ericson Light Duty Pulling Grips are used in general underground electrical construction where pulling

tensions are low.

E = Eye Length M = Mesh Length at Nominal Diameter (Inches)

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

LDPG-050-S .50-.61 2800LBS. 511

LDPG-062-S .62-.74 2800LBS. 511

LDPG-075-S .75-.99 4000LBS. 612

LDPG-100-S 1.00-1.24 5300LBS. 713

LDPG-125-S 1.25-1.49 5300LBS. 714

LDPG-150-S 1.50-1.74 6800LBS. 815

LDPG-175-S 1.75-1.99 8500LBS. 817

LDPG-200-S 2.00-2.49 8500LBS. 918

LDPG-250-S 2.50-2.99 10600LBS. 918

LDPG-300-S 3.00-3.49 14700LBS. 10 20

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

LDPG-050 .50-.61 2800LBS. 516

LDPG-062 .62-.74 2800LBS. 516

LDPG-075 .75-.99 4000LBS. 620

LDPG-100 1.00-1.24 6800LBS. 720

LDPG-125 1.25-1.49 6800LBS. 721

LDPG-150 1.50-1.99 6800LBS. 823

LDPG-200 2.00-2.49 8500LBS. 925

LDPG-250 2.50-2.99 10600LBS. 927

LDPG-300 3.00-3.50 14700LBS. 10 30

LDPG-350 3.50-3.99 14700LBS. 10 32

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

JPG-25 .25-.36 450 LBS. 3-1/4 4-1/4

JPG-37 .37-.49 900 LBS. 3-1/4 7

JPG-50 .50-.61 1300 LBS. 4-1/4 8-1/2

JPG-62 .62-.74 1950 LBS. 510

JPG-75 .75-.99 2800 LBS. 5-3/4 10

JPG-100 1.00-1.25 3900 LBS. 6-1/2 11-1/2

JPG-KIT .25-1.25

INCLUDES: JPG-25, JPG-37

JPG-50, JPG-62

JPG-75, JPG-100

Lower Diameter

Range of Mesh

FE = Flexible Eye

S= Short

LDPG = Light Duty Pulling Grips

JPG = Junior Pulling Grips

UPG = Utility Pulling Grips

Pulling Grips Number Structure

Product Type Mesh Diameter Eye Style

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference

section for safety and working load factors.

JUNIOR PULLING

For attaching to a pulling

line, fish tape or snake.

SHORT

STANDARD

238

Pulling Grips - Utility Pulling Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

For shorter or longer mesh please consult factory.

Standard, Flexible Eye

• High strength galvanized steel strand.

• Pulling Grips are double weave for added strength with greater mesh contact on the cable to handle longer

or heavier pulling jobs.

Lower Diameter

Range of Mesh

FE = Flexible Eye

S = Short

LDPG = Light Duty

Pulling Grips

JPG = Junior Pulling Grips

UPG = Utility Pulling Grips

Pulling Grips Number Structure

Product Type Mesh Diameter Eye Style

CATALOG

NUMBER DIA. RA.

APPROX.

BREAKING

STRENGTH

LENGTH

UPG-50-FE .50-.61 4500LBS. 516

UPG-62-FE .62-.74 5600LBS. 516

UPG-75-FE .75-.99 6800LBS. 632

UPG-100-FE 1.00-1.49 9600LBS. 733

UPG-150-FE 1.50-1.99 16400LBS. 734

UPG-200-FE 2.00-2.49 18500LBS. 936

UPG-250-FE 2.50-2.99 24500LBS. 10 38

UPG-300-FE 3.00-3.49 24500LBS. 10 39

UPG-350-FE 3.50-3.99 31000LBS. 10 41

Caution: When selecting a grip, never use to their approximate breaking strength. Refer to Technical Reference

section for safety and working load factors.

239

Strain Relief Grips - Wide Range Grips, Cord Grips, Deluxe Cord Grips, I-Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

Ericson's Strain Relief Grip and Mesh eliminates cable pullout to reduce a loss of service resulting in costly

downtime. The endless mesh weave provides easy cable installation that is woven with stainless steel providing

corrosion resistance for all applications. A NPT and PG threaded body allows for easy attachment to either a

threaded hub or knock-out in box.

Wide Range

Grips

Cord

Grips

Deluxe Cord

Grips

I - Grips

240

How To Select A Strain Relief Grip

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

How to select a Strain Relief Grip

Step 1 Refer to chart below to determine which Strain Relief Grip style is

best suited for your application.

Step 2 Determine outside diameter of cable.

Step 3 Is the application environment indoors or outdoors?

Step 4 Select N.P.T. size and fitting style.

Strain Relief Grip Style Application Features

Wide Range Grip

Indoor use only for wiring of electrical enclosures,

portable power tools, bus drop cable systems, etc

Aluminum Body

Stainless Steel Mesh

Grip Range = .25 to 2.45"

Deluxe Cord Grip

Outdoors or indoors rated where item are

subjected to moisture or splash.

Examples are hand tools, pendant

drops for cranes and hoists, or

pumps and processing equipment.

Aluminum Nut

Aluminum Body

Neoprene Bushing

Stainless Steel Mesh with

Aluminum Collars

Grip Range = .18 to 3.25"

Cord Grips

Outdoors or indoors rated where items are

subjected to moisture or splash

Aluminum Nut

Aluminum Body

Neoprene Bushing

I - Grips

Provides additional strain relief for Plugs and

Connectors while

controlling the cable arc of bend.

For indoor use only.

High Strength

Galvanized Strand

Grip Range = .30 to 1.25"

241

Strain Relief Grips - Wide Range

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

• Ericson Strain Relief Grips are wide range mesh construction with single weave, galvanized steel mesh.

• The one piece design is easy to install.

• Ericson Strain Relief Grips are used to connect flexible cord or bus drop cable to electrical enclosures, also

prevents cord or cable pullout.

• Insulating bushing available for non-insulated aluminum fittings.

• Available with locknut and pvc gasket for a dirt and dust free seal.

• Dry locations only.

DRY LOCATION ONLY

Lower Diameter

Range of Mesh

SR = Strain Relief

SRI = Strain Relief Insulated

Strain Relief Number Structure

Product Type Mesh Diameter

CATALOG

NUMBER DIA. RA. THREAD SIZE NPT (INCHES)

LENGTH

@ NOM

DIA. (IN.)

SR-022 .24-.32 1/2 3-1/4

SR-030 .32-.43 1/2 3-3/4

SR-040 .43-.54 1/2 4-3/4

SR-052 .54-.73 3/4 6-1/2

SR-070 .73-.97 1 7

SR-094 .97-1.25 1-1/4 9

CATALOG

NUMBER DIA. RA. THREAD SIZE NPT

(INCHES)

LENGTH

@ NOM

DIA. (IN.)

DIM. A

(INCHES)

SRI-022 .24-.32 1/2 N.P.S. 3-1/4 1

SRI-030 .32-.43 1/2 N.P.S. 3-3/4 1

SRI-040 .43-.54 1/2 N.P.S. 4-3/4 1

SRI-052 .54-.73 3/4 N.P.S. 6-1/2 1

SRI-070 .73-.97 1 N.P.S. 71-3/16

SRI-094 .97-1.25 1-1/4 N.P.S. 91-3/16

SRI-120 1.25-1.50 1-1/2 N.P.T. 11-3/4 1-3/16

SRI-140 1.50-1.70 2 N.P.T. 13-1/4 1-3/8

SRI-162 1.70-2.00 2-1/2 N.P.T. 13-1/2 1-1/2

SRI-200 2.00-2.45 2-1/2 N.P.T. 13-3/4 1-1/2

SRP SERIES Insulated Wide

Range Strain Relief with

Insulating Bushing

SR SERIES Non-Insulated

Wide Range Strain Relief

242

Strain Relief Grips - Cord and Deluxe Cord Grips Features

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

Features

• Indoor and outdoor use

• Prevents cord pull-out

• For use where cable is exposed to

moisture or submersion

• Eliminates fatigue points

• Control cable arc-of-bend

Cord Grip Materials

• Aluminum Nut

• Aluminum Body

• Neoprene Bushing

Deluxe Cord Grip Materials

• Aluminum Nut

• Aluminum Body

• Neoprene Bushing

• SST Mesh with aluminum collars

Applications Available upon request

• Wiring Enclosures • Metal Clad Sealing “O” Ring

• Pumps • Locknut

• Compressors

• Construction Suitable for use in hazardous

• Hand Tools locations under NEC Sec

• Processing Equipment 501-4(b), 502-4(a)(2), and

• Material Handling Equipment 503-2(a). For Class 1, Div 2;

• Motors & Machine Tools Class II, Div 1 and 2;

and Class III, Div 1 and 2.

COMPLIANCES:

National Electrical Code

Articles 400-10 and 400-14

NEMA standars FB1-1983

Fed. Spec. W-C-586c

Mil Spec 100 and 130

Cord Grip

Deluxe Cord Grip

243

Strain Relief Grips - Cord Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

STRAIGHT CORD

CONNECTORS

Machined Aluminum

MACHINED ALUMINUM

NPT

HUB SIZE

DIAMETER RANGE FORM SIZE CATALOG NUMBER

INCHES

3/8”

.062-.125

CG-12-F1

.125-.187 CG-18-F1

.187-.250 CG-25-F1

.250-.312 CG-3I-F1

.312 · .375 CG-37-F1

.375-.437 CG-43-F1

1/2”

062-.125

CG-12-F2

.125-.187 CG-18-F2

.187-.250 CG-25-F2

.250-.375 CG-37-F2

.312-.437 CG-43-F2

.375-.500 CG-50-F2

3/4”

.375-.500

CG-50-F3

.500-.625 CG-62-F3

.625-150 CG-75-F3

150-.875 CG-87-F3

1”

.375-.500

CG-50-F4

.500-.625 CG-62-F4

.625-.750 CG-75-F4

.750-.875 CG-87-F4

.875-1.00 CG-100-F4

1.00- 1.12 CG-112-F4

1 1/4”

.750-.875

CG-87-F5

.875-1.00 CG-100-F5

1.00-1.125 F5 CG-112-F5

1.125-1.250 CG-125-F5

1.250-1.375 CG-137-F5

1.375-1.437 CG-143-F5

1 1/2”

.750-.875

CG-87-F6

.875-1.00 CG-100-F6

1.00-1.125 CG-112-F6

1.125-1.25 CG-125-F6

1.25-1.375 CG-137-F6

1.375-1.437 CG -143-F6

244

Strain Relief Grips - Cord Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

STRAIGHT CORD

CONNECTORS

CASTINGS

Cast Aluminum

ALUMINUM 2” -3” NPT

NPT

HUB SIZE

DIAMETER RANGE FORM SIZE CATALOG NUMBER

INCHES

2”

.250-1.375

CG-137-F7

1.375-1.500 CG-150-F7

1.500-1.625 CG-162-F7

1.625-1750 CG-175-F7

1.750-1.875 CG-187-F7

1.875-1.937 CG-193-F7

1.937-2.000 CG-200-F7

2 1/2”

1.688-1.812

CG-181-F8

1.812-1.937 CG-193-F8

1.937-2.062 CG-206-F8

2062-2188 CG-218-F8

2.188-2.312 CG-231-F8

2.312-2.437 CG-243-F8

3”

2.437-2.625

CG-262-F9

2.625-2.812 CG-281-F9

2.812-3.000 CG-300-F9

3.000-3.250 CG3-325-F9

245

Strain Relief Grips - Cord Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

90˚ MALE CORD

CONNECTORS

MACHINED ALUMINUM

NPT

HUB SIZE

DIAMETER RANGE FORM SIZE CATALOG NUMBER

INCHES

3/8”

.062-.125

CG-12-F1-90

.125-.187 CG-18-F1-90

.187-.250 CG-25-F1-90

.250-.312 CG-31-F1-90

.312-.375 CG-37-F1-90

.375-.437 CG-43-F1-90

1/2”

.062-.125

CG-12-F2-90

.125-.187 CG-18-F2-90

.187-.250 CG-25-F2-90

.250-.375 CG-37-F2-90

.312-.437 CG-43F-2-90

.375-.500 CG-50-F2-90*

.500-.625 CG-62-F2-90*

3/4”

.375-.500

CG-50-F3-90

.500-.625 CG-62-F3-90

.625-.750 CG-75-F3-90*

.750-.875 CG-87-F3-90*

1”

.375-.500

CG-50-F4-90

.500-.625 CG-62-F4-90

.625-.750 CG-75-F4-90

.750-.875 CG-87-F4-90

.875-1.000 CG-100-F4-90*

1.00-1.125 CG-112-F4-90*

1 1/4”

.750-.875

CG-87-F5-90

.875-1.000 CG-100-F5-90

1000-1.125 CG-112-F5-90

1.125-1.250 CG-125-F5-90*

1.250-1.375 CG-137-F5-90*

1.375-1.437 CG-143-F5-90*

1 1/2”

.750-.875

CG-87-F6-90

.875-1.000 CG-100-F6-90

1.000-1.125 CG-112-F6-90

1.125-1.250 CG-125-F6-90

1.250-1.375 CG-137-F6-90

1.375-1.437 CG-143-F6-90

2”

1.250-1.375

CG-137-F7-90

1.375-1.500 CG-150-F7-90

1.500-1.625 CG-162-F7-90

1.625-1150 CG-175-F7-90

1.750-1.875 CG-187-F7-90

1.875-1937 CG-193-F7-90

1.937-2.000 CG-200-F7-90*

*Cable jacket may have to be stripped to pass through connector.

246

Strain Relief Grips - Deluxe Cord Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Ericson Deluxe Cord Grips are used whenever cable or cord must withstand extreme applications and

environmental conditions.

• Widely used with switch boxes, power duct cut-outs, drop stations, power hand tools, moving catalogs of

machinery, pumps, compressors, and bus drop installations.

• Endless weave provides smooth cable-hugging ends for construction free installation.

THREAD

SIZE

N.P.T.

GRIP DIAM.

RANGE INCHES

MALE

THREAD

DESCRIPTION

90˚ MALE THREAD

DESCRIPTION

45˚ MALE THREAD

DESCRIPTION

FEMALE

THREAD

DESCRIPTION

3/8”

.18-.25 DCG-25-F1 DCG-25-F1-90 DCG-25-F1-45 DCG-25-F1-F

.25-.37 DCG-37-F1 DCG-37-F1-90 DCG-37-F1-45 DCG-37-F1-F

.37-.43 DCG-43-F1 DCG-43-F1-90 DCG-43-F1-45 DCG-43-F1-F

1/2”

.18-.25 DCG-25-F2 DCG-25-F2-90 DCG-25-F2-45 DCG-25-F2-F

.25-.37 DCG-37-F2 DCG-37-F2-90 DCG-37-F2-45 DCG-37-F2-F

.31-.43 DCG-43-F2 DCG-43-F2-90 DCG-43-F2-45 DCG-43-F2-F

.37-.50 DCG-50-F2 DCG-50-F2-90 DCG-50-F2-45 DCG-50-F2-F

.50-.62 DCG-62-F2 DCG-62-F2-90 DCG-62-F2-45 DCG-62-F2-F

3/4”

.18-.25 DCG-25-F3 DCG-25-F3-90 DCG-25-F2-45 DCG-25-F3-F

.25-.37 DCG-37-F3 DCG-37-F3-90 DCG-37-F2-45 DCG-37-F3-F

.37-.50 DCG-50-F3 DCG-50-F3-90 DCG-50-F2-45 DCG-50-F3-F

.50-.62 DCG-62-F3 DCG-62-F3-90 DCG-62-F2-45 DCG-62-F3-F

.62-.75 DCG-75-F3 DCG-75-F3-90 DCG-75-F2-45 DCG-75-F3-F

1”

.37-.50 DCG-50-F4 DCG-50-F4-90 DCG-50-F2-45 DCG-50-F4-F

.50-.62 DCG-62-F4 DCG-62-F4-90 DCG-62-F2-45 DCG-62-F4-F

.62-.75 DCG-75-F4 DCG-75-F4-90 DCG-75-F2-45 DCG-75-F4-F

.75-.87 DCG-87-F4 DCG-87-F4-90 DCG-87-F4-45 DCG-87-F4-F

.87-1.00 DCG-100-F4 DCG-100-F4-90 DCG-100-F4-45 DCG-100-F4-F

1-1/4”

.75-.87 DCG-87-F5 DCG-87-F5-90 DCG-87-F5-45 DCG-87-F5-F

.87-1.00 DCG-100-F5 DCG-100-F5-90 DCG-100-F5-45 DCG-100-F5-F

1.00-1.125 DCG-112-F5 DCG-112-F5-90 DCG-112-F5-45 DCG-112-F5-F

1.12-1.25 DCG-125-F5 DCG-125-F5-90 DCG-125-F5-45 DCG-125-F5-F

1.25-1.37 DCG-137-F5 DCG-137-F5-90 DCG-137-F5-90 DCG-137-F5-F

247

Strain Relief Grips - Deluxe Cord Grips

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

THREAD

SIZE

N.P.T.

GRIP DIAM. RANGE

INCHES

MALE

THREAD

DESCRIPTION

90˚ MALE THREAD

DESCRIPTION

45˚ MALE THREAD

DESCRIPTION

FEMALE

THREAD

DESCRIPTION

1 1/2”

.75-.87 DCG-87-F6 DCG-87-F6-90 DCG-87-F6-45 DCG-87-F6-F

.87-1.00 DCG-100-F6 DCG-100-F6-90 DCG-100-F6-45 DCG-100-F6-F

1.00-1.125 DCG-112-F6 DCG-112-F6-90 DCG-112-F6-45 DCG-112-F6-F

1.125-1.25 DCG-125-F6 DCG-125-F6-90 DCG-125-F6-45 DCG-125-F6-F

1.25 - 1.37 DCG-137-F6 DCG-137-F6-90 DCG-137-F6-45 DCG-137-F6-F

1.37 - 1.43, DCG-143-F6 DCG-143-F6-90 DCG-143-F6-90 DCG-143-F6-F

2”

1.20-1.375 DCG-137-F7 DCG-137-F7-90

1.375-1.500 DCG-150-F7 DCG-150-F7-90

1.500-1.625 DCG-162-F7 DCG-162-F7-90

1.625-1.750 DCG-175-F7 DCG-175-F7-90

1.750-1.875 DCG-187-F7 DCG-187-F7-90

1.875-1.937 DCG-193-F7 DCG-193-F7-90

1.937-2.000 DCG-200-F7 DCG-200-F7-90

2 1/2”

1.687-1.812 DCG-181-F8

1.812-1.937 DCG-193-F8

1.937-2.062 DCG-206-F8

2.062-2.187 DCG-218-F8

2.187-2.312 DCG-231-F8

2.312-2.437 DCG-243-F8

3”

2.437-2.625 DCG-262-F9

2.625-2.812 DCG-281-F9

2.812-3.000 DCG-300-F9

3.000-3.250 DCG-325-F9

248

Strain Relief Grips - I-Grips

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Ericson - Grips are easy to attach, will control cable-arc-of bend, and provide heavy duty strain relief for plugs

and connectors used on portable equipment where abnormal high strain abuse occurs.

• Ericson- Grips are made of high strength galvanized steel strand and are recommended for indoor use only.

E= Eye Length M= Mesh Length at Nominal Diameter (Inches)

I - GRIPS GALVANIZED

I - GRIPS NYLON COATED

CATALOG

NUMBER

CABLE DIAMETER

RANGE INCHES EM

I-030 .30-.43 1.25 4

I-040 .40-.56 1.25 4-3/4

I-052 .52-.73 1.50 6

I-070 .70-.85 1.50 6-1/2

I-082 .82-1.00 1.50 8

I-094 .94-1.25 1.50 10

CATALOG

NUMBER

CABLE DIAMETER

RANGE INCHES EM

I-030-NC .30-.43 1.25 4

I-040-NC .40-.56 1.25 4-3/4

I-052-NC .52-.73 1.50 6

I-070-NC .70-.85 1.50 6-1/2

I-082-NC .82-1.00 1.50 8

I-094-NC .94-1.25 1.50 10

249

Technical Reference - Working Load and Safety Factor Considerations

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

The Grips in the catalog have listed approximate Breaking Strength. The approximate breaking strength of an Ericson

grip represents an average calculation based on test factors, which have been determined from data established from

actual testing performed in our engineering laboratories. The actual testing is performed with new Grips on metal

rods, subject to straight longitudinal tensile loads applied at a uniform rate. Normal manufacturing and test factors

can produce a variation + or - 20% in the approximate breaking strength values listed.

The broad application of Ericson Grips on a wide variety of objects require that adequate safety factors be used to

establish a safe working load. The ratio of the listed approximate breaking strength to the normal working load is the

safety factor. As an example, a safety factor of ten (10) would then mean the working load is established by dividing

the catalog listed approximate breaking strength by ten (10), or it can be stated that the working load is 1/10 of the

catalog listed approximate breaking strength.

To determine the recommended working load safety factor for cable grips, divide the approximate breaking strength

by 5 for Pulling Grips and 10 for Support Grips.

Example: For Pulling Grips, 30,000 / 5 Safety Factor = 6000 lbs which is the workload factor.

Example: For Support Grips, 11,000 / 10 Safety Factor = 1100 lbs which is the workload factor.

It is impossible to set a safety factor suitable for all cases as operating conditions are never the same. The load, the

speed, the acceleration, the diameter, number of objects gripped, surface of object being gripped, and the

attachments used - all of these should be considered, together with the effects of abrasion, corrosion, prior use, or

abuse, etc. The user-engineer must consider all the variables of his/her specific application, as well as possible

accident consequences, before selecting the safety

factor to be applied. Where the conditions of the application are not well defined or where risk of

personnel or property damage is high, a greater safety factor should be utilized.

Any warranty as to quality, performance or fitness for use of Grips is always premised on the condition that the

published approximate breaking strengths apply only to new, unused grips and that such products are properly

stored, handled, used, maintained, and properly inspected from time to time during the period of use.

The factory should be consulted for specific application recommendations where approximate breaking strength and

holding power are critical.

250

Technical Reference - Lace & Rod Closing Instructions

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

• Single weave Grips should be laced with single strand lacing; double weave with double strand.

• Lacing strands should be the same material as the Grip.

Split Grips, closed with a rod, eliminate the time and guesswork of on-the-job lacing. The stainless steel rod is a precise

built-in feature which makes threading easy and fast. The strands of the mesh pass around the rod and match up with

the strands from the opposite direction. The rod does not touch the cable at any point and therefore cannot cut the

cable. Rod Closing Grips are salvageable; may be removed and reused as many times as desired.

FAST TO INSTALL

Wrap the Grip around

the cable and thread

the rod through the

preformed loops with

a corkscrew motion,

us-ing the curved end

of the rod to engage

the loops. The action

required is a steady push

and twist simultaneously.

The fingers of the left hand

are used to bring the loops

together just ahead of the

hook on the end of the rod.

To remove, simply pull the

rod out.

1234

Start the lacing at the

lead or anchoring end of

all the Grip. Thread the

lacings through the first

loops of the split and

pull through until the

lacings are centered at

this point. Lace as you

would your shoe, cross-

ing the lacings before

lacing the next two

loops.

Don’t pull lacing too

tight. leave a space

between adjoining loops

approximately equal to

the width of one dia-

mond of the mesh.

Twist the lacing strands

tightly together at the

tail end of the Grip.

Wrap the ends of the lac-

ings once or twice tight-

ly around the tail of the

Grip, twisting the ends

together securely. Excess

lace can be cut off.

123

251

Technical Reference - Selecting a Grip Size

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

Selecting Proper Sized Pulling and Support Grips

Grip Selection Table for One or More Cables of Equal Diameter

1) Read across top line for number of cables in one grip

2) Read down for diameter of each cable

3) Read across line to Grip Diameter Range column

Grip size is based on the outside diameter or circumference of the cable(s). Use Selection Table 1 to deter-

mine the Grip Diameter Range for one or more cables of equal diameter.

Table 1: Decimal and Fractional Inch Cable Diameters —

for One or More Cables of Equal Diameter

1 Cable 2 Cables 3 Cables 4 Cables Grip Diameter

Range

0.25–0.37 1/4–3/8 0.16–0.25 1/64–1/4 0.15–0.22 5/32–7/32 0.12–0.20 1/8–13/64 .250–.375

0.37–0.50 3/8–1/2 0.25–0.36 1/4–23/64 0.22–0.33 7/32–21/64 0.20–0.28 13/64–9/32 .375–0.50

0.50–0.62 1/2–5/8 0.27–0.36 17/64–23/64 0.26–0.33 17/64–21/64 0.24–0.28 15/64–9/32 0.50–0.75

0.62–0.75 5/8–3/4 0.36–0.45 23/64–29/64 0.33–0.36 21/64–23/64 0.28–0.31 9/32–5/16 0.62–0.75

0.75–1.00 3/4–1 0.45–0.60 29/64–39/64 0.36–0.49 23/64–31/64 0.31–0.42 5/16–27/64 0.75–1.00

1.00–1.25 1–1 1/4 0.60–0.76 39/64–49/64 0.49–0.63 31/64–5/8 0.42–0.54 27/64–35/64 1.00–1.25

1.25–1.50 1 1/4–1 1/2 0.76–0.91 49/64–29/32 0.63–0.76 5/8–49/64 0.54–0.65 35/64–21/32 1.25–1.50

1.50–1.75 1 1/2–1 3/4 0.91–1.08 29/32–1 5/64 0.76–0.89 49/64–57/64 0.65–0.77 21/32–49/64 1.50–1.75

1.75–2.00 1 3/4–2 1.08–1.23 1 5/64–1 5/64 0.89–1.02 57/64–1 1/64 0.77–0.88 49/64–7/8 1.75–2.00

2.00–2.50 2–2 1/2 1.23–1.54 1 5/64–1 35/64 1.02–1.28 1 1/64–1 9/32 0.88–1.00 7/8–1 2.00–2.50

2.50–3.00 2 1/2–3 1.54–1.84 1 35/64–1 27/32 1.28–1.53 1 9/32–1 17/32 1.10–1.32 1 3/32–1 21/64 2.50–3.00

3.00–3.50 3–3 1/2 1.84–2.15 1 27/32–2 5/32 1.53–1.79 1 17/32–1 51/64 1.32–1.54 1 21/64–1 35/64 3.00–3.50

3.50–4.00 3 1/2–4 2.15–2.45 2 5/32–2 29/64 1.79–2.05 1 51/64–2 3/64 1.54–1.76 1 35/64–1 49/64 3.50–4.00

How To Select Proper Grip Size For One Or More Cables Of EQUAL Diameter

Example: For four cables bundled together, each with a diameter of 0.30”:

Step 1 Locate “4 Cables” column

Step 2 Read down column to range (0.28" - .031")

Step 3 Read across line to Grip Diameter Range (.062” - .075”)

252

Technical Reference - Selecting a Grip Size

Made in

the USA

1-800-ERICSON (374-2766) •www.ericson.com

E-GRIPS

Selecting Proper Sized Pulling and Support Grips

Table 1: Decimal and Fractional Inch Cable Diameters —

for One or More Cables of Equal Diameter

5 Cables 6 & 7 Cables 8 Cables 9 Cables Grip Diameter

Range

0.11–0.14 7/64–9/64 0.10–0.11 3/32–7/64 0.09–0.10 3/32–7/64 0.06–0.09 1/16–3/32 .250–.375

0.14–0.25 9/64–1/4 0.11–0.25 7/64–1/4 0.10–0.20 7/64–13/64 0.09–0.19 3/32–3/16 .375–0.50

0.21–0.25 7/32–1/4 0.19–0.22 3/16–7/32 0.17–0.20 11/64–13/64 0.15–0.19 5/32–3/16 0.50–0.75

0.25–0.29 1/4–19/64 0.22–0.26 7/32–17/64 0.20–0.23 13/64–15/64 0.19–0.22 3/16–7/32 0.62–0.75

0.29–0.38 19/64–3/8 0.26–0.34 17/64–11/32 0.23–0.31 15/64–5/16 0.22–0.31 7/32–5/16 0.75–1.00

0.38–0.48 3/8–31/64 0.34–0.43 11/32–7/16 0.31–0.39 5/16–25/64 0.29–0.36 19/64–23/64 1.00–1.25

0.48–0.58 31/64–37/64 0.43–0.52 7/16–33/64 0.39–0.46 25/64–15/32 0.36–0.43 23/64–7/16 1.25–1.50

0.58–0.67 37/64–43/64 0.52–0.60 33/64–39/64 0.46–0.54 15/32–35/64 0.43–0.49 7/16–31/64 1.50–1.75

0.67–0.77 43/64–49/64 0.60–0.69 39/64–11/16 0.54–0.62 35/64–5/8 0.49–0.57 31/64–37/64 1.75–2.00

0.77–0.96 49/64–31/32 0.69–0.86 11/16–55/64 0.62–0.77 5/8–49/64 0.57–0.72 37/64–23/32 2.00–2.50

0.96–1.16 31/32–1 5/32 0.86–1.03 55/64–1 1/32 0.77–0.93 49/64–15/16 0.72–0.86 23/32–55/64 2.50–3.00

1.16–1.35 1 5/32–1 23/64 1.03–1.20 1 1/32–1 13/64 0.93–1.08 15/16–1 5/64 0.86–1.00 55/64–1 3.00–3.50

1.35–1.54 1 23/64–1 35/64 1.20–1.37 1 13/64–1 3/8 1.08–1.24 1 5/64–1 15/64 1.00–1.14 1–1 9/64 3.50–4.00

How To Select Proper Grip Size For Cables Of UNEQUAL Diameters

Step 1 Find the Grip Circumference Range by measuring the circumference of the bundle of different diameter cables to

be gripped (see Illustration).

Step 2 Divide the bundle of circumference by 3.14 to determine the diameter.

Step 3 Choose a grip offering a range of cable diameters the same as the cable diameter.

Unequal Diameters

Equal Diameters

253

Product Name - Descripter

Made in

the USA

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY CATALOG NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

E-GRIPS

254

Technical Reference

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

255

Technical Reference

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

In the following pages you will find useful

electrical industry information

•Lamp Comparison Chart

•NEMA Type Designations

•IP Rating System

•Hazardous Locations

•Temperature Conversion

•Metric Conversion Chart

•Electrical Formulas

•Glossary of Terms

•Metal Gang Box Danger

•Industrial Wiring Device Innovations

•OSHA Product Match

24/7 Emergency Assistance Hotline

1-877-OSCAR99 (672-2799)

256

Portable Electrical Cord Reference

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Portable Electrical Cord Nomenclature

Diameter Ranges of Portable Electrical Cord

In Accordance with UL 62

J = Junior (300V Rated)

Outer Jacket

(Not Present) = 600V Rated

Outer Jacket

E = Elastomeric Outer Jacket

T= Thermoplastic Outer

Jacket

W = Outdoor Approved

O = Oil Resistant Insulation

on Individual Conductors

O = Oil Resistant Outer Jacket

S = Hard Service Cord

S J E O O W

Type AWG Size 2 Conductors 3 Conductors 4 Conductors

SJ,SJE, SJOO,

SJO, SJEO, SJT,

SJTO, SJTOO

18 0.280-0.315 0.300-0.335 0.325-0.365

16 0.305-0.340 0.325-0.360 0.350-0.395

14 0.335-0.375 0.360-0.395 0.390-0.435

12 0.405-0.455 0.425-0.475 0.465-0.520

10 0.540-0.605 0.565-0.635 0.625-0.700

S, SE, SOO, SO

SEO, ST, STOO,

STO

18 0.340-0.385 0.360-0.400 0.385-0.430

16 0.365-0.410 0.385-0.430 0.410-0.460

14 0.495-0.550 0.520-0.575 0.560-0.620

12 0.565-0.625 0.590-0.655 0.640-0.710

10 0.615-0.685 0.650-0.720 0.700-0.775

80.780-0.880 0.830-0.930 0.925-1.050

60.920-1.050 0.970-1.100 1.050-1.200

41.060-1.210 1.130-1.280 1.250-1.450

21.210-1.400 1.300-1.500 1.450-1.650

257

Lamp Comparison Chart

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Lamp Comparison Chart

This Chart shows typical light output (lumens) & expected life

(hour) of commonly used incandescent & fluorescent bulbs.

Notes:

1. All based on 120V 60Hz input

2. Based on a scale from 1 to 100 where 100 represents sunlight. The higher the number the truer the color appears

3. Sunlight is simulated with a light that is about 5000 K. The higher the number the whiter the light

Color Temp (K)

COOL 7000 Overcast Sky

6000

5000 Noon Sunlight

4000

Sunlight 1 Hr After Sunrise

3000

WARM

2000 Sunlight At Sunrise

WATTAGE TYPE LUMENS AVERAGE LIFE

(HOURS) CRI(2) COLOR(3) TEMP

(°K)

60 Incandescent A19 865 1000 100 2800

75 Incandescent A19 1190 750 100 2800

100 Incandescent A19 1710 750 100 2800

13 Compact Fluorescent T4/5

Twin or Quad Tube 825 10,000 82 4100

26 Compact Fluorescent T4/5

Twin or Quad Tube 1710 10,000 82 4100

17 Fluorescent T8 1325 20,000 86 4100

25 Fluorescent T8 2080 20,000 86 4100

32 Fluorescent T8 2950 20,000 86 4100

40 Fluorescent T8 3600 20,000 84 4100

18 F18BX Fluorescent 2G11

Base BIAX 1250 20,000 82 4100

27 F27BX Fluorescent 2

G11 Base BIAX 1800 12,000 82 4100

39 F39BX Fluorescent

2G11 Base BIAX 2850 12,000 82 4100

15 F15T8 CW Fluorescent 825 7,500 60 4100

30 F30T12 CW Fluorescent 2200 18,000 72 4100

40 F40T12 CW Fluorescent 3350 20,000 80 4100

70 HID High Pressure Sodium 6400 24,000 + 22 1900

150 HID High Pressure Sodium 16000 24,000 + 22 2000

70 HID Metal Halide 5600 12,000 70 3200

175 HID Metal Halide 13600 10,000 65 4000

400 HID Metal Halide 36000 20,000 65 4000

258

NEMA Type Designations

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Environmental ratings for enclosures based on "NEMA" Type designations

"NEMA" Types From UL50 & UL508

a.) ANSI/UL50, Enclosures for Electrical Equipment for Types 1, 2, 3, 3R, 3S, 4, 4X, 5, 6, 6P, 12, 12K and 13.

b.) ANSI/UL698, Industrial Control Equipment for Use in Hazardous (Classified) Locations and other related standards for Types 7, 8 and 9.

c.) ANSI/NEMA250, Enclosures for Electrical Equipment (1000 Volts Maximum) for Types 1, 2, 3, 3R, 3S, 4, 4X, 5, 6, 6P, 7, 8, 9,12, 12K and 13.

Comparison of "NEMA" Type and "IP" Code designations

Conversion of "NEMA" Type to "IP" Code designations*

*Table cannot be used to convert ”IP”

Codes to “NEMA” Types. See NEMA

250 for additional details.

Enclosure Type

Designation Intended Use and Description

1Indoor use primarily to provide a degree of protection against limited amounts of falling dirt.

2Indoor use primarily to provide a degree of protection against limited amounts of falling dirt and water.

3Outdoor use primarily to provide a degree of protection against rain, sleet, wind blown dust and damage from

external ice formation.

3R Outdoor use primarily to provide a degree of protection against rain, sleet, and damage from external ice

formation.

3S Outdoor use primarily to provide a degree of protection against rain, sleet, windblown dust and to

provide for operation of external mechanisms when ice laden.

4Indoor or outdoor use primarily to provide a degree of protection against windblown dust and rain, splashing

water, hose-directed

4X Indoor or outdoor use primarily to provide a degree of protection against corrosion, windblown dust and rain,

splashing water, hose-directed water, and damage from external ice formation.

5Indoor use primarily to provide a degree of protection against settling airborne dust, falling dirt, and dripping

noncorrosive liquids.

6Indoor or outdoor use primarily to provide a degree of protection again hose-directed water, and the entry of

water during occasional temporary submersion at a limited depth and damage from external ice formation.

6P Indoor or outdoor use primarily to provide a degree of protection against hose-directed water, the entry of water

during prolonged submersion at a limited depth and damage from external ice formation.

7Indoor use in locations classified as Class I, Division 1, Groups A, B, C or D hazardous locations as defined in the

National Electric Code (NFPA 70) (Commonly referred to as explosion-proof).

8Indoor or outdoor use in locations classified as Class I, Division 2, Groups A, B, C or D hazardous

locations as defined in the National Electric Code (NFPA 70) (commonly referred to as oil immersed).

9Indoor use in locations classified as Class II, Division 1, Groups E, F and G hazardous locations as

defined in the National Electric Code (NFPA 70) (commonly referred to as dust-ignition proof).

10 Intended to meet the applicable requirements of the Mine Safety and Health Administration (MSHA).

12 and 12K Indoor use primarily to provide a degree of protection against circulating dust, falling dirt, and dripping

noncorrosive liquids.

13 Indoor use primarily to provide a degree of protection against dust, spraying of water, oil, and noncorrosive coolant.

Type Number IP Designation

1IP10

2IP11

3IP54

3R IP54

3S IP54

4 and 4X IP56

5IP52

6 and 6P IP67

12 and 12K IP52

13 IP54

259

IP Rating System

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

TABLE 1 - CHARACTERISTICS DEFINED BY THE IEC Per Standard 60529

First Digit - Protection against persons -

touching and ingress of solid foreign objects

Second Digit - Protection against the penetration of liquids

IP_0 IP_1 IP_2 IP_3 IP_4 IP_5 IP_6 IP_7 IP_8

Non Protection Protection Protection Protection Protection Protection Protection Protection

protected against against against against against against against against

vertical falling of spraying splashing water jets heavy seas effects of continuous

falling of water drops water (rain) water from from any (waves) immersion submersion

water drops at an angle at an angle any direction in water in water

up to 15° up to 60° direction (360°) under

from the from the (360°) defined

vertical vertical conditions

of pressure

and time

Without protection

Protection against touching

with the hand and solid objects

greater than 50mm dia.

Protection against touching

with the finger and solid

objects greater than 12mm dia.

Protection against touching

with tools, wires, etc. more than

2.5mm thick and solid objects

greater than 2.5mm dia.

Protection against touching

with tools, wires, etc. more than

1mm thick and solid objects

greater than 1mm dia.

Unlimited protection against

contact with live parts and

damaging deposits of dust

Unlimited protection against

contact with live parts and any

penetration of dust

IP 0_

IP 1_

IP 2_

IP 3_

IP 4_

IP 5_

IP 6_

In some countries a third digit (for mechanical security) is added.

IP 00

IP 10 IP 11 IP 12

IP 20 IP 21 IP 22 IP 23

IP 30 IP 31 IP 32 IP 33 IP 34

IP 40 IP 41 IP 42 IP 43 IP 44

IP 50 IP 54 IP 55

IP 60 IP 65 IP 66 IP 67 IP 68

260

Hazardous Locations

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Division 1 and 2

A (acetylene)

B (hydrogen)

C (ethylene)

D (propane)

Zone 0, 1 and 2

IIC (acetylene & hydrogen)

IIB (ethylene)

IIA (propane)

Class I Groups

Zone 0:

Where ignitable concentrations of flammable

gases, vapors or liquids are present continu-

ously or for long periods of time under normal

operating conditions.

Zone 1:

Where ignitable concentrations of flammable

gases, vapors or liquids are likely to exist

under normal operating conditions.

Zone 2:

Where ignitable concentrations of flammable

gases, vapors or liquids are not likely to exist

under normal operating conditions.

Division 1:

Where ignitable concentrations of flammable

gases, vapors or liquids can exist all of the time

or some of the time under normal operating

conditions.

Division 2:

Where ignitable concentrations of flammable

gases, vapors or liquids are not likely under

normal operating conditions.

Flammable Gases, Vapor or Liquids

Class I Area Classifications

Division 1 and 2

T1 (< 450°C)

T2 (< 300°C)

T2A, T2B, T2C, T2D

(< 280°C, < 260°C, < 230°C,< 215°C)

T3 (< 200°C)

T3A, T3B, T3C

(< 180°C, < 165°C, < 160°C)

T4 (< 135°C)

T4A (< 120°C)

T5 (< 100°C)

T6 (< 85°C)

Class I Temperature Codes

Zone 0,1 and 2

T1 (< 450°C)

T2 (< 300°C)

---

T3 (< 200°C)

---

T4 (< 135°C)

---

T5 (< 100°C)

T6 (< 85°C)

Class I Hazardous Locations

261

Hazardous Locations

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Class II Groups

Class II Temperature Codes

Class II Hazardous Locations

Division 1 and 2

E (metals--- Div. 1 only)

F (coal)

G (grain)

Division 1:

Where ignitable concentrations of combustible

dusts can exist all of the time or some of the

time under normal operating conditions.

Division 2:

Where ignitable concentrations of

combustible dusts are not likely to exist

under normal operating conditions.

Combustible Dusts

Class II Area Classifications

Division 1 and 2

T1 (< 450°C)

T2 (< 300°C)

T2A, T2B, T2C, T2D

(< 280°C, < 260°C, < 230°C,< 215°C)

T3 (< 200°C)

T3A, T3B, T3C

(< 180°C, < 165°C, < 160°C)

T4 (< 135°C)

T4A (< 120°C)

T5 (< 100°C)

T6 (< 85°C)

262

Hazardous Locations

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Class III Groups

Class III Temperature Codes

Class III Hazardous Locations

Hazardous Locations Markings

Division 1 and 2

None

Division 1:

Where easily ignitable fibers or materials

producing combustible flyings are handled,

manufactured or used.

Division 2:

Where easily ignitable fibers are stored

or handled.

Ignitable Fibers & Flyings

Class III Area Classifications

Division 1 and 2

None

Note: Article 503 of the NEC limits

the maximum temperature for Class III

equipment to 165°C for equipment

not subject to overloading and to

120°C for equipment that maybe

overloaded.

Class I, II & III Division 1 & 2 (U.S. & Canada) - This marking would include:

Class(es), Division(s), Gas/Dust Group(s), Temperature Code

Example: Class I, Division I, Group C & D, T4A

Class I, Zone 0, 1 & 2 (U.S. & Canada) - This marking would include:

Method A: For Zone Listings based on UL 2279 or the CSA-E79 Series

Class, Zone(s), Ex, Protection Method(s), Gas Group, Temperature Code

Example: Class I, Zone 1, Ex de IIB, T4

Method B: For Zone Listings based on UL or CSA Division Certification Documents

Class, Zone(s), Gas Group, Temperature Code

Example: Class I, Zone 1, Group IIB, T4

Note: For U.S. Zone Listings based on UL 2279, Article 505 of the 1999 NEC requires that the “Ex”

element of the marking string shall read “AEx.”

Note: For Canadian Zone listings based on the CSA-E79 Series, the “Class” and “Zone”

elements of the marking string are optional.

Zone 0, 1 & 2 (IEC only) - This marking would include;

EEx, Protection Method(s), Gas Group, Temperature Code

Example: Ex de IIB T4

Zone 0, 1 & 2 (Europe only) - This marking would include:

EEx, Protection Method(s), Gas Group, Temperature Code

Example: EEx de IIB T4

263

Temperature Conversion

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

°C °C/°F °F °C °C/°F °F °C °C/°F °F

-40.0 -40 -40 40.6 105 221 123.9 255 491

-37.2 -35 -31 43.3 110 230 126.7 260 500

-34.4 -30 -22 46.1 115 239 129.4 265 509

-31.7 -25 -13 48.9 120 248 132.2 270 518

-28.9 -20 -4 51.7 125 257 135.0 275 527

-26.1 -15 5 54.4 130 266 137.8 280 536

-23.3 -10 14 57.2 135 275 140.6 285 545

-20.6 -5 23 60.0 140 284 143.3 290 554

-17.8 0 32 62.8 145 293 146.1 295 563

-15.0 5 41 65.6 150 302 148.9 300 572

-12.2 10 50 68.3 155 311 151.7 305 581

-9.4 15 59 71.1 160 320 154.4 310 590

-6.7 20 68 76.7 170 338 157.2 315 599

-3.9 25 77 79.4 175 347 160.0 320 608

-1.1 30 86 82.2 180 356 162.8 325 617

1.7 35 95 85.0 185 365 165.6 330 626

4.4 40 104 87.8 190 374 168.3 335 635

7.2 45 113 90.6 195 383 171.1 340 644

10.0 50 122 93.3 200 392 173.9 345 653

12.8 55 131 96.1 205 401 176.7 350 662

15.6 60 140 98.9 210 410 179.4 355 671

18.3 65 149 101.7 215 419 182.2 360 680

21.1 70 158 104.4 220 428 185.0 365 689

23.9 75 167 107.2 225 437 187.8 370 698

26.7 80 176 110.0 230 446 190.6 375 707

29.4 85 185 112.8 235 455 193.3 380 716

32.2 90 194 115.6 240 464 196.1 385 725

35.0 95 203 118.3 245 473 198.9 390 734

37.8 100 212 121.1 250 482 201.7 395 743

Temperature Conversion Chart

1. Locate known temperature in °C/°F column

2. Read converted temperature in °C or °F column

Example: To convert 75 F to Celsius…

Locate 75 in °C/°F column

Read converted temperature in C Column, 23.9 C

Temperature Conversion Formulas

°F = (9/5 x °C) + 32

°C = 5/9 (°F - 32)

Fraction Three Place Three Place

(In.) Decimal Decimal

(In.) (mm)

33/64 .516 13.097

17/32 .531 13.494

35/64 .547 13.891

9/16 .562 14.288

37/64 .578 14.684

19/32 .594 15.081

39/64 .609 15.478

5/8 .625 15.875

41/64 .641 16.272

21/32 .656 16.669

43/64 .672 17.066

11/16 .688 17.463

45/64 .703 17.859

23/32 .719 18.256

47/64 .734 18.653

3/4 .750 19.050

49/64 .766 19.447

25/32 .781 19.844

51/64 .797 20.241

13/16 .812 20.638

53/64 .828 21.034

27/32 .844 21.431

55/64 .859 21.828

7/8 .875 22.225

57/64 .891 22.622

29/32 .906 23.019

59/64 .922 23.416

15/16 .938 23.813

61/64 ..953 24.209

31/32 .969 24.606

63/64 .984 25.003

1 1.000 25.400

264

Metric Conversion Chart

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Fraction Three Place Three Place

(In.) Decimal Decimal

(In.) (mm)

1/64 0.016 0.397

1/32 .031 .794

3/64 .047 1.191

1/16 .062 1.588

5/64 .078 1.934

3/32 .094 2.381

7/64 .100 2.778

1/8 .125 3.175

9/64 .141 3.572

5/32 .156 3.969

11/64 .172 4.366

3/16 .188 4.763

13/64 .203 5.159

7/32 .219 5.556

15/64 .234 5.953

1/4 .250 6.350

17/64 .266 6.747

9/32 .281 7.144

19/64 .297 7.541

5/16 .312 7.938

21/64 .328 8.334

11/32 .344 8.731

23/64 .359 9.128

3/8 .375 9.525

25/64 .391 9.922

13/32 .406 10.319

27/64 .422 10.716

7/16 .438 11.113

29/64 .453 11.509

15/32 .469 11.906

31/64 .484 12.303

1/2 .500 12.700

Metric Conversion Chart

(Fraction Inch to Decimal Inch and Millimeters)

Metric Conversion Formulas

To Obtain Multiply

Millimeters Inches x 25.4

Inches Millimeters x 0.0394

Meter Feet x .3048

Feet Meters x 3.281

Square Centimeters Square Inches x 6.45

Square Inches Square Centimeters x 0.155

Kilograms Pounds x 0.4536

Pounds KiIlograms x 2.205

265

Electrical Formulas

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Watts = Amperes x Volts or Amps x Amps x ohms, or Volts x Volts

Amperes = Watts

________

Volts

HP = Volts x Amps x Efficiency

_____________________

746

Power Watts

______________

Factor = Amperes x Volts

3-phase 746 x HP (Horsepower)

________________________________

Amperes = 1.732 x Volts x Efficiency x Power Factor

Single-phase Volts x Amperes x Power Factor

________________________________

Kilowatts = 1000

Single-phase 746 x HP (Horsepower)

________________________________

Amperes = Volts x Efficiency x Power Factor

Ohms = Volts Amperes= Volts Volts = Amperes x Ohms

________ ________

Amperes Ohms

OHMS Law

Power

Approximate Voltage Drop for Various

Extension Cord Gauges, Lengths, and Amps

ohms

Cord

Length, feet

Current flowing through cord

10A 15A 20A 30A

Cord Size = #16 gauge wire

10 1.0 V (0.8%)

20 2.0 V (1.7%)

30 2.9 V (2.4%)

40 3.9 V (3.3%)

50 4.9 V (4.1%)

100 9.8 V (8.2%)

Cord Size = #14 gauge wire

10 0.6 V (0.5%) 0.9 V (0.8%)

20 1.2 V (1.0%) 1.8 V (1.5%)

30 1.8 V (1.5%) 2.7 V (2.3%)

40 2.4 V (2.0%) 3.6 V (3.0%)

50 3.0 V (2.5%) 4.6 V (3.8%)

100 6.1 V (5.1%) 9.1 V (7.6%)

Cord Size = #12 gauge wire

10 0.4 V (0.3%) 0.6 V (0.5%) 0.8 V (1.7%)

20 0.8 V (0.7%) 1.1 V (0.9%) 1.5 V (1.3%)

30 1.1 V (0.9%) 1.7 V (1.4%) 2.3 V (1.9%)

40 1.5 V (1.3%) 2.3 V (1.9%) 3.1 V (2.6%)

50 1.9 V (1.6%) 2.9 V (2.4%) 3.8 V (3.2%)

100 3.8 V (3.2%) 5.7 V (4.8%) 7.7 V (6.4%)

Cord Size = #10 gauge wire

10 0.2 V (0.2%) 0.4 V (0.3%) 0.5 V (0.4%) 0.7 V (0.6%)

20 0.5 V (0.4%) 0.7 V (0.6%) 1.0 V (0.8%) 1.4 V (1.2%)

30 0.7 V (0.6%) 1.1 V (0.9%) 1.4 V (1.2%) 2.2 V (1.8%)

40 1.0 V (0.8%) 1.4 V (1.2%) 1.9 V (1.6%) 2.9 V (2.4%)

50 1.2 V (1.0%) 1.8 V (1.5%) 2.4 V (2.0%) 3.6 V (3.0%)

100 2.4 V (2.0%) 3.6 V (3.0%) 4.8 V (4.0%) 7.2 V (6.0%)

Note 1:Numbers are rounded to the nearest 0.1V and 0.1%.

Note 2:Voltage drops shown are the same for any single-phase supply

voltage. Voltage drop depends only on amps.

Note 3: Values are approximate, as they are affected by factors such as

temperature.

Note 4: For a given cord size and amps, voltage drop is uniform over

a length of cord, so for example, a 40 ft cord has twice the

voltage drop as a 20 ft cord. That means the numbers in the

voltage drop columns can be added together. For example,

the voltage drop for a 70 ft cord can be found by adding

together the voltage drops for a 30 ft cord and a 40 ft cord.

266

Glossary of Terms

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

AC (Alternating Current) - An electrical current that reverses direction in a circuit at regular intervals, such as

normal household current.

Adapter - Device that adapts one form or size of connection to another.

ALCI - Appliance Leakage Current Interrupter. An ALCI is a device intended to be used in conjunction with an electrical appliance

whose function is to interrupt both conductors of the electric circuit to a load when a fault current to ground exceeds 4-6 mA and is

less than that required to operate the overcurrent protection device of the circuit. The ALCI is intended to be used only in a circuit

that has a solidly grounded neutral conductor, and is required. ALCIs are considered “personal protection” devices and contain the

following features: a) Can function either line polarity, and b) Other features may or may not be provided.

Ambient Temperature - The temperature of a medium (gas or liquid) surrounding an object.

Ampacity - The current in amperes that a conductor can carry continuously under the conditions of use without exceeding its

temperature rating.

Ampere - The unit of current. One ampere is the current flowing through one ohm of resistance at one volt potential.

Attachment Plug - Male contact device for the readily detachable connection of a flexible cord or cable to receptacles, connectors,

flanged equipment power outlets, etc.

Auto Reset - GFCI that powers-up automatically upon plug-in and after power loss. User must press the reset button in the event of

a ground fault to restore power.

AWG - American Wire Gauge. A relative system for the designation of wire diameter.

Braid - A fibrous or metallic group of filaments interwoven in cylindrical form to form a covering over one or more wires. Typically

used to add mechanical strength & abrasion resistance to flexible cord.

Circuit (Electric) - The complete path of an electrical current. When the continuity is broken, it is called an open

circuit; when continuity is maintained, it is called a closed circuit.

Collector Ring - A collector ring is an assembly of slip rings for transferring electrical energy from a stationary to a rotating member.

Conductor - An uninsulated wire suitable for carrying electrical current.

Confined Space (1) - OSHA defines a confined space as an area that: (1) is large enough and so configured that an employee can

bodily enter and perform assigned work; and (2) has limited or restricted means for entry or exit (for example, tanks, vessels, silos,

storage bins, hoppers, vaults, and pits are spaces that may have limited means of entry); and (3) is not designed for continuous

employee occupancy 1.

Contacts - The parts of the connector that actually carry the electrical current, and are touched together or

separated to control the flow.

Continuity Check - A test to determine whether electrical current flows continuously throughout the length of a single wire or

individual wires in a cable.

Cord - A flexible insulated cable.

Cord Connector - Female contact device used in making a detachable connection to an attachment plug or a flanged equipment

power inlet.

Cord Grip - Means by which the flexible cord entering a device is gripped in order to relieve stress on the

terminals from tension applied to the cord.

CSA - Canadian Standards Association. This is a nonprofit, independent organization that operates a listing service for electronic

materials and equipment. The Canadian counterpart of the Underwriters Laboratories.

Current Carrying Capacity - The maximum current an insulated conductor can safely carry without

exceeding its insulation and jacket temperature limitations.

1. Source OSHA web site www.osha.gov

267

Glossary of Terms

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

DC (Direct Current) - An electric current that flows only in one direction through a circuit, such as battery power.

Damp location - Partially protected locations under canopies, marquees, roofed open porches, and like locations, and interior

locations subject to moderate degrees of moisture, such as some basements.

Dead Front - Without live parts exposed to a person on the operating side of the equipment.

Dielectric Strength - The voltage that an insulation can withstand before breakdown occurs.

Usually expressed as a voltage gradient (such as volts per mil).

Dry Location - A location not normally subject to dampness or wetness. A location classified as dry may be temporarily

subject to dampness or wetness, as in the case of a building under construction.

Dustproof - So constructed or protected that dust will not interfere with its successful operation.

EMI - Abbreviation for electromagnetic interference.

Elastomer - Macromolecular material that at room temperature returns rapidly to approximately it’s initial dimensions and

shape after substantial deformation by a weak stress and release of that stress.

ELCI - Equipment Leakage Current Interrupter. The ELCI is a device intended to provide leakage current

protection in appliances and utilization equipment whose function is to interrupt all ungrounded

conductors of the supply circuit to electrical equipment in the event a current, in excess of the trip current, occurs between live

parts and the grounded enclosure of other grounded parts. An ELCI is not intended to be used in place of a GFCI, ALCI, or IDCI

and may have any trip current value greater that 6 mA. The use of an ELCI is not intended to replace or supersede the overcur-

rent protection requirements concerning trip current and time. ELCIs are considered “equipment protection” devices, not per-

sonal protection devices.

Flame Resistance - The ability of a material not to propagate flame once the heat source is removed.

Gauge - A term used to denote the physical size of a wire. See AWG.

GFCI - Ground Fault Circuit Interrupter, also known as a GFI. A device intended for the protection of personnel as well as

equipment. It de-energizes a circuit within an established period of time (25 ms) when a current to ground exceeds some pre-

determined value (4-6 mA, for a Class A GFCI) that is less than that required to operate the overcurrent protective device of the

supply circuit.

GFCI - (Class A) - Denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more.

Ground - An electrical term meaning to connect to the earth or other large conducting body to serve as an earth, thus making

a complete electrical circuit.

Ground Fault - An unintentional electrical path between a part operating normally at some potential to ground, and ground.

Grounded Neutral - GFCI will automatically trip if the neutral conductor is grounded on the load side of

the device (after sensor). If the load side neutral is shorted to ground and also a ground fault occurred

simultaneously, some of the fault current would flow through the neutral wire to the sensor and some would flow through the

inadvertent ground path. If such a ground connection occurred, it would be

possible for a person to contact a hot wire and ground, having the ground fault current flow through the inadvertent neutral

ground and the neutral to the service entrance. Under this condition, there may not

be enough imbalance in current through the sensor to cause the GFCI to trip.

Hospital Grade - A device constructed to meet performance requirements of high abuse areas found in hospital

locations, tested to “Hospital Grade” requirements of Underwriters’ Laboratories Standard UL 498.

Incandescent - Method for producing light by heating a thin filament.

Manual Reset - GFCI that requires the user to press the reset button upon plug-in, after power loss to prevent accidental

equipment start-up and in the event of a ground fault to restore power.

268

Glossary of Terms

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Motor - Circuit Switch - A switch, rated in horsepower, capable of interrupting the maximum operating overload current of a

motor of the same horsepower rating as the switch at the rated voltage.

NEMA - National Electrical Manufacturers Association.

NEMA 4X - An enclosure rating per UL50 and UL508 indicating that the product is intended for indoor or outdoor use primarily to

provide a degree of protection against corrosion, windblown dust and rain, splashing water, hose-directed water, and damage from

external ice formation.

NFPA - National Fire Protection Association.

Nuisance Trip - Tripping caused by conditions other than those for which the device is intended to respond.

Open Neutral Protection - GFCI will automatically trip when the neutral connection is lost. When the neutral connection is open,

this creates an unsafe condition where the available current has lost its normal flow path, thus increasing the potential for the

current to flow elsewhere.

OSHA - Occupational Safety and Health Act. Specifically the Williams-Steiger Law passed in 1970 covering all factors relating to

safety in places of employment.

Overcurrent - Any current in excess of the rated current of equipment or the ampacity of a conductor. It may result from overload

(see definition), short circuit, or ground fault. A current in excess of rating may be accommodated by certain equipment and

conductors for a given set of conditions. Hence the rules for overcurrent protection are specific for particular situations.

Overload - Operation of equipment in excess of normal, full load rating, or of a conductor in excess of rated ampacity which, when

it persists for a sufficient length of time, would cause damage or dangerous overheating. A fault, such as a short circuit or ground

fault, is not an overload (See “Overcurrent”).

Primary - The line (Power source) side of a device.

PVC - Polyvinyl Chloride. Compound used in thermoplastic (SJTW - STW) cords.

Rated Voltage - The maximum voltage at which an electrical component can operate for extended periods without undue

degradation or safety hazard.

RFI - Abbreviation for radio frequency interference.

Reverse Polarity - Condition where the Hot and Neutral connections are switched.

Secondary - The load (equipment) side of a device.

SEOW - Extra Hard Service cord. 600v, oil resistant thermoplastic elastomer outer jacket. Weather resistant for outdoor use.

SJEOW - Junior hard service cord. 300v, oil resistant thermoplastic elastomer outer jacket. Weather resistant for outdoor use.

SJTW - Hard Service cord. 300v thermoplastic outer jacket. Weather resistant for outdoor use.

SOW - Hard service cord. 600v rubber outer jacket. Weather resistant for outdoor use.

SPT-1 - Thermoplastic constructed, parallel jacketed. 300 volt 2 or 3 conductor, 18 gauge.

SPT-2 - Same as SPT-1 but heavier construction. 18-16 gauge.

SPT-3 - Same as SPT-2 but heavier construction. 18-10 gauge.

STW - Extra Hard Service cord. 600v thermoplastic outer jacket. Weather resistant for outdoor use.

SVT - Vacuum cleaner service cord. All plastic construction, 2 or 3 conductors.

Thermoplastic - A material that softens when heated and becomes firm on cooling.

269

Glossary of Terms

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Thermoset - A material that hardens or sets when heat is applied and that, once set, cannot be resoftened by heating.

The application of heat is called “curing”.

TPE - Abbreviation for thermoplastic elastomer. A compound used in Portable/flexible cords (SEOW, SJEOW).

Trip - Denotes automatic interruption by the GFCI of the electrical circuit to load.

Trip Time - The elapsed interval between the time when the ground fault current is first applied and the time when the circuit

is interrupted.

UL - Abbreviation for Underwriters Laboratories, a non-profit independent organization that operates a listing service for

electrical and electronic materials and equipment.

UL Listed - Indicates an item has been tested and approved to the safety standards established by Underwriters’ Laboratories.

UL Recognized - Refers to products that have been tested and approved to the safety standards established by Underwriters’

Laboratories & are typically used as components of a final assembly.

VRMS - Voltage (root mean square).

Voltage - The term most often used in place of electromotive force, potential, potential difference, or voltage drop to designate

the electrical pressure that exists between two points and is capable of producing a current when a closed circuit is connected

between two points.

Weatherproof - So constructed or protected that exposure to the weather will not interfere with successful operation.

Rainproof, raintight, or watertight equipment can fulfill the requirements for weatherproof where varying weather conditions

other than wetness, such as snow, ice dust, or temperature extremes, are not a factor.

Wet location - Installations underground or in concrete slabs or masonry in direct contact with the earth, and locations

subject to saturation with water or other liquids, such as locations exposed to weather and unprotected.

270

Metal Gang Box Danger

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Metal Gang Box Danger

8000 Series

Metal Gang Box

The GFCI False Sense of Security

The “traditional” metal gang box on the end of a

cord has been a danger for many years.

There are several reasons for the danger:

•Metal boxes are designed for permanently

wired installations, not portable temp power.

•No weatherproofing except for outdoor

location FS types.

•HOT box danger. (See below)

•Hand Hazard with sharp edges

As the diagram shows, the metal gang box can have a common situation in which the earth ground is poor

or not connected. There can be a hot short to the metal box in which you now have a “hot” box. The short

will not trip the circuit breaker nor will the GFCI trip. The GFCI sensor only watches the “load” side of the

receptacle, not the line side. The GFCI is worthless in this situation.

6102 Series

Sixty cents. That's what it would have cost in 1918 to purchase one of

the first insulating Rubber Handles for one of your Extension Light, or

Drop Lights as they were called in those days. The C & E Universal

Safety Handle was molded of a heavy duty rubber compound and

was designed for use with either keyed or keyless sockets to protect

workers from electrical shocks and to add to the service life of the

lights. Many lamp guards up to that point were made of wood which

proved too fragile to withstand the many industrial uses to which

they were put.

C & E was the forerunner of today’s Ericson Manufacturing Co.,

founded by Edward O. Ericson. Ericson pioneered the develop-

ment of a variety of important safety electrical devices.

Ericson devoted his attention to industrial applications. There was

a great need for safe products for workers using electricity. Simple,

molded rubber hand lamp handles (which he had patented in

1918) gave way to more sophisticated designs made of a variety

of materials, each providing increasingly better electrical safety,

durability and price advantages.

Ericson also pioneered in this area, and in 1927 introduced the first

Insulated Hand Lamp Guards. The basic guard included a 1/16-in.

thick electrolytically bonded insulation coating of the “toughest kind

of rubber” that withstood dielectric tests of more than 4,000 volts.

They provided a high degree of electrical safety and added to a

lamp’s service life under the roughest conditions.

Ericson’s invention of the first “Dead-Front, Back-Wired” Electrical Plug

in 1929 is perhaps the single most important development in the

wiring device industry in the past seventy-plus years. U.S. Patent #

2,061,190 was assigned to it in 1936.

Older plugs and connectors had the wiring come through from the

back. They were wired in the front end where the connections were

visible and were susceptible to damage from moisture, dirt, tools, etc.

(Fiber discs, and later plastic discs, were used to cover these wiring

areas, but they often came off during use.) The Ericson “Dead-Front,

Back-Wired” design placed the wiring connections at the rear of the

plug with the front end closed off by a structural member of the

device. The blades were held firmly and permanently in alignment.

There were no rivets to loosen or fiber to warp. Connections on the

inside were protected. Cord grips kept tension off the terminals.

Flexible shanks took the wear off the cord. They were easy to wire

in the field. Newer variations are now even quicker and easier to

wire: the stripped wires are inserted in holes, where simple screw

tightening secures them in place.

Many products available today reach beyond being simple plugs or

connectors. They are all, however, dead-front, back-wired devices. Our

Perma-Tite® 2 Plugs and Connectors have unique features to protect

the internals from moisture, dust and dirt. And covers using new,

high tech materials resist chemicals, acids and oils to provide

greater service life in extremely hazardous environments.

Ericson’s Industrial Wiring Device Innovations Revolutionized Electrical Safety

Plug into history: Before 1929 (top), plug connections

were exposed. The first dead-front, back-wired plug

created by Ericson (middle) revolutionized the industry,

and eventually led to modern plugs (bottom) with such

amenities as built-in ground and continuity monitors.

Ericson’s Perma-Watch® Plugs and Connectors

have built-in Ground and Continuity Monitor

Devices to help workers determine at a glance

whether their electrical power source’s grounding

system in safe. The GCM’s have internal LED lamps

that glow when the line has ground continuity.

These devices also can help cut as much as 90%

of the cost of maintaining OSHA required records

for extension cord sets and temporary job site

receptacles.

Ericson’s dead-front, back-wired 1929 design is

important: both the National Electrical Code

and OSHA still require its use.

271

Industrial Wiring Device Innovations

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

272

OSHA Product Match

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Topic Regulation Ericson Product

General Wiring 1926.404(a)(2) Polarity of connections. No grounded conductor shall be attached to

any terminal or lead so as to reverse designated polarity. Plugs

and

Connectors

Wiring Devices

1926.404(a)(3) Use of grounding terminals and devices. A grounding terminal or

grounding-type device on a receptacle, cord connector, or attachment plug shall not

be used for purposes other than grounding.

Ground Fault

Protection

1926.404(b)(1)(i) General. The employer shall use either ground fault circuit interrupters

as specified in paragraph (b)(1)(ii) of this section or an assured equipment grounding

conductor program as specified in paragraph (b)(1)(iii) of this section to protect employees

on construction sites. These requirements are in addition to any other requirements for

equipment grounding conductors.

GFCI

1926.404(b)(1)(ii) Ground-fault circuit interrupters. All 120-volt, single-phase 15- and 20-

ampere receptacle outlets on construction sites, which are not a part of the permanent

wiring of the building or structure and which are in use by employees, shall have approved

ground-fault circuit interrupters for personnel protection. Receptacles on a two-wire, single-

phase portable or vehicle-mounted generator rated not more than 5kW, where the circuit

conductors of the generator are insulated from the generator frame and all other grounded

surfaces, need not be protected with ground-fault circuit interrupters.

Assured

Equipment

Grounding

Conductor

Program

1926.404(b)(1)(iii) Assured equipment grounding conductor program. The employer shall

establish and implement an assured equipment grounding conductor program on

construction sites covering all cord sets, receptacles which are not a part of the building or

structure, and equipment connected by cord and plug which are available for use or used

by employees. This program shall comply with the following minimum requirements:

GFCI Oscars®

Smart Monitor

Plugs/Connectors

1926.404(b)(1)(iii)(A) A written description of the program, including the specific

procedures adopted by the employer, shall be available at the jobsite for inspection

and copying by the Assistant Secretary and any affected employee.

1926.404(b)(1)(iii)(B) The employer shall designate one or more competent persons

(as defined in 1926.32(f)) to implement the program.

1926.404(b)(1)(iii)(C) Each cord set, attachment cap, plug and receptacle of cord sets, and

any equipment connected by cord and plug, except cord sets and receptacles which are

fixed and not exposed to damage, shall be visually inspected before each day's use for

external defects, such as deformed or missing pins or insulation damage, and for indications

of possible internal damage. Equipment found damaged or defective shall not be used

until repaired.

1926.404(b)(1)(iii)(D) The following tests shall be performed on all cord sets, receptacles

which are not a part of the permanent wiring of the building or structure, and cord- and

plug-connected equipment required to be grounded:

1926.404(b)(1)(iii)(D)(1) All equipment grounding conductors shall be tested for

continuity and shall be electrically continuous.

1926.404(b)(1)(iii)(D)(2) Each receptacle and attachment cap or plug shall be tested

for correct attachment of the equipment grounding conductor. The equipment

grounding conductor shall be connected to its proper terminal.

1926.404(b)(1)(iii)(E) All required tests shall be performed:

1926.404(b)(1)(iii)(E)(1) Before first use

1926.404(b)(1)(iii)(E)(2) Before equipment is returned to service following any repairs

1926.404(b)(1)(iii)(E)(3) Before equipment is used after any incident which can be reasonably

suspected to have caused damage (for example, when a cord set is run over) and

1926.404(b)(1)(iii)(E)(4) At intervals not to exceed 3 months, except that cord sets and

receptacles which are fixed and not exposed to damage shall be tested at intervals not

exceeding 6 months.

1926.404(b)(1)(iii)(F) The employer shall not make available or permit the use by

employees of any equipment which has not met the requirements of this paragraph

(b)(1)(iii) of this section.

1926.404(b)(1)(iii)(G) Tests performed as required in this paragraph shall be recorded.

This test record shall identify each receptacle, cord set, and cord- and plug-connected

equipment that passed the test and shall indicate the last date it was tested or the

interval for which it was tested. This record shall be kept by means of logs, color cod-

ing, or other effective means and shall be maintained until replaced by a more current

record. The record shall be made available on the jobsite for inspection by the Assistant

Secretary and any affected employee.

273

OSHA Product Match

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Topic Regulation Ericson Product

Electrical

Grounding Safety

for

Generator

Transformer

Derived Power

1926.404(f)(2) Separately derived systems. Where paragraph (f )(1) of this section

requires grounding of wiring systems whose power is derived from generator, trans-

former, or converter windings and has no direct electrical connection, including a

solidly connected grounded circuit conductor, to supply conductors originating in

another system, paragraph (f)(5) of this section shall also apply.

e-Cart™2

e-Cart™ Jr

1926.404(f)(3)(iii) Neutral conductor bonding. A neutral conductor shall be bonded to

the generator frame if the generator is a component of a separately derived system. No

other conductor need be bonded to the generator frame.

1926.404(f)(5)(i) Grounded system. For a grounded system, a grounding electrode

conductor shall be used to connect both the equipment grounding conductor and the

grounded circuit conductor to the grounding electrode. Both the equipment ground-

ing conductor and the grounding electrode conductor shall be connected to the

grounded circuit conductor on the supply side of the service disconnecting means, or

on the supply side of the system disconnecting means or overcurrent devices if the

system is separately derived.

Topic Regulation Ericson Product

Cord

Connected

Equipment

1926.404(f)(7)(iv) Equipment connected by cord and plug. Under any of the conditions

described in paragraphs (f)(7)(iv)(A) through (f)(7)(iv)(C) of this section, exposed non-

current-carrying metal parts of cord- and plug-connected equipment which may

become energized shall be grounded:

e-Cart™, Oscar® Series

1926.404(f)(7)(iv)(A) If in a hazardous (classified) location (see 1926.407). Hazardous Location

Lighting

1926.404(f)(7)(iv)(B) If operated at over 150 volts to ground, except for guarded

motors and metal frames of electrically heated appliances if the appliance frames are

permanently and effectively insulated from ground.

Ericson Temporary

Cordsets and Wiring

Devices

1926.404(f)(7)(iv)(C)(1) Hand held motor-operated tools

1926.404(f)(7)(iv)(C)(2) Cord- and plug-connected equipment used in damp or wet

locations or by employees standing on the ground or on metal floors or working inside

of metal tanks or boilers

1926.404(f)(7)(iv)(C)(4) Tools likely to be used in wet and/or conductive locations

1926.404(f)(7)(iv)(C)(5) Portable hand lamps. Ericson Temporary

Lighting Products

1926.404(f )(7)(iv)(C)(6) Tools likely to be used in wet and/or conductive locations need not

be grounded if supplied through an isolating transformer with an ungrounded secondary of

not over 50 volts. Listed or labeled portable tools and appliances protected by a system of

double insulation, or its equivalent, need not be grounded. If such a system is employed, the

equipment shall be distinctively marked to indicate that the tool or appliance utilizes a sys-

tem of double insulation.

Low Voltage Lighting

Products

274

OSHA Product Match

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Topic Regulation Ericson Product

Temporary Wiring

1926.405(a)(2)(i) Scope. The provisions of paragraph (a)(2) of this section apply to

temporary electrical power and lighting wiring methods which may be of a class less

than would be required for a permanent installation. Except as specifically modified in

paragraph (a)(2) of this section, all other requirements of this subpart for permanent

wiring shall apply to temporary wiring installations. Temporary wiring shall be

removed immediately upon completion of construction or the purpose for which the

wiring was installed.

Stringlights

and

Cordsets

1926.405(a)(2)(ii)(B) Branch circuits shall originate in a power outlet or panelboard.

Conductors shall be run as multiconductor cord or cable assemblies or open conductors,

or shall be run in raceways. All conductors shall be protected by overcurrent devices at

their ampacity. Runs of open conductors shall be located where the conductors will

not be subject to physical damage, and the conductors shall be fastened at intervals

not exceeding 10 feet (3.05 m). No branch-circuit conductors shall be laid on the floor.

Each branch circuit that supplies receptacles or fixed equipment shall contain a separate

equipment grounding conductor if the branch circuit is run as open conductors.

e-Cart™

and

Oscar™ Series

1926.405(a)(2)(ii)(C) Receptacles shall be of the grounding type. Unless installed in a

complete metallic raceway, each branch circuit shall contain a separate equipment

grounding conductor, and all receptacles shall be electrically connected to the grounding

conductor. Receptacles for uses other than temporary lighting shall not be installed on

branch circuits which supply temporary lighting. Receptacles shall not be connected to

the same ungrounded conductor of multiwire circuits which supply temporary lighting.

e-Cart™

and

Oscar® Series

1926.405(a)(2)(ii)(D) Disconnecting switches or plug connectors shall be installed to

permit the disconnection of all ungrounded conductors of each temporary circuit.

Ericson

Wiring Devices

Lamp Guards on

All Lighting

1926.405(a)(2)(ii)(E) All lamps for general illumination shall be protected from accidental

contact or breakage. Metal-case sockets shall be grounded.

Ericson

Lamp Guards

Temporary Lighting

Mounting

1926.405(a)(2)(ii)(F) Temporary lights shall not be suspended by their electric cords

unless cords and lights are designed for this means of suspension. Stringlights

Low Voltage

Lighting

1926.405(a)(2)(ii)(G) Portable electric lighting used in wet and/or other conductive

locations, as for example, drums, tanks, and vessels, shall be operated at 12 volts or less.

However, 120-volt lights may be used if protected by a ground-fault circuit interrupter.

Low Voltage

Lighting

Cord Protection

1926.405(a)(2)(ii)(I) Flexible cords and cables shall be protected from damage. Sharp

corners and projections shall be avoided. Flexible cords and cables may pass through

doorways or other pinch points, if protection is provided to avoid damage.

CP5-36

Cable Protectors

Flexible Cords

1926.405(a)(2)(ii)(J) Extension cord sets used with portable electric tools and appliances

shall be of three-wire type and shall be designed for hard or extra-hard usage. Flexible

cords used with temporary and portable lights shall be designed for hard or extra-hard

usage.

Ericson Temporary

Cordsets

1926.405(g)(2)(iv) Strain relief. Flexible cords shall be connected to devices and fittings

so that strain relief is provided which will prevent pull from being directly transmitted

to joints or terminal screws.

6000, 7000 and 8000

Series Boxes and Covers

275

OSHA Product Match

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

Topic Regulation Ericson Product

Portable Lighting

1926.405(j)(1)(iii) Portable lamps. Portable lamps shall be wired with flexible cord and

an attachment plug of the polarized or grounding type. If the portable lamp uses an

Edison-based lampholder, the grounded conductor shall be identified and attached to

the screw shell and the identified blade of the attachment plug. In addition, portable

handlamps shall comply with the following:

Ericson

Lighting Products

and

Wiring Devices

Handlamps

1926.405(j)(1)(iii)(B) Handlamps shall be equipped with a handle of molded composition or

other insulating material

Ericson Lighting

Products

1926.405(j)(1)(iii)(C) Handlamps shall be equipped with a substantial guard attached

to the lampholder or handle

Metal Guards on

Stringlights

1926.405(j)(1)(iii)(D) Metallic guards shall be grounded by the means of an equipment

grounding conductor run within the power supply cord.

Weather Proof

Lampholders

1926.405(j)(1)(iv) Lampholders. Lampholders of the screw-shell type shall be installed

for use as lampholders only. Lampholders installed in wet or damp locations shall be of

the weatherproof type.

Lighting Fixtures in

Wet Locations

1926.405(j)(1)(v) Fixtures. Fixtures installed in wet or damp locations shall be identified

for the purpose and shall be installed so that water cannot enter or accumulate in

wireways, lampholders, or other electrical parts.

Plugs / Connectors

1926.405(j)(2)(i) Configuration. Receptacles, cord connectors, and attachment plugs

shall be constructed so that no receptacle or cord connector will accept an attachment

plug with a different voltage or current rating than that for which the device is intended.

However, a 20-ampere T-slot receptacle or cord connector may accept a 15-ampere

attachment plug of the same voltage rating. Receptacles connected to circuits having

different voltages, frequencies, or types of current (ac or dc) on the same premises shall

be of such design that the attachment plugs used on these circuits are not interchangeable.

Ericson Wiring

Devices

Wet Locations for

Receptacles

1926.405(j)(2)(ii) Damp and wet locations. A receptacle installed in a wet or damp

location shall be designed for the location. FS Flip Covers

1926.56(a)

General. Construction areas, ramps, runways, corridors, offices, shops, and storage areas shall be lighted to not less than the minimum

illumination intensities listed in Table D-3 while any work is in progress:

TABLE D-3 - MINIMUM ILLUMINATION INTENSITIES IN FOOT-CANDLES

____________________________________________________________________

Foot-Candles | Area of Operation

_______________|____________________________________________________

5............. | General construction area lighting.

3............. | General construction areas, concrete placement,

| excavation and waste areas, access ways, active

| storage areas, loading platforms, refueling, and

| field maintenance areas.

5............. | Indoors: warehouses, corridors, hallways, and

| exitways.

5............. | Tunnels, shafts, and general underground work areas:

| (Exception: minimum of 10 foot-candles is required

| at tunnel and shaft heading during drilling,

| mucking, and scaling. Bureau of Mines approved cap

| lights shall be acceptable for use in the tunnel

| heading)

10............ | General construction plant and shops (e.g., batch

| plants, screening plants, mechanical and

| electrical equipment rooms, carpenter shops,

| rigging lofts and active store rooms, mess halls,

| and indoor toilets and workrooms.)

30............ | First aid stations, infirmaries, and offices.

276

Do’s & Don’ts- Temporary Lighting

1-800-ERICSON (374-2766) •www.ericson.com

TECHNICAL REFERENCE

Do’s

•Use enough lighting to comply to Table D-3 OSHA

•Use proper bulb protection per the mfg instructions

•Use 3 wire grounded stringlights with metal bulb guards

•Use MH fixtures properly and not too close to workers

•Use proper lighting fixtures for the environment intended

•Use proper stairwell lighting even during construction

Don’ts

•Operate sites with poor lighting –leads to accidents

•Hang stringlights by the cord – only use mounting tabs

•Use 2 wire stringlights with metal guards – guard must be

grounded

•Use MH fixtures with cracked or partial broken bulb –

UV A & B can get out

•Use non-hazardous lighting in

classified locations

•Use permanent light fixtures in

temporary applications

Circuit Load (20A)

120V = 5 units

240V = 10 units

208V = 12 units

277V = 15 units

Wall

40’

60’

Wall

Baylite™ Layout

(shown from top)

Note: This layout is typical to ensure minimum OSHA lighting standards, however many variables effect this layout.

Use this as a general guide but Ericson makes no absolute claim to compliance.

277

Do’s & Don’ts- Temporary Lighting

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

TECHNICAL REFERENCE

OSHA Regulations

Topic Regulation Ericson Product

Lamp Guards

on All Lighting

1926.405(a)(2)(ii)(E) All lamps for general illumination shall be protected from

accidental contact or breakage. Metal-case sockets shall be grounded.

Ericson

Lamp Guards

Temporary

Lighting

Mounting

1926.405(a)(2)(ii)(F) Temporary lights shall not be suspended by their electric

cords unless cords and lights are designed for this means of suspension. Stringlights

Low Voltage

Lighting

1926.405(a)(2)(ii)(G) Portable electric lighting used in wet and/or other

conductive locations, as for example, drums, tanks, and vessels, shall be

operated at 12 volts or less. However, 120-volt lights may be used if

protected by a ground-fault circuit interrupter.

Low Voltage

Lighting

Cord Protection

1926.405(a)(2)(ii)(I) Flexible cords and cables shall be protected from dam-

age. Sharp corners and projections shall be avoided. Flexible cords and

cables may pass through doorways or other pinch points, if protection is

provided to avoid damage.

CP5-36

Cable Protectors

Flexible Cords

1926.405(a)(2)(ii)(J) Extension cord sets used with portable electric tools

and appliances shall be of three-wire type and shall be designed for hard

or extra-hard usage. Flexible cords used with temporary and portable

lights shall be designed for hard or extra-hard usage.

Ericson

Temporary Cordsets

1926.405(g)(2)(iv) Strain relief. Flexible cords shall be connected to devices

and fittings so that strain relief is provided which will prevent pull from

being directly transmitted to joints or terminal screws.

6000, 7000

and 8000 Series

Boxes and Covers

04201 93

1000 110

1000-25 110

1000-50 110

1000-BAL 110

1000F 111

1000F-25 111

1000F-50 111

1000F-R 111

1000F-R25 111

1000F-R50 111

1000-HAN 113

1000-LRK 110

1000-MAG 110

1000-MH 21, 66, 113

1000-MH-LENS 113

1000-MH-MAG 113

1000-R 110

1000-R25 110

1000-R50 110

1000-RG 110

1000-RG25 110

1000-RG50 110

1002-MHX-LPS 81

1002-MHXPS 81

1003-HPS 66, 113

1004-MHX-50PS 81

1004-MHX-BG 81

1004-MHX-G 81

1004-MHX-LPS 81

1004-MHXPS 80, 81

1004-REFL 81

1010 110, 113

1010-MH 113

104 86

104-I 86

104-R 86, 116

1060 180

1061 180

1062 180

1066 9, 21, 30, 31, 38, 39

1066-B 39

1066-BFS 31, 39

1066FS 12, 13, 31

1067 30, 31, 34, 35

1067-A 31, 35

1067-ALC 31, 37

1067-ALCNF 31

1067-B 31, 35

1067-BLC 31, 37

1067-BLCNF 31

1067-C 31, 35

1067-CLC 31, 37

1067-CLCNF 31

1067-LC 30, 31, 36, 37

1067-LCNF 31

1068 30, 33

1068-1 31, 33

1068-1A 31, 33

1068-1C 31, 33

1068-A 31, 33

1068-C 31, 33

107 86

1075-AR 179

1075-MR 179

107-I 86

107-R 86

1100-P 109

1100-S 109

1140-25 108

1140-25F 108

1140-4F 108

1140-TS 109

1142-25 108

1142-25F 108

118 86

118-I 86

118-R 86

119 86

119-R 86

122100STW 69

122100STW-C 69, 70

123100CFLXPI-1 79

123100CFLXPI-BL 79

123100STWY-1C 69, 73

123100STWY-1L 69, 73

123100STWY-1W 69, 73

123100STWY-1WP 69

123100STWY-3C 69, 73

123100STWY-3L 69, 73

123100STWY-3W 69, 73

123100STWY-3WP 69

123100XPI-1 79

123100XPI-3 79

123100XPI-BL 79

123100Y-1 69, 75

123100Y-2 69, 75

123100Y-3 69, 75

12345XPI-1-LP 79

12350CFLXPI-1 79

12350CFLXPI-BL 79

12350STWY-1C 73

12350STWY-1L 73

12350STWY-1W 73

12350STWY-3C 73

12350STWY-3L 73

12350STWY-3W 73

12350XPI-1 79

12350XPI-3 79

12350XPI-BL 79

12350Y-1 75

12350Y-2 75

12350Y-3 75

12365XPI-1-LP 79

1239-25 108

1239-25F 108

1239-4F 108

1239-FT 109

123B 46

123B-H 47

123B-TT 46

123D 46

123D-H 47

123D-TT 12, 46

123Y 45

124100Y-4 75

12460Y-4 75

12560Y-5 75

12590Y-5 75

142100 69, 70

143100STWY-1C 69, 73

143100STWY-1L 69, 73

143100STWY-1W 69, 73

143100STWY-1WP 69

143100STWY-2C 69, 73

143100STWY-2L 69, 73

143100STWY-2W 69, 73

143100STWY-2WP 69

143100Y-1 69, 75

143100Y-2 69, 75

14350STWY-1C 73

14350STWY-1L 73

14350STWY-1W 73

14350STWY-2L 73

14350STWY-2W 73

14350Y-1 75

14350Y-2 75

150 86

1507-P 123

1507-PG 122, 130

1507-PW6P 92, 122, 130

150-I 86

1510 145

1510-P 123, 129

1510-PG 122

1510-PMGL 125

1510-PML 125

1510PML123A 125

1510PML123B 124

1510-PW6P 45, 122

1510-PW6PL 125

1512 145

1512-P 123, 129

1512-PG 122

1512-PMGL 125

1512-PML 125

1512-PW6P 122, 136

1512-PW6PL 125

1514 145

1514-P 123, 129

1514-PG 122

1514-PW6P 122, 136

1516 145

1516-P 123

1516-PG 122

1516-PW6P 122, 136

1520 145

1520-P 45, 123

1520-PG 122

1520-PMGL 125

1520-PML 125

1520-PW6P 45, 122

1520-PW6PL 125

1522 145

1522-P 123

1522-PG 122

1522-PW6P 122, 136

1524 145

1524-P 123

1524-PG 122

1524-PW6P 122

1530-PH 142

1530-PHC 142

1532-PH 142

1532-PHC 142

15PW 141

1607-C 123

1607-CG 122, 130

1607-CW6P 122, 130

1610 145

1610-C 45, 123, 129

1610-CG 122

1610-CMGL 125

1610-CML 124, 125

1610CML123B 124

1610-CW6P 45, 122

1610-CW6PL 125

1610-PWDX 123, 135, 136

1612 145

1612-C 123, 129

1612-CG 122

1612-CMGL 125

1612-CML 125

1612-CW6P 29, 122

1612-CW6PL 125

1612-PWDX 123, 135, 136

1614 145

1614-C 123, 129

1614-CG 122

1614-CW6P 122

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

278

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

279

Numeric Listing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

1614-PWDX 123, 135, 136

1616 145

1616-C 123

1616-CG 122

1616-CW6P 122

1616-PWDX 123, 135, 136

1620 145

1620-C 45, 123

1620-CG 122

1620-CMGL 125

1620-CML 125

1620-CW6P 45, 122

1620-CW6PL 125

1620-PWDX 123, 135, 136

1622 145

1622-C 123

1622-CG 122

1622-CW6P 122

1622-PWDX 123, 135, 136

1624 145

1624-C 123

1624-CG 122

1624-CW6P 122

1624-PWDX 123, 135, 136

1630-CH 142

1630-CHC 142

1632-CH 142

1632-CHC 142

16CW 141

1705 141

1712 141

1740 141

1744 141

1917-12 94

1917-12S 94

1917-BULB 94

1917-CORD 94

1917-HAND 94

1917-HAND-S 94

1917-LENS 94

1918-12 94

1918-12S 94

1924-12A 98, 99

1924-12B 99

1926-12A 99

1926-12B 99

1931-12 99

1932 99

1933 99

1935-12 89, 99, 105

1940-12 96

1940-12CF 92, 96

1941-12 87, 96

1941-12CF 96

1943-12 97

1945-12 97

1946-12 87

1948-12 88, 89, 96

1948-12CF 89

194XCB 97

1950-12 95, 96

211 76, 93

211-BG 72, 76

211-P 75, 76

212 76

214 75

215 76

216 76

220 76

2200 82, 100, 101

220-P 76

2225 101

222-L 76, 78

222-LP 76

224 76

224-P 76

2250 101

226 76

2310 145

2310-P 45, 123

2310-PG 122

2310-PMGL 125

2310-PML 125

2310-PW6P 122

2312 145

2312-P 123

2312-PG 122

2312-PW6P 122

2314 145

2314-P 123

2314-PW6P 122

2316 145

2316-P 123

2316-PG 122

2316-PW6P 122

2317 145

2317-P 123

2317-PW6P 122

2320 145

2320-P 45, 123

2320-PW6P 45, 122

2322 145

2322-P 123

2322-PW6P 122

2324 145

2324-P 123

2324P124D 13

2324-PW6P 122

2410 145

2410-C 123

2410-CG 122

2410-CMGL 125

2410-CML 125

2410-CW6P 45, 122, 125

2410-CW6PL 125

2412 145

2412-C 123

2412-CG 122

2412-CW6P 122

2414 145

2414-C 123

2414-CW6P 122

2416 145

2416-C 123

2416-CG 122

2416-CW6P 122

2417 145

2417-C 123

2417-CW6P 122

2420 145

2420-C 45, 123

2420-CW6P 45, 122

2422 145

2422-C 123

2422-CW6P 122

2424 145

2424-C 123

2424-CW6P 122

24CW 141

2500 82, 100, 102, 103, 193

2502 103

2503 103

2510 145

2510-P 45, 123

2510-PG 122

2510-PW6P 45, 122

2512 145

2512-P 123

2512-PG 122

2512-PW6P 122

2514 145

2514-P 123

2514-PW6P 122

2516 145

2516-P 123

2516-PW6P 122

2520 145

2520-P 123

2520-PW6P 122

2522 145

2522-P 123

2522-PW6P 122

2524 145

2524-P 123

2524-PW6P 122

2525 103

2526 145

2526-P 123

2526-PW6P 122

2528 145

2528-P 123

2528-PW6P 122

2530 145

2530-P 123

2530-PW6P 122

2550 103

2600 82, 100, 104, 105, 193

2600-CFL 105

2600-LV 105

2601 105

2602 105

2603 105

2604 105

2605 105

2607 105

2610 145

2610-C 45, 123

2610-CG 122

2610-CW6P 45, 122

2612 145

2612-C 123

2612-CW6P 122

2614 145

2614-C 123

2614-CW6P 122

2616 145

2616-C 123

2616-CW6P 122

2620 145

2620-C 123

2620-CW6P 122

2622 145

2622-C 123

2622-CW6P 122

2624 145

2624-C 123

2624-CW6P 122

2625 105

2625-CFL 105

2625-LV 105

2626 145

2626-C 123

2626-CW6P 122

2628 145

2628-C 123

2628-CW6P 122

2630 145

2630-C 123

2630-CW6P 122

2634 45

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

NUMERIC LISTING

2636 45

2650 105

2650-CFL 105

2650-LV 105

26CW 141

2700-FS 138

2705-15 139

2705-15A 139

2705-20 123, 138

2705-20A 138

2705-L142 123, 139

2705-L15 139

2705-L15A 138

2705-L162 123, 138

2705-L20 123, 139

2715FS07 138

2800-FS 138

2820-FS10 123, 138

2820-FS12 123, 138

2820-FS14 123, 138

2820-FS16 123, 138

2820-FS17 123, 138

2830-FS10 123, 138

2830-FS12 123, 138

2830-FS14 123, 138

2830-FS16 123, 138

2900 82, 83, 183, 184, 186

2900-FS 138

2910 186

2920-FS20 123, 138

2920-FS22 123, 138

2920-FS24 123, 138

2925 83

2930-FS20 123, 138

2930-FS22 123, 138

2930-FS24 123, 138

2930-FS26 123, 138

2930-FS28 123, 138

2930-FS30 123, 138

2950 83

3163-50-AL 186

3163-50-TT 186

3762-C 143

3763-P 143

3764-C 143

3765-P 143

3769 143

3775 143

3777 143

40LB SPRING 234

4123-25 188

4123-25-1610 189

4123-25-1612CG 189

4123-25-B 189

4123-25-B20 189

4123-25-BG 189

4123-25-F 188

4123-25-HSS 188

4123-50 188

4123-50-1610 189

4123-50-1612CG 189

4123-50-B 189

4123-50-B20 189

4123-50-BG 189

4123-50-F 188

4124-35 188

413-25 83

413-50 83

4143-30 188

4143-30-1610 189

4143-30-B 189

4143-30-BG 189

4143-30-F 188

4143-30-HSS 188

4143-30SO 188

4143-40 188

4143-40-1610 189

4143-40-B 189

4143-40-BG 189

4143-40-F 188

4143-40SO 188

4143-50 188

4143-50-1610 189

4143-50-B 189

4143-50-BG 189

4143-50-F 188

4143-50-HSS 188

4144-35 188

4163-25 188

4163-25-HS 188

4163-25SO 188

4163-35 188

4163-35-HS 188

4163-35SO 188

4163-50 188

4163-50-HS 188

4163-50SO 188

4164-35 188

4164-35SO 188

4164-50 188

4164-50SO 188

44-W 86, 89, 93

45BSO 33, 49

45BSOM 49

45BSOMPGTL 49

45DSO 33, 49

45DSOM 49

45MIL PGTL-100 49

45MIL PGTL-50 49

45PGTL-100 33, 49

45PGTL-25 33, 49

45PGTL-50 33, 49

4744 93

4780 93

4780F 93

47F 93

47FL 93

5103-20 190

5103-30 190

5103-40 190

5103-50 190

5104-20 190

5104-30 190

5104-40 190

5104-50 190

5123-20 190

5123-30 190

5123-40 190

5123-50 190

5123-60 190

5124-20 190

5124-30 190

5124-40 190

5124-50 190

513-25 83

5143-20 190

5143-30 190

5143-40 190

5143-50 190

5143-60 190

5144-20 190

5144-30 190

5144-40 190

5144-50 190

5144-60 190

5146-20 190

5146-30 190

5146-40 190

5146-50 190

5148-20 190

5148-30 190

5163-20 190

5163-30 190

5163-40 190

5163-50 190

5163-60 190

5164-20 190

5164-30 190

5164-40 190

5164-50 190

5164-60 190

5166-20 190

5166-30 190

5166-40 190

5166-50 190

5266-E 123, 131

5266-EL 131

5269-E 123, 131

5269-EL 131

5500 BLACK BOOTS 211

5502 93

5502-2 205

5502-PG 203

5503-PG 203

5503-PG-2 203

5503-PG-3 203

5504 205

5504-A 205

5504-E 205

5506 205

5506-A 205

5506-E 205

5508 205

5508-A 205

5508-E 205

5510 205

5512 205

55CG1 205, 211

55CG2 205, 211

55CG3 205, 211

55CG4 205, 211

55CG5 211

55CG6 211

55CG7 211

55CG8 211

55EN02 210

55EN04 210

55EN06 210

55EN06D 210

55EN06H 210

55EN06HD 210

55EN08 210

55EN08D 210

55EN08H 210

55EN08HD 210

55EN10H 210

55EN10HD 210

55EN12H 210

55EN12HD 210

55J1 209

55J2 209

55J3 209

55J4 209

55J5 209

55LC 211

55LD1D 211

55LN1A 211

55LN1D 211

55LN2D 211

55PL1A 211

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

280

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

281

Numeric Listing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

55PL1D 211

55PL2D 211

55S01 206

55S02 206

55S03 206

55S04 206

55S05 206

55S06 206

55S07 206

55S08 206

55S09 206

55S10 206

55S11 206

55S12 206

55S13 207

55S14 207

55S15 207

55S16 207

55S17 207

55S18 207

55S19 207

55S20 207

55S21 207

55S22 207

55S23 207

55S24 207

55S25 208

55S26 208

55S27 208

55S28 208

55S29 208

55S30 208

55S31 208

55S32 208

55S33 208

5700 216, 217, 202

5700-1 216, 217

5700-1A 216, 217

5700-2A 216, 217

5702 216

5702-2A 216

5704 216

5704-2A 216

5706 216

5706-2A 216

5708 216

5708-2A 216

6000 9, 52, 55, 183, 191

60001 54

6000-F 52

6001-1 54

6001-2 54

6002 52, 62

60025 54

6002-F 52

6005 52

60050 54

6005-F 52

6006 52, 54

6006-143A2 54

6006-143B2 54

6006-143C2 54

6006-2 54

6006-F 52

6010 52

6010-F 52

6011 52, 54

6011-123A3 54

6011-123A4 54

6011-123B3 54

6011-123B4 54

6011-123C3 54

6011-3 54

6011-F 52

60201 54

60225 54

60250 54

6029 53, 189

6030 53

6030B 53

6031 53

6031B 53

6032 53

6032B 53

6033 53

6033B 53

6034 53, 57

6034B 53, 57

6035 53

6035B 53

6100 56, 58, 105

61001 58

6100B 56

6100B-F 56

6100-F 56

6101-1 58

6101-2 58

6102 56, 246

61025 58

6102B 56

6102B-F 56

6102-F 56

6103-100 191

6103-70 191

6103-80 191

6103-90 191

6104-100 191

6104-70 191

6104-80 191

6104-90 191

6105 56

61050 58

6105-F 56

6106 56, 58

6106-143B2 58

6106-143C2 58

6106-2 58

6106-F 56

6110 56

6110-F 56

6111 56, 58

6111-123A4 58

6111-123B3 58

6111-123B4 58

6111-123C4 58

6111-4 58

6111-F 56

61201 58

61225 58

6123-100 191

6123-70 191

6123-80 191

6123-90 191

6124-100 191

6124-70 191

6124-80 191

6124-90 191

61250 58

6129 57

6129B 57

6129B-F 57

6129-F 57

6130 57

6130B 57

6130B-F 57

6130-F 57

6131 57

6131B 57

6132 57

6133 57

6135 57

6143-100 191

6143-125 191

6143-70 191

6143-80 191

6143-90 191

6144-100 191

6144-70 191

6144-80 191

6144-90 191

6163-100 191

6163-125 191

6163-150 191

6163-70 191

6163-80 191

6163-90 191

6164-100 191

6164-125 191

6164-70 191

6164-80 191

6164-90 191

6210FD 137

6210FDF 137

6210FDK 139

6210NFD 137

6210NFDF 137

6210NFDK 139

6210WFD 137

6210WFDF 137

6210WFDK 139

6212FD 137

6212FDF 137

6212FDK 139

6212FS 136

6212FSF 137

6212FSK 139

6212FT 137

6212FTF 137

6212NFD 136, 137

6212NFDF 137

6212NFDK 139

6212NFS 136, 137

6212NFSF 137

6212NFSK 139

6212NFT 136, 137

6212NFTF 137

6212WFD 136, 137

6212WFDF 137

6212WFDK 139

6212WFS 137

6212WFSF 137

6212WFSK 139

6212WFT 137

6212WFTF 137

6234FD 136, 137

6234FDF 137

6234FDK 139

6234FS 137

6234FSF 137

6234FSK 139

6234FT 136, 137

6234FTF 137

6234NFD 136, 137

6234NFDF 137

6234NFDK 139

6234NFS 136, 137

6234NFSF 137

6234NFSK 139

6234NFT 136, 137

6234NFTF 137

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

NUMERIC LISTING

6234WFD 137

6234WFDF 137

6234WFDK 139

6234WFS 136, 137

6234WFSF 137

6234WFSK 139

6234WFT 136, 137

6234WFTF 137

6260WK 136

63ASO 49

63BSO 49

63DSO 49

63DST 35

63PGTLSO 49

63PGTLSO-100 49

63PGTLSO-50 49

63YSTW 35, 49

65BSO 33, 42, 49

65BSOM49 42, 49

65DSO 33, 49

65DSOM 42, 49

65MIL PGTL-100 49

65MIL PGTL-50 49

65MIL PIGTAIL 49

65PGTL-100 33, 49

65PGTL-50 33, 49

786

7000 59, 250, 253

7000-25-2 59

7000-50-2 59

7002 59

7002-25-2 59

7002-25-2GF 59

7002-50-2 59

7002-50-2GF 59

7004 59

7004-25-2 59

7004-50-2 59

7008 59

7008-25-2 59

7008-25-4 59

7008-50-2 59

7010 59

7010-25-2 59

7010-50-2 59

702 89

7020 59

7020-25-2 59

7020-50-2 59

7022 59

7022-25-2 59

7022-50-2 59

7024 59

7024-25-2 59

7024-50-2 59

703 89

704 89

707 89

708 89

70-NG 82, 89

70-NG25 89

70-NG50 89

70-NGQL 89

70-NGQL25 89

70-NGQL50 89

70-NGR 89

70-NGR50 89

70-NI 89

70-NI25 89

70-NI50 89

710 86

7103-125 191

7104-125 191

712 89

7123-125 191

7123-150 191

7124-125 191

7143-150 191

7144-125 191

7144-150 191

7164-150 191

718 85

718-I 85

718-R 85

718-RS 85

718-S 85

72F9006F 161, 167

72F9012F 161

72F9020F 161

72FMSE006F 165

72FMSE012F 165

72FMSE020F 165

72FRK1 169

72FRL3 169

72FS006F 161, 167

72FS012F 161

72FS020F 161

72M9E006F 161, 167

72M9E012F 161

72M9E020F 161

72MRK1 169

72MRK2 169

72MSE006F 161, 167

72MSE012F 161

72MSE020F 161

73F9006F 161

73F9012F 161

73F9020F 161

73FMSE006F 165

73FMSE012F 165

73FMSE020F 165

73FRK1 169

73FRL3 169

73FS006F 161

73FS012F 161

73FS020F 161

73M9E006F 161

73M9E012F 161

73M9E020F 161

73MRK1 169

73MRK2 169

73MSE006F 161

73MSE012F 161

73MSE020F 161

7425 85

7425-I 85

7425-R 85

7425-RS 85

7425-S 85

7425-SI 85

744 85

744-I 85

744-R 85

744-RS 85, 188

744-S 85

7450 85

7450-I 85

7450-R 85

7450-RS 85

7450-S 85

74F9006F 161

74F9012F 161

74F9020F 161

74FMSE006F 165

74FMSE012F 165

74FMSE020F 165

74FRK1 169

74FRL3 169

74FS006F 161

74FS012F 161

74FS020F 161

74M9E006F 161

74M9E012F 161

74M9E020F 161

74MRK1 169

74MRK2 169

74MSE006F 161

74MSE012F 161

74MSE020F 161

75F9006F 161

75F9012F 161

75F9020F 161

75FMSE006F 165

75FMSE012F 165

75FMSE020F 165

75FRK1 169

75FRL3 169

75FS006F 161

75FS012F 161

75FS020F 161

75M9E006F 161

75M9E012F 161

75M9E020F 161

75MRK1 169

75MRK2 169

75MSE006F 161

75MSE012F 161

75MSE020F 161

76F9006F 161

76F9012F 161

76F9020F 161

76FMSE006F 165

76FMSE012F 165

76FMSE020F 165

76FRK1 169

76FS006F 161

76FS012F 161

76FS020F 161

76M9E006F 161

76M9E012F 161

76M9E020F 161

76MRK1 169

76MRK2 169

76MSE006F 161

76MSE012F 161

76MSE020F 161

7717 143

7764-C 143

7765-P 143

7825 85

7825-I 85

7825-R 85

7825-RS 85

7825-S 85

7850 85

7850-I 85

7850-R 85

7850-RS 85

7850-S 85

7-A 86

7-A25 86

7-A50 86

7-S 86

7-SA 86

7-SA25 86

7-SA50 86

8005 60

8005F 60

8010 60

8010F 60

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

282

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

283

Numeric Listing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

801-25 83

8034 60

8034F 60

80LB SPRING 234

80SCPKG 60

810F9003A 151

810F9006A 151

810F9012A 151

810F9015A 151

810F9020A 151

810FRC 155

810FS003A 151

810FS006A 151

810FS012A 151

810FS015A 151

810FS020A 151

810M9003A 151

810M9006A 151

810M9012A 151

810M9015A 151

810M9020A 151

810MRC 155

810MS003A 151

810MS006A 151

810MS012A 151

810MS015A 151

810MS020A 151

812F9003A 151

812F9006A 151

812F9012A 151

812F9015A 151

812F9020A 151

812FRC 155

812FS003A 151

812FS006A 151

812FS012A 151

812FS015A 151

812FS020A 151

812M9003A 151

812M9006A 151

812M9012A 151

812M9015A 151

812M9020A 151

812MRC 155

812MS003A 151

812MS006A 151

812MS012A 151

812MS015A 151

812MS020A 151

8143-20 193

8143-20-XPF 193

8143-20-XPI 193

8143-40 193

8143-40-XPF 193

8143-40-XPI 193

8143-50 193

8143-50-XPF 193

8143-50-XPI 193

8144-20 193

8144-40 193

8144-50 193

8163-20 193

8163-20-XPF 193

8163-20-XPI 193

8163-40 193

8163-40-XPF 193

8163-40-XPI 193

8163-50 193

8163-50-XPF 193

8163-50-XPI 193

8164-20 193

8164-40 193

8164-50 193

817-25 115

817-25F 115

817-50 115

817-50F 115

8200 60

82005 60, 61, 136

82005W 60, 61, 136

8201 60

82010 60, 61, 136

82010W 60, 61, 136

8201FS 60

8202 60

8203 60

82034 60, 61, 136

82034W 60, 61, 136

8203FS 60

8204 60

8204FS 60

8205 60, 61

8206 60, 61

8206FS 60

8207 60, 61

8207FS 60

8208 60, 61

8208FS 60

825-25 115

825-25F 115

825-50 115

825-50F 115

82F9003A 149

82F9006A 149

82F9012A 149

82F9015A 149

82F9020A 149

82F9M9003A 157

82F9M9006A 157

82F9M9012A 157

82F9M9015A 157

82F9M9020A 157

82F9MS003A 157

82F9MS006A 157

82F9MS012A 157

82F9MS015A 157

82F9MS020A 157

82FMS003A 157

82FMS006A 157

82FMS012A 157

82FMS015A 157

82FMS020A 157

82FRC 153

82FS003A 149

82FS006A 149

82FS012A 149

82FS015A 149

82FS020A 149

82M9003A 149

82M9006A 149

82M9012A 149

82M9015A 149

82M9020A 149

82M9FS003A 157

82M9FS006A 157

82M9FS012A 157

82M9FS015A 157

82M9FS020A 157

82MRC 153

82MS003A 149

82MS006A 149

82MS012A 149

82MS015A 149

82MS020A 149

82SCPKGPL 60

832-25 115

832-25F 115

832-50 115

832-50F 115

83F9003A 149

83F9006A 149

83F9012A 149

83F9015A 149

83F9020A 149

83F9M9003A 157

83F9M9006A 157

83F9M9012A 157

83F9M9015A 157

83F9M9020A 157

83F9MS003A 157

83F9MS006A 157

83F9MS012A 157

83F9MS015A 157

83F9MS020A 157

83FMS003A 157

83FMS006A 157

83FMS012A 157

83FMS015A 157

83FMS020A 157

83FRC 153

83FS003A 149

83FS006A 149

83FS012A 149

83FS015A 149

83FS020A 149

83M9003A 149

83M9006A 149

83M9012A 149

83M9015A 149

83M9020A 149

83M9FS003A 157

83M9FS006A 157

83M9FS012A 157

83M9FS015A 157

83M9FS020A 157

83MRC 153

83MS003A 149

83MS006A 149

83MS012A 149

83MS015A 149

83MS020A 149

840-25 115

840-25F 115

840-50 115

840-50F 115

84F9003A 149

84F9006A 149

84F9012A 149

84F9015A 149

84F9020A 149

84F9M9003A 157

84F9M9006A 157

84F9M9012A 157

84F9M9015A 157

84F9M9020A 157

84F9MS003A 157

84F9MS006A 157

84F9MS012A 157

84F9MS015A 157

84F9MS020A 157

84FMS003A 157

84FMS006A 157

84FMS012A 157

84FMS015A 157

84FMS020A 157

84FRC 153

84FS003A 149

84FS006A 149

84FS012A 149

84FS015A 149

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

NUMERIC LISTING

84FS020A 149

84M9003A 149

84M9006A 149

84M9012A 149

84M9015A 149

84M9020A 149

84M9FS003A 157

84M9FS006A 157

84M9FS012A 157

84M9FS015A 157

84M9FS020A 157

84MRC 153

84MS003A 149

84MS006A 149

84MS012A 149

84MS015A 149

84MS020A 149

85F9003A 149

85F9006A 149

85F9012A 149

85F9015A 149

85F9020A 149

85F9M9003A 157

85F9M9006A 157

85F9M9012A 157

85F9M9015A 157

85F9M9020A 157

85F9MS003A 157

85F9MS006A 157

85F9MS012A 157

85F9MS015A 157

85F9MS020A 157

85FMS003A 157

85FMS006A 157

85FMS012A 157

85FMS015A 157

85FMS020A 157

85FRC 153

85FS003A 149

85FS006A 149

85FS012A 149

85FS015A 149

85FS020A 149

85M9003A 149

85M9006A 149

85M9012A 149

85M9015A 149

85M9020A 149

85M9FS003A 157

85M9FS006A 157

85M9FS012A 157

85M9FS015A 157

85M9FS020A 157

85MRC 153

85MS003A 149

85MS006A 149

85MS012A 149

85MS015A 149

85MS020A 149

86BF9003A 149

86BF9006A 149

86BF9012A 149

86BF9015A 149

86BF9020A 149

86BFRC 155

86BFS003A 149

86BFS006A 149

86BFS012A 149

86BFS020A 149

86BM9003A 149

86BM9006A 149

86BM9012A 149

86BM9020A 149

86BMRC 155

86BMS003A 149

86BMS006A 149

86BMS015A 149

86BMS020A 149

86F9003A 149

86F9006A 149

86F9012A 149

86F9015A 149

86F9020A 149

86F9M9003A 157

86F9M9006A 157

86F9M9012A 157

86F9M9015A 157

86F9M9020A 157

86F9MS006A 157

86F9MS012A 157

86F9MS015A 157

86F9MS020A 157

86FBS015A 149

86FMS003A 157

86FMS006A 157

86FMS012A 157

86FMS015A 157

86FMS020A 157

86FRC 153

86FS003A 149

86FS006A 149

86FS012A 149

86FS015A 149

86FS020A 149

86M9003A 149

86M9006A 149

86M9012A 149

86M9015A 149

86M9020A 149

86M9FS003A 157

86M9FS006A 157

86M9FS012A 157

86M9FS015A 157

86M9FS020A 157

86MRC 153

86MS003A 149

86MS006A 149

86MS012A 149

86MS015A 149

86MS020A 149

87F9003A 151

87F9006A 151

87F9012A 151

87F9020A 151

87FS003A 151

87FS006A 151

87FS012A 151

87FS015A 151

87FS020A 151

87M9003A 151

87M9006A 151

87M9012A 151

87M9015A 151

87M9020A 151

87MS003A 151

87MS006A 151

87MS012A 151

87MS015A 151

87MS020A 151

88F9003A 151

88F9006A 151

88F9012A 151

88F9015A 151

88FRC 155

88FS003A 151

88FS006A 151

88FS012A 151

88FS015A 151

88FS020A 151

88M9003A 151

88M9006A 151

88M9012A 151

88M9015A 151

88M9020A 151

88MRC 155

88MS003A 151

88MS012A 151

88MS015A 151

88MS020A 151

89F9003A 151

89F9006A 151

89F9012A 151

89F9015A 151

89F9020A 151

89FRC 155

89FS003A 151

89FS006A 151

89FS012A 151

89FS015A 151

89FS020A 151

89M9003A 151

89M9006A 151

89M9012A 151

89M9015A 151

89M9020A 151

89MRC 155

89MS003A 151

89MS006A 151

89MS012A 151

89MS015A 151

89MS020A 151

8V2123SJB6G2 44

8V2123SJB6GA 44

8V2123SJB6GB 44

8V3103SE6G2 44

8V3103SE6GA 44

8V3103SE6GB 44

8V3103SE6GD 44

8Z2124SE8G2 44

8z2124se8ga 44

8Z2124SE8GB 44

8Z3104SO8G2 44

8Z3104SO8GA 44

8Z3104SO8GB 44

8Z3104SO8GD 44

986

900-25 91

900-25S 91

900-50 91

900-50S 91

901 91

902 91

918 82, 85

918-I 85

918-R 85

918-S 85

926-25 91

926-25LV 92

926-50 91

926-50LV 92

926-BAL25 91

926-BAL50 91

926-CF 91

926-CRD120V25 91

926-CRD120V50 91

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

284

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

285

Numeric Listing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

926-EC 91

926-RS 91

926-TS 91

93FMSE2G 163

93FMSE4G 163

93FMSE5G 163

93MRK1 159

93MRK2 159

93MRK3 159

93MRK4 159

9425 85

9425-I 85

9425-R 85

9425-RS 85

9425-S 85

944 85

944-I 85

944-R 85

944-RS 85, 188

944-S 85

9450 85

9450-I 85

9450-R 85

9450-RS 85

9450-S 85

94FMSE2G 163

94FMSE4G 163

94FMSE5G 163

94MRK1 159, 167

94MRK2 159, 167

94MRK3 159, 167

94MRK4 159, 167

95FMSE2G 163

95FMSE4G 163

95FMSE5G 163

95MRK1 159, 167

95MRK2 159, 167

95MRK3 159, 167

95MRK4 159, 167

96BMS012A 149

9825 85

9825-I 85

9825-R 85

9825-RS 85

9825-S 85

9850 85

9850-I 85

9850-R 85

9850-RS 85

9850-S 85

9-A 86

9-A25 86

9-A50 86

9-S 86

9-SA 86

9-SA25 86

9-SA50 86

BD-022-SE 234

BD-022-UB 234

BD-030-SE 234

BD-030-UB 234

BD-041-SE 234

BD-041-UB 234

BD-053-SE 234

BD-053-UB 234

BD-070-SE 234

BD-070-UB 234

BD-082-SE 234

BD-082-UB 234

BD-096-SE 234

BD-096-UB 234

BD-125-SE 234

BE1-CAM2CL1063 19

BE1-CAM2CL1120 19

BE1-CAM2CL1180 19

BE1-CAM2CL3006 19

BE1-CAM2CL3060L 19

BE1-CAM2CL3060TT 19

BE1-CAM2CL3063 19

BE1-CAM2CL3120 19

BE1-CAM2CL3180 19

BE1-CAMCL1061 19

BE1-CAMCL1062 19

BE1-CAMCL1120 19

BE1-CAMCL1180 19

BE1-CAMCL3003 19

BE1-CAMCL3006 19

BE1-CAMCL3040L 19

BE1-CAMCL3060L 19

BE1-CAMCL3060TT 19

BE1-CAMCL3061 19

BE1-CAMCL3062 19

BE1-CAMCL3063 19

BE1-CAMCL3120 19

BE1-CAMCL3180 19

BE1-T50CM1080 19

BE1-T50CM1120 19

BE4-480CAM2CL3002C 15

BE4-480CAMCL3004C 15

BE4-480CAMCL3004I 15

BE4-600CAM2CL1004C 15

BE4-600CAM2CL3004C 15

BE4-600CAMCL3004C 15

BE4-CAM2CL3062CL 15

BE4-CAM2CL3122C 15

BE4-CAMCL1008T 15

BE4-CAMCL3004C 15

BE4-CAMCL3012T 15

BE4-CAMCL3062CL 15

BE4-CAMCL3122C 15

BL500 116

BL500-G 116

BL500-L 116

BL500M 116

BL500-MAG 116

BL500S 116

CG-100-F4 243

CG-100-F4-90 245

CG-100-F5 243

CG-100-F5-90 245

CG-100-F6 243

CG-100-F6-90 245

CG-112-F5 243

CG-112-F5-90 245

CG-112-F6 243

CG-112-F6-90 245

CG-125-F5 243

CG-125-F5-90 245

CG-125-F6 243

CG-125-F6-90 245

CG-137-F5 243

CG-137-F5-90 245

CG-137-F6 243

CG-137-F6-90 245

CG-137-F7 244

CG-137-F7-90 245

CG-143-F6-90 245

CG-150-F7 244

CG-150-F7-90 245

CG-162-F7 244

CG-162-F7-90 245

CG-175-F7 244

CG-175-F7-90 245

CG-181-F8 244

CG-187-F7 244

CG-187-F7-90 245

CG-193-F7 244

CG-193-F7-90 245

CG-193-F8 244

CG-200-F7 244

CG-200-F7-90 245

CG-206-F8 244

CG-218-F8 244

CG-231-F8 244

CG-243-F8 244

CG-25-F1 243

CG-25-F1-90 245

CG-25-F2 243

CG-25-F2-90 245

CG-262-F9 244

CG-281-F9 244

CG-300-F9 244

CG-37-F1 243

CG-37-F1-90 245

CG-37-F2 243

CG-37-F2-90 245

CG-43-F1 243

CG-43-F1-90 245

CG-43-F2 243

CG-50-F2 243

CG-50-F2-90 245

CG-50-F3 243

CG-50-F3-90 245

CG-50-F4 243

CG-50-F4-90 245

CG-62-F2-90 245

CG-62-F3 243

CG-62-F3-90 245

CG-62-F4 243

CG-62-F4-90 245

CG-75-F3 243

CG-75-F3-90 245

CG-75-F4 243

CG-75-F4-90 245

CG-87-F4 243

CG-87-F4-90 245

CG-87-F5 243

CG-87-F5-90 245

CG-87-F6 243

CG-87-F6-90 245

CP5-36-GP 51

CP5-45Y-GP 51

CP5-ECP-GP 51

CRG-C.75-CM-050 230

CRG-C1.25-CM-050 230

CRG-C1.25-CM-062 230

CRG-C1.25-CM-075 230

CRG-C1.25-LC-075 231

CRG-C1.25-RC-075 232

CRG-C1.50-CM-050 230

CRG-C1.50-CM-062 230

CRG-C1.50-CM-075 230

CRG-C1.50-CM-100 230

CRG-C1.5-LC-075 231

CRG-C1.5-LC-100 231

CRG-C1.5-RC-075 232

CRG-C1.5-RC-100 232

CRG-C1-CM-050 230

CRG-C1-CM-062 230

CRG-C2.50-CM-050 230

CRG-C2.50-CM-062 230

CRG-C2.50-CM-075 230

CRG-C2.50-CM-100 230

CRG-C2.50-CM-125 230

CRG-C2.50-CM-150 230

CRG-C2.50-CM-175 230

CRG-C2.5-LC-075 231

CRG-C2.5-LC-100 231

CRG-C2.5-LC-125 231

CRG-C2.5-LC-150 231

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

NUMERIC LISTING

CRG-C2.5-LC-175 231

CRG-C2.5-RC-075 232

CRG-C2.5-RC-100 232

CRG-C2.5-RC-125 232

CRG-C2.5-RC-150 232

CRG-C2.5-RC-175 232

CRG-C2-CM-050 230

CRG-C2-CM-062 232

CRG-C2-CM-075 230

CRG-C2-CM-100 230

CRG-C2-CM-125 230

CRG-C2-LC-075 231

CRG-C2-LC-100 231

CRG-C2-LC-125 231

CRG-C2-RC-075 232

CRG-C2-RC-100 232

CRG-C2-RC-125 232

CRG-C3.50-CM-062 230

CRG-C3.50-CM-075 230

CRG-C3.50-CM-100 230

CRG-C3.50-CM-125 230

CRG-C3.50-CM-150 230

CRG-C3.50-CM-175 230

CRG-C3.50-CM-200 230

CRG-C3.50-CM-250 230

CRG-C3.5-LC-075 231

CRG-C3.5-LC-100 231

CRG-C3.5-LC-125 231

CRG-C3.5-LC-150 231

CRG-C3.5-LC-175 231

CRG-C3.5-LC-200 231

CRG-C3.5-LC-250 231

CRG-C3.5-RC-075 232

CRG-C3.5-RC-100 232

CRG-C3.5-RC-125 232

CRG-C3.5-RC-150 232

CRG-C3.5-RC-175 232

CRG-C3.5-RC-200 232

CRG-C3.5-RC-250 232

CRG-C3-CM-050 230

CRG-C3-CM-062 230

CRG-C3-CM-075 230

CRG-C3-CM-100 230

CRG-C3-CM-125 230

CRG-C3-CM-150 230

CRG-C3-CM-175 230

CRG-C3-CM-200 230

CRG-C3-LC-075 231

CRG-C3-LC-100 231

CRG-C3-LC-125 231

CRG-C3-LC-150 231

CRG-C3-LC-175 231

CRG-C3-LC-200 231

CRG-C3-RC-075 232

CRG-C3-RC-100 232

CRG-C3-RC-125 232

CRG-C3-RC-150 232

CRG-C3-RC-175 232

CRG-C3-RC-200 232

CRG-C4.50-CM-075 230

CRG-C4.50-CM-100 230

CRG-C4.50-CM-125 230

CRG-C4.50-CM-150 230

CRG-C4.50-CM-175 230

CRG-C4.50-CM-200 230

CRG-C4.50-CM-250 230

CRG-C4.50-CM-300 230

CRG-C4.50-CM-350 230

CRG-C4.5-LC-075 231

CRG-C4.5-LC-100 231

CRG-C4.5-LC-125 231

CRG-C4.5-LC-150 231

CRG-C4.5-LC-175 231

CRG-C4.5-LC-200 231

CRG-C4.5-LC-250 231

CRG-C4.5-LC-300 231

CRG-C4.5-LC-350 231

CRG-C4.5-RC-075 232

CRG-C4.5-RC-100 232

CRG-C4.5-RC-125 232

CRG-C4.5-RC-150 232

CRG-C4.5-RC-175 232

CRG-C4.5-RC-200 232

CRG-C4.5-RC-250 232

CRG-C4.5-RC-300 232

CRG-C4.5-RC-350 232

CRG-C4-CM-062 230

CRG-C4-CM-075 230

CRG-C4-CM-100 230

CRG-C4-CM-125 230

CRG-C4-CM-150 230

CRG-C4-CM-175 230

CRG-C4-CM-200 230

CRG-C4-CM-250 230

CRG-C4-CM-300 230

CRG-C4-LC-075 231

CRG-C4-LC-100 231

CRG-C4-LC-125 231

CRG-C4-LC-150 231

CRG-C4-LC-175 231

CRG-C4-LC-200 231

CRG-C4-LC-250 231

CRG-C4-LC-300 231

CRG-C4-RC-075 232

CRG-C4-RC-100 232

CRG-C4-RC-125 232

CRG-C4-RC-150 232

CRG-C4-RC-175 232

CRG-C4-RC-200 232

CRG-C4-RC-250 232

CRG-C4-RC-300 232

CRG-C5-CM-075 230

CRG-C5-CM-100 230

CRG-C5-CM-125 230

CRG-C5-CM-150 230

CRG-C5-CM-175 230

CRG-C5-CM-200 230

CRG-C5-CM-250 230

CRG-C5-CM-300 230

CRG-C5-CM-350 230

CRG-C5-LC-075 231

CRG-C5-LC-100 231

CRG-C5-LC-125 231

CRG-C5-LC-150 231

CRG-C5-LC-175 231

CRG-C5-LC-200 231

CRG-C5-LC-250 231

CRG-C5-LC-300 231

CRG-C5-LC-350 231

CRG-C5-RC-075 232

CRG-C5-RC-100 232

CRG-C5-RC-125 232

CRG-C5-RC-150 232

CRG-C5-RC-175 232

CRG-C5-RC-200 232

CRG-C5-RC-250 232

CRG-C5-RC-300 232

CRG-C5-RC-350 232

CRG-C6-CM-075 230

CRG-C6-CM-100 230

CRG-C6-CM-125 230

CRG-C6-CM-150 230

CRG-C6-CM-175 230

CRG-C6-CM-200 230

CRG-C6-CM-250 230

CRG-C6-CM-300 230

CRG-C6-CM-350 230

CRG-C6-LC-075 231

CRG-C6-LC-100 231

CRG-C6-LC-125 231

CRG-C6-LC-150 231

CRG-C6-LC-175 231

CRG-C6-LC-200 231

CRG-C6-LC-250 231

CRG-C6-LC-300 231

CRG-C6-LC-350 231

CRG-C6-RC-075 232

CRG-C6-RC-100 232

CRG-C6-RC-125 232

CRG-C6-RC-150 232

CRG-C6-RC-175 232

CRG-C6-RC-200 232

CRG-C6-RC-250 232

CRG-C6-RC-300 232

CRG-C6-RC-350 232

CS6360-C 143

CS6361-P 143

CS6364-C 143

CS6365-P 143

CS6369 143

CS6375 143

CS6375-F 143

CS8164-C 143

CS8165-P 143

CS8169 143

CS8175 143

CS8264-C 143

CS8265-P 143

CS8269 143

CS8275 143

CS8465-P 143

CS8469 143

DCG-100-F4 246

DCG-100-F4-45 246

DCG-100-F4-90 246

DCG-100-F4-F 246

DCG-100-F5 246

DCG-100-F5-45 246

DCG-100-F5-90 246

DCG-100-F5-F 246

DCG-100-F6 247

DCG-100-F6-45 247

DCG-100-F6-90 247

DCG-100-F6-F 247

DCG-112-F5 246

DCG-112-F5-45 246

DCG-112-F5-90 246

DCG-112-F5-F 246

DCG-112-F6 247

DCG-112-F6-45 247

DCG-112-F6-90 247

DCG-112-F6-F 247

DCG-125-F5 246

DCG-125-F5-45 246

DCG-125-F5-90 246

DCG-125-F5-F 246

DCG-125-F6 247

DCG-125-F6-45 247

DCG-125-F6-90 247

DCG-125-F6-F 247

DCG-137-F5 246

DCG-137-F5-90 246

DCG-137-F5-F 246

DCG-137-F6 247

DCG-137-F6-45 247

DCG-137-F6-90 247

DCG-137-F6-F 247

DCG-137-F7 247

DCG-137-F7-90 247

DCG-143-F6 247

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

286

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

287

Numeric Listing

MANY ERICSON PRODUCTS ARE LISTED OR CERTIFIED.

FOR THE LATEST FULL SEARCHABLE LISTING BY PART NUMBER, GO TO: WWW.ERICSON.COM/AGENCY

Note: Products shown on this page may not be listed.

DCG-143-F6-90 247

DCG-143-F6-F 247

DCG-150-F7 247

DCG-150-F7-90 247

DCG-162-F7 247

DCG-162-F7-90 247

DCG-175-F7 247

DCG-175-F7-90 247

DCG-181-F8 247

DCG-187-F7 247

DCG-187-F7-90 247

DCG-193-F7 247

DCG-193-F8 247

DCG-200-F7 247

DCG-200-F7-90 247

DCG-206-F8 247

DCG-218-F8 247

DCG-231-F8 247

DCG-243-F8 247

DCG-25-F1 246

DCG-25-F1-45 246

DCG-25-F1-90 246

DCG-25-F1-F 246

DCG-25-F2 246

DCG-25-F2-45 246

DCG-25-F2-90 246

DCG-25-F2-F 246

DCG-25-F3 246

DCG-25-F3-90 246

DCG-25-F3-F 246

DCG-262-F9 247

DCG-281-F9 247

DCG-300-F9 247

DCG-37-F1 246

DCG-37-F1-45 246

DCG-37-F1-90 246

DCG-37-F1-F 246

DCG-37-F2 246

DCG-37-F2-45 246

DCG-37-F2-90 246

DCG-37-F2-F 246

DCG-37-F3 246

DCG-37-F3-90 246

DCG-37-F3-F 246

DCG-43-F1 246

DCG-43-F1-45 246

DCG-43-F1-90 246

DCG-43-F1-F 246

DCG-43-F2 246

DCG-43-F2-45 246

DCG-43-F2-90 246

DCG-43-F2-F 246

DCG-50-F2 246

DCG-50-F2-45 246

DCG-50-F2-90 246

DCG-50-F2-F 246

DCG-50-F3 246

DCG-50-F3-90 246

DCG-50-F3-F 246

DCG-50-F4 246

DCG-50-F4-90 246

DCG-50-F4-F 246

DCG-62-F2 246

DCG-62-F2-45 246

DCG-62-F2-90 246

DCG-62-F2-F 246

DCG-62-F3 246

DCG-62-F3-90 246

DCG-62-F3-F 246

DCG-62-F4 246

DCG-62-F4-90 246

DCG-62-F4-F 246

DCG-75-F3 246

DCG-75-F3-90 246

DCG-75-F3-F 246

DCG-75-F4 246

DCG-75-F4-90 246

DCG-75-F4-F 246

DCG-87-F4 246

DCG-87-F4-45 246

DCG-87-F4-90 246

DCG-87-F4-F 246

DCG-87-F5 246

DCG-87-F5-45 246

DCG-87-F5-90 246

DCG-87-F5-F 246

DCG-87-F6 247

DCG-87-F6-45 247

DCG-87-F6-90 247

DCG-87-F6-F 247

EML520R 142

EML630R 142

I-030 248

I-030-NC 248

I-040 248

I-040-NC 248

I-052 248

I-052-NC 248

I-070 248

I-070-NC 248

I-082 248

I-082-NC 248

I-094 248

I-094-NC 248

JPG-100 237

JPG-25 237

JPG-37 237

JPG-50 237

JPG-62 237

JPG-75 237

JPG-KIT 237

LDPG-050 237

LDPG-050-S 237

LDPG-062 237

LDPG-062-S 237

LDPG-075 237

LDPG-075-S 237

LDPG-100 237

LDPG-100-S 237

LDPG-125 237

LDPG-125-S 237

LDPG-150 237

LDPG-150-S 237

LDPG-175-S 237

LDPG-200 237

LDPG-200-S 237

LDPG-250 237

LDPG-250-S 237

LDPG-300 237

LDPG-300-S 237

LDPG-350 237

LS1 211

LS2 211

LVT-12-ST 95

LVT-12-STCF 95

PB-45 195

PB-67 195

PC2MF100-C 16

PC2MF25-C 16

PC2MF50-C 16

PC4MF100-C 16

PC4MF25-C 16

PC4MF50-C 16

SD-100-SE 229

SD-100-UB 229

SD-23-SE 229

SD-23-UB 229

SD-32-SE 229

SD-32-UB 229

SD-43-SE 229

SD-43-UB 229

SD-56-SE 229

SD-56-UB 229

SD-73-SE 229

SD-73-UB 229

SD-85-SE 229

SD-85-UB 229

SDHD-100-SE 229

SDHD-100-UB 229

SDHD-23-SE 229

SDHD-23-UB 229

SDHD-32-SE 229

SDHD-32-UB 229

SDHD-43-SE 229

SDHD-43-UB 229

SDHD-56-SE 229

SDHD-56-UB 229

SDHD-73-SE 229

SDHD-73-UB 229

SDHD-85-SE 229

SDHD-85-UB 229

SDR-100 194

SDR-50 194

SG-CM-050-DE 224

SG-CM-050-OFS 226

SG-CM-050-SE 225

SG-CM-050-UB 227

SG-CM-062-DE 224

SG-CM-062-OFS 226

SG-CM-062-SE 225

SG-CM-062-UB 227

SG-CM-075-DE 224

SG-CM-075-OFS 226

SG-CM-075-SE 225

SG-CM-075-UB 227

SG-CM-100-DE 224

SG-CM-100-OFS 226

SG-CM-100-SE 225

SG-CM-100-UB 227

SG-CM-125-DE 224

SG-CM-125-OFS 226

SG-CM-125-SE 225

SG-CM-125-UB 227

SG-CM-150-DE 224

SG-CM-150-OFS 226

SG-CM-150-SE 225

SG-CM-150-UB 227

SG-CM-175-DE 224

SG-CM-175-OFS 226

SG-CM-175-SE 225

SG-CM-175-UB 227

SG-CM-200-DE 224

SG-CM-200-OFS 226

SG-CM-200-SE 225

SG-CM-200-UB 227

SG-CM-250-DE 224

SG-CM-250-OFS 226

SG-CM-250-SE 225

SG-CM-250-UB 227

SG-CM-300-DE 224

SG-CM-300-OFS 226

SG-CM-300-SE 225

SG-CM-300-UB 227

SG-CM-350-DE 224

SG-CM-350-OFS 226

SG-CM-350-SE 225

SG-CM-350-UB 227

SGHD-CM-075-DE 228

SGHD-CM-075-SE 228

SGHD-CM-100-DE 228

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

NUMERIC LISTING

288

SGHD-CM-100-SE 228

SGHD-CM-125-DE 228

SGHD-CM-125-SE 228

SGHD-CM-150-DE 228

SGHD-CM-150-SE 228

SGHD-CM-200-DE 228

SGHD-CM-250-DE 228

SGHD-CM-300-DE 228

SGHD-CM-350-DE 228

SGHD-CM-400-DE 228

SG-LC-050-DE 224

SG-LC-050-OFS 226

SG-LC-050-SE 225

SG-LC-050-UB 227

SG-LC-062-DE 224

SG-LC-062-OFS 226

SG-LC-062-SE 225

SG-LC-062-UB 227

SG-LC-075-DE 224

SG-LC-075-OFS 226

SG-LC-075-SE 225

SG-LC-075-UB 227

SG-LC-100-DE 224

SG-LC-100-OFS 226

SG-LC-100-SE 225

SG-LC-100-UB 227

SG-LC-125-DE 224

SG-LC-125-OFS 226

SG-LC-125-SE 225

SG-LC-125-UB 227

SG-LC-150-DE 224

SG-LC-150-OFS 226

SG-LC-150-SE 225

SG-LC-150-UB 227

SG-LC-175-DE 224

SG-LC-175-OFS 226

SG-LC-175-SE 225

SG-LC-175-UB 227

SG-LC-200-DE 224

SG-LC-200-OFS 226

SG-LC-200-SE 225

SG-LC-200-UB 227

SG-LC-250-DE 224

SG-LC-250-OFS 226

SG-LC-250-SE 225

SG-LC-250-UB 227

SG-LC-300-DE 224

SG-LC-300-OFS 226

SG-LC-300-SE 225

SG-LC-300-UB 227

SG-LC-350-DE 224

SG-LC-350-OFS 226

SG-LC-350-SE 225

SG-LC-350-UB 227

SG-RC-050-DE 224

SG-RC-050-OFS 226

SG-RC-050-SE 225

SG-RC-050-UB 227

SG-RC-062-DE 224

SG-RC-062-OFS 226

SG-RC-062-SE 225

SG-RC-062-UB 227

SG-RC-075-DE 224

SG-RC-075-OFS 226

SG-RC-075-SE 225

SG-RC-075-UB 227

SG-RC-100-DE 224

SG-RC-100-OFS 226

SG-RC-100-SE 225

SG-RC-100-UB 227

SG-RC-125-DE 224

SG-RC-125-OFS 226

SG-RC-125-SE 225

SG-RC-125-UB 227

SG-RC-150-DE 224

SG-RC-150-OFS 226

SG-RC-150-SE 225

SG-RC-150-UB 227

SG-RC-175-DE 224

SG-RC-175-OFS 226

SG-RC-175-SE 225

SG-RC-175-UB 227

SG-RC-200-DE 224

SG-RC-200-OFS 226

SG-RC-200-SE 225

SG-RC-200-UB 227

SG-RC-250-DE 224

SG-RC-250-OFS 226

SG-RC-250-SE 225

SG-RC-250-UB 227

SG-RC-300-DE 224

SG-RC-300-OFS 226

SG-RC-300-SE 225

SG-RC-300-UB 227

SG-RC-350-DE 224

SG-RC-350-OFS 226

SG-RC-350-SE 225

SG-RC-350-UB 227

SL15GW 107

SL15NW 107

SL15NWBASE 107

SL15NWFIXTURE 107

SL15NWMAST 107

SL1NM 107

SL1NMBASE 107

SL1NMFIXTURE 107

SL1NMMAST 107

SL1WG 107

SL-FIXT 107

SLHK-01 70

SL-L1000 107

SL-L-750 107

SL-REFL 107

SR-022 241

SR-030 241

SR-040 241

SR-052 241

SR-070 241

SR-094 241

SR50 35, 37, 39

SRI-022 241

SRI-030 241

SRI-040 241

SRI-052 241

SRI-070 241

SRI-094 241

SRI-120 241

SRI-140 241

SRI-162 241

SRI-200 241

SS-E-LITE 77

SS-HD 77

UPG-100-FE 238

UPG-150-FE 238

UPG-200-FE 238

UPG-250-FE 238

UPG-300-FE 238

UPG-350-FE 238

UPG-50-FE 238

UPG-62-FE 238

UPG-75-FE 238

X-142100 69, 71

XG2-12-10B 178

XG2-12-10B-MR 178

XG2-12-10BW 178

XG2-12-10BW-MR 178

XG2-12-10G 177

XG2-12-10G-MR 177

XG2-12-10W 177

XG2-12-10W-LKG 177

XG2-12-10W-MR 177

XG2-12-10W-MR-15 177

XG2-12-10W-MR-LKG 177

XG2-12-25B 55, 178

XG2-12-25B-15 55, 178

XG2-12-25B-MR 178

XG2-12-25B-MR-15 178

XG2-12-25BW 178

XG2-12-25BW-15 178

XG2-12-25BW-MR 178

XG2-12-25BW-MR-15 178

XG2-12-25G 177

XG2-12-25G-15 177

XG2-12-25G-LKG 177

XG2-12-25G-MR 177

XG2-12-25G-MR-15 177

XG2-12-25G-MR-LKG 177

XG2-12-25W 177

XG2-12-25W-15 177

XG2-12-25W-LKG 177

XG2-12-25W-MR 177

XG2-12-25W-MR-15 177

XG2-12-25W-MR-LKG 177

XG2-12-2B 55, 178

XG2-12-2B-15 55, 178

XG2-12-2B-MR 178

XG2-12-2B-MR-15 178

XG2-12-2BW 178

XG2-12-2BW-15 178

XG2-12-2BW-MR 178

XG2-12-2BW-MR-15 178

XG2-12-2G 177

XG2-12-2G-15 177

XG2-12-2G-LKG 177

XG2-12-2G-MR 177

XG2-12-2G-MR-15 177

XG2-12-2G-MR-LKG 177

XG2-12-2TT 177

XG2-12-2W 177

XG2-12-2W-15 177

XG2-12-2W-LKG 177

XG2-12-2W-MR 177

XG2-12-2W-MR-15 177

XG2-12-2W-MR-LKG 177

XG2-12-50B 55, 178

XG2-12-50B-15 55, 178

XG2-12-50B-MR 178

XG2-12-50B-MR-15 178

XG2-12-50BW 178

XG2-12-50BW-15 178

XG2-12-50BW-MR 178

XG2-12-50BW-MR-15 178

XG2-12-50G 177

XG2-12-50TT 177

XG2-12-50W 177

XG2-12-50W-LKG 177

XG2-12-50W-MR 177

XG2-12-50W-MR-15 177

XG2-12-50W-MR-LKG 177

XG2-14-25S 177

XG2-14-2S 177

XG2R-12-10BS-15 178

XG2R-12-25BS-15 178

XG2R-12-2BS-15 178

XG2R-12-50BS-15 178

Cat. No. Page No. Cat. No. Page No. Cat. No. Page No. Cat. No. Page No.

288

Numeric Listing

1-800-ERICSON (374-2766) •www.ericson.com

NUMERIC LISTING

Where to Buy

Pick a category that best describes you and how you buy product. These markets are serviced by local

SALES TEAM MEMBERS that know you and your local area needs. To find your local Ericson Representa-

tive please go to www.ericson.com and visit the “Where to Buy” menu.

General & Electrical Contractors

Your local Factory Trained Electrical

Representative will assist you with

local service and supply stock.

• General Contractors

• Electricians

• Maintenance Personnel

Service Professional

(Tool and Rental)

Your local Factory Trained Tool

& Rental Expert will assist you

with special rental and tool

house supply.

• Rental Store Managers

• Tool House Buyers

• Rental Fleet Managers

Government & Military Agency

Ericson is a Small Business that

has products and services to meet

the needs of all agencies.

• Federal, State, City, County

• DOD, DOE, DOT

MARKETS SERVED

Please visit:

www.ericson.com

and click

to find

your local

Ericson Representative.

CAGE# 82832

GSA# GS-07F-0313Y

M-2012

PRODUCTS

• Temporary Power

• Temporary Lighting

• Plugs & Connectors

• Ground Fault Circuit Interrupters

• Cord & Cable Reels

• Push Button Pendant Stations

• Custom Products

• E-Grips™

• Mini & Micro Cabling

MARKETS SERVED:

• Power Generation •Ship & Vessel Building

• Petroleum & Chemical Refining •Entertainment

• Commercial & Industrial Construction •Government

• Food Processing •OEM

• Rental

• Transportation

Ericson Manufacturing

Company

4215 Hamann Parkway

Willoughby, Ohio 44094 USA

1-800-ERICSON (374-2766)

fax: 440-951-1867

web: www.ericson.com

e-mail: info@ericson.com

Manufacturing Company

™ Trademark of Ericson

Manufacturing Company

® Registered Trademark of

Ericson Manufacturing

Company

Specifications subject to

change without notice.

REORDER-L-1000064

B-08/01-25M

Printed in the U.S.A.
