Pipe Markers

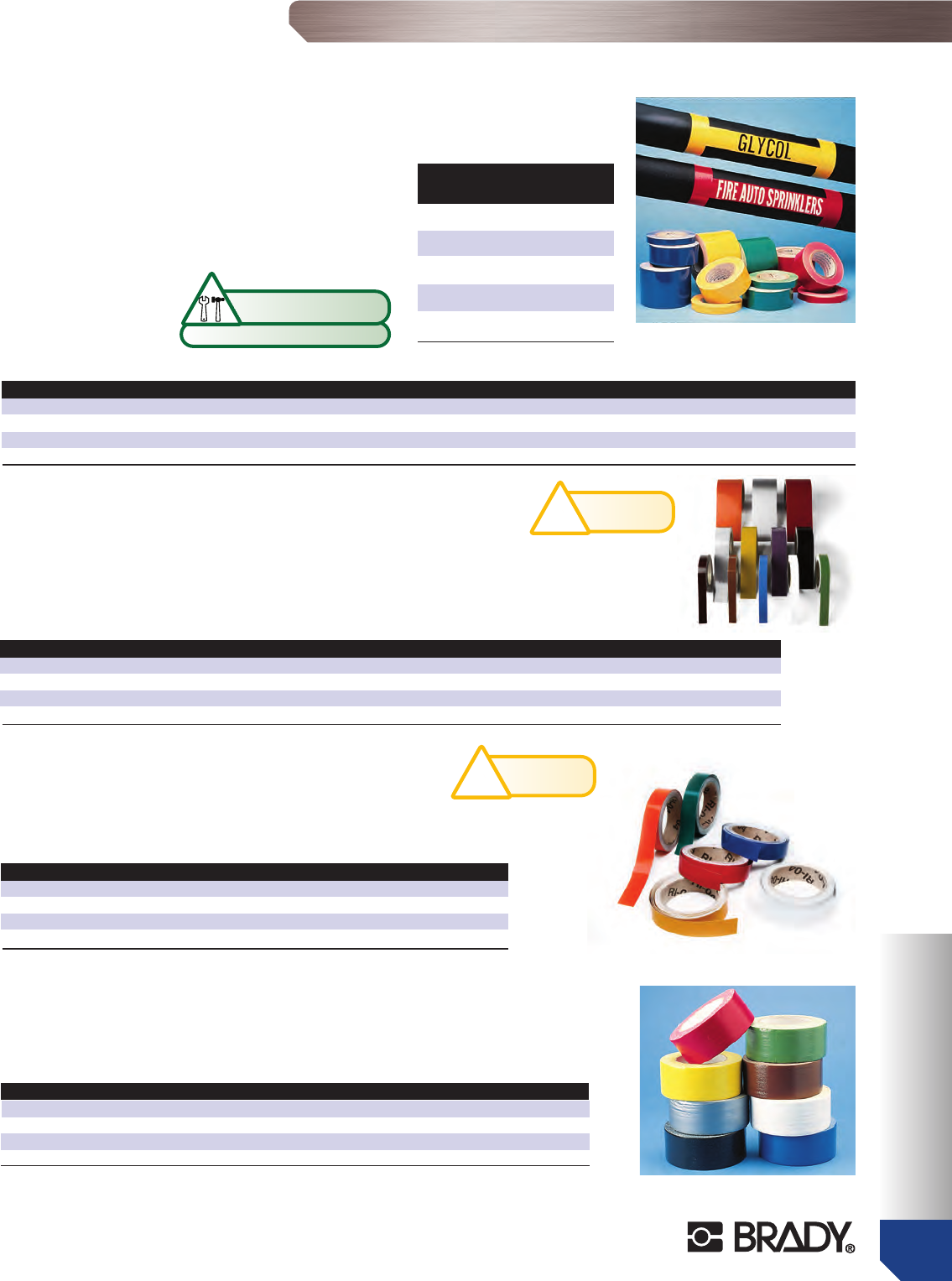

Reflective Pipe Banding Tape

• Increase night time visibility throughout your facility

• 5 mil vinyl, that with stands temperature of -40˚ to +180˚

• Exceeds Federal Spec. C-S-300, Class I and FP-79 type II

ISO 14726 Pipe Banding Tape

• Help reduce accidents and damage to machinery

• ISO14726 Marine Standard defines the principle colors for

identifying pipes - each color indicates a certain gauge of substances

Food Industry Pipe Markers

• Laminated polyester construction seal in & protects graphics

great for wash-down areas.

• Industrial grade self-adhesive – Protects against bacteria or

moisture trapping behind the pipe marker.

see page 14

NEW!

see page 9

NEW PRODUCTS

WELCOME TO BRADY’S PIPE & VALVE IDENTIFICATION CATALOG

Extra Large High Performance Pipe

Markers

• The only High Performance Wrap-around Pipe Marker to meet ASME

(ANSI) standards for pipes over 10” in diameter

• Ideal for dirty, oily, greasy or rough surfaces including stainless steel

• Markers resist abrasion, chemicals & outdoor weather

• Pipe Markers up to 32” x 86” and arrows are included to indicate

flow direction

see page 11

Pipe Markers

TABLE

OF CONTENTS

4ASME Standard for Pipe Identification

5Pipe Marker Material Selection

6Self-Sticking Pipe Markers

7Roll-Form Pipe Markers

8Roll Form Pipe Markers / Pipe Markers To-Go

9Pipe Banding Tape

10 Snap-On / Strap-On Pipe Markers

11 High Performance Pipe Markers

12 IIAR Pipe Markers

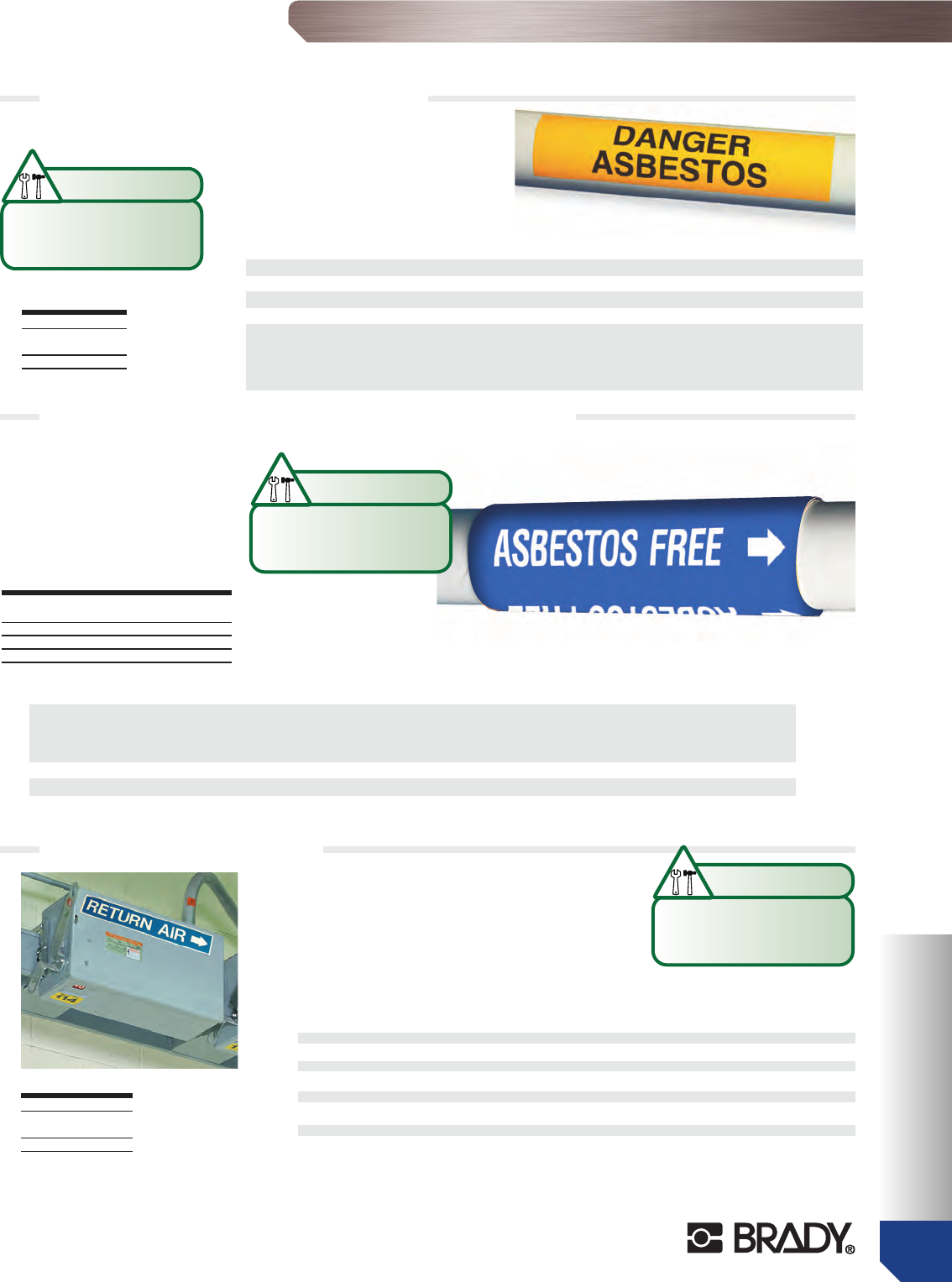

13 Asbestos / Duct Markers

14 Food Industry Pipe Markers

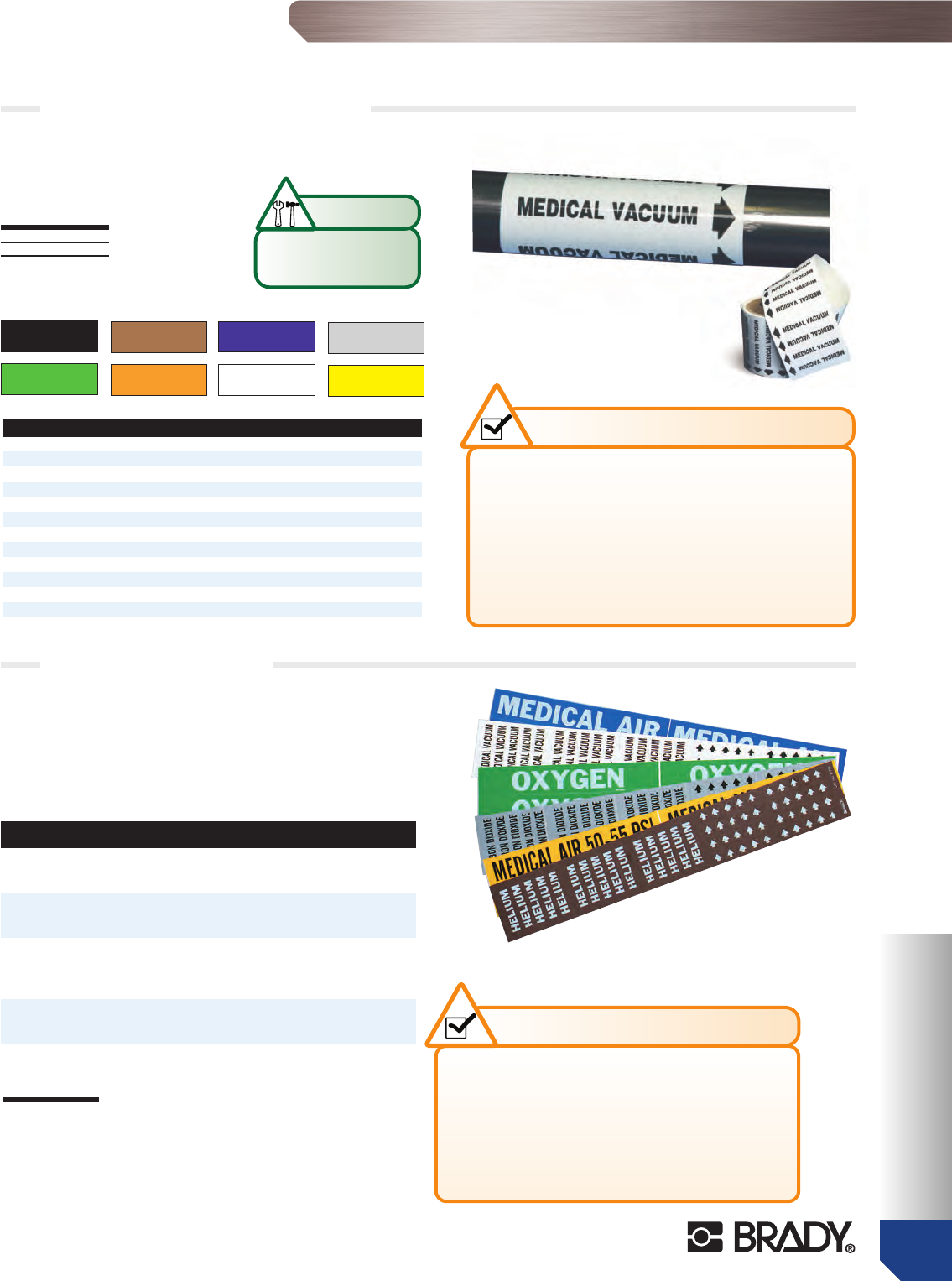

15 Medical Gas Pipe Markers

16 Semi-Conductor / Porcelain Markers

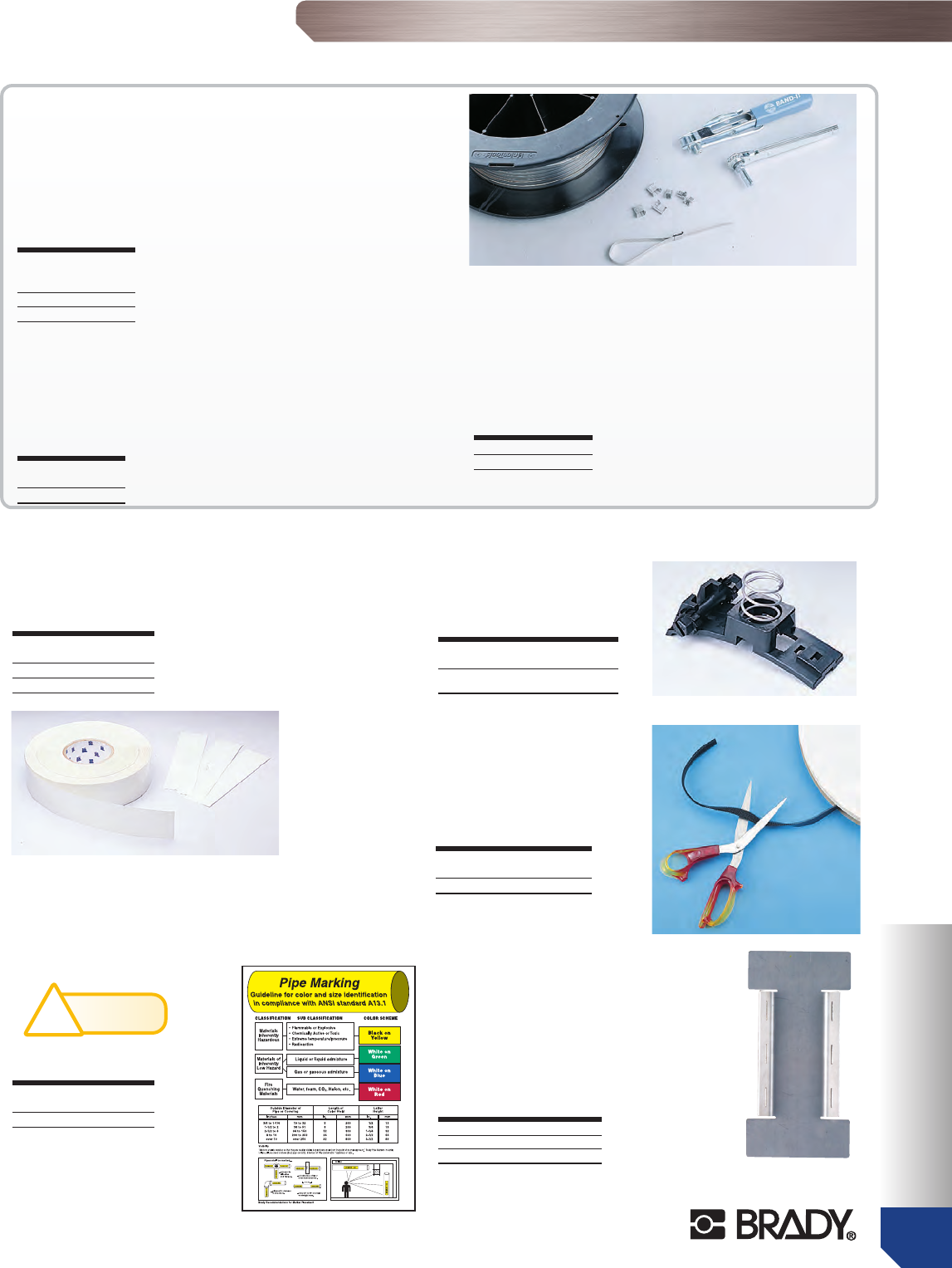

17 Pipe Marker Accessories

18 Custom Pipe Marker Order Form

19 Custom Pipe Marker Order Form

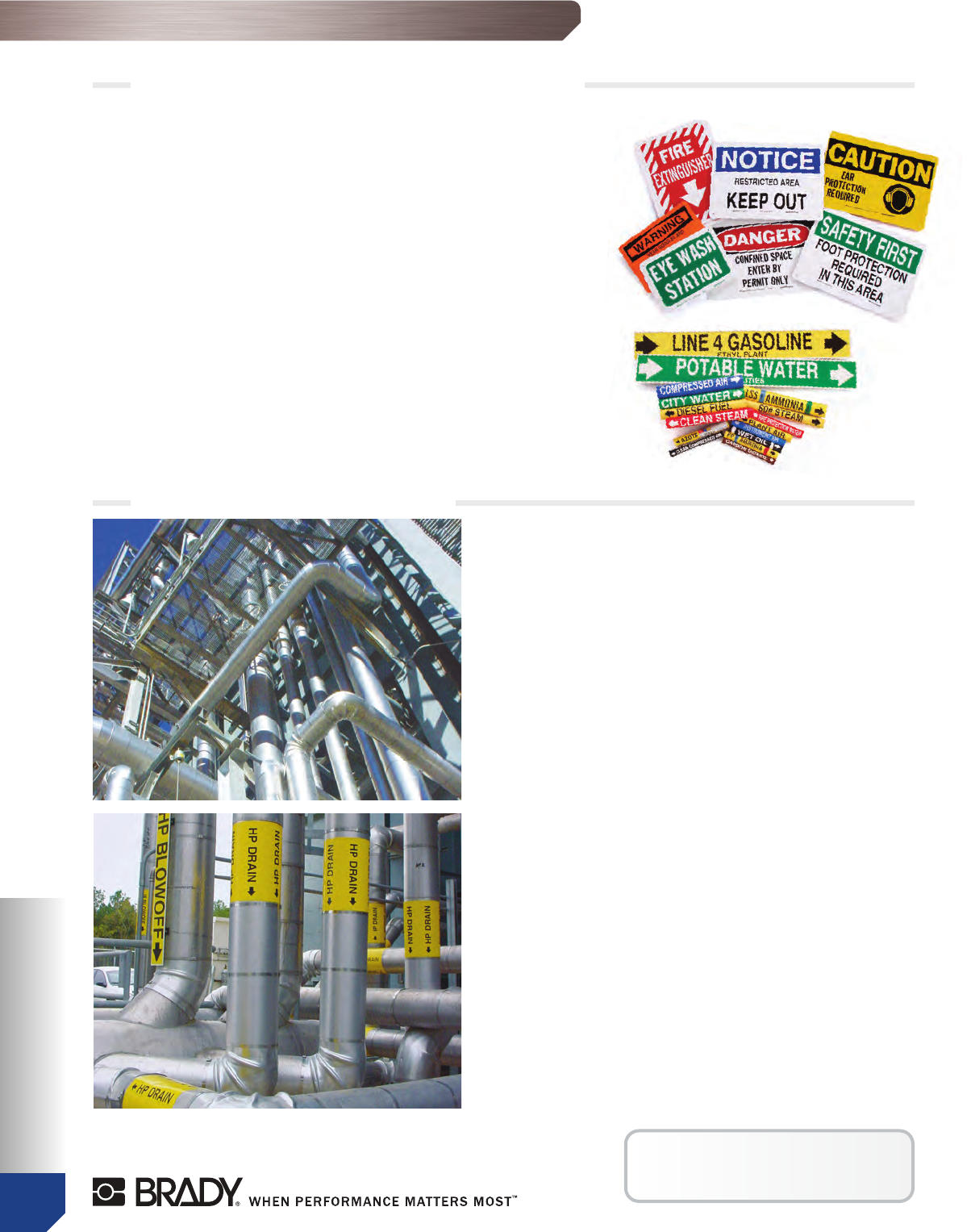

20 Facility Assessment/Pipe Marker Services

21 Identification Tag Materials

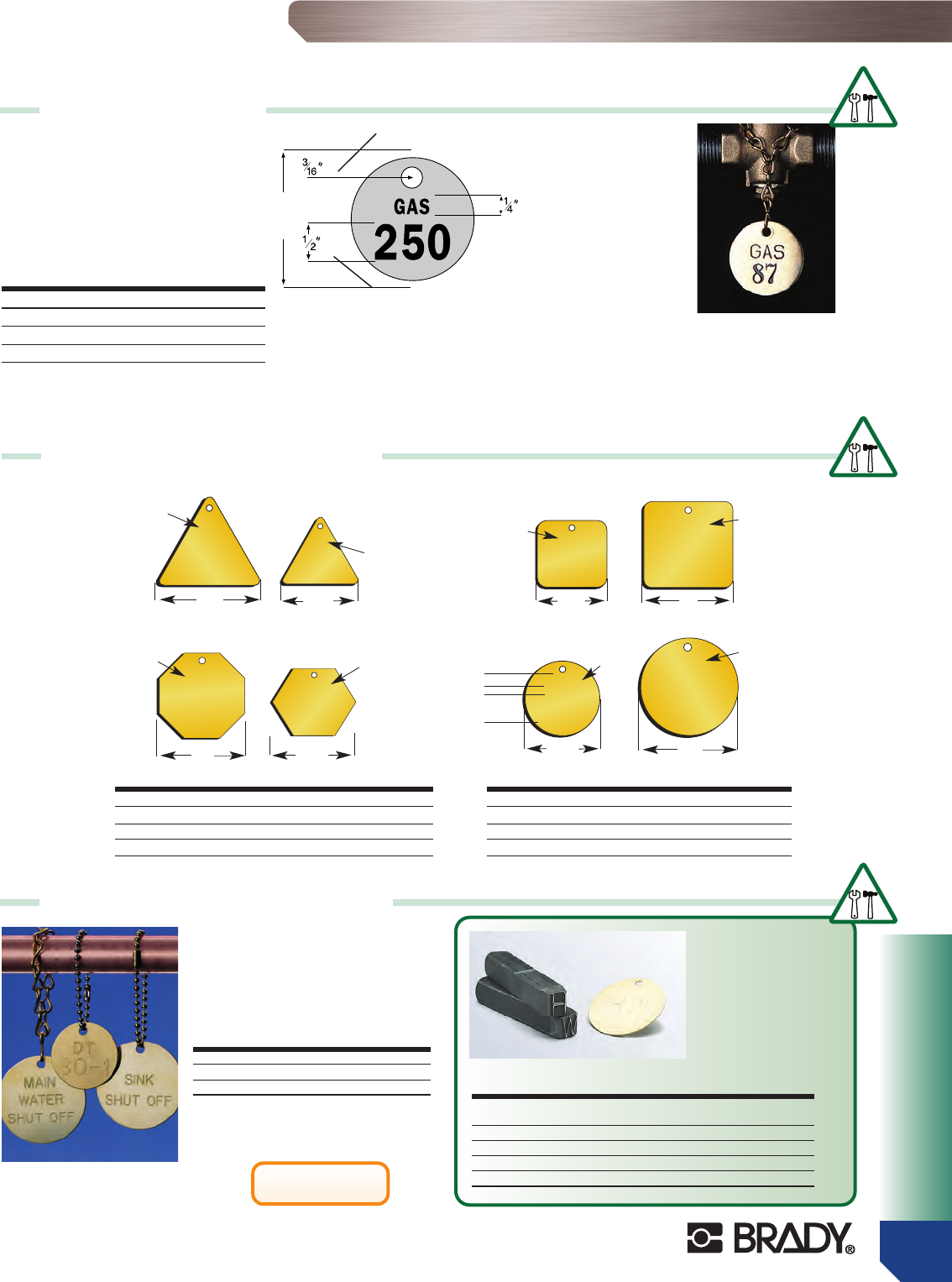

22 Stock Brass Valve Tags

23 Custom Brass Valve Tags

24 Aluminum Tags (Stock & Custom)

25 Stainless Steel Tags (Stock & Custom)

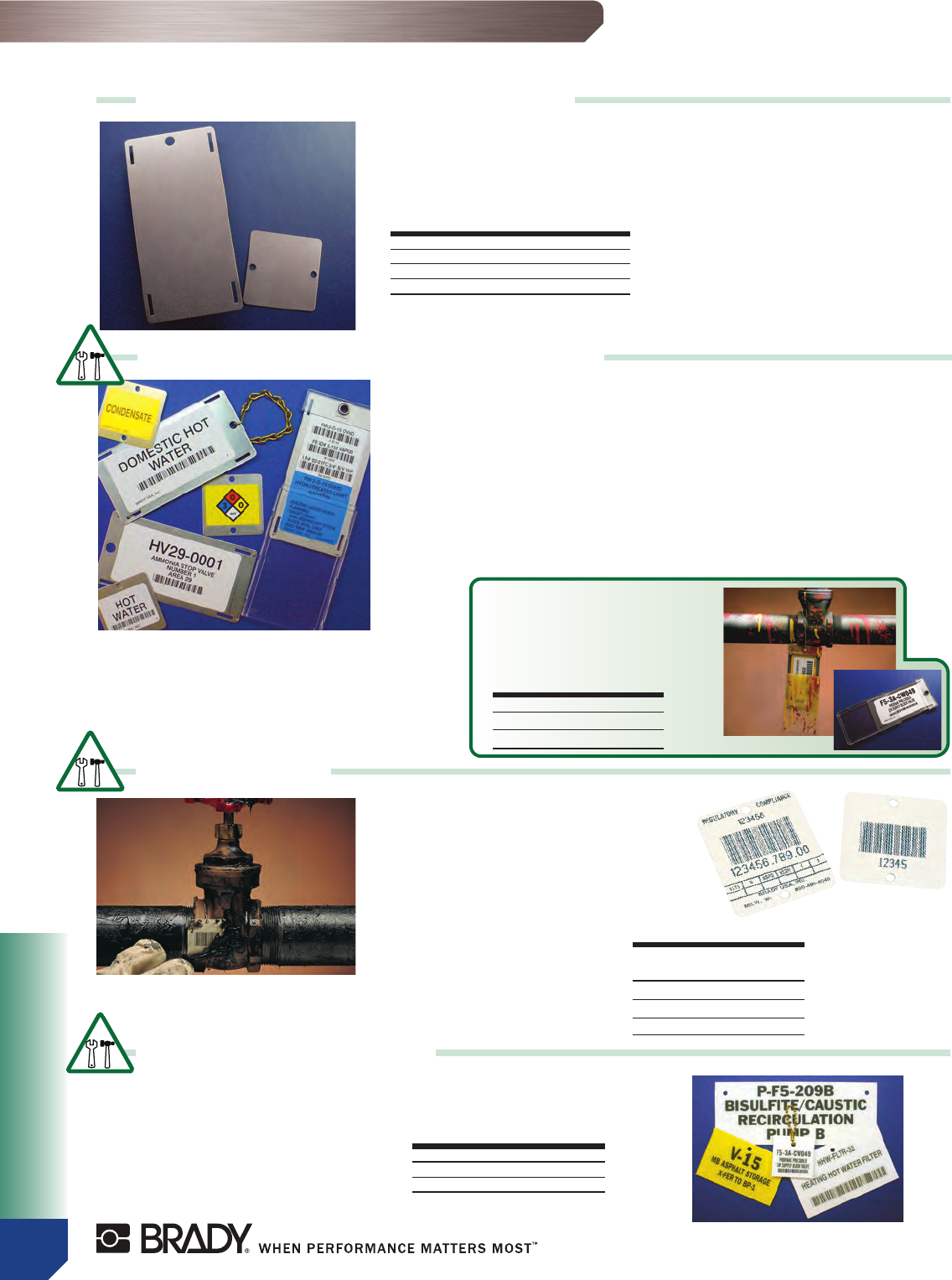

26 HEET / Teflon / Fiberglass Tags

27 VIP Tags (Stock & Custom)

28 Energy Source / Laminated Tags

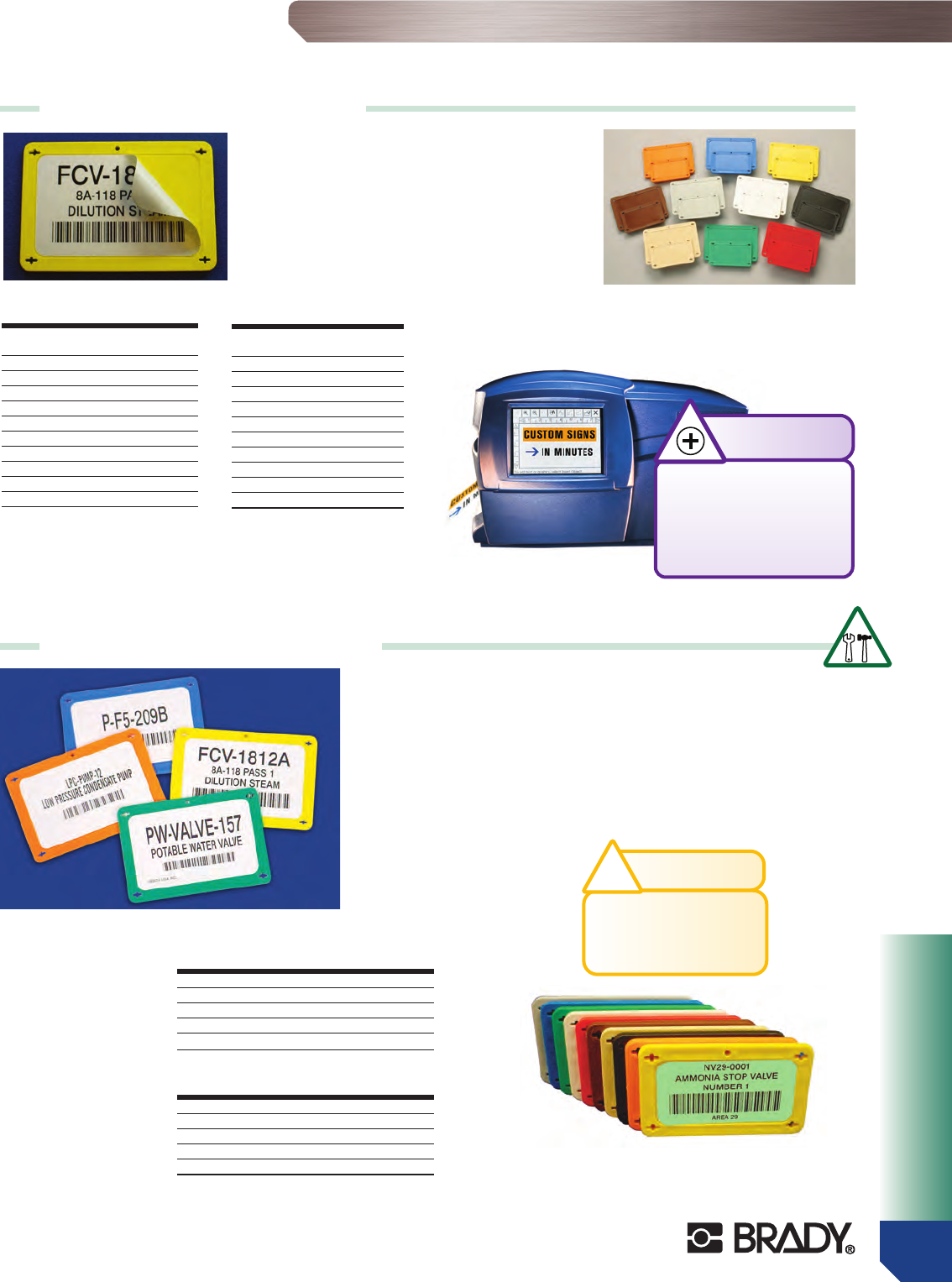

29 Polyester / Polyurethane Tags

30 3-ply Tags / Tag Accessories

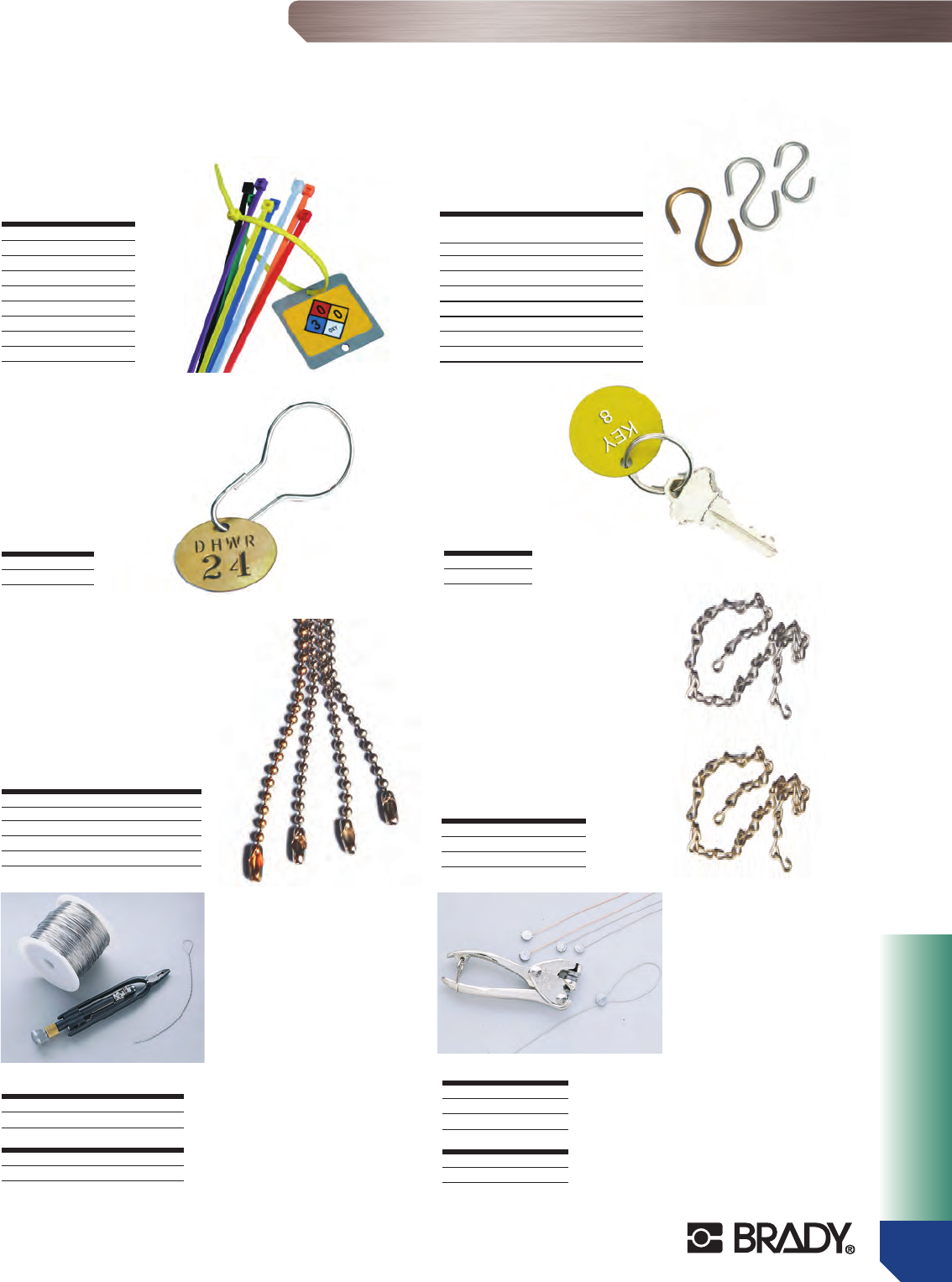

31 Tag Accessories

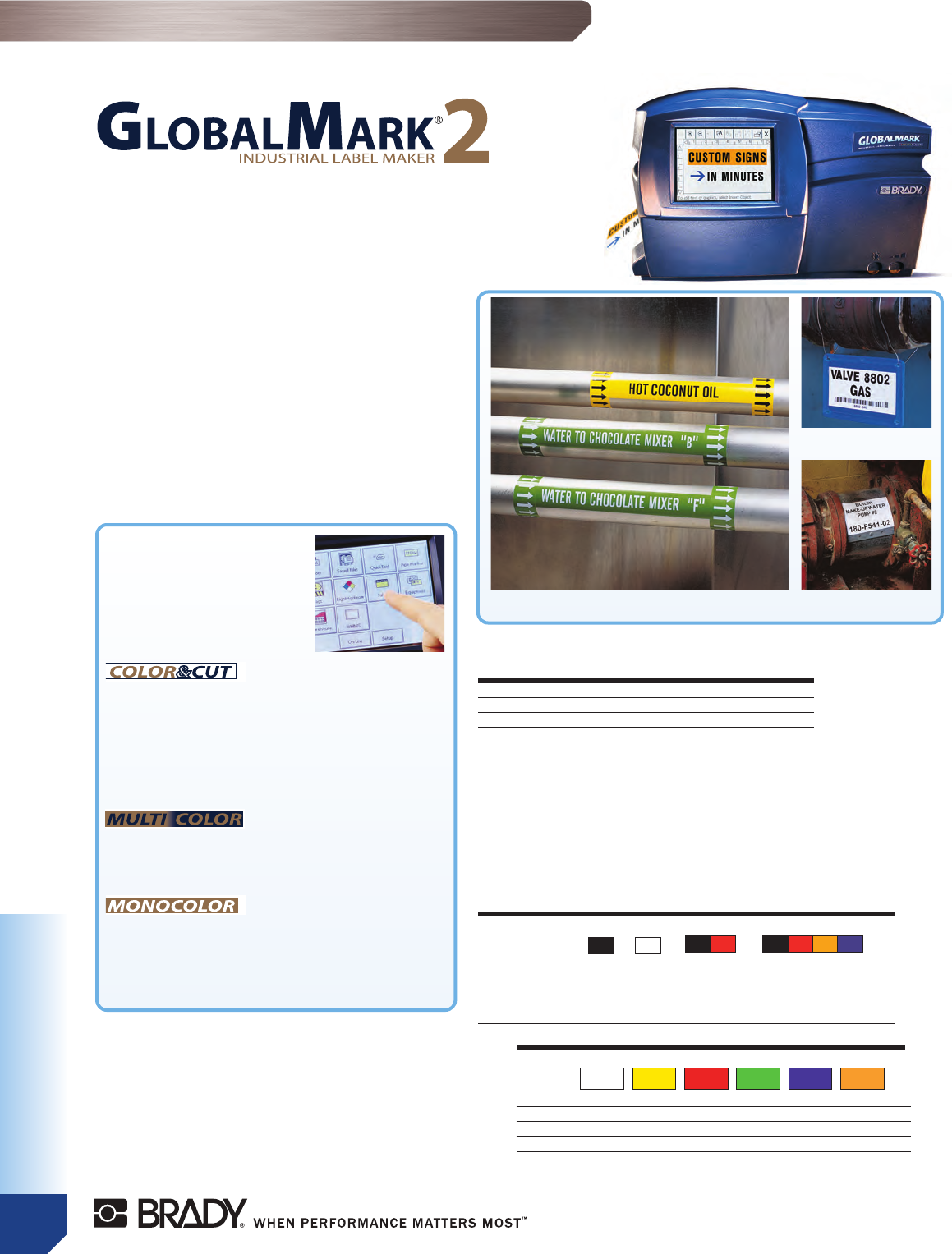

32 GlobalMark®Industrial Label Maker

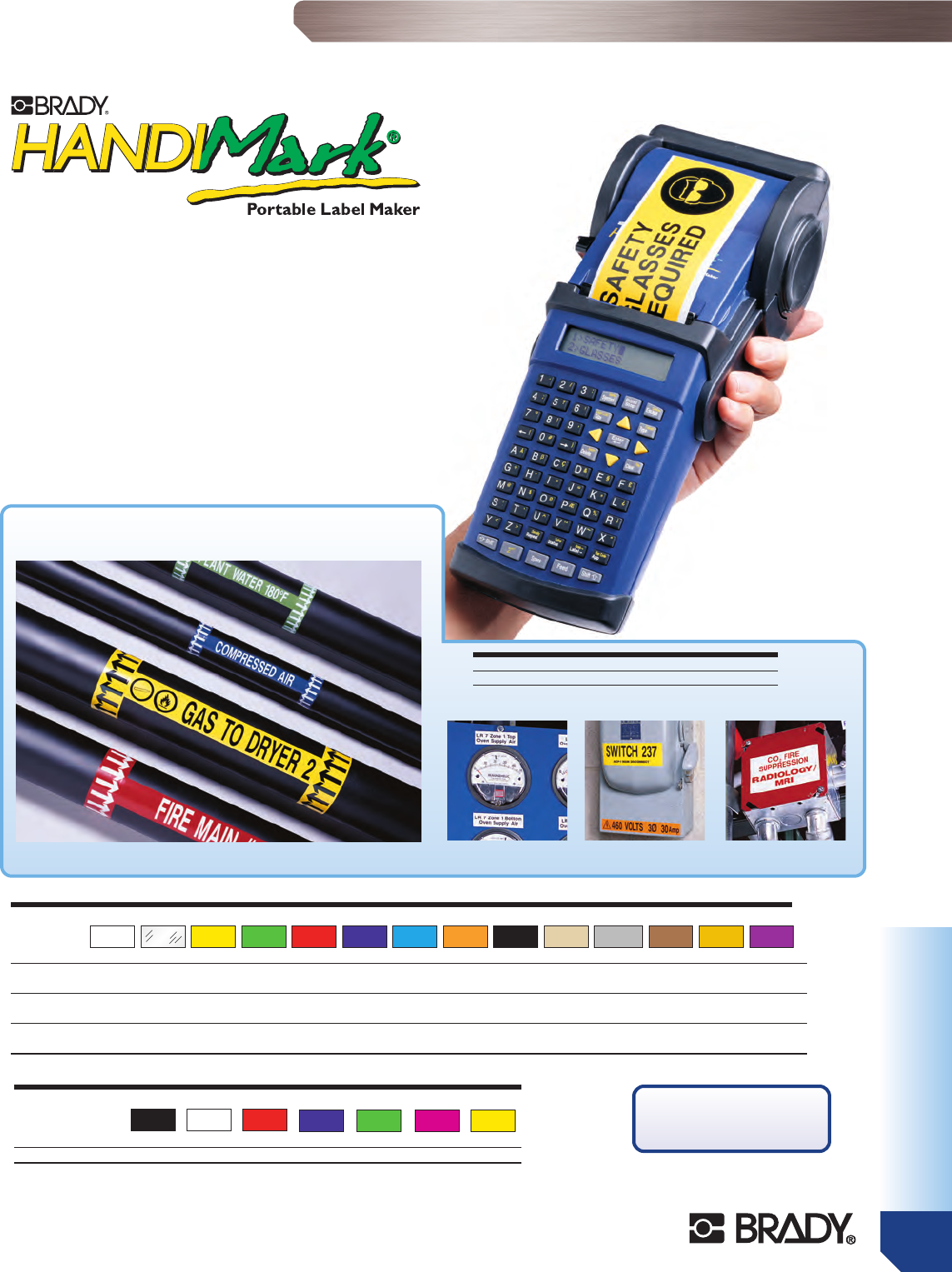

33 HandiMark®Portable Label Maker

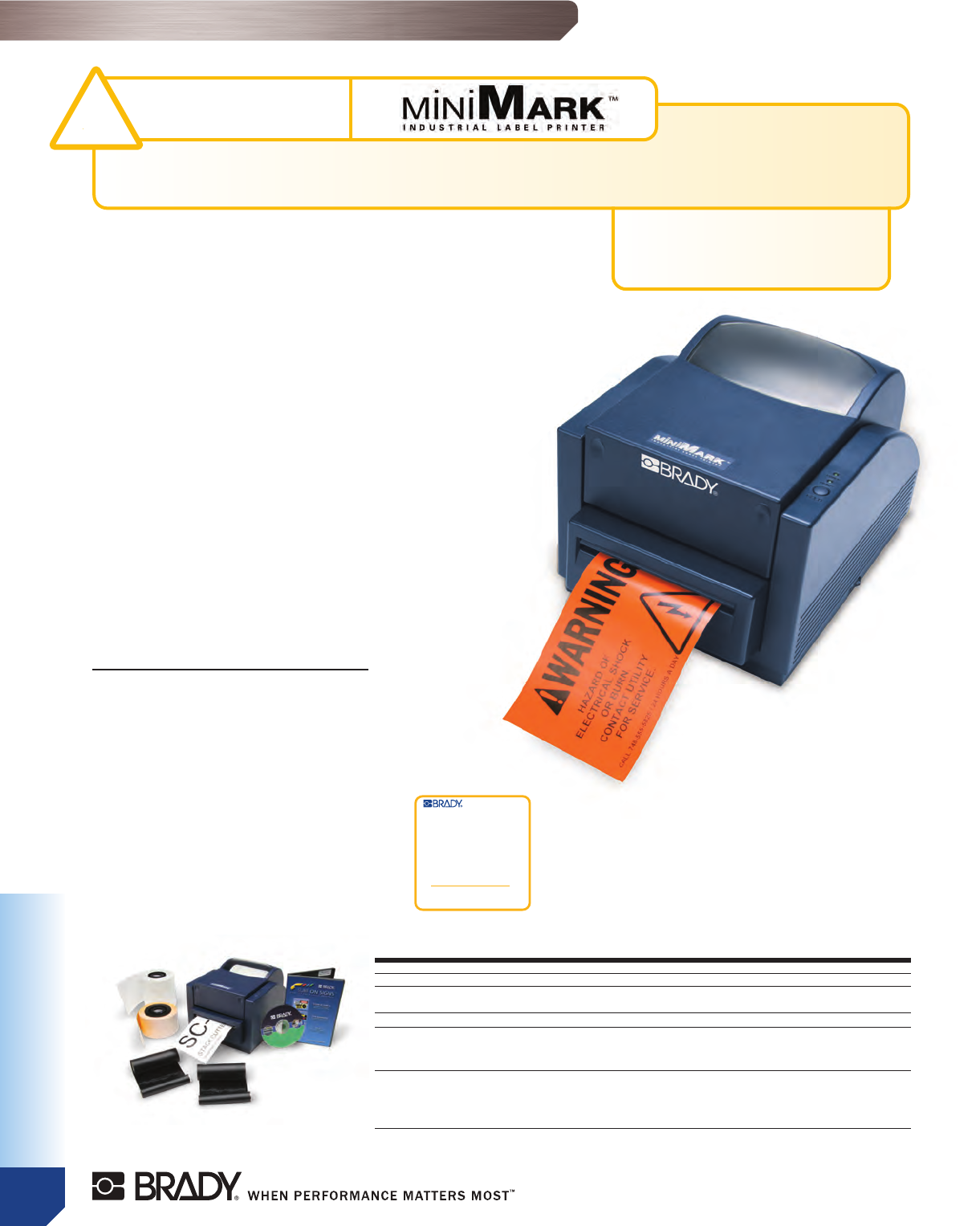

34-35 MiniMarkTM Industrial Label Printer

Pipe Marker Reference Chart

• Comply with ANSI standards with guides for color and

size identification

• Sign includes 4 mounting holes for easy installation

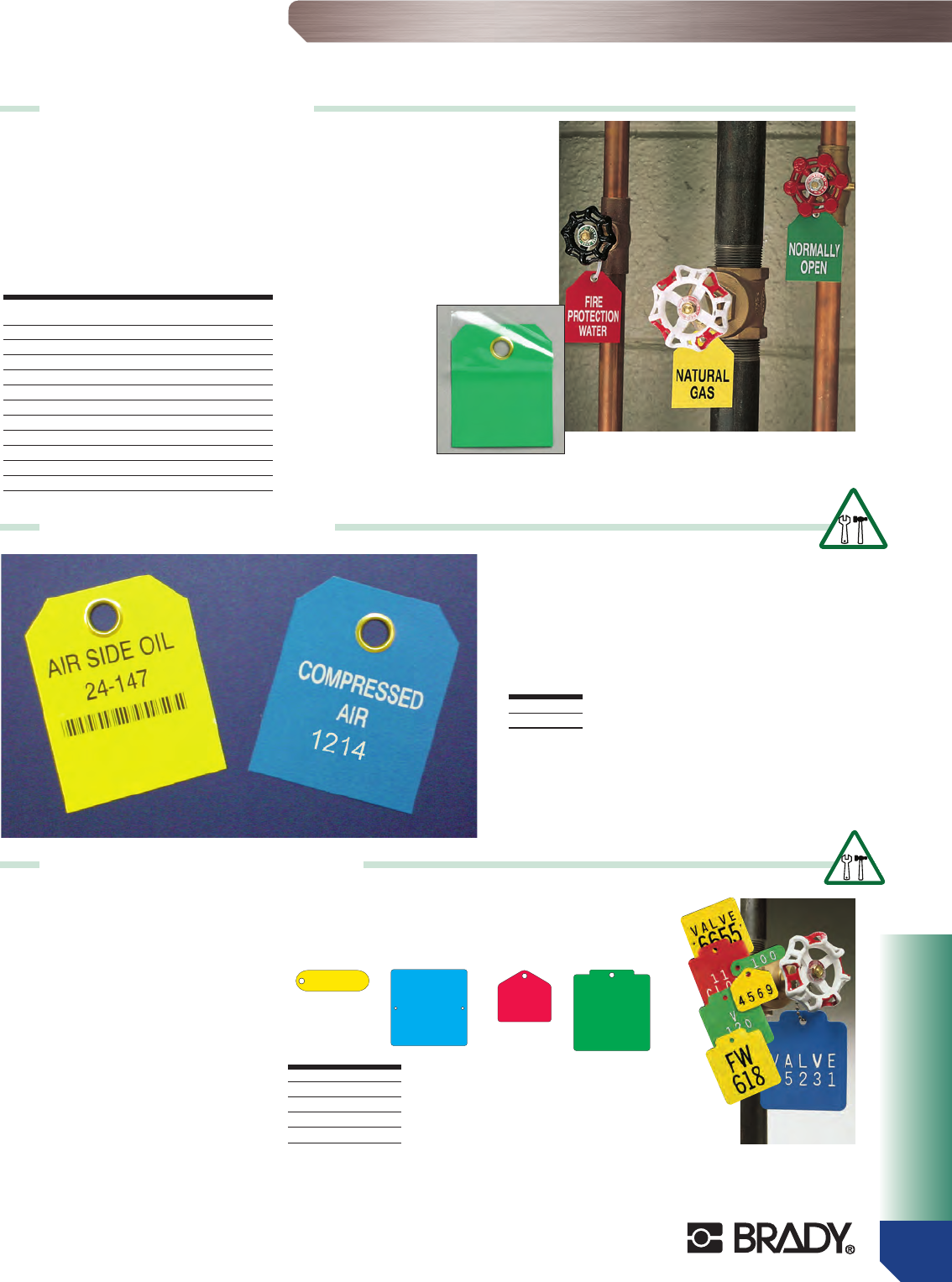

Glo VIP Tags

●Tags are lightweight, non-corrosive, non-conductive and

●Temperatures between -40°F to 260°F

●Bar code options include 3 of 9 or Code 128

●Overlaminate choices include standard or UV resistant

for longer durability

●10 Colors Available

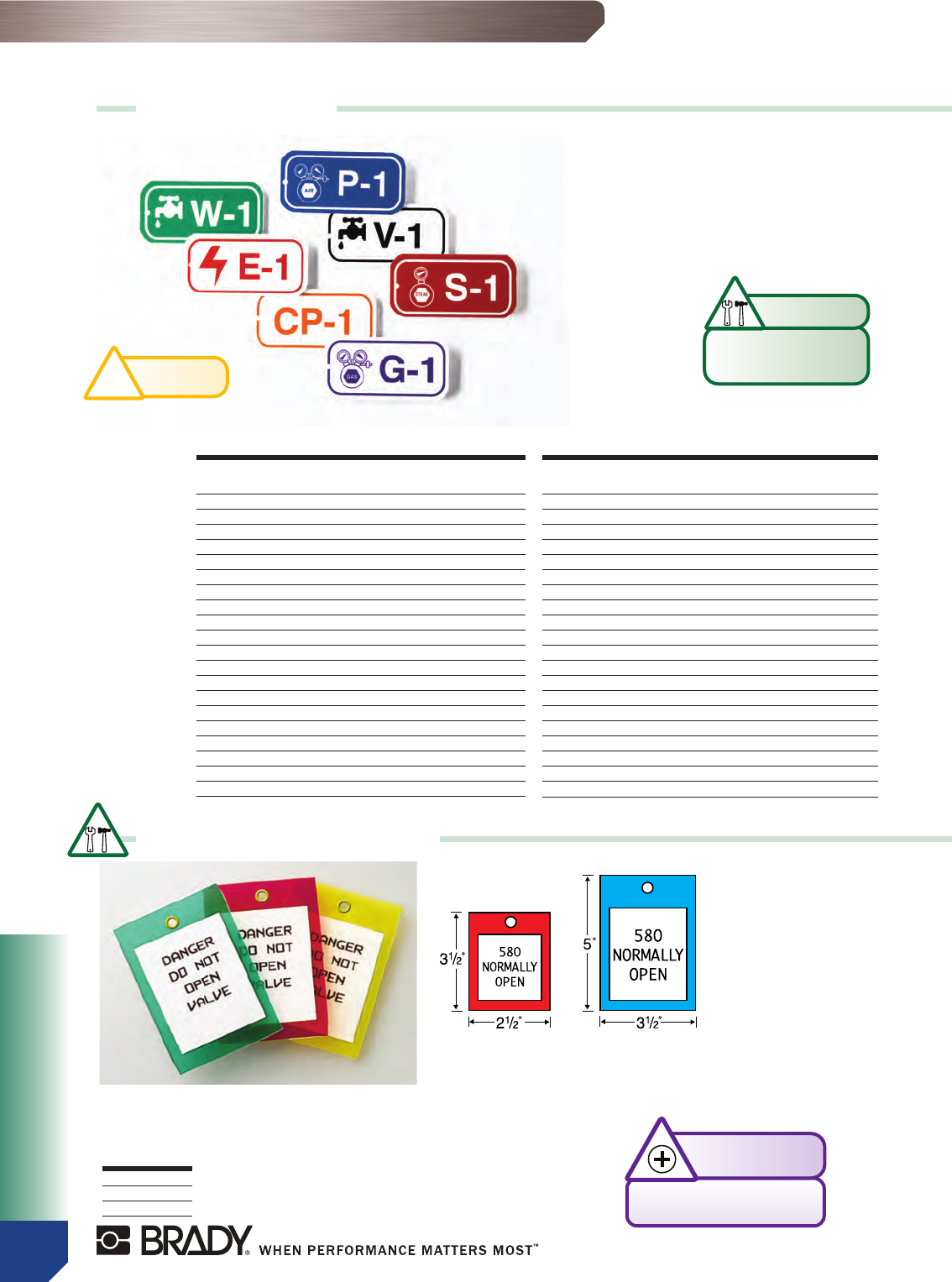

Energy Source Tags

●Tags are constructed with B-401 Plastic

see page 27

see page 28

see page 19

Pipe Markers

ASME (ANSI) Standards

The ASME (ANSI) Standard for pipe identification is a widely used guideline in determining pipe identification requirements. The purpose

of the standard is to “assist in identification of hazardous materials conveyed in piping systems and their hazards when released into the

environment.” “Pipes are defined as conduits for the transport of gases, liquids, semi-liquids or fine particulate dust.”

Brady Pipe Marking Systems Meet the

ASME (ANSI) A13.1-1996 Standard

The Brady Pipe Marking System instantly tells you all you need to know…

pipe contents…direction of flow…whether hazardous or safe.

Brady Pipe Marking Systems Meet the

ASME (ANSI) Size Recommendations

The A13.1-1996 standard also makes recommendations as to the size of

letter height and length of color field for various pipe diameters. These

recommendations are shown in the table.

Brady Pipe Marking Systems Meet ASME

(ANSI) Color Recommendations

Unmarked pipes mean danger – to both life and property. Numerous injuries have

occurred through ignorance of pipe contents, particularly when outside agencies are

called in under emergency conditions.

Outside Diameter

of Pipe or Covering Size of Letters

3⁄4" to 11⁄4"1⁄2"

11⁄2" to 2" 3⁄4"

21⁄2" to 6" 11⁄4"

8" to 10" 21⁄2"

Over 10" 31⁄2"

NOTE: For pipes less than 3⁄4" in diameter,

a permanently legible tag is recommended.

Brady Pipe Marking Systems Meet

the ASME (ANSI) A13.1-1996 Standard

Visibility

“Markers shall be located so that they are readily visible to plant personnel from the point of normal approach.” Brady Pipe Markers instantly

tell you all you need to know about pipe contents, direction of flow and whether hazardous or safe.

Brady Recommendations for Marker Placement

Pipes shall be marked...

Brady offers a full range of services—whether your job is large or small, we can help you with:

●Facility Marking Assessment & Audit Services

A cost-effective solution for anyone who wants to upgrade their identification program, but doesn’t know how or where to start.

●Free Takeoff Service

Based on a drawing takeoff or plant walk-through, Brady can function independently or serve as an extension of

your operations. Simply provide us with a copy of the plan view drawings, the pipe identification specifications and

the insulation schedule. You will receive a comprehensive list of identification products and materials needed

*See page 20 for additional information.

●Turnkey Services

From engineering to installation, responsibility for getting your marking job done right rests with Brady.

Use of high-quality materials provided by Brady, selected and installed by marking professionals in accordance

with your specifications, assures you of a complete, reliable, cost-effective identification system

ASME (ANSI) Standard A13.1-1996

Icon Glossary S-25 04/11/2006

Material Selection

Pipe Markers

www.bradyid.com

HARSH ENVIRONMENT GENERAL PURPOSE

Mechanically Applied Mechanically Applied Self-Sticking

Wrap-Around High Performance B-915 BradySnap-On™ Self-Sticking Self-Sticking

Polyester High Visibility and Strap-On Vinyl Vinyl Plastic Film

Characteristic B-689 (p. 11) B-681/B-883 (p. 11) (p. 10) B-946 (p. 6) B-736 (p. 7)

PLANT ENVIRONMENT

Indoor Good Good Good Good Good

Avg. Outdoor Durability (yrs.) 5-8 5-8 5-8 3-5 2-3

Surface Abrasion Resistance Good Good NR NR NR

TEMPERATURES

Min. Installation Temperature 40˚F, 5˚C —— 0˚F, -18˚C 50°F, 10˚C

Upper Temperature Limit 248˚F, 120˚C 230˚F, 110˚C 180˚F, 82˚C 180˚F, 82˚C 212°F, 100˚C

Lower Temperature Limit -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C

PIPE SURFACE

Dirty, Dusty Good Good Good NR NR

Rough Good Good Good Good NR

Insulated Good Good Good Good Good

Wet Good Good Good NR NR

Greasy, Oily Good Good Good NR NR

CHEMICAL RESISTANCE

Organic Solvents NR NR NR NR NR

(MEK, Acetone, Toluene)

Acids Good Good NR NR Good

(Sulfuric, HCL, Acetic)

Alkalis Good Good NR NR NR

(Sodium Hydroxide)

Alcohols Good Good Good Good Good

(Methanol, Isopropanol)

Grease/Oils Good Good Good Good Good

(SAE 20, ASTM #3)

SPECIAL PROPERTIES

Low PVC

Pipe contact point Yes Yes No No No

Whole marker No Yes No No No

Low Halogen

Pipe contact point Yes Yes No No No

Whole marker No Yes No No No

Meets ASME (ANSI) A13.1 Yes Yes Yes Yes Yes

n/a = data not available NR = marker not recommended for environment listed Good = marker suitable for environment listed

High Performance Pipe Markers

Brady High Performance Markers are designed

for use in harsh environments where there’s

significant exposure to sunlight, heat, and/or

chemicals.

•B-689 High Performance Polyester

PVF overlaminated polyester with sealed-in

graphics. Markers are resistant to abrasion,

chemicals, high humidity, and outdoor

weathering. Supplied precoiled for easy

wrap-around installation on pipes up to

77⁄8" in diameter

•B-681/B-883 High Performance

High Visibility

B-681 labels are factory applied to our

B-883 FRP carrier. Directional arrows

are applied by the installer. Markers are

fastened to the pipe with Stainless Steel

Strapping, sold separately on page 17

Self-Sticking Vinyl Pipe Markers

Factory applied industrial grade adhesives

simplify marker installation. Simply peel the

release coated paper backing from the marker

and press the marker in place. Banding each

end of the marker with Arrow Tape (see page 8) is

recommended to indicate contents flow direction

and to secure markers to the pipe.

•B-946 Self-Sticking Vinyl

A premium indoor/outdoor grade

self-sticking marker product.

•B-736 Plastic Film

An economical roll form marker product

(Pipe Markers-To-Go) designed for use in

less demanding applications.

•B-681 Polyester w/ Protective Over

Laminate

Laminated polyester construction seal in and

protect graphics great for wash-down areas.

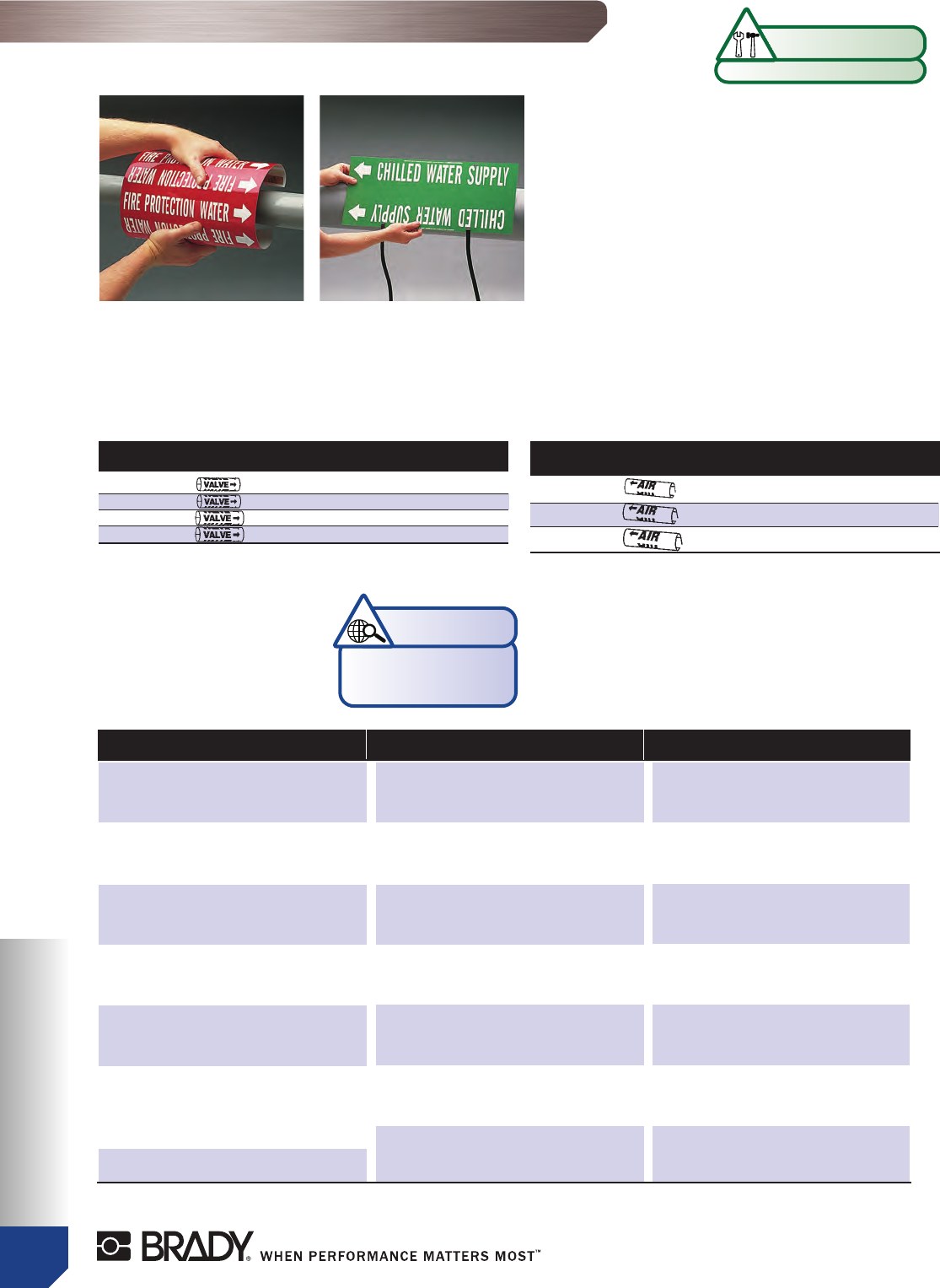

BradySnap-On™and Strap-On Vinyl

Unlike installing self-sticking markers, there’s no

need to clean pipe surfaces. Installation

time is reduced. Markers are simply snapped,

strapped or wrapped in place.

•B-915 BradySnap-On™

and Strap-On Vinyl

A mechanically applied, surface printed

vinyl pipe marker. Snap-ons are used for

pipes less than 6" outside diameter.

Strap-ons are designed for pipes from

6" and greater

Use the chart below to help determine which material best meets your pipe marker application needs.

Pipe Marker Material Descriptions Below are more detailed descriptions of pipe marker materials.

*NEED MATERIAL DATA SPECIFICATION SHEETS? Download technical data sheets from brady online at www.bradyid.com or call our Customer

Service at 1-888-272-3946

Self-Sticking Pipe Markers Mechanically Applied Pipe Markers

Pipe Markers

Self-Sticking Pipe Markers

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

*When ordering, please indicate the catalog number for your desired legend followed by the Order Style

(1HV, 1, 4 or 3C) that corresponds with your desired size and style. (example Acetone = 7000 - 3C)

• Markers meet the requirements of the ASME (ANSI) A13.1 Standard for the

identification of piping system contents when used with Directional Flow

Arrow Tape (sold separately pg. 8)

• Durable B-946 material ideal for indoor and outdoor environments

• Markers supplied on a coated backing material that makes handling and

installation easy

• Marker ends should be banded with Brady Directional Flow Arrow Tape

(sold separately on page 8) to indicate pipe content flow direction

• Available in four styles

• Choose from more than 200 stock legends or customize your own

• For a complete legend list, visit www.bradyid.com

Self-Sticking Vinyl Pipe Markers, made with durable

B-946 material, are excellent for both indoor and out-

door use.

Outside Letter Order

Diameter Height Style Description Style*

8" or greater 31⁄2" Style 1HV: One 4" x 24" 1HV

marker per card

21⁄2" to 77⁄8" 2" Style 1: One 21⁄4" x 14" marker per card 1

3⁄4" to 23⁄8"3⁄4" Style 4: Four 11⁄8" x 7" markers per card 4

less than 3⁄4"1⁄2" Style 3C: Three 21⁄4" x 23⁄4" markers 3C

per card plus 8 strips of Arrow Tape

Size Chart

Spanish Legends

AIR Yellow 7005 –*

AIR Blue 7006 –*

AIR Green 7007 –*

AIR SUPPLY Blue 7010 –*

AMMONIA Yellow 7014 –*

ARGON Green 7015 –*

ASBESTOS FREE Blue 7017 –*

ASBESTOS FREE INSULATION Blue 7018 –*

ASBESTOS INSULATION Yellow 7019 –*

BLANK Yellow 7025 –*

CHILLED WATER Green 7045 –*

CHILLED WATER RETURN Green 7046 –*

CHILLED WATER SUPPLY Green 7047 –*

CITY WATER Green 7054 –*

COLD WATER Green 7055 –*

COMPRESSED AIR Yellow 7058 –*

COMPRESSED AIR Green 7059 –*

COMPRESSED AIR Blue 7060 –*

CONDENSATE Yellow 7061 –*

CONDENSATE DRAIN Yellow 7062 –*

CONDENSATE DRAIN Green 7063 –*

CONDENSATE RETURN Yellow 7065 –*

CONDENSER WATER Green 7067 –*

CONDENSER

WATER RETURN Green 7068 –*

CONDENSER

WATER SUPPLY Green 7069 –*

COOLING WATER Green 7070 –*

COOLING WATER RETURN Green 7071 –*

DEIONIZED WATER Green 7073 –*

DOMESTIC COLD WATER Green 7084 –*

DOMESTIC COLD

WATER SUPPLY Green 7086 –*

DOMESTIC HOT WATER Yellow 7087 –*

DOMESTIC HOT

WATER RETURN Yellow 7088 –*

DOMESTIC HOT

WATER SUPPLY Yellow 7089 –*

DRAIN Green 7090 –*

FIRE AUTO SPRINKLERS Red 7107 –*

FIRE PROTECTION WATER Red 7110 –*

FUEL OIL Yellow 7115 –*

GAS Yellow 7119 –*

GLYCOL Yellow 7121 –*

GLYCOL RETURN Yellow 7122 –*

GLYCOL SUPPLY Yellow 7123 –*

HEATING RETURN Yellow 7125 –*

HEATING SUPPLY Yellow 7127 –*

HEATING WATER Yellow 7128 –*

HEATING WATER RETURN Yellow 7129 –*

HEATING WATER SUPPLY Yellow 7130 –*

HIGH PRESSURE

CONDENSATE Yellow 7137 –*

HOT WATER Yellow 7146 –*

HOT WATER

RECIRCULATION Yellow 7147 –*

HOT WATER RETURN Yellow 7148 –*

HOT WATER SUPPLY Yellow 7149 –*

INDUSTRIAL WATER Green 7163 –*

LOW PRESSURE

CONDENSATE Yellow 7175 –*

LOW PRESSURE STEAM Yellow 7179–*

MEDICAL AIR Yellow 7184 – *

MEDICAL VACUUM White 7186 – *

MEDIUM PRESSURE

NATURAL GAS Yellow 7190–*

NATURAL GAS Yellow 7196–*

NITROGEN Green 7198–*

NITROGEN Blue 7200–*

NON-POTABLE WATER Yellow 7203 –*

OVERFLOW Yellow 7208–*

OXYGEN Green 7210–*

OXYGEN Yellow 7209–*

PLANT AIR Yellow 7212–*

POTABLE WATER Yellow 7218–*

PROCESS WATER Green 7224–*

PROPANE GAS Yellow 7227–*

RAIN WATER Green 7229–*

REFRIGERANT LIQUID Yellow 7235–*

RETURN Green 7242–*

RETURN Yellow 7244–*

ROOF DRAIN Green 7247–*

SANITARY SEWER Green 7250 –*

SANITARY SEWER Yellow 7251 –*

SANITARY VENT Yellow 7252 –*

SANITARY WASTE Yellow 7253–*

SPRINKLER Red 7267–*

SPRINKLER FIRE Red 7268–*

SPRINKLER WATER Red 7269–*

STEAM Yellow 7270 –*

STORM DRAIN Green 7273–*

STORM SEWER Green 7274 –*

SUPPLY Green 7282–*

SUPPLY Yellow 7311 –*

TEMPERED WATER Yellow 7283–*

TOWER WATER Green 7285–*

VACUUM Yellow 7291–*

VACUUM Green 7292 –*

VENT Yellow 7295–*

VENT Green 7296–*

WASTE Yellow 7298–*

WASTE Green 7299–*

WATER Yellow 7303 –*

WATER Green 7304–*

Icon Glossary S-25 04/11/2006

Customize It

Custom Self-Sticking Vinyl Pipemarkers are also

available. NO minimum order: Orders shipped in 24

hours. STANDARD COLOR OPTIONS: Legend Colors:

Black, White. Background Colors: Yellow, Green, Red,

Blue, White, Orange, Gray, Purple, Brown.

(See custom order form found on page 19)

Background Style

Legend Color 1HV 1 4 3C

Background Style

Legend Color 1HV 1 4 3C

AGUA Green 83596 83540 83576 83615

AGUA DE REFRIGERACION Green 83484 83424 83460

AGUA FRIA Green 83451 83418 83453 83498

AGUA POTABLE Yellow 83522 83558

AGUA REFRIGERADA Green 83477 83414 83449

AGUA PROTEC. PAPA INCENDIOS Red 83430 83466

AIRE Blue 83400 83436

AIRE COMPRIMIDO Blue 83421 83456 83501

AIRE USO MEDICO Yellow 83514 83550 83599

CAUSTICA Yellow 83413 83448 83496

DESAGUE SANITARIO Green 83589 83527 83563

GAS Yellow 83489 83432 83468 83501

GAS NATURAL Yellow 83585 83517 83553 83601

HIDROGENO Yellow 83510 83545 83598

OXIGENO Green 83520 83556 83604

RESPIRADERO Yellow 83537 83573 83612

RETORNO DE AGUA REFRIGERADA Green 83478 83415 83450

SUMINISTRO AGUA REFRIGERADA Green 83479 83416 83451

VACIO USO MEDICO White 83515 83551 83600

VAPOR Yellow 83590 83530 83566 83607

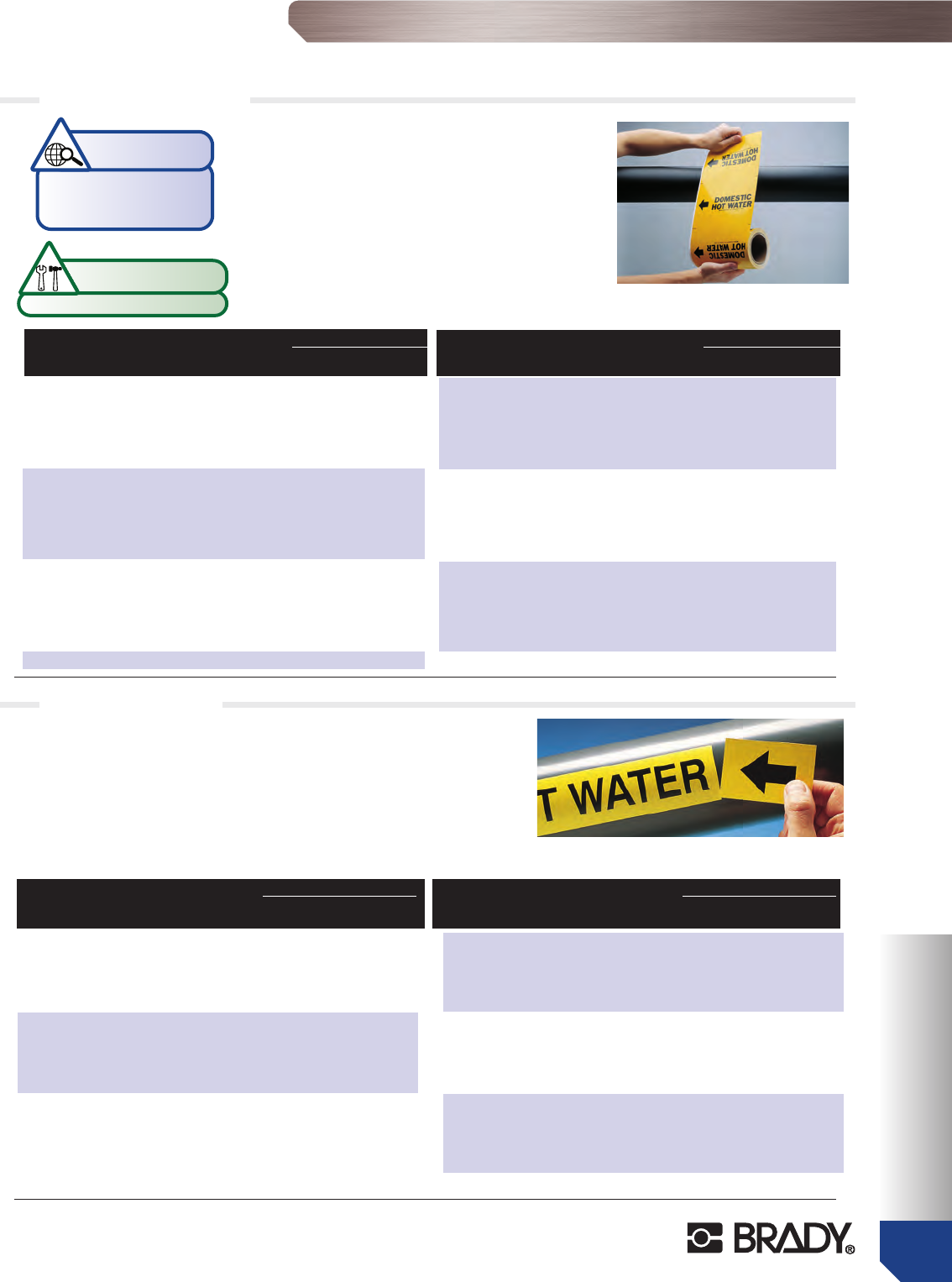

Roll Form / Pipe Markers To-Go

Pipe Markers

www.bradyid.com

●Eliminates need for precise measurement of pipe diameter --

simply cut to the size you need from 30' long roll

●B-946 material adheres to itself for easy

wrap-around marker installation

●Legend repeats 65 times per roll

●Choose from more than 75 stock legends

(go to www.bradyid.com for all legends)

or customize your own legend

●Available in both 8" and 12" widths

Roll Form Pipe Markers wrap around

the pipe and adhere to themselves.

Catalog Numbers

Legend/ Size Size

Legend Background 8" x 30 ft. 12" x 30 ft.

Catalog Numbers

Legend/ Size Size

Legend Background 8" x 30 ft. 12" x 30 ft.

Icon Glossary S-25 04/11/2006

There’s More Online

Log on for all available

legends or see our full line

catalog.

www.bradyid.com

Icon Glossary S-25 04/11/2006

Customize It

Custom order form on pg 19

Blank Yellow 41596 15505

Blank Green 41597 15506

Blank Blue 41598 15507

Blank Red 41599 15508

Blank (With Arrow) Black/Yellow 41532 15509

ASBESTOS FREE White/Blue 41593 15502

CHILLED WATER White/Green 41518 15517

CITY WATER White/Green 41522 15522

COLD WATER White/Green 41512 15523

COMPRESSED AIR Black/Yellow 41455 15535

COMPRESSED AIR White/Blue 41456 15536

CONDENSATE Black/Yellow 41521 15524

COOLING WATER White/Green 41457 15537

DOMESTIC COLD WATER White/Green 41458 15538

DOMESTIC HOT WATER Black/Yellow 41459 15539

FIRE AUTO SPRINKLERS White/Red 41461 15541

FIRE PROTECTION WATER White/Red 41462 15542

GAS Black/Yellow 41464 15544

HIGH PRESSURE STEAM Black/Yellow 41519 15534

HOT WATER Black/Yellow 41510 15545

HOT WATER RETURN Black/Yellow 41465 15582

HOT WATER SUPPLY Black/Yellow 41466 15583

LOW PRESSURE STEAM Black/Yellow 41520 15550

NATURAL GAS Black/Yellow 41511 15556

POTABLE WATER White/Green 41472 15589

RETURN Black/Yellow 41514 15561

SANITARY SEWER Black/Yellow 41474 15591

STEAM Black/Yellow 41513 15567

SUPPLY Black/Yellow 41516 15571

VACUUM Black/Yellow 41479 15596

WASTE WATER Black/Yellow 41586 15576

___ LB STEAM Black/Yellow 41483 15600

Roll Form Pipe Markers

Pipe Markers-To-Go

Catalog Numbers

Marker Size Marker Size

Legend Background 1" x 8" 2" x 12"

Catalog Numbers

Marker Size Marker Size

Legend Background 1" x 8" 2" x 12"

● Made of economical B-736 surface printed plastic for use on smooth, clean, dry pipe surfaces

● Markers withstand temperatures from -40°F to 212°F

● Supplied in rolls of 25 identical markers and matching arrows

● Arrows may be applied to indicate flow in either direction

● Choose from nearly 90 stock legends (go to www.bradyid.com for all legends)

● Ideal for on-the-spot repair or replacement of damaged or missing markers Each Pipe Marker-To-Go legend comes with a perforated flow

arrow making it easy to indicate flow direction.

AIR Blue 20401 73861

CHILLED WATER RETURN Green 20408 73868

CHILLED WATER SUPPLY Green 20409 73869

CITY WATER Green 20411 73871

COLD WATER Green 20412 73872

COMPRESSED AIR Blue 20415 73875

COMPRESSED AIR Yellow 20416 73877

CONDENSATE Yellow 20417 73878

CONDENSER WATER RETURN Green 20421 73882

CONDENSER WATER SUPPLY Green 20422 73883

DOMESTIC COLD WATER Green 20425 73886

DOMESTIC HOT WATER Yellow 20426 73887

FUEL OIL Yellow 20431 73892

GLYCOL Yellow 20433 73894

HEATING RETURN Yellow 20435 73896

HEATING SUPPLY Yellow 20436 73897

HOT WATER Yellow 20440 73901

HOT WATER RETURN Yellow 20441 73902

HOT WATER SUPPLY Yellow 20442 73903

NATURAL GAS Yellow 20449 73910

NITROGEN Green 20450 73911

NON-POTABLE WATER Yellow 20452 73913

POTABLE WATER Green 20456 73917

PROPANE GAS Yellow 20457 73918

SPRINKLER FIRE Red 20466 73927

STEAM Yellow 20468 73929

WASTE WATER Green 20480 73941

WATER Green 20481 73942

ARROW Yellow 20487 73948

ARROW Green 20488 73949

ARROW Blue 20489 73950

ARROW Red 20490 73951

Background/

Arrow Color Single Double Single Double Single Double

Yellow/Black 93390 93391 76507 76514 93242 93243

Blue/White 93392 76502 76509 93247 93248

Red/White 93394 93395 76505 76512 93252

Green/White 93396 93397 76503 76510 93257 93258

Orange/Black 76504 93262

White/Black 76506 93267

Aluminum/Black 76501 93272

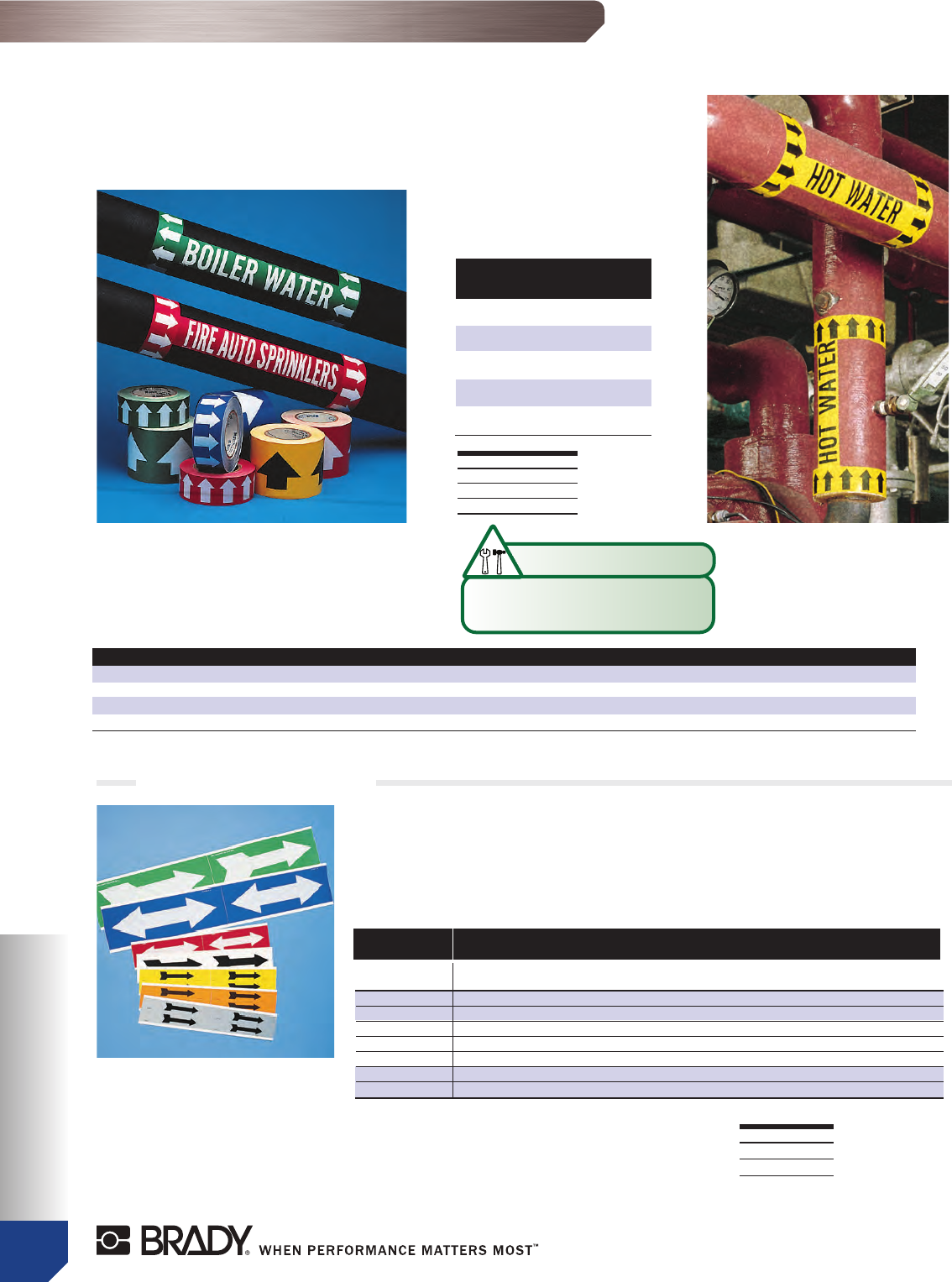

Pipe Markers

Arrow Tape

Self Sticking Vinyl Arrows

• Durable B-946 material withstands the elements indoors or out

• Provides 360° visibility

• Supplied in liner-mounted rolled form - use two bands per marker

• Three roll widths available in your choice of nine color combinations

• Mounted on easy-to-use dispenser cards

• Durable B-946 material withstands the elements indoors or out

• Three styles/sizes available to meet various pipe diameters

• Choose from single or double arrow legends in your choice of seven color combinations

Use Self-Sticking Vinyl Arrows

along with Pipe Markers to identify

directional flow of pipe contents.

Banding pipes with Directional Flow Arrow Tape can

enhance safety and improve operating efficiency.

Roll Calculation Guide

Use to determine the number of

rolls of Arrow or Banding Tape

required for your job.

Number of

Pipe Color Bands

Diameter Per Roll

1" 260

2" 150

3" 100

4" 80

5" 60

6" 50

7" 40

8" 35

9" 30

10" 30

Secure Self-Sticking Vinyl Pipe

Markers with Arrow Tape to

identify flow direction and

reinforce color coding.

Self-Sticking Arrows Material B-946

Pipe Diameter Over 6" – Style 2HV 3" or greater – Style 2 1" to 21⁄2" – Style 4

Two 4" x 12" Markers/Card Two 21⁄4" x 7" Markers/Card Four 11⁄8" x 7" Markers/Card

B-946 Catalog Numbers

Icon Glossary S-25 04/11/2006

Customize It

Description

Style 1HV, 2HV

1, 2, 4, 3C

Description

1" x 30 yds

2" x 30 yds

4" x 30 yds

Custom Arrow Tape colors and sizes

are also available. Contact your local

Brady Distributor for more information.

Roll Size Black/Yellow White/Green White/Red White/Blue Black/Green Black/White Black/Orange Black/Gray Arrows Per Roll

1" x 30 yds 91424 91425 91426 91427 91412 91413 91414 91415 1440

2" x 30 yds 91420 91421 91422 91423 91416 91417 91418 91419 720

4" x 30 yds 91287 91290 91288 91289 91408 91409 91410 91411 270

Pipe Banding Tape

Pipe Markers

www.bradyid.com

◗Stock Economy Pipe Banding Tape

• B-88 self-wound, non-printable plastic backed cloth tape

• Three roll widths available in your choice of eight colors

◗Solid Color Pipe Banding Tape

• Durable B-946 material withstands the elements indoors or out

• Provides 360° visibility

• Meets ASME color field size recommendation when used in

combination with worded legends and directional flow arrows

• Supplied in liner-mounted rolled form

• Three roll widths available in your choice of 11 colors

• Use two bands per marker

Roll Calculation Guide

Use to determine the number of

rolls of Arrow or Banding Tape

required for your job.

Number of

Pipe Color Bands

Diameter Per Roll

1" 260

2" 150

3" 100

4" 80

5" 60

6" 50

7" 40

8" 35

9" 30

10" 30

Solid Color Pipe Banding Tape

provides 360° visibility to improve

safety and operational efficiency.

Stock Economy Pipe Banding Tape

is ideal for use in indoor color

coding applications.

B-88 Catalog Numbers

B-946 Catalog Numbers

◗ISO 14726 Pipe Banding Tape

• Help reduce accidents and damage to machinery

• Provides 360˚ visibility

• ISO14726 Marine Standard defines the principle colors for

identifying pipes - each color indicates a certain gauge of substances

◗Reflective Pipe Banding Tape

• Increase night time visibility throughout your facility

• 5 mil vinyl, that with stands temperature of -40˚ to +180˚

• Exceeds Federal Spec. C-S-300, Class I and FP-79 type II

ISO 14726 Pipe Banding Tape Catalog Numbers

Reflective Catalog Numbers

Icon Glossary S-25 04/11/2006

NEW

Icon Glossary S-25 04/11/2006

NEW

Roll Size Yellow Green Red Blue Orange White

1" 105976 105973 105974 105972 105971 105975

2" 105982 105979 105980 105978 105977 105981

4" 105988 105985 105986 105984 105983 105987

Roll Size Yellow Green Red Blue Aluminum White Black Brown

1" x 60 yds 80175 80176 80177 80178 80179 80181 80182 80183

2" x 60 yds 80184 80185 80186 80187 80188 80190 80191 80192

4" x 60 yds 80193 80194 80195 80196 80197 80198 80199 80200

Roll Size Yellow Green Red Blue Orange Brown Gray Purple Maroon Silver

1" 105561 105554 105560 105552 105558 105553 105555 105556 105557 105559

2" 105571 105564 105570 105562 105568 105563 105565 105566 105567 105569

4" 105581 105574 105580 105572 105578 105573 105575 105576 105577 105579

Roll Size Yellow Green Red Blue Orange White Brown Black Gray Purple Clear

1" x 30 yds 36301 36304 36302 36303 91428 91429 36305 36306 36307 36308 36309

2" x 30 yds 55260 55263 55261 55262 91430 91431 36310 36311 36312 36313 36314

4" x 30 yds 36287 36290 36288 36289 91432 91433 36315 36316 36317 36318 36319

Icon Glossary S-25 04/11/2006

Customize It

Custom order form on pg 19

Pipe Markers

BradySnap-OnTM / Strap-on Markers

AIR Green 4001 – *

AIR Blue 4002 – *

AIR Yellow 4003 – *

ARGON Blue 4162 – *

ARGON Green 4006 – *

ASBESTOS FREE Blue 4007 – *

(BLANK) Yellow 4010-A

(BLANK) Red 4012-A

CARBON DIOXIDE Yellow 4019 – *

CAUSTIC Yellow 4020 – *

CHILLED WATER Green 4022 – *

CHILLED WATER RETURN Green 4023 – *

CHILLED WATER SUPPLY Green 4024 – *

CITY WATER Green 4028 – *

COLD WATER Green 4029 – *

COMPRESSED AIR Yellow 4032 – *

COMPRESSED AIR Green 4033 – *

COMPRESSED AIR Blue 4034 – *

CONDENSATE Yellow 4035 – *

CONDENSATE DRAIN Yellow 4036 – *

CONDENSATE RETURN Yellow 4037 – *

COOLING WATER RETURN Green 4043 – *

COOLING WATER SUPPLY Green 4044 – *

DEIONIZED WATER Green 4046 – *

DEIONIZED WATER RETURN Green 4172 – *

DEIONIZED WATER SUPPLY Green 4173 – *

DOMESTIC COLD WATER Green 4048 – *

DOMESTIC COLD

WATER SUPPLY Green 4050 – *

DOMESTIC HOT WATER Yellow 4051 – *

DOMESTIC HOT

WATER RETURN Yellow 4052 – *

DOMESTIC HOT

WATER SUPPLY Yellow 4053 – *

DRAIN Green 4055 – *

FIRE AUTO SPRINKLERS Red 4059 – *

FIRE MAIN Red 4185 – *

FIRE PROTECTION WATER Red 4060 – *

FUEL OIL RETURN Yellow 4064 – *

FUEL OIL SUPPLY Yellow 4065 – *

GAS Yellow 4067 – *

HEATING RETURN Yellow 4070 – *

HEATING SUPPLY Yellow 4071 – *

HEATING WATER RETURN Yellow 4072 – *

HEATING WATER SUPPLY Yellow 4073 – *

HELIUM Green 4074 – *

HIGH PRESSURE AIR Yellow 4075 – *

HIGH PRESSURE CONDENSATE Yellow 4076 – *

HIGH PRESSURE STEAM Yellow 4077 – *

HIGH PRESSURE WATER Yellow 4078 – *

HOT Yellow 4197 – *

HOT WATER Yellow 4079 – *

HOT WATER RETURN Yellow 4081 – *

HOT WATER SUPPLY Yellow 4082 – *

HYDRAULIC LINE Yellow 4083 – *

HYDRAULIC OIL Yellow 4199 – *

HYDROCHLORIC ACID Yellow 4085 – *

HYDROGEN Yellow 4086 – *

INSTRUMENT AIR Blue 4089 – *

LAB VENT Yellow 4225 – *

LAB WASTE Yellow 4226 – *

LOW PRESSURE CONDENSATE Yellow 4091 – *

LOW PRESSURE STEAM Yellow 4092 – *

NATURAL GAS Yellow 4097 – *

NITRIC ACID Yellow 4247 – *

NITROGEN Yellow 4098 – *

NITROGEN Green 4099 – *

NITROGEN Blue 4100 – *

NON-POTABLE WATER Yellow 4102 – *

OILYellow 4103 – *

OXYGEN Yellow 4105 – *

OXYGEN Green 4106 – *

OXYGEN Blue 4107 – *

PLANT AIR Yellow 4108 – *

PLUMBING VENT Green 4110 – *

POTABLE WATER Green 4111 – *

PROCESS WATER Green 4113 – *

PROPANE GAS Yellow 4114 – *

RETURN Yellow 4119 – *

ROOF DRAIN Green 4121 – *

SANITARY DRAIN Green 4122 – *

SANITARY SEWER Green 4123 – *

SERVICE WATER Green 4270 – *

SODIUM HYPOCHLORITE Yellow 4124 – *

SPRINKLER FIRE Red 4127 – *

SPRINKLER WATER Red 4128 – *

STEAM Yellow 4129 – *

STORM DRAIN Green 4132 – *

STORM WATER Green 4134 – *

SULFURIC ACID Yellow 4136 – *

TEMPERED WATER Yellow 4140 – *

TOWER WATER RETURN Green 4143 – *

VACUUM Yellow 4146 – *

VACUUM Green 4147 – *

VENT Yellow 4148 – *

VENT Green 4150 – *

WARM WATER Green 4280 – *

WASTE Yellow 4151 – *

WASTE WATER Yellow 4152 – *

WASTE WATER Green 4153 – *

WATER Green 4155 – *

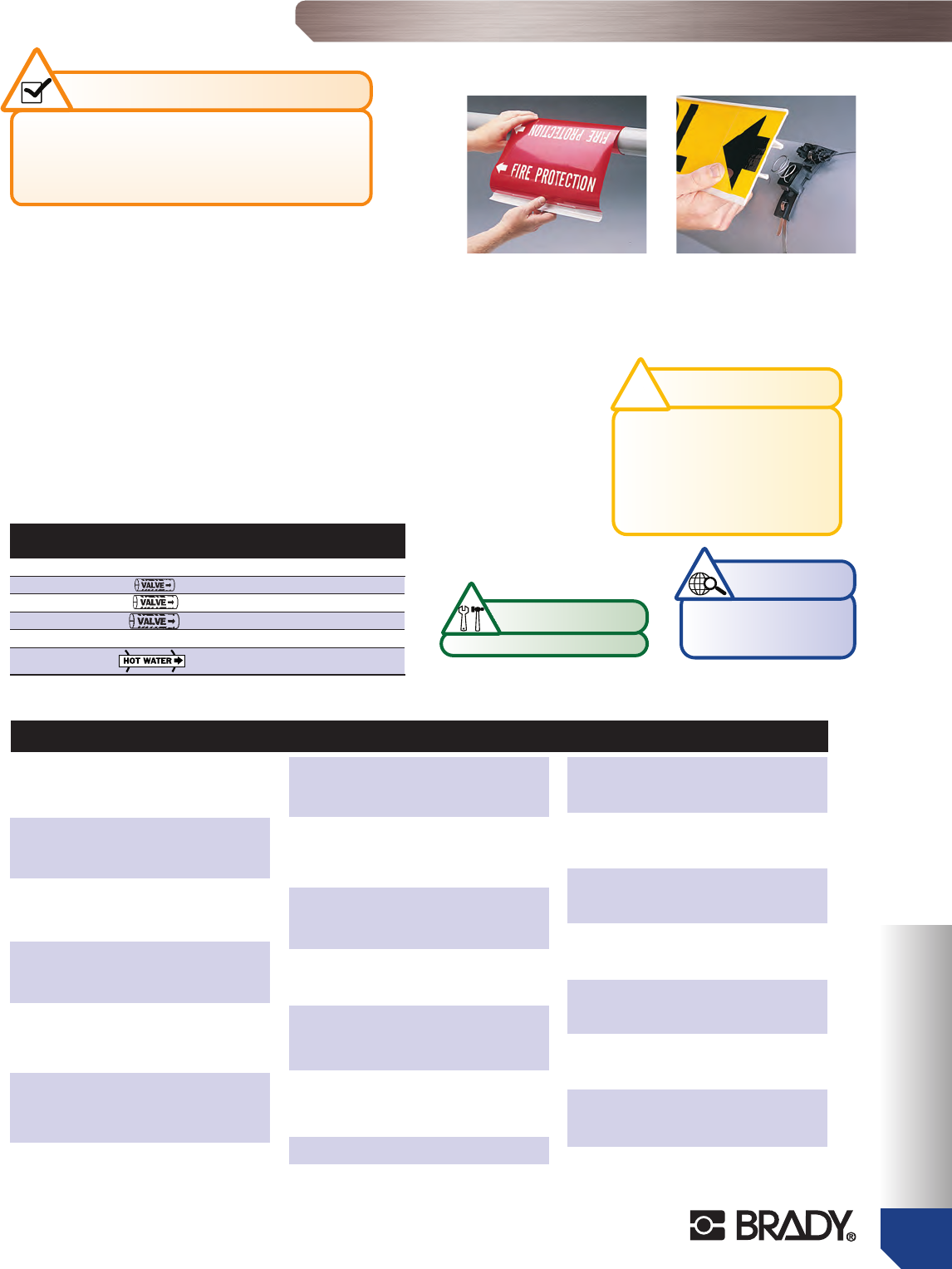

◗BradySnap-OnTM / Strap-on Pipe Markers

• Designed for pipes that have an outside diameter between 3⁄4" and 15"

(including insulation)

• Ideal for indoor or outdoor use

• May be applied to dirty, oily, greasy or rough surfaces

• Installs quickly and easily in older facilities or new construction

• 360˚ visibility

• All stock BradySnap-On™ / Strap-On markers meet ASME (ANSI) Standard

• Can be removed and reapplied in other areas

• Choose from more than 150 stock legends or create your own

custom legend

• For a complete legend list visit www.bradyid.com

BradySnap-On™ Vinyl Pipe

Markers are designed for general

purpose pipe identification on

pipes that have an outside diam-

eter between 3⁄4" and 6".

Outside Letter Style Order

Diameter Height Description Style*

6" to 77⁄8" 11⁄4" Style F F

8" to 97⁄8" 21⁄2" Style G G

10" to 15" 31⁄2" Style H H

Strap-On Style Marker Size Chart

Outside Letter Style Order

Diameter Height Description Style*

3⁄4" to 13⁄8"1⁄2" Style A A

11⁄2" to 23⁄8"3⁄4" Style B B

21⁄2" to 37⁄8" 11⁄4" Style C C

4" to 6" 11⁄4" Style D D

BradySnap-OnTM Markers Size Chart

Strap-On Pipe Markers are

designed for general purpose pipe

identification on pipes that have a

6" or larger diameter.

Icon Glossary S-25 04/11/2006

Customize It

Custom order form on pg 19

• Designed for pipes that have an outside diameter between 3⁄4" and

6" (including insulation)

• Coiled plastic is lightweight and durable

• Supplied as a flat sheet with slots to accommodate BradyLock™

Fastener straps. Styles F - H come with nylon straps to fit the

specified pipe diameter.

• Designed for pipes that have an outside diameter of 6" or larger

(including insulation)

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

*When ordering, please indicate the catalog number for your desired legend followed by the letter code (A-D, F-H) that corresponds

with your desired size and style.

Icon Glossary S-25 04/11/2006

There’s More Online

Log on for all available

legends or see our full line

catalog.

www.bradyid.com

(Blank label) Blue 5600 – *

(Blank label) Green 5601 – *

(Blank label) Red 5602 – *

(Blank label) Yellow 5603 – *

60# STEAM Yellow 5609 – *

65# STEAM Yellow 5610 – *

150# STEAM Yellow 5614 – *

170# STEAM Yellow 5616 – *

AIR Blue 5625 – *

AIR Yellow 5627 – *

AMMONIA Yellow 5630 – *

ANHYDROUS AMMONIA Yellow 5631 – *

BLACK LIQUOR Yellow 5634 – *

BOILER BLOWDOWN Yellow 5636 – *

BOILER FEED WATER Yellow 5637 – *

CAUSTIC Yellow 5643 – *

CAUSTIC SODA Yellow 5644 – *

CHEMICAL FEED Yellow 5645 – *

CHILLED WATER Green 5646 – *

CHILLED WATER RETURN Green 5647 – *

CHILLED WATER SUPPLY Green 5648 – *

CHLORINE DIOXIDE

LIQUID Yellow 5651 – *

CHLORINE GAS Yellow 5652 – *

CITY WATER Green 5655 – *

COMPRESSED AIR Blue 5660 – *

COMPRESSED AIR Yellow 5661 – *

CONDENSATE Yellow 5662 – *

CONDENSATE DRAIN Green 5663 – *

CONDENSATE RETURN Yellow 5664 – *

CONDENSER WATER

RETURN Green 5665 – *

CONDENSER WATER

SUPPLY Green 5666 – *

COOLING WATER Yellow 5667 – *

COOLING WATER Green 5668 – *

DEMIN. WATER Green 5672 – *

DOMESTIC COLD WATER Green 5673 – *

DOMESTIC HOT WATER Yellow 5675 – *

DOMESTIC HOT

WATER RETURN Yellow 5676 – *

DRAIN Green 5678 – *

DRAIN Yellow 5679 – *

ETHYLENE OXIDE Yellow 5683 – *

FILTERED WATER Green 5684 – *

FIRE PROTECTION Red 5688 – *

FIRE PROTECTION WATER Red 5689 – *

FLOOR DRAIN Yellow 5690 – *

FOUL CONDENSATE Yellow 5691 – *

#6 FUEL OIL Yellow 5694 – *

FUEL OIL Yellow 5695 – *

FUEL OIL RETURN Yellow 5696 – *

FUEL OIL SUPPLY Yellow 5697 – *

GREEN LIQUOR Yellow 5699 – *

HEATING SUPPLY Yellow 5701 – *

HEATING WATER RETURN Yellow 5702 – *

HEATING WATER SUPPLY Yellow 5703 – *

HEAVY BLACK LIQUOR Yellow 5704 – *

HIGH PRESSURE

CONDENSATE Yellow 5705 – *

HIGH PRESSURE STEAM Yellow 5706 – *

HOT WATER Yellow 5707 – *

HYDRAULIC OIL Yellow 5711 – *

INSTRUMENT AIR Blue 5716 – *

LOW PRESSURE

CONDENSATE Yellow 5719 – *

LOW PRESSURE STEAM Yellow 5720 – *

MAKE-UP WATER Green 5722 – *

MEDIUM PRESSURE

STEAM Yellow 5723 – *

MILL AIR Blue 5724 – *

MILL WATER Green 5725 – *

NATURAL GAS Yellow 5726 – *

NITRIC ACID Yellow 5727 – *

NITROGEN Green 5728 – *

NITROGEN Yellow 5729 – *

NON-POTABLE WATER Yellow 5730 – *

OXYGEN Yellow 5736 – *

PLANT AIR Yellow 5738 – *

PLANT WATER Green 5739 – *

POTABLE WATER Green 5744 – *

PROCESS DRAIN Yellow 5745 – *

PROCESS WATER Yellow 5746 – *

PROCESS WATER Green 5747 – *

RAW WATER Green 5750 – *

ROOF DRAIN Green 5754 – *

SANITARY SEWER Yellow 5755 – *

SEAL WATER Green 5758 – *

SODIUM CHLORATE Yellow 5760 – *

SODIUM HYPOCHLORITE Yellow 5761 – *

SPRINKLER FIRE Red 5764 – *

SPRINKLER WATER Red 5765 – *

STARCH Yellow 5766 – *

STEAM Yellow 5767 – *

STORM DRAIN Green 5769 – *

SULFURIC ACID Yellow 5774 – *

TURPENTINE Yellow 5776 – *

VACUUM Green 5777 – *

VENT Green 5780 – *

VENT Yellow 5781 – *

WARM MILL WATER Green 5782 – *

WASTE WATER Yellow 5784 – *

WATER Green 5786 – *

WATER Yellow 5787 – *

WELL WATER Green 5790 – *

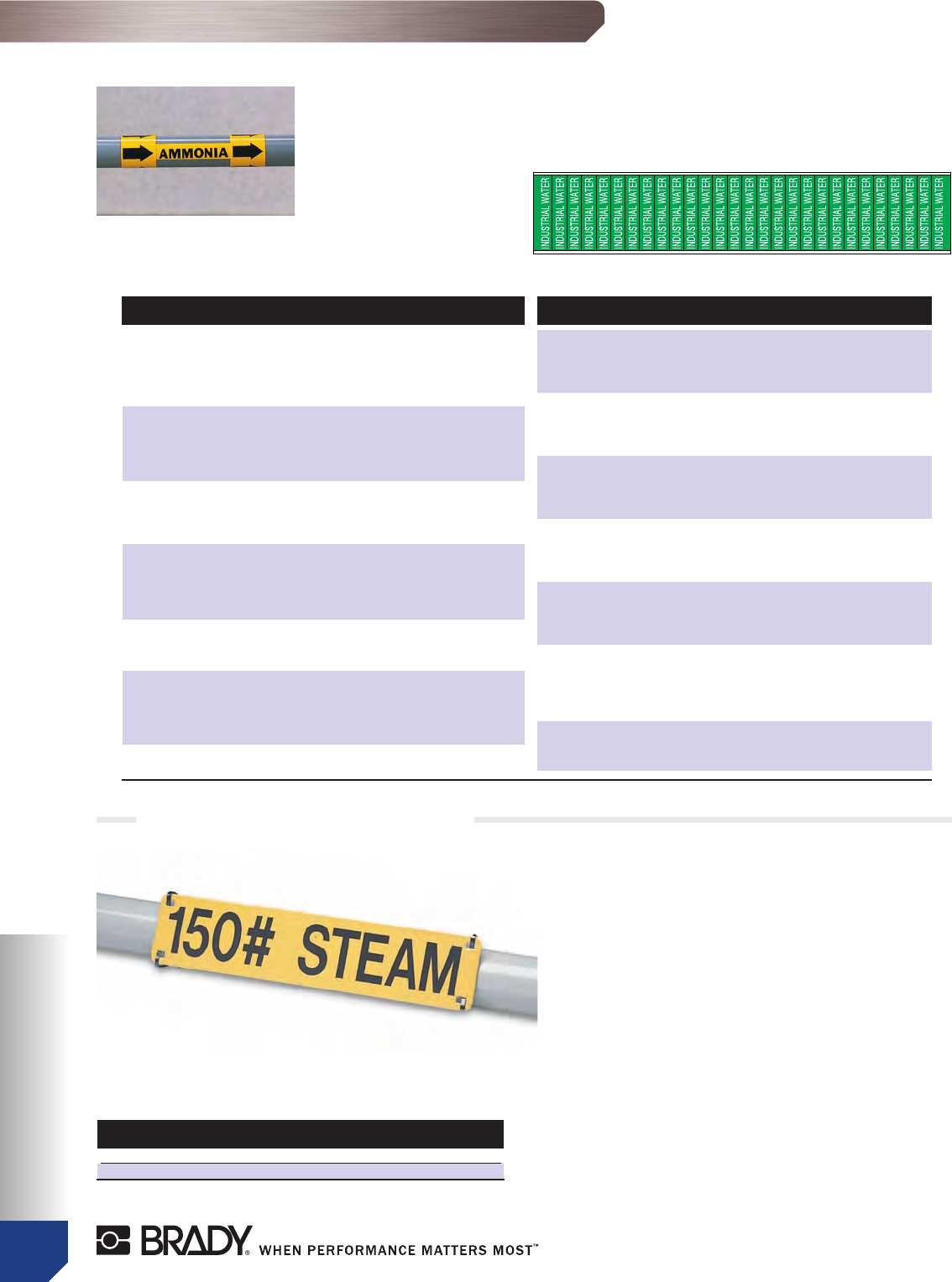

High Performance Pipe Markers

Pipe Markers

www.bradyid.com

“Pulp, Paper and Paperboard Mills”

This regulation applies to plants where pulp, paper and

paperboard are converted. “All chlorine, caustic and acid lines

shall be marked for positive identification in

accordance with ASME (ANSI) Standard A13.1.

Size Chart

◗B-689 High Performance Pipe Markers

• PVF overlaminated polyester construction seals in and protects graphics

• Markers resist abrasion, chemicals, high humidity and outdoor weathering

• Ideal for pipes up to 77⁄8" in diameter

• Choose from our stock legends (see below) or create your own

B-689 High Performance Pipe

Markers are pre-coiled for

easy wrap-around installation

on pipe up to 77⁄8" in diameter.

◗B-681/B-833 High Performance, High Visibility (HPHV) Pipe Markers

• Overlaminate protects graphics

• Easy strap-on installation of fiberglass reinforced plastic marker carrier

• Ideal for pipes 8” and larger in diameter

• Includes two Heavy-Duty Mounting Clips (additional clips sold on page 17)

• Apply mounting clips to pipe using Continuous Stainless Steel Strapping (sold separately on page 17)

High Performance B-681 labels

with overlaminated graphics

are factory applied to a fiber-

glass plastic carrier for easy

strap-on installation on pipes

8" and larger in diameter.

Outside Max. Char. Letter Style Order

Diameter Per Marker Height Description Style*

Coiled Wrap-Around (B-689)

1⁄2" to 13⁄8" 22 1⁄2" Style 0 0

11⁄2" to 23⁄8" 13 3⁄4" Style l l

21⁄2" to 77⁄8" 13 11⁄4" Style ll ll

Strap-on Carrier (B-681/B-833)

8" & above 16 31⁄2" Style HPHV HPHV

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

Background Catalog

Legend Color No.

*When ordering, please indicate the catalog number for your desired leg-

end followed by the letter code (0, I, II, or HPHV) that corresponds with your

desired size and style.

OSHA Federal Regulation 29 CFR 1910.261

Icon Glossary S-25 04/11/2006

NEW

New Sizes available in Custom

Wrap-around High Performance

Pipemarkers. Brady now offers a

wrap around style marker for pipes

over 10” diameter that allows for

360O visibility

Larger markers available on request.

Icon Glossary S-25 04/11/2006

There’s More Online

Log on for all available

legends or see our full line

catalog.

www.bradyid.com

Icon Glossary S-25 04/11/2006

Customize It

Custom order form on pg 19

Pipe Markers

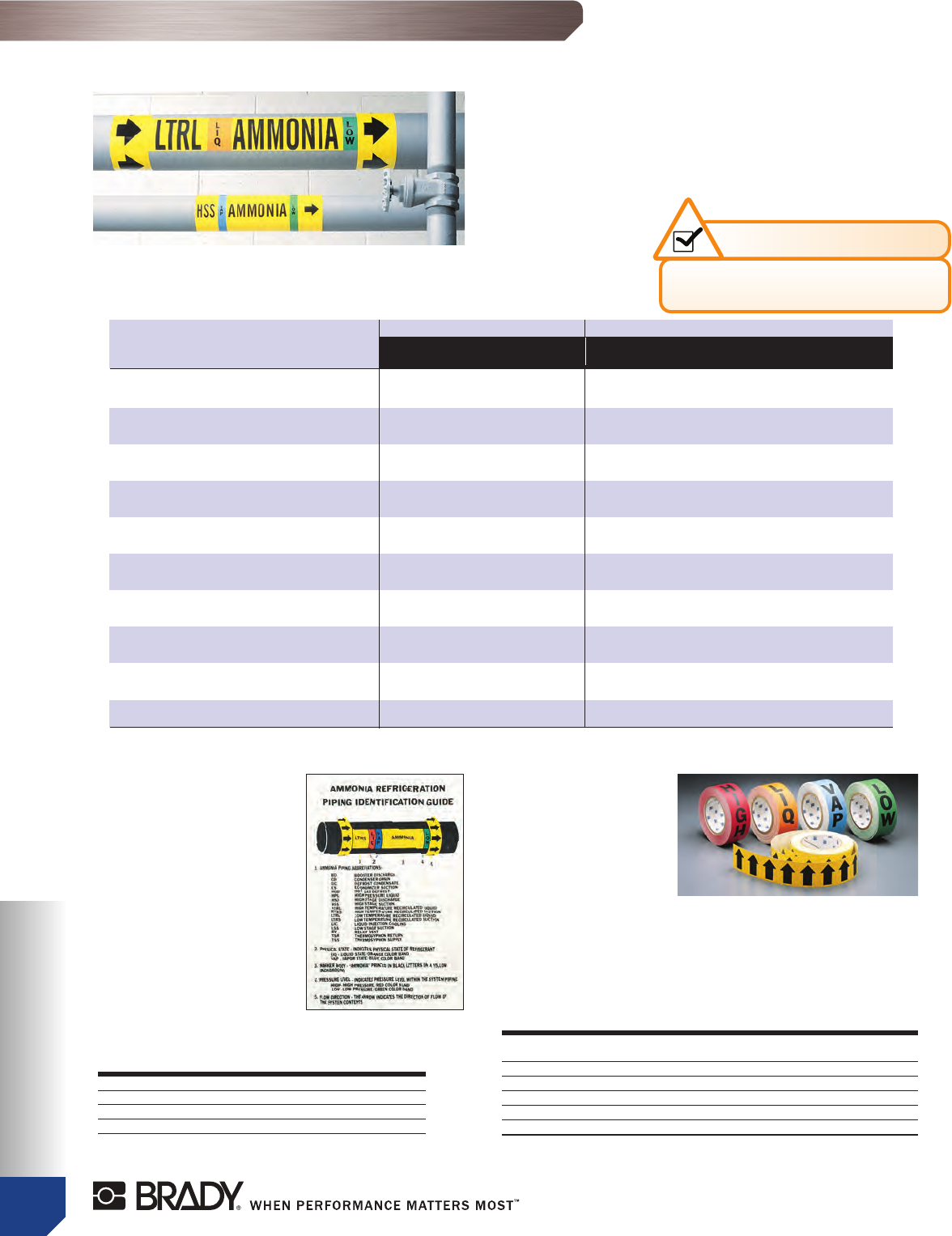

IIAR Pipe Markers

◗Stock IIAR Tapes

●Ideal for use with IIAR

Pipe Markers

●Made from B-946

Indoor/Outdoor Self-Sticking

Vinyl Material

●Use Arrow Tapes to indicate

flow direction

●Five standard legends

available

●Available in 1", 2" and

4" widths

◗Stock IIAR Pipe Markers

●Recommended for use in labeling ammonia piping and its contents

●Available in a variety of sizes and styles

●Choose the material that best meets your application requirements: High

Performance Polyester or Indoor/Outdoor Self-Sticking Vinyl

●Meets IIAR Standard

●29 stock legends available

A uniform method of pipe identification, such as this one

utilizing IIAR Pipe Markers, helps create a safer, more

productive work environment.

Stock IIAR Reference Chart.

Use Stock IIAR Tapes to secure IIAR

Pipe Markers.

◗Stock IIAR

Reference Chart

●Explains IIAR pipe markings

●Meets IIAR Standard

●Choose from rigid fiberglass

or self-sticking vinyl

High Performance Polyester B-946 Indoor/Outdoor Self-Sticking Vinyl

IIAR Physical Pressure B-689 B-681/B-883 Style 1HV Style 1 Style 4

Abbreviation State Level Legend Size I Size II HPHV 4" x 24" (1/cd) 21⁄4" x 14" (1/cd) 11⁄8" x 7" (4/cd)

BD VAP LOW Ammonia 57960 57980 59919 90440 90400 90420

CD LIQ HIGH Ammonia 57961 57981 59920 90441 90401 90421

DC LIQ HIGH Ammonia 57962 57982 59921 90442 90402 90422

ES VAP LOW Ammonia 57963 57983 59922 90443 90403 90423

EQ LIQ/VAP LOW Ammonia 58014 58017 59982 90486 90484 90485

HG VAP HIGH Ammonia 57964 57984 59923 90444 90404 90424

HGD VAP HIGH Ammonia 57965 57985 59924 90445 90405 90425

HPL LIQ HIGH Ammonia 57966 57986 59925 90446 90406 90426

HSD VAP HIGH Ammonia 57967 57987 59926 90447 90407 90427

HSS VAP LOW Ammonia 57968 57988 59927 90448 90408 90428

HTRL LIQ LOW Ammonia 57969 57989 59928 90449 90409 90429

HTRS LIQ/VAP LOW Ammonia 57970 57990 59929 90450 90410 90430

HTS VAP LOW Ammonia 57971 57991 59930 90451 90411 90431

LIC LIQ HIGH Ammonia 57972 57992 59931 90452 90412 90432

LSS VAP LOW Ammonia 57973 57993 59932 90453 90413 90433

LTRL LIQ LOW Ammonia 57974 57994 59933 90454 90414 90434

LTRS LIQ/VAP LOW Ammonia 57975 57995 59934 90455 90415 90435

LTS VAP LOW Ammonia 57976 57996 59935 90456 90416 90436

PO LIQ LOW Ammonia 58012 58015 59980 90480 90478 90479

PU LIQ HIGH Ammonia 58013 58016 59981 90483 90481 90482

RV VAP HIGH Ammonia 57977 57997 59936 90457 90417 90437

TSR LIQ/VAP HIGH Ammonia 57978 57998 59937 90458 90418 90438

TSS LIQ HIGH Ammonia 57979 57999 59938 90459 90419 90439

BLANK LIQ HIGH Ammonia 58000 58006 59939 90462 90460 90461

BLANK VAP HIGH Ammonia 58001 58007 59940 90468 90466 90467

BLANK LIQ/VAP HIGH Ammonia 58002 58008 59941 90474 90472 90473

BLANK LIQ LOW Ammonia 58003 58009 59942 90465 90463 90464

BLANK VAP LOW Ammonia 58004 58010 59943 90471 90469 90470

BLANK LIQ/VAP LOW Ammonia 58005 58011 59944 90477 90475 90476

B-946 Indoor/Outdoor Self-Sticking Vinyl

Background Legend Catalog Number

Legend Color Color 1" x 30 yd roll 2" x 30 yd roll 4" x 30 yd roll

ARROW Yellow Black 91424 91420 91287

LIQ Orange Black 55360 55361 55362

VAP Blue Black 55363 55364 55365

HIGH Red Black 55366 55367 55368

LOW Green Black 55369 55370 55371

Catalog Number Material Size

45900 B-302 Self-Sticking 14" x 10"

69822 B-120 Rigid Fiberglass 14" x 10"

69821 B-120 Rigid Fiberglass 20" x 14"

Visit www.bradyid.com for more

information on IIAR Pipe Marker

Regulations.

IIAR Pipe Marker Regulations

Icon Glossary S-25 04/11/2006

Asbestos / Duct Pipe Markers

Pipe Markers

www.bradyid.com

Self-Sticking Asbestos Warning Pipe Markers

Brady Snap-On™ and Strap-On Asbestos Warning Pipe Markers

Self-Sticking Vinyl Duct Markers

Size

Legend Text Background 1HV 1

CAUTION ASBESTOS BLACK YELLOW 97542 97543

DANGER ASBESTOS BLACK YELLOW 97544 97545

ASBESTOS FREE INSULATION WHITE BLUE 81219 93450

NO ASBESTOS WHITE BLUE 97597 97626

CAUTION

ASBESTOS HAZARD

DO NOT DISTURB WITHOUT

PROPER TRAINING AND EQUIPMENT BLACK YELLOW 97627 97628

PIPE MARKER STYLE

Legend Text Background DFG

DANGER

CONTAINS ASBESTOS FIBERS

AVOID CREATING DUST

CANCER AND LUNG DISEASE HAZARD RED/BLK WHITE 97629 98246 98247

ASBESTOS INSULATION ---> BLACK YELLOW 48699 40358 40359

ASBESTOS FREE ---> WHITE BLUE 40352 40353

PIPE MARKER STYLE

●Identify asbestos or asbestos free pipes

●Made with B-946 self-sticking vinyl

●Easy-to-install markers are ideal

for indoor pipes

●No adhesive necessary – ideal for

dirty, oily, or greasy surfaces

●Color-coded markers make it easy to differentiate between

different air systems

●Markers come complete with detachable arrows which can be

applied in any direction

●Made with B-946 Self-Sticking Vinyl

Icon Glossary S-25 04/11/2006

Customize It

Custom self-sticking vinyl

Asbestos markers available

see pg 18.

Icon Glossary S-25 04/11/2006

Customize It

Custom Snap-on Asbestos

markers available

See custom form on pg 18.

Icon Glossary S-25 04/11/2006

Customize It

Custom self-sticking Duct

markers available

see pg 18.

41416

Size

1HV (4" x 24")

1 (2 1/4" x 14"

Pipe Fits

Marker Style Outside Diameter

D 4" to 6"

F 6" to 7 7/8"

G 8" to 9 7/8"

Size

2 1/4" x 13 1/4"

4" x 20 1/2"

Legend Text Background 2 1/4” x 13 1/4” 4” X 20 1/2

Color Color

EXHAUST BLACK YELLOW 98356 98490

EXHAUST AIR BLACK YELLOW 98357 98491

INTAKE BLACK YELLOW 98358 98492

OUTSIDE AIR WHITE BLUE 98368 98493

RELIEF BLACK YELLOW 98378 98494

RELIEF AIR WHITE BLUE 98487 98495

RETURN AIR WHITE BLUE 98488 98496

SUPPLY AIR WHITE BLUE 98489 98497

Pipe Markers

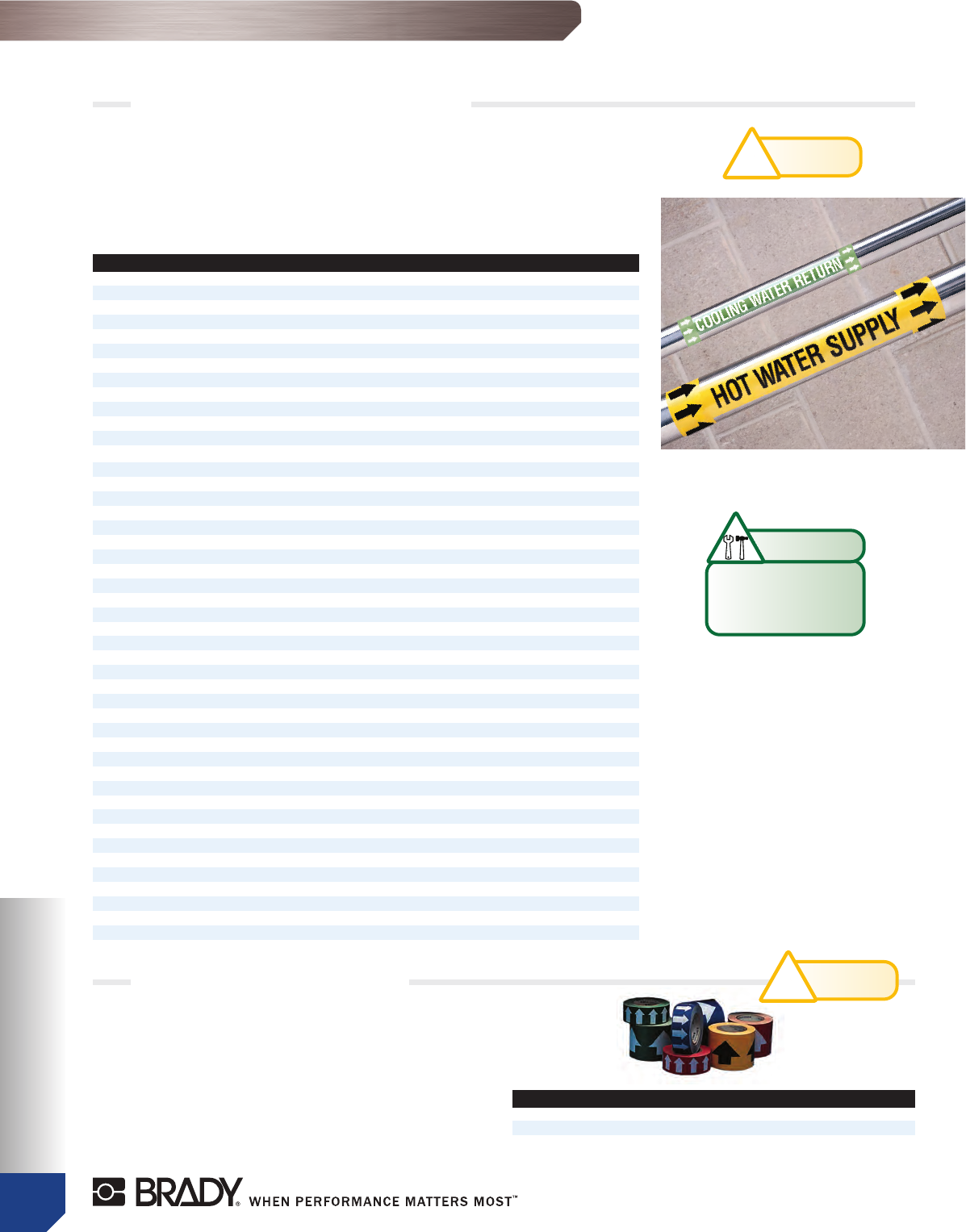

Food Industry Pipe Markers

Roll Size Red Green Blue Yellow

1" X 30 YARDS 106167 106170 106173 106176

2" X 30 YARDS 106168 106171 106174 106177

3" X 30 YARDS 106169 106172 106175 106178

Food Industry Self Sticking Pipe Markers

This is the Ultimate Pipe Marker Design for the Food Industry and Clean Room Applications.

• Laminated polyester construction seal in & protects graphics great for wash-down areas.

• Industrial grade self-adhesive – Protects against bacteria or moisture trapping behind the pipe marker.

• All Stock Markers Meet ASME (ANSI) when used with Arrow Tape

• For clean room applications the material liner should be removed prior to entering the clean room.

• Made with B-681 Polyester with protective overlaminate

Food Industry Pipe Banding Tape

This is the Ultimate Pipe Banding Design for the Food Industry and Clean

Room Applications.

• B-302 self sticking vinyl with protective overlamiante

• For clean room applications the material liner should be removed prior

to entering the clean room.

• All Stock Markers Meet ASME (ANSI) when used with standard pipe marker

• Three roll widths available in your choice of three colors

Legend Legend Color Style 1HV Style 1 Style 4 Style 3C

Boiler Feedwater Black/Yellow 105735 105736 105737 105738

Carbon Dioxide Black/Yellow 105739 105740 105741 105742

Chlorine Water Black/Yellow 105743 105744 105745 105746

Condensate Return Black/Yellow 105747 105748 105749 105750

DC LIQ Ammonia HIGH Black/Yellow 105751 105752 105753 105754

Diesel Fuel Black/Yellow 105755 105756 105757 105758

Glycol Return Black/Yellow 105759 105760 105761 105762

Glycol Supply Black/Yellow 105763 105764 105765 105766

HGD LIQ Ammonia HIGH Black/Yellow 105767 105768 105769 105770

High Pressure Steam Black/Yellow 105771 105772 105773 105774

Hot Water Return Black/Yellow 105775 105776 105777 105778

Hot Water Supply Black/Yellow 105779 105780 105781 105782

HTRL LIQ Ammonia LOW Black/Yellow 105783 105784 105785 105786

HTRS LIQ VAP Ammonia LOW Black/Yellow 105787 105788 105789 105790

LSS VAP Ammonia LOW Black/Yellow 105791 105792 105793 105794

LTRL LIQ Ammonia LOW Black/Yellow 105795 105796 105797 105798

LTRS LIQ VAP Ammonia LOW Black/Yellow 105799 105800 105801 105802

Natural Gas Black/Yellow 105803 105804 105805 105806

Compressed Air White/Blue 105807 105808 105809 105810

Vacuum White/Blue 105811 105812 105813 105814

Abandoned White/Green 106063 106064 106065 106066

City Water White/Green 106067 106068 106069 106070

Condensate Drain White/Green 106071 106072 106073 106074

Condenser Water Return White/Green 106075 106076 106077 106078

Condenser Water Supply White/Green 106079 106080 106081 106082

Cooking Oil White/Green 106083 106084 106085 106086

Cooling Water Return White/Green 106087 106088 106089 106090

Cooling Water Supply White/Green 106091 106092 106093 106094

Corn Oil White/Green 106095 106096 106097 106098

Domestic Cold Water White/Green 106099 106100 106101 106102

Domestic Hot water White/Green 106103 106104 106105 106106

Drain White/Green 106107 106108 106109 106110

Frying Oil - New White/Green 106111 106112 106113 106114

High Pressure Water White/Green 106115 106116 106117 106118

Non-Potable Chilled Water Return White/Green 106119 106120 106121 106122

Non-Potable Chilled Water Supply White/Green 106123 106124 106125 106126

Non-Potable Water White/Green 106127 106128 106129 106130

Potable Chilled Water Return White/Green 106131 106132 106133 106134

Potable Chilled Water Supply White/Green 106135 106136 106137 106138

Potable Heat Reclaim White/Green 106139 106140 106141 106142

Potable Water White/Green 106143 106144 106145 106146

Potable Water - Cold White/Green 106147 106148 106149 106150

Potable Water - Hot White/Green 106151 106152 106153 106154

Salad Oil White/Green 106155 106156 106157 106158

Virgin Oil White/Green 106159 106160 106161 106162

Sprinkler Water White/Red 106163 106164 106165 106166

Icon Glossary S-25 04/11/2006

NEW

Icon Glossary S-25 04/11/2006

Customize It

Custom food industry

legends available

See custom form

on pg 18.

Icon Glossary S-25 04/11/2006

NEW

Medical Gas Pipe Markers

Pipe Markers

www.bradyid.com

Medical Gas Pipe Markers

Medical Gas Pipe Markers-on-a-Roll

• Constructed from B-946 vinyl

• For pipes with an outside diameter of 3⁄4" or smaller, order Style 3C.

Includes three 21⁄4" x 23⁄4" wrap around labels and four sets of

arrow tape

• For pipes with an outside diameter of 1" to 21⁄2", order Style 4.

Includes four 11⁄8" x 7" labels per card

Use Brady's Medical Gas Pipe Markers to correctly specify

the gas content and operating pressure of medical gas

piping systems.

Designed to wrap completely around 3/4" piping. 3" x 3" markers come complete with

direction flow arrows with 1/4" high characters. Comply with CGA & NFPA Standards.

Catalog Legend Legend Color Bkgd. Color

98498 CARBON DIOXIDE White Gray

98499 CYCLOPROPANE Black Orange

98621 HELIUM White Brown

98720 MEDICAL AIR Black Yellow

98806 MEDICAL AIR 50-55 PSI Black Yellow

98838 MEDICAL VACUUM Black White

98839 NATURAL GAS 2 PSI Black Yellow

98840 NITROGEN White Black

98841 NITROGEN 180-200 psi White Black

98842 NITROUS OXIDE White Blue

98843 NITROUS OXIDE 50-55 psi White Blue

98844 OXYGEN White Green

98845 OXYGEN 50-55 psi White Green

National Fire Protection Assoc. (NFPA) Standard 99C-1996 and the

Compressed Gas Assoc. (CGA) Pamphlet C-9-1988 (R1993)

NFPA 99C- Section 4-3.5.4.1 The gas content and operating pressure of med-

ical gas piping systems shall be identifiable by labeling with name and pressure

of the gas contained. Labeling shall appear at intervals not more than 20 ft.

and at least once in each room and each story traversed by the piping system.

CGA C-9-Section 4.1 Colors identification of piping is used in accordance with

gases and colors named in CGA Pamphlet. Color coding is never to be used

alone; it is supplementary to labeling.

Legend Background

Legend Color Color Style 3C Style 4

CARBON DIOXIDE White Gray 87740 90307

HELIUM White Brown 87742 90313

MEDICAL AIR White Blue 90253 77294

MEDICAL AIR Black Yellow 87743 90327

MEDICAL AIR 50-55 psi Black Yellow 86330 86331

MEDICAL VACUUM White Blue 90255 90256

MEDICAL VACUUM Black White 87744 90329

NITROGEN White Black 87745 90331

NITROGEN 180-200 psi White Black 86334 86335

NITROUS OXIDE White Blue 87746 90333

NITROUS OXIDE 50-55 psi White Blue 86332 86333

OXYGEN White Green 87747 93154

OXYGEN 50-55 psi White Green 86328 86329

BLACK

WHITE TEXT

BROWN

WHITE TEXT

BLUE

WHITE TEXT

GRAY

WHITE TEXT

GREEN

WHITE TEXT

ORANGE

BLACK TEXT

WHITE

BLACK TEXT

YELLOW

BLACK TEXT

FYI

Icon Glossary S-25 04/11/2006

Customize It

To order custom medical

roll form marker legends

see pg 18

CGA C-9 DESIGNATED COLORS

NFPA Update

Icon Glossary S-25 04/11/2006

NFPA Update 99-62 specifies that the gas content and

operating pressure of medical gas piping systems shall be

readily identifiable by appropriate labeling with the name

and pressure of the gas contained.

Labels shall appear on the piping at intervals of not more

than 20 ft (6 m). Supplementary color identification shall be

in accordance with the Compressed Gas Association pam-

phlet c-9. For more information, visit the NFPA online at

www.NFPA.org.

Size

15' to 60 markers/roll

Description

Style 4, 3C

Pipe Markers

Semi / Porcelain Pipe Markers

Porcelain Enamel Pipe Markers

• Markers are unaffected by UV light, temperatures up to 1000°F;

exposure to acids (except hydrofluoric); cold or mildly warm alkalis;

salt air; or organic chemicals and solvents

• Colors, text and graphics are permanently locked in and protected

from environmental damage

• Impervious, inorganic vitreous surface is fused to the metal base at

a temperature of 1500°F

• Apply to pipe using Stainless Steel Strapping and Banding Heads

sold on page 17

• Black wording on yellow background in ASME (ANSI) color desig-

nation for hazardous pipe contents identification

• Customize your marker legend (minimum order: 10 markers per

size, per legend)

Size Chart

Outside Letter Style Color Field Meets ANSI

Pipe Diameter Height Description Width Standard

3⁄4" to 2" 3⁄4" 3P 8" Yes

21⁄2" to 6" 11⁄4" 2P 12" Yes

8" to 10" 31⁄2" 1P 24" Yes

Custom Porcelain Enamel Pipe Markers combine the hardness of glass

with the strength and rigidity of steel.

Legend Background Color Catalog Number Legend Background Color Catalog Number

●Meets ASME A13.1 color specifications

●Made from B-946 self-sticking vinyl with permanent adhesive

●Marker size: 1⁄2" x 21⁄4"

●Stock marker Style 28 includes 28 markers per card

●Use with 1" arrow tape sold on pg 8

●70 stock legends

Style 28 Marker.

(arrow) Yellow 91883

(arrow) Green 91884

(arrow) Red 91885

(arrow) Blue 91886

(arrow) Orange 91887

(arrow) White 91888

(blank) Yellow 91889

(blank) Green 91890

(blank) Red 91891

(blank) Blue 91892

(blank) Orange 91893

(blank) White 91894

ACETONE Yellow 91895

ACID Yellow 91896

ACID WASTE Yellow 91897

AIR Green 91898

AMMONIA Yellow 91899

ARGON Yellow 91900

ARGON Green 91901

CARBON DIOXIDE Yellow 91906

CARBON DIOXIDE Green 91907

CAUSTIC Green 91909

CHILLED WATER Green 91910

CHLORINE Yellow 91911

CITY WATER Green 91913

CLEAN DRY AIR Yellow 91914

CLEAN DRY AIR Green 91915

COLD WATER Green 91916

COMPRESSED AIR Blue 91917

COOLING WATER Green 91918

D.I. WATER Green 91920

DEIONIZED WATER Green 91921

DRAIN Yellow 91925

DRAIN Green 91926

EXHAUST Yellow 91930

HEATING WATER Yellow 91933

HELIUM Yellow 91934

HELIUM Green 91935

HOT Yellow 91936

HOT WATER Yellow 91937

HYDROCHLORIC ACID Yellow 91938

HYDROFLUORIC ACID Yellow 91939

HYDROGEN Yellow 91940

HYDROGEN CHLORIDE Yellow 91942

INDUSTRIAL WATER Green 91943

ISOPROPYL ALCOHOL Yellow 91944

METHYL ALCOHOL Yellow 91948

NATURAL GAS Yellow 91949

NITROGEN Blue 91997

NITROGEN Green 91998

NITROGEN TRIFLUORIDE Yellow 91950

NITROUS OXIDE Yellow 91951

NON-POTABLE WATER Yellow 91953

OXYGEN Yellow 91955

PHOSPHINE Yellow 91956

POTABLE WATER Green 91958

PROCESS COOLING WATER Green 91959

PROCESS GAS Yellow 91960

PROCESS VACUUM Green 91961

RETURN Yellow 91964

RETURN Green 91965

SILANE Yellow 91966

SOLVENT Yellow 91967

SPARE Green 91968

SUPPLY Yellow 91972

TRICHLOROSILANE Yellow 91974

VACUUM Green 91977

VENT Yellow 91978

VENT Green 91979

WATER Green 91981

Pipe Marker Accessories

Pipe Markers

www.bradyid.com

◗(C) Banding Tool

• Convenient, easy way to secure ends of Continuous Strapping or

Banding Heads

• Lightweight and pocket sized

◗Heavy-Duty

Mounting Clips

• For use with HPHV pipe markers

• Sold one clip per package

◗BradylockTM Fastener

• Standard fastener for attaching

Strap-On Pipe Markers

• Excellent chemical resistance

• Self-locking heavy duty plastic

◗Tape Strip Rolls

• Use extra Tape Strips to re-secure wrap-around pipe markers should

they become damaged, or if markers are moved to a new location

• Sold in continuous rolls

Secure your Pipe Markers using Continuous Stainless Steel

Strapping (a), Stainless Steel Banding Heads (b), and

Banding Tool (c).

Tape Strip Rolls

◗Brady High Performance

Sign Mounting Bracket

• Industrial strength adhesive backing permanently

bonds your sign to the bracket

• Ideal for mounting rigid signs to pipes or large

diameter poles

• Brady stainless steel strapping holds your

bracket in place (not included)

◗(A) Continuous Stainless Steel Strapping

• High quality Type 316 Stainless Steel Strapping is highly corrosion and heat

resistant

• Ideal for installation of HPHV pipe markers, HEET Tags or for your

own purpose

• Continuous form requires separate heads for uses other than HPHV pipe marker

installation

• Available in three lengths, each 1⁄4" wide

◗(B) Stainless Steel Banding Heads

• Use with Continuous Strapping and Banding Tool to create secure clo-

sures

• Stainless steel to meet your specific facility environment needs

• Fits 1⁄4" strapping

• 100 pieces per package

◗Pipe Marker Reference Chart

• Comply with ANSI standards with guides for color and size identification

• 14" H x 10" plastic

• Sign includes 4 mounting holes for easy installation

Icon Glossary S-25 04/11/2006

NEW

Catalog

Size Number

14" x 10” 102846

Catalog

Number

Heavy Duty Clip

(sold one per pkg.) 42335

Catalog

Roll Size Number

2" x 10 yards 59945

2" x 30 yards 59946

Catalog

Size Number

1⁄2" x 150' 41772

Catalog

Length Number

100' 42331

250' 42332

1000' 42333

Catalog Number

42322

Steel Catalog

Type Number

316 90910

Catalog Number Qty.

98204 1

98205 25

Pipe Markers

Custom Pipe Marker Request

Distributor Information

Distributor: Contact:

Account #: Fax # : Phone # :

c Order cQuote cArtwork Attached Ship Via: ––––––––––– P.O. # or Request # : –––––––––––––––––––––––––

General Information - Fax completed form to your local distributor

Company Name: Name:

Address1: Phone #:

Address2: Fax #:

City: ST: Zip: Email:

Request Data

Legend Color Marker Material Quantity

Line 1 Text Bkgd Style / Size

Brady standard pipe markers colors are: Yellow, Green, Red, Blue, White, Grey, Brown, Orange, Black, Purple and Clear. Custom colors are available.

Item Information

Roll Form B-946 Food Industry Pipe Markers B-661 Pipe Markers-To-Go B-736

Order By Size Pipe Outside Diameter Order By Style Order By Size

8” x 30’ Less than 3/4” OD 3c (3mrks/card) 1” x 8”

12” x 30’ 3/4” to 2 3/8” 4- (4mrks/card) 2” x 12”

Vinyl Duct Markers B946 2 1/2” to 7 7/8” 1

Order By Size 8” and above 1HV

2 1/4” x 13 1/4”

4” x 20 1/2”

Asbestos Pipe Markers

Self Sticking Vinyl B-946 Snap-On/Strap-On

Pipe Outside Diameter Order By Style Pipe Outside Diameter Order By Style

2 1/2” to 7 7/8” 1 4” to 6” OD D

8” and above OK 1HV 6” to 7 7/8” OD F

10” to 15” OD G

Medical Gas Pipe Markers

Self Sticking Vinyl B-946 Roll Form B946

Pipe Outside Diameter Order By Style Order By Size

Less than .75” 3c 15’ (60 Markers per Roll)

.75” to 2.375” 4

Icon Glossary S-25 04/11/2006

Item Information

Self-Sticking B-946 Brady Snap-On High Performance B-689

Pipe Outside Diameter Order By Style Pipe Outside Diameter Order By Style Pipe Outside Diameter Order By Style

Less than 3/4" OD 3c - (3mrks/card) 3/4" to 1 3/8" OD A 1/2" to 1 3/8" OD O

3/4" to 2 3/8" 4 - (4mrks/card) 1 1/2" to 2 3/8" OD B 1 1/2" to 2 3/8" OD I

2 1/2 to 7 7/8" OD 1 2 1/2" to 3 7/8" OD C 2 1/2" to 7 7/8" OD II

8" and above OD 1HV 4" to 6" OD D 8” to 10” OD III

Arrows sold separately. 6 to 7 7/8" OD F 10+” to 16” OD IV

Semi Conductor & Chemical B-946 8" to 9 7/8" OD G 16+” to 22” OD V

Marker Size Order By Style 10" to 15" OD H 22+” to 26” OD VI

1/2” -2 1/4” 28 Cable Style High Performance B-681 B-883 (HPHV)

3/4” - 5/8” OD Cable 8" & above OD HPHV

Markers printed with arrows

Custom Pipe Marker Request

Pipe Markers

www.bradyid.com

Distributor Information

Distributor: Contact:

Account #: Fax # : Phone # :

c Order cQuote cArtwork Attached Ship Via: ––––––––––– P.O. # or Request # : –––––––––––––––––––––––––

General Information - Fax completed form to your local distributor

Company Name: Name:

Address1: Phone #:

Address2: Fax #:

City: ST: Zip: Email:

Request Data

Legend Color Marker Material Quantity

Line 1 Text Bkgd Style

10.

Brady standard pipe markers colors are: Yellow, Green, Red, Blue, White, Grey, Brown, Orange, Black, Purple and Clear. Custom colors are available.

Icon Glossary S-25 04/11/2006

Pipe Markers

Pipe Marker Services

Contractors…let Brady take the

pain out of Pipe Marking!

At the bid stage or with contract in hand, Brady can relieve your busy estimating and

take-off operations of the costly and time-consuming job of determining the pipe

marker requirements for your project – and we’ll do it quickly, completely,

and cost-effectively. In fact this service is FREE!

Because Brady’s experienced take-off professionals have developed extremely

efficient ways of organizing and handling pipe marker data, you’ll improve your bid

accuracy – and that means you’ll avoid losing a project because of overbidding, or

reducing your profits because of underbidding.

Requesting a Quote Is Easy!

Simply provide us with a copy of the plan view drawings…the pipe identification

specifications…the pipe insulation thickness schedule…a scope definition…and a

line legend list.

Our Free Take-off Service Provides You With

●A price quote that’s complete and easy to understand

●A comprehensive list of the identification products and materials needed,

per the specifications or with cost-saving alternate suggestions

●A complete listing of the drawings we used to determine marker sizes

and quantities

●A clear-cut explanation of our policy regarding returns, exchanges and/or

additional items to be ordered

●Up-to-date Technical Data Sheets for the Brady products quoted

●FREE SAMPLES of the materials for your use as submittals (upon request)

Brady’s free Pipe Marker Take-off Service will provide you with the opportunity to

receive quantity discounts by supplying you with the appropriate information to

order everything you need for your project at one time. We even agree to maintain

the aggregated prices for one year.

So, don’t let your next pipe marking project go down the drain because of inaccurate

or incomplete estimating. Call us today toll-free to discuss how Brady’s Pipe Marker

Take-off Service can help your organization – and to ask a member of our Brady

Safety Identification Services Team to give your project their personal attention.

To request a quote, simply provide us with a copy of the plan view

drawings including pipe identification specifications, pipe insulation

thickness schedule, a scope definition and a line legend list.

Pipe Marker Take-Off Service

Facility Marking Assessment & Audit Service

●Increase safety compliance.

●Bring over 20 years of plant marking expertise to your facility.

●Save the weeks of data collection effort needed to develop a proper plant audit internally.

●Ensure the right marking and labeling products for the right applications.

A cost-effective solution for anyone who wants to

upgrade their identification program, but doesn’t

know how or where to start.

A Brady Project Manager will

come to your facility and examine:

●General Safety Signage

●Personal Protective Equipment (PPE) Notices

●Confined Space Warnings

●Safety Shower and Eyewash Identification

●Portable Fire Protection Equipment Identification

●Pipe Marking

●Tank and Vessel Signage and Placarding

●Electrical Panel Safety Marking

For more information on Brady's

Services, call toll-free

1-888-272-3946.

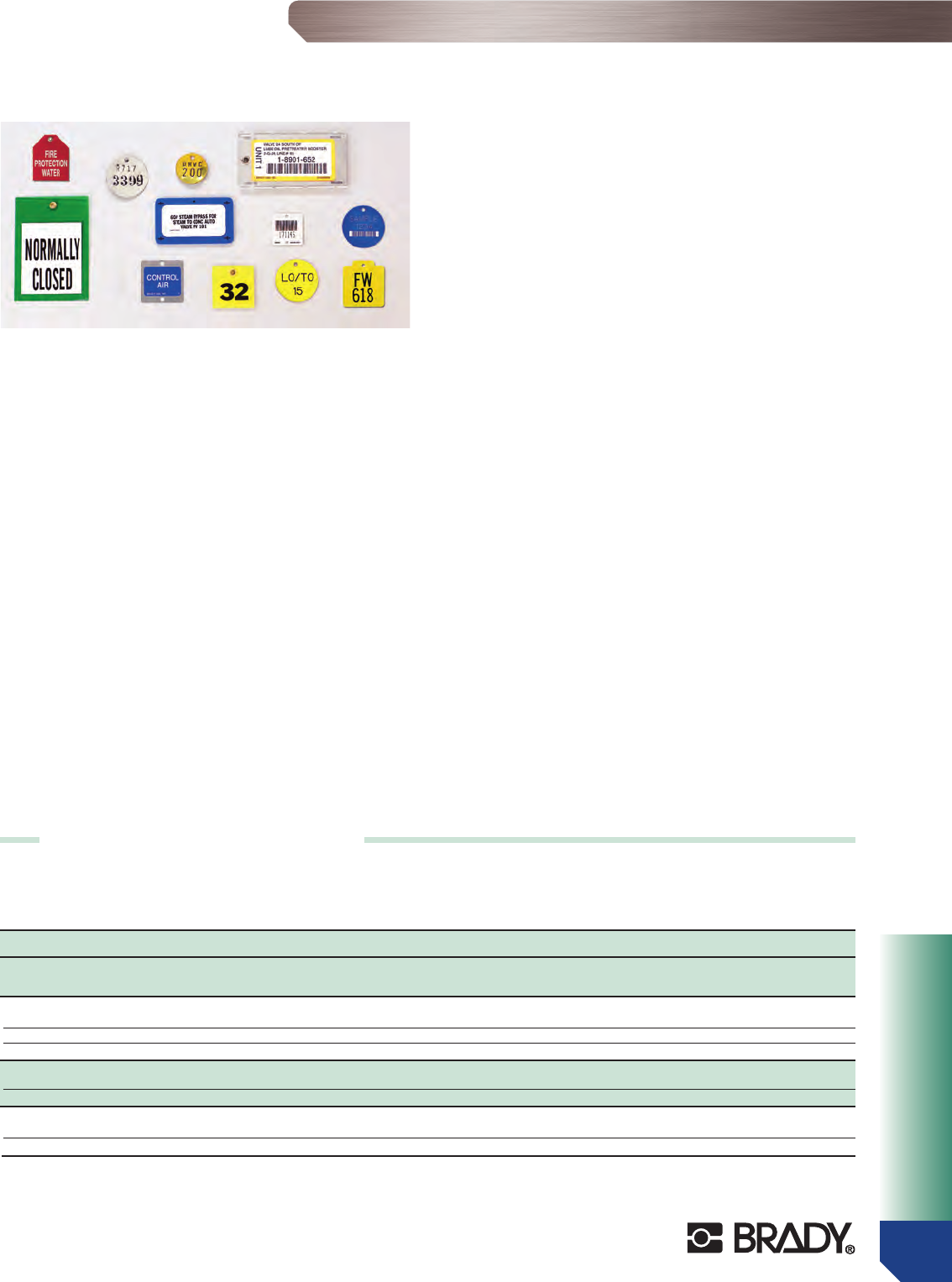

ID Tag Material Chart

ID Tags

www.bradyid.com

Valve Tag Material Selection Guide

**Includes Tedlar overlaminate n/a - data not available.

HIGH

PERFORMANCE GENERAL PURPOSE

HEET Tag Teflon Fiberglass Plastic Tag Brass Aluminum Engraved 3-Ply Engraved Laminated

B-748 B-541 B-120 B-418 B-907 B-906 Stainless Steel B-1 B-911

Characteristic Page 26 Page 26 Page 26 Page 27 Page 22-23 Page 24 Page 25 Page 30 Page 28

PLANT ENVIRONMENT

Indoor Good Good Good Good Good Good Good Good Good

Avg. Outdoor Durability (yrs.) 5-7 up to 10 15 **5-7 3-6 up to 2 5-7 5-8 2-4

Surface Abrasion Resistance Good Good Good Good Good Good Good Good Good

TEMPERATURES

Upper Limit 248˚F, 120˚C 500˚F, 260˚C 193˚F, 89˚C 260˚F, 127˚C 233˚F, 113˚C 233˚F, 113˚C 233˚F, 113˚C 193˚F, 89˚C 250˚F, 121˚C

Lower Limit -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C -40˚F, -40˚C n/a -40˚F, -40˚C n/a

SPECIAL PROPERTIES

Bar Coding Available Yes Yes No Yes No No No No No

Protective Covering Available Yes No No Yes No No No No No

ALUMINUM (B-906) – pages 24

Type 3003-H14 material has been anodized, dyed, and sealed. These tags

allow you to color code by content, system or service. Stock blank tags and

custom engraved tags are available.

STAINLESS STEEL – pages 25

Stock blank tags are offered for on-site engraving or custom tags can be

pre-stamped by the factory. Pre-stamped tags may be black filled for easier

readability. Equipment tags (which may include a bar code) are surface

coated with ink and then engraved.

FIBERGLASS (B-120) – page 26

Fiberglass Reinforced Plastic Tags feature graphics embedded within a

fiberglass/resin package. Fifteen year outdoor durability.

TEFLON COATED ALUMINUM (B-541) – page 26

Anodized aluminum printed with black text and coated with Teflon®.

Recommended for use in dirty environments. Tags can be painted over, yet

wipe off easily so they can be read.

3-PLY ENGRAVED (B-1) – page 30

A rigid laminate, which has tag text engraved through a colored cap sheet to

a contrasting colored base sheet, provides bright color coding options for

the custom wording you’ve selected.

LAMINATED (B-911) – page 28

Preprinted paper with colored borders thermally sealed in a polyester pouch

help you to establish or maintain your color coding system.

DURABLE PLASTIC TAGS (B-418) – pages 27

Colorful Plastic Tag has recess on both sides to apply printed label.

Non-corrosive and lightweight.

POLYESTER (B-851) – pages 29

Grommeted heavy duty polyester tags withstand moisture, grease and dirt.

Average Outdoor Durability: 3-5 years (Average Expected outdoor life of

product will depend on user definition of failure, climate conditions)

Choose a valve tag that best suits your needs. Tags are available in

the following materials: (A) Plastic Tag, (B) Aluminum, (C) Fiberglass,

(D) Sheathed HEET Tag, (E) Stainless Steel, (F) 2-Ply Engraved, (G) Brass,

(H) Teflon, (I) Laminated, (J) HEET Tag, (K) Poly-tag and (L) Polyester Tag.

HEET TAG (B-748) – page 26

Designed for use in the most severe environments, this tag construction features

overlaminated polyester label graphics permanently bonded to a stainless steel

base plate. You have complete flexibility in tag graphics design. Large type,

small type, bold type, bar codes, valve numbers, operating instructions, etc.

can all be included in your tag text at no extra cost. Optional protective tag

covers are available to assure readability even when covered with paint.

BRASS (B-907) – pages 22-23

Made from 19 gauge cartridge brass (40 mils thick) and used for general purpose

valve identification. These tags are available in standard 1

1⁄2

" and 2" round and

square styles. You can purchase blank tags and stamp or engrave them yourself, or

you can select from our large list of stock pre-stamped items shown on the next page.

Below are more detailed descriptions of valve tag materials offered throughout the Identification Tags Section.

Valve Tag Material Selection Chart

●Use the chart below to help determine which material best meets your valve tag application needs.

POLYURETHANE VALVE TAGS (B-462) – page 29

For a durable valve tag that can withstand extreme conditions and temperatures

from -40˚F to +250˚F, try our Poly-Tag Valve Tags. Tags are made of

multi-purpose polyurethane that is heat stamped with the numbering or

lettering of your choice. Four tag styles are available. Each style may be fastened

with wire, S-hooks and chain, or nylon ties. The chemical composition of

the tag makes it ideal for outdoor use and on small diameter pipes when

chlorides are not to come in contact with the pipe.

ID Tags

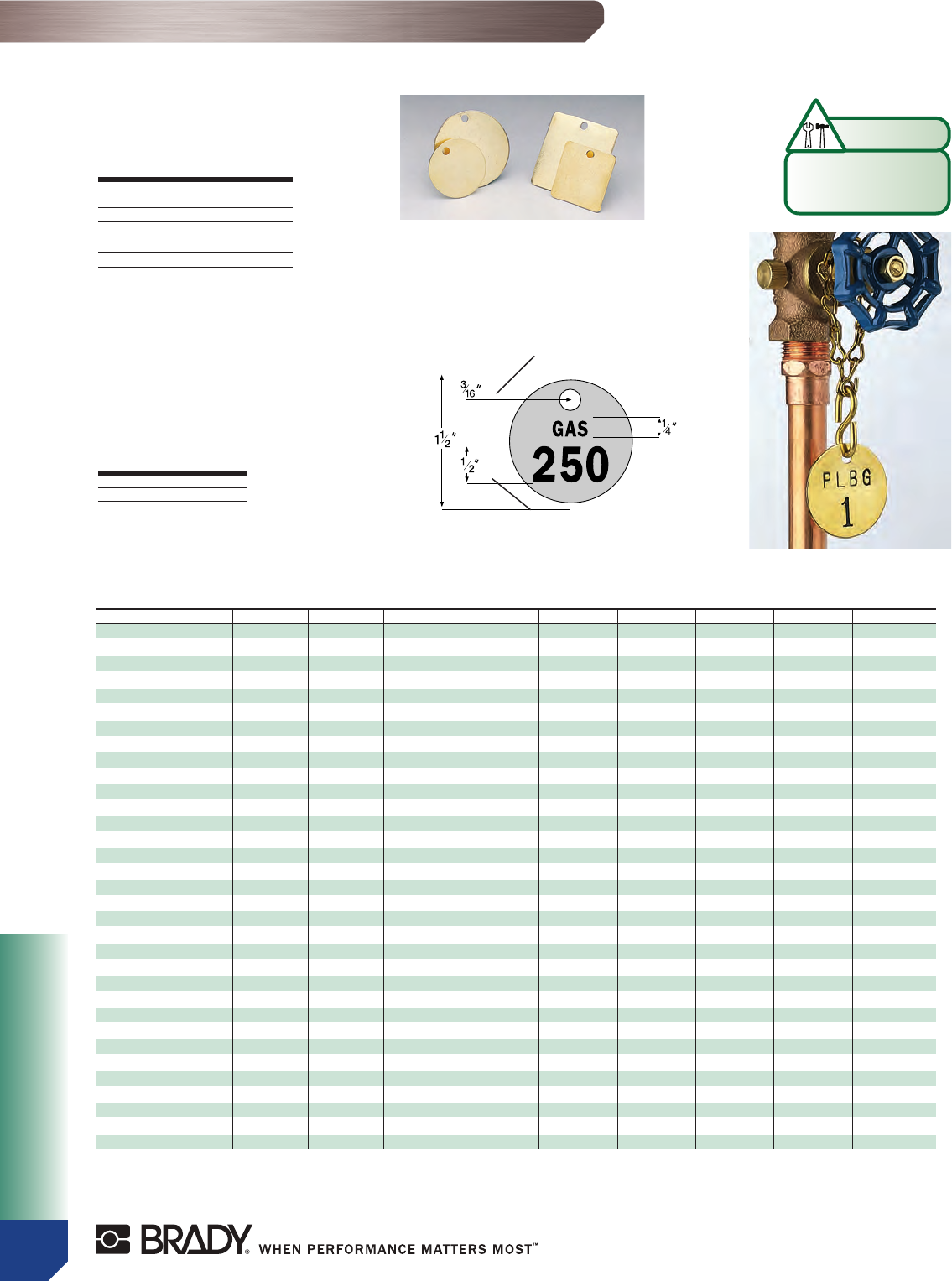

Stock Brass Valve Tags

Tag Size

Bottom Line

Hole Size

Top Line

◗Stock Stamped Brass Valve Tags (B-907)

●19 gauge cartridge brass (40 mils thick)

●11⁄2" diameter

●Black filled text for easy readability

●Standard package: 25 identical tags

Stock Stamped Brass Valve Tags

Use the chart below to determine if the tag you need is available as a stock order. In the first column, find the top line service abbreviation.

Then, follow the row across to find the stock number for the serial sequence you need. Stock sequences are available for immediate shipment.

◗Blank Brass Valve Tags (B-907)

●Standard package: 25 identical tags

Create your own custom brass tags

on-site with Brady steel stamps (sold on

page 23) or with your own engraver.

Icon Glossary S-25 04/11/2006

Customize It

Custom Stamped and

Engraved Tags

see pg 23.

Bottom Line Number Sequence

Top Line Copy

1-25 26-50 51-75 76-100 101-125 126-150 151-175 176-200 201-225 226-250 251-275 276-300 301-325 326-350 351-375 376-400 401-425 426-450 451-475 476-500

(Blank) 23200 23201 23202 23203 23204 23205 23206 23207 23208 23209 23617 23618 23619 23620 23621 23622 23623 23624 23625 23626

AC 23272 23273 23274 23275 23480 23481 23482 23483 23484 23485 23486 23487 23488 23489 23490 23491 23492 23493 23494 23495

CA 87460 87461 87462 87463 87464 87465 87466 87467 87468 87469 87470 87471 87472 87473 87474 87475 87476 87477 87478 87479

CHW 23516 23517 23518 23519 23520 23521 23522 23523 23524 23525 23526 23527 23528 23529 23530 23531 23532 23533 23534 23535

CHWR 23596 23597 23598 23599 23600 23601 23602 23603 23604 23605 23606 23607 23608 23609 23610 23611 23612 23613 23614 23615

CHWS 23576 23577 23578 23579 23580 23581 23582 23583 23584 23585 23586 23587 23588 23589 23590 23591 23592 23593 23594 23595

COND 23647 23648 23649 23650 23651 23652 23653 23654 23655 23656 23657 23658 23659 23660 23661 23662 23663 23664 23665 23666

CW 23256 23257 23258 23259 23400 23401 23402 23403 23404 23405 23406 23407 23408 23409 23410 23411 23412 23413 23414 23415

CWR 87100 87101 87102 87103 87104 87105 87106 87107 87108 87109 87110 87111 87112 87113 87114 87115 87116 87117 87118 87119

CWS 87120 87121 87122 87123 87124 87125 87126 87127 87128 87129 87130 87131 87132 87133 87134 87135 87136 87137 87138 87139

DCW 87200 87201 87202 87203 87204 87205 87206 87207 87208 87209 87300 87302 87303 87304 87305 87306 87307 87308 87309 87310

DCWR 87331 87332 87333 87334 87335 87336 87337 87338 87339 87340 87341 87342 87343 87344 87345 87346 87347 87348 87349 87350

DCWS 87371 87372 87373 87374 87375 87376 87377 87378 87379 87380 87381 87382 87383 87384 87385 87386 87387 87388 87389 87942

DHW 87180 87181 87182 87183 87184 87185 87186 87187 87188 87189 87190 87191 87192 87193 87194 87195 87196 87197 87198 87199

DHWR 87311 87312 87313 87314 87315 87316 87317 87318 87319 87320 87321 87322 87323 87324 87325 87326 87327 87328 87329 87330

DHWS 87351 87352 87353 87354 87355 87356 87357 87358 87359 87360 87361 87362 87363 87364 87365 87366 87367 87368 87369 87370

FP 23667 23668 23669 23670 23671 23672 23673 23674 23675 23676 23677 23678 23679 23680 23681 23682 23683 23684 23685 23686

GAS 23264 23265 23266 23267 23448 23449 23450 23451 23452 23453 23454 23455 23456 23457 23458 23459 23460 23461 23462 23463

HPS 44720 44721 44722 44723 44724 44725 44726 44727 44728 44729 44730 44731 44732 44733 44734 44735 44736 44737 44738 44739

HTG 23268 23269 23270 23271 23464 23465 23466 23467 23468 23469 23470 23471 23472 23473 23474 23475 23476 23477 23478 23479

HW 23276 23277 23278 23279 23416 23417 23418 23419 23420 23421 23422 23423 23424 23425 23426 23427 23428 23429 23430 23431

HWR 23536 23537 23538 23539 23540 23541 23542 23543 23544 23545 23546 23547 23548 23549 23550 23551 23552 23553 23554 23555

HWS 23556 23557 23558 23559 23560 23561 23562 23563 23564 23565 23566 23567 23568 23569 23570 23571 23572 23573 23574 23575

HVAC 87140 87141 87142 87143 87144 87145 87146 87147 87148 87149 87150 87151 87152 87153 87154 87155 87156 87157 87158 87159

LPC 87390 87391 87392 87393 87394 87395 87396 87397 87398 87399 87400 87401 87402 87403 87404 87405 87406 87407 87408 87409

LPS 44740 44741 44742 44743 44744 44745 44746 44747 44748 44749 44750 44751 44752 44753 44754 44755 44756 44757 44758 44759

MPS 44700 44701 44702 44703 44704 44705 44706 44707 44708 44709 44710 44711 44712 44713 44714 44715 44716 44717 44718 44719

OXY 87480 87481 87482 87483 87484 87485 87486 87487 87488 87489 87490 87491 87492 87493 87494 87495 87496 87497 87498 87499

PLBG 23260 23261 23262 23263 23432 23433 23434 23435 23436 23437 23438 23439 23440 23441 23442 23443 23444 23445 23446 23447

SPK 23627 23628 23629 23630 23631 23632 23633 23634 23635 23636 23637 23638 23639 23640 23641 23642 23643 23644 23645 23646

SPR 87160 87161 87162 87163 87164 87165 87166 87167 87168 87169 87170 87171 87172 87173 87174 87175 87176 87177 87178 87179

STM 23496 23497 23498 23499 23500 23501 23502 23503 23504 23505 23506 23507 23508 23509 23510 23511 23512 23513 23514 23515

VAC 87500 87501 87502 87503 87504 87505 87506 87507 87508 87509 87510 87511 87512 87513 87514 87515 87516 87517 87518 87519

Blank Brass Valve Tag (B-907)

Catalog

Size Shape Number

11⁄2" Round 23210

2" Round 23211

11⁄2" Square 23212

2" Square 23213

Brass Valve Tags (B-907)

Description

11⁄2" Round

Custom Brass Valve Tags

ID Tags

www.bradyid.com

Custom Stamped Brass Tags (B-907)

Tag Size

11/2

"- 2"

Bottom Line

Hole Size

Top Line

HTG

9685

2" Octagon

(1-1/2" Not

Available)

MAX. OF 6

LETTERS

342

HTG

1- 1/2"

MAX. OF 5

LETTERS

HTG

5013

MAX. OF 6

LETTERS

741

GAS

1-1/2"

Hexagon

(2" Not

Available)

MAX. OF 5

LETTERS

2361

MAX. OF 6

LETTERS

MAX. OF 5

LETTERS

PLBG

134

1 - 1/2"

1/4"

1/2"

5486

MAX. OF 4

LETTERS

438

MAX. OF 3

LETTERS

19 Gauge Brass

TRIANGLE (Illustrations shown smaller than actual size.) SQUARE

OCTAGON/HEXAGON ROUND

CHOOSE: Shape, Size, Lettering for TOP line, Numbering for BOTTOM line,and Character

Color (natural or black-filled). See chart for maximum characters per line.

NOTE: Black-filled legend is recommended over Natural for maximum legibility.

All tags are produced Natural unless specifically requested. For optional fill

colors or quantities over 1000 tags, please call your local Brady Distributor or call us toll-

free at 1-888-272-3946.

MAXIMUM NUMBER OF CHARACTERS PER LINE

Size Top Line Bottom Line

11⁄2" Tags 53

2" Tags 64

1- 1/2"

Square and Round Tags - CST1083

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

Octagon/Hexagon and Triangle Tags - CST1084

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

Custom Engraved Brass Tags (B-907)

●Durable 19 gauge brass tags

●Available in round or square shapes in

either 11⁄2" or 2" sizes

●Withstands temperatures of 1200˚ F

Engraved Brass Tags (B-907) - CST1087

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

For special fill colors or quantities over 1000 tags

please call your local Distributor for quote and lead

time... Or call us toll-free

at 1-888-272-3946

Custom Stamped Tags

Icon Glossary S-25 04/11/2006

◗Steel Stamps

●Customize your own

valve tags onsite using

Blank Brass Valve Tags

(sold on page 22) and

Brady Steel Stamps to

make the impression

Steel Stamps

Character Number of Catalog

Type of Set Size Characters Per Set Number

Letter Set 1⁄4" 27 23240

Number Set 1⁄4"9 23241

Letter Set 1⁄2" 27 23242

Number Set 1⁄2"9 23243

See pg. 25 for maximum

number of characters.

ID Tags

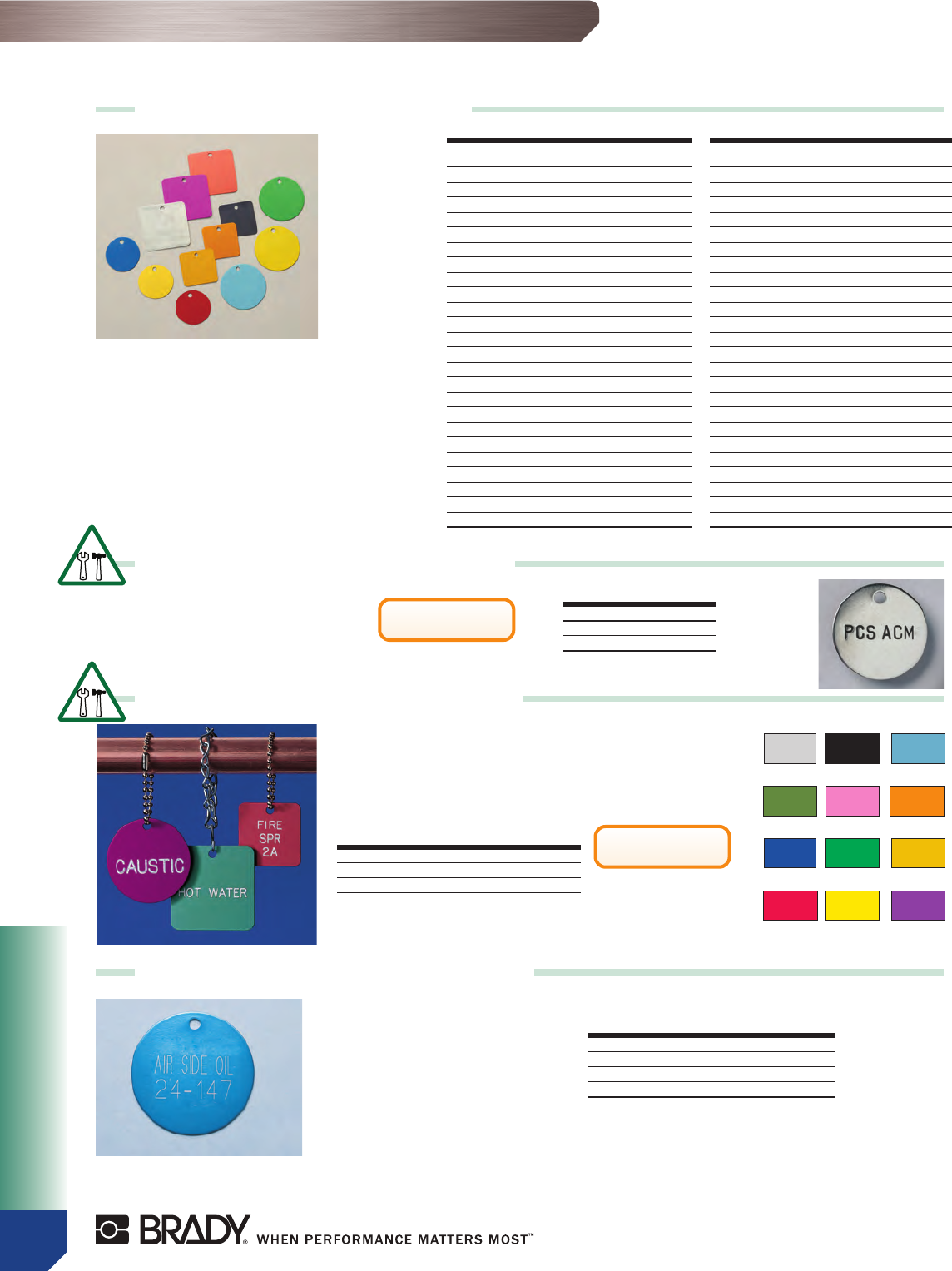

Aluminum Tags

●Anodized aluminum is dyed to offer color-coding

options not available with brass tags

●Available in twelve colors

●Choose from 11⁄2" or 2" round styles

●Standard package: 25 tags

Brady Stock Blank Aluminum Valve

Tags are ideal for color-coding

applications.

Tag Size Shape Color Part #

1⁄2

" DIA. Round Olive Drab 87602

2" DIA. Round Olive Drab 87609

1⁄2

" X 1

1⁄2

" Square Olive Drab 87616

2" X 2" Square Olive Drab 87634

1⁄2

" DIA. Round Orange 87604

2" DIA. Round Orange 87611

1⁄2

" X 1

1⁄2

" Square Orange 87618

2" X 2" Square Orange 87636

1⁄2

" DIA. Round Pink 87603

2" DIA. Round Pink 87610

1⁄2

" X 1

1⁄2

" Square Pink 87617

2" X 2" Square Pink 87635

1⁄2

" DIA. Round Red 49901

2" DIA. Round Red 49906

1⁄2

" X 1

1⁄2

" Square Red 87628

2" X 2" Square Red 87640

1⁄2

" DIA. Round Violet 87600

2" DIA. Round Violet 87607

1⁄2

" X 1

1⁄2

" Square Violet 87614

2" X 2" Square Violet 87632

1⁄2

" DIA. Round Yellow 49900

2" DIA. Round Yellow 49905

1⁄2

" X 1

1⁄2

" Square Yellow 87627

2" X 2" Square Yellow 87639

Tag Size Shape Color Part #

1⁄2

" DIA. Round Black 87605

2" DIA. Round Black 87612

1⁄2

" X 1

1⁄2

" Square Black 87619

2" X 2" Square Black 87637

1⁄2

" DIA. Round Blue 49902

2" DIA. Round Blue 49907

1⁄2

" X 1

1⁄2

" Square Blue 87629

2" X 2" Square Blue 87641

1⁄2

" DIA. Round Gold 87601

2" DIA. Round Gold 87608

1⁄2

" X 1

1⁄2

" Square Gold 87615

2" X 2" Square Gold 87633

1⁄2

" DIA. Round Green 49903

2" DIA. Round Green 49908

1⁄2

" X 1

1⁄2

" Square Green 87630

2" X 2" Square Green 87642

1⁄2

" DIA. Round Light Blue 87606

2" DIA. Round Light Blue 87613

1⁄2

" X 1

1⁄2

" Square Light Blue 87620

2" X 2" Square Light Blue 87638

1⁄2

" DIA. Round Natural 49904

2" DIA. Round Natural 49909

1⁄2

" X 1

1⁄2

" Square Natural 87631

2" X 2" Square Natural 87643

Stock Blank Aluminum Tags (B-906)

Custom Stamped Aluminum Tags (B-906)

●Durable 19 gauge aluminum tags

●Available in round or square shapes in either

11⁄2" or 2" sizes.

●Withstands temperatures of 1500˚F

CST1086

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

Custom Engraved Aluminum Tags (B-906)

Black

Gold

Dark Blue

Natural

Light Blue

Green

Olive Drab

Pink

Yellow

Orange

Red Violet

●Durable 19 gauge aluminum tags

●Available in round or square shapes in either 11⁄2" or 2" sizes

●Withstands temperatures of 233˚ F at a consistent heat.

Engraved Aluminum Tags (B-906) - CST1089

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

For special fill colors or quantities over 1000 tags

please call your local Distributor for quote and lead

time... Or call us toll-free

at 1-888-272-3946

Brady-EtchTM Aluminum Valve Tags (B-906)

●Available in four colors: red, yellow,

blue and green

●Choose round or square styles in

11⁄2" or 2" sizes

Brady-Etch™Aluminum Valve

Tags give you the ability to cus-

tomize with text.

BradyEtchTM Tags - CST1091

Size Shape

11⁄2" Round or Square

2" Round or Square

Brady-EtchTM tags available in natural legend only.

See pg. 23 for maximum

number of characters.

See pg. 25 for maximum

number of characters.

Icon Glossary S-25 04/11/2006

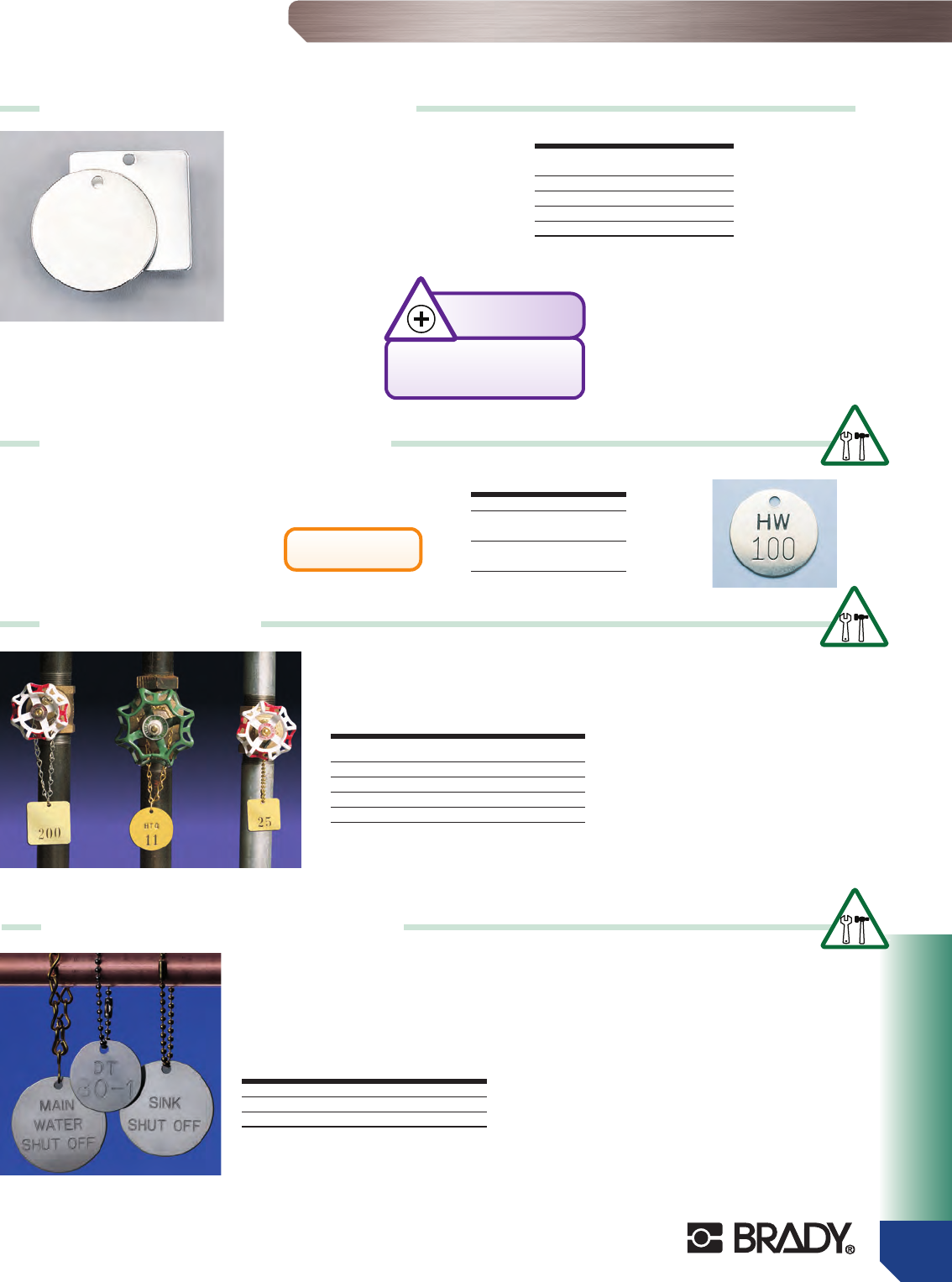

Stainless Steel Tags

ID Tags

www.bradyid.com

Stock Blank Stainless Steel Tags (B-748)

●Ideal for harsh environments or where a

stainless steel material is specified

●Available in two standard sizes

●Round or square shapes available

●Tag hole is 3⁄16"

●Standard package: 25 tags

Customize Stock Blank Stainless

Steel Valve Tags on the spot with

your own engraver.

Icon Glossary S-25 04/11/2006

May We Also

Suggest...

Stainless Steel Strapping

see pg 30

Tag Tag Catalog

Size Shape Number

11⁄2" Round 44400

11⁄2" Square 44401

2" Round 44402

2" Square 44403

Custom Stamped Stainless Steel Tags

●Durable .025" stainless steel tags.

●Available in round or square shapes in either 11⁄2" or

2" sizes.

●Withstands temperatures of 2700˚F

CST1085

Size Color

11⁄2" Natural or Black Fill

2" Natural or Black Fill

Custom Engraved Stainless Steel Tags

●Durable .025 stainless steel tags

●Available in round or square shapes in either 11⁄2" or 2" sizes

●Withstands temperatures of 2700˚ F

Engraved Stainless Steel (B-748) - CST1088

Size

11⁄2"

For tags with black fill please call your local

Distributor for quote and lead time... Or call us toll-

free at 1-888-272-3946

See pg. 23 for maximum

number of characters.

Icon Glossary S-25 04/11/2006

Maximum Number of Characters

Max. Lines

Tag Size Per Tag Bottom Line

11⁄2" Round 38

11⁄2" Square 3 12

2" Round 3 10

2" Square 3 16

Note: Black-filled legend is recommended over natural

due to legibility. All tags are produced natural unless a

black fill is specifically requested.

Custom Engraved Tags

Icon Glossary S-25 04/11/2006

●Choose from Brass, Aluminum and Stainless Steel tags

●Round or Square tags are available

ID Tags

HEET / Teflon / Fiberglass Tags

Stock Blank Stainless Steel (HEET) Tags (B-748)

●Ability to customize wording for each valve or piece of equipment

●Enhance employee safety

●Available in two sizes: 2" x 2" or 21⁄2" x 5"

●Standard Package - 10 tags

Stainless Steel (HEET) Tags (B-748)

Size Catalog No.

2" x 2" 89226

2 1⁄2" x 5" 89227

2 1⁄2" x 5" w/cover 89228

Custom Harsh Environment Equipment Tags (HEET)

Custom Teflon Tags

Custom Fiberglass Tags (B-120)

Teflon coated tags make it easy to wipe

off grease, dirt and even paint for fast

bar code reading.

●Anodized aluminum with Teflon®coating resists

paint, most chemicals, sunlight (UV), solvents,

and heat to 500°F (260°C)

●Teflon coating on both sides resists corrosion

●Legends, bar codes and human readable text

available with variable print

Fixed custom message, warning or logo may

be added to all tags

●Custom sizes are also available

●Graphics are embedded with tags to withstand moisture, grease, and dirt

●Standard colors are yellow and white

●Ability to add barcodes and multiple lines

●Custom sizes and

colors available

●Rigid

●Ability to customize wording for each valve or piece of equipment

●Enhance employee safety

●Available in two sizes: 2" x 2" or 21⁄2" x 5"

●Text may be on one or both sides

●ASME (ANSI) color options provide an easy method of color coding within the plant

including yellow, red, green, blue or white

●Variety of formats and labels to choose from

●Many formats offer 3 of 9 bar coding as a standard option

●Minimum order: 25 tags

◗Tag Covers

Covers available for the 21/2" x 5" tag only.

Tag covers protect the tag information

from debris and allow clear reading of the

tag even after exposure to airborne debris.

Teflon Tags (B-541) - CST1076

Size

/2" x 11

/2", one-sided

/2" x 11

/2", two-sided

1" x 3", one-sided

1" x 3", two sided

Fiberglass Tags (B-120) - CST1079

Size

2" x 2"

2" x 4"

Tag Covers (B-789) - CST1078

Size

/2" x 5", one-sided w/sheath

/2" x 5", two-sided w/sheath

Harsh Environment Tags (B-748) - CST1077

Icon Glossary S-25 04/11/2006

VIP Tags

ID Tags

www.bradyid.com

Custom Durable Plastic Tags (B-418)

Make your plant visually

instructive with Brady's

Plastic Valve Tags.

Designed to stand up to

harsh environments,

Plastic Tags are a durable

way to accurately mark

valves.

Glow VIP Tags

Available in ten

bright colors.

●Tags are lightweight, non-corrosive, non-conductive and

●Temperatures between -40°F to 260°F

●Sizes available: 11⁄2" x 3" or 21⁄2" x 4" label area

●Bar code options include 3 of 9 or Code 128

●Overlaminate choices include standard or UV resistant for longer durability

●10 Colors Available: Black, Yellow, Red, Blue, Green, Orange, White, Grey, Brown & Tan

Icon Glossary S-25 04/11/2006

NEW

Custom Durable Plastic Tags

are now available w/

Reflective &

Photoluminescent Vinyl.

(B-418) Plastic Tag with Standard Overlaminate

(VIP) - CST1074

1.5" x 3" label on one side

1.5" x 3" label on both sides

2.5" x 4" label on one side

2.5" x 4" label on both sides

(B-418) Plastic Tag with UV Resistant Overlaminate

(VIP) - CST1075

1.5" x 3" label on one side

1.5" x 3" label on both sides

2.5" x 4" label on one side

2.5" x 4" label on both sides

Stock Durable Plastic Tags (B-418)

Choose from ten bright colors.

●Durable Plastic Tags are lightweight, non-corrosive,

non-conductive and impact resistant

●Tag withstands temperatures between -40°F to 260°F

●Two sizes available: 11⁄2" x 3" or 21⁄2" x 4" label area

●Rounded corners and hole punched

●Tags are sold individually

●10 Colors Available: Black, Yellow, Red, Blue, Green,

Orange, White, Grey, Brown & Tan

Durable Plastic Tags (B-418)

Catalog

Number Color Size

41920 Black 11⁄2" x 3"

41921 Black 21⁄2" x 4"

41922 Yellow 11⁄2" x 3"

41923 Yellow 21⁄2" x 4"

41924 Red 11⁄2" x 3"

41925 Red 21⁄2" x 4"

41926 Blue 11⁄2" x 3"

41927 Blue 21⁄2" x 4"

41928 Green 11⁄2" x 3"

41929 Green 21⁄2" x 4"

Catalog

Number Color Size

87694 Orange 11⁄2" x 3"

87695 Orange 21⁄2" x 4"

87696 White 11⁄2" x 3"

87697 White 21⁄2" x 4"

87698 Grey 11⁄2" x 3"

87699 Grey 21⁄2" x 4"

87710 Brown 11⁄2" x 3"

87711 Brown 21⁄2" x 4"

87712 Tan 11⁄2" x 3"

87713 Tan 21⁄2" x 4"

Icon Glossary S-25 04/11/2006

May We Also

Suggest...

Create custom labels with the

GlobalMark Industrial Labeling

System. Visit www.bradyid.com

for more information and to see

Brady’s complete line of printers

ID Tags

Energy Source / Laminated Tags

Energy Source Tags

●Tags are constructed with

B-401 Plastic

●Rounded corners with

1 hole

●Available in packages of

5 or 25

Identify your energy

source with Brady’s

Energy Source Tags

Icon Glossary S-25 04/11/2006

NEW

Legend Picto Name Color 5 pk 25 pk

P-1 Double Pressure Gauge White/Blue 105654 105694

P-2 Double Pressure Gauge White/Blue 105655 105695

P-3 Double Pressure Gauge White/Blue 105656 105696

P-4 Double Pressure Gauge White/Blue 105657 105697

P-5 Double Pressure Gauge White/Blue 105658 105698

S-1 Single Pressure Gauge Black/Orange 105659 105699

S-2 Single Pressure Gauge Black/Orange 105660 105700

S-3 Single Pressure Gauge Black/Orange 105661 105701

S-4 Single Pressure Gauge Black/Orange 105662 105702

S-5 Single Pressure Gauge Black/Orange 105663 105703

V-1 Spout Black/White 105664 105704

V-2 Spout Black/White 105665 105705

V-3 Spout Black/White 105666 105706

V-4 Spout Black/White 105667 105707

V-5 Spout Black/White 105668 105708

G-1 Double Pressure Gauge Purple/White 105669 105709

G-2 Double Pressure Gauge Purple/White 105670 105710

G-3 Double Pressure Gauge Purple/White 105671 105711

G-4 Double Pressure Gauge Purple/White 105672 105712

G-5 Double Pressure Gauge Purple/White 105673 105713

* CP and E tags are supplied with an adhesive back

Legend Picto Name Color 5 pk 25 pk

CP-1 Orange/White 105634 105674

CP-2 Orange/White 105635 105675

CP-3 Orange/White 105636 105676

CP-4 Orange/White 105637 105677

CP-5 Orange/White 105638 105678

E-1 Electric Bolt Red/White 105639 105679

E-2 Electric Bolt Red/White 105640 105680

E-3 Electric Bolt Red/White 105641 105681

E-4 Electric Bolt Red/White 105642 105682

E-5 Electric Bolt Red/White 105643 105683

W-1 Spout White/Green 105644 105684

W-2 Spout White/Green 105645 105685

W-3 Spout White/Green 105646 105686

W-4 Spout White/Green 105647 105687

W-5 Spout White/Green 105648 105688

S-1 Single Pressure Gauge White/Red 105649 105689

S-2 Single Pressure Gauge White/Red 105650 105690

S-3 Single Pressure Gauge White/Red 105651 105691

S-4 Single Pressure Gauge White/Red 105652 105692

S-5 Single Pressure Gauge White/Red 105653 105693

Custom Laminated Tags (B-911)

Letter Size: 0.2"

Lines of Copy: 4

Characters Per Line: 8

Laminated Valve Tags provide an economical custom

tag that is fully sealed from the environment.

Letter Size: 0.4"

Lines of Copy: 6

Characters Per Line: 8

Two sizes available: ●Available in red, yellow, blue,

green and white for

color-coding options

●Tags have square corners and

a brass grommet

●Polyester laminate withstands

exposure to moisture,

solvents, grease and dirt

●Two sizes available:

21⁄2" x 31⁄2", and 31⁄2" x 5"

CST1093

Dimension

31/2" x 21/2"

5" x 31/2"

Minimum order : 50 tags per size

Icon Glossary S-25 04/11/2006

May We Also

Suggest...

Tag Fasteners available

see pgs 31

Icon Glossary S-25 04/11/2006

Customize It

Custom Energy Source

Tags also available

CST 1170

Icon Glossary S-25 04/11/2006

Polyester Tags

ID Tags

www.bradyid.com

Custom Polyester Tags (B-851)

●Rigid polyester surface exceeds OSHA 50 lb.

pull out requirement

●Polyester tags withstand moisture, grease and dirt

●Standard colors include red, yellow, blue, green

and white

●Ability to add barcodes and multiple lines

CST1094

Size

2 1/2" x 2"

Custom Polyurethane Tags (B-462)

Style 1

(4) 1/2"

Characters, 1 line

3/4" x 2-5/8"

Style 3

(4) 1/2"

Characters,

1 line

2-3/16" x 2"

Style 2

(5) 1/2" Characters,

3 lines

(3) 1" Characters,

2 lines

3" x 3"

Style 4

(5) 1/2" Characters,

3 lines

(3) 1" Characters,

2 lines

3" x 3-3/8"

CWR

686686

HTGHTG

712712

CW29

HS02

●Chemical and oil resistant polyurethane tags

were made for harsh environments.

●A durable valve tag that can withstand extreme

conditions and temperatures from -40˚F to

+250˚F

●Tags are made of multi-purpose polyurethane

that is heat stamped with the numbering or

lettering of your choice.

●Four tag styles are available.

●Each style may be fastened with wire, S-hooks

and chain, or nylon ties.

●Chemical composition of the tag makes it ideal

for outdoor use and on small diameter pipes

when chlorides are not to come in contact with

the pipe.

Poly Tag - CST1092

Tag Style

Stock Polyester Tags (B-851)

●21⁄2" x 2 grommeted polyester tags

●Choose from 7 different legends

●Also available in a self laminating blank tag

●Sold in packages of 10 identical tags

●Rigid polyester surface exceeds OSHA 50 lb. pull out requirement

●Polyester tags withstand moisture, grease and dirt

Stock Polyester Tags (B-851)

Legend Color Catalog No.

Normally Closed White/Red 89245

Normally Open White/Green 89246

Compressed Air White/Blue 89247

Main Shut-Off White/Red 89248

Do Not Adjust Black/Yellow 89249

Fire Protection Water White/Red 89250

Natural Gas Black/Yellow 89251

Blank w/Self Overlam Red 89252

Blank w/Self Overlam Blue 89253

Blank w/Self Overlam Yellow 89254

Blank w/Self Overlam Green 89255

Icon Glossary S-25 04/11/2006

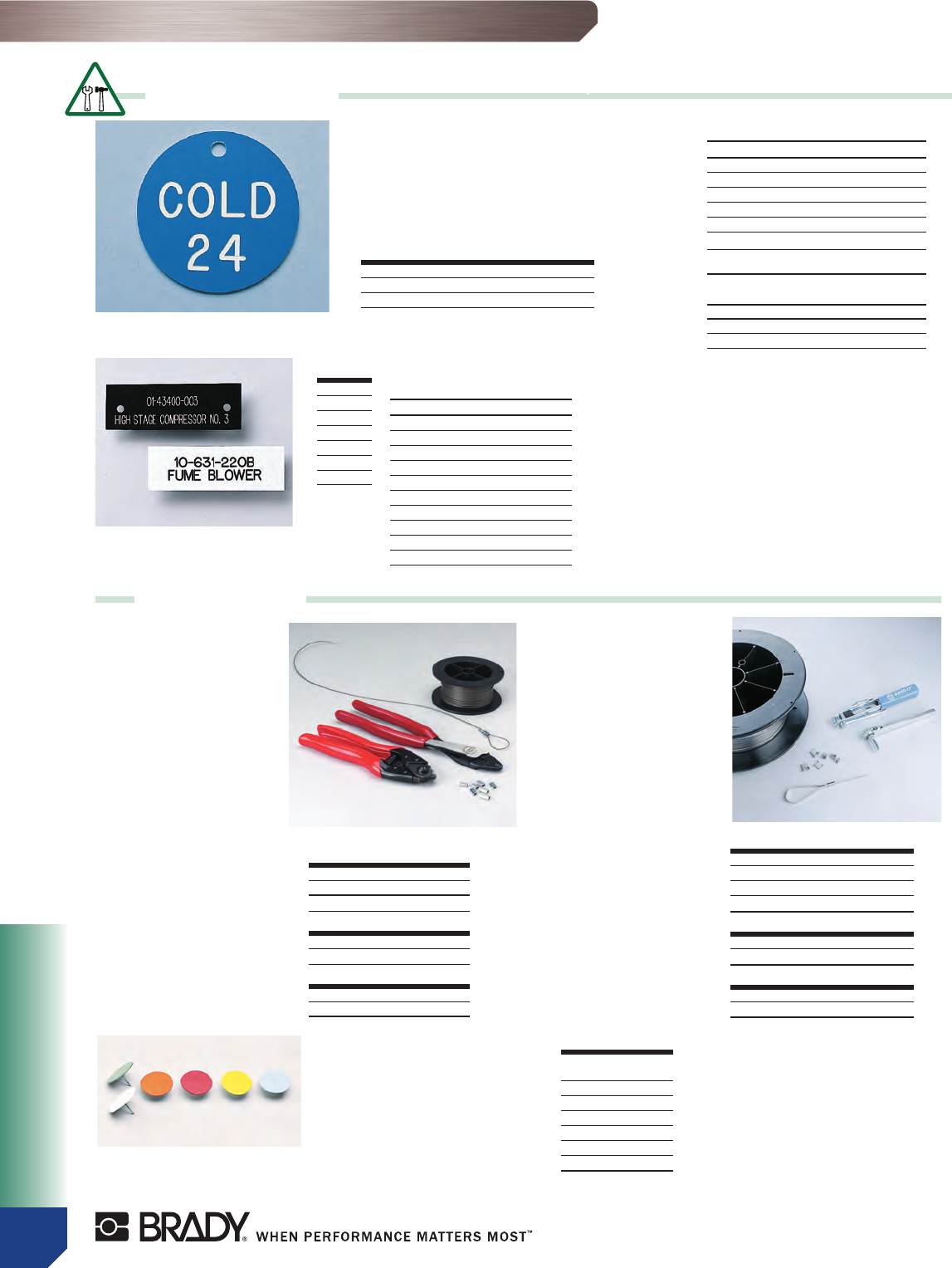

Custom 3-Ply Tags

ID Tags

3-Ply Tags & Tag Accessories

●Custom wording available

●Available in multiple background colors

●Material is 1⁄16" rigid laminate plastic (B-1)

●Heat resistant, non-conductive, non-corroding

Color Options

Lettering Background

Black Yellow

Black White

White Green

White Red

White Blue

White Black

Size Options

Maximum Number

of Characters

Tag Size Top Line Bottom Line

11⁄2"43

2" 55

Hole size: 3⁄16"

Color Options

Lettering Background

Black White

Black Orange

Black Yellow

White Green

White Blue

White Red

White Black

Green White

Red White

Blue White

Available in six background colors

Available in seven back-

ground colors

CST1082

Size

.75" x 2.5"

1" x 2.5"

1" x 3"

2" x 3"

1.5" x 4"

2" x 4"

Custom 3-Ply Valve Tags

Price Per Tag (Round or Square) - CST1081

Size

11⁄2"

E-1

E-1. Crimping Tool

●Secure and crimp brass clamp

E-2. Cutting Tool

●Cuts Stainless Steel Wire

F. Brass Wire Clamps -

Double Ferrule Design

●Use to secure or splice

Stainless Steel Wire

●Made from brass for strength

and durability

●Standard package: 50

G. Stainless Wire (48 mil)

●Stranded stainless steel wire

●30' rolls

●For secure attachment, use

with brass clamps

E-2

H. Stainless Steel

Strapping

●Made from type 316

stainless steel

●Continuous form strapping

1/4" wide, is used with heads

and Banding Tool, sold below

●Recommended for use with

B-748 HEET Tags

●Available in 100', 250'

and 1000'

I. Stainless Steel

Banding Heads

●Creates secure closure

●Fits 1/4" strapping

●Use Banding Heads with

continuous strapping and

Banding Tool, sold below

●Standard Package: 100

J. Banding Tool

●Lightweight pocket size tool

for use with banding straps

E. Tool

Catalog Number

38088 E (1)

38089 E (2)

F. Brass Wire Clamps

Catalog Number

38090

G. Stainless Steel Wire

Catalog Number

38091

H. Stainless Steel Strapping

Catalog Number

42331 100'

42332 250'

42333 1000'

I. Stainless Steel Banding Heads

Catalog Number

90910 Type 316

J. Banding Tool

Catalog Number

42322

Valve Finder Ceiling Tacks

◗Valve Finder Ceiling Tacks

●Use Valve Finder Ceiling Tacks on

accessible tile ceilings to indicate the

location of valves, dampers, gauges,

sensors and other controls

●7⁄8" diameter head

●Available in six colors

●Standard package: 25 identical tacks

Catalog

Color Number

Yellow 23250

Green 23251

Red 23252

Blue 23253

White 23254

Orange 23255

Icon Glossary S-25 04/11/2006

Tag Accessories

ID Tags

www.bradyid.com

C. Lead Seals

●12" wires with pre-fitted

lead seals fit easily around

pipes or valves

●Use with Hand Sealing Press

●Available in copper and monel

●Standard package: 250

D. Hand Sealing Press

●Quickly and permanently

crimp your lead seals with

Brady’s own hand sealer

●Prevents tampering

●Custom initials available (max.

of 3) call your local distributor

for more information.

A. Stainless Steel Safety Wire

(32 mil)

●Economical 5 lb. canister

●Use with wire twister pliers

●Standard package: 1800'

B. Wire Twister Pliers

●In a quick single action, pliers

quickly and tightly twist safety

wire to lock-wire tags in place

◗#16 Jack Chain

●Tough, solid chain

●Open and close links to adjust to

size needed

●Approximately 25 links per foot

●Approximately 10-12 inches is

enough to fasten one tag

●Standard package: 50 feet of chain,

sold in full packages only

◗Solid “S” Hooks

●Available in three size O.D.s:

13⁄4", 11⁄2" and 11⁄4"

●Standard package: 100 “S”

Hooks, sold in full packages only

◗41⁄2" Beaded Chain

●Available in #6 brass, nickel plate,

aluminum, and stainless steel

●Extremely flexible 41⁄2" bead chain

with locking link

●Standard package: 100 chains, sold

in full packages only

◗Zinc Plated

●Temporary fastener for valve tags

and other tag attachments

●Squeeze fastener to open and close

●Inside diameter of fastener is 13⁄8"

●Sold in Packs of 100

◗Key Ring

●Nickel plated

●1" in diameter

●Sold in packs of 10

◗Colored Nylon Ties

●8” Nylon tie provides easy fastening of valve tags

●Hook ties together to create longer lengths

●Sold in Packs of 100

A. Stainless Steel Safety Wire

Catalog Number

15424

B. Wire Twister Pliers

Catalog Number

15425

C. Lead Seals

Catalog Number

23301 Copper

23302 Monel

D. Hand Sealing Press

Catalog Number

23300

Catalog Number Description

23306 #6 Brass

23307 #6 Nickel Plate

98856 #6 Aluminum

98857 #6 Stainless Steel

#16 Jack Chain

Catalog Number

23308 Brass #16

98859 Stainless Steel

Catalog No.

98858

Catalog No. Color

98848 Black

98849 Blue

98850 Green

98851 Natural

98852 Orange

98853 Purple

98854 Red

98855 Yellow

Catalog No.

58973

Catalog For Valve

Number Size Stems Up To

Brass

23305 13⁄4" O.D. 1⁄2"

23304 11⁄2" O.D. 3⁄8"

23303 11⁄4" O.D. 1⁄4"

Stainless Steel

98860 13⁄4" O.D. 1⁄2"

98861 11⁄2" O.D. 3⁄8"

98862 11⁄4" O.D. 1⁄4"

Printers

GlobalMark®Industrial Label Maker

Valve Tags

Equipment I.D.

◗Specially Priced GlobalMark®Combo Packages

◗Indoor/Outdoor Grade Vinyl Tape

• Labels adhere well to pipes, walls, equipment, windows – most clean,

dry surfaces

• Conforms well to irregular, curved or rough surfaces – it even stands up

to grease, oil and most industrial chemicals

• Five-year average outdoor durability in temperatures from 180°F to

-40°F (82°C to -40°C), can be applied as low as 0°F (-18°C)

◗Industrial Grade Print Ribbons

• Super-Tough smear-proof ribbons assure your printed text lasts for years outdoors

and in an industrial environment

• Ribbons ship self-contained in cartridges that drop straight in to the GlobalMark®

with a “click”

• 2 and 4-color "paneled" ribbons are used to print labels and signs containing

more than 1 print color

Unprecedented Ease of Use...

Unprecedented Choice of Materials...

Touch... Print... Presto!

Unprecedented Ease of Use...

Unprecedented Choice of Materials...

Touch... Print... Presto!

• Color touch screen interface…Quick & Easy!

• Multicolor spot printing or Full-color process printing

• Specialty materials including tag stock, magnetic, reflective and

phosphorescent (10 hour glow)

• Cuts characters & shapes!

• Patent # D481,415

Brady File Management Utility allows you to:

• Transfer files from your PC to your GlobalMark and from your

GlobalMark to your PC

• Manage your existing GlobalMark files

• Update your GlobalMark operating system when upgrades are

available. Simple to run when connected to your PC

Pipe Markers (1/2"-4")

Choose from three

GlobalMark®Models

that will meet all your

labeling requirements

• Prints in one color, multiple spot colors,

blended colors and full process color

• Unit has a built-in cutter for cutting out characters and shapes

• With optional MarkWare™ label making software, import and

print full color logos, artwork, even photographs

• Tape Saver feature

• Prints the same color options as the Color & Cut system,

including the optional MarkWare™ software enhancements,

without the built-in cutter

• Prints one color only on one color tape. It is compatible with

MarkWare™ software

• Monochrome touchscreen display

• Does not have a built-in cutter

Black White Black/Red Black/Red/

Orange/

Blue

White Yellow Red Green Blue Orange

- Catalog No. 76801

- Catalog No. 76800

- Catalog No. 76798

Catalog No Description

99004 Multi-Color GlobalMark and Lockout Pro Software

99009 Color & Cut GlobalMark and Lockout Pro™ Software

For more details on Lockout Pro™ Software see pg57

Print Ribbon Cartridges – 200 ft./roll

Size Catalog Number

4.11" 76739 76741

4.11” x 8” Panels 76763 51447

Description Catalog Number

4" x 100' 76542 76547 76552 76556 76560 76594

2.25" x 100' 76544 76549 76553 76557 76561 76595

1.125" x 100' 76545 76550 76554 76558 76562 76596

HandiMark®Portable Label Maker

Printers

www.bradyid.com

The most versatile portable industrial

label maker on the market!

The most versatile portable industrial

label maker on the market!

• .5", 1" or 2" tape widths

• Large characters – Hundreds of character sizes from .08" to 1.7"

• Super-tough outdoor grade vinyls

• 15 tape colors, 7 print colors

• Specialty materials: Reflective, tamper resistant or repositionable vinyl

• Thermal transfer print...no smearing!

• 113 Built-in industrial symbols

• Bar codes, sequencing & memory built-in!

• Portable – battery or AC operation

Print Your Own Labels Right Now!

The applications are virtually limitless…

Pipe Markers Panels & Switches Junction BoxesGauges

Includes

●HandiMark® Portable

Label Maker

●Rechargeable Battery

●Battery Charger

●25' roll of 2" white vinyl tape

●Black ribbon

●Hard carrying case

●Symbols reference chart

White Clear Yellow Green Red Blue Lt. Blue Orange Black Tan Grey Brown Gold Purple

Black White Red Blue Green Magenta Yellow

For more information on our line

of industrial label makers visit

www.bradyid.com

Description Catalog Number

HandiMark®Portable Label Maker 42001

(Includes items listed to the right above.)

Outdoor Grade Vinyl Tapes

Description Catalog Number

1/2" x 50'

(

13 mm x 15.2 m

)42018 42076 42022 42026 42030 42034 — 42038 42042 — 42046 42050 42054 42058

1" x 50'

(

25 mm x 15.2 m

)42019 42077 42023 42027 42031 42035 42133 42039 42043 42135 42047 42051 42055 42059

2" x 50'

(

51 mm x 15.2 m)

42021 42079 42025 42029 42033 42037 42134 42041 42045 42136 42049 42053 42057 42061

Industrial Grade Print Ribbons

Size Catalog Number

2" x 75' (51 mm x 23 m) 42011 42012 42013 42014 42015 42016 42123

Printers

MiniMarkTM Industrial Label Printer

The Next Small Thing in Fast Labeling

It Pays to Think Small

The new Brady MiniMark™ Industrial Label Printer offers an affordable sign and

label making solution that is compact, fast, and incredibly versatile.

Brady’s MiniMark printer is ideal for:

■Signs ■Pipe Markers ■Equipment ID

■General ID ■Racks and Shelving ■Panel ID

■Procedures ■Asset Management ■And much more

Big Benefits in a Small Package

■VERSATILE – Uses continuous tapes for multiple applications

■EASY – Supplies are easy to load

■FAST – Prints up to three inches per second

■COMPACT – Doesn’t take up a lot of space in work areas

■Available with parallel, serial, and USB connectivity

■Built-in cutter minimizes waste

MiniMark™ Printer Specifications

Maximum Printing Width: 4 inches

Minimum Printing Length: From 1 inch to 39 inches

Dimensions: 8 inches wide x 10.25 inches deep

x 7 inches high

Weight: 4.85 pounds

Current – Input: 100-240V / 50 / 60Hz / 1.6A

Current – Output: 24VCD – 2.5A

Icon Glossary S-25 04/11/2006

NEW

Great for 5S, Kaizen and

Six Sigma Programs

Stress

FREE

Setup

System

QUALIFIED

Catalog No. Description

52041 MiniMark™ Industrial Label Printer (Surf on Signs Software, USB cable, quick start, power cord and cleaning kit)

52159 ValuePLUS Package for MiniMark™

Includes: 1 roll each 4" and 2.25" white vinyl tape; MarkWare™ software; and 1 roll of black ribbon.

105030 MiniMark™ Industrial Label Printer and HandiMark® Portable Label Maker Combination Kit

105089 General Industrial Supply Starter Package (Printer Sold Separately)

Includes: MarkWare™ software; 2 rolls each of 4" white and yellow vinyl; 2 rolls each of 2.25" white

and yellow vinyl; 2 rolls each of 1.125" white and yellow vinyl; and 8 rolls of black ribbon (4 pkgs.)

105088 Pipe Marker Supply Starter Package (Printer Sold Separately)

Includes: MarkWare™ software; 3 rolls of 4" yellow vinyl; 1 roll each of 4" red, green, and blue vinyl; 3

rolls of 2.25" yellow vinyl; 1 roll each of 2.25" red, green, and blue vinyl; 1 roll each of 1.125" yellow,

red, green, and blue vinyl; and 6 rolls each of black and white ribbon (3 pkgs. each)

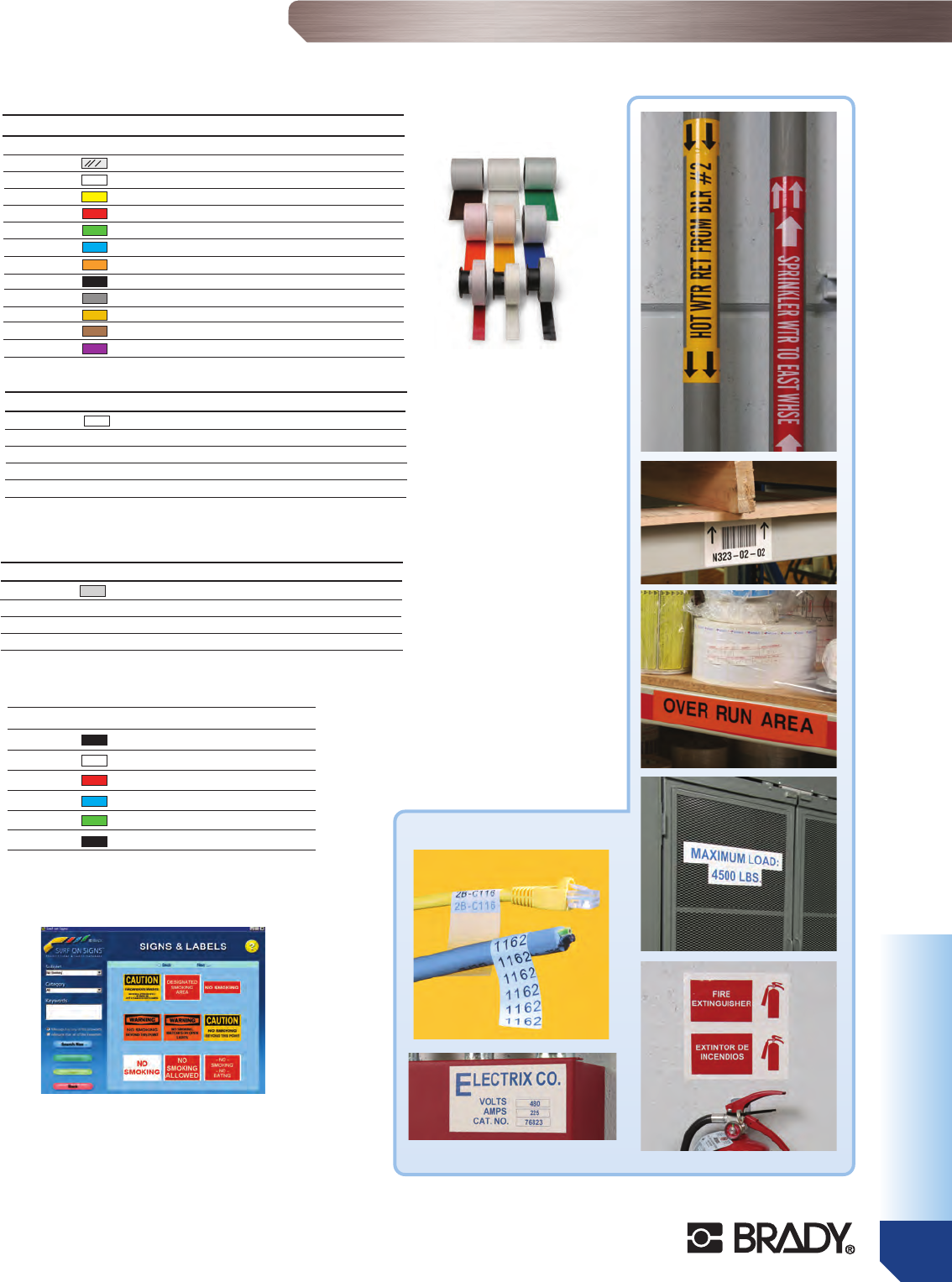

MiniMarkTM Industrial Label Printer

Printers

www.bradyid.com

Ships with Surf on SignsTM Software

Ribbon 4.4" x 290' per roll, 2 rolls/pkg.

Description Catalog No.

Black 52042

White 52044

Red 52045

Blue 52047

Green 52059

Black Wax 105031

B-438 Tamper-Evident Metalized Polyester Labels*

Description Catalog No. Labels/Roll

Silver 2"x 1" 52148 1,240/roll

3"x 1" 52149 1,225/roll

3"x 2" 52150 650/roll

3"x 110' 52152 Continuous

*Use Brady black wax ribbon with die cut labels. Part No. 105031

B-427 Self-Laminating Die Cut Labels*

Description Catalog No. Labels/Roll

White .5"x 1.25" 52153 2,800/roll

1"x 1" 52155 3,275/roll

1"x 1.25" 52156 2,780/roll

1"x 2.5" 52157 1,485/roll

1.5"x 2.5" 52158 1,000/roll

*Use Brady black wax ribbon with die cut labels. Part No. 105031

Indoor/Outdoor Vinyl Tape Tape Cartridges, 1 per pkg.

Description Catalog No.

4" x 110' 2.25" x 110' 1.125" x 110'

Clear 52086 52073 52060

White 52087 52074 52062

Yellow 52090 52075 52063

Red 52091 52076 52064

Green 52093 52077 52065

Blue 52094 52078 52066

Orange 52096 52079 52067

Black 52143 52080 52068

Grey 52144 52081 52069

Gold 52145 52082 52070

Brown 52146 52083 52071

Purple 52147 52084 52072

WWW.BRADYID.COM

www.bradyid.com www.bradycorp.com for worldwide locations

6555 West Good Hope Road, Milwaukee, WI 53223 U.S.A.

CUSTOMER SERVICE PH:1-888-BRADYGO (1-888-272-3946)FX: 1-800-292-2289

TECHNICAL SUPPORT PH:1-800-643-8766 FX: 1-800-358-6767

Brady Worldwide Inc.

355 Apple Creek Blvd., Markham, ON L3R 9X7

CUSTOMER SERVICE PH:1-800-263-6179

www.bradycanada.com

Brady Canada

Create Custom Labels quickly,

easily and cost-effective.

Brady Offers a wide variety of Portable and Benchtop Printers for any application.

Whether you need signs, labels, tags or pipe markers, Specify Brady.

Y522484 MS522484

PIPE VALVE ID CATALOG 114598

Navigation menu

Versions of this User Manual:

Views

Navigation
