1.0 Value Line™ Motors

TABLE OF CONTENTS

2.0 X$D Ultra® NEMA

Premium® Extra

Severe Duty Motors

2.1 X$D Ultra® – Extra Severe Duty

2.1 Standard Features

2.2 Pricing

2.8 C-Face Pricing

2.9 High Torque Design C Pricing

2.10 460V Performance Data

2.13 575V Performance Data

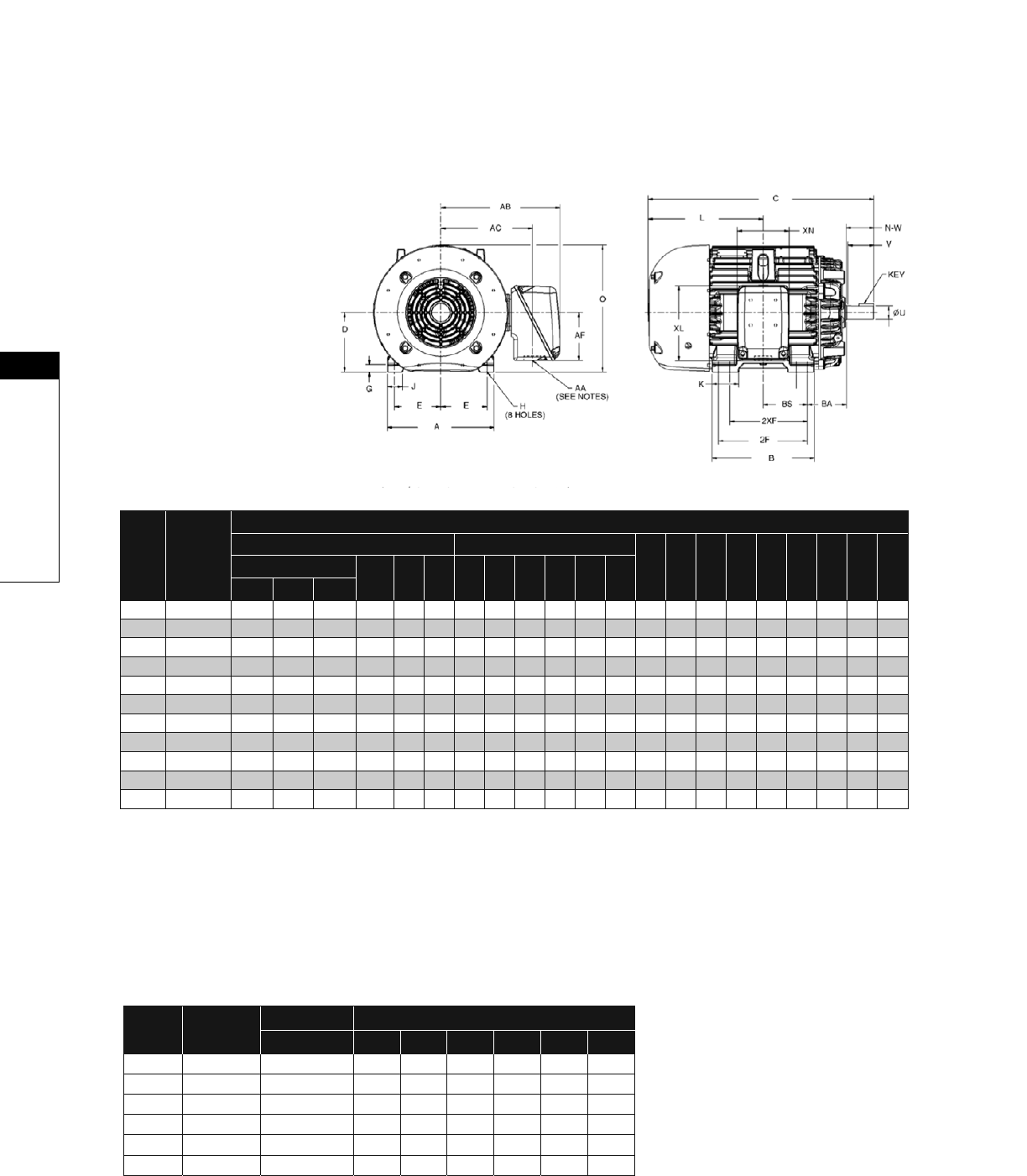

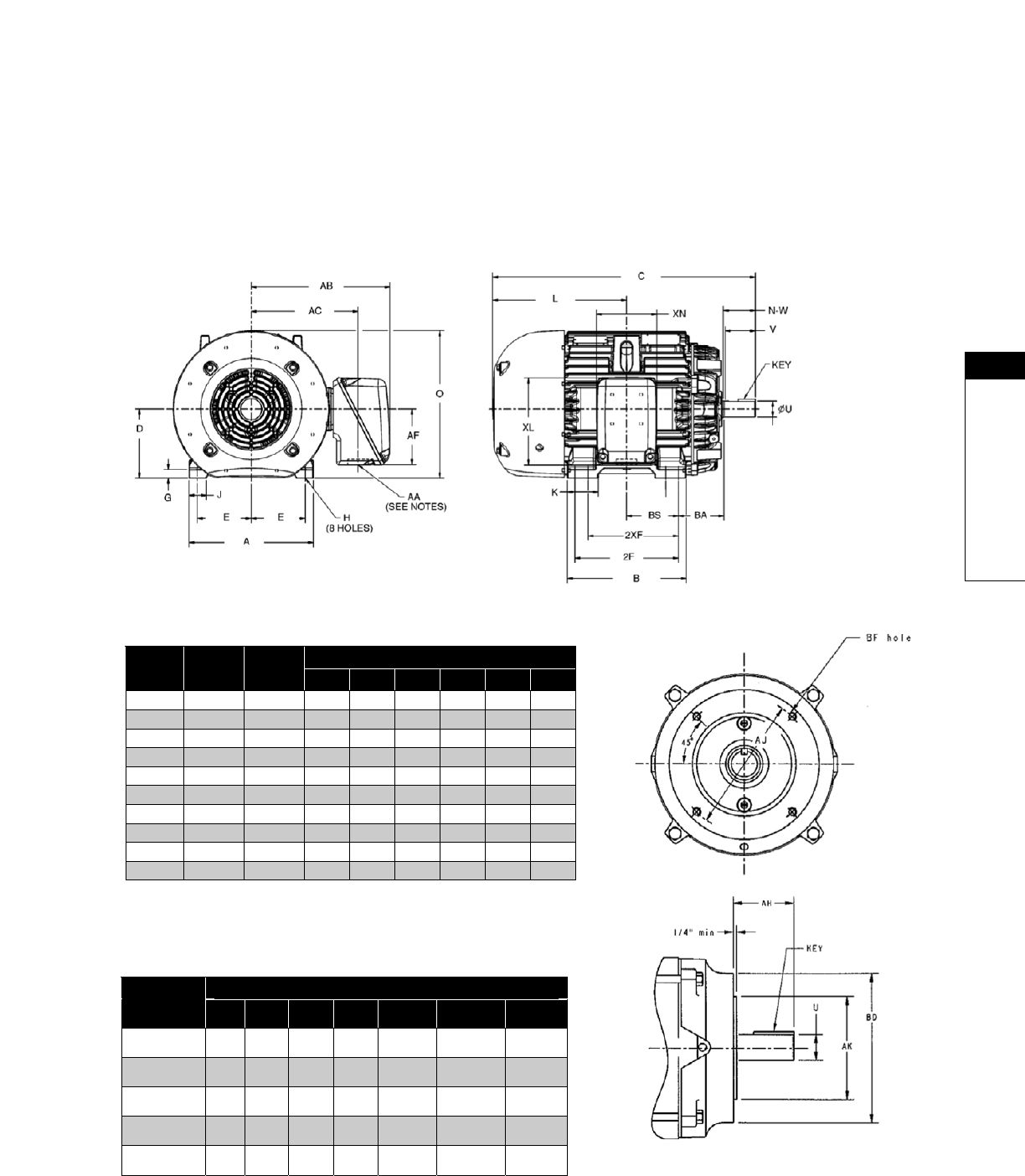

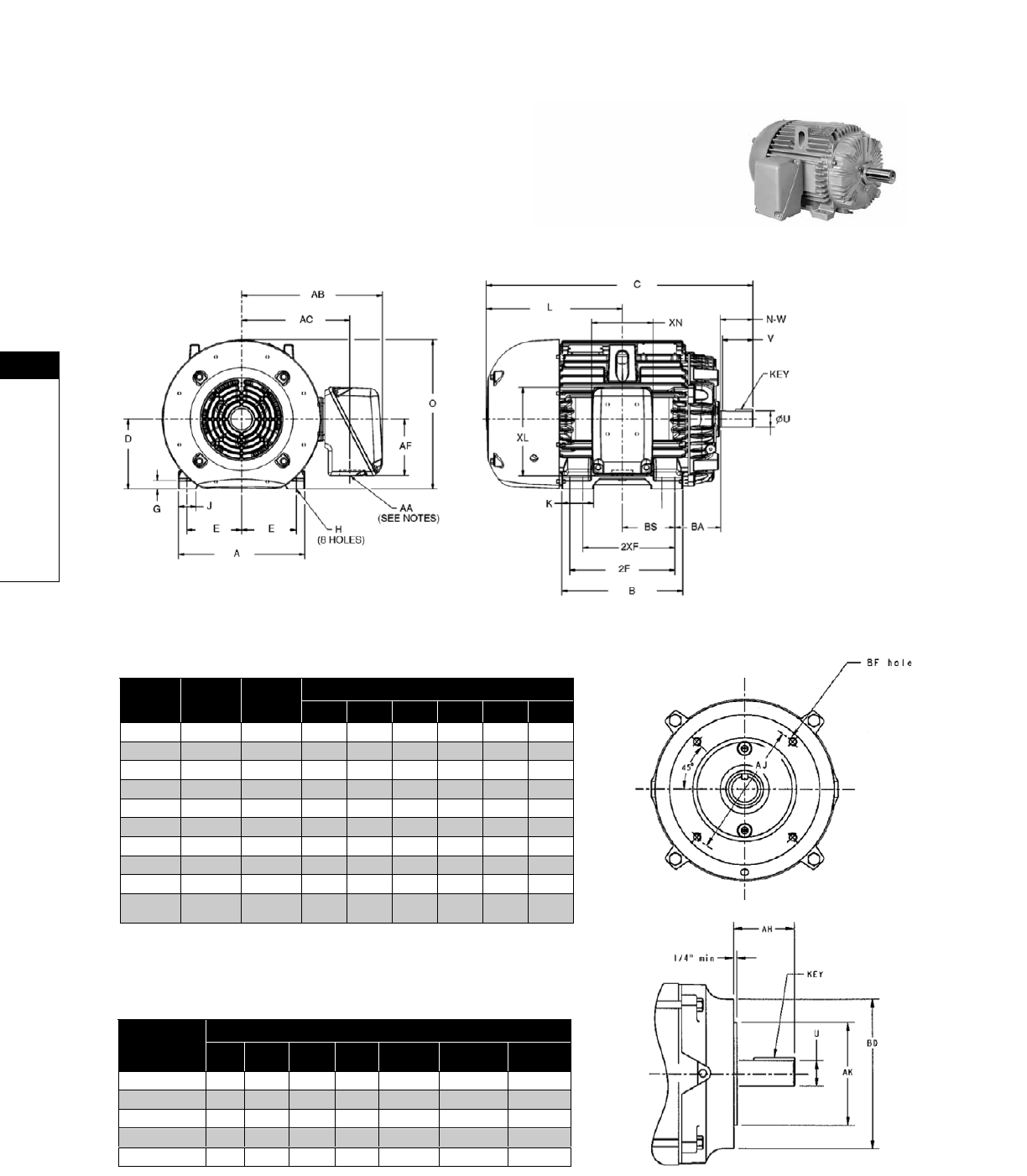

2.16 Dimensions

2.18 X$D Ultra® 841

2.18 Standard Features

2.19 Pricing

2.24 C-Face Pricing

2.25 460V Performance Data

2.28 575V Performance Data

2.31 Dimensions

2.33 X$D Ultra® 661 for Heat Exchanger

2.33 Standard Features

2.34 Pricing

2.35 460V Performance Data

2.36 Dimensions

2.37 X$D Ultra®, X$D Ultra® 841

and 661 Kits 140 to 449T

2.41 X$D Ultra®

Checklist for

Value

TABLE OF CONTENTS

Section Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

Localized Manufacturing

GE manufactures quality low voltage AC induction and DC motors in North America. We deliver through three

U.S. warehouses and channel partners with the highest quality and integrity. GE is committed to deliver the most

durable, reliable and energy efficient motors for your most challenging applications.

Monterrey, Mexico

Established in 1995, this modern and efficient

motor plant employs over 520 people. Here, GE’s

professional manufacturing team continues to improve

upon previous techniques and technologies to deliver

quality products and meet customer needs.

Warehouse Locations

•Mount Juliet, TN

established 1988

•Houston, TX

established 2008

•Los Angeles, CA

established 1993

Legendary Quality

Exceptional Service

Innovative Solutions

Local Manufacturing & Distribution

Expect more with GE

Operational Excellence

GE Energy

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

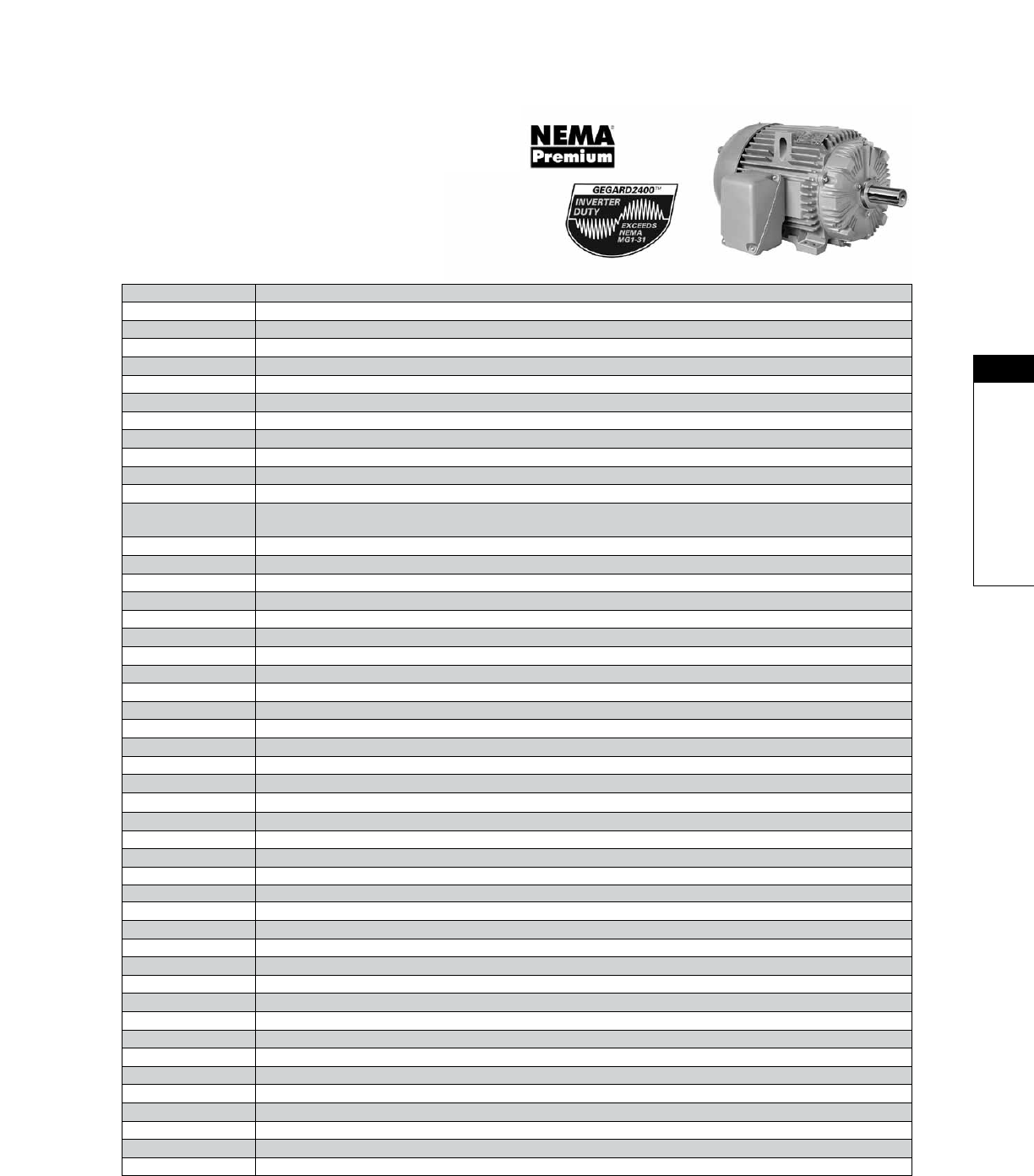

X$D Ultra® TEFC

2.1

X$D Ultra®

TEFC—Extra Severe

Duty (IP55)

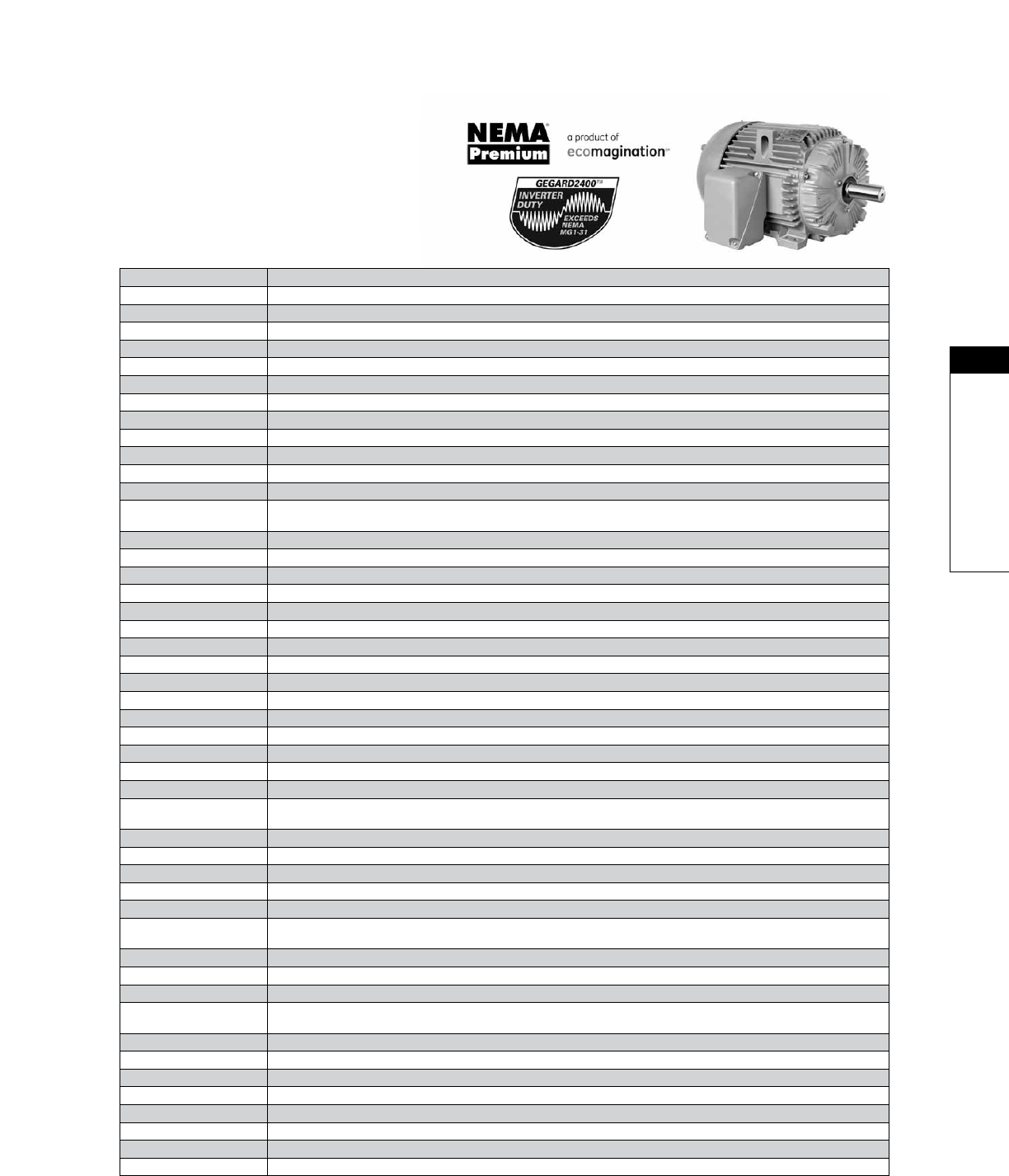

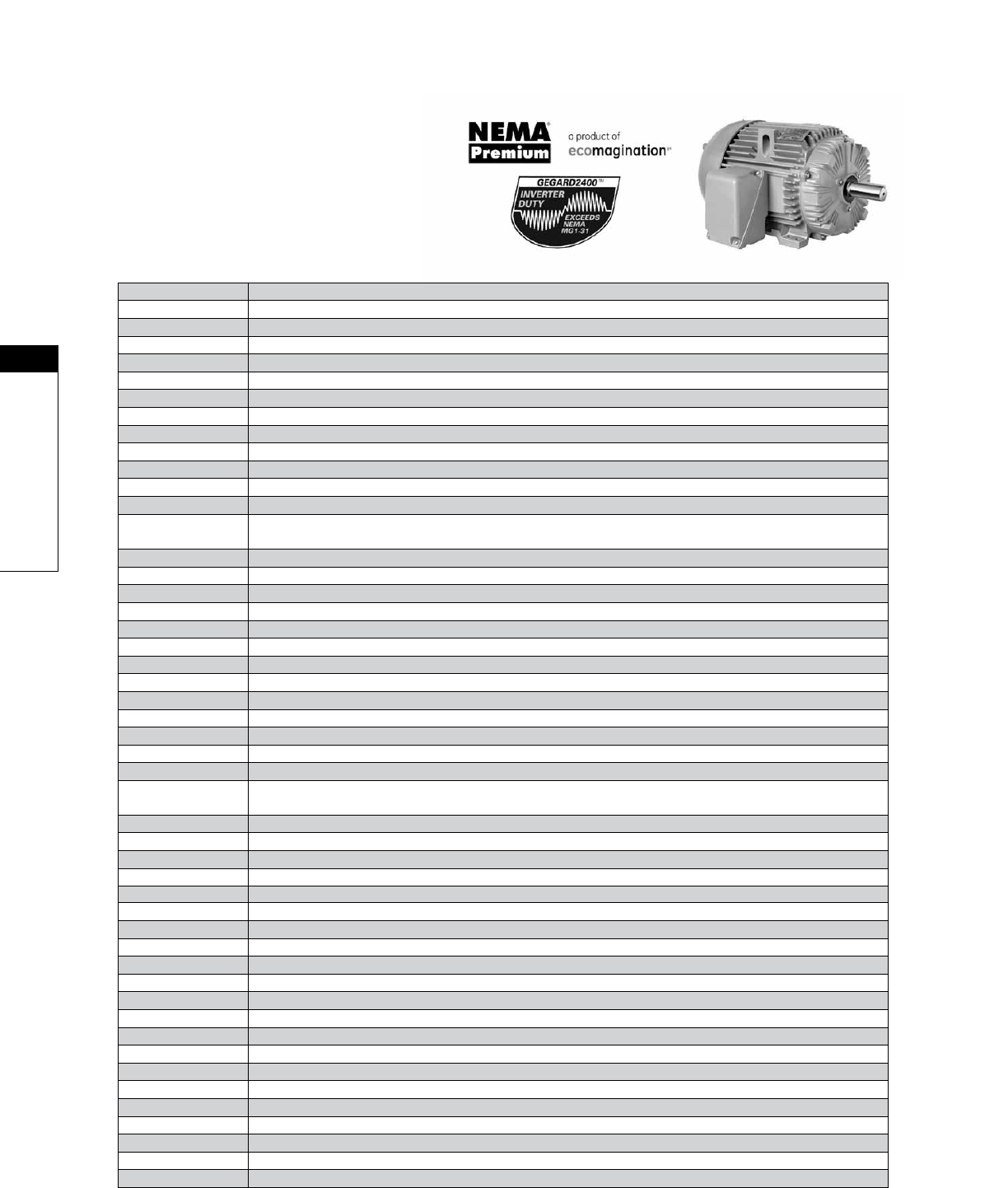

Standard Features

HP Range 0.75–300

Poles 2,4,6,8

Voltage 230/460, 460, 575

Agency Approvals UL—Component and Insulation System Recognition, CSA—Motors and C-390 (CE and ATEX Zone 2 by custom order)

Altitude 3300 ft

Ambient 40ºC, Alternate rating 65ºC @ 1.0 SF

Balance/Vibration ISO Grade 1, Ball Bearings: 0.040 in/sec (P)

Bearing Caps 143-449: Both ends are gasketed

Bearing Housing Rise 65ºC

Bearing Protection IP55—Recessed Slinger, Inpro Seal kit available

Bearing Type Ball, Belted 4-pole 250-300 HP have Roller Brg

Centered Core Allows F1-F2 field conversion

Conduit Box Gasketed and rotatable in 90 degree increments, Cast iron

Div 2 Temp Codes An optional Division 2 Nameplate or a statement of maximum internal and external surface temperature

can be provided (see kit section)

Drains Stainless Steel T-drains in lowest section of both endshields

Efficiency Meets or exceeds NEMA Premium nominal. Exceeds all NEMA Premium minimum efficiencies.

End Shield Cast Iron

Fan Non-Sparking Plastic or Bronze

Fan Cover Cast Iron

Fasteners SAE, Grade 5

Foot Draft Angle +/- 1.5 degrees

Foot Flatness 0.005 inches

Frame Material Cast Iron

Frame Size 143-449

Frequency 60Hz and 50Hz rating stamped on nameplate

Grease Polyurea

Ground Ground lug in Conduit Box

Industry Specifications Meets IEEE 45 Marine Duty

Insulation Class Class H

Insulation System GEGARD2400TM 143-449 frames. Non-Hygroscopic, Anti-Fungus, 2400Volt @ .1microsecond rise time.

Exceeds NEMA MG1-31

Inverter Capabilities Variable Torque inf:1, Constant Torque 20:1 (see Inverter Duty Capabilities, page iv)

L10 Bearing Life Direct Coupled: 130,000 hrs, Belted: 26,280 hrs, Belted L10a 50,000

Lifting Means 4 lugs cast into frame

Mounting F1 as Standard and Modifiable to F2

Mounting Holes 1 per foot (324 frame), 2 per foot (all other frames)

Nameplate 316 Stainless Steel Includes Weight, 3/4 Load Efficiency, Vibration Limit, Alternate Ambient, Service Factor and

60Hz and 50Hz data

NEMA Design B

Paint Buff, Epoxy ester

Relubrication Both ends, extended through the fan cover

Roller Bearing 4P: 0.0004 in (P-P)

6P: 0.0005 in (P-P)

Rotor Cast Aluminum

Service Factor 1.25 @ 40°C , Alternate 1.0 @ 65°C (a few exceptions are noted 152)

Shaft TIR Meets IEEE 841, .001 in for shaft diameter 1.625 in and smaller, .0015 in for shaft diameter greater than 1.625 in.

Temperature Rise 80°C @ 1.0 SF

Tests NEMA Report including Vibration supplied with motor, IEEE 112 Method B

Time Rating Continuous

Vibration Pads Cast in vibration pads for repeatable measurements

Warranty 60 months from date of installation or 66 months from date of manufacture, whichever occurs first

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

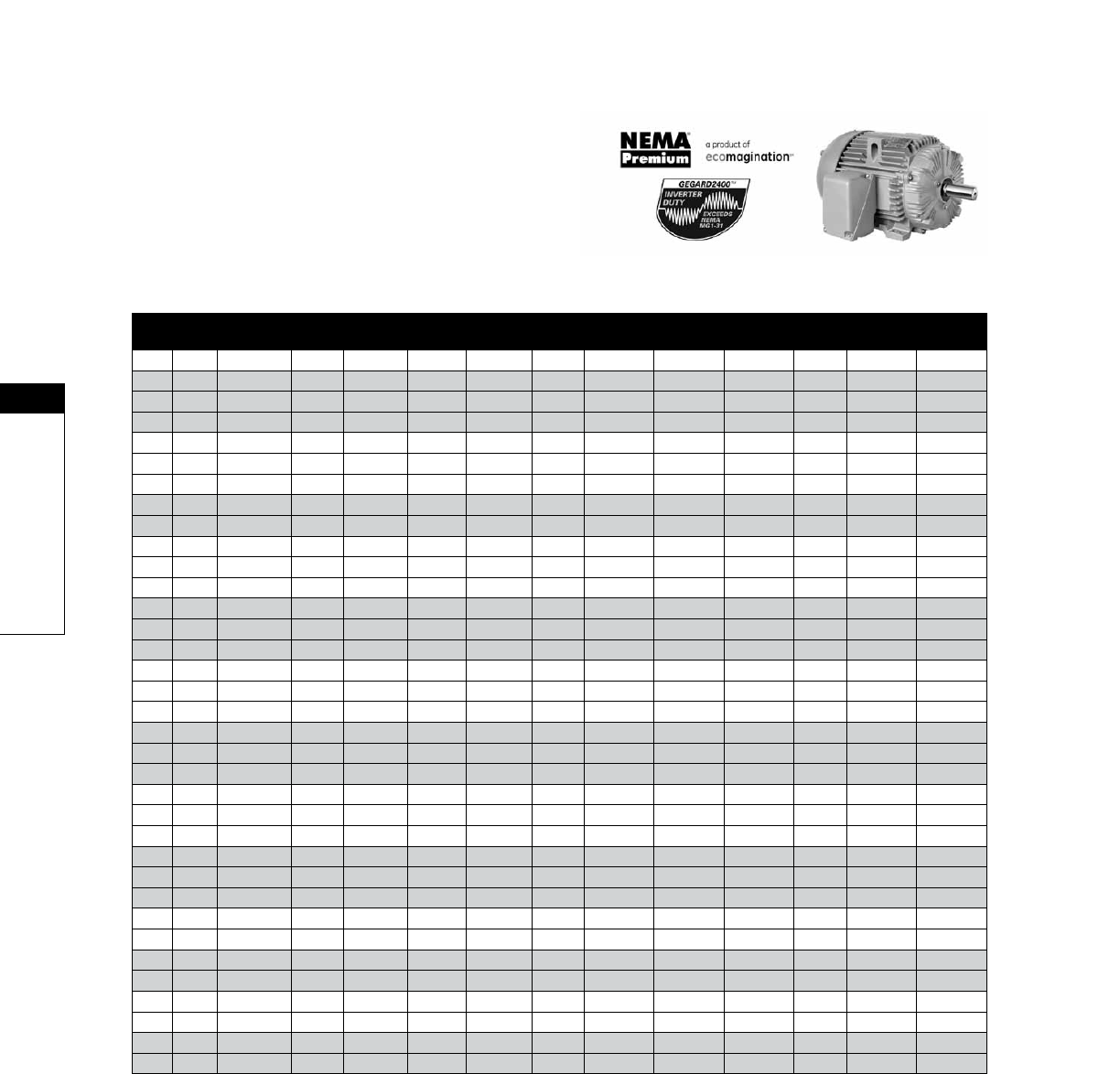

2.2

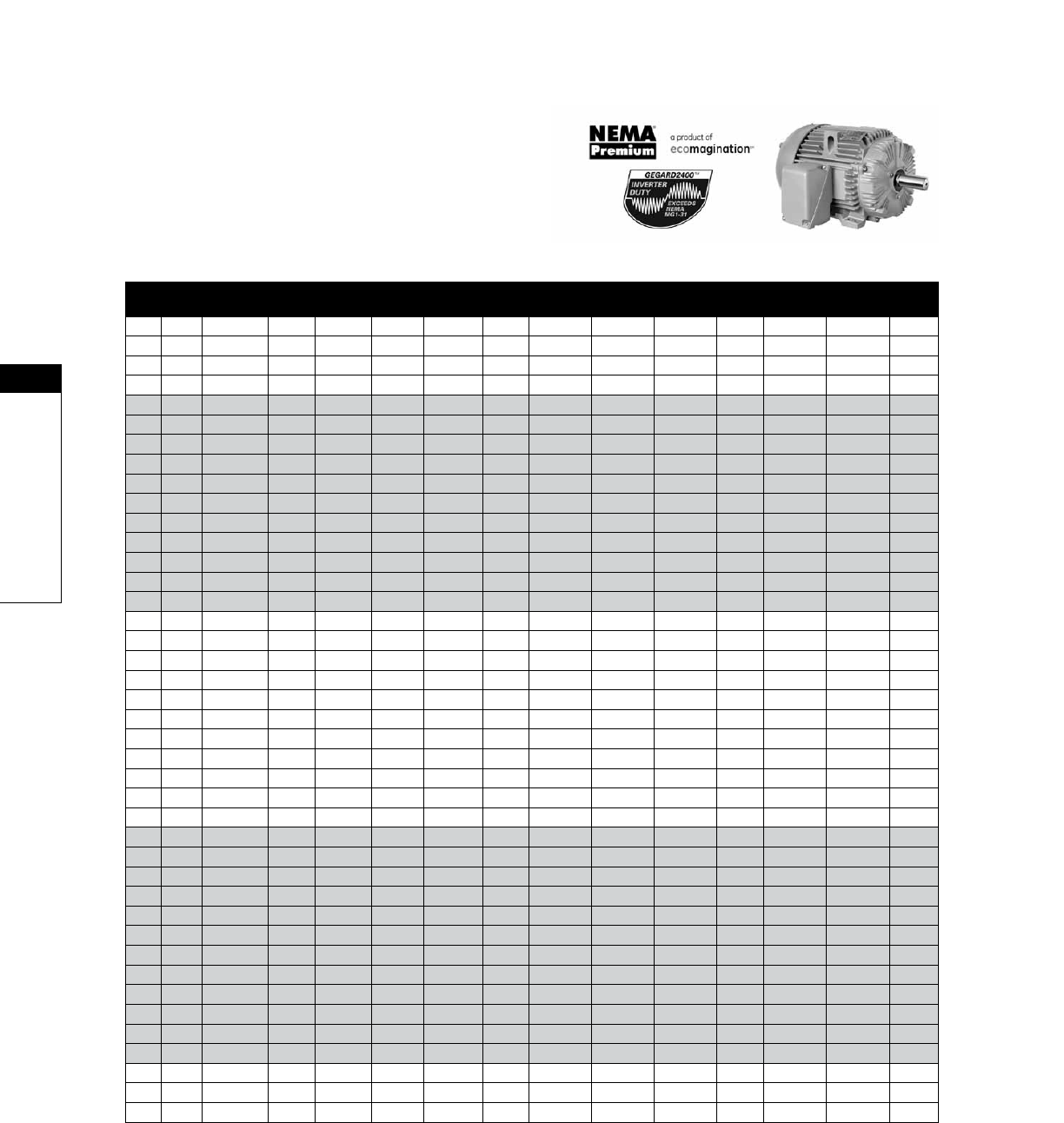

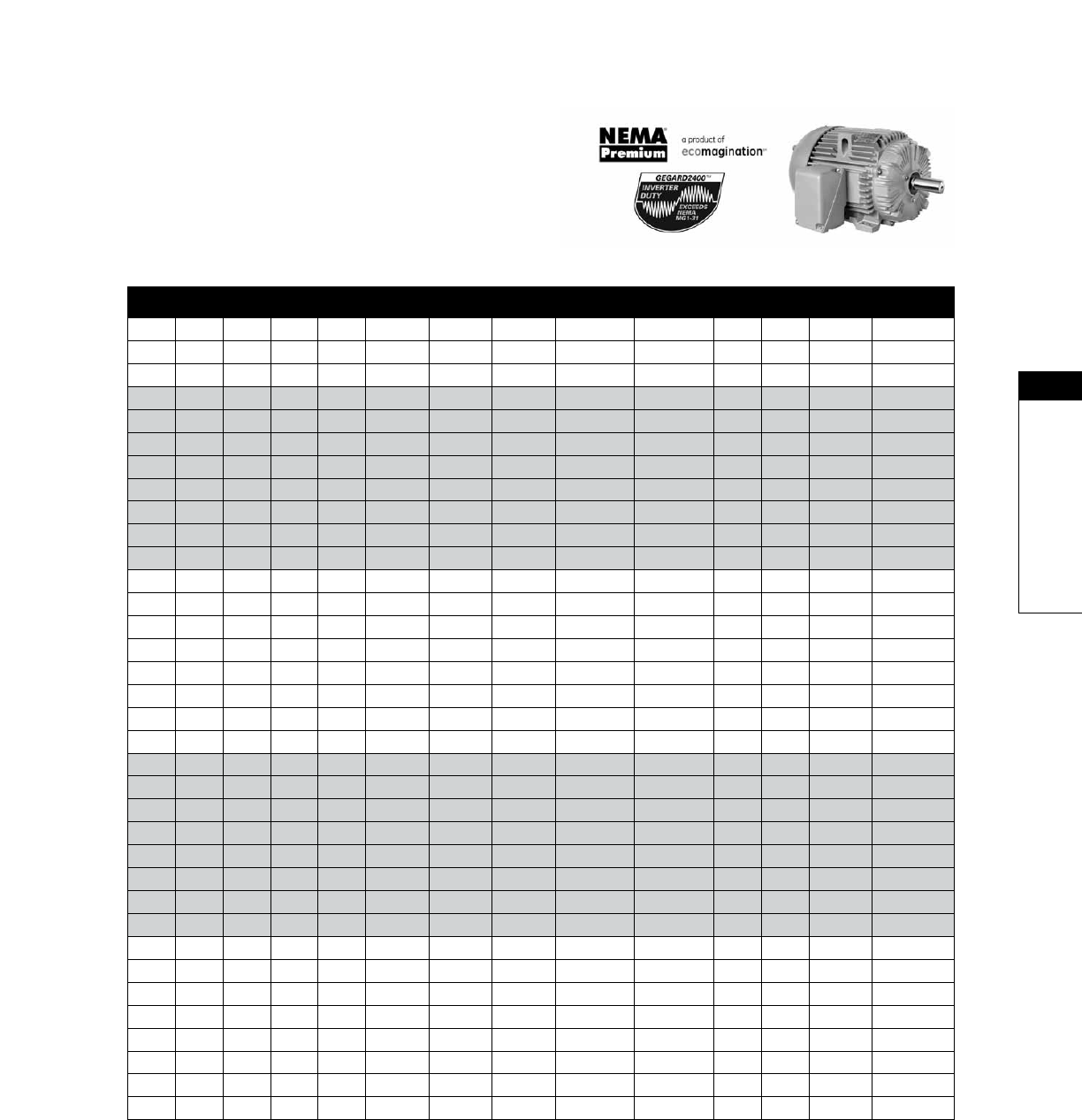

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

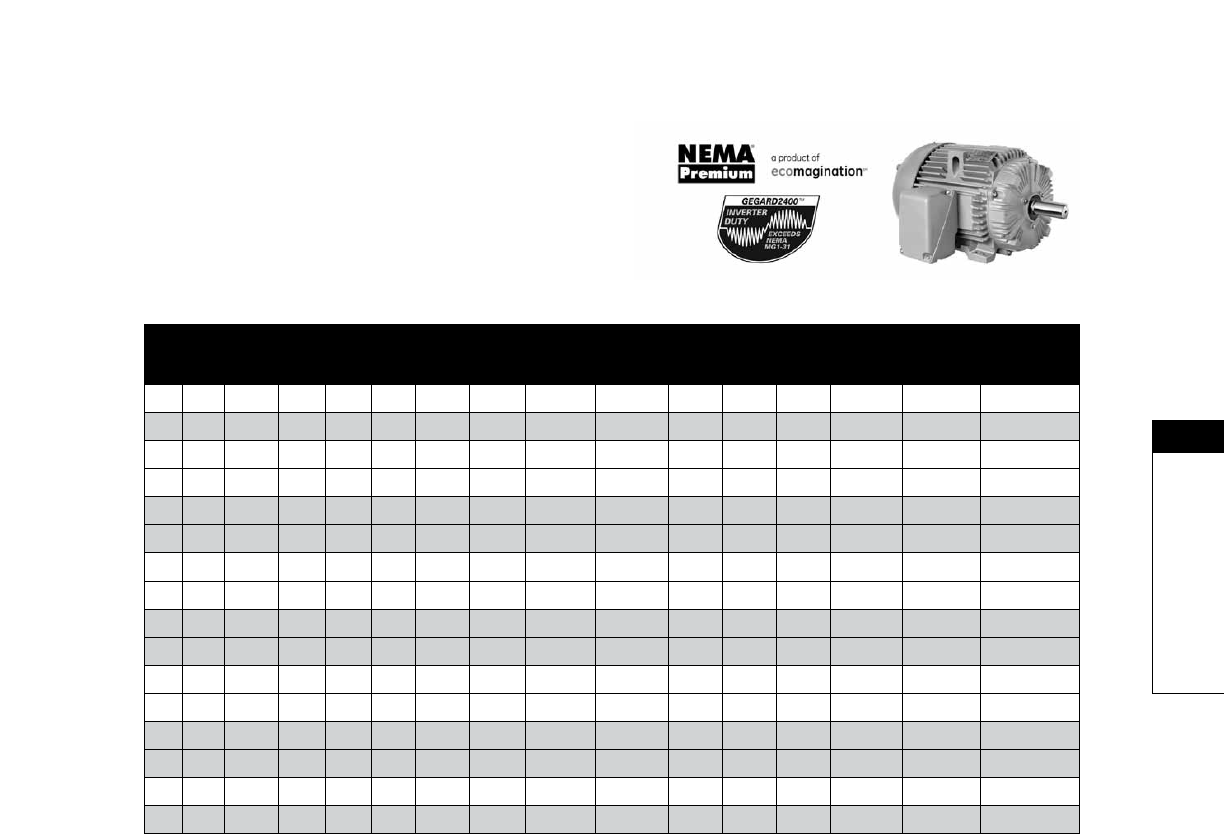

Pricing

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

0.75 1200 230/460 143T 2.8/1.4 80.0 78.5 M480 $980 G4-7U1 N 43 13.40 PB14A

0.75 1200 575 143T 1.1 80.0 78.5 M481 $980 G4-7U1 N 43 13.40 PB14A

0.75 900 230/460 145T 3.8/1.9 72.0 70.0 M460 $1,352 G4-7U1 N 50 13.40 PB14A

0.75 900 575 145T 1.5 72.0 70.0 M477 $1,352 G4-7U1 N 50 13.40 PB14A

1 3600 230/460 143T 2.8/1.4 87.5 86.5 M462 $927 G4-7U1 N 43 13.40 PB14A 55

1 3600 575 143T 1.1 87.5 86.5 M463 $927 G4-7U1 N 43 13.40 PB14A 55

1 1800 230/460 143T 2.8/1.4 86.5 85.5 M482 $839 G4-7U1 Y 43 11.60 PB14A

1 1800 460 143T 1.4 86.5 85.5 M475 $839 G4-7U1 N 43 11.60 PB14A

1 1800 575 143T 1.1 86.5 85.5 M483 $839 G4-7U1 Y 43 11.60 PB14A

1 1200 230/460 145T 3.6/1.8 82.5 81.5 M484 $1,040 G4-7U1 N 50 13.40 PB14A

1 1200 460 145T 1.8 82.5 81.5 M476 $1,040 G4-7U1 N 50 13.40 PB14A

1 1200 575 145T 1.5 82.5 81.5 M485 $1,040 G4-7U1 N 50 13.40 PB14A

1 900 230/460 182T 4.4/2.2 80.0 78.5 M9871 $1,229 G4-7U1 N 76 15.90 PB18A 55

1 900 460 182T 2.2 80.0 78.5 M9887 $1,229 G4-7U1 N 76 15.90 PB18A 55

1 900 575 182T 1.8 80.0 78.5 M9872 $1,229 G4-7U1 N 76 15.90 PB18A 55

1.5 3600 230/460 143T 4.0/2.0 87.5 86.5 M486 $974 G4-7U1 Y 43 11.60 PB14A 55

1.5 3600 575 143T 1.6 87.5 86.5 M487 $974 G4-7U1 N 43 11.60 PB14A 55

1.5 1800 230/460 145T 4.2/2.1 86.5 85.5 M492 $932 G4-7U1 Y 50 11.60 PB14A

1.5 1800 460 145T 2.1 86.5 85.5 M464 $932 G4-7U1 N 50 11.60 PB14A

1.5 1800 575 145T 1.7 86.5 85.5 M493 $932 G4-7U1 Y 50 11.60 PB14A

1.5 1200 230/460 182T 4.8/2.4 87.5 86.5 M9702 $1,034 G4-7U1 N 76 15.90 PB18A

1.5 1200 460 182T 2.4 87.5 86.5 M9943 $1,034 G4-7U1 Y 76 15.90 PB18A

1.5 1200 575 182T 1.9 87.5 86.5 M9703 $1,034 G4-7U1 N 76 15.90 PB18A

1.5 900 230/460 184T 6.4/3.2 80.0 78.5 M9873 $1,451 G4-7U1 N 101 15.90 PB18A

1.5 900 460 184T 3.2 80.0 78.5 M9888 $1,451 G4-7U1 N 101 15.90 PB18A

1.5 900 575 184T 2.6 80.0 78.5 M9874 $1,451 G4-7U1 N 101 15.90 PB18A

2 3600 230/460 145T 5.4/2.7 86.5 85.5 M490 $1,038 G4-7U1 Y 50 11.60 PB14A 55

2 3600 460 143T 2.7 86.5 85.5 M465 $1,038 G4-7U1 N 43 11.60 PB14A 55

2 3600 575 145T 2.2 86.5 85.5 M491 $1,038 G4-7U1 N 50 11.60 PB14A 55

2 1800 230/460 145T 5.4/2.7 86.5 85.5 M488 $1,026 G4-7U1 N 50 13.40 PB14A

2 1800 460 145T 2.7 86.5 85.5 M494 $1,026 G4-7U1 Y 50 13.40 PB14A

2 1800 575 145T 2.2 86.5 85.5 M489 $1,026 G4-7U1 Y 50 13.40 PB14A

2 1200 230/460 184T 6.0/3.0 88.5 87.5 M9704 $1,104 G4-7U1 N 101 15.90 PB18A

2 1200 460 184T 3.0 88.5 87.5 M9944 $1,104 G4-7U1 Y 101 15.90 PB18A

2 1200 575 184T 2.5 88.5 87.5 M9706 $1,104 G4-7U1 N 101 15.90 PB18A

2 900 230/460 213T 7.6/3.8 86.5 85.5 M9875 $1,733 G4-7U1 Y 200 20.10 PB21A

2 900 460 213T 3.8 86.5 85.5 M9705 $1,733 G4-7U1 N 200 20.10 PB21A

2 900 575 213T 3.0 86.5 85.5 M9876 $1,733 G4-7U1 N 200 20.10 PB21A

3 3600 230/460 182T 7.8/3.9 89.5 88.5 M9713 $1,001 G4-7U1 N 76 15.90 PB18A 55

3 3600 460 182T 3.9 89.5 88.5 M9939 $1,001 G4-7U1 Y 76 15.90 PB18A 55

3 3600 575 182T 3.1 89.5 88.5 M9715 $1,001 G4-7U1 N 76 15.90 PB18A 55

Notes:

55 TENV Construction

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.3

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

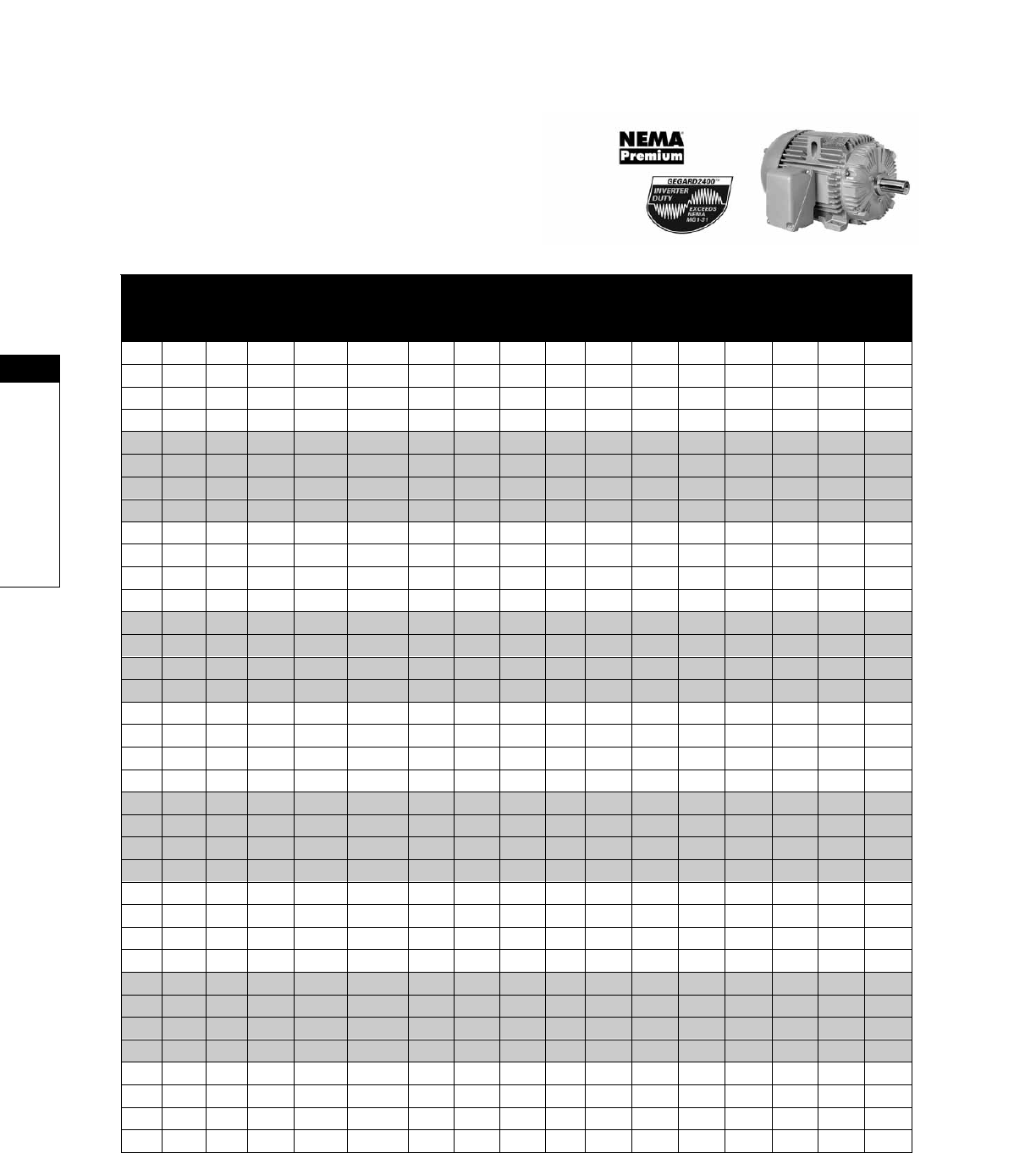

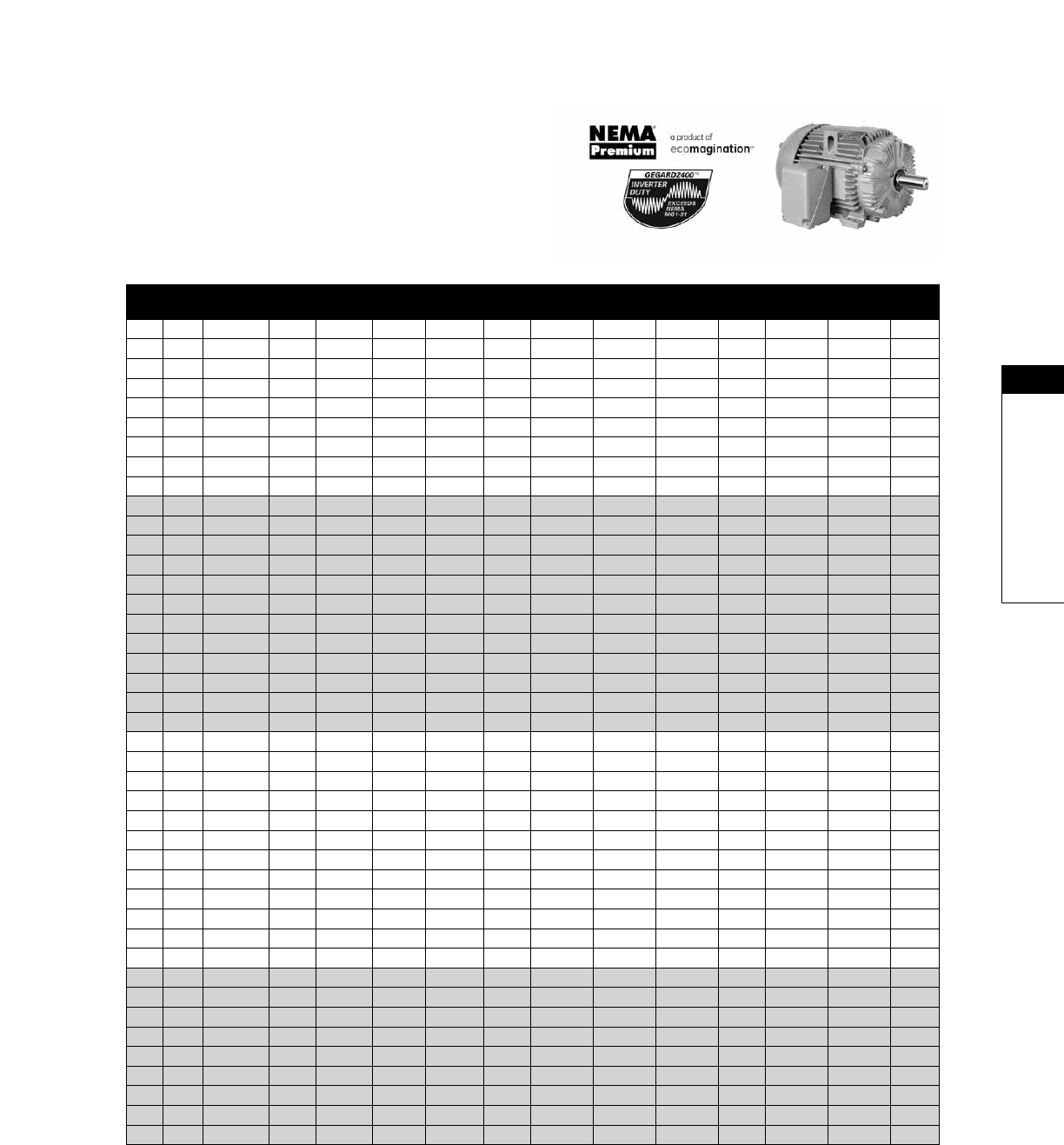

Pricing (cont.)

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

3 1800 230/460 182T 8.4/4.2 89.5 88.5 M241 $975 G4-7U1 N 76 15.90 PB18A 55

3 1800 460 182T 4.2 89.5 88.5 M9941 $975 G4-7U1 Y 76 15.90 PB18A 55

3 1800 575 182T 3.3 89.5 88.5 M9711 $975 G4-7U1 Y 76 15.90 PB18A 55

3 1200 230/460 213T 8.4/4.2 89.5 88.5 M9142 $1,230 G4-7U1 N 200 20.10 PB21A

3 1200 460 213T 4.2 89.5 88.5 M9111 $1,230 G4-7U1 Y 200 20.10 PB21A

3 1200 575 213T 3.4 89.5 88.5 M9712 $1,230 G4-7U1 N 200 20.10 PB21A

3 900 230/460 215T 10.6/5.3 86.5 85.5 M9877 $2,165 G4-7U1 Y 220 20.10 PB21A

3 900 460 215T 5.3 86.5 85.5 M9708 $2,165 G4-7U1 N 220 20.10 PB21A

3 900 575 215T 4.3 86.5 85.5 M9878 $2,165 G4-7U1 N 220 20.10 PB21A

5 3600 230/460 184T 12.4/6.2 90.2 89.5 M240 $1,068 G4-7U1 N 101 15.90 PB18A

5 3600 460 184T 6.2 90.2 89.5 M9940 $1,068 G4-7U1 Y 101 15.90 PB18A

5 3600 575 184T 4.9 90.2 89.5 M9722 $1,068 G4-7U1 Y 101 15.90 PB18A

5 1800 230/460 184T 13.2/6.6 89.5 88.5 M242 $1,026 G4-7U1 N 101 15.90 PB18A

5 1800 460 184T 6.6 89.5 88.5 M9942 $1,026 G4-7U1 Y 101 15.90 PB18A

5 1800 575 184T 5.3 89.5 88.5 M9718 $1,026 G4-7U1 Y 101 15.90 PB18A

5 1200 230/460 215T 13.4/6.7 89.5 88.5 M9143 $1,748 G4-7U1 N 220 20.10 PB21A

5 1200 460 215T 6.7 89.5 88.5 M9112 $1,748 G4-7U1 Y 220 20.10 PB21A

5 1200 575 215T 5.4 89.5 88.5 M9717 $1,748 G4-7U1 N 220 20.10 PB21A

5 900 230/460 254T 16.0/8.0 89.5 88.5 M9879 $2,876 G4-7U1 Y 315 25.60 PB25A

5 900 460 254T 8.0 89.5 88.5 M9719 $2,876 G4-7U1 N 315 25.60 PB25A

5 900 575 254T 6.4 89.5 88.5 M9880 $2,876 G4-7U1 N 315 25.60 PB25A

7.5 3600 230/460 213T 17.0/8.5 91.0 90.2 M9144 $1,524 G4-7U1 N 200 20.10 PB21A

7.5 3600 460 213T 8.5 91.0 90.2 M990 $1,524 G4-7U1 Y 200 20.10 PB21A

7.5 3600 575 213T 6.8 91.0 90.2 M9728 $1,524 G4-7U1 Y 200 20.10 PB21A

7.5 1800 230/460 213T 18.2/9.1 91.7 91.0 M9145 $1,515 G4-7U1 N 200 20.10 PB21A

7.5 1800 460 213T 9.1 91.7 91.0 M9911 $1,515 G4-7U1 Y 200 20.10 PB21A

7.5 1800 575 213T 7.2 91.7 91.0 M9730 $1,515 G4-7U1 Y 200 20.10 PB21A

7.5 1200 230/460 254T 19.6/9.8 91.7 91.0 M9146 $2,321 G4-7U1 N 315 25.60 PB25A

7.5 1200 460 254T 9.8 91.7 91.0 M9113 $2,321 G4-7U1 Y 315 25.60 PB25A

7.5 1200 575 254T 7.9 91.7 91.0 M9726 $2,321 G4-7U1 N 315 25.60 PB25A

7.5 900 230/460 256T 23.2/11.6 89.5 88.5 M9881 $3,635 G4-7U1 Y 350 25.60 PB25A

7.5 900 460 256T 11.6 89.5 88.5 M9724 $3,635 G4-7U1 N 350 25.60 PB25A

7.5 900 575 256T 9.3 89.5 88.5 M9882 $3,635 G4-7U1 N 350 25.60 PB25A

10 3600 230/460 215T 22.4/11.2 91.0 90.2 M9147 $1,635 G4-7U1 N 220 20.10 PB21A

10 3600 460 215T 11.2 91.0 90.2 M991 $1,635 G4-7U1 Y 220 20.10 PB21A

10 3600 575 215T 9.0 91.0 90.2 M9733 $1,635 G4-7U1 Y 220 20.10 PB21A

10 1800 230/460 215T 24.0/12.0 91.7 91.0 M9148 $1,547 G4-7U1 N 220 20.10 PB21A

10 1800 460 215T 12.0 91.7 91.0 M9912 $1,547 G4-7U1 Y 220 20.10 PB21A

10 1800 575 215T 9.6 91.7 91.0 M9738 $1,547 G4-7U1 Y 220 20.10 PB21A

10 1200 230/460 256T 26.0/13.0 91.0 90.2 M9149 $2,847 G4-7U1 N 350 25.60 PB25A

10 1200 460 256T 13.0 91.0 90.2 M9114 $2,847 G4-7U1 Y 350 25.60 PB25A

10 1200 575 256T 10.5 91.0 90.2 M9737 $2,847 G4-7U1 N 350 25.60 PB25A

Notes:

55 TENV Construction

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.4

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

Pricing (cont.)

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

10 900 230/460 284T 27.4/13.7 90.2 89.5 M9883 $4,242 G4-7U1 Y 460 28.58 PB28A

10 900 460 284T 13.7 90.2 89.5 M9736 $4,242 G4-7U1 N 460 28.58 PB28A

10 900 575 284T 11.0 90.2 89.5 M9884 $4,242 G4-7U1 N 460 28.58 PB28A

15 3600 230/460 254T 35.0/17.5 91.7 91.0 M9150 $2,244 G4-7U1 N 315 25.60 PB25A

15 3600 460 254T 17.5 91.7 91.0 M992 $2,244 G4-7U1 Y 315 25.60 PB25A

15 3600 575 254T 14.0 91.7 91.0 M9741 $2,244 G4-7U1 Y 315 25.60 PB25A

15 1800 230/460 254T 36.0/18.0 92.4 91.7 M9151 $2,127 G4-7U1 N 315 25.60 PB25A

15 1800 460 254T 18.0 92.4 91.7 M9913 $2,127 G4-7U1 Y 315 25.60 PB25A

15 1800 575 254T 14.4 92.4 91.7 M9745 $2,127 G4-7U1 Y 315 25.60 PB25A

15 1200 230/460 284T 39.0/19.5 91.7 91.0 M9152 $3,788 G4-7U1 N 460 28.58 PB28A

15 1200 460 284T 19.5 91.7 91.0 M9115 $3,788 G4-7U1 Y 460 28.58 PB28A

15 1200 575 284T 15.6 91.7 91.0 M9746 $3,788 G4-7U1 N 460 28.58 PB28A

15 900 230/460 286T 40.6/20.3 90.2 89.5 M9885 $5,526 G4-7U1 Y 510 28.58 PB28A 152

15 900 460 286T 20.3 90.2 89.5 M9742 $5,526 G4-7U1 N 510 28.58 PB28A 152

15 900 575 286T 16.3 90.2 89.5 M9886 $5,526 G4-7U1 N 510 28.58 PB28A 152

20 3600 230/460 256T 45.2/22.6 92.4 91.7 M9153 $2,702 G4-7U1 N 350 25.60 PB25A

20 3600 460 256T 22.6 92.4 91.7 M993 $2,702 G4-7U1 Y 350 25.60 PB25A

20 3600 575 256T 18.1 92.4 91.7 M9749 $2,702 G4-7U1 Y 350 25.60 PB25A

20 1800 230/460 256T 46.6/23.3 93.0 92.4 M9154 $2,541 G4-7U1 N 350 25.60 PB25A

20 1800 460 256T 23.3 93.0 92.4 M9914 $2,541 G4-7U1 Y 350 25.60 PB25A

20 1800 575 256T 18.6 93.0 92.4 M9751 $2,541 G4-7U1 Y 350 25.60 PB25A

20 1200 230/460 286T 51.6/25.8 91.7 91.0 M9155 $4,625 G4-7U1 N 510 28.58 PB28A

20 1200 460 286T 25.8 91.7 91.0 M9117 $4,625 G4-7U1 Y 510 28.58 PB28A

20 1200 575 286T 20.7 91.7 91.0 M9755 $4,625 G4-7U1 N 510 28.58 PB28A

20 900 460 324T 29.8 91.0 90.2 M9748 $6,756 G4-7U1 Y 649 30.54 A761

20 900 575 324T 23.9 91.0 90.2 M8950 $6,756 G4-7U1 N 649 30.54 A761

25 3600 230/460 284TS 55.6/27.8 93.0 92.4 M9156 $3,384 G4-7U1 N 460 27.20 PB28A

25 3600 460 284TS 27.8 93.0 92.4 M994 $3,384 G4-7U1 Y 460 27.20 PB28A

25 3600 575 284TS 22.2 93.0 92.4 M9838 $3,384 G4-7U1 Y 460 27.20 PB28A

25 1800 230/460 284T 59.2/29.6 93.6 93.0 M9157 $3,243 G4-7U1 N 460 28.58 PB28A

25 1800 460 284T 29.6 93.6 93.0 M9935 $3,243 G4-7U1 Y 460 28.58 PB28A

25 1800 575 284T 23.7 93.6 93.0 M9759 $3,243 G4-7U1 Y 460 28.58 PB28A

25 1200 230/460 324T 64.6/32.3 93.0 92.4 M9158 $5,502 G4-7U1 N 679 30.54 A761

25 1200 460 324T 32.3 93.0 92.4 M9119 $5,502 G4-7U1 Y 679 30.54 A761

25 1200 575 324T 25.8 93.0 92.4 M9758 $5,502 G4-7U1 N 679 30.54 A761

25 900 460 326T 37.0 91.0 90.2 M9761 $8,420 G4-7U1 Y 710 32.04 A761

25 900 575 326T 29.2 91.0 90.2 M9762 $8,420 G4-7U1 N 710 32.04 A761

30 3600 230/460 286TS 66.4/33.2 93.0 92.4 M9159 $3,980 G4-7U1 N 510 27.20 PB28A 152

30 3600 460 286TS 33.2 93.0 92.4 M995 $3,980 G4-7U1 Y 510 27.20 PB28A 152

30 3600 575 286TS 26.7 93.0 92.4 M9828 $3,980 G4-7U1 Y 510 27.20 PB28A 152

Notes:

152 Rated 1.15 SF @ 40ºC, 1.0 SF @ 65ºC

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.5

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

Pricing (cont.)

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

30 1800 230/460 286T 70.6/35.3 93.6 93.0 M9160 $3,788 G4-7U1 N 510 28.58 PB28A

30 1800 460 286T 35.3 93.6 93.0 M9937 $3,788 G4-7U1 Y 510 28.58 PB28A

30 1800 575 286T 28.2 93.6 93.0 M9764 $3,788 G4-7U1 Y 510 28.58 PB28A

30 1200 230/460 326T 76.4/38.2 93.0 92.4 M9161 $6,276 G4-7U1 N 730 32.04 A761

30 1200 460 326T 38.2 93.0 92.4 M9122 $6,276 G4-7U1 Y 730 32.04 A761

30 1200 575 326T 30.8 93.0 92.4 M9834 $6,276 G4-7U1 N 730 32.04 A761

30 900 460 364T 42.2 92.4 91.7 M9767 $9,846 G4-7U Y 1010 34.89 A763

30 900 575 364T 33.8 92.4 91.7 M9766 $9,846 G4-7U N 1010 34.89 A763

40 3600 460 324T 46.8 94.1 93.6 M9820 $4,952 G4-7U1 N 649 30.54 A761

40 3600 230/460 324TS 93.6/46.8 94.1 93.6 M9162 $4,952 G4-7U1 N 649 29.04 A762

40 3600 460 324TS 46.8 94.1 93.6 M996 $4,952 G4-7U1 Y 649 29.04 A762

40 3600 575 324TS 37.4 94.1 93.6 M9829 $4,952 G4-7U1 Y 649 29.04 A762

40 1800 230/460 324T

101.6/50.8

94.5 94.1 M9163 $4,908 G4-7U1 N 689 30.54 A761

40 1800 460 324T 50.8 94.5 94.1 M9915 $4,908 G4-7U1 Y 689 30.54 A761

40 1800 575 324T 40.6 94.5 94.1 M9768 $4,908 G4-7U1 Y 689 30.54 A761

40 1800 460 324TS 50.8 94.5 94.1 M9916 $4,908 G4-7U1 N 689 29.04 A762

40 1200 460 364T 49.4 94.1 93.6 M9124 $8,657 G4-7U Y 1030 34.89 A763

40 1200 575 364T 39.8 94.1 93.6 M9835 $8,657 G4-7U N 1030 34.89 A763

40 900 460 365T 55.9 93.0 92.4 M9770 $12,144 G4-7U N 1090 34.89 A763

40 900 575 365T 45.0 93.0 92.4 M9534 $12,144 G4-7U N 1090 34.89 A763

50 3600 460 326T 57.3 94.5 94.1 M9823 $6,335 G4-7U1 N 700 32.04 A761

50 3600 230/460 326TS

114.6/57.3

94.5 94.1 M9164 $6,335 G4-7U1 N 700 30.48 A762

50 3600 460 326TS 57.3 94.5 94.1 M997 $6,335 G4-7U1 Y 700 30.48 A762

50 3600 575 326TS 45.5 94.5 94.1 M9839 $6,335 G4-7U1 Y 700 30.48 A762

50 1800 230/460 326T

127.8/63.9

94.5 94.1 M9165 $5,754 G4-7U1 N 740 32.04 A761

50 1800 460 326T 63.9 94.5 94.1 M9917 $5,754 G4-7U1 Y 740 32.04 A761

50 1800 575 326T 51.1 94.5 94.1 M9765 $5,754 G4-7U1 Y 740 32.04 A761

50 1800 460 326TS 63.9 94.5 94.1 M9918 $5,754 G4-7U1 N 740 30.48 A762

50 1200 460 365T 62.2 94.1 93.6 M9126 $10,050 G4-7U Y 1070 34.89 A763

50 1200 575 365T 49.7 94.1 93.6 M9775 $10,050 G4-7U N 1070 34.89 A763

50 900 460 404T 66.6 93.0 92.4 M9773 $14,654 G4-7U N 1490 39.77 A765

50 900 575 404T 53.0 93.0 92.4 M9535 $14,654 G4-7U N 1490 39.77 A765

60 3600 460 364TS 70.4 95.0 94.5 M998 $8,816 G4-7U Y 940 32.76 A764

60 3600 575 364TS 56.3 95.0 94.5 M9847 $8,816 G4-7U N 940 32.76 A764

60 1800 460 364T 71.2 95.0 94.5 M9919 $8,633 G4-7U Y 1020 34.89 A763 152

60 1800 575 364T 56.6 95.0 94.5 M9776 $8,633 G4-7U Y 1020 34.89 A763 152

60 1800 460 364TS 71.2 95.0 94.5 M9921 $8,633 G4-7U Y 1020 32.76 A764 152

60 1200 460 404T 72.5 95.0 94.5 M9128 $11,691 G4-7U Y 1480 39.77 A765

60 1200 575 404T 58.0 95.0 94.5 M9837 $11,691 G4-7U N 1480 39.77 A765

Notes:

152 Rated 1.15 SF @ 40ºC, 1.0 SF @ 65ºC

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.6

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

Pricing (cont.)

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

60 900 460 405T 78.9 93.0 92.4 M9778 $18,000 G4-7U N 1570 39.77 A765

60 900 575 405T 63.1 93.0 92.4 M9536 $18,000 G4-7U N 1570 39.77 A765

75 3600 460 365TS 90.4 95.8 95.4 M999 $10,823 G4-7U Y 970 32.76 A764

75 3600 575 365TS 72.3 95.8 95.4 M9830 $10,823 G4-7U N 970 32.76 A764

75 1800 460 365T 87.1 95.4 95.0 M9922 $10,466 G4-7U Y 1080 34.89 A763 152

75 1800 575 365T 69.7 95.4 95.0 M9781 $10,466 G4-7U Y 1080 34.89 A763 152

75 1800 460 365TS 87.1 95.4 95.0 M9923 $10,466 G4-7U N 1080 32.76 A764 152

75 1200 460 405T 89.6 95.0 94.5 M9131 $12,996 G4-7U Y 1540 39.77 A765

75 1200 575 405T 71.2 95.0 94.5 M9868 $12,996 G4-7U N 1540 39.77 A765

75 900 460 444T 94.0 94.5 94.1 M9780 $22,523 G4-7U N 1950 45.62 A767

75 900 575 444T 75.2 94.5 94.1 M9537 $22,523 G4-7U N 1950 45.62 A767

100 3600 460 405TS 108.0 95.4 95.0 M9510 $14,013 G4-7U Y 1530 36.76 A766

100 3600 575 405TS 86.3 95.4 95.0 M9831 $14,013 G4-7U N 1530 36.76 A766

100 1800 460 405T 119.0 95.8 95.4 M9924 $12,926 G4-7U Y 1480 39.77 A765

100 1800 575 405T 95.3 95.8 95.4 M9779 $12,926 G4-7U Y 1480 39.77 A765

100 1800 460 405TS 119.0 95.8 95.4 M9925 $12,926 G4-7U Y 1480 36.76 A766

100 1200 460 444T 116.0 95.4 95.0 M9133 $17,504 G4-7U Y 2060 45.62 A767

100 1200 575 444T 93.4 95.4 95.0 M9846 $17,504 G4-7U N 2060 45.62 A767

100 900 460 445T 125.0 94.5 94.1 M9782 $28,538 G4-7U N 2020 45.62 A767

100 900 575 445T 100.0 94.5 94.1 M8953 $28,538 G4-7U N 2020 45.62 A767

125 3600 460 444TS 139.0 95.4 95.0 M9511 $18,305 G4-7U Y 1790 41.87 A768

125 3600 575 444TS 112.0 95.4 95.0 M9538 $18,305 G4-7U N 1790 41.87 A768

125 1800 460 444T 144.0 95.8 95.4 M9926 $17,006 G4-7U Y 1970 45.62 A767

125 1800 575 444T 115.0 95.8 95.4 M9832 $17,006 G4-7U N 1970 45.62 A767

125 1800 460 444TS 144.0 95.8 95.4 M9927 $17,006 G4-7U Y 1970 41.87 A768

125 1200 460 445T 150.0 95.4 95.0 M9135 $21,086 G4-7U Y 2130 45.62 A767

125 1200 575 445T 120.0 95.4 95.0 M9870 $21,086 G4-7U N 2130 45.62 A767

125 900 460 447T 155.0 95.0 94.5 M9784 $31,778 G4-7U Y 2580 52.12 A767

125 900 575 447T 124.0 95.0 94.5 M8954 $31,778 G4-7U N 2580 52.12 A767

150 3600 460 445TS 165.0 95.8 95.4 M9512 $22,011 G4-7U Y 1860 41.87 A768

150 3600 575 445TS 132.0 95.8 95.4 M8955 $22,011 G4-7U N 1860 41.87 A768 152

150 1800 460 445T 170.0 96.2 95.8 M9928 $19,785 G4-7U Y 2090 45.62 A767

150 1800 575 445T 137.0 96.2 95.8 M9854 $19,785 G4-7U N 2060 45.62 A767

150 1800 460 445TS 170.0 96.2 95.8 M9929 $19,785 G4-7U Y 2090 41.87 A768

150 1200 460 447T 171.0 95.8 95.4 M9137 $25,545 G4-7U Y 2860 52.12 A767

150 1200 575 447T 137.0 95.8 95.4 M9869 $25,545 G4-7U N 2860 52.12 A767

Notes:

152 Rated 1.15 SF @ 40ºC, 1.0 SF @ 65ºC

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.7

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

Pricing (cont.)

Volts: 230/460, 460, 575

HP: 0.75 – 300

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

C-Face

Kit Notes

150 900 460 449T 184.0 95.0 94.5 M9785 $34,653 G4-7U N 3150 52.12 A767

150 900 575 449T 147.0 95.0 94.5 M8956 $34,653 G4-7U N 3120 52.12 A767

200 3600 460 447TS 214.0 95.8 95.4 M9961 $27,866 G4-7U Y 2560 50.37 A768 66

200 3600 460 447TS 214.0 95.8 95.4 M9995 $27,866 G4-7U N 2560 50.37 A768 62

200 3600 575 447TS 170.0 95.8 95.4 M8957 $27,866 G4-7U N 2560 50.37 A768 66

200 1800 460 447T 222.0 96.5 96.2 M9991 $24,818 G4-7U Y 2610 52.12 98

200 1800 460 447T 222.0 96.5 96.2 M9958 $24,818 G4-7U Y 2610 52.12 A767

200 1800 575 447T 177.0 96.5 96.2 M9959 $24,818 G4-7U N 2610 52.12 A767

200 1200 460 449LL 229.0 95.8 95.4 M9141 $28,580 G4-7U N 3070 54.12 A767

200 1200 460 449T 229.0 95.8 95.4 M9139 $28,580 G4-7U Y 3070 52.12 A767

200 1200 575 449T 183.0 95.8 95.4 M9845 $28,580 G4-7U N 3070 52.12 A767

250 3600 460 449TS 265.0 95.8 95.4 M9514 $35,903 G4-7U Y 2770 50.37 A768 66, 152

250 3600 460 449TS 265.0 95.8 95.4 M9996 $35,903 G4-7U N 2770 50.37 A768 62

250 3600 575 449TS 211.0 95.8 95.4 M8959 $35,903 G4-7U N 2770 50.37 A768 66

250 1800 460 449T 276.0 96.5 96.2 M9988 $29,021 G4-7U Y 3010 54.12 A767 152

250 1800 460 449T 280.0 96.2 95.8 M9933 $29,021 G4-7U Y 2790 54.12 98, 152

250 1800 575 449T 218.0 96.5 96.2 M9989 $29,021 G4-7U N 3010 54.12 A767 152

250 1800 575 449T 224.0 96.2 95.8 M9851 $29,021 G4-7U N 2790 54.12 98, 152

250 1200 460 449T 296.0 95.8 95.4 M8963 $36,180 G4-7U Y 3150 54.12 A767

300 3600 460 449TS 319.0 95.8 95.4 M8960 $44,522 G4-7U Y 2790 50.37 A768 66, 152

300 3600 575 449TS 255.0 95.8 95.4 M8961 $44,522 G4-7U N 2790 50.37 A768 66, 152

300 1800 460 449T 334.0 96.2 95.8 M9990 $33,981 G4-7U Y 2980 54.12 A767

300 1800 460 449T 334.0 96.2 95.8 M9906 $33,981 G4-7U Y 2980 54.12 98, 107

300 1800 575 449T 265.0 96.5 96.2 M9907 $33,981 G4-7U N 3030 54.12 A767

300 1800 575 449T 265.0 96.5 96.2 M8962 $33,981 G4-7U N 3030 54.12 98, 152

Notes:

62 Connected for CCW rotation facing opposite shaft end. No reconnection possible.

66 CW rotation only facing opposite drive-end. CCW rotation available, but must be specified on the order.

107 Y-start /△-Run capable

152 Rated 1.15 SF @ 40ºC, 1.0 SF @ 65ºC

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.8

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

C-Face

Pricing

Notes:

55 TENV Construction

C-Face ratings through 300HP, 449T Frame are available by custom order

152 Rated 1.15 SF @ 40ºC, 1.0 SF @ 65ºC

Volts: 230/460, 460

HP: 0.75 – 50

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min. Eff.

Cat.

No.

List

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in) Notes

0.75 1200 230/460 143TC 2.8/1.4 80.0 78.5 M496 $1,083 G4-7U1 N 43 13.92

1 1800 230/460 143TC 2.8/1.4 86.5 85.5 M497 $942 G4-7U1 Y 43 13.92

1 1800 460 143TC 1.4 86.5 85.5 M478 $1,020 G4-7U1 N 43 13.92 152

1 1200 230/460 145TC 3.6/1.8 82.5 81.5 M498 $1,143 G4-7U1 Y 50 13.92

1.5 1800 230/460 145TC 4.2/2.1 86.5 85.5 M499 $1,035 G4-7U1 Y 50 13.92

1.5 1800 460 145TC 2.1 86.5 85.5 M479 $1,035 G4-7U1 N 50 13.92

1.5 1200 460 182TC 2.4 87.5 86.5 M9946 $1,026 G4-7U1 Y 76 16.65

2 1800 230/460 145TC 5.4/2.7 86.5 85.5 M500 $1,130 G4-7U1 Y 50 13.92

2 1200 460 184TC 3.0 88.5 87.5 M9948 $1,133 G4-7U1 Y 101 16.65

3 3600 460 182TC 3.9 89.5 88.5 M9945 $1,134 G4-7U1 Y 76 16.65 55

3 1800 460 182TC 4.2 89.5 88.5 M9889 $1,109 G4-7U1 Y 76 16.65 55

3 1200 460 213TC 4.2 89.5 88.5 M9950 $1,350 G4-7U1 Y 200 20.90

5 3600 460 184TC 6.2 90.2 89.5 M9947 $1,188 G4-7U1 Y 101 16.65

5 1800 460 184TC 6.6 89.5 88.5 M9890 $1,146 G4-7U1 Y 101 16.65

5 1200 460 215TC 6.7 89.5 88.5 M9952 $1,868 G4-7U1 Y 220 20.90

7.5 3600 460 213TC 8.5 91.0 90.2 M9949 $1,655 G4-7U1 Y 200 20.90

7.5 1800 460 213TC 9.1 91.7 91.0 M9891 $1,646 G4-7U1 Y 200 20.90

7.5 1200 460 254TC 9.8 91.7 91.0 M9954 $2,477 G4-7U1 Y 315 26.09

10 3600 460 215TC 11.2 91.0 90.2 M9951 $1,755 G4-7U1 Y 220 20.90

10 1800 460 215TC 12.0 91.7 91.0 M9892 $1,667 G4-7U1 Y 220 20.60

10 1200 460 256TC 13.0 91.0 90.2 M9956 $3,003 G4-7U1 Y 350 26.09

15 3600 460 254TC 17.5 91.7 91.0 M9953 $2,390 G4-7U1 Y 315 26.09

15 1800 460 254TC 18.0 92.4 91.7 M9893 $2,283 G4-7U1 Y 315 26.09

15 1200 460 284TC 19.5 91.7 91.0 M9901 $4,008 G4-7U1 Y 460 28.58

20 3600 460 256TC 22.6 92.4 91.7 M9955 $2,858 G4-7U1 Y 350 26.09

20 1800 460 256TC 23.3 93.0 92.4 M9894 $2,697 G4-7U1 Y 350 26.09

20 1200 460 286TC 25.8 91.7 91.0 M9902 $4,845 G4-7U1 N 510 28.58

25 3600 460 284TSC 27.8 93.0 92.4 M9903 $3,605 G4-7U1 N 460 27.20

25 1800 460 284TC 29.6 93.6 93.0 M9895 $3,464 G4-7U1 Y 460 28.58

30 3600 460 286TSC 33.2 93.0 92.4 M9904 $4,200 G4-7U1 N 510 27.20 152

30 1800 460 286TC 35.3 93.6 93.0 M9896 $4,007 G4-7U1 Y 510 28.58

40 3600 460 324TSC 46.3 94.1 93.6 M8964 $5,271 G4-7U1 N 649 29.04

40 1800 460 324TC 49.8 94.5 94.1 M8965 $5,228 G4-7U1 Y 689 30.54

50 3600 460 326TSC 56.9 94.5 94.1 M8966 $6,654 G4-7U1 N 700 30.48

50 1800 460 326TC 62.3 94.5 94.1 M8967 $6,164 G4-7U1 Y 740 32.04

Page Updated 01 / 2013

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

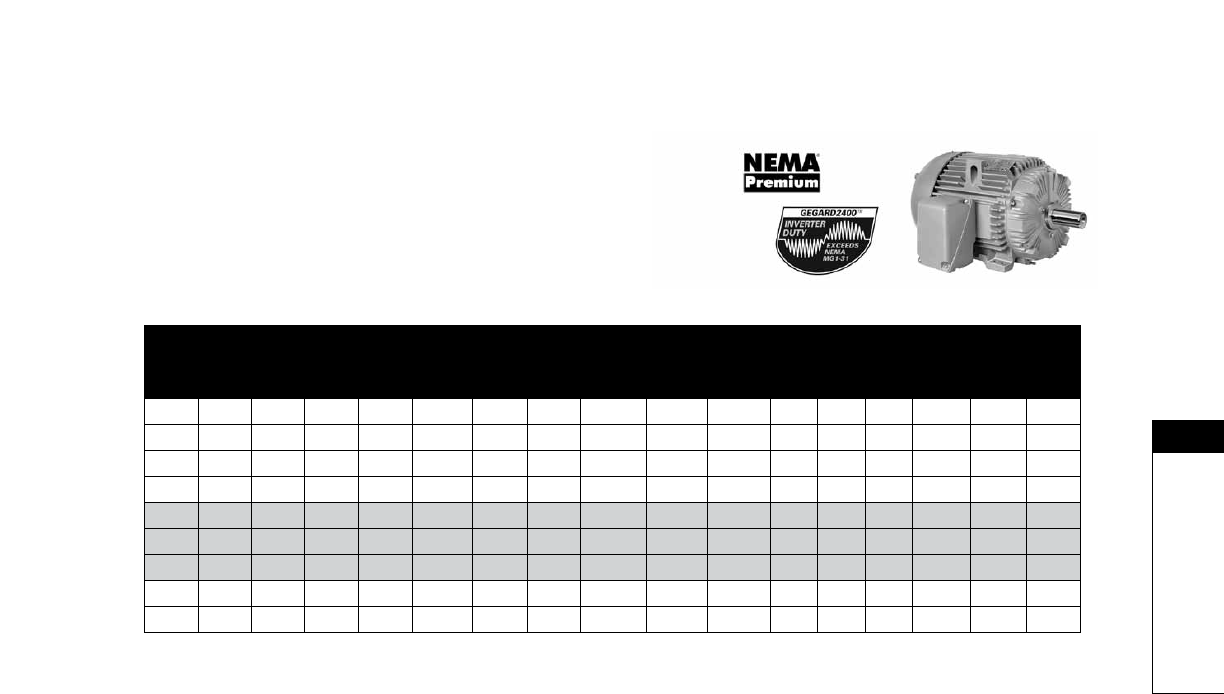

X$D Ultra® TEFC

2.9

X$D Ultra®

TEFC—Extra Severe Duty (IP55)

NEMA Design C (KGS Plus)—High Torque

Pricing

HP RPM Volts Frame FLA

Nom.

Eff.

Guar.

Min.

Eff. Cat. No. List Price

Price

Symbol

Norm.

Stk.

Wt.

(lbs)

C Dim.

(in)

Starting

Torque

(lb-ft)

Breakdown

Torque

(lb-ft) Notes

40 1200 460 364T 50.6 93.0 92.4 M8982 $9,407 G4-7U N 1000 34.89 443 454 98, 99

50 1200 460 365T 63.3 93.0 92.4 M8983 $10,800 G4-7U N 1030 34.89 551 553 98, 99

60 1800 460 364T 72.5 94.5 94.1 M8992 $9,383 G4-7U Y 1030 34.89 456 422 98, 99

60 1200 460 404T 73.2 94.1 93.6 M8984 $12,441 G4-7U N 1480 39.77 590 625 98, 99

75 1800 460 365T 89.5 94.5 94.1 M8993 $11,216 G4-7U Y 1090 34.89 594 521 98, 99

75 1200 460 405T 91.0 94.1 93.6 M8985 $13,746 G4-7U N 1530 39.77 742 782 98, 99

100 1800 460 405T 118.0 95.4 95.0 M8994 $13,676 G4-7U Y 1500 39.77 700 679 98, 99

100 1200 460 444T 123.0 93.0 92.4 M8986 $18,254 G4-7U N 1920 45.62 1118 1032 98, 99

125 1800 460 444T 145.0 95.8 95.4 M8995 $17,756 G4-7U Y 1970 45.62 762 924 98, 99

125 1200 460 445T 149 93.6 93 M8987 $23,380 G4-7U N 2140 45.62 1324 1358 98, 99

150 1800 460 445T 173.0 95.8 95.4 M8996 $20,535 G4-7U Y 2060 45.62 1105 1083 98, 99

150 1200 460 447T 185.0 94.5 94.1 M8988 $26,295 G4-7U N 2700 54.12 1420 1486 98, 99

200 1800 460 447T 229.0 95.8 95.4 M8997 $25,568 G4-7U Y 2700 54.12 1662 1503 98, 99

200 1200 460 449T 243.0 95.0 94.5 M8989 $29,330 G4-7U N 3070 54.12 2433 2159 98, 99

250 1800 460 449T 282.0 95.8 95.4 M8998 $29,771 G4-7U Y 2980 54.12 2137 1843 98, 99

300 1800 460 449T 338.0 95.4 95.0 M8999 $34,731 G4-7U Y 3100 54.12 2116 2054 98, 99

Notes:

98 For belted load only. Roller Bearing on drive-end.

99 NEMA design C: High Torque and 4140 stress proof shaft material

Volts: 460

HP: 40 - 300

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.10

X$D Ultra® TEFC

GE Energy Section 3 – X$D Ultra®

3.10 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Volts: 460

HP: 0.75 – 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

0.75 1150 1.4 7.5 12.5 P 3.4 9.5 12.3 80 78.5 81.1 78.3 63.5 54.4 42 0.6

0.75 855 1.9 7.2 12.5 P 4.6 11.5 14.8 72 70 72.4 67.5 52 43.1 32.9 1

1 3540 1.3 12.8 25 N 1.5 4.9 6.6 87.5 86.5 89.1 87.3 80 73 60.7 0.4

1 1750 1.4 11.9 15 N 3 11.5 14 86.5 85.5 86.9 84.8 76 68 55.1 0.5

1 1155 1.8 10.8 15 N 4.5 14.3 18.1 82.5 81.5 83.2 80.7 62.5 53.5 41.1 0.8

1 875 2.2 10.4 15 N 6 11 18.9 80 78.5 79.3 75.3 52.5 43.8 33.2 1.2

1.5 3530 2 18.6 20 M 2.2 7.4 9.6 87.5 86.5 89.6 88.5 80.5 73.7 61.3 0.6

1.5 1740 2.1 16.9 20 M 4.5 16.7 19.8 86.5 85.5 87.5 86.1 77.5 69.8 56.8 0.8

1.5 1175 2.4 17.4 20 M 6.7 14.7 27.8 87.5 86.5 88.4 86.6 68 59.5 46.7 1

1.5 870 3.2 14.7 20 M 9 16.7 26.1 80 78.5 80 76.7 55.5 46.7 35.6 1.6

2 3515 2.7 23.1 25 L 3 9.2 11.9 86.5 85.5 89 88.2 80 72.7 59.9 0.8

2 1735 2.7 21 25 L 6.1 21.2 24.8 86.5 85.5 88 87.2 80 72.8 60.2 0.9

2 1170 3 22.6 25 L 9 19.6 36.1 88.5 87.5 88.9 87.5 69.5 61.3 48.4 1.2

2 880 3.8 20.5 25 L 11.9 20.1 38.4 86.5 85.5 85.9 83.3 57 48.6 37.2 1.9

3 3530 3.8 25.8 32 K 4.5 8.1 14 89.5 88.5 91.3 90.8 82 76.4 65.1 1

3 1760 4.2 29.2 32 K 8.9 23.1 30.2 89.5 88.5 89.8 88.8 75.5 68.4 55.9 1.5

3 1175 4.3 29.9 32 K 13.4 26.5 41.4 89.5 88.5 89.7 88.5 73 66 53.8 1.7

3 875 5.4 27.8 32 K 18 29.1 51.2 86.5 85.5 86.6 84.9 60.5 52.8 41 2.5

5 3535 6.1 43.7 46 J 7.4 14.9 23.9 90.2 89.5 91.1 90.1 84.5 80 70.3 1.5

5 1755 6.6 42.9 46 J 15 35 44 89.5 88.5 90.9 90.5 79 73.9 63 2

5 1170 6.8 42.8 46 J 22.4 39.7 59.1 89.5 88.5 90.5 90.3 77 71.6 60.6 2.2

5 880 7.6 40.5 46 J 29.8 48.8 82.4 89.5 88.5 89.7 88.4 69 61.1 48.6 3.2

7.5 3535 8.4 60.8 63.5 H 11.1 24.4 30.7 91 90.2 92 91.3 91.5 89.9 85.4 1.4

7.5 1770 9.2 60.4 63.5 H 22.3 42.3 59 91.7 91 92.3 91.8 83.5 80.6 72.5 2.2

7.5 1175 9.6 60.7 63.5 H 33.5 65.2 91.8 91.7 91 92.4 91.7 79.5 74.5 63.9 2.9

7.5 880 11.3 60.6 63.5 H 44.7 77.8 122.5 89.5 88.5 90.2 89.2 69.5 62 49.5 4.6

10 3525 11.3 76 81 H 14.9 31.1 38.7 91 90.2 92.1 91.9 91 90.1 85.9 1.8

10 1765 12.2 77.2 81 H 29.8 55.6 75.6 91.7 91 92.4 92.3 84 81.1 73.4 2.9

10 1170 12.7 72.3 81 H 44.8 79.1 110.6 91 90.2 92 91.9 81 76.7 66.8 3.6

10 885 13.6 75.2 81 H 59.5 84.3 136.8 89.5 88.5 91.1 91.2 77 72.6 62.3 4

15 3550 16.9 108.1 116 G 22.2 44.7 50.7 91.7 91 92.6 92.4 90.5 90.3 87.4 2.3

15 1770 17.8 110.5 116 G 44.5 97.3 114.6 92.4 91.7 93.1 93 85.5 82.3 73.8 4.4

15 1185 19.1 109.5 116 G 66.5 98 164.3 91.7 91 92.8 92.4 80 74.9 64.3 5.8

15 880 20.1 111.6 116 G 89.5 133.4 207.2 89.5 88.5 91 91.4 78 73.9 64 5.7

20 3550 22.1 147 145 G 29.6 70.2 65.4 92.4 91.7 93.3 93.4 91.5 91.6 89.7 2.5

20 1770 22.9 140.6 145 G 59.3 133.4 142.9 93 92.4 93.8 94 88 85.7 79.3 4.6

20 1180 25.4 142.1 145 G 88.8 130.1 214.3 91.7 91 93.1 92.8 80.5 75.8 65.6 7.4

20 875 29.6 137.2 145 G 119.8 191 264.6 91 90.2 92.1 91.6 69.5 63.1 51.3 11.2

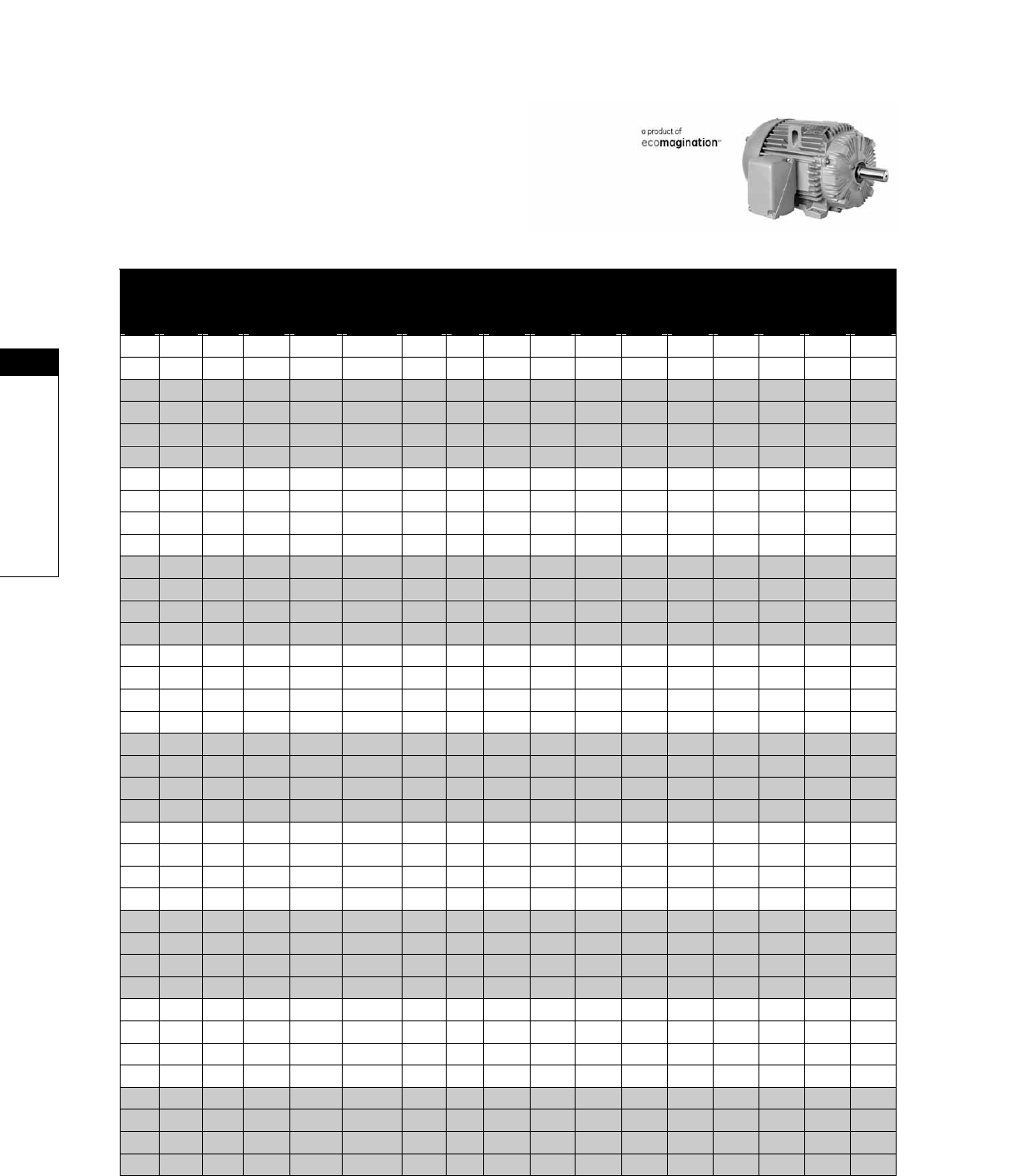

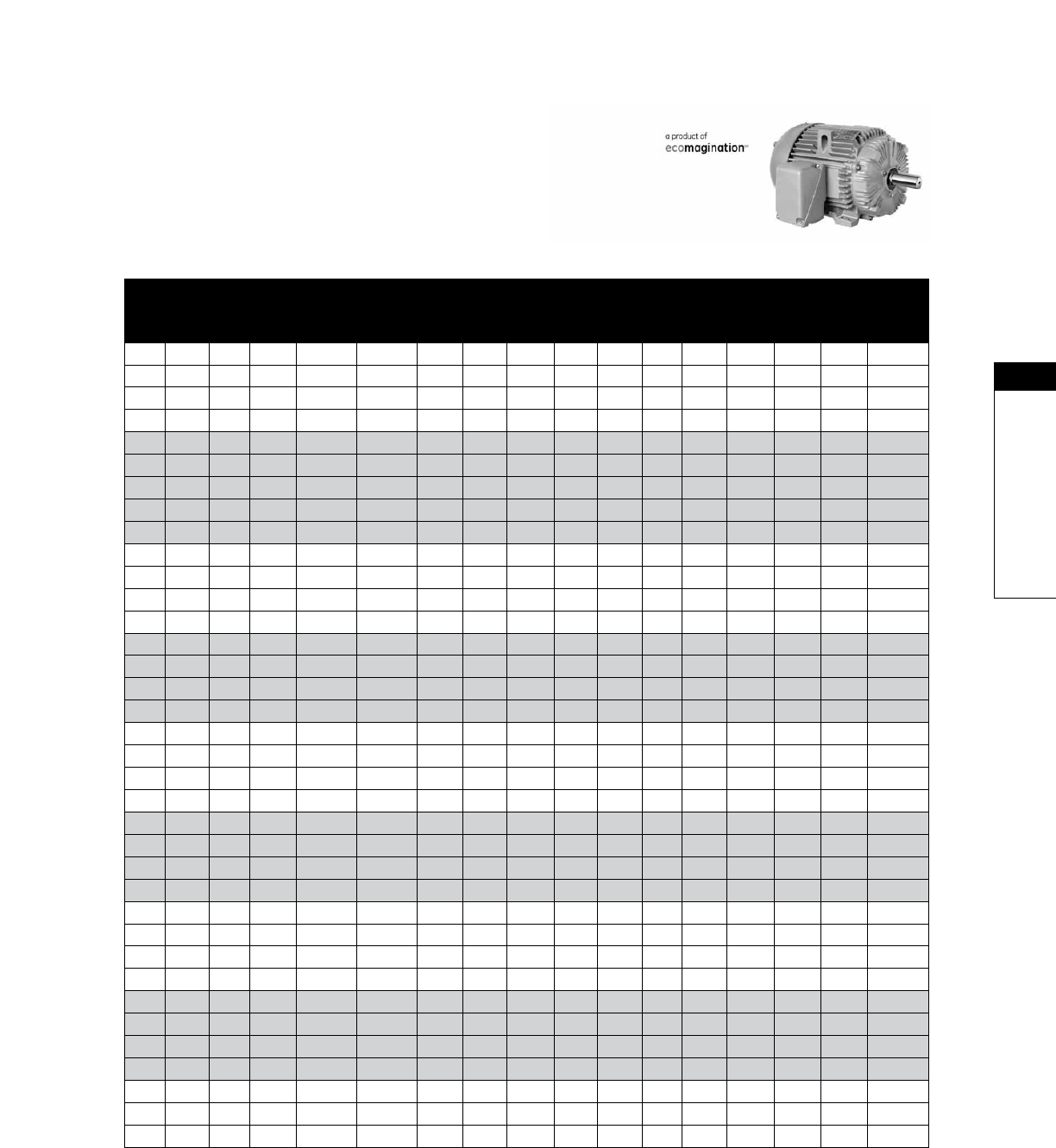

X$D Ultra®

TEFC—Extra Severe Duty

ical Performance Data

X$D Ultra®

TEFC—Extra Severe Duty

ical Performance Data (cont.)

X$D Ultra®

TEFC—Extra Severe Duty

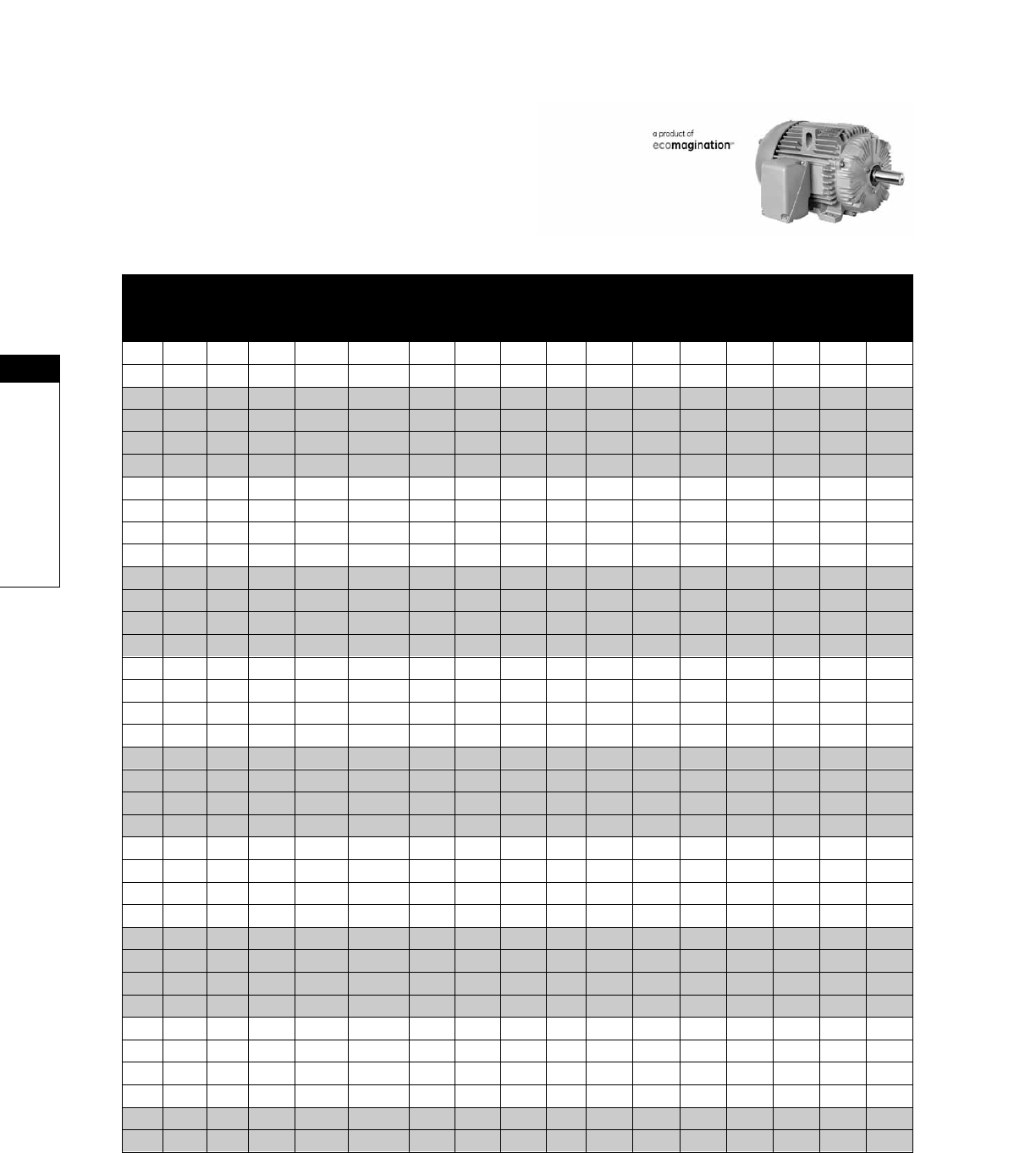

Typical Performance Data

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.11

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

Volts: 460

HP: 0.75 - 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

25 3555 27.2 181.6 182.5 G 36.9 96.5 94.2 93 92.4 93.3 92.9 92.5 91.7 88.3 3.9

25 1775 29.1 174.8 182.5 G 73.9 122.9 181.4 93.6 93 94.1 94 86 82.8 74.7 7

25 1180 32.1 168.7 182.5 G 111.4 199.1 251 93 92.4 93.5 93.1 78.5 74.3 64.2 9.5

25 875 36.5 167.5 182.5 G 150.2 238.5 323.7 91 90.2 92.2 91.8 70.5 64.3 52.7 13.3

30 3550 32.5 217.3 217.5 G 44.4 123.4 111.8 93 92.4 93.7 93.5 93 92.3 89.3 4.3

30 1775 34.7 206.4 217.5 G 88.7 147.3 210.7 93.6 93 94.1 94.2 86.5 83.7 76.2 7.9

30 3570 35.1 193.4 217.5 G 44.1 59.8 105.1 93.6 93 93.2 91.8 85.5 82.4 74.8 8.4

30 1175 38 207.1 217.5 G 133.8 261.1 305.9 93 92.4 93.7 93.5 79.5 75.3 65.5 10.9

30 890 41.6 187.8 217.5 G 177.2 242.8 387.4 92.4 91.7 94.2 93.6 73 67.2 55.7 14.4

40 3570 47.1 270.2 290 G 58.8 89 144.4 94.1 93.6 93.9 92.8 84.5 81.4 73.1 11.9

40 1780 48 260 290 G 117.9 199.1 279.8 94.5 94.1 94.9 94.6 82.5 78.1 68.5 13.4

40 1185 48.8 263.8 290 G 176.9 264 425.4 94.1 93.6 94.8 94.4 81.5 76.9 66.8 14

40 890 54.8 253.2 290 G 236.3 336.2 522.7 93 92.4 94.4 93.9 73.5 67.4 56 19

50 3570 57.3 324.5 362.5 G 73.6 117 171 94.5 94.1 94.5 93.7 86.5 84.4 77.6 12.4

50 1780 60.4 325.6 362.5 G 147.6 255.7 350.7 94.5 94.1 95 94.7 82 77.7 67.9 17.1

50 1185 61 324.3 362.5 G 221.3 331.6 524.5 94.1 93.6 95 94.7 81.5 77.1 67.2 17.3

50 885 66.2 332.7 362.5 G 297.2 443.8 753.8 93 92.4 94.4 94 76 70.1 58.5 22.4

60 3570 69.1 412.9 435 G 88.2 129 222.8 95 94.5 95 94.1 85.5 82 73.5 17.5

60 1780 70 403.7 435 G 176.8 286.3 433.2 95 94.5 95.3 95.1 84.5 80.9 72 18

60 1190 71.7 401.6 435 G 264.2 380.7 614.8 95 94.5 95.3 94.8 82.5 78.5 69.3 19.3

60 885 78.9 399.7 435 G 356.8 545.6 909 93 92.4 94.7 94.4 76.5 70.8 59.4 26.1

75 3570 82.8 504.7 542.5 G 110.3 180.8 269.4 95.8 95.4 95.6 95 88.5 86.4 80.1 16.9

75 1780 86.1 516.9 542.5 G 220.9 391.8 552.3 95.4 95 95.7 95.6 85.5 82.4 74.1 20.8

75 1190 89.6 510.2 542.5 G 330.3 498.4 779.7 95 94.5 95.5 95.1 82.5 78.7 69.5 24

75 890 93.4 481.3 542.5 G 442.2 614.6 1018.2 94.5 94.1 95.3 94.8 79.5 75.1 65.3 27

100 3570 108 706.3 725 G 147.1 244.1 384.9 95.4 95 95.8 95.6 91 89.8 85.6 17.3

100 1785 118 589 725 G 293.9 429.8 670.9 95.8 95.4 96.1 95.9 83 79.4 70.4 31.2

100 1195 116 691.8 725 G 440.2 603.7 1078.8 95.4 95 95.4 94.9 84.5 81.6 73.4 28.2

100 890 125 643 725 G 589.9 846.6 1370.4 94.5 94.1 95.4 95 79.5 75.1 65.2 36.1

125 3580 139 824.3 907.5 G 183.3 220.9 467.6 95.4 95 95.6 95.2 88.5 86.2 79.8 28.6

125 1785 140 831.1 907.5 G 367.9 654 937.3 95.8 95.4 95.9 95.6 87 84.1 76.5 32.2

125 1190 149 857.1 907.5 G 550.6 996.5 1306.4 95.4 95 95.6 95.1 82.5 78.9 69.8 39.7

125 890 155 828 907.5 G 737.7 1136.3 1796.4 95 94.5 95.4 95.2 79.5 75.7 66 43.9

150 3580 162 1016.6 1085 G 220 314.8 569.1 95.8 95.4 96.1 95.8 90.5 88.9 84 28.3

150 1790 166 1001.4 1085 G 439.8 523.6 1108.4 96.2 95.8 96.4 96.2 88 85.8 79.1 34.6

150 1195 171 1034.2 1085 G 660.4 1010.2 1758.8 95.8 95.4 95.8 95.6 85.5 82.8 75.2 39.3

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.12

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

Volts: 460

HP: 0.75 - 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

150 890 184 975.7 1085 G 885.1 1348.5 2081.7 95 94.5 95.7 95.6 80.5 77 68 48.8

200 3580 211 1385 1450 G 293.2 511.4 832.8 95.8 95.4 95.9 95.5 92.5 92 89.2 27.4

200 1790 218 1334.3 1450 G 586.2 744.3 1497.3 96.5 96.2 96.7 96.6 89 87.1 81.3 41.6

200 1190 227 1345.1 1450 G 881 1349.6 2294.5 95.8 95.4 96 95.9 86 83.3 76.1 50.4

250 3580 265 1707.8 1825 G 366.7 601.8 1025.1 95.8 95.4 96 95.8 92 91.6 88.4 36.4

250 1790 272 1526.1 1825 G 733.1 864.8 1715.7 96.5 96.2 96.8 96.7 89 87.9 83 47.1

250 1195 293 1711.2 1825 G 1100.4 1401.2 2967.1 95.8 95.4 96.1 96 83.5 80.2 71.4 74.5

300 3580 319 2099.4 2200 G 440.1 717.2 1242.3 95.8 95.4 96.2 96 92 91.5 88.2 44.6

300 1790 332 1995.4 2200 G 879.2 1118.6 2241.9 96.2 95.8 96.4 95.9 88 86.2 80 66

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.13

GE Energy Section 3 – X$D Ultra®

3.13 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Volts: 575

HP: 0.75 – 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

0.75 1150 1.1 5.9 10 P 3.4 9.3 12 80 78.5 81.3 78.6 64 55.1 42.6 0.6

0.75 855 1.5 5.8 10 P 4.6 11.6 15 72 70 72.2 67.2 51.5 42.9 32.7 1

1 3540 1.1 10.3 25 N 1.5 4.9 6.6 87.5 86.5 89 87.3 80 72.9 60.5 0.4

1 1750 1.1 9.6 12 N 3 11.6 14.1 86.5 85.5 86.8 84.7 75.5 67.6 54.7 0.5

1 1155 1.5 8.9 12 N 4.5 14.8 18.7 82.5 81.5 82.9 80.1 61.5 52.2 40 0.9

1 875 1.8 8.5 12 N 6 11.2 19.1 80 78.5 79 74.9 52 43.5 33 1.2

1.5 3530 1.6 14.7 16 M 2.2 7.2 9.4 87.5 86.5 89.4 88.3 81 73.9 61.5 0.6

1.5 1740 1.7 13.8 16 M 4.5 17.2 20.3 86.5 85.5 87.7 86.3 77.5 69.5 56.5 0.8

1.5 1175 1.9 14.1 16 M 6.7 14.9 28.1 87.5 86.5 88.3 86.5 67.5 59.1 46.3 1

1.5 870 2.6 12.4 16 M 9 18 27.5 80 78.5 80.1 76.5 53.5 45.2 34.3 1.7

2 3515 2.2 18.4 20 L 3 9.2 11.8 86.5 85.5 89 88.2 80 73 60.3 0.8

2 1735 2.2 16.9 20 L 6.1 21.3 24.9 86.5 85.5 87.9 87.1 80 72.6 59.9 0.9

2 1170 2.5 19.3 20 L 9 21.3 38.7 88.5 87.5 88.9 87.3 68 59.2 46.4 1.3

2 880 3 16.1 20 L 11.9 19.5 37.6 86.5 85.5 85.9 83.3 57.5 49.1 37.7 1.9

3 3530 3.1 20.6 25.6 K 4.5 8 13.9 89.5 88.5 91.2 90.7 82 76.4 65.1 1

3 1760 3.3 23.4 25.6 K 8.9 23.1 30.2 89.5 88.5 89.7 88.7 75.5 68.3 55.8 1.5

3 1175 3.4 23.7 25.6 K 13.4 26.1 41 89.5 88.5 89.5 88.3 73 66.1 53.9 1.7

3 875 4.3 22.7 25.6 K 18 30 52.2 86.5 85.5 86.5 84.7 60 52.3 40.5 2.5

5 3535 4.9 35.3 36.8 J 7.4 15 24 90.2 89.5 91 90 84 79.6 69.6 1.5

5 1755 5.3 34.3 36.8 J 15 34.9 43.9 89.5 88.5 90.9 90.5 79 73.9 63 2

5 1170 5.5 35 36.8 J 22.4 40.7 60.4 89.5 88.5 90.5 90.2 76.5 70.9 59.7 2.2

5 880 6.2 33.6 36.8 J 29.7 50.9 85.1 89.5 88.5 89.6 88.2 68 60.1 47.6 3.3

7.5 3535 6.7 48.6 50.8 H 11.1 24.3 30.7 91 90.2 91.9 91.3 91.5 89.9 85.4 1.4

7.5 1770 7.3 47.5 50.8 H 22.3 41.5 58.1 91.7 91 92.2 91.8 84 80.9 73 2.2

7.5 1175 7.7 48.5 50.8 H 33.5 65.3 91.9 91.7 91 92.4 91.8 79.5 74.5 63.9 2.9

7.5 880 9 48.5 50.8 H 44.7 77.7 122.4 89.5 88.5 90.1 89.2 69.5 62.1 49.5 4.6

10 3525 9 61.2 64.8 H 14.9 31.2 38.9 91 90.2 92.1 91.9 91 90 85.7 1.8

10 1765 9.7 62 64.8 H 29.8 55.7 75.8 91.7 91 92.4 92.3 84 81.1 73.3 2.9

10 1170 10.2 59.5 64.8 H 44.8 81.5 113.7 91 90.2 92 91.8 81 76.1 66 3.7

10 885 10.8 59.9 64.8 H 59.5 83.8 136.2 89.5 88.5 91.1 91.1 77.5 72.6 62.3 4

15 3550 13.7 88.1 92.8 G 22.2 42.9 52.8 91.7 91 92.3 92.1 89.5 88.7 84.5 2.8

15 1770 14.2 89.1 92.8 G 44.5 98.6 115.4 92.4 91.7 93.1 93 85.5 82.2 73.7 4.4

15 1185 15.3 86.3 92.8 G 66.6 96.5 162 91.7 91 92.9 92.5 80 75.2 64.9 5.7

15 880 16.1 89.2 92.8 G 89.5 133.2 207 89.5 88.5 91 91.4 78 73.9 64 5.7

20 3550 17.7 118.2 116 G 29.6 70.6 65.7 92.4 91.7 93.3 93.4 91.5 91.6 89.7 2.5

20 1770 18.3 112.2 116 G 59.3 133 142.5 93 92.4 93.8 94 88 85.8 79.4 4.6

20 1180 20 108.6 116 G 88.9 125.6 203 91.7 91 92.9 92.8 81.5 77.3 67.8 6.9

20 875 23.7 106.1 116 G 119.8 177.3 255.8 91 90.2 91.9 91.4 69.5 63.1 51.3 11.2

X$D Ultra®

TEFC—Extra Severe Duty

ical Performance Data (cont.)

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.14

X$D Ultra® TEFC

GE Energy Section 3 – X$D Ultra®

3.14 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Volts: 575

HP: 0.75 – 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

25 3550 21.8 144.4 146 G 36.9 95.9 93.7 93 92.4 93.3 92.9 92.5 91.7 88.4 3.8

25 1775 23.3 140.9 146 G 73.9 123.7 182.4 93.6 93 94.1 94 86 82.7 74.5 7

25 1180 25.6 138.5 146 G 111.4 204.6 257.6 93 92.4 93.4 93 78.5 73.7 63.4 9.7

25 875 30.3 156.2 146 G 149.6 292.7 376.6 91 90.2 91.7 90.9 68 60.9 48.7 15.3

30 3550 26 173 174 G 44.4 122.4 111 93 92.4 93.6 93.4 93 92.3 89.4 4.2

30 1775 27.7 165.4 174 G 88.7 147.5 211 93.6 93 94.2 94.2 86.5 83.7 76.2 7.9

30 1175 30.4 159.3 174 G 133.8 240.9 295.5 93 92.4 93.6 93.4 79.5 75.2 65.5 10.8

30 890 33.3 150.1 174 G 177.2 242.5 386.6 92.4 91.7 94.1 93.5 73 67.2 55.8 14.4

40 3570 37.4 214.7 232 G 58.8 88.2 143.6 94.1 93.6 94 92.9 85 81.5 73.3 11.8

40 1780 38.4 208.1 232 G 118 198.9 279.7 94.5 94.1 94.9 94.5 82.5 78.1 68.5 13.4

40 1185 39.1 211.7 232 G 176.9 264.7 426.8 94.1 93.6 94.8 94.4 81.5 76.7 66.7 14.1

40 890 44.4 209.6 232 G 236.2 348.6 540.4 93 92.4 94.3 93.7 72.5 66.3 54.6 19.9

50 3565 45.5 252.5 290 G 73.6 113.7 166.6 94.5 94.1 94.4 93.7 87 84.9 78.4 12

50 1780 48.3 260.4 290 G 147.6 255.7 350.6 94.5 94.1 95 94.7 82 77.7 67.9 17.1

50 1185 49.1 263 290 G 221.2 335.9 530.9 94.1 93.6 94.9 94.6 81 76.6 66.5 17.6

50 885 52.6 261.1 290 G 297.3 434.6 738.9 93 92.4 94.4 94 76.5 70.6 59.1 22

60 3570 55.3 334 348 G 88.2 130.6 225.5 95 94.5 95 94.1 85.5 81.7 73.1 17.8

60 1780 56 323 348 G 176.8 285.8 432.7 95 94.5 95.3 95.1 84.5 80.9 72 18

60 1190 57.3 321.2 348 G 264.2 380.3 613.9 95 94.5 95.3 94.8 82.5 78.5 69.3 19.4

60 880 62.7 312.1 348 G 357 530.8 885 93 92.4 94.6 94.4 77 71.4 60.1 25.5

75 3570 66.5 399.8 434 G 110.3 178.7 267.1 95.4 95 95.6 95 88.5 86.5 80.3 16.7

75 1785 68.9 417.9 434 G 220.9 396.1 558.1 95.4 95 95.7 95.6 85.5 82.2 73.8 21

75 1190 71.7 406.5 434 G 330.3 494.3 776.1 95 94.5 95.5 95.1 82.5 78.7 69.5 24

75 890 74.7 384.4 434 G 442.2 613.4 1016.3 94.5 94.1 95.3 94.8 79.5 75.1 65.3 27

100 3570 86.3 564.3 580 G 147.1 250.1 383.3 95.4 95 95.8 95.6 91 90.1 86 16.8

100 1785 94.2 478 580 G 293.9 433.9 679 95.8 95.4 96.1 95.8 83 79 69.8 31.9

100 1195 92.9 565 580 G 440.1 617.6 1102.3 95.4 95 95.5 94.9 84.5 81.2 72.8 28.8

100 890 99.7 499.7 580 G 590.2 820.3 1329.6 94.5 94.1 95.4 95.1 79.5 75.7 66.2 34.9

125 3580 111 676.1 726 G 183.3 226.6 478.8 95.4 95 95.7 95.2 88 85.7 79 29.6

125 1785 112 672.6 726 G 367.8 663.6 949.2 95.8 95.4 96 95.6 87 84 76.3 32.5

125 1190 118 676 726 G 550.7 981.2 1286.7 95.4 95 95.5 95.1 83 79.2 70.3 39

125 890 124 662.2 726 G 737.7 1135.7 1795.5 95 94.5 95.4 95.2 79.5 75.7 66 43.9

150 3580 130 822.5 868 G 220 313.8 576.5 95.8 95.4 96.1 95.8 90 88.6 83.4 29.2

150 1790 133 825 868 G 439.7 537 1139.1 96.2 95.8 96.5 96.2 88 85.4 78.4 35.7

150 1190 137 820.5 868 G 660.4 1003.6 1746.2 95.8 95.4 95.9 95.6 85.5 83 75.5 38.8

150 890 147 774.4 868 G 885.3 1338.2 2067.1 95 94.5 95.7 95.6 80.5 77.2 68.2 48.5

X$D Ultra®

TEFC—Extra Severe Duty

ical Performance Data (cont.)

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.15

y g r e n EEG Section 3 – X$D Ultra®

01 / 10U005 - PEG. ec i t ont uoh t i wegnahco t t ce j busa t aD51.3

www.gemotors.com

1917145008

Volts: 575

HP: 0.75 – 300

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

200 3580 169 1095.4 1160 G 293.3 498.2 826 95.8 95.4 95.8 95.4 92.5 92 89.1 27.5

200 1790 174 1049.8 1160 G 586.2 730.9 1471.2 96.5 96.2 96.7 96.6 89 87.3 81.6 40.9

200 1190 182 1056 1160 G 881.1 1322.1 2250.1 95.8 95.4 96 95.9 86 83.6 76.6 49.4

250 3580 211 1374.4 1460 G 366.7 612.2 1027.2 95.8 95.4 96 95.8 92.5 91.7 88.6 36

250 1790 218 1226.7 1460 G 733 869.7 1729.1 96.5 96.2 96.9 96.8 89 87.8 82.9 47.4

300 3575 253 1623.2 1760 G 440.3 707.5 1199.2 95.8 95.4 96.1 96 92.5 91.8 88.9 42.1

300 1790 264 1501.9 1760 G 879.5 1064.4 2117.8 96.2 95.8 96.3 96 88.5 87 81.6 61

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

X$D Ultra®

TEFC—Extra Severe Duty

Typical Performance Data (cont.)

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.16

X$D Ultra® TEFC

X$D Ultra®

TEFC—Extra Severe Duty

Dimensions

Frame

(19)

Approx.

Net

Weight

(lbs)

Dimensions in Inches

Shaft Mounting (18)

A B C D (3) G J K L O

Key

N-W U (1) V E H BA BS

(20) 2XFWidth Depth Length

143T 43 0.187 0.187 1.380 2.25 0.875 2.12 2.75 0.39 2.25 2.25 5.00 4.00 6.88 5.88 13.42 3.50 0.40 1.39 2.32 6.42 7.25

145T 50 0.187 0.187 1.380 2.25 0.875 2.12 2.75 0.39 2.25 2.25 5.00 4.00 6.88 5.88 13.42 3.50 0.40 1.39 2.32 6.42 7.25

182T 76 0.250 0.250 1.750 2.75 1.125 2.50 3.75 0.46 2.75 2.75 5.50 4.50 8.68 6.64 15.91 4.50 0.46 1.54 2.58 7.66 9.25

184T 101 0.250 0.250 1.750 2.75 1.125 2.50 3.75 0.46 2.75 2.75 5.50 4.50 8.68 6.64 15.91 4.50 0.46 1.54 2.58 7.66 9.25

213T 200 0.312 0.312 2.380 3.38 1.375 3.12 4.25 0.46 3.50 3.50 7.00 5.50 9.60 8.00 20.15 5.25 0.57 1.47 3.12 9.77 10.43

215T 220 0.312 0.312 2.380 3.38 1.375 3.12 4.25 0.46 3.50 3.50 7.00 5.50 9.60 8.00 20.15 5.25 0.57 1.47 3.12 9.77 10.43

254T 315 0.375 0.375 2.380 4.00 1.625 3.76 5.00 0.58 4.25 5.00 10.00 8.25 11.20 11.30 25.29 6.25 0.65 1.52 3.93 12.34 12.50

256T 350 0.375 0.375 2.880 4.00 1.625 3.76 5.00 0.58 4.25 5.00 10.00 8.25 11.20 11.30 25.29 6.25 0.65 1.52 3.93 12.34 12.50

284TS 460 0.375 0.375 1.880 3.25 1.625 3.00 5.50 0.58 4.76 5.50 11.00 9.50 12.40 12.80 27.20 7.00 0.76 1.75 4.12 13.70 13.88

284T 460 0.500 0.500 3.250 4.62 1.875 4.38 5.50 0.58 4.76 5.50 11.00 9.50 12.40 12.80 28.58 7.00 0.76 1.75 4.12 13.70 13.88

286TS 510 3.750 3.750 1.880 3.25 1.625 3.00 5.50 0.58 4.76 5.50 11.00 9.50 12.40 12.80 27.20 7.00 0.76 1.75 4.12 13.70 13.88

286T 510 0.500 0.500 3.250 4.62 1.875 4.38 5.50 0.58 4.76 5.50 11.00 9.50 12.40 12.80 28.58 7.00 0.76 1.75 4.12 13.70 13.88

324TS 664 0.500 0.500 2.000 3.75 1.875 3.50 6.25 0.67 5.25 6.00 – 10.50 14.40 13.80 29.04 8.00 0.99 2.01 3.62 15.54 17.07

324T 664 0.500 0.500 3.880 5.25 2.125 5.00 6.25 0.67 5.25 6.00 – 10.50 14.40 13.80 30.54 8.00 0.99 2.01 3.62 15.54 17.07

326TS 800 0.500 0.500 2.000 3.75 1.875 3.50 6.25 0.67 5.25 6.00 12.00 10.50 14.40 13.80 30.54 8.00 0.99 2.01 3.62 15.54 17.07

326T 800 0.500 0.500 3.880 5.25 2.125 5.00 6.25 0.67 5.25 6.00 12.00 10.50 14.40 13.80 32.04 8.00 0.99 2.01 3.62 15.54 17.07

364TS 1122 0.500 0.500 2.000 3.75 1.875 3.50 7.00 0.69 5.88 6.13 12.25 11.25 16.00 14.40 32.76 9.00 1.09 2.26 3.40 17.00 19.02

364T 1122 0.625 0.625 4.250 5.88 2.375 5.64 7.00 0.69 5.88 6.13 12.25 11.25 16.00 14.40 43.89 9.00 1.09 2.26 3.40 17.00 19.02

365TS 1155 0.500 0.500 2.000 3.75 1.875 3.50 7.00 0.69 5.88 6.13 12.25 11.25 16.00 14.40 32.76 9.00 1.09 2.26 3.40 17.00 19.02

365T 1155 0.625 0.625 4.250 5.88 2.375 5.64 7.00 0.69 5.88 6.13 12.25 11.25 16.00 14.40 43.89 9.00 1.09 2.26 3.40 17.00 19.02

404TS 1580 0.500 0.500 2.750 4.25 2.125 4.00 8.00 0.81 6.62 6.88 13.75 12.25 18.00 16.00 36.76 10.00 1.29 2.64 4.00 19.02 21.18

404T 1580 0.750 0.750 5.625 7.25 2.875 7.00 8.00 0.81 6.62 6.88 13.75 12.25 18.00 16.00 39.77 10.00 1.29 2.64 4.00 19.02 21.18

405TS 1600 0.500 0.500 2.750 4.25 2.125 4.00 8.00 0.81 6.62 6.88 13.75 12.25 18.00 16.00 36.76 10.00 1.29 2.64 4.00 19.02 21.18

405T 1600 0.750 0.750 5.625 7.25 2.875 7.00 8.00 0.81 6.62 6.88 13.75 12.25 18.00 16.00 39.77 10.00 1.29 2.64 4.00 19.02 21.18

444TS 2100 0.625 0.625 3.000 4.75 2.375 4.50 9.00 0.81 7.50 8.25 16.50 14.50 20.00 18.80 41.87 11.00 1.49 2.64 4.97 21.37 23.94

444T 2100 0.875 0.875 6.875 8.50 3.375 8.25 9.00 0.81 7.50 8.25 16.50 14.50 20.00 18.80 45.62 11.00 1.49 2.64 4.97 21.37 23.94

445TS 2260 0.625 0.625 3.000 4.75 2.375 4.50 9.00 0.81 7.50 8.25 16.50 14.50 20.00 18.80 41.87 11.00 1.49 2.64 4.97 21.37 23.94

445T 2260 0.875 0.875 6.875 8.50 3.375 8.25 9.00 0.81 7.50 8.25 16.50 14.50 20.00 18.80 45.62 11.00 1.49 2.64 4.97 21.37 23.94

447TS 2610 0.625 0.625 3.000 4.75 2.375 4.50 9.00 0.81 7.50 12.50 25.00 20.00 20.00 27.30 50.37 11.00 1.49 2.64 8.81 25.62 23.94

447T 2610 0.875 0.875 6.875 8.50 3.375 8.25 9.00 0.81 7.50 12.50 25.00 20.00 20.00 27.30 54.12 11.00 1.49 2.64 8.81 25.62 23.94

449TS 3010 0.625 0.625 3.000 4.75 2.375 4.50 9.00 0.81 7.50 12.50 25.00 20.00 20.00 27.30 50.37 11.00 1.49 2.64 8.81 25.62 23.94

449T 3010 0.875 0.875 6.875 8.50 3.375 8.25 9.00 0.81 7.50 12.50 25.00 20.00 20.00 27.30 54.12 11.00 1.49 2.64 8.81 25.62 23.94

449LL 3010 0.875 0.875 4.500 6.75 3.375 6.50 9.00 0.81 7.50 12.50 25.00 20.00 20.00 27.30 53.37 11.00 1.49 2.64 8.70 25.62 23.94

Notes:

1 Shaft diameters 1 1/2 inches and smaller will come within the limits of +0.000 inch, -0.0005 inch diameters 1 5/8 inches and larger +0.000 inch,

-0.001 inch

3 Tolerance on “D” dimension for rigid base motors will be +0.000 inch, -0.060 inch. No tolerance has been est. for the “D” dimension of resilient

mounted motors.

18 Motor feet have 2 holes per foot allowing NEMA F-1 or F-2 assembly while maintaining critical NEMA mounting dimensions

19 Cast iron motors in 449 frame also have mounting holes meeting 447 frame dimensions

Providing mounting conditions permit, conduit box may be turned so that entrance can be made upward, downward, or from either side

Weights shown are approximate shipping weights and should be used for estimating only

20 324 Frame motors have mounting holes for the 324 frame size only

Dimensions refer to drawing on following page

Cast Iron Construction/Frames 140-449, Type KS, 3-Phase/Dimensions—For estimating only

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® TEFC

2.17

GE Energy Section 3 – X$D Ultra®

3.17 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Dimensions on previous page

Cast Iron Construction/Frames 140-449, Type KS, 3-Phase/Dimensions—For estimating only

Conduit Box Dimensions

Dimensions in Inches

Frame

Nominal

Approx.

Vol.

(cubic in) AA* AB AC AF XL XN

143-145 2 32 0.75 6.62 5.12 2.50 4.30 5.40

182-184 5 32 0.75 7.82 6.32 2.50 4.30 5.40

213-215 10 55 1.00 9.50 7.42 3.50 5.78 4.16

254-256 20 140 1.25 11.68 9.12 4.59 7.37 5.37

284-286 30 140 1.50 12.44 9.88 4.59 7.37 5.37

324-326 50 346 3.00 16.13 12.43 6.44 10.14 7.00

364-365 75 346 3.00 17.07 13.37 6.44 10.14 7.00

404-405 125 700 3.00 20.48 16.22 7.00 12.13 10.50

444-449 200 700 3.00 22.00 17.74 7.00 12.13 10.50

444-449 250-300 1260 2x 4.00 22.56 17.80 7.00 12.40 16.25

* A tapped NPT hole is provided for the conduit size listed in Column AA

X$D Ultra®

TEFC—Extra Severe Duty

Dimensions (cont.)

C-Face Dimensions

All Dimensions in inches

NEMA

Frame AH AJ AK U

Key

Width

Key

Thickness

Key

Length

143TC-

145TC 2.12 5.88 4.50 0.88 0.19 0.19 1.38

182TC-

184TC 2.62 7.25 8.50 1.13 0.25 0.25 1.75

213TC-

215TC 3.12 7.25 8.50 1.38 0.31 0.31 2.38

254TC-

256TC 3.75 7.25 8.50 1.63 0.38 0.38 2.88

284TC-

286TC 4.38 9.00 10.50 1.88 0.50 0.50 3.25

X$D Ultra®

TEFC—Extra Severe Duty

Dimensions (cont.)

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.18

X$D Ultra® 841

TEFC—Extra Severe

Duty (IP56)

Standard Features

HP Range 0.75-250

Poles 2,4,6,8

Voltage 460, 575

Agency Approvals UL - Component and Insulation System Recognition, CSA - Motors and C-390 (CE and ATEX Zone 2 by custom order)

Altitude 3300 ft

Ambient 40ºC

Balance/Vibration ISO Grade 1, Ball Bearings: 0.040 in/sec (P)

Bearing Caps Cast iron and gasketed on both ends

Bearing Housing Rise 2-pole: 50ºC, 4,6,8-pole: 45ºC

Bearing Protection IP56 (exceeds IEEE 841 requirement of IP55), Inpro Seal both ends

Bearing Type Ball

Centered Core Allows F1-F2 field conversion

Conduit Box Gasketed and rotatable in 90 degree increments, Cast iron

Div 2 Temp Codes Motors have an Auto Ignition Temperature of 200 degree C stamped on the nameplate. A Division 2 Nameplate can be provided

(see kit section).

Drains Stainless Steel T-drains in lowest section of both endshields

Efficiency Meets or exceeds NEMA Premium nominal. Exceeds all NEMA Premium minimum efficiencies.

End Shield Cast Iron

Fan Non-Sparking Plastic or Bronze

Fan Cover Cast Iron

Fasteners SAE, Grade 5

Foot Draft Angle +/- 1.5 degrees

Foot Flatness 0.005 inches

Frame Material Cast Iron

Frame Size 143-449

Frequency 60 Hz

Grease Polyurea

Ground Ground lug in Conduit Box and Frame ground

Industry Specifications Exceeds IEEE 841

Meets IEEE 45 Marine Duty; Meets GM 7E-TA Automotive Duty

Insulation Class Class H

Insulation System GEGARD2400TM 143-449 frames. Non-Hygroscopic, Anti-Fungus, 2400Volt @ .1microsecond rise time. Exceeds NEMA MG1-31

Inverter Capabilities Variable Torque inf:1, Constant Torque 20:1 (see Inverter Duty Capabilities, page iv)

L10 Bearing Life Direct Coupled: 130,000 hrs, Belted: 26,280 hrs

Lifting Means 4 Lugs cast into frame

Mounting F1 as Standard and Modifiable to F2

Mounting Holes 1 per foot (324 frame), 2 per foot (all other frames)

Nameplate 316 Stainless Steel (Includes weight, 3/4 load efficiency, vibration limit)

NEMA Design B

Oil Mist Lube Includes provisions for conversion to Oil Mist Lubrication

Paint Buff, Epoxy ester

Relubrication Both ends, extended through the fan cover

Rotor Cast Aluminum

Service Factor 1.15

Shaft TIR Meets IEEE 841, .001 in for shaft diameter 1.625 in and smaller, .0015 in for shaft diameter greater than 1.625 in.

Special Painting Meets IEEE 841

Temperature Rise 80°C @ 1.0 SF

Tests NEMA Routine Report including Vibration supplied with motor, IEEE 112 Method B

Time Rating Continuous

Vibration Pads Cast in vibration pads for repeatable measurements

Warranty 60 months from date of installation or 66 months from date of manufacture, whichever occurs first

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® 841

2.19

Volts: 460, 575

HP: 0.75 – 250

HP RPM Volts Frame FLA Nom. Eff.

Guar.

Min. Eff. Cat. No. List Price Price Symbol

Norm.

Stk.

Wt.

(lbs) C Dim. (in) Notes

0.75 1200 460 143T 1.4 80.0 78.5 M354 $1,008 G4-7UX1 N 43 13.40

0.75 1200 575 143T 1.1 80.0 78.5 M355 $1,008 G4-7UX1 N 43 13.40

0.75 900 460 145T 1.9 72.0 70.0 M8901 $1,662 G4-7UX1 N 50 13.40

1 3600 460 143T 1.3 87.5 86.5 M8903 $1,035 G4-7UX1 N 43 11.60 55

1 3600 575 143T 1.1 87.5 86.5 M8904 $1,035 G4-7UX1 N 43 11.60 55

1 1800 460 143T 1.4 86.5 85.5 M352 $1,020 G4-7UX1 Y 43 11.60

1 1800 575 143T 1.2 86.5 85.5 M353 $1,020 G4-7UX1 Y 43 11.60

1 1200 460 145T 1.8 82.5 81.5 M363 $1,092 G4-7UX1 Y 50 13.40

1 1200 575 145T 1.5 82.5 81.5 M364 $1,092 G4-7UX1 N 50 13.40

1 900 460 182T 2.2 80.0 78.5 M9413 $1,334 G4-7UX1 N 76 15.90 55

1 900 575 182T 1.8 80.0 78.5 M9482 $1,334 G4-7UX1 N 76 15.90 55

1.5 3600 460 143T 2.0 87.5 86.5 M8905 $1,080 G4-7UX1 Y 43 11.60 55

1.5 3600 575 143T 1.6 87.5 86.5 M8906 $1,080 G4-7UX1 N 43 11.60 55

1.5 1800 460 145T 2.1 86.5 85.5 M359 $1,157 G4-7UX1 Y 50 11.60

1.5 1800 575 145T 1.7 86.5 85.5 M360 $1,157 G4-7UX1 Y 50 11.60

1.5 1200 460 182T 2.4 87.5 86.5 M9414 $1,194 G4-7UX1 Y 76 15.90

1.5 1200 575 182T 1.9 87.5 86.5 M9483 $1,194 G4-7UX1 N 76 15.90

1.5 900 460 184T 3.2 80.0 78.5 M9415 $1,577 G4-7UX1 N 101 15.90

1.5 900 575 184T 2.6 80.0 78.5 M9485 $1,577 G4-7UX1 N 101 15.90

2 3600 460 145T 2.7 86.5 85.5 M8907 $1,293 G4-7UX1 Y 43 11.60 55

2 3600 575 145T 2.2 86.5 85.5 M8908 $1,293 G4-7UX1 N 43 11.60 55

2 1800 460 145T 2.7 86.5 85.5 M361 $1,250 G4-7UX1 Y 50 13.40

2 1800 575 145T 2.2 86.5 85.5 M362 $1,250 G4-7UX1 Y 50 13.40

2 1200 460 184T 3.0 88.5 87.5 M9416 $1,278 G4-7UX1 Y 101 15.90

2 1200 575 184T 2.5 88.5 87.5 M9486 $1,278 G4-7UX1 Y 101 15.90

2 900 460 213T 3.8 86.5 85.5 M9417 $2,031 G4-7UX1 N 200 20.10

2 900 575 213T 3.0 86.5 85.5 M9487 $2,031 G4-7UX1 N 200 20.10

3 3600 460 182T 3.9 89.5 88.5 M9418 $1,178 G4-7UX1 Y 76 15.90 55

3 3600 575 182T 3.1 89.5 88.5 M9488 $1,178 G4-7UX1 N 76 15.90 55

3 1800 460 182T 4.2 89.5 88.5 M9419 $1,112 G4-7UX1 Y 76 15.90 55

3 1800 575 182T 3.3 89.5 88.5 M9489 $1,112 G4-7UX1 Y 76 15.90 55

3 1200 460 213T 4.2 89.5 88.5 M9420 $1,425 G4-7UX1 Y 200 20.10

3 1200 575 213T 3.4 89.5 88.5 M9490 $1,425 G4-7UX1 Y 200 20.10

3 900 460 215T 5.4 86.5 85.5 M9421 $2,621 G4-7UX1 N 220 20.10

3 900 575 215T 4.3 86.5 85.5 M9491 $2,621 G4-7UX1 N 220 20.10

Notes:

55 TENV Construction

X$D Ultra® 841

TEFC—Extra Severe Duty

Pricing

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.20

X$D Ultra® 841

Volts: 460, 575

HP: 0.75 – 250

HP RPM Volts Frame FLA Nom. Eff.

Guar.

Min. Eff. Cat. No. List Price Price Symbol

Norm.

Stk.

Wt.

(lbs) C Dim. (in) Notes

5 3600 460 184T 6.3 90.2 89.5 M9422 $1,334 G4-7UX1 Y 101 15.90

5 3600 575 184T 5.0 90.2 89.5 M9492 $1,334 G4-7UX1 N 101 15.90

5 1800 460 184T 6.6 89.5 88.5 M9423 $1,182 G4-7UX1 Y 101 15.90

5 1800 575 184T 5.3 89.5 88.5 M9493 $1,182 G4-7UX1 Y 101 15.90

5 1200 460 215T 7.2 89.5 88.5 M9424 $2,007 G4-7UX1 Y 220 20.10

5 1200 575 215T 5.4 89.5 88.5 M9494 $2,007 G4-7UX1 Y 220 20.10

5 900 460 254T 8.1 89.5 88.5 M9425 $3,615 G4-7UX1 N 315 25.60

5 900 575 254T 6.5 89.5 88.5 M9495 $3,615 G4-7UX1 N 315 25.60

7.5 3600 460 213T 8.5 91.0 90.2 M9426 $1,740 G4-7UX1 Y 200 20.10

7.5 3600 575 213T 6.8 91.0 90.2 M9496 $1,740 G4-7UX1 N 200 20.10

7.5 1800 460 213T 9.1 91.7 91.0 M9427 $1,730 G4-7UX1 Y 200 20.10

7.5 1800 575 213T 7.2 91.7 91.0 M9497 $1,730 G4-7UX1 Y 200 20.10

7.5 1200 460 254T 9.8 91.7 91.0 M9428 $2,667 G4-7UX1 Y 315 25.60

7.5 1200 575 254T 7.9 91.7 91.0 M9498 $2,667 G4-7UX1 Y 315 25.60

7.5 900 460 256T 11.6 89.5 88.5 M9429 $4,577 G4-7UX1 N 350 25.60

7.5 900 575 256T 9.3 89.5 88.5 M9499 $4,577 G4-7UX1 N 350 25.60

10 3600 460 215T 11.2 91.0 90.2 M9430 $1,883 G4-7UX1 Y 220 20.10

10 3600 575 215T 9.0 91.0 90.2 M9563 $1,883 G4-7UX1 N 220 20.10

10 1800 460 215T 12.0 91.7 91.0 M9431 $1,929 G4-7UX1 Y 220 20.10

10 1800 575 215T 9.6 91.7 91.0 M9564 $1,929 G4-7UX1 Y 220 20.10

10 1200 460 256T 13.1 91.0 90.2 M9432 $3,260 G4-7UX1 Y 350 25.60

10 1200 575 256T 10.5 91.0 90.2 M9565 $3,260 G4-7UX1 Y 350 25.60

10 900 460 284T 13.8 90.2 89.5 M9433 $5,426 G4-7UX1 N 460 28.58

10 900 575 284T 11.0 90.2 89.5 M9566 $5,426 G4-7UX1 N 460 28.58

15 3600 460 254T 17.6 91.7 91.0 M9434 $2,588 G4-7UX1 Y 315 25.60

15 3600 575 254T 14.0 91.7 91.0 M9567 $2,588 G4-7UX1 N 315 25.60

15 1800 460 254T 18.0 92.4 91.7 M9435 $2,541 G4-7UX1 Y 315 25.60

15 1800 575 254T 14.4 92.4 91.7 M9568 $2,541 G4-7UX1 Y 315 25.60

15 1200 460 284T 19.6 91.7 91.0 M9436 $4,323 G4-7UX1 Y 460 28.58

15 1200 575 284T 15.7 91.7 91.0 M9569 $4,323 G4-7UX1 Y 460 28.58

15 900 460 286T 20.5 90.2 89.5 M9437 $7,089 G4-7UX1 N 510 28.58

15 900 575 286T 16.4 90.2 89.5 M9570 $7,089 G4-7UX1 N 510 28.58

20 3600 460 256T 22.6 92.4 91.7 M9438 $3,203 G4-7UX1 Y 350 25.60

20 3600 575 256T 18.1 92.4 91.7 M9571 $3,203 G4-7UX1 N 350 25.60

20 1800 460 256T 23.3 93.0 92.4 M9439 $3,167 G4-7UX1 Y 350 25.60

20 1800 575 256T 18.6 93.0 92.4 M9572 $3,167 G4-7UX1 Y 350 25.60

X$D Ultra® 841

TEFC—Extra Severe Duty

Pricing (cont.)

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® 841

2.21

X$D Ultra® 841

TEFC—Extra Severe Duty

Pricing (cont.)

Volts: 460, 575

HP: 0.75 – 250

HP RPM Volts Frame FLA Nom. Eff.

Guar.

Min. Eff. Cat. No. List Price Price Symbol

Norm.

Stk.

Wt.

(lbs) C Dim. (in) Notes

20 1200 460 286T 26.0 91.7 91.0 M9440 $5,268 G4-7UX1 Y 510 28.58

20 1200 575 286T 20.8 91.7 91.0 M9573 $5,268 G4-7UX1 Y 510 28.58

20 900 460 324T 29.8 91.0 90.2 M9441 $8,189 G4-7UX1 N 649 30.54

20 900 575 324T 23.9 91.0 90.2 M9574 $8,189 G4-7UX1 N 649 30.54

25 3600 460 284TS 27.8 93.0 92.4 M9442 $3,948 G4-7UX1 Y 460 27.20

25 3600 575 284TS 22.2 93.0 92.4 M9575 $3,948 G4-7UX1 N 460 27.20

25 1800 460 284T 29.8 93.6 93.0 M9443 $3,771 G4-7UX1 Y 460 28.58

25 1800 575 284T 23.8 93.6 93.0 M9576 $3,771 G4-7UX1 Y 460 28.58

25 1200 460 324T 32.3 93.0 92.4 M9444 $6,669 G4-7UX1 Y 679 30.54

25 1200 575 324T 25.8 93.0 92.4 M9577 $6,669 G4-7UX1 Y 679 30.54

25 900 460 326T 37.0 91.0 90.2 M9445 $9,807 G4-7UX1 N 710 32.04

25 900 575 326T 29.2 91.0 90.2 M9578 $9,807 G4-7UX1 N 710 32.04

30 3600 460 286TS 33.4 93.0 92.4 M9446 $4,610 G4-7UX1 Y 510 27.20

30 3600 575 286TS 26.7 93.0 92.4 M9579 $4,610 G4-7UX1 N 510 27.20

30 1800 460 286T 35.5 93.6 93.0 M9447 $4,383 G4-7UX1 Y 510 28.58

30 1800 575 286T 28.4 93.6 93.0 M9580 $4,383 G4-7UX1 Y 510 28.58

30 1200 460 326T 38.2 93.0 92.4 M9448 $7,443 G4-7UX1 Y 730 32.04

30 1200 575 326T 30.8 93.0 92.4 M9581 $7,443 G4-7UX1 Y 730 32.04

30 900 460 364T 42.2 92.4 91.7 M9449 $12,110 G4-7UX N 1010 34.89

30 900 575 364T 33.8 92.4 91.7 M9582 $12,110 G4-7UX N 1010 34.89

40 3600 460 324TS 46.8 94.1 93.6 M9450 $6,264 G4-7UX1 Y 649 29.04

40 3600 575 324TS 37.4 94.1 93.6 M9583 $6,264 G4-7UX1 N 649 29.04

40 1800 460 324T 50.8 94.5 94.1 M9451 $6,077 G4-7UX1 Y 689 30.54

40 1800 575 324T 40.6 94.5 94.1 M9584 $6,077 G4-7UX1 Y 689 30.54

40 1200 460 364T 49.4 94.1 93.6 M9452 $9,950 G4-7UX Y 1030 34.89

40 1200 575 364T 39.8 94.1 93.6 M9585 $9,950 G4-7UX Y 1030 34.89

40 900 460 365T 55.9 93.0 92.4 M9453 $14,937 G4-7UX N 1090 34.89

40 900 575 365T 45.0 93.0 92.4 M9586 $14,937 G4-7UX N 1090 34.89

50 3600 460 326TS 57.3 94.5 94.1 M9454 $7,647 G4-7UX1 Y 700 30.48

50 3600 575 326TS 45.5 94.5 94.1 M9587 $7,647 G4-7UX1 N 700 30.48

50 1800 460 326T 63.9 94.5 94.1 M9455 $6,923 G4-7UX1 Y 740 32.04

50 1800 575 326T 51.1 94.5 94.1 M9588 $6,923 G4-7UX1 Y 740 32.04

50 1200 460 365T 62.2 94.1 93.6 M9456 $11,343 G4-7UX Y 1070 34.89

50 1200 575 365T 49.7 94.1 93.6 M9589 $11,343 G4-7UX Y 1070 34.89

50 900 460 404T 66.6 93.0 92.4 M9457 $18,023 G4-7UX N 1490 39.77

50 900 575 404T 53.0 93.0 92.4 M9590 $18,023 G4-7UX N 1490 39.77

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.22

X$D Ultra® 841

TEFC—Extra Severe Duty

Pricing (cont.)

Volts: 460, 575

HP: 0.75 – 250

HP RPM Volts Frame FLA Nom. Eff.

Guar.

Min. Eff. Cat. No. List Price Price Symbol

Norm.

Stk.

Wt.

(lbs) C Dim. (in) Notes

60 3600 460 364TS 70.4 95.0 94.5 M9458 $10,256 G4-7UX Y 940 32.76

60 3600 575 364TS 56.3 95.0 94.5 M9591 $10,256 G4-7UX N 940 32.76

60 1800 460 364T 71.2 95.0 94.5 M9459 $9,924 G4-7UX Y 1020 34.89

60 1800 575 364T 56.6 95.0 94.5 M9592 $9,924 G4-7UX Y 1020 34.89

60 1200 460 404T 72.5 95.0 94.5 M9460 $13,245 G4-7UX Y 1480 39.77

60 1200 575 404T 58.0 95.0 94.5 M9593 $13,245 G4-7UX N 1480 39.77

60 900 460 405T 78.9 93.0 92.4 M9461 $20,340 G4-7UX N 1570 39.77

60 900 575 405T 63.1 93.0 92.4 M9594 $20,340 G4-7UX N 1570 39.77

75 3600 460 365TS 85.2 95.8 95.4 M9462 $12,261 G4-7UX Y 1020 32.76

75 3600 575 365TS 68.6 95.8 95.4 M8917 $12,261 G4-7UX N 1020 32.76

75 1800 460 365T 86.6 95.4 95.0 M9463 $11,759 G4-7UX Y 1090 34.89

75 1800 575 365T 68.9 95.4 95.0 M9596 $11,759 G4-7UX Y 1090 34.89

75 1200 460 405T 89.6 95.0 94.5 M9464 $14,547 G4-7UX Y 1540 39.77

75 1200 575 405T 71.2 95.0 94.5 M9597 $14,547 G4-7UX N 1540 39.77

75 900 460 444T 94.0 94.5 94.1 M9465 $25,449 G4-7UX N 1950 45.62

75 900 575 444T 75.2 94.5 94.1 M9598 $25,449 G4-7UX N 1950 45.62

100 3600 460 405TS 108.0 95.4 95.0 M9466 $15,783 G4-7UX Y 1530 36.76

100 3600 575 405TS 86.3 95.4 95.0 M8918 $15,783 G4-7UX N 1530 36.76

100 1800 460 405T 119.0 95.8 95.4 M9467 $14,477 G4-7UX Y 1480 39.77

100 1800 575 405T 95.3 95.8 95.4 M9693 $14,477 G4-7UX Y 1480 39.77 113

100 1200 460 444T 116.0 95.4 95.0 M9468 $18,723 G4-7UX Y 2060 45.62

100 1200 575 444T 93.0 95.4 95.0 M9694 $18,723 G4-7UX N 2060 45.62

100 900 460 445T 125.0 94.5 94.1 M9469 $32,247 G4-7UX N 2020 45.62

100 900 575 445T 100.0 94.5 94.1 M9695 $32,247 G4-7UX N 2020 45.62

125 3600 460 444TS 139.0 95.4 95.0 M9470 $20,169 G4-7UX Y 1790 41.87

125 3600 575 444TS 112.0 95.4 95.0 M8919 $20,169 G4-7UX N 1790 41.87

125 1800 460 444T 144.0 95.8 95.4 M9471 $18,651 G4-7UX Y 1970 45.62

125 1800 575 444T 115.0 95.8 95.4 M9697 $18,651 G4-7UX Y 1970 45.62

125 1200 460 445T 150.0 95.4 95.0 M9472 $22,307 G4-7UX Y 2130 45.62

125 1200 575 445T 120.0 95.4 95.0 M9698 $22,307 G4-7UX N 2130 45.62

125 900 460 447T 155.0 95.0 94.5 M9473 $35,909 G4-7UX N 2580 52.12

125 900 575 447T 124.0 95.0 94.5 M9699 $35,909 G4-7UX N 2580 52.12

150 3600 460 445TS 163.0 95.8 95.4 M9474 $23,874 G4-7UX Y 1930 41.87

150 3600 575 445TS 130.0 95.8 95.4 M8920 $23,874 G4-7UX N 1930 41.87

150 1800 460 445T 170.0 96.2 95.8 M9475 $21,431 G4-7UX Y 2090 45.62

150 1800 575 445T 137.0 96.2 95.8 M9384 $21,431 G4-7UX Y 2060 45.62

Notes:

113 Bearing temperature exceeds IEEE-841

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® 841

2.23

X$D Ultra® 841

TEFC—Extra Severe Duty

Pricing (cont.)

Volts: 460, 575

HP: 0.75 - 250

HP RPM Volts Frame FLA Nom. Eff.

Guar.

Min. Eff. Cat. No. List Price Price Symbol

Norm.

Stk. Wt. (lbs) C Dim. (in) Notes

150 1200 460 447T 171.0 95.8 95.4 M9476 $27,162 G4-7UX Y 2860 52.12

150 1200 575 447T 137.0 95.8 95.4 M9385 $27,162 G4-7UX N 2860 52.12

150 900 460 449T 184.0 95.0 94.5 M8937 $39,158 G4-7UX N 3150 52.12

150 900 575 449T 147.0 95.0 94.5 M8938 $39,158 G4-7UX N 3120 52.12

200 3600 460 447TS 214.0 95.8 95.4 M9477 $29,729 G4-7UX Y 2560 50.37 66, 112

200 3600 460 447TS 214.0 95.8 95.4 M8978 $29,729 G4-7UX Y 2630 50.37 62, 112

200 3600 575 447TS 170.0 95.8 95.4 M8939 $29,729 G4-7UX N 2560 50.37 66, 112

200 1800 460 447T 220.0 96.5 96.2 M9478 $26,421 G4-7UX Y 2800 54.12

200 1800 575 447T 175.0 96.5 96.2 M9387 $26,421 G4-7UX Y 2800 54.12

200 1200 460 449T 229.0 95.8 95.4 M8940 $30,213 G4-7UX Y 3070 54.12

200 1200 575 449T 183.0 95.8 95.4 M8941 $30,213 G4-7UX N 3070 54.12

200 900 460 449T 247.0 95.4 95.0 M8942 $41,250 G4-7UX N 3120 54.12 97, 113

250 3600 460 449TS 265.0 95.8 95.4 M8943 $37,578 G4-7UX Y 2770 50.37 66, 112, 113

250 3600 460 449TS 265.0 95.8 95.4 M8979 $37,578 G4-7UX Y 2770 50.37 62, 112, 113

250 3600 575 449TS 211.0 95.8 95.4 M8944 $37,578 G4-7UX N 2770 50.37 66, 112, 113

250 1800 460 449T 280.0 96.2 95.8 M8945 $30,654 G4-7UX Y 2790 54.12 112

250 1800 575 449T 224.0 96.2 95.8 M8946 $30,654 G4-7UX N 2790 54.12 112

250 1200 460 449T 294.0 95.8 95.4 M8947 $35,990 G4-7UX Y 3150 54.12 95, 96, 97

250 1200 575 449T 233 95.8 95.4 M9630 $35,990 G4-7UX N 3150 54.12 95, 96, 97

300 3600 460 449TS 319.0 95.8 95.4 M8948 $40,170 G4-7UX Y 2790 54.12 62, 95, 96, 116

300 1800 460 449T 332.0 96.2 95.8 M8949 $35,624 G4-7UX Y 2980 54.12 112

300 1800 575 449T 264 96.2 95.8 M9640 $35,624 G4-7UX N 2980 54.12 112

Notes:

62 Connected for CCW rotation facing opposite shaft end. No reconnection possible

66 CW rotation only facing opposite drive end. CCW rotation available, but must be specified on the order

95 Class F temperature rise

96 Does not meet IEEE 841 temperature rise

97 Does not meet 200C AIT at 1.0SF-215C AIT and above only

112 Noise level exceeds IEEE-841

113 Bearing temperature exceeds IEEE-841

116 Does not meet 200°C AIT at 1.0SF-260°C AIT and above only.

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.24

X$D Ultra® 841

TEFC—Extra Severe Duty

C-Face

Pricing

Volts: 460

HP: 1 – 50

HP RPM Volts Frame FLA Nom. Eff. Guar. Min. Eff. Cat. No. List Price Price Symbol Norm. Stk. Wt. (lbs) C Dim. (in) Notes

1 1800 460 143TC 1.4 86.5 85.5 M520 $1,145 G4-7UX1 Y 43 13.92

1.5 1800 460 145TC 2.1 86.5 85.5 M521 $1,286 G4-7UX1 Y 50 13.92

1.5 1200 460 182TC 2.4 87.5 86.5 M8926 $1,184 G4-7UX1 N 76 16.65

2 1800 460 145TC 2.7 86.5 85.5 M526 $1,377 G4-7UX1 Y 50 13.92

2 1200 460 184TC 3.0 88.5 87.5 M8928 $1,307 G4-7UX1 N 101 16.65

3 3600 460 182TC 3.9 89.5 88.5 M8925 $1,335 G4-7UX1 Y 76 16.65 55

3 1800 460 182TC 4.2 89.5 88.5 M8909 $1,263 G4-7UX1 Y 76 16.65 55

5 3600 460 184TC 6.3 90.2 89.5 M8927 $1,484 G4-7UX1 Y 101 16.65

5 1800 460 184TC 6.6 89.5 88.5 M8910 $1,320 G4-7UX1 Y 101 16.65

5 1200 460 215TC 7.2 89.5 88.5 M8932 $2,145 G4-7UX1 N 220 20.90

7.5 3600 460 213TC 8.5 91.0 90.2 M8929 $1,898 G4-7UX1 Y 200 20.90

7.5 1800 460 213TC 9.1 91.7 91.0 M8911 $1,878 G4-7UX1 Y 200 20.90

7.5 1200 460 254TC 9.8 91.7 91.0 M8934 $2,847 G4-7UX1 N 315 26.09

10 3600 460 215TC 11.2 91.0 90.2 M8931 $2,021 G4-7UX1 Y 220 20.90

10 1800 460 215TC 12.0 91.7 91.0 M8912 $2,079 G4-7UX1 Y 220 20.90

10 1200 460 256TC 13.1 91.0 90.2 M8936 $3,438 G4-7UX1 N 350 26.09

15 3600 460 254TC 17.6 91.7 91.0 M8933 $2,768 G4-7UX1 Y 315 26.09

15 1800 460 254TC 18.0 92.4 91.7 M8913 $2,727 G4-7UX1 Y 315 26.09

15 1200 460 284TC 19.6 91.7 91.0 M8921 $4,575 G4-7UX1 N 460 28.58

20 3600 460 256TC 22.6 92.4 91.7 M8935 $3,387 G4-7UX1 Y 350 26.09

20 1800 460 256TC 23.3 93.0 92.4 M8914 $3,362 G4-7UX1 Y 350 26.09

20 1200 460 286TC 26.0 91.7 91.0 M8922 $5,519 G4-7UX1 N 510 28.58

25 3600 460 284TSC 27.8 93.0 92.4 M8951 $4,206 G4-7UX1 Y 460 27.20

25 1800 460 284TC 29.8 93.6 93.0 M8915 $4,028 G4-7UX1 Y 460 28.58

30 3600 460 286TSC 33.4 93.0 92.4 M8952 $4,865 G4-7UX1 Y 510 27.20

30 1800 460 286TC 35.5 93.6 93.0 M8916 $4,637 G4-7UX1 Y 510 28.58

40 3600 460 324TSC 46.3 94.1 93.6 M8971 $6,584 G4-7UX1 Y 649 29.04

40 1800 460 324TC 49.8 94.5 94.1 M8972 $6,396 G4-7UX1 Y 689 30.54

50 3600 460 326TSC 56.9 94.5 94.1 M8973 $7,967 G4-7UX1 Y 700 30.48

50 1800 460 326TC 62.3 94.5 94.1 M8974 $7,244 G4-7UX1 Y 740 32.04

Notes:

55 TENV Construction

C-Face ratings through 250HP, 449T Frame are available by custom order

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

X$D Ultra® 841

2.25

GE Energy Section 3 – X$D Ultra®

3.25 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Volts: 460

HP: 0.75 – 250

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

0.75 1150 1.4 7.5 12.5 P 3.4 9.5 12.3 80.0 78.5 81.1 78.3 63.5 54.4 42.0 0.6

0.75 855 1.9 7.2 12.5 P 4.6 11.5 14.8 72.0 70.0 72.4 67.5 52.0 43.1 32.9 1.0

1 1750 1.4 11.9 15.0 N 3.0 11.5 14.0 86.5 85.5 86.9 84.8 76.0 68.0 55.1 0.5

1 1155 1.8 10.8 15.0 N 4.5 14.3 18.1 82.5 81.5 83.2 80.7 62.5 53.5 41.1 0.8

1 875 2.2 10.4 15.0 N 6.0 11.0 18.9 80.0 78.5 79.3 75.3 52.5 43.8 33.2 1.2

1.5 3530 2.0 18.6 20.0 M 2.2 7.4 9.6 87.5 86.5 89.6 88.5 80.5 73.7 61.3 0.6

1.5 1740 2.1 16.9 20.0 M 4.5 16.7 19.8 86.5 85.5 87.5 86.1 77.5 69.8 56.8 0.8

1.5 1175 2.4 17.4 20.0 M 6.7 14.7 27.8 87.5 86.5 88.4 86.6 68.0 59.5 46.7 1.0

1.5 870 3.2 14.7 20.0 M 9.0 16.7 26.1 80.0 78.5 80.0 76.7 55.5 46.7 35.6 1.6

2 3515 2.7 23.1 25.0 L 3.0 9.2 11.9 86.5 85.5 89.0 88.2 80.0 72.7 59.9 0.8

2 1735 2.7 21.0 25.0 L 6.1 21.2 24.8 86.5 85.5 88.0 87.2 80.0 72.8 60.2 0.9

2 1170 3.0 22.6 25.0 L 9.0 19.6 36.1 88.5 87.5 88.9 87.5 69.5 61.3 48.4 1.2

2 880 3.8 20.5 25.0 L 12.0 20.1 38.4 86.5 85.5 85.9 83.3 57.0 48.6 37.2 1.9

3 3530 3.8 25.8 32.0 K 4.5 8.1 14.0 89.5 88.5 91.3 90.8 82.0 76.4 65.1 1.0

3 1760 4.2 29.2 32.0 K 8.9 23.1 30.2 89.5 88.5 89.8 88.8 75.5 68.4 55.9 1.5

3 1175 4.3 29.9 32.0 K 13.0 26.5 41.4 89.5 88.5 89.7 88.5 73.0 66.0 53.8 1.7

3 875 5.4 27.8 32.0 K 18.0 29.1 51.2 86.5 85.5 86.6 84.9 60.5 52.8 41.0 2.5

5 3535 6.1 43.7 46.0 J 7.4 14.9 23.9 90.2 89.5 91.1 90.1 84.5 80.0 70.3 1.5

5 1755 6.6 42.9 46.0 J 15.0 35.0 44.0 89.5 88.5 90.9 90.5 79.0 73.9 63.0 2.0

5 1170 6.8 42.8 46.0 J 22.0 39.7 59.1 89.5 88.5 90.5 90.3 77.0 71.6 60.6 2.2

5 880 7.6 40.5 46.0 J 30.0 48.8 82.4 89.5 88.5 89.7 88.4 69.0 61.1 48.6 3.2

7.5 3535 8.4 60.8 63.5 H 11.0 24.4 30.7 91.0 90.2 92.0 91.3 91.5 89.9 85.4 1.4

7.5 1770 9.2 60.4 63.5 H 22.0 42.3 59.0 91.7 91.0 92.3 91.8 83.5 80.6 72.5 2.2

7.5 1175 9.6 60.7 63.5 H 34.0 65.2 91.8 91.7 91.0 92.4 91.7 79.5 74.5 63.9 2.9

7.5 880 11.3 60.6 63.5 H 45.0 77.8 122.5 89.5 88.5 90.2 89.2 69.5 62.0 49.5 4.6

10 3525 11.3 76.0 81.0 H 15.0 31.1 38.7 91.0 90.2 92.1 91.9 91.0 90.1 85.9 1.8

10 1765 12.2 77.2 81.0 H 30.0 55.6 75.6 91.7 91.0 92.4 92.3 84.0 81.1 73.4 2.9

10 1170 12.7 72.3 81.0 H 45.0 79.1 110.6 91.0 90.2 92.0 91.9 81.0 76.7 66.8 3.6

10 885 13.6 75.2 81.0 H 60.0 84.3 136.8 89.5 88.5 91.1 91.2 77.0 72.6 62.3 4.0

15 3550 16.9 108.1 116.0 G 22.0 44.7 50.7 91.7 91.0 92.6 92.4 90.5 90.3 87.4 2.3

15 1770 17.8 110.5 116.0 G 45.0 97.3 114.6 92.4 91.7 93.1 93.0 85.5 82.3 73.8 4.4

15 1185 19.1 109.5 116.0 G 67.0 98.0 164.3 91.7 91.0 92.8 92.4 80.0 74.9 64.3 5.8

15 880 20.1 111.6 116.0 G 90.0 133.4 207.2 89.5 88.5 91.0 91.4 78.0 73.9 64.0 5.7

20 3550 22.1 147.0 145.0 G 30.0 70.2 65.4 92.4 91.7 93.3 93.4 91.5 91.6 89.7 2.5

20 1770 22.9 140.6 145.0 G 59.0 133.4 142.9 93.0 92.4 93.8 94.0 88.0 85.7 79.3 4.6

20 1180 25.4 142.1 145.0 G 89.0 130.1 214.3 91.7 91.0 93.1 92.8 80.5 75.8 65.6 7.4

20 875 29.6 137.2 145.0 G 120.0 191.0 264.6 91.0 90.2 92.1 91.6 69.5 63.1 51.3 11.2

X$D Ultra® 841

TEFC—Extra Severe Duty

ical Performance Data

X$D Ultra® 841

TEFC—Extra Severe Duty

Typical Performance Data

Section 2 – X$D Ultra® Motors

Power Conversion

Data subject to change without notice. GEP-500W 08/12 • www.gemotors.com • 800-541-7191

2.26

X$D Ultra® 841

GE Energy Section 3 – X$D Ultra®

3.26 Data subject to change without notice. GEP-500U 01/10

www.gemotors.com

800 541 7191

Volts: 460

HP: 0.75 – 250

RPM

FLA

Design

LRA

NEMA B

LRA

Code

KVA/HP

FLT

(lb-ft)

LRT

(lb-ft)

BDT

(lb-ft)

Eff.

Full

Load

Guar.

Eff.

Full

Load

75%

Load

Eff.

50%

Load

Eff.

NP PF

Full

Load

75%

Load

Power

Factor

50%

Load

Power

Factor

Max.

KVAR

25 3555 27.2 181.6 182.5 G 36.9 96.5 94.2 93 92.4 93.3 92.9 92.5 91.7 88.3 3.9

25 1775 29.1 174.8 182.5 G 73.9 122.9 181.4 93.6 93 94.1 94 86 82.8 74.7 7

25 1180 31.5 173.1 182.5 G 111.3 213.5 252 93 92.4 93.7 93.3 80 75.6 66 8.9

25 875 36.5 167.5 182.5 G 150.2 238.5 323.7 91 90.2 92.2 91.8 70.5 64.3 52.7 13.3

30 3550 32.5 217.3 217.5 G 44.4 123.4 111.8 93 92.4 93.7 93.5 93 92.3 89.3 4.3

30 1775 34.7 206.4 217.5 G 88.7 147.3 210.7 93.6 93 94.1 94.2 86.5 83.7 76.2 7.9

30 1180 38 210.6 217.5 G 133.7 265.6 309.1 93 92.4 93.7 93.4 79.5 75.3 65.5 10.9
