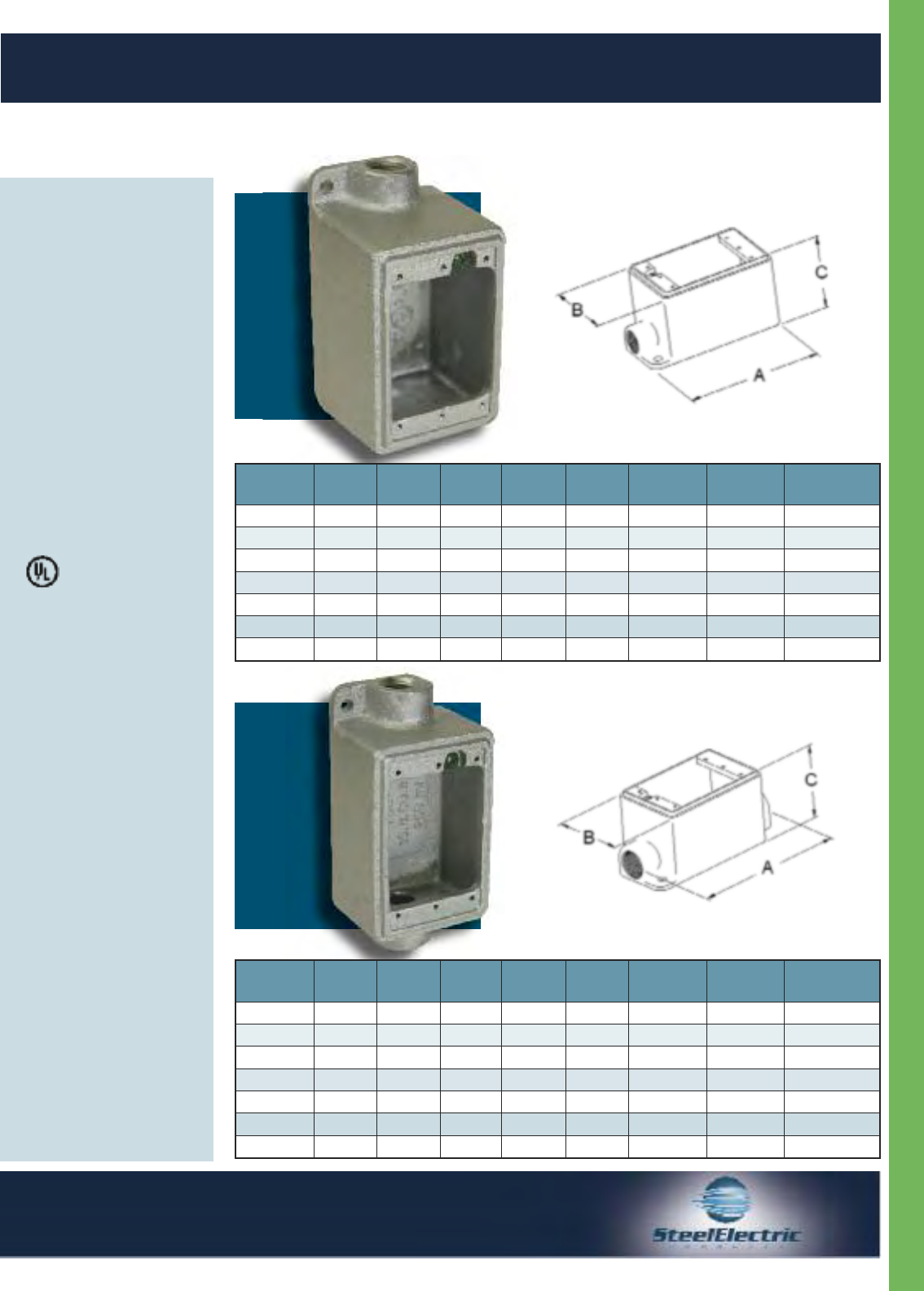

FS and FD Device Boxes
Application:
Accommodates wiring devices
and provides opening to splice,
tap or pull conductors.
Features:
• Tapered threaded hubs
(NPT) with integral bushing
• Internal grounding screw
• Suitable for use in wet
locations when used with
gasketed covers
• Surface mounting lugs
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E208392
For Threaded Rigid Conduit and IMC
TYPE FD-50
TYPE FSC-50
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
FS-50 1/2” 5.250 2.938 2.125 15221 90116
FS-75 3/4” 5.250 2.938 2.125 1 5 233 90117
FS-100 1” 5.250 2.938 2.125 15242 90118
FD-50 1/2” 5.250 3.000 2.875 15272 90119
FD-75 3/4” 5.250 3.000 2.875 1 5 278 90120
FD-100 1” 5.250 3.000 2.875 15283 90121
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
FSC-50 1/2” 6.063 2.938 2.125 15234 90122
FSC-75 3/4” 6.063 2.938 2.125 1 5 240 90123
FSC-100 1” 6.063 2.938 2.125 15250 90124
FDC-50 1/2” 6.063 3.000 2.875 15293 90125
FDC-75 3/4” 6.063 3.000 2.875 1 5 305 90126
FDC-100 1” 6.063 3.000 2.875 15313 90127
1
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
C US
RIGID-IMC FITTINGS

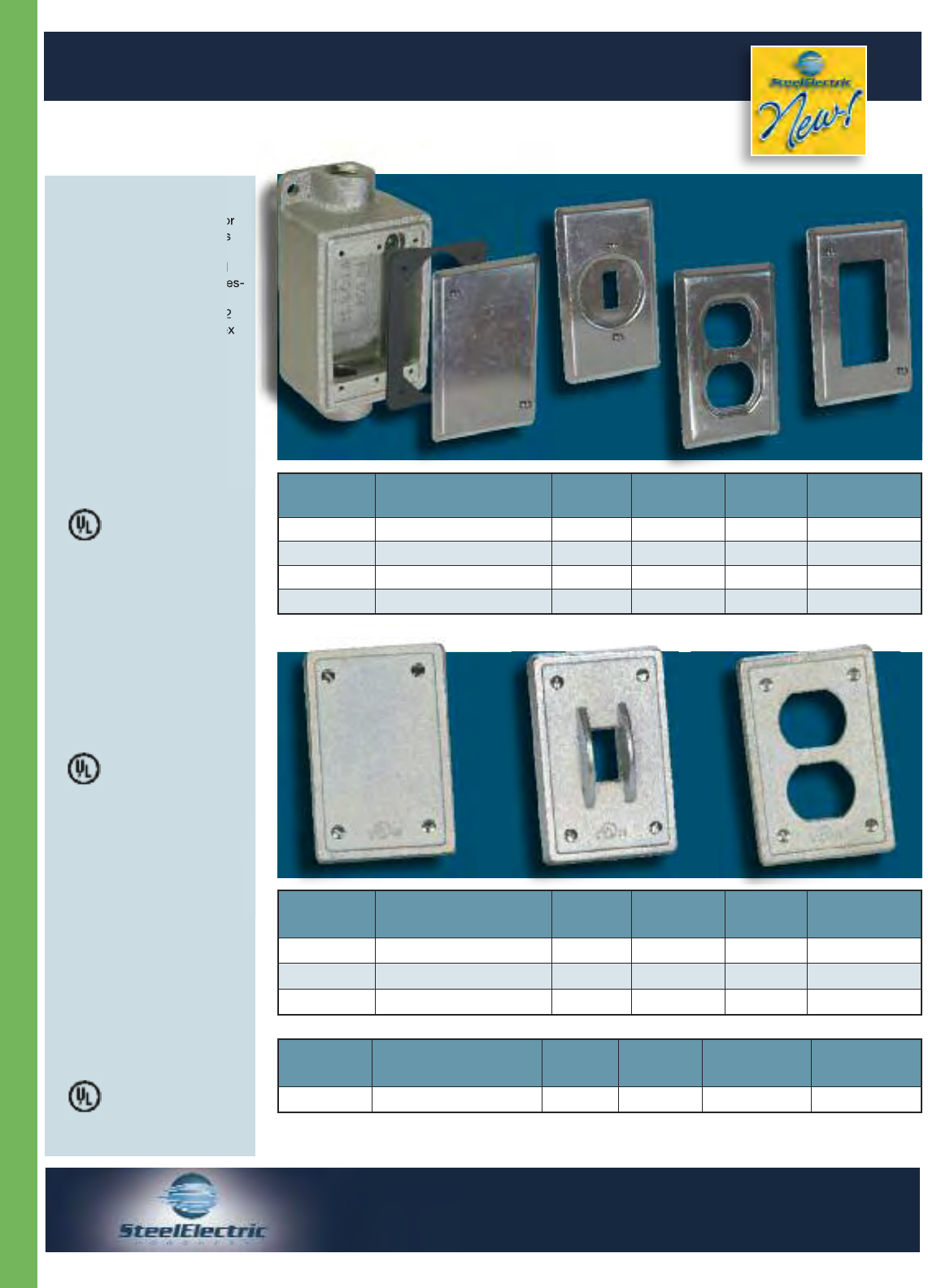

FS and FD Device Box Covers
Features:
• Blank cover with gasket for
enclosing splices and taps
where device is not used
• For square handle general
use snap or toggle switches-
guarded
• For standard and 3-pole, 2
wire grounding type duplex
convenience receptacles
• Each cover individually
bagged and supplied with
screws
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E208392
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E208392
Standard Materials:
Neoprene Rubber
UL Listed:
E208392
C US
C US
C US
2
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
TOGGLE
DUPLEX
GROUND FAULT
INTERRUPTER (GFI)
BLANK
BLANK
TOGGLE
DUPLEX
CATALOG
NUMBER TYPE UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 OPCS.
NAED MFG #78-5994
UPC/DCI #
FSFDCS1 Blank 5 50 18 10110
FSFDCS2 Toggle Switch 5 50 17 10111
FSFDCS3 Duplex Receptacle 5 50 14 10112
FSFDCS4
Ground Fault Interrupter (GFI)
5 50 13 10113
CATALOG
NUMBER TYPE UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 OPCS.
NAED MFG #78-5994
UPC/DCI #
FSFDCM1 Blank 5 50 56 10114
FSFDCM2 Toggle Switch 5 50 63 10115
FSFDCM3 Duplex Receptacle 5 50 54 10116
CATALOG
NUMBER TYPE UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 OPCS.
NAED MFG #78-5994
UPC/DCI #
FSFDCG Gasket 10 100 3 10117
GASKET
RIGID-IMC FITTINGS
Application:
To provide access to
conductors for pulling,
splicing, and maintenance.
Threaded for rigid conduit
and IMC.
Features:
• Tapered threaded hubs
(NPT)
• Flat back design for easy
mounting close to walls
• Suitable for use in concrete
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated and
Aluminum Enameled
UL Listed:
E121488

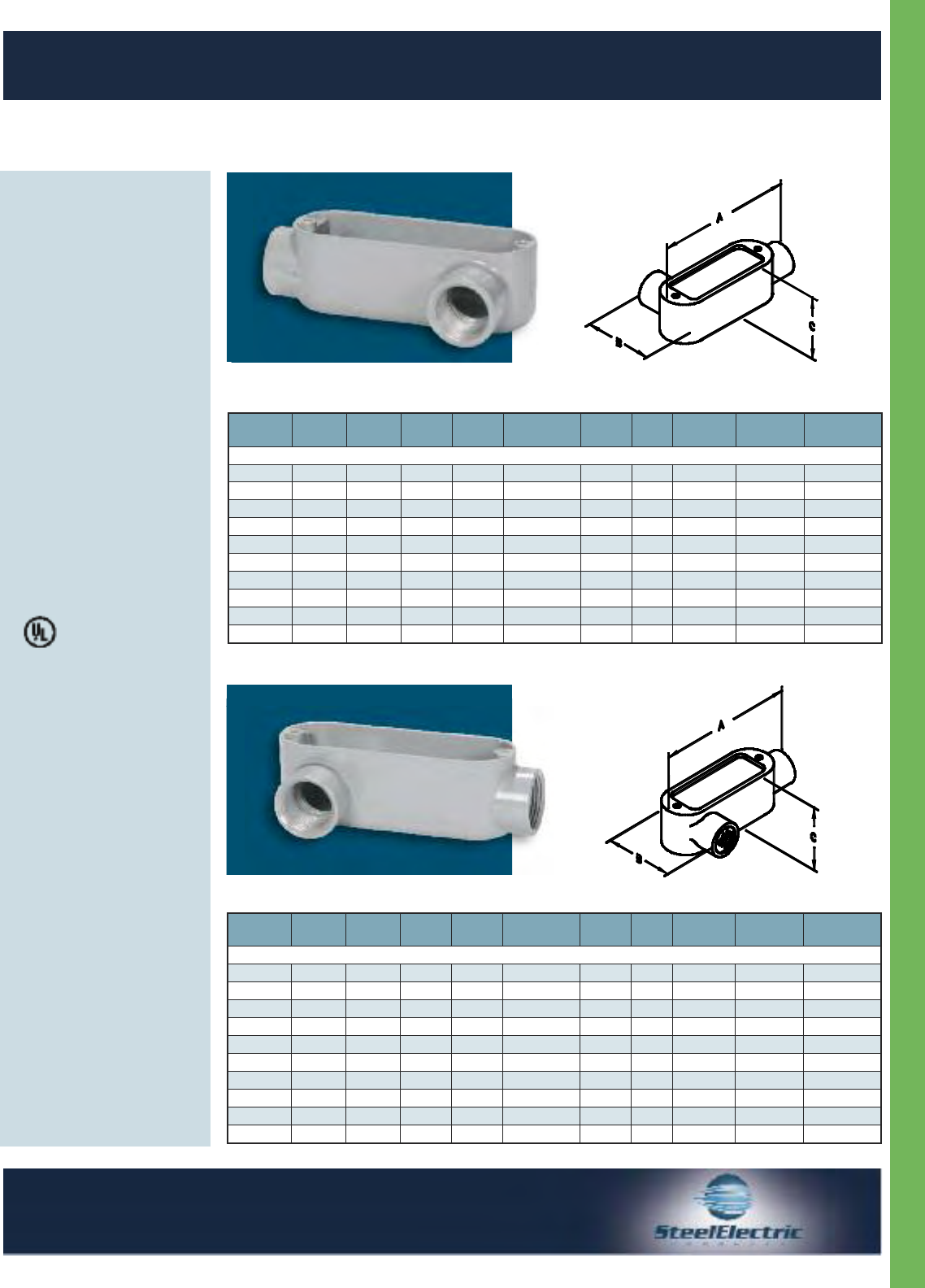

Malleable Iron Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
C US
Type C1
3
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C TYPE
C1 1/2” 5.375 1.313 1.375 N/A 4.50 10 50 98 43010
C2 3/4” 6.000 1.500 1.688 3 #6 AWG 7.50 10 50 118 43020
C3 1” 7.063 1.813 1.875 3 #4 AWG 12.50 5 25 170 43030
C4 1-1/4” 9.000 2.625 2.750 3 #2 AWG 32.30 - 10 309 43040
C5 1-1/2” 9.000 2.625 2.813 3 #1/0 AWAG 35.30 - 10 368 43050
C6 2” 11.500 3.125 3.313 3 #4/0 AWG 73.00 -5 553 43060
C7 2-1/2” 15.000 4.313 3.875 3 #250 MCM 138.00 - 1 1216 43070
C8 3” 15.125 4.313 4.750 3 #250 MCM 170.00 -11437 43080
C9 3-1/2” 18.125 4.875 5.625 3 #350 MCM 300.00 - 1 2210 43090
C10 4” 18.125 4.875 5.625 3 #350 MCM 328.00 -12321 43100
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LB TYPE
LB1 1/2” 4.688 1.313 2.063 N/A 4.50 10 50 71 40011
LB2 3/4” 5.375 1.500 2.250 3 #6 AWG 7.50 10 50 97 40021
LB3 1” 6.188 1.813 2.625 3 #4 AWG 12.50 5 25 143 40031
LB4 1-1/4” 8.125 2.625 2.750 3 #2 AWG 32.30 - 10 287 40041
LB5 1-1/2” 8.125 2.625 2.813 3 #1/0 AWG 35.30 - 10 332 40051
LB6 2” 10.500 3.125 4.438 3 #4/0 AWG 73.00 -5 534 40061
LB7 2-1/2” 13.625 4.313 5.375 3 #350 AWG 138.00 - 1 1105 40071
LB8 3” 13.875 4.313 5.875 3 #350 AWG 170.00 -11160 40081
LB9 3-1/2” 16.250 5.625 6.875 3 #500 MCM 300.00 - 1 1989 40091
LB10 4” 16.625 5.625 7.188 3 #500 MCM 328.00 -12100 40101
Type LB1
RIGID-IMC FITTINGS
Application:
To provide access to
conductors for pulling, splicing,
and maintenance. Threaded for
rigid conduit and IMC.
Features:
• Tapered threaded hubs
(NPT)
• Flat back design for easy
mounting close to walls
• Suitable for use in concrete
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated and
Aluminum Enameled
UL Listed:
E121488

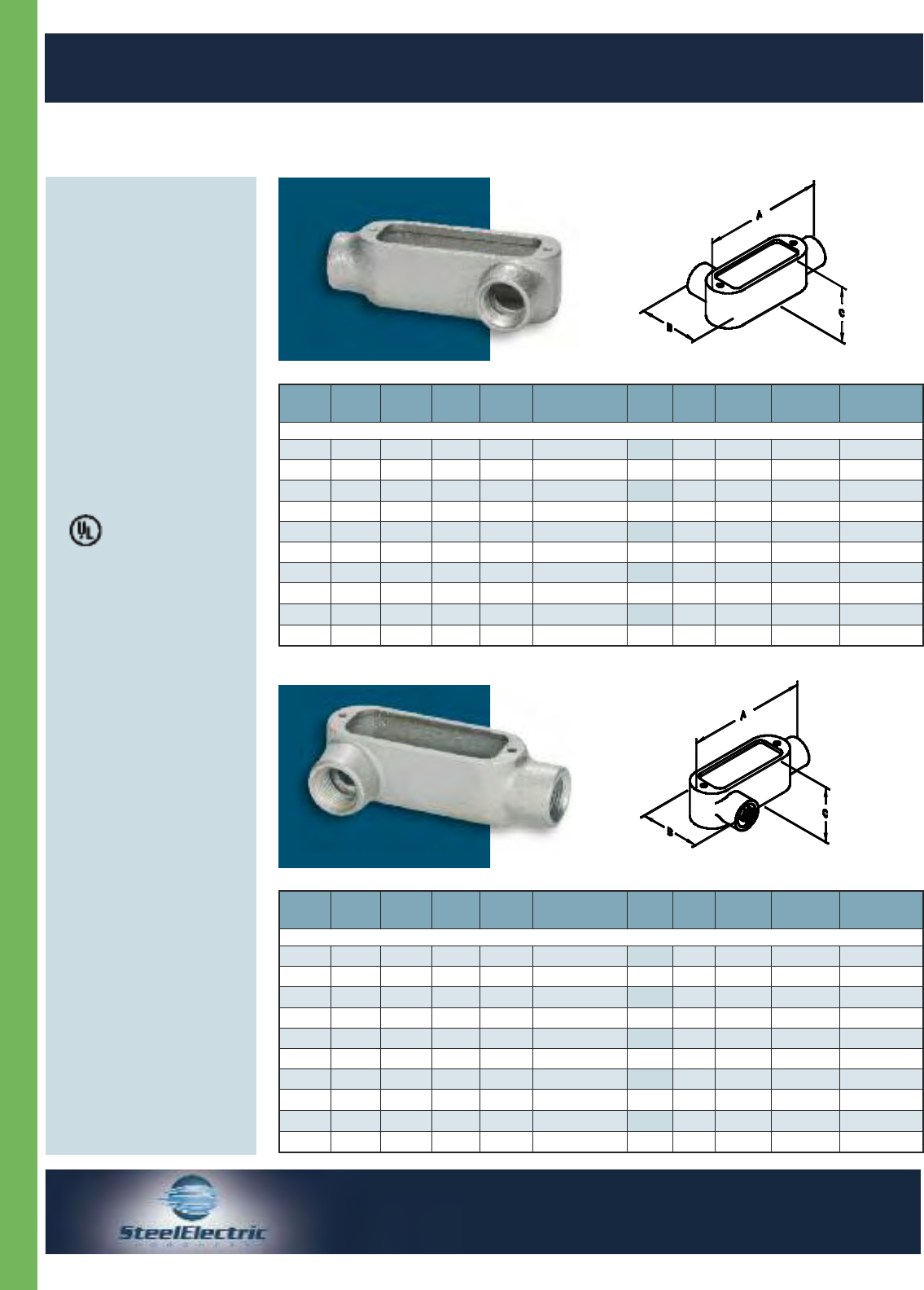

Malleable Iron Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
C US
4
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type LL1
Type LR1
RIGID-IMC FITTINGS
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LL TYPE
LL1 1/2” 4.688 2.063 1.375 N/A
4.50
10 50 76 41011
LL2 3/4” 5.375 2.250 1.688 3 #6 AWG
7.50
10 50 95 41021
LL3 1” 6.188 2.625 1.875 3 #4 AWG
12.50
5 25 138 41031
LL4 1-1/4” 8.125 2.750 2.750 3 #2 AWG
32.30
- 10 309 41041
LL5 1-1/2” 8.125 3.500 2.813 3 #1/0 AWAG
35.30
- 10 332 41051
LL6 2” 10.500 4.125 3.313 3 #4/0 AWG
73.00
-5 497 41061
LL7 2-1/2” 13.625 4.688 3.875 3 #300 MCM
138.00
- 1 1105 41071
LL8 3” 13.875 5.875 4.750 3 #350 MCM
170.00
-11437 41081
LL9 3-1/2” 16.250 6.125 5.625 3 #350 MCM
300.00
- 1 2321 41091
LL10 4” 16.250 6.938 5.625 3 #350 MCM
328.00
-12431 41101
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LR TYPE
LR1 1/2” 4.688 2.063 1.375 N/A
4.50
10 50 71 42011
LR2 3/4” 5.375 2.250 1.688 3 #6 AWG
7.50
10 50 100 42021
LR3 1” 6.188 2.625 1.875 3 #4 AWG
12.50
5 25 157 42031
LR4 1-1/4” 8.125 2.750 2.750 3 #2 AWG
32.30
- 10 332 42041
LR5 1-1/2” 8.125 2.813 2.813 3 #1/0 AWAG
35.30
- 10 345 42051
LR6 2” 10.500 4.438 3.313 3 #4/0 AWG
73.00
-5 626 42061
LR7 2-1/2” 13.625 5.375 3.875 3 #300 MCM
138.00
- 1 1105 42071
LR8 3” 13.875 5.875 4.750 3 #350 MCM
170.00
-11437 42081
LR9 3-1/2” 16.250 6.875 5.625 3 #350 MCM
300.00
- 1 2321 42091
LR10 4” 16.625 7.188 5.625 3 #350 MCM
328.00
-12500 42101
Application:
To provide access to
conductors for pulling, splicing,
and maintenance. Threaded for
rigid conduit and IMC.
Features:
• Tapered threaded hubs
(NPT)
• Flat back design for easy
mounting close to walls
• Suitable for use in concrete
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated and
Aluminum Enameled
UL Listed:
E121488
Malleable Iron Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
C US
5
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

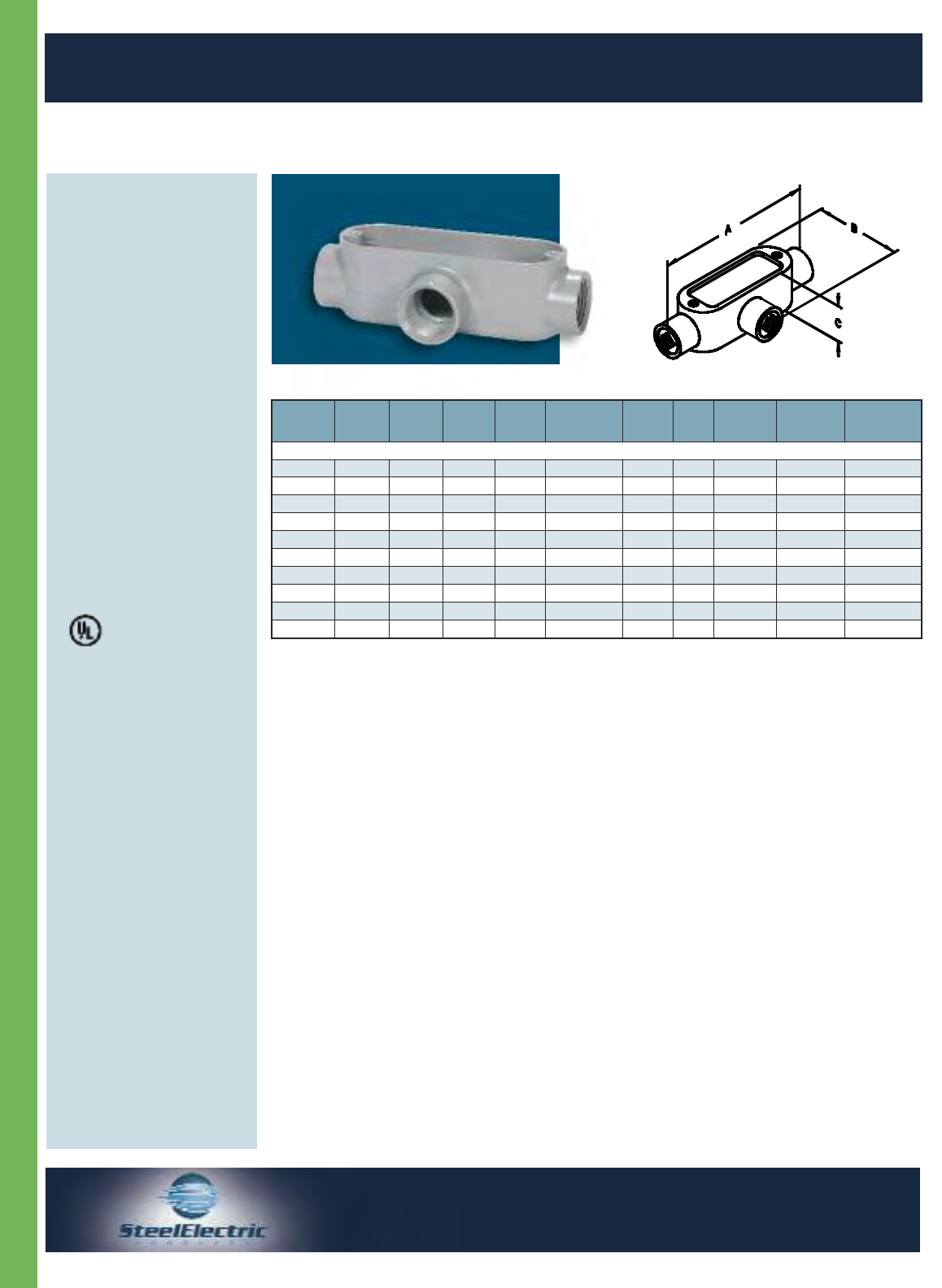

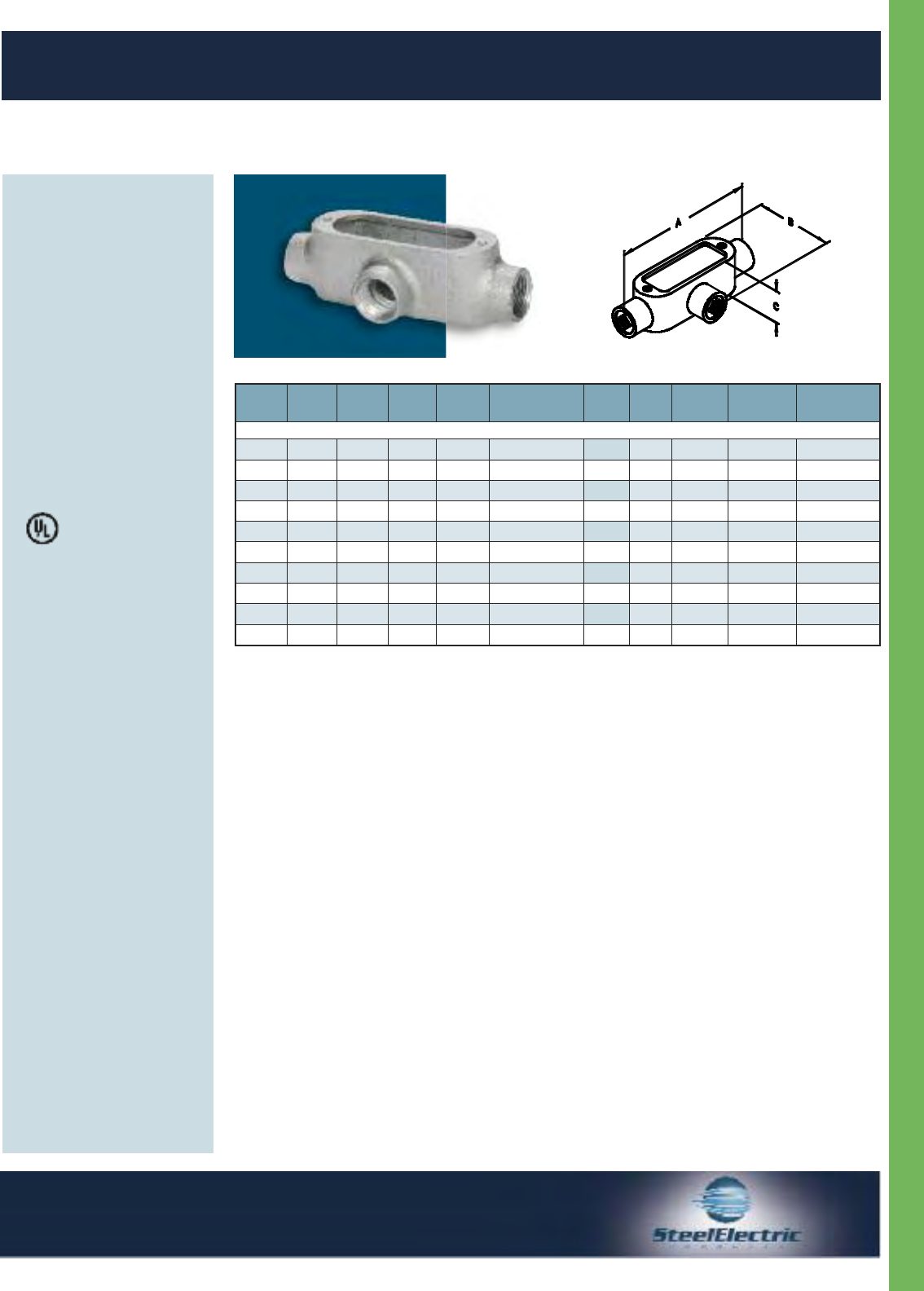

Type T1
RIGID-IMC FITTINGS
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
T TYPE
T1 1/2” 5.375 2.063 1.313 N/A
6.00
10 50 111 44011
T2 3/4” 6.000 2.250 1.500 3 #6 AWG
9.50
10 50 137 44021
T3 1” 7.063 2.625 1.813 3 #4 AWG
15.00
5 25 195 44031
T4 1-1/4” 9.000 2.750 2.625 3 #2 AWG
33.00
- 10 332 44041
T5 1-1/2” 9.000 3.500 2.625 3 #2 AWAG
36.00
- 10 368 44051
T6 2” 11.500 4.125 3.125 3 #1/0 AWG
75.00
-5 663 44061
T7 2-1/2” 15.000 5.688 4.313 3 #4/0 AWG
138.00
- 1 1271 44071
T8 3” 15.125 5.875 4.313 3 #4/0 AWG
170.00
-11547 44081
T9 3-1/2” 18.125 6.813 4.875 3 #350 MCM
300.00
- 1 2542 44091
T10 4” 18.125 7.188 4.875 3 #350 MCM
328.00
-12542 44101
6
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To provide access to
conductors for pulling, splicing,
and maintenance. Threaded
for rigid conduit and IMC
Features:
• Tapered threaded hubs
(NPT)
• Raintight when used with
gasketed covers
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls
Standard Materials:
1/2” - 2”
Die cast/Copper-free Aluminum
2-1/2” - 4”
Sand-cast/Copper-free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259

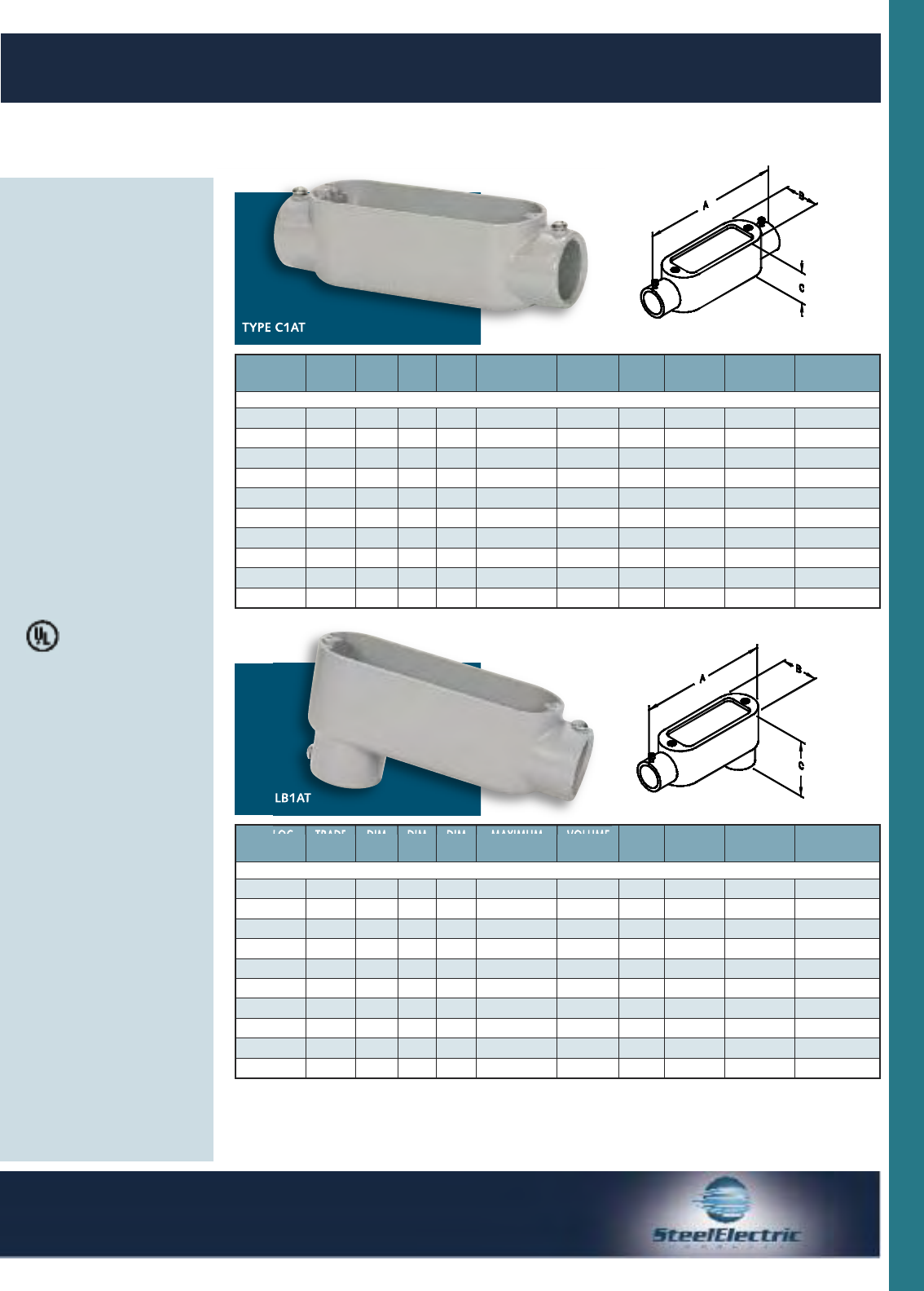

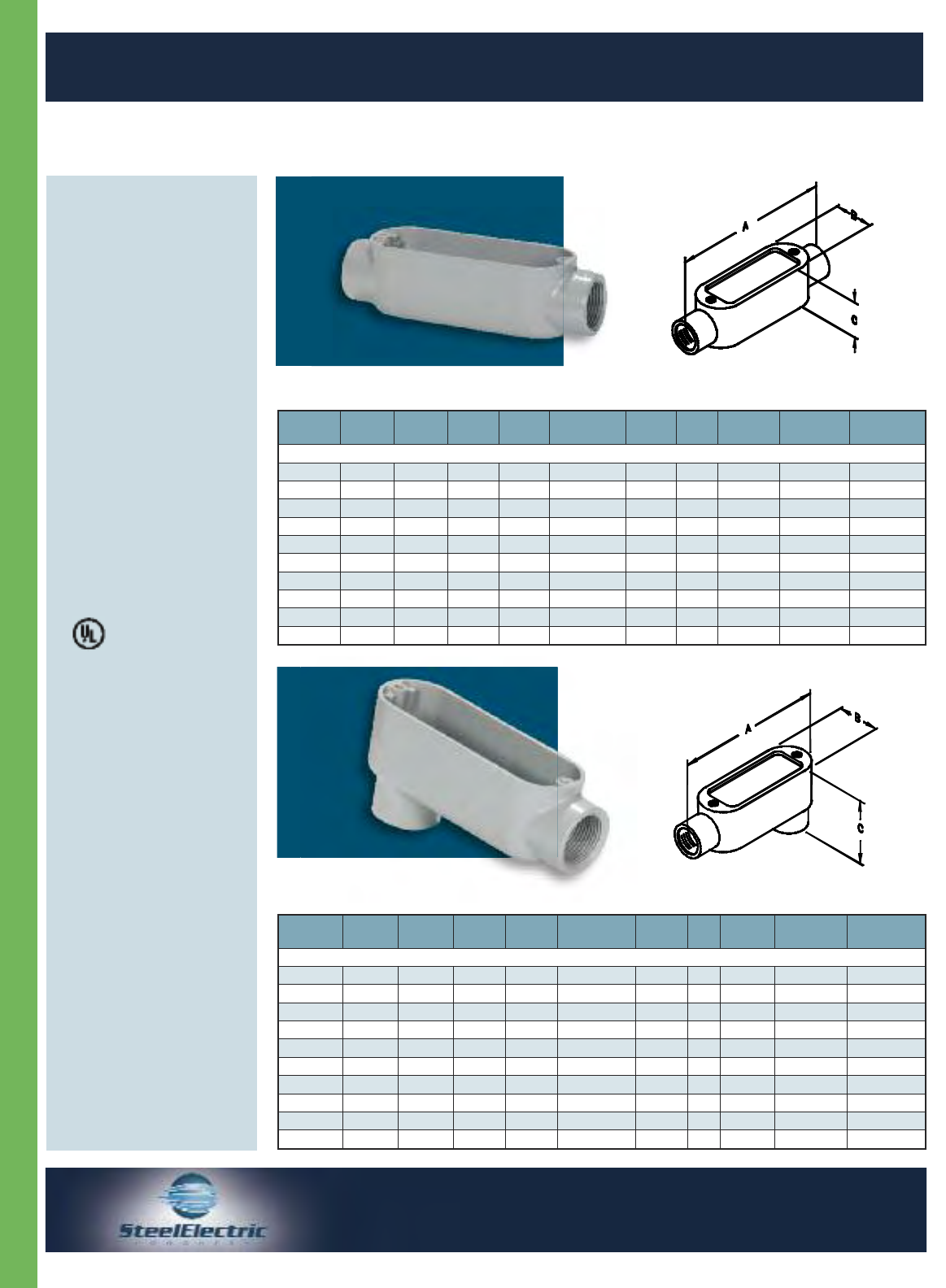

Aluminum Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C TYPE
C1A 1/2
”
4.69 1.38 1.31 N/A 4.35 10 50 21 43015
C2A 3/4
”
5.50 1.56 1.63 3 #6 AWG 7.30 10 50 33 43025
C3A 1
”
6.48 1.88 1.88 3 #4 AWG 12.20 5 25 46 43035
C4A 1-1/4
”
8.31 2.50 2.50 3 #2 AWG 33.50 - 10 82 43045
C5A 1-1/2
”
8.38 2.50 2.50 3 #1/0 AWAG 33.50 - 10 85 43055
C6A 2
”
10.31 3.38 3.38 3 #4/0 AWG 69.50 -5 188 43065
C7A 2-1/2
”
13.12 4.50 4.00 3 #250 MCM 69.50 - 1 325 43075
C8A 3
”
13.19 4.56 4.56 3 #250 MCM 188.00 -1 399 43085
C9A 3-1/2
”
16.12 5.69 5.63 3 #300 MCM 307.00 - 1 975 43095
C10A 4
”
16.12 5.69 5.63 3 #300 MCM 309.00 -1 875 43105
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LB TYPE
LB1A 1/2
”
4.31 1.31 2.19 N/A 4.35 10 50 24 40015
LB2A 3/4
”
5.06 1.56 2.44 3 #6 AWG 7.25 10 50 37 40025
LB3A 1
”
5.87 1.75 2.75 3 #4 AWG 12.20 5 25 46 40035
LB4A 1-1/4
”
7.81 2.50 3.44 3 #2 AWG 32.30 - 10 98 40045
LB5A 1-1/2
”
7.81 2.50 3.44 3 #2 AWG 33.80 - 10 91 40055
LB6A 2
”
10.06 3.12 4.31 3 #4/0 AWG 71.20 -5 222 40065
LB7A 2-1/2
”
12.81 4.50 5.31 3 #4/0 AWG 71.20 - 1 366 40075
LB8A 3
”
12.81 4.50 5.94 3 #4/0 AWG 183.50 -1 430 40085
LB9A 3-1/2
”
15.62 5.56 7.06 3 #400 MCM 304.90 - 1 937 40095
LB10A 4
”
15.62 5.56 7.06 3 #400 MCM 308.00 -1 851 40106
Type LB1A
Type C1A
C US
RIGID-IMC FITTINGS
7
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Aluminum Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
Application:
To provide access to
conductors for pulling, splicing,
and maintenance. Threaded
for rigid conduit and IMC
Features:
• Tapered threaded hubs
(NPT)
• Raintight when used with
gasketed covers
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls
Standard Materials:
1/2” - 2”
Die cast/Copper-free Aluminum
2-1/2” - 4”
Sand-cast/Copper-free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LL TYPE
LL1A 1/2
”
4.31 2.06 1.38 N/A 4.35 10 50 25 41015
LL2A 3/4
”
5.06 2.25 1.63
3 #6 AWG
7.30 10 50 37 41025
LL3A 1
”
5.87 2.63 1.88 3 #4 AWG 12.20 5 25 45 41035
LL4A 1-1/4
”
7.81 3.63 2.50 3 #2 AWG 35.80 - 10 98 41045
LL5A 1-1/2
”
7.81 3.63 2.50 3 #1/0 AWAG 35.80 - 10 92 41055
LL6A 2
”
10.06 4.44 3.38 3 #4/0 AWG 69.70 -5 245 41065
LL7A 2-1/2
”
12.81 5.75 4.00 3 #300 MCM 69.70 - 1 388 41075
LL8A 3
”
12.81 5.75 4.50 3 #350 MCM 186.00 -1 439 41085
LL9A 3-1/2
”
15.62 11.69 5.63 3 #350 MCM 306.00 - 1 924 41095
LL10A 4
”
15.62 11.69 5.63 3 #350 MCM 308.00 -1 882 41105
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
.
NAED MFG #78-5994
UPC/DCI #
LR TYPE
LR1A 1/2” 4.31 2.06 1.38 N/A 4.35 10 50 23 42015
LR2A 3/4” 5.06 2.25 1.63
3 #6 AWG
7.30 10 50 38 42025
LR3A 1” 5.87 2.63 1.88 3 #4 AWG 12.20 5 25 49 42035
LR4A 1-1/4” 7.81 3.63 2.50 3 #2 AWG 35.80 - 10 98 42045
LR5A 1-1/2” 7.81 3.63 2.50 3 #1/0 AWAG 35.80 - 10 94 42055
LR6A 2” 10.06 4.44 3.38 3 #4/0 AWG 69.70 -5 254 42065
LR7A 2-1/2” 12.81 5.75 4.00 3 #300 MCM 69.70 - 1 366 42075
LR8A 3” 12.81 5.75 4.50 3 #350 MCM 186.00 -1 406 42085
LR9A 3-1/2” 15.62 11.69 5.63 3 #350 MCM 306.00 - 1 928 42095
LR10A 4” 15.62 11.69 5.63 3 #350 MCM 308.00 -1 902 42105
Type LL1A
Type LR1A
C US
RIGID-IMC FITTINGS
Aluminum Threaded Conduit Bodies
For Threaded Rigid Conduit and IMC
Application:
To provide access to
conductors for pulling, splicing,
and maintenance. Threaded
for rigid conduit and IMC
Features:
• Tapered threaded hubs
(NPT)
• Raintight when used with
gasketed covers
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls
Standard Materials:
1/2” - 2”
Die cast/Copper-free Aluminum
2-1/2” - 4”
Sand-cast/Copper-free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259
8
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
T TYPE
T1A 1/2” 4.75 2.06 1.38 N/A 4.35 10 50 23 44015
T2A 3/4” 5.56 2.25 1.63
3 #6 AWG
7.25 10 50 38 44025
T3A 1” 6.44 2.63 1.88 3 #4 AWG 12.20 5 25 53 44035
T4A 1-1/4” 8.25 3.56 2.50 3 #2 AWG 33.10 - 10 100 44045
T5A 1-1/2” 8.38 3.56 2.50 3 #1/0 AWAG 33.10 - 10 98 44055
T6A 2” 10.69 4.38 3.13 3 #4/0 AWG 67.00 -5 265 44065
T7A 2-1/2” 13.25 5.75 4.00 3 #4/0 AWG 67.00 - 1 375 44075
T8A 3” 13.25 5.75 4.50 3 #4/0 AWG 175.00 -1 444 44085
T9A 3-1/2” 16.13 7.69 5.63 3 #400 MCM 298.00 - 1 1146 44095
T10A 4” 16.13 7.69 5.63 3 #400 MCM 300.00 -1 1079 44105
Type T1A
C US
RIGID-IMC FITTINGS

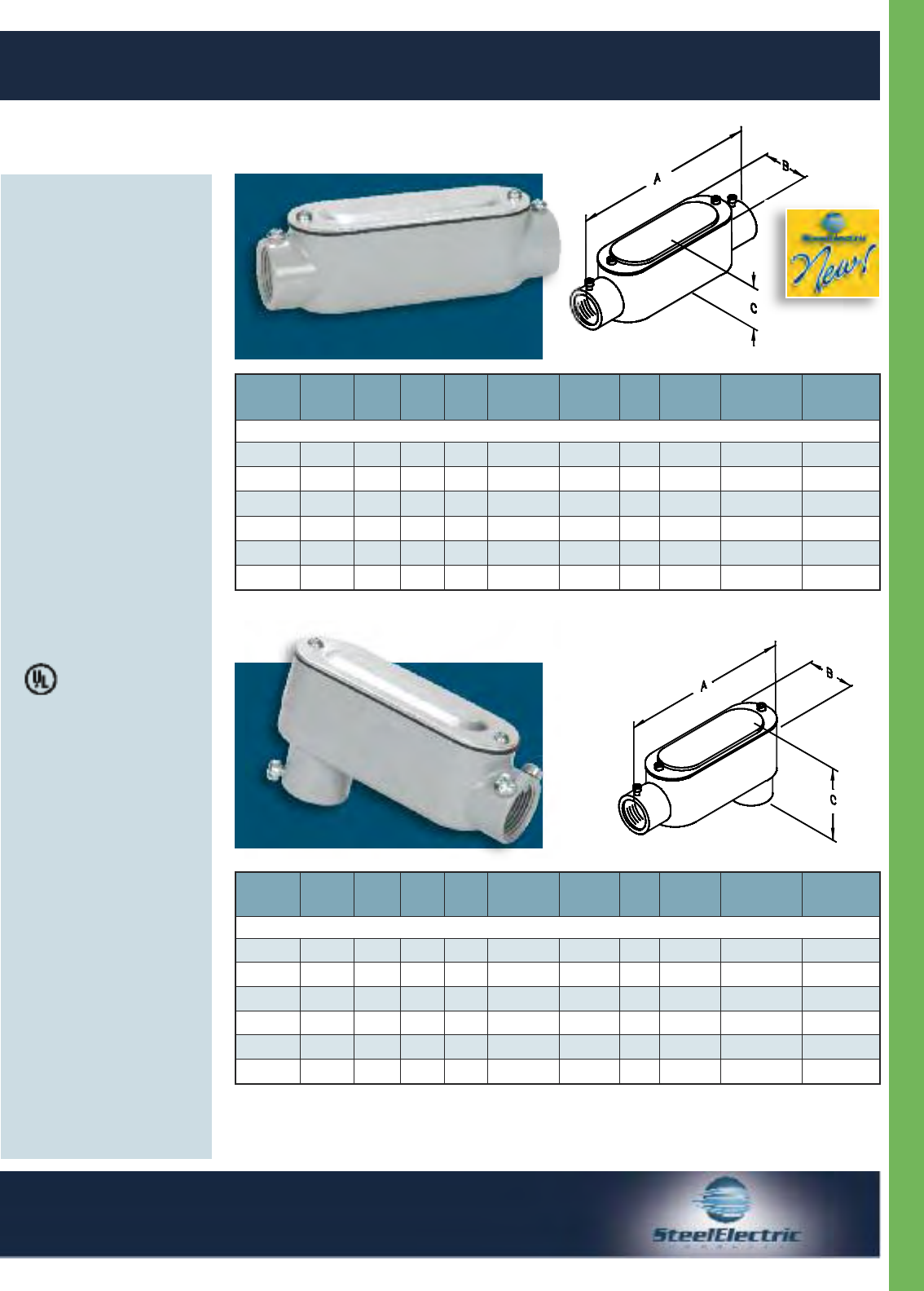

Application:
• Used with threaded rigid
conduit, IMC, and EMT for
providing access to the
interior of a conduit system
for pulling, splicing,
inspection and maintenance.
Features:
• Assembled with slotted/
Robertson combination
screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast fom high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled

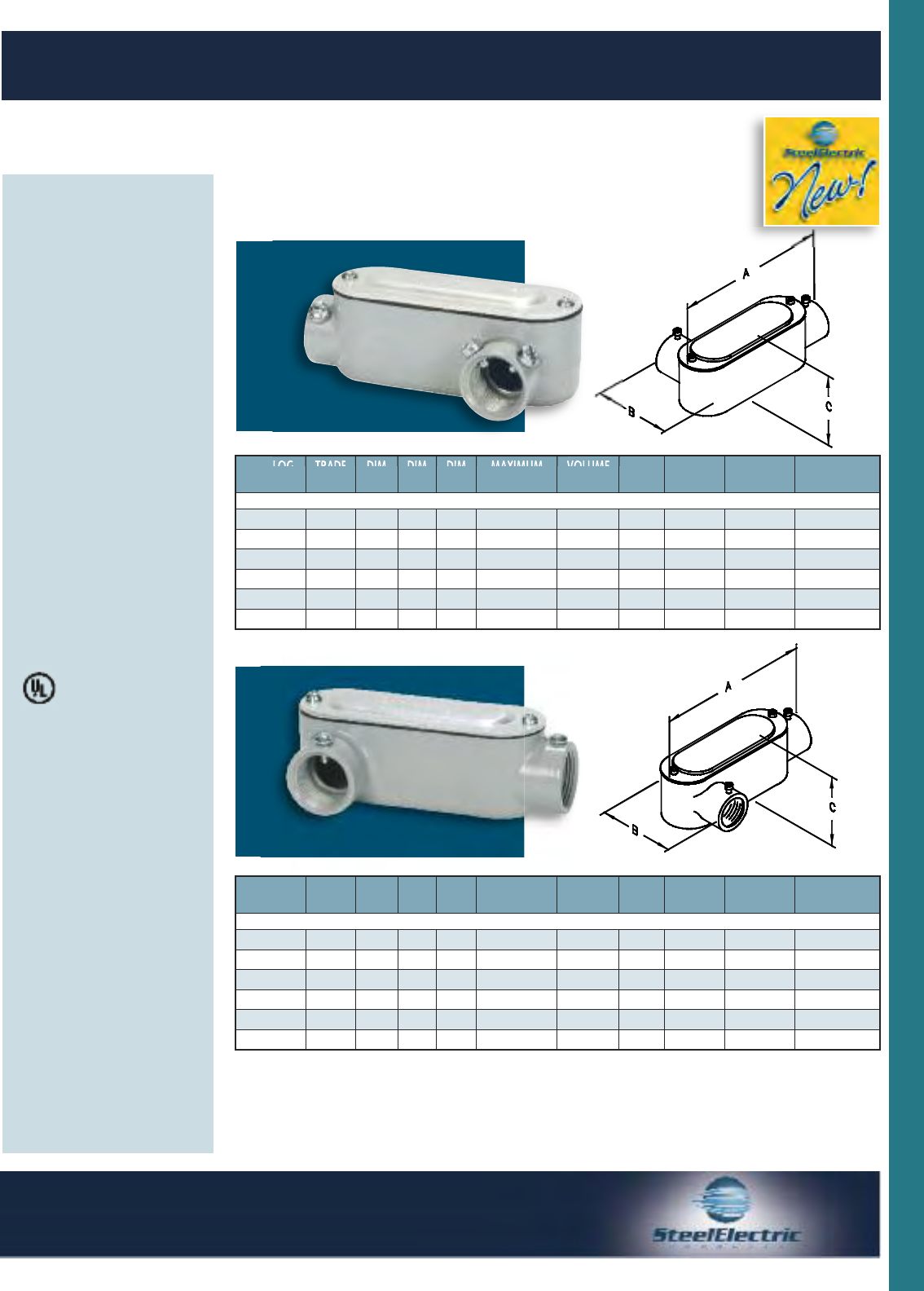

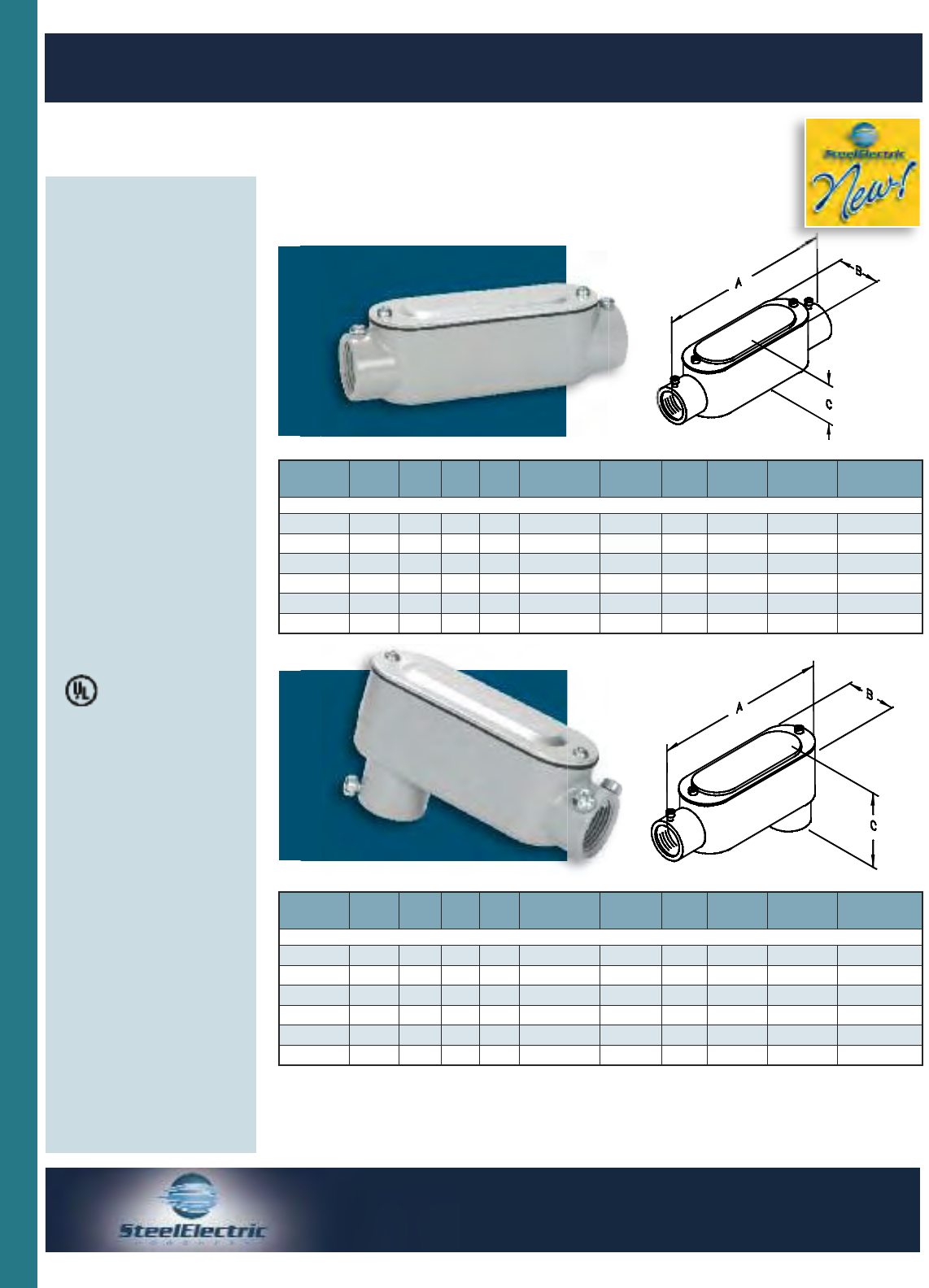

Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
With Cover
& Gasket
9
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type C1CA
Type LB1CA
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOLUME
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C TYPE
C1CA
1/2” 4.69 1.38 1.56 N/A 4.35 10 50 28 64401
C2CA
3/4” 5.50 1.56 1.75
3 #6 AWG
7.30 10 50 41 64402
C3CA
1” 6.48 1.88 2.13 3 #4 AWG 12.20 5 25 56 64403
C4CA
1-1/4” 8.31 2.50 2.75 3 #2 AWG 33.50 - 10 101 64404
C5CA
1-1/2” 8.38 2.50 2.75 3 #1/0 AWAG 33.50 - 10 104 64405
C6CA
2” 10.31 3.38 3.63 3 #4/0 AWG 69.50 -5 220 64406
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOLUME
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LB TYPE
LB1CA
1/2” 4.31 1.31 2.44 N/A 4.35 10 50 24 64101
LB2CA
3/4” 5.06 1.56 2.69 3 #6 AWG 7.25 10 50 37 64102
LB3CA
1” 5.87 1.75 3.00 3 #4 AWG 12.20 5 25 46 64103
LB4CA
1-1/4” 7.81 2.50 3.69 3 #2 AWG 32.30 - 10 98 64104
LB5CA
1-1/2” 7.81 2.50 3.69 3 #2 AWG 33.80 - 10 91 64105
LB6CA
2” 10.06 3.12 4.56 3 #4/0 AWG 71.20 -5 222 64106
C US
RIGID-IMC FITTINGS

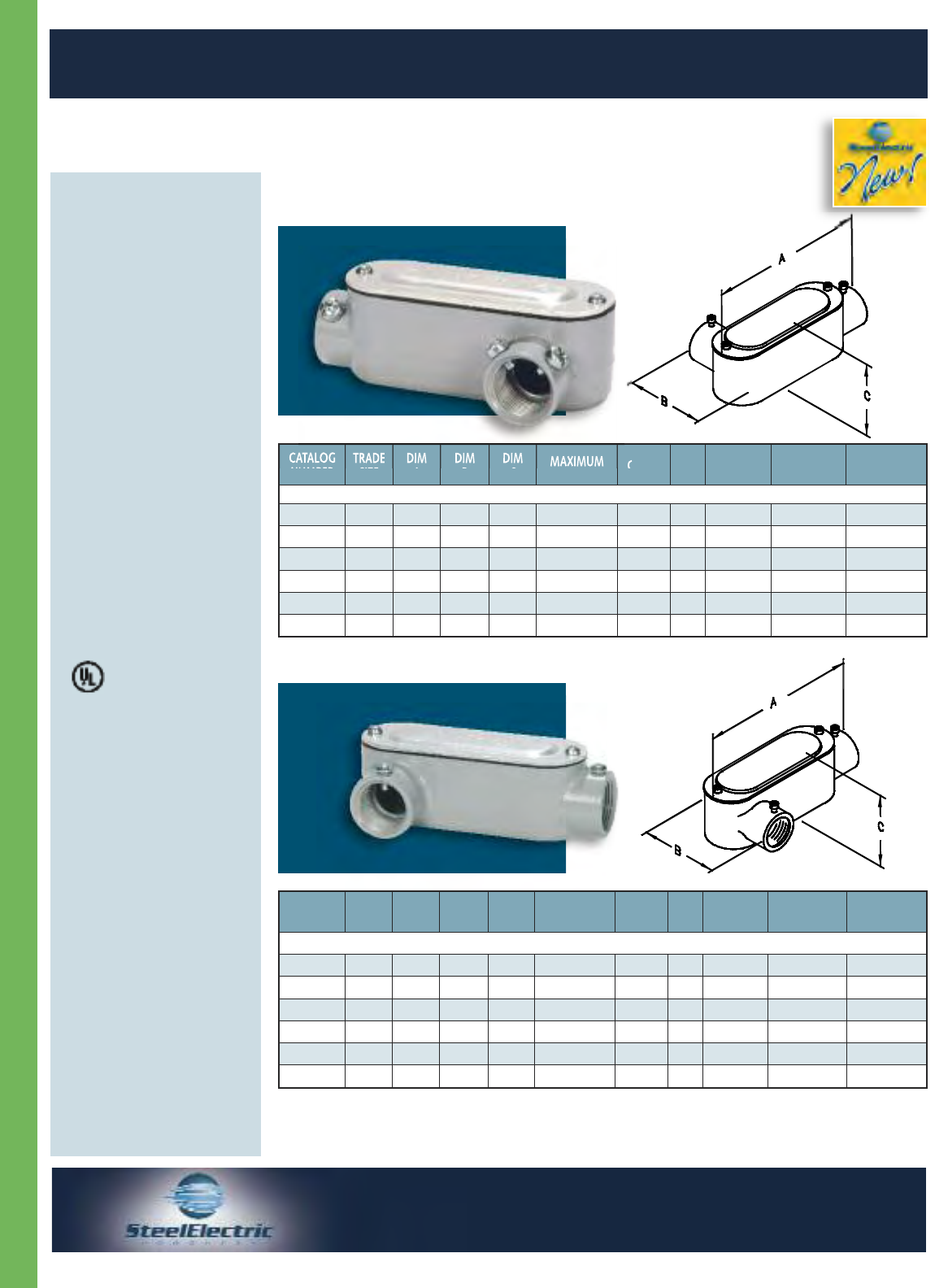

Application:
• Used with threaded rigid
conduit, IMC, and EMT for
providing access to the
interior of a conduit system
for pulling, splicing,
inspection and maintenance.
Features:
• Assembled with slotted/
Robertson combination
screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast fom high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled
Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
With Cover
& Gasket
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LL TYPE
LL1CA
1/2
”
4.31 2.06
1.63
N/A
4.35
10
50
25
64201
LL2CA
3/4
”
5.06 2.25
1.88
3 #6 AWG
7.30
10
50
37
64202
LL3CA
1
”
5.87 2.63
2.13
3 #4 AWG
12.20
5
25
45
64203
LL4CA
1-1/4
”
7.81 3.63
2.75
3 #2 AWG
35.80
-
10
98
64204
LL5CA
1-1/2
”
7.81 3.63
2.75
3 #1/0 AWAG
35.80
-
10
92
64205
LL6CA
2
”
10.06 4.44
3.63
3 #4/0 AWG
69.70
-
5
245
64206
10
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

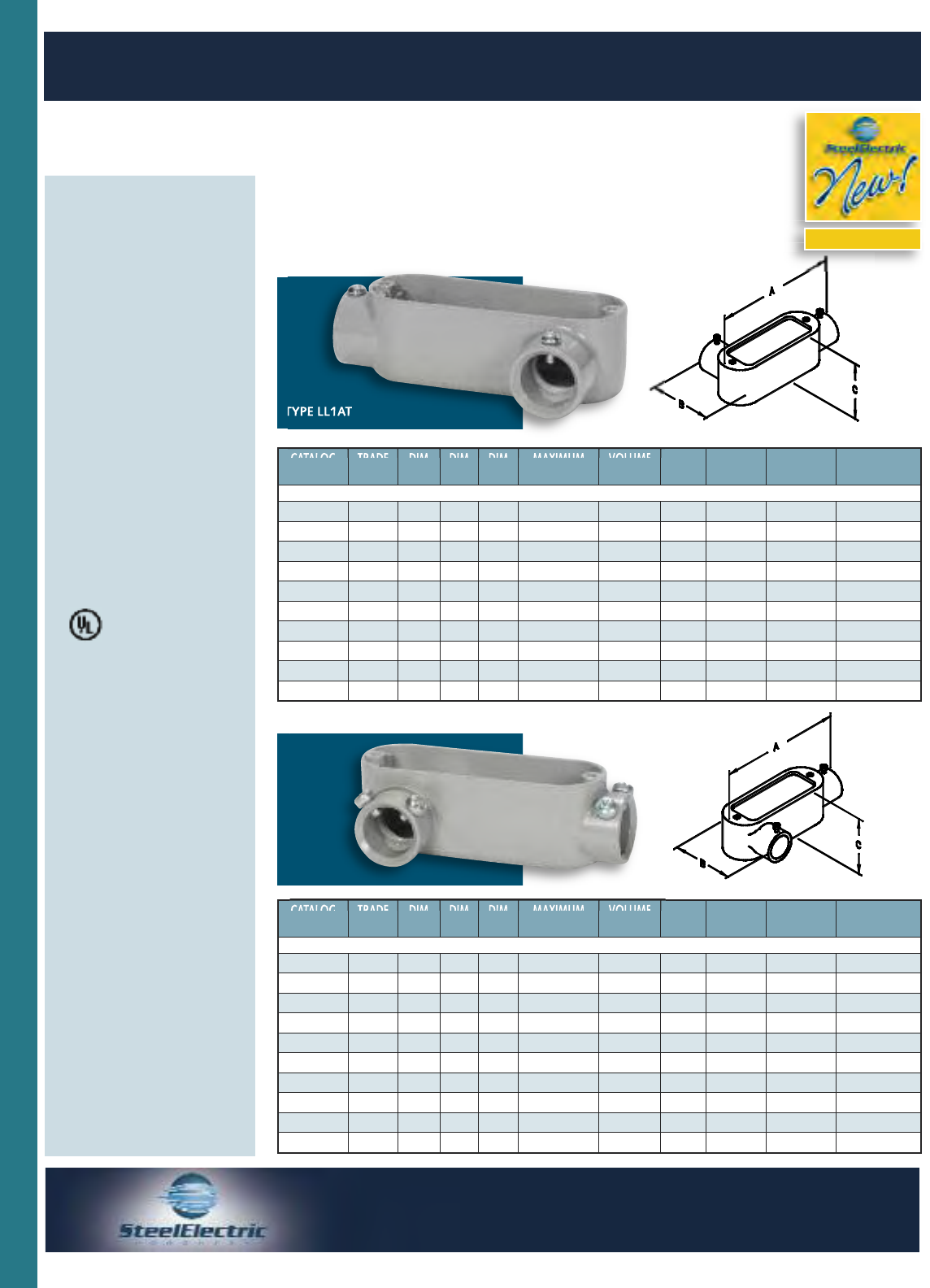

Type LL1CA
Type LR1CA
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LR TYPE
LR1CA
1/2
”
4.31 2.06
1.63
N/A
4.35
10
50
23
64301
LR2CA
3/4
”
5.06 2.25
1.88
3 #6 AWG
7.30
10
50
38
64302
LR3CA
1
”
5.87 2.63
2.13
3 #4 AWG
12.20
5
25
49
64303
LR4CA
1-1/4
”
7.81 3.63
2.75
3 #2 AWG
35.80
-
10
98
64304
LR5CA
1-1/2
”
7.81 3.63
2.75
3 #1/0 AWAG
35.80
-
10
94
64305
LR6CA
2
”
10.06 4.44
3.63
3 #4/0 AWAG
69.70
-
5
254
64306
C US
RIGID-IMC FITTINGS
Application:
• Used with threaded rigid
conduit, IMC, and EMT for
providing access to the
interior of a conduit system
for pulling, splicing,
inspection and maintenance.
Features:
• Assembled with slotted/
Robertson combination
screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast fom high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled
Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
With Cover
& Gasket
11
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

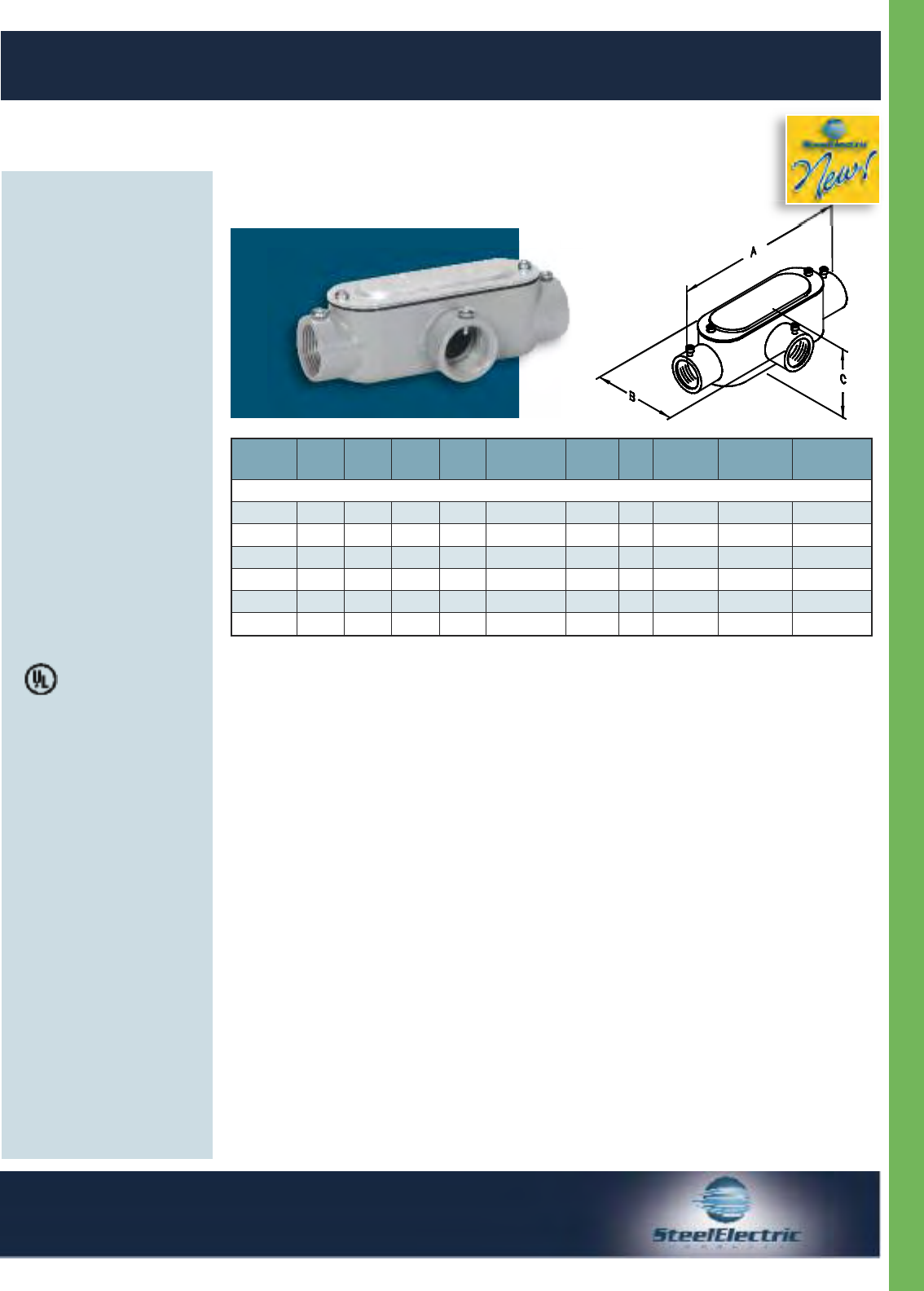

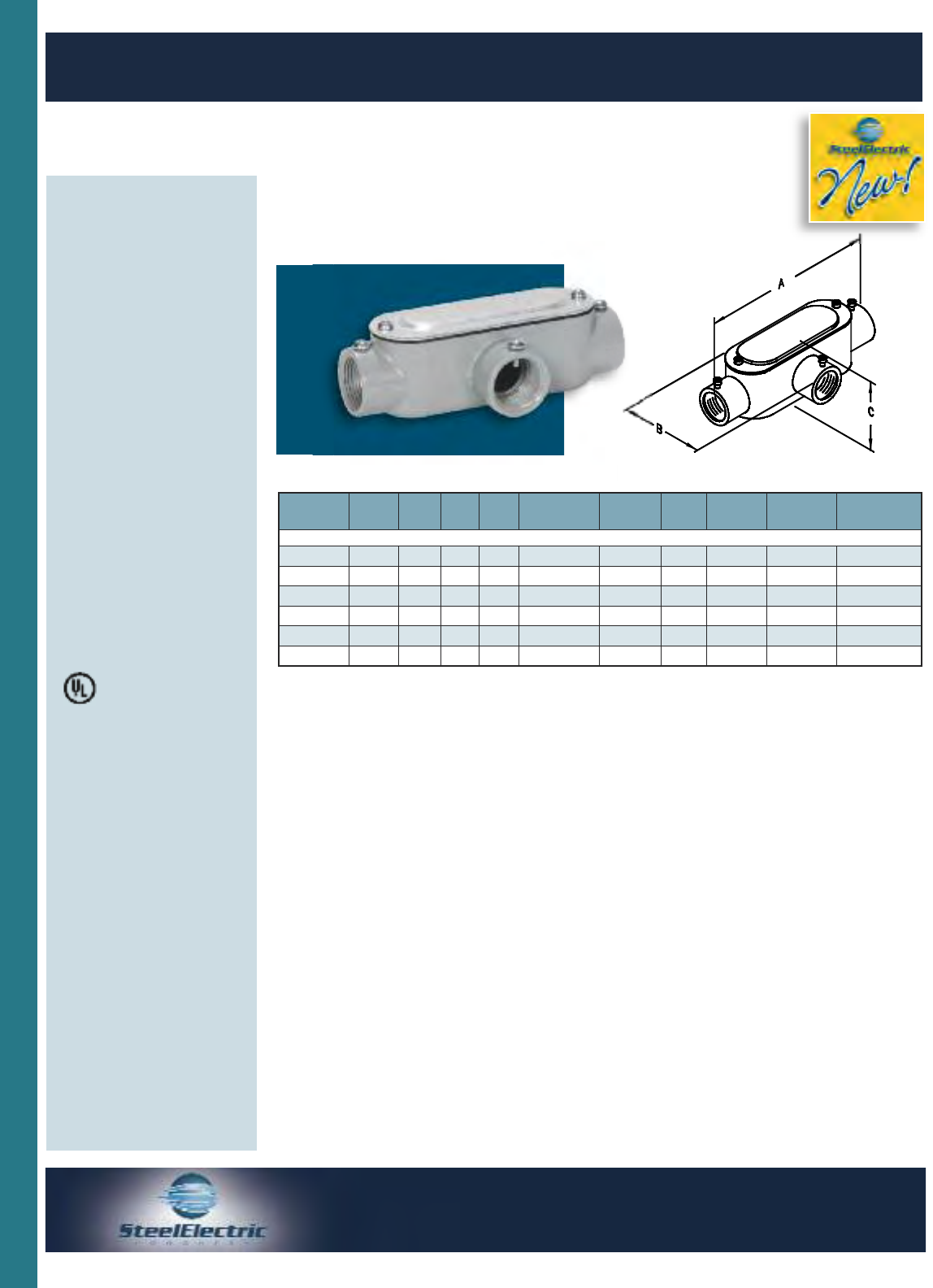

Type T1CA
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
MAXIMUM
WIRE SIZE
VOL.
CU. IN.
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
T TYPE
T1CA
1/2
”
4.75 2.06
1.63
N/A
4.35
10
50
23
64501
T2CA
3/4
”
5.56 2.25
1.88
3 #6 AWG
7.25
10
50
38
64502
T3CA
1
”
6.44 2.63
2.13
3 #4 AWG
12.20
5
25
53
64503
T4CA
1-1/4
”
8.25 3.56
2.75
3 #2 AWG
33.10
-
10
100
64504
T5CA
1-1/2
”
8.38 3.56
2.75
3 #1/0 AWAG
33.10
-
10
98
64505
T6CA
2
”
10.69 4.38
3.63
3 #4/0 AWG
67.00
-
5
265
64506
C US
RIGID-IMC FITTINGS
12
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
• Used with conduit bodies to
cover opening.
Features:
• Assembled with captive zinc
plated steel screws.
Standard Materials:
Steel
Standard Finish:
Zinc plated
UL Listed:
E121488
Application:
• Used with conduit bodies to
cover opening.
Features:
• Assembled with captive zinc
plated steel screws.
• Stamped from high-strength
aluminum, corrosion and
weather resistant copper-
free aluminum alloy.
Standard Materials:
Stamped Aluminum
UL Listed:
E121488

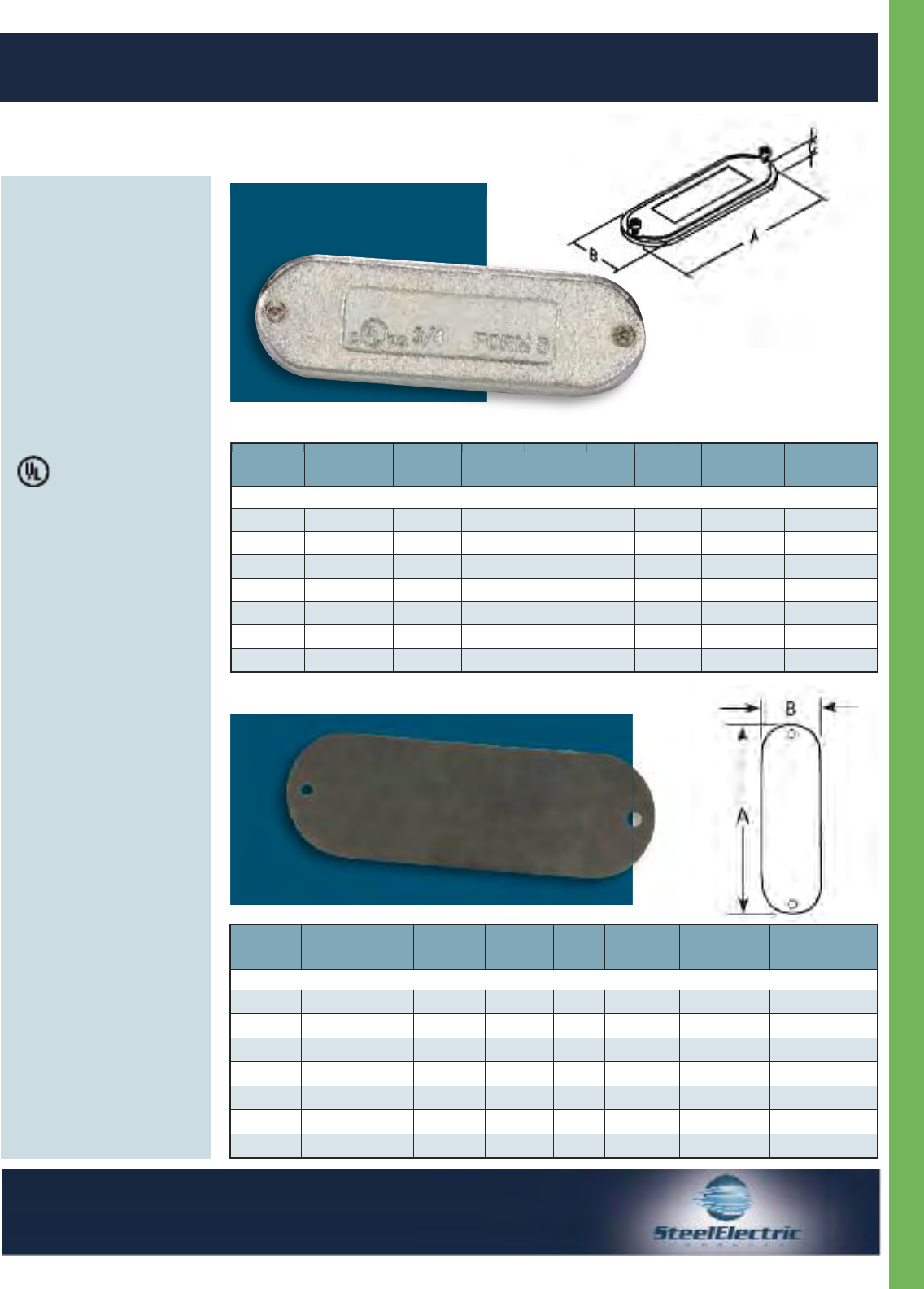

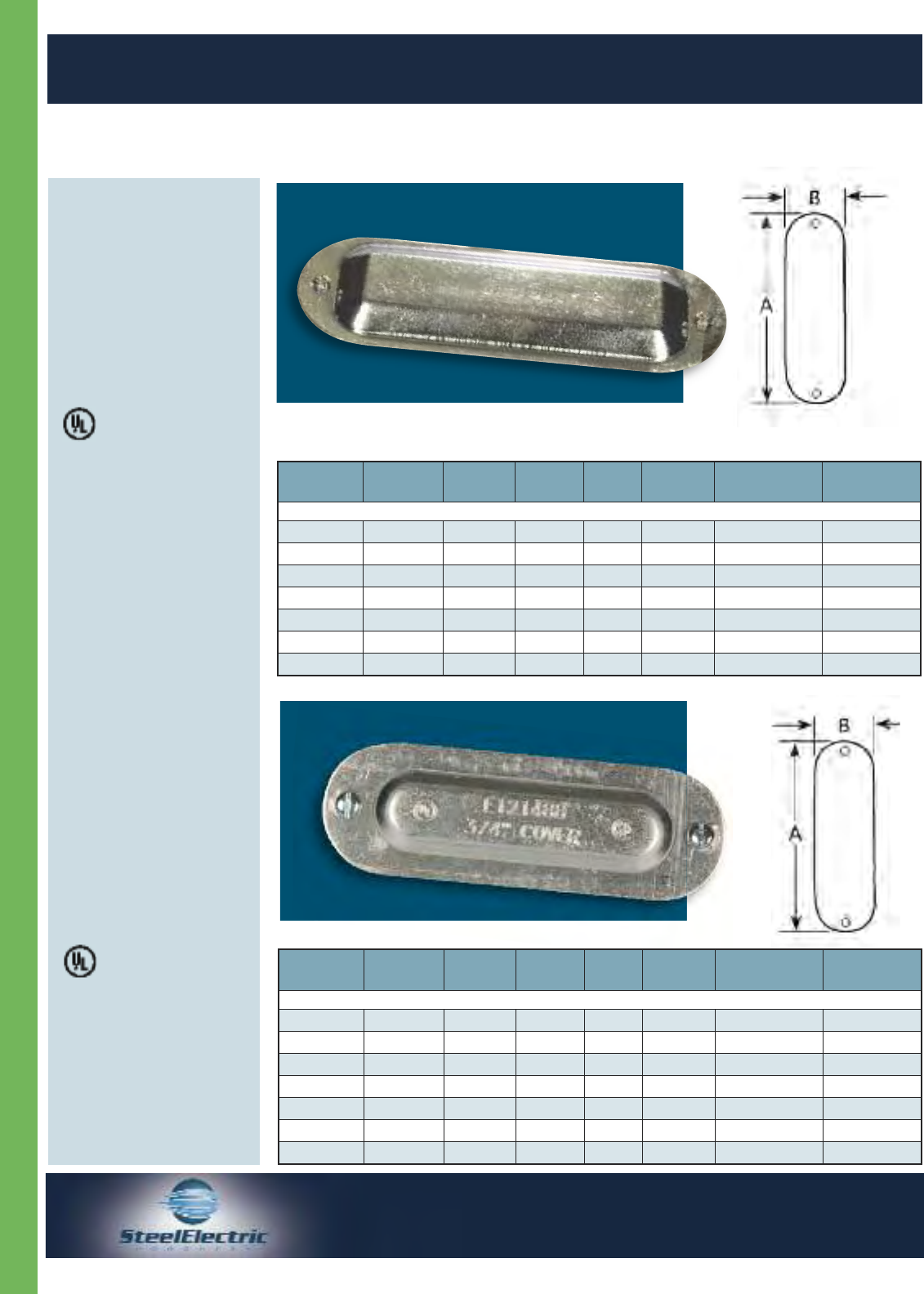

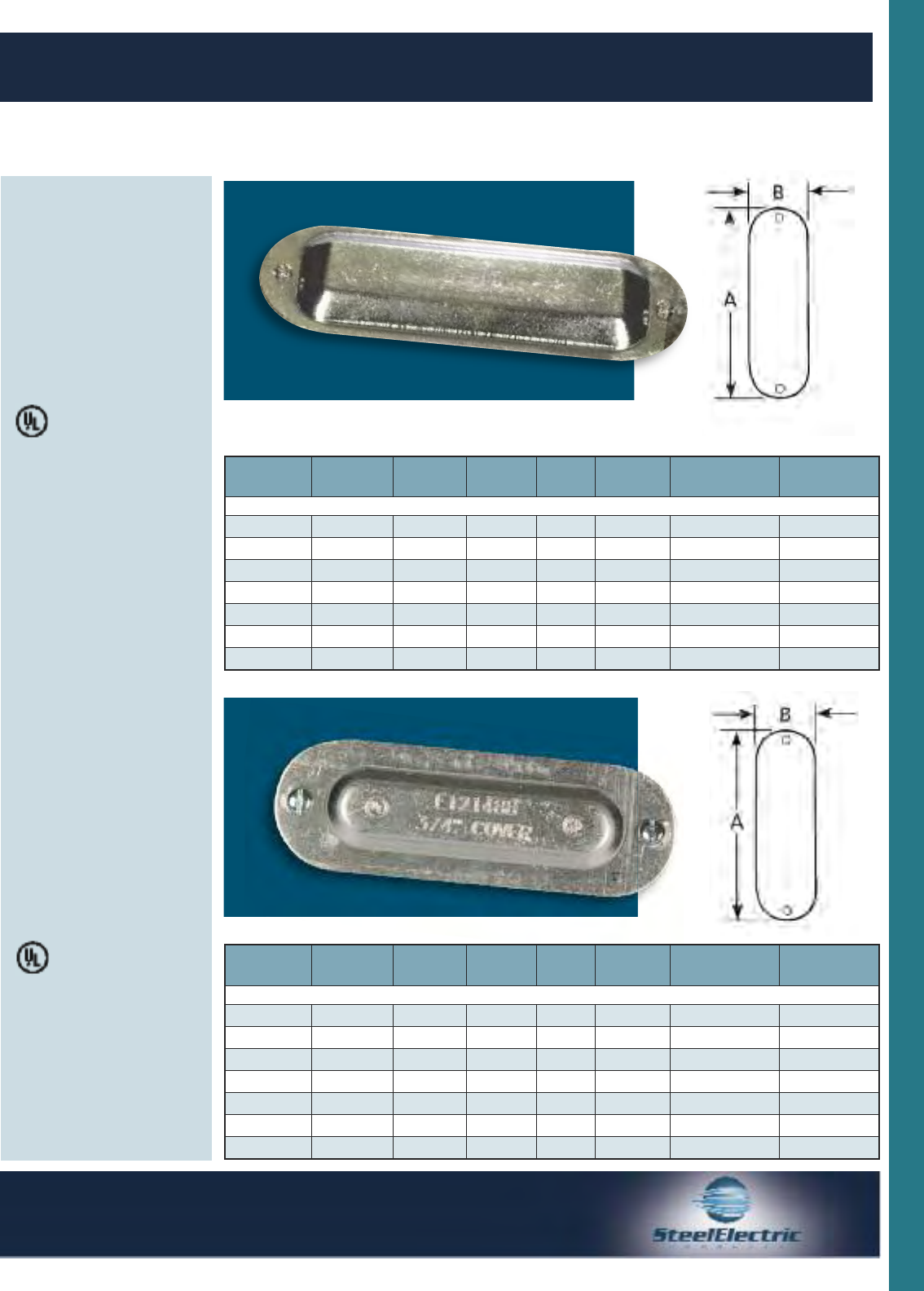

Conduit Body Covers
Steel and Aluminum Covers
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Steel Covers
01 1/2” 3.875 1.310 25 250 9 49017
02 3/4” 4.625 1.520 25 250 13 49027
03 1” 5.315 1.710 20 200 19 49037
04
1-1/4” -1-1/2”
7.240 2.510 25 100 31 49047
05 2” 9.484 3.110 - 50 50 49057
06
2-1/2” - 3”
14.937 5.500 - 10 94 49067
07 3-1/2” - 4”
15.000 6.000 - 10 138 49077
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Aluminum Covers
01A 1/2” 3.90 1.37 25 250 6 49105
02A 3/4” 4.70 1.60 25 250 10 49205
03A 1” 5.40 1.78 20 200 14 49305
04A
1-1/4
”
- 1-1/2
” 7.25 2.52 25 100 18 49405
05A 2” 9.50 3.11 - 50 20 49505
06A 2-1/2” - 3” 12.13 4.45 - 10 33 49605
07A 3-1/2” - 4” 14.94 5.50 - 10 62 49705
Type 02
Type 02A
RIGID-IMC FITTINGS
13
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
• Used with conduit bodies to
cover opening.
Features:
• Supplied with Stainless Steel
captive screws
• Sizes 21/2" thru 4" with raised
dome affords additional
wiring room
Standard Materials:
Malleable Iron
Standard Finish:
Zinc plated
UL Listed:
E208392
Application:
• Gasket used with conduit
bodies for a raintight seal.
Standard Materials:
Neoprene Rubber
Conduit Body Covers
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Malleable Iron
01M
1/2”
3.936
1.313
0.063
25
250
23
90131
02M
3/4”
4.625
1.500
0.063
25
250
31
90132
03M
1”
5.313
1.750
0.063
20
200
41
90133
04M
1-1/4” - 1-1/2”
7.188
2.500
0.250
25
100
91
90134
05M
2”
9.500
3.188
0.313
-
25
208
90135
06M
2-1/2” - 3”
12.125
4.313
1.063
-
10
358
90136
07M
3-1/2” - 4”
14.875
5.625
1.125
-
10
550
90137

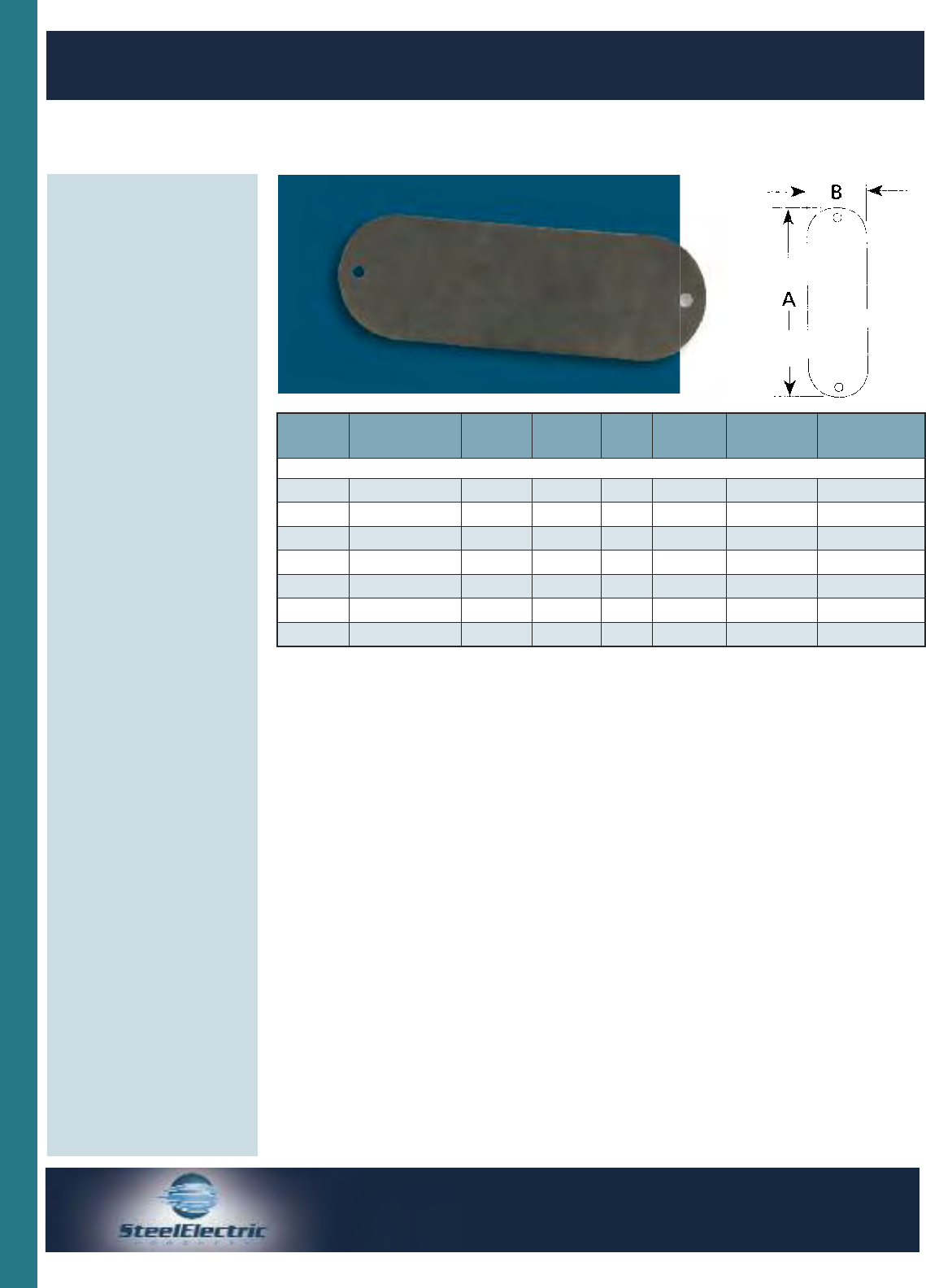

Type 11
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Neoprene Gaskets
10 1/2” 3.90 1.37 200 2000 3 49910
11 3/4” 4.60 1.56 100 1000 3 49911
12 1” 5.34 1.73 100 1000 3 49912
13
1-1/4” - 1-1/2”
7.25 2.51 50 500 6 49913
14 2” 9.50 3.05 25 100 11 49914
15 2-1/2” - 3” 12.13 4.39 - 10 13 49915
16 3-1/2” - 4” 14.88 5.43 - 10 28 49916
Type 01M
RIGID-IMC FITTINGS
Malleable Iron Covers and Neoprene Gaskets
Application:
Used with a locknut to
terminate threaded rigid and
IMC conduit to a box or
enclosure and to provide a
smooth pulling surface.
Thermoplastic liner prevents
damage to wire insulation.
Liner rated at 150°C.
Features:
• The plastic liner won’t chip,
crack, swell or shrink.
It resists corrosion,
chemicals, and temperature
extremes.
• Set-screw provided with
each fitting locks bushing in
any desired position.
• UL Listed for use with
Copper or Aluminum
Grounding Conductors.
Standard Materials:
Malleable Iron/Open side tin
plated aluminum lug.
Standard Finish:
Zinc plated
Optional Lug: Available with
copper lug; use suffix C instead
of L. Example 20BI4C.
UL Listed:
E88878

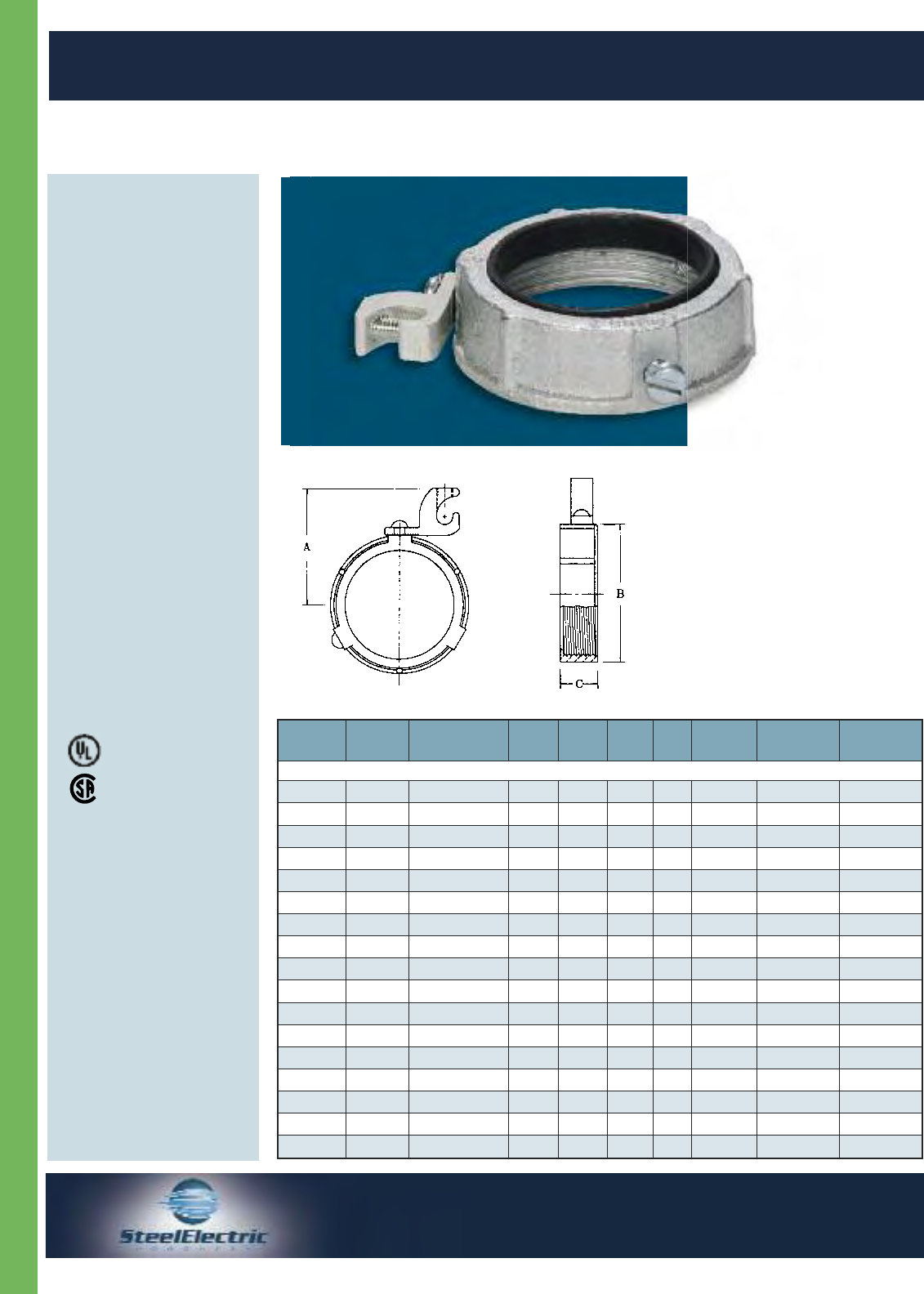

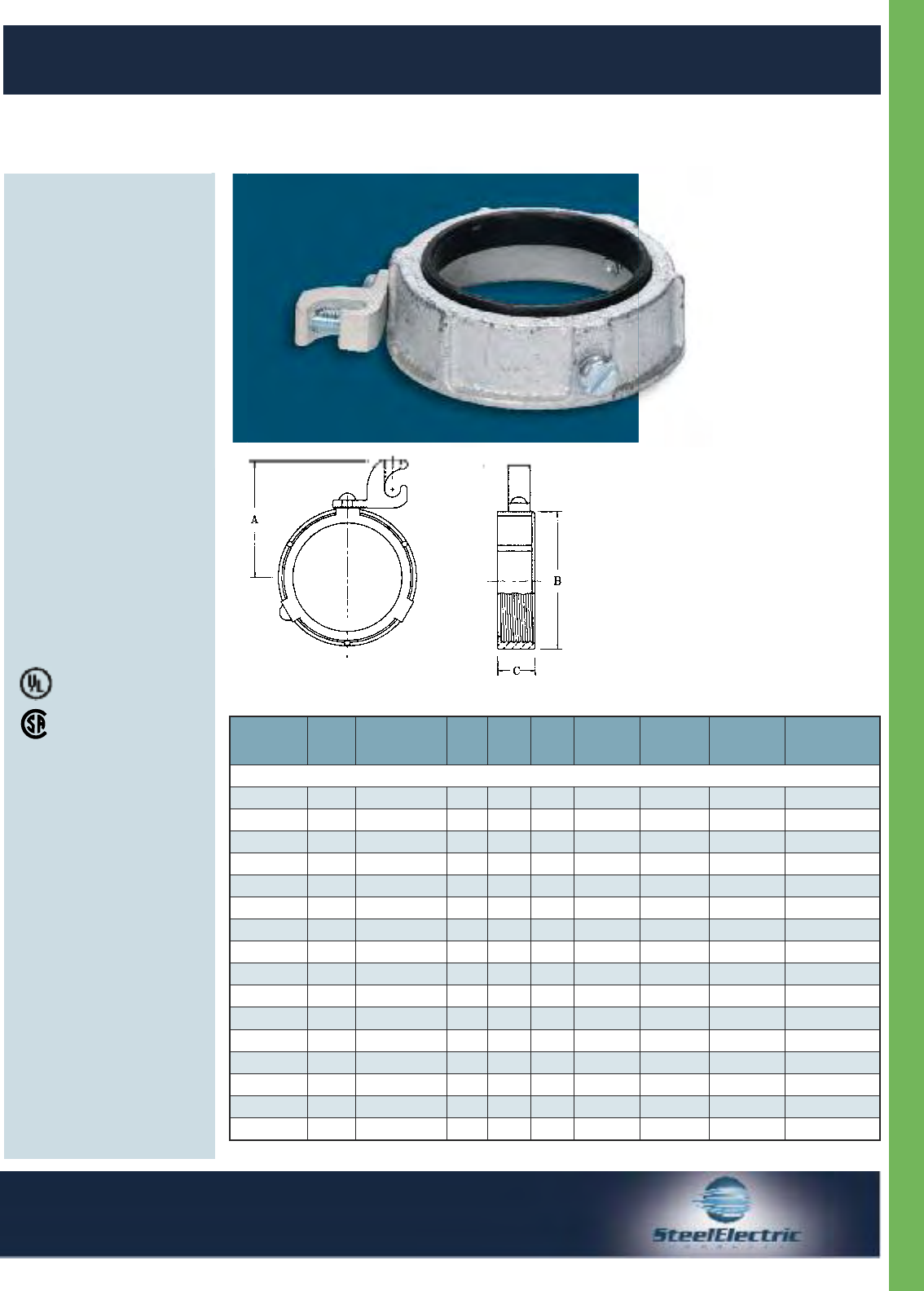

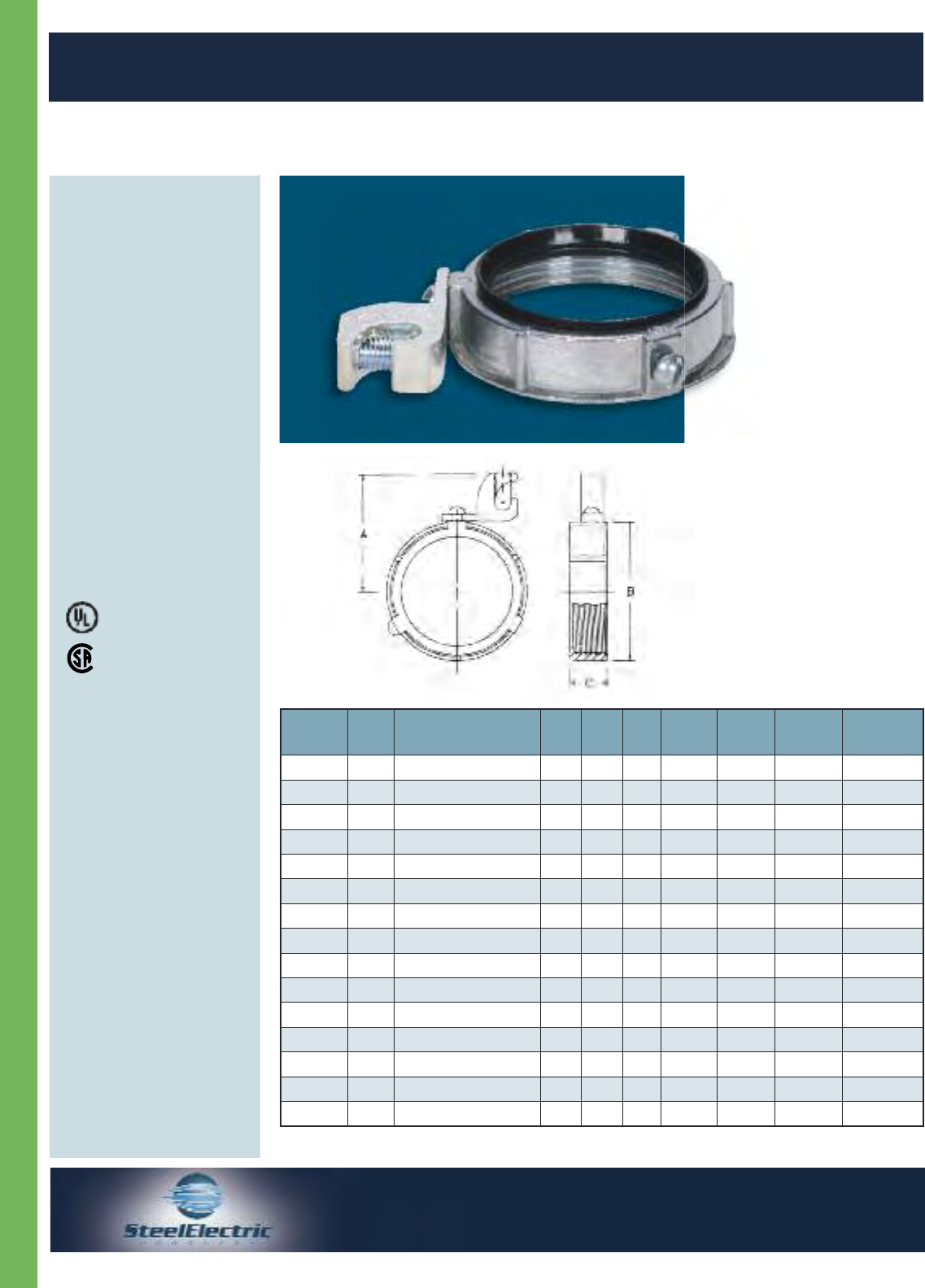

Malleable Iron Insulated Grounding Bushings
For Threaded Rigid Conduit and IMC
®
CATALOG
NUMBER
TRADE
SIZE
GROUNDING
LUG CAPACITY
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Threaded
20BI4L
1/2
”
#14 - #4
1.34
1.19
0.61
100
1000
7
20006
21BI4L
3/4
”
#14 - #4
1.47
1.45
0.64
50
500
11
20013
22BI4L
1
”
#14 - #4
1.63
1.76
0.72
25
250
15
20019
23BI4L
1-1/4
”
#14 - #4
1.80
2.10
0.74
25
250
18
20025
24BI4L
1-1/2
”
#14 - #4
2.11
2.33
0.80
25
250
23
20033
25BI0L
2
”
#14 - #2/0
2.55
2.79
0.85
25
250
32
25012
25BI4L
2
”
#14 - #4
2.34
2.79
0.85
25
250
28
25011
26BI0L
2-1/2
”
#14 - #2/0
2.84
3.33
1.10
-
10
57
25017
26BI40L
2-1/2
”
#6 - #250MCM
3.47
3.33
1.10
-
10
70
25018
27BI0L
3
”
#14 - #2/0
3.11
3.87
1.10
-
10
73
25029
27BI40L
3
”
#6 - #250MCM
3.74
3.87
1.10
-
10
85
25030
28BI0L
3-1/2
”
#14 - #2/0
3.38
4.42
1.10
-
10
88
28043
28BI40L
3-1/2
”
#6 - #250MCM
4.02
4.42
1.10
-
10
90
28044
29BI0L
4
”
#14 - #2/0
3.62
4.89
1.10
-
10
118
28055
29BI40L
4
”
#6 - #250MCM
4.25
4.89
1.10
-
10
121
28056
30BI40L
5
”
#6 - #250MCM
4.80
6.00
1.13
-
10
165
28067
31BI40L
6
”
#6 - #250MCM
5.46
7.31
1.13
-
10
203
28068
14
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type 25BI4L
RIGID-IMC FITTINGS
15
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used with a locknut to
terminate threadless rigid
and IMC conduit to a box or
enclosure and to provide a
smooth pulling surface.
Thermoplastic liner prevents
damage to wire insulation.
Liner rated at 150°C.
Features:
• The plastic liner won’t chip,
crack, swell or shrink.
It resists corrosion,
chemicals, and temperature
extremes.
• Set-screw provided with
each fitting locks bushing in
any desired position.
• UL Listed for use with
Copper or Aluminum
Grounding Conductors.
Standard Materials:
Malleable Iron/Open side tin
plated aluminum lug.
Standard Finish:
Zinc plated
UL Listed:
E88878
Malleable Iron Insulated Grounding Bushings
For Threadless Rigid Conduit and IMC
®
CATALOG
NUMBER
TRADE
SIZE
GROUNDING
LUG CAPACITY
Min.-Max. Solid Strand
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Set-Screw
20BI4LSS
1/2”
#14-#4
1.19
0.61
0.61
100
1000
7
12700
21BI4LSS
3/4”
#14-#4
1.44
0.64
0.64
50
500
11
12701
22BI4LSS
1”
#14-#4
1.75
0.72
0.72
25
250
15
12702
23BI4LSS
1-1/4”
#14-#4
2.13
0.74
0.74
25
250
18
12703
24BI4LSS
1-1/2”
#14-#4
2.31
0.80
0.80
25
250
23
12704
25BI4LSS
2”
#14-#4
2.81
0.85
0.85
25
250
28
29405
26BI0LSS
2-1/2”
#14-#1/0
3.38
1.10
0.85
-
10
57
12706
26BI40LSS
2-1/2”
#6-#250MCM
3.38
1.10
1.10
-
10
70
29406
27BI0LSS
3”
#14-#2/0
4.06
1.10
1.10
-
10
73
12707
27BI40LSS
3”
#6-#250MCM
4.06
1.10
1.10
-
10
85
29407
28BI0LSS
3-1/2”
#14-#2/0
4.50
1.10
1.10
-
10
88
12708
28BI40LSS
3-1/2”
#6-#250MCM
4.50
1.10
1.10
-
10
90
29408
29BI0LSS
4”
#14-#2/0
5.19
1.10
1.10
-
10
118
12709
29BI40LSS
4”
#6-#250MCM
5.19
1.10
1.10
-
10
121
29409
30BI40LSS
5”
#6-#250MCM
6.60
1.13
1.10
-
10
165
29410
31BI40LSS
6”
#6-#250MCM
7.18
1.13
1.13
-
10
203
29411
Type 25BI4LSS
RIGID-IMC FITTINGS
Application:
Used with a locknut to
terminate threaded rigid and
IMC conduit to a box or
enclosure and to provide a
smooth pulling surface.
Thermoplastic liner prevents
damage to wire insulation.
Liner rated at 150°C.
Features:
• The plastic liner won’t chip,
crack, swell or shrink.
It resists corrosion,
chemicals, and temperature
extremes.
• Set-screw provided with
each fitting locks bushing in
any desired position.
• UL Listed for use with
Copper or Aluminum
Grounding Conductors.
Standard Materials:
Zinc Die Cast/Open side tin
plated aluminum lug.
UL Listed:
E88878
Zinc Insulated Grounding Bushings
For Threaded Rigid Conduit and IMC
®
16
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type 25BIZ4L
CATALOG
NUMBER
TRADE
SIZE
GROUNDING LUG CAP.
MIN. - MAX. SOLID STRAND
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
20BIZ4L
1/2”
#14 - #4
1.313
1.063
0.500
100
1000
4
20009
21BIZ4L
3/4”
#14 - #4
1.406
1.281
0.500
50
500
6
20016
22BIZ4L
1”
#14 - #4
1.563
1.531
0.596
25
250
8
20022
23BIZ4L
1-1/4”
#14 - #4
1.750
1.875
0.625
25
250
14
20028
24BIZ4L
1-1/2”
#14 - #4
2.031
2.156
0.625
25
250
16
20038
25BIZ4L
2”
#14 - #4
2.281
2.625
0.625
25
250
23
25007
25BIZ0L
2”
#14 - #1/0
2.500
2.625
0.625
25
250
26
25008
26BIZ0L
2-1/2”
#14 - #1/0
2.875
3.219
0.875
-
10
39
25023
26BIZ40L
2-1/2”
#6 - #250MCM
3.156
3.219
0.875
-
10
43
25024
27BIZ0L
3”
#14 - #1/0
3.313
3.813
0.875
-
10
46
25035
27BIZ40L
3”
#6 - #250MCM
3.625
3.813
0.875
-
10
51
25036
28BIZ0L
3-1/2”
#14 - #1/0
3.718
4.344
0.875
-
10
50
28049
28BIZ40L
3-1/2”
#6 - #250MCM
3.875
4.344
0.875
-
10
56
28050
29BIZ0L
4”
#14 - #1/0
3.968
4.813
0.875
-
10
58
28061
29BIZ40L
4”
#6 - #250MCM
4.125
4.813
0.875
-
10
65
28062
RIGID-IMC FITTINGS
17
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

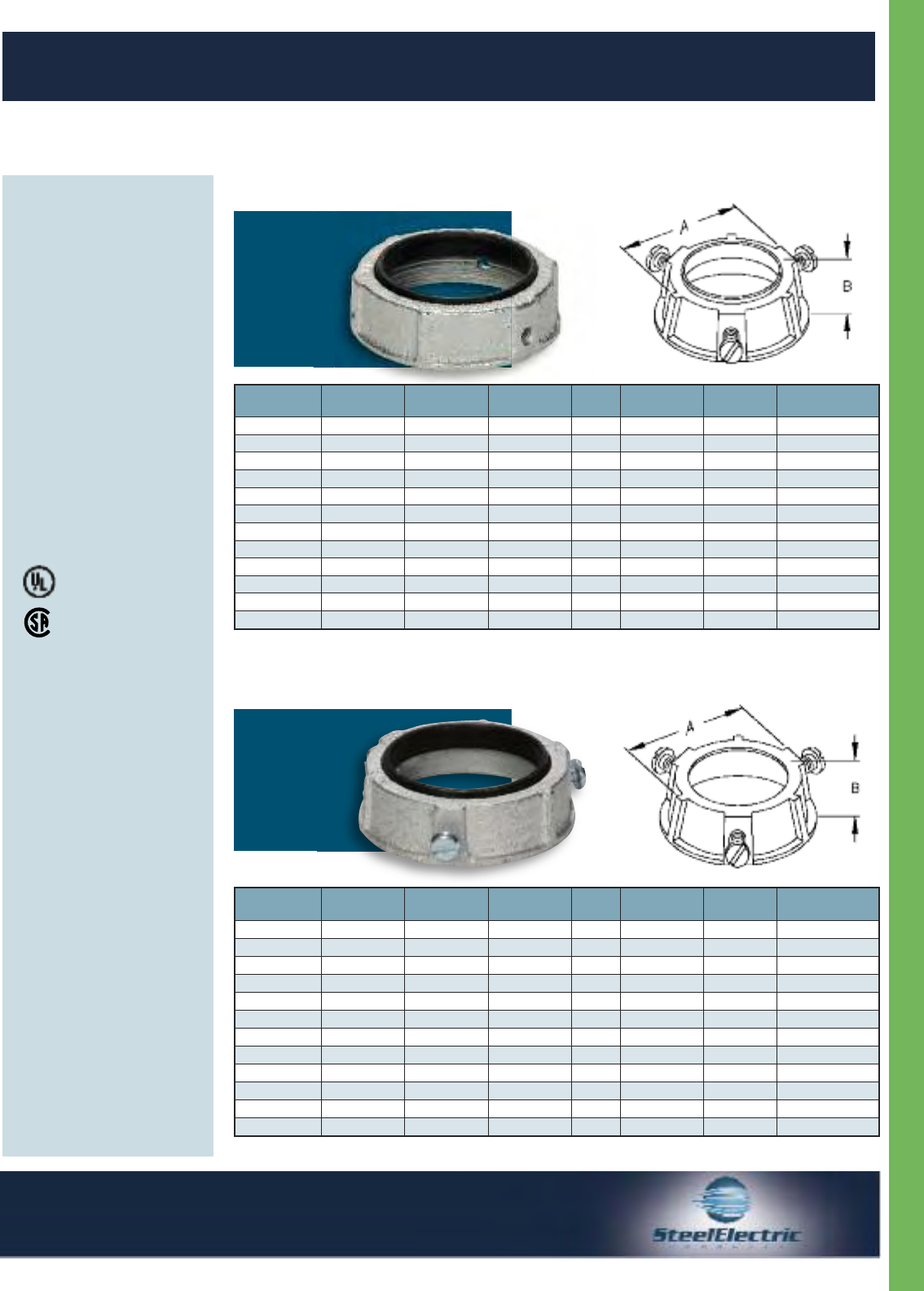

Application:
Used with a locknut to
terminate threaded/threadless
rigid and IMC conduit to a box
or enclosure and to provide a
smooth pulling surface.
Thermoplastic liner prevents
damage to wire insulation.
Liner rated at 150°C.
Features:
• The plastic liner won’t chip,
crack, swell or shrink.
It resists corrosion,
chemicals, and temperature
extremes.
Standard Materials:
Malleable Iron
Standard Finish:
Zinc plated
UL Listed:
E155411
Malleable Iron Insulated Bushings
For Rigid Conduit and IMC
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1206SS 1/2” 1.19 0.50 100 1000 6 12206
1207SS 3/4” 1.44 0.56 100 500 9 12207
1208SS 1” 1.75 0.63 50 500 13 12208
1209SS 1-1/4” 2.13 0.75 25 250 17 12209
1210SS 1-1/2” 2.31 0.81 25 250 21 12210
1211SS 2” 2.81 0.88 - 25 25 12221
1212SS 2-1/2” 3.35 1.10 - 25 51 12222
1213SS 3” 4.06 1.10 - 25 66 12223
1214SS 3-1/2” 4.50 1.10 - 25 72 12224
1215SS 4” 5.19 1.10 - 25 103 12225
1216SS 5” 6.00 1.13 - 10 147 12226
1217SS 6” 7.18 1.13 - 10 184 12227
ALSO AVAILABLE WITH LAY-IN LUGS. SEE PAGE 14.
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1206 1/2” 1.19 0.50 100 1000 6 12061
1207 3/4” 1.44 0.56 100 500 9 12071
1208 1” 1.75 0.63 50 500 13 12081
1209 1-1/4” 2.13 0.75 25 250 17 12091
1210 1-1/2” 2.31 0.88 25 250 21 12101
1211 2” 2.81 0.94 - 25 25 12111
1212 2-1/2” 3.38 1.00 - 25 51 12121
1213 3” 4.06 1.13 - 25 66 12131
1214 3-1/2” 4.50 1.19 - 25 72 12141
1215 4” 5.19 1.31 - 25 103 12151
1216 5” 6.06 1.31 - 10 147 12161
1217 6” 7.15 1.31 - 10 184 12171
For Threaded Rigid Conduit and IMC
For Threadless Rigid Conduit and IMC
Type 1206
Type 1206SS
ALSO AVAILABLE WITH LAY-IN LUGS. SEE PAGE 15.
RIGID-IMC FITTINGS
18
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
ALSO AVAILABLE WITH LAY-IN LUGS. SEE PAGE 16.
Application:
Used with a locknut to
terminate threaded rigid and
IMC conduit to a box or
enclosure and to provide a
smooth pulling surface.
Thermoplastic liner prevents
damage to wire insulation.
Liner rated at 150°C.
Features:
• The plastic liner won’t chip,
crack, swell or shrink.
It resists corrosion,
chemicals, and temperature
extremes.
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
For Threaded Rigid Conduit and IMC
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1206Z 1/2” 1.15 0.47 100 1000 3 12062
1207Z 3/4” 1.41 0.47 100 500 4 12072
1208Z 1” 1.68 0.54 50 500 7 12082
1209Z 1-1/4” 1.94 0.60 25 250 15 12092
1210Z 1-1/2” 2.20 0.62 25 250 19 12102
1211Z 2” 2.80 0.62 - 25 22 12112
1212Z 2-1/2” 3.32 0.93 - 25 42 12122
1213Z 3” 3.94 0.93 - 25 51 12132
1214Z 3-1/2” 4.45 0.94 - 25 68 12142
1215Z 4” 5.00 0.97 - 25 98 12152

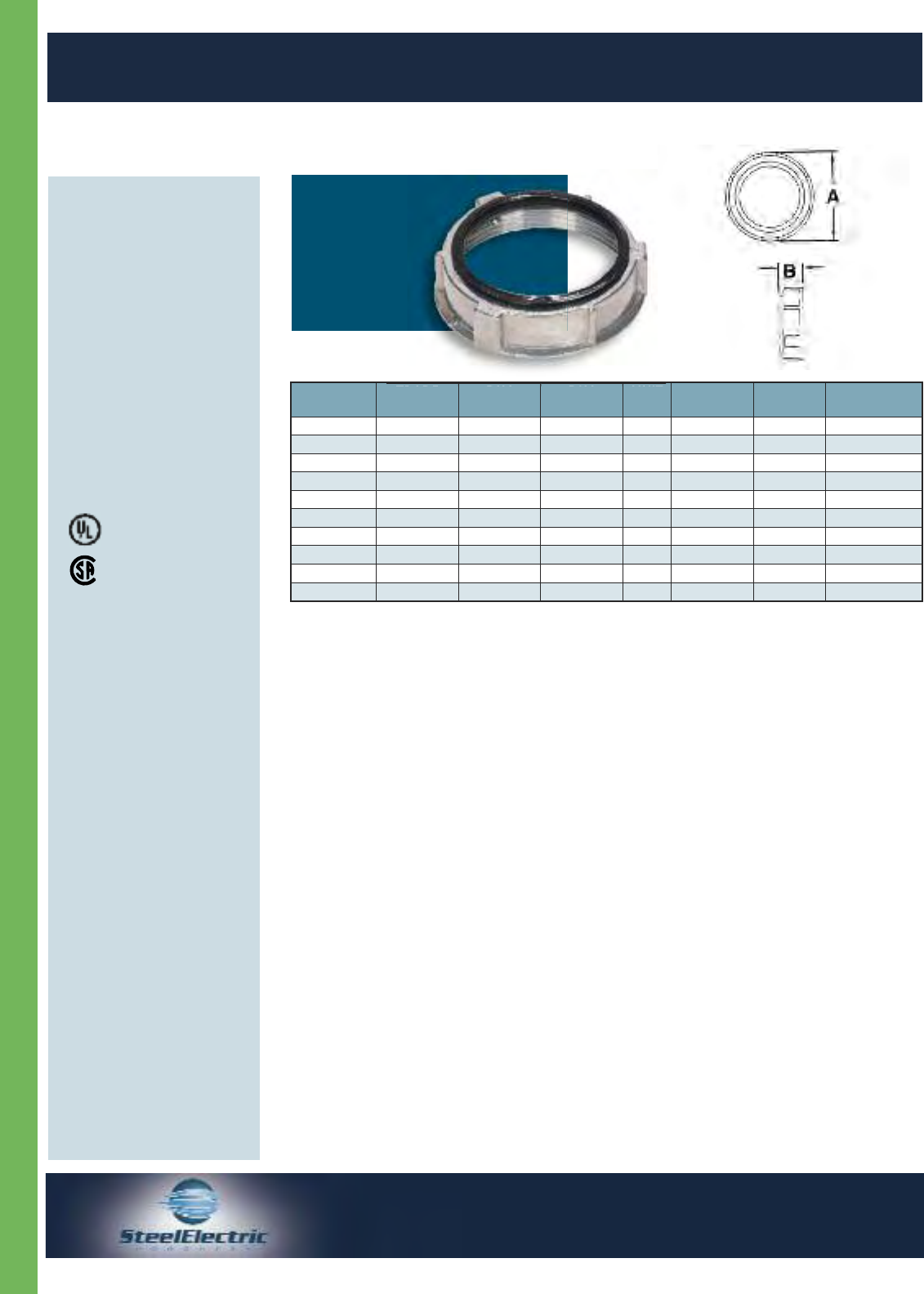

Zinc Insulated Bushings
Type 1207Z
RIGID-IMC FITTINGS
19
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used with a locknut to
terminate threaded rigid and
IMC conduit to a box or
enclosure.
Features:
• Bushing surface rounded
to prevent damage to wire
insulation during pulling.
Standard Materials:
Malleable Iron
Standard Finish:
Zinc plated
UL Listed:
E155411
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
For Threaded Rigid Conduit and IMC
Malleable Iron
Zinc Die Cast
®
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
806
1/2
”
1.06
0.38
100
1000
6
18061
807
3/4
”
1.25
0.44
100
1000
9
18071
808
1
”
1.50
0.56
50
500
13
18081
809
1-1/4
”
1.88
0.75
25
250
16
18091
810
1-1/2
”
2.19
0.69
25
250
21
18101
811
2
”
2.63
0.81
-
25
25
18111
812
2-1/2
”
3.13
0.81
-
25
50
18121
814
3
”
3.75
1.00
-
25
66
18141
815
3-1/2
”
4.31
1.00
-
25
71
18151
816
4
”
4.88
1.00
-
25
102
18161
817
5
”
6.13
1.13
-
10
146
18171
818
6
”
7.19
1.13
-
10
183
18181
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
806Z 1/2” 1.15 0.47 100 1000 3 18062
807Z 3/4” 1.41 0.47 100 1000 4 18072
808Z 1” 1.68 0.54 50 500 7 18082
809Z 1-1/4” 1.94 0.60 25 250 15 18092
810Z 1-1/2” 2.20 0.62 25 250 19 18102
811Z 2” 2.80 0.62 - 25 22 18112
812Z 2-1/2” 3.32 0.93 - 25 42 18122
814Z 3” 3.94 0.93 - 25 51 18142
815Z 3-1/2” 4.45 0.94 - 25 68 18152
816Z 4” 5.00 0.97 - 25 98 18162

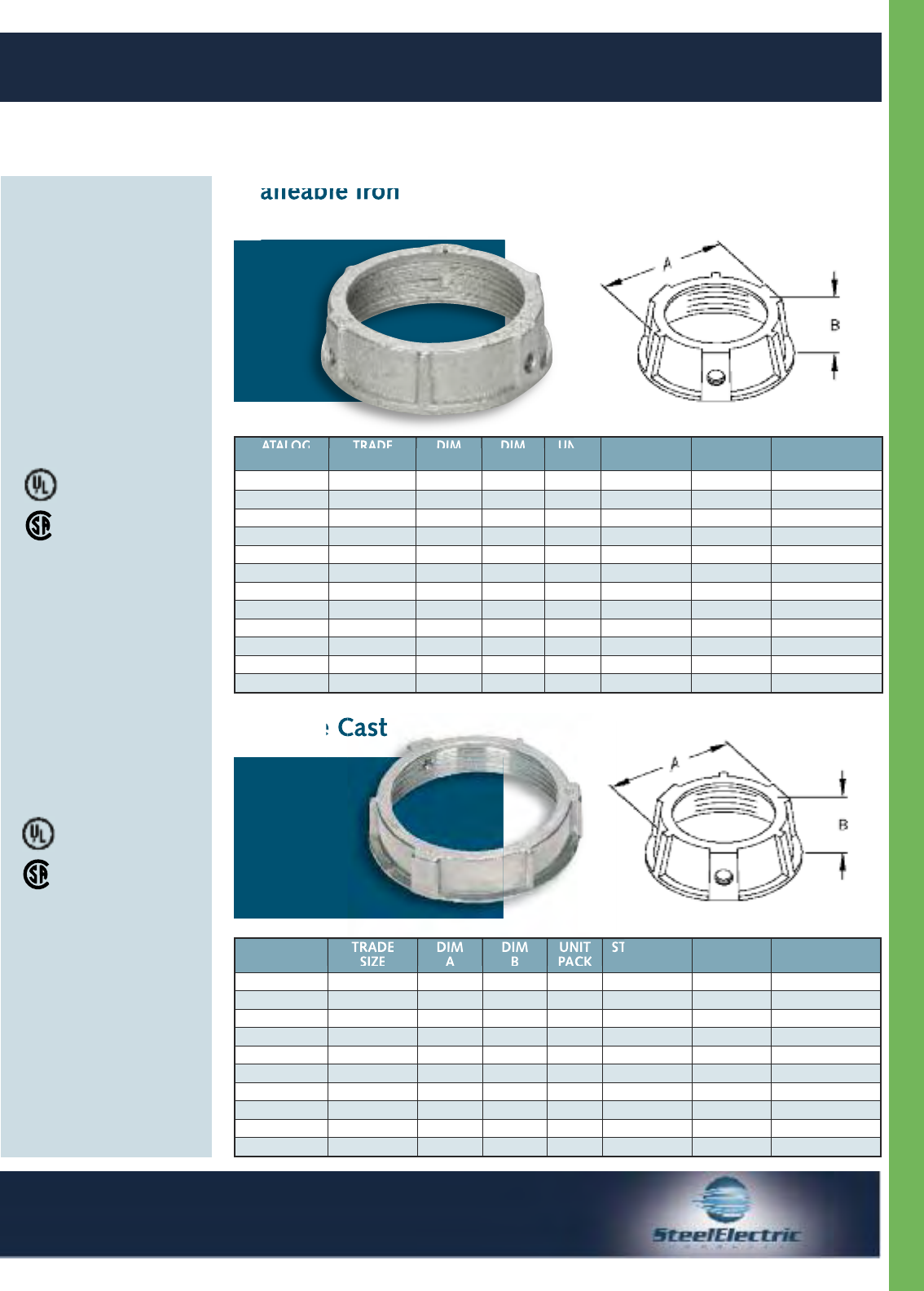

Malleable Iron and Zinc Conduit Bushings
Type 806
Type 806Z
RIGID-IMC FITTINGS
20
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Features:
• Bushings are supplied with
metal cap insert.
Standard Materials:
Zinc Die Cast
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated

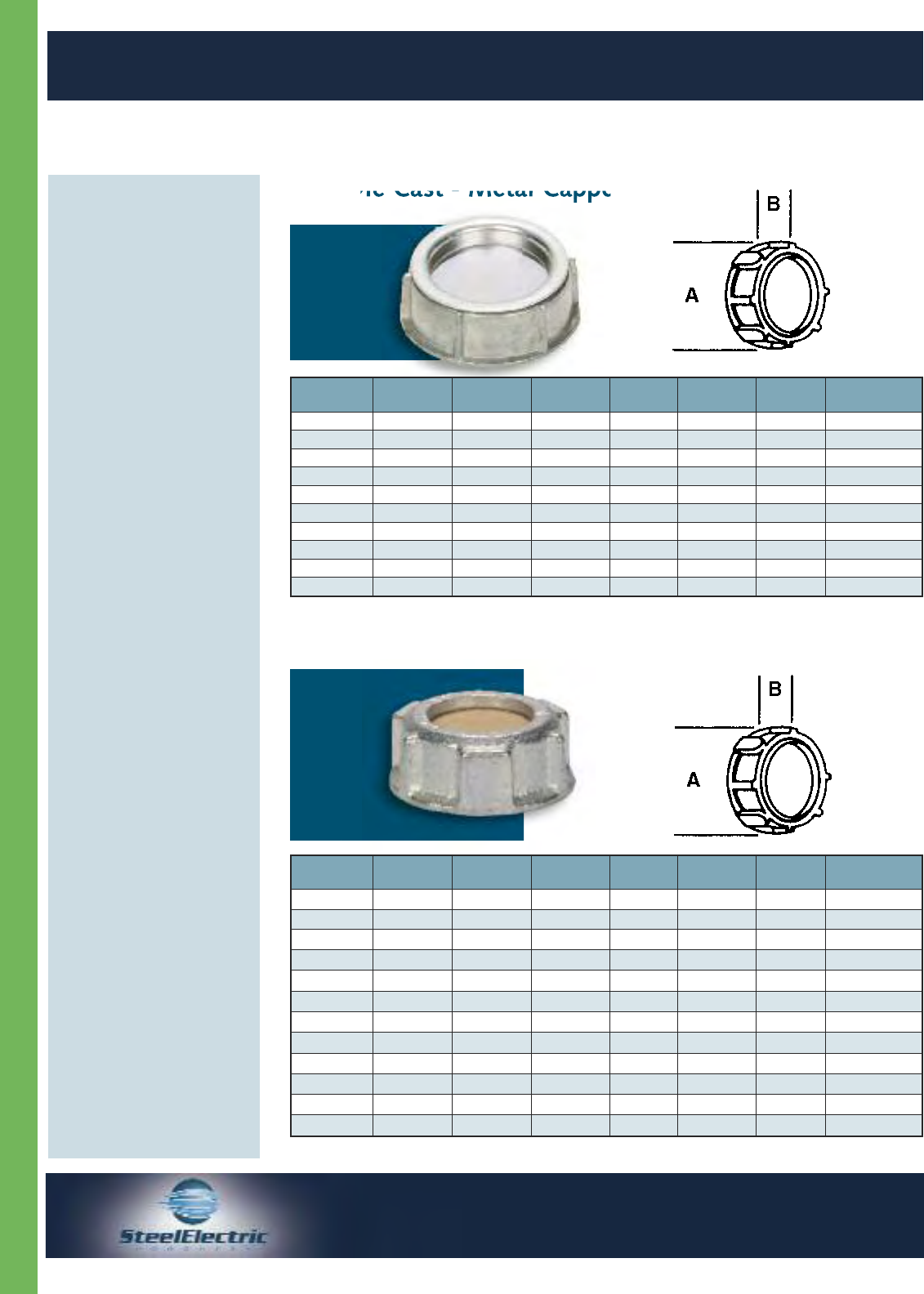

Conduit Capped Bushings
For Threaded Rigid Conduit and IMC
Zinc Die Cast - Metal Capped
Also available Zinc Die Cast bushing with paper cap. Please call factory.
Malleable Iron Bushings - Paper Capped
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
820Z 1/2” 1.15 0.47 100 1000 2 18202
821Z 3/4” 1.41 0.47 100 1000 4 18212
822Z 1” 1.68 0.54 50 500 6 18222
823Z 1-1/4” 1.94 0.60 25 250 9 18232
824Z 1-1/2” 2.20 0.62 25 250 13 18241
825Z 2” 2.80 0.62 - 25 17 18252
838Z 2-1/2” 3.32 0.93 - 25 35 18382
839Z 3” 3.94 0.93 10 100 48 18392
840Z 3-1/2” 4.45 0.94 5 25 57 18402
841Z 4” 5.00 0.97 5 25 81 18412
Also available Malleable Iron bushing with metal cap. Please call factory.
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
826 1/2” 1.06 0.38 100 1000 3 18261
827 3/4” 1.25 0.44 100 1000 5 18271
828 1” 1.56 0.50 50 500 7 18281
829 1-1/4” 2.00 0.63 25 250 9 18291
830 1-1/2” 2.19 0.63 25 250 13 18301
831 2” 2.63 0.63 - 25 19 18311
832 2-1/2” 3.19 0.75 - 25 35 18321
833 3” 3.81 0.94 - 25 40 18331
834 3-1/2” 4.44 0.94 - 25 50 18341
835 4” 4.94 1.06 - 25 95 18351
836 5” 6.00 1.19 - 10 100 18361
837 6” 7.38 1.31 - 10 110 18371
Type 820Z
Type 826
RIGID-IMC FITTINGS
21
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used to insert into zinc die cast
or malleable iron bushing.
Standard Materials:
Steel
Conduit Metal Pennies
For Threaded Rigid Conduit and IMC
Metal Pennies
CATALOG
NUMBER
TRADE
SIZE
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
530M 1/2” - 500 1 15301
531M 3/4” - 500 1 15311
532M 1” - 100 1 15321
533M 1-1/4” - 100 2 15331
534M 1-1/2” - 100 2 15341
535M 2” - 50 3 15351
536M 2-1/2” - 50 5 15361
537M 3” - 50 6 15371
538M 3-1/2” - 25 10 15381
539M 4” - 25 12 15391
559M 5” - 10 13 15591
569M 6” - 10 15 15691
Type 535M
RIGID-IMC FITTINGS
22
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

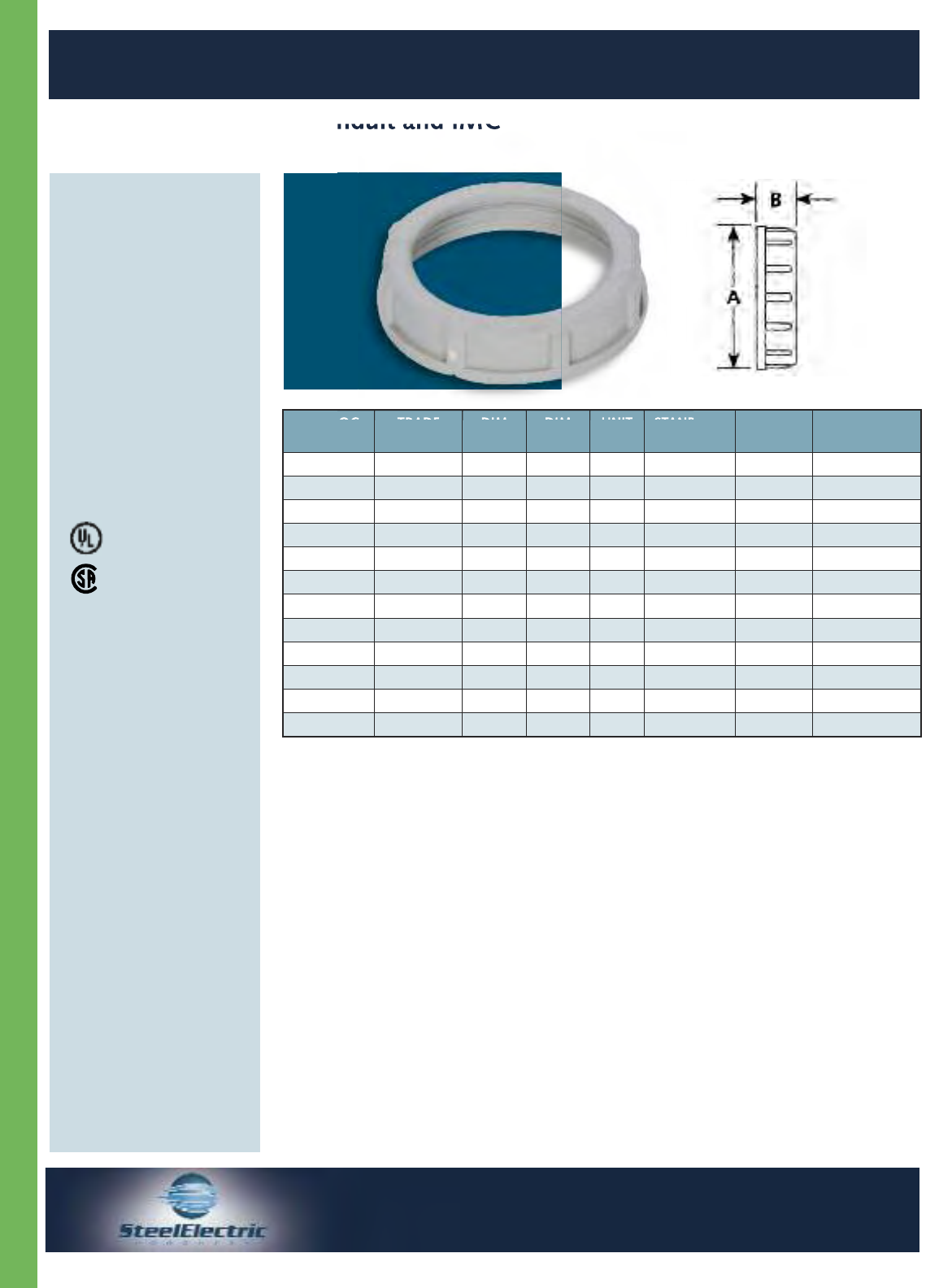

Application:
Threaded plastic bushings are
used at the end of threaded
conduit, or conduit connector,
to provide smooth well
rounded bearing surface for
wires or cables as required by
the National Electrical Code.
Features:
• Thermoplastic material-heat,
impact and torque
resistance
• Meets UL and CSA
specifications
Standard Materials:
Flame-Retardant
Polypropylene.
(Rated to 221° F, 105° C)
For Threaded Rigid Conduit and IMC
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
ST10 1/2” 1.03 0.37 100 1000 1 51068
ST11 3/4” 1.28 0.39 100 1000 1 51168
ST12 1” 1.65 0.50 50 500 2 51268
ST13 1-1/4” 2.10 0.49 25 250 2 51368
ST14 1-1/2”’ 2.28 0.49 25 250 4 51468
ST15 2” 2.66 0.54 - 100 5 51568
ST16 2-1/2”’ 3.31 0.63 - 25 6 51668
ST17 3” 3.95 0.70 - 25 7 51768
ST18 3-1/2” 4.41 0.71 - 25 8 51868
ST19 4” 4.94 0.73 - 25 9 51968
ST20 5” 6.38 1.00 - 5 32 52068
ST21 6” 7.50 0.99 - 5 40 52168
Plastic Bushings
Type ST10
RIGID-IMC FITTINGS
23
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

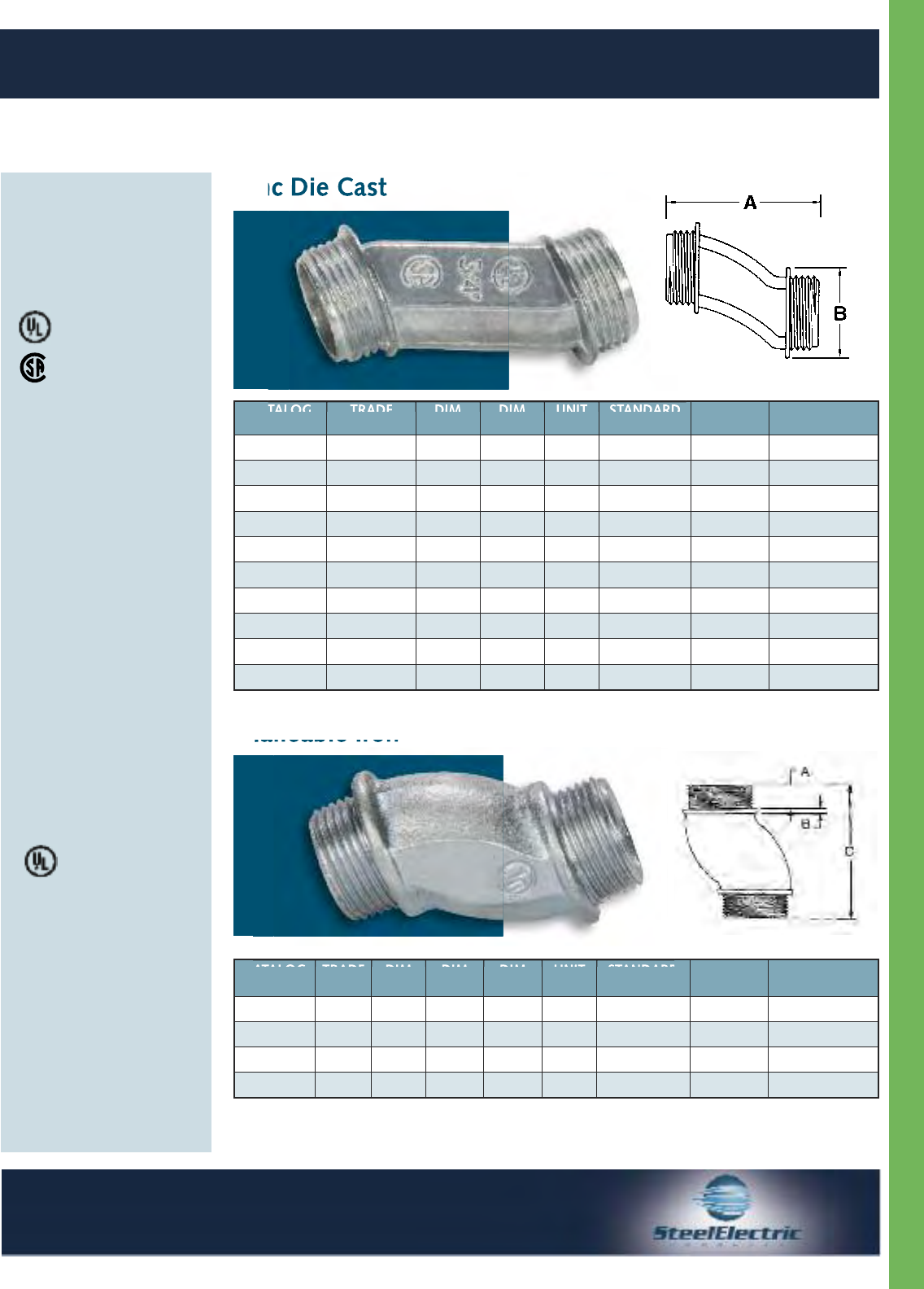

Application:
To offset the axis of raceways
3/4 of an inch.
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Standard Materials:
Malleable Iron
Material/Finish:
Zinc Plated
UL Listed:
E207875
Offset Conduit Nipples
For Rigid Conduit and IMC
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C41 1/2” 2.440 0.940 10 100 12 13412
C42 3/4” 2.560 1.150 10 100 16 13422
C43 1” 2.750 1.420 10 100 22 13432
C44 1-1/4” 2.880 1.850 5 50 34 13442
C45 1-1/2” 3.060 2.070 5 50 46 13452
C46 2” 3.120 2.600 2 20 66 13462
C465 2-1/2” 3.500 2.980 -2 97 13465
C466 3” 3.850 3.360 - 1 184 13475
C467 3-1/2” 5.000 4.477 - 1 200 13485
C468 4” 5.000 4.960 - 1 222 13495
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
OSN50 1/2” 0.438 0.125 2.250 10 100 22 13991
OSN75 3/4” 0.500 0.125 2.438 10 100 30 13993
OSN100 1” 0.563 0.125 2.500 10 100 42 13995
OSN125 1-1/4” 0.625 0.125 2.625 5 50 70 13997
Malleable Iron
Zinc Die Cast
®
Type C41
Type OSN50
C US
RIGID-IMC FITTINGS
24
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

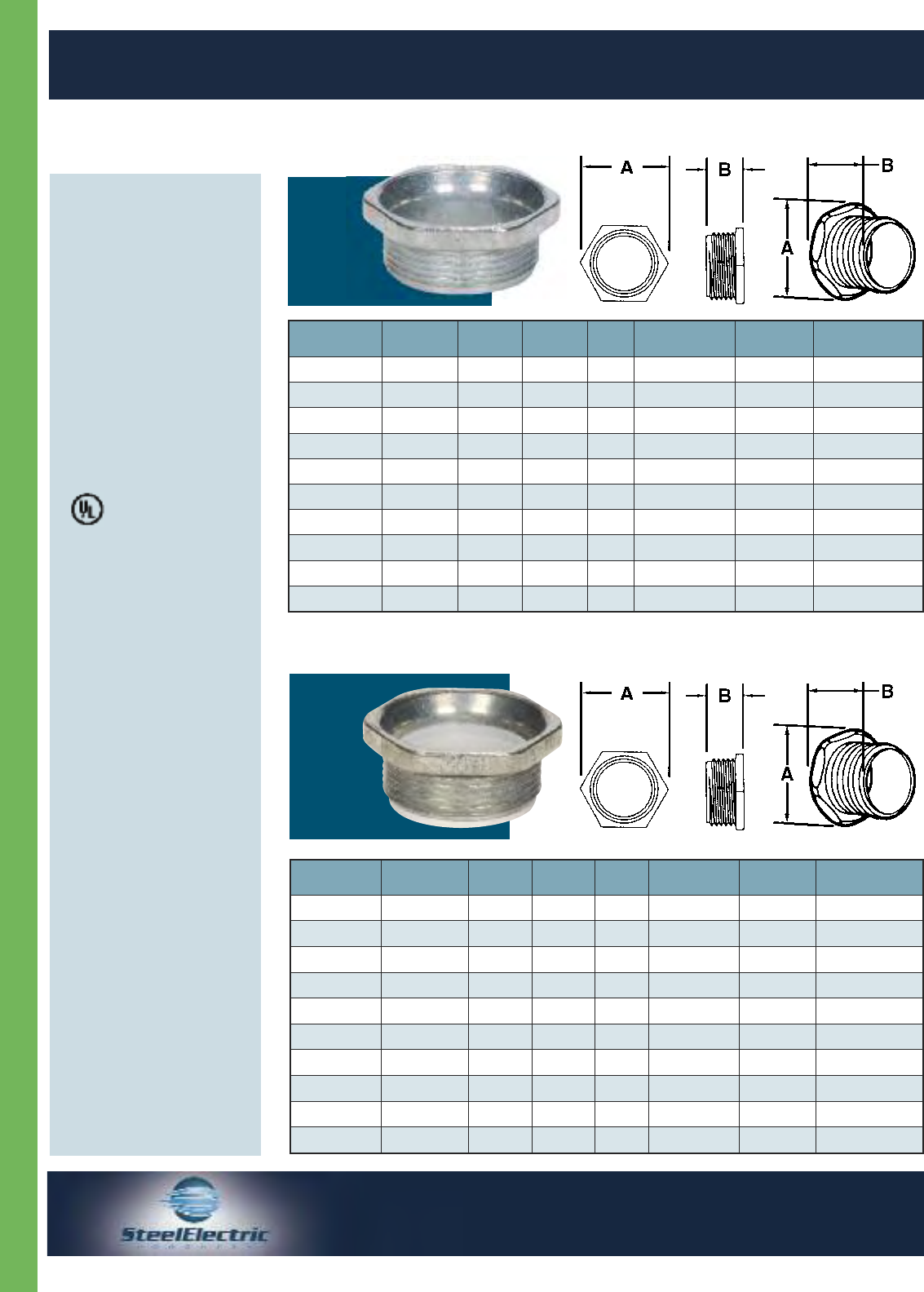

Application:
Use through knockout to
connect box to conduit
coupling. Use with a locknut
to connect two boxes side
by side or back to back.
Use with a locknut to connect
fixture housing to continuous
runs.
Features:
• Available with insulated
Throat.
• With rigid conduit threads
(NPS)
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
For Threaded Rigid Conduit and IMC
Insulated Throat
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
90Z 1/2” 1.02 0.68 100 1000 4 19002
91Z 3/4” 1.29 0.75 50 500 6 19102
92Z 1” 1.53 0.87 25 250 10 19202
93Z 1-1/4” 1.89 0.94 25 250 14 19302
94Z 1-1/2” 2.30 0.91 25 100 20 19402
95Z 2” 2.88 1.07 10 40 32 19502
96Z 2-1/2” 3.39 1.38 10 40 43 19602
97Z 3” 4.06 1.44 10 40 55 19702
98Z 3-1/2” 4.61 1.47 10 40 68 19802
99Z 4” 5.15 1.47 5 20 70 19902
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
90ZT 1/2” 1.02 0.68 100 1000 4 19004
91ZT 3/4” 1.29 0.75 50 500 6 19104
92ZT 1” 1.53 0.87 25 250 10 19204
93ZT 1-1/4” 1.89 0.94 25 250 14 19304
94ZT 1-1/2” 2.30 0.91 25 100 20 19404
95ZT 2” 2.88 1.07 10 40 32 19504
96ZT 2-1/2” 3.39 1.38 10 40 43 19604
97ZT 3” 4.06 1.44 10 40 55 19704
98ZT 3-1/2” 4.61 1.47 10 40 68 19804
99ZT 4” 5.15 1.47 5 20 70 19904
Zinc Conduit Nipples
C US
Type 90Z
Type 90ZT
RIGID-IMC FITTINGS
25
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Use through knockout to
connect box to conduit
coupling. Use with a locknut to
connect two boxes side by side
or back to back. Use with a
locknut to connect fixture
housing to continuous runs.
Features:
• Available with insulated
Throat.
• With rigid conduit threads
(NPS)
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E155411

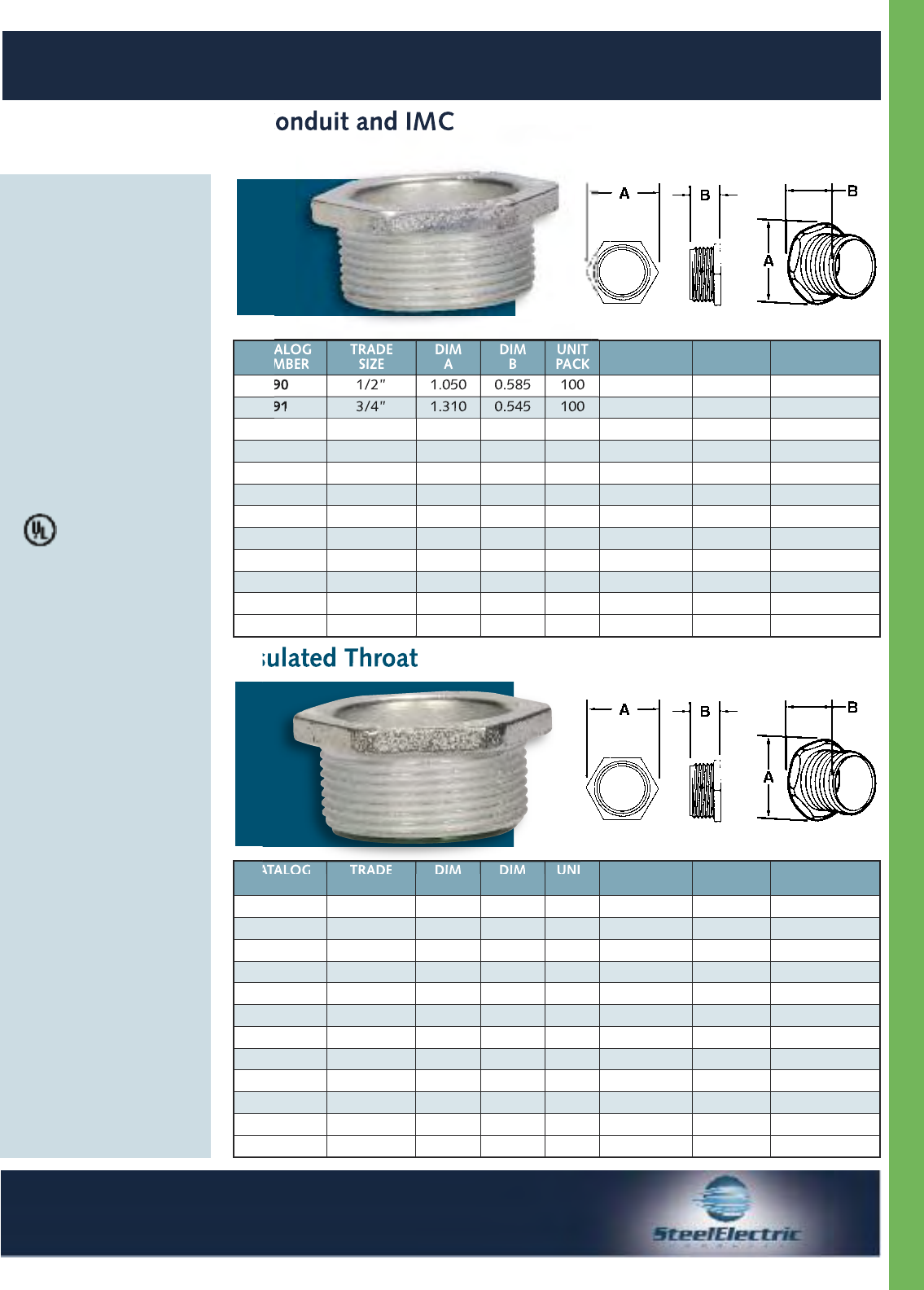

Malleable Iron Conduit Nipples
For Threaded Rigid Conduit and IMC
Insulated Throat
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
90T 1/2” 1.050 0.585 100 1000 6 19003
91T 3/4” 1.310 0.545 100 1000 8 19103
92T 1” 1.640 0.710 50 500 15 19203
93T 1-1/4” 2.095 0.840 25 250 24 19303
94T 1-1/2” 2.410 0.835 - 25 28 19403
95T 2” 2.945 0.900 - 25 38 19503
96T 2-1/2” 3.955 1.200 - 15 72 19603
97T 3” 4.390 1.490 - 10 125 19703
98T 3-1/2” 4.925 1.395 - 10 166 19803
99T 4” 5.420 1.395 - 10 202 19903
995T 5” 6.950 1.800 - 5 336 19953
996T 6” 8.370 2.165 - 5 448 19963
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
90 1/2” 1.050 0.585 100 1000 6 19001
91 3/4” 1.310 0.545 100 1000 8 19101
92 1” 1.640 0.710 50 500 15 19201
93 1-1/4” 2.095 0.840 25 250 24 19301
94 1-1/2” 2.410 0.835 - 25 28 19401
95 2” 2.945 0.900 - 25 38 19501
96 2-1/2” 3.955 1.200 - 15 71 19601
97 3” 4.390 1.490 - 10 124 19701
98 3-1/2” 4.925 1.395 - 10 163 19801
99 4” 5.420 1.395 - 10 199 19901
995 5” 6.950 1.800 - 5 331 19951
996 6” 8.370 2.165 - 5 441 19961
C US
Type 90
Type 90T
RIGID-IMC FITTINGS
26
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

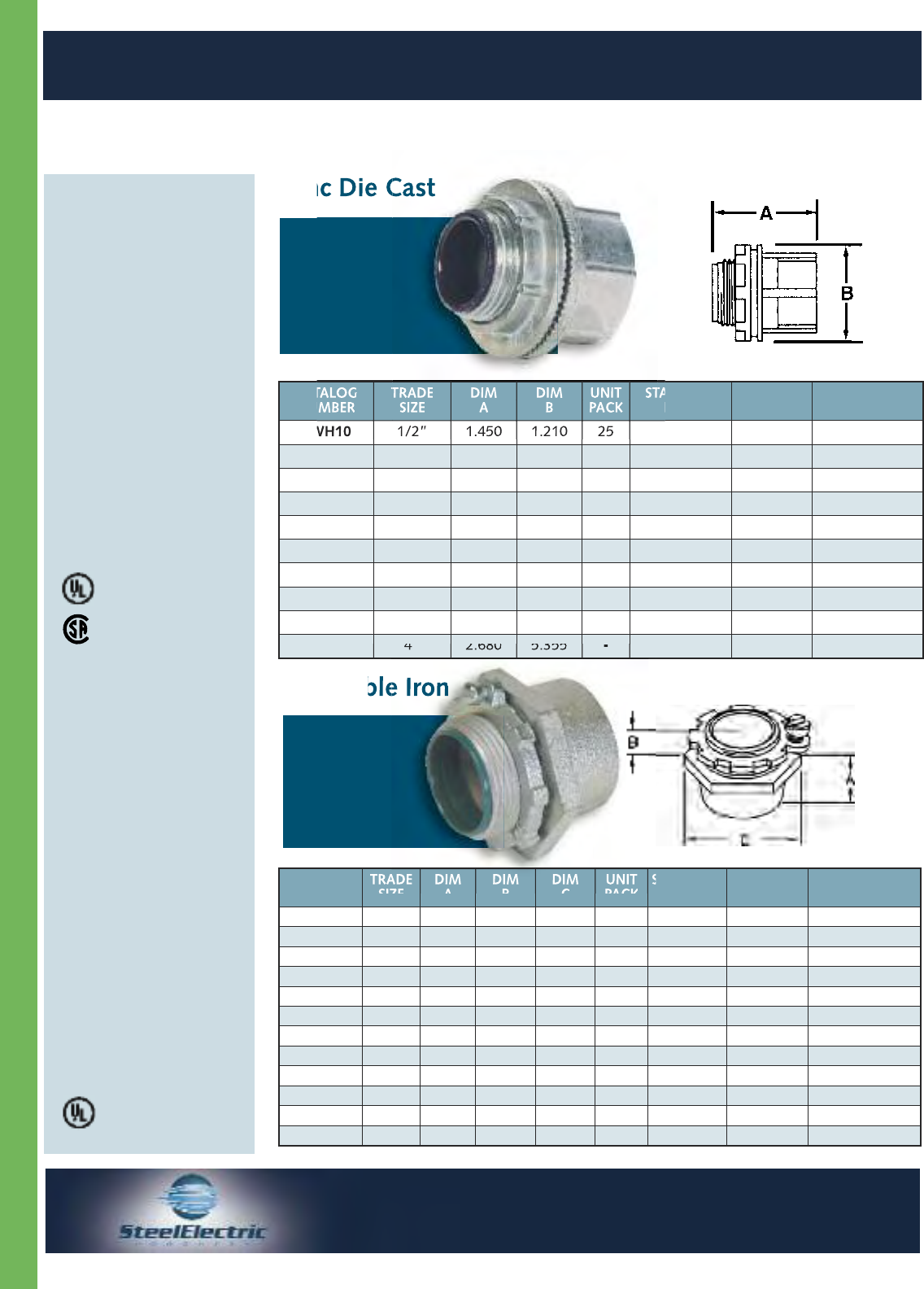

Application:
To secure threaded rigid
service entrance conduit to box
or enclosure. Insulated throat
rated 105° C. BUNA-N sealing
ring completely encircles
knockout to prevent
contaminants from entering
enclosure.
Features:
• Assembled with 105°C rated
flame retardant Lexan throat
insulator and BUNA-N seal-
ing ring.
• UL Listed and CSA Certified
for use in wet locations.
• Meets NEMA sealing require-
ments for Type 2, 3, 3R, 4,
4X, 5, 12, and 13 enclosures.
• Certified for use in hazardous
locations, Class II, Groups E,
F, G and Class III.
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA Certified: C5F17
Note:
Minimum wall thickness that
can be accommodated is 1⁄32
Application:
General Purpose Fitting.
Insulated Throat form with
Bonding Screw.
Features:
• Male thread type
• Tapered female thread for
rigid conduit and IMC
• Recessed O-ring seal assures
watertight and dust tight
connections.
• Insulated throat and bonding
locknut is suitable for service
entrance application.
• Suitable for use in hazardous
locations as follows: Class I,
Div. 2 Class II, Div. I, 2 Class
III, Div. I, 2 Per NEC 501-4 (b),
502-4 (a), 503-3 (a)
Material/Finish:
Malleable Iron/Zinc Plated
UL Listed:
E207875
For Threaded Rigid Conduit and IMC
Malleable Iron
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
TWH10 1/2” 1.450 1.210 25 250 16 70010
TWH20 3/4” 1.570 1.430 25 250 22 70020
TWH30 1” 1.865 1.850 10 100 41 70030
TWH40 1-1/4” 1.985 2.280 5 25 55 70040
TWH50 1-1/2” 2.040 2.555 2 20 68 70050
TWH60 2” 2.150 3.060 2 20 95 70060
TWH70 2-1/2” 2.550 3.580 - 10 165 70070
TWH80 3” 2.625 4.190 - 5 216 70080
TWH90 3-1/2” 2.655 4.780 - 5 260 70090
TWH100 4” 2.680 5.355 - 5 338 70100
Watertight Conduit Hubs
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
CHM50 1/2” 0.813 0.625 1.500 25 250 18 70870
CHM75 3/4” 0.938 0.625 1.813 25 250 25 70871
CHM100 1” 1.063 0.750 2.063 10 100 39 70872
CHM125 1-1/4” 1.250 0.750 2.625 5 25 54 70873
CHM150 1-1/2” 1.250 0.813 3.125 2 20 64 70874
CHM200 2” 1.250 0.813 3.563 2 20 98 70875
CHM250 2-1/2” 1.625 1.188 4.125 - 10 196 70876
CHM300 3” 1.750 1.250 4.938 - 5 282 70877
CHM350 3-1/2” 1.813 1.313 5.750 - 5 351 70878
CHM400 4” 1.938 1.375 6.188 - 5 395 70879
CHM500 5” 2.063 1.438 7.625 - 1 717 70880
CHM600 6” 2.125 1.563 8.813 - 1 888 70881
Zinc Die Cast
C US
Type TWH20
Type CHM50
RIGID-IMC FITTINGS
27
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

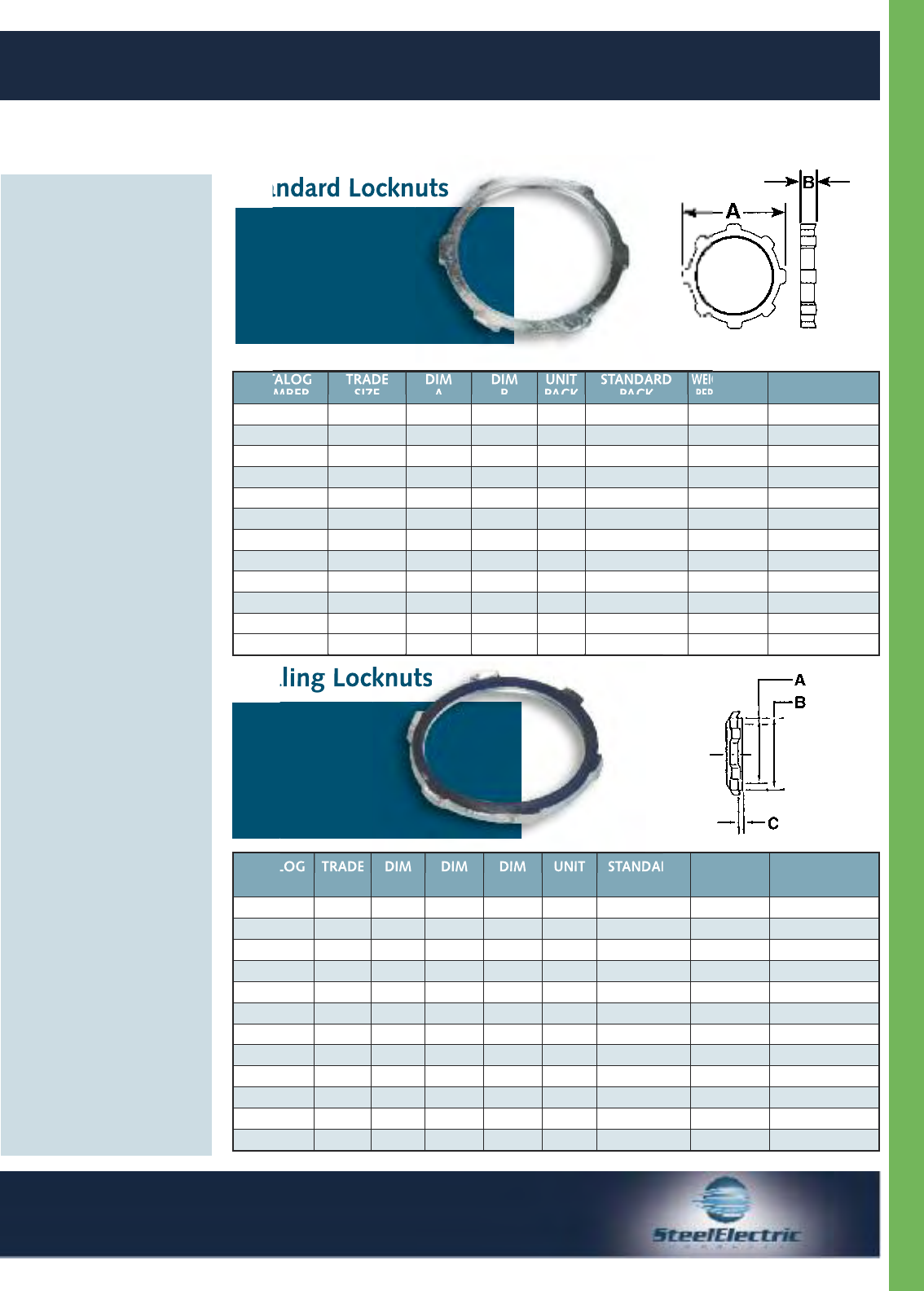

Application:
Conduit locknuts for securing
threaded conduit or connectors
with tapered or straight thread,
to a knockout or unthreaded
slip hole.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
Application:
Sealing locknuts provide a
raintight seal when securing
threaded conduit or connectors
with tapered or straight thread,
to a knockout or unthreaded
slip hole of a box or enclosure.
Installed as per the National
Electrical Code Article
345-Intermediate Metal
Conduit and Article 346-Rigid
Metal Conduit
Standard Materials:
Steel/Neoprene Gasket
Standard Finish:
Zinc Plated
For Threaded Rigid Conduit and IMC
Sealing Locknuts
Standard Conduit Locknuts
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
706P 1/2” 0.780 0.970 0.110 100 1000 1 17063
707P 3/4” 1.100 1.210 0.100 100 1000 2 17073
708P 1” 1.270 1.520 0.090 50 500 4 17083
709P 1-1/4” 1.550 1.860 0.110 - 100 6 17093
710P 1-1/2” 1.820 2.100 0.120 - 100 7 17103
711P 2” 2.300 2.610 0.120 - 50 10 17113
712P 2-1/2” 2.820 3.180 0.140 - 20 14 17123
713P 3” 3.450 3.870 0.200 - 10 19 17115
714P 3-1/2” 3.950 4.400 0.200 - 10 23 17116
715P 4” 4.450 4.930 0.210 - 10 27 17117
716P 5” 6.515 6.223 0.975 - 10 90 17118
717P 6” 7.785 7.225 1.100 - 10 100 17119
Standard Locknuts
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
706 1/2” 1.13 0.13 100 3000 1 17061
707 3/4” 1.40 0.13 100 1000 2 17071
708 1” 1.72 0.15 50 500 3 17081
709 1-1/4” 2.08 0.15 100 1000 4 17091
710 1-1/2 2.40 0.16 100 1000 6 17101
711 2” 2.90 0.17 50 500 8 17111
712 2-1/2” 3.48 0.19 50 250 14 17121
713 3” 4.13 0.18 25 250 18 17131
714 3-1/2” 4.70 0.20 25 125 23 17141
715 4” 5.32 0.20 - 25 26 17151
716 5” 6.38 0.42 - 10 60 17161
717 6” 7.75 0.43 - 10 70 17171
Type 707
Type 706P
RIGID-IMC FITTINGS
28
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

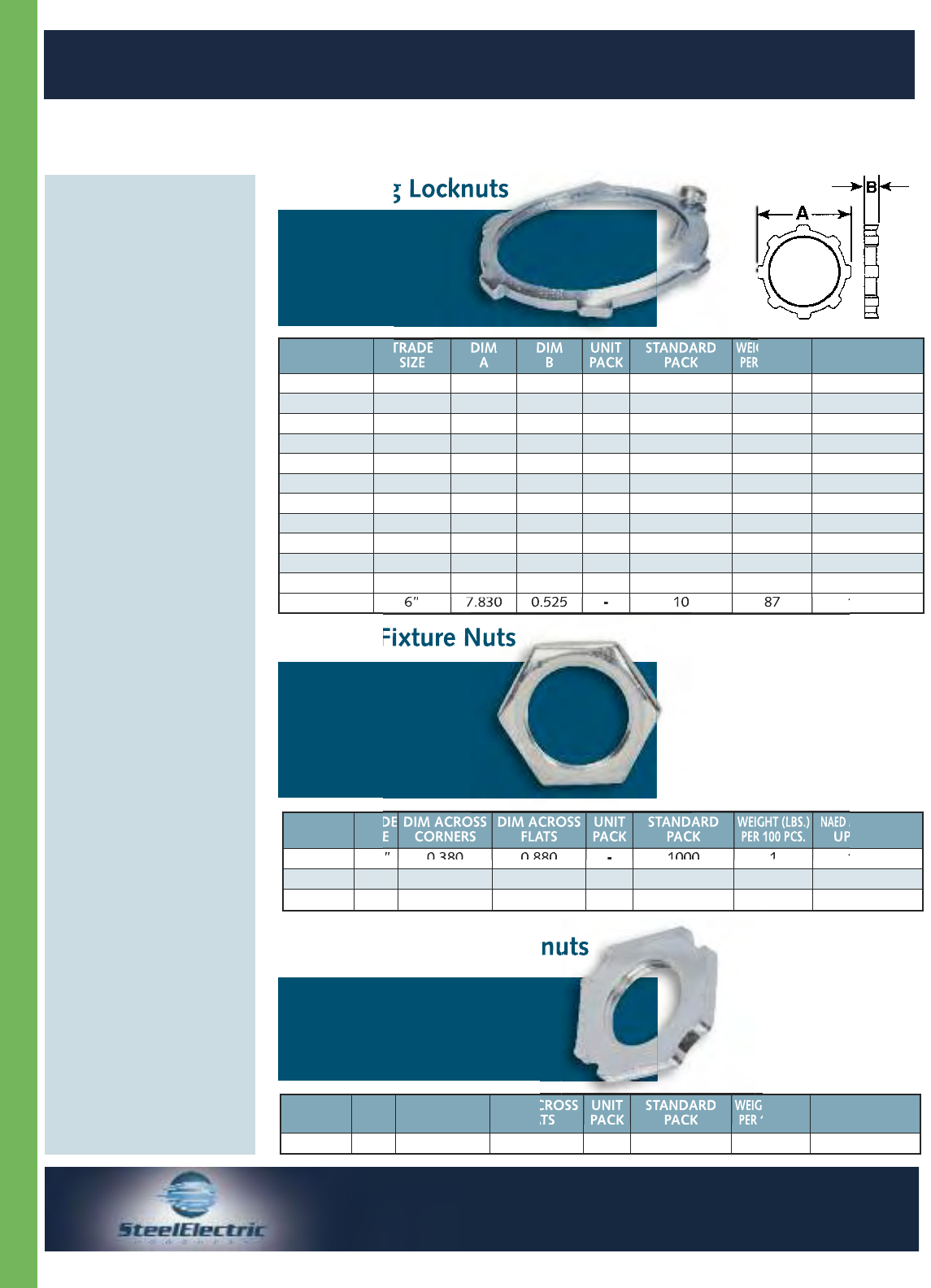

Application:
Used with bushings to bond
threaded rigid conduit and
IMC to boxes, cabinets or
other enclosures where
locknut is exposed.
Standard Material:
Steel
Standard Material:
Zinc Plated
Application:
Used with a fixture nipple to
hang fixtures.
Standard Material:
Steel
Standard Material:
Zinc Plated
Application:
Used with a fixture nipple to
hang fixtures.
Standard Material:
Steel
Standard Material:
Zinc Plated
For Threaded Rigid Conduit and IMC
Conduit Oversize Locknuts
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
GL70 1/2” 1.250 0.220 100 1000 3 17704
GL71 3/4” 1.450 0.260 100 1000 4 17714
GL72 1” 1.720 0.245 50 500 5 17724
GL73 1-1/4” 2.020 0.240 50 500 6 17734
GL74 1-1/2” 2.535 0.250 50 500 8 17744
GL75 2” 2.950 0.250 25 250 13 17754
GL76 2-1/2” 3.570 0.280 10 100 19 17764
GL77 3” 4.330 0.295 10 100 21 17774
GL78 3-1/2” 4.810 0.310 10 100 38 17784
GL79 4” 5.395 0.300 10 100 40 17794
GL80 5” 6.487 0.525 - 10 76 17804
GL81 6” 7.830 0.525 - 10 87 17814
Standard Conduit Locknuts
Conduit Fixture Nuts
Grounding Locknuts
CATALOG
NUMBER
TRADE
SIZE
DIM ACROSS
CORNERS
DIM ACROSS
FLATS
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
703 1/8” 0.380 0.880 - 1000 1 17031
704 1/4” 0.750 0.690 - 500 1 17041
705 3/8” 1.038 1.006 - 500 1 17051
CATALOG
NUMBER
TRADE
SIZE
DIM ACROSS
CORNERS
DIM ACROSS
FLATS
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
705X 3/8” 1.038 1.006 - 250 1 17052
Type GL75
Type 703
Type 705X
RIGID-IMC FITTINGS

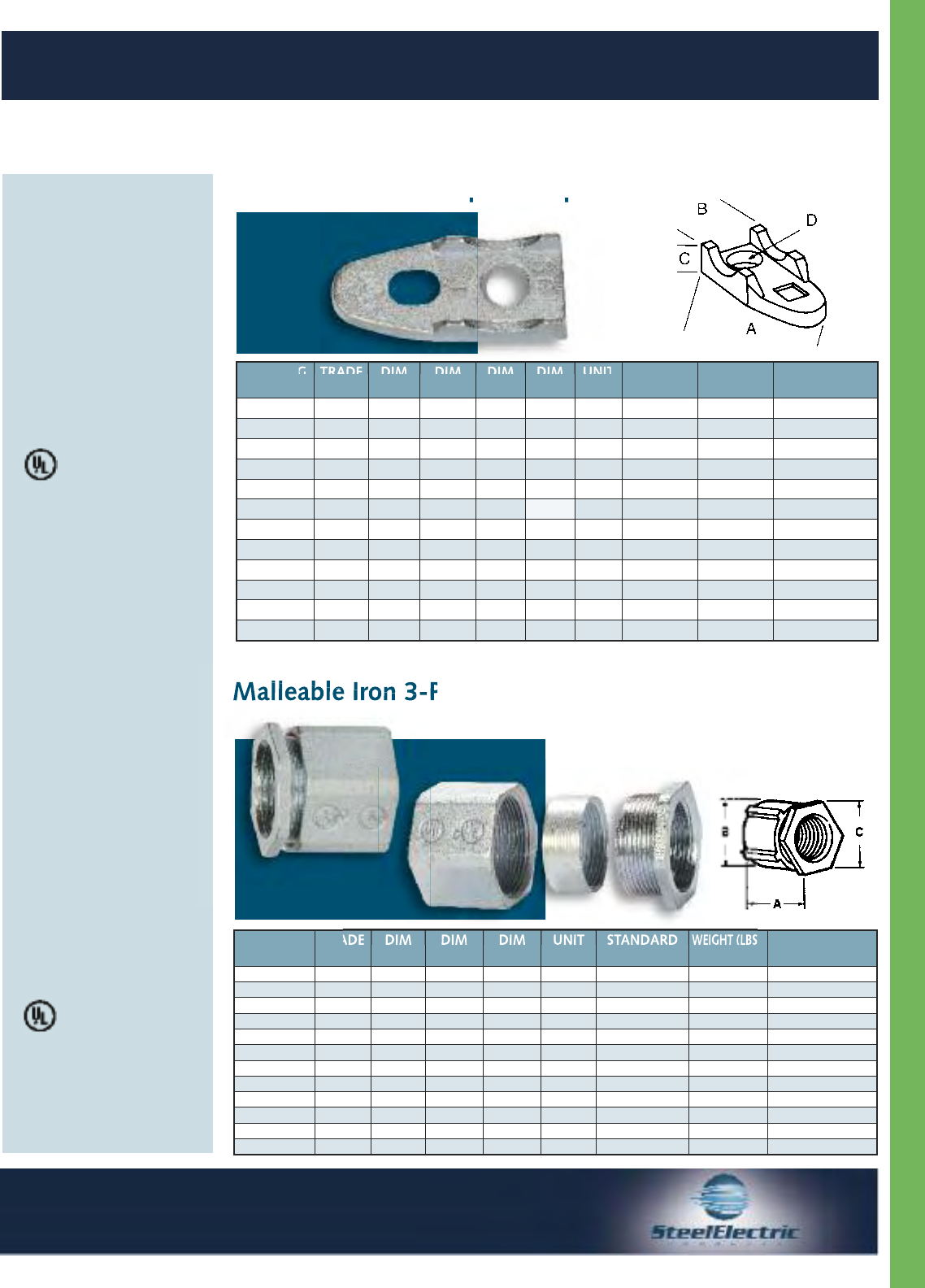

Application:
Provides space between
conduit and mounting surface,
for use with malleable iron or
aluminum straps.
Features:
• Heavy Duty Casting
• Can be used with one hole
straps.
Standard Material:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E213669
Application:
Used to join two lengths of
threaded conduit.
Features:
• Threaded (NPS) for rigid
conduit and IMC
• Concrete tight
Standard Material:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Threaded Rigid Conduit and IMC
Malleable Iron 3-Piece Couplings
Clamp Back Spacers and 3-Piece Couplings
Malleable Iron Clamp Back Spacers
C US
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
900 1/2” 2.000 1.000 0.500 0.313 100 1000 8 89009
901 3/4” 2.300 1.060 0.500 0.313 100 500 12 89011
902 1” 2.320 1.250 0.560 0.375 50 500 16 89021
903 1-1/4” 3.430 1.870 0.750 0.438 50 250 22 89031
904 1-1/2” 3.810 1.870 0.810 0.438 - 25 35 89041
905 2” 4.750 1.920 1.000 0.563 - 25 51 89051
906 2-1/2” 5.750 2.410 1.000 0.563 - 25 81 89061
907 3” 6.780 2.620 1.000 0.563 - 25 83 89071
908 3-1/2” 7.120 2.870 1.060 0.750 - 20 148 89081
909 4” 8.830 3.060 1.060 0.750 - 10 199 89091
910 5” 10.125 3.750 1.188 0.750 - 10 344 89092
911 6” 12.188 4.000 1.500 0.750 - 10 419 89093
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1022 1/2” 1.38 1.36 1.36 20 200 26 10221
1023 3/4” 1.63 1.58 1.58 10 100 37 10231
1024 1” 1.81 1.89 1.89 - 20 55 10241
1025 1-1/4” 2.19 2.38 2.38 - 20 111 10251
1026 1-1/2” 2.31 2.83 2.83 - 10 172 10261
1027 2” 2.44 3.29 3.29 - 10 203 10271
1028 2-1/2” 3.19 4.08 4.08 2 10 327 10281
1029 3” 3.31 4.67 4.67 2 10 442 10291
1030 3-1/2” 3.50 5.07 5.07 1 5 608 10301
1031 4” 3.75 5.75 5.75 1 5 718 10311
1005 5” 3.69 6.88 7.50 - 1 1050 10051
1006 6” 4.31 8.00 8.00 - 1 1250 10061
Type 1023
Type 901
29
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
RIGID-IMC FITTINGS
30
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To connect threadless rigid
conduit to boxes and
enclosures.
Features:
• Concrete tight Male Hub
Threads
• NPSM Thread 1⁄2" through 2"
• NPT Thread above 2"
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875

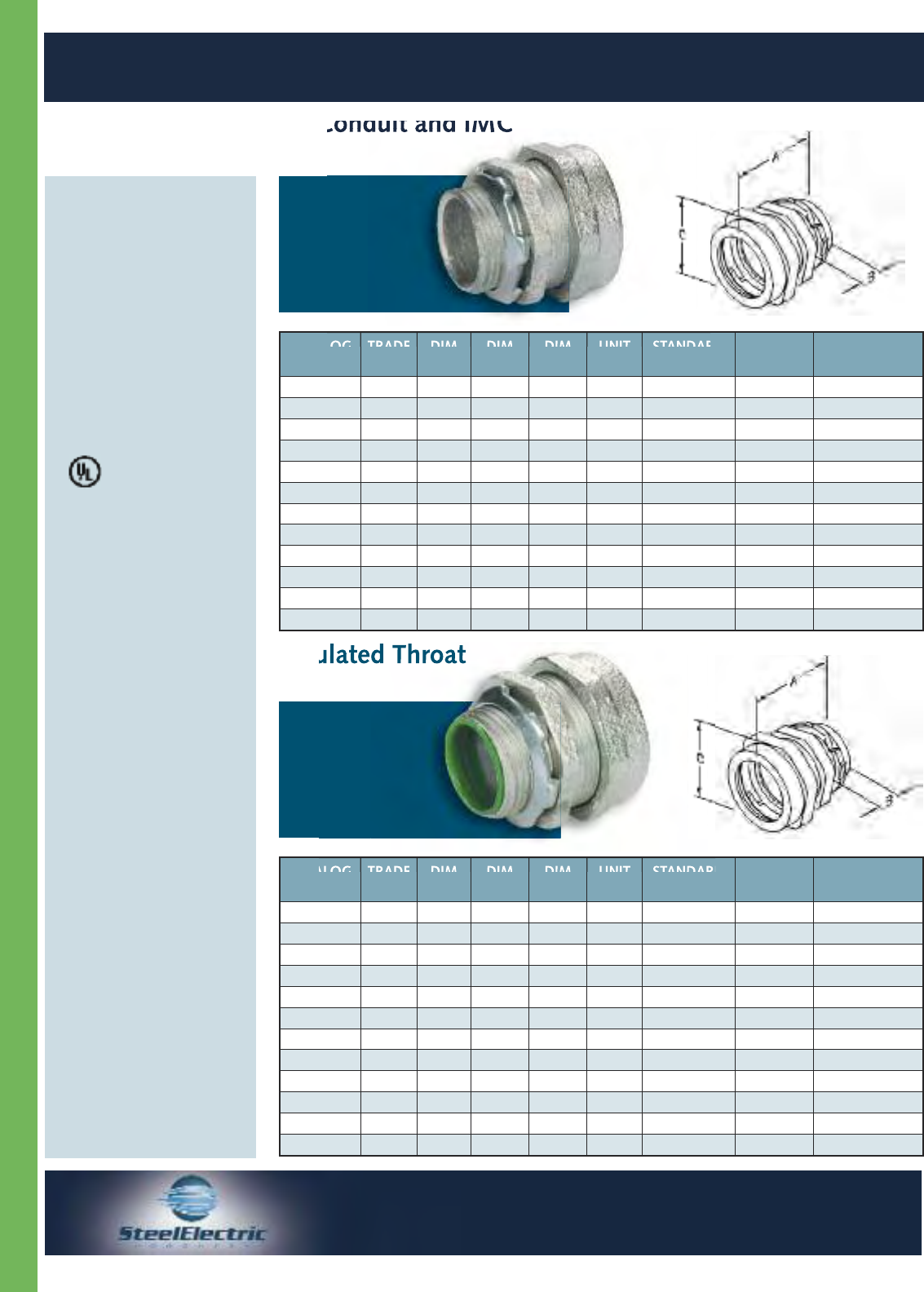

For Threadless Rigid Conduit and IMC
Malleable Iron Rigid Compression Connectors
Insulated Throat
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
NTC-50 1/2” 1.500 0.500 1.500 25 250 20 14213
NTC-75 3/4” 1.500 0.500 1.625 25 250 22 14223
NTC-100 1” 1.688 0.563 2.000 10 100 34 14233
NTC-125 1-1/4” 2.000 0.688 2.375 5 50 52 14243
NTC-150 1-1/2” 2.063 0.688 2.625 2 20 65 14253
NTC-200 2” 2.250 0.875 3.313 5 25 107 14263
NTC-250 2-1/2” 2.936 1.250 3.750 1 10 243 14273
NTC-300 3” 3.125 1.375 4.250 1 5 295 14283
NTC-350 3-1/2” 3.125 1.375 4.750 1 5 383 14293
NTC-400 4” 3.375 1.500 5.313 1 5 467 14294
NTC-500 5” 4.250 1.818 6.016 - 1 760 14295
NTC-600 6” 4.563 2.000 7.625 - 1 1100 14296
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
NTC-50T 1/2” 1.563 0.563 1.500 25 250 21 14214
NTC-75T 3/4” 1.563 0.563 1.625 25 250 23 14224
NTC-100T 1” 1.750 0.625 2.000 10 100 34 14234
NTC-125T 1-1/4” 2.000 0.688 2.375 5 50 53 14244
NTC-150T 1-1/2” 2.125 0.750 2.625 2 20 66 14254
NTC-200T 2” 2.313 0.813 3.313 5 25 114 14264
NTC-250T 2-1/2” 3.000 1.313 3.750 1 10 245 14265
NTC-300T 3” 3.125 1.438 4.250 1 5 298 14266
NTC-350T 3-1/2” 3.188 1.500 4.750 1 5 387 14267
NTC-400T 4” 3.438 1.563 5.313 1 5 472 14268
NTC-500T 5” 4.283 1.965 6.016 - 1 787 14269
NTC-600T 6” 4.613 2.125 7.625 - 1 1110 14270
C US
Type NTC-50
Type NTC-50T
RIGID-IMC FITTINGS
31
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To couple sections of
threadless rigid conduit
together
Features:
• Concrete tight
Standard Materials:
Malleable Iron
Standard Finish
Zinc Plated
UL Listed:
E207875
For Threadless Rigid Conduit and IMC
Malleable Iron Rigid Compression Couplings
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
NTCC-50 1/2” 1.813 0.500 1.500 25 250 30 14413
NTCC-75 3/4” 1.875 0.500 1.625 10 100 32 14414
NTCC-100 1” 2.188 0.563 2.000 5 50 44 14415
NTCC-125 1-1/4” 2.625 0.688 2.375 5 50 78 14416
NTCC-150 1-1/2” 2.688 0.750 2.625 2 20 93 14417
NTCC-200 2” 3.063 0.938 3.313 5 25 159 14418
NTCC-250 2-1/2” 4.500 2.000 3.750 1 10 277 14473
NTCC-300 3” 4.938 2.250 4.250 1 5 393 14483
NTCC-350 3-1/2” 5.000 2.250 4.750 1 5 547 14493
NTCC-400 4” 5.625 2.438 5.313 1 5 626 14494
NTCC-500 5” 6.250 2.713 6.016 - 1 1220 14423
NTCC-600 6” 6.875 2.975 7.625 - 1 1300 14424
Type NTCC-50
RIGID-IMC FITTINGS
32
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To connect threadless rigid
conduit to boxes and
enclosures.
Features:
• Concrete tight
• Available with insulated throat
• Male hub thread (NPS)
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Threadless Rigid Conduit and IMC

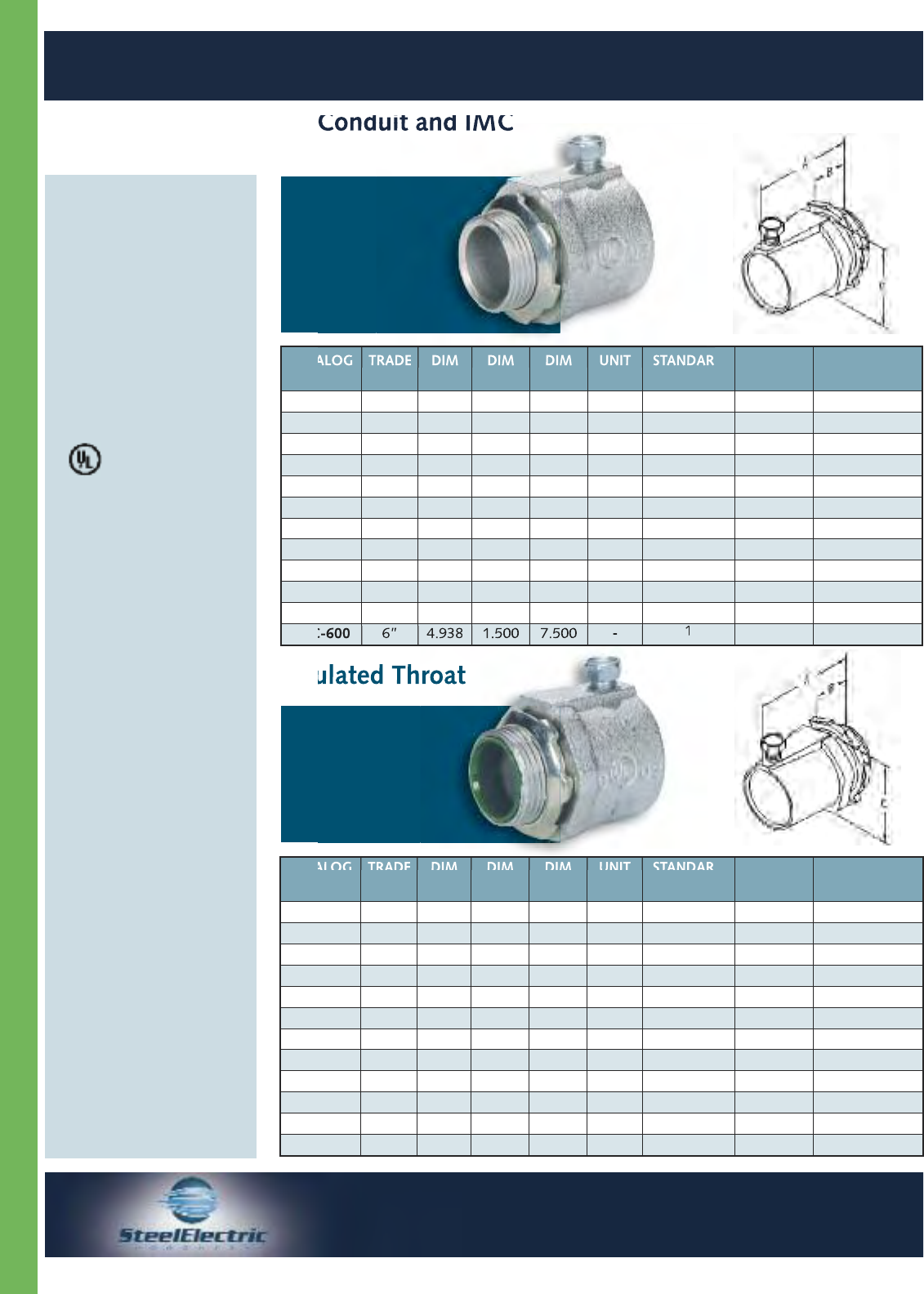

Malleable Iron Rigid Set-Screw Connectors
Insulated Throat
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
TRC-50 1/2” 1.375 0.438 1.313 25 250 13 70830
TRC-75 3/4” 1.688 0.500 1.563 25 100 21 70831
TRC-100 1” 1.938 0.563 1.875 5 25 38 70832
TRC-125 1-1/4” 2.188 0.625 2.188 5 25 44 70833
TRC-150 1-1/2” 2.313 0.625 2.500 5 20 67 70834
TRC-200 2” 2.438 0.625 2.938 2 10 105 70835
TRC-250 2-1/2” 3.188 0.750 3.625 2 10 190 70836
TRC-300 3” 3.813 0.875 4.250 1 5 272 70837
TRC-350 3-1/2” 4.313 0.938 4.688 1 5 367 70838
TRC-400 4” 4.625 0.938 5.188 1 5 427 70839
TRC-500 5” 4.750 1.375 6.500 - 1 695 70890
TRC-600 6” 4.938 1.500 7.500 - 1911 70900
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
TRC-50T 1/2” 1.375 0.500 1.313 25 250 14 70840
TRC-75T 3/4” 1.688 0.563 1.563 25 100 22 70841
TRC-100T 1” 1.938 0.625 1.875 5 25 39 70842
TRC-125T 1-1/4” 2.188 0.688 2.188 5 25 54 70843
TRC-150T 1-1/2” 2.313 0.688 2.500 5 20 70 70844
TRC-200T 2” 2.438 0.688 2.938 2 10 106 70845
TRC-250T 2-1/2” 3.188 0.813 3.625 2 10 191 70846
TRC-300T 3” 3.813 0.938 4.250 1 5 280 70847
TRC-350T 3-1/2” 4.313 1.000 4.688 1 5 380 70848
TRC-400T 4” 4.500 1.000 5.188 1 5 455 70849
TRC-500T 5” 4.688 1.438 6.500 - 1 701 70170
TRC-600T 6” 4.938 1.563 7.500 - 1 920 70180
C US
Type TRC-50
Type TRC-50T
RIGID-IMC FITTINGS
33
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

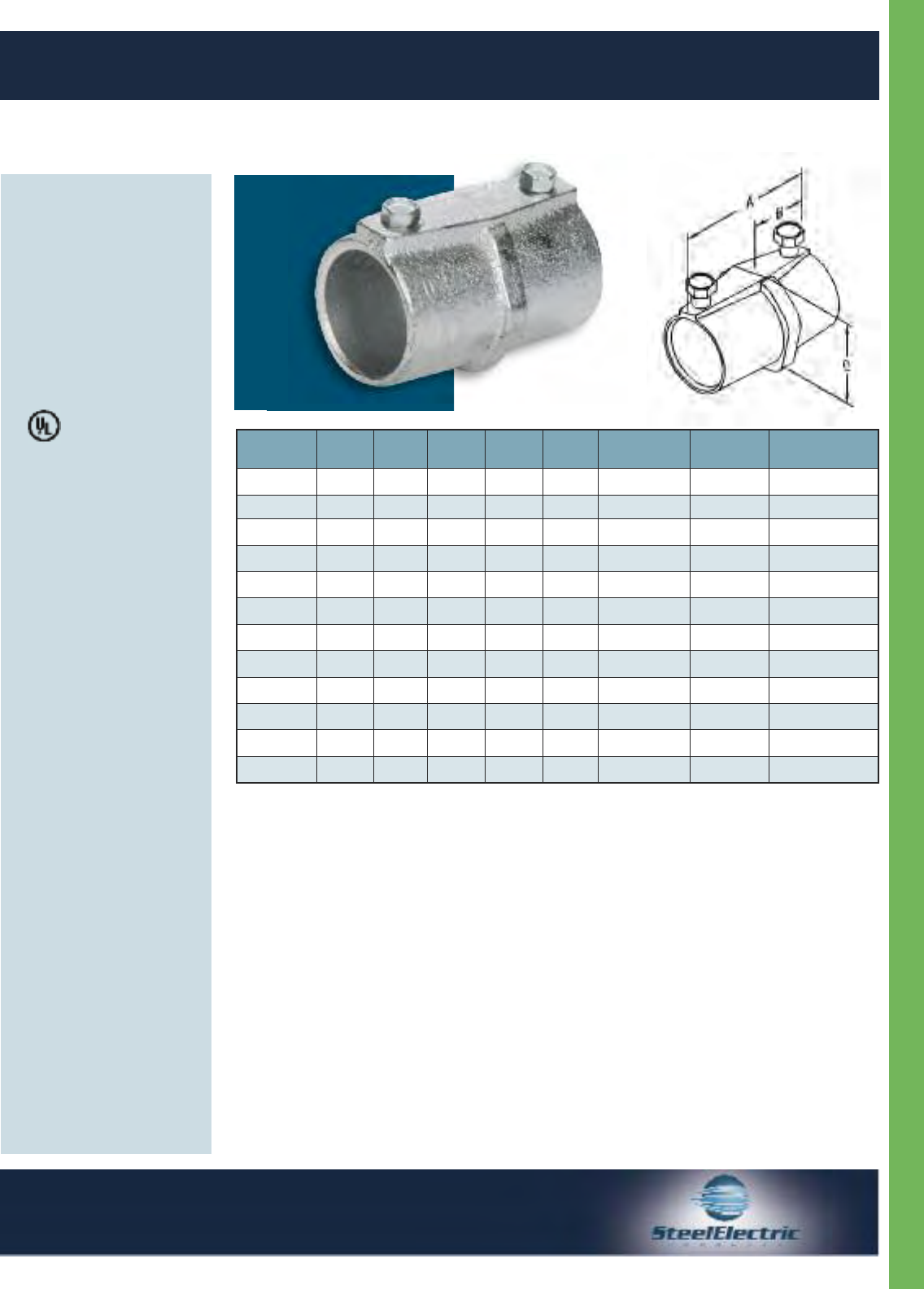

Application:
To couple sections of thread-
less rigid conduit together
Features:
• Concrete tight
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Threadless Rigid Conduit and IMC
Malleable Iron Rigid Set-Screw Couplings
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
TRCC-50 1/2” 1.750 0.750 1.375 20 100 30 70820
TRCC-75 3/4” 2.000 0.875 1.563 20 100 32 70821
TRCC-100 1” 2.688 1.188 1.875 5 50 44 70822
TRCC-125 1-1/4” 2.750 1.250 2.188 5 25 78 70823
TRCC-150 1-1/2” 3.188 1.500 2.500 5 20 93 70824
TRCC-200 2” 3.375 1.563 3.000 2 10 159 70825
TRCC-250 2-1/2” 4.000 1.718 3.125 2 10 277 70826
TRCC-300 3” 4.250 1.938 3.750 1 5 393 70827
TRCC-350 3-1/2” 4.500 2.250 4.250 1 5 547 70828
TRCC-400 4” 4.750 2.625 4.750 1 5 626 70829
TRCC-500 5” 6.000 2.818 6.500 - 1 1220 70862
TRCC-600 6” 6.500 3.000 7.500 - 1 1300 70863
Type TRCC-75
RIGID-IMC FITTINGS
34
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

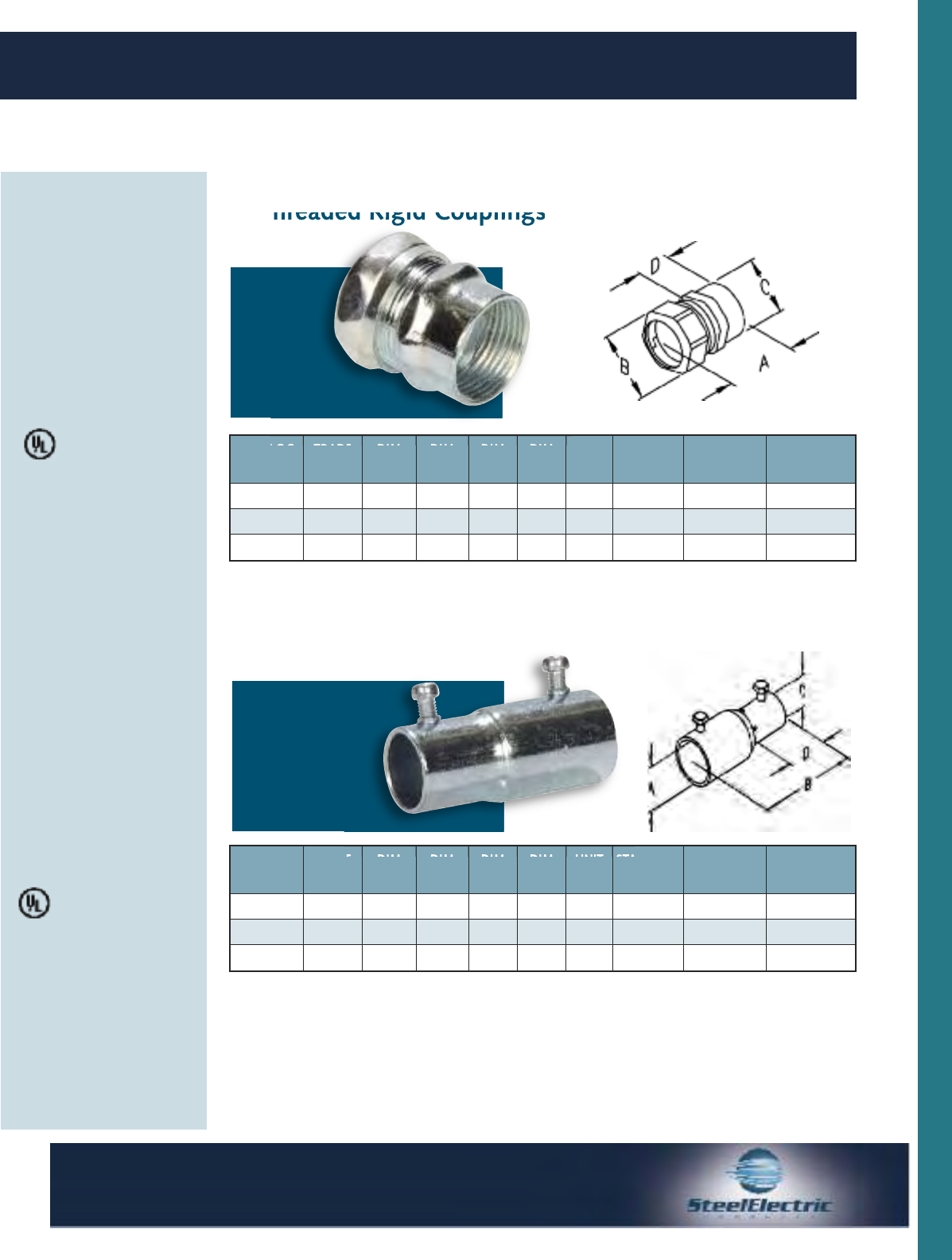

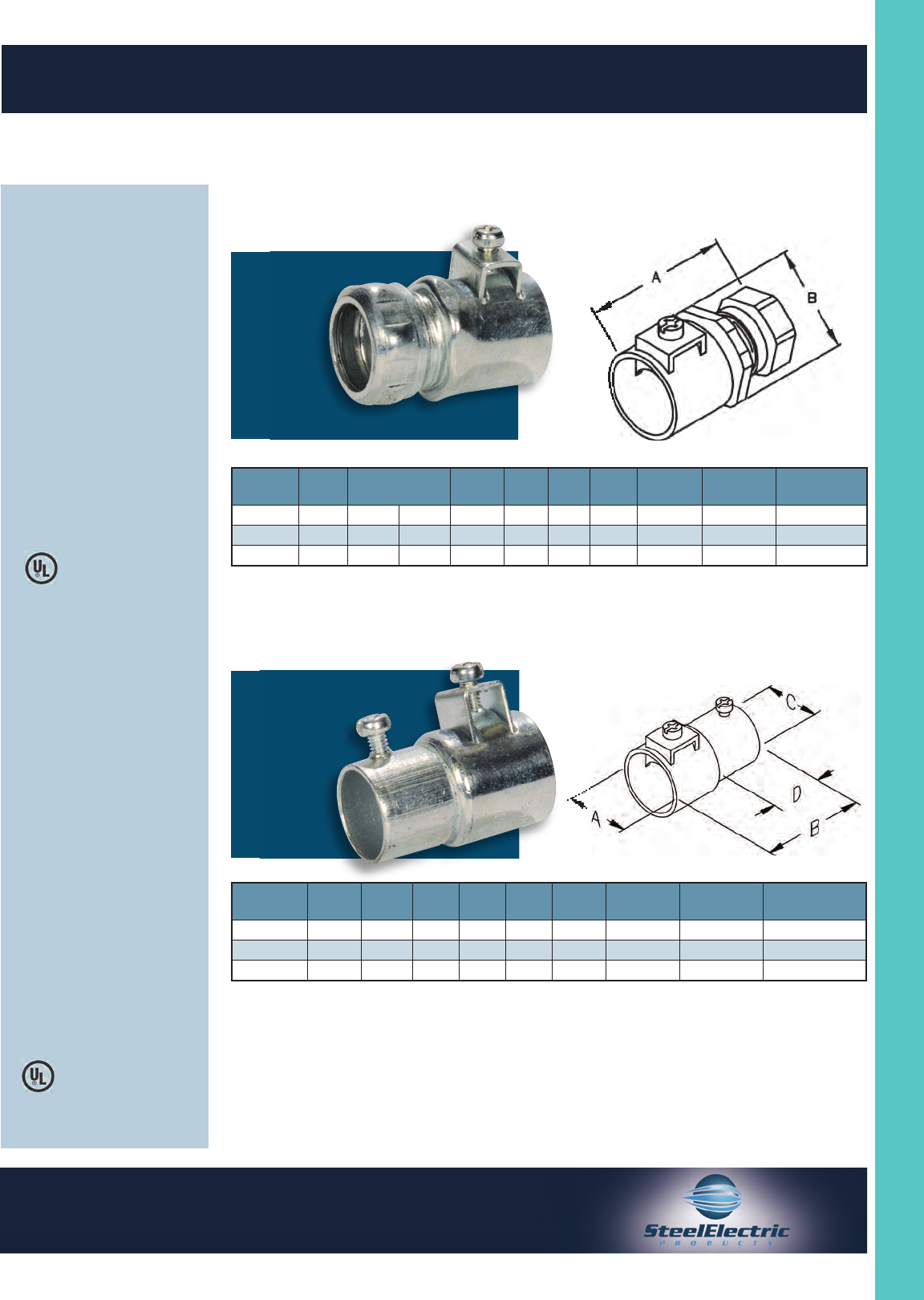

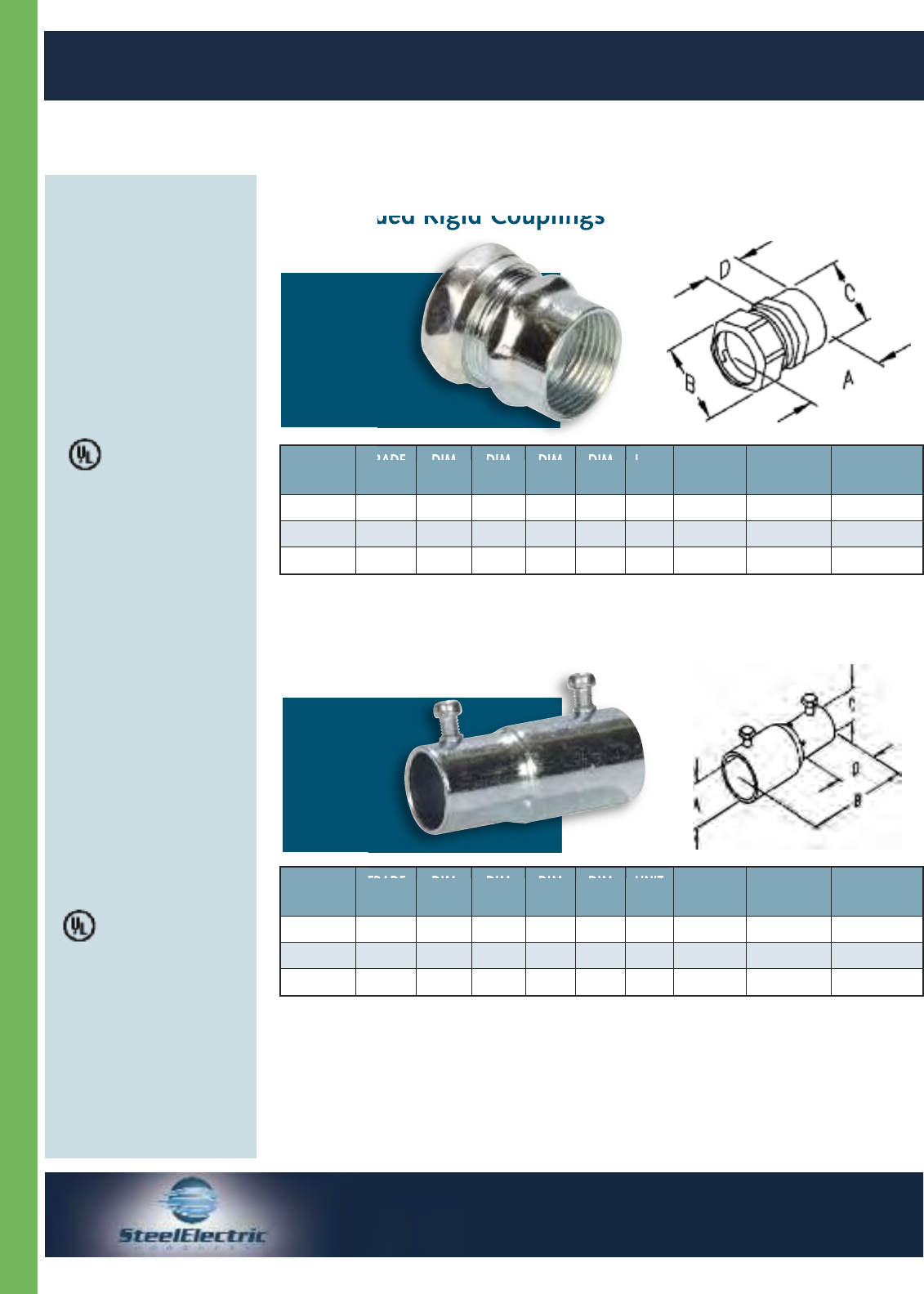

Application:
To join E.M.T. to Rigid or IMC
Features:
• Threaded rigid and IMC to
compression E.M.T.
• Concrete tight
• NPT female hub
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E207875
Application:
A combination coupling to
provide a transition from EMT
to unthreaded rigid conduit or
IMC.
Features:
• Pre-set and staked
Robertson head screws
• Concrete tight when taped
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Rigid Conduit, IMC and E.M.T.
Combination Couplings
For EMT Steel Set-Screw to Rigid Set-Screw Couplings
For EMT Steel Compression
to Threaded Rigid Couplings
C US
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
ERC-22 1/2” 1.313 1.125 0.875 0.688 25 250 14 47322
ERC-23 3/4” 1.438 1.375 1.125 0.750 25 250 25 47323
ERC-24 1” 1.500 1.688 1.375 0.813 25 250 34 47324
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S16ES 1/2” 1.000 2.375 0.875 0.938 50 500 14 23016
S17ES 3/4” 1.250 2.813 1.125 1.125 25 250 28 23017
S18ES 1” 1.500 3.000 1.188 1.188 - 25 36 23018
Type ERC-23
Type S18ES
RIGID-IMC FITTINGS
35
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

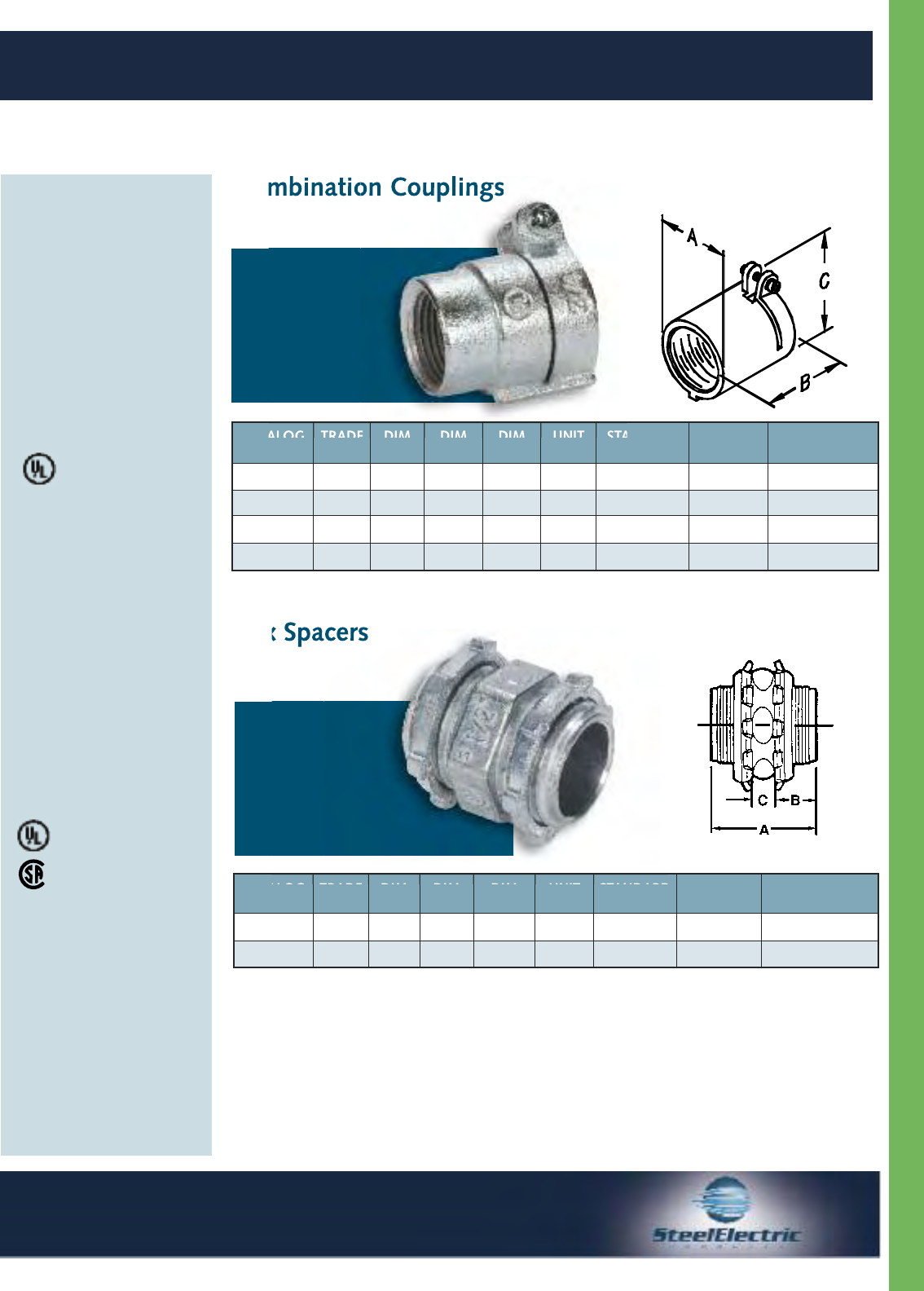

Application:
Used as a raceway between
two enclosures.
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Application:
To connect Flexible metal
conduit to Rigid or IMC
conduit.
Features:
• Rigid Conduit to Flex
• Female hub threads - NPT
Standard Materials:
Malleabe Iron
Standard Materials:
Zinc Plated
UL Listed:
207875
For Flex Metal Conduit to Rigid or IMC Conduit
Combination Couplings
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
22E 1/2” 1.19 1.50 1.69 25 250 14 55221
23E 3/4” 1.38 1.75 1.88 20 200 19 55231
24E 1” 1.63 1.81 2.31 20 100 32 55241
25E 1-1/4” 2.00 2.31 2.62 - 20 36 55251
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
BS50 1/2” 1.12 0.40 0.31 50 500 8 70504
BS75 3/4” 1.12 0.40 0.31 50 500 11 70354
Combination Couplings
Box Spacers
®
Type 22E
Type BS50
C US
RIGID-IMC FITTINGS
36
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

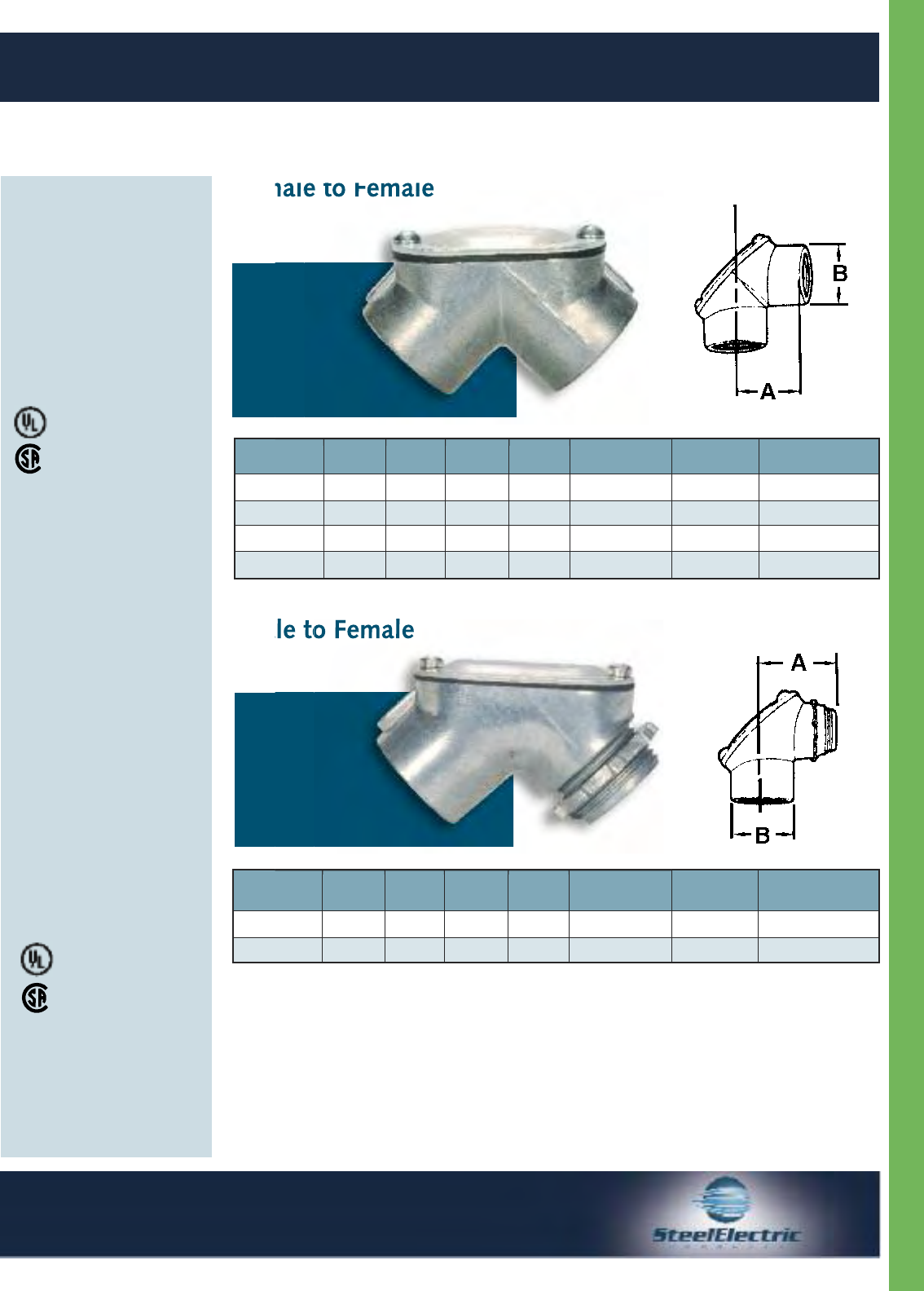

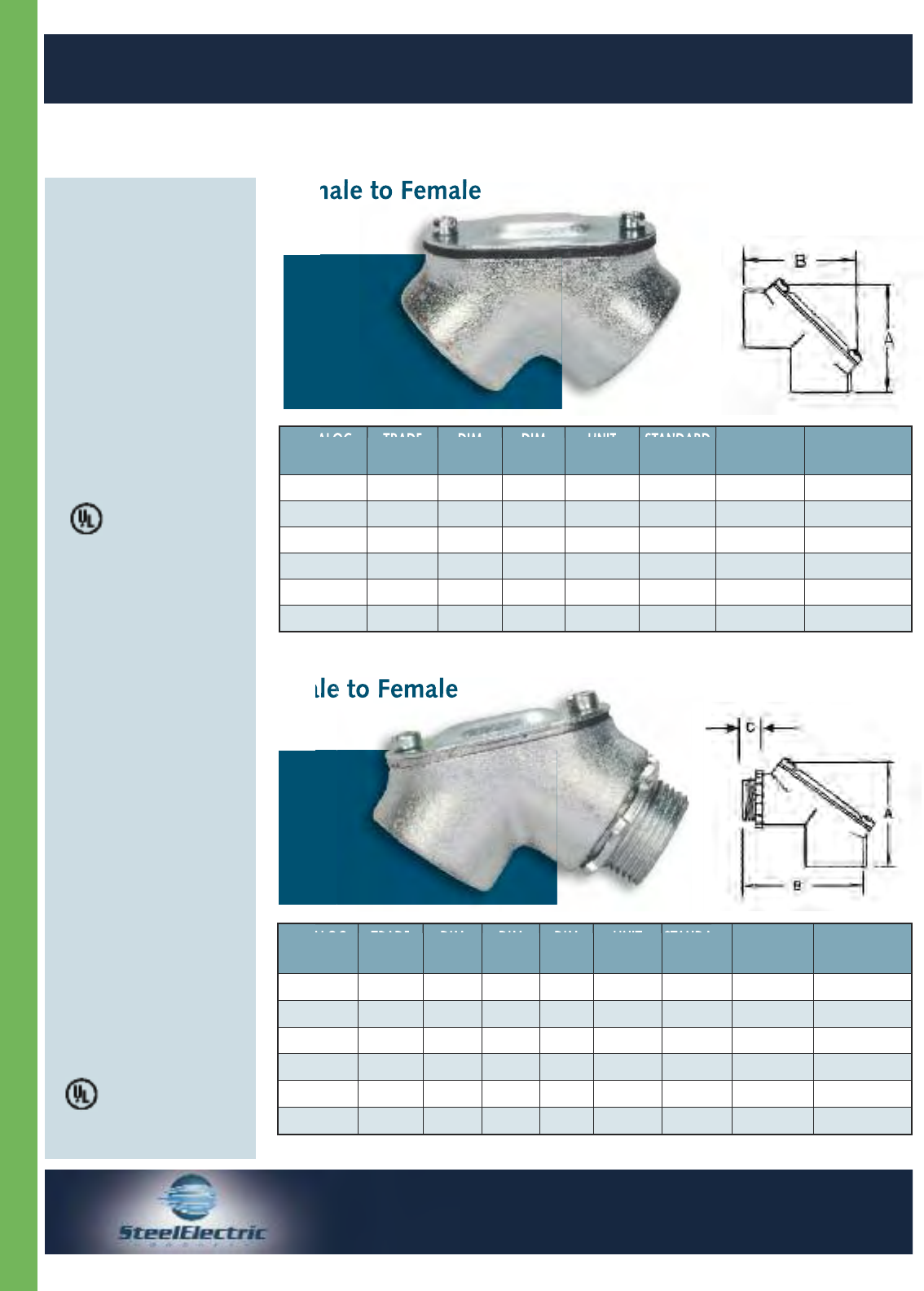

Application:
For connecting rigid conduit
or IMC to rigid conduit or IMC
to form 90° bend.
Features:
• Raintight
• Furnished with Neoprene
gasketed steel cover
• Threaded for rigid conduit
and IMC
(Female-NPT)
Standard Materials:
Malleable Iron
Standard Materials:
Zinc Plated
UL Listed:
E207875
Application:
For connecting rigid conduit
or IMC to box or enclosures
to form 90° bend.
Features:
• Raintight
• Furnished with Neoprene
gasketed steel cover
• Furnished with steel locknut
• Threaded for rigid conduit
and IMC
(Female-NPT, Male-NPSM)
Standard Materials:
Malleable Iron
Standard Materials:
Zinc Plated
UL Listed:
E207875
For Threaded Rigid Conduit and IMC
Malleable Iron 90° Pull Elbows
Male to Female
Female to Female
C US
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
PEM50 1/2” 2.188 2.438 0.563 10 100 36 70887
PEM75 3/4” 2.313 2.625 0.625 5 50 49 70888
PEM100 1” 3.125 3.188 0.625 - 25 94 70882
PEM125 1-1/4” 3.625 4.125 0.750 - 20 140 70883
PEM150 1-1/2” 4.125 5.188 0.813 - 10 200 90142
PEM200 2” 4.500 5.688 0.875 - 5 345 90143
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
PEF50 1/2” 2.188 2.188 10 100 36 13701
PEF75 3/4” 2.313 2.313 5 50 49 13703
PEF100 1” 3.125 3.125 - 25 94 13704
PEF125 1-1/4” 3.625 3.625 - 20 140 13705
PEF150 1-1/2” 4.125 4.125 - 10 200 13707
PEF200 2” 4.500 4.500 - 5 345 13708
Type PEF75
Type PEM75
RIGID-IMC FITTINGS
37
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

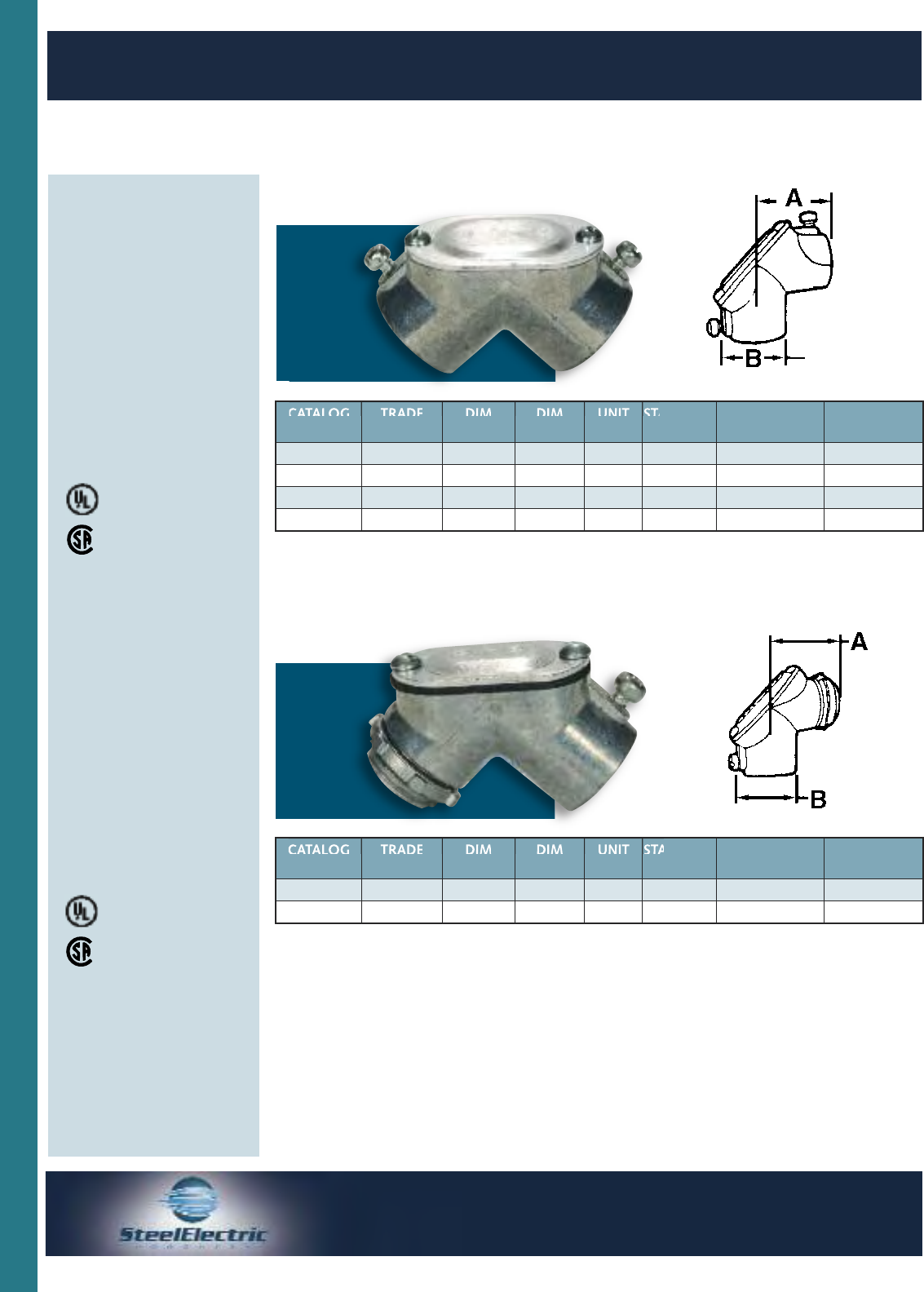

Application:
For connecting rigid conduit
or IMC to box or enclosures
to form 90° bend.
Features:
• Removable aluminum cover
and neoprene gasket
facilitate wire pulling
• Assembled with Zinc Die
Cast Locknut
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Application:
For connecting rigid conduit
or IMC to rigid conduit or IMC
to form 90° bend.
Features:
• Raintight
• Furnished with neoprene
gasket
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
For Threaded Rigid Conduit and IMC
Zinc 90° Pull Elbows
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1313 1/2” 1.31 1.09 10 100 28 13132
1314 3/4” 1.43 1.29 5 50 33 13142
1315 1” 1.95 1.59 - 25 62 13152
1316 1-1/4” 2.26 1.97 - 20 91 13162
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1320 1/2” 1.31 1.09 10 100 36 13202
1321 3/4” 1.47 1.29 5 50 49 13212
Female to Female
Male to Female
®
®
Type 1313
Type 1320
RIGID-IMC FITTINGS
38
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

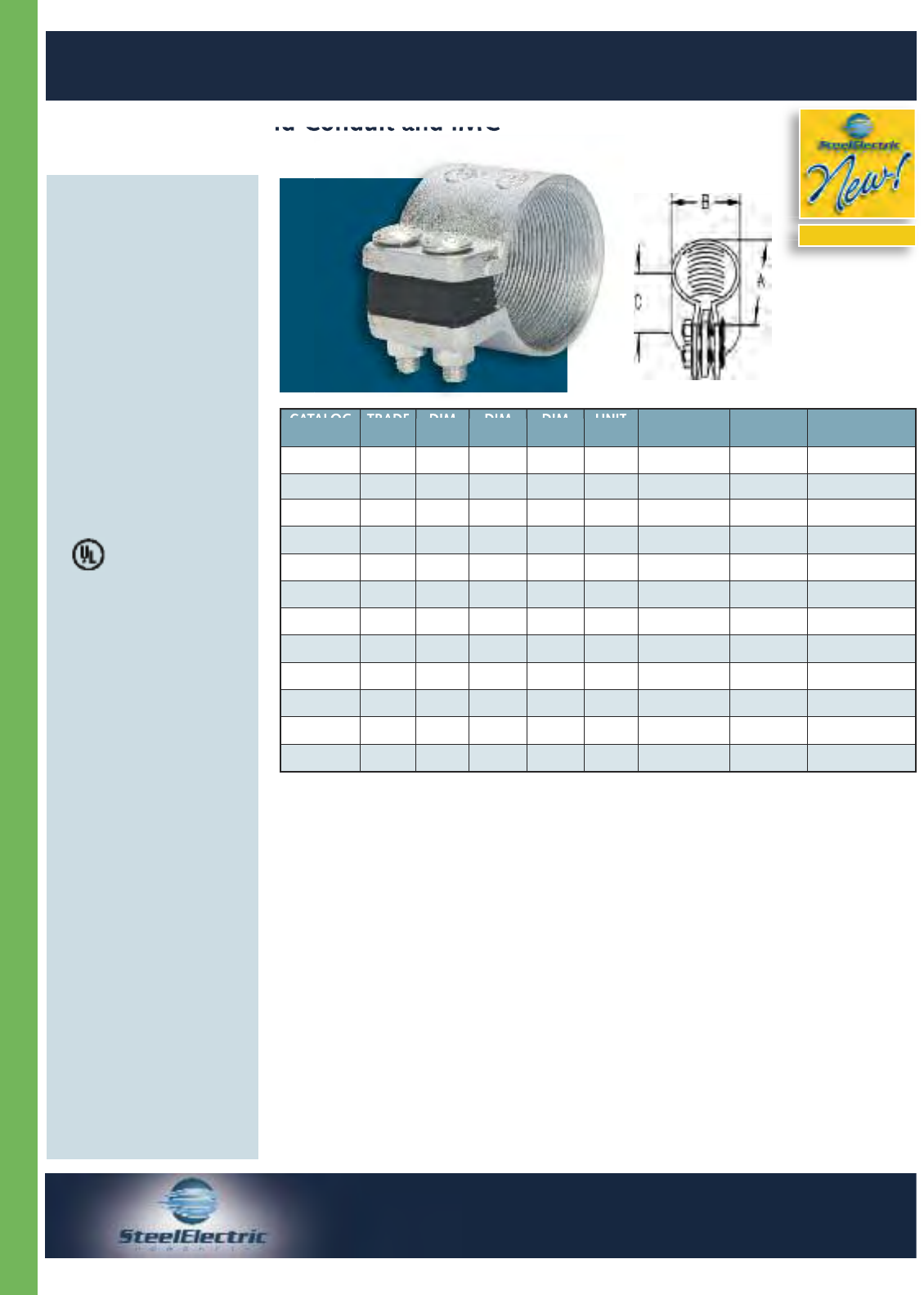

CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
*SCC-50 1/2” 2.000 1.250 1.250 10 100 34 70795
*SCC-75 3/4” 2.313 1.250 1.500 10 100 40 70796
*SCC-100 1” 2.625 1.625 1.813 10 40 60 70797
*SCC-125 1-1/4” 3.063 1.625 2.188 5 20 75 70798
*SCC-150 1-1/2” 3.313 1.938 2.438 5 20 113 70799
SCC-200 2” 3.813 2.000 2.875 5 20 113 70800
SCC-250 2-1/2” 4.625 3.063 3.563 2 20 275 70801
SCC-300 3” 5.313 3.125 4.125 2 20 300 70802
SCC-350 3-1/2” 6.063 3.250 4.813 1 5 425 70803
SCC-400 4” 6.563 3.438 5.375 1 5 500 70804
SCC-500 5” 8.063 3.875 6.563 - 1 900 70805
SCC-600 6” 9.250 4.188 7.625 - 1 1300 70806
Application:
A speed union for economically
joining two threaded rigid metal
conduits.
Features:
• A neoprene gasket provides a
concrete tight seal at the joint
• Use where conduit runs are
closely spaced
• Use where conduit is tight
against wall, ceiling or other
obstruction
• Use where conduit cannot be
turned
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Threaded Rigid Conduit and IMC
Malleable Iron Split Couplings
C US
Type SCC-200
SIZES
1/2” and 3/4” furnished with one screw
1” through 6” furnished with two screws
RIGID-IMC FITTINGS
1/2” - 1 1/2”
39
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

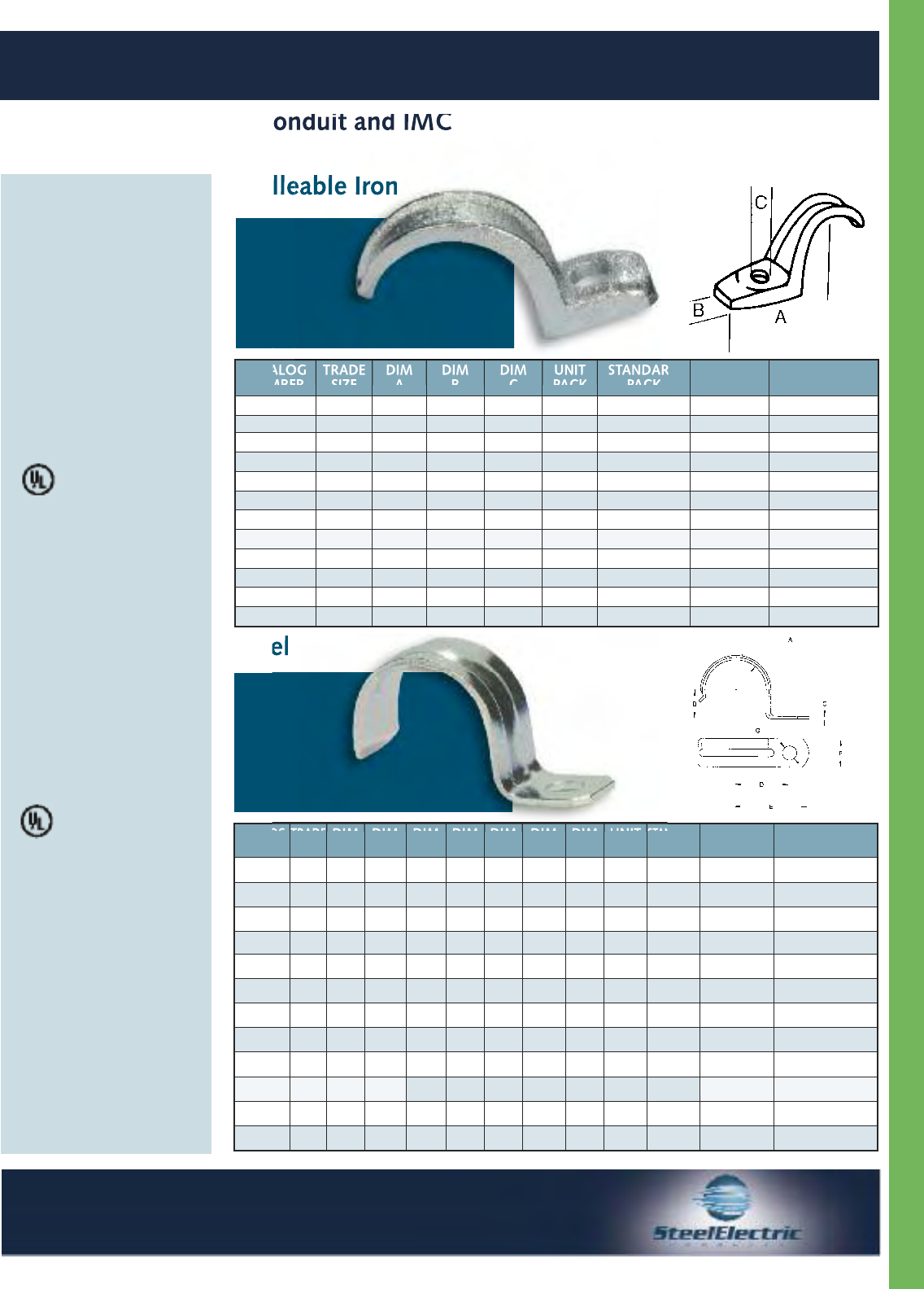

Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E186443
Application:
Click-on type one-hole straps
for rigid conduit or IMC. Pro-
vides support for the conduits,
as required by the National
Electrical Code.
Features:
Heavy Duty Casting
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E186443
For Threaded Rigid Conduit and IMC
One-Hole Straps
Malleable Iron
Steel
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
DIM
E
DIM
F
DIM
G
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
130S
1/4” 0.265 0.235 0.060 0.800 1.125 0.562 0.200 100 1000 2 81307
131S
3/8” 0.340 0.300 0.075 0.937 1.250 0.562 0.250 100 1000 3 81317
132S
1/2” 0.420 0.390 0.075 0.937 1.375 0.625 0.250 100 1000 3 81327
133S
3/4” 0.525 0.500 0.090 1.031 1.562 0.750 0.250 100 1000 3 81337
134S
1” 0.655 0.620 0.090 1.250 1.812 0.875 0.312 50 500 5 81347
135S
1-1/4” 0.830 0.800 0.100 1.500 2.000 0.875 0.375 50 500 7 81357
136S
1-1/2” 0.950 0.920 0.125 1.875 2.500 1.000 0.437 50 250 10 81367
137S
2” 1.185 1.150 0.125 2.125 2.750 1.125 0.562 - 50 17 81377
138S
2-1/2” 1.437 1.400 0.150 2.562 3.312 1.250 0.562 - 25 29 81387
139S
3” 1.750 1.700 0.150 2.875 3.625 1.250 0.562 - 25 50 81397
141S
3-1/2” 2.000 1.950 0.180 3.250 4.000 1.250 0.562 - 15 110 81471
148S
4” 2.250 2.200 0.180 3.500 4.250 1.250 0.562 - 10 120 81417
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
132 1/2” 1.437 0.625 0.312 100 1000 6 81321
133 3/4” 1.750 0.750 0.312 100 1000 8 81331
134 1” 2.125 0.937 0.312 50 500 9 81341
135 1-1/4” 2.375 1.062 0.437 - 100 22 81351
136 1-1/2” 2.750 1.062 0.500 - 50 32 81361
137 2” 3.937 1.250 0.562 - 50 44 81371
138 2-1/2” 3.937 1.250 0.562 - 25 66 81381
139 3” 5.187 1.750 0.562 - 10 159 81391
141 3-1/2” 5.562 2.125 0.750 - 10 185 81411
148 4” 6.500 2.250 0.750 - 10 221 81481
150 5” 10.040 2.750 0.750 - 5 369 81501
152 6” 12.500 3.130 0.750 - 5 631 81521
C US
Type 133
Type 132S
RIGID-IMC FITTINGS
40
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

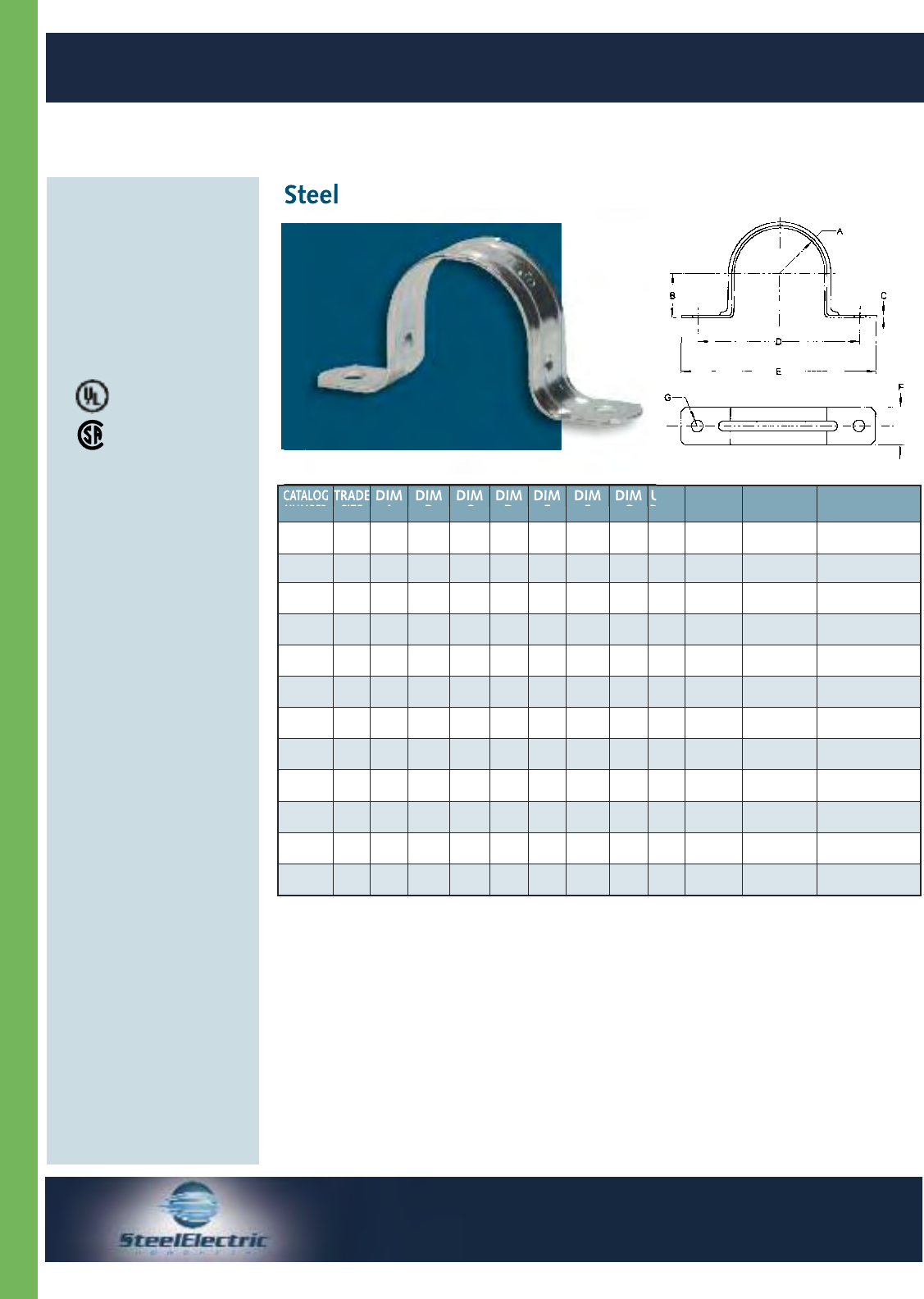

Steel
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
DIM
E
DIM
F
DIM
G
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
2132S
1/2” 0.420 0.390 0.035 1.875 2.500 0.625 0.188 - 250 2 21327
2133S
3/4” 0.525 0.500 0.035 2.250 2.875 0.688 0.188 - 150 2 21337
2134S
1” 0.655 0.620 0.048 2.625 3.375 0.750 0.250 - 100 3 21347
2135S
1-1/4” 0.830 0.800 0.048 3.437 4.188 0.875 0.250 - 50 5 21357
2136S
1-1/2” 0.950 0.920 0.060 3.812 4.625 0.937 0.250 - 50 7 21367
2137S
2” 1.185 1.150 0.060 4.250 5.125 1.000 0.375 - 25 12 21377
2138S
2-1/2” 1.437 1.400 0.075 4.875 5.875 1.000 0.375 - 25 20 21387
2139S
3” 1.750 1.700 0.075 5.500 6.500 1.000 0.375 - 20 28 21397
2141S
3-1/2” 2.000 1.950 0.090 6.375 7.375 1.000 0.437 - 15 31 21417
2148S
4” 2.250 2.200 0.090 7.000 8.000 1.000 0.437 - 10 36 21487
2150S
5” 2.560 2.560 0.125 8.250 9.000 1.000 0.437 - 10 49 21507
2152S
6” 3.125 3.125 0.125 8.500 9.250 1.000 0.437 - 10 55 21527
Application:
Snap-on type two-hole straps
for rigid conduit and IMC are
used where higher load bearing
supports are desired.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E186443
For Threaded Rigid Conduit and IMC
Two-Hole Straps
®
Type 2133S
RIGID-IMC FITTINGS
41
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To reduce the trade size of a
tapered entry on a conduit
fitting.
Features:
• Threaded for rigid conduit
and IMC.
• Made with rolled edge,
protects wire insulation.
For Threaded Rigid Conduit and IMC
Conduit Reducer Bushings
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
CR0 1/2” x 3/8” 0.638 0.908 - 200 3 80007
CR1 3/4” x 1/2” 0.650 0.930 - 200 4 80017
CR2 1” x 1/2” 0.715 1.125 - 100 13 80027
CR3 1” x 3/4” 0.715 1.125 - 100 8 80037
CR4 1-1/4” x 1/2” 0.820 1.470 - 50 29 80047
CR5 1-1/4” x 3/4” 0.820 1.470 - 50 22 80057
CR6 1-1/4” x 1” 0.810 1.470 - 50 14 80067
CR7 1-1/2” x 1/2” 0.850 1.700 - 50 38 80077
CR8 1-1/2” x 3/4” 0.850 1.700 - 50 32 80087
CR9 1-1/2” x 1” 0.850 1.700 - 50 24 80097
CR10 1-1/2” x 1-1/4” 0.850 1.700 - 50 12 80107
CR11 2” x 1/2” 0.970 2.230 - 25 45 80117
CR12 2” x 3/4” 0.970 2.230 - 25 68 80127
CR13 2” x 1” 0.970 2.230 - 25 54 80137
CR14 2” x 1-1/4” 0.970 2.230 - 25 44 80147
CR15 2” x 1-1/2” 0.970 2.230 - 25 31 80157
CR16 2-1/2” x 1/2” 1.070 0.430 1.340 - 10 85 80167
CR17 2-1/2” x 3/4” 1.070 0.500 1.630 - 10 80 80177
CR18 2-1/2” x 1” 1.070 0.580 1.950 - 10 88 80187
CR19 2-1/2” x 1-1/4” 1.070 0.670 2.390 - 10 91 80197
CR20 2-1/2” x 1-1/2” 1.070 0.700 2.680 - 10 80 80207
CR21 2-1/2” x 2” 1.200 0.750 3.485 - 10 50 80217
CR22 3” x 1/2” 1.130 0.430 1.340 - 10 110 80227
CR23 3” x 3/4” 1.130 0.500 1.630 - 10 108 80237
CR24 3” x 1” 1.785 0.500 4.075 - 10 116 80247
CR25 3” x 1-1/4” 2.100 0.410 3.445 - 10 126 80257
CR26 3” x 1-1/2” 2.020 0.440 3.460 - 10 117 80267
CR27 3” x 2” 2.000 0.400 3.380 - 10 121 80277
CR28 3” x 2-1/2” 1.390 0.375 4.395 - 10 100 80287
CR29 3-1/2 x 1/2” 1.180 0.430 1.950 - 5 233 80297
CR30 3-1/2” x 3/4” 1.180 0.500 1.950 - 5 231 80307
CR31 3-1/2” x 1” 1.180 0.580 1.950 - 5 230 80317
CR32 3-1/2” x 1-1/4” 1.180 0.670 2.390 - 5 202 80327
CR33 3-1/2” x 1-1/2” 1.180 0.700 3.280 - 5 200 80337
CR34 3-1/2” x 2” 1.180 0.750 3.280 - 5 233 80347
CR35 3-1/2” x 2-1/2” 1.180 0.920 3.860 - 5 180 80357
CR36 3-1/2” x 3” 1.180 0.980 4.920 - 5 150 80367
CR37 4” x 1/2” 1.220 0.500 1.950 - 5 250 80377
CR38 4” x 3/4” 1.220 0.560 1.950 - 5 240 80387
CR39 4” x 1” 1.220 0.580 1.950 - 5 235 80397
CR40 4” x 1-1/4” 1.220 0.670 2.350 - 5 220 80407
CR41 4” x 1-1/2” 1.220 0.700 2.680 - 5 180 80417
CR42 4” x 2” 1.220 0.750 2.680 - 5 304 80427
CR43 4” x 2-1/2” 1.220 0.920 3.200 - 5 350 80437
CR44 4” x 3” 1.775 0.980 4.625 - 5 238 80447
CR45 4” x 3-1/2” 1.400 1.030 5.200 - 5 138 80457
CR46 5” x 4” 2.130 1.030 5.630 - 5 375 80467
CR47 6” x 5” 2.830 1.030 6.563 - 5 463 80468
Flush Type
®
Type CR1
RIGID-IMC FITTINGS
42
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

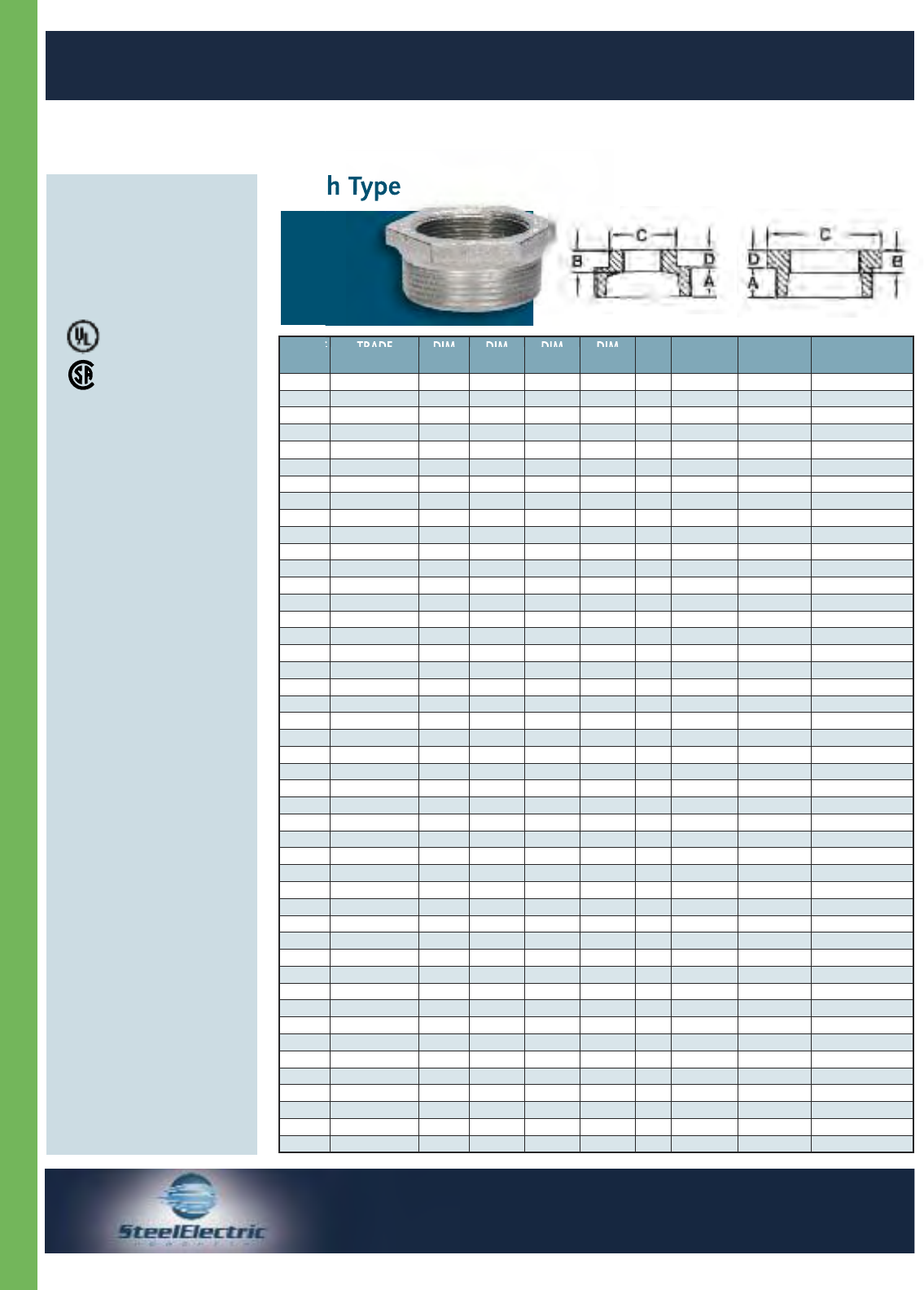

Features:
• Threaded for rigid conduit
and IMC.
• Provided with hex shoulder.
Material/Finish:
Malleable Iron/Zinc Plated
For Threaded Rigid Conduit and IMC
Conduit Hex Reducer Bushings
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
HCR1
3/4” x 1/2” 0.63 0.53 1.15 0.22 - 100 8 80011
HCR2
1” x 1/2” 0.75 0.43 1.42 0.25 - 100 15 80021
HCR3
1” x 3/4” 0.75 0.50 1.42 0.25 - 100 12 80031
HCR4
1-1/4” x 1/2” 0.80 0.43 1.34 0.34 - 50 30 80041
HCR5
1-1/4” x 3/4” 0.80 0.50 1.76 0.28 - 50 50 80051
HCR6
1-1/4” x 1” 0.80 0.58 1.76 0.28 - 50 21 80061
HCR7
1-1/2” x 1/2” 0.83 0.43 1.34 0.37 - 50 48 80071
HCR8
1-1/2” x 3/4” 0.83 0.50 1.63 0.37 - 50 43 80081
HCR9
1-1/2” x 1” 0.83 0.58 2.00 0.31 - 50 40 80091
HCR10
1-1/2” x 1-1/4” 0.83 0.71 2.00 0.31 - 50 26 80101
HCR11
2” x 1/2” 0.88 0.43 1.34 0.41 - 25 85 80111
HCR12
2” x 3/4” 0.88 0.50 1.63 0.41 - 25 81 80121
HCR13
2” x 1” 0.88 0.58 1.95 0.41 - 25 73 80131
HCR14
2” x 1-1/4” 0.88 0.67 2.48 0.34 - 25 64 80141
HCR15
2” x 1-1/2” 0.88 0.70 2.48 0.34 - 25 55 80151
HCR16
2-1/2” x 1/2” 1.07 0.43 1.34 0.44 - 10 83 80161
HCR17
2-1/2” x 3/4” 1.07 0.50 1.63 0.44 - 10 80 80171
HCR18
2-1/2” x 1” 1.07 0.58 1.95 0.44 - 10 79 80181
HCR19
2-1/2” x 1-1/4” 1.07 0.67 2.39 0.44 - 10 74 80191
HCR20
2-1/2” x 1-1/2” 1.07 0.70 2.68 0.40 - 10 73 80201
HCR21
2-1/2” x 2” 1.07 0.75 2.98 0.37 - 10 76 80211
HCR22
3” x 1/2” 1.13 0.43 1.34 0.48 - 10 150 80221
HCR23
3” x 3/4” 1.13 0.50 1.63 0.48 - 10 120 80231
HCR24
3” x 1” 1.13 0.58 1.95 0.48 - 10 110 80241
HCR25
3” x 1-1/4” 1.13 0.67 2.39 0.48 - 10 100 80251
HCR26
3” x 1-1/2” 1.13 0.70 2.68 0.48 - 10 158 80261
HCR27
3” x 2” 1.13 0.75 3.28 0.48 - 10 188 80271
HCR28
3” x 2-1/2” 1.13 0.92 3.86 0.40 - 10 150 80281
HCR29
3-1/2” x 1/2” 1.18 0.43 1.85 0.52 - 10 160 80291
HCR30
3-1/2” x 3/4” 1.18 0.50 1.95 0.52 - 10 151 80301
HCR31
3-1/2” x 1” 1.18 0.58 1.95 0.52 - 10 144 80311
HCR32
3-1/2” x 1-1/4” 1.18 0.67 2.39 0.52 - 10 135 80321
HCR33
3-1/2” x 1-1/2” 1.18 0.70 3.28 0.52 - 10 130 80331
HCR34
3-1/2” x 2” 1.18 0.75 3.28 0.52 - 10 165 80341
HCR35
3-1/2” x 2-1/2” 1.18 0.92 3.86 0.52 - 10 172 80351
HCR36
3-1/2” x 3” 1.18 0.98 4.62 0.43 - 10 166 80361
HCR37
4” x 1/2” 1.22 0.50 1.95 0.60 - 5 215 80371
HCR38
4” x 3/4” 1.22 0.56 1.95 0.60 - 5 185 80381
HCR39
4” x 1” 1.22 0.58 1.95 0.60 - 5 175 80391
HCR40
4” x 1-1/4” 1.22 0.67 2.39 0.60 - 5 160 80401
HCR41
4” x 1-1/2” 1.22 0.70 2.68 0.60 - 5 153 80411
HCR42
4” x 2” 1.22 0.75 3.28 0.60 - 5 177 80421
HCR43
4” x 2-1/2” 1.22 0.92 3.86 0.60 - 5 225 80431
HCR44
4” x 3” 1.22 0.98 4.62 0.50 - 5 310 80441
HCR45
4” x 3-1/2” 1.22 1.03 5.20 0.50 - 5 218 80451
HCR46
5” x 4” 1.50 1.03 5.20 0.50 - 5 438 80461
Flush Type
®
Type HCR1
RIGID-IMC FITTINGS
43
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

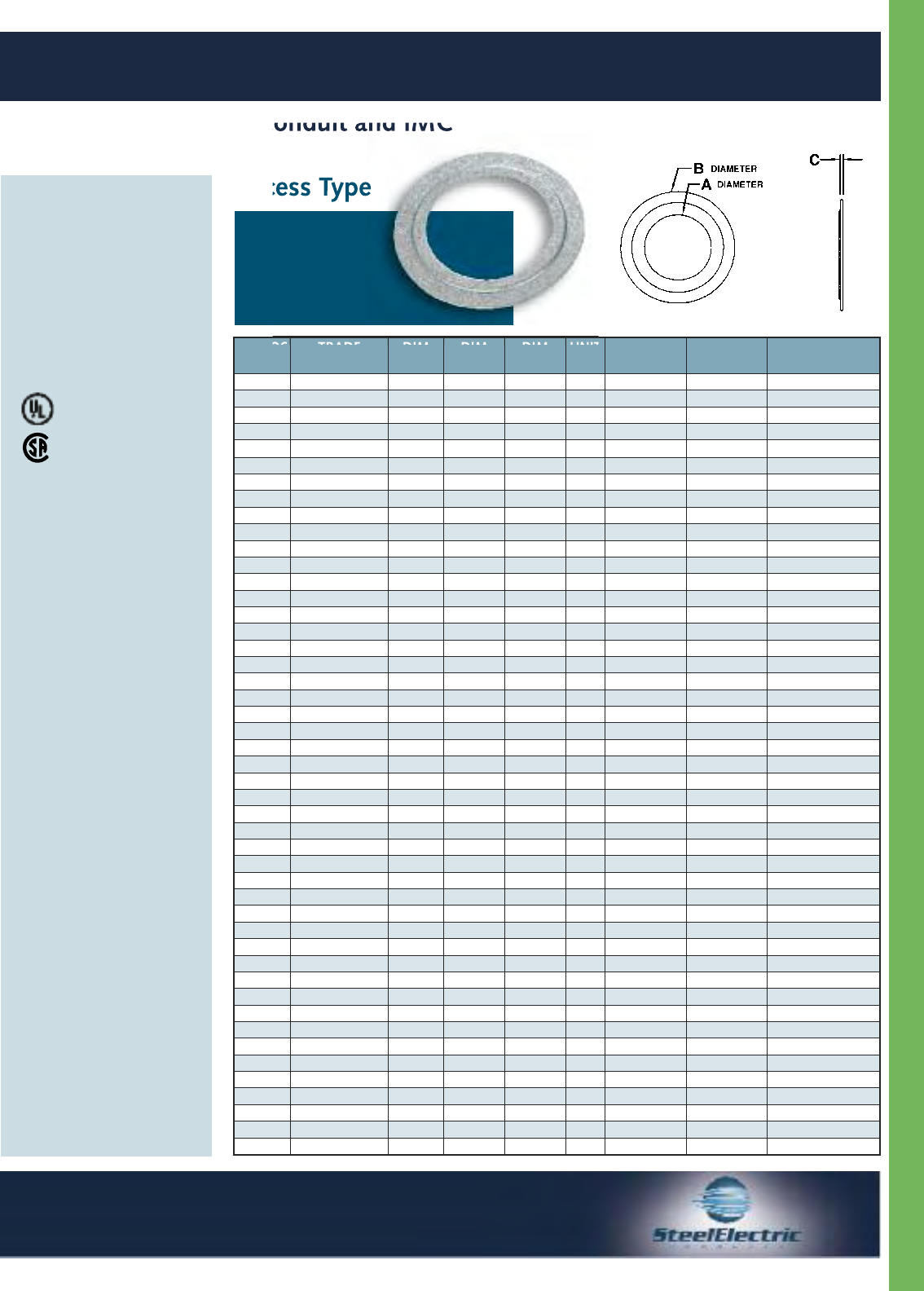

Application:
Reduce knockout size on
sheet metal box, enclosure or
cabinet.
Note: Two reducing washers
are required for each knockout.
Standard Materials:
Galvanized Steel
UL Listed:
E181788
For Threaded Rigid Conduit and IMC
Conduit Reducing Washers
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
CW19 1/2” x 1/4” 0.830 1.382 0.035 - 500 1 81197
CW20 1/2” x 3/8” 0.830 1.382 0.035 - 500 1 81207
CW21 3/4” x 1/2” 0.870 1.420 0.035 250 2500 1 81217
CW31 1” x 1/2” 0.870 1.710 0.035 250 2500 2 81506
CW32 1” x 3/4” 1.060 1.710 0.035 250 2500 2 81507
CW41 1-1/4” x 1/2” 0.870 2.080 0.035 100 1000 3 81508
CW42 1-1/4” x 3/4” 1.125 2.080 0.035 100 1000 3 81510
CW43 1-1/4” x 1” 1.380 2.080 0.035 100 1000 3 81512
CW51 1-1/2” x 1/2” 0.870 2.635 0.035 100 1000 6 81517
CW52 1-1/2” x 3/4” 1.060 2.635 0.035 100 1000 5 81527
CW53 1-1/2” x 1” 1.335 2.635 0.035 100 1000 4 81537
CW54 1-1/2” x 1-1/4” 1.690 2.635 0.035 100 1000 3 81547
CW61 2” x 1/2” 0.870 3.265 0.035 50 500 9 81617
CW62 2” x 3/4” 1.060 3.265 0.035 50 500 9 81627
CW63 2” x 1” 1.335 3.265 0.035 50 500 8 81637
CW64 2” x 1-1/4” 1.690 3.265 0.035 50 500 7 81647
CW65 2” x 1-1/2” 1.935 3.265 0.035 50 500 6 81657
CW71 2-1/2” x 1/2” 0.870 3.265 0.035 50 500 8 81717
CW72 2-1/2” x 3/4” 1.060 3.265 0.035 50 500 8 81727
CW73 2-1/2” x 1” 1.370 3.265 0.035 50 500 7 81737
CW74 2-1/2” x 1-1/4” 1.750 3.265 0.035 50 500 6 81747
CW75 2-1/2” x 1-1/2” 1.995 3.265 0.035 50 500 5 81757
CW76 2”-1/2 x 2” 2.425 3.265 0.035 50 500 4 81767
CW81 3” x 1/2” 0.870 4.490 0.040 25 250 17 81817
CW82 3” x 3/4” 1.060 4.490 0.040 25 250 17 81827
CW83 3” x 1” 1.360 4.490 0.040 25 250 19 81837
CW84 3” x 1-1/4” 1.750 4.490 0.040 25 250 18 81847
CW85 3” x 1-1/2” 1.995 4.490 0.040 25 250 15 81857
CW86 3” x 2” 2.100 4.490 0.040 25 250 13 81867
CW87 3” x 2-1/2” 2.840 4.490 0.040 25 250 12 81877
CW91 3-1/2” x 1/2” 0.870 5.000 0.060 10 100 32 81917
CW92 3-1/2” x 3/4” 1.060 5.000 0.060 10 100 33 81927
CW93 3-1/2” x 1” 1.380 5.000 0.060 10 100 31 81937
CW94 3-1/2” x 1-1/4” 1.710 5.000 0.060 10 100 29 81947
CW95 3-1/2” x 1-1/2” 1.950 5.000 0.060 10 100 58 81957
CW96 3-1/2” x 2” 2.435 5.000 0.060 10 100 30 81967
CW97 3-1/2” x 2-1/2” 2.920 5.000 0.060 10 100 25 81977
CW98 3-1/2” x 3” 3.560 5.000 0.060 10 100 19 81987
CW101 4” x 1/2” 0.870 5.500 0.065 10 100 40 81017
CW102 4” x 3/4” 1.060 5.500 0.065 10 100 37 81027
CW103 4” x 1” 1.380 5.500 0.065 10 100 38 81037
CW104 4” x 1-1/4” 1.715 5.500 0.065 10 100 36 81047
CW105 4” x 1-1/2” 1.970 5.500 0.065 10 100 35 81057
CW106 4” x 2” 2.435 5.500 0.065 10 100 37 81067
CW107 4” x 2-1/2” 2.920 5.500 0.065 10 100 33 81077
CW108 4” x 3” 3.560 5.500 0.065 10 100 24 81087
CW109 4” x 3-1/2” 4.050 5.500 0.065 10 100 22 81097
Recess Type
®
Type CW32
RIGID-IMC FITTINGS
44
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Slotted Plugs
Square Head
Application:
To close up a taped hole or
hub.
Features:
Threaded (NPT)
Standard Materials:
Zinc Die Cast
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
Pipe Plugs
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
P1 1/2” 0.560 0.160 100 1000 1 14012
P2 3/4” 0.630 0.180 100 1000 2 14022
P3 1” 0.750 0.200 100 1000 4 14032
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
P4 1/2” 0.790 0.330 0.563 - 100 11 14041
P5 3/4” 1.000 0.300 0.625 - 100 15 14051
P6 1” 1.230 0.280 0.813 - 100 24 14061
P7 1-1/4” 0.800 0.560 0.938 - 25 32 14071
P8 1-1/2” 0.830 0.620 1.125 - 25 46 14081
P9 2” 0.880 0.680 1.313 - 25 78 14091
P25 2-1/2” 1.070 0.740 1.500 - 10 112 14251
P30 3” 1.130 0.800 1.688 - 10 180 14301
P35 3-1/2” 1.180 0.860 1.875 - 5 228 14353
P40 4” 1.220 1.000 2.175 - 5 300 14401
Type P3
Type P4
RIGID-IMC FITTINGS
45
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To close up a taped hole
or hub.
Features:
Threaded (NPT)
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
Application:
To secure rigid to wooden
structure members. Use in
place of one hole straps.
Features:
• Tensile strength of Cast Steel
is 30% higher than Malleable
Iron
• Withstands greater striking
force
Standard Materials:
Cast Steel
Standard Finish:
Zinc Plated

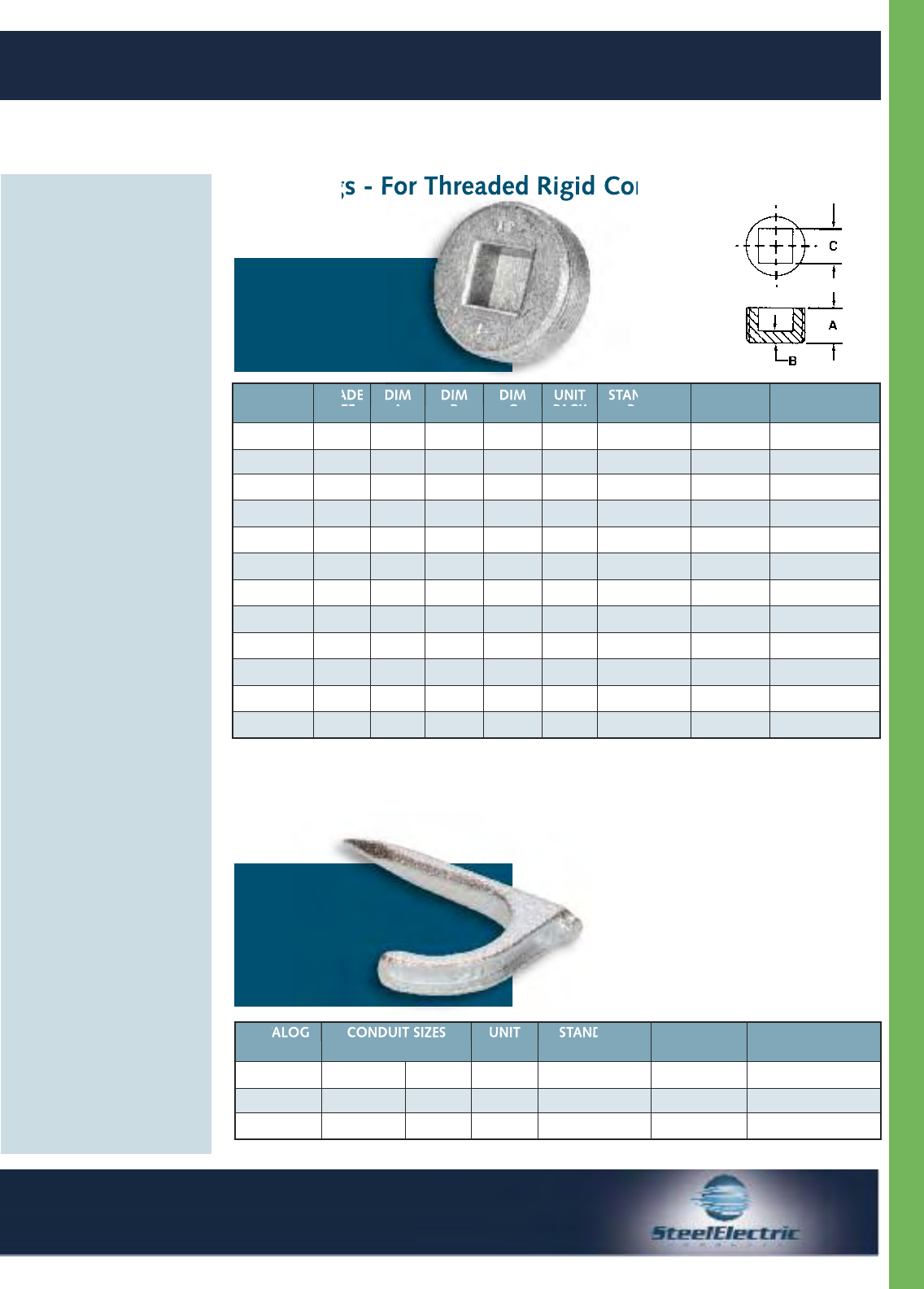

Pipe Plugs and Nail Straps
Pipe Plugs - For Threaded Rigid Conduit and IMC
Nail Straps - For Threaded Rigid Conduit and EMT
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
P10 1/2” 0.560 0.160 0.382 - 100 7 14101
P11 3/4” 0.630 0.180 0.508 - 100 12 14111
P12 1” 0.750 0.200 0.508 - 100 21 14121
P13 1-1/4” 0.800 0.759 0.220 - 100 33 14131
P14 1-1/2” 0.830 0.759 0.240 - 25 45 14141
P15 2” 0.880 0.884 0.260 - 25 78 14151
P16 2-1/2” 1.070 1.137 0.290 - 10 148 14161
P17 3” 1.130 1.391 0.310 - 10 219 14171
P18 3-1/2” 1.180 1.518 0.340 - 5 336 14181
P19 4” 1.220 2.022 0.370 - 5 378 14191
P20 5” 1.310 2.275 0.400 - 5 540 14201
P21 6” 1.375 2.530 0.437 - 5 780 14211
CATALOG
NUMBER
CONDUIT SIZES
THINWALL RIGID
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
360M 1/2” 3/8” 100 1000 3 83607
361M 3/4” 1/2” 100 1000 4 83617
362M 1” 3/4” 100 1000 6 83627
Type P10
Type 360M
RIGID-IMC FITTINGS
46
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

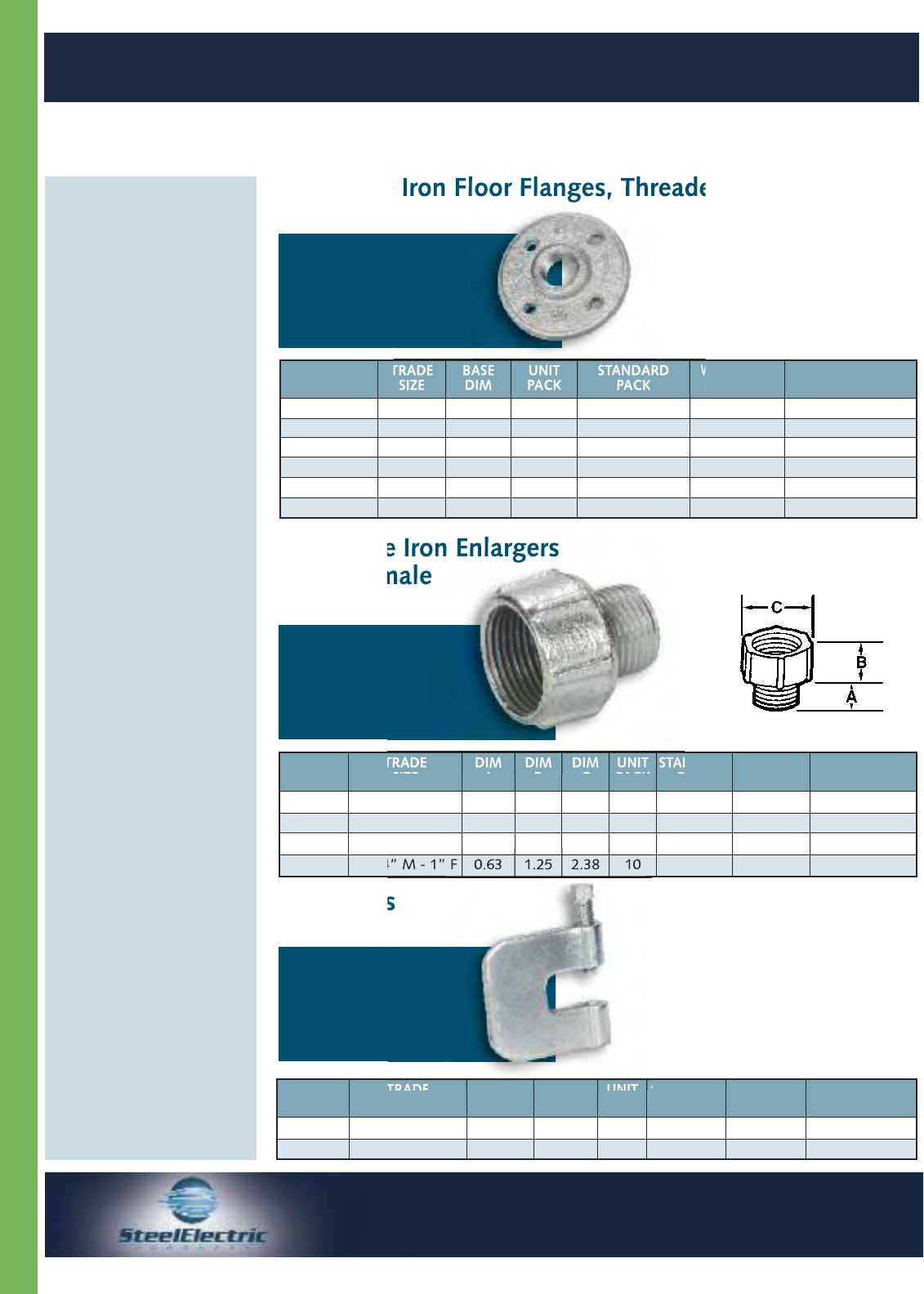

Malleable Iron Floor Flanges, Threaded Insert
Malleable Iron Enlargers
Male-Female
C-Clamps
Application:
Used to support rigid conduit
or IMC to the floor.
Features:
Heavy Duty Casting
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
Application:
Enlarges a threaded hub in an
enclosure or conduit fittings.
Standard Materials:
Malleable Iron
Standard Materials:
Steel
Floor Flanges, Enlargers and C Clamps
CATALOG
NUMBER
TRADE
SIZE
BASE
DIM
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1F 1/2” 3.00 - 25 47 12311
2F 3/4” 3.38 - 25 50 12321
3F 1” 3.38 - 25 86 12331
4F 1-1/4” 4.00 - 25 79 12341
5F 1-1/2” 4.38 - 25 130 12351
6F 2” 4.88 - 25 216 12361
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
E35 1/2” M - 3/4” F 0.56 0.19 1.38 25 250 20 14351
E36 3/4” M - 1” F 0.56 0.94 1.75 10 100 45 14361
E37 1” M - 1-1/4” F 0.56 1.06 2.25 10 100 65 14371
E38 1-1/4” M - 1” F 0.63 1.25 2.38 10 100 87 14381
CATALOG
NUMBER
TRADE
SIZE LENGTH WIDTH UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
21CC 3/8” 3.38 2.56 - 100 45 15217
22CC 1/2” 4.64 3.25 - 100 47 15227
Type 2F
Type E35
Type 21CC
RIGID-IMC FITTINGS
Aluminum Set-Screw Conduit Bodies
Application:
To provide access to conduc-
tors for pulling, splicing, and
maintenance. Use for thinwall
conduit.
Features:
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
Standard Materials:
1/2" - 2"
Die Cast/Copper-Free
Aluminum
2 1/2" - 4"
Sand-Cast Copper-Free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259
For EMT Conduit
TYPE C1AT
47
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C TYPE
C1AT 1/2” 4.69 1.38 1.31 N/A 4.35 10 50 21 49015
C2AT 3/4” 5.50 1.56 1.63 3 #6 AWG 7.30 10 50 33 49025
C3AT 1” 6.48 1.88 1.88 3 #4 AWG 12.20 5 25 46 49035
C4AT 1-1/4” 8.31 2.50 2.50 3 #2 AWG 33.50 - 10 82 49045
C5AT 1-1/2” 8.38 2.50 2.50 3 #1/0 AWAG 33.50 - 10 85 49055
C6AT 2” 10.31 3.38 3.38 3 #4/0 AWG 69.50 -5 188 49065
C7AT 2-1/2” 13.12 4.50 4.00 3 #250 MCM 69.50 - 1 325 49075
C8AT 3” 13.19 4.56 4.56 3 #250 MCM 188.00 -1 399 49085
C9AT 3-1/2” 16.12 5.69 5.63 3 #300 MCM 307.00 - 1 975 49095
C10AT 4” 16.12 5.69 5.63 3 #300 MCM 309.00 -1 875 49005
TYPE LB1AT
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LB TYPE
LB1AT 1/2” 4.31 1.31 2.19 N/A 4.35 10 50 24 45015
LB2AT 3/4” 5.06 1.56 2.44 3 #6 AWG 7.25 10 50 37 45025
LB3AT 1” 5.87 1.75 2.75 3 #4 AWG 12.20 5 25 46 45035
LB4AT 1-1/4” 7.81 2.50 3.44 3 #2 AWG 32.30 - 10 98 45045
LB5AT 1-1/2” 7.81 2.50 3.44 3 #2 AWG 33.80 - 10 91 45055
LB6AT 2” 10.06 3.12 4.31 3 #4/0 AWG 71.20 -5 222 45065
LB7AT 2-1/2” 12.81 4.50 5.31 3 #4/0 AWG 71.20 - 1 366 45075
LB8AT 3” 12.81 4.50 5.94 3 #4/0 AWG 183.50 -1 430 45085
LB9AT 3-1/2” 15.62 5.56 7.06 3 #400 MCM 304.90 - 1 937 45095
LB10AT 4” 15.62 5.56 7.06 3 #400 MCM 308.00 -1 851 45105
EMT FITTINGS
Aluminum Set-Screw Conduit Bodies
48
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To provide access to conduc-
tors for pulling, splicing, and
maintenance. Use for thinwall
conduit.
Features:
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
Standard Materials:
1/2" - 2"
Die Cast/Copper-Free
Aluminum
2 1/2" - 4"
Sand-Cast Copper-Free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259
TYPE LL1AT
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LL TYPE
LL1AT 1/2” 4.31 2.06 1.38 N/A 4.35 10 50 25 46015
LL2AT 3/4” 5.06 2.25 1.63 3 #6 AWG 7.30 10 50 37 46025
LL3AT 1” 5.87 2.63 1.88 3 #4 AWG 12.20 5 25 45 46035
LL4AT 1-1/4” 7.81 3.63 2.50 3 #2 AWG 35.80 - 10 98 46045
LL5AT 1-1/2” 7.81 3.63 2.50 3 #1/0 AWAG 35.80 - 10 92 46055
LL6AT 2” 10.06 4.44 3.38 3 #4/0 AWG 69.70 -5 245 46065
*LL7AT 2-1/2” 12.81 5.75 4.00 3 #300 MCM 69.70 - 1 388 46066
*LL8AT 3” 12.81 5.75 4.50 3 #350 MCM 186.00 -1 439 46067
*LL9AT 3-1/2” 15.62 11.69 5.63 3 #350 MCM 306.00 - 1 924 46068
*LL10AT 4” 15.62 11.69 5.63 3 #350 MCM 308.00 -1 882 46069
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LR TYPE
LR1AT 1/2” 4.31 2.06 1.38 N/A 4.35 10 50 23 47015
LR2AT 3/4” 5.06 2.25 1.63 3 #6 AWG 7.30 10 50 38 47025
LR3AT 1” 5.87 2.63 1.88 3 #4 AWG 12.20 5 25 49 47035
LR4AT 1-1/4” 7.81 3.63 2.50 3 #2 AWG 35.80 - 10 98 47045
LR5AT 1-1/2” 7.81 3.63 2.50 3 #1/0 AWAG 35.80 - 10 94 47055
LR6AT 2” 10.06 4.44 3.38 3 #4/0 AWG 69.70 -5 254 47065
*LR7AT 2-1/2” 12.81 5.75 4.00 3 #300 MCM 69.70 - 1 366 47066
*LR8AT 3” 12.81 5.75 4.50 3 #350 MCM 186.00 -1 406 47067
*LR9AT 3-1/2” 15.62 11.69 5.63 3 #350 MCM 306.00 - 1 928 47068
*LR10AT 4” 15.62 11.69 5.63 3 #350 MCM 308.00 -1 902 47069
TYPE LR1AT
SIZES
2 1/2” - 4”
For EMT Conduit
EMT FITTINGS
Aluminum Set-Screw Conduit Bodies
49
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

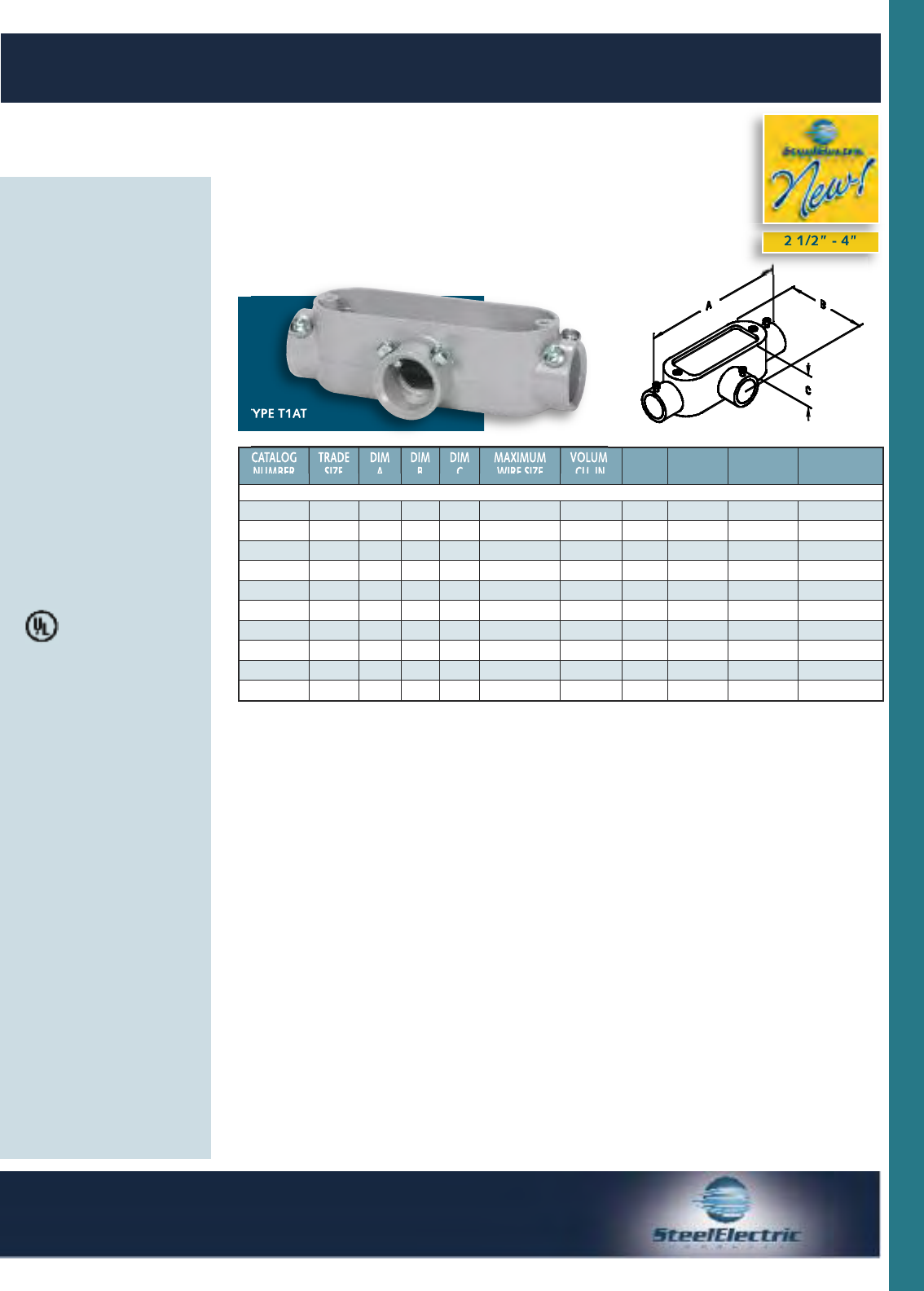

Application:
To provide access to conduc-
tors for pulling, splicing, and
maintenance. Use for thinwall
conduit.
Features:
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
Standard Materials:
1/2" - 2"
Die Cast/Copper-Free
Aluminum
2 1/2" - 4"
Sand-Cast Copper-Free
Aluminum
Standard Finish:
Aluminum Enameled
UL Listed:
E198259
TYPE T1AT
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
T TYPE
T1AT 1/2” 4.75 2.06 1.38 N/A 4.35 10 50 23 48015
T2AT 3/4” 5.56 2.25 1.63 3 #6 AWG 7.25 10 50 38 48025
T3AT 1” 6.44 2.63 1.88 3 #4 AWG 12.20 5 25 53 48035
T4AT 1-1/4” 8.25 3.56 2.50 3 #2 AWG 33.10 - 10 100 48045
T5AT 1-1/2” 8.38 3.56 2.50 3 #1/0 AWAG 33.10 - 10 98 48055
T6AT 2” 10.69 4.38 3.13 3 #4/0 AWG 67.00 -5 265 48065
*T7AT 2-1/2” 13.25 5.75 4.00 3 #4/0 AWG 67.00 - 1 375 48066
*T8AT 3” 13.25 5.75 4.50 3 #4/0 AWG 175.00 -1 444 48067
*T9AT 3-1/2” 16.13 7.69 5.63 3 #400 MCM 298.00 - 1 1146 48068
*T10AT 4” 16.13 7.69 5.63 3 #400 MCM 300.00 -1 1079 48069
2 1/2” - 4”
SIZES
For EMT Conduit
EMT FITTINGS
Application:
Used with threaded rigid
conduit, IMC and EMT for
providing access to the interior
of conduit system for pulling,
splicing, inspection and
maintenance.
Features:
• Assembled with
slotted/Robertson
combination screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled
UL Listed
Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
C US
50
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
With Cover
& Gasket
Type C1CA
Type LB1CA
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LB TYPE
LB1CA 1/2” 4.31 1.31 2.44 N/A 4.35 10 50 24 64101
LB2CA 3/4” 5.06 1.56 2.69 3 #6 AWG 7.25 10 50 37 64102
LB3CA 1” 5.87 1.75 3.00 3 #4 AWG 12.20 5 25 46 64103
LB4CA 1-1/4” 7.81 2.50 3.69 3 #2 AWG 32.30 - 10 98 64104
LB5CA 1-1/2” 7.81 2.50 3.69 3 #2 AWG 33.80 - 10 91 64105
LB6CA 2” 10.06 3.12 4.56 3 #4/0 AWG 71.20 -5 222 64106
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
C TYPE
C1CA 1/2” 4.69 1.38 1.56 N/A 4.35 10 50 28 64401
C2CA 3/4” 5.50 1.56 1.75 3 #6 AWG 7.30 10 50 41 64402
C3CA 1” 6.48 1.88 2.13 3 #4 AWG 12.20 5 25 56 64403
C4CA 1-1/4” 8.31 2.50 2.75 3 #2 AWG 33.50 - 10 101 64404
C5CA 1-1/2” 8.38 2.50 2.75 3 #1/0 AWAG 33.50 - 10 104 64405
C6CA 2” 10.31 3.38 3.63 3 #4/0 AWG 69.50 -5 220 64406
EMT FITTINGS
Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
51
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
With Cover
& Gasket
Type LR1CA
Application:
Used with threaded rigid
conduit, IMC and EMT for
providing access to the interior
of conduit system for pulling,
splicing, inspection and
maintenance.
Features:
• Assembled with
slotted/Robertson
combination screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled
UL Listed
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LL TYPE
LL1CA 1/2” 4.31 2.06 1.63 N/A 4.35 10 50 25 64201
LL2CA 3/4” 5.06 2.25 1.88 3 #6 AWG 7.30 10 50 37 64202
LL3CA 1” 5.87 2.63 2.13 3 #4 AWG 12.20 5 25 45 64203
LL4CA 1-1/4” 7.81 3.63 2.75 3 #2 AWG 35.80 - 10 98 64204
LL5CA 1-1/2” 7.81 3.63 2.75 3 #1/0 AWAG 35.80 - 10 92 64205
LL6CA 2” 10.06 4.44 3.63 3 #4/0 AWG 69.70 -5 245 64206
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LR TYPE
LR1CA 1/2” 4.31 2.06 1.63 N/A 4.35 10 50 23 64301
LR2CA 3/4” 5.06 2.25 1.88 3 #6 AWG 7.30 10 50 38 64302
LR3CA 1” 5.87 2.63 2.13 3 #4 AWG 12.20 5 25 49 64303
LR4CA 1-1/4” 7.81 3.63 2.75 3 #2 AWG 35.80 - 10 98 64304
LR5CA 1-1/2” 7.81 3.63 2.75 3 #1/0 AWAG 35.80 - 10 94 64305
LR6CA 2” 10.06 4.44 3.63 3 #4/0 AWG 69.70 -5 254 64306
Type LL1CA
EMT FITTINGS
52
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Aluminum Combination Conduit Bodies
For Threaded Rigid Conduit, IMC and EMT
With Cover
& Gasket
Application:
Used with threaded rigid
conduit, IMC and EMT for
providing access to the interior
of conduit system for pulling,
splicing, inspection and
maintenance.
Features:
• Assembled with
slotted/Robertson
combination screws.
• Assembled with neoprene
gasket and stamped cover.
• Tapered threaded hubs
(NPT).
• Die cast from high-strength,
corrosion and weather
resistant, copper-free
aluminum alloy.
• Flat back design for easy
mounting close to walls.
• Suitable for use in concrete.
Standard Materials:
Die cast/Copper-free Aluminum
Standard Finish:
Aluminum Enameled
UL Listed
C US
Type T1CA
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CMAXIMUM
WIRE SIZE VOLUME
CU. IN. UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
T TYPE
T1CA 1/2” 4.75 2.06 1.63 N/A 4.35 10 50 23 64501
T2CA 3/4” 5.56 2.25 1.88 3 #6 AWG 7.25 10 50 38 64502
T3CA 1” 6.44 2.63 2.13 3 #4 AWG 12.20 5 25 53 64503
T4CA 1-1/4” 8.25 3.56 2.75 3 #2 AWG 33.10 - 10 100 64504
T5CA 1-1/2” 8.38 3.56 2.75 3 #1/0 AWAG 33.10 - 10 98 64505
T6CA 2” 10.69 4.38 3.63 3 #4/0 AWG 67.00 -5 265 64506
EMT FITTINGS
53
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
• Used with conduit bodies to
cover opening.
Features:
• Assembled with captive zinc
plated steel screws.
Standard Materials:
Steel
Standard Finish:
Zinc plated
UL Listed:
E121488
Application:
• Used with conduit bodies to
cover opening.
Features:
• Assembled with captive zinc
plated steel screws.
• Stamped from high-strength
aluminum, corrosion and
weather resistant copper-
free aluminum alloy.
Standard Materials:
Stamped Aluminum
UL Listed:
E121488
Conduit Body Covers
Steel and Aluminum Covers
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Steel Covers
01
1/2” 3.875 1.310 25 250 9 49017
02
3/4” 4.625 1.520 25 250 13 49027
03
1” 5.315 1.710 20 200 19 49037
04
1-1/4” -1-1/2”
7.240 2.510 25 100 31 49047
05
2” 9.484 3.110 - 50 50 49057
06
2-1/2” - 3”
14.937 5.500 - 10 94 49067
07
3-1/2” - 4”
15.000 6.000 - 10 138 49077
Type 02
Type 02A
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Aluminum Covers
01A 1/2” 3.90 1.37 25 250 6 49105
02A 3/4” 4.70 1.60 25 250 10 49205
03A 1” 5.40 1.78 20 200 14 49305
04A
1-1/4
”
- 1-1/2
” 7.25 2.52 25 100 18 49405
05A 2” 9.50 3.11 - 50 20 49505
06A 2-1/2” - 3” 12.13 4.45 - 10 33 49605
07A 3-1/2” - 4” 14.94 5.50 - 10 62 49705
EMT FITTINGS
54
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
• Gasket used with conduit
bodies for a raintight seal.
Standard Materials:
Neoprene Rubber
Conduit Body Covers
Neoprene Gaskets
Type 11
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
Neoprene Gaskets
10 1/2” 3.90 1.37 200 2000 3 49910
11 3/4” 4.60 1.56 100 1000 3 49911
12 1” 5.34 1.73 100 1000 3 49912
13
1-1/4” - 1-1/2”
7.25 2.51 50 500 6 49913
14 2” 9.50 3.05 25 100 11 49914
15 2-1/2” - 3” 12.13 4.39 - 10 13 49915
16 3-1/2” - 4” 14.88 5.43 - 10 28 49916
EMT FITTINGS
Application:
To ground and secure E.M.T.
raceways to boxes and
enclosures.
Features:
• Heavy steel walls
• Concrete tight
• Pre-set/Pre-staked set
screws
• Male hub threads NPS
• Three-way combination
screws
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E308075

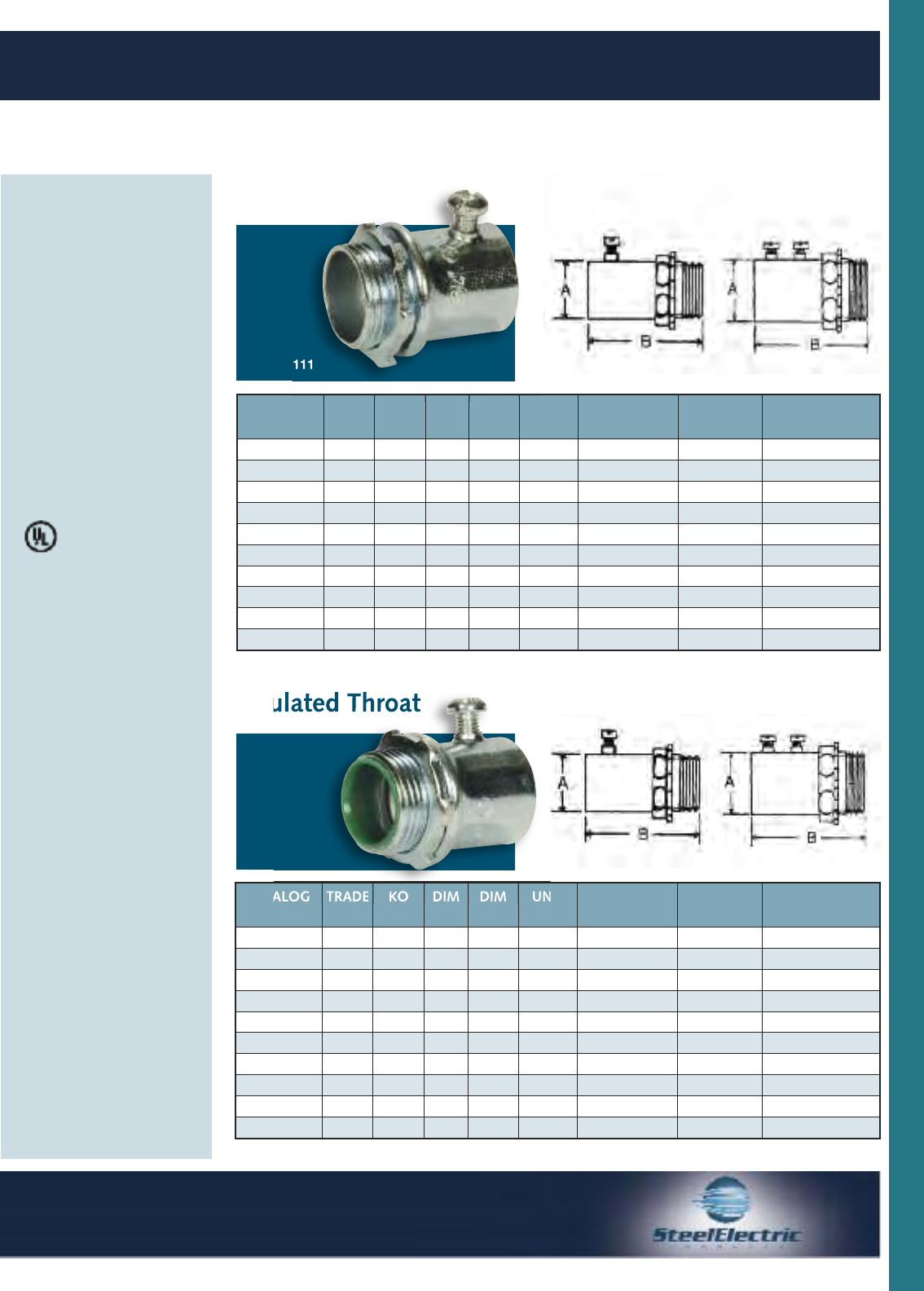

Steel EMT Set-Screw Connectors
For EMT Conduit
55
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
C US
Insulated Throat
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S1110 1/2” 1/2” 0.87 1.53 50 500 9 62007
S1111 3/4” 3/4” 1.10 1.58 25 250 13 62017
S1112 1” 1” 1.36 1.83 50 200 20 62027
*S1112A 1-1/4” 1-1/4” 1.73 2.34 25 100 36 62037
*S1112B 1-1/2” 1-1/2” 1.97 2.27 10 40 45 62047
*S1112C 2” 2” 2.45 2.40 5 20 64 62057
*S1112D 2-1/2” 2-1/2” 3.10 3.18 - 12 130 62067
*S1112E 3” 3” 3.72 3.81 - 12 140 62077
*S1112E1 3-1/2” 3-1/2” 4.24 4.31 - 6 180 62087
*S1112F 4” 4” 4.74 4.87 - 6 225 62097
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S4066 1/2” 1/2” 0.87 1.53 50 500 9 62003
S4067 3/4” 3/4” 1.10 1.58 25 250 13 62013
S4068 1” 1” 1.36 1.83 50 200 20 62023
*S4069 1-1/4” 1-1/4” 1.73 2.34 25 100 36 62033
*S4070 1-1/2” 1-1/2” 1.97 2.27 10 40 45 62043
*S4071 2” 2” 2.45 2.40 5 20 64 62053
*S4072 2-1/2” 2-1/2” 3.10 3.18 - 12 130 62063
*S4073 3” 3” 3.72 3.81 - 12 140 62073
*S4074 3-1/2” 3-1/2” 4.24 4.31 - 6 180 62083
*S4075 4” 4” 4.74 4.87 - 6 225 62093
Type S1111
Type S4067
* Furnished with two set-screws
* Furnished with two set-screws
EMT FITTINGS

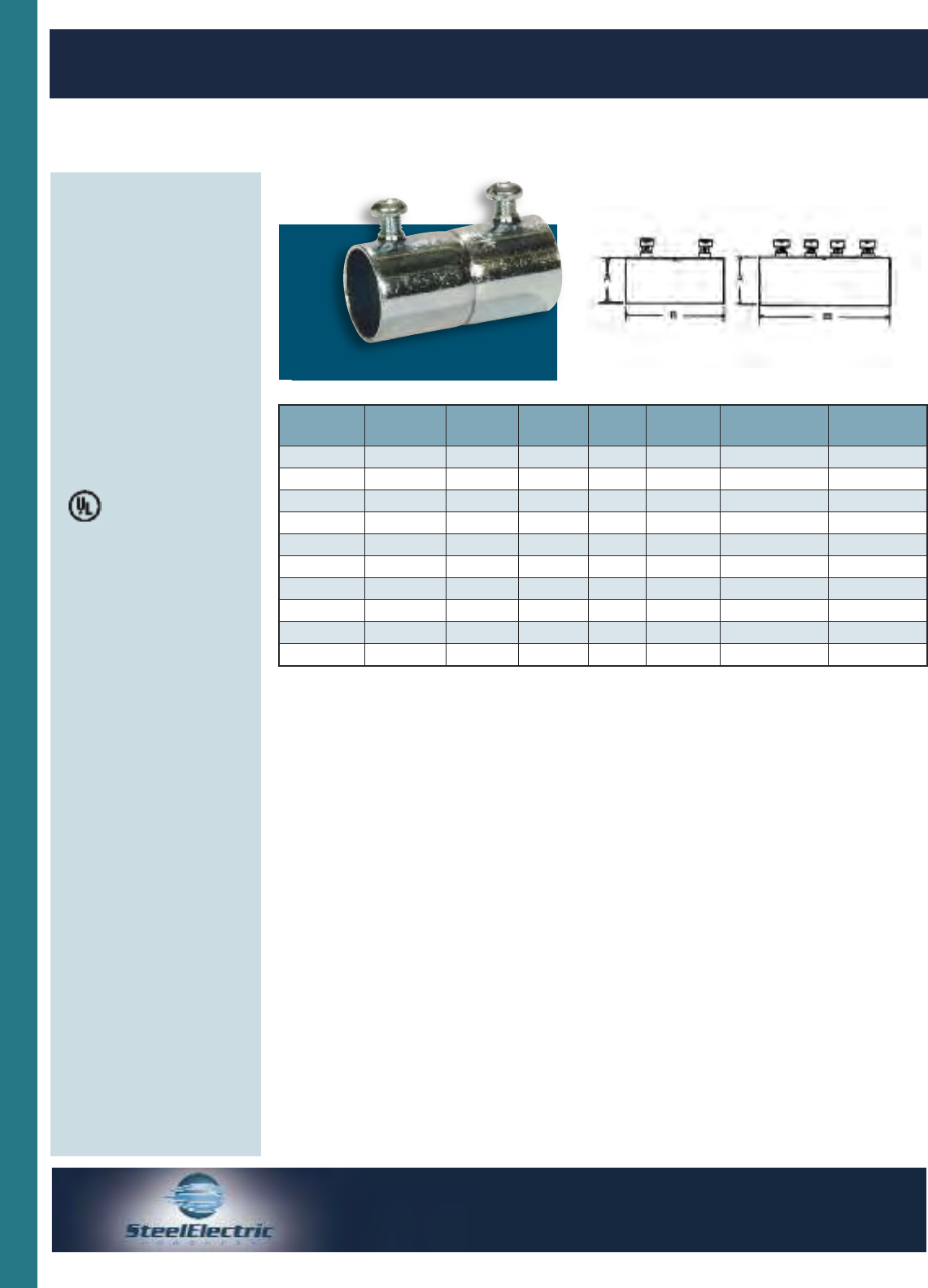

Steel EMT Set-Screw Couplings
For EMT Conduit
56
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To ground and secure E.M.T.
raceway sections together.
Features:
• Heavy steel walls
• Concrete tight
• Pre-set/Pre-staked set
screws
• Three-way combination
screws
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E308075
Type S1113
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S1113 1/2” 0.87 1.63 50 500 8 62107
S1114 3/4” 1.10 1.86 25 250 13 62117
S1115 1” 1.36 2.31 50 200 20 62127
*S1115A 1-1/4” 1.73 2.76 25 100 40 62137
*S1115B 1-1/2” 1.97 3.00 10 40 58 62147
*S1115C 2” 2.45 3.27 5 20 65 62157
*S1115D 2-1/2” 3.10 4.00 - 12 130 62167
*S1115E 3” 3.72 4.25 - 12 140 62177
*S1115E1 3-1/2” 4.24 4.50 - 6 217 62187
*S1115F 4” 4.74 4.75 - 6 250 62197
* Furnished with four set-screws
EMT FITTINGS

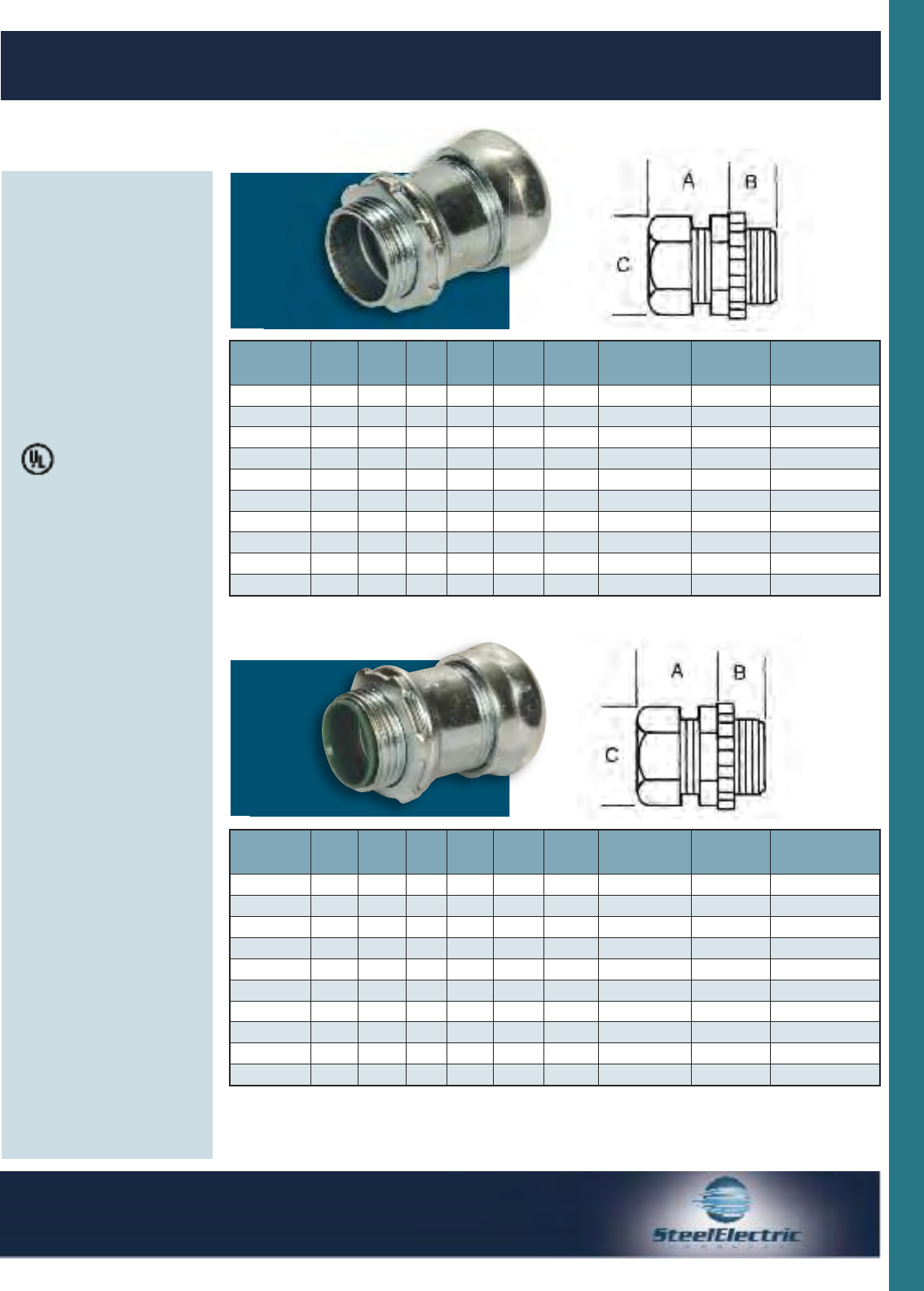

Steel EMT Compression Connectors
For EMT Conduit
57
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type S1011
Type S4061
Application:
To ground and secure E.M.T.
raceways to boxes and
enclosures.
Features:
• Male hub threads NPS
• Concrete tight
• Heavy Steel Walls
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E308075
C US
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S1010
1/2” 1/2” 1.040 0.034 1.120 50 500 11 61007
S1011
3/4” 3/4” 1.040 0.043 1.390 25 250 17 61017
S1012
1” 1” 1.050 0.052 1.700 50 200 23 61027
S1013
1-1/4” 1-1/4” 1.270 0.062 2.050 25 100 41 61037
S1014
1-1/2” 1-1/2” 1.400 0.064 2.250 10 40 50 61047
S1015
2” 2” 1.520 0.066 2.780 5 20 67 61057
S1015D
2-1/2” 2-1/2” 2.510 0.083 3.600 - 12 177 61067
S1015E
3” 3” 2.540 0.083 4.260 - 12 234 61077
S1015E1
3-1/2” 3-1/2” 2.720 0.087 4.710 - 6 288 60187
S1015F
4” 4” 2.890 0.090 5.210 - 6 343 61097
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S4060
1/2” 1/2” 1.040 0.034 1.120 50 500 11 61003
S4061
3/4” 3/4” 1.040 0.043 1.390 25 250 17 61013
S4062
1” 1” 1.050 0.052 1.700 50 200 23 61023
S4063
1-1/4” 1-1/4” 1.270 0.062 2.050 25 100 41 61033
S4064
1-1/2” 1-1/2” 1.400 0.064 2.250 10 40 50 61043
S4065
2” 2” 1.520 0.066 2.780 5 20 67 61053
S4065D
2-1/2” 2-1/2” 2.510 0.083 3.600 - 12 177 61063
S4065E
3” 3” 2.540 0.083 4.200 - 12 234 61073
S4065E1
3-1/2” 3-1/2” 2.720 0.087 4.710 - 6 288 61083
S4065F
4” 4” 2.890 0.090 5.210 - 6 343 61093
Insulated Throat
EMT FITTINGS
58
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
STEEL

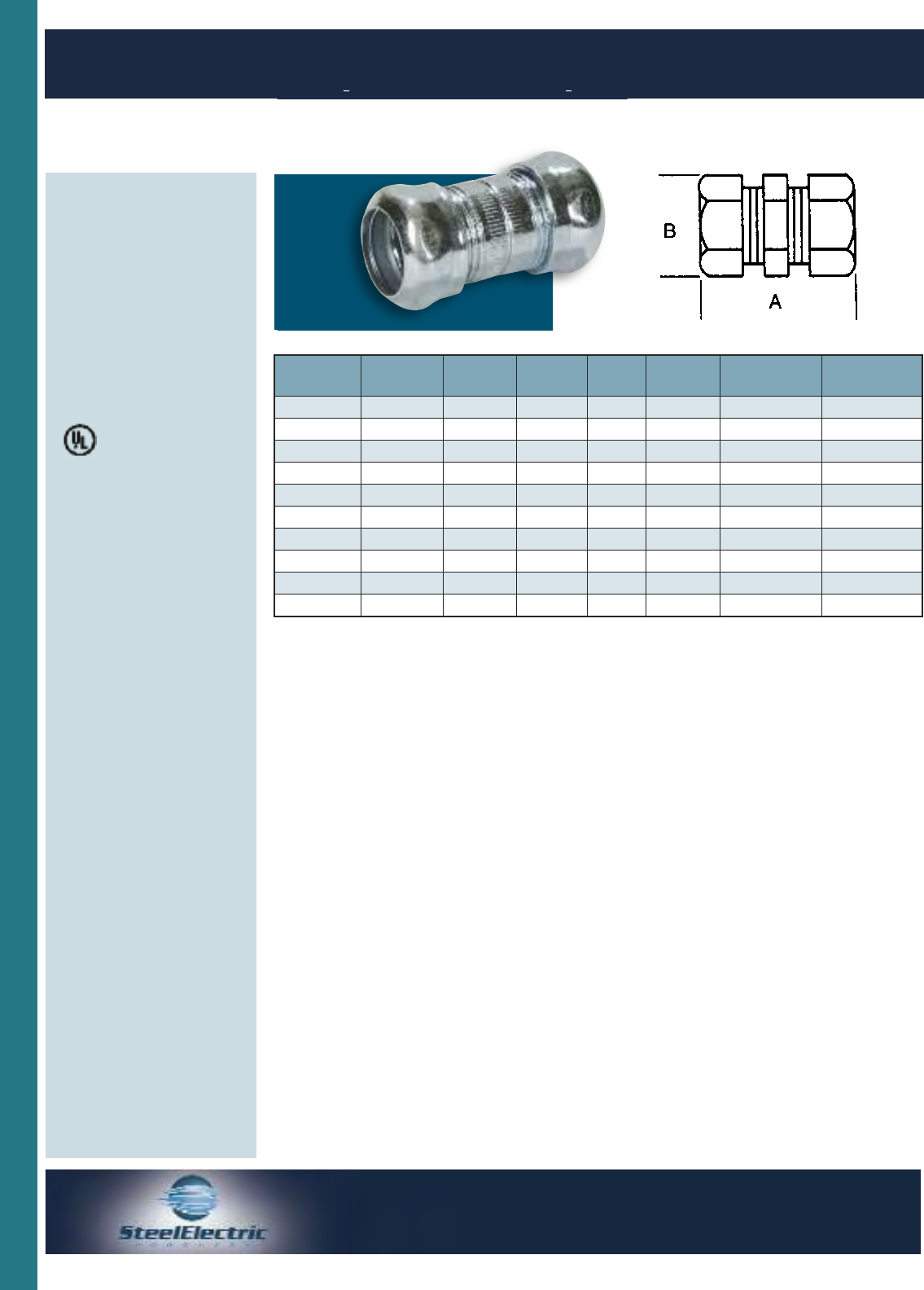

Steel EMT Compression Couplings
For EMT Conduit
Application:
To ground and secure E.M.T.
raceway sections together.
Features:
• Concrete tight
• Heavy Steel Walls
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E308075
Type S1017
C US
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S1016 1/2” 1.60 1.12 50 500 8 61107
S1017 3/4” 1.60 1.39 25 250 13 61117
S1018 1” 1.71 1.68 50 200 20 61127
S1019 1-1/4” 2.08 2.06 25 100 40 61137
S1020 1-1/2” 2.36 2.25 10 40 58 61147
S1021 2” 2.40 2.78 5 20 65 61157
S1021D 2-1/2” 3.89 3.65 - 12 130 61167
S1021E 3” 4.25 4.31 - 12 140 61177
S1021E1 3-1/2” 4.65 4.75 - 6 217 61187
S1021F 4” 4.90 5.27 - 6 250 61197
EMT FITTINGS
59
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
RAINTIGHT

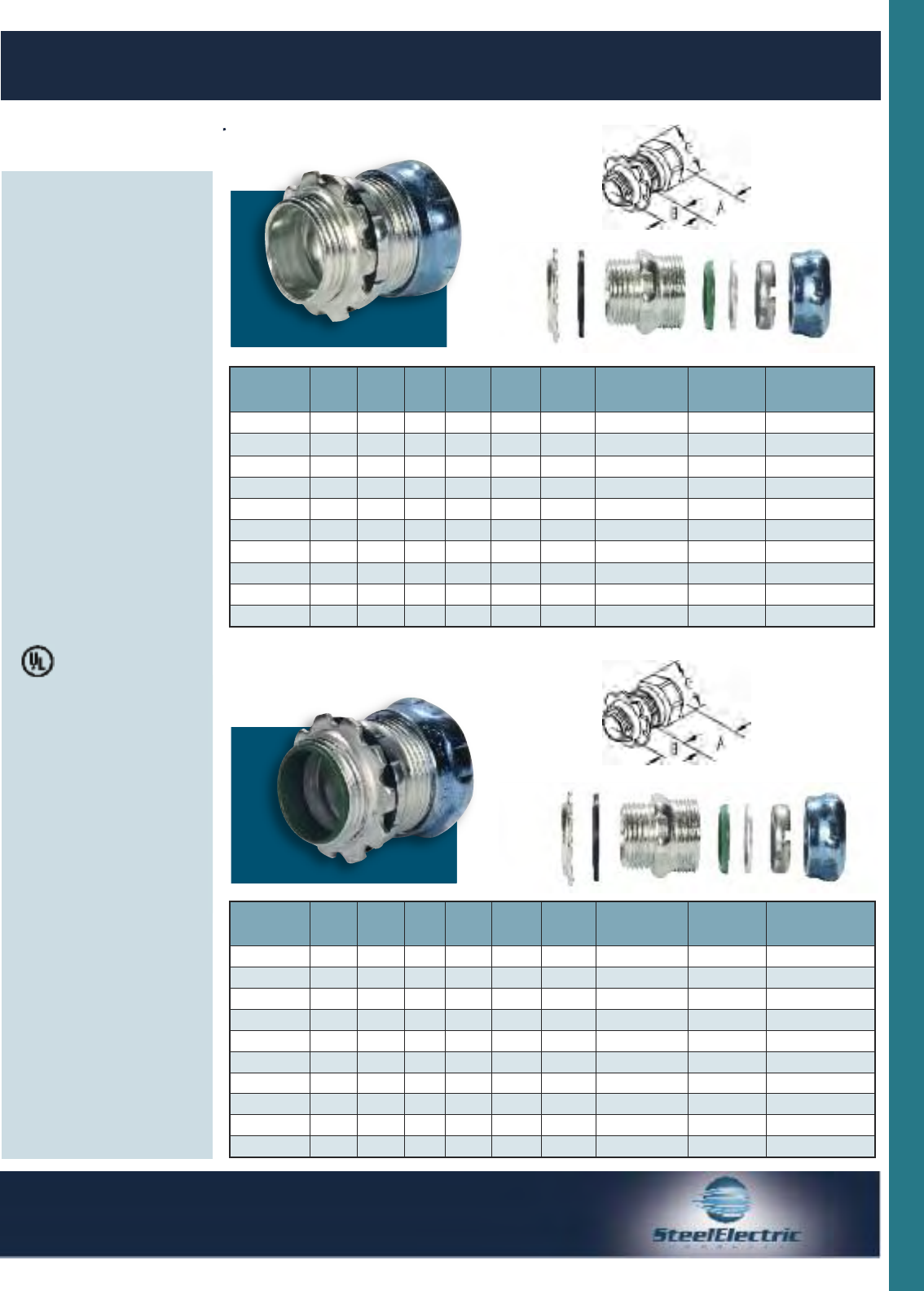

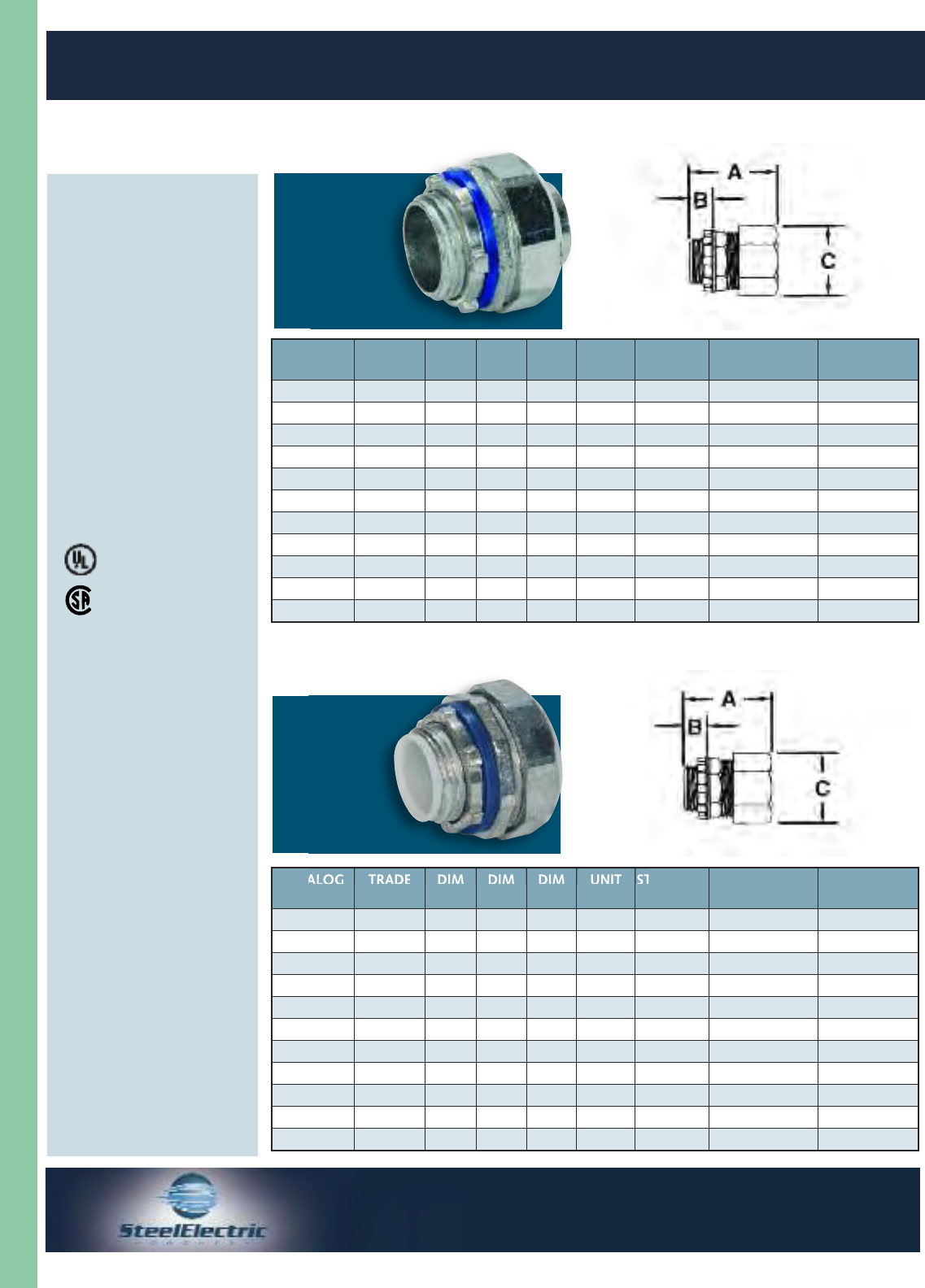

Steel Raintight EMT Compression Connectors
For EMT Conduit
Type S1011RT
Type S4061RT
Application:
Compression style connector
with internal sealing ring and
knockout gasket to create a
raintight seal when connecting
E.M.T. to box or enclosure.
Features:
• The only steel compression
fitting, UL Listed Raintight
• Unique raised bump design
affords fast, positive locking
of compression nuts
• Male Hub Threads-NPSM
• Steel locknuts
• Heavy steel walls
• Raintight
• Concrete tight
Standard Materials:
Steel
Standard Finish:
Zinc Plated
PATENTED
UL Listed:
E308075
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S1010RT
1/2” 1/2” 1.040 0.034 1.120 50 500 11 62201
S1011RT
3/4” 3/4” 1.040 0.043 1.390 25 250 17 62202
S1012RT
1” 1” 1.050 0.052 1.700 50 200 23 62203
S1013RT
1-1/4” 1-1/4” 1.270 0.062 2.050 25 100 41 62204
S1014RT
1-1/2” 1-1/2” 1.400 0.064 2.250 10 40 50 62205
S1015RT
2” 2” 1.520 0.066 2.780 5 20 67 62206
S1015DRT
2-1/2” 2-1/2” 2.510 0.083 3.600 - 12 177 62311
S1015ERT
3” 3” 2.540 0.083 4.260 - 12 234 62312
S1015E1RT
3-1/2” 3-1/2” 2.720 0.087 4.710 - 6 288 62313
S1015FRT
4” 4” 2.890 0.090 5.210 - 6 343 62314
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S4060RT
1/2” 1/2” 1.040 0.034 1.120 50 500 11 62301
S4061RT
3/4” 3/4” 1.040 0.043 1.390 25 250 17 62302
S4062RT
1” 1” 1.050 0.052 1.700 50 200 23 62303
S4063RT
1-1/4” 1-1/4” 1.270 0.062 2.050 25 100 41 62304
S4064RT
1-1/2” 1-1/2” 1.400 0.064 2.250 10 40 50 62305
S4065RT
2” 2” 1.520 0.066 2.780 5 20 67 62306
S4065DRT
2-1/2” 2-1/2” 2.510 0.083 3.600 - 12 177 62307
S4065ERT
3” 3” 2.540 0.083 4.260 - 12 234 62308
S4065E1RT
3-1/2” 3-1/2” 2.720 0.087 4.710 - 6 288 62309
S4065FRT
4” 4” 2.890 0.090 5.210 - 6 343 62310
Insulated Throat
C US
EMT FITTINGS
Application:
Compression style coupling
used to join two lengths of
E.M.T. Internal sealing rings
create a raintight seal.
Features:
• The only steel compression
fitting, UL Listed Raintight
• Unique raised bump design
affords fast, positive locking
of compression nuts
• Heavy steel walls
• Raintight
• Concrete tight
Standard Materials:
Steel
Standard Finish:
Zinc Plated
PATENTED
UL Listed:
E308075

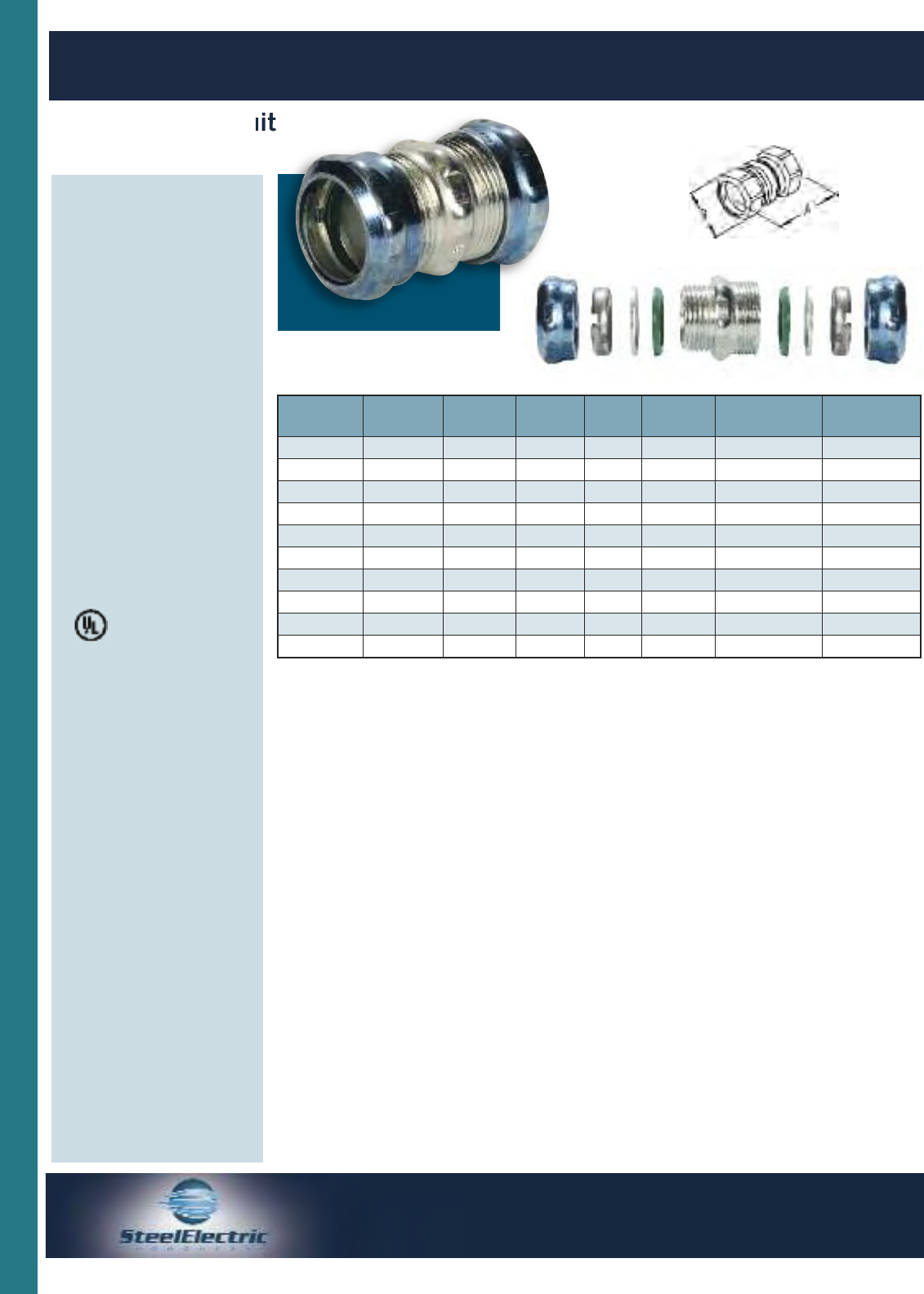

Steel Raintight EMT Compression Couplings
For EMT Conduit
Type S1017RT
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S1016RT 1/2” 1.60 1.12 50 500 8 62401
S1017RT 3/4” 1.60 1.39 25 250 13 62402
S1018RT 1” 1.71 1.68 50 200 20 62403
S1019RT 1-1/4” 2.08 2.06 25 100 40 62404
S1020RT 1-1/2” 2.36 2.25 10 40 58 62405
S1021RT 2” 2.40 2.78 5 20 65 62406
S1021DRT 2-1/2” 3.89 3.65 - 12 130 62407
S1021ERT 3” 4.25 4.31 - 12 140 62408
S1021E1RT 3-1/2” 4.65 4.75 - 6 217 62409
S1021FRT 4” 4.90 5.27 - 6 250 62410
C US
EMT FITTINGS
60
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
61
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To secure and terminate
E.M.T. to knockouts in concrete
tight box or dry location
applications.
Features:
• Concrete tight
• Pre-set/pre-staked
set-screws
• Combination head set-screws
• Male hub threads NPS
Standard Materials:
Zinc Die Cast
UL Listed: E155411
CSA File No. LR57925

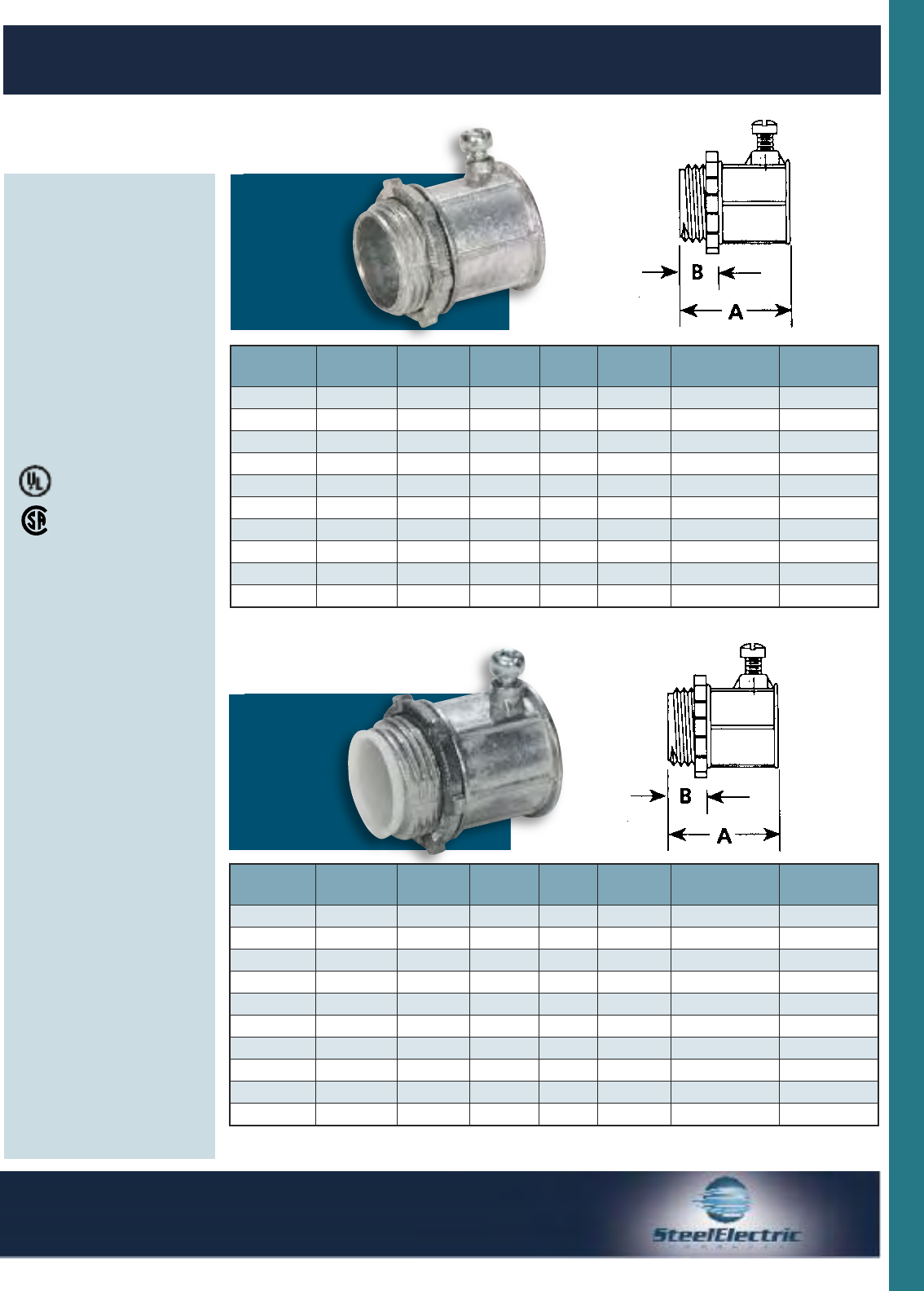

Zinc EMT Set-Screw Connectors
For EMT Conduit
Type 1111
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1110 1/2” 1.16 0.41 50 500 7 62002
1111 3/4” 1.31 0.47 25 250 10 62012
1112 1” 1.56 0.56 50 200 15 62022
*1112A 1-1/4” 1.96 0.63 25 100 29 62032
*1112B 1-1/2” 2.19 0.72 10 40 40 62042
*1112C 2” 2.50 0.75 5 20 54 62052
*1112D 2-1/2” 3.03 1.00 - 12 83 62062
*1112E 3” 3.37 1.06 - 12 100 62072
*1112E1 3-1/2” 3.58 1.09 - 10 128 62082
*1112F 4” 3.75 1.09 - 6 156 62092
Type 4067
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
4066 1/2” 1.16 0.41 50 500 7 62008
4067 3/4” 1.31 0.47 25 250 10 62018
4068 1” 1.56 0.56 50 200 15 62028
*4069 1-1/4” 1.96 0.63 25 100 29 62038
*4070 1-1/2” 2.19 0.72 10 40 40 62048
*4071 2” 2.50 0.75 5 20 54 62058
*4072 2-1/2” 3.03 1.00 - 12 83 62068
*4073 3” 3.37 1.06 - 12 100 62078
*4074 3-1/2” 3.58 1.09 - 10 128 62088
*4075 4” 3.75 1.09 - 6 156 62098
Insulated Throat
*Furnished with two set-screws
*Furnished with two set-screws
EMT FITTINGS
®
Application:
To ground and secure E.M.T.
raceway sections together.
Features:
• Heavy steel walls
• Concrete tight
• Pre-set/Pre-staked set
screws
• Three-way combination
screws
Material/Finish:
Zinc Die Cast
UL Listed: E155411
CSA File No. LR57925

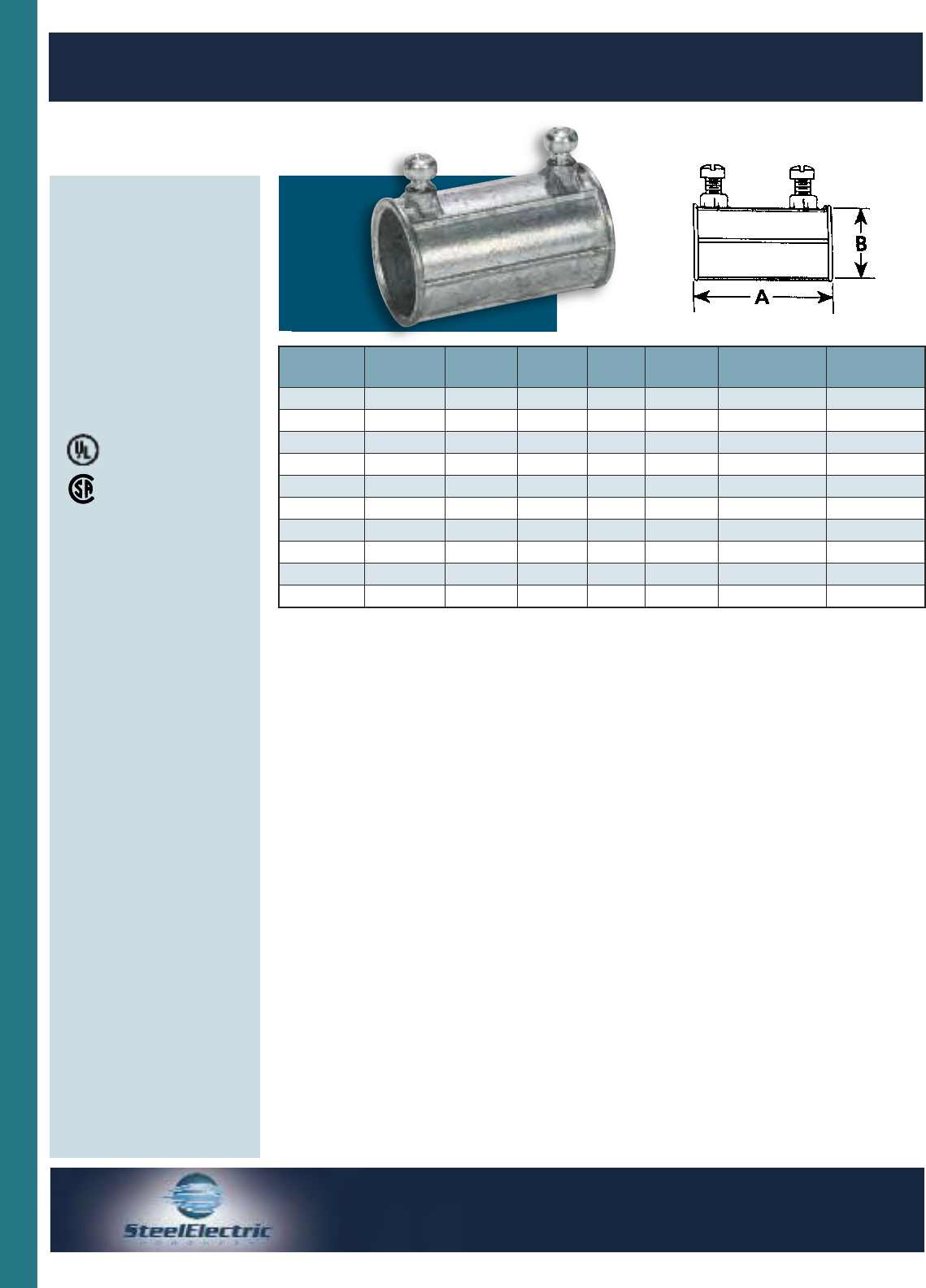

Zinc EMT Set-Screw Couplings
For EMT Conduit
62
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
®
Type 1114
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1113 1/2” 1.53 0.94 50 500 8 62102
1114 3/4” 1.88 1.16 25 250 13 62112
1115 1” 2.00 1.43 50 200 20 62122
*1115A 1-1/4” 2.50 1.84 25 100 40 62132
*1115B 1-1/2” 2.88 2.07 10 40 58 62142
*1115C 2” 3.44 2.55 5 20 65 62152
*1115D 2-1/2” 3.99 3.30 - 12 130 62162
*1115E 3” 4.55 3.94 - 12 140 62172
*1115E1 3-1/2” 4.82 4.45 - 10 217 62182
*1115F 4” 5.24 4.97 - 6 250 62192
*Furnished with four set-screws
EMT FITTINGS
63
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To secure and terminate E.M.T.
to knockouts in concrete tight
box, dry or damp location
applications.
Features:
• Male hub threads NPS
• Concrete tight
Standard Materials:
Zinc Die Cast
UL Listed: E155411
CSA File No. LR57925

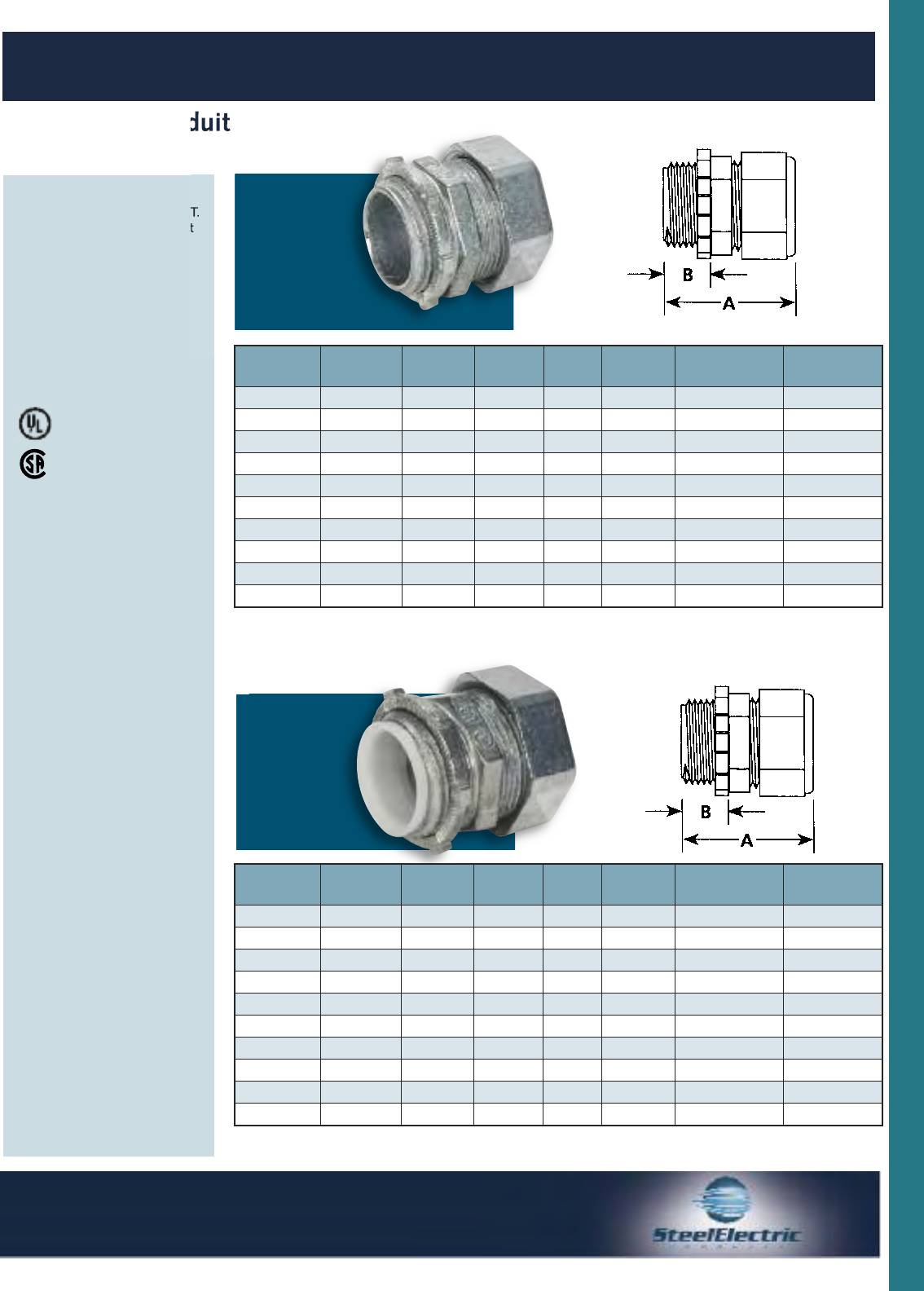

Zinc EMT Compression Connectors
For EMT Conduit
®
Type 1011
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1010 1/2” 1.20 0.40 50 500 10 61002
1011 3/4” 1.27 0.40 25 250 14 61012
1012 1” 1.48 0.50 50 200 20 61022
1013 1-1/4” 1.75 0.59 25 100 37 61032
1014 1-1/2” 1.91 0.62 10 40 55 61042
1015 2” 2.11 0.76 5 20 81 61052
1015D 2-1/2” 2.62 1.00 - 12 107 61062
1015E 3” 2.75 1.06 - 12 137 61072
1015E1 3-1/2” 2.83 1.14 - 10 176 61082
1015F 4” 2.84 1.14 - 6 206 61092
Type 4061
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
4060 1/2” 1.20 0.40 50 500 10 61008
4061 3/4” 1.27 0.40 25 250 14 61018
4062 1” 1.48 0.50 50 200 20 61028
4063 1-1/4” 1.75 0.59 25 100 37 61038
4064 1-1/2” 1.91 0.62 10 40 55 61048
4065 2” 2.11 0.76 5 20 81 61058
4065D 2-1/2” 2.62 1.00 - 12 107 61068
4065E 3” 2.75 1.06 - 12 137 61078
4065E1 3-1/2” 2.83 1.14 - 10 176 61088
4065F 4” 2.84 1.14 - 6 206 61098
Insulated Throat
EMT FITTINGS
64
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To join lengths of E.M.T. for
concrete tight, dry or damp
location applications.
Features:
• Concrete tight
Standard Materials:
Zinc Die Cast
UL Listed: E155411
CSA File No. LR57925
For EMT Conduit
®

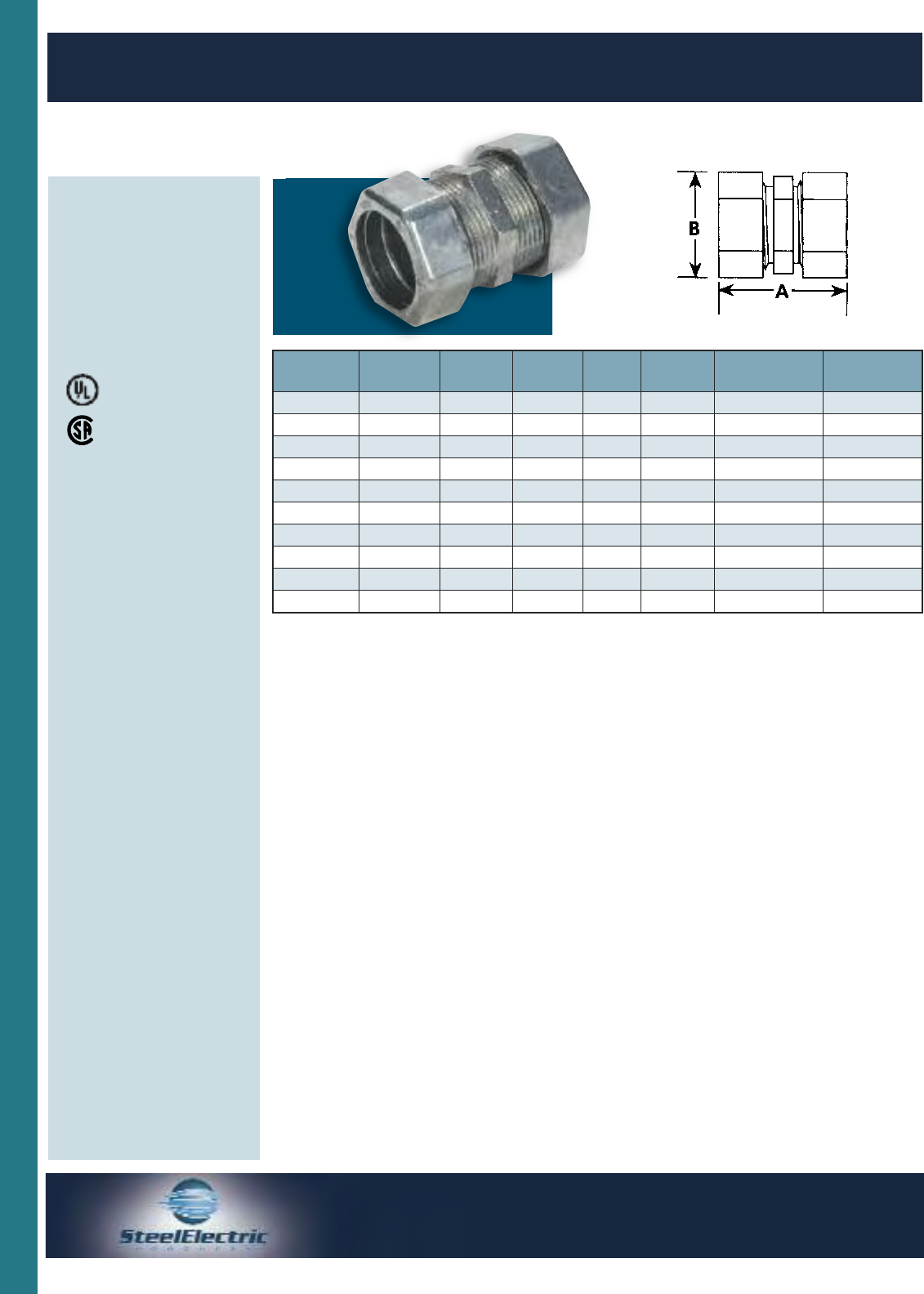

Zinc EMT Compression Couplings
Type 1017
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1016 1/2” 1.59 1.09 50 500 8 61102
1017 3/4” 1.81 1.28 25 250 13 61112
1018 1” 1.82 1.60 50 200 20 61122
1019 1-1/4” 2.07 2.00 25 100 40 61132
1020 1-1/2” 2.47 2.29 10 40 58 61142
1021 2” 2.56 2.79 5 20 65 61152
1021D 2-1/2” 3.29 3.51 - 12 130 61162
1021E 3” 3.42 4.21 - 12 140 61172
1021E1 3-1/2” 3.51 4.75 - 10 217 61182
1021F 4” 3.54 5.32 - 6 250 61192
EMT FITTINGS
65
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
EMT FITTINGS
Application:
To join E.M.T. to Rigid or IMC
Features:
• Threaded rigid and IMC to
compression E.M.T.
• Concrete tight
• NPT female hub
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E207875
Application:
A combination coupling to
provide a transition from EMT
to unthreaded rigid conduit or
IMC.
Features:
• Pre-set and staked
Robertson head screws
• Concrete tight when taped
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E207875
For Rigid Conduit, IMC and E.M.T.
Combination Couplings
For EMT Steel Set-Screw to Rigid Set-Screw Couplings
For EMT Steel Compression
to Threaded Rigid Couplings
C US
C US
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
ERC-22 1/2” 1.313 1.125 0.875 0.688 25 250 14 47322
ERC-23 3/4” 1.438 1.375 1.125 0.750 25 250 25 47323
ERC-24 1” 1.500 1.688 1.375 0.813 25 250 34 47324
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S16ES 1/2” 1.000 2.375 0.875 0.938 50 500 14 23016
S17ES 3/4” 1.250 2.813 1.125 1.125 25 250 28 23017
S18ES 1” 1.500 3.000 1.188 1.188 - 25 36 23018
Type ERC-23
Type S18ES
66
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
90° corner pulling elbows are
used to facilitate pulling
conductors through a sharp
bend in a run of E.M.T. The
removable cover gives ample
access so that wire pulling can
be achieved without any
obstructions.
Feature:
• Removable aluminum cover
and neoprene gasket
facilitate wire pulling
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
Used to connect E.M.T. conduit
to a metal box enclosure at a
90° bend.
Features:
• Removable aluminum cover
and neoprene gasket
facilitate wire pulling
• Assembled with zinc die cast
locknut
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Zinc 90
°
Pull Elbows
For EMT Conduit
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1326 1/2” 1.31 0.94 10 100 24 13262
1327 3/4” 1.59 1.22 5 50 37 13272
1328 1” 1.94 1.59 - 25 68 13282
1329 1-1/4” 2.36 1.97 - 20 102 13292
Type 1326
Female to Female
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1332 1/2” 1.31 0.93 10 100 22 13322
1333 3/4” 1.47 1.22 5 50 35 13332
Type 1332
Male to Female
®
®
EMT FITTINGS
67
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Use to connect E.M.T. conduit
to a metal outlet box or
enclosure where an offset is
desired.
Features:
• Set-Screw Type
• Concrete tight
• Assembled with zinc die cast
locknut
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
Use to connect E.M.T. conduit
to a metal outlet box or
enclosure where an offset is
desired.
Features:
• Compression Type
• Raintight & Concrete tight
• Assembled with zinc die cast
locknut
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Zinc Offset Connectors
For EMT Conduit
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1250 1/2 2.090 0.940 0.375 10 100 12 61250
1251 3/4 2.980 1.160 0.750 10 100 19 61251
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1260 1/2 2.130 1.000 0.375 20 200 13 13761
1261 3/4 2.900 1.190 0.750 10 100 21 13702
Type 1250
Set-Screw
Type 1260
Compression
®
®
EMT FITTINGS
68
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Similar to that for 90° Corner
Pulling Elbows, however, these
products are used where it is
essential to make tight turns
within limited available space.
Features:
• Assembled with tri-combo
screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
Compression type 90° E.M.T.
connectors used to terminate
E.M.T. to an unthreaded box or
enclosure.
Features:
• Concrete tight
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
For EMT Conduit
®
®

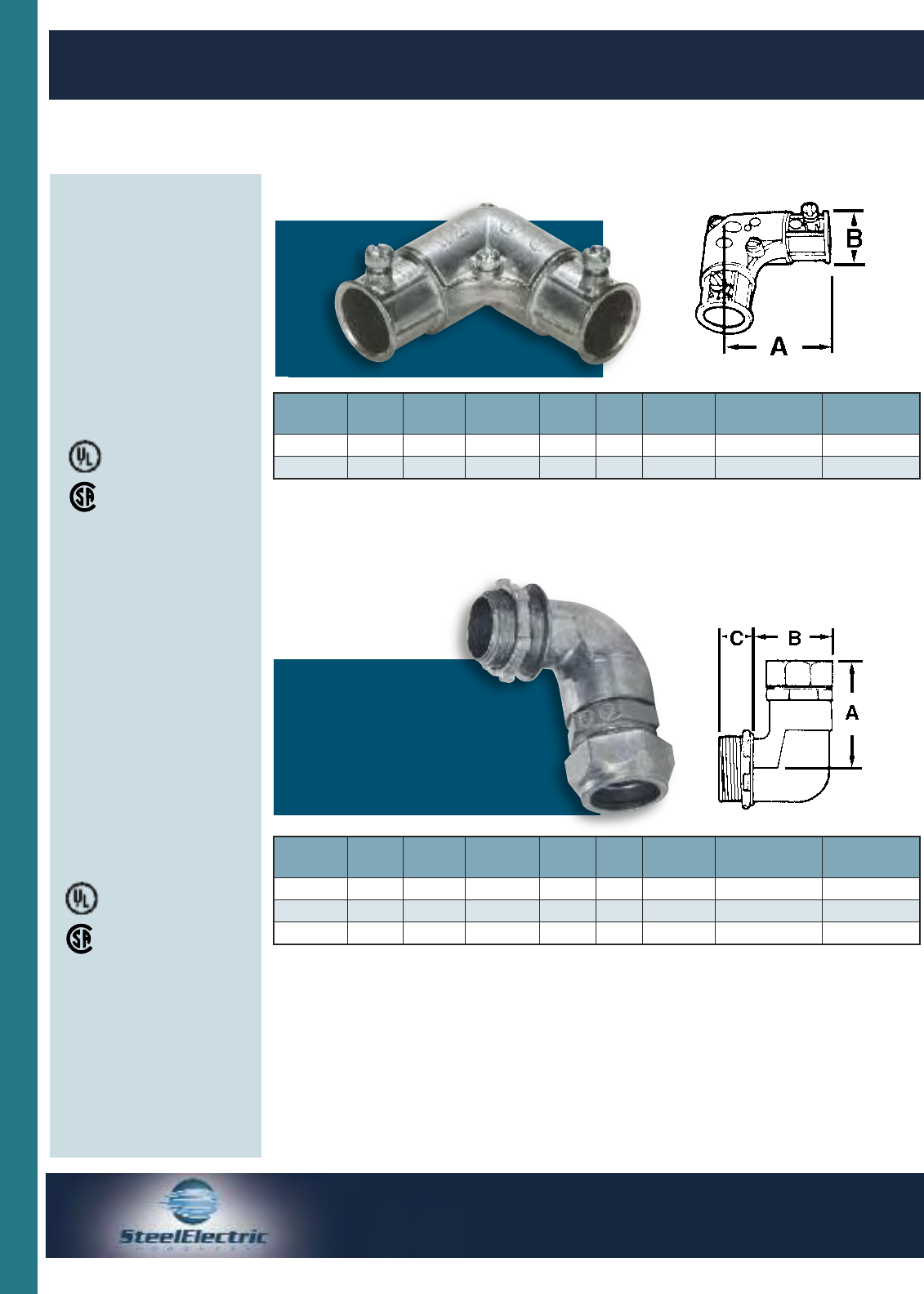

Zinc 90
°
Corner Pull Elbows and 90
°
Comp. Conn.
Type 1341
Set-Screw
Type 10E
Male to Female
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
1341 1/2” 1.81 1.00 10 100 20 13413 13413
1342 3/4” 1.00 1.25 5 50 29 13423 13423
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
10E 1/2” 1.75 0.83 0.52 25 250 20 62101
11E 3/4” 1.86 0.95 0.52 20 200 26 62111
12E 1” 2.21 1.12 0.67 10 100 46 62121
EMT FITTINGS
69
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Click-on type one-hole straps
for E.M.T. Provides support for
the conduits, as required by the
National Electrical Code.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E198338
Application:
Snap-on type two-hole straps
for E.M.T. are used where
higher load bearing supports
are desired.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E198338

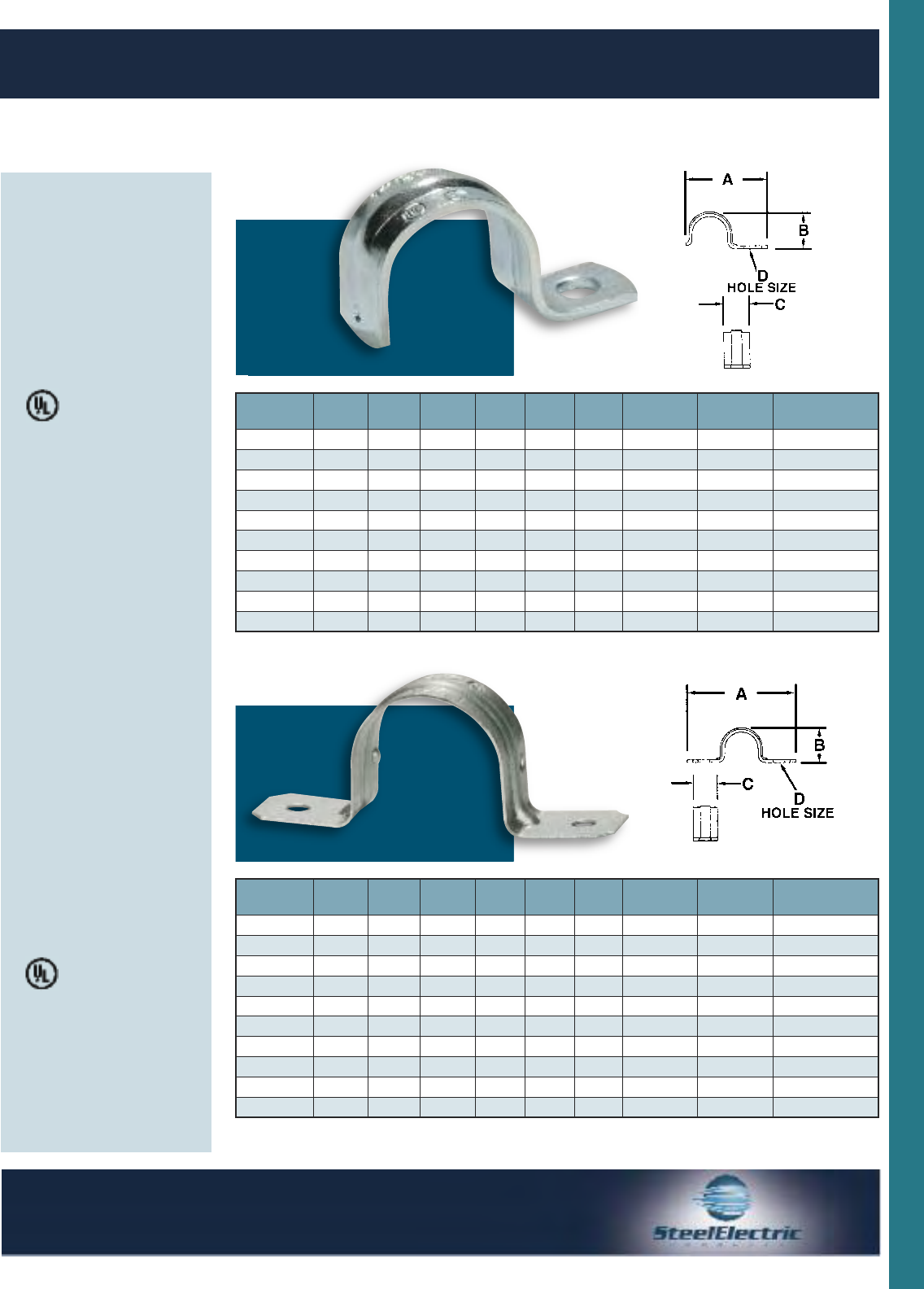

EMT Straps
For EMT Conduit
Type 143S
One-Hole
Type 2143S
Two-Hole
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CDIM
DUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
2142S 1/2” 2.200 0.790 0.560 0.200 - 250 1 21427
2143S 3/4” 2.700 0.980 0.620 0.200 - 200 2 21437
2144S 1” 2.975 1.185 0.690 0.200 - 100 4 21447
2145S 1-1/4” 3.650 1.535 0.750 0.275 - 50 5 21457
2146S 1-1/2” 4.250 1.765 0.870 0.275 - 50 8 21467
2147S 2” 4.730 2.300 0.995 0.325 - 25 13 21477
2158S 2-1/2” 6.025 2.855 0.985 0.345 - 25 20 21533
2159S 3” 6.460 3.425 0.995 0.345 - 20 25 21597
2160S 3-1/2” 7.300 3.925 0.990 0.345 - 10 33 21535
2161S 4” 7.895 4.435 0.995 0.345 - 10 36 21617
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CDIM
DUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
142S 1/2” 1.720 0.700 0.550 0.312 100 1000 2 81427
143S 3/4” 1.980 0.975 0.630 0.312 100 1000 3 81437
144S 1” 2.210 1.090 0.750 0.312 50 500 4 81447
145S 1-1/4” 2.880 1.540 0.880 0.355 50 500 10 81457
146S 1-1/2” 3.140 1.750 0.990 0.335 - 50 16 81467
147S 2” 3.890 2.150 1.110 0.450 - 50 22 81477
158S 2-1/2” 4.925 2.825 1.245 0.550 - 25 62 81587
159S 3” 5.540 3.430 1.250 0.550 - 25 76 81597
160S 3-1/2” 6.260 3.900 1.250 0.575 - 10 120 81607
161S 4” 6.830 4.390 1.240 0.575 - 10 125 81613
C US
C US
EMT FITTINGS
70
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To allow securing of conduit
to wall surfaces and route to
junction box without requiring
offset bending of conduit.
Features:
• Standoff design eliminates
conduit bending and provides
automatic alignment with
electrical box knockouts.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E213669
Application:
To allow securing of conduit
to wall surfaces and route to
junction box without requiring
offset bending of conduit.
Features:
• Standoff design eliminates
conduit bending and provides
automatic alignment with
electrical box knockouts.
Standard Materials:
Zinc Die Cast
UL Listed:
E200730

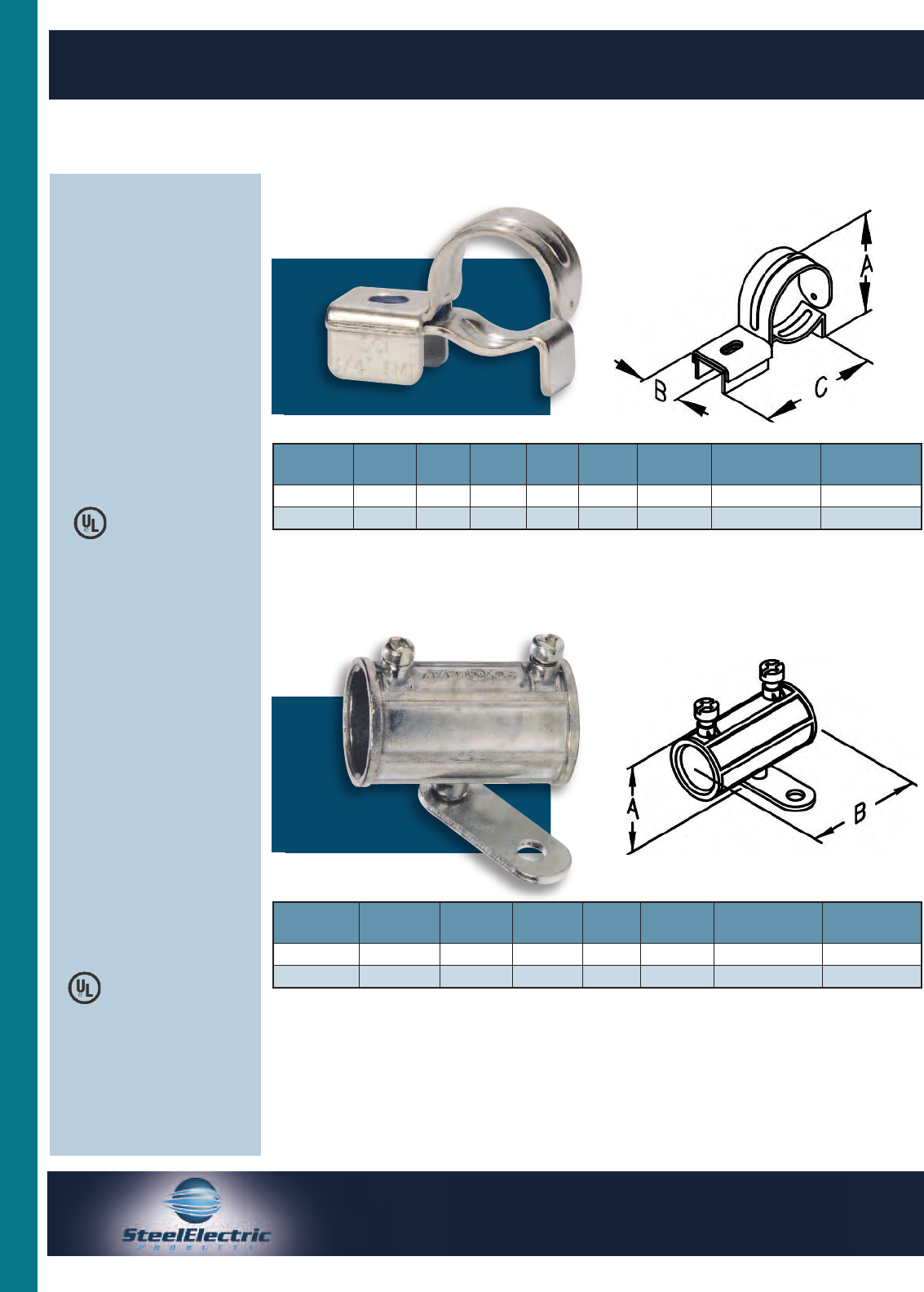

Bendsaver TM Fittings
Type OCS-50
Type DOC-50
Die Cast BendsaverTM Couplings
Steel BendsaverTM Conduit Straps
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
DOC-50 1/2” 1.125 1.625 50 500 9 90114
DOC-75 3/4” 1.375 1.875 25 250 14 90115
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
OCS-50 1/2” 1.313 8.130 1.750 50 500 7 90112
OCS-75 3/4” 1.500 8.130 1.938 25 250 9 90113
C US
C US
EMT FITTINGS
71
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
A combination coupling to
provide a transition from E.M.T.
to flexible metallic conduit.
Features:
• Assembled with tri-combo
screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
A combination coupling to
provide a transition from E.M.T.
to flexible metallic conduit.
Features:
• Assembled with tri-combo
screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
To secure rigid to wooden
structure members. Use in
place of one hole straps.
Features:
• Tensile strength of Cast Steel
is 30% higher than Malleable
Iron
• Withstands greater striking
force
Standard Materials:
Cast Steel
Standard Finish:
Zinc Plated

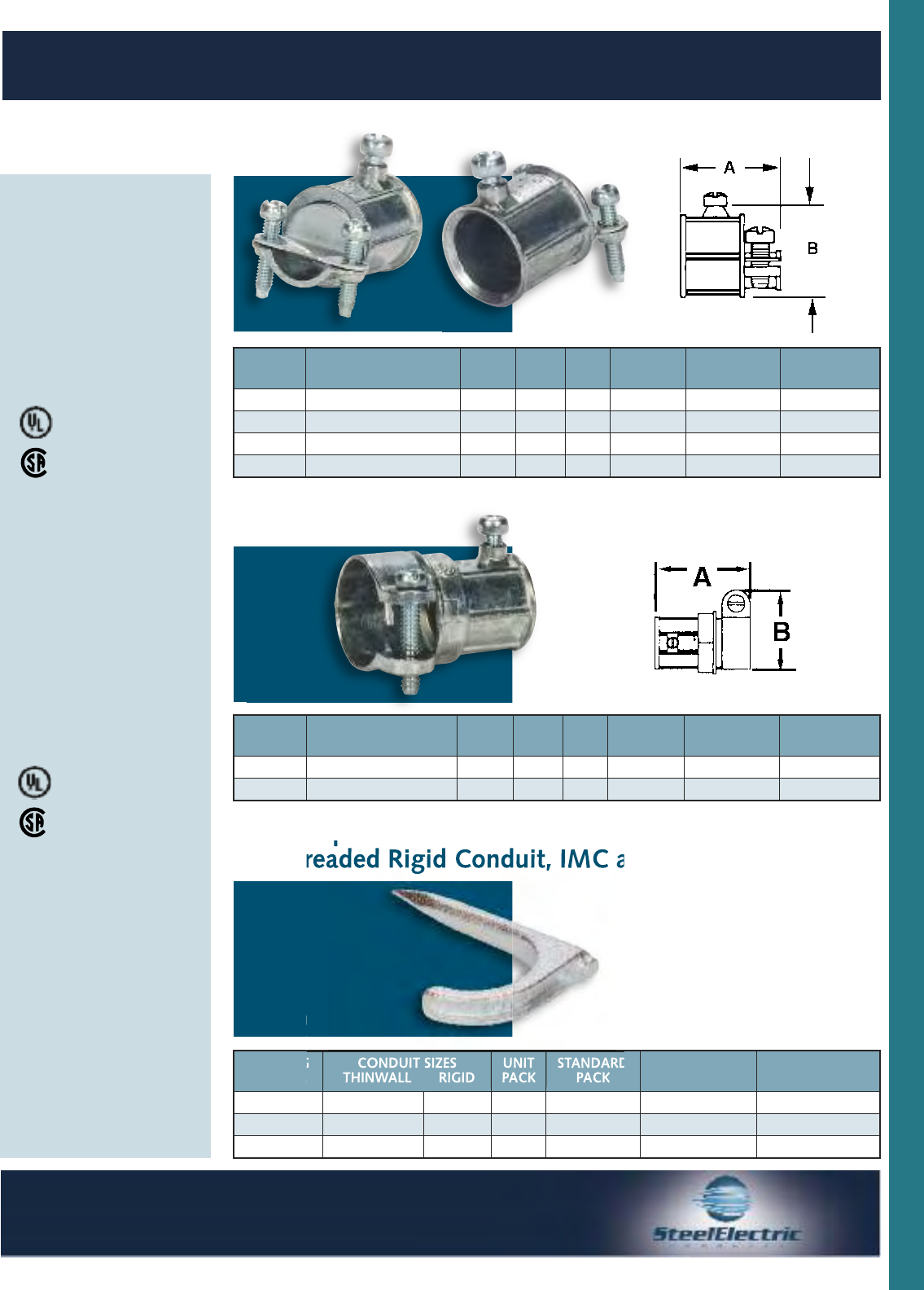

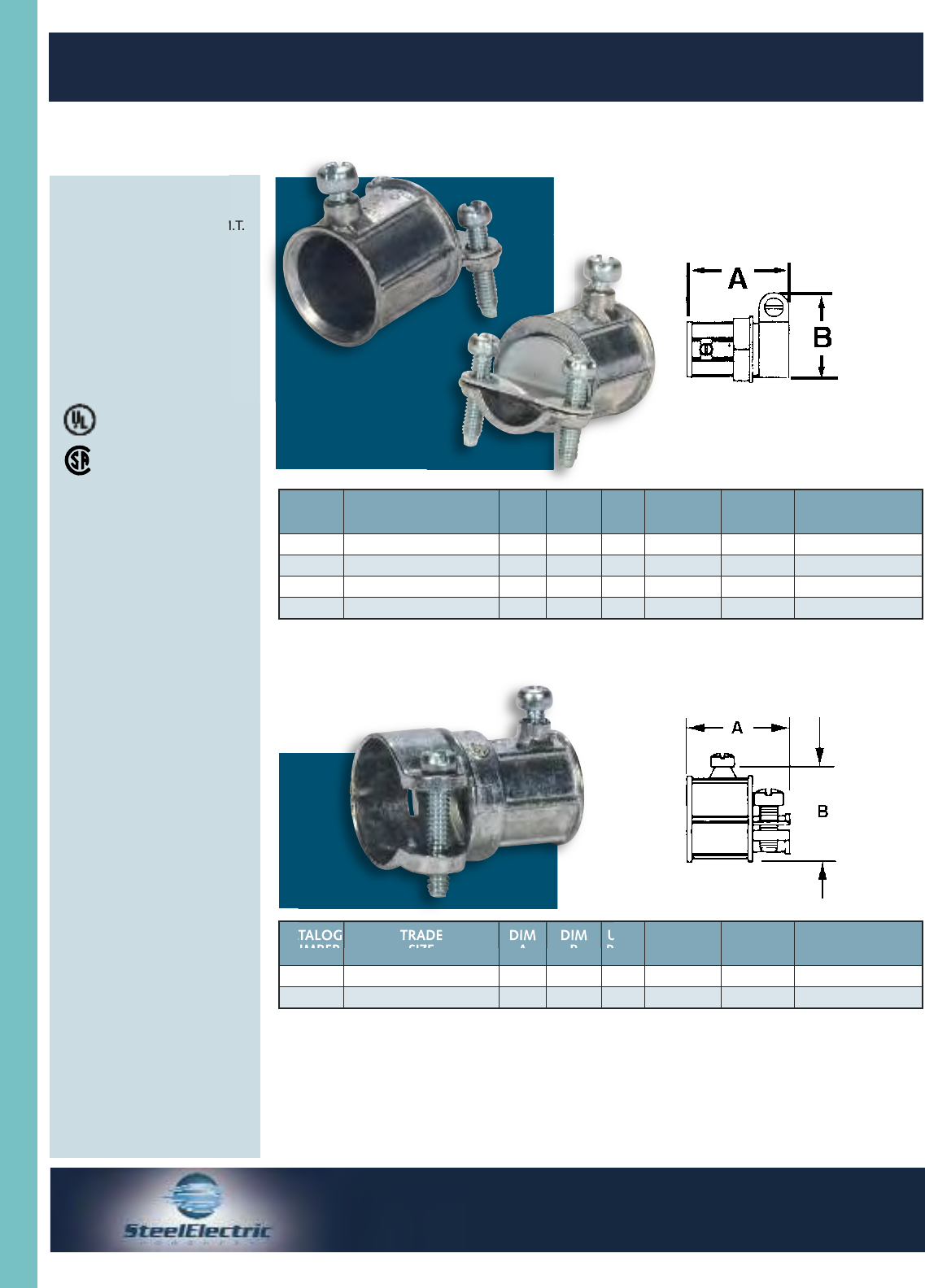

Zinc Combination Couplings and Nail Straps
®
®
Type 170C
Type 171
Type 360M
Nail Straps
for Threaded Rigid Conduit, IMC and EMT Conduit
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
*170C 1/2” E.M.T. - 3/8” Flex 1.280 1.140 50 500 8 51702
171C 1/2” E.M.T. - 1/2” Flex 1.645 1.340 25 250 10 51703
172C 3/4” E.M.T. - 3/4” Flex 1.975 1.535 20 200 15 51704
173C 1” E.M.T. - 1” Flex 2.285 1.700 10 100 26 51705
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
171 1/2” E.M.T. - 1/2” FMC 1.645 1.340 25 250 10 51712
172 3/4” E.M.T. - 3/4” FMC 1.975 1.535 20 200 15 51722
CATALOG
NUMBER CONDUIT SIZES
THINWALL RIGID UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
360M 1/2” 3/8” 100 1000 3 83607
361M 3/4” 1/2” 100 1000 4 83617
362M 1” 3/4” 100 1000 6 83627
*EMT TO NM CABLE
For EMT Conduit and Flexible Metallic Conduit
EMT FITTINGS

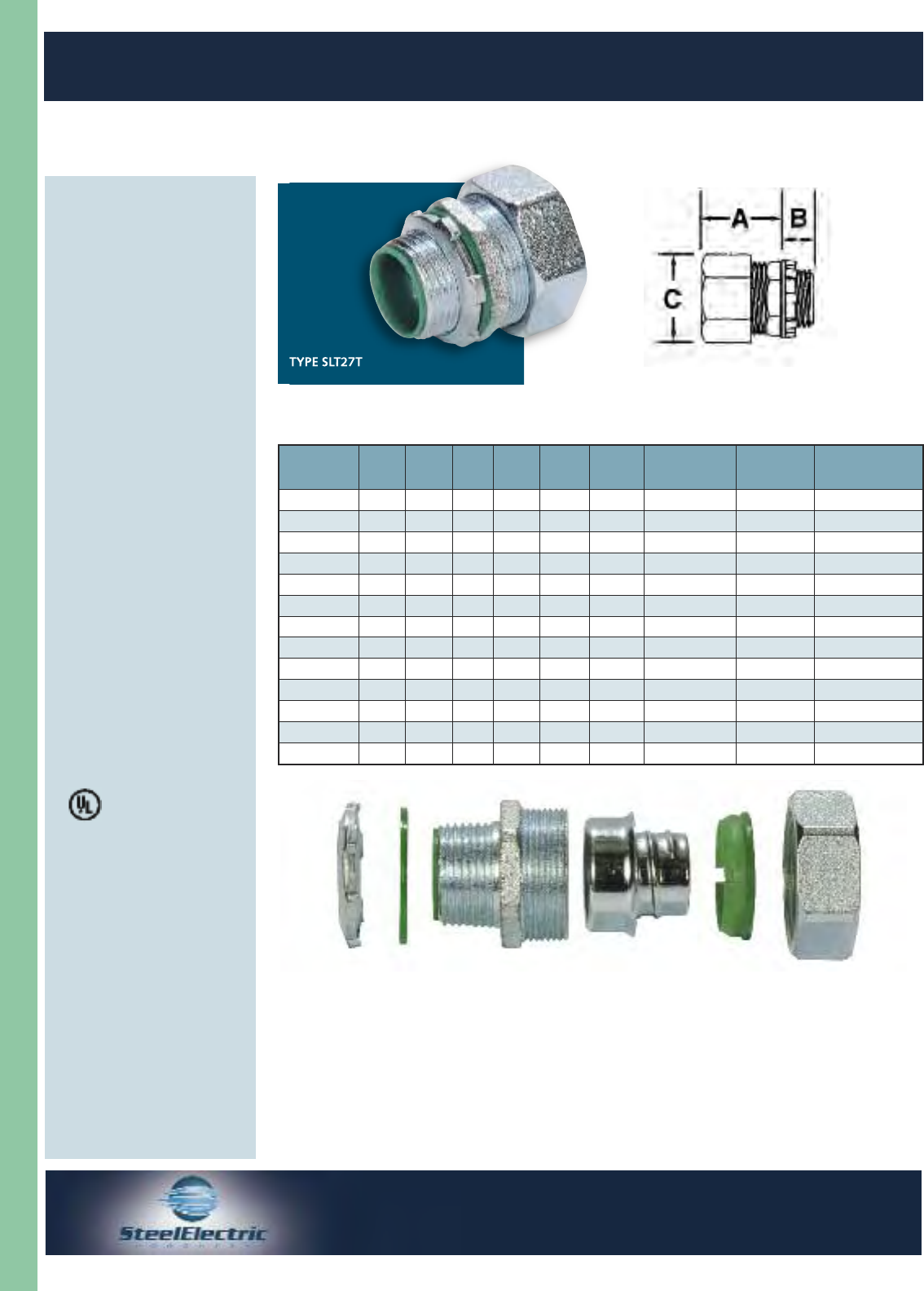

Malleable Iron Straight Liquidtight Connectors
For Liquidtight Flexible Metallic Conduit
72
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To secure, ground and seal
Liquidtight Flexible Metal
conduit, to boxes and
enclosures
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with an insulated
throat with steel locknut and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for wet locations
• Long ferrule prevents pullout
and tight bend conduit
“pop-out”
• UL Listed liquidtight flexible
metal conduit fittings are suit-
able for use in the following
Hazardous Locations under
NEC 501-4(b), 502-4(a)(2);
Class I, Div.2; Class II, Div. 1
and 2; and Class III, Div. 1
and 2 and are suitable for
grounding in sizes 3/8”
through 1-1/2” under NEC
35I-I
Standard Materials:
Malleable Iron/Steel Furrule
Standard Finish:
Zinc Plated
UL Listed:
E198258
TYPE SLT27T
C US
CATALOG
NUMBER
TRADE
SIZE
KO
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SLT47T 3/8” 1/2” 1.140 0.500 1.150 25 250 16 14419
SLT27T 1/2” 1/2” 1.250 0.500 1.280 25 250 18 14630
SLT28T 3/4” 3/4” 1.280 0.520 1.550 10 100 29 14640
SLT29T 1” 1” 1.430 0.650 1.800 5 50 40 14650
SLT30T 1-1/4” 1-1/4” 1.500 0.660 2.250 5 50 56 14309
SLT31T 1-1/2” 1-1/2” 1.610 0.730 2.440 10 50 71 14319
SLT32T 2” 2” 1.760 0.750 2.970 5 25 100 14329
SLT33T 2-1/2” 2-1/2” 2.180 1.010 4.010 1 10 367 14339
SLT34T 3” 3” 2.500 1.150 4.180 1 10 461 14349
SLT60T 3-1/2” 3-1/2” 2.610 1.180 5.250 1 10 675 14609
SLT61T 4” 4” 2.740 1.250 5.780 1 5 797 14619
SLT62T 5” 5” 3.125 1.500 6.063 - 1 1047 78062
SLT63T 6” 6” 3.375 1.563 7.500 -1 1381 60001
All Furnished with Insulated Throats
LIQUIDTIGHT FITTINGS

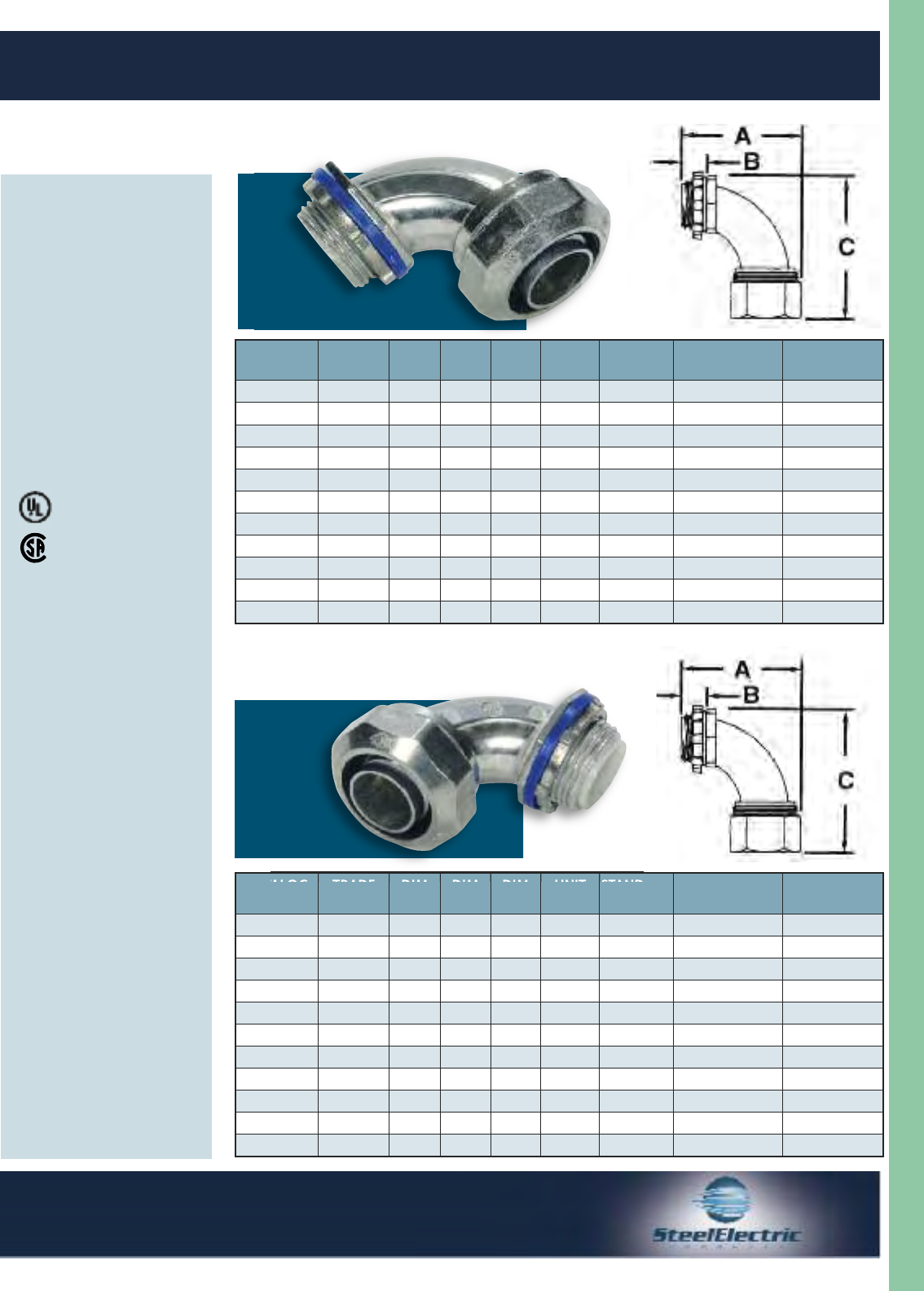

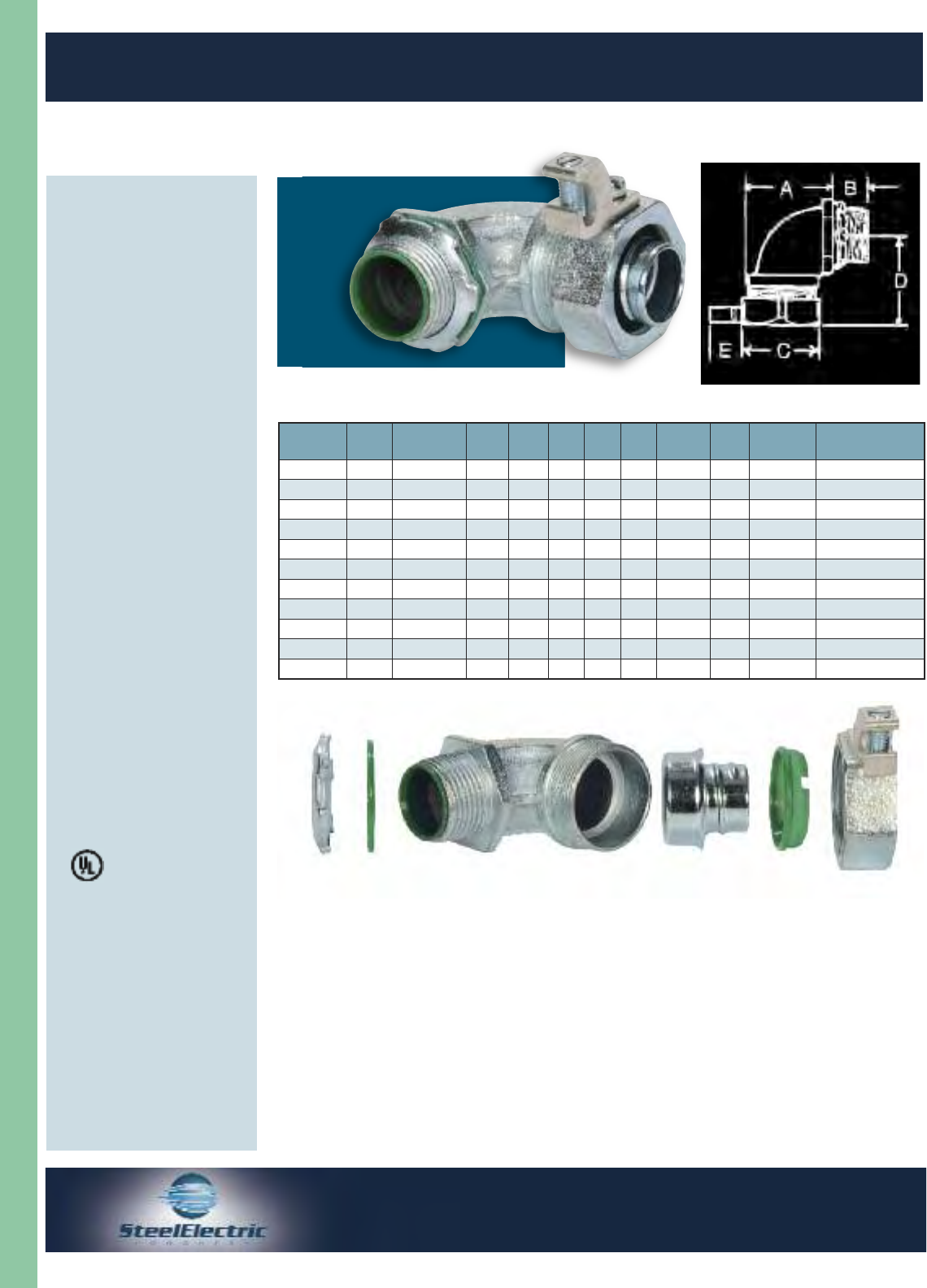

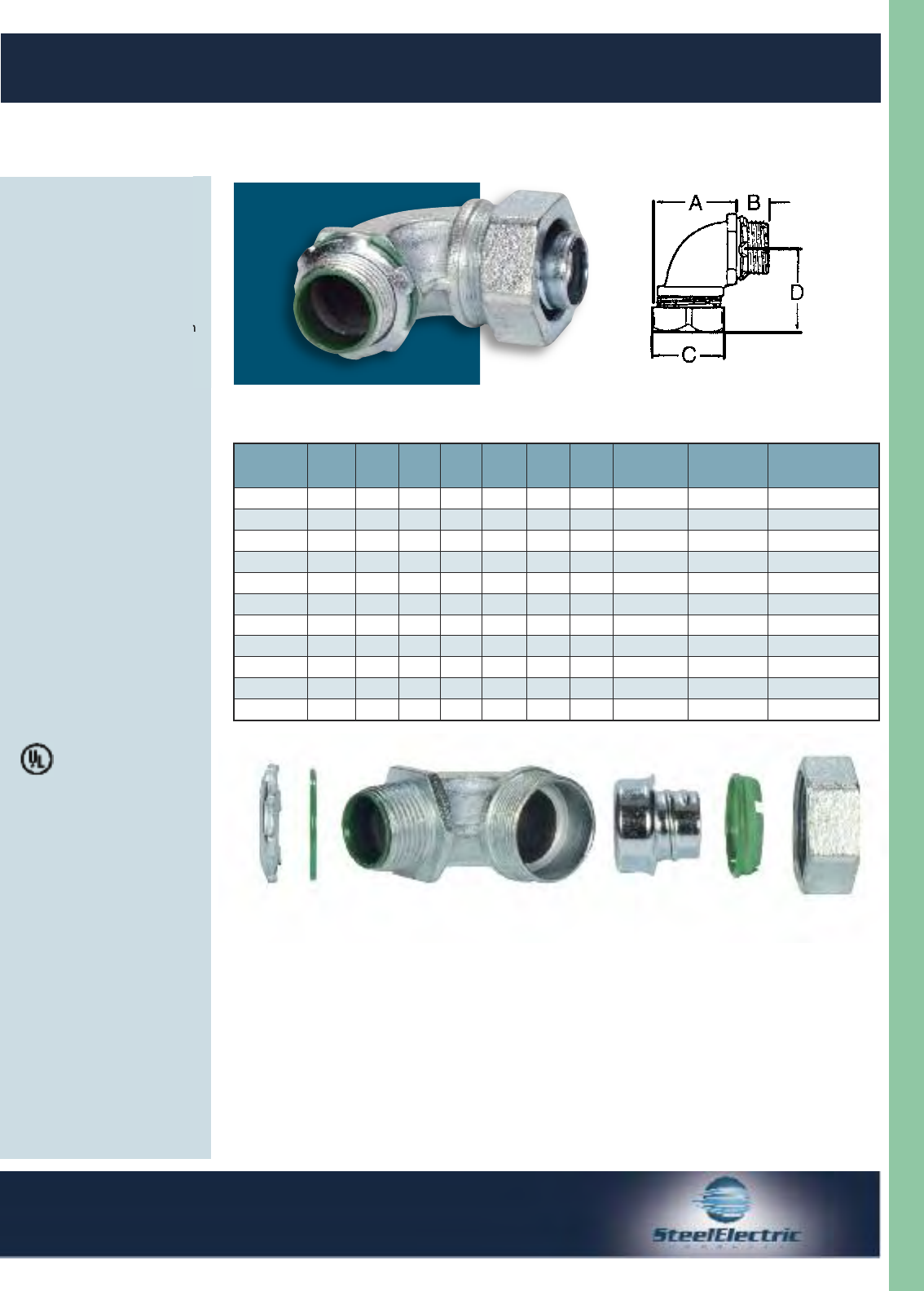

Malleable Iron 90
°
Liquidtight Connectors
For Liquidtight Flexible Metallic Conduit
73
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To secure, ground seal
Liquidtight Flexible Metal
conduit, to boxes and
enclosures
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with an insulated
throat with steel locknut and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for wet locations
• Long ferrule prevents pullout
and tight bend conduit
“pop-out”
• UL Listed liquidtight flexible
metal conduit fittings are suit-
able for use in the following
Hazardous Locations under
NEC 501-4(b), 502-4(a)(2);
Class I, Div.2; Class II, Div. 1
and 2; and Class III, Div. 1
and 2 and are suitable for
grounding in sizes 3/8”
through 1-1/2” under NEC
35I-I
Standard Materials:
Malleable Iron/Steel Ferrule
Standard Finish:
Zinc Plated
UL Listed:
E198258
C US
CATALOG
NUMBER
TRADE
SIZE
KO
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SLT25T 3/8” 1/2” 1.31 0.50 1.15 1.37 10 100 28 14259
SLT35T 1/2” 1/2” 1.43 0.50 1.28 1.37 10 100 31 14690
SLT36T 3/4” 3/4” 1.62 0.52 1.55 1.50 10 100 46 14700
SLT37T 1” 1” 1.93 0.65 1.80 1.81 5 50 77 14710
SLT38T 1-1/4” 1-1/4” 2.37 0.66 2.25 1.94 - 10 98 14389
SLT39T 1-1/2” 1-1/2” 2.68 0.73 2.44 2.40 - 10 124 14399
SLT40T 2” 2” 3.18 0.75 2.97 2.64 - 5 179 14409
SLT65T 2-1/2” 2-1/2” 8.31 1.01 4.01 7.81 - 1 847 14659
SLT66T 3” 3” 9.80 1.15 4.18 9.15 - 1 1243 14669
SLT67T 3-1/2” 3-1/2” 11.18 1.18 5.25 11.22 - 1 1914 14679
SLT68T 4” 4” 12.98 1.25 5.78 12.54 - 1 2399 14689
All Furnished with Insulated Throats
TYPE SLT35T

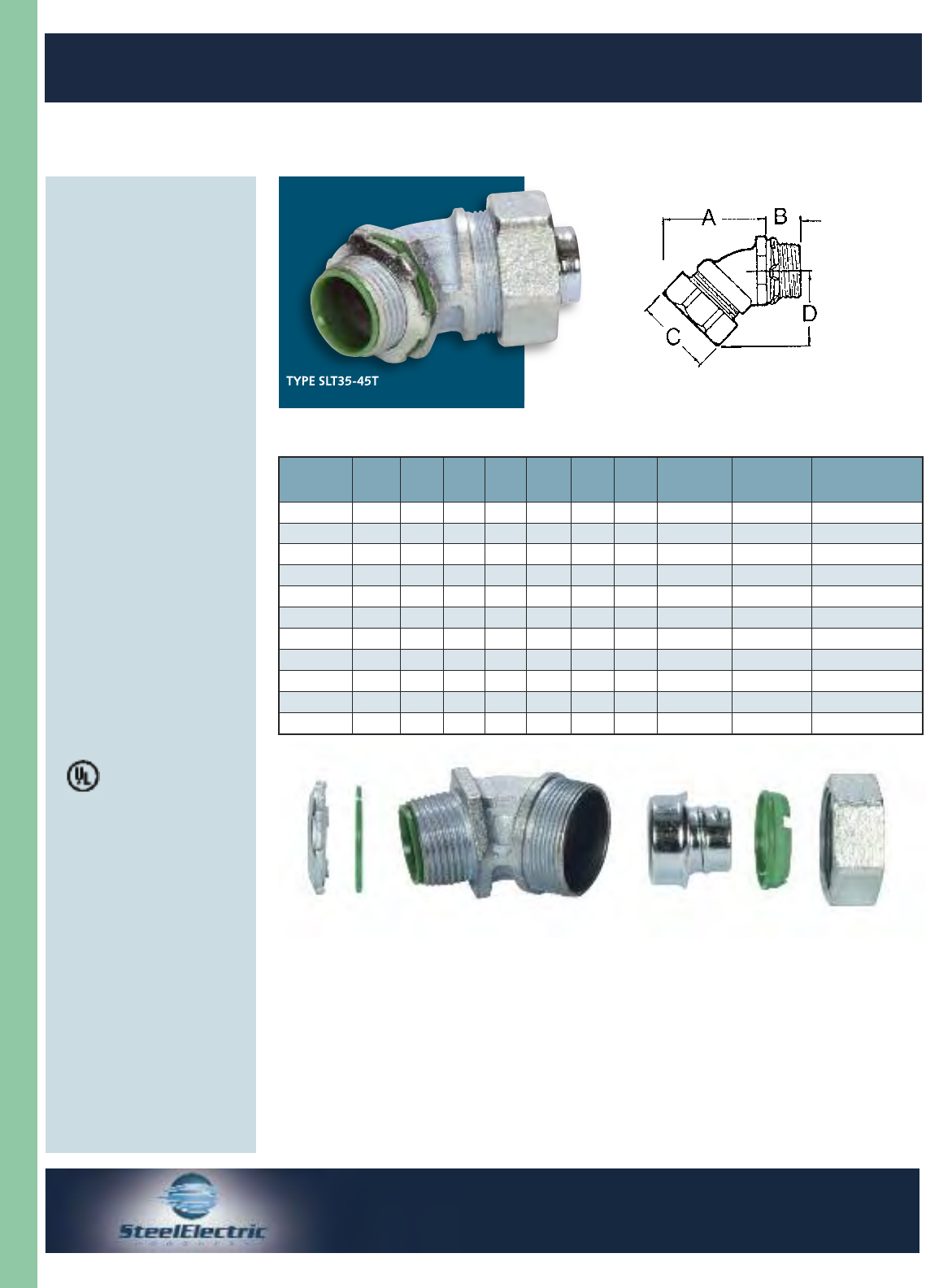

LIQUIDTIGHT FITTINGS

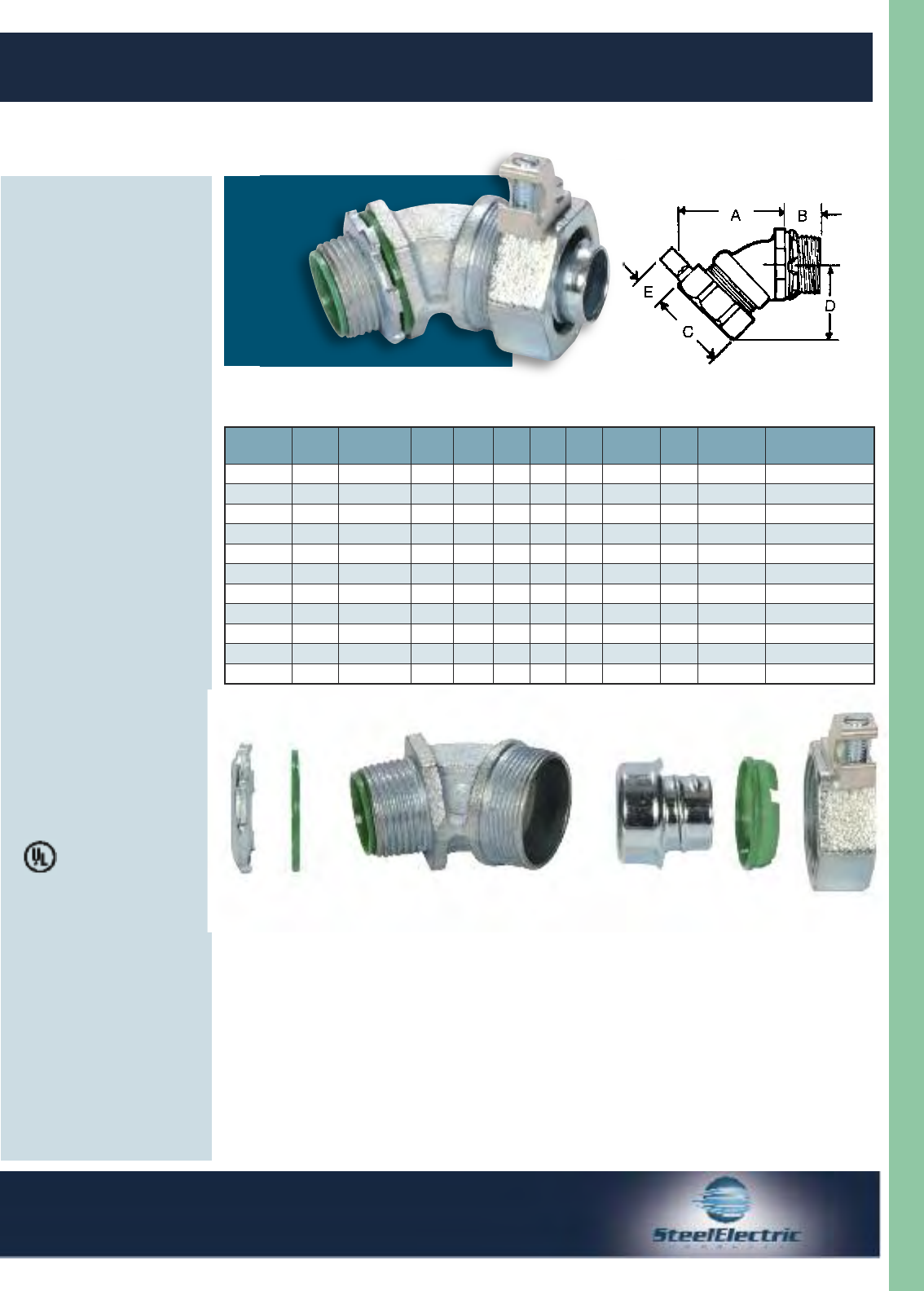

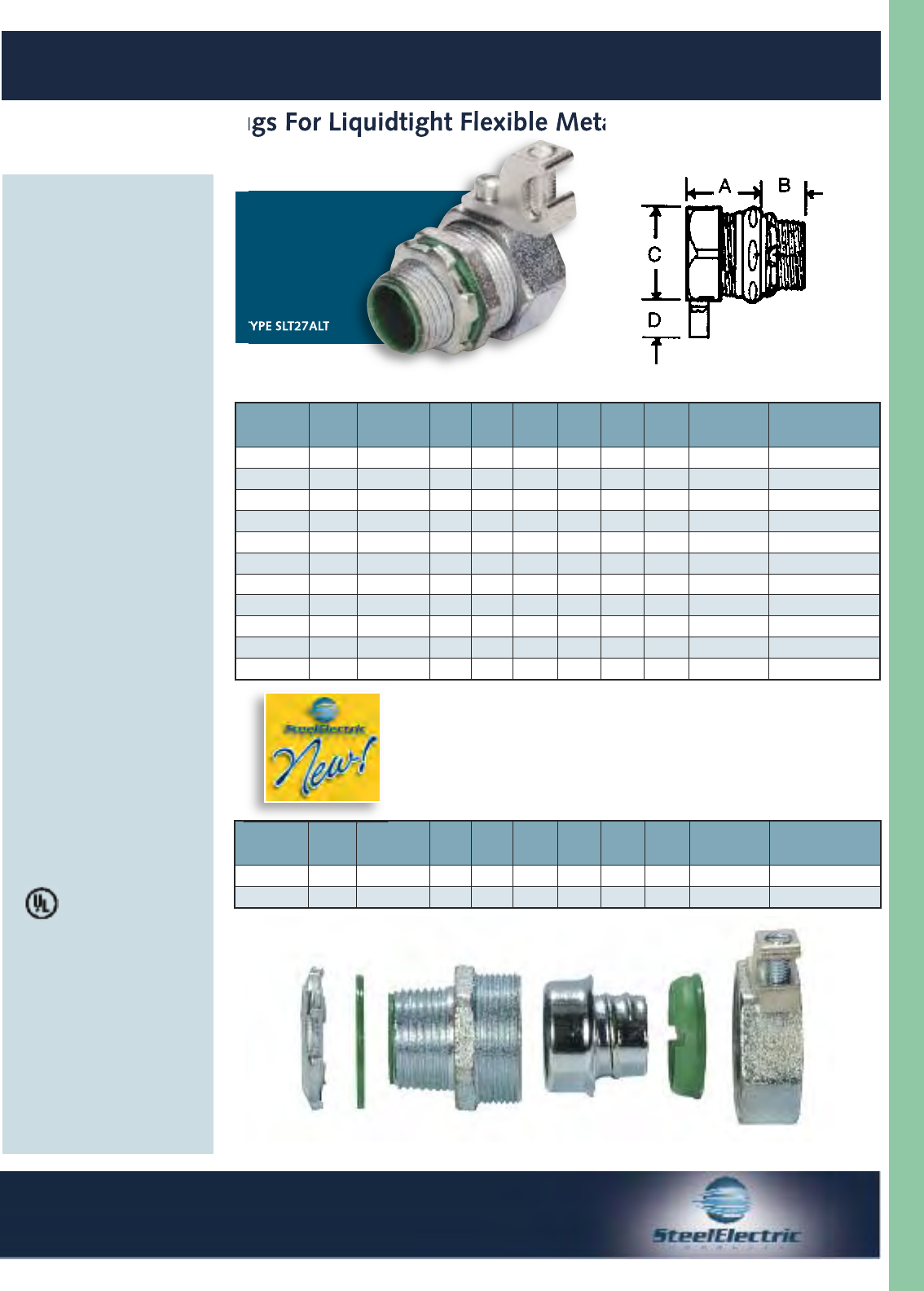

Application:
To secure, ground and seal
Liquidtight Flexible Metal
conduit to boxes and
enclosures.
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with an insulated
throat with steel locknut and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for wet locations
• Long ferrule prevents pullout
and tight bend conduit
“pop-out”
• UL Listed liquidtight flexible
metal conduit fittings are suit-
able for use in the following
Hazardous Locations under
NEC 501-4(b), 502-4(a)(2);
Class I, Div.2; Class II, Div. 1
and 2; and Class III, Div. 1
and 2 and are suitable for
grounding in sizes 3/8”
through 1-1/2” under NEC
35I-I
Standard Materials:
Malleable Iron/Steel Furrule
Standard Finish:
Zinc Plated
UL Listed:
E198258
Malleable Iron 45
°
Liquidtight Connectors
For Liquidtight Flexible Metallic Conduit
C US
74
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
TYPE SLT35-45T
CATALOG
NUMBER
TRADE
SIZE
KO
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SLT25-45T 3/8” 1/2” 1.14 0.50 1.15 1.48 10 100 29 14825
SLT35-45T 1/2” 1/2” 1.25 0.50 1.28 1.51 10 100 29 14835
SLT36-45T 3/4” 3/4” 1.28 0.52 1.55 1.54 10 100 42 14836
SLT37-45T 1” 1” 1.43 0.65 1.80 1.81 5 50 66 14837
SLT38-45T 1-1/4” 1-1/4” 1.50 0.66 2.25 2.16 - 10 90 14838
SLT39-45T 1-1/2” 1-1/2” 1.61 0.73 2.44 2.43 - 10 112 14839
SLT40-45T 2” 2” 1.76 0.75 2.97 2.82 - 5 179 14840
SLT65-45T 2-1/2” 2-1/2” 2.18 1.01 4.01 4.41 - 1 582 14865
SLT66-45T 3” 3” 2.50 1.15 4.18 5.50 - 1 869 14866
SLT67-45T 3-1/2” 3-1/2” 2.61 1.18 5.25 5.93 - 1 1296 14867
SLT68-45T 4” 4” 2.74 1.25 5.78 8.34 - 1 1539 14868
All Furnished with Insulated Throats
LIQUIDTIGHT FITTINGS
Malleable Iron Straight Liquidtight Connectors
With Aluminum Lugs For Liquidtight Flexible Metallic Conduit
75
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Connects conduit and
terminates bonding conductor
run externally across liquidtight
conduit.
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with Insulated
throat, steel locknut, and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding & wet
locations
• Long ferrule prevents pullout
and tight bend conduit
‘pop-out’
• UL Listed liquidtight flexible
metal conduit fittings are suit-
able for use in the following
Hazardous Locations under
NEC 501-4(b), 502-4(a)(2);
Class I, Div.2; Class II, Div. 1
and 2; and Class III, Div. 1
and 2 and are suitable for
grounding in sizes 3/8"
through 1-1/2" under NEC
35I-I
Standard Materials:
Malleable Iron/
Steel Ferrule/
Aluminum Grounding Lug
Standard Finish:
Zinc Plated
Available with Copper Lug.
Use suffix C instead of A.
Example: SLT47CLT
UL Listed:
E212551
C US
TYPE SLT27ALT
CATALOG
NUMBER
TRADE
SIZE
LUG
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STD.
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SLT47ALT 3/8” #4-#14 1.14 0.50 1.15 0.75 25 250 18 78047
SLT27ALT 1/2” #4-#14 1.25 0.50 1.28 0.75 25 250 20 78027
SLT28ALT 3/4” #4-#14 1.28 0.52 1.55 0.75 10 100 31 78028
SLT29ALT 1” #4-#14 1.43 0.65 1.80 0.75 5 50 42 78029
SLT30ALT 1-1/4” #4-#14 1.50 0.66 2.25 0.75 5 50 57 78030
SLT31ALT 1-1/2” #4-#14 1.61 0.73 2.44 0.75 10 50 73 78031
SLT32ALT 2” #4-#14 1.76 0.75 2.97 0.75 5 25 101 78032
SLT33ALT 2-1/2” #1/0-#8 2.18 1.01 4.01 1.13 1 10 373 78033
SLT34ALT 3” #1/0-#8 2.50 1.15 4.18 1.13 1 10 465 78034
SLT60ALT 3-1/2” #3/0-#6 2.61 1.18 5.25 1.50 1 10 686 78060
SLT61ALT 4” #3/0-#6 2.74 1.25 5.78 1.50 1 5 807 78061
CATALOG
NUMBER
TRADE
SIZE
LUG
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STD.
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
*SLT62ALT 5” #6-#250MCM 3.13 1.50 6.06 1.69 -1 1058 78063
*SLT63ALT 6” #6-#250MCM 3.13 1.56 7.50 1.69 - 1 1395 78064
All Furnished with Insulated Throats
SIZES
LIQUIDTIGHT FITTINGS
76
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Malleable Iron 90° Liquidtight Connectors
Application:
Connects conduit and
terminates bonding conductor
run externally across liquidtight
conduit.
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with Insulated
throat, steel locknut, and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding and
wet locations
• Long ferrule prevents pullout
and tight bend conduit
‘pop-out’
• UL Listed liquidtight flexible
metal conduit fittings are
suitable for use in the
following Hazardous
Locations under NEC
501-4(b), 502-4(a)(2); Class I,
Div.2; Class II, Div. 1 and 2;
and Class III, Div. 1 and 2 and
are suitable for grounding in
sizes 3/8" through 1-1/2"
under NEC 35I-I
Standard Materials:
Malleable Iron/
Steel Ferrule/
Aluminum Grounding Lug
Standard Finish:
Zinc Plated
Available with Copper Lug.
Use suffix C instead of A.
Example: SLT25CLT
UL Listed:
E212551
C US
Type SLT35ALT
CATALOG
NUMBER
TRADE
SIZE
LUG
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
DIM
E
UNIT
PACK
STD.
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
SLT25ALT 3/8” #4-#14 1.31 0.50 1.15 1.37 0.75 10 100 18 79125
SLT35ALT 1/2” #4-#14 1.43 0.50 1.28 1.37 0.75 10 100 20 79135
SLT36ALT 3/4” #4-#14 1.62 0.52 1.55 1.50 0.75 10 100 31 79136
SLT37ALT 1” #4-#14 1.93 0.65 1.80 1.81 0.75 5 50 42 79137
SLT38ALT 1-1/4” #4-#14 2.37 0.66 2.25 1.94 0.75 - 10 57 79138
SLT39ALT 1-1/2” #4-#14 2.68 0.73 2.44 2.40 0.75 - 10 73 79139
SLT40ALT 2” #4-#14 3.18 0.75 2.97 2.64 0.75 - 5 101 79140
SLT65ALT 2-1/2” #1/0-#8 8.31 1.01 4.01 7.81 1.13 - 1 373 79165
SLT66ALT 3” #1/0-#8 9.80 1.15 4.18 9.15 1.13 - 1 465 79166
SLT67ALT 3-1/2” #3/0-#6 11.18 1.18 5.25 11.22 1.50 - 1 686 79167
SLT68ALT 4” #3/0-#6 12.93 1.25 5.78 12.54 1.50 - 1 807 79168
All Furnished with Insulated Throats
With Aluminum Lugs For Liquidtight Flexible Metallic Conduit
LIQUIDTIGHT FITTINGS
77
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CATALOG
NUMBER
TRADE
SIZE
LUG
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
DIM
E
UNIT
PACK
STD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
SLT25-45ALT 3/8” #4-#14 1.62 0.50 1.15 1.48 0.75 10 100 18 79325
SLT35-45ALT 1/2” #4-#14 1.64 0.50 1.28 1.51 0.75 10 100 20 79335
SLT36-45ALT 3/4” #4-#14 1.68 0.52 1.55 1.54 0.75 10 100 31 79336
SLT37-45ALT 1” #4-#14 2.16 0.65 1.80 1.81 0.75 5 50 42 79337
SLT38-45ALT 1-1/4” #4-#14 2.50 0.66 2.25 2.16 0.75 - 10 57 79338
SLT39-45ALT 1-1/2” #4-#14 3.10 0.73 2.44 2.43 0.75 - 10 73 79339
SLT40-45ALT 2” #4-#14 3.28 0.75 2.97 2.82 0.75 - 5 101 79340
SLT65-45ALT 2-1/2” #1/0-#8 6.67 1.01 4.01 4.41 1.13 - 1 373 79365
SLT66-45ALT 3” #1/0-#8 8.01 1.15 4.18 5.50 1.13 - 1 465 79366
SLT67-45ALT 3-1/2” #3/0-#6 9.55 1.18 5.25 5.93 1.50 - 1 686 79367
SLT68-45ALT 4” #3/0-#6 10.64 1.25 5.78 8.34 1.50 - 1 807 79368
Application:
Connects conduit and
terminates bonding conductor
run externally across liquidtight
conduit.
Features:
• Tapered threaded male hub
NPT
• Compact, slim diameter with
small turning radius
• Furnished with Insulated
throat, steel locknut, and
sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding
• Long ferrule prevents pull-out
and tight bend conduit
“pop-out”
• UL Listed liquidtight flexible
metal conduit fittings are
suitable for use in the
following Hazardous
Locations under NEC 501-
4(b), 502-4(a)(2); Class I,
Div.2; Class II, Div. 1 and 2;
and Class III, Div. 1 and 2 and
are suitable for grounding in
sizes 3/8" through 1-1/2"
under NEC 35I-I.
Standard Materials:
Malleable Iron/
Steel Ferrule/
Aluminum Grounding Lug
Standard Finish:
Zinc Plated
Available with Copper Lug.
Use suffix C instead of A.
Example: SLT25-45CLT
UL Listed:
E212551
Malleable Iron 45° Liquidtight Connectors
All Furnished with Insulated Throats
With Aluminum Lugs For Liquidtight Flexible Metallic Conduit
C US
Type SLT35-45ALT
LIQUIDTIGHT FITTINGS
78
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Terminate and seal liquidtight
flexible metal conduit to either
oiltight, liquidtight or raintight
box or enclosure. Connectors
can be used with tapered
thread female entry or
unthreaded knockout using the
provided sealing washer and
locknut.
Features:
• Furnished with zinc die cast
locknut and sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding
(through 11⁄4”)
• Suitable for wet locations
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Zinc Straight Liquidtight Connectors
For Liquidtight Flexible Metallic Conduit
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LT47T 3/8” 1.530 0.490 1.260 25 250 16 14478
LT27T 1/2” 1.590 0.510 1.385 25 250 20 14278
LT28T 3/4” 1.690 0.510 1.720 10 100 28 14288
LT29T 1” 1.875 0.530 1.900 5 50 44 14298
LT30T 1-1/4” 1.990 0.636 2.290 5 50 64 14308
LT31T 1-1/2” 2.207 0.610 2.633 - 10 87 14318
LT32T 2” 2.170 0.675 3.156 - 5 121 14328
LT33T 2-1/2” 3.025 0.775 4.205 - 1 250 14338
LT34T 3” 3.530 0.920 4.910 - 1 355 14348
LT60T 3-1/2” 3.660 0.920 5.470 - 1 480 14608
LT61T 4” 3.875 0.987 5.925 - 1 570 14618
Type LT27
Type LT27T
Insulated Throat
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LT47 3/8” 1.440 0.400 1.260 25 250 16 14472
LT27 1/2” 1.500 0.420 1.385 25 250 20 14272
LT28 3/4” 1.600 0.420 1.720 10 100 28 14282
LT29 1” 1.785 0.550 1.900 5 50 44 14292
LT30 1-1/4” 1.900 0.546 2.290 5 50 64 14302
LT31 1-1/2” 2.737 0.520 2.633 - 10 87 14312
LT32 2” 2.080 0.585 3.156 - 5 121 14322
LT33 2-1/2” 3.025 0.775 4.205 - 1 250 14332
LT34 3” 3.530 0.920 4.910 - 1 355 14342
LT60 3-1/2” 3.660 0.920 5.470 - 1 480 14602
LT61 4” 3.875 0.987 5.925 - 1 570 14612
LIQUIDTIGHT FITTINGS
Application:
Terminate and seal liquidtight
flexible metal conduit, at 90°
angle, to either oiltight,
liquidtight or raintight box or
enclosure.
Features:
• Furnished with zinc die cast
locknut and sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding
(through 11⁄4”)
• Suitable for wet locations
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Zinc 90
°
Liquidtight Connectors
79
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
®
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LT25T 3/8” 2.152 0.610 2.340 10 100 23 14258
LT35T 1/2” 2.310 0.615 2.340 10 100 27 14358
LT36T 3/4” 2.640 0.770 3.550 10 100 48 14368
LT37T 1” 2.910 0.765 3.785 5 50 76 14378
LT38T 1-1/4” 3.452 0.790 3.960 - 10 112 14388
LT39T 1-1/2” 3.540 0.790 4.130 - 10 147 14398
LT40T 2” 4.126 0.665 4.700 - 5 196 14408
LT65T 2-1/2” 5.215 0.860 5.375 - 1 400 14658
LT66T 3” 6.100 1.100 6.500 - 1 550 14668
LT67T 3-1/2” 6.715 1.100 7.450 - 1 740 14678
LT68T 4” 6.780 1.100 8.000 - 1 970 14688
Type LT35
Type LT35T
Insulated Throat
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
LT25 3/8” 2.062 0.520 2.340 10 100 23 14252
LT35 1/2” 2.220 0.525 2.340 10 100 27 14352
LT36 3/4” 2.550 0.680 3.550 10 100 48 14362
LT37 1” 2.820 0.675 3.785 5 50 76 14372
LT38 1-1/4” 3.362 0.700 3.960 - 10 112 14382
LT39 1-1/2” 3.450 0.700 4.130 - 10 147 14392
LT40 2” 4.036 0.575 4.700 - 5 196 14402
LT65 2-1/2” 5.215 0.770 5.375 - 1 400 14652
LT66 3” 6.100 1.100 6.500 - 1 550 14662
LT67 3-1/2” 6.715 1.100 7.450 - 1 740 14672
LT68 4” 6.780 1.100 8.000 - 1 970 14682
For Liquidtight Flexible Metallic Conduit
LIQUIDTIGHT FITTINGS

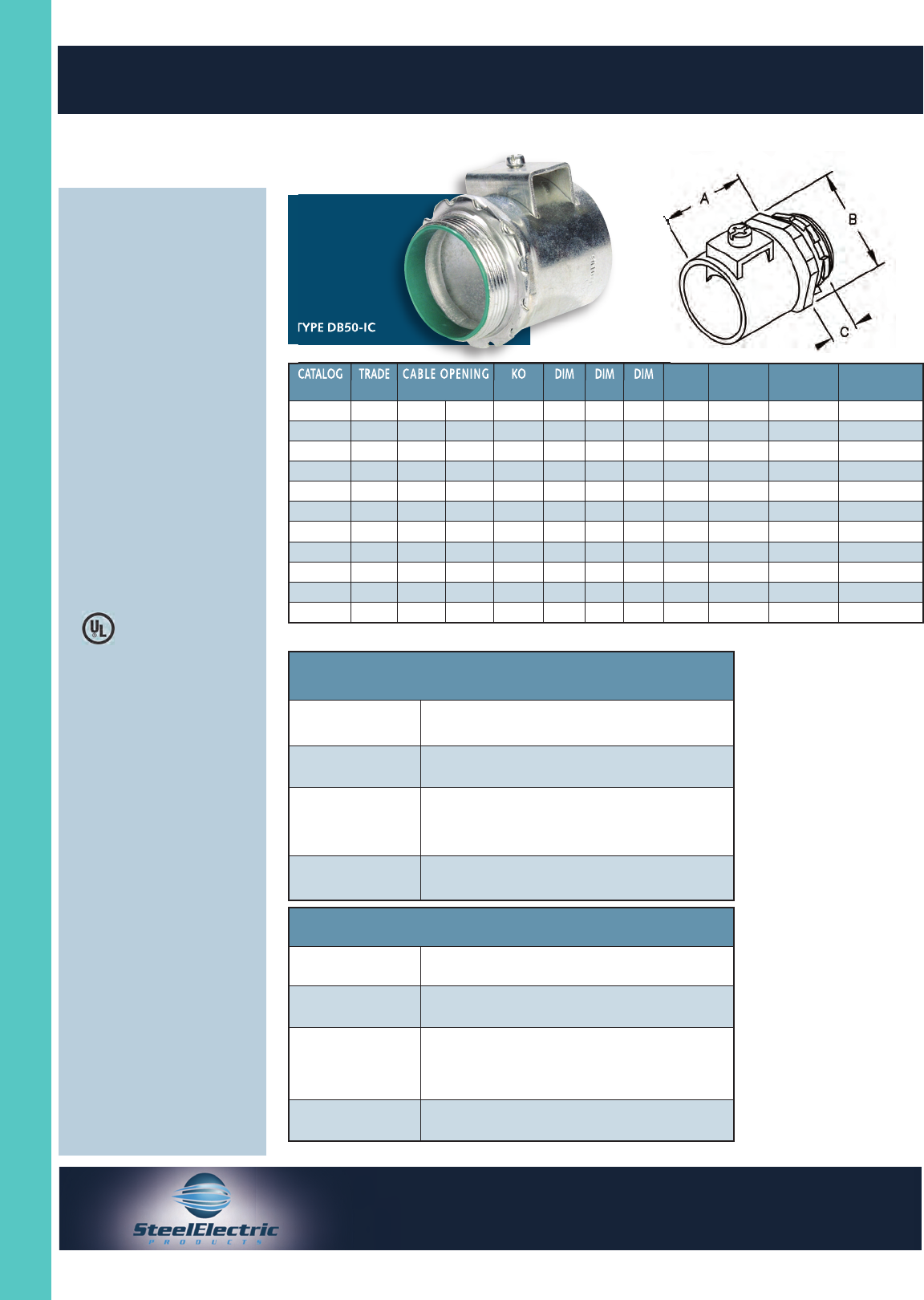

Big Bite-Saddle Type Connectors
with Insulated Throat
80
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To connect Flex, AC and MC
cables to a box or an
enclosure.
Features:
• One piece tubular construc-
tion affording extra strength
• Dual gripping saddle clamps
• Saddle clamp rides up &
down on screw for ease of
installation
• Robertson Head Screws
• Furnished with Insulated
Throat
Standard Materials:
Tubular Steel/Steel Locknut
Standard Finish:
Zinc Plated
UL Listed:
E238299
3/8” thru 1”
E207875
11⁄4” thru 4”
TYPE DB50-IC
CATALOG
NUMBER
TRADE
SIZE
CABLE OPENING
MAX MIN
KO
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
*DB38-IC 3/8” 0.656 0.437 1/2” 1.188 1.250 0.500 50 500 15 31800
*DB50-IC 1/2” 0.937 0.750 1/2” 1.375 1.250 0.438 25 100 16 31801
*DB75-IC 3/4” 1.125 0.906 3/4” 1.375 1.438 0.438 10 100 17 31802
*DB100-IC 1” 1.468 1.250 1” 1.563 1.813 0.500 5 50 31 31803
DB125-IC 1-1/4” 1.500 1.312 1-1/4” 2.188 2.125 0.625 5 10 53 31804
DB150-IC 1-1/2” 1.750 1.562 1-1/2” 2.438 2.500 0.625 5 10 63 31805
DB200-IC 2” 2.031 1.812 2” 2.563 3.000 0.625 5 10 87 31806
DB250-IC 2-1/2” 3.062 2.812 2-1/2” 2.688 3.625 0.813 1 5 163 31807
DB300-IC 3” 3.562 3.312 3” 2.813 4.250 0.938 15 192 31808
DB350-IC 3-1/2” 4.060 3.620 3-1/2” 2.938 4.750 1.000 - 1 225 31809
DB400-IC 4” 4.560 4.120 4” 3.000 5.813 1.031 -1 263 31810
ARMORED CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 12/4, 10/2, 10/3, 10/4, 8/2, 8/3, 8/4, 6/2, 6/3
.550/ .920
3/4”
Aluminum: 8/3, 8/4, 6/2, 6/3, 6/4, 4/2, 4/3
.680 / 1.075
Steel: 6/4, 4/2, 4/3
.930 / 1.075
1” 6/4, 4/3, 4/4, 3/2, 3/3, 2/3, 2/4, 1/3, 1/4
.930 / 1.468
METAL CLAD CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 10/2, 10/3, 10/4, 8/2, 8/3
.640 / .920
3/4”
Aluminum: 6/4, 4/3, 3/3
.930 / 1.075
Steel: 8/3, 8/4, 6/2, 6/3, 6/4, 4/3, 3/3
.730 / 1.075
1” 6/4, 4/3, 4/4, 3/3, 3/4
.960 / 1.468
For Armored Cable, Metal Clad and Flexible Metallic Conduit
*Suitable for use on Steel or Aluminum Cables
C US
AC- MC -FLEX FITTINGS
90
°

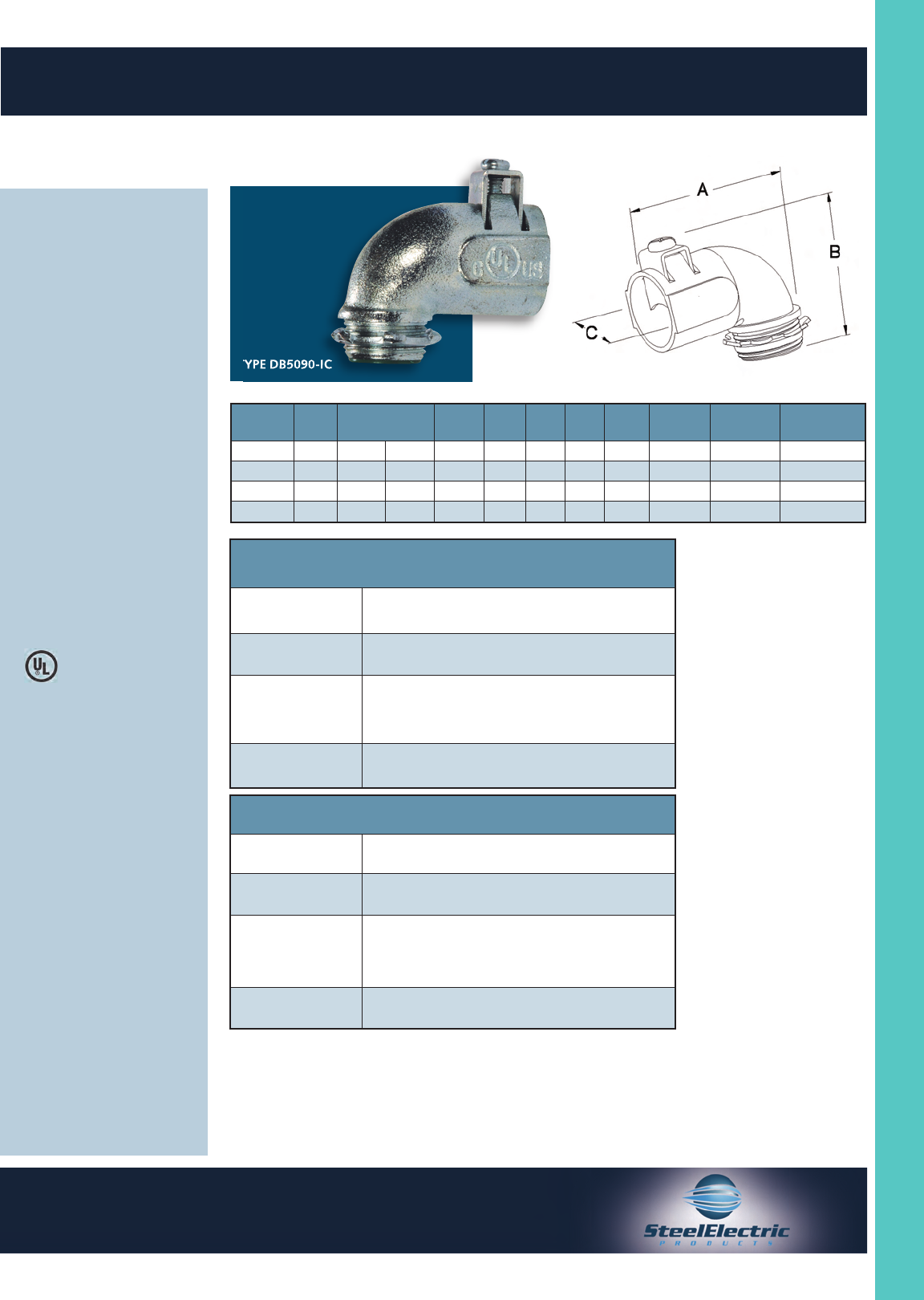

Big Bite-Saddle Type Connectors
with Insulated Throat
81
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
ARMORED CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 12/4, 10/2, 10/3, 10/4, 8/2, 8/3, 8/4, 6/2, 6/3
.550/ .920
3/4”
Aluminum: 8/3, 8/4, 6/2, 6/3, 6/4, 4/2, 4/3
.680 / 1.075
Steel: 6/4, 4/2, 4/3
.930 / 1.075
1” 6/4, 4/3, 4/4, 3/2, 3/3, 2/3, 2/4, 1/3, 1/4
.930 / 1.468
METAL CLAD CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 10/2, 10/3, 10/4, 8/2, 8/3
.640 / .920
3/4”
Aluminum: 6/4, 4/3, 3/3
.930 / 1.075
Steel: 8/3, 8/4, 6/2, 6/3, 6/4, 4/3, 3/3
.730 / 1.075
1” 6/4, 4/3, 4/4, 3/3, 3/4
.960 / 1.468
Application:
To connect Flex, AC and MC
cables to a box or an enclosure
Features:
• Male Hub Threads- NPSM
• One piece malleable
construction affording extra
strength
• Dual gripping saddle clamps
• Saddle clamp rides up &
down on screw for ease of
installation
• Robertson Head Screws
• Furnished with Insulated
Throat
Standard Materials:
Malleable Iron/Steel Locknuts/
Steel Clamps
Standard FInish:
Zinc Plated
UL Listed:
E238299
TYPE DB5090-IC
For Armored Cable, Metal Clad and Flexible Metallic Conduit
CATALOG
NUMBER
TRADE
SIZE
CABLE OPENING
MAX MIN
KO
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
DB3890-IC 3/8” 0.656 0.437 1/2” 1.750 2.063 1.000 50 500 15 99916
DB5090-IC 1/2” 0.937 0.750 1/2” 2.125 2.250 1.250 25 100 16 99917
DB7590-IC 3/4” 1.125 0.906 3/4” 2.500 2.500 1.375 10 100 17 99918
DB10090-IC 1” 1.468 1.250 1” 2.813 2.875 1.688 5 50 31 99919
C US
AC- MC -FLEX FITTINGS
Application:
To connect Flex, AC and MC
cables to a box or an enclosure.
Features:
• Male Hub Threads- NPSM
• One piece malleable
construction affording extra
strength
• Dual gripping saddle clamps
• Saddle clamp rides up &
down on screw for ease of
installation
• Robertson Head Screws
• Furnished with Insulated
Throat
Standard Materials:
Malleable Iron/Steel Locknuts/
Steel Clamps
Standard FInish:
Zinc Plated
UL Listed:
E238299
45
°

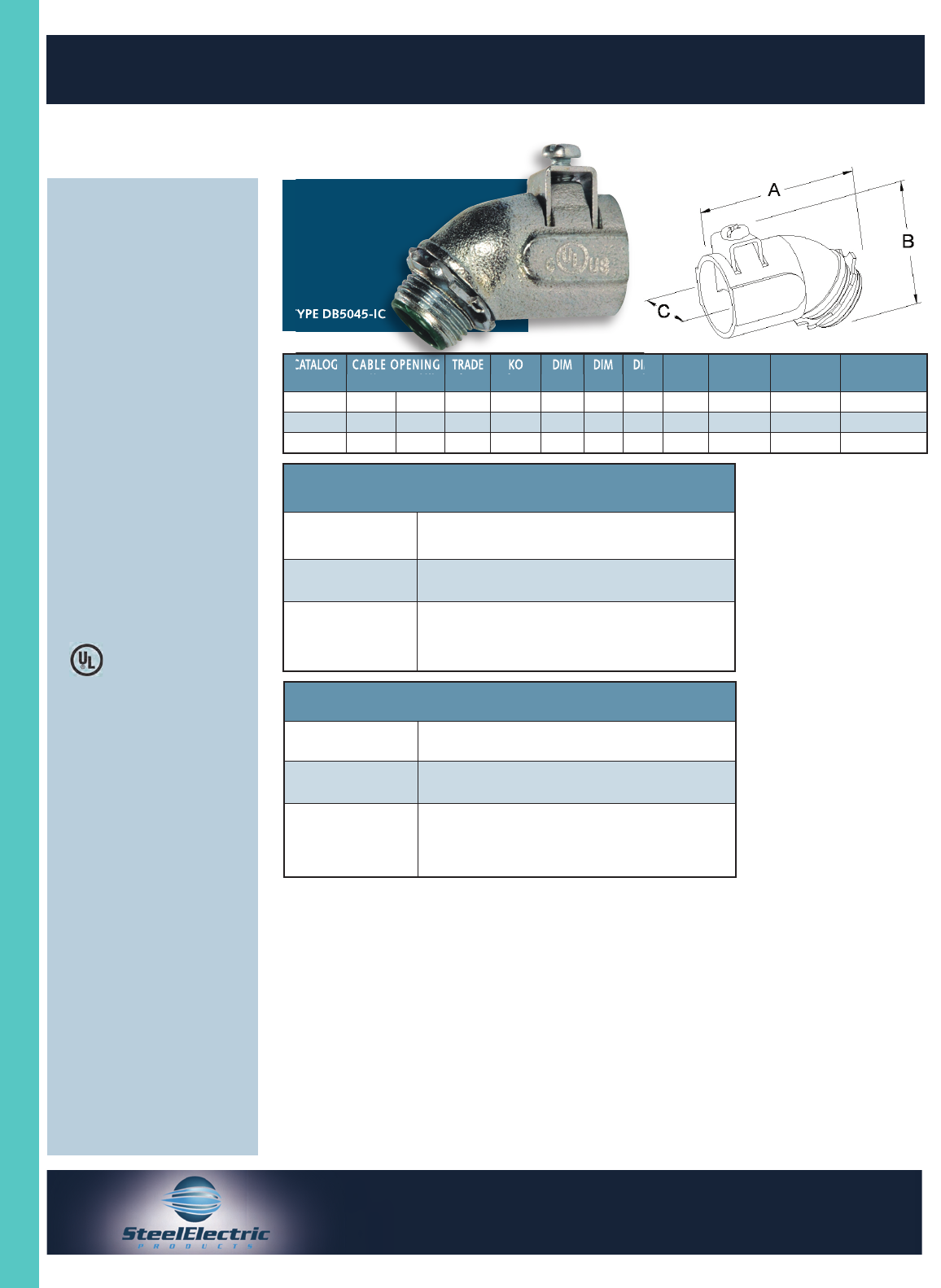

Big Bite-Saddle Type Connectors
with Insulated Throat
82
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CATALOG
NUMBER
CABLE OPENING
MAX MIN
TRADE
SIZE
KO
SIZE
DIM
A
DIM
B
DIM
C
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
DB3845-IC 0.656 0.437 3/8” 1/2” 1.813 1.750 0.938 50 250 16 99913
DB5045-IC 0.937 0.750 1/2” 1/2” 2.125 2.125 1.250 25 100 26 99914
DB7545-IC 1.125 0.906 3/4” 3/4” 2.375 2.313 1.438 10 100 29 99915
TYPE DB5045-IC
For Armored Cable, Metal Clad and Flexible Metallic Conduit
ARMORED CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 12/4, 10/2, 10/3, 10/4, 8/2, 8/3, 8/4, 6/2, 6/3
.550/ .920
3/4”
Aluminum: 8/3, 8/4, 6/2, 6/3, 6/4, 4/2, 4/3
.680 / 1.075
Steel: 6/4, 4/2, 4/3
.930 / 1.075
METAL CLAD CABLES
Steel and Aluminum
3/8” 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
.450/.660
1/2” 10/2, 10/3, 10/4, 8/2, 8/3
.640 / .920
3/4”
Aluminum: 6/4, 4/3, 3/3
.930 / 1.075
Steel: 8/3, 8/4, 6/2, 6/3, 6/4, 4/3, 3/3
.730 / 1.075
C US
AC- MC -FLEX FITTINGS
SEPCO 2009 80 - 107:Layout 1 8/7/09 10:17 AM Page 3
Big Bite-Saddle Type Combination Couplings
For Armored Cable, Metal Clad and Flexible Metallic Conduit
83
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type DBC-50
Type DBS-50
Application:
To connect Flex, AC and MC
cables to a box or an enclosure
Features:
• One piece tubular construction
affording extra strength
• Dual gripping saddle clamps
• Saddle clamp rides up &
down on screw for ease of
installation
• Robertson Head Screws
Standard Materials:
Tubular Steel/ Steel Locknuts/
Steel Compression Nut/
Steel Gland Ring
Standard Finish:
Zinc Plated
UL Listed:
1/2" thru 3/4"
E238299
Application:
Combination couplings are
used to join EMT conduit to
armored cable, metal clad
cable or flexible metallic
conduit
Features:
• One piece tubular construc-
tion affording extra strength
• Dual gripping saddle clamps
• Saddle clamp rides up &
down on screw for ease of
installation
• Robertson Head Screws
Standard Materials:
Tubular Steel
Standard Finish:
Zinc Plated
UL Listed:
1/2" thru 3/4"
E207875
CATALOG
NUMBER
TRADE
SIZE
CABLE OPENING
MAX MIN
KO
SIZE
DIM
A
DIM
B
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
DBC-38 3/8” 0.656 0.437 1/2” 1.375 1.250 50 500 18 99910
DBC-50 1/2” 0.937 0.750 1/2” 1.563 1.250 25 100 19 99911
DBC-75 3/4” 1.125 0.906 3/4” 1.563 1.438 10 100 20 99912
CATALOG
NUMBER
TRADE
SIZE
DIM
A
DIM
B
DIM
C
DIM
D
UNIT
PACK
STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
DBS-38 3/8” 0.750 1.563 0.875 0.625 50 500 18 90128
DBS-50 1/2” 1.063 2.000 0.875 0.625 25 100 19 90129
DBS-75 3/4” 1.250 2.125 1.125 0.813 10 100 20 90130
Compression Couplings
Set-Screw Couplings
C US
C US
AC- MC -FLEX FITTINGS
84
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

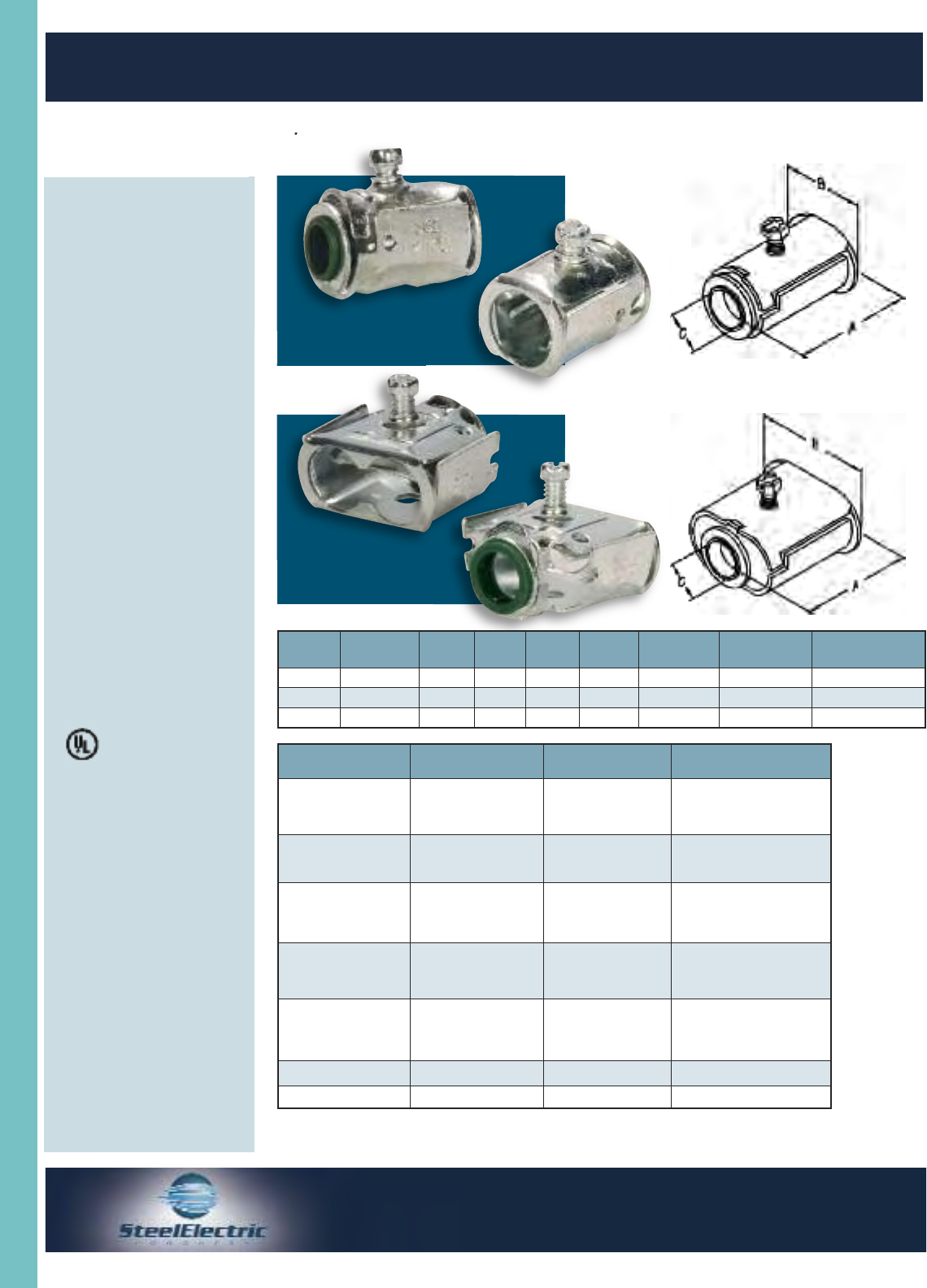

Quicklock Type Connectors
with Insulated Throat
For Armored Cable, Metal Clad and Flexible Metallic Conduit
Application:
Used to connect MC, AC, and
Flex Cable to box or enclosure
Features:
• No locknut required
• Single-unit or duplex
construction with captive
clamp
• Connects 50 MC, AC and
Flex RW cable sizes with just
three fittings
• Easy to install. Just tilt, insert
and snap down
• Single unit construction
eliminates loose component
parts; integral green plastic
insulated throat bushing
provides maximum protection
for wire installation
• Concrete tight when taped
and used with PVC jacketed
cord
• Accepts 2 cables of each size
listed
Standard Materials:
Tubular Steel
Standard Finish:
Zinc Plated
UL Listed:
E238299
Type QL-50
Type QL-50D
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
QL-50 1/2” SINGLE 1.438 0.438 0.438 50 500 8 90001
QL-75 3/4” SINGLE 1.313 0.563 0.563 25 125 14 90002
QL-50D 1/2” DUPLEX 1.688 0.563 0.563 25 125 10 90003
CABLE
TYPE QL-50
1/2” KO QL-75
3/4” KO QL-50D**
1/2” KO DUPLEX
AC STEEL
14/2 14/3 14/4
12/2 12/3 12/4
10/2 10/3
10/4 10/5
8/3 8/4
6/3
14/2 14/3 14/4
12/2
12/3 12/4
AC ALUMINUM
INTERLOCKED
14/2 14/3 14/4
12/2 12/3 12/4
10/4
8/3 8/4
14/2 14/3 14/4
12/2 12/3 12/4
MC STEEL
*14/2 *14/3 *14/4
*12/2 *12/3 *12/4
*10/2
*10/3 *10/4
*8/2 *8/3
*6/2
14/2 14/3 14/4
12/2 12/3 12/4
10/2
MC ALUMINUM
INTERLOCKED
14/2 14/3 14/4
12/2 12/3 12/4
10/2
10/3 10/4
8/2
14/2 14/3 14/4
12/2 12/3 12/4
MC ALUMINUM
14/3 14/4
*12/2 *12/3 *12/4
10/2 10/3
MC ALUMINUM FLAT 12/3
FLEX RW 3/8 STEEL & AL. 1/2 STEEL
*Concrete tight when taped and used with PVC jacketed cord.
**Accepts two cables of each size listed.
Exceeds UL specifications for
electrical continuity and is
suitable as a grounding means
under the NEC 350-2 and for
hazardous locations under
NEC 501-4 (b), Class 1, Div. 2.
C US
AC- MC -FLEX FITTINGS
85
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type C34
Type C34T
Application:
Used with locknut to
terminate steel or aluminum
flexible metal conduit to
enclosure.
Features:
• Male hub threads - NPS
• Provided with steel locknut
Standard Materials:
Malleable Iron/Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E207875
Malleable Iron Cable Connectors
For Armored Cable and Flexible Metallic Conduit
Sizes 3⁄8” - 11⁄4” are
manufactured as
shown above
Sizes 11⁄2” - 3” are
manufactured as
shown above
Sizes 31⁄2” - 4” are
manufactured as
shown above
Sizes 3⁄8” - 11⁄4” are
manufactured as
shown above
Sizes 11⁄2” - 3” are
manufactured as
shown above
Sizes 31⁄2” - 4” are
manufactured as
shown above
C US
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C47A 3/8” 1/2” 1.00 0.45 1.60 25 250 6 34708
C27 1/2” 1/2” 1.00 0.45 1.60 25 250 13 32701
C28 3/4” 3/4” 1.10 0.48 1.78 25 250 17 32801
C29 1” 1” 1.10 0.57 2.15 10 100 26 32901
C30 1-1/4” 1-1/4” 1.19 0.57 2.18 10 100 40 33001
C31 1-1/2” 1-1/2” 1.85 0.64 2.25 - 10 63 33101
C32 2” 2” 2.00 0.75 2.70 - 10 107 33201
C33 2-1/2” 2-1/2” 2.05 0.90 3.31 - 10 172 33301
C34 3” 3” 2.15 1.05 3.90 - 5 203 33401
C60 3-1/2” 3-1/2” 3.75 1.31 6.50 - 2 442 36001
C61 4” 4” 4.10 1.50 7.25 - 1 663 36101
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C47AT 3/8” 1/2” 1.00 0.45 1.60 25 250 6 34718
C27T 1/2” 1/2” 1.00 0.45 1.60 25 250 13 32703
C28T 3/4” 3/4” 1.10 0.48 1.78 25 250 17 32803
C29T 1” 1” 1.10 0.57 2.15 10 100 26 32903
C30T 1-1/4” 1-1/4” 1.19 0.57 2.18 10 100 40 33003
C31T 1-1/2” 1-1/2” 1.85 0.64 2.25 - 10 64 33103
C32T 2” 2” 2.00 0.75 2.70 - 10 108 33203
C33T 2-1/2” 2-1/2” 2.05 0.90 3.31 - 10 174 33303
C34T 3” 3” 2.15 1.05 3.90 - 5 205 33403
C60T 3-1/2” 3-1/2” 3.75 1.31 6.50 - 2 446 36003
C61T 4” 4” 4.10 1.50 7.25 - 1 670 36103
Squeeze Type
Squeeze Type - Insulated Throat
AC- MC -FLEX FITTINGS
86
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used with locknut to terminate
steel or aluminum flexible metal
conduit to enclosure to form a
90° bend.
Features:
• Male hub threads - NPS
• Provided with steel
locknut
Standard Materials:
Malleable Iron/Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E207875

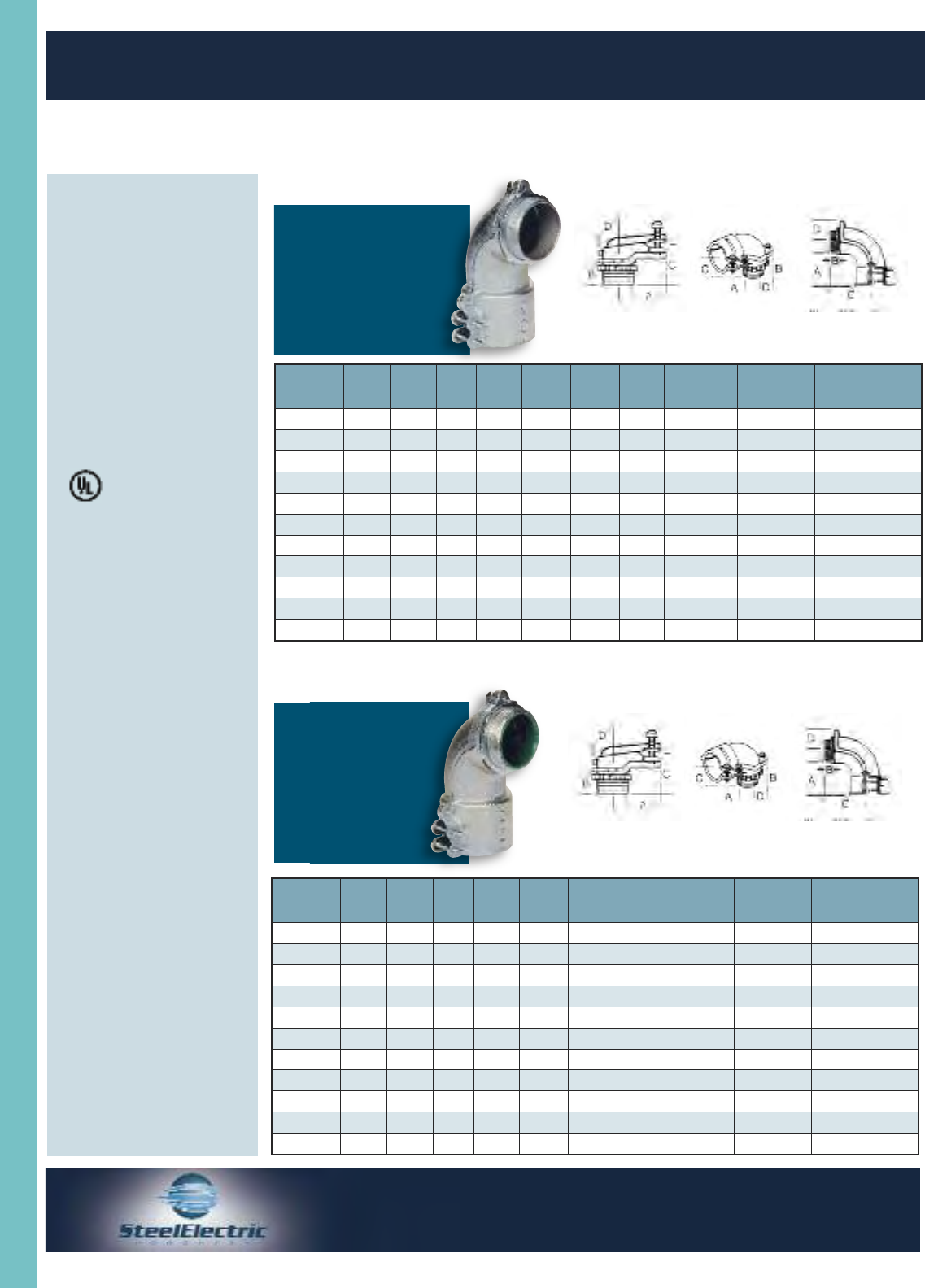

Malleable Iron 90° Cable Connectors
For Armored Cable and Flexible Metallic Conduit
C USC US
Type C40
Type C40T
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CDIM
DUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C25 3/8” 1/2” 1.63 0.41 0.85 0.51 50 500 9 38025
C35 1/2” 1/2” 1.63 0.41 0.85 0.51 25 250 20 33511
C36 3/4” 3/4” 1.81 0.50 1.10 0.62 10 100 25 33611
C37 1” 1” 2.10 0.50 1.31 0.81 5 50 62 33711
C38 1-1/4” 1-1/4” 2.75 0.65 1.83 1.12 - 10 120 33811
C39 1-1/2” 1-1/2” 3.37 0.65 1.83 1.50 - 10 149 33911
C40 2” 2” 5.00 0.81 2.75 1.70 - 5 309 34011
C65 2-1/2” 2-1/2” 5.50 1.00 4.12 2.00 - 2 352 36511
C66 3” 3” 6.62 1.00 4.50 2.25 - 1 553 36611
C67 3-1/2” 3-1/2” 8.25 1.30 5.56 3.15 - 1 1216 36711
C68 4” 4” 9.30 1.50 7.00 3.45 - 1 1437 36811
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CDIM
DUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C25T 3/8” 1/2” 1.63 0.41 0.85 0.51 50 500 9 38125
C35T 1/2” 1/2” 1.63 0.41 0.85 0.51 25 250 20 33513
C36T 3/4” 3/4” 1.81 0.50 1.10 0.62 10 100 25 33613
C37T 1” 1” 2.10 0.50 1.31 0.81 5 50 62 33713
C38T 1-1/4” 1-1/4” 2.75 0.65 1.83 1.12 - 10 120 33813
C39T 1-1/2” 1-1/2” 3.37 0.65 1.83 1.50 - 10 149 33913
C40T 2” 2” 5.00 0.81 2.75 1.70 - 5 309 34013
C65T 2-1/2” 2-1/2” 5.50 1.00 4.12 2.00 - 2 352 36513
C66T 3” 3” 6.62 1.00 4.50 2.25 - 1 553 36613
C67T 3-1/2” 3-1/2” 8.25 1.30 5.56 3.15 - 1 1216 36713
C68T 4” 4” 9.30 1.50 7.00 3.45 - 1 1437 36813
90° Squeeze Type
90° Squeeze Type - Insulated Throat
Sizes 3⁄8” - 11⁄4” are
manufactured as
shown above
Sizes 1” - 3” are
manufactured as
shown above
Sizes 31⁄2” - 4” are
manufactured as
shown above
Sizes 3⁄8” - 11⁄4” are
manufactured as
shown above
Sizes 1” - 3” are
manufactured as
shown above
Sizes 31⁄2” - 4” are
manufactured as
shown above
AC- MC -FLEX FITTINGS

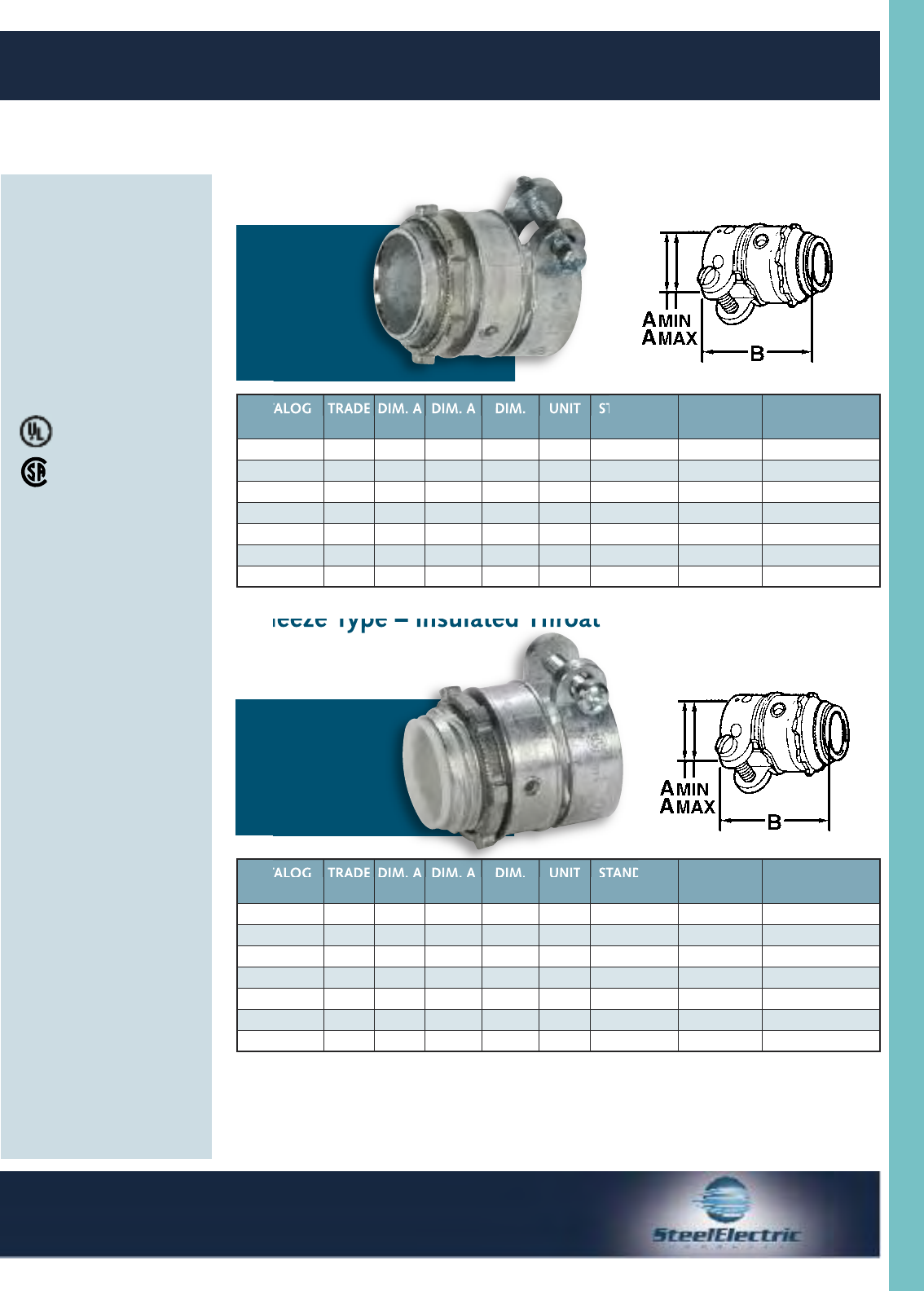

Application:
Used with a locknut to
terminate steel or aluminum
flexible metal conduit and
armored cable to enclosure.
Features:
• Assembled with die cast
locknut and tri-combo screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925

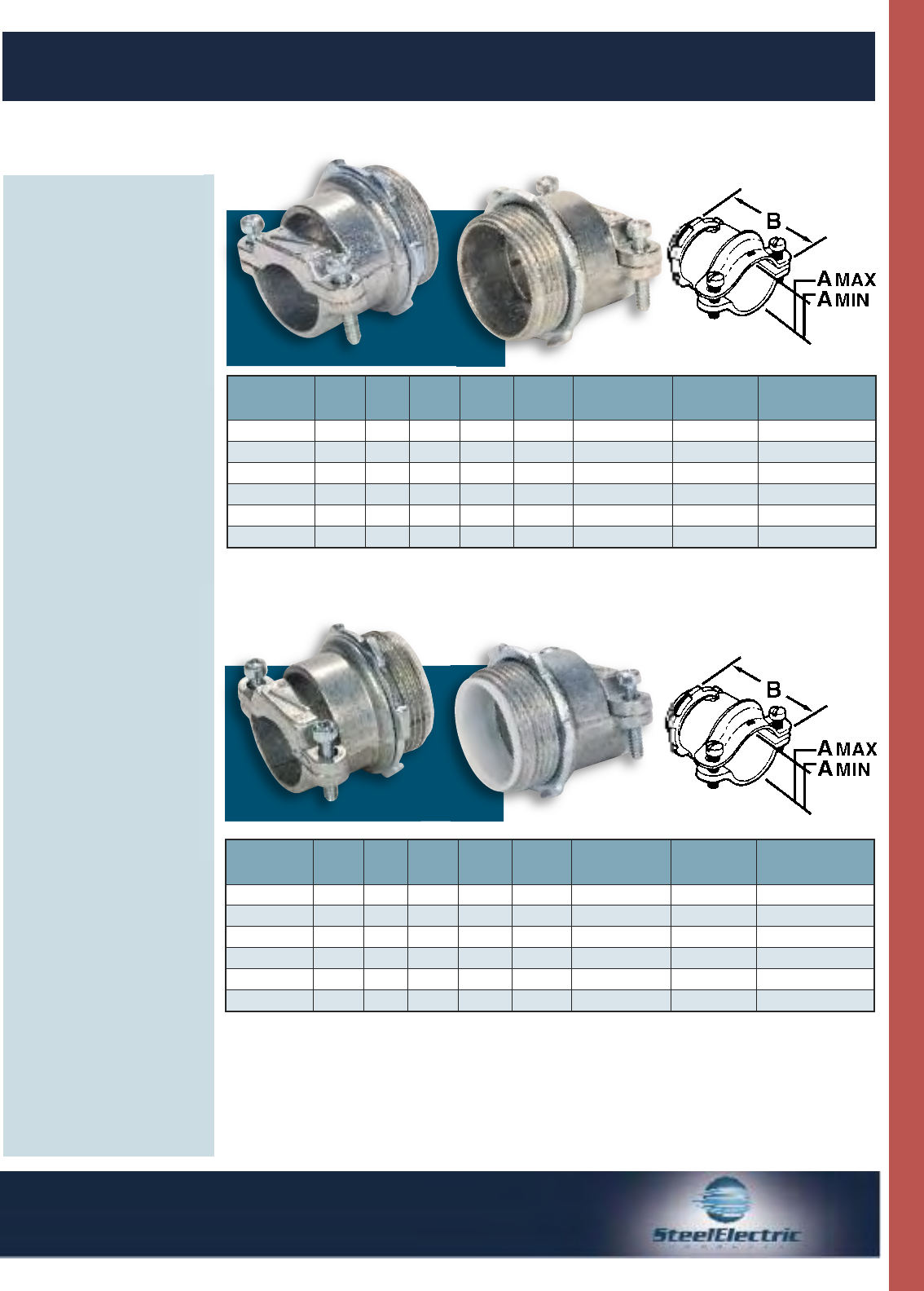

Zinc Cable Connectors
For Armored Cable and Flexible Metallic Conduit
87
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Squeeze Type – Insulated Throat
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C47Z 3/8” 0.530 0.620 0.982 50 500 7 24708
C27Z 1/2” 0.850 0.914 1.470 25 250 10 32708
C28Z 3/4” 1.100 1.135 1.580 25 250 13 32808
C29Z 1” 1.255 1.375 1.750 10 100 20 32908
C30Z 1-1/4” 1.550 1.610 1.910 10 100 29 33008
C31Z 1-1/2” 1.810 1.895 2.090 5 50 39 33108
C32Z 2” 2.260 2.485 2.340 10 40 46 33208
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C47ZT 3/8” 0.530 0.620 0.982 50 500 7 32646
C27ZT 1/2” 0.850 0.914 1.470 25 250 10 32757
C28ZT 3/4” 1.100 1.135 1.580 25 250 13 32867
C29ZT 1” 1.255 1.375 1.750 10 100 20 32967
C30ZT 1-1/4” 1.550 1.610 1.910 10 100 29 33067
C31ZT 1-1/2” 1.810 1.895 2.090 5 50 39 33167
C32ZT 2” 2.260 2.485 2.340 10 40 46 33267
Type C27Z
Type C27ZT
Squeeze Type
®
AC- MC -FLEX FITTINGS

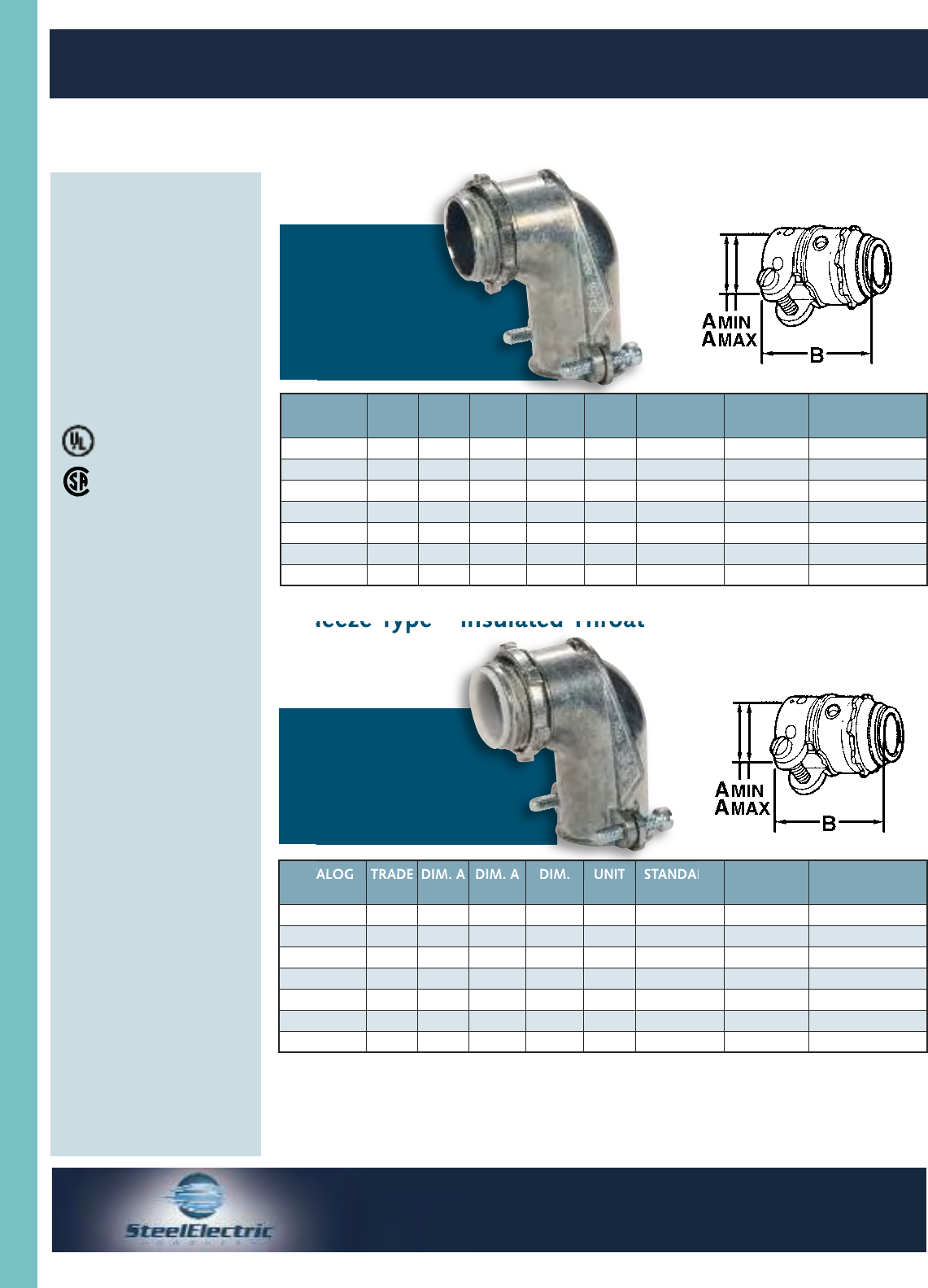

Zinc 90° Cable Connectors
For Armored Cable and Flexible Metallic Conduit
88
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used with a locknut to
terminate steel or aluminum
flexible metal conduit and
armored cable to enclosure to
form a 90° bend
Features:
• Assembled with die cast
locknut and tri-combo screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
®
Squeeze Type – Insulated Throat
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C25ZT 3/8” 0.440 0.750 0.180 50 500 7 32567
C35ZT 1/2” 0.635 1.085 2.140 25 250 10 33567
C36ZT 3/4” 0.830 1.380 2.380 10 100 13 33667
C37ZT 1” 1.330 1.570 2.800 5 50 20 33767
C38ZT 1-1/4” 1.625 1.940 3.930 10 40 29 33867
C39ZT 1-1/2” 1.400 2.400 6.050 - 10 39 33967
C40ZT 2” 1.400 2.400 6.050 - 5 46 34067
Type C40Z
Type C40ZT
Squeeze Type
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C25Z 3/8” 0.440 0.750 0.180 50 500 7 32252
C35Z 1/2” 0.635 1.085 2.140 25 250 10 33516
C36Z 3/4” 0.830 1.380 2.380 10 100 13 33616
C37Z 1” 1.330 1.570 2.800 5 50 20 33716
C38Z 1-1/4” 1.625 1.940 3.930 10 40 29 33816
C39Z 1-1/2” 1.400 2.400 6.050 - 10 39 33916
C40Z 2” 1.400 2.400 6.050 - 5 46 34016
AC- MC -FLEX FITTINGS

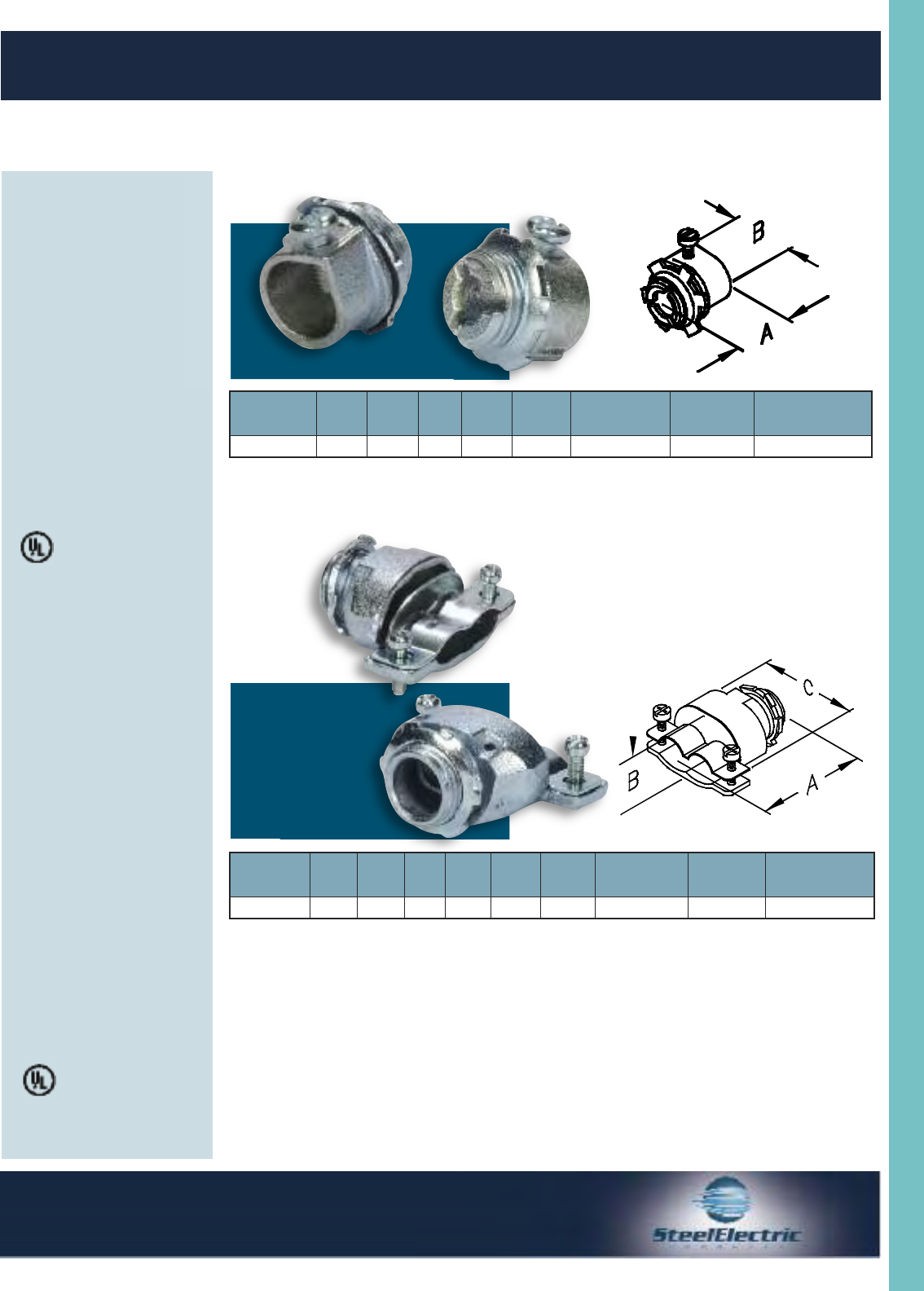

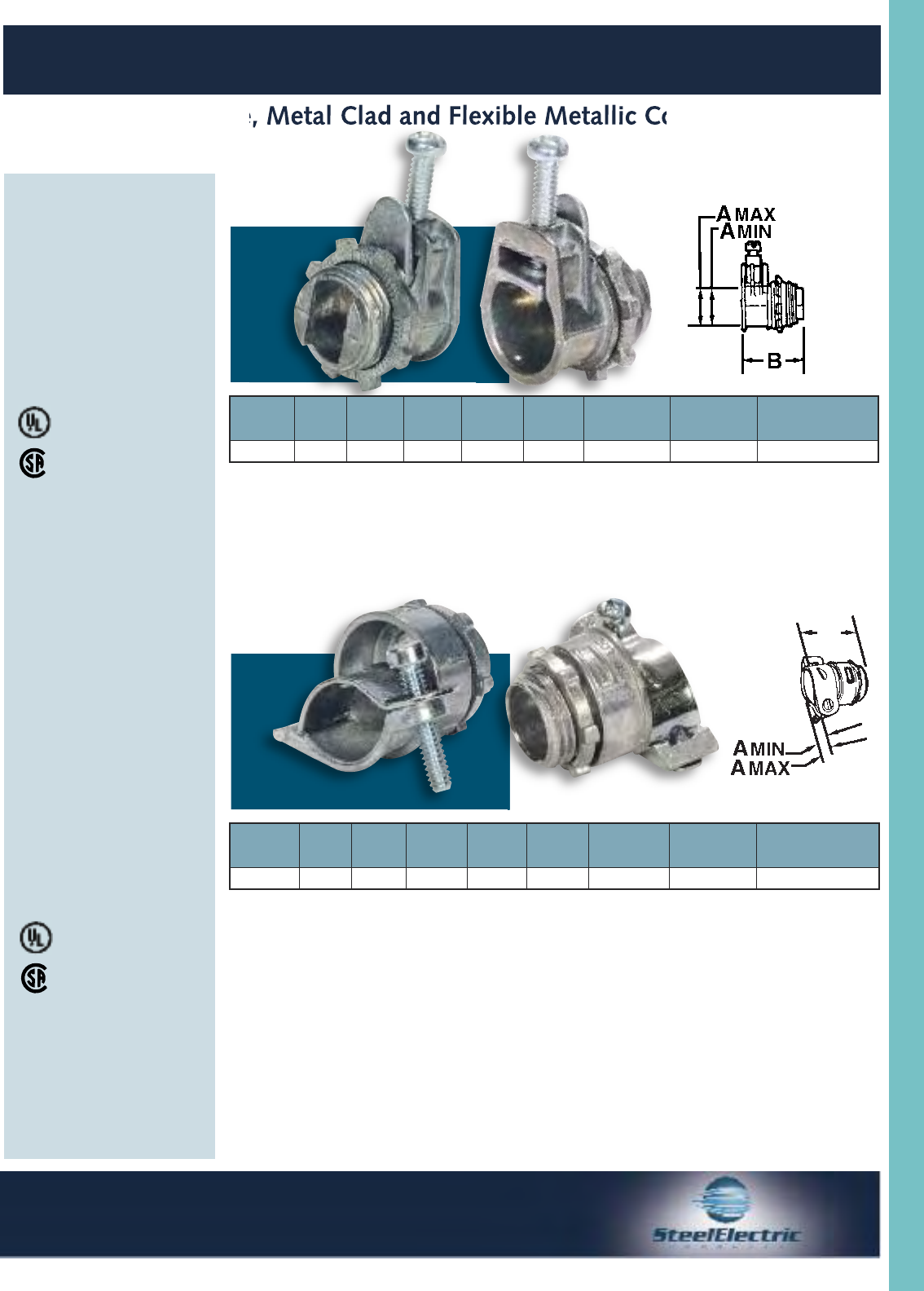

Malleable Iron Cable Connectors
For Armored Cable, Metal Clad and Flexible Metallic Conduit
89
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type C22M
Type C270M
Application: Used to connect
steel armored cable to box or
enclosure.
Features:
• UL Listed flexible metal
conduit fittings are suitable
for use in Hazardous
Locations under NEC 501-4
(b) Class I Div. II, and suitable
as a grounding means under
NEC 350-5
• Male Hub Threads-NPSM
• Provided with steel locknuts
Standard Materials:
Malleable Iron / Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E207875
Application: Strap type fitting
used to connect flexible metal
conduit or armored cable to
box or enclosure.
Features:
• UL Listed flexible metal
conduit fittings are suitable
for use in Hazardous
Locations under NEC 501-4
(b) Class I Div. II, and suitable
as a grounding means under
NEC 350-5
• Male Hub Threads-NPSM
• Provided with steel locknuts
• Stamped Steel Covers
Standard Materials:
Malleable Iron / Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E238299
C US
C US
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C22M 3/8” 1/2” 1.000 0.438 100 1000 7 31240
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C270M 3/8” 1/2” 1.688 0.438 1.625 20 200 14 52802
Duplex
Set-Screw
AC- MC -FLEX FITTINGS
90
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
STEEL

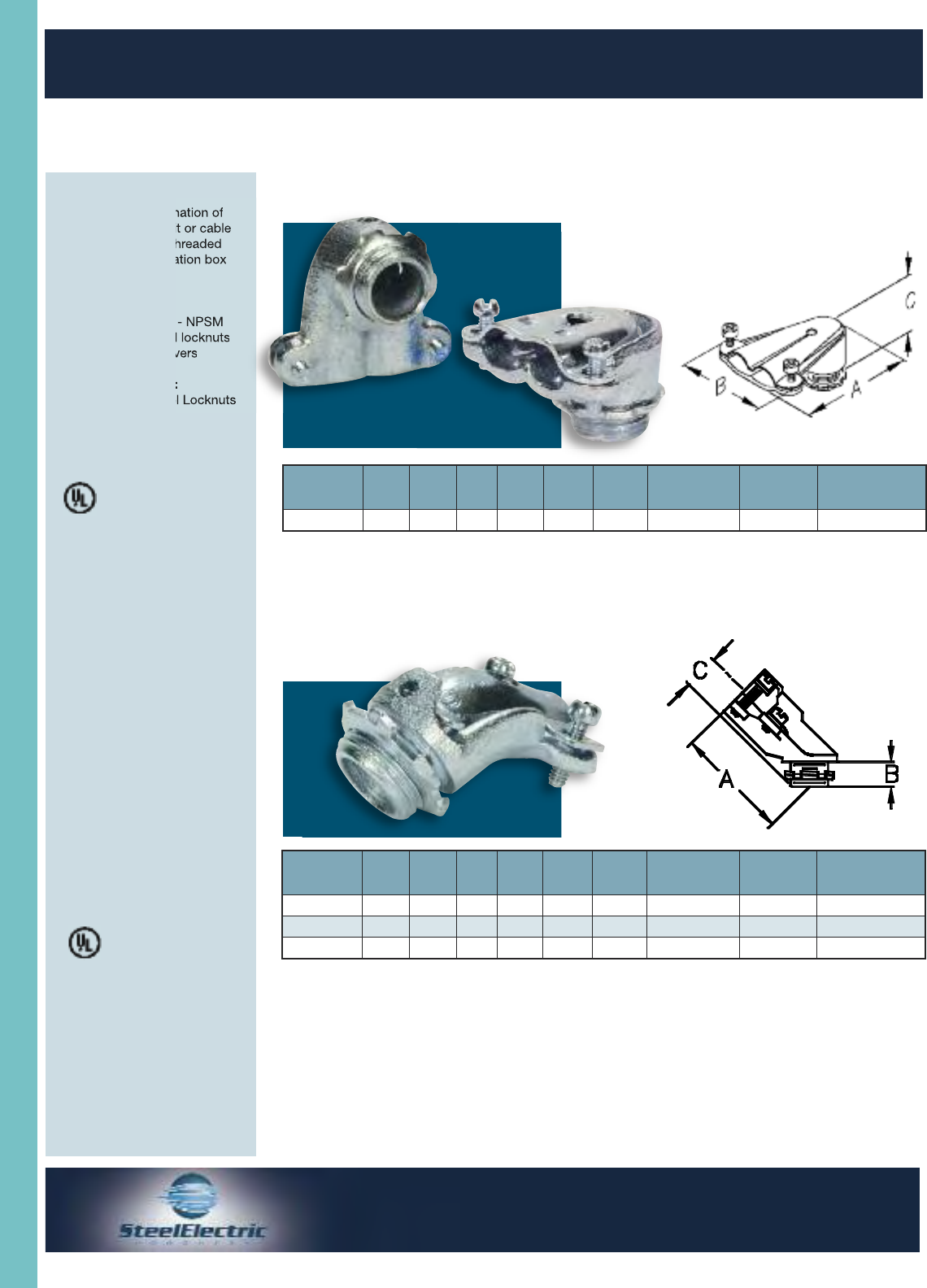

Malleable Iron Cable Connectors
For Armored Cable, Metal Clad and Flexible Metallic Conduit
Application:
To make a 90° termination of
flexible metal conduit or cable
to a knockout or unthreaded
slip hole in a dry location box
or enclosure.
Features:
• Male Hub Threads - NPSM
• Provided with steel locknuts
• Stamped Steel Covers
Standard Materials:
Malleable Iron / Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E207875
Application:
Connects conduit and
terminates bonding conductor.
Features:
• Male Hub Threads - NPSM
• Provided with steel locknuts
• Stamped Steel Covers
Standard Materials:
Malleable Iron / Steel Locknuts
Standard Finish:
Zinc Plated
UL Listed:
E207875
Type C271
Type 315M
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C271 3/8” 1/2” 1.188 0.438 0.875 25 250 14 52713
CATALOG
NUMBER TRADE
SIZE KO
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
315M 3/8” 1/2” 1.750 0.438 1.125 25 250 10 31502
316M 1/2” 1/2” 1.938 0.438 1.750 25 250 12 70885
317M 3/4” 3/4” 1.938 0.500 2.000 25 250 15 70886
45° Angle
90° Duplex
C US
C US
AC- MC -FLEX FITTINGS
91
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
RAINTIGHT
Zinc Cable and Conduit Connectors
For Armored Cable, Metal Clad and Flexible Metallic Conduit
Application:
For use with flexible metal con-
duit and reduced wall flexible
metal conduit, metal clad and
armored cable. They are used
to connect two, Trade Size 3/8
(12) flexible metal conduits, two
armored cable of appropriate
size marked, or two metal clad
cable of appropriate size
marked to an enclosure
through a Trade Size 1/2 (16)
knockout.
Features:
• UL Listed Locknut
• Male hub NPS
• Tri-combo head screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
Strap-type fitting used to
connect flexible metal conduit
or armored cable to box or
enclosure.
Features:
• UL Listed Locknut
• Male Hub NPS
• Tri-combo head screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Type C270A
CATALOG
NUMBER TRADE
SIZE DIM.
A MIN. DIM.
A MAX. DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C270A 3/8” 1.688 0.438 1.625 25 250 13 52712
CATALOG
NUMBER TRADE
SIZE DIM.
ADIM.
BDIM.
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C270 3/8” 1.688 0.438 1.625 20 200 12 52702
Duplex Single Screw-Clamp Type
Type C270
Duplex Two-Screw Clamp Type
®
®
These connectors are used to secure the following cable to an enclosure:
• 0.58 Inch Maximum Diameter Aluminum Armored Cable (10-3)
• 0.48 Inch Minimum Diameter Aluminum Armored Cable (14-2)
• 0.50 Inch Maximum Diameter Steel Armored Cable (10-3)
• 0.46 Inch Minimum Diameter Steel Armored Cable (14-2)
• 0.610 Inch Maximum Diameter Aluminum MCI (10-3)
• 0.468 Inch Minimum Diameter Aluminum MCI (14-2)
• 0.6 Inch Maximum Diameter Steel MCI (10-3)
• 0.47 Inch Minimum Diameter Steel (14-2)
• 0.495 Inch Maximum Diameter Aluminum MCI-A (10-3)
• 0.370 Inch Minimum Diameter Aluminum MCI-A (14-2)
• 0.495 Inch Maximum Diameter Aluminum HCF MCI-A (10-2)
• 0.418 Inch Minimum Diameter Aluminum HCF MCI-A (12-2)
• FMC
These connectors are used to secure the following cable to an enclosure:
• 0.58 Inch Maximum Diameter Aluminum Armored Cable (10-3)
• 0.48 Inch Minimum Diameter Aluminum Armored Cable (14-2)
• 0.50 Inch Maximum Diameter Steel Armored Cable (10-3)
• 0.46 Inch Minimum Diameter Steel Armored Cable (14-2)
• 0.610 Inch Maximum Diameter Aluminum MCI (10-3)
• 0.468 Inch Minimum Diameter Aluminum MCI (14-2)
• 0.6 Inch Maximum Diameter Steel MCI (10-3)
• 0.47 Inch Minimum Diameter Steel (14-2)
• 0.495 Inch Maximum Diameter Aluminum MCI-A (10-3)
• 0.370 Inch Minimum Diameter Aluminum MCI-A (14-2)
• 0.495 Inch Maximum Diameter Aluminum HCF MCI-A (10-2)
• 0.418 Inch Minimum Diameter Aluminum HCF MCI-A (12-2)
• FMC
AC- MC -FLEX FITTINGS
Zinc Cable and Conduit Connectors
92
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

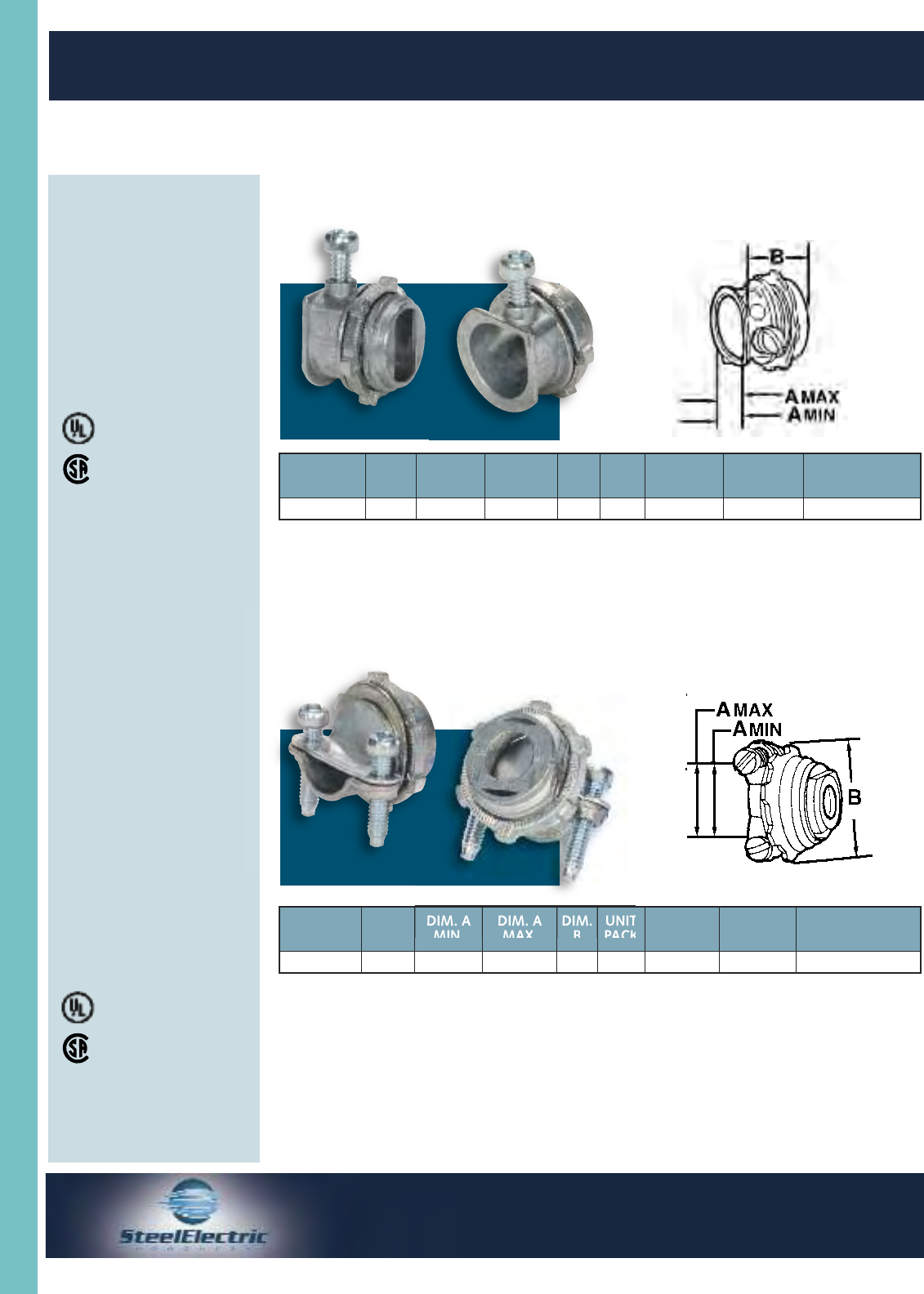

Application:
Used to connect steel armored
cable and flexible metallic con-
duit to a box or enclosure.
Features:
• UL Listed Locknut
• End Stopped
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Application:
To terminate regular wall steel
or aluminum flexible conduit to
a 1/2” knockout in a dry box
enclosure.
Features:
• UL Listed Locknut
• End Stopped
• Male Hub NPS
• Combination Head Screw
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
Type C22
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX. DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C22 3/8” 0.38 0.63 0.84 100 1000 5 31222
CATALOG
NUMBER TRADE
SIZE DIM. A
MIN. DIM. A
MAX. DIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C23C 3/8” 0.63 0.18 1.20 100 1000 6 32232
Set-Screw
for Armored Cable and Flexible Metallic Conduit
Type C23C
Two Screw
for Armored Cable, Metal Clad and Flexible Metallic Conduit
®
®
These connectors are used to secure the following cable to an enclosure:
• AC Cable No. 10-2 Steel; Maximum Diameter 0.598 in.
• AC Cable No. 14-2 Steel; Minimum Diameter 0.460 in.
• AC Cable No. 10-2 Aluminum; Maximum Diameter 0.565 in.
• AC Cable No. 14-2 Aluminum; Minimum Diameter 0.480 in.
• MCI Cable No. 10-3 Steel; Maximum Diameter 0.600 in.
• MCI Cable No. 14-2 Steel; Minimum Diameter 0.469 in.
• MCI Cable No. 10-3 Aluminum; Maximum Diameter 0.610 in.
• MCI Cable No. 14-2 Aluminum; Minimum Diameter 0.470 in.
• MCI-A Cable No. 10-3 Aluminum; Maximum Diameter 0.495 in
• MCI-A Cable No. 14-2 Aluminum; Minimum Diameter 0.370 in
• HCF MCI-A Cable No. 10-2 Aluminum; Maximum Diameter 0.495 in
• HCF MCI-A Cable No. 12-2 Aluminum; Minimum Diameter 0.418 in
• FMC
These connectors are used to secure the following cable to an enclosure:
• AC Cable No. 10-2 Steel; Maximum Diameter 0.598 in.
• AC Cable No. 14-2 Steel; Minimum Diameter 0.460 in.
• MCI Cable No. 10-3 Steel; Maximum Diameter 0.600 in.
• MCI Cable No. 14-2 Steel; Minimum Diameter 0.469 in.
AC- MC -FLEX FITTINGS
93
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To terminate armored cable in a
1/2” knockout in a dry location
box or enclosure.
Features:
• Furnished with die cast
locknuts
• Tri-combo head screws
Standard Materials:
Zinc Die Cast
UL Listed: E155411
CSA File No. LR57925
Application:
To make a termination of
flexible metal conduit to a
knockout or unthreaded slip
hole in a dry location box or
enclosure.
Features:
• Furnished with die cast
locknuts
• Male Hub NPS
• Tri-combo head screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925

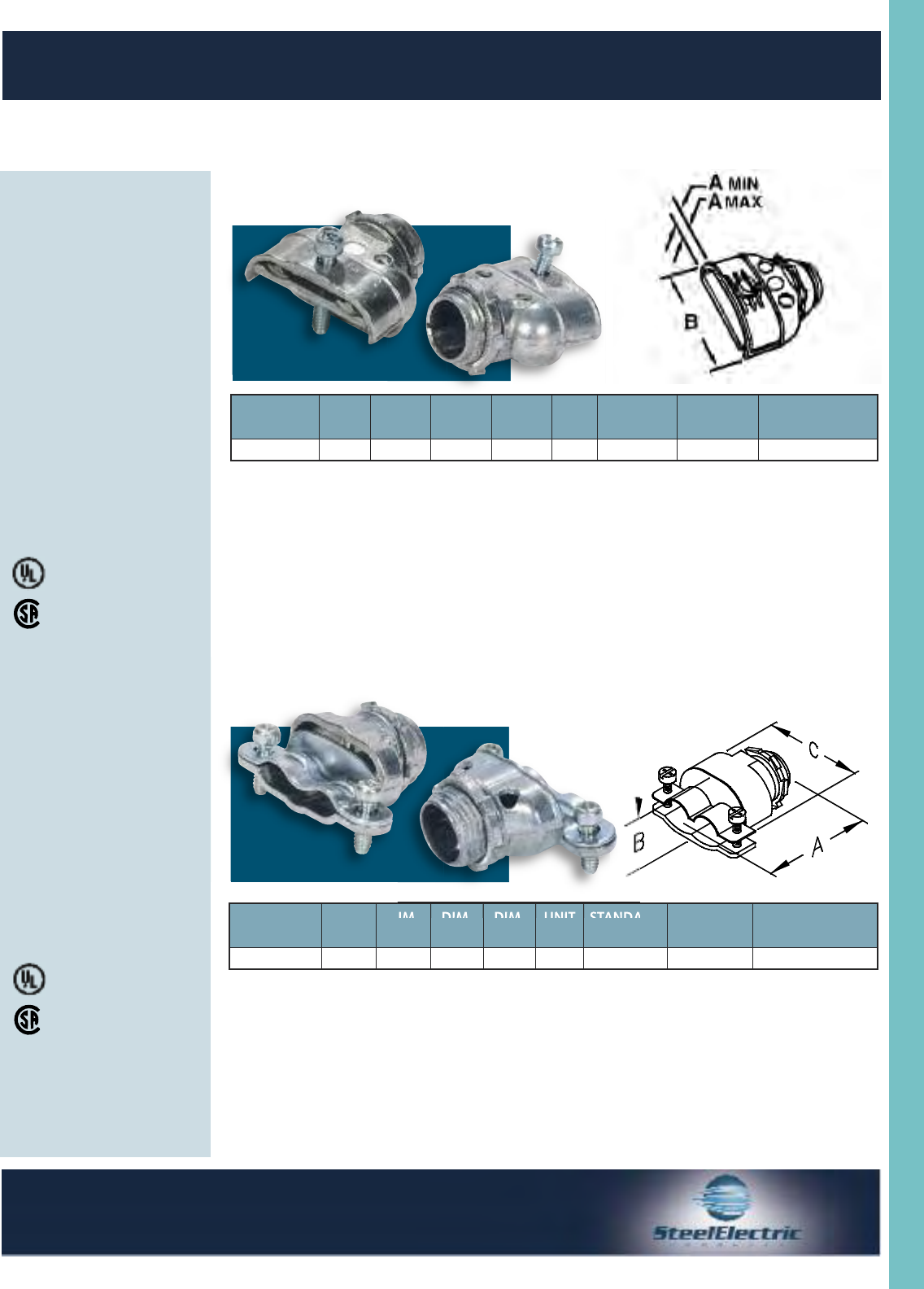

Zinc Cable and Conduit Connectors
For Armored Cable, Metal Clad and Flexible Metallic Conduit
®
®
Type C920
CATALOG
NUMBER TRADE
SIZE DIM A
MIN DIM B
MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C920 3/8” 0.12 0.63 0.98 50 500 8 13512
Saddle Type
B
Type C910
CATALOG
NUMBER TRADE
SIZE DIM A
MIN DIM B
MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C910 1/2” 0.63 0.95 1.41 25 250 10 13502
Strap Type
AC- MC -FLEX FITTINGS
Zinc Combination Couplings
For EMT Conduit and Flexible Metallic Conduit
*EMT TO NM CABLE
94
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
A combination coupling to
provide a transition from E.M.T.
to flexible metallic conduit.
Features:
• Assembled with tri-combo
screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
CSA File No. LR57925
®
Type 170C
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
*170C 1/2” EMT - 3/8” Flex 1.280 1.140 50 500 8 51702
171C 1/2” EMT - 1/2” Flex 1.645 1.340 25 250 10 51703
172C 3/4” EMT - 3/4” Flex 1.975 1.535 20 200 15 51704
173C 1” EMT - 1” Flex 2.285 1.700 10 100 26 51705
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
171 1/2” EMT - 1/2” FMC 1.645 1.340 25 250 10 51712
172 3/4” EMT - 3/4” FMC 1.975 1.535 20 200 15 51722
Type 171
AC- MC -FLEX FITTINGS
95
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

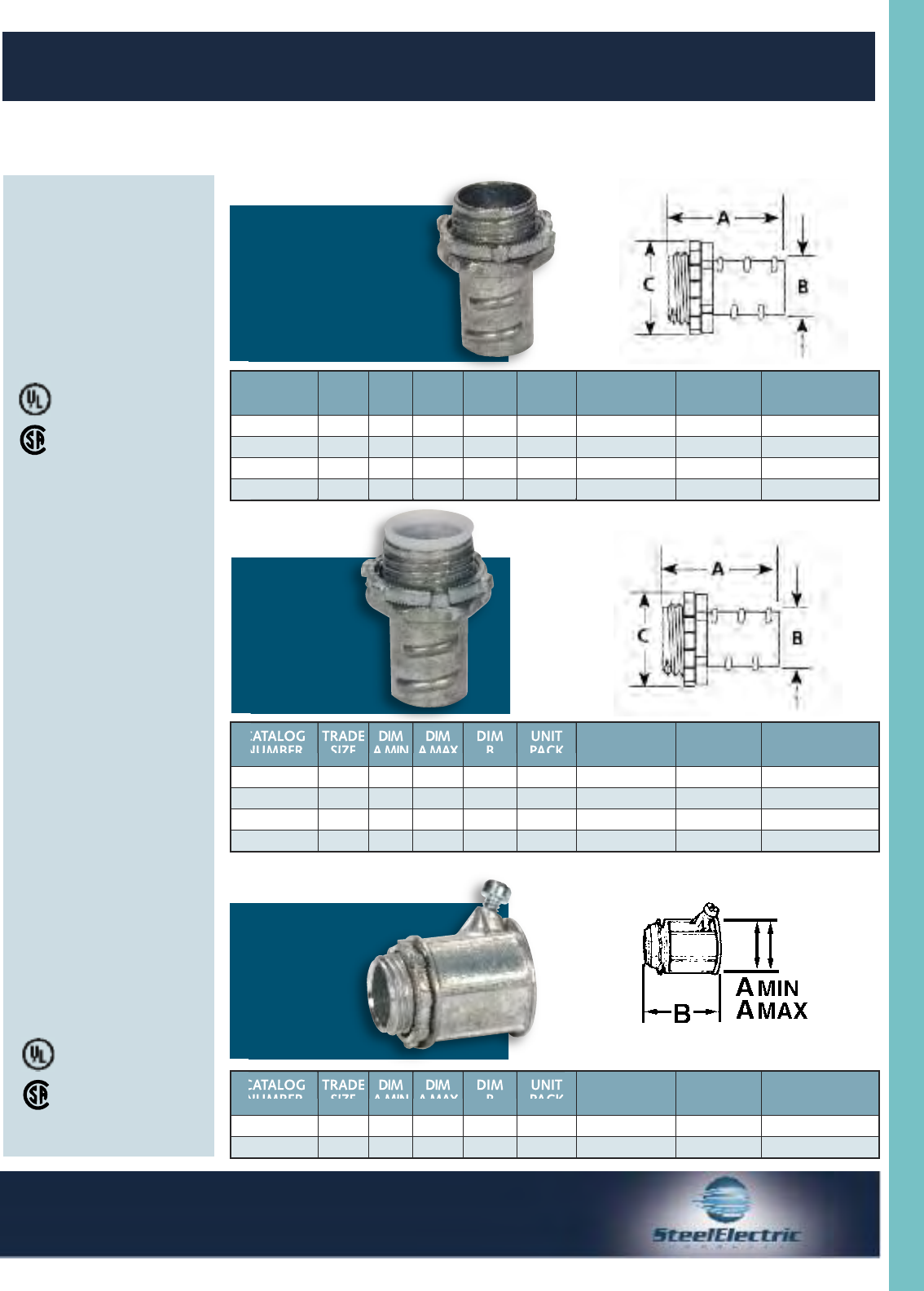

Zinc Cable and Conduit Connectors
For Flexible Metallic Conduit
®
®
Application:
Screw-in type connectors for
flexible metal conduit.
Features:
• Assembled with die cast
locknut
Standard Materials:
Zinc Die Cast
Third Party Certification:
UL Listed:
155411
No. 43Y8
18130
Type 340
CATALOG
NUMBER TRADE
SIZE DIM
A MIN DIM
A MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
340 3/8” 1.28 0.45 1.12 50 500 6 33402
341 1/2” 1.37 0.72 1.14 50 500 6 33412
342 3/4” 1.47 0.92 1.39 25 250 10 33422
343 1” 1.94 1.12 1.71 25 250 16 33432
CATALOG
NUMBER TRADE
SIZE DIM
A MIN DIM
A MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
340T 3/8” 1.28 0.45 1.12 50 500 6 33408
341T 1/2” 1.37 0.72 1.14 50 500 6 33418
342T 3/4” 1.47 0.92 1.39 25 250 10 33428
343T 1” 1.94 1.12 1.71 25 250 16 33438
CATALOG
NUMBER TRADE
SIZE DIM
A MIN DIM
A MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C24G 1/2” 0.74 0.94 1.46 50 500 10 33242
C25G 3/4” 1.02 1.26 1.54 25 250 10 33243
Screw-In Connector
Type 340T
Insulated
Application:
Set-screw connectors are used
to terminate regular wall steel
or aluminum flexible metal
conduit to a knock-out in a dry
location box or enclosure.
Standard Materials
Zinc Die Cast
UL Listed:
155411
Type C24G
Set-Screw Connector
AC- MC -FLEX FITTINGS
96
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To connect Flexible metal
conduit to Rigid or IMC conduit.
Features:
• Rigid Conduit to Flex
• Female Hub Threads - NPT
Standard Materials:
Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E207875

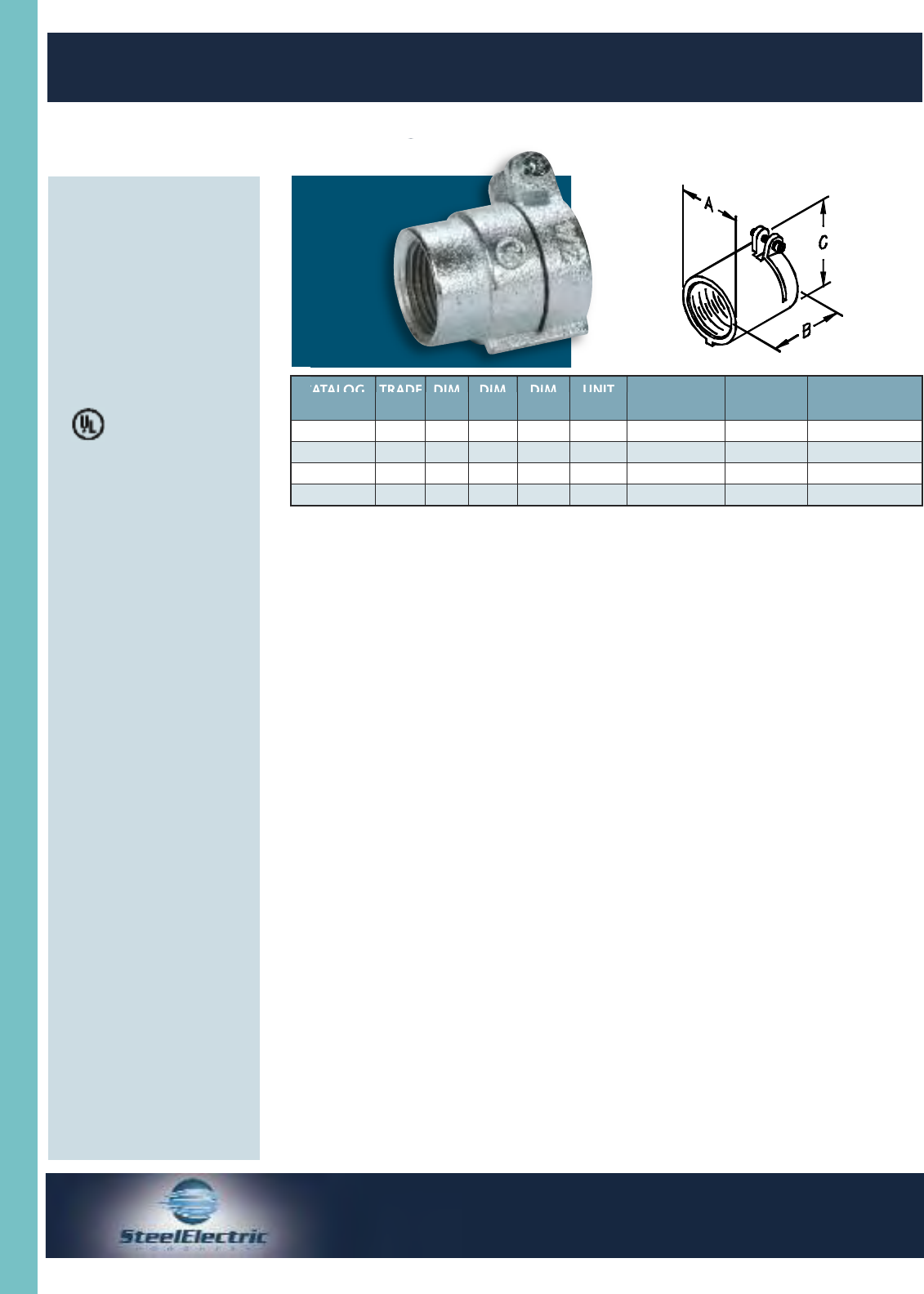

For Flex Metal Conduit to Rigid or IMC Conduit
Combination Couplings
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
22E 1/2” 1.19 1.50 1.69 25 250 14 55221
23E 3/4” 1.38 1.75 1.88 20 200 19 55231
24E 1” 1.63 1.81 2.31 20 100 32 55241
25E 1-1/4” 2.00 2.31 2.62 - 20 36 55251
Type 22E
C US
AC- MC -FLEX FITTINGS
97
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

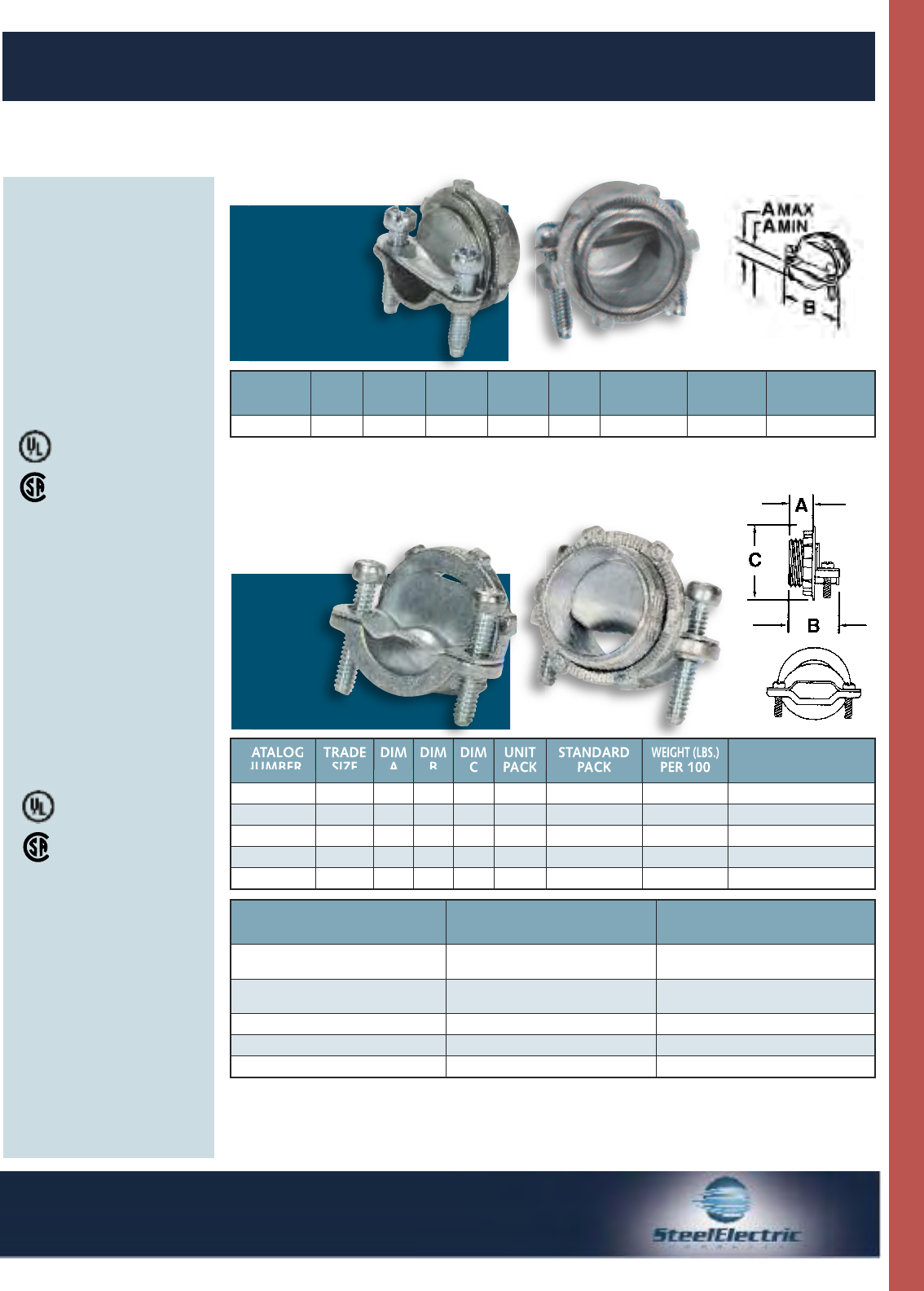

Zinc Cable and Conduit Connectors
For Non-Metallic Sheathed Cable
®
®
Application:
Used to connect non-metallic
sheath cable and flexible cord
from 0.290 to 0.450 in. in
diameter to outlet boxes,
enclosures, or raceway
systems in dry locations.
Features:
• Assembled with die cast
locknut and tri-combo screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
Type C23
CATALOG
NUMBER TRADE
SIZE DIM A
MIN DIM A
MAX DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C23 3/8” 0.64 0.18 1.21 100 1000 5 31232
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SC1 3/4” 0.450 1.031 1.220 25 250 10 32012
SC2 1” 0.645 1.190 1.500 20 200 16 32022
SC3 1-1/4” 0.660 1.330 1.900 10 100 25 32031
SC4 1-1/2” 0.740 1.470 2.115 10 100 36 32042
SC5 2” 0.750 1.620 2.640 5 50 50 32052
CATALOG NUMBER SE/OVAL DIAMETER IN. SER/ROUND DIAMETER IN.
SC1
Non-Metallic Cable 10-3 through 8-2 (.52 by .61) and (.51 by .80) (.57) and (.69)
SC2
Non-Metallic Cable 10-3 through 4-3 (.51 by .80) and (.62 by .975) (.69) and (.92)
SC3 (1.065 by 0.635) and (1.250 by 0.740) -
SC4 (1.065 by 0.635) and (1.250 by 0.740) -
SC5 (1.405 by 0.875) and (1.450 by 0.875) -
Romex Connector
Type SC1
Service Entrance Connector
Application:
Non-watertight. To make a
termination of non-metallic
sheathed cable and service
entrance.
Features:
• Assembled with die cast
locknut and tri-combo screws
Standard Materials:
Zinc Die Cast
UL Listed:
E155411
NM CABLE FITTINGS
One or two non-metallic cable 14-2 to 12-2 or 0.29” to 0.45” diameter flexible cord
98
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used with locknut to terminate
service entrance cable to
enclosure.
Features:
• Assembled with die cast
locknut and tri-combo screws
• For round cable
Standard Materials:
Zinc Die Cast
UL Listed:
E155411

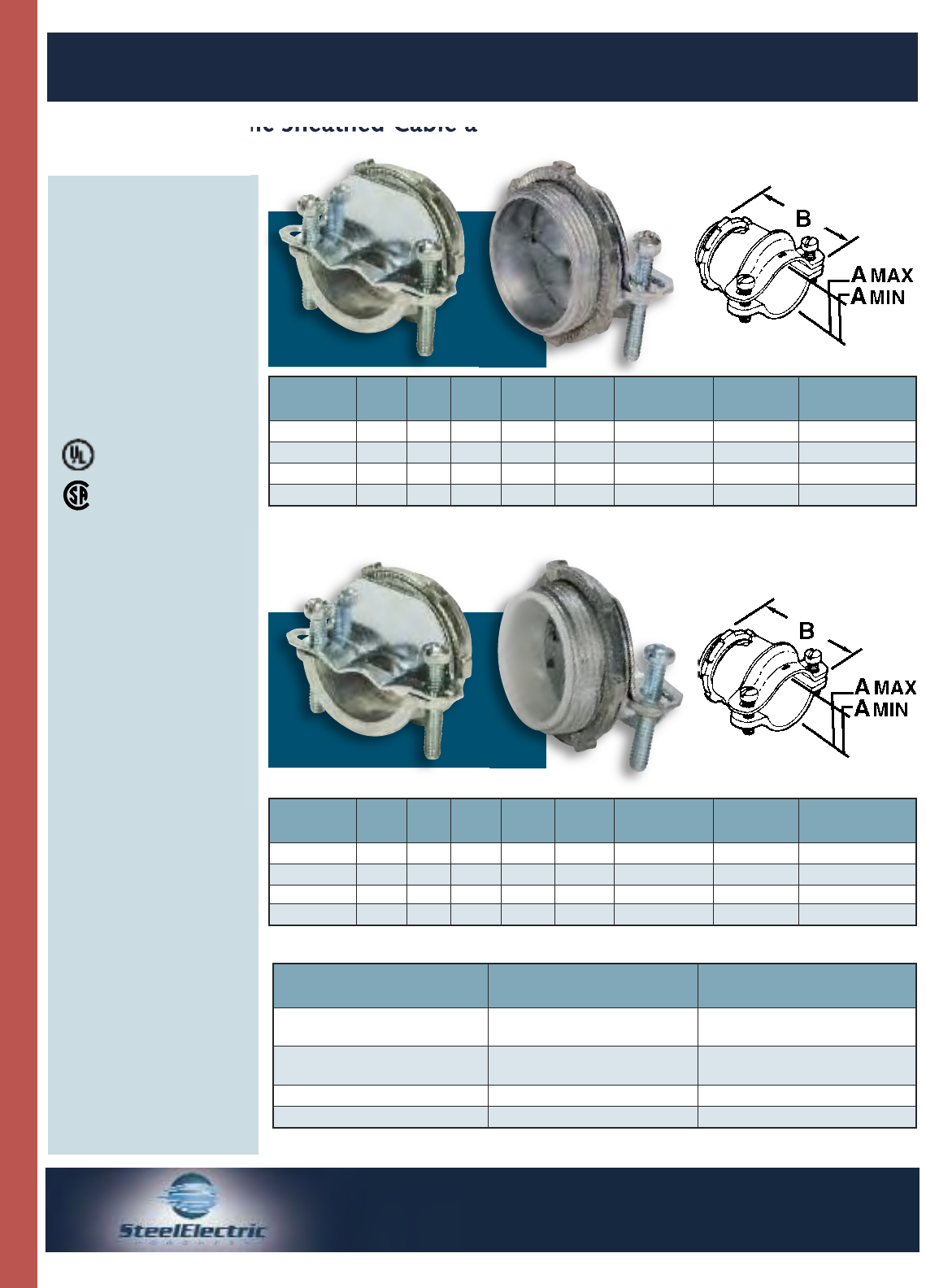

For Non-Metallic Sheathed Cable and Service Entrance Cable
Zinc Non-Watertight Short Body Connectors
Type C50S
Type C50ST
CATALOG
NUMBER TRADE
SIZE DIM A
MIN. DIM A
MAX. DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C50S 1” 0.620 1.140 1.500 10 100 15 64601
C51S 1-1/4” 0.700 1.380 1.900 10 100 24 64602
C52S 1-1/2” 0.750 1.610 2.115 10 100 34 64603
C53S 2” 0.900 2.040 2.640 5 50 46 64604
CATALOG
NUMBER TRADE
SIZE DIM A
MIN. DIM A
MAX. DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C50ST 1” 0.620 1.140 1.500 10 100 15 90138
C51ST 1-1/4” 0.700 1.380 1.900 10 100 24 90139
C52ST 1-1/2” 0.750 1.610 2.115 10 100 34 90140
C53ST 2” 0.900 2.040 2.640 5 50 46 90141
Insulated
®
NM CABLE FITTINGS
CATALOG NUMBER SE/OVAL DIAMETER IN. SER/ROUND DIAMETER IN.
C50S and C50ST
Non-Metallic Cable 10-3 through 4-3 (.51 by .80) and (.62 by .975) (.69) and (.92)
C51S and C51ST
Non-Metallic Cable 4-3 through 2-3 (.67 by 1.06) and (.73 by 1.235) 1.19
C52S and C52ST (1.15 by 0.73) and (1.41 by 0.89) 1.48
C53S and C53ST (1.405 by 0.875) and (1.450 by 0.875) -
99
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Zinc Non-Watertight Long Body Connectors
For Non-Metallic Sheathed Cable and Service Entrance Cable
Type C50Z
Type C50ZT
CATALOG
NUMBER TRADE
SIZE DIM A
MIN. DIM A
MAX. DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C48Z 1/2” 0.40 0.95 1.87 25 250 10 32482
C49Z 3/4” 0.50 1.10 1.84 20 200 12 32492
C50Z 1” 0.62 1.14 2.00 10 100 15 32502
C51Z 1-1/4” 0.50 1.38 2.28 10 100 25 32512
C52Z 1-1/2” 0.75 1.61 2.49 10 100 38 32522
C53Z 2” 0.90 2.04 3.35 5 50 50 32632
CATALOG
NUMBER TRADE
SIZE DIM A
MIN. DIM A
MAX. DIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C48ZT 1/2” 0.40 0.95 1.87 25 250 10 34867
C49ZT 3/4” 0.50 1.10 1.84 20 200 12 34967
C50ZT 1” 0.62 1.14 2.00 10 100 15 35067
C51ZT 1-1/4” 0.50 1.38 2.28 10 100 25 35167
C52ZT 1-1/2” 0.75 1.61 2.49 10 100 38 35267
C53ZT 2” 0.90 2.04 3.35 5 50 50 35367
Insulated
Application:
Used with locknut to terminate
service entrance cable to
enclosure.
Features:
• Take-all Type
Standard Materials:
Zinc Die Cast
NM CABLE FITTINGS
100
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

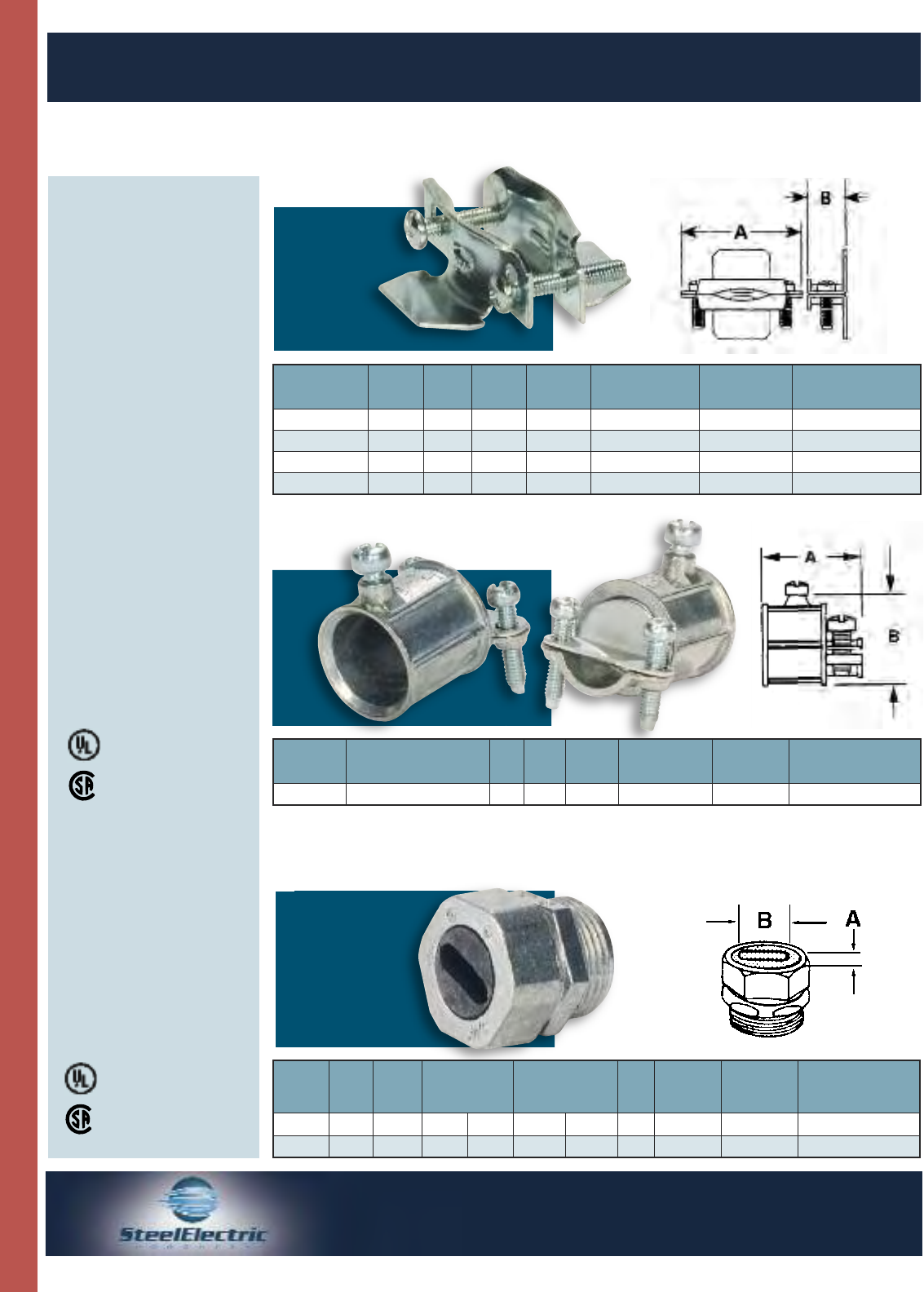

Application:
To terminate one or more
nonmetallic sheathed cables
to a 1/2 inch knockout in a dry
location box or enclosure.
Also used in “old work”
locations. Material finish is
bright zinc plated.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
Application:
Used to join 1/2” steel EMT to
12-2 non-metallic sheath cable.
Features:
• Assembled with tri-combo
screws
Standard Materials:
Zinc Die Cast
Application:
Used to connect underground
feeder cables to enclosures in
wet locations.
Features:
• Assembled with a rubber
grommet and steel washer
Material/Finish:
Zinc Die Cast
UL Listed:
E155411
For Non-Metallic Sheathed Cable
Zinc Cable and Conduit Fittings
Type C24
Type 170C
Type UF10
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
C24 1/2” 1.33 0.64 100 1000 4 33247
C54 3/4” 1.75 0.76 50 500 7 33547
C64 1-1/4” 2.25 0.85 25 250 11 33647
C74 1-1/2” 2.73 0.84 20 200 14 33747
CATALOG
NUMBER TRADE
SIZE TYPE MINIMUM
WIRE SIZE
A B
MAX. WIRE SIZE
GROM. OPENING
A B
UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
UF10 1/2” 12-2 0.100 0.475 0.220 0.440 25 250 17 49899
UF20 3/4” 12-3 0.175 0.800 0.220 0.660 25 250 26 49900
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
*170C 1/2” E.M.T. - 3/8” Flex 1.28 1.14 50 500 8 51702
Combination Couplings
Clamp Type
* EMT to NM Cable
Underground Feeder Connectors (UF)
For Service Entrance Cable and Non-Metallic Sheathed Cable
NM CABLE FITTINGS
®
®

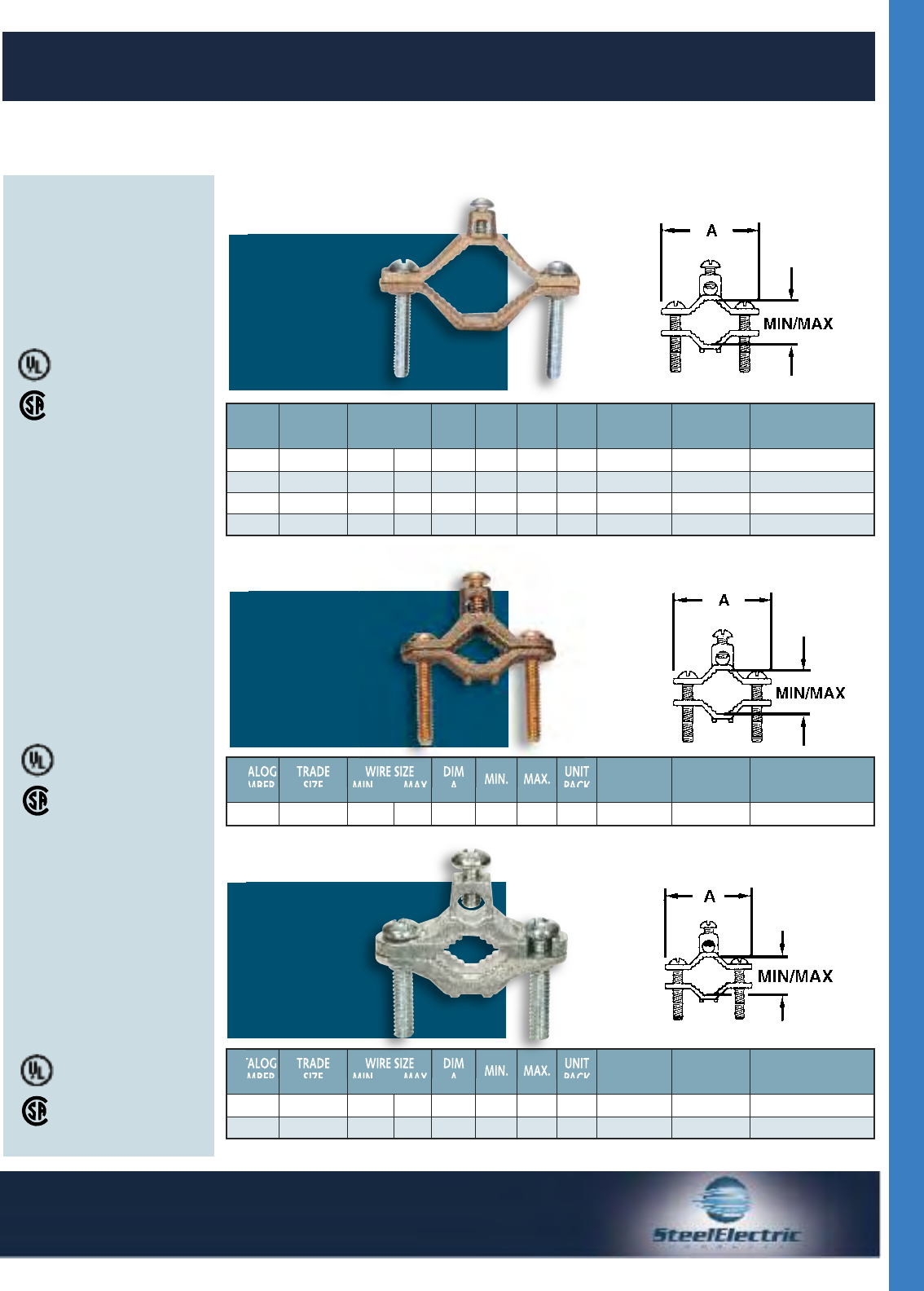

Type 34B
CATALOG
NUMBER TRADE
SIZE WIRE SIZE
MIN MAX DIM
AMIN. MAX. UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
10B 1/2” - 1” 10 SOL. 2 STR. 2.430 0.500 1.380 25 250 19 41054
34B 1-1/4” - 2” 10 SOL. 2 STR. 2.275 0.675 1.850 - 50 40 43414
35A 2-1/2” - 4” 10 SOL. 2 STR. 6.350 2.700 5.900 - 10 135 43514
36A 4” - 6” 10 SOL. 2 STR. 8.000 4.000 7.900 - 5 160 43614
CATALOG
NUMBER TRADE
SIZE WIRE SIZE
MIN MAX DIM
AMIN. MAX. UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
10BR 1/2” - 1” 10 SOL. 2 STR. 3.600 1.065 2.680 25 250 21 41084
CATALOG
NUMBER TRADE
SIZE WIRE SIZE
MIN MAX DIM
AMIN. MAX. UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
10BG 1/2” - 1” 8 SOL. 2 STR. 2.220 0.545 1.575 25 250 17 41074
*10BB 1/2” - 1” 8 SOL. 2 STR. 2.400 0.625 2.000 25 250 17 41064
With Steel Screws
Type 10 BR
With Bronze Screws for Direct Burial
Type 10BG
Zinc Die Cast
105
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Ground Clamps
For Bare Wire
Application:
Used to connect bare copper
wire to water pipe, rebar,
ground rod or copper water
tubing for grounding
Standard Materials:
Bronze with Steel Screws
UL Listed:
E88878
CSA file No. LR57925
Application:
Used to connect bare
copper wire to water pipe,
ground rod or copper water
tubing for grounding.
Standard Materials:
Zinc Die Cast with Steel
Screws
UL Listed:
E88878
CSA file No. LR57925
®
Application:
Used to connect bare copper
wire to water pipe, rebar,
ground rod or copper water
tubing for grounding
Standard Materials:
Bronze with Bronze Screws
UL Listed:
E88878
CSA file No. LR57925
®
®
*Brass Colored Zinc Plated
GROUNDING FITTINGS
106
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

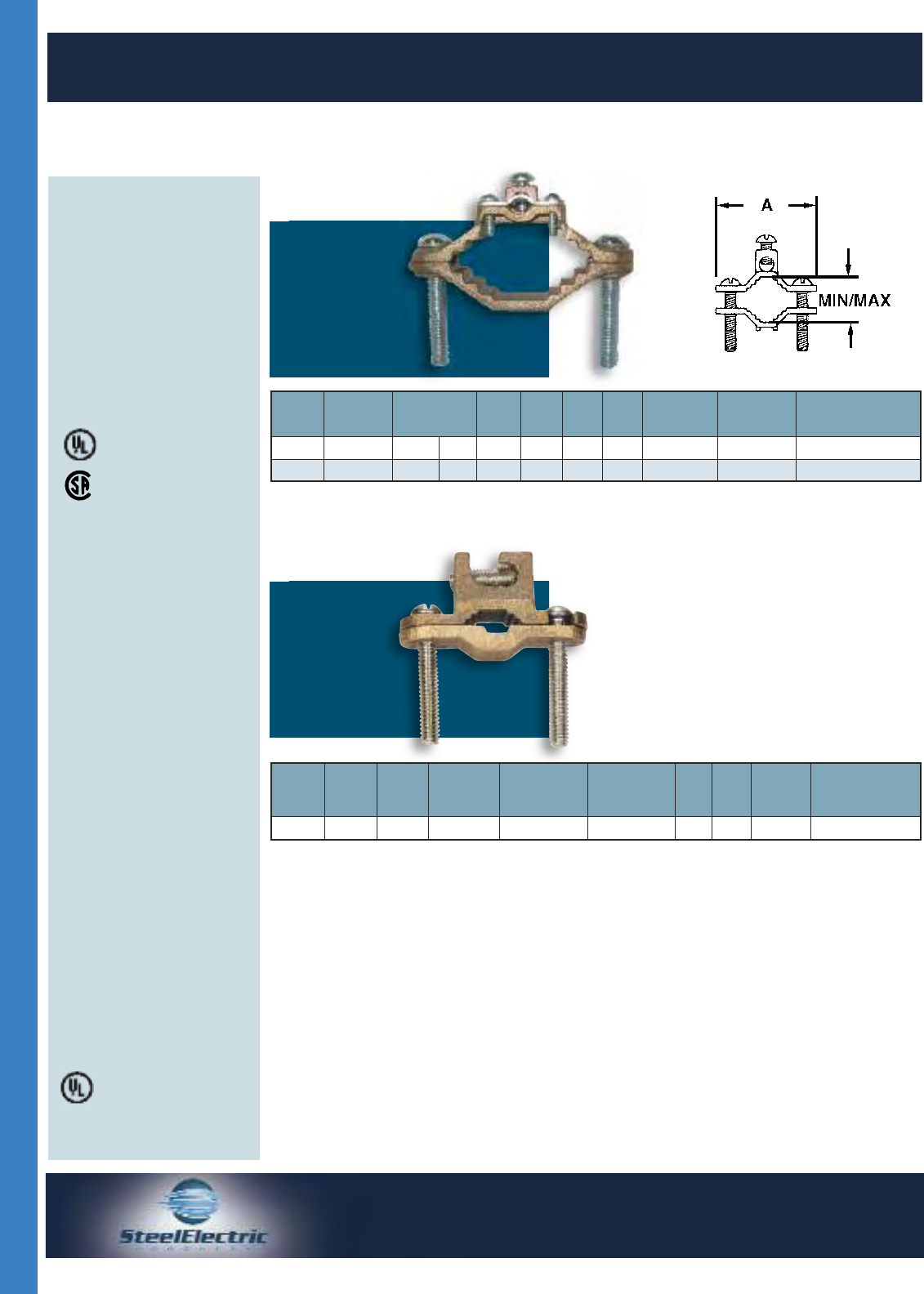

For Armored Cable
Ground Clamps
Application:
Used to connect armored
cable to water pipe for
grounding.
Features:
• Special pressure bar grips
armored cable insulation to
decrease chances of
grounding conductor being
pulled out
Standard Materials:
Solid Brass with Steel Screws
UL Listed:
E88878
CSA file No. LR57925
Application:
Integral cast, lay-in lug style
direct burial ground clamps
are for making connection
with #10AWG solid to #2
AWG stranded copper wire
to 1/2" to 1" ground water
pipe or 3/8" to 1" rebar.
Clamps meet both UL and
NEC requirements for burial
in earth or embedment in
concrete. Typical
installations include
swimming pool and service
grounding.
Features:
• Combines FOUR clamps
into ONE
• It eliminates, rebar clamp,
clamp with steel screws,
clamp with brass screws,
and direct burial clamp
• Configure any job in 1/3
the time by presetting
clamps with lay-in feature
Standard Materials:
Bronze Alloy with Stainless
Steel Screws
UL Listed:
E198108
Listed for Direct Burial
in Earth & Concrete
Patent Pending
Type 35B
®
With Steel Screws
CATALOG
NUMBER TRADE
SIZE WIRE SIZE
MIN MAX DIM
AMIN. MAX. UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
35B 2-1/2” - 4” 8 SOL. 4 STR. 6.350 2.700 5.900 - 10 150 43524
36B 4” - 6” 8 SOL. 4 STR. 8.000 4.000 7.900 - 5 180 43624
Type RBC-50
CATALOG
NUMBER PIPE
RANGE REBAR
RANGE GROUND
ROD RANGE WIRE
RANGE
MECHANICAL
CONNECTION/
SPLICE
UNIT
PACK STD.
PACK
WEIGHT
(LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
RBC-50 1/2” - 1” 3/8” - 1” 1/4” - 1” #10 SOL - #2 STR TWO #8 SOL 25 250 21 66101
Patent Pending Direct Burial-Ground Clamp for Rebar
GROUNDING FITTINGS

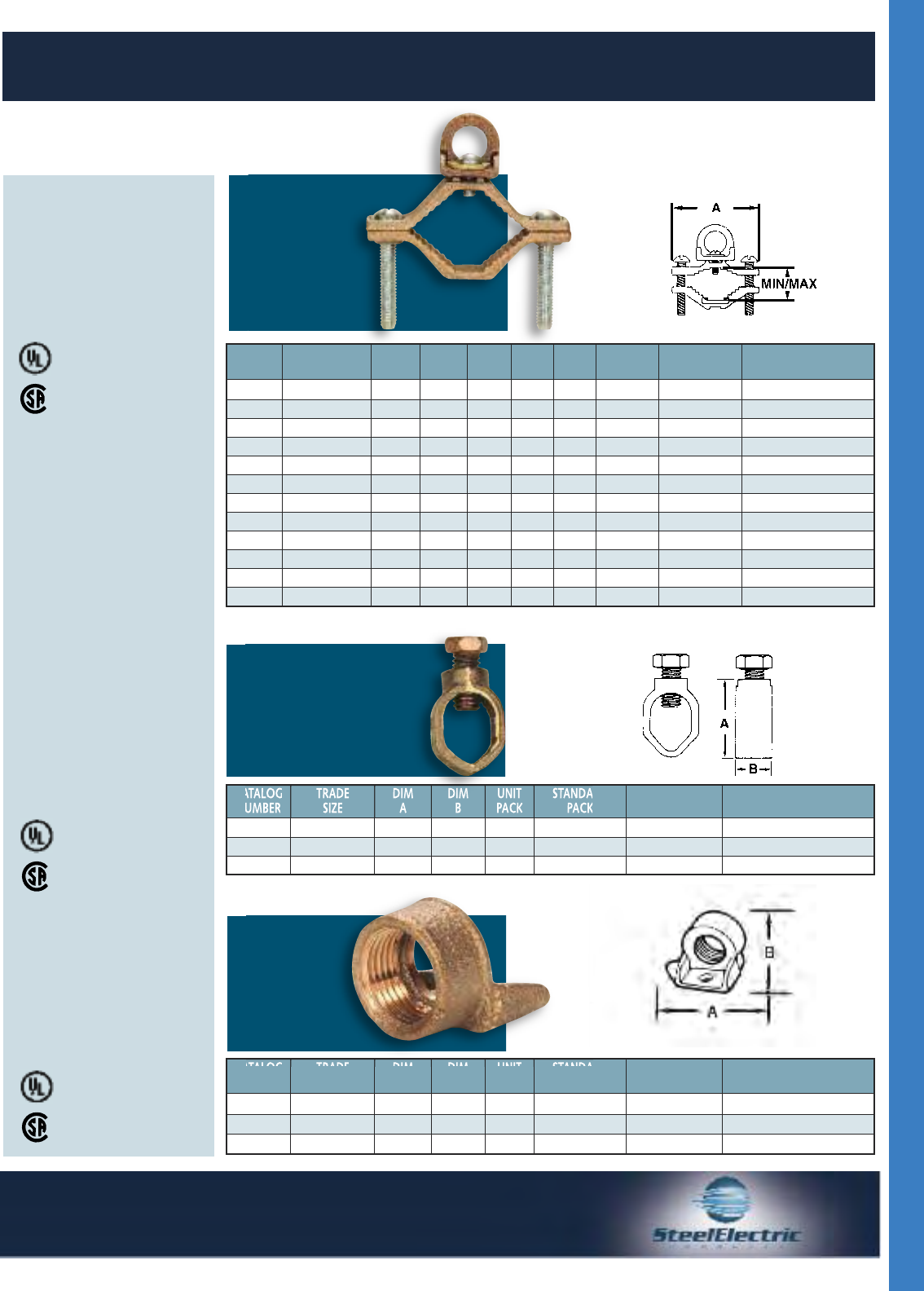

Type 307
CATALOG
NUMBER TRADE
SIZE HUB
SIZE DIM
AMIN. MAX. UNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
301 1/2” - 1” 1/2” 2.250 0.550 1.795 10 100 25 43014
302 1/2” - 1” 3/4” 2.250 0.550 1.795 10 100 30 43024
310 1/2” - 1” 1” 2.250 0.550 1.795 10 50 35 43104
307 1-1/4” - 2” 1/2” 3.600 1.390 3.000 10 50 75 43074
308 1-1/4” - 2” 3/4” 3.600 1.390 3.000 10 50 80 43084
309 1-1/4” - 2” 1” 3.600 1.390 3.600 - 25 85 43094
35C 2-1/2” - 4” 1/2” 2.430 0.500 1.380 - 10 140 43534
36C 4”- 6” 1/2” 8.000 4.000 7.900 - 2 175 43634
35D 2-1/2”- 4” 3/4” 2.430 0.500 1.380 - 10 185 43544
36D 4” - 6” 3/4” 8.000 4.000 7.900 - 2 215 43644
35E 2-1/2” - 4” 1” 2.430 0.500 1.380 - 10 225 43554
36E 4” - 6” 1” 8.000 4.000 7.900 - 2 280 43654
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
200 1/2” 1.250 0.875 - 100 13 52004
201 5/8” 1.275 0.690 - 100 18 52014
202 3/4” 1.445 1.030 - 50 25 52024
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
311 1/2” 1.000 1.500 25 100 9 43114
312 3/4” 1.250 1.880 25 100 17 43124
313 1” 1.500 2.136 25 100 20 43134
Type 201
Ground Rod Clamps - Listed for Direct Burial
Type 311
Conduit Hubs
107
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Ground Clamps, Rod Clamps and Hubs
For Rigid Conduit
Application:
Used to connect grounding
conductor in rigid conduit to
water pipe for grounding.
Standard Materials:
Solid Brass with Steel Screws
UL Listed:
E88878
Application:
Used with ground pipe
clamp to connect rigid
conduit to water pipe for
grounding.
Standard Materials:
Copper Alloy
UL Listed: E88878
CSA File No.
LR57925
®
Application:
Used to connect a grounding
conductor to a drive.
Features:
• Approved for direct burial in
ground and concrete
• Assembled with bronze
hexagon headed bolt
Standard Materials:
Copper Alloy with Bronze Bolt
Third Party Certification:
UL Listed: E88878
CSA File No.
LR57925
®
®
GROUNDING FITTINGS

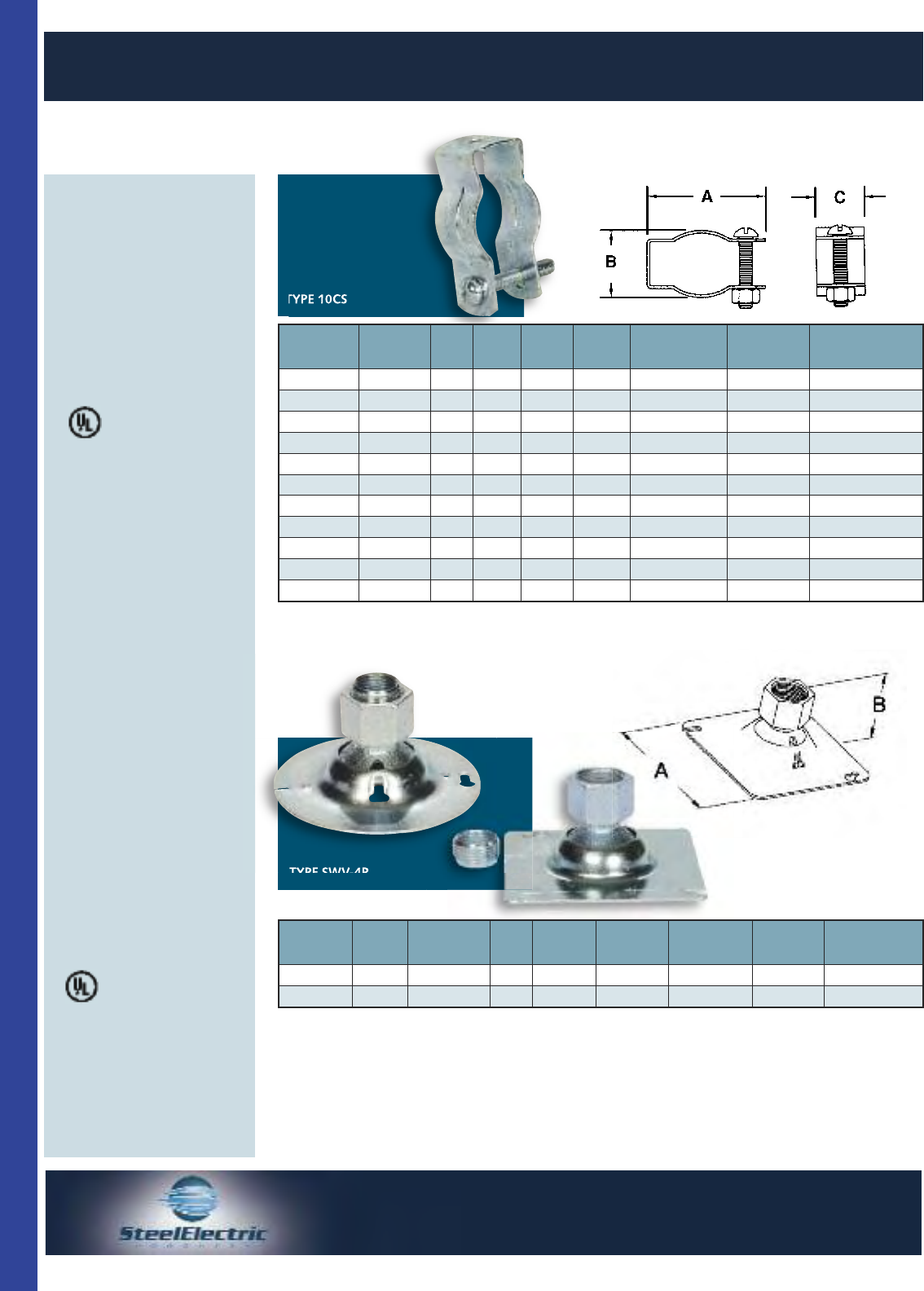

Conduit Hangers
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Secure and suspend rigid
conduit, IMC, E.M.T. or PVC
conduit overhead supports.
Features:
• Supplied with bolts and nuts
Standard Materials:
Steel
Standard Finish:
Zinc Plated
UL Listed:
E186443
Application:
Ball type swivel fixture covers
for mounting pendant or
fluorescent lighting fixtures to
box. Furnished with 3/4" x 1/2"
steel reducing bushing.
Features:
• For use with 1/2" x 3/4" fixture
conduit stems
• Available for use with
octagonal or square boxes
• Easily attached by 2 screws
• Suitable for damp locations
Standard Materials:
Steel/Malleable Iron
Standard Finish:
Zinc Plated
UL Listed:
E208392
Loading Capacity 50 pounds
TYPE 10CS
TYPE SWV-4R
For Threaded Rigid Conduit, IMC, EMT Conduit or PVC Conduit
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
10CS 3/8” - 1/2” 1.875 0.900 0.780 100 500 10 11072
11CS 3/4” 2.175 1.260 0.875 - 100 11 11172
12CS 1” 2.370 1.295 0.875 - 100 12 11272
13CS (Rigid) 1-1/4” 3.255 1.875 0.830 - 100 12 11372
13CSA (E.M.T.) 1-1/4” 3.175 1.965 0.850 - 100 12 11069
14CS 1-1/2” 3.780 2.220 1.065 - 100 21 11472
15CS 2” 4.100 2.450 1.210 - 50 27 11572
16CS 2-1/2” 4.800 3.180 1.240 - 50 30 11672
17CS 3” 5.375 3.750 1.220 - 50 40 11772
18CS 3-1/2” 6.187 4.187 1.270 - 25 42 11872
19CS 4” 6.240 4.430 1.250 - 25 42 11972
CATALOG
NUMBER TRADE
SIZE DIAMETER DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SWV-4R 3/4” 4.125 X 2.813 - 25 78 95001
SWV-4S 3/4” X 4.125 2.813 - 25 78 95002
Swivel Fixture Hangers
108
C US
C US
CLAMP AND HANGER FITTINGS

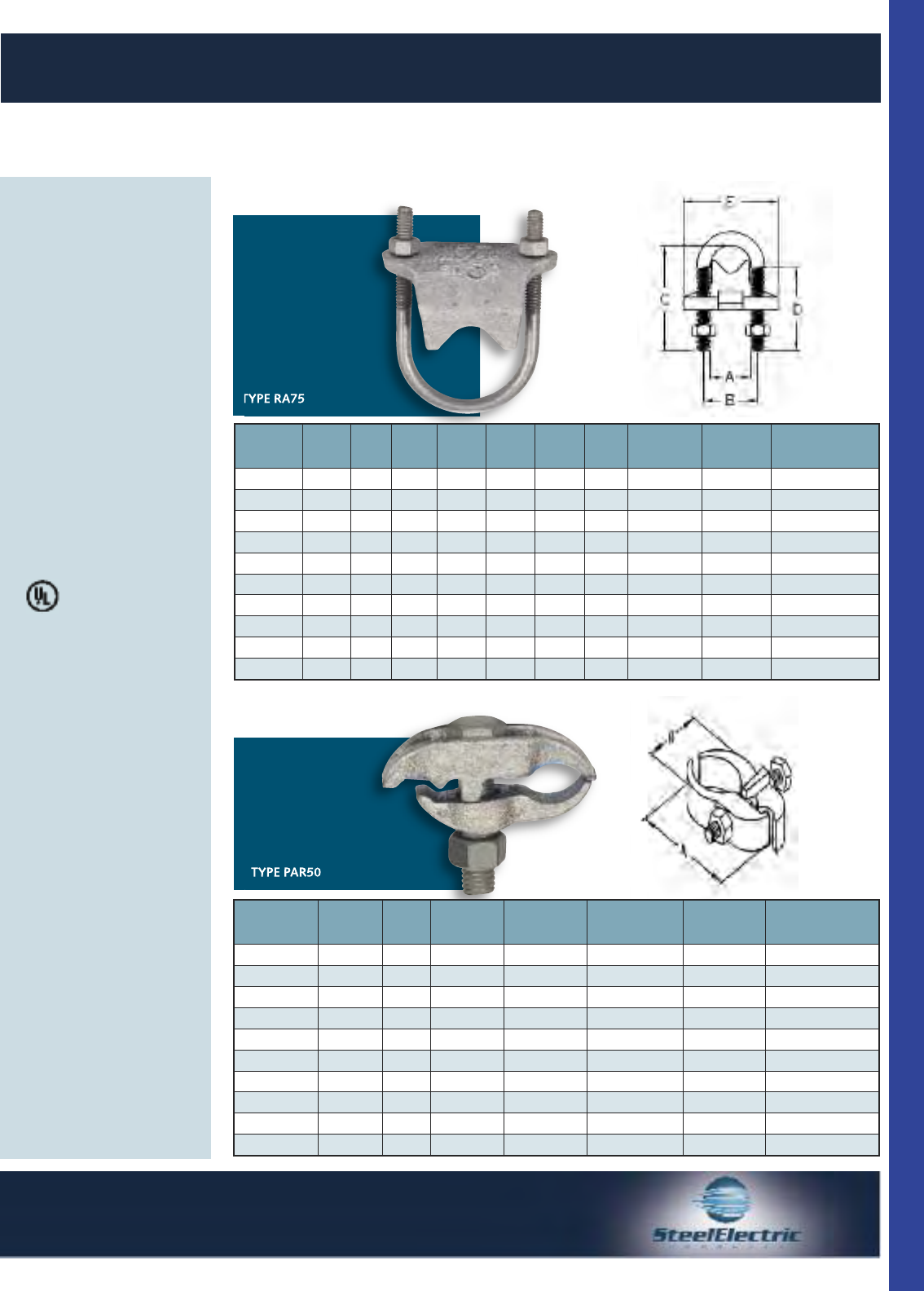

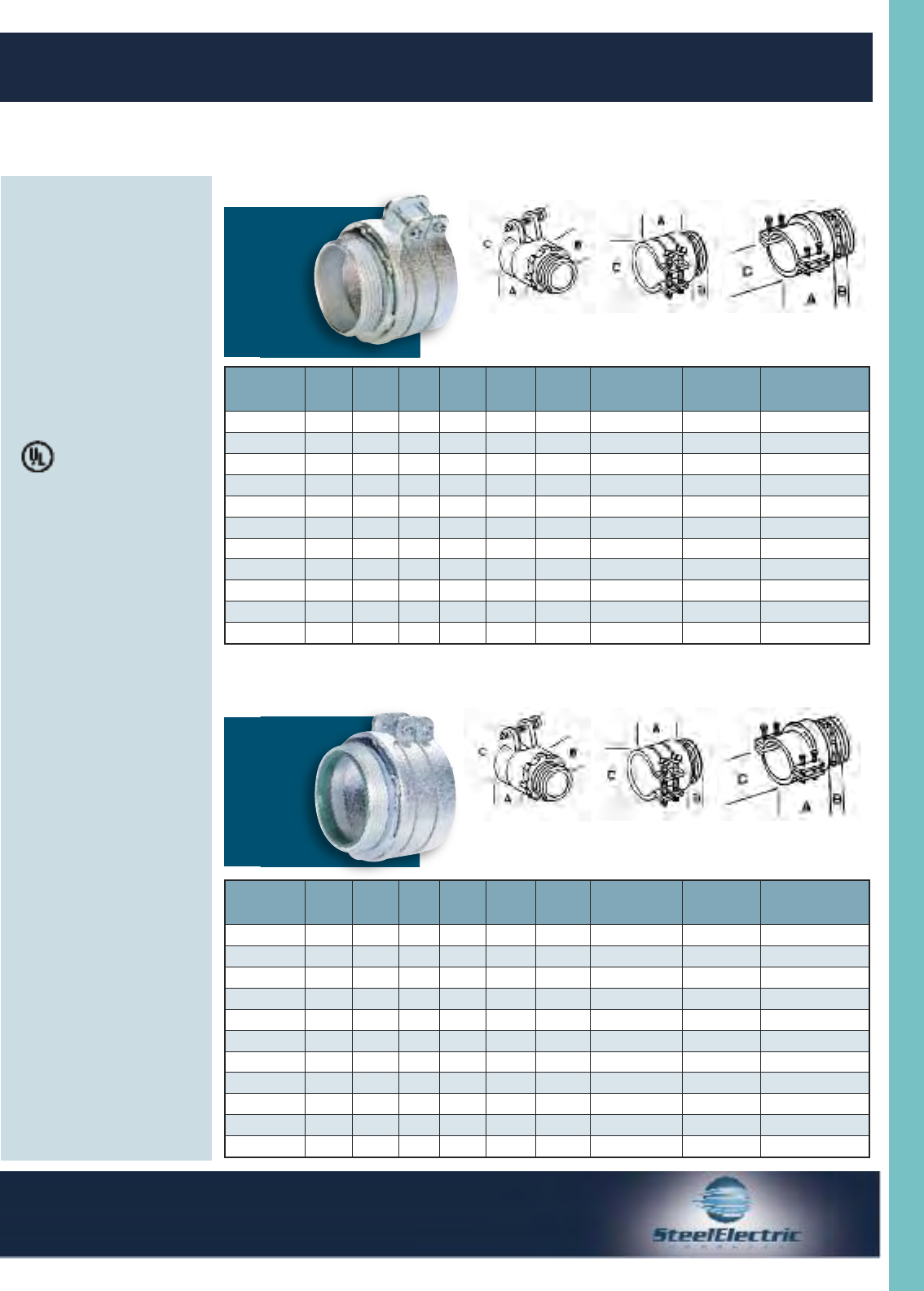

Conduit Clamps
109
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Used to secure conduit or
E.M.T. across, parallel, or
perpendicular to beam,
channel and angle supports.
Features:
• Easily Installed
• Capable of withstanding
heavy loads
• A Mechanically Galvanized
finish provides a plating
thickness equivalent to
Hot-Dip process meeting
ASTM A-153 performance
criteria
Standard Materials:
Malleable Iron with
Steel U-Bolts and
Nuts
Standard Finish:
Hot-Dip Galvanized
UL Listed:
E213669
For Threaded Rigid Conduit, IMC and EMT Conduit
TYPE RA75
TYPE PAR50
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CDIM
DDIM
EUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
RA50 1/2” 1.000 1.250 2.500 1.813 2.063 - 50 34 74050
RA75 3/4” 1.125 1.375 2.813 1.813 2.250 - 50 38 74075
RA100 1” 1.375 1.625 3.063 1.813 2.563 - 50 45 74100
RA125 1-1/4” 1.750 2.000 3.188 1.813 2.875 - 25 49 74125
RA150 1-1/2” 2.000 2.375 3.500 1.813 3.250 - 25 54 74150
RA200 2” 2.500 2.500 4.500 2.625 4.063 - 25 71 74200
RA250 2-1/2” 3.000 3.250 4.875 2.625 4.500 - 10 90 74250
RA300 3” 3.625 3.875 5.375 2.625 5.125 - 10 101 74300
RA350 3-1/2” 4.063 4.563 5.875 2.625 5.625 - 10 110 74350
RA400 4” 4.688 5.063 6.688 2.625 6.125 - 10 128 74400
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
PAR50 1/2” 2.875 1.438 - 50 54 75550
PAR75 3/4” 3.063 1.688 - 50 61 75551
PAR100 1” 3.250 2.000 - 50 62 75552
PAR125 1-1/4” 3.625 2.125 - 25 82 75553
PAR150 1-1/2” 3.875 2.188 - 25 85 75554
PAR200 2” 4.625 2.875 - 25 103 75556
PAR250 2-1/2” 5.250 3.250 - 10 127 75557
PAR300 3” 5.875 3.875 - 10 154 75558
PAR350 3-1/2” 6.313 4.313 - 10 163 75559
PAR400 4” 6.813 4.813 - 10 180 75560
Parallel Type Conduit Clamps
Right Angle Type Conduit Clamps
C US
CLAMP AND HANGER FITTINGS
Application:
Used to secure conduit or
E.M.T. across, parallel, or
perpendicular to beam,
channel and angle supports.
Features:
• Easily Installed
• Capable of withstanding
heavy loads
• A Mechanically Galvanized
finish provides a plating
thickness equivalent to Hot-
Dip process meeting ASTM
A-153 performance criteria
Standard Materials:
Malleable Iron/Steel U-Bolts
and Nuts
Standard Finish:
Hot-Dip Galvanized
UL Listed:
E213669
Application:
For use with all types metallic
and flex conduit. Design of
clamp style can be used for
application where conduit is
clamped directly to beam. Can
be used for parallel to beam
and 90° conduit runs.
Standard Materials:
Malleable Iron/Steel
Bolt-Case Hardened
Standard Finish:
Zinc Plated
UL Listed:
E213669

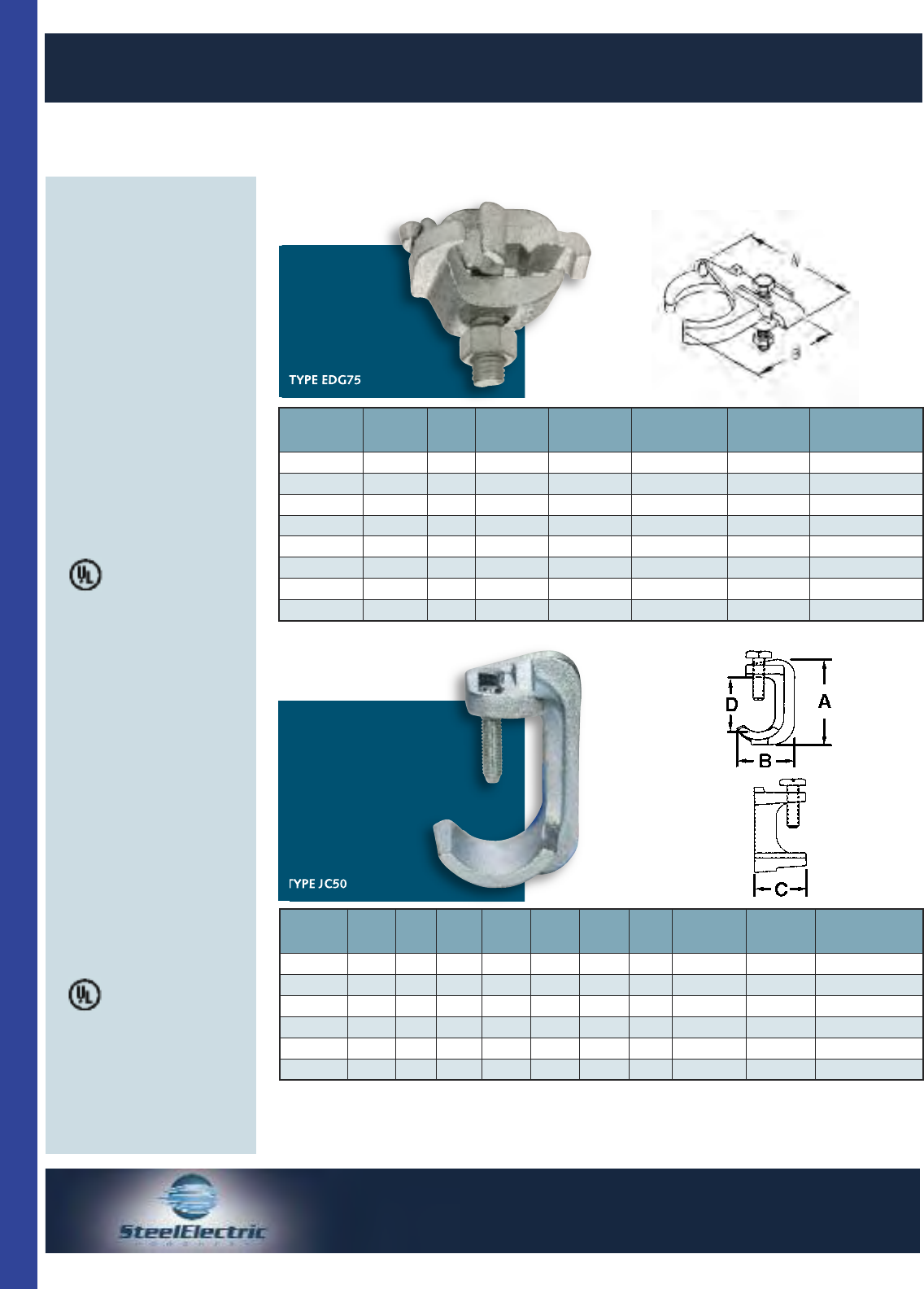

Conduit Clamps
110
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
For Threaded Rigid Conduit, IMC and EMT Conduit
TYPE EDG75
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
EDG50 1/2” 2.813 2.125 - 50 10 30750
EDG75 3/4” 2.938 2.375 - 50 11 37075
EDG100 1” 3.063 2.625 - 50 12 37100
EDG125 1-1/4” 3.063 3.063 - 25 12 37125
EDG150 1-1/2” 3.938 3.250 - 25 12 37150
EDG200 2” 4.500 4.063 - 25 21 37200
EDG250 2-1/2” 5.125 4.625 - 10 27 37250
EDG300 3” 5.750 5.250 - 10 30 37300
Edge Type Conduit Clamps
TYPE JC50
CATALOG
NUMBER TRADE
SIZE TAP
SIZE DIM
ADIM
BDIM
CDIM
DUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
JC50 1/2” 5/16” 2.500 1.563 1.375 1.625 25 100 10 72050
JC75 3/4” 5/16” 2.875 1.875 1.375 2.000 25 100 11 72075
JC100 1” 5/16” 3.500 2.188 1.750 2.188 10 100 12 72100
JC125 1-1/4” 3/8” 3.750 2.500 1.750 2.188 - 25 12 72125
JC150 1-1/2” 3/8” 4.063 2.875 2.000 2.750 - 25 12 72150
JC200 2” 1/2” 4.938 3.250 2.188 3.438 - 25 21 72200
J-Clamp
C US
CLAMP AND HANGER FITTINGS
C US

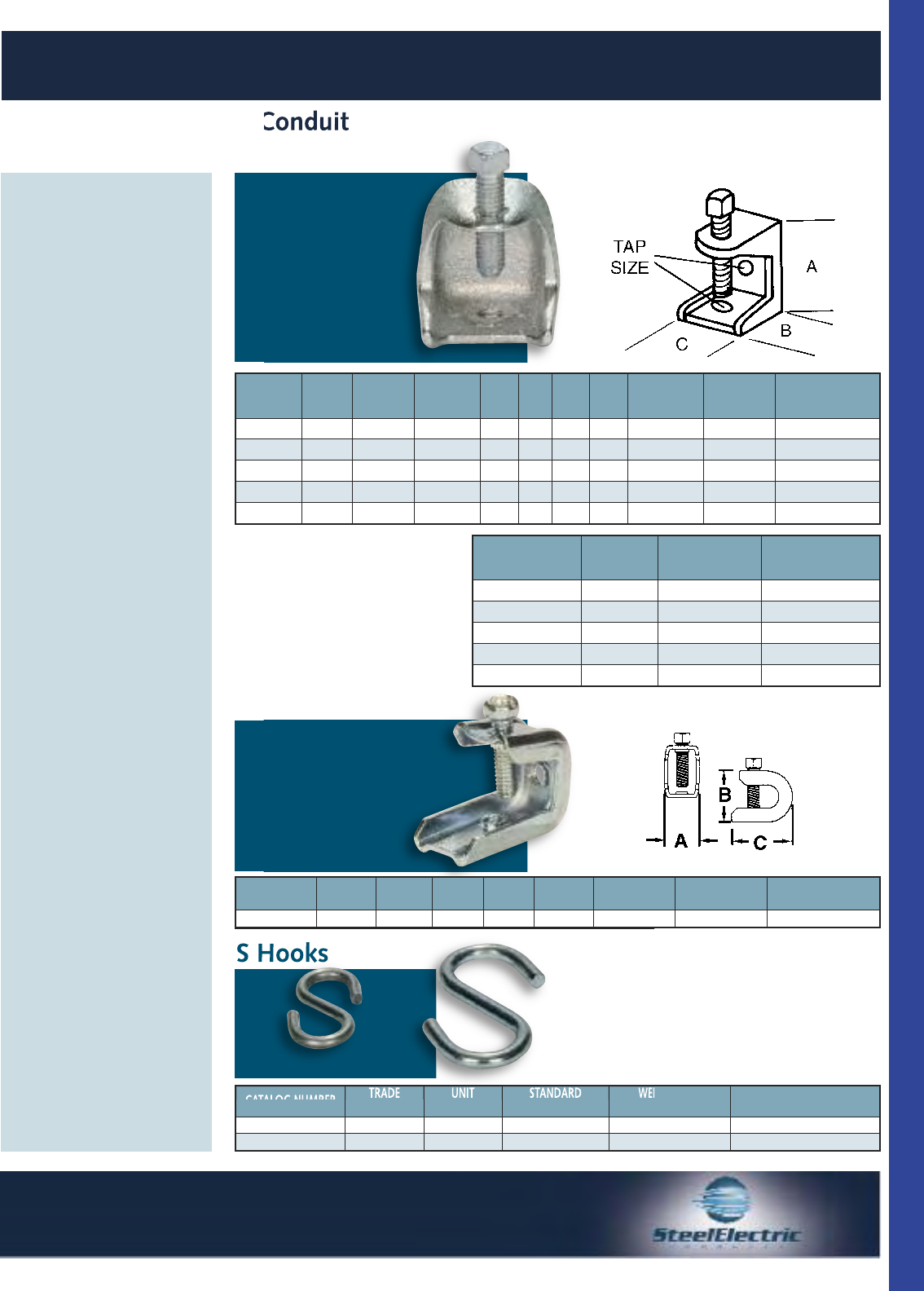

Conduit Beam Clamps
For Threaded Rigid Conduit
111
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Type S620
Type 620
Application:
Provides support for conduit
hanging systems.
Features:
• Steel bolt - case hardened
• Standard Sizes 1”-2 1/2”
Jaw Opening 3/4”-1 1/4”
Standard Materials:
Malleable Iron/Steel Bolt-Case
Hardened
Standard Finish:
Zinc Plated
Application:
Clamp on to structure member
to provide mounting means for
the attachment of conduit
hangers either directly or by
means of threaded rod.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
Application:
For terminating end of jack
chain, used to suspend lighting
fixtures, etc.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
S620 1/4” - 20” 0.920 1.400 1.625 25 250 15 16207
Loading Capacity

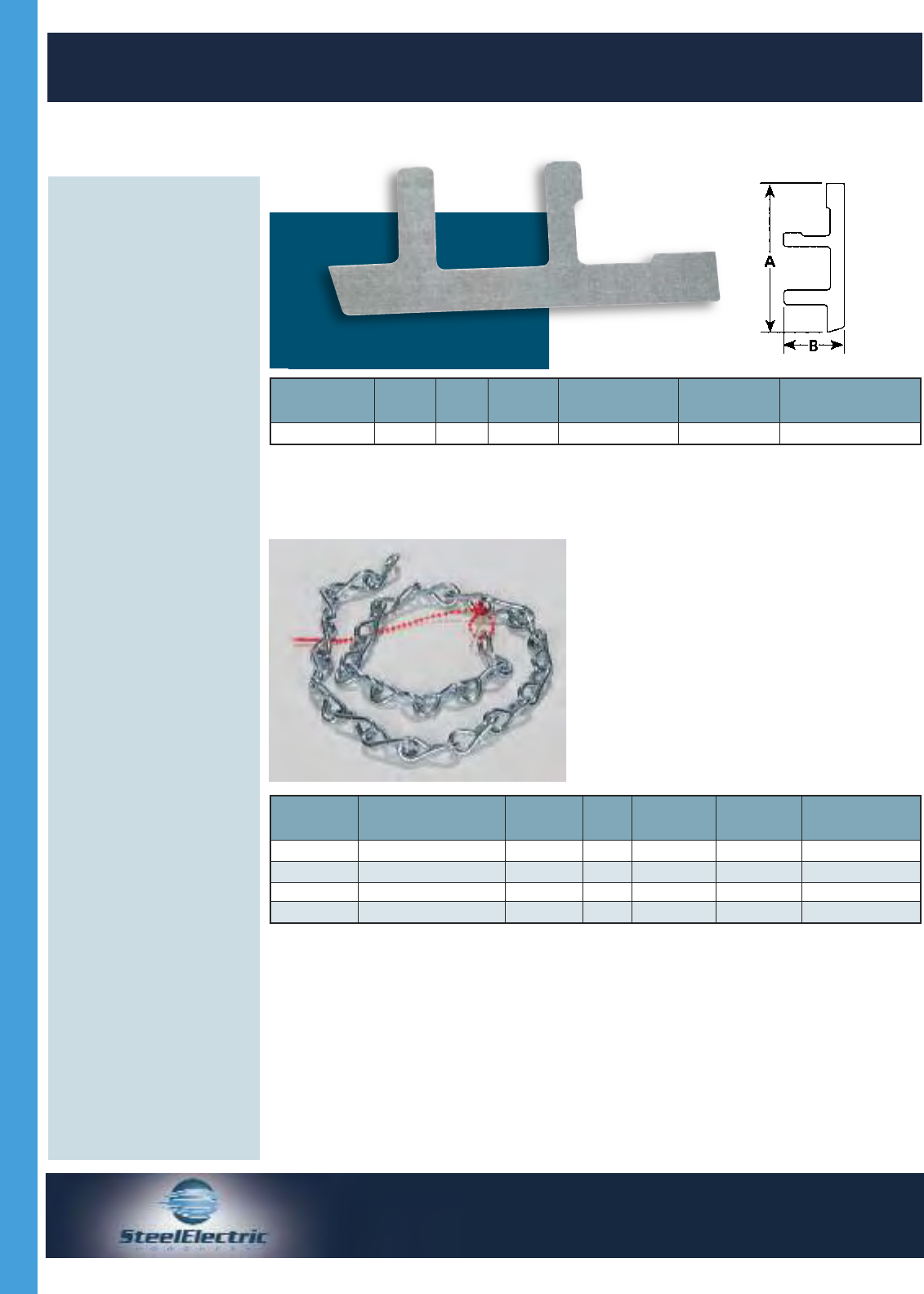

Insulator Supports
Type DBS-50
CATALOG NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100 PCS.
NAED MFG #78-5994
UPC/DCI #
224 #12 - 1000 5 83247
225 #10 - 1000 9 83257
S Hooks
CATALOG
NUMBER TRADE
SIZE TAP
SIZE JAW
OPENING DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
620 1” 1/4” - 20” 0.750 1.125 1.400 1.385 25 250 22 16201
621 1” 3/8” - 16” 0.750 1.125 1.400 1.385 25 250 22 16211
625 2” 3/8” - 16” 0.875 1.990 1.755 1.885 - 50 90 16251
626 2” 1/2” - 13” 0.875 1.990 1.755 1.885 - 25 90 16261
627 2-1/2” 1/2” - 13” 1.250 2.530 2.140 2.500 - 25 160 16271
CATALOG
NUMBER TRADE
SIZE WORKING
LOAD TEST LOAD
FOR 5 MIN.
620 1” 250 LBS 750 LBS
621 1” 250 LBS 750 LBS
625 2” 500 LBS 1500 LBS
626 2” 500 LBS 1500 LBS
627 2-1/2” 500 LBS 1500 LBS
Type 224
CLAMP AND HANGER FITTINGS
122
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com

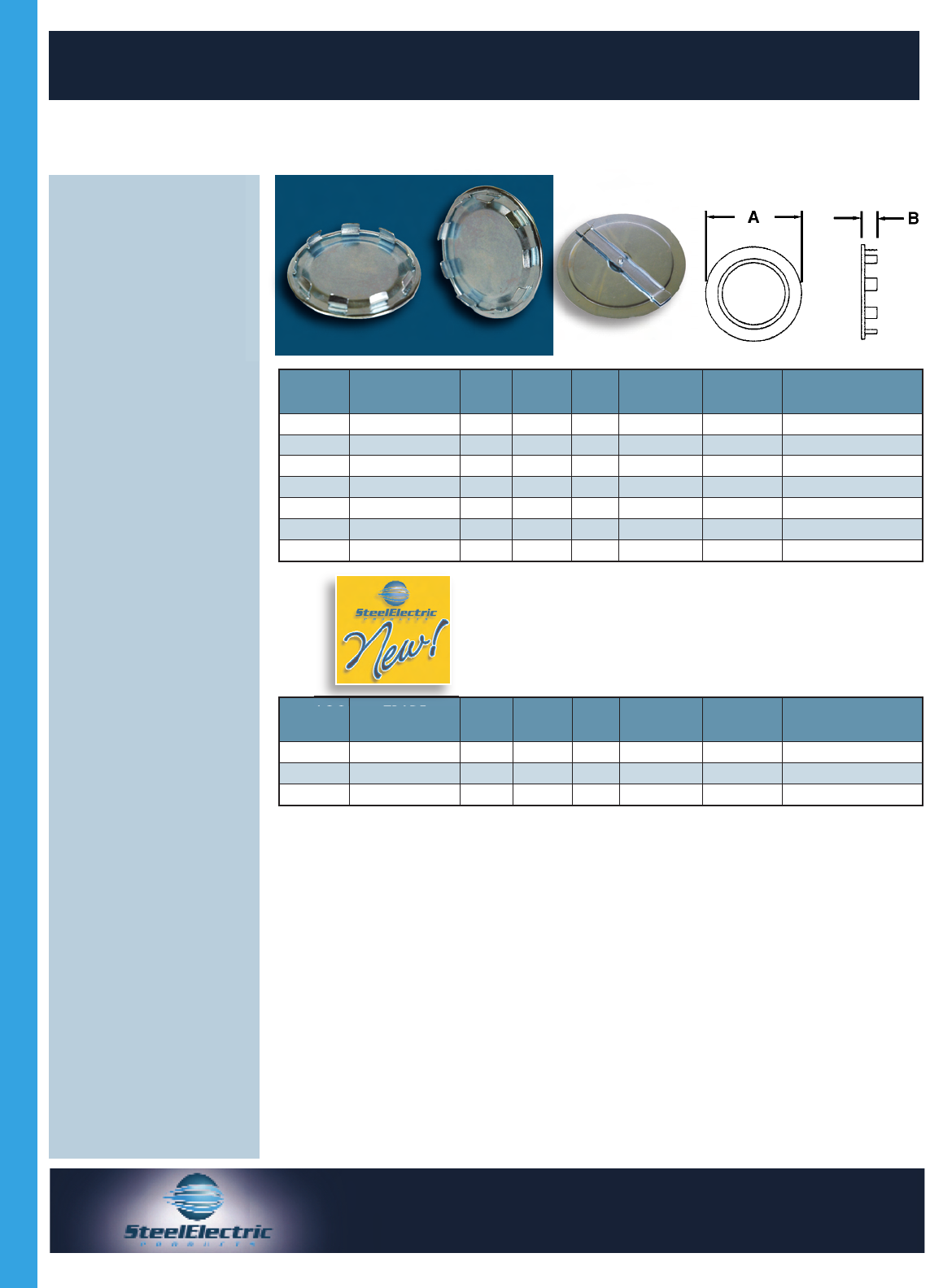

MISCELLANEOUS FITTINGS
Application:
To close unused opening or
knockout in sheet metal box,
enclosure or cabinet.
Standard Materials:
Steel
Standard Finish:
Zinc Plated
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SS50 1/2” 1.070 0.365 200 2000 1 22507
SS52 3/4” 1.235 0.310 100 1000 2 22527
SS54 1” 1.480 0.335 100 1000 3 22547
SS56 1-1/4” 1.800 0.310 50 500 4 22567
SS58 1-1/2” 2.215 0.365 50 500 5 22587
SS60 2” 2.675 0.360 25 250 7 22607
SS62 2-1/2” 2.975 0.410 10 100 15 22627
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
*SS64 3” 4.500 0.465 10 50 40 90147
*SS66 3-1/2” 5.000 0.487 10 50 50 90148
*SS68 4” 5.500 0.4962 10 50 50 90149
Type SS50
SIZES
Knock-Out Seals
SEPCO 2009 108 - 129 :Layout 1 7/10/09 11:11 AM Page 15
123
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Duct Sealing Compound
Asbestos Free
Application:
Sealer is used primarily by the
building and specifically by the
electrical trade to seal around
junction boxes, flashing, and
service mast entries, etc. It can
be shaped by hand to any form
and reused if necessary. Duct
seal has countless other
applications in the refrigeration,
heating and cooling, plumbing
and metal fabrication fields, as
well as being an excellent
general purpose sealant around
the home. Duct seal may be
painted immediately after
application and will not bleed
through the dry paint film.
Physical & Chemical
Characteristics:
• Base: Non-drying synthetic
polymers and oils.
• Odor: No unpleasant odor
• Temperature tolerance range:
-30°F to +175°F. Will not
slump at 350° for 1 hr.
• Fillers: Saturated mineral
fillers and other inert
ingredients.
• Specified gravity: 1.98 ±0.06
• Temperature usage range
(recommended) 25°F to 120°F.
• Shelf life: 1 year from the
manufacturing date.
Description:
This asbestos-free sealer is a
gray, permanently soft, non
toxic, non-volatile compound
which will adhere to most
clean, dry surfaces. It will not
adversely affect other plastic
materials or corrode metals and
has no adverse effect on
human skin.
Type SD1
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SD1 1 lb. bag 1 50 100 67001
SD5 5 lb. bag 5 50 500 67005
MISCELLLANEOUS FITTINGS
124
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
These anti-short bushings are
used in the terminations of
flexible metal conduit and ar-
mored cables. Inserted into I.D.
of each termination point to
protect the conductors from
the sharp edges of the raceway
where cut.
Features:
• Features high dielectric
strength and assures
complete insulation on all
sharp edges
Standard Materials:
Plastic
Thermoplastic
Standard Materials:
Steel
Standard Finish:
Zinc Plated
Anti-Short Bushings and Rod Couplings
CAT.
NO. TRADE
SIZE DIM
ADIM
BFOR CABLE SIZES
PC.
PER
BAG
UNIT
PACK STD.
PACK
WEIGHT
(LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
05/16” 0.57 0.64 14-2, 14-3, 12-2, Armored Cable;
5/169 Flexible Conduit” 35 1 BAG 500 BAGS 3 55506
13/8” 0.67 0.66 14-4, 12-3, 6-1, 4-1, Armored Cable;
3/89 Flexible Conduit” 35 1 BAG 400 BAGS 3 55516
27/16” 0.61 0.82 12-4, 10-2, 10-3, 2-1, Armored Cable;
7/169 Flexible Conduit” 35 1 BAG 300 BAGS 7 55526
31/2” 0.67 0.94 10-4, 8-2, 8-3, 1-1, Armored Cable;
1/29 Flexible Conduit” 20 1 BAG 200 BAGS 8 55536
43/4” 0.79 1.16 8-4, 6-2, 6-3, Armored Cable; 3/49
Flexible Conduit” 16 1 BAG 150 BAGS 6 55546
Type 0
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
118R 1/4”-20” 100 1000 2 11187
120R 3/8”-16” 100 1000 4 11207
121R 1/2”-13” 100 1000 6 11217
Type 12OR
Rod Couplings
MISCELLANEOUS FITTINGS
125
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Sealing Gaskets
Self Retaining PVC Gasket with Steel Rings
Application:
To insure Raintight integrity for
Rigid Conduit Fittings
Features:
• PVC Gasket
• Steel Retaining Ring
Standard Materials:
PVC Gasket/Steel Rings
Standard Finish:
Zinc Plated
UL Listed:
E207875
Type SR50
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SR50 3/8” - 1/2” 1.125 0.813 0.187 100 500 1 70850
SR75 3/4” 1.375 1.125 0.187 100 500 2 70851
SR100 1” 1.625 1.313 0.187 100 500 2 70852
SR125 1-1/4” 2.000 1.625 0.187 50 250 3 70853
SR150 1-1/2” 2.250 1.875 0.187 50 250 3 70854
SR200 2” 2.750 2.313 0.187 50 250 3 70855
SR250 2-1/2” 3.500 2.875 0.187 - 10 6 70856
SR300 3” 4.250 3.500 0.187 - 10 9 70857
SR350 3-1/2” 4.750 4.000 0.187 - 10 10 70858
SR400 4” 5.188 4.500 0.187 - 10 13 70859
SR500 5” 6.563 5.563 0.187 - 5 16 70860
SR600 6” 7.750 6.625 0.187 - 5 19 70861
C US
MISCELLLANEOUS FITTINGS
126
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
To support attachment of
boxes in drywall, paneling, etc.,
where there are no means of
attaching the box to a structure
member or the like. Two are re-
quired per box.
Standard Materials:
Steel
Application:
Used for hanging fixtures.
Standard Materials:
Steel
No. 12 also available on 250’ &
500’ Reels. Additional charge
of $10.00 M Ft.
No. 12 Chain - Load Capacity
29 lbs. per 100’
No. 10 Chain - Load Capoacity
47 lbs. per 100’
Switch Box Supports and Jack Chain
Type S102
Type 220
CATALOG
NUMBER DIM.
ADIM.
BUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
S102 5.11 2.25 50 PAIR 1000 PAIR 6 51027
CATALOG
NUMBER AVAILABLE IN TYPE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
220 No. 12 (100’ & 50’ Hanks) Plain Polished 50 FEET 1000 FEET 10 82207
220R No. 12 (100’ & 50’ Reels) Plain Polished 50 FEET 1000 FEET 10 82208
221 No. 12 (100’ & 50’ Hanks) Zinc Plated 50 FEET 1000 FEET 12 82217
222 No. 10 (100’ Hanks) Plain Polished 50 FEET 1000 FEET 14 82227
Jack Chain
MISCELLANEOUS FITTINGS
127
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Male Loops, Fixture Extensions and No-Bolt Stud
Type 215
Type SE32
Type 1202
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
215 1/2” 100 1000 12 82152
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
SE32 11/16” 100 1000 3 89327
SE33 1” 100 1000 6 89337
SE34 1-3/8” 100 1000 7 89347
Fixture Extensions
No-Bolt Stud
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
1202 1/8” Female 3/8” Male - 100 4 12021
Applications:
Used with fixture chain to hang
lighting fixtures.
Standard Materials:
Zinc Die Cast
Application:
Used to extend deep mounted
boxes.
Standard Materials:
Zinc Die Cast
Applications:
To install lighting fixture to
box in horizontal or vertical
position.
Standard Materials:
Zinc Die Cast
MISCELLLANEOUS FITTINGS
128
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Application:
Clamp connector is for
bonding and grounding of
electrode conductors in panel
boards, transformers, raceways
and enclosures.
Features:
• The Kenny Clamp is the
ONLY UL Listed connector
for bonding and grounding of
electrode conductors
• Assures good metallic
connection and low
impedance path for grounding
and bonding of electrical
equipment
• Tested and listed at 9000
amperes
• Complies with 110.3 (B)
250.8 and 312.5 A NEC,
using a listed grounding or
bonding connector for the
proper application
• Meets UL 467 requirements
for bonding and grounding
and UL 468A standard for
connectors
Standard Materials:
Brass PATENT PENDING
Bonding and Grounding Connector
Kenny Clamps
®
Type KC1AST
CATALOG
NUMBER TRADE
SIZE UNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
KC1AST #1/0 AWG STRANDED - 10 34 99900
KC2AST #2/0 AWG STRANDED - 10 34 99901
KC2ST #2 AWG STRANDED - 10 52 99902
KC3AST #3/0 AWG STRANDED - 10 52 99903
KC4SO #4 AWG SOLID - 10 52 99904
KC4ST #4 AWG STRANDED - 10 65 99905
KC6SO #6 AWG SOLID - 10 65 99906
KC6ST #6 AWG STRANDED - 10 87 99907
KC8SO #8 AWG SOLID - 10 87 99908
KC8ST #8 AWG STRANDED - 10 87 99909
MISCELLANEOUS FITTINGS
129
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Lay-In Grounding Lugs
Standard Materials:
Aluminum
Standard Finish:
Zinc Plated
Standard Materials:
Copper
Standard Finish:
Natural
AL4 and AL1/0 are furnished with slotted
screws. AL3/0 and AL250 are furnished with
hex-head screws.
Type AL4
Type CL4
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
AL4 4/14 1.063 0.375 0.750 - 100 2 10001
AL1/0 1/0 - 8 1.500 0.625 1.125 - 100 7 10002
AL3/0 3/0 - 6 2.000 0.813 1.500 - 50 16 10003
AL250 250MCM - 6 2.188 0.813 1.688 - 50 19 10004
CATALOG
NUMBER TRADE
SIZE DIM
ADIM
BDIM
CUNIT
PACK STANDARD
PACK
WEIGHT (LBS.)
PER 100
NAED MFG #78-5994
UPC/DCI #
CL4 4/14 1.063 0.375 0.750 - 100 4 10005
CL1/0 1/0 - 8 1.500 0.625 1.125 - 100 16 10006
CL3/0 3/0 - 6 2.000 0.813 1.500 - 50 40 10007
CL250 250MCM - 6 2.188 0.813 1.688 - 50 50 10008
Aluminum
CL4 and CL1/0 are furnished with slotted
screws. CL3/0 and CL250 are furnished with
hex-head screws.
MISCELLLANEOUS FITTINGS
Copper
Index by Catalog Number
i
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
121R 124
1250 67
1251 67
1260 67
1261 67
12CS 108
12E 68
13 13 & 54
130S 39
1313 37
1314 37
1315 37
1316 37
131S 39
132 39
1320 37
1321 37
1326 66
1327 66
1328 66
1329 66
132S 39
1332 66
1333 66
1341 68
1342 68
133 39
133S 39
134 39
134S 39
135 39
135S 39
136 39
136S 39
137 39
137S 39
138 39
138S 39
139 39
139S 39
13CSA 108
13CS 108
14 13 & 54
141 39
141S 39
0 124
01 12 & 53
01A 12 & 53
01M 13
02 12 & 53
02A 12 & 53
02M 13
03 12 & 53
03A 12 & 53
03M 13
04 12 & 53
04A 12 & 53
04M 13
05 12 & 53
05A 12 & 53
05M 13
06 12 & 53
06A 12 & 53
06M 13
07 12 & 53
07A 12 & 53
07M 13
1 124
10 13 & 54
1005 29
1006 29
1010 63
1011 63
1012 63
1013 63
1014 63
1015 63
1015D 63
1015E 63
1015E1 63
1015F 63
1016 64
1017 64
1018 64
1019 64
1020 64
1021 64
1021D 64
1021E 64
1021E1 64
1021F 64
1022 29
1023 29
1024 29
1025 29
1026 29
1027 29
1028 29
1029 29
1030 29
1031 29
1060 112
1060A 112
1064 112
1066 112
1066A 112
1068 112
1068A 112
1069 112
1069A 112
1069B 112
1069C 112
1069D 112
10B 105
10BB 105
10BG 105
10BR 105
10CS 108
10E 68
11 13 & 54
1110 61
1111 61
1112 61
1112A 61
1112B 61
1112C 61
1112D 61
1112E 61
1112E1 61
1112F 61
1113 62
1114 62
1115 62
1115A 62
1115B 62
1115C 62
1115D 62
1115E 62
1115E1 62
1115F 62
118R 124
11CS 108
11E 68
12 13 & 54
1202 127
1206 17
1206SS 17
1206Z 18
1207 17
1207SS 17
1207Z 18
1208 17
1208SS 17
1208Z 18
1209 17
1209SS 17
1209Z 18
120R 124
1210 17
1210SS 17
1210Z 18
1211 17
1211SS 17
1211Z 18
1212 17
1212SS 17
1212Z 18
1213 17
1213SS 17
1213Z 18
1214 17
1214SS 17
1214Z 18
1215 17
1215SS 17
1215Z 18
1216 17
1216SS 17
1217 17
1217SS 17
ii
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
142S 69
143S 69
144S 69
145S 69
146S 69
147S 69
148 39
148S 39
14CS 108
15 13 & 54
150 39
152 39
158S 69
159S 69
15CS 108
16 13 & 54
160S 69
161S 69
16CS 108
170C 71,94,100
171 71 & 94
171C 71 & 94
172 71 & 94
172C 71 & 94
173C 71 & 94
17CS 108
18CS 108
19CS 108
1F 46
2 124
200 107
201 107
202 107
20BI4L 14
20BI4LSS 15
20BIZ4L 16
2132S 40
2133S 40
2134S 40
2135S 40
2136S 40
2137S 40
2138S 40
2139S 40
2141S 40
2142S 69
2143S 69
2144S 69
2145S 69
2146S 69
2147S 69
2148S 40
215 127
2150S 40
2152S 40
2158S 69
2159S 69
2160S 69
2161S 69
21BI4L 14
21BI4LSS 15
21BIZ4L 16
21CC 46
220 126
220R 126
221 126
222 126
224 111
225 111
22BI4L 14
22BI4LSS 15
22BIZ4L 16
22CC 46
22E 35 & 96
23BI4L 14
23BI4LSS 15
23BIZ4L 16
23E 35 & 96
24BI4L 14
24BI4LSS 15
24BIZ4L 16
24E 35 & 96
25BIOL 14
25BI4L 14
25BI4LSS 15
25BIZOL 16
25BIZ4L 16
25E 35 & 96
260L 121
26BI0L 14
26BI0LSS 15
26BI40L 14
26BI40LSS 15
26BIZ0L 16
26BIZ40L 16
26P 121
27BI0L 14
27BI0LSS 15
27BI40L 14
27BI40LSS 15
27BIZ0L 16
27BIZ40L 16
28BI0L 14
28BI0LSS 15
28BI40L 14
28BI40LSS 15
28BIZ0L 16
28BIZ40L 16
29BI0L 14
29BI0LSS 15
29BI40L 14
29BI40LSS 15
29BIZ0L 16
29BIZ40L 16
2F 46
3 124
301 107
302 107
3032 115
3033 115
3035 115
307 107
308 107
309 107
30BI40L 14
30BI40LSS 15
310 107
311 107
312 107
313 107
315M 90
316M 90
317M 90
31BI40L 14
31BI4OLSS 15
340 95
340T 95
341 95
341T 95
342 95
342T 95
343 95
343T 95
34B 105
35A 105
35B 106
35C 107
35D 107
35E 107
360M 45 & 71
361M 45 & 71
362M 45 & 71
36A 105
36B 106
36C 107
36D 107
36E 107
3F 46
4 124
400 113
401 113
402 113
403 113
404 113
405 113
406 113
4060 63
4061 63
4062 63
4063 63
4064 63
4065 63
4065D 63
4065E 63
4065E1 63
4065F 63
4066 61
4067 61
4068 61
4069 61
Index by Catalog Number
Index by Catalog Number
iii
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
407 113
4070 61
4071 61
4072 61
4073 61
4074 61
4075 61
408 113
409 113
412 116
413 116
414 116
415 116
415XL 116
416 116
417 116
425 114
426 114
427 114
428 114
429 114
430 114
431 114
432 114
433 114
434 114
4F 46
530M 21
531M 21
532M 21
533M 21
534M 21
535M 21
536M 21
537M 21
538M 21
539M 21
559M 21
569M 21
5F 46
620 111
621 111
625 111
626 111
627 111
6F 46
703 28
704 28
705 28
705X 28
706 27
706P 27
707 27
707P 27
708 27
708P 27
709 27
709P 27
710 27
710P 27
711 27
711P 27
712 27
712P 27
713 27
713P 27
714 27
714P 27
715 27
715P 27
716 27
716P 27
717 27
717P 27
806 19
806Z 19
807 19
807Z 19
808 19
808Z 19
809 19
809Z 19
810 19
810Z 19
811 19
811Z 19
812 19
812Z 19
814 19
814Z 19
815 19
815Z 19
816 19
816Z 19
817 19
818 19
820Z 20
821Z 20
822Z 20
823Z 20
824Z 20
825Z 20
826 20
827 20
828 20
829 20
830 20
831 20
832 20
833 20
834 20
835 20
836 20
837 20
838Z 20
839Z 20
840Z 20
841Z 20
850S 121
860S 121
870S 121
880S 121
90 25
900 29
901 29
902 29
903 29
904 29
905 29
906 29
907 29
908 29
909 29
910 29
911 29
90T 25
90Z 24
90ZT 24
91 25
91T 25
91Z 24
91ZT 24
92 25
92T 25
92Z 24
92ZT 24
93 25
93T 25
93Z 24
93ZT 24
94 25
94T 25
94Z 24
94ZT 24
95 25
95T 25
95Z 24
95ZT 24
96 25
96T 25
96Z 24
96ZT 24
97 25
97T 25
97Z 24
97ZT 24
98 25
98T 25
98Z 24
98ZT 24
99 25
995 25
995T 25
996 25
996T 25
99T 25
99Z 24
99ZT 24
AL4 129
AL1/0 129
Index by Catalog Number
iv
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
AL3/0 129
AL250 129
BS50 35
BS75 35
C1 3
C10 3
C10A 6
C10AT 47
C1A 6
C1AT 47
C1CA 9 & 50
C2 3
C22 92
C22M 89
C23 97
C23C 92
C24 100
C24G 95
C25 86
C25G 95
C25T 86
C25Z 88
C25ZT 88
C27 85
C270 91
C270A 91
C270M 89
C271 90
C27T 85
C27Z 87
C27ZT 87
C28 85
C28T 85
C28Z 87
C28ZT 87
C29 85
C29T 85
C29Z 87
C29ZT 87
C2A 6
C2AT 47
C2CA 9 & 50
C3 3
C30 85
C30T 85
C30Z 87
C30ZT 87
C31 85
C31T 85
C31Z 87
C31ZT 87
C32 85
C32T 85
C32Z 87
C32ZT 87
C33 85
C33T 85
C34 85
C34T 85
C35 86
C35T 86
C35Z 88
C35ZT 88
C36 86
C36T 86
C36Z 88
C36ZT 88
C37 86
C37T 86
C37Z 88
C37ZT 88
C38 86
C38T 86
C38Z 88
C38ZT 88
C39 86
C39T 86
C39Z 88
C39ZT 88
C3A 6
C3AT 47
C3CA 9 & 50
C4 3
C40 86
C40T 86
C40Z 88
C40ZT 88
C41 23
C42 23
C43 23
C44 23
C45 23
C46 23
C465 23
C466 23
C467 23
C468 23
C47A 85
C47AT 85
C47Z 87
C47ZT 87
C48Z 99 & 120
C48ZT 99 & 120
C49Z 99 & 120
C49ZT 99 & 120
C4A 6
C4AT 47
C4CA 9 & 50
C5 3
C50S 98 & 119
C50ST 98 & 119
C50Z 99 & 120
C50ZT 99 & 120
C51S 98 & 119
C51ST 98 & 119
C51Z 99 & 120
C51ZT 99 & 120
C52S 98 & 119
C52ST 98 & 119
C52Z 99 & 120
C52ZT 99 & 120
C53S 98 & 119
C53ST 98 & 119
C53Z 99 & 120
C53ZT 99 & 120
C54 100
C5A 6
C5AT 47
C5CA 9 & 50
C6 3
C60 85
C60T 85
C61 85
C61T 85
C64 100
C65 86
C65T 86
C66 86
C66T 86
C67 86
C67T 86
C68 86
C68T 86
C6A 6
C6AT 47
C6CA 9 & 50
C7 3
C74 100
C7A 6
C7AT 47
C8 3
C8A 6
C8AT 47
C9 3
C910 93
C920 93
C9A 6
C9AT 47
CL4 129
CL1/0 129
CL3/0 129
CL250 129
CG50 104
CG50-250 101
CG50-25045 103
CG50-25090 102
CG50-350 101
CG50-35045 103
CG50-35090 102
CG50-450 101
CG50-45045 103
CG50-45090 102
CG50-560 101
CG50-56045 103
CG50-56090 102
CG50-650 101
CG50-65045 103
CG50-65090 102
CG51 104
CG52 104
Index by Catalog Number
v
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
CG75-250 101
CG75-25045 103
CG75-25090 102
CG75-350 101
CG75-35045 103
CG75-35090 102
CG75-450 101
CG75-45045 103
CG75-45090 102
CG75-560 101
CG75-56045 103
CG75-56090 102
CG75-650 101
CG75-65045 103
CG75-65090 102
CG75-750 101
CG75-75045 103
CG75-75090 102
CG75-850 101
CG75-85045 103
CG75-85090 102
CG100-560 101
CG100-56045 103
CG100-56090 102
CG100-650 101
CG100-65045 103
CG100-65090 102
CG100-750 101
CG100-75045 103
CG100-75090 102
CG100-850 101
CG100-85045 103
CG100-85090 102
CG100-950 101
CG100-95045 103
CG100-95090 102
CG100-1050 101
CG100-105045 103
CG100-105090 102
CG125-850 101
CG125-85045 103
CG125-85090 102
CG125-950 101
CG125-95045 103
CG125-95090 102
CG125-1050 101
CG125-105045 103
CG125-105090 102
CG125-1150 101
CG125-115045 103
CG125-115090 102
CG125-1250 101
CG125-125045 103
CG125-125090 102
CG125-1375 101
CG125-137545 103
CG125-137590 102
CG150-1050 101
CG150-105045 103
CG150-105090 102
CG150-1150 101
CG150-115045 103
CG150-115090 102
CG150-1250 101
CG150-125045 103
CG150-125090 102
CG150-1375 101
CG150-137545 103
CG150-137590 102
CHM50 26
CHM75 26
CHM100 26
CHM125 26
CHM150 26
CHM200 26
CHM250 26
CHM300 26
CHM350 26
CHM400 26
CHM500 26
CHM600 26
CR0 41
CR1 41
CR10 41
CR11 41
CR12 41
CR13 41
CR14 41
CR15 41
CR16 41
CR17 41
CR18 41
CR19 41
CR2 41
CR20 41
CR21 41
CR22 41
CR23 41
CR24 41
CR25 41
CR26 41
CR27 41
CR28 41
CR29 41
CR3 41
CR30 41
CR31 41
CR32 41
CR33 41
CR34 41
CR35 41
CR36 41
CR37 41
CR38 41
CR39 41
CR4 41
CR40 41
CR41 41
CR42 41
CR43 41
CR44 41
CR45 41
CR46 41
CR47 41
CR5 41
CR6 41
CR7 41
CR8 41
CR9 41
CW19 43
CW20 43
CW21 43
CW31 43
CW32 43
CW41 43
CW42 43
CW43 43
CW51 43
CW52 43
CW53 43
CW54 43
CW61 43
CW62 43
CW63 43
CW64 43
CW65 43
CW71 43
CW72 43
CW73 43
CW74 43
CW75 43
CW76 43
CW81 43
CW82 43
CW83 43
CW84 43
CW85 43
CW86 43
CW87 43
CW91 43
CW92 43
CW93 43
CW94 43
CW95 43
CW96 43
CW97 43
CW98 43
CW101 43
CW102 43
CW103 43
CW104 43
CW105 43
CW106 43
CW107 43
CW108 43
CW109 43
DB38-IC 80
DB3845-IC 82
DB3890-IC 81
DB50-IC 80
Index by Catalog Number
vi
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
DB5045-IC 82
DB5090-IC 81
DB75-IC 80
DB7545-IC 82
DB7590-IC 81
DB100-IC 80
DB10090-IC 81
DB125-IC 80
DB150-IC 80
DB200-IC 80
DB250-IC 80
DB300-IC 80
DB350-IC 80
DB400-IC 80
DBC-38 83
DBC-50 83
DBC-75 83
DBS-38 83
DBS-50 83
DBS-75 83
DOC-50 70
DOC-75 70
E35 46
E36 46
E37 46
E38 46
EDG50 110
EDG75 110
EDG100 110
EDG125 110
EDG150 110
EDG200 110
EDG250 110
EDG300 110
ERC-22 34 & 65
ERC-23 34 & 65
ERC-24 34 & 65
FD-50 1
FD-75 1
FD-100 1
FDC-50 1
FDC-75 1
FDC-100 1
FS-50 1
FS-75 1
FS-100 1
FSC-50 1
FSC-75 1
FSC-100 1
FSFDCS1 2
FSFDCS2 2
FSFDCS3 2
FSFDCS4 2
FSFDCG 2
FSFDCM1 2
FSFDCM2 2
FSFSCM3 2
GL70 28
GL71 28
GL72 28
GL73 28
GL74 28
GL75 28
GL76 28
GL77 28
GL78 28
GL79 28
GL80 28
GL81 28
HCR1 42
HCR2 42
HCR3 42
HCR4 42
HCR5 42
HCR6 42
HCR7 42
HCR8 42
HCR9 42
HCR10 42
HCR11 42
HCR12 42
HCR13 42
HCR14 42
HCR15 42
HCR16 42
HCR17 42
HCR18 42
HCR19 42
HCR20 42
HCR21 42
HCR22 42
HCR23 42
HCR24 42
HCR25 42
HCR26 42
HCR27 42
HCR28 42
HCR29 42
HCR30 42
HCR31 42
HCR32 42
HCR33 42
HCR34 42
HCR35 42
HCR36 42
HCR37 42
HCR38 42
HCR39 42
HCR40 42
HCR41 42
HCR42 42
HCR43 42
HCR44 42
HCR45 42
HCR46 42
JC50 110
JC75 110
JC100 110
JC125 110
JC150 110
JC200 110
KC1AST 128
KC2AST 128
KC2ST 128
KC3AST 128
KC4SO 128
KC4ST 128
KC6SO 128
KC6ST 128
KC8SO 128
KC8ST 128
LB1 3
LB1A 6
LB1AT 47
LB1CA 9 & 50
LB10 3
LB10A 6
LB10AT 47
LB2 3
LB2A 6
LB2AT 47
LB2CA 9 & 50
LB3 3
LB3A 6
LB3AT 47
LB3CA 9 & 50
LB4 3
LB4A 6
LB4AT 47
LB4CA 9 & 50
LB5 3
LB5A 6
LB5AT 47
LB5CA 9 & 50
LB6 3
LB6A 6
LB6AT 47
LB6CA 9 & 50
LB7 3
LB7A 6
LB7AT 47
LB8 3
LB8A 6
LB8AT 47
LB9 3
LB9A 6
LB9AT 47
LL1 4
LL1A 7
LL1AT 48
LL1CA 10 & 51
LL10 4
LL10A 7
LL10AT 48
LL2 4
LL2A 7
LL2AT 48
LL2CA 10 & 51
LL3 4
LL3A 7
Index by Catalog Number
vii
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
LL3AT 48
LL3CA 10 & 51
LL4 4
LL4A 7
LL4AT 48
LL4CA 10 & 51
LL5 4
LL5A 7
LL5AT 48
LL5CA 10 & 51
LL6 4
LL6A 7
LL6AT 48
LL6CA 10 & 51
LL7 4
LL7A 7
LL7AT 48
LL8 4
LL8A 7
LL8AT 48
LL9 4
LL9A 7
LL9AT 48
LR1 4
LR1A 7
LR1AT 48
LR1CA 10 & 51
LR10 4
LR10A 7
LR10AT 48
LR2 4
LR2A 7
LR2AT 48
LR2CA 10 & 51
LR3 4
LR3A 7
LR3AT 48
LR3CA 10 & 51
LR4 4
LR4A 7
LR4AT 48
LR4CA 10 & 51
LR5 4
LR5A 7
LR5AT 48
LR5CA 10 & 51
LR6 4
LR6A 7
LR6AT 48
LR6CA 10 & 51
LR7 4
LR7A 7
LR7AT 48
LR8 4
LR8A 7
LR8AT 48
LR9 4
LR9A 7
LR9AT 48
LT25 79
LT25T 79
LT27 78
LT27T 78
LT28 78
LT28T 78
LT29 78
LT29T 78
LT30 78
LT30T 78
LT31 78
LT31T 78
LT32 78
LT32T 78
LT33 78
LT33T 78
LT34 78
LT34T 78
LT35 79
LT35T 79
LT36 79
LT36T 79
LT37 79
LT37T 79
LT38 79
LT38T 79
LT39 79
LT39T 79
LT40 79
LT40T 79
LT47 78
LT47T 78
LT60 78
LT60T 78
LT61 78
LT61T 78
LT65 79
LT65T 79
LT66 79
LT66T 79
LT67 79
LT67T 79
LT68 79
LT68T 79
NS2 117
NS7A 117
NS9 117
NS10 117
NS11 117
NTC-50 30
NTC-50T 30
NTC-75 30
NTC-75T 30
NTC-100 30
NTC-100T 30
NTC-125 30
NTC-125T 30
NTC-150 30
NTC-150T 30
NTC-200 30
NTC-200T 30
NTC-250 30
NTC-250T 30
NTC-300 30
NTC-300T 30
NTC-350 30
NTC-350T 30
NTC-400 30
NTC-400T 30
NTC-500 30
NTC-500T 30
NTC-600 30
NTC-600T 30
NTCC-50 31
NTCC-75 31
NTCC-100 31
NTCC-125 31
NTCC-150 31
NTCC-200 31
NTCC-250 31
NTCC-300 31
NTCC-350 31
NTCC-400 31
NTCC-500 31
NTCC-600 31
OCS-50 70
OCS-75 70
OSN-50 23
OSN-75 23
OSN-100 23
OSN-125 23
P1 44
P2 44
P3 44
P4 44
P5 44
P6 44
P7 44
P8 44
P9 44
P10 45
P11 45
P12 45
P13 45
P14 45
P15 45
P16 45
P17 45
P18 45
P19 45
P20 45
P21 45
P25 44
P30 44
P35 44
P40 44
PAR50 109
PAR75 109
PAR100 109
PAR125 109
PAR150 109
Index by Catalog Number
viii
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
PAR200 109
PAR250 109
PAR300 109
PAR350 109
PAR400 109
PEF50 36
PEF75 36
PEF100 36
PEF125 36
PEF150 36
PEF200 36
PEM50 36
PEM75 36
PEM100 36
PEM125 36
PEM150 36
PEM200 36
QL-50 84
QL-50D 84
QL-75 84
RA50 109
RA75 109
RA100 109
RA125 109
RA150 109
RA200 109
RA250 109
RA300 109
RA350 109
RA400 109
RBC-50 106
S1010 57
S1010RT 59
S1011 57
S1011RT 59
S1012 57
S1012RT 59
S1013 57
S1013RT 59
S1014 57
S1014RT 59
S1015 57
S1015RT 59
S1015D 57
S1015DRT 59
S1015E 57
S1015ERT 59
S1015E1 57
S1015E1RT 59
S1015F 57
S1015FRT 59
S1016 58
S1016RT 60
S1017 58
S1017RT 60
S1018 58
S1018RT 60
S1019 58
S1019RT 60
S102 126
S1020 58
S1020RT 60
S1021 58
S1021RT 60
S1021D 58
S1021DRT 60
S1021E 58
S1021ERT 60
S1021E1 58
S1021E1RT 60
S1021F 58
S1021FRT 60
S1110 55
S1111 55
S1112 55
S1112A 55
S1112B 55
S1112C 55
S1112D 55
S1112E 55
S1112E1 55
S1112F 55
S1113 56
S1114 56
S1115 56
S1115A 56
S1115B 56
S1115C 56
S1115D 56
S1115E 56
S1115E1 56
S1115F 56
S16ES 34 & 65
S17ES 34 & 65
S18ES 34 & 65
S4060 57
S4060RT 59
S4061 57
S4061RT 59
S4062 57
S4062RT 59
S4063 57
S4063RT 59
S4064 57
S4064RT 59
S4065 57
S4065RT 59
S4065D 57
S4065DRT 59
S4065E 57
S4065ERT 59
S4065E1 57
S4065E1RT 59
S4065F 57
S4065FRT 59
S4066 55
S4067 55
S4068 55
S4069 55
S4070 55
S4071 55
S4072 55
S4073 55
S4074 55
S4075 55
S620 111
SC1 97 & 118
SC2 97 & 118
SC3 97 & 118
SC4 97 & 118
SC5 97 & 118
SCC-50 38
SCC-75 38
SCC-100 38
SCC-125 38
SCC-150 38
SCC-200 38
SCC-250 38
SCC-300 38
SCC-350 38
SCC-400 38
SCC-500 38
SCC-600 38
SD1 123
SD5 123
SE32 127
SE33 127
SE34 127
SLT25-45ALT 77
SLT25-45T 74
SLT25ALT 76
SLT25T 73
SLT27ALT 75
SLT27T 72
SLT28ALT 75
SLT28T 72
SLT29ALT 75
SLT29T 72
SLT30ALT 75
SLT30T 72
SLT31ALT 75
SLT31T 72
SLT32ALT 75
SLT32T 72
SLT33ALT 75
SLT33T 72
SLT34ALT 75
SLT34T 72
SLT35-45ALT 77
SLT35-45T 74
SLT35ALT 76
SLT35T 73
SLT36-45ALT 77
SLT36-45T 74
SLT36ALT 76
SLT36T 73
SLT37-45ALT 77
SLT37-45T 74
SLT37ALT 76
SLT37T 73
Index by Catalog Number
CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE CAT. NO. PAGE
SLT38-45ALT 77
SLT38-45T 74
SLT38ALT 76
SLT38T 73
SLT39-45ALT 77
SLT39-45T 74
SLT39ALT 76
SLT39T 73
SLT40-45ALT 77
SLT40-45T 74
SLT40ALT 76
SLT40T 73
SLT47ALT 75
SLT47T 72
SLT60ALT 75
SLT60T 72
SLT61ALT 75
SLT61T 72
SLT62T 72
SLT62ALT 75
SLT63T 72
SLT63ALT 75
SLT65-45ALT 77
SLT65-45T 74
SLT65ALT 76
SLT65T 73
SLT66-45ALT 77
SLT66-45T 74
SLT66ALT 76
SLT66T 73
SLT67-45ALT 77
SLT67-45T 74
SLT67ALT 76
SLT67T 73
SLT68-45ALT 77
SLT68-45T 74
SLT68ALT 76
SLT68T 73
SR-50 125
SR-75 125
SR-100 125
SR-125 125
SR-150 125
SR-200 125
SR-250 125
SR-300 125
SR-350 125
SR-400 125
SR-500 125
SR-600 125
SS50 122
SS52 122
SS54 122
SS56 122
SS58 122
SS60 122
SS62 122
SS64 122
SS66 122
SS68 122
ST10 22
ST11 22
ST12 22
ST13 22
ST14 22
ST15 22
ST16 22
ST17 22
ST18 22
ST19 22
ST20 22
ST21 22
SWV-4R 108
SWV-4S 108
T1 5
T1A 8
T1AT 49
T1CA 11 & 52
T10 5
T10A 8
T10AT 49
T2 5
T2A 8
T2AT 49
T2CA 11 & 52
T3 5
T3A 8
T3AT 49
T3CA 11 & 52
T4 5
T4A 8
T4AT 49
T4CA 11 & 52
T5 5
T5A 8
T5AT 49
T5CA 11 & 52
T6 5
T6A 8
T6AT 49
T6CA 11 & 52
T7 5
T7A 8
T7AT 49
T8 5
T8A 8
T8AT 49
T9 5
T9A 8
T9AT 49
TRC-50 32
TRC-50T 32
TRC-75 32
TRC-75T 32
TRC-100 32
TRC-100T 32
TRC-125 32
TRC-125T 32
TRC-150 32
TRC-150T 32
TRC-200 32
TRC-200T 32
TRC-250 32
TRC-250T 32
TRC-300 32
TRC-300T 32
TRC-350 32
TRC-350T 32
TRC-400 32
TRC-400T 32
TRC-500 32
TRC-500T 32
TRC-600 32
TRC-600T 32
TRCC-50 33
TRCC-75 33
TRCC-100 33
TRCC-125 33
TRCC-150 33
TRCC-200 33
TRCC-250 33
TRCC-300 33
TRCC-350 33
TRCC-400 33
TRCC-500 33
TRCC-600 33
TWH10 26
TWH20 26
TWH30 26
TWH40 26
TWH50 26
TWH60 26
TWH70 26
TWH80 26
TWH90 26
TWH100 26
UF10 100
UF20 100
ix
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Alphabetical Index
x
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
A
Anti-Short Bushings- (0 series)- Page 124
B
Bendsaver™ Fittings
Steel EMT Bendsaver™ Conduit Straps (OCS-50 series)-
Page 70
Zinc EMT Bendsaver™ Couplings (DOC-50 series)- Page 70
Big Bite-Saddle Type Connectors
45° Big Bite-Saddle Type Connectors w/Insulated Throat-
Malleable Iron (DB5045-IC series)- Page 82
90° Big Bite-Saddle Type Connectors w/Insulated Throat-
Malleable Iron (DB5090-IC series)- Page 81
Big Bite-Saddle Type Compression Couplings-
Steel (DBC-50 series)- Page 83
Big Bite-Saddle Type Connectors w/Insulated Throat -
Steel (DB50-IC series)- Page 80
Big Bite-Saddle Type Set-Screw Couplings-
Steel (DBS-50 series)- Page 83
Bushings
Anti-Short Bushings- (0 series)- Page 124
Conduit Hex Reducer Bushings (HCR1 series)- Page 42
Conduit Reducer Bushings (CR1 series)- Page 41
Malleable Iron Paper Capped Bushings (826 series)- Page 20
Malleable Iron Conduit Bushings (806 series)- Page 19
Malleable Iron Insulated Conduit Bushings (1206 series)-
Page 17
Malleable Iron Insulated Grounding Bushings (20BI4L series)-
Page 14
Malleable Iron Insulated Set- Screw / Threadless Conduit
Bushings (1206SS series)- Page 17
Malleable Iron Insulated Set-Screw / Threadless Grounding
Bushings (20BI4LSS series)- Page 15
Plastic Bushings (ST10 series)- Page 22
Zinc Conduit Bushings (806Z series)- Page 19
Zinc Insulated Conduit Bushings (1206Z series)- Page 18
Zinc Insulated Grounding Bushings (20BIZ4L series)- Page 16
Zinc Metal Capped Bushings (820Z series)- Page 20
C
Cable Connectors
Malleable Iron 90° Cable Connectors (C35 series)- Page 86
Malleable Iron 90° Cable Connectors-Insulated (C35T series)-
Page 86
Malleable Iron Cable Connectors (C27 series)- Page 85
Malleable Iron Cable Connectors-Insulated (C27T series)-
Page 85
Zinc 90° Cable Connectors (C35Z series)- Page 88
Zinc 90° Cable Connectors-Insulated (C35ZT series)- Page 88
Zinc Cable Connectors (C27Z series)- Page 87
Zinc Cable Connectors-Insulated (C27ZT series)- Page 87
Clamps
Beam Clamps (620 series)- page 111
C-Clamps- (21CC series)- Page 46
Edge Type Conduit Clamps- (EDG50 series)- Page 110
J-Clamps (JC50 series)- Page 110
Malleable Iron Rigid Clamp Backs (901 series)- Page 29
Parallel Type Conduit Clamps- (PAR50 series)- Page 109
Right Angle Type Conduit Clamps (RA50 series)- Page 109
Conduit Bodies
Aluminum EMT Set-Screw “C” Conduit Bodies
(C1AT series)- Page 47
Aluminum EMT Set-Screw ”LB” Conduit Bodies
(LB1AT series)- Page 47
Aluminum EMT Set-Screw ”LL” Conduit Bodies
(LL1AT series)- Page 48
Aluminum EMT Set-Screw “LR“ Conduit Bodies
(LR1AT series)- Page 48
Aluminum EMT Set-Screw “T” Conduit Bodies (T1AT series)-
Page 49
Aluminum Rigid “C” Conduit Bodies (C1A series)- Page 6
Aluminum Rigid “LB” Conduit Bodies (LB1A series)- Page 6
Aluminum Rigid “LL” Conduit Bodies (LL1A series)- Page 7
Aluminum Rigid “LR” Conduit Bodies (LR1A series)- Page 7
Aluminum Rigid ”T” Conduit Bodies (T1A series)- Page 8
Aluminum Rigid & EMT ”C” Combination Conduit Bodies
(C1CA series)- Page 9 & 50
Aluminum Rigid & EMT ”LB” Combination Conduit Bodies
(LB1CA series)- Page 9 & 50
Aluminum Rigid & EMT “LL” Combination Conduit Bodies
(LL1CA series)- Page 10 & 51
Aluminum Rigid & EMT “LR” Combination Conduit Bodies
(LR1CA series)- Page 10 & 51
Aluminum Rigid & EMT “T” Combination Conduit Bodies
(T1CA series)- Page 11 & 52
Malleable Iron Rigid “C” Conduit Bodies (C1 series)- Page 3
Malleable Iron Rigid “LB” Conduit Bodies (LB1 series)- Page 3
Malleable Iron Rigid “LL” Conduit Bodies (LL1 series)- Page 4
Malleable Iron Rigid “LR” Conduit Bodies (LR1 series)- Page 4
Malleable Iron Rigid “T” Conduit Bodies (T1 series)- Page 5
Alphabetical Index
xi
(718) 259-6100 • Fax: (718) 331-1874 • 1-800-626-1223
www.sepco-usa.com
Connectors- Malleable Iron
Malleable Iron45° Cable Connectors(315M series)-Page90
Malleable Iron90° Duplex Cable Connectors(C271)-Page90
Malleable Iron Duplex Cable Connectors- (C270M)-Page89
Malleable IronRigid Compression Connectors
(NTC-50 series)-Page30
Malleable IronRigid Compression Connectors-Insulated
(NTC-50T series)-Page30
Malleable IronRigid Set-Screw Connectors(TRC-50 series)-
Page32
Malleable IronRigid Set-Screw Connectors- Insulated
(TRC-50T series)-Page32
Malleable Iron Set-Screw Cable Connectors- (C22M)-Page89
Connectors- Steel
Steel EMT Compression Connectors(S1011 series)-Page57
Steel EMT Compression Connectors- Insulated
(S4061 series)-Page57
Steel EMT Raintight Compression Connectors
(S1011RT series)-Page59
Steel EMT Raintight Compression Connectors- Insulated
(S4061RT series)-Page59
Steel EMT Set-Screw Connectors(S1111 series)-Page55
Steel EMT Set-Screw Connectors- Insulated (S4067 series)-Page55
Steel Quicklock Type Connectorsw/Insulated Throat
(QL-50 series)-Page84
Connectors- Zinc Die Cast
Zinc3/8”Duplex Single-Screw, ClampType Connectors
(C270A)-Page91
Zinc3/8“ Duplex Two-Screw, ClampType Connectors
(C270)-Page91
Zinc3/8”Romex Connectors(C23)-Page97
Zinc3/8” Saddle Type Connectors(C920)-Page93
Zinc3/8” Set-Screw Cable Connectors(C22)-Page92
Zinc3/8” Strap Type Connectors(C910)-Page93
Zinc3/8”Two-Screw Cable Connectors(C23C)-Page92
Zinc ClampTypeRomex Connectors(C24 series)-Page100
Zinc EMT 90° Compression Connectors(10E series)-Page68
Zinc EMT Compression Connectors(1011 series)-Page63
Zinc EMT Compression Connectors- Insulated (4061 series)-
Page63
Zinc EMT CompressionOffset Connectors(1260 series)-Page67
Zinc EMT Set-Screw Connectors(1111 series)-Page61
Zinc EMT Set-Screw Connectors- Insulated (4067 series)-Page61
Zinc EMT Set-Screw Offset Connectors(1250 series)-Page67
Zinc Non-Watertight LongBody Connectors -
(C50Z series)-Page99 & 120
Zinc Non-Watertight LongBody Connectors-Insulated
(C50ZT series)-Page99 & 120
Zinc Non-Watertight ShortBody Connectors(C50S series)-
Page98 & 119
Zinc Non-Watertight ShortBody Connectors-Insulated
(C50ST series)-Page98 & 119
Zinc Screw-In Connectors(340 series)-Page95
Zinc Screw-In Connectors-Insulated (340T series)-Page95
Zinc Service Entrance Connectors(SC1 series)-Page97 & 118
Zinc Set-Screw Flex Connectors(C24G series)-Page95
Zinc Underground Feeder Connectors(UF10 series)-Page100
ZincWatertight Connectors(1060 series)-Page112
Cord Grip Connectors
Malleable Iron45° Cord Grip Connectors
(CG50-25045 series)-Page103
Malleable Iron90° Cord Grip Connectors
(CG50-25090 series)-Page102
Steel Straight Cord Grip Connectors(CG50-250 series)-Page101
Zinc Cord Grip Connectors(CG51 series)-Page104
Couplings- Malleable Iron
Malleable Iron3-Piece Couplings(1023 series)-Page29
Malleable Iron Combination Couplings-Flexible Metal Conduit
toRigid orIMC (23E series)-Page35 & 96
Malleable IronRigid Compression Couplings
(NTCC-50 series)-Page31
Malleable IronRigid Set-Screw Couplings(TRCC-50 series)-
Page33
Malleable Iron Split Couplings(SCC-75 series)-Page38
Couplings- Steel
Steel Combination Couplings-EMT Compressionto
Threaded Rigid (ERC-23 series)-Page34 & 65
Steel Combination Coulpings-EMT Set-Screw toThreaded Rigid
Set-Screw (S17ES series)-Page34 & 65
Steel EMT Compression Couplings(S1017 series)-Page58
Steel EMT Raintight Compression Couplings(S1017RT series)-
Page60
Steel EMT Set-Screw Couplings(S1114 series)-Page56
Steel Rod Couplings- (120R series)-Page124
Couplings- Zinc Die Cast
Zinc Combination Couplings / ClampTypefor EMT and
Flex (170C series)-Page71,94 & 100
Zinc Combination Couplings / Set-Screw for EMT and
Flex (172 series)-Page71 & 94
Zinc Combination Couplings-Flexible Metal Conduit to
Rigid orIMC (BS50 series)-Page35
Zinc EMT Bendsaver™ Couplings(DOC-50 series)-Page70
Zinc EMT Compression Couplings(1017 series)-Page64
Zinc EMT Set-Screw Couplings(1114 series)-Page62
Alphabetical Index
xii
Covers
Aluminum Conduit Body Covers(02A series)-Page12 & 53
Device Box Covers - FS & FD- Malleable Iron - Page 2
Device Box Covers - FS & FD- Steel - Page 2
Malleable Iron Conduit Body Covers(02M series)-Page13
Steel Conduit Body Covers(02 series)-Page12 & 53
D
Device Boxes
Device Box Covers- FS & FD- Malleable Iron-Page 2
Device Box Covers- FS & FD- Steel- Page 2
Device Box Gasket- FS & FD- Neoprene Gasket-Page 2
Device Boxes- FS & FD- Malleable Iron-Page 1
Duct Sealing Compound(SD1 series)-Page123
E
Malleable Iron Enlargers- Male-Female (E35 series)-Page46
F
Fixture Extensions(SE32 series)-Page127
Floor Flanges-Malleable Iron(2F series)-Page46
G
Gaskets
Device Box Gasket- FS & FD- Neoprene Gasket-Page 2
Neoprene Gasket (11 series)-Page13 & 54
Sealing Gaskets(SR50 series)-Page125
Ground Clamps
Ground ClampwithBronze Screwsfor Direct Burial (10BR)-
Page105
Ground Clampsfor Direct Burial andRebar (RBC-50)-
Page106
Ground Clampswith Hubs(301series)-Page107
Ground Clampswith Steel Screwsfor Armored Cable
(35B series)-Page106
Ground Clampswith Steel ScrewsforBareWire(10B series)-
Page105
Ground Clamps-Zinc Die Cast (10BG)-Page105
GroundRod Clamps(201 series)-Page107
Grounding Bushings
Malleable IronInsulated GroundingBushings(20BI4L series)-
Page14
Malleable IronInsulated Set-Screw / Threadless Grounding
Bushings(20BI4LSS series)-Page15
ZincInsulated GroundingBushings(20BIZ4L series)-Page16
H
Hangers
Conduit HangerswithBolts and Nuts(10CS series)-Page108
Swivel Fixture Hangers(SWV-4R series)-Page108
Hubs
Copper Conduit Hubs(311 series)-Page107
Malleable IronWatertight Conduit Hubs(CHM50 series)-
Page26
ZincWatertight Conduit Hubs(TWH20 series)-Page26
I
Insulator Supports(S620)-Page111
J
Jack Chain (220 series)-Page126
K
Kenny Clamps® (KC1AST series)-Page128
Knock-Out Seals (SS50 series)-Page122
L
Liquidtight Connectors
Malleable Iron90° Liquidtight Connectorsw/Insulated Throat
(SLT35T series)-Page73
Malleable Iron90° Liquidtight Connectorsw/Insulated Throat
and Aluminum Lug(SLT35ALT series)-Page76
Malleable Iron45° Liquidtight Connectorsw/Insulated Throat
(SLT35-45T series)-Page74
Malleable Iron45° Liquidtight Connectorsw/Insulated Throat
and Aluminum Lug(SLT35-45ALT series)-Page77
Malleable Iron Straight Liquidtight Connectorsw/Insulated
Throat (SLT27T series)-Page72
Malleable Iron Straight Liquidtight Connectorsw/Insulated
Throat and Aluminum Lug(SLT27ALT series)-Page75
Zinc90° Liquidtight Connectors(LT35 series)-Page79
Zinc90° Liquidtight Connectorsw/Insulated Throat
(LT35T series)-Page79
Zinc Straight Liquidtight Connectors(LT27 series)-Page78
Zinc Straight Liquidtight Connectorsw/Insulated Throat
(LT27T series)-Page78
Locknuts
Conduit Fixture Nuts-Steel (703 series)-Page28
Conduit Oversize Locknuts-Steel (705X series)-Page28
Grounding Locknuts-Steel (GL70 series)-Page28
Sealing Locknuts-Steel (706P series)-Page27
Standard Conduit Locknuts-Steel (706 series)-Page27
Alphabetical Index
xiii
Lugs
Aluminum Lay-In Lugs(AL4 series)-Page129
Copper Lay-In Lugs(CL4 series)-Page129
M
Male Loops(215)-Page127
N
Nail Straps- Cast Steel (360M series)-Page45 & 71
Nipples
Malleable Iron Conduit Nipples (90 series)-Page25
Malleable Iron Conduit Nipples-Insulated (90T series)-
Page25
Malleable IronOffset Conduit Nipples (OSN-50 series)-
Page23
Zinc Conduit Nipples (90Z series)-Page24
Zinc Conduit Nipples-Insulated (90ZT series)-Page24
ZincOffset Conduit Nipples (C41 series)-Page23
No-Bolt Studs(1202)-Page127
P
Metal Pennies- Page21
Plugs
Slotted Plugs-Zinc Die Cast (P1 series)-Page44
Square Head Plugs- Malleable Iron(P4 series)-Page44
Threaded InsertPlugs- Malleable Iron(P10 series)-Page45
Pull Elbows
Malleable IronRigid 90°Pull Elbows- Female to Female
(PEF50 series)-Page36
Malleable IronRigid 90°Pull Elbows- Male to Female
(PEM50 series)-Page36
Zinc EMT 90°Pull Elbows- Female to Female (1326 series)-
Page66
Zinc EMT 90°Pull Elbows- Male to Female (1332 series)-
Page66
Zinc EMT Inside Corner Pulling Elbows(1341 series)-Page68
ZincRigid 90°Pull Elbows- Female to Female (1313 series)-
Page37
ZincRigid 90°Pull Elbows- Male to Female (1320 series)-
Page37
R
Steel Rod Couplings- (120R series)-Page124
S
S Hooks (224 series)-Page111
Service Entrance
AluminumThreaded Service Entrance Heads(400 series)-
Page113
Aluminum Clamp-On Service Type Entrance Heads(427 series)-
Page114
Aluminum Mast Type Service Entrance Heads(3032 series)-
Page115
Aluminum Service Entrance Ells (412 series)-Page116
Aluminum Service Entrance Heads(NS7A series)-Page117
Aluminum Sill Plates for Service Entrance (260L)-Page121
PVC Entrance Caps(NS11 series)-Page117
PVC Sill Plates with Steel Screws and Sealing Compoundfor
Service Entrance (26P)-Page121
ZincWatertight Connectors(1060 series)-Page112
Straps
Cast Steel Nail Straps(360M series)-Page45 & 71
Malleable IronRigid One-Hole Straps(132 series)-Page39
Service Entrance Straps(880S series)-Page121
Steel EMT Bendsaver™ Conduit Straps(OCS-50 series)-
Page70
Steel EMT One-Hole Straps(142S series)-Page69
Steel EMT Two-Hole Straps(2142S series)-Page69
Steel Rigid One-Hole Straps(132S series)-Page39
Steel Rigid Two-Hole Straps(2132S series)-Page40
Switch Box Supports(S102)-Page126
W
Conduit ReducingWashers(CW21 series)-Page43
2009
2009 CATALOG
CONDUIT &CABLE FITTINGS
CHANNELING ELECTRICITY SAFELY
Sepko Covers FINAL B FULL:Layout 1 1/13/09 4:18 PM Page 1
