Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-1

Metering Devices, Protective Relays,

Software and Connectivity

9.1 Power Xpert Architecture

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-2

9.2 Monitoring Software and Reporting

Power Xpert® Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-14

9.3 Metering Devices

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-21

Power Xpert Meter 4000/6000/8000 Series. . . . . . . . . . . . . . . . . . . . . V3-T9-30

Power Xpert Meter 2000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-49

IQ 250/260 Series Electronic Power Meters . . . . . . . . . . . . . . . . . . . . V3-T9-60

IQ 130/140/150 Series Electronic Power Meters . . . . . . . . . . . . . . . . . V3-T9-66

IQ 150S/250S Self-Enclosed Electronic Meters . . . . . . . . . . . . . . . . . . V3-T9-71

IQ 35M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-76

IQ Analyzer 6400/6600 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-79

IQ DP-4000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-87

IQ 230 Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-93

Power Xpert Multi-Point Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-100

IQ Energy Sentinel™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-112

PM3 Monitoring and Metering Module . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-121

Current Transformers (CTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-122

Clamp-On Current Transformers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-131

IQ Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-134

Enclosed Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-136

9.4 Protective Relays

Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-158

FP-6000 Feeder Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-162

FP-5000 Feeder Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-172

FP-4000 Feeder Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-180

MP-3000 Motor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-188

MP-4000 Motor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-198

MD-3000 Motor/Generator Differential Relay. . . . . . . . . . . . . . . . . . . . V3-T9-204

Digitrip 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-207

VR-300 Multifunctional Voltage Relay. . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-217

DP-300 Current Differential Protection Relay . . . . . . . . . . . . . . . . . . . . V3-T9-221

EDR-3000 Feeder Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-226

ETR-4000 Transformer Protection Relay. . . . . . . . . . . . . . . . . . . . . . . . V3-T9-237

Ground Fault Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-250

Universal RTD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-254

IQ 125 Volt DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-258

9.5 Connectivity Options

Power Xpert Gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-259

Power Xpert Ethernet Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-272

Power Xpert Gateway Series 1000 Card—Power Distribution Unit . . . V3-T9-276

Power Xpert Gateway Series 2000 Card—Uninterruptible Power

Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-279

mMINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-282

MINTII RS-232 Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-284

IPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-285

DPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-286

MPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-287

I/O Devices Digital Input Module (DIM) . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-288

Addressable Relay II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-290

Breaker Interface Module II (BIM II) . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-293

Sub-Network Master Local Display (SMLD) . . . . . . . . . . . . . . . . . . . . . V3-T9-297

IMPCABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-299

V3-T9-2 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Contents

Description Page

Power Xpert System . . . . . . . . . . . . . . . . . . . . . . . V3-T9-3

Power Xpert Architecture . . . . . . . . . . . . . . . . . . . . V3-T9-4

Level 0—Small System with Smart Hardware . V3-T9-8

Level 1—Using Power Xpert Gateways . . . . . . V3-T9-9

Level 2—Power Xpert Software . . . . . . . . . . . . V3-T9-11

Level 3—Eaton’s Electrical Services & Systems (EESS)

Customized Software Solutions . . . . . . . . . . . V3-T9-13

An Eaton

Green Solution

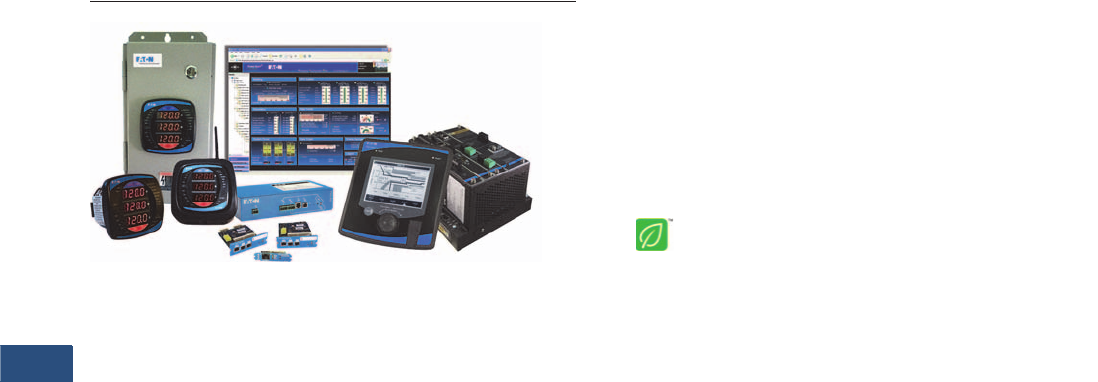

Introduction

Enabling Power

System Management

Eaton’s Power Xpert

Architecture (PXA) provides a

complete hardware/software

solution to manage your

entire power system. Power

Xpert Architecture consists

of Power Xpert Meters,

Gateways, Switches

and Software.

Power Xpert devices are

devices that can provide by

themselves, or facilitate for

others, Ethernet network

protocols to communicate

with your critical infrastructure

components. Power Xpert

devices provide the intelligent

hardware connectivity layer

to allow Web-enabled

communications throughout

the power system.

Power Xpert Meters

Power Xpert Meters provide

measurement of the critical

elements found in power

systems, including voltage,

power, current, transients,

harmonics or even time.

Power Xpert Meters

provide Web-enabled

communications for use

through a Web browser or

with the Power Xpert

Software or third-party

monitoring systems.

Power Xpert Gateways

Power Xpert Gateways are

capable of Web-enabling

electrical devices contained in

electrical gear via a standard

Web-browser on the Ethernet

network. Standard on-board

Web pages eliminate the

need for any customer

programming or software.

Power Xpert Software

Power Xpert Software is a

comprehensive solution for

system-level management of

your power infrastructure via

a Web-browser. Power Xpert

Software provides a clear

picture of what is happening

at a component, device and

system level.

Because no two organiza-

tion’s needs are the same,

Power Xpert Software is

available in two editions:

Power Xpert Software

Professional Edition

Geared toward end users,

with built-in support for Eaton

power distribution products

such as switchgear, UPSs,

breakers, PDUs, RPPs,

meters, relays, VFDs and

MCCs among others.

Eaton products connect with

the software directly via an

Ethernet connection, while

legacy devices use a Power

Xpert Gateway to Web-

enable their communications.

A subset of third-party meters

and devices are supported as

standard via the gateway

connection.

Power Xpert Software

Enterprise Edition

Geared toward advanced

power users, system

integrators and enterprises

with heterogeneous device

spectrum and system

developers who can take

advantage of the included

SNMP and Modbus®

integration development

utilities.

●Extensive support for

third-party devices via

standard SNMP and

Modbus TCP protocols

●Large variety of ready

made third-party drop

in drivers

Support for Existing

PowerNet Systems

Power Xpert is directly

compatible with existing

PowerNet™ systems

v.3.32 and higher. All

communications hardware

devices such as NetLink,

EMINT, MINT II and EPONI

can be connected to Power

Xpert Software through the

PowerNet server for

configuration of the INCOM™

communication devices.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-3

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Power Xpert System

See Notes on Page V3-T9-4.

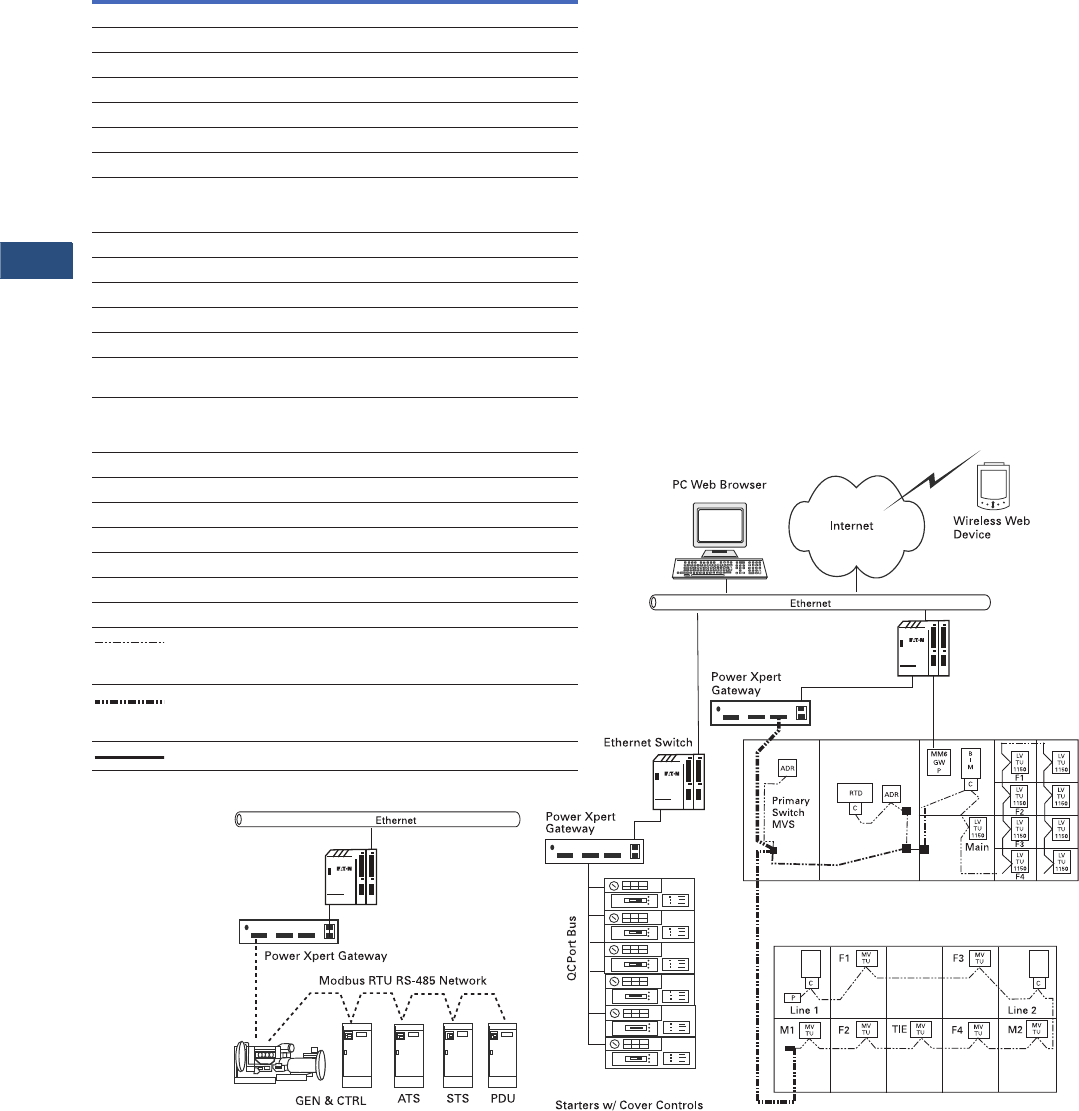

Power Xpert System Overview

PXG 400

Power Xpert Software

(SMTP)

Web Browser

(WAN)

Data

Export

(csv)

Data

Trending

Web Browser

(LAN)

HTTP

Internet

Waveform

Capture and Acquisition

3rd Party HMI

Software

Modbus TCP/IP

NTP

Power Xpert

Meter

4000/6000/8000

BACnet/WS+

Motor Controls

Power Xpert

Gateway 600

BACnet/WS+

Power Distribution

Power Xpert

Ethernet Switch

Power Xpert

Gateway 400

IQ Analyzer

Meter w/PONI Card

IQ 250/250

Meters

IQ 130/140/150

Meters

Advantage

Central

Monitoring

Unit

w/WPONI

IT. Cover

Controls

Single

Port

Device

Server

Power Xpert

Gateway

ATS

STS

PDU

GEN & CTRL CRAC

Critical Power

Distribution & Cooling

Eaton

PDU

IT. MCC

IT. S811

Soft

Starter

EOLR

Freedom

MCC

EOLTR

Advantage

MCC

SVX9000

MVX9000

Drive

Advantage

Starter

InsulGard

Relays

IQ DP-4000

Meter w/PONI Card

IQ 220/230

Meters

DT-1150

Trip Unit

Breaker Interface

Module w/PONI Card

OPTIM

Trip Unit

MP-3000/4000

FP-4000/5000

Motor/Protection

Relays

Central Energy Dislay

w/PONI Display

Power

Sentinel Meter

Energy

Sentinel Meter

EOLR

EOLRT

LV Switchgear

MV Switchgear

MV Starter

Eaton

UPS

3rd Party Motor

Relays

3rd Party

Protective

Relays

3rd Party

PQ Meters

Ethernet Network

QC Port Network

INCOM Network

RS-485 Network

EOLR

EOLTR End of line termination resistor

End of line resistor

opq

15 6

Network Time Server

PXG 400

Power

Xpert

Meter

2000

Power

Xpert

Ethernet

Switch

# Product Name Page Reference

1 Power Xpert Software V3-T9-14

2 Power Xpert Meter 4000/6000/8000 V3-T9-30, V3-T9-49

3 Power Xpert 6-Port Ethernet Switch V3-T9-272

4 Power Xpert Gateway 600 V3-T9-259

5 Power Xpert Gateway 400 V3-T9-259

6 IQ Analyzer V3-T9-79

7 IQ DP-4000 V3-T9-87

8 IQ 220/230 Series Meters V3-T9-93

9 Digitrip DT1150 V3-T9-260

10 Breaker Interface Module V3-T9-293

11 OPTIM Trip Unit V3-T9-263

12 MP-3000/MP-4000/MD-3000

DT-3000/FP-4000/FP-5000

V3-T9-188, V3-T9-198, V3-T9-204,

V3-T9-207, V3-T9-180, V3-T9-172

13 Central Energy Display V3-T9-5

14 Energy/Power Sentinel V3-T9-112

15 IQ 130/140/150 Meter V3-T9-66

16 IQ 250/260 Meter V3-T9-60

17 InsulGard™ Relay V3-T9-264

18 Advantage Central Monitoring Unit V3-T9-5

19 Advantage Starter w/WPONI —

20 SVX9000/MVX9000 Drive —

21 IT. Cover Control —

22 IT. S811 Soft Start —

23 Eaton PDU w/PXGX1000 Card V3-T9-276

24 Eaton PDU w/PXGX2000 Card V3-T9-279

V3-T9-4 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Power Xpert Architecture—Notes

a. Simple Mail Transfer

Protocol (SMTP)—

Device events and

periodic data log file

attachments are sent

to users in the form of

an e-mail from the

following Power Xpert

products: Power

Xpert Software,

Power Xpert Meters

2000/4000/6000/

8000, Power Xpert

Gateway 600 and

Power Xpert Gateway

Cards 1000/2000

Series.

b. Hyper Text Transfer

Protocol (HTTP)—

Web browser access

is available on the

following Power Xpert

products: Power

Xpert Software,

Power Xpert Meters

2000/4000/6000/

8000, Power Xpert

Gateway 600 and

Power Xpert Gateway

Cards 1000/2000

Series.

c. Network Time Server

(NTP)—Network Time

Protocol (Client-side)

is available on the

following Power Xpert

products: Power

Xpert Software,

Power Xpert Meters

2000/4000/6000/

8000, Power Xpert

Gateway 600 and

Power Xpert Gateway

Cards 1000/2000

Series.

d. Modbus TCP/IP—

Modbus TCP/IP over

Ethernet is available

on the following

Power Xpert

products: Power

Xpert Software,

Power Xpert Server

Core Software, Power

Xpert Meters 2000/

4000/6000/8000,

Power Xpert Gateway

600 and Power Xpert

Gateway Cards 1000/

2000 Series. Modbus

available online at

www.eaton.com/

powerxpert.

e. Data Export—Data

files consist of

metered data and

event log information

that is exported from

the meter, gateway or

software in the form

of a .csv (comma

separated variable)

file. Supported

products are: Power

Xpert Gateway

PXG600, PXGX1000,

PXGX2000, Power

Xpert Meters 2000/

4000/6000/8000

and Power Xpert

Software.

f. Data Trending—

Viewing trended data

in a standard Web

browser interface in

the form of a graphed

line for one or more

data points is available

for the following

products: Power

Xpert Gateway

PXG600, PXGX1000,

PXGX2000, Power

Xpert Meters 2000/

4000/6000/8000

and Power Xpert

Software.

g. Waveform Capture—

The ability to capture

a waveform and/or

export the waveform

as a standard

comtrade file format

is available on the

following products:

Power Xpert Meters

4000/6000/8000.

h. Waveform Acquisition

and Export—The

ability to acquire a

waveform from

another device that

natively captures a

waveform internally

and then export that

waveform in a

standard comtrade

file format is

supported by the

following devices:

PXG600 (provides

data acquisition and

comtrade conversion

for: IQ Analyzer,

DT1150 and FP5000).

Note: The Power Xpert Meters

4000/6000/8000 also export

natively captured waveforms as

comtrade file format.

i. Third-Party HMI

Software Integration—

Is achieved through

the Modbus TCP/IP

interface on all Power

Xpert devices. If

PowerNet software is

utilized in the system,

then an OPC Server

is available.

j. Proprietary Serial

Device Protocols over

Ethernet—The ability

to communicate with

third-party equipment

is achieved through a

Power Xpert Gateway

via Modbus 485 or

Modbus Serial.

k. BACnet/WS+ —

Is based upon the

protocol specification

developed by the

ASHRAE standards

group as an

Addendum c to

Standard 135-2004.

Reference: [BACnet—

A Data

Communication

Protocol for Building

Automation and

Control Networks.

Public Review Draft,

ASHRAE Standard.

BSR/ASHRAE

Addendum c to ANSI/

ASHRAE Standard

135-2004. First Public

Review. Released:

October 22, 2004.

32 pages. Copyright

Society of Heating,

Refrigerating and

Air-Conditioning

Engineers, Inc.

August 30, 2004.]

This draft shows proposed

changes to the current

BACnet standard.

Note: Eaton has extended this

protocol addendum with a (+) to

signify the addition of an “event-

driven” behavior to the existing

“polled” data acquisition model.

This allows optimization in

communications between Power

Xpert devices and Power Xpert

Software.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-5

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

l. CEC

(Communications

Expansion Card

PXMCE-B)—This card

must be ordered as

an option on the

Power Xpert Meters

4000/6000/8000 to

provide Ethernet

connectivity for use

with a Web browser,

interface to Power

Xpert Software or

third-party HMI

software.

m. Ethernet Switch—

The Eaton Ethernet

Switch provides

connectivity between

Power Xpert devices

on a common

subnetwork. The

6-port version of

the switch shown

provides (6) RJ-45

network ports. As

an option, 1 or 2 of

these ports can be

substituted to be

ST-Type Fiber

connections.

n. Single-port Device

Server—Is a device

that is used to add

network connectivity

to a single serial

device. These device

servers offer a single

RS-232/485 serial port

to connect a variety

of serial devices

including meter

devices, UPS, PDU,

Static Switch,

Automatic Transfer

Switch, generators,

Computer Room Air

Conditioners, and

other commercial,

industrial or business

automation

equipment. The

serial ports use

standard RJ-45 or

DB-9 connectors for

convenient cabling,

and optional adapters

are available as well.

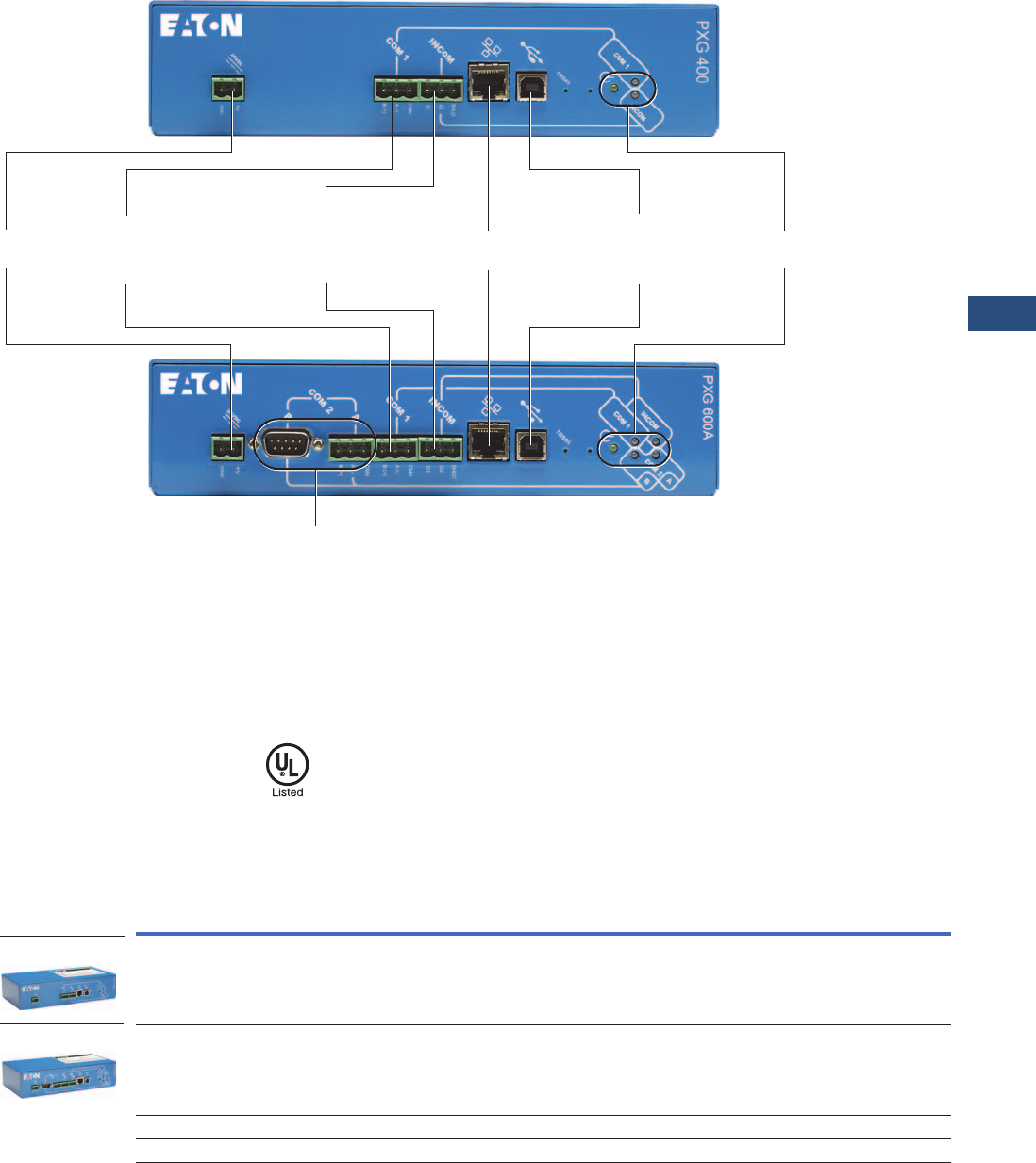

o. PXG600A COM2

Port—Is used to

communicate on a

Modbus RS-232/485

network or on an

Eaton QC-Port (IT)

bus. The user may

choose between a

DB-9 or terminal strip

connector to connect

up to 32, RS-45 serial

devices.

p. PXG600A COM1

Port—Is used

to communicate on a

Modbus RS-232/485

network or on an

Eaton QC-Port (IT)

bus. A terminal strip

connector is provided

for this interface. Up

to 32 devices may

be connected to

this port.

q. PXG600A INCOM

Port—Is used to

communicate on an

Eaton INCOM device

network only. Up to

64 devices may

be connected to

this port.

r. PXG400 Ports—The

ports on the PXG400

operate the same as

on the PXG600;

however, there is

only one RS-232/485

port to be used for

Modbus or QC-Port.

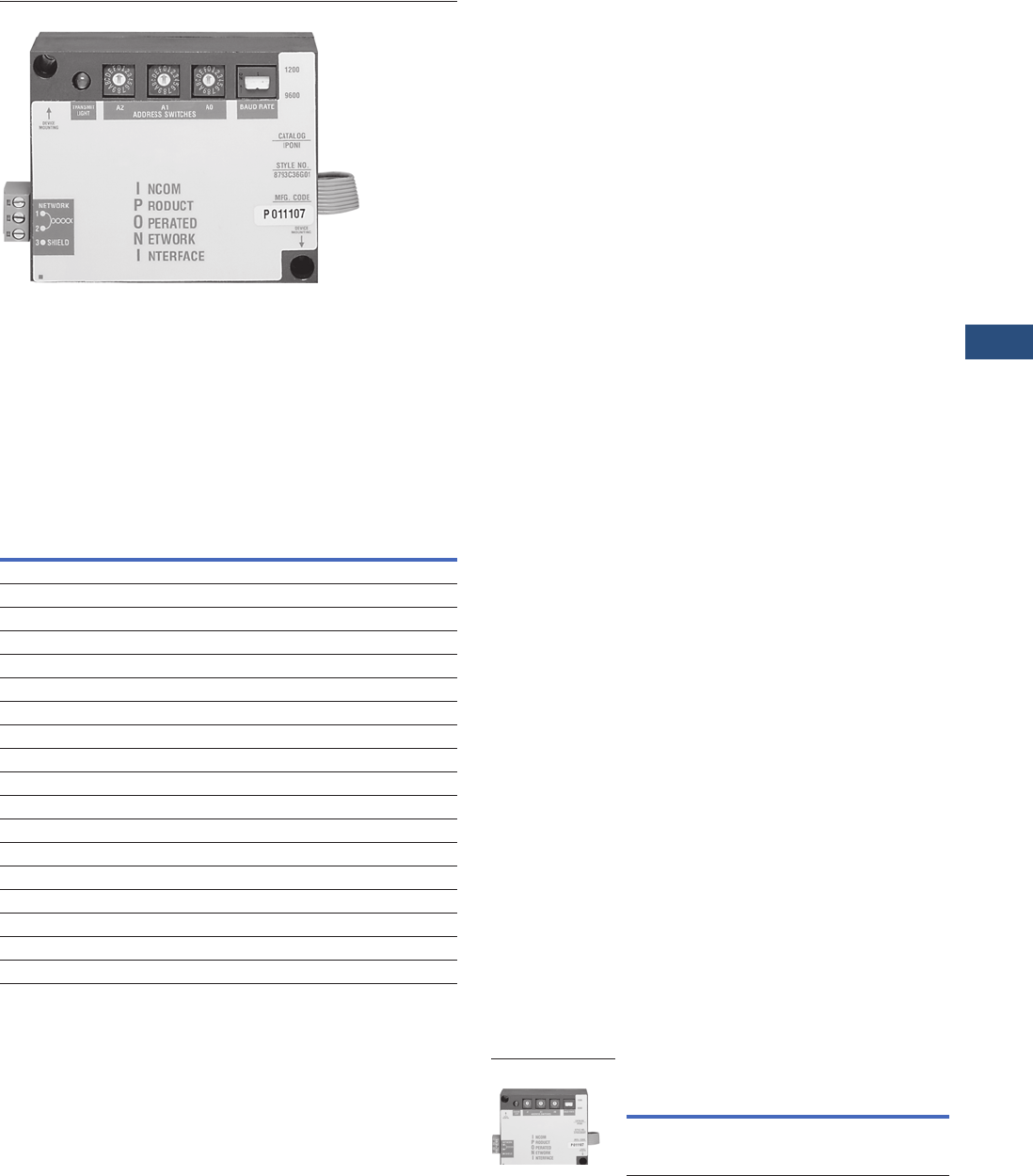

s. PONI (Product

Oriented Network

Interface)—Is used

to connect the

Advantage Central

Monitoring Unit (18),

the Breaker Interface

Module (10), and the

Central Energy

Display (13),an IQ

Analyzer (6),and the

IQ DP-4000 (7) to an

INCOM network.

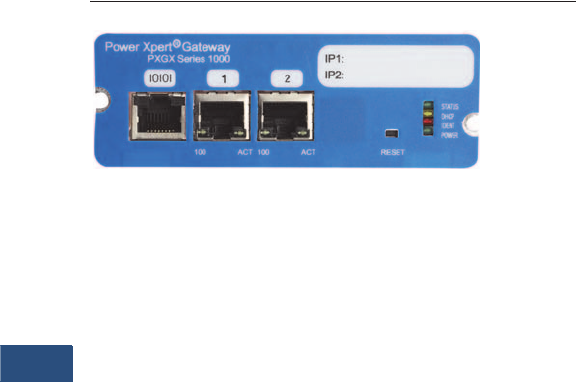

t. PXGX1000 Card—

Is used to connect

an Eaton PDU (Power

Distribution Unit) or

RPP (Remote Power

Panel) to an Ethernet

network. Available

interfaces are: HTTP

(Web) SNMP, SMTP

(e-mail), Modbus TCP/

IP and BACnet/WS+.

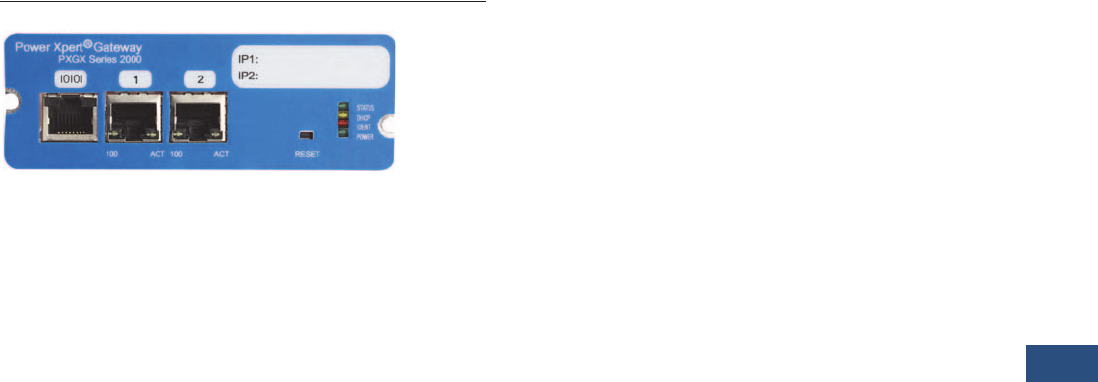

u. PXGX2000 Card—

Is used to connect

an Eaton UPS to an

Ethernet network.

Available interfaces

are: HTTP (Web)

SNMP, SMTP (e-mail),

Modbus TCP/IP and

BACnet/WS+.

Important Note: When

connecting multiple Modbus

RTU devices to either a

multiport terminal server or

a Power Xpert Gateway 400/

600 over an RS-485 daisy

chain network, the baud rate,

data frame (stop bits, data

bits and parity), byte order

(standard or reversed) and

physical wiring (two-wire or

four-wire) must be the same

for all devices connected.

V3-T9-6 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Deployment Levels

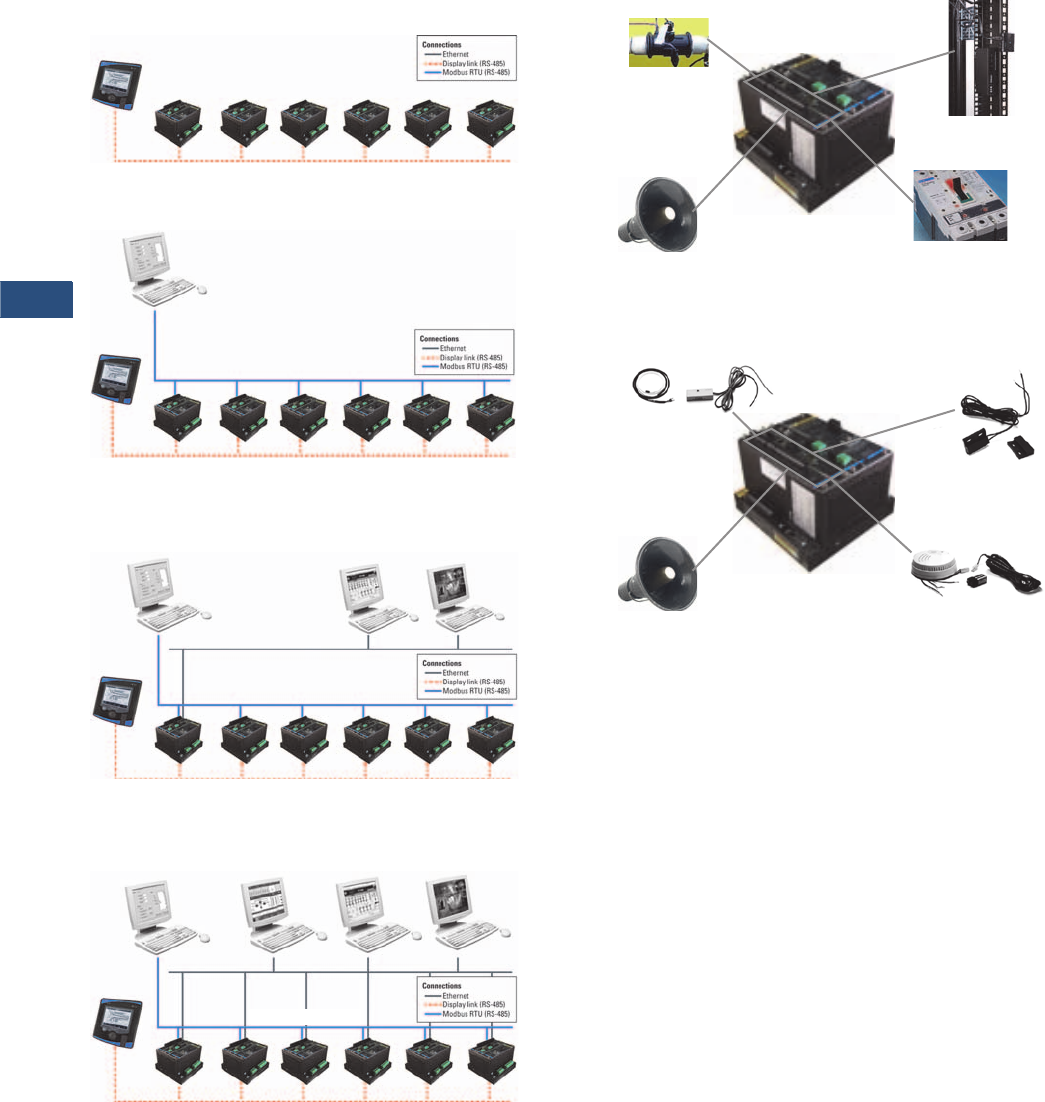

1. Web Browser monitoring

for a single device

2. Web Browser monitoring

for multiple devices

3. Web Browser monitoring

with centralized

management

4. Customized Web-based

graphics and third-party

device support

Power Xpert Architecture

Hardware/Software

Products

Power Xpert hardware/

software products were

developed to provide a highly

intuitive local user interface

that simplifies complex real-

time data into meaningful

information. At a glance, a

user can quickly determine

if a critical parameter in their

power system, (such as

voltage, current or kWH),

falls within or outside of an

acceptable operational range.

Power Xpert devices provide

the intelligent hardware

connectivity layer to

allow Web-enabled

communications over an

Ethernet TCP/IP network.

These devices can act as

standalone Web servers or as

part of a coordinated system

with Power Xpert Software

consolidating and analyzing

the combined system data.

The Power Xpert Meter family

and the Power Xpert Gateway

family are microprocessor-

based, Web-enabled,

communicating devices

from Eaton that make up the

Power Xpert Architecture.

Power Xpert Meters

Power Xpert Meters 2000/

4000/6000/8000 offer Eaton

customers a new level of

accessibility to the critical

information required to

manage their electrical

distribution system. The

meter’s embedded Web

server includes real-time

circuit information in both

numeric and graphical visual

formats that can be viewed

on its local display or through

a Web browser via the

Internet or a customer’s

intranet.

The Power Xpert Meters

4000/6000/8000 are the

benchmark for intelligent

Web-enabled power quality

metering instruments. The

meters include high-speed

sampling and measurement

of the critical elements,

(i.e., voltage, power, current,

transients or harmonics),

in a facility’s power system.

See Page V3-T9-21 for

detailed information on the

Power Xpert Meters.

All Power Xpert Meters

provide a standard

communications protocol

for easy integration into

other systems.

Power Xpert Gateways

Power Xpert Gateways are

intelligent communication

devices that Web-enable one

or more electrical devices

so they become visible to

a browser on an Ethernet

network. The Power Xpert

Gateways are capable of

providing communications

conversion from one network

field bus protocol to an

other—for example, INCOM

to Ethernet.

Power Xpert Gateway

devices are a key component

in the Power Xpert

Architecture. They allow a

user to optimize their existing

investment in Eaton’s

communicating devices such

as IQ Meters, Digitrip™

Breaker Trip Units, Protective

and Overload Relays and IT.

Motor Starters. They can

also extend state-of-the-art

connectivity to third-party

devices that communicate

using Modbus RTU protocol

over an RS-485 field bus.

See Page V3-T9-259 for

detailed information on the

Power Xpert Gateways.

Power Xpert Software

Power Xpert Software, an

integral part of the overall

Power Xpert Architecture, is a

comprehensive solution for

system-level management

of your power infrastructure

via a Web-browser, from

any desktop, on one screen.

Power Xpert Software is

designed to take the

complexity out of managing

your power system and

provides a clear picture of

what is happening at a

component, device and

system level. Power Xpert

Software provides insight into

cost savings and downtime

prevention. For detailed

information on Power

Xpert Software, see

Page V3-T9-14.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-7

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Configuration Guidelines

With Power Xpert devices

(sophisticated, Web-

enabled, high-definition

communications) and a

simple Web browser,

users can interrogate single

devices directly, groups of

devices connected through

gateways, or connect

through software managing

multiple devices and

gateways. Using the Eaton

system, users are free to

combine ways in which

they view their devices.

Applications generally fall

into four primary categories.

Eaton has developed an easy

way to provide the preferred

solution, using the following

configuration deployment

strategies as example

application categories.

See Page V3-T9-8.

Configuration Guidelines

Application

Categories Level Description

Implementation

Details

Small/Smart

Hardware

installation

0Web browser access directly to an individual Power

Xpert device, i.e., Power Xpert Meter or Eaton UPS w/

optional Power Xpert Gateway Series 2000 card

installed.

Easy configuration to enable Web browser monitoring

for a single or small amount of Eaton devices, without

coordination between devices.

Medium

installation 1Web browser access to multiple Eaton devices and

third-party Modbus RTU devices through the Power

Xpert Gateway and/or Power Xpert Gateway Cards.

Easy setup to enable Web browser monitoring for

multiple Eaton devices, as well as third-party devices

that support Modbus RTU. Each Power Xpert Gateway/

Gateway Card acts as a standalone Web server.

Sophisticated

installation

2Web browser access to multiple Eaton and third-party

devices through Power Xpert Software. Devices

connect to Power Xpert Software by means of either

direct Web-enabled cards installed inside or via Power

Xpert Gateways. Includes device views for Eaton

equipment as standard.

Full suite of tools available to monitor overall system

health. Power Xpert provides complete control over

centralized alarm notification, reporting and escalation.

Tailored

solution

3Custom Web interface design using Eaton Electrical

Services group.

Integration of third-party devices and custom screens.

V3-T9-8 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Level 0—Small System with Smart Hardware

Example Applications

Power Xpert Meter in low

voltage switchgear and UPS.

Description

Configuration Level 0 offers

an easy means to Web-

enable a single Eaton device

provided that it is supported

by an optional Web

communications card that

can be installed directly into

the device.

Standard Features

●Real-time monitoring of

metered and alarm points

●Alarm history

●E-mail notification

●Communications settings

via the Web

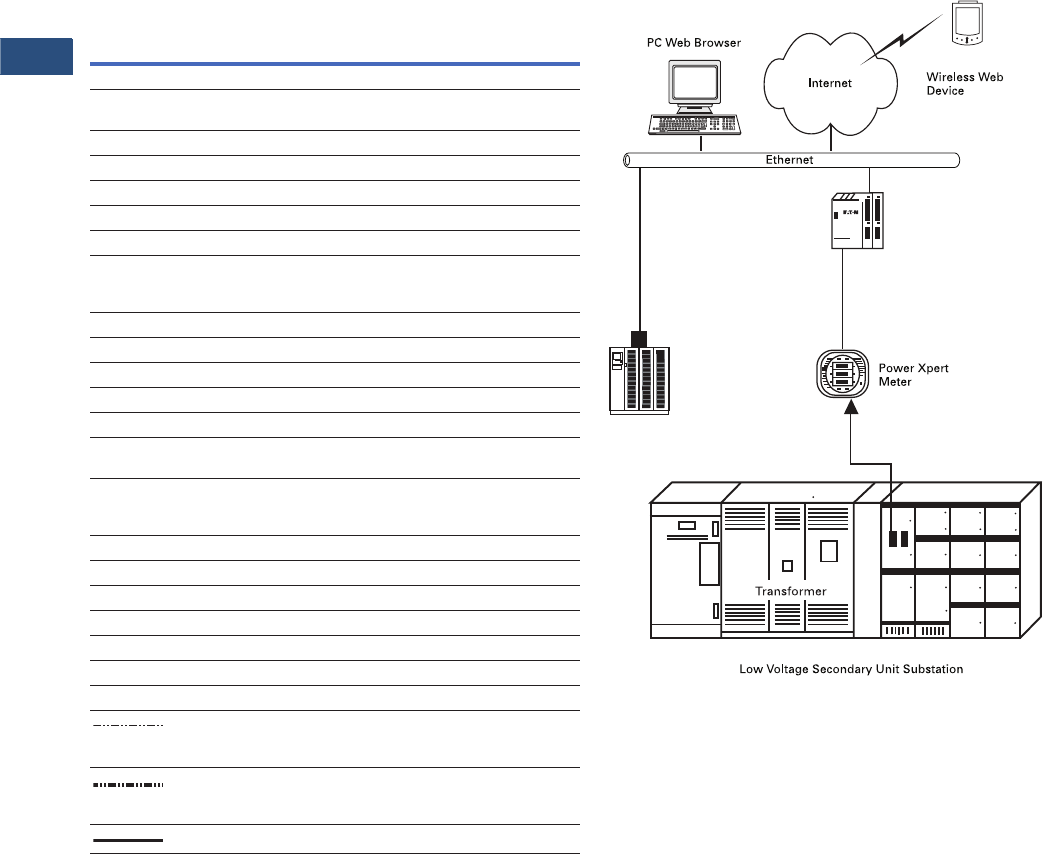

Small Installation with Smart Hardware

UPS

w/Power Xpert Gateway

Series 2000 Card

Power Xpert

Ethernet Switch

Functions/Devices

Drawing

Symbol

Function

Description

Eaton

Device

Monitoring Equipment

MM6GWP

Power Quality Meter Analyzer Power Xpert Meter

4000/6000/8000

MM4&P

Meter Monitor and Protection

IQ DP-4000

MM Meter Monitor IQ 100/IQ 200

SMM Sub-Metering Module IQ Energy Sentinel

Overcurrent/Short Circuit Protection

MVTU Medium Voltage Relay (> 600V) DT-3000, FP-5000

LVTU Low Voltage Trip Unit (d 600V) Digitrip RMS-810, 910,

520 MC or 1150

Digitrip OPTIM 750 or 1050

Motor Protection and Control

MPR Motor Protective Relay MP-3000

MMS Microprocessor Motor Starter IT. Starter

VFD Variable Frequency Drive SVX9000

Central Monitoring Panels

BIM II Breaker Interface Module II BIM II (used with Digitrip

OPTIM or Digitrip RMS)

LDISP Local Display and Sub-network

Master

Used with IQ Multipoint Energy

Submeter II or with

Energy/Power Sentinels

Other Devices

ATS Automatic Transfer Switch IQ Transfer

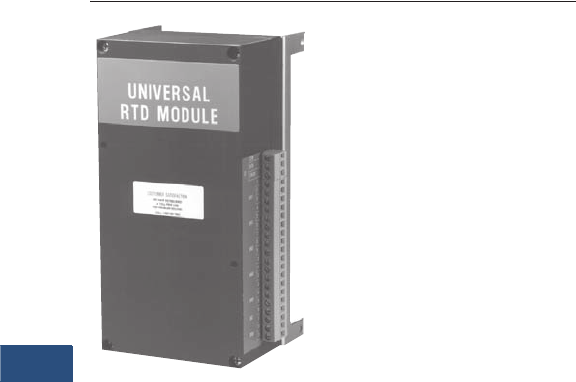

RTD Resistance Temperature Universal RTD Module

ADR Addressable Relay ADRII

C Product Communication Device IPONI

R Resistor-End of Line Resistor

■Terminal Block

IP, IN, IS Terminal Designation

Factory Twisted Pair Wiring IMPCABLE or

Belden YR29090 or

Belden 9463 Family

Field Twisted Pair Wiring IMPCABLE or

Belden YR29090 or

Belden 9463 Family

Field Ethernet Backbone CAT5 or multimode fiber

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-9

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Level 1—Using Power Xpert Gateways

Example Applications

Low and medium voltage

switchgear, motor control

centers and third-party

equipment via Modbus RTU.

Recommendation: Use one

Power Xpert Gateway device

per electrical assembly or

switchgear sub-section.

Description

Configuration Level 1 offers

an easy means to Web-

enable multiple Eaton devices

and third-party devices that

support Modbus RTU.

Standard Features

●Real-time monitoring of

metered and alarm points

●Communications settings

via the Web

●Alarm history

●E-mail notification

V3-T9-10 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Power Xpert Gateway

IT.

LV Secondary Unit Substation

MV VacClad-W Metal-Clad Switchgear

4&P

INCOM

Power Xpert

Ethernet Switch

Power Xpert

Ethernet Switch

Functions/Devices

Drawing

Symbol

Function

Description

Eaton

Device

Monitoring Equipment

MM6GWP

Power Quality Meter Analyzer Power Xpert Meter 4000/6000/8000

MM4&P

Meter Monitor and Protection

IQ DP-4000

MM Meter Monitor IQ 100/IQ 200

SMM Sub-Metering Module IQ Energy Sentinel

Overcurrent/Short Circuit Protection

MVTU Medium Voltage Relay (> 600V) DT-3000, FP-5000

LVTU Low Voltage Trip Unit (d 600V) Digitrip RMS-810, 910,

520 MC or 1150

Digitrip OPTIM 750 or 1050

Motor Protection and Control

MPR Motor Protective Relay MP-3000

MMS Microprocessor Motor Starter IT. Starter

VFD Variable Frequency Drive SVX9000

Central Monitoring Panels

BIM II Breaker Interface Module II BIM II (used with Digitrip

OPTIM or Digitrip RMS)

LDISP Local Display and Sub-network

Master Used with IQ Multipoint Energy

Submeter II or with

Energy/Power Sentinels

Other Devices

ATS Automatic Transfer Switch IQ Transfer

RTD Resistance Temperature Universal RTD Module

ADR Addressable Relay ADRII

C Product Communication Device IPONI

R Resistor-End of Line Resistor

■Terminal Block

IP, IN, IS Terminal Designation

Factory Twisted Pair Wiring IMPCABLE or

Belden YR29090 or

Belden 9463 Family

Field Twisted Pair Wiring IMPCABLE or

Belden YR29090 or

Belden 9463 Family

Field Ethernet Backbone CAT5 or multimode fiber

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-11

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

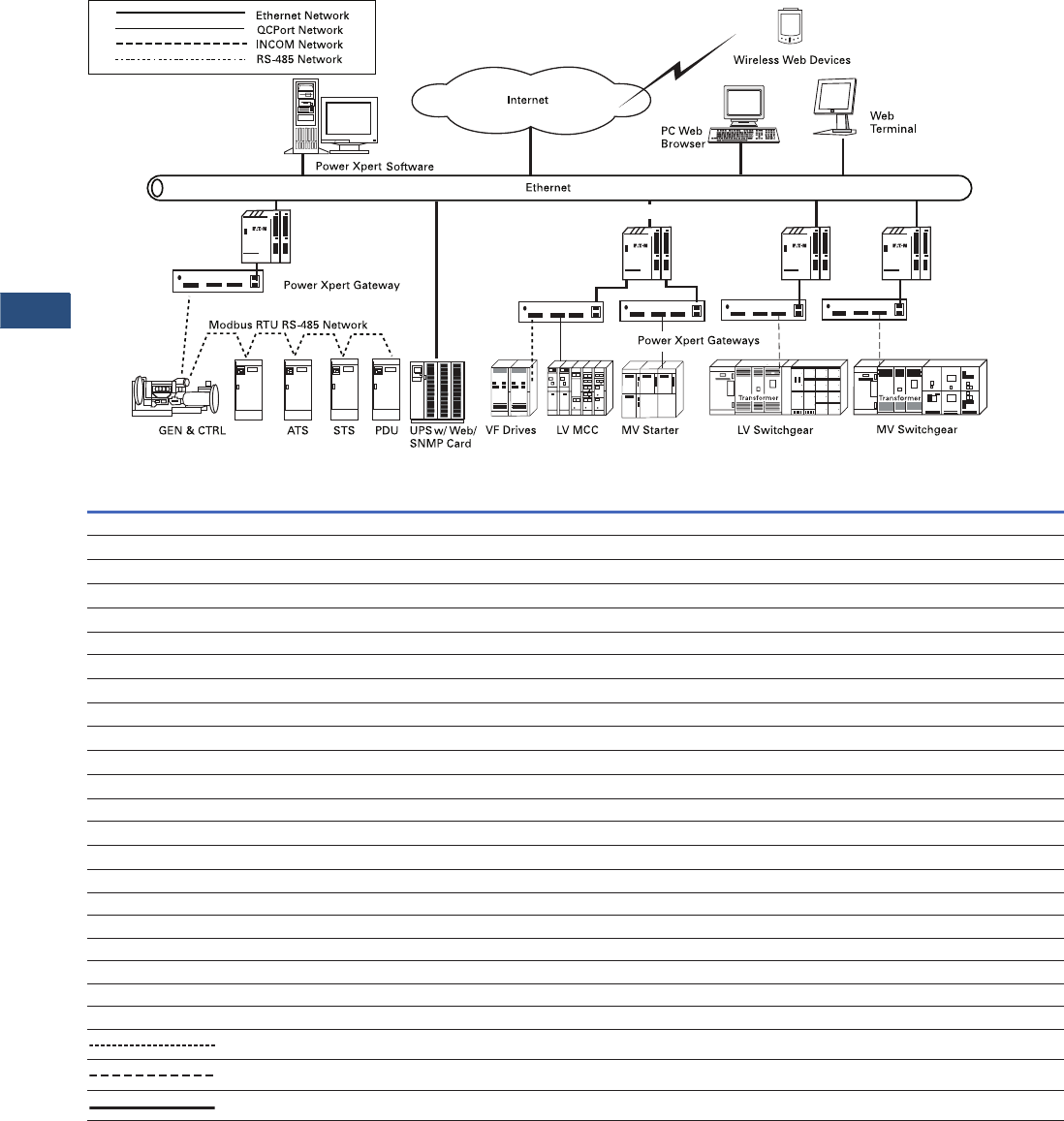

Level 2—Power Xpert Software

Example Applications

All Eaton devices and third-

party devices that support

Modbus TCP and SNMP in

addition to third-party Modbus

RTU devices via the Power

Xpert Gateway.

Description

Configuration Level 2 offers

an easy means to Web-

enable and centrally manage

all Eaton devices that can

be connected directly to an

Ethernet network or via

a Power Xpert Gateway

device. Power Xpert

Software provides a rich

set of standard features,

as well as premier value

add-on option modules.

Standard Features

●Real-time monitoring of

metered and alarm points

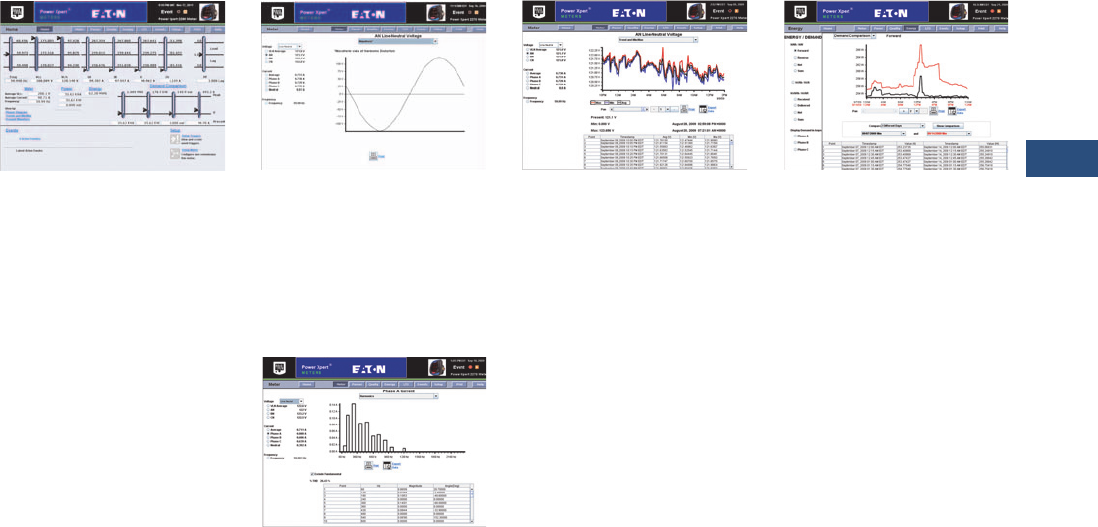

●Full color Web-based

graphics package with

standard views for all

Eaton devices

●E-mail notification

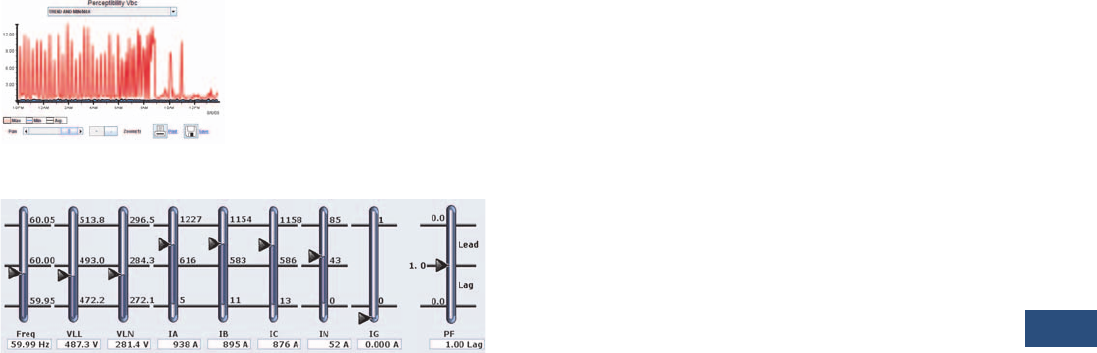

●Data trending and graphing

Optional Add-on Features

●Web-based graphics editor

to design floor plan and

third-party device views

●Energy consumption

analysis and tenant billing

●Power quality analysis and

waveform viewing

●Modbus TCP tool to import

third-party devices

●SNMP tool to compile

SNMP MIB (Management

Information Base) files

from various third-party

devices

V3-T9-12 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Power Xpert Software

Power Xpert

Ethernet Switch

Power Xpert Ethernet Switches

Functions/Devices

Drawing Symbol Function Description Eaton Device

Monitoring Equipment

MM6GWP

Power Quality Meter Analyzer Power Xpert Meter 4000/6000/8000

MM4&P

Meter Monitor and Protection

IQ DP-4000

MM Meter Monitor IQ 100/IQ 200

SMM Sub-Metering Module IQ Energy Sentinel

Overcurrent/Short Circuit Protection

MVTU Medium Voltage Relay (> 600V) DT-3000, FP-5000

LVTU Low Voltage Trip Unit (d 600V) Digitrip RMS-810, 910, 520 MC or 1150/Digitrip OPTIM 750 or 1050

Motor Protection and Control

MPR Motor Protective Relay MP-3000

MMS Microprocessor Motor Starter IT. Starter

VFD Variable Frequency Drive SVX9000

Central Monitoring Panels

BIM II Breaker Interface Module II BIM II (used with Digitrip OPTIM or Digitrip RMS)

LDISP Local Display and Sub-network Master Used with IQ Multipoint Energy Submeter II or with Energy/Power Sentinels

Other Devices

ATS Automatic Transfer Switch IQ Transfer

RTD Resistance Temperature Universal RTD Module

ADR Addressable Relay ADRII

C Product Communication Device IPONI

R Resistor-End of Line Resistor

■Terminal Block

IP, IN, IS Terminal Designation

Factory Twisted Pair Wiring IMPCABLE or Belden YR29090 or Belden 9463 Family

Field Twisted Pair Wiring IMPCABLE or Belden YR29090 or Belden 9463 Family

Field Ethernet Backbone CAT5 or multimode fiber

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-13

9.1

Metering Devices, Protective Relays, Software and Connectivity

Power Xpert Architecture

Level 3—Eaton’s Electrical Services & Systems (EESS)

Customized Software Solutions

Available Applications

Any manufacturer’s equipment that is supported by the

EESS extensive device driver support list or request a custom

quotation to obtain support.

Description

Configuration Level 3 offers an extensive service offering for

the delivery of customized graphics and support for third-party

proprietary device driver support.

Enhanced Features

●Customized one-line diagrams to portray realistic operation

of the complete power distribution system

Power Distribution System One-Line Diagram

●Customized navigation systems to allow the operator to

navigate the software in a similar paradigm that is consistent

with the way they would describe their organization from a

functional or departmental standpoint

Customized Navigation System

V3-T9-14 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

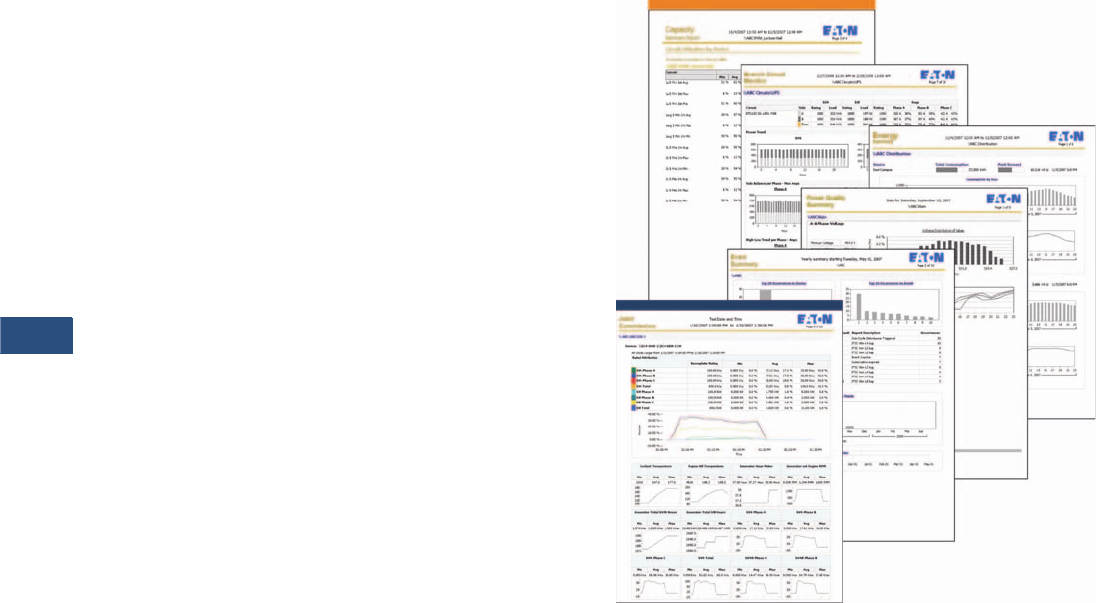

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Power Xpert Software

Contents

Description Page

Power Xpert Software

Product Selection Guide . . . . . . . . . . . . . . . . . . V3-T9-15

Features and Benefits . . . . . . . . . . . . . . . . . . . . V3-T9-16

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V3-T9-19

An Eaton

Green Solution

Power Xpert Software

Product Description

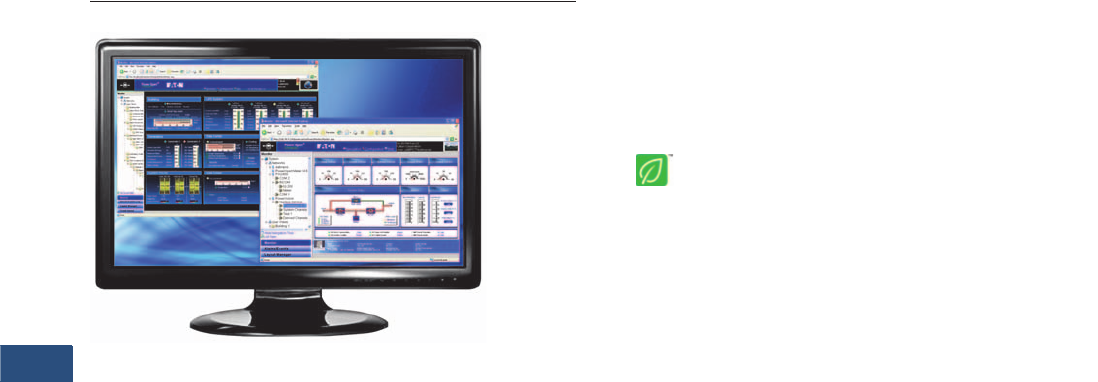

Power Xpert Software is the

fusion of key components of

PowerNet and PowerVision

Software into a single

power monitoring package,

which includes ease of

interconnectivity to a wide

range of Eaton and third-party

communicating devices.

Power Xpert Software

provides an easy upgrade

path to allow existing

PowerNet users to enjoy the

benefits of power monitoring

through a simple Web

browser interface. It provides

a complete software solution

to manage your power

system. Critical components

such as metering devices,

protective relays, circuit

breaker trip units, motor

starters and uninterruptible

power supplies communicate

vital information about the

health and status of critical

infrastructure devices.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-15

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Product Selection Guide

Power Xpert Software Professional Edition

●Geared toward end users, with built-in support for Eaton

power distribution products such as switchgear, UPSs,

breakers, PDUs, RPPs, meters, relays, VFDs and MCCs,

among others

●Eaton products connect with the software directly via an

Ethernet connection, while legacy devices use a Power Xpert

Gateway to Web-enable their communications

●A subset of third-party meters and devices are supported as

standard via the gateway connection

Power Xpert Software Enterprise Edition

●Geared toward advanced power users, system integrators and

enterprises with heterogeneous device spectrum and system

developers who can take advantage of the included SNMP

and Modbus integration development utilities

●Extensive support for third-party devices via standard SNMP

and Modbus TCP protocols

●Large variety of ready made, optional third-party drop in

drivers available

Power Xpert Software Features

Feature Sets

Power Xpert Software

Professional Edition

Power Xpert Software

Enterprise Edition

Server module ■■

Trend viewer module ■■

Layout manager module ■■

Quality manager module ■■

Eaton device support (switchgear, UPSs, breakers, ePDUs, meters,

relays, VDFs, MCCs, etc.)

■■

Power Xpert Gateway third-party device support ■■

SNMP connector ■

Modbus connector ■

Optional third-party driver support ■

Custom third-party device driver support ■

V3-T9-16 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

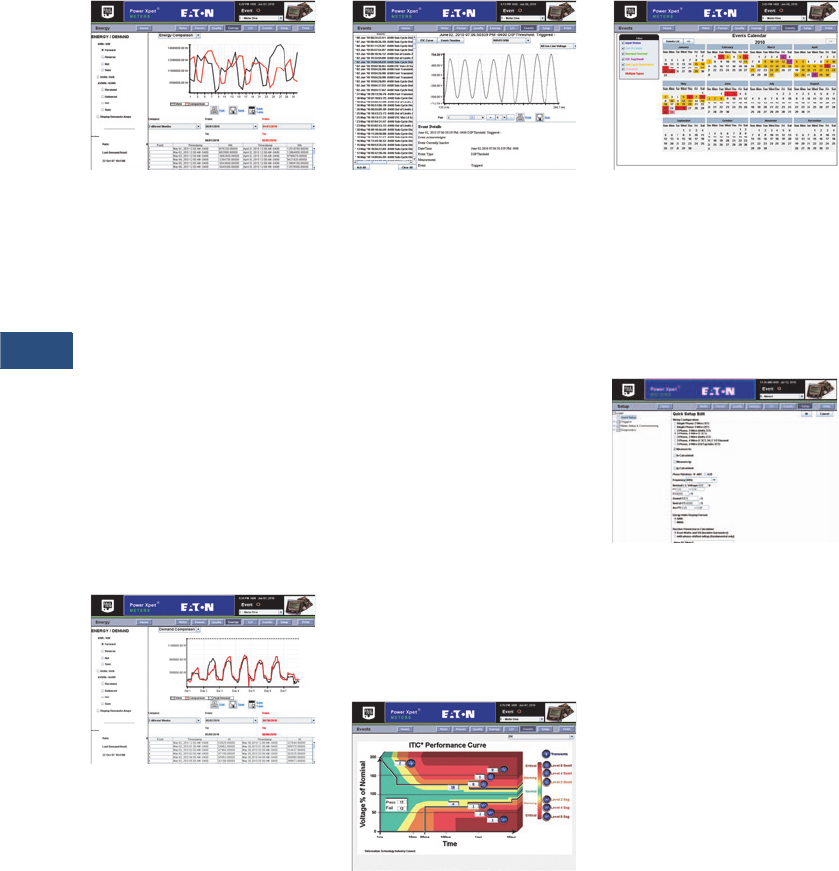

Features and Benefits

Power Xpert Software

Feature Benefit

General

Web browser user interface There is no need to install a separate client piece of software on your computer. Simple and easy access via Web browser from any location in

the world.

Web-based monitoring capabilities Monitor all power system equipment through the Internet.

Downloadable software version updates Receive the latest enhancements and versions via downloads available from Eaton’s Web site.

Event Notification

Event notification via e-mail notification Receive automatic e-mails when events are triggered.

Event notification via pagers, text message or third-

party interfaces

Receive alarms on event changes via pagers, text message or third-party interfaces.

Alarm state management Acknowledge, clear and close alarms through Power Xpert Software.

Event indicator displayed without Web page active The Web page you are on does not need to be active to display the event indicator.

Alarm/event searching and filtering Conveniently search and filter alarms and events to quickly find what you are looking for.

Waveform attached to applicable power event Waveforms captured by meters are attached to actual power events, making them easy to understand and interpret.

Web browser based waveform viewing There is no need to install a separate waveform viewer on your computer. Waveforms can be easily reviewed right in your Web browser.

Alarm capabilities based on device driven events Alarms and triggered events come to the software directly from the associated devices, eliminating false alarms.

Analysis and Trending

Graphic Trend Viewer Displays power system device measurements in an easy-to-understand graphical chart format.

Chart or data option selection Conveniently view the data in either spreadsheet type data format or a graphic line chart plot.

Multiple trends display Displaying multiple trends at a time helps analyze event ramifications and impact in more detail.

Multiple axis support Multiple trends can be plotted on multiple x and y axis, displaying pertinent time and scale information.

View multiple variables (i.e., Ia, Ib, Ic, Vab, Vbc, etc.)

for a single waveform

Multiple waveform variables can be viewed at a time, eliminating the need of changing views frequently.

Standard COMTRADE file format support View, import and open any waveform captures in standard IEEE® (C37.111-1999) COMTRADE file format.

Customizable Trend Viewer look and feel The formatting of the data, and the look and feel of it can be easily customized according to user preferences.

Fixed or custom time frames Information displayed in the Trend Viewer can have either system-defined fixed or user-selected custom time frames.

Trend analysis capabilities Trends can be easily spotted and analyzed on screen or exported to third-party software for further analysis if necessary.

Data export Trend data can be easily exported to Excel for further analysis.

Custom Graphics and Layouts

Custom graphics development via Web browser Customized Web pages can be easily developed using a plain Web browser, eliminating the need to install a separate application

to be installed, learned and utilized.

Four user view example templates included as standard Easily use ‘as is’ or modify as necessary: data center, plant, hospital and geographical layout templates.

iFrame capability iFrames enable embedding browser portals into custom Web page layouts.

Browser Portal Widget support Browser Portal Widgets can be embedded in iFrames to accommodate streaming media feeds.

Streaming media support Multiple streaming media feeds can be embedded into a single Web page, utilizing iFrames technology.

Graphic object library included as standard A large object library including most common power devices is embedded within the system, enabling the user to develop mimic

screens from the start.

ISO® standard electrical picture objects available Add ISO standard compliant graphics to one-line diagrams or other layouts for ISO compatibility.

Graphic files import capability Import floor plans, street maps or photographs to be used as background images or mimic objects in Web pages.

Graphic object animation capability Graphics can be animated based on event and threshold changes. An object could change color, for example, when a threshold is reached.

Gauge object library support A multitude of gauges are provided in the standard object library to enable easy Web page custom measurement gauges design.

External Web links support Add Web links to Power Xpert Software pages, which link to any device, Web page on the Internet and network around the globe with a

Web user interface.

Alarm bubble-up support through several page layers Alarms can be easily bubbled-up through multiple Web pages with the folder link feature. Event can be seen on the topmost page and the

user can drill down for more information.

Trend object support Trend objects can be embedded into the layout, enabling viewing the data directly in the Trend Viewer.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-17

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Power Xpert Software, continued

Note: These specifications are subject to change without notice and represent the maximum capabilities of the product with all options installed. This is not a complete feature list. Features and

functionality may vary depending on selected options and product model. Please refer to the technical data sheet and user manual for detailed specifications.

Communication Protocol Support

Feature Benefit

UPS Shutdown

File saving during shutdown During an emergency shutdown due to an extended power failure outlasting the UPS battery, open files on the computer systems

are closed and saved in an orderly fashion.

Automatic, orderly and sequential shutdown All operating systems running Power Xpert Software Shutdown Agent will be shut down in an orderly and sequential fashion to

prevent data loss.

Parallel redundant UPS shutdown capability Built-in software logic will initiate shutdown only after UPS redundancy has been lost and the last UPS is out of runtime.

Security and Administration

Windows Authentication Security Control access to Power Xpert Software via Windows® Authentication Service.

Two-tier secure system access support Access the Power Xpert Software with read or write privileges to prevent unauthorized tampering.

SSL Supported via OpenSSL.

Secure Web browser access (support for HTTPS) Supported via OpenSSL.

Time Synchronization

Time synchronization support for connected devices

with 1 millisecond time resolution

Millisecond-based timestamp support (when supported by connected device) enables understanding the sequence of rapidly occurring events.

Export and Integration

Extended Excel® spreadsheet support Open report files directly in Excel.

SQL database query support Power Xpert uses standard SQL database format that can be queried by third-party applications for system integration and data exchange.

Logs

System Log The System Log gathers information on system-level events for error and security purposes.

Error Log The Error Log gathers information on errors occurred for diagnostic purposes.

Service

Eaton help desk services (1-877-ETN-CARE) Call Eaton to speak directly to a product specialist providing support for the software.

Turnkey startup service Purchase a 1, 2 or 5-day startup service package from Eaton for turnkey system installation and configuration.

System Backup

Power Xpert Software system backup Easily back up Power Xpert software including configurations, user views and device setups.

Documentation and Training Videos

System Administrator’s Guide Guides users on how to administer Power Xpert Software.

Power Xpert Software User’s Guide Detailed information of Power Xpert Software features and functionality along with screenshots and references.

Layout Manager Guide Detailed information on how to use Layout Manager’s features and functionality to create custom graphic system pages.

Quick Start Guide Takes the guesswork out of initial software installation and configuration with clear step-by-step instructions on how to get started.

Power Xpert Software Introduction and Training Video Learn the main features and functionality of Power Xpert Software by watching a hands-on video showing you how to install, configure

and use the software.

Power Xpert Reporting Introduction and Training Video Learn the main features and functionality of Power Xpert Reporting by watching a hands-on video showing you how to install and configure

reporting. Included are step-by-step instructions on how create reporting hierarchies and pull data out of different databases.

Communication Protocol Description

Dry-contact/contact closure/relay Contact closure support is enabled via various Eaton Gateway devices. Please refer to Power Xpert Software Hardware Compatibility List for details.

BACnet WS+ BACnet WS+

Modbus RTU Modbus RTU

Modbus TCP Modbus Protocol over TCP

TCP/IP Transmission Control Protocol

SNMP Simple Network Management Protocol

SMTP Simple Mail Transfer Protocol

INCOM Eaton Legacy Protocol

HTTP Hypertext Transfer Protocol

HTTPS Hypertext Transfer Protocol with SSL

SSL Secure Sockets Layer

V3-T9-18 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Power Xpert Reporting—the perfect complement

Power Xpert Reporting helps bring information from the

software together. Power Xpert Software brings together your

power system information from around the floor to around the

world—data and information that is invaluable. Power Xpert

Reporting brings all the power system information together to

compare, contrast and generally give you the big picture. Power

Xpert Reporting provides a standard set of reports, including:

●Data Center Efficiency Report: A summary of data center

infrastructure efficiency and power usage effectiveness,

including such information as temperature and humidity, and

energy consumption

●Greenhouse Gas Report: Captures the six offensive

greenhouse gasses: Carbon Dioxide, Sulfur Dioxide, Nitrogen

Oxide, Mercury, Methane and Nitrous Oxide broken down by

selected locations within a facility

●Utilities Report: Captures consumption of water, air, gas,

electricity and steam (WAGES)

●Capacity Summary Report: The summary of top- and

bottom-loaded circuits, as well as loading details for each

circuit according to user-defined date/time range and facility

hierarchy location

●Branch Circuit Monitoring Report: Determine branch circuit

loading levels at a glance with color-coded graphics indicating

loading status against capacity. Redundant sources can be

reviewed, as well as single source loads

●Energy Summary Report: The summary of consumption

(kWh) and demand (kW) for a user-defined date/time range

and facility hierarchy location

●Energy Cost Allocation Report: The total energy bill dollar

value or a cost per kWh across a facility hierarchy for a user-

defined date/time range

●Power Quality Report: The distribution and trend for amps,

volts and THD according to user-defined date/time ranges and

facility hierarchy location

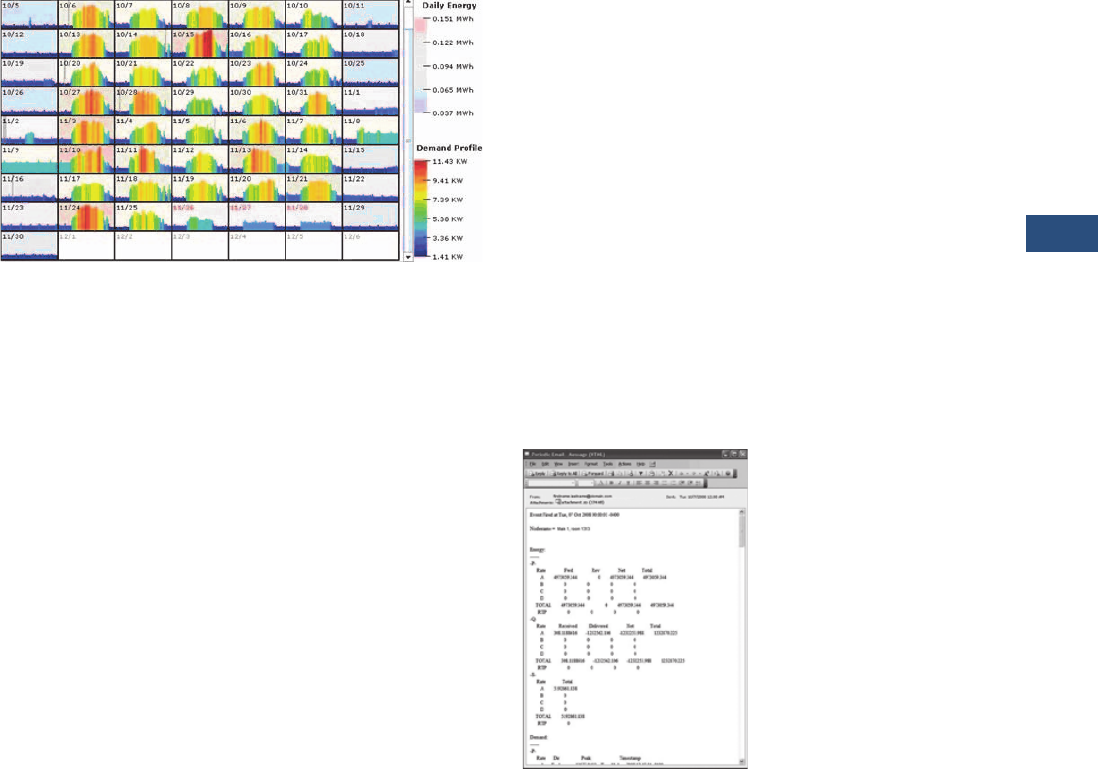

●Event Summary Report: Provides a Pareto chart of events

according to user-defined date/time ranges and facility

hierarchy location

●Joint Commission Report: Standard Joint Commission

compliant report supports hospital power test requirements.

It checks events, key metrics of generators and automatic

transfer switches (ATS) during generator testing at user-

defined date/time ranges and facility hierarchy location

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-19

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Product Selection

Power Xpert Software

Description

Catalog

Number

Power Xpert Software Professional Edition

Power Xpert Software Professional Edition PXS-PRO

Power Xpert Software Professional Edition w/ 1-day startup PXS-PROn1S

Power Xpert Software Professional Edition w/ 2-day startup PXS-PROn2S

Power Xpert Software Professional Edition w/ 5-day startup PXS-PROn5S

Power Xpert Software Professional Edition and Power Xpert Reporting PXS-PROnPXR

Power Xpert Software Enterprise Edition

Power Xpert Software Enterprise Edition PXS-ENT

Power Xpert Software Enterprise Edition w/ 1-day startup PXS-ENTn1S

Power Xpert Software Enterprise Edition w/ 2-day startup PXS-ENTn2S

Power Xpert Software Enterprise Edition w/ 5-day startup PXS-ENTn5S

Power Xpert Reporting

Power Xpert Reporting—single source DB connection PXR

Power Xpert Reporting—up to 2 source DB connections PXR-2DB

Power Xpert Reporting—up to 5 source DB connections PXR-5DB

Power Xpert Reporting—up to 10 source DB connections PXR-10DB

Power Xpert Reporting—up to 25 source DB connections PXR-25DB

Power Xpert Reporting—up to 50 source DB connections PXR-50DB

Service Packs

Power Xpert 1-day startup Service Pack PX-1S

Power Xpert 2-day startup Service Pack PX-2S

Power Xpert 5-day startup Service Pack PX-5S

V3-T9-20 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.2

Metering Devices, Protective Relays, Software and Connectivity

Monitoring Software and Reporting

Technical Data and Specifications

Hardware Requirements

Power Xpert Software (PXS) requires a server-class machine

with the following minimum hardware specifications:

You may wish to add the following hardware as well:

●Local printer

●Sound card (if sounds are assigned to specific

alarm conditions)

●Modem (for remote alarm notification to machines

not available via your network)

Software Requirements

Supported operating systems

●Microsoft® Windows Server 2003 R2 (Standard or Enterprise)

32-bit edition

●Microsoft Windows XP Professional (32-bit) with

Service Pack 3, 32-bit

●Windows Server 2008 (Standard or Enterprise),

32-bit or 64-bit

●Windows Server 2008 R2 (Server or Enterprise),

32-bit or 64-bit

●Windows 7 Professional, Ultimate or Enterprise editions,

either 32-bit or 64-bit

Software components

●IIS 5.0 or higher (must be installed prior to installing PXS; for

Windows 7 and Windows Server 2008, this is installed

automatically)

●Microsoft Internet Explorer® 7.0 or 8.0

Third-Party Software Installed

The following Microsoft software is also installed during the

PXS installation.

●.NET Framework 3.5 SP1

●Windows Installer 4.5

●C++ Runtime Library 2008

●Microsoft Data Access 2.8

●SQL Server 2008 Express SP2

●SQL Server 2005 Express Management Studio SP2

Hardware Specification

Processor 2.8 GHz, dual-core processor

Memory 2 GB allocated for PXS (allocate 3 GB

of memory to a virtual machine session

running PXS)

Disk space required for application The PXS application itself requires 190 MB of

disk storage

Disk space required for database A typical database will grow to 2 GB within a

year. If you have a large number of devices,

reserve additional storage space

Video resolution 1280 by 1024 pixels or higher

Removable media DVD RO driv

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-21

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Products Family

Contents

Description Page

Metering Products Family

Power Xpert Meter 4000/6000/8000 Series . . . . . . V3-T9-30

Power Xpert Meter 2000 Series . . . . . . . . . . . . . . . V3-T9-49

IQ 250/260 Series Electronic Power Meters. . . . . . V3-T9-60

IQ 130/140/150 Series Electronic Power Meters . . V3-T9-66

IQ 150S/250S Self-Enclosed Electronic Meters . . . V3-T9-71

IQ 35M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-76

IQ Analyzer 6400/6600 Series . . . . . . . . . . . . . . . . V3-T9-79

IQ DP-4000 Series . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-87

IQ 230 Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-93

Power Xpert Multi-Point Meter . . . . . . . . . . . . . . . . V3-T9-100

IQ Energy Sentinel™ . . . . . . . . . . . . . . . . . . . . . . . V3-T9-112

PM3 Monitoring and Metering Module . . . . . . . . . V3-T9-121

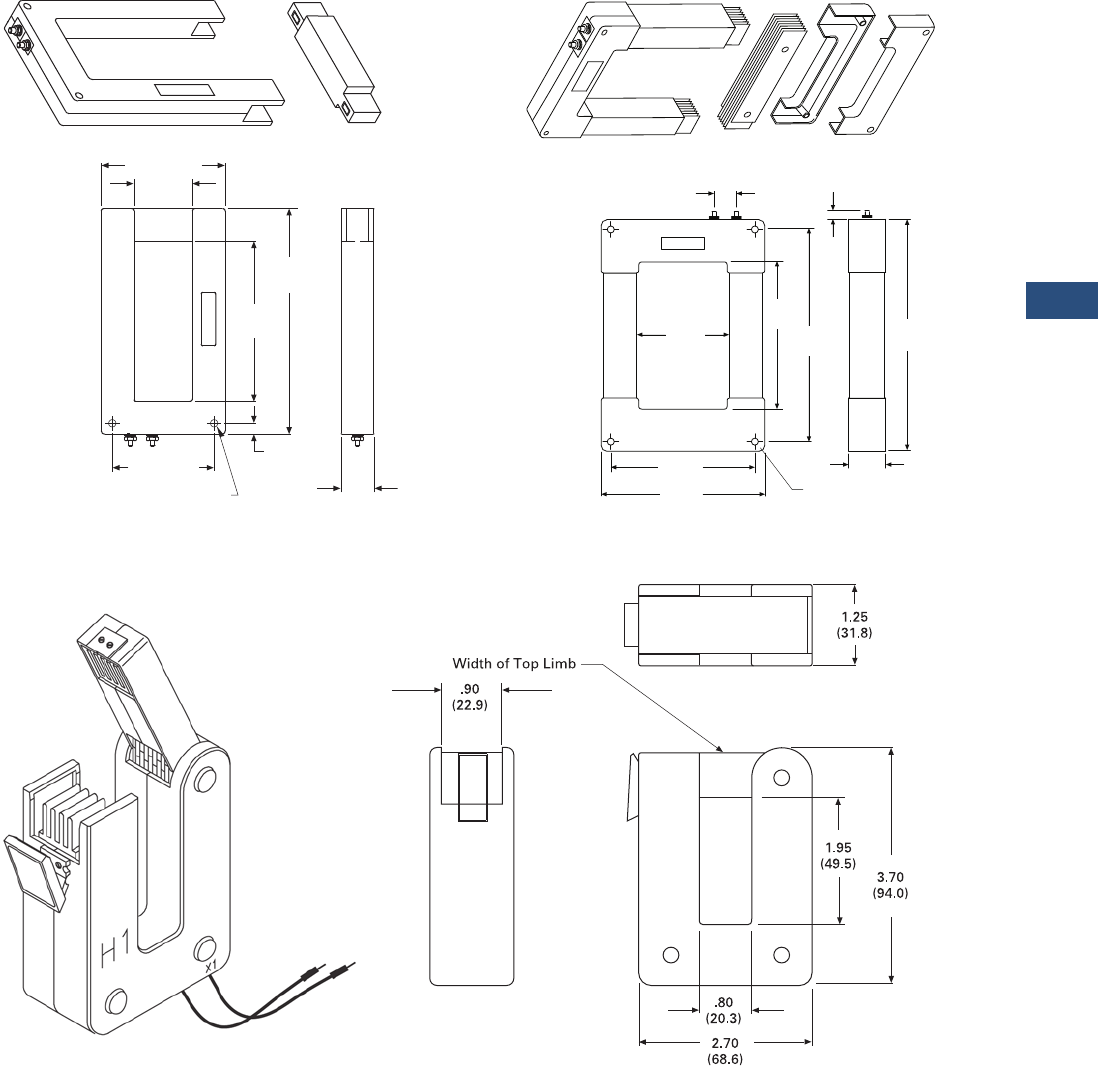

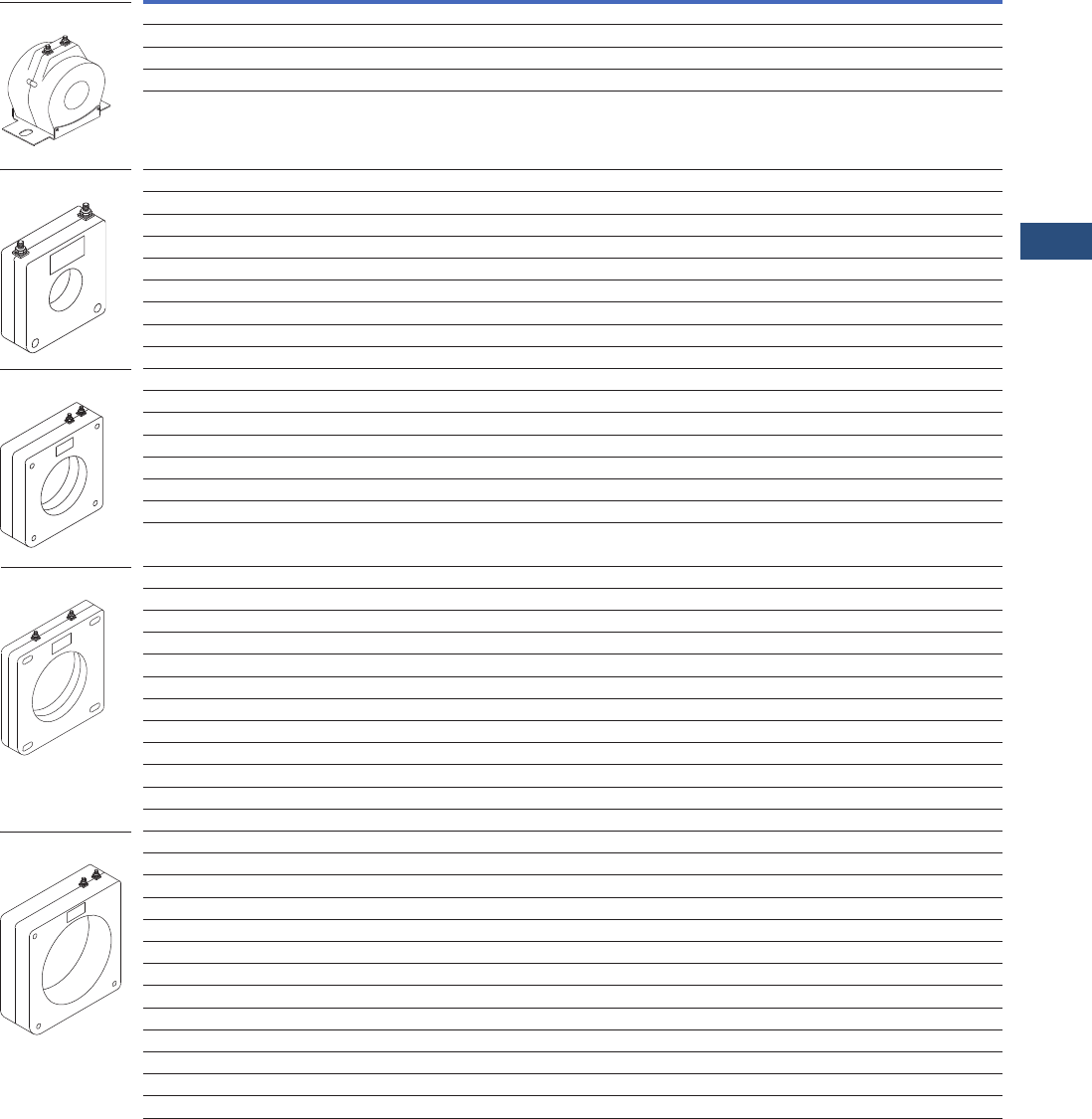

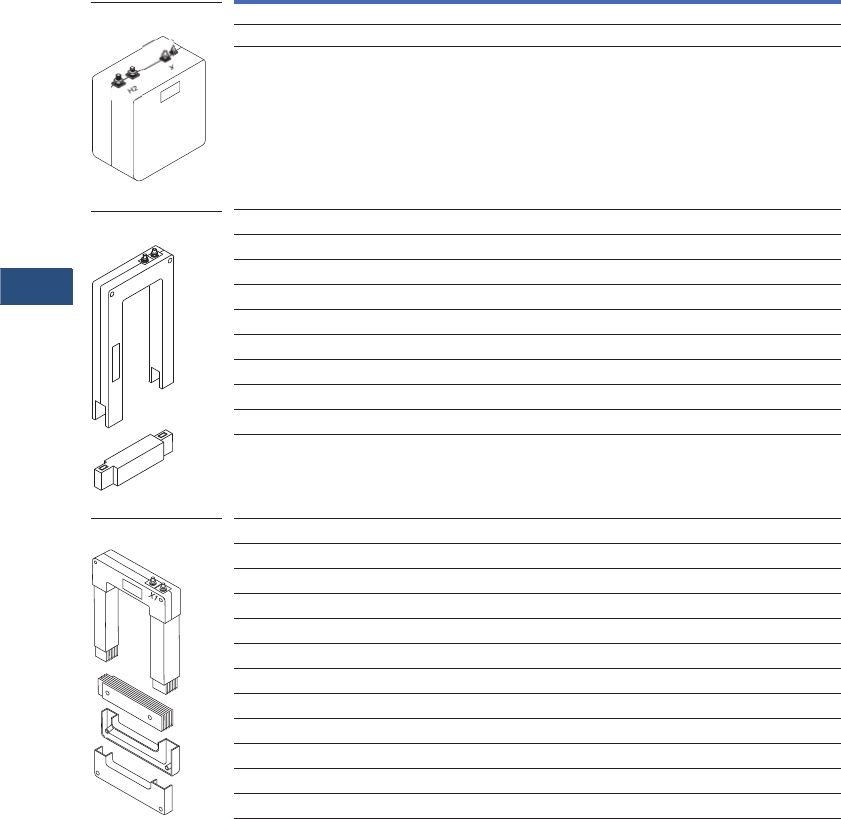

Current Transformers (CTs). . . . . . . . . . . . . . . . . . . V3-T9-122

Clamp-On Current Transformers . . . . . . . . . . . . . . . V3-T9-131

IQ Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-134

Panel Mounting Adapter Kit . . . . . . . . . . . . . . . . . . V3-T9-135

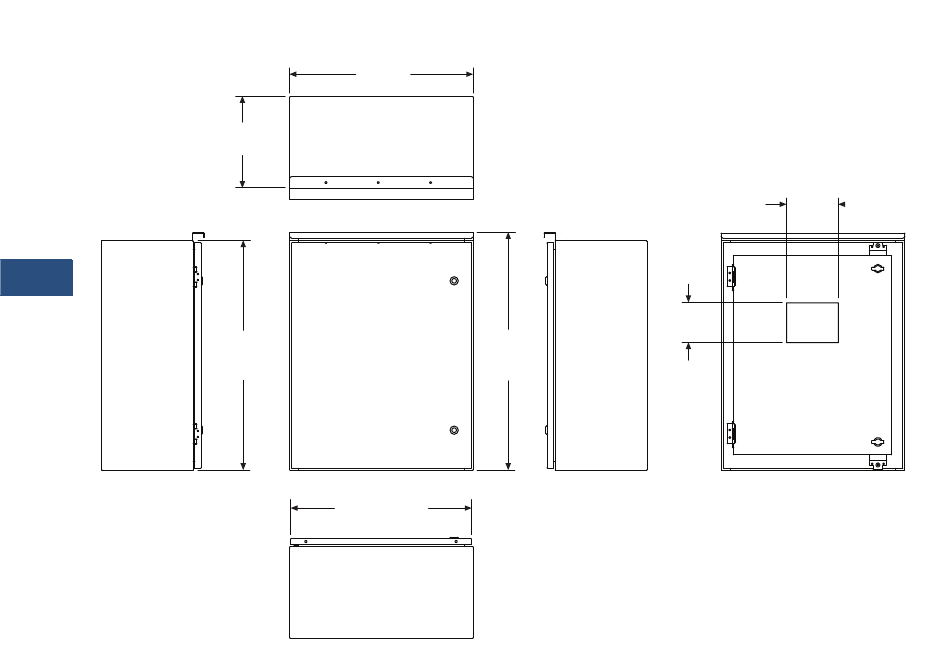

Enclosed Meters. . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-136

Product Overview

Eaton’s metering products

provide solutions needed

to monitor and manage all

aspects of an electrical

distribution system.

When greater reliability,

increased productivity and

significant cost savings

are called for to remain

competitive in today’s

market, Eaton’s metering

products fit the bill. These

innovative meters and

communications systems,

along with Power

Management software, make

it possible to successfully

take control of the electrical

distribution system.

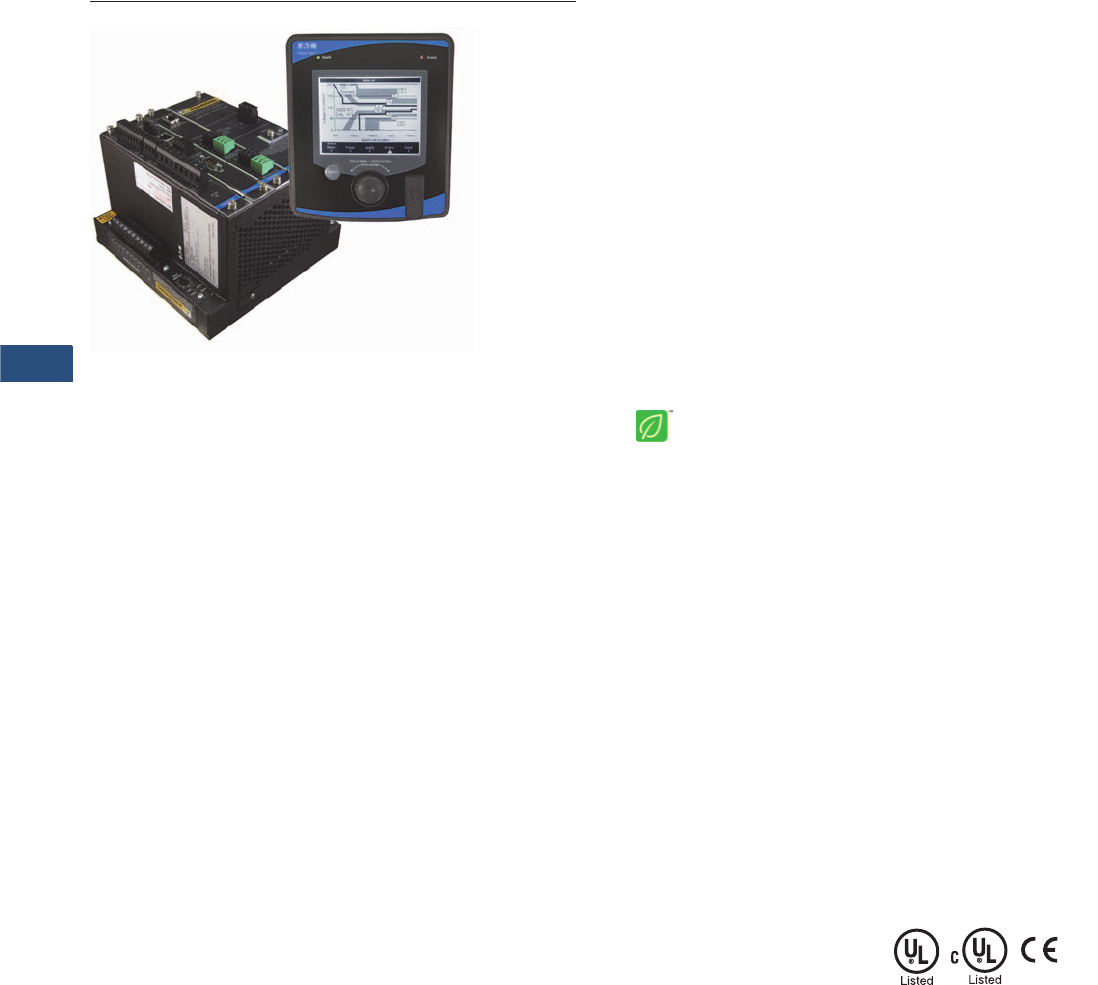

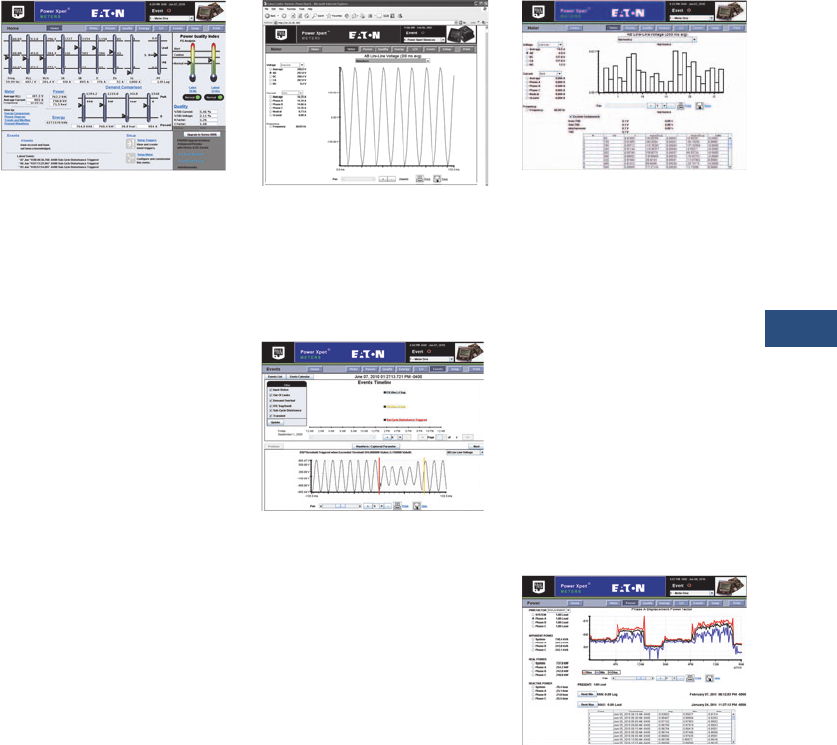

Power Xpert Meters

Power Xpert Meters are

the benchmark for intelligent

Web-enabled top-quality

metering devices for the

power system. Power Xpert

Meters provide measurement

of the critical elements found

in the power system, whether

that be voltage, power,

current, transients, harmonics

or even time. Power Xpert

Meters provide Web-enabled

communications for use with

the Power Xpert Software.

All Power Xpert Meters

provide a standard

communications protocol

for easy integration into

other systems.

Features and Benefits

Greater Reliability

Eaton’s metering products

give the ability to receive an

early warning of potential

problems, eliminate

unnecessary trips, isolate

faults to ensure minimum

downtime and shed or

equalize loads while a

problem is being corrected.

Increased Productivity

Equipment downtime

resulting from voltage or

frequency variations can be

very costly to an operation.

Monitoring power quality

with Eaton’s metering

products throughout the

electrical distribution system

provides data to identify,

isolate and correct problems

quickly and efficiently.

Reduced Energy and

Operating Costs

When we think about meters

and power quality, the

common thread throughout

the basket of solutions is

information. Collecting,

monitoring and managing data

from the electrical distribution

system can help reduce costs

for those facilities prepared to

define and analyze present

electrical energy usage levels

and patterns. Data provided by

Eaton’s metering products

comprise the data for verifying

utility bills for energy

management and lowering

operating costs. Deregulation

in some geographical

locations permits energy

users to select a utility

provider and negotiate rate

structures. For large users

with heavy utility bills, this

may be an incentive to verify

the utility bill, identify an

opportunity for savings,

negotiate a better utility rate

and apply the savings directly

to the bottom line. Users are

also empowered to decrease

energy consumption, thereby

lowering peak demand

charges and decreasing

operating costs.

When an Eaton meter is used

with Eaton trip units and

relays incorporating built-in

metering capabilities, the

entire electrical distribution

system can be cost-

effectively managed.

Eaton is an industry

leader offering a complete

integrated solution to oversee

your entire electrical

distribution system. As a

global manufacturer of

low and medium voltage

electrical distribution system

equipment and components,

Eaton is an experienced

innovator of metering

products that incorporate

cutting-edge technology.

These innovations result

from our scientific and

engineering expertise,

physical resources and the

ongoing R&D programs at

our technology centers.

V3-T9-22 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Product Selection Guide

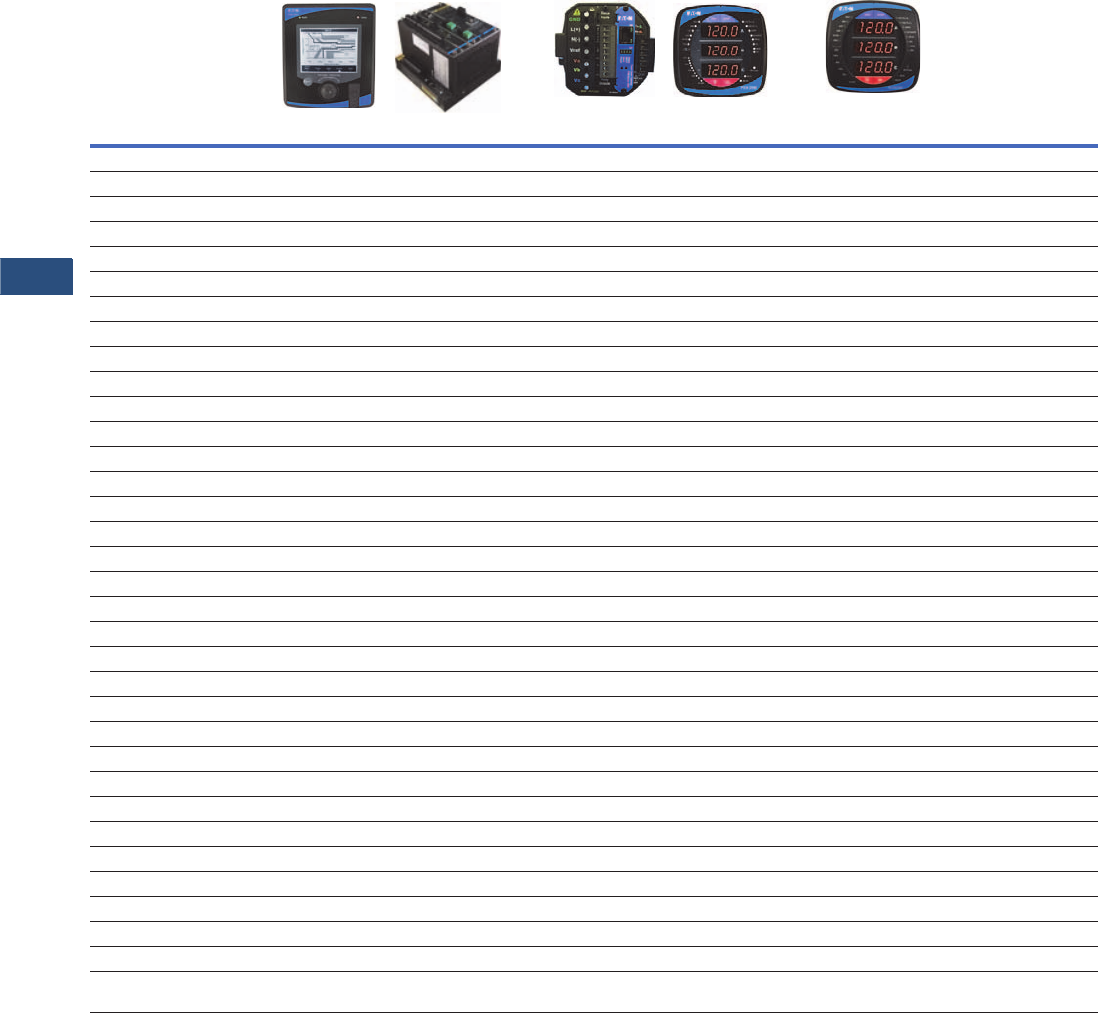

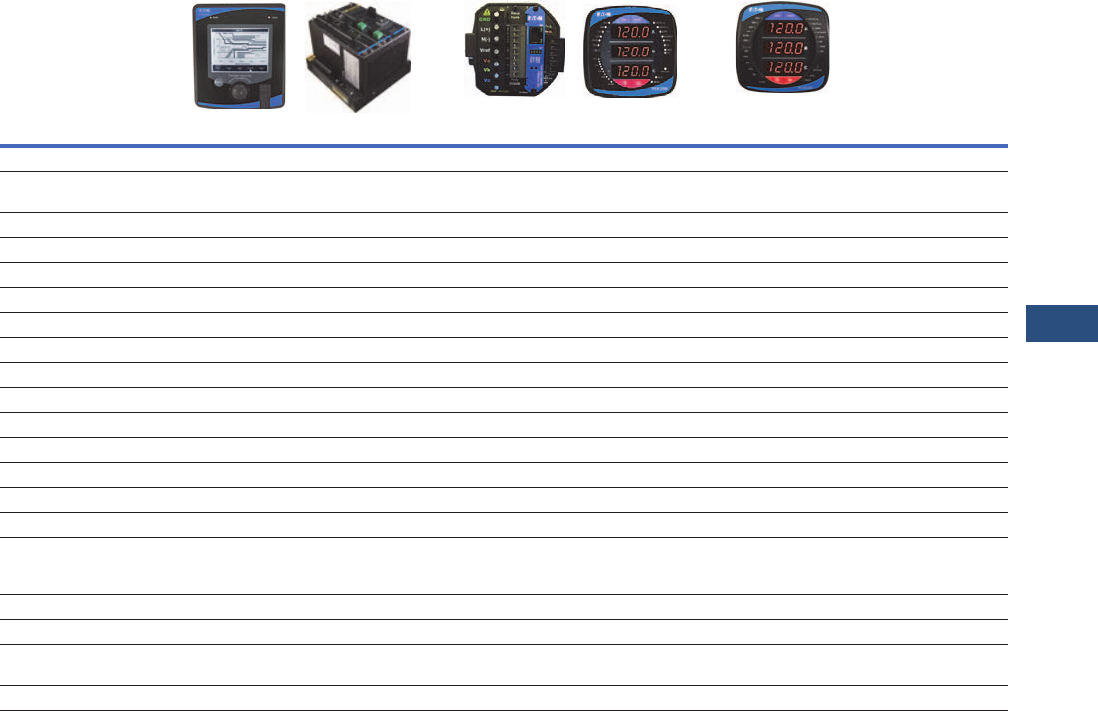

Metering Selection Chart

Notes

1Under typical operating conditions.

2PXM 2260 only.

3PXM 2270 only.

4PXM 2280 only.

5PXM 2290 only.

6IQ 260 only.

7Individual values reported to 85th

harmonic; anti-alias filtering prevents

higher frequencies from distorting

readings (see IEC 61000-4-7).

8PMX 6000 only.

9PXM 8000 only.

jOptional.

kAt computer only.

Device Name

Accessories

See Page V3-T9-131

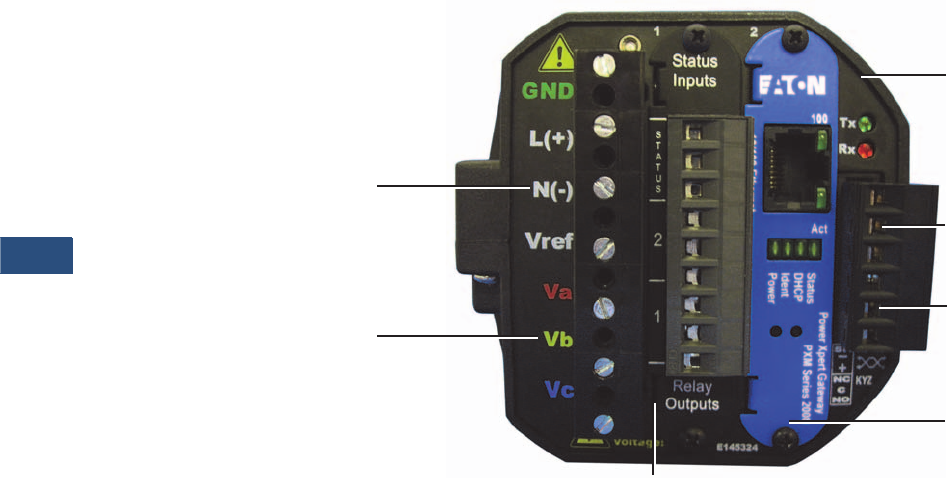

Power Xpert Meter 4000/6000/8000 Series Power Xpert Meter 2000 Series IQ 250/260 Series

Section Page Number V3-T9-30 V3-T9-49 V3-T9-60

Electrical Parameters

Volts 0.1% of RV + 0.02% FS 0.1% of RV 0.1% of RV

Amperes 0.05% of RV + 0.01% FS 0.1% of RV 0.1% of RV

Current range (% of nominal) 0.005–20A (400%) 0.1–200% 0.1–200%

Watts 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV

VARs 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV

VA 0.1% of RV + 0.0025% FS 0.2% of RV 0.2% of RV

PF-apparent 0.1% 0.2% of RV 0.2% of RV

PF-displacement 0.1% — —

Frequency ±0.01 Hz ±0.03 Hz ±0.03 Hz

THD-voltage 127th 40th 2345 40th 6

THD-current 127th 40th 2345 40th 6

Watthours ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

VAR-hours ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

VA-hours ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

Ampere-demand 0.05% of RV + 0.01% FS ±0.1% per ANSI C12.20 0.2 Class ±0.1% per ANSI C12.20 0.2 Class

Watt-demand ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

VAR-demand ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

VA-demand ±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1±0.2% per ANSI C12.20 0.2 Class 1

Revenue accuracy ±0.2% per ANSI C12.20 0.2 Class 1ANSI C12.20 (0.2%) ANSI C12.20 (0.2%)

Individual ampere harmonics 85th 740th 345 —

Individual voltage harmonics 85th 740th 345 —

Interharmonics Yes — —

Minimum and/or Maximum Values

Volts L-L, L-N, N-G, VAUX L-L L-L, L-N L-L, L-N

Current A, B, C, N, G A, B, C, N A, B, C

Power Watt, VAR, VA Watt, VAR, VA Watt, VAR, VA

Power Factor Apparent/displacement Apparent Apparent

Frequency Hertz Hertz Hertz

THD Amperes/volts (L-L, L-N, AUX L-L) Amperes/volts 2345 Amperes/volts 6

Demand values kW, kVAR, kVA, amperes kW, kVAR, kVA, amperes kW, kVAR, kVA, amperes

Trend analysis 2 / 4 8 / 8 9 GB 256 / 512 2 / 768 345 MB 128 KB

Event logging 2 / 4 8 / 8 9 GB 100,000 alarms/events with timestamp k

Disturbance recording 2 / 4 8 / 8 9 GB

60 cycles per event

768 MB 45

up to 64 cycles per event 45

—

Legend: PG = Programmable

FS = Full scale

RV = Read value

Auxiliary voltage

(optional) = Provides three additional voltage inputs to the

meter: Va2, Vb2, Vc2.

Interharmonics = Power Xpert Meter 6000/8000 supported.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-23

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Notes

1PXM 6000 only.

2PXM 8000 only.

3PXM 2260 only.

4PXM 2270 only.

5The auxiliary voltage option adds three additional voltage

input channels to Power Xpert Meters.

6At computer only.

7PXM 2280 only.

8PXM 2290 only.

9Optional

Legend: PG = Programmable

FS = Full scale

RV = Read value

Auxiliary voltage

(optional) = Provides three additional voltage inputs to the

meter: Va2, Vb2, Vc2.

Interharmonics = Power Xpert Meter 6000/8000 supported.

Device Name

Accessories

See Page V3-T9-131

Power Xpert Meter 4000/6000/8000 Series Power Xpert Meter 2000 Series IQ 250/260 Series

Section Page Number V3-T9-30 V3-T9-49 V3-T9-60

Other Features

Storage 2 / 4 1 / 8 2 GB 256 / 512 3 / 768 4 MB Standard 128 KB for logging, up to 8 parameters every 15

minutes for 30 days

PG output relays 5 maximum Optional (2) Form C, 5A or (4) Form A, 120 mA Optional (2) Form C, 5A or (4) Form A, 120 mA

PG analog outputs — Optional (4) 4–20 mA or (4) 0–1 mA Optional (4) 4–20 mA or (4) 0–1 mA

Discrete contact inputs 8 Optional (2) or (4) Optional (2) or (4)

Analog inputs — — —

Synch-input kW utility Via status input Via end of interval pulse with optional digital inputs Via end of interval pulse with optional digital inputs

Auxiliary voltage 5Yes — —

kWh pulse initiator Yes Yes Yes

Waveform display Local/computer 6—

Waveform capture, samples/cycle Yes, 512 (4096 oversampling) Yes, up to 64 7, up to 512 8—

Frequency distribution display — — —

Display type LCD 9Red LED Red LED

Display lines/character Graphic (320 x 240 pixels) 3 lines, 4 characters 3 lines, 4 characters

Display character height 5.5 mm H x 4 mm W 0.56 (14.2) H 0.56 (14.2) H

Communications Serial: Modbus RTU, Modbus ASCII

9 Network: Modbus TCP, Ethernet TCP/IP,

HTTP, SNMP, SMTP, FTP, DNP 3.0

Serial: Modbus RTU, Modbus ASCII, DNP 3.0

Network: Modbus TCP, BACnet/IP, Ethernet TCP/IP,

HTTP, HTTPS, SNMP, SMTP, 78 Waveform FTP

Serial: Modbus RTU, Modbus ASCII, DNP 3.0

Network: Modbus TCP via Power Xpert Gateway

Setup configuration Via Web browser/display Via Web browser/display Via configuration software/display

Dimensions Refer to TD02601007E Refer to TD02601017E Refer to TD02601016E

Operating temperature range –20° to 60°C display unit

–20° to 70°C meter base unit

–20° to 70°C –20° to 70°C

Reference literature TD02601007E TD02601017E TD02601016E

V3-T9-24 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

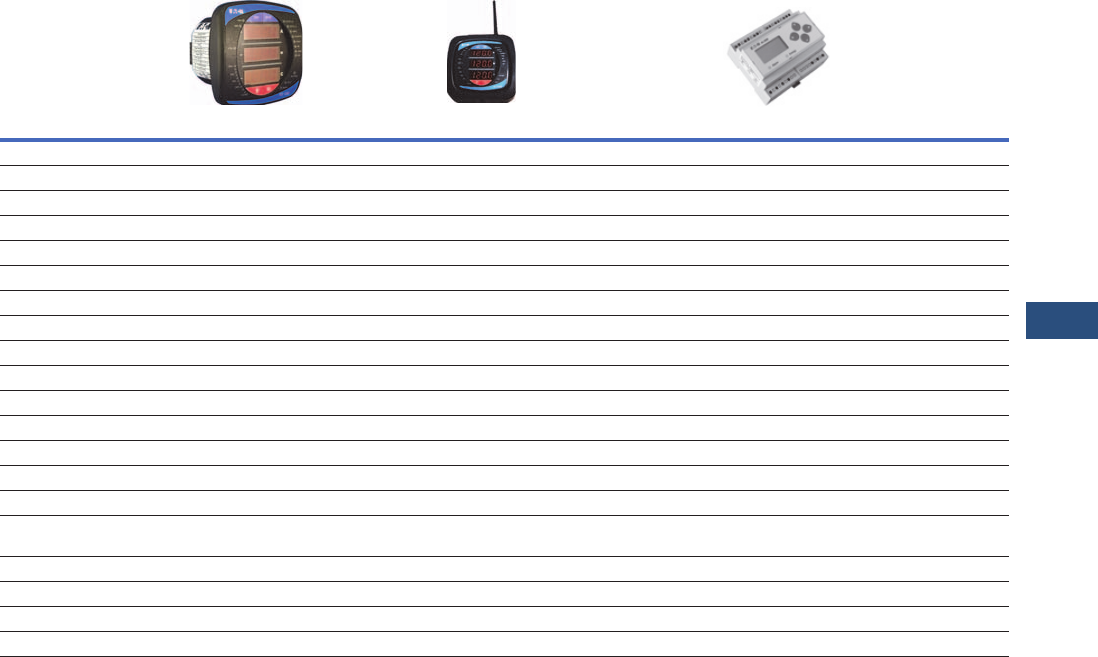

Metering Selection Chart, continued

Notes

1IQ 140 and IQ 150.

2IQ 150 only.

3At computer only.

4Optional.

5IQ 250S only.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

IQ 130/140/150 Series IQ 150S/250S Series IQ 35M Series

Section Page Number V3-T9-66 V3-T9-71 V3-T9-76

Electrical Parameters

Volts ±0.25% of RV 0.1% of RV 0.4% +0.015% per °C deviation from 25°C

Amperes ±0.25% of RV 0.1% of RV 0.4% (5–100%), 0.8% (1–5%) +0.015% per °C from 25°C

Current range (% of nominal) 0.1–200% 0.1–200% 1–120%

Watts 0.5% of RV 10.2% of RV 0.5% per ANSI C12.20 and IEC 62053-22 Class 0.5S

VARs 0.5% of RV 10.2% of RV 2.0% per IEC 62053-23 Class 2

VA 0.5% of RV 10.2% of RV Calculated: vector sum of watts and VARs

PF-apparent 0.5% of RV 10.2% of RV Calculated: Watts / VAs

PF-displacement — — —

Frequency ±0.03% Hz 1±0.03 Hz ±0.02 Hz

THD-voltage — — —

THD-current — — —

Watthours ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class 0.5% per ANSI C12.20 and IEC 62053-22 Class 0.5S

Varhours ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class ±2.0% per IEC 62053-23 Class 2

VA-hours ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class —

Ampere-demand ±0.5% per ANSI C12.20 0.5 Class 2±0.1% per ANSI C12.20 0.2 Class —

Watt-demand ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class 0.5% per ANSI C12.20 and IEC 62053-22

Class 0.5S

VAR-demand ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class 2.0% per IEC 62053-23 Class 2

VA-demand ±0.5% per ANSI C12.20 0.5 Class 2±0.2% per ANSI C12.20 0.2 Class Calculated: vector sum of watts and VARs

Revenue accuracy ANSI C12.20 (0.5%) ANSI C12.20 (0.2%) 0.5% per ANSI C12.20 and IEC 62053-22 Class 0.5S

Individual ampere harmonics — — —

Individual voltage harmonics — — —

Interharmonics — — —

Minimum and/or Maximum Values

Volts L-L, L-N L-L, L-N —

Current A, B, C A, B, C —

Power Watt, VAR, VA Watt, VAR, VA —

Power factor Apparent 1Apparent Apparent (low alert)

Frequency Hertz 1Hertz Hertz (out of range alert)

THD Ampere/Volts — —

Demand values kW, kVAR, kVA, amperes 1kW, kVAR, kVA, amperes kW, kVAR, kVA; Maximum kW, kVAR, kVA

Trend analysis 32 MB 5—

Event logging 32 MB 5Logging on demand interval or Modbus command 4

Disturbance recording — — —

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-25

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Notes

1Optional.

2IQ 250S only.

3The auxiliary voltage option adds three additional voltage input channels to

Power Xpert Meters.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

IQ 130/140/150 Series IQ 150S/250S Series IQ 35M Series

Section Page Number V3-T9-66 V3-T9-71 V3-T9-76

Other Features

Storage — 2 MB 210 registers (16 bit) by 5760 entries each (115 KB) 1

PG output relays — — —

PG analog outputs — — —

Discrete contact inputs — — 2 pulse inputs with BACnet

Analog inputs — — —

Synch-input kW Utility — — Optional demand synchronization via Modbus

Auxiliary voltage 3—— —

kWh pulse initiator 1Yes Yes

Waveform display — — —

Waveform capture — — —

Frequency distribution display — — —

Display type Red LED Red LED Backlit LCD

Display lines/character 3 lines, 4 characters 3 lines, 4 characters 2 lines by 5 characters ea (full alphanumeric top row)

Display character height 0.56 (14.2) H 0.56 (14.2) H 7.5 mm

Communications Serial: Modbus RTU, Modbus ASCII 1

Network: Modbus TCP 1

Serial: Modbus RTU, Modbus ASCII, DNP 3.0

Network: Modbus TCP, wired or wireless

Serial: Modbus RTU 1, BACnet MS/TP 1

Network: Modbus TCP via Power Xpert Gateway

Setup configuration Via configuration software/display Via configuration software/display Via display/configuration software

Dimensions 4.85 (123.2) H x 4.85 (123.2) W x 4.97 (126.2) D 7.90 (200.7) H x 7.50 (190.5) W x 3.10 (78.7) D 3.60 (91.4) H x 4.20 (106.7) W x 2.30 (58.4) D

Operating temperature range –20 to 70°C –20 to 70°C –20 to 70°C

Reference literature TD02601015E TD02601019E TD02601015E

V3-T9-26 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Notes

1From 3–300% of FS.

2At unity power factory and 5–300% of FS.

3At a power factor <±0.5 and 5–300% of FS.

4At computer only.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

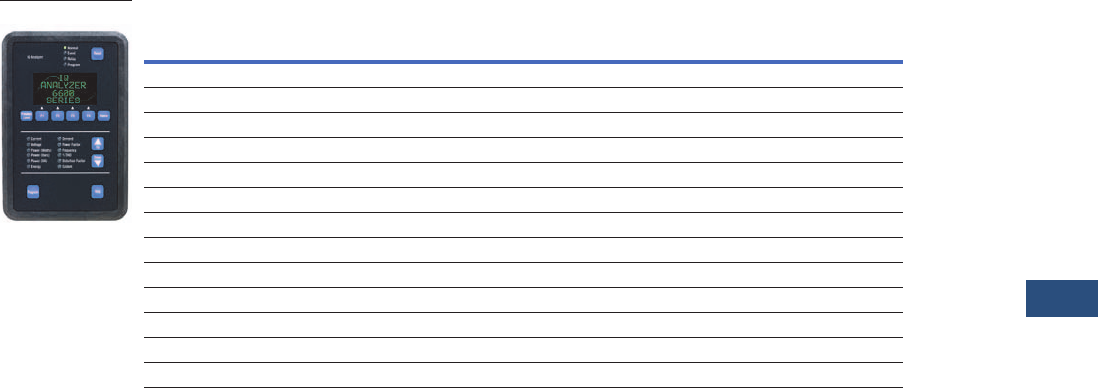

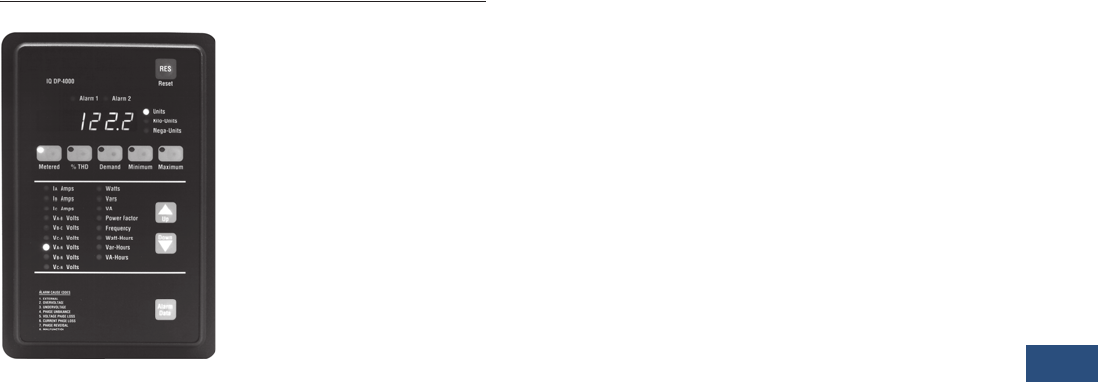

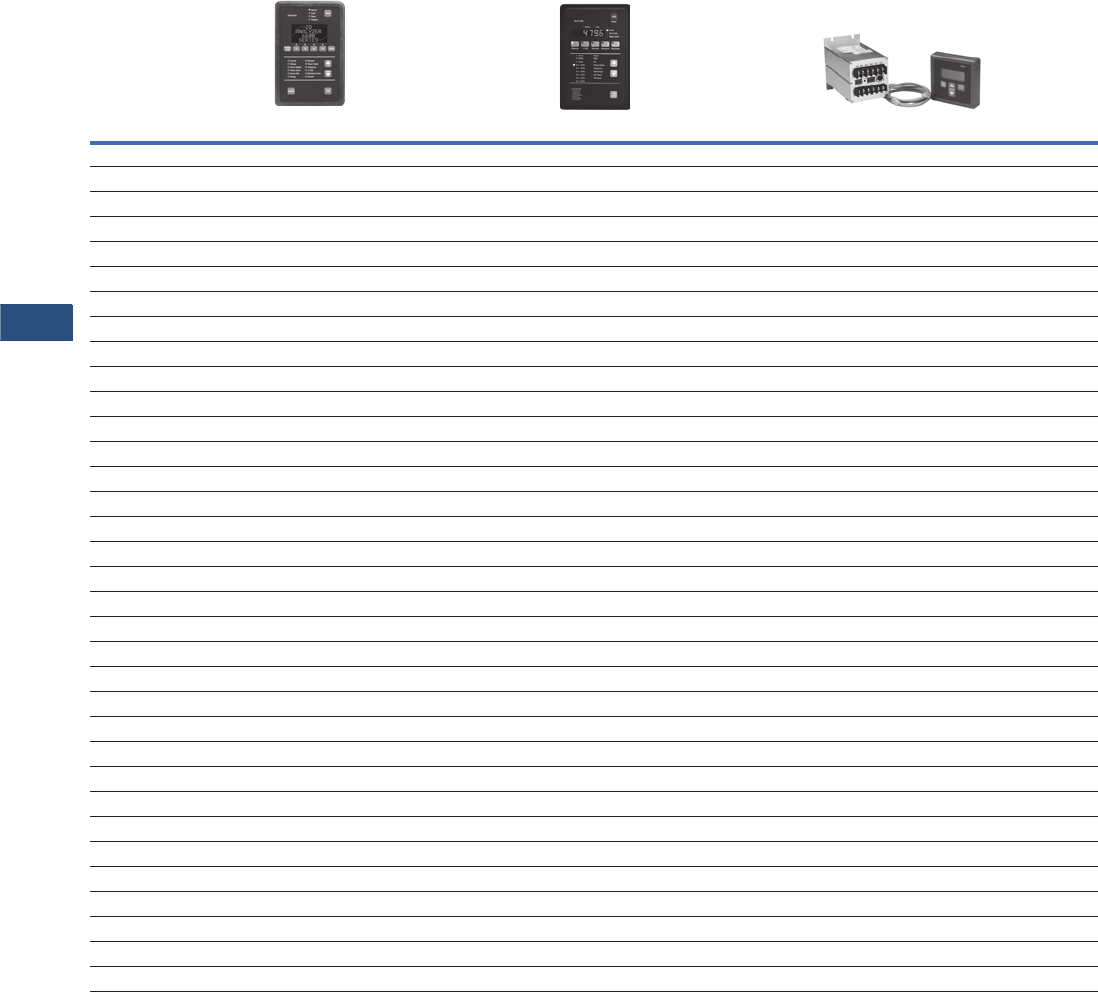

IQ Analyzer 6000 Series IQ DP-4000 Series IQ 230 Series

Section Page Number V3-T9-79 V3-T9-87 V3-T9-93

Electrical Parameters

Volts ±0.2% FS 1±0.3% FS ±0.5% FS

Amperes ±0.2% FS 1±0.3% FS ±0.5% FS

Current range (% of nominal) 3–800% 10–250% 1–200%

Watts 0.4% FS, 6 RV 2±0.6% FS ±1.0% FS

VARs 0.4% FS, 6 RV 3±0.6% FS ±1.0% FS

VA 0.4% FS, 6 RV 2±0.6% FS ±1.0% FS

PF-apparent 0.8% FS 1±1.0% FS ±2.0% FS

PF-displacement 0.8% FS 1±1.0% FS ±2.0% FS

Frequency 0.04% 1 or 0.01 Hz ±0.17% FS ±0.1% Hz

THD-voltage 50th 31st —

THD-current 50th 31st —

Watthours 0.5% RV 2±0.6% FS ±1.0% per ANSI C12

Varhours 1% RV 3±0.6% FS ±1.0% per ANSI C12

VA-hours 0.5% RV 2±0.6% FS ±1.0% per ANSI C12

Ampere-demand ±0.2% FS 1±0.3% ±0.5% per ANSI C12

Watt-demand ±0.4% FS 1±0.6% ±1.0% per ANSI C12

VAR-demand ±0.4% FS 1±0.6% ±1.0% per ANSI C12

VA-demand ±0.4% FS 1±0.6% ±1.0% per ANSI C12

Revenue accuracy ANSI C12.20 (0.5%) — ANSI C12.1 (1%)

Individual ampere harmonics 50th — —

Individual voltage harmonics 50th — —

Interharmonics — — —

Minimum and/or Maximum Values

Volts L-L, L-N L-L, L-N L-L, L-N

Current A, B, C, N, G A, B, C A, B, C

Power Watt, VAR, VA Watt, VAR, VA Watt, VAR, VA

Power factor Apparent/displacement Apparent/displacement Apparent/displacement

Frequency Hertz Hertz Hertz

THD Amperes/volts Amperes/volts —

Demand values All All All

Trend analysis Time/date 2 alarms 4

Event logging 504 events w/timestamp 44

Disturbance recording 10 waveform events — —

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-27

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Notes

1Relays programmable to operate on any measured function.

2Optional.

3An IPONI is required.

4IQ 230M only.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

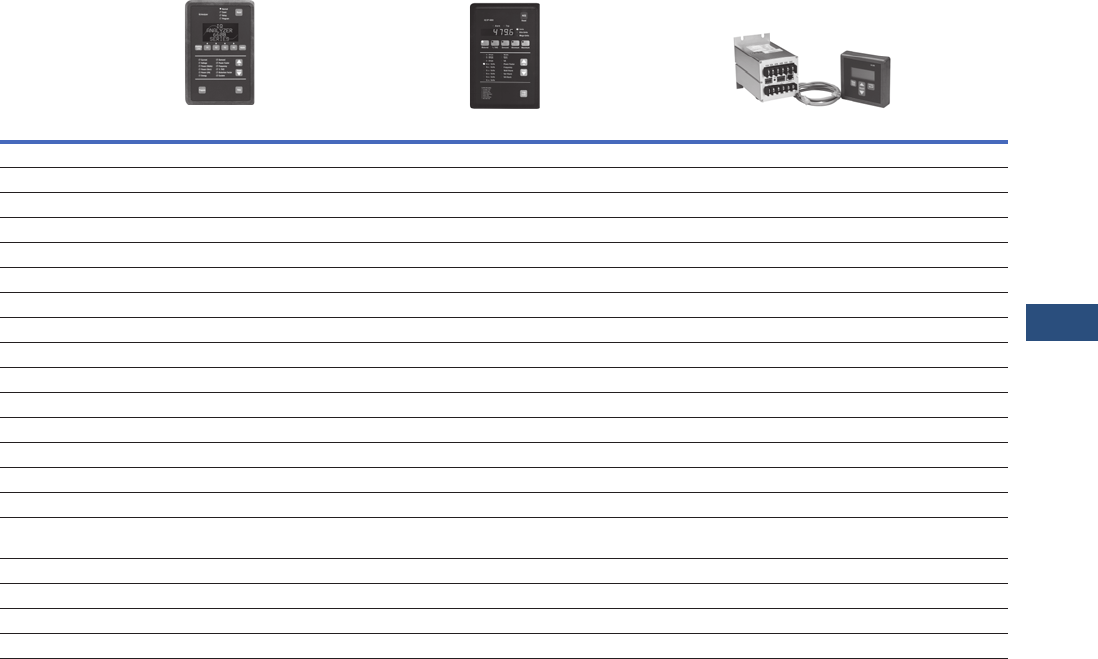

IQ Analyzer 6000 Series IQ DP-4000 Series IQ 230 Series

Section Page Number V3-T9-79 V3-T9-87 V3-T9-93

Other Features

Storage 90 KB 15 parameters —

PG output relays (4) 10A Form C 1(3) 10A Form C 2(2) 100 mA Form A

PG analog outputs (4) 0–10/4–20 mA — —

Discrete contact inputs (3) + 30 Vdc differential (1) kW Demand 2(2) +30 Vdc differential

Analog inputs (1) 0–20/4–20 mA — (1) 4–20 mA

Synch-input kW Utility At device or via communications At device or via communications 2Via communications only

Auxiliary voltage — — —

kWh pulse initiator Yes Yes 2Yes

Waveform display Local 2/computer — —

Waveform capture, samples/cycle Yes, 128 — —

Frequency distribution display Local 2/computer — —

Display type Graphic LCD with LED backlight 7 Segment LED Backlit LCD

Display lines/character 7 lines, 147 characters 1 line, 7 characters 4 lines, 20 characters

Display character height Up to 7 lines 1 line 1.60 (40.6) H x.09 (2.3) W

Communications Serial: INCOM 3

Network: via Power Xpert Gateway 3

Serial: INCOM 3

Network: via Power Xpert Gateway 3

Serial: INCOM, Modbus RTU 4

Network: via Power Xpert Gateway

Setup configuration Via configuration software/display Via configuration software/display Via configuration software/display

Dimensions Refer to TD1702BTE Refer to TD1703ATE Refer to TD1706ATE

Operating temperature range –20° to 70°C –20° to 70°C 0° to 50°C

Reference literature — — —

V3-T9-28 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Note

1At computer only.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

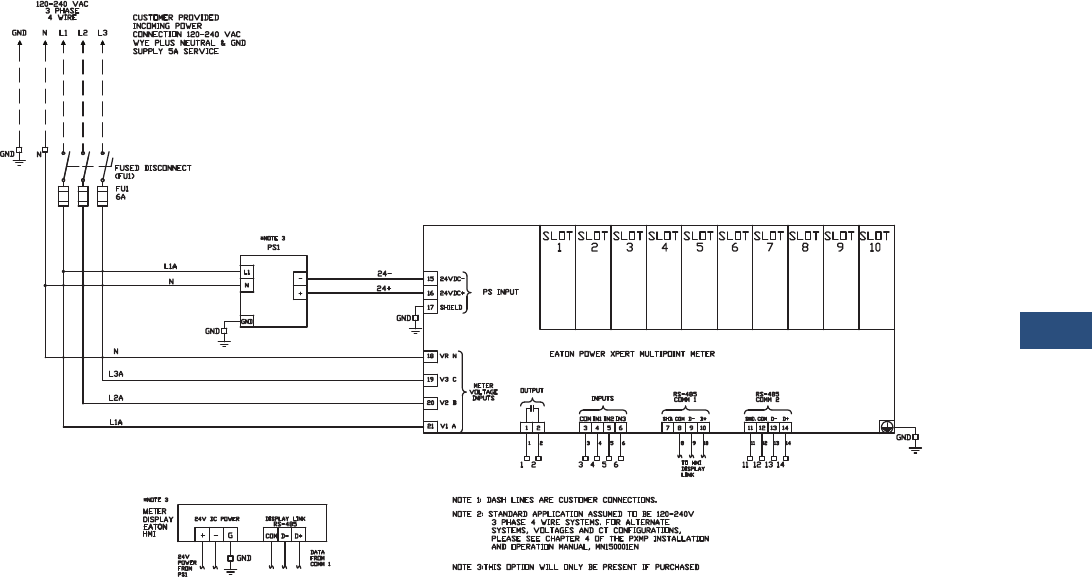

Power Xpert

Multi-Point Meter

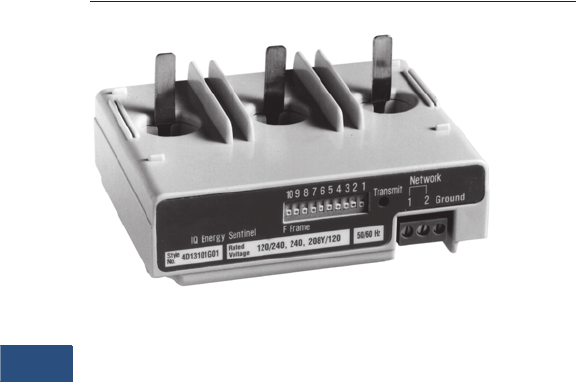

IQ Energy

Sentinel

Section Page Number V3-T9-100 V3-T9-112

Electrical Parameters

Volts ±0.2% RV —

Amperes ±0.2% RV —

Current range (% of nominal) — —

Watts ±0.5% RV ±1.0% FS

VARs ±0.5% RV —

VA ±0.5% RV —

PF-apparent ±0.5% RV —

PF-displacement — —

Frequency ±0.1 Hz —

THD-voltage — —

THD-current — —

Watthours ±0.5% per ANSI C12.20 0.5 class ±1.0% FS

VAR-hours ±0.5% per ANSI C12.20 0.5 class —

VA-hours ±0.5% per ANSI C12.20 0.5 class —

Ampere-demand — —

Watt-demand ±0.5% per ANSI C12.20 0.5 class ±1.0% FS

VAR-demand ±0.5% per ANSI C12.20 0.5 class —

VA-demand ±0.5% per ANSI C12.20 0.5 class —

Revenue accuracy ANSI C12.20 (0.5%) —

Individual ampere harmonics — —

Individual voltage harmonics — —

Interharmonics — —

Minimum and/or Maximum Values

Volts L-L, L-N —

Current A, B, C —

Power Watts, VAR, VA —

Power factor Apparent —

Frequency Hertz —

THD — —

Demand values Watts (Delivered & Received), Watts (Q1–Q4), VA (Q1,

Q4), VA (Q2, Q3)

—

Trend analysis Interval data 1

Event logging 20 latest events and historical 1

Disturbance recording — —

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-29

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Metering Selection Chart, continued

Note

1Optional.

Legend: PG = Programmable

FS = Full scale

RV = Read value

Device Name

Accessories

See Page V3-T9-131

Power Xpert

Multi-Point Meter

IQ Energy

Sentinel

Section Page Number V3-T9-100 V3-T9-112

Other Features

Storage 256 MB standard, 2 GB optional —

PG output relays 1 standard, 8 each module 1—

Discrete contact inputs 3 standard, 8 each module 1—

Analog inputs — —

Synch-input kW utility Via communications and digital input Via communications only

Auxiliary voltage — —

kWh pulse initiator Aggregate or main-digital output, LED output on meter

modules (accuracy check)

—

Waveform display — —

Waveform capture — —

Frequency distribution display — —

Display type LCD color touchscreen 1—

Display lines/character 6-inch diagonal —

Display character height Graphics —

Communications Serial: Modbus RTU

1 Network: Modbus TCP, BACnet/IP, Ethernet TCP/IP,

HTTP, HTTPS, SNMP, SMTP, SFTP

Serial: INCOM

Network: via Power Xpert Gateway

Setup configuration Via PXMP configuration software Via configuration software

Dimensions Refer to TD150006EN (see Page V3-T9-110) Refer to TD1707TE

Operating temperature range –20° to 70°C –25° to 70°C

Reference literature TD150006EN —

V3-T9-30 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert 4000/6000/8000 Series Display and Meter

Contents

Description Page

Metering Products Family. . . . . . . . . . . . . . . . . . . . . V3-T9-21

Power Xpert Meter 4000/6000/8000 Series

Power Xpert Meter 2000 Series . . . . . . . . . . . . . . . . V3-T9-49

IQ 250/260 Series Electronic Power Meters . . . . . . V3-T9-60

IQ 130/140/150 Series Electronic Power Meters . . . V3-T9-66

IQ 150S/250S Self-Enclosed Electronic Meters . . . . V3-T9-71

IQ 35M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-76

IQ Analyzer 6400/6600 Series . . . . . . . . . . . . . . . . . V3-T9-79

IQ DP-4000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-87

IQ 230 Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-93

Power Xpert Multi-Point Meter . . . . . . . . . . . . . . . . . V3-T9-100

IQ Energy Sentinel™ . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-112

PM3 Monitoring and Metering Module . . . . . . . . . . V3-T9-121

Current Transformers (CTs). . . . . . . . . . . . . . . . . . . . V3-T9-122

Clamp-On Current Transformers. . . . . . . . . . . . . . . . V3-T9-131

IQ Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-134

Panel Mounting Adapter Kit . . . . . . . . . . . . . . . . . . . V3-T9-135

Enclosed Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-136

An Eaton

Green Solution

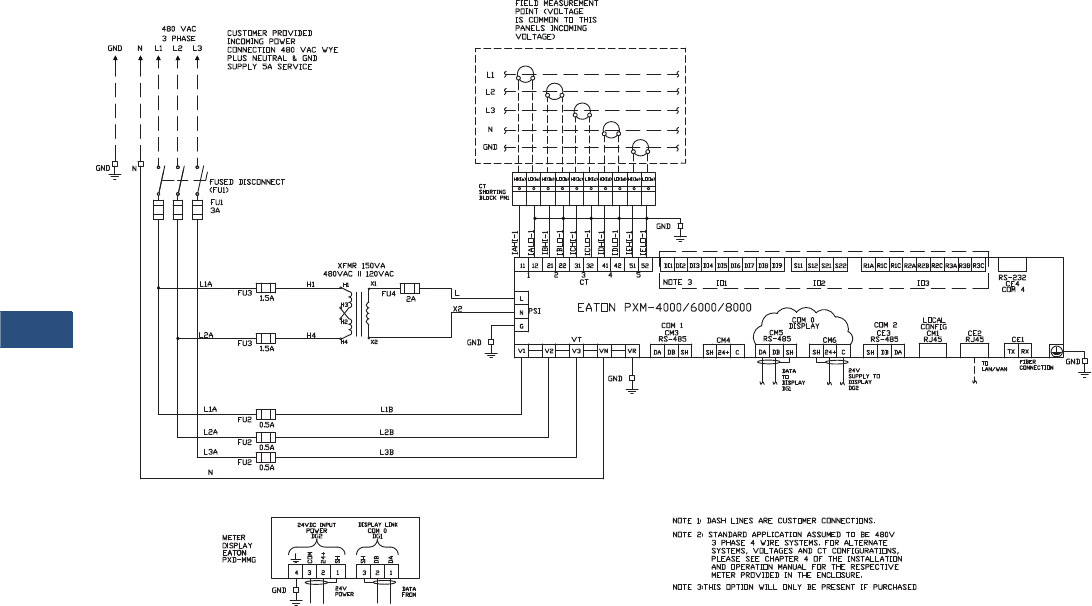

Power Xpert Meter 4000/6000/8000 Series

Product Description

The Power Xpert Meter 4000/

6000/8000 Series monitors

the critical aspects of an

electrical distribution system.

This premier power quality

metering instrument is

simple to use, powerful,

scalable and highly flexible.

The Power Xpert Meter 4000/

6000/8000 offers a new level

of intuitive user interface

design, presenting critical

electrical distribution system

information in simple-to-

navigate and easy-to-

understand information

architecture. The Power

Xpert Meter 4000/6000/8000

graphic display visualizes

the information from up

to 16 meter modules. The

embedded Web server

displays complex power

quality data using standard

Internet browsers and allows

for device configuration from

the browser.

Both the local graphic display

and the embedded Web

server present real time,

historical and event

information in a browser-style

graphical format to help the

user interpret key circuit

information, such as:

●Current loading

●Voltage and power levels

●Power factor

●Energy usage

●I/O status

●Power quality

measurements

●Harmonic plots

●Disturbance and transient

waveforms

●ITIC disturbance summary

screen

The Power Xpert Meter 4000/

6000/8000 graphic display

uses a simple “twist and

click” navigation control dial

to easily navigate the menus

and drill down into increasing

levels of important detail.

A “back” key enhances the

browser-like navigation of the

graphic display.

The Web server provides the

energy and demand readings

required to help manage

the cost of energy. It also

provides critical information

regarding power quality,

such as harmonic distortion,

flicker, crest factor, K-factor

and more.

Note: Features and functionality

may vary depending on the meter

model and options being used.

Review the Features and Benefits

chart on Page V3-T9-35 for

details.

Standards and Certifications

●Safety: EN61010-1,

UL/cUL 61010-1

●Accuracy: IEC/EN60687

0.2 Class, ANSI C12.20

0.2 Class

●EMC: FCC Part 15

Subpart B Class A EN55011

Class A

●Measurement Canada

Approval No. AE-1898

(4000/6000 meters)

●Immunity IEC 61326

●CE Mark

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-31

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Application Description

Identify Power Quality

Problems to Help:

●Identify harmonics, sags,

swells and transients

damaging or disrupting

sensitive, mission-critical

IT equipment

●Boost IT equipment’s

service life to the

maximum

●Analyze sequence of

events up to 1 millisecond

time resolution

●Protect motors from

damage

●Preserve the integrity of

processes and batches

●Prevent blown capacitor

bank fuses

●Protect transformers and

conductors from

overheating

Detect and Record High-

Speed Transients to Help:

●Avoid equipment damage

and disruption

●Identify equipment

malfunction

Monitor Circuit Loading

to Help:

●Avoid overloads and

nuisance overload trips

●Maximize equipment

utilization

●Manage emergency

overloads

Manage Energy Utilization

to Help:

●Reduce peak demand

charges and power

factor penalties

●Identify excessive energy

consumption

Metered/Monitored Parameters

Note: See Page V3-T9-35.

●V o l t s : L- L , L- N , A v g . L- L ,

Avg. L-N, N-G

●Phase neutral and

ground currents

●Power: real, reactive

and apparent

●Frequency

●Power factor: apparent

and displacement

●Energy

●Demand

●% THD

●Minimum and maximum

values

●Harmonics

●Flicker

●Individual harmonics

●Interharmonics

●% TDD

●ITIC events plot, duration,

magnitude

●Energy comparisons

●Demand comparisons

●Event calendar

●Event timeline and

sequence

●Number of 9s of availability

●Phasors

●Sequence components

●Crest factor

●K-factor

●PQ Index

Accuracy

●Currents: 0.05% RV

+ 0.025%FS

●Voltage: 0.1% RV

+ 0.025% FS

●Energy and demand

power:

0.2% in accordance

with ANSI C12.20

●Frequency: ±0.01 Hertz

●Power factor:

●0.10% at Unity PF

●0.30% at 0.5 PF

Communications

Multiple communications

ports including:

Standard

●RS-485 remote display port

●RS-485 Modbus RTU

slave port

●RJ-45 10/100Base-T local

configuration port (local

Web server connection)

●HTTP (local), FTP,

COMTRADE

Optional

●Communications

Expansion Card (CEC

●Selectable 100FX or

10/100Base-T Ethernet

network port

●RS-485 Modbus RTU

selectable master/

slave port

●RS-232 Modbus RTU

slave port

For Optional Graphic Display

Note: Display ports provide access

to up to 16 Power Xpert 4000/6000/

8000 Meter modules located on

the display RS-485 network.

●RS-485 meter display

network port

●RJ-45 10/100Base-T for

access to Local Display

Power Xpert network

Communication Protocols

Supported

●Modbus RTU

●Modbus TCP

●Ethernet TCP/IP

●HTML

●NTP (Network Time

Protocol)

●FTP (File Transfer Protocol)

●SMTP (Simple Mail

Transfer Protocol)

●SNMP (Simple Network

Management Protocol)

●COMTRADE (IEEE

C37.111-1999)

●DNP 3.0 over Ethernet

(Distributed Network

Protocol)

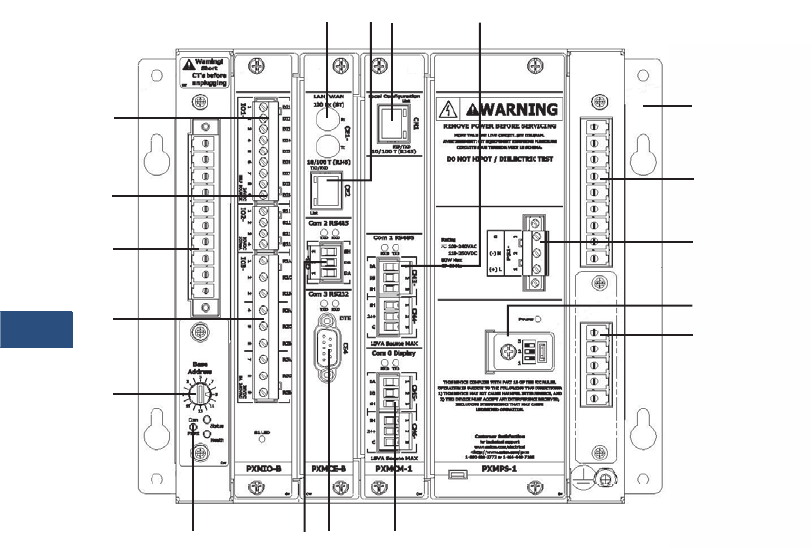

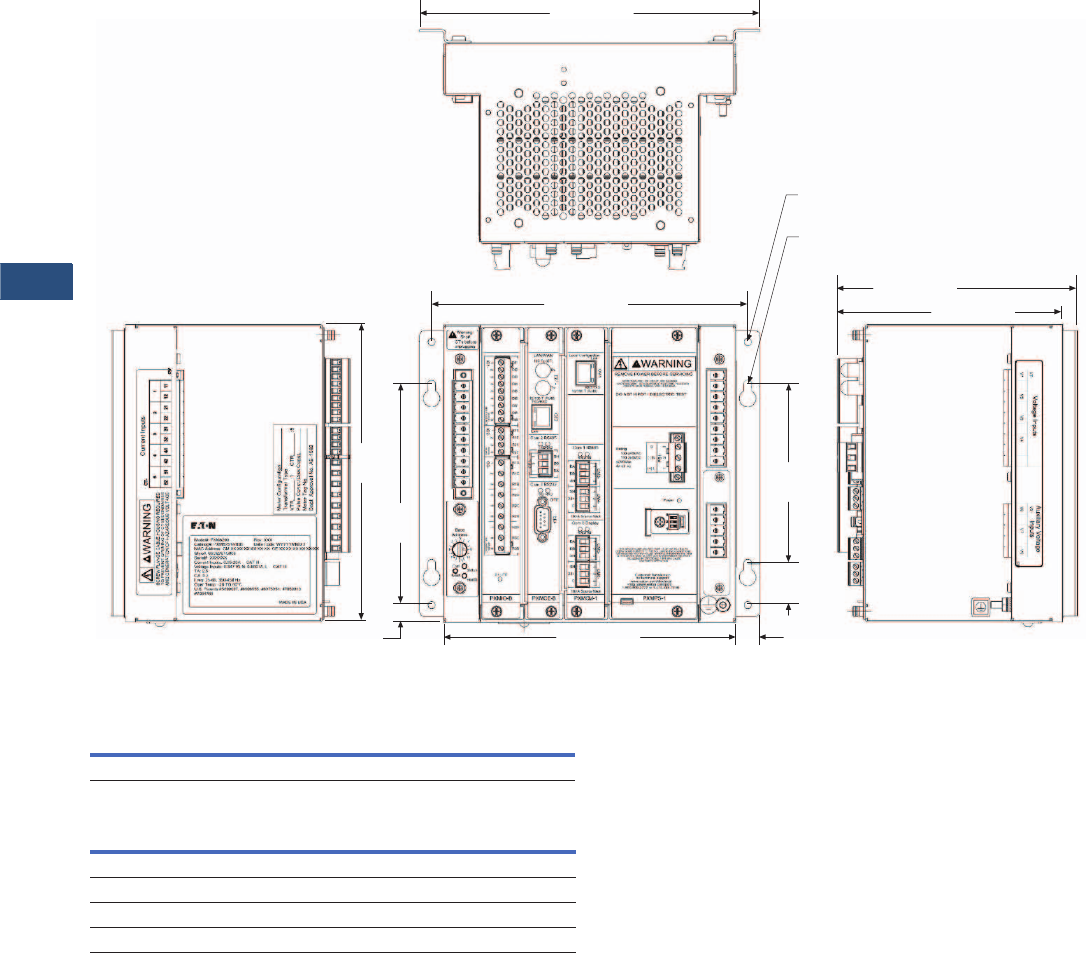

Physical Characteristics

Two-Piece Design

●Power Xpert 4000/6000/

8000 Meter modules

●Power Xpert Meter 4000/

6000/8000 Graphic Display

320 x 240 pixel backlight

LCD remote graphics

display (supports up to 16

Power Xpert 4000/6000/

8000 Meter

module

Display/Meter

Mounting Options

●Display remotely mounted

up to 2000 ft (1219m) away

from up to 16 Power Xpert

Meter

modules

●Display and Power Xpert

Meter modules mounted

together on opposite sides

of a panel (15 additional

meter modules can still

be remotely mounted).

Meter Base Unit Characteristics

●NEMA rating: NEMA 1,

IP30

Display Unit Characteristics

●NEMA rating: NEMA 12,

IP42 front of panel rating

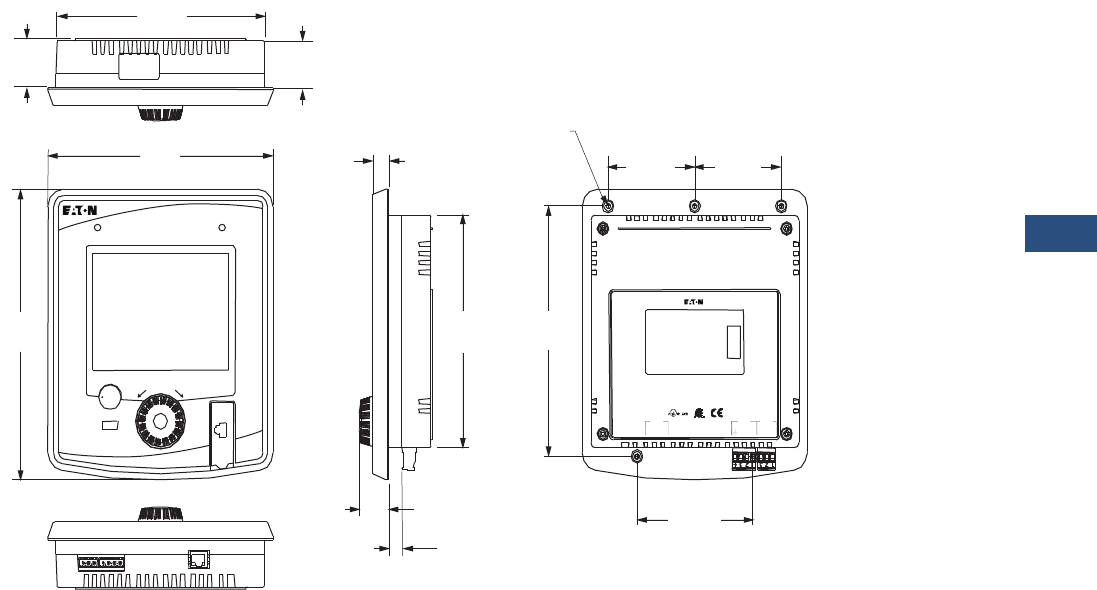

Ease of Use—Power Xpert

Meter 4000/6000/8000 Graphic

Display (Option)

The Power Xpert Meter 4000/

6000/8000 display features

a large easy-to-read white

backlit graphic LCD. The

information presented by

the display is organized into

an information architecture

that is easy-to-navigate and

organized for simplicity.

Screen navigation is

accomplished using a

navigation control dial and

a “back” button. The user

simply twists the knob on

the navigation control dial

to move between menu

selections and drill down

links on the screen. When

the selection is highlighted,

pressing the dial makes the

selection. Information is

displayed from a single meter

or an RS-485 daisychain of

up to 16 meters. The display

features a rich set of screens

including real-time data, trend

plots, waveform views and an

ITIC Plot. The graphic display

allows basic device setup and

password protected resets.

An audible alarm is available

to annunciate alarm

conditions.

V3-T9-32 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter 4000/6000/

8000 Embedded Web Server

The Power Xpert Meter 4000/

6000/8000 embedded Web

server offers Eaton

customers a new level of

accessibility to the critical

information required to

manage their electrical

distribution system. The Web

server includes real-time

circuit information in both

numeric and graphical visual

formats to help monitor

circuit parameters such as

current loading, voltage and

power levels, power factor,

THD, Flicker and more. The

Web server also provides

energy and demand readings

with graphic usage plots to

help analyze energy usage

patterns. Energy readings

include kWh, kVARh,

delivered and received and

kVAh with time of use and

RTP displays. The interval

energy usage plot includes

the ability to do week-to-

week and month-to-month

energy consumption

graphical comparisons for

benchmarking purposes. The

embedded Web server will

also display in simplified

Chinese if connected to a

computer configured for

Chinese language.

Both the Power Xpert Meter

4000/6000/8000 embedded

Web server and the local

graphic display support

graphical trend charts of key

circuit measurements such

as current, voltage, power

and energy. The trend chart

supports a zoom feature that

allows the user to view data

over a short period of 16

hours up to 4 years. The trend

chart includes zoom in/out

buttons and a horizontal slider

bar control to manage

scrolling forward and backward

through the data. Trend charts

of basic readings include

minimum, maximum and

average readings. Trend

charts of interval by interval

energy data also display

peak demand.

Note: For remote access and

networking capabilities such as

connecting to a LAN/WAN, use

the optional Communications

Expansion Card (CEC).

Sag/Swell/Transient Capture

and Recording

60 cycles of waveform are

oversampled at 4096 samples

per cycle (Power Xpert Meter

4000/6000), filtered through

anti-aliasing and recorded at

512 samples per cycle and

post event data. The Power

Xpert Meter 8000 samples at

a rate of 100,000 samples per

cycle. Embedded Web server

supports viewing of triggered

waveforms one channel at a

time and includes the ability to

zoom and to scroll horizontally

using a slider bar.

The Power Xpert Meter

6000/8000 Series have

preconfigured (600 volts and

below) trigger settings for

sags, swells and transients,

and do not require additional

setup by the user. Waveforms

are stored in non-volatile flash

memory using an industry

standard COMTRADE

format. Waveforms can be

automatically sent out as

COMTRADE attachments to

an e-mail following an event,

or can be retrieved from an

FTP (File Transfer Protocol)

directory structure in

the Power Xpert meter

module’s memory.

Historical Trend Logging

The Power Xpert Meter 4000/

6000/8000 records historical

data for graphical viewing

from the Local display or

the embedded Web server.

Graphical views of historical

data support pan and zoom.

145 standard metering

parameters are logged as

part of the standard meter

functionality including min./

max. and average for each

parameter. The averages are

calculated over the interval

period. The minimum and

maximum readings are based

on 200 ms calculations.

Storage capacity for standard

trend plots includes all of the

following intervals:

●Every 5 minutes for

48 hours (2 days)

●Every 15 minutes for

192 hours (4 days)

●Every hour for 28 days

(4 weeks)

●Every 8 hours for

56 weeks

●Every week for 44 months

Note: Trend plot data can be

easily exported to third-party

applications, such as Microsoft

Excel in csv-file format.

In addition, metered

parameters are automatically

stored on the built-in FTP

Servers, where they can be

easily copied and imported

into third-party applications

for benchmarking and

analysis. Logs on the FTP

Server include the min./max.

and average for 145 standard

metering parameters at

5-minute intervals.

Storage capacity for

trend data:

●6 days of 5-minute

interval trend data

●Capacity=18,144 intervals

Energy Profile Data

The Power Xpert Meter 4000/

6000/8000 records Real and

Reactive energy forward,

reverse, net and absolute

sum, as well as Apparent

energy (kVAH). Up to 8 status

inputs can be configured as

energy accumulators for

counting KYZ pulse inputs

(option). These readings are

stored over a configurable

interval from 1 to 60 minutes,

as well as in daily and

weekly totals.

With the optional LAN/WAN

Ethernet Communication

Expansion Card (CEC), users

can easily configure the

meters to send periodic

e-mails at user-defined

intervals of energy

consumption and power

demand. E-mails contain

a summary of readings per

rate structures and also have

the actual measurements

attached to the E-mail’s

body as a CSV file in a

ZIP container.

In addition, metered

parameters are automatically

stored on the built-in FTP

Server, where they can be

easily copied and imported

into third-party applications

for benchmarking and

analysis. Logs on the FTP

Server include energy

consumption logs, one

for every month in CSV

file format, trended

measurement logs also

in CSV file format and

waveform captures in

COMTRADE file format.

Storage capacity for energy

profile data:

●62 days of 15 minute

interval energy and pulse

interval data.

●Fixed interval capacity

= 5952 intervals.

Configurable intervals

from 1 to 60 min

●372 days of 1 day

accumulated energy and

pulse interval data

●208 weeks of 1 week

accumulated energy

and pulse interval data

Energy and Demand

Comparisons

Energy and demand usage

patterns can be analyzed with

the month-to-month, week-

to-week comparison chart

built into the meter. Raw

data can be exported with

the “Save Table” option to

other applications, such as

Excel, for further analysis

and graphing.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-33

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter Profiler—Free Download

The Power Xpert Meter

Profiler software allows you

to compare “expected”

energy consumption patterns

to present usage and flag

areas of concern. It is also a

predictor. It can predict what

energy consumption would

be expected later in a day.

Event Triggers

The Power Xpert Meter

4000/6000/8000 supports

five types of configurable

event triggers:

●Out of limits (4000/6000/

8000)

●Demand overload (4000/

6000/8000)

●Sub-cycle disturbance

(4000/6000/8000)

●ITIC (6000/8000)

●Fast transient (8000)

These triggers permit pickup,

reset and pickup delay to

be configured by the user.

When a trigger occurs,

actions include Performance

Monitoring (#9’s analysis),

Capturing Waveform, Capture

Parameters, Send Email and

Operate a Relay Output. The

Graphic Display flashes an

LED to annunciate the alarm

condition. An audible alarm is

also available.

Trigger options include:

●Out of limits: over

100 triggers

●Demand overload:

10 triggers

●ITIC: 8 triggers

●Fast transient: dV/dT and

absolute per phase

●Sub-cycle disturbance—

dV/dt and absolute

Event Logging

The optional Power Xpert

Meter 4000/6000/8000

Local graphic display or the

embedded Web server both

allow the user to view a list of

triggered events along with

any captured parameters,

event details and triggered

waveforms. In addition, a

separate event log includes a

variety of activities including

acknowledged triggers, new

min. and max. events, and

system operations such as

resets. The size of the event

log is virtually unlimited based

only on the memory option

selected.

E-mail Notification

With the optional LAN/WAN

Ethernet Communication

Expansion Card (CEC)

attached to the Power Xpert

Meter 4000/6000/8000’s, the

users can easily configure

the meters to send periodic

emails at user-defined

intervals for energy

consumption and power

demand. Emails contain a

summary of readings per

rate structures and also have

the actual measurements

attached to the email’s

body as a CSV file in a ZIP

container. Prompt alarm

emails can also be sent for

any event condition either

standard in the meter or ones

set up by the user based on

thresholds, dV/dt triggers or

IO status changes with the

optional IO Card. Alarm

emails can be configured

to have the COMTRADE

waveform capture attached

to the e-mail’s body.

Periodic Email Message

V3-T9-34 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

ITIC Analysis Plot

The Power Xpert Meter

graphic display (option) and

Web server include a graphic

representation of the ITIC plot

(Power Xpert Meter 6000/

8000) with counts of

disturbances and transients

that have occurred. The ITIC

plot organizes events into

8 distinct disturbance zones

corresponding to severity and

a 9th zone for transients. A

pass/fail count is displayed

to indicate how many events

are outside the ITIC limits.

Clicking on any counter in the

ITIC Web page will link the

user to the event view and

display all triggered events

in the selected zone.

This makes it simple to view

disturbance waveforms

associated with the ITIC plot.

A separate ITIC graph is

available to review individual

ITIC events. This graph will

show the user the event

hit position on the graph

and the event duration

and magnitude.

Inputs and Outputs

Power Xpert Meter 4000/

6000/8000 is available with

an optional digital I/O card,

which includes:

●Eight digital inputs—

self sourced 24 Vdc

●Three relay outputs—

5A max. continuous,

240 Vac max., 30 Vdc max.

●Two solid-state outputs—

80 mA max. continuous,

30 Vdc max.

Each of the 8 inputs are

interrupt driven, allowing

for 1 ms accuracy of digital

events time stamps (1 ms

accuracy requires local NTP

TimeServer). Inputs can also

be configured for demand

synch and pulse counting.

Inputs selected for pulse

counting can be scaled.

Interval by interval pulse

recordings are maintained in

profile memory and can be

displayed graphically. Outputs

can be used for KYZ, or alarm

annunciation.

Ratings

●Application to 500 kV,

no PTs to 600V

●CT ratios selectable from

standard 120/600 Vac line

●CT inputs accept 5A

secondary

●Power supply:

●Standard 120/240 Vac

or 110/250 Vdc

Storage Capacity

Power Xpert Meter 4000/6000/8000 Estimated Memory and Storage Capacity with 2/4/8 GB Memory Capacity

Notes

1The typical and server power quality event occurrences are estimates and may vary depending on the electrical environment.

2Memory is not allocated by event category; memory is used first come, first served.

Model Memory Event File Size (KB)

Occurrence Per Month 1Memory Usage (MB) Months of Capacity 2

Typical Severe Typical Severe Typical Severe

PXM 4000 2 GB Subcycle Disturbance 1260 10 60 12.3 73.8 166 28

PXM 6000 4 GB ITIC Event 1260 5 20 6.2 24.6 666 166

Subcycle Disturbance 1260 10 60 12.3 73.8 333 55

ITIC + Subcycle Disturbance Total---> 15 80 18.5 98.4 222 42

PXM 8000 8 GB ITIC Event 1260 5 20 6.2 24.6 1332 333

Subcycle Disturbance 1260 10 60 12.3 73.8 666 111

Transients 2048 3 30 6.0 60.0 1365 137

ITIC + Subcycle Disturbance + Transients Total---> 18 110 24.5 158.4 335 52

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-35

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Features and Benefits

Power Xpert Meter 4000

●Harmonics, including

individual harmonics

●Disturbance capture

●Low frequency transient

detection and capture

●Standard power

quality index

Power Xpert Meter 6000

●Interharmonics

●Flicker calculations

●ITIC performance curve

●Event calendar view

●Events timeline view

●Sequence of events

waveform plot

●Enhanced power

quality index

Power Xpert Meter 8000

●Impulsive transient

capture at 6 MHz

●100,000 samples

per cycle

●Premium power

quality index

Power Xpert Meter 4000/6000/8000

Notes

These specifications are subject to change without notice and represent the maximum capabilities of the product with all options installed. This is not a complete feature list. Features and functionality

may vary depending on selected options, firmware version and product model. Please refer to the technical data sheet and User Manual for detailed specifications.

1Delta-Sigma A/D oversampling rate.

Power Xpert Meter

Feature 4000 6000 8000 Benefit

General

Embedded Web server ■■■Use a standard Web browser to monitor and manage the meter over the network, Internet

TOU metering support ■■■Time of usage can be set up to support 4 different schedules

Firmware flash update support ■■■Enables you to flash the meter with the latest firmware updates

Self-learning capability (characterizes “normal” per circuit) ■■■The meter can automatically adjust to the environment and alarm only when

“real” events occur

Power, Energy and Demand

Voltage, current: per phase minimum, maximum, average, trend graph analysis,

export, print

■■■Review voltage and current trends, export, print and analyze parameters right on the meter

or external software

Energy and demand plot comparisons month-to-month, week-to-week ■ ■ ■ Plot two months or two weeks for vivid energy or demand comparison

Power: power factor, apparent, real, reactive, frequency ■■■Review power usage and power factor and avoid potential PF penalties

Energy, demand: forward, reverse, net, sum, tou, profile, previous month

comparison, graph analysis, export, print

■■■Keep track of your energy usage, compare time of usage and usage against previous month,

identify peaks to conserve energy usage

Power Quality Analysis

Statistical analysis (min., max., average) ■■■Review statistical trends, identify past and future problem areas

Sag and swell monitoring, management and recording ■■■Capture electrical sags and swells and analyze the waveforms

Symmetrical Components: Zero, Negative, Positive ■■■Analyze possibly unbalanced three-phase power systems

Low frequency transient detection and capture ■■■Capture lower frequency transient waveforms for retrospective analysis or e-mailing

Sampling rate, maximum samples/cycle 4096 14096 1100,000 Extremely high sampling rate will effectively capture impulsive transients

“Number of Nines” uptime data (e.g., 6 nines = 99.9999%) ■■■Review uptime availability per cent

K-factor ■ ■■Review the ratio of eddy current losses, e.g., when driving nonlinear and linear loads

Crest factor ■ ■■Review the peak-to-average ratio of the waveform

Security

Secure 5 level user access privileges ■■■Define appropriate security access level per user

Communications and I/O

Modbus TCP ■■■Easy integration with standard protocol to power management and other software

Modbus RTU ■■■Integrate meters to existing Modbus networks, daisy chain several (1–16) meters together

HTML ■■■Communicate to the meter over the Internet via standard Web browser

SNMP (simple network management protocol) ■■■Communicate with the meter via Simple Network Protocol; hook to existing NMS system

SMTP (simple mail transfer protocol) ■■■Send e-mail messages via standard Simple Mail Transfer Protocol

FTP (file transfer protocol) ■■■Access, copy, paste, cut waveform capture files on the meter with an FTP Client

NTP (network time protocol) ■■■Network Time Protocol support enables the meter to synchronize time over the network up

to the 1 millisecond resolution

COMTRADE, open IEEE Standard file format for

Waveform capture export

■■■Import waveform captures in standard IEEE (C37.111-1999) COMTRADE file format to third-

party software

DNP 3.0 over Ethernet (Distributed Network Protocol) ■■■Communicate with the meter via DNP 3.0 over Ethernet; hook to existing utility systems

V3-T9-36 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter 4000/6000/8000, continued

Notes

may vary depending on selected options, firmware version and product model. Please refer to the technical data sheet and User Manual for detailed specifications.

1When used with third-party device and I/O option.

Power Xpert Meter

Feature 4000 6000 8000 Benefit

Communications and I/O, continued)

Trend measurements CSV file export ■■■Easily export trend measurements to third-party applications, e.g., Microsoft Excel in

standard CSV file format

I/O (8 digital inputs, 3 relay outputs, 2 solid-state KYZ outputs) ■■■The Power Xpert I/O Card is extremely flexible and can be used in a large variety of

different applications. Digital inputs and relay outputs can be programmed to interact

during various conditions defined by the user. Various third-party devices, such as

alarm, pulse meters, trip units, sensors can be easily integrated to the Power Xpert

Meter. Triggers and events can be tied to the meters standard functions such as e-mail,

logs and trends

Time Synchronization

NTP time synchronization up to 1 millisecond accuracy ■■■Network Time Protocol support enables the meter to synchronize time over the network up

to the 1 millisecond resolution

GPS time synchronization up to 1 millisecond accuracy ■ 1■ 1■ 1The GPS option allows the meter to synchronize time over the GPS satellite positioning

system up to the 1 millisecond resolution

Logs

Trend logging ■■■Log trend information for easy statistical analysis

Load profile ■■■Review the load profile graph to get a better understanding of your electrical load

versus time

Event logging ■■■Log events for retrospective event analysis

Memory and Storage

Standard memory, GB 248Store large amounts of waveform captures and events for historical analysis

Harmonics

Harmonic levels 127 127 127 Provides extremely fast, high resolution D/A conversion

Total harmonic distortion (THD) ■■■Review the total harmonic distortion level directly on the meter

Delta-Sigma D/A conversion technology ■■■Provides extremely fast, high resolution D/A conversion

Harmonics over-sampling (4096 samples per cycle) ■■■Over-sampling enables the usage of Anti-Aliasing technology, increasing accuracy

Anti-alias filtering ■■■Technology to remove out-of-band signal components resulting in more accurate data

Individual harmonics ■ ■■Review individual harmonic levels directly on the meter

Total demand distortion (TDD) ■ ■■Identify harmful harmonics in e.g. lightly loaded variable-speed drive environments where

THD may be high but not relative

Interharmonics ■ ■ Interharmonics allow you to see what is going on between the integer multiples of the

fundamental. Zoom in on the harmonics trend graph and review frequency content every

5 Hz instead of every 60 Hz

Highlights

Sub-cycle disturbance capturing ■■■Capture fast voltage changes/low frequency transient (e.g. capacitor switching transient)

dV/dt triggers for sub-cycle oscillatory transients ■■■Detect and record a large magnitude oscillation transient resulting in equipment damage

Absolute threshold and dV/dt triggering ■■■Detect and record if a surge suppressor is necessary

Power quality index—standard (includes dv/dt count, %TDDi and %THDv) ■ ■■Complex power quality data put into simple graphic format

Power quality index—enhanced (includes Standard Index plus Sag level,

Swell level and Flicker)

■ ■ Complex power quality data put into simple graphic format (includes ITIC events

and flicker calculations)

Flicker calculations ■■Detect and quantify low frequency rms voltage variations causing incandescent

lighting flicker

Automatic trigger setting ■■Trigger thresholds are automatically set according to ITIC (CBEMA) standard, no need to

figure this out by yourself

Automatic event severity analysis ■■Automatically analyze the severity of the event with the ITIC (CBEMA) performance curve

plot, see where the event actually hit

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-37

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter 4000/6000/8000, continued

Notes

may vary depending on selected options, firmware version and product model. Please refer to the technical data sheet and User Manual for detailed specifications.

Power Xpert Meter

Feature 4000 6000 8000 Benefit

Highlights, continued

Event severity counters ■■An ITIC (CBEMA) event counter keeps track of the number of all sags, swells and

transients

ITIC (Information Technology Industry Council), previously CBEMA

performance curve

■■ITIC (Information Technology Industry Council), previously CBEMA performance curve for

easy power problem evaluation

Custom ITIC (CBEMA) plot with individual event magnitude and duration ■■Review custom ITIC (CBEMA) plots of individual events showing you the actual

magnitude, duration and hit are in a simple graphical representation

Event calendar view ■ ■ The Events Timeline calendar view provides instant insight to the frequency of power

events and helps detect reoccurring problems

Events timeline view ■ ■ View and understand the sequence of events that have occurred during a period of time

Sequence of events and events plot on waveform ■ ■ Plot color-coded events on a captured waveform to gain insight into the sequence of

events cycle per cycle

Power quality index—premium (at-a-glance “thermometer” view of

power quality)

■ Complex power quality data put into simple graphic format (includes ITIC events and

flicker calculations)

High-Speed Transient Capture and Detection

6 MHz capture of impulsive transients ■Capture impulsive transients by taking 6 samples every millionth of a second

Transient Capture Duration: ~20 ms/6 MHz ~120 ms/1 MHz ■Record and analyze transients during a longer timeframe

Waveform recorded at 100,000 samples per cycle ■High-speed ensures impulsive transients are correctly captured (fast rise time)

Three-phase voltage and neutral-to-ground fast transient capture ■Capture impulsive transients on all 4 channels

V3-T9-38 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

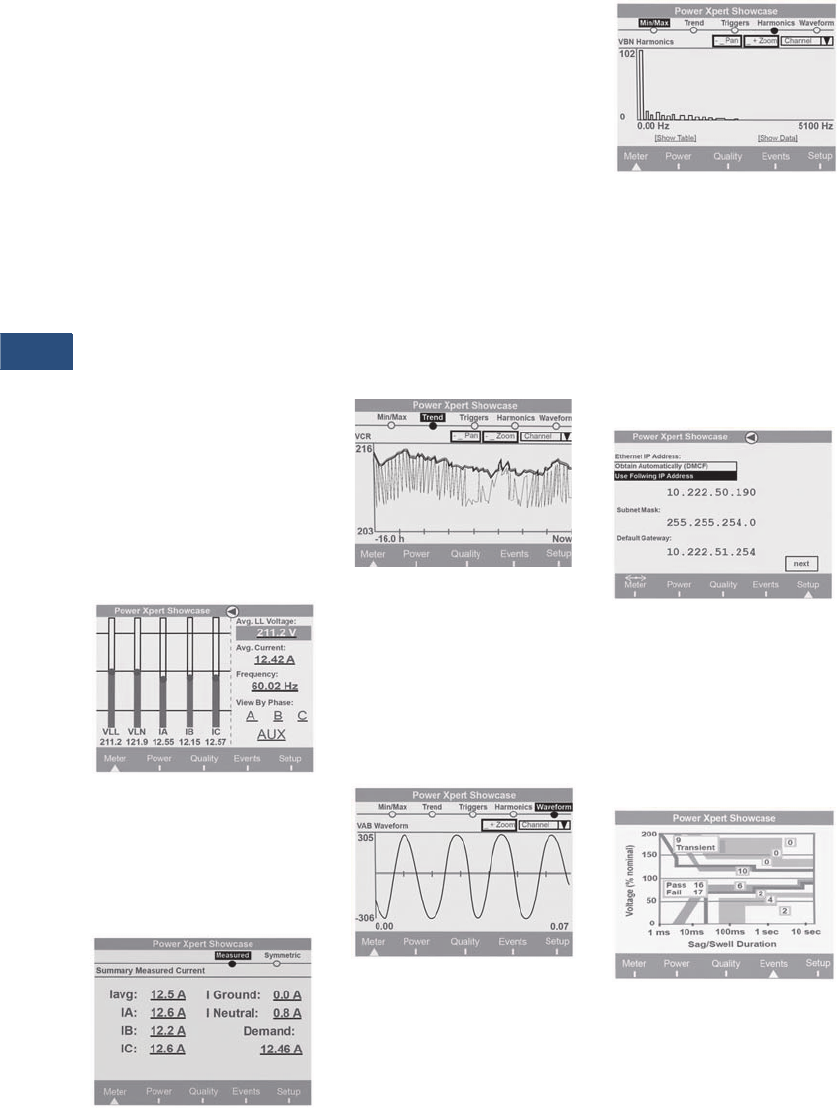

Power Xpert 4000/6000/8000 Graphic Display (Option) Features

A menu-driven graphical

display with information

organized into a user-friendly

information architecture.

The homepage (see below)

offers:

●Graphical level indicator

based on a statistical

analysis for three-phase

line-to-line and line-to-

neutral voltage and per

phase currents to quickly

indicate out of normal

readings

●Large easy-to-read average

L-L voltage average phase

currents and system

frequency can be

highlighted and selected

using the navigation

control dial to drill down

for additional detail

●Menu selections for meter,

power, quality, events and

setup are shown for ease

of navigation into display

for more detail, or basic

device setup

Homepage

Highlighting a field such as

the avg. current value and

pressing the navigation control

dial brings up a detail screen

like the one below.

Current Summary

Highlighting an individual

reading on the detail

summary level screen and

selecting it drills down to a

level including links to min./

max., historical trend plots,

triggers, harmonic spectral

data and waveform viewing.

Selecting the trend plot for

a given parameter displays

a historical graph of the

selected parameter over

the last 16 hours. The zoom

buttons change the time

scale to one of several data

views based on historical

averages with min./max. The

Pan button allows scrolling

within the selected view.

Trend Plot

Waveforms can be displayed

for currents and voltages.

The waveforms can be

viewed on demand for

steady-state conditions.

Triggered waveforms can

also be displayed to view

sag/swell or transient data.

Waveform Viewer

Harmonic Spectrum

The harmonic spectral plot

displays both harmonics and

interharmonics up to the

85th order. A detailed table

also includes individual

magnitudes and angles

of current and voltage

harmonics, as well as a

harmonic power calculation

at each frequency.

Ethernet Settings

Ethernet and other settings

can be input or verified via

the Power Xpert Meter

LCD display.

Note: Some of the other settings

are specific only to the Web

Browser GUI.

ITIC Plot (Power Xpert 6000/8000)

The Power Xpert Meter

classifies disturbances and

summarizes the results

graphically using the ITIC plot.

The number of ITIC sags and

swells are indicated for each

of nine severity levels.

A pass/fail summary is

shown to indicate how many

events are outside the ITIC

pass zone.

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-39

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Graphic Display

(Option) Screens

Meter Top Level Screen

V-LL avg, V-LN avg, IA, IB, IC,

Iavg, freq.

Meter Detail Screens

Per phase detail L-L, L-N,

Symmetrical Comp, Aux.

Channels, Min./Max. with

date/time of occurrence,

Trend Plots, Triggers,

Phasors.

Power Top Level Screen

Three-Phase Power Factor,

kWHr, kWd, Real-Time kW,

kVAR, kVA, Load Profile Link.

Power Detail Screens

Per phase detail, kVA, kVAR,

kW, Min./Max. with date/

time of occurrence, Trend

Plots, Triggers.

Quality Top Level Screen

10 min. and 24 hr. PQIndex,

THDI, THDV, K-factor, Crest

Factor, Flicker Pst,%9’s of

Reliability.

Quality Detail Screens

Per phase detail L-L,

L-N,V aux, Odd, Even,

Interharmonics, Present,

Min/Max, Trend Plots,

Harmonic spectrum plots,

waveform plots.

Events Top Level Screen

Active/Acknowledged Event

list, Trigger List, System Log,

ITIC Curve Link.

Event Detail Screens

Event List, Condition,

Acknowledge Button,

Trigger Date/Time, Trigger

description.

Setup Top Level Screen

View setup, Edit setup,

Setup Detail Screens

Quick Setup, Trigger setup,

Detail setting.

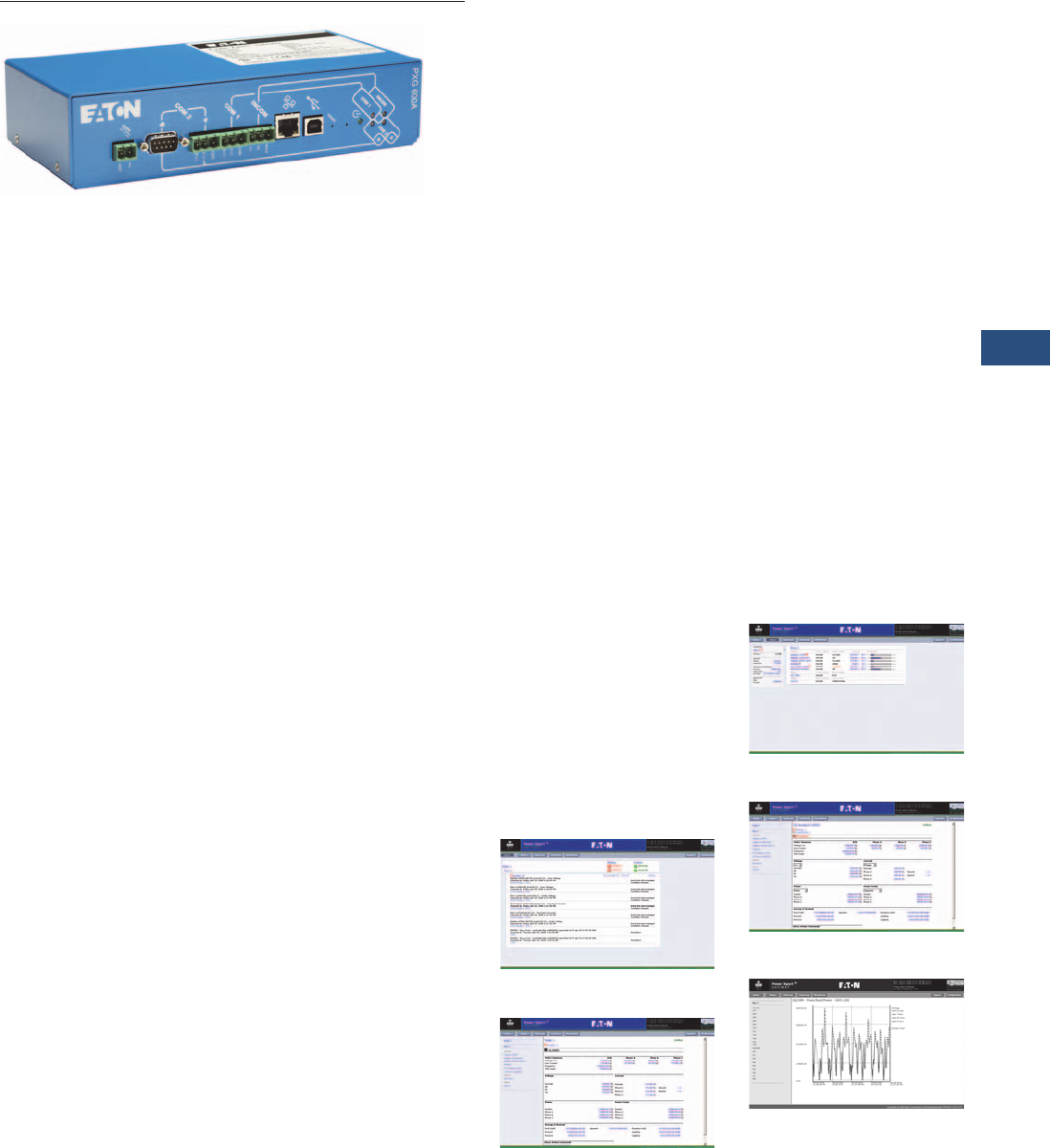

Power Xpert 4000/6000/8000 Web Browser Views

Power Xpert 4000/6000/8000 Web

Browser Homepage (Note: 4000 does

not include flicker, ITIC)

Power Xpert Meter 4000/

6000/8000’s embedded

Web server offers Eaton

customers a new level of

accessibility to the critical

information required to

manage the electrical

distribution system. The

embedded Web server

includes real-time circuit

information in both numeric

and graphical formats to help

monitor circuit parameters

such as current loading,

voltage and power levels,

power factor.

The Web server also provides

the energy and demand

readings required to help

manage the cost of energy.

Readings include kWh,

kVARh, delivered and

received and kVAh with

time-of-use and separate

status input controlled energy

accumulation to account for

energy during special times

such as rate alert periods

or stand-by generator times

of operation.

The Web server also includes

critical information regarding

Power Quality such as

harmonic distortion, flicker

(Power Xpert Meter 6000/

8000), crest factor, K-Factor

and more.

Steady-State Waveform

The Web server allows the

user to view waveforms of

the voltage and current to

spot power quality problems

such as notching.

Events Timeline

(Power Xpert 6000/8000)

View and understand the

sequence of events that have

occurred during a period

of time. Plot color-coded

events on captured

waveforms to gain insight

into the sequence of events

from one single cycle to the

next one. This provides the

user an excellent vantage

point to review and compare

multiple events at an

unprecedented resolution.

Harmonic Spectral Plot

The harmonic spectral plot

displays both harmonics and

interharmonics up to the

85th order. A detailed table

also includes individual

magnitudes and angles of

current and voltage

harmonics, as well as a

harmonic power calculation

at each frequency. Even, odd

and total THD are displayed

for diagnostic purposes. In

addition, the Power Xpert

6000/8000 provides

interharmonics, which allow

users to see what is going

on between the integer

multiples of the fundamental.

Historical Trend Plot

Graphical Trending of Data

The Power Xpert Meter 4000/

6000/8000 embedded Web

server supports graphical

trend charts of key circuit

measurements such as

current, voltage, power and

energy. The trend chart

supports a zoom feature

that allows the user to view

data over a short period of

16 hours or a longer period of

48 months. The trend chart

has a horizontal slider bar

control to manage scrolling

forward and backward

through the data. Trend

charts of basic readings

include minimum, maximum

and average readings. Trend

charts of energy data also

display demand values.

V3-T9-40 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Energy Comparison

Energy usage patterns can be

effortlessly analyzed with the

month-to-month, week-to-

week comparison chart. Raw

data can be easily exported

with the “Save Table” option

to other applications such as

Excel for further analysis or

graphing (firmware version

12.x.x and higher only).

Note: All data logging for

trend plotting is automatically

preconfigured in all of the Power

Xpert Meter 4000/6000/8000

meters. In addition, the 6000

and 8000 Series meters have

sag, swell and transient triggers

built-in according to the ITIC

(CBEMA) standard.

Demand Comparison

Demand comparison

compares power

consumption day-to-day,

month-to-month or week-to-

week. Power Xpert Meters

can set to measure demand

at 1 to 60 minute intervals.

Both sliding and fixed interval

windows are supported for

maximum flexibility.

Disturbance Recording

Sag/Swell Recording

60 cycles of waveform are

recorded at 256 samples per

cycle including 30 cycles of

pre- and post-trigger data.

The Power Xpert Meter 4000/

6000/8000 embedded Web

server supports viewing of

triggered waveforms one

channel at a time including

the ability to zoom and to

scroll horizontally using a

slider bar. Waveforms are

stored in Power Xpert

Meter’s 4000/6000/8000

non-volatile flash memory

using an industry standard

Comtrade format.

Waveforms can be

automatically sent out by

e-mail following an event,

or can be retrieved from an

FTP directory structure in the

meter module’s memory.

ITIC Analysis Plot

(Power Xpert Meter 6000/8000)

The ITIC Web page includes

counters to track the

occurrence of disturbances

and a pass/fail summary.

In addition, selecting any

disturbance counter links to

a detailed event view of the

disturbances in that ITIC

category. Disturbance

waveforms can be viewed

from the browser.

Events Calendar

(Power Xpert 6000/8000)

The Events Timeline calendar

view provides instant insight

to the frequency of power

events and helps detect

reoccurring problems. Color-

coded events can be filtered

to detect specific issues.

Configuration Page

Web Server Device

Configuration

Special software is not

required to configure a Power

Xpert Meter 4000/6000/8000.

The embedded Web server

includes comprehensive

device set-up capability.

Discrete Contact Inputs

The optional PXIO-B

expansion card offers 8 digital

inputs that are useful for a

variety of applications such as:

●Status indication with time

stamping of transitions

(1 ms precision).

●Pulse counting of KYZ or

other utility pulses such

as air, water or gas.

●High-speed triggering of

waveforms based on

events such as breaker

trips or static transfers

●Demand interval timing

taken from a master utility

meter end of interval pulse

Status inputs are self sourced

providing a nominal 24 Vdc

(20–30 Vdc) across the circuit.

Names can be configured for

each input for ease of use.

Relay Outputs

The optional PXIO-B card

includes three 5A form C

relay outputs rated for

240 Vac or 30 Vdc. These

outputs can be used for

applications such as:

●Alarm annunciation

●KYZ pulse output

Alarm outputs can be driven

from triggers based on

metering values. Output

modes include:

●Normal—relay energized

during alarm condition

●Latched—relay energized

by event trigger,

de-energized by

acknowledgement

●Timed—relay energized by

event trigger, maintained

for a programmed interval.

Communications Expansion

Card (CEC)

The optional CEC Card offers

two Ethernet connection

options, 10/100Base-T and

a fiber-optic port that can

be used for the following

applications:

●Monitoring, managing and

configuring the meter

remotely using a standard

Web browser interface like

Microsoft Internet Explorer

●Alarm notifications via

e-mail, SMTP

●Enabling access to the

meter’s FTP server

(energy, trend and

waveform logs)

●Providing Modbus TCP/IP

or RTU communications

to BMS systems

●Providing DNP 3.0 over

Ethernet to utility systems

●Providing SNMP

communications to

NMS systems

●Synchronizing with an

NTP server for 1ms

timestamping resolution

●Asset management

via SNMP to Network

Management Systems

●Updating firmware on

the meter

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-41

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Flicker (EN61000-4-15; Power Xpert Meter 6000/8000)

Flicker values for

perceptibility, PST and PLT

are calculated based on

EN61000-4-15 guidelines.

Power at a Glance

Easily Upgrade Your Power

Xpert Meter 4000 to a 6000

Eaton understands that our

customers’ needs change

over time. That’s why we’ve

developed meters that can

grow with you. Once a Power

Xpert Meter is purchased,

you have the ability to

upgrade to a Power Xpert

Meter 6000, with no

intervention from Eaton,

when needed. All the

features of the Power Xpert

Meter 4000 that you have

been using and depend on

remain, however, once

updated, all the additional

features of the Power Xpert

Meter 6000 are available. The

self-upgrade is available on

Eaton’s website. You’ll need

a credit card, your Power

Xpert Meter 4000 serial

number and data code (you

will be presented with this

information if you are using

the upgrade link directly from

your Power Xpert Meter)

and your e-mail address.

Once you have completed

the purchase, we will send

you your new license key

information via e-mail that

will allow you to complete

the upgrade.

V3-T9-42 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter 4000/6000/8000 Module Layout

I/O Card

aDigital inputs 1–8 (option)

bSolid-state outputs 1–2 (option)

cRelay outputs 1–3 (option)

CT and Voltage Connections

dCT input connections

eStandard three-phase voltage phase inputs

fAux. channel voltage inputs (option)

Communication Expansion Card (LAN/WAN Ethernet Networking)

g100FX ST-type Ethernet (multi-mode) (option)

h10/100Base-T Ethernet (option)

iRS-485 (two-wire w/shield)—24V accessory power (com 2)

Standard Features

jLocal RJ-45 config. port (non-networkable Ethernet)

kRS-485 (two-wire w/shield) Modbus RTU (com 1)

lMeter mounting brackets

mSealable mode switch cover

nControl power (100–240 Vac and 110–250 Vdc) (±20%)

oDisplay RS-485 Network port (up to 15 meters)—24V accessory power (com 0)

pRS-232 (Tx Rx) Modbus RTU (com (3) (option)

qMeter base address

rCom Reset Button

ghj k

oip

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-43

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Catalog Number Selection

To order a Power Xpert

Meter 4000/6000/8000, the

catalog number should be

determined using the chart

shown below. The chart

illustrates how to include the

desired factory options as

part of a catalog number.

Option cards that are

selected at time of order

entry will be installed at the

factory. Option cards are

also field installable for

field upgrades.

If a display is required, it

should be ordered separately.

The multi-meter graphic

display is capable of

displaying data from an

RS-485 daisychain of up to

16 Power Xpert Meter 4000/

6000/8000 modules over a

distance of up to 1000 ft.

Power Xpert Meter modules

include panel mounting

brackets. The multi-meter

graphic display is designed to

mount separately. If back-to-

back meter to display panel

mounting is desired, a

mounting bracket kit is

available (PX-PMBA).

Example 1: PXM8251A1BB

(PXM 8000 Meter, w/ VAUX,

Std. Pwr, Com. Exp. &

I/O Cards)

Example 2: PXM6251A1BA

(PXM 6000 Meter, w/ VAUX,

Std. Pwr, Com. Exp. Card)

Power Xpert Meter 4000/6000/8000

Accessories

Power Xpert Meter 4000/6000/8000

Notes

1These items can be ordered separately or preinstalled in the meter by selecting option B in the model number.

Communication cable (standard Modbus RTU) is not included in the package for meter module connection.

Description

Catalog

Number

Graphic display module PXD-MMG

Communication expansion card for LAN/WAN Ethernet networking: 100FX fiber-optic, 10/100T, RS-485, RS-232 PXMCE-B 1

Digital I/O card: eight digital input, two solid-state output, three relay output PXMIO-B 1

Panel mounting bracket assembly for back-to-back meter to graphic display mounting PX-PMBA

Panel mounting bracket assembly for retrofitting a graphic display to an IQ Analyzer cutout PX-PMBB

Panel mounting bracket assembly for reduced graphic display rear clearance PX-PMBC

Power Xpert Meter 4000 to 6000 license upgrade key PXM-4KUPG

PXM 8 0 5 1 A 1 B B

Model Series

4 = 4000 (Standard

power quality, 2 GB)

6 = 6000 (Enhanced

power quality, 4 GB)

8 = 8000 (Premium PQ

w/ transient capture, 8 GB)

Power Supply Configuration

1 = Standard 100–240 Vac or

110–250 Vdc power supply

Card Slot 1 Configuration

1 = Standard Communications Module with RS-485

Card Slot 2 Configuration

A = No card option

B = Communication expansion card

for LAN/WAN Ethernet

networking w/10/100Base-T,

100F, RS-485, RS-232 ports

Card Slot 3 Configuration

A = No card option

B = I/O option card

(8 digital inputs, 2 solid-state

outputs, 3 relay outputs)

Voltage Input Configuration

0 = Standard (V1, V2, V3, V4)

2 = Standard plus auxiliary

(V6, V7, V8)

Example 1: PXM8251A5BB (PXM 8000 meter, w/ VAUX, std. pwr., com. exp. and I/O cards)

Example 2: PXM6251A6BA (PXM 6000 meter, w/ VAUX, std. pwr., com. exp.card)

V3-T9-44 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Technical Data and Specifications

Environmental Conditions

●Operating temperature:

●Meter: –20 to +70°C

●Display: –20 to +60°C

operating

●Storage temperature:

–40 to +85°C

●Operating humidity:

5% to 95% condensing

●Device weight: 7.1 lbs—

meter 2.1 lbs—display

●Meter and back of

display are pollution

degree 2

●Elevation to 6562 ft

(2000m)

Current Inputs (Each Channel)

●Conversion: 4096 samples

per cycle delta-sigma

converter digitally filtered

down to 512 samples

per cycle

●CT Input: 4096 rms

samples per cycle delta-

sigma converter digitally

filtered down to 512

samples per cycle for

anti-aliasing

●Burden: less than

10 milliohms

●Overload withstand:

500A for 1 second,

non-repeating

●Range: 0.005–20A

continuous

●Accuracy: 0.05% or

reading plus 0.01%

of full scale (from

50 milliamps to 20A)

Voltage Inputs (Each Channel)

●Conversion: 4096 rms

samples per cycle delta-

sigma converter digitally

filtered down to 512

samples per cycle for

anti-aliasing

●PT input: 120V–500,000V

primary

●Input range: 600V L-L,

347 L-N direct connect

●Nominal full scale:

1000V rms

●Input impedance:

2 megohms

Frequency Range

●47–63 Hz

Harmonic Response

(Voltage, Current)

●127th harmonic

Accuracy

●ANSI C12.20 0.2 Class

●IEC 687 0.2 Class

Discrete Inputs

●Self sourced: 24 Vdc

Relay Output Contacts

●5A maximum, 240 Vac

maximum, 30 Vdc

maximum

●Lifetime: 1,000,000 no

load operations

●100,000 under rated

voltage and load

Solid-State Outputs

●Maximum load:

100 milliamps

●Maximum voltage: 30V

(externally sourced)

Control Power Input

●Input range AC:

100–240 Vac (±20%)

●Frequency range:

47–63 Hz

●Input range DC:

110–250 Vdc ±20%

●Burden 50 VA

●Ride-through: 1–5s

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-45

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

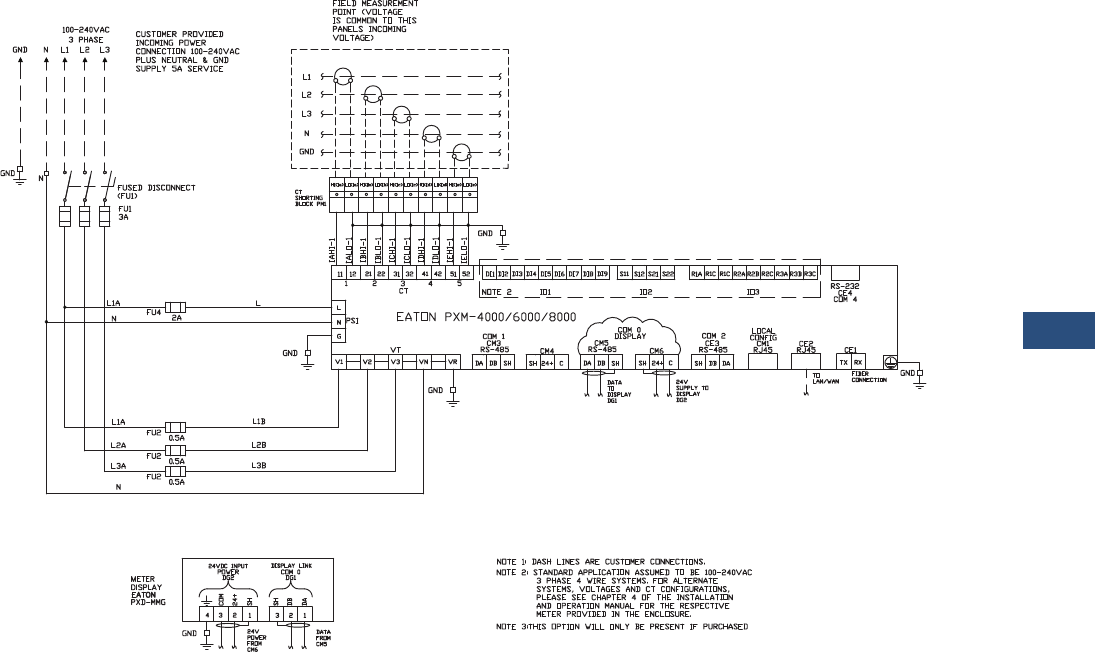

Wiring Diagrams

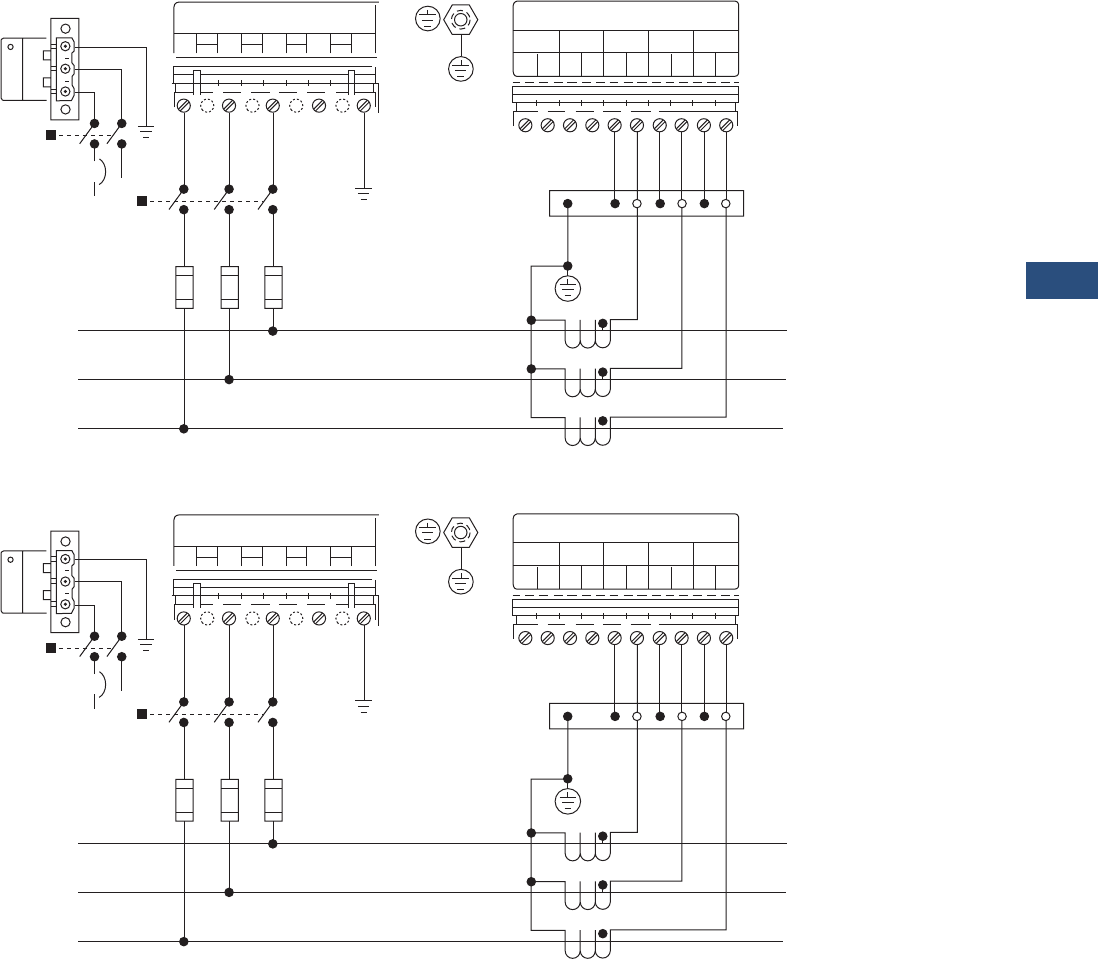

Three-Phase, Three-Wire Delta (Up to 600 Volts)

Three-Phase, Three-Wire Delta (Above 600 Volts)

Note

Based upon the voltage rating, you may need a control power transformer for the control power.

Voltage Inputs

V1 V2 V3 V4 VR

Disconnect

Switch

Disconnect

Switch

Breaker

(+) L

(–) N

123

Control

Power

Load

Line

Shorting

Block

Protective

Earth /

Chassis

Ground

Current Inputs

5 4 3 2 1

52 51 42 41 32 31 22 21 12 11

PSI-

Voltage Inputs

V1 V2 V3 V4 VR

Disconnect

Switch

Disconnect

Switch

Breaker

(+) L

(–) N

123

Control

Power

Load

Line

Shorting

Block

Protective

Earth /

Chassis

Ground

Current Inputs

5 4 3 2 1

52 51 42 41 32 31 22 21 12 11

PSI-

V3-T9-46 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

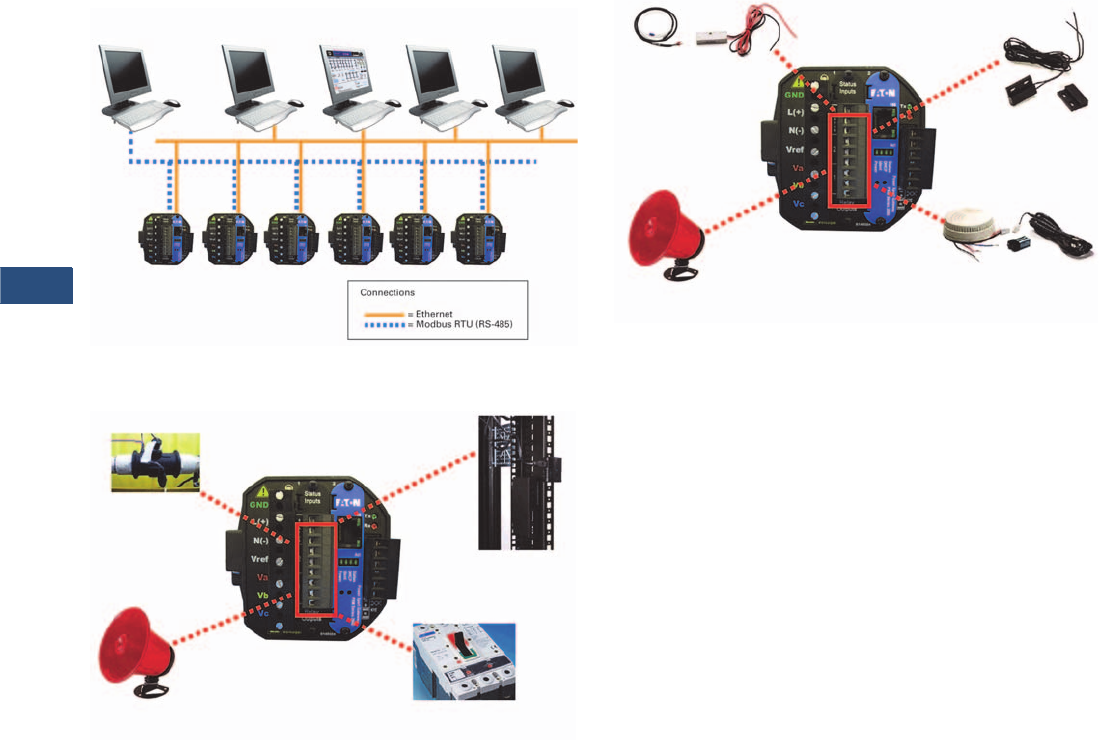

Power Xpert Meters Configuration and Wiring Examples

Display Link

Modbus RTU (RS-485)—Non-Web Enabled

Web Enabled—Browser and Modbus TCP

Web Enabled—Advanced System Functionality

Accessories—I/O Card (Option)

IT Configuration Examples—Accessories—I/O Card (Option

Display Link (RS-485)

Up to 16 Meters can be Daisy-Chained to a Single

Power Xpert Meter LCD Display

…Up to 16

Display Link (RS-485)

Modbus RTU (RS-485)

Master

…Up to 16

Display Link (RS-485)

Modbus RTU (RS-485)

Master

…Up to 16

Modbus TCP

Master

Web

Browser

Display Link (RS-485)

Modbus RTU (RS-485)

Master

Modbus TCP

Master

Web

Browser

Power Xpert

Software

Alarm

Flow Meter

(Pulse Count)

• Eight Programmable Digital Inputs

• Two Solid-State Programmable Outputs

• Three Relay Programmable Outputs

Trip and Sequence

of Events

Rack Monitoring—

Open Door/Tamper Switch

Smoke Alarm

Alarm

Water Leak and

Vibration Sensors

Rack Monitoring

— Open Door/

Ta m p er S w i t c h

• 8 Programmable Digital Inputs

• 2 Solid-State Programmable Outputs

• 3 Relay Programmable Outputs

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-47

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Dimensions

Approximate Dimensions in Inches (mm)

Power Xpert Meter 4000/6000/8000 Multimeter Graphic Display (PXD-MMG)—Sold Separately,

Supports up to 16 Power Xpert Meter 4000/6000/8000 Modules

10/100 T

DG3

Power

Com 0

O24

DG2

DG1

Display Link

24VDC Input

Customer Satisfaction for Techni cal Support

www.EatonElectrical or

htt // E t El t i l

1-800 -809-2772 or 1 -414-

E18555

ory

G.O.#: XXXXXXXXXX

Catalog#: PX8054A1CB

Model#: PX8000

Serial#: 000042

Style#: 65D8054G010

Power Supply: 24 VDC (+/ -20%)

SELV, 8W MAX.

MADE

CANADA

Date Code: C050131

Rev: 1

per

emp: -

60°C

4.00 Ref.

(101.6)

3.00 Ref.

(76.2)

3.00 Ref.

(76.2)

1.45

(36.8)

1.50

(38.1)

5X #8 – 32 Thread

Thread Depth 0.31

7.22

(183.5)

7.80

(198.0)

9.02

(229.0)

0.57

(14.5)

7.22

(183.5)

7. 7 6 R e f .

(197.1)

1.04

(26.3)

0.46

(11.6)

Health Events

Push to Select • Hold for Help

BACK

Turn to Highlight

V3-T9-48 Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Approximate Dimensions in Inches (mm)

Power Xpert Meter 4000/6000/8000 Module

Meter Base Unit

Display Unit

Note

1Including optional wall mounting brackets.

Width Height Depth

9.56 (242.8) 8.88 (225.6) 6.72 (170.8) 1

Height Width Depth

Projection In Front of Panel Surface

9.02 (229.0) 7.80 (198.1) 1.04 (26.3)

Behind Panel Surface

9.02 (229.0) 7.80 (198.1) 1.45 (36.8)

8.88 (255.6)

8.20 (208.3)

8.32

(211.3)

7.36

(186.9)

0.42 (10.7) 0.34

(8.6)

1.60

(40.6)

5.00

(127.0)

6.72 (208.3)

6.33 (160.8)

4x R0.11

(R2.8)

4x Ø 0.20

(Ø 5.2)

9.56 (242.8)

Volume 3—Power Distribution and Control Assemblies CA08100004E—November 2013 www.eaton.com V3-T9-49

9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

Power Xpert Meter 2000 Series

Contents

Description Page

Metering Products Family. . . . . . . . . . . . . . . . . . . . V3-T9-21
