Powers Fasteners 2013-2014 Buyers Guide & Screw Catalog Cat No. 0001210 11/13
Powers Fasteners
2 Powers Lane
Brewster, NY 10509
P: (800) 524-3244
F: (877) 871-1965
Powers Fasteners Canada Ltd.
6275 Millcreek Drive,
Mississauga Ontario L5N-7KN Canada
P: 1(800) 567-7188
F: 1(800) 265-9680
www.powers.com
Mechanical Anchors Pg. 4
Adhesive Anchors Pg. 26
Light Duty Anchors Pg. 35
Powder & Gas Fastening Pg. 41
Carbide Drill Bits Pg. 62
Zinc, SS, Brass &
Bronze Screws
Pg. 74
High Speed Drill Bits Pg. 106
Packaged Fasteners Pg. 108
Buyers
Guide
2013-2014
INTRODUCTION AND IMPORTANT INFORMATION
Powers Fasteners is the leading supplier of concrete and masonry anchors in North America and
has been a leader in the fastening industry since 1921. Founded as the Rawlplug Company Inc,
the Powers family changed the name to Powers Fasteners in 1996 as the company expanded
internationally with operations overseas. Powers expansion into Australia, Asia and Europe
dictated the name change from Rawlplug to Powers, a name which the Powers family owns
worldwide. Powers is an ISO-9001 international anchoring products company with extensive
expertise in the following product groups: Mechanical Anchors, Adhesive Anchoring Systems,
Light Duty Anchors, Roofing Fasteners, Carbide Drill Bits, and powered forced-entry systems
such as Powder Actuated, and Gas Fastening.
We are pleased to present to you our 2013 -2014 Buyers Guide. This comprehensive catalog
was developed for both distributors and contractors. This catalog contains the latest products
and innovations in anchoring technology. This catalog should as a quick reference for order-
ing and for help in selecting the right anchor for your next fastening application. For technical
data relating to any of the products contained in the catalog, we ask that you refer to our latest
technical information or by visiting our website at www.powers.com.
www.powers.com
This site contains the most up-to-date product information including product approvals and
listings, MSDS sheets, submittal packages, general product information, software tools, contact
information, and copies of our newsletter ‘Concrete Evidence’. These resources and programs
combined with over thirty stocking locations throughout North America provide the best
possible product and field support available in the post-installed anchoring industry.
If you should have any questions or feedback, please contact customer service at
1(800) 524-3244 or by email at info@powers.com.
Product Warranty Statement
Powers Fasteners, Inc. will repair or replace, at its sole discretion,
any product within 90 days after sale by Powers Fasteners, Inc.
or its distributors, if found to be defective in material or
workmanship,normal wear and tear excluded.
This warranty does not apply to products not used in compliance
with published instructions, specific applications, installment
procedures, modified products, defective substrate materials or
deterioration due to environmental conditions.
All warranties are expressed in lieu of other warranties, expressed
or implied, including warranties of merchantability or fitness for a
particular purpose, all such other warranties being hereby express-
ly excluded.
Limitation of Liability
Powers Fasteners, Inc. shall not be liable for any injury, loss or
damage, direct, indirect, incidental or consequential, arising out of
the use of, or the ability to use, the products described herein.
Indemnity
Any or all modifications made by the customer to either the
product itself or the installation procedures, shall, regardless of
specific instructions to the user, indemnify, defend, and hold
harmless, Powers Fasteners, Inc. for any and all claimed loss or
damage occasioned, in whole or in part, by the modified products.
POWERS FASTENERS BRANCH INFORMATION
USA LOCATIONS
CITY ADDRESS CONTACT PHONE FAX
Alabama 5405 Buford Hwy Suite 410 Norcross, GA 30071-3984 Jeff Hatchett 678-966-0000 678-966-9242
Atlanta 5405 Buford Hwy Suite 410 Norcross, GA 30071-3984 Ryan Raica 678-966-0000 678-966-9242
Boston 2 Powers Lane, Brewster, NY 10509 Jack Armour 800-524-3244 877-871-1965
Charlotte 349 L West Tremont Avenue, Charlotte, NC 28203 Bob Aurisy 704-375-5012 704-376-5517
Chicago 2472 Wisconsin Avenue, Downers Grove, IL 60515 Dan Gilligan 630-960-3156 630-960-3912
Dallas 1300 IH 35 North, Suite #118, Carrollton TX 75006 Matt Henderson 972-446-5985 972-446-3674
Denver 2475 West Second Street #35, Denver, CO 80223 Jared Hemmert 303-922-9202 303-922-9228
Detroit 21600 Wyoming Avenue, Oak Park, MI 48237 Glen Gaskill 248-543-8600 248-543-8601
Florida 2412 Lynx Lane, Orlando, FL 32804 John Christy 813-626-4500 813-626-4545
Houston 13833 North Promenade, Suite 100, Stafford, TX 77477 Vaughn Eshelman 281-491-0351 281-491-0367
Indianapolis 15290 Stony Creek Way, Noblesville, IN 46060 Ian Jones 317-773-1668 317-773-1690
Los Angeles 2761 Dow Avenue, Tustin, CA 92780 John Kenny 714-731-2500 714-731-2566
Maryland 3137-B Pennsy Drive, Landover, MD 20785 Chris Van Syckle 301-773-1722 301-341-5119
Milwaukee 12020 W. Feerick Street, Milwaukee, WI 53222 Donn Raduenz 414-466-2400 414-466-3993
Minneapolis 351 Wilson Street, NE Minneapolis, MN 55413 Josh Nelson 612-331-3770 612-331-3549
Missouri 3225 Harvester Road, Kansas City, KS 66115 Don James, Jr. 816-472-5033 816-472-5040
New Orleans 102 Sampson Street, Houston, TX 77003 Gary Button 713-228-1524 713-228-1528
New York 2 Powers Lane, Brewster, NY 10509 Matt Reap 800-524-3244 877-871-1965
Philadelphia 2 Powers Lane, Brewster, NY 10509 Greg Stephenson 800-524-3244 877-871-1965
Phoenix 3602 E. Southern Ave, Suite 5 Phoenix, AZ 85040 Patrick Stysly 602-431-8024 602-431-8027
Pittsburgh 1360 Island Avenue, Mckees Rocks, PA 15136 Bill Dugan 412-771-3010 412-771-9858
Portland 18808 142nd Ave NE, Suite 4A, Woodinville, WA 98072 Jim Swink 360-608-6845 206-762-5817
Rochester 36 Van Auker Blvd., Rochester, NY 14608 Mark Harper 800-524-3244 / 585-529-4188 877-871-1965/ 585-529-5319
Salt Lake City 3120 W. California Ave, Suite E, Salt Lake City, UT 84104 Don Manning 801-466-9428 801-466-3083
San Francisco 28970 Hopkins Street, Suite B+C, Hayward, CA 94545 John O’Brien/Craig Hering 510-293-1500 510-293-1505
Seattle 18808 142nd Ave NE, Suite 4A, Woodinville, WA 98072 Darin Arnold 206-762-5812 206-762-5817
Tennessee 221 Blanton Avenue, Nashville, TN 37210 Jamie Utley/John Hazen Sr. 615-248-2667 615-248-2676
INTERNATIONAL LOCATIONS
COUNTRY/REGION ADDRESS CONTACT PHONE FAX
Australia Factory 3, 205 Abbotts Road, Dandenong, South Victoria 3175 Peter Pratis +61 3 8787 5888 +61 3 8787 5899
Canada 6275 Millcreek Drive, Mississauga, Ontario L5N 7K6 Joe Diilio 1-800-567-7188 1-800-265-9680
China 8/F, Lujiazui Fund Tower, No. 101, Zhu Lin Road, PuDong District, Tina Ge +86-21-6162-1858*2234 +86-21-5080-5101
Shanghai, China 200122
Europe Westrak 208, 1771 SV Wieringerwerf, Netherlands Colin Earl +31 888 769 377 +31 227 594 759
Manitoba 1810 Dublin Avenue Man. Winnipeg, R3H 0H3 Distributor 204-633-0064 204-694-1261
New Zealand PO Box 302 076 North Harbour Auckland Clay Sesto +64 9415 2425 +64 9415 2627
Quebec 721 Meloche Avenue, Dorval, Quebec H9P 2S5 Allan Hill 514-631-4216 514-631-2583
LATIN & CARIBBEAN DISTRIBUTION INQUIRIES
COUNTRY/REGION ADDRESS CONTACT PHONE FAX
Latin America Allan Herbert 0050767477749 877-871-1965
LATIN & CARIBBEAN DISTRIBUTION
COUNTRY/REGION ADDRESS CONTACT PHONE FAX
Brazil HARD, Rua Dr. Humberto Pinheiro Viera, 150 Lote B, 55-47-40097209 55-47-40097217
1 B Distrito Industrial, Joinville, Brazil
Colombia Electrogeno, S.A., Carrera 52 #71c-38, Bogota, Colombia (57) 1 6600 9436
Costa Rica Tecnofijaciones de Costa Rica,, La Uruca, costado Este del Banco Nacional, alguerak@tecnofijacionescr.com 00-506-2256-8115/8117 00-506-2256-8149
Condominio Horizontal JW, Bodega #21, San Jose, Costa Rica
Cel Internacional s.a., Alajuela, Costa Rica, Apartado 674-4050 ventas@celcr.com 00-506-2432 5868 00-506-2440-1839
Dominican Republic Calle Estancia Nueva #17 E Esquina Cul-De-Sac 9, San Geronimo, Santo Domingo Rodfor Team 809-224-5615 809-472-8640
Ecuador Acero Comercial Ecuatoriano S.A., Av. La Prensa N45-14 y Telégrafo 1 – Quito infouio@acerocomercial.com (593-2) 2454 333 (593-2) 2454 455
Av. Juan Tanca Marengo Km. 1.7 – Guayaquil infogye@acerocomercial.com (593-4) 2683 060 (593-4) 2683 059
Guatemala Multimateriales s.a., 1 calle, #33-88, Zona 1, Colonia Toledo, Guatemala 01011 info@multimateriales.com 00-502-2429-6700 00-502-2429-6767
Mexico Multiaccesorios, Av.A tiempo, #502, Parque, Nuevo Leon jnlazo@multiaccesorios.com 00-52-81-8042-4200 00-52-81-1231-0048
Fulminantes Industriales, Encino No.1103, Col Granjas, Chihuahua irmafp@live.com 00-52-614-419-0090 00-52-614-419-8523
Sergio Paulo Ramirez, Colonia Jardines de Jerez, Gardenias #103, Leon, Guanajuato prosetgto@hotmail.com 00-52-477-711-0670 00-52-477-212-2478
Panama Centro-Industrial, Via Cincuentenario, No. 7910, Ciudad Panama, Panama (507) 302-8022
Mecsa, Via Argentina #46-70, Edif. Rattan, Planta Baja Local 5, Panama rvanselow@germantecpa.com 00-507-269-4333 00-507-269-1866
Fixa Panama, Via Porras, Edif. 54, Local #7, San Francisco ventas@fixapanama.com 00-507-260-9505
Peru Powers Peruana SAC, Av. Santa Catalina, 571 La Victoria, Lima 13, Peru Martin Vasquez 00 511 265 8500 00 511 330 0909
(www.powersperuana.com)
Venezuela Anclajes Powers s.a., Calle Sucre/Qta. Maudora, #1721 Entre Cec Acosta Y Distributor
San Ignacio Chacao, Caracas anclajespowers@hotmail.com 58 212 264 1313 58 212 263 0219
Trinidad - Tobago Ft. Farfan, 3-5 Ibis Avenue, Ibis Acres, San Juan Derek Cumming (868) 674-7896
Note: The information and data contained within this documentation was current as of November 2013. The information is for marketing purposes only and is subject to change and
updates as needed. Powers Fasteners, Inc. reserves the right to change designs and specifications without notice or liability for such changes. Please contact Powers Fasteners for the
most current and up to date available information or refer to our website at www.powers.com
Powers Fasteners 2 Powers Lane, Brewster, NY 10509 P: (800) 524-3244 F:(877) 871-1965
www.powers.com
Cat. No. 0001210 11/13
©2013 Powers Fasteners, Inc.
1
MECHANICAL ANCHORS

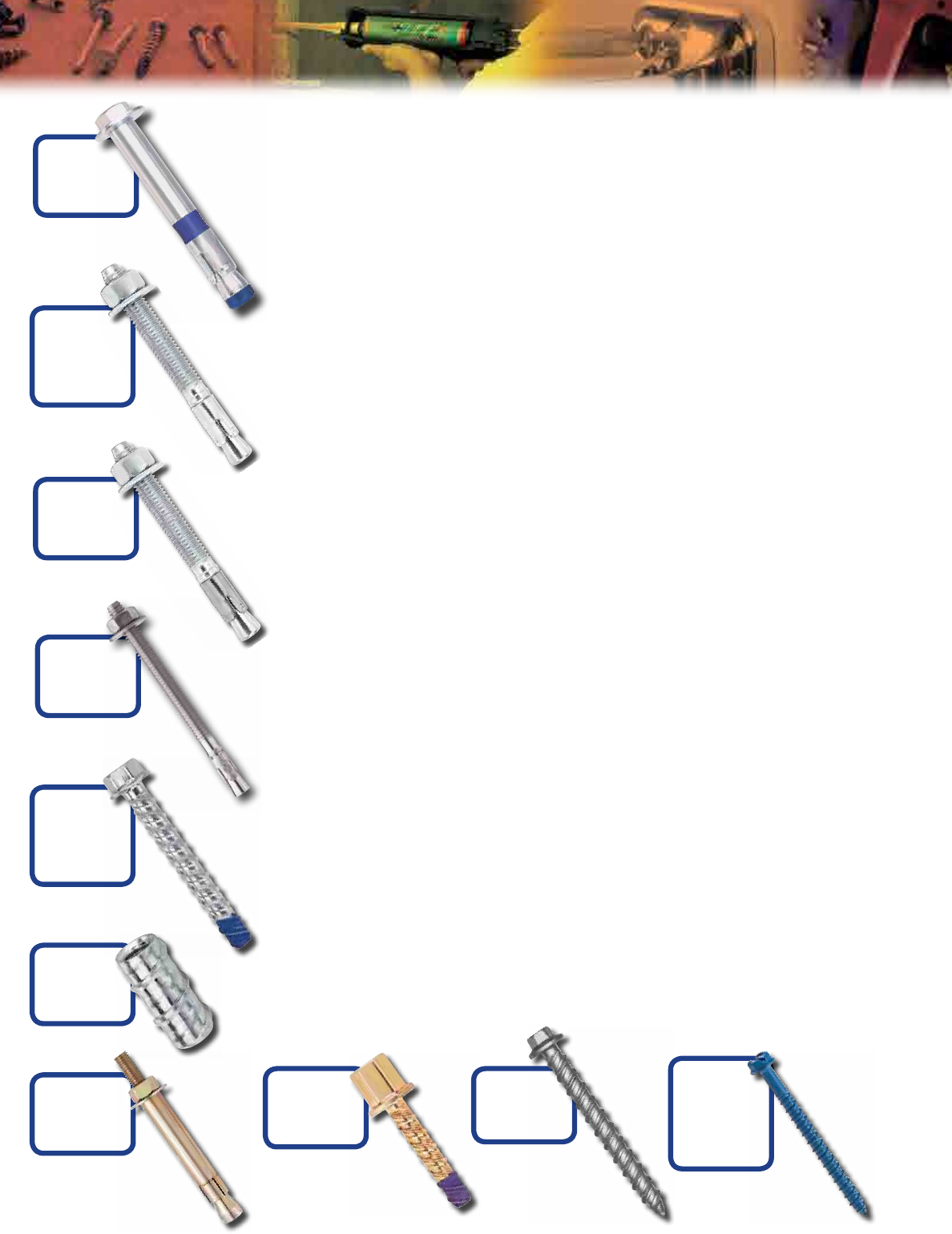

Selection Guide 4-5

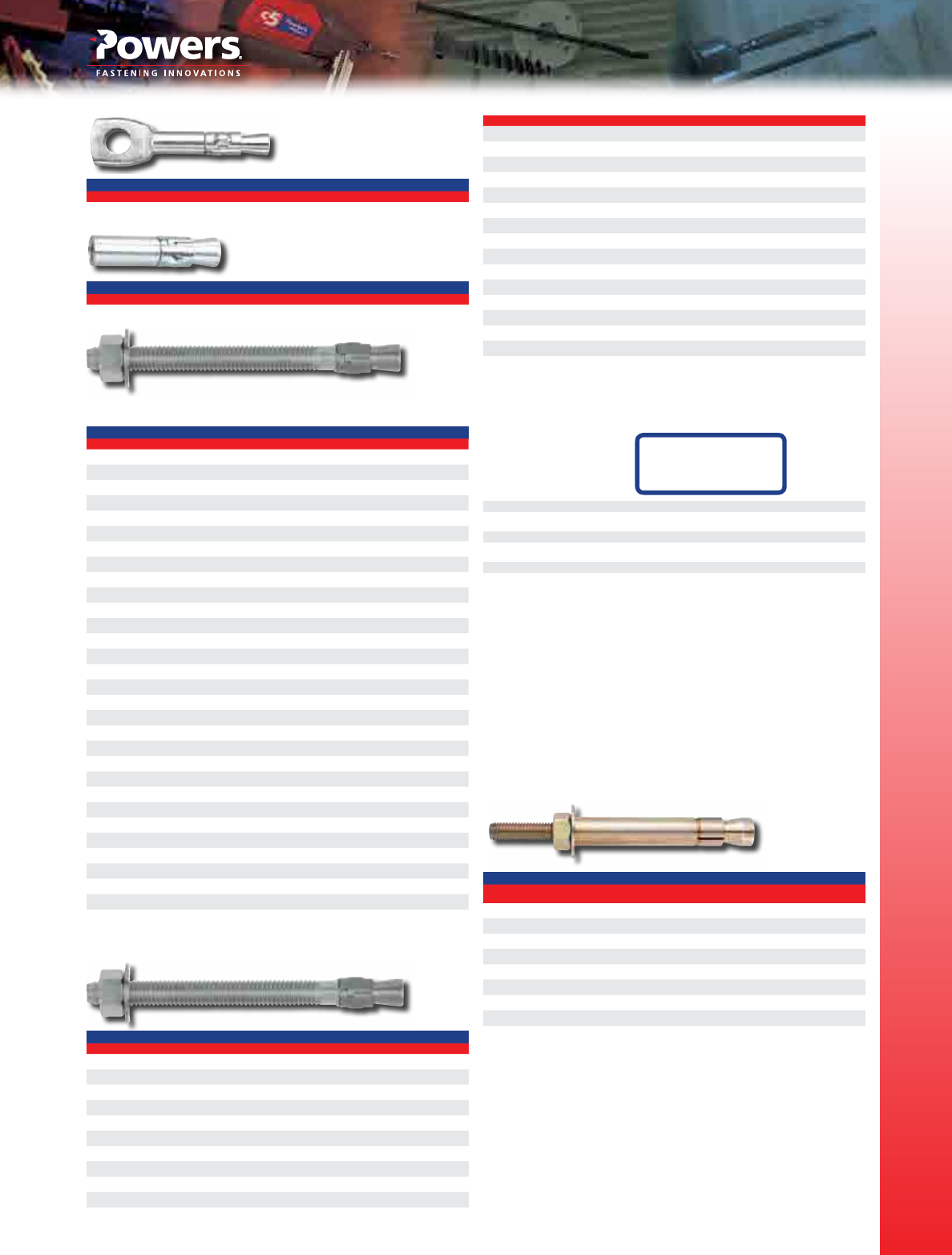

EXPANSION ANCHORS

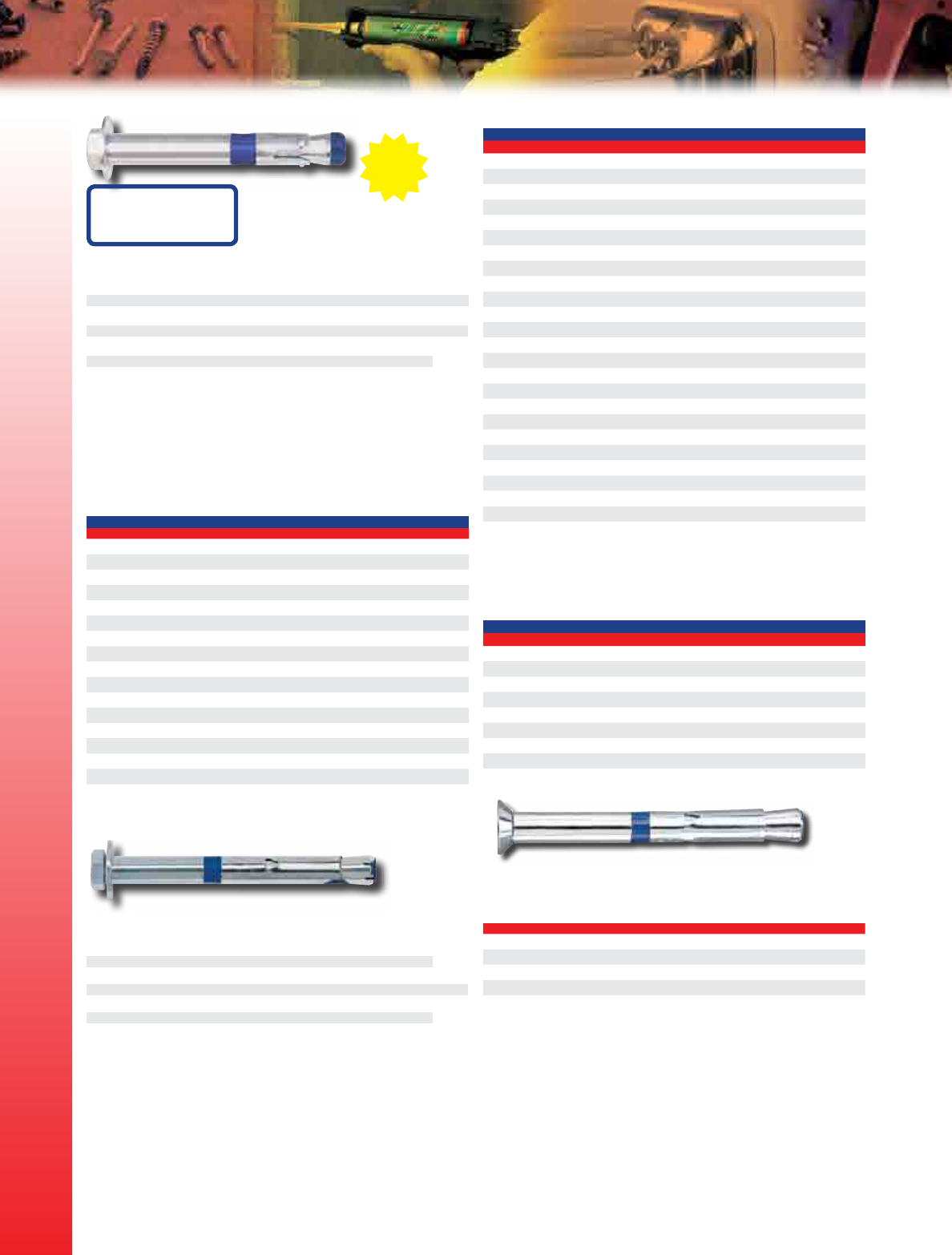

PB+ (Power-Bolt+) 6
Power-Bolt® 6

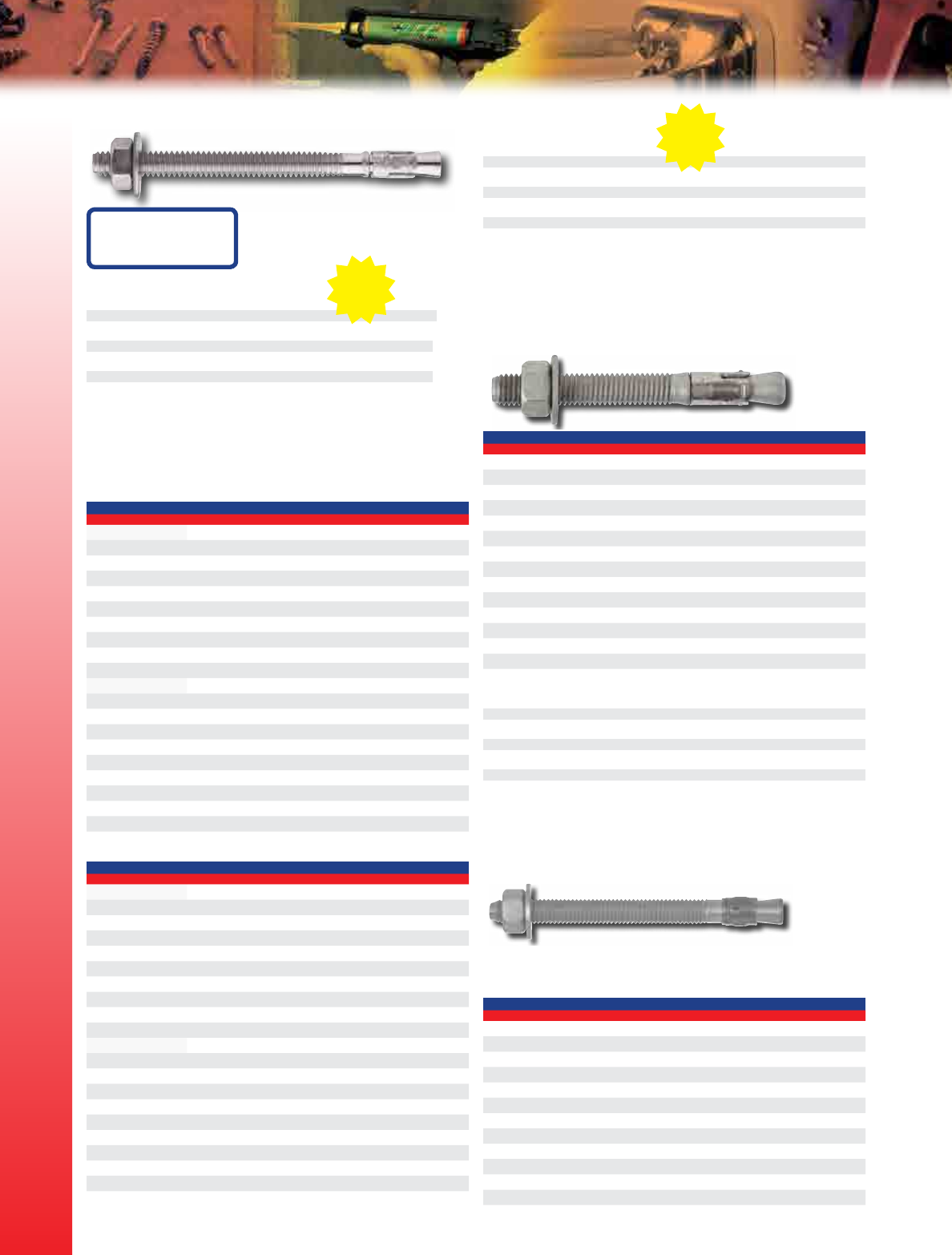

Power-Stud+ SD1 7
Power-Stud+ SD2 7
Power-Stud+ SD4 + SD6 8
Power-Stud HD5 8
Power-Stud® 8
Lok-Bolt AS 10
Set-Bolt 11
UNDERCUT ANCHORS
Atomic+ Undercut 9
SCREW ANCHORS

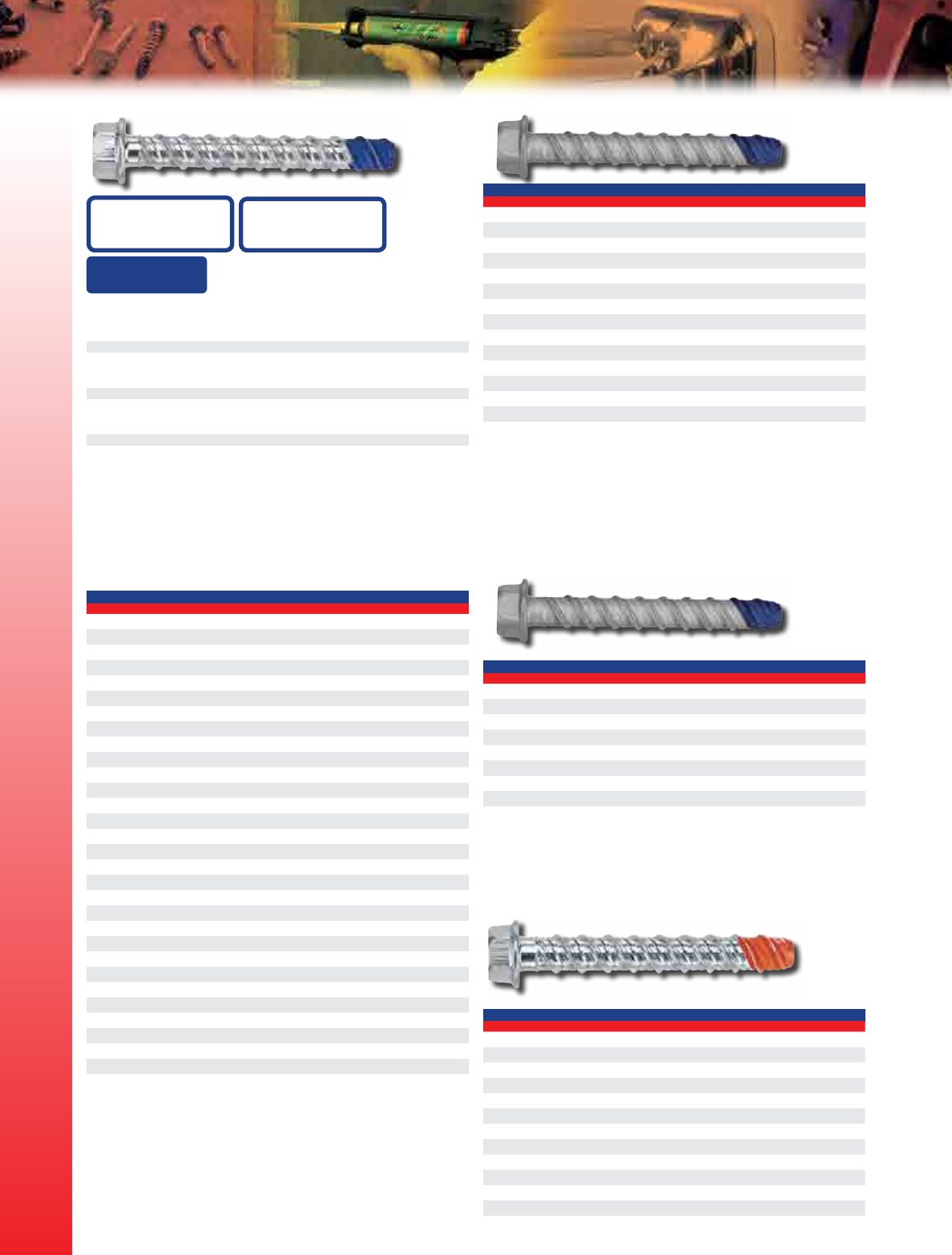

Wedge-Bolt®+ 12
Wedge-Bolt® 12
Tapper+Xtreme 13
Tapper+ 14
Tapper 15
BOLT & SHIELD ANCHORS
Snake+ 18
Smart DI+ 18
Hollow-Set Dropin 19
Steel Dropin 19
Mini Dropin 20
Double 20
Single 20
Calk-In 20
Lag Shield 21
ROD HANGING SYSTEMS & CONCRETE INSERTS

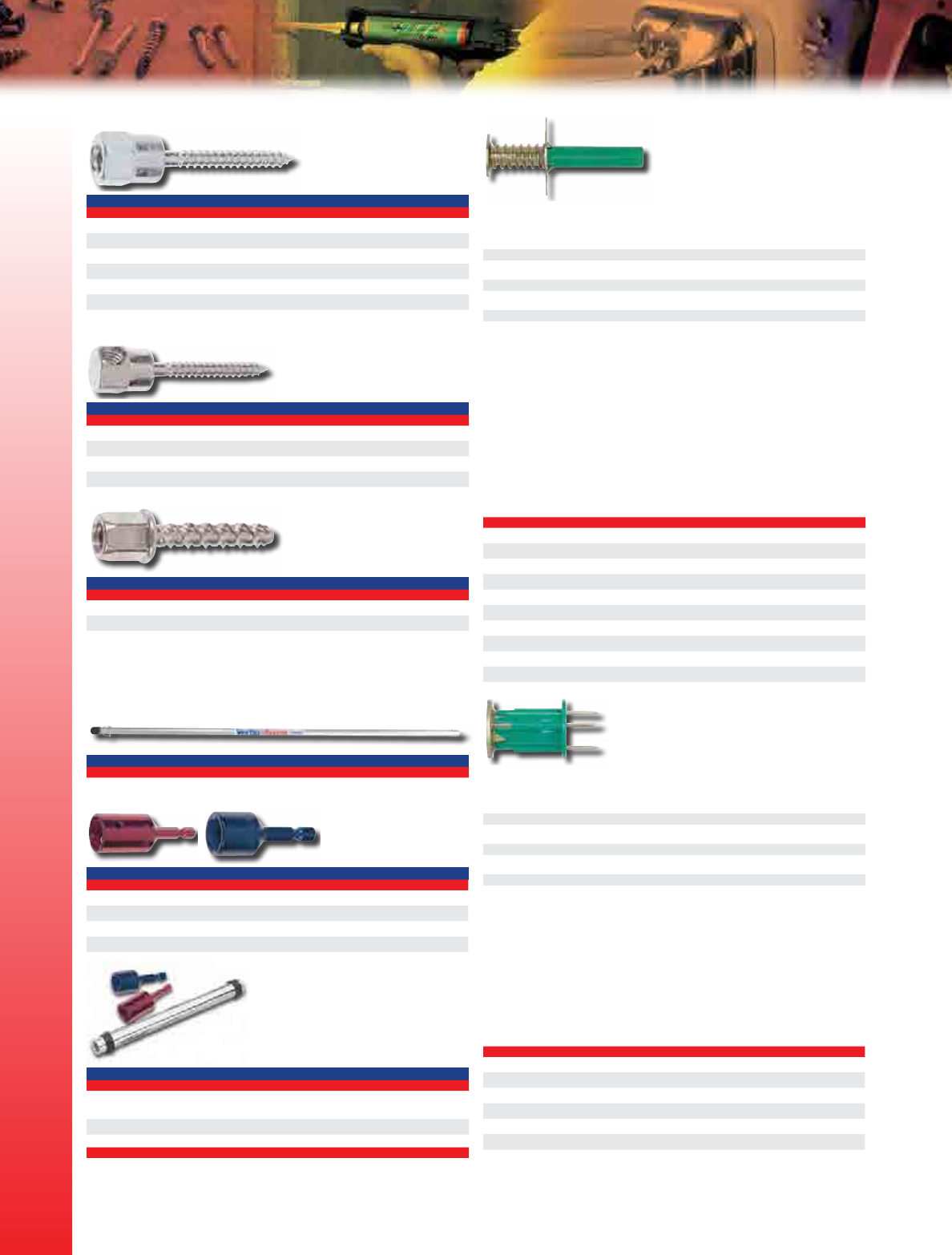

Vertigo® / Vertigo+ 21
Bang-It 22
Wood-Knocker 22
FACADE, PIN & NAIL ANCHORS
Heli-Pin 21

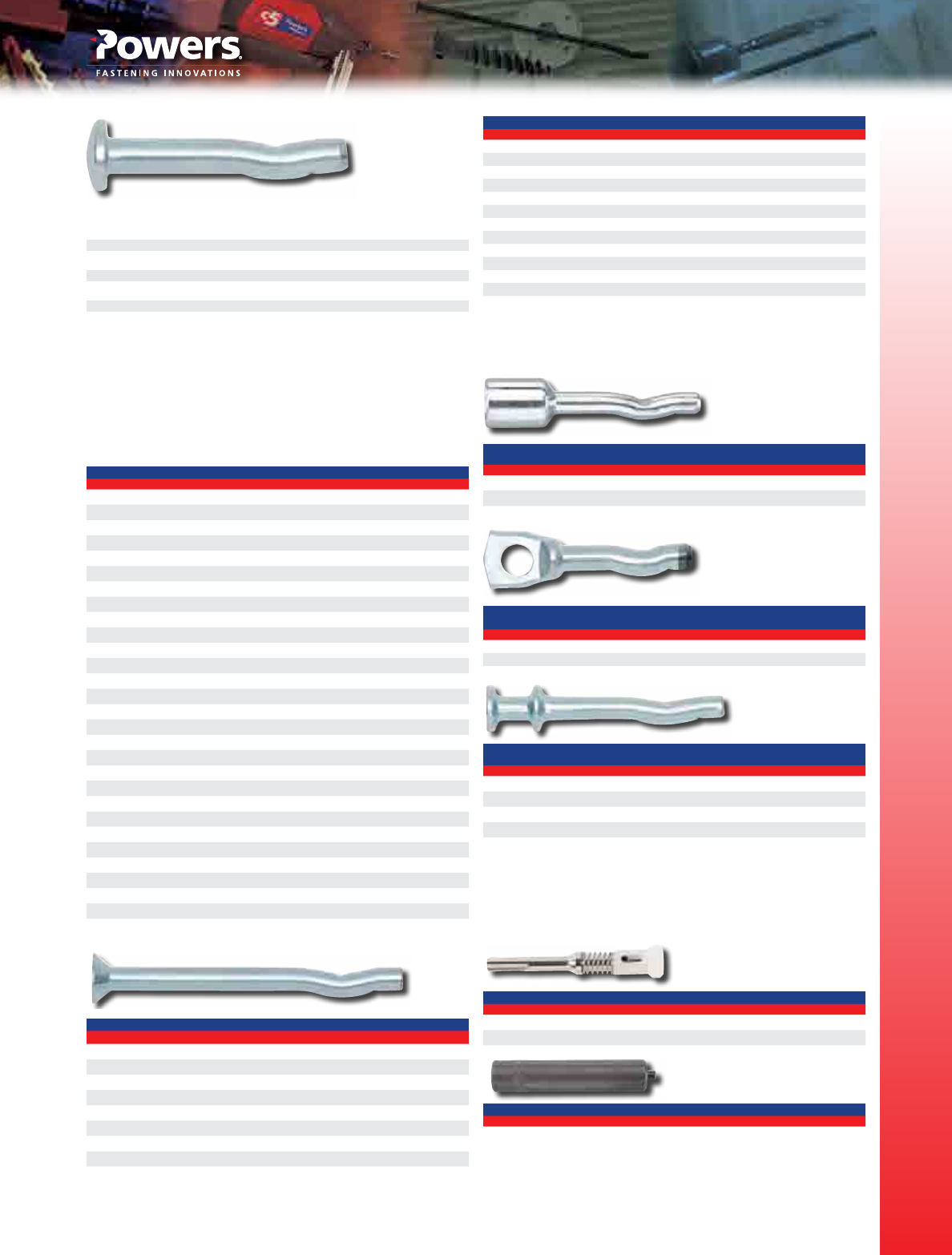

Spike® 23
Drive® 24
Zamac Hammer-Screw® 24
Safe-T+ Pin 24

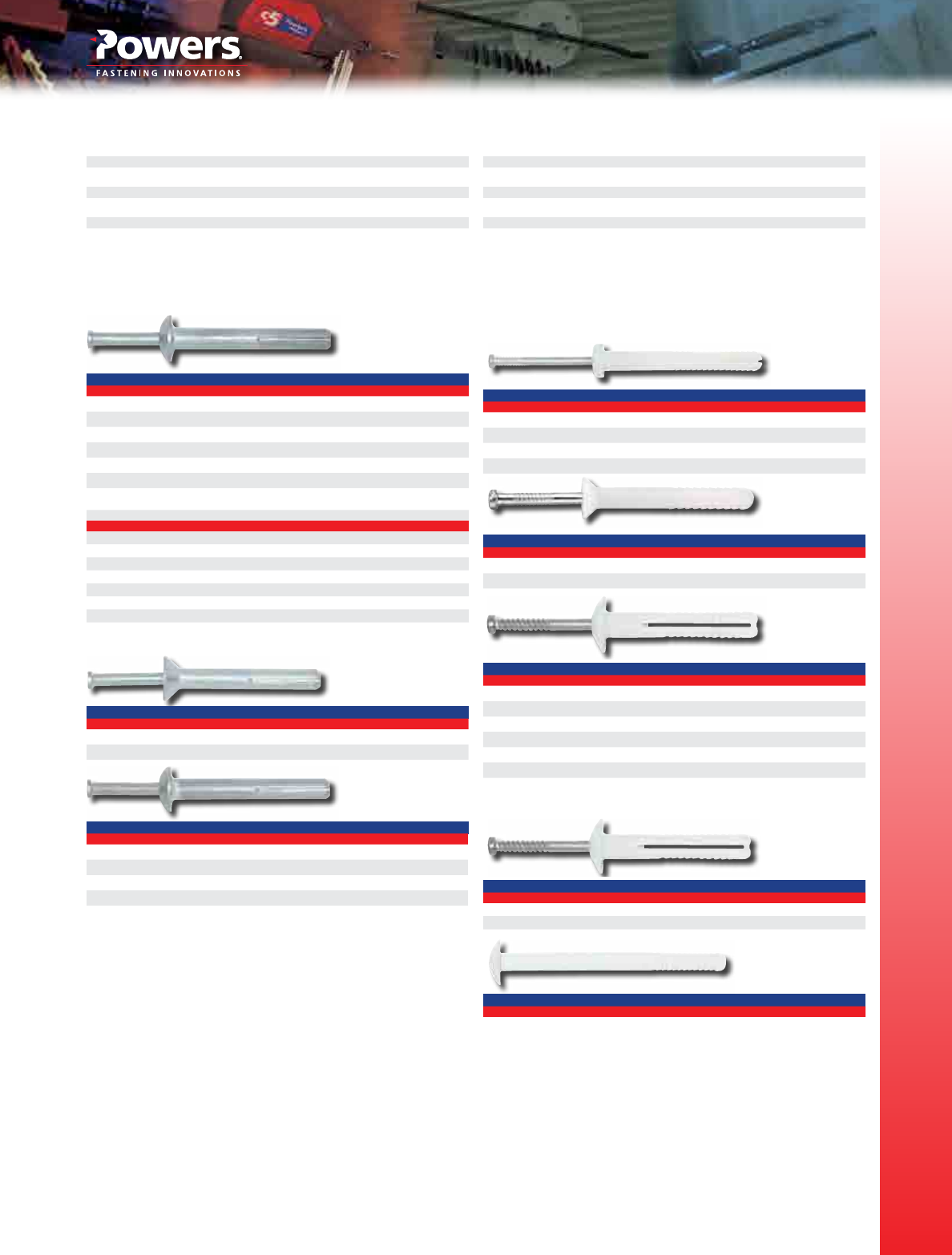

Zamac Nailin® 25
Nylon Nailin® 25
ADHESIVES
Selection Guide 26
INJECTION ADHESIVES
AC100+Gold® 27
PE1000+® 28
T308+ 28
Pure50+ 29

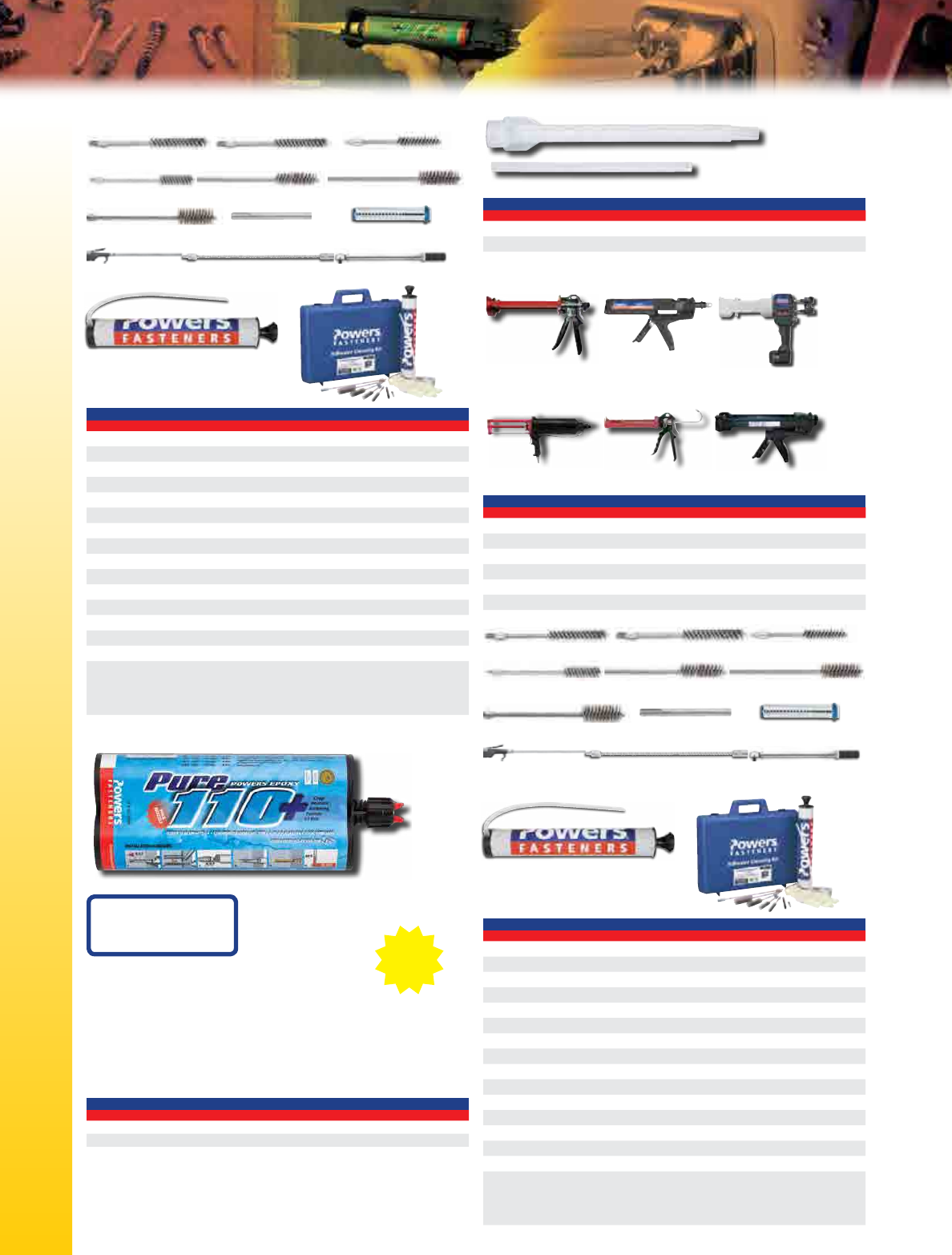

Pure110+ 30
AC50 Silver 31
GLASS CAPSULE ADHESIVE ANCHORS
Chem-Stud® 31
Hammer-Capsule® 32
ADHESIVE ANCHORING ACCESSORIES

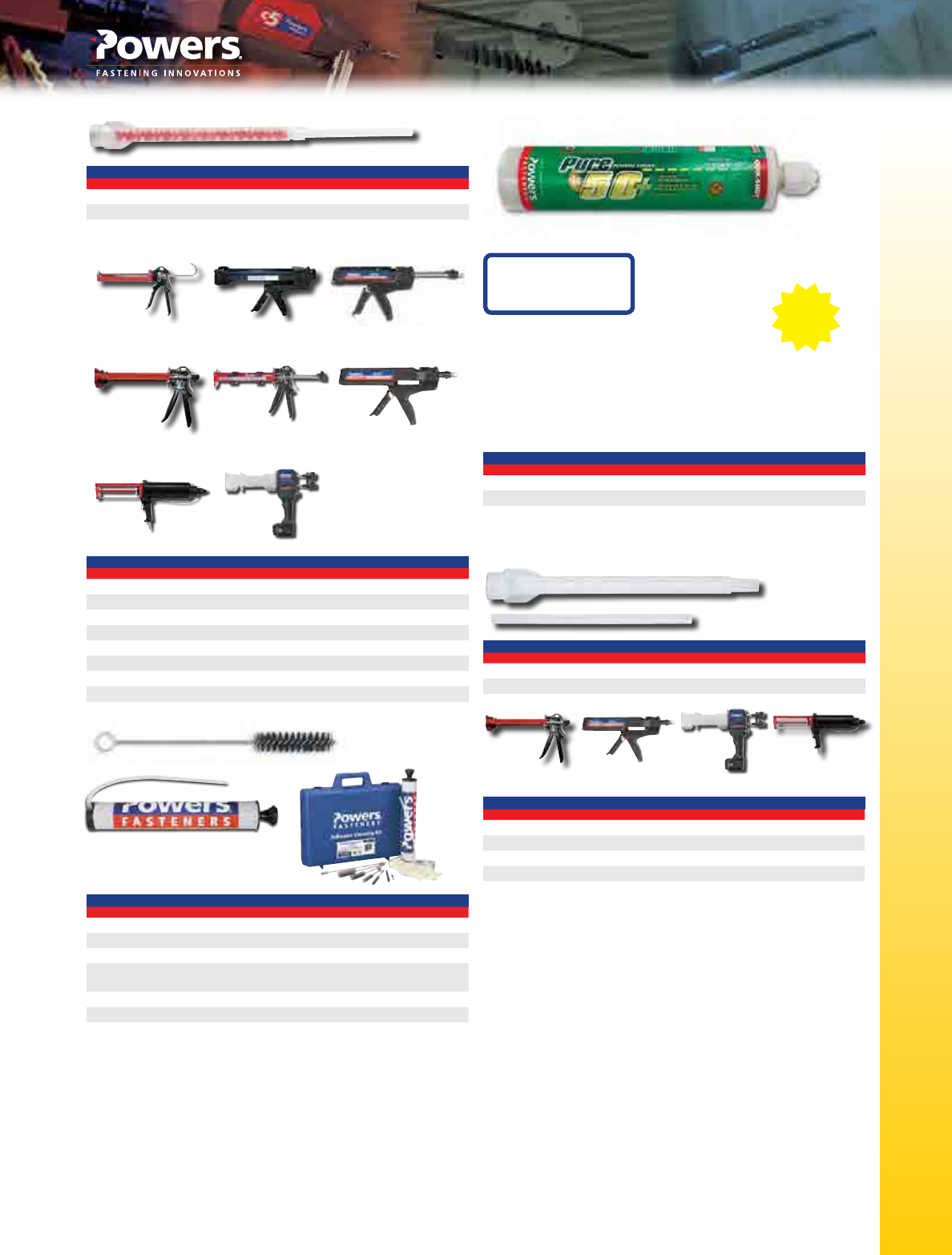

Installation Accessories 32
Screen Tubes 33
EXPANSION FOAMS
PowerFoam 34
TriggerFoam Pro 34
BONDING SEALANTS
PowerStick 34
PowerPatch 34
LIGHT DUTY ANCHORS
Selection Guide 35
METAL ANCHORS

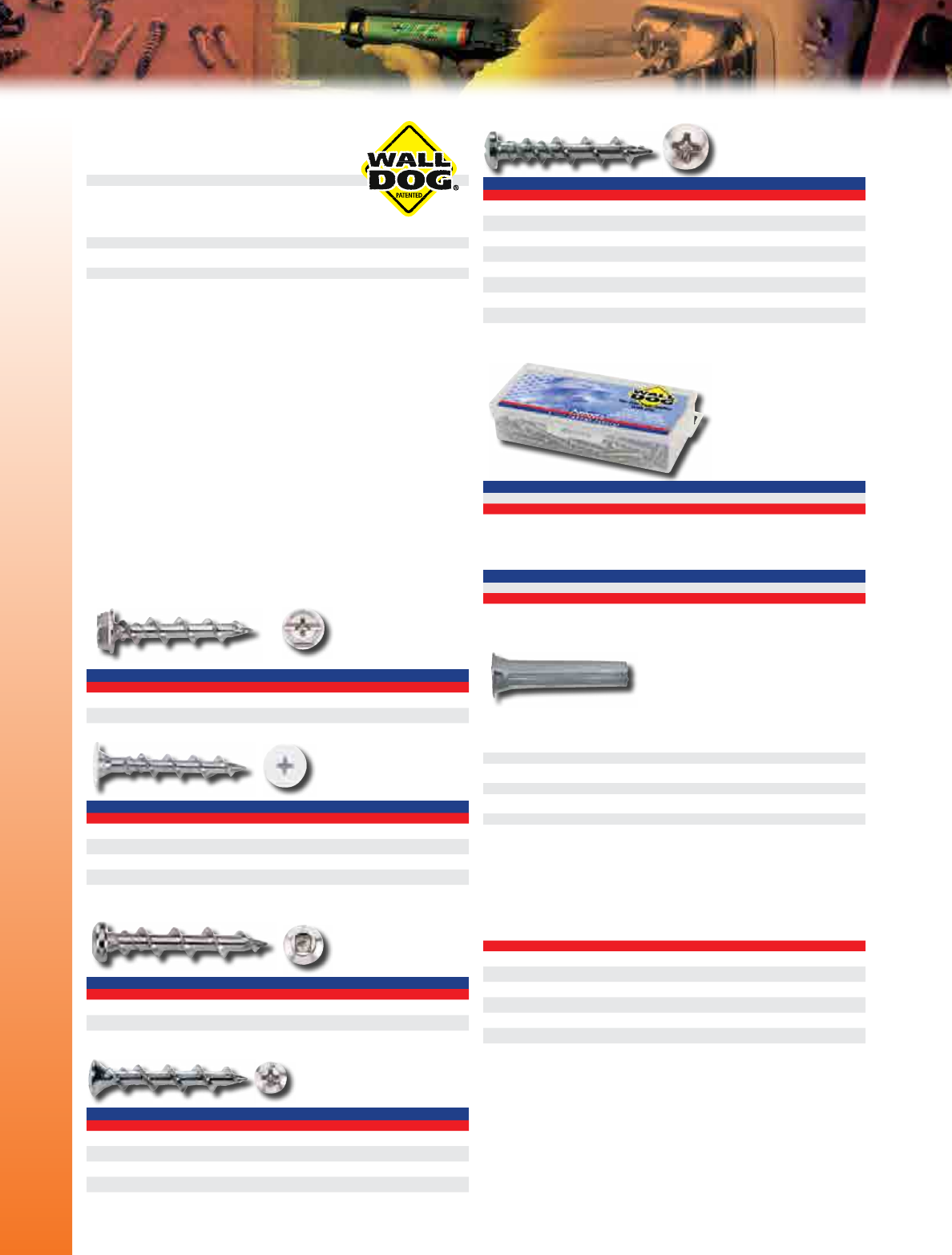

Wall-Dog® 36
Scru-Lead 36
Toggle-Bolt 37
Polly 37
Legs 38
Zip-All® 38
PLASTIC ANCHORS
Sharkie 38
Strap-Toggle 38
Zip-It® and Zip-It® Jr. 39
Zip-Toggle® 39
Poly-Toggle® 39
Pop-Toggle 39
Bantam Plug 40
Fluted Plastic Anchor 40
POWDER ACTUATED FASTENING
Selection Guide 41-42
FASTENERS

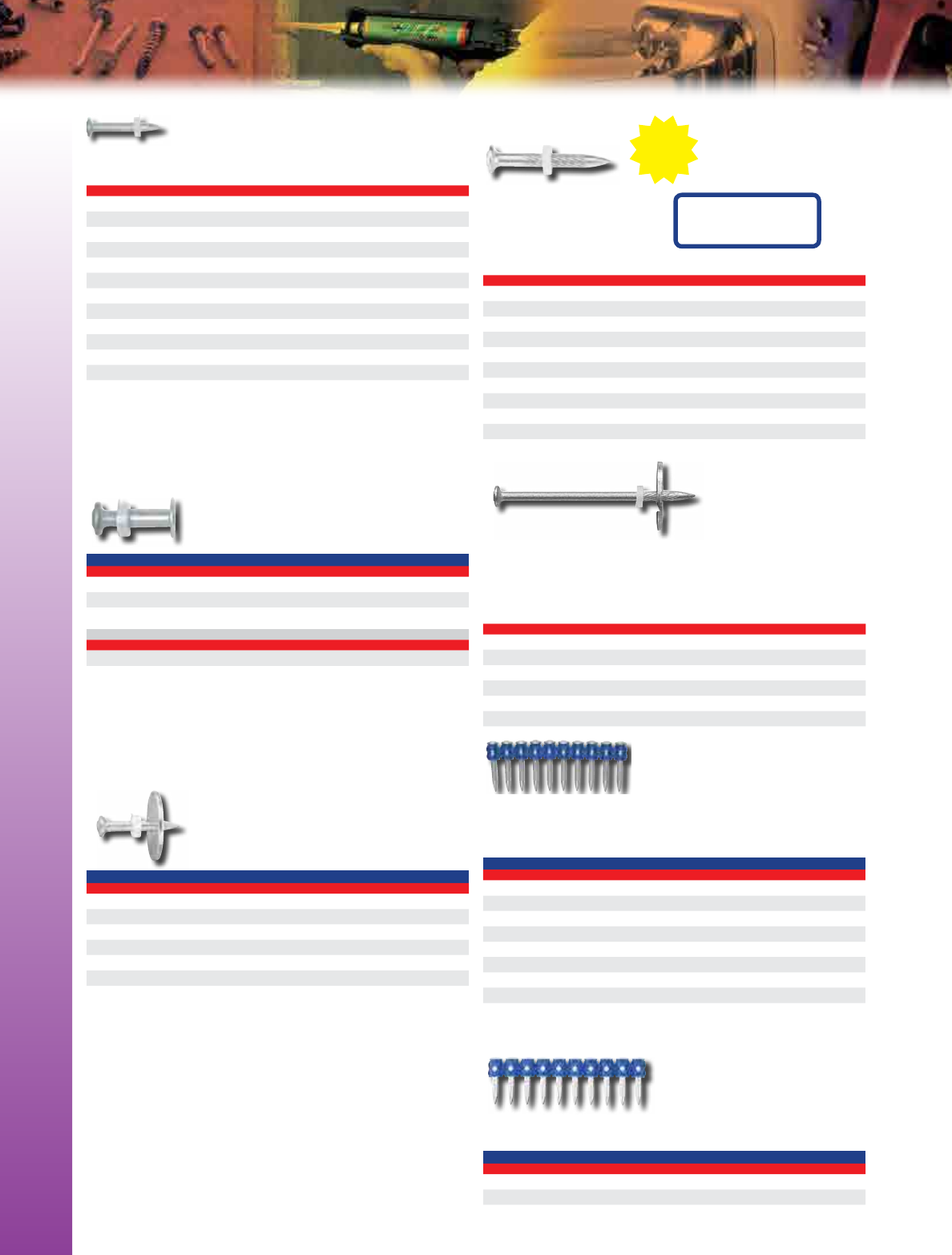

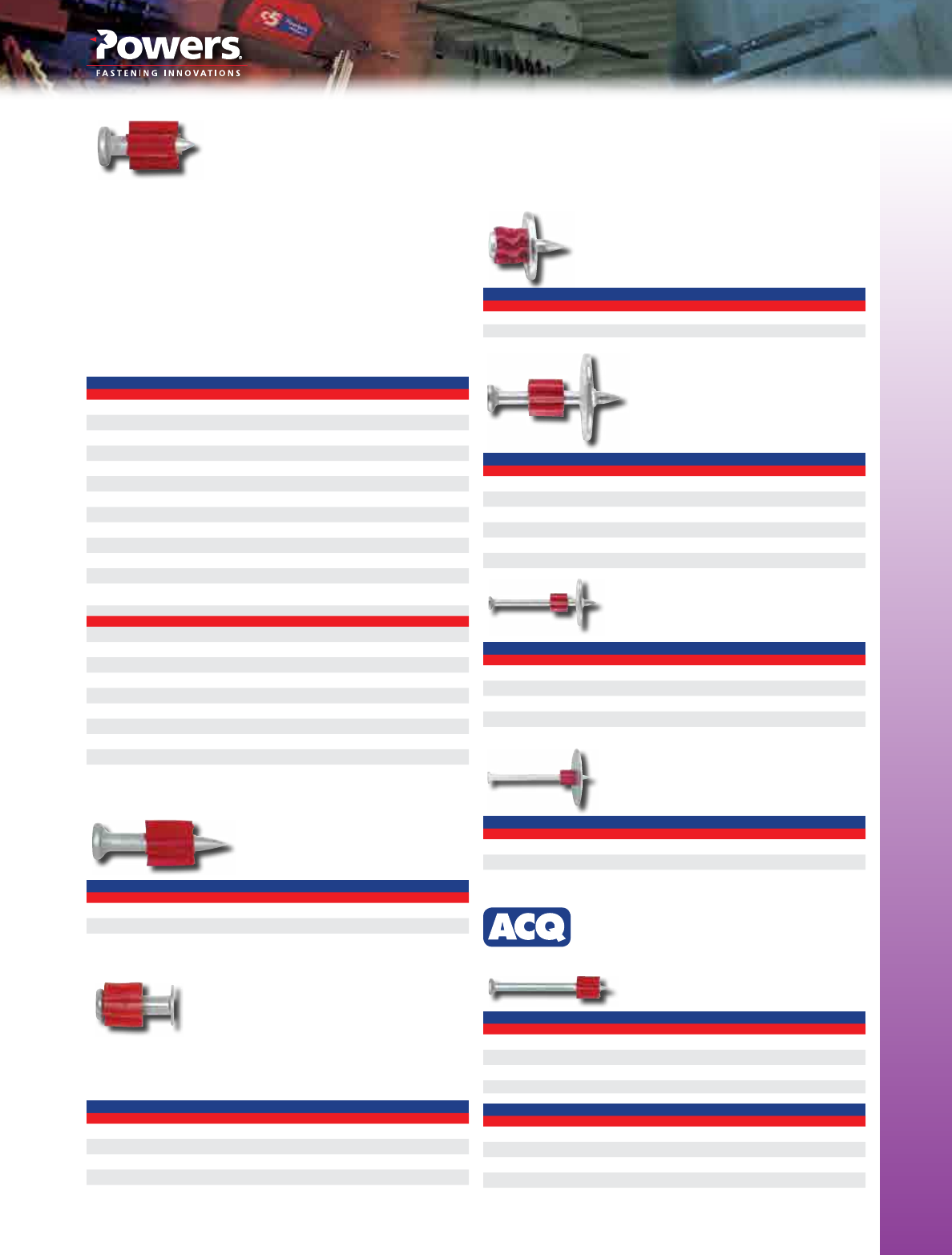

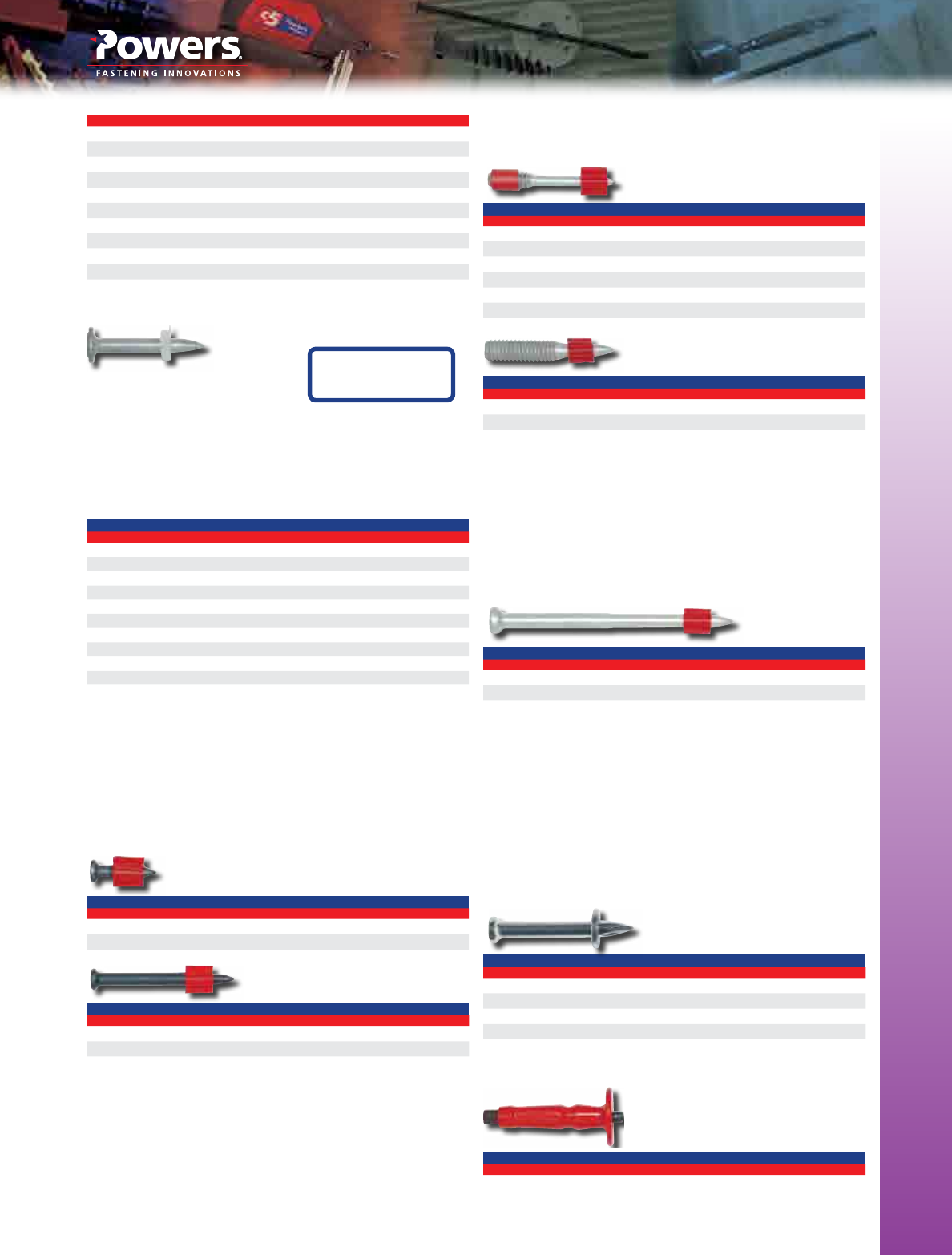

0.300" Head Drive Pins 43
0.300" Head Drive Pins with Washers 43
ACQ Drive Pins for Pressure Treated Lumber 43
8mm Head Drive Pins 44
8mm CSI Spiral Pins 44
8mm Head Drive Pins with Washers 44

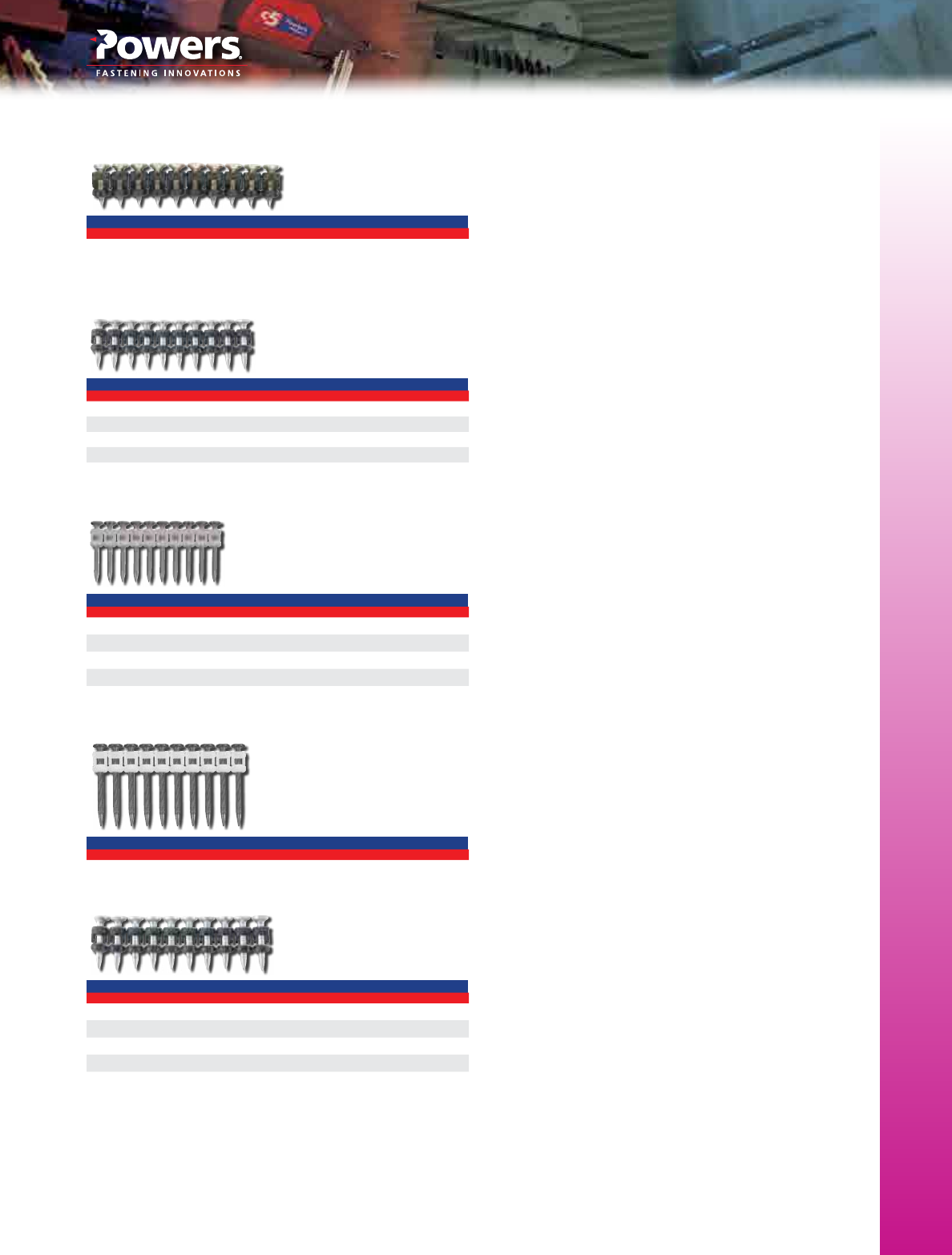

8mm Head Collated Spiral CSI Pins 44
8mm Head Collated Drive Pins 44
10mm Head Drive Pins 45
Ballistic Point Drive Pins 45
Threaded Studs 45
3/8" Head Drive Pins 45
Hammer Drive Pins 45
ACCESSORIES

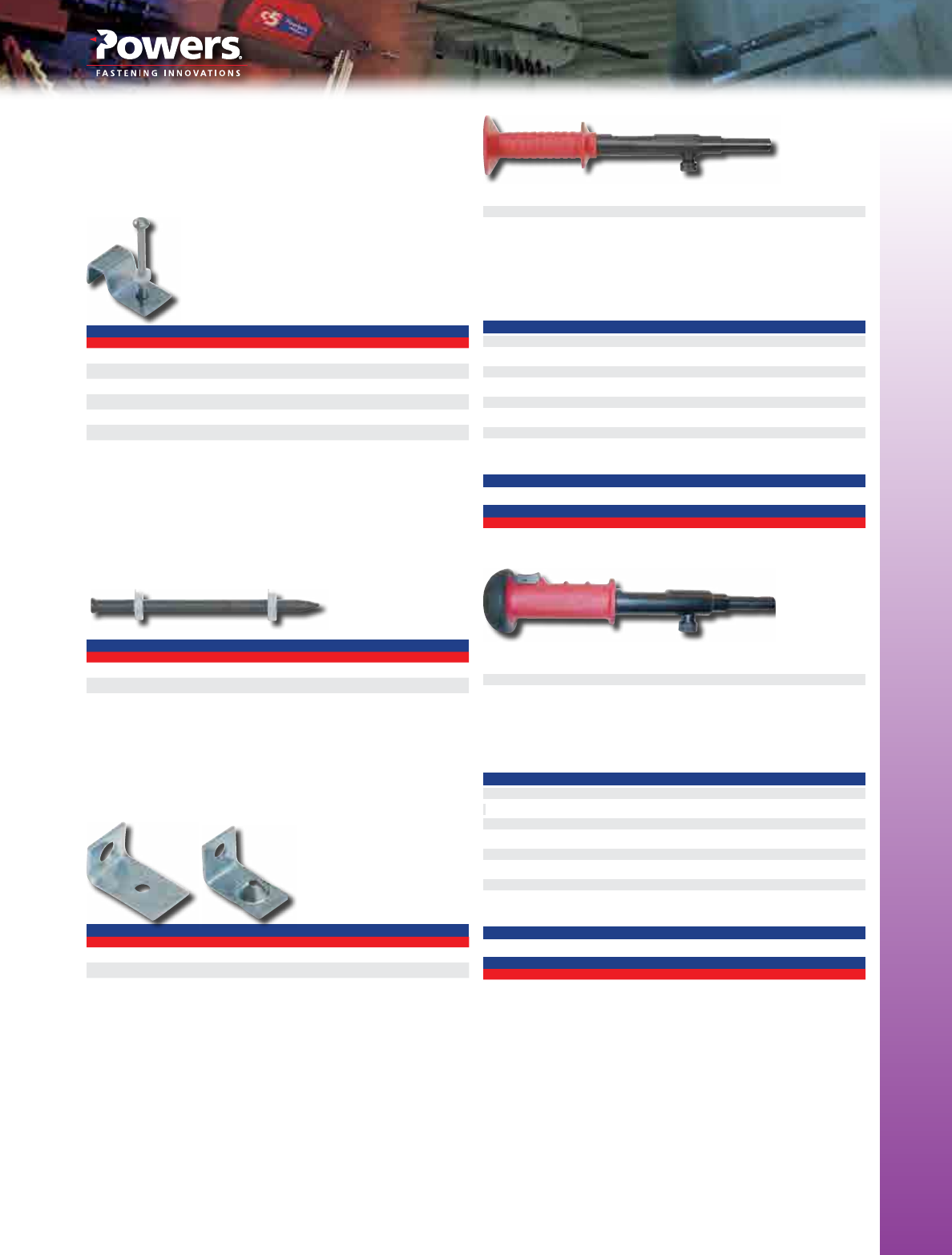

Ceiling Clip Assemblies 46
BX & EMT Conduit Clip Assemblies 46
Rod Hanging Clip Assemblies 46
CSI Clip Assemblies 46
Rebar Basket Assemblies 47
Forming Pins 47
Fastener Accessories 47
TOOLS
P1000 47
T1000 47
P2201 48
P35s 48
P7201 49
P3500 49
PA3500 50
P3801 50
P3600 51
PA351 51

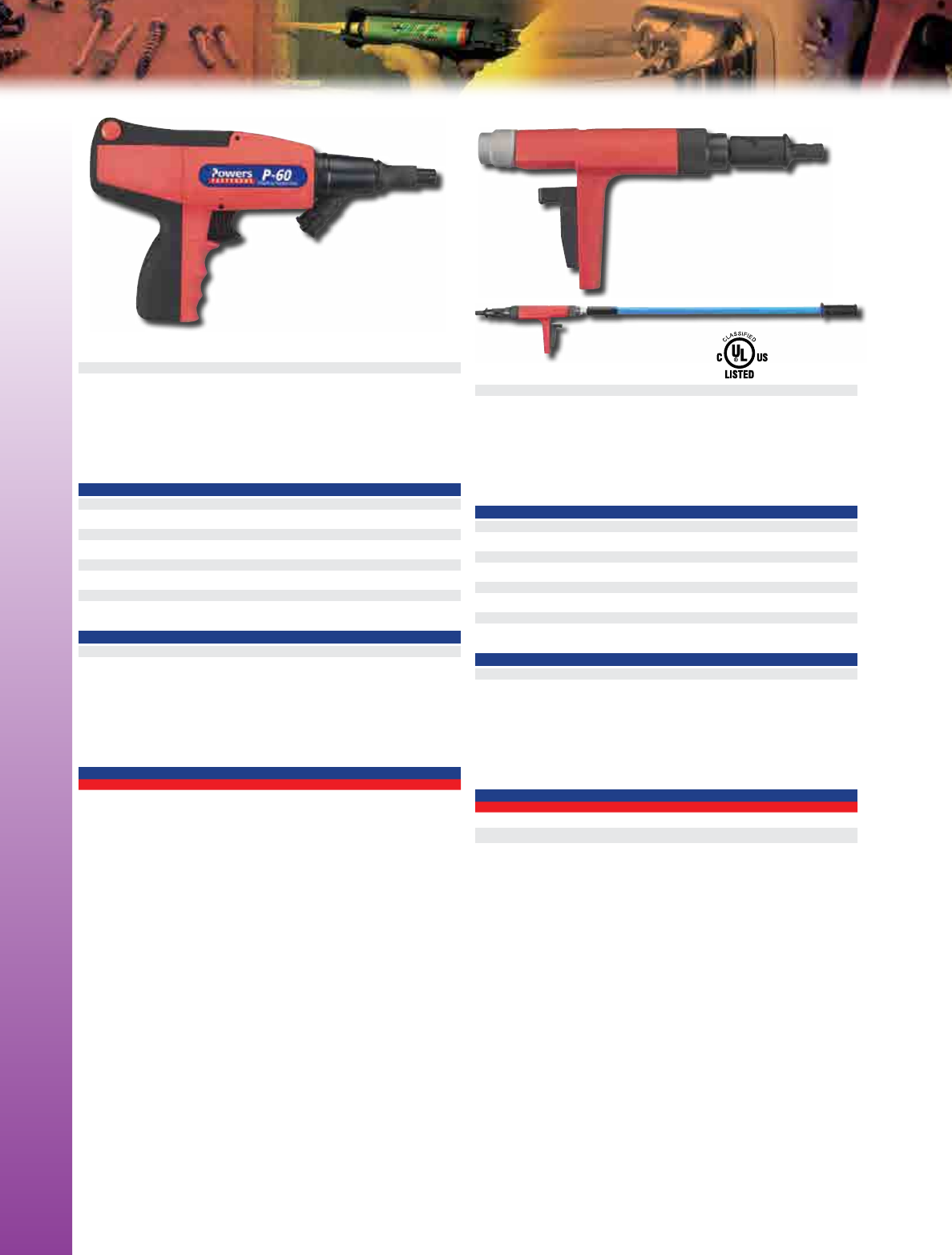

P60 52
Sniper Pole Tool 52

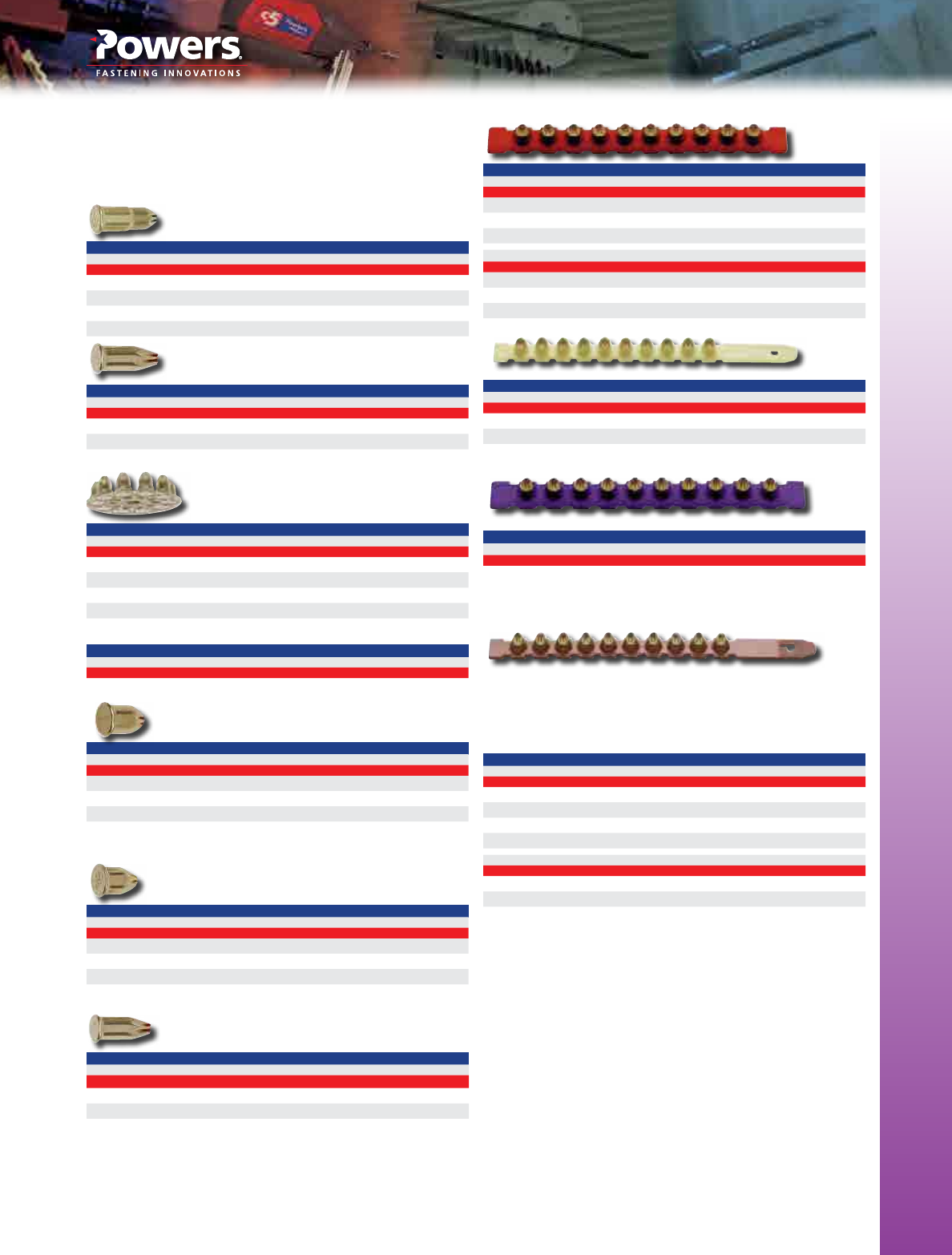

POWDER LOADS
.22 Caliber Singles 53
.25 Caliber Singles 53
.27 Caliber Singles 53
.25 Caliber Strips 53
.27 Caliber Strips 53
.27 Caliber Safety Strip® 53
GAS FASTENING
Selection Guide 54
TOOLS AND FASTENERS
Trak-It® C5 55
Trak-It® C4 56
C3 Trak-It® Pins 57
Trak-It® Stick-E 58
ROOFING FASTENERS
Selection Guide 59

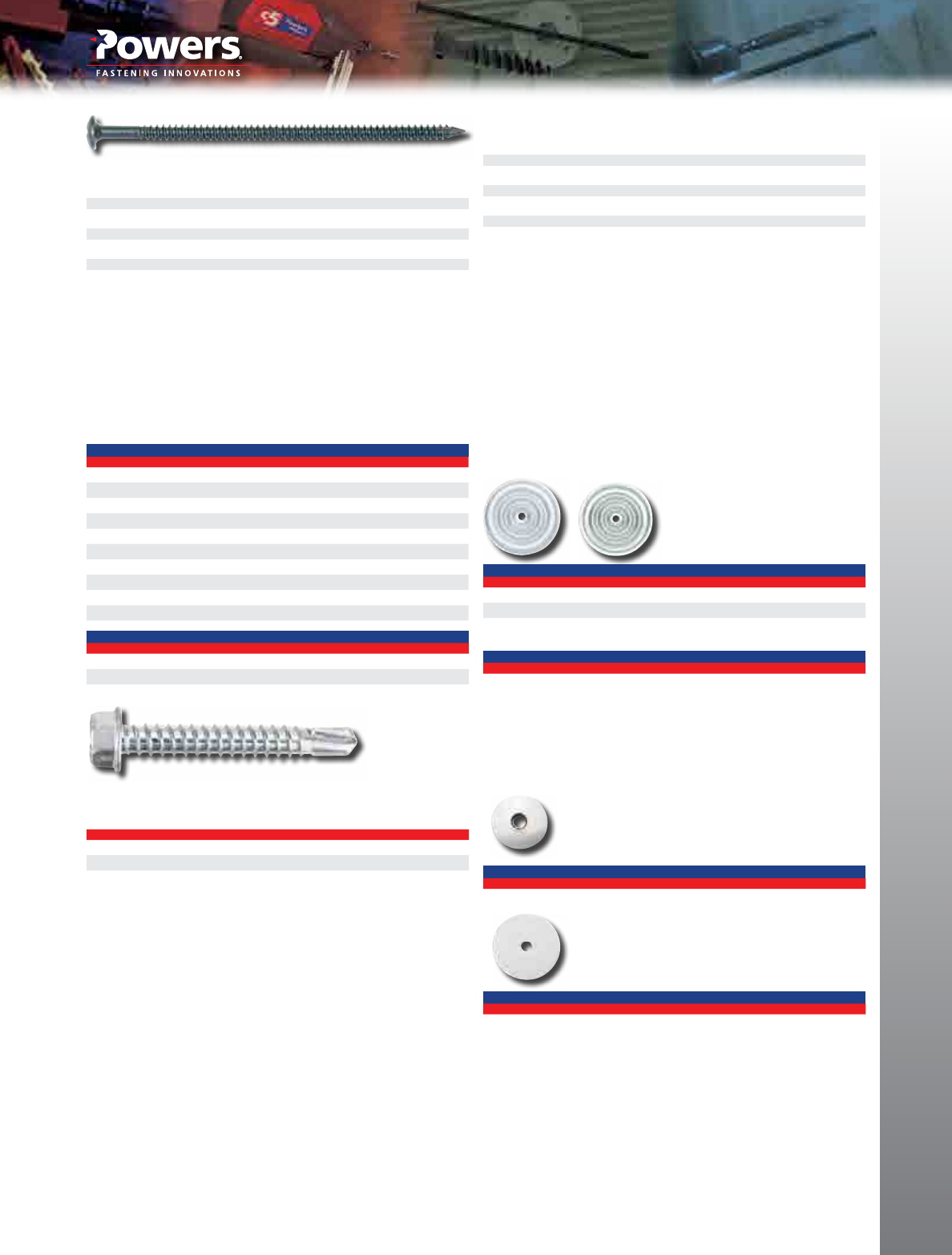

Spike® Perma-Seal® 60
Powerlite™ 60
Deck Screws 61
Twin Fast Screws 61
Stress Plates 61
CARBIDE DRILL BITS
Selection Guide 62
Fat-Head 63
S-4 Plus SDS 63
Accu-Bits 64
Industrial Grade Bits (Value Paks) 64
Quatro Head SDS Plus 64
4-X Cutter SDS-Max Shank 64
4-X Cutter Spline Shank 65
Single Tip Spline Shank 65
HD Straight Shank 65
IG Straight Shank 66
A” Taper 66
Rotary Carbide Bits 66
Rebar Cutter 66
Heavy Duty Chisels 67
One and Two Piece Core Bits 67
Contents
2
Why sell code approved anchors? It’s now the LAW.
The 2003, 2006 or 2009 International Building or Residential Codes
(IBC or IRC) have been adopted in 49 states and have adoptions by
some local jurisdictions in the other state. The building codes serves as
the basic design and enforcement requirements that an owner, engineer,
contractor, inspector and code official use to produce safe structures
today. It also applies to renovations to existent buildings requiring
construction to current code. These structures include everything from
condos, shopping malls, hospitals, schools and high-rise construction to
ordinary home construction.
The 2006 and 2009 IBC and IRC specifically require anchors which
meet the code AC-193 for Mechanical Anchors and AC-308 for Adhesive
Anchors as an alternative to the building code through 104.11 in the
IBC. In the near future ACI will be voting to add Adhesive Anchors to its
standards in addition to mechanical anchors.
Since nearly all states have adopted the building code with enforcement,
there are very significant ramifications for any contractor using products
not compliant with the code. Compliance with the code is as simple
as providing a Powers ICC-ES report or knowing that one exists when
selling, specifying or using our product. Since Powers has so many
ICC-ES reports for anchoring it is highly advantageous for a distributor
to sell and stock only code listed products for structural applications.
Powers also has numerous reports on products tested using an ICC-AS
laboratory which with acceptance by a local inspector or building official
will serve as proof of compliance.
Code
listed
ICC-ES ESR-2818
ICC-ES ESR-2966
Code
listed
ICC-ES ESR-2502
Code
listed
ICC-ES ESR-2526
ICC-ES ESR-1678
Code
listed
ICC-ES ESR-2272
Code
listed
ICC-ES ESR-3067
Atomic+
Undercut
Code
listed
ICC-ES ESR-2989
Code
listed
ICC-ES ESR-3068
Power-Stud+
SD1
Power-Stud+
SD2
Wedge-Bolt®+
Snake+
Vertigo+Tapper+ Xtreme
Code
listed
ICC-ES ESR-3068
ICC-ES ESR-3042
ICC-ES ESR-3213
Tapper+
Code
listed
ICC-ES ESR-3298
Power-Bolt+
Code
listed
ICC-ES ESR-3471
Power-Stud+
SD4 + SD6
3
Construction distributors should be selling only anchors that comply with
the new Building Codes since IBC and IRC are national codes. While the
code does not apply to non-structural anchoring application such as light
duty fastening to drywall, it does apply to applications which involve all
the steel anchors and adhesive anchors purchased which are used every
day by contractors of all types in structural applications.
There are several key reasons why everyone should be selling,
specifying and using ONLY concrete anchors that are code listed:
1. Code listed anchors normally offers significantly
higher performance.
2. Powers can offer these products at a competitive cost
and in a complete range.
3. Compliance with state and local building authorities’
regulations.
4. Independent qualification and certification of
product performance.
5. Proof of usability and conformance in all 50 states.
6. Usability and conformance in Florida and California
(wind and seismic qualification).
7. Increased product safety, reliability and confidence.
8. Minimize risk for all applications
(structural or non-structural).
Specifications for building code compliant products are now the
norm and enforcements of the codes is taking place. Those companies
who don’t sell, specify or use code compliant anchors will find less
opportunities in the market.
Code
listed
ICC-ES ESR-1995
CSI Drive Pin
Code
listed
ICC-ES ESR-3275
Trak-It® C5 Pins
Code
listed
ICC-ES ESR-2249
Trak-It® C4 Pins
Code
listed
ICC-ES ESR-3263
TriggerFoam Pro
Code
listed
ICC-ES ESR-3066
ICC-ES ESR-3149
T308+
Code
listed
ICC-ES ESR-3263
AC-100+Gold®
Code
listed
ICC-ES ESR-2583
PE1000+®
Code
listed
ICC-ES ESR-3576
Pure50+TM
Code
listed
ICC-ES ESR-3598
Pure110+TM
4
MECHANICAL
Base Material Anchor Diameter Head Style Coating/Material
Page
Concrete
Lightweight Concrete
Hollow Core Plank
Grout-filled Concrete Masonry
Hollow Concrete Masonry
Solid Brick
Hollow Brick
Stone
Structural Clay/Tile
Wood
Steel
3/16"
1/4"
5/16"
8 mm
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1-1/4"
Finished Hex Head
Hex Head
Round/Acorn Head
Flat Head (Countersunk)
Mushroom Head
Removable
Tie-Wire Head
Tamperproof
Female Coupler
Coated/Plated Carbon Steel
Galvanized Carbon Steel
Type 303/304 Stainless Steel
Type 316 Stainless Steel
Type 410 Stainless Steel
Perma-Seal Coated
Nylon/Plastic
Code Recognition
Expansion Anchors
PB+ (Power-Bolt+) 6• • • • • Code Listed
ICC-ES ESR 3260
Power-Bolt 6• • • • • • • • • • •
Power-Stud+ SD1 7• • • • • • • • •
Code Listed
ICC-ES ESR-2818 &
2966
LARR-25787
& 25864
Power-Stud+ SD2 7• • • • • •
Code Listed
ICC-ES ESR-2502
LARR-25831
Power-Stud+
SD4/SD6 8• • • • • • • Code Listed
ICC-ES ESR 3471
Power-Stud HD5 8• • • •
Power-Stud 8•• • ••••••• • • •••••
Lok-Bolt AS 10 ••• •• •••• ••• • •• •
Set-Bolt 11 • •
Atomic+ Undercut 9• • • • • • Code Listed
ICC-ES ESR 3067
Screw Anchors
Wedge-Bolt+ 12 • • • • • • • •
Code Listed ICC-ES
ESR-2526 & 1678
LARR-25808
Tapper+/Tapper 13 • • • • • • • • • • •
Code Listed
ICC-ES ESR-3068,
3042, 3213;
Tested to
ICC-ES AC 193
Rod Hanging System
Vertigo+ / Vertigo 21 • • • • • • • • • Code Listed
ICC-ES ESR-2989
Bang-it 22 •• • ••••• ••
Wood-Knocker 22 • • • • • • • •
• Suitable
May be Suitable
SELECTION GUIDE
5

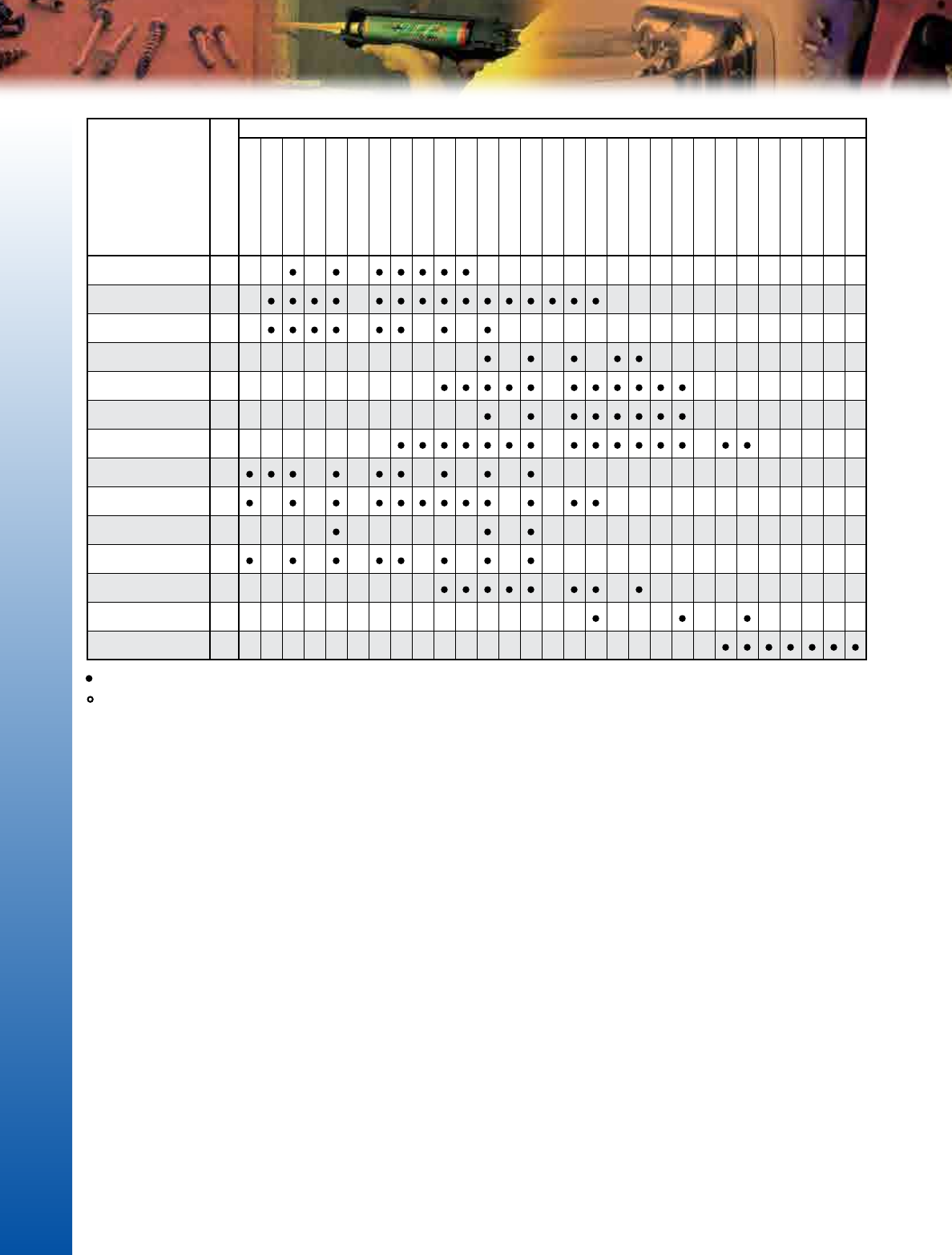

MeCHAnICAL
Base Material Anchor Diameter Head Style Coating/Material
Page
Concrete
Lightweight Concrete
Hollow Core Plank
Grout-filled Concrete Masonry
Hollow Concrete Masonry
Solid Brick
Hollow Brick
Stone
Structural Clay/Tile
Wood
Steel
3/16"
1/4"
5/16"
8 mm
3/8"
1/2"
5/8"
3/4"
Mushroom Head
Round Head
Flat Head (Countersunk)
Tie-Wire
Removable
Tamperproof
Flush Mount
Coated/Plated Carbon Steel
Galvanized Carbon Steel
Type 303/304 Stainless Steel
Type 316 Stainless Steel
Type 410 Stainless Steel
Zamac Alloy
Perm-Seal Coated
Nylon/Plastic
Lead
Code Recognition
Bolt and Shield Anchors
Snake+ 18 • • • •
Code Listed
ICC-ES ESR-2272
LARR-25810
Smart DI+ 18 • • • • • •
Hollow-Set Dropin 19 • • • • • • • • • • •
Steel Dropin 19 •• •••• •• ••
Mini Dropin 20 • • • • • • •
Double 20 • • • • • • • •
Single 20 • • • • •
Calk-In 20 • • • •
Lag-Shield 21 • • • • • • • •
Heli-Pin 21 • • • • • • •
Pin Anchors
Spike 23 • • • • • • •
Drive 24 • • • • • • •
Nail Anchors
Safe-T+ Pin 24 • • • Code Listed
ICC-ES ESR-3057
Zamac Hammer-
Screw 24 • • • •
Zamac Nailin 25 • • • • •
Nylon Nailin 25 • • • • • • •
• Suitable
May be Suitable
SELECTION GUIDE
6
MECHANICAL

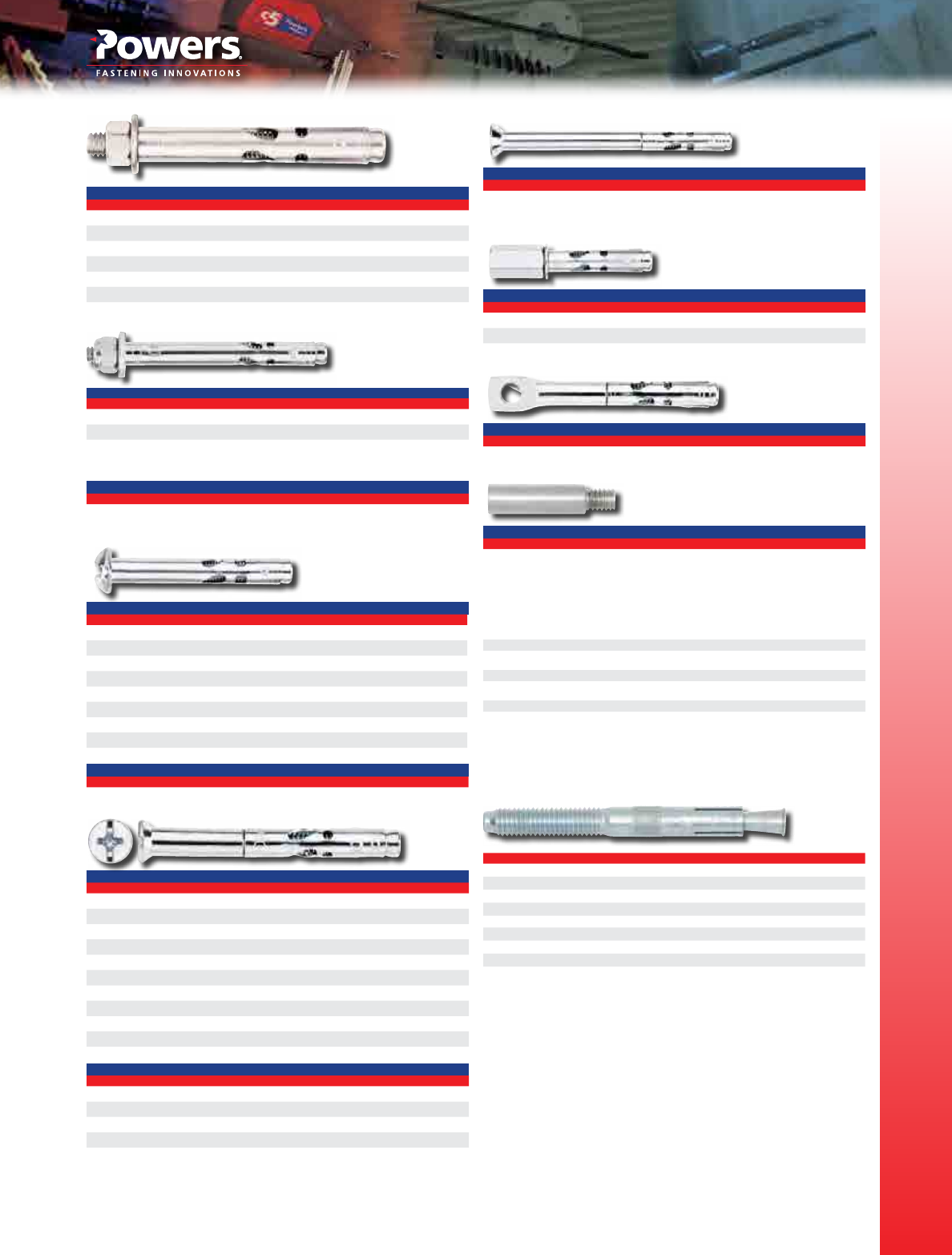

PB+ • POWERBOLT
New!
Code listed
ICC-ES ESR-3260
PB+ (Power-Bolt+)
Heavy-Duty Sleeve Anchor
BASE MATERIAL
Concrete
SIZE RANGE
1/4” x 1-3/4” to 5/8” x 8-1/2”
ANCHOR MATERIAL
Carbon Steel
The PB+ anchor is a torque controlled, heavy duty sleeve style anchor which is
designed for consistent performance in cracked and uncracked concrete. It is
available with a finished hex head.
Carbon steel PB+ anchors are manufactured using a Grade 8 bolt. They are
plated with a commercial bright zinc finish and have a supplementary chromate
treatment in accordance with ASTM B 633.
CARBON STEEL HEX HEAD PB+
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
6902SD 1/4" x 1-3/4" 1/4" 100 600
6906SD 1/4" x 3" 1/4" 100 600
6911SD 3/8" x 1-7/8" 3/8" 50 300
6910SD 3/8" x 2-1/4" 3/8" 50 300
6913SD 3/8" x 3" 3/8" 50 300
6914SD 3/8" x 3-1/2" 3/8" 50 300
6916SD 3/8" x 4" 3/8" 50 300
693 0SD* 1/2" x 2-3/4" 1/2" 50 200
6932SD 1/2" x 3-1/2" 1/2" 50 200
6934SD 1/2" x 4-3/4" 1/2" 25 200
6936SD 1/2" x 5-3/4" 1/2" 25 150
6940SD* 5/8" x 3" 5/8" 20 150
6942SD 5/8" x 4" 5/8" 15 120
6944SD 5/8" x 5" 5/8" 15 90
6945SD 5/8" x 6" 5/8" 15 90
6947SD 5/8" x 8-1/2" 5/8" 10 40
*Asterisked catalog numbers denote sizes which are less than the minimum standard anchor length for
strength design. The published size includes diameter and overall length of the anchor.
Power-Bolt®
Heavy-Duty Sleeve Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
1/4” x 1” to 3/4” x 8-1/4”
ANCHOR MATERIAL
Carbon Steel & Type 304 Stainless Steel
The Power-Bolt anchor is a heavy duty sleeve style anchor which is vibration
resistant and removable. It is available with a finished hex head or flat head with
a hex key insert and can be used in concrete, block, brick, or stone.
Carbon steel Power-Bolt anchors are manufactured using a Grade 5 bolt. They
are plated with a commercial bright zinc finish and have a supplementary
chromate treatment in accordance with ASTM Specification B 633.
CARBON STEEL HEX HEAD POWER-BOLT
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
6900* 1/4" x 1" 1/4" 7/8" 100 600
6902* 1/4" x 1-3/4" 1/4" 1-1/4" 100 600
6906* 1/4" x 3" 1/4" 1-1/4" 100 600
6907* 5/16" x 1-3/4" 5/16" 1-1/2" 100 600
6908* 5/16" x 2-1/2" 5/16" 1-1/2" 50 300
6909* 5/16" x 3-1/2" 5/16" 1-1/2" 50 300
6910 3/8" x 2-1/4" 3/8" 2" 50 300
6911** 3/8" x 1-7/8" 3/8" 1-1/4" 50 300
6913 3/8" x 3" 3/8" 2" 50 300
6914 3/8" x 3-1/2" 3/8" 2" 50 300
6916 3/8" x 4" 3/8" 2" 50 300
6930† 1/2" x 2-3/4" 1/2" 2-1/2" 50 200
6932† 1/2" x 3-3/4" 1/2" 2-1/2" 25 150
6934† 1/2" x 4-3/4" 1/2" 2-1/2" 25 150
6936† 1/2" x 5-3/4" 1/2" 2-1/2" 25 150
6940† 5/8" x 3" 5/8" 2-3/4" 20 120
6942† 5/8" x 4" 5/8" 2-3/4" 15 90
6944† 5/8" x 5" 5/8" 2-3/4" 15 90
6945† 5/8" x 6" 5/8" 2-3/4" 15 90
6947† 5/8" x 8-1/2" 5/8" 2-3/4" 10 40
6950 3/4" x 3-1/4" 3/4" 3" 15 90
6952 3/4" x 4-1/4" 3/4" 3" 10 60
6954 3/4" x 5-1/4" 3/4" 3" 10 60
6956 3/4" x 7-1/4" 3/4" 3" 10 40
6957 3/4" x 8-1/4" 3/4" 3" 10 40
The published length is measured from below the washer to the end of the anchor. *1/4” and 5/16” Power-
Bolt utilize a grade 8 bolt ** This size does not have a compression ring. †Discontinued item once current
stock is depleted.
Stainless steel Power-Bolt anchors are manufactured from 300 series stainless
steel (passivated).
304 STAINLESS STEEL HEX HEAD POWER-BOLT
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
5900** 1/4" x 1" 1/4" 7/8" 100 600
5902 1/4" x 1-3/4" 1/4" 1-1/4" 100 600
5906 1/4" x 3" 1/4" 1-1/4" 100 600
5910 3/8" x 2-1/4" 3/8" 2" 50 300
5914 3/8" x 3-1/2" 3/8" 2" 50 300
5916 3/8" x 4" 3/8" 2" 50 300
5930 1/2" x 2-3/4" 1/2" 2-1/2" 50 200
5934 1/2" x 4-3/4" 1/2" 2-1/2" 25 150
** This size does not have a compression ring. The published length is measured from below the washer to
the end of the anchor.
Carbon Steel Flat Head Power-Bolt®
The flat head Power-Bolt anchor has a hex key insert formed in the head of the
bolt. Each box contains an Allen wrench which matches the insert size.
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
6981 3/8" x 3-3/4" 3/8" 2" 50 300
6982 3/8" x 5" 3/8" 2" 50 300
6983 3/8" x 6" 3/8" 2" 50 300
6984 1/2" x 5" 1/2" 2-1/2" 25 150
6987 5/8" x 5-1/2" 5/8" 2-3/4" 15 90
The published length is the overall length of the anchor.
7
MeCHAnICAL

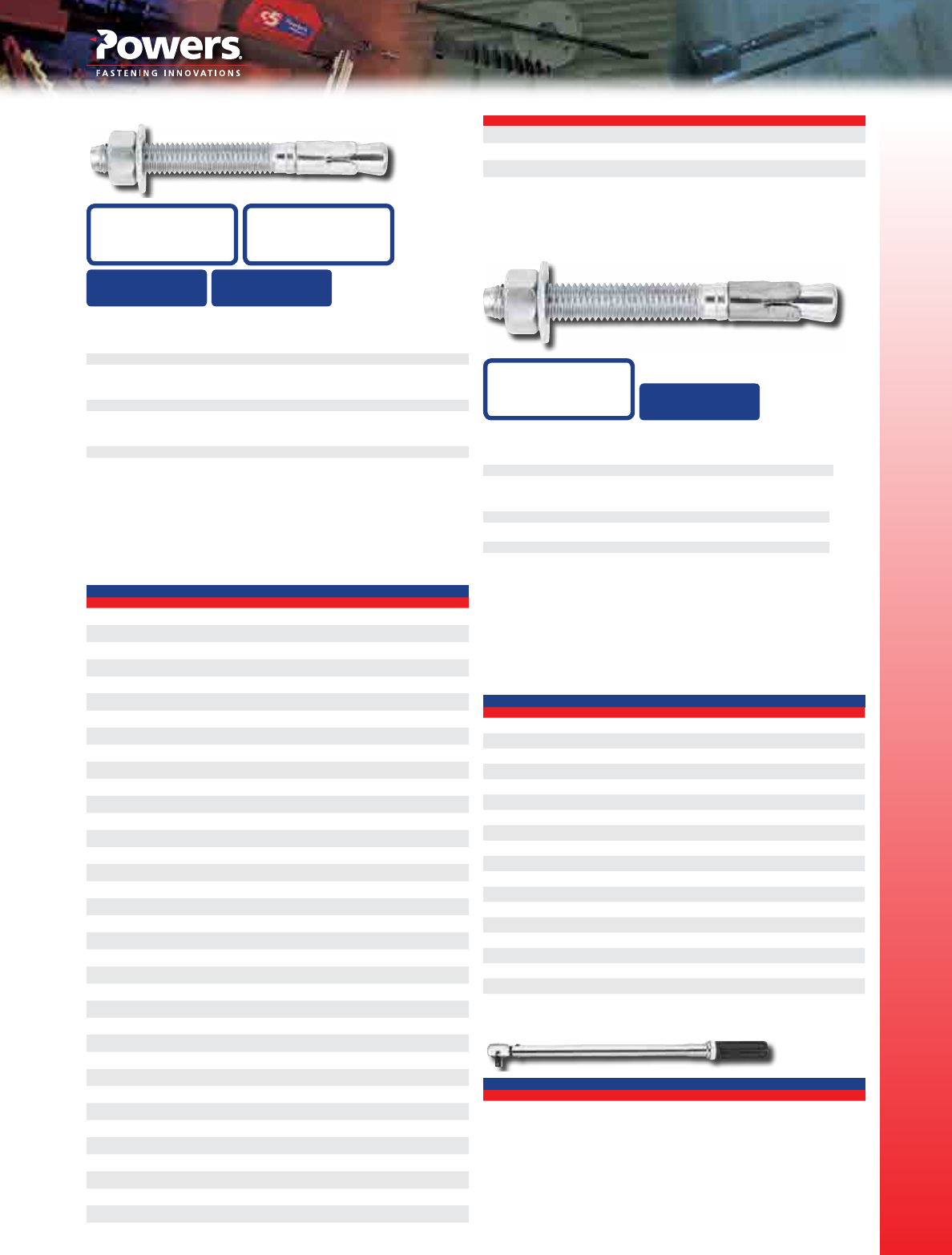

POWER-STUD+ SD1 • POWER-STUD+ SD2
Code listed
ICC-ES ESR-2818
Code listed
ICC-ES ESR-2966
City of los angeles
LARR-25787 (Concrete)
City of los angeles
LARR-25864 (Masonry)
Power-Stud+ SD1
Wedge Type Expansion Anchor
BASE MATERIAL
Normal-Weight Concrete, Structural Sand-Lightweight Concrete, Concrete over
Metal Deck, Grout-Filled Masonry
SIZE RANGE
1/4” diameter (uncracked concrete), 3/8” diameter through 1-1/4” diameter
(cracked and uncracked concrete)
ANCHOR MATERIAL
Zinc Plated Carbon Steel Body and Expansion Clip, with Nut and Washer
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge
expansion anchor which is designed for consistent performance in cracked and
uncracked concrete. Suitable base materials include normal-weight concrete,
structural sand-lightweight concrete and concrete over metal deck. The anchor is
manufactured with a zinc plated carbon steel body and expansion clip.
Patented & Additional Patents Pending
POWER-STUD+ SD1 CARBON STEEL BODY & EXPANSION CLIP
CAT. NO. SIZE THREAD LENGTH STD. BOX STD. CTN.
7400SD1* 1/4" x 1-3/4" 3/4" 100 600
7402SD1 1/4" x 2-1/4" 1-1/4" 100 600
7404SD1 1/4" x 3-1/4" 2-1/4" 100 600
7410SD1* 3/8" x 2-1/4" 7/8" 50 300
7412SD1* 3/8" x 2-3/4" 1-3/8" 50 300
7413SD1 3/8" x 3" 1-5/8" 50 300
7414SD1 3/8" x 3-1/2" 2-1/8" 50 300
7415SD1 3/8" x 3-3/4" 2-3/8" 50 300
7416SD1 3/8" x 5" 3-5/8" 50 300
7417SD1 3/8" x 7" 5-5/8" 50 200
7420SD1* 1/2" x 2-3/4" 1" 50 200
7422SD1 1/2" x 3-3/4" 2" 50 200
7423SD1 1/2" x 4-1/2" 2-3/4" 50 200
7424SD1 1/2" x 5-1/2" 3-3/4" 50 150
7426SD1 1/2" x 7" 5-1/4" 25 100
7427SD1 1/2" x 8-1/2" 6-3/4" 25 100
7428SD1 1/2" x 10" 8-1/4" 25 100
7430SD1* 5/8" x 3-1/2" 1-1/2" 25 100
7432SD1 5/8" x 4-1/2" 2-1/2" 25 100
7433SD1 5/8" x 5" 3" 25 100
7434SD1 5/8" x 6" 4" 25 75
7436SD1 5/8" x 7" 5" 25 75
7438SD1 5/8" x 8-1/2" 6-1/2" 25 50
7439SD1 5/8" x 10" 8" 25 50
7440SD1* 3/4" x 4-1/4" 1-3/4" 20 60
7441SD1* 3/4" x 4-3/4" 2-1/4" 20 60
7442SD1 3/4" x 5-1/2" 3" 20 60
7444SD1 3/4" x 6-1/4" 3-3/4" 20 60
7446SD1 3/4" x 7" 4-1/2" 20 20
7448SD1 3/4" x 8-1/2" 6" 10 60
7449SD1 3/4" x 10" 7-1/2" 10 40
7451SD1 3/4" x 12" 9-1/2" 10 40
7450SD1* 7/8" x 6" 2-3/4" 10 40
7452SD1 7/8" x 8" 4-3/4" 10 40
7454SD1 7/8" x 10" 6-3/4" 10 40
7461SD1* 1" x 6" 2-3/8" 10 30
CAT. NO. SIZE THREAD LENGTH STD. BOX STD. CTN.
7463SD1 1" x 9" 5-3/8" 10 30
7465SD1 1" x 12" 8-3/8" 5 20
7473SD1 1-1/4" x 9" 4-3/4" 5 15
7475SD1 1-1/4" x 12" 7-3/4" 5 15
* Sizes which are less than the minimum standard anchor length for strength design. The published length is
the overall length of the anchor. Allow for fixture thickness plus one anchor diameter for the nut and washer
thickness when selecting a length. All anchors are packaged with nuts and washers.
Code listed
ICC-ES ESR-2502
City of los angeles
LARR-25831(Concrete)
Power-Stud+ SD2
Wedge Type Expansion Anchor
BASE MATERIAL
Normal-Weight Concrete, Structural Sand-Lightweight Concrete,
Concrete over Metal Deck, Grout-Filled Masonry
SIZE RANGE
3/8” through 3/4” diameter (Cracked and Uncracked Concrete)
ANCHOR MATERIAL
Zinc Plated Carbon Steel Body with Stainless Steel Expansion Clip
The Power-Stud+ SD2 anchor is a fully threaded, torque-controlled, wedge
expansion anchor which is designed for consistent performance in cracked and
uncracked concrete. Suitable base materials include normal-weight concrete,
structural sand-lightweight concrete and concrete over metal deck. The anchor is
manufactured with a zinc plated carbon steel body and stainless steel expansion
clip for premium performance.
Patented & Additional Patents Pending
POWER-STUD+ SD2 CARBON STEEL BODY & SS EXPANSION CLIP
CAT. NO. SIZE THREAD LENGTH STD. BOX STD. CTN.
7413SD2 3/8" x 3" 1-5/8" 50 300
7414SD2 3/8" x 3-1/2" 2-1/4" 50 300
7415SD2 3/8" x 3-3/4" 2-1/2" 50 300
7416SD2 3/8" x 5" 3-3/4" 50 300
7422SD2 1/2" x 3-3/4" 2-1/8" 50 200
7423SD2 1/2" x 4-1/2" 2-7/8" 50 200
7424SD2 1/2" x 5-1/2" 3-7/8" 50 150
7426SD2 1/2" x 7" 5-3/8" 25 100
7427SD2 1/2" x 8-1/2" 6-7/8" 25 100
7435SD2 5/8" x 4-3/4" 2-7/8" 25 100
7433SD2 5/8" x 5" 3-1/8" 25 100
7434SD2 5/8" x 6" 4-1/8" 25 75
7436SD2 5/8" x 7" 5-1/8" 25 75
7438SD2 5/8" x 8-1/2" 6-5/8" 25 75
7442SD2 3/4" x 5-1/2" 3-1/4" 20 60
7444SD2 3/4" x 6-1/4" 4" 20 60
7446SD2 3/4" x 7" 4-3/4" 20 60
7448SD2 3/4" x 8-1/2" 6-1/4" 10 60
The published length is the overall length of the anchor. Allow for fixture thickness plus one anchor diameter for
the nut and washer thickness when selecting a length. All anchors are packaged with nuts and washers.
INSTALLATION ACCESSORIES FOR ADDITIONAL LENGTH
CAT. NO. SIZE STD. BOX
08465 Adjustable torque wrench with 1/2” square drive (10 to 150 ft.-lbs.) 1
8
MECHANICAL
Code listed
ICC-ES ESR-3471
Power-Stud+ SD4 + SD6
New!
Stainless Steel Wedge Type Expansion Anchor
BASE MATERIAL
Normal-Weight Concrete, Sand-Lightweight Concrete
SIZE RANGE
1/4” through 5/8” diameter
ANCHOR MATERIAL
Stainless Steel Body with Expansion Clip with Nut and Washer
The Power-Stud+ SD4 and Power-Stud+ SD6 anchors are fully threaded,
torque-controlled, stainless steel wedge expansion anchors which are designed
for consistent performance in cracked and uncracked concrete. Suitable base
materials are normal-weight and sand-lightweight concrete. The anchor is
manufactured with a stainless steel body and expansion clip. Nut and washer
are included.
POWER-STUD+ SD4
CAT. NO. SIZE THREAD LENGTH STD. BOX STD. CTN.
7300SD4 1/4” x 1-3/4” 3/4” 100 600
7302SD4 1/4” x 2-1/4” 1-1/4” 100 600
7304SD4 1/4” x 3-1/4” 2-1/4” 100 600
7310SD4 3/8” x 2-1/4” 7/8” 50 300
7312SD4 3/8” x 2-3/4” 1-3/8” 50 300
7313SD4 3/8” x 3” 1-5/8” 50 300
7314SD4 3/8” x 3-1/2” 2-1/8” 50 300
7315SD4 3/8” x 3-3/4” 2-3/8” 50 300
7316SD4 3/8” x 5” 3-5/8” 50 300
7317SD4 3/8” x 7” 5-5/8” 50 300
7320SD4 1/2” x 2-3/4” 1” 50 300
7322SD4 1/2” x 3-3/4” 2” 50 300
7323SD4 1/2” x 4-1/2” 2-3/4” 50 300
7324SD4 1/2” x 5-1/2” 3-3/4” 50 300
7326SD4 1/2” x 7” 5-1/4” 25 100
7330SD4 5/8” x 3-1/2” 1-1/2” 25 100
7332SD4 5/8” x 4-1/2” 2-1/2” 25 100
7333SD4 5/8” x 5” 3” 25 100
7334SD4 5/8” x 6” 4” 25 75
7336SD4 5/8” x 7” 5” 25 75
7338SD4 5/8” x 8-1/2” 6-1/2” 25 50
POWER-STUD+ SD6
CAT. NO. SIZE THREAD LENGTH STD. BOX STD. CTN.
7600SD6 1/4” x 1-3/4” 3/4” 100 600
7602SD6 1/4” x 2-1/4” 1-1/4” 100 600
7604SD6 1/4” x 3-1/4” 2-1/4” 100 600
7610SD6 3/8” x 2-1/4” 7/8” 50 300
7612SD6 3/8” x 2-3/4” 1-3/8” 50 300
7613SD6 3/8” x 3” 1-5/8” 50 300
7614SD6 3/8” x 3-1/2” 2-1/8” 50 300
7615SD6 3/8” x 3-3/4” 2-3/8” 50 300
7616SD6 3/8” x 5” 3-5/8” 50 300
7617SD6 3/8” x 7” 5-5/8” 50 300
7620SD6 1/2” x 2-3/4” 1” 50 300
7622SD6 1/2” x 3-3/4” 2” 50 300
7623SD6 1/2” x 4-1/2” 2-3/4” 50 300
7624SD6 1/2” x 5-1/2” 3-3/4” 50 300
7626SD6 1/2” x 7” 5-1/4” 25 100
7630SD6 5/8” x 3-1/2” 1-1/2” 25 100
7632SD6 5/8” x 4-1/2” 2-1/2” 25 100
7633SD6 5/8” x 5” 3” 25 100
7634SD6 5/8” x 6” 4” 25 75
7636SD6 5/8” x 7” 5” 25 75
7638SD6 5/8” x 8-1/2” 6-1/2” 25 50
Power-Stud® HD5
Wedge Type Expansion Anchor
New!
BASE MATERIAL
Concrete, Grouted CMU
SIZE RANGE
3/8” x 3” to 3/4” x 8-1/2”
ANCHOR MATERIAL
Hot Dipped Galvanized Steel
The Power-Stud anchor is a one piece fully threaded, wedge style anchor avail-
able in carbon steel and stainless steel. The drill bit diameter needed for proper
installation is the same nominal size as the anchor diameter.
Hot Dipped Galvanized Power-Stud anchors are manufactured from carbon steel
which have a mechanically galvanized coating (zinc) in accordance with ASTM
Specification B 695, Class 65, Type I.
HOT DIPPED GALVANIZED POWER-STUD
CAT. NO. SIZE MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7713HD5 3/8” x 3” 1-1/2" 1-1/2” 50 300
7715HD5 3/8” x 3-3/4” 1-1/2" 2-3/8” 50 300
7716HD5 3/8” x 5” 1-1/2" 3-1/2” 50 300
7717HD5 3/8” x 7” 1-1/2" 5-1/2” 50 200
7724HD5 1/2" x 5-1/2" 2" 6-5/8" 50 150
7726HD5 1/2" x 7" 2" 2-3/4" 25 100
7730HD5 5/8" x 3-1/2" 2-3/8" 4-3/4" 25 100
7733HD5 5/8" x 5" 2-3/8" 3" 25 100
7734HD5 5/8" x 6" 2-3/8" 4" 25 75
7738HD5 5/8" x 8-1/2" 2-3/8" 6-1/2" 25 50
7741HD5 3/4” x 4-3/4” 3-3/8" 2-1/4” 20 60
7742HD5 3/4” x 5-1/2” 3-3/8" 3” 20 60
7746HD5 3/4” x 7” 3-3/8" 4-1/2” 20 60
7748HD5 3/4” x 8-1/2 3-3/8" 6” 10 40
Power-Stud®
Wedge Type Expansion Anchor
BASE MATERIAL
Concrete, Grouted CMU
SIZE RANGE
1/4” x 1-3/4” to 1-1/4” x 12”
ANCHOR MATERIAL
Carbon Steel, Type 304 or 316 Stainless Steel, & Mechanically Galvanized
Carbon Steel
The Power-Stud anchor is a one piece fully threaded, wedge style anchor avail-
able in carbon steel and stainless steel. Threaded, Rod Hanger and Tie-Wire
versions are designed for use in solid concrete. The drill bit diameter needed for
proper installation is the same nominal size as the anchor diameter.
Mechanically Galvanized Power-Stud anchors are manufactured from carbon steel
which have a mechanically galvanized coating (zinc) in accordance with ASTM
Specification B 695, Class 65, Type I.
MECHANICALLY GALVANIZED POWER-STUD
CAT. NO. SIZE MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7720* 1/2" x 2-3/4" 2-1/4" 1-3/8" 50 200
7723* 1/2" x 4-1/2" 2-1/4" 3-1/8" 50 200
7724* 1/2" x 5-1/2" 2-1/4" 4-1/8" 50 150
7726* 1/2" x 7" 2-1/4" 5-5/8" 25 100
7730* 5/8" x 3-1/2" 2-3/4" 2" 25 100
7734* 5/8" x 6" 2-3/4" 4-1/2" 25 75
7741 3/4" x 4-3/4" 3-3/8" 2-7/8" 20 60
7742 3/4" x 5-1/2" 3-3/8" 3-5/8" 20 60
7748 3/4" x 8-1/2" 3-3/8" 6-5/8" 10 40
7750 7/8" x 6" 3-7/8" 2-3/4" 10 40
7752 7/8" x 8" 3-7/8" 4-3/4" 10 40
7763 1" x 9" 4-1/2" 5-3/8" 10 30
* Discontinued item once current stock depleted.
POWER-STUD+ SD 4+SD6 • POWER-STUD HD5 • POWER-STUD
9
MeCHAnICAL
TIE-WIRE POWER-STUD
CAT. NO. SIZE TIE-WIRE HOLE SIZE MIN. EMBED. STD. BOX STD. CTN.
7409SD1 1/4" x 2" 9/32" 1-1/8" 100 500
ROD HANGER POWER-STUD
CAT. NO. ROD SIZE ANCHOR SIZE DRILL DIA. MIN. EMBED. THREAD DEPTH STD. BOX STD. CTN.
7806 3/8" 1/2"x 2-3/8" 1/2" 2-1/4" 9/16" 50 250
Stainless Steel Power-Stud anchors are manufactured from AISI Type 304 /
304 Cu and Type 316 stainless steel which is passivated.
TYPE 304 STAINLESS STEEL POWER-STUD
CAT. NO SIZE MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7300 1/4" x 1-3/4" 1-1/8" 3/4" 100 500
7302 1/4" x 2-1/4" 1-1/8" 1-1/4" 100 500
7304 1/4" x 3-1/4" 1-1/8" 2-1/4" 100 500
7310 3/8" x 2-1/4" 1-5/8" 1-1/4" 50 250
7312 3/8" x 2-3/4" 1-5/8" 1-5/8" 50 250
7313 3/8" x 3" 1-5/8" 1-7/8" 50 250
7314 3/8" x 3-1/2" 1-5/8" 2-3/8" 50 250
7315 3/8" x 3-3/4" 1-5/8" 2-5/8" 50 250
7316 3/8" x 5" 1-5/8" 3-1/8" 50 250
7320 1/2" x 2-3/4" 2-1/4" 1-3/8" 50 200
7322 1/2" x 3-3/4" 2-1/4" 2-3/8" 50 200
7323 1/2" x 4-1/2" 2-1/4" 3-1/8" 50 200
7324 1/2" x 5-1/2" 2-1/4" 4-1/8" 50 150
7326 1/2" x 7" 2-1/4" 5-5/8" 25 100
7330 5/8" x 3-1/2" 2-3/4" 2" 25 100
7332 5/8" x 4-1/2" 2-3/4" 3" 25 100
7333 5/8" x 5" 2-3/4" 3-1/2" 25 100
7334 5/8" x 6" 2-3/4" 4-1/2" 25 75
7336 5/8" x 7" 2-3/4" 5-1/2" 25 75
7338 5/8" x 8-1/2" 2-3/4" 7" 25 75
7340 3/4" x 4-1/4" 3-3/8" 2-3/8" 20 60
7341 3/4" x 4-3/4" 3-3/8" 2-7/8" 20 60
7342 3/4" x 5-1/2" 3-3/8" 3-5/8" 20 60
7344 3/4" x 6-1/4" 3-3/8" 4-3/8" 20 60
7346 3/4" x 7" 3-3/8" 5-1/8" 20 60
7348 3/4" x 8-1/2" 3-3/8" 6-5/8" 10 40
7349 3/4" x 10" 3-3/8" 8-1/8" 10 30
7352 7/8" x 8" 3-7/8" 4-3/4" 10 40
7361 1" x 6" 4-1/2" 2-3/8" 10 30
7363 1" x 9" 4-1/2" 5-3/8" 10 30
7365 1" x 12" 4-1/2" 8-3/8" 5 15
The published length is the overall length of the anchor. Allow for fixture thickness plus one anchor diameter
for the nut and washer thickness when selecting a length.
TYPE 316 STAINLESS STEEL POWER-STUD
CAT. NO. SIZE MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7600 1/4" x 1-3/4" 1-1/8" 3/4" 100 500
7602 1/4" x 2-1/4" 1-1/8" 1-1/4" 100 500
7604 1/4" x 3-1/4" 1-1/8" 2-1/4" 100 500
7610 3/8" x 2-1/4" 1-5/8" 1-1/4" 50 250
7612 3/8" x 2-3/4" 1-5/8" 1-5/8" 50 250
7613 3/8" x 3" 1-5/8" 1-7/8" 50 250
7614 3/8" x 3-1/2" 1-5/8" 2-3/8" 50 250
7615 3/8" x 3-3/4" 1-5/8" 2-5/8" 50 250
7616 3/8" x 5" 1-5/8" 3-7/8" 50 250
7620 1/2" x 2-3/4" 2-1/4" 1-3/8" 50 200
CAT. NO. SIZE MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7622 1/2" x 3-3/4" 2-1/4" 2-3/8" 50 200
7623 1/2" x 4-1/2" 2-1/4" 3-1/8" 50 200
7624 1/2" x 5-1/2" 2-1/4" 4-1/8" 50 150
7626 1/2" x 7" 2-1/4" 5-5/8" 25 100
7630 5/8" x 3-1/2" 2-3/4" 2" 25 100
7632 5/8" x 4-1/2" 2-3/4" 3" 25 100
7633 5/8" x 5" 2-3/4" 3-1/2" 25 100
7634 5/8" x 6" 2-3/4" 4-1/2" 25 75
7636 5/8" x 7" 2-3/4" 5-1/2" 25 75
7638 5/8" x 8-1/2" 2-3/4" 7" 25 75
7640 3/4" x 4-1/4" 3-3/8" 2-3/8" 20 60
7641 3/4" x 4-3/4" 3-3/8" 2-7/8" 20 60
7642 3/4" x 5-1/2" 3-3/8" 3-5/8" 20 60
7644 3/4" x 6-1/4" 3-3/8" 4-3/8" 20 60
7646 3/4" x 7" 3-3/8" 5-1/8" 20 60
7648 3/4" x 8-1/2" 3-3/8" 6-5/8" 10 40
The published length is the overall length of the anchor. Allow for fixture thickness plus one anchor diameter
for the nut and washer thickness when selecting a length.
Atomic+
Undercut
Heavy Duty Undercut Anchor
Code listed
ICC-ES ESR-3067
BASE MATERIAL
Normal-Weight Concrete, Structural Sand-Lightweight Concrete
SIZE RANGE
3/8” diameter through 3/4” diameter
ANCHOR MATERIAL
Zinc Plated A 36 Carbon Steel, Zinc Plated High Strength A 193 Grade B7 Steel,
Type 316 Stainless Steel
The Atomic+ Undercut anchor is a heavy duty undercut anchor which is de-
signed for consistent performance in cracked and uncracked concrete. Atomic+
Undercut anchors are available for standard installations and for through bolt
applications where the fixture is already in place. The Atomic+ Undercut anchor
is installed into a pre-drilled hole which has been enlarged at the bottom in
the shape of a reversed cone using the Powers Undercut Drill Bit. The result is
an anchor which transfers load mainly through bearing, and unlike a typical
expansion anchor is not dependent upon friction between the expansion sleeve
and the concrete.
*Contact Powers Fasteners for appropriate drilling method. For anchor lengths not listed please contact
Powers Fasteners. For availability of all anchor lengths please contact Powers Fasteners.
ATOMIC+ UNDERCUT ANCHOR A 36 STEEL
CAT. NO. NOM.
ANCHOR DIA.
LENGTH REQ. UNDERCUT BIT
(CAT. NO.)
RECOMMENDED
STOP BIT (CAT. NO.)
ANCHOR TYPE STD. BOX
03100SD 3/8" 5-1/2" 03200SD 03220SD Standard 20
03102SD 3/8" 5-1/2" 03200SD * Through bolt 20
03108SD 1/2" 7" 03201SD 03222SD Standard 15
03110SD 1/2" 7" 03201SD * Through bolt 15
03120SD 5/8" 7-3/4" 03202SD 03222SD Standard 10
03122SD 5/8" 7-3/4" 03202SD * Through bolt 10
03132SD 3/4" 8-5/8" 03203SD 03228SD Standard 8
03134SD 3/4" 8-5/8" 03203SD * Through bolt 8
POWER-STUD • ATOMIC+ UNDERCUT
10
MECHANICAL
ATOMIC+ UNDERCUT HIGH STRENGTH A 193, GRADE B7 STEEL
CAT. NO. NOM.
ANCHOR DIA.
LENGTH REQ. UNDERCUT BIT
(CAT. NO.)
RECOMMENDED
STOP BIT (CAT. NO.)
ANCHOR
TYPE
STD. BOX
03104SD 3/8" 6-3/4" 03200SD 03221SD Standard 20
03106SD 3/8" 6-3/4" 03200SD *Through bolt 20
03112SD 1/2" 8" 03201SD 03223SD Standard 15
03114SD 1/2" 8" 03201SD *Through bolt 15
03116SD 1/2" 9-3/4" 03201SD 03224SD Standard 15
03118SD 1/2" 9-3/4" 03201SD *Through bolt 15
03124SD 5/8" 10-3/4" 03202SD 03226SD Standard 10
03126SD 5/8" 10-3/4" 03202SD *Through bolt 10
03128SD 5/8" 12-1/4" 03202SD 03227SD Standard 10
03130SD 5/8" 12-1/4" 03202SD *Through bolt 10
03136SD 3/4" 13-5/8" 03203SD 03229SD Standard 8
03138SD 3/4" 13-5/8" 03203SD *Through bolt 8
ATOMIC UNDERCUT+ TYPE 316 STAINLESS STEEL
CAT. NO. NOM.
ANCHOR DIA.
LENGTH REQ. UNDERCUT BIT
(CAT. NO.)
RECOMMENDED
STOP BIT (CAT. NO.)
ANCHOR
TYPE
STD. BOX
03600SD 3/8" 5-1/2" 03200SD 03220SD Standard 20
03602SD 3/8" 5-1/2" 03200SD * Through bolt 20
03608SD 1/2" 7" 03201SD 03222SD Standard 15
03610SD 1/2" 7" 03201SD * Through bolt 15
03620SD 5/8" 7-3/4" 03202SD 03225SD Standard 10
03622SD 5/8" 7-3/4" 03202SD * Through bolt 10
03632SD 3/4" 8-5/8" 03203SD 03228SD Standard 8
03634SD 3/4" 8-5/8" 03203SD * Through bolt 8
The Stop Drill Bit creates a drill hole to the proper depth for standard instal-
lations of the Atomic+ Undercut anchor (For through bolt applications please
contact Powers Fasteners for appropriate drilling method)
STOP DRILL BITS
CAT. NO. NOMINAL
STOP DRILL BIT DIA.
CORRESPONDING
NOMINAL ANCHOR DIA.
MAX.
DRILL DEPTH
SHANK TYPE STD. TUBE
03220SD 5/8" 3/8" 3-1/8" SDS 1
03221SD 5/8" 3/8" 4-3/8" SDS 1
03222SD 3/4" 1/2" 4-1/4" SDS 1
03223SD 3/4" 1/2" 5-1/4" SDS 1
03224SD 3/4" 1/2" 7" SDS 1
03225SD 1" 5/8" 5" SDS-Max 1
03226SD 1" 5/8" 8" SDS-Max 1
03227SD 1" 5/8" 9-1/2" SDS-Max 1
03228SD 1-1/8" 3/4" 5-13/16" SDS-Max 1
03229SD 1-1/8" 3/4" 10-13/16" SDS-Max 1
The Undercut Drill Bits unique design enlarges the bottom of the drill hole creat-
ing a reverse cone sized to receive the Atomic+ Undercut anchor.
UNDERCUT DRILL BITS
CAT. NO. NOMINAL
STOP DRILL BIT DIA.
CORRESPONDING
NOMINAL ANCHOR DIA.
MAX.
DRILL DEPTH
SHANK TYPE STD. TUBE
03200SD 5/8" 3/8" 9" SDS 1
03201SD 3/4" 1/2" 10-1/4" SDS 1
03202SD 1" 5/8" 12-1/4" SDS-Max 1
03203SD 1-1/8" 3/4" 13-1/2" SDS-Max 1
UNDERCUT SET SLEEVE
CAT. NO. CORRESPONDING NOMINAL ANCHOR DIA. STD. TUBE
03210SD 3/8" 1
03211SD 1/2" 1
03212SD 5/8" 1
03213SD 3/4" 1
Note: One Undercut Setting Sleeve will be packaged with each box of Atomic+ Undercut anchors.
ATOMIC+ CUTTER BLADE ASSEMBLIES
CAT. NO. DESCRIPTION STD. TUBE
03205SD Atomic+ (3/8”) Cutter Blade - 5/8” 1
03206SD Atomic+ (1/2”) Cutter Blade - 3/4” 1
03208SD Atomic+ (5/8”) Cutter Blade - 1” 1
03209SD Atomic+ (3/4”) Cutter Blade - 1-1/8” 1
ATOMIC+ REPLACEMENT BOW JAWS
CAT. NO. DESCRIPTION STD. TUBE
03212SD 3/8” Bow Jaw for 5/8” Hole 1
03215SD 1/2” Bow Jaw for 3/4” Hole 1
03216SD 5/8” Bow Jaw for 1” Hole 1
03217SD 3/4” Bow Jaw for 1-1/8” Hole 1
Lok-Bolt AS
Sleeve Type Expansion Anchor
BASE MATERIAL
Concrete, Block, Brick
SIZE RANGE
1/4” x 5/8” to 3/4” x 7-1/2”
ANCHOR MATERIAL
Carbon Steel & Stainless Steel
The Lok-Bolt AS anchor is a pre-assembled single unit sleeve anchor available in
carbon steel and stainless steel which can be used in concrete, block, brick and
stone. Extension sleeves are added to create longer lengths.
* AS refers to all-steel sleeve
HEX NUT LOK-BOLT AS CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
5005S 5/16" x 1-1/2" 5/16" 1" 100 1000
5010S 5/16" x 2-3/8" 5/16" 1" 100 500
5015S 3/8" x 1-7/8" 3/8" 1-1/4" 50 500
5020S 3/8" x 3" 3/8" 1-1/4" 50 500
5022S 3/8" x 4" 3/8" 1-1/4" 50 250
5025S 1/2" x 2-1/2" 1/2" 1-1/2" 25 250
5030S 1/2" x 3" 1/2" 1-1/2" 25 250
5034S 1/2" x 3-3/4" 1/2" 1-1/2" 25 125
5033S 1/2" x 5-1/4" 1/2" 1-1/2" 25 125
5032S 1/2" x 6" 1/2" 1-1/2" 10 100
5035S 5/8" x 2-1/2" 5/8" 2" 25 125
5038S 5/8" x 3" 5/8" 2" 25 125
5040S 5/8" x 4-1/4" 5/8" 2" 10 100
5045S 5/8" x 5-3/4" 5/8" 2" 10 100
5050S 3/4" x 2-3/4" 3/4" 2-1/4" 10 100
5055S 3/4" x 4-1/4" 3/4" 2-1/4" 10 40
5060S 3/4" x 6-1/4" 3/4" 2-1/4" 10 30
5065S 3/4" x 8-1/4" 3/4" 2-1/4" 10 30
The published length is measured from below the washer to the end of the anchor.
ATOMIC+ UNDERCUT • LOK-BOLT AS
11
MeCHAnICAL
HEX NUT LOK-BOLT AS 304 STAINLESS STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED STD. BOX STD. CTN.
6152S 3/8" x 1-7/8" 3/8" 1-1/4" 50 500
6153S 3/8" x 3" 3/8" 1-1/4" 50 500
6156S 1/2" x 2-1/2" 1/2" 1-1/2" 25 250
6157S 1/2" x 3" 1/2" 1-1/2" 25 250
6160S 1/2" x 3-3/4" 1/2" 1-1/2" 25 125
6164S 5/8" x 4-1/4" 5/8" 2" 10 100
The published length is measured from below the washer to the end of the anchor.
ACORN NUT LOK-BOLT AS CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
5125S 1/4" x 5/8" 1/4" 1/2" 100 1000
5150S 1/4" x 1-3/8" 1/4" 1/2" 100 1000
5175S 1/4" x 2-1/4" 1/4" 1/2" 100 1000
The published length is measured from below the washer to the end of the anchor.
ACORN NUT LOK-BOLT AS 304 STAINLESS STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
6150S 1/4" x 1-3/8" 1/4" 1/2" 100 1000
The published length is measured from below the washer to the end of the anchor.
ROUND HEAD LOK-BOLT AS CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
5205S 1/4" x 1-3/8" 1/4" 1/2" 100 1000
5210S 1/4" x 2-1/4" 1/4" 1/2" 100 1000
5215S 1/4" x 3" 1/4" 1/2" 100 1000
5220S 1/4" x 3-3/4" 1/4" 1/2" 100 1000
5225S 5/16" x 2-3/8" 5/16" 1" 100 1000
5230S 5/16" x 3-3/8" 5/16" 1" 100 500
5235S 3/8" x 2-3/4" 3/8" 1-1/4" 50 500
5240S 3/8" x 3-3/4" 3/8" 1-1/4" 50 250
ROUND HEAD LOK-BOLT AS 304 STAINLESS STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED STD. BOX STD. CTN.
6180S 1/4" x 2-1/4" 1/4" 1/2" 100 1000
COMBO FLAT HEAD LOK-BOLT AS CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
5305S 1/4" x 1-1/2" 1/4" 1/2" 100 1000
5310S 1/4" x 2-1/4" 1/4" 1/2" 100 1000
5315S 1/4" x 3" 1/4" 1/2" 100 1000
5320S 1/4" x 4" 1/4" 1/2" 100 500
5325S 1/4" x 5-1/4" 1/4" 1/2" 100 500
5330S 5/16" x 2-1/4" 5/16" 1" 100 1000
5340S 3/8" x 2-3/4" 3/8" 1-1/4" 50 300
5345S 3/8" x 4" 3/8" 1-1/4" 50 250
5350S 3/8" x 5" 3/8" 1-1/4" 50 250
5360S 3/8" x 6" 3/8" 1-1/4" 50 250
COMBO FLAT HEAD LOK-BOLT AS 304 STAINLESS STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
6170S 1/4" x 2-1/4" 1/4" 1/2" 100 1000
6172S 1/4" x 3" 1/4" 1/2" 100 1000
6174S 3/8" x 4" 3/8" 1-1/4" 50 250
6175S 3/8" x 5" 3/8" 1-1/4" 50 250
6176S 3/8" x 6" 3/8" 1-1/4" 50 250
These parts do not have a compression ring.
THRESHOLD FLAT HEAD LOK-BOLT AS
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
5500S 1/4" x 2" 1/4" 1/2" 100 1000
This part does not have a compression ring.
ROD HANGER LOK-BOLT AS CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
5810S 1/4" x 1-1/2" 5/16" 1/2" 50 250
5815S 3/8" x 1-7/8" 3/8" 1-1/4" 50 250
5825S 1/2" x 2-1/4" 1/2" 1-1/2" 25 125
TIE-WIRE LOK-BOLT AS
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
5700S 5/16" x 1-1/2" 5/16" 1" 100 1000
LOK-BOLT AS EXTENDERS CARBON STEEL (FOR ADDITIONAL LENGTH)
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
5684S 3/8 x 1-1/4" 3/8" 50 500
Set-Bolt
Displacement Controlled Expansion Anchor
BASE MATERIAL
Concrete
SIZE RANGE
1/4” x 1-3/4” to 1/2” x 4-1/4”
ANCHOR MATERIAL
Carbon Steel
The Set-Bolt is a one piece, stud style anchor with an external bottom-bearing
expansion plug. It is available in carbon steel for use in concrete, stone and solid
masonry units.
CAT. NO. SIZE MIN. DEPTH THREAD LENGTH STD. BOX STD. CTN.
7101 1/4" x 1-3/4" 1-3/8" 5/8" 100 1000
7107* 1/4" x 3-1/4" 1-3/8" 1" 100 500
7123* 3/8" x 2-1/4" 1-5/8" 5/8" 50 250
7126 3/8" x 3" 1-5/8" 1-3/8" 50 250
7129* 3/8" x 3-3/4" 1-5/8" 1-3/8" 50 250
7134* 3/8" x 6" 1-5/8" 1-3/8" 50 -
7145* 1/2" x 2-3/4" 1-7/8" 7/8" 50 250
7151 1/2" x 4-1/4" 1-7/8" 1-7/8" 25 125
7153* 1/2" x 5-1/4" 1-7/8" 1-7/8" 25 125
* Discontinued item once current stock exhausted.
LOK-BOLT AS • SET-BOLT
12
MECHANICAL
Code listed
ICC-ES ESR-2526
Code listed
ICC-ES ESR-1678
City of los angeles
LARR-25808 (Concrete)
Wedge-Bolt® +
Screw Anchor
BASE MATERIAL
Normal-Weight Concrete, Structural Sand-Lightweight Concrete, Concrete Over
Metal Deck, Grouted CMU
SIZE RANGE
1/4” Diameter (Uncracked Concrete), 3/8” Diameter Through 3/4” Diameter
(Cracked And Uncracked Concrete), Grouted CMU
ANCHOR MATERIAL
Zinc Plated Carbon Steel Body, and Hex Head or Mechanically Galvanized
Carbon Steel Body and Hex Head
The Wedge-Bolt+ anchor is a one piece, heavy duty screw anchor with a
finished hex head. It is simple to install, easy to identify and fully removable. The
Wedge-Bolt+ has many features and benefits that make it well suited for many
applications in a variety of base materials. The anchor is designed for consistent
and reliable performance in cracked and uncracked concrete.
Install with Powers Wedge-Bit™
WEDGE-BOLT + SCREW ANCHOR (CARBON STEEL)
CAT. NO. DIAMETER SIZE & LENGTH MIN. EMBED. STD. BOX STD. CTN.
7204SD 1/4" x 1-1/4"* 1" 100 600
7206SD 1/4" x 1-3/4"* 1" 100 600
7207SD 1/4" x 2" 1-3/4" 100 600
7208SD 1/4" x 2-1/4" 1-3/4" 100 600
7210SD 1/4" x 3" 1-3/4" 100 500
7220SD 3/8" x 1-3/4"* 1-1/2" 50 300
7222SD 3/8" x 2-1/2" 2-1/8" 50 300
7224SD 3/8" x 3" 2-1/8" 50 250
7226SD 3/8" x 4" 2-1/8" 50 250
7228SD 3/8" x 5" 2-1/8" 50 250
7230SD 3/8" x 6" 2-1/8" 50 150
7240SD 1/2" x 2"* 1-3/4" 50 150
7242SD 1/2" x 2-1/2"* 1-3/4" 50 200
7244SD 1/2" x 3" 2-1/2" 50 150
7246SD 1/2" x 4" 2-1/2" 50 150
7248SD 1/2" x 5" 2-1/2" 25 100
7250SD 1/2" x 6" 2-1/2" 25 75
7268SD 1/2" x 6-1/2" 2-1/2" 25 75
7252SD 1/2" x 8" 2-1/2" 25 75
7260SD 5/8" x 3"* 2-1/2" 25 100
7262SD 5/8" x 4" 3-1/4" 25 100
7264SD 5/8" x 5" 3-1/4" 25 75
7266SD 5/8" x 6" 3-1/4" 25 75
7270SD 5/8" x 8" 3-1/4" 25 75
7280SD 3/4" x 3"* 2-1/2" 20 60
7282SD 3/4" x 4"* 3" 20 60
7284SD 3/4" x 5" 4-1/4" 20 60
7286SD 3/4" x 6" 4-1/4" 20 60
7288SD 3/4" x 8 " 4-1/4" 10 40
7290SD 3/4" x 10" 4-1/4" 10 40
* Sizes which are less than the minimum standard anchor length for strength design. The published length is
measured from below the hex washer head to the end of the anchor. Wedge-Bolt+ is marked with a blue tip and
must be installed with a matched tolerance Wedge-Bit.
WEDGE-BOLT+ MG SCREW ANCHOR
CAT. NO. DIAMETER SIZE & LENGTH STD. BOX STD. CTN.
7726SD 3/8" x 4" 50 250
7728SD 3/8" x 5" 50 250
7730SD 3/8" x 6" 50 150
7746SD 1/2" x 4" 50 150
7748SD 1/2" x 5" 25 100
7750SD 1/2" x 6" 25 75
7751SD 1/2" x 6-1/2" 25 75
7752SD 1/2" x 8" 25 75
7764SD 5/8" x 5" 25 75
7766SD 5/8" x 6" 25 75
7768SD 5/8" x 6-1/2" 25 75
7770SD 5/8" x 8" 25 75
7786SD 3/4" x 6" 20 60
7789SD 3/4" x 8-1/2" 10 40
7790SD 3/4" x 10" 10 20
MG = Mechanically Galvanized
Wedge-Bolt®
(Stainless Steel & Orange Tip)
The 410 SS Wedge-Bolt screw anchor is specifically engineered for applica-
tions where additional corrosion resistance is desired. This anchor can be easily
installed with either an impact wrench or conventional hand socket.
Install with Powers Wedge-Bit™
410 STAINLESS STEEL WEDGE-BOLT SCREW ANCHOR
CAT. NO. DIA. SIZE & LENGTH CLEARANCE HOLE DIA. MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN.
7701N 1/4" x 1-3/4" 5/16” 1" 1-5/8" 100 500
7702N 3/8" x 1-3/4" 5/16” 1" 1-1/2" 50 500
7705N 3/8" x 2-1/2" 7/16” 1-1/2" 2-1/4" 50 250
7706N 3/8" x 3" 7/16” 1-1/2" 2-3/4" 50 250
7707N 3/8" x 4" 7/16” 1-1/2" 3-3/4" 50 150
7708N 3/8" x 5" 7/16” 1-1/2" 3-3/4" 50 150
7710N 1/2" x 3" 9/16” 1-3/4" 2-3/4" 50 150
7711N 1/2" x 4" 9/16” 1-3/4" 3-3/4" 50 150
The Carbon Steel Wedge-Bolt OT screw anchor is a specifically engineered part
for the racking industry. This anchor is available in a finished hex head design
and can be easily installed with either an impact wrench or conventional hand
socket. This anchor, unlike Blue Tip Wedge-Bolt, can be installed with regular
ANSI standard carbide drill bits but requires larger clearance holes.
Orange Tip (OT) = Install with ANSI Bit
WEDGE-BOLT OT SCREW ANCHOR
CAT. NO. DIA. SIZE & LENGTH ANSI BIT DIA. CLEARANCE HOLE DIA. MIN. EMBED. THREAD LENGTH STD. BOX STD. CTN
7215 1/4" x 3" 1/4" 3/8” 1" 2-3/4" 100 500
7216 3/8" x 4" 3/8" 1/2” 1-1/2" 3-3/4" 50 250
7217 1/2" x 4" 1/2" 5/8” 1-3/4" 3-3/4" 50 150
7218 1/2" x 5" 1/2" 5/8” 1-3/4" 3-3/4" 25 100
7214 1/2" x 6" 1/2" 5/8" 1-3/4" 3-3/4" 25 75
7219 5/8" x 4" 5/8" 3/4” 2-1/2" 3-3/4" 25 100
7221 5/8" x 5" 5/8" 3/4” 2-1/2" 3-3/4" 25 75
7227 5/8" x 6" 5/8" 3/4" 2-1/2" 3-3/4" 25 75
7229 5/8" x 7" 5/8" 3/4" 2-1/2" 3-3/4" 25 75
7233 1/2" x 6-1/2" 1/2" 5/8” 1-3/4" 3-3/4" 25 75
7231 3/4" x 6" 3/4" 7/8" 2-1/2" 4-1/2" 20 60
7232 3/4"x 8" 3/4" 7/8" 2-1/2" 6" 10 40
WEDGE-BOLT+ • WEDGE-BOLT
13
MeCHAnICAL
WEDGE-BIT • TAPPER+ XTREME

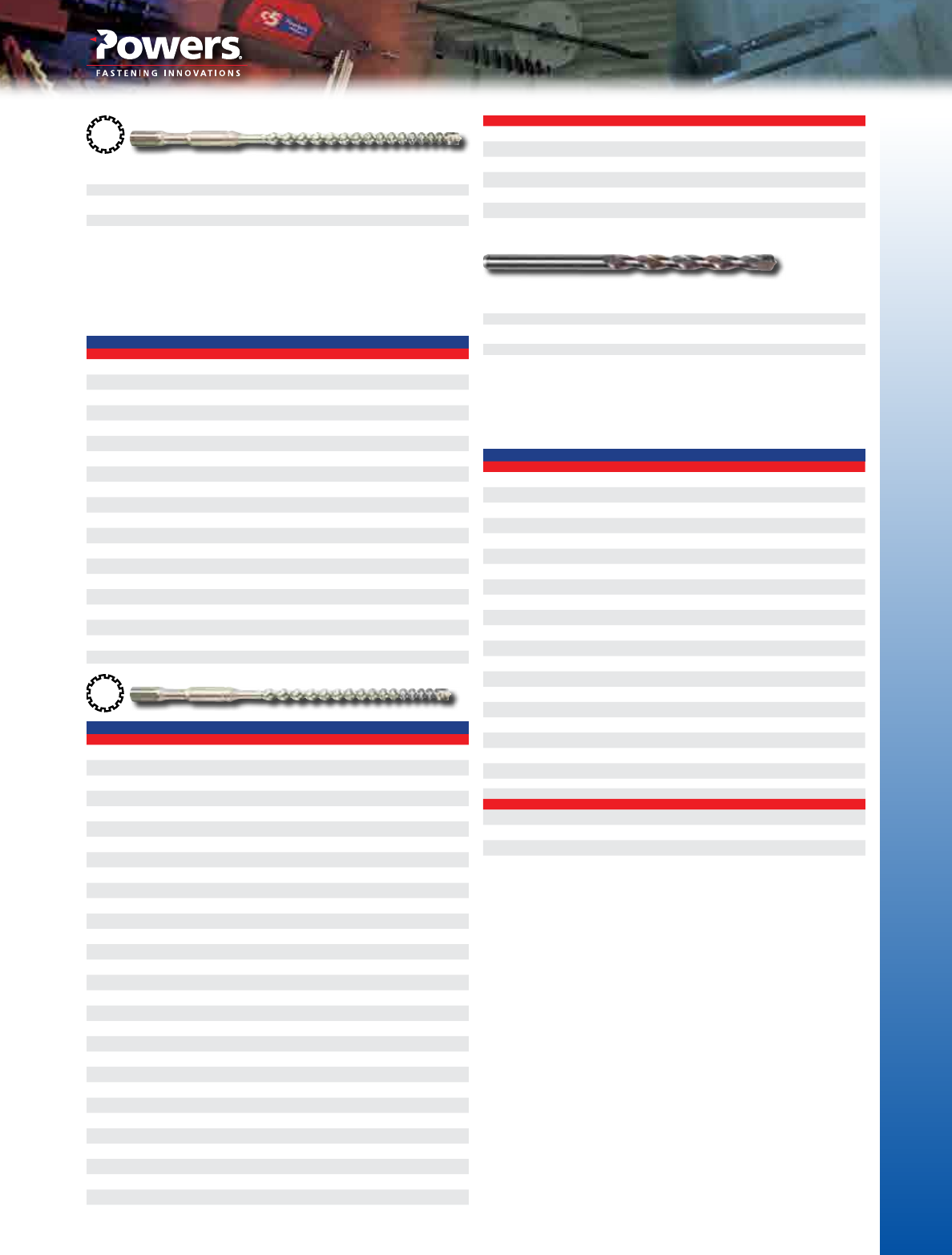

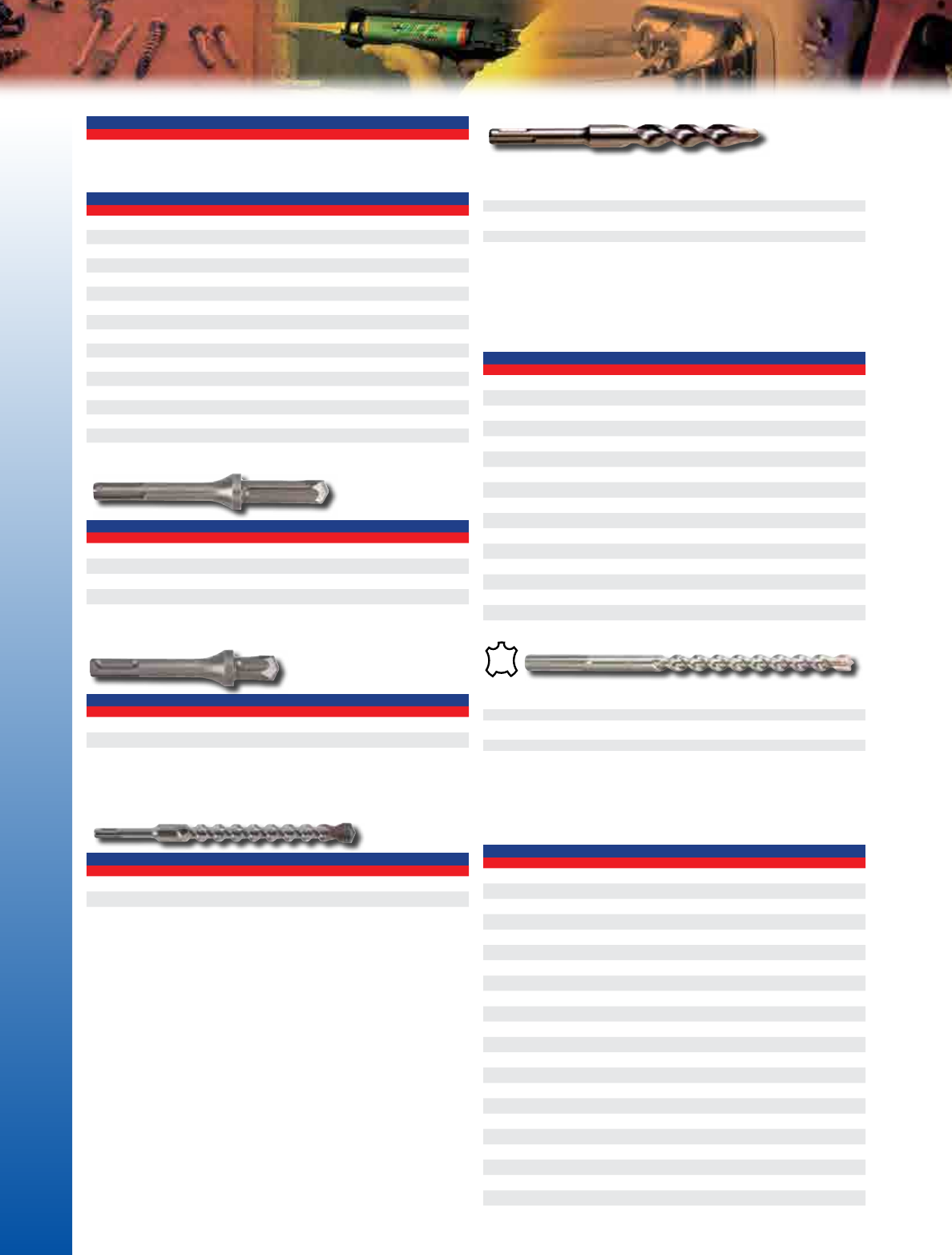

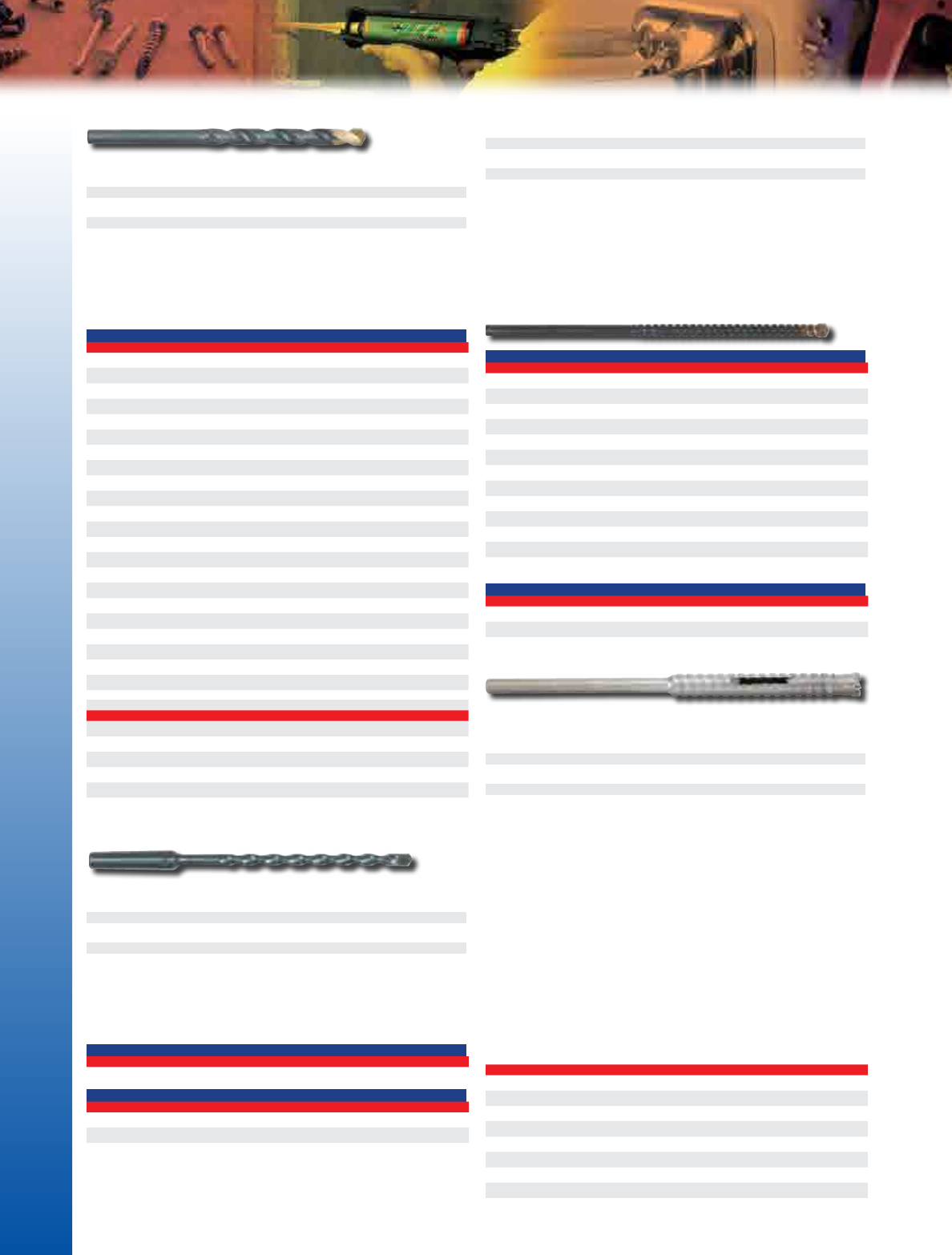

Wedge-Bits
For proper performance, the Carbon Steel Wedge-Bolt and 410 Stainless Steel
Wedge-Bolt anchors must be installed with a Wedge-Bit. The Wedge-Bit has a
special matched tolerance range designed to provide optimum performance for
the anchor. The available shank styles and sizes are listed below.
SDS-PLUS WEDGE-BIT
CAT. NO. DRILL SIZE USABLE LENGTH OVERALL LENGTH STD. POUCH
1312 1/4" 2" 4" 1
1314 1/4" 4" 6" 1
1315 1/4" 6" 8" 1
1316 3/8" 4" 6" 1
1318 3/8" 6" 8" 1
1319 3/8" 16" 18" 1
1332 3/8" 10" 12" 1
1320 1/2" 4" 6" 1
1322 1/2" 8" 10" 1
1324 5/8" 6" 8" 1
1334 1/2" 10" 12" 1
1326 5/8" 10" 12" 1
1336 5/8" 16" 18" 1
1328 3/4" 6" 8" 1
1330 3/4" 10" 12" 1
1335 1/2" 16" 18" 1
HEAVY DUTY STRAIGHT SHANK WEDGE-BIT
CAT. NO. DRILL SIZE USABLE LENGTH OVERALL LENGTH STD. POUCH
1370 1/4" 2-3/4" 4" 1
1372 1/4" 4" 6” 1
1380 3/8” 4" 6" 1
1384 3/8" 11" 13" 1
1390 1/2" 4" 6" 1
1394 1/2" 11" 13" 1
1396 5/8" 11" 13" 1
1397 3/4" 11" 13" 1
SPLINE WEDGE-BIT
CAT. NO. DRILL SIZE USABLE LENGTH OVERALL LENGTH STD. POUCH
1340 1/2" 8" 13" 1
1342 1/2" 11" 16" 1
1344 5/8" 8" 13" 1
1348 3/4" 8" 13" 1
SDS-MAX WEDGE-BIT
CAT. NO. DRILL SIZE USABLE LENGTH OVERALL LENGTH STD. POUCH
1354 1/2" 8" 13" 1
1356 5/8" 8" 13" 1
1357 5/8" 16" 21" 1
1358 3/4" 8" 13" 1
Code listed
ICC-ES ESR-3068
UNCRACKED CONCRETE
APPROVED
MIAMI-DADE COUNTY
Tapper+Xtreme
New!
Concrete Screw
BASE MATERIAL
Uncracked Concrete,
SIZE RANGE
5/16” x 6”
ANCHOR MATERIAL
Carbon Steel
The new Tapper+ Xtreme concrete screw is fully threaded in lengths up to
3-1/4" for light gauge metal attachment to CMU. It is easily installed 2-1/2" -
added strength with low torque, and installation drive mechanisms, -5/16" hex
head and #3 Phillips. Available in a choice of head styles including Hex flange
head, trim hex head, flat and trim flat. Tapper+ Xtreme has been tested to meet
ICC-ES Standards for uncracked concrete.
White and Bronze Perma-Seal coating available by special order.
SILVER TAPPER+ XTREME STANDARD PACK*
HWH CAT. NO. THH CAT. NO. PFH CAT. NO. TFH CAT. NO. SCREW SIZE STD. BOX STD. CTN
2200SD 2230SD 2240SD 5/16" x 1-3/4" 100 500
2202SD 2232SD 2212SD 2242SD 5/16" x 2-1/4" 100 500
2204SD 2234SD 2214SD 2244SD 5/16" x 2-3/4" 100 500
2206SD 2336SD 2216SD 2246SD 5/16" x 3-1/4" 100 500
2208SD 2238SD 2218SD 2248SD 5/16" x 4" 100 500
2210SD 2220SD 2250SD 5/16" x 5" 100 500
2222SD 5/16" x 6" 100 500
WHITE TAPPER+ XTREME STANDARD PACK*
HWH CAT. NO. THH CAT. NO. PFH CAT. NO. TFH CAT. NO. SCREW SIZE STD. BOX STD. CTN
2330SD 2340SD 5/16" x 1-3/4" 100 500
2332SD 2312SD 2342SD 5/16" x 2-1/4" 100 500
2334SD 2314SD 2344SD 5/16" x 2-3/4" 100 500
2316SD 2316SD 2346SD 5/16" x 3-1/4" 100 500
2318SD 2318SD 2348SD 5/16" x 4" 100 500
2320SD 2350SD 5/16" x 5" 100 500
2322SD 5/16" x 6" 100 500
BRONZE TAPPER+ XTREME STANDARD PACK*
HWH CAT. NO. THH CAT. NO. PFH CAT. NO. TFH CAT. NO. SCREW SIZE STD. BOX STD. CTN
2330SD 2340SD 5/16" x 1-3/4" 100 500
2332SD 2312SD 2342SD 5/16" x 2-1/4" 100 500
2334SD 2314SD 2344SD 5/16" x 2-3/4" 100 500
2316SD 2316SD 2346SD 5/16" x 3-1/4" 100 500
2318SD 2318SD 2348SD 5/16" x 4" 100 500
2320SD 2350SD 5/16" x 5" 100 500
2322SD 5/16" x 6" 100 500
HWH = Hex Washer Head (slotted); PFH = Phillips Flat Head; TFH = Trim Flat Head; FHH = Flange Hex Head
* One Tapper+ drill bit included in each standard box.
TAPPER+ XTREME SDS-PLUS BIT
CAT. NO. SIZE USABLE LENGTH STD. PACK
1314 1/4" x 6" 4" 1
1315 1/4" x 8" 6" 1
TAPPER+ XTREME INSTALLATION TOOLS
CAT. NO. DESCRIPTION STD. BOX
2291SD Tapper+ Xtreme Installation Kit 1
14
MECHANICAL
Code listed
ICC-ES ESR-3068
UNCRACKED CONCRETE
Code listed
ICC-ES ESR-3042
WOOD-TO-WOOD
Code listed
ICC-ES ESR-3213
CHEMICALLy TREATED LUMBER
TESTED TO
iCC-es aC106
MASONRy (CMU)
APPROVED
MIAMI-DADE COUNTY

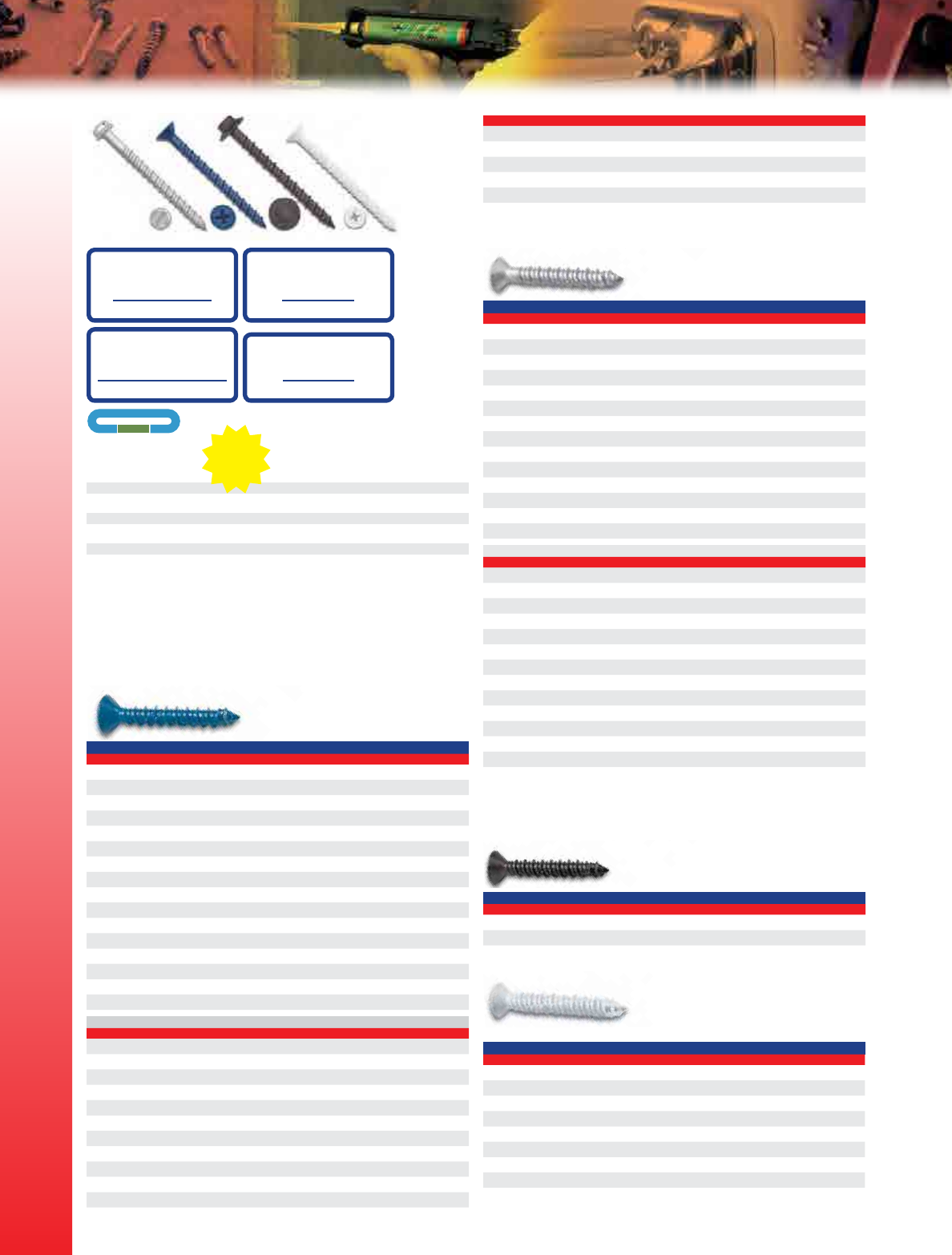

Tapper+
New!
Concrete Screw
BASE MATERIAL
Uncracked Concrete, Block, Brick, Wood, Pressure Treated Lumber
SIZE RANGE
3/16” x 1-1/4” to 1/4” x 6”
ANCHOR MATERIAL
Carbon Steel, Type 304 & Type 410 Stainless Steel

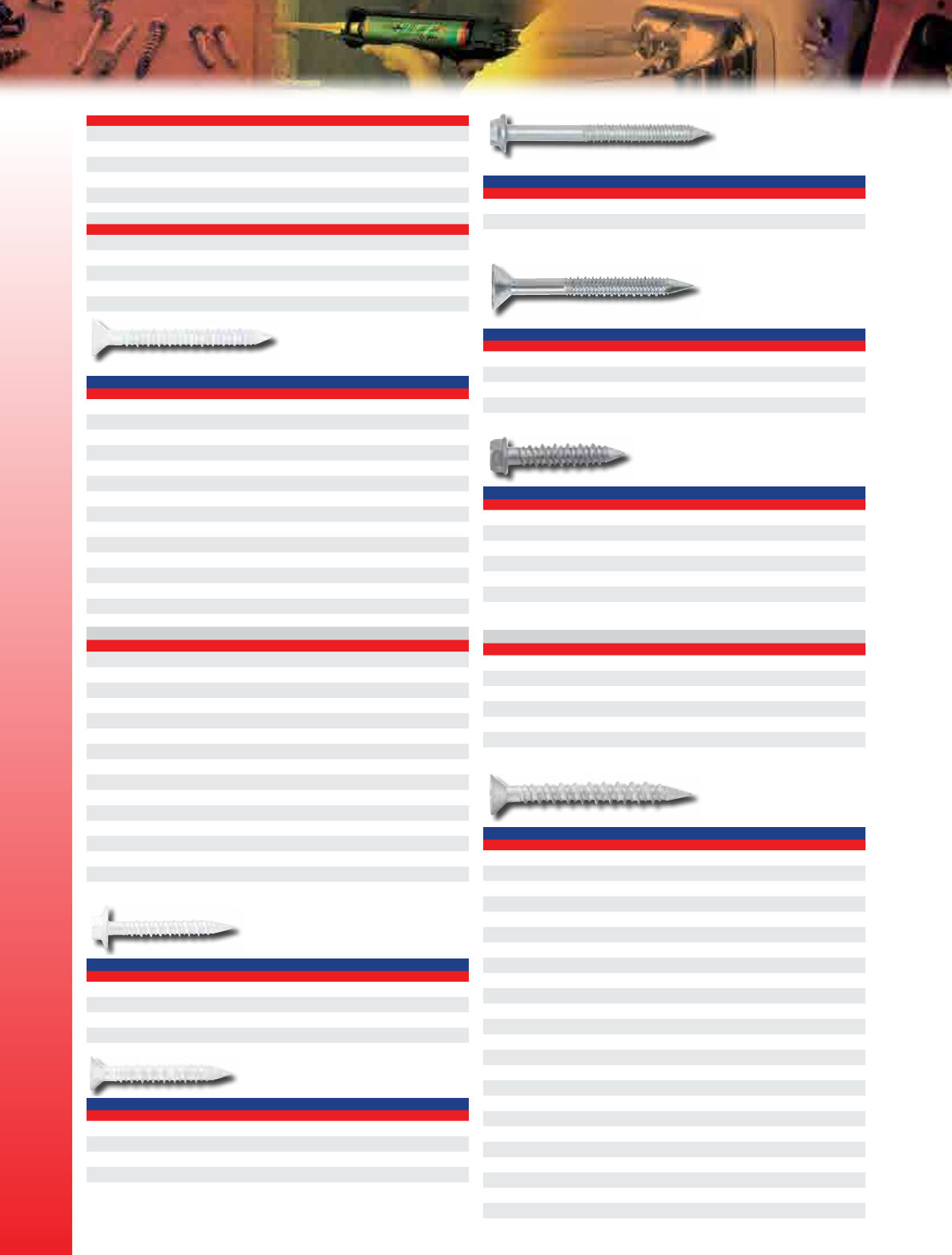

The Tapper+ is a one-piece self-tapping concrete screw for use in a variety of
light to medium duty applications in base materials including concrete, masonry
and wood. It features a corrosion resistant Perma-Seal® coating and an opti-
mized thread design for lower torque. The screw also incorporates a gimlet drill
point for wood base materials (no pre-drilling required). Tapper+ is available in a
variety of head styles and colors to match the application.
BLUE PERMA-SEAL TAPPER+ STANDARD PACK*
HWH CAT. NO. PFH CAT. NO. SCREW SIZE STD. BOX STD. CTN
2700SD† 2740SD† 3/16" x 1-1/4" 100 500
2702SD† 2742SD† 3/16" x 1-3/4" 100 500
2704SD 2744SD 3/16" x 2-1/4" 100 500
2706SD 2746SD 3/16" x 2-3/4" 100 500
2708SD 2748SD 3/16" x 3-1/4" 100 500
2710SD 2750SD 3/16" x 3-3/4" 100 500
2712SD 2752SD 3/16" x 4" 100 500
2720SD† 2760SD† 1/4" x 1-1/4" 100 500
2722SD† 2762SD† 1/4" x 1-3/4" 100 500
2724SD 2764SD 1/4" x 2-1/4" 100 500
2726SD 2766SD 1/4" x 2-3/4" 100 500
2728SD 2768SD 1/4" x 3-1/4" 100 500
2730SD 2770SD 1/4" x 3-3/4" 100 500
2732SD 2772SD 1/4" x 4" 100 500
2734SD 2774SD 1/4" x 5" 100 100
2776SD 1/4" x 6" 100 100
MASTER PACK**
HWH CAT NO. PFH CAT NO. SCREW SIZE QUANTITY DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9462SD† 9476SD† 3/16" x 1-1/4" 2000 2781 2793
9463SD† 9477SD† 3/16" x 1-3/4" 2000 2781 2793
9464SD 9478SD 3/16" x 2-1/4" 2000 2782 2793
9465SD 9479SD 3/16" x 2-3/4" 2000 2782 2793
9466SD 9480SD 3/16" x 3-1/4" 1000 2783 2794
9467SD 9481SD 3/16" x 3-3/4" 1000 2783 2794
9468SD 9482SD 3/16" x 4" 1000 2783 2794
9469SD† 9483SD† 1/4" x 1-1/4" 2000 2785 2796
9470SD† 9484SD† 1/4" x 1-3/4" 2000 2785 2796
9471SD 9485SD 1/4" x 2-1/4" 1000 2786 2796
9472SD 9486SD 1/4" x 2-3/4" 1000 2786 2796
HWH CAT NO. PFH CAT NO. SCREW SIZE QUANTITY DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9473SD 9487SD 1/4" x 3-1/4" 1000 2787 2797
9474SD 9488SD 1/4" x 3-3/4" 1000 2787 2797
9475SD 9489SD 1/4" x 4" 1000 2787 2797
9490SD 1/4" x 5" 1000 2788 2797
9491SD 1/4" x 6" 1000 2789 2797
HWH = Hex Washer Head (slotted); PFH = Phillips Flat Head; TFH = Trim Flat Head; FHH = Flange Hex Head.
* One Tapper+ drill bit included in each standard box. ** Drill bit not included with master pack. † Sizes
which are less than the minimum standard anchor length for strength design.
SILVER PERMA-SEAL TAPPER+ STANDARD PACK*
CAT. NO. HWH CAT. NO. PFH CAT. NO. FHH CAT. NO. TFH SCREW SIZE STD. BOX ST. CTN.
2498SD† 3/16" x 1-1/4" 100 500
2500SD† 3/16" x 1-3/4" 100 500
2501SD 3/16" x 2-1/4" 100 500
2502SD 3/16" x 2-3/4" 100 500
2503SD 3/16" x 3-1/4" 100 500
2504SD 3/16" x 3-3/4" 100 500
2505SD 3/16" x 4" 100 500
2486SD† 2506SD† 1/4" x 1-1/4" 100 500
2488SD† 2507SD† 8715SD† 8719SD† 1/4" x 1-3/4" 100 500
2490SD 2508SD 8716SD 8720SD 1/4" x 2-1/4" 100 500
2492SD 2509SD 8717SD 8721SD 1/4" x 2-3/4" 100 500
2494SD 2510SD 8718SD 8722SD 1/4" x 3-1/4" 100 500
2495SD 2511SD 8723SD 1/4" x 3-3/4" 100 500
2496SD 2512SD 1/4" x 4" 100 500
MASTER PACK**
CAT. NO. HWH CAT. NO. PFH SCREW SIZE QUANTITIES DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8757SD† 3/16" x 1-1/4" 2000 2781 2793
8758SD† 3/16" x 1-3/4" 2000 2781 2793
8759SD 3/16" x 2-1/4" 2000 2782 2793
8760SD 3/16" x 2-3/4" 2000 2782 2793
8761SD 3/16" x 3-1/4" 1000 2783 2794
8762SD 3/16" x 3-3/4" 1000 2783 2794
8763SD 3/16" x 4" 1000 2783 2794
8750SD† 8764SD† 1/4" x 1-1/4" 2000 2785 2796
8751SD† 8765SD† 1/4" x 1-3/4" 2000 2785 2796
8752SD 8766SD 1/4" x 2-1/4" 1000 2786 2796
8753SD 8767SD 1/4" x 2-3/4" 1000 2786 2796
8754SD 8768SD 1/4" x 3-1/4" 1000 2787 2797
8755SD 8769SD 1/4" x 3-3/4" 1000 2787 2797
8756SD 8770SD 1/4" x 4" 1000 2787 2797
HWH = Hex Washer Head (slotted); PFH = Phillips Flat Head; TFH = Trim Flat Head; FHH = Flange Hex Head
* One Tapper+ drill bit included in each standard box. **Drill bit not included with master pack.
† Sizes which are less than the minimum standard anchor length for strength design
BRONZE PERMA-SEAL TAPPER+ STANDARD PACK*
CAT. NO. HWH CAT. NO. PFH SCREW SIZE STD. BOX STD. CTN.
9975SD† 9977SD† 1/4" x 1-1/4" 100 500
9976SD† 9978SD† 1/4" x 1-3/4" 100 500
† Sizes which are less than the minimum standard anchor length for strength design
WHITE PERMA-SEAL TAPPER+ STANDARD PACK*
CAT. NO. HWH CAT. NO. PFH CAT. NO. FHH CAT. NO. TFH SCREW SIZE STD. BOX STD. CTN.
2400SD† 2440SD† 3/16" x 1-1/4" 100 500
2402SD† 2442SD† 3/16" x 1-3/4" 100 500
2404SD 2444SD 3/16" x 2-1/4" 100 500
2406SD 2446SD 3/16" x 2-3/4" 100 500
2408SD 2448SD 3/16" x 3-1/4" 100 500
2410SD 2450SD 3/16" x 3-3/4" 100 500
2412SD 2449SD 3/16" x 4" 100 500
2420SD† 2460SD† 1/4" x 1-1/4" 100 500
2422SD† 2462SD† 8706SD† 8710SD† 1/4" x 1-3/4" 100 500
TAPPER+
15
MeCHAnICAL

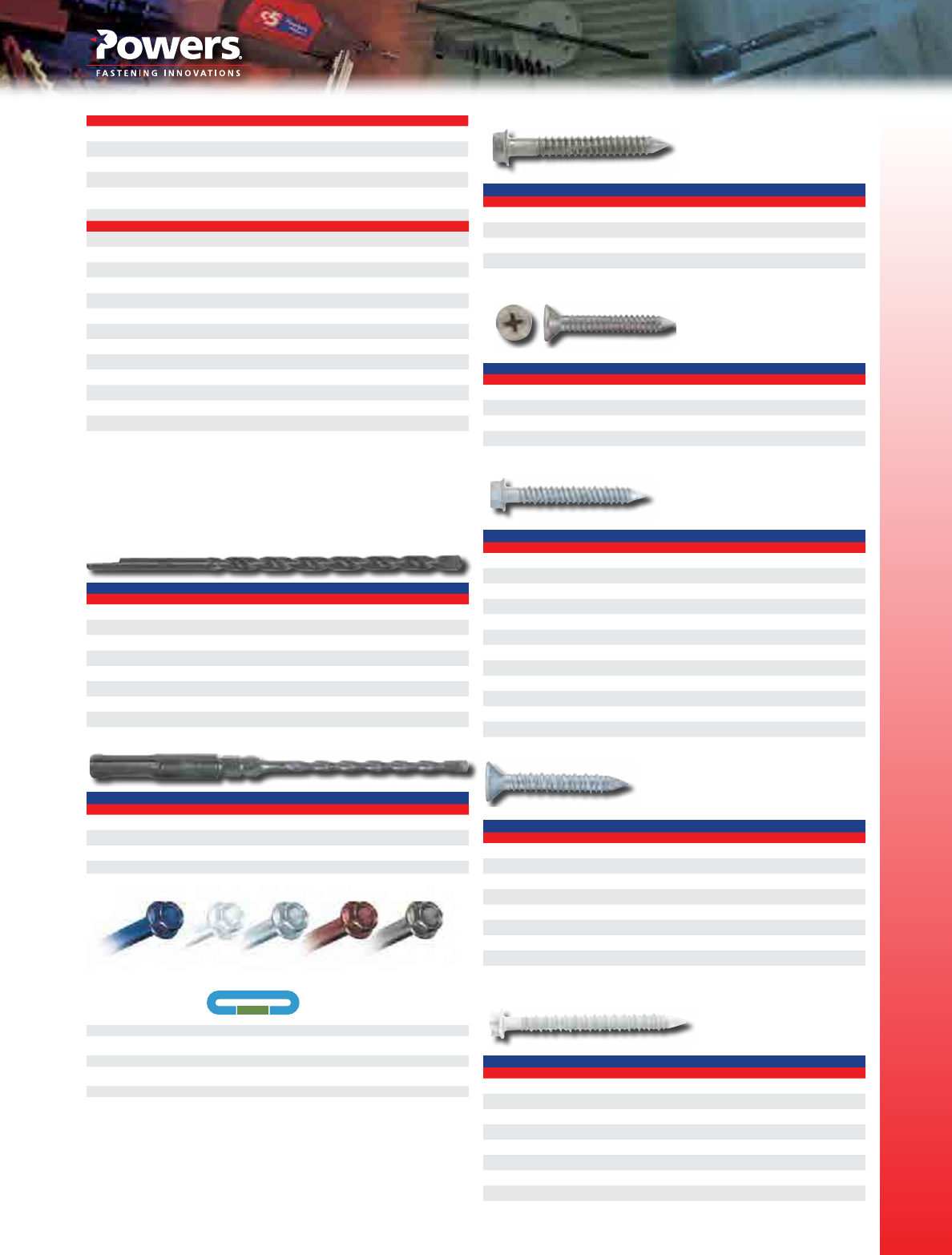

TAPPER+ • TAPPER
CAT. NO. HWH CAT. NO. PFH CAT. NO. FHH CAT. NO. TFH SCREW SIZE STD. BOX STD. CTN.
2424SD 2464SD 8707SD 8711SD 1/4" x 2-1/4" 100 500
2426SD 2466SD 8708SD 8712SD 1/4" x 2-3/4" 100 500
2428SD 2468SD 8709SD 8713SD 1/4" x 3-1/4" 100 500
2430SD 2470SD 8714SD 1/4" x 3-3/4" 100 500
2435SD 2472SD 1/4" x 4" 100 500
MASTER PACK**
CAT. NO. HWH CAT. NO. PFH SCREW SIZE QUANTITIES DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9191SD† 3/16" x 1-1/4" 2000 2781 2793
9192SD† 3/16" x 1-3/4" 2000 2781 2793
9193SD 3/16" x 2-1/4" 2000 2782 2793
9194SD 3/16" x 2-3/4" 2000 2782 2793
9195SD 3/16" x 3-1/4" 1000 2783 2794
9196SD 3/16" x 3-3/4" 1000 2783 2794
9197SD 3/16" x 4" 1000 2783 2794
9923SD† 9951SD† 1/4" x 1-1/4" 2000 2785 2796
9924SD† 9952SD† 1/4" x 1-3/4" 2000 2785 2796
9925SD 9953SD 1/4" x 2-1/4" 1000 2786 2796
9926SD 9954SD 1/4" x 2-3/4" 1000 2786 2796
9927SD 9955SD 1/4" x 3-1/4" 1000 2787 2797
9928SD 9956SD 1/4" x 3-3/4" 1000 2787 2797
9929SD 9957SD 1/4" x 4" 1000 2787 2797
HWH = Hex Washer Head (slotted); PFH = Phillips Flat Head; TFH = Trim Flat Head; FHH = Flange Hex Head
* One Tapper+ drill bit included in each standard box. **Drill bit not included with master pack.
† Sizes which are less than the minimum standard anchor length for strength design
Drill Bits for Perma-Seal® Tapper+
STRAIGHT SHANK
CAT. NO. SIZE USABLE LENGTH STD. TUBE WT./100
2781SD 5/32" x 3-1/2" 2" 10 1/4
2782SD 5/32" x 4-1/2" 3" 10 1/4
2783SD 5/32" x 5-1/2" 4" 10 1/4
2785SD 3/16" x 3-1/2" 2" 10 1/4
2786SD 3/16" x 4-1/2" 3" 10 1/4
2787SD 3/16" x 5-1/2" 4" 10 1/2
2788SD 3/16" x 6-1/2" 5" 10 1/2
2789SD 3/16" x 7-1/2" 6" 10 1/2
HEX SHANK SDS-PLUS
CAT. NO. SIZE USABLE LENGTH STD. TUBE WT./10
2793SD 5/32" x 5" 3" 1 1
2794SD 5/32" x 7" 4" 1 1
2796SD 3/16" x 5" 3" 1 1
2797SD 3/16" x 7" 4" 1 1
Tapper
APPROVED
MIAMI-DADE COUNTY
Concrete Screw
BASE MATERIAL
Concrete, Block and Brick
SIZE RANGE
3/16” x 1-1/4” to 3/8” x 6”
ANCHOR MATERIAL
Carbon Steel, Type 304 & Type 410 Stainless Steel
The Tapper Anchoring System is a family of screw anchors, specially designed
drill bits and installation tools designed to meet the needs of most light to me-
dium duty applications in concrete, block and brick. The Tapper concrete screw
anchor is produced in either hex washer head or Phillips flat head styles from
Perma-Seal coated carbon steel and Type 304 and Type 410 stainless steel. The
3/8” size is made in zinc plated carbon steel.
Standard Packaging - 100 screws and 1 drill per box
TYPE 304 STAINLESS STEEL TAPPER HEX HEAD†
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2880 1/4" x 1-1/4" 100 500 2894 2790
2881 1/4" x 1-3/4" 100 500 2894 2790
2882 1/4" x 2-1/4" 100 500 2895 2790
2883 1/4" x 2-3/4" 100 500 2895 2790
†Stainless Steel Tapper screws require the use of special Tapper drill bits. These special drill bits are gold or sil-
ver colored for identification. They cannot be used with the Perma-Seal® Tapper or 410 Stainless Steel Tapper.
Standard Packaging - 100 screws and 1 drill per box
TYPE 304 STAINLESS STEEL TAPPER PHILLIPS FLAT HEAD†
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2887 1/4" x 1-1/4" 100 500 2894 2790
2888 1/4" x 1-3/4" 100 500 2894 2790
2889 1/4" x 2-1/4" 100 500 2895 2790
2890 1/4" x 2-3/4" 100 500 2895 2790
†Stainless Steel Tapper screws require the use of special Tapper drill bits. These special drill bits are gold or sil-
ver colored for identification. They cannot be used with the Perma-Seal® Tapper or 410 stainless steel Tapper.
Standard Packaging - 100 screws and 1 drill per box
TYPE 410 STAINLESS STEEL TAPPER HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
4180 3/16" x 1-1/4" 100 500 2781 2793
4181 3/16" x 1-3/4" 100 500 2781 2793
4182 3/16" x 2-1/4" 100 500 2782 2793
4183 3/16" x 2-3/4" 100 500 2782 2793
4110 1/4" x 1-1/4" 100 500 2785 2796
4112 1/4" x 1-3/4" 100 500 2785 2796
4114 1/4" x 2-1/4" 100 500 2786 2796
4116 1/4" x 2-3/4" 100 500 2786 2796
4117 1/4" x 3-1/4" 100 500 2786 2796
4119 1/4" x 3-3/4" 100 500 2786 2796
4127 1/4" x 4" 100 500 2787 2797
4128 1/4" x 5" 100 500 2788 -
4129 1/4" x 6" 100 500 2788 -
Standard Packaging - 100 screws and 1 drill per box
TYPE 410 STAINLESS STEEL TAPPER PHILLIPS FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
4185 3/16" x 1-1/4" 100 500 2781 2793
4186 3/16" x 1-3/4" 100 500 2781 2793
4187 3/16" x 2-1/4" 100 500 2782 2793
4188 3/16" x 2-3/4" 100 500 2782 2793
4118 1/4" x 1-1/4" 100 500 2785 2796
4120 1/4" x 1-3/4" 100 500 2785 2796
4123 1/4" x 2-1/4" 100 500 2786 2796
4124 1/4" x 2-3/4" 100 500 2786 2796
4125 1/4" x 3-1/4" 100 500 2786 2796
Standard Packaging - 100 screws and 1 drill per box
WHITE PERMA-SEAL TAPPER HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2400 3/16" x 1-1/4" 100 500 2781 2793
2402 3/16" x 1-3/4" 100 500 2781 2793
2404 3/16" x 2-1/4" 100 500 2782 2793
2406 3/16" x 2-3/4" 100 500 2782 2793
2408 3/16" x 3-1/4" 100 500 2783 2794
2410 3/16" x 3-3/4" 100 500 2783 2794
2412 3/16" x 4" 100 500 2783 2794
2420 1/4" x 1-1/4" 100 500 2785 2796
2422 1/4" x 1-3/4" 100 500 2785 2796
16
MECHANICAL
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2424 1/4" x 2-1/4" 100 500 2786 2796
2426 1/4" x 2-3/4" 100 500 2786 2796
2428 1/4" x 3-1/4" 100 500 2787 2797
2430 1/4" x 3-3/4" 100 500 2787 2797
2435 1/4" x 4" 100 500 2787 2797
MASTER PACK
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9923 1/4" x 1-1/4" 2000 2000 2785 2796
9924 1/4" x 1-3/4" 2000 2000 2785 2796
9927 1/4" x 3-1/4" 1000 1000 2787 2797
9928 1/4" x 3-3/4" 1000 1000 2787 2797
9929 1/4" x 4" 1000 1000 2787 2797
Standard Packaging - 100 screws and 1 drill per box
WHITE PERMA-SEAL TAPPER PHILLIPS FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2440 3/16" x 1-1/4" 100 500 2781 2793
2442 3/16" x 1-3/4" 100 500 2781 2793
2444 3/16" x 2-1/4" 100 500 2782 2793
2446 3/16" x 2-3/4" 100 500 2782 2793
2448 3/16" x 3-1/4" 100 500 2783 2794
2450 3/16" x 3-3/4" 100 500 2783 2794
2449 3/16" x 4" 100 500 2783 2794
2460 1/4" x 1-1/4" 100 500 2785 2796
2462 1/4" x 1-3/4" 100 500 2785 2796
2464 1/4" x 2-1/4" 100 500 2786 2796
2466 1/4" x 2-3/4" 100 500 2786 2796
2468 1/4" x 3-1/4" 100 500 2787 2797
2470 1/4" x 3-3/4" 100 500 2787 2797
2472 1/4" x 4" 100 500 2787 2797
MASTER PACK
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9191 3/16" x 1-1/4" 2000 2000 2781 2793
9192 3/16" x 1-3/4" 2000 2000 2781 2793
9193 3/16" x 2-1/4" 2000 2000 2782 2793
9194 3/16" x 2-3/4" 2000 2000 2782 2793
9195 3/16" x 3-1/4" 1000 1000 2783 2794
9196 3/16" x 3-3/4" 1000 1000 2783 2794
9197 3/16" x 4" 1000 1000 2783 2794
9951 1/4" x 1-1/4" 2000 2000 2785 2796
9952 1/4" x 1-3/4" 2000 2000 2785 2796
9953 1/4" x 2-1/4" 2000 2000 2786 2796
9954 1/4" x 2-3/4" 2000 2000 2786 2796
9955 1/4" x 3-1/4" 1000 1000 2787 2797
9956 1/4" x 3-3/4" 1000 1000 2787 2797
9957 1/4" x 4" 1000 1000 2787 2797
9958 1/4" x 5" 1000 1000 2788 -
9959 1/4" x 6" 500 500 2789 -
WHITE PERMA-SEAL TAPPER FLANGE HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8706 1/4" x 1-3/4" 100 500 2785 2796
8707 1/4" x 2-1/4" 100 500 2786 2796
8708 1/4" x 2-3/4" 100 500 2786 2796
8709 1/4" x 3-1/4" 100 500 2787 2797
WHITE PERMA-SEAL TAPPER TRIM FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8710 1/4" x 1-3/4" 100 500 2785 2796
8711 1/4" x 2-1/4" 100 500 2786 2796
8712 1/4" x 2-3/4" 100 500 2786 2796
8713 1/4" x 3-1/4" 100 500 2787 2797
8714 1/4" x 3-3/4" 100 500 2787 2797
Standard Packaging - 100 screws and 1 drill per box
3/8” ZINC PLATED CARBON STEEL TAPPER FLANGE HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
5804 3/8" x 2" 100 500 5860 5866
5806 3/8" x 3" 100 500 5860 5866
5808 3/8" x 4" 100 500 5861 5868
Standard Packaging - 100 screws and 1 drill per box
3/8” ZINC PLATED CARBON STEEL TAPPER FLANGE PHF
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
5852 3/8" x 3" 100 500 5860 5866
5854 3/8" x 4" 100 500 5861 5868
5856 3/8" x 5" 100 100 5862 5868
5858 3/8" x 6" 100 100 5863 5868
SILVER PERMA-SEAL TAPPER HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2486 1/4” x 1-1/4" 100 500 2785 2796
2488 1/4” x 1-3/4” 100 500 2785 2796
2490 1/4” x 2-1/4” 100 500 2786 2796
2492 1/4” x 2-3/4” 100 500 2786 2796
2494 1/4” x 3-1/4” 100 500 2787 2797
2495 1/4” x 3-3/4” 100 500 2787 2797
2496 1/4” x 4” 100 500 2787 2797
MASTER PACK
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8750 1/4” x 1-1/4” 2000 2000 2785 2796
8751 1/4” x 1-3/4” 2000 2000 2785 2796
8752 1/4” x 2-1/4” 2000 2000 2786 2796
8753 1/4” x 2-3/4” 2000 2000 2786 2796
8754 1/4” x 3-1/4” 1000 1000 2787 2797
8755 1/4” x 3-3/4” 1000 1000 2787 2797
8756 1/4” x 4” 1000 1000 2787 2797
SILVER PERMA-SEAL TAPPER PHILLIPS FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
2498 3/16” x 1-1/4” 100 500 2781 2793
2500 3/16” x 1-3/4” 100 500 2781 2793
2501 3/16” x 2-1/4” 100 500 2782 2793
2502 3/16” x 2-3/4” 100 500 2782 2793
2503 3/16” x 3-1/4” 100 500 2783 2794
2504 3/16” x 3-3/4” 100 500 2783 2794
2505 3/16” x 4” 100 500 2783 2794
2506 1/4” x 1-1/4” 100 500 2785 2796
2507 1/4” x 1-3/4” 100 500 2785 2796
2508 1/4” x 2-1/4” 100 500 2786 2796
2509 1/4” x 2-3/4” 100 500 2786 2796
2510 1/4” x 3-1/4” 100 500 2787 2797
2511 1/4” x 3-3/4” 100 500 2787 2797
2512 1/4” x 4” 100 500 2787 2797
8757 3/16” x 1-1/4” 2000 2000 2781 2793
8758 3/16” x 1-3/4” 2000 2000 2781 2793
8759 3/16” x 2-1/4” 2000 2000 2782 2793
8760 3/16” x 2-3/4” 1000 1000 2782 2793
8761 3/16” x 3-1/4” 1000 1000 2783 2794
8762 3/16” x 3-3/4” 1000 1000 2783 2794
8763 3/16” x 4” 1000 1000 2783 2794
8764 1/4” x 1-1/4” 2000 2000 2785 2796
8765 1/4” x 1-3/4” 2000 2000 2785 2796
8766 1/4” x 2-1/4” 2000 2000 2786 2796
TAPPER
17
MeCHAnICAL
TAPPER
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8767 1/4” x 2-3/4” 2000 2000 2786 2796
8768 1/4” x 3-1/4” 1000 1000 2787 2797
8769 1/4” x 3-3/4” 1000 1000 2787 2797
8770 1/4” x 4” 1000 1000 2787 2797
SILVER PERMA-SEAL TAPPER FLANGE HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8715 1/4” x 1-3/4” 100 500 2785 2796
8716 1/4” x 2-1/4” 100 500 2786 2796
8718 1/4” x 3-1/4” 100 500 2787 2797
SILVER PERMA-SEAL TAPPER TRIM FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
8719 1/4” x 1-3/4” 100 500 2785 2796
8720 1/4” x 2-1/4” 100 500 2786 2796
8721 1/4” x 2-3/4” 100 500 2786 2796
8722 1/4” x 3-1/4” 100 500 2787 2797
8723 1/4” x 3-3/4” 100 500 2787 2797
BRONZE TAPPER FLANGE HEX HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9977 1/4” x 1-3/4” 100 500 2785 2796
9978 1/4” x 2-1/4” 100 500 2786 2796
BRONZE TAPPER PHILLIPS FLAT HEAD
CAT. NO. SIZE STD. BOX STD. CTN. DRILL BIT REF. STRAIGHT DRILL BIT REF. SDS HEX
9975 1/4” x 1-3/4” 100 500 2785 2796
9976 1/4” x 2-1/4” 100 500 2786 2796

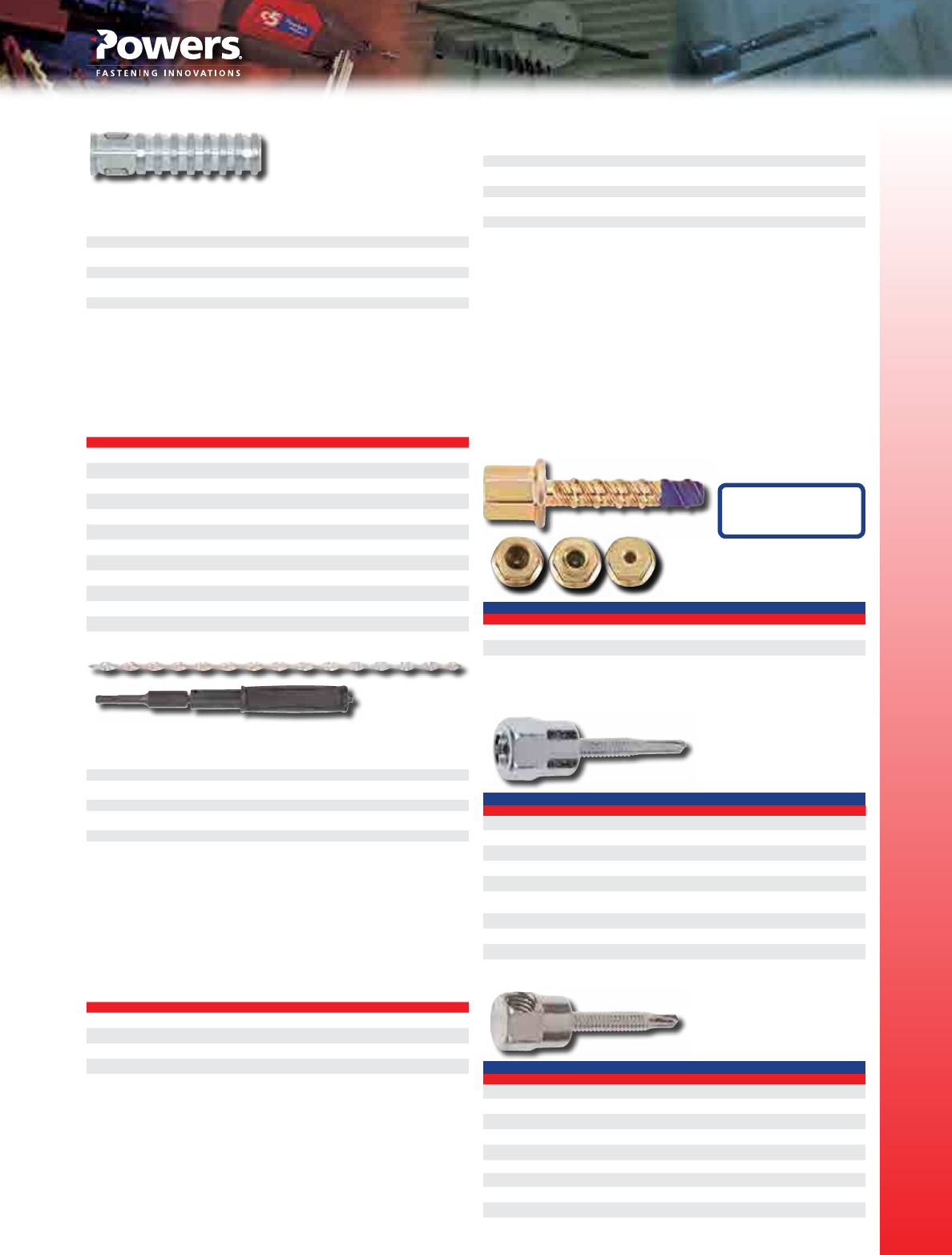

Tapper Drill Bits
Carbide Drill Bits for Perma-Seal® and 410 SS Tapper
Tapper Drill Bits in the diameters listed are nominal size. 3/16”& 1/4” Perma-
Seal Tapper anchors must be installed with special tolerance Tapper drill bits.
1/4” Stainless Steel Tapper anchors require the use of specific tolerance Tapper
drill bits, which are gold or silver colored, to denote the standard size and special
application size for harder materials.
3/8” diameter Tapper anchors should be installed with a 1/4” ANSI drill bit.
Tolerance Range = 0.168” to 0.175” for the 5/32” and 0.202” to 0.204” for
the 3/16” bits.
(Do not use with Type 304 Stainless Steel Tapper)
STRAIGHT SHANK
CAT. NO. SIZE USABLE LENGTH STD. TUBE
2781 5/32" x 3-1/2" 2" 10
2782 5/32" x 4-1/2" 3" 10
2783 5/32" x 5-1/2" 4" 10
2785 3/16" x 3-1/2" 2" 10
2786 3/16" x 4-1/2" 3" 10
2787 3/16" x 5-1/2" 4" 10
2788 3/16" x 6-1/2" 5" 10
2789 3/16" x 7-1/2" 6" 10
SDS HEX
CAT. NO. SIZE USABLE LENGTH STD. TUBE
2793 5/32" x 5" 3" 1
2794 5/32" x 7" 5" 1
2796 3/16" x 5" 3" 1
2797 3/16" x 7" 5" 1
Carbide Drill Bits for Type 304 SS TAPPER
This is the standard bit for use with Type 304 Stainless Steel Tapper. It is for use
in standard weight concrete and block, tolerance = 0.215” to 0.216”.
This bit is gold colored for identification. (Do not use with Perma-Seal or
Type 410 SS Tapper)
STRAIGHT SHANK
CAT. NO. SIZE USABLE LENGTH STD. TUBE
2894 3/16" x 3-1/2" 2" 10
2895 3/16" x 4-1/2" 3" 10
SDS HEX
CAT. NO. SIZE USABLE LENGTH STD. TUBE
2790 3/16" x 5-1/2" 3" 1
Special Drill Bits for Type 304 SS TAPPER
For use in hard aggregate concrete, tolerance = 0.220” to 0.222. This bit is
silver colored for
identification. (Do not use with Perma-Seal or Type 410 SS Tapper)
SDS HEX
CAT. NO. SIZE USABLE LENGTH STD. TUBE
2780 3/16" x 5" 3" 1
CARBIDE DRILL BITS FOR 3/8” ZINC PLATED TAPPER STRAIGHT SHANK
CAT. NO. SIZE USABLE LENGTH STD. TUBE
5861 1/4" x 5-1/2" 4" 5
5862* 1/4" x 6-1/2" 5" 5
5863* 1/4" x 7-1/2" 6" 5
* Discontinued item once current stock exhausted.
SDS HEX
CAT. NO. SIZE USABLE LENGTH STD. TUBE
5866 1/4" x 6" 4" 1
5868* 1/4" x 8" 6" 1
* Discontinued item once current stock exhausted.
TapperInstallation Tools
INSTALLATION TOOLS FOR 3/16" AND 1/4" TAPPER
CAT. NO. DESCRIPTION MAX SCREW LENGTH MAX. BIT LENGTH STD. BOX
2791 Tapper 1000 Tool (as shown) 4" 5-1/2" 1
2792* Condrive®† 2000 2-3/4" 4-1/2" 1
2795 1000 SDS Extension (8") 6" 7-1/2" 1
*This tool cannot be used with SDS Drill Bits or PFH screws.
TAPPER 1000 REPLACEMENT PARTS
CAT. NO. DESCRIPTION STD. BOX
2953 Drive Sleeve Assembly (5-3/4") 1
2955* 1/8" Hex Key 1
2964 Blue 3/16” Hex Wedge-Bolt® Socket 1
* Discontinued item once current stock exhausted.
18
MECHANICAL
CONDRIVE® 2000 REPLACEMENT PARTS†
CAT. NO. DESCRIPTION STD. BOX
2956 1/4" Hex Key 1
2957 5/16" Hex Key 1
† Condrive® is a Registered Trademark of Illinois Tool Works.
INSTALLATION TOOLS FOR 3/8” TAPPER
CAT. NO. DESCRIPTION MAX SCREW LENGTH MAX. BIT LENGTH STD. BOX
5865* Tapper 3000 Tool 4" 5-1/2" 1
5867 3000 Extension (8") 6" 7-1/2" 1
* Discontinued item once current stock exhausted.
TAPPER 3000 REPLACEMENT PARTS
CAT. NO. DESCRIPTION STD. BOX
5874 Drive Sleeve Assembly (5-3/4") 1
5867 Drive Sleeve Assembly (8") 1
Code listed
ICC-ES ESR-2272
City of
los angeles
LARR-25810
(Concrete)
Snake+
Internally Threaded Self-Tapping Anchor
BASE MATERIAL
Normal-Weight Concrete, Structural Sand-Lightweight Concrete,
Concrete Over Metal Deck
SIZE RANGE
3/8” diameter (Cracked and Uncracked Concrete), 1/2” diameter
ANCHOR MATERIAL
Zinc Plated Carbon Steel
The Snake+ anchor is an internally threaded, self-tapping screw anchor
designed for performance in cracked and uncracked concrete. Suitable base
materials include normal-weight concrete, structural sand-lightweight concrete
and concrete over metal deck. The Snake+ screw anchor is installed into a drilled
hole with a power tool and a Snake+ setting tool. A hammer is not used for
installation.
SNAKE+
CAT. NO. SIZE MIN. HOLE DEPTH INTERNAL THREAD DEPTH STD. BOX STD. CTN.
6400SD 1/4" 2" 22/32" 100 1000
6401SD 3/8" 1-5/8" 11/16" 50 500
6403SD 1/2" 2-1/2" 29/32" 50 300
EXTRA SNAKE & SNAKE+ SETTING TOOLS
CAT. NO. SIZE STD. BOX STD. CTN.
6402SD 1/4" 1 250
6407SD 3/8" 1 250
6404SD 1/2" 1 250

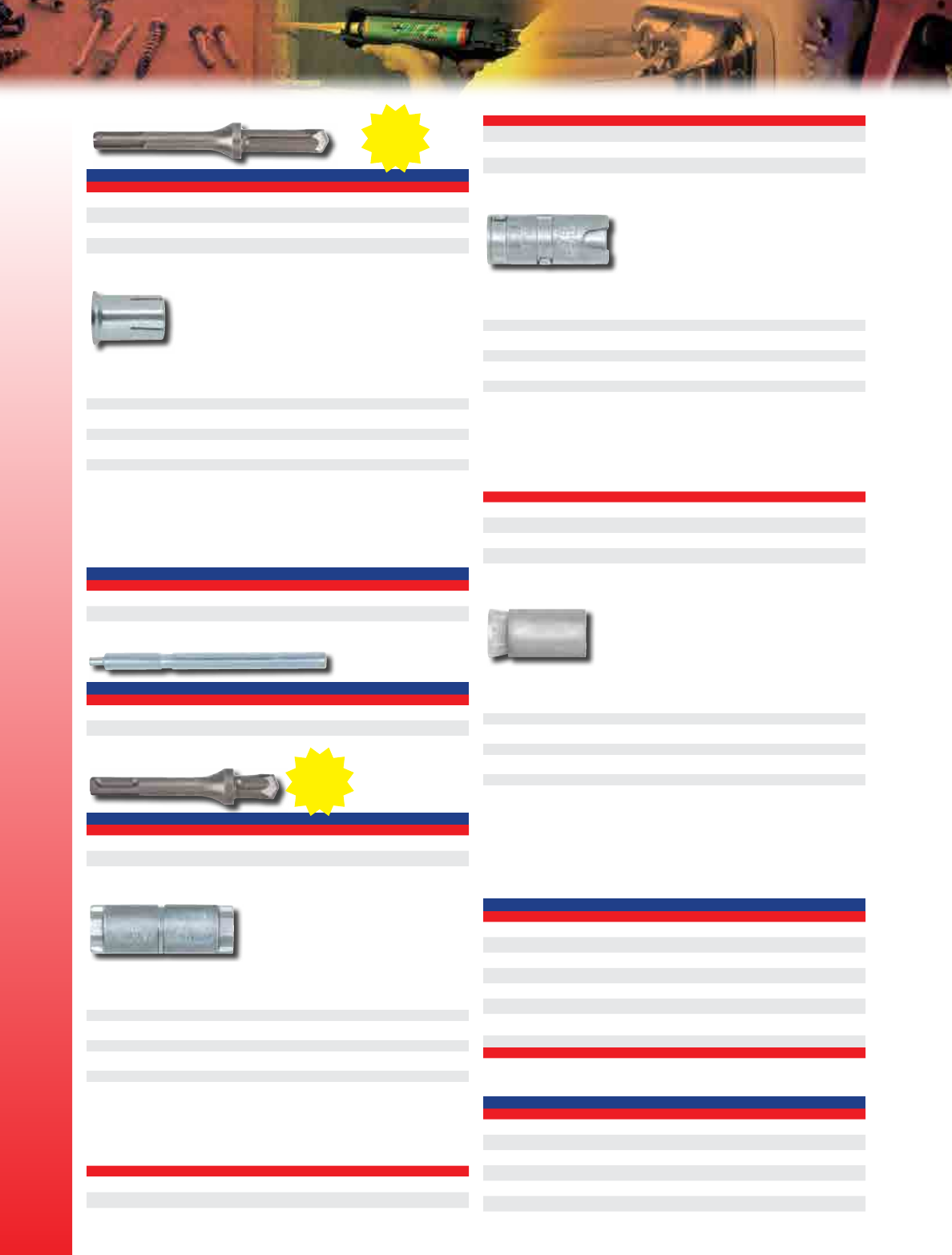

Smart DI+ Anchor (Drop-In)
Internally Threaded Expansion Anchor
New!
BASE MATERIAL
Concrete
SIZE RANGE
1/4” to 3/4”
ANCHOR MATERIAL
Carbon Steel
With Powers new patented innovation, the Smart DI+ Anchor (Drop-In),
contractors can now reduce the amount of hammer blows when setting by ap-
proximately 25% compared to competitive brands. Once the setting tool is flush,
your anchor is set! The new patented plug design yields a higher percentage of
the expansion at the bottom of the anchor, exactly where it is needed. Smart
DI+ Anchor (Drop-In), can also be set using our new Smart Tool. Drill your hole,
slide the tool sleeve over your carbide drill and lock into place. Your hammer drill
now does all the work for you in setting the anchor.
SMART DI+
CAT. NO. SIZE STD. BOX STD. CTN.
6304SD 1/4" 100 1000
6306SD 3/8" 50 500
6308SD 1/2" 50 250
6320SD 5/8" 25 125
6312SD 3/4" 10 50
DI+ TOOL
CAT. NO. SIZE STD. BOX STD. CTN.
00425SD 1/4" 1 6
00427SD 3/8" 1 6
00429SD 1/2" 1 6
DI+ DRILL
CAT. NO. SIZE STD. BOX STD. CTN.
00391SD 3/8" (for 1/4" Smart DI+) 1 12
00397SD 1/2" (for 3/8" Smart DI+) 1 12
00410SD 5/8" (for 1/2" Smart DI+) 1 12
TAPPER • SNAKE+ • SMART DI+
Drill
Drill your
hole with
the Smart
DI+ drill bit
Lock
Lock on
your
Smart DI+
setting tool
Drive
Drive the plug
with the same
tool you used
to drill your
anchor hole
19
MeCHAnICAL

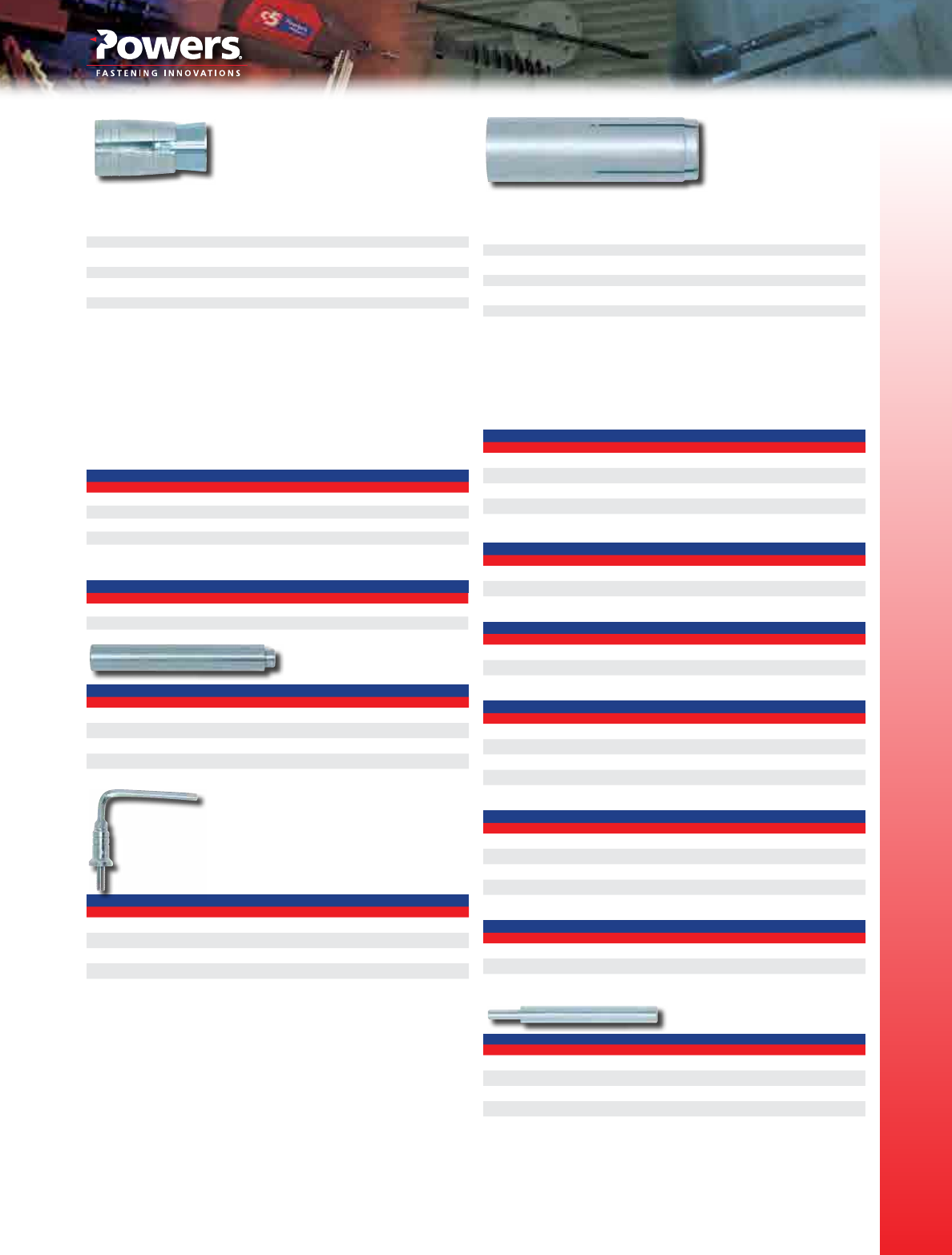

HOLLOW-SET DROPIN • STEEL DROPIN
Hollow-Set Dropin
Internally Threaded Expansion Anchor
BASE MATERIAL
Concrete, Block, Brick, Pre-cast Hollow Core Plank, Stone
SIZE RANGE
1/4” to 5/8”
ANCHOR MATERIAL
Zamac Alloy with Carbon Steel or Stainless Steel Cones
The Hollow-Set Dropin anchor is designed for anchoring in hollow base
materials such as hollow concrete block, brick with weep holes and hollow
core pre-cast concrete plank. It can also be used in solid base materials. Hollow
masonry materials often have a relatively thin outer wall thickness. During the
drilling process, spalling on the back side of the wall can decrease the wall thick-
ness available for anchoring to 1” or less. The design of the Hollow-Set Dropin
overcomes this problem.
ZAMAC BODY WITH CARBON STEEL CONE
CAT. NO. SIZE DRILL DIA. OVERALL LENGTH SLEEVE LENGTH STD. BOX STD. CTN.
9320 1/4" 3/8" 7/8" 5/8" 100 1000
9330 5/16" 5/8" 1-5/16" 15/16" 50 500
9340 3/8" 5/8" 1-5/16" 15/16" 50 500
9350 1/2" 3/4" 1-3/4" 1-1/4" 50 250
9360 5/8" 1" 2" 1-1/2" 25 125
ZAMAC BODY WITH STAINLESS STEEL CONE
CAT. NO. SIZE DRILL DIA. OVERALL LENGTH SLEEVE LENGTH STD. BOX STD. CTN.
9420 1/4" 3/8" 7/8" 5/8" 100 1000
9440 3/8" 5/8" 1-5/16" 15/16" 100 500
For solid base materials
SETTING TOOLS - SOLID BASE MATERIALS
CAT. NO. SIZE STD. BOX STD. CTN.
9322 1/4" 1 1
9342 5/16" & 3/8" 1 1
9352 1/2" 1 1
9362 5/8" 1 1
For hollow base materials
SETTING TOOLS - HOLLOW BASE MATERIALS
CAT. NO. SIZE STD. BOX STD. CTN.
9323 1/4" 1 1
9333 5/16" 1 1
9343 3/8" 1 1
9353 1/2" 1 1
9363 5/8" 1 1
Steel Dropin
Internally Threaded Expansion Anchor
BASE MATERIAL
Solid Concrete, Solid Block, Hard Stone
SIZE RANGE
1/4” to 3/4” Standard Thread, 1/2” & 3/4” in Coil Thread
ANCHOR MATERIAL
Carbon Steel and Type 304 or 316 Stainless Steel
The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel
and two types of stainless steel. It can be used in solid concrete, hard stone, and
solid block. A coil-thread version for forming applications is also available. A
setting tool is included in each standard carton.
CARBON STEEL DROPIN (SMOOTH WALL)
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6304 1/4" 3/8" 1" 7/16" 100 1000
6306 3/8" 1/2" 1-9/16" 5/8" 50 500
6308 1/2" 5/8" 2" 13/16" 50 250
6320 5/8" 7/8" 2-1/2" 1-3/16" 25 125
6312 3/4" 1" 3-3/16" 1-3/8" 10 50
CARBON STEEL FLANGED DROPIN (LIPPED)
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6324 1/4" 3/8" 1" 7/16" 100 1000
6326 3/8" 1/2" 1-9/16 5/8" 50 500
6328 1/2" 5/8" 2" 13/16" 50 250
CARBON STEEL KNURLED WALL DROPIN
CAT. NO. ROD/ANCHOR SIZE DRILL DIA. OVERALL LENGTH THREAD DEPTH STD. BOX STD. CTN.
6340 1/4" 3/8" 1" 7/16" 100 1000
6342 3/8" 1/2" 1-9/16" 5/8" 50 250
6344 1/2" 5/8" 2" 13/16" 50 250
TYPE 303 STAINLESS STEEL DROPIN
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6204 1/4" 3/8" 1" 7/16" 100 1000
6206 3/8" 1/2" 1-9/16" 5/8" 50 500
6208 1/2" 5/8" 2" 13/16" 50 250
6210 5/8" 7/8" 2-1/2" 1-3/16" 25 125
6212 3/4" 1" 3-3/16" 1-3/8" 10 50
TYPE 316 STAINLESS STEEL DROPIN
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6224 1/4" 3/8" 1" 7/16" 100 1000
6226 3/8" 1/2" 1-9/16" 5/8" 50 500
6228 1/2" 5/8" 2" 13/16" 50 250
6230 5/8" 7/8" 2-1/2" 1-3/16" 25 125
6232 3/4" 1" 3-3/16" 1-3/8" 10 50
CARBON STEEL COIL THREAD DROPIN
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6330 1/2" 5/8" 2" 13/16" 50 250
6332 3/4" 1" 3-3/16" 1-3/8" 10 50
Use Setting Tool Cat. No. 6309 for 1/2” size, Cat. No. 6313 for 3/4” size.
SETTING TOOLS FOR STEEL DROPIN ANCHORS
CAT. NO. SIZE STD. BOX STD. CTN.
6305 1/4" 1 250
6307 3/8" 1 100
6309 1/2" 1 100
6311 5/8" 1 50
6313 3/4" 1 25
20
MECHANICAL
`
New!
SDS-PLUS ACCU-BIT FOR DROPIN AND SMART DI+
CAT. NO. SIZE USABLE LENGTH BITS PER PACK
00391 SDS-Plus 3/8"Concrete Accu-Bit for 1/4" Dropin 1
00397 SDS-Plus 1/2"Concrete Accu-Bit for 3/8"Dropin 1
00410 SDS-Plus 5/8"Concrete Accu-Bit for 1/2" Dropin 1
00418 SDS-Plus 7/8"Concrete Accu-Bit for 5/8" Dropin 1
00419 SDS-Plus 1"Concrete Accu-Bit for 3/4" Dropin 1
Mini Dropin
Internally Threaded Expansion Anchor
BASE MATERIAL
Pre-cast Hollow Core Plank, Concrete
SIZE RANGE
1/4”, 3/8” and 1/2”
ANCHOR MATERIAL
Carbon Steel
The Mini Dropin is a carbon steel, machine bolt anchor used in shallow
embedment applications. It can be used in solid concrete and hollow core
concrete plank, and it may be suitable in hard stone and solid block.
MINI DROPIN
CAT. NO. SIZE DRILL DIA. MIN. DEPTH THREAD DEPTH STD. BOX STD. CTN.
6335 1/4" 3/8" 5/8" 3/8" 100 1000
6322 3/8" 1/2" 3/4" 13/32" 100 1000
6337 1/2" 5/8" 1" 5/8" 50 250
SETTING TOOLS FOR MINI DROPIN ANCHORS
CAT. NO. SIZE STD. BOX STD. CTN.
6336 1/4" 1 50
6323 3/8" 1 50
6338 1/2" 1 50
`
New!
SDS-PLUS ACCU-BIT FOR MINI DROPIN
CAT. NO. SIZE USABLE LENGTH BITS PER PACK
00392 SDS-Plus 3/8" Concrete Accu-Bit for 1/4" Mini Dropin 1
00398 SDS-Plus 1/2" Concrete Accu-Bit for 3/8" Mini Dropin 1
00411 SDS-Plus 5/8" Concrete Accu-Bit for 1/2" Mini Dropin 1
Double Expansion Anchor
Shell Expansion Anchor
BASE MATERIAL
Concrete, Block, Brick
SIZE RANGE
1/4” to 3/4”
ANCHOR MATERIAL
Zamac Alloy
The Double is a dual expansion machine bolt anchor particularly suited for base
materials of questionable strength. It can be used in solid concrete and some
block, brick and stone base materials.
CAT. NO. SIZE ANCHOR LENGTH DRILL DIA. MIN. HOLE DEPTH STD. BOX STD. CTN.
9510 1/4" 1-3/8" 1/2" 1-1/4" 50 500
9515 5/16" 1-5/8" 5/8" 1-1/2" 50 500
CAT. NO. SIZE ANCHOR LENGTH DRILL DIA. MIN. HOLE DEPTH STD. BOX STD. CTN.
9520 3/8" 2" 3/4" 1-3/4" 50 250
9525 1/2" 2-1/2" 7/8" 2-1/4" 25 250
9530 5/8" 2-3/4" 1" 2-1/2" 25 100
9535 3/4" 3-15/16" 1-1/4" 3-1/2" 10 50
Single Expansion Anchor
Shell Expansion Anchor
BASE MATERIAL
Concrete
SIZE RANGE
1/4” to 5/8”
ANCHOR MATERIAL
Zamac Alloy
The Single is a machine bolt anchor designed for use in concrete, and may be
suitable in block, brick and stone base materials. The anchor consists of a
pre-assembled set of expansion shields and an expander cone formed from
Zamac alloy.
CAT. NO. SIZE ANCHOR LENGTH DRILL DIA. MIN. HOLE DEPTH STD. BOX STD. CTN.
9650 1/4" 1-5/16" 1/2" 1-3/8" 50 250
9655 5/16" 1-1/2" 5/8" 1-5/8" 50 250
9665 3/8" 1-1/2" 5/8" 1-5/8" 50 250
9675 1/2" 2-1/16" 7/8" 2-1/2" 25 125
9685 5/8" 2-5/8" 1" 2-3/4" 25 1
Calk-In
Machine Screw Anchor
BASE MATERIAL
Concrete, Block, Brick
SIZE RANGE
8 - 32 to 3/4”- 10
ANCHOR MATERIAL
Zamac Alloy and Lead
The Calk-In is a pre-assembled precision cast calking type machine bolt anchor
which can be used in concrete, block, brick or stone. The anchor consists of
an antimonial lead alloy calking sleeve and a Zamac alloy internally-threaded
expander cone.
CALK-IN
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
9205 8-32 5/16" 1/2" 100 1000
9210 10-24 3/8" 5/8" 100 1000
9220 1/4"-20 1/2" 7/8" 100 1000
9225 5/16"-18 5/8" 1" 50 250
9230 3/8"-16 3/4" 1-1/4" 50 250
9240 1/2"-13 7/8" 1-1/2" 50 250
9250 3/4"-10 1-1/4" 2-1/4" 50 -
MASTER PACK
CAT. NO. SIZE DRILL DIA. MIN. DEPTH MASTER CTN.
9222 1/4"-20 1/2" 7/8" 1000
Calk-In tools purchased separately (not included).
CALK-IN SETTING TOOLS
CAT. NO. SIZE STD. BOX STD. CTN.
9201 8 1 1
9211 10 1 1
9221 1/4" 1 1
9226 5/16" 1 1
9231 3/8" 1 1
9241 1/2" 1 1
MINI DROPIN • DOUBLE • SINGLE • CALKIN
21
MeCHAnICAL
LAG SHIELD • HELI-PIN • VERTIGO/VERTIGO+
Lag Shield
Shell Expansion Anchor
BASE MATERIAL
Concrete and Mortar Joints of Block and Brick
SIZE RANGE
1/4” to 3/4”
ANCHOR MATERIAL
Zamac Alloy
The Lag Shield is a screw style anchor designed for use with lag bolts. It is suit-
able for use in concrete and the mortar joints of block or brick walls. Lag Shield
anchors are formed from Zamac alloy. In harder masonry materials, short style
Lag Shields are used to reduce drilling time. The long style
version is used in soft or weak masonry to engage more base material.
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
1051 1/4" Short 1/2" 1" 50 500
1055 1/4" Long 1/2" 1-1/2" 50 500
1101 5/16" Short 1/2" 1-1/4" 50 500
1105 5/16" Long 1/2" 1-3/4" 50 500
1151 3/8" Short 5/8" 1-3/4" 50 500
1155 3/8" Long 5/8" 2-1/2" 50 250
1201 1/2" Short 3/4" 2" 50 500
1205 1/2" Long 3/4" 3" 50 200
1251 5/8" Short 7/8" 2" 25 125
1255 5/8" Long 7/8" 3-1/2" 25 125
1301 3/4" Short 1" 2" 25 125
1305 3/4" Long 1" 3-1/2" 25 100
Heli-Pin
Facade Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone, Clay Tile and Wood
SIZE RANGE
8mm (5/16”) x 6” to 8mm (5/16”) x 12”
ANCHOR MATERIAL
Type 304 Stainless Steel
The Heli-Pin anchor is a one-piece, stainless steel helical wall tie system used
for anchoring existing brick veneers to the back-up structural members without
exposed hardware. Existing facades constructed of various masonry materials
can be reattached and reinforced using the Heli-Pin. They are ideal for stabilizing
areas with missing or corroded wall ties as well as retrofits to multiple width
masonry wall sections. The Heli-Pin is installed in predrilled holes with a Heli-Pin
setting tool and a SDS-Plus shank roto-hammer drill.
CAT. NO. ITEM DESCRIPTION STD. BOX STD. CTN.
08341 Heli-Pin Anchor 8mm (5/16" ) x 6" 100 1000
08342 Heli-Pin Anchor 8mm (5/16") x 8" 100 1000
08343 Heli-Pin Anchor 8mm (5/16") x 10" 100 1000
08344 Heli-Pin Anchor 8mm (5/16") x 12" 50 500
08345 Heli-Pin SDS Setting Tool 1 12
Vertigo / Vertigo+
Rod Hanger System
BASE MATERIAL
Steel, Wood, Concrete,
SIZE RANGE
1/4” – 1/2”
ANCHOR MATERIAL
Carbon Steel
Vertigo is an all steel threaded fastening system for suspending steel threaded
rod and other assemblies. Vertigo can be installed in a variety of base materials
including steel bar joists and beams, wood frame columns and beams, as well as
concrete beams and columns. In wood and steel base materials, Vertigo is also
offered in a side mount style for lateral installation of 1/4” and 3/8” diameter
steel threaded rods onto joists, columns and trusses. For all steel and wood
Vertigo fasteners, a red Vertigo Socket Driver is recommended to provide proper
installation with a screw gun or hammer drill in “rotation only” mode. Concrete
Vertigo fasteners should be installed with the appropriate size standard drive
sockets and hammer drill or powered impact wrench.
Code listed
ICC-ES ESR-2989
CONCRETE VERTIGO+
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH FINISH STD. BOX STD CTN.
7180SD* 1/4" 3/8" x 2-1/8" Yellow Dichromate Finish 100 500
7181SD* 3/8" 3/8" x 2-1/8" Yellow Dichromate Finish 100 500
7182SD* 1/2" 3/8" x 2-1/8" Yellow Dichromate Finish 50 250
* Packed with SDS Wedge-Bit
STEEL VERTICAL HANGER
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH POINT STYLE STD. BOX STD. CTN.
#3 FOR PURLINS
7155 1/4" 1/4-20 x 1" #3 100 500
7157 3/8" 1/4-20 x 2" #3 100 500
7158 3/8" 1/4-20 x 1" (w/nuts) #3 100 500
7159 3/8" 1/4-20 x 1-1/2" #3 100 500
7160 3/8" 1/4-20 x 1-1/2" (w/nuts) #3 100 500
#5 FOR BEAMS
7152 1/4" 12-20 x 1-1/2" #5 100 500
7154 3/8" 12-20 x 1-1/2" (w/nuts) #5 100 500
7161 1/2" 12-20 x 1-1/2" (w/nuts) #5 100 500
STEEL SIDE HANGER
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH POINT STYLE STD. BOX STD. CTN.
#3 FOR PURLINS
7183 1/4" 1/4-20 x 1" #3 100 500
7184 3/8" 1/4-20 x 1" (w/nuts) #3 100 500
7186 3/8" 1/4-20 x 1-1/2" (w/nuts) #3 100 500
7188 3/8" 1/4-20 x 2" (w/nuts) #3 100 500
#5 FOR BEAMS
7200 1/4" 12-20 x 1-1/2" #5 50 250
7201 3/8" 12-20 x 1-1/2" (w/nuts) #5 100 500
22
MECHANICAL
WOOD VERTICAL HANGER
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH POINT STYLE STD. BOX STD. CTN.
7163 1/4" 1/4" x 2" Type 17 100 500
7203 3/8" 1/4" x 1" Type 17 100 500
7165 3/8" 1/4" x 2" Type 17 100 500
7167 3/8" 1/4" x 3" Type 17 100 500
7169 3/8" 1/4" x 4" Type 17 100 500
7162 3/8" 5/16" x 2-1/2" Type 17 100 500
7164 1/2" 5/16" x 2-1/2" Type 17 100 500
WOOD SIDE HANGER
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH POINT STYLE STD. BOX STD. CTN.
7185 1/4" 1/4" x 1" Type 17 100 500
7205 3/8" 1/4" x 1" Type 17 100 500
7170 3/8" 1/4" x 2" Type 17 100 500
7156 3/8" 5/16" x 2-1/2" Type 17 100 500
CONCRETE VERTICAL HANGER
CAT. NO. ROD SIZE SCREW SHANK SIZE & LENGTH SHANK STYLE STD. BOX STD. CTN.
7171 1/4" 1/4" x 1-1/4" ANSI Wedge-Bolt OT thread 100 500
7173 3/8" 1/4" x 1-1/2" ANSI Wedge-Bolt OT thread 100 500
7175 1/2" 3/8" x 2-3/4" ANSI Wedge-Bolt OT thread 50 250
For side Mount Concrete Applications use Cat. No. 7185 and 7170 with a 3/16” ANSI Drill Bit
Vertigo Accessories
POLE TOOL
CAT NO. DESCRIPTION BOX CARTON
7166 6’-12’ Pole Tool (includes three Jaw Chuck) 1 1
DRIVER SOCKET
CAT NO. DESCRIPTION COLOR STD. BOX STD. CTN.
7187 Universal Steel & Wood Socket Red n5 25
7195 1/4” Concrete Socket Blue n5 25
7197 3/8” Concrete Socket Blue n5 25
7198 1/2” Concrete Socket Blue n 5 25
VERTIGO TOOL KIT
CAT NO. DESCRIPTION STD. BOX STD. CTN.
5864 Sleeve Assembly (same as cat. #5874) 1/4" and 3/8" blue
concrete drive sockets and red universal drive socket
1 10
5874 Sleeve Assembly 1 -
CAT NO. DESCRIPTION USABLE LENGTH STD. TUBE WT./10
5866 1/4" x 6" Hex Shank SDS Drill Bit 4" 1 1/2
Bang-It
Concrete Inserts
BASE MATERIAL
Concrete, Lightweight Concrete
SIZE RANGE
1/4” to 7/8”
ANCHOR MATERIAL
Carbon Steel and Engineered Plastic
Bang-It concrete inserts are designed for installation through pre-drilled metal
composite deck (i.e. “pan deck”) used to support a newly poured concrete
floor or roof slab. Depending upon the size/color chosen, the protective sleeve
protrudes below the surface of the deck allowing overhead attachment of steel
threaded rod in sizes ranging from 1/4” to 7/8” in diameter. The protective sleeve
prevents sprayed fireproofing material and acoustical dampening products from
clogging the internal threads of the insert inside, as well as burying, masking or
losing the insert location. The unique, six-sided impact plate offers resistance to
rotation within the concrete as a steel threaded rod is being installed.
CAT. NO. DESCRIPTION PRE DRILLED HOLE STD. BOX PALLET
7540 n 1/4" Brown Bang-It 13/16" 100 4000
7542 n 3/8" Green Bang-It 13/16" 100 4000
7544 n 1/2" Yellow Bang-It 13/16" 100 4000
7546 n 5/8" Red Bang-It 1-3/16" 50 2400
7548 n 3/4" Purple Bang-It 1-3/16" 50 2400
7549 n 7/8" Black Bang-It 1-3/16" 50 2400
7560 Bang-It Deck Driller 1
7562 13/16" Carbide Hole Saw for 1/4", 3/8" and 1/2" 1
7564 1-3/16" Carbide Hole Saw for 5/8", 3/4" and 7/8" 1
7566 Carbide Hole Saw Center Bit 1
Wood-Knocker
Concrete Inserts
BASE MATERIAL
Concrete, Lightweight Concrete
SIZE RANGE
1/4” to 3/4”
ANCHOR MATERIAL
Carbon Steel and Engineered Plastic
Wood-Knocker concrete inserts are installed onto wooden forms used to sup-
port a newly poured concrete floor slabs, roof slabs or walls. When the forms
are stripped, the color-coded flange is easily seen embedded in the concrete
surface allowing attachment of steel threaded rod or threaded bolts in sizes
ranging from 1/4” to 3/4” in diameter. The unique six-sided impact plate offers
resistance to rotation within the concrete as a steel threaded rod or threaded
bolt is being installed.
CAT. NO. DESCRIPTION STD. BOX PALLET
7550 n 1/4" Brown Wood Knocker 200 9600
7552 n 3/8" Green Wood Knocker 200 9600
7554 n 1/2" Yellow Wood Knocker 200 9600
7556 n 5/8" Red Wood Knocker 150 6000
7558 n 3/4" Purple Wood Knocker 150 6000
7567 n 1/2" Coil Thread Wood Knocker 200 9600
7568 n 3/4" Coil Thread Wood Knocker 150 6000
VERTIGO • BANG-IT • WOOD-KNOCKER
23
MeCHAnICAL
SPIKE
Spike®
Pre-Expanded Anchor
BASE MATERIAL
Concrete, Block
SIZE RANGE
3/16” x 1” to 1/2” x 6-1/2”
ANCHOR MATERIAL
Carbon Steel and Type 316 Stainless Steel
The Spike anchor is a patented, one-piece, tamper-proof anchor for use in
concrete, block, brick or stone. Several head styles are available and offered
in carbon and type 316 stainless steel. The Spike anchor is formed with an
“s” shaped configuration at the working end of the anchor to create an
expansion mechanism. Since the anchor is pre-expanded, there is no secondary
tightening operation.
MUSHROOM HEAD GRADE 8.2 CARBON STEEL SPIKE
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD.CTN.
5502 3/16" x 1" 3/16" 7/8" 100 1000
5503 3/16" x 1-1/4" 3/16" 7/8" 100 1000
5504 3/16" x 1-1/2" 3/16" 1-1/4" 100 1000
5506 3/16" x 2" 3/16" 1-1/4" 100 1000
5508 3/16" x 2-1/2" 3/16" 1-1/4" 100 1000
5510 3/16" x 3" 3/16" 1-1/4" 100 1000
5511 3/16" x 3-1/2" 3/16" 1-1/4" 100 1000
5512 3/16" x 4" 3/16" 1-1/4" 100 500
5522 1/4" x 1" 1/4" 7/8" 100 1000
5523 1/4" x 1-1/4" 1/4" 1" 100 1000
5524 1/4" x 1-1/2" 1/4" 1-1/4" 100 1000
5526 1/4" x 2" 1/4" 1-1/4" 100 1000
5528 1/4" x 2-1/2" 1/4" 1-1/4" 100 1000
5530 1/4" x 3" 1/4" 1-1/4" 100 1000
5531 1/4" x 3-1/2" 1/4" 1-1/4" 100 1000
5532 1/4" x 4" 1/4" 1-1/4" 100 1000
5546 3/8" x 2" 3/8" 1-3/4" 25 250
5548 3/8" x 2-1/2" 3/8" 1-3/4" 25 250
5550 3/8" x 3" 3/8" 1-3/4" 25 250
5551 3/8" x 3-1/2" 3/8" 1-3/4" 25 250
5552 3/8" x 4" 3/8" 1-3/4" 25 250
5554 3/8" x 5" 3/8" 1-3/4" 25 250
5556 3/8" x 6" 3/8" 1-3/4" 25 250
5569 1/2" x 2-3/4" 1/2" 2-1/2" 50 200
5571 1/2" x 3-1/2" 1/2" 2-1/2" 50 150
5572 1/2" x 4" 1/2" 2-1/2" 25 150
5574 1/2" x 5" 1/2" 2-1/2" 25 150
5577 1/2" x 6-1/2" 1/2" 2-1/2" 25 150
The published length is measured from below the head to the end of the anchor.
FLAT HEAD GRADE 8.2 CARBON STEEL SPIKE
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD.CTN.
5608 3/16" x 2-1/2" 3/16" 1-1/4" 100 1000
5610 3/16" x 3" 3/16" 1-1/4" 100 1000
5612 3/16" x 4" 3/16" 1-1/4" 100 1000
5624 1/4" x 1-1/2" 1/4" 1-1/4" 100 1000
5626 1/4" x 2" 1/4" 1-1/4" 100 1000
5628 1/4" x 2-1/2" 1/4" 1-1/4" 100 1000
5630 1/4" x 3" 1/4" 1-1/4" 100 1000
5631 1/4" x 3-1/2" 1/4" 1-1/4" 100 1000
5632 1/4" x 4" 1/4" 1-1/4" 100 500
The published length is the overall length of the anchor.
MUSHROOM HEAD TYPE 316 STAINLESS STEEL SPIKE
CAT. NO. SIZE DRILL DIA. MIN.EMBED. STD. BOX STD. CTN.
6602 3/16" x 1" 3/16" 7/8" 100 1000
6603 3/16" x 1-1/4" 3/16" 7/8" 100 1000
6604 3/16" x 1-1/2" 3/16" 1-1/4" 100 1000
6606 3/16" x 2" 3/16" 1-1/4" 100 1000
6623 1/4" x 1-1/4" 1/4" 1" 100 1000
6624 1/4" x 1-1/2" 1/4" 1-1/4" 100 1000
6626 1/4" x 2" 1/4" 1-1/4" 100 1000
6628 1/4" x 2-1/2" 1/4" 1-1/4" 100 1000
6630 1/4" x 3" 1/4" 1-1/4" 100 1000
6646 3/8" x 2" 3/8" 1-3/4" 25 250
6648 3/8" x 2-1/2" 3/8" 1-3/4" 25 250
6650 3/8" x 3" 3/8" 1-3/4" 25 250
The published length is measured from below the head to the end of the anchor.
Special Application Spike® Anchors
ROD HANGING
PIPE SPIKE GRADE 8.2 CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
3755 1/4" 3/16" 1-1/4" 100 1000
3758 3/8" 1/4" 1-3/4" 50 500
SUSPENDED CEILINGS
TIE-WIRE SPIKE GRADE 8.2 CARBON STEEL
CAT. NO. SIZE DRILL DIA. MIN. EMBED. TIE-WIRE HOLE SIZE STD. BOX STD. CTN.
3756 3/16" 3/16" 1-1/4" 3/16" 100 500
3759 1/4" 1/4" 1-1/4" 9/32" 100 500
CONCRETE FORMING
FORMING SPIKE GRADE 8.2 CARBON STEEL
CAT. NO. ANCHOR SIZE DRILL DIA. MIN. EMBED. STD. BOX STD. CTN.
3795 3/16" x 1-1/2" 3/16" 1-1/4" 100 1000
3796 3/16" x 2" 3/16" 1-1/4" 100 1000
3797 3/16" x 2-3/4" 3/16" 1-1/4" 100 1000
3794 1/4" x 2-3/4" 1/4" 1-1/4" 100 1000
While the Spike anchor can easily be installed using a hammer, a specially de-
signed series of drivers and manual tools provide a fast, easy to use method for
installation into concrete and masonry materials. The tools allow Spike anchors
to be installed in confined areas and prevent damage to the fixture from stray
hammer blows.
SPIKE INSTALLATION TOOLS
CAT. NO. TOOL DESCRIPTION TIP O.D. STD. BOX
3790 Spike Driver 1000 1/2" 1
3791 Spike Driver 2000 1/2" 1
PIPE SPIKE TOOL
CAT. NO. TOOL DESCRIPTION TIP O.D. STD. BOX
3760 Pipe Spike Setting
Tool
5/16" 1
24
MECHANICAL

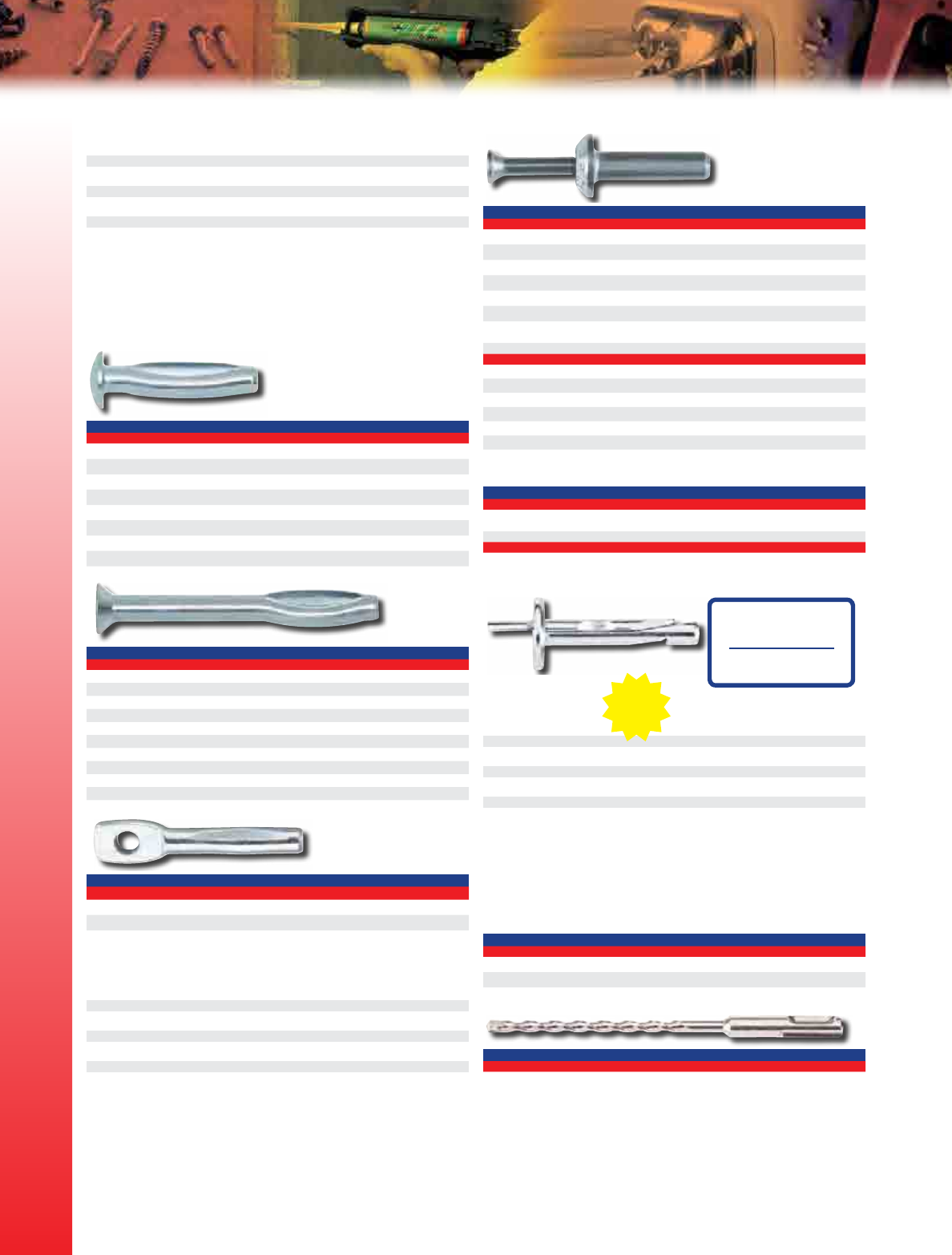

Drive®
Split Pin Type Pre-Expander Anchor
BASE MATERIAL
Concrete
SIZE RANGE
3/16” x 1-1/2” to 1/2” x 3”
ANCHOR MATERIAL
Carbon Steel
The Drive is a one piece tamper-proof, pre-expanded anchor available in
carbon steel for use in concrete and stone. Tie-Wire Drive anchors are used for
suspended ceiling applications. The flat head (counter-sunk) style is particularly
suited for wood-to-concrete anchoring. The round head style is for all other
applications requiring fast, permanent installations.
ROUND HEAD DRIVE
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
3211 1/4" x 1-1/4" 1/4" 1-1/8" 100 1000
3241 1/4" x 1-1/2" 1/4" 1-1/8" 100 1000
3271 1/4" x 2" 1/4" 1-1/8" 100 1000
3301 1/4" x 2-1/2" 1/4" 1-1/8" 100 1000
3601 3/8" x 2" 3/8" 1-7/8" 25 250
3631 3/8" x 2-1/2" 3/8" 1-7/8" 25 250
3691 3/8" x 3-1/2" 3/8" 1-7/8" 25 250
3781 1/2" x 3" 1/2" 2-5/8" 25 125
FLAT HEAD DRIVE
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
3092 3/16" x 1-1/2" 3/16" 7/8" 100 1000
3122 3/16" x 2" 3/16" 7/8" 100 1000
3152 3/16" x 2-1/2" 3/16" 7/8" 100 1000
3162 3/16" x 3" 3/16" 7/8" 100 1000
3242 1/4" x 1-1/2" 1/4" 1-1/8" 100 1000
3272 1/4" x 2" 1/4" 1-1/8" 100 1000
3302 1/4" x 2-1/2" 1/4" 1-1/8" 100 1000
3332 1/4" x 3" 1/4" 1-1/8" 100 1000
3362 1/4" x 3-1/2" 1/4" 1-1/8" 100 1000
3392 1/4" x 4" 1/4" 1-1/8" 100 500
TIE-WIRE DRIVE (13/64” TIE-WIRE HOLE)
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
3244 1/4" x 1-3/4" 1/4" 1-1/8" 500 500
3245 1/4" x 1-3/4" 1/4" 1-1/8" 100 500
3250 Tie-Wire Setting Tool Drive 1 1
Zamac Hammer-Screw®
Nail Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
1/4” x 3/4” to 1/4” x 3”
ANCHOR MATERIAL
Zamac Alloy with Carbon Steel and Perma-Seal Drive Screw
The Zamac Hammer-Screw is a unique, one-step drive anchor featuring a
Phillips type head and an internal screw thread for use in concrete, block, brick
or stone. The anchor has a body formed from corrosion resistant Zamac alloy
with a carbon steel drive screw, and has been developed as an improvement
over standard nailin anchors. The anchor is removable and is also offered with
an optional Perma-Seal coated screw.
ZAMAC HAMMER-SCREW - MUSHROOM HEAD / NO. 2 PHILLIPS TYPE SCREW CARBON STEEL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2839 1/4" x 3/4" 1/4" 100 500
2840 1/4" x 1" 1/4" 100 500
2842 1/4" x 1-1/4" 1/4" 100 500
2844 1/4" x 1-1/2" 1/4" 100 500
2846 1/4" x 2" 1/4" 100 500
2848 1/4" x 2-1/4" 1/4" 100 500
2850 1/4" x 3" 1/4" 100 500
MASTER PACK WITH CARBON STEEL SCREW
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2939 1/4" x 3/4" 1/4" 1000 1000
2940 1/4" x 1" 1/4" 1000 1000
2942 1/4" x 1-1/4" 1/4" 1000 1000
2944 1/4" x 1-1/2" 1/4" 1000 1000
2946 1/4" x 2" 1/4" 1000 1000
2948 1/4" x 2-1/4" 1/4" 1000 1000
2949 1/4" x 3" 1/4" 1000 1000
ZAMAC HAMMER-SCREW - MUSHROOM HEAD WITH NO. 2 PHILLIPS TYPE PERMA-SEAL SCREW
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2817 1/4" x 1-1/4" 1/4" 100 500
MASTER PACK WITH PERMA-SEAL SCREW
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2818 1/4" x 1-1/4" 1/4" 1000 1000
Code listed
ICC-ES ESR-3057
CRACKED & UNCRACKED
CONCRETE
(REDUNDANT FASTENING)
Safe-T+ Pin
New!
Nail Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
1/4” x 1-3/8” and 1/4” x 2-1/2”
ANCHOR MATERIAL
Carbon Steel
The new Powers Safe-T+ Pin is a one piece, all steel, nail drive anchor that can
be used in concrete, block, brick or stone. Each box of Safe-T+ pins comes with
a 6MM SDS carbide drill bit for ease of installation. Typical applications include
HVAC Duct Straps, light to medium duty signage, and termination bar, flooring
ECT. Available in 1 diameter and two lengths. Just drill a hole and hammer it in.
SAFE-T+ PIN
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2800SD 6mm (1/4") x 1-3/8" 6mm 100 600
2801SD 6mm (1/4") x 2-1/2" 6mm 100 600
SAFE-T+ PIN DRILL BIT
CAT. NO. DESCRIPTION DIA. USABLE LENGTH STD. BOX STD. CTN.
2800 Drill Bit 6mm 3-1/4" 1 50
DRIVE • ZAMAC HAMMER-SCREW • SAFE -T PIN
25
MeCHAnICAL
ZAMAC NAILIN • NyLON NAILIN
Zamac Nailin®
Drive Pin Type Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
3/16” x 7/8” to 1/4” x 3”
ANCHOR MATERIAL
Zamac Alloy with Carbon or Stainless Steel Drive Pin
The Zamac Nailin is a tamper-proof nail drive anchor which has a body formed
from Zamac alloy. Nails are available in carbon or stainless steel. The anchor can
be used in concrete, block, brick or stone.
MUSHROOM HEAD ZAMAC NAILIN - CARBON STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2802 3/16" x 7/8" 3/16" 100 500
2806 1/4" x 3/4" 1/4" 100 500
2808 1/4" x 1" 1/4" 100 50
2814 1/4" x 1-1/4" 1/4" 100 500
2820 1/4" x 1-1/2" 1/4" 100 500
2826 1/4" x 2" 1/4" 100 500
2804 1/4" x 3" 1/4" 100 500
MASTER PACK
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2803 3/16" x 7/8" 3/16" 1000 1000
2807 1/4" x 3/4" 1/4" 1000 1000
2809 1/4" x 1" 1/4" 1000 1000
2815 1/4" x 1-1/4" 1/4" 1000 1000
2821 1/4" x 1-1/2" 1/4" 1000 1000
2827 1/4" x 2" 1/4" 1000 1000
2805 1/4" x 3" 1/4" 1000 1000
FLAT HEAD ZAMAC NAILIN - CARBON STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2836 1/4" x 1-1/2" 1/4" 100 500
2838 1/4" x 2" 1/4" 100 500
MUSHROOM HEAD ZAMAC NAILIN - STAINLESS STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2858 1/4" x 1" 1/4" 100 500
2864 1/4" x 1-1/4" 1/4" 100 500
2870 1/4" x 1-1/2" 1/4" 100 500
2876 1/4" x 2" 1/4" 100 500
Nylon Nailin®
Plastic Drive Pin Type Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
3/16” x 1” to 1/4” x 6”
ANCHOR MATERIAL
Engineered Nylon with Carbon or Stainless Steel Drive Pin
The Nylon Nailin is a pin drive anchor with a body formed from engineered
nylon and nails available in carbon and stainless steel. The anchor can be used
in concrete, block, brick or stone.
ROUND HEAD NYLON NAILIN - CARBON STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2431 3/16" x 1" 3/16" 100 1000
2451 3/16" x 1-1/2" 3/16" 100 1000
2521 1/4" x 1" 1/4" 100 1000
2541 1/4" x 1-1/2" 1/4" 100 1000
FLAT HEAD NYLON NAILIN- CARBON STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2542 1/4" x 1-1/2" 1/4" 100 1000
2562 1/4" x 2" 1/4" 100 1000
MUSHROOM HEAD NYLON NAILIN CARBON STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2433 3/16" x 1" 3/16" 100 1000
2513 1/4" x 3/4" 1/4" 100 1000
2523 1/4" x 1" 1/4" 100 1000
2543 1/4" x 1-1/2" 1/4" 100 1000
2563 1/4" x 2" 1/4" 100 1000
2573 1/4" x 3" 1/4" 100 1000
2583 1/4" x 4" 1/4" 100 1000
MUSHROOM HEAD NYLON NAILIN STAINLESS STEEL NAIL
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2528 1/4" x 1" 1/4" 100 1000
2548 1/4" x 1-1/2" 1/4" 100 1000
MUSHROOM HEAD BODIES ONLY
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
2574 1/4" x 3" 1/4" 2500 2500
26
ADHESIVE
Base Material Anchor Diameter Anchor
Elements Chemistry Hole
Condition
Page
Concrete
Lightweight Concrete
Grout-filled Concrete Masonry
Hollow Concrete Masonry
Solid Brick
Hollow Brick
Stone
Structural Clay/Tile
1/4"
3/8" (#3)
1/2" (#4)
5/8" (#5)
3/4" (#6)
7/8" (#7)
1" ( #8)
1-1/4" ( # 10)
1-3/8"
1-1/2"
1-3/4"
2"
Coated/Plated Carbon Steel
Type 304 Stinless Steel
Epoxy
Ester Based Resin
Polyurethane
MS Polymer
Dry
Wet
Code Recognition
Injection Adhesives
AC100+Gold 27 • •••• ••••••• Code Listed
ICC-ES ESR-2582
PE1000+ 28 • • • • • • •
Code Listed
ICC-ES ESR-2583
LARR-25849
T308+ 28 • • • • •
Code Listed
ICC-ES ESR-3066 &
3149
Pure50+ 29 ••••••• • • Code Listed
ICC-ES ESR-3576
Pure110+ 30 • •••• ••••••• Code Listed
ICC-ES ESR-3598
AC50 Silver 31 • • • • • •
Glass Capsule Adhesives
Chem-Stud 31 • • ••••••• Tested To
ICC-ES AC 58
Hammer-Capsule 32 • • • • • • Tested To
ICC-ES AC 58
Anchor
Hardware
Straight Cut Rod 33 •••••••••••••••• • •
Chisel Point Rod 31 ••••••• •

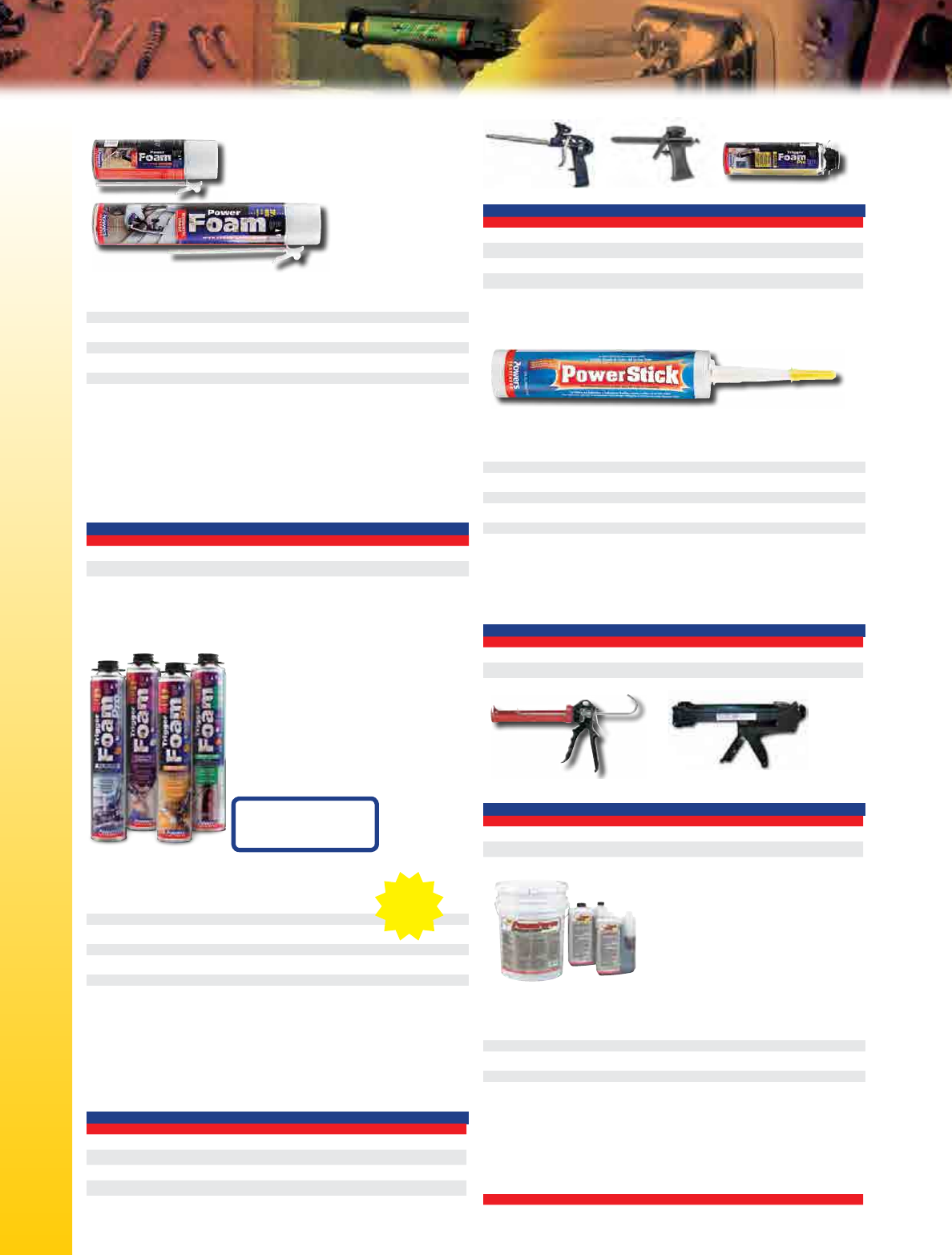

Expansion Foam
PowerFoam 34 •••••••• •
PowerFoam Pro 34 •••••••• Code Listed
ICC-ES ESR-3263
Bonding
Sealant
PowerStick 34 •••••••• • •
Adhesive
Sealant
PowerPatch 34 • •
• Suitable
May be Suitable
SELECTION GUIDE
27

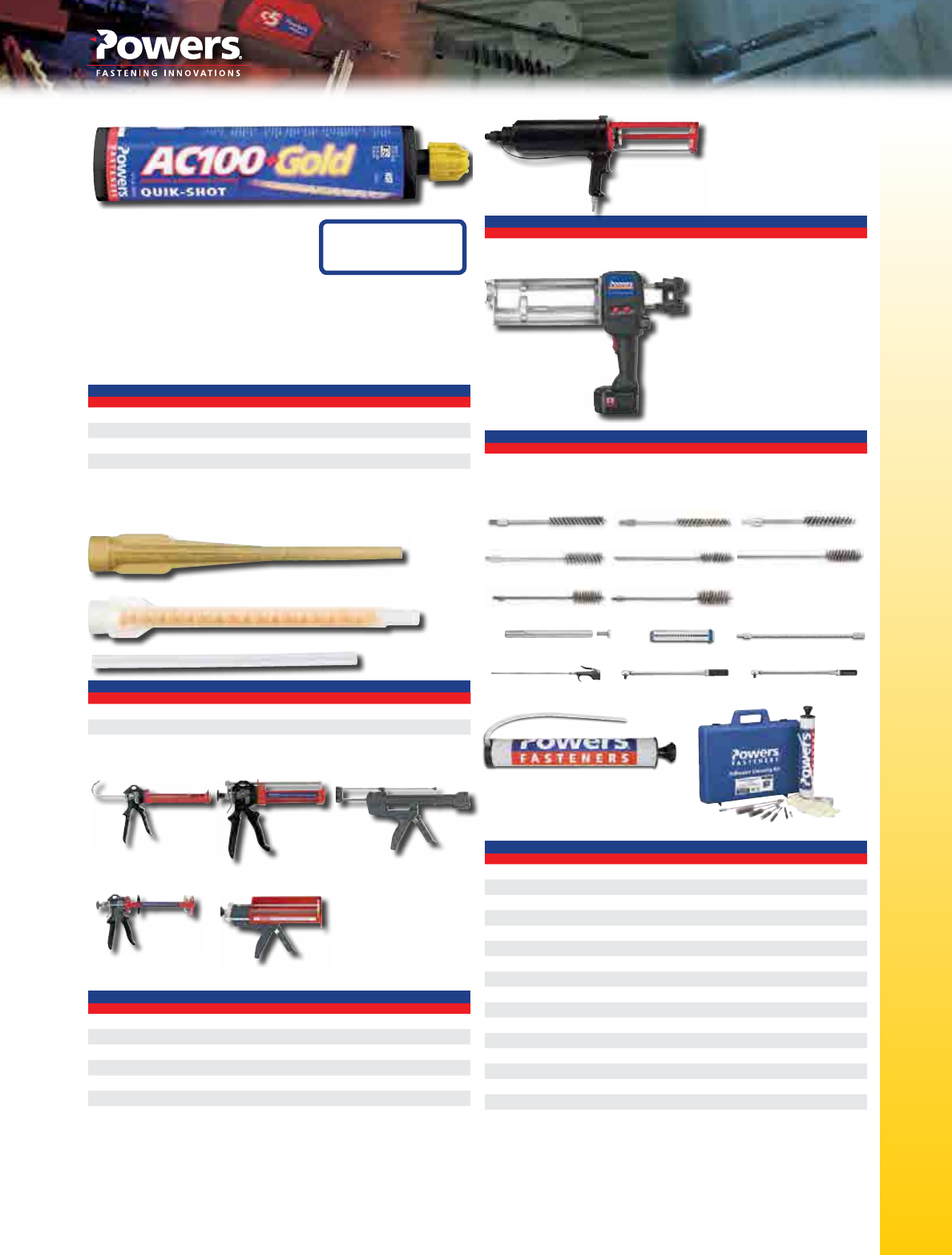

ADHesIVe
Mixing nozzle included with each cartridge
AC100+Gold®
Adhesive Anchoring System
Code listed
ICC-ES ESR-2582
The AC100+Gold is a two-component vinylester adhesive anchoring system.
The system includes injection adhesive in plastic cartridges, mixing nozzles,
dispensing tools and hole cleaning equipment. The AC100+Gold is designed for
bonding threaded rod and reinforcing bar hardware into drilled holes in concrete
and masonry base materials.
AC100+GOLD CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX STD. CTN. PALLET
8462SD 5 fl. oz. Push-Pak 12 36 -
8478SD 10 fl. oz. Quik-Shot 12 36 648
8480SD 8 fl. oz. dual cartridge - 12 624
8486SD 12 fl. oz. dual cartridge - 12 540
8490SD 28 fl. oz. dual cartridge - 8 240
One AC100+Gold mixing nozzle is packaged with each cartridge.
AC100+Gold mixing nozzles must be used to ensure complete and proper mixing of the adhesive.
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08293 Extra mixing nozzle for AC100+Gold (5 oz., 8 oz.,10 oz. & 12 oz.) 2 24
08294 Extra mixing nozzle (with 8" extension)for AC100+Gold 28 oz. 2 24
08281 Mixing nozzle extension, 8" 2 24
8437 8484 8485
8494 8495
DISPENSING TOOLS FOR INJECTION ADHESIVE
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08437 Manual caulking gun for Push-Pak and Quik-Shot 1 12
08479 High performance caulking gun for Push-Pak and Quik-Shot 1 12
08484 AC100+Gold 8 oz. standard all metal manual tool 1 6
08485 AC100+Gold 8 oz., 10 oz. & 12 oz. high performance manual tool 1 20
08494 AC100+Gold 28 oz. standard all metal manual tool 1 -
08495 AC100+Gold 28 oz. high performance manual tool 1 -
PNEUMATIC INJECTION TOOL DELIVERY SYSTEM
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08496 28 oz. High Performance Pneumatic Tool 1 1
BATTERY INJECTION DISPENSING TOOL
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08444* 28 oz. High Performance Battery Tool 1 1
* Dispenses 12 cartridges at 70˚F * Dispenses 6 cartridges at 30˚F
8284 8285 8286
8287 8288 8289
8290 8291
8283 8296 8482
8292 8465 8466
8280 52073
HOLE CLEANING TOOLS & ACCESSORIES
CAT. NO. DESCRIPTION LENGTH INCHES STD. PKG.
08284 Wire brush for 7/16" ANSI hole (3/8" rod or #3 rebar) 6-3/4" 1
08285 Wire brush for 9/16" ANSI hole (1/2" rod or #4 rebar) 6-3/4" 1
08286 Wire brush for 11/16" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08278 Wire brush for 3/4" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08287 Wire brush for 7/8" ANSI hole (3/4" rod or #6 rebar) 7-7/8" 1
08288 Wire brush for 1" ANSI hole (7/8" rod or #7 rebar) 11-7/8" 1
08289 Wire brush for 1-1/8" ANSI hole (1" rod or #8 rebar) 11-7/8" 1
08290 Wire brush for 1-3/8" ANSI hole (1-1/4" rod or #9 rebar) 11-7/8" 1
08291 Wire brush for 1-1/2" ANSI hole ( #10 rebar) 11-7/8" 1
08283 SDS-plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2 square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2 square drive (25 to 250 ft.-lbs.) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280),
gloves and safety glasses
1
AC100+GOLD
28

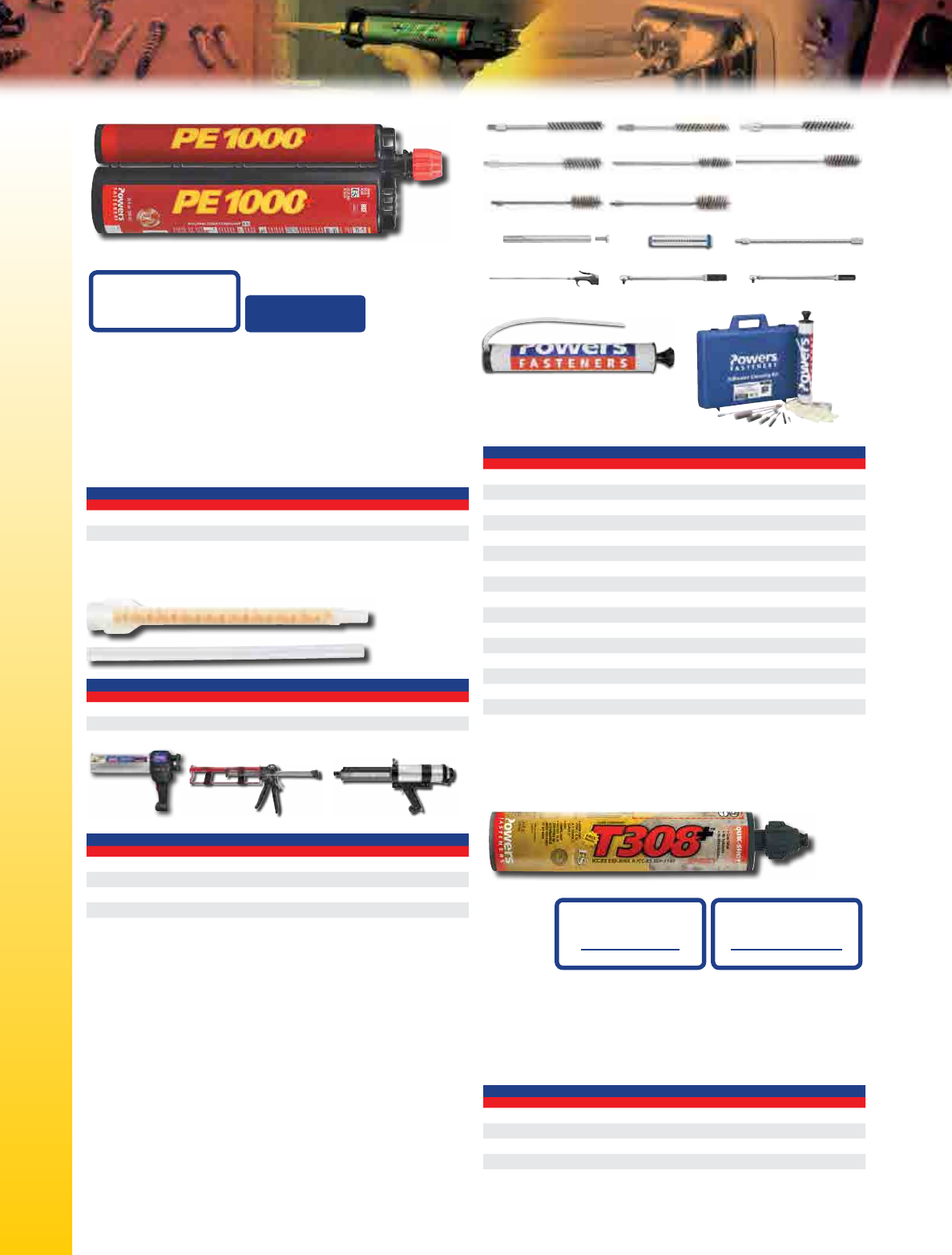

ADHESIVE
Mixing nozzle included with each cartridge
Code listed
ICC-ES ESR-2583
City of los angeles
LARR-25849 (Concrete)
PE1000+®
Adhesive Anchoring System
The PE1000+ is a two-component, high strength epoxy adhesive anchoring sys-
tem. The system includes injection adhesive in plastic cartridges, mixing nozzles,
dispensing tools and hole cleaning equipment. The PE1000+ is designed for
bonding threaded rod and reinforcing bar hardware into drilled holes in solid
concrete base materials.
PE1000+ CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX
0500SD 13 fl. oz. dual cartridge 12
0502SD 20 fl. oz. dual cartridge 12
One PE1000+ mixing nozzle is packaged with each cartridge.
PE1000+ mixing nozzles must be used to ensure complete and proper mixing of the adhesive.
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08294 Extra mixing nozzle (with an 8" extension) for PE1000+ 2 24
08281 Mixing nozzle extension, 8" 2 24
8279SD 08298 8497SD
PE1000+ DISPENSING TOOLS
CAT. NO. DESCRIPTION STD. BOX STD.CTN.
8279SD 13 oz. + 20 oz. PE1000+ battery tool 1 12
08298 13 oz. + 20 oz. PE1000+ heavy duty dispensing tool 1 5
8497SD 13 oz. + 20 oz. PE1000+ pneumatic dispensing tool 1 -
08277 Battery for 8279SD 1 -
8284 8285 8286
8287 8288 8289
8290 8291
8283 8296 8482
8292 8465 8466
8280 52073
HOLE CLEANING TOOLS & ACCESSORIES
CAT. NO. DESCRIPTION LENGTH INCHES STD. PKG.
08284 Wire brush for 7/16" ANSI hole (3/8" rod or #3 rebar) 6-3/4" 1
08285 Wire brush for 9/16" ANSI hole (1/2" rod or #4 rebar) 6-3/4" 1
08286 Wire brush for 11/16" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08278 Wire brush for 3/4" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08287 Wire brush for 7/8" ANSI hole (3/4" rod or #6 rebar) 7-7/8" 1
08288 Wire brush for 1" ANSI hole (7/8" rod or #7 rebar) 11-7/8" 1
08289 Wire brush for 1-1/8" ANSI hole (1" rod or #8 rebar) 11-7/8" 1
08290 Wire brush for 1-3/8" ANSI hole (1-1/4" rod or #9 rebar) 11-7/8" 1
08291 Wire brush for 1-1/2" ANSI hole ( #10 rebar) 11-7/8" 1
08283 SDS-plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2 square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2 square drive (25 to 250 ft.-lbs.) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280),
gloves and safety glasses
1
Mixing nozzle included with each cartridge
T308+
Code listed
ICC-ES ESR-3066
UNCRACKED CONCRETE
Code listed
ICC-ES ESR-3149
UNREINFORCED MASONRy
Adhesive Anchoring System
T308+ is a two-component epoxy adhesive anchoring system. The system
includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools
and hole cleaning equipment. T308+ is designed for bonding threaded rod and
reinforcing bar into drilled holes in concrete and masonry base materials.
T308+ CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX STD. CTN. PALLET
8558SD 8.5 fl. oz. Quik-Shot cartridge (15.3 in3) 12 24 432
8503SD 14 fl. oz. Side-by-Side cartridge (25.0 in3) 12 - 960
8523SD 21.5 fl. oz. Side-by-Side cartridge (38.5 in3) 12 - 432
8536SD 51 fl. oz. Side-by-Side cartridge (92.0 in3) 8 - 216
One T308+ mixing nozzle is packaged with each cartridge. T308+ mixing nozzles must be used to ensure
complete and proper mixing of the adhesive.
PE1000+ • T308+
29
ADHesIVe
T308+ • PURE50+
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
07908 Extra mixing nozzle for T308+ (with 9" extension tube) 2 24
07919 Extra mixing nozzle for T308+ (bulk quantity) 400
07921 Extra Turbo mixing nozzle 2 24
8437 8479 8415
8409 8416 8421
8438 8442
DISPENSING TOOLS FOR INJECTION ADHESIVE
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08437 10 oz. Heavy duty caulking gun for Quik-Shot 1 12
08479 10 oz. High performance caulking gun for Quik-Shot 1 12
08415 14 oz. High performance manual caulking gun 1 10
08409 21.5 oz. Standard all-metal manual tool 1 8
08416 14 oz. Standard all-metal manual tool 1 8
08421 21.5 oz. High performance manual caulking gun 1 6
08438 51 oz. High performance pneumatic caulking gun 1 1
08442 21.5 oz. Battery tool 1 1
8280 52073
HOLE CLEANING TOOLS & ACCESSORIES
CAT. NO. DESCRIPTION BRUSH LENGTH STD.PKG.
07931 Nylon brush for 7/16" ANSI hole (3/8" rod or #3 rebar) 8-1/2" 1
07932 Nylon brush for 9/16" ANSI hole (1/2" rod or #4 rebar) 8-1/2" 1
07933 Nylon brush for 3/4" ANSI hole (5/8" rod or #5 rebar) 12" 1
07934 Nylon brush for 1" & 1-1/8" ANSI hole
(7/8" & 1" rod or #7, #8 rebar)
13" 1
07935 Nylon brush for 1-1/4" ANSI hole (1-1/4" rod or #10 rebar) 13-1/2 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280), gloves
and safety glasses
1
Code listed
ICC-ES ESR-3576
Pure50+
Adhesive Anchoring System
`
New!
Pure50+ is a two-component adhesive anchoring system. The system includes
injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole
cleaning equipment. Pure50+ is designed for bonding threaded rod & reinforcing
bar hardware into drilled holes in solid concrete base materials.
PURE50+ CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX PALLET
08600 9 fl. oz. cartridge 12 432
08605 21 fl. oz. cartridge 12 540
08651 51 fl. oz. cartridge 8 216
One Pure50+ mixing nozzle is packaged with each cartridge. Pure50+ mixing nozzles must be used to ensure
complete and proper mixing of the adhesive.
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. PACK STD. CTN.
08294 Extra mixing nozzle (with an 8” extension) for Pure50+ 12 540
08281 Mixing nozzle extension, 8” 8 216
8409 8421 8442 8438
DISPENSING TOOLS FOR INJECTION ADHESIVE
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08409 21 fl. oz. Standard all-metal manual tool 1 10
08421 21 fl. oz. High performance manual caulking gun 1 10
08442 21 fl. oz. Battery powered tool (cordless) 1 -
08459 21 fl. oz. Pneumatic tool 1 -
08438 51 fl. oz. Pneumatic tool 1 -
30
ADHESIVE
08284 08285 08286
08287 08288 08289
08290 08283 08296
08492 08282 08465
8280 52073
HOLE CLEANING TOOLS AND ACCESSORIES
CAT. NO. DESCRIPTION STD. PKG.
08284 Wire brush for 7/16"ANSI hole (3/8" rod or #3 rebar) 1
08285 Wire brush for 9/16"ANSI hole (1/2" rod or #4 rebar) 1
08286 Wire brush for 11/16"ANSI hole (5/8" rod or #5 rebar) 1
08278 Wire brush for 3/4"ANSI hole (5/8" rod or #5 rebar) 1
08287 Wire brush for 7/8"ANSI hole (3/4" rod or #6 rebar) 1
08288 Wire brush for 1"ANSI hole (7/8" rod) 1
08289 Wire brush for 1-1/8"ANSI hole (1" rod or # 8 rebar) 1
08290 Wire brush for 1-3/8"ANSI hole (1-1/4" rod) 1
08283 SDS-Plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2" square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2" square drive (25 to 250 ft.-lbs.) 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280), gloves
and safety glasses
1
Code listed
ICC-ES ESR-3598
Pure110+
`
New!
Adhesive Anchoring System
Pure110+ is a two-component epoxy adhesive anchoring system. The system
includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools
and hole cleaning equipment. Pure110+ is designed for bonding threaded rod
and reinforcing bar hardware into drilled holes in solid concrete base materials.
PURE50+ CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX PALLET
08310SD 9 fl. oz. Quik-Shot cartridge 12 432
08321SD 21 fl. oz. dual cartridge 12 540
One Pure110+ mixing nozzle is packaged with each cartridge. Pure110+ mixing nozzles must be used to
ensure complete and proper mixing of the adhesive.
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. PACK STD. CTN.
08294 Extra mixing nozzle (w/8" extension) for Pure110+ Quik-Shot 2 24
08281 Mixing nozzle extension, 8" minimum 2 24
08609 Extra high flow mixing nozzle (w/8"extension) for
Pure110+ dual cartridge
2 24
08409 08421 08442
08413 08437 08479
DISPENSING TOOLS FOR INJECTION ADHESIVE
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08409 21 fl. oz. Standard all-metal manual tool 1 10
08421 21 fl. oz. High performance manual tool 1 10
08442 21 fl. oz. Battery powered tool (cordless) 1 -
08437 Manual caulking gun for Quik-Shot 1 12
08438 51 fl. oz. Pneumatic tool 1 -
08479 High performance caulking gun for Quik-Shot 1 12
08284 08285 08286
08287 08288 08289
08290 08283 08296
08492 08282 08465
8280 52073
HOLE CLEANING TOOLS AND ACCESSORIES
CAT. NO. DESCRIPTION STD. PKG.
08284 Wire brush for 7/16"ANSI hole (3/8" rod or #3 rebar) 1
08285 Wire brush for 9/16"ANSI hole (1/2" rod or #4 rebar) 1
08286 Wire brush for 11/16"ANSI hole (5/8" rod or #5 rebar) 1
08278 Wire brush for 3/4"ANSI hole (5/8" rod or #5 rebar) 1
08287 Wire brush for 7/8"ANSI hole (3/4" rod or #6 rebar) 1
08288 Wire brush for 1"ANSI hole (7/8" rod) 1
08289 Wire brush for 1-1/8"ANSI hole (1" rod or # 8 rebar) 1
08290 Wire brush for 1-3/8"ANSI hole (1-1/4" rod) 1
08283 SDS-Plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2" square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2" square drive (25 to 250 ft.-lbs.) 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280),
gloves and safety glasses
1
PURE50+ • PURE110+
31
ADHesIVe
AC50 SILVER • CHEM-STUD
AC50 Silver
Adhesive Anchoring System
`
New!
AC50 Silver is a two-component vinylester adhesive anchoring system.
The system includes injection adhesive in plastic cartridges, mixing nozzles,
dispensing tools and hole cleaning equipment. AC50 Silver is designed for
bonding threaded rod and reinforcing bar hardware into drilled holes in solid
concrete base materials.
PURE50+ CARTRIDGES
CAT. NO. DESCRIPTION STD. BOX PALLET
08497 28 fl. oz. cartridge 8 400
One AC50 Silver mixing nozzle is packaged with each cartridge. AC50 Silver mixing nozzles must be used to
ensure complete and proper mixing of the adhesive
CARTRIDGE SYSTEM MIXING NOZZLES
CAT. NO. DESCRIPTION STD. PACK STD. CTN.
08294 Extra mixing nozzle (with an 8” extension) for AC50 Silver 12 540
08281 Mixing nozzle extension, 8” minimum 8 216
08494 8495 08444 08496
DISPENSING TOOLS FOR INJECTION ADHESIVE
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08494 28 fl. oz. Standard all-metal manual tool 1 10
08495 28 fl. oz. High performance manual tool 1 10
08444 28 fl. oz. Battery powered tool (cordless) 1 -
08496 28 fl. oz. Pneumatic tool 1 -
08284 08285 08286
08287 08288 08289
08290 08283 08296
08492 08282 08465
8280 52073
HOLE CLEANING TOOLS AND ACCESSORIES
CAT. NO. DESCRIPTION STD. PKG.
08284 Wire brush for 7/16"ANSI hole (3/8" rod or #3 rebar) 1
08285 Wire brush for 9/16"ANSI hole (1/2" rod or #4 rebar) 1
08286 Wire brush for 11/16"ANSI hole (5/8" rod or #5 rebar) 1
08278 Wire brush for 3/4"ANSI hole (1/2" rod or #4 rebar) 1
08287 Wire brush for 7/8"ANSI hole (3/4" rod or #6 rebar) 1
08288 Wire brush for 1"ANSI hole (7/8" rod) 1
CAT. NO. DESCRIPTION STD. PKG.
08289 Wire brush for 1-1/8"ANSI hole (1" rod or # 8 rebar) 1
08290 Wire brush for 1-3/8"ANSI hole (1-1/4" rod) 1
08283 SDS-Plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2" square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2" square drive (25 to 250 ft.-lbs.) 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285,
08286, 08287), steel brush extension (08282), SDS-Pus adapter
(08283), standard drill adapter (08296), hand pump/dust blower
(08280), gloves and safety glasses
1
Chem-Stud®
Spin-In Type Capsule Adhesive
TESTED TO
iCC-es aC58
The Chem-Stud Anchor System consists of self contained two-part glass capsules and
matching chisel pointed anchor rods which are installed using a rotary hammer drill and
rod adapters. The Chem-Stud adhesive is an ester based resin material packaged in a single
use glass capsules designed for installation of 3/8” through 1-1/2” threaded rods in solid
concrete and masonry materials. It can also be used with chisel pointed reinforcing bars.
CHEM-STUD CAPSULES
CAT. NO. ROD SIZE DRILL DIA. LENGTH STD. BOX STD. CTN.
6502 3/8" 7/16" 3-1/2" 10 500
6503 1/2" 9/16" 4-1/4" 10 200
6504 5/8" 11/16" 5" 10 200
6505 3/4" 7/8" 6-5/8" 5 50
6506 7/8" 1" 7" 5 50
6507 1" 1-1/8" 8-1/4" 5 50
6508 1-1/4" 1-1/2" 10-1/4" 5 25
Carbon steel rods are zinc plated according to ASTM B 633. A307 Standard
Carbon Steel, Zinc Plated (ASTM B 633)
CHEM-STUD CHISEL-POINTED ANCHOR RODS
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
6513 1/2" x 6-1/2" 9/16" 4-1/4" 10 50
6514 5/8" x 7-1/2" 11/16" 5" 10 40
6515 3/4" x 9-5/8" 7/8" 6-5/8" 10 40
6517 1" x 12" 1-1/8" 8-1/4" 10 10
6518* 1-1/4" x 15" 1-1/2" 10-1/4" 5 5
* Discontinued item once current stock exhausted.
Chem-Stud® Installation Tools
Chem-Stud installation tools consist of a drive adapter which is designed to
fit the rotary hammer drill used and a coupler to hold either threaded rods or
reinforcing bars. The tools for threaded rod and reinforcing bars are different and
can not be interchanged.
Threaded Rod Installation Tools
COUPLERS FOR THREADED ROD
CAT. NO. SIZE STD. BOX STD. CTN.
6562 3/8" 1 10
6563 1/2" 1 10
6564 5/8" 1 10
6565 3/4" 1 5
6566 7/8" 1 5
6567 1" 1 5
6568 1-1/4" 1 5
32
ADHESIVE
DRIVERS FOR THREADED ROD COUPLERS - HEX
CAT. NO. HEX SIZE FITS COUPLER SIZE STD. BOX STD. CTN.
6570 1/4" 3/8" to 5/8" 1 10
6572 3/8" 3/4" to 1-1/4" 1 10
DRIVERS FOR THREADED ROD COUPLERS - SDS-PLUS
CAT. NO. HEX SIZE FITS COUPLER SIZE STD. BOX STD. CTN.
6574 1/4" 3/8" to 5/8" 1 10
6576 3/8" 3/4" to 1-1/4" 1 10
DRIVERS FOR THREADED ROD COUPLERS - SPLINE
CAT. NO. HEX SIZE FITS COUPLER SIZE STD. BOX STD. CTN.
6580 1/4" 3/8" to 5/8" 1 10
6582 3/8" 3/4" to 1-1/4" 1 10
DRIVERS FOR THREADED ROD COUPLERS - SDS-MAX
CAT. NO. HEX SIZE FITS COUPLER SIZE STD. BOX STD. CTN.
6559 1/4" 3/8" to 5/8" 1 10
6561 3/8" 3/4" to 1-1/4" 1 10
Reinforcing Bar Installation Tools
CHEM-STUD REBAR COUPLERS AND DRIVERS
CAT. NO. SIZE STD. BOX STD. CTN.
6533 #3 Coupler 1 10
6534 #4 Coupler 1 5
6536 #6 Coupler 1 10
6537 #7 Coupler 1 10
6538 #8 Coupler 1 10
6539 #9 Coupler 1 10
6540 #10 Coupler 1 1
6590 Spline Driver Extension 1 1
6596 SDS-Max Driver Extension 1 1
INTERNALLY THREADED INSERT TOOLS*
CAT. NO. SIZE STD. BOX STD. CTN.
6862 3/8" 1 1
6863 1/2" 1 1
6864 5/8" 1 1
6865 3/4" 1 1
*Use with drivers for threaded rod.

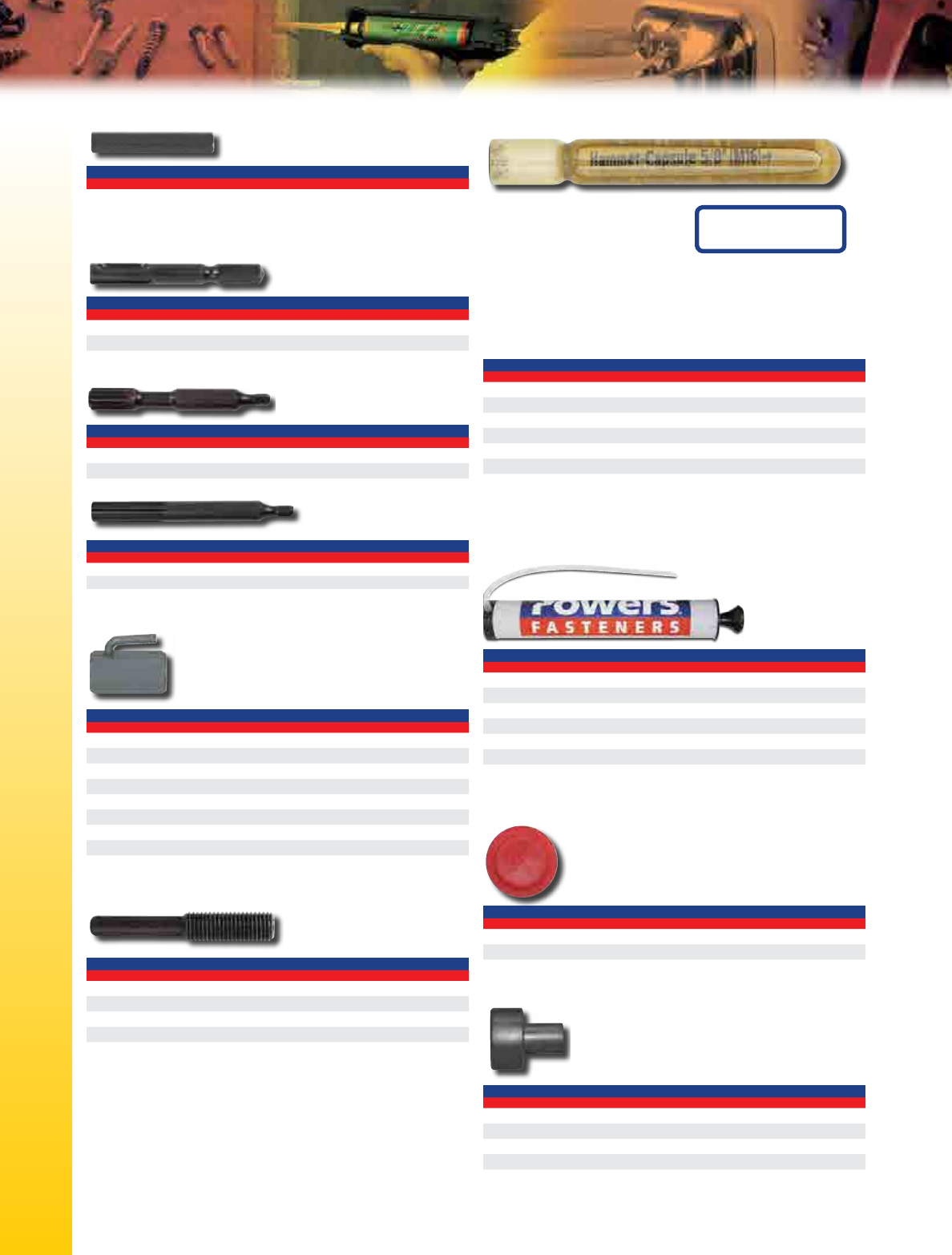

Hammer-Capsule®
Drive-In Type Capsule Adhesive
TESTED TO
iCC-es aC58
The Hammer-Capsule System consists of a self contained, single use, two-part
glass capsule into which threaded anchor rod or reinforcing bars can be directly
driven without the need for a chisel point or spinning action. It is designed for
use in the installation of 3/8” through 1” diameter threaded rod in solid con-
crete and masonry materials. It can also be used to install reinforcing bars.
HAMMER-CAPSULE SELECTION GUIDE
CAT. NO. SIZE DRILL DIA. CAPSULE LENGTH STD. BOX STD. CTN.
6702 3/8" 7/16" 3-1/2" 10 500
6703 1/2" 9/16" 4-1/4" 10 200
6704 5/8" 11/16" 5" 10 100
6705 3/4" 7/8" 6-5/8" 5 50
6706 7/8" 1" 7" 5 50
6707 1" 1-1/8" 8-1/4" 5 50
Adhesive Installation Accessories
Adhesive installation accessories are designed to provide a dispenser or mixing
nozzle extension when required and to aid in the preparation of the anchor hole.
ACCESSORIES
CAT. NO. DESCRIPTION STD. BAG
8280 Blow Out Pump 1
7931 1/2" x 8-1/2" nylon brush 1
7932 3/4" x 8-1/2" nylon brush 1
7933 1" x 12" nylon brush 1
7934 1-1/4" x 13" nylon brush 1
7935 1-1/2" x 13-1/2" nylon brush 1
Anchor Seal Plugs help retain the adhesive in the anchor hole and hold the
anchor rod centered in the hole until the adhesive sets. The plugs are described by
the anchor rod diameter they are used with.
ANCHOR SEAL PLUGS
CAT. NO. DESCRIPTION PLUG DEPTH HOLE SIZE STD. BAG
7936 3/8" Anchor Seal Plug 3/8" 7/16" 25
7937 1/2" Anchor Seal Plug 1/2" 9/16" 25
For additional sizes call for availability.
ADHESIVE PISTONS
CAT. NO. DESCRIPTION ANSI DRILL DIA. ROD SIZE STD. BAG STD. CTN.
08300 7/8" Plug 7/8" #6 - 3/4" 10 100
08301 1" Plug 1" #7 - 7/8" 10 100
08303 1-1/8" Plug 1-1/8" Plug #8 - 1" 10 100
08305 1-3/8" Plug 1-3/8" Plug #9 - 1-1/4" 10 100
08309 1-1/2" Plug 1-1/2" Plug #10 10 100
CHEM-STUD • HAMMER-CAPSULE • ADHESIVE INSTALLATION ACCESSORIES
33
ADHesIVe
ADHESIVE INSTALLATION ACCESSORIES
Screen tubes are made from a 300 series stainless steel. The nominal diameter
of the screen listed indicates the matching rod diameter.
STAINLESS STEEL SCREEN TUBES
CAT. NO. DESCRIPTION DRILL DIA. STD.CTN.
7862 1/4" x 6" Screen Tube † 3/8” 25
7864 1/4" x 8" Screen Tube † 3/8” 25
7866* 1/4" x 10" Screen Tube † 3/8” 25
7961 3/8" x 3-1/2" Screen Tube † 1/2” 25
7962 3/8" x 6" Screen Tube † 1/2” 25
7963 3/8" x 8" Screen Tube † 1/2” 25
7964 3/8" x 10" Screen Tube † 1/2” 25
7959 3/8" x 12" Screen Tube † 1/2” 25
7965 1/2" x 3-1/2" Screen Tube 5/8” 25
7966 1/2" x 6" Screen Tube 5/8” 25
7967 1/2" x 8" Screen Tube † 5/8” 25
7968 1/2" x 10" Screen Tube † 5/8” 25
7969 5/8" x 4-1/2" Screen Tube 3/4” 20
7970 5/8" x 6" Screen Tube 3/4” 20
7971 5/8" x 8" Screen Tube † 3/4” 20
7972 5/8” x 10" Screen Tube † 3/4” 20
7973 3/4” x 6" Screen Tube 7/8” 10
7977 3/4" x 8" Screen Tube 7/8” 10
7974 3/4" x 10" Screen Tube 7/8” 107
7975 3/4" x 13" Screen Tube 7/8” 10
7865 15/16" x 8" Screen Tube 1" 10
7867 15/16" x 13" Screen Tube 1” 10
7869 15/16" x 17" Screen Tube † 1” 10
7955 Adhesive Shear Tube (steel sleeve) - 10
* Discontinued item once current stock exhausted. † Includes extension tubing
The nominal diameter of the screen listed indicate the matching rod diameter.
Note: hole size required for plastic screen tubes are different than that for the
stainless steel tubes.
PLASTIC SCREEN TUBES
CAT/ NO. DESCRIPTION DRILL DIA. STD. BOX
8470 1/4" x 1-3/4" Screen Tube 1/2" 25
8473 3/8" x 2-3/4" Screen Tube 9/16" 25
8310 3/8" x 3-1/2" Screen Tube 9/16" 25
8311 3/8" x 6" Screen Tube 9/16" 25
8313 3/8" x 8" Screen Tube 9/16" 25
8315 1/2" x 3-1/2" Screen Tube 3/4" 25
8317 1/2" x 6" Screen Tube 3/4" 25
8321 5/8" x 6" Screen Tube 7/8" 25
8323 3/4" x 6" Screen Tube 1" 10
8284 8285 8286
8287 8288 8289
8290 8291
8283 8296 8482
8292 8465 8466
8280 52073
HOLE CLEANING TOOLS & ACCESSORIES
CAT. NO. DESCRIPTION LENGTH INCHES STD. PKG.
08284 Wire brush for 7/16" ANSI hole (3/8" rod or #3 rebar) 6-3/4" 1
08285 Wire brush for 9/16" ANSI hole (1/2" rod or #4 rebar) 6-3/4" 1
08286 Wire brush for 11/16" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08278 Wire brush for 3/4" ANSI hole (5/8" rod or #5 rebar) 7-7/8" 1
08287 Wire brush for 7/8" ANSI hole (3/4" rod or #6 rebar) 7-7/8" 1
08288 Wire brush for 1" ANSI hole (7/8" rod or #7 rebar) 11-7/8" 1
08289 Wire brush for 1-1/8" ANSI hole (1" rod or #8 rebar) 11-7/8" 1
08290 Wire brush for 1-3/8" ANSI hole (1-1/4" rod or #9 rebar) 11-7/8" 1
08291 Wire brush for 1-1/2" ANSI hole ( #10 rebar) 11-7/8" 1
08283 SDS-plus adapter for steel brushes 1
08296 Standard drill adapter for steel brushes (e.g. Jacobs Chuck) 1
08282 Steel brush extension, 12" 1
08280 Hand pump/dust blower (25 fl. oz. cylinder volume) 1
08292 Air compressor nozzle with extension 1
08465 Adjustable torque wrench with 1/2 square drive (10 to 150 ft.-lbs.) 1
08466 Adjustable torque wrench with 1/2 square drive (25 to 250 ft.-lbs.) 1
52073 Adhesive cleaning kit, includes 4 wire brushes (08284, 08285, 08286,
08287), steel brush extension (08282), SDS-Pus adapter (08283),
standard drill adapter (08296), hand pump/dust blower (08280),
gloves and safety glasses
1
Straight cut rod is provided in A307 Threaded Anchor rod, zinc plated (ASTM B
633, clear chromate); includes nuts & washers.
STRAIGHT CUT THREADED ROD
CAT. NO. DESCRIPTION STD. CTN.
7980 1/4" x 3" Anchor Rod 25
7985 1/2" x 5-1/2" Anchor Rod 25
7986 1/2" x 8" Anchor Rod 25
7989 5/8" x 6-1/2" Anchor Rod 20
7990 5/8" x 8" Anchor Rod 20
7993 3/4" x 9" Anchor Rod 10
7994 3/4" x 12" Anchor Rod 10
Rod is pre-bent at a 22-1/2 degree angle and includes nuts and washers.
BENT THREADED ROD (22-1/2°)
CAT. NO. DESCRIPTION STD. CTN.
7957* 3/4" x 21" 22-1/2° Bent Rod 10
* Discontinued item once current stock exhausted.
34
ADHESIVE
PowerFoam
Expanding Polyurethane Foam
BASE MATERIAL
Concrete, Masonry, Wood, Metal
SIZE RANGE
12 oz. & 29 oz.
MATERIAL
Polyurethane
PowerFoam is a one-part polyurethane expanding foam that sets and cures into
its final form by reacting to moisture and humidity present in the air. Power-
Foam’s exceptional ability to bond allows it to be applied to various building
elements including the surfaces of concrete, brick, block, wood, steel, aluminum
and other miscellaneous metals. As it is being dispensed, PowerFoam has a
neutral odor. Cured foam is standard yellow.
POWERFOAM
CAT. NO. DESCRIPTION STD. BOX STD. CTN. STD. PALLET
08130N PowerFoam 12 oz. 12 12 1152
08132N PowerFoam 29 oz. 12 12 612
Code listed
ICC-ES ESR-3263
TriggerFoam Pro `
New!
Expanding Polyurethane Foam
BASE MATERIAL
Concrete, Masonry, Wood, Metal
SIZE RANGE
29 oz.
MATERIAL
Polyurethane
TriggerFoam Pro formulas are a professional, gun applied, normal expansion
polyurethane foam sealant with an extended temperature range which allows
for use at temperatures as low as 23° F (-5°C). It is designed to seal gaps, insu-
late, and deaden sound. Recommended for use in heating and air conditioning,
electrical and plumbing applications.
TRIGGERFOAM PRO
CAT. NO. DESCRIPTION STD. CTN.
08136N TriggerFoam Pro Standard Formula 12
08133P TriggerFoam Pro Fire Block Formula 12
08134P TriggerFoam Pro Window & Door Formula 12
08135P TriggerFoam Pro All Season Formula 12
08128 08139 08147
TRIGGERFOAM TOOLS & ACCESSORIES
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
08126 TriggerFoam Pro 20" dispensing tool (not shown) 1 10
08128 TriggerFoam Pro deluxe metal gun 1 10
08139 TriggerFoam Pro plastic gun 1 10
08141* TriggerFoam Pro gun replacement brass tip 1 1
08147 TriggerFoam Pro Cleaner 17 fl. oz. 6 -
* Discontinued item once current stock exhausted.
PowerStick
Adhesive Sealant
BASE MATERIAL
Concrete, Masonry, Metals, Wood, Plastics
SIZE RANGE
10 oz. tubes
ANCHOR MATERIAL
MS Polymer Chemistry
PowerStick is a one-component universal adhesive/sealant based on proprietary
MS Polymer chemistry. PowerStick is the first professional grade product on the
market that delivers high bond strength and superior flexibility.
POWERSTICK
CAT. NO. SIZE COLOR DISPENSER STD. BOX STD. CTN.
8166N 10 oz. White Caulk Gun 12 12
8168N 10 oz. Gray Caulk Gun 12 12
8437 8479
CAULKING GUNS FOR POWERSTICK
CAT.NO. DESCRIPTION STD. BOX STD. CTN.
8437 Manual Caulking Gun 1 12
8479 High Performance Manual Tool 1 1
PowerPatch Kit
Adhesive Sealant
BASE MATERIAL
Concrete
SIZE RANGE
5 Gallon Bucket
PowerPatch is a rapid setting, 100% solids, high strength, all temperature
spall repair and patching material. PowerPatch uses a unique hybridized epoxy
urethane system and an engineered aggregate blend for superior performance
in all conditions, including high traffic areas.
CAT. NO. SIZE COLOR STD. BOX STD. CTN.
8350 5 Gallon Bucket Dark Gray 1 -
POWERFOAM • POWERSTICK • POWERPATCH
35
LIGHt DUtY AnCHoRs
Page
Base Material Anchor Diameter Head Style Coating/
Material
Concrete
Lightweight Concrete
Hollow Core Plank
Grout-filled Concrete Masonry
Hollow Concrete Masonry
Solid Brick
Hollow Brick
Stone
Structural Clay/Tile
Plywood
Wallboard / Plaster
No. 4 Screw
No. 5 Screw
No. 6 Screw
No. 7 Screw
No. 8 Screw
No. 9 Screw
No. 10 Screw
No. 12 Screw
No. 14 Screw
No. 16 Screw
No. 18 Screw
1/8"
3/16"
1/4"
5/16"
3/8"
1/2"
Finished (Hex) Head
Round Head
Flat Head (Countersunk)
Mushroom Head
Removable
Coated / Plated Carbon Steel
Zamac Alloy
Nylon Plastic
Lead
Metal Anchors
Wall Dog 36 • • • • • • • • •
Scru-Lead 36 ••• ••• •••••

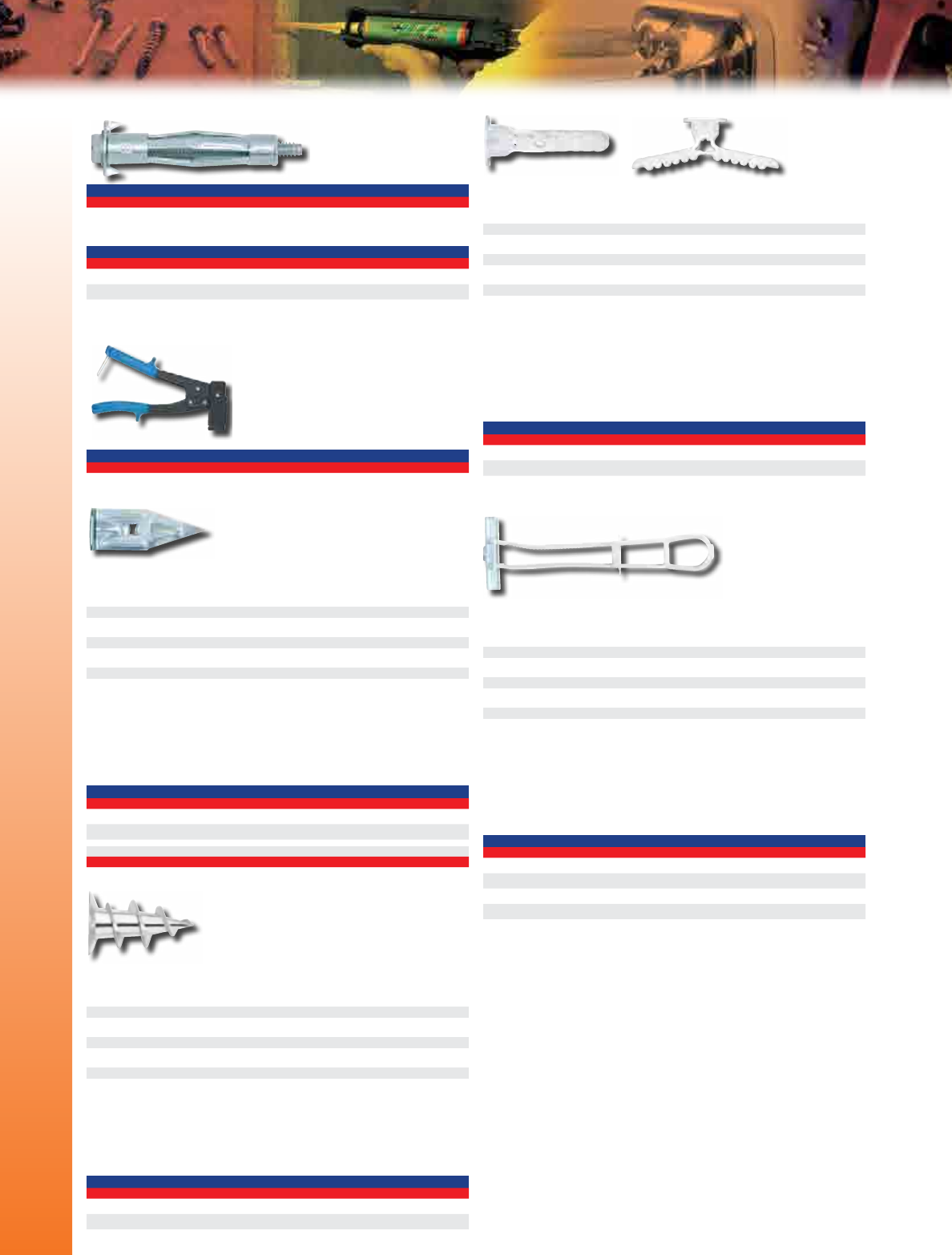

Toggle-Bolt 37 •• •••••••••• •
Polly 37 • • • • • • •
Legs 38 • • •
Zip-All 38 • • • • •

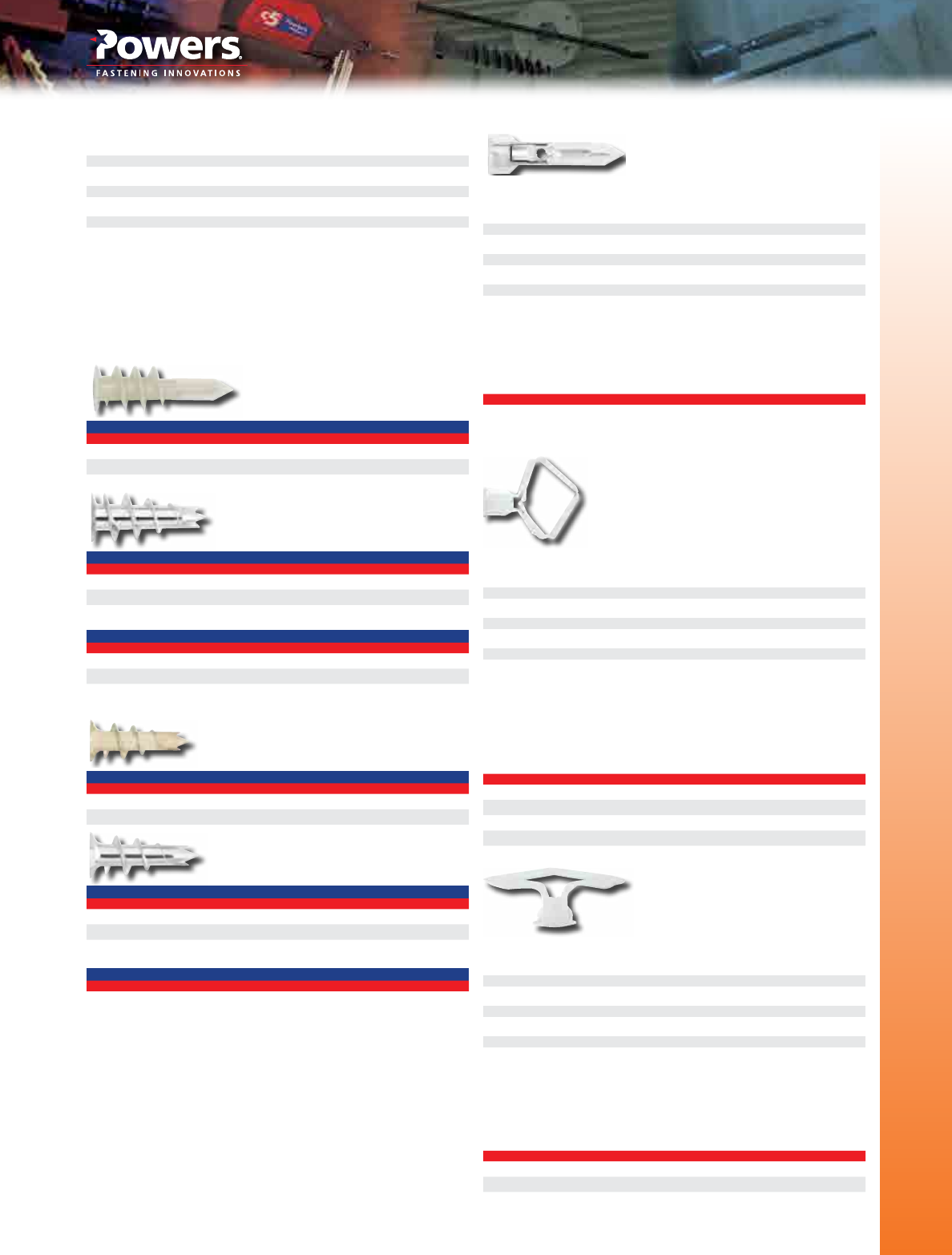

Plastic Anhors
Sharkie 38 •••• • • ••••••••••
Strap-Toggle 38 • • • • • • • •
Zip-It / Zinc Zip-It 39 • • • • •
Zip-Toggle 39 • •
Poly-Toggle 39 •• ••••••
Pop-Toggle 39 •• •••••••
Bantam Plug 40 • ••• • ••••••••
Fluted Plastic 40 • •••••••••
• Suitable
May be Suitable
SELECTION GUIDE
36
LIGHT DUTY ANCHORS
WALL-DOG • SCRU-LEAD

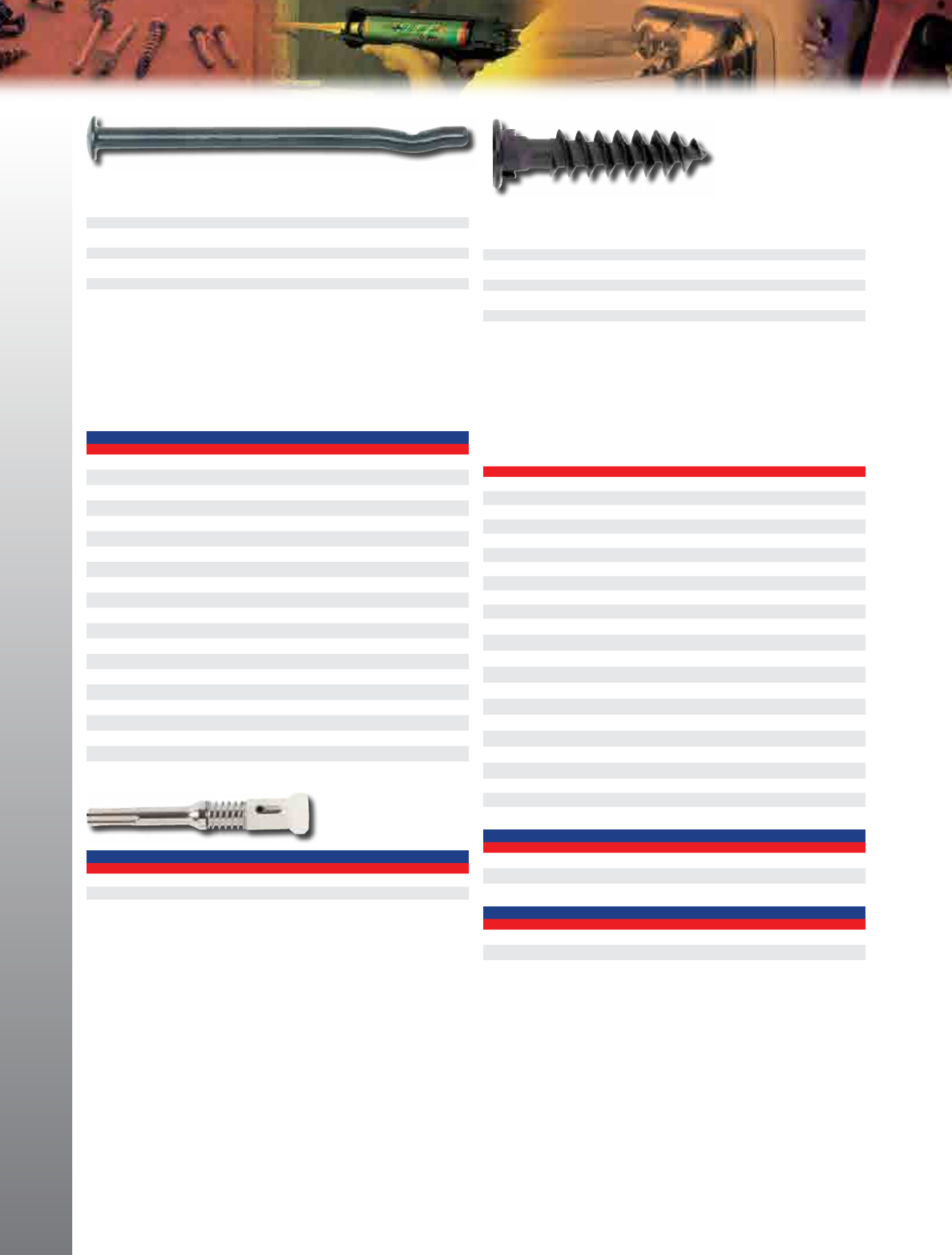

Wall-Dog®
Universal Light-Duty Anchor
BASE MATERIAL
Wallboard (1/2”, 5/8” & double wallboard), Plywood,
Concrete, Hollow or Grout Filled Block, Brick, Plaster,
Wood and Masonry
SIZE RANGE
3/16” Diameter x 2-1/2” Length max.
ANCHOR MATERIAL
Case Hardened Carbon Steel
Powers Wall-Dog is the industry’s first all steel one-piece screw anchor, which
features high-profile threads for easy fastening into wallboard and other ma-
sonry base materials. Its deep cutting, corkscrew-like threads provide for smooth
entry and a strong hold, and when removed the Wall-Dog leaves a much smaller
hole than toggles or other systems. For fastening into wallboard or wood, no
pre-drilling is required. Fastening into concrete, hollow or grout filled block, brick
and plaster requires a pre-drilled 3/16” ANSI hole.
Features and Benefits
Installs in wallboard, plywood, concrete, hollow or grout lled block,
brick and plaster
Patented design provides for smooth entry, clean cutting and a strong hold
Thread design prevents spinning and stripping
Heat treated point can penetrate metal and wood studs
Various head styles and colors available
Self-drills in wallboard and in plywood
Installs quickly and easily with a Phillips® screwdriver
WALL-DOG LIGHT DUTY ANCHOR - COMBO HWH
CAT. NO. DESCRIPTION STD. BOX STD. CTN. MASTER CTN.
2265 1-1/4" Combo HWH Zinc 5000
2271 1-1/4" Combo HWH Zinc 100 1000 N/A
WALL-DOG LIGHT DUTY ANCHOR - WAFER HEAD
CAT. NO. DESCRIPTION STD. BOX STD. CTN. MASTER CTN.
2277 1/4" x 1-1/2" White Wafer Head 100 500 N/A
2278 1/4" x 2" White Wafer Head 100 500 N/A
2279 1/4" x 2-1/4" White Wafer Head 100 500 N/A
2280 1/4" x 2-1/2" White Wafer Head 100 500 N/A
Phillips® is a registered trademark of Phillips Consumer Electronics Corporation.
WALL-DOG LIGHT DUTY ANCHOR - ROBERTSON HEAD
CAT. NO. DESCRIPTION STD. BOX STD. CTN. MASTER CTN.
2281 1-1/4" Zinc Robertson Head 5000
2266 1-1/4" Zinc Robertson Head 100 1000 N/A
WALL-DOG LIGHT DUTY ANCHOR - OVAL HEAD
CAT. NO. DESCRIPTION STD. BOX STD. CTN. MASTER CTN.
2314 1-1/4" Zinc Oval Head 100 1000 N/A
2328 1-1/4" White Oval Head 100 1000 N/A
2288 1-1/4" Black Oval Head 100 500 N/A
2292 1-1/4" Brass Oval Head 100 500 N/A
WALL-DOG LIGHT DUTY ANCHOR - PAN HEAD
CAT. NO. DESCRIPTION STD. BOX STD. CTN. MASTER CTN.
2316 1-1/4" Zinc Pan Head 100 1000 N/A
2330 1-1/4" White Pan Head 100 1000 N/A
2273 1-1/2" White Pan Head 100 600 N/A
2274 1-1/2" Bronze Pan Head 100 600 N/A
2275 1-1/2" Zinc Pan Head 100 600 N/A
2276 1-1/2" Black Phosphate Pan Head 100 600 N/A
2286 1-1/4" Black Pan Head 100 500 N/A
2294 1-1/4" Brass Pan Head 100 500 N/A
WALL-DOG KIT (SCREWDRIVER)
PACKAGED WITH 50 ZINC PANHEAD ANCHORS AND 1 PHILLIPS® SCREWDRIVER
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
2289 Wall-Dog Kit with Screwdriver 1 10
PACKAGED WITH 50 ZINC PANHEAD ANCHORS AND 3/16” STRAIGHT SHANK BIT
WALL-DOG KIT (BIT)
PACKAGED WITH 50 ZINC PANHEAD ANCHORS AND 3/16” STRAIGHT SHANK BIT
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
2332 Wall-Dog Kit with Drill Bit 1 10
Scru-Lead
Wall Anchor
BASE MATERIAL
Concrete, Block, Brick
SIZE RANGE
No. 6-8 x 3/4” to No.16-18 x 1-1/2”
ANCHOR MATERIAL
Lead Alloy
The Scru-Lead anchor is designed for use with sheet metal or wood screws in con-
crete, block or brick. The anchor is made entirely of lead alloy which is soft enough
for easy installation, yet hard enough to give holding strength. The performance of
this product is dependent on the integrity of the base material.
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
9409 6-8 x 3/4" 1/4" 3/4" 100 1000
9414 6-8 x 1" 1/4" 1" 100 1000
9419 6-8 x 1-1/2" 1/4" 1-1/2" 100 500
9429 10-14 x 1" 5/16" 1" 100 500
9439 10-14 x 1-1/2" 5/16” 1-1/2" 100 500
9460 16-18 x 1-1/2" 3/8" 1-1/2" 25 250
37

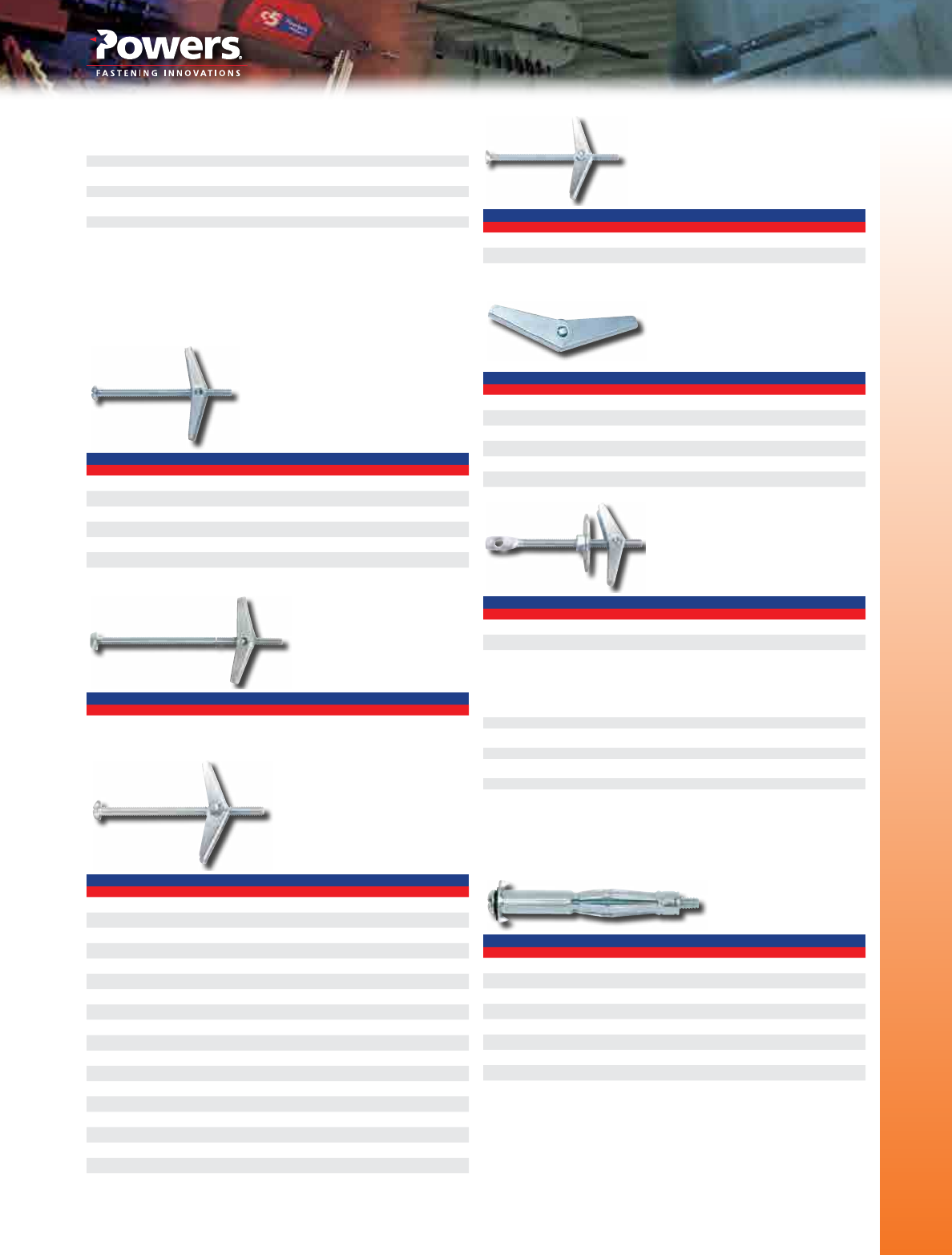

LIGHt DUtY AnCHoRs
TOGGLE BOLT • POLLy
Toggle Bolt
Hollow Wall Anchor
BASE MATERIAL
Hollow block, wallboard, plaster
SIZE RANGE
1/8”x 2” to 1/2” x 4”
ANCHOR MATERIAL
Carbon Steel
The Toggle Bolt is a spring wing type hollow wall anchor designed for use in
block, wallboard and other hollow base materials. The Toggle Bolt is a two-part
assembly consisting of a machine screw and a spring wing toggle. Sizes range
from 1/8” x 2” to 1/2” x 4” with combo round, flat, mushroom, tie-wire or
slotted hex head styles.
COMBO MUSHROOM HEAD
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
4023 1/8" x 2" 3/8" 50 500
4033 1/8" x 3" 3/8" 50 500
4043 1/8" x 4" 3/8" 50 500
4133 3/16" x 3" 1/2" 50 500
4143 3/16" x 4" 1/2" 50 500
4233 1/4" x 3" 5/8" 50 500
4243 1/4" x 4" 5/8" 50 500
SLOTTED HEX HEAD
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
4038 1/8" x 3" 3/8" 50 500
COMBO ROUND HEAD
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
4021 1/8" x 2" 3/8" 50 500
4031 1/8" x 3" 3/8" 50 500
4041 1/8" x 4" 3/8" 50 500
4121 3/16" x 2" 1/2" 50 500
4131 3/16" x 3" 1/2" 50 500
4141 3/16" x 4" 1/2" 50 500
4151 3/16" x 5" 1/2" 50 500
4161 3/16" x 6" 1/2" 50 500
4231 1/4" x 3" 5/8" 50 500
4241 1/4" x 4" 5/8" 50 500
4251 1/4" x 5" 5/8" 50 500
4261 1/4" x 6" 5/8" 50 500
4341 5/16" x 4" 7/8" 25 250
4431 3/8" x 3" 7/8" 25 250
4441 3/8" x 4" 7/8" 25 250
4451 3/8" x 5" 7/8" 25 125
4461 3/8" x 6" 7/8" 25 125
4541 1/2" x 4" 1-1/4" 25 25
FLAT HEAD
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
4132 3/16" x 3" 1/2" 50 500
4142 3/16" x 4" 1/2" 50 500
4232 1/4" x 3" 5/8" 50 500
TOGGLE WINGS ONLY
CAT. NO. SIZE DRILL DIA. STD. BOX STD. CTN.
4000 1/8" 3/8" 100 500
4020 3/16" 1/2" 100 1000
4220 1/4" 5/8" 100 1000
4330 5/16" 7/8" 50 500
4430 3/8" 7/8" 50 500
4540 1/2" 1-1/4" 25 25
TIE-WIRE ACOUSTICAL TOGGLE
CAT. NO. SIZE TIE WIRE HOLE SIZE DRILL DIA. STD. BOX STD. CTN.
4247 1/4" x 4" 7/32" 5/8" 100 100
4257 1/4" x 5" 7/32" 5/8" 100 100
Polly
Hollow Wall Anchor
BASE MATERIAL
Plaster, wallboard, block, hollow tile, plywood
SIZE RANGE
1/8” extra short to 1/4” long
ANCHOR MATERIAL
Carbon Steel
The Polly is a sleeve type hollow wall anchor designed for use in base materials
such as plaster, wallboard, concrete block, hollow tile or plywood.
COMBINATION SLOTTED PHILLIPS HEAD POLLY
CAT. NO. SIZE SCREW LENGTH DRILL DIA. WALL THICKNESS STD. BOX STD. CTN.
2100 1/8" XS 1-1/16" 5/16" 1/8"–1/4" 100 500
2101 1/8" S 1-3/4" 5/16" 3/8"–1/2" 100 500
2102 1/8" L 2-1/4" 5/16" 5/8"–1" 100 500
2111 3/16" S 2" 3/8" 3/8"–5/8" 50 250
2112 3/16" L 2-1/2" 3/8" 3/4"–1-1/8" 50 250
2113 3/16" XL 3" 3/8" 1-1/4"–1-3/4" 25 125
2121 1/4" S 2-1/4" 7/16" 3/8"–1/2" 50 250
2122 1/4" L 2-3/4" 7/16" 5/8"–1-1/8" 50 250
XS - Extra Short S - Short L - Long XL - Extra Long
38
LIGHT DUTY ANCHORS
LEGS • ZIP-ALL • SHARKIE • STRAP-TOGGLE
SLOTTED HEX HEAD POLLY
CAT. NO. SIZE SCREW LENGTH DRILL DIA. WALL THICKNESS STD. BOX STD. CTN.
2105 1/8" S 1-3/4" 5/16" 3/8"–1/2" 100 500
DRIVE POLLY
CAT.NO. SIZE SCREW LENGTH WALL THICKNESS STD. BOX STD. CTN.
2180* 1/8" XS 1-3/8" 1/8"–1/4" 100 500
2182 1/8" S 2" 3/8"–1/2" 100 500
2184 1/8" L 2-3/8" 1/2"–3/4" 100 500
* Discontinued item once current stock exhausted. XS - Extra Short S - Short L - Long
POLLY SETTING TOOL (FITS ALL SIZES)
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
2150 Polly Setting Tool 1 1
Legs
Wallboard Anchor
BASE MATERIAL
Wallboard
SIZE RANGE
Use with No.6 or No.8 screw
ANCHOR MATERIAL
Carbon Steel
The Legs anchor is a fast, easy to use expansion anchor designed for use in
wallboard. The anchor has a pierce point, requiring no pre-drilling. Removal of
the anchor, if required, is easy. Once removed, the anchor leaves a small slit in
the wallboard.
LEGS DRYWALL ANCHOR
CAT.NO. DESCRIPTION STD. BOX STD. CTN.
2336 Legs Wallboard Anchor 100 1000
2335 Legs Anchor w/ No.8 x 1" Screw 100 1000
MASTER PACK
CAT. NO. DESCRIPTION MASTER CTN.
2338 Legs Wallboard Anchor 5000
Zip-All®
Wallboard Anchor
BASE MATERIAL
Wallboard, Wood
SIZE RANGE
Use with No. 6 or No. 8 screw
ANCHOR MATERIAL
Zamac Alloy
The Zip-All anchor is a one piece self drilling anchor designed for use in
hollow gypsum wallboard, wood, block and concrete for light duty loads. It is
available in Zamac alloy for use with either a No. 6 or No. 8 screws in 3/8” to
1” wallboard.
ZIP-ALL
CAT. NO. WALL THICKNESS DESCRIPTION STD. BOX STD. CTN.
2296 3/8" to 1" Zinc - no screws 100 1000
2297 3/8" to 1" Zinc - with screws 100 1000
Sharkie
Plastic Wall Anchor
BASE MATERIAL
Concrete, Block, Brick & Wallboard
SIZE RANGE
Use with No. 4 x 1” to No. 14 x 1-9/16” screw
ANCHOR MATERIAL
Plastic
The Sharkie is a one-piece plastic anchor designed for light duty applications
in wallboard, concrete and masonry. The Sharkie works in hollow or solid base
materials and is suitable for screws with various thread sizes and styles. Screws
for the anchor may be installed with a screw gun. The Sharkie is available with
and without a flange at the top of the anchor to match the application.
SHARKIE DRYWALL ANCHOR
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
7580 Sharkie Anchor Flange #4-#10 100 1000
7582 Sharkie Anchor Flange #6-#12 100 1000
7584 Sharkie Anchor Flange #8-#14 100 500
Strap-Toggle
Hollow Wall Anchor
BASE MATERIAL
Hollow Wallboard or Hollow Block
SIZE RANGE
3/16” x 4” to 1/2” x 4”
ANCHOR MATERIAL
Plastic
The Strap-Toggle is a pre-assembled anchor consisting of a carbon steel wing
and a locking cap / ratchet leg assembly molded from engineered plastic. When
compared to traditional toggles, this unique anchor can be installed through a
smaller hole and does not require a fixture or screw to set in the base material.
STRAP-TOGGLE
CAT. NO. SIZE DRILL DIA. WALL THICKNESS STD. BOX STD. CTN.
4052 3/16" x 4" 1/2" 2-1/2" 50 300
4054 1/4" x 4" 1/2" 2-1/2" 50 300
4056 3/8" x 4" 3/4" 2-1/2" 25 150
4058 1/2" x 4" 3/4" 2-1/2" 25 150
39
LIGHt DUtY AnCHoRs
ZIP-IT • ZINC ZIP-TOGGLE • POLy-TOGGLE
Zip-It® and Zip-It® Jr.
Wallboard Anchor
BASE MATERIAL
Wallboard
SIZE RANGE
Use with No. 6 or No. 8 screw
ANCHOR MATERIAL
Engineered Nylon or Zamac Alloy
The Zip-It anchor is a one piece self drilling anchor designed for use in hollow
gypsum wallboard for light duty loads. It is available in both engineered nylon
and Zamac alloy for use with either a No. 6 or No. 8 screws in 3/8” to 1” wall-
board. The Zip-It Jr. is formed from engineered nylon for use with No. 6 screws
in 3/8” to 5/8” wallboard.
NYLON ZIP-IT
CAT. NO. WALL THICKNESS DESCRIPTION STD. BOX STD. CTN.
2345 3/8" to 1" Std. box, no screws 100 1000
2348 3/8" to 1" Std. box, No.8 x 1" screws 100 1000
2355 3/8" to 1" Master ctn., no screws - 5000
ZINC ZIP-IT
CAT. NO. WALL THICKNESS DESCRIPTION STD. BOX STD. CTN.
2346Z 3/8" to 1" Std. box, no screws 100 1000
2349Z 3/8" to 1" Std. box, No.8 x 1" screws 100 1000
2356Z 3/8" to 1" Master ctn., no screws - 1000
ZIP-IT KITS
CAT. NO. MATERIAL DESCRIPTION STD. BOX STD. CTN.
2368 Nylon 50 anchors & No. 8 x 1" screws 1 10
2369 Zinc 50 anchors & No. 8 x 1" screws 1 10
NYLON ZIP-IT JR.
CAT. NO. WALL THICKNESS DESCRIPTION STD. BOX STD. CTN.
2350 3/8"-5/8" Std. box (no screws) 100 1000
2351 3/8"-5/8" Std. box & No. 6 x 1" screws 100 1000
ZINC ZIP-IT JR.
CAT. NO. WALL THICKNESS DESCRIPTION STD. BOX STD. CTN.
2362Z 3/8"-5/8" Std. box (no screws) 100 1000
2364Z 3/8"-5/8" Std. box & No. 6 x 1" screws 100 1000
2363Z 3/8"-5/8" Master ctn. (No screws) - 5000
ZIP-IT JR. KITS
CAT. NO. MATERIAL DESCRIPTION STD. BOX STD. CTN.
2367 Nylon 50 Anchors, No. 6 x 1" screws and
No. 2 Phillips Driver Bit
1 10
Zinc Zip-Toggle®
Hollow Wall Anchor
BASE MATERIAL
Wallboard
SIZE RANGE
Use with No. 6 x 2” screw
ANCHOR MATERIAL
Zamac Alloy
The Zip-Toggle is a hollow gypsum wallboard anchor designed to provide
superior performance without the need to pre-drill larger diameter holes. The
Zip-Toggle is packaged with its own No. 6 x 2” lubricated screw for 3/8” to 5/8”
wallboard.
CAT. NO. SIZE SCREWS STD. BOX STD. CTN.
2295 Metal Zip-Toggle with screws No. 6 x 2" 50 250
Poly-Toggle®
Plastic Hollow Wall Anchor
BASE MATERIAL
Wallboard or solid masonry
SIZE RANGE
1/8” to 5/8” wall thickness
ANCHOR MATERIAL
Plastic
The Poly-Toggle is a screw actuated hollow wall anchor for use in paneling,
wallboard and solid masonry available in 4 sizes to match the most common wall
thicknesses. In solid base materials, the anchor can be used by removing the outer
wings. The performance of this product depends on the integrity of the base mate-
rial in which it is installed.
CAT. NO. SIZE WALL THICKNESS DRILL DIA. STD. BOX STD. CTN.
2302 Mini 1/8" 5/16" 100 1000
2303 Short 3/8" 5/16" 100 1000
2304 Medium 1/2" 5/16" 100 1000
2305 Long 5/8" 5/16" 100 1000
Pop-Toggle
Hollow Wall Anchor
BASE MATERIAL
Gypsum Wallboard, Plaster, Plywood & some Hollow Masonry
SIZE RANGE
Wall thickness from 1/8” to 5/8”, No. 6 to No. 10 wood or sheet metal screws
ANCHOR MATERIAL
Plastic
Pop-Toggle fasteners are hollow wall anchors ideal for static applications
requiring light duty performance. Installation is easy, needing a pre-drilled
5/16” diameter hole. The fastener pre-installs without a screw, allowing for easy
placement and removal of the fixture.
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
4060 Pop-Toggle Small 100 1000
4062 Pop-Toggle Medium 100 1000
4064 Pop-Toggle Large 100 1000
40
LIGHT DUTY ANCHORS

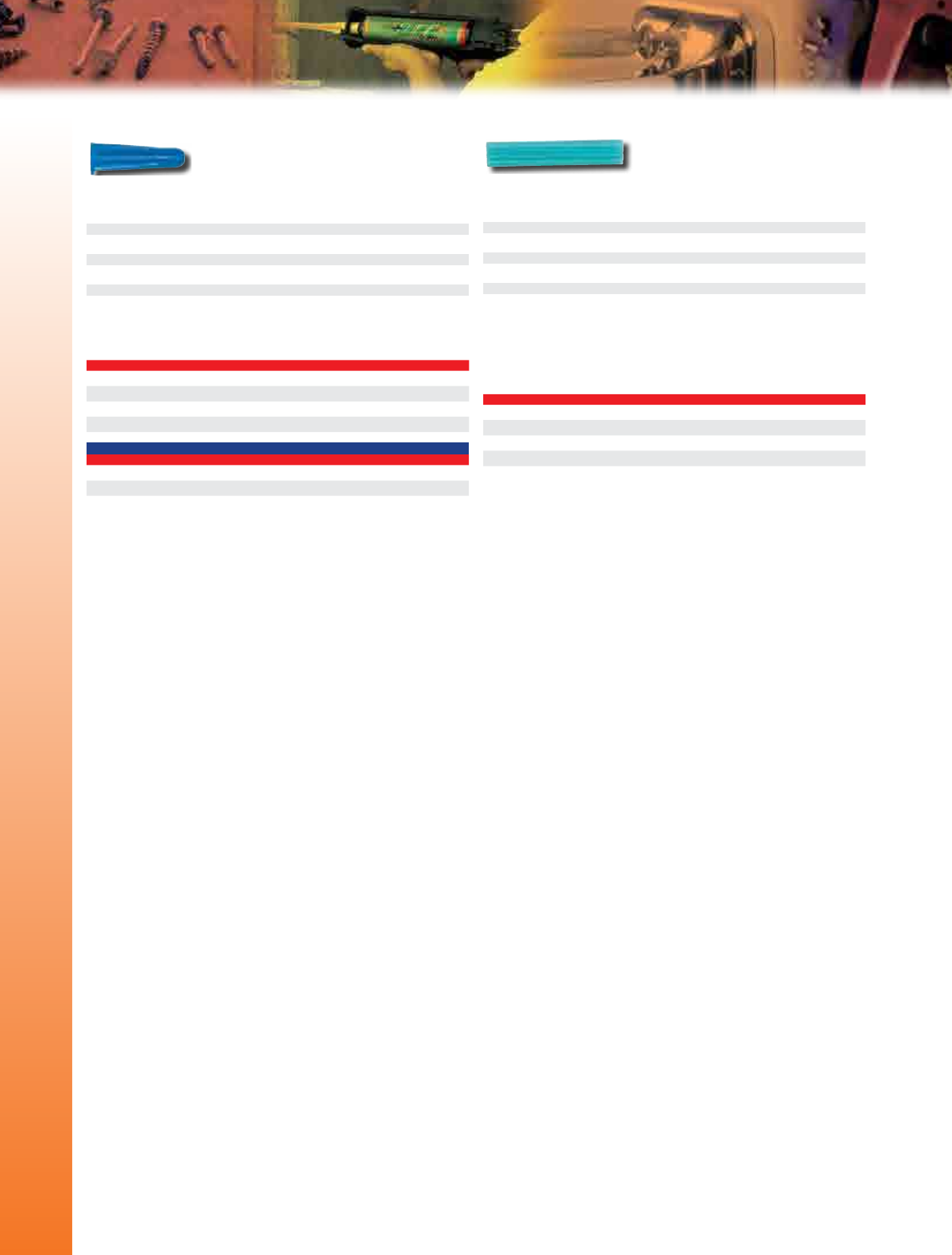

Bantam Plug
Plastic Wall Anchor
BASE MATERIAL
Concrete, Block, Brick, Wallboard
SIZE RANGE
No. 6-8 x 3/4” to No. 14-16 x 1-1/2”
ANCHOR MATERIAL
Plastic
The Bantam Plug anchor is a plastic anchor designed for use with lightweight
fixtures with a sheet metal or wood screw.
CAT. NO. SIZE DRILL DIA. MIN. DEPTH STD. BOX STD. CTN. MSTR. CTN.
7559 6-8 x 3/4" 3/16" 3/4" 100 1000 150,000
7569 8-10 x 7/8" 3/16" 7/8" 100 1000 150,000
7579 10-12 x 1" 1/4" 1" 100 1000 80,000
7589 14-16 x 1-1/2" 5/16" 1-1/2" 50 500 40,000
KITS - SLOTTED/PHILLIPS PAN HEAD SHEET METAL SCREWS
CAT. NO. KIT NO. ANCHOR SIZE SCREW SIZE MIN. DEPTH ANCHOR & SCREWS STD CTN.
8934 B-8 8-10 No. 8 x 1" 7/8" 100 10
8936 B-10 10-12 No. 10 x 1" 1" 100 10
8938 B-12 10-12 No. 12 x 1" 1" 100 10
100 Anchors and screws plus one drill bit per kit
Fluted Plastic Anchor
Plastic Wall Anchor
BASE MATERIAL
Concrete, Block, Brick, Stone
SIZE RANGE
No. 4-6 x 1” to No. 14 x 1-1/2”
ANCHOR MATERIAL
Plastic
The Fluted Plastic Anchor is designed for light duty fastening applications with
sheet metal or wood screws. Longitudinal ribs on the anchor body prevent it
from turning during tightening of the screw. This standard plastic screw anchor
comes color-coded by diameter for easy application.
CAT. NO. SIZE COLOR DRILL DIA. MIN. DEPTH STD. BOX STD. CTN.
7500 4-6 x 1" White 3/16" 1" 100 1000
7510 10-12 x 1" Green 1/4" 1" 100 1000
7515 10-12 x 1-1/4" Green 1/4" 1-1/4" 100 1000
7520 10-12 x 1-1/2" Green 1/4" 1-1/2" 100 1000
7530 14 x 1-1/2" Blue 5/16" 1-1/2" 100 1000
BANTAM PLUG • FLUTED PLASTIC ANCHOR
41
PoWDeR ACtUAteD
• Suitable May be Suitable
Dimensions Base Powers Tools Other Tools
Page
Shank Length
Shank Diameter
Concrete
Lightweight Concrete
Grout-filled Concrete Masonry
Steel
P1000
T1000
P2201
P35s
P7201
P3500/PA3500
P3801
P3600
PA351
P60
Sniper
721
M70
D45
D60 / D60L
D45 / D60 / D60L
MD380
SA270
Cobra
Viper
DX E37
DXE72
DX400
DXE72 / DX400
DX600N
DX35
DX350 / DX351/ DX36M
DX451
DXA40
DXA41
DX100 / DX200
DX460
Code
Recognition
0.300" Head Drive Pins
.300 Head Pin 43
1/2" to
1-1/2" 0.145"
••••• •••• •••• • ••• • •• • •
Code Listed
ICC-ES ESR-2024
LARR-25304
.300 Head Pin 43
1-3/4" to
3" 0.145"
• • • • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
.300 Head Pin w Top Hat 43
1/2" to
1" 0.145"
•• •• •••• •••• • ••• • •••• •
Code Listed
ICC-ES ESR-2024
LARR-25304
.300 Head Pin w Washer 43
3/4" to
1-1/2" 0.145"
••••• •••• •••• • •••• • •••• •
Code Listed
ICC-ES ESR-2024
LARR-25304
.300 Head Pin w Washer 43
2" to
3" 0.145"
• • • • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
.300 Head Step Shank 43
3/4" to
1"
0.145"/
0.130"
• • • • • • • • • • • • • •
8mm Head Drive Pins
8mm Head Pin 44
5/8" to
1-1/2" 0.145"
• • • • • • • • • • • • • • • • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
8mm Head Pin 44
1-5/8" to
2-7/8"
0.145"
• • • • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
8mm Head Pin w Top Hat 44
5/8" to
1" 0.145"
•• •• •••• •••• • ••• • •••• •
Code Listed
ICC-ES ESR-2024
LARR-25304
8mm Head 0.157 CSI Pins 44
1/2" to
2-7/8" 0.157"
• • • • • • • • • • •
Code Listed
ICC-ES ESR-1995
LARR-25931
8mm Head .0157
CSI Pin w Washer 44
3/4" to
2-7/8" 0.157"
• • • • • • • • • • •
Code Listed
ICC-ES ESR-1995
LARR-25931
8mm Head Pin w Washer 44
1" to 1-
1/2" 0.145"
• • • • • • • • • • • • • • • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
8mm Head Pin w Washer 44
2" to
2-7/8" 0.145"
• • • • • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
Threaded Studs
1/4"-20 Threaded Stud 45
1/2" to
1-1/4" 0.145"
•• •• •••• •••• ••• • •••• •
Code Listed
ICC-ES ESR-2024
LARR-25304
3/8"-16 Threaded Stud 45
3/4" to
1-1/4" 0.205"
• • • • • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
Heavy Duty Pins
3/8" Head Drive Pin 45
1" to
3-1/8"
.172"
.216/.188
• • • •
Code Listed
ICC-ES ESR-2024
LARR-25304
10mm Head Drive Pin 45
3/4" to
3-1/4" 0.177"
• • • • • • • Code Listed
ICC-ES ESR-1995
LARR-25931
Ballistic Point Pins
Ballistic Point Pin 45
1/2" to
7/8" 0.150"
•• •• •••• • ••• •• •• ••••••• Code Listed
ICC-ES ESR-2024
Ballistic Point Step Shank 45
1-1/4" 0.181"/
0.150"
•• •• •••• ••••• •••••• ••••••
Ballistic Point Step Shank 45
1-7/8" 0.181"/
0.150
• • • • • • • • • • • • •
Specialty Fasteners
Forming Pin 45
1-3/4" to
2-1/2"
0.145"
• • • • • • • • • •
Hammer Drive Pin 45
3/4" to
3"
0.140"
• •
Clips & Assemblies
Ceiling Clip Assemblies
(.300, 8mm & Ballistic Pt.) 46
1" to
1-1/4" 0.145"
•• •••• ••••• •••••• •• •••
Code Listed
ICC-ES ESR-2024
LARR-25304
Ceiling Clip Assemblies
Ladd Tool (L1600) 46
1-1/2" 0.155"
• •
Code Listed
ICC-ES ESR-2024
LARR-25304
BX-EMT Conduit Clip
Assemblies (.300" & 8mm) 46
1" to
1-1/4" 0.145"
• • • • • • • • • • • • • • • • • • • • • •
Rebar Basket Clip
Assemblies (8mm) 46
1-1/4" to
2-7/8" 0.157"
• • • • • • • • • • •
SELECTION GUIDE
42
POWDER ACTUATED
Load Power Powers Tools Other Tools
Page
Gray–Power Level 1
Brown–Power Level 2
Green–Power Level 3
Yellow–Power Level 4
Red–Power Level 5
Purple/Black Power Level 6
P1000
T1000
P2201
P35s
P7201
P3500/PA3500
P3801
P3600
PA351
P60
Sniper
721
M70
LADD (L1600)
D45
D60 / D60L
MD380
SA270
Cobra
Viper
DX E37
DXE72
DX400
DX600N
DX35
DX350 / DX351/ DX36M
DX450
DX451
DXA40
DXA41
DX100 / DX200
DX460
Powder Actuated Loads
.22 Caliber "A"
Single Load 53 • • • • • • • •
.22 Caliber Single Load
Ladd Tool (L1600) 53 • •
.25 Caliber Disk Load 53 •••• • ••
.25 Caliber
Disk Load Red 53 • •
.25 Caliber Single Load 53 •••• •
.27 Caliber Single Load 53 • •
.27 Caliber Single Load
Long Loads 53 • •
.25 Caliber
10 Load Strip 53 • • •
.25 Caliber 10 Load Strip
Purple / Black 53 • •
.27 Caliber Safety Strip 53 • • • • • • • • •
• Suitable
May be Suitable
SELECTION GUIDE
43
PoWDeR ACtUAteD
.300 HEAD PINS
.300 Head Drive Pins
Standard Pins
Drive pins with a 0.300” diameter head are designed for permanently fastening
a fixture to concrete, some types of masonry and A36 structural steel. Drive pins
are manufactured with a 0.145” diameter shank in various lengths. Knurled
shank designs are available to increase performance in steel base materials.
A plastic flute is mounted over the point to retain the drive pin in the fastener
guide of the tool providing guidance during the driving operation.
.300 HEAD DRIVE PINS
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50012 1/2" (knurled) .300 .145 100 5000
50016 5/8" (knurled) .300 .145 100 5000
50022 3/4" .300 .145 100 5000
50023 3/4” Black .300 .145 100 5000
50026 1" .300 .145 100 5000
50032 1-1/4" .300 .145 100 1000
50034 1-1/2" .300 .145 100 1000
50038 2" .300 .145 100 1000
50040 2-1/4" .300 .145 100 1000
50042* 2-3/8" .300 .145 100 1000
50044 2-1/2" .300 .145 100 1000
50046 2-3/4" .300 .145 100 1000
50048 3" .300 .145 100 1000
MASTER PACK
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50980 1/2" knurled .300 .145 1000 5000
51041 3/4" black pins .300 .145 1000 5000
53300 5/8" knurled .300 .145 1000 5000
53400* 5/8" knr. top hat .300 .145 1000 5000
51040 3/4" .300 .145 1000 5000
51100 1" .300 .145 1000 5000
51160 1-1/4" .300 .145 1000 5000
51340 1/2"knr. top hat .300 .145 1000 5000
51400 3/4" top hat .300 .145 1000 5000
51520 1" top hat .300 .145 1000 5000
* Discontinued item once current stock exhausted.
.300 HEAD STEP SHANK PINS
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50158* 3/4" step shank .300 .145/.130 100 5000
50159* 1" step shank .300 .145/.130 100 5000
* Discontinued item once current stock exhausted.
The pins listed below are used primarily for applications fastening drywall track
to concrete or steel. They are assembled with a metal top hat to provide extra
bearing surface against the drywall track.
.300 HEAD DRIVE PINS WITH TOP HAT
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50136 1/2" knurled .300 .145 100 5000
50138 5/8" knurled .300 .145 100 5000
50140 3/4" .300 .145 100 5000
50144 1" .300 .145 100 5000
Washered Pins
To provide resistance to pullover, these pins are available with pre-assembled
14 gage (0.075”) metal washers in various diameters. The insulation washer
has a thickness of 0.035”.
.300 HEAD DRIVE PINS WITH 3/4” WASHER
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50070 3/4" .300 .145 100 1000
50080 2-1/2" .300 .145 100 1000
.300 HEAD DRIVE PINS WITH 7/8” WASHER
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50090 1" .300 .145 100 1000
50092 1-1/4" .300 .145 100 1000
50094 1-1/2" .300 .145 100 1000
50096 2" .300 .145 100 1000
50098 2-1/2" .300 .145 100 1000
50100 3" .300 .145 100 1000
.300 HEAD DRIVE PINS WITH 1” WASHER
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50108 1-1/4" .300 .145 100 1000
50110 1-1/2" .300 .145 100 1000
50112 2" .300 .145 100 1000
50114 2-1/2" .300 .145 100 1000
50116 3" .300 .145 100 1000
.300 HEAD DRIVE PINS WITH 1-7/16” INSULATION WASHER
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50122 1-1/2" .300 .145 100 1000
50126 2-1/2" .300 .145 50 500
Powers ACQ Powder Actuated Fasteners are designed for
fastening through pressure treated lumber into concrete and
grout filled masonry. The fasteners are available with either a
round or square washer for increased pullover resistance.
.300 HEAD DRIVE PINS (MECHANICALLY GALVANIZED)
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50034MG 1-1/2" .300 .145 1000 5000
50038MG 2" .300 .145 1000 5000
50045MG 2-1/2" .300 .145 1000 5000
50047MG 3" .300 .145 1000 5000
.300 HEAD DRIVE PINS W/1” WASHER (MECHANICALLY GALVANIZED)
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50110MG 1-1/2" .300 .145 1000 5000
50112MG 2" .300 .145 1000 5000
50113MG 2-1/2" .300 .145 1000 5000
50115MG 3" .300 .145 1000 5000
44
POWDER ACTUATED
8mm Head Drive Pins
X-DN Type Pins 8mm Head Drive Pins
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50180 16mm knrld -5/8" 8mm .145 100 5000
50182 19mm knrld -3/4" 8mm .145 100 5000
50184 22mm -7/8" 8mm .145 100 5000
50186 27mm -1" 8mm .145 100 5000
50188 32mm -1-1/4" 8mm .145 100 1000
50190 37mm -1-1/2" 8mm .145 100 1000
50192 42mm -1-5/8" 8mm .145 100 1000
50194 47mm -1-7/8" 8mm .145 100 1000
50196 52mm -2" 8mm .145 100 1000
50198 57mm -2-1/4" 8mm .145 100 1000
50200 62mm -2-1/2" 8mm .145 100 1000
50202 72mm -2-7/8" 8mm .145 100 1000
8mm Diameter Head Drive Pins with Top Hat
The pins listed below are used primarily for applications fastening drywall track
to concrete or steel. They are assembled with a metal top hat to provide extra
bearing surface against the drywall track.
8MM DIAMETER HEAD DRIVE PINS WITH TOP HAT
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50210 16mm knrld -5/8" 8mm .145 100 5000
50214 22mm -7/8" 8mm .145 100 5000
50216 27mm - 1" 8mm .145 100 5000
MASTER CARTON
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
51700 16mm knr. T Hat 8mm .145 1000 5000
51750 22mm Top Hat 8mm .145 1000 5000
Washered Pins
To provide resistance to pullover, these pins are available with preassembled
14 gage (0.075”) metal washers in various diameters.
8MM DIAMETER HEAD DRIVE PINS WITH 1” WASHER
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50220 27mm -1" 8mm .145 100 1000
50222 32mm -1-1/4 8mm .145 100 1000
50224 37mm -1-1/2" 8mm .145 100 1000
50226 52mm -2" 8mm .145 100 1000
50228 62mm -2-1/2" 8mm .145 100 1000
50230 72mm -2-7/8" 8mm .145 100 1000
`
New!
8mm Head
Spiral CSI Drive Pins Code listed
ICC-ES ESR-1995
Competes with XU Pins
For Concrete, Steel and I-Beams
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50197 1/2" (13mm) 8mm .157 100 1000
50201 5/8" (16mm) 8mm .157 100 1000
50203 3/4" (19mm) 8mm .157 100 5000
50204 7/8" (22mm) 8mm .157 100 5000
50205 1" (27mm) 8mm .157 100 5000
50207 1-1/2" (37mm) 8mm .157 100 5000
50208 1-1/4" (32mm) 8mm .157 100 1000
50209 2" (52mm) 8mm .157 100 1000
50241 2-1/2" (62mm) 8mm .157 100 1000
50211 2-7/8" (72mm) 8mm .157 100 1000
8mm Head Spiral CSI Drive Pins
With Washers
Competes with XU Pins
For Concrete, Steel and I-Beams
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. WASHER STD. BOX STD. CTN.
50245 3/4" (19mm) 8mm .157 3/4" 100 1,000
50247 1" (27mm) 8mm .157 3/4" 100 1,000
50249 1-1/4" (32mm) 8mm .157 3/4" 400 1,000
50261 1-1/4" (32mm) 8mm .157 1" 400 1,000
50263 2-1/2" (62mm) 8mm .157 1" 400 1,000
50265 2-7/8" (72mm) 8mm .157 1" 400 1,000
8mm Head Collated Spiral CSI Drive Pins
Competes with XU Pins
For Concrete, Steel and I-Beams
8MM SPIRAL CSI 10 FASTENER MAGAZINE FOR PA 351 AND DX460
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50450 5/8" (16mm) (K) 8mm .157 100 1,000
50452 3/4" (19mm) (K) 8mm .157 100 1,000
50454 7/8" (22mm) (K) 8mm .157 100 1,000
50456 1" (27mm) (K) 8mm .157 100 1,000
50458 1-1/4" (32mm) (K) 8mm .157 100 1,000
50460 1-1/2" (37mm) (K) 8mm .157 100 1,000
50461 1-5/8" (42mm) (K) 8mm .157 100 1,000
50462* 2" (52mm) (K) 8mm .157 100 1,000
50464* 2-7/8" (72mm) (K) 8mm .157 100 1,000
K=Knurled * DX460 Only
8mm Head Collated Drive Pins
8MM HEAD 10 FASTENER MAGAZINE FOR PA 351 AND DX460
CAT. NO. SHANK LENGTH (IN.) SHANK LENGTH (MM) HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50244N 3/4" 19 8mm .145 500 2500
50246N 7/8" 22 8mm .145 500 2500
50248N 1" 27 8mm .145 500 2500
8MM PINS
45
PoWDeR ACtUAteD
CAT. NO. SHANK LENGTH (IN.) SHANK LENGTH (MM) HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50250N 1-1/4" 32 8mm .145 500 2500
50252N 1-1/2" 37 8mm .145 500 2500
50254N 1-5/8" 42 8mm .145 500 2500
50256N 1-7/8" 47 8mm .145 500 2500
50258N 2" 52 8mm .145 500 2500
50260N 2 1/4" 57 8mm .145 500 2500
50262N 2 1/2" 62 8mm .145 500 2500
50264N 2 7/8" 67 8mm .145 500 2500
50240N 5/8" K 16 8mm .145 500 2500
50242N 3/4" K 19 8mm .145 500 2500
K=Knurled
10mm Head Drive Pins Code listed
ICC-ES ESR-1995
DS Type Pins
Drive pins with 10mm diameter head are designed for permanently fastening a
fixture to concrete, some types of masonry and A36 structural steel. Drive pins
are manufactured with a 0.177” diameter shank in various lengths. A plastic
washer is mounted over the point to retain the drive pin in the fastener guide of
the tool providing guidance during the driving operation.
10MM HEAD DRIVE PINS FOR P3600
CAT. NO. SHANK LENGTH HEAD DIA SHANK DIA STD. BOX STD. CTN.
50846 3/4" 19mm 10mm .177 100 1000
50848 7/8" 22mm 10mm .177 100 1000
50850 1" 27mm 10mm .177 100 1000
50852 1-1/4" 32mm 10mm .177 100 1000
50854 1-5/8" 42mm 10mm .177 100 1000
50856 2" 52mm 10mm .177 100 1000
50858 2-1/2" 62mm 10mm .177 100 1000
50860 2-7/8" 72mm 10mm .177 100 1000
50862 3-1/4" 82mm 10mm .177 100 1000
50864 3-34" 97mm 10mm .177 100 1000
50866 4-1/2" 117mm 10mm .177 100 1000
Ballistic Point Drive Pins
Premium drive pins with a 0.300” diameter head and specially designed point
to allow more consistent penetration into harder base materials. Manufactured
with a 0.150” diameter straight and step shank in various lengths. A plastic flute
is mounted over the point to retain the drive pin in the fastener guide of the tool
providing guidance during the driving operation.
BALLISTIC POINT DRIVE PINS (BLACK)
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50052 1/2" .300 .150 100 1000
50054 3/4" .300 .150 100 1000
BALLISTIC POINT STEP SHANK PINS
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50056 1-1/4" .300 .181/.150 100 5000
50057 1-7/8" .300 .181/.150 100 1000
Threaded Studs
Available in 1/4”-20 and 3/8”-16 thread diameters with a variety of thread and
shank lengths for concrete and A36 structural steel. Used for applications where
it may be desirable to remove the fixture, or where shimming may be required.
The shank diameter: 0.145” for the 1/4”-20; and 0.205” for the 3/8”-16.
Knurled shanks are available to increase performance in steel base materials. A
plastic flute is mounted over the point to retain the drive pin in the fastener guide
of the tool for guidance during the driving operation. On the 1/4”-20 threaded
studs, a plastic cap is also provided to protect the threads of the fastener during
the driving process.
1/4” -20 THREADED STUDS
CAT. NO. THREAD LENGTH SHANK LENGTH THREAD DIA. SHANK DIA. STD. BOX STD. CTN.
50322 3/4" 1/2" K 1/4" .145 100 1000
50326 3/4" 3/4" 1/4" .145 100 1000
50328 1/2" 1" 1/4" .145 100 1000
50330 3/4" 1" 1/4" .145 100 1000
50336 3/4" 1-1/4" 1/4" .145 100 1000
50338 1-1/4" 1-1/4" 1/4" .145 100 1000
K=Knurled
3/8” -16 THREADED STUDS
CAT. NO. THREAD LENGTH SHANK LENGTH THREAD DIA. SHANK DIA. STD. BOX STD. CTN.
50340 1-1/4" 3/4" K 3/8" .205 100 1000
50342 1-1/4" 1" 3/8" .205 100 1000
50344 1-1/4" 1-1/4" 3/8" .205 100 1000
K=Knurled
3/8” Head Drive Pins
Designed for permanently fastening a fixture to concrete, some types of masonry
and A36 structural steel. Manufactured with a 0.172” diameter shank in various
lengths. A plastic flute is mounted over the point to retain the drive pin in the
fastener guide of the tool providing guidance during the driving operation.
3/8” HEAD DRIVE PINS
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50174* 3" 3/8" .172 100 1000
50176* 3-1/8" (w/step shank) 3/8" .216/.188 100 1000
* Discontinued item once current stock exhausted.
Hammer Drive Pins
No Powder Loads Required
Hammer Drive pins are designed for permanently fastening a fixture to concrete
and some types of masonry. This fastener is designed for use in a standard
hand tool and should not be used in a powder actuated tool. The pins are
formed with a 1/4” diameter head on one end and a 0.140” diameter shank
in various lengths. A 3/8” diameter steel washer is mounted over the point to
retain the drive pin in the fastener guide of the tool providing guidance during
the driving operation.
1/4” HEAD HAMMER DRIVE PINS
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50294 3/4" 1/4" .140 100 5000
50296 1" 1/4" .140 100 5000
50298 1-1/4" 1/4" .140 100 1000
50306* 3" 1/4" .140 100 1000
* Discontinued item once current stock exhausted.
HAMMER DRIVE SETTING TOOL
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
50310 Hammer Drive Tool - Standard 1 1
10MM PINS • BALLISTIC POINT THREADED STUDS • 3/8 DRIVE PINS • HAMMER DRIVE PINS
46
POWDER ACTUATED

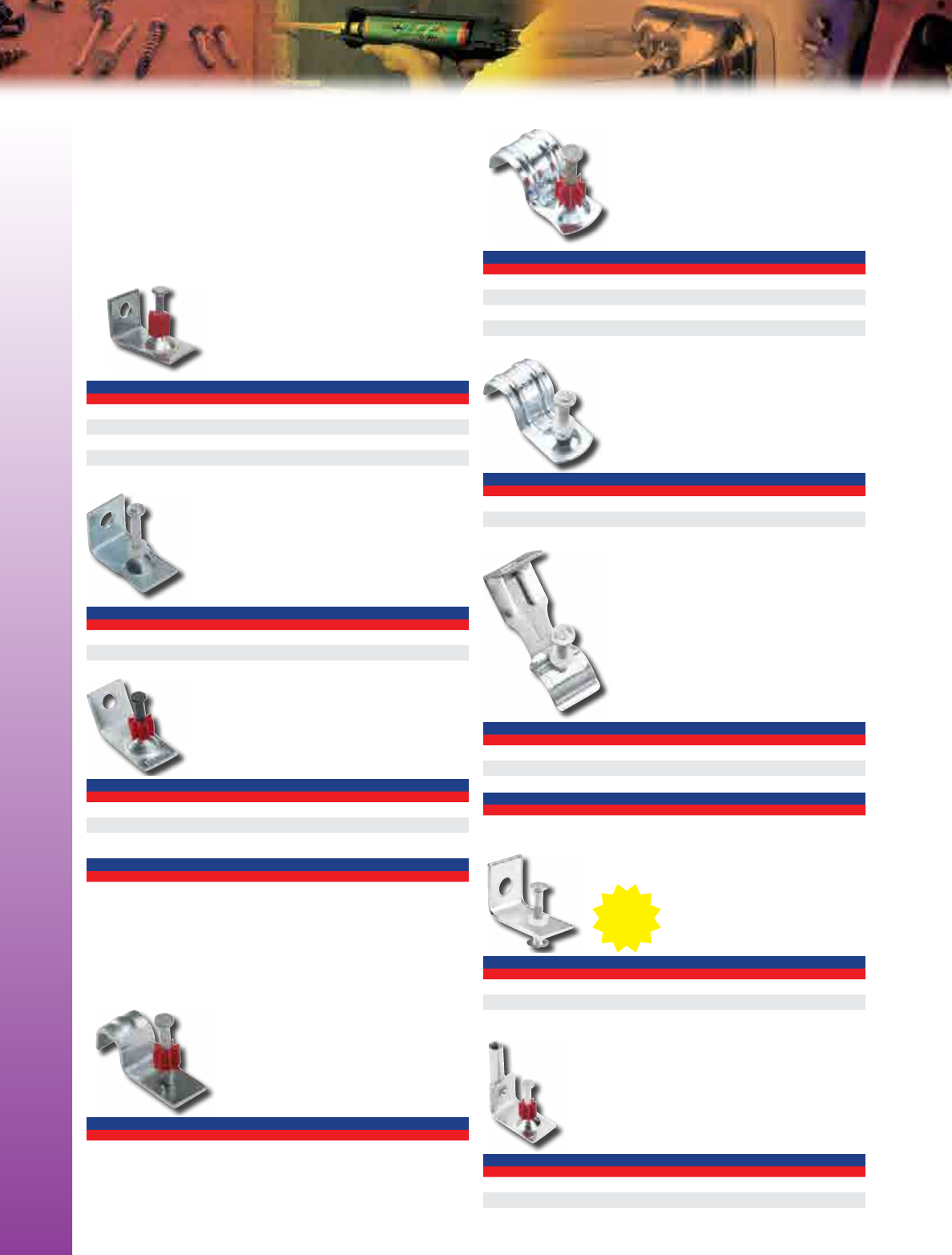

Assemblies & Accessories
Assemblies are combinations of drive pins and stamped steel clips designed
for specific applications. The pins are held within the clip using either a dome
mechanism or a metal top hat.
Ceiling Clip Assemblies
For applications suspending acoustical ceiling systems or light fixtures, several
styles of angled clips are pre-mounted onto pins.
.300 HEAD PINS WITH CEILING CLIPS
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. WIRE HOLE STD. BOX STD. CTN.
50363††* 1" .300 .145 0.278" 100 1000
50364 1" .300 .145 0.278" 100 1000
50368† 1-1/8" .300 .145 0.278" 100 1000
50370 1-1/4" .300 .145 0.278" 100 1000
† Economy Clip †† Ceiling clip without dome * Discontinued item once current stock exhausted.
8MM DRIVE HEAD PINS WITH CEILING CLIPS
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. WIRE HOLE STD. BOX STD. CTN.
50272 27mm w/CC 8mm .145 0.278" 100 1000
50274 32mm w/CC 8mm .145 0.278" 100 1000
50206 1-1/4" w/CC 8mm .177 0.278" 100 1000
BALLISTIC POINT DRIVE PIN WITH CEILING CLIP
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50058 1-1/4" with ceiling clip (45˚) .300 .181/.150 100 1000
50366 7/8" with ceiling clip (90˚) .300 .181/.150 100 1000
PRE-ASSEMBLED PIN AND CLIP FOR LADD TOOL (L1600)
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. WIRE HOLE STD. BOX STD. CTN.
50438 Pre-assembled pin clip .310 .155 0.278" 100 1000
BX & EMT Conduit Clip Assemblies
For the electrical trade, BX and EMT conduit clips are provided in various sizes
for attaching conduit to base materials.
.300 HEAD DRIVE PINS WITH BX CABLE CLIPS
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50150 1" (BX) w/TH .300 .145 100 1000
.300 HEAD DRIVE PINS WITH EMT CONDUIT CLIPS
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50382 1/2" EMT 1" pin .300 .145 100 1000
50384 3/4" EMT 1-1/4" .300 .145 100 1000
50385 3/4" EMT 1" pin TH .300 .145 100 1000
50386 3/4" EMT 1-1/8" pin .300 .145 100 1000
50388 1" EMT 1" pin TH .300 .145 25 250
8MM DIAMETER HEAD DRIVE PINS WITH EMT CONDUIT CLIPS
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50276 27mm TH w/ 1/2" EMT 8mm .145 100 1000
50278 27mm TH w/ 3/4" EMT 8mm .145 100 500
50280 27mm TH w/ 1" EMT 8mm .145 25 250
8MM HEAD DRIVE PINS WITH ROD HANGER CLIP
CAT. NO. DESCRIPTION SHANK DIA. STD. BOX STD. CTN.
50219 32mm (1-1/4") pin w/ 1/4"-20 rod hanger .145 100 1000
50221 32mm (1-1/4") pin w/ 3/8"-16 rod hanger .145 100 1000
8MM HEAD SPIRAL CSI DRIVE PIN WITH ROD HANGER CLIP
CAT. NO. DESCRIPTION SHANK DIA. STD. BOX STD. CTN.
50215 32mm (1-1/4") pin w/ 1/4"-20 rod hanger .157 100 1000
`
New!
8MM HEAD SPIRAL CSI DRIVE PIN WITH CEILING CLIP
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. WIRE HOLE STD. BOX STD. CTN.
50212 7/8" (22mm) CSI w/PW TH 90cc 8mm .157 0.313" 100 1000
50213 1" (27mm) CSI w/PW TH 90cc 8mm .157 0.313" 100 1000
50218 1-1/4" (32mm) CSI w/Pw TH 90cc 8mm .157 0.313" 100 1000
.300 HEAD DRIVE PIN WITH CEILING CLIP AND POST NUT
CAT. NO. DESCRIPTION SHANK DIA. STD. BOX STD. CTN.
50376 1-1/8" Pin w/domed right angle cc w/post nut .145 100 1000
50378 1-1/4" Pin w/domed right angle cc w/post nut .145 100 1000
ASSEMBLIES & ACCESSORIES
47
PoWDeR ACtUAteD
Rebar Basket Assemblies
Rebar basket clips are typically used in highway construction and paving
applications to hold the support baskets for the reinforcing bars in place while
the concrete is being poured. For #4 rebar.
8MM HEAD DRIVE PINS WITH REBAR BASKET CLIP
CAT. NO. DESCRIPTION HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50702 32mm w/ basket clip 8mm .145 100 500
50704 37mm w/ basket clip 8mm .145 100 500
50710* 47mm w/ basket clip 8mm .145 100 500
50712 52mm w/ basket clip 8mm .145 100 500
50716 62mm w/ basket clip 8mm .145 100 500
50718 72mm w/ basket clip 8mm .145 100 500
* Discontinued item once current stock exhausted.
For concrete forming applications, the 1-3/4” (44mm) pin is designed for
fastening wood members up to 3/4” in thickness while the 2-1/2” (62mm)
pin is designed for wood members up to 1-1/2” in thickness. The pin has a
break off groove 1” from the point to allow the wood forming members to
be easily removed.
FORMING PIN
CAT. NO. SHANK LENGTH HEAD DIA. SHANK DIA. STD. BOX STD. CTN.
50789* 44mm - 1-3/4" .181 .145 100 5000
50790 62mm - 2-1/2" .181 .145 100 1000
* Discontinued item once current stock exhausted.
Fastener Accessories
In addition to the assemblies, the following accessories are available for use with
drive pins or threaded studs as indicated below.
ACCESSORIES
CAT. NO. DESCRIPTION STD. BOX STD. CTN.
50400 Ceiling clip (no pin) 9/32"& 5/16" holes 100 1000
50439* LADD clip - no pin 100 1000
50365* Domed ceiling clip - no pin 100 1000
* Discontinued item once current stock exhausted.
P1000
SIZE RANGE
1/2” to 3” lengths, .22 caliber
Hammer actuated, powder actuated tool. Engineered for high reliability, low
maintenance and speed. This tool uses four levels of power; grey through yellow
loads (levels 1-4) and .300 , 8mm head fasteners with lengths of 1/2” through
3” and 1/4”-20 threaded studs.
TECHNICAL DATA
TOOL BODY PIN LENGTH
Precision Moulded Rubber 1/2” to 3” Total Length
TOOL LENGTH LOAD TYPE
13” .22 Caliber
TOOL WEIGHT POWER LEVEL
3 lbs. Gray (1), Brown (2), Green (3), Yellow (4)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin, 1/4”-20
Threaded Stud
TYPICAL APPLICATIONS
Remodeling Electrical Maintenance Telecommunications
P1000 SELECTION GUIDE
CAT NO. DESCRIPTION STD. CTN.
52013 P1000 Tool 1
T1000
SIZE RANGE
1/2” to 3” lengths, .22 caliber
Professional grade powder actuated tool engineered for high reliability, low
maintenance and speed. Its easy to use trigger mechanism makes fastening to
concrete, block and steel. The tool uses 22 caliber powder loads.
TECHNICAL DATA
TOOL BODY PIN LENGTH
Precision Moulded Rubber 1/2” to 3” Total Length
TOOL LENGTH LOAD TYPE
13” .22 Caliber
TOOL WEIGHT POWER LEVEL
3 lbs. Gray (1), Brown (2), Green (3), Yellow (4)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin, 1/4”-20
Threaded Stud
TYPICAL APPLICATIONS
Remodeling Electricians Maintenance Telecommunications
T1000 SELECTION GUIDE
CAT NO. DESCRIPTION STD. CTN.
52035 T1000 Tool 1
Tool Operation: Powder actuated tools may be used only by properly trained and licensed operators as described in
ANSI Standard A 10.3. For complete tool operation details, completely review the tool manual and contact your local
Powers branch office or distributor for training.
ASSEMBLIES • P1000 • T1000
48
POWDER ACTUATED

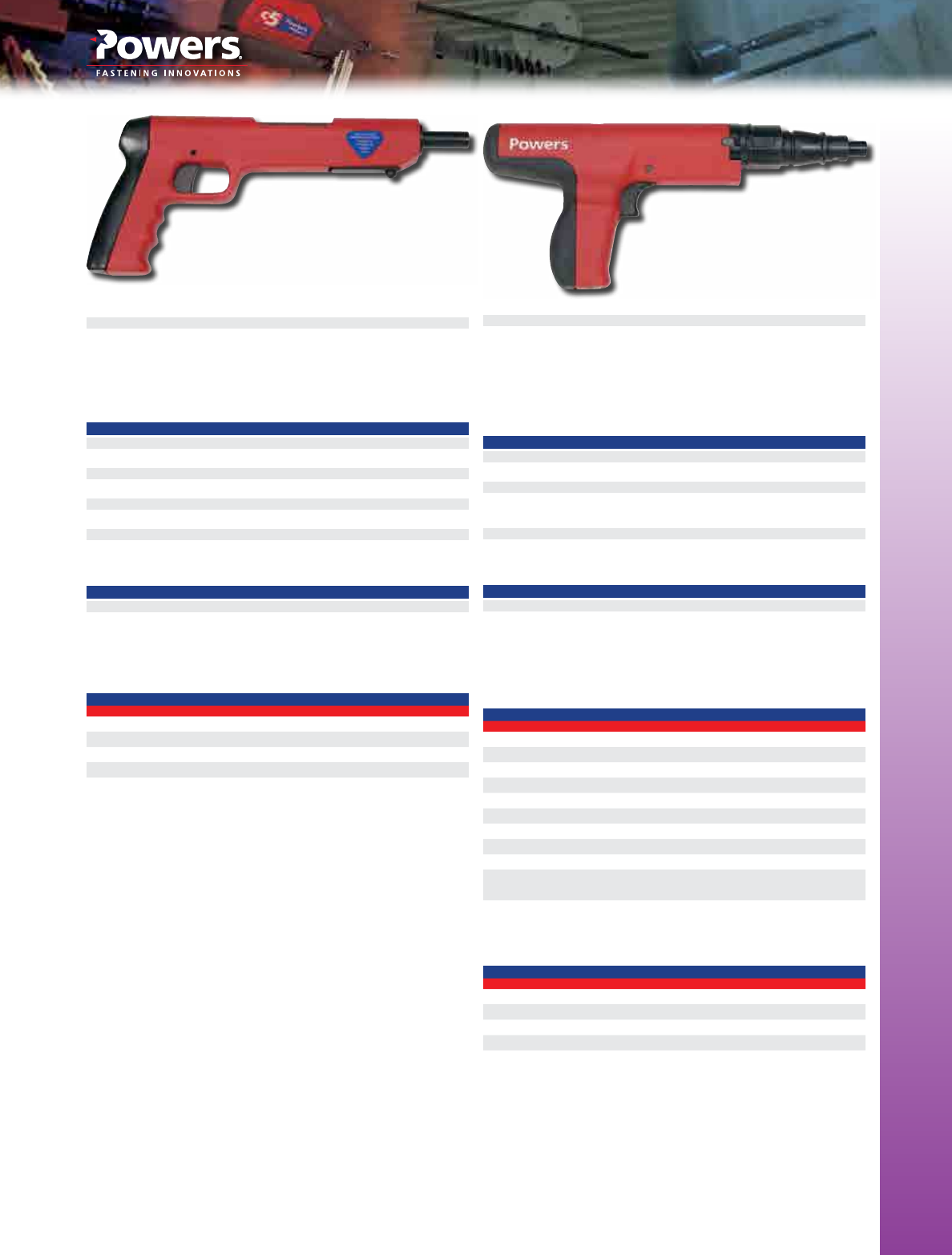

P2201
SIZE RANGE
1/2” to 3” pin lengths, .22 caliber
The P2201 is a low velocity, single shot, .22 caliber tool which can be used to
install .300 head drive pins, 8mm head drive pins and 1/4”-20 threaded studs,
up to 3” in total length. The P2201 is designed for maintenance or residential
contractors.
TECHNICAL DATA
TOOL BODY PIN LENGTH
Engineered Plastic 1/2” to 3” Total Length
TOOL LENGTH LOAD TYPE
12-1/2” .22 Caliber Crimped A” Load
TOOL WEIGHT POWER LEVEL
4.3 lbs. Gray (1), Brown (2), Green (3), Yellow (4)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin, 1/4”-20
Threaded Stud
TYPICAL APPLICATIONS
TRADE APPLICATION
Drywall Metal track
Forming Concrete forms
Residential Sill plate
Electrical Boxes, conduit clip assemblies
Mechanical Duct straps
P2201 SELECTION GUIDE
CAT . NO. DESCRIPTION STD. CTN.
52006 P2201 Tool 1
52007 P2201 (Blister Pack) 1
52522 Piston 1
52510 Nose Piece 1
52512 Piston Reset Pin 1
Tool Operation: Powder actuated tools may be used only by properly trained and licensed operators as described in
ANSI Standard A 10.3. For complete tool operation details, completely review the tool manual and contact your local
Powers branch office or distributor for training.
P35s
SIZE RANGE
1/2” to 1-1/2” pin lengths, .25 caliber
The P35s is specially designed for acoustical and drywall contractors. It is a low
velocity, semi-automatic, tool which can be used to install .300 head drive pins,
8mm head drive pins and 1/4”-20 threaded studs up to 1-1/2” in total length.
The P35s is designed for high speed and repetitive volume applications. The
standard version of the tool is supplied with a flat end piston and a full size
baseplate/guide. A limited access baseplate/guide assembly is also available.
TECHNICAL DATA
TOOL BODY PIN LENGTH
Precision Cast Aluminum 1/2” to 1-1/2” Total Length
TOOL LENGTH LOAD TYPE
11-1/4” .25 Caliber in a 10 Load Strip
TOOL WEIGHT POWER LEVEL
4.25 lbs. Green (3), Yellow (4), Red (5)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin, 1/4”-20
Threaded Stud
TYPICAL APPLICATIONS
TRADE APPLICATION
Acoustical Ceiling clip assemblies
Drywall Metal track, door frames
Electrical Boxes, conduit clip assemblies
Mechanical Duct straps
SELECTION GUIDE
CAT. NO. DESCRIPTION STD. CTN.
52002 P35s Tool (Deluxe Kit) 1
52023 P35s Tool (Blister Pack) 1
52200 Piston Standard 21/SDF 1
52204 Guide 21/F3-1 1
52206 Baseplate 21/S1 1
POLE TOOLS FOR OVERHEAD ATTACHMENTS
CAT. NO. DESCRIPTION STD. CTN.
50065 6’ Di-Electric Pole Tool 1
50066 8’ Di-Electric Pole Tool 1
52041 6’ Smacker Pole Tool 1
52045 3’ Smacker Pole Extension 1
Tool Operation: Powder actuated tools may be used only by properly trained and licensed operators as described in
ANSI Standard A 10.3. For complete tool operation details, completely review the tool manual and contact your local
Powers branch office or distributor for training.
P2201 • P35S
49
PoWDeR ACtUAteD

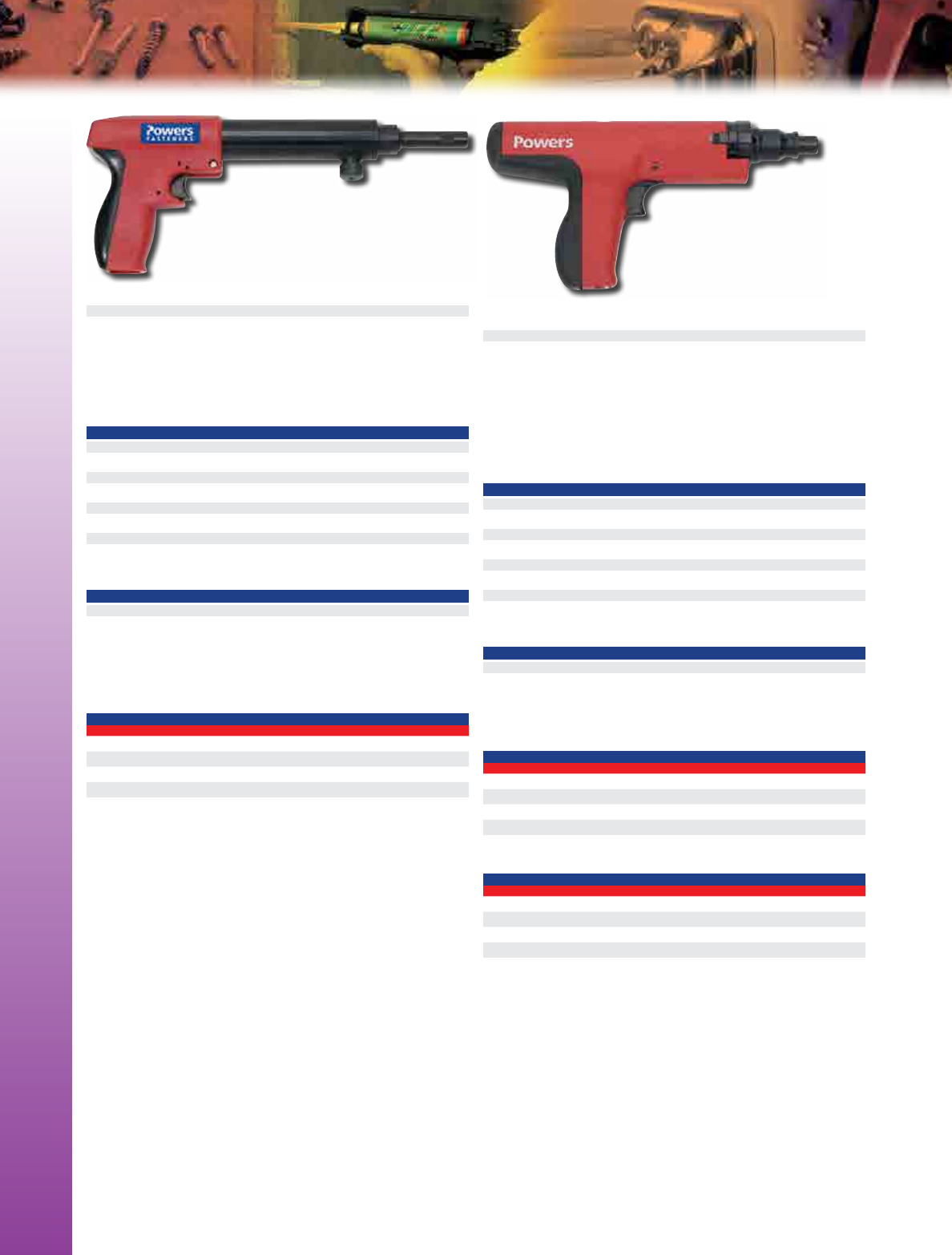

P7201
SIZE RANGE
1/2” to 1-1/2” pin lengths, .22 caliber
The P7201 is a low velocity, single shot .22 caliber tool which can be used to
install .300” head drive pins, 8mm head drive pins and 1/4”-20 threaded studs
up to 1-1/2” in total length. The P7201 is commonly used in the drywall trade.
TECHNICAL DATA
TOOL BODY PIN LENGTH
Precision Cast Aluminum 1/2” to 1-1/2” Total Length
TOOL LENGTH LOAD TYPE
13-1/2” .22 Caliber Crimped “A Load
TOOL WEIGHT POWER LEVEL
4.3 lbs. Gray (1), Brown (2), Green (3), Yellow (4)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin, 1/4”-20
Threaded Stud
TYPICAL APPLICATIONS
TRADE APPLICATION
Acoustical Ceiling clip assemblies
Drywall Metal track
Electrical Boxes, conduit clip assemblies
Mechanical Duct straps
P7201 SELECTION GUIDE
CAT .NO. DESCRIPTION STD. CTN.
52004 P7201 Tool (Deluxe Kit) 1
52005 P7201 Tool (Blister pack) 1
52300 Piston 1
52306 Barrel Extension 5/16" 1
52308 Barrel Stop Pin 1
Tool Operation: Powder actuated tools may be used only by properly trained and licensed operators as described in
ANSI Standard A 10.3. For complete tool operation details, completely review the tool manual and contact your local
Powers branch office or distributor for training.
P3500
SIZE RANGE
1/2” to 3” pin lengths, .27 caliber strip
The P3500 is a low velocity, semi-automatic .27 caliber tool which can be
used to install .300 head drive pins, 8mm head drive pins and 1/4”-20 threaded
studs, up to 3” in total length. The P3500 is designed for high speed and
repetitive volume applications.
TECHNICAL DATA
TOOL BODY PIN LENGTH TOOL LENGTH
Precision Cast Aluminum 1/2” - 3” Total Length 13-5/8”
LOAD TYPE TOOL WEIGHT POWER LEVEL
27 Caliber /10 Load Strip 5 lbs. Brown (2), Green (3),
Yellow (4), Red (5)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin,
1/4”-20 Threaded Stud
TYPICAL APPLICATIONS
TRADE APPLICATION TRADE APPLICATION
Acoustical Ceiling clip assemblies Electrical Boxes, conduit clips
assemblies
Drywall Metal track, door frames Mechanical Duct straps
Forming Concrete forms, basket clips, Residential Sill plates
forming pins
P3500 SELECTION GUIDE
CAT .NO. DESCRIPTION STD. CTN.
52000 P3500 Powder Tool (Deluxe Kit) 1
52001 P3500 Powder Tool (Blister Pack) 1
52102 Piston Flat End w/ Ring 1
52108 Guide 2/F-3 1
52110 Base Plate 2/S-13 1
52120 Shear Clip 1
52112 Piston Stop 1
52122 Steel Annular Ball 1
52106 Piston Ring 1
PISTON FOR INSTALLING 8MM HEAD DRIVE PINS
52100 Piston 2/DN-1 (for 8mm Head Drive Pins) 1
FOR APPLICATIONS IN TIGHT AREAS, A LIMITED ACCESS BASE PLATE/GUIDE IS AVAILABLE.
52114 Guide 2/F-4 Limited Access 1
52116 Baseplate 2/F-14-1 Limited Access 1
POLE TOOLS FOR OVERHEAD ATTACHMENTS
CAT. NO. DESCRIPTION STD. CTN.
50065 6’ Di-Electric Pole Tool 1
50066 8’ Di-Electric Pole Tool 1
52041 6’ Smacker Pole Tool 1
52045 3’ Smacker Pole Extension 1
Tool Operation: Powder actuated tools may be used only by properly trained and licensed operators as described in
ANSI Standard A 10.3. For complete tool operation details, completely review the tool manual and contact your local
Powers branch office or distributor for training.
P2701 • P3500
50
POWDER ACTUATED

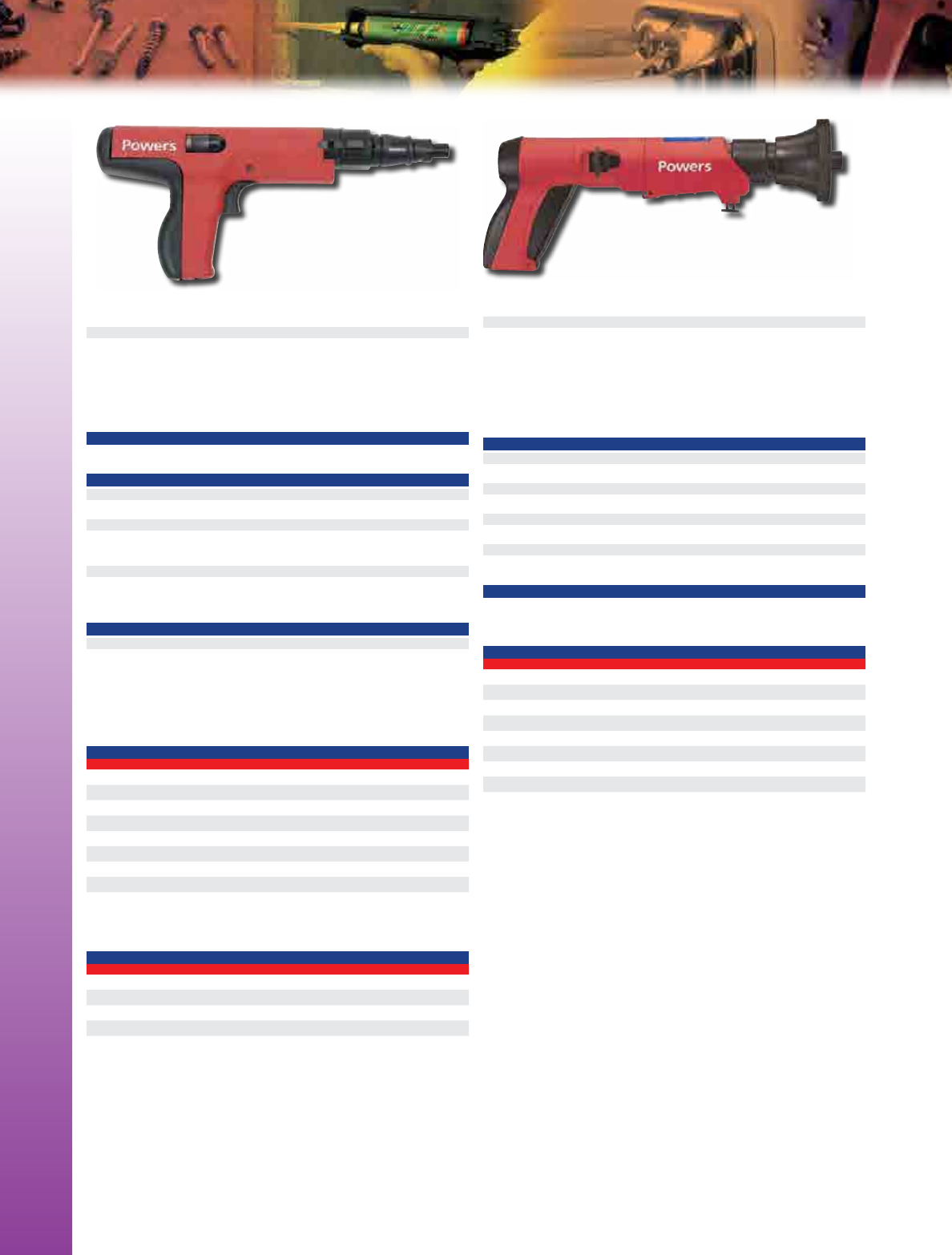

PA3500
SIZE RANGE
1/2” to 3” pin lengths, .27 caliber strip
The PA3500 is a modified version of the P3500 that includes a power adjuster,
allowing the operator to effectively decrease the power level of the load being
used. A red load can be reduced down to the level of a green load.
POWER ADJUSTER SETTINGS
1 -Minimum Power 3-Medium Power 6-Maximum Power
TECHNICAL DATA
TOOL BODY PIN LENGTH TOOL LENGTH
Precision Cast Aluminum 1/2” - 3” Total Length 13-5/8”
LOAD TYPE TOOL WEIGHT POWER LEVEL
.27 Caliber /10 Load Strip 5 lbs. Brown (2), Green (3),
Yellow (4), Red (5)
PIN TYPE
Ballistic Point Drive Pin, .300 Head Drive Pin, 8mm Head Drive Pin,
1/4”-20 Threaded Stud
TYPICAL APPLICATIONS
TRADE APPLICATION TRADE APPLICATION
Acoustical Ceiling clip assemblies Electrical Boxes, conduit clip
assemblies
Drywall Metal track, door frames Mechanical Duct straps
Forming Concrete forms, basket clips, Residential Sill plates
forming pins
PA3500 SELECTION GUIDE
CAT. NO. DESCRIPTION STD. CTN.
52019 PA3500 Powder Tool (Deluxe Kit) 1
52025 PA3500 Powder Tool (Blister Pack) 1
52103 PA Piston Flat End with Ring 1
52108 Guide 2/F-3 1
52110 Base Plate 2/S-13 1
52112 Piston Stop 1
52120 Shear Clip 1
52122 Steel Annular Ball 1
FOR APPLICATIONS IN TIGHT AREAS, A
