VerifEye™

Submetering Solutions

Reward of Information (ROI)

VerifEye™ Smart Submetering Solutions

2

SMARTer Metering. SMARTer Control. REAL Savings.

The Benefits of Submetering

Leviton redefines ROI as Reward of Information with VerifEye™ Submetering Solutions. VerifEye delivers a

comprehensive line of leading-edge submeters, communication products, and software solutions as the

key building blocks to help you better manage costs and conserve energy.

Develop your strategic energy management plan using revenue grade real-time energy usage information

to measure, monitor, and manage operations to improve your bottom line. From tenant billing to energy

measurement & verification (M&V) software solutions, VerifEye offers cost effective scalability and inte-

gration to provide you with the solution you need today and in the future.

For additional energy savings, combine VerifEye with Leviton lighting controls for a complete energy

management solution from a single source.

VerifEye delivers accurate information for:

• Tenant billing/cost allocation

• Load profiling & benchmarking

• Measurement & verification (M&V)

• Energy conservation programs

• LEED projects

• Government mandates

• AMR/BMS/EMS integration

3

www.leviton.com/verifEye

Excellence Comes Standard

• Open architecture design provides easy integration with third party building management system

(BMS) platforms

• UL 916 Listed for Energy Monitoring Equipment

• Installer friendly, reverse phase LED and power and load indicators provide installation diagnostics by

visually confirming that the product is properly installed and functioning

• Leviton Series 1000, 2000, 3300, and 3500 meters are available in an indoor steel or outdoor NEMA 4X

enclosure at the same low price

• Leviton Series 4000 Industrial ModBus Meter is available in as an indoor DIN Rail Mount or outdoor

NEMA 4x enclosure

• Offering includes wide range of meters to meet the needs of any application and automated data

collection solutions and energy reporting and analysis software to easily and intelligently manage

energy consumption

• Confidently backed by a best in the industry 10 year warranty

Leviton Metering Philosophy

Consultative Approach - Each project is tailored to each customer’s needs - from a basic meter hardware

system to an advanced communication system that includes BAS/BMS integration

Scalable System - Options for future upgrades and additions are available with Leviton’s flexible solution—

no need to purchase an entire new system

Open Protocol - Ease of communication with use of Leviton AMR and Automated Metering (AMR) and

Data Acquisition Hub (DAS) equipment

VerifEye™ Smart Submetering Solutions

4

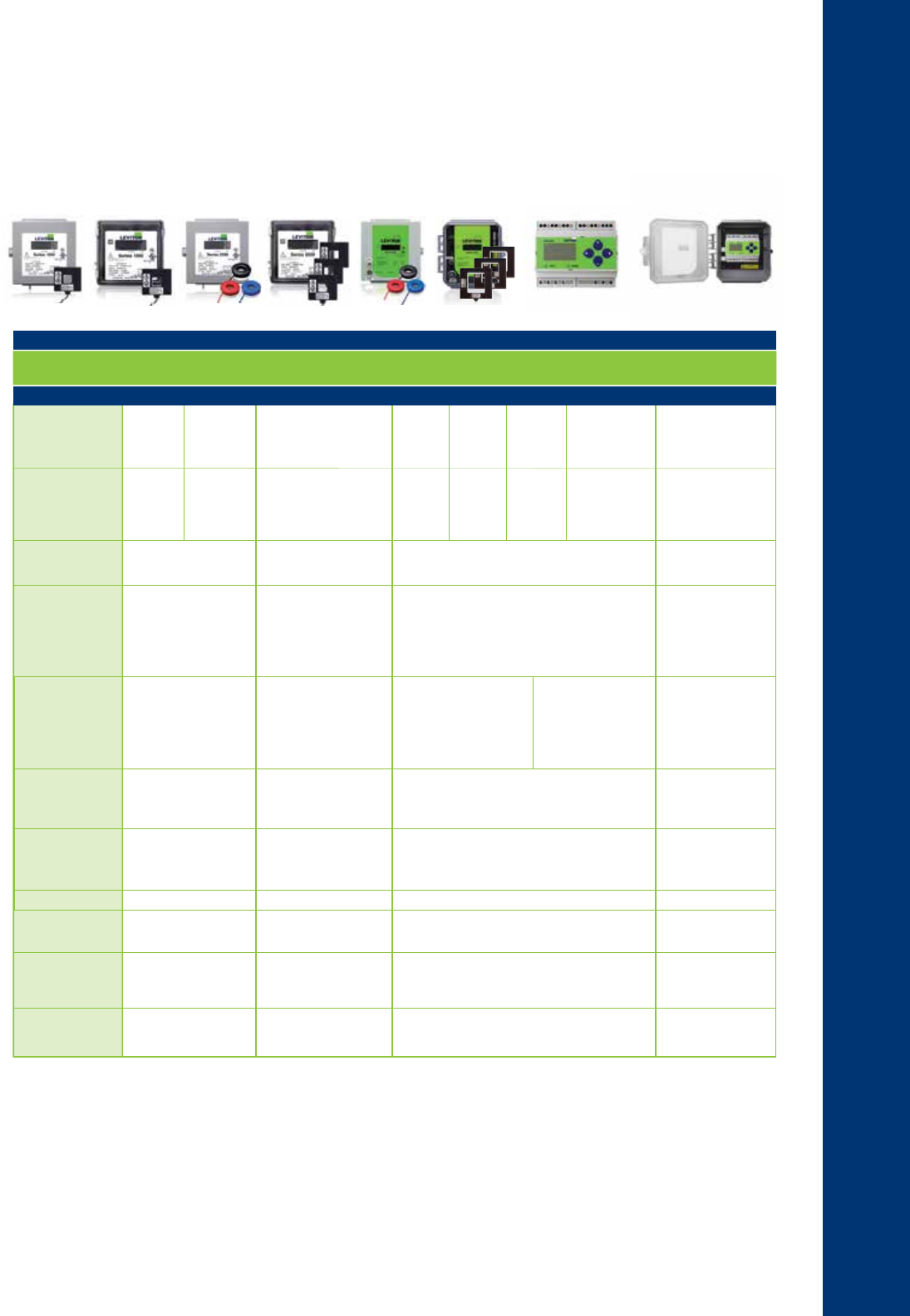

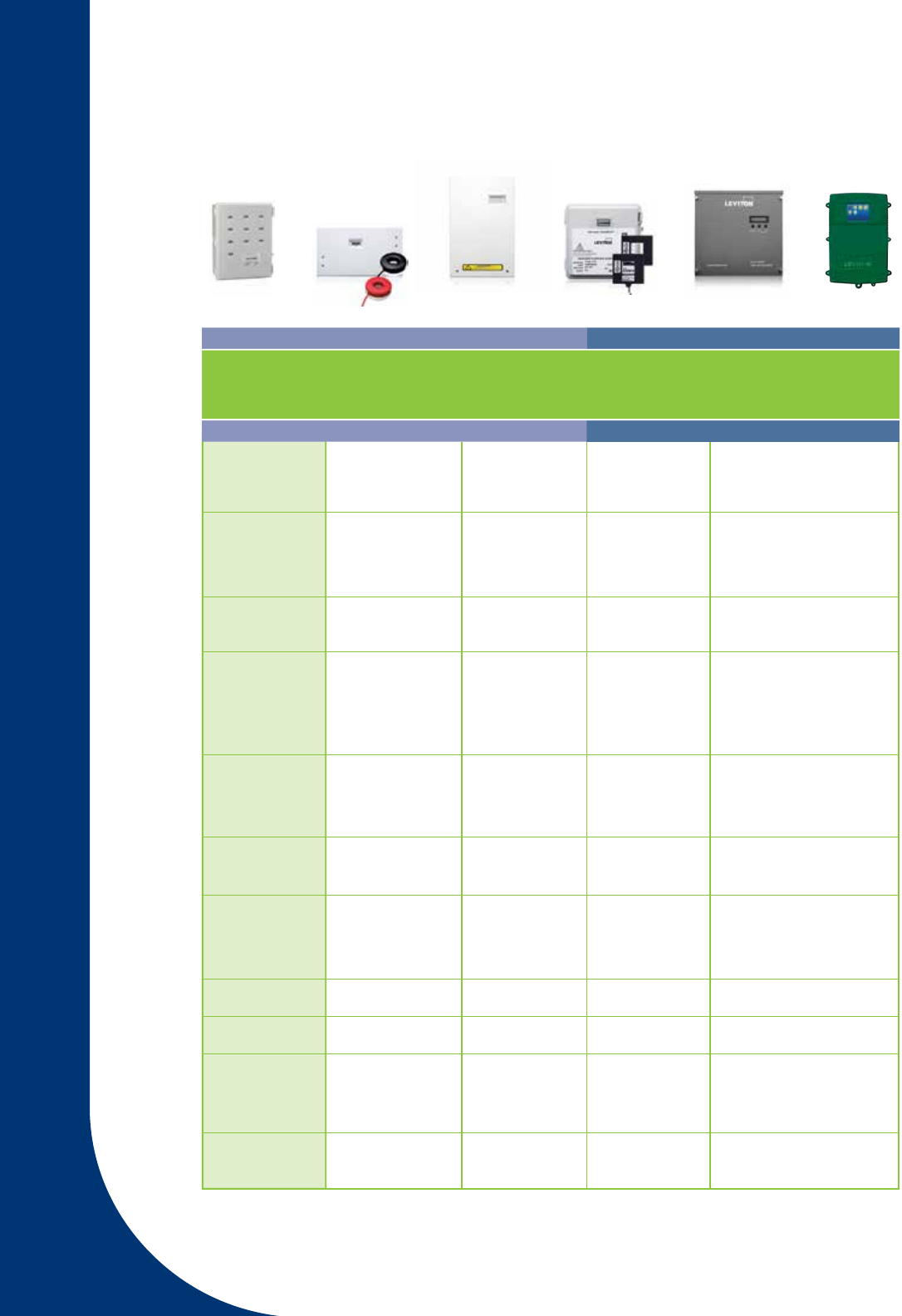

VerifEye Meters

MMU Mini Meter Flush Mount Mini Meter Outdoor

Residential

kWh Meter

Phase/Wiring 1PH 3W

Voltage

Configurations

120/208/240

Amperages 100-200A

100, 200

Measuring

Parameters

kWh

Communications

Protocol

(Standard)

Isolated

Pulse Output

Current

Transformers

Options

Split Core

Solid Core

Solid Core Split Core

Enclosure

Options

OEM Module

Indoor Plastic

Flush Mount NEMA 1

Outdoor NEMA 4X

MMU NEMA 4X

Display Type LCD or Mechanical

Counter

Accuracy C12.10 +/- 0.5%

with paired CTs

C12.10 and

C12.20 +/- 0.5%

Multiple Meter

Unit (MMU)

Configurations

Medium, 2-4 Meters

Large, 5-8 Meters

Extra-Large,

9-19 Meters

_

Data Storage Last Reading -

Cumulative

Last Reading -

Cumulative

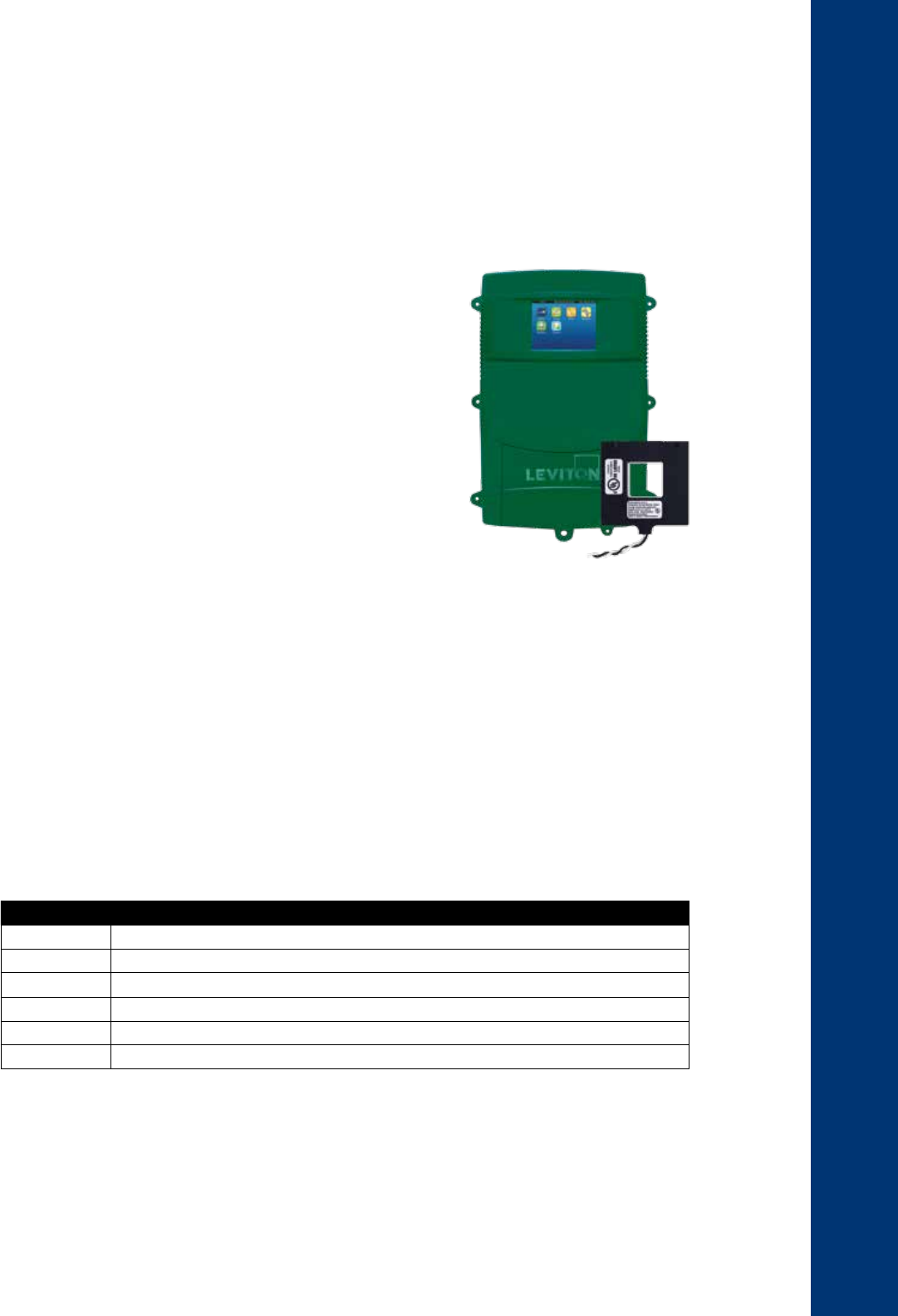

Series 8000 EMH+ Integrated

Meter & Hub

1PH 3W

120/208/240

200A

kWh

2-Way Mesh

Network

(902-928 MHz)

Indoor

Flush Mount

Indoor

Surface Mount

LCD

1PH 2W

1PH 3W WYE

3PH 3W Delta

3PH 4W WYE

120/208

120/240

240/416

277/480

480*

kWh

Wh delivered and

received, VARh

delivered and

received,VAh,

Vrms,Irms

ModBus TCP

ModBus RTU

(RS-485)

BACnet IP

Indoor JIC Steel

NEMA (MMU)

Local LCD, Scroll

3PH: 8x3

1PH 3W: 12x2, 9x2,

6x2, 3x2

1PH: 24x1

Last Reading -

Cumulative Data in

15 min Intervals

0.5% Mini Meter

Specifications Mini Meter™

Kits

0.5% Mini Meter

Kits

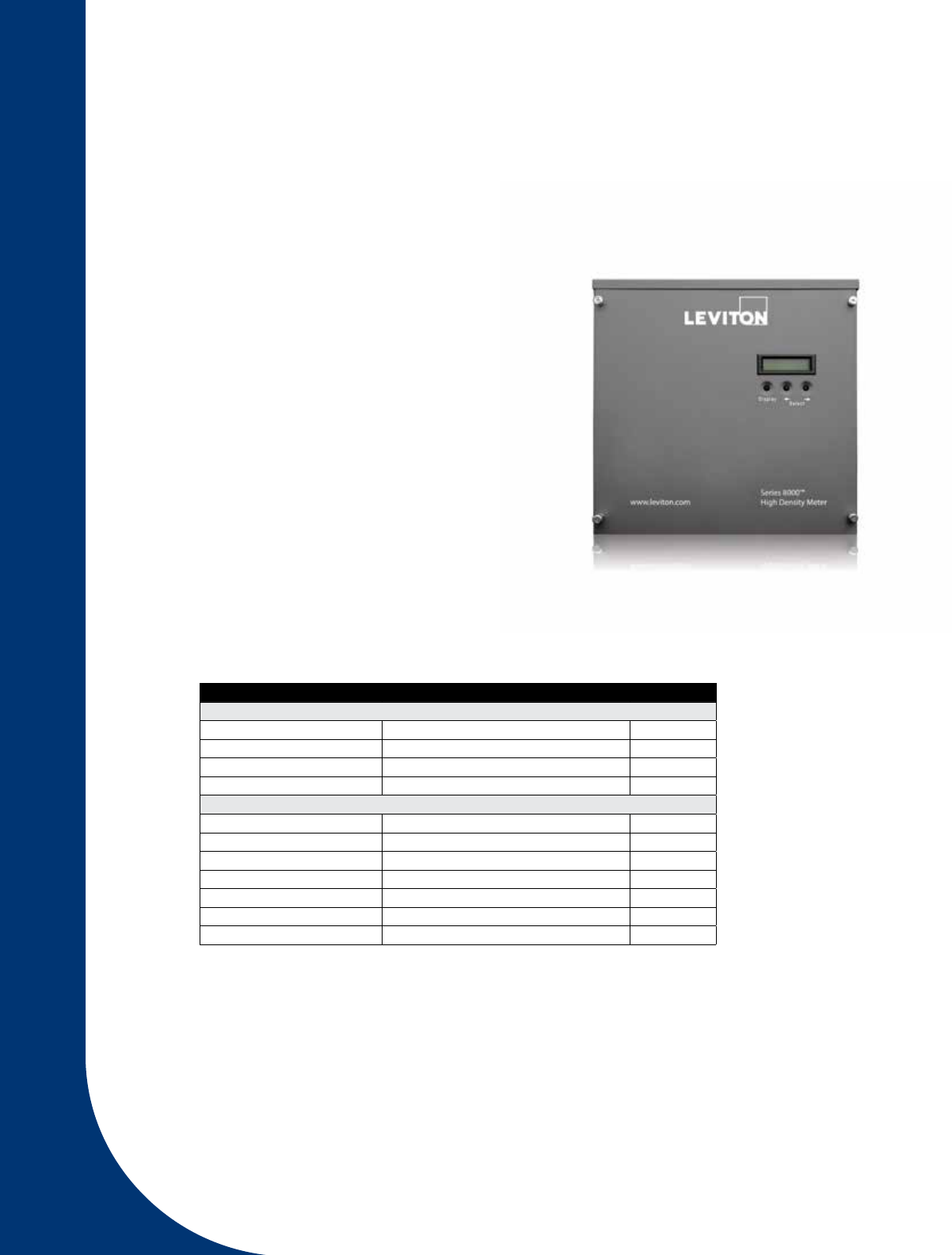

Series 8000

Multiple Point

High Density

Meter

Residential/Commercial

kWh Meter

* With potential transformer - consult factory for availability.

100-5000A

100, 200, 400, 800,

1600, 3000, 5000

C12.20 0.5% with

paired CTs

EMH+ Integrated

Meter & Hub

3PH 3W Delta

3PH 3W WYE

1PH 2W

3PH 4W WYE

208-480VAC 3 Phase,

120, 240, 277VAC

Single Phase

50/60Hz

100-5000A

100, 200, 300, 400, 600, 1600

Meter Totals: kWh, kVARh,

kW, kVAR, kVA, Voltage L-L,

L-N, Current, Power Factor,

Frequency Per Phase: Voltage

L-L, L-N, Current, Power,

Power Factor

ModBus/RTU, ModBus/TCP,

TCP/IP, PPP, HTTP/HTML, FTP,

NTP, XML, SNMP-Trap.

Optional BACnet/IP

Split core

Indoor Plastic Surface Mount

LCD

C12.10 +/- 0.5% from 1% to

100% of full scale

_

Last reading - 1 to 60 minutes,

User Selectable

(default 15 minutes)

5

www.leviton.com/verifEye

Series 1000

Outdoor

Series 2000

Indoor

Series 2000

Outdoor

Series 3300/

3500 Indoor

Series 1000

Indoor

Series 3300/

3500 Outdoor

Series 4000

Outdoor

Series 4000

Indoor

Commercial

kWh Meter with Optional Demand kWh Meter

Phase/Wiring 1PH 2W 1PH 3W 3PH 4W WYE 1PH 3W

WYE

3PH 3W

Delta

3PH 4W

WYE

3PH 4W

High Leg

Delta

Voltage

Configurations

120

277

120/208

120/240

277/480

120/208

277/480

120/208

277/480

208

240

480

120/208

277/480

120/240

Amperages 100-800A

100, 200, 400, 800

100-1200A

100, 200, 400, 800, 1200

100-5000A

100, 200, 400, 800, 1600, 3000, 5000

Measuring

Parameters

kWh

Optional kW

(peak demand reset)

kWh

Optional kW

(peak demand reset)

kWh

kW (peak demand reset)

Meter total: kVAR, kVA, Power Factor & kW

By Phase: Volts, Watts, Amps, Power Factor

Interval Data

Communications

Protocol

(Standard)

Isolated Pulse Output Isolated Pulse Output

Isolated Pulse Output

Modbus RTU over RS-485

BACnet MS/TP

Isolated Pulse Output

Ethernet

Modbus TCP/IP

BACnet IP

Current

Transformers

Options

Split Core

Solid Core

Split Core

Solid Core

Split Core

Solid Core

Enclosure

Options

Indoor JIC Steel NEMA 1

Outdoor NEMA 4X

Indoor JIC Steel NEMA 1

Outdoor NEMA 4X

MMU JIC Steel NEMA 1

Indoor JIC Steel NEMA 1

Outdoor NEMA 4X

Display Type Local LCD Local LCD Local LCD, Scroll

Accuracy C12.10 and C12.20

+/- 0.5%

C12.10 and C12.20

+/- 0.5%

C12.10 and C12.20

+/- 0.5%

Multiple Meter

Unit (MMU)

Configurations

_ Medium, 2-4 Meters

Large, 5-8 Meters/

Extra-Large, 9-19 Meters

_

Data Storage Last Reading - Cumulative

Peak Demand with Key

Reset (optional)

Last Reading - Cumulative

Peak Demand with Key

Reset (optional)

Last Reading - Cumulative

Peak Demand with Key Reset

Data in 15 min Intervals

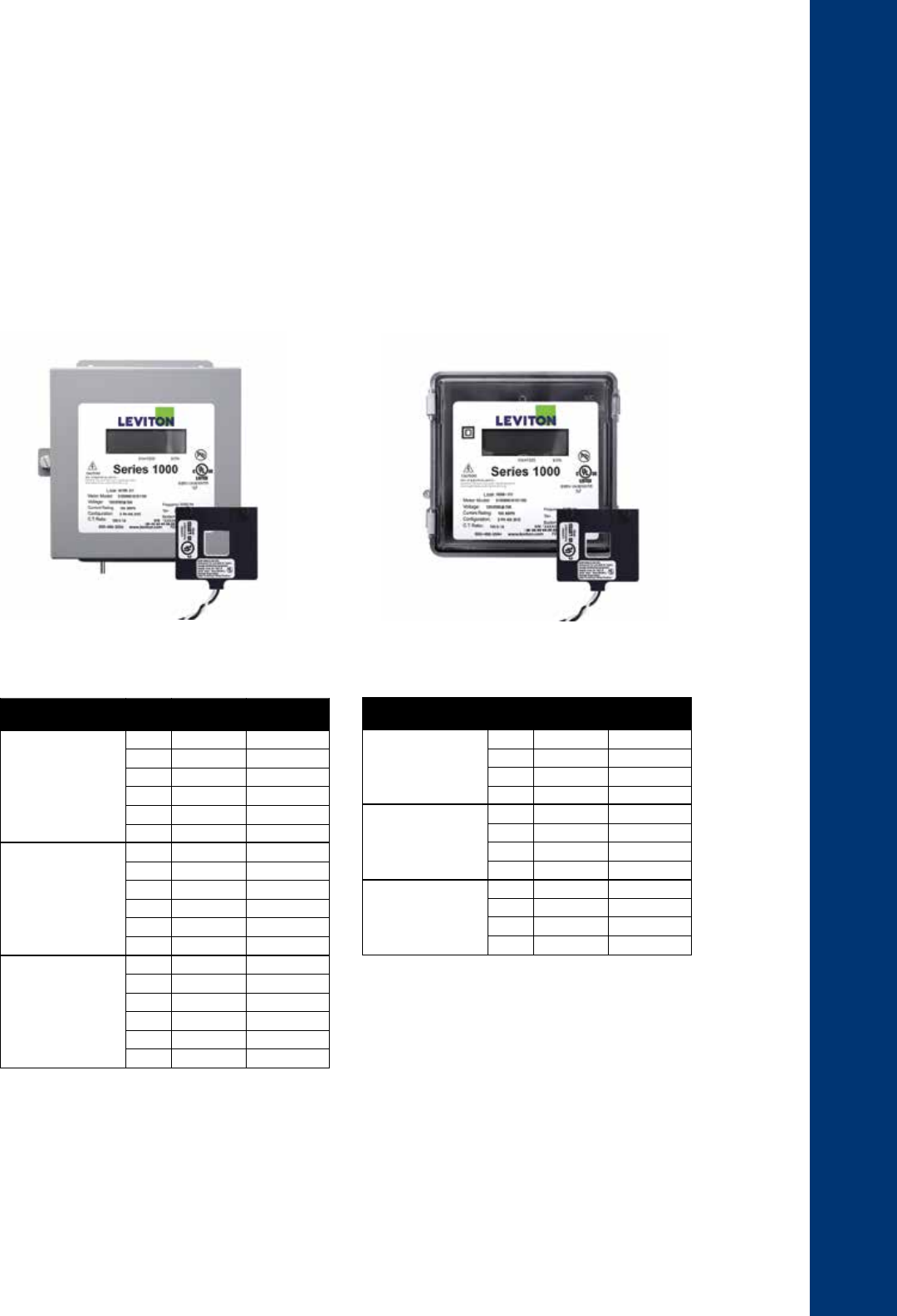

Series 1000 Single

Phase Meter Kits

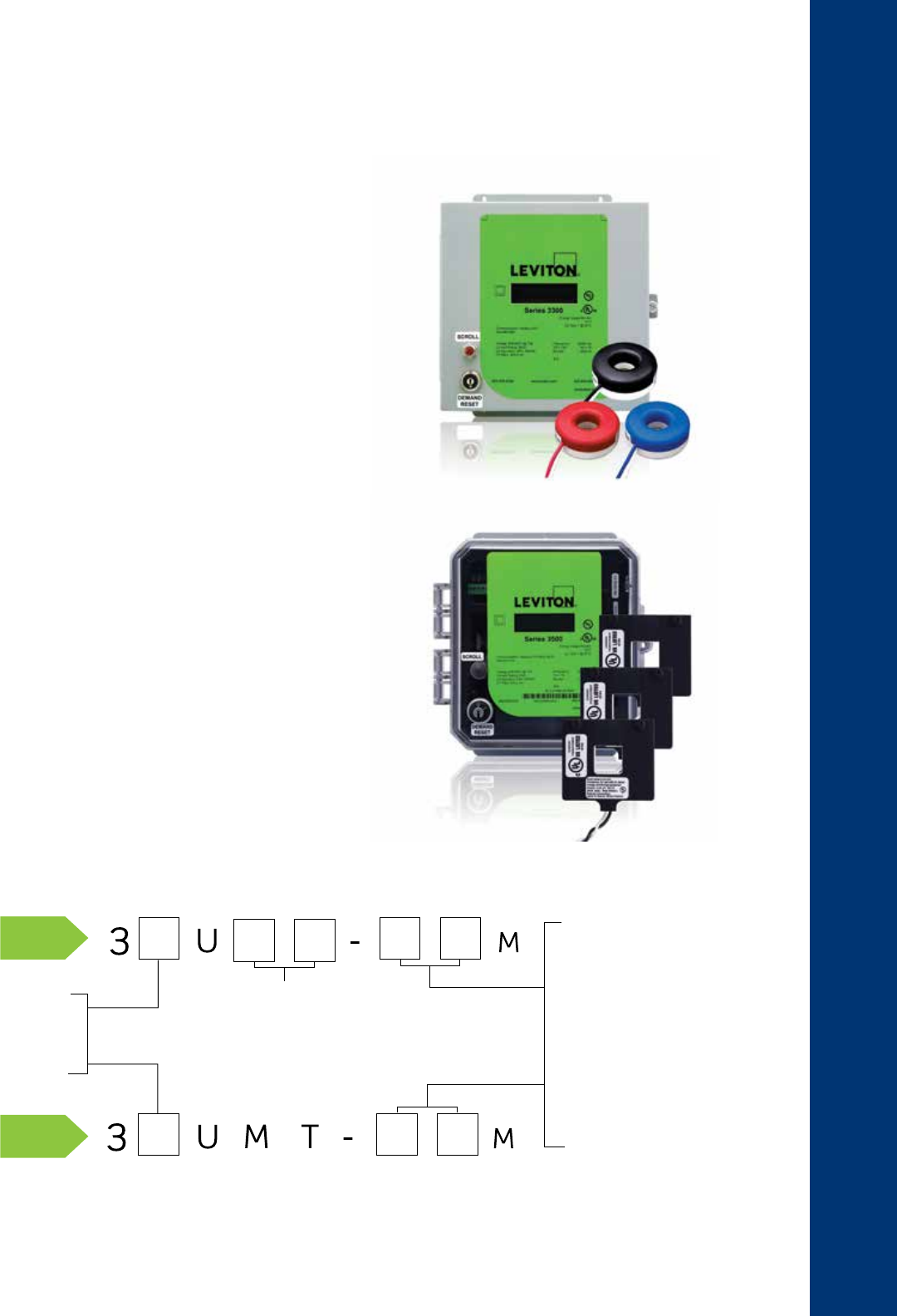

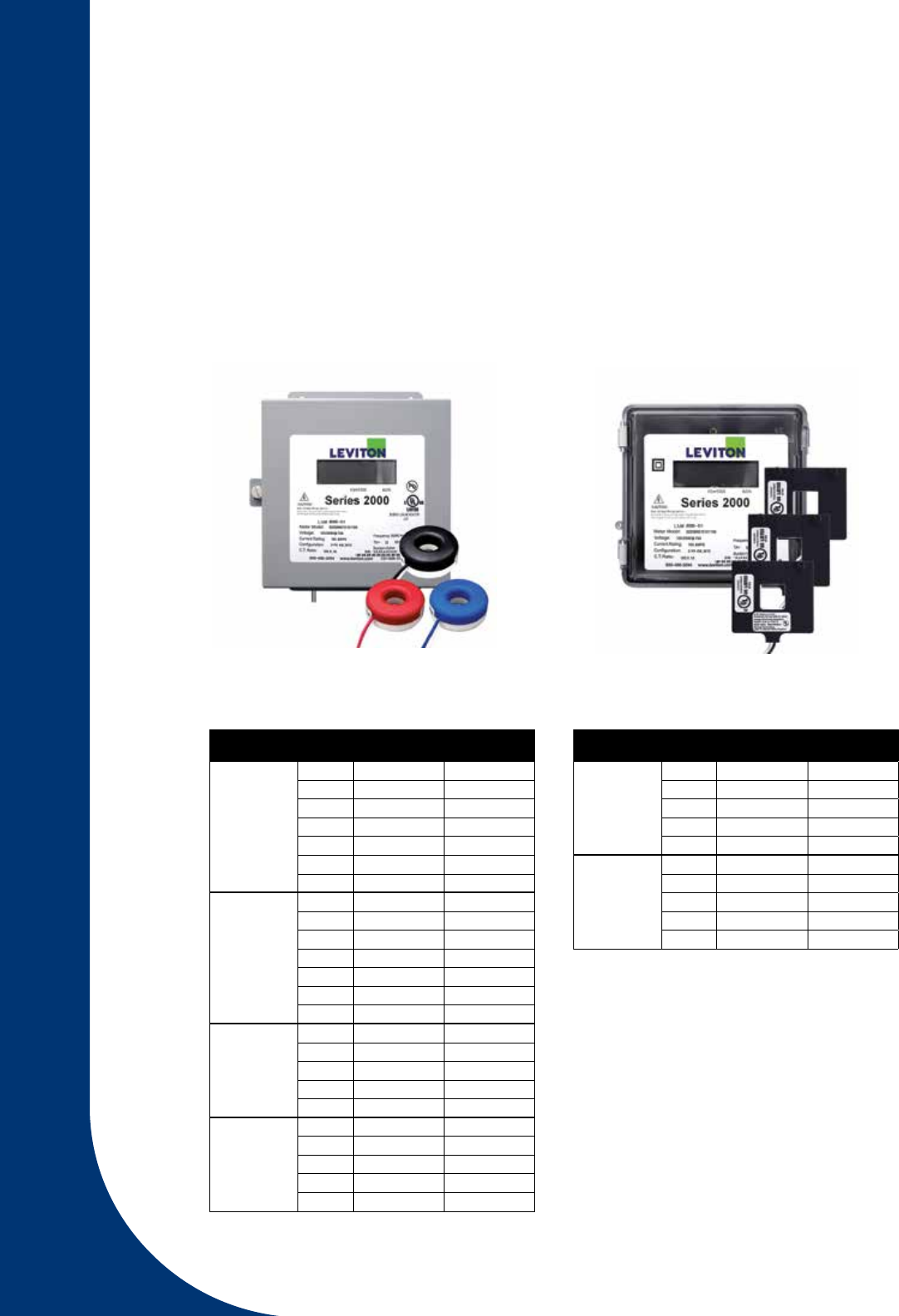

Series 2000 Three

Phase Meter Kits

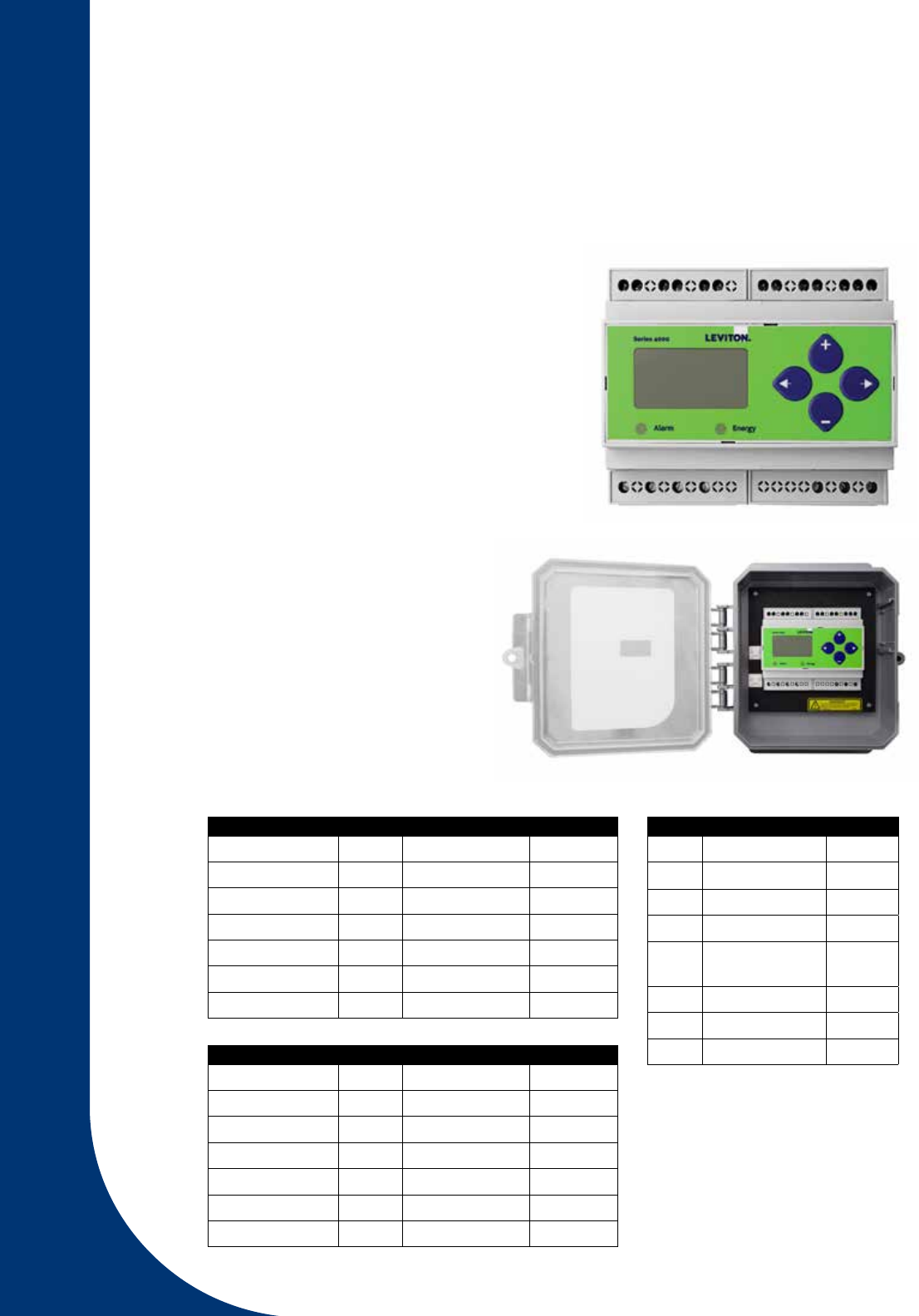

Series 3300 Multi-Function RS485 Meter Kits Series

4000

Industrial

ModBus Meter Kits

Series 3500 Multi-Function Ethernet Meter Kits

Series 3300 Series 3500

3PH 3W/4W

90-60VAC

50/60Hz

Split Core: 100, 200,

400, 800A

Rogowski: 20-5000A

Meter Totals: kVARh,

kW, kVAR, kVA,

Voltage L-L, L-N,

Current, Power Factor,

Frequency

ModBus/RTU

Isolated Pulse Output

Split Core

12, 18, 24” Rogowski

Coil lengths available

Indoor

DIN Rail Mount

Outdoor

NEMA 4X

LCD

C12.20 / 0.5%

_

Last Reading - Present

and Peak Demand for

kW and kVAR

VerifEye™ Smart Submetering Solutions

6

Outdoor

Mini Meter

Indoor Surface Mount

Mini Meter

Indoor

Flush Mount

Mini Meter

Mini Meter™

EQUITABLE TENANT BILLING

Some multi-tenant residential properties include energy costs in rental fees and generally charge tenants

for energy based on the square footage occupied. To be truly equitable, tenants should pay only for what

they actually use. With Leviton Mini Meters, building managers can easily track and allocate energy usage

costs fairly to multiple tenants, as well as recoup energy expenses from common-use areas (parking

lots, hall lighting, etc.). Tenants benefit by paying only for the energy they use; and when they focus on

conserving energy, they can see direct financial benefits from their efforts.

• kWh Meter

• 120V 1PH 2W and 120/208/240V 1PH 3W

• 100-200 Amps

• Pulse Output - standard feature

• Available in indoor flush mount or surface mount enclosure

• Available in NEMA 4X indoor/outdoor individual meter enclosures and Multiple Meter Units (MMUs)

from 2 to 19 meters

• Select surface mount and flush mount models include built in tamper proof switch or built in wireless

AMR and temperature sensing capabilities

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

• Up to three sets of CTs per phase can be paralleled per meter with no multipliers

• Components of Mini Meter Kits are UL/cUL Listed Energy Usage Monitor per CCN FTRZ

7

www.leviton.com/verifEye

0.5% Mini Meter Kits - Indoor Flush Mount Enclosure*

VOLTAGE AMPS CTs INCLUDED CAT. NO.

120/208/240V 1PH 3W200A2 SOLID CTs 6P201-C02

120/208/240V 1PH 3W with AMR (includes Time of Use (TOU)

enabled kWh Transceiver and Tamper Proof Switch) 200A2 SOLID CTs 6W201-C02

120/208/240V 1PH 3W with AMR (includes Time of Use (TOU) &

Temperature enabled kWh Transceiver and Tamper Proof Switch)

200A2 SOLID CTs 6W201-D02

120/208/240V 1PH 3W (includes Time of Use (TOU) & Delta

Temperature enabled kWh Transceiver and Tamper Proof Switch)

200A2 SOLID CTs 6W201-E02

120/208/240V 1PH 3W (OEM Module Kit) 200A2 SOLID CTs 7H201-S02

0.5% Mini Meter Kits - Indoor Surface Mount Enclosure*

VOLTAGE AMPS CTs INCLUDED CAT. NO.

120/208/240V 1PH 3W with AMR 200A2 SOLID CTs 6PSMT-C02

120/240V 1PH 3W (and Tamper Proof Switch) 200A2 SOLID CTs MMSMT-C02

120/240V 1PH 3W with AMR (and Tamper Proof Switch) 200A2 SOLID CTs MMSMT-D02

120/240V 1PH 3W with AMR (and Tamper Proof Switch) 200A2 SOLID CTs MMSMT-E02

Mini Meter Kits - Indoor Flush Mount Enclosure

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3W or 120/240V 1PH 3W (Split Phase) 100A2 SOLID CTs MK240-1SW

200A2 SOLID CTs MK240-2SW

Mini Meter Kits - Outdoor Enclosure

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3W or 120/240V 1PH 3W (Split Phase) 100A2 SOLID CTs MO240-1SW

200A2 SOLID CTs MO240-2SW

120/208V 2PH 3W or 120/240V 1PH 3W (Split Phase) 100A2 Split CTs MO240-01W

200A2 Split CTs MO240-02W

*For a complete wireless Automatic Meter Reading (AMR) system, data transceivers and other wireless network components (DCAPs

and Repeaters) are required as dictated by building construction.

TOU = Time of Use, providing 15-minute time-stamped kWh interval data

**All DCAPs and Gateways shipped with 6VDC, minimum 1.5 Amp power supply, Ethernet cable and USB cable

Wireless Repeater

DESCRIPTION CAT. NO.

Repeater, 5V, includes 5VDC 1A plug-in power supply and internal backup battery T101R-05V

Wireless Data Concentrating Access Points (DCAPs)**

DESCRIPTION CAT. NO.

Data Concentrating Access Point (DCAP), Low Capacity (150 meter points max), built-in radio receiver T201E-151

DCAP, High Capacity (1000 meter points max), built-in radio receiver T201E-102

DCAP-Gateway, unlimited meter points, built-in radio receiver T201G-UNL

Central Database Gateway, supports up to 2000 meter points T221C-202

MINI METER KITS

Note: Kits include meter, specified enclosure and required current transformers

VerifEye™ Smart Submetering Solutions

8

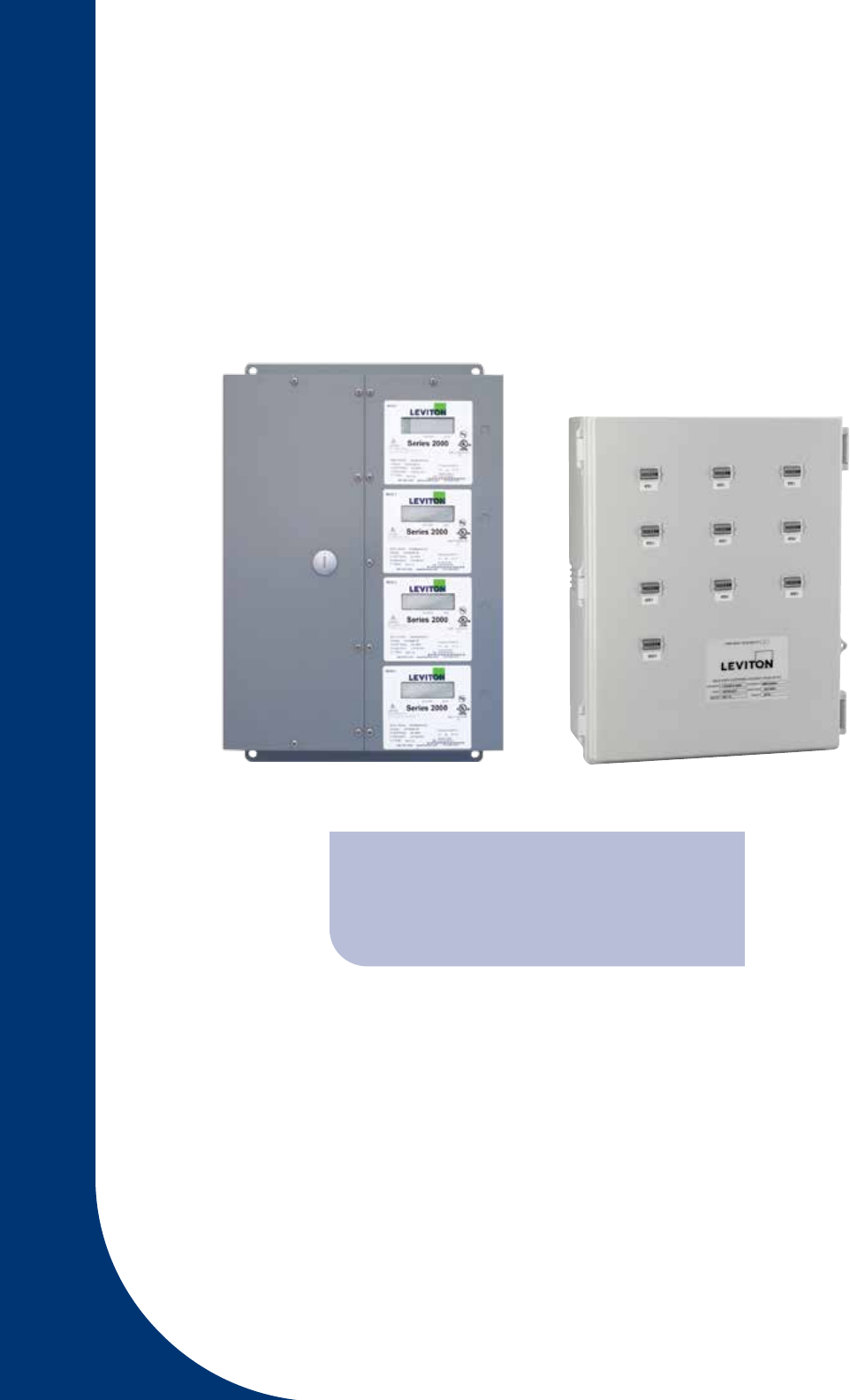

Mini Meter Multiple Meter Unit (MMU)

Series 2000 Multiple Meter Unit (MMU)

Multiple Meter Units (MMUs)

For both retrofit and new construction, Leviton Multiple Meter Units (MMUs) are fast and easy to install.

They come pre-wired per project configuration sheets with clearly labeled connections, minimizing the

electrical installation time, another great money saving feature.

All Leviton MMUs are UL Listed assemblies, giving your customers extra assurance for no extra cost.

Choose from an indoor steel model in 4/8/16 unit single- or three-phase configurations utilizing Series

2000 meters or a weatherproof outdoor enclosure in 4/8/19 unit single-phase configurations utilizing

Mini Meters. If your application requires a different configuration, Leviton is ready to help.

All MMUs are customizable and field upgradable

for individual projects. Each meter order requires

submittal of a Configuration Form. Go to leviton.

com/verifeye for more information.

9

www.leviton.com/verifEye

MINI METER MMUS

VOLTAGE DESCRIPTION CAT. NO.

MEDIUM MINI METER MMU, 2-4 METERS

120/240V

1PH 3W

2 Dual Element Meters 6M202-CFG

3 Dual Element Meters 6M203-CFG

4 Dual Element Meters 6M204-CFG

120/208V

3PH 4W

2 Dual Element Meters 6M302-CFG

3 Dual Element Meters 6M303-CFG

4 Dual Element Meters 6M304-CFG

LARGE MINI METER MMU, 5-8 METERS

120/240V

1PH 3W

5 Dual Element Meters 6L205-CFG

6 Dual Element Meters 6L206-CFG

7 Dual Element Meters 6L207-CFG

8 Dual Element Meters 6L208-CFG

120/208V

3PH 4W

5 Dual Element Meters 6L305-CFG

6 Dual Element Meters 6L306-CFG

7 Dual Element Meters 6L307-CFG

8 Dual Element Meters 6L308-CFG

EXTRA-LARGE MINI METER MMU, 9-19 METERS,

NEMA 4X ENCLOSURE

120/240V

1PH 3W

9 Dual Element Meters 6X209-CFG

10 Dual Element Meters 6X210-CFG

11 Dual Element Meters 6X211-CFG

12 Dual Element Meters 6X212-CFG

13 Dual Element Meters 6X213-CFG

14 Dual Element Meters 6X214-CFG

15 Dual Element Meters 6X215-CFG

16 Dual Element Meters 6X216-CFG

17 Dual Element Meters 6X217-CFG

18 Dual Element Meters 6X218-CFG

19 Dual Element Meters 6X219-CFG

120/208V

3PH 4W

9 Dual Element Meters 6X309-CFG

10 Dual Element Meters 6X310-CFG

11 Dual Element Meters 6X311-CFG

12 Dual Element Meters 6X312-CFG

13 Dual Element Meters 6X313-CFG

14 Dual Element Meters 6X314-CFG

15 Dual Element Meters 6X315-CFG

16 Dual Element Meters 6X316-CFG

17 Dual Element Meters 6X317-CFG

18 Dual Element Meters 6X318-CFG

19 Dual Element Meters 6X319-CFG

SERIES 2000 MMUs

VOLTAGE DESCRIPTION CAT. NO.

MEDIUM SERIES 2000 MMU, 2-4 METERS

120/208V

3PH 4W

2 Three Element Meters 2M202-CFG

3 Three Element Meters 2M203-CFG

4 Three Element Meters 2M204-CFG

277/480V

3PH 4W

2 Three Element Meters 2M402-CFG

3 Three Element Meters 2M403-CFG

4 Three Element Meters 2M404-CFG

LARGE SERIES 2000 MMU, 5-8 METERS

120/208V

3PH 4W

5 Three Element Meters 2L205-CFG

6 Three Element Meters 2L206-CFG

7 Three Element Meters 2L207-CFG

8 Three Element Meters 2L208-CFG

277/480V

3PH 4W

5 Three Element Meters 2L405-CFG

6 Three Element Meters 2L406-CFG

7 Three Element Meters 2L407-CFG

8 Three Element Meters 2L408-CFG

EXTRA-LARGE SERIES 2000 MMU, 9-16 METERS,

NEMA 4X ENCLOSURE

120/208V

3PH 4W

9 Three Element Meters 2X209-CFG

10 Three Element Meters 2X210-CFG

11 Three Element Meters 2X211-CFG

12 Three Element Meters 2X212-CFG

13 Three Element Meters 2X213-CFG

14 Three Element Meters 2X214-CFG

15 Three Element Meters 2X215-CFG

16 Three Element Meters 2X216-CFG

277/480V

3PH 4W

9 Three Element Meters 2X409-CFG

10 Three Element Meters 2X410-CFG

11 Three Element Meters 2X411-CFG

12 Three Element Meters 2X412-CFG

13 Three Element Meters 2X413-CFG

14 Three Element Meters 2X414-CFG

15 Three Element Meters 2X415-CFG

16 Three Element Meters 2X416-CFG

VerifEye™ Smart Submetering Solutions

10

VOLTAGE DESCRIPTION CAT. NO.

RESIDENTIAL

120/208/240V 1PH 3W Phase Config 3x2 with Wiring Harness S8120-032

120/208/240V 1PH 3W Phase Config 6x2 with Wiring Harness S8120-062

120/208/240V 1PH 3W Phase Config 9x2 with Wiring Harness S8120-092

120/208/240V 1PH 3W Phase Config 12x2 with Wiring Harness S8120-122

COMMERCIAL & INDUSTRIAL

120/208V or 277/480V 3PH Phase Config 8x3 with Termination Enclosure S8UTS-083

120/208V or 277/480V 1PH 3WPhase Config 12x2 with Termination Enclosure S8UTS-122

120/208V or 277/480V 1PH 3WPhase Config 24x1 with Termination Enclosure S8UTS-241

120/208V or 277/480V 3PH Phase Config 8x3 with Wiring Harness S8UWH-083

120/208V or 277/480V 1PH 3WPhase Config 12x2 with Wiring Harness S8UWH-122

120/208V or 277/480V 1PH 3WPhase Config 24x1 with Wiring Harness S8UWH-241

480V Delta Delta PTs with Enclosure S480V-011

Series 8000 Multi-Point High Density Meters

The VerifEye™ Series 8000 Multiple Point Meters are designed to meter high density appli cations such as

multi-tenant office and residential build ings, medium-sized retail stores, institutional facilities, and more.

For easy data accessibility, the Series 8000 design is based on an open protocol network to transmit

data over ModBus and BACnet™. Combining revenue-grade electrical submetering with building

automation communications technology, the Series 8000 complies with all regulatory electric safety

and communications requirements and meets stringent ANSI 0.5 Accuracy Class standards.

• Allows for revenue grade metering of up to 24

individual circuits in one device

• Provides multiple electric loads in one device

• Monitors up to 24 current transformers - 8 3-phase,

12 2-phase or 24 single phase loads

• Branch Circuit Monitoring

• Universal voltage

• 100-5,000 Amp current transformers

• Native communications protocol – Modbus TCP,

Modbus RTU (RS-485) and BACNet IP standard

• Measures kilowatt hours, kW demand, volts, amps

• Interval and net metering

• Configurable via Ethernet or ModBus RTU network

to BMS or VerifEye software solutions for tenant

billing or measurement & verification (M&V)

SERIES 8000 MULTI-POINT HIGH DENSITY METERS

CHOOSING BETWEEN A WIRING HARNESS AND TERMINAL STRIPS

• Wiring harnesses offer a less labor intensive solution when all CTs are located in one panel like in a

multi-family high rise project. This eliminates the need to extend CT wires out of the panel.

•Terminal strips are ideal for installers who prefer to land each wire and not use a color-coded wiring

harness. For CTs located in different panels or different locations with a switchboard, terminal strips

offer an easier solution with the ability to extend the current transformer wiring back to the meter

location for termination. Terminal strip models also carry a slightly higher cost and should be

considered with the project budget.

11

www.leviton.com/verifEye

Series 1000 Single Phase Meters

• kWh meter with optional Demand functionality (includes Reset Key)

• 100 - 800 Amps

• Isolated Pulse output - standard feature

• Large LCD Display

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

INDOOR ENCLOSURE

VOLTAGE AMPS CTS

INCLUDED CAT. NO.

120V 1PH 2W100 1 Split CT 1K120-01W

200 1 Split CT 1K120-02W

400 1 Split CT 1K120-04W

800 1 Split CT 1K120-08W

100 1 SOLID CT 1K120-1SW

200 1 SOLID CT 1K120-2SW

120/208V 1PH

3W or

120/240V 1PH 3W

(Split Phase)

100 2 Split CTs 1K240-01W

200 2 Split CTs 1K240-02W

400 2 Split CTs 1K240-04W

800 2 Split CTs 1K240-08W

100 2 SOLID CTs 1K240-1SW

200 2 SOLID CTs 1K240-2SW

277V 1PH 2W100 1 Split CT 1K277-01W

200 1 Split CT 1K277-02W

400 1 Split CT 1K277-04W

800 1 Split CT 1K277-08W

100 1 SOLID CT 1K277-1SW

200 1 SOLID CT 1K277-2SW

OUTDOOR ENCLOSURE

VOLTAGE AMPS CTS

INCLUDED CAT. NO.

120V 1PH 2W100 1 Split CT 1O120-01W

200 1 Split CT 1O120-02W

400 1 Split CT 1O120-04W

800 1 Split CT 1O120-08W

120/208V 1PH

3W or

120/240V 1PH 3W

(Split Phase)

100 2 Split CTs 1O240-01W

200 2 Split CTs 1O240-02W

400 2 Split CTs 1O240-04W

800 2 Split CTs 1O240-08W

277V 1PH 2W100 1 Split CT 1O277-01W

200 1 Split CT 1O277-02W

400 1 Split CT 1O277-04W

800 1 Split CT 1O277-08W

SERIES 1000 SINGLE PHASE METER KITS

Note: Kits include meter, specified enclosure and required current transformers

VerifEye™ Smart Submetering Solutions

12

Series 2000 Three Phase Meters

• kWh meter with optional Demand functionality (includes Reset Key)

• 120/208V or 277/480V 3PH 4W WYE only

• 100 - 1200 Amps

• Isolated Pulse output - standard feature

• Large LCD Display

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

INDOOR ENCLOSURE

VOLTAGE AMPS CTS

INCLUDED CAT. NO.

120/208V

3PH 4W WYE

kWh Meter

100 3 Split CTs 2K208-01W

200 3 Split CTs 2K208-02W

400 3 Split CTs 2K208-04W

800 3 Split CTs 2K208-08W

1200 3 Split CTs 2K208-12W

100 3 SOLID CTs 2K208-1SW

200 3 SOLID CTs 2K208-2SW

277/480V

3PH 4W WYE

kWh Meter

100 3 Split CTs 2K480-01W

200 3 Split CTs 2K480-02W

400 3 Split CTs 2K480-04W

800 3 Split CTs 2K480-08W

1200 3 Split CTs 2K480-12W

100 3 SOLID CTs 2K480-1SW

200 3 SOLID CTs 2K480-2SW

120/208V

3PH 4W WYE

Demand

Meter

100 3 Split CTs 2K208-01D

200 3 Split CTs 2K208-02D

400 3 Split CTs 2K208-04D

800 3 Split CTs 2K208-08D

1200 3 Split CTs 2K208-12D

277/480V

3PH 4W WYE

Demand

Meter

100 3 Split CTs 2K480-01D

200 3 Split CTs 2K480-02D

400 3 Split CTs 2K480-04D

800 3 Split CTs 2K480-08D

1200 3 Split CTs 2K480-12D

OUTDOOR ENCLOSURE

VOLTAGE AMPS CTS

INCLUDED CAT. NO.

120/208V

3PH 4W WYE

kWh Meter

100 3 Split CTs 2O208-01W

200 3 Split CTs 2O208-02W

400 3 Split CTs 2O208-04W

800 3 Split CTs 2O208-08W

1200 3 Split CTs 2O208-12W

277/480V

3PH 4W WYE

kWh Meter

100 3 Split CTs 2O480-01W

200 3 Split CTs 2O480-02W

400 3 Split CTs 2O480-04W

800 3 Split CTs 2O480-08W

1200 3 Split CTs 2O480-12W

SERIES 2000 THREE PHASE METER KITS

Note: Kits include meter, specified enclosure and required current transformers

Series 1000 Single Phase Meters

• kW

13

www.leviton.com/verifEye

SERIES 2000 THREE PHASE METER KITS

Note: Kits include meter, specified enclosure and required current transformers

Series 3300 Multi-Function RS485 Meters

Series 3500 Multi-Function Ethernet Meters

• Communications Protocol

- Series 3300

- Modbus RTU or BACnet MS/TP over RS485

- Isolated pulse output

- Series 3500

- Modbus TCP/IP or BACnet IP

- Isolated pulse output

• Universal voltage for 120-480V

• Measured Parameters

- Total Meter:

- kWh/kW

- kVAh

- kVA and kVAR

- Power Factor

- Line Frequency

- Voltage L-L

• Large LCD display with scroll feature

• Revenue grade accuracy: 0.5% accuracy class

• Installation diagnostics

• Low voltage detection

• Real time clock with battery backup for TOU reading

• Use with split core or solid core CTs

• Indoor JIC steel and outdoor (NEMA 4X) enclosure options

• UL/cUL Listed Energy Usage Monitor per CCN FTRZ

COMMUNICATION

PROTOCOL

MR = Modbus RTU

BM = BACnet MS/TP

KIT TYPE

K = Indoor

O = Outdoor

NEMA 4X

AMPERAGE RATING

& CT TYPE

01 = 100A Split Core

02 = 200A Split Core

04 = 400A Split Core

08 = 800A Split Core

16 = 1600A Split Core

30 = 3000A Split Core

50 = 5000A Split Core

1S = 100A SOLID Core

2S = 200A SOLID Core

4S = 400A SOLID Core

- Per Phase:

- Voltage L-N

- Current

- Watts

- VA, VAR

- Power Factor

SERIES

3300

SERIES

3500

SERIES 3300 AND SERIES 3500 METER KITS

Note: Kits include meter, specified enclosure and required current transformers

VerifEye™ Smart Submetering Solutions

14

Series 4000 Industrial ModBus Meter Kits

The VerifEye™ Series 4000 Industrial ModBus Meter Kits are revenue-grade (ANSI C12.20 Class 0.5%)

kWh electrical meters. The Series 4000 Industrial ModBus Meter Kits are DIN rail mount, 3-phase,

advanced communication meter kits with split core or flexible rope-style Rogowski CTs for compact or

irregular shaped conductors. Combinations of serial communication, pulse output and phase alarms are

provided to suit a wide variety of applications.

• Industrial Temperature Range -22°F to 158°F

(-30°C to 70°C)

• 50/60Hz

• 90-600VAC (50/60Hz) versatility including 347V

(L-N) and 600V (L-L)

with fewer models to stock

• Energy monitoring for AMR/BAS/BMS/EMS systems

• DIN Rail mount for easy installation

• Options for 100, 200, 400, and 800A Split Core CTs

and Rogowski CTs (20-5000A)

• ANSI 12.20 0.5% Accuracy, IEC 62053-22 Class 0.5S

• Real energy output and phase loss alarm output

• One device serves multiple locations

• User-enabled password protection to

protect meter from tampering

• Bright, backlit LCD for installation in

dark areas and viewing real time data

• System integration via ModBus RTU

- RS-485 2-wire with shield

INDOOR DIN RAIL MOUNT

VOLTAGE AMPS CTS INCLUDED CAT. NO.

Universal 3PH 3W/4W100 Split Core CTs 4KUMR-01M

Universal 3PH 3W/4W200 Split Core CTs 4KUMR-02M

Universal 3PH 3W/4W400 Split Core CTs 4KUMR-04M

Universal 3PH 3W/4W800 Split Core CTs 4KUMR-08M

Universal 3PH 3W/4W20-5000 12” Rogowski Coil CTs 4KUMR-R12

Universal 3PH 3W/4W20-5000 18” Rogowski Coil CTs 4KUMR-R18

Universal 3PH 3W/4W20-5000 24” Rogowski Coil CTs 4KUMR-R24

OUTDOOR NEMA ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

Universal 3PH 3W/4W100 Split Core CTs 4OUMR-01M

Universal 3PH 3W/4W200 Split Core CTs 4OUMR-02M

Universal 3PH 3W/4W400 Split Core CTs 4OUMR-04M

Universal 3PH 3W/4W800 Split Core CTs 4OUMR-08M

Universal 3PH 3W/4W20-5000 12” Rogowski Coil CTs 4OUMR-R12

Universal 3PH 3W/4W20-5000 18” Rogowski Coil CTs 4OUMR-R18

Universal 3PH 3W/4W20-5000 24” Rogowski Coil CTs 4OUMR-R24

COMPONENTS

AMPS DESCRIPTION CAT. NO.

100 Split Core CTs CTV01-K21

200 Split Core CTs CTV02-K21

400 Split Core CTs CTV04-K40

800 Split Core CTs CTV08-K40

—

Fuse Pack,

1/2A, 600VAC,

slow blow

CTV00-FK3

20-5000 12” Rogowski Coil CTs CRV50-K62

20-5000 18” Rogowski Coil CTs CRV50-K93

20-5000 24” Rogowski Coil CTs CRV50-KC2

SERIES 4000 MODBUS METER KITS

15

www.leviton.com/verifEye

VerifEye™ EMH+ Integrated Meter And Energy Monitoring Hub

The VerifEye™ EMH+ Integrated Meter and Energy Monitoring Hub combines an onboard revenue-grade

power meter, a Leviton Data Acquisition HUB and web server in a flexible all-in-one package. This simple

and effective energy solution can be used to meet energy codes and mandates and is ideal for new

construction and commercial buildings. Installation is simple as the device draws power from the connected

voltage sense lines - no external power supply required!

• Data Collection

- Logs and collects data on user selected intervals

- Non-volatile memory stores data until the next

scheduled upload or manual download

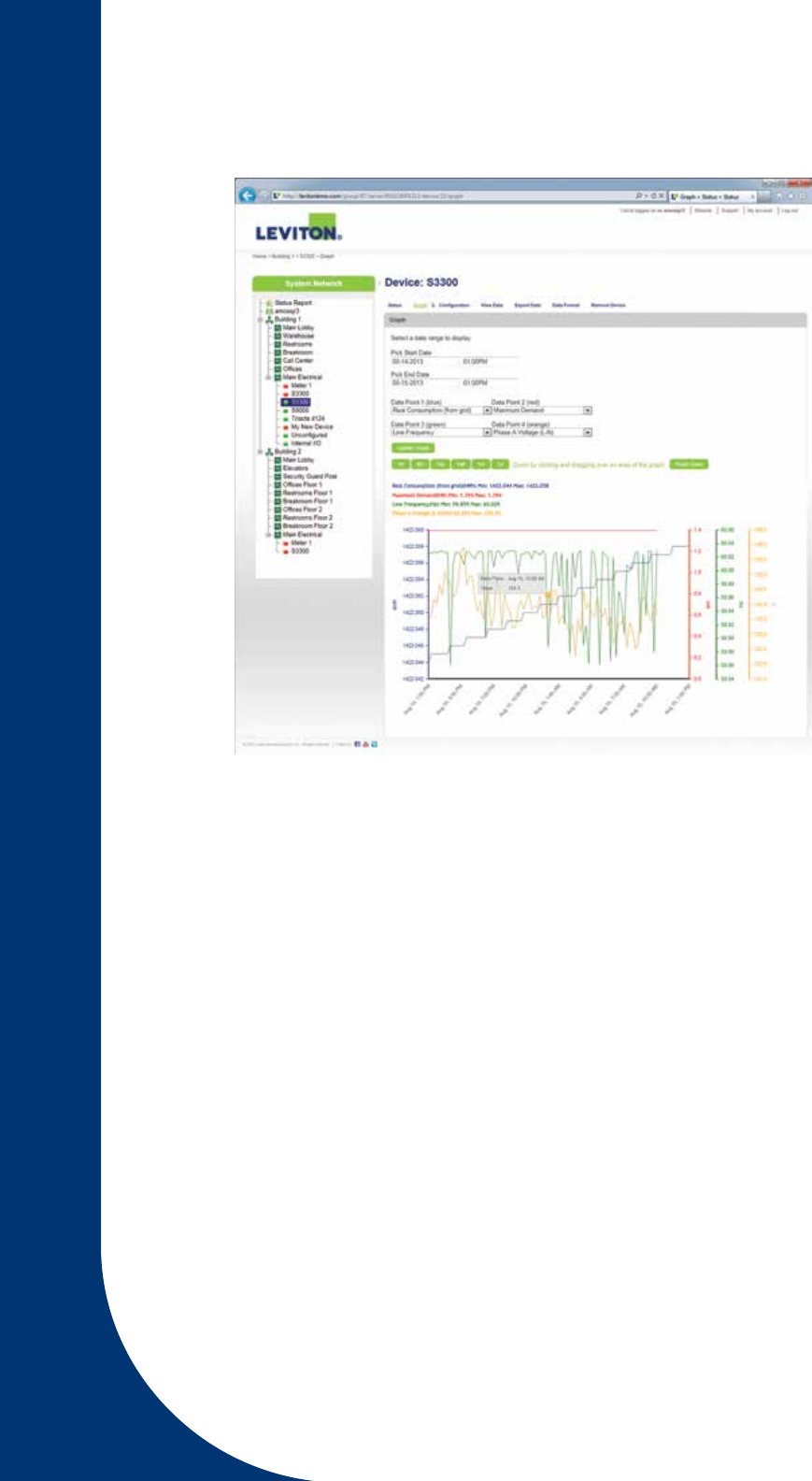

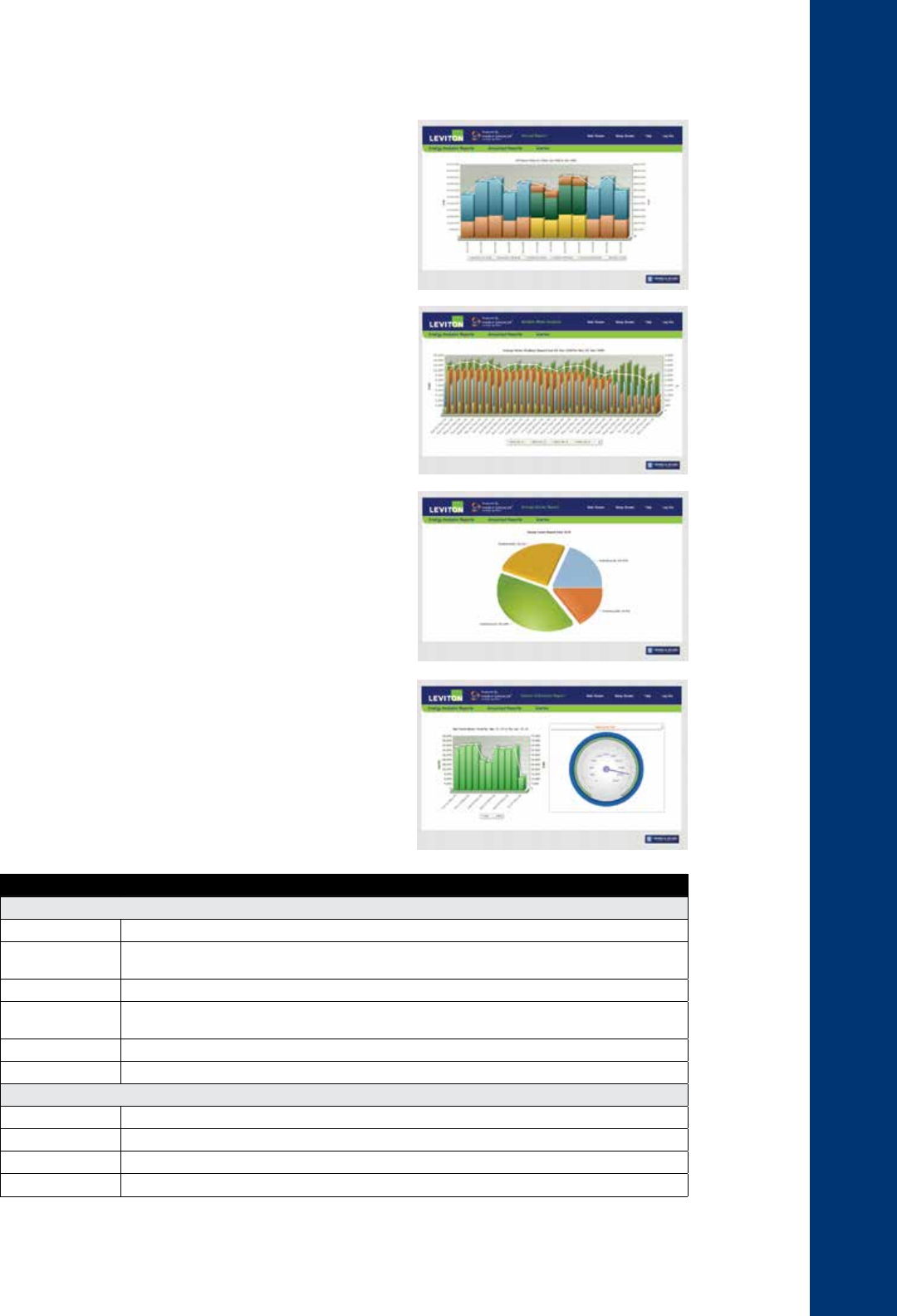

• Compatible with VerifEye Building Manager Online* allowing

users to quickly access energy consumption information from

a web-based platform

• Tracks real-time energy usage for demand response programs

• Meter data can be transferred to energy dashboards, kiosks

and software applications

• Expandable via ModBus RTU and ModBus TCP

• Supports BACNet IP and other protocols on one device

• Seamlessly integrates with BMS and BAS systems

• Monitors performance of critical systems such as lighting

and HVAC

• Set alarms notifications for targeted levels and view

graphical and historical data

*VerifEye Building Manager Online is included at no cost with the purchase of

VerifEye EMH+

LCD TOUCH SCREEN FEATURES

• Similar SmartPhone layout

• System set up from touch screen

• Set communication modules from the full color touch screen

EMH+ INTEGRATED METER & ENERGY MONITORING HUB

CAT. NO. DESCRIPTION

A8814-1S3EMH+ Data Acquisition Server with 3 Phase Meter, includes 100A CTs. Power Supply Included.

A8814-2S3EMH+ Data Acquisition Server with 3 Phase Meter, includes 200A CTs. Power Supply Included.

A8814-3S3EMH+ Data Acquisition Server with 3 Phase Meter, includes 300A CTs. Power Supply Included.

A8814-4S3EMH+ Data Acquisition Server with 3 Phase Meter, includes 400A CTs. Power Supply Included.

A8814-6S3EMH+ Data Acquisition Server with 3 Phase Meter, includes 600A CTs. Power Supply Included.

A8814-163 EMH+ Data Acquisition Server with 3 Phase Meter, includes 1600A CTs. Power Supply Included.

VerifEye™ Smart Submetering Solutions

16

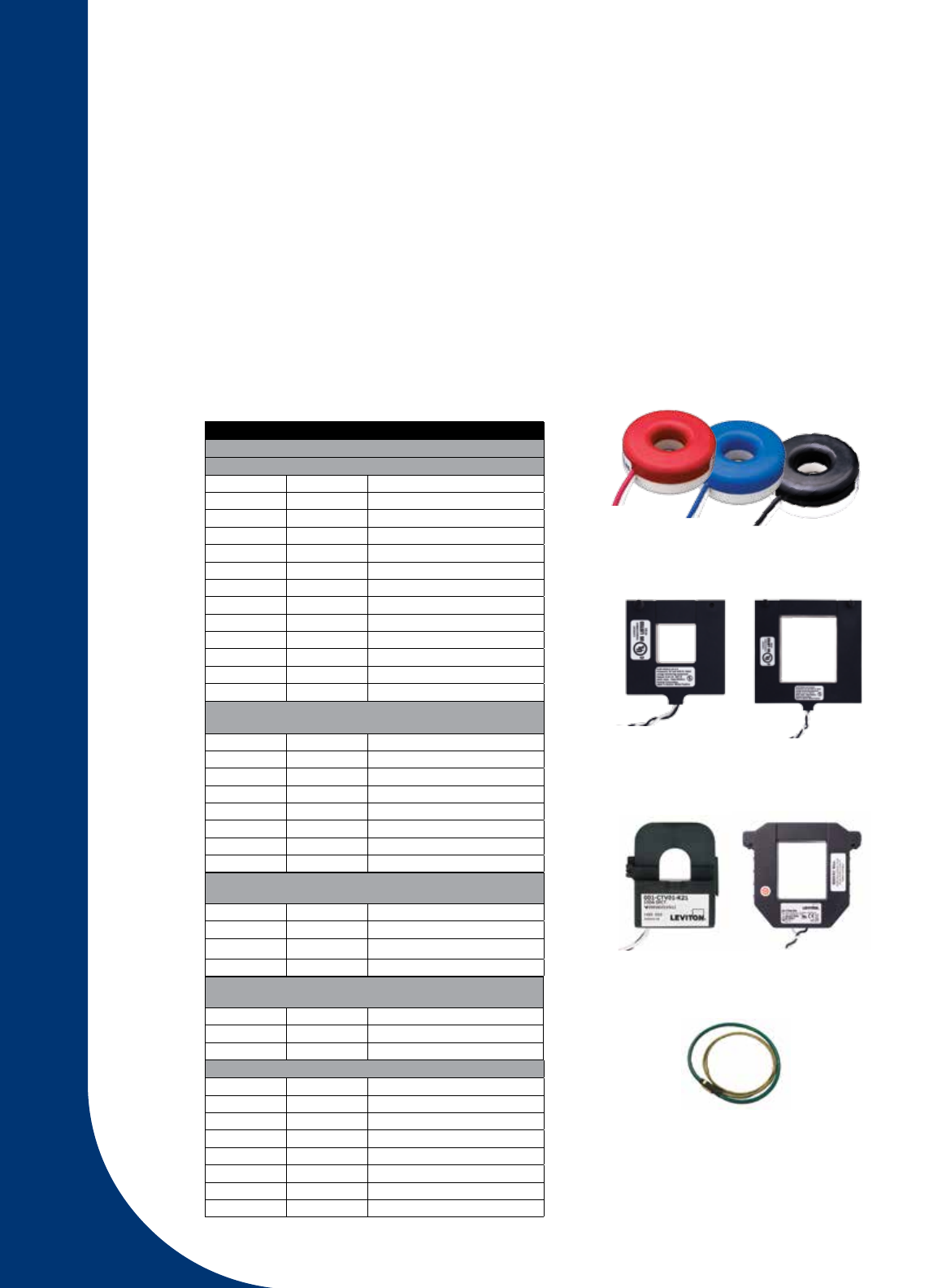

Current Transformers

The better the equipment, the better the measurement. Leviton meters utilize highly accurate current

transformers for revenue-grade performance certified to ANSI standards. Competing products use

current sensors that do not provide the same level of performance. Leviton Meter Kits include Split Core,

Rogowski, or Solid Core Current Transformers (CTs) for high-quality, long-term accuracy and reliability.

For added safety, all Leviton current transformers come with built-in voltage suppression devices that

prevent hazardous voltages from developing on CT secondaries should they become disconnected from

a meter with load current present.

Compact and cost-effective solid core CTs slip over power lines to measure the electrical current flowing

through the line. They are compact and cost effective. For solid core CT installation, power must be

de-energized and the circuit opened, in order to slip the CT over the power line.

Solid Core Current Transformers -

For use with Mini Meters & MMUs Only

Split Core Current Transformers - For use with

Series 1000, 2000, and 3300/3500 Meters,

and Series 2000 MMUs

CURRENT TRANSFORMERS

NOTE: Meters sold separately.

System Accuracy: ±1% of reading from 10% to 100% of the rated

current of the CTs, accomplished by matching the CTs with electronics

and calibrating them as a system.

Split Core Current Transformers - For use with EMH+

and Series 4000 Industrial ModBus Meter Kits Only

Rogowski Coil Current Transformer - For use with

Series 4000 Industrial ModBus Meter Kits Only

AMP CAT. NO. DESCRIPTION

SINGLES

SOLID CORE - FOR USE WITH MINI METERS AND MMUs

100:0.1A CDE01-K11 Solid Core, 0.67”, Black

100:0.1A CDE01-L11 Solid Core, 0.67”, Blue

100:0.1A CDE01-R11 Solid Core, 0.67”, Red

100:0.1A CDA01-K12 Solid Core, 0.72”, Black

100:0.1A CDA01-L12 Solid Core, 0.72”, Blue

100:0.1A CDA01-R12 Solid Core, 0.72”, Red

200:0.1A CDE02-K11 Solid Core, 0.67”, Black

200:0.1A CDE02-L11 Solid Core, 0.67”, Blue

200:0.1A CDE02-R11 Solid Core, 0.67”, Red

200:0.1A CDA02-K12 Solid Core, 0.72”, Black

200:0.1A CDA02-L12 Solid Core, 0.72”, Blue

200.0.1A CDA02-R12 Solid Core, 0.72”, Red

400:0.1A CDF04-K24 Solid Core, 1.5”, Black

SPLIT CORE - FOR USE WITH SERIES 1000, 2000, AND

3300/3500 METERS, & SERIES 2000 (MMUs) ONLY

100:0.1A CTD01-K16 Split Core, .75” x .75”

200:0.1A CTD02-K16 Split Core, 1” x 1”

400:0.1A CTD04-K23 Split Core, 1.5”, x 1.5”

800:0.1A CTC08-K46 Split Core, 3” x 3.5”

1200:0.1A CTC12-K46 Split Core, 4” x 6”

1600:0.1A CTC16-K96 Split Core, 4” x 6”

3000:0.1A CTC30-57B Split Core, 5” x 7”

5000:0.1A CTC50-57B Split Core, 5” x 7”

KITS - FOR USE WITH MINI-METERS & MMUs

100:0.1A CDE01-211 CT Kit, 0.67”, Red, Black

100:0.1A CDE01-311 CT Kit, 0.67”, Blue, Red, Black

100:0.1A CDA01-212 CT Kit, 0.72”, Red, Black

100:0.1A CDA01-312 CT Kit, 0.72”, Blue, Red, Black

200:0.1A CDE02-211 CT Kit, 0.67”, Red, Black

200:0.1A CDE02-311 CT Kit, .067”, Blue, Red, Black

200:0.1A CDA02-212 CT Kit, 0.72”, Red, Black

200:0.1A CDA02-312 CT Kit, 0.72”, Blue, Red, Black

ROGOWSKI COIL- FOR USE WITH SERIES 4000 INDUSTRIAL

MODBUS METER KITS ONLY

20-5000A CRV50-K62 Rogowski Coil, 12”

20-5000A CRV50-K93 Rogowski Coil, 18”

20-5000A CRV50-KC2 Rogowski Coil, 24”

SPLIT CORE - FOR USE WITH EMH+ & SERIES 4000

INDUSTRIAL MODBUS METER KITS ONLY

100:0.333V CTV01-K21 Split Core, 1.6” x 2.1”

200:0.333V CTV02-K21 Split Core, 2.2” x 2.8”

400:0.333V CTV04-K40 Split Core, 6” x 5.2”

800:0.333V CTV08-K40 Split Core, 6” x 5.2”

17

www.leviton.com/verifEye

Specifications

Data

Acquisition

Hubs

Data

Acquisition

Hubs

Data

Acquisition

Hubs

Input/

Output

Module

Input/

Output

Module

Wireless Modbus/

Pulse Transceiver

Energy

Monitoring

Hub (EMH)

EMB

Hub

EMB

HubLite

High

Density

Pulse

Module

Flex I/O

Module ModHopper

A8812 A8810 A7810 A8911 A8332 R9120

Protocols

Modbus RTU

Modbus TCP

TCP/IP

PPP

HTTP/HTML

FTP

NTP

XML

SNMP-Trap

BACNet IP

Modbus RTU

Modbus TCP

TCP/IP

PPP

HTTP/HTML

FTP

NTP

XML

SNMP-Trap

BACNet IP

Modbus TCP

TCP/IP

PPP

HTTP/HTML

FTP

NTP

XML

SNMP-Trap

BACNet IP

Modbus RTU Modbus RTU Modbus RTU

Applications

Push-or-pull meter data to software applications

Use with an Ethernet (LAN) connection to push-or-

pull data via HTTP, XML, FTP, or any custom protocol

Connect to web-based (IP-based) software

dashboards, energy information management

systems and demand response systems

Use with EMH to take

advantage of plug-in

communication

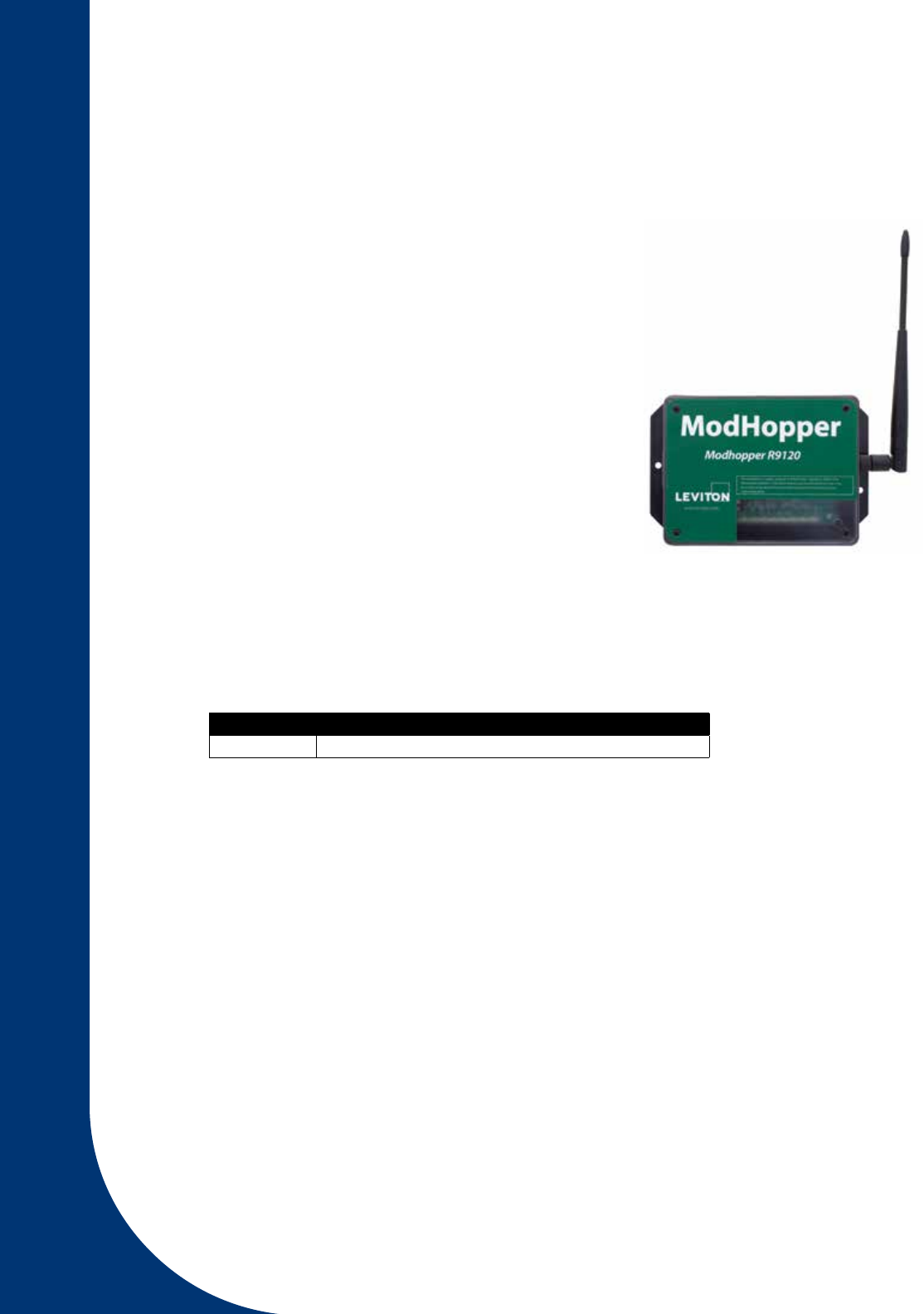

Use with ModHopper for

wireless communication

Push-or-pull meter data to

VerifEye kiosks and software

applications

Designed specifically

for wireless sub-

metering

Collect meter data

from multiple buildings

over long distances

“Self-managed”

mesh network keeps

system functioning

with high reliability

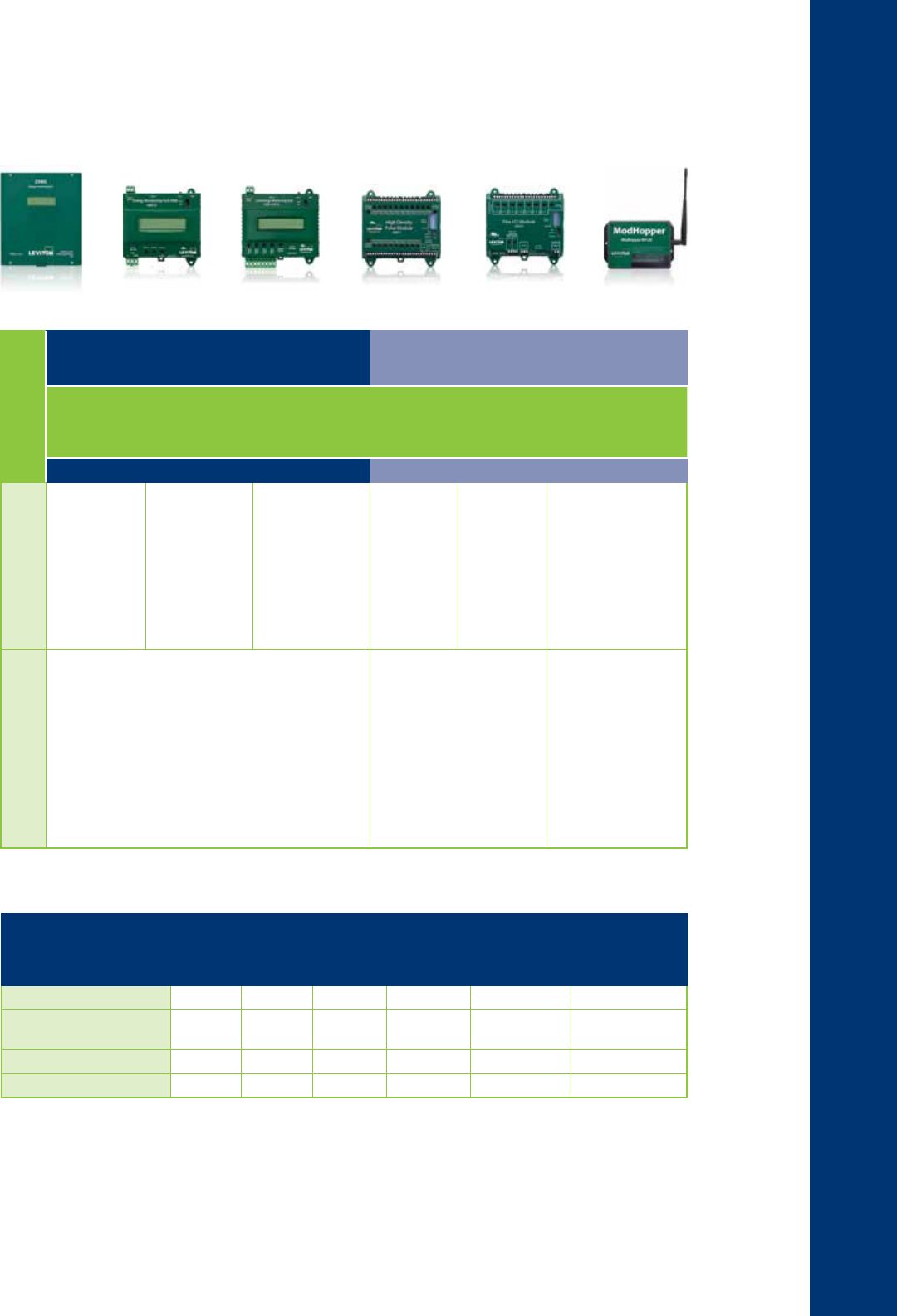

VerifEye Communication Products

Energy EMB Hub EMB HubLite High Density Flex I/O Module ModHopper

Monitoring Hub Pulse Module

(EMH)

HOW TO SELECT THE APPROPRIATE DATA ACQUISITION HUB

Modbus

TCP

Modbus

RTU

4 Pulse

Inputs

Onboard

8 Flex

Inputs

On Board*

Configured

for Leviton

Energy

Manager

Requires

Separately

Ordered

Power Supply

A8812-001 EMH X X - X X -

A8812-000 EMH

(non-configured) X X - X - -

A8810-000 EMB Hub X X - - - X

A7810-000 EMB HubLite X - X - - X

* Pulse, analog, status, and resistive.

VerifEye™ Smart Submetering Solutions

18

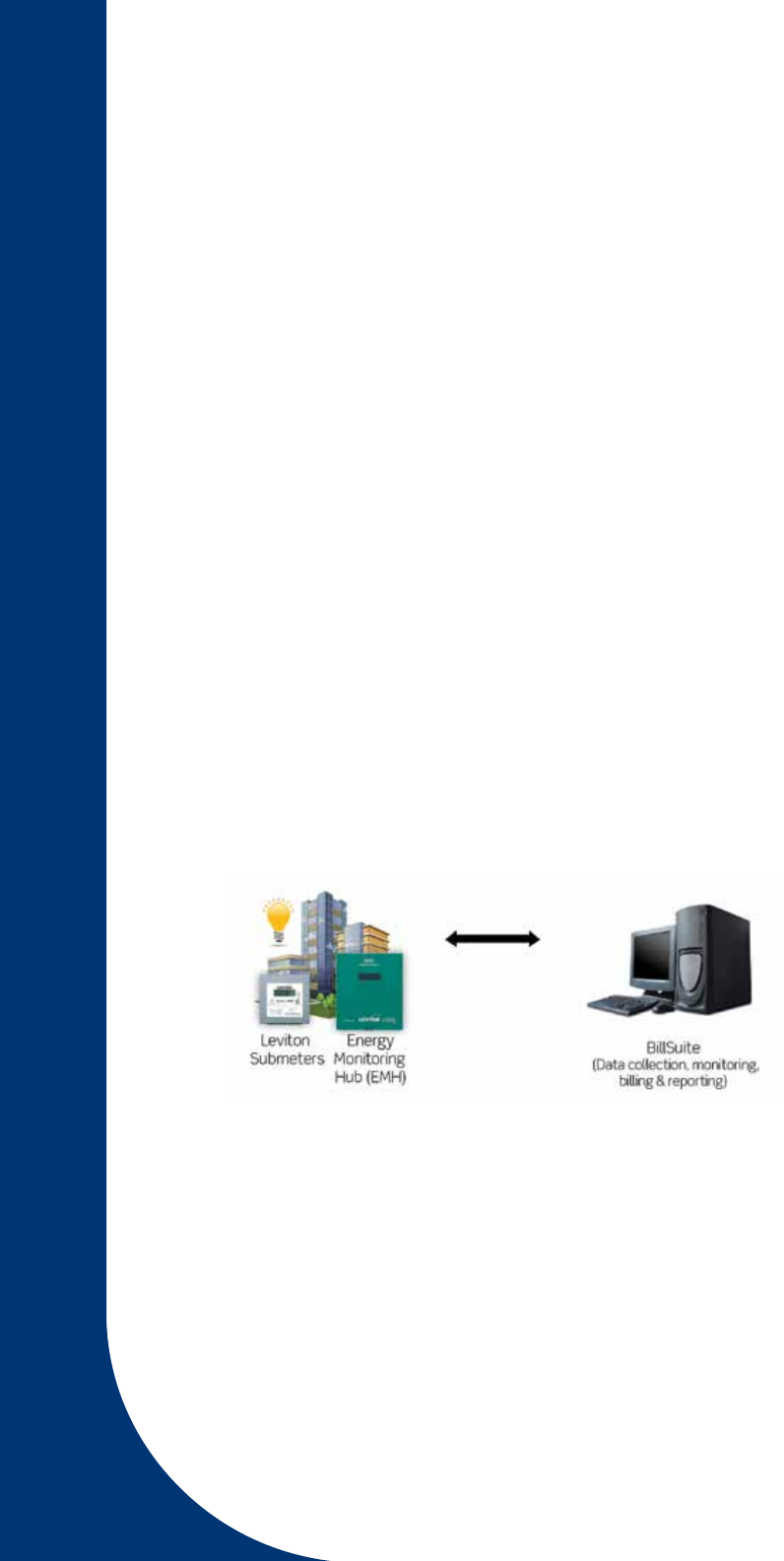

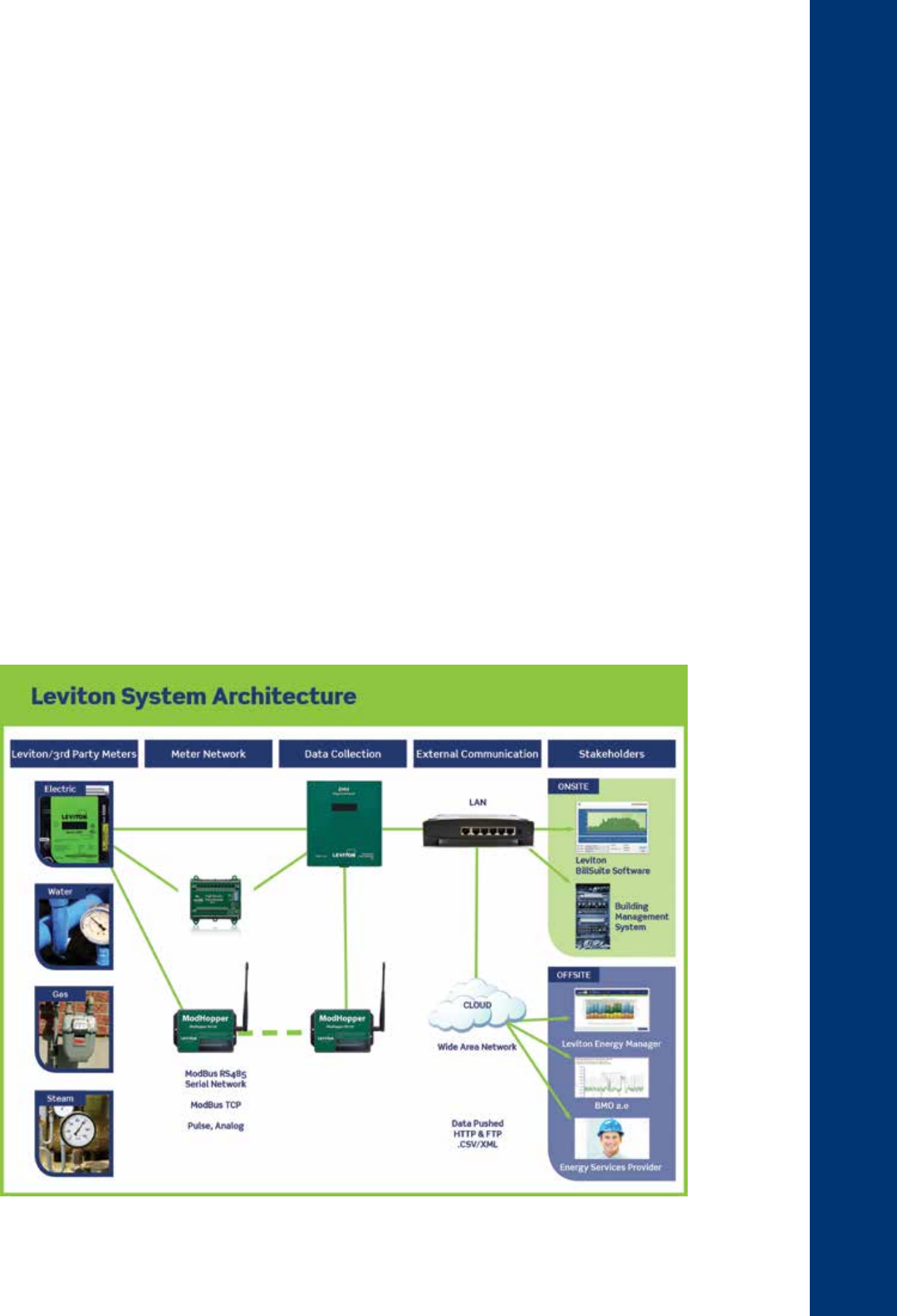

Metering Communications Systems

To create a data network between Leviton submeters and stake-

holders (BAS, third party billing, Leviton Energy Manager software,

etc.), Leviton offers Metering Communication Systems. These

solutions transmit data from meters to end systems, creating a

seamless transition between data collection and data display.

Leviton Metering Communications Systems also enable facilities

to create metering systems that can easily share data through

open protocols such as Modbus, and IP-based data transfer

through HTTP/FTP of .csv or XML files. The results are robust and

reliable networks scalable to accommodate future expansion,

with data made accessible from any internal or external location.

Data Acquisition Hubs

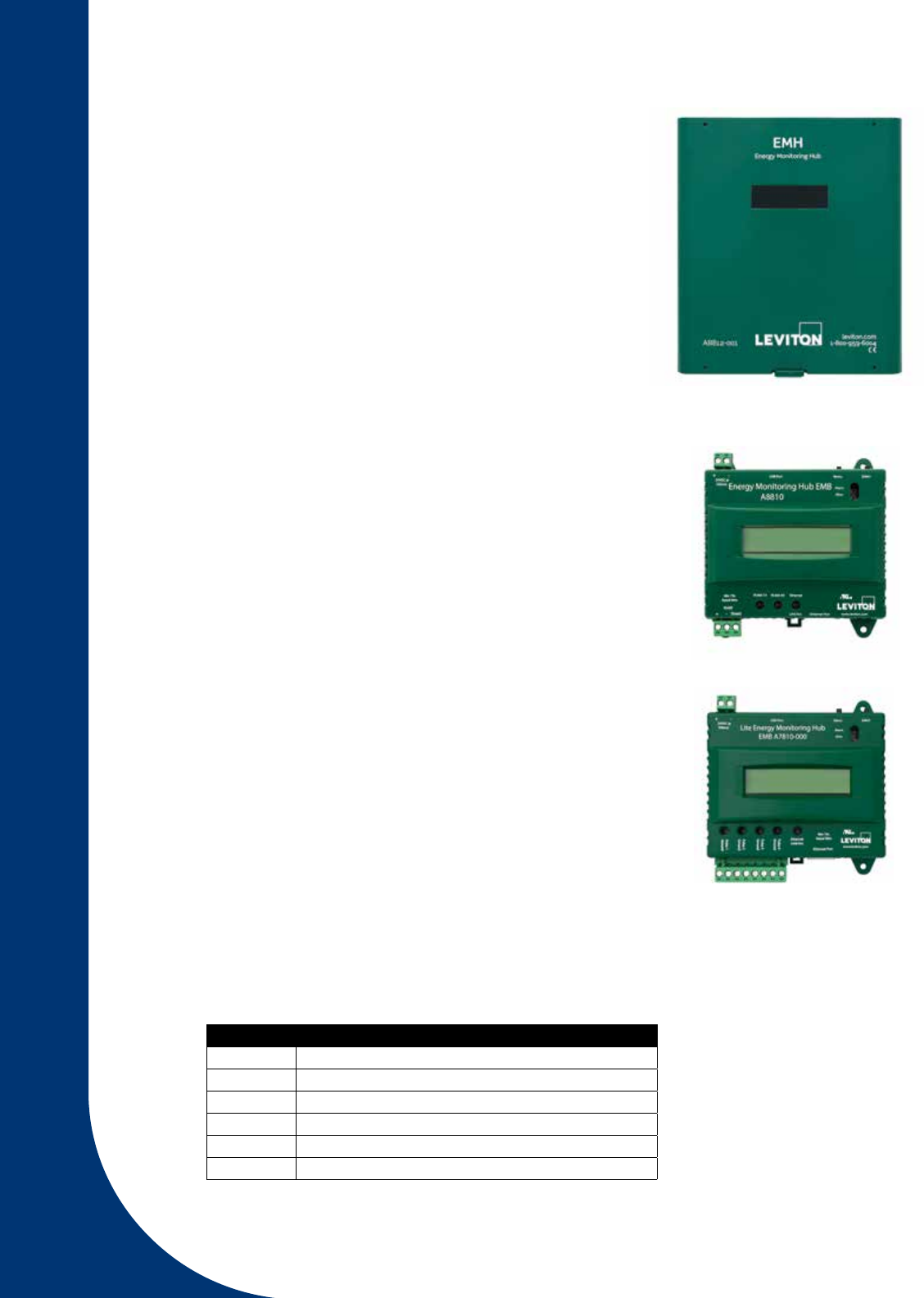

ENERGY MONITORING HUBS

Metering Communication Hubs, including the Energy Monitoring

Hub (EMH), EMB and EMBLite, are intelligent, flexible data acquisi-

tion servers allowing users to collect energy data from meters and

environmental sensors. Designed to connect to IP-based applica-

tions such as enterprise energy management, demand response

and smart grid programs, Hub servers let you connect thousands of

energy points, benchmark energy usage and reduce energy costs.

• Collects and logs data from connected wired or wireless devices

based on user-set intervals

• Pushes or pulls data via HTTP, XML, FTP or any custom protocol

using an Ethernet (LAN) connection

• No software required: Information can be accessed through any

web browser in any location

• Plug and play connectivity

• Compatible with nearly any front-end software platform allowing

customers to use a variety of reporting tools

• Push or pull meter data to energy dashboards, kiosks and software

applications

• Monitor performance of critical systems (lighting, HVAC, PDUs,

inverters, etc.)

• VerifEye Building Manager Online is included at no cost with

purchase of any VerifEye Data Acquisition Hub

Energy Monitoring Hub

DATA ACQUISITION HUBS

CAT. NO. DESCRIPTION

A8812-001 Energy Monitoring Hub – Configured for Leviton Energy Manager

A8812-000 Energy Monitoring Hub – Non-Configured

A8810-000 EMB Hub

A7810-000 EMB HubLite

YBM05-010 Power Supply for EMB Hub and EMB HubLite

YMB07-001 Replacement power supply

EMB Hub

EMB HubLite

Refer to page 15 for the EMH+ Integrated Meter and Energy Monitoring Hub

19

www.leviton.com/verifEye

High Density Pulse Module

Input/Output Modules

HIGH DENSITY PULSE MODULE

The High Density Pulse Module provides a convenient way to expand a Leviton Metering System by

connecting the HD Pulse Module to an Energy Monitoring Hub (EMH) and/or ModHopper for system

expansion. The HD Pulse Module accepts up to 23 standard pulse sensors and can function as a slave

device with any Modbus master. This data can easily be integrated to a network of other critical energy

sensors to provide a comprehensive energy monitoring solution. The HD Pulse Module is ideal for

applications with a high density of pulse output devices, giving users access to meters that would

previously require multiple modules.

• External communications handled via shielded twisted pair

18-22 gauge wire allowing communication up to 4000 feet

and pulse input communications up to 200 feet (consult

factory for longer runs) using 18-24 gauge control wire

• DIN or wall mounting make installations quick and easy

• Device verification - LED indicators for each pulse input

allow for fast indication and verification of pulses to reduce

installation and troubleshooting time

• Non-volatile memory retains configuration and pulse count

totals during power failures for reliable data collection and

retention

• Easily add pulse meters to Modbus network for a scalable, open protocol solution

• Field upgradable firmware for user-friendly future upgrades and expansion

FLEX I/O MODULE

The Flex I/O Module is a cost-effective way to collect data from meters or sensors and bring the information

into a Modbus network or energy monitoring system. As a stand-alone or bundled package, the Leviton

Flex I/O can be incorporated with data acquisition and metering devices to provide a cost-effective energy

monitoring solution. The Flex I/O is compatible with virtually any Modbus master, allowing customers the

flexibility to use it in existing Modbus networks. Use with the Leviton Energy Monitoring Hub (EMH).

• Easily add meters and sensor to Modbus network

• 8x user selectable inputs

• 2x output relays

• 2x pulse replicator

• Non-volatile memory

• Industrial temperature range (-30°C to 70°C)

• LEDs for visual verification/status reduce installation and

troubleshooting time

• Din or wall mount for easy installation

• Field upgradable firmware for user-friendly future upgrades and expansion

Flex I/O Module

INPUT/OUTPUT MODULES

CAT. NO. DESCRIPTION

A8911-000 High Density Pulse Module, 23 Inputs

A8332-000 Flex I/O Module, 8 User Selectable Inputs, 2 Relay Outputs

VerifEye™ Smart Submetering Solutions

20

ModHopper

WIRELESS MODBUS/PULSE TRANSCEIVER

CAT. NO. DESCRIPTION

R9120-500 ModHopper and Power Supply

Wireless Modbus/Pulse Transceiver

MODHOPPER

The ModHopper is a breakthrough mesh technology design that makes connecting Modbus RTU (RS485)

and pulse devices simple and cost effective. Our “smart” ModHopper transceivers eliminate the need

for costly wiring runs allowing users to capture meter data in the most challenging retrofit and campus

environments. Collect meter points in existing buildings with minimum down-time or disruption of

day-to-day operations.

• Designed specifically for wireless metering and Leviton Metering Solutions

for guaranteed compatibility

• No software or programming required and devices automatically configure

when powered, reducing labor costs and installation time

• Wireless “mesh” network—self-healing, self-optimizing for

ease of installation and maintenance

• Connect up to 32 Modbus and 2 pulse devices per

ModHopper for the ultimate expandable solution

• Long distance communication (3000ft indoor/14 miles LOS

Outdoors) for flexibility of placement and easier future

expansion

• Multiple independent network capability

• Reliable, constant two-way communication and packet verification

• Point to multi-point communication

• Field upgradable firmware for user-friendly future upgrades and expansion

21

www.leviton.com/verifEye

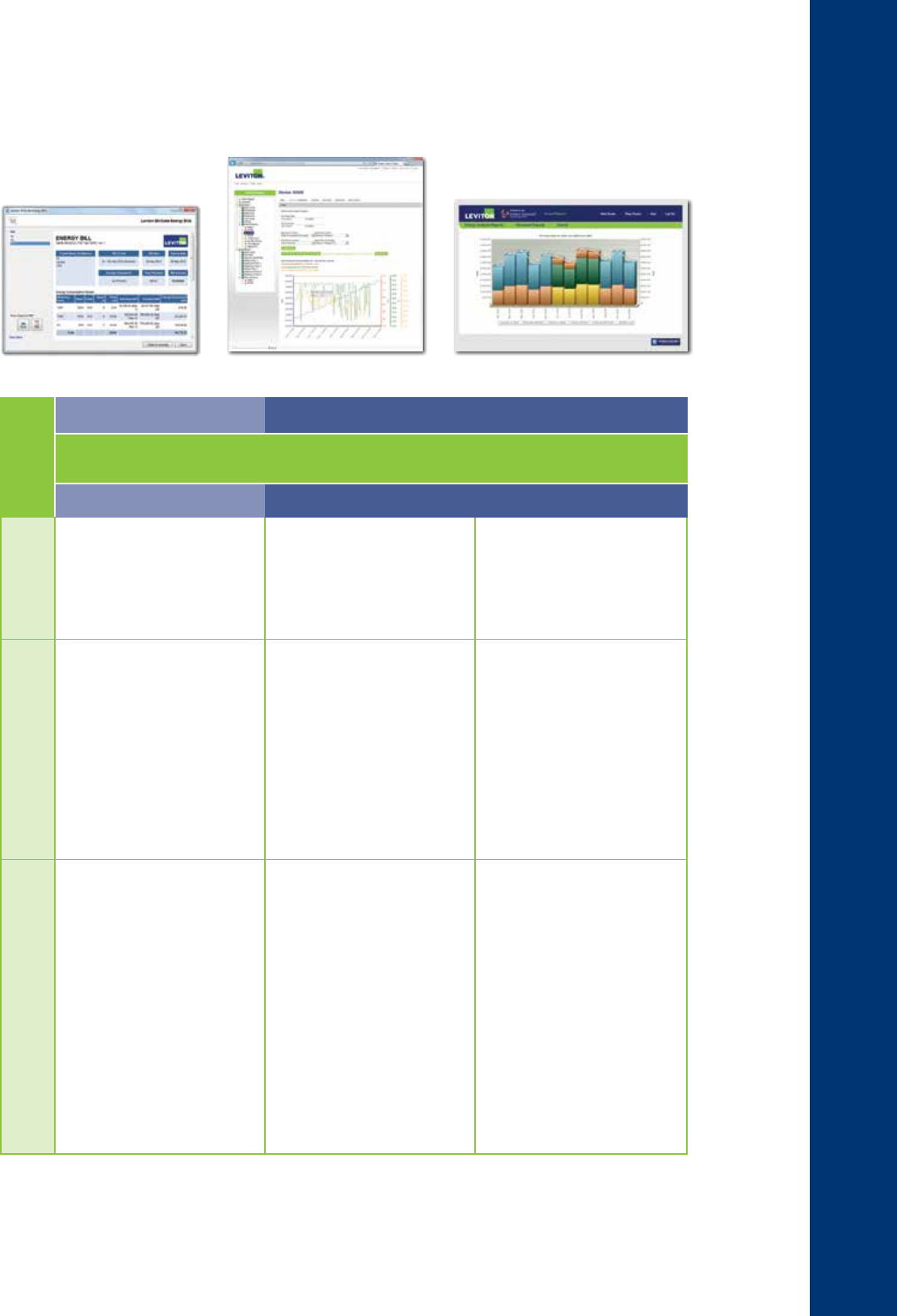

Specifications

Tenant Billing Software Measurement & Verification (M&V) Software

BillSuite Building Manager

Online (BMO) Energy Manager

LBSSW BMOSW LEMS8

Primary

Functions

Automates the tenant billing

process by eliminating manual

meter readings

Allows users to quickly access

energy consumption information

via a web-based platform

Plot charts and view data quikly

without any custom software

installed on a PC - simply log on

to the BMO website

Analyzes, formats and reports

data gathered from VerifEye

Submetering Solutions

Users log in to Energy Manager

website and access data and

reports in real-time

Key Features

Monitor energy consumption of

each tenant or whole building on

a 24/7 basis

Meters can be in a basement,

wire closet or individual unit

Generate bills from any PC -

requires Windows 7 or better

Monthly and periodic billing

reports for any or all VerifEye

submeters

Energy profile to identify peak

demand and energy waste

Delivers simple graphical interface

for plotting energy information

and identifying

anomalies and

peak demand in

near real time

Uploads 15 minute interval data

and displays raw data in a line

graph

Illustrates information in real time

Includes an automatic reporting

system and an instant alarm

notification system

Produces customized reports to

suit precise requirements

Collects information from 1 to

60 minute intervals for in-depth

tracking

Reporting based on 15 minute

intervals

Key Benefits

Generate monthly electricity bills

for each tenant, which reflect

actual energy usage

Improve cash flow and increase

net operating income

Eliminate uncertainty of variable

utility costs

Delegate energy usage account-

ability to tenants

Improve tenant satisfaction,

retention and property values

Identify and fix energy waste,

reducing overall costs

Select date ranges to display

information in intervals from one

year to as little as an hour

Add or change configuration of

attached sensors

Add or change the data recording

interval, alarm thresholds, even

the device name

Identify cost saving measures that

can lead to greater profitability

Discover energy inefficiencies

that may be difficult to see

Establish baselines, budgets and

allocation of energy use and cost

within an enterprise to track and

analyze goals and performance

Develop responsible environmental

goals and conservation measures

while measuring and managing

facility’s carbon footprint

Provide outstanding communica-

tion and support, enabling facili-

ties to have the most advanced

and intuitive energy management

reporting in the industry

VerifEye Software Products

BillSuite Building Manager Online Energy Manager

VerifEye™ Smart Submetering Solutions

22

VerifEye Software

SAVE ENERGY, REDUCE COSTS, BE SUSTAINABLE

With a competitive global economy, soaring energy prices, increasing environmental issues and technology-

based decision making, your profitability depends on the ability to analyze and control operating costs.

Better energy management saves money and translates to an improved bottom line.

VERIFEYE SOFTWARE INCLUDES:

• Tenant Billing

- BillSuite - provides individual tenant billing capabilities to ensure accurate and complete recovery of

tenant energy costs

• Measurement & Verification (M&V)

- Building Manager Online (BMO) - web-based interval data collection software platform

- Energy Manager - energy monitoring platform which interprets submeter data and exports real-time

reports in selected time increments, stretching from hour-by-hour to year-by-year

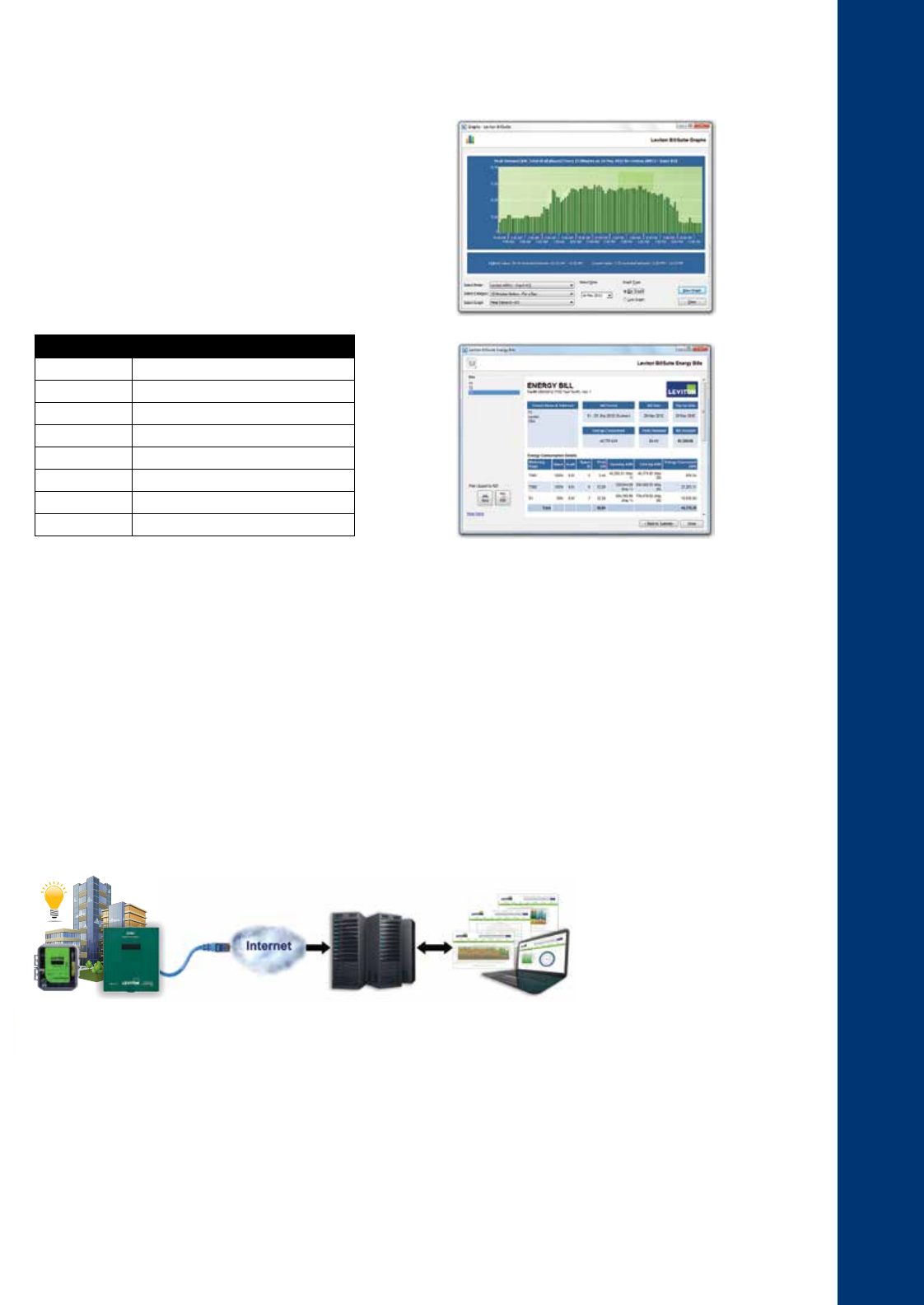

Tenant Billing Software

MEASURE. MONITOR. MANAGE. BILL.

Generate billing based on actual tenant consumption. BillSuite is a PC based software program that

provides individual tenant billing capabilities to ensure accurate and complete recovery of tenant energy

costs. This software solution automates the tenant billing process by eliminating manual meter readings

for simplified, more accurate measure ment and verification. BillSuite collects energy consumption data

from all meters on a periodic basis and generates energy bills, billing reports, energy profiles as well as

graphs. Other submeters such as gas, water, BTU, etc. can be added to the tenant bill.

How VerifEye BillSuite Tenant Billing Software Works

SIMPLE, EFFECTIVE, TURN KEY SOLUTION TO MONITOR & BILL ENERGY USAGE

• Meters record real-time kWh and kW consumption data

• Energy Monitoring Hub (EMH) receives meter data and pushes it to BillSuite

• BillSuite collects data, generates individual tenant bills using customizable utility rates, and provides

graphing and trending capabilities

• User logs into BillSuite and accesses billings and reports

23

www.leviton.com/verifEye

BILLSUITE SOFTWARE

CAT. NO. DESCRIPTION

LBSSW-01L BillSuite Software 1 - 50 Meters

LBSSW-02L BillSuite Software 51 - 100 Meters

LBSSW-03L BillSuite Software 101 - 200 Meters

LBSSW-04L BillSuite Software 201 - 300 Meters

LBSSW-05L BillSuite Software 301 - 400 Meters

LBSSW-06L BillSuite Software 401 - 550 Meters

LBSSW-07L BillSuite Software 551 - 750 Meters

LBSSW-08L BillSuite Software 751 - 1000 Meters

15-Minute Interval Data

Tenant Energy Bill

Energy

Monitoring

Hub (EMH)

Leviton

Submeters

Leviton

Energy Manager

Data Center

User Interface

BMO 2.0 or

Energy Manager

Software

Measurement & Verification (M&V) Software

MEASURE. MONITOR. MANAGE. IF YOU DON’T MEASURE IT, YOU CAN’T MANAGE IT!

Energy monitoring and reporting is the key to measuring and managing energy efficiency and cost.

Decision makers everywhere are turning to VerifEye Solutions to get the information they need to make

smart energy choices. An advanced web based platform that provides real time data for your entire en-

terprise, Leviton Building Manager Online (BMO) 2.0 and Energy Manager deliver the most sophisticated

tools to drive energy efficiencies, reduce operating costs and create more sustainable, environmentally

sound facilities.

How VerifEye Measurement & Verification (M&V) Software Works

SIMPLE, EFFECTIVE, TURN KEY SOLUTION TO MONITOR ENERGY IN REAL TIME

• Meters record real time consumption data

• Energy Monitoring Hub (EMH) receives meter data and pushes it to Energy Manager data center

• Data Center stores, manages and reports data in real time

• Energy Manager software analyzes, formats and reports the data

• User logs into Energy Manager website and accesses data and reports

VERIFEYE BILLSUITE FEATURES

• Monitor energy consumption of each tenant or whole

building on a 24x7 basis

• Meters can be in a basement, wire closet or individual unit

• Billing of each tenant from the convenience of your PC

• Monthly and periodic billing reports for any or all meters

• Energy profile to identify peak demand and energy waste

VerifEye™ Smart Submetering Solutions

24

VerifEye Building Manager Online (BMO)

• Leviton hosted software application - no software installation required

• Set alarms and view graphical and historical data in intervals from one year to as little as an hour

• Provides a daily view summary of load profiles to help identify high and low consumption days and

visual daily trending patterns

• Shows the effects of energy conservation measures by tracking load profiles over a given time period

• Quickly view any building or end-user for a summary of operating parameters

• Export data to spreadsheets for analysis (.csv files)

• Plot charts to show trends and provide analytical charts with demand profiling

• Select date ranges to display information

• Copy and paste graphs into your own reports with BMO’s convenient legends

• VerifEye BMO is included at no cost with purchase of any VerifEye Data Acquisition Hub

25

www.leviton.com/verifEye

Energy Manager Software

• Simplified, easy to use with intuitive drilldown

functionality

• Identify cost saving measures that can lead to

greater profitability

• Discover energy inefficiencies that may be difficult

to see

• Establish baselines, budgets and allocation of

energy use & costs within an enterprise

• Measure and monitor the enterprise’s carbon

footprint

• Enhance LEED certification ratings with credits

for measuring, monitoring and verification

• Adopt best-business practices for efficient

energy use

• Track and trend consumption and site performance

versus goals

• Highlight maintenance issues - identify sites and

equipment that need immediate attention

• Trend, compare and validate utility bills

• Provide outstanding communication and support

enabling your operations and management

personnel

to have the most advanced, intuitive

energy management reporting at their fingertips

in just 3 clicks!

- Real-time Report - Daily Report

- Weekly Report - Weekly Profile Report

- Monthly Report - Monthly Profile Report

- Annual Report - Comparison Report

- Carbon Emissions Report - Energy Center Report

ENERGY MANAGER SOFTWARE

CAT. NO. DESCRIPTION

YEAR ONE

LEMSB-000 Energy Manager Software - Base License Program - includes (8) control points and (1) user account

LEMS8-812 Energy Manager Software - Base License Program - includes EMH (Modbus/RS-485, Ethernet, No Modem),

(8) Flex Inputs, (8) control points and (1) user account

LEMSS-000 Energy Manager Software - Specifier Version - includes (8) control points and (1) user account

LEMS9-812 Energy Manager Software - Specifier Version - includes EMH (Modbus/RS-485, Ethernet, No Modem),

(8) Flex Inputs, (8) control points and (1) user account

LEMSU-000 Energy Manager Software - Additional User Account

LEMSP-000 Energy Manager Software - Additional Points License - includes (8) control points

ANNUAL RENEWAL

LEMSB-R00 Energy Manager Software - Base License Program Renewal – includes (8) control points and (1) user account

LEMSS-R00 Energy Manager Software – Specifier Version Renewal – includes (8) control points and (1) user account

LEMSU-R00 Energy Manager Software – Additional User Account Renewal

LEMSP-R00 Energy Manager Software - Additional Points License Renewal – includes (8) control points

Annual Report

Multiple Meter Analysis Report

Energy Center Report

Carbon Emissions Report

26

Leviton Manufacturing Co., Inc. Global Headquarters

201 N. Service Rd. Melville, NY 11747-3138 tech line 1-800-824-3005 fax 1-800-832-9538

Leviton Manufacturing Co., Inc. Lighting & Energy Solutions

20497 SW Teton Avenue, Tualatin, OR 97062 tel 1-800-736-6682 fax 503-404-5594

tech line (6:00AM-4:00PM P.S.T. Monday-Friday): 1-800-959-6004

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 tel 1-800-469-7890 fax 1-800-563-1853

Leviton S. de R.L. de C.V.

Lago Tana 43, Mexico DF, Mexico CP 11290 tel (+52) 55-5082-1040 www.leviton.com.mx

Visit our Website at www.leviton.com/les

© 2014 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

G-8505F/H14-ak

REV AUG 2014

©2014 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

‘USGBC’ and related logo is a trademark owned by the U.S. Green Building Council and is used by permission

The American Recovery And Reinvestment Act of 2009 (“ARRA”) provides federal grants and loans for projects throughout the country. Section 1605 of the Act, named the “Buy American” provision, requires

that certain materials and manufactured products used in projects funded by the Act be manufactured in the United States. The appearance of the Recovery Act Logo in relation to a Leviton product is only

intended to reflect that such product may be used in an ARRA funded project. It does not mean that such product or Leviton is sponsored or endorsed by, or that Leviton receives funds from, the federal

government or the Recovery Accountability and Transparency Board. Nothing in Leviton’s use of the logo is intended to suggest anything regarding the requirements for funding under ARRA.

facebook.com/leviton twitter.com/leviton youtube.com/levitonmfg

Visit our Website at: www.leviton.com/les
