Global Plus Connectivity
Global Plus Connector Cables
PG.05.05.T.E
Connector Cables
Global Plus Conectivity
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . 1
Model Selection, Micro Style . . . . . . 3
Model Selection, Mini Style . . . . . . . 5
Model Selection, Nano Style . . . . . . 6
Model Selection,
Double-Ended . . . . . . . . . . . . . . . . . 7
Model Selection,
Accessories . . . . . . . . . . . . . . . . . . . 8
Wiring Diagrams . . . . . . . . . . . . . . . . 8
Specifications . . . . . . . . . . . . . . . . . . 9
Dimensions . . . . . . . . . . . . . . . . . . . . 9
Finish your sensor installation with
high quality Cutler-Hammer
®
Connector Cables from Eaton’s
electrical business. Our Global Plus
line is designed to give you
everything you want without paying
extra for the features you don’t want.
It includes a wide variety of single-
and double-connector cables. Custom
lengths are available upon request
from the factory.
Approvals
■
UL Recognized (Mini Style)
■
CSA Certified (Mini and Nano
Styles)
■
C-UL Recognized (Micro and
Nano Styles)
High Performance Cost-Effective Quick-Disconnect Cable
Products for Flexible Wiring Solutions

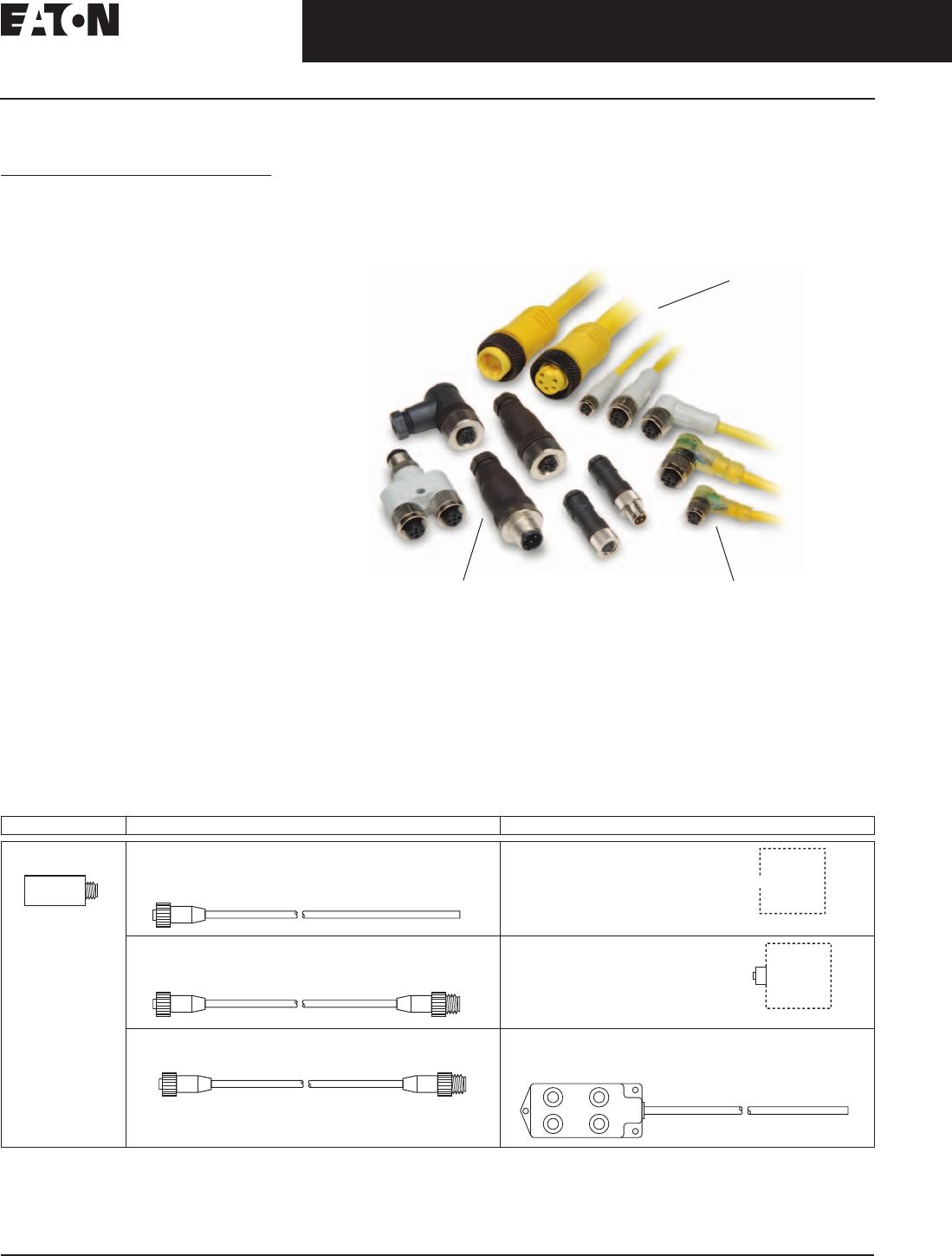

What Type of Connector Cable Do You Need?
Sensor Connector Cable Type Interfaces with …
Single-Connector Cable Junction Box or Control Panel
For hard-wiring into a typical junction box
or control panel.
The majority of the
sensors in this Product
Guide are available
with connectors for
quick-disconnect
installation.
Double-Connector Cable Connectorized Junction Box or Control
Panel
For connecting to a junction box or control
panel that has a receptacle connector
interface.
Double-Connector Cable Multi-Connector Block with Cable
Allows up to 8 sensors to be consolidated into one cable for wiring
to your control system.
For Customer Service in the U.S. call
1-877-ETN CARE (386-2273)
,
in Canada call
1-800-268-3578
.
For Application Assistance in the U.S. and Canada
call
1-800-426-9184
.
Mini, Micro and Nano Cables
in Various Lengths, Gauges
and Jacket Materials
Cables with
Built-in LEDs
Single- and Double-Ended
Connector Cables
Field Wireable Connectors
and Bulk Cable for Making
Your Own Cables
Style: Micro — See Page 3
Mini — See Page 5
Nano — See Page 6
Style: Micro — See Page 7
Mini — See Page 7
Style: Micro — See Page 7
Style: Micro — See CA05310001E
2
For more information visit:
www.eaton.com
PG.05.05.T.E
Global Plus Connectivity
August 2009
Global Plus Connector Cables
Catalog Number Selection
Connector Cables — Catalog Numbering System
This is a representative guide to the catalog numbering system. All possible combinations may not be available for ordering. Please verify the number
with the following pages or call Application Support at (800) 426-9194 before ordering.
C S D S 4 A 4 C Y 2 2 0 2 -D
Product
CS = Cordset
Electrical Version/Connector Type
D = Euro (Micro) Connector
A = AC Micro Connector
M = AC/DC Mini Connector
Connector Type
S = Straight
R = Right Angle
Pin Configuration
2 = 2-Pin
3 = 3-Pin
4 = 4-Pin
5 = 5-Pin
9 = 9-Pin
Wire Color Code
A = IEC Color Code
F = North American Color Code
D = Industrial Color Code
Wire Configuration
2 = 2-Wire
3 = 3-Wire
4 = 4-Wire
5 = 5-Wire
9 = 9-Wire
Jacket Color
Y = Yellow
B = Black
Wire Gauge
24 = 24 AWG
22 = 22 AWG
16 = 16 AWG
Connector Type
D = Double-Ended
LN = LED NPN
LP= LED PNP
Cable Length
01 = 1 Meter (3.2 Feet)
01.5 = 1.5 Meters (4.9 Feet)
02 = 2 Meters (6.5 Feet)
03 = 3 Meters (9.8 Feet)
04 = 4 Meters (13 Feet)
05 = 5 Meters (16.4 Feet)
10 = 10 Meters (32.8 Feet)
Jacket Material
C = PVC
R = PUR
I = IRR PUR
August 2009
PG.05.05.T.E For more information visit:
www.eaton.com
3
Global Plus Connectivity
Global Plus Connector Cables

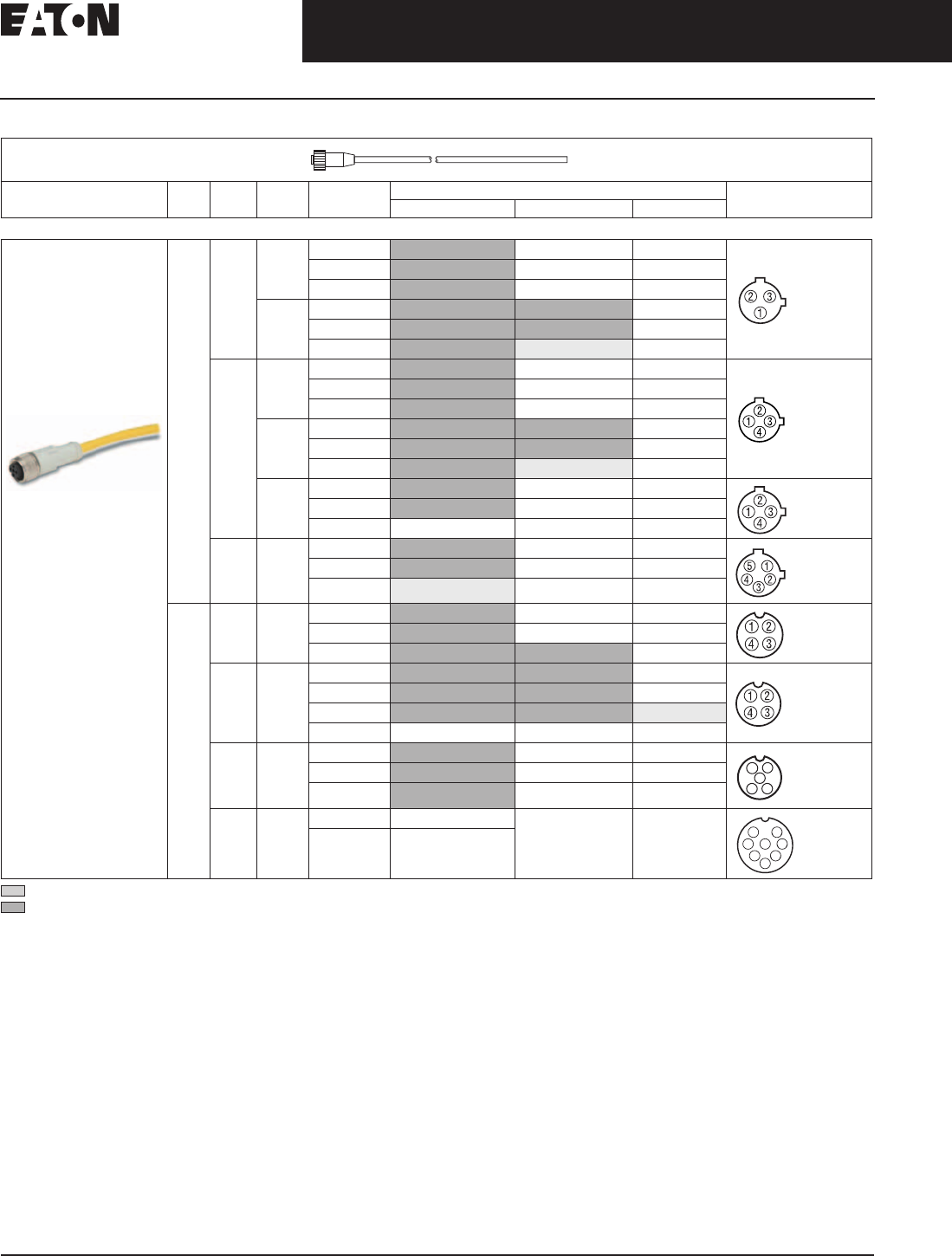

Model Selection — Micro Style, Single-Connector Cables
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage
Style
Number
of Pins
Gauge Length Catalog Number Pin Configuration/Wire Colors
(Face View Female Shown)
PVC Jacket PUR Jacket IRR PUR Jacket
Standard Cables
Micro Style
Straight Female
AC 3-pin
3-wire
18 AWG 6.0 feet (2m)
CSAS3F3CY1802 — —
16.4 feet (5m)
CSAS3F3CY1805 — —
32.8 feet (10m)
CSAS3F3CY1810 — —
22 AWG 6.0 feet (2m)
CSAS3F3CY2202 CSAS3F3RY2202 —
16.4 feet (5m)
CSAS3F3CY2205 CSAS3F3RY2205 —
32.8 feet (10m)
CSAS3F3CY2210 CSAS3F3RY2210 —
4-pin
4-wire
18 AWG 6.0 feet (2m)
CSAS4F4CY1802 — —
16.4 feet (5m)
CSAS4F4CY1805 — —
32.8 feet (10m)
CSAS4F4CY1810 — —
22 AWG 6.0 feet (2m)
CSAS4F4CY2202 CSAS4F4RY2202 —
16.4 feet (5m)
CSAS4F4CY2205 CSAS4F4RY2205 —
32.8 feet (10m)
CSAS4F4CY2210 CSAS4F4RY2210 —
22 AWG 6.0 feet (2m)
CSAS4A4CY2202 — —
16.4 feet (5m)
CSAS4A4CY2205 — —
32.8 feet (10m)
CSAS4A4CY2210 — —
5-pin
5-wire
22 AWG 6.0 feet (2m)
CSAS5A5CY2202 — —
16.4 feet (5m)
CSAS5A5CY2205 — —
32.8 feet (10m)
CSAS5A5CY2210 — —
DC 4-pin
3-wire
22 AWG 6.0 feet (2m)
CSDS4A3CY2202 CSDS4A3RY2202 —
16.4 feet (5m)
CSDS4A3CY2205 CSDS4A3RY2205 —
32.8 feet (10m)
CSDS4A3CY2210 CSDS4A3RY2210 —
4-pin
4-wire
22 AWG 6.0 feet (2m)
CSDS4A4CY2202 CSDS4A4RY2202 CSDS4A4IO2202
16.4 feet (5m)
CSDS4A4CY2205 CSDS4A4RY2205 CSDS4A4IO2205
32.8 feet (10m)
CSDS4A4CY2210 CSDS4A4RY2210 CSDS4A4IO2210
65.6 feet (20m)
CSDS4A4CY2220 — —
5-pin
5-wire
22 AWG 6.0 feet (2m)
CSDS5A5CY2202 — —
16.4 feet (5m)
CSDS5A5CY2205 — —
32.8 feet (10m)
CSDS5A5CY2210 — —
8-Pin
8-Wire
24 AWG 16.4 feet (5m)
CSDS8A8CB2405
——
32.8 feet (10m)
CSDS8A8CB2410
1-Green
2-Red/Black
3-Red/White
2-Red/White
3-Red
4-Green
1-Red/Black
2-Bl
ue
3
-Blac
k
4-Whit
e
1-Br
o
w
n
1-Br
o
w
n
2-Bl
ue
3-Gra
y
4-Bl
ack
5
-Whit
e
1
-Br
o
wn
2-N
o
Wir
e
3
-Blue
4-Bl
ac
k
1
-Br
o
wn
2-W
h
it
e
3
-Blue
4-Bl
ac
k
1-Brown
2-White
3-Blue
4-Black
5-Green/Yellow
12
3
4
5
3
8
2
5
1
7
6
4
1-Whi
te
2-Br
o
w
n
3
-
G
r
een
4-Y
e
ll
ow
5-Gra
y
6
-Pin
k
7-Bl
ue
8
-R
ed
4
For more information visit:
www.eaton.com
PG.05.05.T.E
Global Plus Connectivity
August 2009
Global Plus Connector Cables

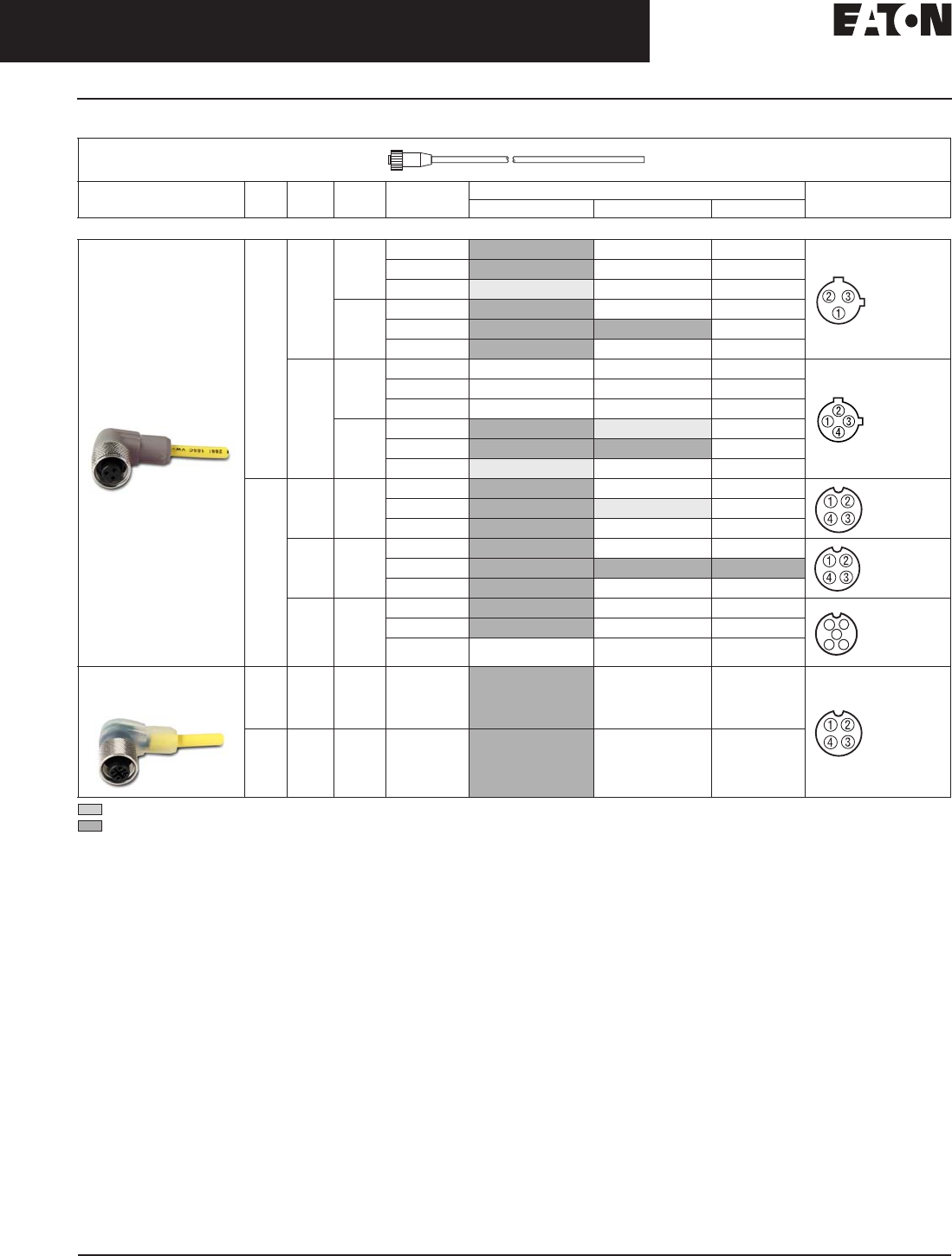

Model Selection — Micro Style, Single-Connector Cables
(Continued)
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage
Style
Number
of Pins
Gauge Length Catalog Number Pin Configuration/Wire Colors
(Face View Female Shown)
PVC Jacket PUR Jacket IRR PUR Jacket
Standard Cables
Micro Style
Right Angle
Female
AC 3-pin
3-wire
18 AWG 6.0 feet (2m)
CSAR3F3CY1802 — —
16.4 feet (5m)
CSAR3F3CY1805 — —
32.8 feet (10m)
CSAR3F3CY1810 — —
22 AWG 6.0 feet (2m)
CSAR3F3CY2202 CSAR3F3RY2202 —
16.4 feet (5m)
CSAR3F3CY2205 CSAR3F3RY2205 —
32.8 feet (10m)
CSAR3F3CY2210 CSAR3F3RY2210 —
4-pin
4-wire
18 AWG 6.0 feet (2m)
CSAR4F4CY1802 — —
16.4 feet (5m)
CSAR4F4CY1805 — —
32.8 feet (10m)
CSAR4F4CY1810 — —
22 AWG 6.0 feet (2m)
CSAR4F4CY2202 CSAR4F4RY2202 —
16.4 feet (5m)
CSAR4F4CY2205 CSAR4F4RY2205 —
32.8 feet (10m)
CSAR4F4CY2210 CSAR4F4RY2210 —
DC 4-pin
3-wire
22 AWG 6.0 feet (2m)
CSDR4A3CY2202 CSDR4A3RY2202 —
16.4 feet (5m)
CSDR4A3CY2205 CSDR4A3RY2205 —
32.8 feet (10m)
CSDR4A3CY2210 CSDR4A3RY2210 —
4-pin
4-wire
22 AWG 6.0 feet (2m)
CSDR4A4CY2202 CSDR4A4RY2202 CSDR4A4IO2202
16.4 feet (5m)
CSDR4A4CY2205 CSDR4A4RY2205 CSDR4A4IO2205
32.8 feet (10m)
CSDR4A4CY2210 CSDR4A4RY2210 CSDR4A4IO2210
5-pin
5-wire
22 AWG 6.0 feet (2m)
CSDR5A5CY2202 — —
16.4 feet (5m)
CSDR5A5CY2205 — —
32.8 feet (10m)
CSDR5A5CY2210 — —
Micro Style
Right Angle Female
with 2 LED Indicators
DC
NPN
4-pin
3-wire
22 AWG 16.4 feet (5m)
CSDR4A3CY2205-LN CSDR4A3RY2205-LN —
DC
PNP
4-pin
3-wire
22 AWG 16.4 feet (5m)
CSDR4A3CY2205-LP CSDR4A3RY2205-LP —
1-Green
2-Red/Black
3-Red/White
2-Red/White
3-Red
4-Green
1-Red/Black
1
-Br
o
wn
2-N
o
Wir
e
3
-Blue
4-Bl
ac
k
1
-Br
o
wn
2-W
h
it
e
3
-Blue
4-Bl
ac
k
1-Brown
2-White
3-Blue
4-Black
5-Green/Yellow
12
3
4
5
1
-Br
o
wn
2-N
o
Wir
e
3
-Blue
4-Bl
ac
k
August 2009
PG.05.05.T.E For more information visit:
www.eaton.com
5
Global Plus Connectivity
Global Plus Connector Cables

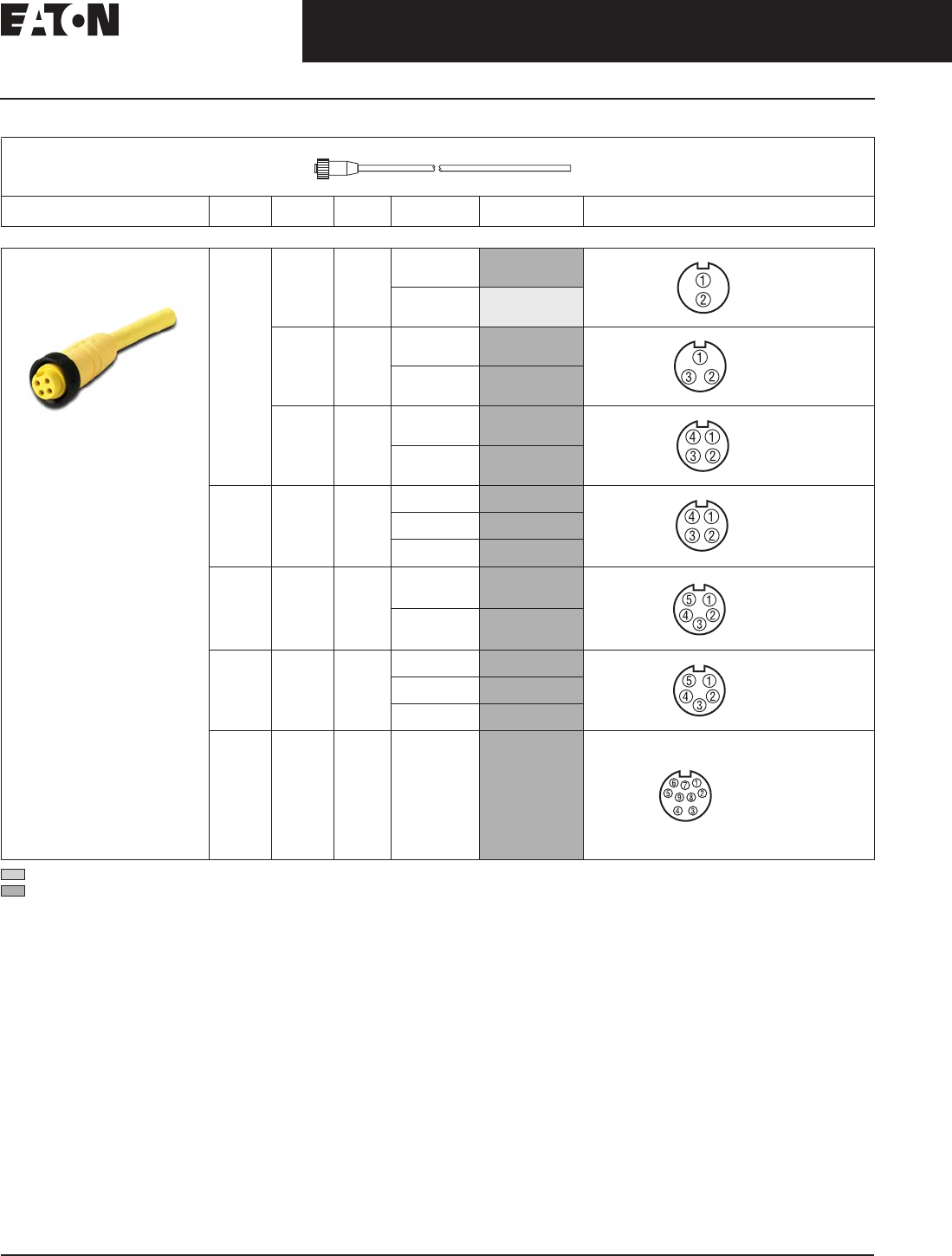

Model Selection — Mini Style, Single-Connector Cables
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage
Style
Number
of Pins
Gauge Length Catalog Number Pin Configuration/Wire Colors
(Face View Female Shown)
Standard Cables
Mini Style
Straight Female
AC/DC 2-pin
2-wire
16 AWG 6 feet (2m)
CSMS2D2CY1602
12 feet (4m)
CSMS2D2CY1604
3-pin
3-wire
16 AWG 6 feet (2m)
CSMS3F3CY1602
12 feet (4m)
CSMS3F3CY1604
4-pin
4-wire
16 AWG 6 feet (2m)
CSMS4F4CY1602
12 feet (4m)
CSMS4F4CY1604
AC/DC 4-pin,
4-wire
16 AWG 6 feet (2m)
CSMS4A4CY1602
13.12 feet (4m)
CSMS4A4CY1604
19.69 feet (6m)
CSMS4A4CY1606
AC/DC 5-pin
5-wire
16 AWG 6 feet (2m)
CSMS5D5CY1602
12 feet (4m)
CSMS5D5CY1604
AC/DC 5-pin,
5-wire
16 AWG 6 feet (2m)
CSMS5A5CY1602
13.12 feet (4m)
CSMS5A5CY1604
19.69 feet (6m)
CSMS5A5CY1606
AC/DC 9-pin
9-wire
16 AWG 6 feet (2m)
CSMS9D9CY1602
Current Rating @ 600V
2-pin: 13A
3-pin: 13A
4-pin: 10A
5-pin: 8A
9-pin: 7A
1-White
2-Black
1
-
G
r
een
2-Bl
ac
k
3
-W
h
ite
1-Bl
ack
2-Whit
e
3
-Re
d
4-
G
ree
n
1-Bl
ack
2-Bl
ue
3
-Brow
n
4-Whit
e
1-Whit
e
2-R
ed
3
-
G
ree
n
4-Oran
ge
5
-Blac
k
1-Bl
ack
2-Bl
ue
3-Oran
ge
4-Br
o
w
n
5
-Whit
e
1-Orange
2-Blue
3-Red/Black
4-Green/Black
5-White
6-Red
7-Green
8-White/Black
9-Black
6
For more information visit: www.eaton.com PG.05.05.T.E
Global Plus Connectivity
August 2009
Global Plus Connector Cables
Model Selection — Nano Style, Single-Connector Cables
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage
Style
Number of
Pins
Gauge Length Catalog Number Pin Configuration/Wire Colors
(Face View Female Shown)
PVC Jacket PUR Jacket

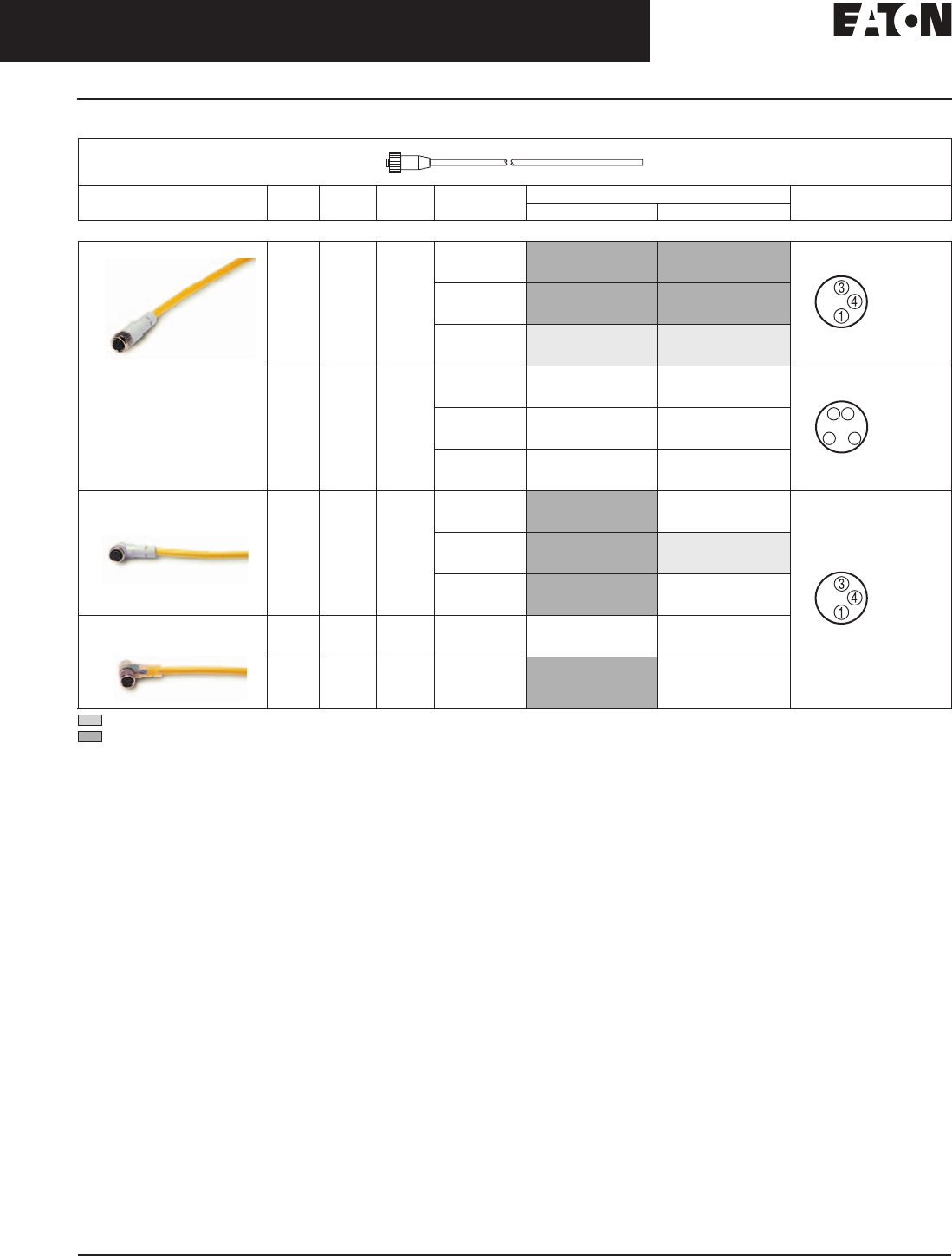

Standard Cables
Nano Style Straight Female — 3-pin
3-wire
24 AWG 6.0 feet (2m) CSNS3A3CY2402 CSNS3A3RY2402
16.4 feet (5m) CSNS3A3CY2405 CSNS3A3RY2405
32.8 feet (10m) CSNS3A3CY2410 CSNS3A3RY2410
DC 4-pin,
4-wire
24 AWG 6.5 ft. (2 m) CSNS4A4CY2402 —
16.4 ft. (5 m) CSNS4A4CY2405 —
32.8 ft. (10 m) CSNS4A4CY2410 —
Nano Style Right Angle Female — 3-pin
3-wire
24 AWG 6.0 feet (2m) CSNR3A3CY2402 CSNR3A3RY2402
16.4 feet (5m) CSNR3A3CY2405 CSNR3A3RY2405
32.8 feet (10m) CSNR3A3CY2410 CSNR3A3RY2410
Nano Style Right Angle Female with
2 LED Indicators
DC
NPN
3-pin
3-wire
24 AWG 16.4 feet (5m) CSNR3A3CY2405-LN CSNR3A3RY2405-LN
DC
PNP
3-pin
3-wire
24 AWG 16.4 feet (5m) CSNR3A3CY2405-LP CSNR3A3RY2405-LP
1-Brown
3-Blue
4-Black
1-Brown
2-White
3-Blue
4-Black
4
31
2
1-Brown
3-Blue
4-Black
August 2009
PG.05.05.T.E For more information visit: www.eaton.com
7
Global Plus Connectivity
Global Plus Connector Cables

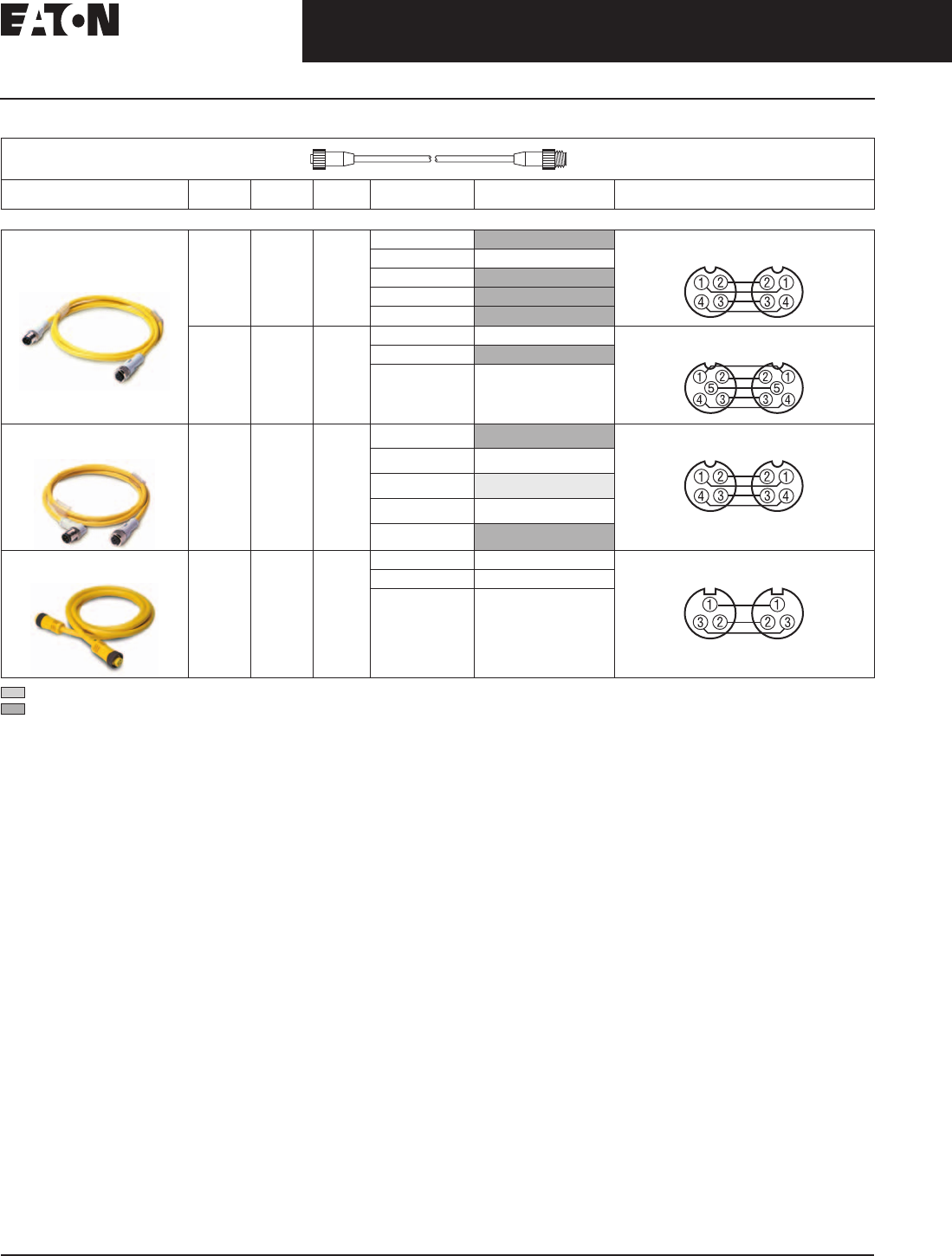

Model Selection — Micro Style, Double-Ended Connector Cables
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage
Style
Number of
Pins
Gauge Length Catalog Number Pin Configuration
Standard Cables
Micro Style
Straight Female/Male
DC 4-pin 22 AWG 3.0 feet (1m) CSDS4A4CY2201-D
5.0 feet (1.5m) CSDS4A4CY2201.5-D
6.0 feet (2m) CSDS4A4CY2202-D
10.0 feet (3m) CSDS4A4CY2203-D
16.4 feet (5m) CSDS4A4CY2205-D
DC 5-pin 22 AWG 3.0 feet (1m) CSDS5A5CY2201-D
10.0 feet (3m) CSDS5A5CY2203-D
16.4 feet (5m) CSDS5A5CY2205-D
Micro Style
Straight Female/Right Angle Male
DC 4-pin 22 AWG 3.0 feet (1m) CSDR4A4CY2201-D
5.0 feet (1.5m) CSDR4A4CY2201.5-D
6.0 feet (2m) CSDR4A4CY2202-D
10.0 feet (3m) CSDR4A4CY2203-D
16.4 feet (5m) CSDR4A4CY2205-D
Mini Style
Straight Female/Male
AC/DC 3-pin 16 AWG 6.0 feet (2m) CSMS3F3CY1602-DP
13.1 feet (4m) CSMS3F3CY1604-DP
23.0 feet (7m) CSMS3F3CY1607-DP
Face View
Male
Face View
Female
Face View
Male
Face View
Female
Face View
Male
Face View
Female
Face View
Male
Face View
Female
August 2009
8
For more information visit: www.eaton.com PG.05.05.T.E
Global Plus Connectivity
Global Plus Connector Cables

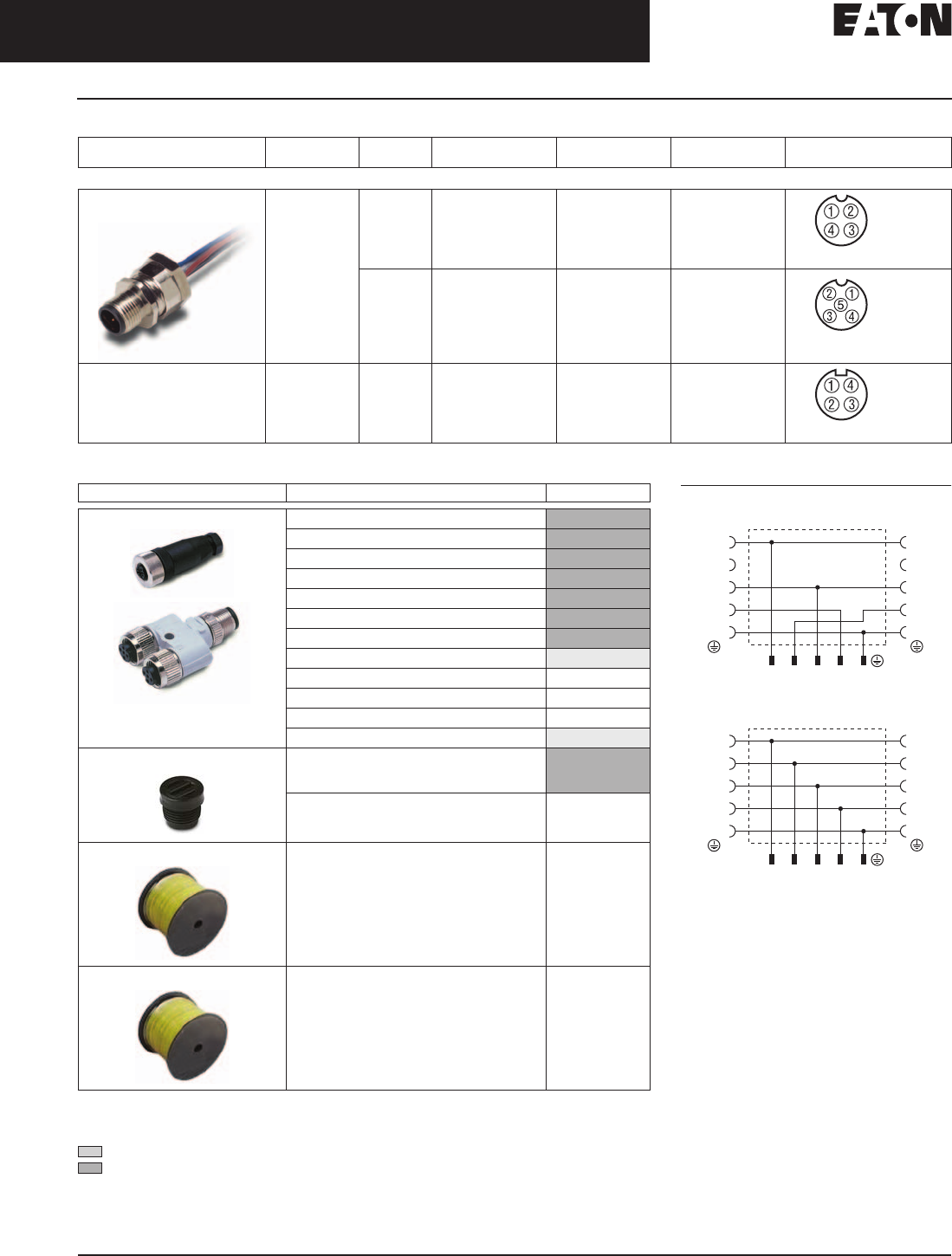

Model Selection — Micro and Mini Receptacles
Model Selection — Accessories
Quantity ordered indicates length (i.e., quantity of 5 equals 5 feet).
For wiring diagrams explaining the difference between 3- and 5-position models, see Wiring
Diagrams on this page.
Fast turn product with typical one business day lead-time to shipment.
Stocked product, typical order quantities guaranteed in stock.
Voltage Style Number of
Pins
Length/Gauge Mounting
Hole Size
Catalog Number Pin Configuration
Standard Cables
Micro Style
Straight Male
DC 4-pin
4-wire
1.0 feet (0.3m)/22 AWG 1/2" NPT CSDS4A4CMR22.3
5-pin
5-wire
1.6 feet (0.5m)/22 AWG PG9 CSDS5A5CMR.5
Mini Style
Striaght Male
AC/DC 4-pin
4-wire
1.6 feet (0.5m)/22 AWG 1/2" NPT CSMS4A4CMR16.5
Description Catalog Number
Field Wireable, Plastic Micro Female Style, Straight, 4-position CSDS4
Micro Female Style, Right Angle, 4-position CSDR4
Micro Male Style, Straight, 4-position CSDSM4
Micro Male Style, Right Angle, 4-position CSDRM4
Nano Female Style, Straight, 3-position CSNS3
Nano Male Style, Straight, 3-position CSNSM3
Nano Male Style, Straight, 4-position CSNSM4
Nano Female Style, Straight, 4-position CSNS4
Nano Female Style, Right Angle, 4-position CSNR4
Nano Male Style, Right Angle, 4-position CSNRM4
Micro Female Style, Y-Splitter, 3-position CSDY3
Micro Female Style, Y-Splitter, 5-position CSDY5
Closure Cap Seals off unused connector ports on Multi-
Connector Blocks, Micro Female Type
CBCAP
Seals off unused parts on Micro, Male Type CBMCAP
Bulk Cable, Micro Style 4-conductor, 22 AWG, yellow jacket (Blue, Brown,
White, Black), compatible with micro style field
wireable connectors shown above
CS4ACY22XX
Bulk Cable, Nano Style 3-conductor, 24 AWG, yellow jacket (Brown, Blue,
Black), compatible with field wireable connectors
shown above
CS3ACY24XX
1-Brown
2-White
3-Blue
4-Black
1-Brown
2-White
3-Blue
4-Black
5-Gray
1-Brown
2-White
3-Blue
4-Black
Wiring Diagrams
1
2
3
4
5
1
2
3
4
5
54321
1
2
3
4
5
1
2
3
4
5
5
4321
CSDY3
CSDY5
August 2009
PG.05.05.T.E For more information visit: www.eaton.com
9
Global Plus Connectivity
Global Plus Connector Cables

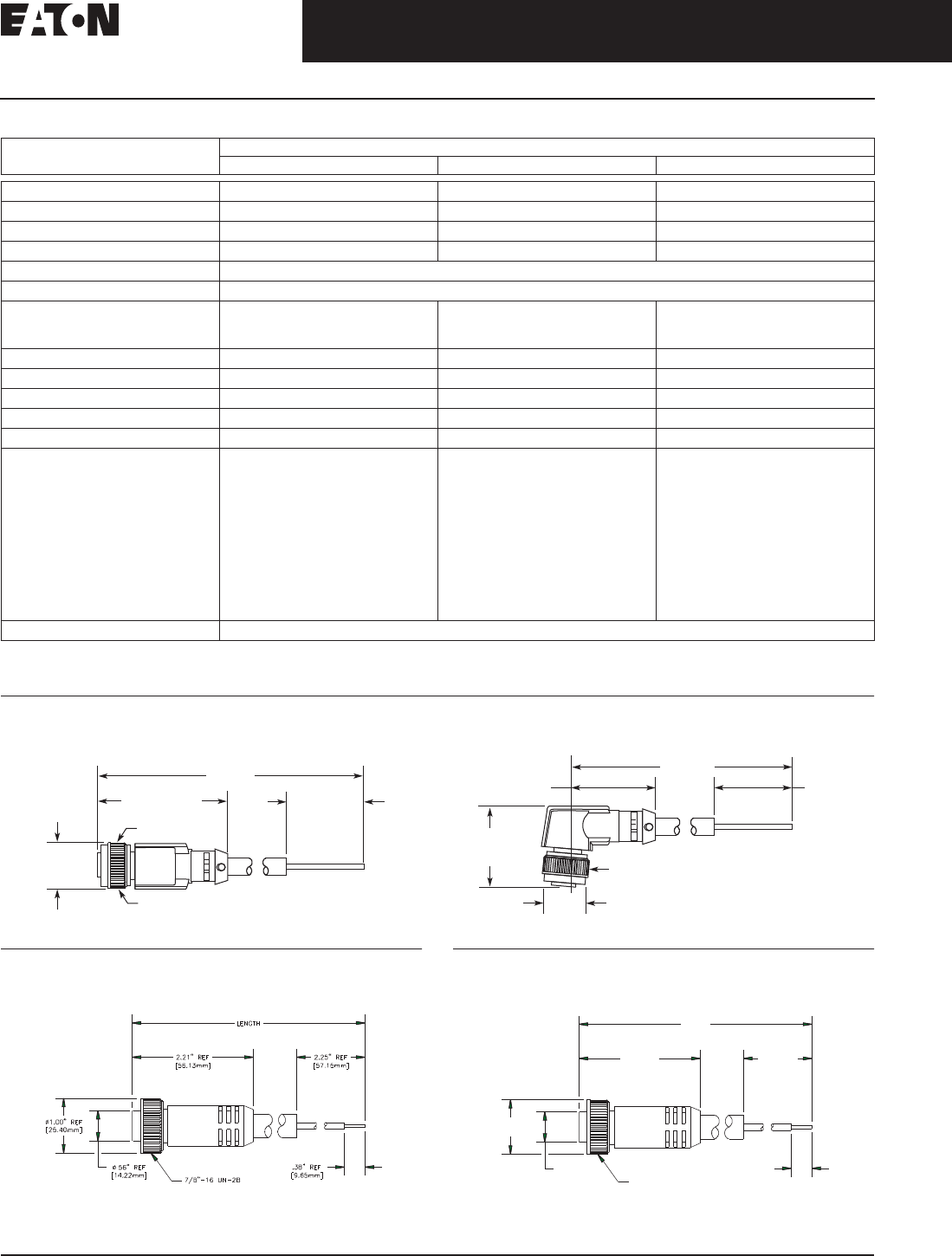

Specifications
Jacket material dependent upon model selection.

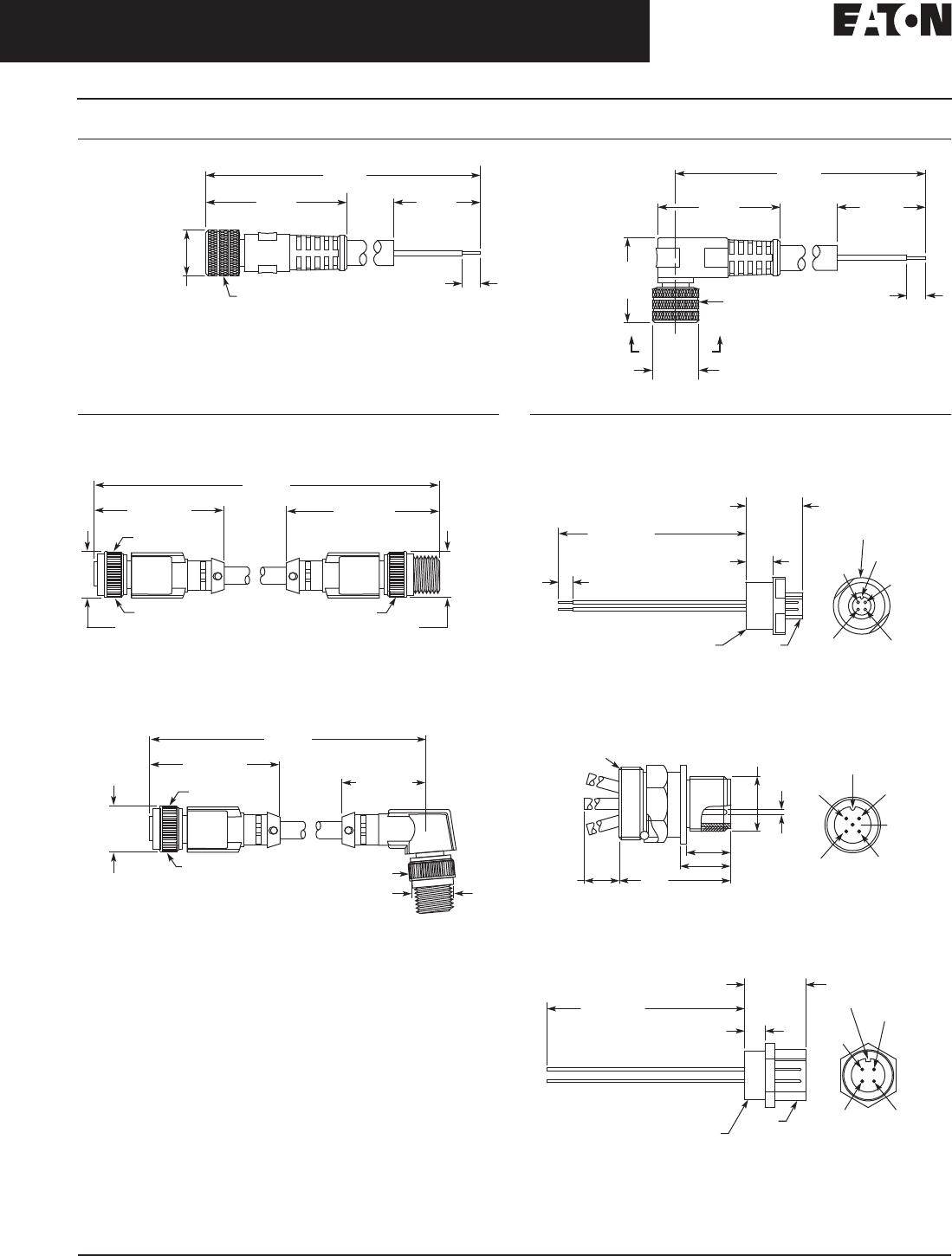

Approximate Dimensions in Inches (mm)
Connector Cables
Micro Style Mini Style Nano Style
Jacket Material PVC/PUR/Irradiated PUR PVC PVC/PUR
Contact Material Gold-plated copper alloy Gold-plated brass Gold-plated copper alloy
Coupling Nut Material Nickel-plated die-cast zinc Nickel-plated die-cast zinc Nickel-plated die-cast zinc
O-ring Nitrile rubber None Nitrile rubber
Cable PVC/PUR/Irradiated PUR, Insulation and jacket, stranded copper conductors
Cable Strain Relief 35 pounds minimum
Voltage Rating 320V
(24V DC for LED plugs)
(30V DC for 8-pin versions)
600V 100V DC
Current Rating 4A See model selection chart 4A
Contact Resistance 5 mΩ maximum 5 mΩ maximum 5 mΩ maximum
Isolation Resistance 1000 MΩ minimum 1000 MΩ minimum 1000 MΩ minimum
Protection IP67 NEMA 6P, IP68 IP67
Temperature Range -25° to 80°C -20° to 105°C -20° to 80°C
Cable Diameter
(3/C = 3 Conductor)
18 AWG PVC:
0.29 inch (7.4 mm)
22 AWG PVC:
3/C: 0.20 inch (5.11 mm)
4/C: 0.21 inch (5.31 mm)
5/C: 0.20 inch (5.08 mm)
22 AWG PUR:
3/C: 0.23 inch (5.8 mm)
4/C: 0.25 inch (6.4 mm)
22 AWG IRR PUR:
3/C: 0.17 inch (4.37 mm)
4/C: 0.18 inch (4.62 mm)
2/C: 0.37 inch (9.4 mm)
3/C: 0.41 inch (10.4 mm)
4/C: 0.42 inch (10.7 mm)
5/C: 0.50 inch (12.7 mm)
9/C: 0.64 inch (16.3 mm)
24 AWG PVC:
0.16 inch (4.12 mm)
24 AWG PUR:
0.17 inch (4.3 mm)
Bend Radius Minimum recommended bend radius is 12X cable diameter
0.978" Ref
(24.8 mm)
0.58" Dia. Ref
(14.8 mm)
0.058" Dia. Ref
(14.8 mm)
1.10" Ref
(28.0 mm)
1.77" Ref
(45.0 mm)
Length
Length
2.16" Ref
(54.8 mm)
2.16" Ref
(54.8 mm)
M12 x 1 (DC)
M12 x 1 (DC)
1/2" - 20 UNF–2B (AC)
Micro Style Connector Cables,
Straight Female
Micro Style Connector Cables,
Right Angle Female
Mini Style Connector Cables,
2-, 3-, 4- and 5-pin Version
Mini Style Connector Cables,
9-pin Version
Ø1.25” REF
[31.75mm]
Ø.81” REF
[20.57mm]
7/8”–16 UN–2B
.38” REF
[9.65mm]
2.25” REF
[57.15mm]
LENGTH
2.79” REF
[70.87mm]
August 2009
10
For more information visit: www.eaton.com PG.05.05.T.E
Global Plus Connectivity
Global Plus Connector Cables
Nano
Style
Connector
Cables,
Straight
Female
Length
1.56
(39.50)
Ref.
.16
(4.06)
Ref.
.75
(19.05)
Ref.
M8x1
Dia. .39
(10) Ref.
Nano Style
Connector
Cables,
Right
Angle
Female
(Standard
and LED) .16
(4.06)
Ref.
.75
(19.05)
Ref.
1.10
(27.90)
Ref.
.78
(19.70)
Ref.
Length
M8x1
Dia. .39
(10) Ref.
0.58"
(14.8 mm)
Dia. Ref
1.77" Ref
(45.0 mm)
Length
M12 x 1 (DC)
1/2" - 20 UNF–2B (AC)
2.02" Ref
(51.3 mm)
0.57"
(14.5 mm)
Dia. Ref
M12 x 1
1.10" Ref
(28.0 mm)
M12 x 1 (DC)
0.58"
(14.8 mm)
Dia. Ref
0.58"
(14.8 mm)
Dia. Ref
1.77" Ref
(45.0 mm)
Length
M12 x 1 (DC)
1/2" - 20 UNF–2B (AC)
Micro Style Double-Connector Cables,
Straight Female/Male
Micro Style Double-Connector Cables,
Straight Female/Right Angle Male
12.00"
(304.8 mm)
0.25"
(6.35 mm)
1.00" Ref
(25.4 mm)
0.47" Ref
(11.94 mm)
M12x11/2-14 NPT
Dia. 1.00" Ref
(25.4 mm)
Key
Pin 1
(Brown)
Pin 4
(Black)
Pin 3
(Blue)
Pin 2
(White)
Male
1.03" Ref
(26.162 mm)
0.345" Ref
(8.763 mm)
6.00"
(152.4 mm)
7/8-16
1/2-14 NPT
Pin 1
(Black)
Key Pin 4
(White)
Pin 2
(Blue)
Pin 3
(Brown)
Male
Pin 2
(White)
Key Pin 1
(Brown)
Pin 3
(Blue)
Pin 4
(Black)
Male
PG9
19.7
(500)
0.98
(25)
0.47 (12)
0.39 (10)
M12x1
0.04
(1)
Pin 5
(Green
/
Yellow)
Micro Style Receptacles,
Straight Male
(1/2" NPT Mounting)
Mini Style Receptacless,
Straight Male
Micro Style Receptacles,
Straight Male
(PG9 Mounting)
