Networking | Intercom | Telephone | Audio | Video
Advanced Networking
Technology for
Today’s Home
2011 Catalog | Version 1
Connected Home
®
Leviton Connected Home
2011 Catalog
4
6
7
8
12
15
16
The Leviton Advantage
What is Structured Wiring?
Why is Structured Wiring Essential?
Application Solutions
Popular Configurations
Configuration Planner > Worksheet
Configuration Planner > Popular Products
Welcome Home | 2
20
28
30
34
38
40
46
50
54
62
64
82
Structured Media Centers
Low Profile / High Density
Interconnect Panels
Voice, Data & TV Panels
Structured Media Power Supplies
Data Networking
TV Distribution
Camera Monitoring
Intercom
Connectors, Patch Cables & Wallplates
Residential Tools & Accessories
Audio
Audio & Control Signal Distribution
Structured Media® | 18
88
96
102
106
Telephone Accessories
Video Accessories
Audio Accessories
Tools
Telephone, Video & Audio Accessories | 86
Resources & Support | 108
110
118
119
120
123
Installation Diagrams

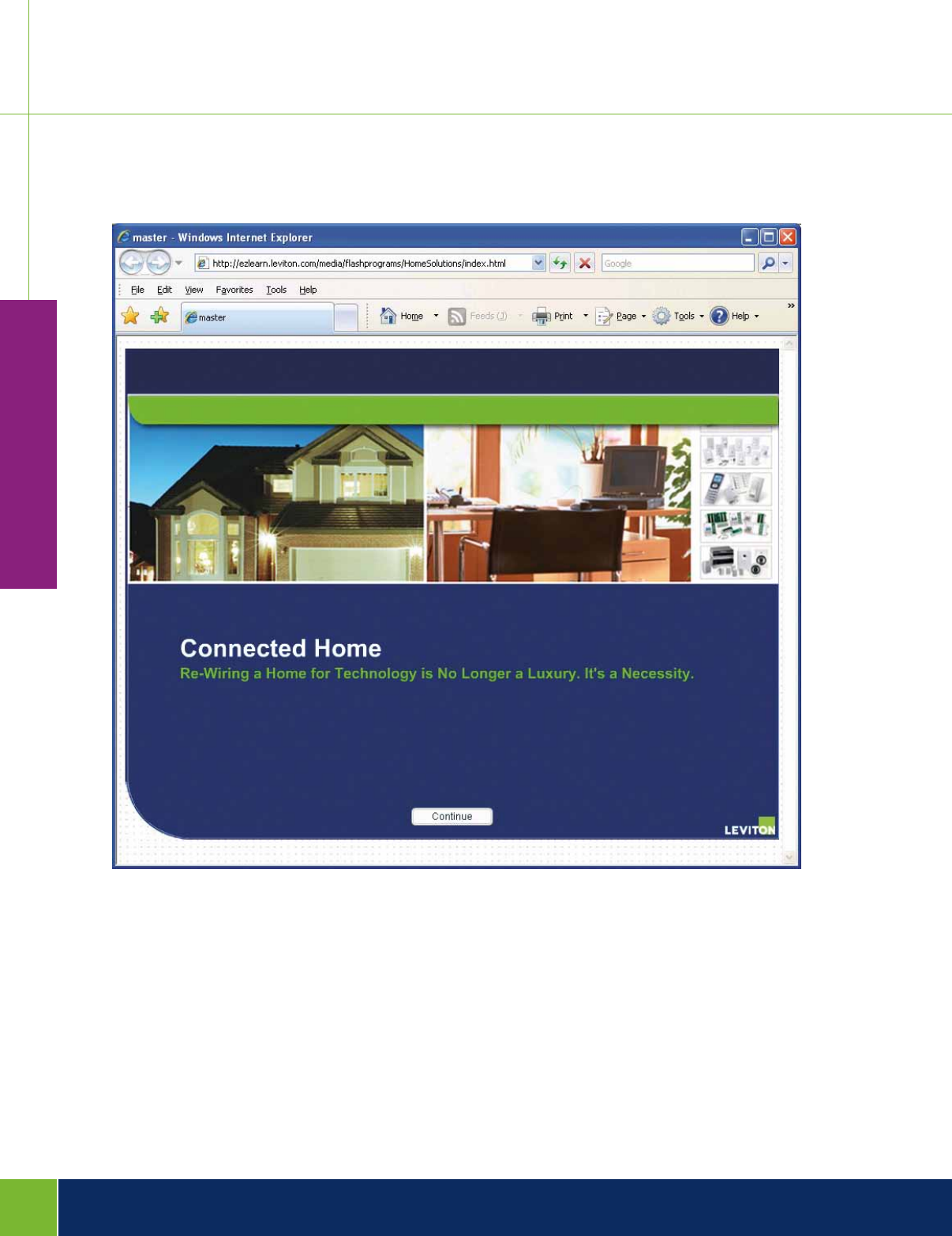

Online Training
Warranty Information
Glossary
Part Number Index
Twist & Mount Patch Panels | Pg. 29
HOME 5e™ & HOME 6™ Ultra High-Flex
Patch Cables | Pg. 55
Ophera Video Entry System | Pg.51
HOME 5e™ & HOME 6™ Connectors
& Patch Cables | Pg. 55
Leviton Architectural Edition™
Powered by JBL® Audio Equipment | Pg. 65
Leading Products
Today’s homeowners expect the latest in residential technology. Their needs now
include HDTV, media servers, Gigabit networking, VoIP, IPTV, and broadband Internet.
Leviton Connected Home solutions provide the ideal support network for these
sophisticated technologies.
For every residential project — new or retrofit, single family home or high-rise MDU —
Leviton Connected Home offers an unparalleled selection of structured wiring, networking,
audio, video, and telephone solutions. You’ll find it all here in our latest catalog.
This catalog also includes installation diagrams, application solutions and planning support.
Popular configurations for two, three, four and five bedroom homes are shown on pages
12-14 and an easy-to-use configuration worksheet can found on pages 15-17.
In addition, we’re pleased to present our Residential Network Installer program, which
includes classroom and online training courses for installers and contractors.
Our registered installers offer skilled workmanship and expertise along with extended
warranties on certified Leviton projects.
If you need help with a special project, feel free to contact our inside sales department
at 800.722.2082. We are ready to assist you.
Welcome
Home
2LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Welcome Home
4
6
7
8
12
15
16
The Leviton Advantage
What is Structured Wiring?
Why is Structured Wiring Essential?
Application Solutions
Popular Configurations
Configuration Planner > Worksheet
Configuration Planner > Popular Products
The following introductory pages provide an overview
of Leviton’s residential products and services.
In addition, we’ve provided examples of our most
popular home configurations, making it easier than ever
to specify and integrate complete Leviton solutions.
3
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Welcome Home |
Welcome Home
4LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Why do our customers choose Leviton? We call it The Leviton Advantage. Within Network Solutions’
Connected Home division, this means award-winning customer service and an unparalleled selection
of residential structured wiring, residential networking, fiber-to-the-home, video distribution, and
audio solutions. We support these solutions with a culture of continuous innovation, a wealth of
specialized customer programs, and much more. Read on to learn how our resources and programs
can help you.
The Leviton Advantage
Inside Sales
Leviton’s Connected Home inside sales team is a critical part
of our organization, working on the front lines every day. Team
representatives handle a multitude of requests, including pricing
and availability, literature, samples, and order entry. They also
work with customers to create special custom product orders
and expedite rush orders. Another reason for our customers’
satisfaction: Leviton doesn’t use phone trees. A person
immediately answers all calls to our 800 numbers and routes
them to the appropriate person or group.
Call 800.722.2082 for inside sales.
Global Support
Leviton now offers an expanded worldwide sales and distribution
network. Offices around the globe have opened to support our
growing international customer base. From the United Kingdom
to the United Arab Emirates, Mexico to Malaysia, you’ll find
dedicated staff providing the same exceptional level of service
Leviton is known for.
Visit leviton.com/international for more information.
Web-Based Resources
Be sure to visit Leviton’s website for a wealth of informational
resources. The site has recently been updated with expanded
features and content. You’ll find wiring diagrams, FAQs,
specification documents, Visio stencils, and other downloadable
resources. In the library you’ll find a broad selection of brochures
and catalogs, our award-winning termination animations, and
other helpful tools.
Visit leviton.com.
Technical Support
When you need assistance determining the best Leviton
products for an application, or simply need to learn more about
a new product, contact our technical support team. More than
90% of customer calls are resolved during the first contact.
Whether you are an end user, consultant, contractor, or
distributor, depend on Leviton Technical Support to ensure that
your installed Leviton products will best meet your projects’
unique requirements.
Call 800.824.3005 for technical support.
Applications Engineering
Leviton’s expert team of Applications Engineers provides
system design assistance. Each design is built around the
specific needs of the customer’s equipment, network
topology, and compatibility requirements. Just as important,
the team will help you plan systems that accommodate
industry trends and future needs.
Call 800.824.3005 for applications engineering assistance.
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
5
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Welcome Home | The Leviton Advantage
Residential Network Installer Program
Contractors striving to be the best in the business join Leviton’s
Residential Network Installer Program. This program allows
contractors, large and small, to obtain the added experience and
knowledge to ensure quality performance of Leviton Connected
Home products. All registered Residential Network Installers
take our training course, which includes the latest structured
wiring product information, standards, technologies, installation
and techniques. Once trained, contractors have the authority to
register for exclusive Leviton 25-year product warranties on their
residential jobs that meet program qualifications.
Visit leviton.com/LCP for more information.
Exacting Standards
Whatever Leviton product you need, you can be sure it will be of
the highest quality. We achieve ISO 9001-2000 certification in all
of our manufacturing facilities, conforming to a comprehensive set
of quality management practices. In addition, we follow Six Sigma,
a continuous improvement initiative with a zero defects goal.
Rigorous testing in our real-world-condition test facilities ensures
that everything we produce will perform for you flawlessly.
Independent Verification
Leviton products are regularly submitted for UL (Underwriters
Laboratory) listing before full-scale production, documenting their
safety in the installed environment. In addition, ETL (Intertek/ ETL
SEMKO) completes thorough performance testing, giving
us ongoing confirmation of product viability and quality.
Leviton also has extensive lab facilities of its own, including
UL-certified labs, which we welcome customers to visit.
Shaping The Future
Leviton Connected Home is actively involved in the industry’s
principal organizations, shaping industry and product
standards. Through active memberships with CEA and CEDIA,
we remain current with emerging trends in technology. In fact,
several Leviton employees have served in leadership roles
at BICSI, the industry’s leading professional association. At
TIA and IEEE, where protocols and standards are formed and
adopted, we, along with other industry leaders, contribute our
expertise to help shape new standards.
Environmental Stewardship
At Leviton, we’re fully committed to reducing our
environmental impact, both with our products and our
processes. At our Bothell, Washington facility, we’ve retrofitted
all our lighting fixtures with lower consumption tubes, saving
200,000 KWh annually — the equivalent of removing 27
cars from the road or powering about 30 homes for a year.
In addition, we recently installed a new variable speed air
compressor that will save another 150,000 KWh or more per
year. Leviton facilities worldwide have made changes
with the same goal in mind, including Leviton's
new corporate office, which has been built to
LEED sustainability specifications. One
of the largest initiatives that Leviton
has undertaken is to become RoHS
compliant. The RoHS Directive —
the European Union standard that
became effective in 2006 — restricts
the use of six hazardous materials in
electrical and electronic equipment.
We have been striving for 100%
RoHS compliance since long before
the Directive was adopted, and
the vast majority of our
products are compliant.
Welcome Home |
Welcome Home
6LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured wiring provides secure, reliable, and fast connectivity between consumer electronic
devices in the home.
What Is Structured Wiring?
Common Cabling Types
CAT 6
The emerging standard for homes; offers greater performance over previous standards-based cable types. CAT 6
cable provides up to twice the bandwidth of CAT 5e and improves on transmission signal-to-noise performance.
Designed for 1000BASE-T Gigabit Ethernet standards.
CAT 5e
The most common type of structured wiring cable. 100 MHz bandwidth is 10 times greater than the
CAT 3 standard. Works with 10BASE-T, 100BASE-T, and 1000BASE-T Gigabit Ethernet standards, and meets
TIA-586A-5 standards.
RG6
Quad
Shield
Coaxial cable type commonly used to distribute video. It also can be a delivery method for cable-based
broadband Internet access. RG6 Quad Shield has the best performance of any cable in its class, and is
the standard cable used for HDTV.
Only a few years ago, residential structured wiring was
used mainly to distribute telephone service throughout the
home. Today, it has expanded to deliver a host of services.
Homeowners need reliable distribution of Internet for surfing,
online gaming, and streaming music and movies, as well as
other services such as HDTV, IPTV, VoIP, and FTTH (fiber to the
home). Supporting the in-home network with a structured
wiring infrastructure provides the reliability, security, and
flexibility these technologies require.
With all of these technologies becoming commonplace, a
centralized distribution point provides a straightforward solution
for managing the needed connectivity and hardware. Leviton’s
Structured Media® Center enclosures house all the equipment
that controls distribution of signals coming from outside the
home, including copper and fiber optic lines for cable, Internet,
and telephone.
Running two sets of cables to each wallplate is recommended. That way, future upgrades and performance improvements can
be completed without needing access behind walls. Several types of standards-based cables are available; understanding
the advantages of each is critical for delivering optimal reliability.
Spotlight - Installing Residential Cabling
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
7
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Technology is an inseparable part of our lives. Structured wiring is a small investment that helps
simplify how we manage in-home technologies.
Welcome Home | Why is Structured Wiring Essential?
Components that require power are considered active. They must be connected to a power
supply module inside the enclosure. Routers, video amplifiers, audio controllers, and camera
hubs are examples of active components. Generally, active components provide enhanced
features.
In contrast, passive components are not powered. They’re used for making physical connection
to components and linking to active equipment. Patch panels, video splitters, and Structured
Media cabling panels are passive components.
High Definition TV (HDTV)
Home theater equipment
Satellite & Cable TV converters
High-speed Internet routers
& modems
Video game consoles
Residential structured wiring is often seen as a luxury, not a
necessity. But the technologies that rely on that connectivity
are part of everything we do. Those working in the industry, from
equipment manufacturers and wiring contractors to service
providers and standards bodies, know that it’s structured cabling
that makes home technology function.
The converse is true as well. Not only does a sufficiently wired
home benefit homeowners, inadequate wiring can lead directly
to poor hardware and service performance. For the companies
that deliver and support the connected services, the costs are
significant: increased phone support and on-site maintenance
costs, dissatisfied customers, lost sales, and ultimately a poor
reputation for both the organization and the industry.
The real dollar costs of installing structured wiring, whether in
an MDU or a single-family residence, are usually less than 1%
of the total property value — a small investment compared to
upgrading wiring after the construction is complete.
Network storage devices
Internet radios
Smart phones
Media players
Blu-rayTM Disc players
Did You Know?
Consumer electronics are connected to either active or passive components
in a centrally located Structured Media® Center enclosure.
Support a host of consumer electronics with structured
wiring and Leviton Connected Home solutions:
Welcome Home |
Welcome Home
8LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Multiple Dwelling Units (MDUs) require a connectivity infrastructure that delivers the high bandwidth
tenants demand and to suit a wide range of applications.
Application Solutions > Multiple Dwelling Units (MDUs)
Structured Media® Center Enclosures
for Condos and Apartments
Exclusive MDU-sized end cap knockouts allow commercial
standard conduit integration
Exclusive backplate options allow components to be installed
off-site, reducing job site cleanup, on-site labor costs and
installation time
Temporary dust cover protects the enclosure
during construction and painting
Job-pack options simplify rough-in, backplate configuration,
and trim-out stages
Each enclosure can be a distribution point for units on floors
above and below the enclosure, eliminating the need for
network distribution closets on each floor
Leviton leads the industry in consumer technology connectivity infrastructure solutions for multiple-dwelling unit properties.
We provide the structured wiring enclosures and components needed for HDTV distribution, high-speed data networks, telephone
distribution, single- and multi-zone audio, and advanced home theater products.
Component Features
Gigabit routers and switches provide the fastest
residential data networking available
Premium and standard video splitters are compliant
with HDTV and digital video distribution requirements
Power supplies provide surge protection along with
a wide selection of options for both line-voltage and
low-voltage power requirements
Exclusive QuickPort® and QuickPlateconnectors
provide high-quality, reliable connectivity for data,
video, audio, and more
Analog video entry systems provide property security
and access
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
9
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
More than ever, today’s homeowners use a wide range of cutting-edge technologies—most of which
require structured wiring.
Welcome Home | Application Solutions > Single Family Dwellings
• Triple Play systems
• HDTV
• Internet via WiFiTM or broadband Ethernet
• Digital photo sharing and storage
• Video on demand
• Network print sharing
• IPTV
• Gaming
• Streaming and downloading online music
• Enhanced DVD and Blu-rayTM features
Leviton has been innovating since 1906, at the dawn of the electrical age. More than a century later, and in a new era of digital
technology, we continue to be both a pioneer and market leader.
Choose Leviton and you’ll deliver the unmatched quality, performance, and reliability that today’s homeowners expect. And for
the ultimate guarantee, installations by Residential Network Installers include product warranty coverage for up to 25 years.
Spotlight - Have Fun with Leviton Connected Home
Structured Media® Center Enclosures
for Single-Family Homes
End cap knockouts allow separation of coaxial and
structured wiring
Temporary dust cover protects the enclosure
during construction
Expansion boards allow a customized mix of active
and passive enclosure components
14, 28 and 42 inch models offer optimal sizing for homes
with two-to-five or more bedrooms
Component Features
Gigabit routers and switches provide the fastest residential
data networking available
Premium and standard video splitters are compliant
with HDTV and digital video distribution requirements
Power supplies provide surge protection along with
a wide selection of options for both line-voltage and
low-voltage power requirements
HOME 5e™ and HOME 6™ residential-grade connectors offer
reliable, durable, and affordable connectivity
A/V connectors, wallplates, home audio equipment
and controllers, security systems, and more provide complete
in-home connectivity solutions
Welcome Home |
Welcome Home
10 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Application Solutions > High-Speed Networking
Fasten your seat belt. Home networks are headed for warp speed.
Gigabit Ethernet Home Networking
More and more consumer electronics and applications are being designed for Gigabit data networks. Deliver fast music and movie
downloads, clear VoIP telephone service, latency-free online video gameplay, and smooth multi-user web surfing experiences
with Leviton’s HOME 6™ connectors and Gigabit Routers. With speeds and performance that exceed wireless network capabilities,
Leviton’s solutions provide the ideal backbone for today’s bandwidth-hungry devices.
Fiber to the Home (FTTH) Networking
Leviton offers fiber enclosures for the service providers, contractors, and builders who provide the
demarcation point for FTTH components. Our multi-bay enclosure designs accommodate a separate
lockable chamber for conversion from fiber optic to copper connectivity. Another bay in the same
enclosure can house a full Leviton structured wiring system that maximizes the high-performance of
the incoming connection. See page 24 for more information.
47FTH-840 47FTH-844
Fiber Optic Network Interface Device
(NID) converts optical signals into
low voltage network.
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
11
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Welcome Home | Application Solutions > Home Entertainment
HDTV
Since June 2009, television stations in the United States have been broadcasting in a 100% digital format. Leviton’s premium
video splitters support the new digital standard: they are DOCSIS (data over cable service interface specifications) 3.0 compliant
and meet all major cable service provider specifications. In addition, the splitters offer lossless signal distribution for exceptional
video quality.
Home Theater
Leviton’s home theater components ensure fast video-on-demand downloads and high quality HDTV distribution. Complete the
home theater experience with Leviton Architectural EditionTM audio powered by JBL®, our multimedia connectors and adapters,
wallplates and inserts, and more.
Whole House Audio
For the best high-performance pro audio technology, choose Leviton Architectural Edition powered by JBL. The whole house audio
line includes receiver, DVD player, amplifiers, and a wide range of speaker options, controllers, and connectors.
JBL technology is in the best professional recording studios and movie theaters around the world. Now, it’s found its way into the
home. Don’t settle for less.
Gaming
Up the online gaming experience with Leviton. Our connectivity solutions deliver optimized network performance, exceptional
graphics quality, and world-class audio.
Why go out? Today’s home entertainment options allow the whole family to have fun
right at home — together or individually.
High-speed broadband network connectivity for superior online gameplay
Leviton Architectural Edition Powered by JBL home theater audio output
Optimized performance for game console media downloads
Welcome Home |
Welcome Home
12 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Popular Configurations > Two & Three Bedroom Homes
Qty. Description Part No.
A114" Structured Media® Center
w/ Flush Mount Cover 47605-140
B1 Basic Telephone & Video Panel 47606-BTV
C1 CAT 5e Voice & Data Board 47603-0C5
D1 10/100 4-Port Internet Router 47611-GT4
E1Surge Protected J-Box
Power Module 47605-ACS
F4Leviton QuickPlateTM Wallplate
for Data, Telephone & Video 5EA20-S3W*
G5 HOME 5eTM Patch Cable 5LHOM-02L
Qty. Description Part No.
A128" Structured Media Center
w/ Flush Mount Cover 47605-28W
B1 Advanced Home Office Panel 47606-ASO
C110/100 4-Port
Internet Router 47611-GT4
D1Surge Protected J-Box
Power Module 47605-ACS
E5Leviton Quickplate Wallplate
for Data, Telephone & Video 5EA20-S3W*
F6 HOME 5eTM Patch Cable 5LHOM-03L
Popular Three Bedroom Home
Configuration
3
A
B C D
E F
A
B C
2Popular Two Bedroom Home
Configuration
D
E
G
F
* = As an alternative, consider the QuickPort® Decora® Single-Gang Wallplate (80301-0SW, pg 61)
combined with a QuickPort Decora 4-Port Insert (41644-00W, pg 60), HOME 5eTM Connectors
(5EHOM-RW5, pg 55), and F-Connectors (41084-FWF, pg 56).
* = As an alternative, consider the QuickPort Decora Single-Gang Wallplate (80301-0SW, pg 61)
combined with a QuickPort Decora 4-Port Insert (41644-00W, pg 60), HOME 5eTM Connectors
(5EHOM-RW5, pg 55), and F-Connectors (41084-FWF, pg 56).
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
13
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Welcome Home | Popular Configurations > Four Bedroom Homes
A
B
C
E
F G H
D
Qty. Description Part No.
A128" Structured Media® Center 47605-28N
B1Premium Hinged Door for 28" Structured Media Center 47605-28P
C1 18-Port Voice & Data Distribution Panel 47603-18P
D1 Surge Protected Dual J-Box Power Module 47605-0DP
E1 1x16 Premium Amplified Video Distribution Module 47693-16P
F1 8-Port 10/100 Ethernet Switch 47611-8PT
G4 QuickPlate™ Wallplate for Data, Telephone & Dual Video 5EA20-S4W*
H4 QuickPlate Wallplate for Data, Telephone & Video 5EA20-S3W*
I1 10/100 4-Port Internet Router 47611-GT4
J9 HOME 5eTM Patch Cable 5LHOM-03L
4Popular Four Bedroom Home
Configuration
I J
* = As an alternative, consider the QuickPort Decora Single-Gang Wallplate (80301-0SW, pg 61)
combined with a QuickPort Decora 4-Port Insert (41644-00W, pg 60), HOME 5eTM Connectors
(5EHOM-RW5, pg 55), and F-Connectors (41084-FWF, pg 56).
Welcome Home |
Welcome Home
14 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Qty. Description Part No.
A142" Structured Media® Center 47605-42N
B1Premium Hinged Door for 42"
Structured Media Center 47605-42P
C124-Port Twist & Mount Voice & Data
Distribution Panel (CAT 6) 476TM-624
D1 Telephone Input Distribution Panel (TIDP) 476TL-T12
E1 1x16 Premium Amplified Video Dist. Module 47693-16P
F1 10/100/1000 4-Port Gigabit Router 47611-GB4
G1 10/100/1000 5-Port Gigabit Switch 47611-5GB
H1 Intercom Module 47000-MKB
I3 Intercom Door Stations, white 47000-0W1
J16 HOME 6™ QuickPort® Data Connector 61HOM-RW6
K16 QuickPort F-Connector 41084-FWF
L8 4-Port Decora Insert 41644-00W
M8 Single-Gang Decora® Snap-on Wallplate 80301-0SW
N56.5" Leviton Architectural Edition™
Powered by JBL® Ceiling Speakers, Pair AEC65-000
O1 7.1 Harman/Kardon® AV Receiver HKAVR-xxx
P1 12-Channel Multi-Zone Amplifier AE6MA-000
Q5 Decora Transformer Free Volume Control SGVST-00W
R1Leviton Architectural Edition Powered by JBL
In-Wall Center Channel Speaker AEI55-000
S26.5" Leviton Architectural Edition Powered by
JBL In-Wall Speakers, Pair AEI65-000
T1Leviton Architectural Edition Powered by JBL
12" Subwoofer AESUB-012
U1 Versatile Power Module 47605-PSC
V9 HOME 6™ Patch Cable 6LHOM-03L
W1 Home Theater Interface Wallplate AEHTK-000
5Premium Five Bedroom Home
Configuration
Popular Configurations > Five Bedroom Homes
A
B
C D E
F G H I J K
LMN
O P
Q
SR T U V W
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
15
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Use this five-step worksheet to organize and build the ideal configuration for your needs.
To fill in each section, refer to the following pages (16-17) for a list of popular products
and their part numbers.
Introduction | Configuration Planner > Worksheet
Data Drops
Qty.
Video Drops
Qty.
Telephone
Drops Qty.
Step 1.
Structured Media Enclosure Part #
Structured Media Power Module Part #
Structured Media Cover or Door Part #
Enclosure
A. Select 14, 28, or 42 inch Structured Media®
Center enclosure.
B. Select coordinating cover.
C. Select desired power module.
Step 2.
Qty
Qty
Qty
Data Distribution Module Part #
Data Wall Connector Part #
Patch Cable Part #
QuickPort Wallplate Part #
Data Networking
A. Select CAT 5e, CAT 6 or combo data
distribution module.
B. Select HOME 5e™ or HOME 6™ data connectors
or blank QuickPort® inserts. Match the quantity from
Data Drops Quantity in Step 1.
C. Select patch cables. Determine quantity according
to installation’s needs.
D. Select QuickPort wallplates. Match the quantity
from Data Drops Quantity in Step 1, accounting
for additional openings for video and
telephone connectors if applicable.
Step 4.
Video Splitter Module Part #
Video Connector Part # Qty
Video Networking
A. Select video splitter module.
B. Select video connector. Match the quantity from
Video Drop Quantity in Step 1.
Step 3.
Telephone Board Part #
Telephone Connector Part # Qty
Telephone
A. Select telephone board.
B. Select telephone connector. Match the quantity from
Telephone Drops Quantity in Step 1.
Step 5.
Project Size
A. Determine total number of drops needed for each
media type.
Welcome Home |
Welcome Home
16 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
28" Premium Hinged Metal Cover
47605-28P (pg 22)
14" Metal Enclosure (shown)
47605-14E (pg 21)
14" Flush Mount Metal Cover (shown)
47605-14C (pg 21)
14" Premium Hinged Metal Cover (shown)
47605-14P (pg 21)
28" Metal Enclosure
47605-28N (pg 22)
28" Flush Mount Metal Cover
47605-F28 (pg 22)
42" Flush Mount Metal Cover
47605-F42 (pg 23)
42" Premium Hinged Metal Cover
47605-42P (pg 23)
42" Metal Enclosure
47605-42N (pg 23)
Surge Protected J-Box
Power Module
47605-ACS (pg 35)
Surge Protected Dual J-Box
Power Module
47605-0DP (pg 35)
Versatile Power Module
120VAC and 12VDC
47605-PSC (pg 36)
Configuration Planner > Popular Products
Step 2. Enclosure (See worksheet on page 15)
1x4 Passive TV/HDTV 1GHz Splitter Module
47690-04C (pg 44)
1x6 Passive TV/HDTV 1GHz Splitter Module
47690-06C (pg 44)
1x8 Passive TV/HDTV 1GHz Splitter Module
47690-08C (pg 44)
1x8 Premium CATV
Module
47693-08P (pg 41-42)
F-Connector, Gold plated
40831-0BW (pg 56)
F-Connector, Standard
41084-FWF (pg 56)
F-Connector, Compression
40782-CPF (pg 56)
Step 3. Video Networking (See worksheet on page 15)
= Leviton Recommends
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Welcome Home
17
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
24-Port CAT 6 Twist &
Mount Patch Panel
476TM-624 (pg 29)
12-Port CAT 6 Twist &
Mount Patch Panel
476TM-612 (pg 29)
CAT 5e Voice & Data
Board with Bracket
47605-C5B (pg 32)
CAT 6 Voice & Data Board
with Bracket
47611-C6B (pg 32)
HOME 5e™ Data Connector
5EHOM-RW5 (pg 55)
HOME 6™ Data Connector
61HOM-RW6 (pg 55)
QuickPort Snap-in Blank Insert
41084-BWB (pg 56)
Welcome Home | Configuration Planner > Popular Products
24-Port CAT 5e Twist &
Mount Patch Panel
476TM-524 (pg 29)
12-Port CAT 5e Twist &
Mount Patch Panel
476TM-512 (pg 29)
QuickPort® 1-Port
Wallplate
41080-1WP (pg 59)
QuickPort 2-Port
Wallplate
41080-2WP (pg 59)
QuickPort 3-Port
Wallplate
41080-3WP (pg 59)
QuickPort 4-Port
Wallplate
41080-4WP (pg 59)
QuickPort 6-Port
Wallplate
41080-6WP (pg 59)
HOME 5e Patch Cables
5LHOM-03L (pg 55)
Additonal colors available for wallplates, connectors, blank inserts, and patch cables.
See pages 54-61 for complete color offerings.
HOME 6 Patch Cables
6LHOM-03L (pg 55)
Step 4. Data Networking (See worksheet on page 15)
1x12 Telephone Input
Distribution Panel
476TL-T12 (pg 29)
1x9 4-Line Bridged
Telephone Board
47689-00B (pg 32)
Telephone Security Board
47609-TSV (pg 32)
Voice Grade 6-Conductor
Connector
41106-RW6 (pg 56)
CAT 3 Connector
41108-RW3 (pg 56)
Voice Grade 8-Conductor
Connector
41108-RW8 (pg 56)
Step 5. Telephone (See worksheet on page 15)
= Leviton Recommends
HOME 5™ Ultra High Flex
Patch Cables
5HHOM-XX* (pg 55)
Structured Media®
18 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media®
20
28
30
34
38
40
46
50
54
62
64
82
Structured Media® Centers
Low Profile / High Density Interconnect Panels
Voice, Data & TV Panels
Structured Media Power Supplies
Data Networking
TV Distribution
Camera Monitoring
Intercom
Connectors, Patch Cables & Wallplates
Residential Tools & Accessories
Audio
Audio & Control Signal Distribution
Movies on the big screen TV complete with
surround sound. Email, Internet, IPTV, VoIP, fax and a
dedicated phone line so homeowners can get a little
work done after hours. Options that provide added
safety for the family. Homeowners demand so much
more in a home today and Leviton has everything
you need to make it happen.
19
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
20 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Today’s home is part business, part school, and
part entertainment complex. Leviton has what
you need to keep homeowners wired for the good
things in life. Leviton meets these challenges by
using the kind of structured cabling employed in
demanding commercial facilities and combining
it with multimedia. This approach provides the
bandwidth and speed needed for voice, data and
Internet access, audio and video. Set ups can be as
simple as cable TV and telephone in a few rooms or
as complex as a local area network (LAN) for a small
office or large home.
Structured Media® Centers
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 21
Structured Media
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Leviton 14" Structured Media Enclosures & Covers
This enclosure creates one distribution point for all low voltage cables in an
apartment or smaller home. It accommodates two Pre-Configured Structured
Cabling Panels and is built tough to make installation easier and help reduce
labor costs.
Structured Media Enclosures
Leviton offers three enclosure sizes — 14", 28", and 42" — that address different
capacities and provide expandable functionality for “wired” homes. These
enclosures provide a convenient termination location for wiring home runs from
wall outlets, and create a distribution point for voice, data, and video applications
in a single family residence or multi-dwelling unit. Leviton offers a size to support all
specifications and floor plans.
Specifications & Features
Accommodates two or more full-width Pre-Configured Structured Cabling Panels
• Positive tabs on housing sidewalls prevent enclosure from falling through the studs
during installation
• One piece white steel unit holds 1/4, 1/2 and full-width expansion modules with the ability to
mount most modules vertically or horizontally
• Can be surface-mounted or recessed
• Ideal for new installations and retrofits
• Powder coated white cover features 3/4" overlap to hide irregular drywall cuts
• Combine two or more enclosures for larger installations or future expansion
• Multiple knock-outs on top and bottom, including two 2" knock-outs on top, facilitate cable
entry and routing
• Cut-out in base of enclosure for mounting single and double gang J-boxes and power modules
• Six 3" square self-healing foam grommets accommodate and protect cable bundles
• Standards Compliance: ACA and CULus listed; UL Listed for fire and burglary
• Enclosures are constructed of white powder coated 20 gauge steel
• Covers are constructed of white powder coated 18 gauge steel
Leviton 14" Structured Media Enclosures & Covers
Description Part No.
14" Enclosure and Flush Mount Cover, 15.32" (389.1mm) H x 15.62" (396.7mm) W
x 3.68" (93.5mm) D 47605-140
14" Enclosure only, 14.0" (355.6mm) H x 14.38" (365.3mm) W x 3.60" (91.4mm) D 47605-14E
14" Multi Dwelling Unit Configuration A Enclosure and Flush Mount Cover, 15.32" (389.1mm)
H x 15.62" (396.7mm) W x 3.68" (93.5mm) D 47605-1MG
14" Flush Mount Cover, 15.32" (389.1mm) H x 15.62" (396.7mm) W x 0.20" (5.1mm) D 47605-14C
14" Economy Hinged Cover, 15.32" (389.1mm) H x 15.62" (396.7mm) W x 0.25" (6.4 mm) D 47605-14D
14" Premium Hinged Cover, 15.32" (389.1mm) H x 15.62" (396.7mm) W x 0.25" (6.4mm) D 47605-14P
14" Enclosure only job packed, 6 per pack, 14.0" (355.6mm) H x 14.38" (365.3mm) W
x 3.60" (91.4mm) D 47605-14G
14" Flush Mount Cover only job packed, 6 per pack 15.32" (389.1mm) H
x 15.62" (396.7mm) W x 0.20" (5.1mm) D 47605-14B
Structured Media® Centers | 14" Enclosures & Covers
47605-14C
47605-14P
47605-14E
Structured Media Centers
22 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Structured Media® Centers |
Leviton 28" Structured Media Enclosures & Covers
Description Part No.
28" Enclosure and Flush Mount Cover, 29.32" (744.7mm) H x 15.62" (396.7mm) W
x 3.68" (93.5mm) D 47605-28W
28" Enclosure only, 28.0" (711.2mm) H x 14.38" (365.3mm) W x 3.60" (91.4mm) D 47605-28N
28" Multi-Dwelling Unit Configuration A Enclosure and Flush Mount Cover,
29.32" (744.7mm) H x 15.62" (396.7mm) W x 3.68" (93.5mm) D 47605-2MG
28" Multi-Dwelling Unit Configuration B Enclosure only, 28.0" (711.2mm) H x 14.38"
(365.3mm) W x 3.60" (91.4mm) D 47605-M28
28" Flush Mount Cover, 29.32" (744.7mm) H x 15.62" (396.7mm) W x 0.20" (5.1mm) D 47605-F28
28" Economy Hinged Cover, 29.32" (744.7mm) H x 15.62" (396.7mm) W x 0.25" (6.4mm) D 47605-28D
28" Premium Hinged Cover, 29.32" (744.7mm) H x 15.62" (396.7mm) W x 0.25" (6.4mm) D 47605-28P
28" Enclosure only, job packed, 3 per pack, 28.0" (711.2mm) H x 14.38" (365.3mm) W
x 3.60" (91.4mm) D 47605-28G
28" Flush Mount Cover only job packed, 3 per pack, 29.32" (744.7mm) H
x 15.62" (396.7mm) W x 0.20" (5.1mm) D 47605-28B
28" Pre-Fab Back Plate, 25" (635.0mm) H x 13.5" (342.9mm) W x 0.38" (9.65mm) D 47605-2BP
28" & 48" Enclosures & Covers Structured Media® Centers | 42" Enclosures & Covers & SMC Accessories
Leviton 28" & 42" Structured Media Enclosures
The 28" enclosures can comfortably accommodate up to eight distribution
modules, depending on selection and density. The 42" enclosures have generous
capacity for up to 12 modules, and can also simultaneously accommodate many
diverse functions. In larger homes, many contractors specify multiple Structured
Media Center enclosures, sometimes separating coaxial cable-based CATV or
Satellite TV equipment from the CAT 5e or Cat 6 UTP-based communications
and networking equipment.
Leviton’s exclusive backplates allows for off-site configuration of components for
reduced on-site labor.
47605-28N
47605-28P
Structured Media Centers
47605-2BP
Spotlight - Choosing Your Structured Media Center Enclosure Cover or Door
Standard Cover
Screws directly to
SMC frame.
Standard Hinged Door
Hinged flange attaches to
left or right side of SMC.
Premium Hinged Door
Full-frame design adds
durability and security.
Door hinges from left or right.
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
23
Structured Media
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
28" & 48" Enclosures & Covers Structured Media® Centers | 42" Enclosures & Covers & SMC Accessories
Leviton 42" Structured Media Enclosures & Covers
Description Part No.
42" Enclosure and Flush Mount Cover, 43.32" (1,100.3mm) H x 15.62" (396.7mm) W
x 3.68" (93.5mm) D 47605-42W
42" Enclosure only, 42.16" (1,070.8mm) H x 14.38" (365.3mm) W x 3.60" (91.4mm) D 47605-42N
42" Multi-Dwelling Unit Configuration A Enclosure and Flush Mount Cover, 43.32"
(1,100.3mm) H x 15.62" (396.7mm) W x 3.68" (93.5mm) D 47605-4MG
42" Multi-Dwelling Unit Configuration B, Enclosure only, 42.16" (1,070.8) H
x 14.38" (365.3mm) W x 3.60" (91.4mm) D 47605-M42
42" Flush Mount Cover, 43.32" (1100.3mm) H x 15.62" (396.7mm) W x 0.20" (5.1mm) D 47605-F42
42" Economy Hinged Cover, 43.32" (1100.3mm) H x 15.62" (396.7mm) W x 0.25" (6.4mm) D 47605-42D
42" Premium Hinged Cover, 43.32" (1100.3mm) H x 15.62" (396.7mm) W x 0.25" (6.4mm) D 47605-42P
42" Pre-Fab Back Plate, 40.0" (1,016.0mm) H x 13.5" (342.9mm) W x 0.38" (9.65mm) D 47605-4BP
Structured Media Centers
Top
Bottom
Top
Bottom
Specifications & Features
• Extender Brackets provide additional 2" of depth
• Allows for better cable management and for large modules within the SMC
• Made of sturdy, white powder coated 18 gauge sheet metal
• Louvers enhance ventilation for added protection against heat build up
from installed modules
28"& 42" Structured Media Center Extender Bracket Frames & SMC Accessories
Description Part No.
Extender Bracket, 2" depth extension package for 28" Structured Media Centers 47612-28B
Extender Bracket, 2" depth extension package for 42" Structured Media Centers 47612-42B
Structured Media Center Lock & Key 5L000-L0K
28" & 42" Extender Bracket Frames & SMC Accessories
Knockout sizes support 1" & 2" commercial conduit.
47605-42N
Extender Bracket Frame
(SMC sold separately)
Spotlight - Structured Media Center Enclosure Options
MDU Configuration A MDU Configuration B
24 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Structured Media® Centers |
Multi-Bay Enclosures
Description Part No.
14" + 14" Dual Enclosure, 29.64" (752.8mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-440
28" + 14" Dual Enclosure, 46.64" (1,184.6mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-840
28" + 14" + 14" Triple Enclosure, 59.22" (1,504.1mm) H x 14.30" (363.2mm) W
x 3.63" (92.2mm) D 47FTH-844
42" + 14" Dual Enclosure, 57.64" (1,464.1mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-420
14" + 14" + 14" Triple Enclosure, 45.22" (1,148mm) H x 14.30" (363.2mm) W
x 3.63" (92.2mm) D 47FTH-240
28" + 28" Dual Enclosure, 57.64" (1,464.1mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-880
Multi-Bay Enclosures
Leviton offers superior products that provide the necessary demarcation
center for FTTH components.
Multi-Bay Enclosures & Media Versatile® Panel
Specifications & Features
24" high, 18 gauge steel panel available in black powder coat finish
• Eight 1" or 1.5" conduit fittings on top and bottom facilitate cable entry and routing
• Wall-mount or recess
• Ideal for new installations or retrofits
• Securable door provides maximum protection from dust and unauthorized entry
3/8" plywood backing allows open architecture for customizing layout and can
accommodate a wide variety of Structured Media distribution modules
Media Versatile Panel
Description Part No.
Media Versatile Panel w/cover, 24" (609.6mm) H x 14" (355.6mm) W x 6" (152.4mm) D 47602-24E
Mounting Brackets, set of four 47602-BKE
Specifications & Features
• Multi-bay enclosure design allows separate lockable sections for FTTH integration
In a separate bay, a full Leviton structured wiring system can be easily connected and
optimized up to Gigabit speeds to maximize incoming fiber optic connection
• Ideal for new installations or retrofits
47602-24E
47FTH-880
47FTH-840
Media Versatile Panel
The Media Versatile Panel was made for custom retrofits and remodeling.
Plywood backing and open architecture allow simple, flexible mounting of all
components. This sturdy, industrial-grade panel can be surface mounted or
recessed in the wall. Optional mounting brackets available for non-standard
stud spacing.
Structured Media Centers
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
25
Structured Media
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media® Centers | Compact Enclosures & Mounting Brackets
Multi-Bay Enclosures
Description Part No.
14" + 14" Dual Enclosure, 29.64" (752.8mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-440
28" + 14" Dual Enclosure, 46.64" (1,184.6mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-840
28" + 14" + 14" Triple Enclosure, 59.22" (1,504.1mm) H x 14.30" (363.2mm) W
x 3.63" (92.2mm) D 47FTH-844
42" + 14" Dual Enclosure, 57.64" (1,464.1mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-420
14" + 14" + 14" Triple Enclosure, 45.22" (1,148mm) H x 14.30" (363.2mm) W
x 3.63" (92.2mm) D 47FTH-240
28" + 28" Dual Enclosure, 57.64" (1,464.1mm) H x 14.30" (363.2mm) W x 3.63" (92.2mm) D 47FTH-880
Multi-Bay Enclosures & Media Versatile® Panel
Mounting Brackets
Specifications & Features
• Made of sturdy white ABS plastic
• Comes with push-lock pins
• Snap-in installation in any Leviton 14", 28" or 42" Structured Media Center
• Allows for cable management via routing under bracket
Mounting Brackets for Structured Media Centers
Description Part No.
Single Plastic Bracket, for single expansion board 47612-SBK
Expansion Plastic Bracket, for up to five expansion boards 47612-EBK
Shelf Plastic Bracket, for up to three expansion boards and CATV splitter 47612-VSB
Half Plastic Bracket, for up to three expansion boards 47612-HBK
Data Plastic Bracket, for mounting routers and switches 47612-DBK
Compact Structured Media Enclosure
Description Part No.
Compact Structured Media Enclosure and Cover, empty 47605-MDU
Compact Structured Media Enclosure, Cover only 47605-MDC
MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6
Telephone Expansion Board) 47604-0F6
MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6
Telephone Expansion Board and 6-Way 1GHz Splitter) 47604-F6S
Compact Structured Media Enclosure
Specifications & Features
• Flexibility to accommodate a variety of telephone/video distribution configurations
• Snap-on cover requires no tools or fasteners
• Molded-in brackets provide quick snap-in convenience for expansion boards
• Angled video splitter shelf for easy installation
• Hosts up to three expansion boards and one passive TV splitter
• Available empty with cover or in two kit versions
• Constructed of sturdy white ABS molded plastic
• cULus listed for communications equipment
47604-F6S
47612-SBK
47605-MDU
47612-EBK
47612-HBK
47612-DBK
Structured Media Centers
26 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Structured Media® Centers |
Create a custom audio/video or copper mini-panel in a Structured Media
Center with the Multimedia Adapter Bracket. The bracket supports a choice of
two 6-pack mounting plates and snaps easily into any of Leviton’s Structured
Media Centers with push-lock pins. Pre-loaded mounting plates are available for
BNC and F-connectors, or create a custom configuration with unloaded 6-pack
QuickPort® plates. QuickPort plates accept any combination of the following
QuickPort adapters or connectors: BNC, F-Connector, Banana Jacks, Speaker
Binding Posts, RCA, S-Video, Voice Grade and CAT 5, HOME 5e™ or HOME 6™.
Brackets mount vertically or horizontally.
Specifications & Features
• Bracket is constructed of white powder-coated sheet metal
• Comes with push-lock pins
• Plates are constructed of black powder-coated sheet metal
Multimedia Adapter Brackets & Mounting Plates
Description Part No.
Multimedia Bracket 47612-MMA
BNC Mounting Plate, 6-pack, loaded 5F100-BNC
F-Connector Mounting Plate, 6-pack, loaded 5F100-6VF
QuickPort Mounting Plate, 6-pack, unloaded 5F100-6QP
8-Conductor Flat Telephone Patch Cord, 8" long 42400-8FG
47612-MMA
Multimedia Adapter Bracket & Mounting Plates
5F100-6QP
5F100-6VF
5F100-BNC
42400-8FG
Structured Media Centers
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
27
Structured Media
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Specifications & Features
All Security Brackets
• Made of white powder-coated sheet steel
• Comes with push-lock pins
Universal Security Brackets
• Available in 6" and 12" lengths, both 1" wide
• Allows an unlimited number of upgrades (limited only by the enclosure’s size) to be added
to an existing security system terminated within any Leviton Structured Media Center
• Sold in pairs with self tapping screws and spacers to easily connect the largest number
of security alarm manufacturers’ panels
Universal Shelf Bracket
• Allows security batteries and other products to be mounted inside any Leviton
Structured Media Center
• Comes with four 8" long VELCRO® Brand strips*, ensuring vertical and horizontal stability
Universal Security Plates
• Half-Width (6") and Full-Width (12") Plates
• Comes with four adhesive clips for mounting within any Leviton Structured Media Center
Combo Bracket
• Allows Leviton products to be installed in most non-Leviton structured wiring enclosures
Structured Media® Centers | Universal Security & Shelf Brackets
Universal Security & Shelf Brackets for Leviton 14", 28" & 42" SMCs
Description Part No.
6" Universal Bracket 47612-6SB
12" Universal Bracket 47612-1SB
Universal Shelf Bracket 47612-UBK
Half-Width Universal Security Plate 47612-HSB
Full-Width Universal Security Plate 47612-FSB
Combo Bracket 47612-CBK
*VELCRO® is a registered trademark of Velcro Industries B. V.
47612-6SB, 47612-1SB
47612-UBK
47612-HSB
47612-CBK
Multimedia Adapter Bracket & Mounting Plates
47612-FSB
Structured Media Centers
28 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton brings the engineering, standards compliance
and reliability of our commercial and industrial
offerings to new home installations. Compact Twist
& Mount Patch Panels offer high-density, component-
rated patching for both voice and Gigabit Ethernet
connections. The companion Telephone Input
Distribution Panel (TIDP) matches the Twist & Mount
Patch Panel in height and depth to continue the
high-tech look in the Structured Media® Center.
Low Profile / High Density
Interconnect Panels
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 29
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Low Profile / High Density Interconnect Panels
Twist & Mount Patch Panels
Twist & Mount Patch Panels allow installers to punch-down CAT 5e or CAT 6 cabling
on component-rated commercial style patch panels. The cable relief feature
maintains cable position during termination. The installer then simply twists and
mounts the panel into place using installed push-lock pins. The low profile of the
Twist & Mount Patch Panel provides extra room for patch cord bend radii in the
Structured Media® Center. Comes in a high-tech black matte finish.
Low Profile / High Density Interconnect Panels | Twist & Mount Patch Panels & TIDP
476TM-524
Twist & Mount Patch Panels
Description Part No.
CAT 5e Twist & Mount Patch Panel w/ 24 CAT 5e connectors 476TM-524
CAT 5e Twist & Mount Patch Panel w/ 12 CAT 5e connectors 476TM-512
CAT 6 Twist & Mount Patch Panel w/ 24 CAT 6 connectors 476TM-624
CAT 6 Twist & Mount Patch Panel w/ 12 CAT 6 connectors 476TM-612
CAT 5e/CAT 6 Twist & Mount Patch Panel w/ 12 CAT 5e and 12 CAT 6 connectors 476TM-654
CAT 5e/CAT 6 Twist & Mount Patch Panel w/ 6 CAT 5e and 6 CAT 6 connectors 476TM-652
Specifications & Features
Used for terminating both voice (CAT 5e) and data (CAT 5e or CAT 6) drops
• Provided blank designation strips make jack labeling a snap
• Universal T568A and T568B wiring labels ensure compatibilty in both residential and
commercial installations
• Meets or exceeds all TIA/EIA-568 B Standards for CAT 5e and 6 cabling
• Four front-mounted hooks provide easy suspension during punchdown
• Dimensions are 7" (177.8mm) H x 6" (152.4mm) W x 1.5" (38.1mm) D
476TL-T12
Telephone Input Distribution Panel (TIDP)
The companion TIDP matches the Twist & Mount Patch Panel in height and depth,
and includes telephone input jacks for easy connection to 1, 2, 3 or 4 telephone
jacks on a cable modem.
Specifications & Features
• Supports four line telephone distribution
• Offers choice of inputs and outputs: One 4-pair 110-style IDC input; four industry-standard
RJ-11 connector inputs for use with “triple play” modems; and twelve modular industry-standard
RJ-45 connector outputs
• Includes a security jack to interface with security systems
• Test and Auxiliary Disconnect Outlet (ADO) port for isolation and testing of telephone
line connections
• Includes twelve 8" telephone patch cords
• Dimensions: 7" (177.8mm) H x 3.52" (89.5mm) W x 1.5" (38.1mm) D
Telephone Input Distribution Panel (TIDP)
Description Part No.
Telephone Input Distribution Panel 476TL-T12
476TM-612
30 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton Voice, Data and TV Panels allow telephone,
data and video to be routed throughout the home
from one simple panel. It’s a flexible solution
available in many different configurations—modules
and expansion boards can easily be added as
requirements change.
Voice, Data & TV Panels
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 31
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Voice, Data & TV Panels
Pre-Configured Structured Cabling Panels
Leviton’s Pre-configured Structured Cabling Panels combine some of our most
popular voice, data and radio frequency modules to create an economical, one-
stop home media distribution point. Some modules are available in expansion
styles to fill unused panel slots as shown below. Choose the pre-configured
combination that best meets your needs and then enhance it with expansion
boards or stand alone modules.
Voice, Data & TV Panels | Pre-Configured Structured Cabling Panels
47606-BTV
47606-BNP
47606-ASO
47603-18P
Pre-Configured Structured Cabling Panels - Full Size
Description Consists of Part No.
Basic Telephone & Video Panel - One 1x9 Bridged Telephone Board
- One 6-way 2 GHz TV Splitter 47606-BTV
Basic Home Networking Plus Panel
- One Telephone Patching Board
- One CAT 5e Voice & Data Board
- Six 4-line telephone connections
- One 6-way 2 GHz TV Splitter
47606-BNP
Advanced Home Telephone
& Video Panel
- One Telephone Line Distribution Board
- 19 multi-line telephone connections
(in various combinations of two or four lines)
- One CAT 5e Voice & Data Board
- One 6-way 2 GHz TV Splitter
47606-AHT
Advanced Home Office Panel
- One Telephone Line Distribution Board
- 19 multi-line telephone connections
(in various combinations of two or four lines)
- Two CAT 5e Voice & Data Boards
- One 6-way 2 GHz TV Splitter
47606-ASO
12-Port Structured Media Panel
- One Telephone Line Distribution Board
- 19 multi-line telephone connections
(in various combinations of two or four lines)
- Two CAT 5e Voice & Data Boards
47603-12P
18-Port Structured Media Panel
- One Telephone Line Distribution Board
- 19 multi-line telephone connections
(in various combinations of two or four lines)
- Three CAT 5e Voice & Data Boards
47603-18P
24-Port Structured Media Panel
- One Telephone Line Distribution Board
- 19 multi-line telephone connections
(in various combinations of two or four lines)
- Four CAT 5e Voice & Data Boards
47603-24P
4x12 Telephone Distribution Module - One 4x12 Telephone Distribution Module 47603-12M
4x12 Telephone Distribution Module
w/ Splitter
- One 4x12 Telephone Distribution Module
- One 8-way 2 GHz TV Splitter 47603-412
4x18 Telephone Distribution Module - One 4x18 Telephone Distribution Module 47603-18M
4x18 Telephone Distribution Module
w/ CAT 5e Board
- One 4x18 Telephone Distribution Module
- One CAT 5e Voice & Data Board 47603-8C1
Full size panel dimensions: 6.13" (155.7mm) H x 13.30" (337.8mm) W x 2.28" (57.9mm) D.
47603-12M
47603-18M
47603-8C1
47603-24P
Voice, Data & TV Panels |
32 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Pre-Configured Structured Cabling Panels – Compact Series
Compact Pre-Configured Structured Cabling Panels are the simple solution for
basic telephone and TV distribution in multi-dwelling units and apartments or
any place where space and budgets are a priority. Panels feature a space saving
profile and provide simple bridged telephone connections to nine locations and
1GHz video to four, six or eight locations.
Pre-Configured Structured Cabling Panels,
Modules & Expansion Boards
47603-1G4
47603-TSV
47603-DP6
Pre-Configured Structured Cabling Panels — Compact Series
Description Consists of Part No.
Telephone & 4-way TV - One 1x9 Bridged Telephone Board
- One 4-way 1 GHz TV Splitter 47603-1G4
Telephone & 6-way TV - One 1x9 Bridged Telephone Board
- One 6-way 1 GHz TV Splitter 47603-1G6
Telephone & 8-way TV - One 1x9 Bridged Telephone Board
- One 8-way 1 GHz TV Splitter 47603-1G8
Telephone Security & 6-way TV - One Telephone Security Board
- One 6-way 1 GHz TV Splitter 47603-TSV
Telephone Data & 6-way TV
- One 1x4 4-Line Bridged Telephone
and 4-Port CAT 5e Combo Board
- One 6-way 1 GHz TV Splitter
47603-DP6
Stand-Alone Modules with Brackets
Description Part No.
1x9 Bridged Telephone Module 47689-00B
CAT 5e Voice & Data Module 47605-C5B
CAT 6 Voice & Data Module 47611-C6B
DSL Filter Module 47616-DSB
Telephone Security Module 47609-TSV
Voice, Data & TV Panels
47603-1G6
Expansion Boards
Description Application Features Part No.
CAT 5e Voice &
Data Board
Data,
Telephone,
Fax, Modem
- Patch phone or data connections to six locations
- Combine with a TLDM, key system or network
switches for added applications
- 4-pair 110-type IDC punchdowns
- Six CAT 5e RJ45 ports
- Printed circuit board
47603-0C5
CAT 6 Voice &
Data Board
Data,
Telephone,
Fax, Modem
- TIA/EIA-568B channel-rated for Gigabit Ethernet
- Combine with Gigabit Internet Router or
Ethernet Switch for additional applications
- 4-pair 110-type IDC punchdowns and six
CAT 6 connectors
47611-0C6
47603-0C5 and 47611 0C6 photos shown on page 33.
47689-00B, 47605-C5B,
46711-C6B, 47616-DSB
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
33
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Voice, Data & TV Panels
Pre-Configured Structured Cabling Panels,
Modules & Expansion Boards Voice, Data & TV Panels | Expansion Boards
47603-0C5, 47611-0C6,
47609-D5P
47609-S10, 47609-004
Expansion Boards Cont.
Description Application Features Part No.
VDSL Board w/
1x5 Bridged Phone
w/ Data Pass-
through IDCs
Data,
Telephone,
Modem
- Bridge up to four telephone lines to five locations
- Connect up to five separate telephones per line
- IDC connectors for CAT 5 or CAT 5e wire
- Termination point and pass-through for a data
connection via IDCs up to 150MHz
47609-D5P
Combo Phone &
Data Board w/ 1x4
Bridged Phone and
4-Port CAT 5e
Data,
Telephone
- Provides data and phone connections on a single board
- 1x4 phone portion provides four telephone lines up
to four locations via IDC punchdowns
- Four ports of CAT 5e 150MHz data connections via
modular RJ45 connectors and 4-pair 110-type
IDC punchdowns
47609-4DP
1x9 Bridged
Telephone Board
Telephone,
Fax, Modem
- Bridge up to four telephone lines to nine locations
- Connect up to nine separate telephones per line
- Printed circuit board
- 4-pair 110-type IDC punchdowns
47603-110
1x6 Bridged
Telephone Board
Telephone,
Fax, Modem
- Bridge up to four telephone lines to six locations
- Connect up to six separate telephones per line
- Printed circuit board
- IDC connectors for CAT 5 or CAT 5e wire
- RJ45 expansion port
47609-0F6
1x10 Bridged
Telephone Board
Telephone,
Fax, Modem
- Bridge up to six telephone lines to ten locations
- Connect up to ten separate telephones per line
- Printed circuit board
- IDC connectors for CAT 5 or CAT 5e wire
- Security port
- Punchdown security interface to accommodate
alarm systems
47609-S10
1x4 Bridged
Telephone Board
Telephone,
Fax, Modem
- 1x4 phone board provides four lines up to four
locations via IDC punchdowns 47609-004
Telephone Patching
Board/Expanded
4-line Telephone
Distribution
Telephone,
Fax, Modem
- Bridge up to four telephone lines to seven locations
- Printed circuit board module
- One incoming 4-pair 110-type IDC punchdown
- Seven outgoing RJ45 connector connections
- Combine with a CAT 5e board to route telephone to
remote locations
47609-EMP
DSL Filter Board Telephone,
Modem
- Filters DSL signal from phone line before
distribution throughout home or office
- Eliminates need for individual filters at wallplate
- Use with any phone distribution module
- Printed circuit board module w/ RJ45 connector
and 110-type punchdown
47616-DSF
Telephone Line
Distribution Board
Telephone,
Fax, Modem
- 19 multi-line telephone connections in
combinations of two or four lines
- Bridge "line 1" service to 12 locations and 4-line
service to 8 locations
- Connect to CAT 5e Voice & Data Board(s) or
additional panels for more connections and easier
adds/moves/changes
- Independent RJ45 connector and punchdown
security interface to accommodate alarm systems
47603-TDM
4x12 Telephone
Distribution Board
Telephone,
Fax
- Bridge up to four telephone lines to
twelve locations 47603-12B
4x18 Telephone
Distribution Board
Telephone,
Fax
- Bridge up to four telephone lines to
eighteen locations 47603-18B
47609-EMP, 47603-18B
47603-12B
47609-4DP, 47603-110,
47609-0F6
34 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton takes special care in designing power
modules and supplies for the Structured Media
Center. AC receptacle power modules come in
both surge-protected and non surge-protected
versions. Power supplies are available in various
output DC voltages and accommodate North
American and international AC inputs. AC Power
Modules and J-Box kits are housed in powder
coated steel enclosures that easily drop into a
cutout in the bottom of the Structured Media
Center. This design allows you to install the power
required without taking up valuable space inside
the enclosure.
Structured Media®
Power Supplies
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 35
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Structured Media Power Supplies
Structured Media® Power Supplies | Surge Protection Devices & Power Modules
48212-06S
Surge-Protection, Standard AC Power Modules & J-Box Kits
AC Power Modules for 14", 28" & 42" Structured Media Enclosures
Description Part No.
Surge AC Power Module w/ two duplex receptacles 47605-0DP
Non-Surge AC Power Module w/ two duplex receptacles 47605-NDP
AC Surge Module w/ six duplex receptacles 48212-06S
J-Box Kits for 14", 28" & 42" Structured Media Enclosures
Description Part No.
Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACS
Non-Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACN
47605-0DP
47605-ACS
51110-001
Specifications & Features
• Cost effective surge-protection for residential environments
• Protection for up to 48,000 amps of surge current per mode
• Parallel design for ANSI/IEEE Category A, B and C applications
• Compatible with Decora Home Control devices
• LED’s show power and surge protection status for each phase
• Optional low voltage protection for phone and satellite connections
• NEMA 4x enclosure
• Operating Temperature: 140˚F / 60˚C
10-year Limited Product Warranty / Lifetime Limited Connected Equipment Warranty
Compliant with ANSI/IEEE Categories A, B & C, C-62.41 & C-62.45,
UL 1449 #E46315, and CSA # LR-94773
51110 Series Surge Protection
Description Voltage
Rating MCOV
Clamping Voltage
Mode
Max Surge
Current Mode Part No.
L-N L-G L-L L-N L-N
Single Phase 120/240V 150V 400 400 400 700 48 51110-001
Single Phase w/ 2 Pair
Telephone, RJ11 &
CATV/ Satellite Coax
120/240V 150V 400 400 400 700 48 51110-PTC
• All 120VAC Power Modules and J-Box kits work with 14", 28", and 42" Structured Media Centers
The surge-protected units provide optimum protection and EMI/RFI filtering that
meets UL 1449 standards
The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit
features one 15-Amp duplex receptacle
• AC Power Module dimensions: 13.08" (78.2mm) H x 9.87" (250.7mm) W x 2.94" (74.7mm) D
• J-Box Kit dimensions: 2.00" (50.8mm) H x 3.00" (76.2mm) W x 2.50" (63.5mm) D
51110 Series Surge Protection
Structured Media® Power Supplies |
36 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
47605-PSC
47605-PSA
47605-PSB
DC Power Supplies
48212-124
Structured Media Power Supplies
Universal DC Power Supplies
Specifications & Features
• Compact units fit into Leviton’s 14", 28" and 42" Structured Media Enclosures
• Compatible with incoming AC voltage in the range of 100-240 VAC, 50-60 Hz
• Units provide a cost-effective method for delivering power to active components
• Safety clips protect outlets from dust, dirt and debris
• Saves valuable real estate by mounting on outside of Structured Media Centers
• Meets UL 1449 standards
DC Power Supplies
Description Part No.
Universal DC Power Supply w/ nine 12 VDC connectors and one IEC AC receptacle 47605-PSA
IEC to NEMA 15A Adapter Power Cord, 12" (accessory for above) 48212-IEC
Universal Mini DC Power Supply w/ three 12 VDC connectors 47605-PSB
Versatile Power Supply w/ six 12 VDC connectors and two NEMA 15A receptacles 47605-PSC
DC Bus
Description Part No.
DC Bus, 12 VDC and 24 VDC 48212-124
DC Bus
Specifications & Features
• Eliminates need for more than two AC/DC power adapters
• Provides fully regulated 12 VDC and 24 VDC power
• Contains six 12 VDC power outputs at up to 1500 mA total
• Contains three 24 VDC power outputs at up to 1000 mA total, including
one F-connector for coax connection
• Power-indicating LEDs for both 12 VDC and 24 VDC inputs
• Output power cables included for all but 24 VDC F-connector connection
• Comes with 2.1mm mini power jacks for 12 VDC, and 1.3mm mini power
jacks for 24 VDC
• Dimensions: 2.13" (54.2mm) H x 6.57" (166.8mm) W x 2.43" (61.7mm) D
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
37
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Structured Media® Power Supplies | Snap-In Modules
Leviton’s Snap-in Surge Protection Modules provide customized surge protection
for all low voltage communication and data lines. Choose from a selection of
protection modules for digital satellite systems, Ethernet systems, cable TV,
telephone/fax/modem and DSL/ADSL equipment.
Specifications & Features
• Interchangeable modules accommodate changing surge protection needs
• All modules easily snap into the Surge Module Adapter Bracket (03950-BKT)
• User friendly design
• Ground wire required
• Telephone/Fax/Modem Module acts as a splitter, allowing the connection of two devices
03950-BKT
05951, 05953, 05954
Snap-in Surge Protection Bracket & Modules
Description Part No.
Surge Module Adapter Bracket for use with Leviton Structured Media Centers 03950-BKT
Satellite System / Cable TV Protection Module — Four standard F-connectors; 3A fuse
for over-current; max line voltage: 75VDC, breakdown voltage range: 70.4-110 volts/sec
Beige: 05951-0SA
Grey: 05951-SAT
Ice: 05951-SAC
Ethernet Protection Module (10 Base-T Applications) — Two RJ45 connectors to
protect two pairs of transmit/receive lines; 10A automatic resettable PTC fuses; max
operating voltage: 16.6VDC; breakdown voltage range: 2.62-19.2 volts/sec
Beige: 05952-0ET
Grey: 05952-ETH
Cable TV System Protection Module — Two standard F-type connectors; 3A fuse for
over-current; max line voltage: 75VDC; breakdown voltage range: 70.4-110 volts/sec
Beige: 05953-0PC
Grey: 05953-PCG
Ice: 05953-PCC
Telephone/Fax/Modem Protection Module — Three RJ11, 4-wire/2-pair connectors;
3-position splitter allows for connection to a common line; 3A fuse for over-current
protection; max operating voltage: 150VRMS (including ring voltage); breakdown
voltage range: 162-331 volts/sec
Beige: 05954-AT4
Grey: 05954-PT4
Ice: 05954-CT4
DSL/ADSL Subscriber Equipment Protection Module — Three RJ11, 4-wire/2-pair
connectors; 3A fuse for over-current protection; max operating voltage: 150VRMS
(including ring voltage); breakdown voltage range: 162-331 volts/sec
Beige: 05955-0DT
Grey: 05955-DTG
Structured Media Power Supplies
38 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton has routers to share Internet access,
Ethernet switches to provide additional ports
for the in-home Local Area Network (LAN), and
a complete collection of connectivity products
for CAT 5e and CAT 6 high-speed networking to
help homeowners get their work done. You’ll find
everything you need to meet today’s increasingly
complex home office requirements, including
Gigabit Ethernet.
Data Networking
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 39
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
47611-GB4
47611-8PT
47611-GT4
47611-5PT
Data Networking | Routers & Switches
Data Networking Routers & Switches
Description Part No.
10/100/1000 4-port Gigabit Router 47611-GB4
10/100 4-port Internet Router 47611-GT4
10/100/1000 5-port Gigabit Switch 47611-5GB
10/100 5-Port Ethernet Switch 47611-5PT
10/100 8-Port Ethernet Switch 47611-8PT
Specifications & Features
10/100/1000 Gigabit Broadband Router
• Multiple VPN capability allows individual users to securely access separate
VPNs over the same connection
• LEDs indicate power, LINK/Activity, 10, 100, and 1000 Mbps
• Quality of Service (QoS) for VoIP and video streaming
• Built-in NAT firewall protects networks and provides
secure communication for the network user even during multiple VPN use
• URL blocking feature filters unwanted sites
• UPnP (Universal Plug-n-Play) allows automatic discovery and configuration
of the Gateway UPnP supported by Windows ME, XP or later
• Scheduling feature for parental control of Internet access periods
• Virtual server is useful for outside access to IP cameras and IP/Quad, XBox 360®,
media servers, etc.
• Upgradeable by firmware updates on the Leviton website
10/100 Broadband Router
• Enables multiple users to share a single, secure high-speed
Internet connection
• Includes 4 ports for in-home LAN connections
10/100/1000 Gigabit Ethernet Switch
• 10/100/1000 Mbps data transfer rate
• Five RJ-45 connector Mbps LAN ports
• LEDs indicate power, LINK/Activity, 10, 100, and 1000 Mbps
• Plug-n-Play installation
• Auto detect uplink to easily cascade additional hubs, switches, and routers
from any port
• Features high-performance store-and-forward switching architecture with
CRC and Runt Filtering
10/100 Ethernet Switches
• Networks additional PCs, printers, and other peripherals beyond router capacity
• Connects to many home office Ethernet devices
• Available in 5- and 8-port versions
47611-5GB
Data Networking
40 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton embraces HDTV, CATV, satellite, digital
and analog video with innovative products that
bring it all home. Leviton is dedicated to providing
the most performance with the least amount of
interference and the clearest possible reception.
TV Distribution
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 41
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Premium CATV Modules
Leviton’s Premium CATV Modules distribute incoming RF signals (HDTV, Cable TV,
Antenna or other modulated sources) to 1, 8 or 16 locations throughout the home
or office on coaxial cable. The modules incorporate state-of-the-art bi-directional
circuitry to support advanced interactive applications such as cable modem, digital
cable communications and standard inputs like incoming CATV and over-the-
air antennas. The Premium CATV module line is ready to handle the latest cable
technology for cutting-edge HDTV and high speed Internet.
Specifications & Features
1x1, 1x8, 1x16 CATV Modules
• Meets DOCSIS and SCTE transmission requirements
• Pre-tested by major CATV MSOs
• Automatically adjust output level on all active ports to match incoming signal level (unity gain)
• Durable aluminum die-cast housing with white powder coating
• F-ports provide up to 15 psi weather sealing
• Robust machine-threaded, gold plated brass F-ports meet SCTE requirements
360-degree seizing inserts retain center conductor up to pull-out tension of 200 grams
• Termination caps included for unused ports
• Easily installs into Leviton’s Structured Media enclosures either horizontally or vertically
• Mounting bracket tilts for easy cable attachment and management
12VDC power supply included
3x1 Passive Combiner Module
• Digital CATV compatible
• Combines modulated signals from cameras, DVD payer, etc., for home or office
• Provides bi-directional signal path to support cable modem or digital cable communications
• Easily installs into Leviton’s Structured Media® enclosures either horizontally or vertically
• Robust machine-threaded, gold plated brass ports meet SCTE requirements
• F-ports provide up to 15 psi weather sealing
360-degree seizing insert retains center conductor up to pullout tension of 200 grams
on .032" diameter coax center conductors
TV Distribution | Premium CATV Modules
47693-01P
47693-08P
47693-16P
47693-31P
Premium CATV Modules
Description Part No.
1x1 Premium CATV Module 47693-01P
1x8 Premium CATV Module 47693-08P
1x16 Premium CATV Module 47693-16P
3x1 Passive Combiner 47693-31P
TV Distribution
TV Distribution |
42 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
1x8 Premium CATV Module Specification - 47693-08P
Parameter Bandwidth Forward
Path
Return
Path
Band 52-1000 MHz 5-42 MHz
Gain (Loss) 4 dB (11.0 dB)
Flatness ± 1.0 dB ± 1.5 dB
Return Loss - Input 22.0 dB 21.0 dB
Return Loss - Output 22.0 dB 21.0 dB
Port Isolation - Output 25.0 dB 25.0 dB
Group Delay
(span 3.58 MHz)
54-60 MHz
61-1000 MHz
15ns
7ns
Group Delay
(span 1 MHz)
5-42 MHz
10-40 MHz 17ns
7ns
Power to RF
Input Isolation 5-1000 MHz 100db (min)
RFI Isolation 5-1000 MHz -110 dBc
Noise Figure 52-1000 MHz 3.0 dB
Distortions
CSO
CTB
Xmod
-65 dBc
-74 dBc
-75 dBc
Premium CATV Module Specifications
1x1 Premium CATV Module Specification - 47693-01P
Parameter Bandwidth Forward
Path
Return
Path
Band 52-1000 MHz 5-42 MHz
Gain (Loss) 15 dB (-0.5 dB)
Flatness ± 0.75 dB ± 1.5 dB
Return Loss - Input 22.0 dB 21.0 dB
Return Loss - Output 22.0 dB 21.0 dB
Port Isolation - Output 25.0 dB 27.0 dB
Group Delay
(span 3.58 MHz)
54-60 MHz
61-1000 MHz
15ns
7ns
Group Delay
(span 1 MHz)
5-42 MHz
10-40 MHz 17ns
7ns
Power to RF
Input Isolation 5-1000 MHz 100db (min)
RFI Isolation 5-1000 MHz -110 dBc
Noise Figure 52-1000 MHz 2.5 dB
Distortions
CSO
CTB
Xmod
-65 dBc
-74 dBc
-75 dBc
One input level at +10 dBmV flat 77 channels and 200 MHz noise for QAM test from
550 to 790 MHz.
Operating Temperature: -40° C to 60° C (-40° F to 140° F).
Two input levels at +10 dBmV flat 77 channels and 200 MHz noise for QAM test from
550 to 790 MHz.
Operating Temperature: -40° C to 60° C (-40° F to 140° F).
1x16 Premium CATV Module Specification - 47693-16P
Parameter Bandwidth Forward
Path
Return
Path
Band 52-1000 MHz 5-42 MHz
Gain (Loss) 0 dB (-14.5 dB)
CM Port (-6.5 dB)
Flatness — ± 1.5 dB ± 2.0 dB
Return Loss - Input 22.0 dB 21.0 dB
Return Loss - CM Input 20.0 dB
Return Loss - Output 20.0 dB 21.0 dB
Port Isolation - Output 20.0 dB 25.0 dB
Port Isolation - CM
port to Output port 20.0 dB
Group Delay
(span 3.58 MHz)
54-60 MHz
61-1000 MHz
15 ns
7 ns
Group Delay
(span 1 MHz)
5-42 MHz
10-40 MHz 15 ns
7 ns
Power to RF Input
Isolation 5-1000 MHz 100 db (min)
RFI Isolation 5-1000 MHz -100 dBc
Noise Figure 52-1000 MHz 3.0 dB
Distortions
CSO
CTB
Xmod
-65 dBc
-74 dBc
-75 dBc
Three input levels at +10 dBmV flat 77 channels and 200 MHz noise for QAM test
from 550 to 790 MHz.
Operating Temperature: -40° C to 60° C (-40° F to 140° F).
TV Distribution
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
43
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
TV Distribution | Passive Combiner Module Specifications
3x1 Passive Combiner Module Specification - 47693-31P
Bandwidth Insertion Loss Input to Input Output Input Return Loss (min)
5-15 MHz 5.2 dB 27 dB 24 dB 25 dB
16-40 MHz 5.3 dB 38 dB 32 dB 28 dB
41-550 MHz 5.6 dB 25 dB 22 dB 24 dB
551-1000 MHz 6.1 dB 24 dB 22 dB 23 dB
Dimensions 3.5" (88.9mm) H x 3.5" (88.9mm) W x 3.33" (83.82mm) D
Impedance 75 Ohm
Connector Type Gold plated F-type
Frequency 52-1000 MHz forward path, 0-45 MHz reverse path
Operating Temperature: -40° C to 60° C (-40° F to 140° F).
1x16
1x8
1x1
3x1
TV Distribution
TV Distribution |
44 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Specifications
Dimensions 6.58" (167.1mm) H x 3.67" (93.2mm) W x 4.4" (112mm) D
Frequency Range 50-1000 MHz
Gain Control Range 10-25 dB
FM Trap 25 dB
Impedance 75 Ohm
Connector Type F-Style
Power Source 12 VDC 500 mA
Features
Boosts strength of off-air antenna signal for video distribution throughout the home
or office
• Boosts signal strength by up to 25 dB
Features a variable attenuator for signal amplification level setting and an FM trap to
eliminate unwanted FM interference
Video Amplifier & Passive TV Splitters
Not for use in-line between one satellite dish (LNB) and DBS Satellite TV receiver. This module is not intended for use with
cable TV (cable modems, set top boxes and cable access cards).
48210-0VA
47690-004, 47690-006,
47690-008
47690-04C, 47690-08C,
47690-06C
Specifications & Features
• Splits TV signals; outputs for up to four, six or eight televisions
• Provides digital cable, cable TV and other TV services, via coaxial cable, to any room in the house
• Die-cast housing and printed circuit board
• Use with the TV Amplifier for increased signal strength
• Gold flashed contacts on 2 GHz units provide lowest conductive resistance
1 GHz Splitters are SCTE compliant
• Dimensions of Splitters:
1x4 — 1.14" (29.0mm) H x 3.36" (85.3mm) W x 1.66" (42.1mm) D
1x6, 1x8 — 1.14" (29.0mm) H x 3.36" (85.3mm) W x 2.65" (67.3mm) D
• Dimensions of Splitters with bracket:
1x4 — 1.40" (35.6mm) H x 6.58" (167.1mm) W x 2.14" (54.4mm) D
1x6, 1x8 — 1.40" (35.6mm) H x 6.58" (167.1mm) W x 2.65" (76.2mm) D
1x4, 1x6 & 1x8 Passive TV Splitters
Description 1 GHz 2 GHz
1x4 Passive TV Splitter 47690-004 47690-0G4
1x6 Passive TV Splitter 47690-006 47690-0G6
1x8 Passive TV Splitter 47690-008 47690-0G8
1x4, 1x6 & 1x8 Passive TV Splitters w/ Mounting Bracket
1x4 Passive TV Splitter w/ bracket for 14", 28" and 42" SMCs 47690-04C 47690-4C2
1x6 Passive TV Splitter w/ bracket for 14", 28" and 42" SMCs 47690-06C 47690-6C2
1x8 Passive TV Splitter w/ bracket for 14", 28" and 42" SMCs 47690-08C 47690-8C2
Video Amplifier Module
Part No. 48210-0VA
Video Amplifer Module
Passive TV Splitters
TV Distribution
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
45
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Specifications
Dimensions 4.77" (121.1mm) x H x 6.58" (167.1mm) W x 2.37"(602. mm) D
Frequency
Terrestrial:
Satellite:
Receiver Output:
40-860 MHz
950-2150 MHz
40-2150 MHz
Connectors F-Style, 75 Ohms
LNB Input Selection LNBA: 13/14 VDC, LNBB: 17/18 VDC
Insertion Loss
(Typical)
Terrestrial:
Satellite:
-7 dB
-3 db
Return Loss (Typical) Terrestrial:
Satellite:
-10 dB
-10 dB
Isolation (Typical) Output to
Opposite Input -22 db
DC Power Passing 500 mA (max)
TV Distribution | Multi-Switch Module
Features
Passive 3x4 Multi-Switch combines signals from digital satellite with off-air antenna
onto single coaxial cable
• Distributes digital satellite signals to up to four TVs
Incorporates a separate input for TV antenna signals and is best used in
combination with a Video Amplifier
Multi-Switch Module
Part No. 47691-3MS
47691-3MS
TV Distribution
46 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
The Leviton Indoor/Outdoor Color Camera Monitoring
System brings homeowners high-level security and
safety that simply can’t be matched by non-video
sensors. Color video output runs through a Leviton
Structured Media® Center and connects to any TV or
video monitor in the home. Parents can keep a close
watch on children and can see who is ringing the
doorbell after dark. Cameras install quickly and easily
with a single CAT 5e or CAT 6 cable.
Camera Monitoring
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 47
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Camera Monitoring | High Resolution Indoor/Outdoor Cameras & Hubs
VSIND-0SC
VSOUT-00W
Specifications & Features
Cameras
Indoor Camera is a flush-mount Leviton Decora® wallplate insert, clear and
smoke lenses included
Outdoor Camera delivers 24-hour video feed with automatic infrared illumination
Each model requires only one 4-pair UTP cable for video and power connectivity
Indoor and outdoor models are high resolution, full color, 420 line cameras
Camera Hubs
Designed for installation in a Leviton Structured Media® Center
Hubs inject power for cameras and provide video out signals for other video
equipment at the Structured Media Center
Standard 110 IDC terminations or 8P8C jacks for connection to camera UTP cabling
Cameras & Hubs
Description Part No.
Indoor Camera VSIND-0SC
Outdoor Camera VSOUT-00W
Camera Hub w/ IDC Connectors VSHUB-IDC
Camera Hub VSHUB-000
VSHUB-IDC , VSHUB-000
Camera Monitoring
Camera Monitoring |
48 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Media Center Modulator
Media Center Modulator / Video Sequencer
Note: Modulator broadcasts mono audio only. Cannot be combined with digital cable.
48213-VMA
Video Sequencer
Features
Automatically switches between up to four cameras with composite video signals
Variable time interval setting ranges from 1-30 seconds to sequentially monitor
each camera
• Snaps into a 14", 28" or 42" Structured Media Center
48213-CVS
Features
• Provides whole house security on one analog channel when CATV channel spacing will allow it
Select the broadcast channel to be programmed via dip-switch button programming
• Modulator provides 0, 10, 20 or 30 dBmV RF output
Camera Monitoring
Specifications
Dimensions 3.34" (84.8mm) H x 3.59" (91.2mm) W x 0.98" (24.9mm) D
Inputs RCA video, RCA audio inputs
Outputs 1 F-connector for RF signal
Operational Channels 14-69 UHF; 70-94, 100-125 CATV, settable via dip switches
Bandwidth 50 MHz - 860 MHz
Power 12VDC 400 mA
Power Source 12 VDC 500 mA
Media Center Modulator
Part No. 48213-VMA
Specifications
Dimensions 6.60" (167.7mm) H x 7.80" (198.1mm) W x 2.01" (51.1mm) D
Inputs Four RCA video, eight RCA left/right audio
Outputs Two RCA video, four RCA left/right audio
Time Interval 1-30 seconds, variable/adjustable
Signal to Noise Ratio <1.2 dB
Bandwidth 5 MHz
Power 12VDC, 300 mA
Video Sequencer
Part No. 48213-CVS
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
49
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Camera Monitoring | RF Notch Filter
Features
Blocks incoming analog cable TV channels 75-80, allowing the Media Center Modulator
to broadcast without interference
Couples to the coaxial cable TV input on either a splitter or an active video distribution device
It also blocks outgoing signals, such as cameras, from being broadcast outside the home
47690-NFA
Leviton’s product selection reaches into commercial-grade security products designed to
converge voice, data and camera video onto a single cabling network. Connect security
cameras and recording equipment over the same commercial UTP cabling used for voice and
data networks with the Leviton suite of UTP Security Solutions.
For more information on UTP Security products, visit leviton.com/security.
Specifications
Dimensions 3.59" (91.2mm) L x 0.81" (20.6mm) W
Type Passive RF filter
Bandwidth CATV channels 75-80
Input Female F-connector
Output Male F-connector
RF Notch Filter Specifications
Part No. 47690-NFA
Did You Know? Leviton offers Commercial UTP Security Solutions
Camera Monitoring
50 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton brings the home intercom into the 21st
century with two innovative systems. The Ophera
Video Entry System offers an excellent access
solution for MDU and custom residential projects.
The Audio Intercom System for Structured Media
applications is available for audio intercom functions
throughout the house and is designed to easily
install with CAT 5e cabling.
Intercom
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 51
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Intercom
The Ophera Video Entry System integrates high quality color video and audio
components in a stylish combination intended to compliment any décor.
A wide range of appealing and innovative features makes Ophera the
recognized choice for moderate sized MDU and custom residential projects.
Operates independent of data networks using proven analog technology.
Ophera Video Entry System
Descripton Part No.
Ophera Hands-Free Color Receiver (with three color inserts) BR200-00W
1-Button Color Video Entry Panel, X1 system, grey BT102-01G
Digital Entry Panel with name directory, grey BT200-DPG
Mounting Box for Ophera BR300-BOX
Surface mount wall support for Ophera, white BR300-SMK
Single Push Button Kit BT600-HPS
Interface module for digital entry panel BT500-HAC
Plastic embedding box BT700-HTI
Plastic embedding box with frame, grey BT700-HTG
Metal Surface Mount Box w/ Rain Cover BT700-HBT
Control unit and power supply, 120-127V, 60Hz, (12 DIN) BC100-0VA
Power Supply, 120-127V, 60Hz, 17.5VDC, 1.7A (8 DIN) BC100-VAS
Video distribution module, 4 output BC200-4VD
Amplified video distribution module, 4 output BC200-AVD
Intercom selector, system X1/300 BC300-VSE
Line repeater, 120-127V, 60Hz (12-DIN) BC100-XAS
Video Amplifer BC200-AMP
Intercom | Ophera Video Entry System
Specifications & Features
Ophera Video Entry System
• Door release capable with re-lock delay
• Up to four entry stations and 100 apartments/suites per system
2,133 ft. maximum cable length per system
• Analog system uses CAT 5e and 18-2 AWG twisted cabling
• Choose single button or digital keypad entry panels
Ophera Hands-Free Receiver
3.5" color monitor on receiver
• Adjustable display tilts 20-degrees
• Mute, privacy and control buttons
• Call waiting notification
• Receiver includes three color inserts: white,
arctic blue, orange
• Audio intercom function for up to eight receivers
per apartment or suite
Entry Station
• Weather resistant video entry stations
• Integrated low-light color video camera with
adjustable angle view
• LED backlit buttons
• LCD display on keypad model
BR200-00W
BT102-01G
BT200-DPG
Arctic
Blue
White Orange
Intercom |
52 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
47000-STR, 47000-PRT,
47000-CHM
Specifications
Controller Power Input 24VDC
Current Consumption 250 mA
Power Indicator Green LED
Ringer Equivalency Number (REN) 4.6
Cabling CAT 5 UTP 4-pair solid conductor 24 AWG 100 Ohm, 100 MHz
Wiring Standard T568A via solid conductor 8P8C modular plug and 110-style IDC
Power Source 12 VDC 500 mA
Specifications & Features
• Integrates with phone system
• Main controller board installs easily into Leviton Structured Media® Center
• System integrates with other services in SMC
• Onboard firmware for music-on-hold
• Allows call on-hold for hang-up at one location and pick-up at another
• Allows whole-house paging, including phone-to-phone paging
• Allows station queuing so multiple, simultaneous activations can be responded to
automatically in sequence
• Integrated dry contacts provide security alert by motion, pressure and gate sensors, etc.
• Provides for remote monitoring of zones for added security
• Full duplex communication
Audio Intercom System
47000-MKB
47000-CWS, 47000-CSG,
47000-CSB
Audio Intercom System
Descripton Part No.
Intercom Kit includes Main Controller Board and one Interface Board on a bracket w/
one Outdoor Station 47000-MKB
Outdoor Station, brushed nickel finish 47000-0D1
Indoor Station, white 47000-0W1
Indoor Station, black 47000-0E1
Door Strike Module 47000-STR
Interface Board w/ four additional ports 47000-PRT
Door Chime Module 47000-CHM
Satin Cover and Button Color Change Kit - warm silver 47000-CWS
Satin Cover and Button Color Change Kit - soft gold 47000-CSG
Satin Cover and Button Color Change Kit - sterling blush 47000-CSB
Intercom
Soft
Gold
Warm
Silver
Sterling
Blush
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
53
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Join a revolution in the home automation industry with Vizia RF +™ wireless lighting and home
control technology. Innovative and affordable, with features that are desired by professional
installers and appreciated by homeowners, Vizia RF + helps reduce energy consumption.
It provides dramatic scene transitions, extended zone lighting control, industry standard
2-way status updating and true integration of household electrical devices. Use Vizia RF +
to enhance new construction or to refresh older homes and multiple-dwelling residences.
Equipped with Z-Wave®, the leading home automation technology, Vizia RF + allows tailoring
of the perfect home control solution. Imagine a home in which the lighting automatically
adapts to your needs. With Vizia RF +, this dream can become reality without straining your
energy resources or budget.
For more information on Vizia RF +, visit leviton.com/viziarf.
Did You Know?
Leviton Offers Wireless Lighting & Home Control Technology
Intercom
54 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton offers a broad selection of at-the-wall
connection options designed especially for the
residential market. HOME 5e™ and HOME 6™
connectors and patch cables deliver affordable high
performance. QuickPlates™ and the new Cheetah
Speed System offer the ultimate in quick installation.
QuickPort® Audio Visual Connectors and Wallplates
round out the collection.
Connectors, Patch Cables
& Wallplates
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 55
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Connectors, Patch Cables & Wallplates | HOME 5e™/HOME 6™
QuickPort HOME Connectors
Description Part No.
HOME 5e Connector, Standard 5EHOM-R*5
HOME 5e Connector, Tool-Free 5ETLS-R*5
HOME 6 Connector, Standard 61HOM-R*6
Home 6 Connector, Tool-Free 61TLS-R*6
Blue (L) Black (E)Grey (G)Ivory (I) Light
Almond (T)
Brown (B)White (W)
* = Colors: Choose from any of the colors below.
Leviton HOME 5e and HOME 6 connectors provide high quality network connections
designed specifically for residential applications. They are available in standard and
tool-free versions to provide maximum flexibility and fast installation in the field.
Both meet or exceed T568A wiring standards. Various color options are available
to distinguish between connections.
The new HOME 5e and HOME 6 Tool-Free connectors feature an innovative
design that eliminates the need for punch-down tools and provides easy wire
organization. Simply align the wires into their proper channel, and pinch the
connector together for a strong, reliable termination. A T568A wiring diagram is
included for residential applications.
5EHOM-RW5 (Front)
HOME Patch Cable
Description Part No.
HOME 5e Patch Cable 5LHOM-xx*
HOME 6 Patch Cable 6LHOM-xx*
HOME 5e Ultra High Flex Patch Cable 5HHOM-xx*
HOME 6 Ultra High Flex Patch Cable 6HHOM-xx*
xx = Length: 6" (6I), 1' (01), 2' (02), 3' (03), or 4' (04).
* = Colors: Choose from any of the colors below.
White (W) Yellow (Y) Red (R) Blue (L)
Leviton’s HOME 5e and HOME 6 patch cables deliver high performance at affordable
costs. Ultra High Flex HOME 5e and HOME 6 patch cables feature a low profile cable,
allowing for tighter radius connections and a cleaner finished appearance inside a
dressed Structured Media® Center. Standard-grade patch cables are also available.
Various color options are available to distinguish between connections.
HOME 5e & HOME 6 Connectors
HOME 5e & HOME 6 Patch Cables
61TLS-RW6 (Back)
5EHOM-RW5 (Back)
5ETLS-RW5 (Back)
61HOM-RW6 (Back)
5LHOM-xxL, 6LHOM-xxL
Connectors, Patch Cables & Wallplates
5HHOM-xx*
61HOM-RW6 (Front)
Connectors, Patch Cables & Wallplates |
56 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Connectors, Patch Cables & Wallplates
QuickPort® Connectors
41084-BWF, 40832-0BW
40782-RYW, 40782-CPF
40833-BWR, 40833-BWE
QuickPort Connectors
Description Applications Part No.
CAT 5 Connector Voice & low speed data 41108-R‡5
CAT 3 Connector Voice & low speed data 41108-R‡3
Voice Grade 6-Conductor Connector Voice 41106-R‡6
Voice Grade 8-Conductor Connector Voice 41108-R‡8
BNC Bulkhead Module, standard CCTV & video 41084-B*F
BNC Bulkhead Module, gold plated CCTV & video 40832-0B°
S-Video Feedthrough Enhanced video streams 40734-CV~
S-Video to 110 Enhanced video streams 40734-SV*
3.5MM Stereo screw terminal Computer audio applications 40839-S~S
F-Connector, standard, 1GHz TV, DVD, satellite & home theater 41084-F*F
F-Connector, gold plated, 2.5GHz TV, DVD, satellite & home theater 40831-0B°
RCA to 110 Advanced audio & video 40735-Rx†
RCA w/ black stripe Advanced audio & video 40830-B*E
RCA w/ red stripe Advanced audio & video 40830-B*R
RCA w/ yellow stripe Advanced audio & video 40830-B°Y
RCA w/ green stripe Advanced audio & video 40830-B~V
RCA w/ blue stripe Advanced audio & video 40830-B~L
Banana Jack Adapter, gold plated w/ black stripe Advanced audio 40837-B°E
Banana Jack Adapter, gold plated w/ red stripe Advanced audio 40837-B°R
Binding Post Adapter, gold plated w/ black stripe Advanced audio 40833-B°E
Binding Post Adapter, gold plated w/ red stripe Advanced audio 40833-B°R
Snap-in Blank Module Secures unused ports 41084-B*B
QuickPort Compression RCA Connector Advanced audio & video 40782-R•W
QuickPort Compression F-Connector (white only) TV, DVD, satellite & home theater 40782-CPF
Compression Connectors
Compression Connectors F-style TV, DVD, satellite & home theater 40985-CRF
Compression Connector RCA-style Advanced audio & video 40985-CRU
‡ = Color: Choose from any of the 14 colors shown below.
* = Color: White (W), Light Almond (T), Almond (A), Ivory (I), Grey (G), Black (E), Brown (B).
° = Color: White (W), Light Almond (T), Almond (A), Ivory (I).
~ = Color: White (W), Ivory (I).
x = Inner Barrel Color: Orange (O), Red (R), White (W), Yellow (Y) Ivory (I).
† = Color: White (W), Light Almond (T), Almond (A), Ivory (I), Grey (G), Black (E).
• = Inner Barrel Color: Black (E), Yellow (Y), Red (R), Blue (L), Green (V).
Deliver the high quality signals expected from today’s latest technology with Leviton’s line of QuickPort
Connectors and Adapters. The modular system approach permits cost-effective custom applications while
providing outstanding signal quality.
40734-CVW, 40834-SVW
40839-SWS
41084-FWF
Green (V) Blue (L)Purple (P)Crimson (C) Dark
Red (R)
Orange (O) Yellow (Y)
Black (E)Grey (G)Ivory (I) Almond (A)Light
Almond (T)
Brown (B)White (W)
40985-CPF, 40985-CRU
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
57
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Specifications and Features
• QuickPlate Wallplates distribute data, phone and TV connections through a
preassembled one-piece design
• Rear facing IDC punchdowns and consistent positioning of data and F-connectors
reduce ordering problems and eliminate onsite assembly
• All QuickPlates have a pleasing matte finish
• Robust one-piece wallplate and lead-frame jack design
• Rear facing 110 IDC punchdown for voice and data jacks make termination
quick and easy
• Data port accepts CAT 5e with T568A wiring
• Phone port accepts UTP with USOC wiring
• F-connector for video applications is an F-81 style bulkhead connector
• Includes captive screws painted to match wallplate color
• Standard dimensions — 4.61" (117.1mm) H x 2.75" (69.9mm) W x 0.26" (6.5mm) D
• Midway dimensions — 4.99" (126.7mm) H 3.13" (79.4mm) W x 0.26" (6.5mm) D
• CAT 5e connectors meet or exceed applicable standards; labeled for T568A wiring
• Complies with applicable FCC Part 68 requirements
• Supports high megabit and shared-sheath applications
F-style bulkhead connectors meet or exceed 10dB of return loss at 1 GHz and
are SCTE compliant
QuickPlate
Description Standard Size Part No. Midway Size Part No.
One Data 5EA20-S1* 5EA20-M1*
One Data, One F-Style 5EA20-S2* 5EA20-M2*
One Data, One Phone, One F-Style 5EA20-S3* 5EA20-M3*
Two Data, Two F-Style 5EA20-S4* 5EA20-M4*
Ivory (I) Almond (A)Light
Almond (T)
White (W)
* = Colors: Choose from any of the colors below.
QuickPort® Connectors
5EA20-S2W
5EA20-S1W
Connectors, Patch Cables & Wallplates | QuickPlates™
5EA20-S3W
5EA20-0S4
Connectors, Patch Cables & Wallplates
Connectors, Patch Cables & Wallplates |
58 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
The patented Cheetah Speed System enables electrical devices and wallplates to
be installed without screws using a revolutionary speed anchor and snap and lock
system. The Cheetah Speed System increases the speed of installation by up to
50%, and at the same time offers the elegance, style and designer appearance
of screwless wallplates.
Cheetah Speed System Inserts
Description White Lt. Almond Almond Ivory Black
3-Port Insert 5020C-C0W 5020C-CAL 5020C-C0I 5020C-C0B
Decora® Insert Telephone CH149-00W CH149-00T CH149-00A CH149-00I CH149-00E
Decora Insert Coax CH181-00W CH181-00T CH181-00A CH181-00I CH181-00E
Decora Insert Telephone/
Coax Combo CH159-00W CH159-00T CH159-00A CH159-00I CH159-00E
Cheetah Speed System Boxes & Brackets
1-Gang Non-Metalic Datacom Box (includes two nails & twp self tapping screws) 3005C-C00
Low Voltage Datacom Cut-in Bracket 4007C-C00
4007C-C00
5020C-C0W
Connectors, Patch Cables & Wallplates |
Cheetah Speed System
3005C-C00
IvoryAlmondLight
Almond
White Black
Connectors, Patch Cables & Wallplates
Cheetah Wallplate
SJ26C
CH159-000
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
59
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Connectors, Patch Cables & Wallplates |
Cheetah Speed System
41080-6WP
41080-3WP
QuickPort Stainless Steel Wallplates
QuickPort Flush Mount Wallplates
Offering field configurability in an attractive single-piece housing. Flush mount
wallplates include color matched mounting screws.
QuickPort Stainless Steel Wallplates – Single & Dual-Gang
Designer styling, durability and easy cleaning make Leviton stainless steel
wallplates a favorite among discerning homeowners.
QuickPort Stainless Steel Wallplates
Description Part No.
1-Port Single-Gang Wallplate 43080-1S1
2-Port Single-Gang Wallplate 43080-1S2
3-Port Single-Gang Wallplate 43080-1S3
4-Port Single-Gang Wallplate 43080-1S4
6-Port Single-Gang Wallplate 43080-1S6
2-Port Dual-Gang Wallplate 43080-2S2
4-Port Dual-Gang Wallplate 43080-2S4
6-Port Dual-Gang Wallplate 43080-2S6
8-Port Dual-Gang Wallplate 43080-2S8
12-Port Dual-Gang Wallplate 43080-S12
Wall Phone Plate, recessed 4108W-1SP
Wall Phone Plate, flush 4108W-0SP
QuickPort Flush Mount Wallplates
Description White Lt. Almond Ivory
6-Port Flush Mount, individual polybag pack, standard carton 41080-6WP 41080-6TP 41080-6IP
4-Port Flush Mount, individual polybag pack, standard carton 41080-4WP 41080-4TP 41080-4IP
3-Port Flush Mount, individual polybag pack, standard carton 41080-3WP 41080-3TP 41080-3IP
2-Port Flush Mount, individual polybag pack, standard carton 41080-2WP 41080-2TP 41080-2IP
1-Port Flush Mount, individual polybag pack, standard carton 41080-1WP 41080-1TP 41080-1IP
Midway size plates in plastic and high-impact nylon also available. Call Leviton Customer Service at 1-800-722-2082.
QuickPort® Flush Mount &
Stainless Steel Wallplates
Light
Almond
White
4108W-1SP, 4108W-0SP
Connectors, Patch Cables & Wallplates
Ivory
Connectors, Patch Cables & Wallplates |
60 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Connectors, Patch Cables & Wallplates |
QuickPort Angled Wallplates
QuickPort Multimedia Wallplate Inserts
40807-0BW, 40807-00W
QuickPort Angled Wallplates
Description White Lt. Almond Almond Ivory
4-Port Wallplate 41081-4WP 41081-4TP 41081-4IP
2-Port Wallplate 41081-2WP 41081-2TP 41081-2IP
4-Port Wallplate w/ ID window 42081-4WS 42081-4TS 42081-4IS
2-Port Wallplate w/ ID window 42081-2WS 42081-2TS 42081-2IS
4-Port w/ two angled ports, individual
polybag pack, standard carton 40807-0BW 40807-0BI
4-Port w/ two angled ports, w/ ID window,
carded pack standard carton 40807-00W 40807-00A 40807-00I
Angled 8-Port w/ four angled ports, individual
polybag pack, standard carton w/ ID window 40807-B2W 40807-B2I
QuickPort Multimedia Wallplate Inserts
Description White Lt. Almond Almond Ivory
1-Port Insert, polybag, standard carton 41641-00W 41641-00T 41641-00A 41641-00I
2-Port Insert, polybag, standard carton 41642-00W 41642-00T 41642-00A 41642-00I
3-Port Insert, polybag, standard carton 41643-00W 41643-00T 41643-00A 41643-00I
4-Port Insert, polybag, standard carton 41644-00W 41644-00T 41644-00A 41644-00I
6-Port Insert, polybag, standard carton 41646-00W 41646-00T 41646-00A 41646-00I
HDMI Decora Insert, feedthrough 41647-00W 41647-00I
DVI Feedthrough, Decora Style 41648-00W 41648-00I
Specifications & Features
• Combine Decora® multimedia inserts with QuickPort modules and Decora wallplates
• Mix and match the modules in combinations of two, three, four or six
Decora inserts are compatible with the full line of standard Decora wallplates, Decora Plus snap-on
wallplates and Leviton sectional wallplates (all sold separately)
• Inserts fit standard NEMA wallboxes and include mounting tabs with strip-resistant steel nuts
Specifications & Features
• Angled ports relieve stress on equipment cords
• The bottom opening can be used as a duplex port by inserting the supplied
divider and installing two QuickPort modules
• Mounting screws are included
QuickPort® Angled Wallplates
& Multimedia Inserts
41641-00W, 41643-00W
IvoryAlmondWhite Light
Almond
42081-4WS
41081-2WP
Connectors, Patch Cables & Wallplates
41647-00W
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
61
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Connectors, Patch Cables & Wallplates |
Decora® Wallplates
& QuickPort® Shutters
51084-ICN
80409-00W
QuickPort Shutters
Description Part No.
QuickPort Shutter Kit w/ Leviton logo and miscellaneous icons 51084-ICN
Accessory Kit w/ pre-printed icons, White 51084-XLB
Color Label Kit w/ pre-printed icons, Brown, Green, Orange, Red, Blue, Grey, and Purple 51084-CLB
QuickPort Shutters
Specifications & Features
• Protect connectors with a one-piece hinged door
• Work in any QuickPort housing
• Fit USOC 8-position, CAT 3, CAT 5, CAT 5e and CAT 6 connectors
Decora Single-Gang Wallplates
Description Part No.
Decora, standard size, urea 80401-00*
Decora, standard size, nylon 80401-0N*
Decora, standard size, stainless 84401-040
Decora Plus, standard size, polycarbonate 80301-0S*
Decora, midsize, urea 80601-0S*
Decora, midsize, nylon 0PJ26-00*
Decora Plus, midsize, polycarbonate 0SJ26-0S*
Decora Dual-Gang Wallplates
Description Part No.
Decora, standard size, urea 80409-00*
Decora, standard size, nylon 80409-0N*
Decora, standard size, stainless 84409-040
Decora Plus, standard size, polycarbonate 80309-0S*
Decora, midsize, urea 80609-0S*
Decora, midsize, nylon 0PJ62-00*
Decora Plus, midsize, polycarbonate 0SJ62-0S*
Ivory (I) Almond (A)Light
Almond (T)
White (W) Grey(G) Black (E) Brown (B)
80401-00W
51084-CLB
Connectors, Patch Cables & Wallplates
* = Colors: Choose from any of the colors below.
62 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton has everything you need to terminate and
connect audio, video and network wiring in the
home. The Wire Punchdown Tool enables one-step
punchdown of 110-Style or 66 Connecting Block IDCs
with a single push on the handle. Specialized blades,
stripping and crimping tools, and other accessories
complete the collection.
Residential Tools
& Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 63
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Residential Tools & Accessories | Residential Tools & Accessories
Residential Tools
Description Part No.
Residential Tool Kit includes Punchdown Tool w/ 110 blade, EZ-RJ45™ Crimp Tool, two Level
Coaxial Cable Strippers, UTP Stripping Tool, Coax and Round Wire Cable Cutter, EZ-RJ45
Connectors, and screwdriver
40812-RTK
Wire Punchdown / Termination Tool, blades sold seperately 49553-814
110 IDC Blade 49553-110
66-Clip Blade 49553-066
BIX® Blade 49553-BIX
Krone® Blade 49553-KRN
Awl (Woodscrew starter punch) 49553-AWL
Master Compression Tool 40989-CPT
UTP Stripping Tool 49660-00P
Coaxial Stripping Tool C5914-000
EZ-RJ45 Crimp Tool 40989-RCT
Residential Accessories
Description Part No.
EZ-RJ45 Connector, 50/pack 47613-EZC
EZ-RJ45 Connector Display Pack, 10/pack 47613-EZR
Push-Lock Pins for SMCs, 20/pack 47615-NYL
4x4 Telephone Line Breakout Module 47609-4X4
Reclosable Tie-Wrap, 5" Length, 25/pack 43105-005
Reclosable Tie-Wrap, 8" Length, 25/pack 43108-008
Reclosable Tie-Wrap, 12" Length, 25/pack 43112-012
40812-RTK
47615-NYL
47609-4X4
43105-005, 43108-008,
43112-012
Residential Tools & Accessories
64 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton has a system to make entertaining with
audio and video easy in any type of home. Leviton
Spec-Grade Sound™ speakers are an ideal balance
between performance and value. Leviton Architectural
Edition™ Powered by JBL® systems bring the pro sound
experience to the home. And award-winning Leviton
Architectural Edition™ components ensure that an
installed entertainment system has no weak links.
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 65
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Audio
Audio | In-Wall/Ceiling Speakers
AEI65-000
AEI80-000
JBL® studio monitors have the reputation for incorporating the most advanced audio
materials, technologies and precision engineering available. Many of these same
features and technologies are built into selected models in the Leviton Architectural
Edition™ Powered by JBL series audio equipment. Whatever the application, when
the specs call for JBL In-Wall and In-Ceiling Speakers, the performance is guaranteed
to bring a new meaning to the phrase “home entertainment.
Features
• JBL Titanium-laminate drivers for maintaining accuracy and clarity even at frequency extremes
• Straight-line Signal Path™ (SSP™) crossover network for minimal signal distortion
Long-excursion woofers with butyl-rubber half-round surrounds and extended pole-piece
magnetic structures for maximum bass impact and dynamic range
• Low-diffraction, swivel-tweeter mounting system for optimum stereo imaging
• Heavy-duty push-type input terminals for long-term connection integrity
Integrated dog-ear mounting brackets (optional rough-in kits available for pre-construction
installation in new homes)
• Acoustically-transparent paintable baffles and grilles
Leviton Architectural Edition Powered by JBL In-Wall Speakers
Description Pair of 6.5" Two-Way In-Wall
Loudspeakers Pair of 8" Two-Way In-Wall Loudspeakers
Part No. AEI65-000 AEI80-000
Specifications
Driver Compliment
1" (25mm) Titanium-laminate
dome tweeter; 6.5" 170(mm)
Titanium-laminate woofer
1" (25 mm) Titanium-laminate
dome tweeter; 8" (200 mm)
Titanium-laminate woofer
Frequency Response 38 Hz-20 kHz (-10 dB) 30 Hz-20 kHz (-10 dB)
Sensitivity 88 dB @ 2.83V/1m 89 dB @ 2.83V/1m
Power Handling 80 Watts 100 Watts
Impedence Nominal 8 Ohms Nominal 8 Ohms
Dimensions 8.5" (226mm) W x 11" (279mm) H
x 3.87" (98mm) D
10.13 W (257mm) x 13.13 (333mm) H
x 4" (102mm) D
Mounting
Cutout Size 7.13" x 9.69" (1811mm x 246.1mm) 8.88" x 11.81" (225.55mm x 299.97mm)
Weight 5 lb /2.3 kg per speaker 7.8 lb/3.5 kg per speaker
Features and specifications subject to change.
Audio |
66 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
In-Wall/Ceiling Speakers
Leviton Architectural Edition™ Powered by JBL® In-Ceiling Speakers
Description Pair of 6.5" Two-Way
In-Ceiling Loudspeakers
Pair of 8" Two-Way
In-Ceiling Loudspeakers
6.5" Two-Channel/Single
Location Two-Way In-Wall
Loudspeaker
Part No. AEC65-000 AEC80-000 AEM65-000
Specifications
Driver Compliment
1" (25 mm) Titanium-
laminate dome tweeter;
6.5" (170 mm) Titanium-
laminate woofer
1" (25 mm) Titanium-
laminate dome tweeter;
8" (200 mm) Titanium-
laminate woofer
Dual .75" (19 mm)
Titanium-laminate dome
tweeters; One 6.5" (170
mm) Dual voice-coil
Titanium-laminate woofer
Frequency Response 40 Hz-20 kHz (-10 dB) 32 Hz-20 kHz (-10 dB) 40 Hz-20 kHz (-10 dB)
Sensitivity 88 dB @ 2.83V/1m 89 dB @ 2.83V/1m 88 dB w/ both channels
driven @ 2.83V/1m
Power Handling 80 Watts 100 Watts 100 Watts total
(50 Watts/channel)
Impedence Nominal 8 Ohms Nominal 8 Ohms Nominal 8 Ohms
Diameter 9.18" (233mm) 10.87" (275mm) 9.18" (233mm)
Depth 4.25" (108mm) 4.25" (108mm) 4.25" (108mm)
Mounting Cutout
Size
7.88" (200.15mm)
Diameter 9.50" (240mm) Diameter 7.88" (200.15mm)
Diameter
Weight 4.5 lb /2.0 kg per speaker 5.6 lb /2.5 kg per speaker 4 lb/1.8 kg per speaker
Features and specifications subject to change.
AEC65-000
AEC80-000
AEM65-000
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
67
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio | In-Wall/Ceiling Spec-Grade™ Speakers
Leviton Architectural Edition™ Powered by JBL® In-Ceiling Speakers
Description Pair of 6.5" Two-Way
In-Ceiling Loudspeakers
Pair of 8" Two-Way
In-Ceiling Loudspeakers
6.5" Two-Channel/Single
Location Two-Way In-Wall
Loudspeaker
Part No. AEC65-000 AEC80-000 AEM65-000
Specifications
Driver Compliment
1" (25 mm) Titanium-
laminate dome tweeter;
6.5" (170 mm) Titanium-
laminate woofer
1" (25 mm) Titanium-
laminate dome tweeter;
8" (200 mm) Titanium-
laminate woofer
Dual .75" (19 mm)
Titanium-laminate dome
tweeters; One 6.5" (170
mm) Dual voice-coil
Titanium-laminate woofer
Frequency Response 40 Hz-20 kHz (-10 dB) 32 Hz-20 kHz (-10 dB) 40 Hz-20 kHz (-10 dB)
Sensitivity 88 dB @ 2.83V/1m 89 dB @ 2.83V/1m 88 dB w/ both channels
driven @ 2.83V/1m
Power Handling 80 Watts 100 Watts 100 Watts total
(50 Watts/channel)
Impedence Nominal 8 Ohms Nominal 8 Ohms Nominal 8 Ohms
Diameter 9.18" (233mm) 10.87" (275mm) 9.18" (233mm)
Depth 4.25" (108mm) 4.25" (108mm) 4.25" (108mm)
Mounting Cutout
Size
7.88" (200.15mm)
Diameter 9.50" (240mm) Diameter 7.88" (200.15mm)
Diameter
Weight 4.5 lb /2.0 kg per speaker 5.6 lb /2.5 kg per speaker 4 lb/1.8 kg per speaker
When the specs call for quality sound, rely on Leviton’s award-winning Spec-Grade
Sound indoor speaker line for technical innovation and value.
Features
• AeroNylon tweeter diaphragm provides crystal-clear treble response and exceptionally accurate
tracking of even the most challenging musical transients
• Built-in AutoSurge™ circuit protection helps prevent speaker damage
• Advanced phase/time alignment guide properly aligns sound without misaligning the tweeters
• Precision dividing network ensures total audio signal electronic integrity up to the last
microsecond before the signal is converted into sound
• Inert mounting frame with “dogleg” installation points eliminates any transmitted vibrations that
could alter in-wall or ceiling sound quality
Leviton Spec-Grade Sound In-Wall/In-Ceiling Speakers
Description 6.5" Two-Way
In-Ceiling Loudspeaker
6.5" Two-Way
In-Wall Loudspeaker
8" Two-Way
In-Wall Loudspeaker
Part No. SGC65-00W SGI65-00W SGI80-00W
Specifications
Driver
Compliment
6.5" Kevlar® composite cone
low-frequency transducer,
0.5" AeroNylon dome
high-frequency transducer,
two-way balanced precision
crossover network w/
AutoSurgeTM circuit
protection
6.5" Kevlar composite cone
low-frequency transducer,
0.5" AeroNylon dome
high-frequency transducer
w/ phase/time alignment
guide, two-way balanced
precision crossover network
w/ AutoSurge circuit
protection
8" Kevlar composite cone
low-frequency transducer,
1" AeroNylon dome high-
frequency transducer w/
phase/time alignment
guide, two-way balanced
precision crossover network
w/ AutoSurge circuit
protection
Frequency
Response 50-20kHz ± 3 dB 50-20kHz ± 3 dB 44-20kHz ± 3 dB
Sensitivity 87.0 dB SPL @
1 Watt/1 Meter
88.8 dB SPL @
1 Watt/1 Meter
86.5 dB SPL @
1 Watt/1 Meter
Power
Handling 120W peak/60W RMS 120W peak/60W RMS 160W peak/60W RMS
Impedence Nominal 8 Ohms/
Minimum 6 Ohms
Nominal 8 Ohms/
Minimum 6 Ohms
Nominal 8 Ohms/
Minimum 6 Ohms
Diameter 9.02" (229.2mm)
Dimensions 3.25" (82.5mm) D
to rear of baffle
12.30" (312.4 mm) H x 9.00"
(228.6mm) W x 3.20"
(81.2mm) D to rear of baffle
14.20" (360.7mm) H x
10.25" (260.4mm) W x 3.52"
(89.4mm) D to rear of baffle
SGC65-00W
SGI80-00W
SGI65-00W
Audio
Audio |
68 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Pre-Constuction Kits & Replacement Grills
Pre-Construction Kits
Leviton/JBL® pre-construction kits ensure that speaker locations and wiring
are preserved and protected during construction, allowing for a cleaner,
faster and more precise installation during the trim-out stage.
Pre-Construction Kits for In-Ceiling & In-Wall Speakers
Description Part No.
Leviton Architectural Edition® Powered by JBL In-Wall Center Shelf Pre-Construction Kit
for use with AEI55 (pg. 70) AEPIS-KIT
Leviton Architectural Edition Powered by JBL 6.5" Pre-Construction Speaker Kit
for In-Wall Speaker AEPI6-KIT
Leviton Architectural Edition Powered by JBL 8" Pre-Construction Speaker Kit
for In-Wall Speaker AEPI8-KIT
Leviton Architectural Edition Powered by JBL 6.5" Pre-Construction Speaker Kit
for In-Ceiling Speaker PCC55-KIT
Leviton Architectural Edition Powered by JBL 8" Pre-Construction Speaker Kit
for In-Ceiling Speaker AEPC8-KIT
Pre-Construction Kits for Leviton Spec-Grade™ Speakers
Description Part No.
Rough-In Bracket for 6.5" In-Wall Loudspeaker PCI65-KIT
Rough-In Bracket for 8" In-Wall Loudspeaker PCI80-KIT
6.5" Pre-construction Kit for In-Ceiling Speaker PCC55-KIT
Replacement Grills for Leviton Spec-Grade In-Ceiling & In-Wall Speakers
Description Part No.
Replacement Grill for SGC65 SGC65-GRL
Replacement Grill for SGI65 SGI65-GRL
Replacement Grill for SGI80 SGI80-GRL
AEBC6-000
Fire Rated Back-box
Description Part No.
Fire Rated Back-box enclosure for any 6.5" ceiling speaker AEBC6-000
Replacement Grills
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
69
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio | Outdoor Speakers
Features
• Elliptical Oblate Sphereoidal™ (EOS®) Waveguide technology for high-frequency dispersion
• Straight-line Signal Path™ (SSP™) crossover networks for minimal signal distortion
5-way binding post input terminals for long-term connection integrity
• Mounting brackets (AEN24) and/or special mounting hardware (AES36) included
Leviton Architectural Edition Powered by JBL Outdoor Speakers
Description Pair of Outdoor/All-Weather
Two-Way Loudspeakers
Pair of Outdoor/All-Weather
Three-Way Loudspeakers
Part No. AEN24-000 AES36-000
Specifications
Driver Compliment
.75" (19mm) Titanium-laminate dome
tweeter, 4" (100mm) WeatherPlasTM
(polymer-coated cellulose fiber cone)
woofer w/ rubber surround, high-
temperature/oversized Kapton® voice
coil, and HeatScapeTM motor structure
1" (25mm) Pure Titanium shielded
dome tweeter; 4" (100mm) WeatherPlas
shielded midrange w/ LFP bezel, 6"
(150mm) WeatherPlas (polymer-coated
cellulose fiber cone) shielded woofer
w/ rubber surround, high-temperature/
oversized Kapton voice coil, Symmetrical
Field Geometry (SFGTM) magnet design
and cast aluminum basket
Frequency Response 75 Hz-20 kHz (-3 dB) 60 Hz-20 kHz (-3 dB)
Sensitivity 86 dB @ 2.83V/1m 90 dB @ 2.83V/1m
Power Handling 100 Watts 150 Watts total
Impedence Nominal 8 Ohms Nominal 8 Ohms
Diameter 9.5" (241mm) 10.25" (260mm)
Depth 6.25" (159mm) 14.62" (371mm)
Weight 4.5 lb/2.0 kg per speaker 11 lb/5 kg per speaker
Features and specifications subject to change.
Leviton Spec-Grade Outdoor/Utility Two-Way Loudspeaker
Description Pair of Outdoor/Utility Two-Way Loudspeakers
Part No. SGO99-00W
Specifications
Driver
Compliment
5.25" Silicate-fiber cone low-frequency transducer with butyl rubber surround,
0.5" Polydome high-frequency transducer, two-way balanced precision crossover
network w/ AutoSurge circuit protection, element resistant polypropylene
enclosure, gold plated binding terminals, and aluminum mounting bracket w/
stainless steel hardware.
Frequency Response 50-20kHz ± 3 dB
Sensitivity 87.0 dB SPL @ 1 Watt/1 Meter
Power
Handling 120W peak/60W RMS
Impedence Nominal 8 Ohms/ Minimum 6 Ohms
Dimensions 8.5" (215.9mm) H x 6.79" (172.4mm) W x 6.03" (153.2mm) D to rear of baffle
Features and specifications subject to change.
AEN24-000
AES36-000
SG099-00W
Leviton Architectural Edition™ Powered by JBL® Outdoor Speakers
Leviton Spec-Grade™ Outdoor/Utility Speakers
Audio
Audio |
70 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Home Theater Component Speakers
Specifications
Driver Compliment 1" (25mm) Pure Titanium dome tweeter, two 5" (125mm)
Polymer-coat aluminum woofers
Frequency Response 40 Hz-20 kHz (-10 dB)
Sensitivity 88 dB @ 2.83V/1m
Power Handling 120 Watts
Impedence Nominal 8 Ohms
Diameter 7.5" (191mm)
Depth 3.87" (98mm)
Mounting
Cutout Size 14" x 6" (356mm x 152mm)
Weight 5.7 lb /2.6 kg per speaker
Features and specifications subject to change.
JBL® systems measure up to a higher standard than typical home theaters, because
more JBL speakers are found in film recording studios and behind the screens of the
worlds best movie theaters than any other brand. In the Leviton/JBL program, the
same professional features and technologies that set JBL apart from the rest are
ready for installation into advanced home theater systems.
Whether installed in a living room, family room, den or other entertainment space,
Leviton Architectural Edition Powered by JBL home theater speaker systems will
thrill listeners with a theater quality listening experience.
Features
• JBL Titanium-laminate drivers (AEI65/80 in-wall and AEC65/80 and AEM65 in-ceiling models)
or pure Titanium tweeter and Polymer-coated aluminum woofers (AEI55 installed center
channel model) for maintaining musical accuracy and clarity even at frequency extremes
• Straight-line Signal Path™ (SSP™) crossover network for minimal signal distortion
• Long-excursion woofers with butyl-rubber half-round surrounds and extended pole-piece
magnetic structures for maximum bass impact and dynamic range
• Low-diffraction, swivel-tweeter mounting system for optimum stereo imaging
• Heavy-duty push-type input terminals for long-term connection integrity
• Integrated dog-ear mounted brackets (optional rough-in kits available for pre-construction
installation in new homes)
• Acoustically-transparent paintable baffles and grills
AEI55-000
Leviton Architectural Edition Powered by JBL Home Theater In-Wall Speaker
Description Part No.
Dual 5" Two-Way In-Wall Center Channel Home Theater Loudspeaker AEI55-000
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
71
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio | Home Theater In-Wall/In-Ceiling Speakers
Specifications
Driver Compliment .75" (19mm) Titanium-laminate dome shielded Tweeter, two 5" (130mm)
PolyplasTM shielded woofers
Frequency Response 75 Hz-20 kHz (-3 dB)
Sensitivity 90 dB @ 2.83V/1m
Power Handling 75W/300W
Impedence Nominal 8 Ohms
Dimensions 6.5" (165mm) H x 20.25" (514mm) W x 9.625" (244mm) D
Weight 9.6 lb /4.4 kg per speaker
Specifications
Driver Compliment 12" (300mm) PolyPlas woofer
Enclosure Type Front-firing
Amplifier Power Output (RMS) 300 Watts
Dynamic Power (peak) 500 Watts
Subwoofer Frequency Response 25 Hz ± 3db low-pass crossover setting (variable)
Inputs Line-Level (switchable to LFE) and Speaker-Level w/
five-way binding posts
Dimensions 19.75" (502mm) H x 14.37" (365mm) W x 18" (457mm) D
Weight 3.95 lb /18 kg per speaker
AECCS-VCE
AESUB-012
Features and specifications subject to change.
Features and specifications subject to change.
Features
• Straight-line Signal Path™ (SSP™) crossover network for minimal signal distortion
• Dual 5-inch JBL PolyPlas™ cone woofers
• FreeFlow™ flared port for increased bass response without adding unwanted port noise
• Elliptical Oblate Spheroidal™ (EOS®) waveguide technology for high-frequency dispersion
Features
• High efficiency, high current switching amplifier
• JBL’s PolyPlas™ woofer for low frequencies
• FreeFlow™ flared port for increased bass response without adding unwanted port noise
• Variable low-pass crossover frequency controls and a phase switch allow for adjusting the
AESUB to be adjusted to a room’s particular acoustics and an individual’s personal preference
• LFE and line level inputs for maximum connection flexibility
Leviton Architectural Edition Powered by JBL Home Theater Shelf-Mount Speaker
Description Part No.
Dual 5" Two-Way Shelf-Mount Center Channel Loudspeaker w/silver grill AECCS-VCE
Leviton Architectural Edition Powered by JBL Home Theater Subwoofer
Description Part No.
Powered 12" Subwoofer w/ 300-Watt Amplifier w/silver grill AESUB-012
JBL® Shelf-Mount Center Channel Speaker
JBL Subwoofer
Audio
Audio |
72 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
When specifications call for audio performance combined with installation flexibility,
look to the AEH50 Surround-Sound Home Cinema speaker system with 100 watt
powered subwoofer. The AEH50 is engineered with a form factor ideal for situations
where installed in-wall and ceiling speakers are impractical, such as corner installations.
AEH50-0WH
Home Cinema Speaker System
Leviton Architectural Edition™ Powered by JBL® Home Cinema Speaker System
Description Part No.
Five-Channel Surround Sound Home Cinema Speaker System w/ 100 watt powered
subwoofer and five satellite speakers
AEH50-0WH (white)
AEH50-0BL (black)
Specifications
Subwoofer Enclosure Type Bass-reflex w/ FreeFlowTM flared port
Recommended Power Range 10-100 Watts
Subwoofer Frequency Response (± 3 dB) 35 Hz -160 Hz
Subwoofer Crossover Frequency 120 Hz, 24 dB/octave w/ LFE/Normal switch in
NORMAL position
Satellite Frequency Response (± 3 dB) 150 Hz-20 kHz
Satellite Speaker Sensitivity (2.83V/1m) 86 dB
Satellite Impedance Nominal 8 Ohms
Subwoofer Dimensions 16.25" (413mm) H x 11" (279mm) W x 13.75" (349mm) D
Subwoofer Weight 28 lb/12.7 kg
Satellite Dimensions 5" (127mm) H x 3.5" (88.9mm) W x 3.5" (88.9mm) D
Satellite Weight 1.8 lb/0.8 kg per speaker
Features
Five-channel system that’s expandable to 6.1 and 7.1 Surround-Sound operation with the addition
of optional AESS5 satellite speaker(s)
Includes five 2-way magnetically-shielded satellite speakers with high-output 2.5" (63.5 mm)
woofer and precision 0.5" (12.7mm) tweeter; one 8 inch (200mm) 100 Watt powered subwoofer
with LFE input, adjustable level control, and built-in crossover network for use with speaker-level
receiver outputs
• Includes five architectural-grade adjustable mounting brackets
• Includes subwoofer input RCA cable
• Available in white or black finish
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
73
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio | Expansion Satellite Speaker & Rough-In Kit
Features
Includes one 2-way magnetically-shielded satellite speaker with high-output 2.5"
(63.5 mm) woofer and precision 0.5" (12.7mm) tweeter
• Includes one architectural-grade adjustable mounting bracket
AEPHK-OWH
(speaker not included)
Subwoofer Enclosure Type Bass-reflex w/ FreeFlowTM flared port
Recommended Power Range 10-100 Watts
Subwoofer Frequency Response (± 3 dB) 35 Hz -160 Hz
Subwoofer Crossover Frequency 120 Hz, 24 dB/octave w/ LFE/Normal switch in
NORMAL position
Satellite Frequency Response (± 3 dB) 150 Hz-20 kHz
Satellite Speaker Sensitivity (2.83V/1m) 86 dB
Satellite Impedance Nominal 8 Ohms
Subwoofer Dimensions 16.25" (413mm) H x 11" (279mm) W x 13.75" (349mm) D
Subwoofer Weight 28 lb/12.7 kg
Satellite Dimensions 5" (127mm) H x 3.5" (88.9mm) W x 3.5" (88.9mm) D
Satellite Weight 1.8 lb/0.8 kg per speaker
Adapter Wallplate/Rough-In Kit for JBL® Home Cinema Satellite Speakers
Description Part No.
Single Gang Decorative Satellite Speaker Adapter Wallplate
4.5" (114mm) H x 2.75" (70mm) W x 2.5" (6mm) D, 1 oz/0.3 kg
AEPHK-0WH (white)
AEPHK-0BL (black)
Features and specifications subject to change.
Features
• Includes mounting hardware (wallplate screws and thread cutting screws for bracket
to wallplate mounting)
Specifications
Recommended Power Range 10-100 Watts
Frequency Response (± 3 dB) 150 Hz -20 Hz
Speaker Sensitivity (2.83V/1m) 86 dB
Satellite Impedance Nominal 8 Ohms
Dimensions 5" (127mm) H x 3.5" (88mm) W x 3.5" (88mm) D
Weight 1.8 lb/0.8 kg per speaker
Expansion Satellite Speaker
Description Part No.
System-Matched Satellite Speaker for 6- and 7-channel operation for
6.1 or 7.1 Surround-Sound operation
AESS5-0WH (white)
AESS5-0BL (black)
AESS5-0WH
Satellite Speakers
Adapter Wallplate/Rough-In Kit
Audio
Audio |
74 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
There is no better way to assure the highest performance and value from a state-of-
the-art Leviton Architectural Edition™ powered by JBL® system than to match it with
the Harman/Kardon Entertainment Center.
Specifications & Features
• Selectable Surround Sound modes, including but not limited to: Logic 7®, DTS®, DTS® 96/24™,
Dolby® Digital, Dolby Virtual Speaker Version 2, and Dolby Pro Logic® II & IIx
• High Current amplification/Ultra-Wide Bandwidth design with independent front and
rear power supplies
1080 HDMI™ switching with Audio/Video processing
• Simplay HD™ verified
• EzSet/EQ automatic room/system correction equalization (calibrated microphone included)
• Converts composite and S-video sources to component video
• RS-232 port for future applications
• Programmable backlit remote control
• iPod® Bridge compatible
• A-BUS Ready® (higher-powered model)
Harman/Kardon® Audio/Video Receiver & DVD Player
Harman/Kardon 7.1 Channel Digital Audio/Video Receiver
Description Part No.
7.1 Channel Audio/Video Surround Sound Receiver with HDMI™ Switching HKAVR-XXX
See Leviton.com to confirm part number. Check with your Leviton salesperson for product availability.
Features and specifications are subject to change.
Audio
HKAVR-XXX
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
75
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio | Infrared Remote Sensor
HKDVD
HKRMS
Harman/Kardon DVD Player
Description Part No.
High-Performance DVD Player w/ HDMI Output
2" (50mm) H x 17.3" (440mm) W x 11.25" (285mm) D, 6 lbs (2.7 kg) HKDVD
Specifications & Features
• Video playback formats include DVD, DVD-R/RW, DVD+R/RW, VCE, SVCD
• Audio playback formats include CD, CD-R, CD-RW, MP3, Windows Media®
• Progressive scan video output (480i and 480p)
• Simultaneous component, S-Video and composite video outputs
• Dolby Digital®, DTS® and MPEG-2-compatible audio outputs
• Coax and optical digital audio outputs
• Backlit remote control
1080i upscaling on HDMI output
Harman/Kardon DVD Player
Audio
Features
• Attractive case for shelf-top locations
• Red talkback LED, tests system for correct wiring as well as indicating infrared reception
• Nominal reception angle: 45˚ off axis
• Attached 7' cable and 3.5 mm stereo mini plug permits direct plug-in to Connecting block that
has an “IR RCVR” or “AUX” jack
Specifications
Nominal reception range > 30 ft
Power 12 VDC @ 10 mA 781RG Power Supply required (supplied)
Maximum cable length One mile w/ 18 gauge
Maximum current output 100 mA
Connecting block
3.5 mm stereo mini jack for quick-connect IR receivers, two 3.5
mm mono mini jacks w/ 470-Ohm resistors drive two single or
two dual emitters and 2.1 mm coaxial power jack
Dimensions 1" (26mm) H x 3.25" (83mm) W x 2" (51mm) D
Weight 5.4 oz (0.153 kg)
Infrared Remote Sensor
Description Part No.
Infrared Remote Sensor HKRMS
See Leviton.com to confirm part number. Check with your Leviton salesperson for product availability.
Features and specifications are subject to change.
Infrared Remote Sensor
Audio |
76 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Harman/Kardon A-BUS Volume Control
Harman/Kardon offers the ability to connect with an A-BUS hub and amplified
volume controls. This makes it possible to add multi-room music distribution right off
the back of a compatible receiver. The 4-zone A-BUS hub connects quickly and easily
to the compatible interface port on the back of the advanced HKAVR receiver.
Specifications & Features
• Decora® up/down amplified rocker-style volume control powers dedicated speakers
in a single room/zone
• Built-in IR sensor accepts control commands to A/V receiver or other
compatible components
• Fits in standard J-box or low-voltage mounting ring
• Output level trim pots
• Uses CAT 5/5e UTP cabling
Features and specifications subject to change.
Features and specifications subject to change.
Harman/Kardon® A-BUS® Multi-Room Amplified Audio System
HKABH-000
HKABV-000
Wallplate not included
Amplified In-Wall A-BUS Volume Control
Description Part No.
Amplified In-Wall A-BUS Volume Control HKABV-000
Harman/Kardon A-BUS 4-Zone System Expansion Hub
Description Part No.
A-BUS 4-Zone System Expansion Hub HKABH-000
Specifications & Features
• Distributes A-BUS audio signal and power to up to four rooms/zones with HKABV
Volume Controls and connected speakers
• Easily connects to the RJ-45 A-BUS interface on the rear of an A-BUS Ready
HKAVR A/V Receiver
Harman/Kardon A-BUS 4-Zone System Expasion Hub
HKABS-000
Specifications & Features
• Automatically selects between independent local source such as an MP3 player or
television audio and the main audio source
• Automatic audio sensing with red LED indicator
• Connects between A-BUS hub and A-BUS volume control
• Line level RCA inputs
• CAT 5e punchdown
A-BUS Local Source Input
A-BUS Local Source Input
Description Part No.
A-BUS Local Source Input HKABS-000
RCA Cable for A-Bus Local Source Input, sold separately HKABS-CBL
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
77
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
AE6MA-000
AE6MC-000
AE6MC-PAD
Amplified In-Wall A-BUS Volume Control
Description Part No.
Amplified In-Wall A-BUS Volume Control HKABV-000
Harman/Kardon A-BUS 4-Zone System Expansion Hub
Description Part No.
A-BUS 4-Zone System Expansion Hub HKABH-000
Audio | Leviton Architectural EditionTM Multi-Room Amplifiers
Features
• Automatic protection circuitry
• High efficiency/small space — Each of the twelve power amplifiers, inside the 3.5" high
enclosure, delivers 50 Watts nominal (40 Watts RMS) with peaks of 100 Watts
• Individual input gain adjustment – Adjusts each channel for input and speaker
sensitivity variations
• External power ON/OFF through external controllers (12VDC trigger output)
• Electronic link feature allows for either six different stereo channel inputs to have individual
sources, or for a different channel input’s pair to share a common source (single-source
amplifier model only)
• Thermostatically-controlled internal fan helps prevent overheating, maximizes energy
efficiency and ensures long-term reliability
AE6MC Additional Features
• Each of the six stereo amplifiers has access to up to seven independent audio sources
AE6MA keypad allows access to the entire system from a single keypad and can be
controlled remotely with AE6MC remote (sold separately)
Multi-Room Amplifier Keypad Accessories
Description Part No.
Keypad Controller for AE6MC Amplifier AE6MC-PAD
Remote Control for AE6MC Keypad Operation AE6MC-RMT
Leviton Architectural Edition Multi-Room Amplifiers
Description 12 Channel (6 Stereo Pairs)
Power Amplifier
12 Channel, Seven-Source, Six-Room
Multi-Channel Controller Amplifier
Part No. AE6MA-000 AE6MC-000
Specifications
Output Power
50 Watts nominal, 40 Watts RMS per channel
20 Hz to 20 kHZ @ <0.2% THD, all channels
driven into 8 Ohms
50 Watts nominal, 40 Watts RMS per channel
20 Hz to 20 kHZ @ <0.2% THD, all channels
driven into 8 Ohms
Peak Output Power 100 Watts per channel 100 Watts per channel
Inputs Gold plated RCA jacks w/ adjustable input gain 14 gold plated RCA jacks with adjustable input gain,
each input has a fully buffered RCA jack output
Outputs Five-way gold plated
binding posts
Removable screw terminal type accepts
12-20 gauge wire
Total Harmonic Distortion (THD) Less than 0.1% 20 Hz to 20 kHz Less than 0.1% 20 Hz to 20 kHz
Signal-to-noise ratio Over 105 dBA weighted (50 Watts) Over 105 dBA weighted (50 Watts)
Fan noise Quiet 28 dBA Quiet 28 dBA
Dimensions 3.5" (89 mm) H x 17" (432 mm) W x 11.5" (292 mm) D 3.5" (89 mm) H x 17" (432 mm) W x 11.5" (292 mm) D
Weight 22 lb/10 kg 22 lb/10 kg
Leviton Architectural Edition Multi-Room Amplifiers
Leviton’s Architectural Edition Multi-Room Audio Amplifiers combine advanced
engineering, and tremendous value in a low-profile chassis. Superior multi-channel
amplification supports even the most demanding residential multi-zone systems.
Audio
Audio |
78 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Specifications
Frequency Response 20 Hz-20 kHZ ± 1 dB
Power Handling 200W peak/100W RMS
Speaker Impedance 4-16 Ohms (nominal 8 Ohms)
Mounting Standard single-gang design (mounting depth 2.5" (64mm)
Materials Frame and slider white polycarbonate high impact, fire retardant
plastic rated UL94 V-O
Leviton’s Composer Series Volume Controls are built to a single quality standard,
which means system designers can specify them for any distributed sound
application with total confidence.
The Strauss volume controls are a contemporary Decora® slider design that brings
precision and elegance to any installed system. They are available in both standard
and impedance-matched versions; color-change kits ensure the right finishing
touch for every application.
Features
• Decora slide control with precision 12-position switch (including full OFF position)
• Transformer-Free™ attenuation technology ensures linear frequency response, signal integrity
and high power handling ability
• Cermetile resistors replace conventional autoformers to preserve audio signal purity
• Detachable cable connector is compatible with all standard speaker wire sizes (14-18 gauge)
• Decora designer styling adds an elegant touch to any décor
• Can be used outdoors when mounted with any compatible Decora all-weather cover
Decora Strauss Color Change Kits
Description Part No.
Color change kit, converts to light almond SGVCK-0LA
Color change kit, converts to almond or ivory SGVCK-0IA
Color change kit, converts to black SGVCK-00E
Composer Series Volume Controls > Strauss
SGVST-00W
Wallplate not included
Decora Strauss Transformer-Free Volume Controls
Description Part No.
Decora Strauss Transformer-Free Volume Control SGVST-00W
Decora Strauss Transformer-Free Impedance Matching Volume Control SGVSM-00W
Light
Almond
Almond Ivory Black
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
79
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Specifications
Peak RMS Power Rating 200 Watts per channel
Continuous Power Rating 100 Watts RMS per channel
Frequency Response ± 1 dB 15-50 kHz
Speaker Impedance 4-16 Ohms nominal
Speaker/Amp Connector Removable, snap-in audio monoblock w/ screw terminals
Power Requirements 12VDC, 200 mA
Volume Control Wall Unit Dimensions 4.13" (104.9mm) H x1.5" (38.1mm) W x 1.2" (30.5mm) D
Volume Control Kit Dimensions 3.3" (83.8mm) H x 6.5" (165.1mm) W x 1.8" (45.7mm) D
Decora Chopin Digital Stereo Volume Controls
Description Part No.
Digital Volume Control Wall Unit 48211-WVC
Digital Volume Control Kit 48211-WVK
Audio | Composer Series Volume Controls > Chopin™
48211-WVC
48211-WVK
The Chopin™ Decora Digital Volume Control is an all-electronic version that provides
system designers with a unique solution for custom audio installations.
Features
• No direct speaker/amplifier connections required at the volume control wall unit
• Digital, transformer-free design uses aerospace-grade Cermetile resistors for proper heat
dissipation and superior performance
• Selectable boot-up feature allows automated volume level control upon powering of
the stereo system
• Microprocessor controlled relays for silent switching
• Tap mute feature activated when pressing center of rocker switch
3-way volume control can be configured using extra controls
Audio
Audio |
80 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Specifications
Wire Gauge 14-18 AWG
Requirements Product must be used with impedance-matched volume
controls or controllers
Dimensions 6.58" (167.1mm) H x 2.89" (73.4mm) W x 1.42" (36.1mm) D
Specifications
Power Handling 150 W RMS per channel /225 W peak
Frequency Response (± .5 dB) 10 Hz-40 kHz
Dimensions 2.57" (68.6mm) H x 6.38" (161.9mm) W x 5.38" (136.5mm) D
Leviton Architectural EditionTM audio distribution and control modules centralize
audio distribution and make for quicker, more reliable connections.
Features
• Combine with non impedance-matching Decora® Volume Controls to control up to six
speaker pairs (cannot be used with impedance-matching volume controls)
• Mounts in Structured Media® Centers and connects six rooms/zones
• AutoSurge™ circuit technology protects speakers from potentially damaging transients
• Transformer-Free™ impedance-matching design ensures linear frequency response,
signal integrity, and high power handling capacity
• Aerospace-grade Cermetile resistors replace conventional autoformers to maintain
audio signal purity
• Independent channel grounds assure safe connection for all conventional audio amplifiers
• Detachable cable connectors are compatible with all standard speaker wire sizes (14-18 gauge)
System Matching Module
Description Part No.
System Matching Module for impedance-matching passive two-channel
multi-room audio systems SGAMP-000
1x6 Audio Distribution Module
Description Part No.
1x6 Passive Audio Module 48211-06A
Audio Distribution Modules
SGAMP-000
Features
• Combines with impedance-matching Decora Volume Controls to control up to six
speaker pairs from an amplifier or receiver
• Mounts in Structured Media Centers and connects six rooms/zones
• Parallel connection scheme ensures the best sound quality
• User-removable connectors facilitate installation
• Connects with standard speaker wire
• Meets or exceeds applicable standards: UL and cULus listed
48211-06A
1x6 Audio Distribution Module
System Matching Module
Audio
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
81
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Integrated Home Theater and Multi-Room Wallplates combine the build-quality
and signal path purity of a custom “audiophile” plate with the connectivity
speed and convenience of a ready-made spring-clip design.
Features
Home Theater and Multi-Room Wallplates
• Designed for easy installation of cables
• Wallplates feature two QuickPort® openings for adding other connectors (blanks installed)
• For use with low voltage rings and standard low voltage junction boxes
AEHTK Additional Features
• Accommodates from 5.1 to 7.1 channel surround-sound systems which connect
to the A/V Receiver
• Features RCA connectors for connecting subwoofers
• Two extra openings for additional QuickPort connectors (e.g. adding an A-BUS® jack or IR port)
AEMRK Additional Features
• Integrated wallplate for connecting Left and Right Audio Speakers (± connections), and
two extra openings for additional QuickPort connectors (e.g. adding a subwoofer or A-BUS jack)
Audio | Home Theater & Multi-Room Wallplates
Home Theater & Multi-Room Wallplates
Description Home Theater Interface Wallplate Multi-Room Install Wallplate
Part No. AEHTK-000 AEMRK-000
Specifications
Connector Type
(front of module)
14 audiophile-grade, gold plated
black and red spring clips, two RCA
connectors, two QuickPort openings
Four audiophile-grade, gold plated black
and red spring clips, two QuickPort
openings
Connector Type
(back of module)
Eight-pin and six-pin in-line pluggable
screw terminals
Two two-pin in-line pluggable
screw terminals
Wallplate Design Three-gang, impact-resistant plastic Single-gang, impact-resistant plastic
Mounting Depth 2.5" (64mm) 2.5" (64mm)
Wiring 14-16 gauge speaker wire 14-16 gauge speaker wire
Leviton Architectural Edition Audio Speaker Wallplates
Description White Ivory
1-Gang Single Spring Clip Device Audio/Video Wallplate, standard size,
polymer break resistant, box mount 40951-1PW 40951-1PI
1-Gang Double Spring Clip Device Audio/Video Wallplate, standard size,
polymer break resistant, box mount 40952-2PW 40952-2PI
AEMRK-000
AEHTK-000
40951-1PW, 40952-2PW
White Ivory
Specifications & Features
• Allows for simple, solderless connections to any home entertainment speaker system
• Designed to be used with in-wall speaker wiring schemes
System Matching Module
Leviton Architectural Edition™ Audio Speaker Wallplates
Audio
82 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton has all the necessary accessories for
configuring and connecting high-quality
entertainment systems. All are designed and built
to the standards one would expect from a leader
in residential connectivity.
Audio & Control
Signal Distribution
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 83
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media Audio & Control Signal Distribution
Specifications 48210-MSU 48210-MRU 48210-MCH
Description Send Unit Receive Unit Media Hub
Video Bandwidth 50 MHz @ -3 dB 50 MHz @ -3 dB 50 MHz @ -3 dB
Video THD -75 dB -75 dB -75 dB
Video Input 0.5V to 2V composite 0.5V to 2V composite
Video Output 0.5V to 2V composite
Slew Rate 800/Vus 800/Vus 800/Vus
Audio Output
Impedance 51 Ohms, max 2Vp-p
Audio Frequency
Response 5 Hz-100k Hz, ± 3 dB 5 Hz-100k Hz, ± 3 dB 5 Hz-100k Hz, ± 3 dB
Audio THD 0.002% 20 Hz-20 kHz 0.004% 20 Hz-20 kHz 0.002% 20 Hz-20 kHz
Audio S/N Ratio 100 dB typical, 80 dB min,
20 Hz-20 k Hz
100 dB typical, 80 dB min,
20 Hz-20 k Hz
100 dB typical, 80 dB min,
20 Hz-20 k Hz
Input Noise 4.5 nV/(Hz), 1/2 typical
@ 1 kHz
6 nV/(Hz), 1/2 typical
@ 1 kHz
4.5 nV/(Hz), 1/2 typical
@ 1 kHz
Input & Output
3 RCA input jacks, 1 set
RJ-45 in/out jacks, 1 110
punchdown out,
1 DC power input
3 RCA output jacks, 1 set
RJ-45 in/out jacks, 1 110
punchdown out,
1 DC power input
3 RCA input jacks, 1 set
RJ-45 input jacks, 6 RJ-45
output jacks,
1 DC power input
Power 12VDC 12VDC 15VDC
Dimensions
4.41" (104.1mm) H x
1.4" (35.6 mm) W x
2.0" (50.8mm) D
4.41" (104.1mm) H x
1.4" (35.6mm) W x
2.0" (50.8mm) D
6.5" (165.1mm) H x
3.4" (86.4mm) W x
1.75" (44.4mm) D
48210-MCH
48210-SRU
Audio & Control Signal Distribution | Decora® Media System Components
Features
• Send DVD, cable TV, satellite and camera signals through CAT 5/5e/6 cable
• Cascade hub units to distribute audio/video signals to over 20 locations
• Send and Receive Units are equipped with RJ-45 connectors and 110 punchdown blocks for
maximum flexibility in installation, and fit standard wallboxes and Decora wallplates
• Composite RCA inputs for connectivity directly from A/V source
• Advanced circuitry with automatic equalization streams analog audio and video
signals over long distances with less distortion
• Stereo audio input/output handles Dolby® ProLogic™ surround signals
• RJ-45 and 110 IDC input for send and receive units
Decora Media System Components
Description Part No.
Decora Media System Media Hub w/ Power Supply 48210-MCH
Decora Media System Send and Receive Unit Pair w/Power Supply 48210-SRU
Decora Media System Send Unit w/ Power Supply 48210-MSU
Decora Media System Receive Unit 48210-MRU
(wallplate not
included)
Audio & Control Signal Distribution |
84 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Structured Media
Specifications
Target Output 1 signal lead
Target Input 2 power leads (DC + and - )
Emitter Output Infrared to control source component
Emitter Input 2 signal leads
Power Supply 12VDC @ 500 mA
Emitter Length 6 ft (1.8 m) of cable
Dimensions 2" H (50.8 mm) x 1" (25.4 mm) W
Multi-Room Infrared (IR) Repeater System
Description Part No.
Infrared Emitter 47621-MIE
Infrared Target 47621-CMS
1x9 Bridged Telephone Module without bracket, individual boxed unit pack, rack pack carton 47603-110
Multi-Room Infrared Repeater
Features
• Low profile, flush-mount target design
• Two signal connections and two power connections
• Emitter features adhesive surface for easy installation on audio/video components
• Distribution block for multiple emitter configurations
• DC power supply
• Uses CAT 5/5e UTP wire
• Target has talkback LED to indicate proper operation
Audio & Control Signal Distribution
47621-MIE
47621-110
47621-CMS
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
85
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Structured Media
Audio & Control Signal Distribution | Recessed Devices
Multi-Room Infrared Repeater
Recessed Entertainment Box (REB)
Description Part No.
REB Box w/ Low-Profile Frame 47617-REB
REB Box w/ High Profile Cover 47617-RBH
REB Box w/ Low Profile Frame, 3 per rack pack counter display 47617-REC
High Profile Cover 47617-HPC
Low Profile Frame 47617-LPF
Replacement Snap-in Plates, 2 per bag 47617-PLT
Recessed Devices
Description Part No.
1-Gang Recessed Single Receptacle
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 00688-00*
1-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 05261-0CH
1-Gang Recessed Duplex Receptacle
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R 00689-00†
1-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
20A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 05361-0CH
1-Gang Recessed Duplex Receptacle and Openings for six QuickPort® Modules
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R 00690-00*
Specifications & Features
• Affordable solution manages home theater electronics in a single location
• Ideal for new construction (stud-mounted) and retrofit (wall-mounted) applications
• Low-profile frame provides neat, recessed installation
• Optional high-profile cover includes sliding plastic front panel, and channels all wires
through the bottom of the unit
• Any combination of line and low voltage products can be configured in openings
• Paintable white ABS molded plastic for structural integrity
* = Color: White (W), Ivory (I)
†= Color: White (W), Lt. Almond (T), Ivory (I), Black (E)
White (W) Light
Almond (T)
Ivory (I) Black (E)
00689-00W
00690-00W
47617-REB
Recessed Devices
Recessed Entertainment Box (REB)
Audio & Control Signal Distribution
Specifications & Features
Recessed One-Gang Duplex Receptacle
• cULus approved, code-compliant solution offers two 15A/125VAC NEMA 5-15R power outlets
• Supplies AC power for two components (flat panel TVs and video receiver)
• Fits most common electrical boxes available at electrical distributors and home centers
Recessed Two-Gang Duplex Receptacle w/ Six QuickPort® Openings
• UL approved, code-compliant solution offers two 15A/125VAC NEMA 5-15R
power outlets and six QuickPort openings (four blank inserts included)
• Fully compatible with Leviton’s QuickPort Modules
• Includes plastic electrical box designed for use in new and retrofit construction
• Centralizes connection points for AC power, audio, video, data and phone
• Wallplate built into device
Telephone, Video,
& Audio Accessories
86 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
88
96
102
106
Telephone Accessories
Video Accessories
Audio Accessories
Tools
The Telephone, Video, and Audio Accessories line
contains the most comprehensive selection of
connection accessories that support a diverse
range of telecommunications and entertainment
technologies. From Internet and home office to
security and home theater, you’ll find everything
you need inside.
Telephone, Video,
& Audio Accessories
87
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
88 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton’s selection of telephone accessories features
a wide variety of wallplates, jacks, adapters and
couplers, and extension cords.
Telephone Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 89
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Telephone Accessories | Flush Mount Wallplates
Decora Flush Mount Wallplate, 6P4C + 6P4C
Description White Ivory
Decora Flush Mount Wallplate, 6P4C + 6P4C carded unit pack C2447-00W C2447-00I
Flush Mount Wallplate
Description White Ivory
Flush Mount Wallplate, 6P4C carded unit pack C0249-00W C0249-00I
Flush Mount TV / Phone Wallplate
Description White Ivory
Flush Mount Wallplate, 6P4C + F-Connector, carded unit pack C2450-00W C2450-00I
Round Flush Mount Wallplate
Description White Ivory
Round Flush Mount Wallplate, 6P4C, carded unit pack C0229-00W C0229-00I
Decora® Flush Mount Wallplate, 6P4C
Description White Ivory
Decora Flush Mount Wallplate, 6P4C, carded unit pack C2449-00W C2449-00I
Flush Mount Wallplate, 6P4C + 6P4C
Description White Ivory
Flush Mount Duplex Wallplate, 6P4C + 6P4C, carded unit pack C0254-00W C0254-00I
C2447-00W
C0249-00W
C2450-00W
C0229-00W
C2449-00W
C0254-00W
Telephone Accessories
Telephone Accessories |
90 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
Wall Phone Jacks & Surface Mount Wallplates
Stainless Steel Wall Phone Jack
Description Stainless Steel
Stainless Steel Wall Phone Jack, individual polybag pack C0256-0SS
Surface Mount Wall Phone Jack with Two Extra Jacks
Description Ivory
Surface Mount Wall Phone Jack w/ 2 Extra Jacks, 6P4C, carded unit pack C2455-000
Surface Mount Jack, Type 625A
Description White Ivory
Surface Mount Jack, Type 625A, 6P4C, carded unit pack C2452-00W C2452-00I
Surface Mount Jack with Block & Cover
Description White Ivory
Surface Mount Jack with Block & Cover, 6P4C, carded unit pack C0245-00W C0245-00I
C0256-0SS
Wall Phone Jack, 6P6C
Description White
Wall Phone Jack, 6P6C, carded unit pack C2682-00W
C2682-00W
C2455-000
C2452-00W
C0245-00W
IvoryWhite
Wall Phone Jack, 6P4C
Description White Ivory
Wall Phone Jack, 6P4C, carded unit pack C0253-00W C0253-00I
Telephone Accessories
C0253-00W
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
91
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Surface Mount Mini Jack
Description White Ivory
Surface Mount Mini Jack, 6P4C, carded unit pack C0252-00W C0252-00I
Phone cord plugs into side of jack. Jack has two outlets. Six color-coded screw-down
connections for each jack. Can operate as two separate jacks or when cross-wired,
both jacks will carry same phone lines (1 and 2).
Surface Mount Duplex Jack
Description White Ivory
Surface Mount Duplex Jack, 6P4C, carded unit pack C2680-00W C2680-00I
Jack cover only with 4-Conductor spade lug connections. Converts old style hard-wired
phones by attaching to Type 42A connecting blocks.
Surface Mount Jack Cover
Description White Ivory
Surface Mount Jack Cover, 6P4C, carded unit pack C0255-00W C0255-00I
Plug connects to telephone demarcation jack and acts as a starting point for inside
phone system wiring. Terminal strip, for connection of up to four extensions, uses screws
to terminate wires onto insulation displacement contacts so connections can be made
without stripping the wire. If preferred, wire may be stripped and terminated under screw.
Block includes cover, terminal strip, mounting screws, and 12-inch, 4-Conductor cord with
modular plug.
Junction Block with Plug Extension
Description Ivory
Junction Block with Plug Extension, 4-Conductor, carded unit pack C0218-00I
Wall Phone Jacks & Surface Mount Wallplates Telephone Accessories | Surface Mount Wall Jacks & Junction Block
C0252-00W
C0255-00W
C2680-00W
C0218-00I
Telephone Accessories
Telephone Accessories |
92 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
Outlet Adapters & Cord Couplers
2-Line Adapter
Description Ivory
2-Line Adapter, 4-Conductor, carded unit pack C0244-000
5-Outlet Adapter
Description Ivory
5-Outlet Adapter, carded unit pack C0261-00I
In-Line Cord Coupler
Description White Ivory
In-Line Cord Coupler, 4-Conductor, carded unit pack C0250-00W C0250-00I
In-Line Cord Coupler, 6-Conductor, carded unit pack C2683-00I
Splits line cord from phone wallplate to two line cords. Female modular input to two
female outputs.
In-Line Duplex Cord Coupler
Description White Ivory
In-Line Duplex Cord Coupler, 4-Conductor, carded unit pack C0280-00W C0280-00I
Converts old style 4-prong jacks to modular style jack.
4-Prong to Modular Adapter
Description Ivory
4-Prong to Modular Adapter, 4-Conductor, carded unit pack C0246-00I
C0244-000
C0261-00I
C0250-00W
C0280-00W
C0246-00I
2-Outlet Adapter
Description White Ivory
2-Outlet Adapter, 4-Conductor, carded unit pack C0247-00W C0247-00I
3-Outlet Adapter
Description White Ivory
3-Outlet Adapter, 4-Conductor, carded unit pack C0248-00W C0248-00I
C0247-00W
C0248-00W
Telephone Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
93
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Mini Line Cord
Description Ivory Grey
8" 4-Conductor, carded unit pack C2454-00I
7" 4-Conductor modular flat line cord, polybag 42400-00G
25' Line Extension Cord
Description White Ivory
25' Line Extension Cord, 4-Conductor, carded unit pack C2406-25W C2406-25I
25' Duplex Line Extension Cord
Description Ivory
25’ Duplex Line Extension Cable, 4-Conductor, carded unit pack C2427-25I
Telephone Accessories | Line Cords & Extension Cords
Line Cords
Description White Ivory
7' 4-Conductor, carded unit pack C2413-07W C2413-07I
15' 4-Conductor, carded unit pack C2413-15W C2413-15I
25' 4-Conductor, carded unit pack C2413-25W C2413-25I
50' 4-Conductor, carded unit pack C2413-50W C2413-50I
C2413-07W
C2454-00I
C2406-25W
C2427-25I
C2429-00C
IvoryWhite Grey
Telephone Accessories
Telephone Accessories |
94 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
Terminates 6-Position and 4-Conductor flat phone wire line cords.
Replacement Line Plugs
Description Clear
6P4C Replacement Line Plugs, 6 per carded unit pack, clear C0257-000
6P4C Replacement Line Plugs, bulk polybag pack (25/pack) 49404-000
Narrow width, 4-Conductor plugs for terminating handset cords.
Replacement Modular Handset Plugs
Description Part No.
Replacement Modular Handset Plugs, 6 per carded unit pack, clear C2453-0CL
C0257-000
C2453-0CL
Handset Cords, Untanglers & Plugs
Handset Cord
Description White Ivory Black
Handset Cord, 4-Conductor, carded unit pack C2407-xxW C2407-xxI C2407-xxE
Stops handset cords from twisting and kinking.
Handset Untangler
Description Clear
Handset Untangler, carded unit pack C2429-00C
xx = Length: 15' or 25'.
C2407-15W
IvoryWhite Black
C2429-00C
Telephone Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
95
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Telephone Accessories | Installation Accessories
Mounting a flush mount wallplate without a back box is easy. Brackets inset into wall
opening, flexible tabs bend up to secure the bracket to the opening. Standard screw holes
accept all wallplate configurations.
1 and 2 Gang Wallplate Mounting Brackets
Description Part No.
Wallplate Mounting Brackets, 1 Gang, contractor pack, 10 per unit pack,
rack pack carton, 2 per carded unit pack C0224-0CP
Wallplate Mounting Brackets, 1 Gang, bulk polybag Pack, 2 brackets per unit,
rack pack carton C0224-000
Wallplate Mounting Bracket, 2 Gang, contractor pack, 5 per unit pack, rack pack carton C0225-0CP
Wallplate Mounting Bracket, 2 Gang, individual polybag pack, rack pack carton C0225-000
Use to hold round or flat phone wire along wall baseboard.
Nail-In Phone Wire Clips
Description Ivory
Nail-In Phone Wire Clips, 20 per carded unit pack C2441-000
C0224
C2441
Plugs into wallplate to verify proper connection. Color read-out bulbs indicate
connection status.
Phone Line Tester
Description Part No.
Phone Line Tester, carded unit pack C2443-000
Base & Handset Cord Crimping Tool
Description Part No.
Base & Handset Cord Crimping Tool, carded unit pack C0260-00I
C2443
C0260-00I
Designed to be used prior to drywall installation, these brackets convert a single gang
electrical box into a 2- or 3- gang low voltage outlet. They allow low voltage outlet wiring
to be safely combined in one wallplate assembly with electrical wiring by providing the
code-required barrier between low-voltage and AC devices. The brackets also eliminate
an unsightly proliferation of separate single gang outlets throughout the room.
Metal Extension Brackets
Description Part No.
2 Gang Metal Extension Brackets, bulk polybag pack 47610-002
3 Gang Metal Extension Brackets, bulk polybag pack 47610-003
47610-002, 47610-003
xx = Length: 15' or 25'.
Telephone Accessories
96 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Create the ideal home theater experience with the
right video connectivity accessories, including Leviton
video splitters, connectors, transformers, switches,
and high-quality cables.
Video Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 97
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Video Accessories | RG6 Coax Cables, Splitters & Termination Cap
Two-Way Splitter | One 75 Ohm input to two 75 Ohm outputs
Description Part No.
Two-Way Splitter, carded unit pack C5002-000
Two-Way Splitter, gold plated, carded unit pack C5002-0GO
Two-Way Splitter, gold plated, individual polybag pack 40987-002
Three-Way Splitter | One 75 Ohm input to three 75 Ohm outputs
Description Part No.
Three-Way Splitter, carded unit pack C5003-000
Three-Way Splitter, gold plated, individual polybag pack 40987-003
Four-Way Splitter | One 75 Ohm input to four 75 Ohm outputs
Description Part No.
Four-Way Splitter, carded unit pack C5004-000
Four-Way Splitter, gold plated, carded unit pack C5004-0G0
Four-Way Splitter, gold plated, individual polybag pack 40987-004
75 Ohm Termination Cap for F-connector jacks
Description Part No.
75 Ohm Termination Cap, 25 per polybag pack 40984-000
C5002-0G0
RG6 Coax Cable, gold plated
Description Part No.
RG6 Coax Cable, gold plated C6851-xx*
Black (E)White (W)
RG6 Coax Cable, nickel
Description Part No.
RG6 Coax Cable, nickel C6851-xx*
xx = Length: 3' (G3), 6' (G6), 12' (1G), 25' (2G), 50' (5G) or 100' (GC).
* = Colors: Choose from any of the colors below.
xx = Length: 3' (03), 6' (06), 12' (12), 25' (25), 50' (50) or 100' (0C).
* = Colors: Choose from any of the colors below.
C6851-03E
C6851-G3W
40987-003
C5004-000
40984-000
Video Accessories
Video Accessories |
98 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
C5052
Converts 75 Ohm incoming signal into 300 Ohm.
Indoor Matching Transformer
Description Part No.
Indoor Matching Transformer, carded unit pack C5052-000
Indoor Matching Transformer, gold plated, carded unit pack C5052-0GO
Connectors, Adapters & Indoor Transformer
C5229-000
Converts RCA plug to 75 Ohm jack connection.
Video Adapter - 1 “F” jack to 1 RCA Plug
Description Part No.
Video Adapter - 1 “F” jack to 1 RCA Plug, carded unit pack C5229-000
C5205-000
Connects a 75 Ohm female jack to RCA plug connection.
RCA to F-Type Video Adapter
Description Part No.
RCA to F-Type Video Adapter, carded unit pack C5205-000
C5235
Converts 75 Ohm twist-on connection to 75 push-on connection.
75 Ohm Push-On Connector
Description Part No.
75 Ohm Push-On Connector, 2 per carded unit pack C5235-000
75 Ohm Push-On Connector, gold plated, 2 per carded unit pack C5235-0GO
40986-000
Double female F-connector for joining two cables together.
75 Ohm In-Line Cable Connector
Description Part No.
75 Ohm In-Line Cable Connector, 100 per bulk polybag 40986-000*
*Note: Retainer nut for wallplate mounting not provided.
Video Accessories
Terminates 75 Ohm w/ Crimp-on male F-Connector
1-Piece and 2-Piece Crimp-on F-Connectors
Description Part No.
One-Piece Crimp-On F-Connector for RG6Quad Shiled Bulk polybag
order in increments of 100, nickel palted 40985-0Q6
(A) One-Piece Crimp-on F-Connector for RG59
Bulk polybag order in increments of 100, nickel palted
2 per carded unit pack, nickel plated
2 per carded unit pack, gold plated
40985-1P9
C5307-000
C5307-00G
(B) One-Piece Crimp-on F-Connector for RG6
Bulk polybag order in increments of 100, nickel palted 40985-1P6
(C) Two-Piece Crimp-on F-Connector for RG59
Bulk polybag order in increments of 100, nickel palted
2 per carded unit pack, nickel plated
2 per carded unit pack, gold plated
40985-2P9
C5009-000
C5009-00G
(D) Two-Piece Crimp-on F-Connector for RG6
Bulk polybag order in increments of 100, nickel palted
2 per carded unit pack, nickel plated
2 per carded unit pack, gold plated
40985-2P6
C5007-000
C5007-00G
40985-0Q6
40985-1P9, 40985-1P6
40985-2P9, 40985-2P6
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
99
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Video Accessories | Transformers, Switches, Amplifier & Dubbing Cable
C5152-000
One 75 Ohm female connection into two 300 Ohm spade tip connections.
Band Separator 75 to 300/300
Description Part No.
Band Separator 75 to 300/300, carded unit pack C5152-000
Video Amplifier- 25dB
Description Part No.
Video Amplifier- 25dB, carded unit pack C5557-000
C5245-6GO
Three 75 Ohm inputs can be used for cable in, antenna in, VCR in, or any combination.
One 75 Ohm connection out. Select one of three signals to be viewed.
Video Selector Switch 3/75 Ohm
Description Part No.
Video Selector Switch 3/75 Ohm, carded unit pack C5501-00E
Gold plated RCA plugs with strain relief.
6' Mono Dubbing Cable
Description Black
6’ Mono Dubbing Cable, carded unit pack C5245-6GO
Converts 300 Ohm incoming signal into 75 Ohm.
Push-On Matching Transformer
Description Part No.
Push-On Matching Transformer, carded unit pack C5055-000
C5055-000
Two 75 Ohm incoming signals into one 75 Ohm output. A/B switch selects signal
to be viewed.
75 Ohm A/B Switch
Description Part No.
75 Ohm A/B Switch, carded unit pack C5101-000
C5101-000
Converts 300 Ohm incoming signal into 75 Ohm. Includes waterproof slip-on boot.
Outdoor Matching Transformer
Description Part No.
Outdoor Matching Transformer, carded unit pack C5053-000 C5053-000
C5501-00E
C5557-000
Video Accessories
Video Accessories |
100 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
Cables & Flush Mount Wallplates
High-quality wire and extra shielding. Gold plated RCA plugs with strain-relief.
Deluxe Shielded Stereo Dubbing Cable
Description Black
Deluxe Shielded Stereo Dubbing Cable, gold plated, carded unit pack C5822-0G0
High quality wire and extra shielding. Cables and adapters needed to connect two VHS VCR’s.
6' Stereo Dubbing Cable
Description Black
6’ Stereo Dubbing Cable, carded unit pack C5822-000
Molded gold plated RCA plugs with strain-relief.
6' Stereo Dubbing Cable
Description Black
6’ Stereo Dubbing Cable, gold plated, carded unit pack C5856-0GO
RCA Coax Cable
Description Black
RCA Coax Cable, gold plated, carded unit pack C5852-6GO
6' S-Video Cable
Description Black
6' S-Video Cable, carded unit pack C5853-006
Flush Mount 75 Ohm Decora® Wallplate
Description White Ivory
Decora Flush Mount 75 Ohm Wallplate, carded unit pack C2448-00W C2448-00I
75 Ohm Wallplate
Description White Ivory
Flush Mount 75 Ohm Wallplate, carded unit pack C5256-00W C5256-00I
Flush Mount 75 Ohm Wallplate, gold plated, carded unit pack C5256-WGO C5256-IGO
C5852-6G0
C5853-006
C2448-00W
C5256-00W
C5822-000
C5856-0GO
C5822-0G0
Video Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
101
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
Video Accessories | Cable & Digital Satellite System® Accessories
Installation of video cables through outside and inside walls prevents drafts
and unsightly holes.
Cable Wall Bushing
Description Ivory
Cable Wall Bushing, 4 per carded unit pack C5810-00I
Nail-in clips to manage RG59 or RG6 coaxial cable.
Coax Cable Clips
Description White Black
Coax Cable Clips, 10 per carded unit pack C5811-000 C5812-000
C5811-000
IvoryWhite Black
C5810-00I
Flush Mount Duplex 75 Ohm Wallplate
Description White Ivory
Flush Mount Duplex 75 Ohm Wallplate, carded unit pack C2456-00W C2456-00I
C2456-00W
Connects one antenna/cable TV input and one DSS® 2.1 gHz input, to one combined output.
DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking
Description Part No
DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking, gold plated, carded unit pack 40856-DSS
Provides 12 dB in-line signal amplification.
DSS Signal Amplifier
Description Part No
DSS Signal Amplifier, gold plated, carded unit pack 40866-DSS
Connects one input to two outputs. All ports 2.1 gHz.
DSS 2-Way Splitter
Description Part No
DSS 2-Way Splitter, gold plated, carded unit pack 40867-DSS
Connects one input to four outputs. All ports 2.1 gHz.
DSS 4-Way Splitter
Description Part No
DSS 4-Way Splitter, gold plated, carded unit pack 40868-DSS
40856-DSS
40866-DSS
40867-DSS
40868-DSS
Video Accessories
102 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
We have everything necessary to install or
upgrade an audio system, including high
grade cables and speaker wire for enhanced
sound quality.
Audio Accessories
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 103
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories Audio Accessories
Audio Accessories | Audio Cables & Adapters
RCA Y Adapter, 1 RCA Jack to 2 RCA Plugs
Description Black
RCA Y Adapter, carded unit pack C5402-000
Splits RCA audio cable into two cables when the two cables have a plug on one end
and jack on the other.
RCA Y Adapter, 1 RCA Jack to 2 RCA Jacks
Description Black
RCA Y Adapter, carded unit pack C5403-000
Splits RCA audio cable into two cables when the two cables have plugs on both ends.
RCA Y Adapter, 1 RCA Plug to 2 RCA Jacks
Description Black
RCA Y Adapter, carded unit pack C5405-000
Splits audio signal into two outputs. One male RCA connector to two female RCA connectors.
C5402-000
C5403-000
C5405-000
In-Line RCA Coupler
Description Part No.
In-Line RCA Coupler, carded unit pack, nickel C5255-000
Connects two RCA plug audio cables together in-line.
C5255-000
Audio Accessories |
104 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Accessories
Shielded Speaker Cable - 1 RCA Plug to 1 RCA Plug
Description Black
6' Shielded Speaker Cable, carded unit pack C5452-006
C5452-006
Audi0 Accessories
Stereo Shielded Cable, 2 RCA Plugs to 2 RCA Plugs
Description Black
3' Shielded Stereo Cable, carded unit pack C5451-003
6' Shielded Stereo Cable, carded unit pack C5451-006
12' Shielded Stereo Cable, carded unit pack C5451-012
Red and black plugs on both ends.
C5451-003
C5454-003
RCA Patch Cable - 4 RCA Plugs to 4 RCA Plugs
Description Black
Black Cable with Color-Coded Plugs (Y-W-R-B), carded unit pack C5454-003
Yellow, white, red and black plugs on both ends.
Audio Cables
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
105
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories
24-2 AWG Speaker Wire
Description Clear
24/2 AWG Speaker Wire, 50', sleeve unit pack X3304-50C
18/2 AWG Speaker Wire
Description Clear
18/2 AWG Speaker Wire, 25', sleeve unit pack X3301-25C
18/2 AWG Speaker Wire, 50', sleeve unit pack X3301-50C
18/2 AWG Speaker Wire, 100', sleeve unit pack X3301-100
18/2 AWG Speaker Wire, 250', spool unit pack W5212-250
14/2 AWG Speaker Wire
Description Clear
14/2 AWG Speaker Wire, 25', sleeve unit pack X3324-025
14/2 AWG Speaker Wire, 50', sleeve unit pack X3324-50C
14/2 AWG Speaker Wire, 100', sleeve unit pack X3324-100
14/2 AWG Speaker Wire, 250', spool unit pack W5214-250
12-2 AWG Speaker Wire
Description Clear
12/2 AWG Speaker Wire, 25', sleeve unit pack X3302-25C
X3324
X3302
X3304
X3301
Audio Accessories | Speaker Wire
Audio Accessories
106 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Leviton has everything you need to terminate
telephone, video and audio connections.
Tools
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005 107
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Accessories Tools
Tools | Crimping & Stripping Tools
Professional, heavy duty tool for crimping coaxial connectors onto RG6 or RG59 cables.
Plastic handle grips protect hands. Stripper adjusts for use with RG6 and RG59 cables.
Coaxial Cable Crimping & Stripping Tool Kit
Description Part No
Coaxial Cable Crimping & Stripping Tool Kit C5917-000
Coaxial Stripping Tool
Description Part No
Coaxial Stripping Tool, carded unit pack, rack pack carton C5914-000
Coaxial Crimping Tool
Description Part No
Coaxial Crimping Tool, carded unit pack 40988-000
Base & Handset Crimping Tool
Description Part No
Base & Handset Crimping Tool C0260-00I
C5917-000
40988-000
C0260-00I
C5914-000
Punch Down Tool
Description Part No
Non-impact 110 Punch Down Tool C0110-110
C0110-110
Resources & Support
108 LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
110
118
119
120
123
Installation Diagrams
Online Training
Warranty Information
Glossary
Part Number Index
Find valuable support information in this section,
including helpful installation diagrams of Leviton
products and systems, details on our online
training programs, warranty information, and
a glossary of terms.
Resources & Support
109
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Resources & Support |
Resources & Support
110 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Cable Modem
Router
(47611-GB4)
1X8 Amplified
CATV Module
(47693-08P)
AC Power
Module
(47605-0DP)
Cable from
Demarc
Master
Bedroom
Kitchen Family
Room
Phone
Demarc
18-Port Structured Media Panel
(47603-18P)
CAT 5e Voice &
Data Board
(47605-C5B)
TLDM Board
Home
Office
Garage
Cable from
Demarc
Out to
TV’s Cable Modem
Router
(47611-GB4)
1X8 Amplified
CATV Module
(47693-08P)
AC Power Module
(47605-0DP)
CAT5e Voice &
Data Module
(47605-C5B) Wallplate
(41080- 1TP)
Wallplate
(41080- 1TP)
Wallplate
(41080- 1TP)
Computer
Computer
Computer
Installation Diagrams
Data Distribution w/ Cable Modem
Voice, Data & CATV Distribution
Installation Diagrams
Cable Color
CAT 5e
RG 6Q
Power
Phone Demarc
8P8C Phone
Cable Color
CAT 5e
RG 6Q
Power
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
111
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Camera Board
/w IDC
(VSHUB-IDC) IP Quad
(VSQIP-000) Modulator
(48213-VMA)
IP Quad
(VSQIP-000)
Camera Board
(VSHUB-000)
Monitor
Monitor
CAT5e Voice &
Data Module
(47605-C5B)
AC Power
Module
(47605-0DP)
AC Power Module
(47605-0DP)
RF Modulation
Monitoring
(VSOUT-00W)
RF Modulation
Monitoring
(VSOUT-00W)
Resources & Support | Installation Diagrams
Quad Distribution
Video Sequencer-Modulator
Installation Diagrams
Use modulator for analog signal only.
RCA
Power
Cable Color
CAT 5e
RG 6Q
Use modulator for analog signal only.
RCA
Power
Cable Color
CAT 5e
RG 6Q
Versatile Power
Supply
(47605-PSC)
CHXXX
Sequencer
(48213-CVS)
RF Modulation
Monitoring
(VSOUT-00W)
Indoor Camera
(VSIND-0SC)
CAT5e Voice &
Data Module
(47605-C5B)
Camera Board
(VSHUB-000)
Modulator
(48213-VMA)
Monitor
Resources & Support |
Resources & Support
112 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Video Sequencer
Installation Diagrams
Video Modulator
Installation Diagrams
Use modulator for analog signal only.
RCA
Power
Cable Color
CAT 5e
RG 6Q
RCA
Power
Cable Color
CAT 5e
AC Power
Module
(47605-0DP)
RF Modulation
Monitoring
(VSOUT-00W)
RF Modulation
Monitoring
(VSOUT-00W)
Camera Board
(VSHUB-000)
Sequencer
(48213-CVS)
Monitor
CAT5e Voice &
Data Module
(47605-C5B)
CAT5e Voice &
Data Module
(47605-C5B)
Antenna
Modulating 3 Cameras
to your CATV System
(48213-VMA)
RF Modulation
Monitoring
(VSOUT-00W)
RF Modulation
Monitoring
(VSOUT-00W)
RF Modulation
Monitoring
(VSOUT-00W)
Camera Board
(VSHUB-000)
Modulator
(48213-VMA)
4-Way TV Splitter
(47690-004)
Monitor
Versatile Power
Supply
(47605-PSC)
1X8 Amplified
CATV Module
(47693-08P)
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
113
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Intercom System Wired For VOIP
Resources & Support | Installation Diagrams
Basic Residential Intercom System
Installation Diagrams
Phone Demarc
Power
Cable Color
CAT 5e
From Test port on TLDM
To ADO port on TLDM Dry contact input.
Do not apply
voltage here.
To second Station
Interface Board or
auxiliary module if used.
Outdoor Station
Phone
Demarc
+24 VDC
Power Adapter
Telephone Line
Distribution Board
(TLDM)
(47603-TDM)
Intercom Kit
(47000-MKB)
Phone Demarc
Power
Cable Color
CAT 5e
AC Power
Module
(47605-0DP)
To ADO port on TLDM Dry contact input.
Do not apply
voltage here.
To second Station
Interface Board or
auxiliary module if used.
VoIP Converter Router
(47611-GB4)
Intercom Kit
(47000-MKB)
Telephone Line
Distribution Board
(TLDM)
(47603-TDM)
Outdoor Station
Phone
Demarc
Resources & Support |
Resources & Support
114 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
DSL Modem Connection in SMC
Installation Diagrams
Residential Intercom System w/ Door Strike & Door Chime Modules
Installation Diagrams
Phone Demarc
Power
Speaker Wire
Cable Color
CAT 5e
Telephone Line
Distribution Board
(TLDM)
(47603-TDM)
Door Chime
Module
(47000-CHM)
Door Strike
Module
(47000-STR)
Interface
Board
(47000-PRT)
Main Controller
Board
(47000-00M)
Door Bell
From test port on TLDM
To ADO port on TLDM
To second Station
Interface Board or
auxiliary module if
used.
Dry contact input.
Do not apply
voltage here.
Door Bell Transformer
Power Supply
Door Strike Transformer
Power Supply
Door Strike
Outdoor Station
(47000-0D1)
AC Power Module
(47605-0DP)
Phone
Demarc
LINE
IN OUT
FILTERED
Category 5e
Jack 1
DSL Modem
Phone
Data
Phone
Data
Phone
Data
Wallplate
41080-2IP
Wallplate
41080-2IP
Wallplate
41080-2IP
Router
(47611-GB4)
Telephone Line
Distribution Board
(TLDM)
(47603-TDM)
DSL Filter
(47616-DSB)
Phone
Demarc
CAT5e Voice &
Data Module
(47605-C5B)
AC Power Module
(47605-0DP)
CAT 5e
Power
Phone Demarc
8P8C Phone
Cable Color
RG 6Q
CAT 5e
Power
Phone Demarc
8P8C Phone
Cable Color
RG 6Q
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
115
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Dual-Gang
Wallplate 12
Connectors/ea
Wallplate
Multi-Room
Multi-Source
Amplifier
(AE6MC-000)
DVD/CD Player
(HKDVD)
Dual-Gang Wallplate
12 Connectors/ea
AE6MC-PAD
AEC80 AEC80 AEC80
AEC80 AEC80 AEC80
AEC80 AEC80
AEC80 AEC80
AEN24
AEN24
RCA
On-Wall Home Cinema System
Resources & Support | Installation Diagrams
Multi-Source/Multi-Room Audio System
Installation Diagrams
Using Leviton Architectural Edition 12-Channel 6 Room/Zone Amplifier/Keypad System
Speaker Wire
RCA
CAT 5e
AV Receiver
(HKAVR)
HKRMS
AEH50 Satellite
AEH50 Satellite AEH50 Satellite AEH50 Satellite
AEH50 Satellite
AEH50 Subwoofer
AEHTK
RCA / HDMI
3.5mm
DVD/CD Player
(HKDVD)
Wallplate
40701-BA,
40830-BAE
Speaker Wire
RCA
Resources & Support |
Resources & Support
116 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Adding a Single Source/Multi-Room Audio System to an A-BUS® Ready Audio/Video Receiver (AVR)
Installation Diagrams
In-Wall Home Theater System
Installation Diagrams
Speaker Wire
RCA
Cable Color
Speaker Wire
Cable Color
CAT 5e
HKRMS
AEI80
AEI80
AEI65
AEI65
AESUB
AEHTK
AEI55
3.5mm
RCA / HDMI
AV Receiver
(HKAVR)
DVD/CD Player
(HKDVD)
Wallplate
40701-BA,
40830-BAE
HKABH
HKABV HKABV HKABV HKABV
AEM65 Speakers
AV Receiver
(HKAVR)
HKABS HKABS HKABS HKABS
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
117
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Resources & Support | Installation Diagrams
Adding Outdoor Music To a Multi-Room Capable Audio/Video Receiver (AVR)
Running a 5.1 Home Theater System
Hybrid Solution Wired & Wireless
Installation Diagrams
Speaker Wire
Cable Color
CAT 5e
Power
Phone Demarc
8P8C Phone
Cable Color
RG 6Q
Multi-Room Audio System Using System Matching Module
AV Receiver
(HKAVR)
AEMRK SGVST
Volume Control
AEN24 Outdoor Speakers
SGAMP
High Power
Stereo Amplifier
AV Receiver
(HKAVR)
SGVST
Volume
Control
AEN24 Outdoor Speakers
AEM65 SpeakersAEC65 Speakers
Speaker Wire
RCA
Cable Color
Cable Modem
Wallplate
41080-2IP
Wallplate
41080-2IP
Advanced Home
Telephone & Video Panel
(47606-AHT)
Cable from Demarc
PC
Mac
WAP
Phone
Phone
Voice
Voice
Data
Data
Router
(47611-GB4)
Phone
Demarc
AC Power
Module
(47605-0DP)
Resources & Support |
Resources & Support
118 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Online Training
A comprehensive online training program is available free of charge on Leviton.com
in the eZ-Learn™ section.
You can participate in the online training courses and learn about popular Leviton
Connected Home solutions including:
Structured Wiring Solutions
Power Supplies
Voice, Data & Video Panels
Camera Systems
Intercom Systems
TV & Video Distribution
Data Networking
Audio
• Connectors & Wallplates
To access the Leviton eZ-Learn center, visit ezlearn.leviton.com/el_front/
Online Training
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
119
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Resources & Support | Warranty Information
Warranty Information
Product Type Standard Limited
Warranty
Warranty When Installed
by a Leviton Residential
Network Installer
Leviton Stuctured Media System Components
Active Data Products 2 Years 2 Years
Active Telephone Products 2 Years 2 Years
Active Video Products 2 Years 2 Years
Leviton TVA (telephone, video, audio, consumer accessory products) 2 Years 2 Years
Passive Data Products 2 Years 25 Years
Passive Telephone Products 2 Years 25 Years
Passive Video Products 2 Years 25 Years
Leviton Video Entry System
Ophera Video Entry 2 Years 2 Years
Leviton Connected Home Audio System Components
Spec Grade™ Speakers and Components 2 Years 2 Years
Leviton Architectural Edition™ 2 Years 2 Years
Leviton Architectural Edition Powered by JBL®5 Years 5 Years
Harman/Kardon® DVD & CD Players* 1 Year 1 Year
Harman/Kardon Receivers* 2 Years 2 Years
A-BUS® Components 1 Year 1 Year
*Service provided by Harman/Kardon.
Warranties subject to change. For the most up-to-date, detailed warranty information,
visit leviton.com/connectedhome.
Warranty Information
Resources & Support |
Resources & Support
120 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
A
ADSL (Asymmetric Digital Subscriber Line) | A form
of DSL that allows for faster transmission of data over
a copper line by offering a faster download speed than
upload speed (asymmetry). Typically speeds are 1.5Mbps
download and 756Kbps upload.
Amplifier | A component that boosts the strength of a
transmitted RF signal as measured in decibels (dB).
Analog | A method of transmitting information by
a continuously variable electrical signal, as opposed
to digital.
B
Bandwidth | The range between the highest and the
lowest frequencies of a transmission channel measured
in Hz (Hertz); A rate of data transfer measured in bits per
second (bps).
Bend Radius | The minimum acceptable radius a cable can
bend without causing degradation to the signal it
is carrying.
Bits per second (bps) | A measure of digital data rate.
Larger measurements include Kbps (kilo or thousands of
bits per second) and Mbps (mega or millions of bits per
second).
BNC | A connector used to terminate coaxial cables.
Typically used for CCTV systems connecting cameras
to distribution or head end equipment. BNC stands for
Bayonet-Neill-Concelman.
Broadband | A wide bandwidth capable of carrying
multiple voice, data, and video channels simultaneously.
C
Category 5e (CAT 5e, HOME 5e™) | A Category of
Performance for 4-Pair Twisted Pair wire. Used in support
of signaling rates of up to 100MHz over distances of up
to 100 meters. Calls for tighter twists, electrical balancing
between pairs and fewer cable anomalies. CAT 5e is
intended to support 100Base-T and Gigabit Ethernet.
Category 6 (CAT 6, HOME 6™) | A Category of
Performance for 4-Pair Twisted Pair wire. Used in support
of signaling rates of up to 250MHz over distances of up
to 100 meters. Calls for tighter twists, electrical balancing
between pairs and fewer cable anomalies. CAT 6 is intended
to support 1000Base-T or Gigabit Ethernet.
CATV (community antenna television) | A cable television
system that receives television broadcasts by antenna and
relays them by cable to paying subscribers in areas where
direct reception is either poor or not possible.
CCTV (Closed circuit television) | Video signal sent to a
limited number of locations, such as in a security system.
Coaxial Cable | A cable composed of an insulated central
conducting wire wrapped in another braided cylindrical
conductor (the shield). A coaxial cable has great capacity to
carry very high bandwidths of information. It is typically used
in CATV applications.
Connecting Block | A plastic block containing metal wiring
terminals to establish connections from one group of wires
to another. Usually each wire can be connected to several
other wires in a bus or common arrangement. A connecting
block has insulation displacement connections (IDCs).
Connector | A device that attaches wires or fibers in a cable
to allow it to connect to equipment or other cables.
Crosstalk | See Near-End Crosstalk.
D
Decibel (dB) | A decibel is the logarithmic ratio of a
measured quantity and a reference quantity using the same
units. Doubling the original measured quantity results in a
+3 dB increase. Conversely, half of the original measured
quantity results in a decrease of -3 dB. Therefore, a change
of -6 dB is a loss of 75% of total signal strength.
Demarcation Point | The point of interconnection between
the incoming signal wire and the building’s internal wiring.
Digital TV | See HDTV.
Drop | A term for a cable run to a media location (e.g., video
drop, telephone drop).
E
EIA/TIA (Electronic Industries Association/
Telecommunications Industries Association) | A trade
organization of manufacturers which set standards for
Glossary A-D
Glossary
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
121
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
telecommunications and networking equipment. Many
associations fall under the umbrella of EIA, though it has
recently been absorbed by the TIA. See www.eia.org or
www.tiaonline.org.
Electromagnetic Interference (EMI) | Signal interference
caused by stray electric and magnetic fields.
Ethernet | A type of network used for connecting
computers, printers, workstations, terminals, etc. within
the same building. Ethernet is a physical and data link
protocol that operates over various connection media.
F
Fiber Optics | High bandwidth medium in which
communication signals are transmitted in the form of light
beams over glass optical fiber cables.
H
HDMI | interface that delivers digital video, audio and
control signals on the same cable.
HDTV (High Definition Television) | A television that
permits the display of higher resolution pictures than the
now obsolete NTSC televisions. HDMI also has an ATSC
tuner to allow reception of over-the-air digital broadcasts.
Hertz | A unit of frequency measuring single cycles per
second, abbreviated as Hz. Megahertz (MHz) measures
millions of cycles per second, while Gigahertz (GHz)
measures billions of cycles per second. Often used to
describe the bandwidth of an audio or video signal.
Home Run | Communication wiring where the individual
cables run from each wallplate directly back to the
central equipment.
I
IEEE 802.3 | A standard set by the Institute of Electrical
and Electronics Engineers (IEEE), a publishing and
standards-making body responsible for many standards
used in LANs, describing Ethernet and StarLan networks.
Typically they transmit at or above 10Mbps. This is the
most common local area network specification.
Impedance | The total opposition (i.e. resistance and
reactance) a circuit offers to the flow of alternating
current. It is measured in ohms (Ω).
J
Jack | A female connector such as a CAT 5e QuickPort®
Insert which mates to a male plug, allowing electrical
contact between wires. A jack may be standard, modified,
or keyed.
L
Local Area Network (LAN) | A short distance network
(typically within a building or campus) used to link together
computers and peripheral devices (such as printers) under
some form of standard control.
M
Modem | A device that converts digital signals to analog
signals for transmission over phone wires. Short for
modulator-demodulator.
Mud Ring | An informal term used to describe low-voltage
mounting bracket .
N
Near-End Crosstalk (NEXT) | Electrical interference coupled
from one pair of wires to another as measured at the same
end of the cable as the transmitter.
Network | A group of telecommunications links and nodes
arranged so that messages may be passed from one part
of the network to another over multiple links and through
various nodes.
O
Ohm (Ω) | A unit of electrical resistance. The higher the
value, the greater the resistance. See Impedance.
Outlet | A telecommunications outlet is a single-piece cable
termination assembly (typically on the floor or in the wall),
containing one or more modular jacks. Jacks might be RJs,
coaxial terminators, fiber optic couplers, etc.
P
Part 68 | In telecommunications, part 68 is the section
of Title 47 of the Code of Federal Regulations of the
United States governing (a) the direct connection of
telecommunications equipment and customer premises
wiring with the public switched telephone network.
Patching | A means of connecting circuits via cords that can
Glossary A-D Resources & Support | Glossary E-O
Glossary
Resources & Support |
Resources & Support
122 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Glossary
Glossary P-Z
be easily disconnected and reconnected at another point.
May be accomplished by using modular cords connected
between jack fields or by patch cord assemblies that plug
onto connecting blocks.
PBX (Private Branch Exchange) | A small, privately-owned
version of the phone company's larger telephone central
switching office.
Plenum | An enclosed space used for airflow in which cables
can be housed. Cables must be appropriately rated for use
in a Plenum space.
Plug | A male component of a plug/jack connector system
In premises wiring, a plug provides the means for a user
to connect communications equipment to the
communications outlet.
Point-to-point Transmission | A dedicated link that
connects exactly two communication facilities (e.g., two
nodes of a network, an intercom station at an entryway with
a single internal intercom station, a radio path between two
points, etc).
Polarity | Describes which wire is positive and which wire is
negative on an electrical circuit.
Punch Tool | A spring-loaded tool for cutting and connecting
wire in a jack or module, also known as an impact tool.
R
Ring | As in Tip and Ring. The Ring is the negative (-) wire of
the two wires needed to set up a telephone connection. See
Tip.
S
Service Loop | The “slack” left after terminating a wire and
used to accommodate future changes.
Splice | Connection of two or more pieces of material or
joining of two or more cables together by connecting the
conductors End for End.
Standards | Principles of protocol set by Committees
working under various trade and international organizations.
STP | Shielded Twisted Pair. See Twisted Pair
Structured Media® Center (SMC) | Leviton’s central
distribution center for structured cabling.
Surge Suppression | The prevention of voltage surges from
reaching and damaging electronic equipment
T
TCP/IP (Transmission Control Protocol/Internet Protocol) |
A set of protocols defining the layers for communication and
connection to the internet and other networks.
Terminate | The act of attaching a wire’s conductors to a
connector.
TIA (Telecommunications Industry Association) | A
trade organization comprised of manufacturers that sets
standards for use of its member companies. Formerly fell
under the umbrella of EIA, (Electronic Industries Alliance).
See EIA/TIA.
Network Topology | The arrangement or mapping of the
links and nodes in a network, especially the physical real and
logical virtual interconnections between nodes. A local area
network (LAN) is one example of a network that exhibits
both a physical topology and a
logical topology.
Twisted Pair | Two insulated wires twisted around each
other to reduce EMI from external sources. The twists, or
lays, are varied in length to reduce the potential for signal
interference between pairs. Several sets of twisted pair
wires may be enclosed in a single cable. In cables greater
than 25 pairs, the twisted pairs are grouped and bound
together.
U
UTP (Unshielded Twisted Pair) | Twisted pair wires that do
not have a shield surrounding them. See Twisted Pair.
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
123
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Resources & Support | Part Number Index
Part Number Index
00688-00* 85
00689-00† 85
00690-00* 85
03950-BKT 37
05261-0CH 85
05361-OCH 85
05951-0SA 37
05951-SAC 37
05951-SAT 37
05952-0ET 37
05952-ETH 37
05953-PC 37
05953-PCC 37
05953-PCG 37
05954-AT4 37
05954-CT4 37
05954-PT4 37
05955-0DT 37
05955-DTG 37
0PJ26-00* 61
0PJ62-00* 61
0SJ26-0S* 61
0SJ62-0S* 61
3005C-C00 58
4007C-C00 58
40734-CV~ 56
40734-SV* 56
40735-RX† 56
40782-CPF 56
40807-00* 60
40807-0B* 60
40807-B2* 60
40812-RTK 63
40830-B*E 56
40830-B*R 56
40830-B~L 56
40830-B~V 56
40830-B°Y 56
40831-0B° 56
40832-0B° 56
40833-B°E 56
40833-B°R 56
40837-B°E 56
40837-B°R 56
40839-S~S 56
40856-DSS 101
40866-DSS 101
40867-DSS 101
40868-DSS 101
40951-1P* 81
40952-2P* 81
40982-R•W 56
40984-000 97
40985-0Q6 98
40985-1P9 98
40985-1P6 98
40985-2P9 98
40985-2P6 98
40985-CRF 56
40985-CRU 56
40985-CRV 56
40986-1P9 98
40986-1P6 98
40986-2P9 98
40986-2P6 98
40986-000* 98
40987-002 97
40987-003 97
40987-004 97, 112
40988-000 107
40989-CPT 63
40989-RCT 63
41080-1*P 59
41080-1AP 110
41080-2*P 59
41080-2IP 114, 117
41080-3*P 59
41080-4*P 59
41080-6*P 59
41081-2*P 60
41081-4*P 60
41084-B*B 56
41084-B*F 56
41084-F*F 56
4108W-0SP 59
4108W-1SP 59
41108-R‡5 56
41180-R‡3 56
Part No. Page Part No. Page
Resources & Support |
Resources & Support
124 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Part Number Index
Part Number Index
41641-00* 60
41642-00* 60
41643-00* 60
41644-00* 60
41646-00* 60
41647-00* 59
41648-00* 59
42081-2*S 60
42081-4*S 60
42400-00G 93
42400-8FG 26
43080-1S1 59
43080-1S2 59
43080-1S3 59
43080-1S4 59
43080-1S6 59
43080-2S2 59
43080-2S4 59
43080-2S6 59
43080-2S8 59
43080-S12 59
43105-005 63
43108-008 63
43112-012 63
47000-00M 114
47000-0D1 52
47000-0E1 52
47000-CHM 52, 114
47000-CSB 52
47000-CSG 52
47000-CWS 52
47000-D1 114
47000-MKB 52, 113
47000-PRT 52
47000-PRT 114
47000-STR 52, 114
471080-C5B 110
47600-0W1 52
47602-24E 24
47602-BKE 24
47603-0C5 32
47603-110 33, 84
47603-12B 33
47603-12M 31
47603-12P 31
47603-18B 33
47603-18M 31
47603-18P 31, 110
47603-1G4 32
47603-1G6 32
47603-1G8 32
47603-24P 31
47603-412 31
47603-8C1 31
47603-DP6 32
47603-TDM 33, 113, 114
47603-TSV 32
47604-0F6 25
47604-F6S 25
47605-0DP 35, 110, 111, 112, 113, 114, 117
47605-140 21
47605-14B 21
47605-14C 21
47605-14D 21
47605-14E 21
47605-14G 21
47605-14P 21
47605-1MG 21
47605-28B 22
47605-28D 22
47605-28G 22
47605-28N 22
47605-28P 22
47605-28W 22
47605-2BP 22
47605-2MG 22
47605-42D 23
47605-42N 23
47605-42P 23
47605-42W 23
47605-4B9 23
47605-4MG 23
47605-ACN 35
47605-ACS 35
47605-C5B 32, 111, 112, 114
47605-F28 22
47605-F42 23
47605-M28 22
Part No. Page Part No. Page
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
125
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Part Number Index
Resources & Support | Part Number Index
47605-M42 23
47605-MDC 25
47605-MDU 25
47605-NDP 35
47605-PSA 36
47605-PSB 36
47605-PSC 36, 111, 112
47606-AHT 31, 117
47606-ASO 31
47606-BNP 31
47606-BTV 31
47609-004 33
47609-0F6 33
47609-4DP 33
47609-4X4 63
47609-D5P 33
47609-EMP 33
47609-S10 33
47609-TSV 32
47610-002 95
47610-003 95
47611-0C6 32
47611-5GB 39
47611-5PT 39
47611-8PT 39
47611-C6B 32
47611-GB4 39, 110, 113, 114, 117
47611-GT4 39
47612-1SB 27
47612-28B 23
47612-42B 23
47612-6SB 27
47612-CBK 27
47612-DBK 25
47612-EBK 25
47612-FSB 27
47612-HSB 27
47612-MMA 26
47612-SBK 25
47612-UBK 27
47612-VSB 25
47613-EZC 63
47613-EZR 63
47615-NYL 63
47616-DSB 32, 114
47616-DSF 33
47617-HPC 85
47617-LPF 85
47617-PLT 85
47617-RBH 85
47617-REB 85
47617-REC 85
47621-CMS 84
47621-MIE 84
47689-00B 17, 32
47690-004 44
47690-006 44
47690-008 44
47690-04C 44
47690-06C 44
47690-08C 44
47690-0G4 44
47690-0G6 44
47690-0G8 44
47690-4C2 44
47690-6C2 44
47690-8C2 44
47690-NFA 49
47691-3MS 45
47693-01P 41
47693-01P 42
47693-08P 41
47693-08P 42, 110, 112
47693-16P 41
47693-16P 42
47693-31P 41
47693-31P 43
476TL-T12 29
476TM-512 29
476TM-524 29
476TM-612 29
476TM-624 29
476TM-652 29
476TM-654 29
47FTH-240 24
47FTH-420 24
47FTH-440 24
47FTH-840 24
Part No. Page Part No. Page
Resources & Support |
Resources & Support
126 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Part Number Index
Part Number Index
47FTH-844 24
47FTH-880 24
48210-0VA 44
48210-MCH 83
48210-MRU 83
48210-MSU 83
48210-SRU 83
48211-06A 80
48211-WVC 79
48211-WVK 79
48212-06S 35
48212-124 36
48212-IEC 36
48213-CVS 48, 111, 112
48213-VMA 48, 111, 112
49404-000 94
49553-066 63
49553-110 63
49553-814 63
49553-AWL 63
49553-BIX 63
49553-KRN 63
49660-00P 63
5020C-C0B 58
5020C-C0I 58
5020C-C0W 58
5020C-CAL 58
51084-ICN 61
51110-001 35
51110-PTC 35
5EA20-M1* 57
5EA20-M2* 57
5EA20-M3* 57
5EA20-M4* 57
5EA20-S1* 57
5EA20-S2* 57
5EA20-S3* 57
5EA20-S4* 57
5EHOM-R*5 55
5ETLS-R*5 55
5F100-6QP 26
5F100-6VF 26
5F100-BNC 26
5HHOM-XX* 55
5L000-L0K 23
5LHOM-XX* 55
61HOM-R*6 55
61TLS-R*6 55
6HH0M-XX* 55
6LHOM-XX* 55
80301-0S* 61
80309-0S* 61
80401-00* 61
80401-040 61
80401-0N* 61
80409-00* 61
80409-0N* 61
80601-0S* 61
80609-0S* 61
84409-040 61
AE6MA 77
AE6MC 77, 115
AE6MC-PAD 77, 115
AE6MC-RMT 77
AEBC6-000 68
AEC65-000 66
AEC80-000 66, 115
AECCS-VCE 71
AEH50 115
AEH50-0WH 72
AEH50-OBL 72
AEHTK 115, 116
AEI55-000 70, 116
AEI65-000 65, 116
AEI80-000 65, 116
AEM65-000 66, 116
AEMRK-000 81, 117
AEN24 115, 117
AEN24-000 69
AEPC8-KIT 68
AEPHK-OBL 73
AEPHK-OWH 73
AEPI6-KIT 68
AEPI8-KIT 68
AEPIS-KIT 68
AES36-000 69
AESS5-0BL 73
AESS5-OWH 73
Part No. Page Part No. Page
LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
Resources & Support
127
Technical Questions? Call Tech Support at 800.824.3005 LEVITON CONNECTED HOME
Part Number Index
Resources & Support | Part Number Index
AESUB 116
AESUB-012 71
BC100-0VA 51
BC100-VAS 51
BC100-XAS 51
BC200-4VD 51
BC200-AMP 51
BC200-AVD 51
BC300-VSE 51
BR200-00W 51
BR300-BOX 51
BR300-SMK 51
BT102-01G 51
BT200-DPG 51
BT500-HAC 51
BT700-HTG 51
BT700-HTI 51
BT700-VTS 51
C0110-110 107
C0218-00I 91
C0224-000 95
C0224-0CP 95
C0225-000 95
C0225-0CP 95
C0229-00* 89
C0244-000 92
C0245-00* 90
C0246-00I 92
C0247-00* 92
C0248-00* 92
C0249-00* 89
C0250-00* 92
C0252-00* 91
C0253-00* 90
C0254-00* 89
C0255-00* 91
C0256-0SS 90
C0257-000 94
C0260-00I 95, 107
C0261-00I 92
C0280-00* 92
C2406-25* 93
C2407-XX* 94
C2413-07* 93
C2413-15* 93
C2413-25* 93
C2413-50* 93
C2427-25I 93
C2429-00C 94
C2441-000 95
C2443-000 95
C2447-00* 89
C2448-00* 100
C2449-00* 89
C2450-00* 89
C2452-00* 90
C2453-0CL 94
C2454-00* 93
C2455-000 90
C2456-00* 101
C2680-00* 91
C2682-00W 90
C2683-00I 92
C5002-000 97
C5002-0GO 97
C5003-000 97
C5004-000 97
C5004-0GO 97
C5007-000 98
C5007-0C7 98
C5009-000 98
C5009-G00 98
C5052-000 98
C5052-0GO 98
C5053-000 99
C5055-000 99
C5101-000 99
C5152-000 98
C5205-000 98
C5229-000 98
C5235-000 98
C5235-0GO 98
C5255-000 103
C5256-*GO 100
C5256-00* 100
C5307-000 98
C5307-00G 98
C525-6GO 99
Part No. Page Part No. Page
Resources & Support |
Resources & Support
128 LEVITON.COM | P 800.722.2082 Technical Questions? Call our Techline at 800.824.3005
LEVITON CONNECTED HOME LEVITON.COM | 800.722.2082
Part Number Index
Part Number Index
Part No. Page
C5402-000 103
C5403-000 103
C5405-000 103
C5451-003 104
C5451-006 104
C5451-012 104
C5452-006 104
C5454-003 104
C5501-00E 99
C5557-000 99
C5810-00I 101
C5811-000 101
C5812-000 101
C5822-000 100
C5822-0GO 100
C5852-6GO 100
C5853-006 100
C5856-0GO 100
C5914-000 63, 107
C5917-000 107
C6851-XX* 97
CH149-00A 58
CH149-00E 58
CH149-00I 58
CH149-00T 58
CH149-00W 58
CH159-00A 58
CH159-00E 58
CH159-00I 58
CH159-00T 58
CH159-00W 58
CH181-00A 58
CH181-00E 58
CH181-00I 58
CH181-00T 58
CH181-00W 58
HKABH-000 76, 116
HKABS-000 76
HKABV-000 76, 116
HKAVR-xxx 74, 115, 116, 117
HKDVD 75, 115, 116
HKRMS 75, 115, 116
PCC55-KIT 68
PCI65-000 68
PCI80-000 68
SG099-00W 69
SGAMP-000 80
SGC65-00W 67
SGCGJ-GRL 68
SGI65-00W 67
SGI65-GRL 68
SGI80-00W 67
SGI80-GRL 68
SGVCK-00E 79
SGVCK-0IA 79
SGVCK-0LA 79
SGVSM-00W 78
SGVST 117
SGVST-00W 78
VSHUB-000 47, 111, 112
VSHUB-IDC 47, 111
VSIND-0SC 47, 111
VSOUT-00W 47, 111, 112
VSQIP-000 111
W5212-250 105
W5214-250 105
X3301-100 105
X3301-25C 105
X3301-50C 105
X3302-25C 105
X3304-50C 105
X3324-025 105
X3324-100 105
X3324-50C 105
© Copyright Leviton Manufacturing Co., Inc. 2011. All rights reserved. All unauthorized quotation and reproduction is forbidden except for brief
examples used in reviews of this work by periodical publications where the source of information is credited to Leviton or the reproduction of this
material for the purpose of preparing specifications and/or bids in which Leviton products are indicated. To request permission, please contact the
Leviton Network Solutions Marketing Department at 425.486.2222.
Information in this catalog is provided as a guide to product selection and is believed to be correct at time of publication. Because Leviton engages
in a continuous program of product improvement, data is subject to change without notice.
The following are trademarks of Leviton Manufacturing Company, Inc.:
AutoSurge™
Chopin™
Decora®
HOME 5e™
HOME 6™
Leviton Architectural Edition™
QuickPort®
QuickPlate
Spec-Grade Sound™
Structured Media®
Transfer-Free™
Vizia RF +™
Many other trademarks are used in this catalog and registered as follows:
A-BUS® is a registered trademark of LeisureTech Electronics Pty Ltd.
Blu-rayTM Disc is a registered trademark of the Blu-ray Disc Association.
Digital Satellite System® and DSS® are registered trademarks of Direct TV, Inc.
DTS® is a registered trademark of DTS, Inc.
Elliptical Oblate Sphereoidal™ (EOS®) is a registered trademark of
Harman International Industries, Inc.
Harman/Kardon® is a registered trademark of Harman International Industries, Inc.
HDMI™ is a trademark of HDMI Licensing, LLC.
iPod® is a registered trademark of Apple, Inc.
JackRapid™ is a trademark of Fluke Corporation.
JBL® is a registered trademark of Harman International Industries, Inc.
Kapton® is a registered trademark of EI du Pont de Nemours and Company.
Klein Tools® is a registered trademark of Klein Tools, Inc.
Simplay HD™ is a trademark of Simplay Labs, Inc.
Symmetrical Field Geometry™, SFG™, Straight-line Signal Path™, SSP™, PolyPlas™,
FreeFlow™ and WeatherPlas™ are trademarks of Harman International
Industries, Inc.
VELCRO® is a registered trademark of Velcro Industries B. V.
WiFi® is a registered trademark of the WiFi Alliance.
Windows Media® and XBOX 360® are registered trademarks of the Microsoft
group of companies.
All other trademarks, service marks and logos used in this catalog are
the trademarks, service marks or logos of their respective owners.
For Leviton warranty information please visit leviton.com/warranties.
Leviton Corporate Headquarters
leviton.com
T 800.323.8920
E customerservice@leviton.com
Leviton International Offices
ASEAN Countries
T +1.631.812.6228
E infoasean@leviton.com
Europe
T +47.900.94.924
E infoeurope@leviton.com
South Korea
T +82.2.3273.9963
E infokorea@leviton.com
Australia & New Zealand
T +64.4.562.8327
E infoausnz@leviton.com
Leviton Network Solutions Connected Home Division Headquarters
Middle East & Africa
T +971.4.886.4722
E lmeinfo@leviton.com
China
T +86.755.3320.0588
E infochina@leviton.com
India / SAARC
T +91.80.4322.5678
E lev_india@leviton.com
Latin America
T +52.55.5082.1040
E lsamarketing@leviton.com
Canada
T +1.514.954.1840
E pcservice@leviton.com
Leviton International Regional Headquarters
Connected Home
®
leviton.com/connectedhome
T 800.722.2082
E infolme@leviton.com
International Inside Sales
T +1.425.486.2222
E intl@leviton.com
Technical Support
T 800.824.3005, +1.425.486.222
E appeng@leviton.com
J10/#3533

Navigation menu
