MINI-CATALOG
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L2

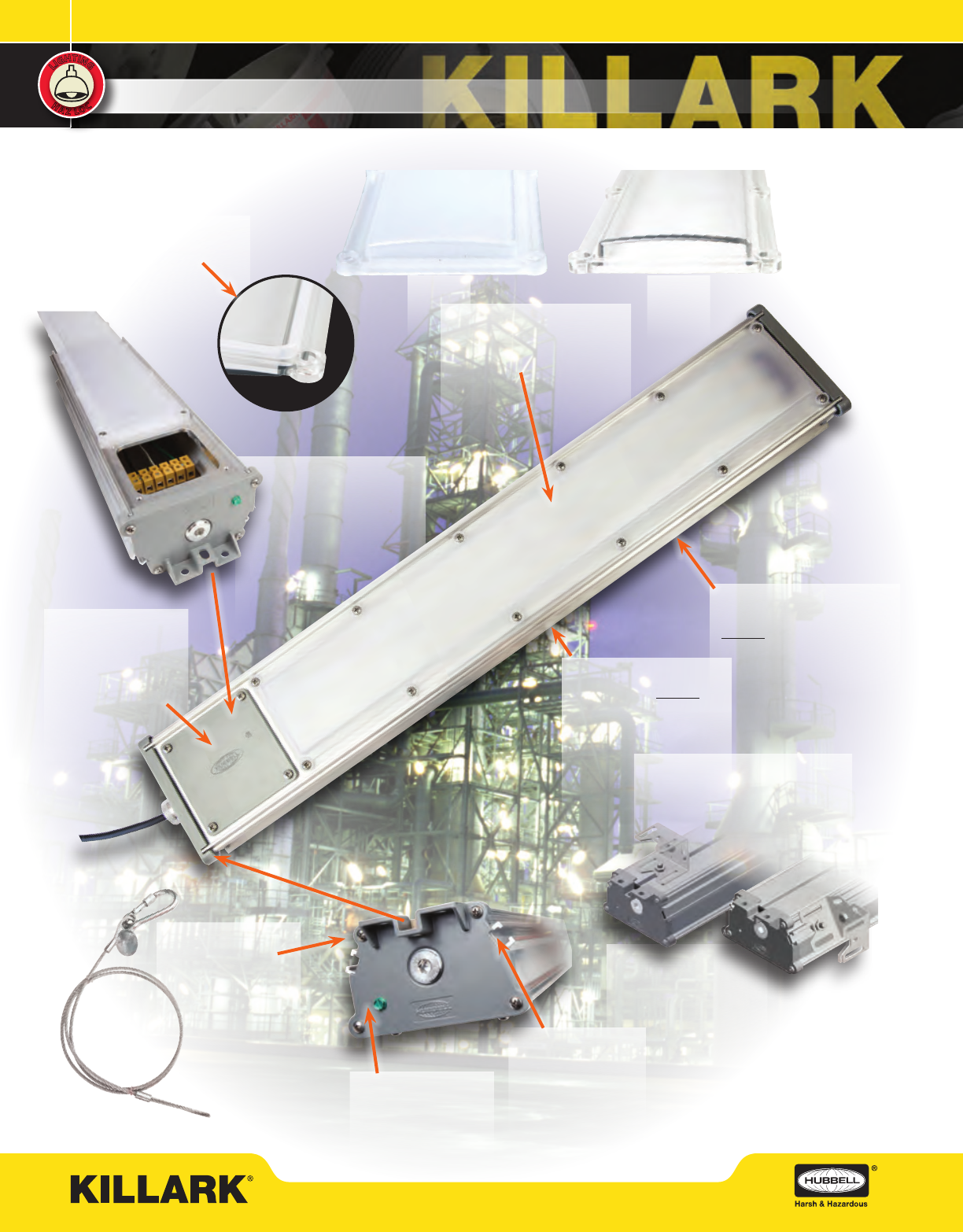

LAL/LALxE/LALC SERIES
LOW PROFILE LINEAR ALUMINUM LED • EXCLUSIVE DESIGN FEATURES
Optional Through
Wiring
2 Access Plates for
feed through wiring
2 Lens Choices:
• Clear for maximum lumens
• Diffused for glare control
Earth
External Earth Ground
for IECEx requirement
Battery
E13 and E26 models include
internal Emergency battery
systems to 50°C suitability
Shown with LAL-SB
Height adjustable Swivel
Brackets
Endcaps standard with 1 x 3/4” hub.
1/2” NPT and M20 available.
Looping Terminal Blocks
under Wiring Access
Plate(s).
High temperature rated
silicone gasketing
provides NEMA 4X &
IP66 sealing.
Surge
Standard with internal
20kA/10kA Supplemental
Surge Protection
End Caps include feet
for direct ceiling
mounting and safety
cable connection
Mounting Slots on
back and at 45°
Diffused Clear
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L3

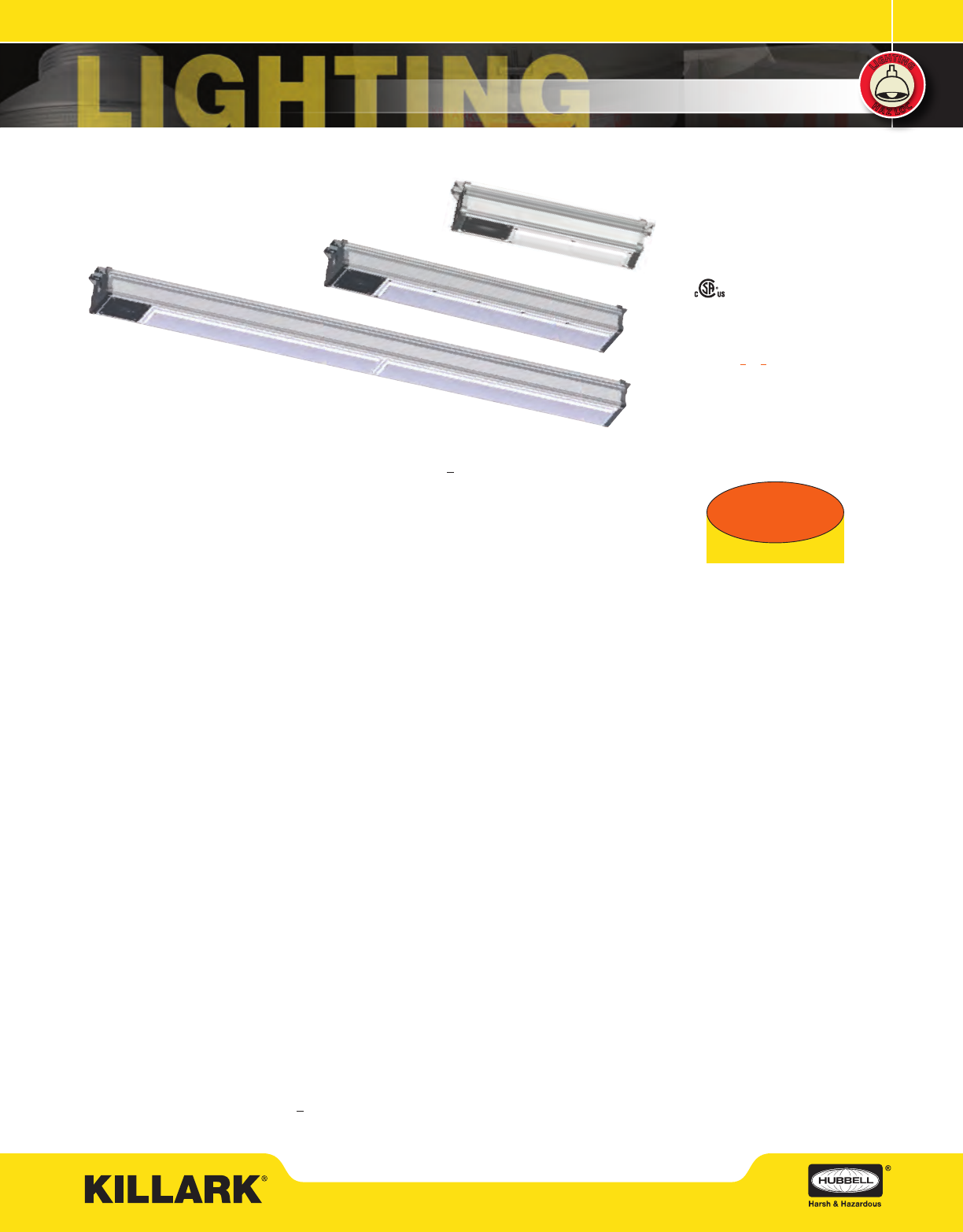

LAL/LALxE/LALC SERIES
LINEAR LED TECHNOLOGY
Double Lens Model
Single Lens Model
LALC Compact
Applications
Linear LED Luminaires are designed for
installations where moisture, dirt, dust,
corrosion and vibration may be present, and
NEMA 3, 4X, IP66 areas where wind, water,
snow or high ambients can be expected.
They can be used in locations made
hazardous by the presence of flammable
vapors or gases or combustible dusts as
defined by the NEC/CEC/IEC.
Typical applications include land based
oil rigs, offshore oil platforms, dockside
installations, chemical and petrochemical
processing facilities, sewage treatment
plants, garages, storage facilities, tunnels,
and grain/food facilities.
ABS (American Bureau of Shipping)
type approval for use on decks, vessels,
platforms, barges, ships and boats. Also
suitable for docks and marinas.
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598(A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminaires for use in hazardous locations
• IEC suffix Zone 2/21 to IEC 60079-0,
60079-15, 60079-31 Standards
• Enclosed and gasketed
• NEMA 3, 4X
• IP66
Materials
• NEMA 4X & IP66 rated
• Housing – one piece natural finish < .001
copper-free aluminum extrusion
• Endcaps & wiring – Access covers are
copper-free (< .004) aluminum with gray
baked powder epoxy-polyester finish,
electrostatically applied for complete
uniform corrosion resistance.
• External screws are 316 stainless steel
• Lens – Impact resistant polycarbonate
lens available in diffuse or clear
LAL & LALxE Product Features
• LALxE models have “built-in” battery
backup for 90 minute emergency exit
• Shallow design minimizes profile in work
areas with low ceiling heights
• Diffuse Lens Standard to minimize glare;
Clear Lens available
• Polycarbonate Single Lens 18W to 60W;
Double Lens model 34W – 120W
• Slot Back Design allows multiple
mounting access points across length –
slots can also be used with 5/16” or 8mm
bolts & nuts, 3 housing slots, 1 center
back and 2 at 45°.
• Variety of mounting options including
swivel brackets, wall, ceiling brackets, or
beam clamps
• End Caps each have 2 mounting feet built-in
plus a safety strap attachment point
• Standard unit End Caps each have single
a ¾” NPT hub, and fixture is furnished
with one ¾” close-up plug and two ¾” to
½” reducers – provides out of the box ½”
dead-end to ¾” feed-through flexibility.
Metric openings are available.
• Standard LALs have one wiring Access
Plate for easy access to driver leads.
• Supplemental 20KA/10KV Surge
Protection is standard (for AC models)
LED Features and Standards
• Many Midpower LEDs blend light to
simulate fluorescent tubes
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000K (CCT);
approx. 70 CRI
• Energy Savings – High lumens per watt
• LED Array Life – to 212,000 maintenance
free hours to 70% initial lumens
• Ambient suitability -40°C to 65°C (see
tables). 50° Ambient limit for Emergency
models.
• Instant On – Including after power
interruption
• World Voltage 120 - 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens –
TM-21* & Calculated
* LM-xx & TM-xx are Illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers.
For more information go to www.ies.org
FEATURES-SPECIFICATIONS
Class I, Div. 2, Groups A, B, C, D
Class l, Zone 2, Groups IIC, llB, llA
Class II, Div. 1 & 2, Groups E, F, G
AEx nAII, Ex nAII
Wet Locations
NEMA 4X
IP66
IECEx Rated
Zone 2 and Zone 21 areas
Ex nA IIC T6 to T3, Gc
Ex tb IIC T95°C Db
Tamb -50°C < Tz < +65°C, IP66
IECEx Certificate
QPS 15.0010
ATEX Certificate
CML 15ATEX4081X (nA)
&
CML15ATEX3082X (tb)
Certified - File LR11713
NON-GLASS
GROUP G
FOOD SUITABILITY
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L4
LAL/LALxE/LALC SERIES
CATALOG LOGIC
LAL(C) – Series Constant
Aluminum Extrusion with Polycarbonate Lens
LAL(R) –
Rig Version with Poke out Hubs
Emergency Battery Backup (LAL 120-
277VAC 50/60Hz only, not LALC Compact)
Blank –
No Emergency
E13 –
LAL 120-277VAC all Models; 18W, 28W, 45W,
60W use extended 4’ housing
E26 –
LAL 120-277VAC 34W, 55W, 80W, 120W
2-Lens models
Voltage
30 –
120V-277VAC 50/60Hz LAL/LALC all models
27 –
12VDC - 24VDC LALC 15W, 20W, 25W models only
33 –
347-480VAC LAL 28W & 55W non-emergency models only
34 –
125VDC-250VDC; 120-277VAC 50/60Hz LALC 15W, 18W, 20W, 23W, 25W
and LAL 28W, 60W, 55W, 120W non-emergency models
Lens
D –
Diffuse Polycarbonate
C –
Clear Polycarbonate
Options
L4-2AP –
LAL 18W, 28W, 45W, 60W with E13 Emer or
Non-Emer to match E13 length (Dimension B)
F –
Single Fuse (1 pole)
FF –
Two Fuses (2 pole - 2 hot legs)
S52 –
1 Endcap with 1x1/2” NPT and 1xM20
Entries (3/4” NPT Plugged)
D52 –
2 Endcaps with 1x1/2” NPT and 1xM20
Entries (3/4” NPT Plugged)
D50 –
2x1/2” NPT Entries 1 end cap, 3/4”
plugged; 2nd end cap std. 1x3/4” NPT
D502 –
2x1/2” Entries 2 end caps, 3/4” NPTs
plugged
D20 –
2xM20 Entries 1 end cap, 3/4” plugged;
2nd end cap std. 1x3/4”NPT
D202 –
2xM20 Entries 2 end caps, 3/4” NPTs
plugged
LSP –
Less Surge Protector
GH –
Gray Painted Housing
RH –
Red Painted Housing
2AP –
Dual Access Platesl
Specials – Contact Factory for custom
congurations and options
Example
= 45W 4PCB with 13W Emergency 120 - 277VAC
with Diffuse Lens, 2 Fuses, 2 Access Plates
Dimension “B”
Fixture Wattage
18
28
45
60
34
55
80
120
C15
C20
C25
C30
C35
C40
C45
C50
Single Lens – Dimension
B
or
C
(C required
for E13 Emergency or for Non-emergency to
match E13 length)
Two Lens – Dimension
D
for Non-emergency,
or E13 or E26 Emergency)
Compact Lens – See Dimension
A
LAL 45 E13 30 DL4-2AP FF
j Cataloged Wattage in LZ2x Fluorescent or LALx LED
luminaires – actual varies with driver or ballast losses
– Delivered Lumens and L/W from photometry testing
k LAL L70 Life 99,600-212,000 hours
LZ2x Fluorescent 10,000-60,000 hours
LED array calculated L70 life depending on
ambient temperature. L70 values indicate 70% of
initial illumination after “x” hours (see next page).
Fluorescent typically operates to 20,000 hours (some
wattages as few as 10,000 hours; specialty 32W
lamps to 60,000 hours)
l 2AP Length Dimensions will increase by 4.2”.
LED VS FLUORESCENT WATTAGE & DELIVERED LUMENSjk
LED WATT LUMENS L/W FLUORESCENT LUMENS L/W
18W 2557 150 40W 1x40W BX 2471 63
28W 3775 144 55W 1x55W BX 3766 65
34W 5075 149 56W 2x28T5 4676 71
45W 5562 137 64W 2x32T8 4772 80
55W 7577 144 108W 2x54T5HO 8088 67
60W 7618 132 120W 2x60T12HO 6965 56
80W 11140 137 162 3x54T5HO 11619 65
Energy Savings
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L5
LAL/LALxE/LALC SERIES
ORDERING INFORMATION
j See Logic Notes for Options
k Shipping weights
l See dimensional detail.
m Standard Power Lumens
n Use 75°C Minimum Supply Wire @ 40°C; Use 90°C Wire at 55° or 65°C
o 55°C or 65°C where listed
p T-Codes for 55°C or 65°C reect maximum internal or external temperatures.
However, E13 or E26 Emergency units are limited to 50°C ambient to protect
electronics and batteries.
LAL
LED LUMEN LIFE L70 CALCULATED L70 TM-21**
40°C Ambient 212,000 Hours to 70% Initial 60,600 Hours Official Reported
55°C/65°C Ambiento99,600 Hours to 70% Initial 60,400 Hours Official Reported
LALC
LED LUMEN LIFE L70 CALCULATED L70 TM-21**
Extra High L/W Models
278,000 Hours to 70% Initial 72,600 Hours Official Reported
High L/W Models 270,000 Hours to 70% Initial 60,100 Hours Official Reported
50W High L/W Models
190,000 Hours to 70% Initial 60,300 Hours Official Reported
** TM-21 based values require very long duration testing. IES TM-21 “official reported” is based on at least 10,000 hours of LED chip manufacturer’s LM-80 Testing at printing.
ORDERING INFORMATION AND AMBIENT SUITABILITY
C1D2 ABCD/
ZONE 2 IIC, IIB,
IIAn
C1D2n
GRPS. EFG
SIMULTANEOUS
C2D1n
GRPS. EFG IEC ZONE 2 IEC ZONE 21
CATALOG NUMBER W/
DIFFUSE LENS j
WEIGHT
LBS./
KG k
WATTS
STD.
POWER
LENGTH
l
VOLTAGE AMPS q
Lu mens
Diffuse/
Clear
40C 55C
p
65C
p
40C 55C
p
65C
p
40C 55C
p
65C
p
40°C
55°C
p
65°C
p
40°C
55°C
p
65°C
p
LAL1830D
17.9 / 8.1
18
B-32.6 (828)
120-277VAC
0.15 - 0.06 2272 / 2479
T6 T6 T5 T4A T4A T4A T4A T4A T4A T6 T6 T5 T4 T4 T4LAL1830D-L4-2AP
21.9 / 9.9 C-51 (1295)
LAL18E1330D-L4-2AP
31.9 / 14.5 C-51 (1295)
LAL2830D
17.9 / 8.1
28
B-32.6 (828)
0.23 - 0.10 3321 / 3624
T6 T6 T5 T4A T4A T4A T4A T4A T4A T6 T6 T5 T4 T4 T4LAL2830D-L4-2AP
21.9 / 9.9 C-51 (1295)
LAL28E1330D-L4-2AP
31.9 / 14.5 C-51 (1295)
LAL4530D
17.9 / 8.1
45
B-32.6 (828)
0.38 - 0.16 5054 / 5515
T6 T5 -T4A T4A T4A T4A T4A T4A T6 T5 T5 T4 T4 T4LAL4530D-L4-2AP
21.9 / 9.9 C-51 (1295)
LAL45E1330D-L4-2AP
31.9 / 14.5 C-51 (1295)
LAL6030D
18.9 / 8.6
60
B-32.6 (828)
0.50 - 0.22 7064 / 7709
T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL6030D-L4-2AP
22.9 / 10.4 C-51 (1295)
LAL60E1330D-L4-2AP
32.9 / 14.9 C-51 (1295)
LAL3430D
34.5 / 15.6
34
D-57.9 (1471)
120-277VAC
0.28 - 0.12 4517 / 4929
T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL34E1330D
44.5 / 20.2
D-57.9 (1471)
LAL34E2630D
54.5 / 24.7
D-57.9 (1471)
LAL5530D
34.5 / 15.6
55
D-57.9 (1471)
0.46 - 0.20 6864 / 7490
T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL55E1330D
44.5 / 20.2
D-57.9 (1471)
LAL55E2630D
54.5 / 24.7
D-57.9 (1471)
LAL8030D
34.5 / 15.6
80
D-57.9 (1471)
0.67 - 0.29 10110 / 11032
T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL80E1330D
44.5 / 20.2
D-57.9 (1471)
LAL80E2630D
54.5 / 24.7
D-57.9 (1471)
LAL12030D
36.5 / 16.6
120
D-57.9 (1471)
1.00 - 0.43 15090 / 16467
T6 T5 -T4A T4A -T4A T4A -T6 T5 -T4 T4 -LAL120E1330D
46.5 / 21.1
D-57.9 (1471)
LAL120E2630D
56.5 / 25.6
D-57.9 (1471)
LALC1527D
12.03 / 4.49
15
A-18.73 (476)
12-24VDC
1.3-0.6
1503 / 1640
T5 T4A -T4A T4A T4A T4A -T5 T4 - T4 T4 -LALC1530D
120-277VAC
0.15-0.06
LALC1534D
120-250VDC
0.2-0.1
LALC2027D
20
A-18.73 (476)
12-24VDC
1.7-0.8
2337 / 2550
T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -LALC2030D
120-277VAC
0.17-0.08
LALC2034D
120-250VDC
0.2-0.1
LALC2527D
25
A-18.73 (476)
12-24VDC
2.1-1.0
3019 / 3294
T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -LALC2530D
120-277VAC
0.18-0.08
LALC2534D
120-250VDC
0.2-0.1
LALC3030D 30
A-18.73 (476)
120-277VAC
0.26-0.11 2726 / 2974
T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -
LALC3530D 35
A-18.73 (476)
0.30-0.13 3261 / 3558
T5 T4A -T4A T4A T4A T4A -T5 T4 -T4 T4 -
LALC4030D 40
A-18.73 (476)
0.34-0.15 4152 / 4530
T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -
LALC4530D 45
A-18.73 (476)
0.38-0.17 5136 / 5604
T5 T5 -T4A T4A T4A T4A -T5 T5 -T4 T4 -
LALC5030D 50
A-18.73 (476)
0.42-0.18 6039 / 6590
T5 - - T4A - - T4A - - T5 - - T4 - -
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L6
LAL/LALxE/LALC SERIES

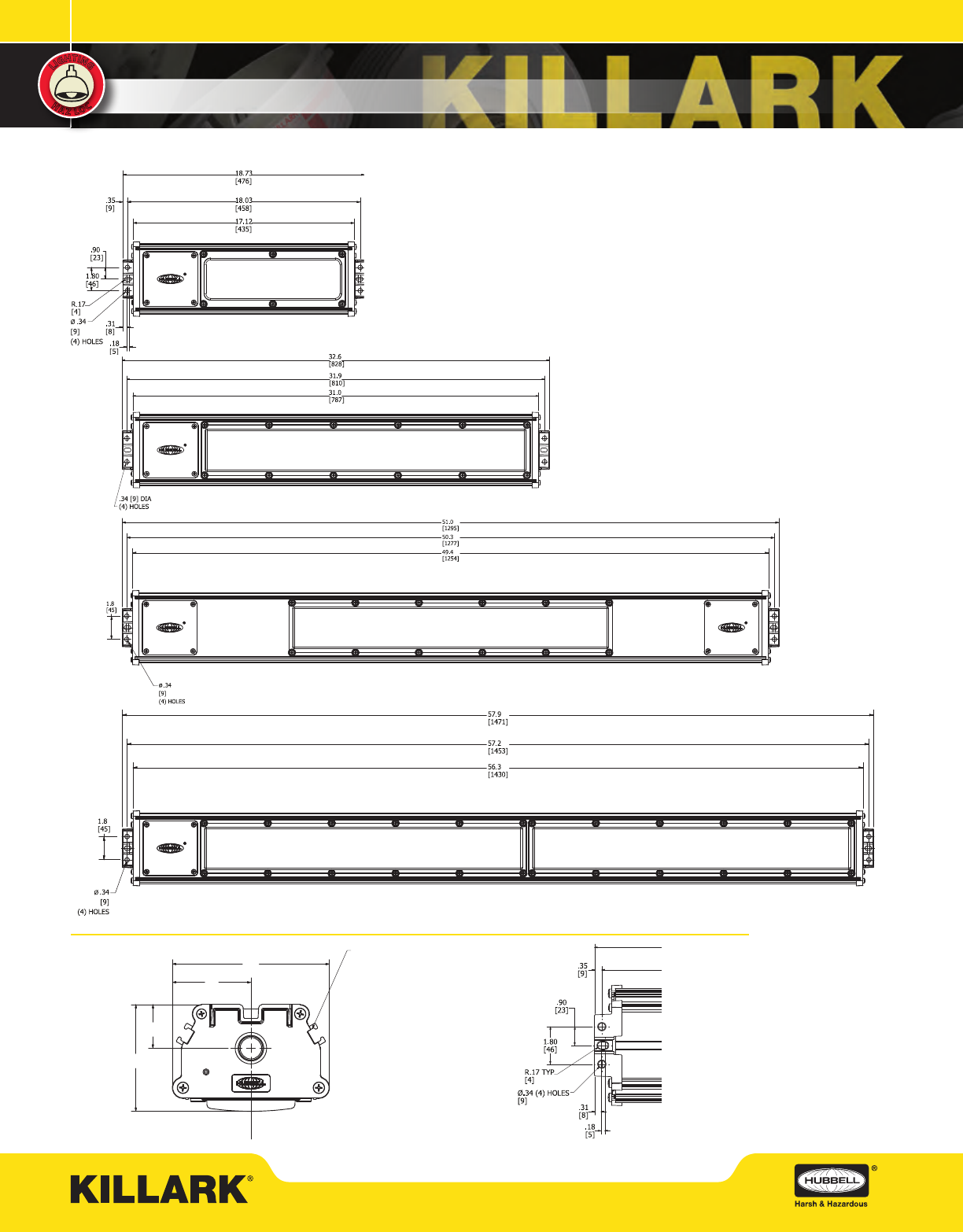

DIMENSIONS AND ACCESSORIES
B: Dimension
for Single
Lens without
Emergency
Backup (17.9
lbs.)
C: Dimension
Single Lens
with Emergency
Battery or
Extended
Model to Match
Emergency
Length
D: Dimension
Double Lens
with or without
Emergency
Battery
A: Dimensions
for LALC
3.92
[100]
1.60
[41]
5.76
[146]
2.88
[73]
T-SLOT FOR 5/16 DIA BOLT
TYP. (3) LOCATIONS
End Views
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L7
LAL/LALxE/LALC SERIES

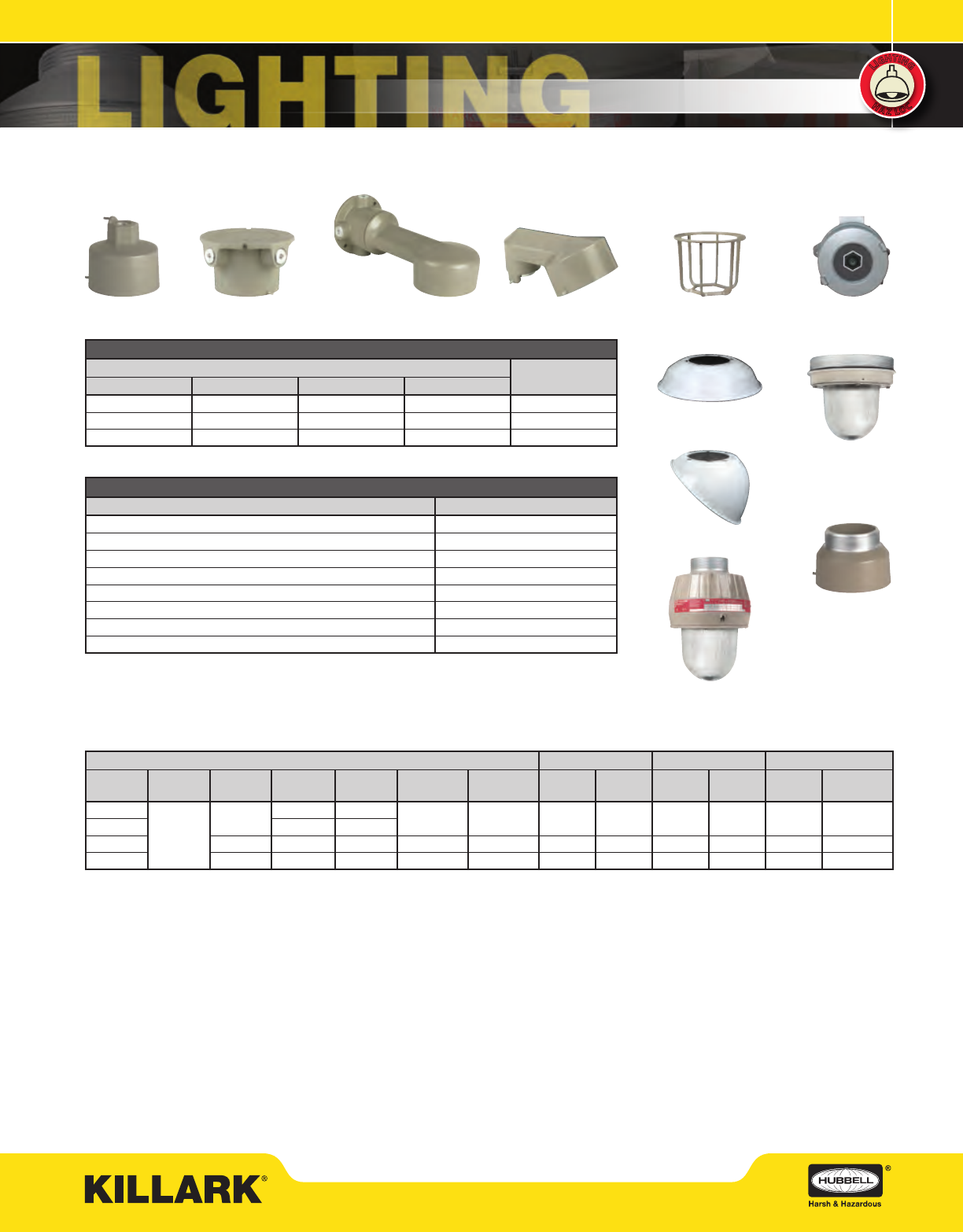

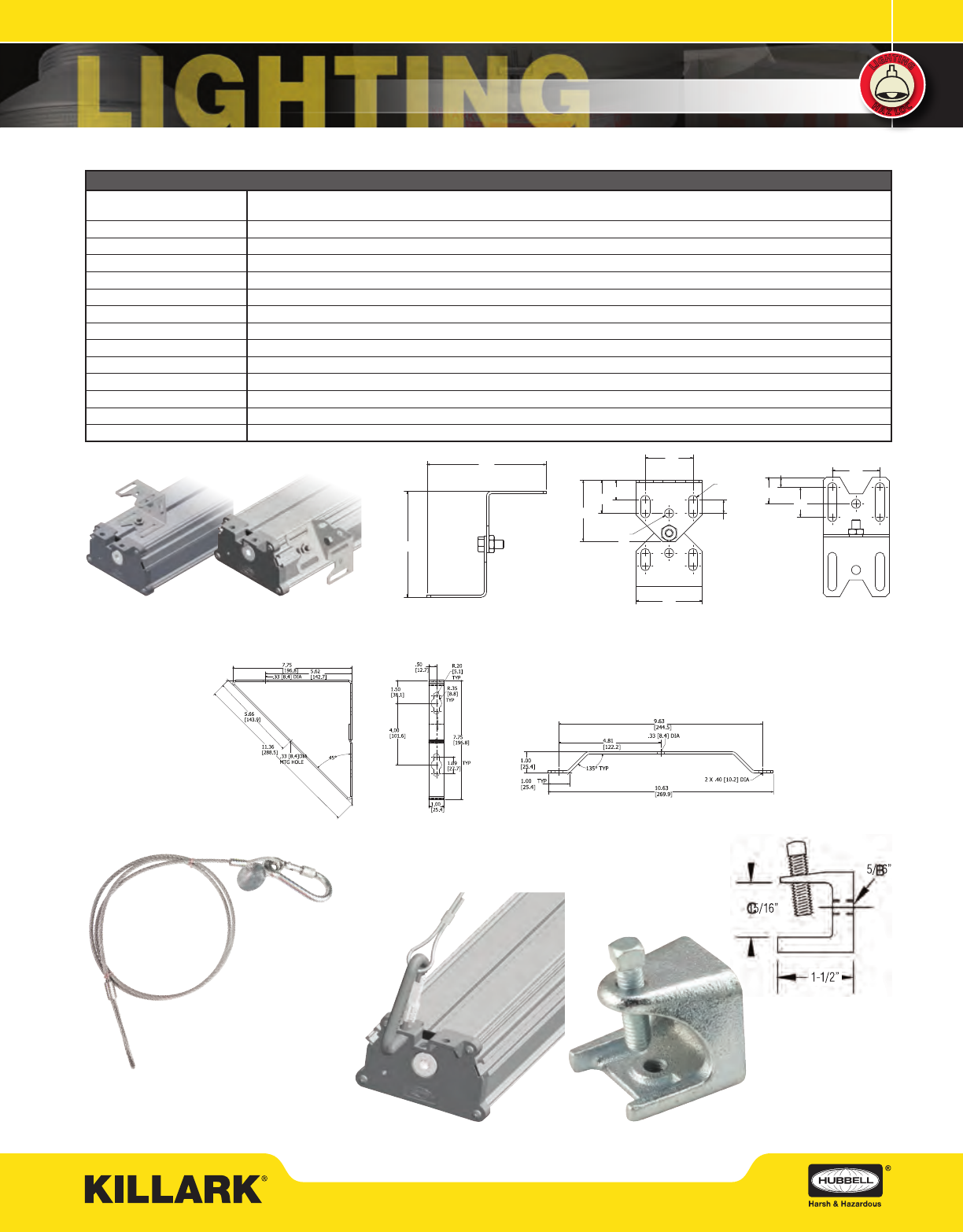

ACCESSORIES AND REPLACEMENT PARTS
LAL-BC Beam Clamp
LAL-SSC
Attached to 1 of 3 End Cap
Attachment Positions
LAL-SSC Safety Cable
j Dimensions in ( ) are millimeters.
k Product accessories have hardware for attachment to
xture; hardware to attach to wall/ceiling F.B.O.
LAL-SB on Center Slot LAL-SB on 45° Slot LAL-SB Dimensions – extended shown
4.00
[101.6]
4.50
[114.3]
1.80
[45.7]
.50
[12.7]
R.17
[4.3]
.34
[8.7]
.75
[19.1]
1.25
[31.8]
2.31
[58.7]
1.13
[28.6]
.38
[9.5]
1.00
[25.4]
2.50
[63.5]
1.80
[45.7]
4.00
[101.6]
4.50
[114.3] 1.80
[45.7]
.50
[12.7]
R.17
[4.3]
.34
[8.7]
.75
[19.1]
1.25
[31.8]
2.31
[58.7]
1.13
[28.6]
.38
[9.5]
1.00
[25.4]
2.50
[63.5]
1.80
[45.7]
4.00
[101.6]
4.50
[114.3] 1.80
[45.7]
.50
[12.7]
R.17
[4.3]
.34
[8.7]
.75
[19.1]
1.25
[31.8]
2.31
[58.7]
1.13
[28.6]
.38
[9.5]
1.00
[25.4]
2.50
[63.5]
1.80
[45.7]
l
l Un-extended height 3.25” (82.6)
Wall Bracket Setk
Part Number LZWB
Stainless Steel (natural nish)
ACCESSORIES AND REPLACEMENT PARTS: jk
LAL-SB Swivel Bracket Set w/ Adjustable Height; includes 5/16” bolts/nuts/lock-washers for attachment to LAL(C) “slots; can also be attached to
end cap mounting feet with FBO bolts.
LZCB Ceiling Bracket Set with Stainless Steel Bolts to attach to LAL(C) “slots”
LZWB Wall Bracket Set with Stainless Steel Bolts to attach to LAL(C) “slots”
LAL-BC Steel/malleable Iron with Zinc electroplate for corrosion resistance; includes Stainless Steel Bolts to attach to LAL(C) “slots”
LAL-EB Eyebolt Set with Stainless Steel Bolts to attach to LAL(C) “slots”
LAL-SSC 4’ Stainless Safety Cable Loop/Loop Spring Safety Carabiner Hook
LALG Stainless Guard for 1 LAL Lens, order two for 2 lens models
LALCG LALC Stainless Guard
LAL-LENSCLR Single Clear Lens with Gasket for LAL Series
LAL-LENSDIF Single Diffuse Lens with Gasket for LAL Series
LALC-LENSCLR Single Clear Lens with Gasket for LALC Series
LALC-LENSDIF Single Diffuse Lens with Gasket for LALC Series
LAL-RIG-CB Rig Mounting Style Ceiling Bracket
LAL-RIG-WB Rig Mounting Style Wall Bracket
-18
[23.8]
[38.1]
Ceiling Bracket Setk
Part Number LZCB
Stainless Steel (natural nish)
• 18W to 120W
• 2500 - 16000 Lumens
• 130 to 150 Lumens per Watt
• Ambient Sustainability -40°C to 55°C
• LED Array Life up to 212,000 Maintenance Free Hours
• Crisp White 5000 Kelvin Light (Noon Sunlight)
• Thermal Shock and Impact Resistant
Polycarbonate Lens
LZ Series
LINEAR LED TECHNOLOGY
for Harsh and Hazardous
Environments
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L8

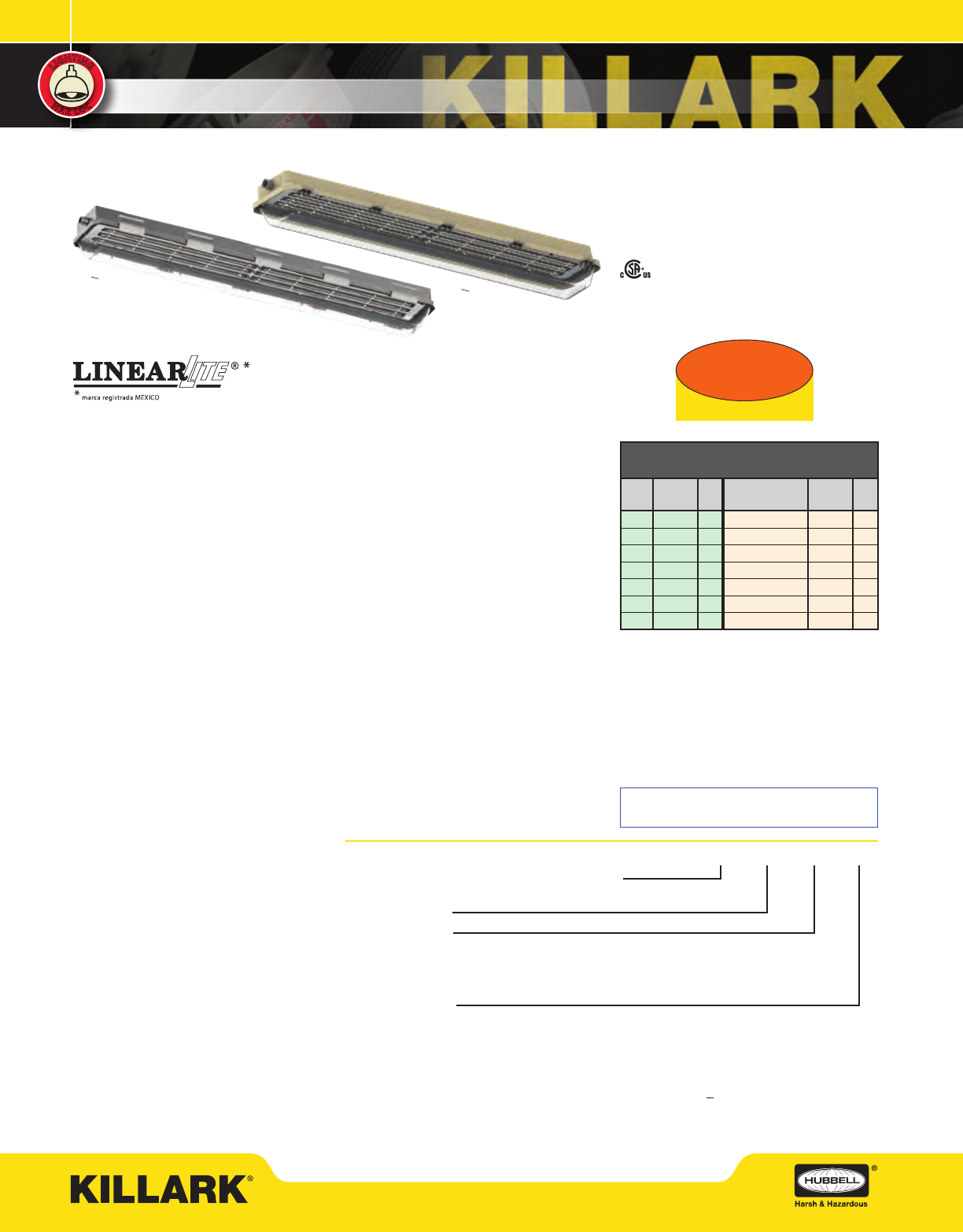

LZ2NL/LZ2SL SERIES
LZ LED INTRODUCTION & LOGIC
Applications
Linear LED Luminaires are designed for
installations where moisture, dirt, dust,
corrosion and vibration may be present, and
NEMA 3, 4X IP66 areas where wind, water,
snow or high ambients can be expected. They
can be used in locations made hazardous by
the presence of flammable vapors or gases or
combustible dusts as defined by the NEC/CEC.
ABS (American Bureau of Shipping) type
approval for use on decks, vessels, platforms,
barges, ships and boats. Also suitable for
docks and marinas.
NSF (National Sanitation Foundation) approved
for “Food Handling” areas, typically requiring
non-glass lighting.
Typical applications include manufacturing
plants, and certain chemical and petrochemical
processing facilities, sewage treatment plants, off-
shore and dockside installations, garages, storage
facilities, tunnels, and grain/food facilities.
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598(A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminaires for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X, IP66
Materials
• NEMA 44X & IP66 rated enclosure
• Housing – one piece fiberglass reinforced
polyester or 316 Stainless Steel
• Lens – Clear Lexan® impact resistant
polycarbonate lens (Lexan is a registered
trademark of SABIC)
• Two 3/4” NTP hubs – one at each end
(includes one 3/4” close-up plug and two
3/4”x1/2” reducers for maximum user
flexibility – LZ2NL hubs aluminum; LZ2SL
hubs 316 Stainless Steel
FEATURES-SPECIFICATIONS
LED Features and Standards
• Many Midpower LEDs blend light to simulate
fluorescent tube
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000K (CCT);
approx. 70 CRI
• Energy Savings – High lumens per watt
• LED Array Life – to 212,000 maintenance
free hours to 70% initial lumens
• Ambient suitability -40°C to 55°C up to
120W
• Instant On – Including after power
interruption
• World Voltage 120 - 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens – TM-
21* & Calculated Supplemental surge protection included as
standard for AC models only
LZ2NL - Series Constant
FRP Housing, Lexan Lens
or LZ2SL - Series Constant
316 Stainless Housing, Lexan Lens
Fixture Wattage
18
28
45
60
34
55
80
120
Voltage
30
– 120V-277VAC 50/60Hz 18W - 120W
33
– 347-480VAC 60Hz 28W, 55W only
34
– 125VDC - 250VDC; 120-277VAC 28W, 60W, 55W, 120W only
Options
F
– Single Fuse (1 hot leg)k
FF
– 2 Fuses (2 hot legs)k
TBL
– Terminal Blocks Looping
P1
l – 120V Photocell factory installed
P2
l – 208V-277VAC
P3
l – 347V only - 28W, 40W, 55W, 75W only
QD
– QuickDisconnect (before driver)
LZ2NL55 33 FF
Catalog Number Logic
* LM-xx & TM-xx are Illumination Engineering
Society Standards designed to promote
uniformity in testing procedures among test labs
and manufacturers.
For more information go to www.ies.org
j Group LZ2SL only for group E
k Fuses not for Canadian or Marine applications
l LZ2xL xtures with photocells are C1D2 only,
not C2D1
Class I, Div. 2, Groups A, B, C, D
Class l, Zone 2, Groups IIC, llB, llA
Class II, Div. 1 & 2, Groups Ej, F, G
AEx nAII, Ex nAII
Wet Locations
NEMA 4X, IP66
ABS
Type Approval (L32NL, L32SL)
NSF Food Handling (LZ2NL)
Certified - File LR11713
4’ styles shown
LZ2SL 316 Stainless Steel
LZ2NL Non-Metallic
LED VS FLUORESCENT WATTAGE &
DELIVERED LUMENSmn
LED
WATT LUMENS L/W FLUORESCENT LUMENS L/W
18W 2557 150 40W 1x40W BX 2471 63
28W 3775 144 55W 1x55W BX 3766 65
34W 5075 149 56W 2x28T5 4676 71
45W 5562 137 64W 2x32T8 4772 80
55W 7577 144 108W 2x54T5HO 8088 67
60W 7618 132 120W
2x60T12HO
6965 56
80W 11140 137 162 3x54T5HO 11619 65
m Cataloged Wattage in LZ2x Housing & Lens – actual
varies with driver or ballast losses – Delivered Lumens
and L/W from photometry testing
n LZ2xL L70 Life 99,600 - 212,000
LZ2x Fluorescent 10,000 - 60,000
LED array calculated L70 life depending on
ambient temperature. L70 values indicate 70% of
initial illumination after “x” hours (see next page).
Fluorescent typically operates to 20,000 hours (some
wattages as few as 10,000 hours; specialty 32W
lamps to 60,000 hours)
NON-GLASS
GROUP G
FOOD SUITABILITY
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L9
LZ2NL/LZ2SL SERIES

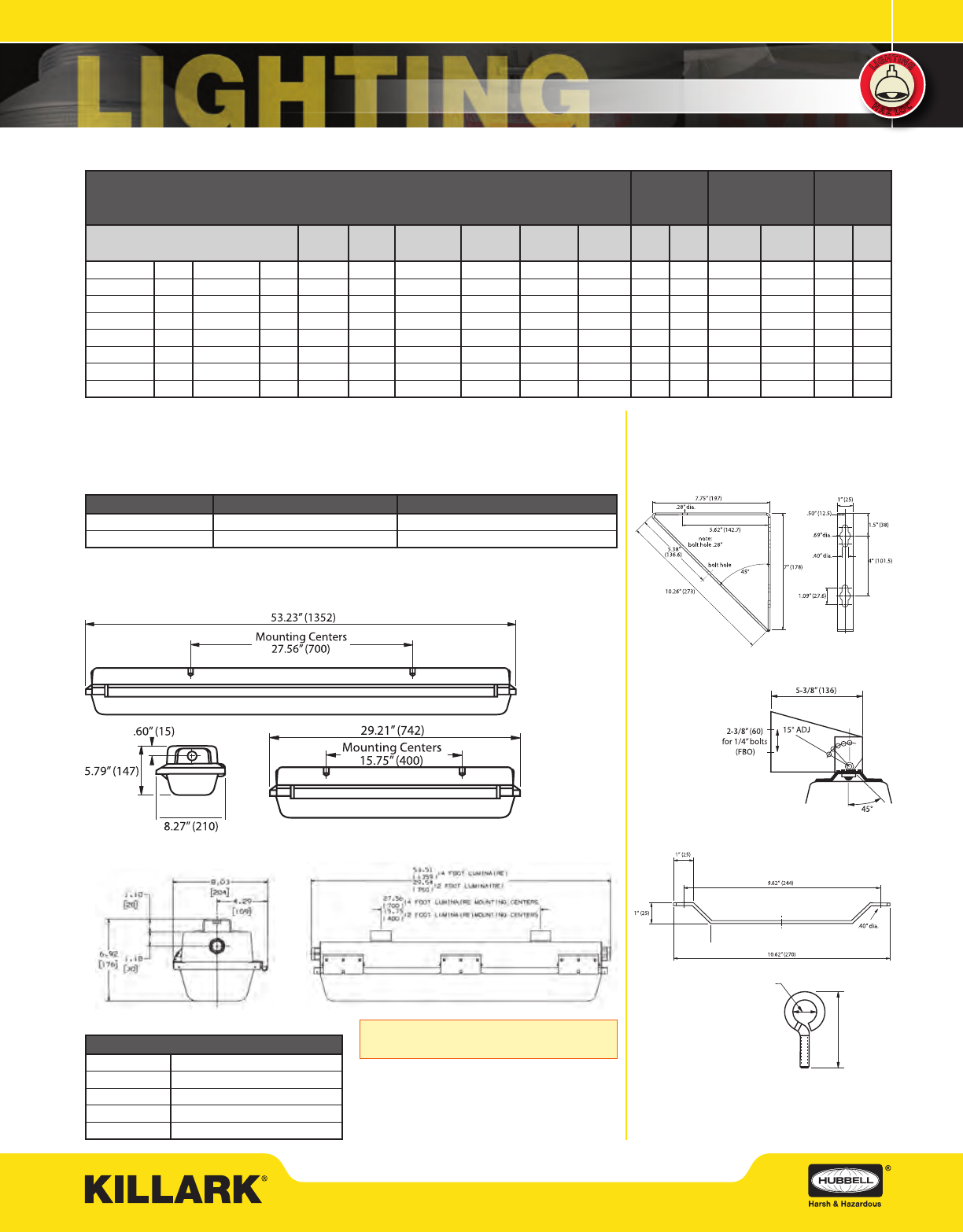

LZ SERIES – ORDERING INFORMATION & TECHNICAL DATA
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2n
C2D1n
LZ2NL GRPS. FG
LZ2SL GRPS. EFG
C1Z2n AEx
nA Ex nA
CATALOG NUMBERjk WATTAGE LENGTH/
PCBSlVOLTAGE AMPSmDELIVERED
LUMENS
LUMENS
PER WATT 40C 55C 40C 55C 40C 55C
FIBERGLASS (W T.) STAINLESS (W T.)
LZ2NL1830 12 LZ2SL1830 13 18 2’ / 2 120-277VAC 0.15 - 0.06 2557 150 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL2830 12 LZ2SL2830 13 28 2’ / 2 120-277VAC 0.23 - 0.10 3775 144 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL4530 12 LZ2SL4530 13 45 2’ / 2 120-277VAC 0.38 - 0.16 5562 137 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL6030 14 LZ2SL6030 15 60 2’ / 3 120-277VAC 0.50 - 0.22 7618 132 T4A -≤ 135°C -T4 -
LZ2NL3430 23 LZ2SL3430 24 34 4’ / 4 120-277VAC 0.28 - 0.12 5075 149 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL5530 23 LZ2SL5530 24 55 4’ / 4 120-277VAC 0.46 - 0.20 7577 144 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL8030 23 LZ2SL8030 24 80 4’ / 4 120-277VAC 0.67 - 0.29 11140 137 T5 T4A ≤ 135°C ≤ 135°C T5 T4
LZ2NL12030 25 LZ2SL12030 26 120 4’ / 6 120-277VAC 1.00 - 0.43 16010 132 T4A -≤ 135°C -T4 -
j Dimensions in ( ) are millimeters.
kProduct accessories have hardware for attachment to
xture; hardware to attach to wall/ceiling F.B.O.
NOTE: Eyebolts are 316 Series, brackets are 300 Series
Stainless Steel.
approx.
1-3/4“
(44.4)
1/4“ (20)
1/2“ (12)
Eyebolt Set
Part Number LZEB
Stainless Steel bolt
with lockwasher & nut
(natural nish)
Suspension Chains (2 required)
Part Number HFX-SC
36” length plated steel chain with snap link ends
For use with LZEB
j See logic for additional voltages and options
k Shipping weights approximate
l Length is nominal, see dimensional detail. PCB noted quantity used per xture wattage
m Amperage measured at 120VAC; 277VAC calculated
n Use 60°C Minimum Supply Wire at 40°C Ambient except 120W; 75°C Wire at 55° Ambient and all 120W
* Mounting Centers are 1/4-20” tapped for
user all thread rod or below accessories.
LED LUMEN LIFE L70 CALCULATED L70 TM-21**
40°C Ambient 212,000 Hours to 70% Initial 60,600 Hours Official Reported
55°C Ambient 99,600 Hours to 70% Initial 60,400 Hours Official Reported
** TM-21 based values require very long duration testing. IES TM-21 “official reported” is based on at least 10,000
hours of LED chip manufacturer’s LM-80 Testing at printing.
REPLACEMENT PARTS:
LZ2N4LENS 4’ Lens only LZ2NL/LZ2SL
LZ2N2LENS 2’ Lens only LZ2NL/LZ2SL
LZ2N4BAR 4’ Locking Bar only LZ2NL
LZ2N2BAR 2’ Locking Bar only LZ2NL
LZ2S-LATCH Latch and Spring LZ2SL
Mounting Accessories
For All LZ2NL & LZ2SL Series
bolt hole
.33”
Ceiling Bracket Setk
Part Number LZCB
Stainless Steel (natural nish)
.33”
Wall Bracket Setk
Part Number LZWB
Stainless Steel (natural nish)
*
Dimensions LZ2NL Series
*
j
Dimensions LZ2SL Series
j
Adjustable Wall Bracket Setk
Part Number LZAB
Stainless Steel bracket
with ceramic coated
pivot bolt
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L10

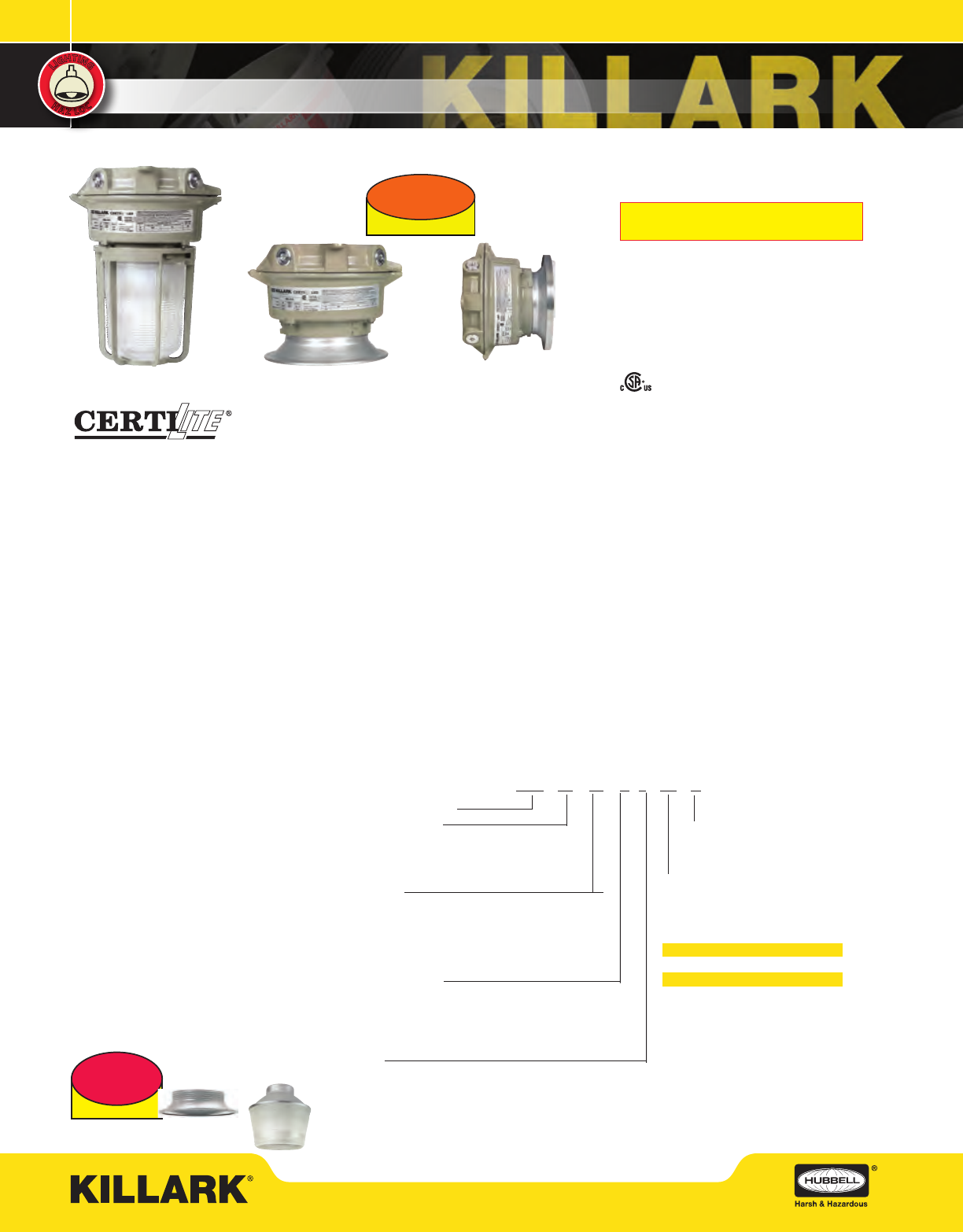

MBL SERIES
COMPACT SIZE – INTRODUCTION & LOGIC
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 1 & 2, Groups E,F,G
Class III
Suitable for wet locations
Marine Rated (US only)
NEMA 3, 4X
Applications
CERTILITE® MBL LED fixtures are designed for
installations where moisture, dirt, dust, corrosion
and vibration may be present, or NEMA 3 and 4X
areas where wind, water, snow or high ambients can
be expected. They can be used in locations made
hazardous by the presence of flammable vapors or
gases or combustible dusts as defined by the NEC.
Typical applications can low ceiling areas in
manufacturing plants, and certain chemical and
petrochemical processing facilities, sewage
treatment plants, off-shore and dockside
installations, garages and storage facilities.
Compliances
• UL-8750 for LED lighting; UL 1598A
• UL Marine type lighting fixtures
UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2; Class
II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric luminaries
for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X
Materials
• Ballast tank, splice box and guards (MBAG, VMAG)
corrosion resistant copper-free aluminum alloy
• Baked powder epoxy/polyester finish,
electrostatically applied for complete, uniform
corrosion protection
• All external hardware - stainless steel
• Reflectors - Polyester reinforced fiberglass
LED Luminaire Features and
Standards
• Compact in Size with Traditional Industrial
Appearance and Suitability
• Wide variety of optics including globes, globes
with reflectors, all-glass refractors, and spin-top
refractors
• Optional Mounting arrangements including
Pendant, Wall, Ceiling, and Stanchion
• MBL LED Housings can be retrofitted to existing
MB splice boxes; upgrade from Fluorescent or HID
• Energy Savings – Less than 50 Watts of Power;
25 Watts for MBL2230
• Long Life up to 100,000+ maintenance free hours
to 70% initial lumens
• Crisp White Light for Excellent Color Rendering -
Chromaticity 5000°K (CCT); 70 CRI
• Ambient suitability -40°C to 40°C (to 55°C for
14W to 22W)
• Instant on – Including after power interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections – Vibration
Resistant
• Dual Drivers 40W, 45W, 50W – Redundant
Systems (built-in backup), or for additional
energy savings half of MBL4530 can be turned
offj
• LM80-08* Measurement of lumen maintenance
for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values - Industry Nomenclature for Hours of
use to 70% of Initial Lumens (TM-21+ Cal.)
Catalog Number Logic
Housing Series
LED Wattagej
14 - 14W 22 - 22W 45 - 45W
17 - 17W 25 - 25W 50 - 50W
20 - 20W 40 - 40W
Guard
N
– No Guard
G
– Guard
MBL 45 30 A 2 R5 G
Mounting Style
A
– Pendant
X
– Ceiling
B
– Wall
D
– Stanchion 25°
Entry
2
– 3/4” NPT (A, X, B)
3
– 1” NPT (A, X, B)
4
– 1-1/4” NPT (D only)
5
– 1-1/2” NPT (D only)
8
– M20 4 hub (X only)
LED
* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among
test labs and manufacturers. For more information go to www.ies.org
Voltage
05 - 480VACl
15 - 347VACl
27 - 12-24VDC
30 - 120-277VAC (20-40W only)
34 - 120-250VDC (20, 25, 40W only)
Optic
GL
– Globe (MBG)
R5
– Type 5 Glass Refractor
S8
– 8” Spin-top Type V Refractor
S5
– 12” Spin-top V Refractor
P5
– 12” Poly Spin-top V Refractor
GF
– 8” Glass Flat Lensk
PF
– 8” Polycarbonate Flat Lensk
Options
CP
– Component Pack (housing, mount,
Optic, Guard if selected)
AN
– Assembled Fixture
(components as selected)
j 14W - 25W use single driver
k 14W - 25W only for 8” at lens
l Single step-down transformer feeds
driver(s)
Luminaire w/Glass Refractor and
Guard Wall Mount w/VZRF8PR Pathway
Reector
Luminaire w/Flat Lens
NEW!
NON-
GLASS
FOOD SUITABILITY
Non-Glass
Polycarbonate 8”
Flat Lens or Spin-top
Patented Design
Expanded wattage range RANGE
14W, 17W, 20W, 25W, 40W, 45W, 50W
TECHNOLOGY
LED
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L11

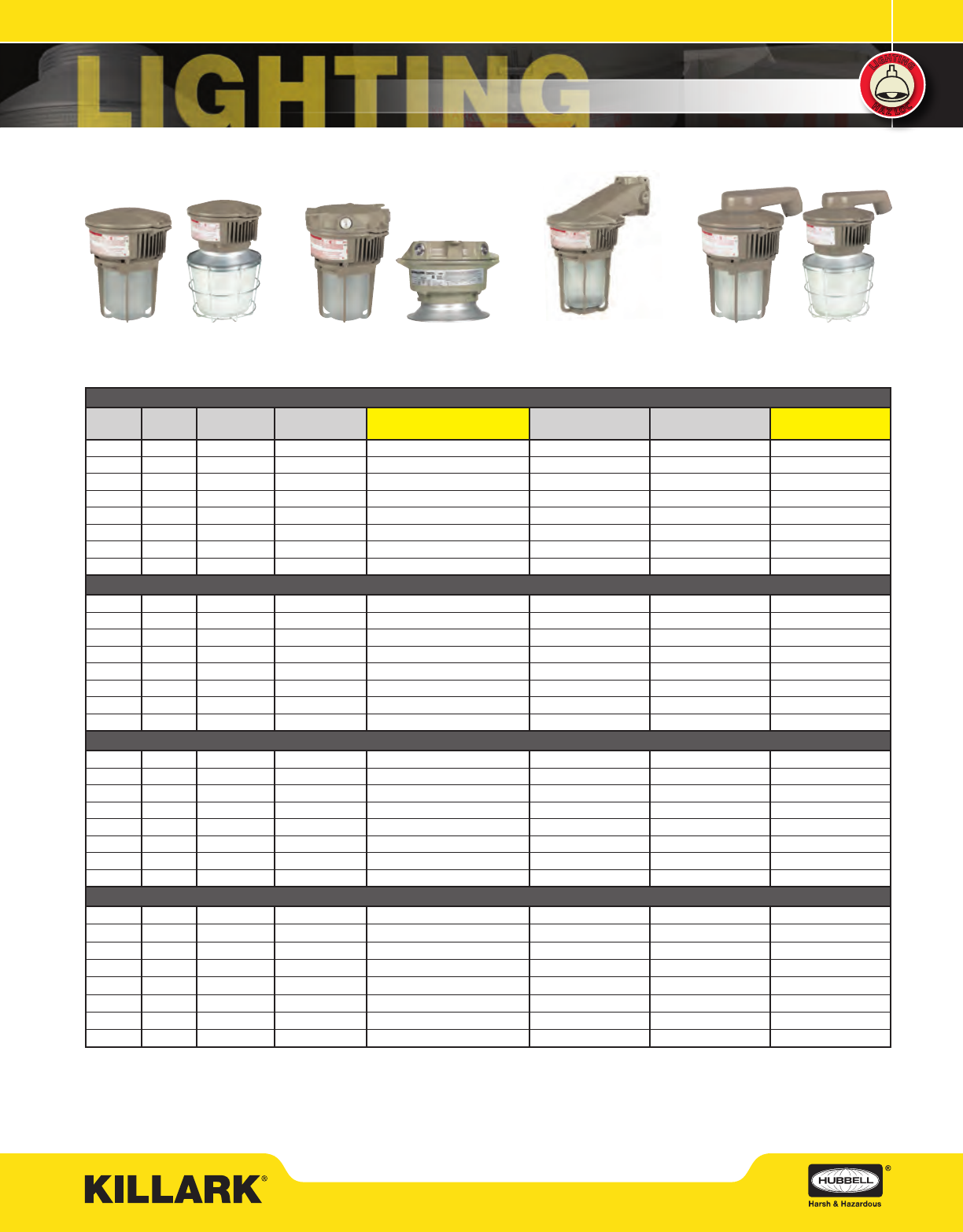

MBL SERIES
COMPACT SIZE – ORDERING INFORMATION
PENDANT WALL
j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. MBL2230A2GLN
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. MBL2230A3GLG
l 120VAC through 277VAC 50/60Hz
m Catalog numbers shown are with 1-1/4” conduit openings; change “4” to “5” for 1-1/2” e.g. MBL2230D5GLG
* For Glass 8” Spin-top Flat Lens, change PFN to GFN at end of catalog number
CEILING STANCHION
ORDERING INFORMATION
MBL SERIES PENDANT WITH OPTIC AND GUARD
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD 8” SPIN-TOP POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
14 3/4” 120-277VAC MBL1430A2GLG MBL1430A2PFN MBL1430A2R5G MBL1430A2S8G MBL1430A2S5G
17 3/4” 120-277VAC MBL1730A2GLG MBL1730A2PFN MBL1730A2R5G MBL1730A2S8G MBL1730A2S5G
20 3/4” 120-277VAC MBL2030A2GLG MBL2030A2PFN MBL2030A2R5G MBL2030A2S8G MBL2030A2S5G
22 3/4” 120-277VAC MBL2230A2GLG MBL2230A2PFN MBL2230A2R5G MBL2230A2S8G MBL2230A2S5G
25 3/4” 120-277VAC MBL2530A2GLG MBL2530A2PFN MBL2530A2R5G MBL2530A2S8G MBL2530A2S5G
40 3/4” 120-277VAC MBL4030A2GLG -MBL4030A2R5G MBL4030A2S8G MBL4030A2S5G
45 3/4” 120-277VAC MBL4530A2GLG -MBL4530A2R5G MBL4530A2S8G MBL4530A2S5G
50 3/4” 120-277VAC MBL5030A2GLG -MBL5030A2R5G MBL5030A2S8G MBL5030A2S5G
MBL SERIES CEILING WITH OPTIC AND GUARDj
14 3/4” 120-277VAC MBL1430X2GLG MBL1430X2PFN MBL1430X2R5G MBL1430X2S8G MBL1430X2S5G
17 3/4” 120-277VAC MBL1730X2GLG MBL1730X2PFN MBL1730X2R5G MBL1730X2S8G MBL1730X2S5G
20 3/4” 120-277VAC MBL2030X2GLG MBL2030X2PFN MBL2030X2R5G MBL2030X2S8G MBL2030X2S5G
22 3/4” 120-277VAC MBL2230X2GLG MBL2230X2PFN MBL2230X2R5G MBL2230X2S8G MBL2230X2S5G
25 3/4” 120-277VAC MBL2530X2GLG MBL2530X2PFN MBL2530X2R5G MBL2530X2S8G MBL2530X2S5G
40 3/4” 120-277VAC MBL4030X2GLG -MBL4030X2R5G MBL4030X2S8G MBL4030X2S5G
45 3/4” 120-277VAC MBL4530X2GLG -MBL4530X2R5G MBL4530X2S8G MBL4530X2S5G
50 3/4” 120-277VAC MBL5030X2GLG -MBL5030X2R5G MBL5030X2S8G MBL5030X2S5G
MBL SERIES WALL WITH OPTIC AND GUARDj
14 3/4” 120-277VAC MBL1430B2GLG MBL1430B2PFN MBL1430B2R5G MBL1430B2S8G MBL1430B2S5G
17 3/4” 120-277VAC MBL1730B2GLG MBL1730B2PFN MBL1730B2R5G MBL1730B2S8G MBL1730B2S5G
20 3/4” 120-277VAC MBL2030B2GLG MBL2030B2PFN MBL2030B2R5G MBL2030B2S8G MBL2030B2S5G
22 3/4” 120-277VAC MBL2230B2GLG MBL2230B2PFN MBL2230B2R5G MBL2230B2S8G MBL2230B2S5G
25 3/4” 120-277VAC MBL2530B2GLG MBL2530B2PFN MBL2530B2R5G MBL2530B2S8G MBL2530B2S5G
40 3/4” 120-277VAC MBL4030B2GLG -MBL4030B2R5G MBL4030B2S8G MBL4030B2S5G
45 3/4” 120-277VAC MBL4530B2GLG -MBL4530B2R5G MBL4530B2S8G MBL4530B2S5G
50 3/4” 120-277VAC MBL5030B2GLG -MBL5030B2R5G MBL5030B2S8G MBL5030B2S5G
MBL SERIES 25O STANCHION WITH OPTIC AND GUARDj
14 1-1/4”m120-277VAC MBL1430D4GLG MBL1430D4PFN MBL1430D4R5G MBL1430D4S8G MBL1430D4S5G
17 1-1/4”m120-277VAC MBL1730D4GLG MBL1730D4PFN MBL1730D4R5G MBL1730D4S8G MBL1730D4S5G
20 1-1/4”m120-277VAC MBL2030D4GLG MBL2030D4PFN MBL2030D4R5G MBL2030D4S8G MBL2030D4S5G
22 1-1/4”m120-277VAC MBL2230D4GLG MBL2230D4PFN MBL2230D4R5G MBL2230D4S8G MBL2230D4S5G
25 1-1/4”m120-277VAC MBL2530D4GLG MBL2530D4PFN MBL2530D4R5G MBL2530D4S8G MBL2530D4S5G
40 1-1/4”m120-277VAC MBL4030D4GLG -MBL4030D4R5G MBL4030D4S8G MBL4030D4S5G
45 1-1/4”m120-277VAC MBL4530D4GLG -MBL4530D4R5G MBL4530D4S8G MBL4530D4S5G
50 1-1/4”m120-277VAC MBL5030D4GLG -MBL5030D4R5G MBL5030D4S8G MBL5030D4S5G
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L12
MBL SERIES

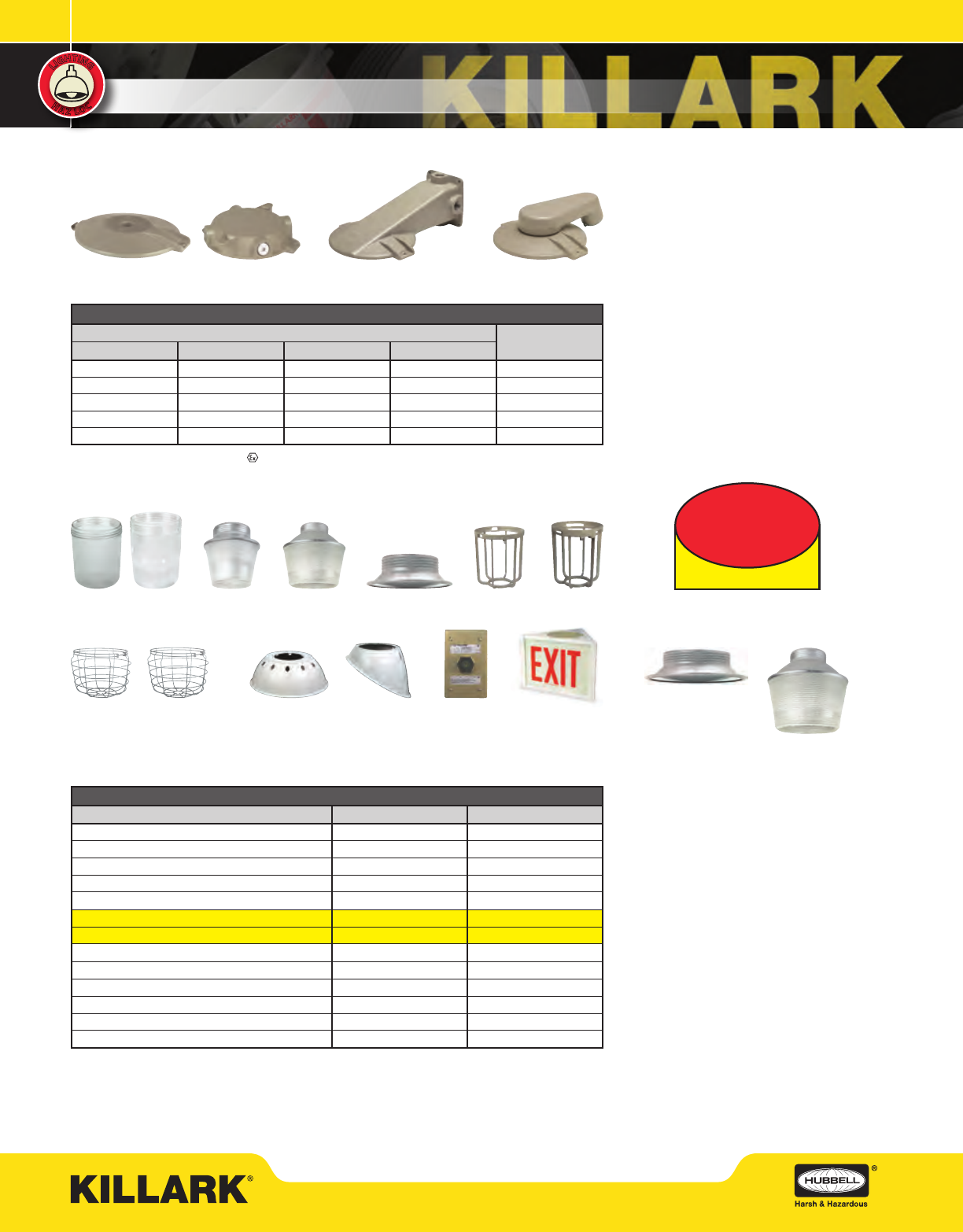

COMPACT SIZE – COMPONENTS
WallPendant Ceiling Stanchion
MBG
VMRWG8n
VZRG1550 VZRG2550
VZRP175
VMAG17
VMR175 VZRGF8
VZRPF8
VMRWGSnVMPA-17VMPSD-17 VMFSPC1
MBAG
j14-25W only
kReectors for use with MBG/MBAG only; VMG17 globe with VMAG17 guard will t without reector.
VEXA100B
NEW!
NON-
GLASS
FOOD SUITABILITY
Non-Glass Polycarbonate
8” Flat Lens or Spin-top
Patented Deisgn

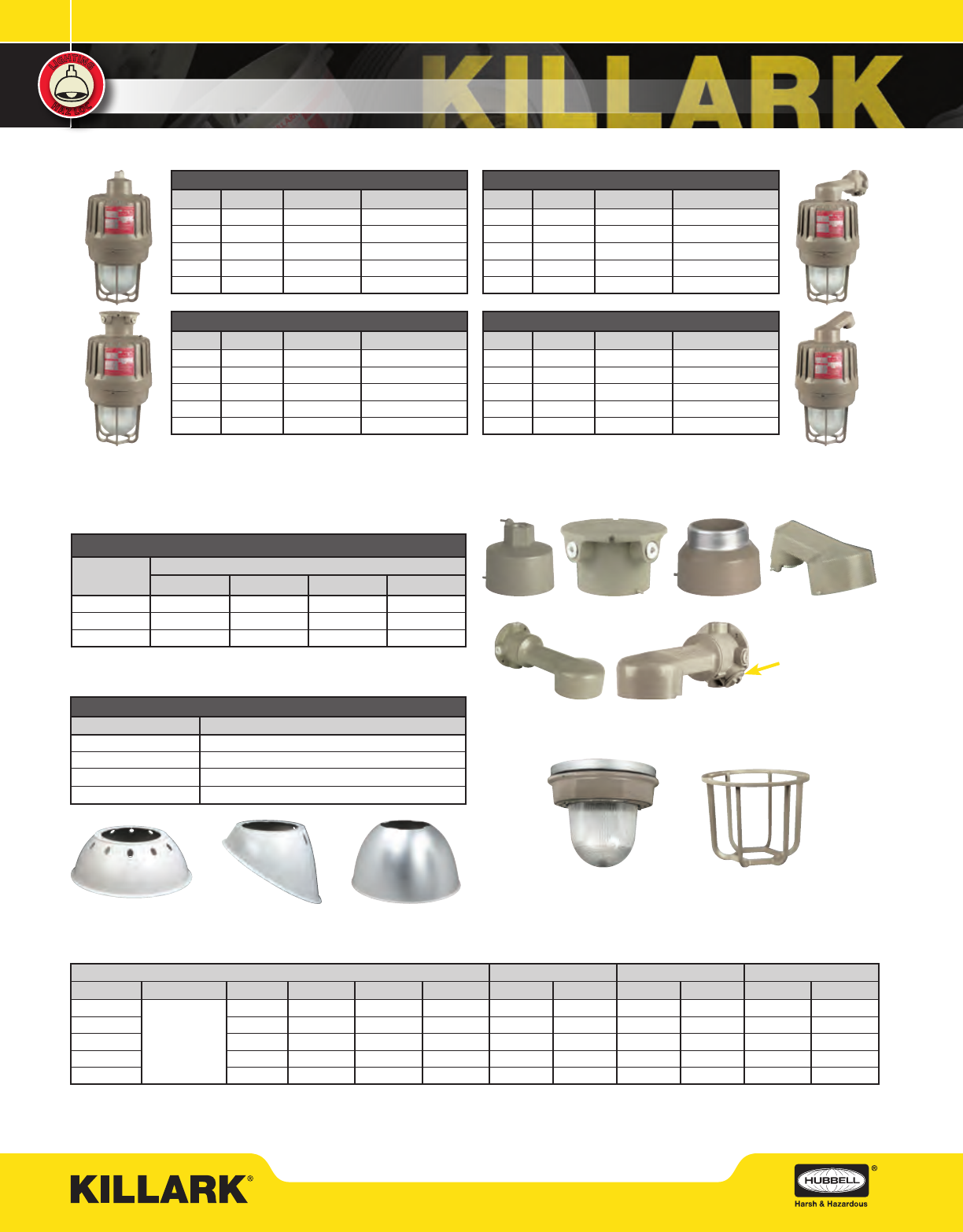

MB MOUNTING BRACKETS
CATALOG NUMBER HUB SIZE
PENDANT CEILING WALL STANCHION
MBA-2 MBX-2 MBB-2 —3/4”
MBA-3 MBX-3 MBB-3 —1”
—MBX-8* ——M20
———MBD-4 1-1/4”
———MBD-5 1-1/2”
* MBX-8 furnished with 3 non-metallic plugs

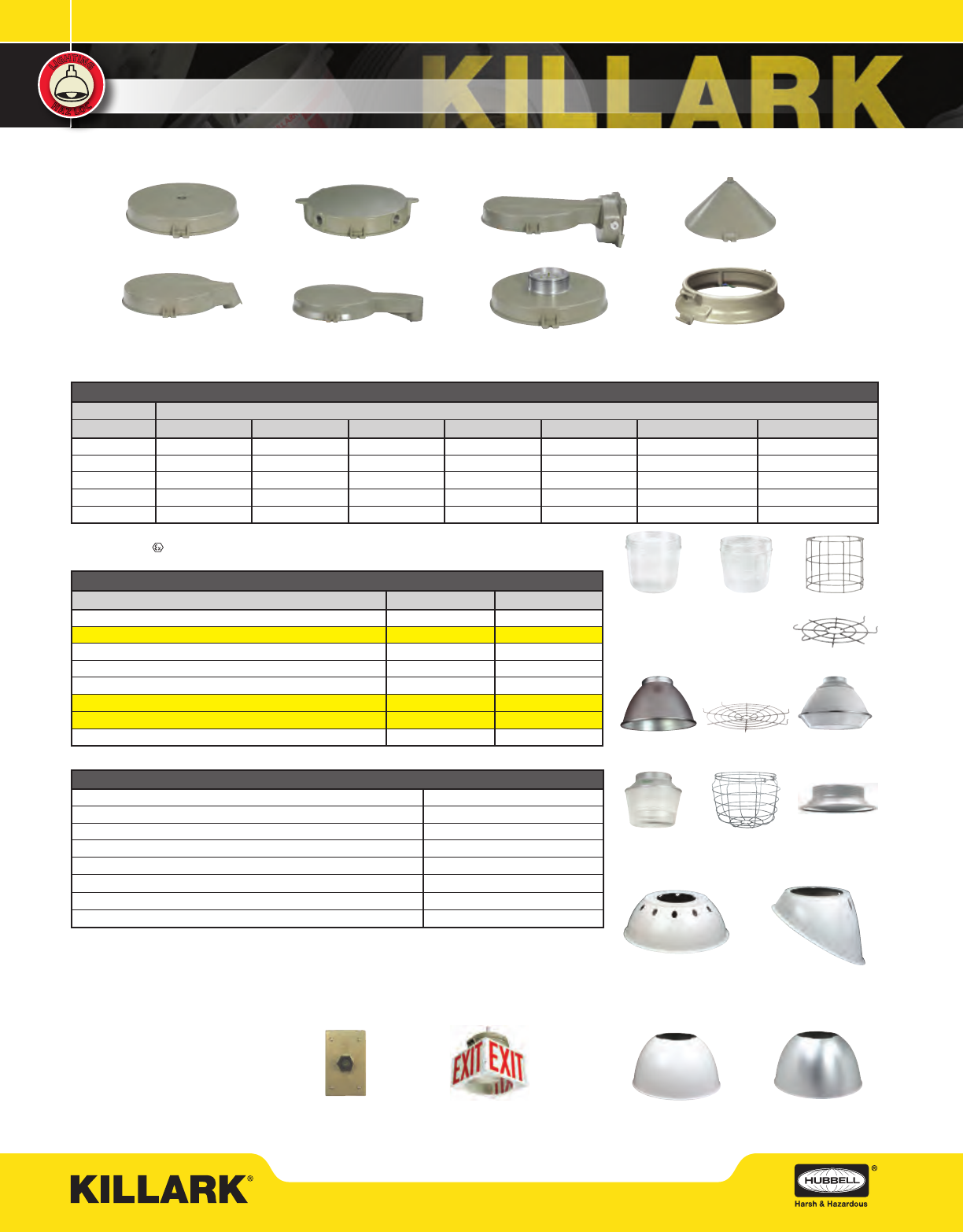

MBL LED OPTICS AND ACCESSORIES
DESCRIPTION OPTIC LOGIC GUARD
Globe (glass) MBG (GL) MBAG
Refractor (all glass) Type V VMR175 (R5) VMAG17
Refractor (spin top) 8”Type V V Z R G 15 5 0 (S 8) VMRWG8
Refractor (spin top) 12”Type V VZRG2550 (S5) VMRWGS
8” Spin-top flat lens (glass)jVZRGF8 (GF) VZRF8GRD
8” Spin-top flat lens (polycarbonate)jVZRPF8 (PF) VZRF8GRD
Refractor polycarbonate (spin -top) 12” Type V VZRP175 (P5) VMRWGS
Pathway Reflectorj VZRF8PR NA
Reflector for MBG Globe - DOMEkVMPSD-17 NA
Reflector for MBG Globe - ANGLEkVMPA-17 NA
120VAC Photocell with FS Style Cover VMFSPC1 NA
208-277VAC Photocell with FS Style Cover VMFSPC2 NA
3-sided EXIT Accessory (use without guard) VEXA100B NA
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L13

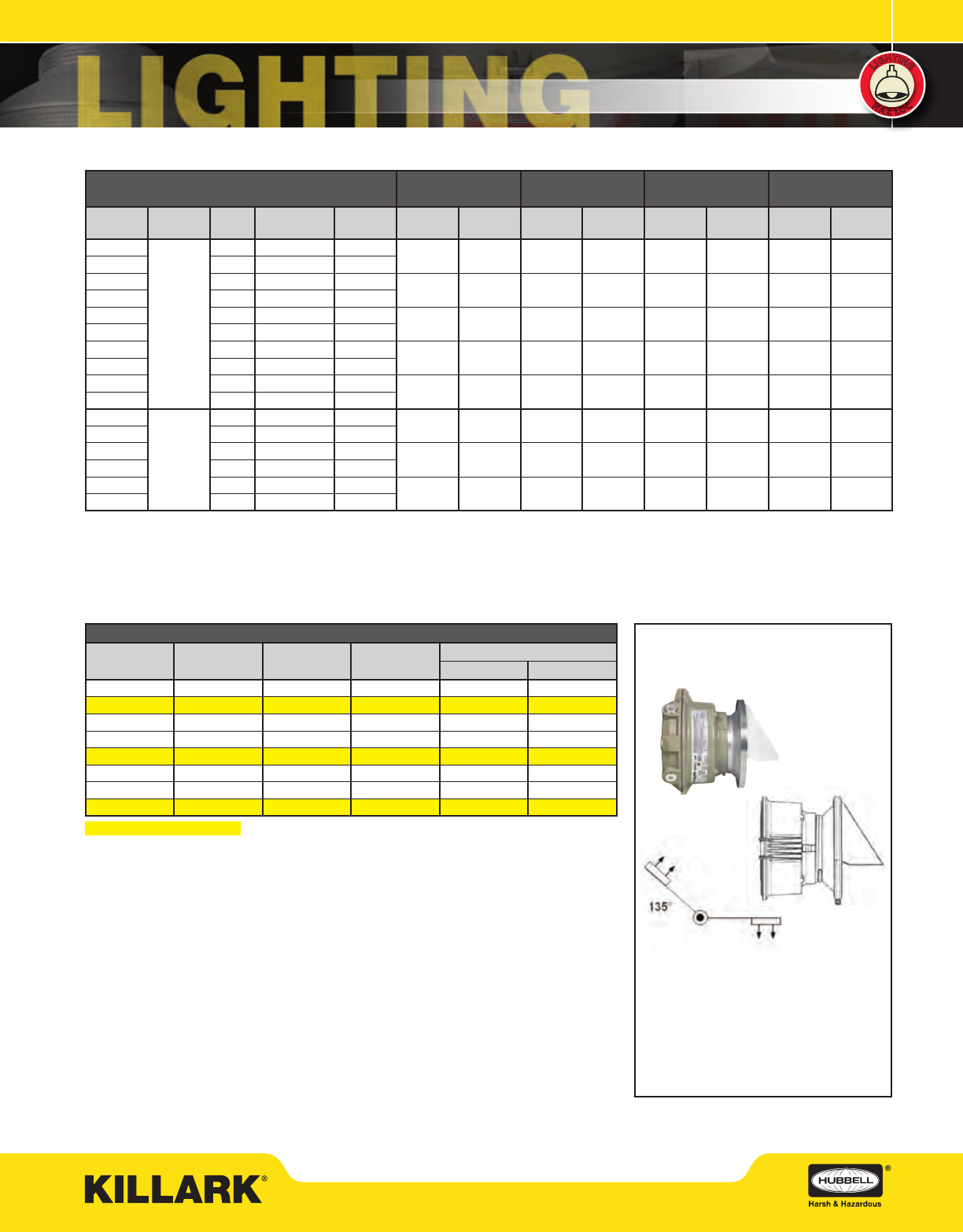

MBL SERIES
COMPACT SIZE – RATINGS, SPECIAL AIMING ANGLES
j Driver THD<20%, Powerfactor 99% @ 120V; Line Regulation 2%; Load regulation 5%; Protected against Over-voltage and Over-current.
k Weights are shown are MBL tank only.
l TM-21 based values require very long duration testing. The TM-21/L70 “official reported” value is at least 10,000 hours testing (at time of printing) at 1000mA to 1500mA
drive current, depending on LED chip utilized -”Reported L70” is a factor of test duration. KILLARK’s MBL series utilizes lower 350mA or 700mA maximum drive current -
“calculated” values by the major chip vendors utilized predict L70 life up to 278,000+ hours even at 1000mA.
m Use 75°C minimum supply wire @ 40°C; use 90°C supply wire @ 55°C.
14W-25W MBL Housings with 8” Flat
Spin-Top Lens may be aimed from 135° to
0° with or without the VZRF8PF Pathway
Reflector. Pathway Reflector must NOT
be aimed upwards in a Class II (Dust)
environment, or where any contaminant
may be collected. Applications include
tunnels, lighting dark spots around ceiling
piping or pathways near handrails.

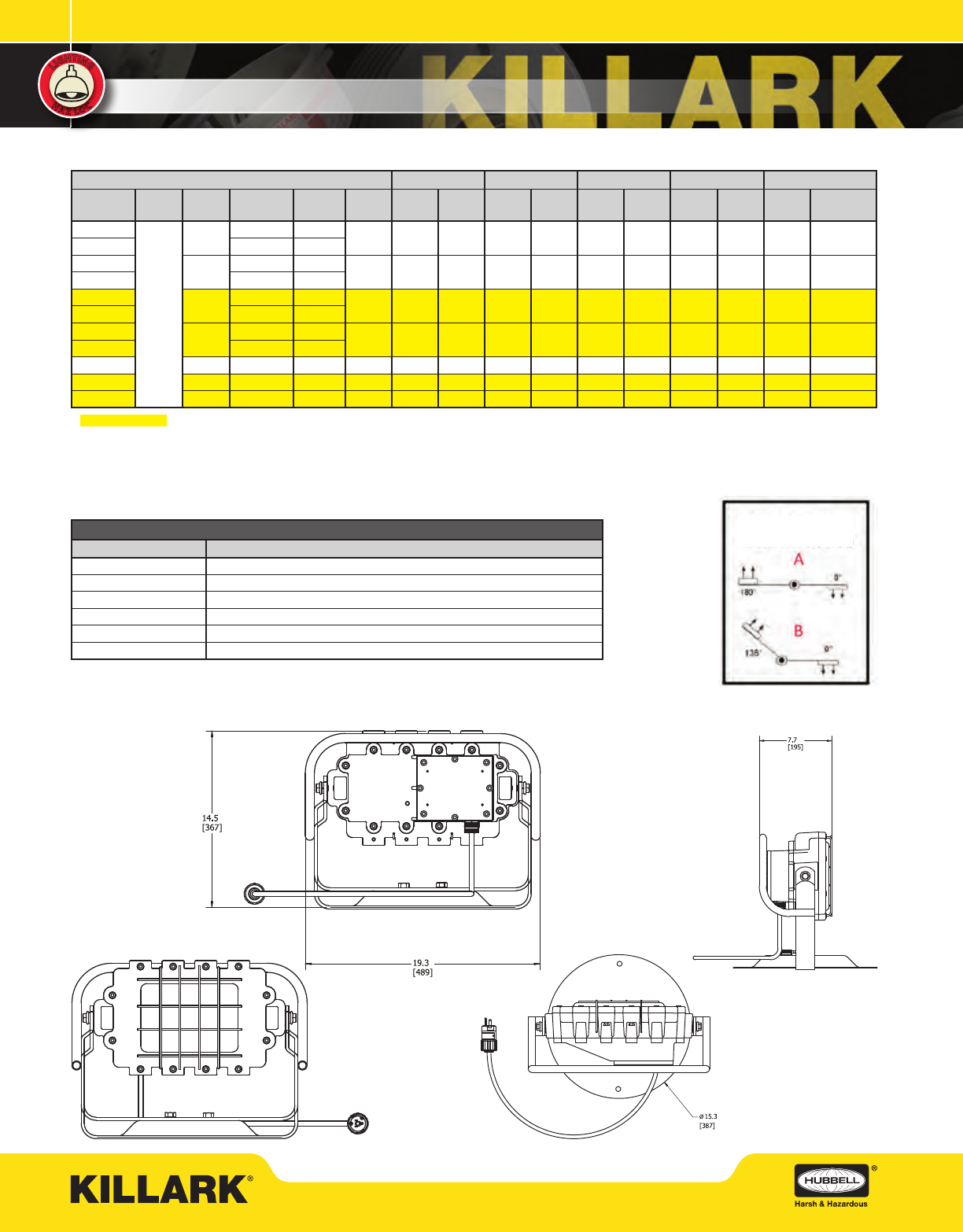

Special Aiming Angles
Wall Mount MBL with Pathway
Reector
Extra high lumen per watt LED’s
* Values indicated are estimates; LM-79 Absolute Photometry testing is in progress.
ORDERING INFORMATION AND AMBIENT
SUITABILITY C1D2 OPTIC ONLY ABCD W/
REFLECTOR C2D1 OPTIC ONLY EFG W/REFLECTOR
CATALOG
NO.
WEIGHT
LBS./KG WATTS VOLTAGE AMPS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C
MBL1427
10.00 / 4.54
14 12-24VDC 1.17-0.58 T5 T4A T4 T3B T4A T4A T4A T4A
MBL1430 14 120-250VDC 0.12-0.05
MBL1727 17 12-24VDC 1.42-0.71 T5 T5 T5 T5 T4 T4 T4 T4
MBL1730 17 120-250VDC 0.14-0.06
MBL2027 20 12-24VDC 1.67-0.83 T5 T5 T5 T5 T4 T4 T4 T4
MBL2030 20 120-250VDC 0.17-0.07
MBL2227 22 12-24VDC 1.83-0.92 T4A T4 T4A T4 T4 T4 T4 T4
MBL2230 22 120-250VDC 0.18-0.08
MBL2527 25 12-24VDC 2.08-1.04 T5 T5 T5 T5 T4 T4 T4 T4
MBL2530 25 120-250VDC 0.21-0.09
MBL4027
15.5 / 7.03
40 12-24VDC 3.33-1.67 T5 -T5 -T4 -T4 -
MBL4030 40 120-250VDC 0.33-0.14
MBL4527 45 12-24VDC 3.75-1.88 T4A -T4A -T4 -T4 -
MBL4530 45 120-250VDC 0.38-0.16
MBL5027 50 12-24VDC 4.17-2.08 T5 -T5 -T4 -T4 -
MBL5030 50 120-250VDC 0.42-0.18
TOTAL LUMEN OUTPUT
WATTAGE MBL + MBG MBL + VMR MBL + VZRXF8 L70
TM-21lCALCULATED
14 910 800* 980* 60100 270000
17 1650 1485* 2040* 72600 278000
20 1785 1570* 2009* 60100 270000
22 1365 1201* 1427* 60100 270000
25 2485 2236* 3186* 72600 278000
40 3625 3821 -60100 270000
45 2940 2955 -60100 270000
50 5824* 6139 -72600 278000
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM

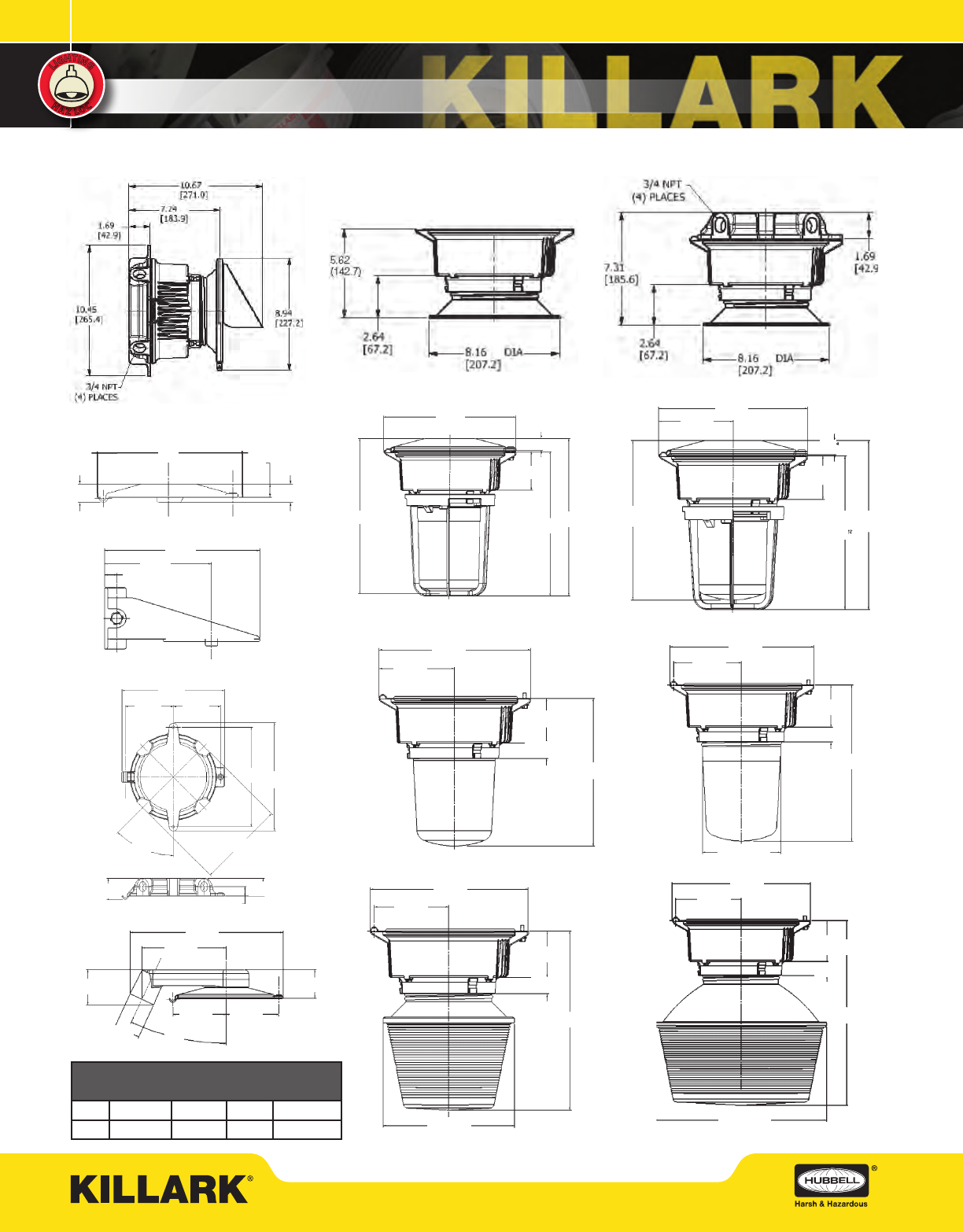

L14
MBL SERIES

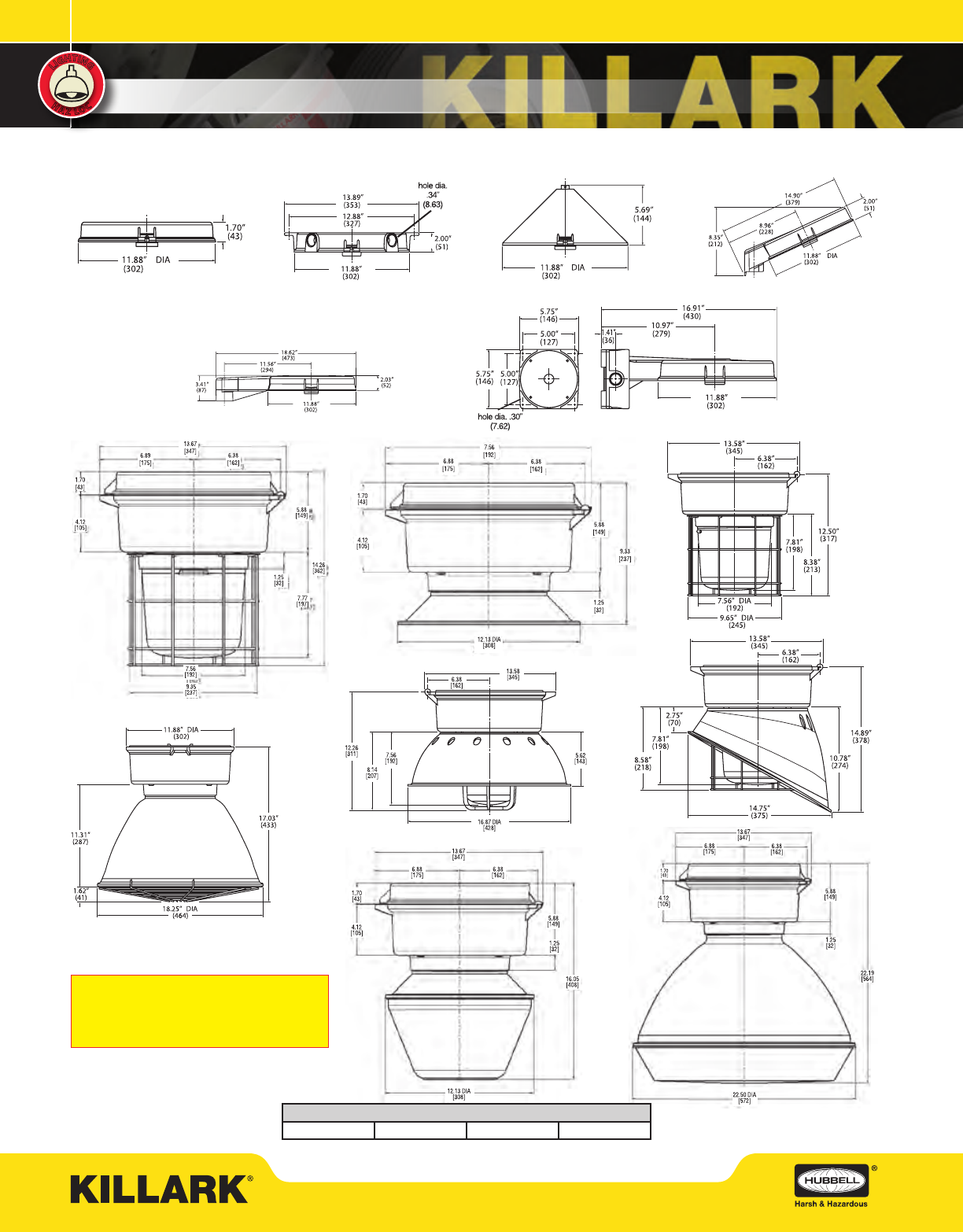

COMPACT SIZE – DIMENSIONS & WEIGHTS
9.90
4.63 4.56
9.63 10.95
8.38
2.04 1.69
.89
45o
MBX Ceiling
9.82
4.88
2.90
9.59
1.00
MBL & MBG Globe Only
2.90
11.15
9.82
4.63
8.16 DIA.
1.00
MBL & 8” Type V Spin-top MBL & 12” Type V Spin-top
2.90
13.13
4.63
9.32
12.19 DIA.
1.00
MBL & VMR Refractor
10.68
2.90
9.82
4.63
5.31 DIA.
1.00
MBD Stanchion
4.56
2.50
13.28
7.32
4.63
3.04
2.25 25o
MBA Pendant
1.29 1.31
.94
9.9
2.90
10.60 10.84
10.22
9.90
.94
MBL Pendant, Globe, Guard
MBL Flat Lens, Pathway Reector
Wall Mount
MBL Flat Lens Ceiling Mount
MBL Tank with Flat Lens
.94
MBL Pendant, Refractor, Guard
9.90
4.96
11.69
2.90
11.85
10.22
TYPICAL WEIGHTS (LBS.) W/STANDARD
GLOBE AND GUARD - MBL SERIES
14-25W Pendant 14.96 Ceiling 15.96 Wall 19.30 Stanchion 16.83
40-50W Pendant 20.96 Ceiling 21.69 Wall 25.30 Stanchion 22.83
13.32
9.31
1.05
MBB Wall Mount
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L15

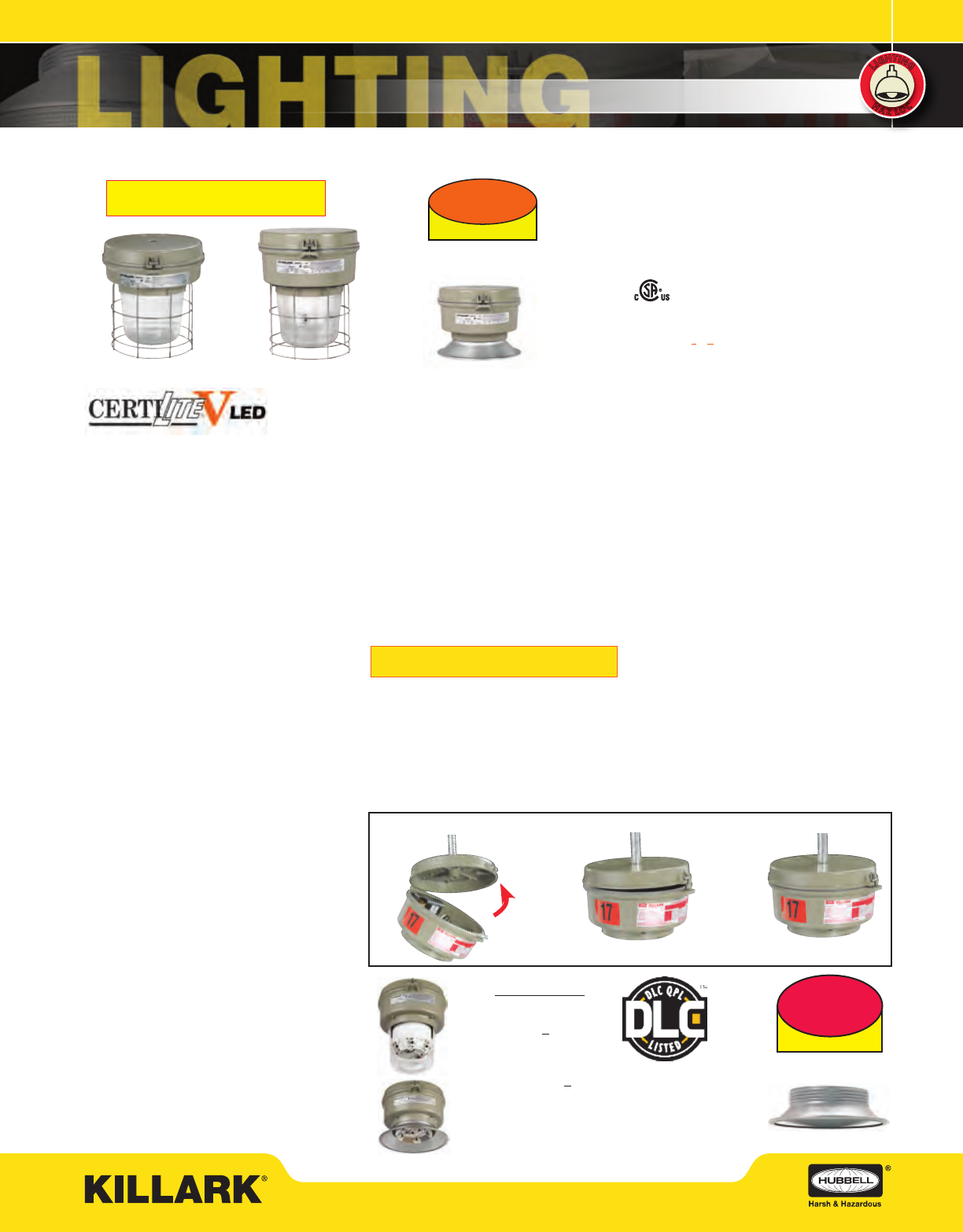

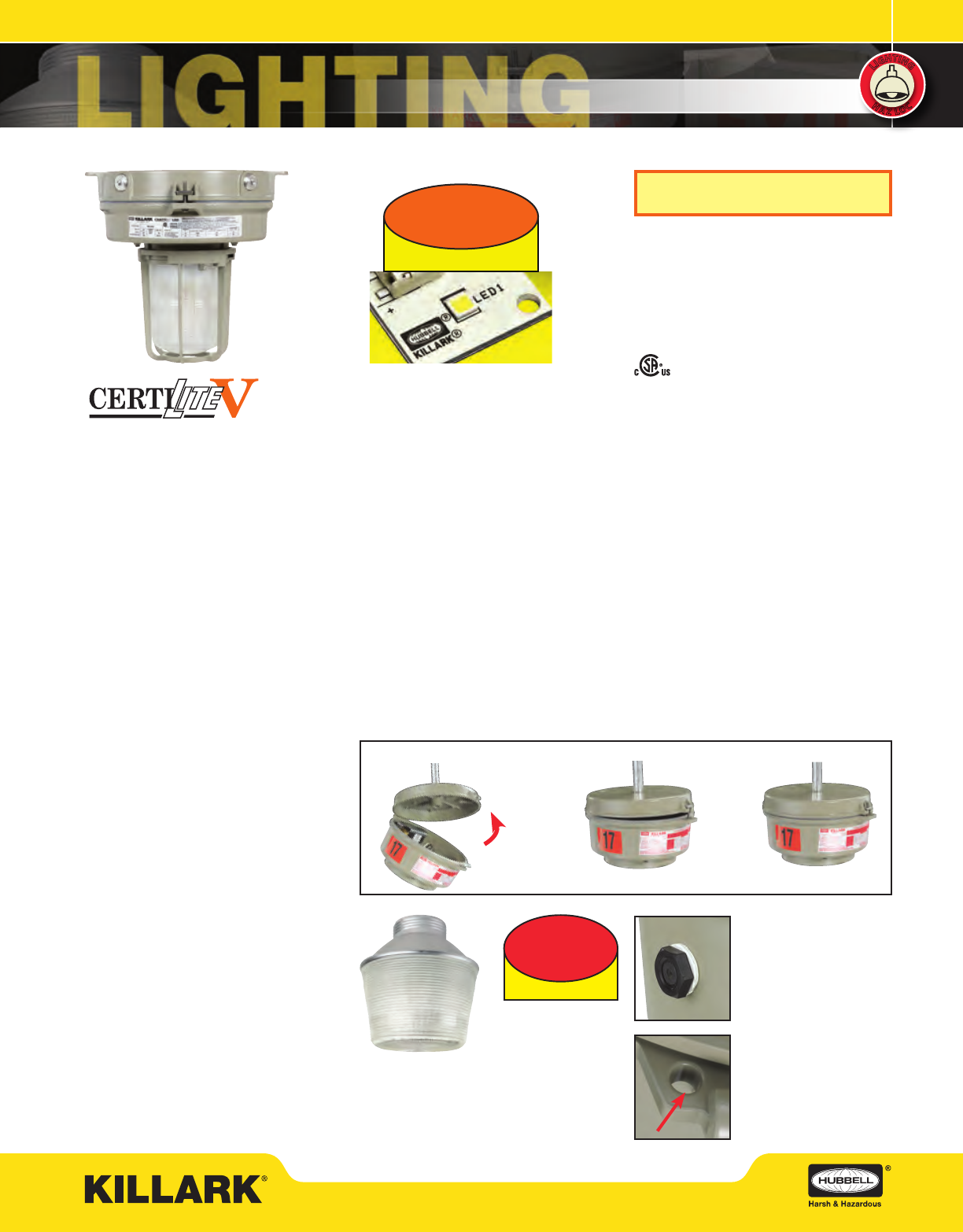

VM1L SERIES
REDUCED PROFILE – INTRODUCTION
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 1 & 2, Groups E,F,G
Class III
Suitable for wet locations
Marine Rated (US only)
NEMA 3, 4X
Applications
CertiLite®V VM1L LED fixtures are designed for
installations where moisture, dirt, dust, corrosion
and vibration may be present, or NEMA 3 and 4X
areas where wind, water, snow or high ambients
can be expected. They can be used in locations
made hazardous by the presence of flammable
vapors or gases or combustible dusts as defined
by the NEC.
Typical applications include manufacturing
plants, and certain chemical and petrochemical
processing facilities, sewage treatment plants,
off-shore and dockside installations, garages and
storage facilities.
Compliances
• UL-8750 for LED lighting
• UL Marine type lighting fixtures (HID models)
UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2; Class
II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric luminaries
for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X
Materials
• Ballast tank, splice box and cast guards
corrosion resistant copper-free aluminum alloy
• Baked powder epoxy/polyester finish,
electrostatically applied for complete, uniform
corrosion protection
• All external hardware - stainless steel
• Reflectors - Polyester reinforced fiberglass
LED Luminaire Features and
Standards
• Reduced profile with Traditional Industrial
Appearance and Suitability
• Wide variety of optics including globes, globes
with reflectors, all-glass refractors, and spin-
top refractors
• Swing-Barrel Nut patented tank mounting
system
• Optional Mounting arrangements including
Pendant, Wall, Ceiling, Stanchion and others
• VM1L LED Housings can be retrofitted to
existing VM splice boxes; upgrade from HID
sources
• Energy Savings - less than 55 Watts of Power
• Long Life - 50,000 - 55,000 maintenance free
hours to 70% initial lumens
• Crisp White Light for Excellent Color
Rendering - Chromaticity 5000°K (CCT); 70
CRI
• Ambient suitability -40°C to 55°C
• Instant on - including after power interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• Dual Drivers - Redundant Systems (built-in
backup), or for additional energy savings half
of VM1 L4530 can be turned off
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values - Industry Nomenclature for Hours
of use to 70% of Initial Lumens
Earthquake Tab -
Built-in attachment point
for safety cables.
Safety: Secures xture
to structure in case of
conduit failure.
Photo controls - Class
I Div. 2 / N4X areas
Available as Field or
Factory Installed to save
energy when light not
required.
* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among
test labs and manufacturers. For more information go to www.ies.org
LED
®
Expanded wattage range
RANGE 40W, 45W, 50W
NEW!
NON-
GLASS
FOOD SUITABILITY
TECHNOLOGY
LED
Swing-Barrel Nut (Patented)
Hang
Fixture
Tighten
3
Swing into Place
2
1
Polycarbonate 12”
Spin-top
Refractor VZRG2550
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L16
VM1L SERIES

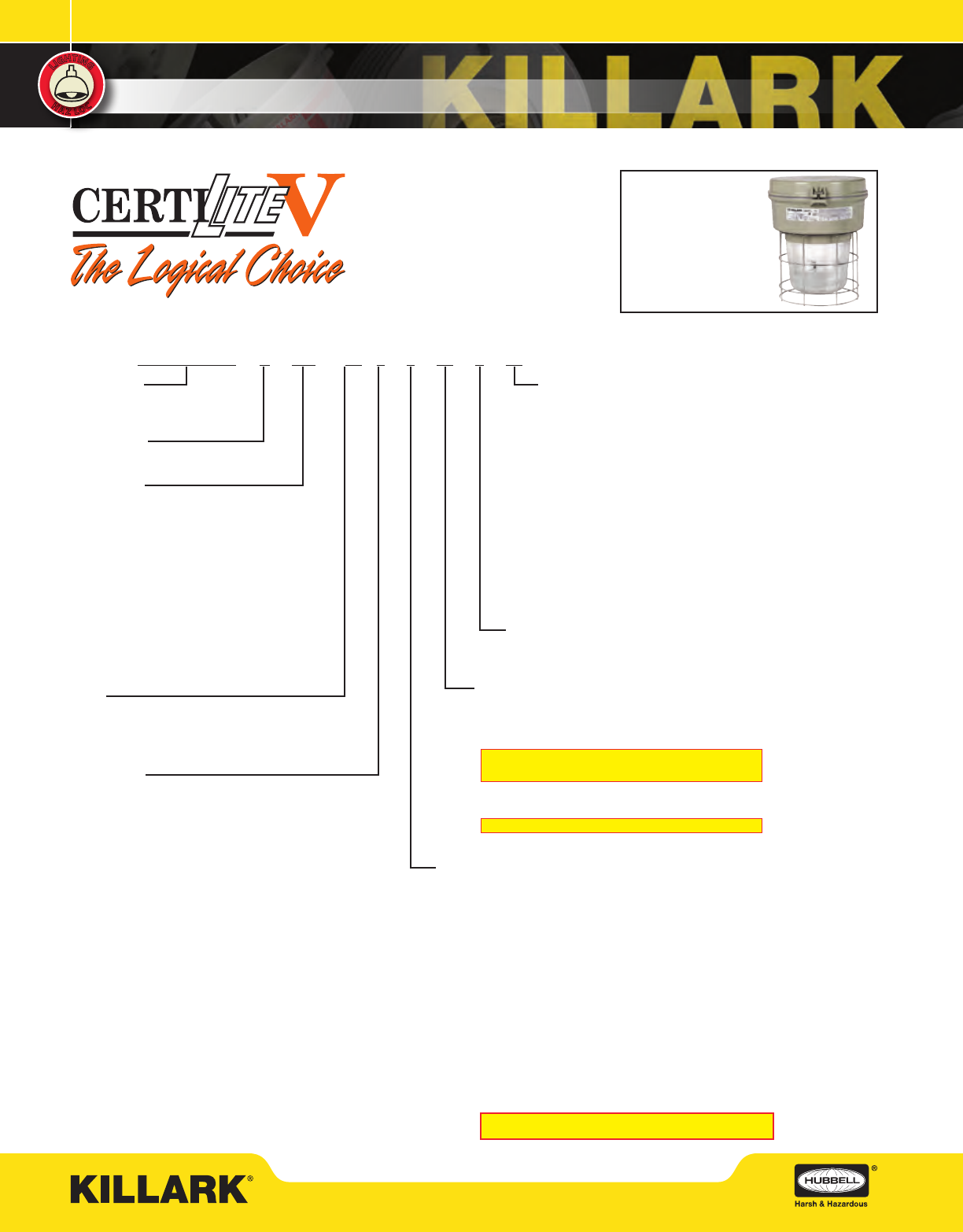

REDUCED PROFILE – CATALOG LOGIC
Optic
GL – Globe
R5 – Type V Refractor (all glass)
S8 – Type V 8” Spin-Top Refractor
S5 – Type V12” Spin-Top Refractor
P5 – Polycarbonate Type V 12” Spin-Top Refractor
Options
F – Single Fusen
FF – Double Fusen
TBX – Terminal Blocks
X= Variations
(May be alphanumeric to
indicate terminals)
25P – Second surge protector
if controlling EA Driver
separately
P1 – Photocell 120Vo
Factory Installed
P2 – Photocell 208-277Vo
Factory Installed
QD – QD Wired at Ballastp
CP – Component Pack
(Tank w/mount, optic, guard -
LED’s included in tank)
AN – Assembled
(Tank w/mount, optic, guard-
LED’s included in tank)
®
CertiLite®V LED Catalog Number Logic
Guard
G – Guard
(Globes & Glass refractors)
N – No Guard
Housing Series
5-1/2” thread w/driver
and LED’s
Voltage
05 – 480VAC 50/60 Hzj
15 – 347VAC 50/60 Hzj
27 – 12-24VDC
30 – 120-277VAC 50/60 Hzk
34 – 120-250VDC
Mounting Type
A – Pendant
X – Ceiling
B – Wall Bracket
C – Cone Top
E – EZ Mount Adapterl
D – Stanchion 25°
S – Stanchion Straight 90°
N – None (mount ordered separately)m
Lamp Wattage
40W – LED
45W – LED
50W – LED
Entry (Mounts available)
2 – 3/4” NPT (A,B,C,X)
3 – 1” NPT (A,B,C,X)
4 – 1 1/4” NPT (D,S)
5 – 1 1/2” NPT (D,S)
6 – 3/4” NPT 5-Hub (X)
7 – 1” NPT 5-Hub (X)
8 – M20 4-Hub (X)
9 – M20 5-Hub (X)
Z – EZ Mount Adaptern
N – None (mount ordered separately)o
VM1L 45 30 0 0 00 000
j Single step-down transformer feeds 2 drivers.
k Dual drivers 40W, 45W, & 50W.
l Completes as “EZ”, conduit mounting boxes ordered seperately. - See page L31
m NN mount ordered seperately.
n Fusing not for Marine or Canadian installations.
o Photo cells for Class I, Div. 2 only.
p QD = Quick Disconnect. Allows easy tank removal for maintenance. Electrician simply unplugs tank from mount for
xture relocation or repair due to impact damage.
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L17

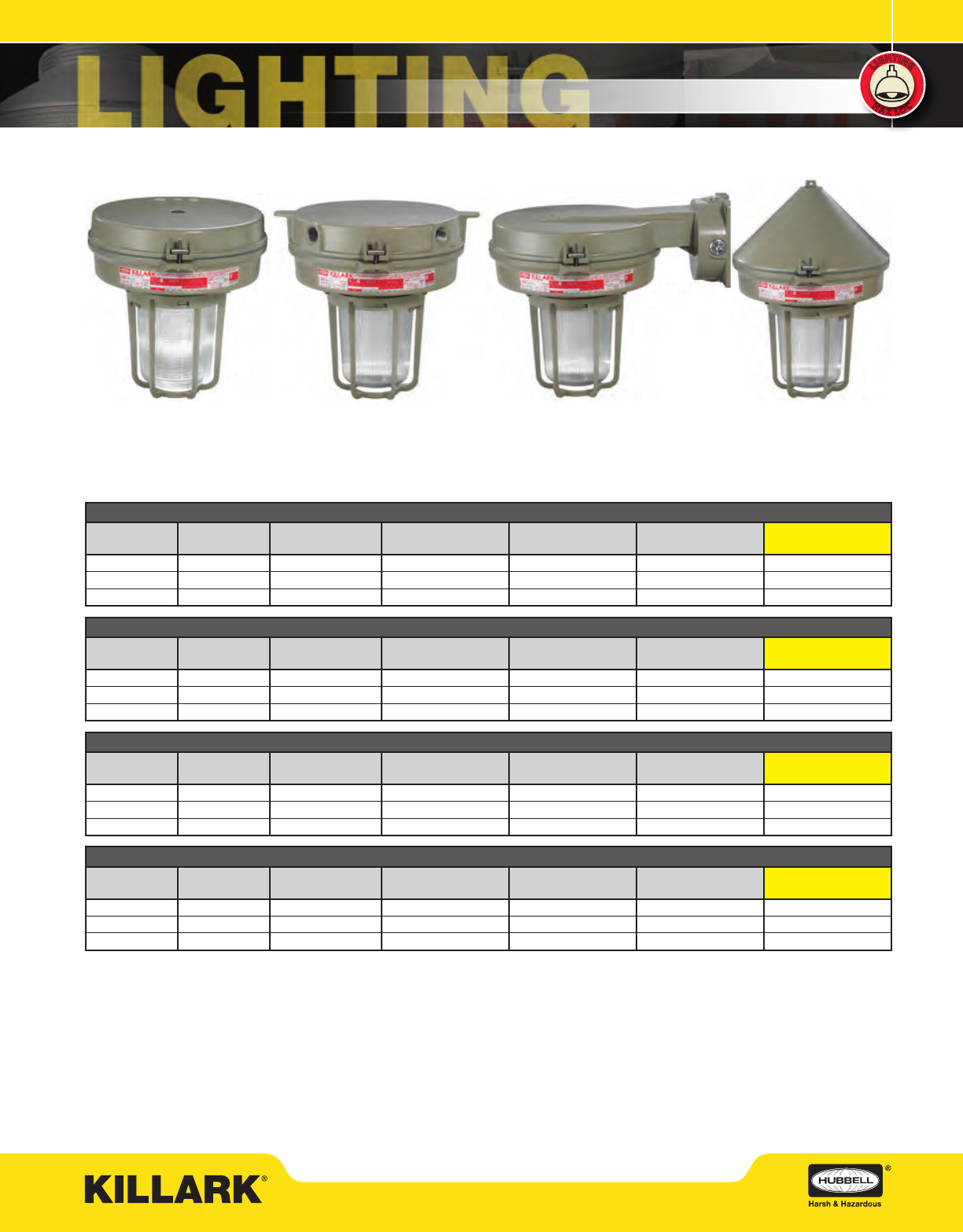

VM1L SERIES
REDUCED PROFILE – ORDERING INFORMATION
CEILINGPENDANT WALL CONE
ORDERING INFORMATION
j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530A2GLN
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. VM1L4530A3GLG
l 120VAC through 277VAC 50/60Hz
VM1L SERIES PENDANT WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 3/4” 120-277VAC VM1L4030A2GLG VM1L4030A2R5G VM1L4030A2S8G VM1L4030A2S5G
45 3/4” 120-277VAC VM1L4530A2GLG VM1L4530A2R5G VM1L4530A2S8G VM1L4530A2S5G
50 3/4” 120-277VAC VM1L5030A2GLG VM1L5030A2R5G VM1L5030A2S8G VM1L5030A2S5G
VM1L SERIES CEILING WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 3/4” 120-277VAC VM1L4030X2GLG VM1L4030X2R5G VM1L4030X2S8G VM1L4030X2S5G
45 3/4” 120-277VAC VM1L4530X2GLG VM1L4530X2R5G VM1L4530X2S8G VM1L4530X2S5G
50 3/4” 120-277VAC VM1L5030X2GLG VM1L5030X2R5G VM1L5030X2S8G VM1L5030X2S5G
VM1L SERIES WALL WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 3/4” 120-277VAC VM1L4030B2GLG VM1L4030B2R5G VM1L4030B2S8G VM1L4030B2S5G
45 3/4” 120-277VAC VM1L4530B2GLG VM1L4530B2R5G VM1L4530B2S8G VM1L4530B2S5G
50 3/4” 120-277VAC VM1L5030B2GLG VM1L5030B2R5G VM1L5030B2S8G VM1L5030B2S5G
VM1L SERIES CONE WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 3/4” 120-277VAC VM1L4030C2GLG VM1L4030C2R5G VM1L4030C2S8G VM1L4030C2S5G
45 3/4” 120-277VAC VM1L4530C2GLG VM1L4530C2R5G VM1L4530C2S8G VM1L4530C2S5G
50 3/4” 120-277VAC VM1L5030C2GLG VM1L5030C2R5G VM1L5030C2S8G VM1L5030C2S5G
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L18
VM1L SERIES

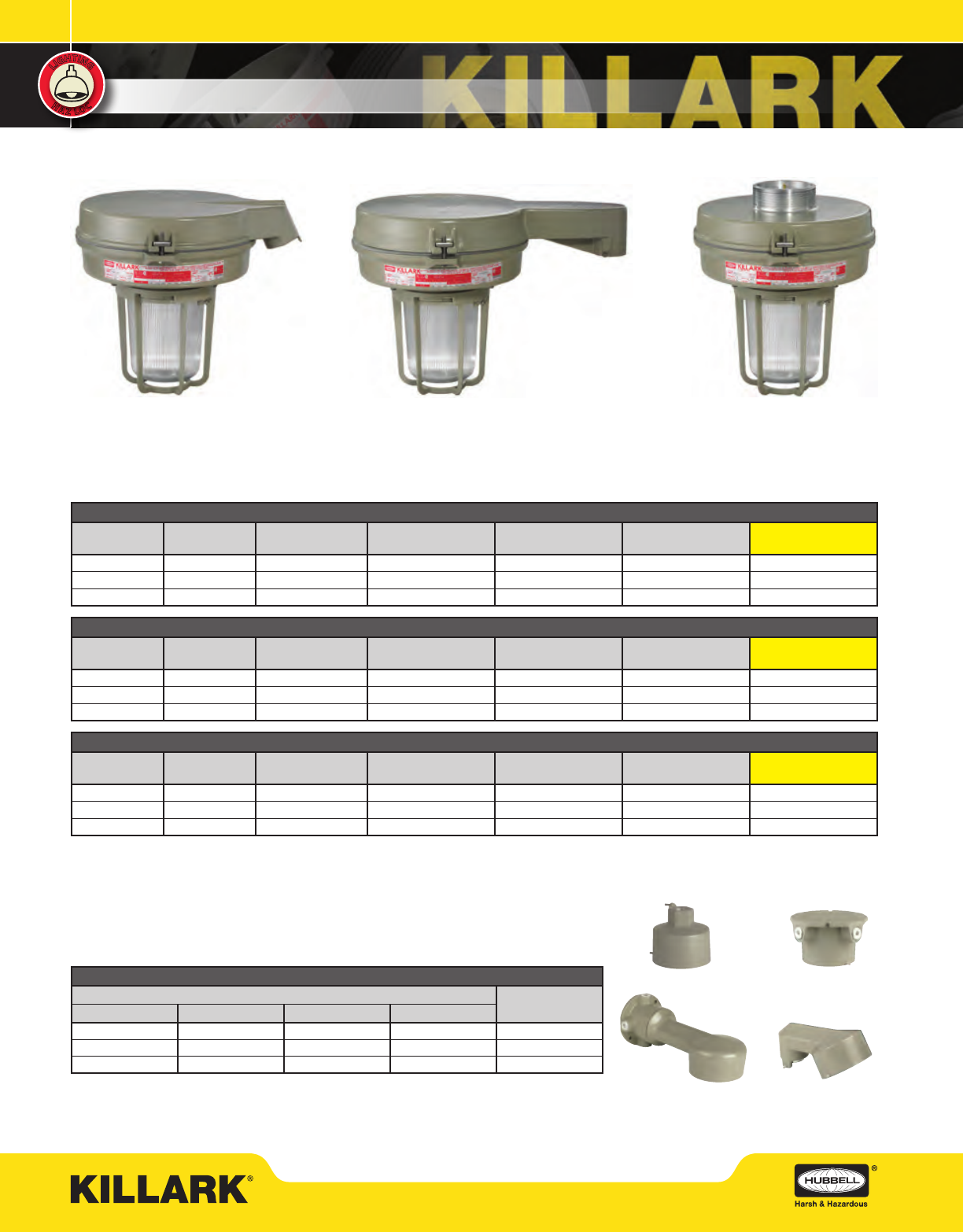

REDUCED PROFILE – ORDERING INFORMATION
ORDERING INFORMATION
j Catalog numbers shown are with Guard; to omit guard change ending G to N; e.g. VM1L4530D5GLN
k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4” e.g. VM1L4530D4GLG
l 120VAC through 277VAC 50/60Hz
m VMEZA tank adapters UL “classied” as an assembly for use between VM tanks and EZ mounts.
Order EZ mounts separately (see below).
Wall Bracket 25° Stanchion
Pendant Ceiling
*1-1/2” furnished with 1-1/2”-1-1/4” reducer and extension.
EZ ADAPTER
STANCHION STRAIGHT
STANCHION 25°
VM1L SERIES 25O STANCHION WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 1-1/2” 120-277VAC VM1L4030D5GLG VM1L4030D5R5G VM1L4030D5S8G VM1L4030D5S5G
45 1-1/2” 120-277VAC VM1L4530D5GLG VM1L4530D5R5G VM1L4530D5S8G VM1L4530D5S5G
50 1-1/2” 120-277VAC VM1L5030D5GLG VM1L5030D5R5G VM1L5030D5S8G VM1L5030D5S5G
VM1L SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 1-1/2” 120-277VAC VM1L4030S5GLG VM1L4030S5R5G VM1L4030S5S8G VM1L4030S5S5G
45 1-1/2” 120-277VAC VM1L4530S5GLG VM1L4530S5R5G VM1L4530S5S8G VM1L4530S5S5G
50 1-1/2” 120-277VAC VM1L5030S5GLG VM1L5030S5R5G VM1L5030S5S8G VM1L5030S5S5G
VM1L SERIES EZ ADAPTER WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
8” SPIN-TOP TYPE V
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
REFRACTOR & GUARD
40 NA 120-277VAC VM1L4030EZGLG VM1L4030EZR5G VM1L4030EZS8G VM1L4030EZS5G
45 NA 120-277VAC VM1L4530EZGLG VM1L4530EZR5G VM1L4530EZS8G VM1L4530EZS5G
50 NA 120-277VAC VM1L5030EZGLG VM1L5030EZR5G VM1L5030EZS8G VM1L5030EZS5G
MOUNTING BOXES FOR EZ ADAPTER
CATALOG NUMBER HUB SIZE
PENDANT CEILING BRACKET STANCHION
EZA2 EZX2 EZB2 —3/4”
EZA3 EZX3 EZB3 —1”
———EZD4A* 1-1/4”/1-1/2”*
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L19

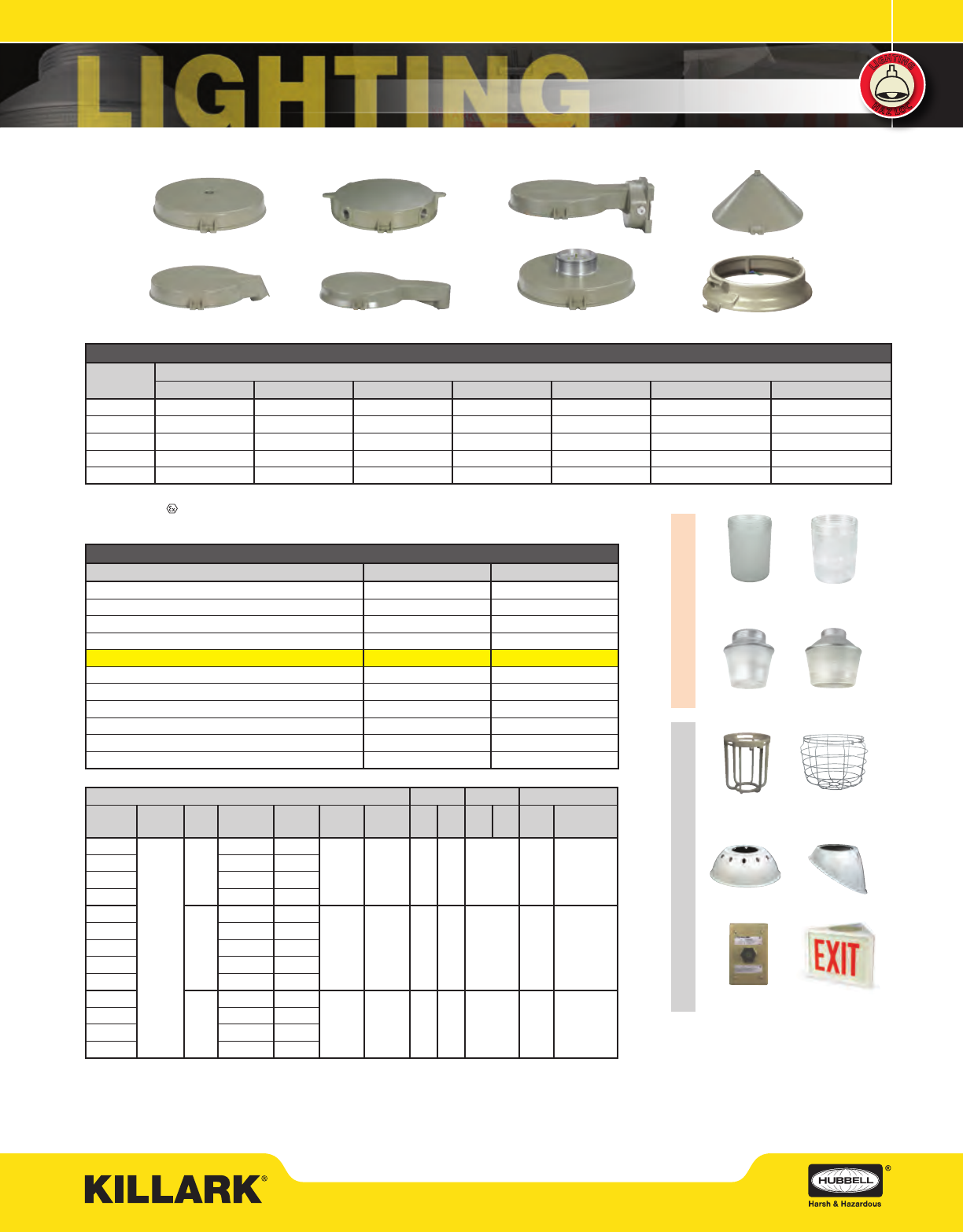

VM1L SERIES

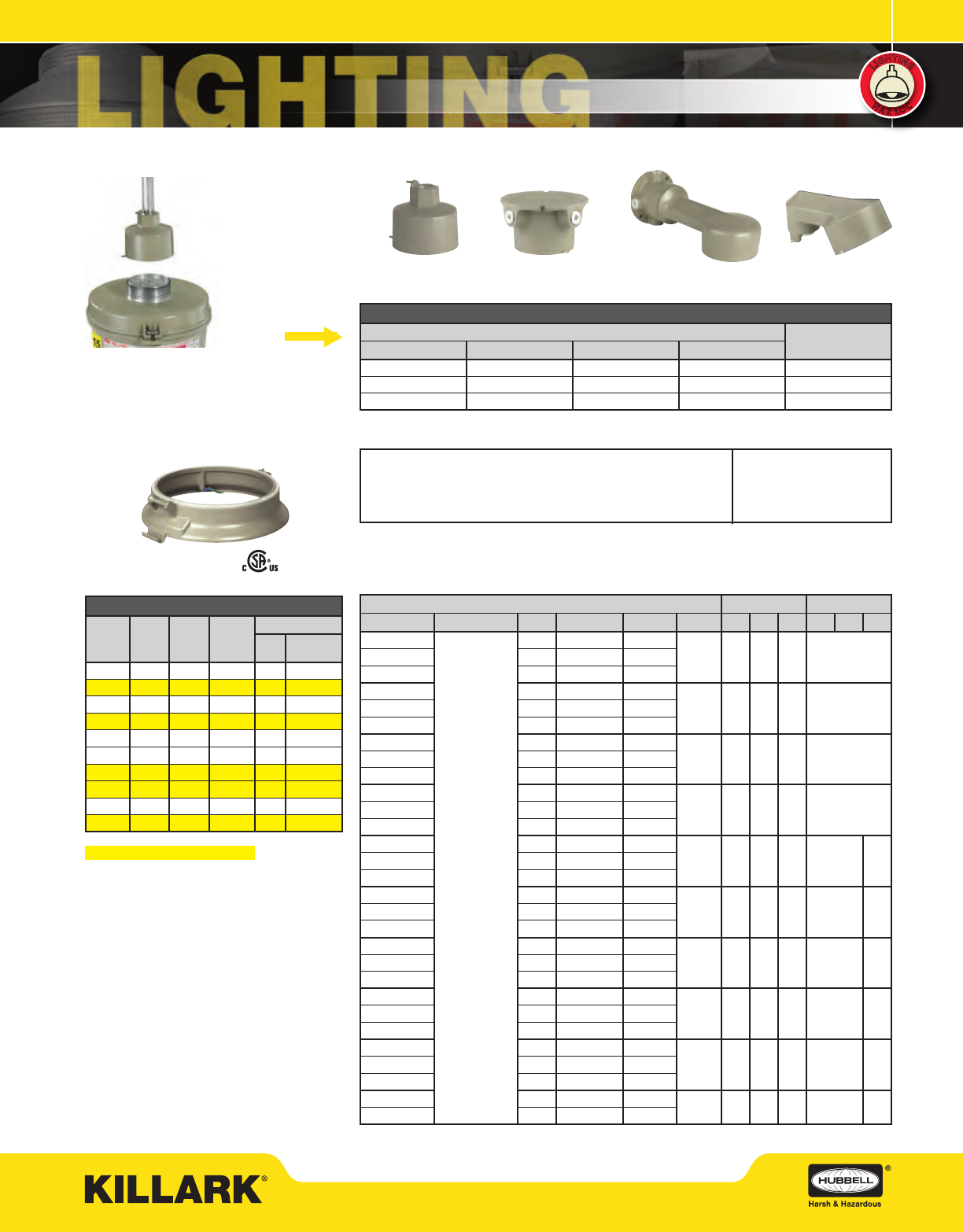

REDUCED PROFILE – COMPONENTS
A
C
C
E
S
S
O
R
I
E
S
O
P
T
I
C
S
Pendant Ceiling Wall
25° Stanchion
Cone Top
Straight Stanchion EZ Adapter*
VMEZA
* VMEZA is used between a ballast tank and an EZ mount-ordered separately. See page 18 for more information.
* * Furnished with non-metallic plugs. Also available: VMB10B wall 4xM25 hubs, and VMB810B 2xM20 side hubs
and 2xM25 top/bottom
VMG17
VMRWG8k
VMRWGSk
VZRG1550 VZRG2550
VMR175
VMPA40VMPSD40
VMFSPC1 VEXA10 0B
Tank Adapter
See page 13 for Full Range
VMAG17
j Driver THD < 20%, Powerfactor 99% @ 120V; Line Regulation 2%; Load regulation 5%; Protected against Over-voltage and Over-current.
k VMRWG8 Plated Steel, VMRWGS 316 Stainless Steel.
l TM-21 based values require very long duration testing. The TM-21/L70 “official reported” value is based on at least 10,000 hours testing (at time of printing) at 1000mA to
1500mA drive current, depending on LED chip utilized.”reported L70” is a factor of test duration. KILLARK’s MBL series utilizes lower 350mA or 700mA maximum drive current
- “calculated” values by the major chip vendors utilized predict L70 life up to 278,000+ hours even at 1000mA.
CERTILITE®V VM MOUNTING SPLICE BOXES
HUB SIZE CATALOG NUMBER
PENDANT CEILING 4 HUB CEILING 5 HUB WALL CONE TOP 25 DEGREE STANCHION 90 DEGREE STANCHION
3/4” VMA2B VMX2B VMX6B VMB2B VMC2B — —
1” VMA3B VMX3B VMX7B VMB3B VMC3B — —
1-1/4” —————VMD4B VMS4B
1-1/2” —————VMD5B VMS5B
M-20 —VMX8B** VMX9B** VMB8B** — — —
VM1L LED OPTICS AND ACCESSORIES
DESCRIPTION OPTIC LOGIC GUARD
Globe (glass) VMG17 (GL) VMAG17
Refractor (all glass) Type V VMR175 (R5) VMAG17
Refractor (spin top) 8”Type V V ZR G15 50 (S8) VMRWG8
Refractor (spin top) 12”Type V VZRG2550 (S5) VMRWGS
Refractor polycarbonate (spin-top) 12” Type V VZRP175 (P5) VMRWGS
DOME REFLECTOR (Polyester reinforced fiberglass) VMPSD40 NA
ANGLE REFLECTOR (Polyester reinforced fiberglass) VMPA40 NA
120VAC Photocell with FS Style Cover VMFSPC1 NA
208-277VAC Photocell with FS Style Cover VMFSPC2 NA
3-sided EXIT Accessory (use without guard) VEXA100B NA
Tank adapter to Crouse-Hinds® VM Series mounts* VMCHVM NA
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C2D1 L70
CATALOG
NO.
WEIGHT
LBS./KG
WATTS
VOLTAGE AMPS VMG15
LUMENS
VMR175
LUMENS 40°C 55°C 40°C 55°C TM-21
CALCULATED
VM1L4005
15.50 /
7.03
40
480 VAC 0.09
3812 4019 T6 T5 T4 (EFG) 60100 270000
VM1L4015
347 VAC 0.13
VM1L4027
12-24VDC
3.33-1.67
VM1L4030
120-277VAC
0.36-0.16
VM1L4505
48
480 VAC 0.10
2858.00 2955 T4A T4 T4 (EFG) 60100 270000
VM1L4515
347 VAC 0.14
VM1L4527
12-24VDC
4.00-2.00
VM1L4530
120-277VAC
0.42-0.18
VM1L4534
120-250VDC
0.40-0.19
VM1L5005
50
480 VAC 0.10
6162.00 6427 T5 T4A T4 (EFG) 72600 278000
VM1L5015
347 VAC 0.14
VM1L5027
12-24VDC
4.17-2.08
VM1L5030
120-277VAC
0.43-0.18
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L20
VM1L SERIES
REDUCED PROFILE – DIMENSIONS & WEIGHTS
13.55
(344) 6.38
(162)
10.77
(274)
8.21
(208)
7.74
(197)
10.77
(274)
6.75
(171)
VM1L Tank Globe & Guard
10.77
(274) 8.21
(208)
7.74
(197)
5.62
(143)
13.58
(345)
6.38
(162)
16.87 DIA.
(428)
VM1L Tank with Dome Refractor
13.58
(345) 6.38
(162)
8.21
(208)
7.74
(197)
2.63
(67)
10.78
(274)
13.34
(339)
14.75 DIA
(375)
VM1L Tank with Angle Refractor
VM1L Tank with 12” Spin-top Refractor
12.73
(323)
10.17
(258)
13.58
(345) 6.38
(162)
12.19
(310)
13.67
(347)
6.88
(175)
1.70
(43)
2.56
(65)
6.38
(162)
4.33
(110)
12.07
(307)
5.31 DIA.
(135)
1.25
(32)
11.35 DIA.
(299)
VM1L Tank w/Pendant M ount & Globe
hole dia. .30”
(7.62) Wall Bracket Mount
hole dia.
.34”
(8.63)
Ceiling Mount
Cone Mount
Stanchion (0°) Mount
Pendant Mount
VM1L Tank with 8” Spin-top Refractor
8.82
(275) 8.25
(210)
11.87 DIA.
(301)
8.16 DIA.
(207)
Stanchion (25°) Mount
TYPICAL WEIGHTS (LBS.) W/ STANDARD GLOBE AND GUARD - VM1L SERIES
Pendant 23.00 Ceiling 24.10 Wall 27.5 0 Stanchion 23.90
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L21
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – INTRODUCTION
LED Luminaire Features and
Standards
• Traditional Industrial Appearance,
Suitability, and Photometric Performance
• Wide variety of optics including globes,
globes with reflectors, all-glass refractors,
spin-top refractors and flat lens
• Swing-Barrel Nut patented tank mounting
system
• Optional Mounting arrangements
including Pendant, Wall, Ceiling,
Stanchion and others
• VM4L LED Housings can be retrofitted to
existing VM splice boxes; upgrade from
HID sources
• VM2Lx housing is 1.56” shallower for low
ceilings
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000 K (CCT
range); approx. 70 CRI
• Energy Savings – less than 130 Watts of
Power
VM4LB with Globe/Guard VM4LC with Flat Lens
* LM-xx + TM-21 are Illumination Engineering Society standards designed to promote uniformity in testing
procedures among test labs and manufacturers. For more information go to www.ies.org
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class I, Zone 2, Groups IIC, IIB, IIA
Class II, Div. 1 & 2, Groups E,F,G
Class III
Suitable for wet locations
NEMA 3, 4X
IP66
Marine Rated (US only)
Contact Factory for other certication details
Applications
CERTALITE® V VM4L LED fixtures are
designed for installations where moisture,
dirt, dust, corrosion and vibration may be
present, or NEMA 3 and 4X areas where
wind, water, snow or high ambients can be
expected. They can be used in locations
made hazardous by the presence of
flammable vapors or gases or combustible
dusts as defined by the NEC/CEC.
Typical applications include manufacturing
plants, food processing, certain chemical
and petrochemical processing facilities,
sewage treatment plants, off-shore and
dockside installations, garages and storage
facilities.
Compliances
• UL-8750 for LED lighting
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X
• IP66 & Marine
Materials
• Ballast tank, splice box and cast guards
corrosion resistant copper-free aluminum
alloy
• Baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware – stainless steel
• Reflectors – Polyester reinforced fiber
glass or aluminum
LED INTERNAL
Heat Sinks
Bulb style (VM4LB)
Maximum lumens but has
more glare at line-of-sight.
Concave style (VM4LC)
for a compact profile.
Recessed concave LED
array produces less glare.
NEW!
NON-
GLASS
FOOD SUITABILITY
Non-Glass Polycarbonate
12” Flat Lens
Patented Design
Expanded wattage range and
shallower depth VM2LB models
VM2LB with Globe/Guard
Swing-Barrel Nut (Patented)
Hang
Fixture Swing into Place Tighten
32
1
TECHNOLOGY
LED
Consult website for
current list of approved
luminaires
IECEx Rated Models (VM4L with IEx suffix)
Ex nA IIC T4, Gc / Ex tb IIIC T83ºC Db
Tamp -40ºC <Ta<+65ºC, IP66
IECEx Certificate QPS 15.0006
ATEX Pending
• Long Life – 50,000 - 55,000 maintenance
free hours to 70% initial lumens
• Ambient suitability -40°C to 55°C
• Instant On – Including after power
interruption
• World Voltage 120 – 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• Ability for Dual Drivers – Redundant
Systems (built-in backup), or for
additional energy savings half of fixture
can be turned off
• LM80-08* Measurement of lumen
maintenance for LED light sources
(including TM-21)
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of Initial Lumens
• Two LED internal heat sink styles
» Bulb VM2LB/VM4LB
» Concave VM2LC/VM4LC
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L22
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – CATALOG LOGIC
Options/Accessories
F – Single Fusen
FF – Double Fusen
TBx – Terminal Blocks
x= Variations (May
be alphanumeric to
indicate terminals)
IEx – IEC Ex includes TBL &
external ground. Not
available with polyoptic,
fuses, photocells or
347/480 volt input.r
2SP – Second surge protector if
controlling each drivers
separately - 80W-130W
P1 – Photocell 120Vo
Factory Installed
P2 – Photocell 208-277Vo
Factory Installed
P3 – Photocell 347Vo
Factory Installed
QD – QD Wired at Ballastp
CP – Component Pack (Tank w/
mount, optic, guard-
LED’s included in tank)
AN – Assembled (Tank w/mount,
optic, guard- LED’s
included in tank)
Accessories – See q below
®
CertiLite®V LED Catalog Number Logic
B – Bulb heat sink
C – Concave heat sink
Housing Series
7-3/4” thread w/driver
and LED’s
Voltage
30 – 120-277VAC 50/60 Hzj
33 – 347-480VAC 50/60Hzj
34 – 120-250VDC (to 105W)k
Mounting Type
A – Pendant
X – Ceiling
B – Wall Bracket
C – Cone Top
E – EZ Mount Adapterl
D – Stanchion 25°
S – Stanchion Straight 90°
N – None (mount ordered separately)m
Lamp Wattage
Approx. VA (wattage) of driver & LED’s
040W LED VM2, VM4
050W LED VM2, VM4
055W LED VM2, VM4
065W LED VM2, VM4
070W LED VM4
080W LED VM4
090W LED VM4
100W LED VM4
105W LED VM4
130W LED VM4
Guard
G – Guard (Globes & Glass refractors)
N – No Guard
Optic
GL – Globe
R5 – Type V Refractor (all glass)
ER – Enclosed Refractor
EP – Polycarbonate Shielded Enclosed Reflector*
P5 – 12” Type V Polycarbonate Spin-Top*
S2 – Type II 12” Spin-Top Refractor
S5 – Type V 12” Spin-Top Refractor
PF – Spin-Top with flat poly lens (VM2LC and VM4LC only)
GF – Spin-Top with flat glass lens (VM2LC and VM4LC only)
Entry (Mounts available)
2 – 3/4” NPT (A,B,C,X)
3 – 1” NPT (A,B,C,X)
4 – 1 1/4” NPT (D,S)
5 – 1 1/2” NPT (D,S)
6 – 3/4” NPT 5-Hub (X)
j 40W, 50W, 55W, 65W, 70W single driver; 80W -130W dual drivers
k 80W-105W only (also 120-277VAC 50/60HZ)
l Completes as “EZ”, conduit mounting boxes ordered separately - See catalog grids.
m Completes as NN-Mount ordered separately.
n Fusing not for Marine or Canadian installations.
o Photo cells for Class I, Div. 2 only.
p QD = Quick Disconnect. Allows easy tank removal for maintenance. Electrician
simply unplugs tank from mount for xture relocation or repair due to impact
damage.
q Accessories - Shown for ordering convenience (shipped separately)
S VMPSD40 Fiberglass White Reector
A VMPA40 Fiberglass ANGLE White Reector
D HRD400 Deep White Reector
Z HRD400ALZ Deep Alzak Reector
r IEx option only available with VM4L and requires glass optics
*Non-glass Group G Food Processing Suitability
Killark high efficiency
LED Luminaries require
NO external heat sink
which adds weight and
collects dust and other
contaminates
VM2L or VM4L B 130 30 0 0 00 000
7 – 1” NPT 5-Hub (X)
8 – M20 4-Hub (X)
9 – M25 5-Hub (X)
Z – EZ Mount Adapterl
N – None (mount ordered separately)m
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L23

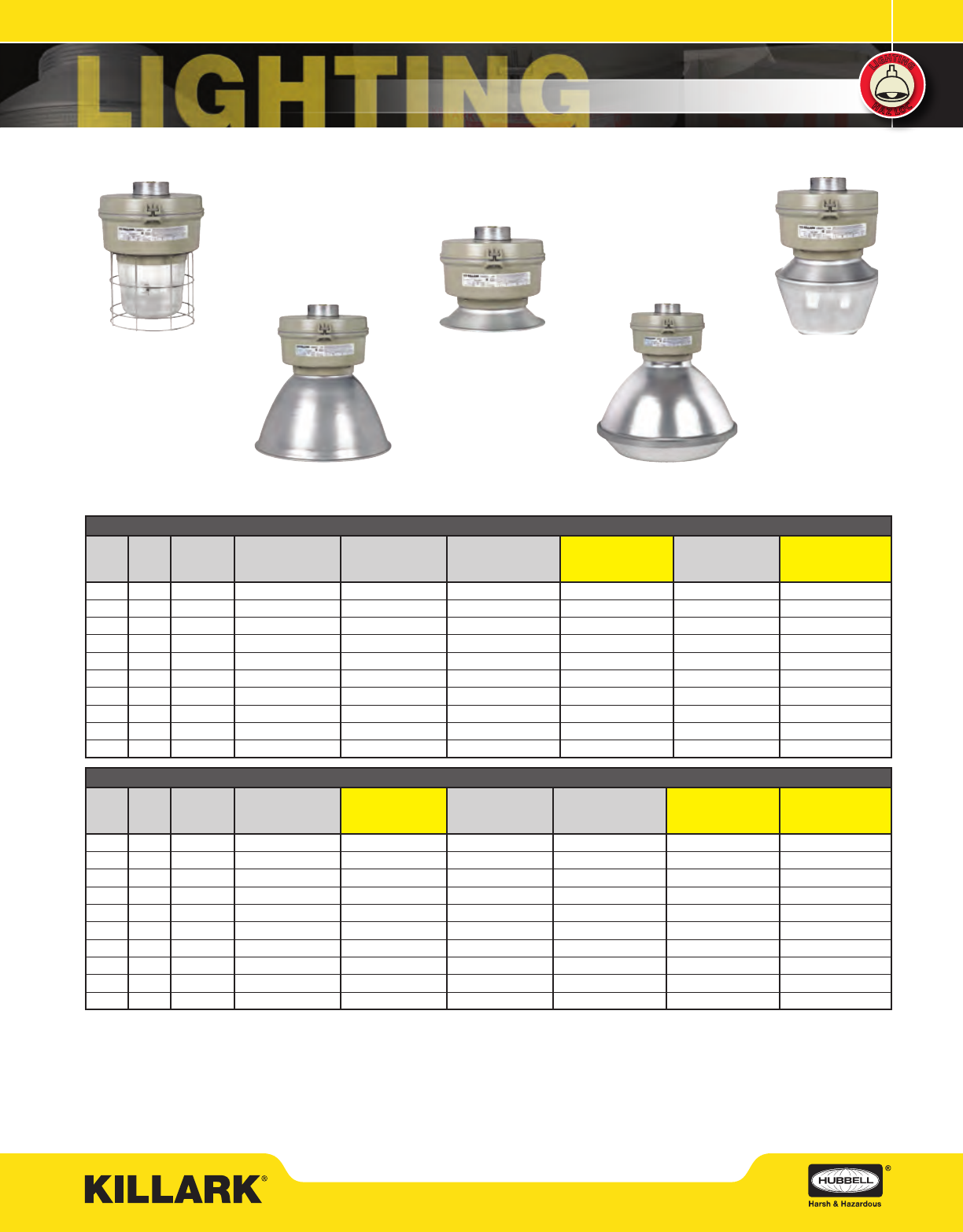

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530X2GLN.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530X3GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
Enclosed Reector
Spin-Top Poly or
Glass Refractor
Poly Food Optic
Spin-Top Poly or Glass
Flat Lens VM4LC only
VM4LB SERIES PENDANT WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LB04030A2GLG VM4LB04030A2R5G VM4LB04030A2S5G VM4LB04030A2P5G VM4LB04030A2ERN VM4LB04030A2EPN
50m3/4” 120-277VAC VM4LB05030A2GLG VM4LB05030A2R5G VM4LB05030A2S5G VM4LB05030A2P5G VM4LB05030A2ERN VM4LB05030A2EPN
55m3/4” 120-277VAC VM4LB05530A2GLG VM4LB05530A2R5G VM4LB05530A2S5G VM4LB05530A2P5G VM4LB05530A2ERN VM4LB05530A2EPN
65m3/4” 120-277VAC VM4LB06530A2GLG VM4LB06530A2R5G VM4LB06530A2S5G VM4LB06530A2P5G VM4LB06530A2ERN VM4LB06530A2EPN
70 3/4” 120-277VAC VM4LB07030A2GLG VM4LB07030A2R5G VM4LB07030A2S5G VM4LB07030A2P5G VM4LB07030A2ERN VM4LB07030A2EPN
80 3/4” 120-277VAC VM4LB08030A2GLG VM4LB08030A2R5G VM4LB08030A2S5G VM4LB08030A2P5G VM4LB08030A2ERN VM4LB08030A2EPN
90 3/4” 120-277VAC VM4LB09030A2GLG VM4LB09030A2R5G VM4LB09030A2S5G VM4LB09030A2P5G VM4LB09030A2ERN VM4LB09030A2EPN
100 3/4” 120-277VAC VM4LB10030A2GLG VM4LB10030A2R5G VM4LB10030A2S5G VM4LB10030A2P5G VM4LB10030A2ERN VM4LB10030A2EPN
105 3/4” 120-277VAC VM4LB10530A2GLG VM4LB10530A2R5G VM4LB10530A2S5G VM4LB10530A2P5G VM4LB10530A2ERN VM4LB10530A2EPN
130 3/4” 120-277VAC VM4LB13030A2GLG VM4LB13030A2R5G VM4LB13030A2S5G VM4LB13030A2P5G VM4LB13030A2ERN VM4LB13030A2EPN
VM4LC SERIES PENDANT WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
GLASS REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LC04030A2GLG VM4LC04030A2PFN VM4LC04030A2R5G VM4LC04030A2S5G VM4LC04030A2P5G VM4LC04030A2EPN
50m3/4” 120-277VAC VM4LC05030A2GLG VM4LC05030A2PFN VM4LC05030A2R5G VM4LC05030A2S5G VM4LC05030A2P5G VM4LC05030A2EPN
55m3/4” 120-277VAC VM4LC05530A2GLG VM4LC05530A2PFN VM4LC05530A2R5G VM4LC05530A2S5G VM4LC05530A2P5G VM4LC05530A2EPN
65m3/4” 120-277VAC VM4LC06530A2GLG VM4LC06530A2PFN VM4LC06530A2R5G VM4LC06530A2S5G VM4LC06530A2P5G VM4LC06530A2EPN
70 3/4” 120-277VAC VM4LC07030A2GLG VM4LC07030A2PFN VM4LC07030A2R5G VM4LC07030A2S5G VM4LC07030A2P5G VM4LC07030A2EPN
80 3/4” 120-277VAC VM4LC08030A2GLG VM4LC08030A2PFN VM4LC08030A2R5G VM4LC08030A2S5G VM4LC08030A2P5G VM4LC08030A2EPN
90 3/4” 120-277VAC VM4LC09030A2GLG VM4LC09030A2PFN VM4LC09030A2R5G VM4LC09030A2S5G VM4LC09030A2P5G VM4LC09030A2EPN
100 3/4” 120-277VAC VM4LC10030A2GLG VM4LC10030A2PFN VM4LC10030A2R5G VM4LC10030A2S5G VM4LC10030A2P5G VM4LC10030A2EPN
105 3/4” 120-277VAC VM4LC10530A2GLG VM4LC10530A2PFN VM4LC10530A2R5G VM4LC10530A2S5G VM4LC10530A2P5G VM4LC10530A2EPN
130 3/4” 120-277VAC VM4LC13030A2GLG VM4LC13030A2PFN VM4LC13030A2R5G VM4LC13030A2S5G VM4LC13030A2P5G VM4LC13030A2EPN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L24

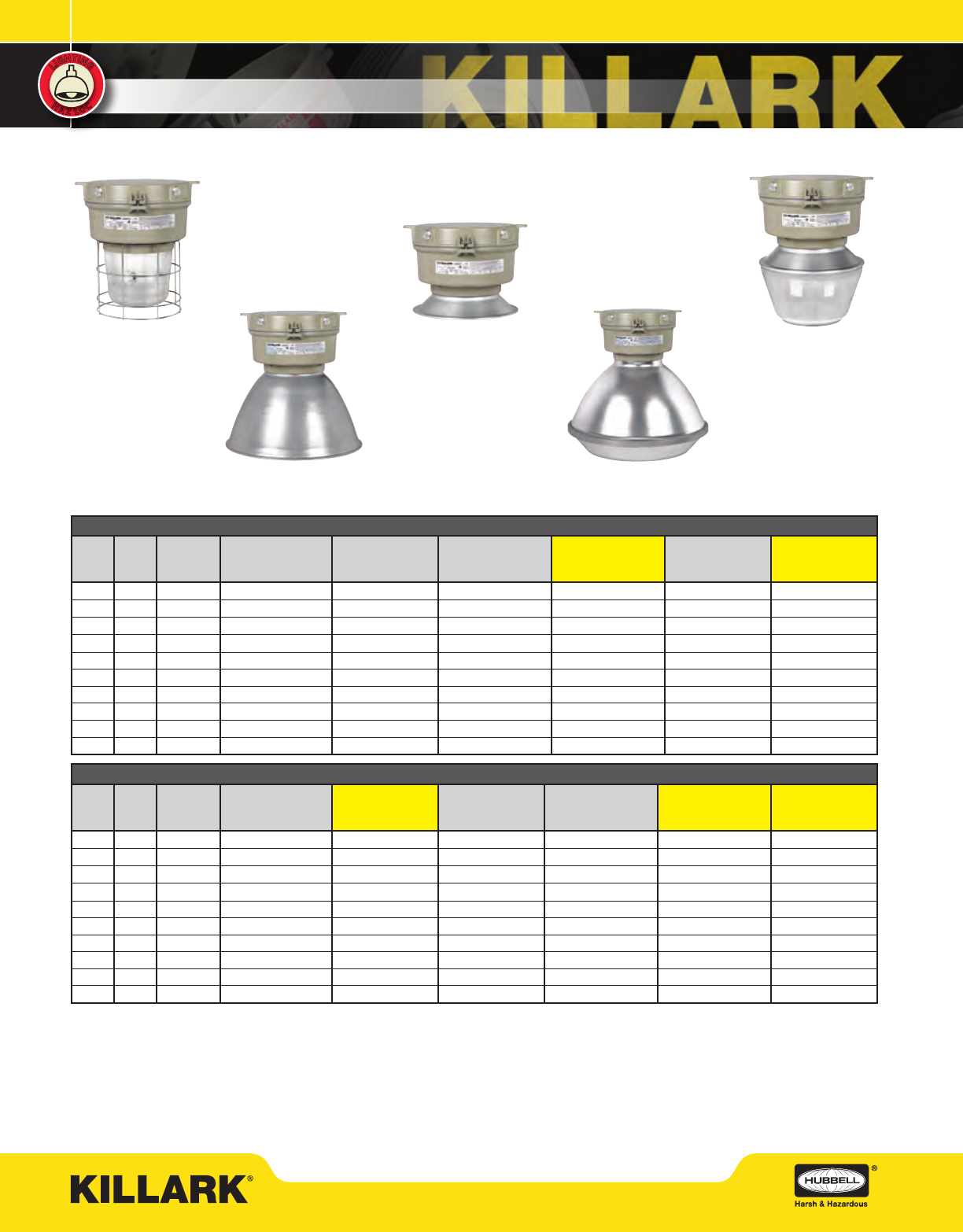

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530X2GLN.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530X3GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
Enclosed Reector
Spin-Top Poly or
Glass Refractor
Poly Food Optic
Spin-Top Poly or Glass
Flat Lens
VM4LB SERIES CEILING WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LB04030X2GLG VM4LB04030X2R5G VM4LB04030X2S5G VM4LB04030X2P5G VM4LB04030X2ERN VM4LB04030X2EPN
50m3/4” 120-277VAC VM4LB05030X2GLG VM4LB05030X2R5G VM4LB05030X2S5G VM4LB05030X2P5G VM4LB05030X2ERN VM4LB05030X2EPN
55m3/4” 120-277VAC VM4LB05530X2GLG VM4LB05530X2R5G VM4LB05530X2S5G VM4LB05530X2P5G VM4LB05530X2ERN VM4LB05530X2EPN
65m3/4” 120-277VAC VM4LB06530X2GLG VM4LB06530X2R5G VM4LB06530X2S5G VM4LB06530X2P5G VM4LB06530X2ERN VM4LB06530X2EPN
70 3/4” 120-277VAC VM4LB07030X2GLG VM4LB07030X2R5G VM4LB07030X2S5G VM4LB07030X2P5G VM4LB07030X2ERN VM4LB07030X2EPN
80 3/4” 120-277VAC VM4LB08030X2GLG VM4LB08030X2R5G VM4LB08030X2S5G VM4LB08030X2P5G VM4LB08030X2ERN VM4LB08030X2EPN
90 3/4” 120-277VAC VM4LB09030X2GLG VM4LB09030X2R5G VM4LB09030X2S5G VM4LB09030X2P5G VM4LB09030X2ERN VM4LB09030X2EPN
100 3/4” 120-277VAC VM4LB10030X2GLG VM4LB10030X2R5G VM4LB10030X2S5G VM4LB10030X2P5G VM4LB10030X2ERN VM4LB10030X2EPN
105 3/4” 120-277VAC VM4LB10530X2GLG VM4LB10530X2R5G VM4LB10530X2S5G VM4LB10530X2P5G VM4LB10530X2ERN VM4LB10530X2EPN
130 3/4” 120-277VAC VM4LB13030X2GLG VM4LB13030X2R5G VM4LB13030X2S5G VM4LB13030X2P5G VM4LB13030X2ERN VM4LB13030X2EPN
VM4LC SERIES CEILING WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
GLASS REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LC04030X2GLG VM4LC04030X2PFN VM4LC04030X2R5G VM4LC04030X2S5G VM4LC04030X2P5G VM4LC04030X2EPN
50m3/4” 120-277VAC VM4LC05030X2GLG VM4LC05030X2PFN VM4LC05030X2R5G VM4LC05030X2S5G VM4LC05030X2P5G VM4LC05030X2EPN
55m3/4” 120-277VAC VM4LC05530X2GLG VM4LC05530X2PFN VM4LC05530X2R5G VM4LC05530X2S5G VM4LC05530X2P5G VM4LC05530X2EPN
65m3/4” 120-277VAC VM4LC06530X2GLG VM4LC06530X2PFN VM4LC06530X2R5G VM4LC06530X2S5G VM4LC06530X2P5G VM4LC06530X2EPN
70 3/4” 120-277VAC VM4LC07030X2GLG VM4LC07030X2PFN VM4LC07030X2R5G VM4LC07030X2S5G VM4LC07030X2P5G VM4LC07030X2EPN
80 3/4” 120-277VAC VM4LC08030X2GLG VM4LC08030X2PFN VM4LC08030X2R5G VM4LC08030X2S5G VM4LC08030X2P5G VM4LC08030X2EPN
90 3/4” 120-277VAC VM4LC09030X2GLG VM4LC09030X2PFN VM4LC09030X2R5G VM4LC09030X2S5G VM4LC09030X2P5G VM4LC09030X2EPN
100 3/4” 120-277VAC VM4LC10030X2GLG VM4LC10030X2PFN VM4LC10030X2R5G VM4LC10030X2S5G VM4LC10030X2P5G VM4LC10030X2EPN
105 3/4” 120-277VAC VM4LC10530X2GLG VM4LC10530X2PFN VM4LC10530X2R5G VM4LC10530X2S5G VM4LC10530X2P5G VM4LC10530X2EPN
130 3/4” 120-277VAC VM4LC13030X2GLG VM4LC13030X2PFN VM4LC13030X2R5G VM4LC13030X2S5G VM4LC13030X2P5G VM4LC13030X2EPN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L25

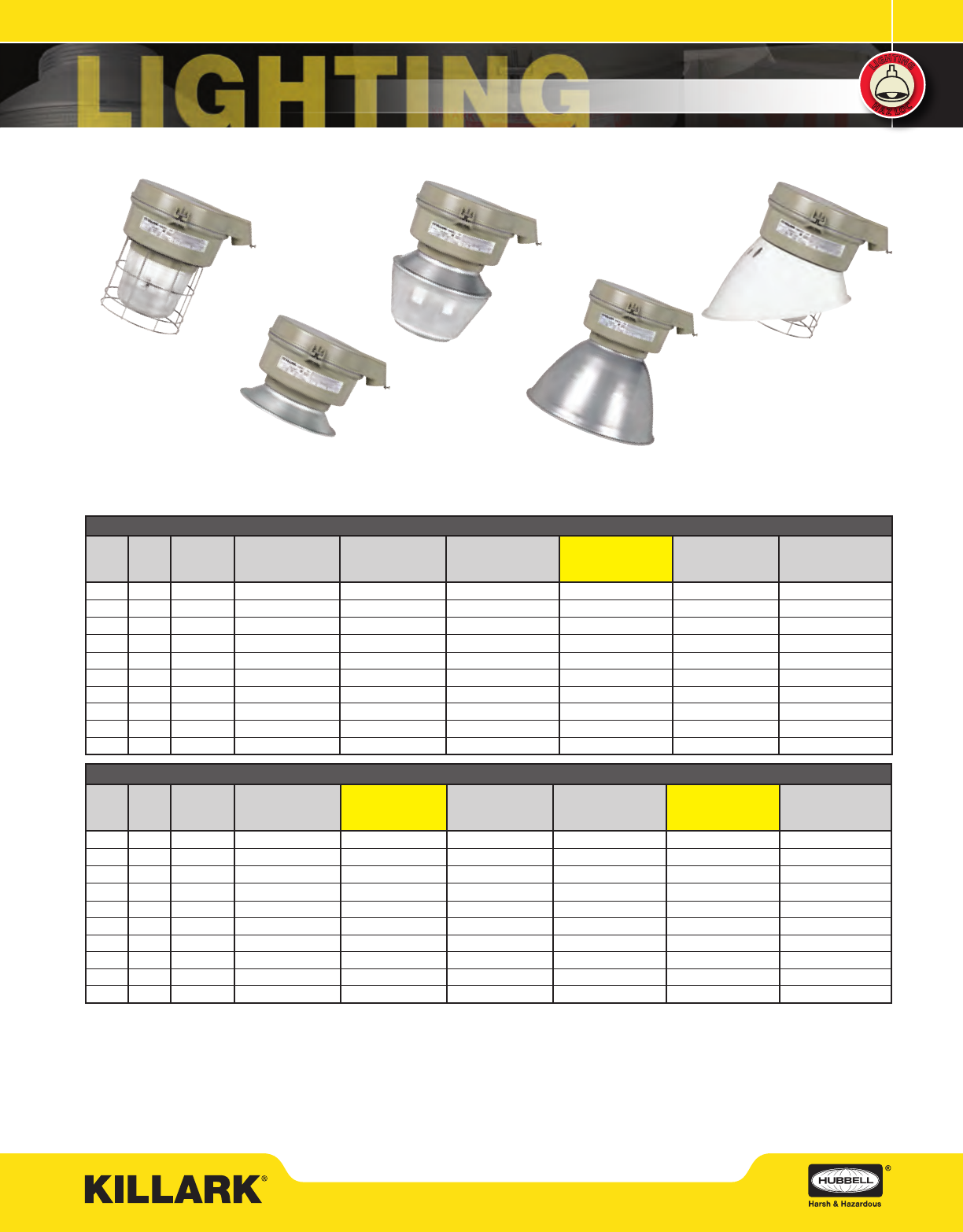

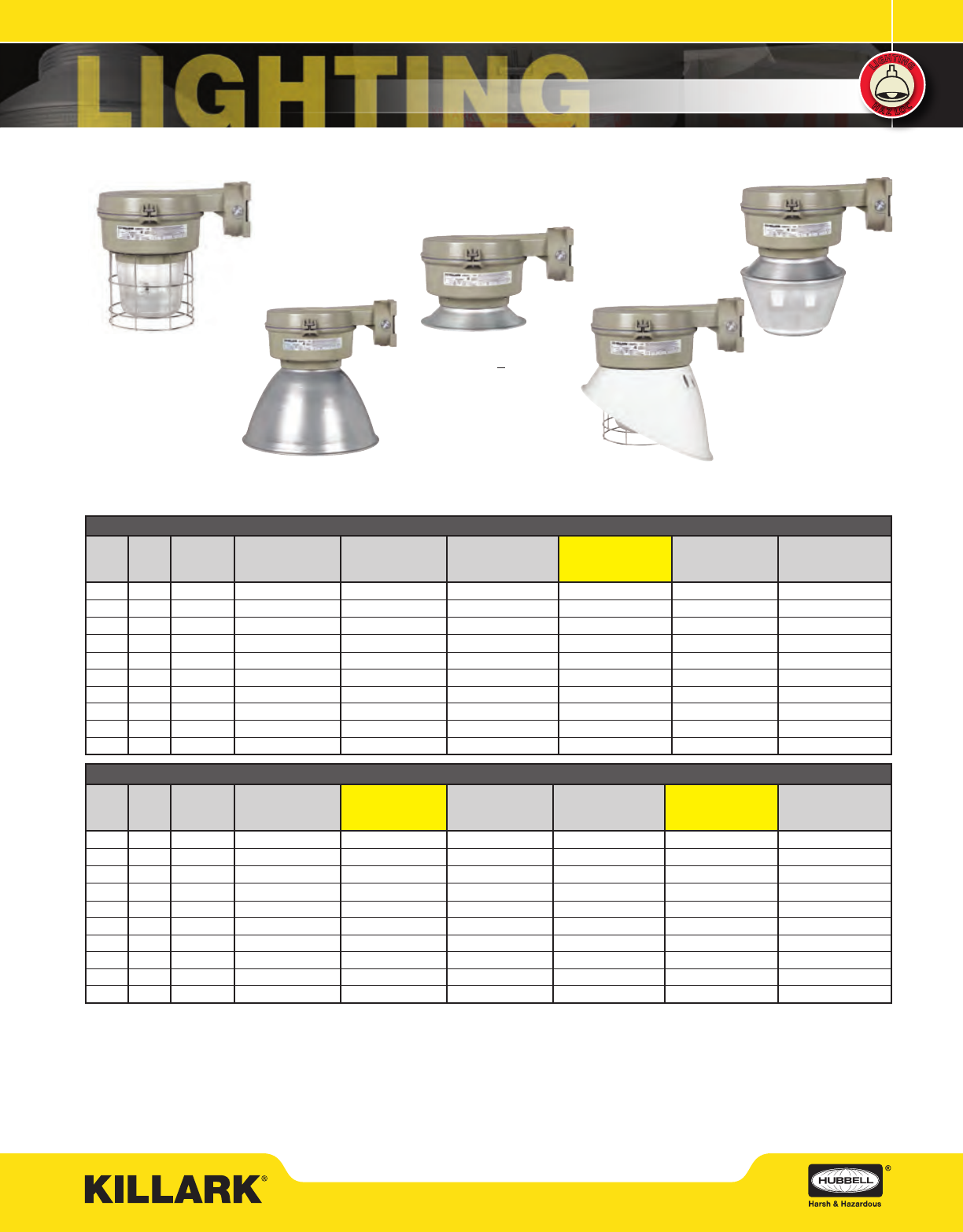

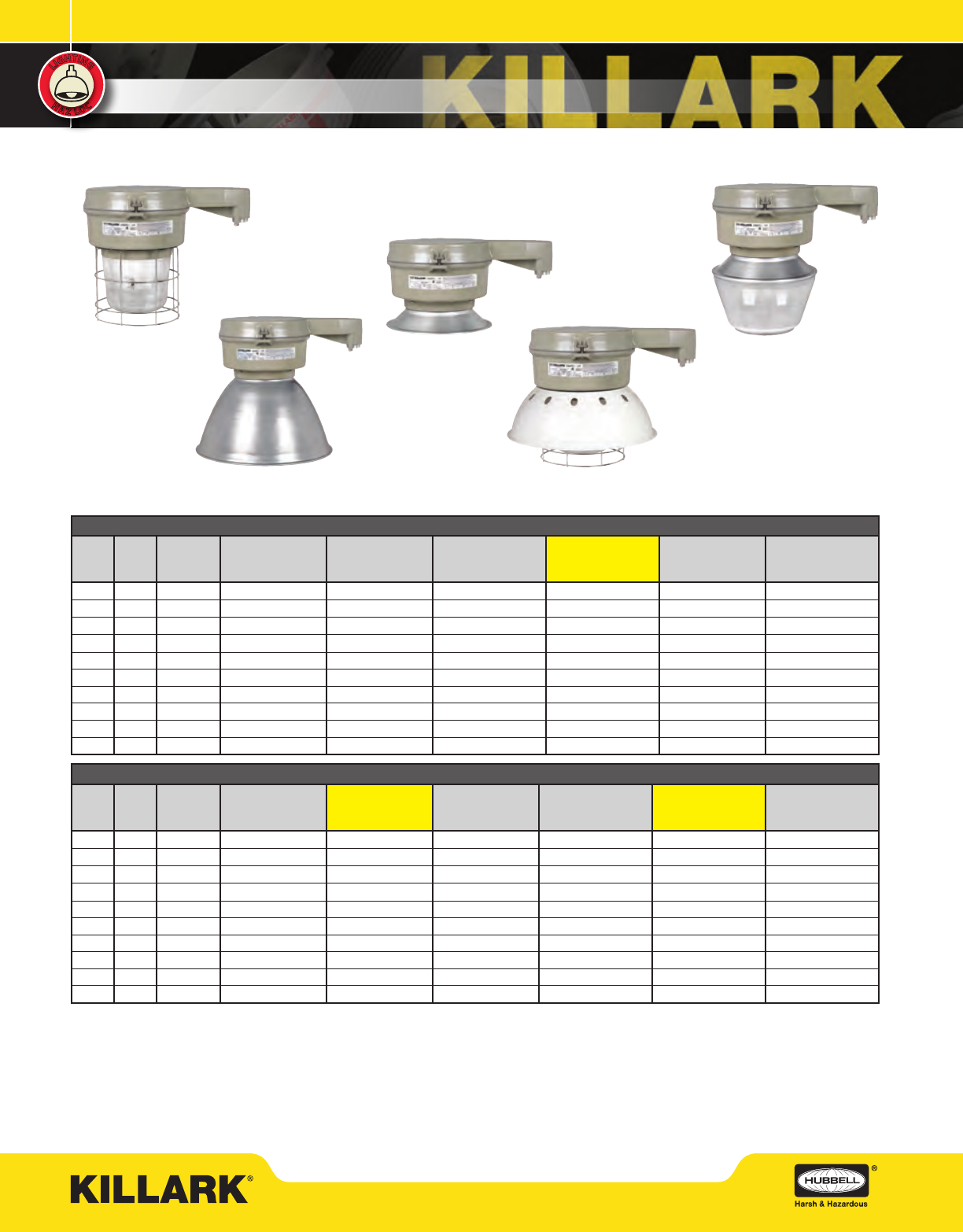

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530B2GLN.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530B3GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m See logic for reector ordering options or order angle reector VMPA40 separately.
n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
Enclosed Reector
Spin-Top Poly or
Glass Refractor
Globe, Guard and Angle Reector
Spin-Top Poly or Glass
Flat Lens VM4LC only
VM4LB SERIES WALL WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
GLOBE, GUARD
& ANGLE
RELFECTORm
40m3/4” 120-277VAC VM4LB04030B2GLG VM4LB04030B2R5G VM4LB04030B2S5G VM4LB04030B2P5G VM4LB04030B2ERN VM4LB04030B2GLG-A
50m3/4” 120-277VAC VM4LB05030B2GLG VM4LB05030B2R5G VM4LB05030B2S5G VM4LB05030B2P5G VM4LB05030B2ERN VM4LB05030B2GLG-A
55m3/4” 120-277VAC VM4LB05530B2GLG VM4LB05530B2R5G VM4LB05530B2S5G VM4LB05530B2P5G VM4LB05530B2ERN VM4LB05530B2GLG-A
65m3/4” 120-277VAC VM4LB06530B2GLG VM4LB06530B2R5G VM4LB06530B2S5G VM4LB06530B2P5G VM4LB06530B2ERN VM4LB06530B2GLG-A
70 3/4” 120-277VAC VM4LB07030B2GLG VM4LB07030B2R5G VM4LB07030B2S5G VM4LB07030B2P5G VM4LB07030B2ERN VM4LB07030B2GLG-A
80 3/4” 120-277VAC VM4LB08030B2GLG VM4LB08030B2R5G VM4LB08030B2S5G VM4LB08030B2P5G VM4LB08030B2ERN VM4LB08030B2GLG-A
90 3/4” 120-277VAC VM4LB09030B2GLG VM4LB09030B2R5G VM4LB09030B2S5G VM4LB09030B2P5G VM4LB09030B2ERN VM4LB09030B2GLG-A
100 3/4” 120-277VAC VM4LB10030B2GLG VM4LB10030B2R5G VM4LB10030B2S5G VM4LB10030B2P5G VM4LB10030B2ERN VM4LB10030B2GLG-A
105 3/4” 120-277VAC VM4LB10530B2GLG VM4LB10530B2R5G VM4LB10530B2S5G VM4LB10530B2P5G VM4LB10530B2ERN VM4LB10530B2GLG-A
130 3/4” 120-277VAC VM4LB13030B2GLG VM4LB13030B2R5G VM4LB13030B2S5G VM4LB13030B2P5G VM4LB13030B2ERN VM4LB13030B2GLG-A
VM4LC SERIES WALL WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
GLASS REFRACTOR
& GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
GLOBE, GUARD
& ANGLE
RELFECTORm
40m3/4” 120-277VAC VM4LC04030B2GLG VM4LC04030B2PFN VM4LC04030B2R5G VM4LC04030B2S5G VM4LC04030B2P5G VM4LC04030B2GLG-A
50m3/4” 120-277VAC VM4LC05030B2GLG VM4LC05030B2PFN VM4LC05030B2R5G VM4LC05030B2S5G VM4LC05030B2P5G VM4LC05030B2GLG-A
55m3/4” 120-277VAC VM4LC05530B2GLG VM4LC05530B2PFN VM4LC05530B2R5G VM4LC05530B2S5G VM4LC05530B2P5G VM4LC05530B2GLG-A
65m3/4” 120-277VAC VM4LC06530B2GLG VM4LC06530B2PFN VM4LC06530B2R5G VM4LC06530B2S5G VM4LC06530B2P5G VM4LC06530B2GLG-A
70 3/4” 120-277VAC VM4LC07030B2GLG VM4LC07030B2PFN VM4LC07030B2R5G VM4LC07030B2S5G VM4LC07030B2P5G VM4LC07030B2GLG-A
80 3/4” 120-277VAC VM4LC08030B2GLG VM4LC08030B2PFN VM4LC08030B2R5G VM4LC08030B2S5G VM4LC08030B2P5G VM4LC08030B2GLG-A
90 3/4” 120-277VAC VM4LC09030B2GLG VM4LC09030B2PFN VM4LC09030B2R5G VM4LC09030B2S5G VM4LC09030B2P5G VM4LC09030B2GLG-A
100 3/4” 120-277VAC VM4LC10030B2GLG VM4LC10030B2PFN VM4LC10030B2R5G VM4LC10030B2S5G VM4LC10030B2P5G VM4LC10030B2GLG-A
105 3/4” 120-277VAC VM4LC10530B2GLG VM4LC10530B2PFN VM4LC10530B2R5G VM4LC10530B2S5G VM4LC10530B2P5G VM4LC10530B2GLG-A
130 3/4” 120-277VAC VM4LC13030B2GLG VM4LC13030B2PFN VM4LC13030B2R5G VM4LC13030B2S5G VM4LC13030B2P5G VM4LC13030B2GLG-A
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L26

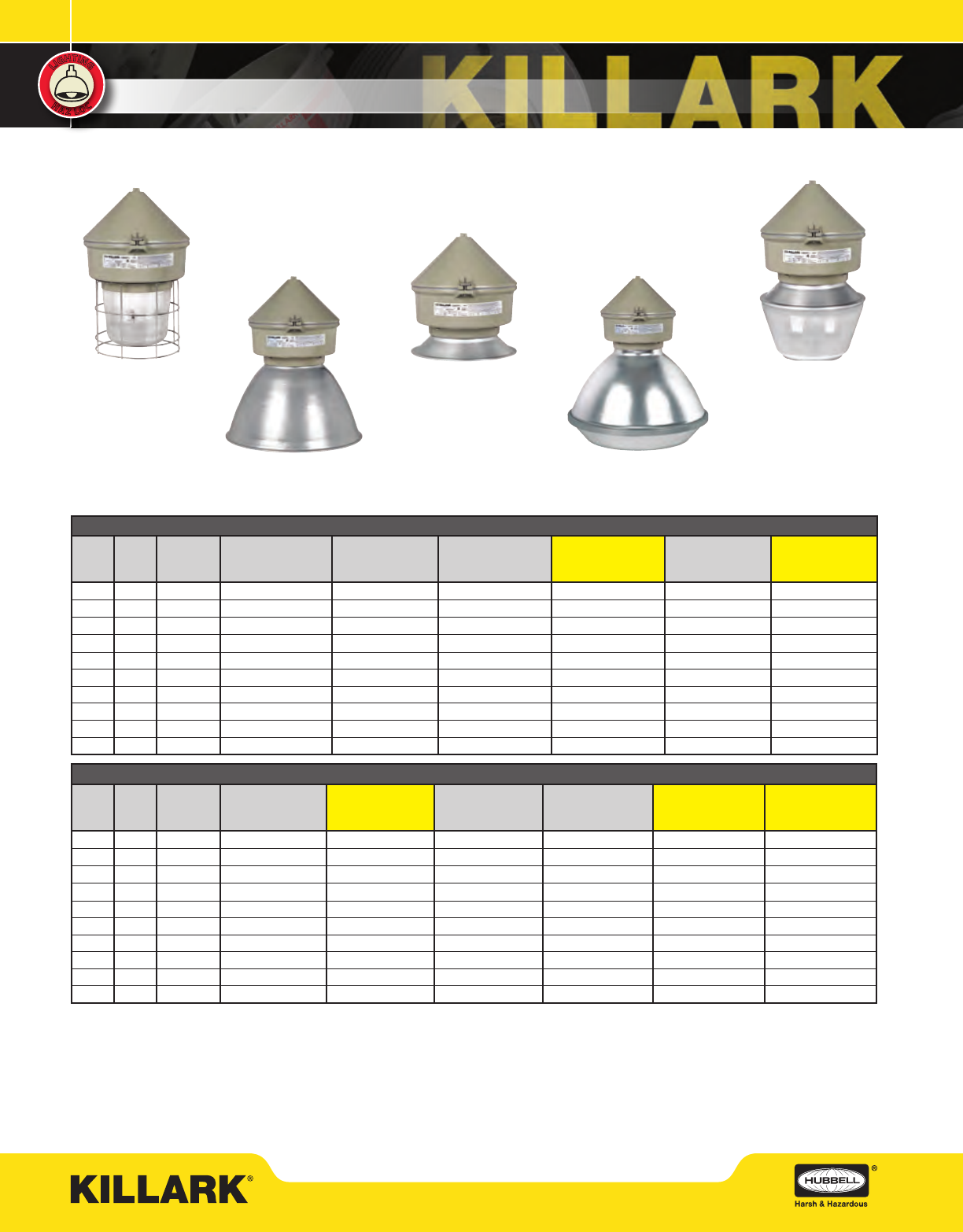

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
Enclosed
Reector
Poly Food Optic
Spin-Top Poly or
Glass Refractor
Spin-Top Poly or
Glass Flat Lens
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530C2GLN.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1”; e.g. VM4LB05530C3GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
VM4LB SERIES CONE WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LB04030C2GLG VM4LB04030C2R5G VM4LB04030C2S5G VM4LB04030C2P5G VM4LB04030C2ERN VM4LB04030C2EPN
50m3/4” 120-277VAC VM4LB05030C2GLG VM4LB05030C2R5G VM4LB05030C2S5G VM4LB05030C2P5G VM4LB05030C2ERN VM4LB05030C2EPN
55m3/4” 120-277VAC VM4LB05530C2GLG VM4LB05530C2R5G VM4LB05530C2S5G VM4LB05530C2P5G VM4LB05530C2ERN VM4LB05530C2EPN
65m3/4” 120-277VAC VM4LB06530C2GLG VM4LB06530C2R5G VM4LB06530C2S5G VM4LB06530C2P5G VM4LB06530C2ERN VM4LB06530C2EPN
70 3/4” 120-277VAC VM4LB07030C2GLG VM4LB07030C2R5G VM4LB07030C2S5G VM4LB07030C2P5G VM4LB07030C2ERN VM4LB07030C2EPN
80 3/4” 120-277VAC VM4LB08030C2GLG VM4LB08030C2R5G VM4LB08030C2S5G VM4LB08030C2P5G VM4LB08030C2ERN VM4LB08030C2EPN
90 3/4” 120-277VAC VM4LB09030C2GLG VM4LB09030C2R5G VM4LB09030C2S5G VM4LB09030C2P5G VM4LB09030C2ERN VM4LB09030C2EPN
100 3/4” 120-277VAC VM4LB10030C2GLG VM4LB10030C2R5G VM4LB10030C2S5G VM4LB10030C2P5G VM4LB10030C2ERN VM4LB10030C2EPN
105 3/4” 120-277VAC VM4LB10530C2GLG VM4LB10530C2R5G VM4LB10530C2S5G VM4LB10530C2P5G VM4LB10530C2ERN VM4LB10530C2EPN
130 3/4” 120-277VAC VM4LB13030C2GLG VM4LB13030C2R5G VM4LB13030C2S5G VM4LB13030C2P5G VM4LB13030C2ERN VM4LB13030C2EPN
VM4LC SERIES CONE WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
POLYCARBONATE
FOOD OPTIC
40m3/4” 120-277VAC VM4LC04030C2GLG VM4LC04030C2PFN VM4LC04030C2R5G VM4LC04030C2S5G VM4LC04030C2P5G VM4LC04030C2EPN
50m3/4” 120-277VAC VM4LC05030C2GLG VM4LC05030C2PFN VM4LC05030C2R5G VM4LC05030C2S5G VM4LC05030C2P5G VM4LC05030C2EPN
55m3/4” 120-277VAC VM4LC05530C2GLG VM4LC05530C2PFN VM4LC05530C2R5G VM4LC05530C2S5G VM4LC05530C2P5G VM4LC05530C2EPN
65m3/4” 120-277VAC VM4LC06530C2GLG VM4LC06530C2PFN VM4LC06530C2R5G VM4LC06530C2S5G VM4LC06530C2P5G VM4LC06530C2EPN
70 3/4” 120-277VAC VM4LC07030C2GLG VM4LC07030C2PFN VM4LC07030C2R5G VM4LC07030C2S5G VM4LC07030C2P5G VM4LC07030C2EPN
80 3/4” 120-277VAC VM4LC08030C2GLG VM4LC08030C2PFN VM4LC08030C2R5G VM4LC08030C2S5G VM4LC08030C2P5G VM4LC08030C2EPN
90 3/4” 120-277VAC VM4LC09030C2GLG VM4LC09030CC2PFN VM4LC09030CC2R5G VM4LC09030CC2S5G VM4LC09030CC2P5G VM4LC09030CC2EPN
100 3/4” 120-277VAC VM4LC10030C2GLG VM4LC10030C2PFN VM4LC10030C2R5G VM4LC10030C2S5G VM4LC10030C2P5G VM4LC10030C2EPN
105 3/4” 120-277VAC VM4LC10530C2GLG VM4LC10530C2PFN VM4LC10530C2R5G VM4LC10530C2S5G VM4LC10530C2P5G VM4LC10530C2EPN
130 3/4” 120-277VAC VM4LC13030C2GLG VM4LC13030C2PFN VM4LC13030C2R5G VM4LC13030C2S5G VM4LC13030C2P5G VM4LC13030C2EPN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L27
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530D5GLN.
k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4”; e.g. VM4LB05530D4GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m See logic for reector ordering options or order angle reector VMPA40 separately.
n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
Spin-Top Poly or
Glass Flat Lens
Spin-Top Poly or
Glass Refractor
Enclosed
Reector
Globe Guard &
Angle Reector
VM4LB SERIES 25° STANCHION WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
GLOBE, GUARD
& ANGLE
RELFECTORm
40m1-1/2” 120-277VAC VM4LB04030D5GLG VM4LB04030D5R5G VM4LB04030D5S5G VM4LB04030D5P5G VM4LB04030D5ERN VM4LB04030D5GLG-A
50m1-1/2” 120-277VAC VM4LB05030D5GLG VM4LB05030D5R5G VM4LB05030D5S5G VM4LB05030D5P5G VM4LB05030D5ERN VM4LB05030D5GLG-A
55m1-1/2” 120-277VAC VM4LB05530D5GLG VM4LB05530D5R5G VM4LB05530D5S5G VM4LB05530D5P5G VM4LB05530D5ERN VM4LB05530D5GLG-A
65m1-1/2” 120-277VAC VM4LB06530D5GLG VM4LB06530D5R5G VM4LB06530D5S5G VM4LB06530D5P5G VM4LB06530D5ERN VM4LB06530D5GLG-A
70 1-1/2” 120-277VAC VM4LB07030D5GLG VM4LB07030D5R5G VM4LB07030D5S5G VM4LB07030D5P5G VM4LB07030D5ERN VM4LB07030D5GLG-A
80 1-1/2” 120-277VAC VM4LB08030D5GLG VM4LB08030D5R5G VM4LB08030D5S5G VM4LB08030D5P5G VM4LB08030D5ERN VM4LB08030D5GLG-A
90 1-1/2” 120-277VAC VM4LB09030D5GLG VM4LB09030D5R5G VM4LB09030D5S5G VM4LB09030D5P5G VM4LB09030D5ERN VM4LB09030D5GLG-A
100 1-1/2” 120-277VAC VM4LB10030D5GLG VM4LB10030D5R5G VM4LB10030D5S5G VM4LB10030D5P5G VM4LB10030D5ERN VM4LB10030D5GLG-A
105 1-1/2” 120-277VAC VM4LB10530D5GLG VM4LB10530D5R5G VM4LB10530D5S5G VM4LB10530D5P5G VM4LB10530D5ERN VM4LB10530D5GLG-A
130 1-1/2” 120-277VAC VM4LB13030D5GLG VM4LB13030D5R5G VM4LB13030D5S5G VM4LB13030D5P5G VM4LB13030D5ERN VM4LB13030D5GLG-A
VM4LC SERIES 25° STANCHION WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
GLOBE, GUARD
& ANGLE
RELFECTORm
40m1-1/2” 120-277VAC
VM4LC04030D5GLG VM4LC04030D5PFN VM4LC04030D5R5G VM4LC04030D5S5G VM4LC04030D5P5G VM4LC04030D5GLG-A
50m1-1/2” 120-277VAC
VM4LC05030D5GLG VM4LC05030D5PFN VM4LC05030D5R5G VM4LC05030D5S5G VM4LC06530D5P5G VM4LC05030D5GLG-A
55m1-1/2” 120-277VAC
VM4LC05530D5GLG VM4LC05530D5PFN VM4LC05530D5R5G VM4LC05530D5S5G VM4LC05530D5P5G VM4LC05530D5GLG-A
65m1-1/2” 120-277VAC
VM4LC06530D5GLG VM4LC06530D5PFN VM4LC06530D5R5G VM4LC06530D5S5G VM4LC06530D5P5G VM4LC06530D5GLG-A
70 1-1/2” 120-277VAC
VM4LC07030D5GLG VM4LC07030D5PFN VM4LC07030D5R5G VM4LC07030D5S5G VM4LC07030D5P5G VM4LC07030D5GLG-A
80 1-1/2” 120-277VAC
VM4LC08030D5GLG VM4LC08030D5PFN VM4LC08030D5R5G VM4LC08030D5S5G VM4LC08030D5P5G VM4LC08030D5GLG-A
90 1-1/2” 120-277VAC
VM4LC09030D5GLG VM4LC09030D5PFN VM4LC09030D5R5G VM4LC09030D5S5G VM4LC09030D5P5G VM4LC09030D5GLG-A
100 1-1/2” 120-277VAC
VM4LC10030D5GLG VM4LC10030D5PFN VM4LC10030D5R5G VM4LC10030D5S5G VM4LC10030D5P5G VM4LC10030D5GLG-A
105 1-1/2” 120-277VAC
VM4LC10530D5GLG VM4LC10530D5PFN VM4LC10530D5R5G VM4LC10530D5S5G VM4LC10530D5P5G VM4LC10530D5GLG-A
130 1-1/2” 120-277VAC
VM4LC13030D5GLG VM4LC13030D5PFN VM4LC13030D5R5G VM4LC13030D5S5G VM4LC13030D5P5G VM4LC13030D5GLG-A
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L28
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530S5GLN.
k Catalog numbers shown are with 1-1/2” conduit openings; change “5” to “4” for 1-1/4”; e.g. VM4LB05530S4GLG.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
m See logic for reector ordering options or order dome reector VMPSD40 separately.
n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PRN to GFN at end of catalog number.
Globe & Guard or Glass
Refractor & Guard
Spin-Top Poly or
Glass Flat Lens
Spin-Top Poly or
Glass Refractor
Enclosed Reector Globe, Guard and Dome Reector
VM4LB SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
GLOBE GUARD
AND DOME
REFLECTORm
40m1-1/2” 120-277VAC VM4LB04030S5GLG VM4LB04030S5R5G VM4LB04030S5S5G VM4LB04030S5P5G VM4LB04030S5ERN VM4LB04030S5GLG-S
50m1-1/2” 120-277VAC VM4LB05030S5GLG VM4LB05030S5R5G VM4LB05030S5S5G VM4LB05030S5P5G VM4LB05030S5ERN VM4LB05030S5GLG-S
55m1-1/2” 120-277VAC VM4LB05530S5GLG VM4LB05530S5R5G VM4LB05530S5S5G VM4LB05530S5P5G VM4LB05530S5ERN VM4LB05530S5GLG-S
65m1-1/2” 120-277VAC VM4LB06530S5GLG VM4LB06530S5R5G VM4LB06530S5S5G VM4LB06530S5P5G VM4LB06530S5ERN VM4LB06530S5GLG-S
70 1-1/2” 120-277VAC VM4LB07030S5GLG VM4LB07030S5R5G VM4LB07030S5S5G VM4LB07030S5P5G VM4LB07030S5ERN VM4LB07030S5GLG-S
80 1-1/2” 120-277VAC VM4LB08030S5GLG VM4LB08030S5R5G VM4LB08030S5S5G VM4LB08030S5P5G VM4LB08030S5ERN VM4LB08030S5GLG-S
90 1-1/2” 120-277VAC VM4LB09030S5GLG VM4LB09030S5R5G VM4LB09030S5S5G VM4LB09030S5P5G VM4LB09030S5ERN VM4LB09030S5GLG-S
100 1-1/2” 120-277VAC VM4LB10030S5GLG VM4LB10030S5R5G VM4LB10030S5S5G VM4LB10030S5P5G VM4LB10030S5ERN VM4LB10030S5GLG-S
105 1-1/2” 120-277VAC VM4LB10530S5GLG VM4LB10530S5R5G VM4LB10530S5S5G VM4LB10530S5P5G VM4LB10530S5ERN VM4LB10530S5GLG-S
130 1-1/2” 120-277VAC VM4LB13030S5GLG VM4LB13030S5R5G VM4LB13030S5S5G VM4LB13030S5P5G VM4LB13030S5ERN VM4LB13030S5GLG-S
VM4LC SERIES STRAIGHT STANCHION WITH OPTIC AND GUARDj
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
GLOBE GUARD
AND DOME
REFLECTORm
40m1-1/2” 120-277VAC VM4LC04030S5GLG VM4LC04030S5PFN VM4LC04030S5R5G VM4LC04030S5S5G VM4LC04030S5P5G VM4LC04030S5GLG-S
50m1-1/2” 120-277VAC VM4LC05030S5GLG VM4LC05030S5PFN VM4LC05030S5R5G VM4LC05030S5S5G VM4LC05030S5P5G VM4LC05030S5GLG-S
55m1-1/2” 120-277VAC VM4LC05530S5GLG VM4LC05530S5PFN VM4LC05530S5R5G VM4LC05530S5S5G VM4LC05530S5P5G VM4LC05530S5GLG-S
65m1-1/2” 120-277VAC VM4LC06530S5GLG VM4LC06530S5PFN VM4LC06530S5R5G VM4LC06530S5S5G VM4LC06530S5P5G VM4LC06530S5GLG-S
70 1-1/2” 120-277VAC VM4LC07030S5GLG VM4LC07030S5PFN VM4LC07030S5R5G VM4LC07030S5S5G VM4LC07030S5P5G VM4LC07030S5GLG-S
80 1-1/2” 120-277VAC VM4LC08030S5GLG VM4LC08030S5PFN VM4LC08030S5R5G VM4LC08030S5S5G VM4LC08030S5P5G VM4LC08030S5GLG-S
90 1-1/2” 120-277VAC VM4LC09030S5GLG VM4LC09030S5PFN VM4LC09030S5R5G VM4LC09030S5S5G VM4LC09030S5P5G VM4LC09030S5GLG-S
100 1-1/2” 120-277VAC VM4LC10030S5GLG VM4LC10030S5PFN VM4LC10030S5R5G VM4LC10030S5S5G VM4LC10030S5P5G VM4LC10030S5GLG-S
105 1-1/2” 120-277VAC VM4LC10530S5GLG VM4LC10530S5PFN VM4LC10530S5R5G VM4LC10530S5S5G VM4LC10530S5P5G VM4LC10530S5GLG-S
130 1-1/2” 120-277VAC VM4LC13030S5GLG VM4LC13030S5PFN VM4LC13030S5R5G VM4LC13030S5S5G VM4LC13030S5P5G VM4LC13030S5GLG-S
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L29
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – ORDERING INFORMATION
j Catalog numbers shown are with Guard (except ER/EP/PF); to omit guard change ending G to N; e.g. VM4LB05530EZGLN.
k VMEZA tank adapters UL “classied” as an assembly for use between VM tanks and EZ mounts. Order EZ mounts separately - see page L31 on components page.
l 120VAC through 277VAC 50/60Hz. See logic for other voltages.
n 40W, 50W, 55W and 65W are available in VM2LB/VM2LC shallower housings. Substitute VM2L for VM4L in catalog number.
* For Glass 12” Spin-Top Flat Lens change PFN to GFN at end of catalog number.
Globe & Guard or
Glass Refractor & Guard
Spin-Top Poly or
Glass Flat Lens
Spin-Top Poly or
Glass Refractor
Enclosed Reector Poly Food Optic
VM4LB SERIES EZ ADAPTER WITH OPTIC AND GUARDjk
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
TYPE V GLASS
REFRACTOR &
GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
ENCLOSED
REFLECTOR
POLYCARBONATE
FOOD OPTIC
40m k 120-277VAC VM4LB04030EZGLG VM4LB04030EZR5G VM4LB04030EZS5G VM4LB04030EZP5G VM4LB04030EZERN VM4LB04030EZEPN
50m k 120-277VAC VM4LB05030EZGLG VM4LB05030EZR5G VM4LB05030EZS5G VM4LB05030EZP5G VM4LB05030EZERN VM4LB05030EZEPN
55m k 120-277VAC VM4LB05530EZGLG VM4LB05530EZR5G VM4LB05530EZS5G VM4LB05530EZP5G VM4LB05530EZERN VM4LB05530EZEPN
65m k 120-277VAC VM4LB06530EZGLG VM4LB06530EZR5G VM4LB06530EZS5G VM4LB06530EZP5G VM4LB06530EZERN VM4LB06530EZEPN
70 k120-277VAC VM4LB07030EZGLG VM4LB07030EZR5G VM4LB07030EZS5G VM4LB07030EZP5G VM4LB07030EZERN VM4LB07030EZEPN
80 k120-277VAC VM4LB08030EZGLG VM4LB08030EZR5G VM4LB08030EZS5G VM4LB08030EZP5G VM4LB08030EZERN VM4LB08030EZEPN
90 k120-277VAC VM4LB09030EZGLG VM4LB09030EZR5G VM4LB09030EZS5G VM4LB09030EZP5G VM4LB09030EZERN VM4LB09030EZEPN
100 k120-277VAC VM4LB10030EZGLG VM4LB10030EZR5G VM4LB10030EZS5G VM4LB10030EZP5G VM4LB10030EZERN VM4LB10030EZEPN
105 k120-277VAC VM4LB10530EZGLG VM4LB10530EZR5G VM4LB10530EZS5G VM4LB10530EZP5G VM4LB10530EZERN VM4LB10530EZEPN
130 k120-277VAC VM4LB13030EZGLG VM4LB13030EZR5G VM4LB13030EZS5G VM4LB13030EZP5G VM4LB13030EZERN VM4LB13030EZEPN
VM4LC SERIES EZ ADAPTER WITH OPTIC AND GUARDjk
WATTS HUB
SIZEkVOLTAGElGLOBE & GUARD
12” SPIN-TOP
POLYCARBONATE
FLAT LENS*
TYPE V GLASS
REFRACTOR
& GUARD
12” SPIN-TOP
TYPE V GLASS
REFRACTOR & GUARD
12” SPIN-TOP TYPE V
POLYCARBONATE
REFRACTOR & GUARD
POLYCARBONATE
FOOD OPTIC
40m k 120-277VAC VM4LC04030EZGLG VM4LC04030EZPFN VM4LC04030EZR5G VM4LC04030EZS5G VM4LC04030EZP5G VM4LC04030EZEPN
50m k 120-277VAC VM4LC05030EZGLG VM4LC05030EZPFN VM4LC05030EZR5G VM4LC05030EZS5G VM4LC05030EZP5G VM4LC05030EZEPN
55m k 120-277VAC VM4LC05530EZGLG VM4LC05530EZPFN VM4LC05530EZR5G VM4LC05530EZS5G VM4LC05530EZP5G VM4LC05530EZEPN
65m k 120-277VAC VM4LC06530EZGLG VM4LC06530EZPFN VM4LC06530EZR5G VM4LC06530EZS5G VM4LC06530EZP5G VM4LC06530EZEPN
70 k120-277VAC VM4LC07030EZGLG VM4LC07030EZPFN VM4LC07030EZR5G VM4LC07030EZS5G VM4LC07030EZP5G VM4LC07030EZEPN
80 k120-277VAC VM4LC08030EZGLG VM4LC08030EZPFN VM4LC08030EZR5G VM4LC08030EZS5G VM4LC08030EZP5G VM4LC08030EZEPN
90 k120-277VAC VM4LC09030EZGLG VM4LC09030EZPFN VM4LC09030EZR5G VM4LC09030EZS5G VM4LC09030EZP5G VM4LC09030EZEPN
100 k120-277VAC VM4LC10030EZGLG VM4LC10030EZPFN VM4LC10030EZR5G VM4LC10030EZS5G VM4LC10030EZP5G VM4LC10030EZEPN
105 k120-277VAC VM4LC10530EZGLG VM4LC10530EZPFN VM4LC10530EZR5G VM4LC10530EZS5G VM4LC10530EZP5G VM4LC10530EZEPN
130 k120-277VAC VM4LC13030EZGLG VM4LC13030EZPFN VM4LC13030EZR5G VM4LC13030EZS5G VM4LC13030EZP5G VM4LC13030EZEPN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L30

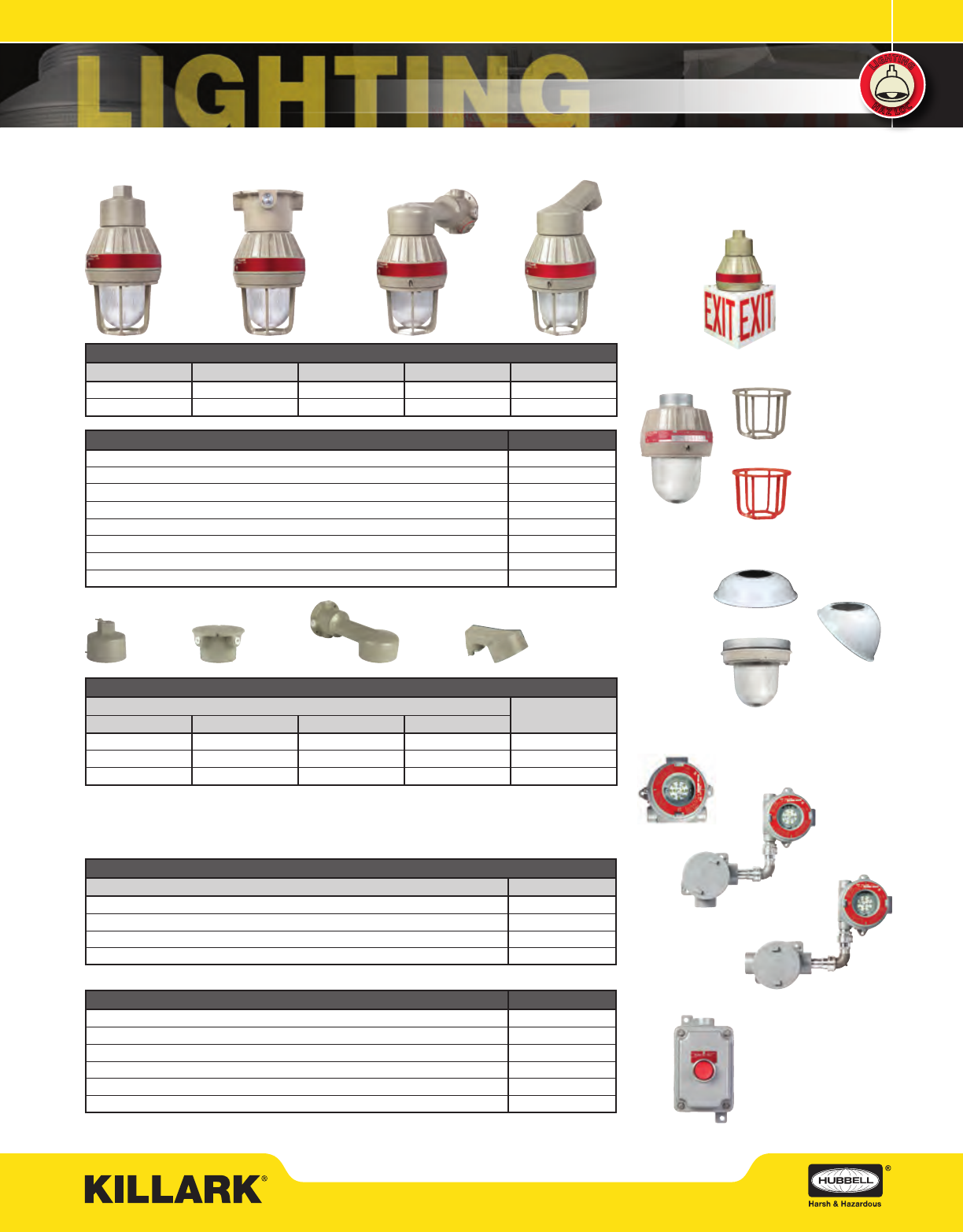

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – COMPONENTS
Pendant Ceiling Wall
25° Stanchion
Cone Top
Straight Stanchion EZ Adapter*
VMEZA
Tank Adapter
See next page to order
HRD400
VMPSD40 VMPA40
HRD400ALZ
Standard Dome, Fiberglass
White Reflector, Dia: 16”
30O Angle, Fiberglass
White Reflector, Dia:16”
Deep Aluminum, White
Reflector, Dia: 21”
Deep Aluminum, Anodized
Reflector, Dia: 21”
VMAGBC
VMER40
VMG25 VMR255
VMR253
VMR251
VMEP40
VMAG25S
VMERG
VZRG4050
VZRG4020
VMRWGS VZRPF/VZRGF
VMFSPC VEXA400
Fixture not included
* VMEZA is used between a ballast tank and an EZ mount - ordered separately. See catalog grids.
* * Furnished with non-metallic plugs. Also available: VMB10B wall 4xM25 hubs, and VMB810B 2xM20 side hubs
and 2xM25 top/bottom
* Non-glass over Food/Grain Class II Div 1 Group G Certied; VMEP40, VZRP175B, and VZRPF12
CERTILITE®V VM MOUNTING SPLICE BOXES
CATALOG NUMBER
HUB SIZE PENDANT CEILING 4 HUB CEILING 5 HUB WALL CONE TOP 25 DEGREE STANCHION 90 DEGREE STANCHION
3/4” VMA2B VMX2B VMX6B VMB2B VMC2B — —
1” VMA3B VMX3B VMX7B VMB3B VMC3B — —
1-1/4” —————VMD4B VMS4B
1-1/2” —————VMD5B VMS5B
M-20 —VMX8B** VMX9B** VMB8B** — — —
VM2L/VM4L LED OPTICS AND ACCESSORIES
DESCRIPTION OPTIC LOGIC GUARDm
Flat Lens (glass spin top) “C” tank only VZRGF12 (GF) VZRF12GRD
Flat Lens (polycarbonate spin top) “C” tank only* VZRPF12 (PF) VZRF12GRD
Globe (glass) VMG25 (GL) VMAG25S
Refractor (all glass) Type V VMR255 (R5) VMAG25S
Enclosed Reflector VMER40 (ER) VMERG
Enclosed Reflector with polycarbonate Lens*VMEP40 (EP)l—
Refractor (polycarbonate spin top) 12” Type V*VZRP175B (P5) VMRWGS
Refractor (glass spin top) 12” Type V VZRG4050 (S5) VMRWGS
j Order single-gang FS box separately. For photocell factory installed in tank, see logic.
k For use with Generator or UPS powered xtures
l For wall applications mount must be spaced out for bottom hub
m Guards are 316 Stainless Steel. Bottom closure for VMAG25S pt. no. VMAGBC
VM2L/VM4L LED REFLECTORS AND ACCESSORIES
DOME REFLECTOR (Polyester reinforced fiberglass) VMPSD40
ANGLE REFLECTOR (Polyester reinforced fiberglass) VMPA40
DEEP DOME REFLECTOR (White Painted Aluminum) HRD400
DEEP DOME REFLECTOR (Anodized Aluminum) HRD400ALZ
120VAC Photocell with FS Style CoverjVMFSPC1
208-277VAC Photocell with FS Style CoverjVMFSPC2
Bottom Closure for VMAG25SmVMAGBC
4-sided EXIT Accessory (use without guard)kVEXA400
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L31
VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – COMPONENTS & RATINGS
Wall Bracket 25° StanchionPendant Ceiling
“EZ” Mount Adapter
For easy fixture relocation or to
repair fixture on ‘bench top’.
VMEZA adapter is used
between a ballast tank and EZ
mount ordered separately.
j Crouse-Hinds is a registered trademark of EATON® corporation.
k Appleton and MERCMASTER are registered trademarks of Emerson® Industrial Automation.
l Hazlux is a registered trademark of Thomas & Betts.
Tank adapter to Crouse-Hinds®j VM Series mounts
Tank adapter to CH (70’s era wall mount with deep box)
Tank adapter to Appleton®k MERCMASTER II mounts
Tank adapter to Appleton® MERCMASTER III mounts
Tank adapter to Hazlux®3l mounts
VMCHVM
VMCHVM-DEEP
VMM2LP
VMM3KP
VMHLDS
j Driver THD<20%, Powerfactor 99% @ 120V; Line
Regulation 2%; Load regulation 5%; Protected against
Over-voltage and Over-current.
k Weights are shown with VM4LB with ceiling mount.
VM4LC with ceiling mount approx. 17.4 lbs.
For VM2L models, deduct approx. 1.25 lbs.
l TM-21 based values require very long duration
testing. The TM-21/L70 “official reported” value
is based on at least 10,000 hours testing (at time
of printing) at 1000mA to 1500mA drive current,
depending on LED chip utilized -”Reported L70”
is a factor of test duration. KILLARK’s VM4LC/B
series utilizes lower 700mA maximum drive current –
“calculated” values by the major chip vendors utilized
predict L70 life up to 278,000 hours even at 1000mA.
m For a given wattage current values are the same,
regardless of tank type VM2LB/C or VM4LB/C.
n Replace (x) with tank size 2 or 4 and replace (y) with
heat sink style B or C.
* Extra high lumen per watt LED’s
Competitive Adapters
Designed to ease upgrading of other manufacturer’s
fixtures to KILLARK LEDs where removal of existing
mounting screws and conduit would be difficult and time
consuming.
Patented Design
*1-1/2” furnished with 1-1/2”-1-1/4” reducer and extension.
MOUNTING BOXES
CATALOG NUMBER HUB SIZE
PENDANT CEILING BRACKET STANCHION
EZA2 EZX2 EZB3 —3/4”
EZA3 EZX3 EZB3 —1”
— — — EZD4A 1-1/4” / 1/2”*
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C2D1
CATALOG NO.n
WEIGHT LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 65°C 40°C 55°C 65°C
VM(x)L(y)4030
18.90 / 8.57
40 120-277 VAC 0.35-0.16
T4A T4A T4 EFG
VM(x)L(y)4033
40 347-480VAC 0.12-0.09
VM(x)L(y)4034
40 120-250VDC 0.33-0.16
VM(x)L(y)5030
50 120-277 VAC 0.43-0.21
T4A T4A T4 EFG
VM(x)L(y)5033
50 347-480VAC 0.15-0.12
VM(x)L(y)5034
50 120-250VDC 0.42-0.20
VM(x)L(y)5530
55 120-277 VAC 0.48-0.21
T4A T4A T4 EFG
VM(x)L(y)5533
55 347-480VAC 0.17- 0.12
VM(x)L(y)5534
55 120-250VDC 0.46-0.22
VM(x)L(y)6530
65 120-277 VAC 0.56-0.24
T4A T4A T4 EFG
VM(x)L(y)6533
65 347-480VAC 0.19-0.14
VM(x)L(y)6534
65 120-250VDC 0.54-0.26
VM4L(y)7030 70 120-277 VAC 0.60-0.30
T4A T4 -EFG -VM4L(y)7033 70 347-480VAC 0.20-0.17
VM4L(y)7034 70 120-250VDC 0.58-0.28
VM4L(y)8030 80 120-277 VAC 0.68-0.30
T4A T4 -EFG -VM4L(y)8033 80 347-480VAC 0.24-0.17
VM4L(y)8034 80 120-250VDC 0.67-0.32
VM4L(y)9030 90 120-277 VAC 0.77-0.33
T4A T4 -EFG -VM4L(y)9033 90 347-480VAC 0.27-0.19
VM4L(y)9034 90 120-250VDC 0.75-0.36
VM4L(y)10030
100 120-277 VAC 0.85-0.39
T4A T4 -EFG -
VM4L(y)10033
100 347-480VAC 0.29-0.23
VM4L(y)10034
100 120-250VDC 0.83-0.40
VM4L(y)10530
105 120-277 VAC 0.89-0.39
T4A T4 -EFG -
VM4L(y)10533
105 347-480VAC 0.31-0.23
VM4L(y)105834
105 120-250VDC 0.88-0.42
VM4L(y)13030
130 120-277 VAC 1.10-0.46 T4A T4 -EFG -
VM4L(y)13033
130 347-480 VAC 0.38-0.27
TOTAL LUMEN OUTPUT
WATTAGE GLOBE
(VM4LB)
GLOBE
(VM4LC)
FLAT
LENS
(VM4LC)
L70
TM-21
CALCULATED
40 4600 4180 3873 60100 270000
50 6715 6087 5556 72600 278000
55 5842 5275 4790 60100 270000
65 8577 8229 7441 72600 278000
70 7111 6524 5980 60100 270000
80 8525 7559 6923 60100 270000
90 10520 10210 9115 72600 278000
100 1220 11910 10666 60100 270000
105 10780 9600 8809 60100 270000
130 15630 15370 13780 72600 278000
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L32

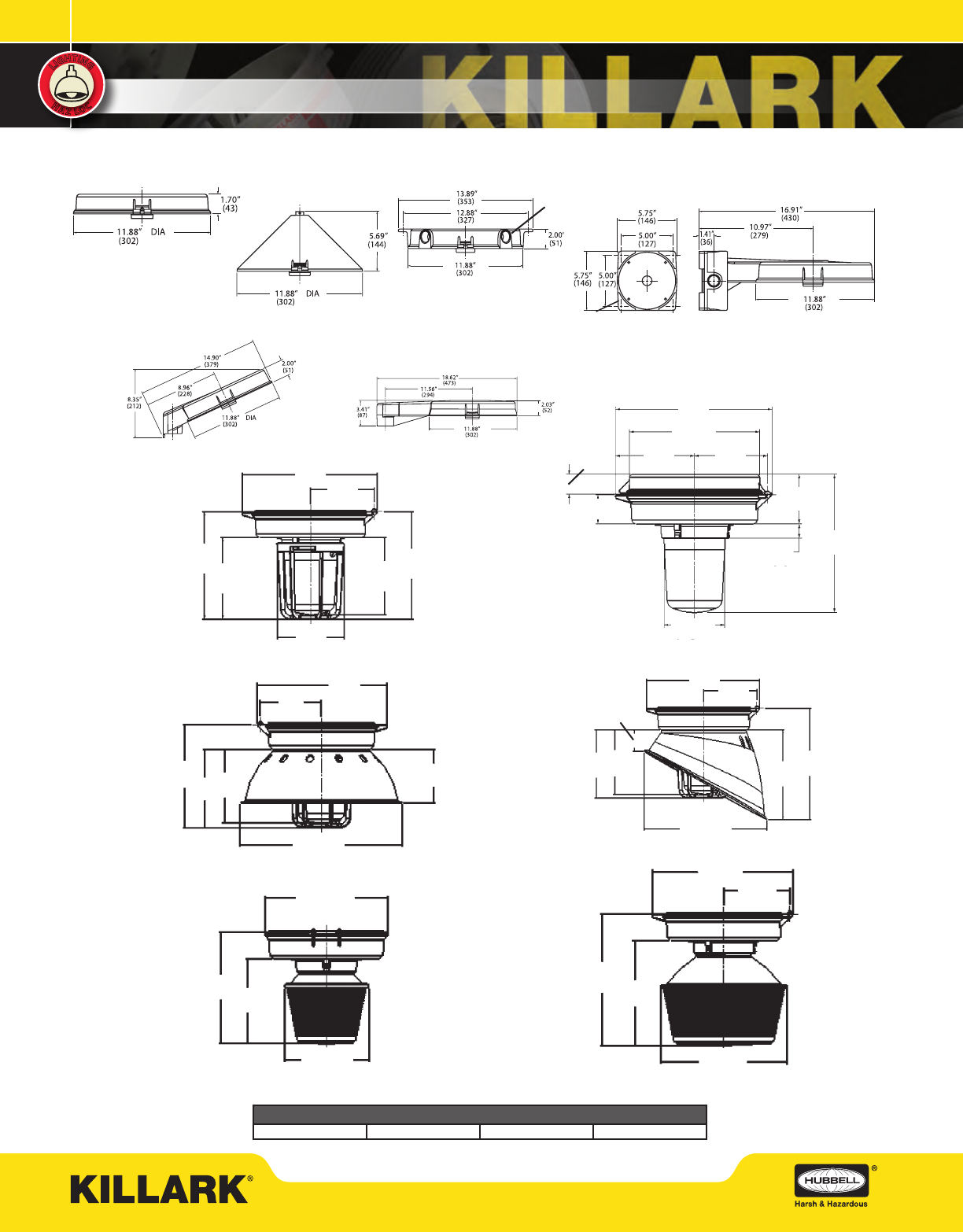

VM2&4LB, VM2&4LC SERIES
HIGH WATTAGE – DIMENSIONS & WEIGHTS
For Height of VM2L models, deduct
1.56” (40mm) from VM4L tank, or overall
dimensions with some mount and optic.
All other dimensions are the same.
Wall Bracket Mount
Stanchion (0°) Mount
Cone Mount Stanchion (25°) Mount
Ceiling Mount
Pendant Mount
TYPICAL WEIGHTS (LBS.) W/STANDARD GLOBE AND GUARD - VM4LB/C SERIES
Pendant 33.40 Ceiling 33.00 Wall 37.90 Stanchion 34.30
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L33

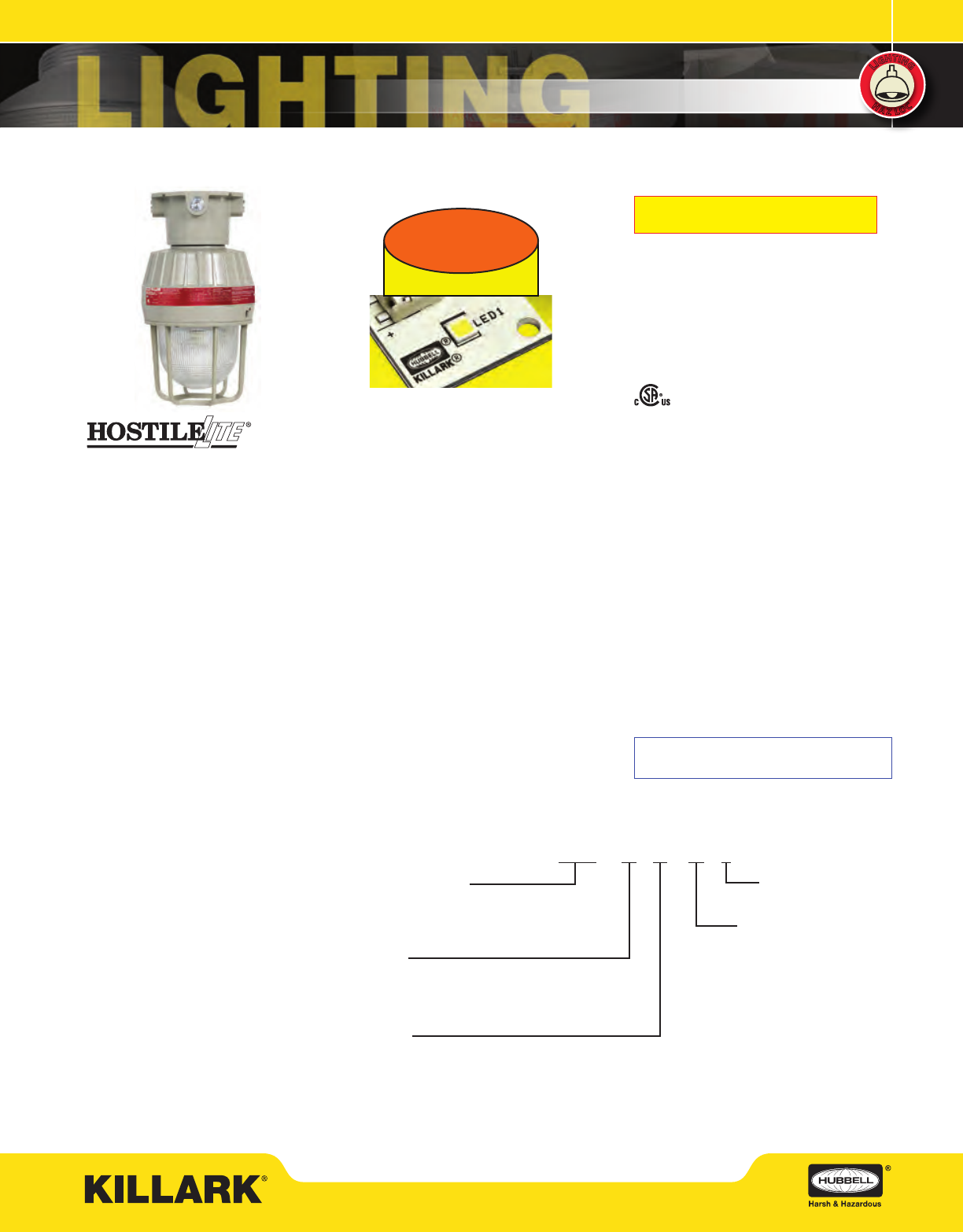

EML SERIES
EXPLOSION-PROOF – INTRODUCTION & LOGIC
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
Suitable for Paint Spray Booth
Marine Rated (US only)
NEMA 3, 4, 4X
Factory Sealed
Catalog Number Logic
Tank & Globe with
Driver and LEDs
EMLC — Tank w/Clear Globe
EML — Tank w/Fluted Globe
Wattage
40W - LED
45W - LED
50W - LED
Mounting Type
A2 — 3/4” Pendant
A3 — 1” Pendant
X2 — 3/4” Ceiling
X3 — 1” Ceiling
B2 — 3/4” Bracket
B3 — 1” Bracket
D4 — 1-1/4” / 1-1/2” Stanchion
Guard
G = Guard
EMLC 45 30 A2 G
Applications
HostileLite® EML LED Series fixtures are
designed for installations where moisture,
dirt, dust, corrosion and vibration may be
present, or NEMA 3 and 4X areas where
wind, water, snow or high ambients can be
expected. They can be used in locations
made hazardous due to the presence of
flammable or explosive gases, vapors and
combustible dusts as defined by the NEC.
Applications include classified areas such
as paint manufacturing plants, ammunition
facilities, oil and gas producing and refining
plants, off-shore and dockside installations,
tank farms, pipeline pumping stations and
marine loading and fuel transfer terminals.
Compliances
• UL-8750 for LED lighting
• UL-844 Electric Lighting Fixtures for use
in Hazardous Locations
• UL Marine Type Electric Lighting Fixtures
• CSA C22.2 no. 137-M1981 Electric
Luminaires for use in Hazardous
Locations
• NEMA 3, 4, 4X, 7CD, 9EFG
Materials
• Ballast tank, splice box and guards
corrosion resistant copper-free aluminum
alloy
• Baked powder epoxy/polyester finish,
electorstatically applied for complete,
uniform corrosion protection
• All external hardware – Stainless Steel
• Reflectors are aluminum with white finish
LED Luminaire Features and Standards
• Compact Explosion-proof with Traditional
Industrial Appearance and Suitability
• Fluted or Exclusive Clear Globe; Dome or
Angle Reflectors
• Surge Protection Standard
• Optional Mounting arrangements
including Pendant, Wall, Ceiling, and
Stanchion
• EML LED Housings can be retrofitted to
existing EZ splice boxes; upgrade from
Incandescent, Fluorescent or HID
• Energy Savings – Less than 55 Watts of
Power
• Long Life – 50,000 - 55,000 Maintenance
Free Hours to 70% Initial Lumens
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000K (CCT
range; approx. 70 CRI
• Ambient suitability -40°C to 55°C
• Instant on – Including after power
interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• Dual Drivers – Redundant Systems (built-
in backup)
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of Initial Lumens
• Factory Sealed Construction – No external
seal required, simply wire mouting cap
and thread-in fixture to install
Voltage
30 — 120-277VAC 50/60Hz
33 — 347-480V (40W only)
Accessories (sold separately)
ERSD30 — Dome Reflector
ERA30 — Angle Reflector
* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among
test labs and manufacturers. For more information go to www.ies.org
LED
Options
AN - Assembled Fixture
Expanded wattage range RANGE
40W, 45W, and 50W
TECHNOLOGY
LED
Suitable for Paint Spray Booth
Applications
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L34

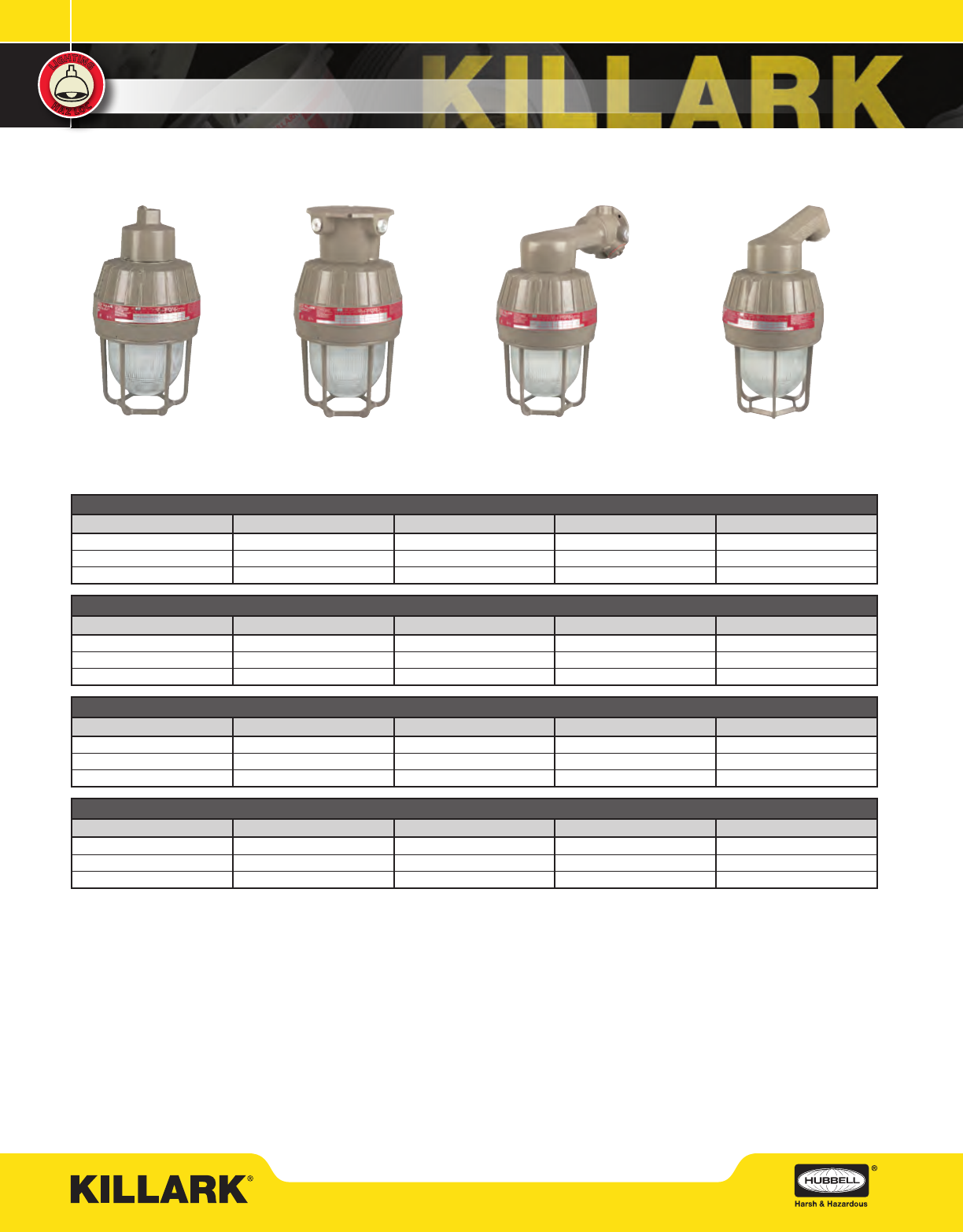

EML SERIES
EXPLOSION-PROOF – ORDERING INFORMATION
ORDERING INFORMATION
Pendant Ceiling Wall Stanchion
j Catalog numbers shown are with Guard; Omit G if guard not required e.g. EML4530A2.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. EML4530A3G.
l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting (refer to catalog logic).
m 120VAC through 277VAC 50/60Hz.
* Exclusive from KILLARK - clear globe for maximum brightness.
EML SERIES PENDANT WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*
40 3/4” 120-277VAC EML4030A2G EMLC4030A2G
45 3/4” 120-277VAC EML4530A2G EMLC4530A2G
50 3/4” 120-277VAC EML5030A2G EMLC5030A2G
EML SERIES CEILING WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*
40 3/4” 120-277VAC EML4030X2G EMLC4030X2G
45 3/4” 120-277VAC EML4530X2G EMLC4530X2G
50 3/4” 120-277VAC EML5030X2G EMLC5030X2G
EML SERIES WALL WITH OPTIC AND GUARDj
WATTS HUB SIZEkVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*
40 3/4” 120-277VAC EML4030B2G EMLC4030B2G
45 3/4” 120-277VAC EML4530B2G EMLC4530B2G
50 3/4” 120-277VAC EML5030B2G EMLC5030B2G
EML SERIES 25° STANCHION WITH OPTIC AND GUARDj
WATTS HUB SIZElVOLTAGEmFLUTED GLOBE & GUARD CLEAR GLOBE & GUARD*
40 1-1/4”/1-1/2” 120-277VAC EML4030D4G EMLC4030D4G
45 1-1/4”/1-1/2” 120-277VAC EML4530D4G EMLC4530D4G
50 1-1/4”/1-1/2” 120-277VAC EML5030D4G EMLC5030D4G
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L35
EML SERIES
EXPLOSION-PROOF – COMPONENTS & RATINGS
Wall BracketPendant Ceiling 25° Stanchion EMG2
ERA30 Angle Dome
ERSD30 Standard Dome
EML4530
EMLC4530
Factory Sealed
Photocell VMHKPC1
EMGS3
EMGS2
EAC/EACH
EZ MOUNTING BRACKETS
CATALOG NUMBER HUB SIZE
PENDANT CEILING WALL STANCHION
EZA2 EZX2 EZB2 —3/4”
EZA3 EZX3 EZB3 —1”
— — — EZD4* 1-1/4” / 1-1/2”*
* 1-1/2” furnished with 1-1/2” - 1-1/4” reducer
j Guards are cast of copper-free aluminum with electrostatically applied epoxy/polyester.
k Reectors are aluminum with white nish.
l Adapters for discontinued Killark “H” Series and Crouse Hinds® available. See page L223 for more information.
EML - EMLC LED ACCESSORIES
DESCRIPTION CATALOG NUMBER
GuardjEMG2
Dome ReflectorkERSD30
Angle ReflectorkERA30
CIDI C2D1 N4X Photocell 120VAC VMHKPC1
CIDI C2D1 N4X Photocell 208-277VAC VMHKPC2
Replacement Fluted Globe & Support EMGS3
Replacement Clear Globe & Support EMGS2
Adapter to old Killark “H” Series or Crouse Hinds®EAC/EACHl
m TM-21 based values require very long duration testing. The TM-21/L70 “official reported” value is based on
at least 10,000 hours testing (at time of printing) at 1000mA to 1500mA drive current, depending on LED chip
utilized. “Reported L70” is a factor of test duration. KILLARK’s VM4LC/B series utilizes lower 700mA maximum
drive current - “calculated” values by the major chip vendors utilized predict L70 life up to 278,000 hours even at
1000mA.
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1/C1Z1 C2D1 L70
CATALOG
NO.
WEIGHT
LBS./KG WATTS VOLTAGE AMPS EML FLUTTED
LUMENS
EMLC CLEAR
LUMENS 40°C 55°C 40°C 55°C TM-21 CALCULATED
EML4030
26.00 /
11.79
40 120-277VAC 0.46-0.16 3479 3750 T6 T6 T4A (EFG) T4 (EFG) 60100 270000
EML4033 347-480VAC 0.14-0.10
EML4530 49 120-277VAC 0.41-0.18 2880 2930 T6 T6 T4A (EFG) T4 (EFG) 60100 270000
EML5030 50 120-277VAC 0.43-0.18 5740 5741 T6 T6 T4A (EFG) T4 (EFG) 72600 278000
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L36

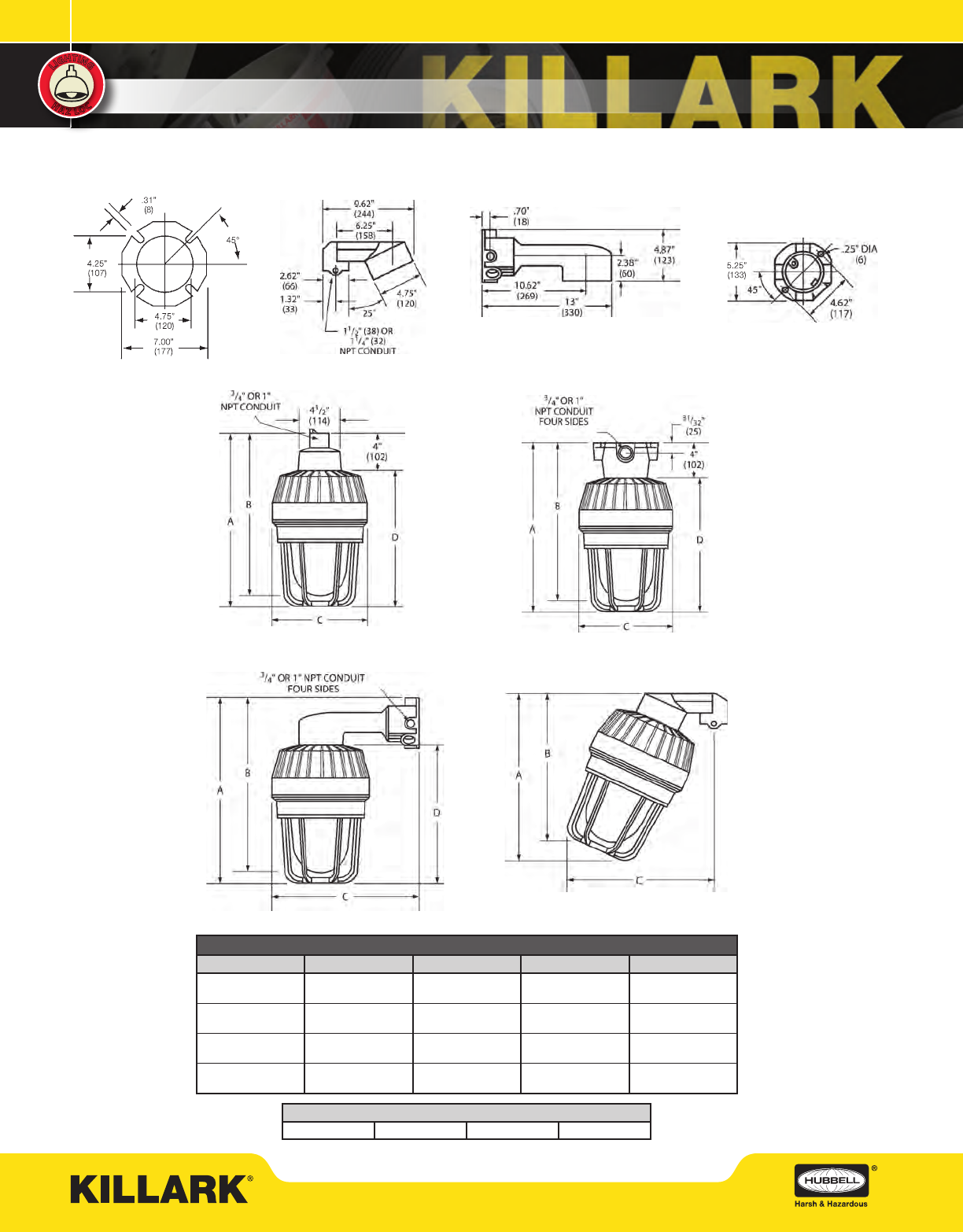

EML SERIES
EXPLOSION-PROOF – DIMENSIONS & WEIGHTS
Wall 25° Stanchion
Pendant Ceiling
EML(C) DIMENSIONS
TYPE A B C D
PENDANT 15-15/16”
(404)
15-1/16”
(382)
8-13/16”
(224)
11-15/16”
(303)
CEILING 15-15/16”
(404)
15-1/16”
(382)
8-13/16”
(224)
11-15/16”
(303)
WALL 16-13/16”
(426)
15-15/16”
(404)
15”
(379)
11-15/16”
(303)
STANCHION 15-1/8”
(384)
14”
(356)
13-1/2”
(343)
TYPICAL WEIGHTS (LBS.) W/STANDARD GLOBE AND GUARD - EML (C) SERIES
Pendant 29.33 Ceiling 31.79 Wall 33.25 Stanchion 30.94
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L37

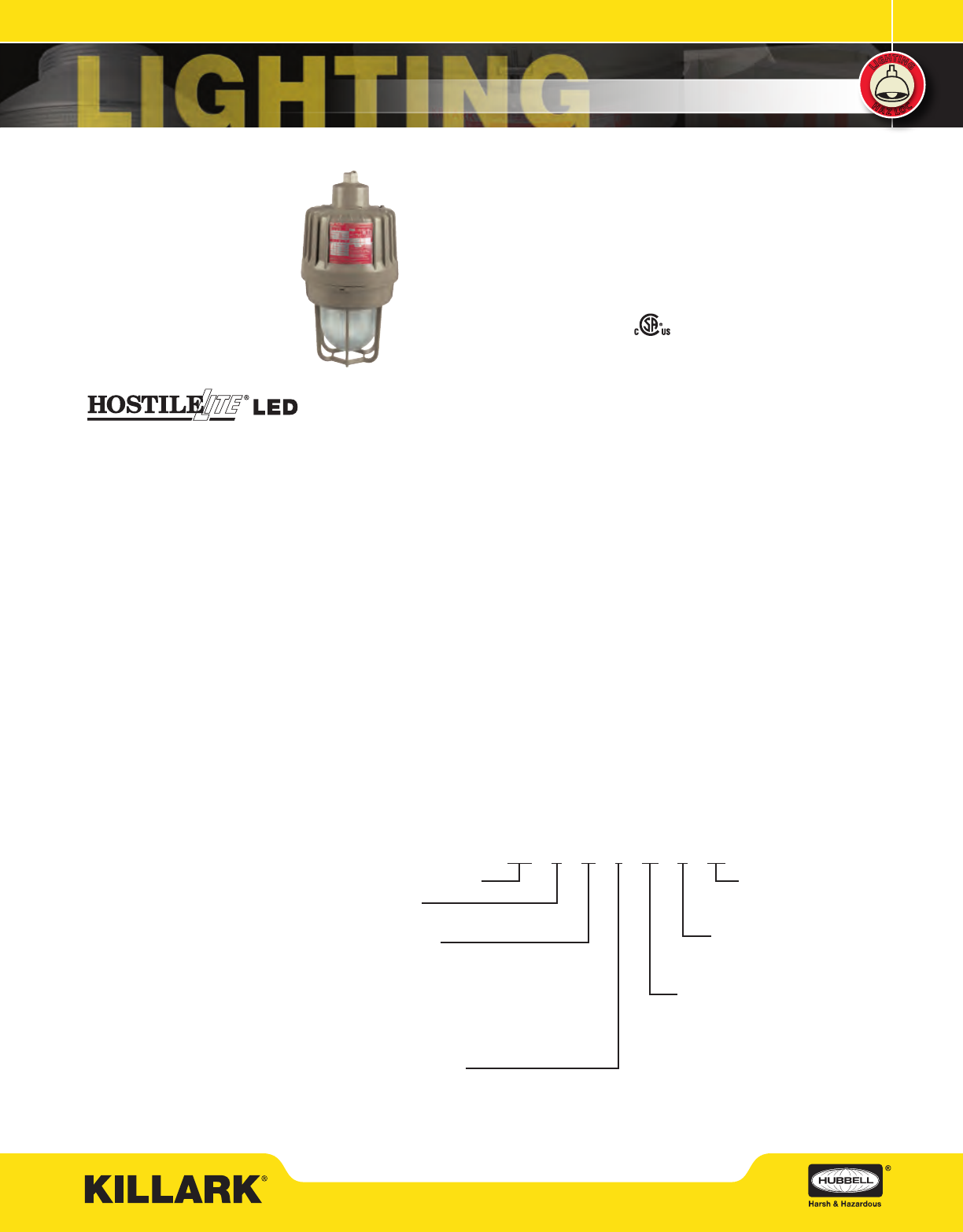

EXPLOSION-PROOF – INTRODUCTION & LOGIC
EZL SERIES
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
Suitable for Paint Spray Booth
Marine Rated (US only)
NEMA 3, 4, 4X
Factory Sealed
Catalog Number Logic
Series EZ Designation
Lamp Type
L – LED
Lamp Wattage
055 – 55 W
065 – 65 W
090 – 90 W
095 – 95 W
100 – 100 W
125 – 125 W
Voltage, Frequency
30 – 120 - 277 VAC, 50/60 Hz
33 – 347 - 480 VAC, 50/60 Hz
34 – 120-250VDC
Guard
G – Guard
O – Guard not provided
Options
AN – Assembled Fixture
EB – Eyebolts
Mounting Type
A2 – 3/4” Pendant
A3 – 1” Pendant
X2 – 3/4” Ceiling
X3 – 1” Ceiling
B2 – 3/4” Bracket
B3 – 1” Bracket
D4 – 1-1/4” / 1-1/2” Stanchion
EZL M07 0A2 GAN
Applications
HOSTILELITE® EZL Series high wattage
LED fixtures are designed for installations
where moisture, dirt, dust, corrosion and
vibration may be present, or NEMA 3 and
4x areas where wind, water, snow or where
high ambient temperatures can be expected.
They can be used in locations made
hazardous due to the presence of flammable
or explosive gases, vapors and combustible
dusts as defined by the NEC.
Typical applications include classified areas
such as paint manufacturing plants, paint
spray, oil and gas producing and refining
plants, off-shore and dockside installations,
tank farms, pipeline pumping stations and
marine loading and fuel transfer terminals.
Compliances
• UL-8750 for LED lighting
• UL-844 Electric Lighting Fixtures for use
in Hazardous Locations
• UL Marine Type Electric Lighting Fixtures
• CSA C22.2 no. 137-M1981 Electric
Luminaires for use in Hazardous
Locations
• NEMA 3, 4, 4X, 7CD, 9EFG
Materials
• Ballast tank, splice box and guards
corrosion resistant copper-free aluminum
alloy
• Baked powder epoxy/polyester finish,
electorstatically applied for complete,
uniform corrosion protection
• All external hardware – Stainless Steel
• Reflectors are aluminum with white finish

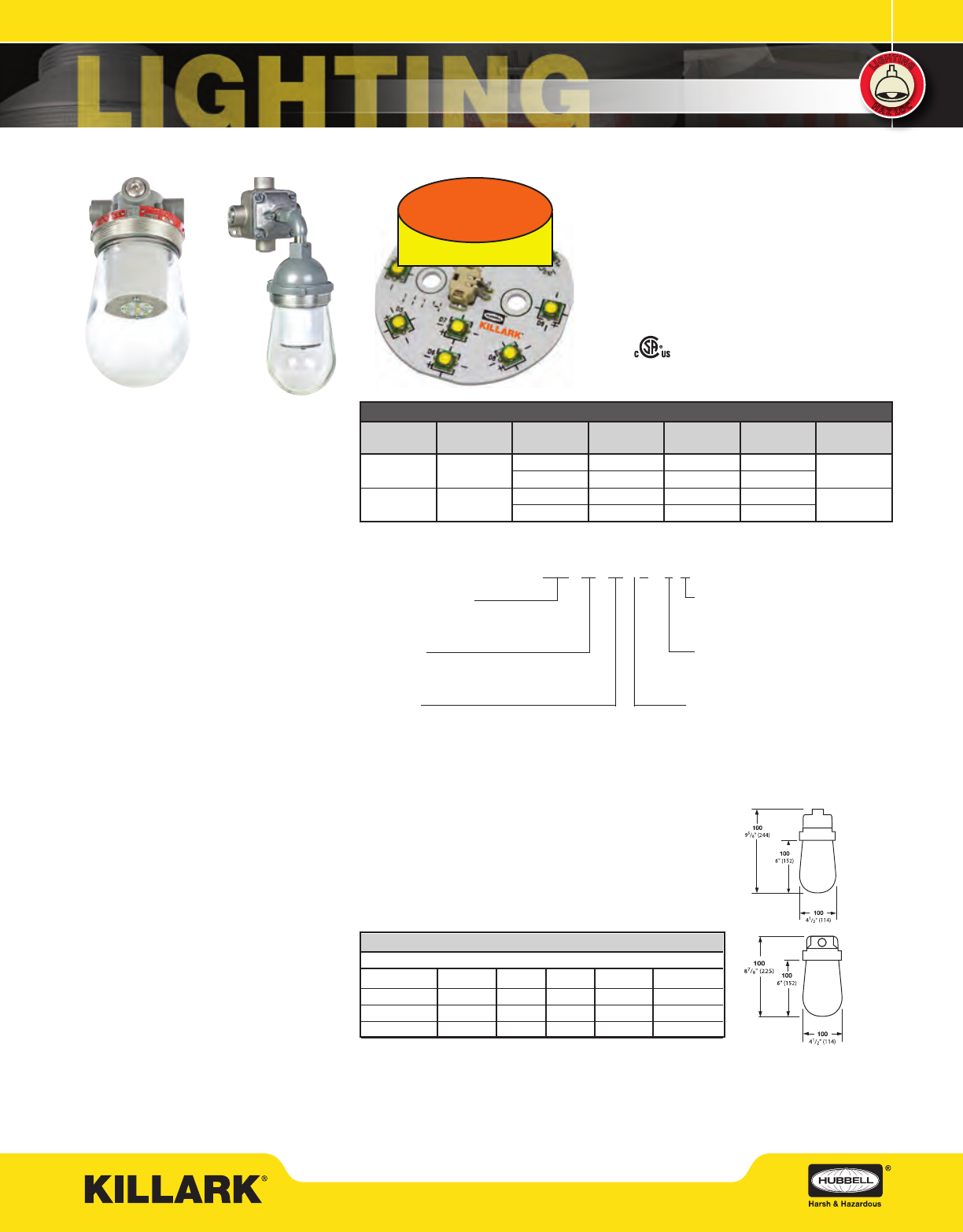

LED Luminaire Features and Standards
• Explosion-proof with Traditional Industrial
Appearance and Suitability
• Dome
• Surge Protection Standard
• Mounting choice – Pendant, ceiling,
25° stanchion or 90° wall mount, all
with “wireless” design that allows fast,
easy fixture installation or removal for
maintenance.
• Accessories – Available with or without
guard, standard dome or angle reflector
• Optional Mounting arrangements
including Pendant, Wall, Ceiling, and
Stanchion
• EZL LED Housings can be retrofitted to
existing EZ splice boxes; upgrade from
Incandescent, Fluorescent or HID
• Energy Savings – Less than 130 Watts of
Power
• Long Life – 50,000 - 55,000 Maintenance
Free Hours to 70% Initial Lumens
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000K (CCT
range; approx. 70 CRI
• Ambient suitability -40°C to 55°C
• Instant on – Including after power
interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of Initial Lumens
• Factory Sealed Construction – No external
seal required, simply wire mouting cap
and thread-in fixture to install
* LM-xx are Illumination Engineering Society Standards designed to promote uniformity in testing procedures among
test labs and manufacturers. For more information go to www.ies.org
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L38
EXPLOSION PROOF – ORDERING INFORMATION, COMPONENTS & RATINGS
EZL SERIES
MOUNTING BOXES
HUB
SIZE
CATALOG NUMBER
PENDANT CEILING BRACKET STANCHION
3/4” EZA2 EZX2** EZB2 —
1” EZA3 EZX3 EZB3 —
1-1/4”/1-1/2” — — — EZD4*
REFLECTORS
CATALOG NUMBER DESCRIPTION
VMPSD40 Standard dome. fiberglass reinforced polyester
VMPA40 30° Angle fiberglass reinforced polyester
HRD400 Deep dome. Aluminum with white finish k
HRD400ALZ Deep dome with specular anaodized finish k
j Catalog numbers shown are with Guard; Omit G if guard not required e.g. EZL05520A2.
k Catalog numbers shown are with 3/4” conduit openings; change “2” to “3” for 1” e.g. EZL05530A2G.
l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting.
* 1-1/2” furnished with 1-1/2” - 1-1/4” reducer
EZL SERIES PENDANT WITH OPTIC AND GUARD
WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk
65 3/4” 120-277VAC EZL06530A2G
90 3/4” 120-277VAC EZL09030A2G
95 3/4” 120-277VAC EZL09530A2G
100 3/4” 120-277VAC EZL10030A2G
125 3/4” 120-277VAC EZL12530A2G
EZL SERIES CEILING WITH OPTIC AND GUARD
WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk
65 3/4” 120-277VAC EZL06530X2G
90 3/4” 120-277VAC EZL09030X2G
95 3/4” 120-277VAC EZL09530X2G
100 3/4” 120-277VAC EZL10030X2G
125 3/4” 120-277VAC EZL12530X2G
EZL SERIES WALL BRACKET WITH OPTIC AND GUARD
WATTS HUB SIZE VOLTAGE GLOBE & GUARDjk
65 3/4” 120-277VAC EZL06530B2G
90 3/4” 120-277VAC EZL09030B2G
95 3/4” 120-277VAC EZL09530B2G
100 3/4” 120-277VAC EZL10030B2G
125 3/4” 120-277VAC EZL12530B2G
EZL SERIES STANCHION WITH OPTIC AND GUARD
WATTS HUB SIZE VOLTAGE GLOBE & GUARDjl
65 3/4” 120-277VAC EZL06530D4G
90 3/4” 120-277VAC EZL09030D4G
95 3/4” 120-277VAC EZL09530D4G
100 3/4” 120-277VAC EZL10030D4G
125 3/4” 120-277VAC EZL12530D4G
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1/C1Z1 C2D1 L70
CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C TM-21 CALCULATED
EZL06530
36 / 16.33
65 120-277VAC 0.54/0.23 6515 T6 T6 EFG EFG 60100 270000
EZL09030 90 120-277VAC 0.75/0.32 7818 T6 T6 EFG EFG 60100 270000
EZL09530 95 120-277VAC 0.79/0.34 9121 T6 T6 EFG EFG 60100 270000
EZL10030 100 120-277VAC 0.83/0.36 10903 T6 XXX EFG XXX 72600 278000
EZL12530 125 120-277VAC 1.04/0.45 12720 T6 XXX EFG XXX 72600 278000
m TM-21 based values require very long duration testing. The TM-21/L70 “official reported” value is based on at least 10,000 hours testing (at time of printing) at 1000mA to
1500mA drive current, depending on LED chip utilized. “Reported L70” is a factor of test duration. KILLARK’s VM4LC/B series utilizes lower 700mA maximum drive current -
“calculated” values by the major chip vendors utilized predict L70 life up to 278,000 hours even at 1000mA.
* For Dimensional Data reference page L159
25° Stanchion
Replacement
Globe & Support
Assemblies
EZGS1
Wall Bracket
EACPendant Ceiling
HIC-BEIGE
replacement wiring
plug for EZBx
Wall Bracket
VMPSD40 VMPA40 HRD400
HRD400ALZ (pictured)
Replacement Guard
EZG1
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L39

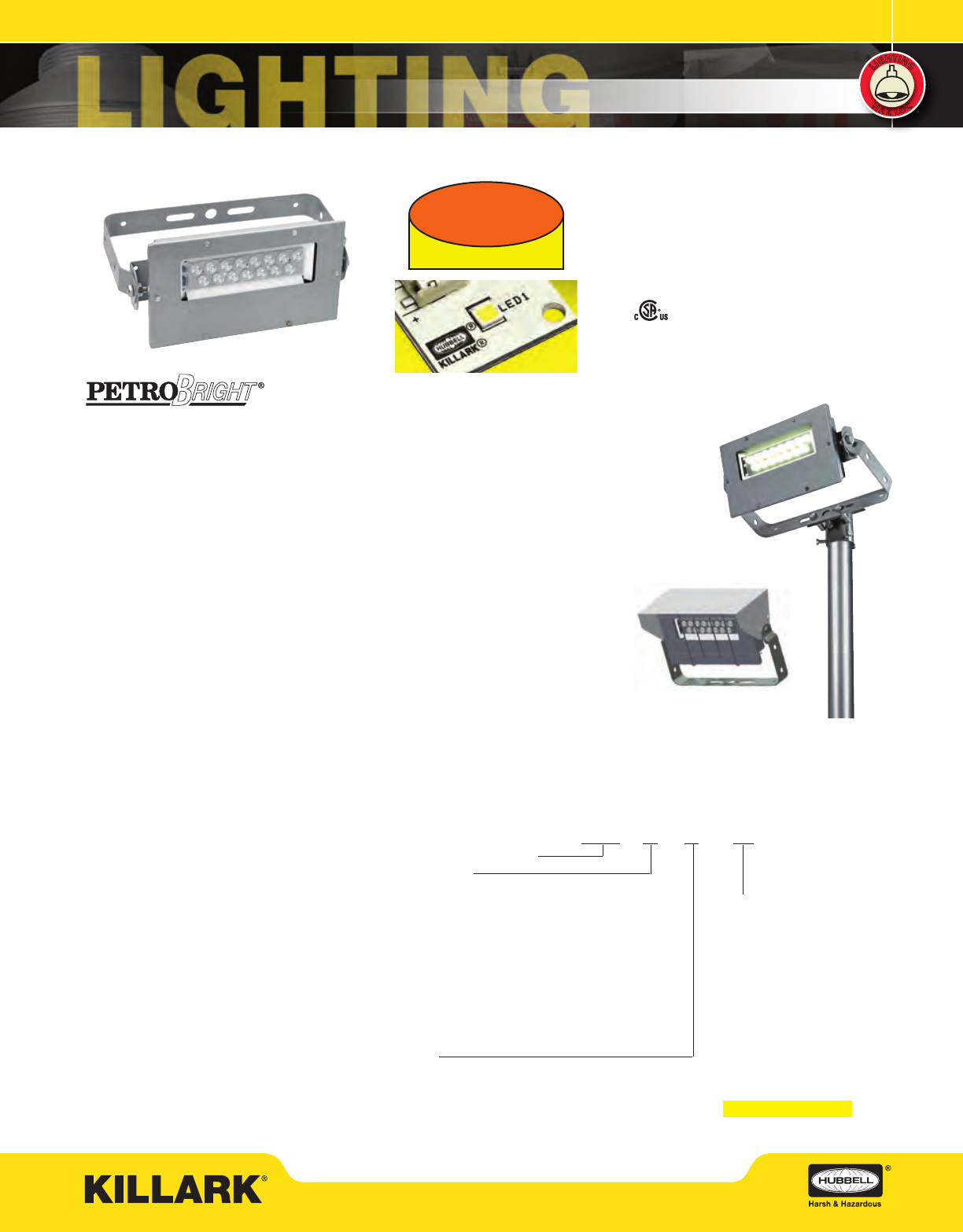

KFLC SERIES
COMPACT FLOOD – INTRODUCTION & LOGIC
FEATURES-SPECIFICATIONS
File LR11713
Class I, Div. 2, Groups A,B,C,D
Class I, Zone 2, Groups IIC, IIB, IIA
Class II, Div. 1 & 2, Groups E,F,G
Class III
NEMA 4X
Applications
LED Compact Floods are designed for
installations where moisture, dirt, dust,
corrosion and vibration may be present, or
NEMA 3 and 4X areas where wind, water,
snow or high ambients can be expected.
They can be used in locations made
hazardous by the presence of flammable
vapors or gases or combustible dusts as
defined by the NEC.
Typical applications include spot lighting
or walkways in manufacturing plants,
and certain chemical and petrochemical
processing facilities, sewage treatment
plants, off-shore and dockside installations,
garages and storage facilities
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598 (A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 1;
Class II, Division 1; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X, IP66
Materials
• Body and lens frame corrosion resistant
copper-free aluminum alloy with
baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware – stainless steel
• Thermal shock and impact resistant extra
heavy-duty glass lens
• High temperature silicone gasketing
• Trunnion heavy gauge galvanized steel
with painted finish
LED Flood Features and Standards
• One 3/4” NPT hub & R-21
3/4” x 1/2” reducer is standard
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000 K (CCT);
approx. 70 CRI
• Energy Savings – High lumens per watt
• Long Life – 100,000+ maintenance free
hours to 70% initial lumens
• Ambient suitability -40˚C to 55˚C
• Instant On – Including after power
interruption
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens –
TM-21* & calculated
Catalog Number Logic
15 -
15W “30, 27 or 34” voltage codes
18 -
18W “30, 27 or 34” voltage codes
20 -
20W “30, 27 or 34” voltage codes
23 -
23W “30, 27 or 34” voltage codes
25 -
23W “30, 27 or 34” voltage codes
30 -
30W “30” voltage code 120 - 277VAC
35 -
35W “30” voltage code 120 - 277VAC
40 -
40W “30” voltage code 120 - 277VAC
45 -
45W “30” voltage code 120 - 277VAC
50 -
50W “30” voltage code 120 - 277VAC
KFLC 45 30 X X
KFLC - Series Constant
LED Wattage
Voltage
30 -
120 - 277VAC 50/60Hz
27 -
12 - 24VDC input
34 -
120-250VDC input; 120-277VAC (15 - 23W
only)
Options
LY-
Less Yoke for Wall Mount
F-
Single Fuse
j
FF-
2 Fuses
j
SP-
Surge Protection
TBL-
Terminal Blocks Looping
QD-
QuickDisconnect
D75-
Dual 3/4” threaded NPT entry
M25-
Single M25 Slip-hole Entry
D25-
Two M25 Slip-hole Entry
M20-
Single M20 Slip-hole Entry
D20-
Dual M20 Slip-hole Entry
PL-
Polycarbonate Lens
KFLC with KFS-6
Sliptter mount
on 2” pipe
Dark Sky Visor
KFLC-DARK
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers. For
more information go to www.ies.org
Patented
Fixture Design
LED
TECHNOLOGY
LED
jFusing not for Canadian Marine Installations
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L40

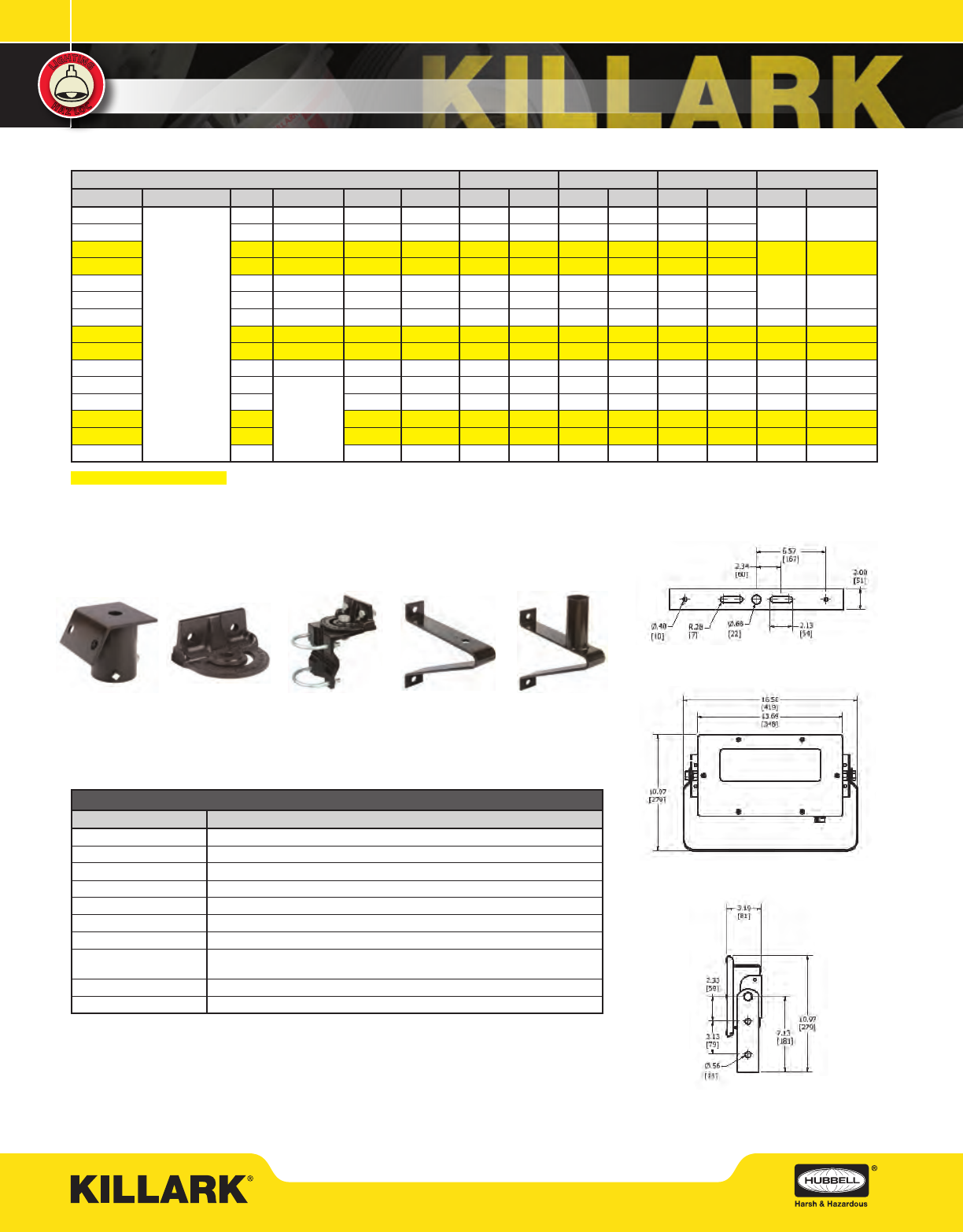

KFLC SERIES
COMPACT FLOOD – ORDERING & TECHNICAL DATA
Dimensions
Trunnion Mounting
Detail
Front
Side
j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.
k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.
l Designed to eliminate uplight when aimed at 70°.
** TM-21 based values require very long duration testing. IES TM-21 “official reported” is based on at 8,000 to
10,000 hours of LED chip manufacturer’s LM-80 Testing at printing.
KFS-6
SLIPFITTER
KFCB
CROSS ARM MOUNT
KFWB
WALL/PIPE BRACKET
K4040
WALL BRACKET
4041
TENON FITTING
Extra high lumen per watt LED’s
* KFLC 30-50w Lumens are LM-79 absolute photometry. 15-25W are calculated based on driver output current.
** All wattages are available as “30” voltage code 120-277VAC.
KFL MOUNTS AND ACCESSORIESj
CATALOG NUMBER DESCRIPTION
KFLC-DARKkReflector for field addition - No uplight at 45° to 70°
KFLCG Guard
KFLC-DOORkReplacement Door Assembly
NWP-HUBA 3/4” Aluminum Hub; Replacement or Additional (Max. 4)
VMSC10lSafety Cable (through yoke)
KFS-6 Steel Slipfitter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.
KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion
KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.)
Through 2-1/2” Pipe (2-7/8” o.d.)
K4040 Heavy Duty Steel Wall Bracket. (Must be with KFCB Crossarm Fitting).
4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting.
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C1D2 C2D1 L70
CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KFLC1527
9.50 / 4.31
15 12-24VDC 1.3-0.6 1435 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC1534 15 120-250VDC 0.2-0.1 1465 T6 T6 T4 T3B T4A T4A
KFLC1827 18 12-24VDC 1.5-0.8 1830 T6 T6 T4 T3B T4A T4A 72600 278000
KFLC1834 18 120-250VDC 0.2-0.1 1830 T6 T6 T4 T3B T4A T4A
KFLC2027 20 12-24VDC 1.7-0.8 2170 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC2034 20 120-250VDC 0.2-0.1 2170 T6 T6 T4 T3B T4A T4A
KFLC2327 23 12-24VDC 1.9-1.0 2550 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC2334 23 120-250VDC 0.2-0.1 2550 T6 T6 T4 T3B T4A T4A 72600 278000
KFLC2527 25 12-24VDC 2.1-1.0 2667 T6 T6 T4 T3B T4A T4A 72600 278000
KFLC2534 25 120-250VDC 0.2-0.1 2667 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC3030 30
120-277VAC
0.26-0.11 2662 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC3530 35 0.30-0.13 3302 T6 T6 T4 T3B T4A T4A 60100 270000
KFLC4030 40 0.34-0.15 4039 T6 T6 T4 T3B T4A T4A 72600 278000
KFLC4530 45 0.38-0.17 4718 T6 T6 T4 T3B T4A T4A 72600 278000
KFLC5030 50 0.42-0.18 5353 T6 T6 T4 T3B T4A T4A 60300 190000
11.32
[287.6]
17.75
[450.9]
14.88
[377.8]
Front
Side
14.07
[357.3]
5.22
[132.7]
8.41
[213.5]
2.00
[50.8]
Front
Side
5.22
[132.7]
[50.8]
3-1/8”
(79)
.531 DIA.
(13)
17.75
[450.9]
14.88
[377.8]
Dimensions
Trunnion Mounting
Detail
Front
Side
14.07
[357.3]
5.22
[132.7]
8.41
[213.5]
2.00
[50.8]
3-1/8”
(79)
.531
DIA.
(13)
11.32
[287.6]
17.75
[450.9]
14.88
[377.8]
Dimensions
Trunnion Mounting
Detail
3-1/8”
(79)
.531 DIA.
(13)
17.75
[450.9]
Dimensions
Trunnion Mounting
Detail
•IECEx/ATEX Approved
•From 60W to 195W Output
•Up to 124 Lumens per Watt
•Ambient Sustainability -50°C to 55°C
•Long Life 190,000 Maintenance Free Hours
•Crisp White 5000 Kelvin Light (Noon Sunlight)
•Thermal Shock and Impact Resistant Glass Lens
KFL Series
LED TECHNOLOGY
for Harsh and Hazardous
Environments
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L41

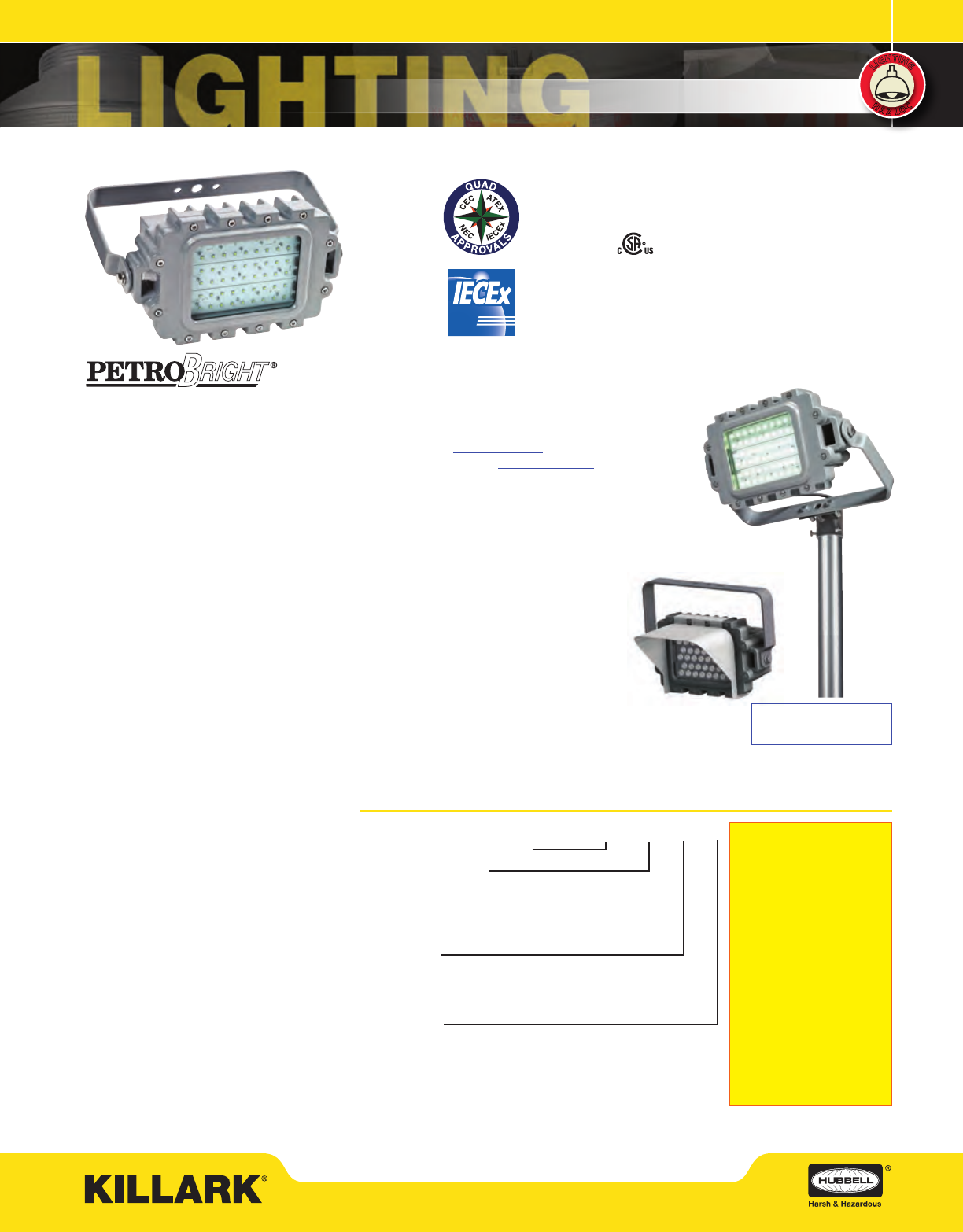

KFL SERIES
C1D2 FLOOD – INTRODUCTION & LOGIC
KFL with KFS-6
Sliptter mount
on 2” pipe
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers.
For more information go to www.ies.org
LED Flood Features and Standards
• Crisp White Light for Excellent Color
Rendering - Chromaticity 5000K (CCT);
approx. 70 CRI
• Energy Savings - High lumens per watt
• Long Life - to 100,000+ maintenance free
hours to 70% initial lumens
• Ambient suitability -50°C to 55°C up to 125Wk
• Instant On - Including after power interruption
• World Voltage 120 - 277VAC 50/60Hz
• Solder-LESS LED Board Connections -
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values - Industry Nomenclature for
Hours of use to 70% of initial Lumens -
TM-21* & Calculated
Class I, Div. 2, Groups A,B,C,D
Class II, Div. 1&2, Groups EFG
Class III
Suitable for wet locations
Marine Rated (US Only)
NEMA 3, 4X
IP66
IEC Ex Rated model (w/IEX suffix)
Zone 2 and Zone 21 areas
Ex nA IIC T6…T3, Gc
Ex tb IIIC T160°C Db
Tamb -50°C <Ta<+55°C, IP66
IECEx Certificate CSA 14.0002X
ATEX CML 14ATEX3087/4088
Applications
LED Floods are designed for installations
where moisture, dirt, dust, corrosion and
vibration may be present, or NEMA 3 and
4X areas where wind, water, snow or high
ambients can be expected. They can be used
in locations made hazardous by the presence
of flammable vapors or gases or combustible
dusts as defined by the NEC.
Typical applications include manufacturing
plants, and certain chemical and
petrochemical processing facilities, sewage
treatment plants, off-shore and dockside
installations, garages and storage facilities.
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598(A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X
• IP66
• IEX suffix Zone 2/21 to IEC 60079-0,
60079-15, 60079-31 Standards
Materials
• Body, end caps and lens frame corrosion
resistant copper-free aluminum alloy with
baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware - stainless steel
• Thermal shock and impact resistant glass lens
• High temperature silicone gasketing
• Trunnion heavy gauge galvanized steel
with painted finish
PATENTED
LUMINAIRE
DESIGN
Supplemental surge protection included as
standard for AC models only
IEX Units include Qty. 3 6mm terminals
plus external ground as standard
File LR11713
FEATURES-SPECIFICATIONS
LED
Catalog Number Logic
KFL 125 30 XX
KFL - Series Constant
Fixture Wattage
060
- 60W
070
- 70W
075
- 75W
085
- 85W
090
- 90W
105
- 105W
110
- 110W
125
- 125W
150
- 150W
165
- 165W
195
- 195W
Voltage
30
– 120 - 277VAC 50/60Hz
33
– 347 - 480VAC 60Hz (85W to 125W models)k
34
– 120 - 250VDC (85W to 125W models)
Options
PL
- Polycarbonate Lens
F
- Single Fusej
FF
- Double Fusej
TBL
- Terminal Blocks
Looping
(Std. w/IEX)
P1
- 120V Photocell, factory installed
P2
- 208V-277V Photocell, factory installed
P3
- 347V Photocell, factory installed
QD
- Quick Disconnect
D20
- 2x M20 entries
D25
- 2x M25 entries
D75
- 2 x 3/4” NPT
SY
- 316 SS Yoke
IEX
- IECEx & ATEX includes TBL and External Ground (to 125W)
Construction Note:
Models with dual metric
entries are tapped with
one plugged and the
standard 3/4” NPT entry
will be plugged.
j Fusing not for Canadian or Marine
Installations
k 347V-480V +40°C Max
Consult website
for current list of
approved luminaires
Dark Sky Visor
KFL-DARK
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L42

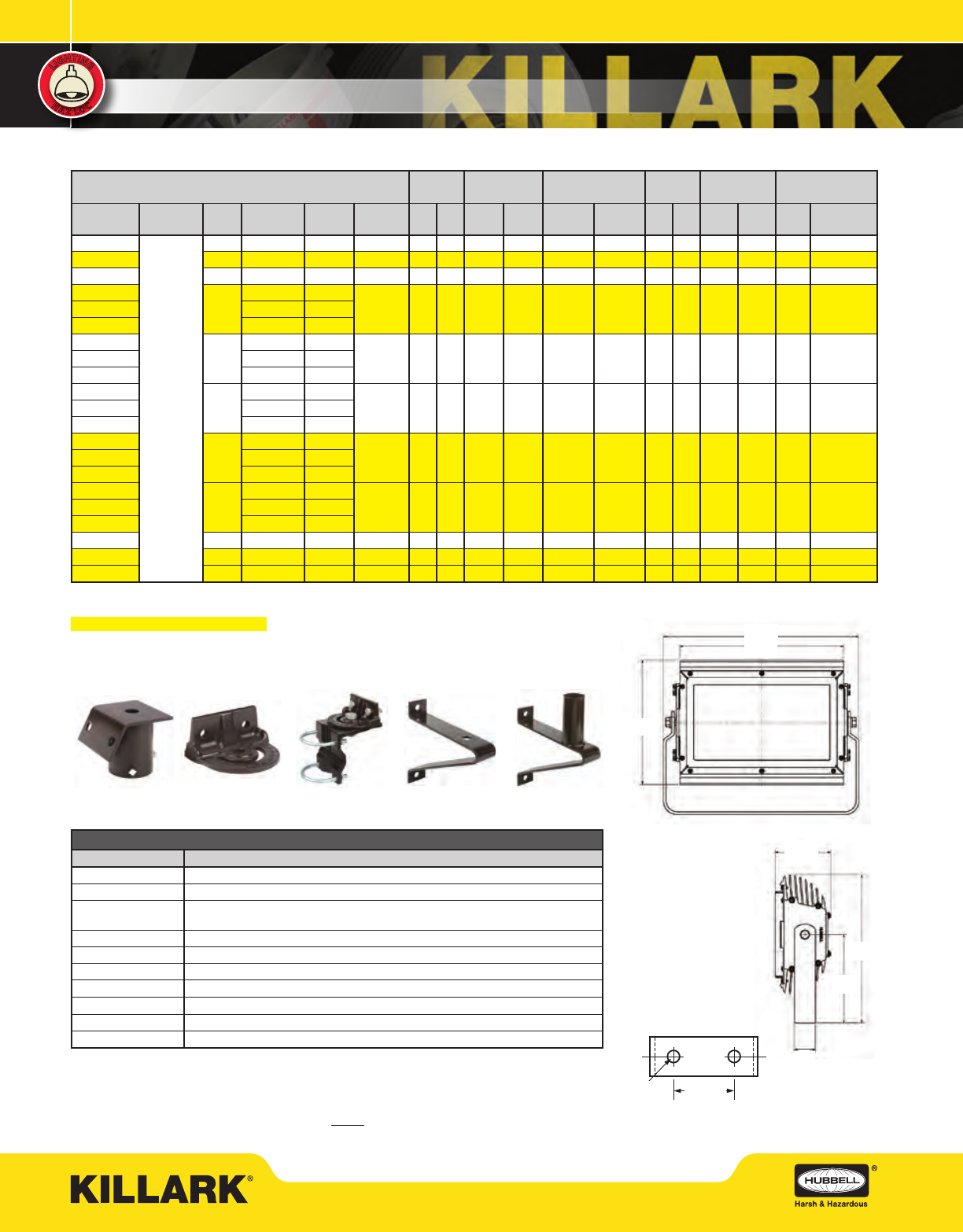

KFL SERIES
C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA
KFL MOUNTS AND ACCESSORIESj
CATALOG NUMBER DESCRIPTION
KFS-6 Steel Slipfitter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.
KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion
KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through
2-1/2” Pipe (2-7/8” o.d.)
K4040 Heavy Duty Steel Wall Bracket. (Must be with
KFCB
Crossarm Fitting).
4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting. Uses with KFS-6.
KFLGoWire Guard, 316 Stainless Steel (not used with KFL-DARK)
VMSC10k10’ Stainless Steel Safety Cable with loop grip
KFL-DARKlo Dark Sky Visor, White Painted Aluminum (not used with KFLG)
KFL-DOOR Replacement Door and Lens Assembly (for units w/o internal reflectors)
KFL-DOOR2mn Replacement Internal Reflector and Lens Assembly
j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.
k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.
l Designed to eliminate uplight when aimed at 45°.
m Only for models factory supplied with internal reector.
n Not backward compatible with units originally shipped without internal reector.
o KFLG and KFL-DARK cannot be used together.
Dimensions
Side
14.07
[357.3]
5.22
[132.7]
8.41
[213.5]
2.00
[50.8]
17.75
[450.9]
14.88
[377.8]
Front
11.32
[287.6]
KFS-6
Sliptter
KFCB
Cross Arm Mount
KFWB
Wall/Pipe Bracket
K4040
Wall Bracket
4041
Tenon Fitting
j Cat. nos. are 120-277VAC models, see logic for 347-480V.
k Amperage measured at 120VAC; 277VAC calculated
l Extra high Lumens per Watt LED models
m Use 75° minimum Supply Wire @40°C Ambient; 90 @55°C Ambient
n First number is lens temperature under 25mm layer of dust; Second number is lens temp. for dust cloud.
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2mC1D2m
SIMULTANEOUS C2D1mIEC ZONE 2
mIEC ZONE 21nL70
CATALOG
NO.j
WEIGHT
LBS./KG WATTS VOLTAGE AMPS
jk LUMENSl40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KFL06030
30.00 /
13.61
60 120-277VAC 0.50-0.20 6111 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000
KFL07030 70 120-277VAC 0.60-0.30 9742 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000
KFL07530 75 120-277VAC 0.60-0.30 7454 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000
KFL08530
85
120-277VAC 0.70-0.30
10840 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000KFL08533 347-480VAC 0.24-0.17
KFL08534 120-250VDC 0.70-0.27
KFL09030
90
120-277VAC 0.80-0.40
9023 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000KFL09033 347-480VAC 0.28-0.23
KFL09034 120-250VDC 0.80-0.36
KFL10530
105
120-277VAC 0.90-0.40
10370 T4A T4A T3C T3C T3C (EFG) T3C (EFG) T4 T4 145-70 160-85 60100 270000KFL10533 347-480VAC 0.31-0.23
KFL10534 120-250VDC 0.90-0.36
KFL11030
110
120-277VAC 0.90-0.40
13780 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000KFL11033 347-480VAC 0.31-0.23
KFL11034 120-250VDC 0.90-0.36
KFL12530
125
120-277VAC 1.00-0.50
15340 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000KFL12533 347-480VAC 0.35-0.29
KFL12534 120-250VDC 1.00-0.45
KFL15030 150 120-277VAC 1.25-0.54 18550 T5 -T3C -T3C (EFG) - - - - - 60300 190000
KFL16530 165 120-277VAC 1.38-0.60 19220 T5 -T3C -T3C (EFG) - - - - - 72600 278000
KFL19530 195 120-277VAC 1.63-0.70 21940 T5 -T3C -T3C (EFG) - - - - - 72600 278000
3-1/8”
(79)
.531 DIA.
(13)
Trunnion Mounting
Detail
• Up to 124 Lumens per Watt
• From 170W to 390W Output
• Ambient Sustainability -50°C to 55°C
• Crisp White 5000 Kelvin Light (Noon Sunlight)
• Thermal Shock and Impact Resistant Glass Lens
• Long Life LED array to 278,000 Maintenance Free Hours
KFLH Series
LED TECHNOLOGY
for Harsh and Hazardous Environments
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L43

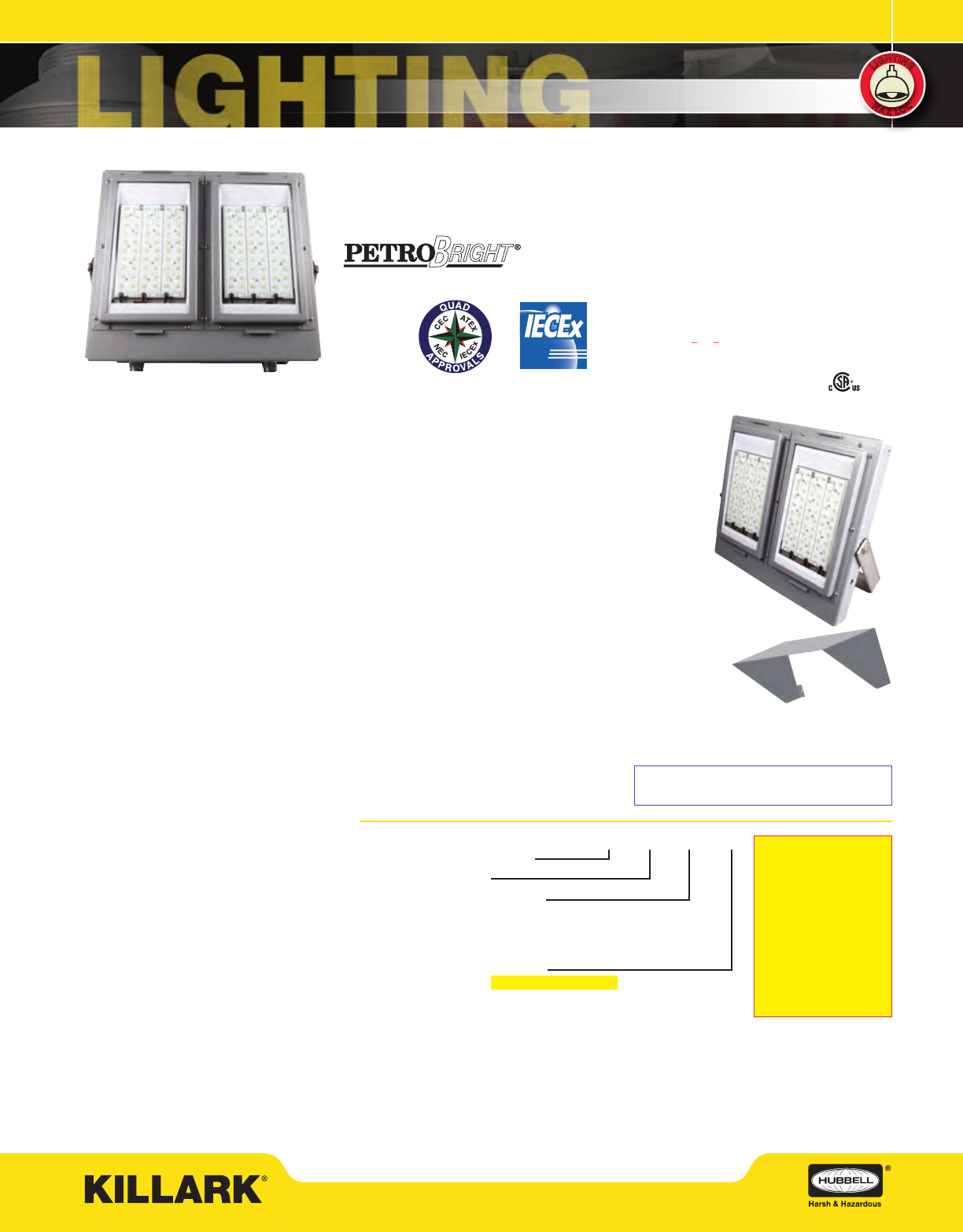

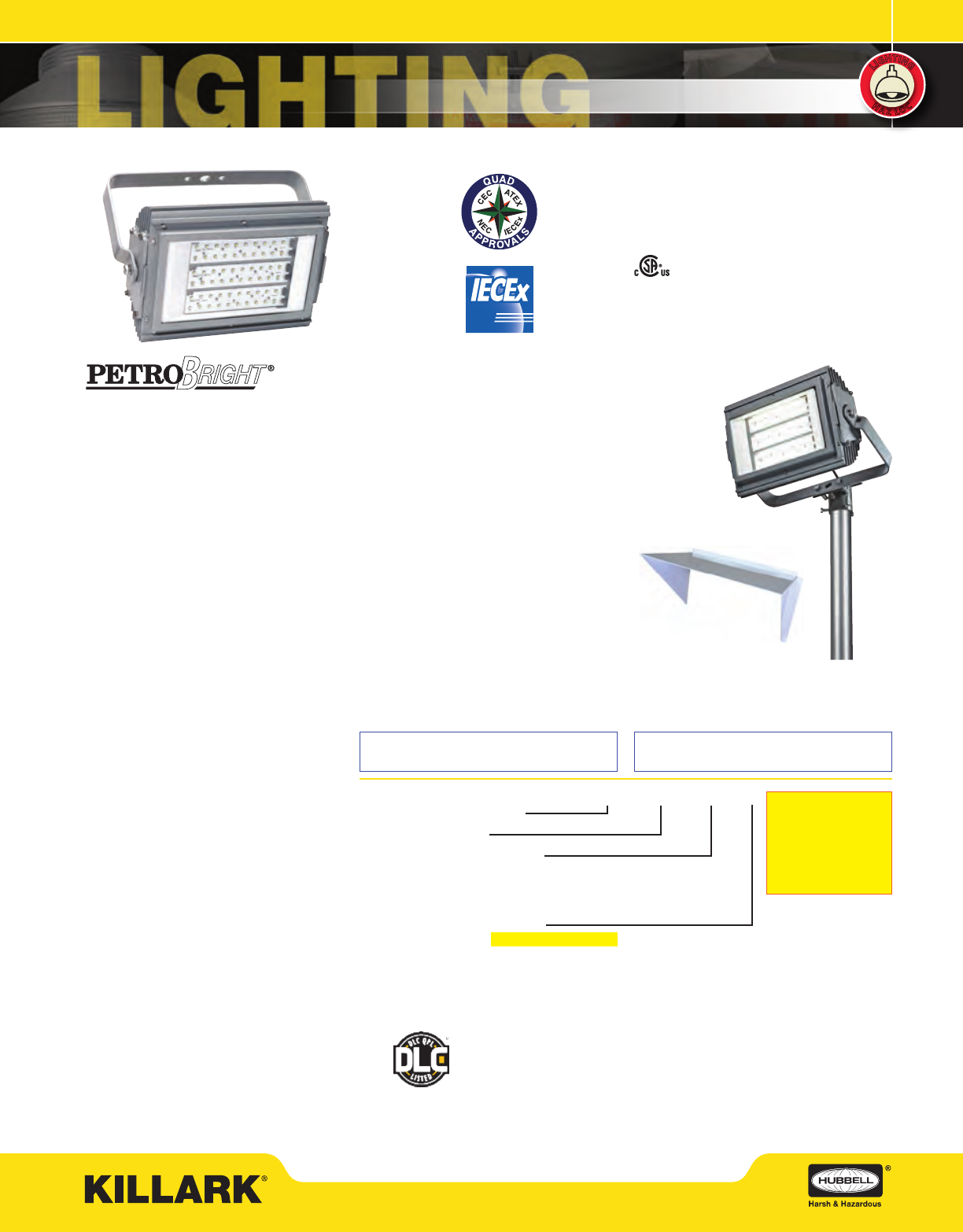

KFLH SERIES
C1D2 FLOOD – INTRODUCTION & LOGIC
KFLH
Luminaire
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers.
For more information go to www.ies.org
LED Flood Features and Standards
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000K (CCT);
approx. 70 CRI
• Energy Savings – High lumens per watt
• Long Life – to 100,000+ maintenance free
hours to 70% initial lumens
• Ambient suitability -40°C to 55°C up
to 250Wk to -50°C for non-hazardous
applications
• Instant On – Including after power
interruption
• World Voltage 120 – 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens –
TM-21* & Calculated
Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, IIC, IIB, IIA
Class II, Div. 1 & 2, Groups E, F, G
Class III
Suitable for wet locations
Marine Rated (US only)
NEMA 3, 4X
IP66
IEC Ex Rated Model (w/ IEX suffix)
Zone 2 and Zone 21 areas
Ex nA IIC T6…T3, Gc
Ex tb IIC T105°C Db
Tamb -50°C < Ta < +55°C, IP66
IECEx Certificate
QPS 15.0011
ATEX Certificate
CML 15ATEX4079X (nA)
& CML 15ATEX3080X (tb)
PATENTED
LENS and
REFLECTOR
DESIGN
Supplemental surge protection included as
standard for AC models only
Applications
LED Floods are designed for installations
where moisture, dirt, dust, corrosion and
vibration may be present, or NEMA 3 and
4X areas where wind, water, snow or high
ambients can be expected. They can be used
in locations made hazardous by the presence
of flammable vapors or gases or combustible
dusts as defined by the NEC.
Typical applications include manufacturing
plants, and certain chemical and
petrochemical processing facilities, sewage
treatment plants, off-shore and dockside
installations, garages and storage facilities.
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598(A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X
• IP66
Materials
• Body and lens frame corrosion resistant
copper-free aluminum alloy with
baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware – stainless steel
• Thermal shock and impact resistant glass
lens (Polycarbonate available)
• High temperature silicone gasketing
• Trunnion heavy gauge 316 stainless steel
FEATURES-SPECIFICATIONS
LED
Catalog Number Logic
KFLH 170 30 XX
KFLH - Series Constant
Fixture Wattage
170 -
170W
210 -
210W
220 -
220W
250 -
250W
300 -
300W
390 -
390W
Voltage
30
– 120 - 277VAC 50/60Hz
33
– 347 - 480VAC 60Hz (170W to 250W)k
34
– 120 - 250VDC (170W to 250W)
Options
PL
- Polycarbonate Lens
F
- Single Fusej
FF
- Double Fusej
TBL
- Terminal Blocks
Looping
P1
- 120V Photocell, factory installed
P2
- 208V-277V Photocell, factory installed
P3
- 347V Photocell, factory installed
QD
- Quick Disconnect
D20
- 2x M20 entries
IEX
- IEXEx includes TBL & External ground
Construction Note:
Standard with two
3/4” NPT entries with
one plugged
Models for dual
metric entries have
slip holes with
metric locknuts and
certified blanking
plugs
jFusing not for Canadian or Marine
Installations
k 347V-480V +40°C Max
Dark Sky Visor
KFLH-DARK
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L44

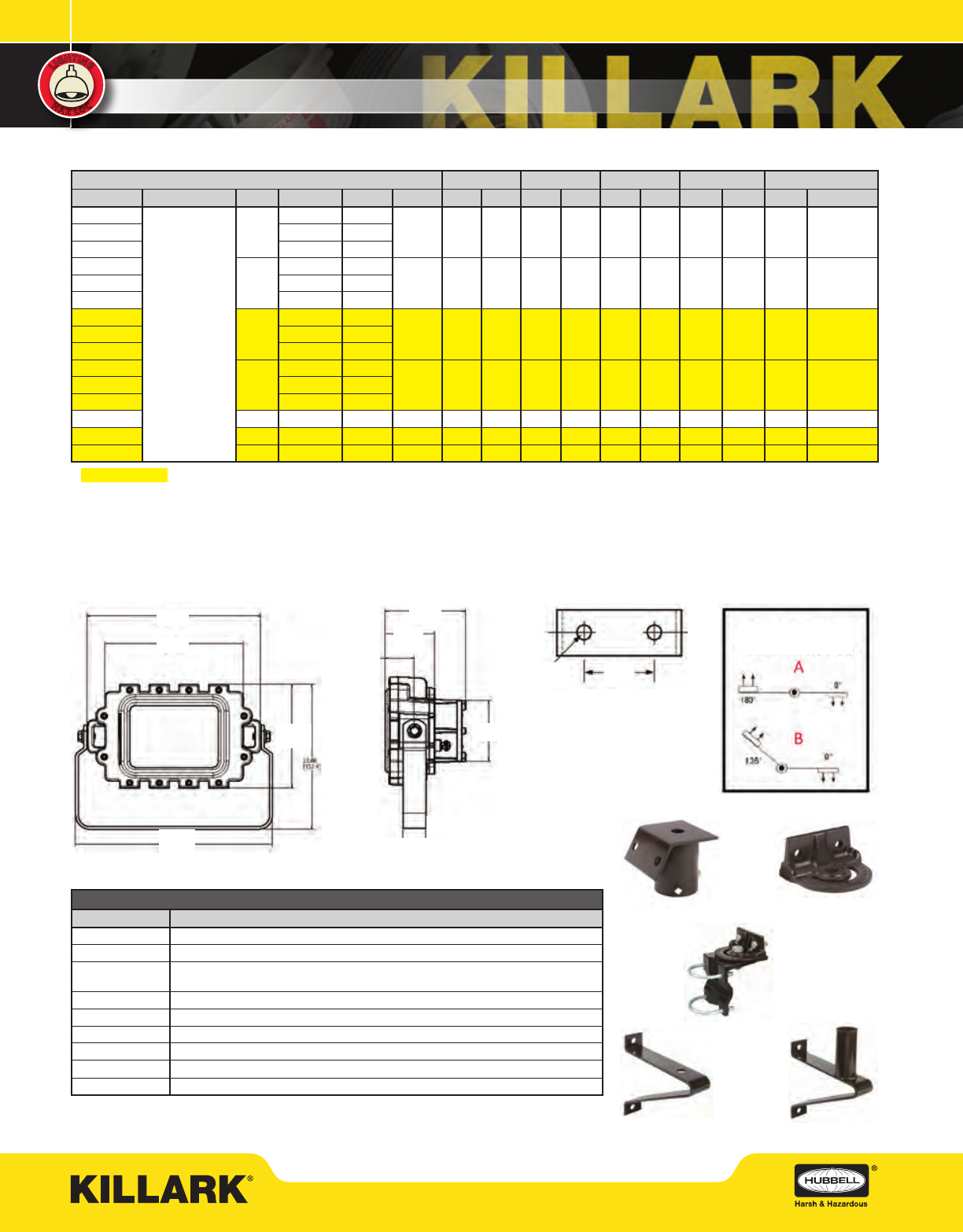

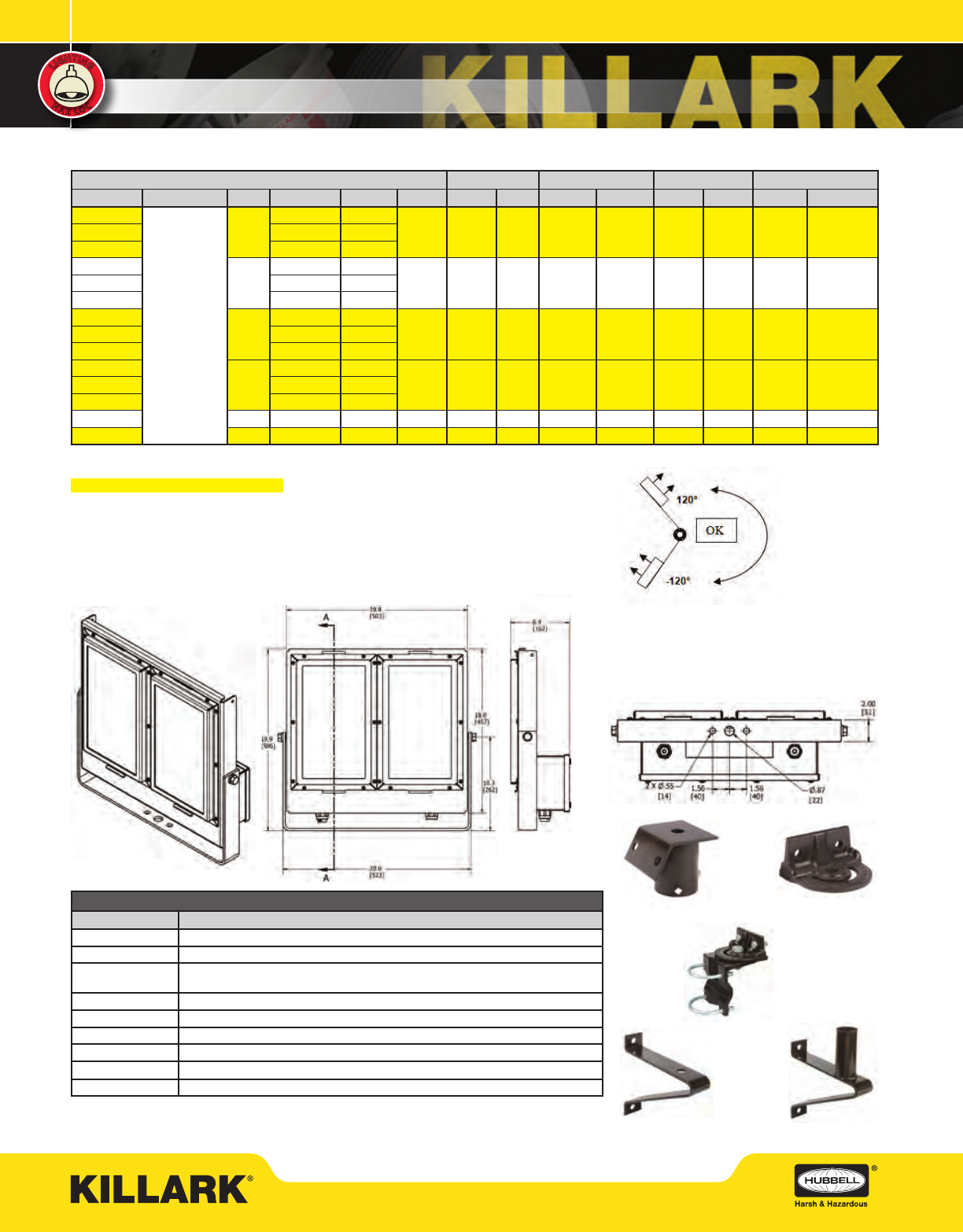

KFLH SERIES
C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA
KFLH MOUNTS AND ACCESSORIESj
CATALOG NUMBER DESCRIPTION
KFS-6 Steel Slipfitter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.
KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion
KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through
2-1/2” Pipe (2-7/8” o.d.)
K4040 Heavy Duty Steel Wall Bracket. (Must be with
KFCB
Crossarm Fitting).
4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting. Use with KFS-6.
KFLG Wire Guard, 316 Stainless Steel (order 2 per fixture)
VMSC10k10’ Stainless Steel Safety Cable with loop grip
KFLH-DARKlDark Sky Visor, White Painted Aluminum
KFLH-DOOR Replacement Internal Reflector and Lens Assembly (order 2 per fixture as required)
j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.
k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.
l Designed to eliminate uplight when aimed at 45°.
j Cat. Nos. are 120 through 277VAC 50/60Hz; see logic for 347-480V or 125-250VDC input
k Amperage measured at 120VAC; 277VAC calculated
l Extra High Lumens per Watt LED Models
m Use 75°C Supply Wire @ 40°C Ambient; 90°C Wire @ 55°C Ambient
n 55°C only for 170W through 250W at 120-277VAC 50/60Hz or 125-250VDC; not 480VAC
o For Dust Applications, limit aiming angle between 120° and -120° to minimize buildup - see gure at right
p L70 is time in hours to 70% of initial lumens remaining. TM-21 based values require very long duration testing and
is denoted “official reported” and is based on at least 6,000 minimum, to 12,000 hours testing (at time of printing).
“Calculated” values by the major chip vendors utilized predict L70 life up to 278,000 hours.
KFS-6
Sliptter
K4040
Wall Bracket
4041
Tenon Fitting
KFWB
Wall/Pipe Bracket
KFCB
Cross Arm Mount
p Dust Aiming
Angles
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 (C1Z2) C1D2 SIMULTANEOUS C2D1 L70
CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KFLH17030
25.00 / 11.3
170
120-277VAC 1.46-0.63
21620 T4A (T4) T4 T4 T3C T4 T3C 72600 278000KFLH17033 347-480VAC 0.51-0.36
KFLH17034 120-250VDC 1.46-0.56
KFLH21030
210
120-277VAC 1.75-0.75
21220 T4A (T4) T4 T4 T3C T4 T3C 60100 270000KFLH21033 347-480VAC 0.61-0.43
KFLH21034 120-250VDC 1.75-0.68
KFLH22030
220
120-277VAC 1.88-0.81
26970 T4A (T4) T4 T4 T3C T4 T3C 72600 278000KFLH22033 347-480VAC 0.65-0.47
KFLH22034 120-250VDC 1.88-0.73
KFLH25030
250
120-277VAC 2.17-0.94
30950 T4A (T4) T4 T4 T3C T4 T3C 72600 278000KFLH25033 347-480VAC 0.75-0.54
KFLH25034 120-250VDC 2.17-0.85
KFLH30030 300 120-277VAC 2.48-1.07 37030 T4A (T4) T4 - - - - 60300 107000
KFLH39030 390 120-277VAC 3.30-1.43 40410 T4A (T4) T4 - - - - 60300 190000
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L45
KF1L SERIES
C1D1 FLOOD – INTRODUCTION & LOGIC
KF1L with KFS-6
Sliptter mount
on 2” pipe
Dark Sky Visor
KF1L-DARK
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers. For
more information go to www.ies.org
LED Flood Features and Standards
• Factory Sealed Construction
• One 3/4” NPT & one M20 entry standard (see
logic for other choices)
• Supplemental surge protection (AC models
120-277VAC only) and looping terminals are
standard
• Crisp White Light for Excellent Color Rendering
– Chromaticity 5000 K (CCT); approx. 70 CRI
• Energy Savings – High lumens per watt
• Long Life – 100,000+ maintenance free hours
to 70% initial lumens
• Instant On – Including after power interruption
• World Voltage 120 – 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens – TM-
21* & calculated
Class I, Div. 1&2, Groups B,C,D
Class I, Zone 1&2, Groups IIB+H2, IIA
Class II, Div. 1&2, Groups EFG, Class III
Enclosure Type 4X, IP66 (-50°C to +55°C)
IEC Ex Rated model (w/IEX or IEX4B suffix) Zone 1, Zone 21
Ex de IIB+H2 T6..T5, Gb, IP66
Tamb -20°C ≤Ta≤ +55°C; Option LT for -50°C ≤Ta≤ +55°Cj
Ex de IIB T6..T5, Gb, -50°C ≤Ta≤ +55°Cj
Ex tb IIIC T90°C Db, -50°C ≤Ta≤ +55°Cj
Certificate IECEX CSA 14.0010
ATEX Certificate SIRA14ATEX1159X
Applications
LED KF1L Series Explosion-proof Floods are
designed for installations where moisture,
dirt, dust, corrosion and vibration may be
present, or NEMA 3 and 4X areas where
wind, water, snow or high ambients can be
expected. They can be used in locations
made hazardous by the presence of
flammable vapors or gases or combustible
dusts as defined by the NEC.
Typical applications include manufacturing
plants, and certain chemical and
petrochemical processing facilities, sewage
treatment plants, off-shore and dockside
installations, garages and storage facilities
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598A
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 1;
Class II, Division 1; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• IEX or IEX4B suffix for Zone 1 and Zone
21 to IEC 60079-0,60079-1,60079-31,
60079-7 Standards
• Enclosed and gasketed
• NEMA 3, 4X
• IP66
Materials
• Body, end caps and lens frame corrosion
resistant copper-free aluminum alloy with
baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware - stainless steel
• Thermal shock and impact resistant extra
heavy-duty glass lens
• High temperature silicone gasketing
• Trunnion heavy gauge 316 SS
Patent Pending
Fixture Design
LED
Catalog Number Logic
KF1L 125 30 XX
KF1L - Series Constant
Fixture Wattage
090
- 90W
105
- 105W
110
- 110W
125
- 125W
Voltage
30
- 120 - 277VAC 50/60Hz
33
- 347 - 480VAC 60Hz (90W-125W)
34
- 120-250VDC (90W-125W)
Options
IEX4B -
Four bolt termination cover (see Note 1)
LT -
For -50°C to +55°C, IEC Zone 1 (see Note 1)
F -
Single Fuse
FF -
Double Fusek
D20 -
Dual M-20 Entries
D25 -
Dual M-25 Entries
D75 -
Dual 3/4” NPT
jConstruction/Certication
Notes: KF1L units are standard
with one 3/4” NPT hub & one
M20 hub – both plugged,
with an 8-bolt factory sealed
termination chamber, suitable
for CID1 BCD -50°C to +55°C
and IEC Zone 1
Ex de suitable for -20°C to
55°C.
Use option LT for models
needing IEC Zone 1, -50°C
to +55°C suitability for
hydrogen.
Option IEX4B utilizes 4
terminal cover bolts for Ex de
and maintains all ratings
EXCEPT CID1 BCD.
See logic for other entry
options
k Fusing not for Canadian or Marine Installations
File LR11713
FEATURES-SPECIFICATIONS
150
- 150W
165
- 165W
195
- 195W
Suitable for Paint
Spray
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L46
KF1L SERIES
C1D1 FLOOD – ORDERING & TECHNICAL DATA
j Yellow highlighted models have extra high lumen LED’s.
k See logic for 347-480V availability
l Amperage measured at 120VAC; 277VAC calculated
m Use minimum 75° Supply Wire @40°C Ambient; 90°@55°C Ambient
n CID1 40°/55° & C2D1 40°C use Aiming Figure “A” below.
o 55°C C2D1 EFG T3C Aiming Figure “B”, 55° C2D1 EF T3A Aiming Figure “A”
p First number is lens temperature under 25mm layer of dust; Second number is lens
temp for dust cloud.
** TM-21 based values require very long duration testing. IES TM-21 “official reported”
is based on at 8,000 to 10,000 hours of LED chip manufacturer’s LM-80 Testing at
printing.
KFL MOUNTS AND ACCESSORIESj
CATALOG NUMBER DESCRIPTION
KFS-6 Steel Slipfitter for 2” Pipe (2-3/8” o.d.) Tenon. Slips 3.75” Over Pipe.
KFCB Heavy Duty Cast-Iron Crossarm Fitting for Horizontal Trunnion
KFWB Heavy Duty Wall Mount and/or Pipe Clamp Fitting Clamps 2” Pipe (2-3/8” o.d.) Through
2-1/2” Pipe (2-7/8” o.d.)
K4040 Heavy Duty Steel Wall Bracket. (Must be with
KFCB
Crossarm Fitting).
4041 Heavy Duty Steel Wall Bracket 2” Pipe (2-3/8” o.d.) Tenon Fitting.
KFLG Wire Guard, 316 Stainless Steel
VMSC10 10’ Stainless Steel Safety Cable with loop gripk
KF1L-DARK Dark Sky Visor, White Painted Aluminuml
KF1L-DOOR Replacement Door and Lens Assembly
j Fittings available to adapt trunnion mount oodlights to crossarms, poles and walls. Must be ordered separately.
k Drop limit 1’. Attaches to luminaire cable provision and to mounting structure.
l Designed to eliminate uplight when aimed at 45°.
17.75
[450.9]
9.36
[237.7]
15.65
[397.4]
12.50
[317.5]
Front
Dimensions
5.30
[134.7]
6.91
[175.5]
2.00
[50.8]
4.27
[108.5]
Side
2.52
[64.0]
Aiming Figures
See Notes n & o
3-1/8”
(79)
.531 DIA.
(13)
Trunnion Mounting
Detail
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1 C2D1 IEC ZONE 1 IEC ZONE 21 L70
CATALOG NO. WEIGHT LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KF1L09030
46.00 / 20.87
90
120-277VAC 0.72-0.31
7182 T6 T6 (EFG) oT6 T5 160-75 175-90 60100 270000KF1L09033 347-480VAC 0.25-0.18
KF1L09034 120-250VDC 0.72-0.28
KF1L10530
105
120-277VAC 0.85-0.37
8362 T6 T6 (EFG) oT6 T5 160-76 175-91 60100 270000KF1L10533 347-480VAC 0.29-0.21
KF1L10534 120-250VDC 0.85-0.33
KF1L11030
110
120-277VAC 0.95-0.41
10590 T6 T6 (EFG) oT6 T5 160-77 175-92 72600 278000KF1L11033 347-480VAC 0.33-0.24
KF1L11034 120-250VDC 0.95-0.37
KF1L12530
125
120-277VAC 1.10-0.48
11590 T6 T6 (EFG) oT6 T5 160-78 175-93 72600 278000KF1L12533 347-480VAC 0.38-0.28
KF1L12534 120-250VDC 1.10-0.43
KF1L15030 150 120-277VAC 1.25-0.54 13280 T5 ----T5 - - 60300 190000
KF1L16530 165 120-277VAC 1.38-0.60 13760 T5 ----T5 --72600 278000
KF1L19530 195 120-277VAC 1.63-0.70 15707 T5 ----T5 - - 72600 278000
KFS-6
Sliptter
K4040
Wall Bracket
4041
Tenon Fitting
KFWB
Wall/Pipe Bracket
KFCB
Cross Arm Mount
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L47

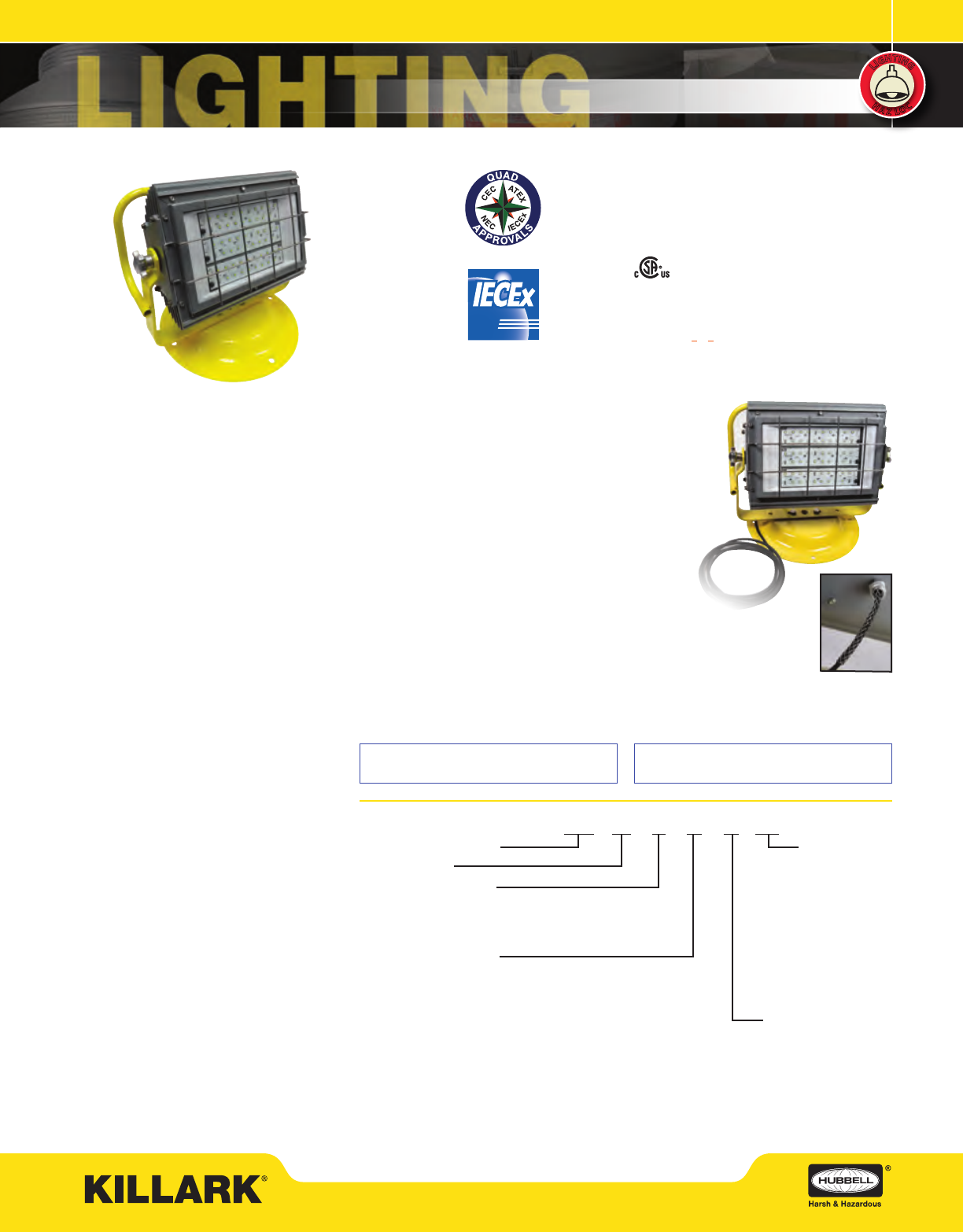

KFLP SERIES
C1D2 FLOOD – INTRODUCTION & LOGIC
LED Flood Features and Standards
• Crisp White Light for Excellent Color Rendering
- Chromaticity 5000K (CCT); approx. 70 CRI
• Energy Savings - High lumens per watt
• Long Life - to 150,000 maintenance free
hours to 70% initial lumens
• Ambient suitability -50°C to 55°C up to 125Wk
• Instant On - Including after power interruption
• World Voltage 120 - 277VAC 50/60Hz
• Solder-LESS LED Board Connections -
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values - Industry Nomenclature for
Hours of use to 70% of initial Lumens - TM-
21* & Calculated
Applications
LED Portable Floods are designed for
temporary applications where moisture, dirt,
dust, corrosion and vibration may be present,
or NEMA 3 and 4X areas where wind, water,
snow or high ambients can be expected. They
can be used in locations made hazardous by
the presence of flammable vapors or gases or
combustible dusts as defined by the NEC.
Typical applications include manufacturing
plants, and certain chemical and petrochemical
processing facilities, sewage treatment plants,
off-shore and dockside installations, garages
and storage facilities.
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598(A)
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Divisions 1 and 2; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4X, IP66
• IEX suffix Zone 2/21 to IEC 60079-0, 60079-
15, 60079-31 Standards
Materials
• Body, end caps and lens frame and base
corrosion resistant copper-free aluminum
alloy with baked powder epoxy/polyester
finish, electrostatically applied for complete,
uniform corrosion protection
• All external hardware - stainless steel
• High temperature silicone gasketing
• Trunnion heavy gauge galvanized steel with
painted finish
• Stand and handle epoxy pound coat
• Polycarbonate Lens
• Stainless steel wire guard
FEATURES-SPECIFICATIONS
Available with
cord and plug
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers.
For more information go to www.ies.org
Class I, Div. 2, Groups A,B,C,D
Class II, Div. 1&2, Groups EFG
Class III
Suitable for wet locations
Marine Rated (US Only)
NEMA 3, 4X
IP66
IEC Ex Rated model (w/IEX suffix)
Zone 2 and Zone 21 areas
Ex nA IIC T6 to T3, Gc
Ex tb IIIC T160°C Db
Tamb -50°C <Ta<+55°C, IP66
IECEx Certificate
CSA 14.0002X
ATEX Certificate
CML 14ATEX3087/4088
PATENTED
LUMINAIRE
DESIGN
Supplemental surge protection included as
standard for AC models only
Units include Qty. 3 6mm terminals plus
external ground as standard
File LR11713
Catalog Number Logic
KFLP 125 30 XX XXXXX
KFLP - Series Constant
Fixture Wattage
060
- 60W
070
- 70W
075
- 75W
085
- 85W
090
- 90W
105
- 105W
110
- 110W
125
- 125W
150
- 150W
165
- 165W
195
- 195W
Plugs
V
- VersaMate 30A
A
- Acceptor Quick
Wire 15 amp
K
- KR Series Plug
20 amp
VSI
- VersaMate
Non-Metallic
20 amp
N
- No Plug
Voltage
30
– 120 - 277VAC 50/60Hz
33
– 347 - 480VAC 60Hz (85W to 125W models)k
Options
F
- Single Fusej
FF
- Double Fusej
IEX
- IECEx & ATEX includes TBL and
External Ground (to 125W)
j Fusing not for Canadian or Marine Installations
k 347V-480V +40°C Max
Strain Relief
Card Grip
Cord
Blank -
No Cord
25 -
25’
50 -
50’
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L48
KFLP SERIES
C1D2 FLOOD – ORDERING INFORMATION & TECHNICAL DATA
j Cat. nos. are 120-277VAC models, see logic for 347-480V.
k Amperage measured at 120VAC; 277VAC calculated
l Extra high Lumens per Watt LED models
m Use 75° minimum Supply Wire @40°C Ambient; 90 @55°C Ambient
n First number is lens temperature under 25mm layer of dust; Second number is lens temp. for dust cloud.
Dimensions
KFLP ACCESSORIES
CATALOG NUMBER DESCRIPTION
KFLG Wire Guard, 316 Stainless Steel (not used with KFL-DARK)
KFL-DOOR-POLY Replacement Door and Lens Assembly (for units w/o internal reflectors)
VP3023 VersaMate Metallic 30 amp 3W4P Plug
UGP-15231QW Acceptor Quick Wire 15 amp NEMA 5-15P
KP-20ABC KR Series 20 amp Plug
VSI20P304 VersaMate Non-Metallic 20 amp 125v Plug
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D2 C1D2
SIMULTANEOUS C2D1 IEC ZONE 2 IEC ZONE 21 L70
CATALOG
NO.
WEIGHT
LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KFLP06030
33.00 /
14.97
60 120-277VAC 0.50-0.20 6111 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000
KFLP07030 70 120-277VAC 0.60-0.30 9742 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000
KFLP07530 75 120-277VAC 0.60-0.30 7454 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000
KFLP08530 85 120-277VAC 0.70-0.30 10840 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000
KFLP08533 347-480VAC 0.24-0.17
KFLP09030 90 120-277VAC 0.80-0.40 9023 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 60100 270000
KFLP09033 347-480VAC 0.28-0.23
KFLP10530 105 120-277VAC 0.90-0.40 10370 T4A T4A T3C T3C T3C (EFG) T3C (EFG) T4 T4 145-70 160-85 60100 270000
KFLP10533 347-480VAC 0.31-0.23
KFLP11030 110 120-277VAC 0.90-0.40 13780 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000
KFLP11033 347-480VAC 0.31-0.23
KFLP12530 125 120-277VAC 1.00-0.50 15340 T6 T5 T3C T3C T3C (EFG) T3C (EFG) T6 T5 145-70 160-85 72600 278000
KFLP12533 347-480VAC 0.35-0.29
KFLP15030 150 120-277VAC 1.25-0.54 18550 T5 -T3C -T3C (EFG) - - - - - 60300 190000
KFLP16530 165 120-277VAC 1.38-0.60 19220 T5 -T3C -T3C (EFG) - - - - - 72600 278000
KFLP19530 195 120-277VAC 1.63-0.70 21940 T5 -T3C -T3C (EFG) - - - - - 72600 278000
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L49

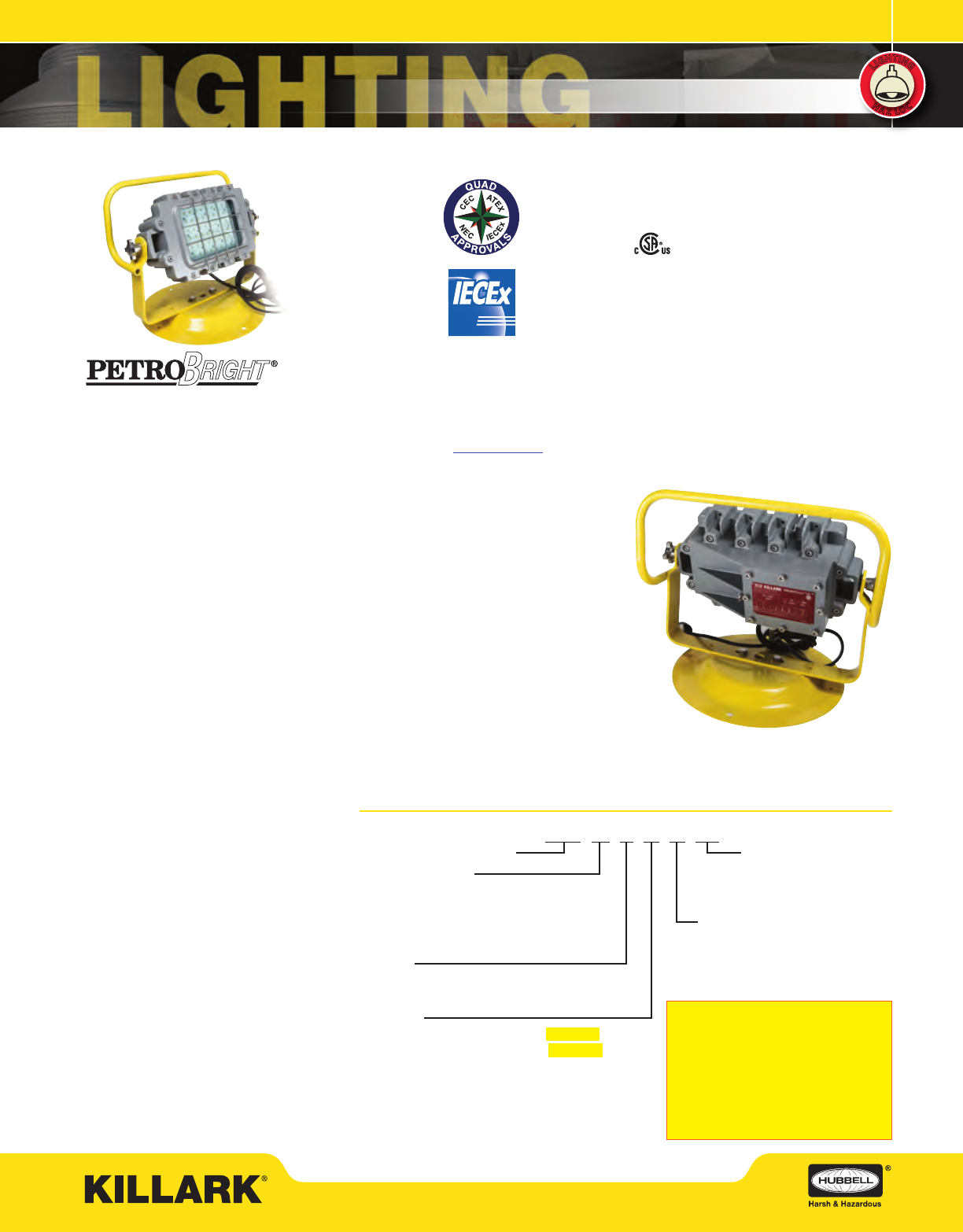

KF1LP SERIES
C1D1 FLOOD – INTRODUCTION & LOGIC
* LM-xx & TM-xx are illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers. For
more information go to www.ies.org
LED Flood Features and Standards
• Factory Sealed Construction
• One 3/4” NPT & one M20 entry standard (see
logic for other choices)
• Supplemental surge protection (AC models
120-277VAC only)
• Crisp White Light for Excellent Color Rendering
– Chromaticity 5000 K (CCT); approx. 70 CRI
• Energy Savings – High lumens per watt
• Long Life – 80,000 maintenance free hours to
70% initial lumens
• Instant On – Including after power interruption
• World Voltage 120 – 277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute” Photometry,
including Chromaticity Color for Solid State
Lighting
• L70 Values – Industry Nomenclature for
Hours of use to 70% of initial Lumens –
TM-21* & calculated
Class I, Div. 1&2, Groups B,C,D
Class I, Zone 1&2, Groups IIB+H2, IIA
Class II, Div. 1&2, Groups EFG, Class III
Enclosure Type 4X, IP66 (-50°C to +55°C)
IEC Ex Rated model (w/IEX or IEX4B suffix)
Zone 1, Zone 21
Ex de IIB+H2 T6..T5, Gb, IP66
Tamb -20°C ≤Ta≤ +55°C;
Option LT for -50°C ≤Ta≤ +55°Cj
Ex de IIB T6..T5, Gb, -50°C ≤Ta≤ +55°Cj
Ex tb IIIC T90°C Db, -50°C ≤Ta≤ +55°Cj
IECEX Certificate
CSA 14.0010
ATEX Certificate
SIRA 14ATEX1159X
Applications
LED KF1L Portable Explosion-proof Floods
are designed Temp App where moisture,
dirt, dust, corrosion and vibration may be
present, or NEMA 3 and 4X areas where
wind, water, snow or high ambients can be
expected. They can be used in locations
made hazardous by the presence of
flammable vapors or gases or combustible
dusts as defined by the NEC.
Typical applications include manufacturing
plants, and certain chemical and
petrochemical processing facilities, sewage
treatment plants, off-shore and dockside
installations, garages and storage facilities
Compliances
• UL-8750 for LED lighting
• ANSI/UL 1598A
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 1;
Class II, Division 1; Class III
• CSA C22.2 no. 137-M1981 electric
luminairies for use in hazardous locations
• IEX4B suffix for Zone 1 and Zone 21 to
IEC 60079-0,60079-1,60079-31, 60079-7
Standards
• Enclosed and gasketed
• NEMA 3, 4X
• IP66
Materials
• Body and lens frame corrosion resistant
copper-free aluminum alloy with
baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• All external hardware - stainless steel
• Thermal shock and impact resistant extra
heavy-duty glass lens
• High temperature silicone gasketing
• Trunnion heavy gauge 316 SS
Patent Pending
Fixture Design
LED
Catalog Number Logic
KF1LP 125 30 XX XX XXX
KF1LP - Series Constant
Voltage
30
- 120 - 277VAC 50/60Hz
33
- 347 - 480VAC 60Hz (90W-125W)
Options
IEX4B -
Four bolt termination cover (see Note 1)
LT -
For -50°C to +55°C, IEC Zone 1 (see Note 1)
F -
Single Fuse
FF -
Double Fusek
Plugs
A -
Acceptor Quick Wire 15 amp
N -
No Plug
Cord
Blank -
No Cord
25 -
25’
50 -
50’
jConstruction/Certication Notes: 8-bolt
factory sealed termination chamber, suitable
for CID1 BCD -50°C to +55°C and IEC Zone 1
Ex de suitable for -20°C to 55°C.
Use option LT for models needing IEC Zone
1, -50°C to +55°C suitability for hydrogen.
Option IEX4B utilizes 4 terminal cover bolts
for Ex de and maintains all ratings
EXCEPT CID1 BCD.
k Fusing not for Canadian or Marine Installations
File LR11713
FEATURES-SPECIFICATIONS
Fixture Wattage
090
- 90W
105
- 105W
110
- 110W
125
- 125W
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L50

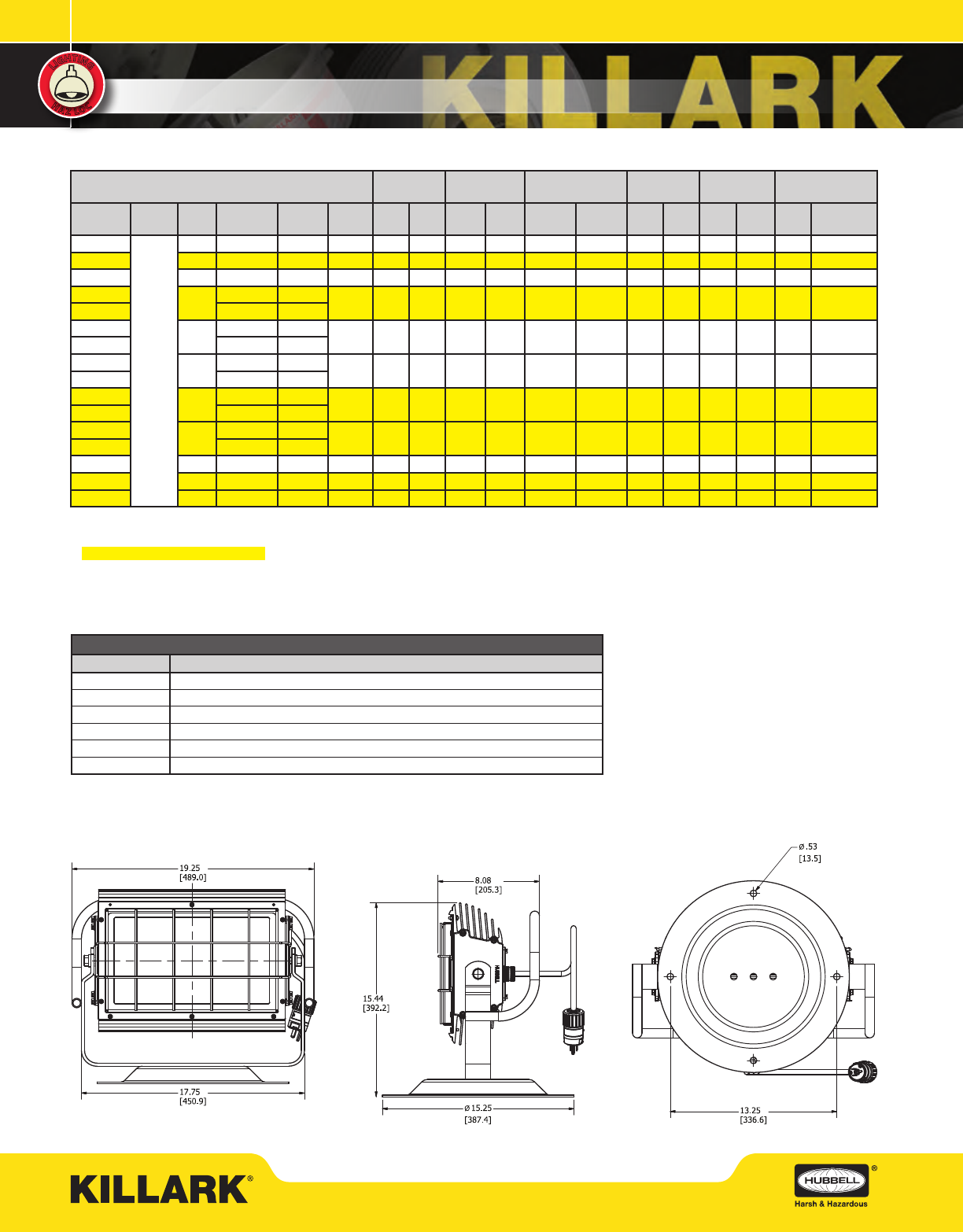

KF1LP SERIES
C1D1 FLOOD – ORDERING & TECHNICAL DATA
Dimensions
j Yellow highlighted models have extra high lumen LED’s.
k See logic for 347-480V availability
l Amperage measured at 120VAC; 277VAC calculated
m Use minimum 75° Supply Wire @40°C Ambient; 90°@55°C Ambient
n First number is lens temperature under 25mm layer of dust; Second number is lens temp for dust cloud.
o 55°C C2D1 EFG T3C Aiming Figure “B”, 55°C C2D1 EF T3A Aiming Figure “A”
KF1L MOUNTS AND ACCESSORIES
CATALOG NUMBER DESCRIPTION
KF1LG Wire Guard, 316 Stainless Steel
KF1L-DOOR Replacement Door and Lens Assembly
VP3023 VersaMate Metallic 30 amp 3W4P Plug
UGP-15231QW Acceptor Quick Wire 15 amp NEMA 5-15P
KP-20ABC KR Series 20 amp Plug
VSI20P304* VersaMate Non-Metallic 20 amp 125v Plug
* (note only with IEX suffix)
ORDERING INFORMATION AND AMBIENT SUITABILITY C1D1 C2D1 IEC ZONE 1 IEC ZONE 21 L70
CATALOG
NO.
WEIGHT
LBS./KG WATTS VOLTAGE AMPS LUMENS 40°C 55°C 40°C 55°C 40°C 55°C 40°C 55°C TM-21 CALCULATED
KF1L09030
49.00 /
22.22
90 120-277VAC 0.72-0.31 7182 T6 T6 (EFG) oT6 T5 160-75 175-90 60100 270000
KF1L09033 347-480VAC 0.25-0.18
KF1L10530 105 120-277VAC 0.85-0.37 8362 T6 T6 (EFG) oT6 T5 160-76 175-91 60100 270000
KF1L10533 347-480VAC 0.29-0.21
KF1L11030 110 120-277VAC 0.95-0.41 10590 T6 T6 (EFG) oT6 T5 160-77 175-92 72600 278000
KF1L11033 347-480VAC 0.33-0.24
KF1L12530 125 120-277VAC 1.10-0.48 11590 T6 T6 (EFG) oT6 T5 160-78 175-93 72600 278000
KF1L12533 347-480VAC 0.38-0.28
KF1L15030 150 120-277VAC 1.25-0.54 13280 T5 ----T5 - - 60300 190000
KF1L16530 165 120-277VAC 1.38-0.60 13760 T5 ----T5 - - 72600 278000
KF1L19530 195 120-277VAC 1.63-0.70 15707 T5 ----T5 - - 72600 278000
Aiming Figures
See Notes n & o
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L51

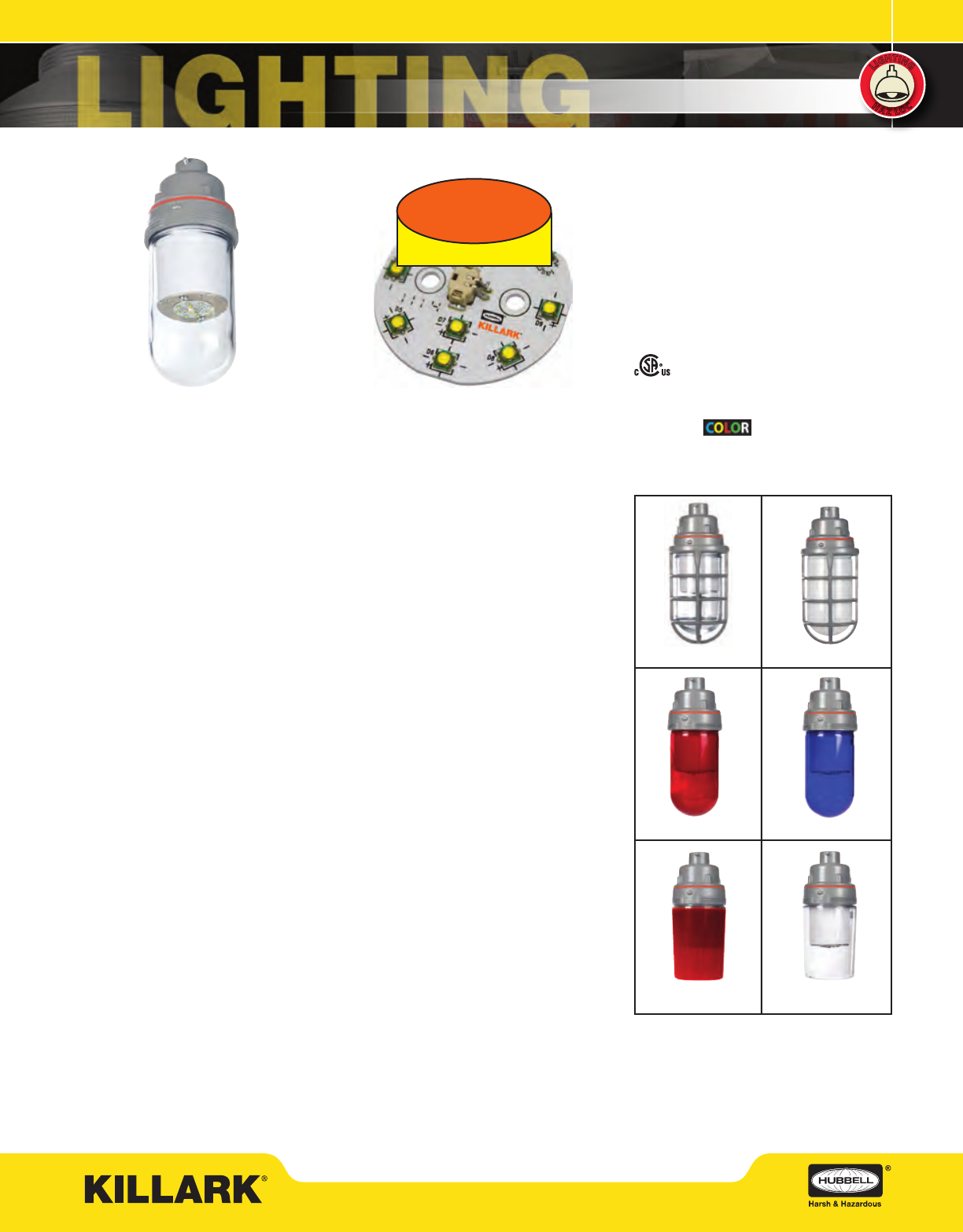

VSL SERIES
UTILITY LIGHT – INTRODUCTION
Optic Selection Examples
• Broadest globe offering for
Hazardous Locations in the industry
• Use as status lights or specialty/
emergency indicators
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 2, Groups F,Gj
Class III
Suitable for wet locations
Enclosure Type 4j
Introduction
Killark ‘VSL’ Series LED fixtures are designed
for installations where moisture, dirt, dust,
corrosion and vibration may be present,
or NEMA 3 and 4 areas where wind, water,
snow or high ambients can be expected.
VSL’s are sized to replace “Utility” type
fixtures (incandescent or CFL’s) in hallways,
closets, elevator pits, docks, stairwells,
access tunnels, and mechanical rooms.
These fixtures can be used in locations made
hazardous by the presence of flammable
vapors or gases or combustible dusts as
defined by the NEC. Typical applications
include manufacturing plants, and certain
chemical and petrochemical processing
facilities, sewage treatment plants, off-shore
and dockside installations, and garage areas.
LED Lumminaire Features and
Standards
• Compact in Size with Traditional Industrial
Appearance and Suitability
• Wide variety of optics including glass
globes (clear and tempered, color) plus
polycarbonate globes in clear and colors
• Optional Mounting arrangements including
Pendant, Wall, Ceiling, Stanchion and Adapters
• Fixtures available unit packed, order
option CP
• VSL LED Housings can be retrofitted to
existing V Series splice boxes; upgrade
from CFL or incandescent
• Energy Savings – less than 13 Watts of
Power; less than 16 Watts for VSL1630.
Replaces 75W or higher incandescent
• Long Life – 60,500+ maintenance-free
hours to 70% initial lumens
• Crisp White Light for Excellent Color
Rendering – Chromaticity 5000°K (CCT);
70 CRI
• Integral driver – maintains fixture’s
compact profile to fit in existing spaces
• Ambient suitability -40°C to 55°Ck
• Instant on – including after power
interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
• LM80-08* Measurement of lumen
maintenance for LED light sources
• LM79-08* Certified “Absolute”
Photometry, including Chromaticity Color
for Solid State Lighting
• TM-21* method to project long term
lumen maintenance
• L70 Values – Industry Nomenclature for
Hours of use to 70% of Initial Lumens
Compliances
• UL-8750 for LED lighting
• UL 1598 standard for luminaires
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Division 2; Class III, Division 2
• CSA C22.2 no. 137-M1981 electric
luminaries for use in hazardous locations
• Enclosed and gasketed
• NEMA 3, 4
Materials, Weights
• Body, splice box and guards are corrosion
resistant copper-free aluminum alloy
• Baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
• Reflectors – Polypropylene for pendant or
ceiling applications
• Heavy-duty silicone gasketing for NEMA 4
requirements
V SERIES LED
* LM-xx & TM-21 are Illumination Engineering Society
Standards designed to promote uniformity in testing
procedures among test labs and manufacturers. For
more information go to www.ies.org
j When mounted (globe down) to V series boxes; not
Class II, Div. 2 or NEMA 4 on VBA, VFPS, VB or VFL
adaptors to sheet metal boxes.
k Glass globe models to 55°C; Polycarbonate suitable
to 40°C.
Clear Glass w/Guard
Red Glass
Red Polycarbonate
White Glass w/Guard
Blue Glass
Clear Polycarbonate
TECHNOLOGY
LED
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L52

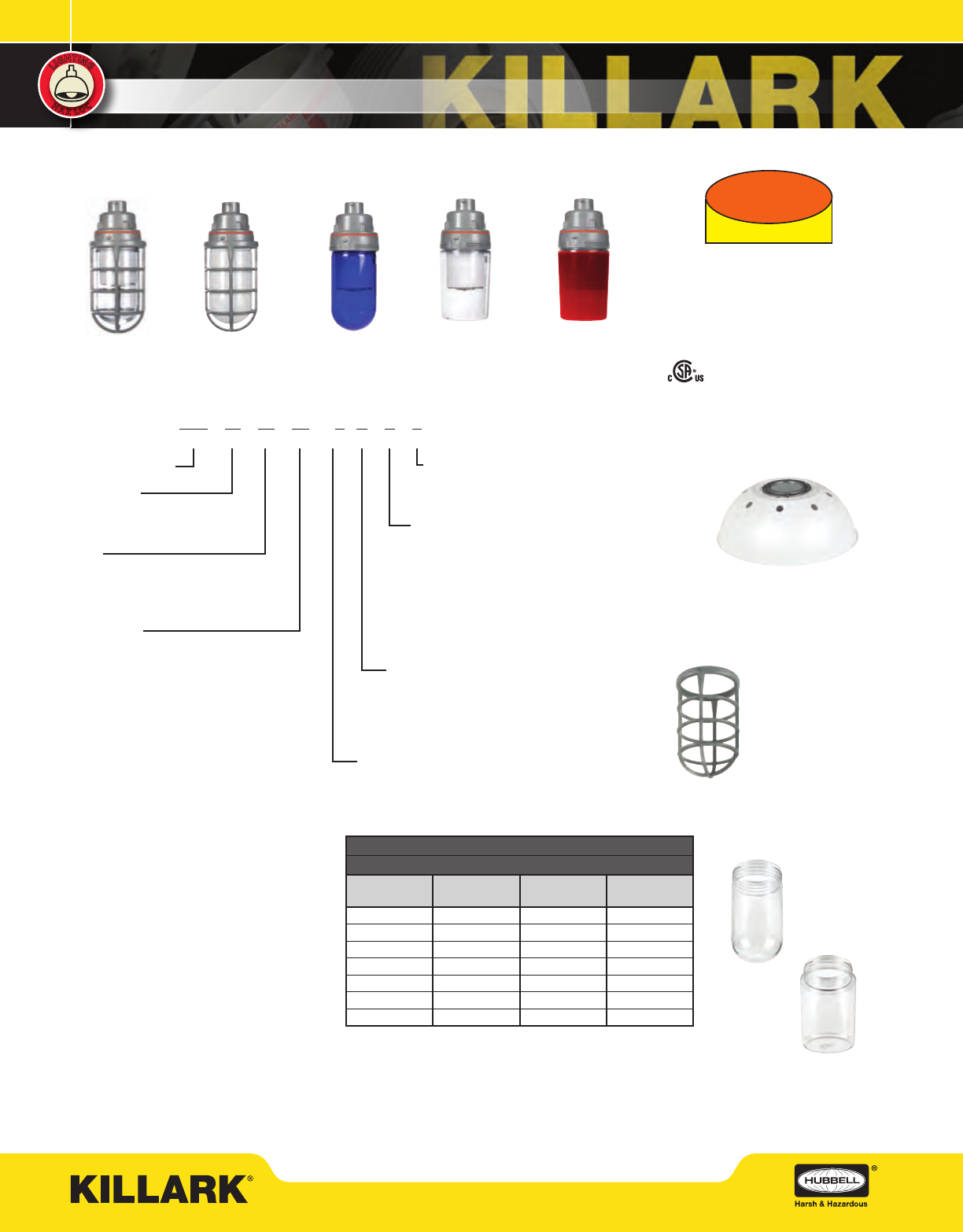

VSL SERIES
UTILITY LIGHT – CATALOG LOGIC
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 2, Groups F,Gj
Class III
Suitable for wet locations
Enclosure Type 4j
Clear Glass w/Guard White Glass w/
Guard
Blue Glass Clear Polycarbonate Red Polycarbonate
V SERIES LED Catalog Number Logic
VSL Series Constant
Voltage
30
– 120-277VAC (13W, 16W)
27
– 12-24VDC (13W, 16W)
34
– 120-250VDC (13W)
Mounting Type
NN
– Mounr Ordered Separately
A1
– 1/2” Pendant (VGA-1)
A2
– 3/4” Pendant (VGA-2)
F1
– 1/2” Ceiling w/Feet & Adapter (VBC-1 w/VBA)
F2
– 3/4” Ceiling w/Feet & Adapter (VBC-2 w/VBA)
X1
– 1/2” Ceiling (VGX-1)
X2
– 3/4” Ceiling (VGX-2)
C1
– 1/2” Ceiling (VGC-1)
C2
– 3/4” Ceiling (VGC-2)
H1
– 1/2” Ceiling Dead End (VGH-1)
H2
– 3/4” Ceiling Dead End (VGH-2)
D1
– 1/2” Ceiling Deep (VXA-1)
D2
– 3/4” Ceiling Deep (VXA-2)
D4
– 1-1/4” Stanchion (VD-4)
RA
– Round (Box) Adapter (VBA)
SA
– Square (Box) Adapter (VFPS)
W1
– 1/2” Wall w/Feet (VBC-1 w/VB-1)
W2
– 3/4” Wall w/Feet (VBC-2 w/VB-2)
V1
– 1/2” Wall Elbow (VB-1)
V2
– 3/4” Wall Elbow (VB-2)
FL
– Elbow for “V” Box (VFL)
Lamp Wattage
13
= 13W LED
16
= 16W LED
Guard
G
– Guard (For Glass Globes Only)
N
– No Guard (Standard on Polycarbonate Globes
R
– Guard Red (For Glass Globes Only)
Can Signify Emergency UPS Circuits
Optics**
S
– Standard Globe (Clear)
H
– Heat Resistant (Tempered) Globe (Clear)
P
– Polycarbonate (Clear)
VSL
1
16
2
30
3
A1
4
S
5
G
6
- B
7
S
8
Certified - File LR11713
Optic Color (Optic Type)
A
– Amber (S, H, P)
B
– Blue (S, H)
R
– Red (S, H, P)
G
– Green (S, P)
P
– Purple (S)
BG
– Blue Green (S, H)
W
– White (S)
Reector
S
– Standard Reflector (Pendant or Ceiling Use Only)k
CP
– Component Packl
** Use tempered glass or poly globe for wet location applications.
j When mounted (globe down) to V series boxes; not Class II, Div.2 or
NEMA 4 on VBA, VFPS, VB or VFL adaptors to sheet metal boxes.
k Reector is held on xture body by VAG-100 guard for glass globe models
or polycarbonate globe’s shoulder. Reectors ship separately.
l CP option includes complete xture in components contained in single
outer carton.
TECHNOLOGY
LED
COLORED GLOBE OPTIONS** EXAMPLE VSL1330A1SG-A
SUFFIX AND AVAILABLE COMBINATIONS
COLOR
NUMBER
STANDARD
GLOBE
TEMPERED
GLOBE POLYCARBONATE
AMBER AAA
BLUE B B —
RUBY RRR
GREEN G—G
PURPLE P — —
BLUE-GREEN BG BG —
WHITE WWW
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L53

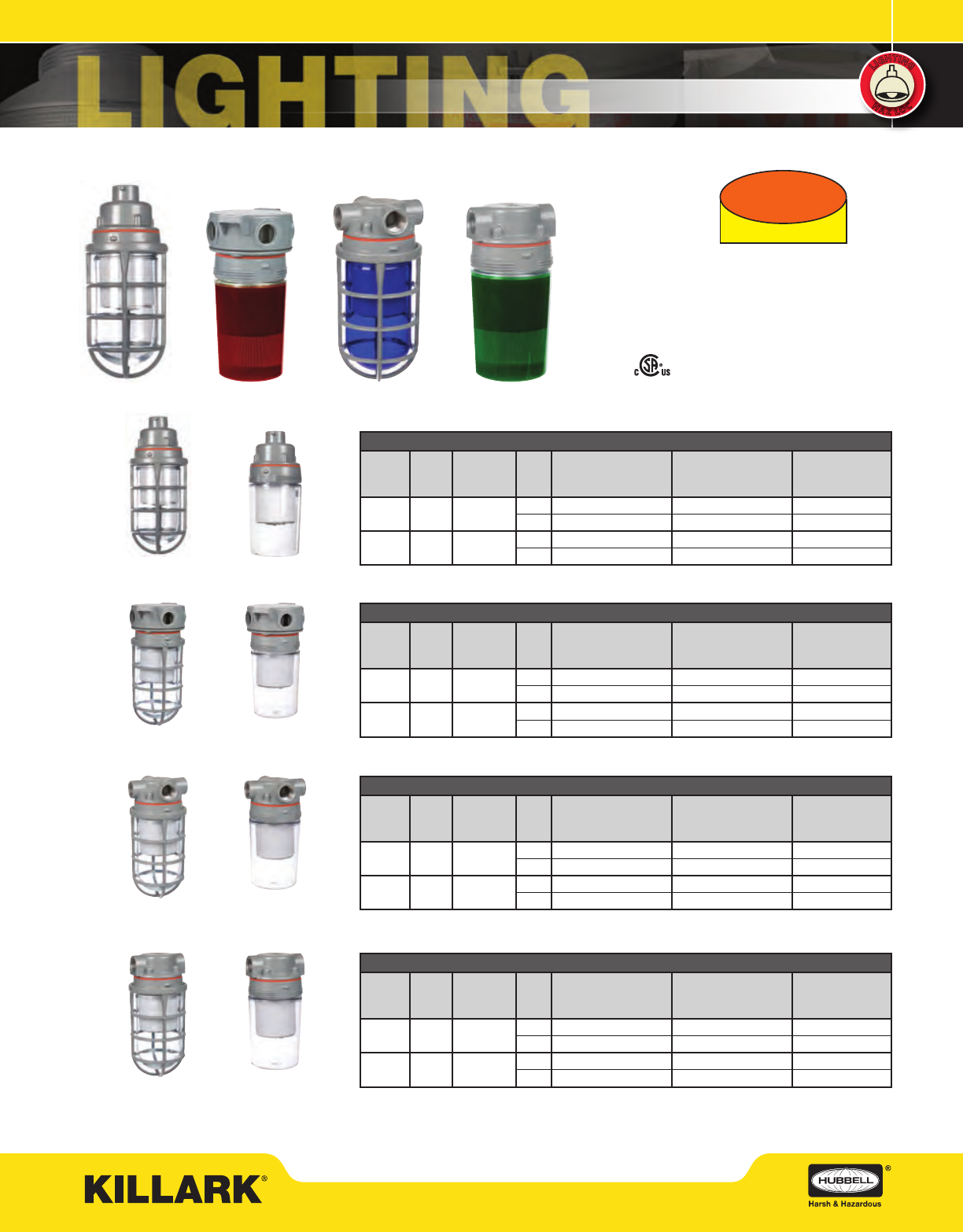

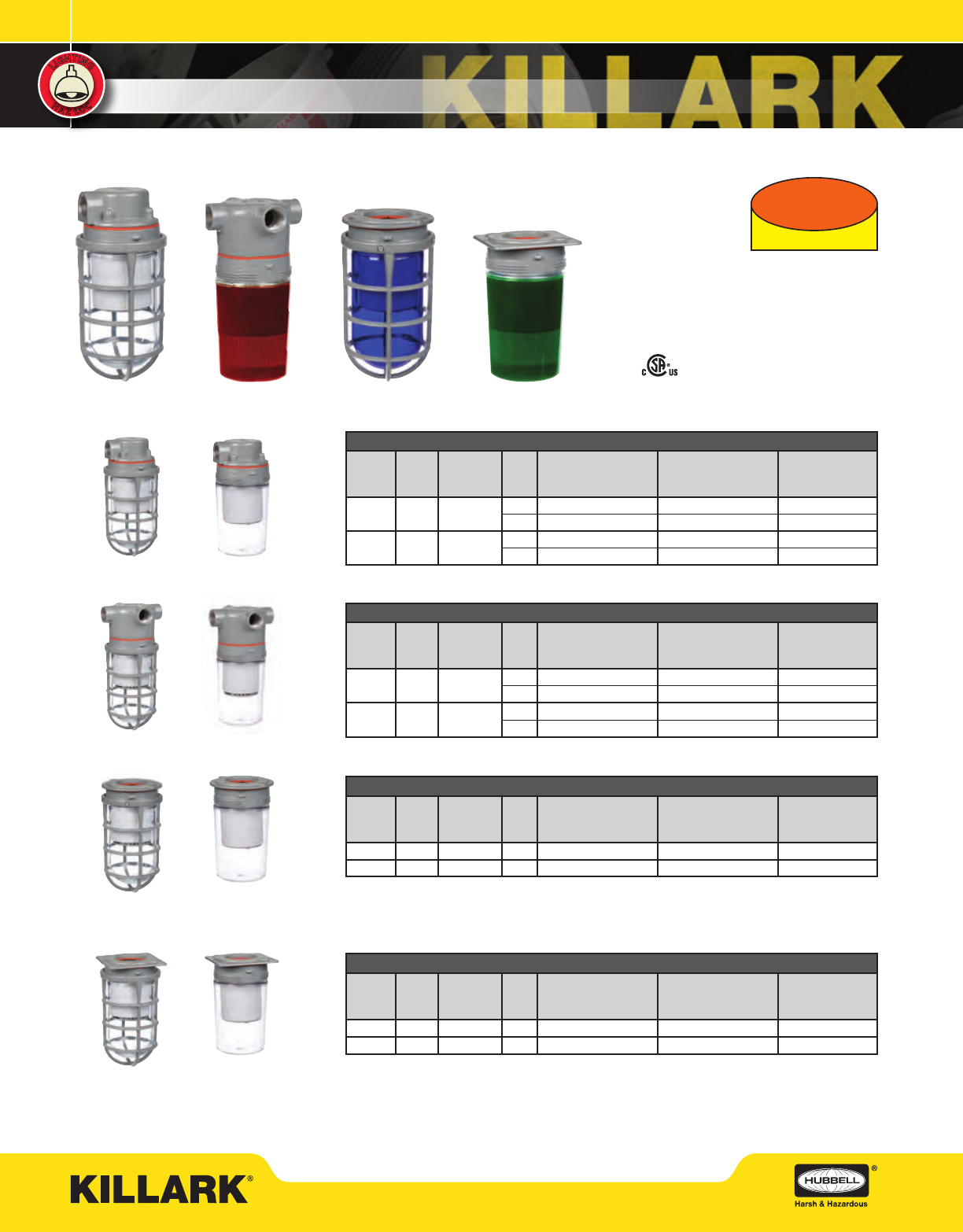

VSL SERIES
UTILITY LIGHT – ORDERING INFORMATION
ORDERING INFORMATION
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 2, Groups F,Gj
Class III
Suitable for wet locations
Enclosure Type 4j
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
j When mounted (globe down) to V series boxes; not Class II, Div.2 or NEMA 4 on VBA, VFPS, VB or VFL adaptors
to sheet metal boxes.
** Use tempered glass or poly globes for wet location applications. See logic page for available globe colors.
TECHNOLOGY
LED
PENDANT MOUNT WITH VGA SPLICE BOX 1 – HUB
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330A1SG VSL1330A1HG VSL1330A1PN
3/4” VSL1330A2SG VSL1330A2HG VSL1330A2PN
VSL1630 16 120-277VAC 1/2” VSL1630A1SG VSL1630A1HG VSL1630A1PN
3/4” VSL1630A2SG VSL1630A2HG VSL1630A2PN
CEILING MOUNT WITH FEET USING VBC SPLICE BOX AND VBA ADAPTER 4 – HUBS
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330F1SG VSL1330F1HG VSL1330F1PN
3/4” VSL1330F2SG VSL1330F2HG VSL1330F2PN
VSL1630 16 120-277VAC 1/2” VSL1630F1SG VSL1630F1HG VSL1630F1PN
3/4” VSL1630F2SG VSL1630F2HG VSL1630F2PN
CEILING MOUNT WITH VGX SPLICE BOX 4 – HUBS
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330X1SG VSL1330X1HG VSL1330X1PN
3/4” VSL1330X2SG VSL1330X2HG VSL1330X2PN
VSL1630 16 120-277VAC 1/2” VSL1630X1SG VSL1630X1HG VSL1630X1PN
3/4” VSL1630X2SG VSL1630X2HG VSL1630X2PN
CEILING MOUNT WITH VGC SPLICE BOX – FEED THROUGH 2 – HUBS
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330C1SG VSL1330C1HG VSL1330C1PN
3/4” VSL1330C2SG VSL1330C2HG VSL1330C2PN
VSL1630 16 120-277VAC 1/2” VSL1630C1SG VSL1630C1HG VSL1630C1PN
3/4” VSL1630C2SG VSL1630C2HG VSL1630C2PN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L54
VSL SERIES
UTILITY LIGHT – ORDERING INFORMATION
ORDERING INFORMATION
TECHNOLOGY
LED
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 2, Groups F,Gj
Class III
Suitable for wet locations
Enclosure Type 4j
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
j When mounted (globe down) to V series boxes; not Class II, Div.2 or NEMA 4 on VBA, VFPS, VB or VFL adaptors
to sheet metal boxes.
** Use tempered glass or poly globes for wet location applications. See logic page for available globe colors.
CEILING MOUNT WITH VGH SPLICE BOX – DEAD END 1 – HUB
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330H1SG VSL1330H1HG VSL1330H1PN
3/4” VSL1330H2SG VSL1330H2HG VSL1330H2PN
VSL1630 16 120-277VAC 1/2” VSL1630H1SG VSL1630H1HG VSL1630H1PN
3/4” VSL1630H2SG VSL1630H2HG VSL1630H2PN
CEILING MOUNT WITH VXA DEEP SPLICE BOX 5 – HUBS
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330D1SG VSL1330D1HG VSL1330D1PN
3/4” VSL1330D2SG VSL1330D2HG VSL1330D2PN
VSL1630 16 120-277VAC 1/2” VSL1630D1SG VSL1630D1HG VSL1630D1PN
3/4” VSL1630D2SG VSL1630D2HG VSL1630D2PN
CEILING MOUNT WITH VBA ADAPTER FOR ROUND OUTLET BOX 0 – HUBSj
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC –VSL1330RASG VSL1330RAHG VSL1330RAPN
VSL1630 16 120-277VAC –VSL1630RASG VSL1630RAHG VSL1630RAPN
CEILING MOUNT WITH VFPS ADAPTER FOR SQUARE OR OCTAGON OUTLET BOX 0 – HUBSj
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC –VSL1330SASG VSL1330SAHG VSL1330SAPN
VSL1630 16 120-277VAC –VSL1630SASG VSL1630SAHG VSL1630SAPN
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L55

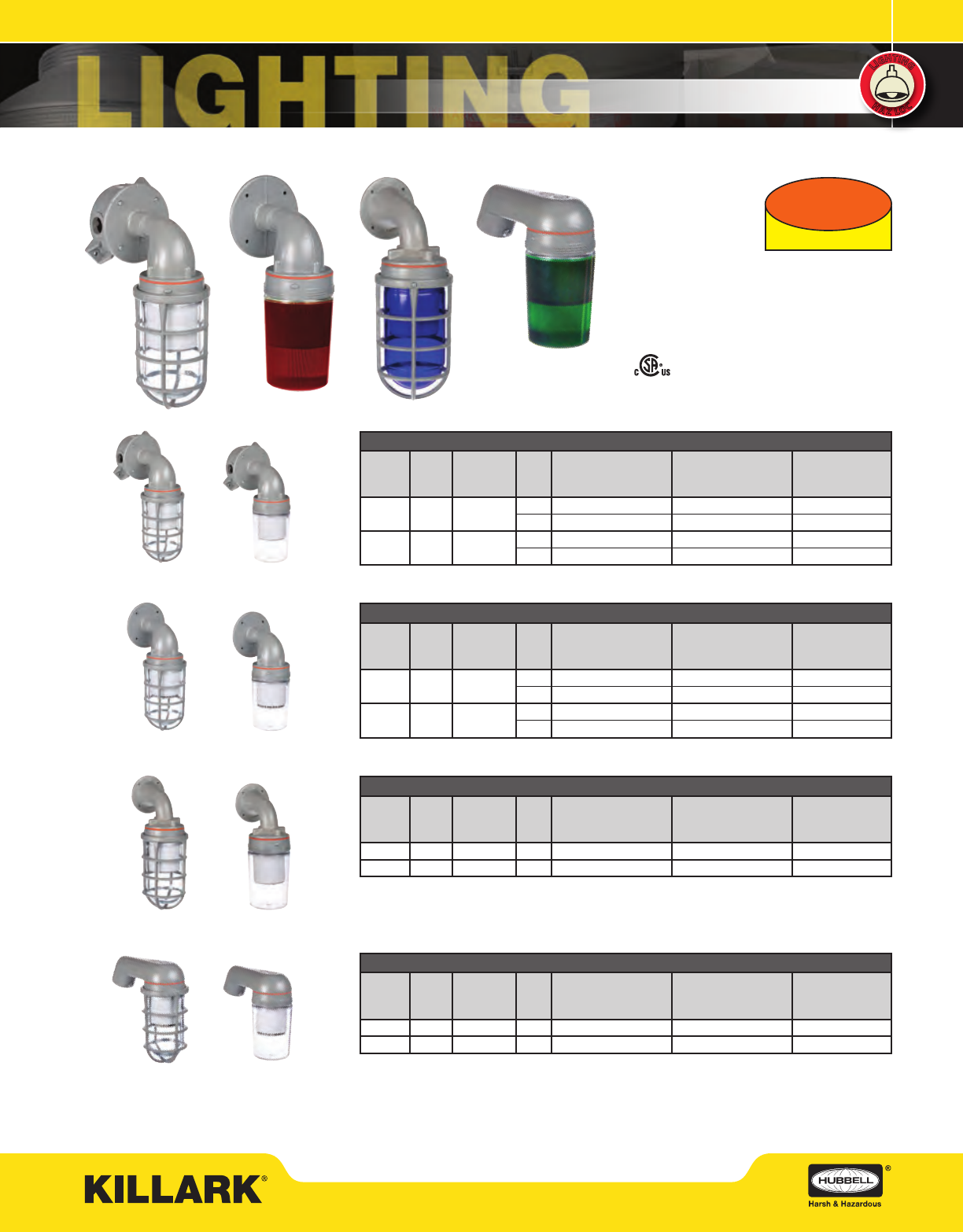

VSL SERIES
UTILITY LIGHT – ORDERING INFORMATION
Certified - File LR11713
Class I, Div. 2, Groups A,B,C,D
Class l, Zone 2, Groups llC,llB,llA
Class II, Div. 2, Groups F,Gj
Class III
Suitable for wet locations
Enclosure Type 4j
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
Glass
Globe
Poly
Globe
j When mounted (globe down) to V series boxes; not Class II, Div.2 or NEMA 4 on VBA, VFPS, VB or VFL adaptors
to sheet metal boxes.
** Use tempered glass or poly globes for wet location applications. See logic page for available globe colors.
WALL MOUNT WITH FEET USING VBC SPLICE BOX AND VB ELBOW 4 – HUBS
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330W1SG VSL1330W1HG VSL1330W1PN
3/4” VSL1330W2SG VSL1330W2HG VSL1330W2PN
VSL1630 16 120-277VAC 1/2” VSL1630W1SG VSL1630W1HG VSL1630W1PN
3/4” VSL1630W2SG VSL1630W2HG VSL1630W2PN
WALL MOUNT WITH VB ELBOW TO MOUNT TO 4” OUTLET BOX 0 – HUBSj
LED WATTS VOLTAGE
NECK
HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1/2” VSL1330V1SG VSL1330V1HG VSL1330V1PN
3/4” VSL1330V2SG VSL1330V2HG VSL1330V2PN
VSL1630 16 120-277VAC 1/2” VSL1630V1SG VSL1630V1HG VSL1630V1PN
3/4” VSL1630V2SG VSL1630V2HG VSL1630V2PN
WALL MOUNT – WITH VFL ELBOW FOR DIRECT MOUNT TO V SERIES SPLICE BOXES 0 – HUBSj
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC –VSL1330FLSG VSL1330FLHG VSL1330FLPN
VSL1630 16 120-277VAC –VSL1630FLSG VSL1630FLHG VSL1630FLPN
STANCHION MOUNT FOR 1-1/4” THREADED PIPE 1 – HUB
LED WATTS VOLTAGE HUB
SIZE
FIXTURE W/ STANDARD
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ TEMPERED
CLEAR GLASS GLOBE &
GUARD**
FIXTURE W/ CLEAR
POLYCARBONATE
GLOBE**
VSL1330 13 120-277VAC 1-1/4” VSL1330D4SG VSL1330D4HG VSL1330D4PN
VSL1630 16 120-277VAC 1-1/4” VSL1630D4SG VSL1630D4HG VSL1630D4PN
TECHNOLOGY
LED
ORDERING INFORMATION
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L56

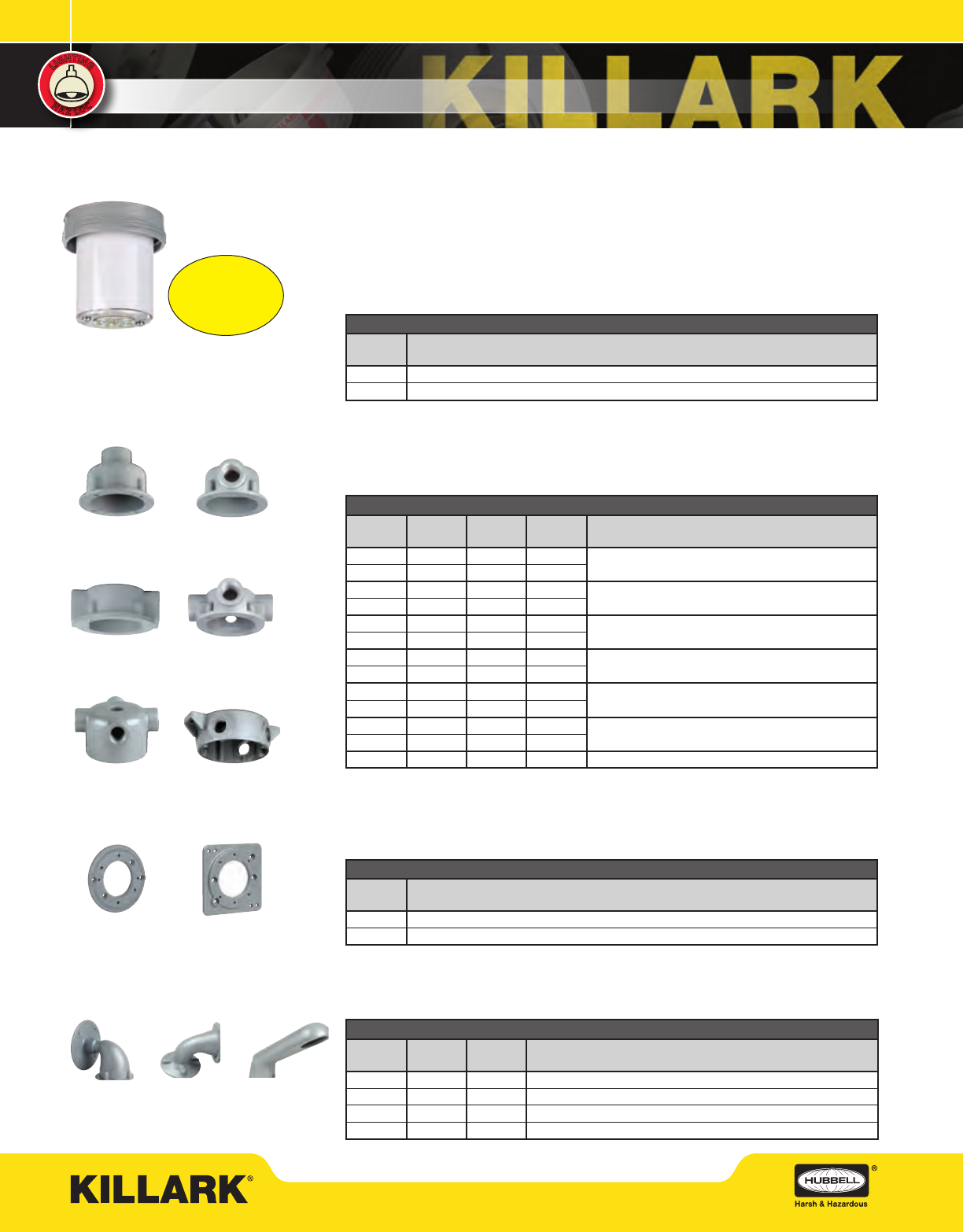

VSL SERIES
UTILITY LIGHT – COMPONENTS
Fixture bodies contain the LED driver and array, heat sink plus gaskets, and are threaded to
accept globes, guards and reflectors. Users with KILLARK “V” Series vapor tight fixtures
from the 1960’s onward can up-grade to the latest technology and, in many cases, reuse
existing mounts, globes and guards. VSL bodies are designed for metallic boxes and mount
directly to V Series splice boxes or adapters as indicated.
VSL Fixture Bodies Only
VSL Body
RETROFIT
FOR ENERGY
SAVINGS VSL FIXTURE BODIES
CATALOG
NUMBER DESCRIPTION
VSL1330 13W 120-277VAC 50/60Hz Body with LEDs and Driver
VSL1630 16W 120-277VAC 50/60Hz Body with LEDs and Driver
VGHVGA
VGXVGC
VBCVXA
*Volume cu. in. is 18
For use with VSL Series fixture bodies.
VSL Splice Boxes
VSL SPLICE BOXES
CATALOG
NUMBER HUB SIZE QT Y. LOGIC
CODE DESCRIPTION
VGA-1 1/2” 1A1 Pendant mount
VGA-2 3/4” 1A2
VGH-1 1/2” 1H1 Ceiling mount
VGH-2 3/4” 1H2
VGC-1 1/2” 2C1 Ceiling mount
VGC-2 3/4” 2C2
VGX-1 1/2” 4X1 Ceiling mount
VGX-2 3/4” 4X2
VXA-1 1/2” 5D1 Ceiling mount, deep box
VXA-2 3/4” 5D2
VBC-1* 1/2” 4F1 Ceiling mount, with 3 close-up plugs (requires VBA Adapter)
or wall mount with VB elbow
VBC-2* 3/4” 4F2
VXAB – – – Blank close-up plate (less gasket)
VFPSVBA
VSL Adapters
VSL ADAPTER MOUNTING PLATES
CATALOG
NUMBER DESCRIPTION
VBA Adapts fixture body to VB, VJ or steel 3-1/2” & 4” splice boxes. Supplied with gasket.
VFPS Adapts fixture body to steel 4” square outlet boxes or 3-1/2” or 4” octagon boxes
VFLVB VD
VSL Wall/Stanchion Mounts
VSL MOUNTING BRACKETS
CATALOG
NUMBER HUB SIZE QT Y. DESCRIPTION
VB-1 1/2” 1 Wall mount to VJ or VB boxes
VB-2 3/4” 1 Wall mount to VJ or VB boxes
VFL – – Wall mount to V boxes directly or to VJ, VB boxes with VBA adapter
VD-4 1-1/4” 1Stanchion mount
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L57

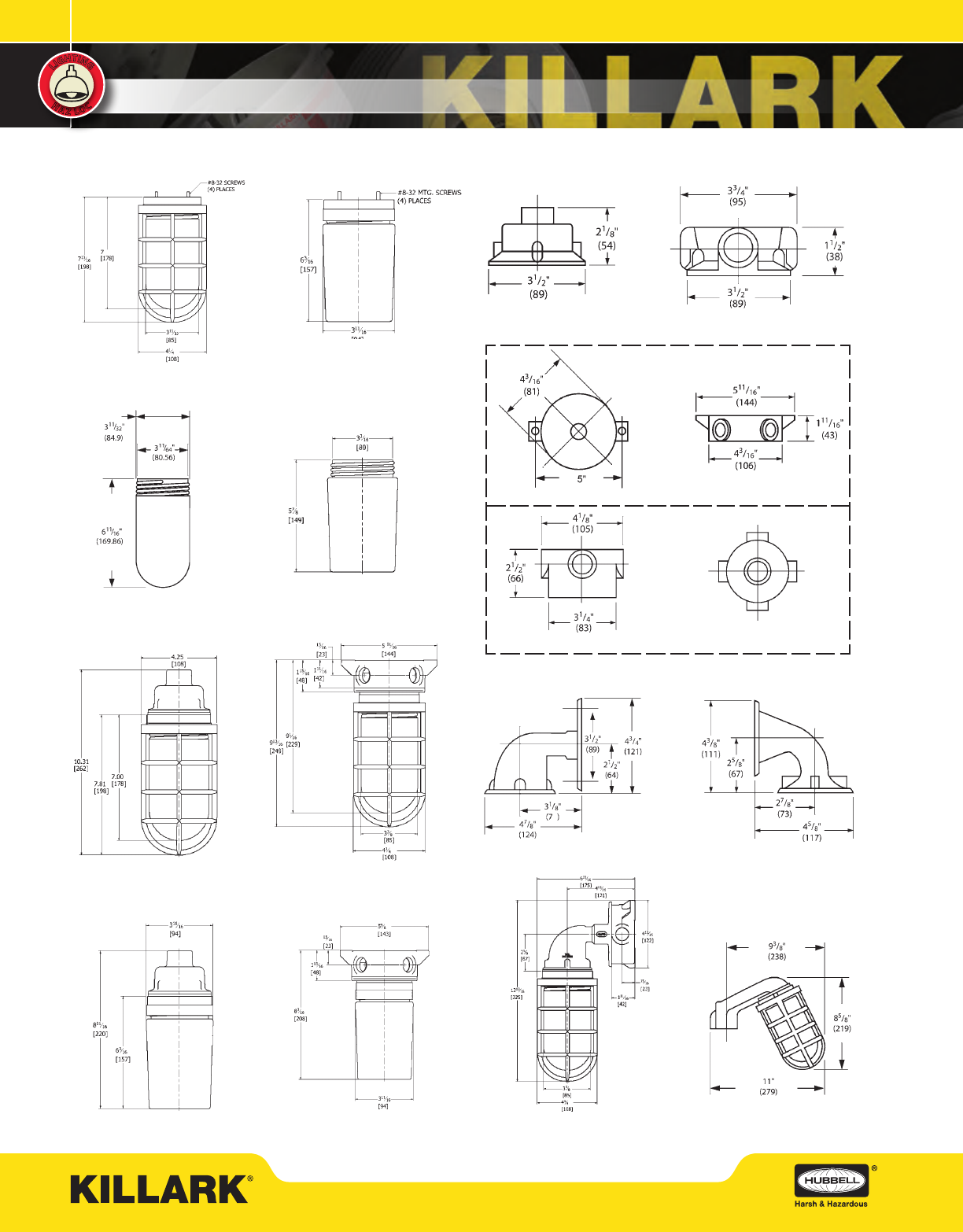

VSL SERIES

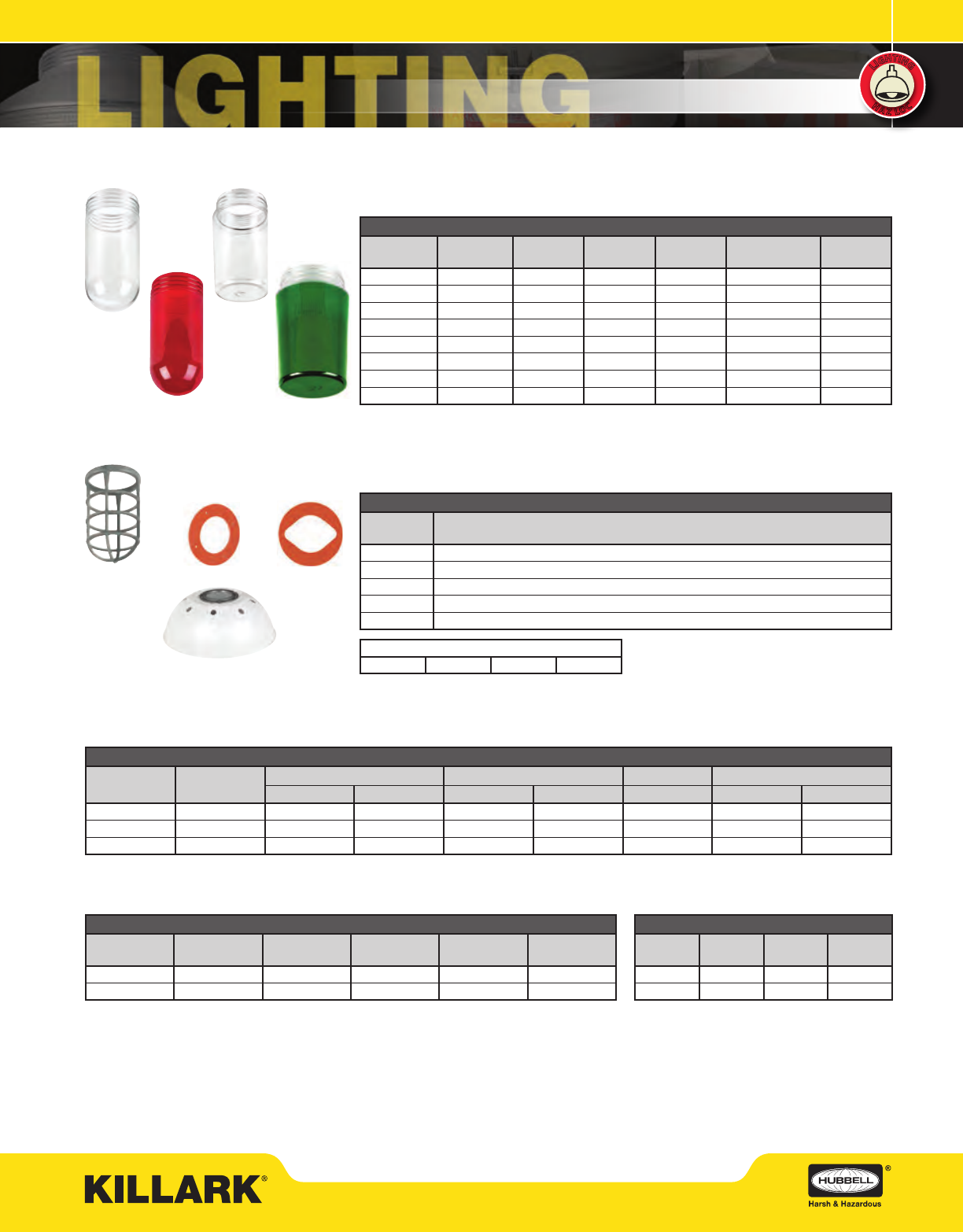

UTILITY LIGHT – COMPONENTS, RATINGS & WEIGHTS
j Driver THD<20%, Powerfactor >90% @ 120V; Line regulation 2%; Load regualtion 5%; Protected against Over-voltage and Overcurrent.
k CIL = Calculated Initial Lumens of LED component based on mfg. data and driver current INSIDE the optic. This value is provided as a reference only for comparison to
traditional light sources such as Incandescent, HID, or uorescent which use initial values in “relative” photometry. KILLARK LED luminaires are tested using the Absolute
photometry method (LM79-08), which calculates delivered lumens only. KILLARK’s LED luminaires provide very bright white 5000o K (CCT) color and can appear brighter
than traditional light sources with higher lumen values under both photopic and scotopic conditions.
l “TM-21 based values require very long duration testing. The L70/TM-21 “official reported” value is based on 10,000 hours testing at 1000mA drive current (“reported L70” is a
factor of test duration). KILLARK’s VSL utilizes lower 450mA maximum drive current - “calculated” values by the chip vendor predict L70 life substantially in excess of 100,000
hours even at 1000mA.”
Glass
Globe
Poly
Globe
Glass Color
Globe
Poly Color
Globe
* See Pre-congured ordering tables for complete xtures.
** Use tempered glass or polycarbonate globes for wet location applications.
VSL Globes
VSL GLOBES – ORDERING INFORMATION AND SUFFIX GRID**
COLOR GLASS OPTIC LOGIC TEMPERED
GLASS OPTIC LOGIC POLYCARBONATE OPTIC LOGIC
Clear VCG-100 S* VCGP-100 H* VPLCG-100 P*
Amber AMG-100 AVAMGP-100 AVPLCG-100A A
Blue VBG-100 BVBGP-100 B––
Ruby (Red) VRG-100 RVRGP-100 RVPLCG-100R R
Green VRSG-100 G––VPLCG-100G G
Purple VPG-100 P––––
Blue-Green VGG-100 BG VGGP-100 BG ––
White VWG-100 WVWGP-100 WVPLCG-100W W
VSL Thermal Ratings
VSL THERMAL PERFORMANCE DATA INCLUDING VPRSD-100 REFLECTOR
CATALOG
NUMBER AMBIENT C1D2 C2D2 SUPPLY L70l
GLASS GLOBE POLY GLOBE GLASS GLOBE POLY GLOBE WIRE TM-21 CALCULATED
VSL1330 40°C T6 T5 T5 (F,G) T5 (F,G) 90° 60,500 100,000+
VSL1330 55°C T5 –––90° 60,500 100,000+
VSL1630 40°C T5 –T5 (F,G) –90° 60,500 100,000+
VSL TOTAL LUMEN OUTPUT
WATTAGE W/ GLOBE
VCG-100
W/GLOBE
VPLCG-100
W/GLOBE
VWG100
13W 1211 1104 905
16W 1328 1308 1072
VSL LED BODY WITH DRIVERSJAND LEDS – ELECTRICAL RATINGS
CATALOG
NUMBER
VOLTAGE
50/60HZ WATTAGE AMPS
120/277 CILkWEIGHT
LBS.
VSL1330 120-277VAC 12.42 .108/.0 47 1300 5.0
VSL1630 120-277VAC 15.64 .156/.067 1625 5.0
VSL Electrical Ratings
VSL Components
VPRSD-100
16-3/8” Dia. 5-5/8” High
VTG-S VTGG1-SVAG-100
VSL COMPONENT PARTS AND ACCESSORIES
CATALOG
NUMBER DESCRIPTION
VAG-100 Aluminum Guard for use with Glass Globe
VAG-100R Red Aluminum Guard for use with Glass Globe
VTG-S Body to Splice Box Gasket – Silicone
VTGG1-S Globe Gasket – Silicone
VPRSD-100 White polypropylene for pendant & ceiling applications. Not for use with wall or stanchion models.
Typical Weights (lbs.) w/Standard Globe and Guard – VSL Series
Pendant 7.03 Ceiling 7.51 Wall 8.09 Stanchion 7.61
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L58
VSL SERIES
UTILITY LIGHT – DIMENSIONS
VGA VGC or VGX
*VGH is 3-5/8” (92)
VBC-1 & VBC-2
VXA
VSL Body w/Globe &
Guard, No Splice Box
VB VFL
VSL Stanchion Fixture
w/Globe & Guard
VSL Body
w/Polycarbonate Globe,
No Splice Box
Glass Globe Polycarbonate Globe
VSL Pendant Fixture
w/Globe & Guard
VSL Ceiling Fixture
w/Globe & Guard
VSL Pendant Fixture
w/Polycarbonate Globe
VSL Wall Mounted Fixture
w/Globe & Guard
VSL Ceiling Fixture
w/Polycarbonate Globe
Side View
Top View
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L59
DVL SERIES
CLASS II UTILITY LIGHT – INTRODUCTION & ORDERING INFORMATION
FEATURES-SPECIFICATIONS
Certified - File LR11713
Class II, Div. 1 & 2, Groups E, F, G
Class III
Class I, Div. 2, Groups A, B, C, D
Introduction
Killark ‘DVL’ Series LED fixtures are designed
for hazardous locations where suspended metal,
carbon (such as coal) and grain dusts create
explosive or ignitable mixture with the air.
LED Lumminaire Features and
Standards
• Compact in Size with Traditional Industrial
Appearance and Suitability
• DVL LED Housings can be retrofitted to
existing DV Series splice boxes; upgrade from
incandescent housing 100 Series components
• Long Life – 60,500+ maintenance-free
hours to 70% initial lumens
• Crisp White Light for Excellent Color Rendering
– Chromaticity 5000°K (CCT); 70 CRI
• Integral driver – maintains fixture’s
compact profile to fit in existing spaces
• Instant on – including after power interruption
• “World Voltage” 120-277VAC 50/60Hz
• Solder-LESS LED Board Connections –
Vibration Resistant
Compliances
• UL-8750 for LED lighting
• UL 1598 standard for luminaires
• UL-844 Standard for lighting fixtures for
hazardous locations, Class I, Division 2;
Class II, Division 2; Class III, Division 2
• CSA C22.2 no. 137-M1981 electric
luminaries for use in hazardous locations
Materials, Weights
• Body and splice box are corrosion resistant
copper-free aluminum alloy. Steel guard.
• Baked powder epoxy/polyester finish,
electrostatically applied for complete,
uniform corrosion protection
DV SERIES LED
j Fixtures supplied with guard. Substitute ‘n‘ for ‘g‘ for xture less guard.
DVL Series LED Catalog Logic
Accessories/Components Dimensions
As 100 Series incandescent
Series Constant
Wattage
13 - 13W LED
16 - 16W LED
Guard
N — No Guard
G — Guard
DVL 13 30 A 1 G
Mounting Style
A — Pendant
X — Ceiling
B — Bracket & Fittings for Wall Mount
Voltage
30 - 120-277VAC 50/60 Hz
27 - 12-24VDC input
DVL Electrical and L70 Ratings
Same as VSL Series - See page L55 Wall Mount overall dimensions
Height = 13.125” (333mm)
Outward from wall = 7.4” (188mm)
Conduit Entry Size
1 — 1/2”
2 — 3/4”
Bodies Mounts
DVL 1330 LED 13W DVA1 1/2” Pendant Mount
DVL 1327 LED 13W DVA2 3/4” Pendant Mount
DVL 1630 LED 16W DVX1 1/2” Ceiling Mount
DVL 1627 LED 16W DVX2 3/4” Ceiling Mount
DVB1 1/2” Wall Mount
Globe Guard DVB2 3/4” Wall Mount
DCGE-10 DAG-100
CAT. NO. AMBIENT WATTS C2D1 EFG C1D2 ABCD SUPPLY WIRE
DVL THERMAL RATINGS
DVL1330 40OC 13 T3B T6 90OC
DVL1630 40OC 16 T3B T6 90OC
DVL1330 55OC 13 - T5 90OC
DVL1630 55OC 16 - T5 90OC
Pendant
Mount
Ceiling
Mount
TECHNOLOGY
LED
DVL 100 SERIESj
MODEL LAMP HUB PENDANT CEILING WALL DELIVERED
LUMENS
Type 100
13Watt Included 1/2” DVL1330A1G DVL1330X1G DVL1330B1G 1144
3/4” DVL1330A2G DVL1330X2G DVL1330B2G
Type 100
16Watt Included 1/2” DVL1630A1G DVL1630X1G DVL1630B1G 1355
3/4” DVL1630A2G DVL1630X2G DVL1630B2G
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L60

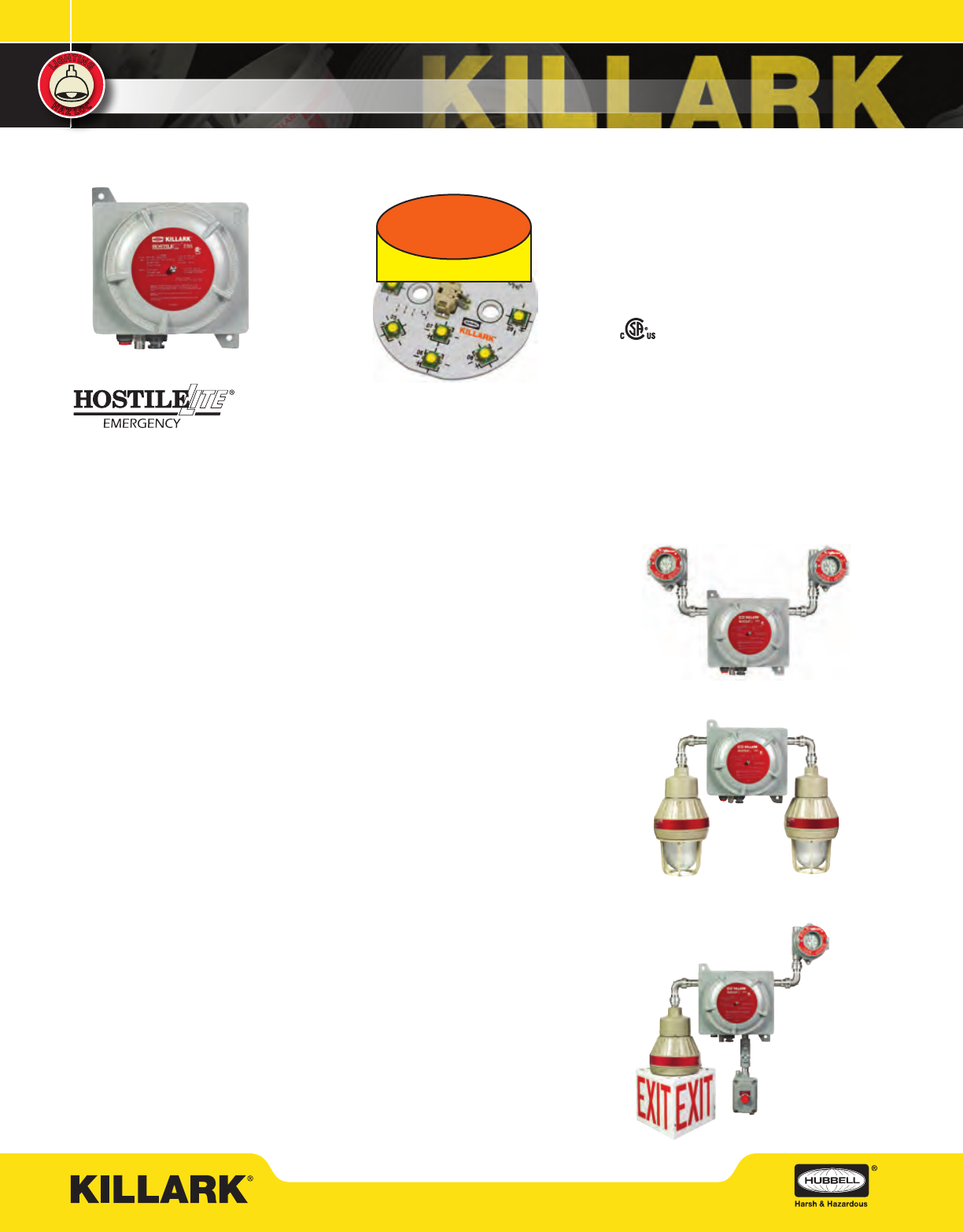

EBS SERIES
EMERGENCY BATTERY SYSTEM – INTRODUCTION
FEATURES-SPECIFICATIONS
File LR11713
Class I, Div. 1&2, Groups Bj,C,D
Class I, Zone 1&2, Groups llB+H2j, llA
Class II, Div. 1&2, Groups EFG
Class III
Enclosure Type 4 (NEMA 4, 7Bj CD, 9EFG)
Applications
Where required by the NEC (or local “Life Safety”
code) for safe egress (over doors, aisleways,
stairs, walkways, exit paths, and outer perimeter
walls) to provide illumination during interruption
of normal power to area lighting.
In indoor or outdoor locations made hazardous
by the presence of flammable gas, vapors, or
dusts. Includes refinery/chemical production
and storage, grain processing, waste water
treatment facilities and any area requiring
heavy-duty dependable emergency lighting.
Exclusive Features
• LED Heads provide clear crisp illumination
at 5000° Kelvink
• LED Head L70 value 100,000 hours for
minimal maintenance
• Two head models up to 500% brighter
than competitive conventional unitsl
• Enclosure Type 4 (NEMA 4) for wet and
harsh locations
• Group B is standard when using EBSHK
type heads
• Automatic Safety Disconnect – Removing
main cover disconnects battery power
• Ambient Suitability 0°C to 45°C Battery
Unit; Heads to 55°
• Compact unit requires only two mounting
points
• World Voltage 120-277 VAC 50/60Hz input
Other Features
• High % of lumens maintained during 90
minute egress cycle
• EBSHK type heads are fully adjustable on
unit or remote when ordered with
RFSL Factory Sealed mounting kits
• EBSEL type heads are factory sealed on
their EZ type mounting boxes
• Heads can be remote mounted over 300’
from battery unit
• Ni-Cad sealed batteries provide 90
minutes of illumination
• Integral base unit LED pilot light indicates
AC power is present
• Choice of Integral or Remote Push-To-Test
station to verify system operation
• Vapor Capsule to inhibit corrosion is
standard with main enclosure unit
• Terminal Blocks identified for incoming
and outgoing connections
Compliances
• UL 1598 Standard for Luminaires
• UL 8750 for LED Lighting
• UL 844 Luminaires for Hazardous
Locations
• UL 1203 Explosion-Proof/Dust-Ignition-
Proof Electrical Enclosures
• UL 924 Emergency Lighting
• CSA C22.2 no. 137-M1981 Luminaires for
Hazardous Locations
• CSA C22.2 no. 30-M1986 C1D1 Enclosures
• CSA 22.2 no. 25-1066 C2D1 EFG Enclosures
• Enclosure Type 4
• NEMA 4, 7BjCD, 9EFG
Materials
• Main Enclosure and Heads Copper Free
Aluminum alloy with Baked Powder epoxy/
polyester finish, electrostatically applied
for complete, uniform corrosion protection
• Attachment fittings copper-free aluminum
• External hardware 316 Stainless Steel
• EBSEL reflectors EXIT accessory
aluminum with white paint
Notes
j Main EBS unit is CID1 Grp B (Suitable Zone 1
IIB+H2) with attached EBSHK heads or no heads;
with attached EBSEL heads unit is CID1 Groups CD
(Suitable Zone 1 IIB, IIA)
k See VSL Series Photometry Color Graphs; 5000°
Kelvin is typical (“sunlight”)
l Based on published tungsteon/incandescent data
EBSEL Heads 300% brighter; EBSHK Heads 500%
brighter
EBS Unit with HK Type Heads and
Integral Push-To-Test
EBS Unit with EL Type Heads and
Integral Push-To-Test
EBS Unit with
EL Type Head
and Exit plus
HK Head
with remote
Push-To-Test
EBS Battery Unit Only
EBS
TECHNOLOGY
LED
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L61

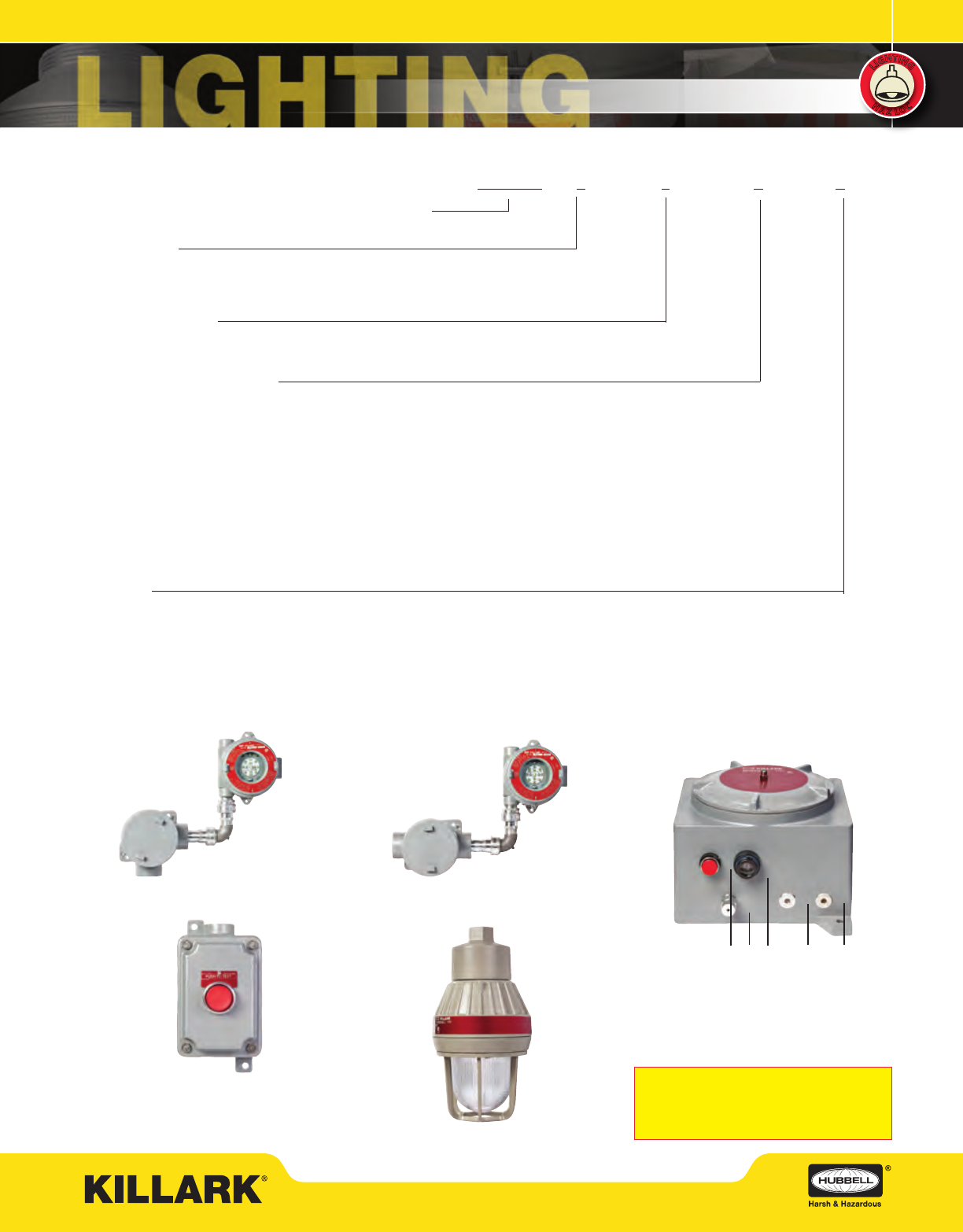

EBS SERIES
EMERGENCY BATTERY SYSTEM – LOGIC & COMPONENTS
Factory Sealed Remote LED
Spot Light - Bottom Feed
Factory Sealed Remote LED
Spot Light - Side Feed
A Optional Push-To-Test
B Optional Group B Drain
C Standard Pilot Light
D Entry for Remote P-T-T Station
E Power Entry (also on top)
Remote Push-To-Test Station
Remote LED Luminaire
Catalog Number Logic EBS23DH - P T A D
Series Constant 120-277V 50/60Hz 23W
Dual-Head (Remote or Attached)
Test Options
P Push-To-Test on Enclosure
R Remote Push-To-Test Station (EBS-PTT shipped separately)
N None - ordered separately or breaker controlled
EBS23DH
Time Delay Option
T Power Resumption Emergency Time-delay (Factory set approx. 15 min.) 120 thru 277V
N No Time-Delay
Luminaire Head Options jk
N No heads - For Remote Heads Ordered Separately
A 2 EBSHK1030 Heads Factory Attached
B 2 EBSEL1030 Heads (Less Guards) and Fittings for Attachment
BG 2 EBSEL1030 Heads with Guards and Fittings for Attachment
BE 2 EBSEL1030 Heads with 1 Guard and 1 HEXA-100 EXIT and Fittings for Attachment
C 1 EBSHK1030 Head Attached and 1 EBSEL1030 Head (Less Guard) and Fittings for Attachment
CG 1 EBSHK1030 Heads Attached and 1 EBSEL1030 Head with Guard and Fittings for Attachment
CE 1 EBSHK1030 Heads Attached and 1 EBSEL1030 Head witn HEXA-100 EXIT and Fittings for Attachment
D 1 EBSHK1030 Only (2nd Head Remote - Ordered Separately)
E 1 EBSEL1030 Only Less Guard and Fittings for Attachment (2nd Head Remote - Ordered Separately)
EG 1 EBSEL1030 Only with Guard and Fittings for Attachment (2nd Head Remote - Ordered Separately)
EE 1 EBSEL1030 Only with HEXA100 EXIT and Fittings for Attachment (2nd Head Remote - Ordered Separately)
Drain l
D Group B Drain for Wet Applications including condensation from heat <> cold cycling
Blank Not included
j Main Enclosure nameplate does not reect heads ordered; unit is Dual Marked with ratings dependent on heads attached. E.g. if No heads or EBSHK only
head(s) attached then unit is C1D1 Groups BCD; if an EBSEL head is attached then unit is Groups CD.
k Units ordered with EBSHK heads are shipped with heads attached; EBSEL heads are shipped separately.
l Drain packed in enclosure with vapor capsule.
EBS UNIT - BOTTOM DETAIL
A B C D E
The EBS23 System is designed to power
2 Heads for operation (total attached
or remote); each Head is approximately
30VDC, 10 Watts.
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L62

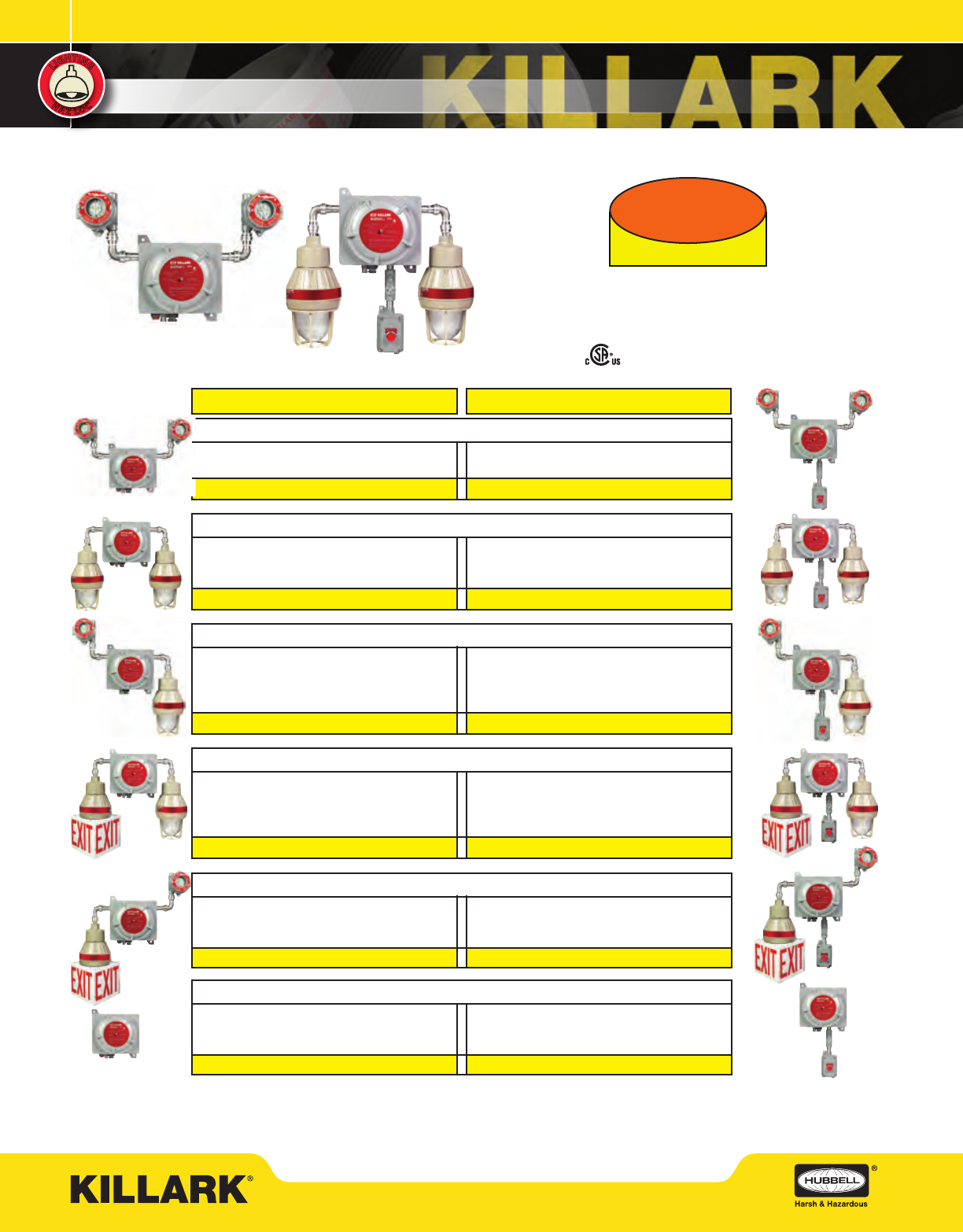

EBS SERIES
EMERGENCY BATTERY SYSTEM – PRE-CONFIGURED UNITS
ORDERING INFORMATION
j Main EBS unit is CID1 Group B (Suitable Zone 1 IIB+H2) with attached EBSHK heads or no heads; with attached
EBSEL heads unit is CID1 Groups CD (Suitable Zone 1 IIB, IIA)
kUse catalog logic for single attached head models and order required remote 2nd head separately. Note, for EXIT
applications EBSEL heads must be ordered without guards.
lPTT = Push-To-Test; TDR = Time Delay Relay (prox 15 minutes after power resumption).
Class I, Div. 1&2, Groups Bj,C,D
Class I, Zone 1&2, Groups llB+H2j, llA
Class II, Div. 1&2, Groups EFG
Class III
Enclosure Type 4 (NEMA 4, 7Bj CD, 9EFG)
File LR11713
EBS System with Two EBSHK Heads kl CID1BCD
Integral PTT,
Two EBSHK
EBS23DH-PNA
Integral PTT, TDR
Two EBSHK
EBS23DH-PTA
Remote PTT,
Two EBSHK
EBS23DH-RNA
Remote PTT, TDR
Two EBSHK
EBS23DH-RTA
EBS System with Two EBSEL Heads with Guards kl CID1CD
Integral PTT, Two
EBSEL Heads w/
Guards
EBS23DH-PNBG
Integral PTT, TDR,
Two EBSEL Heads
w/Guards
EBS23DH-PTBG
Remote PTT,
Two EBSEL Heads
w/Guards
EBS23DH-RNBG
Remote PTT, TDR,
Two EBSEL Heads
w/Guards
EBS23DH-RTBG
EBS System with One EBSHK Head & 1 EBSEL Head with Guard kl CID1CD
Integral PTT, One
EBSHK & One
EBSEL Head
w/Guard
EBS23DH-PNCG
Integral PTT, TDR,
One EBSHK & One
EBSEL Head
w/Guard
EBS23DH-PTCG
Remote PTT, One
EBSHK & One
EBSEL Head
w/Guard
EBS23DH-RNCG
Remote PTT, TDR,
One EBSHK &
One EBSEL Head
w/Guard
EBS23DH-RTCG
EBS System with Two EBSEL Heads One with EXIT kl CID1CD
Integral PTT, Two
EBSEL Heads, One
w/EXIT, One w/
Guard
EBS23DH-PNBE
Integral PTT, TDR,
Two EBSEL Heads
One w/EXIT, One
w/Guard
EBS23DH-PTBE
Remote PTT, Two
EBSEL Heads, One
w/EXIT, One
w/Guard
EBS23DH-RNBE
Remote PTT, Two
EBSEL Heads,
One w/EXIT, One
w/Guard
EBS23DH-RTBE
EBS System with One EBSHK Head & One EBSEL Head with EXIT kl CID1CD
Integral PTT, One
EBSHK Head, One
EBSEL w/EXIT
EBS23DH-PNCE
Integral PTT, TDR,
One EBSHK Head,
One EBSEL w/EXIT
EBS23DH-PTCE
Remote PTT, One
EBSHK Head, One
EBSEL w/EXIT
EBS23DH-RNCE
Remote PTT, TDR,
One EBSHK Head,
One EBSEL w/EXIT
EBS23DH-RTCE
EBS System Only for Remote Heads (order two separately) kl CID1BCD
Integral PTT,
No Heads
EBS23DH-PNN
Integral PTT, TDR,
No Heads
EBS23DH-PTN
Remote PTT,
No Heads
EBS23DH-RNN
Remote PTT, TDR,
No Heads
EBS23DH-RTN
Integral Push-To-Test Remote Push-To-Test
TECHNOLOGY
LED
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L63
EBS SERIES
EMERGENCY BATTERY SYSTEM – REMOTE HEADS & ACCESSORIES
EBSEL
Shown with
Exit Accessory
ERSD15
ERA15
EMGS1
EBSEL1030
EMG1
EMG1-R
EBS-PTT
EBSHK1030-RFSL
EBSHK1030-RFSC
EBSHK1030
EBSEL1030 REMOTE HEADS WITH MOUNT (FACTORY SEALED) CID1CD; C2D1EFG
10W 30VDC PENDANT 3/4”jCEILING 3/4”jWALL 3/4”jSTANCHION 1-1/2”k
With Guard EBSEL1030A2G EBSEL1030X2G EBSEL1030B2G EBSEL1030D4G
Without GuardlEBSEL1030A2 EBSEL1030X2 EBSEL1030B2 EBSEL1030D4
EBSEL1030 COMPONENTS & ACCESSORIES – DESCRIPTION
CATALOG NUMBER
EBSEL 10W 30V Head Only with LED’s, Less Mount and Guard EBSEL1030
Guard EMG1
Red Guard – used to signify remote fixture is for Emergency EMG1-Rl
EXIT Accessory – 3-sided white painted aluminum HEXA-100l
Dome Reflector ERSD15
Angle Reflector ERA15
Sealed Fittings Set for attachment of Pendant EBSEL to EBS23HD-xxx EBS-AHFS
Replacement Globe and Support Assembly EMGS1
j For 1” pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EBSEL1030A3G.
k Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting.
l Order xture without guard for use with HEXA-100 EXIT Accessory, or to order EMG1-R Red Guard.
m For EBSEL with Mount Dimensions, see EMI15 series in lighting section.
MOUNTING BOXES
CATALOG NUMBER HUB SIZE
PENDANT CEILING BRACKET STANCHION
EZA2 EZX2 EZB2 –3/4”
EZA3 EZX3 EZB3 –1”
–––EZD4k1-1/4” / 1-1/2”
j Seal purchased separately appropriate of area of use
EBSHK1030 10W 30V HEADS, COMPONENTS & ACCESSORIES CID1BCD; C2D1EFG
DESCRIPTION CATALOG NUMBER
EBSHK Head Only with LED’s – Requires Field SealjEBSHK1030
EBSHK Head with ADJUSTABLE FACTORY SEALED “C” fittings set EBSHK1030-RFSC
EBSHK Head with ADJUSTABLE FACTORY SEALED “L” fittings set EBSHK1030-RFSL
Sealed Fittings Set for attachment of EBSHK to EBS23DH-xxx EBS-AHFS
j EBS23DH requires conduit seals (purchased separately) exiting enclosure within 18”; EBS-PTT contains a N.C.
contact and is Factory Sealed for C&D and up to 5’ for Group B.
EBS23DH SERIES ACCESSORIES – DESCRIPTION
CATALOG NUMBER
Remote Push-To-Test Station Group B 3/4” Feed-Thru w/Close Up PlugjEBS-PTT
Remote Push-To-Test Station with Lock Off, Group B 3/4” Feed-ThrujEBS-PTT-LO
Lock-Off for Integral Push-To-Test GO10502
Sealed Fittings Set for attachment of EBSHK to GEBC-2 or GEBL-2 EBS-AHFS
Replacement Battery Pack and Electronics KLBP01
Replacement Vapor Capsule for corrosion protection EBS-VC
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
WWW.HUBBELL-KILLARK.COM
L64

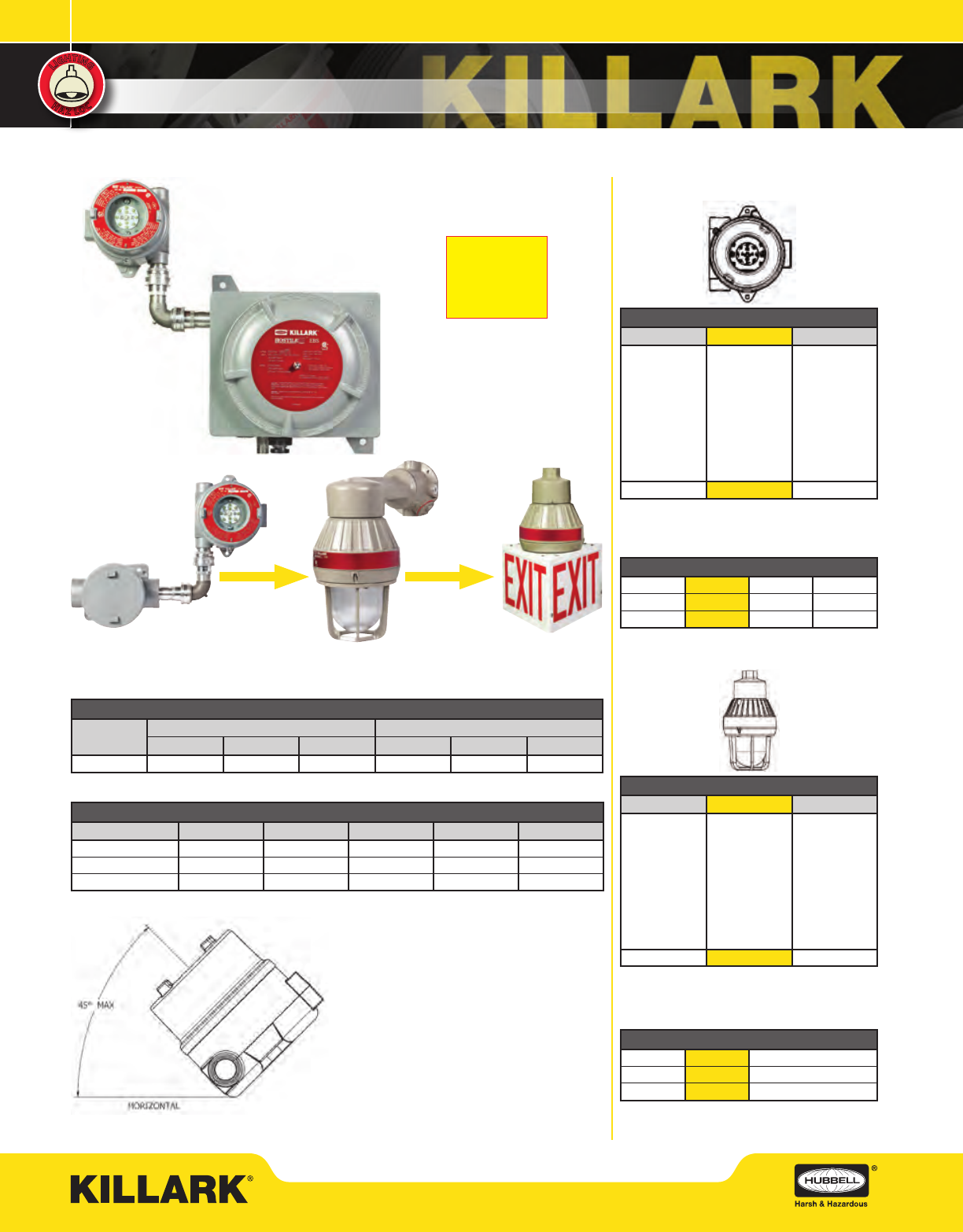

EBS SERIES
EMERGENCY BATTERY SYSTEM – ELECTRICAL & TEMPERATURE DATA
EBS System with
SINGLE HEAD
with
Remote
Options
EBSHK Heads can be aimed up to 45 above
horizontal – if ush on wall will require spacing out.
EBS23DH ELECTRICAL DATA
CATALOG
NUMBER
INPUT** OUTPUT**
VOLTAGE WATTS CURRENT VOLTAGE WATTS CURRENT
EBS23DH 120-277VAC 7. 5 .1 A 33VDC 23 700mA
** Figures nominal. Current is 350mA to each of 2 heads (2 heads are required for proper operation, remote or attached).
THERMAL PERFORMANCE DATA
CATALOG NUMBER AMBIENT CID1 CIID1 SUITABILITY SUPPLY WIRE
EBS23DH 45°C T6 EFG 0-45°C 75°C
EBSEL1030 55°C T6 EFG -40 to 40°C 75°C
EBSHK1030 55°C T6 EFG -40 to 40°C 75°C
EXIT SIGN
LUMINAIRESPOTLIGHT
or with or with
LED 10W EBSHK1030
ZONAL LUMEN SUMMARY
ZONE LUMENS FIXT%
0-30 254 27.9 %
0-40 423 46.3%
0-60 781 85.5%
0-90 913 100.0%
90-120 00.0%
90-130 00.0%
90-150 00.0%
90-180 00.0%
0-180 913 100.0%
LED 10W EBSEL1030
ZONAL LUMEN SUMMARY
ZONE LUMENS FIXT%
0-30 180 16.7%
0-40 344 31.8%
0-60 758 70.1%
0-90 1067 98.7%
90-120 11 1.0%
90-130 13 1.2%
90-150 14 1.3%
90-180 14 1.3%
0-180 1081 100%
Absolute Photometry
Total Luminaire Efficiency = N.A.%
Spacing to Mounting Height Ratio 2.1
Absolute Photometry
Total Luminaire Efficiency = N.A.%
Spacing to Mounting Height Ratio 2.1
EMERGENCY MODE LUMENS
05 Min. 99.1% 905 Lumens
45 Min. 99.4% 871 Lumens
90 Min. 95.3% 871 Lumens
EMERGENCY MODE LUMENS
5 Min. 94.4% 102 Lumens
45 Min. 91.3% 987 Lumens
90 Min. 89.3% 966 Lumens
4 Head EBS option:
EBS units are designed for 2 head operation
and will provide the lumens noted at right.
However, 4 heads can be connected and will
operate for 90 Minutes at half the published
lumen values. The EBSHK1030 would
provide 456 lumens; the EVSEL1030 540
lumens. Instructions for wiring are included
with the main EBS unit.
KILLARK LIGHTING
H
A
Z
L
O
C
H
A
Z
L
O
C
L
I
G
H
T
I
N
G
L
I
G
H
T
I
N
G
SEE WWW.HUBBELL-KILLARK.COM LIGHTING SOFTWARE FOR LATEST LED PHOTOMETRY L65

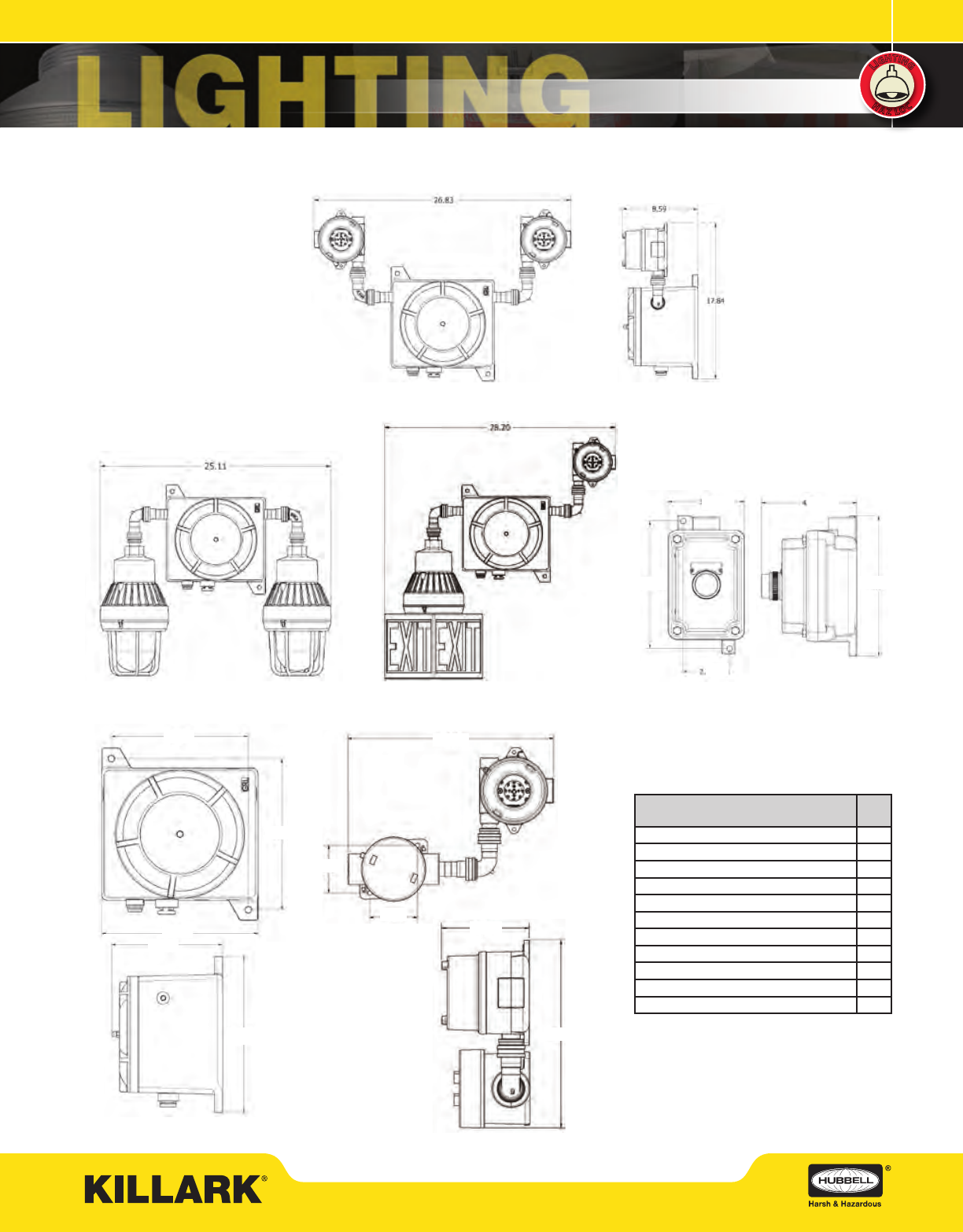

EBS SERIES
EMERGENCY BATTERY SYSTEM – DIMENSIONS & WEIGHTS
Dimensions -
Factory Sealed
Remote HK Head
For EBSEL
with mounting
Dimensions,
see EM/15 in
lighting section.
Dimensions - Remote Test Station
Dimensions - EBS Main Unit
14.64
3.40
5.09
10.95
4.54
3.69
6.71
6.19
2.25
3.40
11.94
8.51
10.47
9.47
Dimensions - EBS with HK Heads
Dimensions - EBS with EL Heads Dimensions - EBS with EL-EXIT & HK Heads
10.80
WEIGHTS (SHIPPING) INDIVIDUAL AND
COMBINATIONSjLBS.
EGS23DH Main Unit Only 36.6
EBSEL1030 Pendant Head Only w/ Fittings Set 12.3
EBSHK1030 Head Only w/ Fittings Set 5.0
EBSHK1030-RFSC (or RFSL) 11.0
EBS-PTT 3.0
EBS-AHFS Factory Sealed Fittings Set 0.6
EBS23DH & 1 EBSHK w/ Fittings 41.6
EBS23DH & 2 EBSHK w/ Fittings 46.6
EBS23DH & 1 EBSEL w/ Fittings 48.9
EBS23DH & 2 EBSEL w/ Fittings 61.2
EBS23DH & 1 EBSEL & 1 EBSHK w/ Fittings 53.9
j EBSEL Heads ship separately
