Wiremold Eclipse™PN03, PN05, and PN10 Series

Raceways are a family of single compartment raceways

designed for communication or power applications. They

are ideal for use in classrooms, offices, and hotel

applications, or anywhere a small, low profile raceway is

needed.

Eclipse PN03, PN05, and PN10 Series Raceways are

specifically designed for the workstation. They accept

Ortronics®Series II and TracJack®modules, Pass &

Seymour®Activate Series inserts, and Wiremold Open

System communication modules.

ECLIPSE™

PN03, PN05, PN10 Series

F E A T U R E S & B E N E F I T S

E D 1 0 9 9 R 8 – Update d A u g u s t 20 0 9 – Fo r l a t e st s p e c s v i s i t w w w.w i re m o l d . co m

Small Nonmetallic Raceway Systems

For Communications and Power Applications

nRaceway available in three sizes. PN03, PN05, and PN10

sizes provide flexibility for meeting various capacity

requirements. Perfect for most small drops and horizontal

runs to work stations.

nDurable, flexible co-extruded hinge construction (on

latching profiles). Allows for repeated openings and

closings while maintaining product integrity and aesthetics.

nSnap-on latching cover. Provides security with access to

wiring for changes or additions.

nThree standard colors. Stock colors are ivory, white, and

fog white (matches with Ortronics®White). Consult factory

for custom colors. Paintable using latex paint.

n1" [25mm] bend radius compliant fittings. Full capacity,

aesthetically pleasing fittings provide 1" [25mm] bend radius.

nAdhesive backing for low-voltage (under 50V)

applications. Allows base to be pressed onto surface,

speeds installation.

nLightweight and easy to handle. Saves time and labor costs.

Standard 8' [2.44m] lengths can be installed by one person.

nDesigned for use with Ortronics®TracJack and Series II

modules. A wide variety of media interface inserts to ensure

a reliable, cost-effective activation for the most demanding

communication system designs.

nPSB3 Device Box accommodates wireless. Designed for

use with Ortronics®Wi-Jack™Wireless Access Points.

nAccommodates communication or power wiring. Can be

used for communications, computer lines, surveillance

systems, fire alarms, outlets, and more.

nEasy to align. All base and fittings have unique alignment

guides built in to help avoid unsightly gaps and uneven

installations. All fitting covers have 1/4" [6.4mm] overlap to

hide uneven cuts of raceway.

nCeiling fitting slips over suspended ceiling grid. Saves

time and labor by eliminating need to cut metal ceiling grid.

nFT-4 Flame Spread Rating. Eclipse™Raceway meets the

definition of “resistant to the spread of fire” in Article 760 of

the NEC and is therefore suitable for use with Type NPLF

non-power-limited fire alarm cable and Type FPL power-

limited fire alarm cable.

nDatacom connectivity options. Accepts industry standard

and proprietary devices from a wide range of manufacturers

to provide a seamless and aesthetically pleasing

communications interface at the point of use.

n UL and cUL Listed component raceways. File E90378

Guide RJTX, Fittings: File E90377 Guide RJYT. Meets

Article 386 of NEC and meets Section 12-600 of CEC.

nRatings: 600VAC, FT-4 Rated for Canada

Eclipse PN05L08 shown in a horizontal installation.

Eclipse PN05L08 shown in

typical vertical installations.

FIBER OPTIC CAT5

Catalog No./Item Description/Specifications

PN03L08* One-Piece Raceway – Co-extruded hinged, one-piece raceway.

PN03L10**

PN05L08*

PN05L10**

PN10L08*

PN10L10**

Raceway Profiles

* Add -“WH” suffix for White finish, -“FW” for Fog White finish or -“V” for Ivory finish.

** 10' [3.05m] lengths available in Fog White finish only.

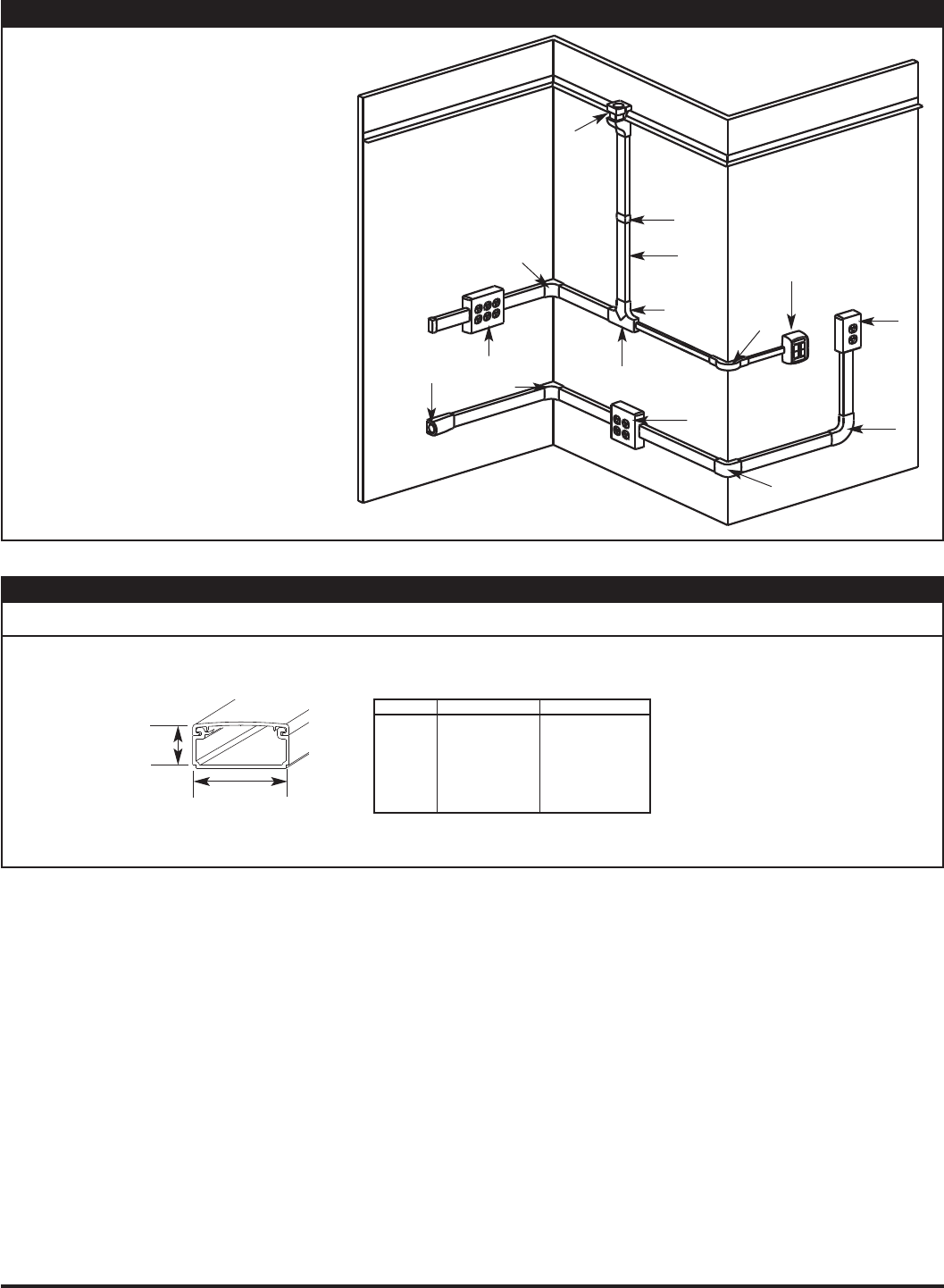

PN03, PN05, and PN10 System Layout

A– PN03L08, PN03L10, PN05L08,

PN05L10, PN10L08, PN10L10

B– PN03F06, PN05F06, PN10F06

C– PN03F11, PN05F11, PN10F11

D– PN03F15, PN05F15, PN10F15

E– PN03F17, PN05F17, PN10F17

F–PN03F18, PN05F18, PN10F18

G– PN03F19, PN05F19, PN10F19

H– PN05F86, PN10F86

I–PN10F21

J–PSB2

K– PSB1

L–PSB3

M– PDB1CM, PDB1S2, PDB2TJ,

PDB2CM, PDB2S2, PDB4TJ,

PBB2S2, PBB4TJ

N– PN153R

Cat No. AB

PN03L08 1/2" [12.7mm] 13/16" [20.6mm]

PN03L10 1/2" [12.7mm] 13/16" [20.6mm]

PN05L08 5/8" [15.9mm] 1 1/8" [29mm]

PN05L10 5/8" [15.9mm] 1 1/8" [29mm]

PN10L08 13/16" [20.6mm] 1 11/16" [43mm]

PN10L10 13/16" [20.6mm] 1 11/16" [43mm]

Catalog No./Item Description/Specifications

PN03F06 Cover Clip – Covers seam where

PN05F06 two lengths of PN03, PN05, or

PN10F06 PN10 Series Raceway meet.

PN03F11 90˚ Flat Elbow – Makes right

PN05F11 angle turns on same surface.

PN10F11 1" [25mm] bend radius.

PN03F15 Tee – Branches raceway at right

PN05F15 angles on the same surface.

PN10F15 1" [25mm] bend radius.

PN03F17 Internal Elbow – Makes right angle

PN05F17 turns around internal corners.

PN10F17 1" [25mm] bend radius.

PN03F18 External Elbow – Makes

PN05F18 right angle turns around

PN10F18 external corners.

Catalog No./Item Description/Specifications

PN03F19 90° External Elbow – Makes right

PN05F19 angle turns around external

PN10F19 corners. 1" [25mm] bend radius.

PN03F20 Blank End Fitting – Closes off

PN05F20 open end of raceway.

PN10F20

PN153R Reducer Adapter – Connects

PN03 or PN05 Series Raceway

to PN10 Series Raceway. Use with

a PN10F15 Tee Fitting.

PN05F86 Drop Ceiling Connector –

PN10F86 Connects cables from ceiling into

PN03, PN05 or PN10 Series

Raceway. Includes PN153R

Reducer Adapter for use with

PN03 Series Raceway.

PN10F21 Entrance End fitting – Connects

1/2" and 3/4" trade size conduit or

armored cable with PN03, PN05

and PN10 Series Raceway.

Includes PN153R Reducer Adapter

for use with PN03 and PN05

Series Raceway.

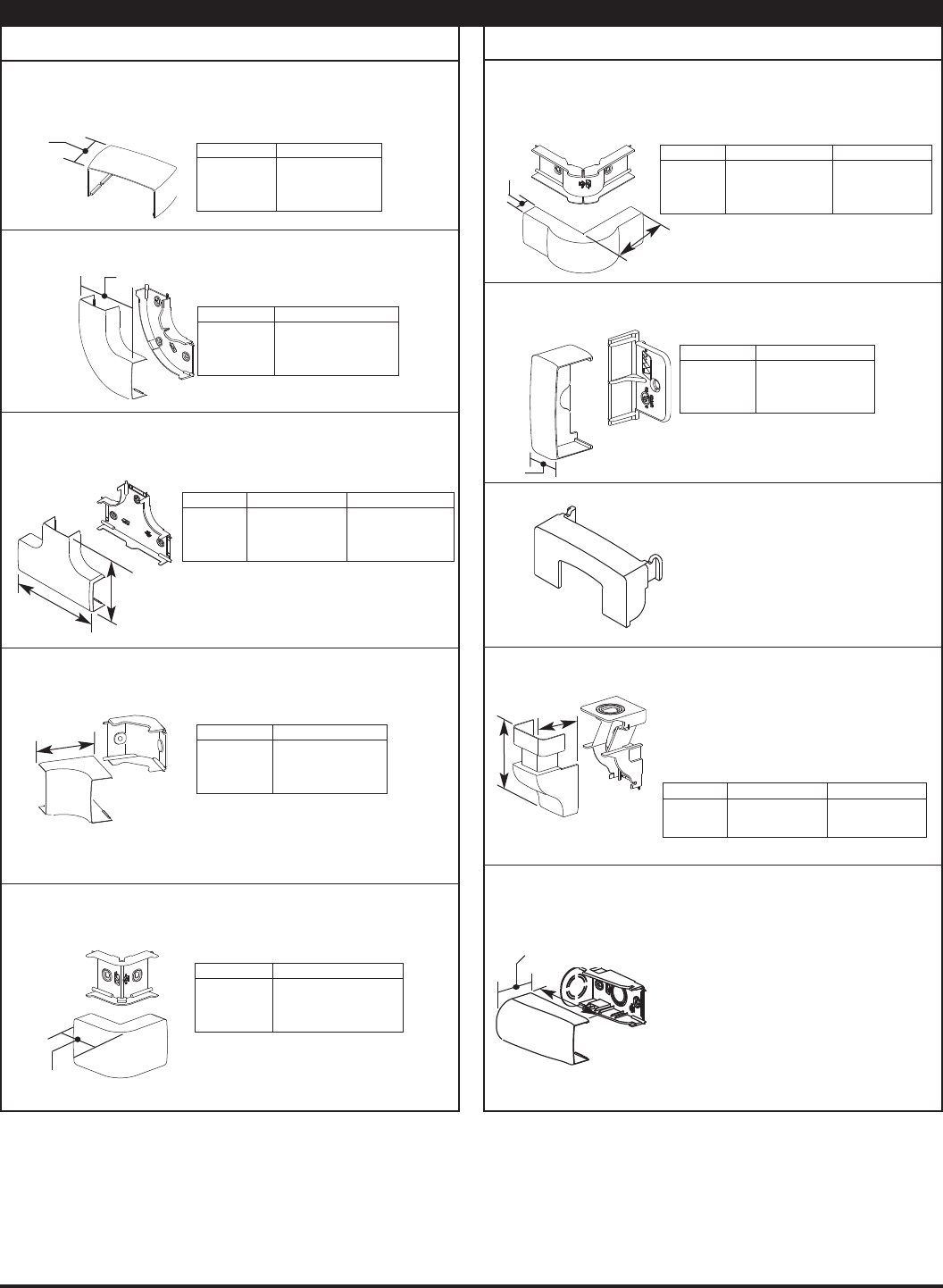

PN03, PN05, and PN10 Surface Nonmetallic Raceway Fittings

Cat No. A

PN03F20 11/16" [17.5mm]

PN05F20 11/16" [17.5mm]

PN10F20 11/16" [17.5mm]

Cat No. A

PN03F11 2 11/16" [68mm]

PN05F11 2 15/16" [75mm]

PN10F11 3 11/16" [94mm]

Cat No. A

PN03F06 1" [25mm]

PN05F06 1" [25mm]

PN10F06 1" [25mm]

NOTE: Add -“WH” suffix for White finish, -“FW” for Fog White finish or -“V” for Ivory finish.

Cat No. A

PN03F17 2 1/8" [54mm]

PN05F17 2 1/8" [54mm]

PN10F17 2 1/8" [54mm]

Cat No. A

PN03F18 1 5/8" [41mm]

PN05F18 1 5/8" [41mm]

PN10F18 1 5/8" [41mm]

Cat No. AB

PN03F19 15/16" [23.8mm] 3 1/8" [79mm]

PN05F19 1 3/16" [30mm] 3 1/8" [79mm]

PN10F19 1 3/16" [30mm] 3 3/8" [116mm]

Cat No. AB

PN03F15 2 11/16" [68mm] 4 5/16" [110mm]

PN05F15 2 15/16" [75mm] 4 3/4" [121mm]

PN10F15 3 11/16" [94mm] 5 5/16"

[135mm]

Cat No. AB

PN05F86 1 5/16" [33mm] 4 3/8" [111mm]

PN10F86 2 1/2" [64mm] 4 3/8" [111mm]

3 7/8"

[98mm]

7/8"

[22mm]

NOTE: Add -“WH” suffix for White finish, -“FW” for Fog White finish or

-“V” for Ivory finish.

Catalog No./Item Description/Specifications

PSB3 Three-Gang Device Box – Accepts

all standard three-gang NEMA

faceplates. Concentric twist-outs

on all four sides for PN03, PN05,

and PN10 Series Raceway.

Designed for use with Ortronics®

Wi-Jack™Wireless Access Point.

Catalog No./Item Description/Specifications

PSB1 One-Gang Power Box – Accepts

all standard single-gang NEMA

face-plates. Concentric twist-outs

on all four sides for PN03, PN05,

and PN10 Series Raceway.

PSB2 Two-Gang Device Box – Accepts

all standard two-gang NEMA

faceplates. Concentric twist-outs

on all four sides for PN03, PN05,

and PN10 Series Raceway.

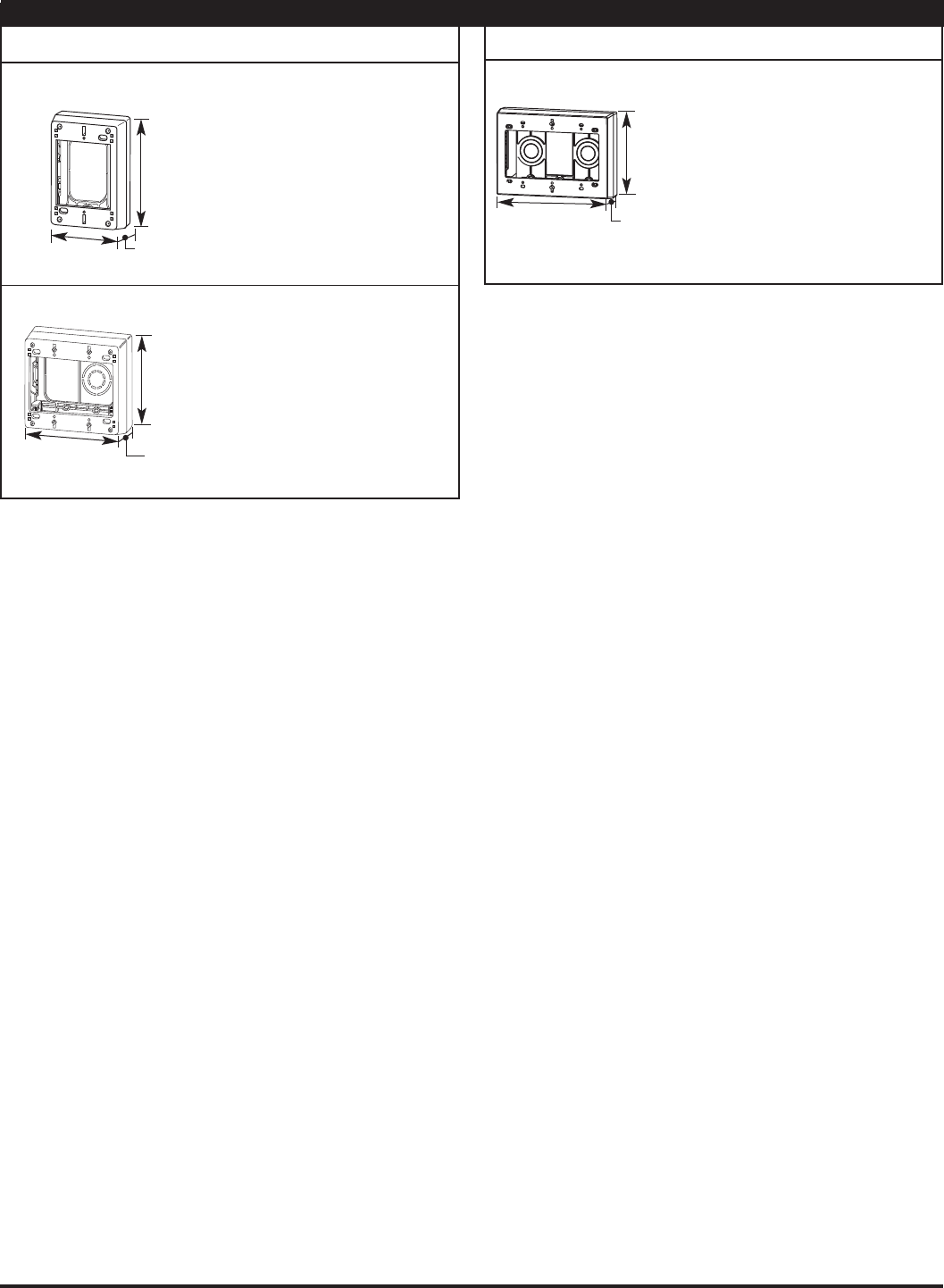

PN03, PN05, and PN10 Series Device Boxes

4 7/8"

[124mm]

4 3/4"

[121mm]

1 3/4"

[44mm]

4 3/4"

[121mm]

[76mm]

1 3/4"

[44mm]

[178mm]

4 3/4"

[121mm]

1 3/4"

[44mm]

Catalog No./Item Description/Specifications

PDB2CM Large Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts two front-loaded downward

facing devices including Pass &

Seymour®Activate Series inserts

andWiremold Open System

communication modules.

PDB2S2 Large Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts two front-loaded downward

facing devices including Ortronics®

Series II devices.

PDB2TJ Small Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts two front-loaded downward

facing devices including Ortronics®

TracJack devices.

PDB4TJ Large Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts four front-loaded downward

facing devices including Ortronics®

TracJack devices.

Catalog No./Item Description/Specifications

PBB2S2 Bezel Box – Surface mount box for

use with Eclipse Series Raceway

or standalone application.

Accepts two front-loaded outward

facing devices including Ortronics®

Series II devices

PBB4TJ Bezel Box – Surface mount box for

use with Eclipse Series Raceway or

standalone application. Accepts

four front-loaded outward facing

devices including Ortronics®

TracJack devices.

PDB1S2 Small Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts one front-loaded downward

facing device including Ortronics®

Series II devices.

PDB1CM Small Data Box – Surface mount

box for use with Eclipse Series

Raceway or standalone application.

Accepts one front-loaded downward

facing device including Pass &

Seymour®Activate Series inserts

and Wiremold Open System

communication modules.

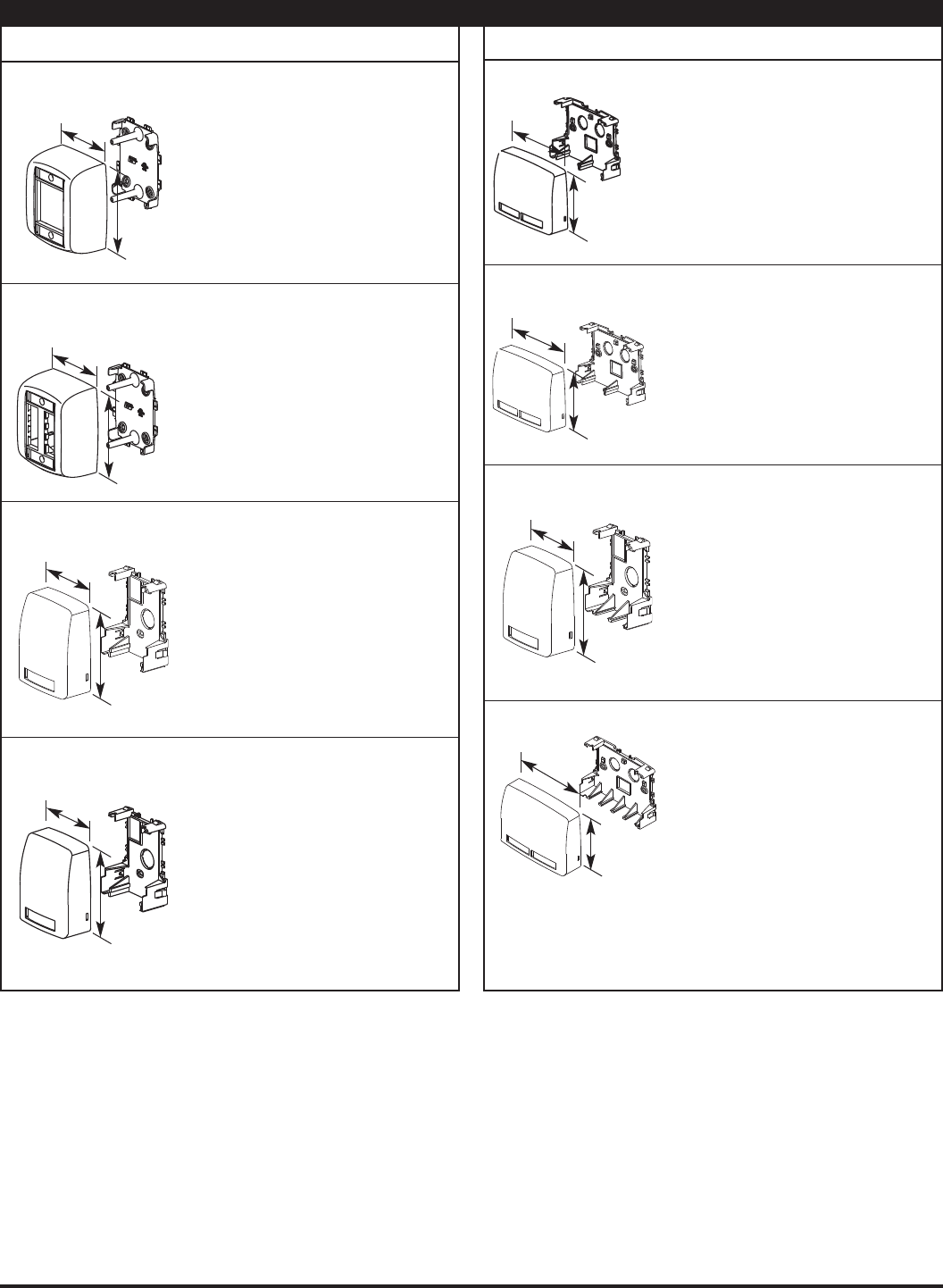

Communication Boxes

2 7/8"

[73mm]

3 5/8"

[92mm]

[76mm]

3 1/4"

[83mm]

2 7/8"

[73mm]

3 5/8"

[92mm]

[127mm]

3 3/4"

[95mm]

[127mm]

3 3/4"

[95mm]

2 7/8"

[73mm]

3 11/16"

[94mm]

[127mm]

3 3/4"

[95mm]

2 7/8"

[73mm]

3 5/8"

[92mm]

NOTE: Add -“WH” suffix for White finish, -“FW” for Fog White finish or -“V” for Ivory finish.

WIRE SIZE O.D.

NUMBER OF CONDUCTORS

THHN/THWN Inches [mm] PN03 PN05 PN10

14 AWG 0.111 [2.8] 8 16 22

12 AWG 0.130 [3.3] 7 14 20

10 AWG 0.164 [4.2] 0019

Raceway Wire Fill Capacities for Power

CABLE/WIRE SIZE O.D. PN03L PN05L PN10L

Inches [mm] 20%* 40%** 20%* 40%** 20%* 40%**

UNSHIELDED 4-pair, 24 AWG Cat 3 0.190 [4.8] 13 36 613

TWISTED PAIR 4-pair, 24 AWG Cat. 5e 0.210 [5.3] 12 25 511

4-pair, 24 AWG Cat. 6 0.250 [6.3] 01 13 4 8

4-pair, 24 AWG Cat. 6a 0.351 [9.0] 00 01 2 4

TELEPHONE 2-pair, 24 AWG 0.140 [3.6] 25 511 12 25

3-pair, 24 AWG 0.150 [3.8] 24 49 11 22

4-pair, 24 AWG 0.190 [4.8] 13 36 613

25-pair, 24 AWG 0.410 [10.4] 00 01 1 3

COAXIAL RG58/U 0.195 [5.0] 12 25 613

RG59/U 0.242 [6.1] 01 13 4 8

RG62/U 0.242 [6.1] 01 13 4 8

RG6/U 0.270 [6.9] 01 13 3 6

TWINAXIAL 100 Ohm 0.330 [8.4] 01 12 2 4

SHIELDED TYPE 1 0.390 [9.9] 00 01 1 3

TWISTED PAIR TYPE 2 0.465 [11.8] 00 01 1 2

TYPE 3 0.245 [6.2] 01 13 4 8

FIBER Mini Zip Cord 0.079 x 0.157 [2 x 4] 37 714 15 31

Zip Cord 0.118 x 0.236 [3 x 6] 13 36 714

Round 4 Strand Fiber 0.187 [4.8] 13 36 714

Round 6 Strand Fiber 0.256 [6.5] 01 13 3 7

* 20% cable fill is calculated to approximate reduction in cable capacity due to connectors mounted within raceway and fittings that may restrict cross sectional area.

** 40% cable fill is the maximum designed cable fill based on a proposed revision to TIA/EIA 569-A.

Raceway Wire Fill Capacities for Communications

NOTES

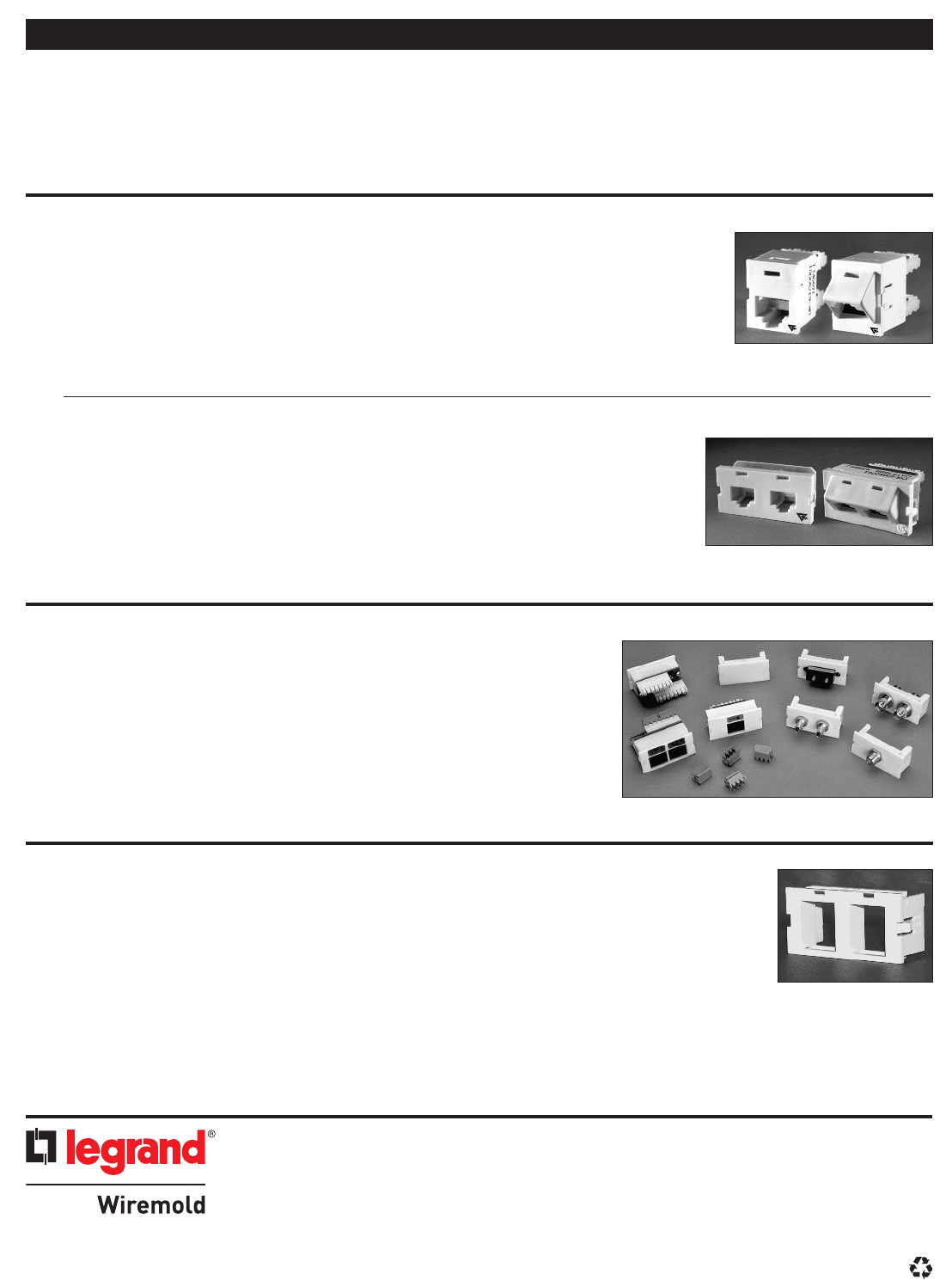

Now you have a wide range of options for providing datacom connectivity into Wiremold/Legrand Pathways. They are:

• Ortronics®TracJack®and Series II Modular Connectivity Solutions

• Pass & Seymour Activate™Modular Inserts

• Open System Communication Modules

Ortronics®Connectivity

TracJack®Individual Jack System

• Front-loading, snap-in design supports future moves adds and changes

• Inserts for voice, data, audio, and video

• Available Category 3, 5e, 6, USOC 6-position, and other media

• Flat or angled 45° exit conﬁgurations

• Choice of 13 colors and color matched to Wiremold Systems

• Universal T568A/B wiring format

Series II Front-Loading, Module System

• Module design features easy snap-in front-loading design

• Linear 110 punch down format for easy termination

• Inserts for voice, data, audio, and video

• Available Category 3, 5e, 6, USOC 6-position, and other media

• Available in ﬂat or angled 45° exit conﬁgurations

• Color matched to Wiremold Systems

For detailed product selection refer to the Ortronics Catalog or visit www.ortronics.com.

Pass & Seymour Legrand Network Wiring

Activate™Series Front-Loading Inserts

• Modular inserts for voice, data, audio and video applications

• Front-load, snap-in design

• Color and texture matched to Wiremold Systems

• Available Category 3, 5e, 6, as well as 6-position USOC

• Universal T568A/B wiring format

For detailed product selection refer to the Pass & Seymour Network Wiring

Catalog or visit www.passandseymour.com.

Open Connectivity Solutions

Wiremold Open System Communications Modules

• Accommodate a wide range of manufacturers’ communications outlets including

keystone jacks, as well as proprietary solutions from Avaya (Systimax) and NORDX

• Modules insert into a wide range of Wiremold Systems

• Pre-punched faceplates accept common communication devices

DATACOM CONNECTIVITY OPTIONS

NOTE: For more information on integrating connectivity into Wiremold Cable Management Systems

contact the Wiremold Applications Engineering Team or your local Wiremold Sales Representative.

Wiremold/Legrand

U.S. and International:

60 Woodlawn Street • West Hartford, CT 06110

1-800-621-0049 • FAX 860-232-2062 • Outside U.S. 860-233-6251

Canada:

570 Applewood Crescent • Vaughan, Ontario L4K 4B4

1-800-723-5175 • FAX 905-738-9721

ED1099R8 – Updated August 2009 – For latest specs visit www.wiremold.com

Eclipse PN03, PN05 & PN10 Series Raceway Product Specificartions Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
