LM16
LED MR16 Lamp
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting
LM16
Product Description
The Cree LM16 delivers up to 620 lumens while achieving over 68 lumens per
watt. The LM16 LED MR16 lamp is available in a variety of beam angles with a color
temperature of 3000K. Designed to halogen MR16 lamp standards, the LM16 LED
lamp imitates the size, appearance and lumen performance of halogen lamps. This
lamp saves 80 percent of annual energy savings and is suitable for open track
fixtures and non-IC rated downlights. It is capable of dimming down to 5 percent
and is perfect for down lighting, track and accent lighting use in both commercial
and retail applications.
Performance Summary
Delivered Light Output: 464 lumens (35W eq); 620 lumens (50W eq)
Input Power: 7 watts (35W eq); 9 watts (50W eq)
CRI: 83
CCT: 3000K
Beam Angle: 17°, 25° and 40°
CBCP: 35W eq 17°: 2862, 35W eq 25°: 1995, 35W eq 40°: 728
50W eq 17°: 4152, 50W eq 25°: 2650, 50W eq 40°: 1057
Warranty: 3 year limited warranty†
Lifetime: Designed to last 25,000 hours in open track fixtures and non-IC downlights
Dimming: 5%*
Ordering Information
Example: LM16-50-30K-25D
LM16 30K
Product Watt
Equivalent CCT Beam Angle Base
LM16 35
35W
50
50W
30K
3000 Kelvin
17D
17° Spot
25D
25° Flood
40D
40° Wide Flood
Blank
GU5.3 Base
*See compatible dimming controls page.
† See www.cree.com/lighting for warranty terms.
Product Specifications
CONSTRUCTION & MATERIALS
• Durable die-cast aluminum housing with lens protects LEDs and
optical system.
• Fanless housing design and smart thermal circuit design with
embedded intelligent software properly monitors the operating
temperature range.
• Housing is ANSI form factor compliant for halogen lamps.
OPTICAL SYSTEM
• Single LED source.
• Proprietary in-house designed lens is available in three beam angles of
17° Spot, 25° Flood and 40° Wide Flood.
• Lens eectively eliminates surface glare and adds a pleasant touch of
soft backlight.
ELECTRICAL SYSTEM
• Power Factor > 0.9 nominal
• Input Voltage: 12Vac
• Dimming: 5%; see dimmer compatibility page
REGULATORY & VOLUNTARY QUALIFICATIONS
• cULus Listed

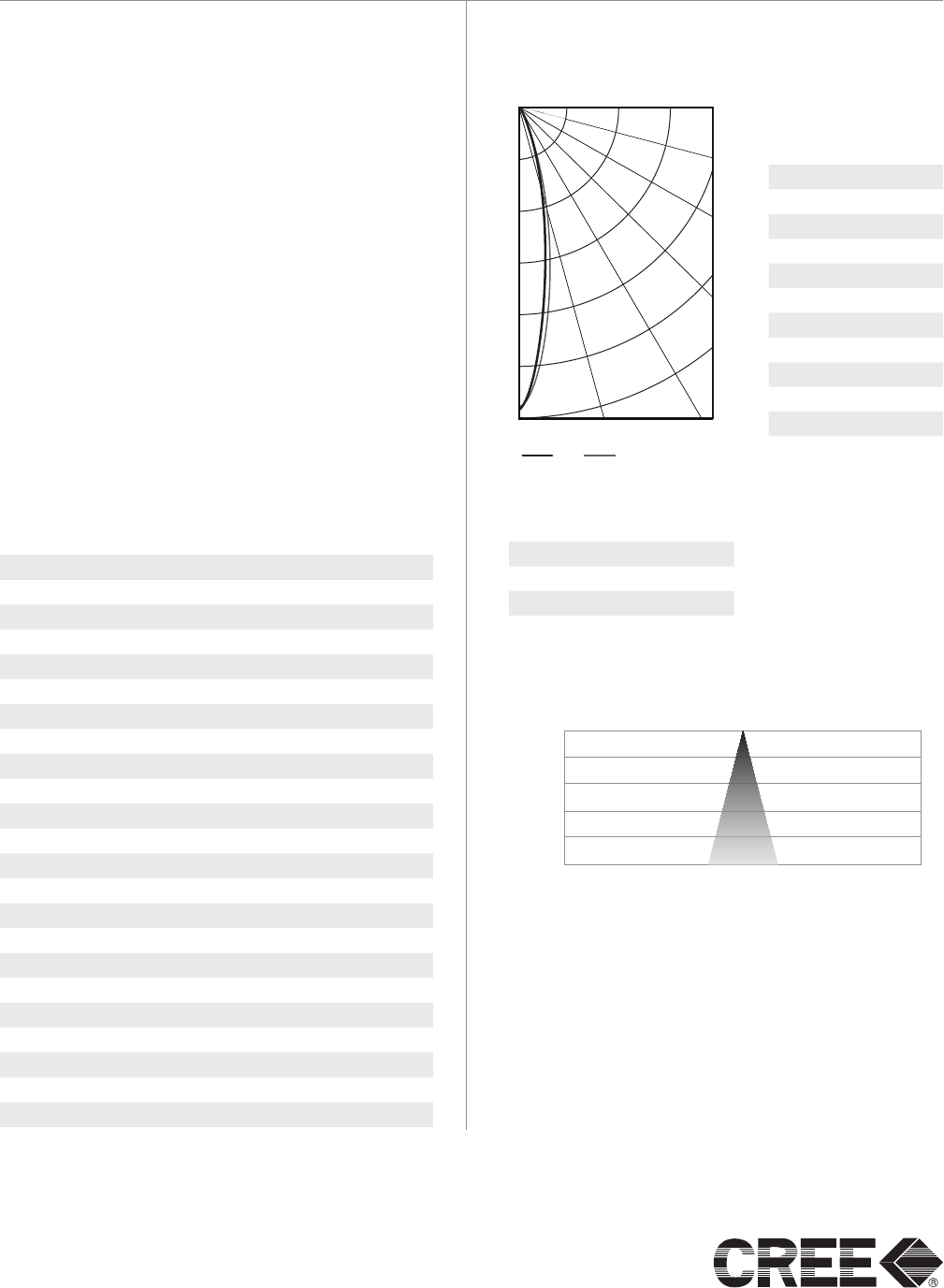

Photometry
LM16-50-30K-25D BASED ON CESTL-2012-0075
Reference www.cree.com/lighting
for detailed photometric data.
Zonal Lumen Summary
Zone Lumens % Lamp
0-30 493 86%
0-40 535 93%
0-60 560 97%
0-90 600 3%
Intensity (Candlepower)
Summary
Angle Mean CP
0° 2650
5° 2265
15° 735
25° 191
35° 54
45° 15
55° 9
65° 6
75° 5
85° 4
90° 3
0° 90°
90°
75°
60°
45°
30°15°0°
2,700
1,800
900
Transformer Compatibility
TRANSFORMER
(Connected with one lamp) LM16 50W EQ LM16 35W EQ
Ambiance Lighting 9454-12 No Flicker No Flicker
BEI B0344F-4 REV.5 No Flicker No Flicker
Con-Tech LA2075N No Flicker No Flicker
Con-Tech LVT-300 No Flicker No Flicker
DS&L WH-601E2N No Flicker No Flicker
Eurofase 0086 No Flicker No Flicker
Fulham PET-120-12-60 No Flicker No Flicker
Hatch IS12-75 No Flicker No Flicker
Hatch RS12-60M No Flicker No Flicker
Hatch RS12-80M No Flicker No Flicker
Hatch RS12-300 No Flicker No Flicker
Hopestar LT-60S No Flicker No Flicker
Juno TL601E-75 No Flicker No Flicker
Juno TL601E-60 No Flicker No Flicker
Lightech LET 60 No Flicker No Flicker
Lightech LET 60-LW No Flicker No Flicker
Lightech LET 75 No Flicker No Flicker
Lightech LET 105 No Flicker No Flicker
Linogene WH601E6A3 No Flicker No Flicker
MDL 316-0003 No Flicker No Flicker
Sea Gull 96223S-15 No Flicker No Flicker
Sebco EE052 No Flicker Not Compatible
Symban SY-75 No Flicker Not Compatible
T (800) 473-1234 F (800) 890 -7507
Canada: www.cree.com/canada
4.0 ft
6.0 ft
8.0 ft
10.0 ft
642.7 fc
160.7 fc
71.4 fc
40.2 fc
25.7 fc
0.8 ft
1.5 ft
2.3 ft
3.1 ft
3.8 ft
2.0 ft
Illuminance at a Distance
Center Beam fc Beam Width
LM16
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting
© 20 12 C ree , I nc . an d /o r on e of it s su bs id ia rie s . All r ig ht s res er ve d . For i nfo rm ati on al
purposes only. See www.cree.com/patents for patents that cover these products.
Cree® and the Cree logo are registered trademarks of Cree, Inc. or one of its
subsidiaries. Any other trademarks, product and/or company names mentioned in
this document are the property of their respective owners.
DIMMER/SERIES MODEL
NUMBER
BEI
B0344F-4
REV.5
Con-Tech
LA2075N
Con-Tech
LVT-300
Fulham
PET-120-12-60
Hatch
RS12-60M
Hatch
RS12-300
Juno
TL601E-75
Lighttech
LET 60
Lighttech
LET 60-LW
Lighttech
LET 75
Sea Gull
96223S-15
Cooper DI06P Not compatible
Cooper DE06P 84% to 4%
1 or 3 lamps only,
Dimming 87%
to 7%
Cooper SI06P 95% to 0%
Cooper 9531
3 lamps only,
Dimming 75%
to 1%
3 lamps only,
Dimming 63%
to 0%
Leviton IPE04-1LZ
1, 2 or 3 lamps,
Dimming 98%
to 9%
1, 2 or 3 lamps,
Dimming 97%
to 8%
1, 2 or 3 lamps,
Dimming 98%
to 8%
Lutron NLV-600 94% to 1%
Lutron NTELV-600
1, 2 or 3 lamps,
Dimming 89%
to 3%
1, 2 or 3 lamps,
Dimming 92%
to 2%
1 or 3 lamps only,
Dimming 89%
to 1%
Lutron RRD-6NA
1, 2 or 3 lamps,
Dimming 88%
to 0%
1, 2 or 3 lamps,
Dimming 91%
to 0%
1 lamp only,
Dimming 100%
to 0%
1 lamp only,
Dimming 90%
to 0%
1 lamp only,
Dimming 90%
to 0%
2 lamps only,
Dimming 86%
to 0%
Lutron Grafik Eye
GRX-3104-T ELVI-1000 87% to 0% 85% to 0% 83% to 0%
Lutron Grafik Eye
GRX-3104-T PHPM-PA-120 95% to 0%
2 or 3 lamps,
Dimming 94%
to 0%
2 or 3 lamps,
Dimming 93%
to 0%
Wattstopper SDMLV-603 93% to 1%
Transformer & Dimmer Compatibility for LM16 Lamp*
Number of allowable connected lamps and dimming range, for 50W eq lamps only.
*The presence of a dimmer on this chart is not a guarantee or warranty of the compatibility of the LM16 in any particular installation. The absence of a dimmer from
this chart does not necessarily imply incompatibility. Please reference the dimmer manufacturer’s instructions for installation and further product information.
T (800) 236-6800 F (262) 504-5415
www.cree.com/lighting
© 2012 Cree, Inc. and/or one of its subsidiaries. All rights reserved. For informational purposes only. See www.cree.com/lighting
for patent and warranty information. Cree® and the Cree logo are registered trademarks of Cree, Inc. or one of its subsidiaries. Any
other trademarks, product and/or company names mentioned in this document are the property of their respective owners.
Rev. Date 12/31/2012
T (800) 473-1234 F (800) 890 -7507
Canada: www.cree.com/canada
