Flexible conduit systems
for critical power & data cable protection
Product Catalogue | February 2014
1
Adaptaflex Product Catalogue | LIT211GB 0414 1
11
5
9
13
3
7
11
15
17
2
6
10
14
4
8
12
16
18
Introduction

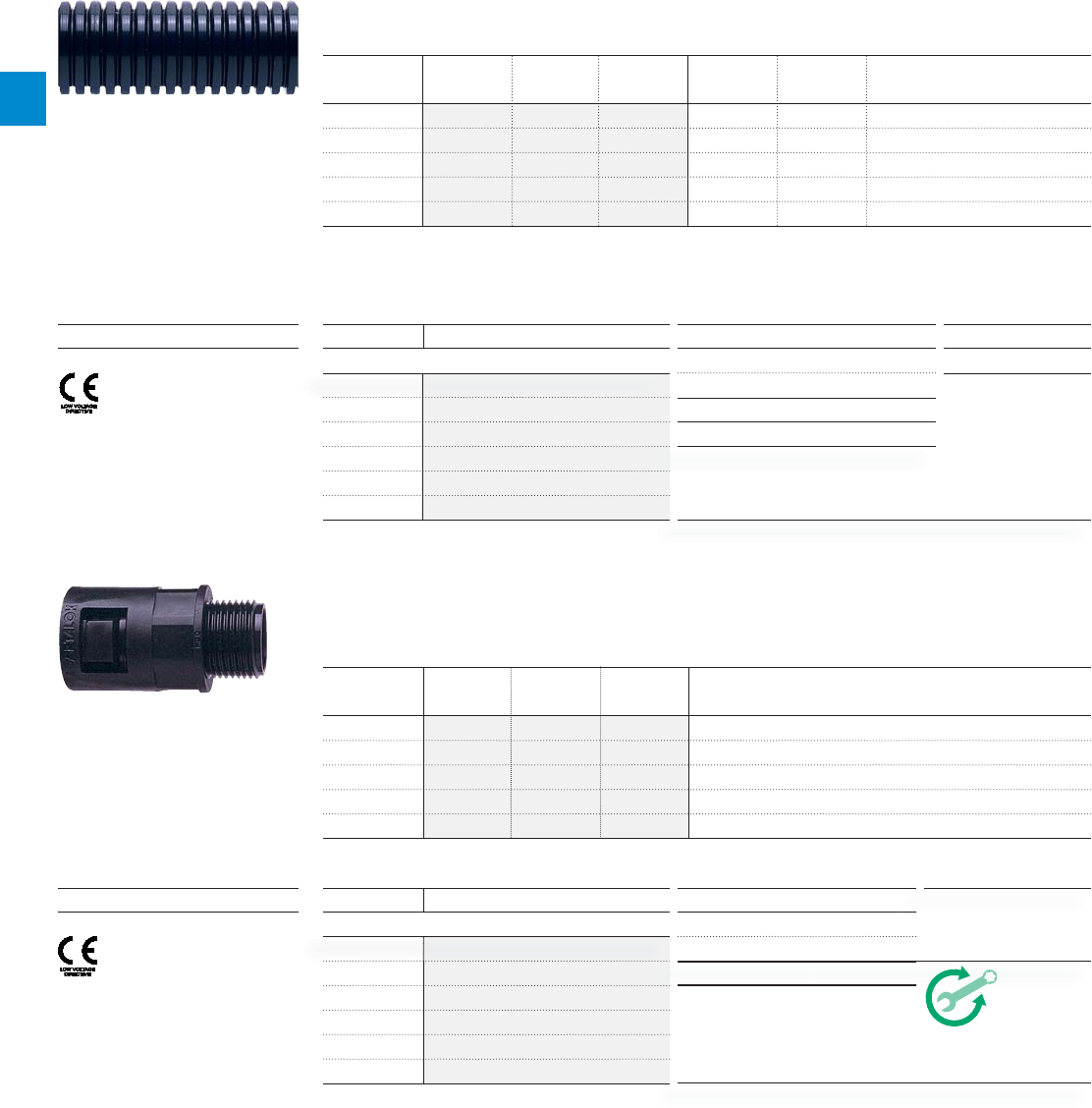

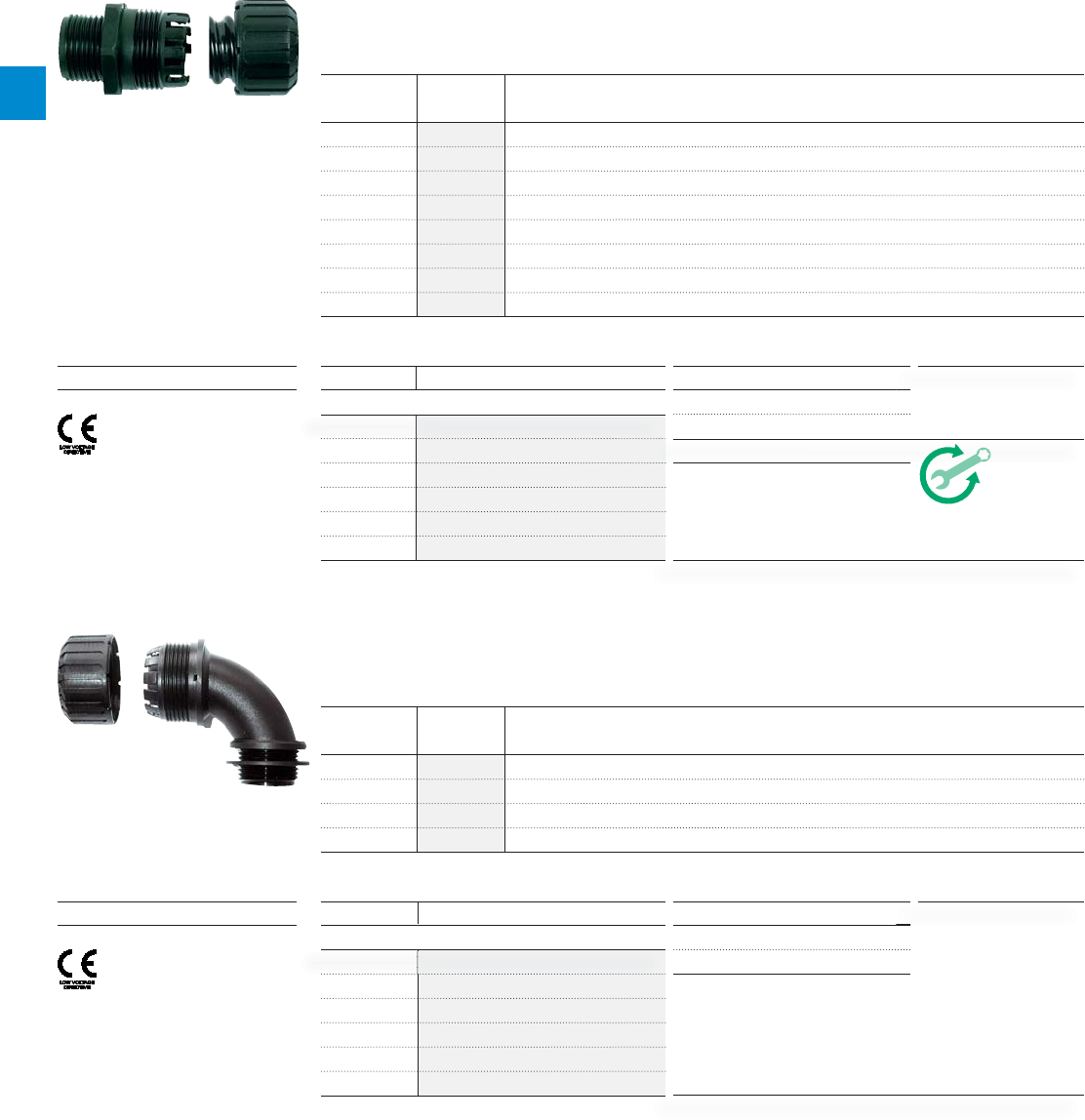

Non-metallic conduit systems
Metallic conduit systems
Convenience packs

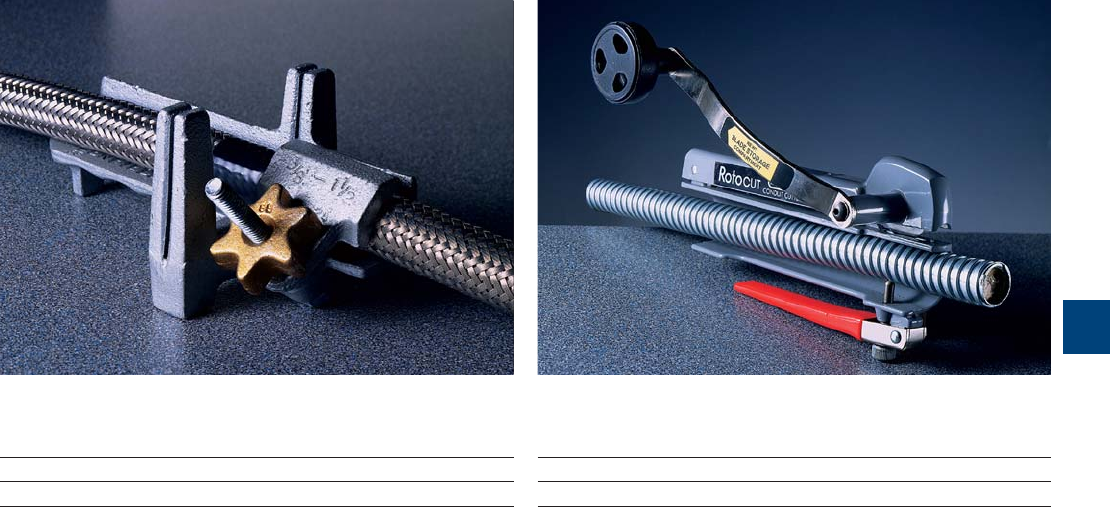

Cutting tools

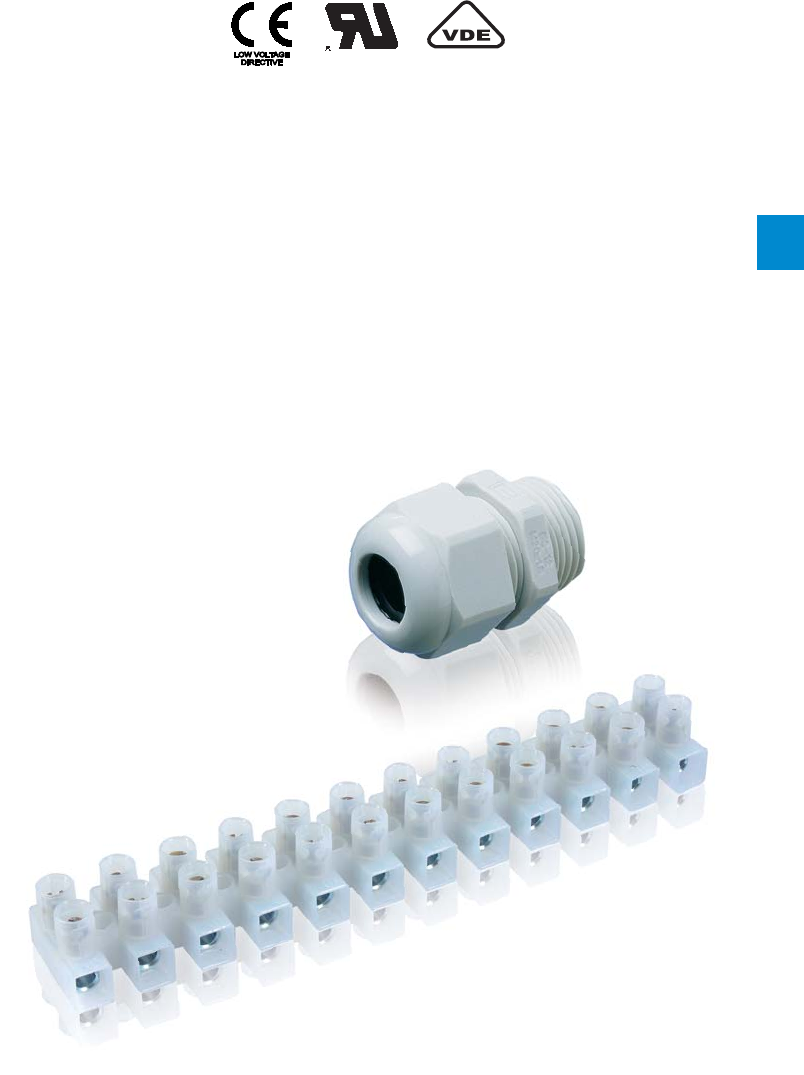

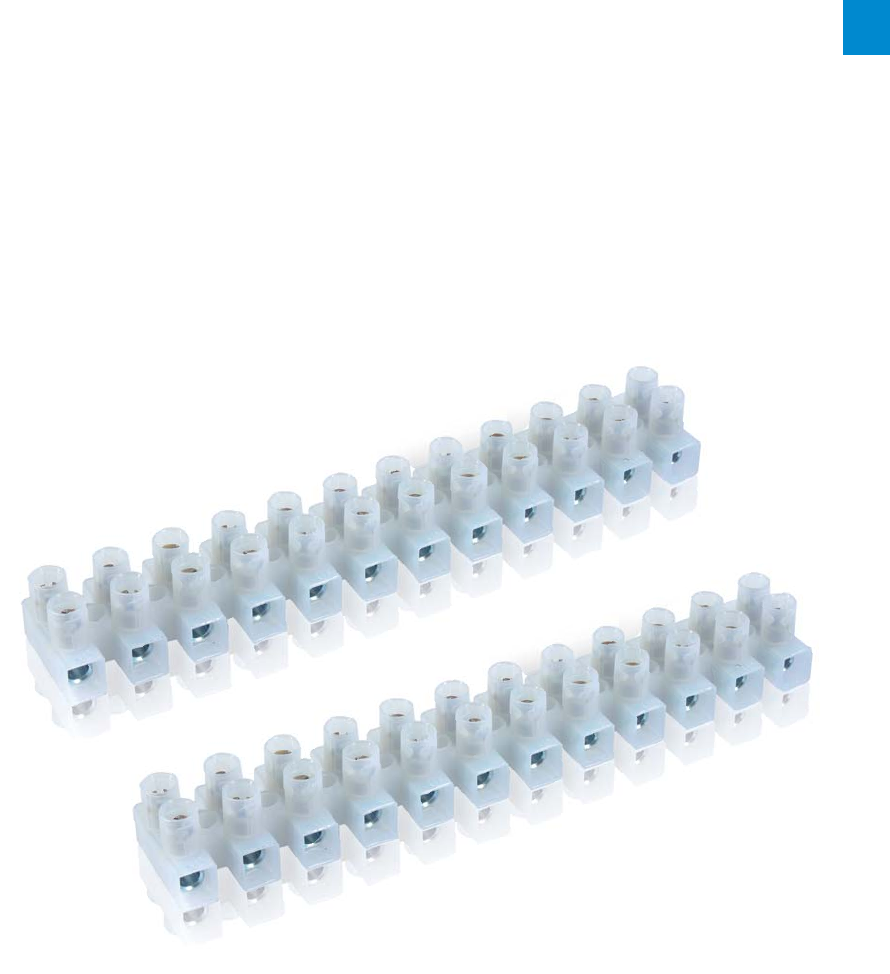

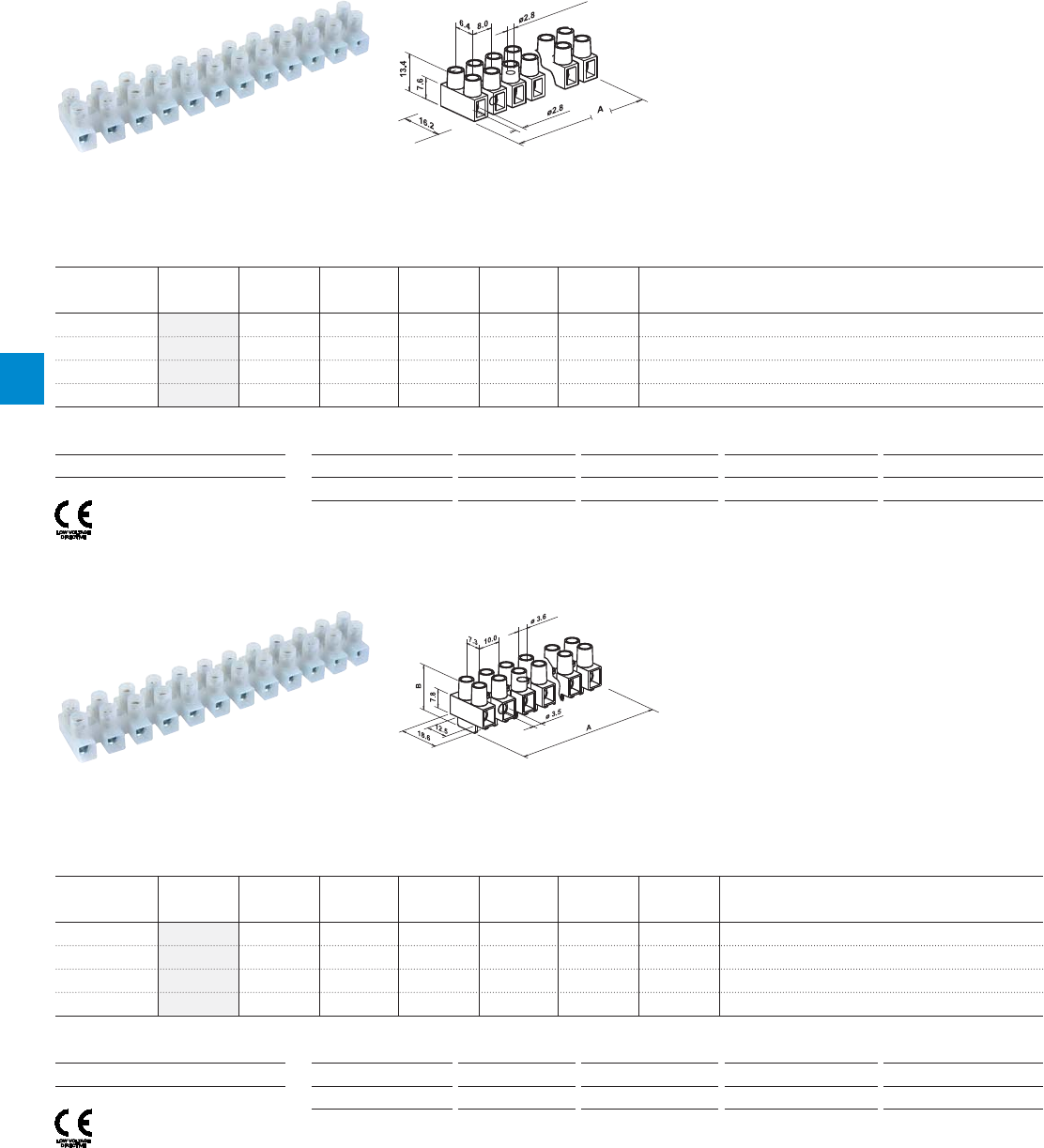

Cable glands & terminal blocks
Aquasafe
Technical section
Index
Chapter 10
Chapter 11
Chapter 12
Chapter 13
Chapter 14
Chapter 15
Chapter 16
Chapter 17
Chapter 18
Flexible conduit systems
for critical power & data cable protection
1
Adaptaflex Product Catalogue | LIT211GB 0414 1/1
Introduction
Company overview 1/2
Quality approvals 1/3
Third party testing & approvals 1/4
Applications
Construction applications 1/5
Machinery applications 1/6
Rail infrastructure applications 1/7
Marine applications 1/8
Mechanical applications 1/9
Introduction
1
1/2 Adaptaflex Product Catalogue | LIT211GB 0414
Introduction
Company overview
Adaptaflex is one of the market leading flexible conduit
system brands that can be found all over the world.
Combining innovative design with dedicated manufacture it
offers customers one of the world’s broadest ranges of
cable protection products and solutions. With a choice of
over 6000 products the range covers metallic and
non-metallic flexible conduit systems for the protection
of critical power and data cable.
The system solutions from Adaptaflex need to perform in a
wide variety of environments from high temperature to
freezing subzero conditions. The products are designed and
tested to withstand constant vibrations, water ingress, offer
corrosion resistance and are available in halogen free, low
smoke and low toxicity materials. An extensive range of
engineered solutions are designed to withstand the rigours of
some of the most technically demanding markets. So
whatever your project involves our experience will provide
the answer helping you to specify the correct flexible
conduit system.
Markets and industries
Adaptaflex flexible conduit systems are used to protect critical
power and data cabling are available throughout a wide
range of markets including:
– Commercial contracting
– Machinery
– Rail / Infrastructure
– Marine
– Mechanical
– Security / CCTV
– Data cabling
– Critical power
Many components are designed specifically for a market
solution. These products uniquely meet an industry’s needs
- solving a specific application requirement, providing product
innovation, saving installation and component costs,
improving the quality and the integrity of the end product.
Wherever you need mechanical and electrical protection
for your cables you can be confident in specifying
Adaptaflex products.
Adaptafl ex fl exible conduit systems are used to protect critical power and data
cabling. Established in 1972 Adpatafl ex has developed into a leading player within
the fl exible conduit market.
1
Adaptaflex Product Catalogue | LIT211GB 0414 1/3
Introduction
Quality approvals
Quality approvals
The company’s commitment to independent testing across a
wide range of applications has led to an impressive range of
certifications and quality approvals:
– BSI Kitemark
– BS EN ISO14001 Environmental standard
– IEC 616386 Conduit standard covering the performance
characteristics of flexible conduits
– Lloyds Register of shipping type approval for its
non-metallic PR, PK and metallic LFH-SP and SPL
products way back in 1995
– IP69K, DIN 40050, standard with its Adaptalok range of
non metallic fittings
– Offer non-metallic conduit that is fully compliant to the new
dual listed UL 1696 standard. Required for any equipment
destined for export to the USA and Canada
– The Hi-Spec PEEK range, designed for the most
demanding electrical applications in rail infrastructure,
underground and public buildings, is the only non-metallic
flexible conduit system fully compliant with both BS6583
Class 1A requirement and LUL engineering standard 1-085
Industry standards
As one of the world leading flexible conduit system
manufacturers, Adaptaflex has gained many international
approvals. With company members on leading technical
committees and actively looking at international standards,
Adaptaflex are able to use our experience and knowledge to
ensure safety and quality levels are maintained now and in
the future.
Adaptaflex continuously monitor our own quality levels, but
we also go that step further by having our products
independently tested. As a result you don’t have to just take
our word for it, in contrast to some other companies our
products are certified by independent third party agencies
and standards so that you can have every confidence in
our products.
1
1/4 Adaptaflex Product Catalogue | LIT211GB 0414
Introduction
Third party testing & approvals
Third party testing & approvals
IEC61386 Performance classification standard
Adaptaflex has achieved third party accreditation to the IEC
61386 Standard from the British Standards Institution (BSI).
IEC61386 conformance guarantees that products meet
performance specifications for fatigue life, operating
temperature, non-flame propagation, IP ratings amongst
other criteria.
BSI Kitemark
Adaptaflex manufacturer to third party accreditation through
the BSI Kitemark scheme. The Kitemark is one of the world’s
premier symbols of trust, integrity and quality. Manufacturers
with the Kitemark are an elite club of some of the world’s best
companies being annually tested to ensure continued
compliance. Having the Kitemark associated with our
products illustrates that we have satisfied the most rigorous
of quality processes.
ISO9001 Quality standard
Adaptaflex conform to ISO 9001:2000, the internationally
recognised standard for Quality Management Systems. This
standard reflects the procedures and management processes
throughout the whole of the company.
BS EN ISO14001 Environmental standard
Controlling the impact of manufacturing activities on the
environment is a major challenge. Again Adaptaflex lead the
way by being the first conduit manufacturer to comply with
this Standard.
We also meet the requirements of EU directive 2002/95/EC
on the restriction of the use of certain hazardous substances
(RoHS). This forms part of the legislation on waste
management and is aligned with the waste electrical and
electronic equipment (WEEE). Specifically this means no lead,
mercury, cadmium, hexavalent chromium; polybrominated
biphenyls (PBB) or polybrominated diphenyl ethers (PBDE) are
used in the manufacture of metallic and non-metallic flexible
conduit systems.
Customer support
All the proof you need backed up by full technical support
team, sales teams, customer care team and in-house
marketing specialists. All dedicated teams working together to
ensure that you have the best of support in the market place.
1
Adaptaflex Product Catalogue | LIT211GB 0414 1/5
Applications
Construction applications
Construction overview
The variety of construction buildings and project requirements
within the commercial market is indeed immense. But
whatever the challenge you can be sure that Adaptaflex have
a solution to meet those specific requirements.
In these environments there are ever increasing demands not
only for quicker and easier to install solutions but also for
increased safety and technical performances to meet the
specific needs of municipal buildings. The ability to offer
product ranges with enhanced low fire hazard properties for
safety or overbraiding for security and EMI shielding. Where
exposed interiors call for design consideration there is a
choice such as conduit in different colours such as white or in
different materials such as stainless steel to complement
interior styling - Adaptaflex have a range to suit.
Typical Applications:
– Office buildings
– Schools
– Hospitals (EMC)
– Retail developments
– Leisure complexes / Sports stadiums
Industry approved
Adaptaflex products are approved by a range of
recognised industry standards including:
– BSI Kitemark to IEC61386
– CE marked to the Low Voltage Directive
– Fully compliant to BS7671 Wiring Regulations code
of practice
Product recommendation
– Low fire hazard PA conduit systems
– Adaptalok fittings
– LFH-SP Liquid resistant covered flexible steel conduit
systems enhanced low fire hazard
1
1/6 Adaptaflex Product Catalogue | LIT211GB 0414
Applications
Machinery applications
Machinery overview
This market is driven by the needs to meet the best in lean
manufacturing. To achieve this every piece of equipment in
this sector is pushed for greater efficiency by working more
intensely and faster. As a result any conduit installed in these
applications will need to provide excellent mechanical
strength, flexibility and abrasion resistance in order to supply
the best possible solution to provide protection along the
entire length of all the moving parts.
In this hardworking environment of both dynamic and static
applications it is essential that any cable management
products continue to deliver performance in areas where
resistance to oils and chemicals is paramount. Any down time
in manufacturing can be very costly so products that can offer
high ingress protection are fundamental and Adaptaflex can
offer a wide range of solutions to meet all of these needs.
Technology is increasingly being used in modern machine
tools and the need to interface conduit to multipin-connectors
is escalating. Nylon systems continue to gain popularity in this
sector due to their excellent performance, flexibility and low
installed cost benefits. For this reason Adaptaflex has
developed a wide range of liquid tight connector interfaces in
the Adaptalok range.
Typical Applications:
– Metal cutting and fabrication
– Milling machines
– CNC machine tool technology
– Moulding machinery
– Security & CCTV
– Robotics
Industry approved
Adaptaflex products are approved by a range of
recognised industry standards including:
– BSI Kitemark to IEC61386
– CE marked to the Low Voltage Directive
– Fully compliant to BS7671 Wiring Regulations code
of practice
– UL / CSA
– UR
Product recommendation
– SPL liquid tight conduit systems – SPLHC conduit systems
– PA conduit systems – PI conduit systems
– SPUL for machinery – Adaptaring fittings
USA export – PADL conduit systems
– Overbraided conduit systems – ATS fittings
1
Adaptaflex Product Catalogue | LIT211GB 0414 1/7
Applications
Rail infrastructure applications
Rail overview
For more than 30 years we have worked with the foremost
manufacturers and suppliers of public transportation systems
throughout the world. We understand not just the Standards
that you need to work to but also the Industry issues that you
face including your customer service delivery expectations to
get the right products to the right place on time and in full.
Our systems need to perform in a wide variety of
environments from high temperature to freezing subzero
conditions. Our products can withstand constant vibrations,
water ingress, offer corrosion resistance and are available in
halogen free, low smoke and low toxicity materials as this
sector can be one of the most technically demanding
markets. If your project involves rail stations, infrastructure,
signalling, tunnels, surveillance or data and information
systems our experience will provide the answer helping you to
specify the correct flexible conduit system.
Typical Applications:
– Infrastructure projects - Stations, tunnels, signalling
– Low fire hazard systems
– Exposed Locations
– High impact resistance, low temperature flexing
– EMC Protection for safety critical systems
– OEM packages
Industry approved
Adaptaflex products are approved by a range of
recognised industry standards including:
– LUL 1-085
– NF F 16-101/102
– Deutsche Bahn (DIN 5510)
– BS6853
– Siemens Transportation
– BSI Kitemark to IEC61386
– CE marked to the Low Voltage Directive
– EN 45545-2
Approvals & standards
– PA conduit systems
– PR enhanced low fire hazard conduit systems
– PF conduit systems
– PK conduit systems
– LFH-SP conduit systems
– CP conduit systems
– IP66/67/68/69k Adaptalok / ATS fittings

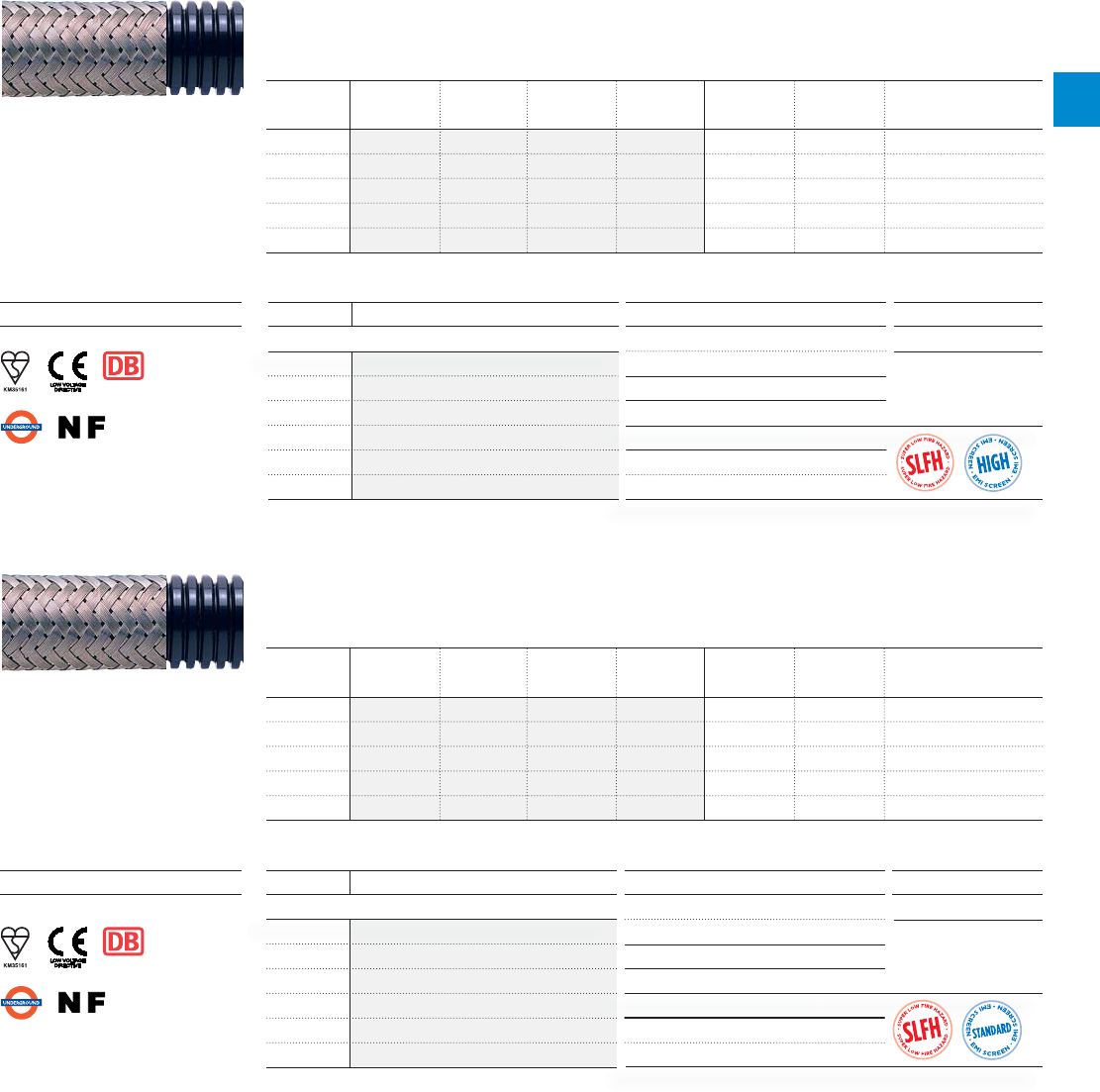

– Overbraided systems
1
1/8 Adaptaflex Product Catalogue | LIT211GB 0414
Applications
Marine applications
Marine overview
Safety and reliability are vital considerations within one of the
harshest operational environments to be found. Products
specified and installed within this sector have to face the
particular damaging effects from the wind, wave and salt
spray conditions in vastly exposed areas. Whilst this
demands for the most robust of products it also calls for
solutions where vibration and temperature extremes add to
the challenge.
Adaptaflex offer a broad range of solutions to suit this sector
and which take into consideration minimum environmental
impact, corrosion and chemical resistance, long service life
and low fire hazard properties. Utilising Adaptalok sealing
systems also offers ingress protection particularly valuable in
pressure washing applications and with our specialist insert
seal raises the IP rating from IP66 to IP67/68/69K.
Typical Applications:
– Ship / Boat engine rooms
– Ship and dock yards
– Leisure boats and cruisers
– Marina developments
– Ocean going craft
Industry approved
Adaptaflex products are approved by a range of recognised
industry standards including:
– Lloyds Register type approved
– UR
– BSI Kitemark to IEC61386
– CE marked to the Low Voltage Directive
Product recommendation
– PA conduit systems
– PR conduit systems
– IP66/67/68/69k Adaptalok ATS™ systems
– Adaptaseal systems
– Stainless steel conduit systems
– SPL conduit systems
– LFH-SP conduit systems
1
Adaptaflex Product Catalogue | LIT211GB 0414 1/9
Applications
Mechanical applications
Mechanical overview
The range of applications for Adaptaflex cable and energy
management systems is almost limitless. Whenever cable
needs protection and wherever cable connections are
required you will find that Adaptaflex have the answer,
providing superior systems to cable management problems
for over 30 years.
The range of products and variety of materials to choose from
are immense. With different materials providing different
performance characteristics it is important that you select not
only the right product for your particular application but also
the right material to give you continued performance where
you need it.
Adaptaflex Applications Engineers offer a breadth of
experience gained internationally across all different market
sectors. A bespoke design service and expert technical
knowledge guarantees that Adaptaflex will find the perfect
product solution for your application.
Examples of individual markets served:
– Hoists
– Cranes
– Lifts
– Escalators
Industry approved
Adaptaflex products are approved by a range of
recognised industry standards including:
– BSI Kitemark to IEC61386
– CE marked to the Low Voltage Directive
– Fully compliant to BS7671 Wiring Regulations code
of practice
– UL / UR
– CSA
Product recommendation
– SPL liquid tight conduit systems
– PA conduit systems

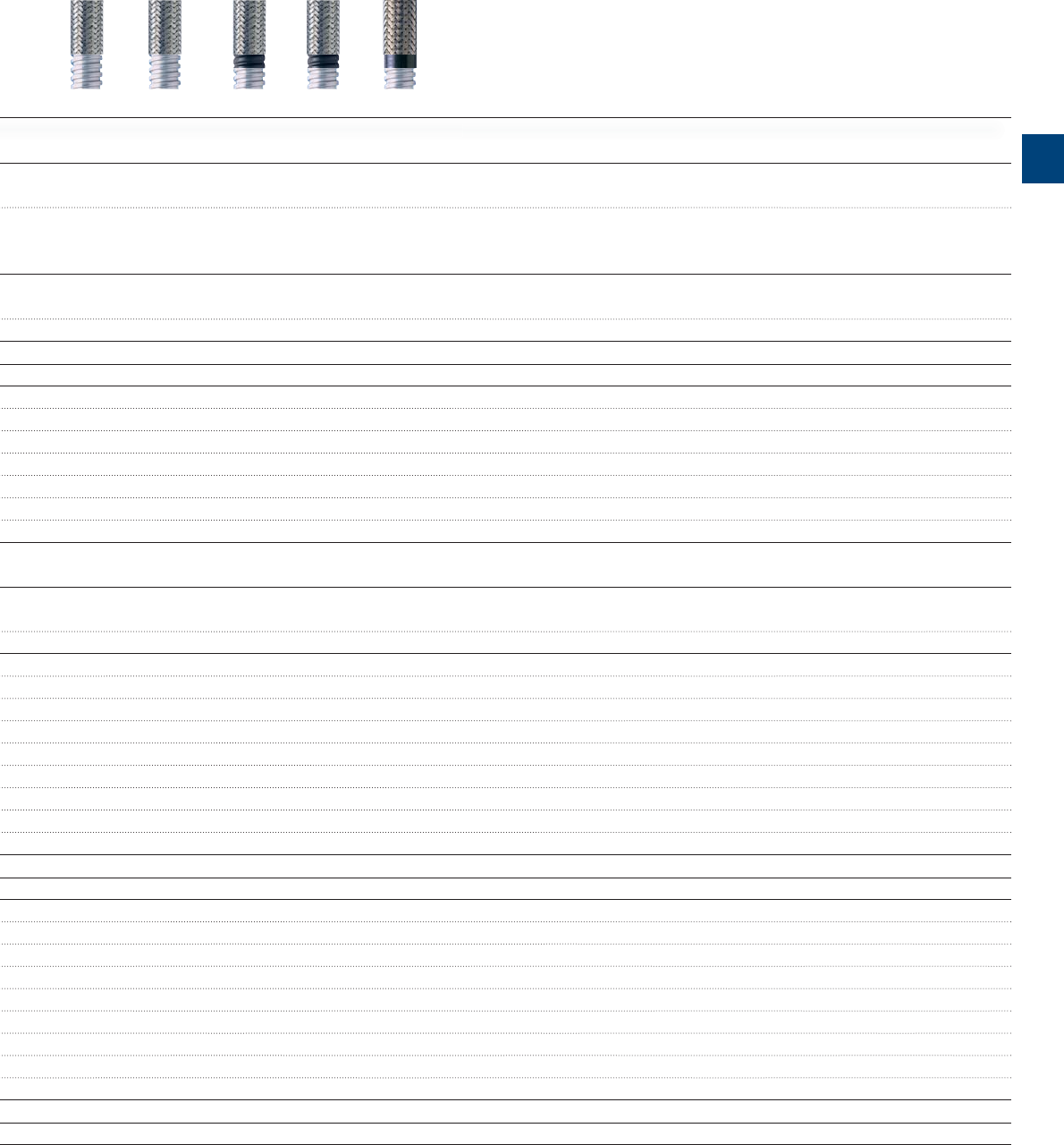

– Overbraided conduit systems
– Stainless steel conduit systems
– SPLHC conduit systems
– PI conduit systems
– Adaptaring fittings
– ATS fittings
Non-Metallic Conduit Systems
Quick selection guide 2/2
Introduction 2/5
Non-Metallic Conduit
Type PA 2/6
Type PF 2/8
Type PI 2/9
Type PR 2/10
Type CP 2/10
Type PADL 2/11
Adaptalok Fittings
Type A - Adaptalok (PADL only) 2/11
Type C90 - Adaptalok (PADL only) 2/11

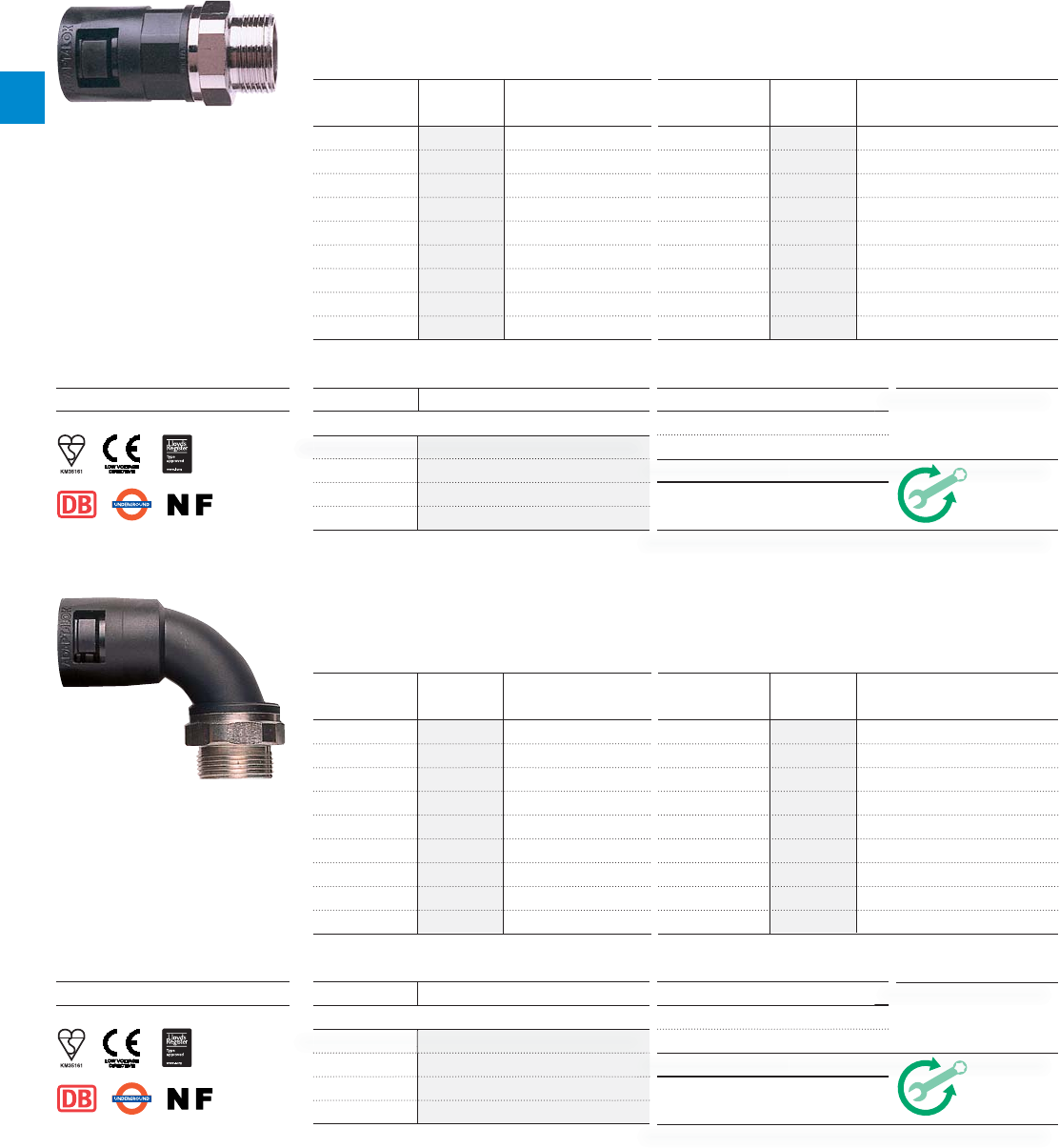

Type A - Adaptalok 2/12

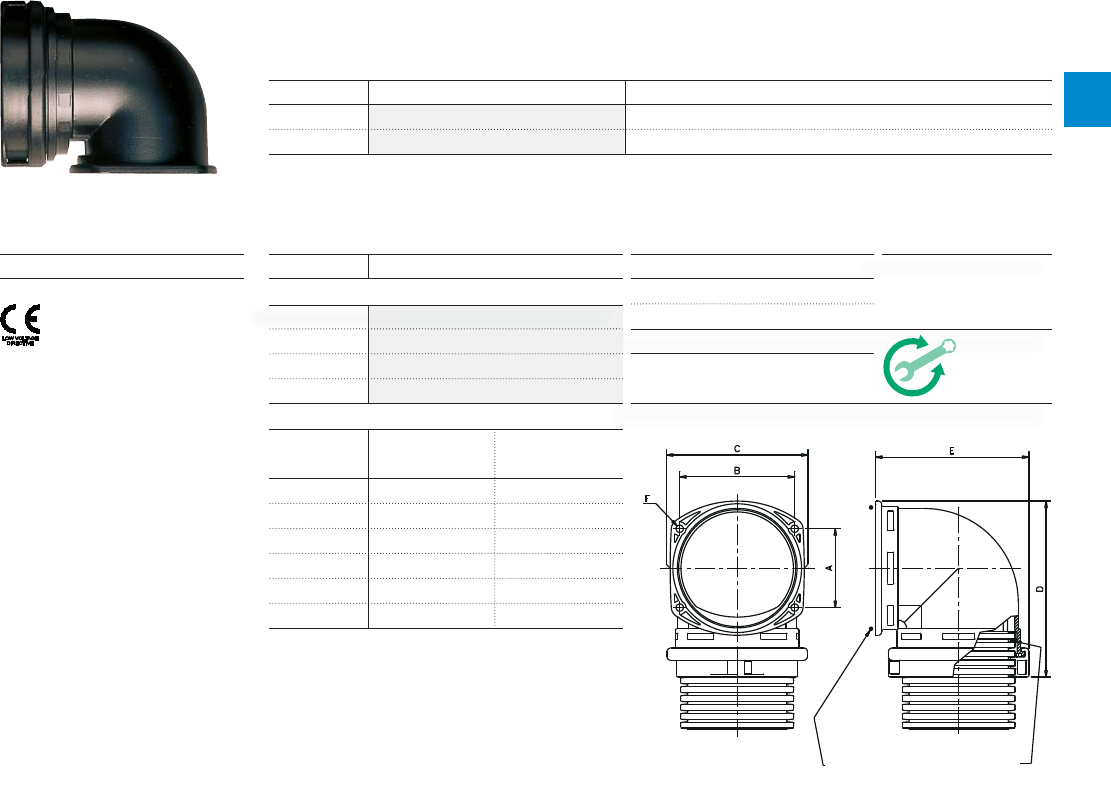

Type C90 - Adaptalok 2/13
Type 45 - Adaptalok 2/14
Push-in - Adaptalok 2/14
3-Way Coupler - Adaptalok 2/15
Insert Seal - Adaptalok 2/15
Type FL/A - Adaptalok 2/16
Type FL/C90 - Adaptalok 2/16
Type FL/45 - Adaptalok 2/17
Swivel Coupler - Adaptalok 2/17
Type SA - Adaptalok 2/18
Type CS90 - Adaptalok 2/18
Type S45 - Adaptalok 2/19
Type SFA - Adaptalok 2/19
Type CSF90 - Adaptalok 2/20
Type SF45 - Adaptalok 2/20
Adaptalok UNEF Fittings
Type A - Adaptalok 2/21
Type C90 - Adaptalok 2/22
Type 45 - Adaptalok 2/23
Adaptalok Jumbo Fittings
Type FL/A - Adaptalok 2/24
Type SK - Adaptalok 2/24
Type FL/90 - Adaptalok 2/25
Non-metallic conduit systems
Conduit, fittings & accessories
Adaptaflex Product Catalogue | LIT211GB 0414 2/1
2
Korifit Conduit & Fittings
Type KF - Korifit 2/45
Type KC/A - Korifit 2/46
Type KC/C90 - Korifit 2/46
Type KF/A - Korifit 2/47
Coupler - Korifit 2/47
Polypropylene Adaptalok Conduit Systems
Type PP - Polypropylene / Adaptalok 2/48
Type PPA - Polypropylene / Adaptalok 2/48
PVC Xtraflex / RF Fittings
Type XF - PVC / Xtraflex 2/49
Type RF - PVC / RF 2/49
Type A - PVC / XF 2/50
Type C90 - PVC / XF 2/50
Type A - PVC / RF 2/51
Type C90 - PVC / RF 2/51
Non-Metallic Accessories
Type LNP - Nylon Locknut 2/52
Type SW - Thread Sealing Washer 2/52
Type AC - Conduit Clip 2/52

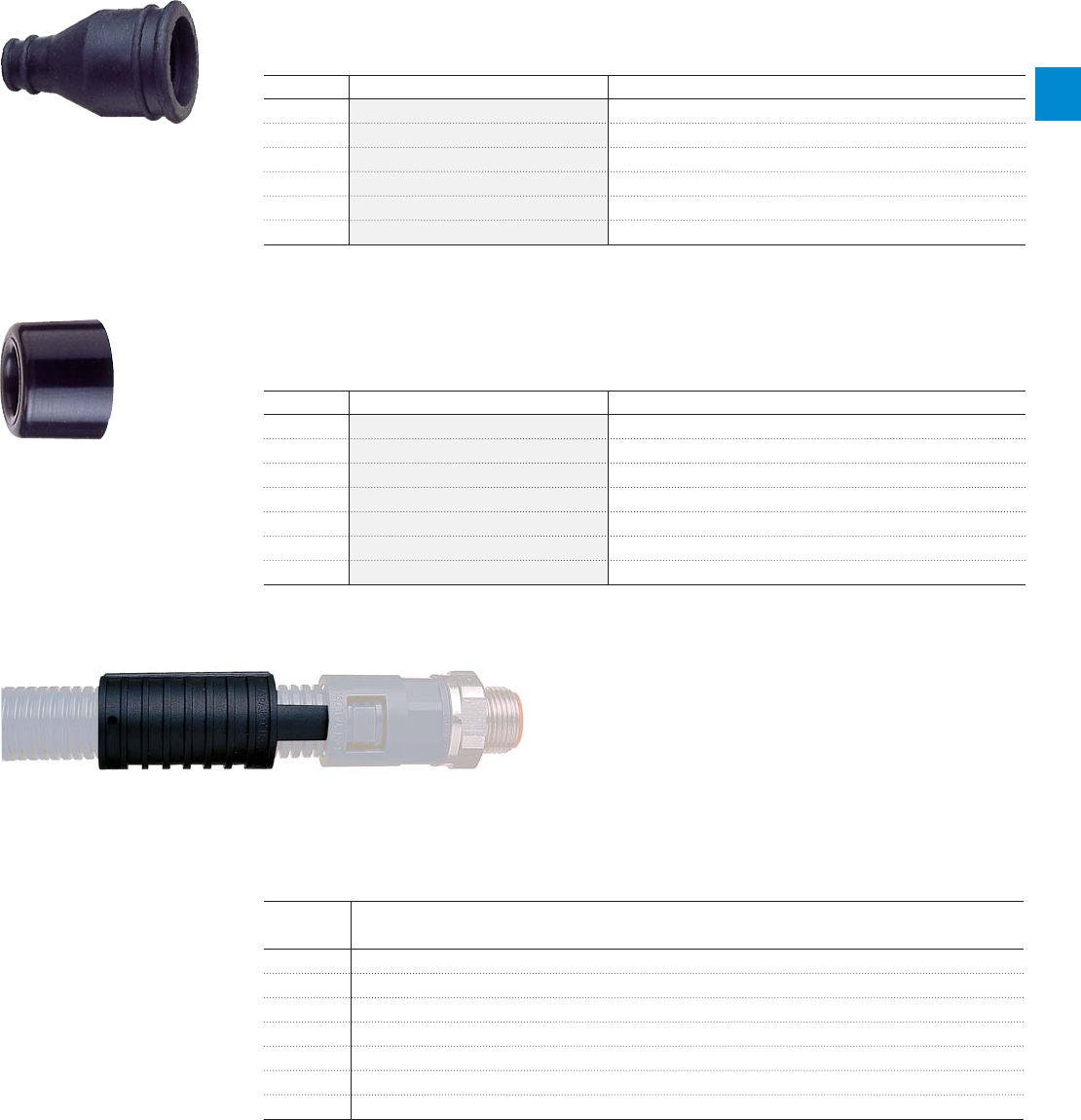

Type GZ - End Sleeve 2/53
Type EC - End Cap 2/53
Type RT - Adaptalok Removal Tool 2/53
Type FK - Fastlok Adapter 2/54

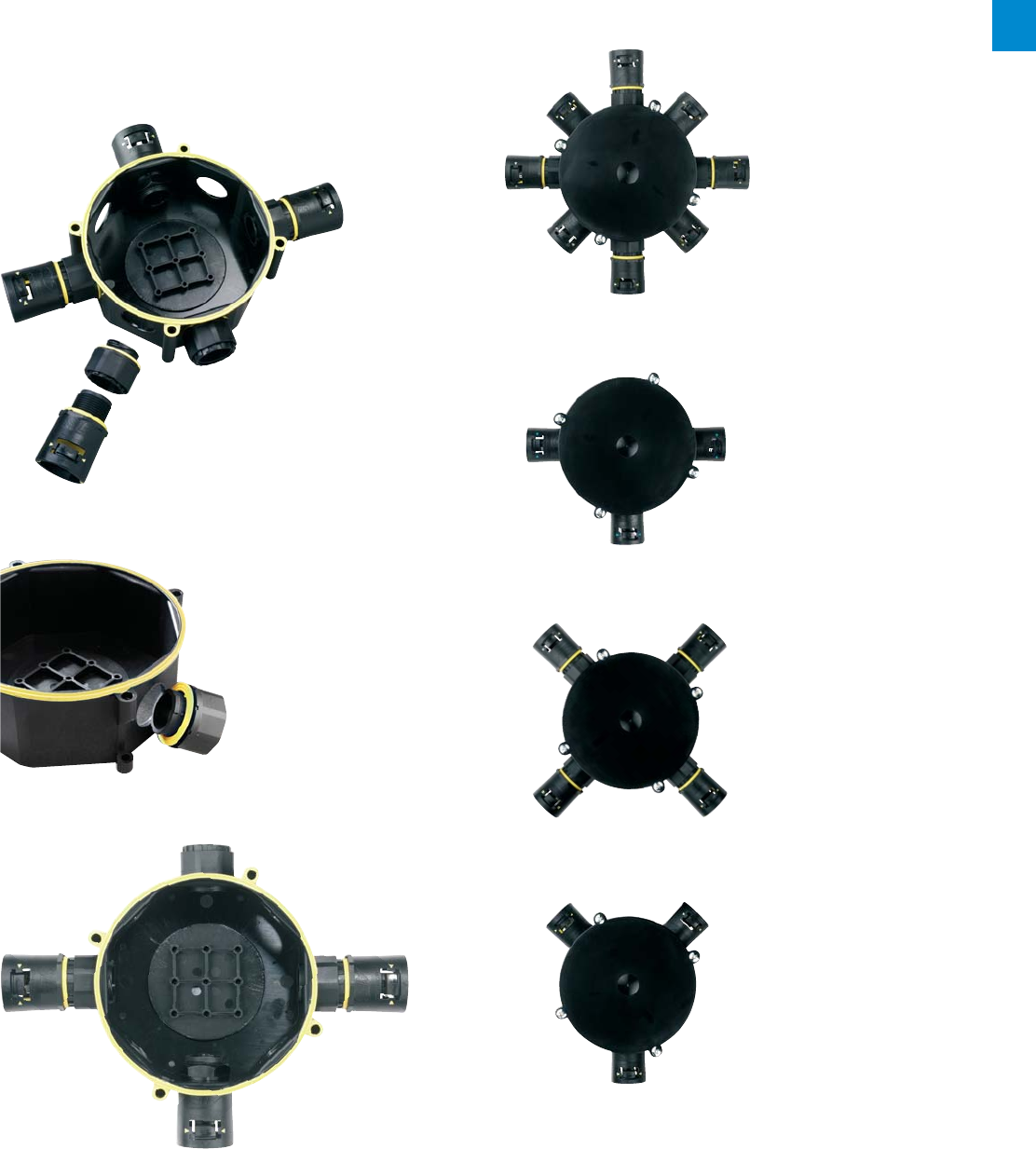

Fastlok Adapters & Manifold Boxes Assembly & Configuration Guide 2/54
Hinged T Pieces 2/56
Hinged Y Pieces 2/57
High-Spec Non-Metallic Conduit Systems
Type PK - Peek 2/58
Type A - Peek 2/58
Type PKTC 2/59
Type PKSS 2/59
Type PRTC 2/60
Type PRSS 2/60
Type A - Hi-Spec 2/61
Type B - Hi-Spec 2/61
Adaptalok ATS™ Non-Metallic Conduit Systems
Introduction to Adaptalok ATS™ 2/26
Adaptalok ATS™ Fittings
Type A - Adaptalok ATS™ 2/27
Type C90 - Adaptalok ATS™ 2/28
Type 45 - Adaptalok ATS™ 2/29
Type SA - Adaptalok ATS™ 2/30
Type CS90 - Adaptalok ATS™ 2/30
Type S45 - Adaptalok ATS™ 2/31
Type SFA - Adaptalok ATS™ 2/31
Type CSF90 - Adaptalok ATS™ 2/32
Type SF45 - Adaptalok ATS™ 2/32
Adaptalok ATS™ UNEF Fittings
Type SFA - Adaptalok ATS™ 2/33
Type CSF90 - Adaptalok ATS™ 2/34
Type SF45 - Adaptalok ATS™ 2/35
Adaptalok ATS™ IP68/69k Fittings
Swivel Coupler - Adaptalok ATS™ 2/36
Type FL/A - Adaptalok ATS™ 2/36
Type FL/C90 - Adaptalok ATS™ 2/37
Type FL/45 - Adaptalok ATS™ 2/37
Adaptalok ATS™ T & Y Piece Fittings

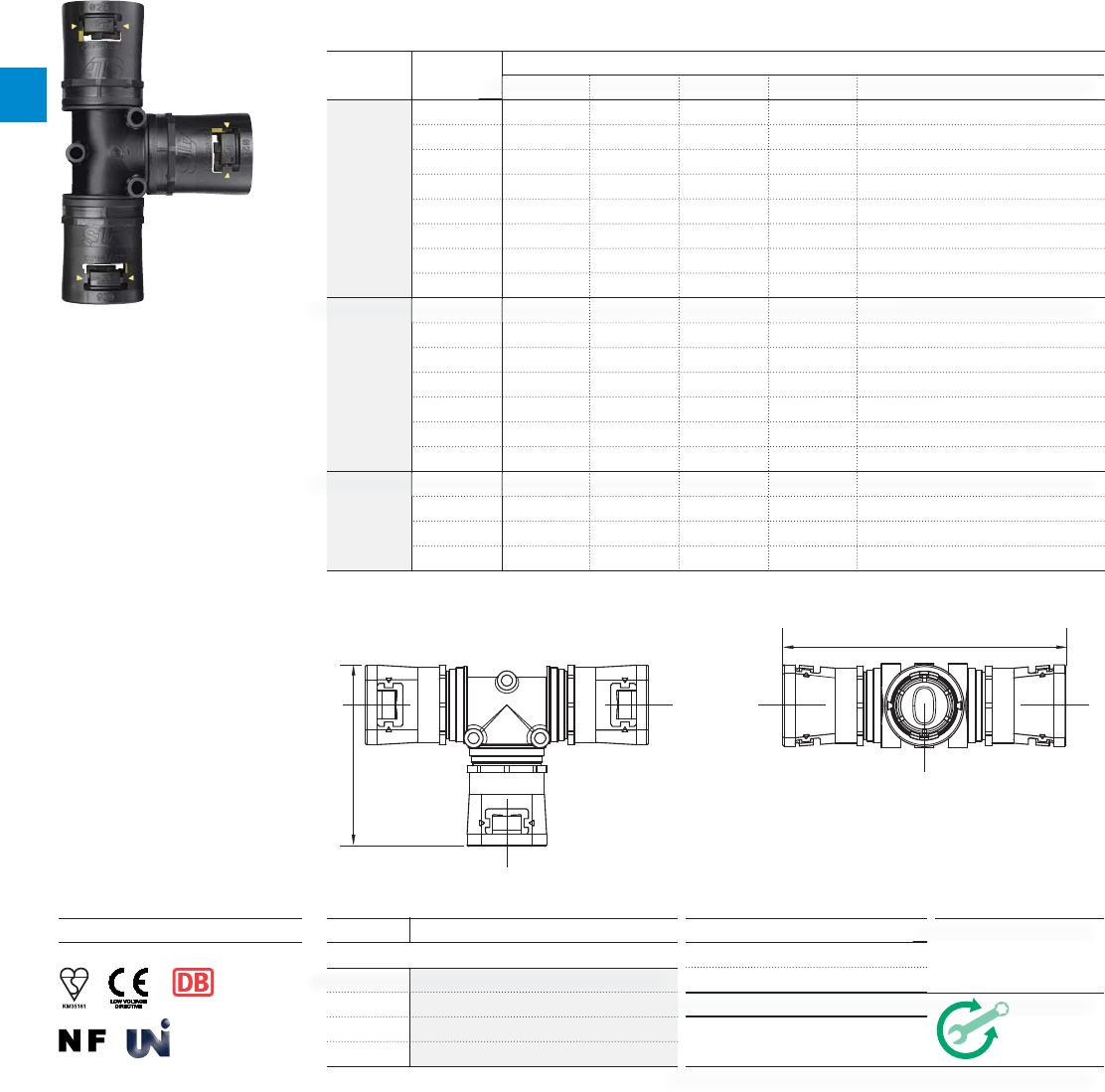

Type T - Adaptalok ATS™ 2/38

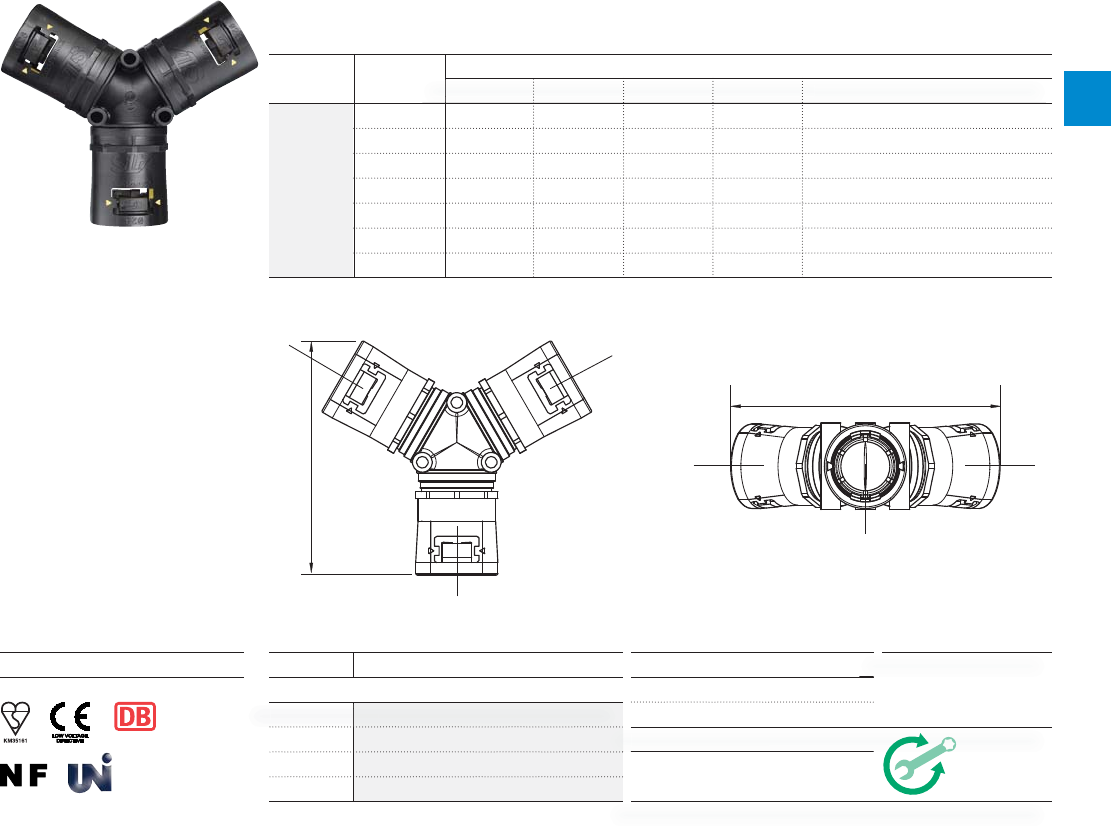

Type Y - Adaptalok ATS™ 2/39
Adaptaseal Fittings
Type A - Adaptaseal 2/40
Type C90 - Adaptaseal 2/40
Type FLC90/FL90 - Adaptaseal 2/41
Type T - Adaptaseal 2/41
Type RK - Adaptaseal 2/42
Type AWB - Adaptaseal 2/42
Adaptaring Fittings
Type A - Adaptaring 2/43
Type C90 - Adaptaring 2/43
Type T - Adaptaring 2/44
Type AWB - Adaptaring 2/44
2/2 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Quick selection guide

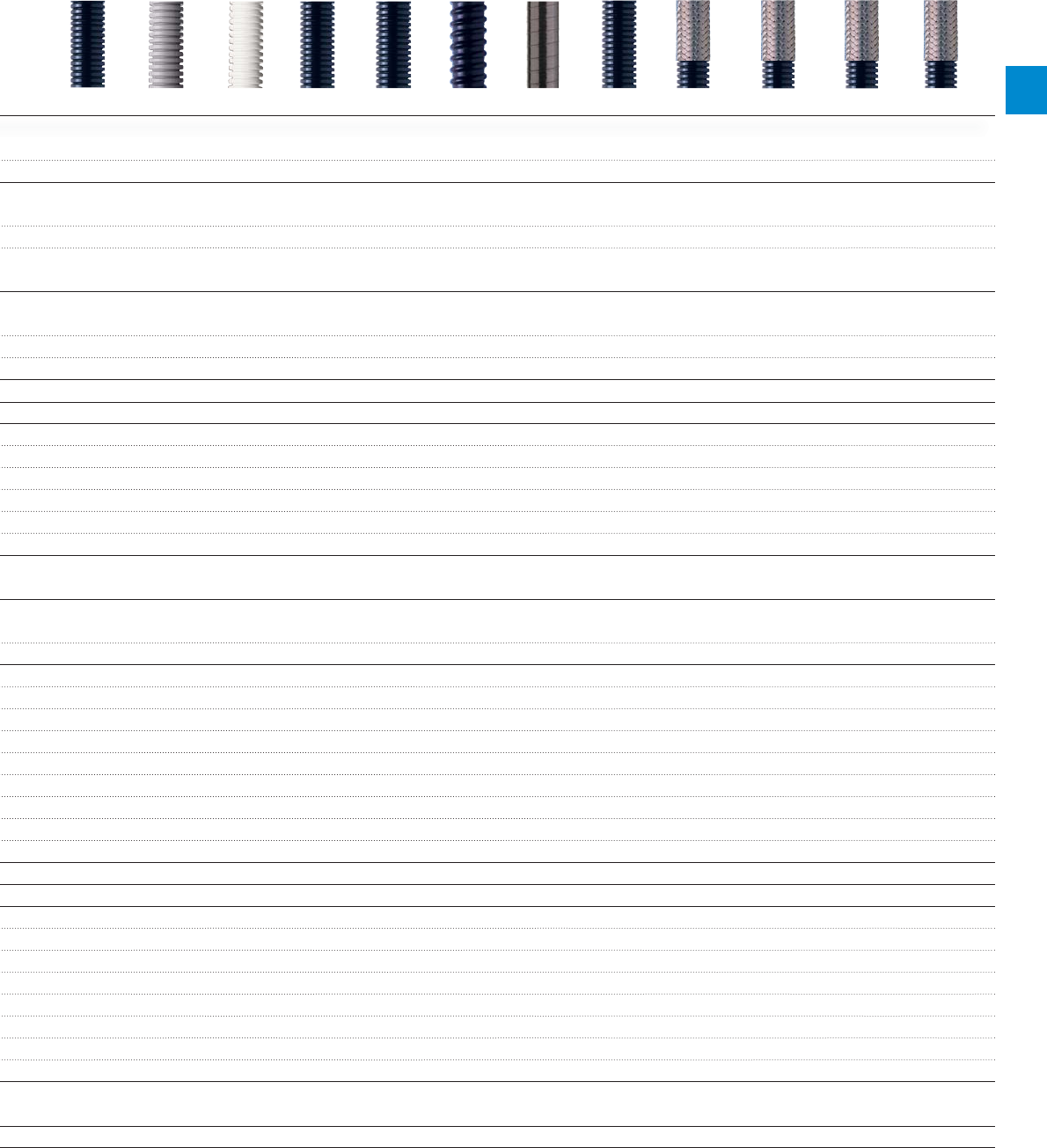

Conduit Type Pitch Type PA Type PA Type PA Type PA Type PF Type PF Type PI Type PI Type PR Type PADL
Part number Fine PAFL PAFL-S PAFS PAFH PFFS PFFH PIFS PIFH PRFS PADL
Coarse PACL PACL-S PACS PACH PFCS PFCH PICS PICH PRCS
Conduit weight Lightweight Lightweight Standard Heavyweight Standard Heavyweight Standard Heavyweight Standard Standard
slit weight weight weight weight weight
Conduit material PA6 PA6 PA6 PA6 PA12 PA12 PA11 PA11 PA6 PA6
Covering/overbraid – – – – – – – – – –
Conduit colour
Black (BL) • • • • • • • • • •
Grey (GR) • – • • – – • – – –
White (W) – – – – – – – – – –
C
onduit Type Pitch Type PA Type PA Type PA Type PA Type PF Type PF Type PI Type PI Type PR Type PADL
IP Rating (with appropriate fitting)
IP40 • – • • – – • • • •
IP65 – – – – – – – – – –
IP66 • – • • • • • • • •
IP67 • – • • • • • • • •
IP68 • – • • • • • • • •
IP69k – – • – • • • – • •
Characteristics
Temperature Range
Static applications (ºC) -40 to +120 -40 to +120 -40 to +120 -40 to +120 -50 to +110 -50 to +110 -50 to +110 -50 to +110 -40 to +120 -40 to +120
Moving applications (ºC) -5 to +120 -5 to +120 -5 to +120 -5 to +120 -45 to +120 -45 to +120 -45 to +120 -45 to +120 -5 to +120 -18 to +120
UV resistance Very high Very high Very high Very high Very high Very high Very high Very high Very high Very high
Flexibility High High High Medium Very high High Very high High High Medium
Fatigue life High High High Medium Very high High Very high Very high Medium Medium
Low fire hazard – – Standard Standard Standard Standard – – Enhanced Standard
Halogen free • • • • • • • • • •
Self extinguishing • • • • • • • • • •
EMI screen – – – – – – – – – –
High mechanical strength – – – – – – – – – –
High abrasion resitance – – • • • • – – • •
Approvals
BSI Kitemark • • • • • • • • • •
CE • • • • • • • • • •
UL / CSA – – – – – – – – – •
DB • – • • – – • • • –
NF F – – • • • • • • • –
Lloyds Register – – • • – – – – • –
LUL 1-085 – – • • – – – – • –
UNI CEI 11170 – – – – • • – – – –
Section 2 / Page No. 2/6 2/6 2/7 2/7 2/8 2/8 2/9 2/9 2/10 2/11
Adaptaflex Product Catalogue | LIT211GB 0414 2/3
2
Type CP Type KF Type KF Type KF Type PP Type XF Type RF Type PK Type PKTC Type PKSS Type PRTC Type PRSS
CPFM KFL KFS KFM PPFM XF RF PKFS PKFSTC PKFSSS PRFSTC PRFSSS
CPCM PKCS PKCSTC PKCSSS PRCSTC PRCSSS
Medium Lightweight Standard Medium Medium Standard Standard Standard Standard Standard Standard Standard
weight weight weight weight weight weight weight weight weight weight weight
CPe PVCu PVCu PVCu PP PVC PVC PK PK PK PA6 PA6
– – – – – Plasticised Plasticised – Tinned Stainless Tinned Stainless
PVC PVC copper steel copper steel
• – – • • • • • – – – –
– • – – – – • – – – – –
– – • – – – – – – – – –
Type
P Type KF Type KF Type KF Type PP Type XF Type RF Type PK Type PKT
Type PK
Type PRT
Type PR
• • • • • – – – – – – –
• • • • – • – – – – – –
• – – – • – – • • • • •
• – – – • – • • • • • •
• – – – • – – – – – – –
• – – – – – – – – – – –
-50 to +135 -5 to +60 -5 to +60 -5 to +60 -20 to +90 -5 to +60 -20 to +60 -60 to +260 -60 to +260 -60 to +260 -40 to +120 -40 to +120
-25 to +150 -5 to +60 -5 to +60 -5 to +60 -5 to +105 -5 to +60 -5 to +60 -45 to +260 -45 to +260 -45 to +260 -5 to +120 -5 to +120
Very high High High High Medium High High Very high Very high Very high Very high Very high
Very high Pliable Pliable Pliable High Very high Medium High High High High High
Very high Low Low Low Medium Medium Medium High High High Medium Medium
Standard – – – – – – Super Super Super Enhanced Enhanced
• – – – • – – • • • • •
• • • • – • • • • • • •
– – – – – – – – High Standard High Standard
– – – – – – – – • • • •
– – – – – – – • • • • •
• • • • – – – • • • • •
• • • • • • • • • • • •
– – – – – – – – – – – –
• – – – – – – – – – • •
• – – – – – – • • • • •
– – – – – – – – – – • •
– – – – – – – • • • • •
– – – – – – – – – – – –
2/10 2/45 2/45 2/45 2/48 2/49 2/49 2/58 2/59 2/59 2/60 2/60
2/4 Adaptaflex Product Catalogue | LIT211GB 0414
2
Adaptaflex Product Catalogue | LIT211GB 0414 2/5
2
Non-metallic conduit systems
Introduction
Our Conduit range is available in many different materials,
ranging from lightweight to heavyweight with nominal conduit
sizes from 10mm right up to the Jumbo size of 106mm.
For more demanding applications there is a wide-ranging
high specification series of conduit with enhanced low fire
hazard properties, EMI screening and incorporating high
fatigue life. Overbraided options are available for use in
abrasive environments.
Standard product is manufactured in a wide range of
materials. The corrugated construction provides good
flexibility and low weight. In addition a range of fittings are
specifically designed to maintain system integrity

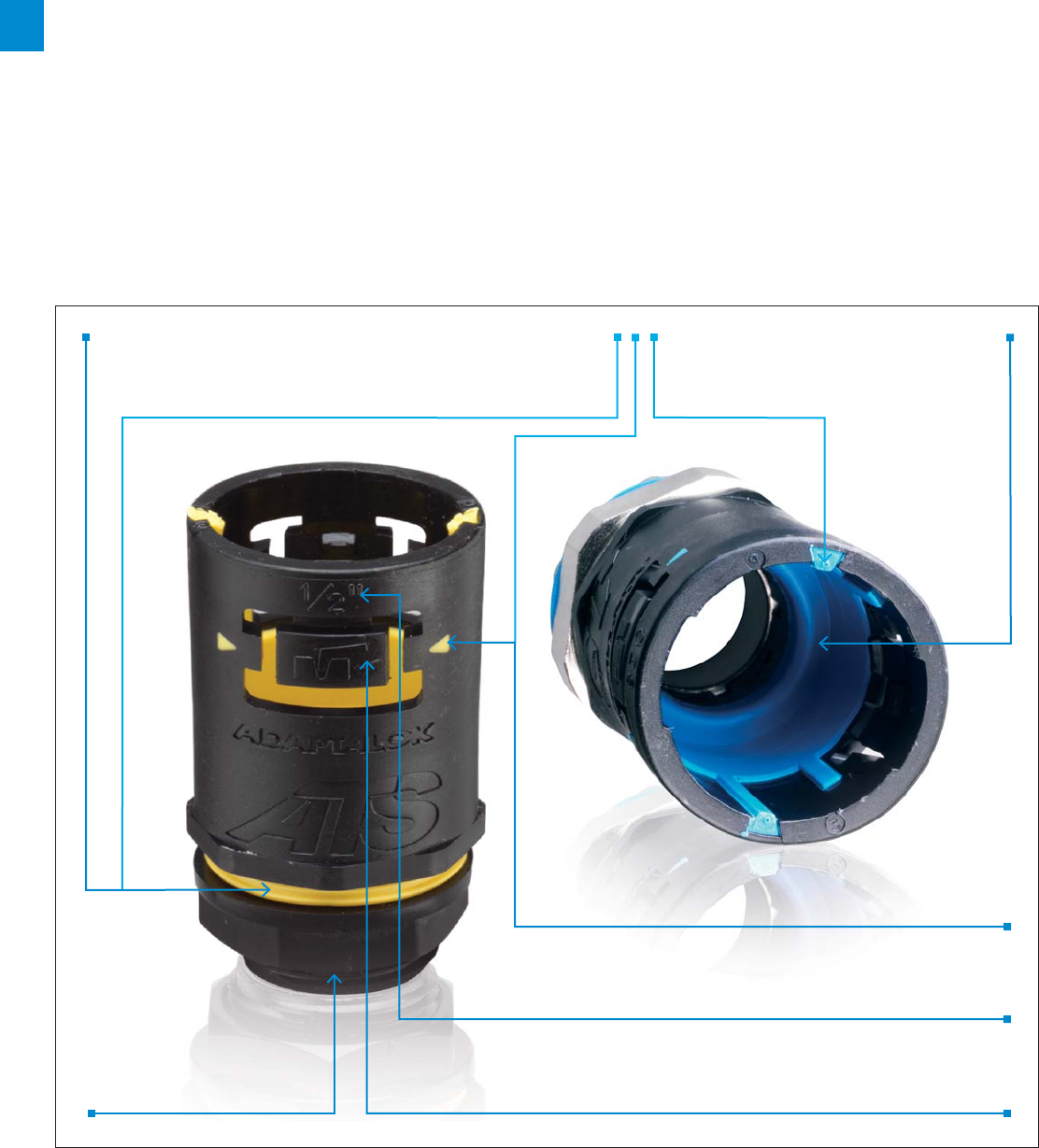

including the popular and easy to fit Adaptalok system.
Fitting types are available in straight, 90°, 45°, with metric,
PG, PF, & NPT threads.
Advantages:
– Non metallic conduits do not corrode (rust)
– Wider variety of fittings - much larger solutions choice
– Quicker to install (cut & assemble fittings)
– Lighter in weight
– Better fatigue life
– Return to shape
Many of our conduit systems have industry recognised
approvals including British Kitemark, CE Approval, UL 1696,
NF, LUL, DB, Lloyds Register amongst others.
Range overview
Adaptafl ex have more than 20 different types of non-metallic conduit systems all
providing different technical properties for your cable management applications.
2/6 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal
IP40 N/A
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A

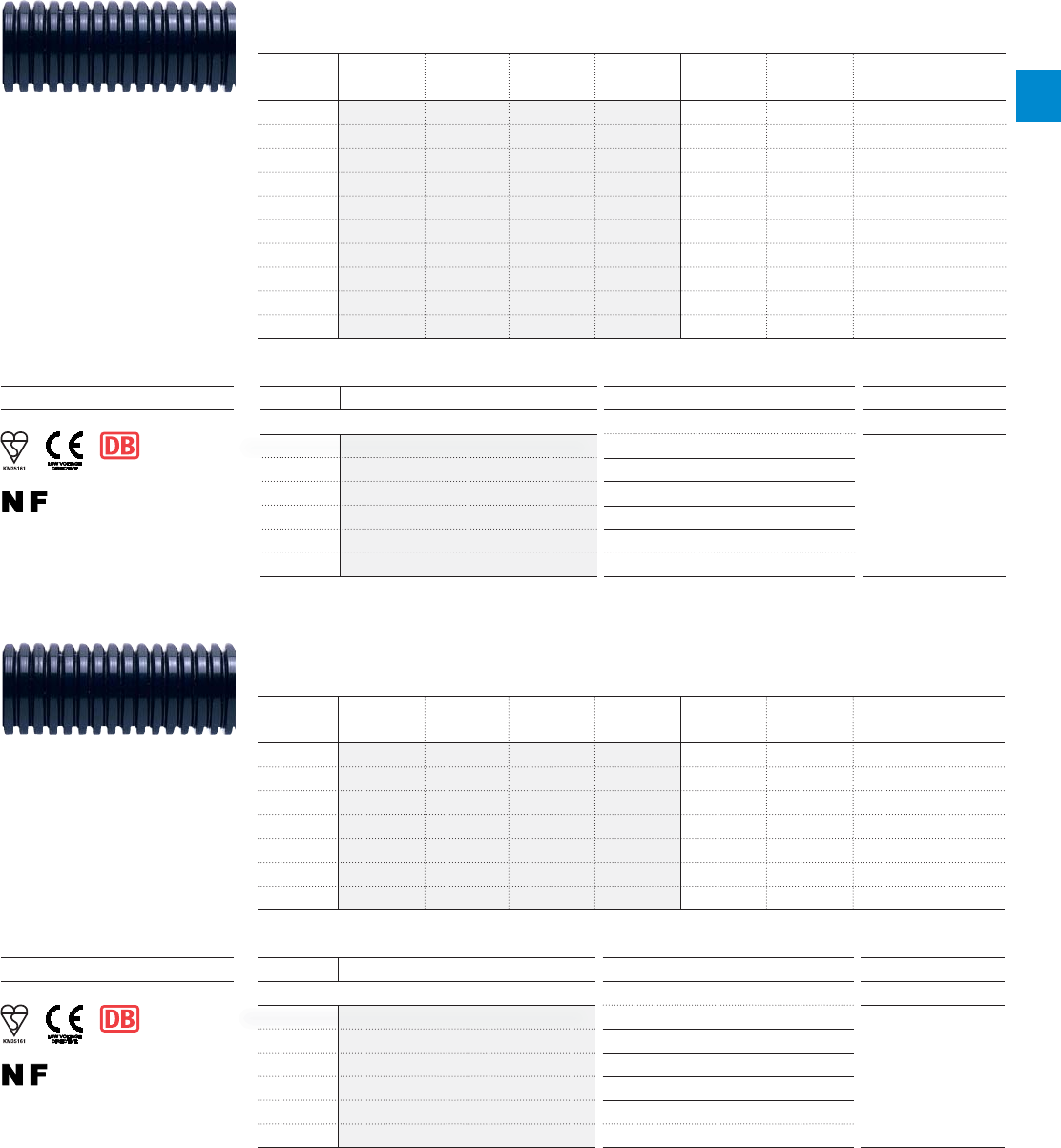

Non-metallic conduit systems
Type PA
Type PA
Lightweight Conduit / Materials: Polyamide (Nylon) 6 / Colour: Black (BL), Grey (GR)
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PAFL13 13mm 10 Fine 13.0mm 10.0mm 25mm 50m
PAFL16 16mm 13 Fine 15.8mm 11.9mm 35mm 50m
PAFL21 21mm 17 Fine 21.2mm 16.8mm 45mm 50m
PACL28 28mm 23 Coarse 28.5mm 22.2mm 50mm 50m
PACL34 34mm 29 Coarse 34.5mm 27.9mm 60mm 50m
PACL42 42mm 36 Coarse 42.5mm 35.2mm 65mm 25m
PACL54 54mm 48 Coarse 54.5mm 46.9mm 75mm 25m
To order quote part number, colour & reel length, e.g. PAFL13/BL/50M
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
Type PA
Lightweight Conduit
Type PA-Slit
Lightweight Slit Conduit / Materials: Polyamide (Nylon) 6 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PAFL13-S 13mm 10 Fine 13.0mm 10.0mm 25mm 50m
PAFL16-S 16mm 13 Fine 15.8mm 11.9mm 35mm 50m
PAFL21-S 21mm 17 Fine 21.2mm 16.8mm 45mm 50m
PACL28-S 28mm 23 Coarse 28.5mm 22.2mm 50mm 50m
PACL34-S 34mm 29 Coarse 34.5mm 27.9mm 60mm 50m
PACL42-S 42mm 36 Coarse 42.5mm 35.2mm 65mm 25m
PACL54-S 54mm 48 Coarse 54.5mm 46.9mm 75mm 25m
To order quote part number, colour & reel length, e.g. PAFL13-S/BL/50M
Approvals
Type PA
Lightweight Slit Conduit
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal
IP40 Adaptaring
IP65 N /A
IP66 Adaptalok, ATS or Adaptaseal
IP67 Adaptalok + ALS Seal or ATS, Adaptaseal
IP68 Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K N/A
Adaptaflex Product Catalogue | LIT211GB 0414 2/7
2
Non-metallic conduit systems

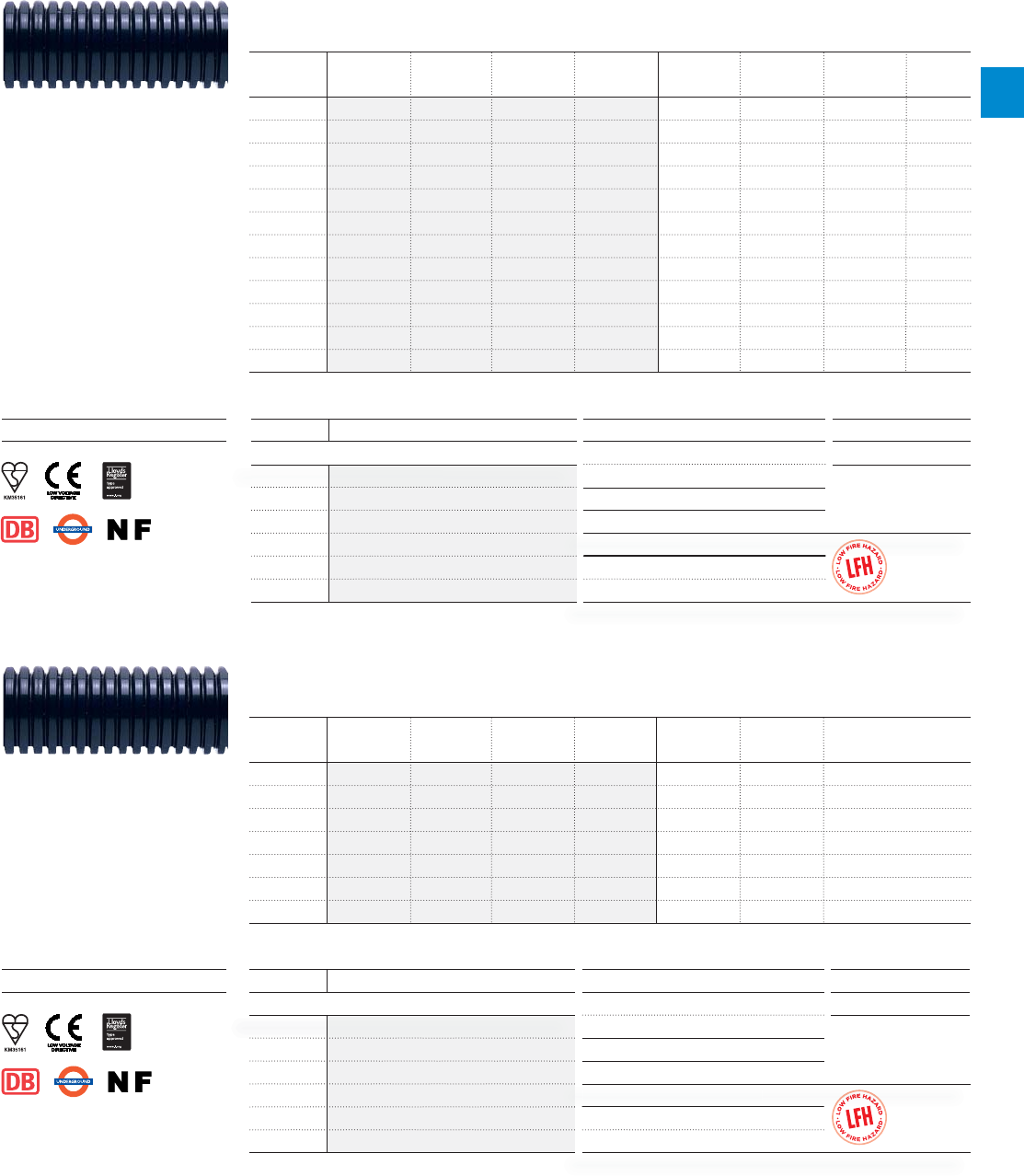

Type PA
Type PA
Standard Weight Conduit / Materials: Polyamide (Nylon) 6 / Colour: Black (BL), Grey (GR)
Nominal NW Conduit Outside Inside Min. Bend Reel Length
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius (BL) (GR)
PAFS10 10mm 7.5 Fine 10.0mm 6.5mm 15mm 50m 50m
PAFS13 13mm 10 Fine 13.0mm 9.6mm 25mm 50m 50m
PAFS16 16mm 13 Fine 15.8mm 11.8mm 35mm 10/25/50m 50m
PAFS21 21mm 17 Fine 21.2mm 16.5mm 45mm 10/25/50m 50m
PAFS28 28mm 23 Fine 28.5mm 22.6mm 50mm 10/25/50m 50m
PACS28 28mm 23 Coarse 28.5mm 21.7mm 50mm 10/25/50m 50m
PAFS34 34mm 29 Fine 34.5mm 28.8mm 60mm 10/25/50m 50m
PACS34 34mm 29 Coarse 34.5mm 27.7mm 60mm 10/25/50m 50m
PACS42 42mm 36 Coarse 42.5mm 35.2mm 65mm 10/25m 25m
PACS54 54mm 48 Coarse 54.5mm 46.5mm 75mm 10/25m 25m
PACS80 80mm 70 Coarse 79.3mm 67.0mm 160mm 10m 10m
PACS106 106mm 95 Coarse 106.0mm 91.5mm 210mm 10m 10m
To order quote part number, colour & reel length, e.g. PAFS13/BL/50M
Type PA
Standard Weight Conduit
Type PA
Heavyweight Conduit / Materials: Polyamide (Nylon) 6 / Colour: Black (BL), Grey (GR)
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PAFH13 13mm 10 Fine 13.0mm 9.0mm 35mm 50m
PAFH16 16mm 13 Fine 15.8mm 11.3mm 45mm 50m
PACH21 21mm 17 Coarse 21.2mm 14.5mm 60mm 50m
PACH28 28mm 23 Coarse 28.5mm 21.3mm 70mm 50m
PACH34 34mm 29 Coarse 34.5mm 26.8mm 75mm 50m
PACH42 42mm 36 Coarse 42.5mm 34.6mm 90mm 25m
PACH54 54mm 48 Coarse 54.5mm 46.0mm 95mm 25m
To order quote part number, colour & reel length, e.g. PAFH13/BL/50M
Approvals
Type PA
Heavyweight Conduit
Approvals IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal / Jumbo
IP40 Adaptaring & Jumbo
IP65 Jumbo + SK Seal
IP66 Adaptalok, ATS or Adaptaseal
IP67 Adaptalok + ALS Seal or ATS, Adaptaseal
IP68 Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K Adaptalok + ALS Seal or ATS
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP
40
Ad
aptar
i
ng
&
J
u
mbo
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal
IP40 Adaptaring
IP65 N /A
IP66 Adaptalok, ATS or Adaptaseal
IP67 Adaptalok + ALS Seal or ATS, Adaptaseal
IP68 Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Fire Per
f
ormance & EMI
S
creen
Fir
e P
erf
ormanc
e &
EM
I S
creen
2/8 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Fitting
For use with: ATS / Adaptalok / ALS
IP40 N/A
IP65 N /A
IP66 ATS, Adaptalok
IP67 ATS, Adaptalok + ALS Seal
IP68 ATS, Adaptalok + ALS Seal
IP69K ATS, Adaptalok + ALS Seal
Non-metallic conduit systems
Type PF
Type PF
Standard Weight Conduit / Materials: Modified Polyamide 12 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PFFS10 10mm 8.5 Fine 10.0mm 6.2mm 20mm 50m
PFFS13 13mm 10 Fine 13.0mm 9.9mm 30mm 50m
PFFS16 16mm 13 Fine 15.8mm 11.7mm 35mm 50m
PFFS21 21mm 17 Fine 21.2mm 16.6mm 40mm 50m
PFCS28 28mm 23 Coarse 28.5mm 21.7mm 50mm 50m
PFCS34 34mm 29 Coarse 34.5mm 27.7mm 60mm 25m
PFCS42 42mm 36 Coarse 42.5mm 35.5mm 65mm 25m
PFCS54 54mm 48 Coarse 54.5mm 46.6mm 75mm 25m
To order quote part number, colour & reel length, e.g. PFFS13/BL/50M
Temperature Range
Static Applications: -50ºC to +110ºC
Moving Applications: -45ºC to +120ºC
Flexibility & Fatigue Life
Very High Flexibility - Very High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
Type PF
Standard Weight Conduit
Type PF
Heavyweight Conduit / Materials: Modified Polyamide 12 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PFFH13 13mm 10 Fine 13.0mm 9.7mm 40mm 50m
PFFH16 16mm 13 Fine 15.8mm 11.5mm 45mm 50m
PFCH21 21mm 17 Coarse 21.2mm 15.3mm 50mm 50m
PFCH28 28mm 23 Coarse 28.5mm 21.5mm 60mm 50m
PFCH34 34mm 29 Coarse 34.5mm 27.5mm 70mm 25m
PFCH42 42mm 36 Coarse 42.5mm 35.5mm 75mm 25m
PFCH54 54mm 48 Coarse 54.5mm 46.4mm 85mm 25m
To order quote part number, colour & reel length, e.g. PFFH13/BL/50M
Approvals
Type PF
Heavyweight Conduit
Temperature Range
Static Applications: -50ºC to +110ºC
Moving Applications: -45ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP Rating Appropriate Fitting
For use with: ATS / Adaptalok / ALS
IP40 N/A
IP65 N /A
IP66 ATS, Adaptalok
IP67 ATS, Adaptalok + ALS Seal
IP68 ATS, Adaptalok + ALS Seal
IP69K ATS, Adaptalok + ALS Seal
Fire Per
f
ormance & EMI
S
creen
Fire Performance & EMI Screen
Adaptaflex Product Catalogue | LIT211GB 0414 2/9
2
Non-metallic conduit systems
Type PI
Type PI
Standard Weight Conduit / Materials: Modified Polyamide 11 / Colour: Black (BL), Grey (GR)
Nominal NW Conduit Outside Inside Min. Bend Reel Length
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius (BL)
PIFS10 10mm 8.5 Fine 10.0mm 6.2mm 15mm 50m
PIFS13 13mm 10 Fine 13.0mm 9.9mm 25mm 50m
PIFS16 16mm 13 Fine 15.8mm 11.7mm 30mm 50m
PIFS21 21mm 17 Fine 21.2mm 16.6mm 35mm 50m
PICS28 28mm 23 Coarse 28.5mm 21.7mm 45mm 50m
PICS34 34mm 29 Coarse 34.5mm 27.7mm 55mm 25m
PICS42 42mm 36 Coarse 42.5mm 35.5mm 60mm 25m
PICS54 54mm 48 Coarse 54.5mm 46.6mm 70mm 25m
PICS80 80mm 70 Coarse 79.3mm 67.0mm 160mm 10m
PICS106 106mm 95 Coarse 106.0mm 91.0mm 210mm 10m
To order quote part number, colour & reel length, e.g. PIFS13/BL/50M
Type PI
Standard Weight Conduit
Type PI
Heavyweight Conduit / Materials: Modified Polyamide 11 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PIFH13 13mm 10 Fine 13.0mm 9.7mm 30mm 50m
PIFH16 16mm 13 Fine 15.8mm 11.5mm 35mm 50m
PICH21 21mm 17 Coarse 21.2mm 15.3mm 40mm 50m
PICH28 28mm 23 Coarse 28.5mm 21.5mm 50mm 50m
PICH34 34mm 29 Coarse 34.5mm 27.5mm 60mm 25m
PICH42 42mm 36 Coarse 42.5mm 35.3mm 65mm 25m
PICH54 54mm 48 Coarse 54.5mm 46.4mm 75mm 25m
To order quote part number, colour & reel length, e.g. PIFH13/BL/50M
Approvals
Type PI
Heavyweight Conduit
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal
IP40 Adaptaring
IP65 N /A
IP66 Adaptalok, ATS or Adaptaseal
IP67 Adaptalok + ALS Seal or ATS, Adaptaseal
IP68 Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K N/A
Temperature Range
Static Applications: -50ºC to +110ºC
Moving Applications: -45ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - Very High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal / Jumbo
IP40 Adaptaring & Jumbo
IP65 Jumbo + SK Seal
IP66 Adaptalok, ATS or Adaptaseal
IP67 Adaptalok + ALS Seal or ATS, Adaptaseal
IP68 Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K Adaptalok + ALS Seal or ATS
Temperature Range
Static Applications: -50ºC to +110ºC
Moving Applications: -45ºC to +120ºC
Flexibility & Fatigue Life
Very High Flexibility - Very High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP
40
Ad
aptar
i
ng
&
J
u
mbo
2/10 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaseal
IP40 N/A
IP65 N /A
IP66 Adaptalok or Adaptaseal
IP67 Adaptalok + ALS Seal & Adaptaseal
IP68 Adaptalok + ALS Seal & Adaptaseal
IP69K Adaptalok + ALS Seal

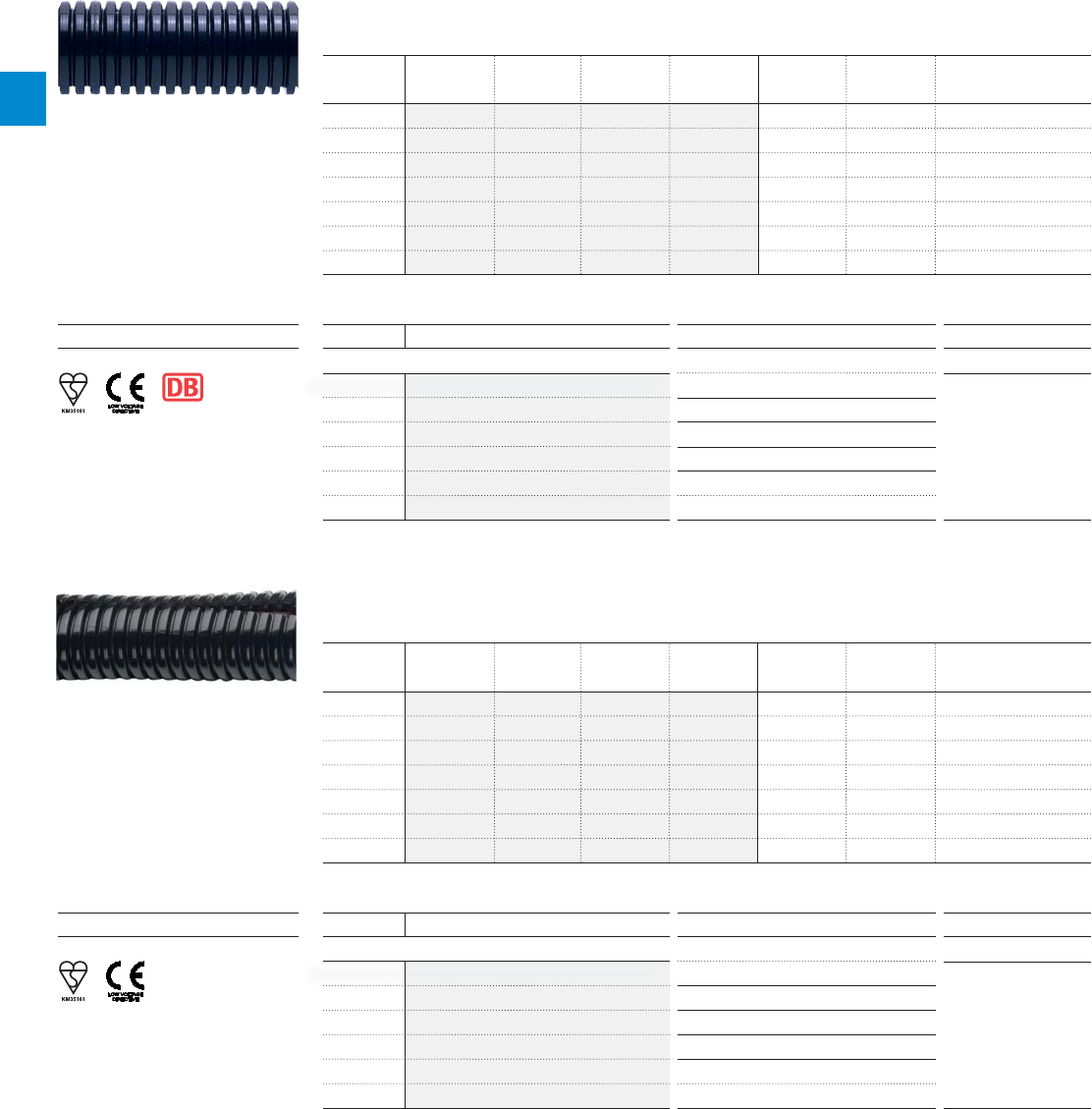

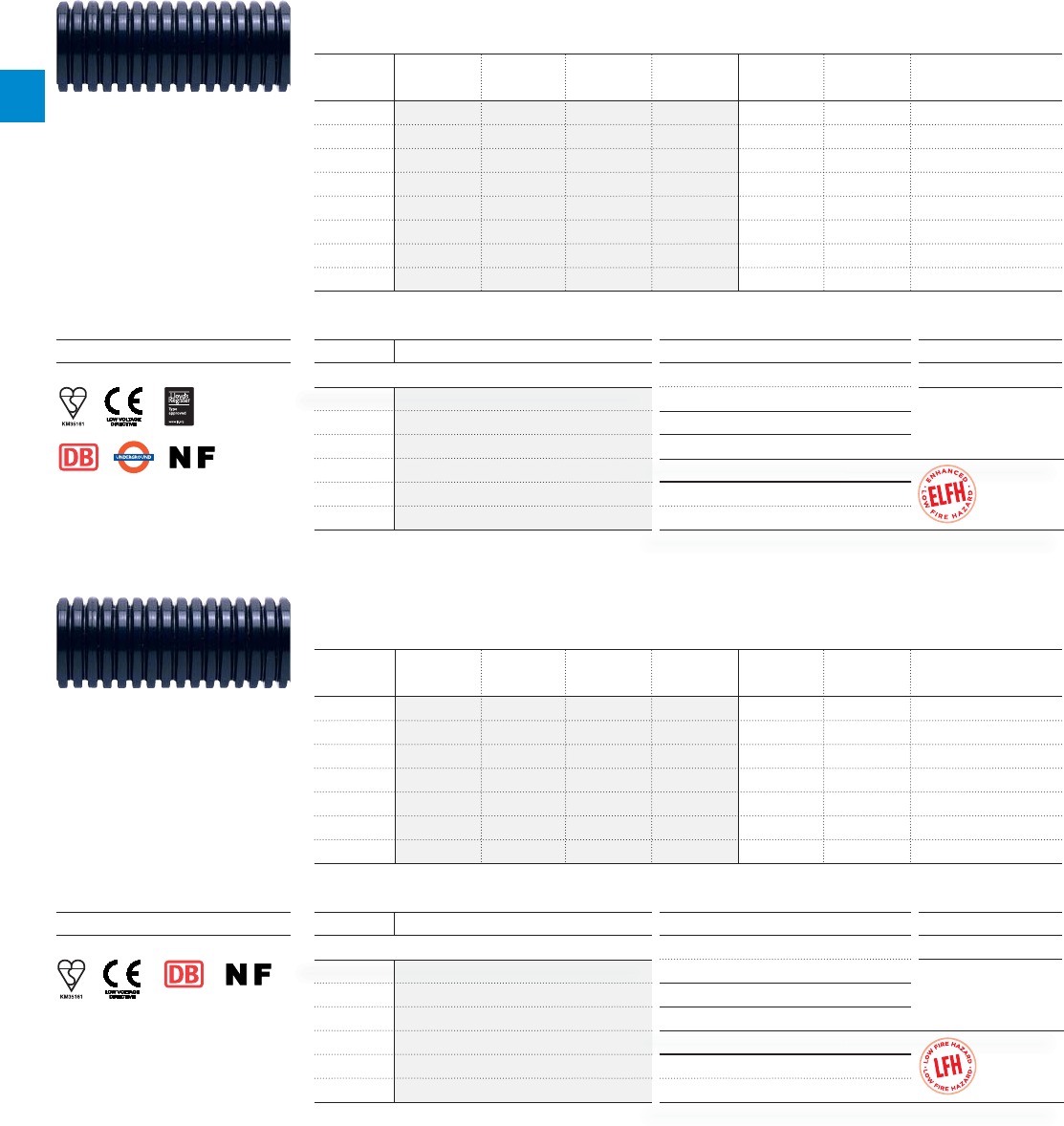

Non-metallic conduit systems
Type PR & CP

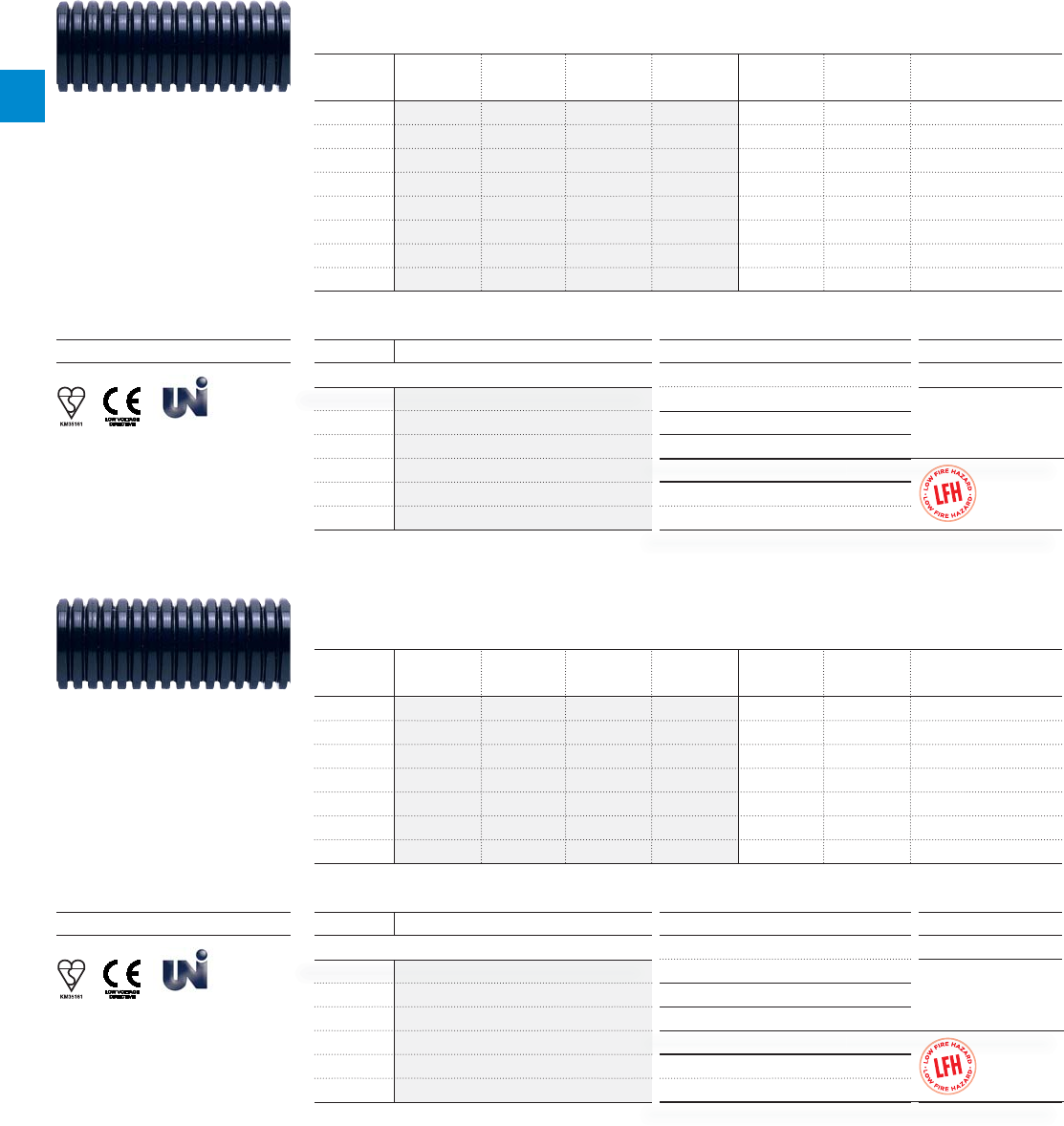

Type PR
Standard Weight Conduit / Materials: Modified Polyamide (Nylon) 6 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PRFS13 13mm 10 Fine 13.0mm 9.4mm 35mm 50m
PRFS16 16mm 13 Fine 15.8mm 11.7mm 45mm 50m
PRFS21 21mm 17 Fine 21.2mm 16.6mm 60mm 50m
PRCS21 21mm 17 Coarse 21.2mm 14.7mm 60mm 50m
PRCS28 28mm 23 Coarse 28.5mm 21.7mm 70mm 50m
PRCS34 34mm 29 Coarse 34.5mm 27.7mm 75mm 50m
PRCS42 42mm 36 Coarse 42.5mm 35.1mm 90mm 25m
PRCS54 54mm 48 Coarse 54.5mm 46.6mm 95mm 25m
To order quote part number, colour & reel length, e.g. PRFS13/BL/50M
Type PR
Standard Weight Conduit
Type CP
Medium Weight Conduit / Materials: Polyester / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
CPFM13 13mm 10 Fine 13.0mm 9.5mm 25mm 50m
CPFM16 16mm 13 Fine 15.8mm 11.3mm 30mm 50m
CPFM21 21mm 17 Fine 21.2mm 16.0mm 35mm 50m
CPCM28 28mm 23 Coarse 28.5mm 21.3mm 45mm 50m
CPCM34 34mm 29 Coarse 34.5mm 27.2mm 55mm 50m
CPCM42 42mm 36 Coarse 42.5mm 34.2mm 60mm 25m
CPCM54 54mm 48 Coarse 54.5mm 46.0mm 70mm 25m
To order quote part number, colour & reel length, e.g. CPFM13/BL/50M
Approvals
Type CP
Medium Weight Conduit
Temperature Range
Static Applications: -50ºC to +135ºC
Moving Applications: -25ºC to +150ºC
Flexibility & Fatigue Life
Very High Flexibility - Very High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
IP Rating Appropriate Fitting
For use with: Adaptalok / ATS / Adaptaring / Adaptaseal / Jumbo
IP40 Adaptaring & Jumbo
IP65 Jumbo + SK Seal
IP66 Adaptalok or Adaptaseal
IP67 Adaptalok + ALS Seal or Adaptaseal
IP68 Adaptalok + ALS Seal or Adaptaseal
IP69K Adaptalok + ALS Seal
Fire Per
f
ormance & EMI
S
creen
Fire Performance & EMI Screen
Adaptaflex Product Catalogue | LIT211GB 0414 2/11
2

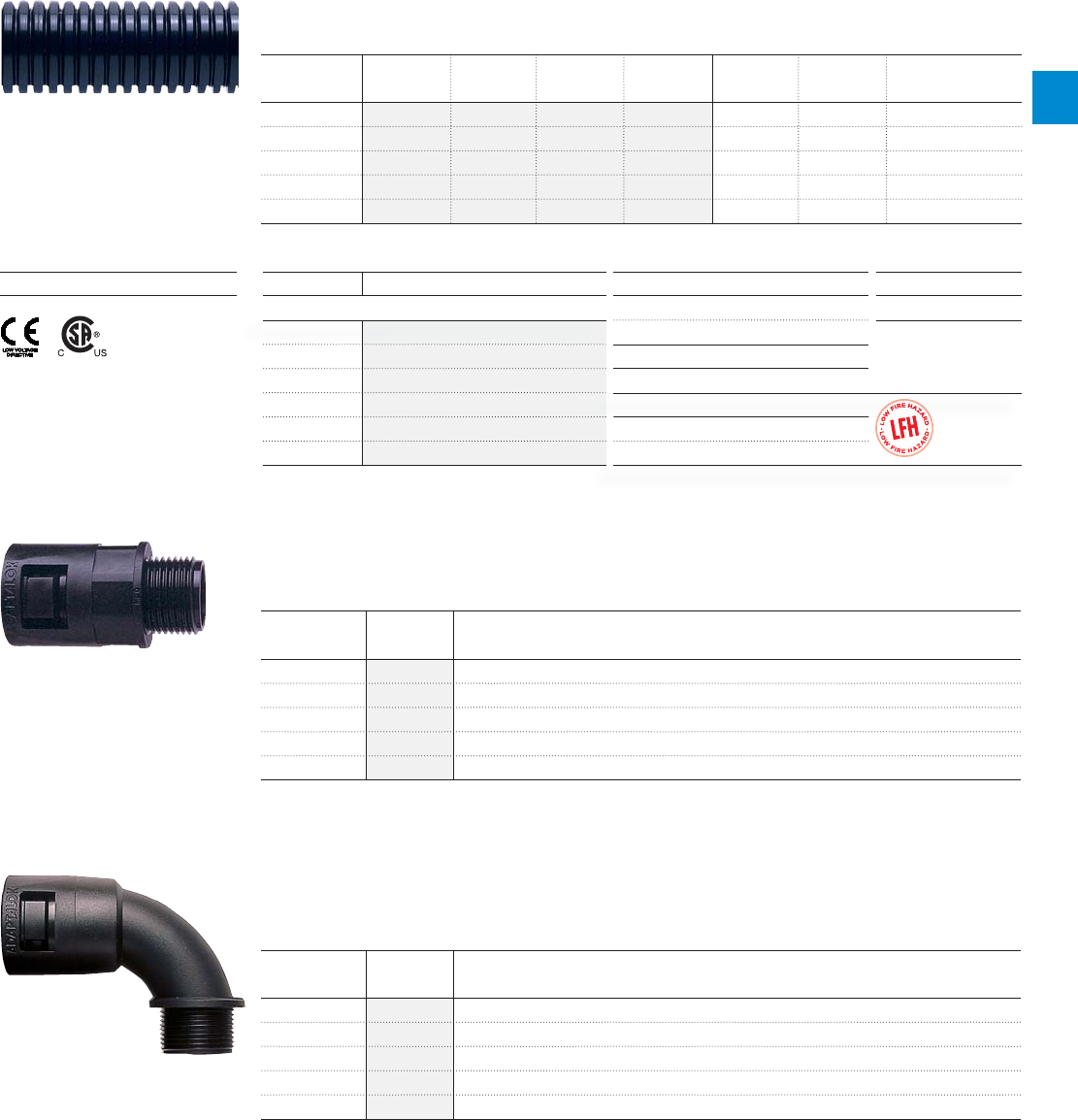

Non-metallic conduit systems
Type PADL / Type A & C90 - Adaptalok
Type PADL
Standard Weight Conduit / Materials: Modified Polyamide (Nylon) 6 / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PADL17 17mm 17 Coarse 17.8mm 13.5mm 45mm 50m
PADL22 22mm 20 Coarse 21.8mm 16.6mm 60mm 50m
PADL28 28mm 23 Coarse 28.5mm 22.6mm 70mm 25/50m
PADL34 34mm 29 Coarse 34.5mm 27.7mm 75mm 25/50m
PADL42 42mm 36 Coarse 42.5mm 35.2mm 80mm 10/25m
To order quote part number, colour & reel length, e.g. PADL17/BL/50M
Type PADL
Standard Weight Conduit
Approvals IP Rating Appropriate Fitting
For use with: Adaptalok / ALD / ATS
IP40 N/A
IP65 N/A
IP66 ALD or ATS
IP67 ALD + ALS Seal or ATS
IP68 ALD + ALS Seal or ATS
IP69K ALD + ALS Seal or ATS
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -18ºC to +120ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP4
0
N/A
Fire Performance & EMI Screen
PADL Type A - Adaptalok
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal NPT
Part No. Conduit Size Thread
ALD17/050/A 17mm 1/2”
ALD22/050/A 22mm 1/2”
ALD28/075/A 28mm 3/4”
ALD34/100/A 34mm 1”
ALD42/125/A 42mm 1 1/4”
To order quote part number, e.g. ALD17/050/A/BL. Note: Other fittings available. Contact our Sales Office for further details
For use only with PADL conduit, to maintain the UL 1696 approval
PADL Type A
Straight Fitting
PADL Type C90 - Adaptalok
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal NPT
Part No. Conduit Size Thread
ALD17/050/C90 17mm 1/2”
ALD22/050/C90 22mm 1/2”
ALD28/075/C90 28mm 3/4”
ALD34/100/C90 34mm 1”
ALD42/125/C90 42mm 1 1/4”
To order quote part number, e.g. ALD17/050/C90/BL. Note: Other fittings available. Contact our Sales Office for further details
For use only with PADL conduit, to maintain the UL 1696 approval
Type C90
90º Elbow Fitting
2/12 Adaptaflex Product Catalogue | LIT211GB 0414
2
Nominal PF Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL10/PF025/A 10mm 1/4”
AL13/PF038/A 13mm 3/8” AL13/038/A 13mm 3/8”
AL16/PF038/A 16mm 3/8” AL16/038/A 16mm 3/8”
AL16/PF050/A 16mm 1/2” AL16/050/A 16mm 1/2”
AL21/PF050/A 21mm 1/2” AL21/050/A 21mm 1/2”
AL28/PF075/A 28mm 3/4” AL28/075/A 28mm 3/4”
AL34/PF100/A 34mm 1” AL34/100/A 34mm 1”
AL42/PF125/A 42mm 1 1/4” AL42/125/A 42mm 1 1/4”
AL54/PF150/A 54mm 1 1/2” AL54/150/A 54mm 1 1/2”
AL54/PF200/A 54mm 2”
To order quote part number & body colour, e.g. AL10/M12/A/BL
Non-metallic conduit systems
Type A - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6

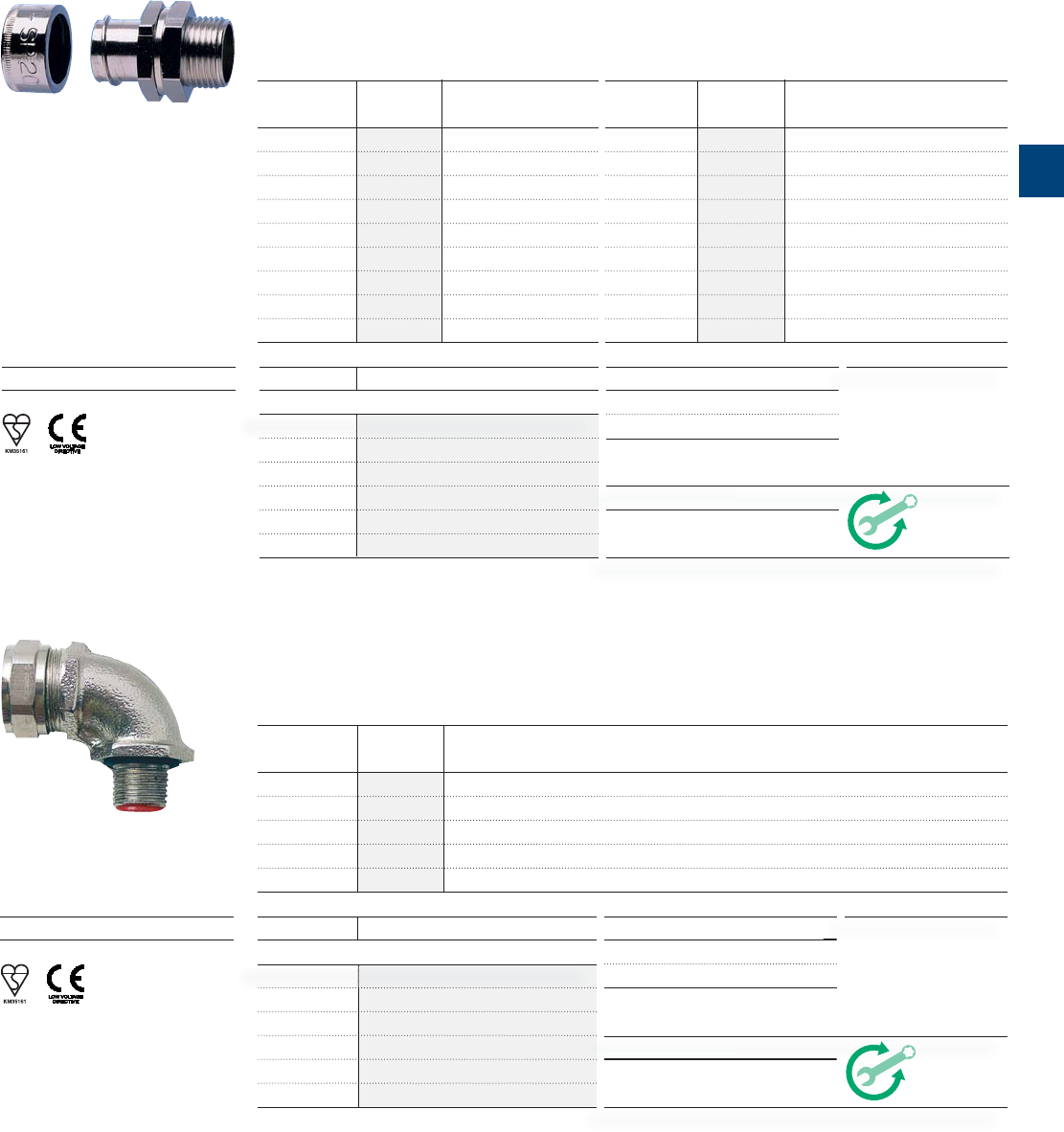

Type A
Straight Fitting
Fitting
C
haracteristics

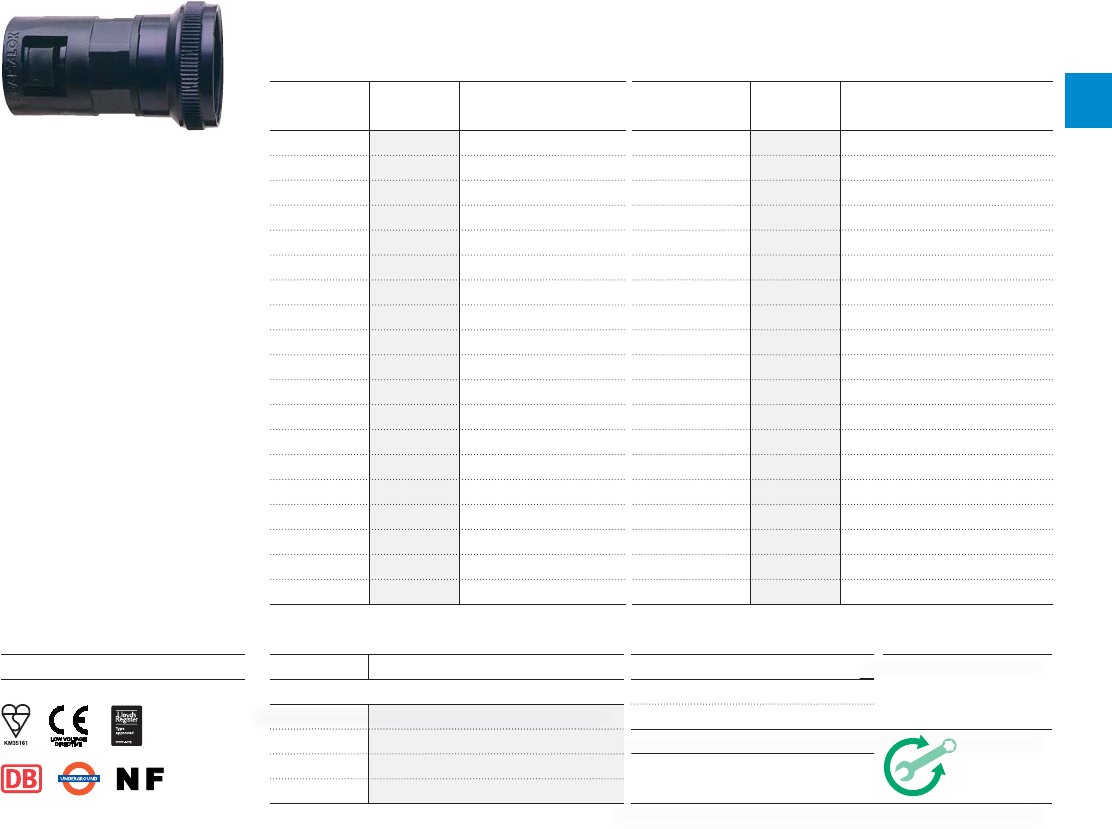

Type A - Adaptalok
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL10/M12/A 10mm M16 AL10/PG7/A 10mm PG7
AL10/PG9/A 10mm PG9
AL13/M16/A 13mm M16 AL13/PG9/A 13mm PG9
AL13/M20/A 13mm M20 AL13/PG11/A 13mm PG11
AL13/PG13/A 13mm PG13.5
AL16/M16/A 16mm M16 AL16/PG9/A 16mm PG9
AL16/M20/A 16mm M20 AL16/PG11/A 16mm PG11
AL16/PG13/A 16mm PG13.5
AL16/PG16/A 16mm PG16
AL21/M20/A 21mm M20 AL21/PG11/A 21mm PG11
AL21/PG13/A 21mm PG13.5
AL21/M25/A 21mm M25 AL21/PG16/A 21mm PG16
AL28/M25/A 28mm M25 AL28/PG21/A 28mm PG21
AL28/M32/A 28mm M32
AL34/M32/A 34mm M32 AL34/PG29/A 34mm PG29
AL34/M40/A 34mm M40
AL42/M40/A 42mm M40 AL42/PG36/A 42mm PG36
AL42/M50/A 42mm M50
AL54/M50/A 54mm M50 AL54/PG48/A 54mm PG48
AL54/M63/A 54mm M63
Adaptaflex Product Catalogue | LIT211GB 0414 2/13
2
Non-metallic conduit systems

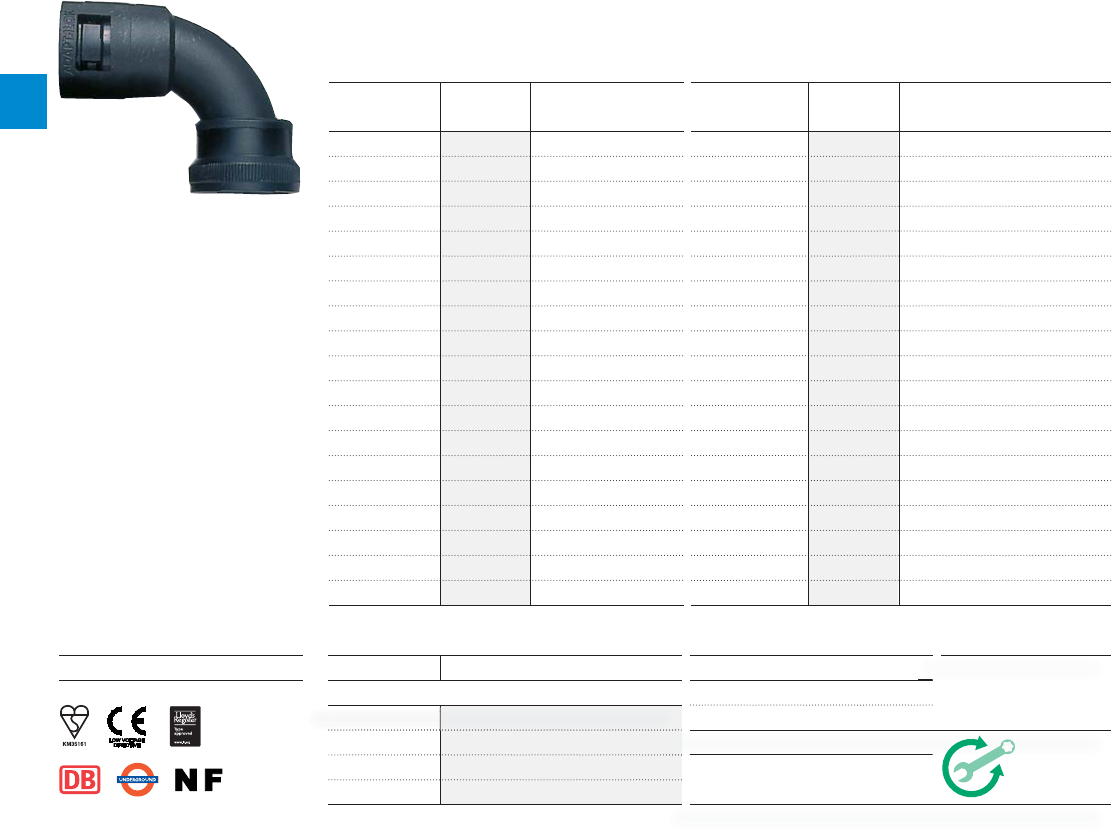

Type C90 - Adaptalok
Nominal PF Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/PFO38/C90 13mm 3/8” AL13/038/C90 13mm 3/8”
AL16/PFO38/C90 16mm 3/8” AL16/038/C90 16mm 3/8”
AL16/PFO50/C90 16mm 1/2” AL16/050/C90 16mm 1/2”
AL21/PFO50/C90 21mm 1/2” AL21/050/C90 21mm 1/2”
AL28/PFO75/C90 28mm 3/4” AL28/075/C90 28mm 3/4”
AL34/PF100/C90 34mm 1” AL34/100/C90 34mm 1”
AL42/PF125/C90 42mm 1 1/4” AL42/125/C90 42mm 1 1/4”
AL54/PF150/C90 54mm 1 1/2” AL54/150/C90 54mm 1 1/2”
AL54/PF200/C90 54mm 2” AL54/200/C90 54mm 2”
To order quote part number & body colour, e.g. AL16/M20/C90/BL
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

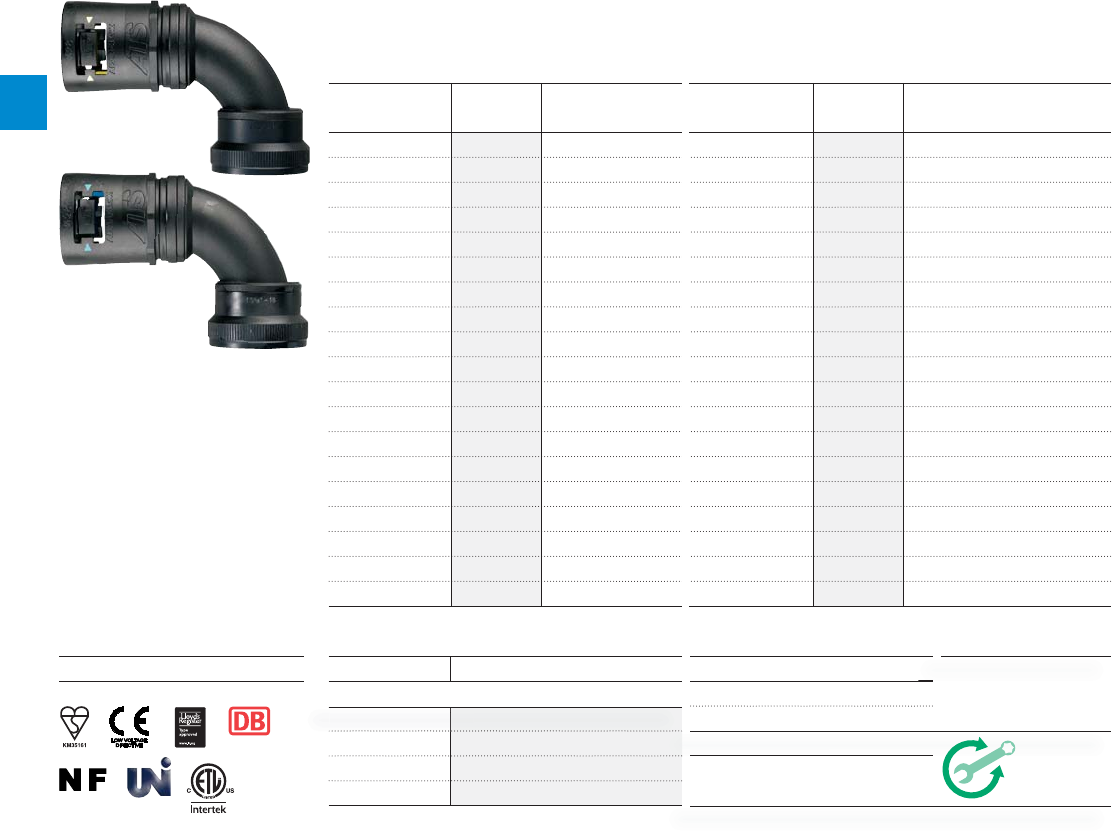

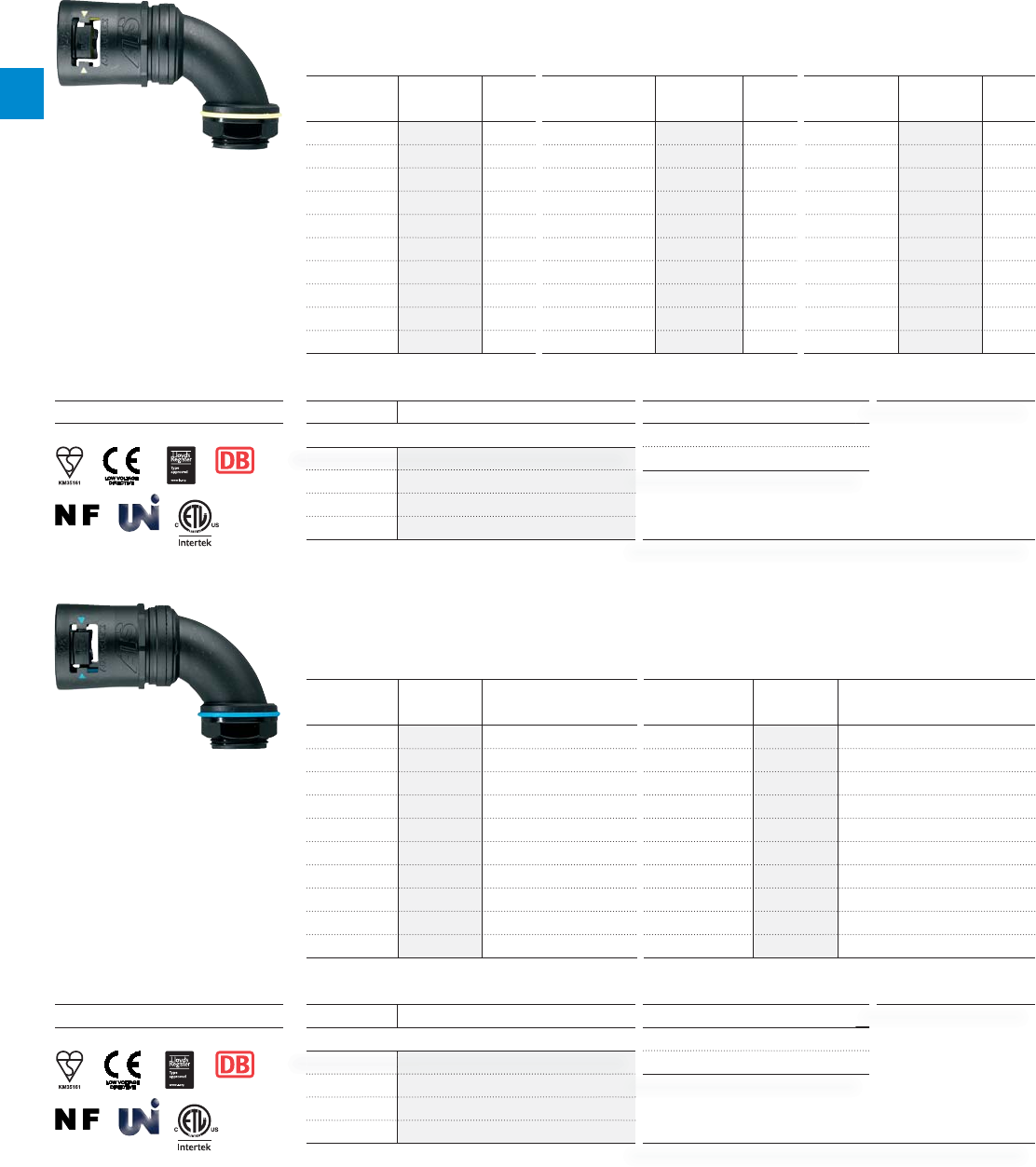

Type C90 - Adaptalok
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL10/M12/C90 10mm M12 AL10/PG7/C90 10mm PG7
AL13/M16/C90 13mm M16 AL13/PG9/C90 13mm PG9
AL16/M16/C90 16mm M16 AL16/PG9/C90 16mm PG9
AL16/M20/C90 16mm M20 AL16/PG11/C90 16mm PG11
AL16/PG13/C90 16mm PG13.5
AL21/M20/C90 21mm M20 AL21/PG13/C90 21mm PG13.5
AL21/PG16/C90 21mm PG16
AL28/M25/C90 28mm M25 AL28/PG21/C90 28mm PG21
AL34/M32/C90 34mm M32 AL34/PG29/C90 34mm PG29
AL42/M40/C90 42mm M40 AL42/PG36/C90 42mm PG36
AL54/M50/C90 54mm M50 AL54/PG48/C90 54mm PG48
AL54/M63/C90 54mm M63
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Yes
IP6
6
Type C90
90º Elbow Fitting
2/14 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type 45 & Push-in - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

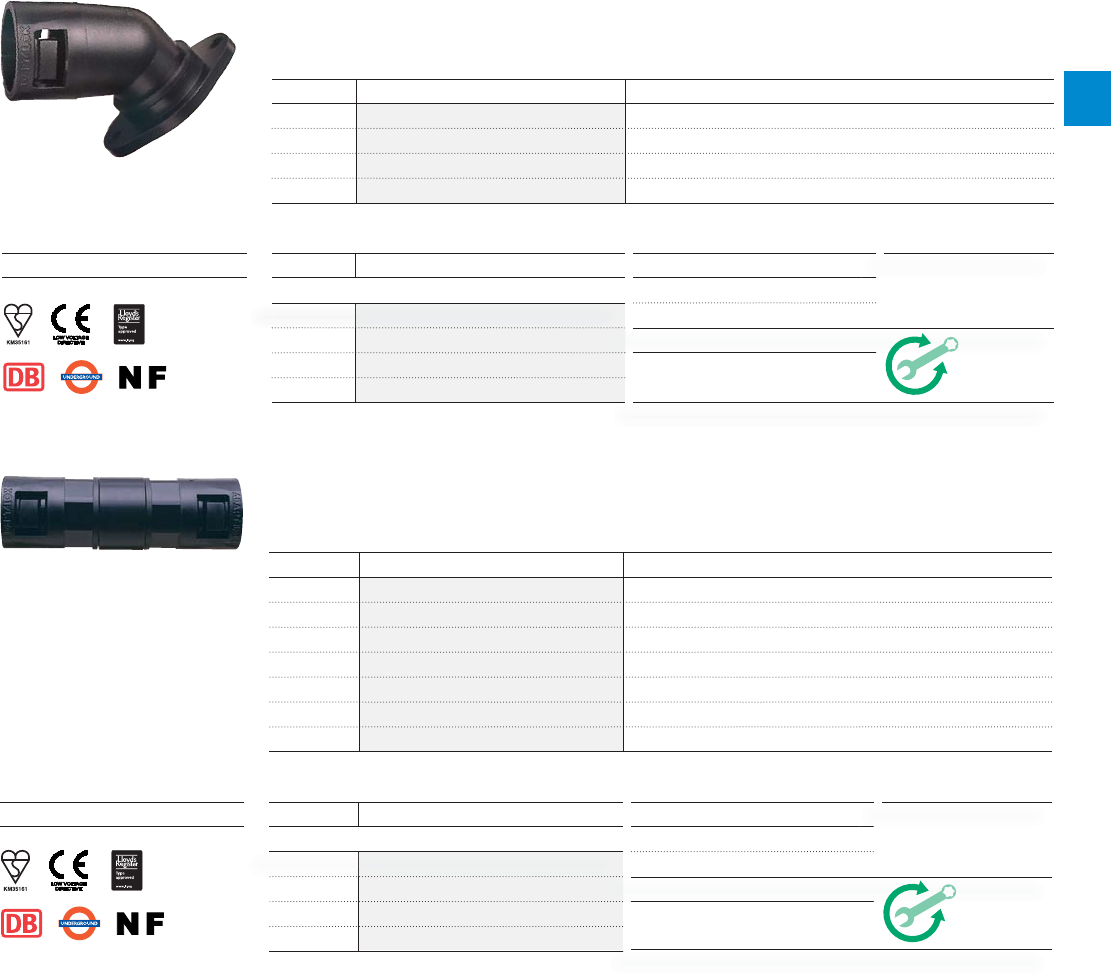

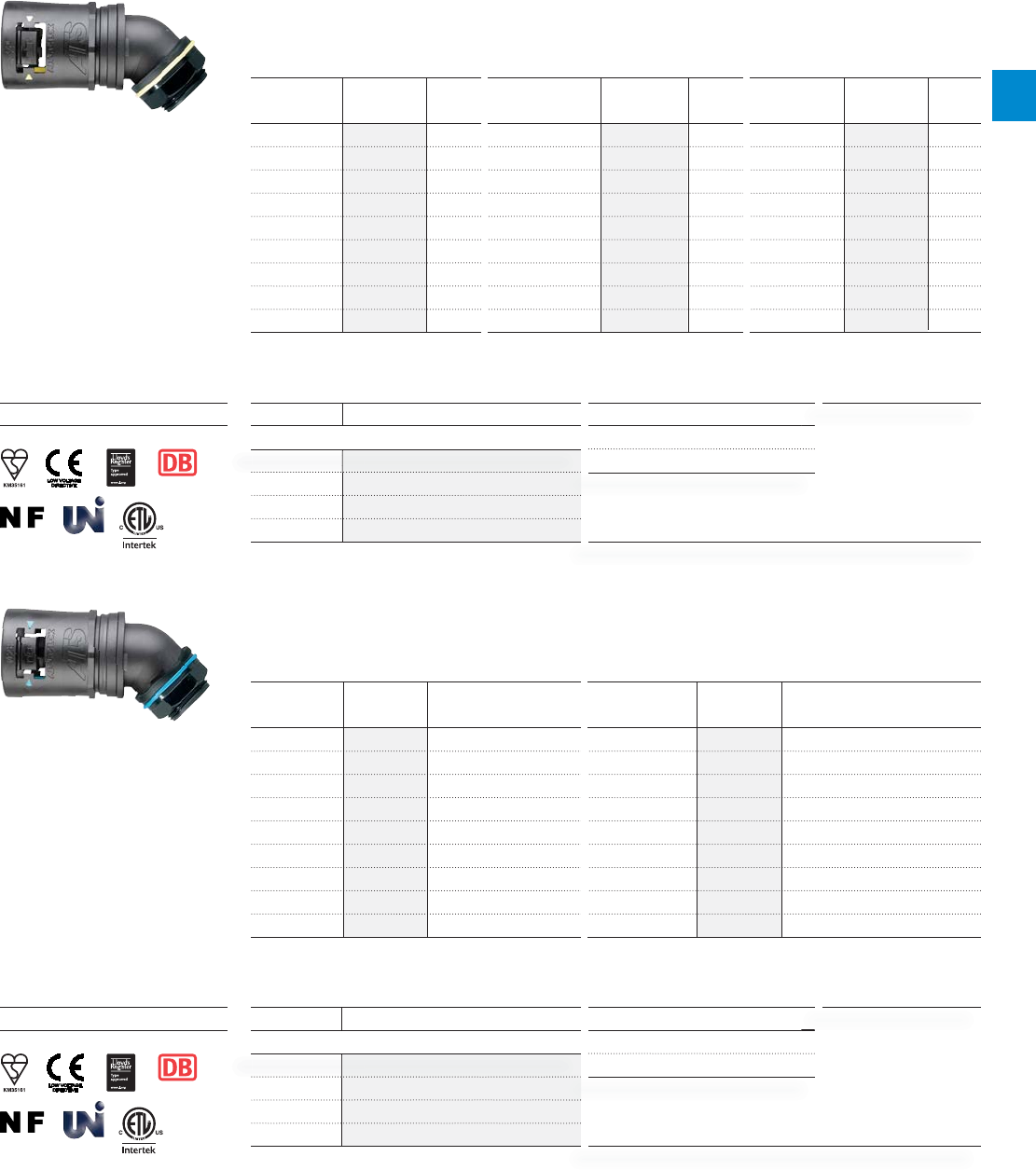

Type 45 - Adaptalok
45º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/45 13mm M16 AL13/PG9/45 13mm PG9
AL16/M16/45 16mm M16 AL16/PG11/45 16mm PG11
AL16/M20/45 16mm M20 AL16/PG13/45 16mm PG13.5
AL21/M20/45 21mm M20 AL21/PG13/45 21mm PG13.5
AL21/PG16/45 21mm PG16
AL28/M25/45 28mm M25 AL28/PG21/45 28mm PG21
AL34/M32/45 34mm M32 AL34/PG29/45 34mm PG29
AL42/M50/45 42mm M40 AL42/PG36/45 42mm PG36
AL54/M50/45 54mm M50 AL54/PG48/45 54mm PG48
AL54/M63/45 54mm M63
To order quote part number & body colour, e.g. AL21/M20/45/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Ye
s
IP66
Type 45
45º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP40 Yes
IP66 N/A
IP67 N/A
IP68 N /A
IP69K N/A
Push-in - Adaptalok
Straight Fitting / Inserts into a 20mm knockout, panel thickness up to 4mm, no locknut required
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Part No. Nominal Conduit Size
AL16/KM20/A 16mm
AL21/KM20/A 21mm
To order quote part number & body colour, e.g. AL21/KM20/A/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Yes
IP4
0
Push-in
Straight Fitting
TYPE
APPROVED
Adaptaflex Product Catalogue | LIT211GB 0414 2/15
2
Non-metallic conduit systems

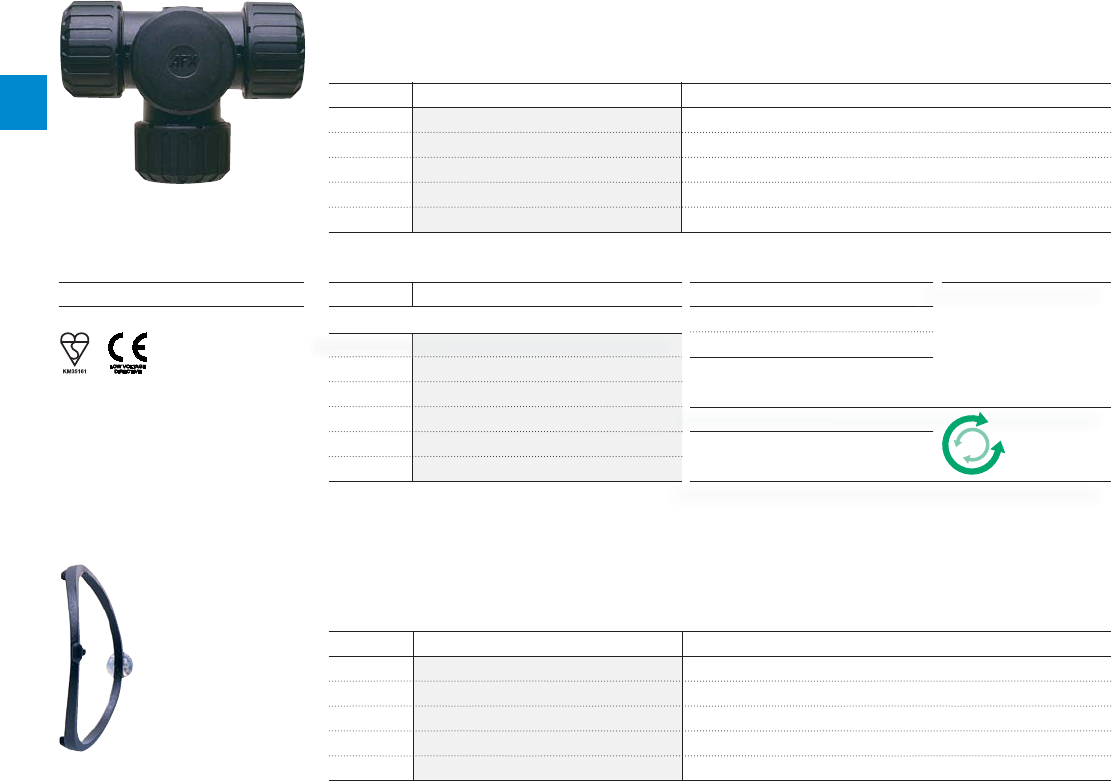

3-Way Coupler & Insert Seal - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF / PK
IP66 N/A
IP67 Yes
IP68 Yes (1.1 bar 35mins)
IP69K Yes (DIN 40050)

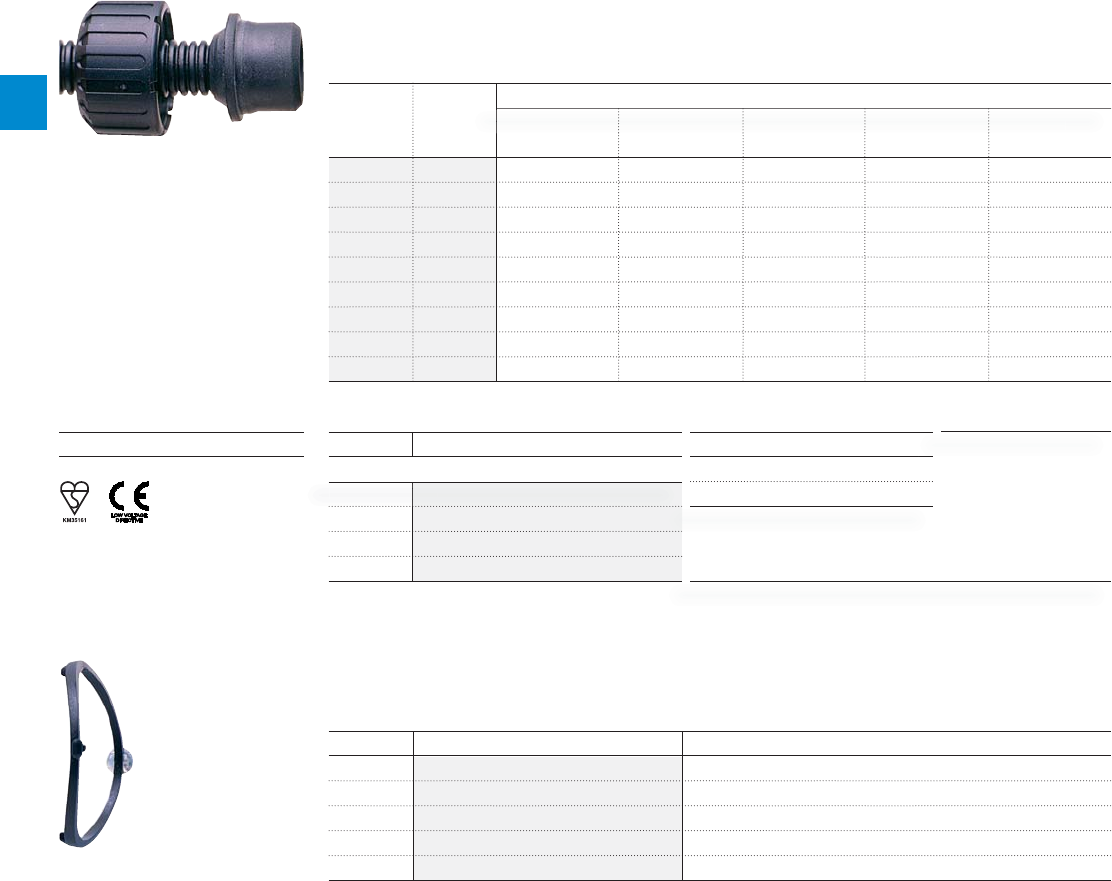

Insert Seal - Adaptalok
IP67/68/69k Insert Seal / Suitable for standard weight PA/PI/PR conduit (Black or Grey)
Materials: Thermoplastic Elastomer / Colour: Yellow (Y) Only
Part No. Conduit Pitch
ALS13/F Fine
ALS16/F Fine
ALS21/F Fine
ALS28/C Coarse
ALS34/C Coarse
ALS42/C Coarse
ALS54/C Coarse
To order quote part number, e.g. ALS13/F
Note: Seal needs to be inserted into the appropriate conduit to upgrade fitting system
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
N/
A
I
P66
Insert Seal
IP67/68/69k Insert Seal
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF / PK
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

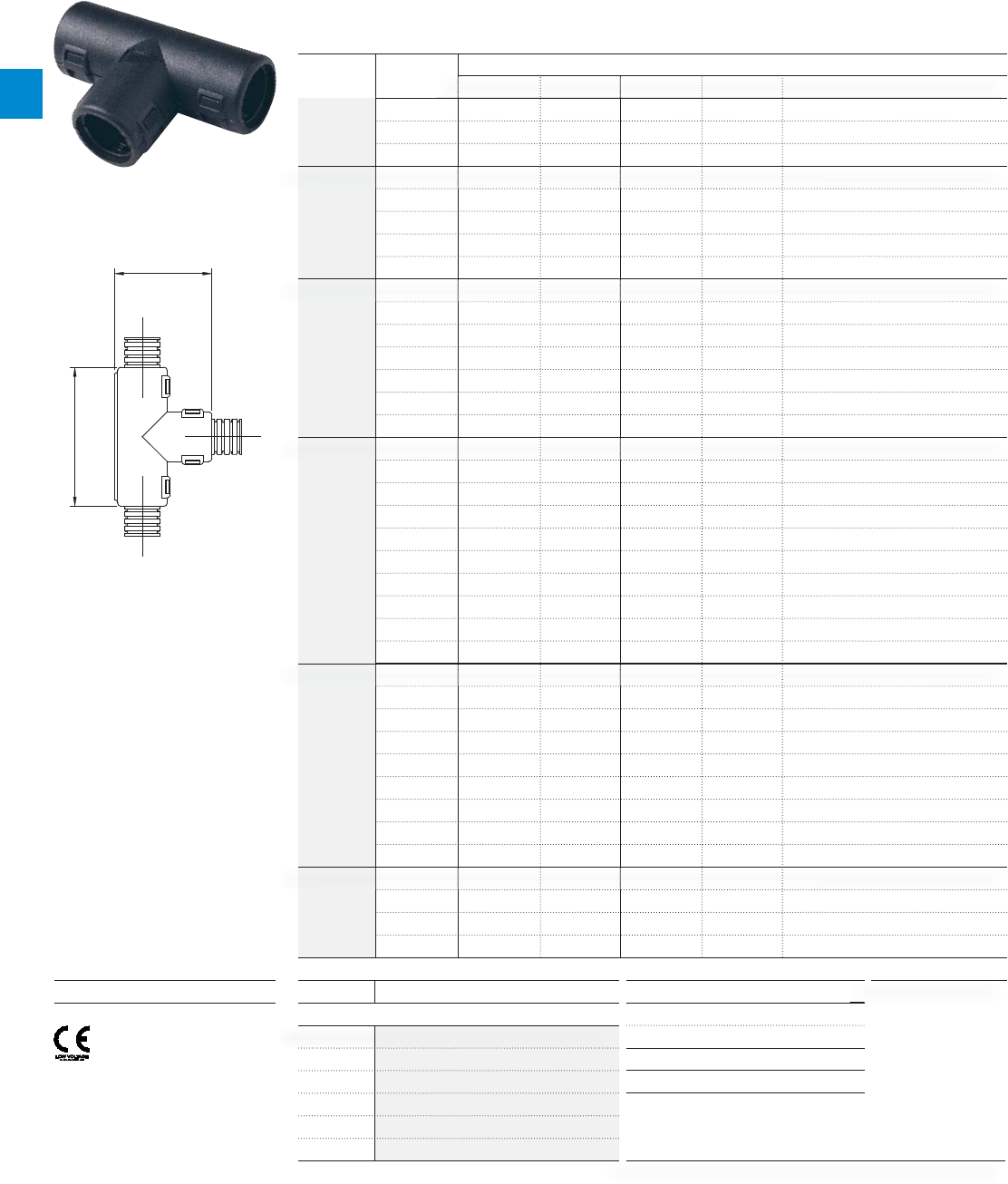

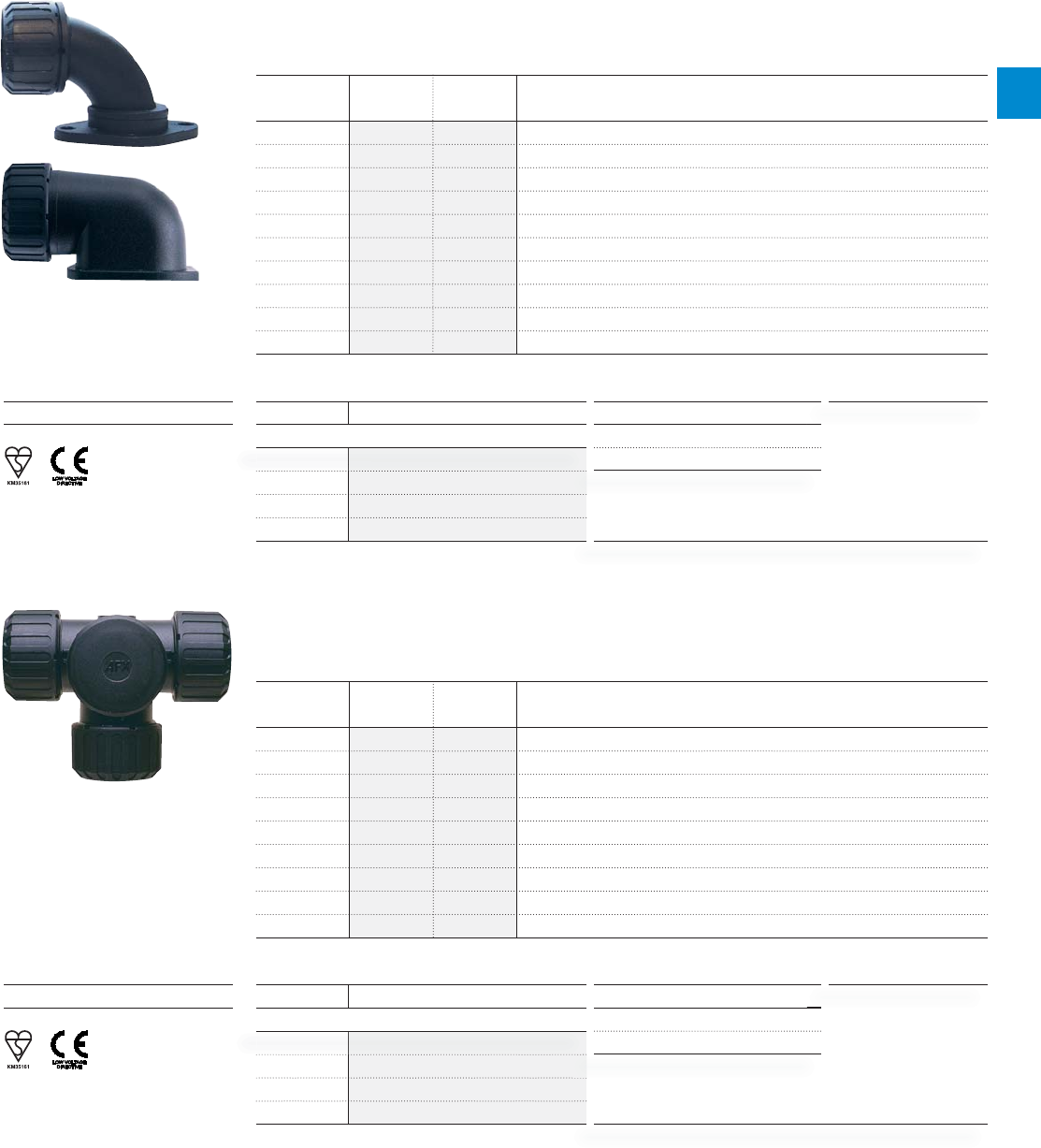

3-Way Coupler - Adaptalok
3-Way PA66 Fitting / For coupling three corrugated flexible conduits
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Conduit
Part No. Size Combination
AL131010/Y 13x10x10mm
AL161313/ Y 16x13x13mm
AL211616/ Y 21x16x16mm
AL282121/Y 28x21x21mm
To order quote part number & body colour, e.g. AL131010/Y/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
e
s
IP
66
3-Way Coupler
3-Way PA66 Fitting
TYPE
APPROVED
2/16 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type FL/A, FL/C90 & FL/90 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

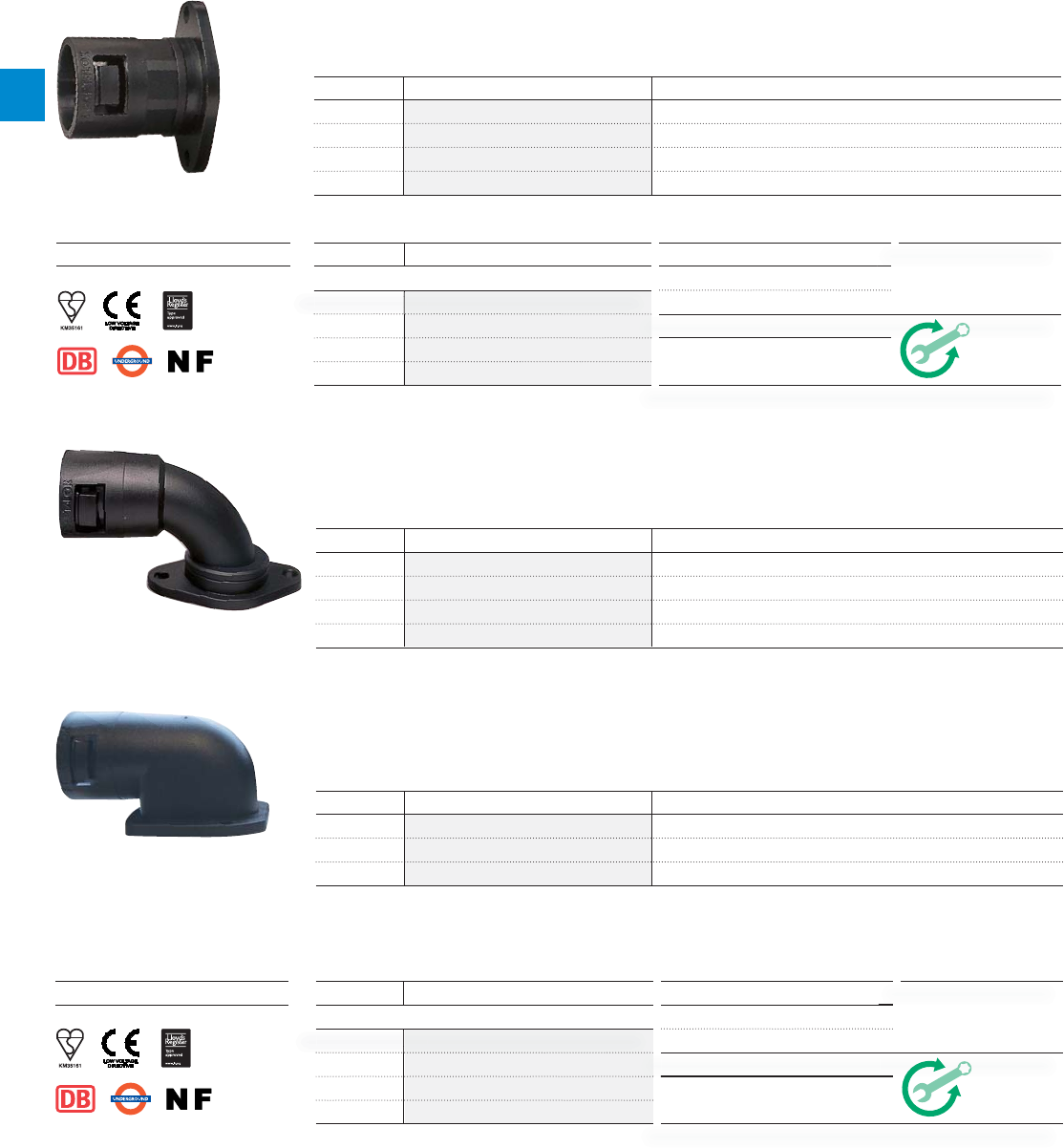

Type FL/A - Adaptalok
Straight Panel Mounting Swivel Flange / With integral face seal
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Part No. Nominal Conduit Size
AL16/FL /A 16mm
AL21/FL/A 21mm
AL28/FL/A 28mm
AL54/FL/A 54mm
To order quote part number & body colour, e.g. AL16/FL/A/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
IP
66
Type FL/A
Straight Panel Mounting
Swivel Flange
Fittin
g C
haracteristics

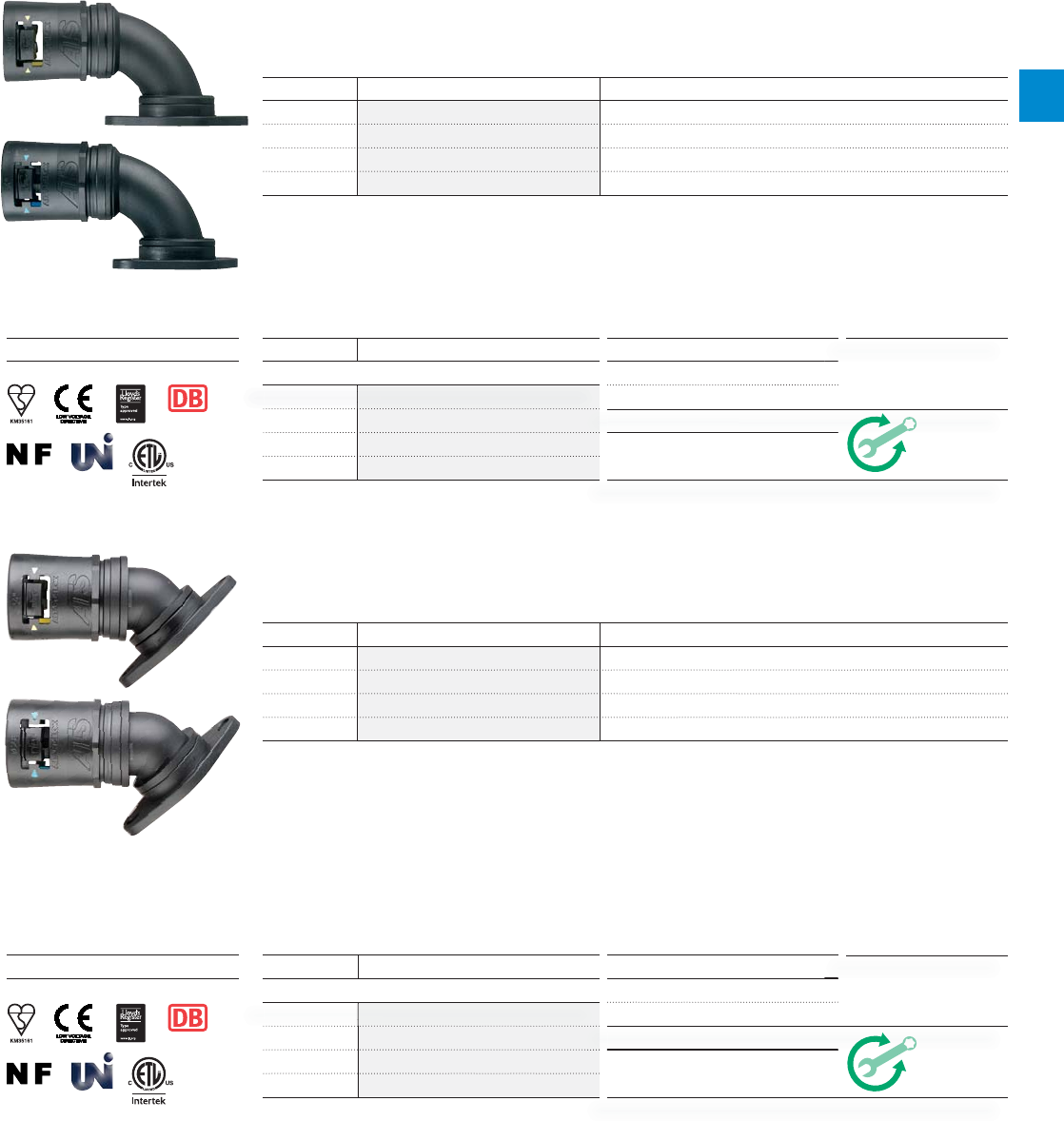

Type FL/C90 - Adaptalok
90º Elbow Body - Panel Mount Swivel Flange / For panel mounting via 2 hole fixing & integral face seal
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Part No. Nominal Conduit Size
AL13/FL /C90 13mm
AL16/FL /C90 16mm
AL21/FL/C90 21mm
AL28/FL/C90 28mm
To order quote part number & body colour, e.g. AL13/FL/C90/BL
Type FL/C90
90º Elbow Body
Type FL/90 - Adaptalok
90º Elbow Fitting - Panel Mount Flange / For panel mounting via 4 hole fixing & integral face seal
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Part No. Nominal Conduit Size
AL34/FL/C90 34mm
AL42/FL/C90 42mm
AL54/FL/C90 54mm
To order quote part number & body colour, e.g. AL34/FL/C90/BL
Type FL/90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics (FLC/90 ONLY)
Approvals
Y
e
s
IP
66
Fittin
g C
haracteristics
(FL
C/90 ONLY
)
Adaptaflex Product Catalogue | LIT211GB 0414 2/17
2
Non-metallic conduit systems
Type FL/45 & Swivel Coupler - Adaptalok
Type FL/45 - Adaptalok
45º Panel Mounting Swivel Flange / With integral face seal
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Part No. Nominal Conduit Size
AL16/FL /45 16mm
AL21/FL/45 21mm
AL28/FL/45 28mm
AL54/FL/45 54mm
To order quote part number & body colour, e.g. AL16/FL/45/BL
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Swivel Coupler - Adaptalok
Straight PA66 Body Swivel Coupler / For coupling two corrugated flexible conduits
Materials: Polyamide (Nylon) 66 + Aluminium / Colour: Black (BL) Only
Part No. Nominal Conduit Size
AL13/A/U/BL 13mm
AL16/A/U/BL 16mm
AL21/A/U/BL 21mm
AL28/A/U/BL 28mm
AL34/A/U/BL 34mm
AL42/A/U/BL 42mm
AL54/A/U/BL 54mm
To order quote part number, e.g. AL13/A/U/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Ye
s
I
P66
Swivel Coupler
Straight PA66 Body Swivel Coupler
Fitting Characteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
IP
66
Fittin
g C
haracteristics
Type FL/45
45º Panel Mounting Swivel Flange
2/18 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type SA & CS90 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

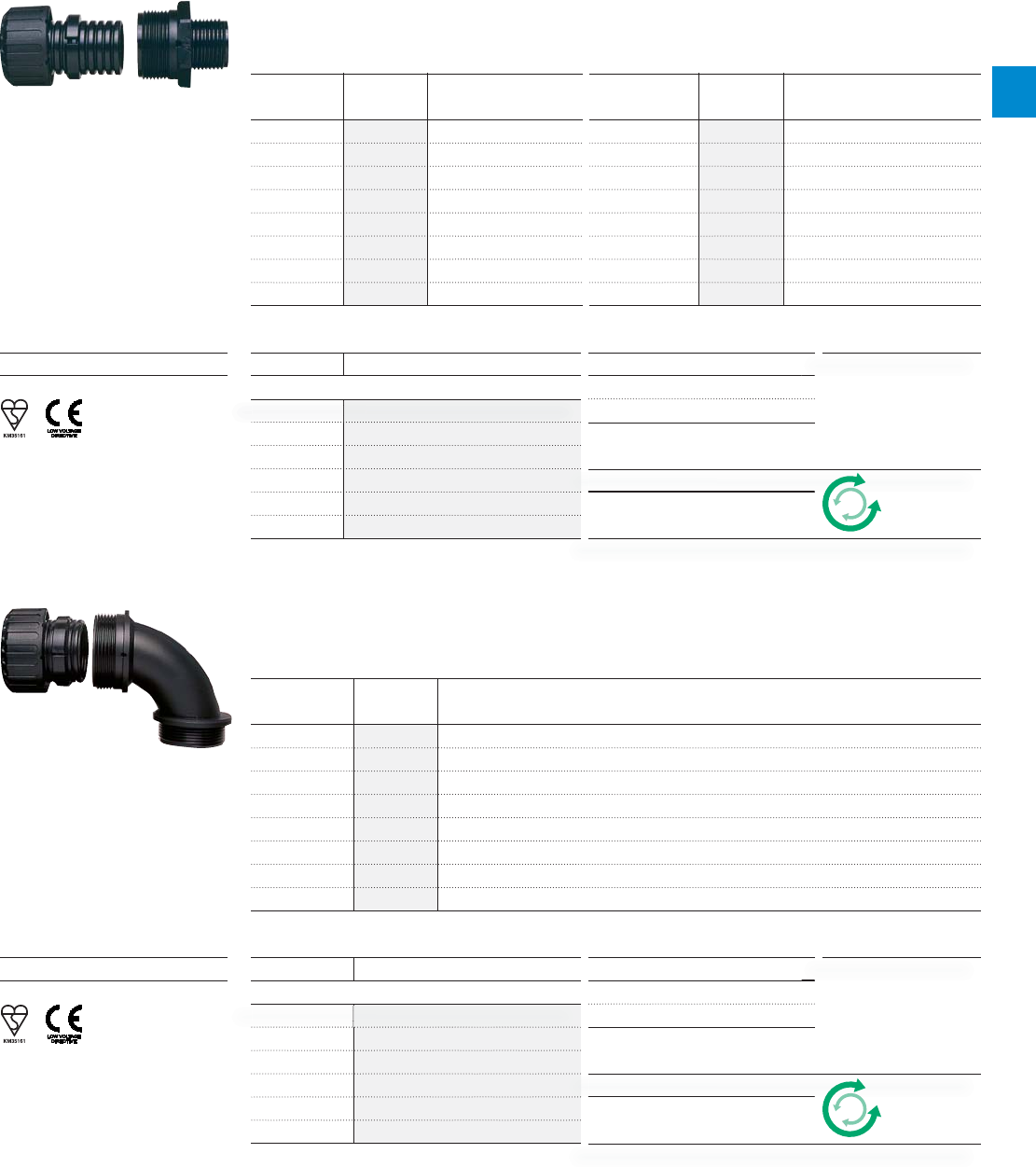

Type SA - Adaptalok
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/SA 13mm M16 AL13/PG9/SA 13mm PG9
AL16/M16/SA 16mm M16 AL16/PG11/SA 16mm PG11
AL21/M20/SA 21mm M20 AL21/PG13/SA 21mm PG13.5
AL21/PG16/SA 21mm PG16
AL28/M25/SA 28mm M25 AL28/PG21/SA 28mm PG21
AL34/M32/SA 34mm M32 AL34/PG29/SA 34mm PG29
AL42/M40/SA 42mm M40 AL42/PG36/SA 42mm PG36
AL54/M50/SA 54mm M50 AL54/PG48/SA 54mm PG48
AL54/M63/SA 54mm M63
To order quote part number & body colour, e.g. AL13/M16/SA/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
66
Type SA
Straight Fitting
Fitting
C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

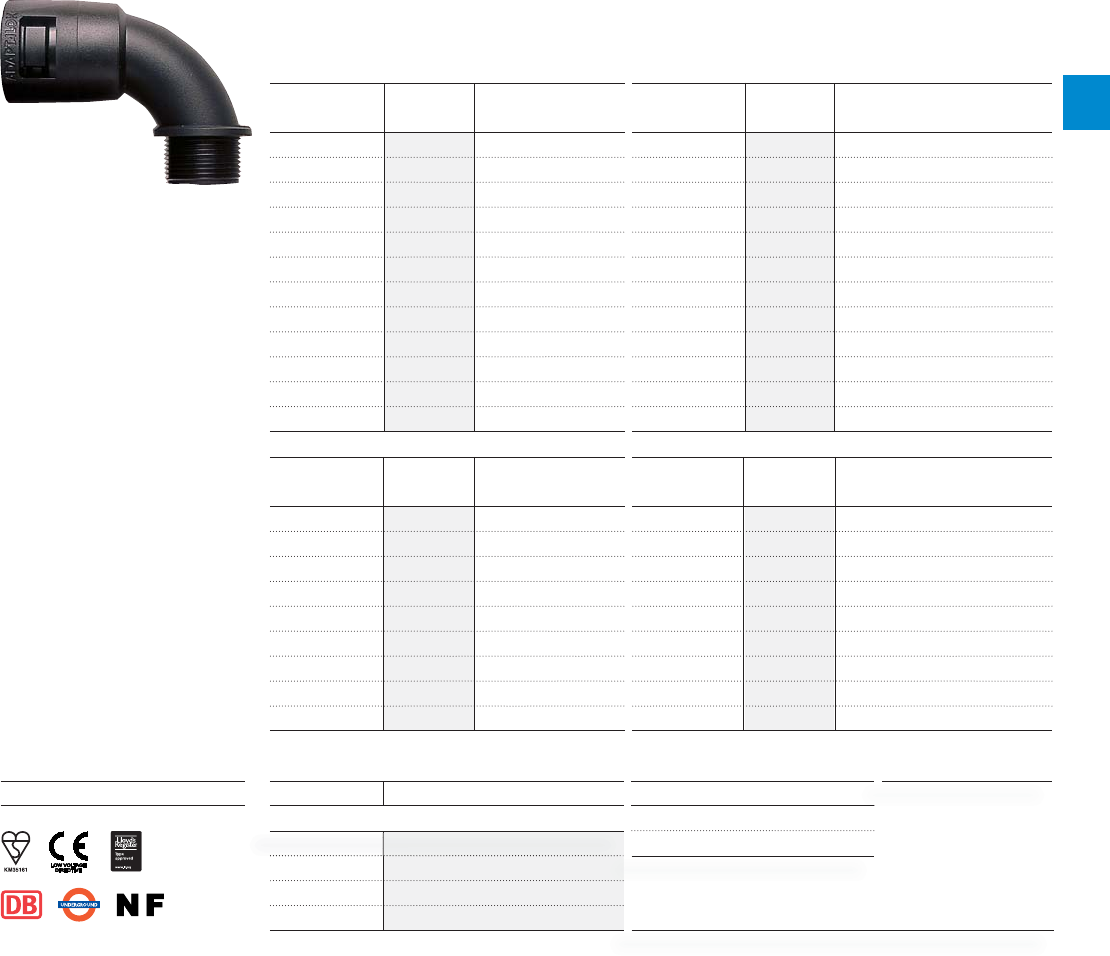

Type CS90 - Adaptalok
90º Elbow Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/CS90 13mm M16 AL13/PG9/CS90 13mm PG9
AL16/M16/CS90 16mm M16 AL16/PG11/CS90 16mm PG11
AL21/M20/CS90 21mm M20 AL21/PG13/CS90 21mm PG13.5
AL21/PG16/CS90 21mm PG16
AL28/M25/CS90 28mm M25 AL28/PG21/CS90 28mm PG21
AL34/M32/CS90 34mm M32 AL34/PG29/CS90 34mm PG29
AL42/M40/CS90 42mm M40 AL42/PG36/CS90 42mm PG36
AL54/M50/CS90 54mm M50 AL54/PG48/CS90 54mm PG48
AL54/M63/CS90 54mm M63
To order quote part number & body colour, e.g. AL13/M16/CS90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Type CS90
90º Elbow Fitting
Fittin
g
C
haracteristics
Adaptaflex Product Catalogue | LIT211GB 0414 2/19
2
Non-metallic conduit systems
Type S45 & SFA - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

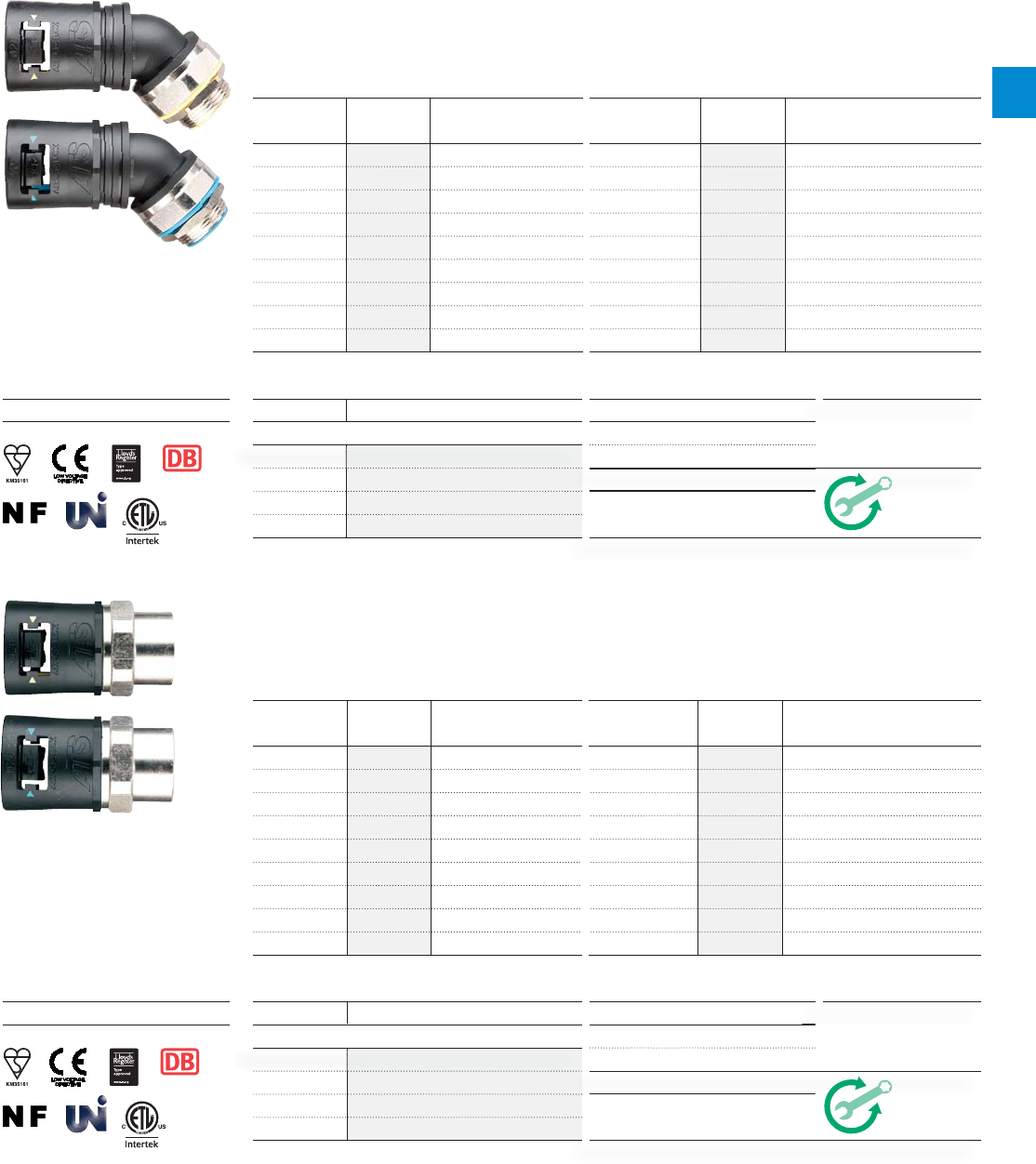

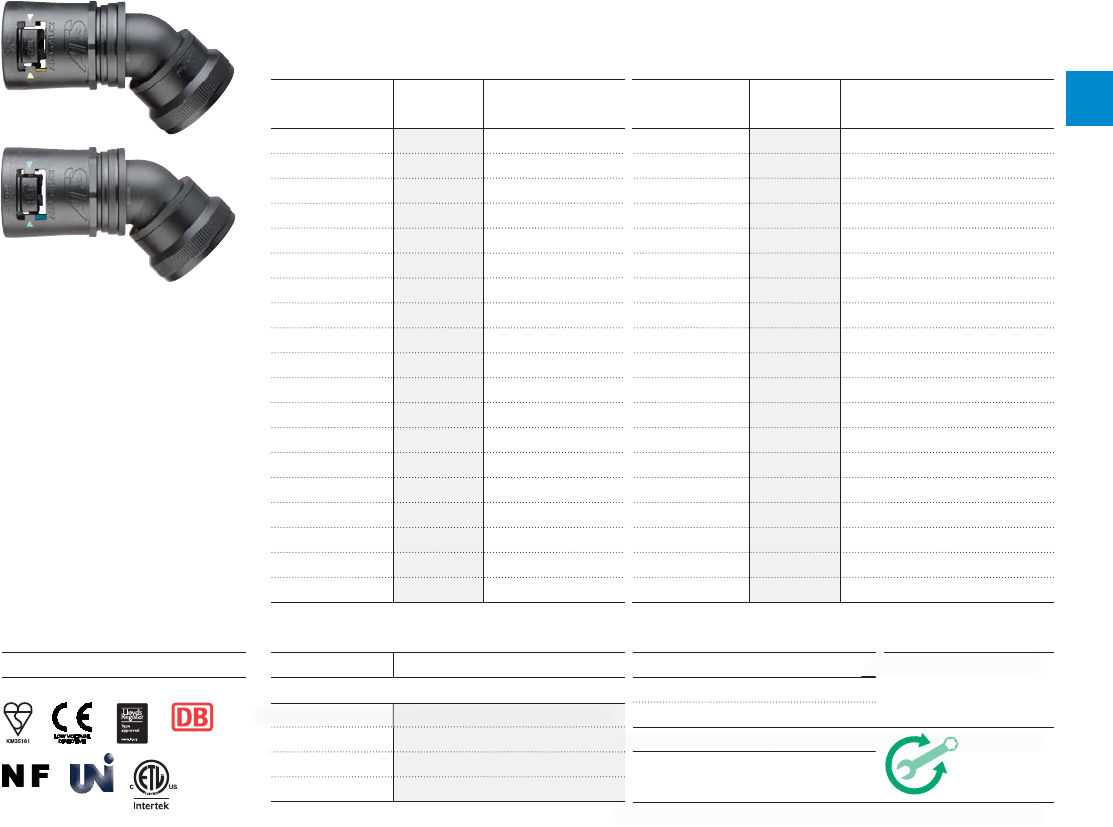

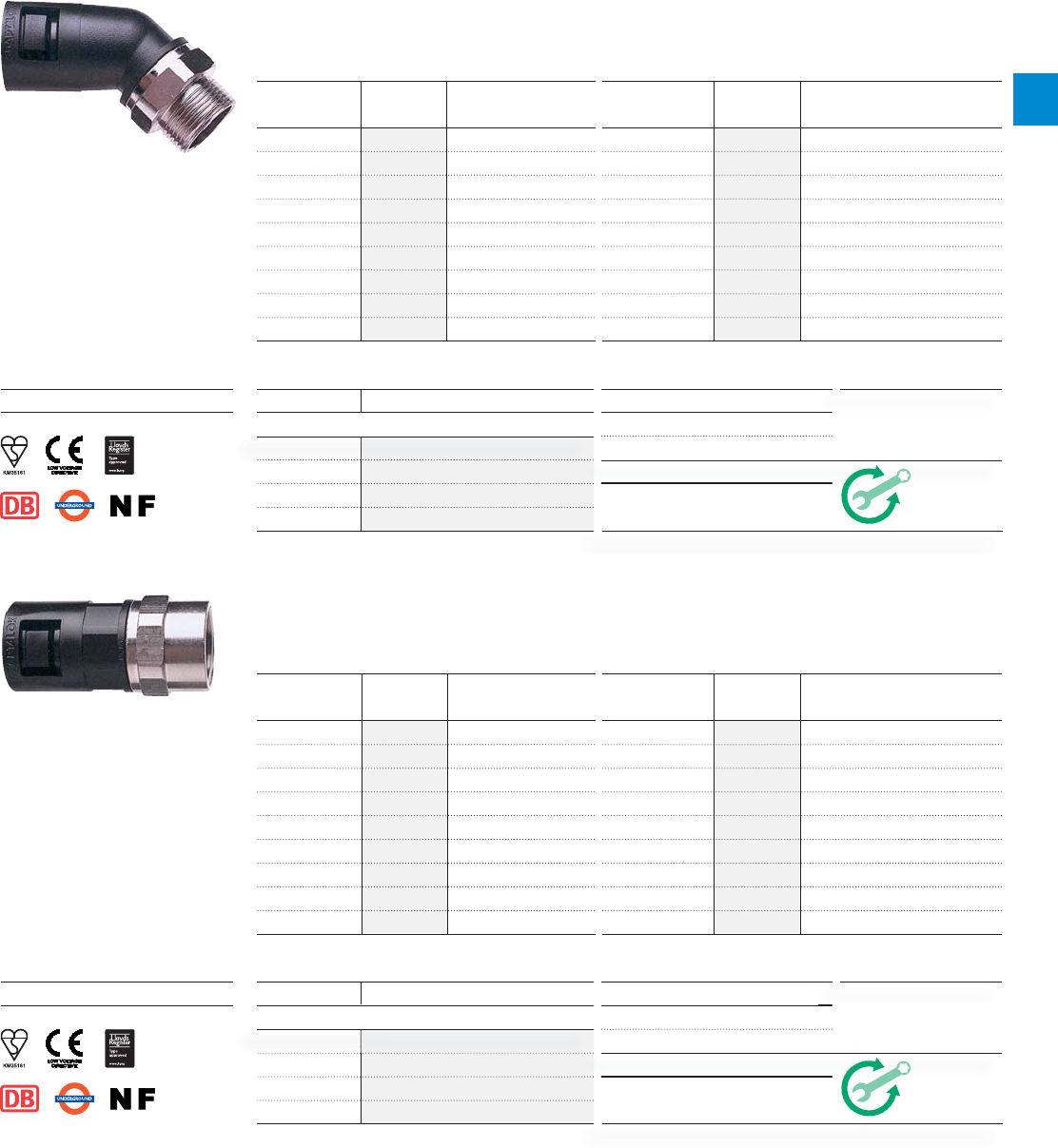

Type S45 - Adaptalok
45º Elbow Body - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/S45 13mm M16 AL13/PG9/S45 13mm PG9
AL16/M16/S45 16mm M16 AL16/PG11/S45 16mm PG11
AL21/M20/S45 21mm M20 AL21/PG13/S45 21mm PG13.5
AL21/PG16/S45 21mm PG16
AL28/M25/S45 28mm M25 AL28/PG21/S45 28mm PG21
AL34/M32/S45 34mm M32 AL34/PG29/S45 34mm PG29
AL42/M40/S45 42mm M40 AL42/PG36/S45 42mm PG36
AL54/M50/S45 54mm M50 AL54/PG48/S45 54mm PG48
AL54/M63/S45 54mm M63
To order quote part number & body colour, e.g. AL13/M16/S45/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
66
Type S45
45º Elbow Body
Fitting
C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

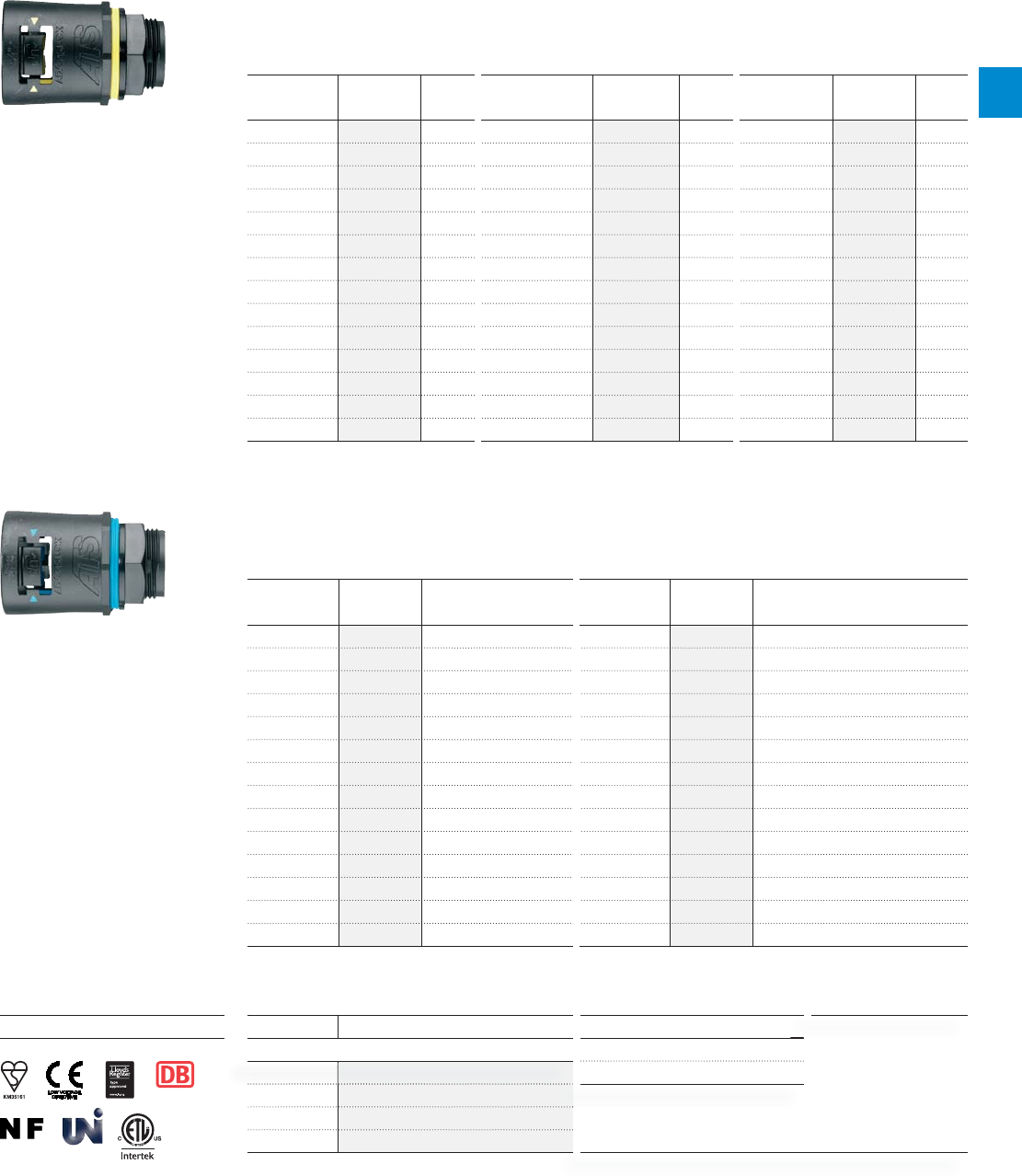

Type SFA - Adaptalok
Straight Body - Swivel Internal Female Thread / For attaching to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/SFA 13mm M16 AL13/PG9/SFA 13mm PG9
AL16/M16/SFA 16mm M16 AL16/PG11/SFA 16mm PG11
AL21/M20/SFA 21mm M20 AL21/PG13/SFA 21mm PG13.5
AL21/PG16/SFA 21mm PG16
AL28/M25/SFA 28mm M25 AL28/PG21/SFA 28mm PG21
AL34/M32/SFA 34mm M32 AL34/PG29/SFA 34mm PG29
AL42/M40/SFA 42mm M40 AL42/PG36/SFA 42mm PG36
AL54/M50/SFA 54mm M50 AL54/PG48/SFA 54mm PG48
AL54/M63/SFA 54mm M63
To order quote part number & body colour, e.g. AL13/M16/SFA/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
66
Type SFA
Straight Body
Fittin
g C
haracteristics
2/20 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type CSF90 & SF45 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal

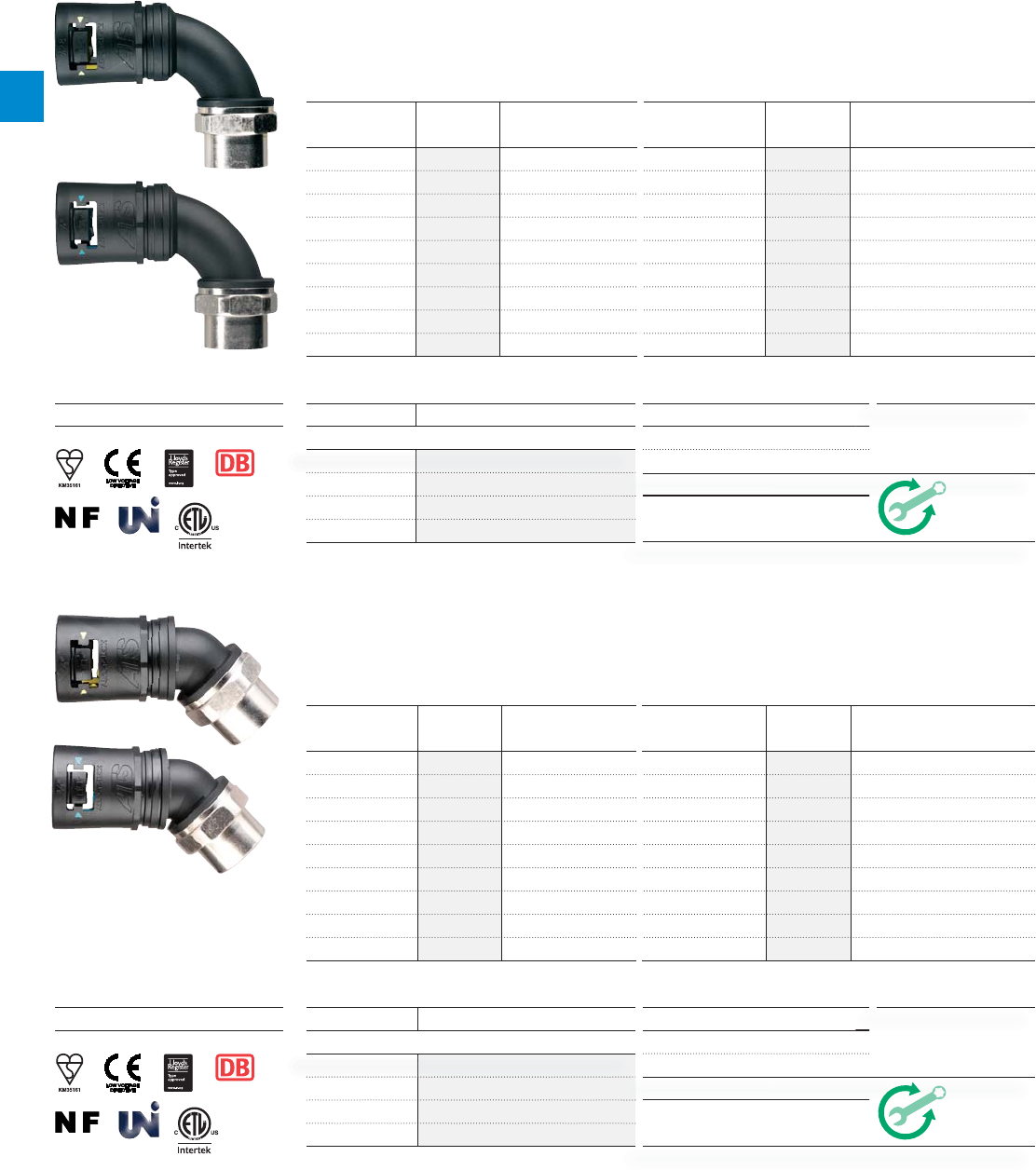

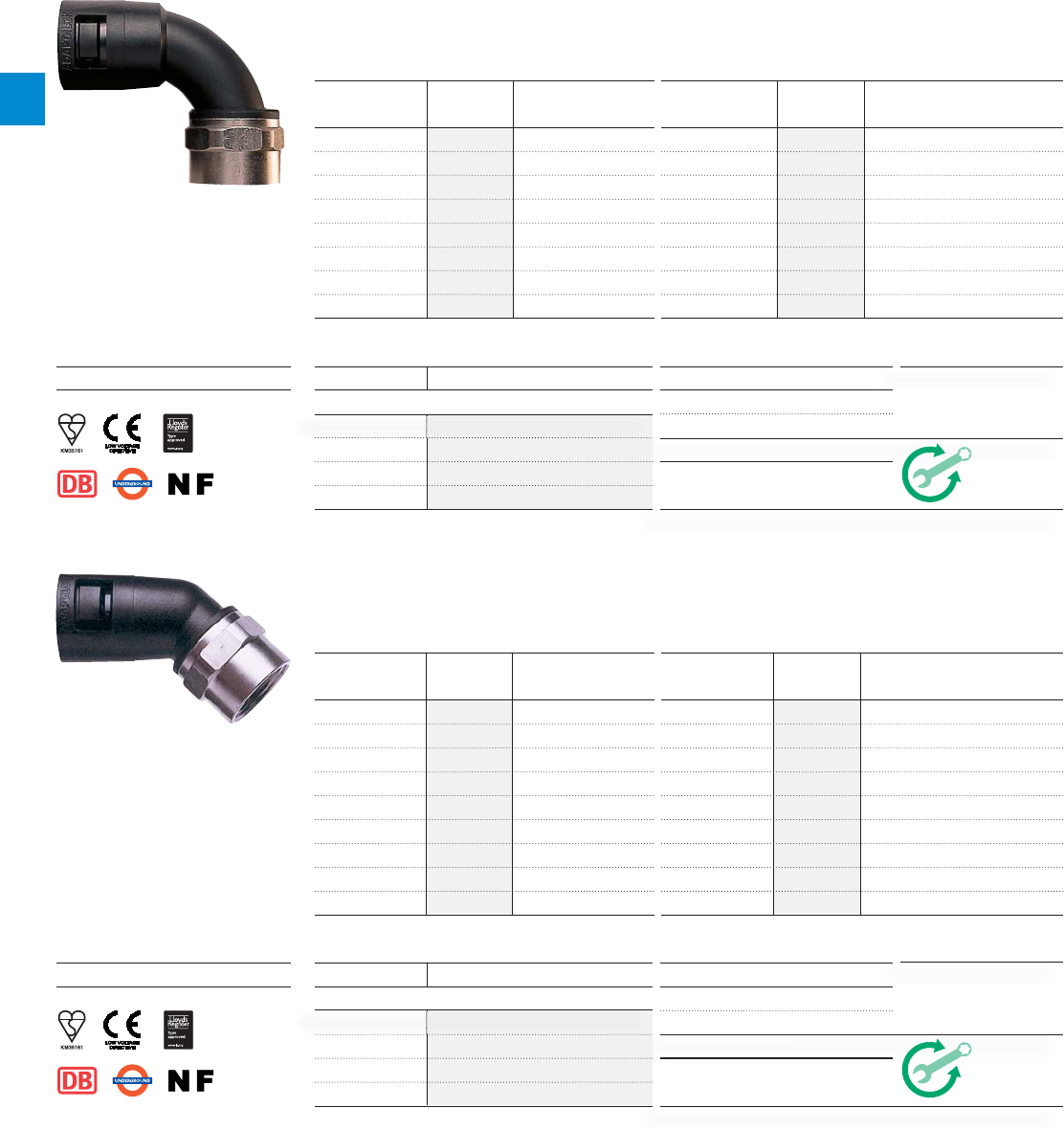

Type CSF90 - Adaptalok
90º Elbow Fitting - Swivel Internal Female Thread / For attachment to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/CSF90 13mm M16 AL13/PG9/CSF90 13mm PG9
AL16/M16/CSF90 16mm M16 AL16/PG11/CSF90 16mm PG11
AL21/M20/CSF90 21mm M20 AL21/PG13/CSF90 16mm PG13.5
AL21/PG16/CSF90 21mm PG16
AL28/M25/CSF90 28mm M25 AL28/PG21/CSF90 28mm PG21
AL34/M32/CSF90 34mm M32 AL34/PG29/CSF90 34mm PG29
AL42/M40/CSF90 42mm M40 AL42/PG36/CSF90 42mm PG36
AL54/M50/CSF90 54mm M50 AL54/PG48/CSF90 54mm PG48
To order quote part number & body colour, e.g. AL13/M16/CSF90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Type CSF90
90º Elbow Fitting
Fitting
C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Type SF45 - Adaptalok
45º Elbow Fitting - Swivel Internal Female Thread / For attachment to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread / Colour: Black (BL), Grey (GR)
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AL13/M16/SF45 13mm M16 AL13/PG9/SF45 13mm PG9
AL16/M16/SF45 16mm M16 AL16/PG11/SF45 16mm PG11
AL21/M20/SF45 21mm M20 AL21/PG13/SF45 16mm PG13.5
AL21/PG16/SF45 21mm PG16
AL28/M25/SF45 28mm M25 AL28/PG21/SF45 28mm PG21
AL34/M32/SF45 34mm M32 AL34/PG29/SF45 42mm PG29
AL42/M40/SF45 40mm M40 AL42/PG36/SF45 48mm PG36
AL54/M50/SF45 50mm M50 AL54/PG48/SF45 54mm PG48
AL54/M63/SF45 63mm M63
To order quote part number & body colour, e.g. AL13/M16/SF90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Type SF45
45º Elbow Fitting
Fitting
C
haracteristics
Adaptaflex Product Catalogue | LIT211GB 0414 2/21
2
Non-metallic conduit systems
UNEF Type A
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Fitting Characteristics
UNEF Type A - Adaptalok
Straight Body - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66 & Aluminium / Colour: Black (BL) Only
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AL13/U063/A 13mm 5/8” - 24 AL21/U144/A 21mm 1 7/16” - 18
AL13/U075/A 13mm 3/4” - 20 AL21/U175/A 21mm 1 3/4” - 18
AL13/U088/A 13mm 7/8” - 20 AL28/U088/A 28mm 7/8” - 20
AL16/U063/A 16mm 5/8” - 24 AL28/U094/A 28mm 15/16” - 20
AL16/U075/A 16mm 3/4” - 20 AL28/U100/A 28mm 1” - 20
AL16/U081/A 16mm 13/16” - 20 AL28/U119/A 28mm 1 3/16” - 18
AL16/U088/A 16mm 7/8” - 20 AL28/U138/A 28mm 1 3/8” - 18
AL16/U094/A 16mm 15/16” - 20 AL28/U144/A 28mm 1 7/16” - 18
AL16/U100/A 16mm 1” - 20 AL28/U175/A 28mm 1 3/4” - 18
AL16/U119/A 16mm 1 3/16” - 18 AL28/U200/A 28mm 2” - 16
AL16/U131/A 16mm 1 5/16” - 18 AL28/U225/A 28mm 2 1/4” - 16
AL21/U075/A 21mm 3/4” - 20 AL34/U100/A 34mm 1” - 20
AL21/U088/A 21mm 7/8” - 20 AL34/U119/A 34mm 1 3/16” - 18
AL21/U094/A 21mm 15/16” - 20 AL34/U144/A 34mm 1 7/16” - 18
AL21/U100/A 21mm 1” - 20 AL34/U175/A 34mm 1 3/4” - 18
AL21/U113/A 21mm 1 1/8” - 18 AL34/U200/A 34mm 2” - 16
AL21/U119/A 21mm 1 3/16” - 18 AL42/U175/A 42mm 1 3/4” - 18
AL21/U131/A 21mm 1 5/16” - 18 AL42/U200/A 42mm 2” - 16
AL21/U138/A 21mm 1 3/8” - 18
To order quote part number, e.g. AL13/U063/A and add 000620
UNEF Type A
Straight Body
2/22 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
UNEF Type C90 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Fitting Characteristics
UNEF Type C90 - Adaptalok
90° Elbow Body - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66 & Aluminium / Colour: Black (BL) Only
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AL13/U063/C90 13mm 5/8” - 24 AL21/U144/C90 21mm 1 7/16” - 18
AL13/U075/C90 13mm 3/4” - 20 AL21/U175/C90 21mm 1 3/4” - 18
AL13/U088/C90 13mm 7/8” - 20 AL28/U088/C90 28mm 7/8” - 20
AL16/U063/C90 16mm 5/8” - 24 AL28/U094/C90 28mm 15/16” - 20
AL16/U075/C90 16mm 3/4” - 20 AL28/U100/C90 28mm 1” - 20
AL16/U081/C90 16mm 13/16” - 20 AL28/U119/C90 28mm 1 3/16” - 18
AL16/U088/C90 16mm 7/8” - 20 AL28/U138/C90 28mm 1 3/8” - 18
AL16/U094/C90 16mm 15/16” - 20 AL28/U144/C90 28mm 1 7/16” - 18
AL16/U100/C90 16mm 1” - 20 AL28/U175/C90 28mm 1 3/4” - 18
AL16/U119/C90 16mm 1 3/16” - 18 AL28/U200/C90 28mm 2” - 16
AL16/U131/C90 16mm 1 5/16” - 18 AL28/U225/C90 28mm 2 1/4” - 16
AL21/U075/C90 21mm 3/4” - 20 AL34/U100/C90 34mm 1” - 20
AL21/U088/C90 21mm 7/8” - 20 AL34/U119/C90 34mm 1 3/16” - 18
AL21/U094/C90 21mm 15/16” - 20 AL34/U144/C90 34mm 1 7/16” - 18
AL21/U100/C90 21mm 1” - 20 AL34/U175/C90 34mm 1 3/4” - 18
AL21/U113/C90 21mm 1 1/8” - 18 AL34/U200/C90 34mm 2” - 16
AL21/U119/C90 21mm 1 3/16” - 18 AL42/U175/C90 42mm 1 3/4” - 18
AL21/U131/C90 21mm 1 5/16” - 18 AL42/U200/C90 42mm 2” - 16
AL21/U138/C90 21mm 1 3/8” - 18
To order quote part number, e.g. AL13/U065/C90 and add 000620
UNEF Type C90
90º Elbow Body
Adaptaflex Product Catalogue | LIT211GB 0414 2/23
2
Non-metallic conduit systems
UNEF Type 45 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes + ALS Seal
IP68 Yes + ALS Seal
IP69K Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP6
6
Fitting Characteristics
UNEF Type 45 - Adaptalok
45º Elbow Fitting - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66 & Aluminium / Colour: Black (BL) Only
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AL13/U063/45 13mm 5/8” - 24 AL21/U144/45 21mm 1 7/16” - 18
AL13/U075/45 13mm 3/4” - 20 AL21/U175/45 21mm 1 3/4” - 18
AL13/U088/45 13mm 7/8” - 20 AL28/U088/45 28mm 7/8” - 20
AL16/U063/45 16mm 5/8” - 24 AL28/U094/45 28mm 15/16” - 20
AL16/U075/45 16mm 3/4” - 20 AL28/U100/45 28mm 1” - 20
AL16/U081/45 16mm 13/16” - 20 AL28/U119/45 28mm 1 3/16” - 18
AL16/U088/45 16mm 7/8” - 20 AL28/U138/45 28mm 1 3/8” - 18
AL16/U094/45 16mm 15/16” - 20 AL28/U144/45 28mm 1 7/16” - 18
AL16/U100/45 16mm 1” - 20 AL28/U175/45 28mm 1 3/4” - 18
AL16/U119/45 16mm 1 3/16” - 18 AL28/U200/45 28mm 2” - 16
AL16/U131/45 16mm 1 5/16” - 18 AL28/U225/45 28mm 2 1/4” - 16
AL21/U075/45 21mm 3/4” - 20 AL34/U100/45 34mm 1” - 20
AL21/U088/45 21mm 7/8” - 20 AL34/U119/45 34mm 1 3/16” - 18
AL21/U094/45 21mm 15/16” - 20 AL34/U144/45 34mm 1 7/16” - 18
AL21/U100/45 21mm 1” - 20 AL34/U175/45 34mm 1 3/4” - 18
AL21/U113/45 21mm 1 1/8” - 18 AL34/U200/45 34mm 2” - 16
AL21/U119/45 21mm 1 3/16” - 18 AL42/U175/45 42mm 1 3/4” - 18
AL21/U131/45 21mm 1 5/16” - 18 AL42/U200/45 42mm 2” - 16
AL21/U138/45 21mm 1 3/8” - 18
To order quote part number, e.g. AL13/U065/45 and add 000620
UNEF Type 45
45º Elbow Fitting
2/24 Adaptaflex Product Catalogue | LIT211GB 0414
2

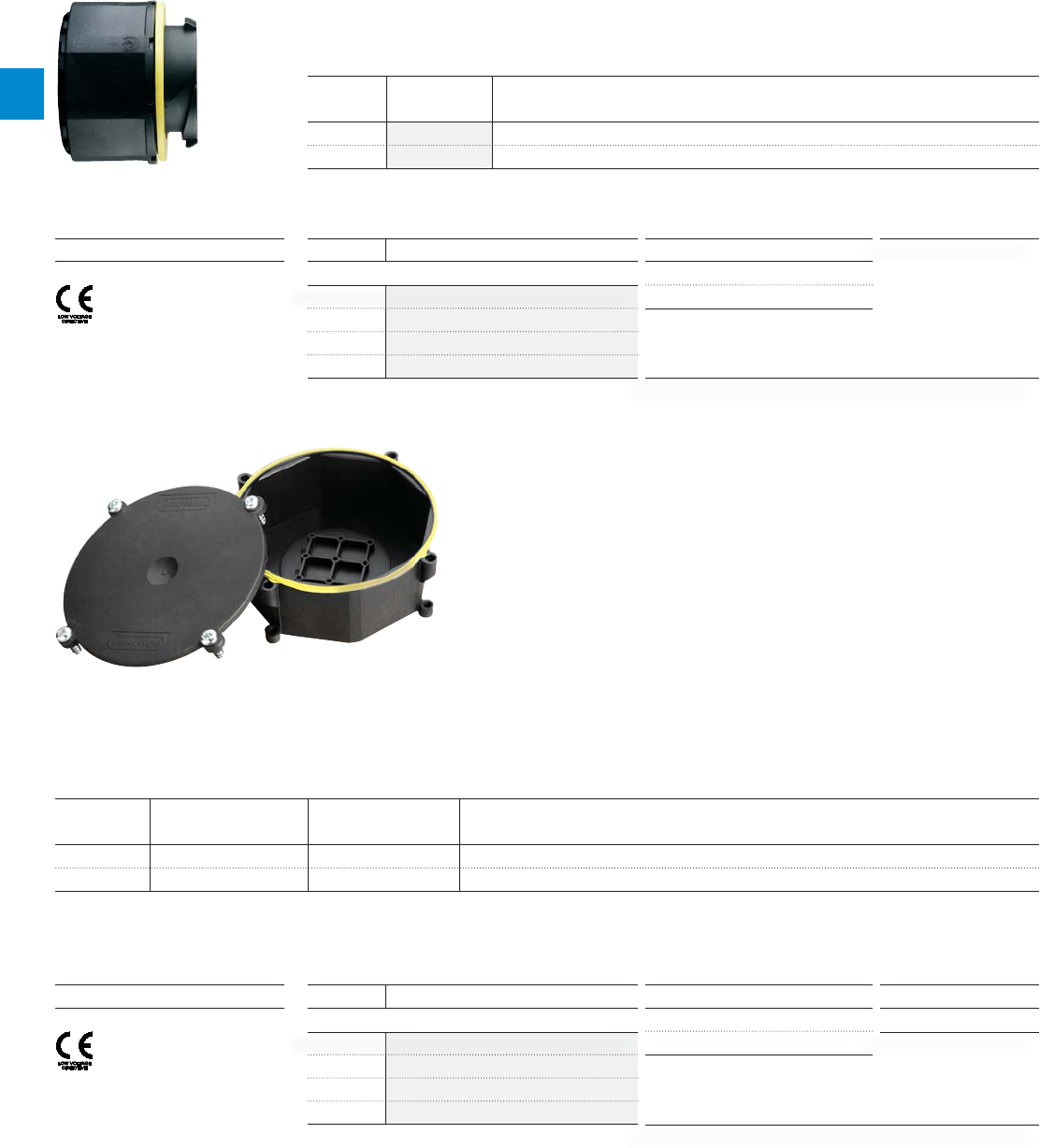

Jumbo Type SK
Sealing Kit / For use with Jumbo fittings to achieve IP65. Consists of two sealing washers & O-ring per kit
Materials: Rubber / Colour: Black (BL) Only
Part No. Nominal Conduit Size
SK80 80mm
SK106 106mm
To order quote part number, e.g. SK80/BL
Jumbo Type SK
Sealing Kit
Non-metallic conduit systems
Jumbo Type FL/A - Adaptalok / Jumbo Type SK
IP Rating Appropriate Conduit
For use with: Type PA / PI / PR 80/106
IP40 Yes
IP65 Yes + SK Seal
IP68 N /A
IP69K N/A

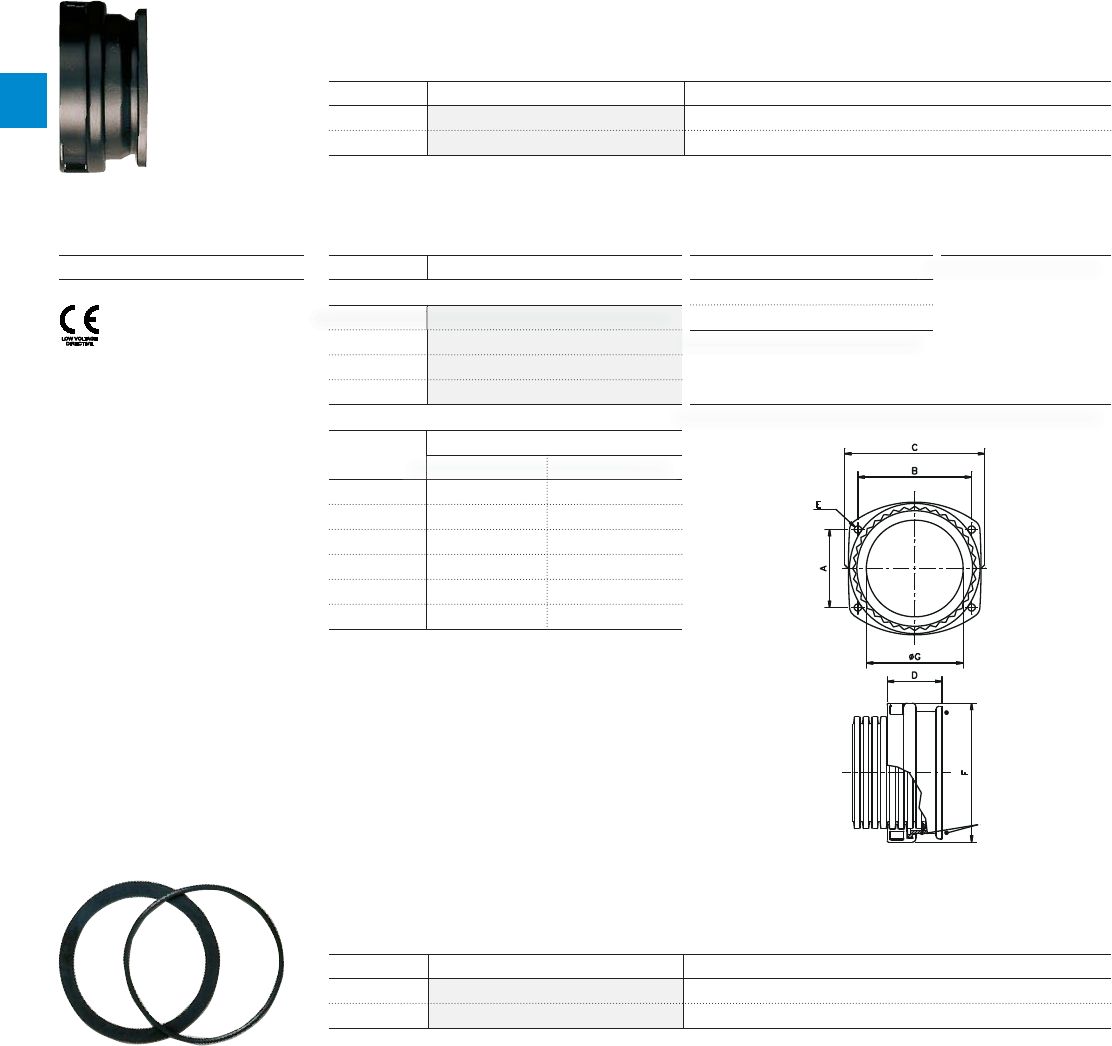

Jumbo Type FL/A - Adaptalok
Straight Panel Mounting Swivel Flange
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Part No. Nominal Conduit Size
ADC80/FL/A 80mm
ADC106/FL/A 106mm
To order quote part number, e.g. ADC80/FL/A/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
es
IP4
0
Jumbo Type FL/A
Straight Panel Mounting
Swivel Flange
Nominal Part No.
Size ADC80/FL/A ADC106/FL/A
A 60mm 74mm
B 80mm 108mm
C 98mm 126mm
D 52.5mm 52.5mm
Eø 7mm 7mm
F 106mm 132mm
ADC80/FL/A ADC106/FL/A
Seal (Optional)
for IP65
Adaptaflex Product Catalogue | LIT211GB 0414 2/25
2
Non-metallic conduit systems
Jumbo Type FL/90 - Adaptalok
IP Rating Appropriate Conduit
For use with: Type PA / PI / PR 80/106
IP40 Yes
IP65 Yes + SK Seal
IP68 N /A
IP69K N/A
Jumbo Type FL/90 - Adaptalok
90º Jumbo Flange
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Part No. Nominal Conduit Size
ADC80/FL/90 80mm
ADC106/FL/90 106mm
To order quote part number, e.g. ADC80/FL/90/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fittin
g C
haracteristics
Jumbo Type FL/90
90º Jumbo Flange
Nominal Part No. Part No.
Size ADC80/FL/90 ADC106/FL/90
A 60mm 74mm
B 80mm 108mm
C 98mm 126mm
D 128mm 166mm
Eø 110.5mm 144mm
F 7mm 7mm
Seal (Optional) for IP65
2/26 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Introduction to Adaptalok ATS™
Adaptalok ATS™ uses a sophisticated moulding process to
mould an internal conduit seal and a face seal washer. This
makes installation times very fast, and extremely reliable,
because the seals cannot be left out. The conduit system also
benefits from the highest IP rating possible.
Additional key features:
– Nylon 6.6 Body
– Lighter in weight
– Quicker to install (cut & assemble fittings)
– Wider variety of fittings - much larger solutions choice
– Better fatigue life
– Return to shape
Adaptalok ATS™ represents a unique and innovative solution in fl exible conduit
systems. Until now, manufacturers have produced fi ttings and seals separately, and
assembled them together, or had the customer assemble them. This increases
assembly time and introduces the possibility for errors.
Integral Face Seal Washer guaranteed fit,
cannot be lost or fitted incorrectly.
No Assembly.
High Visibility Elastomer -
3 visible confirmation points.
Internal Elastomer Conduit Seal - guaranteed
fit, cannot be lost or fitted incorrectly.
No Assembly & protects cables.
Thread Data -
thread size clearly indicated
on fitting thread.
Proven Clip Design - pitch independent, ensures
secure fitment to coarse & fine pitch conduits.
Visual Fitting Guides - highly visible elastomer
markings on lugs, aids correct fitment.
Conduit Data - conduit size
clearly indicated on fitting.
Adaptaflex Product Catalogue | LIT211GB 0414 2/27
2
Non-metallic conduit systems

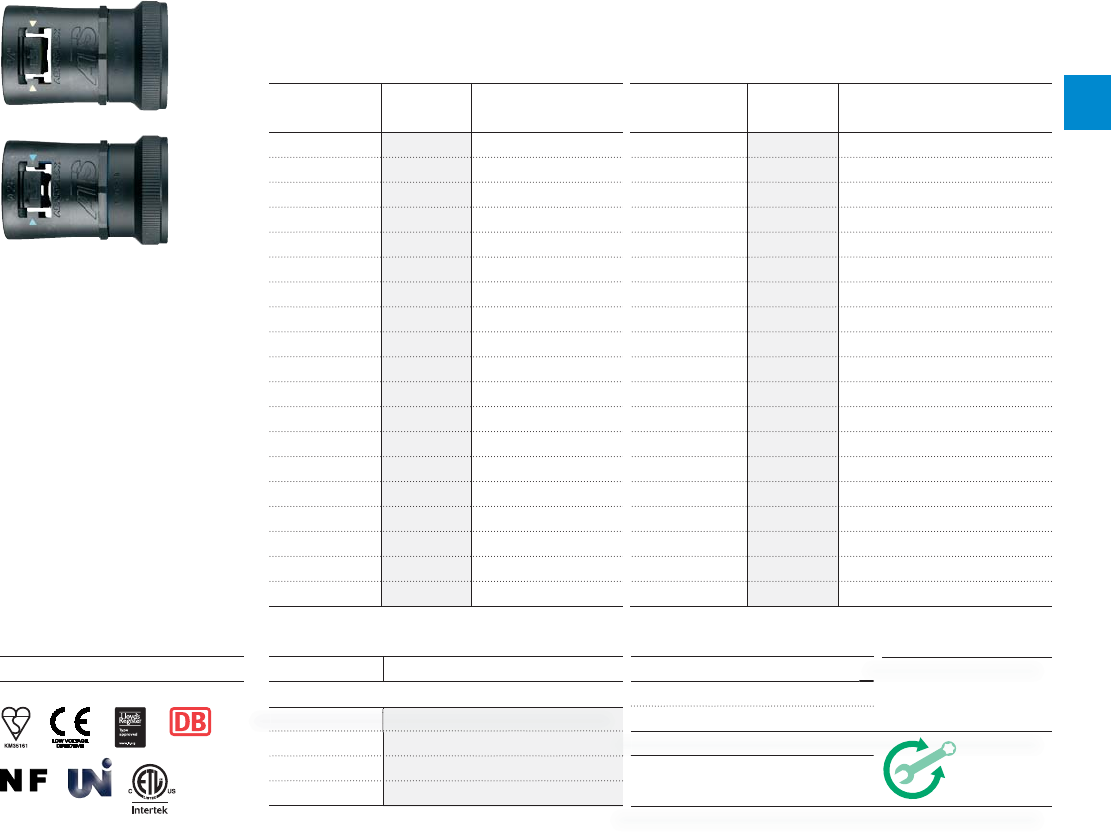

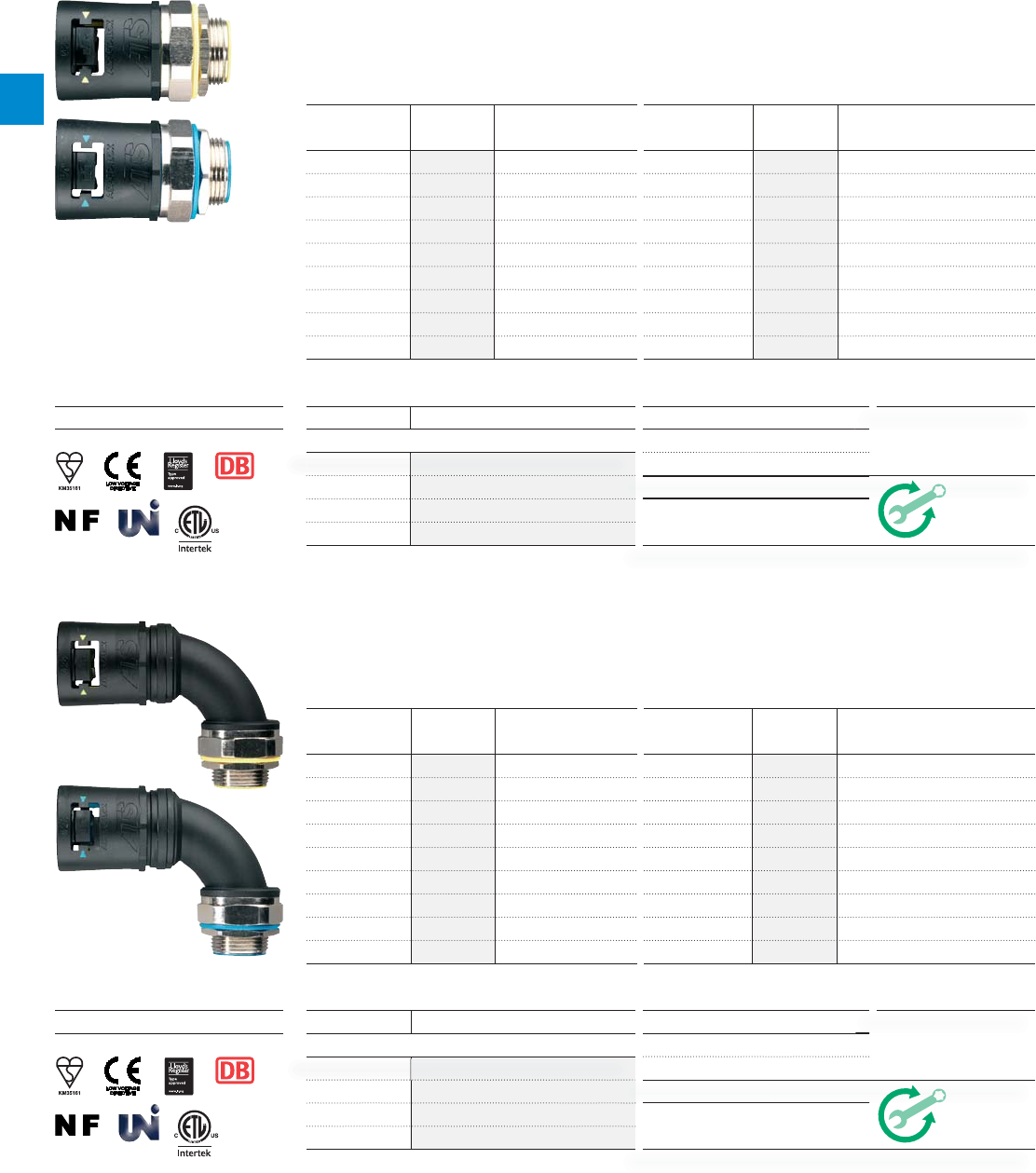

Type A - Adaptalok ATS™
Type A
Staight Fitting
Type A - Adaptalok ATS™
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (Y) Elastomer
Nominal Metric Nominal PF Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/A 13mm M16 AT13/PF038/A 13mm 3/8” AT13/038/A 13mm 3/8”
AT16/M16/A 16mm M16 AT16/PF038/A 16mm 3/8” AT16/038/A 16mm 3/8”
AT16/M20/A 16mm M20 AT16/PF050/A 16mm 1/2” AT16/050/A 16mm 1/2”
AT21/M20/A 21mm M20 AT21/PF050/A 21mm 1/2” AT21/050/A 21mm 1/2”
AT21/M25/A 21mm M25
AT28/M25/A 28mm M25 AT28/PF075/A 28mm 3/4” AT28/075/A 28mm 3/4”
AT28/M32/A 28mm M32
AT34/M32/A 34mm M32 AT34/PF100/A 34mm 1” AT34/100/A 34mm 1”
AT34/M40/A 34mm M40
AT42/M40/A 42mm M40 AT42/PF125/A 42mm 1 1/4” AT42/125/A 42mm 1 1/4”
AT42/M50/A 42mm M50
AT48/M50/A 48mm M50 AT48/PF150/A 48mm 1 1/2” AT48/150/A 48mm 1 1/2”
AT54/M50/A 54mm M50
AT54/M63/A 54mm M63 AT54/PF200/A 48mm 2” AT54/200/A 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT21/M20/A/BLY
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type A - Adaptalok ATS™
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/A 13mm M16 AT13/038/A 13mm 3/8”
AT16/M16/A 16mm M16 AT16/038/A 16mm 3/8”
AT16/M20/A 16mm M20 AT16/050/A 16mm 1/2”
AT21/M20/A 21mm M20 AT21/050/A 21mm 1/2”
AT21/M25/A 21mm M25
AT28/M25/A 28mm M25 AT28/075/A 28mm 3/4”
AT28/M32/A 28mm M32
AT34/M32/A 34mm M32 AT34/100/A 34mm 1”
AT34/M40/A 34mm M40
AT42/M40/A 42mm M40 AT42/125/A 42mm 1 1/4”
AT42/M50/A 42mm M50
AT48/M50/A 48mm M50 AT48/150/A 48mm 1 1/2”
AT54/M50/A 54mm M50
AT54/M63/A 54mm M63 AT54/200/A 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT21/M20/A/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
es
I
P4
0
Type A
Staight Fitting
2/28 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Non-metallic conduit systems
Type C90 - Adaptalok ATS™
Type C90 - Adaptalok ATS™
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (Y) Elastomer
Nominal Metric Nominal PF Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/C90 13mm M16 AT13/PF038/C90 13mm 3/8” AT13/038/C90 13mm 3/8”
AT16/M16/C90 16mm M16 AT16/PF038/C90 16mm 3/8” AT16/038/C90 16mm 3/8”
AT16/M20/C90 16mm M20 AT16/PF050/C90 16mm 1/2” AT16/050/C90 16mm 1/2”
AT21/M20/C90 21mm M20 AT21/PF050/C90 21mm 1/2” AT21/050/C90 21mm 1/2”
AT28/M25/C90 28mm M25 AT28/PF075/C90 28mm 3/4” AT28/075/C90 28mm 3/4”
AT34/M32/C90 34mm M32 AT34/PF100/C90 34mm 1” AT34/100/C90 34mm 1”
AT42/M40/C90 42mm M40 AT42/PF125/C90 42mm 1 1/4” AT42/125/C90 42mm 1 1/4”
AT48/M50/C90 48mm M50 AT48/PF150/C90 48mm 1 1/2” AT48/150/C90 48mm 1 1/2”
AT54/M50/C90 54mm M50 AT54/PF150/C90 54mm 1 1/2” AT54/150/C90 54mm 1 1/2”
AT54/M63/C90 54mm M63 AT54/PF200/C90 54mm 2” AT54/200/C90 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT21/M20/C90/BLY
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Yes
IP4
0
Type C90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type C90 - Adaptalok ATS™
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/C90 13mm M16 AT13/PF038/C90 13mm 3/8”
AT16/M16/C90 16mm M16 AT16/PF038/C90 16mm 3/8”
AT16/M20/C90 16mm M20 AT16/PF050/C90 16mm 1/2”
AT21/M20/C90 21mm M20 AT21/PF050/C90 21mm 1/2”
AT28/M25/C90 28mm M25 AT28/PF075/C90 28mm 3/4”
AT34/M32/C90 34mm M32 AT34/PF100/C90 34mm 1”
AT42/M40/C90 42mm M40 AT42/PF125/C90 42mm 1 1/4”
AT48/M50/C90 48mm M50 AT48/PF150/C90 48mm 1 1/2”
AT54/M50/C90 54mm M50 AT54/PF150/C90 54mm 1 1/2”
AT54/M63/C90 54mm M63 AT54/PF200/C90 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT21/M20/C90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
es
IP4
0
Type C90
90º Elbow Fitting
Adaptaflex Product Catalogue | LIT211GB 0414 2/29
2
Non-metallic conduit systems
Type 45 - Adaptalok ATS™
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Yes
IP4
0
Type 45
45º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type 45 - Adaptalok ATS™
45º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/45 13mm M16 AT13/PF038/45 13mm 3/8”
AT16/M16/45 16mm M16 AT16/PF038/45 16mm 3/8”
AT16/M20/45 16mm M20 AT16/PF050/45 16mm 1/2”
AT21/M20/45 21mm M20 AT21/PF050/45 21mm 1/2”
AT28/M25/45 28mm M25 AT28/PF075/45 28mm 3/4”
AT34/M32/45 34mm M32 AT34/PF100/45 34mm 1”
AT42/M40/45 42mm M40 AT42/PF125/45 42mm 1 1/4”
AT48/M50/45 48mm M50 AT48/PF150/45 48mm 1 1/2”
AT54/M50/45 54mm M50
To order quote part number, body colour & Elastomer colour, e.g. AT54/M50/45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
es
I
P4
0
Type 45
45º Elbow Fitting
Type 45 - Adaptalok ATS™
45º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (Y) Elastomer
Nominal Metric Nominal PF Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/45 13mm M16 AT13/PF038/45 13mm 3/8” AT13/038/45 13mm 3/8”
AT16/M16/45 16mm M16 AT16/PF038/45 16mm 3/8” AT16/038/45 16mm 3/8”
AT16/M20/45 16mm M20 AT16/PF050/45 16mm 1/2” AT16/050/45 16mm 1/2”
AT21/M20/45 21mm M20 AT21/PF050/45 21mm 1/2” AT21/050/45 21mm 1/2”
AT28/M25/45 28mm M25 AT28/PF075/45 28mm 3/4” AT28/075/45 28mm 3/4”
AT34/M32/45 34mm M32 AT34/PF100/45 34mm 1” AT34/100/45 34mm 1”
AT42/M40/45 42mm M40 AT42/PF125/45 42mm 1 1/4” AT42/125/45 42mm 1 1/4”
AT48/M50/45 48mm M50 AT48/PF150/45 48mm 1 1/2” AT48/150/45 48mm 1 1/2”
AT54/M50/45 54mm M50
To order quote part number, body colour & Elastomer colour, e.g. AT54/M50/45/BLY
2/30 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes

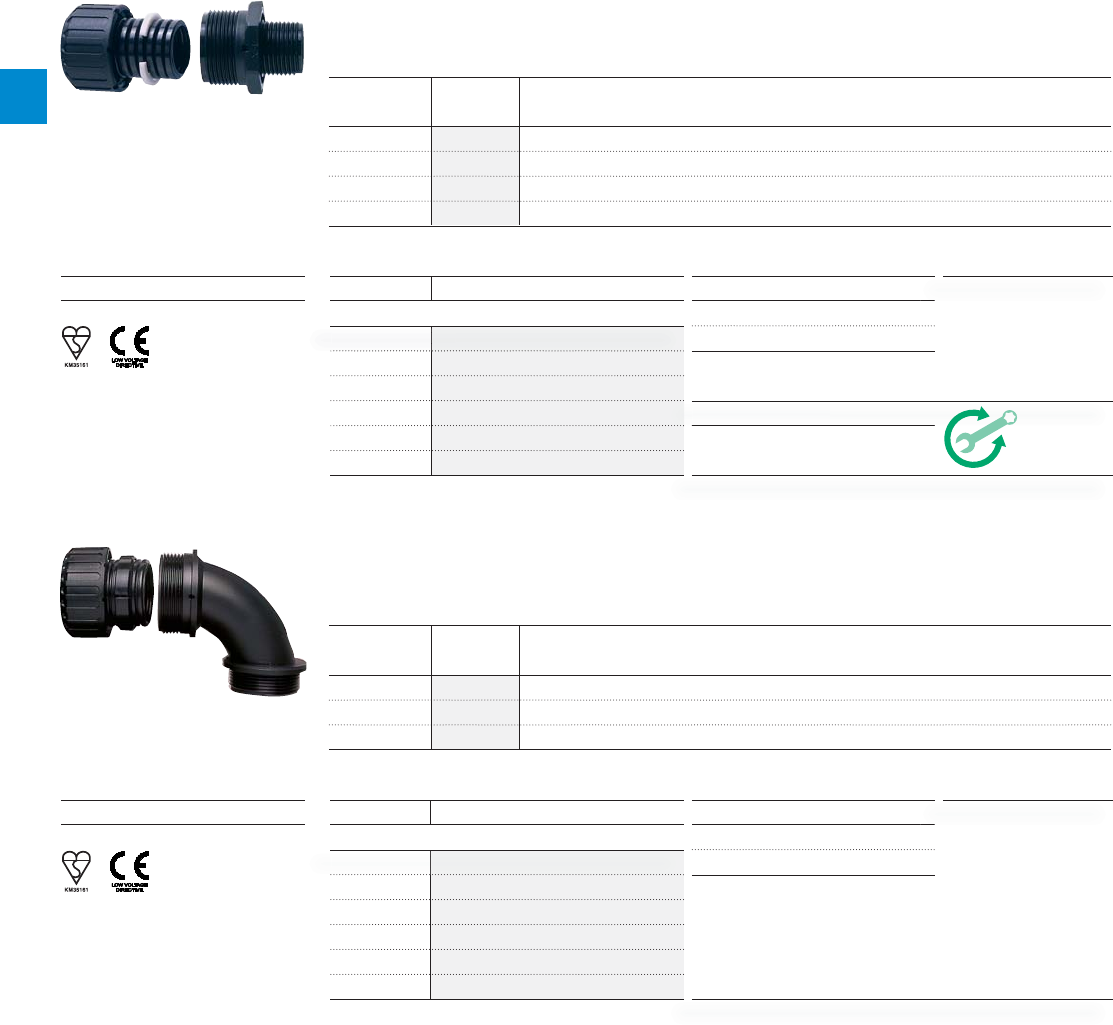

Type CS90 - Adaptalok ATS™
90º Elbow Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts. Order locknuts separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/CS90 13mm M16 AT13/038/CS90 13mm 3/8”
AT16/M16/CS90 16mm M16 AT16/038/CS90 16mm 3/8”
AT21/M20/CS90 21mm M20 AT21/050/CS90 21mm 1/2”
AT28/M25/CS90 28mm M25 AT28/075/CS90 28mm 3/4”
AT34/M32/CS90 34mm M32 AT34/100/CS90 34mm 1”
AT42/M40/CS90 42mm M40 AT42/125/CS90 42mm 1 1/4”
AT48/M50/CS90 48mm M50 AT48/150/CS90 48mm 1 1/2”
AT54/M50/CS90 54mm M50 AT54/150/CS90 54mm 1 1/2”
AT54/M63/CS90 54mm M63 AT54/200/CS90 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/CS90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
IP4
0
Type CS90
90º Elbow Fitting
Fittin
g C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type SA - Adaptalok ATS™
Straight Fitting - Metal Swivel External Male Thread / For insertion into threaded entries & knockouts. Order locknuts separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/SA 13mm M16 AT13/038/SA 13mm 3/8”
AT16/M16/SA 16mm M16 AT16/038/SA 16mm 3/8”
AT21/M20/SA 21mm M20 AT21/050/SA 21mm 1/2”
AT28/M25/SA 28mm M25 AT28/075/SA 28mm 3/4”
AT34/M32/SA 34mm M32 AT34/100/SA 34mm 1”
AT42/M40/SA 42mm M40 AT42/125/SA 42mm 1 1/4”
AT48/M50/SA 48mm M50 AT48/150/SA 48mm 1 1/2”
AT54/M50/SA 54mm M50 AT54/150/SA 54mm 1 1/2”
AT54/M63/SA 54mm M63 AT54/200/SA 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/SA/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Ye
s
IP40
Type SA
Straight Fitting
Fitting Characteristics
Non-metallic conduit systems
Type SA & CS90 - Adaptalok ATS™
Adaptaflex Product Catalogue | LIT211GB 0414 2/31
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type S45 - Adaptalok ATS™
45º Elbow Body - Swivel External Male Thread / For insertion into threaded entries & knockouts. Order locknuts separately
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/S45 13mm M16 AT13/038/S45 13mm 3/8”
AT16/M16/S45 16mm M16 AT16/038/S45 16mm 3/8”
AT21/M20/S45 21mm M20 AT21/050/S45 21mm 1/2”
AT28/M25/S45 28mm M25 AT28/075/S45 28mm 3/4”
AT34/M32/S45 34mm M32 AT34/100/S45 34mm 1”
AT42/M40/S45 42mm M40 AT42/125/S45 42mm 1 1/4”
AT48/M50/S45 48mm M50 AT48/150/S45 48mm 1 1/2”
AT54/M50/S45 54mm M50 AT54/150/S45 54mm 1 1/2”
AT54/M63/S45 54mm M63 AT54/200/S45 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT54/M63/S45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Ye
s
I
P4 0
Type S45
45º Elbow Body
Fitting Characteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type SFA - Adaptalok ATS™
Straight Fitting - Swivel Internal Female Thread / For attachments to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13 / M 16/ S FA 13 mm M16 AT13/ 03 8 /S FA 13mm 3 / 8”
AT 16/M 16/SFA 16m m M 16 AT16/ 038/SF A 16m m 3/8”
AT21/M20/SFA 21mm M20 AT21/050/SFA 21mm 1/2”
AT28/M25/SFA 28mm M25 AT28/075/SFA 28mm 3/4”
AT34/M32/SFA 34mm M32 AT34/100/SFA 34mm 1”
AT42/M40/SFA 42mm M40 AT42/125/SFA 42mm 1 1/4”
AT48/M50/SFA 48mm M50 AT48/150/SFA 48mm 1 1/2”
AT54/M50/SFA 54mm M50
AT54/M63/SFA 54mm M63 AT54/200/SFA 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT54/M63/SFA/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
I
P4
0
Type SFA
Straight Fitting
Fittin
g C
haracteristics
Non-metallic conduit systems
Type S45 & SFA - Adaptalok ATS™
2/32 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type SF45 - Adaptalok ATS™
45º Elbow Body - Swivel Internal Female Thread / For attaching to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/SF45 13mm M16 AT13/038/SF45 13mm 3/8”
AT16/M16/SF45 16mm M16 AT16/038/SF45 16mm 3/8”
AT21/M20/SF45 21mm M20 AT21/050/SF45 21mm 1/2”
AT28/M25/SF45 28mm M25 AT28/075/SF45 28mm 3/4”
AT34/M32/SF45 34mm M32 AT34/100/SF45 34mm 1”
AT42/M40/SF45 42mm M40 AT42/125/SF45 42mm 1 1/4”
AT48/M50/SF45 48mm M50 AT48/150/SF45 48mm 1 1/2”
AT54/M50/SF45 54mm M50
AT54/M63/SF45 54mm M63 AT54/200/SF45 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/SF45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
IP4
0
Type SF45
45º Elbow Body
Fittin
g C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Type CSF90 - Adaptalok ATS™
90º Elbow Body - Swivel Internal Female Thread / For attaching to external threads & other fittings
Materials: Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Metric Nominal NPT
Part No. Conduit Size Thread Part No. Conduit Size Thread
AT13/M16/CSF90 13mm M16 AT13/038/CSF90 13mm 3/8”
AT16/M16/CSF90 16mm M16 AT16/038/CSF90 16mm 3/8”
AT21/M20/CSF90 21mm M20 AT21/050/CSF90 21mm 1/2”
AT28/M25/CSF90 28mm M25 AT28/075/CSF90 28mm 3/4”
AT34/M32/CSF90 34mm M32 AT34/100/CSF90 34mm 1”
AT42/M40/CSF90 42mm M40 AT42/125/CSF90 42mm 1 1/4”
AT48/M50/CSF90 48mm M50 AT48/150/CSF90 48mm 1 1/2”
AT54/M50/CSF90 54mm M50
AT54/M63/CSF90 54mm M63 AT54/200/CSF90 54mm 2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/CSF90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Ye
s
IP40
Type CSF90
90º Elbow Body
Fitting Characteristics
Non-metallic conduit systems
Type CSF90 & SF45 - Adaptalok ATS™
Adaptaflex Product Catalogue | LIT211GB 0414 2/33
2
Non-metallic conduit systems
UNEF Type SFA - Adaptalok ATS™
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
UNEF Type SFA - Adaptalok ATS™
Straight Body - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66, Aluminium/TPE / Colour: Black (BL) Only / Yellow (Y), Blue (B) Elastomer
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AT13/U063/SFA 13mm 5/8” - 24 AT21/U144/SFA 21mm 1 7/16” - 18
AT13/U075/SFA 13mm 3/4” - 20 AT21/U175/SFA 21mm 1 3/4” - 18
AT13/U088/SFA 13mm 7/8” - 20 AT28/U088/SFA 28mm 7/8” - 20
AT16/U063/SFA 16mm 5/8” - 24 AT28/U094/SFA 28mm 15/16” - 20
AT16/U075/SFA 16mm 3/4” - 20 AT28/U100/SFA 28mm 1” - 20
AT16/U081/SFA 16mm 13/16” - 20 AT28/U119/SFA 28mm 1 3/16” - 18
AT16/U088/SFA 16mm 7/8” - 20 AT28/U138/SFA 28mm 1 3/8” - 18
AT16/U094/SFA 16mm 15/16” - 20 AT28/U144/SFA 28mm 1 7/16” - 18
AT16/U100/SFA 16mm 1” - 20 AT28/U175/SFA 28mm 1 3/4” - 18
AT16/U119/SFA 16mm 1 3/16” - 18 AT28/U200/SFA 28mm 2” - 16
AT16/U131/SFA 16mm 1 5/16” - 18 AT28/U225/SFA 28mm 2 1/4” - 16
AT21/U075/SFA 21mm 3/4” - 20 AT34/U100/SFA 34mm 1” - 20
AT21/U088/SFA 21mm 7/8” - 20 AT34/U119/SFA 34mm 1 3/16” - 18
AT21/U094/SFA 21mm 15/16” - 20 AT34/U144/SFA 34mm 1 7/16” - 18
AT21/U100/SFA 21mm 1” - 20 AT34/U175/SFA 34mm 1 3/4” - 18
AT21/U113/SFA 21mm 1 1/8” - 18 AT34/U200/SFA 34mm 2” - 16
AT21/U119/SFA 21mm 1 3/16” - 18 AT42/U175/SFA 42mm 1 3/4” - 18
AT21/U131/SFA 21mm 1 5/16” - 18 AT42/U200/SFA 42mm 2” - 16
AT21/U138/SFA 21mm 1 3/8” - 18
To order quote part number, body colour & Elastomer colour, e.g. AT16/U063/SFA/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
UNEF Type SFA
Straight Body
Fitting Characteristics
2/34 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
UNEF Type CSF90 - Adaptalok ATS™
90º Elbow Body - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66, Aluminium/TPE / Colour: Black (BL) Only / Yellow (Y), Blue (B) Elastomer
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AT13/U063/CSF90 13mm 5/8” - 24 AT21/U144/CSF90 21mm 1 7/16” - 18
AT13/U075/CSF90 13mm 3/4” - 20 AT21/U175/CSF90 21mm 1 3/4” - 18
AT13/U088/CSF90 13mm 7/8” - 20 AT28/U088/CSF90 28mm 7/8” - 20
AT16/U063/CSF90 16mm 5/8” - 24 AT28/U094/CSF90 28mm 15/16” - 20
AT16/U075/CSF90 16mm 3/4” - 20 AT28/U100/CSF90 28mm 1” - 20
AT16/U081/CSF90 16mm 13/16” - 20 AT28/U119/CSF90 28mm 1 3/16” - 18
AT16/U088/CSF90 16mm 7/8” - 20 AT28/U138/CSF90 28mm 1 3/8” - 18
AT16/U094/CSF90 16mm 15/16” - 20 AT28/U144/CSF90 28mm 1 7/16” - 18
AT16/U100/CSF90 16mm 1” - 20 AT28/U175/CSF90 28mm 1 3/4” - 18
AT16/U119/CSF90 16mm 1 3/16” - 18 AT28/U200/CSF90 28mm 2” - 16
AT16/U131/CSF90 16mm 1 5/16” - 18 AT28/U225/CSF90 28mm 2 1/4” - 16
AT21/U075/CSF90 21mm 3/4” - 20 AT34/U100/CSF90 34mm 1” - 20
AT21/U088/CSF90 21mm 7/8” - 20 AT34/U119/CSF90 34mm 1 3/16” - 18
AT21/U094/CSF90 21mm 15/16” - 20 AT34/U144/CSF90 34mm 1 7/16” - 18
AT21/U100/CSF90 21mm 1” - 20 AT34/U175/CSF90 34mm 1 3/4” - 18
AT21/U113/CSF90 21mm 1 1/8” - 18 AT34/U200/CSF90 34mm 2” - 16
AT21/U119/CSF90 21mm 1 3/16” - 18 AT42/U175/CSF90 42mm 1 3/4” - 18
AT21/U131/CSF90 21mm 1 5/16” - 18 AT42/U200/CSF90 42mm 2” - 16
AT21/U138/CSF90 21mm 1 3/8” - 18
To order quote part number, body colour & Elastomer colour, e.g. AT16/U063/CSF90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP4
0
UNEF Type CSF90
90º Elbow Body
Fittin
g
Characteristics
Non-metallic conduit systems
UNEF Type CSF90 - Adaptalok ATS™
Adaptaflex Product Catalogue | LIT211GB 0414 2/35
2
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
UNEF Type SF45 - Adaptalok ATS™
45º Elbow Body - Swivel Internal Female Thread / For coupling to UNEF circular connectors
Materials: Polyamide (Nylon) 66, Aluminium/TPE / Colour: Black (BL) Only / Yellow (Y), Blue (B) Elastomer
Nominal Connector Nominal Connector
Part No. Conduit Size UNEF Thread Part No. Conduit Size UNEF Thread
AT13/U063/SF45 13mm 5/8” - 24 AT21/U144/SF45 21mm 1 7⁄16” - 18
AT13/U075/SF45 13mm 3/4” - 20 AT21/U175/SF45 21mm 1 3⁄4” - 18
AT13/U088/SF45 13mm 7/8” - 20 AT28/U088/SF45 28mm 7⁄8” - 20
AT16/U063/SF45 16mm 5/8” - 24 AT28/U094/SF45 28mm 15⁄16” - 20
AT16/U075/SF45 16mm 3/4” - 20 AT28/U100/SF45 28mm 1” - 20
AT16/U081/SF45 16mm 13/16” - 20 AT28/U119/SF45 28mm 1 3⁄16” - 18
AT16/U088/SF45 16mm 7/8” - 20 AT28/U138/SF45 28mm 1 3⁄8” - 18
AT16/U094/SF45 16mm 15/16” - 20 AT28/U144/SF45 28mm 1 7⁄16” - 18
AT16/U100/SF45 16mm 1” - 20 AT28/U175/SF45 28mm 1 3⁄4” - 18
AT16/U119/SF45 16mm 1 3/16” - 18 AT28/U200/SF45 28mm 2” - 16
AT16/U131/SF45 16mm 1 5/16” - 18 AT28/U225/SF45 28mm 2 1⁄4” - 16
AT21/U075/SF45 21mm 3/4” - 20 AT34/U100/SF45 34mm 1” - 20
AT21/U088/SF45 21mm 7/8” - 20 AT34/U119/SF45 34mm 1 3⁄16” - 18
AT21/U094/SF45 21mm 15/16” - 20 AT34/U144/SF45 34mm 1 7⁄16” - 18
AT21/U100/SF45 21mm 1” - 20 AT34/U175/SF45 34mm 1 3⁄4” - 18
AT21/U113/SF45 21mm 1 1/8” - 18 AT34/U200/SF45 34mm 2” - 16
AT21/U119/SF45 21mm 1 3/16” - 18 AT42/U175/SF45 42mm 1 3⁄4” - 18
AT21/U131/SF45 21mm 1 5/16” - 18 AT42/U200/SF45 42mm 2” - 16
AT21/U138/SF45 21mm 1 3/8” - 18
To order quote part number, body colour & Elastomer colour, e.g. AT16/U063/SF45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP4
0
Fittin
g
Characteristics
Non-metallic conduit systems
UNEF Type SF45 - Adaptalok ATS™
UNEF Type SF45
45º Elbow Body
2/36 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Swivel Coupler & Panel Mounting Type FL/A - Adaptalok ATS™
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes

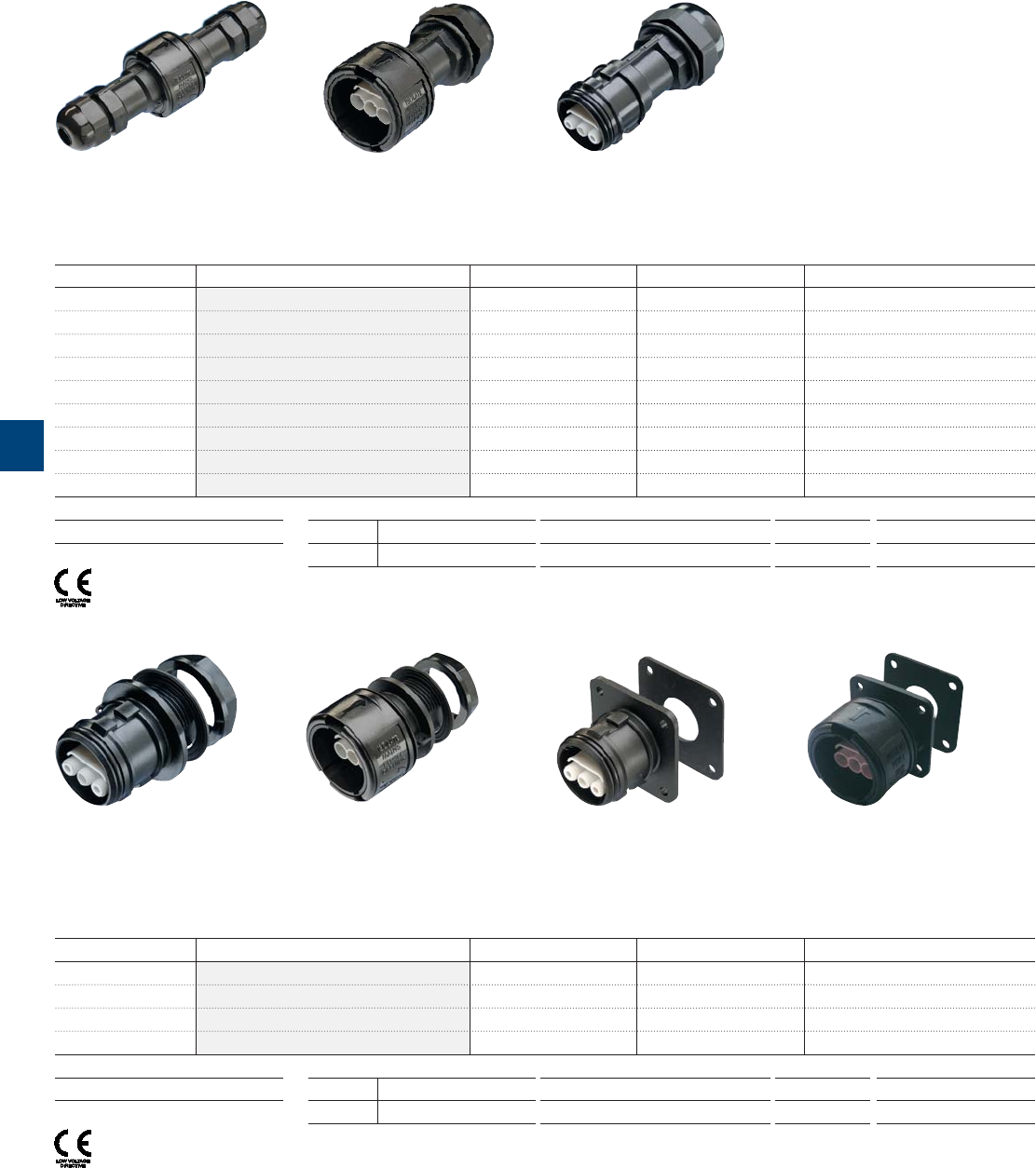

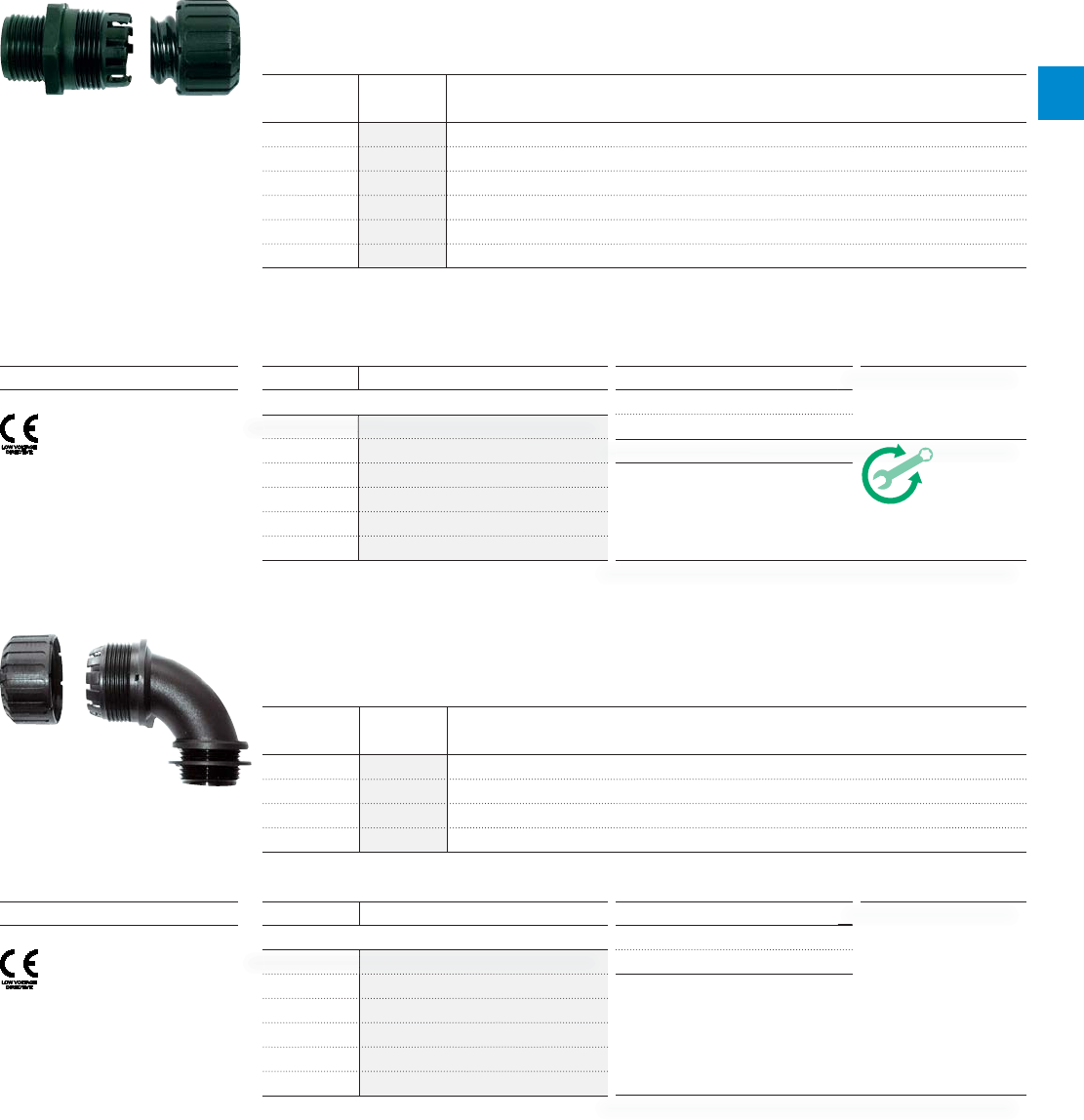

Swivel Coupler - Adaptalok ATS™
Straight PA66 Body - Swivel Coupler / For coupling to corrugated flexible conduit
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL) Only / Yellow (Y), Blue (B) Elastomer
Part No. Nominal Conduit Size
AT13/A /U 13mm
AT16/A/U 13mm
AT21/A/U 13mm
AT28/A/U 16mm
AT34/A/U 16mm
AT42/A/U 16mm
AT48/A/U 16mm
AT54/A /U 16mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/A/U/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Swivel Coupler
Straight PA66 Body
Fittin
g C
haracteristics
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Panel Mounting Type FL/A - Adaptalok ATS™
Straight Panel Mounting-Swivel Flange / With integral face seal
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Part No. Nominal Conduit Size
AT21/FL/A 21mm
AT28/FL/A 28mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/FL/A/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
IP4
0
Panel Mounting Type FL/A
Straight Panel Mounting
Swivel Flange
Fitting
C
haracteristics
Adaptaflex Product Catalogue | LIT211GB 0414 2/37
2
Non-metallic conduit systems
Panel Mounting Type FL/C90 & FL45 - Adaptalok ATS™
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP4
0
Fittin
g C
haracteristics
Panel Mounting Type FL/C90 - Adaptalok ATS™
90º Elbow Body - Panel Mounting Swivel Flange / For panel mounting via 2 hole fixing & integral face seal
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Part No. Nominal Conduit Size
AT13/FL /C90 13mm
AT16/FL/C90 16mm
AT21/FL/C90 21mm
AT28/FL/C90 28mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/FL/C90/BLB
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
es
I
P4
0
Fitting Characteristics
Panel Mounting Type FL45 - Adaptalok ATS™
45º Elbow Body - Panel Mounting Swivel Flange / With integral face seal
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL), Grey (GR) / Yellow (W), Blue (B) Elastomer
Part No. Nominal Conduit Size
AT16/FL/45 16mm
AT21/FL/45 21mm
AT28/FL/45 28mm
AT54/FL/45 54mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/FL/45/BLB
Panel Mounting Type FL45
45º Elbow Body
Panel Mounting Type FL/C90
90º Elbow Body
2/38 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type T - Adaptalok ATS™
Type T - Adaptalok ATS™
3 Way ‘T’ Piece / Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Dimensions / Conduit Size
Part No. A B C D E
AT211316/T 74.2mm 132.2mm 21mm 13mm 16mm
AT211321/T 74.2mm 127.9mm 21mm 13mm 21mm
AT211613/T 79.2mm 127.2mm 21mm 16mm 13mm
AT211616/T 79.2mm 132.2mm 21mm 16mm 16mm
AT211621/T 79.2mm 127.9mm 21mm 16mm 21mm
AT212113/T 77.2mm 127.9mm 21mm 21mm 13mm
AT211616/ T 77.2mm 127.9mm 21mm 16mm 16mm
AT212121/T 77.2mm 127.9mm 21mm 21mm 21mm
AT281321/T 92.4mm 135.2mm 28mm 13mm 21mm
AT281328/T 88.0mm 135.2mm 28mm 13mm 28mm
AT281621/T 92.4mm 139.8mm 28mm 16mm 21mm
AT281628/T 88.0mm 139.8mm 28mm 16mm 28mm
AT282121/T 92.4mm 143.5mm 28mm 21mm 21mm
AT282128/T 88.0mm 143.5mm 28mm 21mm 28mm
AT282828/T 88.0mm 134.2mm 28mm 28mm 28mm
AT341634/T 90.0mm 145.1mm 34mm 16mm 34mm
AT342128/T 100.5mm 155.6mm 34mm 21mm 28mm
AT342134/T 90.0mm 155.6mm 34mm 21mm 34mm
AT343434/T 90.0mm 145.1mm 34mm 34mm 34mm
To order quote part number, body colour & Elastomer colour, e.g. AT211316/T/BLY
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fittin
g
C
haracteristics
E
D
C
A
CD
E
B
Type T
3 Way ‘T’ Piece
A B C D E
AT281321/T 92.4mm 135.2mm 28mm 13mm 21mm
AT341634/T 90.0mm 145.1mm 34mm 16mm 34
mm
21T
28T
34T
Adaptaflex Product Catalogue | LIT211GB 0414 2/39
2
Non-metallic conduit systems
Type Y - Adaptalok ATS™
Type Y - Adaptalok ATS™
3 Way ‘Y’ Piece / Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Dimensions / Conduit Size
Part No. A B C D E
AT282113/Y 107.1mm 117.8mm 28mm 21mm 13mm
AT282116/Y 110.6mm 117.8mm 28mm 21mm 16mm
AT282121/Y 116.4mm 129.9mm 28mm 21mm 21mm
AT282813/Y 108.7mm 124.6mm 28mm 28mm 13mm
AT282816/Y 112.2mm 124.6mm 28mm 28mm 16mm
AT282821/Y 116.6mm 124.6mm 28mm 28mm 21mm
AT282828/Y 165.0mm 119.0mm 28mm 28mm 28mm
To order quote part number, body colour & Elastomer colour, e.g. AT282113/Y/BLY
Type Y
3 way ‘Y’ Piece
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PADL / PF
IP40 Yes
IP65 Yes
IP68 Yes (4 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP4
0
Fitting Characteristics
E
D
C
A
E
B
CD
A B C D E
28Y
2/40 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type A & C90 - Adaptaseal
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes
IP68 Yes (2 bar 30mins)
IP69K Yes
Type A - Adaptaseal
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Conduit Metric Nominal Conduit PG
Part No. Conduit Size Pitch Thread Part No. Conduit Size Pitch Thread
ASF10/M16/A 10mm Fine M16 ASF10/PG9/A 10mm Fine PG9
ASF13/M16/A 13mm Fine M16 ASF13/PG9/A 13mm Fine PG9
ASF16/M16/A 16mm Fine M16 ASF16/PG11/A 16mm Fine PG11
ASF16/M20/A 16mm Fine M20 ASF16/PG13/A 16mm Fine PG13.5
ASF21/M20/A 21mm Fine M20 ASF21/PG16/A 21mm Fine PG16
ASC21/M20/A 21mm Coarse M20 ASC21/PG16/A 21mm Coarse PG16
ASF28/M25/A 28mm Fine M25 ASF28/PG21/A 28mm Fine PG21
ASC28/M25/A 28mm Coarse M25 ASC28/PG21/A 28mm Coarse PG21
ASF34/M32/A 34mm Fine M32 ASF34/PG29/A 34mm Fine PG29
ASC34/M32/A 34mm Coarse M32 ASC34/PG29/A 34mm Coarse PG29
ASC42/M40/A 42mm Coarse M40 ASC42/PG36/A 42mm Coarse PG36
ASC54/M50/A 54mm Coarse M50 ASC54/PG48/A 54mm Coarse PG48
To order quote part number & body colour, e.g. ASF10/M16/A/BL
PF & NPT thread sizes available
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Y
e
s
IP
66
Type A
Straight Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes
IP68 Yes (2 bar 30mins)
IP69K Yes
Type C90 - Adaptaseal
90° Elbow Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Conduit Metric Nominal Conduit PG
Part No. Conduit Size Pitch Thread Part No. Conduit Size Pitch Thread
ASF10/M16/C90 10mm Fine M16 ASF10/PG9/C90 10mm Fine PG9
ASF13/M16/C90 13mm Fine M16 ASF13/PG9/C90 13mm Fine PG9
ASF16/M16/C90 16mm Fine M16 ASF16/PG11/C90 16mm Fine PG11
ASF16/M20/C90 16mm Fine M20 ASF16/PG13/C90 16mm Fine PG13.5
ASF21/M20/C90 21mm Fine M20 ASF21/PG16/C90 21mm Fine PG16
ASC21/M20/C90 21mm Coarse M20 ASC21/PG16/C90 21mm Coarse PG16
ASF28/M25/C90 28mm Fine M25 ASF28/PG21/C90 28mm Fine PG21
ASC28/M25/C90 28mm Coarse M25 ASC28/PG21/C90 28mm Coarse PG21
ASF34/M32/C90 34mm Fine M32 ASF34/PG29/C90 34mm Fine PG29
ASC34/M32/C90 34mm Coarse M32 ASC34/PG29/C90 34mm Coarse PG29
ASC42/M40/C90 42mm Coarse M40 ASC42/PG36/C90 42mm Coarse PG36
ASC54/M50/C90 54mm Coarse M50 ASC54/PG48/C90 54mm Coarse PG48
To order quote part number & body colour, e.g. ASF10/M16/C90/BL
PF & NPT thread sizes available
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Y
e
s
IP
66
Type C90
90° Elbow Fitting
Adaptaflex Product Catalogue | LIT211GB 0414 2/41
2
Non-metallic conduit systems
Type FLC90/FL90 & T - Adaptaseal
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes
IP68 Yes (2 bar 30mins)
IP69K Yes
Type FLC90/FL90 - Adaptaseal
90° Elbow Body - Panel Mount Swivel Flange / For panel mounting via 2/4 hole fixing & integral face seal
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Conduit
Part No. Conduit Size Pitch
ASF13/FL/C90 13mm Fine
ASF16/FL /C90 16mm Fine
ASF21/FL/C90 21mm Fine
ASC21/FL/C90 21mm Coarse
AS F28/ FL/C90 28mm Fine
ASC28/FL/C90 28mm Coarse
ASF34/FL/90* 34mm Fine
ASC34/FL/90* 34mm Coarse
ASC42/FL/90* 42mm Coarse
ASC54/FL/90* 54mm Coarse
To order quote part number & body colour, e.g. ASF13/FL/C90/BL
*These sizes are fixed panel mounting - non swivel
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Ye
s
IP66
Type FLC90/FL90
90° Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes
IP68 N /A
IP69K N/A
Type T - Adaptaseal
Inspection T-Piece / For connection to corrugated flexible conduit
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Conduit Metric
Part No. Conduit Size Pitch Thread
ASF10X3/T 10mm Fine M10
ASF13X3/ T 13mm Fine M13
ASF16X3/T 16mm Fine M16
ASF21X3/T 21mm Fine M21
ASC21X3/T 21mm Coarse M21
ASF28X3/T 28mm Fine M28
ASC28X3/T 28mm Coarse M28
ASF34X3/T 34mm Fine M34
ASC34X3/T 34mm Coarse M34
To order quote part number & body colour, e.g. ASF10X3/T/BL
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Y
e
s
IP
66
Type T
Inspection T-Piece
2/42 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type RK & AWB - Adaptaseal
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP66 Yes
IP67 Yes
IP68 N /A
IP69K N/A
Type RK - Adaptaseal
Reducing Kit / For connection to a reduced conduit size
Materials: Polyamide (Nylon) 66 & Neoprene Rubber / Colour: Black (BL) Only
Part No.
Nominal Conduit Reducing to Reducing to Reducing to Reducing to Reducing to
Conduit Size Pitch Conduit Size 10 Conduit Size 13 Conduit Size 16 Conduit Size 21 Conduit Size 28
10mm Fine
13mm Fine RK13-10
16mm Fine RK16-10 RK16-13
21mm Fine RK21-10 RK21-13 RK21-16
21mm Coarse RK21-10 RK21-13 RK21-16
28mm Fine RK28-13 RK28-16 RK28-21
28mm Coarse RK28-13 RK28-16 RK28-21
34mm Fine RK34-21 RK34-28
34mm Coarse RK34-21 RK34-28
To order quote part number, e.g. RK13-10/BL
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Yes
IP6
6
Type RK
Reducing Kit
Reducing to Reducing to Reducing to Reducing to Reducing to
Type AWB - Adaptaseal
Anti-Vibration Washer / Prevents fitting loosening under vibration
Materials: Acetal (POM) / Colour: Black (BL) Only
Part No. Nominal Conduit Size
AWB13 13mm
AWB16 16mm
AWB21 21mm
AWB28 28mm
AWB34 34mm
Type AWB
Anti-Vibration Washer
Adaptaflex Product Catalogue | LIT211GB 0414 2/43
2
Non-metallic conduit systems
Type A & C90 - Adaptaring
Type A - Adaptaring
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 & Acetal (POM) / Colour: Black (BL) Only
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
AR13/M16/A 13mm M16 AR13/PG9/A 13mm PG9
AR16/M16/A 16mm M16 AR16/PG11/A 16mm PG11
AR16/M20/A 16mm M20 AR16/PG13/A 16mm PG13.5
AR21/M20/A 21mm M20 AR21/PG16/A 28mm PG16
AR28/M25/A 28mm M25 AR28/PG21/A 42mm PG21
AR34/M32/A 34mm M32 AR34/PG29/A 48mm PG29
AR42/M40/A 42mm M42 AR42/PG36/A 54mm PG36
AR54/M50/A 54mm M50 AR54/PG48/A 54mm PG48
To order quote part number, e.g. AR21/M20/A/BL
PF & NPT thread sizes available
Type A
Straight Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP40 Yes
IP65 N/A
IP66 N/A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characteristics
Approvals
Yes
IP4
0
Fitting Characteristics
Type C90 - Adaptaring
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts. Locknut supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 & Acetal (POM) / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
AR13/M16/C90 13mm M16
AR16/M16/C90 16mm M16
AR16/M20/C90 16mm M20
AR21/M20/C90 21mm M20
AR28/M25/C90 28mm M25
AR34/M32/C90 34mm M32
AR42/M40/C90 42mm M42
AR54/M50/C90 54mm M50
To order quote part number & body colour, e.g. AR21/M20/C90/BL
PF & NPT thread sizes available
Type C90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP40 Yes
IP65 N/A
IP66 N/A
IP67 N/A
IP68 N/A
IP69K N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fittin
g C
haracteristics
2/44 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Type T & AWB - Adaptaring
Type T - Adaptaring
Rotational Inspection T-Piece / For connection to corrugated flexible conduit
Materials: Polyamide (Nylon) 66 & Acetal (POM) / Colour: Black (BL) Only
Part No. Nominal Conduit Size
AR13X3/ T 13mm
AR16X3/T 16mm
AR21X3/T 21mm
AR28X3/T 28mm
AR34X3/ T 34mm
To order quote part number, e.g. AR13X3/T/BL
Type T
Rotational Inspection T-Piece
IP Rating Appropriate Conduit
For use with: Type PA / PI / CP / PR / PF
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fitting Characteristics
Type AWB - Adaptaring
Anti-Vibration Washer / Prevents fitting loosening under vibration
Materials: Acetal (POM) / Colour: Black (BL) Only
Part No. Nominal Conduit Size
AWB13 13mm
AWB16 16mm
AWB21 21mm
AWB28 28mm
AWB34 34mm
Type AWB
Anti-Vibration Washer
Adaptaflex Product Catalogue | LIT211GB 0414 2/45
2
Type KF - Korifit
Lightweight Conduit / Materials: PVCu / Colour: Grey (GR) Only
Nominal NW Conduit Outside Inside Min. Bend
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Reel Length
KFL16 16mm 13 Fine 15.8mm 12.1mm 25mm 50m
KFL20 20mm 17 Fine 19.8mm 14.5mm 30mm 50m
KFL25 25mm 22 Fine 24.8mm 19.9mm 40mm 50m
To order quote part number, colour & reel length, e.g. KFL16/GR/50M
Type KF
Lightweight Conduit
Approvals IP Rating Appropriate Fitting
For use with: Korifit KC & KF
IP40 Korifit KC
IP 65 Korifit K F
IP66 N/A
IP67 N/A
IP68 N/A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Flexibility & Fatigue Life
Pliable - Low Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
High
Fir
e P
erf
ormanc
e &
EM
I S
creen
Non-metallic conduit systems
Type KF - Korifit
Type KF - Korifit
Standard Weight Conduit / Materials: PVCu / Colour: White (W) Only
Nominal NW Conduit Outside Inside Min. Bend
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Reel Length
KFS16 16mm 13 Fine 15.8mm 11.9mm 25mm 50m
KFS20 20mm 17 Fine 19.8mm 14.3mm 30mm 50m
KFS25 25mm 22 Fine 24.8mm 19.7mm 40mm 50m
To order quote part number, colour & reel length, e.g. KFS16/W/50M
Type KF
Standard Weight Conduit
Type KF - Korifit
Medium Weight Conduit / Materials: PVCu / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Reel Length
KFM16 16mm 13 Fine 15.8mm 11.9mm 25mm 50m
KFM20 20mm 17 Fine 19.8mm 14.3mm 30mm 50m
KFM25 25mm 22 Fine 24.8mm 19.7mm 40mm 50m
To order quote part number, colour & reel length, e.g. KFM16/BL/50M
Type KF
Medium Weight Conduit
2/46 Adaptaflex Product Catalogue | LIT211GB 0414
2
Type KC/A - Korifit
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts. Locknut supplied
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR), White (W)
Nominal Metric
Part No. Conduit Size Thread
KC16/M16/A 16mm M16
KC16/M20/A 16mm M20
KC20/M20/A 20mm M20
KC25/M25/A 20mm M25
To order quote part number & body colour, e.g. KC16/M16/A/BL
Type KC/A
Straight Fitting
Non-metallic conduit systems
Type KC/A & KC/C90 - Korifit
IP Rating Appropriate Conduit
For use with: Korifit Type KF
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fitting Characteristics
Type KC/C90 - Korifit
90° Elbow Fitting - Fixed External Male Thread / For insertion into knockouts. Locknut supplied
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
KC16/M16/C90 16mm M16
KC20/M20/C90 20mm M20
KC25/M25/C90 25mm M25
To order quote part number & body colour, e.g. KC16/M16/C90/BL
Type KC/C90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Korifit Type KF
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Approvals
Yes
IP4
0
Adaptaflex Product Catalogue | LIT211GB 0414 2/47
2
Non-metallic conduit systems

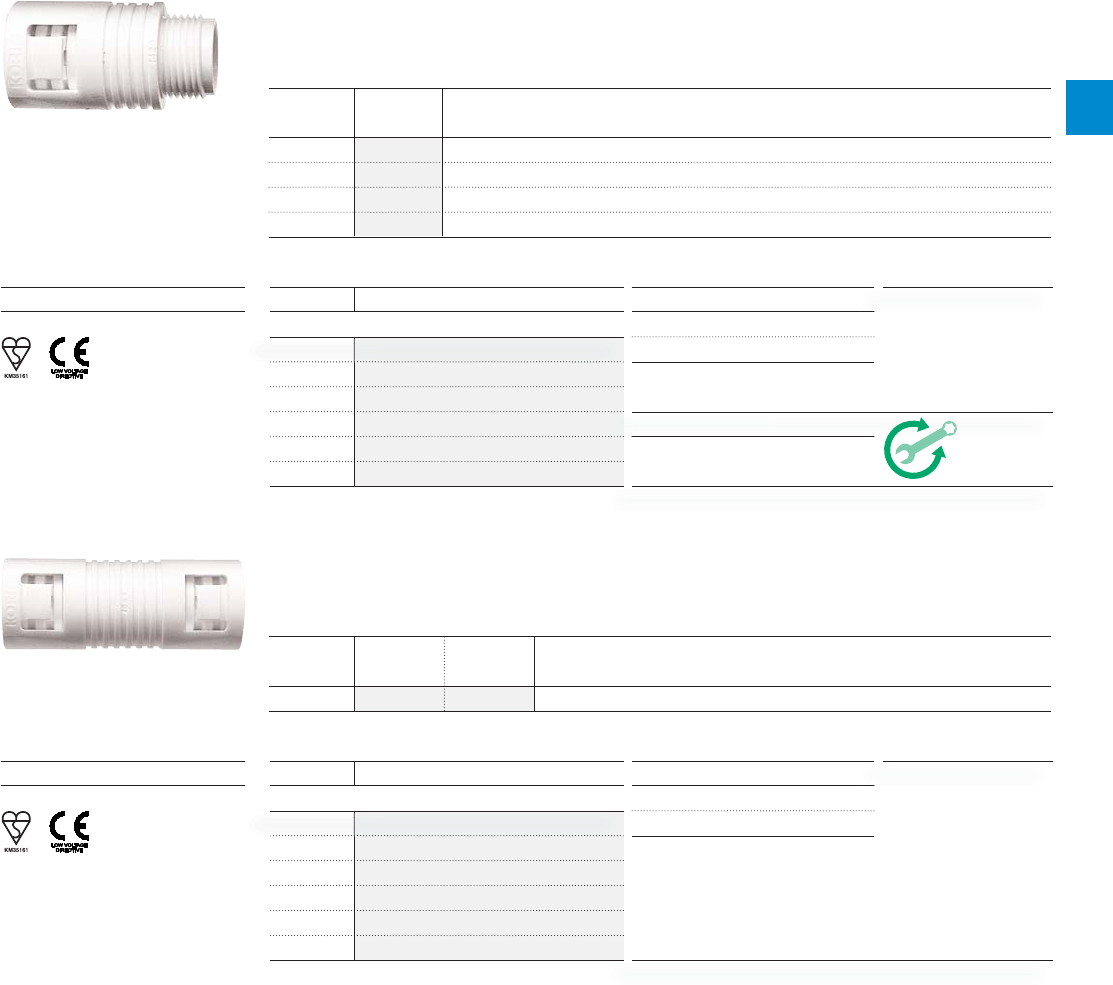

Type KF/A & Coupler - Korifit
Type KF/A - Korifit
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts. Locknut supplied
Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR), White (W)
Nominal Metric
Part No. Conduit Size Thread
KF16/M16/A 16mm M16
KF16/M20/A 16mm M20
KF20/M20/A 20mm M20
KF25/M25/A 25mm M25
To order quote part number & body colour, e.g. KF16/M16/A/BL
Type KF/A
Straight Fitting
IP Rating Appropriate Conduit
For use with: Korifit Type KF
IP40 N/A
IP65 Yes
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Fitting Characteristics
Approvals
N/
A
IP40
Fitting Characteristics
Coupler - Korifit
Straight One Piece Coupler / For coupling two corrugated flexible conduits
Materials: Polyamide (Nylon) 66 / Colour: Colour White (W) Only
Nominal NW
Part No. Conduit Size Conduit Size
KF2020 20mm 17
To order quote part number & body colour, e.g. KF2020/W
Coupler
Straight One Piece Coupler
IP Rating Appropriate Conduit
For use with: Korifit Type KF
IP40 N/A
IP65 Yes
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Approvals
N/
A
IP40
2/48 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Polypropylene Type PP & PPA - Adaptalok
Polypropylene Type PP - Adaptalok
Medium Weight Conduit / Materials: Polypropylene / Colour: Black (BL) Only
Nominal NW Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Diameter Diameter Radius Length
PPFM13 13mm 10 13.0mm 9.8mm 5mm 50m
PPFM16 16mm 13 15.8mm 12.1mm 35mm 50m
PPFM21 21mm 17 21.2mm 16.8mm 40mm 50m
PPFM28 28mm 23 28.5mm 23.1mm 60mm 50m
PPFM34 34mm 29 34.5mm 29.1mm 50mm 50m
To order quote part number, colour & reel length, e.g. PPFM16/BL/50M
Temperature Range
Static Applications: -20ºC to +90ºC
Moving Applications: -5ºC to +105ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
UV Resistance
Medium
Approvals
Type PP
Medium Weight Conduit
IP Rating Appropriate Fitting
For use with: Polypropylene Type PP
IP40 N/A
IP65 N /A
IP 6 6 Polypropylene Type PP
IP67 N/A
IP68 N /A
IP69K N/A
IP Rating Appropriate Conduit
For use with: Polypropylene Type PPA
IP40 N/A
IP65 N/A
IP66 Yes
IP67 N /A
IP68 N /A
IP69K N/A
Polypropylene Type PPA - Adaptalok
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using locknuts. Locknuts supplied
Materials: Polypropylene / Colour: Black (BL) Only
Nominal NW Outside Metric
Part No. Conduit Size Conduit Size Diameter Thread
AL13/M16/PPA 13mm 10 13.0mm M16
AL16/M16/PPA 16mm 13 15.8mm M16
AL21/M20/PPA 21mm 17 21.2mm M20
AL28/M25/PPA 28mm 23 28.5mm M25
AL34/M32/PPA 34mm 29 34.5mm M32
To order quote part number & body colour, e.g. AL21/M20/PPA/BL
Temperature Range
Static Applications: -20ºC to +90ºC
Moving Applications: -5ºC to +105ºC
Fitting Characteristics
Approvals
N/A
IP4
0
Type PPA
Straight Fitting
Fitting
C
haracteristics
Adaptaflex Product Catalogue | LIT211GB 0414 2/49
2
Non-metallic conduit systems
PVC Type XF & RF - Xtraflex / RF
PVC Type XF - Xtraflex
Standard Weight Conduit / Materials: PVCu Spiral with Plasticised PVC Covering / Colour: Black (BL) Only
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
XF12 12mm 14.5mm 10mm 25mm 30m
XF16 16mm 16.5mm 12mm 30mm 30m
XF20 20mm 20.5mm 16mm 35mm 30m
XF25 25mm 27.5mm 22mm 50mm 30m
XF32 32mm 33.5mm 28mm 60mm 30m
XF40 40mm 44.0mm 38mm 80mm 30m
XF50 50mm 57.5mm 50mm 105mm 30m
To order quote part number, colour & reel length, e.g. XF16/BL/30M
Type XF
Standard Weight Conduit
PVC Type RF - RF
Heavyweight Conduit - Smooth Bore / Materials: PVCu Spiral with Plasticised PVC Covering
Colour: Black (BL), Grey (GR)
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
RF12 12mm 14.5mm 10mm 25mm 30m
RF16 16mm 16.5mm 12mm 30mm 30m
RF20 20mm 20.5mm 16mm 35mm 30m
RF25 25mm 27.5mm 22mm 50mm 30m
RF32 32mm 33.5mm 28mm 60mm 30m
To order quote part number, colour & reel length, e.g.RF16/BL/30M
Approvals
Type RF
Heavyweight Conduit
Smooth Bore
Approvals IP Rating Appropriate Fitting
For use with: Type XF
IP40 N/A
IP 6 5 Type XF
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Flexibility & Fatigue Life
Very High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
High
IP4
0
N/A
IP Rating Appropriate Fitting
For use with: Type RF
IP40 N/A
IP65 N /A
IP66 N /A
IP 67 Type RF
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -20ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
High
2/50 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
PVC Type A & C90 - XF
Type A - XF
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
XF12/M16/D 12mm M16
XF16/M16/D 16mm M16
XF16/M20/D 16mm M20
XF20/M20/D 20mm M20
XF25/M25/D 25mm M25
XF32/M32/D 32mm M32
XF40/M40/D 40mm M40
XF50/M50/D 50mm M50
To order quote part number & body colour, e.g. XF16/M16/D/BL
PG, PF & NPT thread sizes available
Type A
Straight Fitting
Type C90 - XF
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
XF16/M16/C90 16mm M16
XF20/M20/C90 20mm M20
XF25/M25/C90 25mm M25
XF32/M32/C90 32mm M32
To order quote part number & body colour, e.g. XF16/M16/C90/BL
PG, PF & NPT thread sizes available
Type C90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Xtraflex Type XF
IP40 N/A
IP65 Yes
IP66 N/A
IP67 N /A
IP68 N/A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Fitting Characteristics
Approvals
N/
A
IP40
Fitting
C
haracteristics
IP Rating Appropriate Conduit
For use with: Xtraflex Type XF
IP40 N/A
IP65 Yes
IP66 N/A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Approvals
N/
A
IP40
Adaptaflex Product Catalogue | LIT211GB 0414 2/51
2
Non-metallic conduit systems
PVC Type A & C90 - RF
Type A - RF
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
RF12/M16/D 12mm M16
RF16/M16/D 16mm M16
RF16/M20/D 16mm M20
RF20/M20/D 20mm M20
RF25/M25/D 25mm M25
RF32/M32/D 32mm M32
To order quote part number & body colour, e.g. XF16/M16/D/BL
PG, PF & NPT thread sizes available
Type A
Straight Fitting
Type C90 - RF
90º Elbow Fitting - Fixed External Male Thread / For insertion into knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Metric
Part No. Conduit Size Thread
RF16/M16/C90 16mm M16
RF20/M20/C90 20mm M20
RF25/M25/C90 25mm M25
RF32/M32/C90 32mm M32
To order quote part number & body colour, e.g. XF16/M16/C90/BL
PG, PF & NPT thread sizes available
Type C90
90º Elbow Fitting
IP Rating Appropriate Conduit
For use with: Xtraflex Type RF
IP40 N/A
IP65 N/A
IP66 N/A
IP 67 Yes
IP68 N/A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Fitting Characteristics
Approvals
N/
A
I
P4 0
Fitting
C
haracteristics
IP Rating Appropriate Conduit
For use with: Xtraflex Type RF
IP40 N/A
IP65 N/A
IP66 N/A
IP 67 Yes
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Approvals
N/
A
I
P4 0
2/52 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Accessories - Type LNP, SW & AC

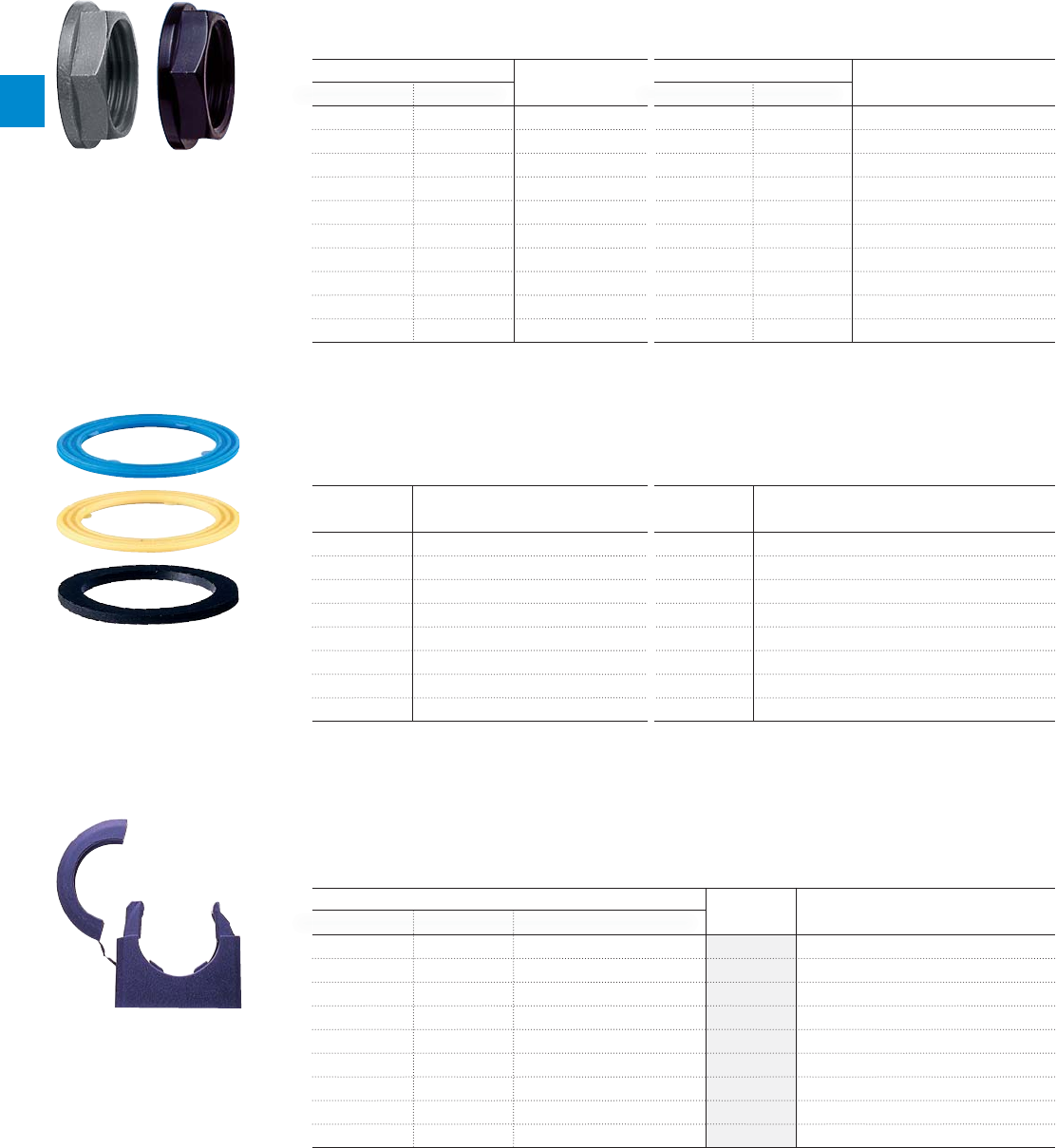

Type LNP
Nylon Locknuts / Materials: Polyamide (Nylon) 6 / Colour: Black (BL), Grey (GR)
Part No. Metric Part No. PG
Black Grey Thread Black Grey Thread
LNPB/M12 – M12 LNPB/PG7 LNPG/PG7 PG7
LNPB/M16 LNPG/M16 M16 LNPB/PG9 LNPG/PG9 PG9
LNPB/M20 LNPG/M20 M20 LNPB/PG11 LNPG/PG11 PG11
LNPB/M25 LNPG/M25 M20 LNPB/PG13 LNPG/PG13 PG13
LNPB/M32 LNPG/M32 M20 LNPB/PG16 LNPG/PG16 PG16
LNPB/M40 LNPG/M40 M20 LNPB/PG21 LNPG/PG21 PG21
LNPB/M50 LNPG/M50 M32 LNPB/PG29 LNPG/PG29 PG29
LNPB/M63 LNPG/M63 M20 LNPB/PG36 LNPG/PG36 PG36
LNPB/PG42 LNPG/PG42 PG42
LNPB/PG48 LNPG/PG48 PG48
Type LNP
Nylon Locknuts
Type SW
Thread Sealing Washer - Captive / Rubber - For use with Nylon threaded fittings. Nylon - For use with swivel metal threaded fittings
Materials: Rubber or Nylon / Colour: Black (BL), Yellow (Y), Blue (B)
Metric NPT & PF Thread
Part No. Thread Part No. (Black Only)
SWM12 M12 SW038 3/8”
SWM16 M16 SW050 1/2”
SWM20 M20 SW075 3/4”
SWM25 M25 SW100 1”
SWM32 M32 SW125 1 1/4”
SWM40 M40 SW150 1 1/2”
SWM50 M50 SW200 2”
SWM63 M63
To order quote part number & body colour, e.g. Rubber / Yellow - SWM12/Y, Nylon / Blue - SWM20/NB
Type SW
Thread Sealing Washer
Type AC
Conduit Clips
Black Grey
Black Grey
Type AC
Conduit Clips / With integral lid
Materials: Polyamide (Nylon) 66, Impact Modified Nylon - ST Version Only / Colour: Black (BL), Grey (GR)
Part No. Nominal
Black Grey Impact Modified (Black Only) Conduit Size
ACB10 ACG10 10mm
ACB13 ACG13 ACB13/ST 13mm
ACB16 ACG16 ACB16/ST 16mm
ACB21 ACG21 ACB21/ST 21mm
ACB28 ACG28 ACB28/ST 28mm
ACB34 ACG34 ACB34/ST 34mm
ACB42 ACG42 ACB42/ST 42mm
ACB48 ACG48 ACB48/ST 48mm
ACB54 ACG54 ACB54/ST 54mm
Black Grey Impact Modified (Black Only)
Adaptaflex Product Catalogue | LIT211GB 0414 2/53
2
Non-metallic conduit systems
Accessories - Type GZ, EC & RT
Type GZ
End Sleeves / For sealing cables to non-metallic conduit
Materials: Rubber / Colour: Black (BL) Only
Part No. Nominal Conduit Size
GZ9 13mm
GZ11 16mm
GZ13 21mm
GZ21 28mm
GZ29 34mm
GZ36 42mm
Type GZ
End Sleeves
Type EC
End Caps
Type RT
Adaptalok Removal Tool / To provide easy removal of Adaptalok & ATS Fittings
Materials: Polyamide (Nylon) 6 / Colour: Black (BL) Only
Adaptalok
Part No. Fitting Size
AL13 R T 13mm
AL16RT 16mm
AL21RT 21mm
AL28RT 28mm
AL34RT 34mm
AL42RT 42mm
AL54RT 54mm
Type RT
Adaptalok Removal Tool
Type EC
End Caps / Provides a smooth finish to conduit preventing any damage to cables when not terminated with a fitting
Materials: Acetal (POM) / Colour: Black (BL) Only
Part No. Nominal Conduit Size
ECB13 13mm
ECB16 16mm
ECB21 21mm
ECB28 28mm
ECB34 34mm
ECB42 42mm
ECB54 54mm
2/54 Adaptaflex Product Catalogue | LIT211GB 0414
2
UV Resistance
Very High
Type MB
Manifold Box - Multiway Adapters / Non metallic enclosure which can be machined to take upto eight Adaptalok ATS™ fittings
Materials: Polyamide (Nylon) 66/TPE / Colour: Black (BL) Only / Yellow (Y) Elastomer
External Dimensions External Dimensions Max Threaded
Part No. Lid (mm) Dia X Height Fixing Lugs (mm) Entry Per Face
MB21 100 x 40 120 M20
MB34 136 x 55 155 M32
To order quote part number, body colour & Elastomer colour, e.g. MB21/BLY
Non metallic enclosure which can be machined to take upto eight Adaptalok ATS™ fittings (or other devices) in a variety of configurations and sizes, e.g. ‘Y’, ‘T’, ‘X’, ‘V’ etc.
Each box has a removable cover for ease of access. The box seal is moulded, so remains captive. Each manifold is provided with eigt blank sides which require drilling/machining to suit
the application. Manifolds can be supplied ready drilled to order subject to minimum order quantities. Threaded fittings with locknuts or Fastlok adapters can be used in each entry.
Type FK - Fastlok
Fastlok Adapter - Straight Fitting / Quick fi t, front of panel mounting adapter, into which can be screwed any metric threaded product
Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only / Yellow (Y) Elastomer
Hole Diameter Metric
Part No. For Fastlok Thread
FK20 20.5mm M20
FK25 25.5mm M25
To order quote part number, body colour & Elastomer colour, e.g. FK20/BLY
Fastlok adapters use seals to provide an ingress protection level of IP66, 67, 68 and 69k. They are a superior alternative to ‘Push-in’ type
fittings, they provide better protection and are simpler to install and remove. Fastlok provides minimum intrusion into the enclosure space.
IP Rating Appropriate Fitting
For use with: All threaded Adaptalok ATS™ Fittings
IP66 Yes
IP67 Yes
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
es
IP
66
Non-metallic conduit systems
Accessories - Type FK - Fastlok / Type MB
IP Rating Appropriate Fitting
For use with: All threaded fittings in this catalogue
IP66 Yes
IP67 Yes
IP68 Yes (2 bar 30mins)
IP69K Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Y
e
s
IP
66
Type FK
Fastlok Adapter
Type MB
Manifold Box
Adaptaflex Product Catalogue | LIT211GB 0414 2/55
2
Non-metallic conduit systems
Fastlok adapters & manifold boxes assembly & confi guration guide
Fastlok assembly
1. Drill hole into enclosure
2. Insert Fastlok into the hole
3. Tighten left-hand thread to secure to enclosure
4. Screw fitting into Fastlok
Exploded view of Fastlok, Enclosure & Fitting Assembly:
Fastlok fits quickly and is secured easily without the need for
any additional tools:
Minimum intrusion into enclosure:
Manifold boxes - example configurations
Each manifold is provided with eight blank sides which require
drilling/machining to suit the application.
2/56 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems
Accessories - Type T, Hinged ‘T’ Piece
Type T
Hinged ‘T’ Piece / Materials: Polyamide (Nylon) 66 / Colour: Black (BL), Grey (GR)
Nominal Dimensions / Conduit Size
Part No. A B C D E
T101010/BL 45.2mm 31.1mm 10mm 10mm 10mm
T101310/BL 45.2mm 31.1mm 10mm 13mm 10mm
T101613/BL 45.2mm 31.1mm 10mm 16mm 13mm
T131010/BL 45.2mm 31.1mm 13mm 10mm 10mm
T131013/BL 45.2mm 31.1mm 13mm 10mm 13mm
T131310/BL 45.2mm 31.1mm 13mm 13mm 10mm
T131313/BL 45.2mm 31.1mm 13mm 13mm 13mm
T131613/BL 45.2mm 31.1mm 13mm 16mm 13mm
T161013/BL 49.1mm 34.8mm 16mm 10mm 13mm
T161313/BL 49.1mm 34.8mm 16mm 13mm 13mm
T161316/BL 49.1mm 34.8mm 16mm 13mm 16mm
T161613/BL 49.1mm 34.8mm 16mm 16mm 13mm
T161616/BL 49.1mm 34.8mm 16mm 16mm 16mm
T162113/BL 49.1mm 34.8mm 16mm 21mm 13mm
T162116/BL 49.1mm 34.8mm 16mm 21mm 16mm
T211016/BL 56.5mm 41.0mm 21mm 10mm 16mm
T211021/BL 56.5mm 41.0mm 21mm 10mm 21mm
T211316/BL 56.5mm 41.0mm 21mm 13mm 16mm
T211321/BL 56.5mm 41.0mm 21mm 13mm 21mm
T211613/BL 56.5mm 41.0mm 21mm 16mm 13mm
T211616/BL 56.5mm 41.0mm 21mm 16mm 16mm
T211621/BL 56.5mm 41.0mm 21mm 16mm 21mm
T212113/BL 56.5mm 41.0mm 21mm 21mm 13mm
T212116/BL 56.5mm 41.0mm 21mm 21mm 16mm
T212121/BL 56.5mm 41.0mm 21mm 21mm 21mm
T281021/BL 64.5mm 48.5mm 28mm 10mm 21mm
T281028/BL 64.5mm 48.6mm 28mm 10mm 28mm
T281321/BL 64.5mm 48.6mm 28mm 13mm 21mm
T281328/BL 64.5mm 48.6mm 28mm 13mm 28mm
T281621/BL 64.5mm 48.6mm 28mm 16mm 21mm
T281628/BL 64.5mm 48.6mm 28mm 16mm 28mm
T282121/BL 64.5mm 48.6mm 28mm 21mm 21mm
T282128/BL 64.5mm 48.6mm 28mm 21mm 28mm
T282828/BL 64.5mm 48.6mm 28mm 28mm 28mm
T341634/BL 72.0mm 55.3mm 34mm 16mm 34mm
T342128/BL 72.0mm 55.3mm 34mm 21mm 28mm
T342134/BL 72.0mm 55.3mm 34mm 21mm 34mm
T343434/BL 72.0mm 55.3mm 34mm 34mm 34mm
Type PA
Hinged ‘T’ Piece
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characterstics
Snap Fit
Approvals IP Rating Appropriate Conduit
For use with: Type PA / PI / PR / PF
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
B
C
AD
E
C D E
A B
10T
13T
16T
21T
28T
34T
13mm 10mm 10mm
T131010/BL 45.2mm 31.1mm
13T
16mm 10mm 13mm
T161013/BL 49.1mm 34.8mm
16
T
21mm 10mm 16mm
T211016/BL 56.5mm 41.0mm
21T
28mm 10mm 21mm
T281021/BL 64.5mm 48.5mm
28
T
34mm 16mm 34m
m
T341634/BL 72.0mm 55.3mm
34T
Adaptaflex Product Catalogue | LIT211GB 0414 2/57
2
Non-metallic conduit systems
Accessories - Type Y, Hinged ‘Y’ Piece
Type Y
Hinged ‘Y’ Piece / Materials: Polyamide (Nylon) 66 / Colour: Black (BL) Only
Nominal Dimensions / Conduit Size
Part No. A B C D E
Y101010/BL 54.6mm 37.1mm 10mm 10mm 10mm
Y101013/BL 54.6mm 37.1mm 10mm 10mm 13mm
Y101210/BL 54.6mm 37.1mm 10mm 12mm 10mm
Y131010/BL 54.6mm 37.1mm 13mm 10mm 10mm
Y131011/BL 54.6mm 37.1mm 13mm 10mm 11mm
Y131310/BL 54.6mm 37.1mm 13mm 13mm 10mm
Y131313/BL 54.6mm 37.1mm 13mm 13mm 13mm
Y161013/BL 54.9mm 39.8mm 16mm 10mm 13mm
Y161310/BL 54.9mm 39.8mm 16mm 13mm 10mm
Y161313/BL 54.9mm 39.8mm 16mm 13mm 13mm
Y161610/BL 54.9mm 39.8mm 16mm 16mm 10mm
Y161613/BL 54.9mm 39.8mm 16mm 16mm 13mm
Y211010/BL 42.8mm 41.0mm 21mm 10mm 10mm
Y211310/BL 42.8mm 41.0mm 21mm 13mm 10mm
Y211313/BL 42.8mm 41.0mm 21mm 13mm 13mm
Y211610/BL 48.2mm 39.8mm 21mm 16mm 10mm
Y211613/BL 48.2mm 39.6mm 21mm 16mm 13mm
Y211616/BL 63.6mm 47.5mm 21mm 16mm 16mm
Y212110/BL 57.9mm 44.9mm 21mm 21mm 10mm
Y212113/BL 57.9mm 44.9mm 21mm 21mm 13mm
Y212116/BL 63.6mm 47.5mm 21mm 21mm 16mm
Y282113/BL 54.0mm 48.8mm 28mm 21mm 13mm
Y282116/BL 54.0mm 48.8mm 28mm 21mm 16mm
Y282121/BL 76.5mm 60.0mm 28mm 21mm 21mm
Y282810/BL 67.3mm 55.9mm 28mm 28mm 10mm
Y282813/BL 67.3mm 55.9mm 28mm 28mm 13mm
Y282816/BL 67.3mm 55.9mm 28mm 28mm 16mm
Y282821/BL 76.5mm 60.0mm 28mm 28mm 21mm
Y282828/BL 90.7mm 67.0mm 28mm 28mm 28mm
Y343416/BL 100.6mm 75.0mm 34mm 34mm 16mm
Y343421/BL 100.6mm 76.0mm 34mm 34mm 21mm
Y343434/BL 100.6mm 82.1mm 34mm 34mm 34mm
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characterstics
Snap Fit
Approvals IP Rating Appropriate Conduit
For use with: Type PA / PI / PR / PF
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type Y
Hinged ‘Y’ Piece
B
C
A
D
E
10Y
A B C D E
13Y
16Y
21Y
28Y
34Y
54.6mm 37.1mm 13mm 10mm 10mm
Y131010
/
BL13Y
5
4.9
mm
39
.8m
m
16m
m
10m
m
13m
m
Y
161
013
/BL
16Y
42.8mm 41.0mm 21mm 10mm 10mm
Y211010/BL21
Y
54.0mm 48.8mm 28mm 21mm 13mm
Y282113/BL2
8Y
100.6mm 75.0mm 34mm 34mm 16mm
Y343416/BL34Y
2/58 Adaptaflex Product Catalogue | LIT211GB 0414
2
Non-metallic conduit systems

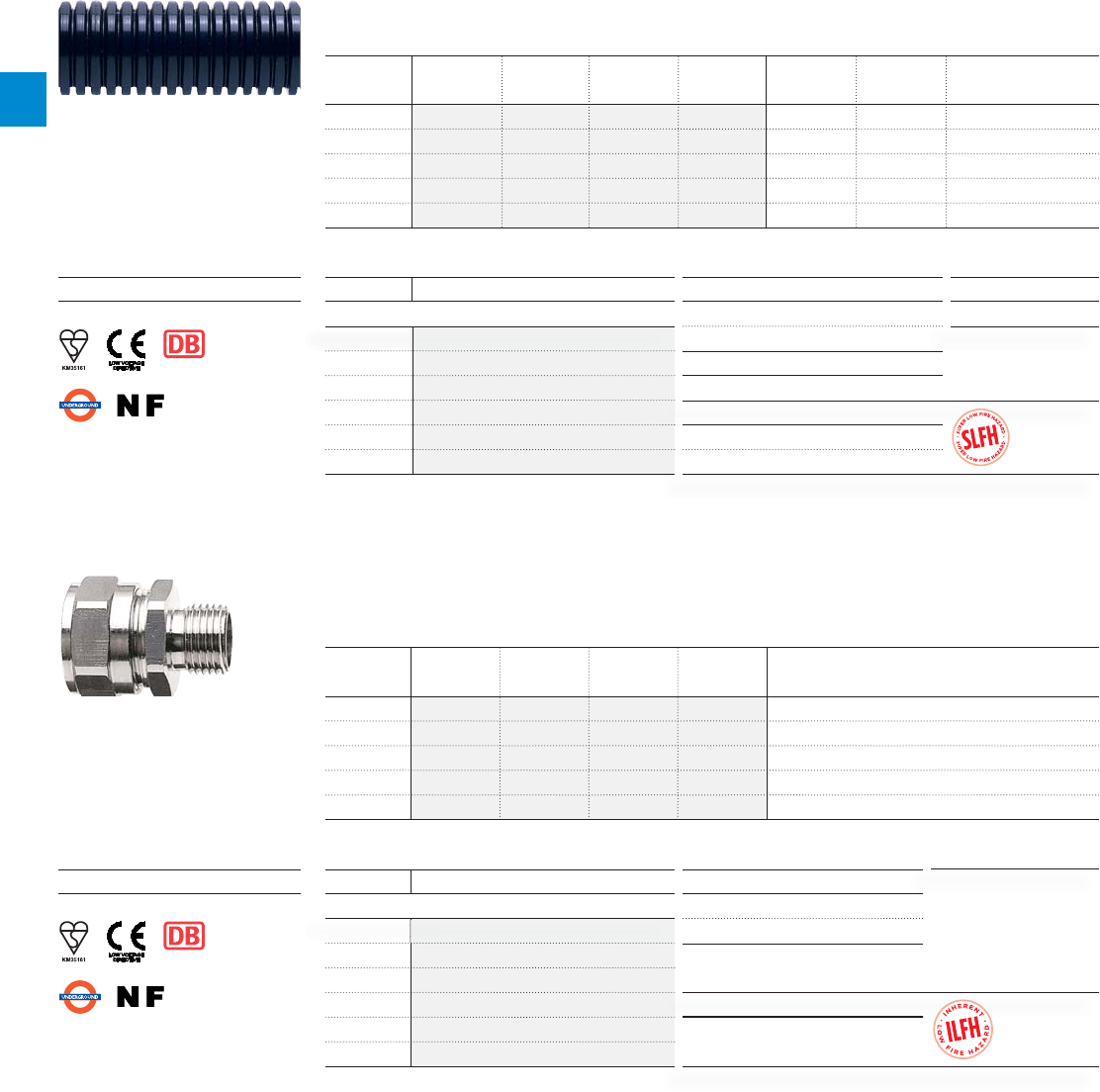

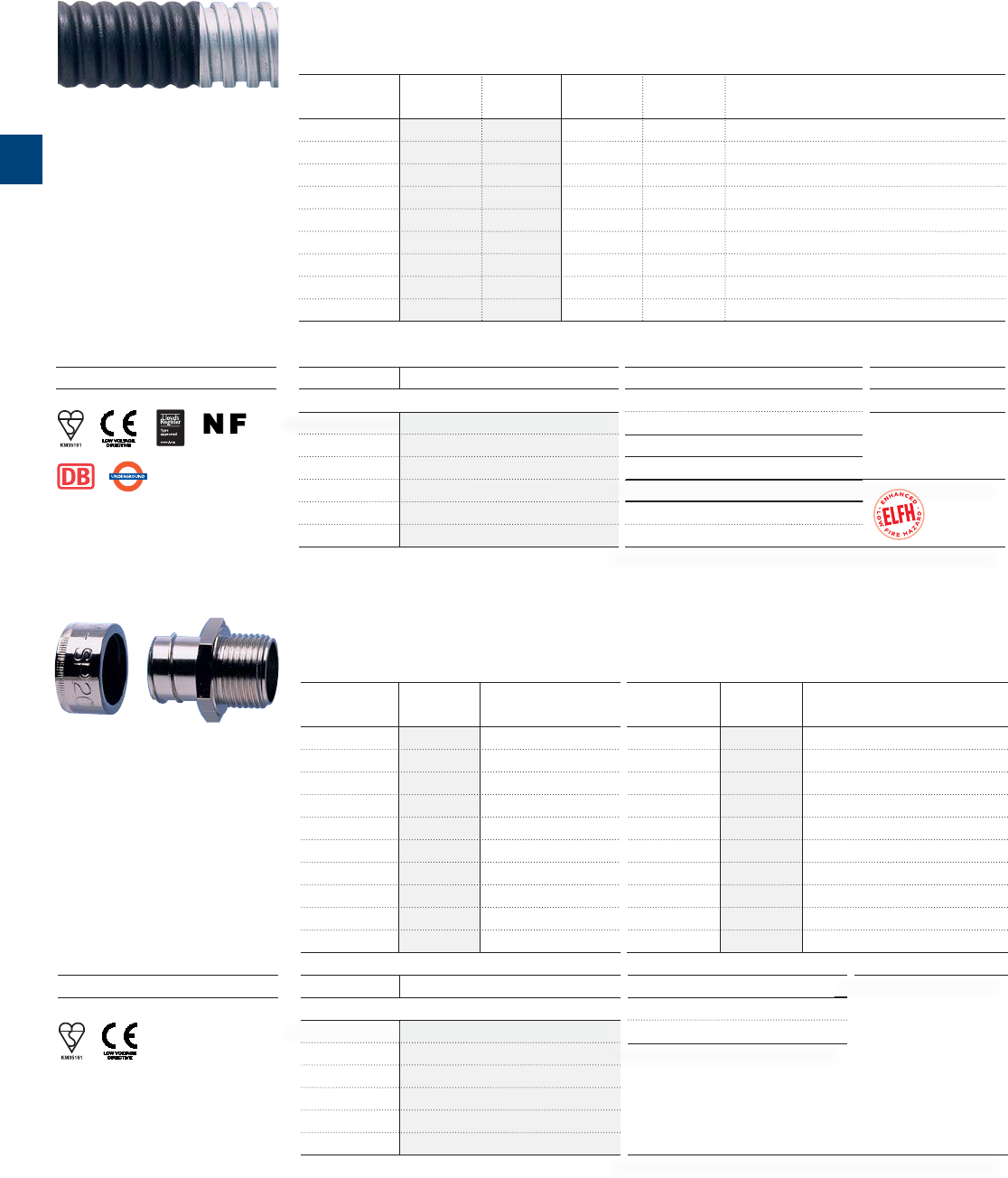

Type PK & A - Peek
Polyetherketone Type PK - Peek
High Specification Conduit / Materials: Polyetherketone / Colour: Black (BL) Only
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PKFS13 13mm 10 Fine 13.2mm 10.0mm 35mm 25, 50m
PKFS16 16mm 13 Fine 16.3mm 11.7mm 45mm 25, 50m
PKFS21 21mm 17 Fine 21.2mm 16.6mm 60mm 25, 50m
PKCS28 28mm 23 Coarse 28.4mm 21.7mm 65mm 25, 25m
PKCS34 34mm 29 Coarse 34.3mm 27.7mm 80mm 25, 25m
To order quote part number, colour & reel length, e.g. PKFS16/BL/50M
Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
Type PK
High Specification Conduit
IP Rating Appropriate Fitting
For use with: Peek Type A
IP40 N/A
IP65 N/A
IP66 Peek Type A
IP67 Peek Type A
IP68 N/A
IP69K N/A
IP Rating Appropriate Conduit
For use with: Peek Type PK
IP40 N/A
IP65 N /A
IP66 Yes
IP67 Yes
IP68 N /A
IP69K N/A
Type A - Peek
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut
Materials: Nickel Plated Brass & Silicone
Nominal NW Conduit Outside Metric
Part No. Conduit Size Conduit Size Pitch Diameter Thread
PK13/M16/A 13mm 10 Fine 13.2mm M16
PK16/M16/A 16mm 13 Fine 16.3mm M16
PK21/M20/A 21mm 17 Fine 21.2mm M20
PK 28/M25 /A 28mm 23 Coarse 28.4mm M50
P K 3 4/ M 3 2/A 3 4mm 2 9 C o a r s e 3 4.3mm M 6 3
Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Fire Performance & EMI Screen
Approvals
N
/A
IP40
Type A
Straight Fitting
Fir
e P
erf
orm
anc
e &
EM
I S
cre
en
Fire Performance & EMI Screen
Adaptaflex Product Catalogue | LIT211GB 0414 2/59
2
Non-metallic conduit systems

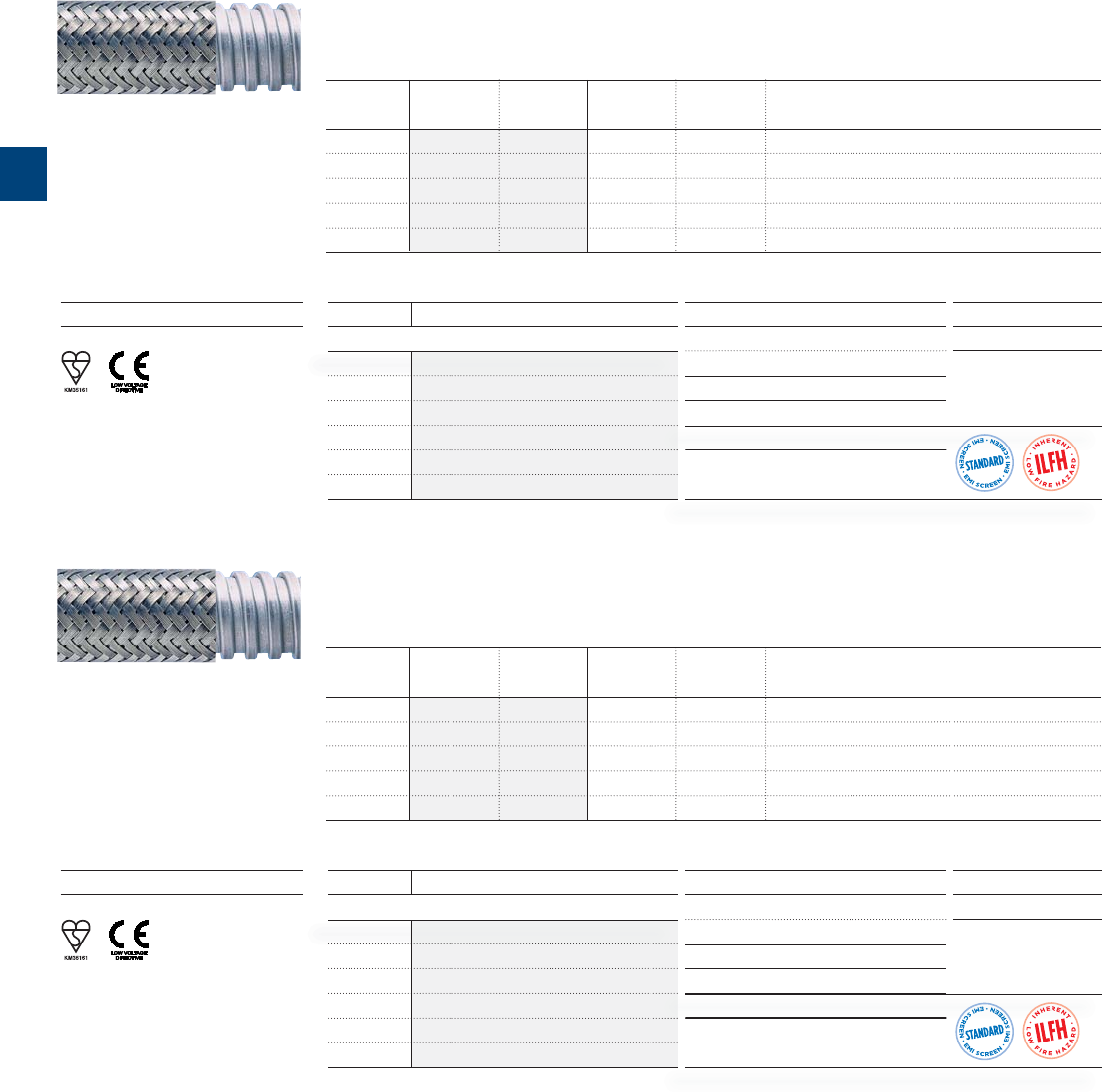

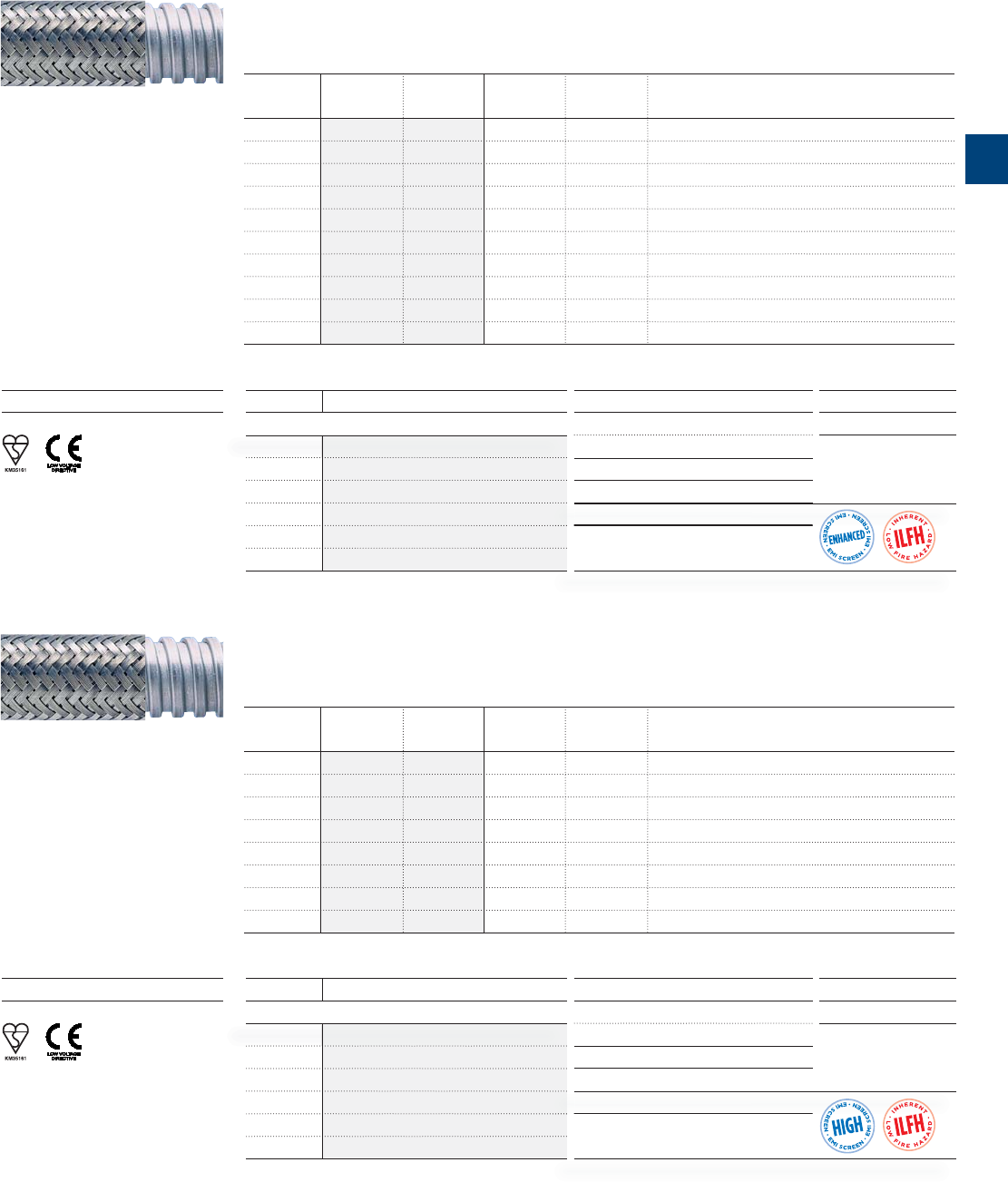

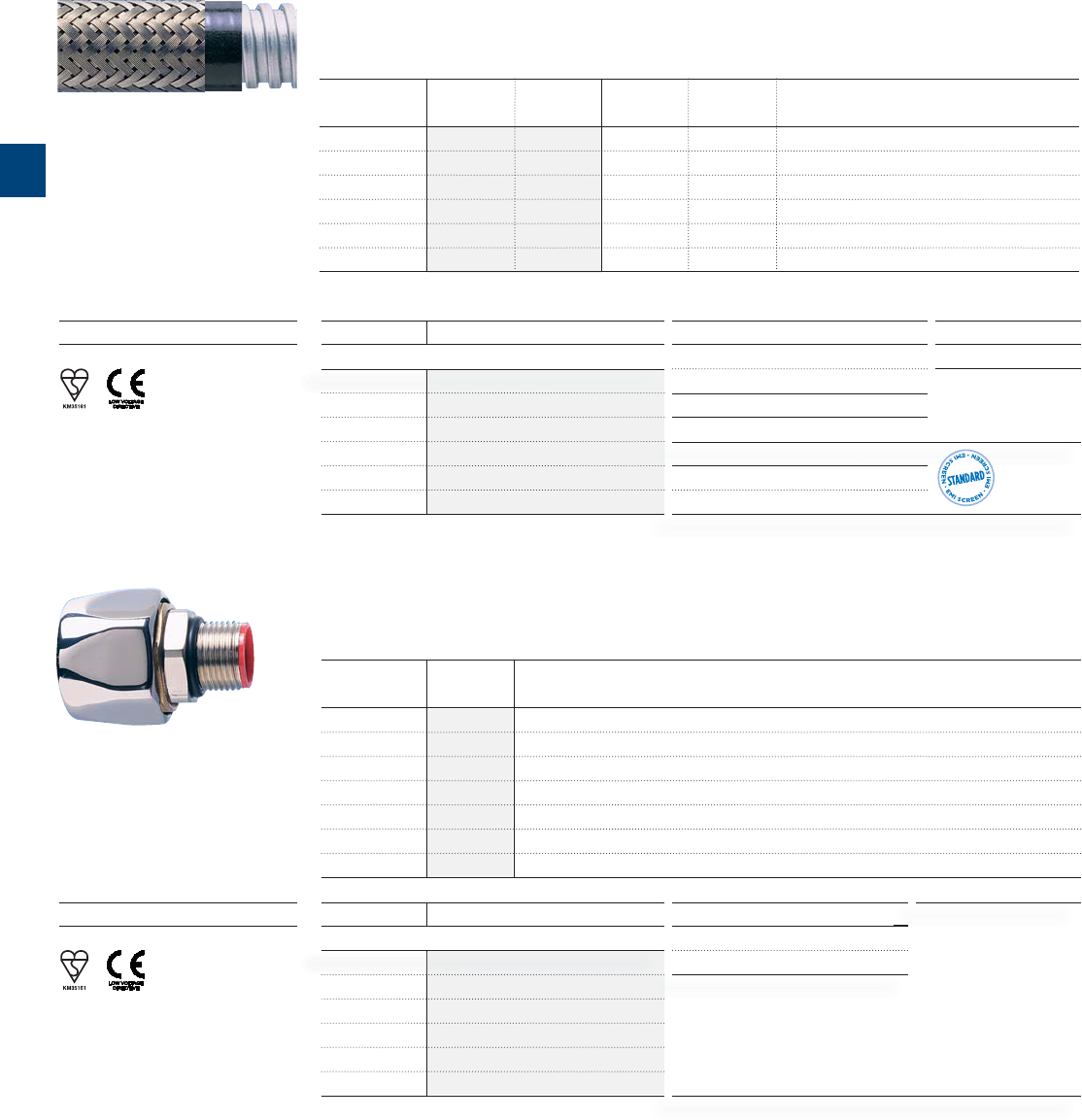

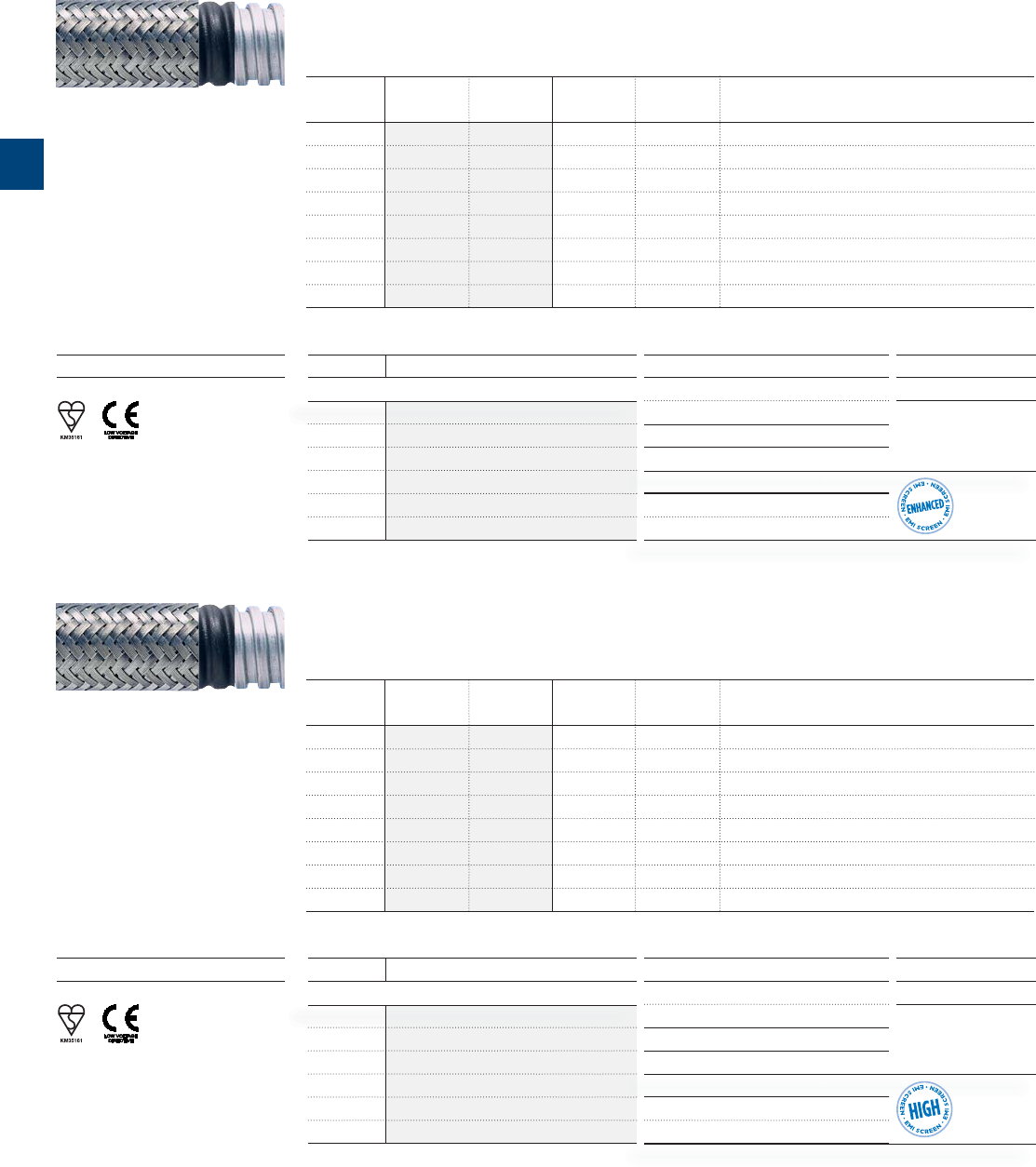

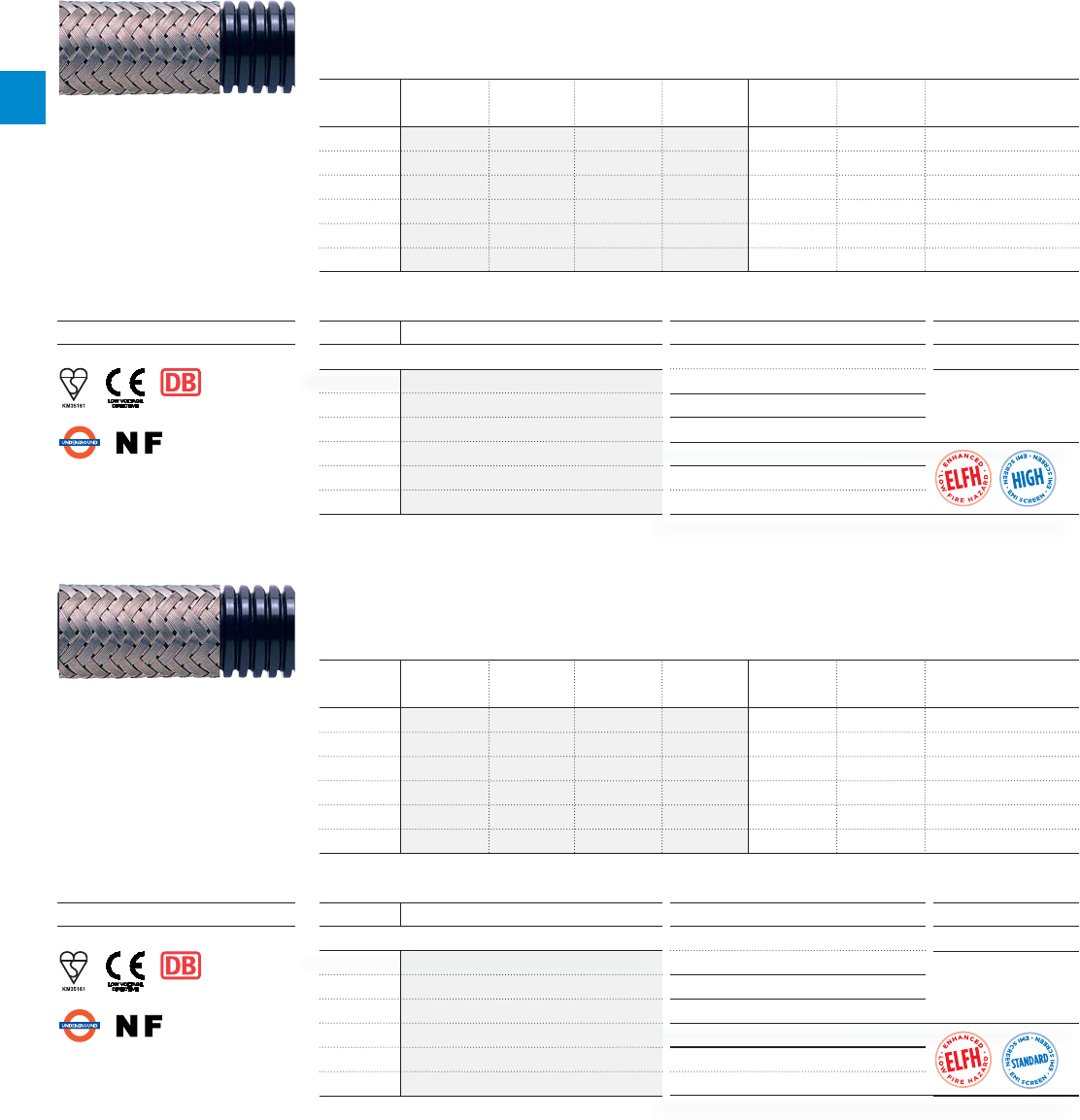

Type PKTC & PKSS - Hi-Spec
Type PKTC - Hi-Spec
High Specification, High EMI Screening Conduit
Materials: Polyetherketone Conduit, Tinned Copper Overbraid
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PKFSTC13 13mm 10 Fine 14.1mm 10.0mm 35mm 25, 50m
PKFSTC16 16mm 13 Fine 17.2mm 11.7mm 45mm 25, 50m
PKFSTC21 21mm 17 Fine 23.6mm 16.6mm 60mm 25, 50m
PKCSTC28 28mm 23 Coarse 30.0mm 21.7mm 65mm 25, 50m
PKCSTC34 34mm 29 Coarse 36.0mm 27.7mm 80mm 25, 50m
To order quote part number & reel length, e.g. PKFSTC13/50M
Type PKTC
High Specification,
High EMI Screening Conduit
Type PKSS - Hi-Spec
High Specification, Standard EMI Screening Conduit
Materials: Polyetherketone Conduit, Stainless Steel Overbraid
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PKFSSS13 13mm 10 Fine 14.1mm 10.0mm 35mm 25, 50m
PKFSSS16 16mm 13 Fine 17.2mm 11.7mm 45mm 25, 50m
PKFSSS21 21mm 17 Fine 23.6mm 16.6mm 60mm 25, 50m
PKFSSS28 28mm 23 Coarse 30.0mm 21.7mm 65mm 25, 50m
PKFSSS34 34mm 29 Coarse 36.0mm 27.7mm 80mm 25, 50m
To order quote part number & reel length, e.g. PKFSSS13/50M
Approvals
Type PKSS
High Specification,
Standard EMI Screening Conduit
Approvals IP Rating Appropriate Fitting
For use with: Hi-Spec Type A & B
IP40 N/A
IP65 N /A
IP66 Hi-Spec Type A & B
IP67 Hi-Spec Type A & B
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP40 N
/A
IP Rating Appropriate Fitting
For use with: Hi-Spec Type A & B
IP40 N/A
IP65 N /A
IP66 Hi-Spec Type A & B
IP67 Hi-Spec Type A & B
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Fir
e P
erf
orm
anc
e &
EM
I S
cre
en
Fire Per
f
ormance & EMI
S
creen
2/60 Adaptaflex Product Catalogue | LIT211GB 0414
2
IP Rating Appropriate Fitting
For use with: Hi-Spec Type A & B
IP40 N/A
IP65 N /A
IP66 Hi-Spec A & B
IP67 Hi-Spec A & B
IP68 N /A
IP69K N/A
Non-metallic conduit systems
Type PRTC & PRSS - Hi-Spec
Type PRTC - Hi-Spec
High Specification, High EMI Screening Conduit
Materials: PA (Nylon) 6 Conduit, Tinned Copper overbraid
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PRFSTC16 16mm 13 Fine 17.2mm 11.7mm 35mm 50m
PRFSTC21 21mm 17 Fine 23.6mm 16.6mm 45mm 50m
PRCSTC28 28mm 23 Coarse 30.0mm 21.7mm 50mm 50m
PRCSTC34 34mm 29 Coarse 36.0mm 27.7mm 60mm 50m
PRCSTC42 42mm 36 Coarse 43.5mm 35.1mm 65mm 25m
PRCSTC54 54mm 48 Coarse 56.5mm 46.6mm 75mm 25m
To order quote part number, colour & reel length, e.g. PAFL13/BL/50M
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Approvals
Type PRTC
High Specification,
High EMI Screening Conduit
Type PRSS - Hi-Spec
High Specification, Standard EMI Screening Conduit
Materials: PA (Nylon) 6 Conduit, Stainless Steel Overbraid
Nominal NW Conduit Outside Inside Min. Bend Reel
Part No. Conduit Size Conduit Size Pitch Diameter Diameter Radius Length
PRFSSS16 16mm 13 Fine 17.2mm 11.7mm 35mm 50m
PRFSSS21 21mm 17 Fine 23.6mm 16.6mm 45mm 50m
PRCSSS28 28mm 23 Coarse 30.0mm 21.7mm 50mm 50m
PRCSSS34 34mm 29 Coarse 36.0mm 27.7mm 60mm 50m
PRCSSS42 42mm 36 Coarse 43.5mm 35.1mm 65mm 25m
PRCSSS54 54mm 48 Coarse 56.5mm 46.6mm 75mm 25m
To order quote part number, colour & reel length, e.g. PRFSTC21/50M
Approvals
Type PRSS
High Specification,
Standard EMI Screening Conduit
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
IP Rating Appropriate Fitting
For use with: Hi-Spec Type A & B
IP40 N/A
IP65 N /A
IP66 Hi-Spec A & B
IP67 Hi-Spec A & B
IP68 N /A
IP69K N/A
Fire Per
f
ormance & EMI
S
creen
Fir
e
P
e
rf
o
rm
a
n
ce
&
EMI
Sc
r
ee
n
UV Resistance
Very High
Adaptaflex Product Catalogue | LIT211GB 0414 2/61
2
Type A
Straight Fitting
Type B
Straight Fitting
Non-metallic conduit systems

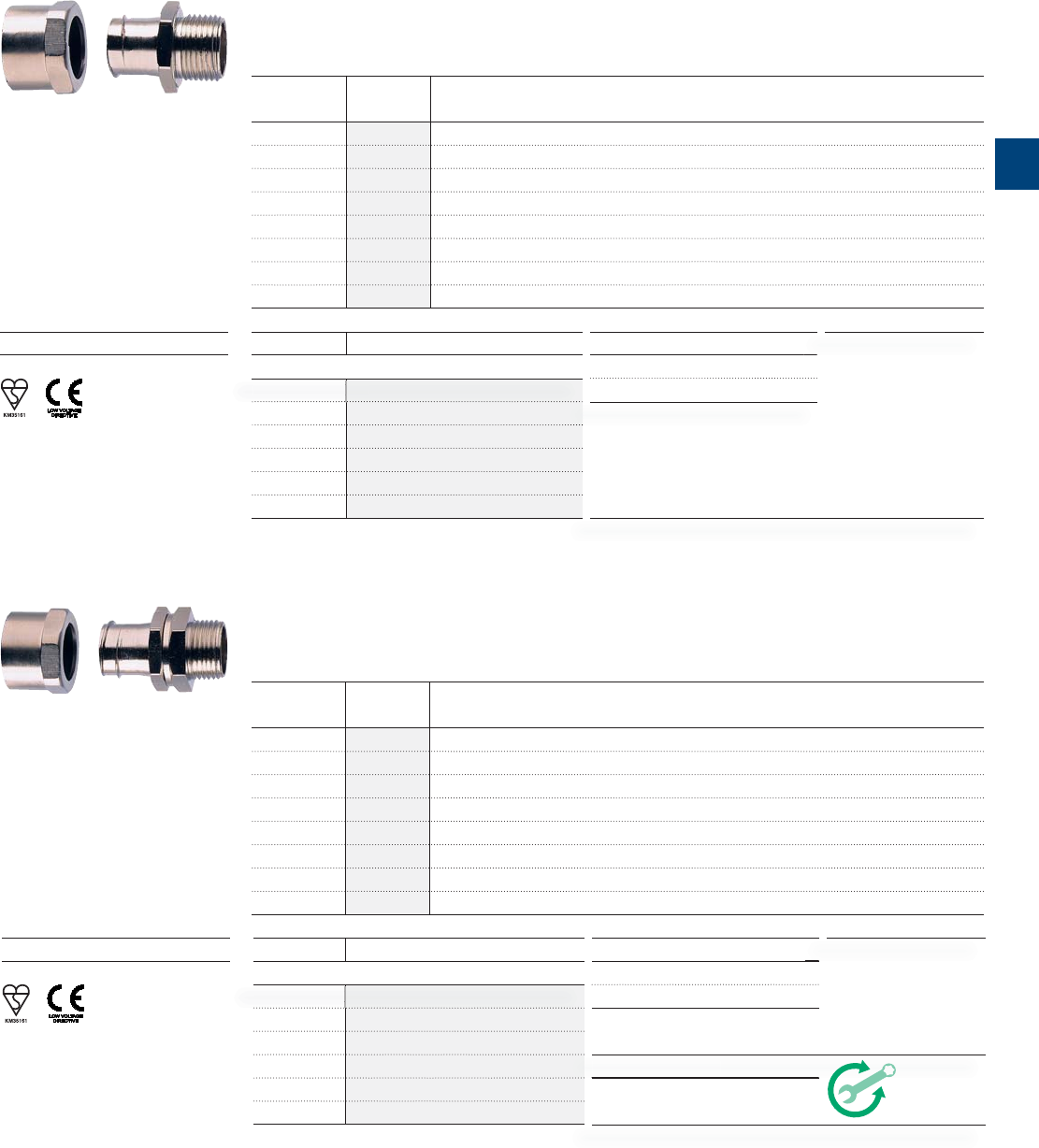

Type A & B - Hi-Spec
IP Rating Appropriate Conduit
For use with: Hi-Spec Type PKTC / PKSS / PRTC / PRSS
IP40 N/A
IP65 N/A
IP66 Yes
IP 67 Yes
IP68 N /A
IP69K N/A

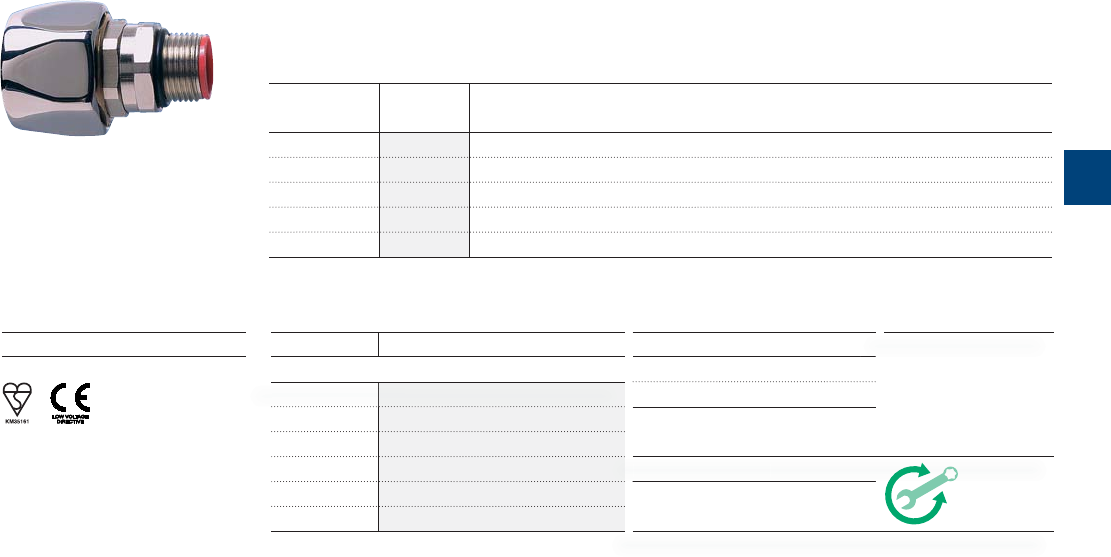

Type A - Hi-Spec
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut
Materials: Nickel Plated Brass
Nominal NW Conduit Outside Metric
Part No. Conduit Size Conduit Size Pitch Diameter Thread
PBF16/M16/A 16mm 13 Fine 17.2mm M16
PBF21/M20/A 21mm 17 Fine 23.6mm M20
PBC28/M25/A 28mm 23 Coarse 30.0mm M25
PBC34/M32/A 34mm 29 Coarse 36.0mm M32
PBC42/M40/A 42mm 36 Coarse 43.5mm M40
Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Fire Performance & EMI Screen
Approvals

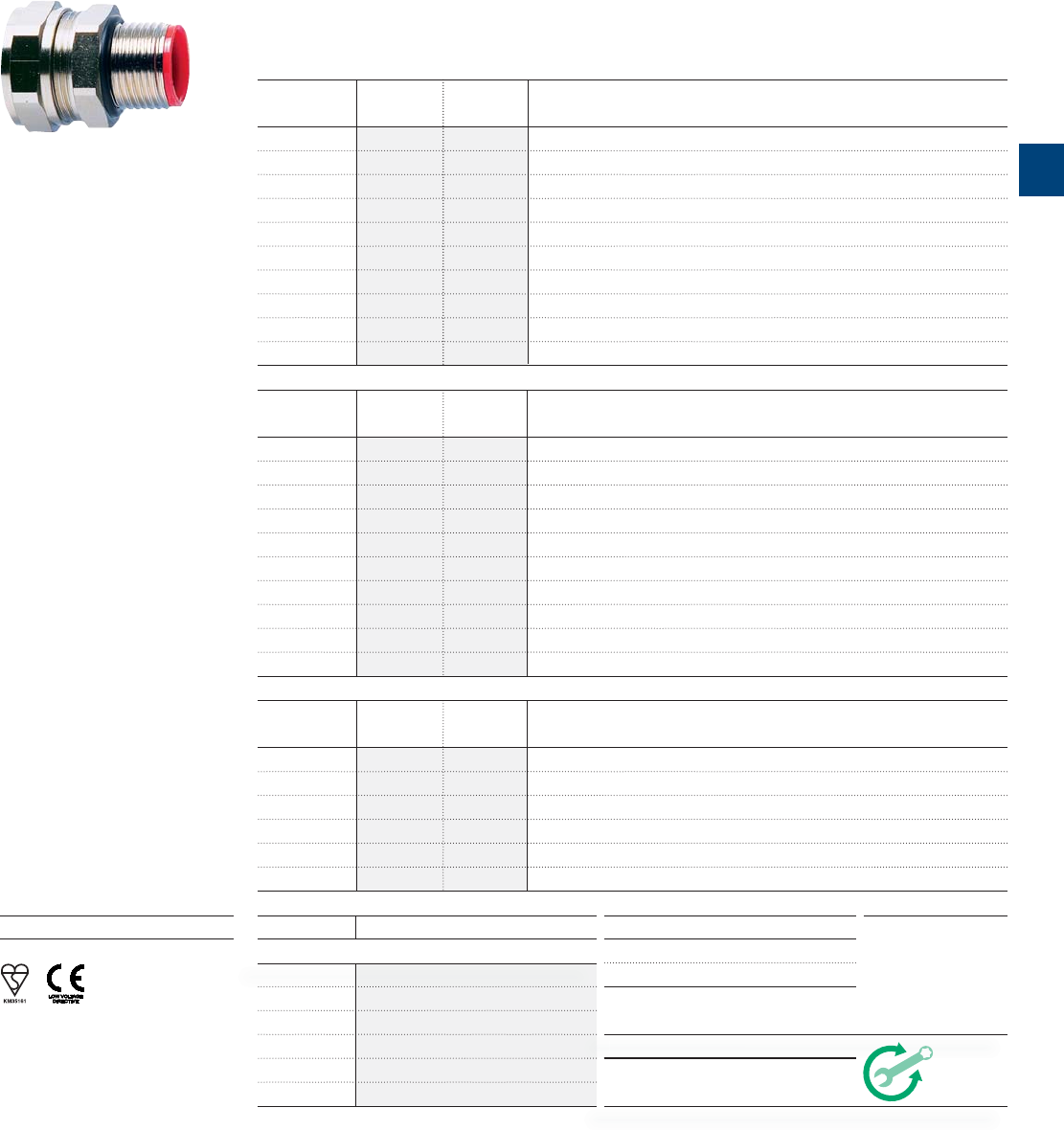

Type B - Hi-Spec
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts
Materials: Nickel Plated Brass
Nominal NW Conduit Outside Metric
Part No. Conduit Size Conduit Size Pitch Diameter Thread
PBF16/M16/B 16mm 13 Fine 17.2mm M16
PBF21/M20/B 21mm 17 Fine 23.6mm M20
PBC28/M25/B 28mm 23 Coarse 30.0mm M25
PBC34/M32/B 34mm 29 Coarse 36.0mm M32
PBC40/M40/B 42mm 36 Coarse 43.5mm M42
PBC54/M50/B 54mm 48 Coarse 56.5mm M50
Approvals Temperature Range
Static Applications: -60ºC to +260ºC
Moving Applications: -45ºC to +260ºC
Fire Performance & EMI Screen
IP Rating Appropriate Conduit
For use with: Hi-Spec Type PKTC / PKSS / PRTC / PRSS
IP40 N/A
IP65 N /A
IP66 Yes
IP 67 Yes
IP68 N /A
IP69K N/A
Fir
e P
erf
orm
anc
e &
EM
I S
cre
en
Fir
e P
erf
o
rm
a
n
c
e &
EM
I S
c
r
ee
n
Adaptaflex Product Catalogue | LIT211GB 0414 3/1
3
Adaptasteel Specialist EMI Screen Conduit & Fittings
Type SB - Specialist EMI Screen Conduit 3/19
Type STC - Specialist EMI Screen Conduit 3/19
Type SSB - Specialist EMI Screen Conduit 3/20
Type SSBGS - Specialist EMI Screen Conduit 3/20
Type A - Nickel Plated Brass Fitting 3/21
Type B - Nickel Plated Brass Fitting 3/21
Adaptasteel Specialist Liquid Resistant Conduit & Fittings
Type SPB - Specialist Liquid Resistant Conduit 3/22
Type SPTC - Specialist Liquid Resistant Conduit 3/22
Type A - Nickel Plated Brass Fitting 3/23
Type B - Nickel Plated Brass Fitting 3/23
Adaptasteel Specialist Liquid Tight Conduit & Fittings
Type SPLHCB - Specialist Liquid Tight Conduit 3/24
Type A - Nickel Plated Brass Fitting 3/24
Type B - Nickel Plated Brass Fitting 3/24
Metallic Accessories
Type LNB/LNS - Metallic Locknut 3/26
Type P - P-Clip Conduit Support 3/26
Type PSA - Proximity Switch Connectors 3/26
Type 90/45 - Brass Elbows 3/27
Type TC - UNEF Thread Converters 3/27
Female Coupler 3/27
Type E, R & TC - Enlargers, Reducers & Converters 3/28
Metallic conduit systems
Conduit, fittings & accessories
Metallic Conduit Systems
Quick selection guide 3/2
Introduction 3/5
Adaptasteel Steel Conduit & Fittings
Type S - Galvanised Steel Conduit 3/6
Type SS - Stainless Steel Conduit 3/6
Type A - Nickel Plated Brass Fitting 3/7
Type B - Nickel Plated Brass Fitting 3/7
Type F - Nickel Plated Brass Fitting 3/8
Type C - Nickel Plated Brass Fitting 3/8
Adaptasteel Liquid Resistant Conduit & Fittings
Type SP - L/R General Purpose Conduit 3/9
Type SN - L/R Abrasion & Solvent Resistant Conduit 3/9
Type LFH-SP - L/R Enhanced Low Fire Hazard Conduit 3/10
Type A - Nickel Plated Brass Fitting 3/10
Type B - Nickel Plated Brass Fitting 3/11
Type C90 - Nickel Plated Steel Fitting 3/11
Type M - Nickel Plated Brass Fitting 3/12
Type F - Nickel Plated Brass Fitting 3/12
Type C - Nickel Plated Brass Fitting 3/13
Type E - Nickel Plated Brass Fitting 3/13
Adaptasteel Liquid Tight Conduit & Fittings
Type SPL - L/T Oil Resistant 3/14
Type SPLHC - L/T Extreme Temperature 3/14
Type SPUL - L/T UL Listed & CSA Approved 3/15
Type A - Nickel Plated Brass Fitting 3/15
Type B - Nickel Plated Brass Fitting 3/16
Type E - Nickel Plated Brass Fitting 3/16
Type M - Nickel Plated Brass Fitting 3/17
Type C90 - Nickel Plated Steel Fitting 3/18
Type 45 - Nickel Plated Brass Fitting 3/18
3/2 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems

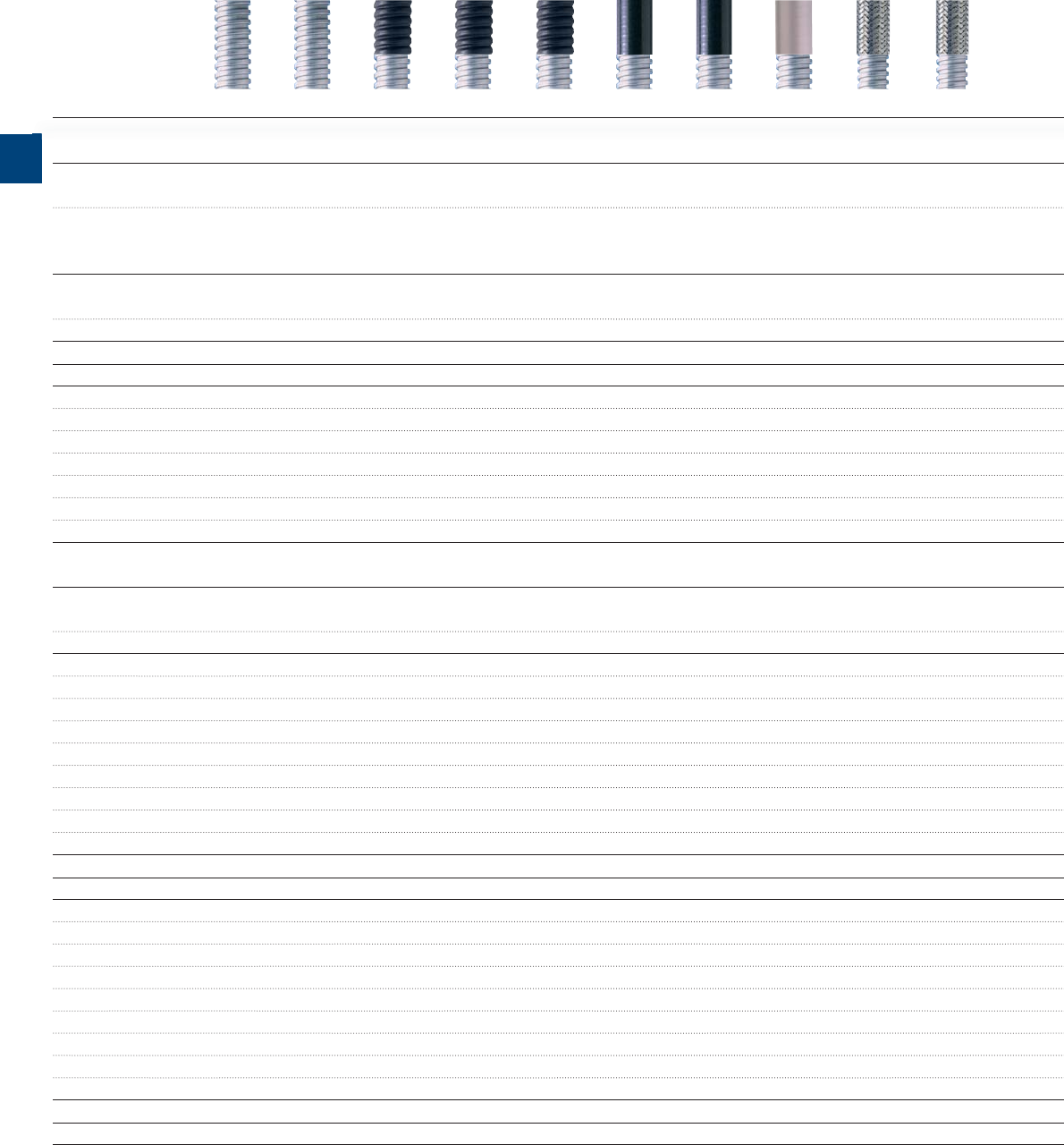

Quick selection guide
Conduit Type Type S Type SS Type SP Type SN Type LFH-SP Type SPL Type SPLHC Type SPUL Type SB Type STC
Part number S SS SP SN LFH-SP SPL SPLHC SPUL SB STC
Conduit material Galvanised Stainless Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised
steel steel steel steel steel steel steel steel steel steel
Covering/overbraid – – PVC PA (Nylon) Polyolefin PVC Thermoplastic PVC Galvanised Tinned
rubber steel copper
Conduit colour
Black (BL) – – • • • • • – – –
Grey (GR) – – • – – • – • – –
C
onduit Type Type
S
Type
SS
Type
S
P Type
S
N Type LFH-
S
P Type
S
PL Type
S
PLH
C
Type
S
PUL Type
S
B Ty pe
S
T
C
IP Rating (with appropriate fitting)
IP40 • • – – – – – – • •
IP54 – – • • • – – – – –
IP65 – – • • • – – – – –
IP66 – – – – – • • • – –
IP67 – – – – – • • • – –
IP68 – – – – – • • • – –
IP69k – – – – – • • • – –
Characteristics
Temperature Range
Static applications (ºC) -50 to +300 -50 to +350 -15 to +70 -25 to +90 -25 to +90 -20 to +105 -65 to +135 -15 to +75 -50 to +300 -50 to +300
Moving applications (ºC) -45 to +250 -45 to +250 -5 to +90 -5 to +105 -5 to +105 -5 to +105 -45 to +150 -5 to +105 -45 to +250 -45 to +250
UV resistance Very high Very high Very high High High Very high Very high High Very high Very high
Flexibility High High High Medium High Medium Very high Medium High High
Fatigue life High High Medium Medium Medium Medium High Medium High High
Low fire hazard Inherent Inherent – – Enhanced – – – Inherent Inherent
Halogen free • • – • • – • – • •
Self extinguishing – – • • • • • • – –
EMI screen – – – – – – – – Enhanced High
High mechanical strength • • • • • • • • • •
High abrasion resitance – • – – – – – – • •
Approvals
BSI Kitemark • • • • • • • • • •
CE • • • • • • • • • •
UL / CSA – – – – – – – • – –
UR – – – – – • – – – –
DB – – – – – – – – – –
NF F – – – – • – – – – –
Lloyds Register – – – – • • – – – –
LUL 1-085 – – – – • – – – – –
UNI CEI 11170 – – – – – – – – – –
Section 3 / Page No. 3/6 3/6 3/9 3/9 3/10 3/14 3/14 3/15 3/19 3/19
Adaptaflex Product Catalogue | LIT211GB 0414 3/3
3
Type SSB Type SSBGS Type SPB Type SPTC Type SPLHCB
SSB SSBGS SPB SPTC SPLHCB
Stainless Galvanised Galvanised Galvanised Galvanised
steel steel steel steel steel
Stainless Stainless PVC & PVC & Rubber &
steel steel Galvanised tinned copper stainless steel
steel
– – – – –
– – – – –
Type
SS
B Type
SS
B
GS
Type
S
PB Type
S
PT
C
Type
S
PLH
CB
• • – – –
– – • • –
– – – – –
– – – – •
– – – – •
– – – – •
– – – – –
-50 to +300 -50 to +300 -15 to +70 -15 to +70 -65 to +135
-45 to +250 -45 to +250 -5 to +90 -5 to +90 -45 to +150
Very high Very high Very high Very high Very high
High High High High High
High High Medium Medium Medium
Inherent Inherent – – –
• • – – •
– – • • •
Standard Standard Enhanced High Standard
• • • • •
• • • • •
• • • • –
• • • • •
– – – – –
– – – – –
– – – – –
– – – – –
– – – – –
– – – – –
– – – – –
3/20 3/20 3/22 3/22 3/24
3/4 Adaptaflex Product Catalogue | LIT211GB 0414
3
Adaptaflex Product Catalogue | LIT211GB 0414 3/5
3

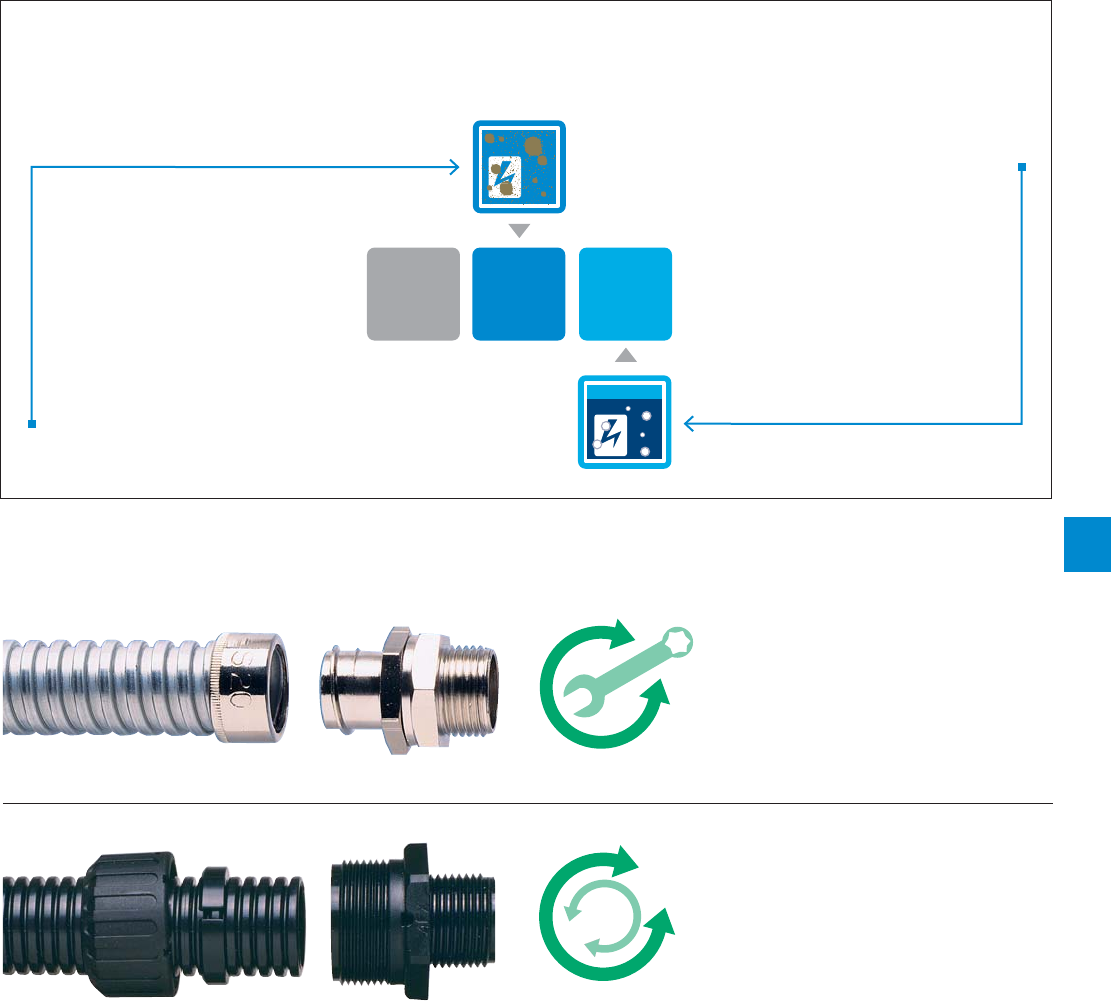

Metallic conduit systems
Introduction
A range of 3 different conduit types provide a solution for
liquid resistant specifications with a further 3 conduit options
in liquid tight covered steel conduit for especially demanding
environments. Conduit ranges are offered in nominal conduit
size from 3mm for CCTV/roller shutter doors and for
protecting fibre optics cables right up to 75mm for larger
cable carrying capacity.
Overbraided conduits are particularly suitable for installation
in abrasive environments. Where applications call for
enhanced low fire hazard properties or EMI screening then
there is the option of high specification tinned copper
overbraided for greater EMI protection levels.
In addition a range of fittings are specifically designed to
maintain system integrity including fixed and swivel fittings,
straights, 90°, 45°, and a host of accessories including
locknuts, enlargers, reducers and converters.
Many of our conduit systems have industry recognised
approvals including British Kitemark, CE Approval, UL 1696,
NF, LUL, DB, Lloyds Register amongst others.
Advantages:
– High compression/crush strength
– Tensile strength - pull off load under tension
– Impact resistance
– Inherent fire protection on uncoated versions
– Corrosion resistant - stainless steel options
– Braided - High level EMI screening with tinned copper
overbraided
Range overview
Adaptafl ex have a choice of fi fteen individual metallic conduit systems
manufactured either in galvanized steel or stainless steel.
3/6 Adaptaflex Product Catalogue | LIT211GB 0414
3
IP Rating Appropriate Fitting
For use with: Type S
IP40 Type S - Type A, B, F & C
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Metallic conduit systems

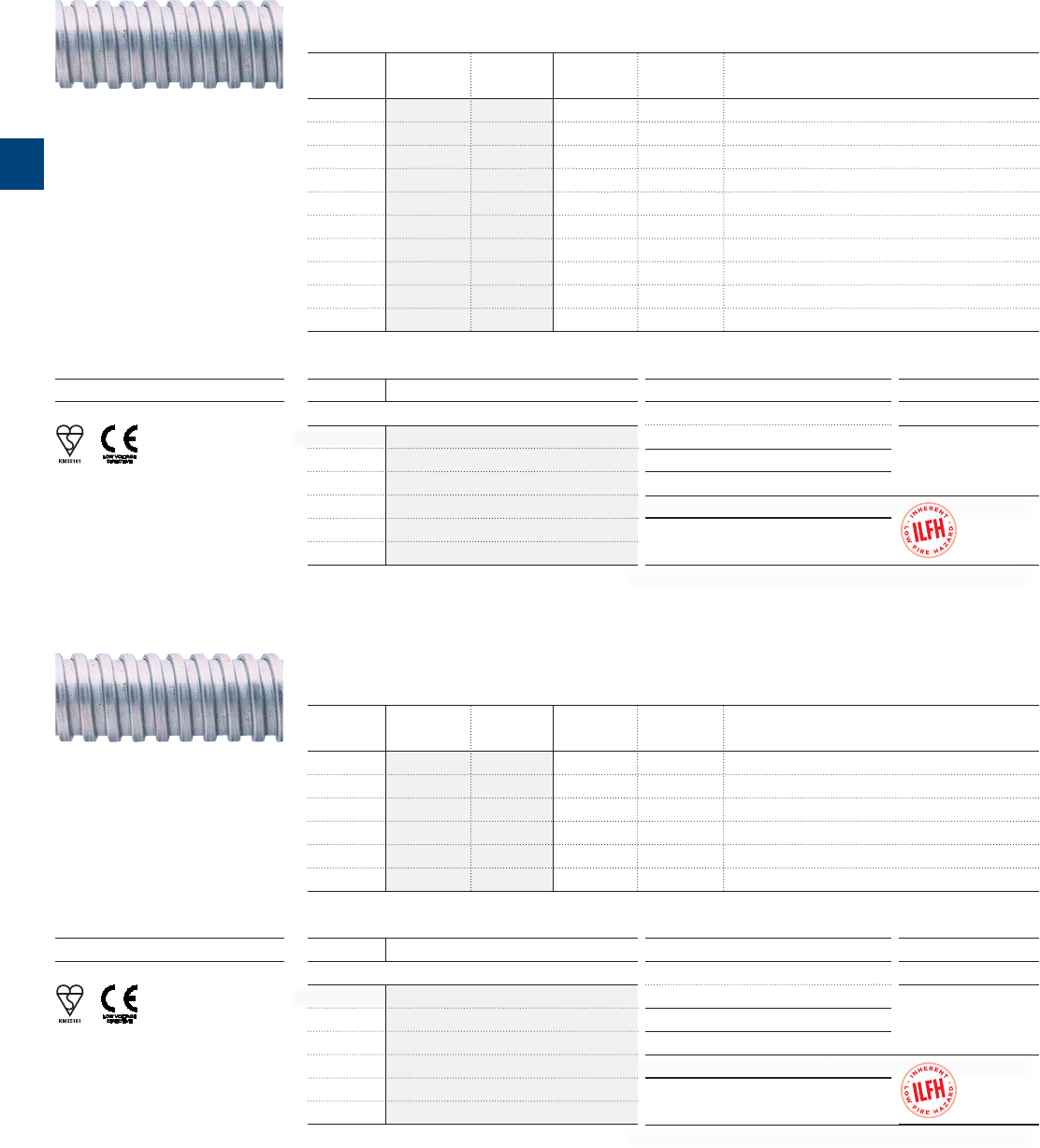

Type S & SS - Adaptasteel
Type S - Adaptasteel
Inherent Low Fire Hazard Steel Conduit / Materials: Galvanised Steel - General Purpose
Nominal Outside Inside Mimimum Reel
Part No. Conduit Size Diameter Diameter Bend Radius Length
S10 10mm 9.1mm 7.0mm 25mm 25, 50m
S12 12mm 13.0mm 10.3mm 30mm 10, 25, 50m
S16 16mm 16.0mm 13.0mm 35mm 10, 25, 50m
S20 20mm 20.5mm 16.9mm 45mm 10, 25, 50m
S25 25mm 25.0mm 21.4mm 55mm 10, 25, 50m
S32 32mm 32.0mm 28.1mm 60mm 10, 25m
S40 40mm 42.5mm 37.7mm 80mm 10, 25m
S50 50mm 53.0mm 48.4mm 90mm 10, 25m
S63 63mm 62.5mm 57.5mm 115mm 10m
S75 75mm 77.0mm 70.0mm 150mm 10m
To order quote part no, & reel length, e.g. S12/25M
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
Approvals
Type S
Inherent Low Fire Hazard
Steel Conduit
Type SS - Adaptasteel
Inherent Low Fire Hazard Steel Conduit / Materials: Stainless Steel 316 - Corrosion Resistant
Nominal Outside Inside Mimimum Reel
Part No. Conduit Size Diameter Diameter Bend Radius Length
SS10 10mm 9.0mm 6.8mm 25mm 25, 50m
SS12 12mm 13.0mm 10.3mm 30mm 25, 50m
SS16 16mm 16.0mm 13mm 35mm 10, 25, 50m
SS20 20mm 20.5mm 16.9mm 45mm 10, 25, 50m
SS25 25mm 25.0mm 21.4mm 55mm 10, 25, 50m
SS32 32mm 32.0mm 28.1mm 60mm 10, 25m
To order quote part no, & reel length, e.g. SS12/25M
Approvals
Type SS
Inherent Low Fire Hazard
Stainless Steel Conduit
Temperature Range
Static Applications: -50ºC to +350ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
IP Rating Appropriate Fitting
For use with: Type S
IP40 Type S - Type A, B, F & C
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Fir
e P
erf
ormanc
e &
EM
I S
creen
Fire Per
f
ormance & EMI
S
creen
Adaptaflex Product Catalogue | LIT211GB 0414 3/7
3
Metallic conduit systems

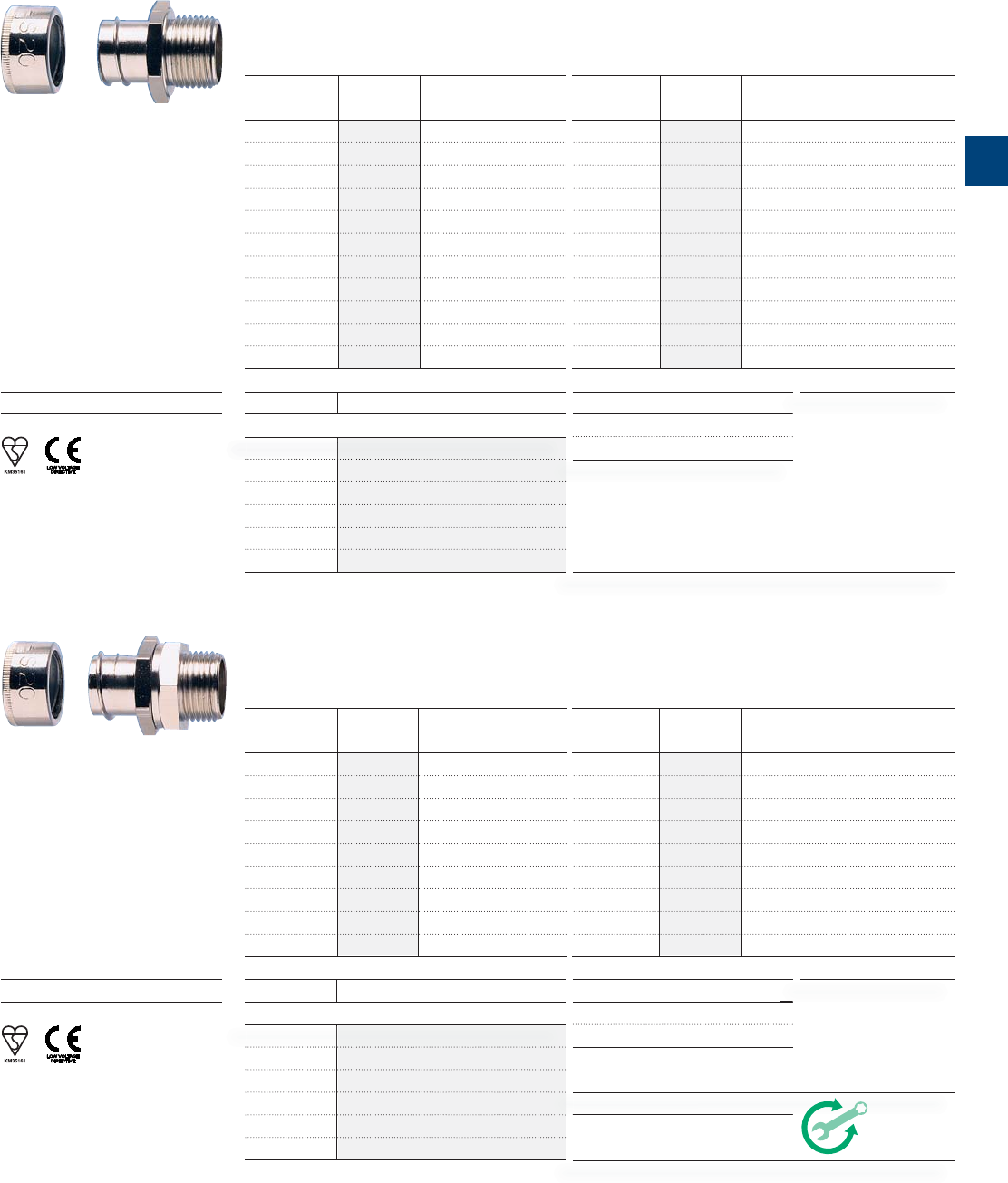

Type A & B - Adaptasteel
IP Rating Appropriate Conduit
For use with: Type S / SS
IP40 Yes
IP65 N/A
IP66 N/A
IP67 N /A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Ye
s
I
P4 0

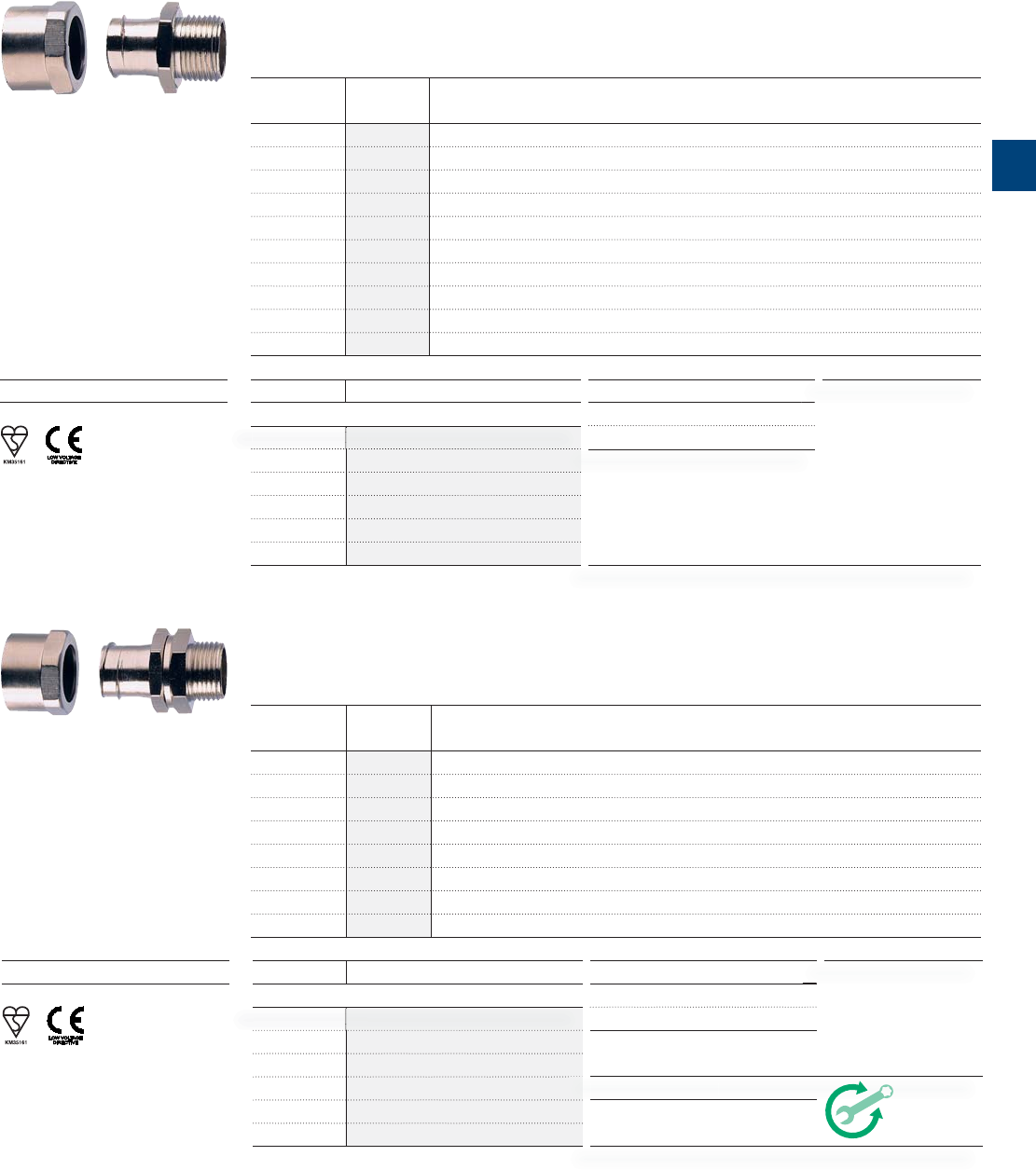

Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
S10/M12/A 10mm M12 S10/PG7/A 10mm PG7
S12/M16/A 12mm M16 S12/PG9/A 12mm PG9
S16/M16/A 16mm M16 S16/PG11/A 16mm PG11
S16/M20/A 16mm M20
S20/M20/A 20mm M20 S20/PG16/A 20mm PG16
S25/M25/A 25mm M25 S25/PG21/A 25mm PG21
S32/M32/A 32mm M32 S32/PG29/A 32mm PG29
S40/M40/A 40mm M40 S40/PG36/A 40mm PG36
S50/M50/A 50mm M50 S50/PG42/A 50mm PG42
S63/M63/A 63mm M63 S63/PG48/A 63mm PG48
S75/M75/A 75mm M75
IP Rating Appropriate Conduit
For use with: Type S / SS
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Ye
s
I
P4 0
Type B
Straight Fitting
Fitting
C
haracteristics
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
S10/M12/B 10mm M12 S10/PG7/B 10mm PG7
S12/M16/B 12mm M16 S12/PG9/B 12mm PG9
S16/M20/B 16mm M16 S16/PG11/B 16mm PG11
S16/M20/B 16mm M20
S20/M20/B 20mm M20 S20/PG16/B 20mm PG16
S25/M25/B 25mm M25 S25/PG21/B 25mm PG21
S32/M32/B 32mm M32 S32/PG29/B 32mm PG29
S40/M40/B 40mm M40 S40/PG36/B 40mm PG36
S50/M50/B 50mm M50 S50/PG42/B 50mm PG42
3/8 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
Type F & C - Adaptasteel
IP Rating Appropriate Conduit
For use with: Type S / SS
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Ye
s
IP40

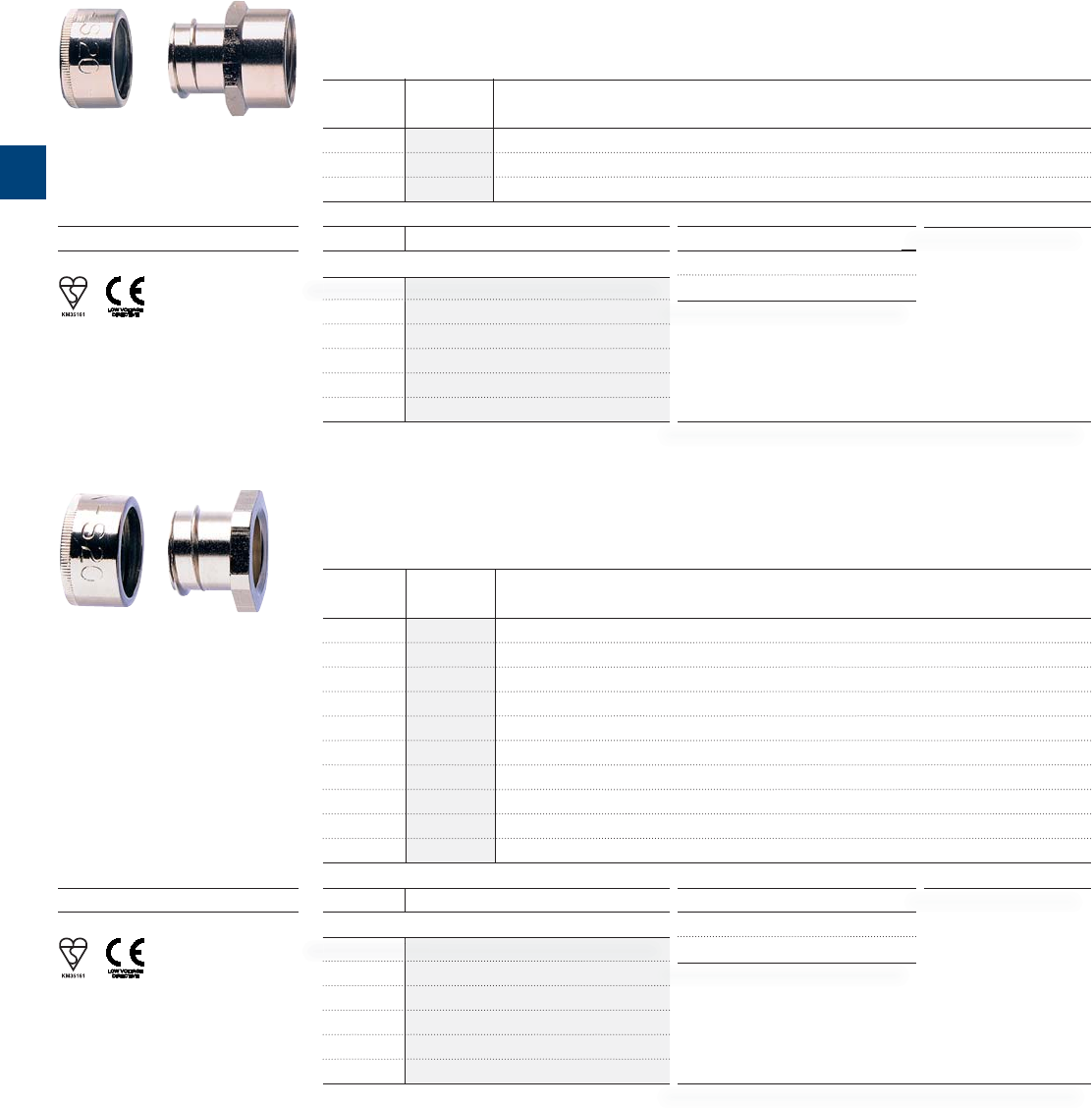

Type F
Straight Fitting
Type F - Adaptasteel
Straight Fitting - Fixed Internal Female Thread / For attaching to external threads & other fittings
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
S20/M20/F 20mm M20
S25/M25/F 25mm M25
S32/M32/F 32mm M32
IP Rating Appropriate Conduit
For use with: Type S / SS
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Yes
IP4
0
Type C
Smooth Entry Bush
Type C - Adaptasteel
Smooth Entry Bush / For locking conduit into plain holes in enclosures
Materials: Nickel plated brass
Nominal
Part No. Conduit Size Hole Size
S10/9/C 10mm 9mm
S12/12 /C 12mm 12mm
S16/16/C 16mm 16mm
S20/20/C 20mm 20mm
S25/25/C 25mm 25mm
S32/32/C 32mm 32mm
S40/40/C 40mm 40mm
S50/51/C 50mm 51mm
S63/61/C 63mm 61mm
S75/75/C 75mm 75mm
Adaptaflex Product Catalogue | LIT211GB 0414 3/9
3
Metallic conduit systems

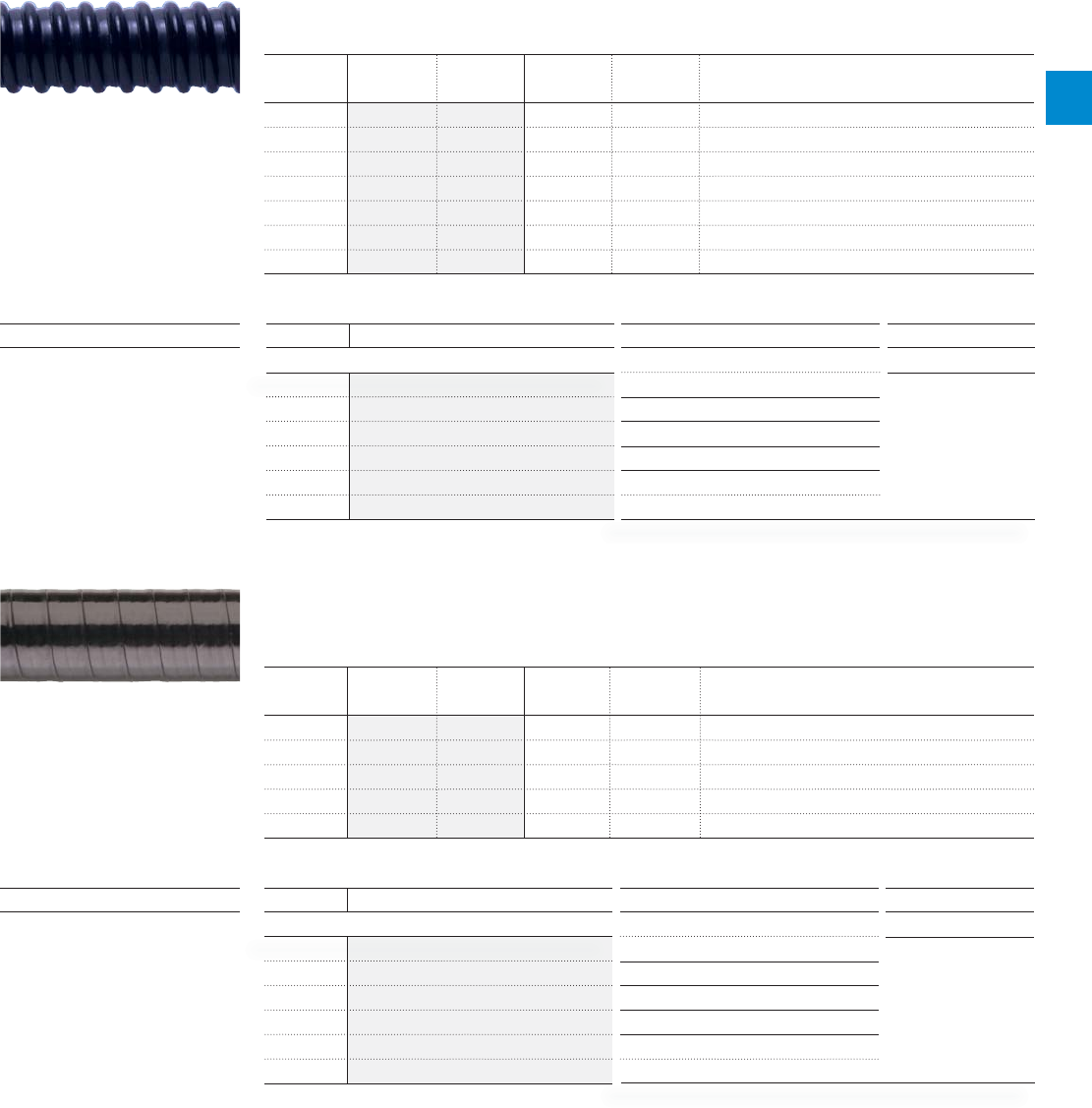

Type SP & SN - Adaptasteel
IP Rating Appropriate Fitting
For use with: Type SP
IP40 Type SP - Type A, B, C, E & F
IP65 Type SP - Type M & C90
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type SP - Adaptasteel
Liquid Resistant General Purpose Covered Steel Flexible Conduit
Materials: PVC Covered Galvanised Steel / Colour: Black (BL), Grey (GR), Orange (OR)
Nominal Outside Inside Mimimum Reel
Part No. Conduit Size Diameter Diameter Bend Radius Length
SP10 10mm 10.0mm 6.8mm 25mm 25, 50m
SP12 12mm 14.0mm 10.3mm 30mm 25, 50m
SP16 16mm 17.0mm 13.0mm 35mm 10, 25, 50m
SP20 20mm 21.5mm 16.9mm 45mm 10, 25, 50m
SP25 25mm 26.0mm 21.4mm 55mm 10, 25, 50m
SP32 32mm 34.0mm 28.1mm 60mm 10, 25m
SP40 40mm 44.5mm 37.7mm 80mm 10, 25m
SP50 50mm 55.0mm 48.4mm 90mm 10, 25m
SP63 63mm 64.5mm 57.5mm 115mm 10m
SP75 75mm 79.0mm 70.0mm 150mm 10m
To order quote part no, colour & reel length, e.g. SP12/BL/25M
Temperature Range
Static Applications: -15ºC to +70ºC
Moving Applications: -5ºC to +90ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
Approvals
Type SP
Liquid Resistant General Purpose
Covered Steel Flexible Conduit
Type SN - Adaptasteel
Liquid Resistant Abrasion & Solvent Resistant Covered Steel Flexible Conduit
Materials: PA (Nylon) Covered Galvanised Steel / Colour: Black (BL) Only
Nominal Outside Inside Mimimum Reel
Part No. Conduit Size Diameter Diameter Bend Radius Length
SN12 12mm 14.0mm 10.3mm 30mm 25, 50m
SN16 16mm 17.0mm 13.0mm 35mm 25, 50m
SN20 20mm 21.5mm 16.9mm 45mm 25, 50m
SN25 25mm 26.0mm 21.4mm 55mm 25, 50m
SN32 32mm 34.0mm 28.1mm 60mm 25m
To order quote part no, colour & reel length, e.g. SN12/BL/25M
Approvals
Type SN
Liquid Resistant Abrasion
& Solvent Resistant Covered
Steel Flexible Conduit
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -25ºC to +150ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
High
IP Rating Appropriate Fitting
For use with: Type SP
IP40 Type SP - Type A, B, C, E & F
IP65 Type SP - Type M & C90
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Fire Per
f
ormance & EMI
S
creen
Fire Per
f
ormance & EMI
S
creen
3/10 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems

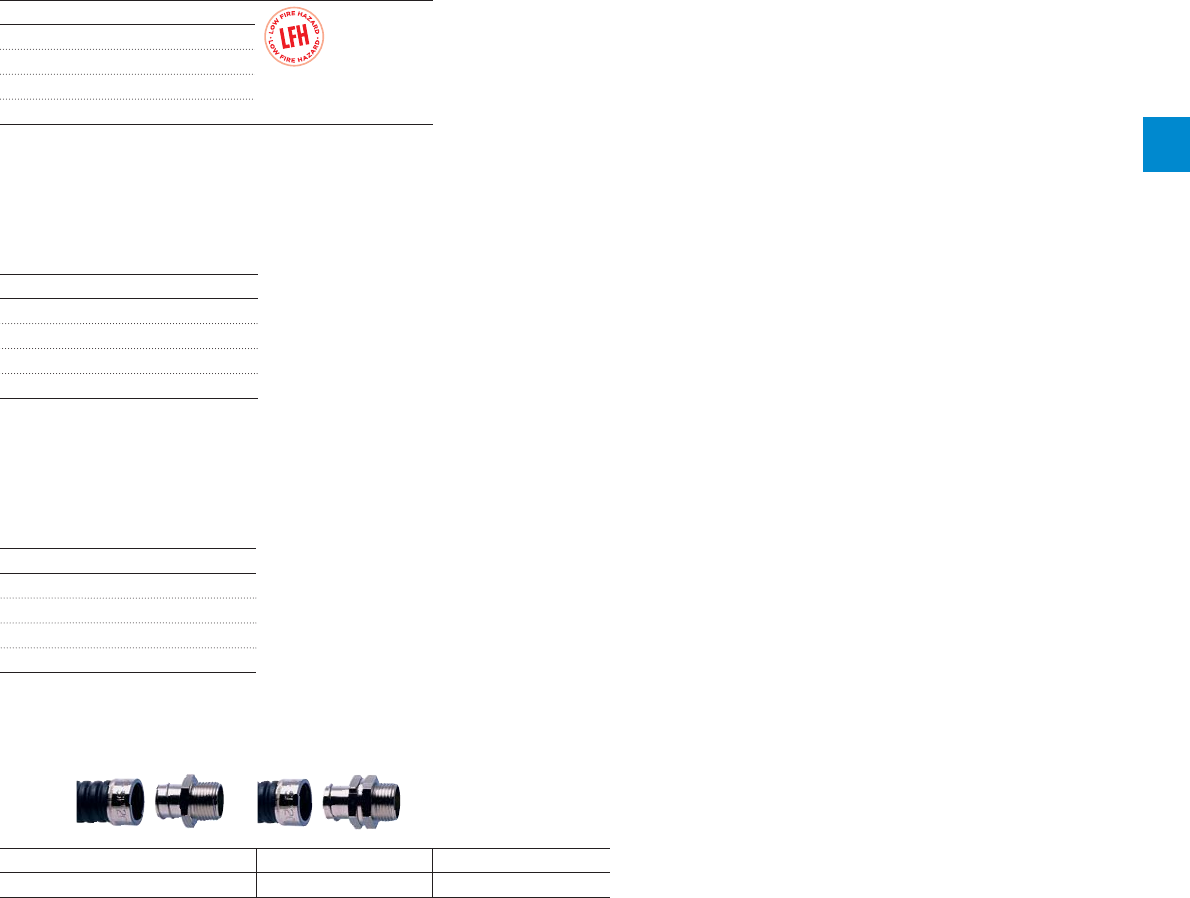

Type LFH-SP & A - Adaptasteel
Type LFH-SP - Adaptasteel
Liquid Resistant Enhanced Low Fire Hazard Covered Steel Flexible Conduit
Materials: Polyolefin Covered Galvanised Steel / Colour: Black (BL) Only
Nominal Outside Inside Mimimum Reel
Part No. Conduit Size Diameter Diameter Bend Radius Length
LFH-SP12 12mm 14.0mm 10.3mm 30mm 25, 50m
LFH-SP16 16mm 17.0mm 13.0mm 35mm 10, 25, 50m
LFH-SP20 20mm 21.5mm 16.9mm 45mm 10, 25, 50m
LFH-SP25 25mm 26.0mm 21.4mm 55mm 10, 25, 50m
LFH-SP32 32mm 34.0mm 28.1mm 60mm 10, 25m
LFH-SP40 40mm 44.5mm 37.7mm 80mm 10, 25m
LFH-SP50 50mm 55.0mm 48.4mm 90mm 10, 25m
LFH-SP63 63mm 64.5mm 57.5mm 115mm 10m
LFH-SP75 75mm 79.0mm 70.0mm 150mm 10m
To order quote part number, colour & reel length, e.g. LFH-SP16/BL/50M
Temperature Range
Static Applications: -25ºC to +90ºC
Moving Applications: -5ºC to +105ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
High
Approvals
Type LFH-SP
Liquid Resistant Enhanced
Low Fire Hazard Covered
Steel Flexible Conduit
IP Rating Appropriate Fitting
For use with: Type SP
IP54 Type SP - Type A, B, C, E & F
IP65 Type SP - Type M & C90
IP66 N/A
IP67 N/A
IP68 N/A
IP69K N/A
Fire Performance & EMI Screen
IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 Yes
IP65 N/A
IP66 N/A
IP67 N/A
IP68 N/A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Ye
s
IP54
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
SP10/M12/A 10mm M16 SP10/PG7/A 10mm PG7
SP12/M16/A 12mm M16 SP12/PG9/A 12mm PG9
SP16/M20/A 16mm M20 SP16/PG11/A 16mm PG11
SP20/M20/A 20mm M20 SP20/PG16/A 20mm PG16
SP25/M25/A 25mm M20 SP25/PG21/A 25mm PG21
SP32/M32/A 32mm M20 SP32/PG29/A 32mm PG29
SP40/M40/A 40mm M25 SP40/PG36/A 40mm PG36
SP50/M50/A 50mm M32 SP50/PG42/A 50mm PG42
SP63/M63/A 63mm M40 SP63/PG48/A 63mm PG48
SP75/M75/A 75mm M50
Adaptaflex Product Catalogue | LIT211GB 0414 3/11
3
Metallic conduit systems
Type B & C90 - Adaptasteel
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
SP10/M12/B 10mm M12 SP10/PG7/B 10mm PG7
SP12/M16/B 12mm M16 SP12/PG9/B 12mm PG9
SP16/M20/B 16mm M16 SP16/PG11/B 16mm PG11
SP16/M20/B 16mm M20
SP20/M20/B 20mm M20 SP20/PG16/B 20mm PG16
SP25/M25/B 25mm M25 SP25/PG21/B 25mm PG21
SP32/M32/B 32mm M32 SP32/PG29/B 32mm PG29
SP40/M40/B 40mm M40 SP40/PG36/B 40mm PG36
SP50/M50/B 50mm M50 SP50/PG42/B 50mm PG42
IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 N/A
IP65 Yes
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
N/A
IP5
4
Fitting Characteristics
Type C90 - Adaptasteel
90° Combined Fitting & Elbow / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SP16/M20/C90 16mm M20
SP16/M20/C90 16mm M20
SP20/M20/C90 20mm M20
SP25/M25/C90 25mm M20
SP32/M32/C90 32mm M20
IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Yes
IP5
4
Fitting Characteristics
Type C90
90° Combined Fitting & Elbow
3/12 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
Type M & F - Adaptasteel
Type F - Adaptasteel
Straight Fitting - Fixed Internal Female Thread / For external threads and other fittings
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SP20/M20/F 20mm M20
SP25/M25/F 25mm M25
SP32/M32/F 32mm M32
Type F
Straight Fitting
Type M
Straight Swivel Fitting
Type M - Adaptasteel
Straight Swivel Fitting - External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric Nominal PG
Part No. Conduit Size Thread Part No. Conduit Size Thread
SP12/M16/M 12mm M16 SP12/PG9/M 12mm PG9
SP16/M16/M 16mm M16 SP16/PG11/M 16mm PG11
SP16/M20/M 16mm M20 SP16/PG13/M 16mm PG13.5
SP20/M20/M 20mm M20 SP20/PG16/M 20mm PG16
SP25/M25/M 25mm M25 SP25/PG21/M 25mm PG21
SP32/M32/M 32mm M32 SP32/PG29/M 32mm PG29
SP40/M40/M 40mm M40
SP50/M50/M 55mm M50
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 N/A
IP65 Yes
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Fitting
C
haracteristics
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Nominal NPT
Part No. Conduit Size Thread
SP16/038/M 16mm 3/8”
SP16/038/M 16mm 3/8”
SP20/050/M 20mm 1/2”
SP25/075/M 25mm 3/4”
SP32/100/M 32mm 1”
Adaptaflex Product Catalogue | LIT211GB 0414 3/13
3
Metallic conduit systems
Type C & E - Adaptasteel
Type C
Smooth Entry Bush
Type E - Adaptasteel
Conduit Terminator / Cable Protection at exit point
Materials: Nickel plated brass
Nominal Hole
Part No. Conduit Size Size
SP12/E 12mm 12mm
SP16/E 16mm 16mm
SP20/E 20mm 20mm
SP25/E 25mm 25mm
SP32/E 32mm 32mm
SP40/E 40mm 40mm
SP50/E 50mm 51mm
Type E
Conduit Terminator
Type C - Adaptasteel
Smooth Entry Bush / For locking conduit into plain holes in enclosures
Materials: Nickel plated brass
Nominal Hole
Part No. Conduit Size Size
SP10/9/C 10mm 9mm
SP12/12/C 12mm 12mm
SP16/16/C 16mm 16mm
SP20/20/C 20mm 20mm
SP25/25/C 25mm 25mm
SP32/32/C 32mm 32mm
SP40/40/C 40mm 40mm
SP50/51/C 50mm 51mm
SP63/61/C 63mm 61mm
SP75/75/C 75mm 75mm
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SP / SN / LFH-SP
IP54 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
3/14 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
Type SPL & SPLHC - Adaptasteel

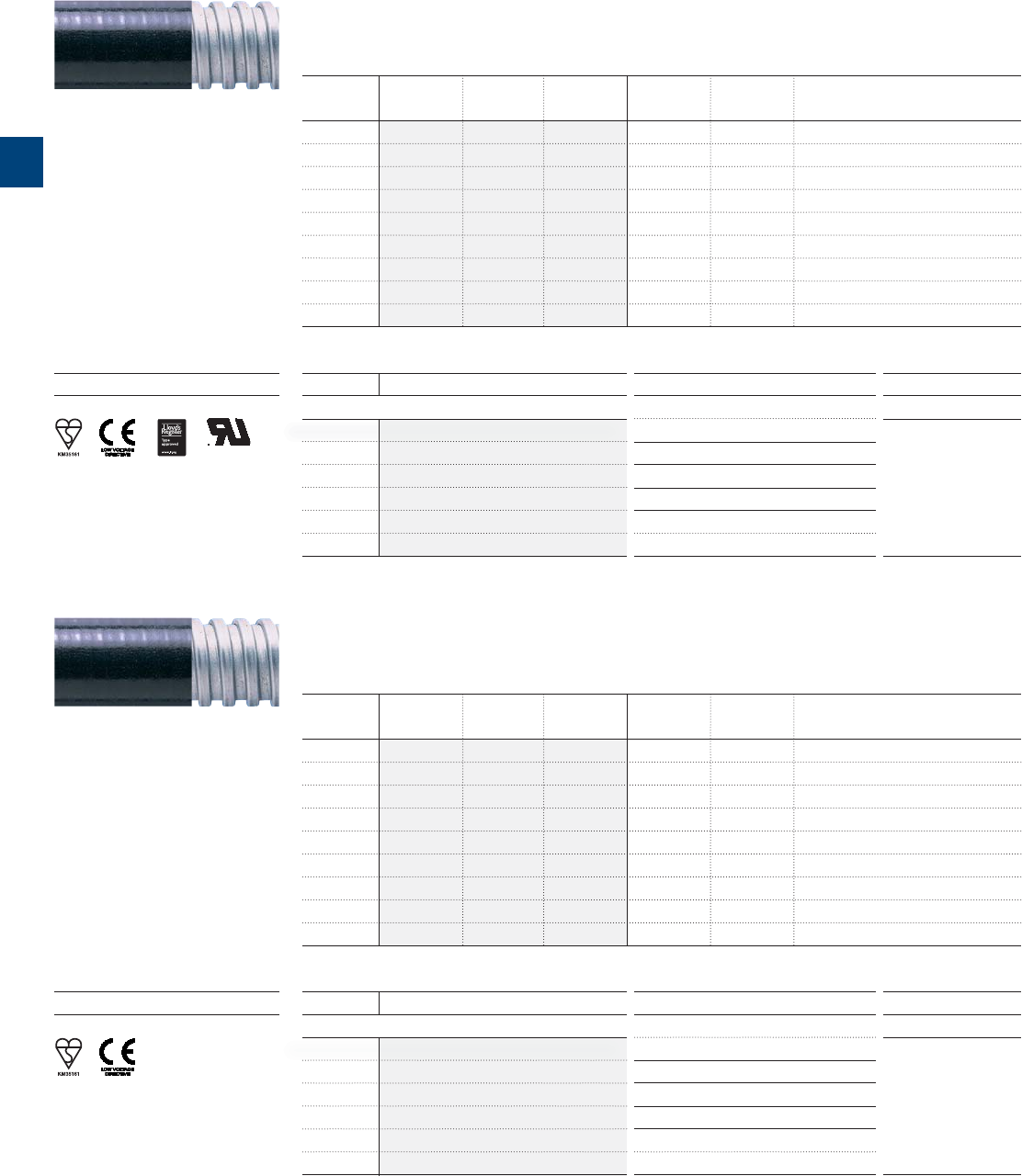

Type SPL - Adaptasteel
Liquid Tight Oil Resistant Covered Steel Flexible Conduit
Materials: PVC Covered Galvanised Steel / Colour: Black (BL), Grey (GR), Orange (OR)
Nominal Outside US Inside Min. Bend Reel
Part No. Conduit Size Diameter Conduit Size Diameter Radius Length
SPL10 10mm 11.8mm 1/4” 7.0mm 40mm 10, 25, 50m
SPL12 12mm 14.2mm 5/16” 10.0mm 45mm 10, 25, 50m
SPL16 16mm 17.8mm 3/8” 12.5mm 50mm 10, 25, 50m
SPL20 20mm 21.1mm 1/2” 15.9mm 80mm 10, 25, 50m
SPL25 25mm 26.4mm 3/4” 21.0mm 110mm 10, 25, 50m
SPL32 32mm 33.1mm 1” 26.7mm 145mm 10, 25m
SPL40 40mm 41.8mm 1 1/4” 35.4mm 180mm 10, 25m
SPL50 50mm 47.9mm 1 1/2” 40.4mm 240mm 10, 25m
SPL63 63mm 59.7mm 2” 51.6mm 345mm 10, 25m
To order quote part number, colour & reel length, e.g. SPL12/BL/50M
Temperature Range
Static Applications: -20ºC to +105ºC
Moving Applications: -5ºC to +105ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
Approvals
Type SPL
Liquid Tight Oil Resistant
Covered Steel Flexible Conduit
IP Rating Appropriate Fitting
For use with: Type SPL
IP40 N/A
IP65 N /A
IP66 Type SPL - Type M & C90
IP67 Type SPL - Type A, B, & M
IP68 Type SPL - Type M
IP69K Type SPL - Type M
Type SPLHC - Adaptasteel
Liquid Tight Extreme Temperature Covered Steel Flexible Conduit
Materials: Thermoplastic Rubber Covered Galvanised Steel / Colour: Black (BL) Only
Nominal Outside US Inside Min. Bend Reel
Part No. Conduit Size Diameter Conduit Size Diameter Radius Length
SPLHC10 10mm 11.8mm 1/4” 7.0mm 40mm 25, 50m
SPLHC12 12mm 14.2mm 5/16” 10.0mm 40mm 25, 50m
SPLHC16 16mm 17.8mm 3/8” 12.5mm 50mm 25m
SPLHC20 20mm 21.1mm 1/2” 15.9mm 80mm 25m
SPLHC25 25mm 26.4mm 3/4” 21.0mm 110mm 25m
SPLHC32 32mm 33.1mm 1” 26.7mm 145mm 25m
SPLHC40 40mm 41.8mm 1 1/4” 35.4mm 180mm 25m
SPLHC50 50mm 47.9mm 1 1/2” 40.4mm 240mm 25m
SPLHC63 63mm 59.7mm 2” 51.6mm 345mm 25m
To order quote part number, colour & reel length, e.g. SPLHC12/BL/50M
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Flexibility & Fatigue Life
Very High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
Type SPLHC
Liquid Tight Extreme Temperature
Covered Steel Flexible Conduit
IP Rating Appropriate Fitting
For use with: Type SPL
IP40 N/A
IP65 N /A
IP66 Type SPL - Type M & C90
IP67 Type SPL - Type A, B, & M
IP68 Type SPL - Type M
IP69K Type SPL - Type M
Adaptaflex Product Catalogue | LIT211GB 0414 3/15
3
Metallic conduit systems

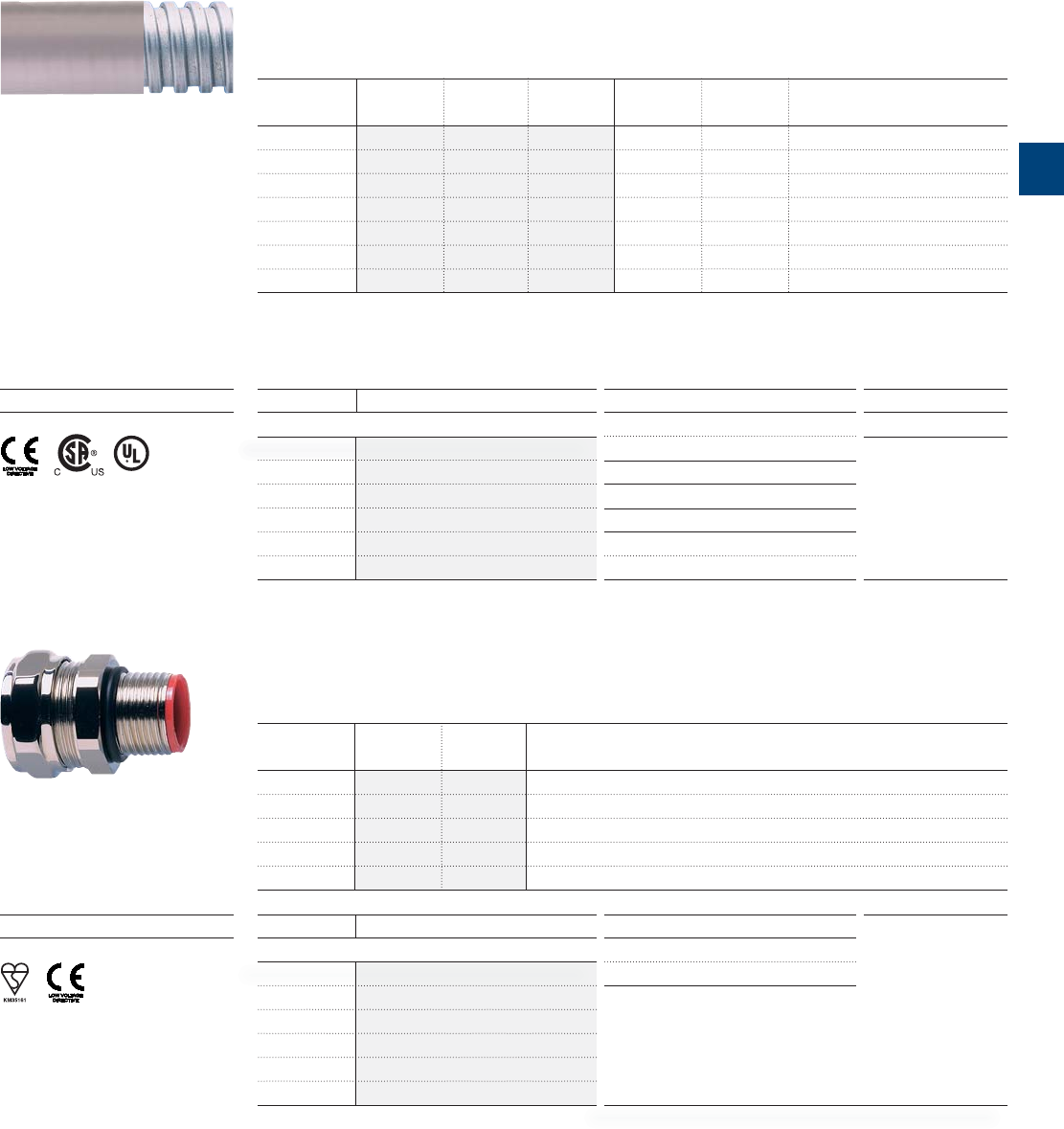

Type SPUL & A - Adaptasteel
Type SPUL - Adaptasteel
Liquid Tight UL Listed & CSA Approved Covered Steel Flexible Conduit
Materials: PVC Covered Galvanised Steel with Copper Packing / Colour: Grey (GR) Only
Nominal Outside US Inside Min. Bend Reel
Part No. Conduit Size Diameter Conduit Size Diameter Radius Length
SPUL16 16mm 17.8mm 3/8” 12.5mm 50mm 50m
SPUL20 20mm 21.1mm 1/2” 15.9mm 80mm 50m
SPUL25 25mm 26.4mm 3/4” 21.0mm 110mm 25m
SPUL32 32mm 33.1mm 1” 26.7mm 145mm 25m
SPUL40 40mm 41.8mm 1 1/4” 35.4mm 180mm 25m
SPUL50 50mm 47.9mm 1 1/2” 40.4mm 240mm 25m
SPUL63 63mm 59.7mm 2” 51.6mm 345mm 10m
To order quote part number & reel length, e.g. SPUL16/50M
Temperature Range
Static Applications: -15ºC to +75ºC
Moving Applications: -5ºC to +105ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
High
Approvals
Type SPUL
Covered Steel Flexible Conduit
IP Rating Appropriate Fitting
For use with: Type SPL
IP40 N/A
IP65 N/A
IP66 Type SPL - Type M & C90
IP67 Type SPL - Type A, B, & M
IP68 Type SPL - Type M
IP69K Type SPL - Type M
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
SPL16/M16/A 16mm 3/8” M16
SPL16/M20/A 16mm 3/8” M20
SPL20/M20/A 20mm 1/2” M20
SPL25/M25/A 25mm 3/4” M25
SPL32/M32/A 32mm 1” M32
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP40 N/A
IP65 N /A
IP66 N /A
IP67 Yes
IP68 N /A
IP69K N/A
3/16 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems

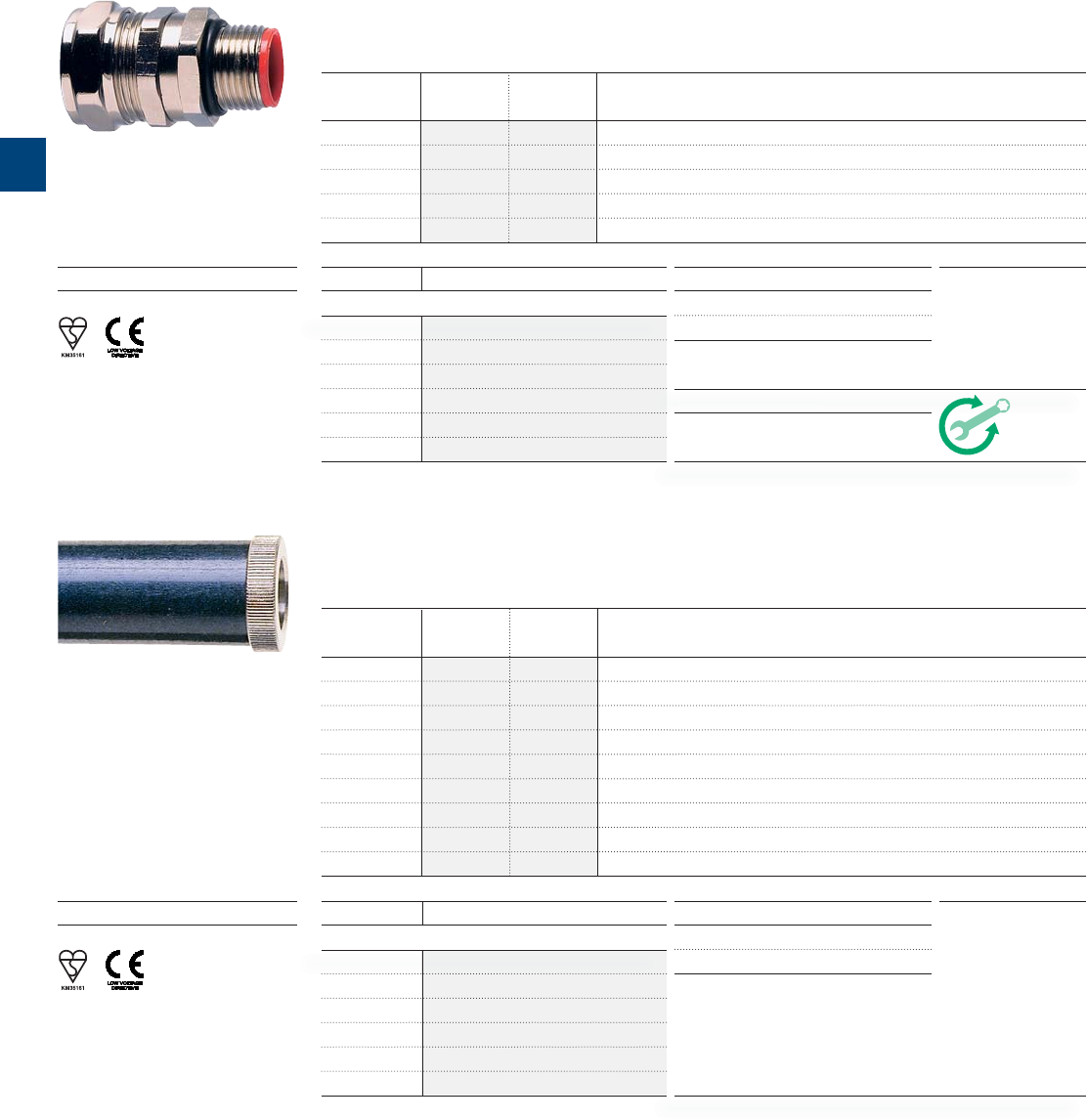

Type B & E - Adaptasteel
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
SPL16/M16/B 16mm 3/8” M16
SPL16/M20/B 16mm 3/8” M20
SPL20/M20/B 20mm 1/2” M20
SPL25/M25/B 25mm 3/4” M25
SPL32/M32/B 32mm 1” M32
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP54 N /A
IP65 N/A
IP66 N/A
IP67 Yes
IP68 N /A
IP69K N/A
Fittin
g C
haracteristics
Type E
Conduit Terminator
Type E - Adaptasteel
Conduit Terminator / Cable protection at exit point
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
SPL10/E 10mm 1/4” M16
SPL12/E 12mm 5/16” M20
SPL16/E 16mm 3/8” M20
SPL20/E 20mm 1/2” M25
SPL25/E 25mm 3/4” M25
SPL32/E 32mm 1” M20
SPL40/E 40mm 1 1/4” M20
SPL50/E 50mm 1 1/2” M25
SPL63/E 63mm 2” M32
Temperature Range
Static Applications: -65ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP54 Yes
IP65 N/A
IP66 N/A
IP67 N /A
IP68 N /A
IP69K N/A
Adaptaflex Product Catalogue | LIT211GB 0414 3/17
3
Metallic conduit systems
Type M - Adaptasteel
Type M - Adaptasteel
Straight Swivel Fitting - External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
SPL10/M12/M 10mm 1/4” M12
SPL12/M16/M 12mm 5/16” M16
SPL16/M16/M 16mm 3/8” M16
SPL16/M20/M 16mm 3/8” M20
SPL20/M20/M 20mm 1/2” M20
SPL25/M25/M 25mm 3/4” M25
SPL32/M32/M 32mm 1” M32
SPL40/M40/M 40mm 1 1/4” M40
SPL50/M50/M 50mm 1 1/2” M50
SPL63/M63/M 63mm 2” M63
Type M
Straight Swivel Fitting
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP54 N /A
IP65 N/A
IP66 Yes
IP67 Yes
IP68 Yes (10 bar 30mins)
IP69K Yes
Fitting
C
haracteristics
Nominal US PG
Part No. Conduit Size Conduit Size Thread
SPL10/PG7/M 10mm 1/4” PG7
SPL12/PG9/M 12mm 5/16” PG9
SPL16/PG11/M 16mm 3/8” PG11
SPL16/PG13/M 16mm 3/8” PG13.5
SPL20/PG16/M 20mm 1/2” PG16
SPL25/PG21/M 25mm 3/4” PG21
SPL32/PG29/M 32mm 1” PG29
SPL40/PG36/M 40mm 1 1/4” PG36
SPL50/PG42/M 50mm 1 1/2” PG42
SPL63/PG48/M 63mm 2” PG48
Nominal US NPT
Part No. Conduit Size Conduit Size Thread
SPL16/038/M 16mm 3/8” 3/8”
SPL20/050/M 20mm 1/2” 1/2”
SPL25/075/M 25mm 3/4” 3/4”
SPL32/100/M 32mm 1” 1”
SPL40/125/M 40mm 1 1/4” 1 1/4”
SPL50/150/M 50mm 1 1/2” 1 1/2”
3/18 Adaptaflex Product Catalogue | LIT211GB 0414
3

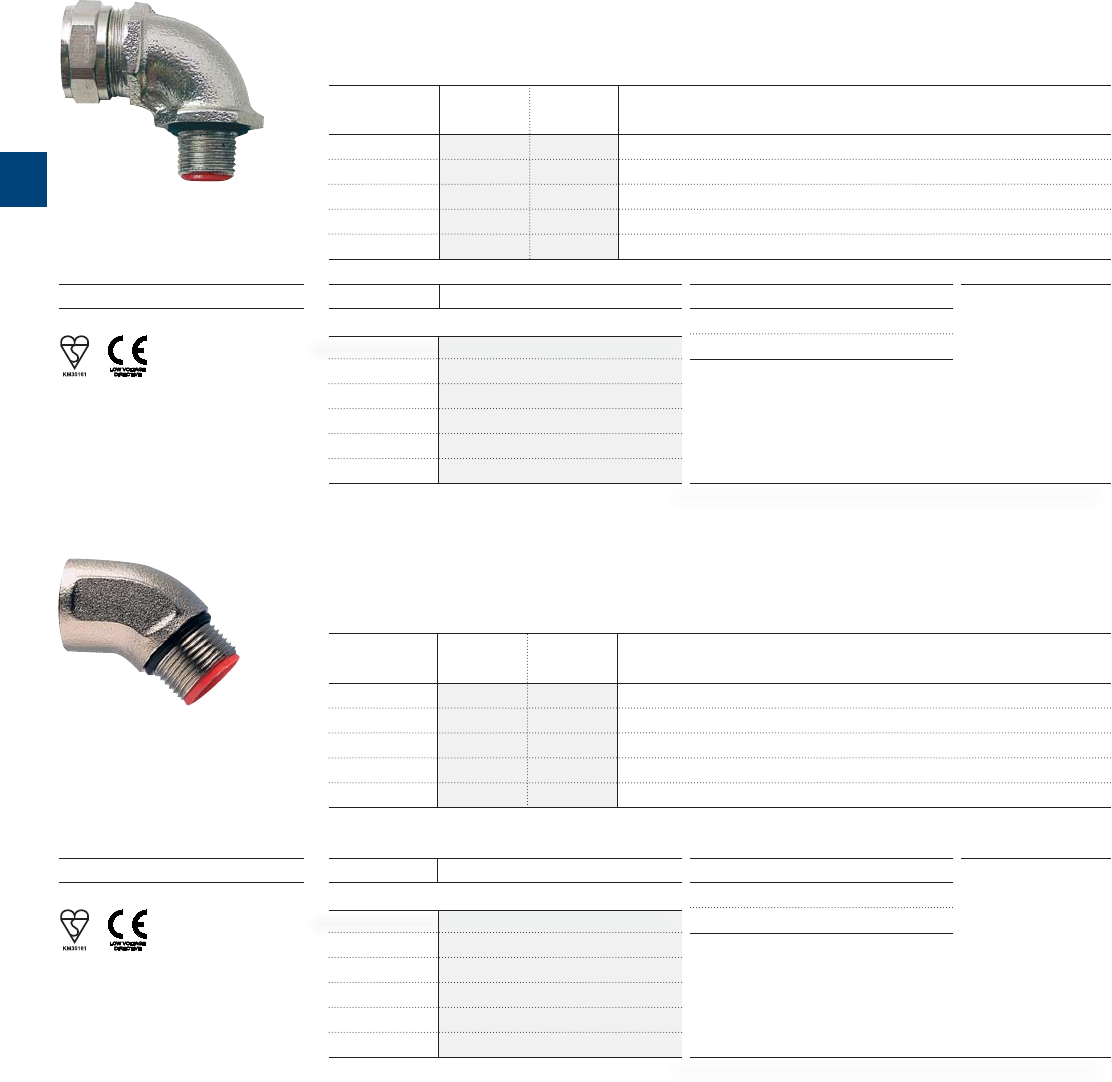

Metallic conduit systems
Type C90 & 45 - Adaptasteel
Type A
90º Combined
Fitting & Elbow
Type C90 - Adaptasteel
90º Combined Fitting & Elbow - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
SPL16/M16/C90 16mm 3/8” M16
SPL16/M20/C90 16mm 3/8” M20
SPL20/M20/C90 20mm 1/2” M20
SPL25/M25/C90 25mm 3/4” M25
SPL32/M32/C90 32mm 1” M32
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP54 N/A
IP65 N/A
IP66 N/A
IP67 Yes
IP68 N/A
IP69K N/A
Type 45
45º Elbow
Type 45 - Adaptasteel
45º Elbow - Fixed External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal US Metric
Part No. Conduit Size Conduit Size Thread
B/M16/45 16mm 3/8” M16*
B/M20/45 16mm 3/8” M20
B/M20/45 20mm 1/2” M20
B/M25/45 25mm 3/4” M25
B/M32/45 32mm 1” M32
*Includes M20 Internal Thread
Temperature Range
Static Applications: -65ºC to +300ºC
Moving Applications: -45ºC to +150ºC
Approvals IP Rating Appropriate Conduit
For use with: Type SPL / SPLHC / SPUL
IP54 N/A
IP65 N/A
IP66 N/A
IP67 Yes
IP68 N/A
IP69K N/A
Adaptaflex Product Catalogue | LIT211GB 0414 3/19
3
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SB
IP40 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Metallic conduit systems
EMI screen Type SB & STC - Adaptasteel
Type SB - Adaptasteel
Galvanised Steel, Overbraided Steel, Enhanced EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit, Galvanised Steel Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SB10 10mm 10.0mm 6.8mm 25mm 25m
SB12 12mm 14.0mm 10.3mm 30mm 25m
SB16 16mm 17.5mm 13.0mm 35mm 25m
SB20 20mm 21.5mm 16.9mm 45mm 25m
SB25 25mm 26.0mm 21.4mm 55mm 25m
SB32 32mm 34.0mm 28.1mm 60mm 10m
SB40 40mm 43.6mm 37.7mm 80mm 10m
SB50 50mm 56.0mm 48.4mm 90mm 10m
SB63 63mm 65.0mm 57.5mm 115mm 10m
SB75 75mm 80.0mm 70.0mm 150mm 10m
To order quote part number & reel length, e.g. SB12/25M
Type SB
Galvanised Steel,
Overbraided Steel,
Enhanced EMI Screening,
Flexible Conduit
Fire Per
f
ormance & EMI
S
creen
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SB
IP40 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type STC - Adaptasteel
Galvanised Steel, Overbraided Tinned Copper, High EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit, Tinned Copper Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
STC10 10mm 10.0mm 6.8mm 25mm 25m
STC12 13mm 24.0mm 10.3mm 30mm 25m
STC16 16mm 17.5mm 13.0mm 35mm 25m
STC20 20mm 21.5mm 16.9mm 45mm 25m
STC25 25mm 26.0mm 21.4mm 55mm 25m
STC32 32mm 34.0mm 28.1mm 60mm 10m
STC40 40mm 43.6mm 37.7mm 80mm 10m
STC50 50mm 56.0mm 48.4mm 90mm 10m
To order quote part number & reel length, e.g. STC12/25M
Type STC
Galvanised Steel,
Overbraided Tinned Copper,
High EMI Screening,
Flexible Conduit
Fire Per
fo
rmance & EMI
S
creen
3/20 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
EMI screen Type SSB & SSBGS - Adaptasteel
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SB
IP40 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type SSB - Adaptasteel
Overbraided, Standard EMI Screening, Flexible Conduit
Materials: Stainless Steel Conduit, Stainless Steel Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SSB12 13mm 24.0mm 10.3mm 30mm 25m
SSB16 16mm 17.5mm 13.0mm 35mm 25m
SSB20 20mm 21.5mm 16.9mm 45mm 25m
SSB25 25mm 26.0mm 21.4mm 55mm 25m
SSB32 32mm 34.0mm 28.1mm 60mm 10m
To order quote part number & reel length, e.g. SSB12/25M
Type SSB
Overbraided,
Standard EMI Screening,
Flexible Conduit
Fire Performance & EMI Screen
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SB
IP40 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type SSBGS - Adaptasteel
Overbraided, Standard EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit, Stainless Steel Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SSBG12 13mm 24.0mm 10.3mm 30mm 25m
SSBG16 16mm 17.5mm 13.0mm 35mm 25m
SSBG20 20mm 21.5mm 16.9mm 45mm 25m
SSBG25 25mm 26.0mm 21.4mm 55mm 25m
SSBG32 32mm 34.0mm 28.1mm 60mm 10m
To order quote part number & reel length, e.g. SSBG12/25M
Type SSBGS
Overbraided,
Standard EMI Screening,
Flexible Conduit
Fir
e P
erf
ormanc
e &
EM
I S
creen
Adaptaflex Product Catalogue | LIT211GB 0414 3/21
3
Metallic conduit systems

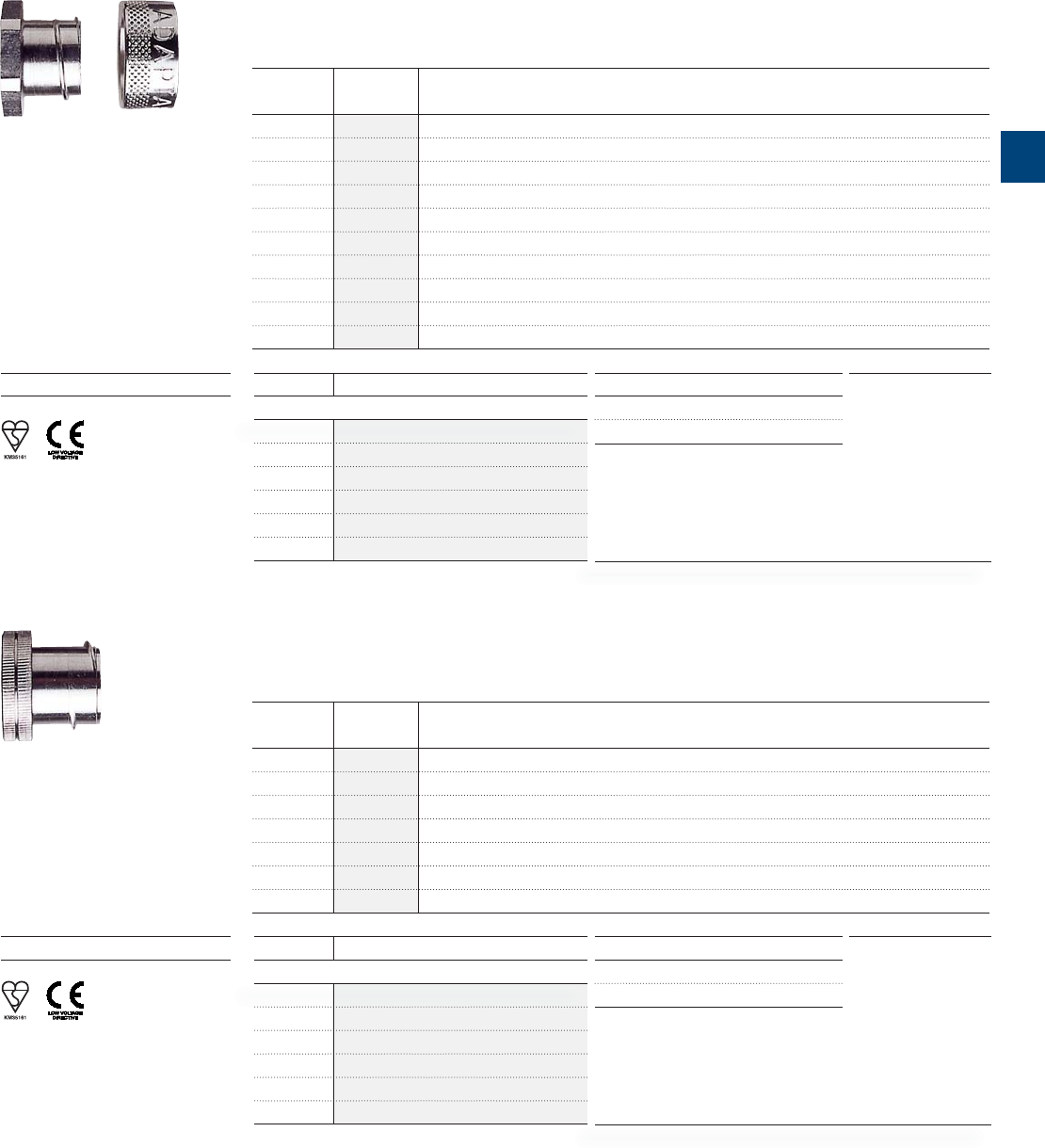

EMI screen Type A & B - Adaptasteel
IP Rating Appropriate Conduit
For use with: Type SB / STC / SSB / SSBGS
IP40 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Y
e
s
IP
40
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut (order locknuts separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SB10/M12/A 10mm M12
SB12/M16/A 13mm M16
SB16/M16/A 16mm M16
SB20/M20/A 20mm M20
SB25/M25/A 25mm M25
SB32/M32/A 32mm M32
SB40/M40/A 40mm M40
SB50/M50/A 50mm M50
SB63/M63/A 63mm M63
SB75/M75/A 75mm M75
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SB10/M12/B 10mm M12
SB12/M16/B 13mm M16
SB16/M16/B 16mm M16
SB20/M20/B 20mm M20
SB25/M25/B 25mm M25
SB32/M32/B 32mm M32
SB40/M40/B 40mm M40
SB50/M50/B 50mm M50
IP Rating Appropriate Conduit
For use with: Type SB / STC / SSB / SSBGS
IP40 Yes
IP65 N/A
IP66 N/A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Y
e
s
IP
40
Fittin
g C
haracteristics
3/22 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
EMI screen, liquid resistant Type SPB & SPTC - Adaptasteel
Temperature Range
Static Applications: -15ºC to +70ºC
Moving Applications: -5ºC to +90ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SPB
IP54 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type SPB - Adaptasteel
Overbraided, Enhanced EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit with PVC Covering, Galvanised Steel Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SPB10 10mm 10.0mm 6.8mm 25mm 25m
SPB12 13mm 14.0mm 10.3mm 25mm 25m
SPB16 16mm 17.5mm 13.0mm 30mm 25m
SPB20 20mm 21.5mm 16.9mm 35mm 25m
SPB25 25mm 26.0mm 21.4mm 55mm 25m
SPB32 32mm 34.0mm 28.1mm 60mm 10m
SPB40 40mm 43.6mm 37.7mm 80mm 10m
SPB50 50mm 56.0mm 48.4mm 90mm 10m
To order quote part number & reel length, e.g. SPB12/25M
Type SPB
Overbraided,
Enhanced EMI Screening,
Flexible Conduit
Fire Performance & EMI Screen
Temperature Range
Static Applications: -15ºC to +70ºC
Moving Applications: -5ºC to +90ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SB
IP54 Type SB - Type A & B
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Type SPTC - Adaptasteel
Overbraided Tinned Copper, High EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit with PVC Covering, Tinned Copper Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SPTC10 10mm 10.0mm 6.8mm 25mm 25m
SPTC12 13mm 14.0mm 10.3mm 25mm 25m
SPTC16 16mm 17.5mm 13.0mm 30mm 25m
SPTC20 20mm 21.5mm 16.9mm 35mm 25m
SPTC25 25mm 26.0mm 21.4mm 55mm 25m
SPTC32 32mm 34.0mm 28.1mm 60mm 10m
SPTC40 40mm 43.6mm 37.7mm 80mm 10m
SPTC50 50mm 56.0mm 48.4mm 90mm 10m
To order quote part number & reel length, e.g. SPTC12/25M
Type SPTC
Overbraided Tinned Copper,
High EMI Screening,
Flexible Conduit
Fire Performance & EMI Screen
Adaptaflex Product Catalogue | LIT211GB 0414 3/23
3
Metallic conduit systems
EMI screen, liquid resistant Type A & B - Adaptasteel
IP Rating Appropriate Conduit
For use with: Type SPB / SPTC
IP54 Yes
IP65 N /A
IP66 N /A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Y
e
s
IP
54
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SPB10/M12/A 10mm M12
SPB12/M16/A 13mm M16
SPB16/M16/A 16mm M16
SPB20/M20/A 20mm M20
SPB25/M25/A 25mm M25
SPB32/M32/A 32mm M32
SPB40/M40/A 40mm M40
SPB50/M50/A 50mm M50
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SPB10/M12/B 10mm M12
SPB12/M16/B 13mm M16
SPB16/M16/B 16mm M16
SPB20/M20/B 20mm M20
SPB25/M25/B 25mm M25
SPB32/M32/B 32mm M32
SPB40/M40/B 40mm M40
SPB50/M50/B 50mm M50
IP Rating Appropriate Conduit
For use with: Type SPB / SPTC
IP54 Yes
IP65 N/A
IP66 N/A
IP67 N/A
IP68 N /A
IP69K N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Y
es
IP
5
4
Fittin
g
Characteristics
3/24 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems
Liquid resistant, high strength Type SPLHCB & A - Adaptasteel
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Flexibility & Fatigue Life
Very High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals IP Rating Appropriate Fitting
For use with: Type SPLB
IP40 N/A
IP65 N /A
IP66 Type SPLB - Type A & B
IP67 Type SPLB - Type A & B
IP68 Type SPLB - Type A & B
IP69K N/A
Type SPLHCB - Adaptasteel
Extreme Temperature, Abuse Resistant, Overbraided, Standard EMI Screening, Flexible Conduit
Materials: Galvanised Steel Conduit, Smooth Thermoplastic Rubber Covering, Stainless Steel 316 Overbraid
Nominal Outside Inside Min. Bend Reel
Part No. Conduit Size Diameter Diameter Radius Length
SPLHCB16 16mm 19.8mm 12.5mm 80mm 25m
SPLHCB20 20mm 23.1mm 15.9mm 95mm 25m
SPLHCB25 25mm 28.4mm 21.0mm 115mm 25m
SPLHCB32 32mm 35.1mm 26.7mm 145mm 10m
SPLHCB40 40mm 44.0mm 35.4mm 180mm 10m
SPLHCB50 50mm 56.0mm 40.4mm 240mm 10m
To order quote part number & reel length, e.g. SPLHCB16/25M
Type SPLHCB
Extreme Temperature,
Abuse Resistant, Overbraided,
Standard EMI Screening,
Flexible Conduit
Fire Per
f
ormance & EMI
S
creen
IP Rating Appropriate Conduit
For use with: Type SPLHCB
IP40 N/A
IP65 N/A
IP66 Yes
IP67 Yes
IP68 Yes (10 bar 30mins)
IP69K N/A
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Approvals
N/
A
I
P4 0
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread / For insertion into knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SPLB16/M16/A 16mm M16
SPLB16/M20/A 16mm M20
SPLB20/M20/A 20mm M20
SPLB25/M25/A 25mm M25
SPLB32/M32/A 32mm M32
SPLB40/M40/A 40mm M40
SPLB50/M50/A 50mm M50
Adaptaflex Product Catalogue | LIT211GB 0414 3/25
3
Metallic conduit systems
Liquid resistant, high strength Type B - Adaptasteel
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread / For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials: Nickel plated brass
Nominal Metric
Part No. Conduit Size Thread
SPLB16/M16/B 16mm M16
SPLB16/M20/B 20mm M20
SPLB20/M20/B 32mm M20
SPLB25/M25/B 40mm M25
SPLB32/M32/B 50mm M32
IP Rating Appropriate Conduit
For use with: Type SPLHCB
IP40 N/A
IP65 N /A
IP66 Yes
IP67 Yes
IP68 Yes (10 bar 30mins)
IP69K N/A
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals
N
/A
IP40
Fitting
C
haracteristics
3/26 Adaptaflex Product Catalogue | LIT211GB 0414
3
Metallic conduit systems

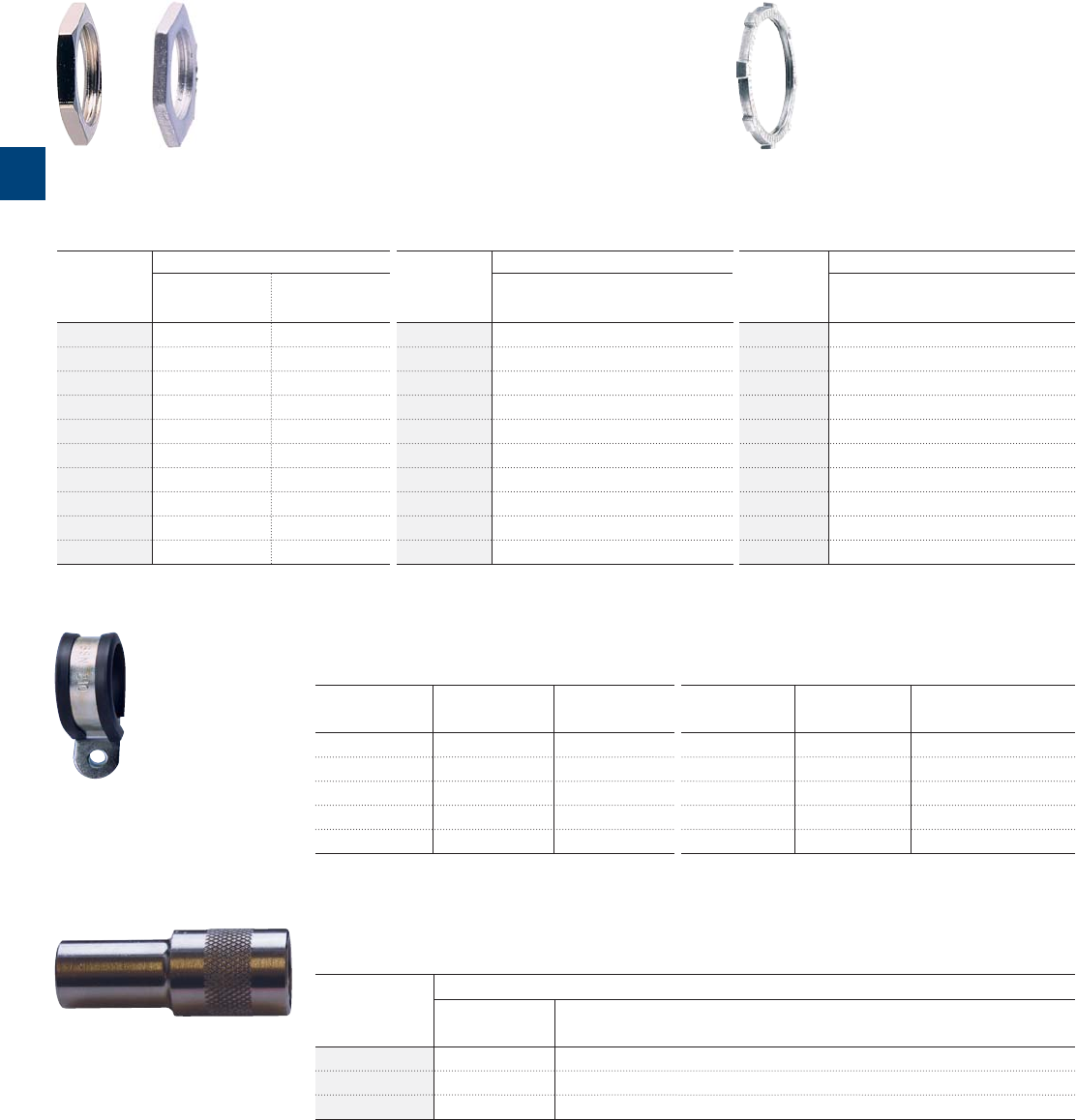

Accessories - Type LNB/LNS, P & PSA
Type PSA
Proximity Switch Connectors / Materials: Nickel Plated Brass
Part No.
To M16 To PG9
Internal Thread Internal Thread Internal Thread
M12 x 1.0 PSA16/M12 PSA9/M12
M18 x 1.0 PSA16/M18 PSA9/M18
M30 PSA16/M30 PSA9/M30
Type PSA
Proximity Switch Connectors
Type LNB Metallic Locknuts
Type LNB/LNS
Metallic Locknuts / Materials: Nickel Plated Brass, Galvanised Steel
Part No. Part No. Part No.
Metric Nickel Galvanised PG NPT
Thread Plated Brass Steel Thread Nickel Plated Brass Thread Steel
M12 x 1.0 LNB/M12X1 PG7 LNB/PG7 3/8” LNS/038
M12 x 1.5 LNB/M12 PG9 LNB/PG9 1/2” LNS/050
M16 LNB/M16 LNS/M16 PG11 LNB/PG11 3/4” LNS/075
M20 LNB/M20 LNS/M20 PG13.5 LNB/PG13 1” LNS/100
M25 LNB/M25 LNS/M25 PG16 LNB/PG16 1 1/4” LNS/125
M32 LNB/M32 LNS/M32 PG21 LNB/PG21 1 1/2” LNS/150
M40 LNB/M40 PG29 LNB/PG29 2” LNS/200
M50 LNB/M50 PG36 LNB/PG36
M63 LNB/M63 PG42 LNB/PG42
M75 LNB/M75 PG48 LNB/PG48
Type P
P-Clip Conduit Support / Materials: Plated Steel or Stainless Steel Construction with PVC Insert
Plated Steel Stainless Steel Nominal Plated Steel Stainless Steel Nominal
Part No. Part No. Conduit Size Part No. Part No. Conduit Size
PCLIP/10 10 PCLIP/32 PCLIP/32SS 32
PCLIP/12 12 PCLIP/40 40
PCLIP/16 PCLIP/16SS 16 PCLIP/50 50
PCLIP/20 PCLIP/20SS 20 PCLIP/63 63
PCLIP/25 PCLIP/25SS 25 PCLIP/75 75
Type P
P-Clip Conduit Support
LNS Locknut
Adaptaflex Product Catalogue | LIT211GB 0414 3/27
3
Metallic conduit systems

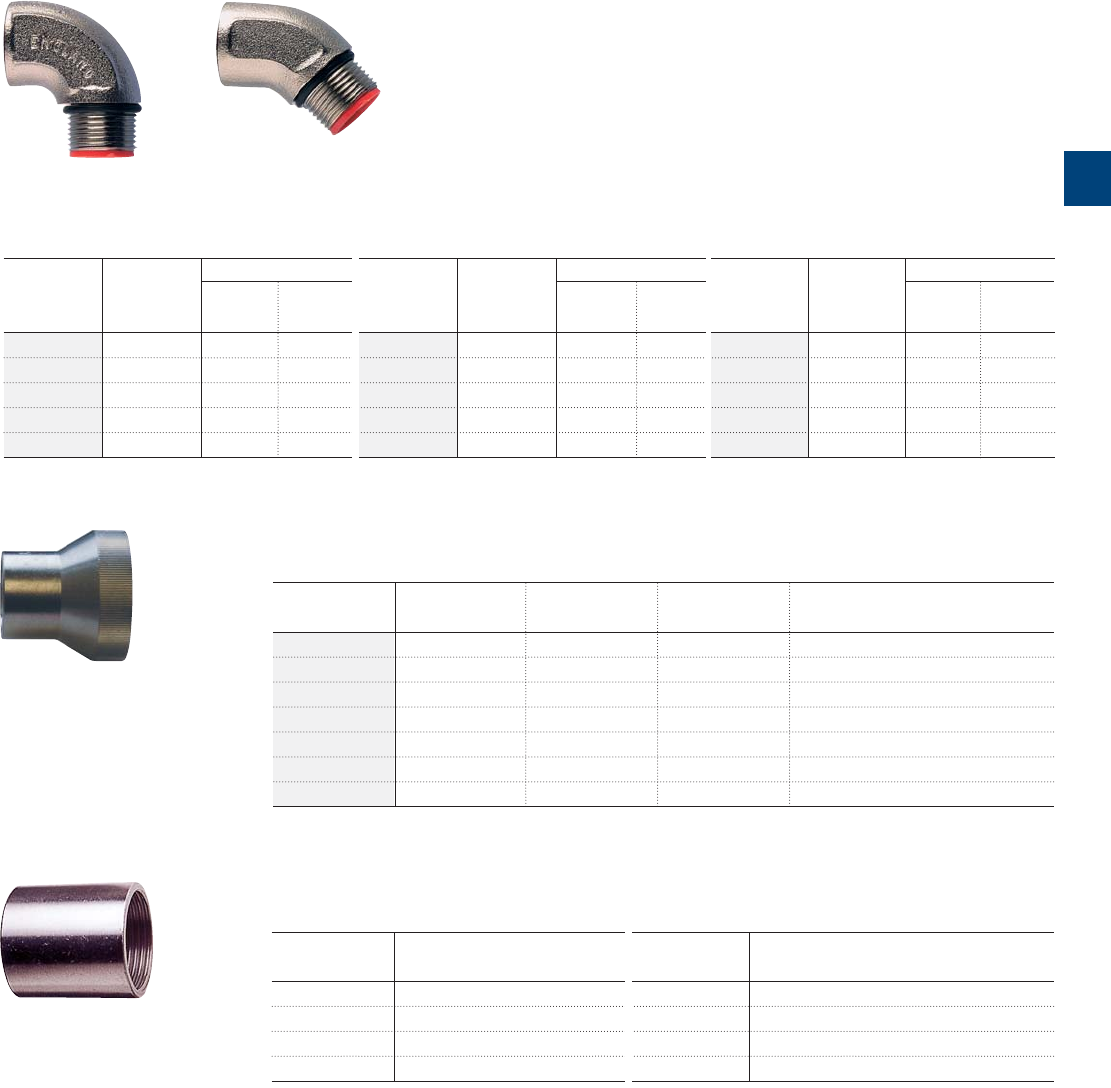

Accessories - Type 90/45, TC & Female couplers
Type TC
Unef Converter
Female Coupler
Brass Internal Female Coupler / Materials: Nickel Plated Brass
Metric Metric
Part No. Thread Part No. Thread
B/M16/C M16 B/M40/C M40
B/M20/C M20 B/M50/C M50
B/M25/C M25 B/M63/C M63
B/M32/C M32 B/M75/C M75
Female Coupler
Brass Female Coupler
Type TC
Unef Thread Converter with Two Internal Female Threads / Materials: Nickel Plated Brass
To M16 To M20 To M25 To M32
Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread
5/8”UNEF B/063U-M16/TC
3/4“UNEF B/075U-M16/TC B/075U-M20/TC
7/8“UNEF B/088U-M20/TC
1“UNEF B/100U-M20/TC B/100U-M25/TC
13/16“UNEF B/119U-M20/TC B/119U-M25/TC
15/16“UNEF B/131U-M20/TC
17/16”UNEF B/144U-M25/TC B/144U-M32/TC
Type 90 Brass Elbow
Type 90/45
Brass Elbows / Materials: Nickel Plated Brass
Metric
Internal Part No.
NPT
Internal
Part No.
PG
Internal
Part No.
External Female External Female External Female
Male Thread Metric Thread Type 90º Type 45º Male Thread Metric Thread Type 90º Type 45º Male Thread Metric Thread Type 90º Type 45º
M16 M16 B/M16/90 1/2” M20 B/050/90 B/050/45 PG9 M16 B/PG9/90
M16 M20 B/M16/45 3/4” M25 B/075/90 B/075/45 PG11 M16 B/PG11/90 B/PG11/45
M20 M20 B/M20/90 B/M20/45 1” M32 B/100/90 B/100/45 PG13.5 M20 B/PG13/90 B/PG13/45
M25 M25 B/M25/91 B/M25/46 PG16 M20 B/PG16/90 B/PG16/45
M32 M32 B/M32/92 B/M32/47 PG21 M25 B/PG21/90 B/PG21/45
Type 45 Brass Elbow
3/28 Adaptaflex Product Catalogue | LIT211GB 0414
3

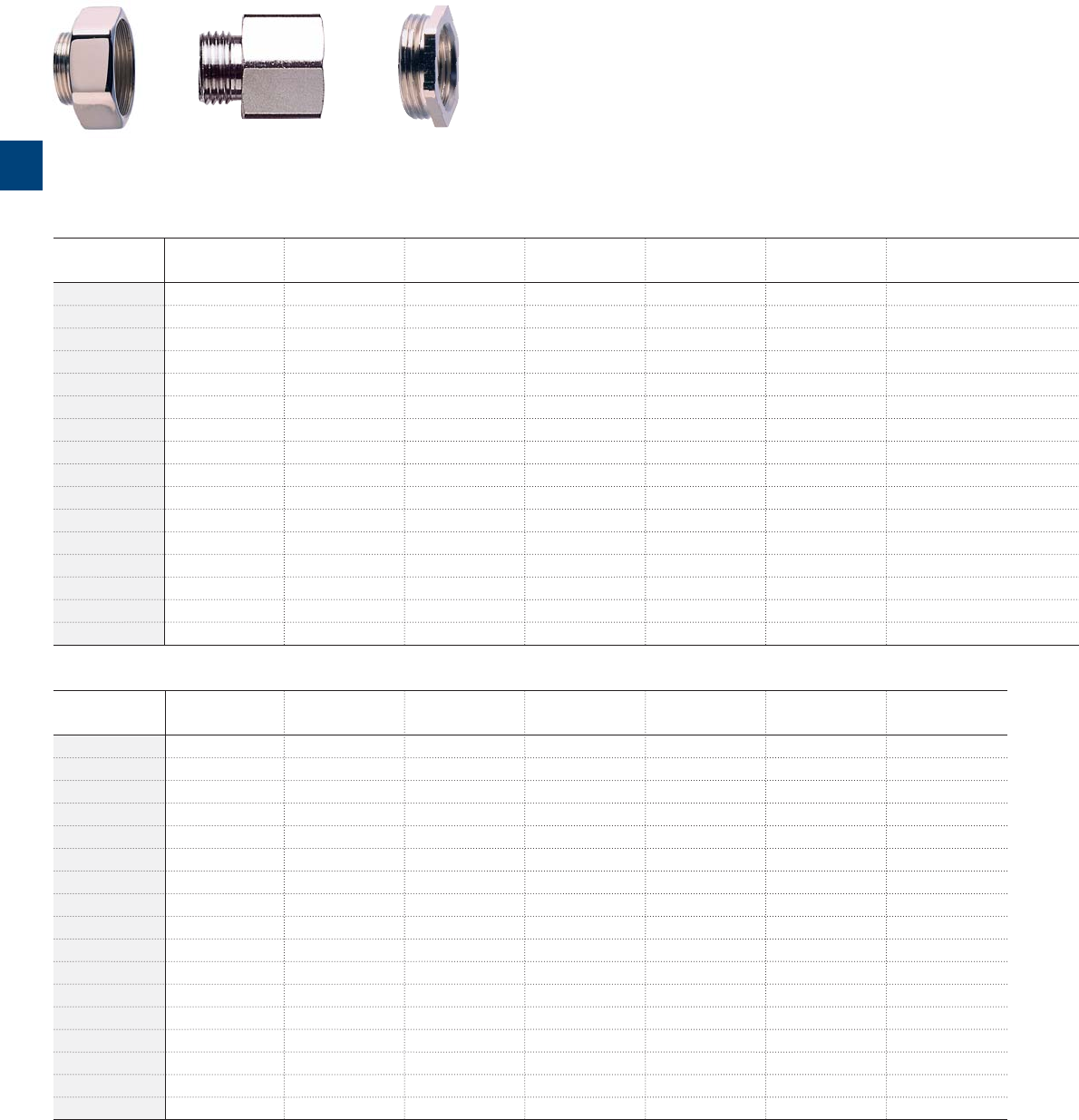

Type E / Type R / Type C
Enlargers, Reducers & Converters / Materials: Nickel Plated Brass
To PG7 To PG9 To PG11 To PG13.5 To PG16 To PG21 To PG29
External Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread
M16 B/M16-PG7/TC B/M16-PG9/ TC B/M16-PG11/TC
M20 B/M20-PG7/TC B/M20-PG9/TC B/M20-PG11/TC B/M20-PG13/TC B/M20-PG16/TC B/M20-PG21/TC
M25 B/M25-PG21/TC
M32 B/M32-PG29/TC
M40
M50
PG7 B/PG7-PG9/E
PG9 B/PG9-PG7/R B/PG9-PG11/E B/PG9-PG13/E
PG11 B/PG11-PG7/R B/PG11-PG9/R B/PG11-PG13/E B/PG11-PG16/E
PG13.5 B/PG13-PG7/R B/PG13-PG9/R B/PG13-PG11/R B/PG13-PG16/E B/PG13-PG21/E
PG16 B/PG16-PG7/R B/PG16-PG9/R B/PG16-PG11/R B/PG16-PG13/R B/PG16-PG21/E
PG21 B/PG21-PG11/R B/PG21-PG13/R B/PG21-PG16/R B/PG21-PG29/E
PG29 B/PG29-PG16/R B/PG29-PG21/R
PG36 B/PG36-PG21/R B/PG36-PG29/R
PG42 B/PG42-PG29/R
PG48
Metallic conduit systems
Accessories - Type E, R & TC
To M12 To M16 To M20 To M25 To M32 To M40 To 1/2” NPT
External Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread Internal Thread
M16 B/M16-M12/R B/M16-M20/E
M20 B/M20-M12/R B/M20-M16/R B/M20-M25/E B/M20-050/TC
M25 B/M25-M20/R B/M25-M32/E
M32 B/M32-M25/R
M40 B/M40-M32/R
M50 B/M50-M40/R
PG7 B/PG7-M16/TC B/PG7-M20/TC
PG9 B/PG9-M16/TC B/PG9-M20/TC
PG11 B/PG11-M16/TC B/PG11-M20/TC B/PG11-050/TC
PG13.5 B/PG13-M16/ TC B/ PG13-M20/TC
PG16 B/PG16-M16/TC B/PG16-M20/TC B/PG16-M25/ TC B/PG16-050/TC
PG21 B/PG21-M16/TC B/PG21-M20/TC B/PG21-M25/TC B/PG21-M32/TC
PG29 B/PG29-M20/TC B/PG29-M25/TC B/PG29-M32/TC B/PG29-M40/TC
PG36 B/PG36-M32/TC B/PG36-M40/TC
PG42
PG48
1/2” NPT B/050-M16/TC B/050-M20/TC
Type E, R & C
Enlargers, Reducers & Converters
Adaptaflex Product Catalogue | LIT211GB 0414 3/29
3
To PG36 To PG42 To PG48
Internal Thread Internal Thread Internal Thread
B/PG29-PG36/E
B/PG36-PG42/E B/PG36-PG48/E
B/PG42-PG36/R B/PG42-PG48/E
B/PG48-PG36/R B/PG48-PG42/R
Adaptaflex Product Catalogue | LIT211GB 0414 4/1
4
Convenience packs
Professional installer conduit systems
Convenience Packs
LFH Convenience 4/2
Budget Convenience 4/2
Retail / Office Convenience 4/2
Liquid Resistant Convenience 4/2

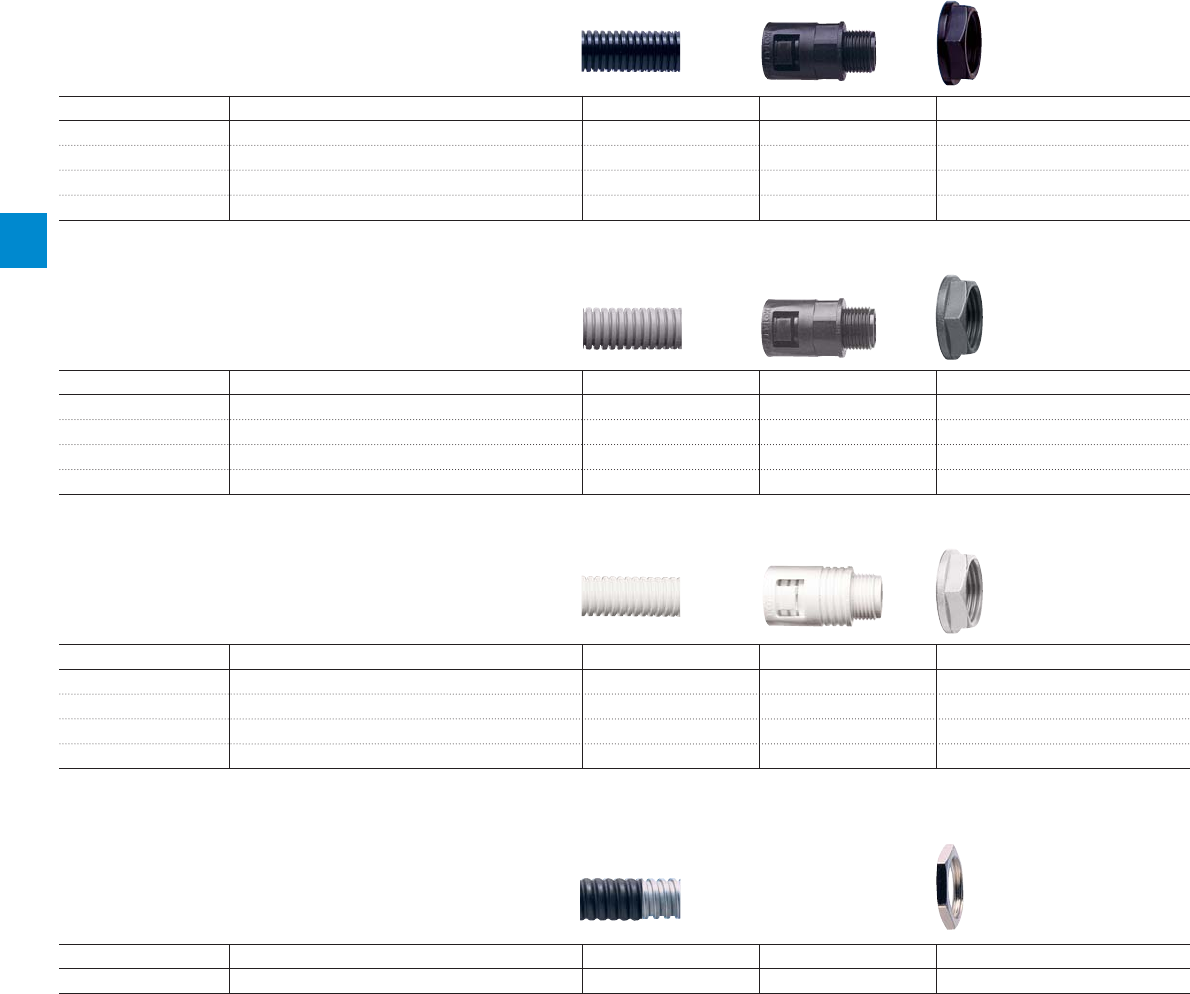

4/2 Adaptaflex Product Catalogue | LIT211GB 0414
4
Convenience packs
Professional installer conduit systems
Liquid Resistant Convenience
Convenience Pack / Type SP Adaptasteel PVC Covered Steel Conduit
with Fixed and Swivel Fittings
Materials: PVC Covered Galvanised Steel / Colour: Black (BL)
Part No. Conduit Type Conduit Diameter Adaptasteel Fittings Locknuts
CP-AF20SP-BS 10m Black Type SP PVC Covered Steel 20mm N/A 10
LFH Convenience
Convenience Pack / Nylon Conduit with Adaptalok One-Piece, Fast Fit, Push & Twist Fittings
Materials: Polyamide Nylon 6 / Colour: Black (BL)
Part No. Type Conduit / Fitting Diameter One-Piece Conduit Fittings Locknuts
CP-AF20A 10m Black Type PA LFH Nylon 6, 20mm diameter 20mm 10 10
CP-AF25A 10m Black Type PA LFH Nylon 6, 25mm diameter 25mm 10 10
AL21/M20/A /BL Pack of 10 Black Fittings (Straight), 20mm diameter 20mm 10 10
AL28/M25/A/BL Pack of 10 Black Fittings (Straight), 28mm diameter 28mm 10 10
Budget Convenience
Convenience Pack / Type PP Polypropylene Conduit with One-Piece, Fast Fit, Push & Twist Fittings
Materials: PP Polypropylene / Colour: Grey (GR)
Part No. Type Conduit / Fitting Diameter One-Piece Conduit Fittings Locknuts
CP-AF20BS-PP 10m Grey Type PP Polypropylene, 20mm diameter 20mm 10 10
CP-AF25BS-PP 10m Grey Type PP Polypropylene, 25mm diameter 25mm 10 10
CP-AF20A-APP Pack of 10 Grey Fittings (Straight), 20mm diameter 20mm 10
CP-AF25A-APP Pack of 10 Grey Fittings (Straight), 25mm diameter 25mm 10
Retail / Office Convenience
Convenience Pack / Self-Extinguishing PVC Conduit & One-Piece Fittings & Locknuts
Materials: PVC Pliable / Colour: White (W), Grey (GR)
Part No. Type Conduit / Fitting Diameter One-Piece Conduit Fittings Locknuts
CP-AF20BS 10m White Type KF PVCu, 20mm diameter 20mm 10 10
CP-AF25BS 10m White Type KF PVCu, 20mm diameter 25mm 10 10
CP-KF20BS 10m Grey Type KF PVCu, 25mm diameter 20mm 10 10
CP-KF25BS 10m Grey Type KF PVCu, 25mm diameter 25mm 10 10
Adaptaflex Product Catalogue | LIT211GB 0414 4/3
4
Fixed Male Fitting Swivel Male Fitting IP Rating
5 5 IP54
IP Rating
IP66
IP66
IP66
IP66
IP Rating
IP54
IP54
IP54
IP54
IP Rating
IP66
IP66
IP66
IP66
Adaptaflex Product Catalogue | LIT211GB 0414 5/1
5
Cutting Tools
Cutting tools for flexible conduit systems
Cutting Tools
Kwikcut 5/2
Swingcut 5/2
Cut-Vice 5/3
Rotocut 5/3
5/2 Adaptaflex Product Catalogue | LIT211GB 0414
5
Cutting Tools

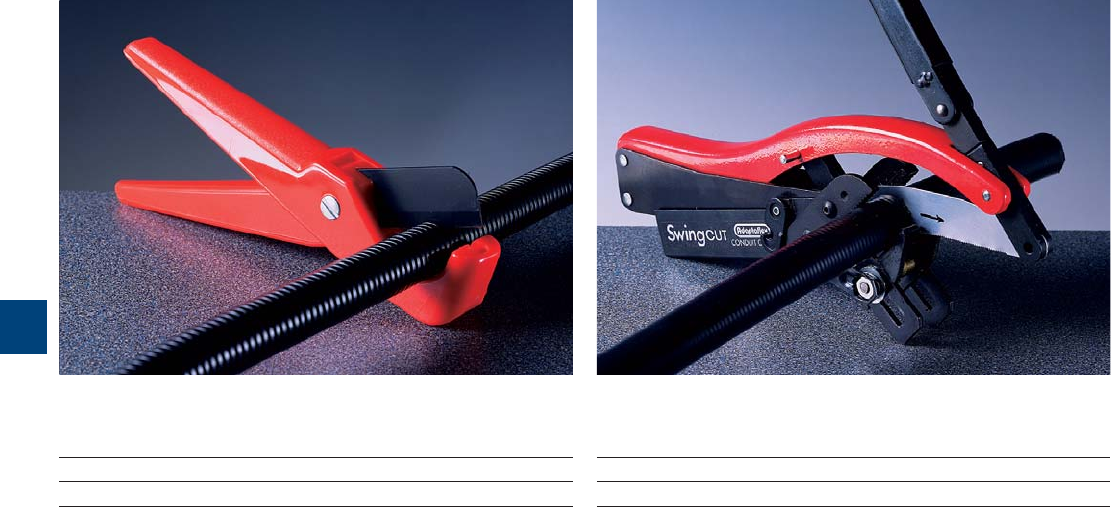

Kwikcut & Swingcut
Kwikcut
Kwikcut is the ideal cutting tool for non-metallic conduits
(PA, PF, PI, PR, PADL, CP, KFL, KFS, KFM, PP, XF & PK)
up to 32mm.
Instructions
Place the conduit between the cutting blade and lower
support, squeeze the handles and rotate the conduit for a
clean, easy cut. Spare blades are available.
Swingcut
Swingcut is a versatile vice and saw combination tool which
facilitates a neat, square cut for liquid tight and pliable
conduits between 10mm and 32mm. Six to one leverage
advantage provides a strong cutting action.
Instructions
Place the conduit in the vice and secure. Move the operating
handle backwards and forwards whilst applying increasing
pressure to the supporting handle.
Hardened captive spring loaded retaining pins make blade
replacement easy. Spare blades are available.
Kwikcut
Part No.
KWIKCUT
Swingcut
Part No.
SWINGCUT
Kwikcut cutting tool Swingcut cutting tool
Adaptaflex Product Catalogue | LIT211GB 0414 5/3
5
Cutting Tools
Cut-Vice & Rotocut
Cut-Vice
Cut-vice offers the ability to produce a clean cut for conduit
sizes 16mm to 40mm.
Instructions
Place the conduit along the vice body and tighten the clamp.
Holding the conduit and integral handle together, insert a
hacksaw blade into the guide and cut. For braided conduit,
wrap adhesive tape around the cutting point to secure
braid. Remove tape after cutting.
Rotocut
Rotocut offers a simple but effective method for cutting 20mm
and 25mm S, SS, SP, LFH-SP and SN steel conduit types.
Instructions
Adjust the clamping pin so that the conduit is just held in the
recess. Squeeze the lever and body whilst rotating the
cutting blade. When the blade appears on the inside of the
conduit, release the pressure and remove the conduit.
A simple twist will then separate the two parts. Where the
conduit is covered, the covering can be cut prior to
separation. Spare blades are available.
Cut-Vice
Part No.
CUT-VICE
Rotocut
Part No.
ROTOCUT
Cut-Vice cutting tool Rotocut cutting tool
Adaptaflex Product Catalogue | LIT211GB 0414 6/1
6
Cable glands & terminal blocks
Accessories
Cable Glands & Terminal Blocks
Introduction 6/3
Cable Glands
Standard - Cable gland 6/4
Index A2P - Cable gland 6/5
Euro Index - Cable gland 6/5
Index Claw - Cable gland 6/6
Index EMC - Cable gland 6/7
Miniature - Cable gland 6/8
Cord Grip Bush 6/8
Clamping Bush 6/9
Stopping Plugs 6/9
Terminal Blocks
Type 1512 - Terminal block 6/10
Type 4012 - Terminal block 6/10
Type 6012 - Terminal block 6/11
Type 10012 - Terminal block 6/11
Type 16012 - Terminal block 6/12
6/2 Adaptaflex Product Catalogue | LIT211GB 0414
6
Adaptaflex Product Catalogue | LIT211GB 0414 6/3
6
Cable glands & terminal blocks
Introduction
Cable Glands
Cable Glands provide sealing and retention for a wide range
of cables for general indoor and outdoor applications.
The Standard Range of “Hex” cable glands has been widely
recognised as the UK “Industry Standard” for plastic cable
glands for over 30 years offering excellent all-round
performance. Euro Index is the next generation of Cable
Glands with enhanced IP and load functionality. Also available
is the Index Cable Gland range providing high strength and
performance for a variety of applications. A range of
accessories are available including seals, grommets, metric
adaptors and reducers, locknuts and sealing washers.
Terminal Blocks
The general purpose 12 pole products are competitively
priced, polyethylene terminals blocks that offer flexibility,
versatility, are neutrally coloured and come with CE Approval.
Available in 3, 5, 15 and 30 Amp loads they are easily cut
into the required number of poles and can be mounted on a
surface within an enclosure.
The range of terminal blocks is now available in standard
12-pole options. The terminal blocks are moulded from a
specially developed Polyamide 6/66 Copolymer, which meets
the arduous glow wire tests as specified in International
Standard IEC 60695-2-11 and IEC 60695-2-12. Available in
a range of size’s, terminal blocks are ideal for use in
appliances, lighting, industrial, domestic, and commercial
applications and the white terminal blocks are available
with raised or level base options.
Range overview
Incorporating high quality design and manufacture, products include cable glands
and terminal blocks.
6/4 Adaptaflex Product Catalogue | LIT211GB 0414
6

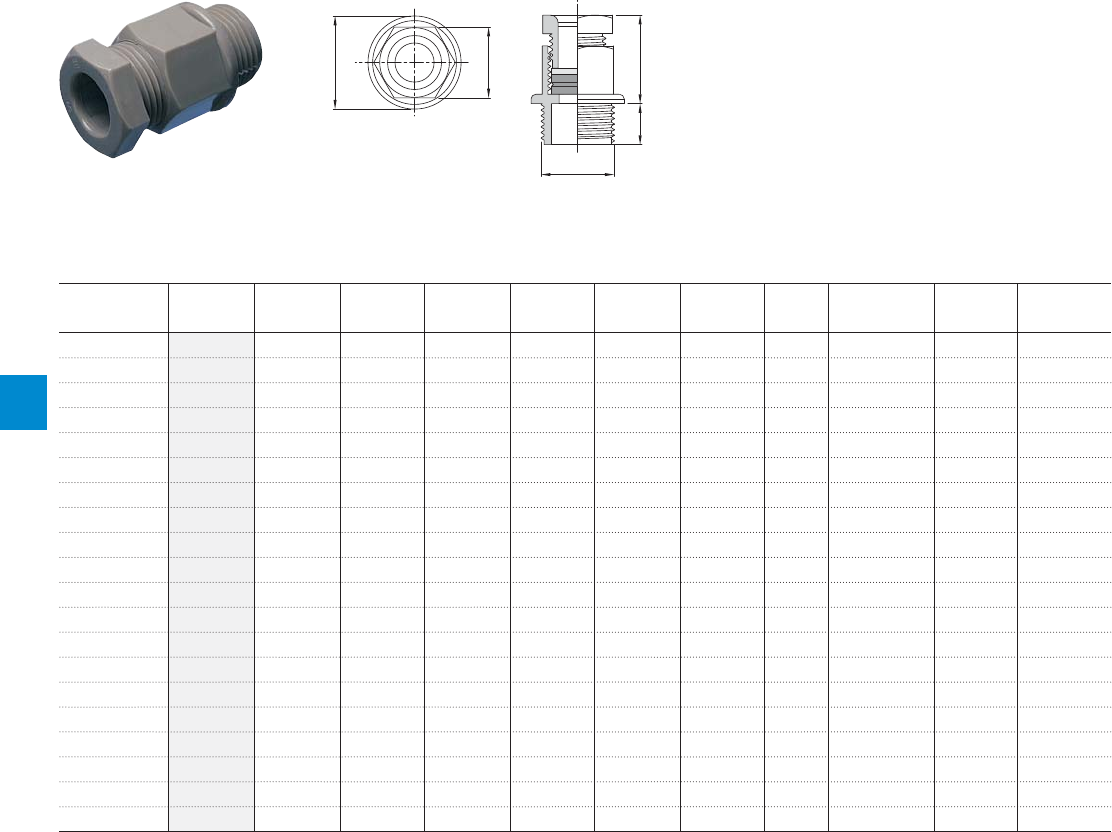

Standard - Cable Gland
General Purpose IP66 Cable Gland / Colour Key: Red ● / White ❍ / Black ● / Grey ●
Materials: Polyamide 6.6 with Nitrile Rubber Seal / Colour: Red RAL 3031 (R), White RAL 9010 (W), Grey RAL 7030 (G), Black RAL 9005 (B)
Metric Thread Cable Max Cable Min Gland Gland Across Flats Pack Sealing Washer Locknut
Part No. Thread A Lengths B Diameter Diameter Depth C Diameter D Dimension E Quantity Part No. Part No. Colours
248 M16 10mm 6mm 4mm 25.0mm 22.0mm 19mm 100 96 92 ● ❍ ● ●
250 M16 10mm 10mm 7mm 25.0mm 22.0mm 19mm 100 96 92 ● ❍ ● ●
249 M20 11mm 6mm 4mm 25.0mm 25.0mm 19mm 100 97 93 ● ❍ ● ●
251 M20 11mm 10mm 7mm 25.0mm 25.0mm 19mm 100 97 93 ● ❍ ● ●
252 M20 11mm 13mm 8mm 30.5mm 26.0mm 23mm 100 97 93 ● ❍ ● ●
264 M25 12mm 6mm 4mm 25.0mm 31.5mm 19mm 100 98 94 ● ❍ ● ●
265 M25 12mm 10mm 7mm 25.0mm 31.5mm 19mm 100 98 94 ● ❍ ● ●
253 M25 12mm 13mm 8mm 30.5mm 31.5mm 23mm 100 98 94 ● ❍ ● ●
254 M25 12mm 18mm 12mm 32.5mm 32.0mm 28mm 100 98 94 ● ❍ ● ●
255 M32 13mm 24mm 18mm 35.0mm 41.0mm 36mm 100 99 95 ● ❍ ● ●
256 M16 20mm 6mm 4mm 25.0mm 22.0mm 19mm 100 96 92 ● ❍ ● ●
258 M16 20mm 10mm 7mm 25.0mm 22.0mm 19mm 100 96 92 ● ❍ ● ●
257 M20 20mm 6mm 4mm 25.0mm 25.0mm 19mm 100 97 93 ● ❍ ● ●
259 M20 20mm 10mm 7mm 25.0mm 25.0mm 19mm 100 97 93 ● ❍ ● ●
260 M20 20mm 13mm 8mm 30.5mm 26.0mm 23mm 100 97 93 ● ❍ ● ●
266 M25 20mm 6mm 4mm 25.0mm 31.5mm 19mm 100 98 94 ● ❍ ● ●
267 M25 20mm 10mm 7mm 25.0mm 31.5mm 19mm 100 98 94 ● ❍ ● ●
261 M25 20mm 13mm 8mm 30.5mm 31.5mm 23mm 100 98 94 ● ❍ ● ●
262 M25 20mm 18mm 12mm 32.5mm 32.0mm 28mm 100 98 94 ● ❍ ● ●
263 M32 20mm 24mm 18mm 35.0mm 41.0mm 36mm 100 99 95 ● ❍ ● ●
To order quote part number & colour, e.g. 248-W
Standard Cable gland gives good all-round performance and is the corner stone of Elkay’s diverse cable gland range
Cable Glands can be supplied assembled with Locknuts and Sealing Washers as required
Cable glands & terminal blocks
Standard - cable gland
Standard Cable Gland
DE
A
C
B
Dimensions
Adaptaflex Product Catalogue | LIT211GB 0414 6/5
6

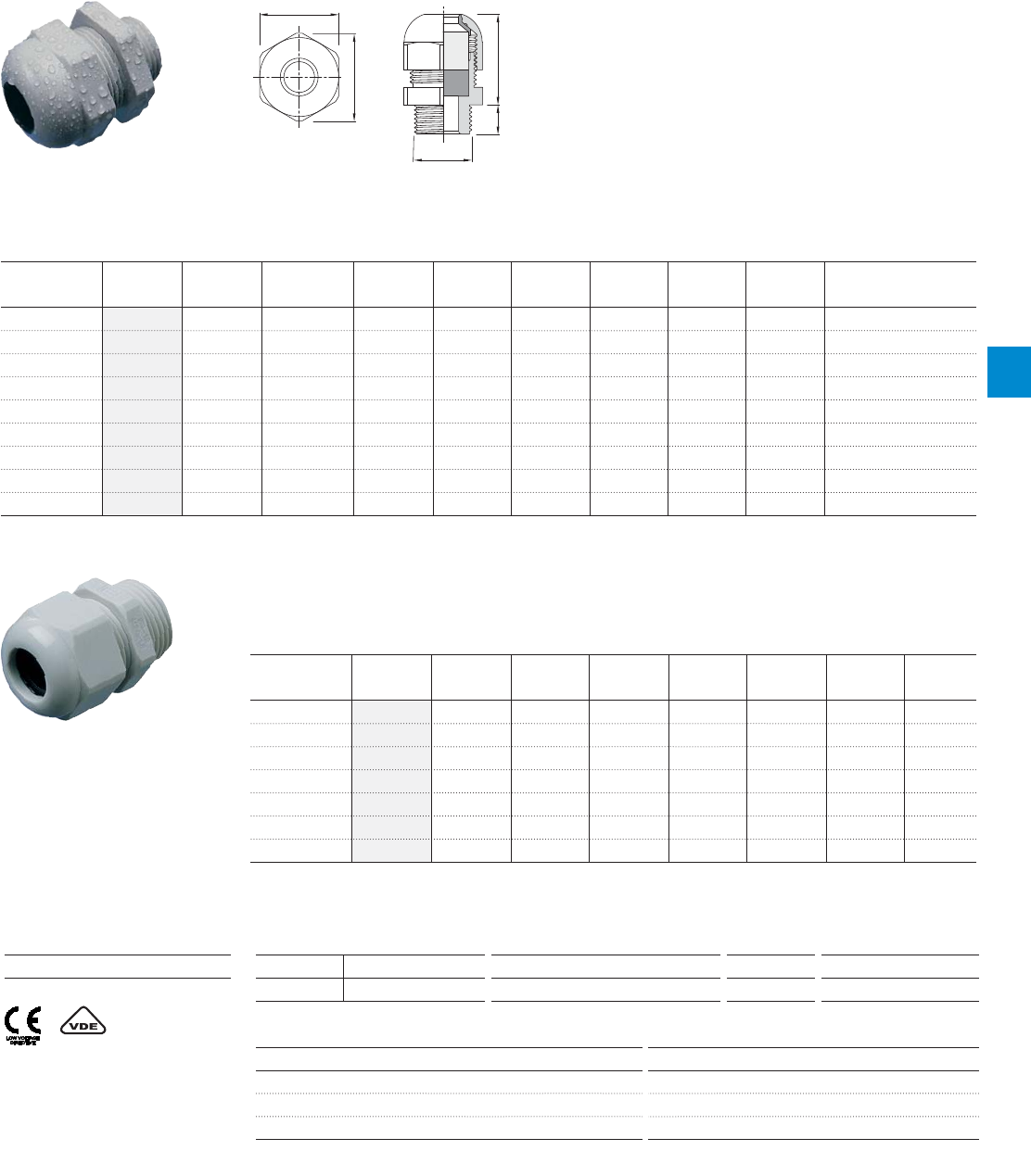

Index A2P - Cable Gland
High Performance IP68 upto 15bar Cable Gland / Materials: Polyamide 6.6 with Nitrile Rubber Seal
Colour: Red RAL 3031 (R), White RAL 9010 (W), Grey RAL 7030 (G), Black RAL 9005 (B)
Metric Thread Gland Length Cable Max Cable Min Gland Across Flats Pack Sealing
Part No. Thread A Lengths B Compressed C Diameter Diameter Diameter D Dimension E Quantity Washer Locknut
200-8160 M16 15mm 24mm 8.0mm 4.0mm 26.0mm 24mm 50 96 92-B
200-8240 M20 15mm 24mm 8.0mm 4.0mm 26.0mm 24mm 50 97 93-B
200-8320 M20 15mm 25mm 10.0mm 7.5mm 30.0mm 27mm 50 97 93-B
200-8400 M20 15mm 26mm 13.2mm 9.5mm 35.5mm 32mm 50 97 93-B
200-8560 M25 15mm 28mm 18.0mm 13.0mm 40.0mm 36mm 25 98 94-B
200-8640 M32 15mm 31mm 25.0mm 17.5mm 51.0mm 46mm 10 99 95-B
200-8720 M40 15mm 31mm 31.5mm 24.5mm 61.0mm 55mm 10 121 111-B
200-8800 M50 15mm 31mm 37.0mm 31.0mm 78.0mm 70mm 5 122 112-B
200-8880 M50 15mm 31mm 43.0mm 36.5mm 78.0mm 70mm 5 122 112-B
Black part numbers listed. Contact us for details of other colours
Index A2P Cable Gland
Cable glands & terminal blocks
Index A2P & Euro Index - cable glands
IP Rating
IP68 Yes (5 bar 30mins)
Approvals Temperature Range
Static Applications: -20ºC to +90ºC
Key Features
– New generation of industrial plastic cable glands – Wide cable acceptance range for each gland size
– Smaller working envelope on bulkhead or panel – Designed to EN 50262:1999
– Integral claw design prevents cable twisting during installation
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Euro Index - Cable Gland
New Generation IP68 Industrial 3 Part Plastic Cable Gland / Materials: Polyamide 6.6 with Nitrile Rubber Seal
Colour: Red RAL 3031 (R), White RAL 9010 (W), Grey RAL 7030 (G), Black RAL 9005 (B), Dark Grey RAL 7001 (DG)
Metric Thread Cable Max Cable Min Gland Gland Across Flats Pack
Part No. Thread A Lengths B Diameter Diameter Depth C Diameter D Dimension E Quantity
ESM12-10 M12 8mm 6.5mm 2mm 23.0mm 19.0mm 17mm 100
ESM16-11 M16 9mm 10.0mm 4mm 25.5mm 23.5mm 21mm 100
ESM20-12 M20 10mm 12.0mm 6mm 27.0mm 27.0mm 24mm 100
ESM20-13 M20 10mm 14.0mm 10mm 28.5mm 30.0mm 27mm 100
ESM25-14 M25 11mm 18.0mm 13mm 29.0mm 33.0mm 30mm 100
ESM32-15 M32 12mm 25.0mm 17mm 37.0mm 45.5mm 41mm 50
ESM40-16 M40 13mm 32.0mm 24mm 42.0mm 55.5mm 50mm 25
To order quote part number & colour, e.g. ESM12-10B
Wholesaler Packs available on this range. Pack Qty 100 Glands & Locknuts
Add WP to Part No. when ordering
Euro Index - Cable Gland
D
E
A
B
C
Dimensions
6/6 Adaptaflex Product Catalogue | LIT211GB 0414
6
Index Claw - Cable Gland
High Performance IP68 Cable Gland
Materials: Polyamide 6.6 with Nitrile Rubber Seal / Colour: Black RAL 9005 (B)
Metric Thread Cable Max Cable Min Gland Gland Across Flats Pack Sealing Locknut
Part No. Thread A Lengths B Diameter Diameter Depth C Diameter D Dimension E Quantity Washer Part No.
211-9020 M16 15mm 9mm 5mm 24mm 26mm 24mm 50 96 92-B
211-9060 M20 15mm 11mm 7mm 25mm 30mm 27mm 50 97 93-B
211-9140 M20 15mm 16mm 12mm 26mm 35mm 32mm 50 97 93-B
The Index Claw Gland is suitable for many applications where cables are subject to high tensile loads. Typical applications would range from portable equipment such as
generators to highly mobile factory equipment. The performance of the Index Claw Gland allows for IP68 rating at 5 bar and cable anchorage of 15.9kgs
IP Rating
IP68 Yes (5 bar 30min)
Approvals
Cable glands & terminal blocks
Index Claw - cable gland
Temperature Range
Static Applications: -20ºC to +90ºC
Key Features
– Ideal for general use
– IP68 Protection (5 bar 30mins)
– Metric
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Index Claw Cable Gland
E
D
A
B
C
Dimensions
Adaptaflex Product Catalogue | LIT211GB 0414 6/7
6
Cable glands & terminal blocks

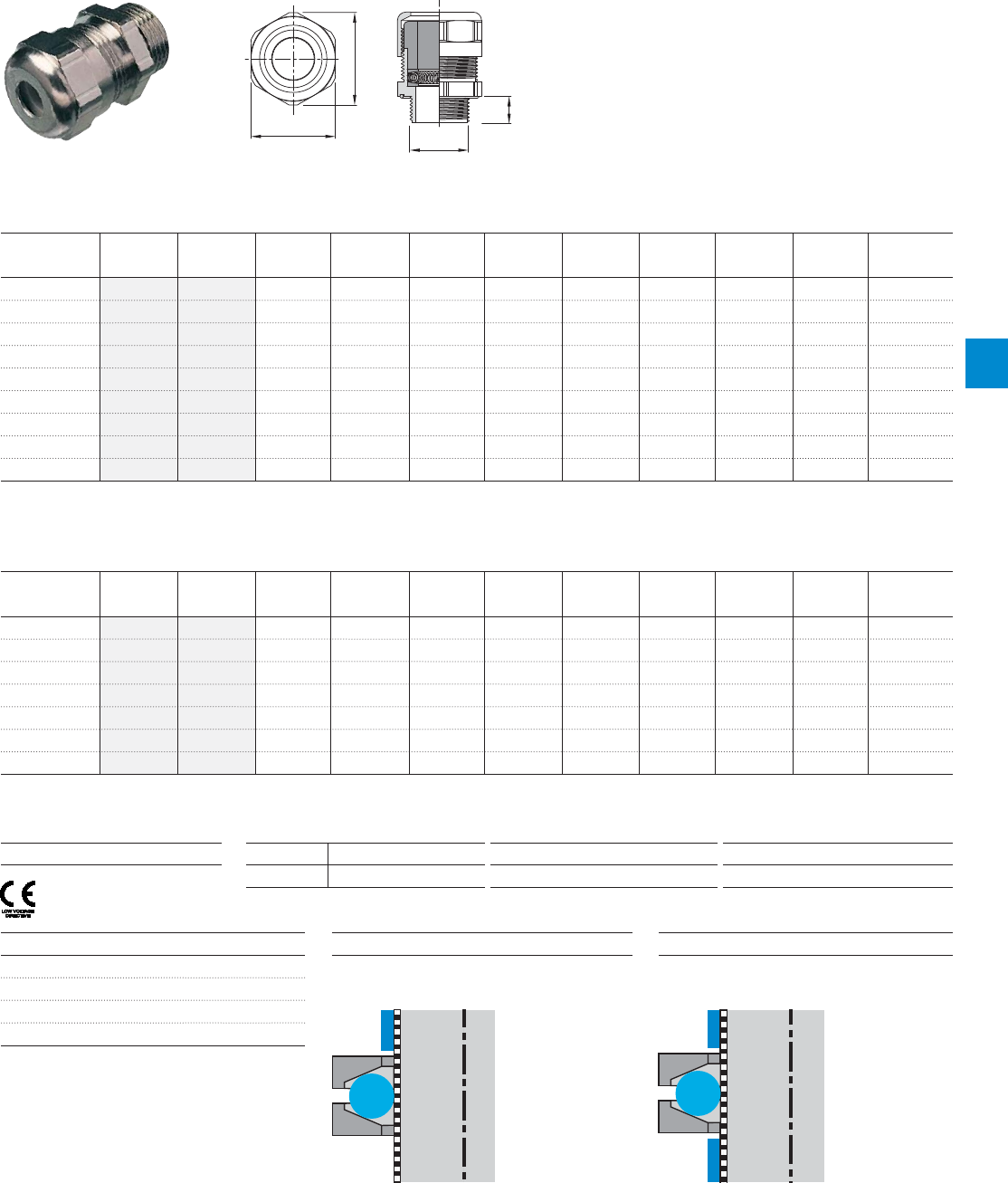

Index EMC Type A & B - cable glands
Index EMC Type A - Cable Gland
High Performance IP68 Cable Gland / Materials: Nickel Plated Brass, Stainless Steel Spring, Rubber Seal (TPE-V)
Metric Thread Gland Across Flats Cable Max Cable Min Screen Screen Pack Locknut
Part No. Thread A Type Lengths B Diameter C Dimension D Diameter Diameter Dia. Max Dia. Min Quantity Part No.
260-1050 M16 A 10mm 26.7mm 24mm 9mm 6m 7.5mm 3.5mm 1 260-0500
260-1100 M16 A 10mm 26.7mm 24mm 11mm 7mm 8.5mm 4mm 1 260-0500
260-1200 M20 A 10mm 26.7mm 24mm 9mm 6mm 7.5mm 3mm 1 260-0600
260-1250 M20 A 10mm 26.7mm 24mm 11mm 7mm 8.5mm 4mm 1 260-0600
260-1300 M25 A 11mm 33.5mm 30mm 9.5mm 6mm 8.5mm 6mm 1 260-0650
260-1350 M25 A 11mm 33.5mm 30mm 11mm 6mm 9.0mm 6mm 1 260-0650
260-1700 M32 A 13mm 43.5mm 40mm 26mm 22mm 21.0mm 15mm 1 260-0700
260-1750 M40 A 14mm 54.0mm 50mm 29mm 25mm 25.0mm 18mm 1 260-0750
260-1900 M50 A 15mm 65.0mm 60mm 41mm 37mm 33.0mm 29mm 1 260-0800
IP Rating
IP68 Yes (10 bar 30min)
Approvals Temperature Range
Static Applications: -40ºC to +135ºC
Halogen Free
Yes
Index EMC Cable Gland
Index EMC Type B - Cable Gland
High Performance IP68 Cable Gland / Materials: Nickel Plated Brass, Stainless Steel Spring, Rubber Seal (TPE-V)
Metric Thread Gland Across Flats Cable Max Cable Min Screen Screen Pack Locknut
Part No. Thread A Type Lengths B Diameter C Dimension D Diameter Diameter Dia. Max Dia. Min Quantity Part No.
260-1000 M16 B 10mm 26.7mm 24mm 6mm 4mm 6.0mm 3.0mm 1 260-0500
260-1150 M20 B 10mm 26.7mm 24mm 6mm 4mm 6.0mm 3.0mm 1 260-0600
260-1400 M25 B 11mm 33.5mm 30mm 11mm 6mm 10.5mm 6.0mm 1 260-0650
260-1450 M25 B 11mm 33.5mm 30mm 14mm 10mm 13.0mm 8.0mm 1 260-0650
260-1550 M25 B 11mm 33.5mm 30mm 18mm 14mm 17.5mm 12.5mm 1 260-0650
260-1650 M32 A/B 13mm 43.5mm 40mm 23mm 19mm 21.0mm 15.0mm 1 260-0700
260-1800 M40 B 14mm 54.0mm 50mm 32mm 29mm 30.5mm 24.0mm 1 260-0750
The INDEX Uni Iris range of cable glands are for use with screened cable and have been designed to connect the screen of the cable to the enclosure screening system
This is achieved by the use of two tapered rings applying force onto a continuous stainless steel spring washer pressing against the screen, ensuring positive contact
Assembly is simple, the screen is exposed, the spring and washers are slipped in place and then the gland can be tightened
Key Features
– Screen continues into enclosure
– IP68 Protection at 10 bar for 30 minutes
– Metric
– For use with systems conforming to EN50 082-1/2
Type A
– Stripped Cable Sheath - Allowing the outer sheath to
be completeley stripped from the cable
Type B
– Continuous Cable Sheath - Allowing for a ring of
outer sheath only to be stripped
D
C
A
B
Dimensions
6/8 Adaptaflex Product Catalogue | LIT211GB 0414
6

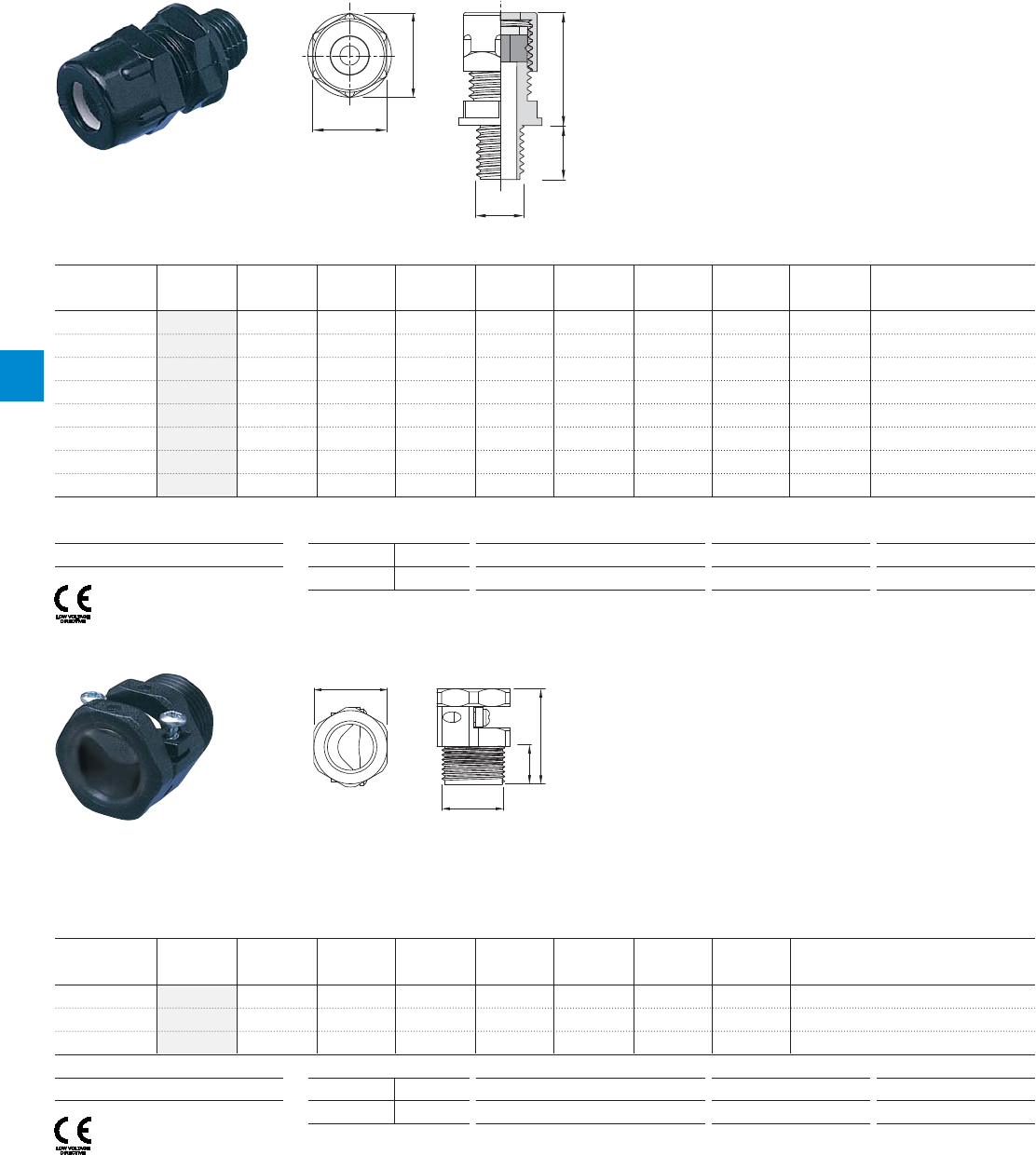

Miniature Gland
Small Cable Size IP66 Cable Gland
Materials: Polyamide 6.6 with Nitrile Rubber Seal / Colour: Black RAL 9005 (B), White RAL 9010 (W) - Black Part Numbers Listed
Metric Thread Cable Max Cable Min Gland Gland Across Flats Pack Sealing Locknut
Part No. Thread A Lengths B Diameter Diameter Depth C Diameter D Dimension E Quantity Washer Part No.
238 M10 8mm 5mm 2mm 21mm 17mm 15mm 100 68 78-B
240 M10 8mm 7mm 5mm 21mm 17mm 15mm 100 68 78-B
244 M10 20mm 5mm 2mm 21mm 17mm 15mm 100 68 78-B
246 M10 20mm 7mm 5mm 21mm 17mm 15mm 100 68 78-B
239 M13 8mm 5mm 2mm 21mm 17mm 15mm 100 69 79-B
241 M13 8mm 7mm 5mm 21mm 17mm 15mm 100 69 79-B
245 M13 20mm 5mm 2mm 21mm 17mm 15mm 100 69 79-B
247 M13 20mm 7mm 5mm 21mm 17mm 15mm 100 69 79-B
Miniature cable glands are ideal for small cable sizes and offer IP66 protection. To order quote part number & colour, e.g. 238-W
Miniature cable glands are available with either long or short threads. Locknuts and sealing washers are available as separate items
IP Rating
IP66 Yes
Approvals
Cable glands & terminal blocks
Miniature gland & Cord grip bush
Temperature Range
Static Applications: -20ºC to +90ºC
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Miniature Gland
Cord Grip Bush
Cord Grip Entry Bush
Materials: Polyamide 6.6 / Colour: Black RAL 9005 (B)
Metric Thread Cable Max Cable Min Across Flats Overall Pack Sealing Locknut
Part No. Thread A Lengths B Diameter Diameter Dimension C Length D Quantity Washer Part No.
743-B M16 9mm 11mm 3.5mm 19mm 23.5mm 100 96 92-B
744-B M20 12mm 14mm 4.0mm 23mm 29.5mm 100 97 93-B
745-B M25 12mm 18mm 8.0mm 27mm 29.5mm 100 98 94-B
IP Rating
IP66 N/A
Approvals Temperature Range
Static Applications: -20ºC to +90ºC
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Cord Grip Bush
E
D
C
A
B
C
Dimensions
Dimensions
A
B
D
Adaptaflex Product Catalogue | LIT211GB 0414 6/9
6

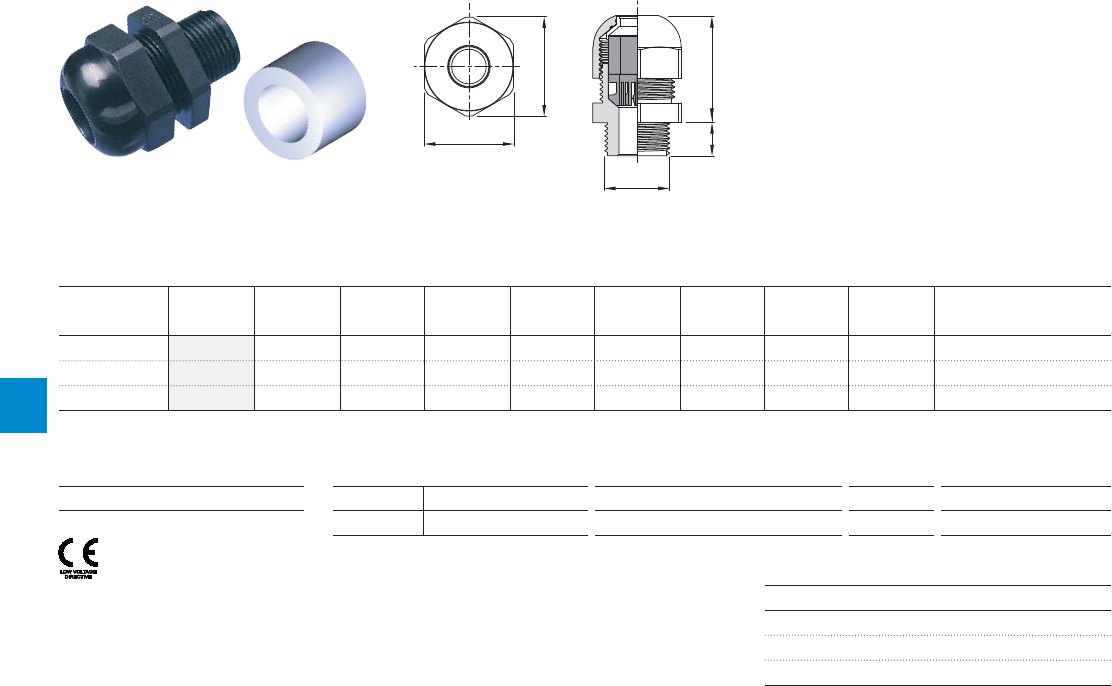

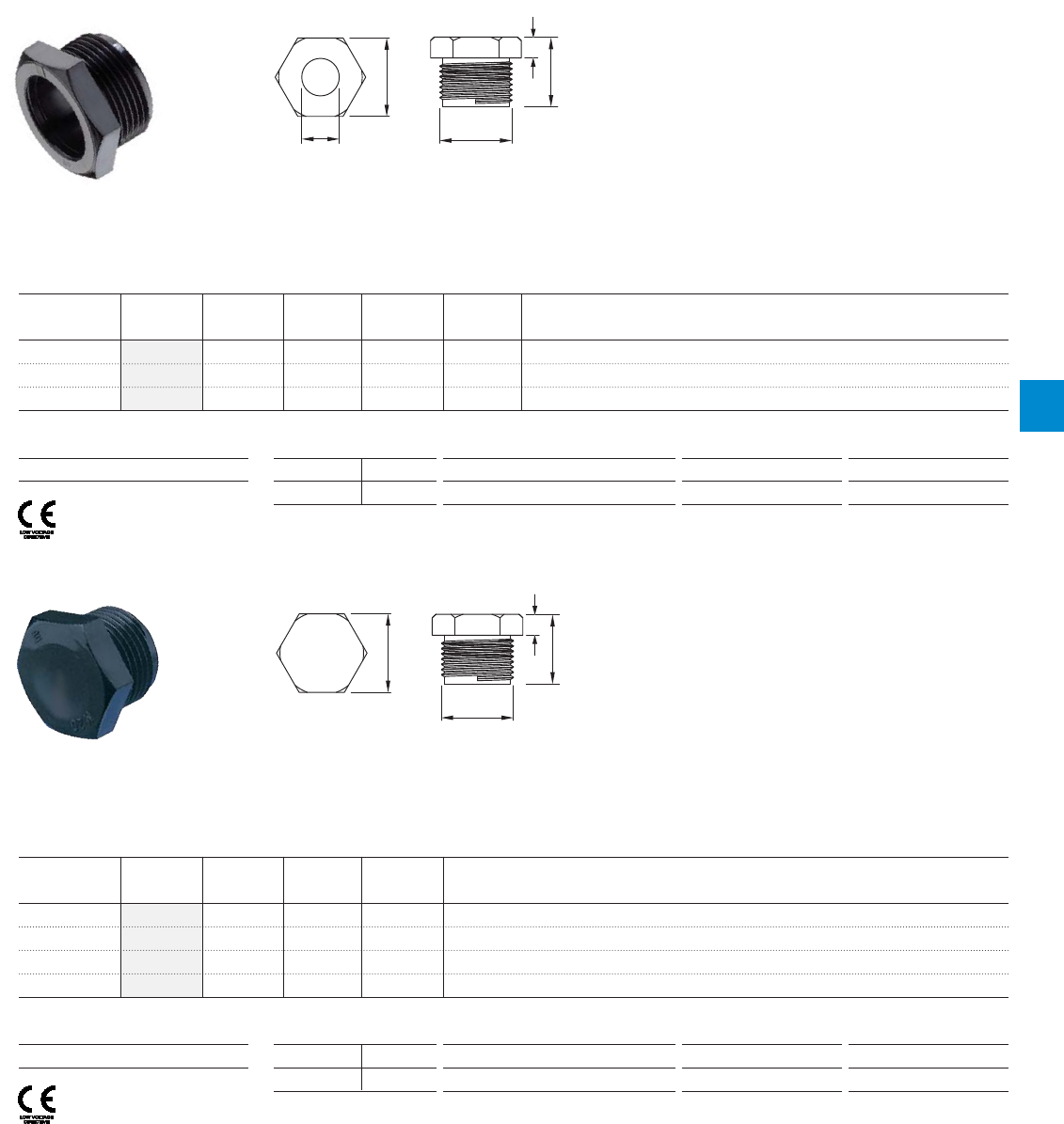

Clamping Bush
Smooth Cable Guide
Materials: Polyamide 6.6 / Colour: Black RAL 9005 (B)
Metric Plug Hexagon Hole Across Flats Pack
Part No. Thread A Length B Thickness C Diameter D DImension E Quantity
46-B M16 14mm 5mm 10.5mm 19mm 100
47-B M20 18mm 6mm 13.0mm 23mm 100
48-B M25 18mm 6mm 19.0mm 28mm 100
IP Rating
IP66 N/A
Approvals
Cable glands & terminal blocks
Clamping bush & Stopping plugs
Temperature Range
Static Applications: -10ºC to +90ºC
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Clamping Bush
Stopping Plug
General Purpose IP66 Stopping Plug
Materials: Polyamide 6.6 / Colour: Black RAL 9005 (B)
Metric Across Flats Plug Head Pack
Part No. Thread A Dimension B Length C Depth D Quantity
64-B M16 19mm 14mm 5mm 100
65-B M20 23mm 18mm 6mm 100
66-B M25 28mm 18mm 7mm 100
67-B M32 36mm 19mm 3mm 100
Adaptaflex range of Stopping Plugs are ideal for sealing cable entries
IP Rating
IP66 N/A
Approvals Temperature Range
Static Applications: -10ºC to +90ºC
Flammability
UL94 - V2 (Nylon material)
Halogen Free
Yes
Stopping Plug
D
C
A
D
C
B
A
Dimensions
Dimensions
B
E
D
6/10 Adaptaflex Product Catalogue | LIT211GB 0414
6
Type 1512 Polyamide - Terminal Block
2.5mm2 Polyamide Terminal Blocks
Materials: Polyamide 6, Galvanised Brass Inserts & Galvanised Steel Screws / Colour: White
Wire Pack
Part No. Base Protector ‘T’ Insert No. Poles Width A Rating Quantity
1512LE Level 12 Pole 94mm 14A 50
1512/151E Raised Yes 12 Pole 94mm 14A 50
1512LTE Level Yes 12 Pole 94mm 14A 50
1512TE Raised Yes 12 Pole 94mm 14A 50
Nominal Clamping Area
2.5mm2
Approvals
Cable glands & terminal blocks
Type 1512 & 4012 polyamide - terminal blocks
Flammability
UL94 - V2 (Nylon material)
Fire Performance
Halogen Free
Type 1512 terminal block
Max Ambient Temp
85ºC
Nominal Voltage
450V
Type 4012 Polyamide - Terminal Block
4mm2 Polyamide Terminal Blocks
Materials: Polyamide 6, Galvanised Brass Inserts & Galvanised Steel Screws / Colour: White
Wire Pack
Part No. Base Protector ‘T’ Insert No. Poles Width A Height B Rating Quantity
4012LE LEVEL 12 Pole 117mm 15.0mm 25A 50
4012/401E RAISED Yes 12 Pole 117mm 18.5mm 25A 50
4012LT/402E LEVEL Yes Yes 12 Pole 117mm 15.0mm 25A 50
4012TE RAISED Yes 12 Pole 117mm 18.5mm 25A 50
Nominal Clamping Area
4mm2
Approvals Flammability
UL94 - V2 (Nylon material)
Fire Performance
Halogen Free
Type 4012 terminal block
Max Ambient Temp
85ºC
Nominal Voltage
450V
Dimensions
Dimensions
Adaptaflex Product Catalogue | LIT211GB 0414 6/11
6
Cable glands & terminal blocks
Type 6012 & 10012 polyamide - terminal blocks
Type 10012 Polyamide - Terminal Block
10mm2 Polyamide Terminal Blocks
Materials: Polyamide 6, Galvanised Brass Inserts & Galvanised Steel Screws / Colour: White
Wire Pack
Part No. Base Protector ‘T’ Insert No. Poles Width A Height B Rating Quantity
10012/1001 RAISED Yes 12 Pole 180mm 28mm 45A 10
10012L LEVEL 12 Pole 180mm 22mm 45A 10
10012L/1001 LEVEL Yes 12 Pole 180mm 22mm 45A 10
10012LT LEVEL 12 Pole 180mm 22mm 45A 10
10012T RAISED 12 Pole 180mm 28mm 45A 10
10012 RAISED 12 Pole 180mm 28mm 45A 10
Nominal Clamping Area
10mm2
Approvals Flammability
UL94 - V2 (Nylon material)
Fire Performance
Halogen Free
Type 10012 terminal block
Max Ambient Temp
85ºC
Nominal Voltage
450V
Dimensions
Type 6012 Polyamide - Terminal Block
6mm2 Polyamide Terminal Blocks
Materials: Polyamide 6, Galvanised Brass Inserts & Galvanised Steel Screws / Colour: White
Wire Pack
Part No. Base Protector ‘T’ Insert No. Poles Width A Height B Rating Quantity
6012/601E Raised Yes 12 Pole 133.7mm 20.8mm 32A 25
6012TE Raised Yes 12 Pole 133.7mm 20.8mm 32A 25
6012L/601E Level Yes 12 Pole 133.7mm 19.3mm 32A 25
6012LE Level 12 Pole 133.7mm 19.3mm 32A 25
Nominal Clamping Area
6mm2
Approvals Flammability
UL94 - V2 (Nylon material)
Fire Performance
Halogen Free
Type 6012 terminal block
Max Ambient Temp
85ºC
Nominal Voltage
450V
Dimensions
6/12 Adaptaflex Product Catalogue | LIT211GB 0414
6
Cable glands & terminal blocks
Type 16012 polyamide - terminal block
Type 16012 Polyamide - Terminal Block
16mm2 Polyamide Terminal Blocks
Materials: Polyamide 6, Galvanised Brass Inserts & Galvanised Steel Screws / Colour: White
Wire Pack
Part No. Base Protector ‘T’ Insert No. Poles Width A Height B Rating Quantity
16012 Raised 12 Pole 180mm 28mm 60A 10
16012LT Level 12 Pole 180mm 22mm 60A 10
16012/1601 Raised Yes 12 Pole 180mm 28mm 60A 10
16012L/1601 Level Yes 12 Pole 180mm 22mm 60A 10
16012T Raised 12 Pole 180mm 28mm 60A 10
16012L Level 12 Pole 180mm 22mm 60A 10
Nominal Clamping Area
16mm2
Approvals Flammability
UL94 - V2 (Nylon material)
Fire Performance
Halogen Free
Type 16012 terminal block
Max Ambient Temp
85ºC
Nominal Voltage
450V
Dimensions
Adaptaflex Product Catalogue | LIT211GB 0414 6/13
6
Adaptaflex Product Catalogue | LIT211GB 0414 7/1
7
Aquasafe
Introduction 7/3
In-Line Aqua-safe 7/4
Bulkhead Aqua-safe 7/4
Sealing Caps 7/5
Aquasafe
Waterproof plugs & connectors
7/2 Adaptaflex Product Catalogue | LIT211GB 0414
7
Adaptaflex Product Catalogue | LIT211GB 0414 7/3
7
Aquasafe
Introduction
Aquasafe is suitable for temporary immersion to IP68 2 Bar
for 30 minutes (Note: Not submersible). The housings are
defined as either Female or Male. The Female housing
has the collar moulding, and the Male housing is smaller in
diameter, and fits inside the opposite housing. The inner
connectors are defined as either a Plug or Socket according
to the metal inserts.
Bulkheads (IP68 - 16A)
If power is being distributed and controlled from a fixed
installation, it may be more appropriate to mount products
into an enclosure or electrical equipment. As an alternative
to the in-line connector, Adaptaflex offer complimentary
mounting options including;
–Chassis / panel mounting (screwed)
Supplied with M25 Locknut and Sealing Washer as
standard, the thread has flats to orientate the housing
during installation.
–Bulkhead / surface mounting (flanged)
Flanged to suit surface mounting where space is restricted
behind the application.
Each bulkhead / panel mounted housing can be used in
conjunction with the appropriate mating in-line connector.
Sealing Caps (IP68 - 16A)
Sealing caps can be fitted to each individual housing to
maintain protection when the connectors are separated. This
ensures electrical safety at all times, even when the
connectors are not in use. The caps are operated in exactly
the same manner as the connectors, by the latch mechanism
held within the collar. A strap is also provided to retain the
sealing cap onto the housings, for light static applications.
Range overview - In-Line (IP68 - 16A)
The in-line range is typically used where temporary connections are required for
power. The range offers a variety of cable acceptances sizes, whilst maintaining a
compact working envelope.
IEC 61984
7/4 Adaptaflex Product Catalogue | LIT211GB 0414
7
In-Line Aqua-safe
IP68 - 16A Standard In-Line Product
Materials: Plug & Socket Connector: Polycarbonate, Outer Housing: Glass Filled Nylon with Nitrile Rubber Seal / Colour: Black
Part No. Description Connector Details Cable Range Pack Quantity
185-9000 In-Line Waterproof Connector Assembly 3 Pole Plug & Socket 5-9mm 1
185-9100 In-Line Waterproof Connector Assembly 3 Pole Plug & Socket 8-13mm 1
185-9200 In-Line Waterproof Connector Assembly 3 Pole Plug & Socket 12-16mm 1
185-OA1011-P030-1 In-Line Waterproof Female Housing 3 Pole Plug 5-9mm 1
185-OA1021-P030-1 In-Line Waterproof Female Housing 3 Pole Plug 8-13mm 1
185-OA1031-P030-1 In-Line Waterproof Female Housing 3 Pole Plug 12-16mm 1
185-1A1011-S030-1 In-Line Waterproof Male Housing 3 Pole Socket 5-9mm 1
185-1A1021-S030-1 In-Line Waterproof Male Housing 3 Pole Socket 8-13mm 1
185-1A1031-S030-1 In-Line Waterproof Male Housing 3 Pole Socket 12 -16mm 1
Aquasafe
In-Line Aqua-safe
In-Line Aqua-Safe
IP Rating
IP68 Yes (upto 2 bar 30min)
Note: Not submersible
Approvals Temperature Range
Static Applications: -25ºC to +80ºC
Flammability
UL94 - V2
Halogen Free
Yes
IEC 61984
Bulkhead Aqua-safe
IP68 - 16A Standard Bulkhead Product
Materials: Plug & Socket Connector: Polycarbonate, Outer Housing: Glass Filled Nylon with Nitrile Rubber Seal / Colour: Black
Part No. Description Connector Details Cable Range Pack Quantity
185-0B1000-P030-1 Aqua-safe Bulkhead Female Housing Flanged 3 Pole Plug 1
185-0E1000-P030-1 Aqua-safe Bulkhead Female Housing Screwed 3 Pole Plug 1
185-1B1000-S030-1 Aqua-safe Bulkhead Male Housing Flanged 3 Pole Socket 1
185-1E1000-S030-1 Aqua-safe Bulkhead Male Housing Screwed 3 Pole Socket 1
Bulkhead Aqua-safe
Bulkhead Male Screwed
IP Rating
IP68 Yes (upto 2 bar 30min)
Note: Not submersible
Approvals Temperature Range
Static Applications: -25ºC to +80ºC
Flammability
UL94 - V2
Halogen Free
Yes
IEC 61984
Bulkhead Aqua-safe
Bulkhead Female Screwed
Bulkhead Aqua-safe
Bulkhead Male Flanged
Bulkhead Aqua-safe
Bulkhead Female Flanged
Adaptaflex Product Catalogue | LIT211GB 0414 7/5
7
Aquasafe
Sealing Caps
Sealing Caps
IP68 - 16A Sealing Caps
Colour: Black
Part No. Description Pack Quantity
185-6100 Male Sealing Cap with strap to suit all Female Housings 100
185-6200 Female Sealing Cap with strap to suit all Male Housings 100
Female Sealing Cap Male Sealing Cap
Adaptaflex Product Catalogue | LIT211GB 0414 8/1
8
Technical section
Product characteristics, classification & performance
Technical Section
Thread Data 8/2
EMI Screen System & Fire Performance 8/3
IP Ratings & Fitting Characteristics 8/4
Chemical Resistance 8/6
Cable Carrying Capacity (Wire Fill) 8/8
IEC61386 Classifications 8/9
8/2 Adaptaflex Product Catalogue | LIT211GB 0414
8
Technical section
Thread data
Metric Thread Data
Standard Thread Conforming to EN60423 & BS3643
Thread External Thread Internal Thread
Size Outside Diameter Inside Diameter Pitch
M8 8mm 6.9mm 1mm
M10 10mm 8.9mm 1mm
M12 12mm 10.9mm 1mm
M12 12mm 10.4mm 1.5mm
M16 16mm 14.4mm 1.5mm
M18 18mm 16.9mm 1mm
M20 20mm 18.4mm 1.5mm
M25 25mm 23.4mm 1.5mm
M30 30mm 28.4mm 1.5mm
M32 32mm 30.4mm 1.5mm
M40 40mm 38.4mm 1.5mm
M50 50mm 48.4mm 1.5mm
M63 63mm 61.4mm 1.5mm
M75 75mm 73.4mm 1.5mm
NOTE: Dimensions are nominal
PG Thread Data
German Standard Thread Conforming to DIN40430
Thread External Thread Internal Thread
Size Outside Diameter Inside Diameter Pitch
PG7 12.5mm 11.3mm 1.27mm
PG9 15.2mm 13.9mm 1.41mm
PG11 18.6mm 17.3mm 1.41mm
PG13.5 20.4mm 19.1mm 1.41mm
PG16 22.5mm 21.2mm 1.41mm
PG21 28.3mm 26.8mm 1.59mm
PG29 37mm 35.5mm 1.59mm
PG36 47mm 45.5mm 1.59mm
PG42 54mm 52.5mm 1.59mm
PG48 59.3mm 57.8mm 1.59mm
NOTE: Dimensions are nominal
PF Thread Data
Japanese Conduit Thread Conforming to JIS B 0202
Thread External Thread Internal Thread
Size Outside Diameter Inside Diameter Pitch
1/4” 13mm 1.34mm
3/8” 16.7mm 15.0mm 1.34mm
1/2” 21.0mm 18.6mm 1.81mm
3/4” 26.4mm 24.1mm 1.81mm
1” 33.3mm 30.3mm 2.31mm
1 1/4” 41.9mm 39.0mm 2.31mm
1 1/2” 47.8mm 44.8mm 2.31mm
2” 59.6mm 56.7mm 2.31mm
NOTE: Dimensions are nominal
NPT Thread Data
US Taper Seal Pipe Thread Conforming to ANSI/ASME B1.20.1 - 1983
Thread External Thread
Size Outside Diameter Pitch
3/8” 16.7mm 1.14mm
1/2” 21.0mm 1.81mm
3/4” 26.4mm 1.81mm
1” 33.3mm 2.21mm
1 1/4” 41.9mm 2.21mm
1 1/2” 47.8mm 2.21mm
2” 59.6mm 2.21mm
NOTE: Dimensions are nominal
UNEF / UNS Thread Data
American Unified Thread conforming to BS1580
Thread External Thread Internal Thread
Size Outside Diameter Inside Diameter Pitch
5/8” 15.9mm 14.7mm 1.06mm
3/4” 19.1mm 17.7mm 1.27mm
13/16” 20.6mm 19.3mm 1.27mm
7/8” 22.2mm 20.9mm 1.27mm
15/16” 23.8mm 22.4mm 1.27mm
1” 25.4mm 24.0mm 1.27mm
1 1/8” 28.6mm 27.0mm 1.41mm
1 3/16” 30.2mm 28.6mm 1.41mm
1 1/4” 31.8mm 30.2mm 1.41mm
1 5/16” 33.3mm 31.8mm 1.41mm
1 3/8” 34.9mm 33.4mm 1.41mm
1 7/16” 36.5mm 35.0mm 1.41mm
1 3/4” 44.5mm 42.9mm 1.41mm
2” 50.8mm 49.3mm 1.59mm
2 1/4” 57.2mm 55.4mm 1.59mm
NOTE: Dimensions are nominal
Adaptaflex Product Catalogue | LIT211GB 0414 8/3
8
EMI Screen System
For applications where electromagnetic interference is of
particular concern we have classified suitable conduit
systems by means of symbols. These are related in an
ascending scale of performance from Standard EMI Screen
(products featuring a stainless steel overbraid) through to
High EMI Screen (products featuring a tinned copper
overbraid). Contact us for full details.
Fire Performance
Adaptaflex has introduced a set of symbols to help the user
specify conduit systems for installations where fire
performance is of particular concern.
Each symbol encompasses a range of properties relevant to
the high specification materials used in the construction of
the conduit.
They are in an ascending scale of
performance from Low Fire Hazard (LFH)
featuring zero halogen through to Super Low
Fire Hazard (SLFH) featuring zero nitrogen.
In addition, Inherent Low Fire Hazard
systems (ILFH) are classified as being all
metal systems.
Standard
EMI Screen
Screening Level
40db @ 100MHz
Enhanced
EMI Screen
Screening Level
60db @ 100MHz
High
EMI Screen
Screening Level
75db @ 100MHz
Low
Fire Hazard
Enhanced Low
Fire Hazard
Super Low
Fire Hazard
Inherent Low
Fire Hazard
Property LFH ELFH SLFH ILFH
Oxygen Index ISO4589 31% ≥ OI ≥ 28% OI ≥ 32% OI ≥ 32%
BS6853 Smoke Density 3m3 0.02 ≥ A0 ≥ 0.03 0.005 ≥ A0 ≥ 0.02 0.02 A0 ≤ 0.005
Zero Halogen • • •
Zero Phosphorus • • •
Zero Sulphur • • •
London Underground Concession Approved Approved
Toxicity Index NES713 Issue 3 5.0 ≥ TI ≥ 6.0 0.5 ≥ TI ≥ 5.0 TI ≤ 0.5
NFF16-102 I3F2 I2F2 I2F1
Inherent Low
Fire Hazard
i.e. Type S, SS, SPB
STC, SSB & SSBGS
Metallic Conduit
& Fittings
Technical section
EMI screen system & fire performance
8/4 Adaptaflex Product Catalogue | LIT211GB 0414
8
Technical section
IP ratings & fitting characteristics
0
1
2
3
4
5
6
No protection
Objects greater than 50 mm,
accidental touch by hands
Objects greater than 12 mm,
accidental touch by fingers
Objects greater than 2.5 mm,
e.g. tools/wires
Objects greater than 1 mm,
e.g. tools/wires/small wires
Protected against dust - limited
ingress (no harmful deposits)
Totally protected against dust
(Dust-tight)
0
1
2
3
4
5
6
7
8
9
No protection
Protected against vertically falling
drops of water
Protected against direct sprays of
water up to 15° from vertical
Protected against sprays of water to
60° from vertical
Protected against water sprayed from all
directions - limited ingress permitted
Protected against low pressure jets of
water from all directions - limited
ingress permitted
Protected against strong pressure jets
of water, heavy seas - limited ingress
permitted
Protection against the effects of
immersion between 15cm - 1 m
Protection against long periods of
immersion under a quoted pressure,
e.g. 2 bar at 24 hours
IP69k Automotive standard DIN40050
and signifies resistance to high
pressure jets of water (up to
80bar) from any angle
Protection against Water
Degree of protection of equipment inside enclosures
against damage from the ingress of water.
IP Ratings
IP suitability ratings are a system for classifying the degree of protection provided
by enclosures of electrical equipment.
Protection against Solid Bodies
Degree of protection for persons against access to
hazardous parts inside the enclosure and/or against the
ingress of solid foreign objects.
Adaptaflex Product Catalogue | LIT211GB 0414 8/5
8
IP Ratings
The higher the number, the greater the degree of protection; they apply ONLY to properly installed equipment.
The numerals stand for the following:
IP 68
The first digit stands for:
Protection against Dust
The second digit stands for:
Protection against Water
Fitting swivels independently of
conduit for installation purpose but
is not suitable as a rotating joint
in constantly moving applications.
Fitting rotates independently of the
conduit to act as a rotating joint within
constantly moving applications.
Fitting Characteristics
8/6 Adaptaflex Product Catalogue | LIT211GB 0414
8
Technical section
Chemical resistance
Chemical Resistance Comparison Table
Products
Chemical
Astm no.1 ● ● ● ■ ● ● ● ● ● ● ■ ● ● ● ●
Astm no.2 ● ● ● ■ ● ● ● ● ● ● ▲ ● ▲ ● ●
Astm no.3 ● ● ● ■ ▲ ● ● ● ● ● ▲ ● ▲ ● ●
Acetic Acid (10%) ▲ ▲ ● ▲ ● ● ▲ ▲ ■ ● ● ● ● ▲ ●
Acetone ● ● ▲ ■ ● ● ● ▲ ● ● ■ ■ ● ● ●
Aluminium Chloride ▲ ● ■ ▲ ● ● ▲ ● ■ ▲ ● ● ● ▲ NT
Aniline ▲ ■ ■ ■ ● ▲ ▲ ■ ● ● ▲ ■ ● ● ●
Benzaldehyde ▲ ▲ ▲ ■ ▲ ● ▲ ▲ ● ● ■ ■ ▲ ● ●
Benzene ● ● ▲ ■ ▲ ● ● ▲ ● ● ■ ■ ■ ● ●
Carbon tetrachloride ● ● ■ ▲ ▲ ● ● ▲ ● ● ■ ▲ ▲ ● ●
Chlorine Water ■ ■ ▲ ■ ▲ ■ ■ ■ ■ ■ ▲ ■ ● ■ ●
Chloroform ■ ■ ■ ■ ▲ ● ■ ▲ ● ● ■ ■ ▲ ● ●
Citric acid ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
Copper sulphate ▲ ● ● ● ● ● ▲ ● ● ● ● ● ● ● ●
Cresol ■ ■ NT ▲ ● ▲ ■ ■ ● ● ■ ▲ ● ▲ ●
Diesel oil ● ● ● ▲ ● ● ● ● ● ● ▲ ● ● ● ●
Diethylamine ● ▲ ▲ ▲ ● ● ● ■ ● ● ● ▲ ● ● ●
Ethanol ● ▲ ● ■ ● ● ● ▲ ● ● ▲ ■ ● ● ●
Ether ● ● NT ▲ ● ● ● ● ● ● ■ ▲ ● ● ●
Ethylamine ● ▲ NT ▲ ● ● ● ■ ● ● ▲ ▲ ▲ ● ●
Ethylene Glycol ● ● ● ▲ ● ● ● ● ■ ● ● ▲ ● ● ●
Ethyl ethanoate ▲ ● ● ■ ● ● ▲ ■ ● ● ■ ■ ● ● ●
Freon 32 ● ● ● ▲ ● ● ● ▲ ■ ● ■ ▲ ■ ● ●
Hydrchloric acid (10%) ■ ▲ ▲ ● ● ● ■ ▲ ■ ■ ■ ● ● ■ ●
Hydrchloric acid (36%) ■ ■ ■ ▲ ● ● ■ ■ ■ ■ ■ ● ● ■ ●
Hydrogen peroxide (35%) ▲ ▲ ▲ ● ● ● ▲ ■ ■ ● ▲ ● ▲ ● ●
Hydrogen peroxide (87%) ■ ■ ■ ● ▲ ● ■ ■ ■ ● ■ ● ■ ▲ ●
Lactic acid ▲ ● ■ ▲ ● ● ▲ ● ■ ● ● ▲ ▲ ● ●
Lubricating oil ● ● ● ▲ ● ● ● ● ● ● ▲ ● ▲ ● ●
Methanol ▲ ▲ ● ■ ● ● ▲ ▲ ● ● ▲ ■ ● ● ●
Methyl bromide ■ ■ NT ■ ▲ ● ■ ■ ● ● ■ ■ ▲ ● ●
MEK ● ● ▲ ■ ● ● ● ▲ ● ● ■ ■ ● ● ●
Nitric acid (10%) ■ ■ ▲ ● ● ● ■ ■ ■ ■ ● ● ● ■ ●
Nitric acid (70%) ■ ■ ■ ● ● ■ ■ ■ ■ ■ ■ ● ● ■ ●
Oxalic acid ▲ ● ▲ ▲ ● ● ▲ ▲ ■ ● ● ● ● ▲ ●
Ozone (gas) ■ ■ NT ▲ ▲ ● ■ ● ■ ● ● ▲ ▲ ● ●
Paraffin oil ● ● ● ▲ ● ● ● ● ● ● ▲ ● ● ● ●
Petrol ● ● ● ■ ● ● ● ● ● ● ■ ● ● ● ●
Phenol ■ ■ ■ ▲ ● ▲ ■ ▲ ● ● ■ ▲ ● ▲ ●
Fittings nickel
plated brass
TC braid
SPLHC
PA, PR
PADL, SN
PI, PF
CP
KF, RF, SP
PP
PK
Fittings
PA66
AST
Elastomer
Seal
S
(including
braid)
SS
(including
braid)
LFH-SP
SPL, SPUL
Adaptaflex Product Catalogue | LIT211GB 0414 8/7
8
Chemical Resistance Comparison Table
Products
Chemical
Sea water ● ● ● ● ● ● ● ● ■ ● ● ● ● ● ▲
Silver nitrate ● ● NT ● ● ● ● ● ■ ● ● ● ● ● ●
Skydrol ● ● ● ■ ● ● ● ▲ ● ● ■ ■ ● ● ●
Sodium chloride ● ● ● ● ● ● ● ● ■ ● ● ● ● ● ▲
Sodium hydroxide (10%) ● ● ● ● ● ● ● ● ■ ● ● ● ● ● ●
Sodium hydroxide (60%) ● ▲ ■ ▲ ● ● ● ▲ ■ ▲ ● ● ● ● ●
Sulphur dioxide (gas) ■ ■ ▲ ● ● ● ■ ■ ■ ■ ▲ ● ● ▲ ■
Sulphuric acid (10%) ■ ▲ ● ● ● ● ■ ▲ ■ ■ ● ● ● ■ ■
Sulphuric acid (70%) ■ ■ ■ ● ● ■ ■ ■ ■ ■ ▲ ● ● ■ ■
Toluene ● ● ▲ ■ ● ● ● ■ ● ● ▲ ■ ■ ● ●
Transformer oil ● ● ● ▲ ● ● ● ● ● ● ▲ ● ▲ ● ●
1,1,1-Trichloroethane ● ● ▲ ■ ▲ ● ● ▲ ■ ● ▲ ■ ▲ ● ●
Trichloroethylene ▲ ■ ■ ■ ▲ ● ▲ ▲ ■ ● ▲ ■ ■ ● ●
Turpentine ● ● ● ▲ ■ ● ● ▲ ● ● ■ ▲ ■ ● ●
Vegetable oil ● ● ● ▲ ● ● ● ● ● ● ▲ ● ● ● ●
Vinyl acetate ▲ ● NT ■ ● ● ▲ ■ ■ ● ■ ■ ● ● ●
Water ● ● ● ● ● ● ● ● ■ ● ● ● ● ● ●
White spirit ● ● NT ▲ ● ● ● ▲ ● ● ■ ▲ ▲ ● ●
Zinc chloride ■ ● ▲ ● ● ● ■ ● ■ ● ● ● ● ▲ ●
Fittings nickel
plated brass
TC braid
SPLHC
PA, PR
PADL, SN
PI, PF
CP
KF, RF, SP
PP
PK
Fittings
PA66
AST
Elastomer
Seal
S
(including
braid)
SS
(including
braid)
LFH-SP
SPL, SPUL
Note
The information above is given as a guide only and is based
on published technical data and experience.
The chemical resistance of the above products is dependant
on factors such as chemical exposure, concentration of the
chemical and temperature. The above chemicals are valid for
a temperature of 23°C.
Use of the above table is at the users own discretion and risk.
Those using it must satisfy themselves that their application
presents no health and safety risks.
The end user should assess compatibility with their
application and contact Adaptaflex for further information.
Key
– Suitable: ●
– Limited suitability: ▲
– Unsuitable: ■
– Not tested: NT
8/8 Adaptaflex Product Catalogue | LIT211GB 0414
8
Technical section
Cable carrying capacity (wire fill)
Introduction
UK Wiring regulations BS7671 recommend that the total
cross sectional area of the sum of individual cables shall not
exceed 40% of the cross sectional area of the conduit based
on using 3 or more cables. The tables below enable youto
calculate the number of conductors that can be run within a
piece of flexible conduit.
Instructions
–Step 1: Establish the number and size of each wire to be
run in the conduit
–Step 2: Look on the Cross Sectional Area (CSA) chart
(table 1), look up the CSA taken up by each of the wires
from STEP 1
–Step 3: Add all the CSA values together (Total CSA)
–Step 4: Look on the conduit fill value chart (table 2).
– Choose a conduit with a 40% fill value higher than the total
CSA from STEP 3
Table 1 - Cross Sectional Area (CSA) Chart
Number of Wires
Nominal Conductor Size 1 2 3 4 5 10 15 20
1mm 6.6 13.2 19.8 26.4 33 66 99 132
1.5mm 7.6 15.2 22.8 30.4 38 76 114 152
2.5mm 9.6 19.2 28.8 38.4 48 96 144 192
4mm 14.5 29 43.5 58 72.5 145 217.5 290
6mm 18.8 37.6 56.4 75.2 94 188 282 376
10mm 29.3 58.6 87.9 117.2 146.5 293 439.5 586
16mm 40.2 80.4 120.6 160.8 201 402 603 804
25mm 63.8 127.6 191.4 255.2 319 638 957 1276
35mm 83.5 167 250.5 334 417.5 835 1252 1670
50mm 113 226 339 452 565 1130 1695 2260
70mm 149 298 447 596 745 1490 2235
95mm 204 408 612 816 1020 2040
2015 10 5 4
2
3
e 1
Table 2 - Wire Fill of Plastic & Metallic Conduit
Plastic Conduit Metallic Conduit
Nominal Diameter 100% Fill 40% Fill 100% Fill 40% Fill
10mm 33.2 13 25.5 10.2
13mm 72.4 29 58.1 23.2
16mm 109.4 44 83.3 33.3
18mm 158.4 63 160.6 64.2
21mm 213.8 86 243.3 97.3
28mm 369.8 148 452.4 181
34mm 602.6 241 855.3 342.1
42mm 973.1 390 1164.2 465.7
54mm 1698.2 680 1963.5 785.4
80mm 3520 1410 3473.2 1389.3
106mm 6500 2600
40
%
Fill100
%
Fill40
%
Fill 100
%
Fill
Example - What size of conduit to use?
–Step 1: 4 x 2.5mm conductors, 2 x 10mm conductors and
3 x 50mm conductors
–Step 2: The CSA of Four 2.5mm conductors is 38.4, Two
10mm conductors is 58.6, Three 50mm conductors is 339
–Step 3: Total of these groups is 38.4 + 58.6 + 339 = 436
–Step 4: Using Table 2 the conduit is either 54mm (680)
Plastic or 50mm (465.7) Metallic
–Note: 42mm Plastic is 390 which is smaller than 436
therefore not recommended
The information given above relates to PA - Standard weight
conduit and Adaptalok fittings or SPL with M-Type fittings.
It is given in good faith and should be used only as a guide in
conjunction with the relevant wiring regulations.
Adaptaflex Product Catalogue | LIT211GB 0414 8/9
8
Technical section
IEC61386 classifications
Non-metallic - IEC61386 Classifications Table
Products
Non-metallic Conduit
PA LIGHT AT 2 4 2 4 4 0 6 7 1 1 0
PA STANDARD AT 2 4 2 4 4 0 6 7 1 1 0
PA HEAVY AT 2 4 2 4 4 0 6 7 2 1 0
PF STANDARD AT 1 3 5 4 4 0 6 7 1 1 0
PF HEAVY AT 2 4 5 4 4 0 6 7 1 1 0
PI STANDARD AT 1 3 5 4 4 0 6 7 1 1 0
PI HEAVY AT 2 4 5 4 4 0 6 7 1 1 0
PR AT 2 4 2 4 4 0 6 7 1 1 0
CP AT 1 4 4 5 4 0 6 7 1 1 0
KF LIGHT KC 2 2 2 1 2 2 4 0 1 1 0
KF STANDARD KC 2 3 2 1 2 2 4 0 2 1 0
KF MEDIUM KC 3 3 2 1 2 2 4 0 1 1 0
PK PK 2 4 5 6 4 2 6 7 1 1 0
PKTC PB 2 4 5 6 4 3 6 7 3 1 0
PKSS PB 2 4 5 6 4 3 6 7 3 1 0
PRTC PB 2 4 2 4 4 1 6 7 3 1 0
PRSS PB 2 4 2 4 4 1 6 7 3 1 0
PRSS PB 2 4 2 4 4 1 6 7 3 1 0
With Fitting
Electrical
Properties
Compression
Strength
Bending
Properties
Maximum
Temperature
Minimum
Temperature
Impact
Strength
Suspended
Load Capacity
IP Rating
Solids
Non-Flame
Propogating
Tensile
Strength
Corrosion
Resistance
IP Rating
Water
Metallic - IEC61386 Classifications Table
Metallic Conduit
S S 4 4 5 6 4 0 4 0 1 4 1 5
SS S 4 4 5 6 4 0 4 0 4 4 1 5
SP SP(M) 4 4 2 2 4 2 6 5 4 1 5
SN SP(M) 4 4 4 5 4 0 6 5 4 1 5
LFH-SP SP(M) 4 4 2 3 4 0 6 5 4 1 5
SPL AL SPL(M) 4 4 2 3 4 2 6 7 4 1 5
SPLHC SPL(M) 4 4 5 5 4 0 6 7 4 1 5
SB SB 4 5 5 6 4 1 4 0 1 4 1 5
STC SB 4 4 5 6 4 1 4 0 1 4 1 5
SSB SB 4 4 5 6 4 1 4 0 4 4 1 5
SSBGS SB 4 4 5 6 4 1 4 0 1 4 1 5
SPB SPB 4 4 2 2 4 3 5 4 4 1 5
SPTC SPB 4 4 2 2 4 3 5 4 4 1 5
SPLHCB SPLB 4 4 5 5 4 1 6 7 5 1 5
Performance Classification Key
Classification Level (N) (J) (ºC) (ºC) (N) (N)
0 Not declared 0 N /A Not declared Not declared
1 125 0.5 5 60 Rigid Conductor 1 Low 100 4 20
2 320 1 -5 90 Pliable Insulator 2 Medium 250 7 30
3 750 2 -15 105 Pliable/ Con/Ins 3 3 Med-Hi 500 150
Semi Rigid
4 1250 6 -25 120 Flexible 4 4 High 1000 450
5 4000 20 -45 150 5 5 2500 850
6 250 6 6
7 7
9/1 Adaptaflex Product Catalogue | LIT211GB 0414
Index
Order code classification
Part No. Page
238 6/8
240 6/8
241 6/8
244 6/8
245 6/8
247 6/8
248 6/4
249 6/4
250 6/4
251 6/4
252 6/4
254 6/4
255 6/4
256 6/4
257 6/4
258 6/4
259 6/4
261 6/4
262 6/4
263 6/4
264 6/4
265 6/4
266 6/4
267 6/4
10012 6/11
16012 6/12
10012/1001 6/11
10012L 6/11
10012LT 6/11
10012T 6/11
1512/151E 6/10
1512LE 6/10
1512LTE 6/10
1512TE 6/10
16012/1601 6/12
16012L 6/12
16012L/1601 6/12
16012LT 6/12
16012T 6/12
185-0A1011-P031-1 7/4
185-0A1011-S030-1 7/4
185-0A1021-P030-1 7/4
185-0A1031-P030-1 7/4
185-0B1000-P030-1 7/4
185-0B1000-S030-1 7/4
185-0E1000-P030-1 7/4
185-0E1000-P031-1 7/4
185-0E1000-S030-1 7/4
185-1A1011-P030-1 7/4
185-1A1011-S030-1 7/4
185-1A1021-S030-1 7/4
185-1A1031-S030-1 7/4
185-1B1000-P030-1 7/4
185-1B1000-S030-1 7/4
Part No. Page
185-1E1000-P030-1 7/4
185-1E1000-P032-1 7/4
185-1E1000-S030-1 7/4
185-6100 7/5
185-6200 7/5
185-9000 7/4
185-9100 7/4
185-9200 7/4
200-8160 6/5
200-8240 6/5
200-8320 6/5
200-8400 6/5
200-8560 6/5
200-8640 6/5
200-8720 6/5
200-8720 6/5
201-8000 6/5
201-8080 6/5
201-8160 6/5
201-8240 6/5
201-8320 6/5
201-8400 6/5
260-1000 6/7
260-1050 6/7
260-1100 6/7
260-1150 6/7
260-1200 6/7
260-1250 6/7
260-1300 6/7
260-1350 6/7
260-1400 6/7
260-1450 6/7
260-1550 6/7
260-1650 6/7
260-1700 6/7
260-1750 6/7
260-1800 6/7
260-1850 6/7
260-1900 6/7
4012/401E 6/10
4012LE 6/10
4012LT/402E 6/10
4012TE 6/10
6012/601E 6/11
6012L/601E 6/11
6012LE 6/11
6012TE 6/11
ACB10 2/52
ACB13 2/52
ACB13/ST 2/52
ACB16 2/52
ACB16/ST 2/52
ACB21 2/52
ACB21/ST 2/52
Part No. Page
ACB28 2/52
ACB28/ST 2/52
ACB34 2/52
ACB34/ST 2/52
ACB42 2/52
ACB42/ST 2/52
ACB54 2/52
ACB54/ST 2/52
ACG10 2/52
ACG13 2/52
ACG16 2/52
ACG21 2/52
ACG28 2/52
ACG34 2/52
ACG42 2/52
ACG54 2/52
ADC106/FL/90 2/25
ADC106/FL/A 2/24
ADC80/FL/90 2/25
ADC80/FL/A 2/24
AL10/M12/A 2/12
AL10/M12/C90 2/13
AL10/PF025/A 2/12
AL10/PG7/A 2 /12
AL10/PG7/C90 2 /13
AL10/PG9/A 2/12
AL13/038/A 2/12
AL13/038/C90 2 /13
AL13/A/U/BL 2/17
AL13/FL/C90 2/16
AL13/M16/45 2/14
AL13/M16/A 2/12
AL13/M16/C90 2/13
AL13/M16/CS90 2/18
AL13/M16/CSF90 2/20
AL13/M16/PPA 2/48
AL13/M16/S45 2/19
AL13/M16/SA 2/18
AL13/M16/SF45 2/20
AL13/M16/SFA 2/19
AL13/M20/A 2/12
AL13/PF038/A 2/12
AL13/PF038/C90 2/13
AL13/PG11/A 2/13
AL13/PG13/A 2 /12
AL13/PG9/45 2/14
AL13/PG9/A 2/12
AL13/PG9/C90 2 /13
AL13/PG9/CS90 2/18
AL13/PG9/CSF90 2/20
AL13/PG9/S45 2/19
AL13/PG9/SA 2/18
AL13/PG9/SF45 2/20
AL13/PG9/SFA 2/19
Part No. Page
AL13/U063/45 2/23
AL13/U063/A 2/21
AL13/U063/C90 2/22
AL13/U075/45 2/23
AL13/U075/A 2 /21
AL13/U075/C90 2 /22
AL13/U088/45 2/23
AL13/U088/A 2/21
AL13/U088/C90 2/22
AL131010/Y 2/15
AL13RT 2/53
AL16/038/A 2/12
AL16/038/C90 2/13
AL16/050/A 2/12
AL16/050/C90 2/13
AL16/A/U/BL 2/17
AL16/FL /45 2/16
AL16/FL /A 2/16
AL16/FL /C90 2/16
AL16/KM20/A 2/14
AL16/M16/45 2/14
AL16/M16/A 2/12
AL16/M16/C90 2/13
AL16/M16/CS90 2/18
AL16/M16/CSF90 2/20
AL16/M16/PPA 2/48
AL16/M16/S45 2/19
AL16/M16/SA 2/18
AL16/M16/SF45 2/20
AL16/M16/SFA 2/19
AL16/M20/45 2/14
AL16/M20/A 2/12
AL16/M20/C90 2/13
AL16/PF038/A 2/12
AL16/PF038/C90 2/13
AL16/PF050/A 2/12
AL16/PF050/C90 2/13
AL16/PG11/45 2/14
AL16/PG11/A 2/12
AL16/PG11/C90 2/13
AL16/PG11/CS90 2/18
AL16/PG11/CSF90 2/20
AL16/PG11/S45 2/19
AL16/PG11/SA 2/18
AL16/PG11/SF45 2/20
AL16/PG11/SFA 2/19
AL16/PG13/45 2/14
AL16/PG13/A 2/12
AL16/PG13/C90 2/13
AL16/PG16/A 2/12
AL16/PG9/A 2/12
AL16/PG9/C90 2/13
AL16/U063/45 2/23
AL16/U063/A 2/21
Adaptaflex Product Catalogue | LIT211GB 0414 9/2
Part No. Page
AL16/U063/C90 2/22
AL16/U075/45 2/23
AL16/U075/A 2 /21
AL16/U075/C90 2/22
AL16/U081/45 2 /23
AL16/U081/A 2/21
AL16/U081/C90 2/22
AL16/U088/45 2/23
AL16/U088/A 2 /21
AL16/U088/C90 2/22
AL16/U094/45 2/23
AL16/U094/A 2/21
AL16/U094/C90 2/22
AL16/U100/45 2/23
AL16/U100/A 2/21
AL16/U100/C90 2/22
AL16/U119/45 2/23
AL16/U119/A 2/21
AL16/U119/C90 2/22
AL16/U131/45 2/23
AL16/U131/A 2/21
AL16/U131/C90 2/22
AL161313/ Y 2/15
AL16RT 2/53
AL21/050/A 2/12
AL21/A/U/BL 2/17
AL21/FL/45 2/17
AL21/FL/A 2/16
AL21/FL/C90 2/16
AL21/KM20/A 2/14
AL21/M20/45 2/14
AL21/M20/A 2/12
AL21/M20/C90 2/13
AL21/M20/CS90 2/18
AL21/M20/CSF90 2/20
AL21/M20/PPA 2/48
AL21/M20/S45 2/19
AL21/M20/SA 2/18
AL21/M20/SF45 2/20
AL21/M20/SFA 2/19
AL21/M25/A 2/12
AL21/PF050/A 2/12
AL21/PF050/C90 2/13
AL21/PG11/A 2/12
AL21/PG13/45 2/14
AL21/PG13/A 2/12
AL21/PG13/C90 2 /13
AL21/PG13/CS90 2/18
AL21/PG13/CSF90 2/20
AL21/PG13/S45 2/19
AL21/PG13/SA 2/18
AL21/PG13/SF45 2/20
AL21/PG13/SFA 2/19
AL21/PG16/45 2/14
Part No. Page
AL21/PG16/A 2/12
AL21/PG16/C90 2/13
AL21/PG16/CS90 2/18
AL21/PG16/CSF90 2/20
AL21/PG16/S45 2/19
AL21/PG16/SA 2/18
AL21/PG16/SF45 2/20
AL21/PG16/SFA 2/19
AL21/U075/45 2/23
AL21/U075/A 2/21
AL21/U075/C90 2/22
AL21/U088/45 2/23
AL21/U088/A 2/21
AL21/U088/C90 2/22
AL21/U094/45 2/23
AL21/U094/A 2/21
AL21/U094/C90 2/22
AL21/U100/45 2/23
AL21/U100/A 2/21
AL21/U100/C90 2/22
AL21/U113/45 2/23
AL21/U113/A 2/21
AL21/U113/C90 2/22
AL21/U119/45 2/23
AL21/U119/A 2/21
AL21/U119/C90 2/22
AL21/U131/45 2/23
AL21/U131/A 2/21
AL21/U131/C90 2/22
AL21/U138/45 2/23
AL21/U138/A 2/21
AL21/U138/C90 2/22
AL21/U144/45 2/23
AL21/U144/A 2/21
AL21/U144/C90 2/22
AL21/U175/45 2/23
AL21/U175/A 2/21
AL21/U175/C90 2/22
AL211616/ Y 2/15
AL21RT 2/53
AL28/075/A 2/12
AL28/075/C90 2/13
AL28/A/U/BL 2/17
AL28/FL/45 2/16
AL28/FL/C90 2/16
AL28/M25/45 2/14
AL28/M25/A 2/12
AL28/M25/C90 2/13
AL28/M25/CS90 2/18
AL28/M25/CSF90 2/20
AL28/M25/PPA 2/48
AL28/M25/S45 2/19
AL28/M25/SA 2/18
AL28/M25/SF45 2/20
Part No. Page
AL28/M25/SFA 2/19
AL28/M32/A 2/12
AL28/PF075/A 2/12
AL28/PF075/C90 2/13
AL28/PG21/45 2/14
AL28/PG21/A 2/12
AL28/PG21/C90 2/13
AL28/PG21/CS90 2/18
AL28/PG21/CSF90 2/20
AL28/PG21/S45 2/19
AL28/PG21/SA 2/18
AL28/PG21/SF45 2/20
AL28/PG21/SFA 2/19
AL28/U088/45 2/23
AL28/U088/A 2/21
AL28/U088/C90 2/22
AL28/U094/45 2/23
AL28/U094/A 2/21
AL28/U094/C90 2/22
AL28/U100/45 2/23
AL28/U100/A 2/21
AL28/U100/C90 2/22
AL28/U119/45 2/23
AL28/U119/A 2/21
AL28/U119/C90 2/22
AL28/U138/45 2/23
AL28/U138/A 2/21
AL28/U138/C90 2/22
AL28/U144/45 2/23
AL28/U144/A 2/21
AL28/U144/C90 2/22
AL28/U175/45 2/23
AL28/U175/A 2/21
AL28/U175/C90 2/22
AL28/U200/45 2/23
AL28/U200/A 2/21
AL28/U200/C90 2/22
AL28/U225/45 2/23
AL28/U225/C90 2/22
AL28/U245/A 2/21
AL282121/Y 2/15
AL28RT 2/53
AL34/100/A 2/12
AL34/100/C90 2/13
AL34/A/U/BL 2/17
AL34/FL/90 2/16
AL34/M32/45 2/14
AL34/M32/A 2/12
AL34/M32/C90 2/13
AL34/M32/CS90 2/18
AL34/M32/CSF90 2/20
AL34/M32/PPA 2/48
AL34/M32/S45 2/19
AL34/M32/SA 2/18
Part No. Page
AL34/M32/SF45 2/20
AL34/M32/SFA 2/19
AL34/M40/A 2/12
AL34/PF100/A 2/12
AL34/PF100/C90 2/13
AL34/PG29/45 2/14
AL34/PG29/A 2/12
AL34/PG29/C90 2/13
AL34/PG29/CS90 2/18
AL34/PG29/CSF90 2/20
AL34/PG29/S45 2/19
AL34/PG29/SA 2/18
AL34/PG29/SF45 2/20
AL34/PG29/SFA 2/19
AL34/U100/45 2/23
AL34/U100/A 2/21
AL34/U100/C90 2/22
AL34/U119/45 2/23
AL34/U119/A 2/21
AL34/U119/C90 2/22
AL34/U144/45 2/23
AL34/U144/A 2/21
AL34/U144/C90 2/22
AL34/U175/45 2/23
AL34/ U175/A 2/21
AL34/U175/C90 2/22
AL34/U200/45 2/23
AL34/U200/A 2/21
AL34/U200/C90 2/22
AL34RT 2/53
AL42/125/A 2/12
AL42/125/C90 2/13
AL42/FL/C90 2/16
AL42/M40/A 2/12
AL42/M40/C90 2/13
AL42/M40/CS90 2/18
AL42/M40/CSF90 2/20
AL42/M40/S45 2/19
AL42/M40/SA 2/18
AL42/M40/SF45 2/20
AL42/M40/SFA 2/19
AL42/M50/45 2/14
AL42/M50/A 2/12
AL42/PF125/A 2/12
AL42/PF125/C90 2/13
AL42/PG36/45 2/14
AL42/PG36/A 2/12
AL42/PG36/C90 2/13
AL42/PG36/CS90 2/18
AL42/PG36/CSF90 2/20
AL42/PG36/S45 2/19
AL42/PG36/SA 2/18
AL42/PG36/SF45 2/20
AL42/PG36/SFA 2/19
9/3 Adaptaflex Product Catalogue | LIT211GB 0414
Index
Order code classification
Part No. Page
AL42/U175/45 2/23
AL42/U175/A 2/21
AL42/U175/C90 2/22
AL42/U200/45 2/23
AL42/U200/A 2/21
AL42/U200/C90 2/22
AL42RT 2/53
AL54/150/A 2/12
AL54/150/C90 2/13
AL54/200/C90 2/13
AL54/A/U/BL 2/17
AL54/FL/45 2/17
AL54/FL/A 2/16
AL54/FL/C90 2/16
AL54/M50/45 2/14
AL54/M50/A 2/12
AL54/M50/C90 2/13
AL54/M50/CS90 2/18
AL54/M50/CS90 2/18
AL54/M50/CSF90 2/20
AL54/M50/CSF90 2/20
AL54/M50/S45 2/19
AL54/M50/SA 2/18
AL54/M50/SA 2/18
AL54/M50/SF45 2/20
AL54/M50/SF45 2/20
AL54/M50/SFA 2/19
AL54/M50/SFA 2/19
AL54/M63/45 2/14
AL54/M63/A 2/12
AL54/M63/C90 2/13
AL54/M63/CS90 2/18
AL54/M63/CS90 2/18
AL54/M63/S45 2/19
AL54/M63/S45 2/19
AL54/M63/SA 2/18
AL54/M63/SA 2/18
AL54/PF150/A 2/12
AL54/PF150/C90 2/13
AL54/PF200/A 2/12
AL54/PF200/C90 2/13
AL54/PG48/45 2/14
AL54/PG48/A 2/12
AL54/PG48/C90 2/13
AL54/PG48/CS90 2/18
AL54/PG48/CSF90 2/20
AL54/PG48/S45 2/19
AL54/PG48/SA 2/18
AL54/PG48/SF45 2/20
AL54/PG48/SFA 2/19
AL54RT 2/53
ALD17/050/A 2/11
ALD17/050/C90 2 /11
ALD22/050/A 2/11
Part No. Page
ALD22/050/C90 2/11
ALD28/075/A 2/11
ALD28/075/C90 2/11
ALD34/100/A 2/11
ALD34/100/C90 2/11
ALD42/125/A 2/11
ALD42/125/C90 2/11
ALS13/F 2/15
ALS16/F 2/15
ALS21/F 2 /15
ALS28/C 2/15
ALS34/C 2/15
ALS42/C 2/15
ALS54/C 2/15
AR13/M16/A 2/43
AR13/M16/C90 2/43
AR13/PG9/A 2/43
AR13X3/T 2/44
AR16/M16/A 2/43
AR16/M16/C90 2/43
AR16/M20/A 2/43
AR16/M20/C90 2/43
AR16/PG11/A 2/43
AR16/PG13/A 2/43
AR16X3/T 2/44
AR21/M20/A 2/43
AR21/M20/C90 2/43
AR21/PG16/A 2/43
AR21X3/T 2/44
AR28/M25/A 2/43
AR28/M25/C90 2/43
AR28/PG21/A 2/43
AR28X3/T 2/44
AR34/M32/A 2/43
AR34/M32/C90 2/43
AR34/PG29/A 2/43
AR34X3/T 2/44
AR42/M40/A 2/43
AR42/M40/C90 2/43
AR42/PG36/A 2/43
AR54/M50/A 2/43
AR54/M50/C90 2/43
AR54/PG48/A 2/43
ASC21/FL/C90 2/40
ASC21/M20/A 2/40
ASC21/M20/C90 2/40
ASC21/PG16/A 2/40
ASC21/PG16/C90 2/40
ASC21X3/T 2/41
ASC28/M25/A 2/40
ASC28/M25/C90 2/40
ASC28/PG21/A 2/40
ASC28/PG21/C90 2/40
ASC28X3/T 2/41
Part No. Page
ASC34/FL/90 2/41
ASC34/M32/A 2/40
ASC34/M32/C90 2/40
ASC34/PG29/A 2/40
ASC34/PG29/C90 2/40
ASC34X3/T 2/41
ASC42/FL/90 2/41
ASC42/M40/A 2/40
ASC42/M40/C90 2/40
ASC42/PG36/A 2/40
ASC42/PG36/C90 2/40
ASC54/FL/90 2/41
ASC54/M50/A 2/40
ASC54/M50/C90 2/40
ASC54/PG48/A 2/40
ASC54/PG48/C90 2/40
ASF10/M16/A 2/40
ASF10/M16/C90 2/40
ASF10/PG9/A 2/40
ASF10/PG9/C90 2/40
ASF10X3/T 2/41
ASF13/FL/C90 2/41
ASF13/M16/A 2/40
ASF13/M16/C90 2/40
ASF13/PG9/A 2/40
ASF13/PG9/C90 2/40
ASF13X3/T 2/41
ASF16/FL/C90 2/41
ASF16/M16/A 2/40
ASF16/M16/C90 2/40
ASF16/M20/A 2/40
ASF16/M20/A 2/40
ASF16/M20/C90 2/40
ASF16/PG11/A 2/40
ASF16/PG11/C90 2/40
ASF16/PG13/A 2/40
ASF16/PG13/C90 2/40
ASF16X3/T 2/41
ASF21/FL/C90 2/41
ASF21/M20/A 2/40
ASF21/M20/C90 2/40
ASF21/PG16/A 2/40
ASF21/PG16/A 2/40
ASF21/PG16/C90 2/40
ASF21X3/T 2/41
ASF28/FL/C90 2/41
ASF28/M25/A 2/40
ASF28/M25/C90 2/40
ASF28/PG21/A 2/40
ASF28/PG21/C90 2/40
ASF28X3/T 2/41
ASF34/FL/90 2/41
ASF34/M32/A 2/40
ASF34/M32/C90 2/40
Part No. Page
ASF34/PG29/A 2/40
ASF34/PG29/C90 2/40
ASF34X3/T 2/41
AT13/038/45 2/29
AT13/038/A 2/27
AT13/038/C90 2/28
AT13/038/CSF90 2/32
AT13/038/S45 2/31
AT13/038/SA 2/30
AT13/038/SF45 2/32
AT13/038/SFA 2/31
AT13/A /U 2/36
AT13/FL/C90 2/37
AT13/M16/45 2/29
AT13/M16/A 2/27
AT13/M16/C90 2/28
AT13/M16/CSF90 2/32
AT13/M16/S45 2/31
AT13/M16/SA 2/30
AT13/M16/SF45 2/32
AT13/M16/SFA 2/31
AT13/PF038/45 2/29
AT13/PF038/A 2/27
AT13/PF038/C90 2/28
AT13/U063/CSF90 2/34
AT13/U063/SF45 2/35
AT13/U063/SFA 2/33
AT13/U075/CSF90 2/34
AT13/U075/SF45 2/35
AT13/U075/SFA 2/33
AT13/U088/CSF90 2/34
AT13/U088/SF45 2/35
AT13/U088/SFA 2/33
AT16/038/45 2/29
AT16/038/A 2/27
AT16/038/C90 2/28
AT16/038/CSF90 2/32
AT16/038/S45 2/31
AT16/038/SA 2/30
AT16/038/SF45 2/32
AT16/038/SFA 2/31
AT16/050/45 2/29
AT16/050/A 2/27
AT16/050/C90 2/28
AT16/050/CSF90 2/32
AT16/050/S45 2/31
AT16/050/SA 2/30
AT16/050/SF45 2/32
AT16/050/SFA 2/31
AT16/A /U 2/36
AT16/FL/45 2/37
AT16/FL/C90 2/37
AT16/M16/45 2/29
AT16/M16/A 2/27
Adaptaflex Product Catalogue | LIT211GB 0414 9/4
Part No. Page
AT16/M16/C90 2/28
AT16/M16/CSF90 2/32
AT16/M16/S45 2/31
AT16/M16/SA 2/30
AT16/M16/SF45 2/32
AT16/M16/SFA 2/31
AT16/M20/45 2/29
AT16/M20/A 2/27
AT16/M20/C90 2/28
AT16/PF038/45 2/29
AT16/PF038/A 2/27
AT16/PF038/C90 2/28
AT16/PF050/45 2/29
AT16/PF050/A 2/27
AT16/PF050/C90 2/28
AT16/U063/CSF90 2/34
AT16/U063/SF45 2/35
AT16/U063/SFA 2/33
AT16/U075/CSF90 2/34
AT16/U075/SF45 2/35
AT16/U075/SFA 2/33
AT16/U081/CSF90 2/34
AT16/U081/SF45 2/35
AT16/U081/SFA 2/33
AT16/U088/CSF90 2/34
AT16/U088/SF45 2/35
AT16/U088/SFA 2/33
AT16/U094/CSF90 2/34
AT16/U094/SF45 2/35
AT16/U094/SFA 2/33
AT16/U100/CSF90 2/34
AT16/U100/SF45 2/35
AT16/U100/SFA 2/33
AT16/U119/CSF90 2/34
AT16/U119/SF45 2/35
AT16/U119/SFA 2/33
AT16/U131/CSF90 2/34
AT16/U131/SF45 2/35
AT16/U131/SFA 2/33
AT21/050/45 2/29
AT21/050/A 2/27
AT21/050/C90 2/28
AT21/A/U 2/36
AT21/FL/45 2/37
AT21/FL/A 2/36
AT21/FL/C90 2/37
AT21/M20/45 2/29
AT21/M20/A 2/27
AT21/M20/C90 2/28
AT21/M20/CSF90 2/32
AT21/M20/S45 2/31
AT21/M20/SA 2/30
AT21/M20/SF45 2/32
AT21/M20/SFA 2/31
Part No. Page
AT21/M25/A 2/27
AT21/PF050/45 2/29
AT21/PF050/A 2/27
AT21/PF050/C90 2/28
AT21/U075/CSF90 2/34
AT21/U075/SF45 2/35
AT21/U075/SFA 2/33
AT21/U088/CSF90 2/34
AT21/U088/SF45 2/35
AT21/U088/SFA 2/33
AT21/U094/CSF90 2/34
AT21/U094/SF45 2/35
AT21/U094/SFA 2/33
AT21/U100/CSF90 2/34
AT21/U100/SF45 2/35
AT21/U100/SFA 2/33
AT21/U113/CSF90 2/34
AT21/U113/SF45 2/35
AT21/U113/SFA 2/33
AT21/U119/CSF90 2/34
AT21/U119/SF45 2/35
AT21/U119/SFA 2/33
AT21/U131/CSF90 2/34
AT21/U131/SF45 2/35
AT21/U131/SFA 2/33
AT21/U138/CSF90 2/34
AT21/U138/SF45 2/35
AT21/U138/SFA 2/33
AT21/U144/CSF90 2/34
AT21/U144/SF45 2/35
AT21/U144/SFA 2/33
AT21/U175/CSF90 2/34
AT21/U175/SF45 2/35
AT21/U175/SFA 2/33
AT28/075/45 2/29
AT28/075/A 2/27
AT28/075/C90 2/28
AT28/075/CSF90 2/32
AT28/075/S45 2/31
AT28/075/SA 2/30
AT28/075/SF45 2/32
AT28/075/SFA 2/31
AT28/A/U 2/36
AT28/FL/45 2/37
AT28/FL /A 2/36
AT28/FL/C90 2/37
AT28/M25/45 2/29
AT28/M25/A 2/27
AT28/M25/C90 2/28
AT28/M25/CSF90 2/32
AT28/M25/S45 2/31
AT28/M25/SA 2/30
AT28/M25/SF45 2/32
AT28/M25/SFA 2/31
Part No. Page
AT28/M32/A 2/27
AT28/PF075/45 2/29
AT28/PF075/A 2/27
AT28/PF075/C90 2/28
AT28/U088/CSF90 2/34
AT28/U088/SF45 2/35
AT28/U088/SFA 2/33
AT28/U094/CSF90 2/34
AT28/U094/SF45 2/35
AT28/U094/SFA 2/33
AT28/U100/CSF90 2/34
AT28/U100/SF45 2/35
AT28/U100/SFA 2/33
AT28/U119/CSF90 2/34
AT28/U119/SF45 2/35
AT28/U119/SFA 2/33
AT28/U138/CSF90 2/34
AT28/U138/SF45 2/35
AT28/U138/SFA 2/33
AT28/U144/CSF90 2/34
AT28/U144/SF45 2/35
AT28/U144/SFA 2/33
AT28/U175/CSF90 2/34
AT28/U175/SF45 2/35
AT28/U175/SFA 2/33
AT28/U200/CSF90 2/34
AT28/U200/SF45 2/35
AT28/U200/SFA 2/33
AT28/U245/CSF90 2/34
AT28/U245/SF45 2/35
AT28/U245/SFA 2/33
AT34/100/45 2/29
AT34/100/A 2/27
AT34/100/C90 2/28
AT34/100/CSF90 2/32
AT34/100/S45 2/31
AT34/100/SA 2/30
AT34/100/SF45 2/32
AT34/100/SFA 2/31
AT34/A/U 2/36
AT34/M32/45 2/29
AT34/M32/A 2/27
AT34/M32/C90 2/28
AT34/M32/CSF90 2/32
AT34/M32/S45 2/31
AT34/M32/SA 2/30
AT34/M32/SF45 2/32
AT34/M32/SFA 2/31
AT34/M40/A 2/27
AT34/PF100/45 2/29
AT34/PF100/A 2/27
AT34/PF100/C90 2/28
AT34/U100/CSF90 2/34
AT34/U100/SF45 2/35
Part No. Page
AT34/U100/SFA 2/33
AT34/U119/CSF90 2/34
AT34/U119/SF45 2/35
AT34/U119/SFA 2/33
AT34/U144/CSF90 2/34
AT34/U144/SF45 2/35
AT34/U144/SFA 2/33
AT34/U175/CSF90 2/34
AT34/U175/SF45 2/35
AT34/U175/SFA 2/33
AT34/U200/CSF90 2/34
AT34/U200/SF45 2/35
AT34/U200/SFA 2/33
AT42/125/45 2/29
AT42/125/A 2/27
AT42/125/C90 2/28
AT42/125/CSF90 2/32
AT42/125/S45 2/31
AT42/125/SA 2/30
AT42/125/SF45 2/32
AT42/125/SFA 2/31
AT42/A/U 2/36
AT42/M40/45 2/29
AT42/M40/A 2/27
AT42/M40/C90 2/28
AT42/M40/CSF90 2/32
AT42/M40/S45 2/31
AT42/M40/SA 2/30
AT42/M40/SF45 2/32
AT42/M40/SFA 2/31
AT42/M50/A 2/27
AT42/PF125/45 2/29
AT42/PF125/A 2/27
AT42/PF125/C90 2/28
AT42/U175/CSF90 2/34
AT42/U175/SF45 2/35
AT42/U175/SFA 2/33
AT42/U200/CSF90 2/34
AT42/U200/SF45 2/35
AT42/U200/SFA 2/33
AT48/150/45 2/29
AT48/150/A 2/27
AT48/150/C90 2/28
AT48/150/CSF90 2/32
AT48/150/S45 2/31
AT48/150/SA 2/30
AT48/150/SF45 2/32
AT48/150/SFA 2/31
AT48/A/U 2/36
AT48/M50/45 2/29
AT48/M50/C90 2/28
AT48/M50/CSF90 2/32
AT48/M50/S45 2/31
AT48/M50/SF45 2/32
9/5 Adaptaflex Product Catalogue | LIT211GB 0414
Index
Order code classification
Part No. Page
AT48/M50/SFA 2/31
AT48/PF150/45 2/29
AT48/PF150/A 2/27
AT48/PF150/C90 2/28
AT54/150/A 2/27
AT54/150/CS90 2/30
AT54/150/S45 2/31
AT54/150/SA 2/30
AT54/200/C90 2/28
AT54/200/CSF90 2/32
AT54/200/S45 2/31
AT54/200/SA 2/30
AT54/200/SF45 2/32
AT54/200/SFA 2/31
AT54/200A 2/27
AT54/A/U 2/36
AT54/FL/45 2/37
AT54/FL/A 2/37
AT54/M50/45 2/29
AT54/M50/A 2/27
AT54/M50/C90 2/28
AT54/M50/CSF90 2/32
AT54/M50/S45 2/31
AT54/M50/SA 2/30
AT54/M50/SF45 2/32
AT54/M63/A 2/27
AT54/M63/C90 2/28
AT54/M63/CSF90 2/32
AT54/M63/S45 2/31
AT54/M63/SA 2/30
AT54/M63/SF45 2/32
AT54/M63/SFA 2/31
AT54/PF200/A 2/27
AT54/PF200/C90 2/28
AWB13 2/42, 2/44
AWB16 2/42, 2/44
AWB21 2/42, 2/44
AWB28 2/42, 2/44
AWB34 2/42, 2/44
B/050/45 3/27
B/050/90 3/27
B/050-M16/TC 3/27
B/050-M20/TC 3/27
B/063U-M16/TC 3/27
B/075/45 3/27
B/075/90 3/27
B/075U-M16/TC 3/27
B/075U-M20/TC 3/27
B/088U-M20/TC 3/27
B/100/45 3/27
B/100/90 3/27
B/100U-M20/TC 3/27
B/119U-M20/TC 3/27
B/119U-M25/TC 3/27
Part No. Page
B/131U-M20/TC 3/27
B/144U-M25/TC 3/27
B/144U-M32/TC 3/27
B/144U-PG21/TC 3/27
B/M16/45 3/18
B/M16/90 3/27
B/M16/C 3/27
B/M16-M12/R 3/27
B/M16-M20/E 3/27
B/M16-PG11/TC 3/28
B/M16-PG7/TC 3/28
B/M16-PG9/TC 3/28
B/M20/45 3/18
B/M20/90 3/27
B/M20/C 3/27
B/M20-050/TC 3/28
B/M20-M12/R 3/27
B/M20-M16/R 3/27
B/M20-M25/E 3/27
B/M20-PG11/TC 3/28
B/M20-PG13/TC 3/28
B/M20-PG16/TC 3/28
B/M20-PG21/TC 3/28
B/M20-PG7/TC 3/28
B/M20-PG9/TC 3/28
B/M25/45 3/18
B/M25/90 3/27
B/M25/C 3/27
B/M25-M20/R 3/27
B/M25-M32/E 3/27
B/M25-PG21/TC 3/28
B/M32/45 3/18
B/M32/90 3/27
B/M32/C 3/27
B/M32-M25/R 3/27
B/M32-PG29/TC 3/28
B/M40/C 3/27
B/M40-M32/R 3/27
B/M50/C 3/27
B/M50-M40/R 3/27
B/M63/C 3/27
B/M75/C 3/27
B/PG11/45 3/27
B/PG11/90 3/27
B/PG11-050/TC 3/27
B/PG11-M16/TC 3/27
B/PG11-M20/TC 3/27
B/PG11-PG13/E 3/28
B/PG11-PG16/E 3/28
B/PG11-PG7/R 3/28
B/PG11-PG9/R 3/28
B/PG13/45 3/27
B/PG13/90 3/27
B/PG13-M16/TC 3/27
Part No. Page
B/PG13-M20/TC 3/27
B/PG13-PG11/R 3/28
B/PG13-PG16/E 3/28
B/PG13-PG21/E 3/28
B/PG13-PG7/R 3/28
B/PG13-PG9/R 3/28
B/PG16/45 3/27
B/PG16/90 3/27
B/PG16-050/TC 3/27
B/PG16-M16/ TC 3/27
B/PG16-M20/TC 3/27
B/PG16-M25/TC 3/27
B/PG16-PG11/R 3/28
B/PG16-PG13/R 3/28
B/PG16-PG21/E 3/28
B/PG16-PG7/R 3/28
B/PG16-PG9/R 3/28
B/PG21/45 3/27
B/PG21/90 3/27
B/PG21-M16/TC 3/27
B/PG21-M20/TC 3/27
B/PG21-M25/TC 3/27
B/PG21-M32/TC 3/27
B/PG21-PG11/R 3/28
B/PG21-PG13/R 3/28
B/PG21-PG16/R 3/28
B/PG21-PG29/E 3/28
B/PG29-M20/TC 3/27
B/PG29-M25/TC 3/27
B/PG29-M32/TC 3/27
B/PG29-M40/TC 3/27
B/PG29-PG16/R 3/28
B/PG29-PG21/R 3/28
B/PG29-PG36/E 3/28
B/PG36-M32/TC 3/27
B/PG36-M40/TC 3/27
B/PG36-PG21/R 3/28
B/PG36-PG29/R 3/28
B/PG36-PG42/E 3/28
B/PG36-PG48/E 3/28
B/PG42-PG29/R 3/28
B/PG42-PG36/R 3/28
B/PG42-PG48/E 3/28
B/PG48-PG36/R 3/28
B/PG48-PG42/R 3/28
B/PG7-M16/TC 3/27
B/PG7-M20/TC 3/27
B/PG7-PG9/E 3/28
B/PG9/90 3/27
B/PG9-M16/TC 3/27
B/PG9-M20/TC 3/27
B/PG9-PG11/E 3/28
B/PG9-PG13/E 3/28
B/PG9-PG7/R 3/28
Part No. Page
B100U-M25/TC 3/27
CP-AF20A 4/2
CP-AF20BS 4/2
CP-AF20BS-PP 4/2
CP-AF20SP-BS 4/2
CP-AF25A 4/2
CP-AF25BS 4/2
CP-AF25BS-PP 4/2
CPCM28 2/10
CPCM34 2/10
CPCM42 2/10
CPCM54 2/10
CPFM13 2/10
CPFM16 2/10
CPFM21 2/10
CP-KF20BS 4/2
CP-KF25BS 4/2
CUT-VICE 5/3
ECB13 2/53
ECB16 2/53
ECB21 2/53
ECB28 2/53
ECB34 2/53
ECB42 2/53
ECB54 2/53
ESM12-10 6/5
ESM16-11 6/5
ESM20-12 6/5
ESM20-13 6/5
ESM25-14 6/5
ESM32-15 6/5
ESM40-16 6/5
ESM40-16 6/5
FK20 2/54
FK25 2/54
GZ11 2/53
GZ13 2/53
GZ21 2/53
GZ29 2/53
GZ36 2/53
GZ9 2/53
KC16/M16/A 2/46
KC16/M16/C90 2/46
KC16/M20/A 2/46
KC20/M20/A 2/46
KC20/M20/C90 2/46
KC25/M25/A 2/46
KC32/M25/C90 2/46
KF16/M16/A 2/47
KF16/M20/A 2/47
KF20/M20/A 2/47
KF2020 2/47
KF25/M25/A 2/47
KFL16 2/45
Adaptaflex Product Catalogue | LIT211GB 0414 9/6
Part No. Page
KFL20 2/45
KFL25 2/45
KFM16 2/45
KFM20 2/45
KFM25 2/45
KFS16 2/45
KFS20 2/45
KFS25 2/45
KWIKCUT 5/2
LFH-SP12 3/10
LFH-SP16 3/10
LFH-SP20 3/10
LFH-SP25 3/10
LFH-SP32 3/10
LFH-SP40 3/10
LFH-SP50 3/10
LFH-SP52 3/10
LFH-SP63 3/10
LFH-SP75 3/10
LNB/M12 3/26
LNB/M12X1 3/26
LNB/M16 3/26
LNB/M20 3/26
LNB/M25 3/26
LNB/M32 3/26
LNB/M40 3/26
LNB/M50 3/26
LNB/M63 3/26
LNB/M75 3/26
LNB/PG11 3/26
LNB/PG13 3/26
LNB/PG16 3/26
LNB/PG21 3/26
LNB/PG29 3/26
LNB/PG36 3/26
LNB/PG42 3/26
LNB/PG48 3/26
LNB/PG7 3/26
LNB/PG9 3/26
LNPB/M12 2/52
LNPB/M16 2/52
LNPB/M20 2/52
LNPB/M25 2/52
LNPB/M32 2/52
LNPB/M40 2/52
LNPB/M50 2/52
LNPB/M63 2/52
LNPB/PG11 2/52
LNPB/PG13 2/52
LNPB/PG16 2/52
LNPB/PG21 2/52
LNPB/PG29 2/52
LNPB/PG36 2/52
LNPB/PG42 2/52
Part No. Page
LNPB/PG48 2/52
LNPB/PG7 2/52
LNPB/PG9 2/52
LNPG/M16 2/52
LNPG/M20 2/52
LNPG/M25 2/52
LNPG/M32 2/52
LNPG/M40 2/52
LNPG/M50 2/52
LNPG/M63 2/52
LNPG/PG11 2/52
LNPG/PG13 2/52
LNPG/PG16 2/52
LNPG/PG21 2/52
LNPG/PG29 2/52
LNPG/PG36 2/52
LNPG/PG42 2/52
LNPG/PG48 2/52
LNPG/PG7 2/52
LNPG/PG9 2/52
LNS/038 3/26
LNS/050 3/26
LNS/075 3/26
LNS/100 3/26
LNS/125 3/26
LNS/150 3/26
LNS/200 3/26
LNS/M16 3/26
LNS/M20 3/26
LNS/M25 3/26
LNS/M32 3/26
MB21 2/54
MB34 2/54
PACH21 2/7
PACH28 2/7
PACH34 2/7
PACH42 2/7
PACH54 2/7
PACL28 2/6
PACL28-S 2/6
PACL34 2/6
PACL34-S 2/6
PACL42 2/6
PACL42-S 2/6
PACL54 2/6
PACL54-S 2/6
PACS106 2/7
PACS28 2/7
PACS34 2/7
PACS42 2/7
PACS54 2/7
PACS80 2/7
PADL17 2 /11
PADL22 2/11
Part No. Page
PADL28 2/11
PADL3 4 2/11
PADL42 2 /11
PAFH13 2/7
PAFH16 2/7
PAFL13 2 /6
PAFL13 2 /6
PAFL13-S 2 /6
PAFL16 2/6
PAFL16 2/6
PAFL16-S 2/6
PAFL21 2/6
PAFL21 2/6
PAFL21-S 2/6
PAFS10 2/7
PAFS13 2/7
PAFS16 2/7
PAFS21 2/7
PAFS28 2/7
PAFS34 2/7
PBC28/M25/A 2/61
PBC28/M25/B 2/61
PBC34/M32/A 2/61
PBC34/M32/B 2/61
PBC42/M40/A 2/61
PBC42/M40/B 2/61
PBC54/M50/A 2/61
PBC54/M50/B 2/61
PBF16/M16/A 2/61
PBF16/M16/B 2/61
PBF21/M20/A 2/61
PBF21/M20/B 2/61
PCLIP/10 3/26
PCLIP/12 3/26
PCLIP/16 3/26
PCLIP/16SS 3/26
PCLIP/20 3/26
PCLIP/20SS 3/26
PCLIP/25 3/26
PCLIP/25SS 3/26
PCLIP/32 3/26
PCLIP/40 3/26
PCLIP/50 3/26
PCLIP/63 3/26
PCLIP/75 3/26
PFCH21 2/8
PFCH28 2/8
PFCH34 2/8
PFCH42 2/8
PFCH54 2/8
PFCS28 2/8
PFCS34 2/8
PFCS42 2/8
PFCS54 2/8
Part No. Page
PFFH13 2/8
PFFH16 2/8
PFFS10 2/8
PFFS13 2/8
PFFS16 2/8
PFFS21 2/8
PICH21 2/9
PICH28 2/9
PICH34 2/9
PICH42 2/9
PICH54 2/9
PICS106 2/9
PICS28 2/9
PICS34 2/9
PICS42 2/9
PICS54 2/9
PICS80 2/9
PIFH13 2 /9
PIFH16 2/9
PIFS10 2/9
PIFS13 2/9
PIFS16 2/9
PIFS21 2/9
PK13/M16/A 2/58
PK16/M16/A 2/58
PK21/M20/A 2/58
PK28/M25/A 2/58
PK34/M32/A 2/58
PKCS28 2/58
PKCS34 2/58
PKCSSS28 2/59
PKCSSS34 2/59
PKCSTC28 2/59
PKCSTC34 2/59
PKFS13 2/58
PKFS16 2/58
PKFS21 2/58
PKFSSS13 2/59
PKFSSS16 2/59
PKFSSS21 2/59
PKFSSSS34 2/59
PKFSTC13 2/59
PKFSTC16 2/59
PKFSTC21 2/59
PPFM13 2/48
PPFM16 2/48
PPFM21 2/48
PPFM28 2/48
PPFM34 2/48
PRCS21 2/10
PRCS28 2/10
PRCS34 2/10
PRCS42 2/10
PRCS54 2/10
9/7 Adaptaflex Product Catalogue | LIT211GB 0414
Index
Order code classification
Part No. Page
PRCSSS28 2/60
PRCSSS34 2/60
PRCSSS42 2/60
PRCSSS54 2/60
PRCSTC28 2/60
PRCSTC34 2/60
PRCSTC42 2/60
PRCSTC54 2/60
PRFCS34 2/10
PRFCS42 2/10
PRFCS54 2/10
PRFS13 2/10
PRFS16 2/10
PRFS21 2/10
PRFSSS16 2/60
PRFSSS21 2/60
PRFSTC16 2/60
PRFSTC21 2/60
PSA16/M12 3/26
PSA16/M18 3/26
PSA16/M30 3/26
RF12 2 /49
RF12/M16/C90 2/51
RF12/M16/D 2/51
RF16 2/49
RF16M16/C90 2/51
RF16M16/D 2/51
RF20 2/49
RF20/M20/C90 2/51
RF20/M20/D 2/51
RF25 2/49
RF25M20/C90 2/51
RF25M20/D 2/51
RF32 2/49
RF32/M32/C90 2/51
RF32/M32/D 2/51
RK13-10 2 /42
RK16-10 2/42
RK16-13 2 /42
RK21-10 2/42
RK21-13 2 /42
RK21-16 2/42
RK28-13 2/42
RK28-16 2/42
RK28-21 2/42
RK34-21 2/42
RK34-28 2/42
ROTOCUT 5/3
S10 3/6
S10/9/C 3/8
S10/M12/A 3/7
S10/M12/B 3/7
S10/PG7/A 3/ 7
S10/PG7/B 3/7
Part No. Page
S12 3/6
S12/12 /C 3/8
S12/M16/A 3/7
S12/M16/B 3/7
S12/PG9/A 3/7
S12/PG9/B 3/7
S16 3/6
S16/16/C 3/8
S16/M16/A 3/7
S16/M16/B 3/7
S16/M20/A 3/7
S16/M20/B 3/7
S16/PG11/A 3/7
S16/PG11/B 3/7
S20 3/6
S20/20/C 3/8
S20/M20/A 3/7
S20/M20/B 3/7
S20/M20/F 3/8
S20/PG16/A 3/7
S20/PG16/B 3/7
S25 3/6
S25/25/C 3/8
S25/M25/A 3/7
S25/M25/B 3/7
S25/M25/F 3/8
S25/PG21/A 3/7
S25/PG21/B 3/7
S32 3/6
S32/32/C 3/8
S32/M32/A 3/7
S32/M32/B 3/7
S32/M32/F 3/8
S32/PG29/A 3/7
S32/PG29/B 3/7
S40 3/6
S40/40/C 3/8
S40/M40/A 3/7
S40/M40/B 3/7
S40/PG36/A 3/7
S40/PG36/B 3/7
S50 3/6
S50/51/C 3/8
S50/M50/A 3/7
S50/M50/B 3/7
S50/PG42/A 3/7
S50/PG42/B 3/7
S63 3/6
S63/61/C 3/8
S63/M63/A 3/7
S63/PG48/A 3/7
S75 3/6
S75/75/C 3/8
S75/M75/A 3/7
Part No. Page
SB/10/M12/A 3/21
SB10 3/19
SB10/M12/B 3/21
SB12 3/19
SB12/M16/A 3/21
SB12/M16/B 3/21
SB16 3/19
SB16/M16/A 3/21
SB16/M16/B 3/21
SB20 3/19
SB20/M20/A 3/21
SB20/M20/B 3/21
SB25 3/19
SB25/M25/A 3/21
SB25/M25/B 3/21
SB32 3/19
SB32/M32/A 3/21
SB32/M32/B 3/21
SB40 3/19
SB40/M40/A 3/21
SB40/M40/B 3/21
SB50 3/19
SB50/M50/A 3/21
SB50/M50/B 3/21
SB63 3/19
SB63/M63/A 3/21
SB75 3/19
SB75/M75/A 3/21
SK106 2/24
SK80 2/24
SN12 3/9
SN16 3/9
SN20 3/9
SN25 3/9
SN32 3/9
SP10 3/9
SP10/9/C 3/8
SP10/M12/A 3/10
SP10/M12/B 3/11
SP10/PG7/A 3/10
SP10/PG7/B 3/11
SP12 3/9
SP12/12/C 3/8
SP12/M16/A 3/10
SP12/M16/B 3/11
SP12/M16/M 3/12
SP12/PG9/A 3/10
SP12/PG9/B 3/11
SP12/PG9/M 3/12
SP16 3/9
SP16/038/M 3/12
SP16/E 3/13
SP16/M16/A 3/10
SP16/M16/B 3/11
Part No. Page
SP16/M16/C90 3/11
SP16/M16/M 3/12
SP16/M20/A 3/10
SP16/M20/B 3/11
SP16/M20/C90 3/11
SP16/M20/M 3/12
SP16/PG11/M 3/12
SP16/PG13/M 3/12
SP20 3/9
SP20/050/M 3/12
SP20/20/C 3/13
SP20/E 3/13
SP20/M20/A 3/10
SP20/M20/B 3/11
SP20/M20/C90 3/11
SP20/M20/F 3/12
SP20/M20/M 3/12
SP20/PG16/A 3/10
SP20/PG16/B 3/11
SP20/PG16/M 3/12
SP25 3/9
SP25/075/M 3/12
SP25/25/C 3/13
SP25/E 3/13
SP25/M25/A 3/10
SP25/M25/B 3/11
SP25/M25/C90 3/11
SP25/M25/F 3/13
SP25/M25/M 3/12
SP25/PG21/A 3/10
SP25/PG21/B 3/10
SP25/PG21/M 3/12
SP32 3/9
SP32/100/M 3/12
SP32/32/C 3/13
SP32/E 3/13
SP32/M32/A 3/10
SP32/M32/B 3/11
SP32/M32/C90 3/11
SP32/M32/F 3/12
SP32/M32/M 3/12
SP32/PG29/A 3/10
SP32/PG29/B 3/10
SP32/PG29/M 3/12
SP40 3/9
SP40/40/C 3/13
SP40/E 3/13
SP40/M40/A 3/10
SP40/M40/B 3/11
SP40/M40/M 3/12
SP40/PG36/A 3/10
SP40/PG36/B 3/11
SP50 3/9
SP50/51/C 3/13
Adaptaflex Product Catalogue | LIT211GB 0414 9/8
Part No. Page
SP50/E 3/13
SP50/M50/A 3/10
SP50/M50/B 3/11
SP50/M50/M 3/12
SP50/PG42/A 3/10
SP50/PG42/B 3/11
SP63 3/9
SP63/61/C 3/13
SP63/M63/A 3/10
SP63/PG48/A 3/10
SP75 3/9
SP75/75/C 3/13
SPB10 3/22
SPB10/M12/A 3/23
SPB10/M12/B 3/23
SPB12 3/22
SPB12/M16/A 3/23
SPB12/M16/B 3/23
SPB16 3/22
SPB16/M16/A 3/23
SPB16/M16/B 3/23
SPB20 3/22
SPB20/M20/A 3/23
SPB20/M20/B 3/23
SPB25 3/22
SPB25/M25/A 3/23
SPB25/M25/B 3/23
SPB32 3/22
SPB32/M32/A 3/23
SPB32/M32/B 3/23
SPB40 3/22
SPB40/M40/A 3/23
SPB40/M40/B 3/23
SPB50 3/22
SPB50/M50/A 3/23
SPB50/M50/B 3/23
SPL10 3/14
SPL10/E 3/16
SPL10/M12 /M 3/17
SPL10/PG7/M 3/17
SPL12 3/14
SPL12/E 3/16
SPL12/M16/M 3/17
SPL12/PG9/M 3/17
SPL16 3/14
SPL16/038/M 3/17
SPL16/E 3/16
SPL16/M16/A 3/15
SPL16/M16/B 3/25
SPL16/M16/C90 3/18
SPL16/M16/M 3/17
SPL16/M20/A 3/15
SPL16/M20/B 3/25
SPL16/M20/C90 3/18
Part No. Page
SPL16/M20/M 3/17
SPL16/PG11/M 3/17
SPL16/PG13/M 3/17
SPL20 3/14
SPL20/050/M 3/17
SPL20/E 3/16
SPL20/M20/A 3/15
SPL20/M20/B 3/25
SPL20/M20/C90 3/18
SPL20/M20/M 3/17
SPL20/PG16/M 3/17
SPL25 3/14
SPL25/075/M 3/17
SPL25/E 3/16
SPL25/M25/A 3/15
SPL25/M25/B 3/25
SPL25/M25/C90 3/18
SPL25/M25/M 3/17
SPL25/PG21/M 3/17
SPL32 3/14
SPL32/100/M 3/17
SPL32/E 3/16
SPL32/M32/A 3/15
SPL32/M32/B 3/25
SPL32/M32/C90 3/18
SPL32/M32/M 3/17
SPL32/PG29/M 3/17
SPL40 3/14
SPL40/125/M 3/17
SPL40/E 3/16
SPL40/M40/M 3/17
SPL40/PG36/M 3/17
SPL50 3/14
SPL50/150/M 3/17
SPL50/E 3/16
SPL50/M50/M 3/17
SPL50/PG42/M 3/17
SPL63 3/14
SPL63/E 3/16
SPL63/M63/M 3/17
SPL63/PG48/M 3/17
SPLB16/M16/A 3/24
SPLB16/M16/B 3/25
SPLB16/M20/A 3/24
SPLB16/M20/B 3/25
SPLB20/M20/A 3/24
SPLB20/M20/B 3/25
SPLB25/M25/A 3/24
SPLB25/M25/B 3/25
SPLB32/M32/A 3/24
SPLB32/M32/B 3/25
SPLB40/M40/A 3/24
SPLB50/M50/A 3/24
SPLHC10 3/14
Part No. Page
SPLHC12 3/14
SPLHC16 3/14
SPLHC20 3/14
SPLHC25 3/14
SPLHC32 3/14
SPLHC40 3/14
SPLHC50 3/14
SPLHC63 3/14
SPLHCB16 3/24
SPLHCB20 3/24
SPLHCB25 3/24
SPLHCB32 3/24
SPLHCB40 3/24
SPLHCB50 3/24
SPTC10 3/22
SPTC12 3/22
SPTC16 3/22
SPTC20 3/22
SPTC25 3/22
SPTC32 3/22
SPTC40 3/22
SPTC50 3/22
SPUL16 3/15
SPUL20 3/15
SPUL25 3/15
SPUL32 3/15
SPUL40 3/15
SPUL50 3/15
SPUL63 3/15
SS10 3/6
SS12 3/6
SS16 3/6
SS20 3/6
SS25 3/6
SS32/25M 3/6
SSB12 3/20
SSB16 3/20
SSB20 3/20
SSB25 3/20
SSB32 3/20
SSBGS12 3/20
SSBGS16 3/20
SSBGS20 3/20
SSBGS25 3/20
SSBGS32 3/20
STC10 3/19
STC12 3/19
STC16 3/19
STC20 3/19
STC25 3/19
STC32 3/19
STC40 3/19
STC50 3/19
SWINGCUT 5/2
Part No. Page
SWM12 2/52
SWM16 2/52
SWM20 2/52
SWM25 2/52
SWM32 2/52
SWM40 2/52
SWM50 2/52
SWM63 2/52
T101010/BL 2/56
T101310/BL 2/56
T101613/BL 2/56
T131010/BL 2/56
T131013/BL 2/56
T131310/BL 2/56
T131313/ BL 2/56
T131613/BL 2/56
T161013/BL 2/56
T161016/BL 2/56
T161116/BL 2/56
T161313/BL 2/56
T161316/BL 2/56
T161613/BL 2/56
T161616/BL 2/56
T162113/BL 2 /56
T162116/BL 2/56
T211016/BL 2/56
T211021/BL 2/56
T211316/BL 2/56
T211321/BL 2/56
T211613/BL 2 /56
T211616/BL 2/56
T211621/BL 2/56
T212113/BL 2/56
T212116/BL 2/56
T212121/BL 2/56
T281021/BL 2/56
T281028/BL 2/56
T281128/BL 2/56
T281321/BL 2/56
T281325/BL 2/56
T281621/BL 2/56
T281628/BL 2/56
T282121/BL 2/56
T282128/BL 2/56
T282828/BL 2/56
T341634/BL 2/56
T342128/BL 2/56
T342134/BL 2/56
T343434/BL 2/56
XF12 2 /49
XF12/M16/D 2/50
XF16 2/49
XF16/M16/C90 2/50
XF16/M16/D 2/50
9/9 Adaptaflex Product Catalogue | LIT211GB 0414
Index
Order code classification
Part No. Page
XF16/M20/D 2/50
XF20 2/49
XF20/M20/C90 2/50
XF20/M20/D 2/50
XF25 2/49
XF25/M25/C90 2/50
XF25/M25/D 2/50
XF32 2/49
XF32/M32/C90 2/50
XF32/M32/D 2/50
XF40/30M 2/49
XF40/M40/D 2/50
XF50 2/49
XF50/M50/D 2/50
Y101010/BL 2/57
Y101013/BL 2/57
Y101210/BL 2/57
Y131010/BL 2/57
Y131011/BL 2/57
Y131310/BL 2/57
Y131313/BL 2/57
Y161013/BL 2/57
Y161310/BL 2/57
Y161313/BL 2/57
Y161610/BL 2/57
Y161613/BL 2/57
Y211010/BL 2/57
Y211310/BL 2/57
Y211313/BL 2/57
Y211610/BL 2/57
Y211613/BL 2/57
Y211616/BL 2/57
Y212110/BL 2/57
Y212111/ BL 2/57
Y212113/BL 2/57
Y212116/BL 2/57
Y282113/BL 2/57
Y282116/BL 2/57
Y282121/BL 2/57
Y282810/BL 2/57
Y282813/BL 2/57
Y282816/BL 2/57
Y282821/BL 2/57
Y282828/BL 2/57
Y343416/BL 2/57
Y343421/BL 2/57
Y343434/BL 2/57
