21

Stahlin Non-Metallic Enclosures

•500 Maple Street, Belding, MI 48809 •Phone: 616-794-0700 •Fax: 616-794-3378 •www.stahlin.com

DIAMONDSHIELD

™

SERIES

ORDERING INFO

Removable dead front panels See the following DiamondShield accessories pages

Grounding stud pg. 338, 339

Custom painting pg. 315 - 322

Molded in color pg. 315 - 322

Silk screening pg. 315 - 322

Decals pg. 315 - 322

EMI/RFI shielding pg. 315 - 322

Custom window pg. 315 - 322

Custom cutouts pg. 315 - 322

Custom hole drilling pg. 315 - 322

Custom Blending pg. 315 - 322

Accessories

Modifications

See Special ModRight™ Modification on pg 315 - 322

Back Panels

ORDERING INFO

Aluminum BP__AL pg. 330

Fiberglass BP__FG pg. 330

Stainless Steel BP__SS pg. 330

Carbon Steel BP__CS pg. 330

Mounting Feet

ORDERING INFO

Mounting feet See the following DiamondShield accessories pages

Special Accessories

Vent DVK3KIT pg. 324

Louver LPK3KIT pg. 324

Carrying Handle RMEMK10956 pg. 326

Fiberglass pedestals JP3336 pg. 326

Assorted hubs and five assorted ranges pg. 327, 328

cord grips (includes rigid & flex)

Vapor capsule VC2-1 pg. 327

HPL

HPL

HPL

DS

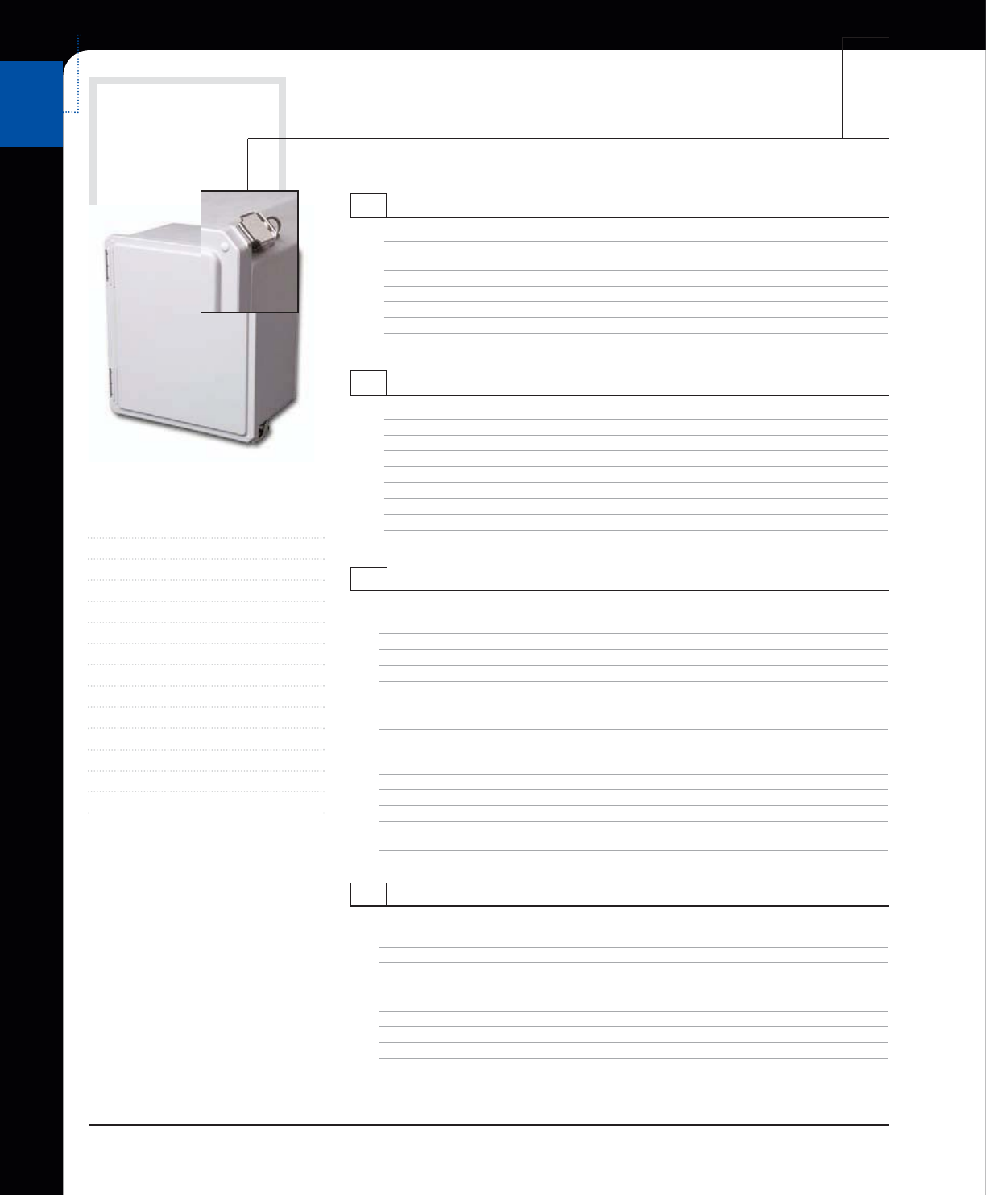

“HPL” configuration - Hinged, 2 pull latches

Technical Specifications - DiamondShield

™

Series

DS141206HPL

Construction

Material Hot compression molded fiberglass reinforced polyester (thermoset)

Gasket Poured polyurethane seamless gasket provides watertight,

dust-tight environmental seal

Recessed Screws No protruding surfaces

Stainless Steel Hardware 300 Series stainless used on all hardware

Mounting Bosses Panel mounting capability for fixed rear panel

Metal inserts All bosses utilize threaded brass inserts accepting 10-32 screws

Soft Edge Design Rounded edges, minimal protrusions or exposed pocket areas for

assembly of dust and debris

HPL

Industry Standards

UL/cUL 50 File E64358 Type 1, 3, 3s, 12, 13, 4X

NEMA 250 Type 1, 3, 3s, 12, 13, 4X

CSA Std C22.2 File LR069014 Type 1, 3, 3s, 12, 13, 4X

Temperature Range (-40°F to +250°F) (-40°C to +130°C)

Flammability Rating UL94-5V

Window Flammability UL94V-0

Self Extinguishing Non-Halogenated, Non-flame propagating

Chemical Resistance Full chemical resistance charts listed in appendix

NFPA No. 101 Flame Spread Class A (1)

HPL

NOTES:

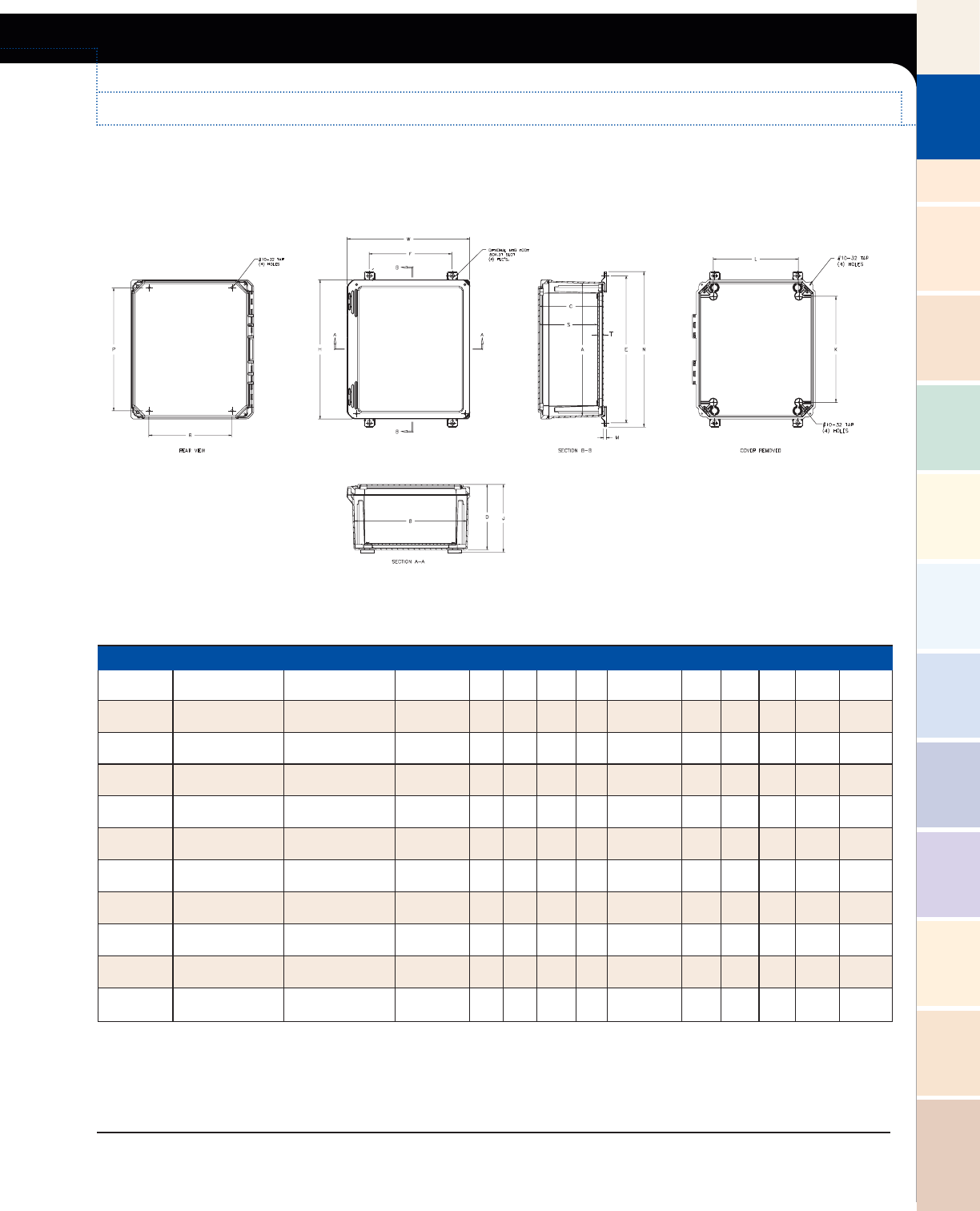

DiamondShield™ Opaque Cover Series “HPL” Configuration Technical Drawings

22

Stahlin Non-Metallic Enclosures

•500 Maple Street, Belding, MI 48809 •Phone: 616-794-0700 •Fax: 616-794-3378 •www.stahlin.com

DIAMONDSHIELD

™

SERIES

DiamondShield Opaque Cover Series Enclosures - “HPL” Configuration Dimensions

SIZE ID OVERALL INSIDE MOUNTING

OPT. MOUNT.

PANEL

NUMBER H X W X D A X B X C P X R K L S T

FEET E X F

N J M WEIGHT NUMBER

DS60604HPL 7.41 x 7.79 x 4.31 6.77 x 6.77 x 4.06 5.93 x 4.00 4.25 4.25 3.60 .38 8.24 x 4.00 9.02 4.56 .25 2.5 lbs BP-66

(188.3 x 197.9 x 109.5) (171.9 x 171.9 x 103.2) (150.6 x 101.6) (108) (108) (91.5) (9.6) (209.2 x 101.6) (229.0) (115.8) (6.35)

DS80604HPL 9.41 x 7.79 x 4.31 8.77 x 6.77 x 4.06 7.91 x 4.00 6.25 4.25 3.60 .38 10.21 x 4.00 10.98 4.56 .25 3.0 lbs BP-86

(239.1 x 197.9 x 109.5) (222.7 x 171.9 x 103.2) (200.9 x 101.6) (159) (108) (91.5) (9.6) (259.3 x 101.6) (279.0) (115.8) (6.35)

DS80804HPL 9.39 x 9.76 x 4.31 8.74 x 8.74 x 4.06 7.91 x 6.00 6.25 6.25 3.60 .38 10.21 x 6.00 10.98 4.56 .25 3.5lbs BP-88

(238.5 x 248.0 x 109.5) (222.1 x 222.1 x 103.2) (200.9 x 152.4) (159) (159) (91.5) (9.6) (259.3 x 152.4) (279.0) (6.35) (115.8)

DS100806HPL 11.42 x 9.79 x 6.31 10.73 x 8.73 x 6.06 9.89 x 6.00 8.25 6.25 5.60 .38 12.19 x 6.00 12.96 6.56 .25 4.5 lbs BP-1008

(290.1 x 248.6 x 160.3) (272.5 x 221.7 x 153.9) (251.2 x 152.4) (210) (159) (142.3) (9.6) (309.6 x 152.4) (329.3) (166.6) (6.35)

DS121006HPL 13.45 x 11.83 x 6.31 12.69 x 10.69 x 6.06 11.88 x 8.00 10.25 8.25 5.60 .38 14.18 x 8.00 14.95 6.56 .25 6.0 lbs BP-1210

(341.6 x 300.5 x 160.3) (322.3 x 271.5 x 153.9) (301.7 x 203.2) (260) (210) (142.3) (9.6) (360.2 x 203.2) (379.7) (166.6) (6.35)

DS141206HPL 15.49 x 13.86 x 6.34 14.72 x 12.72 x 6.06 13.91 x 10.00 12.25 10.25 5.60 .38 16.21 x 10.00 16.98 6.59 .25 8.0 lbs BP-1412

(393.4 x 352.0 x 161.0) (373.9 x 323.1 x 153.9) (353.3 x 254.0) (311) (260) (142.3) (9.6) (411.7 x 254.0) (431.4) (167.4) (6.35)

DS141208HPL 15.49 x 13.86 x 8.34 14.66 x 12.66 x 8.06 13.88 x 10.00 12.25 10.25 7.60 .38 16.19 x 10.00 16.96 8.59 .25 9.5 lbs BP-1412

(393.4 x 352.0 x 211.8) (372.4 x 321.6 x 204.7) (352.5 x 254.0) (311) (260) (193.2) (9.6) (411.2 x 254.0) (430.9) (218.2) (6.35)

DS161408HPL 17.58 x 15.96 x 8.34 16.69 x 14.69 x 8.06 15.96 x 12.00 14.25 12.25 7.60 .38 18.26 x 12.00 19.04 8.59 .25 11.5 lbs BP-1614

(446.6 x 405.4 x 211.8) (424.0 x 373.1 x 204.7) (405.4 x 304.8) (362) (311) (193.2) (9.6) (464.0 x 304.8) (483.5) (218.2) (6.35)

DS181610HPL 19.77 x 18.15 x 10.34 18.63 x 16.63 x 10.06 17.94 x 14.00 16.25 14.25 9.60 .38 20.24 x 14.00 21.02 10.59 .25 16.0 lbs BP-1816

(502.2 x 461.0 x 262.6) (473.2 x 422.4 x 255.5) (455.6 x 355.6) (413) (362) (243.9) (9.6) (514.3 x 355.6) (533.8) (268.9) (6.35)

DS201610HPL 21.79 x 18.16 x 10.34 20.63 x 16.63 x 10.06 19.96 x 14.00 18.25 14.25 9.59 .38 22.26 x 14.00 23.04 10.59 .25 17.5 lbs BP-J2016

(553.5 x 4612 x 262.6) (524.0 x 422.4 x 255.5) (506.9 x 355.6) (463) (362) (243.7) (9.6) (565.6 x 355.6) (585.1) (268.9) (6.35)

All measures are in inches, items in parentheses are in millimeters
