PowerPact™ H-, J-, and L-Frame
Circuit Breakers
Catalog
0611CT1001 R07/14
2014
Class 0611
CONTENTS
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
Catalog Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Automatic Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Motor Circuit Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Trip Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Accessories for Micrologic™ Trip Units . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Accessories and Auxiliaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Circuit Breaker Mounting and Connections . . . . . . . . . . . . . . . . . . . . . . . 117
Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
Trip Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
2
07/2014
PowerPact™ H-, J-, and L-Frame Circuit Breakers
3
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
SECTION 1: CATALOG NUMBERING ..............................................................................7
PowerPact™ with Micrologic™ Circuit Breakers .......................................................................... 7
Catalog Numbering....................................................................................................................... 8
SECTION 2: GENERAL INFORMATION .........................................................................10
Applications ................................................................................................................................ 10
Mission Critical Circuit Breakers ................................................................................................. 12
Flexible Configurations ............................................................................................................... 14
General Characteristics ............................................................................................................. 15
PowerPact H-, J-, and L-frame Circuit Breaker Trip Units ......................................................... 20
SECTION 3: CIRCUIT BREAKERS .................................................................................22
Dual-Break Rotating Contacts ....................................................................................................22
High Ampere Interrupting Ratings (AIR) ..................................................................................... 22
Internal Operating Mechanism....................................................................................................22
Handle Position Indication .......................................................................................................... 23
Circuit Breaker Ratings............................................................................................................... 23
Special Applications.................................................................................................................... 25
H- and J-Frame Catalog Numbers.............................................................................................. 26
L-Frame Circuit Breaker Catalog Numbers................................................................................. 36
SECTION 4: AUTOMATIC SWITCHES ...........................................................................42
Automatic Switch Functions ....................................................................................................... 42
Specifications.............................................................................................................................. 43
Catalog Numbers........................................................................................................................ 44
SECTION 5: MOTOR CIRCUIT PROTECTION ...............................................................46
General Information .................................................................................................................... 46
Motor Branch Circuit Protection Function .................................................................................. 46
Trip Class of a Overload Relay Device....................................................................................... 47
Asynchronous-Motor Starting Parameters ................................................................................. 47
Motor-Feeder Solutions ............................................................................................................. 47
Electronic Motor Circuit Protectors (AC Only)............................................................................. 49
Micrologic 1.3 M Electronic Trip Units for Instantaneous
Protection Only (L-Frame Circuit Breakers Only) ..................................................................... 52
Micrologic 2.2 M and 2.3 M Electronic Trip Units ....................................................................... 53
Indications................................................................................................................................... 54
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
4
07/2014
SECTION 6: TRIP UNITS ................................................................................................ 58
Available Trip Units ..................................................................................................................... 58
Protection of Distribution Systems ..............................................................................................61
SECTION 7: ACCESSORIES FOR MICROLOGIC™ TRIP UNITS ................................ 77
Display Options........................................................................................................................... 77
Circuit Breaker Communication Network Options.......................................................................80
SECTION 8: ACCESSORIES AND AUXILIARIES ......................................................... 94
Communication Network ............................................................................................................ 94
Accessory Connections...............................................................................................................97
Auxiliary and Alarm Indication Contacts...................................................................................... 97
SDx and SDTAM Modules for Micrologic ...................................................................................99
Shunt Trip (MX) and Undervoltage Trip (MN) ...........................................................................101
Motor Operator.......................................................................................................................... 102
Add-On Ground-Fault Module (GFM) (H- and J-Frame Only) .................................................. 104
Earth Leakage Module (ELM) (H- and J-Frame Only) .............................................................. 105
Rotary Operating Handles......................................................................................................... 106
Class 9422 Flange-Mounted Variable-Depth Operating Mechanism........................................ 109
Locking Systems....................................................................................................................... 109
Manual Mechanical Interlocking Systems ................................................................................ 110
Sealing Accessory..................................................................................................................... 113
Front-Panel Escutcheons.......................................................................................................... 113
Toggle Collars (For Drawout Mounting).................................................................................... 114
Toggle Boot............................................................................................................................... 114
Handle Extension...................................................................................................................... 114
Circuit Breaker Enclosures and Enclosure Accessories ........................................................... 115
SECTION 9: CIRCUIT BREAKER MOUNTING AND CONNECTIONS ........................ 117
Mounting Configurations ........................................................................................................... 117
Unit-Mount Circuit Breakers...................................................................................................... 118
I-Line™ Circuit breakers ........................................................................................................... 119
Connection................................................................................................................................ 123
PowerPact™ H-, J-, and L-Frame Circuit Breakers
5
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
SECTION 10: INSTALLATION RECOMMENDATIONS .................................................129
Operating Conditions ............................................................................................................... 129
Installation in Equipment .......................................................................................................... 132
Safety Clearances and Minimum Distances ............................................................................. 132
Safety Clearance ...................................................................................................................... 133
Control Wiring .......................................................................................................................... 134
24 Vdc Power Supply Module .................................................................................................. 136
Wiring ....................................................................................................................................... 137
Modbus ..................................................................................................................................... 138
SECTION 11: WIRING DIAGRAMS ................................................................................139
SECTION 12: DIMENSIONS ...........................................................................................148
SECTION 13: TRIP CURVES ...........................................................................................171
CATALOG NUMBERS ..............................................................................230
GLOSSARY ...............................................................................................236
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
6
07/2014
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Catalog Numbering
7
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Section 1—Catalog Numbering

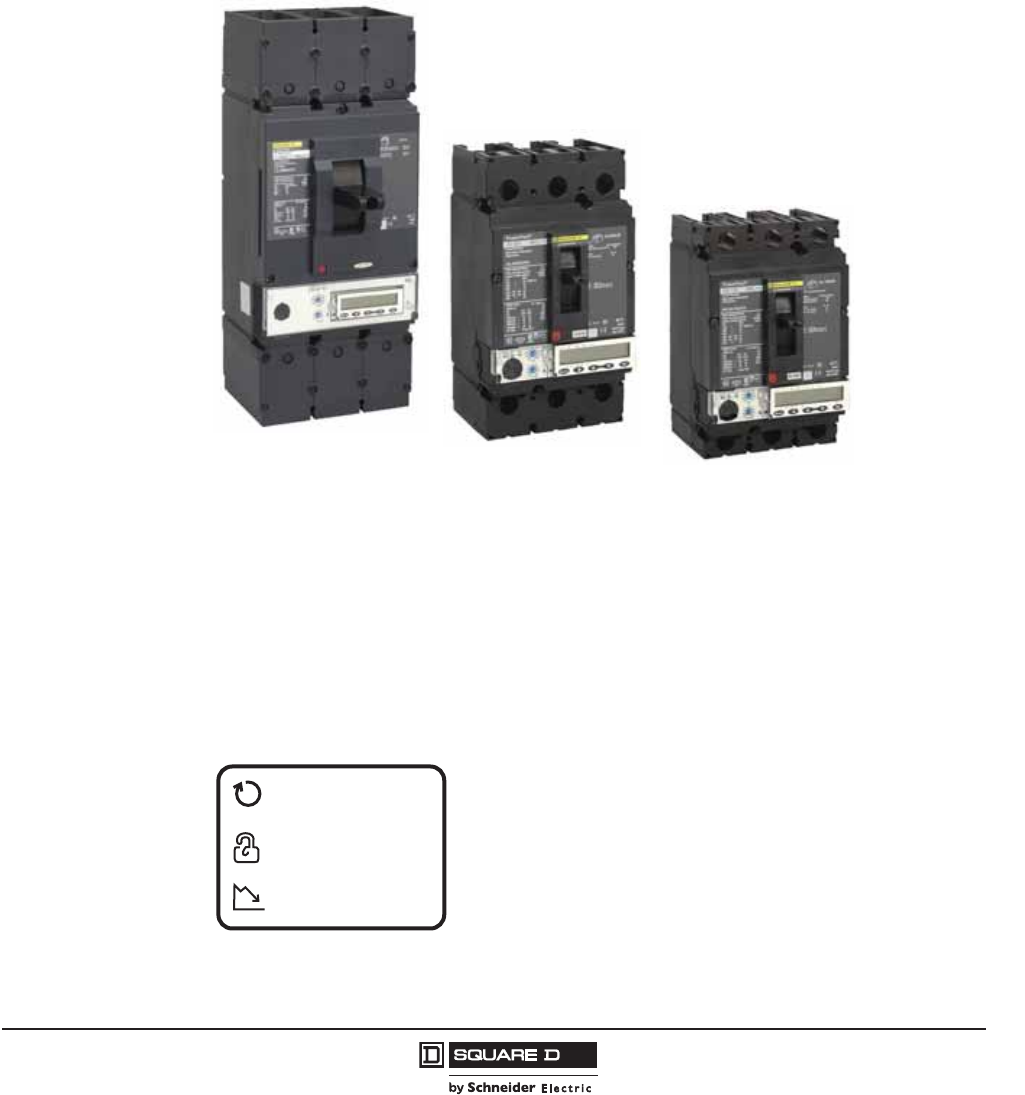

PowerPact™ with Micrologic™ Circuit Breakers

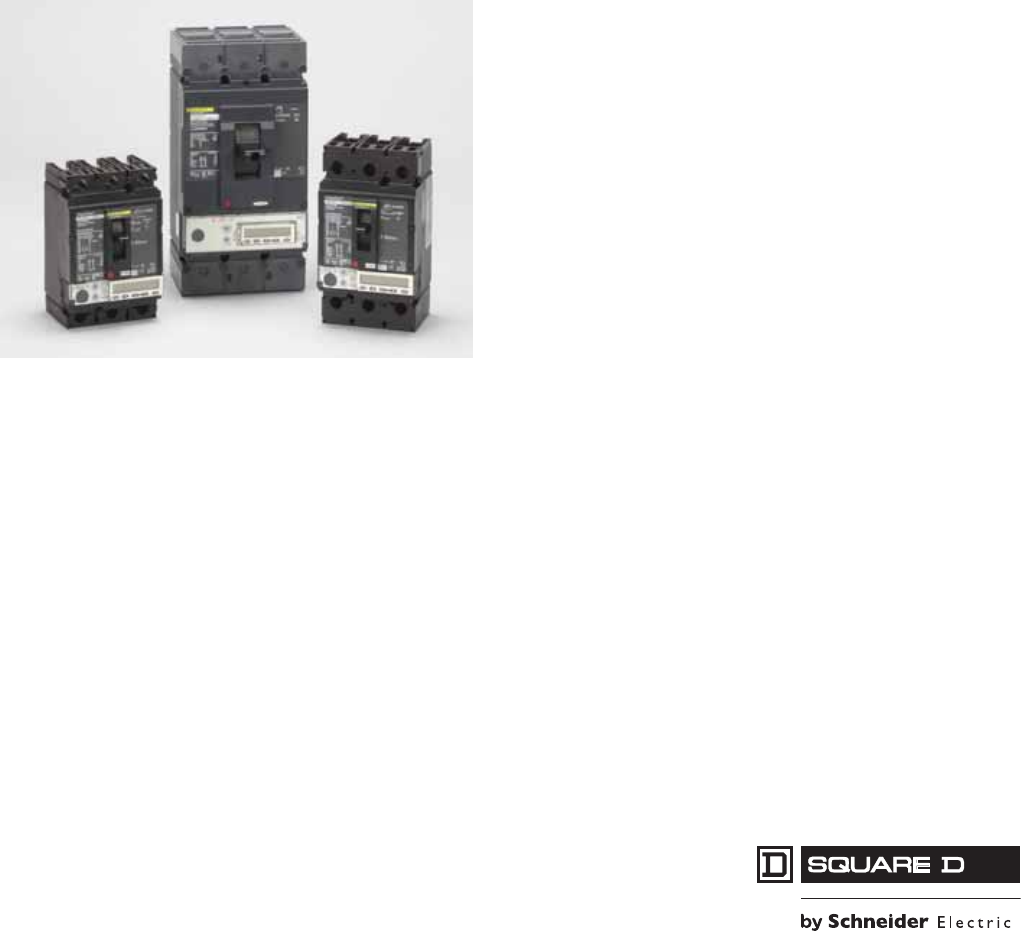

The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from
damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with
either thermal-magnetic or Micrologic
electronic trip units. L-frame circuit breakers are available with
Micrologic electronic trip unit.
Direct Access to Energy Management
The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to
energy management. Integrated metering enhances their protective functions. For the first time,
Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a
remarkably compact device.
Smart – A meter in every breaker
Safe – Combines safety and performance in one compact device
Simple – To select, install, and use
Increased energy
availability
Safety and
Protection
Energy measurement
and control
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Catalog Numbering
8
07/2014
Catalog Numbering
Table 1: Interrupting Rating
UL
®
/ CSA
®
/ NOM
®
IEC 647-2 Icu/Ics
240 Vac 480 Vac 600 Vac 250 Vdc
1
1250 Vdc ratings only available with PowerPact H or J circuit breakers with thermal-magnetic trip units (not including MCP).
500 Vdc
2
2UL 500 Vdc ratings only available with PowerPact J circuit breakers with thermal-magnetic trip units (not including MCP).
220/240 Vac 380/440/415 Vac 500/525 Vac 690 Vac 250 Vdc
1
500 Vdc
3
3IEC 500 Vdc rating only available on PowerPact J-frame circuit beakers.
D25 kA 18 kA 14
kA 20 kA 25/25 kA 18/18 kA 14/14 kA 20 kA 20 kA
G65 kA 35 kA 18 kA 20 kA 20 kA 65/65 kA 35/35 kA 18/18 kA 20 kA 20 kA
J100 kA 65 kA 25 kA 20 kA 100/100 kA 65/65 kA 25/25 kA 20 kA 20 kA
L125 kA 100 kA 50 kA 20 kA 125/125 kA 100/100 kA 50/50 kA 20
kA 20 kA
R200 kA 200 kA 100 kA 150 kA 125 kA 75 kA 20 kA
Trip Unit
Micrologic Electronic Trip Units
U31X LI Standard Protection
U33X LSI Standard Protection
U43X LSI plus Ammeter
U44X LSIG plus Ammeter
U53X LSI plus Energy Management
U54X LSIG plus Energy Management
M37X Magnetic Only (L-Frame Only)
M38X Motor Protector Circuit Breaker
S40X 400 A Molded Case Switch (L-Frame Automatic Switch)
S60X 600 A Molded Case Switch (L-Frame Automatic Switch)
F40 400 A L-Frame Only (No Trip Unit)
F60 600 A L-Frame Only (No Trip Unit)
Thermal-Magnetic Trip Units
Standard Fixed Trip Unit (Suitable for reverse connection)
F06 60 A H-Frame Only (No trip unit)
F15 150 A H-Frame Only (No trip unit)
F25 250 A J-Frame Only (No trip unit)
T Complete Circuit Breaker (Frame + removable trip unit)
S15 150 A Molded Case Switch (H-Frame automatic switch)
S17 175 A Molded Case Switch (J-Frame automatic switch)
S25 250 A Molded Case Switch (J-Frame automatic switch)
C 100% Rated Continuous Current Rating1
M71 30 A H-Frame Motor Circuit Protector (MCP)
M72 50 A H-Frame Motor Circuit Protector (MCP)
M73 100 A H-Frame Motor Circuit Protector (MCP)
M74 150 A H-Frame Motor Circuit Protector (MCP)
M75 250 A J-Frame Motor Circuit Protector (MCP)
D81 500 Vdc 150–175 A J-Frame Molded Case Circuit Breaker
D82 500 Vdc 200–250 A J-Frame Molded Case Circuit Breaker
R 100% Rated Continuous Current Rating Complete Circuit Breaker
(Frame + removable trip unit)
1100% ratings valid for:
3P H/J frame unit mount only
3P/4P L-frame 250 A and 400 A unit mount
3P L-frame 250 A and 400 A I-Line
I-Line Phasing
— ABC (3P)
6CBA (3P)
1AB(2P)
2AC(2P)
3BA(2P)
4BC(2P)
5CA(2P)
6CB(2P)
Frame
H H-Frame
JJ-Frame
L L-Frame
Poles
22P
33P
4 4P
Amperage
060 60 A
100 100 A
150 150 A
250 250 A
400 400 A
600 600 A
000 Switch or
Frame only
Voltage
6600 Vac
4 480 Vac
Terminations
L Lugs Line/Load Side
M Lugs Line Side
P Lugs Load Side
FBus Bar
AI-Line
S Rear Connected
N Plug-in
D Drawout
K Reverse I-Line
Performance Level (kA) (See Table 1)
Accessory Suffix Code (See Table 2)
J L L 3 6 250 W T – – – –
Brand
_ Square D
N Schneider
Electric
Mission Critical
(J- and L-frame with D, G, J,
and L interrupting ratings)
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Catalog Numbering
9
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 2: Factory Installed Accessory Suffix Codes (Building Sequence as Listed) and Field-Installable Kit Number
(1) Communication Networks
1
(5) Shunt Trip (6) Undervoltage Release
UVR Voltage
Suffix Description Kit No. Suffix Kit No. Suffix Kit No.
EA NSX Cord 1.3 m, V 480 V S434201 SK S29384 UK S29404 24 Vac
EB NSX Cord 3 m, V 480 V S434202 SL S29385 UL S29405 48 Vac
ED NSX Cord 1.3 m, V > 480 V S434204 SA S29386 UA S29406 120 Vac
EE NSX Cord 3 m, V > 480 V S434303 SD S29387 UD S29407 208/277 Vac
EG4BSCM + NSX Cord 1.3 m, V 480 V S434201BS SH S29388 UH S29408 380/480 Vac
EH4BSCM + NSX Cord 3 m, V 480 V S434202BS SJ S29389 UJ S29409 525/600 Vac
EK4BSCM + NSX Cord 1.3 m, V > 480 V S434204BS SN S29382 UN S29402 12 Vdc
EL4BSCM + NSX Cord 3 m, V > 480 V S434303BS SO S29390 UO S29410 24 Vdc
EN 24 Vdc Power Supply Terminal Block S434210 SU S29391 UU S29411 30 Vdc
(2) Indication Contacts SP S29392 UP S29412 48 Vdc
SV S29383 UV S29403 60 Vdc
Suffix Description Kit No. SR S29393 UR S29413 125 Vdc
VSDX S429532 SS S29394 US S29414 250 Vdc
SDTAM (motor only trip units) S429424 (6) Communicating Motor Operator
5
(3) Auxiliary Switch Suffix Voltage H-Frame J-Frame L-Frame
Suffix Contacts Kit No. Kit Qty. NC 220/240 Vac S429441 S431549 S432652
AA 1A/1B Standard S29450 1 (7) Motor Operator
AB 2A/2B Standard S29450 2
AC 3A/3B Standard (L-frame only) S29450 3 Suffix Voltage H-Frame J-Frame L-Frame
AE 1A/1B Low-Level S29452 1 ML 48/60 Vac S29440 S31548 S432639
AF 2A/2B Low-Level S29452 2 MA 120 Vac S29433 S31540 S432640
AG 3A/3B Low Level (L-frame only) S29452 3 MD 277 Vac S29434 S31541 S432641
(4) Alarm/Overcurrent Trip Switch MF 380/415 Vac S432642
MH 440/480 Vac S29435 S31542 S432647
Suffix Switch Kit No. Kit Qty. MO 24/30 Vdc S29436 S31543 S432643
PowerPact L-Frame and PowerPact H/J-Frame with Micrologic 5/6 trip units MV 48/60 Vdc S29437 S31544 S432644
BC Alarm Switch S29450 1 MR 110/130 Vdc S29438 S31545 S432645
BH Alarm Switch Low-Level S29452 1 MS 250 Vdc S29439 S31546 S432646
BD Overcurrent Trip Switch, Standard
SDE Actuator
S29450
S29451
1
1(8) Rotary Handle
BJ Overcurrent Trip Switch, Low-Level
SDE Actuator
S29452
S29451
1
1
Suffix Handle Type (color) H/J-Frame L-Frame
RD10 Direct Mount (black) S29337 S32597
BE Alarm Switch and
Overcurrent Trip Switch, Standard S29450 2 RD20 Direct Mount (red) S29339 S32599
RE10 Extended Door Mount (black) S29338 S32598
BK Alarm Switch and
Overcurrent Trip Switch, Low-Level S29452 2 RT10 Telescoping (black) S29343 S32603
RE20 Extended Door Mount (red) S29340 S32600
PowerPact H/J-Frame with Thermal-Magnetic or Micrologic 1/2/3 trip units (9) Wire Harnesses2
BC Alarm Switch S29450 1
BH Alarm Switch Low-Level S29452 1 Suffix Harness2Kit No.
BD Overcurrent Trip Switch, Standard
SDE Actuator
S29450
S29451
1
1
YH3 ZSI Wire Harness, H/J Frame S434300
YH3 ZSI Wire Harness, L-Frame S434301
BJ Overcurrent Trip Switch, Low-Level
SDE Actuator
S29452
S29451
1
1
YH2 ENCT Wire Harness S434302
YH1 OF Wire Harness S434500
BE
Alarm Switch and
Overcurrent Trip Switch, Standard
SDE Actuator
S29450 2 YH1 SD/SDE Wire Harness S434501
YH1 SDx/SDTAM Wire Harness S434502
S29451 1 YH1 MN Wire Harness S434503
BK
Alarm Switch and
Overcurrent Trip Switch, Low-Level S29452 2 YH1 MX Wire Harness S434504
YH1 Motor Operator Wire Harness S434506
SDE Actuator S29451 1 YH1 Communicating Motor Operator Wire Harness S434507
1
Except for 24 Vdc Power Supply Terminal Block, installation requires IFM (STRV00210) for
Modbus communication and/or FDM (STRV00121) for external display.
2
YH1 = all installed accessories but ZSI and ENCT
YH2 = ENCT and all installed accessories
YH3 = ZSI and all installed accessories
YH4 = ZSI, ENCT and all installed accessories
3
I-Line wire harness included for communication network accessories.
Optional wire harness for unit mount requires YH1 suffix.
4
If using with a motor operator, requires Communicating Motor Operator (suffix NC).
5
Requires Micrologic trip unit U43, U44, U53, or U54 and communication accessories EG, EH, EK,
or EL.
YH13NSX Wire Harness S434508
YH4 ENCT and ZSI Wire Harnesses
YH1324 Vdc Power Supply Wire Harness S434505
(10) Handle Padlocks
Suffix Padlock Type H/J-Frame L-Frame
YP Handle Padlock, ON or OFF S29371 S32631
YQ Handle Padlock, OFF Only S37422 NJPAF
YQ Handle Padlock, OFF Only 2P H2PHLA
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
10
07/2014
Section 2—General Information
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from
damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with
either thermal-magnetic or Micrologic™
electronic trip units. L-frame circuit breakers are available with
Micrologic electronic trip unit.
H- and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload)
and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal
trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric
Code
®
(NEC
®
) and the Canadian Electrical Code, standard circuit breakers may only be applied
continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but
require specially-designed enclosures, copper lugs, and 194°F (90°C) rated wire.
Devices with the Micrologic electronic trip unit provide adjustable protection settings for greater system
flexibility. In addition to electronic protection, Micrologic trip units allow users to monitor both energy
and power. Through direct access to in-depth information and networking using open protocols,
PowerPact circuit breakers with Micrologic trip units let operators optimize the management of their
electrical installations. Far more than a circuit breaker, these circuit breakers are a measurement and
communication tool ready to meet energy-efficiency needs through optimized power requirements,
increased energy availability, and improved installation management.
Applications
PowerPact H-, J-, and L-frame circuit breakers offer high performance and a wide range of
interchangeable trip units to protect most applications.
Electronic trip units provide highly accurate protection with wide setting ranges and can integrate
measurement, metering and communication functions. They can be combined with the front display
module (FDM121) to provide functions similar to a power meter.

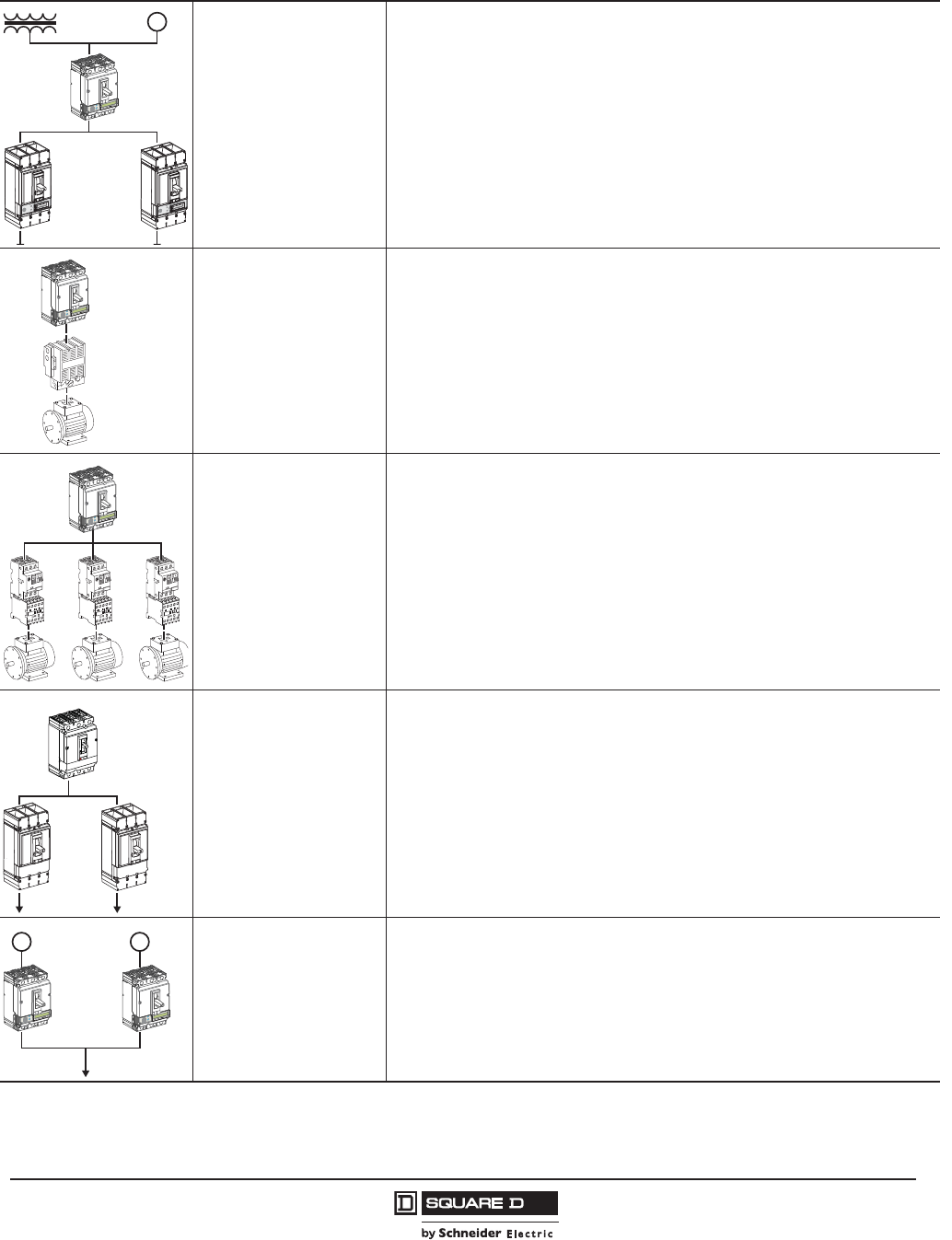

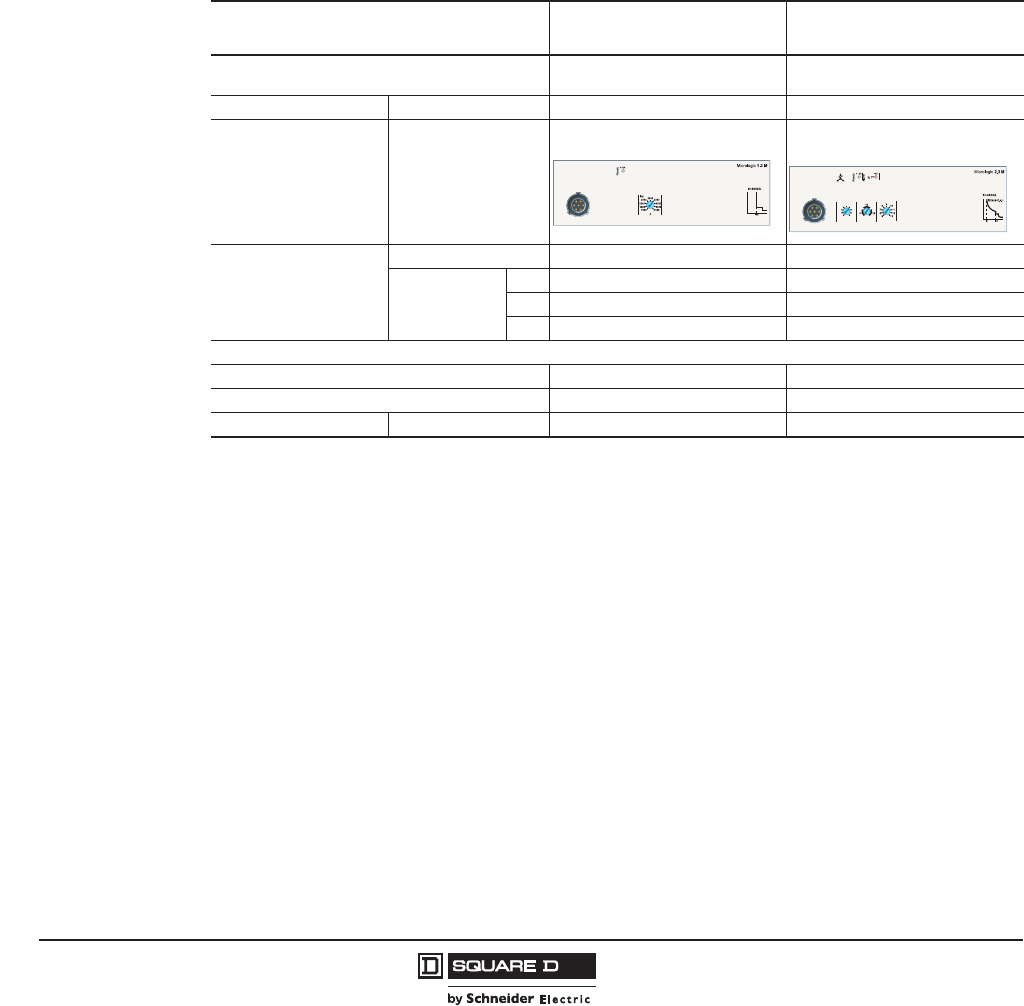

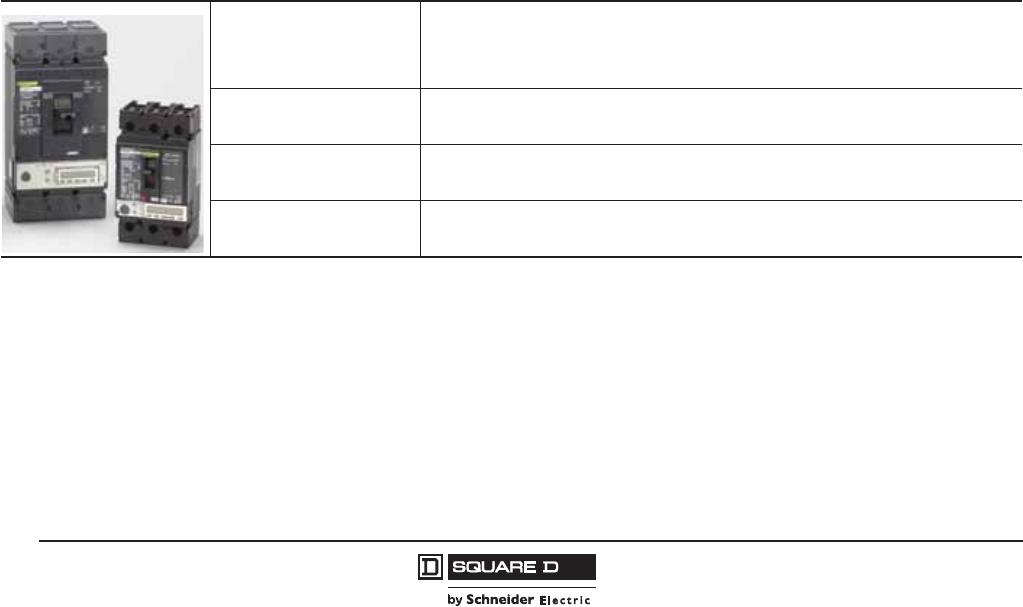

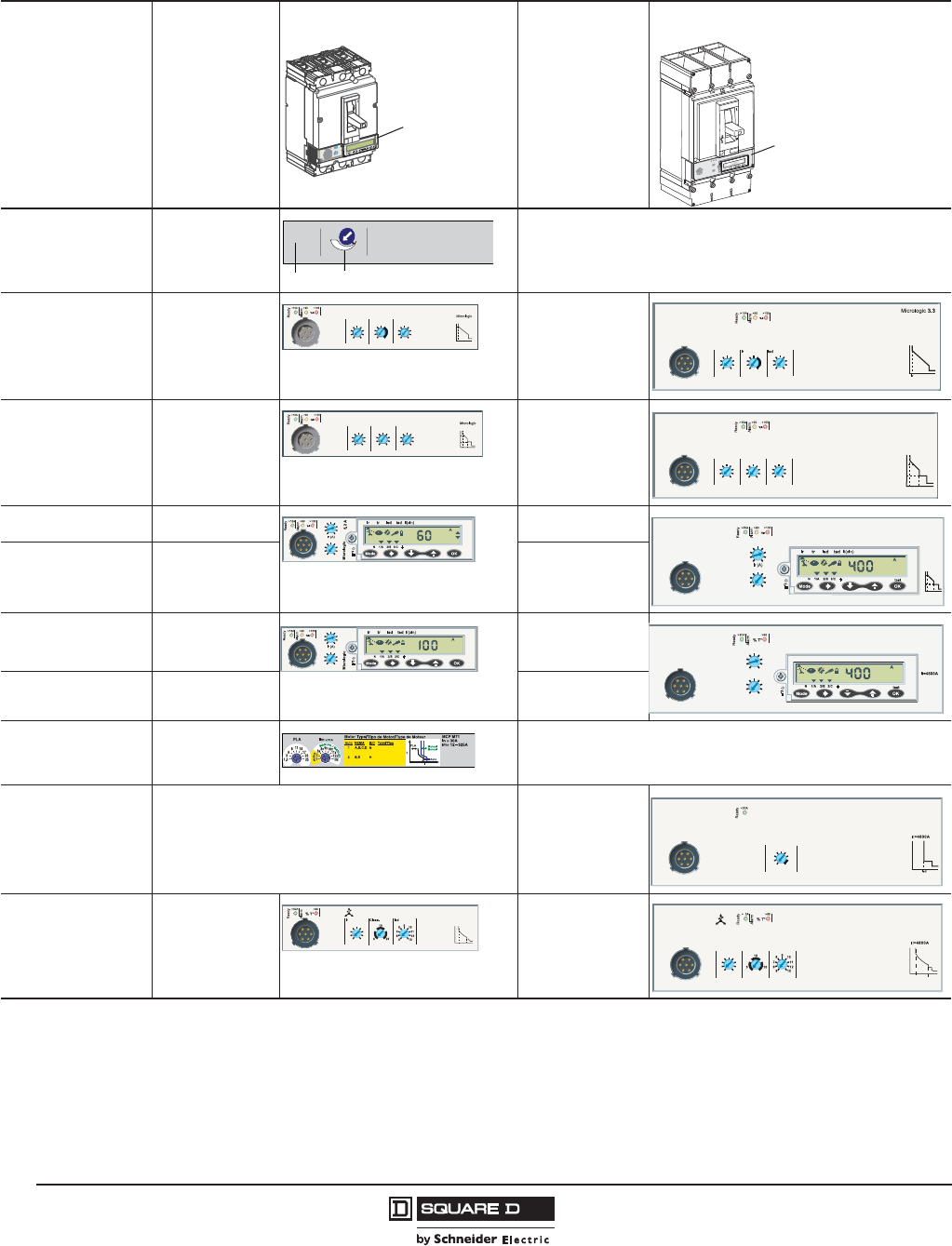

Table 3: Applications
Power Meter
PowerPact H-, J-, and L-frame circuit breakers equipped with Micrologic 5 / 6 trip units offer
type A (ammeter) or E (energy) metering functions as well as communication capability. Using
Micrologic trip unit sensors and intelligence, PowerPact H-, J-, and L-frame circuit breakers
provide access to measurements of all the main electrical parameters on the built-in screen, on a
dedicated front display module (FDM121) or through the communication network.
Operating assistance
Integration of measurement functions provides operators with operating assistance functions
including alarms tripped by user-selected measurement values, time-stamped event tables and
histories, and maintenance indicators.
Front display module

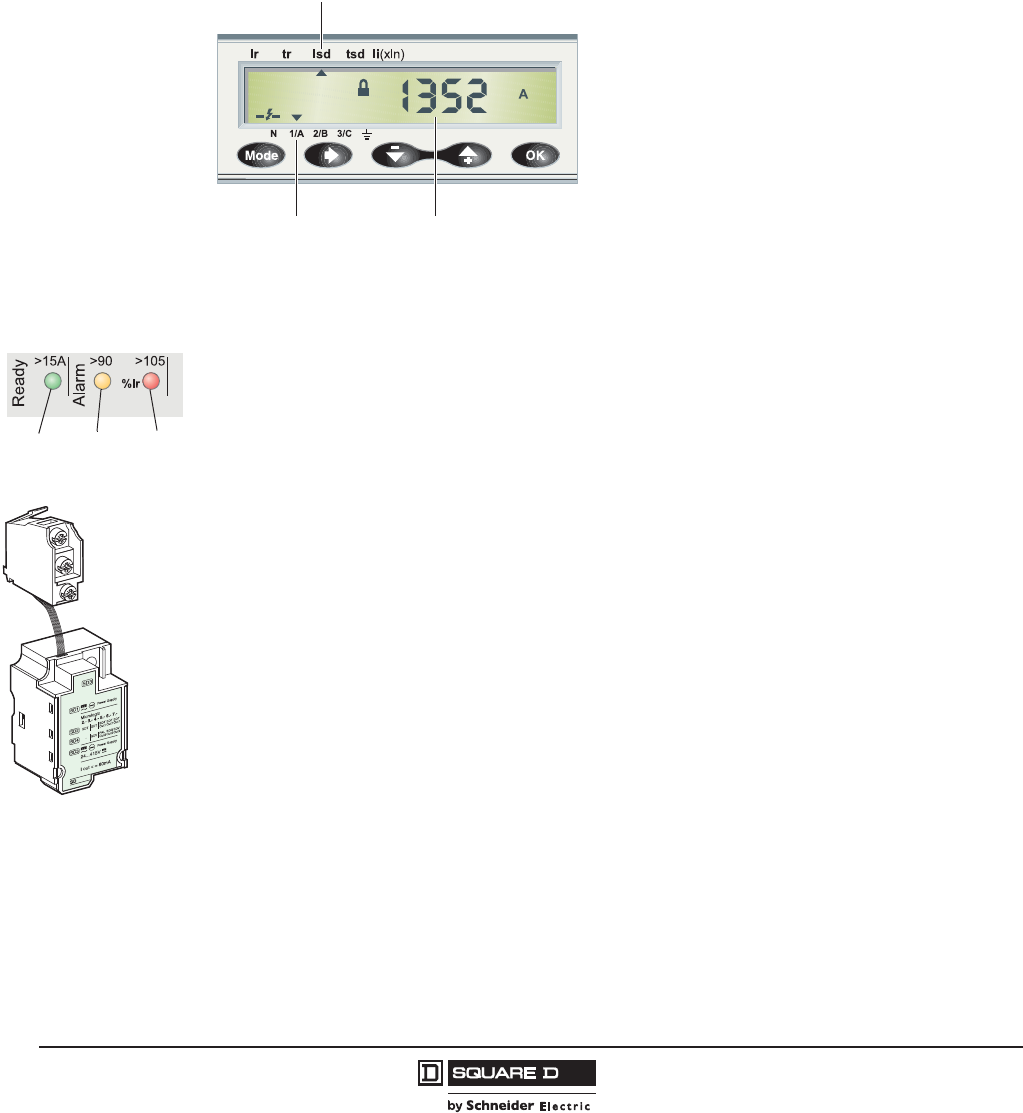

The main measurements can be read on the built-in screen of Micrologic 5 / 6 trip units. They
can also be displayed on the equipment FDM121 along with pop-up windows signalling the main
alarms.
Communication Network
PowerPact H-, J-, and L-frame circuit breakers equipped with Micrologic 5 / 6 trip units provide
communication capabilities. Simple RJ45 cables connect to a Modbus communication interface
module.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
11
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Protection of distribution
systems
Mission critical applications
The PowerPact H-, J-, and L-frame circuit breakers provide protection against short circuits and
overloads for:
distribution systems supplied by transformers
distribution systems supplied by engine generator sets
They are easily installed at all levels in distribution systems, from the main LV switchboard to the
subdistribution boards and enclosures. All PowerPact circuit breakers can protect against
insulation faults by adding an external Vigirex relay.
The PowerPact H-, J-, and L-frame mission critical circuit breakers provide high levels of
selective coordination with QO and ED/EG/EJ circuit breakers.
Protection of motors
The PowerPact H-, J-, and L-frame circuit breakers include a number of versions to protect
motor applications:
basic short-circuit protection with electronic instantaneous only MCP or the electronic
Micrologic 1.3 M trip units, combined with a special overload relay to provide thermal
protection
protection against overloads, short circuit and phase unbalance or loss with Micrologic 2 M
trip units
The exceptional limiting capacity of the PowerPact circuit breakers automatically provides
coordination with the motor starter.
Protection of special
applications
The PowerPact H-, J-, and L-frame circuit breakers offer a number of version for special
protection applications:
industrial control panels with:
— compliance with international standards IEC 60947-2 and UL 508/CSA 22.2 N°14
—compliance with UL 489
— installation in universal and functional enclosures
400 Hz systems
Control using automatic
switches
An automatic switch version of PowerPact H-, J-, and L-frame circuit breakers is available for
circuit control. All add-on functions for the circuit breakers may be combined with the basic
automatic switch function, including motor operators.
For information on other automatic switches, contact Schneider Electric.
Manual transfer systems
To ensure a continuous supply of power, some electrical installations are connected to two
power systems:
the normal source, usually the utility (U)
a replacement source to supply the installation when the normal source is not available,
generally from a generator (G)
A mechanical and/or electrical interlocking system between two circuit breakers or automatic
switches avoids all risk of parallel connection of the sources during switching.
A system can be manual transfer mechanical device interlocking.
Table 3: Applications
G
rciMcigolo
E
2
.5
r
I
%
A
0
3
>
0
3
>0
1
1
>
.9
2
9
.
3
9
.
4
9
.5
9
.
1
8
9
.
7
9
.
6
9
.
Ir)
o
I
x
(
5
.
1
2
5
.
2
34
0
1
8
6
5
d
s
I)
r
I
x
(
rciMcigolo
E
2
.5
r
I
%
A
0
3
>
0
3
>0
1
1
>
.9
2
9
.
3
9
.
4
9
.5
9
.
1
8
9
.
7
9
.
6
9
.
Ir )
o
I
x
(
5
.
1
2
5
.
2
34
0
1
8
6
5
d
s
I)
r
I
x
(
rciMcigolo
E
2
.5
r
I
%
A
0
3
>
0
3
>0
1
1
>
.9
2
9
.
3
9.
4
9
.59
.
1
8
9
.
7
9
.
6
9
.
Ir)
o
I
x
(
5
.
1
2
5
.
2
34
0
1
8
6
5
ds
I)
r
I
x
(
rciMcigolo
E
2
.5
r
I
%
A
0
3
>
0
3
>01
1
>
.9
2
9
.
3
9
.
4
9
.5
9
.
1
8
9
.
7
9
.
6
9
.
Ir )
o
I
x
(
5
.
1
2
5
.
2
34
0
1
8
6
5
ds
I)
r
I
x
(
Main Alternate
UG
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
12
07/2014
Mission Critical Circuit Breakers
The PowerPact
J- and L-Frame Mission Critical circuit breakers deliver high levels of selective
coordination in a flexible design that can be easily configured for a variety of applications. Tested to be
selectively coordinated with the QO
family of miniature circuit breakers and the ED, EG, and EJ
circuit breakers, this solution provides peace of mind when power availability is critical.
An electronic trip unit provides adjustable long-time settings in three sensor sizes, allowing coverage
from 70 through 600 A on 120-240, 208Y/120, 240, and 480Y/277 V systems.
In addition to unique design attributes, the PowerPact Mission Critical circuit breakers have also
undergone rigorous testing procedures to certify the coordination with downstream circuit breakers—
combining innovative engineering with validated test results.
Apply Schneider Electric Mission Critical circuit breakers in emergency power distribution systems,
data centers, hospitals, or anywhere continuity of service is desired.
Theory of Operation
There are several dynamic forces between the PowerPact Mission Critical circuit breakers and
downstream circuit breakers when a fault occurs downstream of the branch circuit breaker. Many of
these events cannot be shown on the trip curve.
The PowerPact Mission Critical circuit breakers analyze the fault current to make decisions which
maximize selectivity with downstream circuit breakers. The trip units deploy a special selectivity delay
to allow downstream circuit breakers to clear. However, on very high faults or if the downstream circuit
breaker does not trip, the circuit breaker trips the mechanism instantaneously.
The combination of the PowerPact Mission Critical circuit breaker and downstream circuit breakers
shown in the selectivity charts in the instruction bulletin are selective due to the fact that the series
impedance and the let-through from the downstream circuit breaker does not produce enough energy
to trip the PowerPact Mission Circuit circuit breaker.
This system maximizes the interaction of the circuit breakers in series to allow selectivity.
Trip Units and Trip Curves
The PowerPact J- and L-Frame Mission Critical circuit breakers deliver high levels of selective
coordination with the QO™ family of miniature circuit breakers and the ED, EG, and EJ circuit breakers
in a flexible design that can be easily configured for a variety of applications. These circuit breaker can

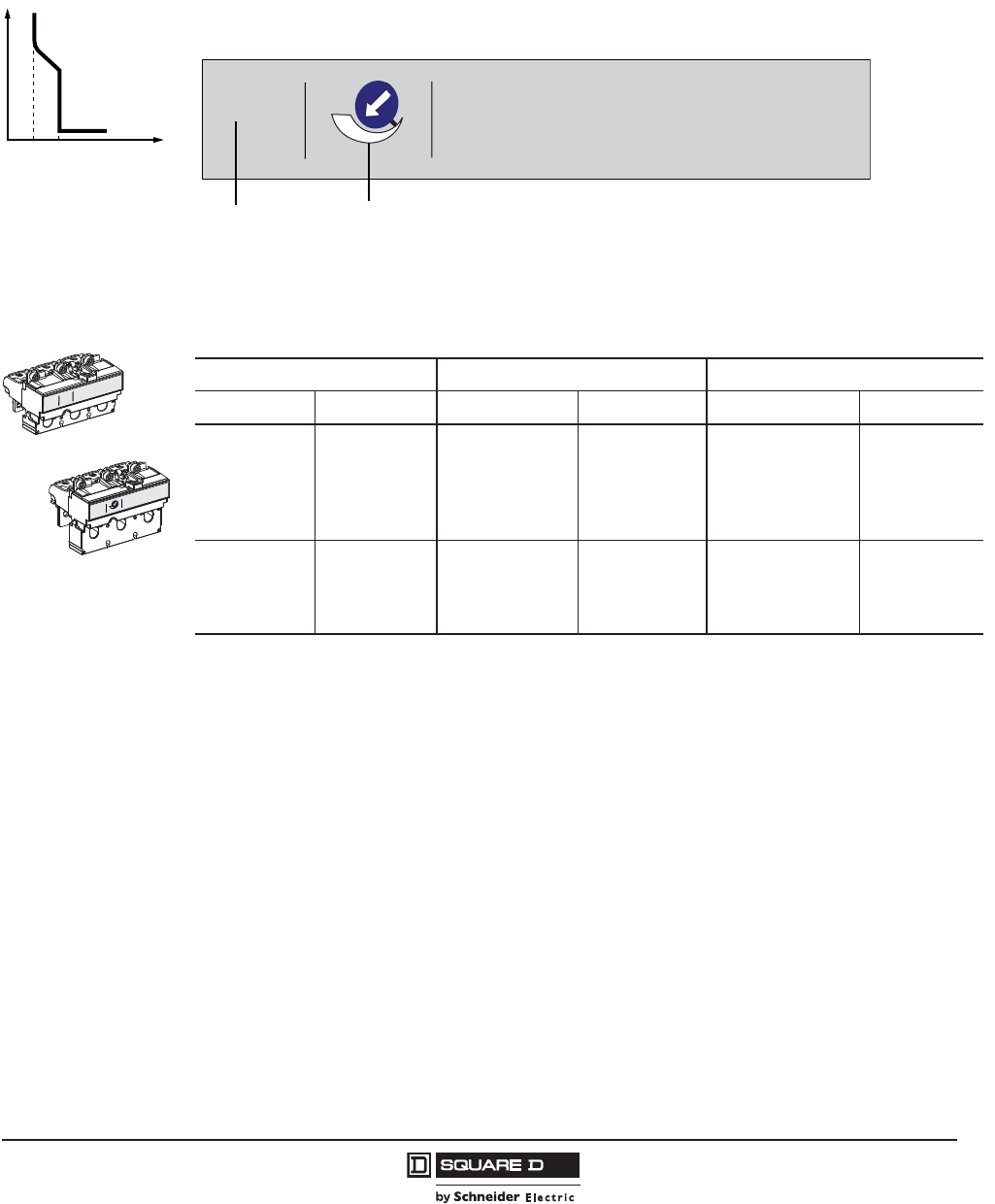

be equipped with 3.2-W, 3.2S-W, 5.2A-W, 5.2E-W, 6.2A-W, 3.3S-W, 5.3A-W, 6.3A-2, and 6.3E-2
Micrologic trip units. See the catalog numbers and references beginning in Table 17.
The mission critical trip units have the same settings and trip curves as the standard trip units as
described in this document.
For more information see the trip unit user guides 48940-310-01 and 48940-312-01 on the Schneider
Electric website.
Ratings Available Configurations
UL 489 Listed
CSA Certified
Voltage: 480Y/277 V
I-Line mounting
Main circuit breaker in NQ and NF
panelboards
Unit mount for OEM users
Plug-in base for OEM users
Drawout base for OEM users
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
13
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
J-frame mission critical circuit breakers are selective with QO or E-frame circuit breakers per Table 4
when the amperage of the main circuit breaker is at least two times the amperage of the branch circuit
breaker.
L-frame mission critical circuit breakers are selective with QO-style and E-frame circuit breakers per
Table 5 when the amperage of the main circuit breaker is at least two times greater than the amperage
of the branch circuit breaker.

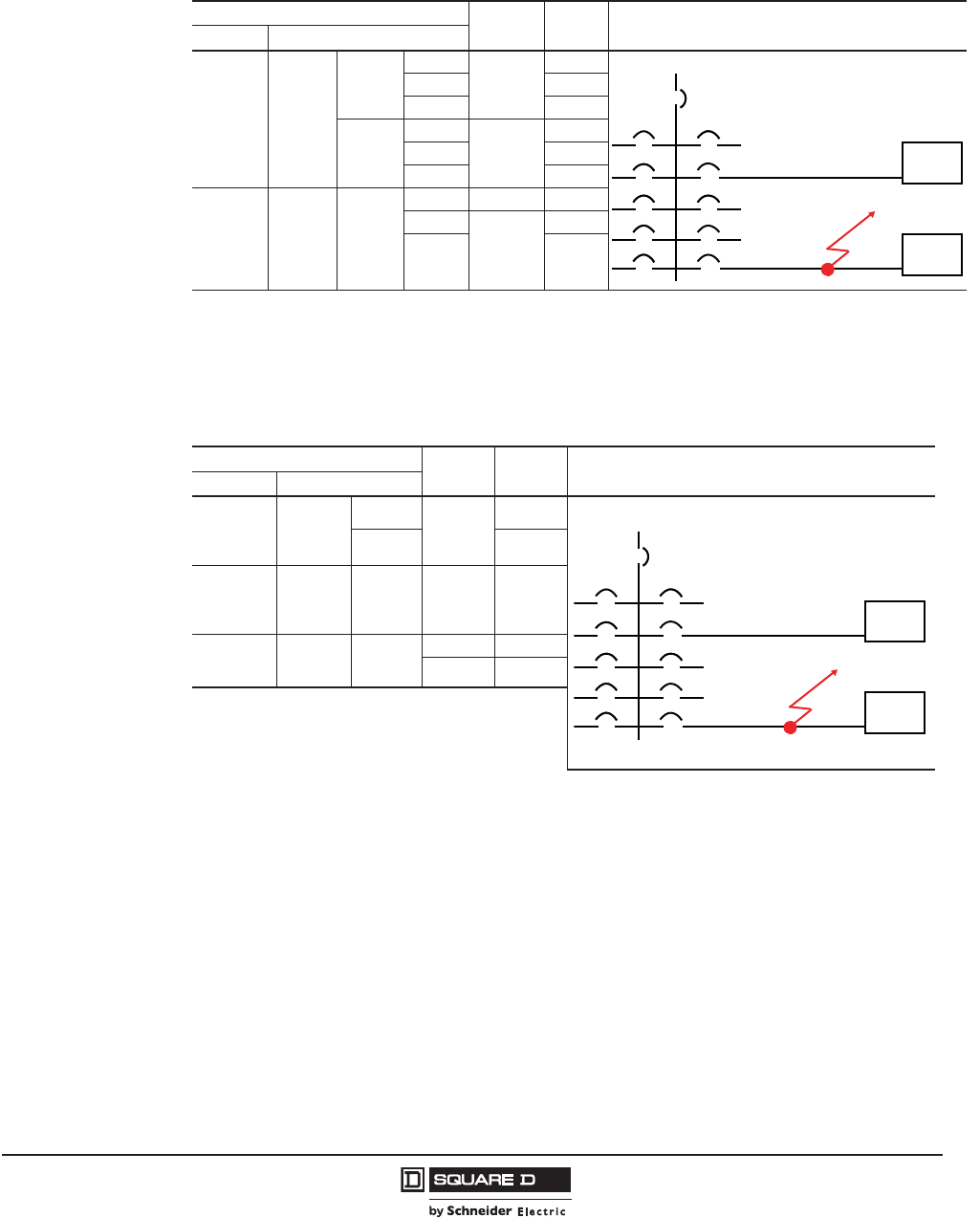

Table 4: J-Frame Selectivity with QO and E-Frame Circuit Breakers
1
1 Including AFI, CAFI, EPD and GFI circuit breakers.
Circuit Breaker Voltage Current One-Line Diagram
Main Branch
J–W, 250 A
QO(B)
QO(B)-H
QO(B)-VH
QH
1P, 2P
10–30 A
240/120 V
120 V
18 kA
35–60 A 15 kA
70–125 A 12 kA
3P
10–30 A
240 V
208 V
15 kA
35–60 A 13 kA
70–125 A 10 kA
J–W, 250 A E-Frame 1P, 2P, 3P
15–125 A 240 V 18 kA
15–60 A
480Y/277 V
10 kA
70–125 A 7 kA
Table 5: L-Frame Selectivity with QO and E-Frame Circuit Breakers
1
1 Including AFI, CAFI, EPD and GFI circuit breakers.
Circuit Breaker Voltage Current One-Line Diagram
Main Branch
L–W, 250 A
QO(B)
QO(B)-H
QO(B)-VH
QH
10–60 A
240 V
18 kA
70–125 A 10 kA
L–W, 400 A
L–W, 600 A
QO(B)
QO(B)-H
QO(B)-VH
QH
15–150 A 240 V 30 kA
L–W, 250 A
L–W, 400 A
L–W, 600 A
E-Frame 15–125 A
240 V 30 kA
480Y/277 30 kA
FAULT
Load
Load
QO 20 A 1P
QO 100 A 2P
J-Frame Mission Critical Circuit Breaker
FAULT
Load
Load
QO 20 A 1P
QO 100 A 2P
L-Frame Mission Critical Circuit Breaker
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
14
07/2014
Flexible Configurations
The PowerPact H-, J- and L-frame circuit breakers may be configured with lugs, bus bar connections,
rear connections, I-Line™, drawout cradle, or plug-in base.
Field Installable Accessories and Trip Units
Figure 1: Field Installable Accessories and Trip Units
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
15
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
General Characteristics
Faceplate Label
Codes and Standards
H-, J-, and L-frame circuit breakers, automatic switches and electronic motor circuit protectors are
manufactured and tested in accordance with the following standards.
NOTE: Apply circuit breakers according to guidelines detailed in the National Electric Code
(NEC) and
other local wiring codes.

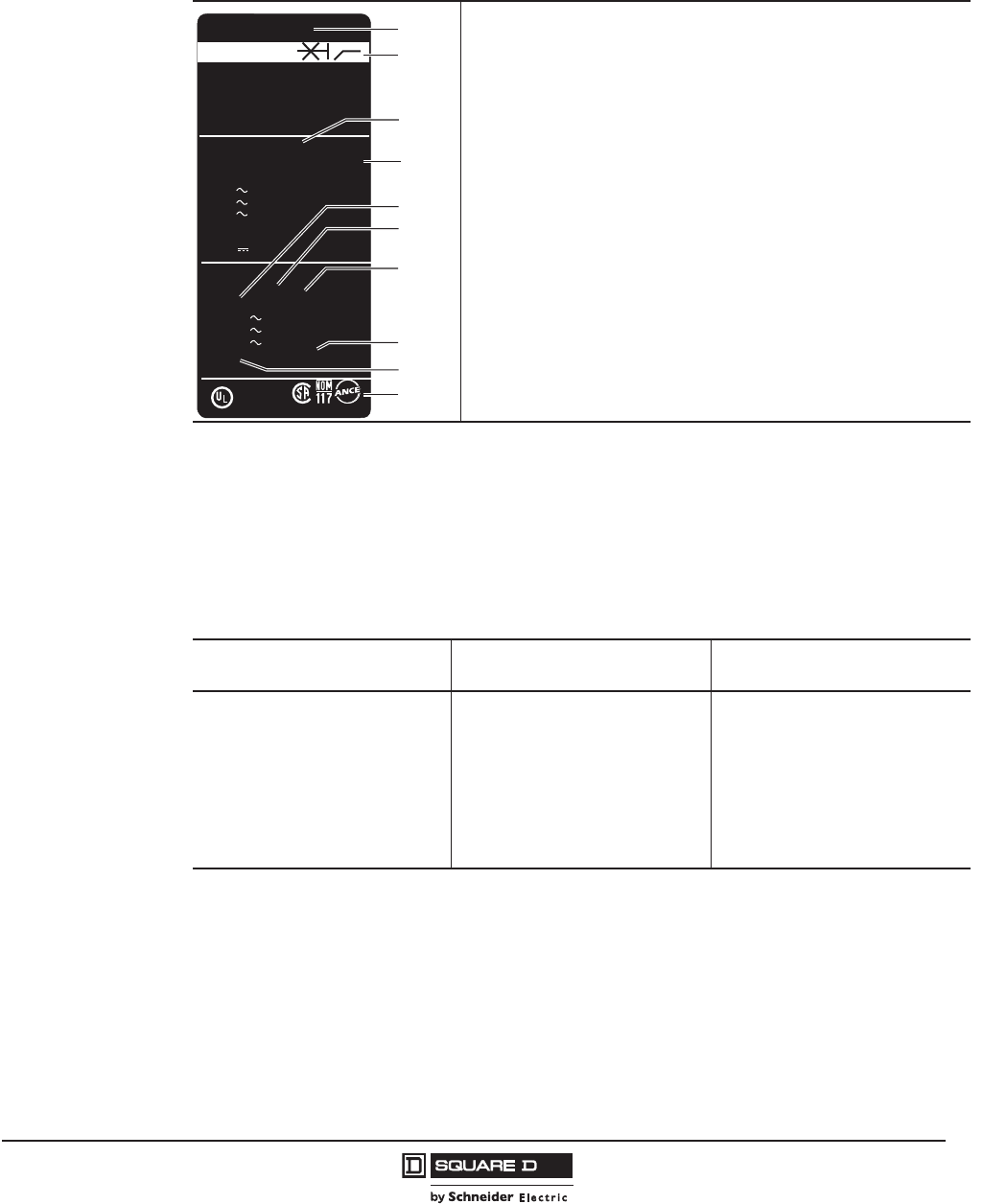

Characteristics indicated on the faceplate label:
A. Circuit breaker type
B. Circuit breaker disconnector symbol
C. Performance levels
D. Standards
E. Ue: Operating voltage per IEC
F. Icu: Ultimate breaking capacity per IEC
G. Ics: Service breaking capacity per IEC
H. Uimp: Rated impulse withstand voltage per IEC
I. Ui: Insulation voltage per IEC
J. Certification marks
NOTE: When the circuit breaker is equipped with an extended
rotary handle, the door must be opened to view the faceplate.
Table 6: Codes and Standards (Domestic)
PowerPact H-, J-, and L-Frame
Circuit Breakers
H-, J-, and L-Frame
Switches
PowerPact H-, J-, and L-Frame
Motor Circuit Protectors
UL 4891
IEC 60947-2
CSA C22.2 No. 52
Federal Specification W-C-375B/GEN
NEMA AB1
NMX J-266
CCC
CE Marking
1PowerPact H- and J-frame circuit breakers are in UL File E10027. PowerPact L-frame circuit breakers are in UL File E63335.
2PowerPact H- and J-frame circuit breakers are in CSA File LR40970. PowerPact L-frame circuit breakers are in CSA File 69561.
UL 4893
IEC 60947-3
CSA C22.2 No. 54
Federal Specification W-C-375B/GEN
NEMA AB1
NMX J-266
CE Marking
3PowerPact H- and J-frame switches are in UL File E87159.
4PowerPact H- and J-frame switches are in CSA File LR32390.
UL 508
IEC 60947-2
CSA C22.2 No. 14
NEMA AB1
CCC
CE Marking
PowerPact
TM
HDA36100
Circuit Breaker
Interuptor Automático
Disjoncteur
HD 150
Interrupting Rating
Valor de Interrupción
Valeur d’interruption
UL
CSA
NEMA
NOM
(V)
240
480
600
240 1Ø - 3Ø
480 1Ø - 3Ø
250
(kA)
25 50/50 Hz
18
14
42
18
20
AIR/Anom.I
50/60 Hz
Ue
(V)
220/240
380/440
400/525
Ui 750V
Icu
(kA)
25
18
14
Uimp 8kV
Ics
(kA)
25
18
14
IEC 60947-2
AS
BS
CIE
UNE
UTE
VDE
MR
153555
LISTED C.B.
Issue No. 186
E10027
F
E
C
D
B
A
J
G
H
I
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
16
07/2014
Vibration
PowerPact H-, J-, and L-frame devices resist mechanical vibration.
Tests are carried out in compliance with standard UL 489 SA and SB for the levels required by
merchant-marine inspection organizations (Veritas, Lloyd's, etc.):
PowerPact H-, J-, and L-frame circuit breaker meet IEC 60068-2-6 for vibration:
2.0 to 25.0 Hz and amplitude +/- 1.6 mm
25.0 to 100 Hz acceleration +/- 4.0 g
Excessive vibration may cause tripping, breaks in connections or damage to mechanical parts.

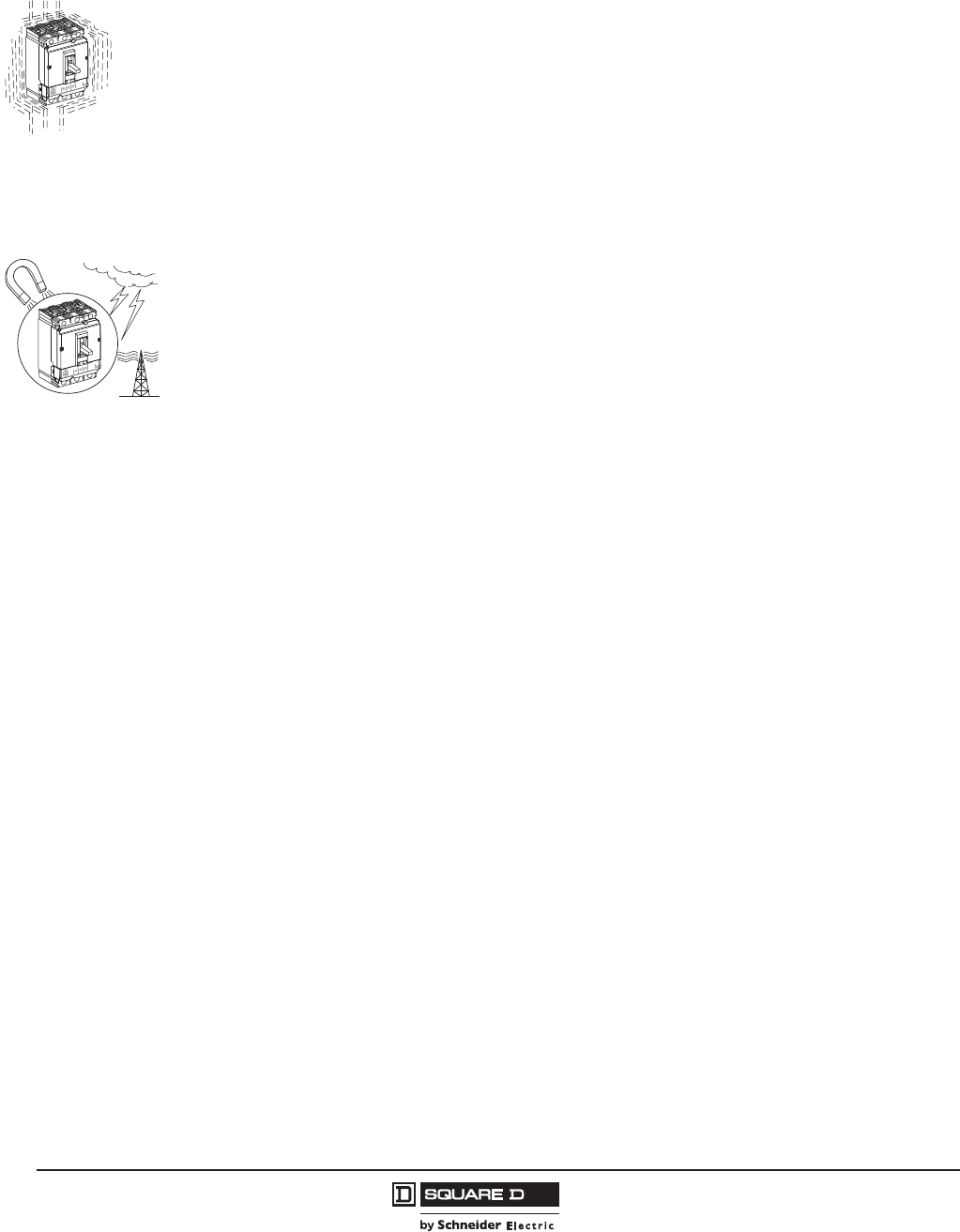

Electromagnetic disturbances
PowerPact H-, J-, and L-frame devices are protected against:
overvoltages caused by circuit switching
overvoltages caused by an atmospheric disturbances or by a distribution-system outage (such as
from failure due to lightning)
devices emitting radio waves (radios, walkie-talkies, radar, etc.)
electrostatic discharges produced directly by users
PowerPact H-, J-, and L-frame devices have successfully passed the electromagnetic-compatibility
tests (EMC) defined by the following international standards:
IEC/EN 60947-2: Low-voltage switchgear and controlgear, part 2: Circuit breakers:
Annex F: Immunity tests for circuit breakers with electronic protection
Annex B: Immunity tests for residual current protection
IEC/EN 61000-4-2: Electrostatic-discharge immunity tests
IEC/EN 61000-4-3: Radiated, radio-frequency, electromagnetic-field immunity tests
IEC/EN 61000-4-4: Electrical fast transient/burst immunity tests
IEC/EN 61000-4-5: Surge immunity tests
IEC/EN 61000-4-6: Immunity tests for conducted disturbances induced by radio frequency fields
CISPR 11: Limits and methods of measurement of electromagnetic disturbance characteristics of
industrial, scientific and medical (ISM) radio-frequency equipment.
These tests ensure that:
no nuisance tripping occurs
tripping times are respected
Tropicalization
The materials used in PowerPact circuit breakers will not support the growth of fungus and mold.
PowerPact circuit breakers have passed the test defined below for extreme atmospheric conditions.
Dry cold and dry heat:
IEC 68-2-1–dry cold at -55 °C
IEC 68-2-2–dry heat at +85° C
Damp heat (tropicalization)
IEC 68-2-30–damp heat (temperature + 55° C and relative humidity of 95%)
IEC 68-2-52 level 2–salt mist
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
17
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Special Ratings
The H-frame and J-frame circuit breakers also comply with the following special ratings:
HACR rating
SWD switch duty rating (applies only to 15 and 20 A / 277 Vac or less, 2P and 3P)
HID high intensity discharge lighting rating (15–50 A)
The L-frame circuit breakers complies with the following special rating:
HACR rating
Marine Ratings
UL Marine Listed/CSA Certified Circuit Breakers (UL 489 Supplement SA)
The PowerPact H- and J-frame circuit breakers with thermal-magnetic trip units with D, G, J and L
interruption levels meet the UL 489 Supplement SA requirements for use on vessels of any length
under or over 65 ft. (19.8 m). The PowerPact H-, J-, and L-frame circuit breakers with Micrologic
electronic trip units meet the UL 489 Supplement SA for use on vessels over 65 ft. (19.8 m) in length.
Marine circuit breakers must not use aluminum or aluminum alloys for terminal connections and must
be calibrated at an ambient temperature of 104° F (40° C). Standard circuit breakers should not be
specified or used in the place of marine rated circuit breakers.
Circuit breakers can be ordered with the Marine SA listing by adding the suffix “YA” (marine) to the
catalog number.
UL Naval Listed/CSA Certified Circuit Breakers (UL 489 Supplement SB)
The PowerPact H-, J-, and L-frame circuit breakers with Micrologic trip units with D, G, J and L
interruption levels meet the UL 489 Supplement SB requirements for use on naval vessels. These circuit
breakers are subject to various vibration tests as described in UL 489 Supplement SB. Naval circuit
breakers must not use aluminum or aluminum alloys for terminal connections and must be calibrated at
an ambient temperature of 122° F (50° C). Standard circuit breakers should not be specified or used in
the place of navel rated circuit breakers.
Circuit breakers can be ordered with the Naval SB listing by adding the suffix “YA1” (naval) to the catalog
number.
American Bureau of Shipping (ABS)
The PowerPact H-, J-, and L-Frame circuit breakers are certified to ABS-NVR (American Bureau of
Shipping - Naval Vessel Rules), for use on Naval vessels.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
18
07/2014

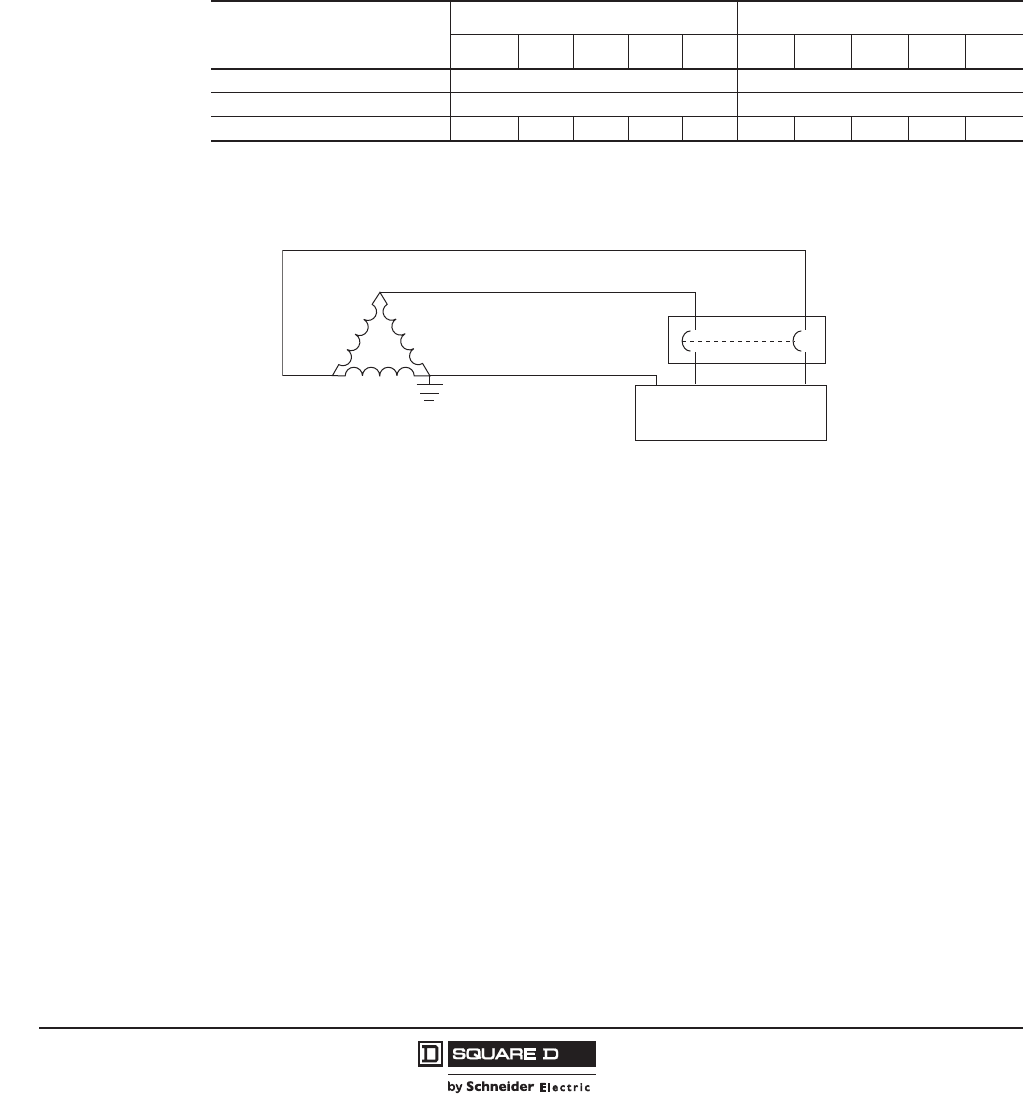

UL 489 SC Listed 500 Vdc Circuit Breakers
The UL Listed/CSA Certified thermal-magnetic J-Frame molded
case circuit breakers are specifically designed for use on
ungrounded dc systems having a maximum short-circuit voltage of
500 Vdc or a maximum floating (unloaded) voltage of 600 Vdc. The
circuit breakers are suitable for use only with UPS (uninterruptable
power supplies) and ungrounded systems. This two-level voltage
rating allows these circuit breakers to be applied to battery sources
having a short-circuit availability of 20,000 amperes at 500 Vdc.
These circuit breakers are UL Listed/CSA Certified for the
interrupting ratings shown only if applied with three poles
connected in series (series connection is external to circuit
breaker). See diagram below.
NOTE: Due to external series connection, I-Line
circuit breakers are not available for this application.
Table 7: DC Molded Case Circuit Breakers
Ampere
Rating
Circuit Breaker
Cat. No.
Adjustable Magnetic Trip Range—DC Amperes Performance Level
@ 500 Vdc
Low High
100 A JGL37100D81 400 600
20 k AIR
125 A JGL37125D81 400 600
150 A JGL37150D81 400 600
175 A JGL37175D81 400 600
200 A JGL37200D82 500 850
20 k AIR225 A JGL37225D82 500 850
250 A JGL37250D82 500 850

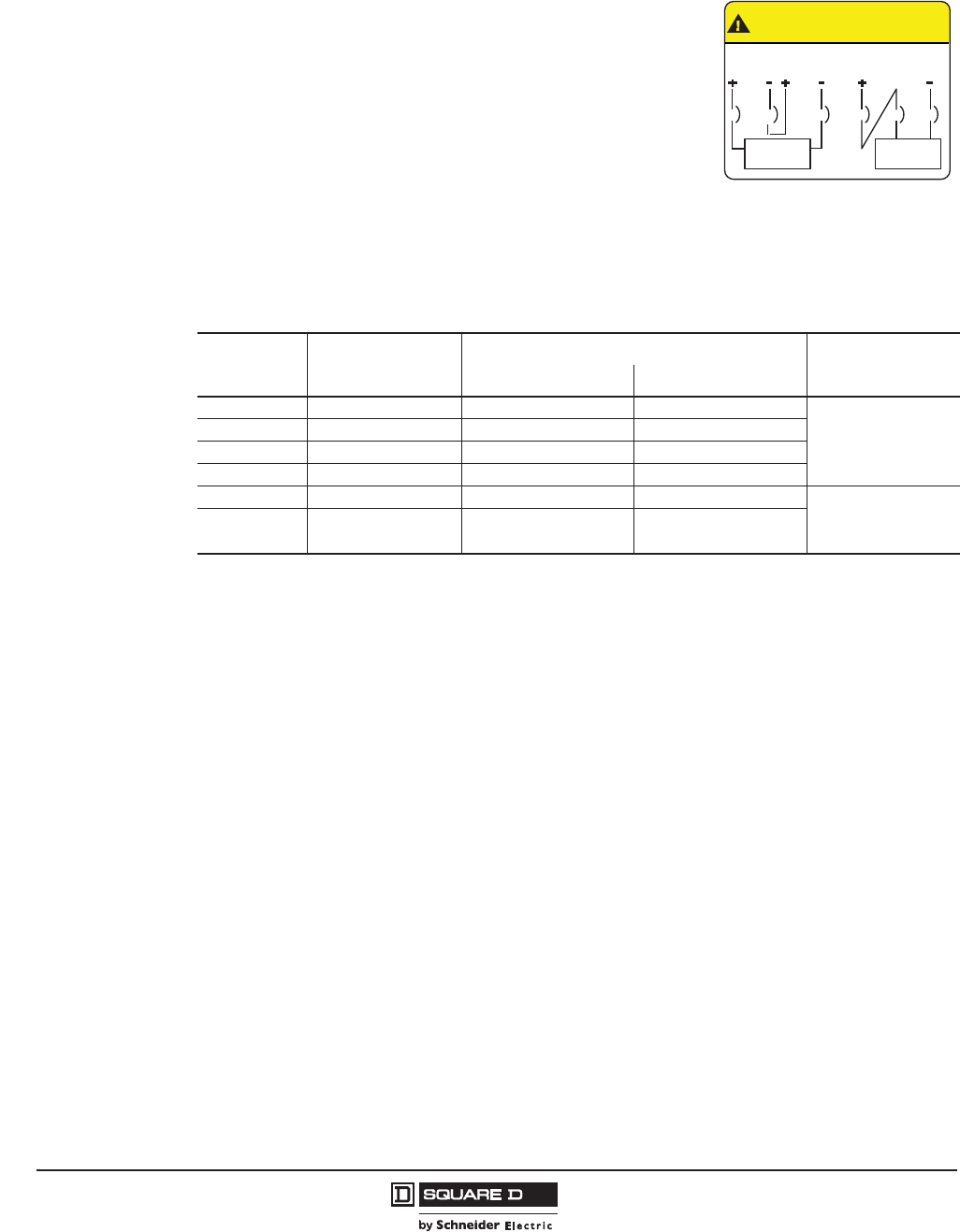

CAUTION/PRECAUCION/
ATTENTION
Connect only as shown/Conectar solo asi/
Francher seulement comme suit:
300 V 300 V
Load/Carga/
Charge
600 V MAX.
MAX. MAX.
Load/Carga/
Charge
or
o
ou
Source = 600 Vdc max. (floating)
500 Vdc max. (loaded)
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
19
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 8: Circuit Breakers
Circuit Breaker 150 A H-Frame 250 A J-Frame 400 A L-Frame 600 A L-Frame
Circuit Breaker Type HD HG HJ HL HR JD JG JJ JL JR LD LG LJ LL LR LD LG LJ LL LR
Number of poles12, 3 3 2, 3 3 3, 4 3, 4
Amperage Range (A) 15-150 70-250 70-400 200-600
UL 489 Circuit Breaker Ratings
UL/CSA/NOM
(kA rms)
240 Vac 25 65 100 125 200 25 65 100 125 200 25 65 100 125 200 25 65 100 125 200
480 Vac 18 35 65 100 200 18 35 65 100 200 18 35 65 100 200 18 35 65 100 200
600 Vac 14 18 25 50 100 14 18 25 50 100 14 18 25 50 100 14 18 25 50 100
250 Vdc220 20 20 20 --- 20 20 20 20 --- --- --- --- --- --- --- --- --- --- ---
500 Vdc2, 3 --- --- --- --- --- --- 20 --- --- --- --- --- --- --- --- --- --- --- --- ---
IEC 947-2 Circuit Breaker Ratings
Ultimate breaking capacity
(Icu)
(kA rms)
220/240 Vac 25 65 100 125 150 25 65 100 125 150 25 65 100 125 150 25 65 100 125 150
380/415 Vac 18 35 65 100 125 18 35 65 100 125 18 35 65 100 125 18 35 65 100 125
440/480 Vac 18 35 65 100 125 18 35 65 100 125 18 35 65 100 125 18 35 65 100 125
500/525 Vac 1418255075141825507514182550751418255075
4
690 Vac --- --- --- --- 20 --- --- --- --- 20 --- --- --- --- 20 --- --- --- --- 20
250 Vdc2--- --- --- --- --- 20 20 20 20 --- --- --- --- --- --- --- --- --- --- ---
500 Vdc2, 3 --- --- --- --- --- 20 20 20 20 --- --- --- --- --- --- --- --- --- --- ---
Service breaking capacity (Ics) % Icu 100% 100% 100% 100%
Insulation Voltage V
i
750 Vac 750 Vac 750 Vac 750 Vac
Impulse Withstand Voltage V
imp
8 kVac 8 kVac 8 kVac 8 kVac
Operational Voltage V
e
690 Vac 690 Vac 690 Vac 690 Vac
Sensor Rating I
n
150 A 250 A 400 A 600 A
Utilization Category --- A A A A
Operations (Open-Close Cycles)
Without Current 4000 5000 5000 5000
With Current 4000 1000 1000 1000
Protection and Measurements
Short-circuit protection Magnetic only ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Overload/short-circuit
protection
Thermal-magnetic ŶŶŶŶŶŶŶŶŶŶ--- --- --- --- --- --- --- --- --- ---
Electronic ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
with neutral protection (Off-0.5-1-OSN)5ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
with ground fault protection ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
with zone selective interlocking (ZSI)6ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Display / I, V, f, P, E, THD measurements / interrupted-current
measurement ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Options
Front display module (FDM121) ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Operating assistance ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Counters ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Histories and alarms ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Metering Com ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ
Device status/control com ŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶŶ

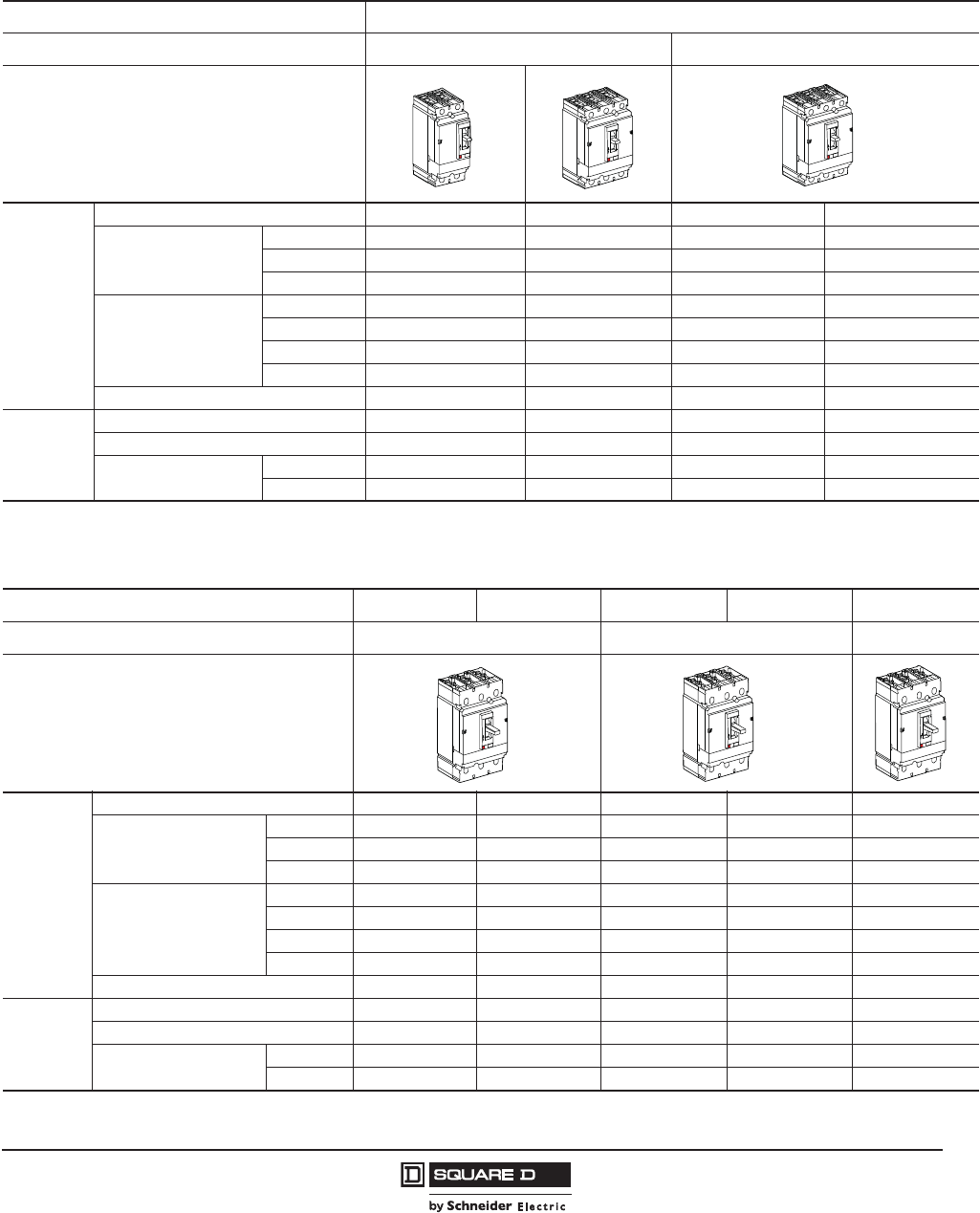

Dimensions / Weight / Connections
Dimensions 3P
(Unit Mount)
in. (mm)
Height 6.4 (163) 7.5 (191) 13.38 (340) 13.38 (340)
Width 4.1 (104) 4.1 (104) 5.51 (140) 5.51 (140)
Depth 3.4 (86) 3.4 (86) 4.33 (110) 4.33 (110)
Weight 3P - lb. (Kg) 4.8 (2.2) 5.3 (2.4) 13.2 (6.0) 13.7 (6.2)
Connections / Terminations
Unit Mount ŶŶŶŶ
I-Line ŶŶŶŶ
Rear Connection ŶŶŶŶ
Plug-In ŶŶŶŶ
Drawout ŶŶŶŶ
Optional Lugs ŶŶŶŶ
1H and J-frame breakers with Micrologic trip units available only with 3P. The HJ, HL and the J-Frame 2P breakers are 3P modules.
2DC not available with PowerPact H, J or L-frame circuit breakers with Micrologic trip units.
3500 Vdc specific catalog numbers, ungrounded UPS systems only.
4I
cs
for 600 A L-frame circuit breaker at 525 V is 19 kA.
5OSN: Over Sized Neutral protection for neutrals carrying high currents (e.g. 3rd harmonics).
6ZSI using restraint wires.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
20
07/2014
PowerPact H-, J-, and L-frame Circuit Breaker Trip Units
Thermal-Magnetic or Electronic Trip Unit?
Thermal-magnetic trip units (available on H- and J-frame circuit breakers only) protect against
overcurrents and short-circuits using tried and true techniques. For applications requiring installation
optimization and energy efficiency, electronic trip units offering more advanced protection functions
combined with measurements.
Trip units using digital electronics are faster as well as more accurate. Wide setting ranges make
installation upgrades easier. Designed with processing capabilities, Micrologic trip units can provide
measurement information and device operating assistance. With this information, users can avoid or
deal more effectively with disturbances and can play a more active role in system operation. They can
manage the installation, anticipate events and plan any necessary servicing.

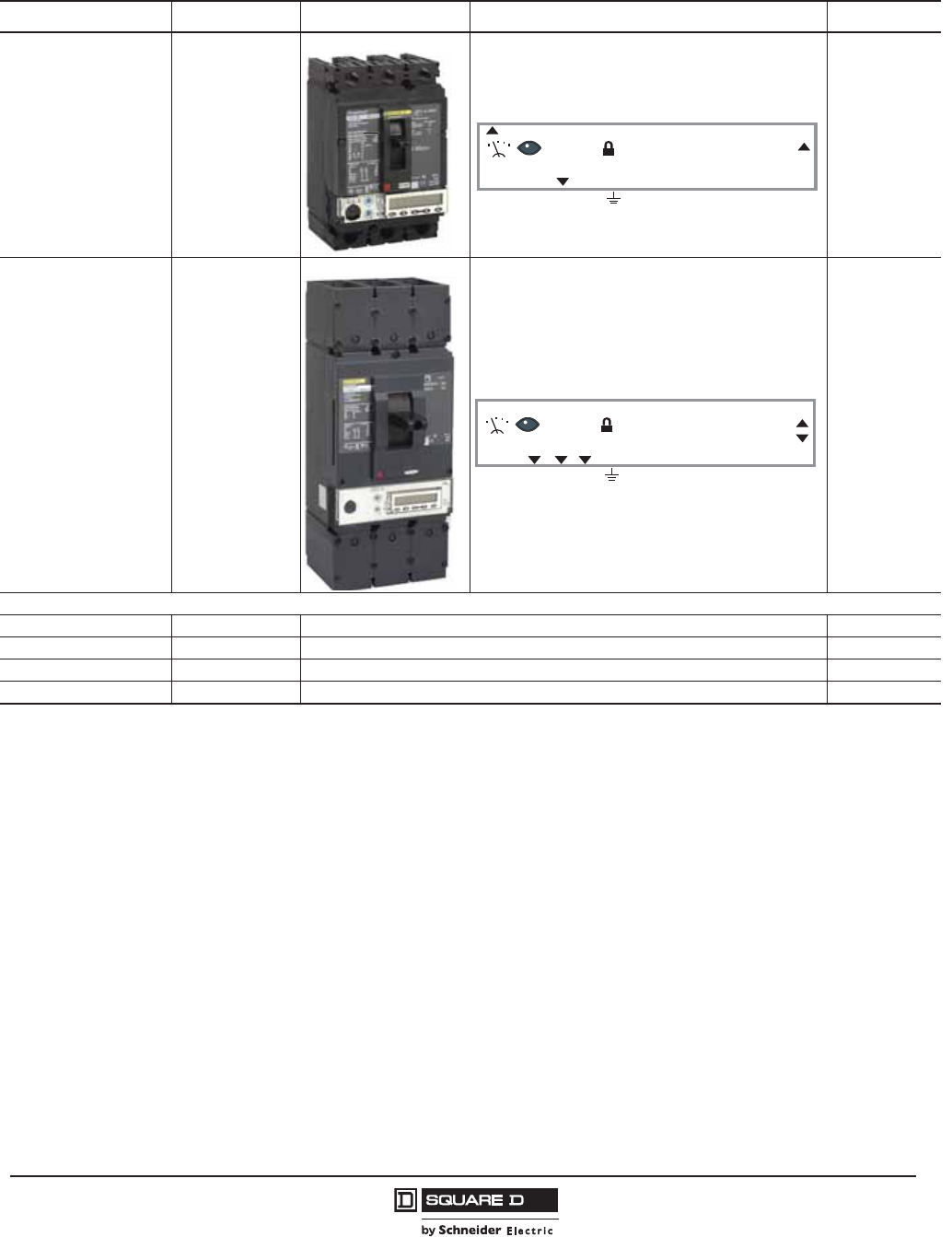

Table 9: Micrologic Trip Unit Features
Features
Micrologic Trip Unit (X = Standard Feature, O = Available Option
Standard Ammeter Energy
3.2/3.3 3.2S/3.3S 5.2A/5.3A 6.2A/6.3A 5.2E/5.3E 6.2E/6.3E
LI X
LSI1
1The LSI with 3.2S/3.3S trip units have fixed short time and long time delays.
XX X
LSIG/Ground Fault Trip2
2Requires neutral current transformer on three-phase four-wire loads.
XX
Ground-Fault Alarm Trip X X
Current Settings Directly in AmperesXXXXXX
True RMS Sensing XXXXXX
UL Listed XXXXXX
Thermal Imaging XXXXXX
LED for Long-Time Pickup XXXXXX
LED for Long-Time Alarm XXXXXX
LED GreenReady Indicator XXXXXX
Up to 12 Alarms Used Together X X X X
Digital Ammeter XXXX
Zone-Selective Interlocking3
3ZSI for H/J-frame devices is only OUT. ZSI for L-frame devices is IN and OUT.
XXXX
Communications OOOOOO
LCD Display XXXX
Front Display Module FDM121 OOOO
Advanced User Interface X X X X
Neutral Protection X X X X
Contact Wear Indication4
4Indication available using the communication system only.
XXXX
Incremental Fine Tuning of Settings X X X X
Load Profile4, 5
5% of hours in 4 current ranges: 0–49%, 50–79%, 80–89%, and >90% I
n
.
XXXX
Power Measurement XX
Power Quality Measurements XX
PowerPact™ H-, J-, and L-Frame Circuit Breakers
General Information
21
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Accurate Measurements for Complete Protection
PowerPact H-, J-, and L-frame circuit breakers devices offer excellent measurement accuracy from
15 amperes on up to the short-circuit currents. This is made possible by a new generation of current
transformers combining “iron-core” sensors for self-powered electronics and “air core” sensors
(Rogowski coils) for measurements. The protection functions are managed by an ASIC (Application
Specific Integrated Circuit) component that is independent of the measurement functions. This
independence ensures immunity to conducted and radiated disturbances and increases reliability.
Numerous Security Functions
Torque-limiting screws
The screws secure the trip unit to the circuit breaker. When the correct tightening torque is
reached, the screw heads break off. Optimum tightening avoids any risk of temperature rise. A
torque wrench is no longer required.
Easy and sure changing of trip
units
All trip units are interchangeable, without wiring. A mechanical mismatch-protection system
makes it impossible to mount a trip unit on a circuit breaker with a lower rating.

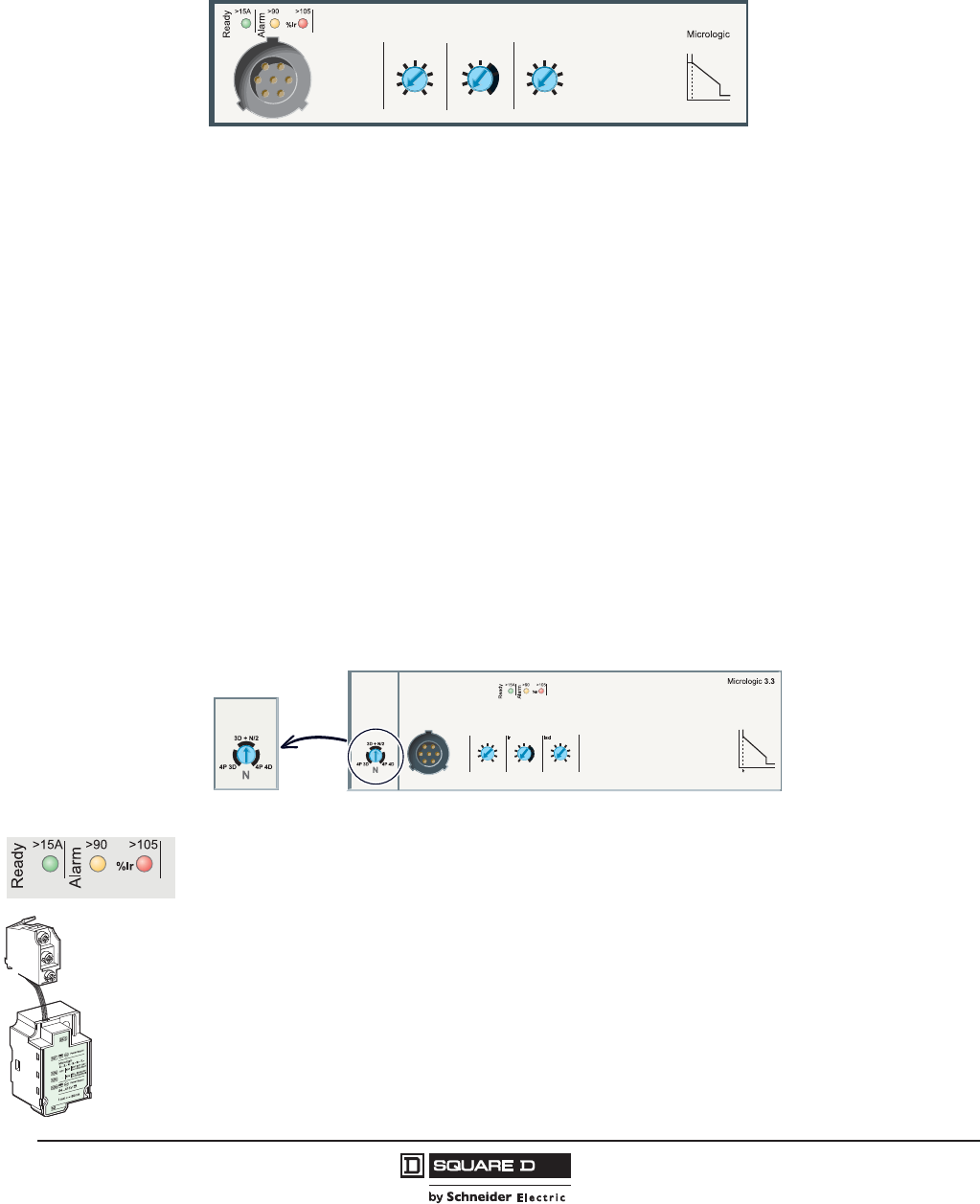

“Ready” LED for a continuous
self-test
The LED on the front of the electronic trip units indicates the result of the self-test running
continuously on the measurement system and the tripping release. As long as the green LED is
flashing, the links between the CTs, the processing electronics and the tripping mechanism are
operational. The circuit breaker is ready to protect. A minimum current of 15 to 50 A, depending
on the device, is required for this indication function.

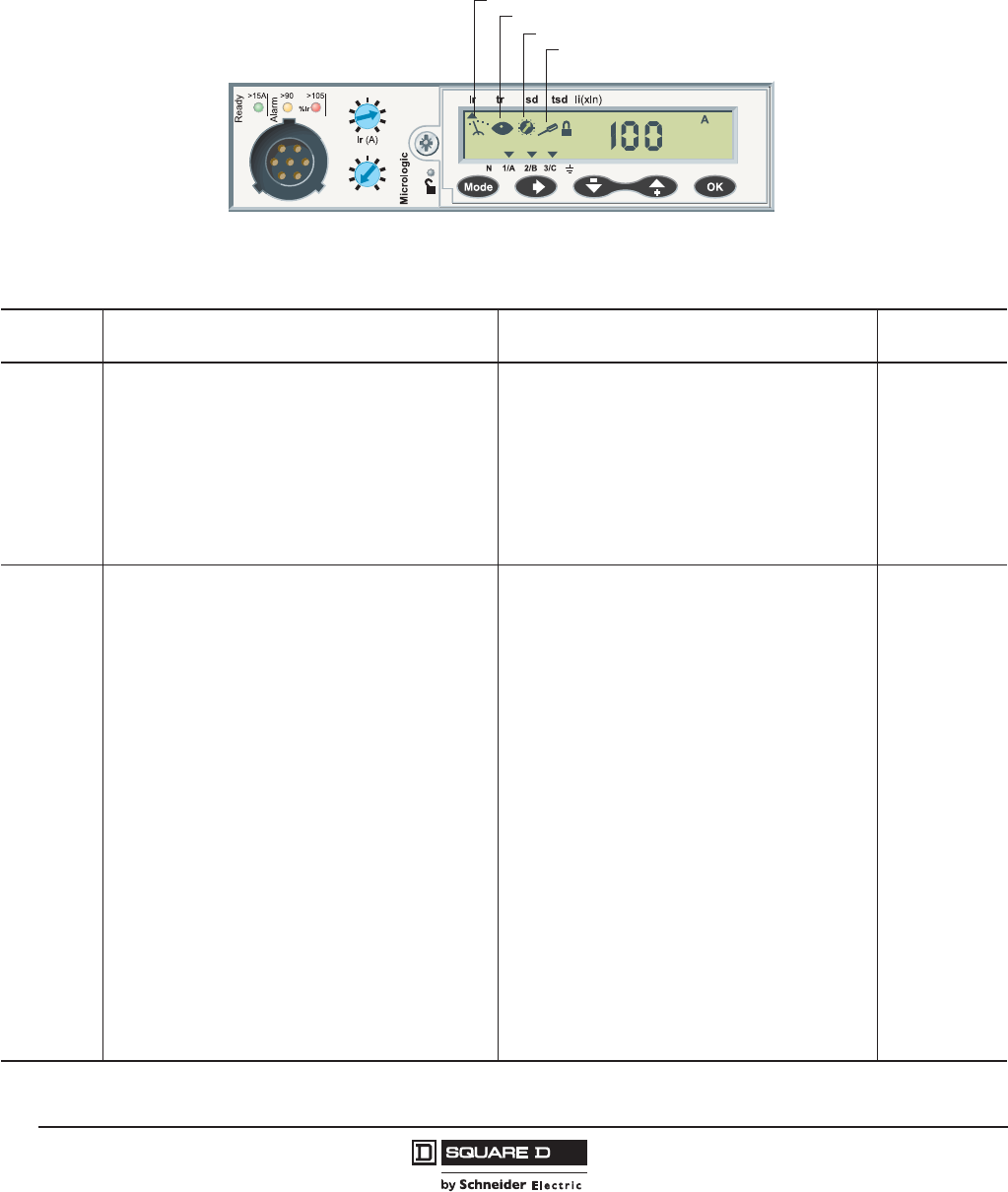

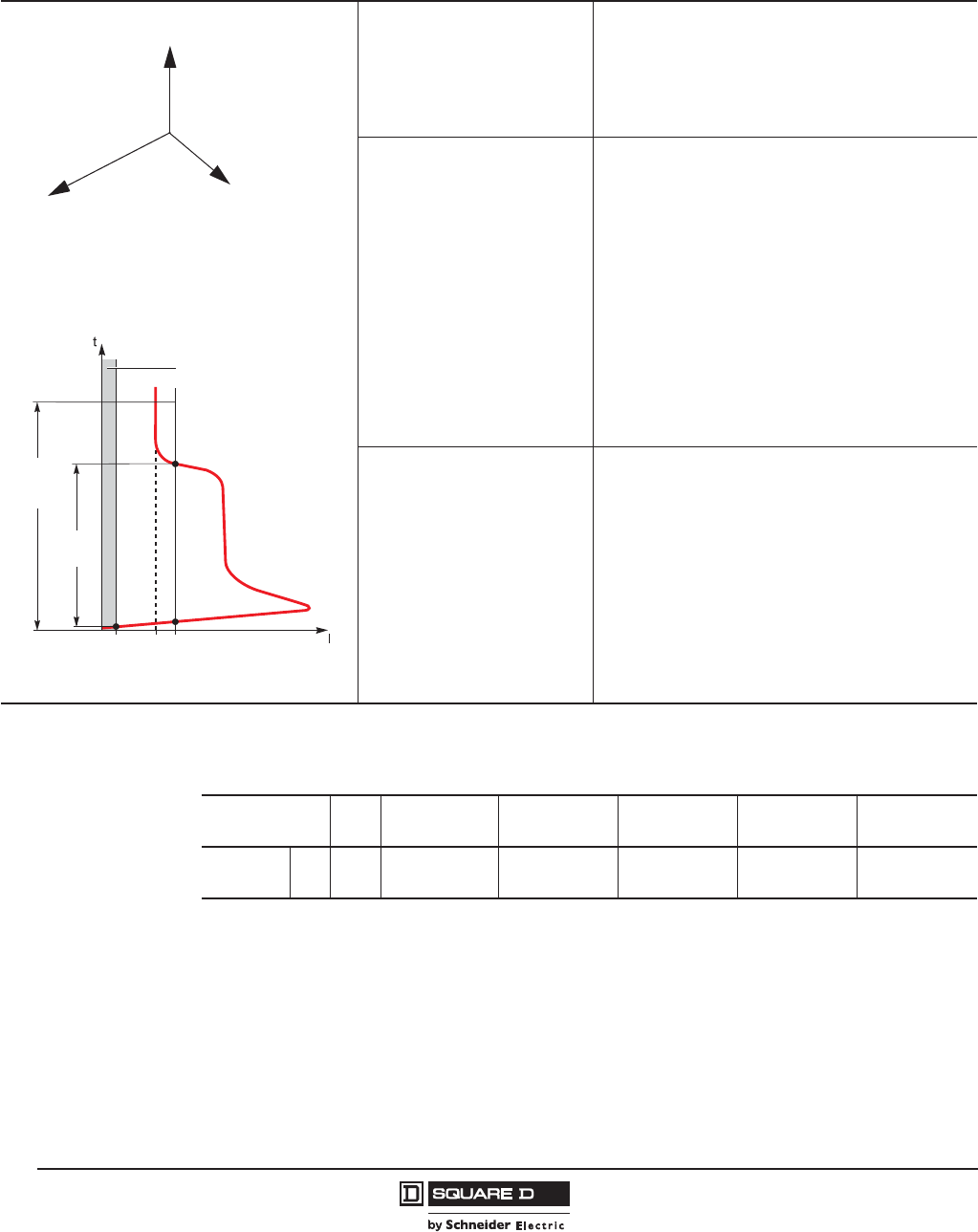

A patented dual adjustment
system for protection functions.
Available on Micrologic 5 / 6 trip units, the system consists of:
an adjustment using rotary switches sets the maximum value
an adjustment using the keypad or made remotely, fine-tunes the setting. This setting may
not exceed the first one. It can be read directly on the Micrologic trip unit screen, to within
one ampere and a fraction of a second.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
22
07/2014
Section 3—Circuit Breakers

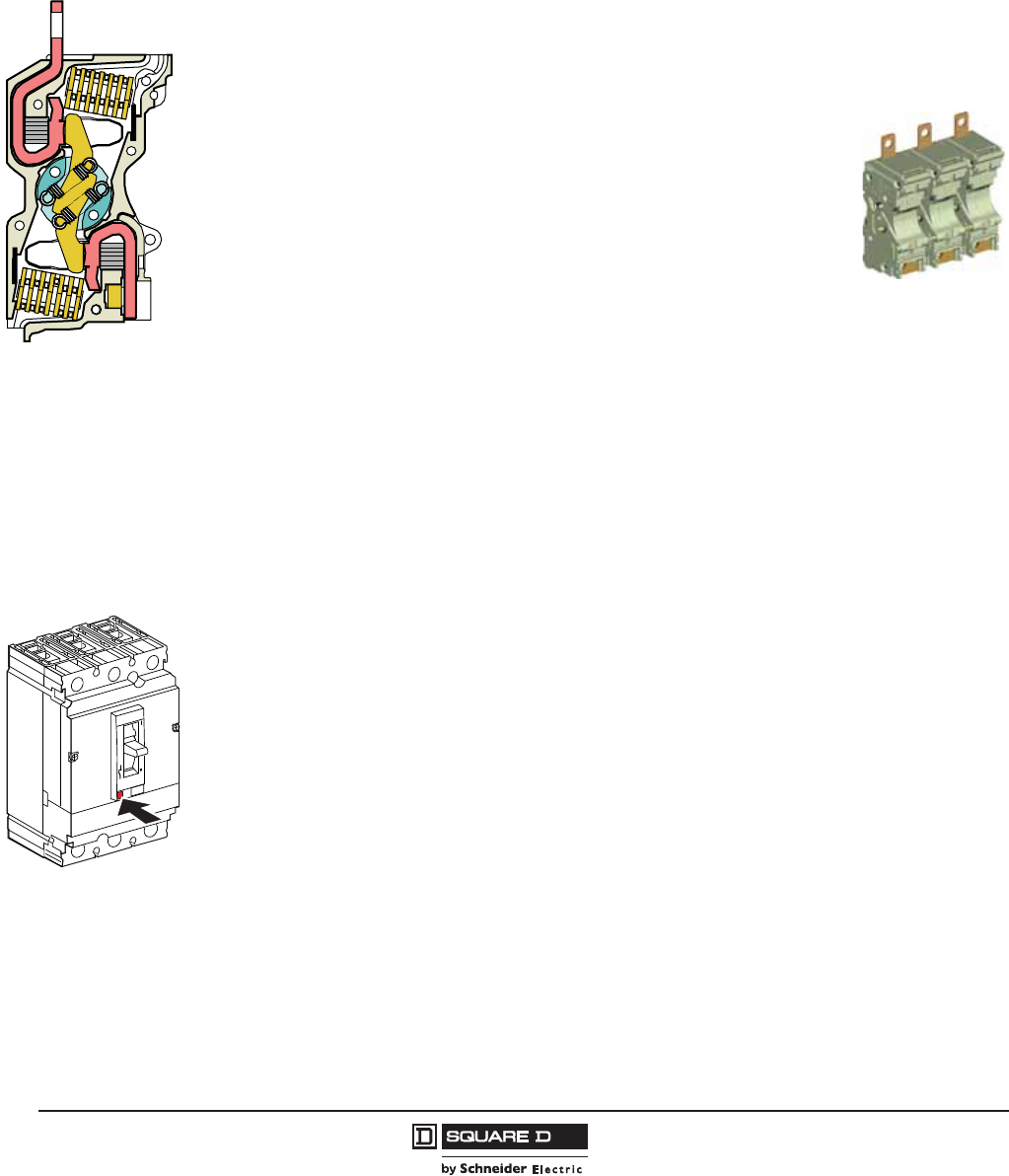

Dual-Break Rotating Contacts
All PowerPact™ H-, J-, and L-frame circuit breakers are equipped with dual-break rotating contacts
that reduce the amount of peak current during a short circuit fault. This reduces the let-through
currents and enhances equipment protection.
Reduced Let-Through Currents
The moving contact has the shape of an elongated “S” and rotates around a
floating axis. The shape of the fixed and moving contacts are such that the
repelling forces appear as soon as the circuit reaches approximately 15 times I
n
.
Due to the rotating movement, repulsion is rapid and the device greatly limits
short-circuit currents, whatever the interrupting level of the unit (D, G, J or L). The
fault current is extinguished before it can fully develop. Lower let-through currents
provide less peak energy, reducing the required bus bar bracing, lowering
enclosure pressure, and delivering improved series or combination ratings. See
page 23 for UL Current Limiting labels.
High Ampere Interrupting Ratings (AIR)
Circuit breakers are available with interrupting ratings up to:
200 kA at 240 Vac delta
200 kA at 480 Vac delta
100 kA at 600 Vac delta.
See Table 1 for additional performance levels.
Internal Operating Mechanism
PowerPact H-, J-, and L-frame circuit breakers have an over-center toggle mechanism providing quick-
make, quick-break operation. The operating mechanism is also trip-free, which allows tripping even
when the circuit breaker handle is held in the “ON” position.
Internal cross-bars provide common opening and closing of all poles with a single operating handle.
All PowerPact circuit breakers have an integral push-to-trip button in the cover to manually trip the
circuit breaker. This should be used as part of a regular preventive maintenance program.
Push-to-Trip
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
23
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved

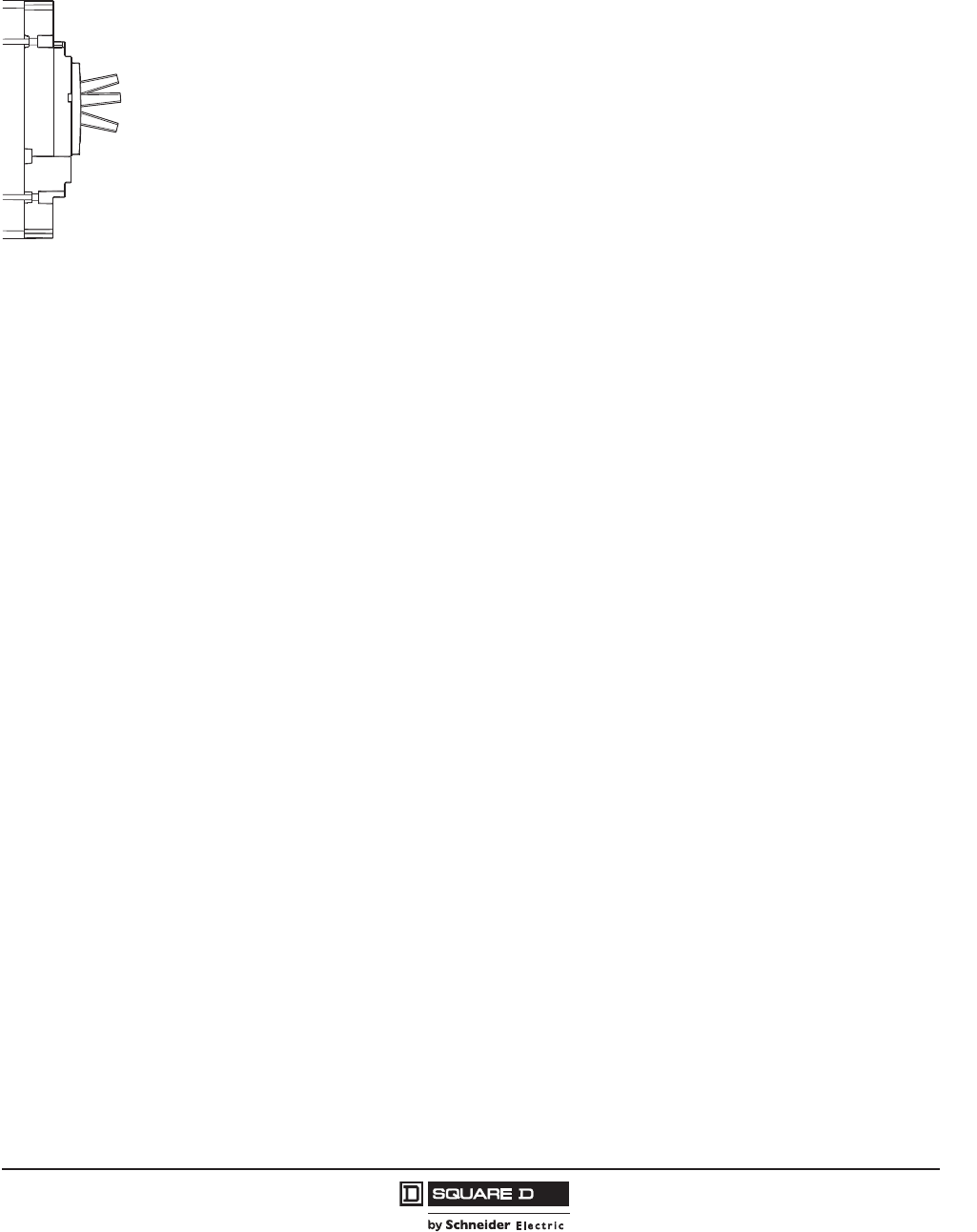

Handle Position Indication
The circuit breaker handle can assume any of three positions, ON, tripped or OFF as shown. The
center tripped position provides positive visual indication that the circuit breaker has tripped.
The circuit breaker can be reset by first pushing the handle to the extreme “OFF” position. Power can
then be restored to the load by pushing the handle to the “ON” position.
Circuit Breaker Ratings
The interrupting rating is the highest current at rated voltage the circuit breaker is designed to safely
interrupt under standard test conditions. Circuit breakers must be selected with interrupting ratings equal
to or greater than the available short-circuit current at the point where the circuit breaker is applied to the
system (unless it is a branch device in a series rated combination). Interrupting ratings are shown on
Table 8: Circuit Breakers on page 19 and on the faceplate label on the front of the circuit breaker.
Reverse Feeding of Circuit Breakers
The standard unit-mount H-, J-, and L-frame circuit breakers have sealed trip units and may be reverse
fed. See Tables 14–15 and 28–36 for catalog numbers.
Circuit breakers with field-interchangeable trip units (designated by the suffix T and labeled “LINE” and
“LOAD”) cannot be reverse fed. Neither can circuit breaker frames without terminations or trip units.
Current Limiting
The current limiting attributes of PowerPact H-, J-, and L-frame circuit breakers provide greater
protection for downstream devices by limiting the let-through current in the event of a fault. The
current-limiting capabilities of HJ/HL/HR, JJ/JL/JR, and LJ/LL/LR frame circuit breakers are
documented with Underwriters Laboratories and Canadian Standards Association. These current-
limiting circuit breakers ship with a label that identifies them as UL/CSA Current Limiting Circuit
Breakers. (The HD/HG, JD/JG, and LD/LG circuit breakers do not carry the UL Current Limiting label).
The trip curves with let-through data are available in the trip curve section in this catalog.
Please note that as let-through curves for UL Listed/CSA Certified Current-Limiting Circuit Breakers,
these curves are maximum let-through values.
100% Rated
Some models of the H-, J-, and L-frame circuit breakers are UL Listed/CSA Certified to be applied at
up to 100% of their current rating. Because of the additional heat generated, the use of specially-
designed enclosures, copper lugs on H- and J-frame circuit breakers, and 194°F (90°C) rated wire is
required when applying circuit breakers at 100% of continuous current rating. (L-frame circuit breakers
can use aluminum or copper lugs.) Markings on the circuit breaker indicate the minimum enclosure
size and ventilation required. The 194°F (90°C) wire must be sized according to the ampacities of the
167°F (75°C) wire column in the NEC. Circuit breakers with 100% rating can also be used in
applications requiring only standard (80%) continuous loading.
ON
Tripped
OFF
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
24
07/2014
100% ratings valid for:
3P H/J-frame unit mount construction only
3P/4P L-frame 250 A and 400 A unit mount construction
3P L-frame 250 A and 400 A I-Line™ construction
Corner Grounded Delta Ratings (1Ø-3Ø)
Circuit breakers suitable for corner-grounded circuits are marked 1Ø-3Ø. For additional information,
refer to data bulletin 2700DB0202R2/09.
Table 10: Corner Grounded Delta Ratings (1Ø-3Ø)
2P H-Frame 2P J-Frame
HD HG HJ
1
1Built using 3P module
HL
1
HR
1
JD
1
JG
1
JJ
1
JL
1
JR
1
Ampere Rating (A) 15–150 150–250
Voltage Rating (Vac) 240 240
UL Interrupting Rating (kA) 42 42 65 100 200 42 42 65 100 200
Figure 2: Three-Phase 240 Vac Corner-Grounded Delta System
2P
Circuit Breaker
Load
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
25
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Special Applications
Protection of Industrial Control Panels
PowerPact H-, J-, and L-frame circuit breakers are also used in industrial control panels. They serve as
an incoming devices or can be combined with contactors to protect motor feeders:
compliance with worldwide standards including IEC 60947-2 and UL 508 / CSA C22.2 N°14
overload and short-circuit protection
installation in universal and functional type

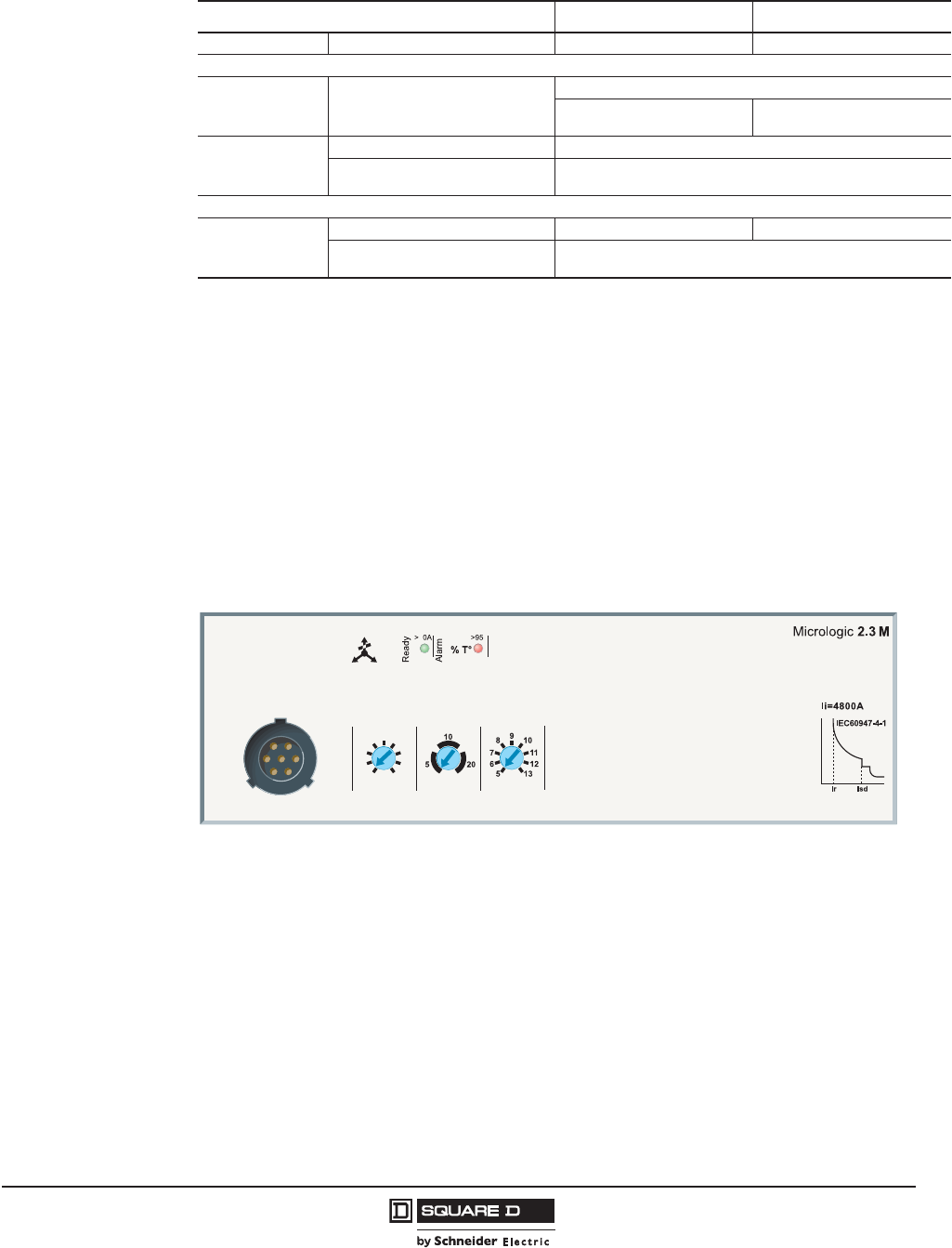

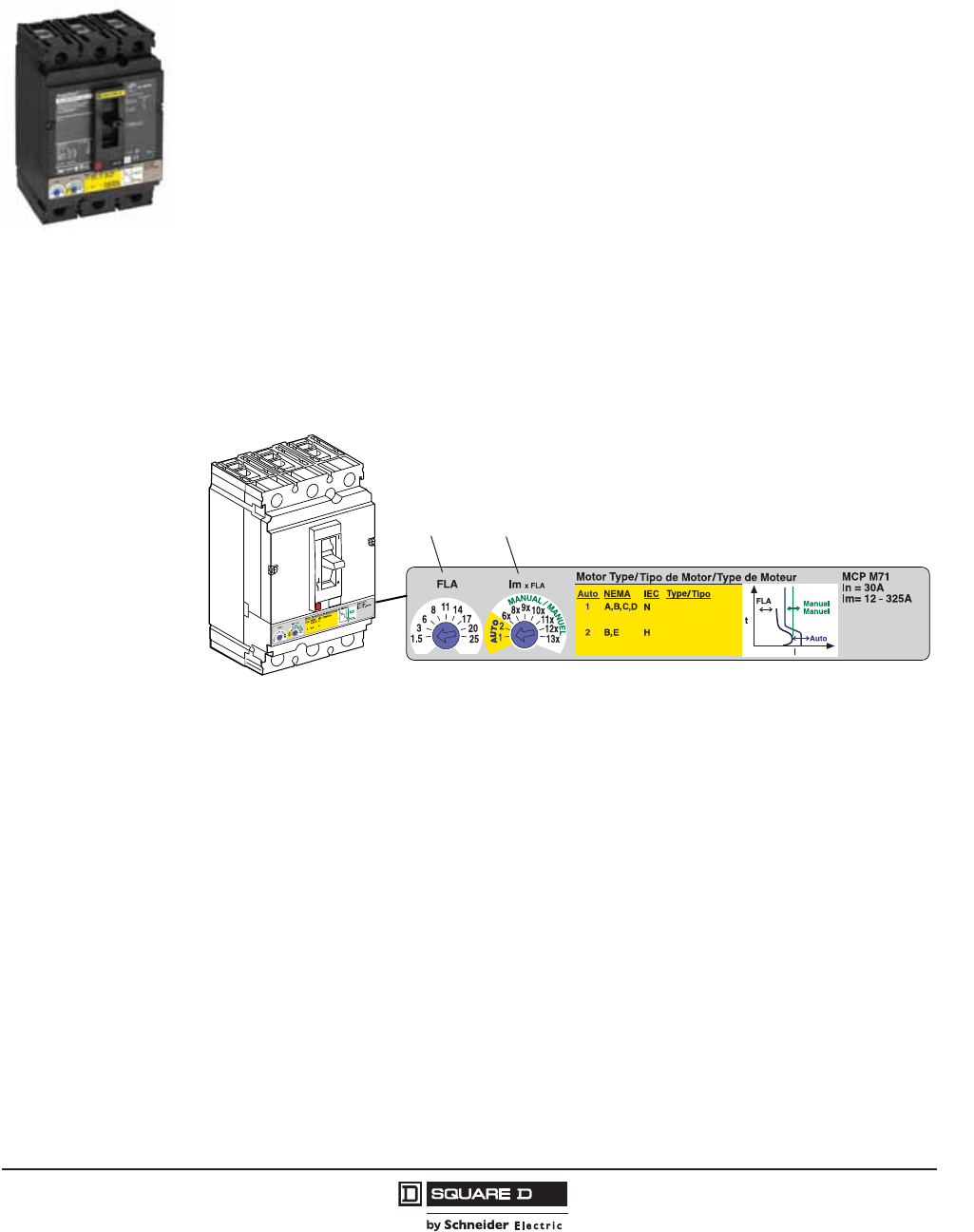

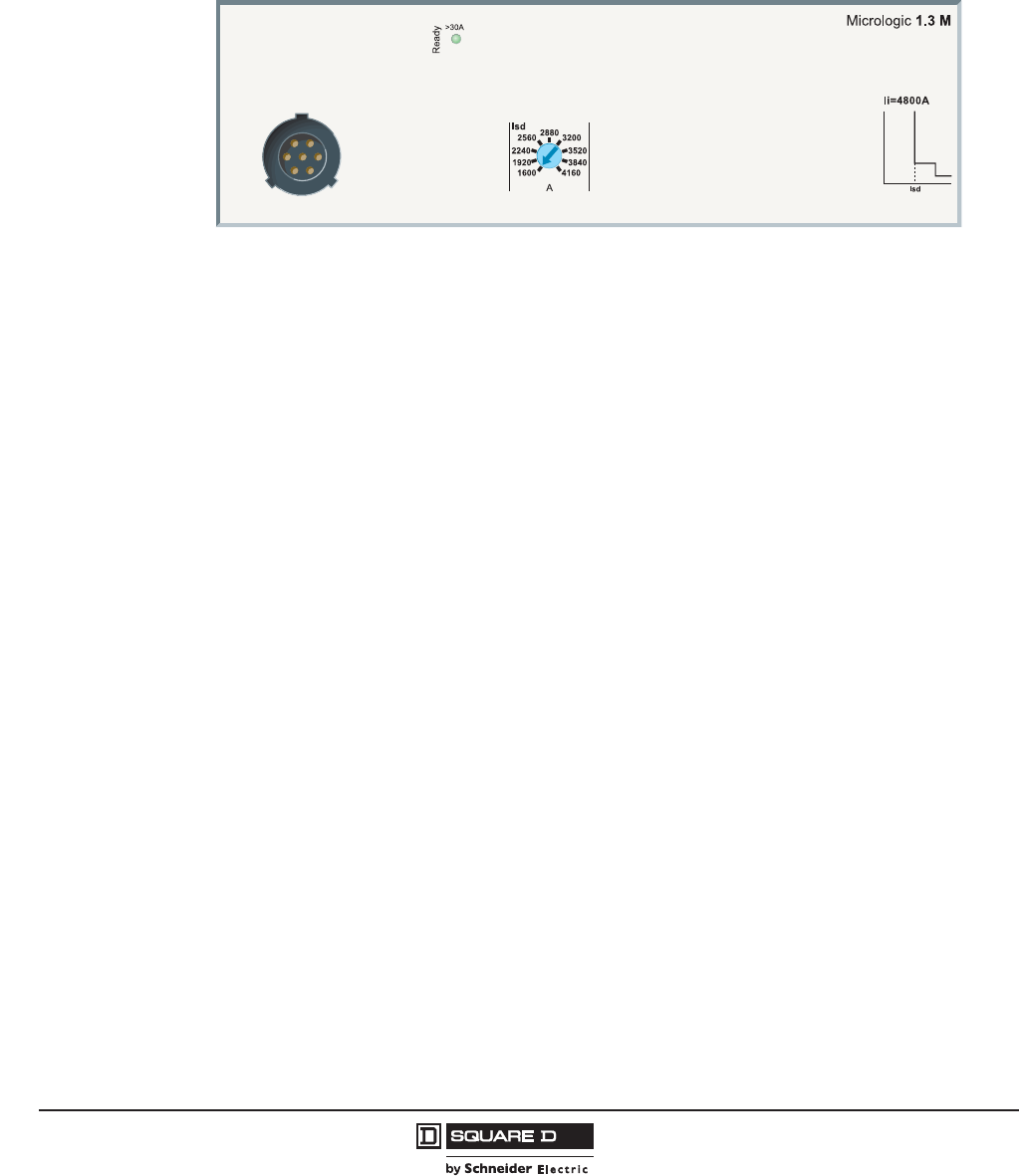

PowerPact H-, J-, and L-frame circuit breakers equipped for motor protection functions as described in
the following pages can be used in industrial control panels. The accessories for the PowerPact H-, J-,
and L-frame circuit breakers are suitable for the special needs of these applications.

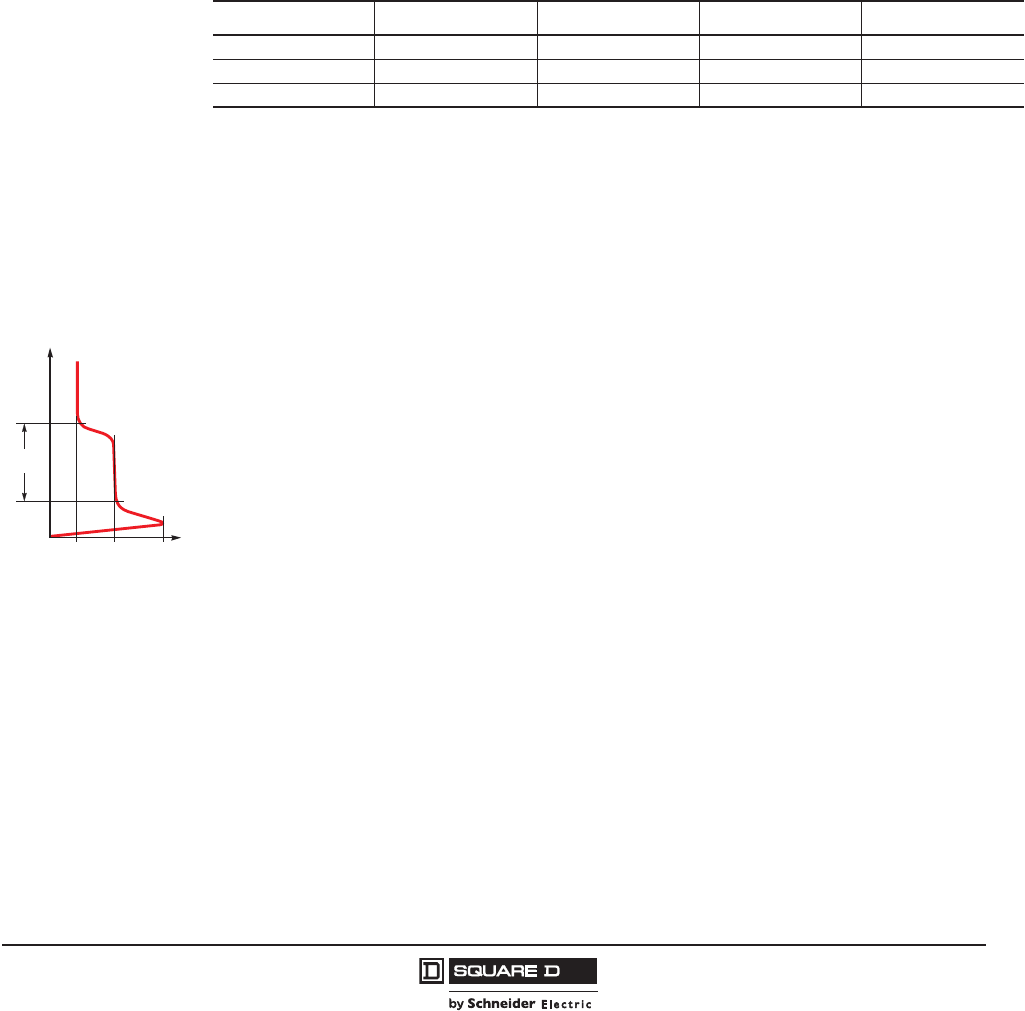

400 Hz Applications
Micrologic™ 3.2/3, 5.2/3 A or E and 6.2/3 with A or E measurement functions are suitable for 400 Hz.
The use of electronics offers the advantage of greater operating stability when the frequency varies.
However the units are still subject to temperature rise caused by the frequency.
The practical consequences are:
limit settings: see the I
r
derating table below
the long-time, short-time and instantaneous pick-ups are not modified (see pages 62 or 64)
the accuracy of the displayed measurements is 2% (class II).
Auxiliary Switch (OF) in 400 Hz Networks
Shunt Trip (MX) or Undervoltage Trip (MN) Voltage Release at 400 Hz and 440 V
For circuit breakers on 400 Hz systems, only 125 Vdc undervoltage trip (MN) or shunt trip (MX) releases
may be used. The release must be supplied by the 400 Hz system through a rectifier bridge (to be selected
from the table below) and an additional resistor with characteristics depending on the system voltage.
Table 11: Thermal Derating Maximum I
r
Setting
Circuit Breaker Maximum Setting Coefficient Max I
r
Setting at 400 Hz
H-Frame, 150 A 0.9 135
J-Frame, 250 A 0.9 225
L-Frame, 400 A 0.8 320
L-Frame, 600 A 0.65 390
Table 12: Electrical Characteristics of Auxiliary Switches
Contact Standard Low Level
Utilization cat. (IEC 60947-5-1) AC12 AC15 AC12 AC15
Operational current
24 V 6 A 6 A 5 A 3 A
40 V 6 A 6 A 5 A 3 A
110 V 6 A 5 A 5 A 2.5 A
200/240 V 6 A 4 A 5 A 2 A
380/415 V 6 A 2 A 5 A 1.5 A
Table 13: Rectifier Bridges for MN or MX Releases
Voltage Rectifier Additional Resistor
220/240 V
Thomson 110 BHz or
General Instrument W06 or
Semikron SKB at 1.2/1.3
4.2 kȍ-5 W
380/240 V Semikron SKB at 1.2/1.3 10.7 kȍ-10 W
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
26
07/2014
H- and J-Frame Catalog Numbers
Unit-Mount Circuit Breaker Catalog Numbers
Table 14: PowerPact H-Frame 150 A Unit-Mount
1
Thermal-Magnetic Circuit Breakers (600 Vac, 250 Vdc) with Factory
Sealed Trip Unit (Suitable for Reverse Connection)
Current
Rating @
40 C
Fixed AC
Magnetic Trip
Interrupting Rating
DG J
2
L
2
Hold Trip
Standard
(80%)
Rated
100% Rated
3
Standard
(80%)
Rated
100% Rated
3
Standard
(80%)
Rated
100%
Rated
3
Standard
(80%)
Rated
100%
Rated
3
H-Frame, 150 A, 2P, 600 Vac 50/60Hz, 250 Vdc
4
15 A 350 A 750 A HDL26015 HDL26015C HGL26015 HGL26015C HJL26015 HJL26015C HLL26015 HLL26015C
20 A 350 A 750 A HDL26020 HDL26020C HGL26020 HGL26020C HJL26020 HJL26020C HLL26020 HLL26020C
25 A 350 A 750 A HDL26025 HDL26025C HGL26025 HGL26025C HJL26025 HJL26025C HLL26025 HLL26025C
30 A 350 A 750 A HDL26030 HDL26030C HGL26030 HGL26030C HJL26030 HJL26030C HLL26030 HLL26030C
35 A 400 A 850 A HDL26035 HDL26035C HGL26035 HGL26035C HJL26035 HJL26035C HLL26035 HLL26035C
40 A 400 A 850 A HDL26040 HDL26040C HGL26040 HGL26040C HJL26040 HJL26040C HLL26040 HLL26040C
45 A 400 A 850 A HDL26045 HDL26045C HGL26045 HGL26045C HJL26045 HJL26045C HLL26045 HLL26045C
50 A 400 A 850 A HDL26050 HDL26050C HGL26050 HGL26050C HJL26050 HJL26050C HLL26050 HLL26050C
60 A 800 A 1450 A HDL26060 HDL26060C HGL26060 HGL26060C HJL26060 HJL26060C HLL26060 HLL26060C
70 A 800 A 1450 A HDL26070 HDL26070C HGL26070 HGL26070C HJL26070 HJL26070C HLL26070 HLL26070C
80 A 800 A 1450 A HDL26080 HDL26080C HGL26080 HGL26080C HJL26080 HJL26080C HLL26080 HLL26080C
90 A 800 A 1450 A HDL26090 HDL26090C HGL26090 HGL26090C HJL26090 HJL26090C HLL26090 HLL26090C
100 A 900 A 1700 A HDL26100 HDL26100C HGL26100 HGL26100C HJL26100 HJL26100C HLL26100 HLL26100C
110 A 900 A 1700 A HDL26110 HDL26110C HGL26110 HGL26110C HJL26110 HJL26110C HLL26110 HLL26110C
125 A 900 A 1700 A HDL26125 HDL26125C HGL26125 HGL26125C HJL26125 HJL26125C HLL26125 HLL26125C
150 A 900 A 1700 A HDL26150 HDL26150C HGL26150 HGL26150C HJL26150 HJL26150C HLL26150 HLL26150C
H-Frame, 150 A, 3P, 600 Vac 50/60Hz, 250 Vdc
15 A 350 A 750 A HDL36015 HDL36015C HGL36015 HGL36015C HJL36015 HJL36015C HLL36015 HLL36015C
20 A 350 A 750 A HDL36020 HDL36020C HGL36020 HGL36020C HJL36020 HJL36020C HLL36020 HLL36020C
25 A 350 A 750 A HDL36025 HDL36025C HGL36025 HGL36025C HJL36025 HJL36025C HLL36025 HLL36025C
30 A 350 A 750 A HDL36030 HDL36030C HGL36030 HGL36030C HJL36030 HJL36030C HLL36030 HLL36030C
35 A 400 A 850 A HDL36035 HDL36035C HGL36035 HGL36035C HJL36035 HJL36035C HLL36035 HLL36035C
40 A 400 A 850 A HDL36040 HDL36040C HGL36040 HGL36040C HJL36040 HJL36040C HLL36040 HLL36040C
45 A 400 A 850 A HDL36045 HDL36045C HGL36045 HGL36045C HJL36045 HJL36045C HLL36045 HLL36045C
50 A 400 A 850 A HDL36050 HDL36050C HGL36050 HGL36050C HJL36050 HJL36050C HLL36050 HLL36050C
60 A 800 A 1450 A HDL36060 HDL36060C HGL36060 HGL36060C HJL36060 HJL36060C HLL36060 HLL36060C
70 A 800 A 1450 A HDL36070 HDL36070C HGL36070 HGL36070C HJL36070 HJL36070C HLL36070 HLL36070C
80 A 800 A 1450 A HDL36080 HDL36080C HGL36080 HGL36080C HJL36080 HJL36080C HLL36080 HLL36080C
90 A 800 A 1450 A HDL36090 HDL36090C HGL36090 HGL36090C HJL36090 HJL36090C HLL36090 HLL36090C
100 A 900 A 1700 A HDL36100 HDL36100C HGL36100 HGL36100C HJL36100 HJL36100C HLL36100 HLL36100C
110 A 900 A 1700 A HDL36110 HDL36110C HGL36110 HGL36110C HJL36110 HJL36110C HLL36110 HLL36110C
125 A 900 A 1700 A HDL36125 HDL36125C HGL36125 HGL36125C HJL36125 HJL36125C HLL36125 HLL36125C
150 A 900 A 1700 A HDL36150 HDL36150C HGL36150 HGL36150C HJL36150 HJL36150C HLL36150 HLL36150C
1Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
2UL Listed/CSA Certified as current limiting circuit breakers.
3100% rated circuit breakers have copper lugs and can be used with copper wire only.
4HD and HG circuit breakers are true 2-pole construction.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
27
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 15: PowerPact J-Frame 250 A Unit-Mount Thermal-Magnetic Circuit Breakers with Factory Sealed Trip Unit
(Suitable for Reverse Connection)
Current
Rating
@ 40 C
Adjustable AC
Magnetic Trip
Interrupting Rating
DGJ
1
L
1
R
1
Hold Trip
Standard
(80%)
Rated
100%
Rated
2
Standard
(80%)
Rated
100%
Rated
2
Standard
(80%)
Rated
100%
Rated
2
Standard
(80%)
Rated
100%
Rated
2
Standard
(80%)
Rated
100%
Rated
2
J-Frame, 250 A, 2P, 600 Vac 50/60Hz, 250 Vdc
150 A3750 A 1500 A JDL26150 JDL26150C JGL26150 JGL26150C JJL26150 JJL26150C JLL26150 JLL26150C ——
175 A3875 A 1750 A JDL26175 JDL26175C JGL26175 JGL26175C JJL26175 JJL26175C JLL26175 JLL26175C ——
200 A41000 A 2000 A JDL26200 JDL26200C JGL26200 JGL26200C JJL26200 JJL26200C JLL26200 JLL26200C ——
225 A41125 A 2250 A JDL26225 JDL26225C JGL26225 JGL26225C JJL26225 JJL26225C JLL26225 JLL26225C ——
250 A41250 A 2500 A JDL26250 JDL26250C JGL26250 JGL26250C JJL26250 JJL26250C JLL26250 JLL26250C ——
J-Frame, 250 A, 3P, 600 Vac 50/60Hz, 250 Vdc
150 A3750 A 1500 A JDL36150 JDL36150C JGL36150 JGL36150C JJL36150 JJL36150C JLL36150 JLL36150C JRL36150 JRL36150C
175 A3875 A 1750 A JDL36175 JDL36175C JGL36175 JGL36175C JJL36175 JJL36175C JLL36175 JLL36175C JRL36175 JRL36175C
200 A41000 A 2000 A JDL36200 JDL36200C JGL36200 JGL36200C JJL36200 JJL36200C JLL36200 JLL36200C JRL36200 JRL36200C
225 A41125 A 2250 A JDL36225 JDL36225C JGL36225 JGL36225C JJL36225 JJL36225C JLL36225 JLL36225C JRL36225 JRL36225C
250 A41250 A 2500 A JDL36250 JDL36250C JGL36250 JGL36250C JJL36250 JJL36250C JLL36250 JLL36250C JRL36250 JRL36250C
1UL Listed/CSA Certified as current limiting circuit breakers.
2100% rated circuit breakers have copper lugs and can be used with copper wire only.
3Standard lug kit: AL175JD. Terminal wire range: 4–4/0 AWG Al or Cu.
4Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
28
07/2014
Table 16: H-Frame 150 A and J-Frame 250 A Electronic Trip UL Rated Circuit Breakers
(600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J
1
L
2
R
2
Standard (80%) Rated Circuit Breakers, 3P
Standard LI 3.22
60 A3
100 A3
150 A3
HDL36060U31X
HDL36100U31X
HDL36150U31X
HGL36060U31X
HGL36100U31X
HGL36150U31X
HJL36060U31X
HJL36100U31X
HJL36150U31X
HLL36060U31X
HLL36100U31X
HLL36150U31X
HRL36060U31X
HRL36100U31X
HRL36150U31X
250 A4JDL36250U31X JGL36250U31X JJL36250U31X JLL36250U31X JRL36250U31X
Standard LSI 3.2S2
60 A3
100 A3
150 A3
HDL36060U33X
HDL36100U33X
HDL36150U33X
HGL36060U33X
HGL36100U33X
HGL36150U33X
HJL36060U33X
HJL36100U33X
HJL36150U33X
HLL36060U33X
HLL36100U33X
HLL36150U33X
HRL36060U33X
HRL36100U33X
HRL36150U33X
250 A4JDL36250U33X JGL36250U33X JJL36250U33X JLL36250U33X JRL36250U33X
Ammeter LSI 5.2A
60 A3
100 A3
150 A3
HDL36060U43X
HDL36100U43X
HDL36150U43X
HGL36060U43X
HGL36100U43X
HGL36150U43X
HJL36060U43X
HJL36100U43X
HJL36150U43X
HLL36060U43X
HLL36100U43X
HLL36150U43X
HRL36060U43X
HRL36100U43X
HRL36150U43X
250 A4JDL36250U43X JGL36250U43X JJL36250U43X JLL36250U43X JRL36250U43X
Energy LSI 5.2E
60 A3
100 A3
150 A3
HDL36060U53X
HDL36100U53X
HDL36150U53X
HGL36060U53X
HGL36100U53X
HGL36150U53X
HJL36060U53X
HJL36100U53X
HJL36150U53X
HLL36060U53X
HLL36100U53X
HLL36150U53X
HRL36060U53X
HRL36100U53X
HRL36150U53X
250 A4JDL36250U53X JGL36250U53X JJL36250U53X JLL36250U53X JRL36250U53X
Ammeter LSIG 6.2A
60 A3
100 A3
150 A3
HDL36060U44X
HDL36100U44X
HDL36150U44X
HGL36060U44X
HGL36100U44X
HGL36150U44X
HJL36060U44X
HJL36100U44X
HJL36150U44X
HLL36060U44X
HLL36100U44X
HLL36150U44X
HRL36060U44X
HRL36100U44X
HRL36150U44X
250 A4JDL36250U44X JGL36250U44X JJL36250U44X JLL36250U44X JRL36250U44X
Energy LSIG 6.2E
60 A3
100 A3
150 A3
HDL36060U54X
HDL36100U54X
HDL36150U54X
HGL36060U54X
HGL36100U54X
HGL36150U54X
HJL36060U54X
HJL36100U54X
HJL36150U54X
HLL36060U54X
HLL36100U54X
HLL36150U54X
HRL36060U54X
HRL36100U54X
HRL36150U54X
250 A4JDL36250U54X JGL36250U54X JJL36250U54X JLL36250U54X JRL36250U54X
100% Rated Circuit Breakers, 3P5
Standard LI 3.22
60 A3
100 A3
150 A3
HDL36060CU31X
HDL36100CU31X
HDL36150CU31X
HGL36060CU31X
HGL36100CU31X
HGL36150CU31X
HJL36060CU31X
HJL36100CU31X
HJL36150CU31X
HLL36060CU31X
HLL36100CU31X
HLL36150CU31X
HRL36060CU31X
HRL36100CU31X
HRL36150CU31X
250 A4JDL36250CU31X JGL36250CU31X JJL36250CU31X JLL36250CU31X JRL36250CU31X
Standard LSI 3.2S2
60 A3
100 A3
150 A3
HDL36060CU33X
HDL36100CU33X
HDL36150CU33X
HGL36060CU33X
HGL36100CU33X
HGL36150CU33X
HJL36060CU33X
HJL36100CU33X
HJL36150CU33X
HLL36060CU33X
HLL36100CU33X
HLL36150CU33X
HRL36060CU33X
HRL36100CU33X
HRL36150CU33X
250 A4JDL36250CU33X JGL36250CU33X JJL36250CU33X JLL36250CU33X JRL36250CU33X
Ammeter LSI 5.2A
60 A3
100 A3
150 A3
HDL36060CU43X
HDL36100CU43X
HDL36150CU43X
HGL36060CU43X
HGL36100CU43X
HGL36150CU43X
HJL36060CU43X
HJL36100CU43X
HJL36150CU43X
HLL36060CU43X
HLL36100CU43X
HLL36150CU43X
HRL36060CU43X
HRL36100CU43X
HRL36150CU43X
250 A4JDL36250CU43X JGL36250CU43X JJL36250CU43X JLL36250CU43X JRL36250CU43X
Energy LSI 5.2E
60 A3
100 A3
150 A3
HDL36060CU53X
HDL36100CU53X
HDL36150CU53X
HGL36060CU53X
HGL36100CU53X
HGL36150CU53X
HJL36060CU53X
HJL36100CU53X
HJL36150CU53X
HLL36060CU53X
HLL36100CU53X
HLL36150CU53X
HRL36060CU53X
HRL36100CU53X
HRL36150CU53X
250 A4JDL36250CU53X JGL36250CU53X JJL36250CU53X JLL36250CU53X JRL36250CU53X
1UL Listed/CSA Certified as current limiting circuit breakers.
23P circuit breakers with this trip unit can be used for 2P applications.
3Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
4Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger binding screws provided.
5100% rated circuit breakers have copper lugs and can be used with copper wire only.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
29
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 17: J-Frame 250 A Mission Critical Electronic Trip UL Rated Circuit Breakers
(3P, 480Y/277 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
1
Type Function Trip Unit D G J L
Standard (80%) Rated Circuit Breakers, 3P
Standard LI 3.2-W 250 A JDL34250WU31X JGL34250WU31X JJL34250WU31X JLL34250WU31X
Standard LSI 3.2S-W 250 A JDL34250WU33X JGL34250WU33X JJL34250WU33X JLL34250WU33X
Ammeter LSI 5.2A-W 250 A JDL34250WU43X JGL34250WU43X JJL34250WU43X JLL34250WU43X
Energy LSI 5.2E-W 250 A JDL34250WU53X JGL34250WU53X JJL34250WU53X JLL34250WU53X
Ammeter LSIG 6.2A-W 250 A JDL34250WU44X JGL34250WU44X JJL34250WU44X JLL34250WU44X
Energy LSIG 6.2E-W 250 A JDL34250WU54X JGL34250WU54X JJL34250WU54X JLL34250WU54X
1Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger binding screws provided.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
30
07/2014
I-Line Circuit Breaker Catalog Numbers
Table 18: PowerPact H-Frame 150 A I-Line Thermal-Magnetic Circuit Breakers
1
with Factory
Sealed Trip Unit (Suitable for Reverse Connection)
2
1Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
2No 100% I-Line available.
Current
Rating at
40°C
Fixed AC Magnetic Trip Interrupting Rating
3
Standard (80%) Rated
3 () Indicates phasing. See “Catalog Numbering” on page 8.
Hold Trip D G J
4
4UL Listed/CSA Certified as current limiting circuit breakers.
L
4
H-Frame, 150 A, 2P, 600 Vac 50/60Hz, 250 Vdc
15 A 350 A 750 A HDA26015( ) HGA26015( ) HJA26015( ) HLA26015( )
20 A 350 A 750 A HDA26020( ) HGA26020( ) HJA26020( ) HLA26020( )
25 A 350 A 750 A HDA26025( ) HGA26025( ) HJA26025( ) HLA26025( )
30 A 350 A 750 A HDA26030( ) HGA26030( ) HJA26030( ) HLA26030( )
35 A 400 A 850 A HDA26035( ) HGA26035( ) HJA26035( ) HLA26035( )
40 A 400 A 850 A HDA26040( ) HGA26040( ) HJA26040( ) HLA26040( )
45 A 400 A 850 A HDA26045( ) HGA26045( ) HJA26045( ) HLA26045( )
50 A 400 A 850 A HDA26050( ) HGA26050( ) HJA26050( ) HLA26050( )
60 A 800 A 1450 A HDA26060( ) HGA26060( ) HJA26060( ) HLA26060( )
70 A 800 A 1450 A HDA26070( ) HGA26070( ) HJA26070( ) HLA26070( )
80 A 800 A 1450 A HDA26080( ) HGA26080( ) HJA26080( ) HLA26080( )
90 A 800 A 1450 A HDA26090( ) HGA26090( ) HJA26090( ) HLA26090( )
100 A 900 A 1700 A HDA26100( ) HGA26100( ) HJA26100( ) HLA26100( )
110 A 900 A 1700 A HDA26110( ) HGA26110( ) HJA26110( ) HLA26110( )
125 A 900 A 1700 A HDA26125( ) HGA26125( ) HJA26125( ) HLA26125( )
150 A 900 A 1700 A HDA26150( ) HGA26150( ) HJA26150( ) HLA26150( )
H-Frame, 150 A, 3P, 600 Vac 50/60Hz, 250 Vdc
15 A 350 A 750 A HDA36015 HGA36015 HJA36015 HLA36015
20 A 350 A 750 A HDA36020 HGA36020 HJA36020 HLA36020
25 A 350 A 750 A HDA36025 HGA36025 HJA36025 HLA36025
30 A 350 A 750 A HDA36030 HGA36030 HJA36030 HLA36030
35 A 400 A 850 A HDA36035 HGA36035 HJA36035 HLA36035
40 A 400 A 850 A HDA36040 HGA36040 HJA36040 HLA36040
45 A 400 A 850 A HDA36045 HGA36045 HJA36045 HLA36045
50 A 400 A 850 A HDA36050 HGA36050 HJA36050 HLA36050
60 A 800 A 1450 A HDA36060 HGA36060 HJA36060 HLA36060
70 A 800 A 1450 A HDA36070 HGA36070 HJA36070 HLA36070
80 A 800 A 1450 A HDA36080 HGA36080 HJA36080 HLA36080
90 A 800 A 1450 A HDA36090 HGA36090 HJA36090 HLA36090
100 A 900 A 1700 A HDA36100 HGA36100 HJA36100 HLA36100
110 A 900 A 1700 A HDA36110 HGA36110 HJA36110 HLA36110
125 A 900 A 1700 A HDA36125 HGA36125 HJA36125 HLA36125
150 A 900 A 1700 A HDA36150 HGA36150 HJA36150 HLA36150
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
31
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 19: PowerPact J-Frame 250A I-Line Thermal-Magnetic Circuit Breakers with Factory
Sealed Trip Unit (Suitable for Reverse Connection)
1
1No 100% I-Line available.
Current
Rating @
40 C
Adjustable AC
Magnetic Trip Interrupting Rating
2
Standard (80%) Rated
2() Indicates phasing. See “Catalog Numbering” on page 8.
Hold Trip D G J
3
3UL Listed/CSA Certified as current limiting.
L
3
R
3
J-Frame, 250 A, 2P, 600 Vac 50/60Hz, 250 Vdc
150 A4
4Standard lug kit: AL175JD. Terminal wire range: 4–4/0 AWG Al or Cu.
750 A 1500 A JDA26150( ) JGA26150( ) JJA26150( ) ——
175 A4875 A 1750 A JDA26175( ) JGA26175( ) JJA26175( ) ——
200 A5
5Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
1000 A 2000 A JDA26200( ) JGA26200( ) JJA26200( ) ——
225 A51125 A 2250 A JDA26225( ) JGA26225( ) JJA26225( ) ——
250 A51250 A 2500 A JDA26250( ) JGA26250( ) JJA26250( ) ——
J-Frame, 250 A, 3P, 600 Vac 50/60Hz, 250 Vdc
150 A4750 A 1500 A JDA36150 JGA36150 JJA36150 JLA36150 JRA36150
175 A4875 A 1750 A JDA36175 JGA36175 JJA36175 JLA36175 JRA36175
200 A51000 A 2000 A JDA36200 JGA36200 JJA36200 JLA36200 JRA36200
225 A51125 A 2250 A JDA36225 JGA36225 JJA36225 JLA36225 JRA36225
250 A51250 A 2500 A JDA36250 JGA36250 JJA36250 JLA36250 JRA36250
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
32
07/2014
Table 20: H-Frame 150 A and J-Frame 250 A I-Line Standard (80%) Rated Electronic Trip UL Rated Circuit Breakers
(3P, 600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
1
1No 100% I-Line available.
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J
2
2UL Listed/CSA Certified as current limiting circuit breakers.
L
2
R
2
Standard LI 3.23
33P circuit breakers with this trip unit can be used for 2P applications.
60 A4
100 A4
150 A4
4Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
HDA36060U31X
HDA36100U31X
HDA36150U31X
HGA36060U31X
HGA36100U31X
HGA36150U31X
HJA36060U31X
HJA36100U31X
HJA36150U31X
HLA36060U31X
HLA36100U31X
HLA36150U31
HRA36060U31X
HRA36100U31X
HRA36150U31
250 A3, 5
5Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger binding screws provided.
JDA36250U31X JGA36250U31X JJA36250U31X JLA36250U31X JRA36250U31X
Standard LSI 3.2S3
60 A4
100 A4
150 A4
HDA36060U33X
HDA36100U33X
HDA36150U33X
HGA36060U33X
HGA36100U33X
HGA36150U33X
HJA36060U33X
HJA36100U33X
HJA36150U33X
HLA36060U33X
HLA36100U33X
HLA36150U33X
HRA36060U33X
HRA36100U33X
HRA36150U33X
250 A3, 5JDA36250U33X JGA36250U33X JJA36250U33X JLA36250U33X JRA36250U33X
Ammeter LSI 5.2A
60 A4
100 A4
150 A4
HDA36060U43X
HDA36100U43X
HDA36150U43X
HGA36060U43X(
HGA36100U43X
HGA36150U43X
HJA36060U43X
HJA36100U43X
HJA36150U43X
HLA36060U43X
HLA36100U43X
HLA36150U43X
HRA36060U43X
HRA36100U43X
HRA36150U43X
250 A3, 5JDA36250U43X JGA36250U43X JJA36250U43X JLA36250U43X JRA36250U43X
Energy LSI 5.2E
60 A4
100 A4
150 A4
HDA36060U53X
HDA36100U53X
HDA36150U53X
HGA36060U53X
HGA36100U53X
HGA36150U53X
HJA36060U53X
HJA36100U53X
HJA36150U53X
HLA36060U53X
HLA36100U53X
HLA36150U53X
HRA36060U53X
HRA36100U53X
HRA36150U53X
250 A3, 5JDA36250U53X JGA36250U53X JJA36250U53X JLA36250U53X JRA36250U53X
Ammeter LSIG 6.2A
60 A4
100 A4
150 A4
HDA36060U44X
HDA36100U44X
HDA36150U44X
HGA36060U44X
HGA36100U44X
HGA36150U44X
HJA36060U44X
HJA36100U44X
HJA36150U44X
HLA36060U44X
HLA36100U44X
HLA36150U44X
HRA36060U44X
HRA36100U44X
HRA36150U44X
250 A3, 5JDA36250U44X JGA36250U44X JJA36250U44X JLA36250U44X JRA36250U44X
Energy LSIG 6.2E
60 A4
100 A4
150 A4
HDA36060U54X
HDA36100U54X
HDA36150U54X
HGA36060U54X
HGA36100U54X
HGA36150U54X
HJA36060U54X
HJA36100U54X
HJA36150U54X(
HLA36060U54X
HLA36100U54X
HLA36150U54X
HRA36060U54X
HRA36100U54X
HRA36150U54X
250 A3, 5JDA36250U54X JGA36250U54X JJA36250U54X JLA36250U54X JRA36250U54X
Table 21: J-Frame 250 A Mission Critical I-Line Standard (80%) Rated Electronic Trip UL Rated Circuit Breakers
(3P, 480Y/277 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
1
.
Type Function Trip Unit D G J L
Standard LI 3.2-W 250 A JDA34250WU31X JGA34250WU31X JJA34250WU31X JLA34250WU31X
Standard LSI 3.2S-W 250 A JDA34250WU33X JGA34250WU33X JJA34250WU33X JLA34250WU33X
Ammeter LSI 5.2A-W 250 A JDA34250WU43X JGA34250WU43X JJA34250WU43X JLA34250WU43X
Energy LSI 5.2E-W 250 A JDA34250WU53X JGA34250WU53X JJA34250WU53X JLA34250WU53X
Ammeter LSIG 6.2A-W 250 A JDA34250WU44X JGA34250WU44X JJA34250WU44X JLA34250WU44X
Energy LSIG 6.2E-W 250 A JDA34250WU54X JGA34250WU54X JJA34250WU54X JLA34250WU54X
1Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger binding screws provided.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
33
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Circuit Breakers with Field-Interchangeable Trip Units Catalog Numbers
Table 22: H-Frame 150 A Circuit Breaker Frame
1
with Field-Interchangeable
Thermal-Magnetic Trip Units
2
(3P, 600 Vac, 250 Vdc)
1Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
2Circuit breakers will be labeled with Line and Load markings and are not suitable for reverse connections.
Only available on standard (80%) rated 3P unit-mount circuit breakers. Not available in R interrupting rating. Not available with
I-Line or Plug-In constructions.
Ampere
Rating
Fixed AC
Magnetic Trip
Interrupting Rating
DGJ
3
3UL Listed/CSA Certified as current limiting circuit breakers.
L
3
Hold Trip Cat. No. Cat. No. Cat. No. Cat. No.
15 A 350 A 750 A HDL36015T HGL36015T HJL36015T HLL36015T
20 A 350 A 750 A HDL36020T HGL36020T HJL36020T HLL36020T
25 A 350 A 750 A HDL36025T HGL36025T HJL36025T HLL36025T
30 A 350 A 750 A HDL36030T HGL36030T HJL36030T HLL36030T
35 A 400 A 850 A HDL36035T HGL36035T HJL36035T HLL36035T
40 A 400 A 850 A HDL36040T HGL36040T HJL36040T HLL36040T
45 A 400 A 850 A HDL36045T HGL36045T HJL36045T HLL36045T
50 A 400 A 850 A HDL36050T HGL36050T HJL36050T HLL36050T
60 A 800 A 1450 A HDL36060T HGL36060T HJL36060T HLL36060T
70 A 800 A 1450 A HDL36070T HGL36070T HJL36070T HLL36070T
80 A 800 A 1450 A HDL36080T HGL36080T HJL36080T HLL36080T
90 A 800 A 1450 A HDL36090T HGL36090T HJL36090T HLL36090T
100 A 900 A 1700 A HDL36100T HGL36100T HJL36100T HLL36100T
110 A 900 A 1700 A HDL36110T HGL36110T HJL36110T HLL36110T
125 A 900 A 1700 A HDL36125T HGL36125T HJL36125T HLL36125T
150 A 900 A 1700 A HDL36150T HGL36150T HJL36150T HLL36150T
Table 23: J-Frame 250 A Circuit Breaker Frame with Field-Interchangeable
Thermal-Magnetic Trip Units
1
(3P, 600 Vac, 250 Vdc)
1Circuit breakers will be labeled with Line and Load markings and are not suitable for reverse connections.
Only available on standard (80%) rated 3P unit-mount circuit breakers. Not available in R interrupting rating. Not available with
I-Line™ or Plug-In constructions.
Ampere
Rating
Adjustable AC
Magnetic Trip
Interrupting Rating
DG J
2
2UL Listed/CSA Certified as current limiting circuit breakers.
L
3
Low High Cat. No. Cat. No. Cat. No. Cat. No.
150 A3
3Standard lug kit: AL175JD. Terminal wire range: 4–4/0 AWG Al or Cu.
750 A 1500 A JDL36150T JGL36150T JJL36150T JLL36150T
175 A3875 A 1750 A JDL36175T JGL36175T JJL36175T JLL36175T
200 A4
4Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
1000 A 2000 A JDL36200T JGL36200T JJL36200T JLL36200T
225 A41125 A 2250 A JDL36225T JGL36225T JJL36225T JLL36225T
250 A41250 A 2500 A JDL36250T JGL36250T JJL36250T JLL36250T
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
34
07/2014

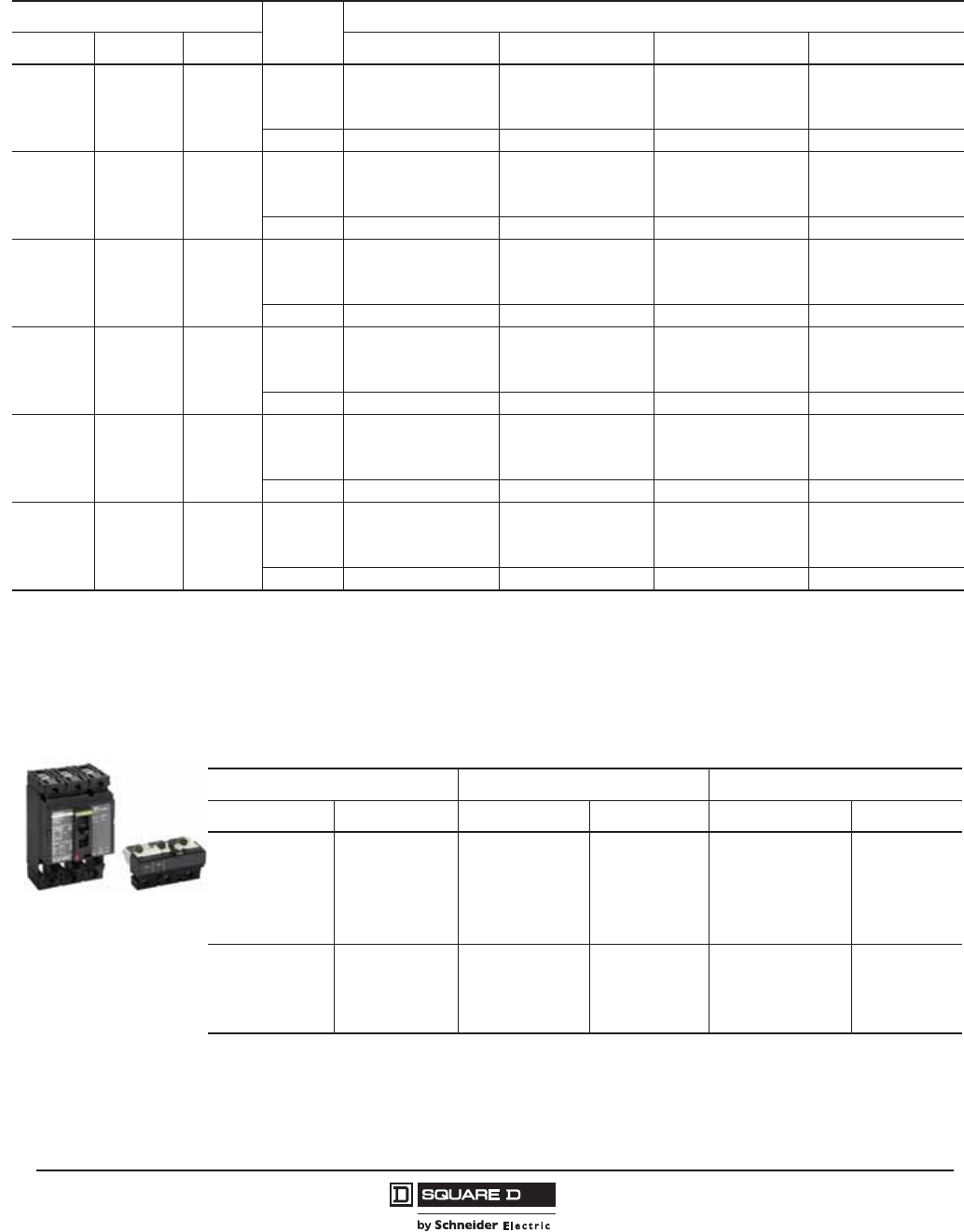

Table 24: H-Frame 150 A and J-Frame 250 A 3P Circuit Breakers with Lugs and Field-Interchangeable Electronic Trip
Units
1
,
2
(Standard (80%) Rated, 600 Vac, 50/60 Hz)
Electronic Trip Unit Sensor
Size
Interrupting Rating
Type Function Trip Unit D G J
3
L
3
Standard LI 3.2
60 A4
100 A4
150 A4
HDL36060TU31X
HDL36100TU31X
HDL36150TU31X
HGL36060TU31X
HGL36100TU31X
HGL36150TU31X
HJL36060TU31X
HJL36100TU31X
HJL36150TU31X
HLL36060TU31X
HLL36100TU31X
HLL36150TU31X
250 A5JDL36250TU31X JGL36250TU31X JJL36250TU31X JLL36250TU31X
Standard LSI 3.2S
60 A4
100 A4
150 A4
HDL36060TU33X
HDL36100TU33X
HDL36150TU33X
HGL36060TU33X
HGL36100TU33X
HGL36150TU33X
HJL36060TU33X
HJL36100TU33X
HJL36150TU33X
HLL36060TU33X
HLL36100TU33X
HLL36150TU33X
250 A5JDL36250TU33X JGL36250TU33X JJL36250TU33X JLL36250TU33X
Ammeter LSI 5.2A
60 A4
100 A4
150 A4
HDL36060TU43X
HDL36100TU43X
HDL36150TU43X
HGL36060TU43X
HGL36100TU43X
HGL36150TU43X
HJL36060TU43X
HJL36100TU43X
HJL36150TU43X
HLL36060TU43X
HLL36100TU43X
HLL36150TU43X
250 A5JDL36250TU43X JGL36250TU43X JJL36250TU43X JLL36250TU43X
Energy LSI 5.2E
60 A4
100 A4
150 A4
HDL36060TU53X
HDL36100TU53X
HDL36150TU53X
HGL36060TU53X
HGL36100TU53X
HGL36150TU53X
HJL36060TU53X
HJL36100TU53X
HJL36150TU53X
HLL36060TU53X
HLL36100TU53X
HLL36150TU53X
250 A5JDL36250TU53X JGL36250TU53X JJL36250TU53X JLL36250TU53X
Ammeter LSIG 6.2A
60 A4
100 A4
150 A4
HDL36060TU44X
HDL36100TU44X
HDL36150TU44X
HGL36060TU44X
HGL36100TU44X
HGL36150TU44X
HJL36060TU44X
HJL36100TU44X
HJL36150TU44X
HLL36060TU44X
HLL36100TU44X
HLL36150TU44X
250 A5JDL36250TU44X JGL36250TU44X JJL36250TU44X JLL36250TU44X
Energy LSIG 6.2E
60 A4
100 A4
150 A4
HDL36060TU54X
HDL36100TU54X
HDL36150TU54X
HGL36060TU54X
HGL36100TU54X
HGL36150TU54X
HJL36060TU54X
HJL36100TU54X
HJL36150TU54X
HLL36060TU54X
HLL36100TU54X
HLL36150TU54X
250 A5JDL36250TU54X JGL36250TU54X JJL36250TU54X JLL36250TU54X
1Circuit breakers will be labeled with Line and Load markings and are not suitable for reverse connections.
2Only available on 3P unit-mount circuit breakers. Not available in R interrupting rating. Not available with I-Line or Plug-in constructions.
3UL Listed/CSA Certified as current limiting circuit breakers.
4Standard lug kit: AL150HD. Terminal wire range: 14–3/0 AWG Al or Cu.
5Standard lug kit: AL250JD. Terminal wire range: 3/0 AWG–350 kcmil Al or Cu.
For smaller wire range (4–4/0 AWG Al or Cu), replace the lug’s wire binding screws with the larger binding screws provided.
Table 25: H-Frame and J-Frame 3P Field-Installable Thermal-Magnetic Trip Units
15–60 A H-Frame 70–150 A H-Frame 150–250 A J-Frame
Amperage Cat. No. Amperage Cat. No. Amperage Cat. No.
15 A HT3015 70 A HT3070 150 A JT3150
20 A HT3020 80 A HT3080 175 A JT3175
25 A HT3025 90 A HT3090 200 A JT3200
30 A HT3030 100 A HT3100 225 A JT3225
35 A HT3035 110 A HT3110 250 A JT3250
40 A HT3040 125 A HT3125 — —
45 A HT3045 150 A HT3150 — —
50 A HT3050 — —
60 A HT3060 — —
H-Frame Trip Unit
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
35
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 26: H-Frame and J-Frame 3P Field-Installable Micrologic Electronic Trip Units
1
1Electronic trip units cannot be used for DC applications.
Electronic Trip Unit
Ampere Settings Trip Unit
Cat. No.
Type Function Trip Unit
Standard
LI 3.2
15-20-25-30-35-40-45-50-60 HE3060U31X
35-40-45-50-60-70-80-90-100 HE3100U31X
50-60-70-80-90-100-110-125-150 HE3150U31X
70-80-100-125-150-175-200-225-250 JE3250U31X
LSI 3.2S
15-20-25-30-35-40-45-50-60 HE3060U33X
35-40-45-50-60-70-80-90-100 HE3100U33X
50-60-70-80-90-100-110-125-150 HE3150U33X
70-80-100-125-150-175-200-225-250 JE3250U33X
Ammeter
LSI 5.2A
15–60 HE3060U43X
35–100 HE3100U43X
50–150 HE3150U43X
70–250 JE3250U43X
LSIG 6.2A
15–60 HE3060U44X
35–100 HE3100U44X
50–150 HE3150U44X
70–250 JE3250U44X
Energy
LSI 5.2E
15–60 HE3060U53X
35–100 HE3100U53X
50–150 HE3150U53X
70–250 JE3250U53X
LSIG 6.2E
15–60 HE3060U54X
35–100 HE3100U54X
50–150 HE3150U54X
70–250 JE3250U54X
Table 27: H-Frame 150A and J-Frame 250 A 3P Basic Circuit Breaker Frame Without
Terminations or Trip Unit (600 Vac, 250 Vdc
1
)
1Not suitable for reverse connection.
Circuit
Breaker
Frame
Ampere
Rating
Interrupting Rating
DG J
2
2UL Listed/CSA Certified as current limiting circuit breakers.
L
2
Cat. No. Cat. No. Cat. No. Cat. No.
H-Frame3
3Field-installed trip units must match frame ampere rating.
15–60 A HDF36000F06 HGF36000F06 HJF36000F06 HLF36000F06
70–150 A HDF36000F15 HGF36000F15 HJF36000F15 HLF36000F15
J-Frame 150–250 A JDF36000F25 JGF36000F25 JJF36000F25 JLF36000F25
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
36
07/2014
L-Frame Circuit Breaker Catalog Numbers
Unit-Mount Circuit Breaker Catalog Numbers
Table 28: L-Frame 600 A Electronic Trip UL Rated 3P Circuit Breakers
(600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating (2nd Letter of Catalog Number)
Type Function Trip Unit D G J
1
L
1
R
1
Standard (80%) Rated, 600 Vac, 50/60 Hz
Standard LI 3.32
250 A3LDL36250U31X LGL36250U31X LJL36250U31X LLL36250U31X LRL36250U31X
400 A4
600 A4
LDL36400U31X
LDL36600U31X
LGL36400U31X
LGL36600U31X
LJL36400U31X
LJL36600U31X
LLL36400U31X
LLL36600U31X
LRL36400U31X
LRL36600U31X
Standard LSI 3.3S2
250 A3LDL36250U33X LGL36250U33X LJL36250U33X LLL36250U33X LRL36250U33X
400 A4
600 A4
LDL36400U33X
LDL36600U33X
LGL36400U33X
LGL36600U33X
LJL36400U33X
LJL36600U33X
LLL36400U33X
LLL36600U33X
LRL36400U33X
LRL36600U33X
Ammeter LSI 5.3A 400 A4
600 A4
LDL36400U43X
LDL36600U43X
LGL36400U43X
LGL36600U43X
LJL36400U43X
LJL36600U43X
LLL36400U43X
LLL36600U43X
LRL36400U43X
LRL36600U43X
Energy LSI 5.3E 400 A4
600 A4
LDL36400U53X
LDL36600U53X
LGL36400U53X
LGL36600U53X
LJL36400U53X
LJL36600U53X
LLL36400U53X
LLL36600U53X
LRL36400U53X
LRL36600U53X
Ammeter LSIG 6.3A 400 A4
600 A4
LDL36400U44X
LDL36600U44X
LGL36400U44X
LGL36600U44X
LJL36400U44X
LJL36600U44X
LLL36400U44X
LLL36600U44X
LRL36400U44X
LRL36600U44X
Energy LSIG 6.3E 400 A4
600 A4
LDL36400U54X
LDL36600U54X
LGL36400U54X
LGL36600U54X
LJL36400U54X
LJL36600U54X
LLL36400U54X
LLL36600U54X
LRL36400U54X
LRL36600U54X
100% Rated, 600 Vac, 50/60 Hz
Standard LI 3.32250 A3LDL36250CU31X LGL36250CU31X LJL36250CU31X LLL36250CU31X LRL36250CU31X
400 A4LDL36400CU31X LGL36400CU31X LJL36400CU31X LLL36400CU31X LRL36400CU31X
Standard LSI 3.3S2250 A3LDL36250CU33X LGL36250CU33X LJL36250CU33X LLL36250CU33X LRL36250CU33X
400 A4LDL36400CU33X LGL36400CU33X LJL3640C0U33X LLL36400CU33X LRL36400CU33X
Ammeter LSI 5.3A 400 A4LDL36400CU43X LGL36400CU43X LJL36400CU43X LLL36400CU43X LRL36400CU43X
Energy LSI 5.3E 400 A4LDL36400CU53X LGL36400CU53X LJL36400CU53X LLL36400CU53X LRL36400CU53X
Ammeter LSIG 6.3A 400 A4LDL36400CU44X LGL36400CU44X LJL36400CU44X LLL36400CU44X LRL36400CU44X
Energy LSIG 6.3E 400 A4LDL36400CU54X LGL36400CU54X LJL36400CU54X LLL36400CU54X LRL36400CU54X
1UL Listed/CSA Certified as current limiting circuit breakers.
23P circuit breakers with this trip unit can be used for 2P applications.
3Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
4Standard lug kit: AL600LS52K3. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
37
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 29: L-Frame 600 A Mission Critical Standard (100%
1
) Rated Electronic Trip UL Rated 3P Circuit Breakers
(480Y/277 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating (2nd Letter of Catalog Number)
Type Function Trip Unit D G J L
Standard LI 3.3-W
250 A2LDL34250WU31X LGL34250WU31X LJL34250WU31X LLL34250WU31X
400 A3
600 A3
LDL34400WU31X
LDL34600WU31X
LGL34400WU31X
LGL34600WU31X
LJL34400WU31X
LJL34600WU31X
LLL34400WU31X
LLL34600WU31X
Standard LSI 3.3S-W
250 A2LDL34250WU33X LGL34250WU33X LJL34250WU33X LLL34250WU33X
400 A3
600 A3
LDL34400WU33X
LDL34600WU33X
LGL34400WU33X
LGL34600WU33X
LJL34400WU33X
LJL34600WU33X
LLL34400WU33X
LLL34600WU33X
Ammeter LSI 5.3A-W 400 A3
600 A3
LDL34400WU43X
LDL34600WU43X
LGL34400WU43X
LGL34600WU43X
LJL34400WU43X
LJL34600WU43X
LLL34400WU43X
LLL34600WU43X
Energy LSI 5.3E-W 400 A3
600 A3
LDL34400WU53X
LDL34600WU53X
LGL34400WU53X
LGL34600WU53X
LJL34400WU53X
LJL34600WU53X
LLL34400WU53X
LLL34600WU53X
Ammeter LSIG 6.3A-W 400 A3
600 A3
LDL34400WU44X
LDL34600WU44X
LGL34400WU44X
LGL34600WU44X
LJL34400WU44X
LJL34600WU44X
LLL34400WU44X
LLL34600WU44X
Energy LSIG 6.3E-W 400 A3
600 A3
LDL34400WU54X
LDL34600WU54X
LGL34400WU54X
LGL34600WU54X
LJL34400WU54X
LJL34600WU54X
LLL34400WU54X
LLL34600WU54X
1Standard rating is 100% for 250 and 400 A only. Standard rating is 80% for 600 A.
2Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
3Standard lug kit: AL600LS52K3. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
38
07/2014
Table 30: L-Frame 600 A Electronic Trip UL Rated 4P Circuit Breakers
(600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating (2nd Letter of Catalog Number)
Type Function Trip Unit D G J
1
L
1
R
1
Standard (80%) Rated, 600 Vac, 50/60 Hz
Standard LI 3.3
250 A2LDL46250U31X LGL46250U31X LJL46250U31X LLL46250U31X LRL46250U31X
400 A3
600 A3
LDL46400U31X
LDL46600U31X
LGL46400U31X
LGL46600U31X
LJL46400U31X
LJL46600U31X
LLL46400U31X
LLL46600U31X
LRL46400U31X
LRL46600U31X
Standard LSI 3.3S
250 A2LDL46250U33X LGL46250U33X LJL46250U33X LLL46250U33X LRL46250U33X
400 A3
600 A3
LDL46400U33X
LDL46600U33X
LGL46400U33X
LGL46600U33X
LJL46400U33X
LJL46600U33X
LLL46400U33X
LLL46600U33X
LRL46400U33X
LRL46600U33X
Ammeter LSI 5.3A 400 A3
600 A3
LDL46400U43X
LDL46600U43X
LGL46400U43X
LGL46600U43X
LJL46400U43X
LJL46600U43X
LLL46400U43X
LLL46600U43X
LRL46400U43X
LRL46600U43X
Energy LSI 5.3E 400 A3
600 A3
LDL46400U53X
LDL46600U53X
LGL46400U53X
LGL46600U53X
LJL46400U53X
LJL46600U53X
LLL46400U53X
LLL46600U53X
LRL46400U53X
LRL46600U53X
Ammeter LSIG 6.3A 400 A3
600 A3
LDL46400U44X
LDL46600U44X
LGL46400U44X
LGL46600U44X
LJL46400U44X
LJL46600U44X
LLL46400U44X
LLL46600U44X
LRL46400U44X
LRL46600U44X
Energy LSIG 6.3E 400 A3
600 A3
LDL46400U54X
LDL46600U54X
LGL46400U54X
LGL46600U54X
LJL46400U54X
LJL46600U54X
LLL46400U54X
LLL46600U54X
LRL46400U54X
LRL46600U54X
100% Rated, 600 Vac, 50/60 Hz
Standard LI 3.3 250 A2LDL46250CU31X LGL46250CU31X LJL46250CU31X LLL46250CU31X LRL46250CU31X
400 A3LDL46400CU31X LGL46400CU31X LJL46400CU31X LLL46400CU31X LRL46400CU31X
Standard LSI 3.3S 250 A2LDL46250CU33X LGL46250CU33X LJL46250CU33X LLL46250CU33X LRL46250CU33X
400 A3LDL46400CU33X LGL46400CU33X LJL46400CU33X LLL46400CU33X LRL46400CU33X
Ammeter LSI 5.3A 400 A3LDL46400CU43X LGL46400CU43X LJL46400CU43X LLL46400CU43X LRL46400CU43X
Energy LSI 5.3E 400 A3LDL46400CU53X LGL46400CU53X LJL46400CU53X LLL46400CU53X LRL46400CU53X
Ammeter LSIG 6.3A 400 A3LDL46400CU44X LGL46400CU44X LJL46400CU44X LLL46400CU44X LRL46400CU44X
Energy LSIG 6.3E 400 A3LDL46400CU54X LGL46400CU54X LJL46400CU54X LLL46400CU54X LRL46400CU54X
1UL Listed/CSA Certified as current limiting circuit breakers.
2Standard lug kit: AL400L61K4. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
3Standard lug kit: AL600LS52K4. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
Table 31: L-Frame 600 A Mission Critical Standard (80%) Rated Electronic Trip UL Rated 4P Circuit Breakers
(480Y/277 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating (2nd Letter of Catalog Number)
Type Function Trip Unit D G J L
Standard LI 3.3-W
250 A1LDL44250WU31X LGL44250WU31X LJL44250WU31X LLL44250WU31X
400 A2
600 A2
LDL44400WU31X
LDL44600WU31X
LGL44400WU31X
LGL44600WU31X
LJL44400WU31X
LJL44600WU31X
LLL44400WU31X
LLL44600WU31X
Standard LSI 3.3S-W
250 A1LDL44250WU33X LGL44250WU33X LJL44250WU33X LLL44250WU33X
400 A2
600 A2
LDL44400WU33X
LDL44600WU33X
LGL44400WU33X
LGL44600WU33X
LJL44400WU33X
LJL44600WU33X
LLL44400WU33X
LLL44600WU33X
Ammeter LSI 5.3A-W 400 A2
600 A2
LDL44400WU43X
LDL44600WU43X
LGL44400WU43X
LGL44600WU43X
LJL44400WU43X
LJL44600WU43X
LLL44400WU43X
LLL44600WU43X
Energy LSI 5.3E-W 400 A2
600 A2
LDL44400WU53X
LDL44600WU53X
LGL44400WU53X
LGL44600WU53X
LJL44400WU53X
LJL44600WU53X
LLL44400WU53X
LLL44600WU53X
Ammeter LSIG 6.3A-W 400 A2
600 A2
LDL44400WU44X
LDL44600WU44X
LGL44400WU44X
LGL44600WU44X
LJL44400WU44X
LJL44600WU44X
LLL44400WU44X
LLL44600WU44X
Energy LSIG 6.3E-W 400 A2
600 A2
LDL44400WU54X
LDL44600WU54X
LGL44400WU54X
LGL44600WU54X
LJL44400WU54X
LJL44600WU54X
LLL44400WU54X
LLL44600WU54X
1Standard lug kit: AL400L61K4. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
2Standard lug kit: AL600LS52K4. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
39
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
I-Line Circuit Breaker Catalog Numbers
Table 32: L-Frame 600 A I-Line Standard (80%) Rated Electronic Trip UL Rated Circuit Breakers
(600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J
1
L
3
R
3
Standard LI 3.32
250 A3LDA36250U31X LGA36250U31X LJA36250U31X LLA36250U31X LRA36250U31X
400 A4
600 A4
LDA36400U31X
LDA36600U31X
LGA36400U31X
LGA36600U31X
LJA36400U31X
LJA36600U31X
LLA36400U31X
LLA36600U31X
LRA36400U31X
LRA36600U31X
Standard LSI 3.3S2
250 A3LDA36250U33X LGA36250U33X LJA36250U33X LLA36250U33X LRA36250U33X
400 A4
600 A4
LDA36400U33X
LDA36600U33X
LGA36400U33X
LGA36600U33X
LJA36400U33X
LJA36600U33X
LLA36400U33X
LLA36600U33X
LRA36400U33X
LRA36600U33X
Ammeter LSI 5.3A 400 A44
600 A4
LDA36400U43X
LDA36600U43X
LGA36400U43X
LGA36600U43X
LJA36400U43X
LJA36600U43X
LLA36400U43X
LLA36600U43X
LRA36400U43X
LRA36600U43X
Energy LSI 5.3E 400 A4
600 A4
LDA36400U53X
LDA36600U53X
LGA36400U53X
LGA36600U53X
LJA36400U53X
LJA36600U53X
LLA36400U53X
LLA36600U53X
LRA36400U53X
LRA36600U53X
Ammeter LSIG 6.3A 400 A4
600 A4
LDA36400U44X
LDA36600U44X
LGA36400U44X
LGA36600U44X
LJA36400U44X
LJA36600U44X
LLA36400U44X
LLA36600U44X
LRA36400U44X
LRA36600U44X
Energy LSIG 6.3E 400 A4
600 A4
LDA36400U54X
LDA36600U54X
LGA36400U54X
LGA36600U54X
LJA36400U54X
LJA36600U54X
LLA36400U54X
LLA36600U54X
LRA36400U54X
LRA36600U54X
1UL Listed/CSA Certified as current limiting circuit breakers.
23P circuit breakers with this trip unit can be used for 2P applications.
3Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
4Standard lug kit: AL600LF52K3. Terminal wire range: (2) 3/0 AWG–500 kcmil Al/Cu. Type of terminal shield: short.
Table 33: L-Frame 600 A Mission Critical I-Line Standard (80%) Rated Electronic Trip UL Rated Circuit Breakers
(480/277 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J L
Standard LI 3.3-W
250 A1LDA34250WU31X LGA34250WU31X LJA34250WU31X LLA34250WU31X
400 A2
600 A2
LDA34400WU31X
LDA34600WU31X
LGA34400WU31X
LGA34600WU31X
LJA34400WU31X
LJA34600WU31X
LLA34400WU31X
LLA34600WU31X
Standard LSI 3.3S-W
250 A1LDA34250WU33X LGA34250WU33X LJA34250WU33X LLA34250WU33X
400 A2
600 A2
LDA34400WU33X
LDA34600WU33X
LGA34400WU33X
LGA34600WU33X
LJA34400WU33X
LJA34600WU33X
LLA34400WU33X
LLA34600WU33X
Ammeter LSI 5.3A-W 400 A2
600 A2
LDA34400WU43X
LDA34600WU43X
LGA34400WU43X
LGA34600WU43X
LJA34400WU43X
LJA34600WU43X
LLA34400WU43X
LLA34600WU43X
Energy LSI 5.3E-W 400 A2
600 A2
LDA34400WU53X
LDA34600WU53X
LGA34400WU53X
LGA34600WU53X
LJA34400WU53X
LJA34600WU53X
LLA34400WU53X
LLA34600WU53X
Ammeter LSIG 6.3A-W 400 A2
600 A2
LDA34400WU44X
LDA34600WU44X
LGA34400WU44X
LGA34600WU44X
LJA34400WU44X
LJA34600WU44X
LLA34400WU44X
LLA34600WU44X
Energy LSIG 6.3E-W 400 A2
600 A2
LDA34400WU54X
LDA34600WU54X
LGA34400WU54X
LGA34600WU54X
LJA34400WU54X
LJA34600WU54X
LLA34400WU54X
LLA34600WU54X
1Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
2Standard lug kit: AL600LS52K3. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
40
07/2014
Circuit Breakers with Field-Interchangeable Trip Units Catalog Numbers
Table 34: L-Frame 250 A and 400 A I-Line 100% Rated Electronic Trip UL Rated Circuit Breakers
(600 Vac, 50/60 Hz) With Factory Sealed Trip Unit Suitable for Reverse Connection
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J
1
L
3
R
3
Standard LI 3.32250 A3LDA36250CU31X LGA36250CU31X LJA36250CU31X LLA36250CU31X LRA36250CU31X
400 A4LDA36400CU31X LGA36400CU31X LJA36400CU31X LLA36400CU31X LRA36400CU31X
Standard LSI 3.3S2250 A3LDA36250CU33X LGA36250CU33X LJA36250CU33X LLA36250CU33X LRA36250CU33X
400 A4LDA36400CU33X LGA36400CU33X LJA36400CU33X LLA36400CU33X LRA36400CU33X
Ammeter LSI 5.3A 400 A4LDA36400CU43X LGA36400CU43X LJA36400CU43X LLA36400CU43X LRA36400CU43X
Energy LSI 5.3E 400 A4LDA36400CU53X LGA36400CU53X LJA36400CU53X LLA36400CU53X LRA36400CU53X
Ammeter LSIG 6.3A 400 A4LDA36400CU44X LGA36400CU44X LJA36400CU44X LLA36400CU44X LRA36400CU44X
Energy LSIG 6.3E 400 A4LDA36400CU54X LGA36400CU54X LJA36400CU54X LLA36400CU54X LRA36400CU54X
1UL Listed/CSA Certified as current limiting circuit breakers.
23P circuit breakers with this trip unit can be used for 2P applications.
3Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
4Standard lug kit: AL600LS52K3. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
Table 35: L-Frame 3 Pole, 600 A Circuit Breakers with Lugs and Field-Interchangeable Electronic Trip Units
(600 Vac, 50/60 Hz)
1
,
2
1Circuit breakers will be labeled with Line and Load markings and are not suitable for reverse connections.
2Only available on 3P unit-mount circuit breakers. Not available in R interrupting rating. Not available with I-Line or Plug-in constructions.
Electronic Trip Unit Sensor
Rating
Interrupting Rating
Type Function Trip Unit D G J
3
3UL Listed/CSA Certified as current limiting circuit breakers.
L
3
Standard (80% Rated), 600 Vac, 50/60 Hz
Standard LI 3.3
250 A4
4Standard lug kit: AL400L61K3. Terminal wire range: (1) 2 AWG–600 kcmil Cu or (1) 2 AWG–500 kcmil Al. Type of terminal shield: short.
LDL36250TU31X LGL36250TU31X LJL36250TU31X LLL36250TU31X
400 A5
600 A5
5Standard lug kit: AL600LS52K3. Terminal wire range: (2) 2/0 AWG–500 kcmil Al/Cu. Type of terminal shield: medium.
LDL36400TU31X
LDL36600TU31X
LGL36400TU31X
LGL36600TU31X
LJL36400TU31X
LJL36600TU31X
LLL36400TU31X
LLL36600TU31X
Standard LSI 3.3S
250 A4LDL36250TU33X LGL36250TU33X LJL36250TU33X LLL36250TU33X
400 A5
600 A5
LDL36400TU33X
LDL36600TU33X
LGL36400TU33X
LGL36600TU33X
LJL36400TU33X
LJL36600TU33X
LLL36400TU33X
LLL36600TU33X
Ammeter LSI 5.3A 400 A5
600 A5
LDL36400TU43X
LDL36600TU43X
LGL36400TU43X
LGL36600TU43X
LJL36400TU43X
LJL36600TU43X
LLL36400TU43X
LLL36600TU43X
Energy LSI 5.3E 400 A5
600 A5
LDL36400TU53X
LDL36600TU53X
LGL36400TU53X
LGL36600TU53X
LJL36400TU53X
LJL36600TU53X
LLL36400TU53X
LLL36600TU53X
Ammeter LSIG 6.3A 400 A5
600 A5
LDL36400TU44X
LDL36600TU44X
LGL36400TU44X
LGL36600TU44X
LJL36400TU44X
LJL36600TU44X
LLL36400TU44X
LLL36600TU44X
Energy LSIG 6.3E 400 A5
600 A5
LDL36400TU54X
LDL36600TU54X
LGL36400TU54X
LGL36600TU54X
LJL36400TU54X
LJL36600TU54X
LLL36400TU54X
LLL36600TU54X
100% Rated, 600 Vac, 50/60 Hz
Standard LI 3.3 250 A4LDL36250RU31X LGL36250RU31X LJL36250RU31X LLL36250RU31X
400 A5LDL36400RU31X LGL36400RU31X LJL36400RU31X LLL36400RU31X
Standard LSI 3.3S 250 A4LDL36250RU33X LGL36250RU33X LJL36250RU33X LLL36250RU33X
400 A5LDL36400RU33X LGL36400RU33X LJL36400RU33X LLL36400RU33X
Ammeter LSI 5.3A 400 A5LDL36400RU43X LGL36400RU43X LJL36400RU43X LLL36400RU43X
Energy LSI 5.3E 400 A5LDL36400RU53X LGL36400RU53X LJL36400RU53X LLL36400RU53X
Ammeter LSIG 6.3A 400 A5LDL36400RU44X LGL36400RU44X LJL36400RU44X LLL36400RU44X
Energy LSIG 6.3E 400 A5LDL36400RU54X LGL36400RU54X LJL36400RU54X LLL36400RU54X
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Circuit Breakers
41
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 36: L-Frame 600 A, 3 Pole, Basic Circuit Breaker Frame Without Terminations or Trip
Units (600 Vac, 50/60 Hz)
1
1Not suitable for reverse connection.
Ampere
Rating
Interrupting Rating
D G J
2
2UL Listed/CSA Certified as current limiting
L
2
250 A (70–250 A) LDF36000F25 LGF36000F25 LJF36000F25 LLF36000F25
400 A (125–400 A) LDF36000F40 LGF36000F40 LJF36000F40 LLF36000F40
600 A (200–600 A) LDF36000F60 LGF36000F60 LJF36000F60 LLF36000F60
Table 37: L-Frame 3P Field-Installable Micrologic Electronic Trip Units
Electronic Trip Unit
Ampere Setting Trip Unit
Cat. No.
Type Function Trip Unit
Standard
LI 3.3
70-80-100-125-150-175-200-225-250 LE3250U31X
125-150-175-200-225-250-300-350-400 LE3400U31X
200-225-250-300-350-400-450-500-600 LE3600U31X
LSI 3.3S
70-80-100-125-150-175-200-225-250 LE3250U33X
125-150-175-200-225-250-300-350-400 LE3400U33X
200-225-250-300-350-400-450-500-600 LE3600U33X
Ammeter
LSI 5.3A 125–400 LE3400U43X
200–600 LE3600U43X
LSIG 6.3A 125–400 LE3400U44X
200–600 LE3600U44X
Energy
LSI 5.3E 125–400 LE3400U53X
200–600 LE3600U53X
LSIG 6.3E 125–400 LE3400U54X
200–600 LE3600U54X
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Automatic Switches
42
07/2014
Section 4—Automatic Switches
Automatic Switch Functions
An automatic switch can be used to open and close a circuit under normal operating conditions. They
are similar in construction to circuit breakers, except that the switches open instantaneously at a factory-set,
non-adjustable trip point calibrated to protect only the molded case switch.
Molded case switches are intended for use as disconnect devices only. UL489 requires molded case
switches to be protected by a circuit breaker or fuse of equivalent rating. Molded case switches are
labeled with their appropriate withstand ratings. The withstand rating of a switch is defined as the
maximum current at rated voltage that the molded case switch will withstand without damage when
protected by a circuit breaker with an equal continuous current rating.
PowerPact™ H-, J-, and L-frame automatic switches are available in unit mount, I-Line™, plug-in and
drawout versions. They use the same accessories and offer the same connection possibilities as the
circuit-breaker versions. They may be interlocked with another switch or circuit breaker to form a
source-changeover system.
Switches are Listed under UL file E103740 and Certified under CSA file LR88980.
Motor Operator
PowerPact H-, J-, and L-frame switches equipped with a motor operator module allow remote closing
and opening.
Ground Fault Protection (H- and J-Frame Circuit Breakers Only)
An ELM or GFM module may be added to an automatic switch to monitor all leakage currents in the
outgoing circuits of the equipment on which the automatic switch is installed. When the ELM or GFM
module detects an earth-leakage current, the automatic switch interrupts the load current.
Automatic Switch Protection
The automatic switch can make and break its rated current. For an overload or a short-circuit, it must
be protected by an upstream device, in compliance with installation standards. Due to their high-set
instantaneous release PowerPact H-, J- and L-frame automatic switches are self-protected.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Automatic Switches
43
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Specifications
Table 38: H-Frame Automatic Molded Case Switch Specifications
Frame H-Frame
Withstand Rating “G” “L”
UL 489
Poles 2P 3P 2P13P
Catalog Number
150 A HGL26000S15 HGL3600S15 HLL26000S15 HLL36000S15
175 A
250 A
Withstand Ratings
240 Vac 65 kA 65 kA 125 kA 125 kA
480 Vac 35 kA 35 kA 100 kA 100 kA
600 Vac 18 kA 18 kA 50 kA 50 kA
250 Vdc 20 kA 20 kA 20 kA 20 kA
AC Trip Point 2250 A 2250 A 2250 A 2250 A
IEC 60947-3
Rated Insulation Voltage 750 Vac 750 Vac 750 Vac 750 Vac
Rated Impulse Withstand Voltage 8 kV 8 kV 8 kV 8 kV
Rated Operational Voltage ac 525 Vac 525 Vac 525 Vac 690 Vac
dc —
12P devices use a 3P switch frame with the center pole inoperative.
Table 39: J-Frame Automatic Molded Case Switch Specifications
Frame J-Frame
Withstand Rating “G” “L” “R”
UL 489
Poles 2P1
12P devices use a 3P switch frame with the center pole inoperative.
3P 2P13P 3P
Catalog Number
150 A
175 A JGL26000S17 JGL36000S17 JLL26000S17 JLL36000S17 JRL36000S17
250 A JGL26000S25 JGL36000S25 JLL26000S25 JLL36000S25 JRL36000S25
Withstand Ratings
240 Vac 65 kA 65 kA 125 kA 125 kA 200 kA
480 Vac 35 kA 35 kA 100 kA 100 kA 200 kA
600 Vac 18 kA 18 kA 50 kA 50 kA 100 kA
250 Vdc 20 kA 20 kA 20 kA 20 kA 20 kA
AC Trip Point 3125 A 3125 A 3125 A 3125 A 3125 A
IEC 60947-3
Rated Insulation Voltage 750 Vac 750 Vac 750 Vac 750 Vac 750 Vac
Rated Impulse Withstand Voltage 8 kV 8 kV 8 kV 8 kV 8 kV
Rated Operational Voltage ac 525 Vac 525 Vac 525 Vac 525 Vac 690 Vac
dc 500 Vdc 500 Vdc 500 Vdc 500 Vdc 500 Vdc
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Automatic Switches
44
07/2014
Catalog Numbers
Table 40: PowerPact H-Frame and J-Frame 250 A Unit-Mount Automatic Molded Case
Switches, 600 Vac with Factory Sealed Trip Unit (Suitable for Reverse Connection)
Ampere
Rating
2-pole 3-pole Withstand Rating
1
1The withstand rating is the fault current, at rated voltage, that the molded case switch will withstand without damage when
protected by a circuit breaker or fuse with an equal continuous current rating.
Trip
Point
Standard Lug Kit
Terminal Wire Range
Cat. No. Cat. No. 240 Vac 480 Vac 600 Vac
G Withstand
150 A HGL26000S152
22-pole device with 3 in. (76 mm) mounting height, all other 2-pole circuit breakers use 3-pole switch 4.5 in. (114 mm) mounting
height.
HGL36000S15 65 35 18 2250 A AL150HD
#14–#3/0 AWG Al or Cu
175 A JGL26000S17 JGL36000S17 65 35 18 3125 A AL250JD
#3/0–350 kcmil Al or Cu
250 A JGL26000S25 JGL36000S25
L Withstand
150 A HLL26000S15 HLL36000S15 125 100 50 2250 A AL150HD
#14–#3/0 AWG Al or Cu
175 A JLL26000S17 JLL36000S17 125 100 50 3125 A AL250JD
#3/0–350 kcmil Al or Cu
250 A JLL26000S25 JLL36000S25
R Withstand
175 A JRL36000S17 200 200 100 3125 A AL250JD
#3/0–350 kcmil Al or Cu
250 A JRL36000S25
Table 41: PowerPact H-Frame and J-Frame I-Line Automatic Molded Case Switches, 600 Vac
with Factory Sealed Trip Unit (Suitable for Reverse Connection)
Ampere
Rating
2-pole 3-pole Withstand Rating
1
1The withstand rating is the fault current, at rated voltage, that the molded case switch will withstand without damage when
protected by a circuit breaker or fuse with an equal continuous current rating.
Trip
Point
Standard Lug Kit
Terminal Wire Range
Cat. No. Cat. No. 240 Vac 480 Vac 600 Vac
G Withstand
150 A HGA26000S15( )2
22-pole device with 3 in. (76 mm) mounting height, all other 2-pole circuit breakers use 3-pole 4.5 in. (114 mm) mounting height.
HGA36000S15 65 35 18 1300 A AL150HD
#14–#3/0 AWG Al or Cu
175 A JGA26000S17( ) JGA36000S17 65 35 18 2500 A AL250JD
#3/0–350 kcmil Al or Cu
250 A JGA26000S25( ) JGA36000S25
L Withstand
150 A HLA26000S15( ) HLA36000S15 125 100 50 1300 A AL150HD
#14–#3/0 AWG Al or Cu
175 A JLA26000S17( ) JLA36000S17 125 100 50 1300 A AL250JD
#3/0–350 kcmil Al or Cu
250 A JLA26000S25( ) JLA36000S25 2500 A
R Withstand
175 A JRA26000S17( ) JRA36000S17 200 200 100 3125A AL250JD
#3/0–350 kcmil Al or Cu
250 A JRA26000S25( ) JRA36000S25
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Automatic Switches
45
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 42: PowerPact L-Frame 600 A Unit-Mount Automatic Molded Case Switches, 600 Vac
Ampere
Rating Poles
1
14P circuit breaker available as bus connected, with lug configurations, and in plug-in, draw-out and rear-connected configurations.
Cat. No. Withstand Rating
2
2The withstand rating is the fault current, at rated voltage, that the molded case switch will withstand without damage when
protected by a circuit breaker or fuse with an equal continuous current rating.
Trip
Point
Standard Lug Terminal
Wire Range
240 Vac 480 Vac 600 Vac
Unit-Mount Automatic Molded Case Switches,
G Withstand
400 A 3P LGL36000S40X 65 kA 35 kA 18 kA 4800 A AL600LS52K3
(2) 2 AWG–500 kcmil Al/Cu
600 A LGL36000S60X 65 kA 35 kA 18 kA 6600 A
400 A 4P LGL46000S40X 65 kA 35 kA 18 kA 4800 A AL600LS52K4
(2) 2 AWG–500 kcmil Al/Cu
600 A LGL46000S60X 65 kA 35 kA 18 kA 6600 A
L Withstand
400 A 3P LLL36000S40X 125 kA 100 kA 50 kA 4800 A AL600LS52K3
(2) 2 AWG–500 kcmil Al/Cu
600 A LLL36000S60X 125 kA 100 kA 50 kA 6600 A
400 A 4P LLL46000S40X 125 kA 100 kA 50 kA 4800 A AL600LS52K4
(2) 2 AWG–500 kcmil Al/Cu
600 A LLL46000S60X 125 kA 100 kA 50 kA 6600 A
R Withstand
400 A 3P LRL36000S40X 200 kA 200 kA 100 kA 4800 A AL600LS52K3
(2) 2 AWG–500 kcmil Al/Cu
600 A LRL36000S60X 200 kA 200 kA 100 kA 6600 A
400 A 4P LRL46000S40X 200 kA 200 kA 100 kA 4800 A AL600LS52K4
(2) 2 AWG–500 kcmil Al/Cu
600 A LRL46000S60X 200 kA 200 kA 100 kA 6600 A
I-Line Circuit Breakers Automatic Molded Case Switches
G Withstand
400 A 3P LGA36000S40X 65 kA 35 kA 18 kA 4800 A AL600LF52K3
(2) 3/0 AWG–500 kcmil Al/Cu
600 A LGA36000S60X 65 kA 35 kA 18 kA 6600 A
L Withstand
400 A 3P LLA36000S40X 125 kA 100 kA 50 kA 4800 A AL600LF52K3
(2) 3/0 AWG–500 kcmil Al/Cu
600 A LLA36000S60X 125 kA 100 kA 50 kA 6600 A
R Withstand
400 A 3P LRA36000S40X 200 kA 200 kA 100 kA 4800 A AL600LF52K3
(2) 3/0 AWG–500 kcmil Al/Cu
600 A LRA36000S60X 200 kA 200 kA 100 kA 6600 A
Table 43: L-Frame Ratings and Withstand Ratings
Circuit Breaker 400 A 600 A
Number of Poles 3, 4 3, 4
Ampere Rating (A) 400 600
UL 489 Ratings
Rated Voltage (V) 600 600
IEC 60947-3 ratings
Rated Insulation Voltage (V) 750 750
Rated Impulse Withstand Voltage (kV) 8 8
Rated Operational Voltage Ue AC 50/60 Hz 690 690
Rated Operational Current Ie AC 525 V 400 600
Making Capacity (kA peak) 7.1 8.5
Short-Time Withstand Current (kA rms) Icw Icw (kA ms) 5 6
Duration (s) 1 1
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
46
07/2014
Section 5—Motor Circuit Protection
General Information
The parameters to be considered for motor-feeder protection depend on:
the application (type of machine driven, operating safety, frequency of operation, etc.)
the level of continuity of service required by the load or the application
the applicable standards for the protection of equipment.
The required electrical functions are:
isolation
switching, generally at high endurance levels
protection against overloads and short-circuits, adapted to the motor
additional special protection.
A motor branch circuit must comply with the requirements of standard UL 508 concerning contactors
and their protection:
coordination of feeder components
overload relay trip classes.
Motor Branch Circuit Protection Function
A motor branch circuit comprises a set of devices for motor protection and control, as well as for
protection of the branch circuit itself.
Switching
The purpose is to control the motor (ON / OFF), either manually, automatically or remotely, taking into
account overloads upon start-up and the long service life required. This function is provided by a
contactor. When the coil of the contactor's electromagnet is energized, the contactor closes and
establishes, through the poles, the circuit between the upstream supply and the motor, through the
circuit breaker.
Basic Protection
Short-circuit protection
Detection and breaking, as quickly as possible, of high short-circuit currents to avoid damage to the
installation. This function is provided by a circuit breaker.
Overload protection
Detection of overload currents and motor shutdown before temperature rise in the motor and
conductors damages insulation. This function is provided by a circuit breaker or a separate motor
overload relay.
Phase unbalance or phase loss protection
Phase unbalance or phase loss can cause temperature rise and braking torques that can lead to
premature aging of the motor. These effects are even greater during starting, therefore protection
must be virtually immediate.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
47
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Additional Electronic Protection
Locked rotor
Under-load
Long starts and stalled rotor
Insulation faults
Trip Class of a Overload Relay Device
The motor branch circuit includes thermal protection that may be built into the circuit breaker. The
protection must have a trip class suited to motor starting. Depending on the application, the motor
starting time varies from a few seconds (no-load start) to a few dozen seconds (high-inertia load).
Example: In class 20, the motor must have finished starting within 20 seconds (6 to 20 s) for a starting
current of 6 x FLA.
Asynchronous-Motor Starting Parameters
The main parameters of direct on-line starting of three-phase asynchronous motors (90% of all
applications) are listed below.
FLA: Full load amperes
This is the current drawn by the motor at full rated load.
Id: locked rotor current
This is the current drawn by the motor during starting, on average 6.0 x In for a duration of 5 to 30
seconds depending on the application. These values determine the trip class and any additional
“long-start” protection devices that may be needed.
Id: peak starting current
This is the subtransient current during the first two half-waves when the system is energized, on the
average 14 I
n
for 10 to 15 ms (e.g. 1840 A peak).
The protection settings must effectively protect the motor, notably through a suitable overload relay trip
class, but let the peak starting current through.
Motor-Feeder Solutions
PowerPact™ H-, J-, and L-frame circuit breakers motor circuit breakers are designed for motor-feeder
solutions using:
three devices, including an electronic MCP or 1.3 M instantaneous-only trip unit
two devices including a 2 M electronic trip unit.
Table 44: Trip Class of Overload Relays as a Function of Their FLA Setting
Class 1.05 FLA
1
1Time for a cold start (motor off and cold).
1.2 FLA
1
1.5 FLA
2
2Time for warm start (motor running under normal conditions).
6.0 FLA
1
5 t > 2 h t < 2h t < 2 mn 2 s < t 5 s
10 t > 2 h t < 2h t < 4 mn 4 s < t 10 s
20 t > 2 h t < 2h t < 8 mn 6 s < t 20 s
td
t”d
I*d
Id
FLA
Starting
time
Typical motor-starting curve
t
I
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
48
07/2014
PowerPact H-, J-, and L-Frame with Micrologic™ Trip Units Motor-Protection Range
PowerPact H-, J-, and L-frame circuit breakers with Micrologic trip units can be used to create motor-
feeder solutions comprising two or three devices. The protection devices are designed for continuous
duty at 104°F (40°C).
Three-device solutions
1 PowerPact circuit breaker with Micrologic 1.3 M trip unit
1 contactor
overload relay
Two-device solutions
1 PowerPact circuit breaker with a Micrologic 2 M electronic trip unit.
1 contactor
Table 45: Motor Protection Specifications
Type of Motor Protection 3 Devices (Circuit Breaker +
Contactor + Overload Relay)
2 Devices (Circuit Breaker +
Contactor)
PowerPact H-, J-, or L-frame circuit breaker PowerPact L-frame 400/600 A PowerPact H-, J-, and L-Frame 100–
600 A
Type 2 coordination with Contactor + overload relay Contactor
Trip Unit Type
Micrologic 1.3 M
Electronic Trip Unit Micrologic 2 M
Electronic Trip Unit
Overload Relay
Separate X
Built-in, Class
5X
10 X
20 X
Protection functions of PowerPact H-, J-, and L-frame circuit breaker
Short-circuits X X
Overloads X
Special motor functions Phase unbalance X
Isd (x FLA)
190
310
290
270
250
230
210
50
FLA (A) Class.
348
330
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
49
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Electronic Motor Circuit Protectors (AC Only)
PowerPact H- and J-frame Electronic Motor Circuit Protectors (MCP) are instantaneous-trip circuit
breakers. They are designed to offer short circuit protection and are National Electrical Code
®
(NEC
®
)
compliant when installed as part of a combination controller having motor overload protection. MCP
circuit breakers accept the same accessories and terminals as the equivalent thermal-magnetic circuit
breakers. (See Section 3 for Accessories.)
The unique design of the PowerPact MCPs includes two rotary switches to allow quick setting
adjustments based on the characteristics of the motor.
The first rotary switch allows for Full Load Amperes (FLA) adjustment across the range of the frame size.
The second rotary switch selects the type of motor protection based on Automatic 1 for Standard
Efficiency or Automatic 2 for High Energy Efficient. When using the automatic settings the MCP
microprocessor automatically adjusts the trip settings for both current and time to align with the start-up
characteristic for the motor type, whether it is a standard or energy-efficient motor. This includes a
dampening means to accommodate a transient motor in-rush current without nuisance tripping of the
circuit breaker. Rotary switch 2 also allows for traditional motor protection from 8 to 13 times the
selected FLA.
The MCP rotary switches are detented and allow the device to be set to specific trip values within a
typical accuracy range of +/-5%.
Full Load Amp Settings
1. Determine the motor’s full-load current by referring to the nameplate on the motor.
2. Set the trip range by turning the FLA rotary switch to the setting closest to the motor’s full load
current.
Automatic Protection Settings
The MCP microprocessor automatically adjusts the trip settings for both current and time to align with
the start-up characteristics for the motor type selected. This includes a dampening means to
accommodate a transient motor in-rush current without nuisance tripping of the circuit breaker.
AB
Standard
Energy Efficient
Energie Efficace
Energia Eficiente
Standard
Energy Efficient
Energie Efficace
Energia Eficiente
(A) Full Load Amp Setting (FLA).
(B) Instantaneous Trip Point Settings (I
m
).
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
50
07/2014
Manual Protection Settings
The manual settings may be adjusted to multiples of current based on the rotary switch setting for
motor Full Load Amps (FLA).
For example, if FLA rotary switch is set to 20 and I
m
rotary switch is set to 9x, then the instantaneous
trip point will be 180 A.
See Tables 51 thru 53 for more information.
High Short Circuit Current Ratings (SCCR)
The PowerPact MCP helps achieve the high UL508A Short Circuit Current Rating (SCCR) needed
to meet NEC Article 409 requirements for industrial control panels. They deliver up to 100 kA at
480 Vac SCCR when used in combination with approved Square D™ NEMA or Schneider
Electric™ IEC motor starters.
Figure 3: Automatic Protection Settings
I
t
Standard
Energy Efficient
Energie Efficace
Motor Type / Tipo de Motor / Type de Moteur
Energia Eficiente
BA
Auto Setting
Dampening for
Motor In-Rush
Instantaneous
Trip Point = (FLA) x (Im)
AB
Standard
Energy Efficient
Energie Efficace
Energia Eficiente
A. Full Load Amp Setting (FLA).
B. Instantaneous Trip Point Settings (Im).
Table 46: H- and J-Frame Electronic Motor Circuit Protectors (MCP)
Frame Current
Full Load
Amperes
Range
Adjustable
Instantaneous
Trip Range
Suffix
J Interrupting
(See SCCR Table Below)
L Interrupting
(See SCCR Table Below) R Interrupting
Cat. No. Cat. No. Cat. No.
H-Frame
30 A 1.5–25 A 9–325 A M71 HJL36030M71 HLL36030M71 HRL36030M71
50 A 14–42 A 84–546 A M72 HJL36050M72 HLL36050M72 HRL36050M72
100 A 30–80 A 180–1040 A M73 HJL36100M73 HLL36100M73 HRL36100M73
150 A 58–130 A 348–1690 A M74 HJL36150M74 HLL36150M74 HRL36150M74
J-Frame 250 A 114–217 A 684–2500 A M75 JJL36250M75 JLL36250M75 JRL36250M75
Table 47: Short Circuit Current Ratings (SCCR)
Contactor/Starter
J Interrupting L Interrupting R Interrupting
200–240 Vac 480 Vac 600 Vac 200–240 Vac 480 Vac 600 Vac 200–240 Vac 480 Vac 600 Vac
Tesys D-line and F-line 100 kA 65 kA 25 kA 100 kA 100 kA 50 kA 200 kA 200 kA 100 kA
NEMA Type S 100 kA 65 kA 25 kA 100 kA 100 kA 50 kA 200 kA 200 kA 100 kA
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
51
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 48: MCP Selection by HP Ratings of Induction-Type Squirrel-Cage and Wound-Rotor Motors
Horsepower Rating of Induction-Type Squirrel-Cage and Wound-Rotor Motors 3Ø 60 Hz NEC Full Load
Amperes
PowerPact H-Frame and
J-Frame Electronic MCP
Starter Size 200 Vac 230 Vac 480 Vac 575 Vac
00
1/2 0.9 A
HJL36030M71
and
HLL36030M71
1/2–10 hp
1/2 1.1 A
3/4 1.3 A
3/4 1 1.7 A
1 2.1 A
1/2 2.2 A
1-1/2 2.4 A
1/2 2.5 A
2 2.7 A
1-1/2 3 A
3/4 3.2 A
2 3.4 A
3/4 3.7 A
3 3.9 A
1 4.2 A
14.8 A
3 4.8 A
1-1/2 6 A
5 6.1 A
2 6.8 A
1-1/2 6.9 A
0
5 7.6 A
27.8 A
7-1/2 9 A
3 9.6 A
3 7-1/2 10 11 A
1
10 14 A
HJL36050M72
and
HLL36050M72
10–25 hp
5 15.2 A
15 17 A
517.5 A
15 21 A
7-1/2 20 22 A
7-1/2 25.3 A
2
20 25 27 A
10 28 A
30 32 A
HJL36100M73
and
HLL36100M73
15–50 hp
10 32.2 A
3
25 34 A
30 40 A
40 41 A
15 42 A
15 48.3 A
40 50 52 A
20 54 A
20 60 62 A
HJL36150M74
and
HLL36150M74
30–100 hp
50 65 A
25 68 A
60 75 77 A
25 78.2 A
4
30 80 A
30 92 A
75 96 A
100 99 A
40 104 A
40 120 A
JJL36250M75
and
JLL36250M75
50–150 hp
100 124 A
5
125 125 A
50 130 A
150 144 A
50 150 A
60 154 A
125 156 A
60 177.1 A
150 180 A
75 200 192 A
75 221 A
200 240 A
100 248 A
Shaded area is not covered by J-frame electronic motor circuit protector.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
52
07/2014
Micrologic 1.3 M Electronic Trip Units for Instantaneous
Protection Only (L-Frame Circuit Breakers Only)
Micrologic 1.3 M trip units are used in 3-device motor-feeder solutions on PowerPact L-frame circuit
breakers with performance levels G/J/L. They provide short-circuit protection for motors up to 250 kW
at 400 V.
Micrologic 1.3 M trip units provide instantaneous protection only, using electronic technology. They are
dedicated to 600 A 3-pole (3P 3D) circuit breakers or 4-pole circuit breakers with detection on three
poles (4P, 3D). They are especially used in 3-pole versions for motor protection.
Circuit breakers equipped with Micrologic 1.3 M trip units, without thermal protection, are used in
certain applications to replace automatic switches. Micrologic 1.3 M trip units are available on
PowerPact L-frame circuit breakers only.
NOTE: All Micrologic trip units have a transparent, sealable cover that protects access to the
adjustment rotary switches.
They also provide the benefits of electronic technology:
accurate settings
tests
“Ready” LED.
Circuit breakers with a Micrologic 1.3 M trip unit are combined with a overload relay and a contactor.
Protection settings are made using a rotary switch.
Protection Version
Three pole (3P): three pole frame circuit breakers equipped with detection on all three poles.
Indications
The green “Ready” LED blinks slowly when the electronic trip unit is ready to provide protection. It
indicates the trip unit is operating correctly.
NOTE: All the trip units have a transparent sealable cover that protects access to the adjustment
rotary switches.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
53
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Micrologic 2.2 M and 2.3 M Electronic Trip Units
Micrologic 2.2 M and 2.3 M trip units provide built-in thermal and instantaneous protection. They are
used in 2-device motor-feeder solutions on PowerPact H-, J-, and L-frame circuit breakers with
performance levels J/L. They provide protection for motors up to 315 kW at 400 V against:
short-circuits
overloads with selection of a trip class (5, 10 or 20)
phase unbalance.
Circuit breakers with a Micrologic 2.2 M/ 2.3 M trip unit include protection similar to an inverse-time
overload relay. They are combined with a contactor.
Protection settings are made using a rotary switch.
Overloads (or Thermal Protection)
Long-time protection and trip class (FLA)
Inverse-time thermal protection
against overloads with adjustable pick-up FLA.
Settings are made in amperes. The tripping curve for the long-time protection, which indicates the
time delay tr before tripping, is defined by the selected trip class.
Table 49: Micrologic 1.3 M Electronic Trip Unit
Rating: I
n
at 104°F (40°C)
1
1Motor standards require operation at 104°F (40°C). Circuit-breaker ratings are derated to take this requirement into account
400 A 600 A
Circuit Breaker PowerPact L-frame X X
Short-time protection
Pick-up (A)
accuracy ±15%
I
sd
There is a very short delay to let
through motor starting currents
Adjustable directly in amps
9 settings: 2000-2400-2800-
3200-3600-4000-4800 A
9 settings: 3000-3600-4200-
4800-5400-6000-6600-7200 A
Time delay (ms)
t
sd
Non-adjustable
Non-tripping time
Maximum break time
20
60
Instantaneous protection
Pick-up (A)
accuracy ±15%
I
i
non-adjustable 4800 7200
Non-tripping time
Maximum break time
0
30 ms
Isd (x FLA)
190
310
290
270
250
230
210
50
FLA (A) Class.
348
330
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
54
07/2014
Trip Class
The class is selected as a function of the normal motor starting time.
Class 5: starting time less than 5 s
Class 10: starting time less than 10 s
Class 20: starting time less than 20 s
For a given class, it is necessary to check that all motor-feeder components are sized to carry the
6 x FLA starting current without excessive temperature rise during the time corresponding to the
class.
Short-Circuits
Short-time protection (I
sd
)
Provides protection with an adjustable pick-up I
sd
.
There is a very short delay to let through motor starting currents.
Non-adjustable instantaneous protection (l
i
)
Instantaneous protection with non-adjustable pick-up l
i
.
Phase Unbalance or Phase Loss (l
unbal
)
This function opens the circuit breaker if a phase unbalance occurs:
that is greater than the 30% fixed pick-up I
unbal
following the non-adjustable time delay t
unbal
equal to:
• 0.7 s during starting
• 4 s during normal operation
Phase loss is an extreme case of phase unbalance and leads to tripping under the same
conditions.
Indications
Front indications
The green “Ready” LED blinks slowly when the electronic trip unit is ready to provide protection. It
indicates the trip unit is operating correctly.
Red alarm LED for motor operation goes ON when the thermal image of the rotor and stator is
greater than 95% of the permissible temperature rise.
Remote indications using SDTAM module
PowerPact H-, J-, and L-frame devices with a Micrologic 2 M trip unit can be equipped with an
SDTAM module dedicated to motor applications for:
a contact to indicate circuit-breaker overload
a contact to open the contactor. In the event of a phase unbalance or overload, this output is
activated 400 ms before circuit-breaker tripping to open the contactor and avoid circuit breaker
tripping
This module takes the place of the shunt trip (MN)/undervoltage trip (MX) coils and an auxiliary
switch (OF) contact
SDTAM remote indication relay module with its terminal block.
Note: All the trip units have a transparent sealable cover that protects access to the adjustment rotary
switches.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
55
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 50: Micrologic 2.2 M and 2.3 M Electronic Trip Unit
Rating: I
n
at 104°F (40°C)
1
30 A 50 A 100 A 150 A 250 A 400 A 600 A
Circuit Breaker
PowerPact H-frame XXXX—
PowerPact J-frame ————X ——
PowerPact L-frame —————X X
Overloads (or Thermal Protection): Long-Time Protection and Trip Class
Pick-Up (A)
Tripping between
1.05 and 1.20 FLA
FLA Value depending on trip unit rating (I
n
) and setting on rotary switch
I
n
= 30 AFLA =141618202122232425
I
n
= 50 AFLA =141721242729323642
I
n
= 100 AFLA =303541455156637180
I
n
= 150 A FLA = 58 71 78 86 91 97 110 119 130
I
n
= 250 A FLA = 114 137 145 155 163 172 181 210 217
I
n
= 400 A FLA = 190 210 230 250 270 290 310 330 348
I
n
= 600 A FLA = 312 338 364 390 416 442 468 484 520
Time Delay
Trip Class 5 10 20
Time Delay (s)
Depending on
selected trip class
t
r
1.5 x FLA 120 240 480 For warm start
6 x FLA 6.5 13.5 26 For cold start
7.2 x FLA 5 10 20 For cold start
S Short Circuits: Short-time protection with fixed time delay
Pick-up (A)
accuracy ±15% I
sd
= FLA x 5678910111213
Time delay (ms)
t
sd
Non-adjustable
Non-tripping time 20
Maximum break time 60
I Short Circuit: Non-adjustable instantaneous protection
Pick-up (A)
accuracy ±15% I
i
non-adjustable 450 750 1500 2250 3750 4800 7200
Time delay (ms) Non-tripping time 0
Maximum break time 30 ms
Phase unbalance or phase loss
Pick-up (A)
accuracy ±20% I
unbal
in % average current230%
Time delay (ms) Non-adjustable 0.7 s during starting
4 s during normal operation
1Motor standards require operation at 104°F (40°C). Circuit-breaker ratings are derated to take this requirement into account.
2The unbalance measurement takes into account the most unbalanced phase with respect to the average current.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
56
07/2014
Additional Technical Characteristics
Table 51: Additional Technical Characteristics
Phase unbalance
An unbalance in three-phase systems occurs when the three
voltages are not equal in amplitude and/or not displaced 12
with respect to each other. It is generally due to single-phase
loads that are incorrectly distributed throughout the system and
unbalance the voltages between the phases.
These unbalances create negative current components that
cause braking torques and temperature rise in asynchronous
machines, thus leading to premature aging.
Phase loss
Phase loss is a special case of phase unbalance.
During normal operation, it produces the effects mentioned
above and tripping must occur after four seconds.
During starting, the absence of a phase may cause motor
reversing, i.e. it is the load that determines the direction of
rotation. This requires virtually immediate tripping (0.7
seconds).
Starting time in compliance with the class (Micrologic 2 M)
For normal motor starting, Micrologic 2 M checks the conditions
below with respect to the thermal-protection (long-time) pick-up
FLA:
current > 10% x FLA (motor-off limit)
overrun of 1.5 x FLA threshold, then return below this
threshold before the end of a 10 s time delay.
If either of these conditions is not met, the thermal protection
trips the device after a maximum time equal to that of the
selected class. Pick-up FLA must have been set to the current
indicated on the motor rating plate.
Starting time in compliance
with the class
(Micrologic 2 M)
For normal motor starting, Micrologic 2 M checks the conditions
below with respect to the thermal-protection (long-time) pick-up
FLA:
current > 10% x FLA (motor-off limit)
overrun of 1.5 x FLA threshold, then return below this
threshold before the end of a 10 s time delay
If either of these conditions is not met, the thermal protection
trips the device after a maximum time equal to that of the
selected class.
Pick-up FLA must have been set to the current indicated on the
motor rating plate.
1 to 200 s
Return
Overrun
FLA1.5 FLA (Micrologic 2-M)
or Ilong (Micrologic 6 E-M)
10 % FLA
Motor-Off zone
Starting
Time
Long
Start Time
Limit
Motor Starting and Long Starts
Unbalance of Phase Currents and Voltages
I
B
(V
B
)
I
C
(V
C
)
I
A
(V
A
)
Table 52: L-Frame Electronic Trip Unit Magnetic Only 3 Pole, 600 Vac, 50/60 Hz—Three
Device Solutions
1
1Three-device solutions are the traditional solutions: motor circuit protector plus motor starter plus overload relay.
Sensor Rating Trip
Unit
Adjustable
2
Trip Range (A)
2UL magnetic trip tolerances are -20%/+30% from the nominal values shown.
G-Interrupting
Cat. No.
J-Interrupting
Cat. No.
L-Interrupting
Cat. No.
R-Interrupting
Cat. No.
PowerPact
L-Frame
400
1.3 M
500–1200% LGL36400M37X LJL36400M37X LLL36400M37X LRL36400M37X
600 500–1200% LGL36600M37X LJL36600M37X LLL36600M37X LRL36600M37X
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Motor Circuit Protection
57
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 53: H-Frame (150 A), J-Frame (250 A) and L-Frame (600 A) Electronic Motor Protector Circuit Breakers
(UL Ratings)—Two Device Solutions
1
Electronic
Trip Unit
Type
Frame Sensor
Rating
Trip
Unit
Full Load
Amperes
Range (FLA)
I
sd
(x FLA) G Interrupting
Cat. No.
J Interrupting
Cat. No.
L Interrupting
Cat. No.
R Interrupting
Cat. No.
Standard2
H-Frame
30
2.2 M
14–25 5-13 x FLA HGL36030M38X HJL36030M38X HLL36030M38X HRL36030M38X
50 14–42 5-13 x FLA HGL36050M38X HJL36050M38X HLL36050M38X HRL36050M38X
100 30–80 5-13 x FLA HGL36100M38X HJL36100M38X HLL36100M38X HRL36100M38X
150 58–130 5-13 x FLA HGL36150M38X HJL36150M38X HLL36150M38X HRL36150M38X
J-Frame 250 114–217 5-13 x FLA JGL36250M38X JJL36250M38X JLL36250M38X JRL36250M38X
L-Frame 400 2.3 M 190–348 5-13 x FLA LGL36400M38X LJL36400M38X LLL36400M38X LRL36400M38X
600 312–520 5-13 x FLA LGL36600M38X LJL36600M38X LLL36600M38X LRL36600M38X
1Two-device solutions (these electronic motor protector circuit breakers include short circuit and overload protection)
—1 electronic motor circuit protector with a Micrologic 2.2 M electronic trip unit, plus
—1 contactor
2The standard trip unit offers Class 5, 10 and 20 and phase unbalance or phase loss protection.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
58
07/2014
Section 6Trip Units
Available Trip Units
PowerPact™ H-, J-, and L-Frame circuit breakers offer a range of thermal-magnetic and
Micrologic™ electronic trip units in interchangeable cases. Thermal-magnetic trip units are
designed to open automatically under overload or short circuit. H-frame and J-frame thermal-
magnetic circuit breakers contain individual thermal (overload) and instantaneous (short circuit)
sensing elements in each pole.
Micrologic electronic trip units provide intelligent operation, with wide setting ranges make
installation upgrades easier. Designed with processing capabilities, Micrologic trip units can
provide measurement information and device operating assistance to supply all of the information
required to manage the electrical installation and optimize energy use.
Micrologic trip units offer excellent measurement accuracy, using a new generation of current
transformers combining “iron-core” sensors for self-powered electronics and “air-core” sensors
(Rogowski coils) for measurements. The protection functions are managed by an ASIC component
that is independent of the measurement functions. This independence ensures immunity to
conducted and radiated disturbances and a high level of reliability.
An LED on the front of the electronic trip units indicates the result of the self-test running continuously on
the measurement system and the tripping release. When the green LED is flashing, the links between
the CTs, the processing electronics and the Mitop release are operational. The circuit breaker is ready
to protect. A minimum current of 15 to 50 A, depending on the device, is required for this function.
The dual adjustment for protection functions on Micrologic 5 / 6 consists of:
an adjustment using rotary switches sets the maximum value
an adjustment, made using the keypad or remotely, fine-tunes the setting. This setting may not
exceed the first one. It can be read directly on the Micrologic screen, to within one ampere and
a fraction of a second.
NOTE: All the trip units have a transparent sealable cover that protects access to the adjustment
rotary switches.
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
59
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
For Micrologic trip unit features, see table 9 on page 20.
Table 54: Understanding the Names of Micrologic Electronic Trip Units
Protection Frame Measurements Applications
1: I
3: LI or LSI
5: LSI
6: LSIG
H- and J-frame
A: Ammeter
DIstribution
or
M: Motors
L: Long time
S: Short time
I: Instantaneous
G: Ground fault
L-frame
E: Energy
Examples
Micrologic 1.3 M Trip Unit Instantaneous only 400 or 600 A Motor
Micrologic 3.3 Trip Unit LI 250, 400, or 600 A Distribution
Micrologic 3.2S Trip Unit LSI 60, 100, 150, or 250 A Distribution
Micrologic 5.2A Trip Unit LSI—Ammeter 60, 100, 150, or 250 A Distribution
Ir tr Isd tsd Ii Ig tg
200
A
N 1/A 2/B 3/C
N1/A2/B3/C
Ir tr Isd tsd Ii (x In
255
kWh
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
60
07/2014
Table 55: Trip Unit Availability
Trip Unit Type Trip Unit
H-, J-Frame
Trip Unit
L-Frame
Distribution Protection
Thermal-Magnetic T-M N/A
Distribution Protection
LI
Micrologic 3.2
and 3.2-W
Micrologic 3.3
and 3.3-W
Distribution Protection
LSI
Fixed ST and LT delays
Micrologic 3.2S
and 3.2S-W
Micrologic 3.3S
and 3.3S-W
Distribution Protection
LSI + Ammeter
Micrologic 5.2 A
and 5.2 A-W
Micrologic 5.3 A
and 5.3 A-W
Distribution Protection
LSI + Energy Monitoring
Micrologic 5.2 E
and 5.2 E-W
Micrologic 5.3 E
and 5.3 E-W
Distribution Protection
LSIG + Ammeter
Micrologic 6.2 A
and 6.2 A-W
Micrologic 6.3 A
and 6.3 A-W
Distribution Protection
LSIG + Energy Monitoring
Micrologic 6.2 E
and 6.2 E-W
Micrologic 6.3 E
and 6.3 E-W
Motor Circuit Protection
Magnetic Only MN/A
Motor Protection
Micrologic 1 M N/A Micrologic 1.3M
Motor Protection
Micrologic 2 M Micrologic 2.2 M Micrologic 2.3 M
NOTE: W = mission critical trip unit.
rciMcigolo
E
2
.5
r
I
%
A
0
3
>
0
3
>0
11
>
.9
2
9
.
3
9
.
4
9
.5
9
.
1
8
9
.
7
9
.
6
9
.
Ir )
o
I
x
(
5
.
1
2
5
.
2
34
0
1
8
6
5
d
s
I)
r
Ix
(
Trip
Unit Trip
Unit
250A
1250 2500
lnlm (= li)
Ii
tr
Ir
3.2
Ir (A) tr @ 6 Ir Ii (x In)
15 60
50
45
40
35
30
25
20
.5 16
16
16
8
4
2
1
1.5 15
12
10
8
6
4
3
2
450 16
16
8
4
216
.5
150
175
200
350
125
300
250
225
12
8
45
3
110
1.5
2
6
Ir (A) Ii (x In)Tr @ 6 Ir Ii
Ii
3.2S
Ir (A) Isd (x In) Ii (x In)
15 60
50
45
40
35
30
25
20
1.5 12
10
6
5
4
3
2
1.5 15
12
10
8
6
4
3
2
8
tsd
tr
Ir Isd
450
6
5
4
3
1.5
150
175
200
350
125
300
250
225
12
8
45
3
210
1.5
2
6
Ir (A) Ii (x In)
3.3S
Micrologic
Ii
tsd
tr
Ir Isd
Isd (x In)
12
10
8
Ii (x In)
35
15
2
3
48
6
10
12
15
20
25
30 40
45
50
60
1.5
5.3 A
Micrologic
Isd
tr
Ir
tsd
Ii
Ii (x In)
225
125
2
3
46
5
8
10
12
150
175
200 250
300
350
400
1.5
Ii (x In)
35
15
2
3
48
6
10
12
15
20
25
30 40
45
50
60
1.5
Ig tg
6.2E
6.3 A
Micrologic
Ir tr Isd tsd Ii(xIn) Ig tg
Ii (x In)
225
125
2
3
46
5
8
10
12
150
175
200 250
300
350
400
1.5
Ir (A)
Standard
Energy Efficient
Energie Efficace
Energia Eficiente
4400
4000
3200 3600
2800
2400
2000 4800
Isd (A)
1.3 M
Micrologic
Isd (x FLA)
114
181
172
163
155
145
137
FLA (A) Class.
217
210
Ii=3750
Micrologic
2.2 M
Isd
FLA
Isd (x FLA)
190
310
290
270
250
230
210
50
FLA (A) Class.
348
330
2.3M
Micrologic
Isd
FLA
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
61
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Protection of Distribution Systems
Thermal-Magnetic Trip Units
TM thermal-magnetic trip units can be used on PowerPact H and J-frame circuit breakers with interrupting
levels D/G/J/L. Thermal-magnetic trip units are available in factory sealed or field-interchangeable
constructions.
t
0lnlil
H-Frame Trip Curve
(ln) Fixed threshold thermal
protection against
overload
(li) Fixed threshold
instantaneous protection
against short circuits
Table 56: H-Frame and J-Frame 3P Field-Installable Thermal-Magnetic Trip Unit
15–60 A H-Frame 70–150 A H-Frame 150–250 A J-Frame
Amperage Cat. No. Amperage Cat. No. Amperage Cat. No.
15 A HT3015 70 A HT3070 150 A JT3150
20 A HT3020 80 A HT3080 175 A JT3175
25 A HT3025 90 A HT3090 200 A JT3200
30 A HT3030 100 A HT3100 225 A JT3225
35 A HT3035 110 A HT3110 250 A JT3250
40 A HT3040 125 A HT3125 — —
45 A HT3045 150 A HT3150 — —
50 A HT3050 — —
60 A HT3060 — —
250A
1250 2500
lnlm (= li)
60A 1125A
(ln)(l
i)
250A
1250 2500
(ln)(l
m)
J-Frame Trip Unit
H-Frame Trip Unit
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
62
07/2014
Micrologic 3 Trip Units
Micrologic 3 trip units can be used on PowerPact H-, J-, and L-Frame circuit breakers with performance
levels D/G/J/L.
They provide:
standard protection of distribution cables
indication of:
overloads (using LEDs)
overload tripping (using the SDx relay module).
Circuit breakers equipped with Micrologic 3 trip units can be used to protect distribution systems
supplied by transformers.
Protection
Settings are made using the adjustment rotary switches.
Overloads: Long time protection (I
r
)
Inverse time protection against overloads with an adjustable current pick-up I
r
set using a rotary switch
and an adjustable time delay t
r
.
Neutral protection
On 3-pole L-frame circuit breakers, neutral protection is not possible.
On four-pole L-frame circuit breakers, neutral protection may be set using a three-position switch:
switch position 4P 3D: neutral unprotected
switch position 4P 3D + N/2: neutral protection at half the value of the phase pick-up, (0.5 x I
r
)
switch position 4P 4D: neutral fully protected at I
r
Indicators
Front indicators
The green “Ready” LED blinks slowly when the electronic trip unit is ready to provide protection. It
indicates the trip unit is operating correctly.
Orange overload pre-alarm LED: steady on when I > 90% I
r
Red overload LED: steady on when I > 105% I
r
Remote indicators
An overload trip signal can be remotely checked by installing an SDx relay module inside the circuit
breaker. This module receives the signal from the Micrologic electronic trip unit through an optical link
and makes it available on the terminal block. The signal is cleared when the circuit breaker is reclosed.
See page 98.
Ii
tr
Ir
3.2
Ir (A) tr @ 6 Ir Ii (x In)
15 60
50
45
40
35
30
25
20
.5 16
16
16
8
4
2
1
1.5 15
12
10
8
6
4
3
2
450 16
16
8
4
216
.5
150
175
200
350
125
300
250
225
12
8
45
3
110
1.5
2
6
Ir (A) Ii (x In)Tr @ 6 Ir
Ii
x
SDX Module
Front Indicators
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
63
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 57: Micrologic 3 Trip Unit
Ratings I
n
at 104°F (40°C)
1
1
If the trip units are used in high-temperature environments, the Micrologic trip unit setting must take into account the thermal
limitations of the circuit breaker. See the temperature derating information on page 129.
60 A 100 A 150 A 250 A 400 A 600 A
Circuit Breaker
H-frame X X X
J-frame X
L-frame X X X
Micrologic 3.2 / 3.3 trip units
2
2Mission Critical trip units have a “-W” at the end of the number (for example 3.2-W). All other protections are the same and have
the same trip curves.
L Long-time protection
Pick-Up (A)
Tripping between
1.05 and 1.20 I
r
I
r
Value depending on sensor rating (I
n
) and setting on rotary switch
I
n
=60 A I
r
= 1520 25 30 35 40455060
I
n
= 100 A I
r
= 3540 45 50 60 708090100
I
n
= 150 A I
r
= 50 60 70 80 90 100 110 125 150
I
n
= 250 A I
r
= 70 80 100 125 150 175 200 225 250
I
n
= 400 A I
r
= 125 150 175 200 225 250 300 350 400
I
n
= 600 A I
r
= 200 225 250 300 350 400 450 500 600
Time Delay (s)
Accuracy 0 to -20%
t
r
0.5124816
1.5 x I
r
15 25 50 100 200 400
6 x I
r
0.5124816
7.2 x I
r
0.35 0.7 1.4 2.8 5.5 11
Thermal memory 20 minutes before and after tripping
I Instantaneous
Pick-up (A)
accuracy ± 15%
I
i
x
60 A 1.5 2 3 4 6 8 10 12 15
100 A 1.5 2 3 4 6 8 10 12 15
150 A 1.5 2 3 4 6 8 10 12 15
250 A1.52345681012
400 A1.52345681012
600 A1.52345681011
Non-tripping time
Maximum break time
10 ms
50 ms for I > 1.5 Ii
Micrologic 3.2S / 3.3S trip units
2
L Long-time protection
Pick-Up (A)
Tripping between
1.05 and 1.20 I
r
I
r
Value depending on sensor rating (I
n
) and setting on rotary switch
I
n
=60 A I
r
= 1520 25 30 35 40455060
I
n
= 100 A I
r
= 3540 45 50 60 708090100
I
n
= 150 A I
r
= 50 60 70 80 90 100 110 125 150
I
n
= 250 A I
r
= 70 80 100 125 150 175 200 225 250
I
n
= 400 A I
r
= 125 150 175 200 225 250 300 350 400
I
n
= 600 A I
r
= 200 225 250 300 350 400 450 500 600
Time Delay (s)
Accuracy 0 to -20%
t
r
non-adjustable
1.5 x I
r
400
6 x I
r
16
7.2 x I
r
11
Thermal memory 20 minutes before and after tripping
S Short-time protection
Pick-up (A)
accuracy ± 10% I
sd
- I
r
x... 1.5234567810
Time delay (ms)
t
sd
non-adjustable
Non-tripping time
Maximum break time
20
80
I Instantaneous
Pick-up (A)
accuracy ± 15%
I
i
x I
n
1.523468101215
Non-tripping time
Maximum break time
10 ms
50 ms for I > 1.5 Ii
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
64
07/2014
Micrologic 5 / 6 A or E Trip Units
Micrologic 5 / 6 A (Ammeter) or E (Energy) trip units can be used on PowerPact H-, J-, and L-frame
circuit breakers with performance levels D, G, J, or L. They all have a front display module. They offer
basic LSI protection (Micrologic 5 trip unit) or LSI and ground-fault protection G (Micrologic 6 trip unit).
They also offer measurement, alarm and energy values.
The capabilities of Micrologic 5 / 6 A and E trip units come into full play with the front display module.
When the two are connected using a simple cable with RJ45 connectors, the combination offers full
Power Meter capabilities and all the measurements required to monitor the electrical installation.
Ii (x In)
35
15
2
3
48
6
10
12
15
20
25
30 40
45
50
60
1.5
Ig tg
6.2E
Measurement
Display
Maintenance
Settings
Measurements Operating and Maintenance Assistance Communication
Network
Ammeter
(Micrologic A
Trip Unit)
Current measurements
Phase and neutral currents I
A
, I
B
, I
C
, I
N
Average current of the 3 phases I
avg
Highest current of the three phases I
max
Ground-fault current Ig (Micrologic 6.2 / 6.3 A) trip units
Maximum and minimum current measured
Indicators, alarms and histories
Fault types
Alarms for high/low alarm thresholds linked to I
measurements
Trip, alarm and operating histories
Time-stamped tables for settings and maximum current
Maintenance indicators
Operation, trip and alarm counters
Operating hours counter
Contact wear
Load profile and thermal image
Modbus with
add-on module
Energy
(Micrologic E
Trip Unit)
Current measurements
Phase and neutral currents I
A
, I
B
, I
C
, I
N
Average current of the 3 phases I
avg
Highest current of the three phases I
max
Ground-fault current I
g
(Micrologic 6.2 / 6.3 A trip units)
Maximum and minimum current measured
Current unbalance between phases
Voltage measurements
Phase-to-phase (V) and phase-to-neutral (U) voltages
Average voltages V
avg
, U
avg
Ph-Ph (V) and Ph-N (U) voltage unbalance
Frequency measurements
Frequency (f)
Power-quality indicators
Total harmonic distortion (THD) for current and voltage
Power measurements
Active, reactive and apparent power, total and per phase
Power factor and cos ij
Maximum and minimum
For all I, V, f, P, E measurements
Demand current and power measurements
Demand values, total and per phase
Maximum demand
Energy metering
Active, reactive and apparent energy, total and per phase
Indicators, alarms and histories
Fault types
Alarms for high/low thresholds linked to I, V, f, P, E
measurements
Trip, alarm and operating histories
Time-stamped tables for settings and I, V, f, P, E
maximum values
Maintenance indicators
Operation, trip and alarm counters
Operating hours counter
Contact wear
Load profile and thermal image
Modbus with
add-on module
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
65
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Power Requirements
The amount of current needed to power the trip unit is printed in the upper left hand corner of the trip
unit by the Ready LED.
Protection
Settings can be adjusted in two ways, using the rotary switches and/or the keypad.
The keypad can be used to make fine adjustments in 1 A steps below the maximum value defined
by the setting on the rotary switch.
Access to setting modifications using the keypad is protected by a locking function displayed on the
screen and controlled by a microswitch.
The lock is activated automatically if the keypad is not used for 5 minutes.
Access to the microswitch is protected by a transparent, sealable cover.
With the cover closed, it is still possible to display the various settings and measurements using the
keypad.
Overloads: Long-Time Protection (I
r
)
Inverse time protection against overloads with an adjustable current pick-up I
r
is set using a rotary
switch or the keypad for fine adjustments. The time delay t
r
is set using the keypad.
Short-Circuits: Short-Time Protection (I
sd
)
Short-circuit protection with an adjustable pick-up I
sd
and adjustable time delay t
sd
, with the possibility
of including a portion of an inverse time curve (I
2
t On).
Short-Circuits: Instantaneous Protection (I
i
)
Instantaneous protection with adjustable pick-up I
i
.
Additional Ground Fault Protection (I
g
) on Micrologic 6 Trip Units
Residual type ground-fault protection with an adjustable pick-up I
g
and adjustable time delay t
g
.
Possibility of including a portion of an inverse time curve (I
2
t On).
Neutral Protection
On 4-pole circuit breakers, this protection can be set using the keypad:
Off: neutral unprotected
0.5: neutral protection at half the value of the phase pick-up (0.5 x I
r
)
1.0: neutral fully protected at I
r
OSN: Oversized neutral protection at 1.6 times the value of the phase pick-up.
Used when there is a high level of 3rd order harmonics (or orders that are multiples of 3) that
accumulate in the neutral and create a high current. In this case, the device must be limited to
I
r
= 0.63 x I
n
for the maximum neutral protection setting of 1.6 x I
r
.
With 3-pole circuit breakers, the neutral can be protected by installing an external neutral sensor
with the output (T1, T2) connected to the trip unit.
Table 58: Trip Unit Power Requirements
Frame Power-Up Requirement
H-Frame, 60 A
60 A > 15 A
100 A > 15 A
150 A > 30 A
J-Frame, 250A 250A > 30 A
L-Frame, 600 A 400 A > 50 A
600 A > 50 A
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
66
07/2014
Zone Selective Interlocking (ZSI)
A ZSI terminal block may be used to interconnect a number of Micrologic trip units to provide zone
selective interlocking for short-time (I
sd
) and ground-fault (I
g
) protection, without a time delay. For
PowerPact H- and J-frame circuit breakers, the ZSI function is available only in relation to the
upstream circuit breaker (ZSI out). For PowerPact L-frame circuit breakers, the ZSI function is
available in relation to the upstream circuit breaker (ZSI out) and downstream circuit breakers (ZSI in).
Display of Type of Fault.
On a fault trip, the type of fault (I
r
, I
sd
, I
i
, I
g
), the
phase concerned and the interrupted current are
displayed. An external power supply is required.
Indicators
Front Indicators
The green “Ready” LED blinks slowly when the electronic trip unit is ready to provide protection. It
indicates the trip unit is operating correctly.
Orange overload pre-alarm LED stays on when I > 90% I
r
Red overload LED stays on when I > 105% I
r
Remote Indicators
An SDx relay module installed inside the circuit breaker can be used to remote the following
information:
overload trip
overload prealarm (Micrologic 5 trip units) or ground fault trip (Micrologic 6 trip units).
This module receives the signal from the Micrologic electronic trip unit through an optical link and
makes it available on the terminal block. The signal is cleared when the circuit breaker is closed.
Note: all the trip units have a transparent sealable cover.
These outputs can be reprogrammed to be assigned to other types of tripping or that protects access
to the adjustment rotary switch. The module is described in detail in the section dealing with
accessories.
Isd Fault
Fault Phase Interrupted Current
Display of Interrupted Current.
Green
LED
Yellow
LED
Red
LED
SDx Module
x
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
67
07/2014
© 2011–2014 Schneider Electric
All Rights Reserved
Table 59: Micrologic 5/6 Trip Unit
1
Ratings I
n
at 104°F (40°C)
2
60 A 100 A 150 A 250 A 400 A 600 A
Circuit Breaker
H-frame X X X
J-frame X
L-frame XX
L Long-time protection
Pick-up (A)
tripping between
1.05 and 1.20 I
r
I
r
rotary switch Value depending on the trip unit rating (I
n
) and setting on rotary switch
I
n
= 60 A I
r
= 15 20 25 30 35 40 45 50 60
I
n
= 100 A I
r
= 35 40 45 50 60 70 80 90 100
I
n
= 150 A I
r
= 50 60 70 80 90 100 110 125 150
I
n
= 250 A Ir = 70 80 100 125 150 175 200 225 250
I
n
= 400 A Ir = 125 150 175 200 225 250 300 350 400
I
n
= 600 A Ir = 200 225 250 300 350 400 450 500 600
keypad setting Fine adjustment in 1 A steps below maximum value set on rotary switch
Time Delay (s)
Accuracy 0 to -20%
tr = keypad setting 0.5 1 2 4 8 16
1.5 x Ir 15 25 50 100 200 400
6 x Ir 0.5 1 2 4 8 16
7.2 x Ir 0.35 0.7 1.4 2.8 5.5 11
Thermal memory 20 minutes before and after tripping
S Short-time protection
Pick-up (A)
accuracy ± 10% I
sd
keypad setting 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
Fine adjustment in 0.5 x I
r
steps using the keypad
Time delay
t
sd
= Keypad
setting
I2t Off 0 0.1 s 0.2 s 0.3 s 0.4 s
I2t On 0.1 s 0.2 s 0.3 s 0.4 s
Non-tripping time
Maximum break time
20 ms
80 ms
80 ms
140 ms
140 ms
200 ms
230 ms
320 ms
350 ms
500 ms
I Instantaneous
Pick-up (A)
accuracy ± 15%
I
i
= I
n
x Rotary
Switch
60 A 1.5 2 .3 4 6 8 10 12 15
100 A 1.5 2 .3 4 6 8 10 12 15
150 A 1.5 2 .3 4 6 8 10 12 15
250 A1.52.345681012
400 A1.52.345681012
600 A1.52.345681011
Non-tripping time
Maximum break time
10 ms
50 ms for I > Ii
G Ground-fault protection - for Micrologic 6 A or E Trip Units
Pick-up (A)
accuracy ± 10%
I
g
Keypad Setting
I
n
= 60 A I
g
= 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1
I
n
= 100–600 A I
g
= 0.2 2.5 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1
Time delay (s)
t
g
= Keypad
setting
I2t Off 0 0.1 0.2 0.3 0.4
I2t On 0.1 0.2 0.3 0.4
Non-tripping time
Maximum break time
20
80
80
140
140
200
230
320
350
500
Test I
g
function Built in
1Mission Critical trip units have a “-W” at the end of the number (for example 3.2-W). All other protections are the same and have the same trip curves.
2If the trip units are used in high-temperature environments, the Micrologic trip unit setting must take into account the thermal limitations of the circuit breaker. See the
temperature derating information on page 129.
© 2011–2014 Schneider Electric
All Rights Reserved
PowerPact™ H-, J-, and L-Frame Circuit Breakers
Trip Units
68
07/2014
Table 60: Micrologic 3 Field-Installable Trip Units
1
1Mission Critical trip units that end in “W” are factory sealed and are not available as field installable units.
Circuit Breaker
Trip Unit Type Catalog No.
Frame Standard Poles Rating
H-frame UL/CSA/NOM
3P 60 A Micrologic 3.2 HE3060U31X
3P 60 A Micrologic 3.2S HE3060U33X
3P 100 A Micrologic 3.2 HE3100U31X
3P 100 A Micrologic 3.2S HE3100U33X
3P 150 A Micrologic 3.2 HE3150U31X
3P 150 A Micrologic 3.2S HE3150U33X
J-Frame UL/CSA/NOM 3P 250 A Micrologic 3.2 JE3250U31X
3P 250 A Micrologic 3.2S JE3250U33X
L-Frame UL/CSA/NOM
3P
250 A Micrologic 3.3 LE3250U31X
Micrologic 3.3S LE3250U33X
400 A Micrologic 3.3 LE3400U31X
Micrologic 3.3S LE3400U33X
600 A Micrologic 3.3 LE3600U31X
Micrologic 3.3S LE3600U33X
