Cree KR4 LED Specification Downlight Sheet

2014-10-22

: Pdf 122531-Attachment 122531-Attachment Batch9 unilog

Open the PDF directly: View PDF PDF.
Page Count: 3

T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting T (800) 473-1234 F (800) 890-7507
Canada: www.cree.com/canada
Emergency Backup
Rev. Date: V6 09/25/2014
11.5"
(292mm)
12.0"
(305mm)
7.4"
(187mm)
5.3"
(133mm)
19.7"
(499mm)
18.4"
(467mm)
7.4"
(187mm)
5.3"
(133mm)

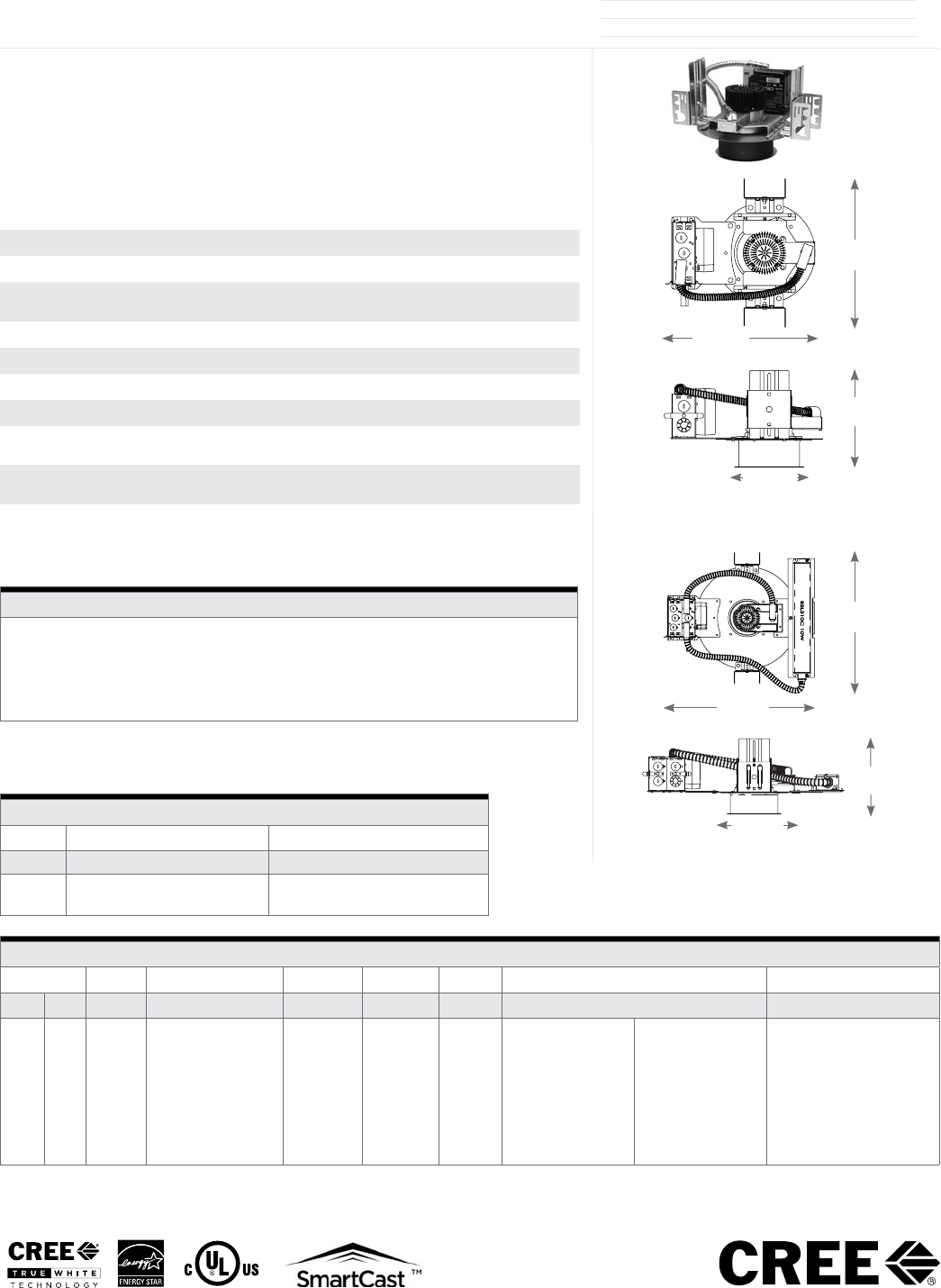

Product Description
The KR4™ LED specication downlight features Cree TrueWhite® Technology and delivers beautiful,
high-quality light with efcacy up to 75 lumens per watt. Designed for new construction applications,
the KR Series is available in variety of color temperatures, round and square trims with high-quality
anodized aluminum reflector nishes, a sloped ceiling adapter and a variety of dimming options
including Cree Sunset Dimming Technology providing rich, warm light that transitions from 2700K to
1800K as naturally as an incandescent source.
Performance Summary
Utilizes Cree TrueWhite® Technology
Made in the U.S.A. of U.S. and imported parts
Delivered Light Output: 665-3199 lumens; Delivered lumen output is typical when using a SSGC
type reflector
Input Power: 13-44 Watts
Emergency Performance: Up to 1210 Lumens; 10W; Minimum 90 Minutes
CRI: 90
C C T: 2700K , 3000K , 3500K, 4000K
Dimming: Triac, 0/1-10V, Cree SmartCast™ Technology, Lutron EcoSystem® Dimming, Lutron® Forward
Phase Dimming; See control availability chart on page 3
Limited Warranty†: 10 years on KR4™ luminiare/5 years on KR4™ luminiare with Cree SmartCast™
Technology/1 year on emergency battery pack
KR4™ Series
LED Specication Downlight – Round 4" Aperture
Ordering Information
Fully assembled luminaire is composed of two components that must be ordered separately:
Example: Housing: KR4 20L 35K 120V 10V + Reflector: KR4T SSGC FF
Housing (Reflector must be ordered separately)
KR4
Series Size Reflector Initial Delivered Lumens Optic CCT Voltage Controls Options
KR 4
4 inch
Blank
Round
9L
13W, 665 Lumens - 51 LPW
13L
18W, 977 Lumens - 54 LPW
20L
30W, 1546 Lumens - 52 LPW
30L
39W, 2348 Lumens - 60 LPW
40L
44W, 3199 Lumens - 73 LPW
Blank
70˚ Beam Angle
(Standard)
27K
2700K - 9L
thru 40L Only
30K
3000K
35K
3500K
40K
4000K
120V
120 Volts
277V
277 Volts
347V
347 Volts
Blank
- For standard control
offering refer to
control availability
chart on page 3
LES Lutron EcoSystem®
Dimming
- Refer to control
availability chart on
page 3
10V 0/1-10V Dimming
- Refer to control
availability chart on
page 3
LFP Lutron Forward Phase
Dimming
- Refer to control
availability chart on
page 3
WD Sunset Dim
- 9L and 13L @ 27K with Triac
Dimming only
10R Cree SmartCast™ Technology**
EB7* Emergency Backup
- Minimum 90 minutes
- 120V, 277V only
Reflector (Housing must be ordered separately)
KR4T
Series Reflector Finish Flange Finish
KR4T SSGC Soft Satin Glow, Clear
SSGCG Soft Satin Glow, Champagne Gold
FF Matches Reflector
WF White Paint
† See www.cree.com/lighting/products/warranty for warranty terms
* Available for U.S. only.
** Not available in 40L and 60L
Field-Installed
Sloped Ceiling Adaptor
KRKS4**WW
** 0-35 (order in 5 degree increments)
Control Module
CIF-10VC1-CWC-SNSR
- Cree SmartCast™ Technology with
ambient light and motion sensors
C-Channel Hanger Bars
RBH30C
- Pair of 30" (762mm) rigid 3/4" x 1/2"
(19mm x 13mm) C-Channel bars
T-Bar Clips
RARC7
- Set of four
Trim Ring
KR4TA
- White
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting T (800) 473-1234 F (800) 890-7507
Canada: www.cree.com/canada
Product Specications
CREE SMARTCAST™ TECHNOLOGY
Cree SmartCast™ Technology changes the paradigm of lighting control. With the
press of a single button, Cree SmartCast™ Technology enabled luminaires and
controls create their own secure network and auto-associate to form logical groups
throughout every space. Integrated sensors and robust wireless communication
included in every luminaire combined with revolutionary OneButton™ Setup enables
automated setup and conguration of luminaires and wall controls. With no extra
wires or interfaces, Cree SmartCast™ Technology products reduce installation time
and complexity.
CREE TRUEWHITE® TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology
is a patented approach that delivers an exclusive combination of 90+ CRI, beautiful
light characteristics, and lifelong color consistency, all while maintaining high luminous
efcacy – a true no compromise solution.
CONSTRUCTION & MATERIAL
• Initial color within a 3-step MacAdam Ellipse
• Low brightness parabolic spun Alzak aluminum cone, 0.06" (2mm) thick with
polished radius and continuous self-flange
• Soft Satin Glow Clear nish, standard
• 2" (51mm) aperture throat to accommodate all standard and up to 3" (76mm)
thick ceilings and provide flexibility in mounting within grid
• Provided with quick mounting brackets for optional carrying channels
• Light engine, optics, and driver accessible from below ceiling
ELECTRICAL SYSTEM
• Power Factor: > 0.9 for 120V and 277V
• Input Power: 120, 277V, or 347V, 50/60Hz
REGULATORY & VOLUNTARY QUALIFICATIONS
• cULus Listed
• Suitable for thru-wiring 8#12AWG-90°C
• Suitable for damp locations
• Thermally protected Type NON-IC in accordance with Article 410 of the NEC and
UL 1598
• Meets Buy American requirements within ARRA
• EnergyStar® Qualied. Please refer to http://www.energystar.gov for most current
information
KR4™ Series - Round 4" Aperature
Installation
• Recommended ceiling cutout 4.25" (108mm)
Note: 30L versions require marked spacing: 24" (600mm) X 12" (300mm) X ½" (12mm). 24" (600mm) luminaire to
luminaire, 12" (300mm) luminaire to side wall, ½" (12mm) above luminaire
60L versions require marked spacing: 48" (1219mm) X 24" (600mm) X 1" (25mm). 48" (1219mm) luminaire to luminaire,
24" (600mm) luminaire to side wall, 1" (25mm) above luminaire
Recommended Cree® KR Series Lumen Maintenance Factors (LMF)1
Ambient Initial Delivered
Lumens
Initial
LMF
25K hr
Projected2
LMF
50K hr
Projected2
LMF
75K hr
Calculated3
LMF
100K hr
Calculated3
LMF
5˚C
(41˚F)
9L and 13L 1.05 1.04 1.03 1.03 1.02
20L and 30L 1.03 0.99 0.94 0.90 0.86
40L 1.03 0.96 0.90 0.83 0.77
10˚C
(50˚F)
9L and 13L 1.04 1.03 1.03 1.02 1.02
20L and 30L 1.02 0.97 0.93 0.89 0.85
40L 1.03 0.95 0.88 0.82 0.76
15˚C
(59˚F)
9L and 13L 1.03 1.02 1.02 1.01 1.01
20L and 30L 1.01 0.96 0.91 0.88 0.84
40L 1.02 0.94 0.87 0.81 0.75
20˚C
(68˚F)
9L and 13L 1.02 1.01 1.00 1.00 0.99
20L and 30L 1.01 0.95 0.90 0.87 0.83
40L 1.01 0.93 0.86 0.80 0.74
25˚C
(77˚F)
9L and 13L 1.00 1.00 0.99 0.99 0.99
20L and 30L 1.00 0.94 0.89 0.86 0.82
40L 1.00 0.92 0.85 0.79 0.74
30˚C
(86˚F)
9L and 13L 0.99 0.99 0.98 0.98 0.98
20L and 30L 0.97 0.93 0.88 0.85 0.81
40L 0.98 0.91 0.84 0.78 0.73
35˚C
(95˚F)
9L and 13L 0.98 0.97 0.97 0.97 0.97
20L and 30L 0.96 0.92 0.87 0.84 0.80
40L 0.96 0.90 0.83 0.77 0.72
1 Lumen maintence values at 25˚C (77˚F) are calculated per TM-21 based on LM-80 data and in-situ luminaire testing
2 In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times
(6X) the IESNA LM-80-08 total test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)
3 In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times (6X) the IESNA LM-80-08 total
test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)

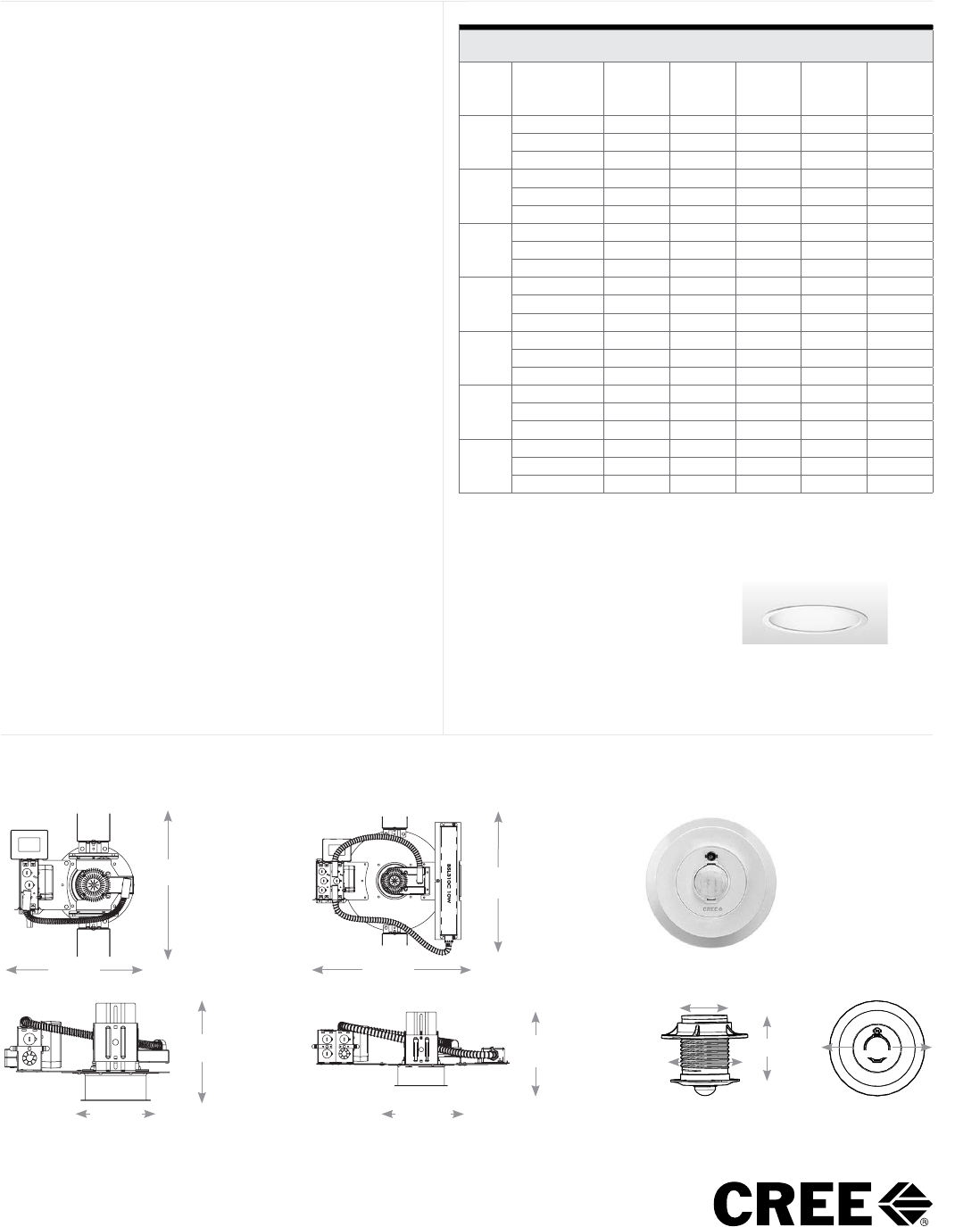

Cree SmartCast™ Technology
11.5"
(292mm)
12.0"
(305mm)
7.4"
(187mm)
5.3"
(133mm)
Emergency Backup and Cree
SmartCast™ Technology
20.0"
(499mm)
18.4"
(467mm)
7.4"
(187mm)
5.3"
(133mm)
Occupancy Sensor included with
Cree SmartCast™ Technology
1.9"
(48mm)
3.0"
(76mm)
3.4"
(86mm)
2.7"
(68.5mm)
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting T (800) 473-1234 F (800) 890-7507
Canada: www.cree.com/canada
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See www.cree.com/patents
for patents that cover these products. Cree®, the Cree logo, Cree TrueWhite®, TrueWhite®, and the Cree TrueWhite Technology logo
are registered trademarks, and KR4™ and the Quick Ship logo are trademarks of Cree, Inc. Lutron® and EcoSystem® are registered
trademarks of Lutron, Inc. The UL logo is a registered trademark of UL LLC. ENERGY STAR® and the ENERGY STAR logo are
registered trademarks of the United States Environmental Protection Agency.
Open Space
Spacing Lumens Wattage LPW w/ft2Average FC
4 x 4
2348 39 60
2.34 137
6 x 6 1.09 65
8 x 8 0.59 36
10 x 10 0.39 26
10' Ceiling, 80/50/20 Reflectances, 2.5 workplane. LLF: 1.0 Initial. Open Space: 50' x 40' x 10'
Corridor
Spacing Lumens Wattage LPW w/ft2Average FC
4' on Center
2348 39 60
1.63 69
6' on Center 1.11 47
8' on Center 0.78 34
10' on Center 0.65 28
10' Ceiling, 80/20/50 Reflectances, Light levels on the ground. LLF: 1.0 Initial. Corridor: 6' Wide x 100' Long
0˚ 20˚
50˚
70˚
90˚
386
0
1543
771
1157
90˚
UL Test Report #: 157461
KR4 30L 27K 120V SSGC FF
Initial Delivered Lumens: 2235
Efcacy: 59.0 LPW
S/M: 1.16
Cone of Light
Distance from
Workplane Footcandles Beam
Diameter
6' (1.8m) 42 6.9' (2.1m)
8' (2.4m) 24 9.1' (2.8m)
10' (3.0m) 15 11.5' (3.5m)
12' (3.7m) 11 13.5' (4.1m)
14' (4.3m) 815.8' (4.8m)
Coefcients Of Utilization – Zonal Cavity
Method
RC %: 80
RW %: 70 50 30 10
RCR: 0 119 119 119 119
1112 109 106 104
2106 100 95 91
399 91 86 81
493 84 77 73
587 77 71 66
682 72 65 60
777 66 59 54
873 62 55 50
969 58 51 46
10 65 54 47 43
Effective Floor Cavity Reflectance:20%
Zonal Lumen Summary
Zone Lumens % Lamp Luminaire
0-30 1,228 N/A 54.8%
0-40 1,733 N/A 77.4%
0-60 2,170 N/A 96.9%
0-90 2,239 N/A 100.0%
0-180 2,239 N/A 100.0%
Average Luminance Table (cd/m2)
Horizontal Angle
Vertical Angle
0° 45° 90°
45° 59,182 59,182 59,182
55° 30,926 30,926 30,926
65° 12,854 12,854 12,854
75° 6,046 6,046 6,046
85° 1,795 1,795 1,795

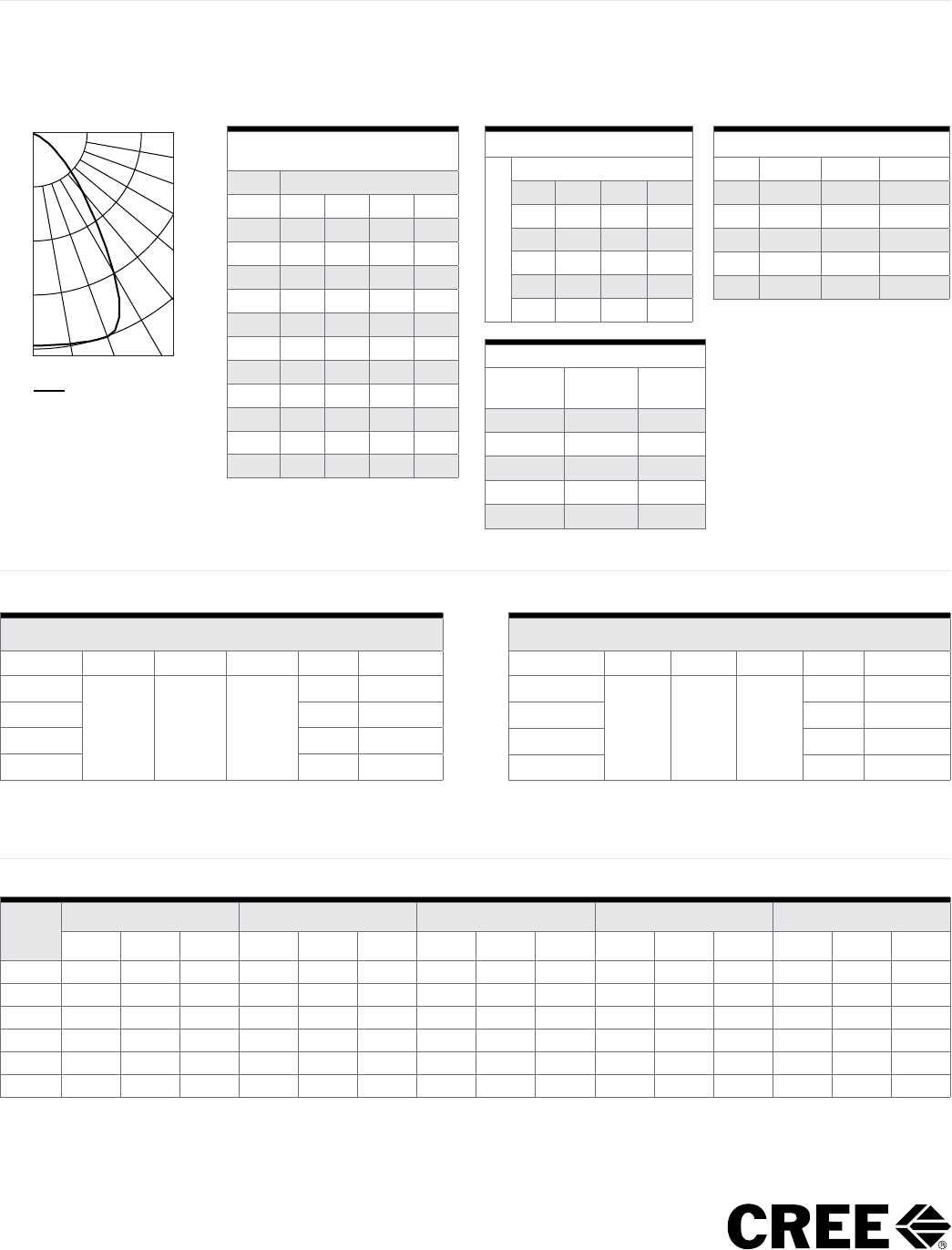

Photometry
KR4 30L 27K 120V W/KR4T SSGC WF BASED ON UL REPORT TEST #: 157461
Fixture photometry has been conducted in accordance with IESNA LM-79-08. IESNA LM-79-08 species the entire luminaire as the source resulting in a xture efciency of 100%.
KR4™ Series - Round 4" Aperature
Control Availability Chart
S = Standard Offering
O = Optional Offering
For exact photometric data, please reference our available IES and LM-79 test results at
http://www.cree.com/Lighting/Products/Indoor/Architectural-Downlights/KR-Series
Application Reference
Based on KR4 30L 27K 120V W/KR4T SSGC FF Luminaire
Initial
Delivered
Lumens
Non Dimming Triac Dimming to 5% 0/1-10V Dimming to 10% LES Dimming to 1% LFP Dimming to 1%
120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V
9L N/A SN/A SN/A N/A O O O N/A N/A O N/A N/A N/A
13L N/A SN/A SN/A N/A O O O O O O O N/A N/A
20L N/A N/A N/A N/A N/A N/A SSSO O O O N/A N/A
30L N/A N/A N/A N/A N/A N/A SSSO O O O N/A N/A
40L N/A N/A N/A N/A N/A N/A SSSO O O N/A N/A N/A
60L N/A N/A N/A N/A N/A N/A SSSO O O N/A N/A N/A
