WIRING DEVICES

Switches

Leviton . . .252-257

Lutron . . . . . . .258

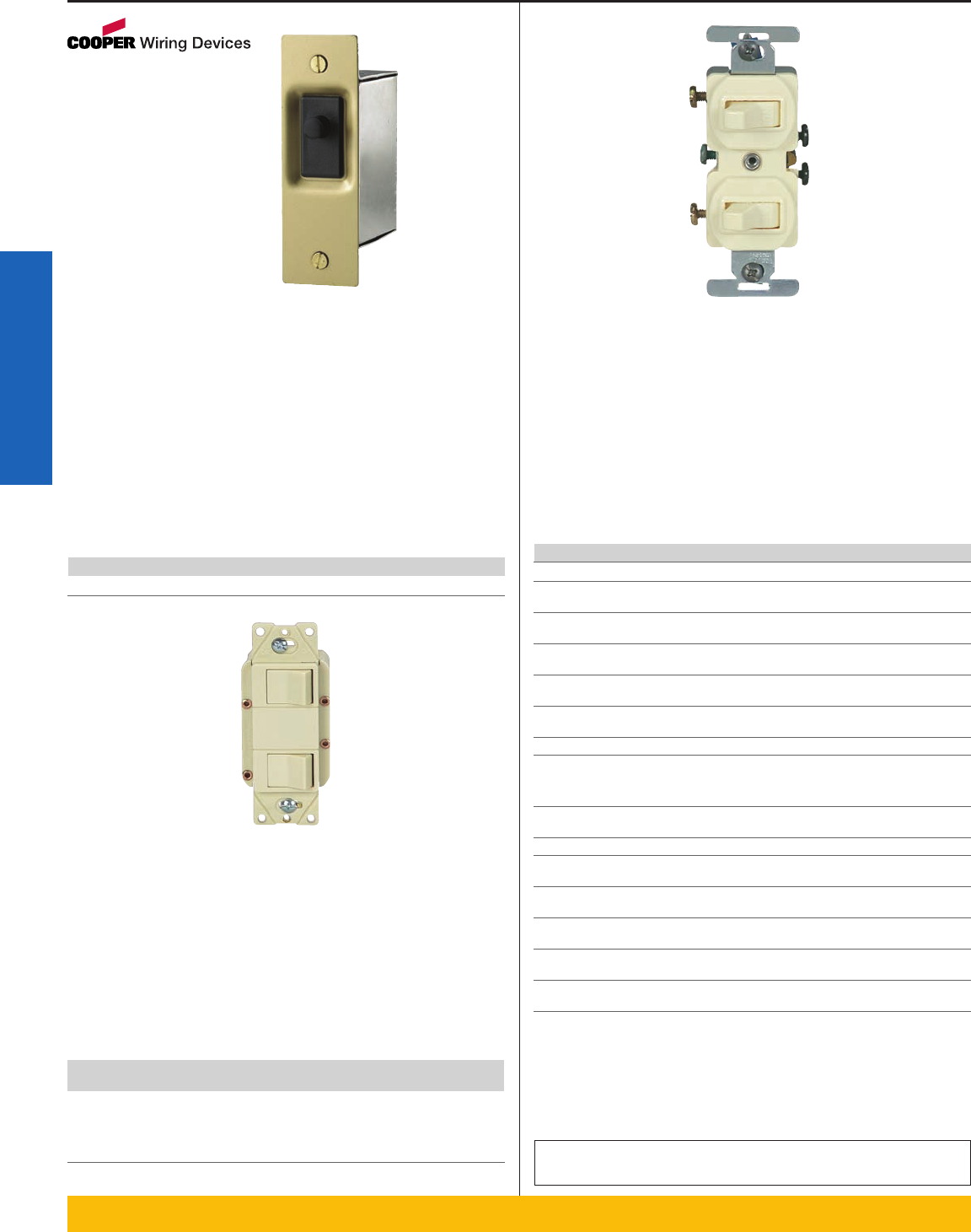

Cooper Wiring Devices . . .259-260

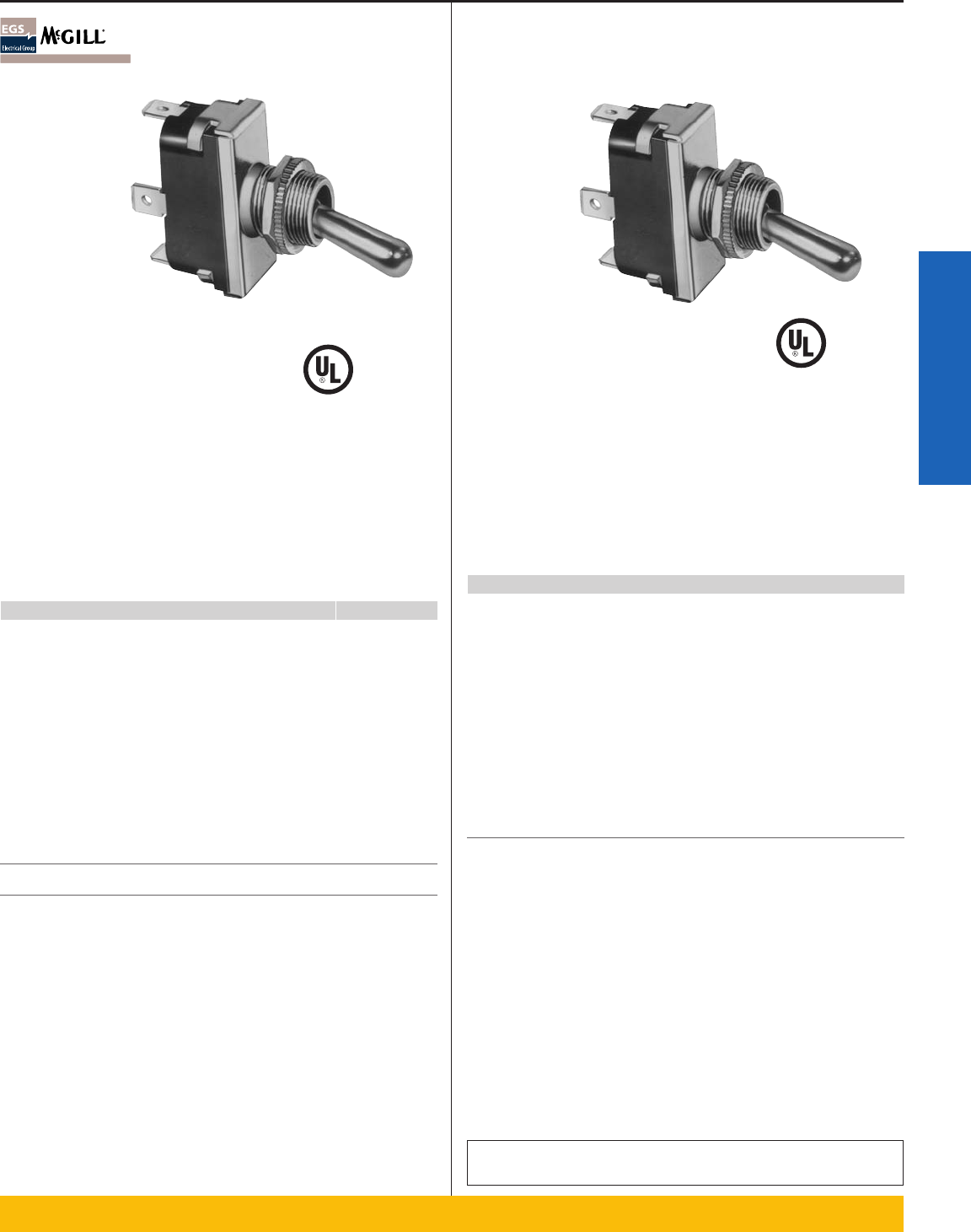

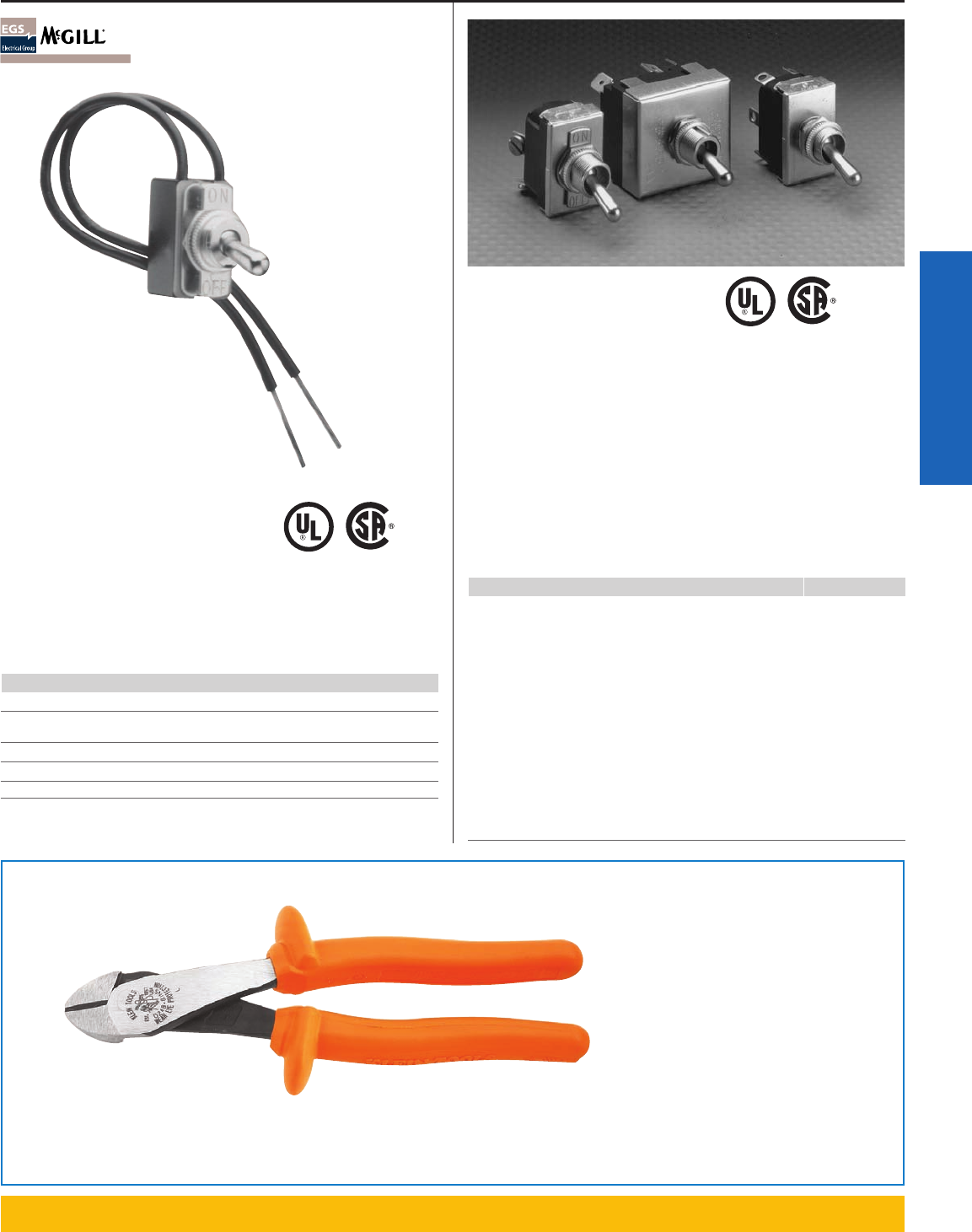

McGill . . .261-263

Hubbell Wiring Devices . . . . . . .264

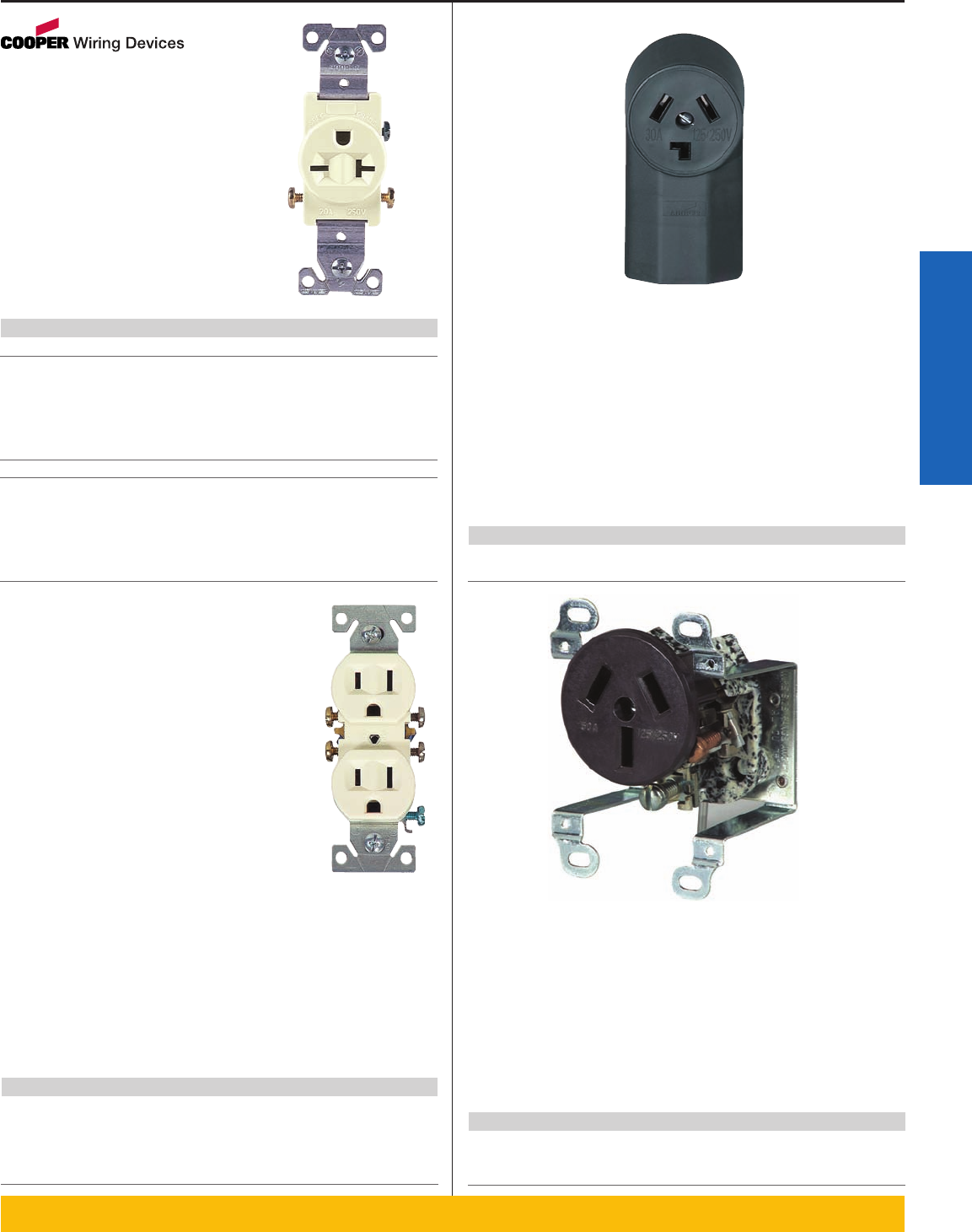

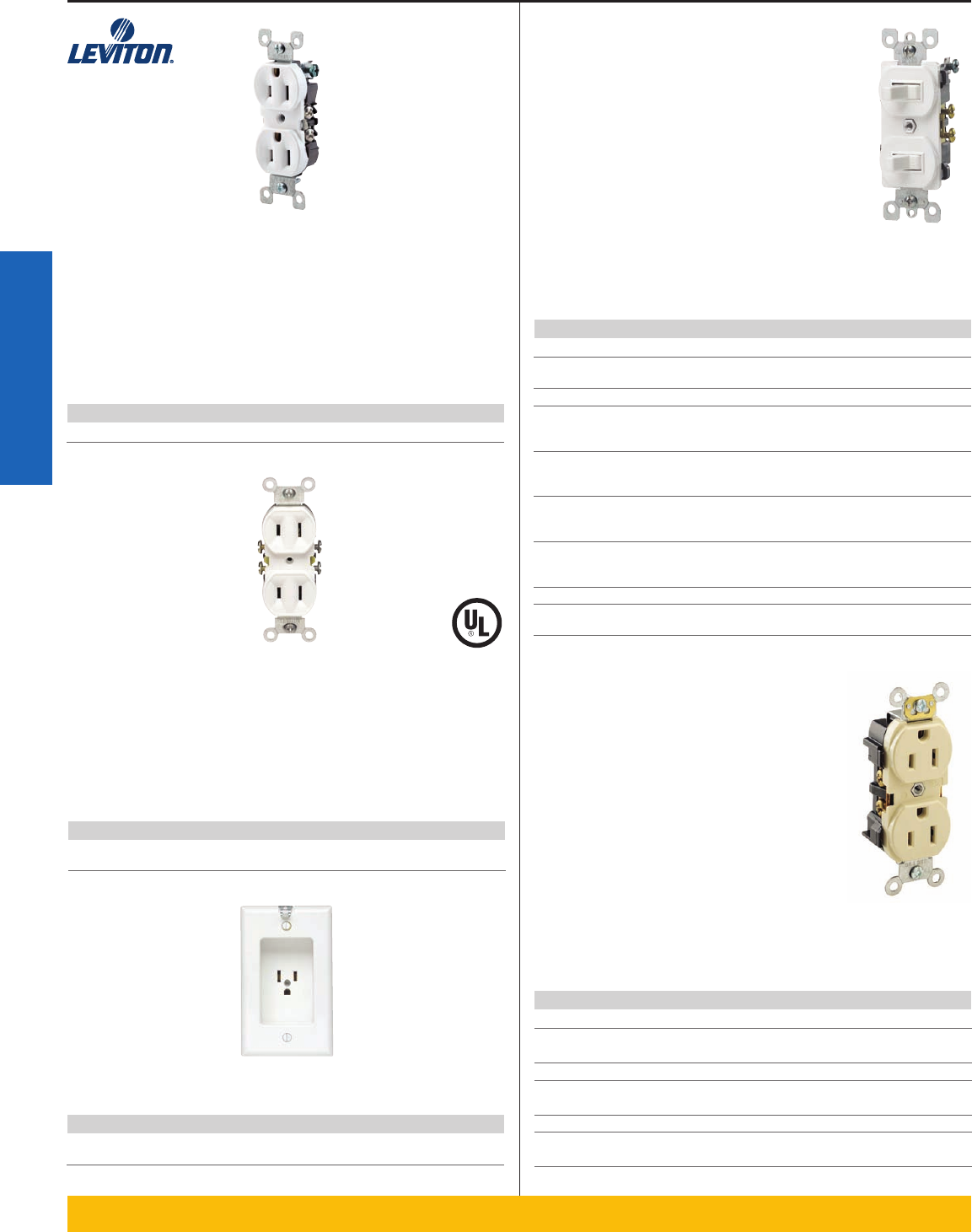

Receptacles

Leviton . . .265-272

Cooper Wiring Devices . . .273-276

Woodhead . . .277-278

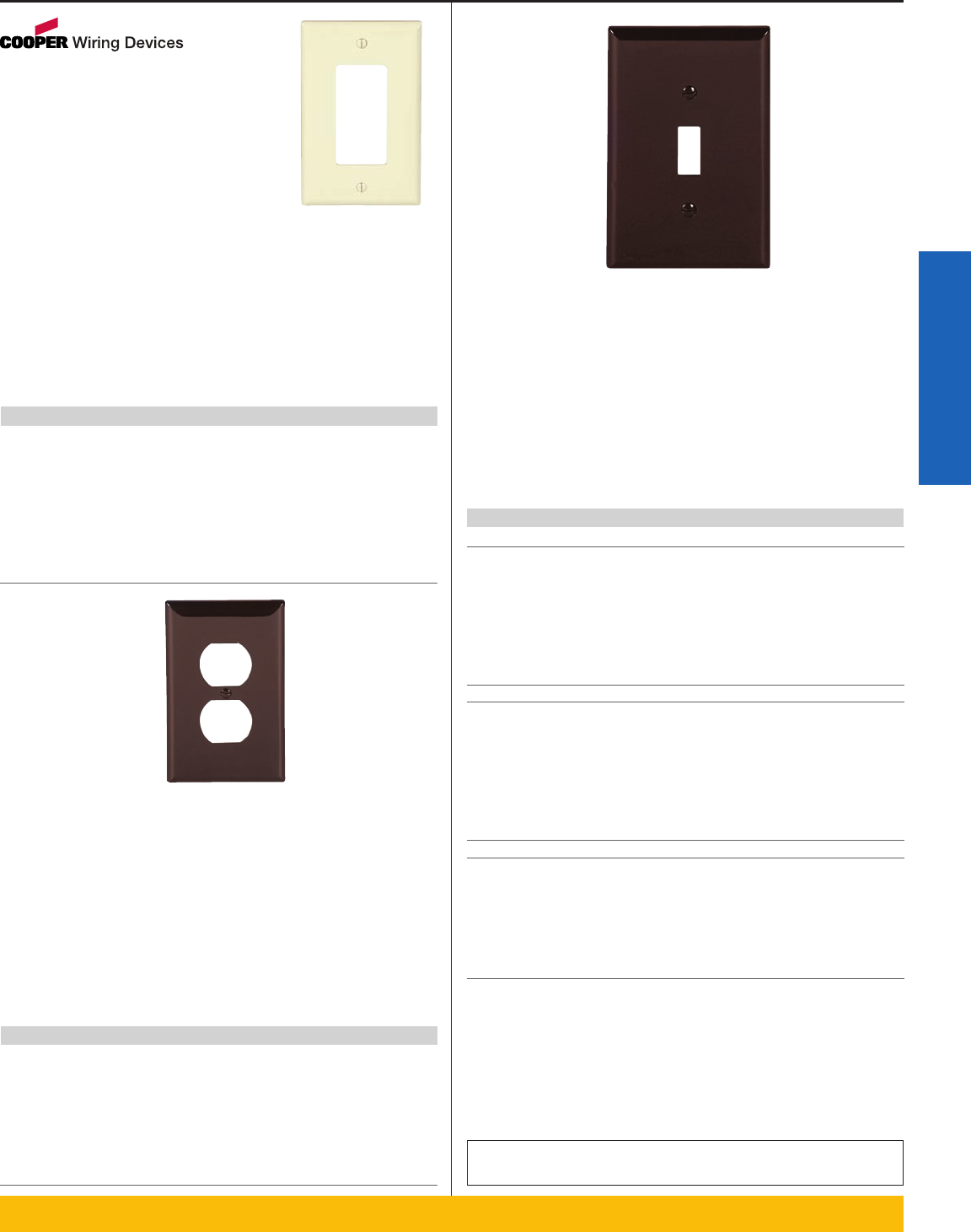

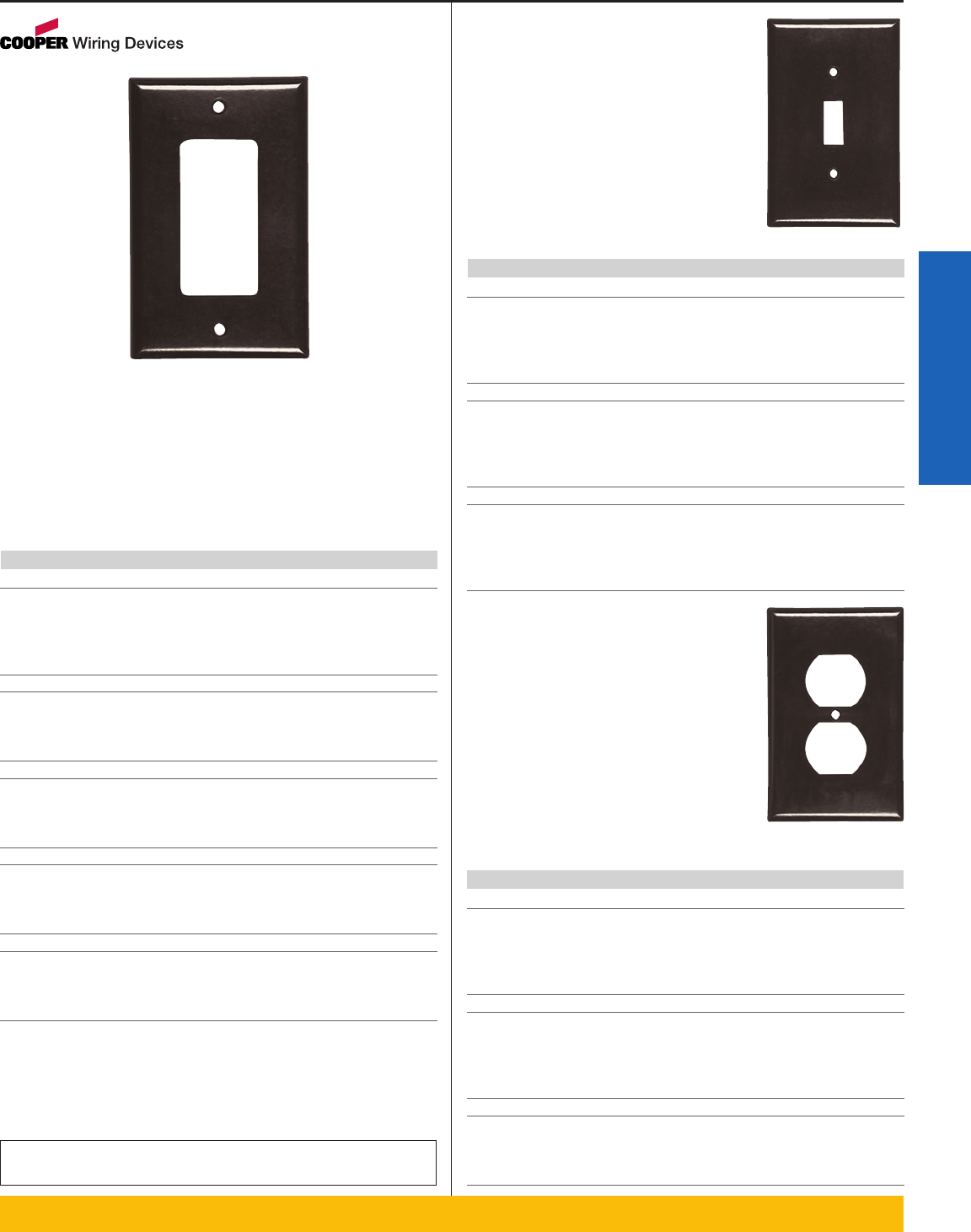

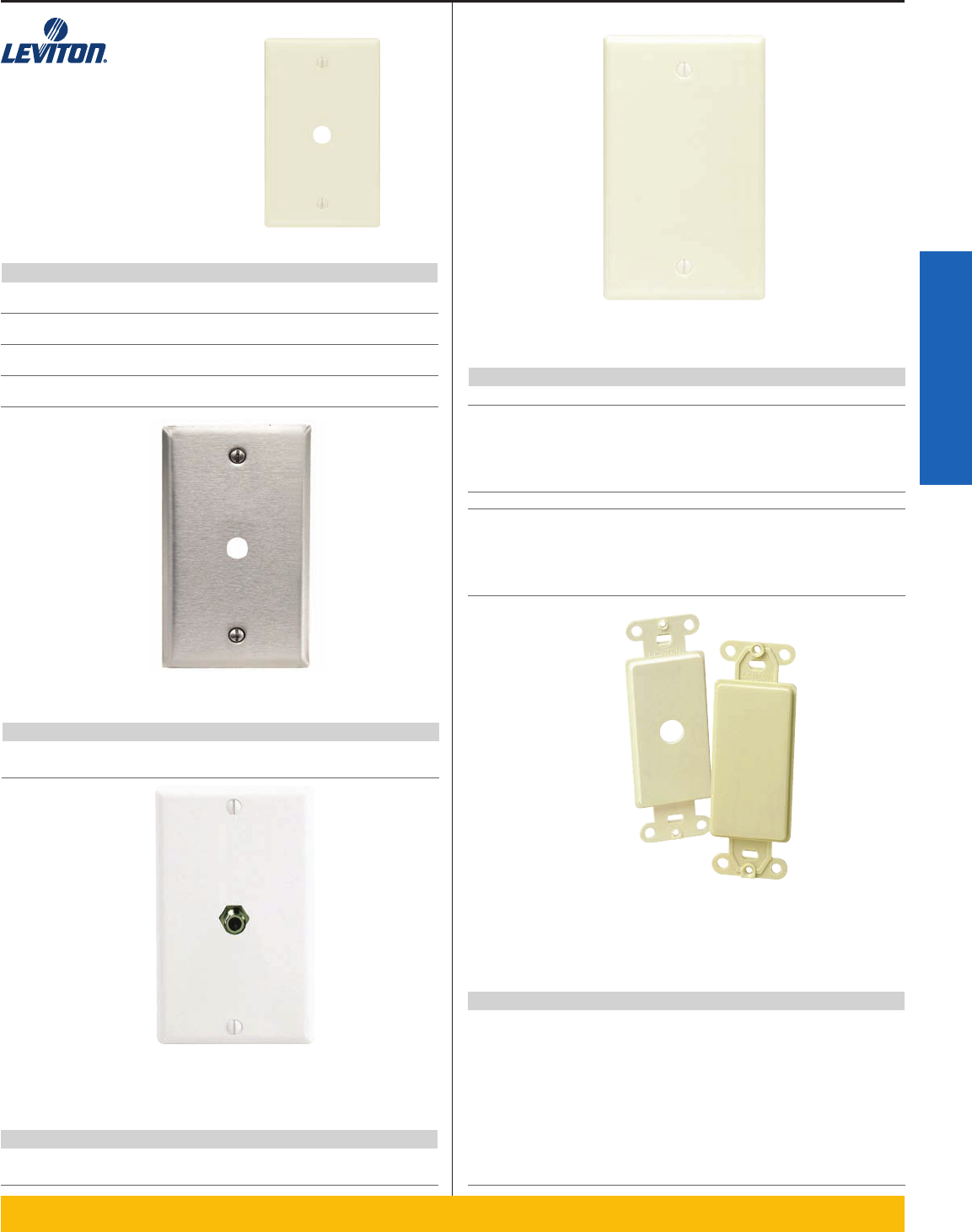

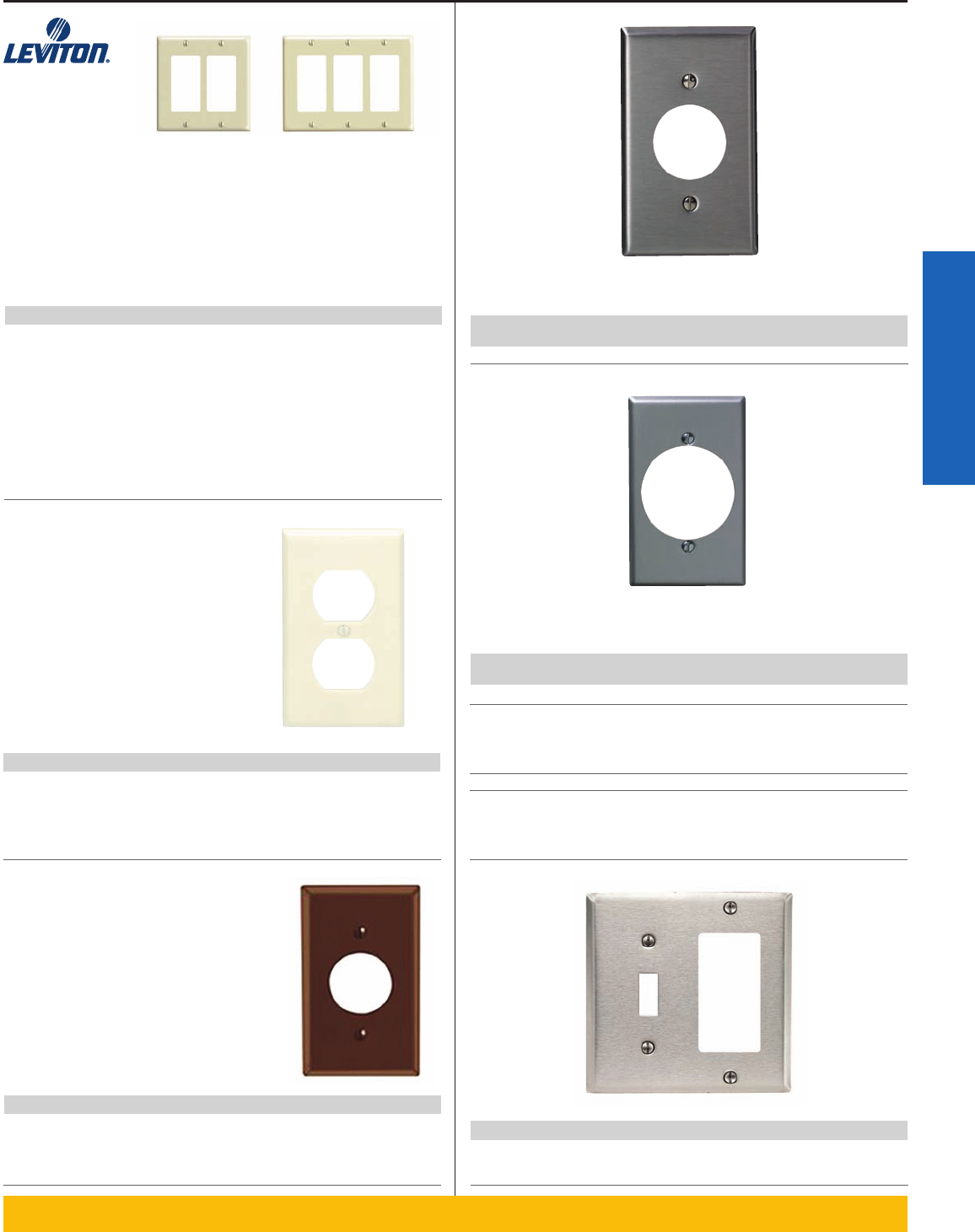

Wallplates

Leviton . . .279-286

Cooper Wiring Devices . . .287-289

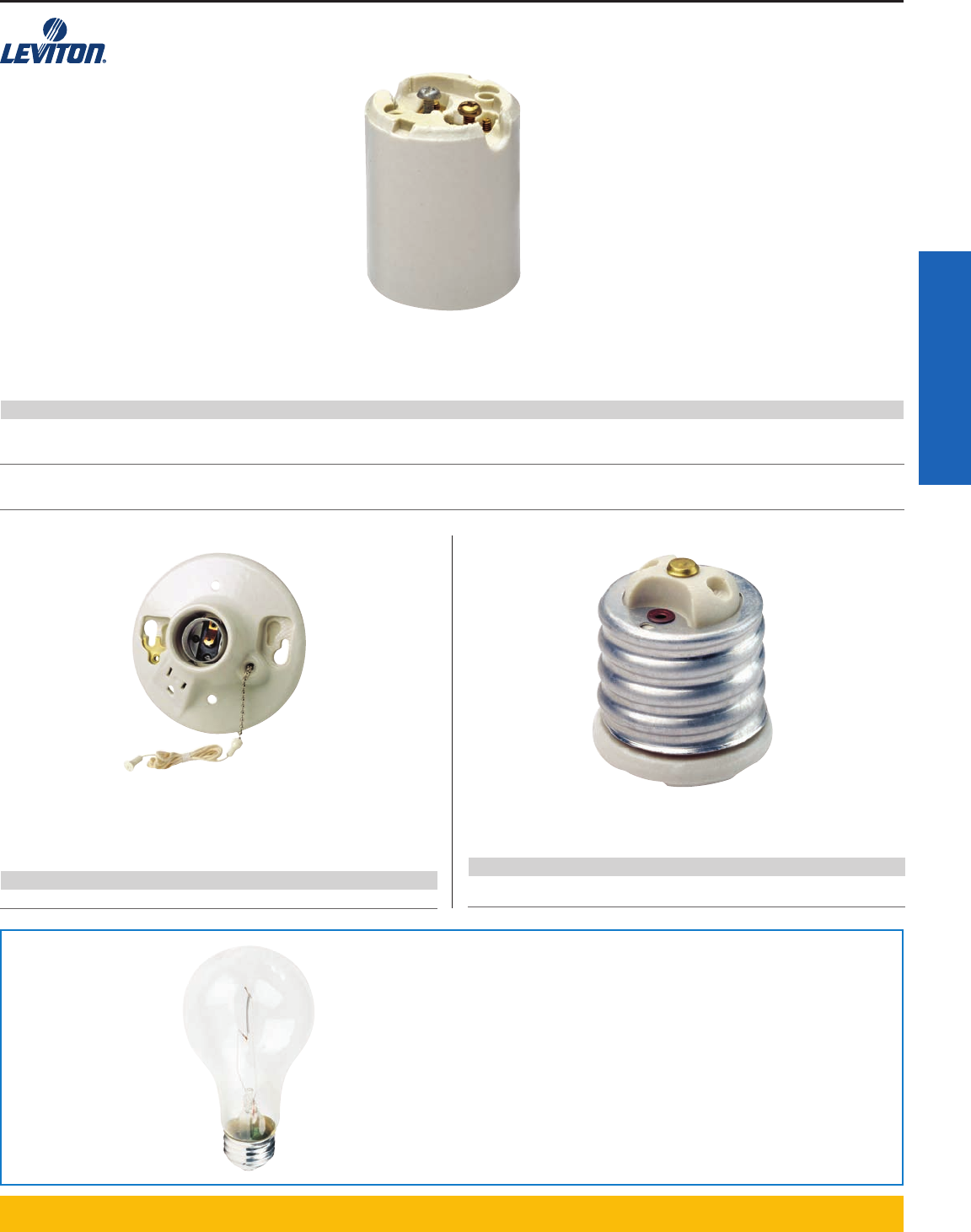

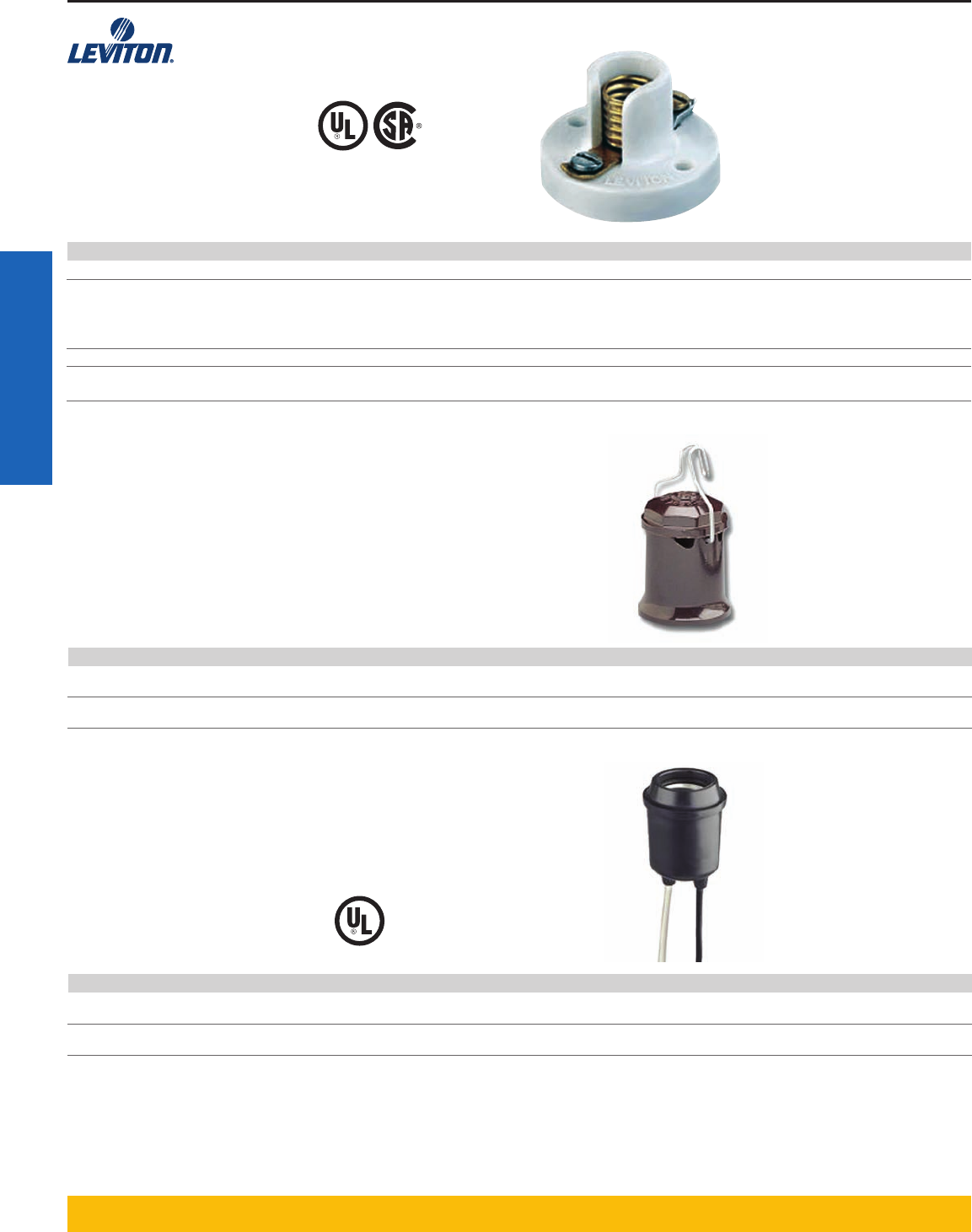

Lampholders

Leviton . . .290-293

Cooper Wiring Devices . . . . . . .294

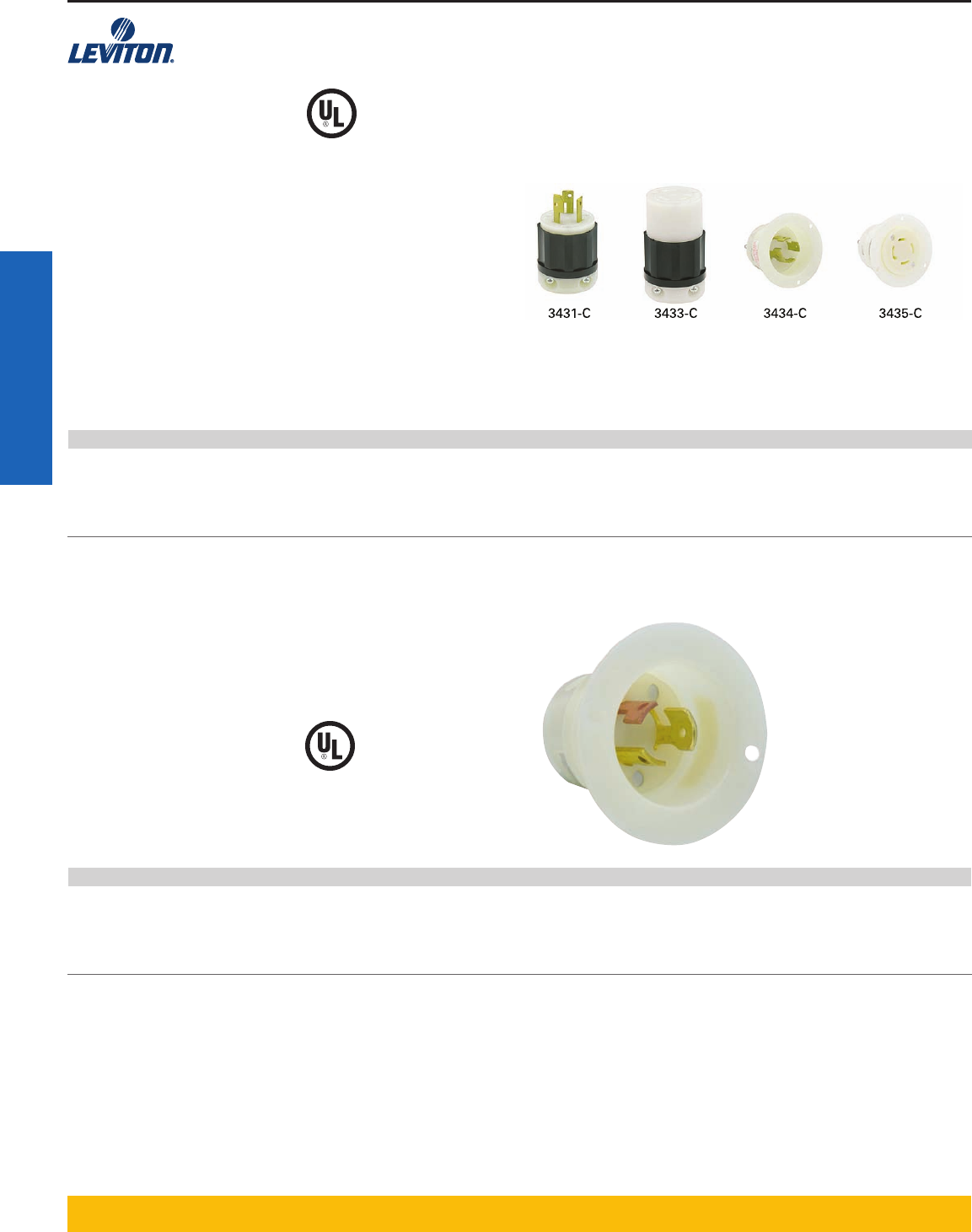

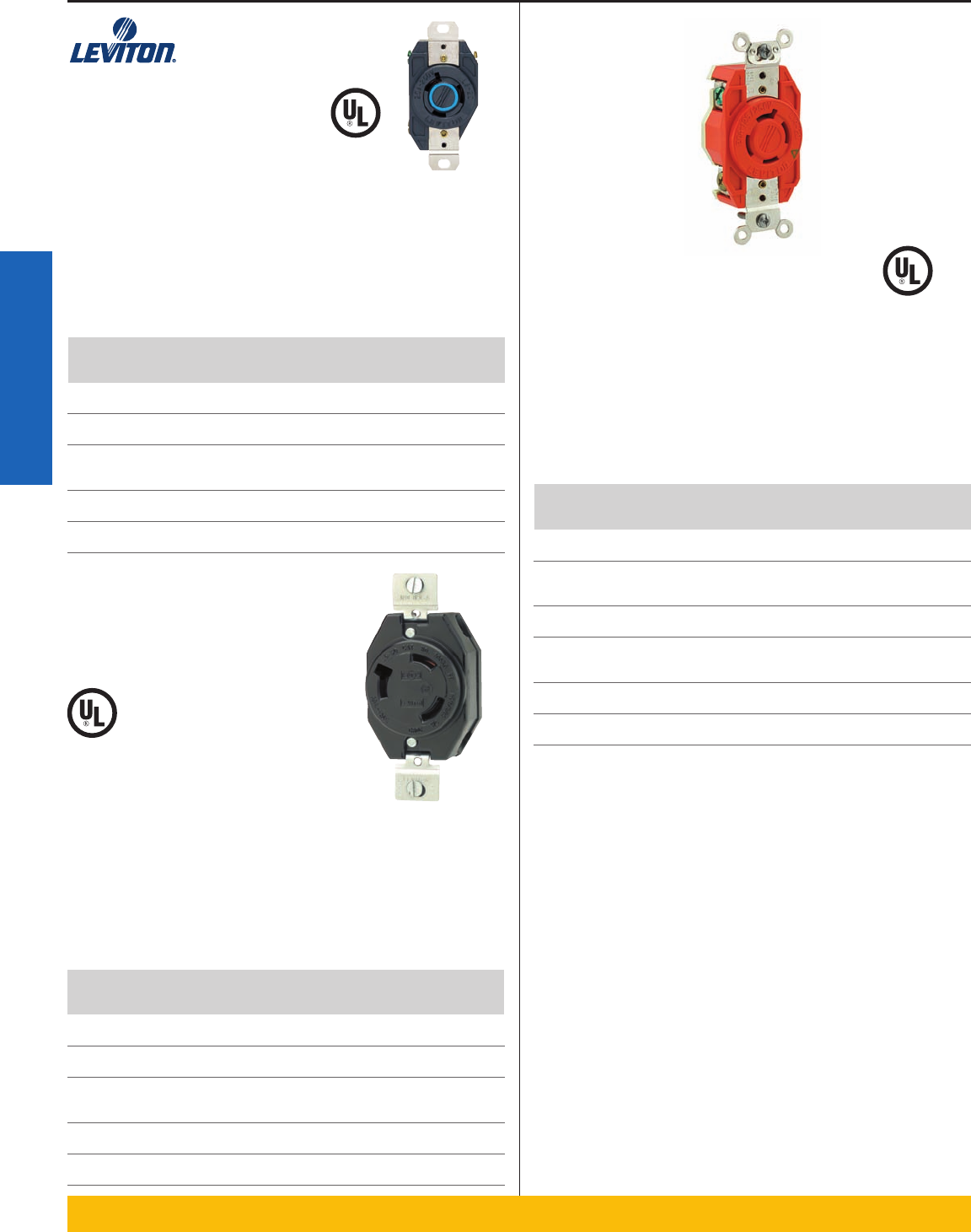

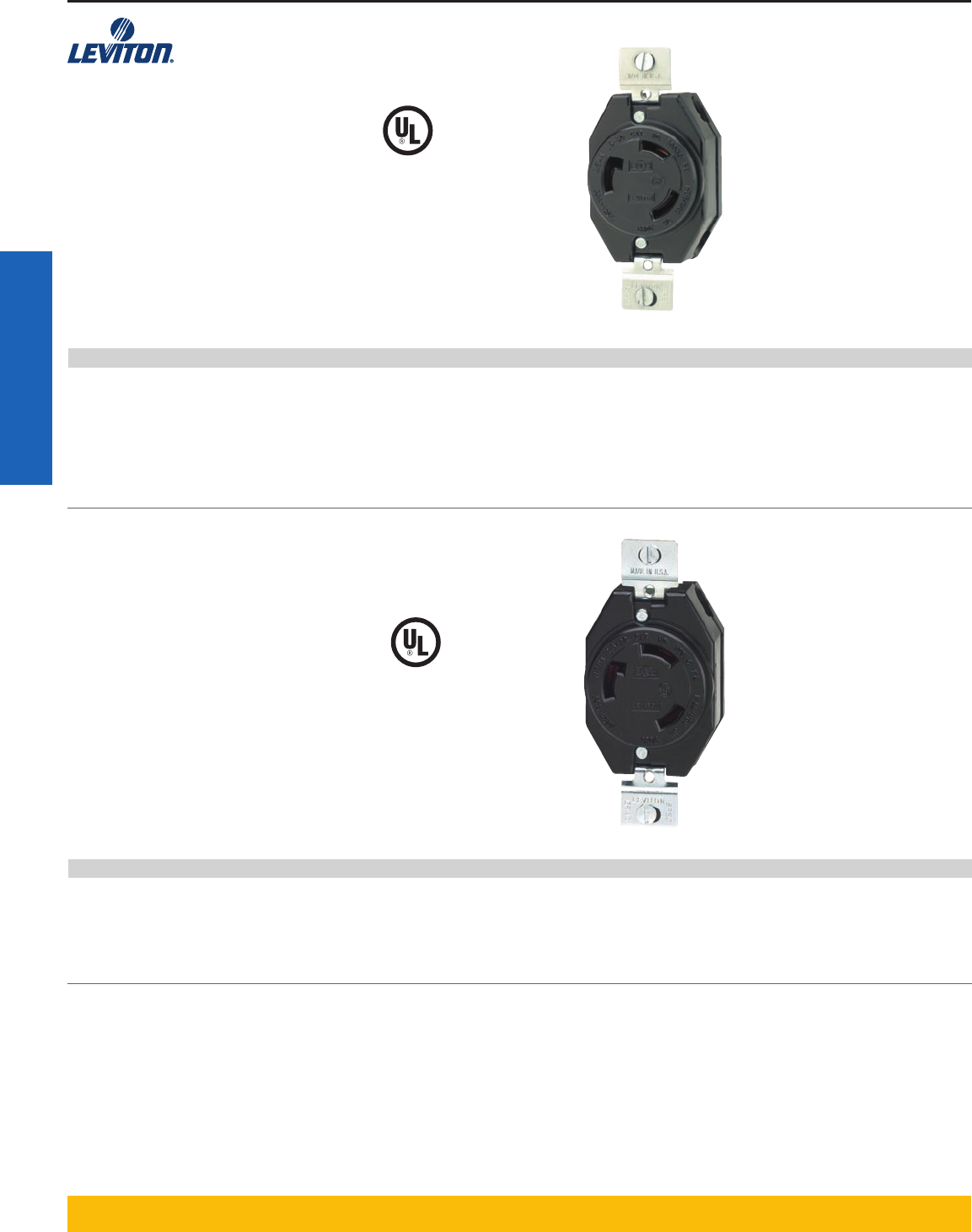

Locking Devices

Leviton . . .295-307

Cooper Wiring Devices . . .308-309

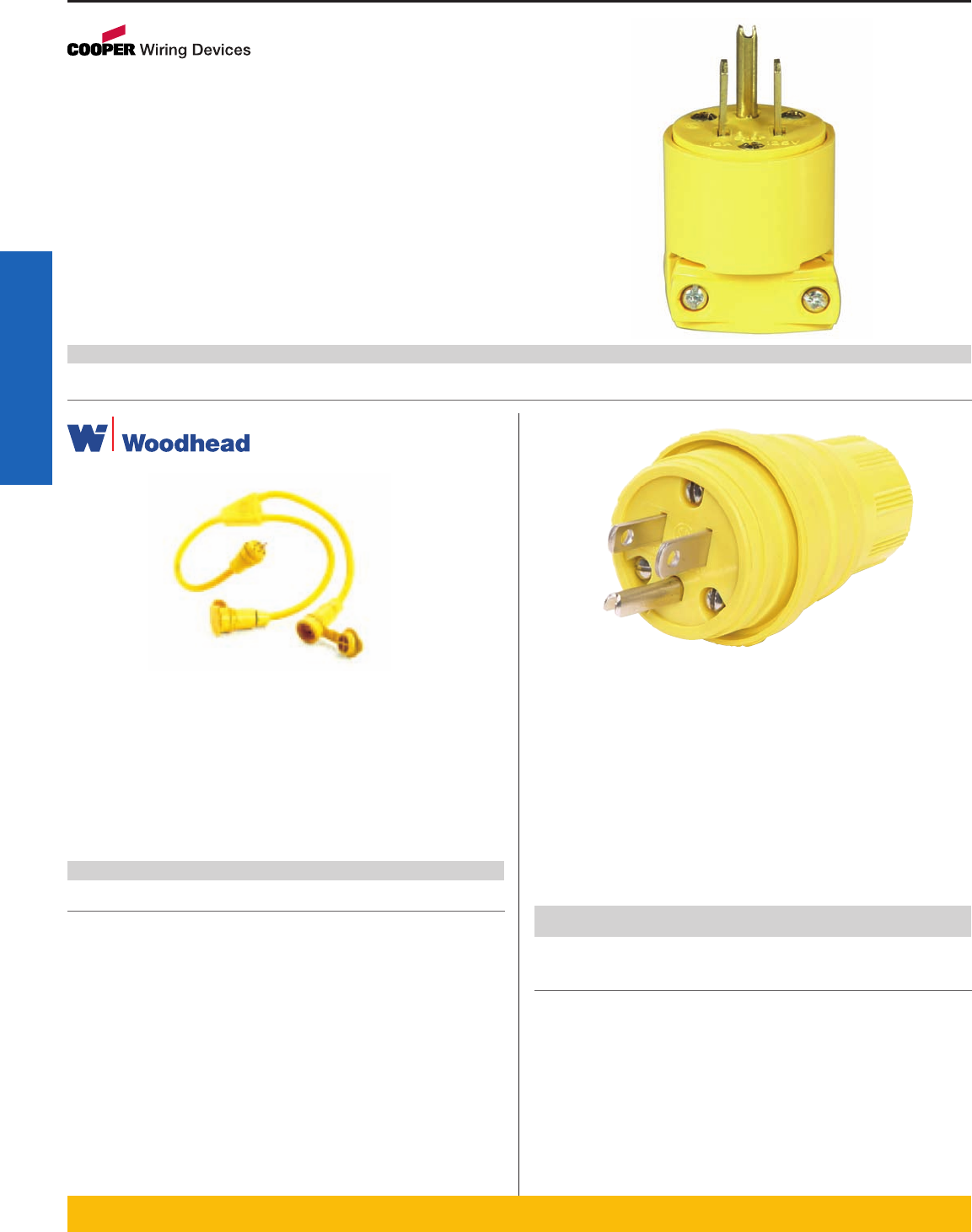

Plugs & Connectors

Leviton . . .310-312

Woodhead . . .313-314

251.qxp 9/5/07 10:20 AM Page 251

SWITCHES Leviton

252 hdsupply.com

Wiring Devices

Leviton®

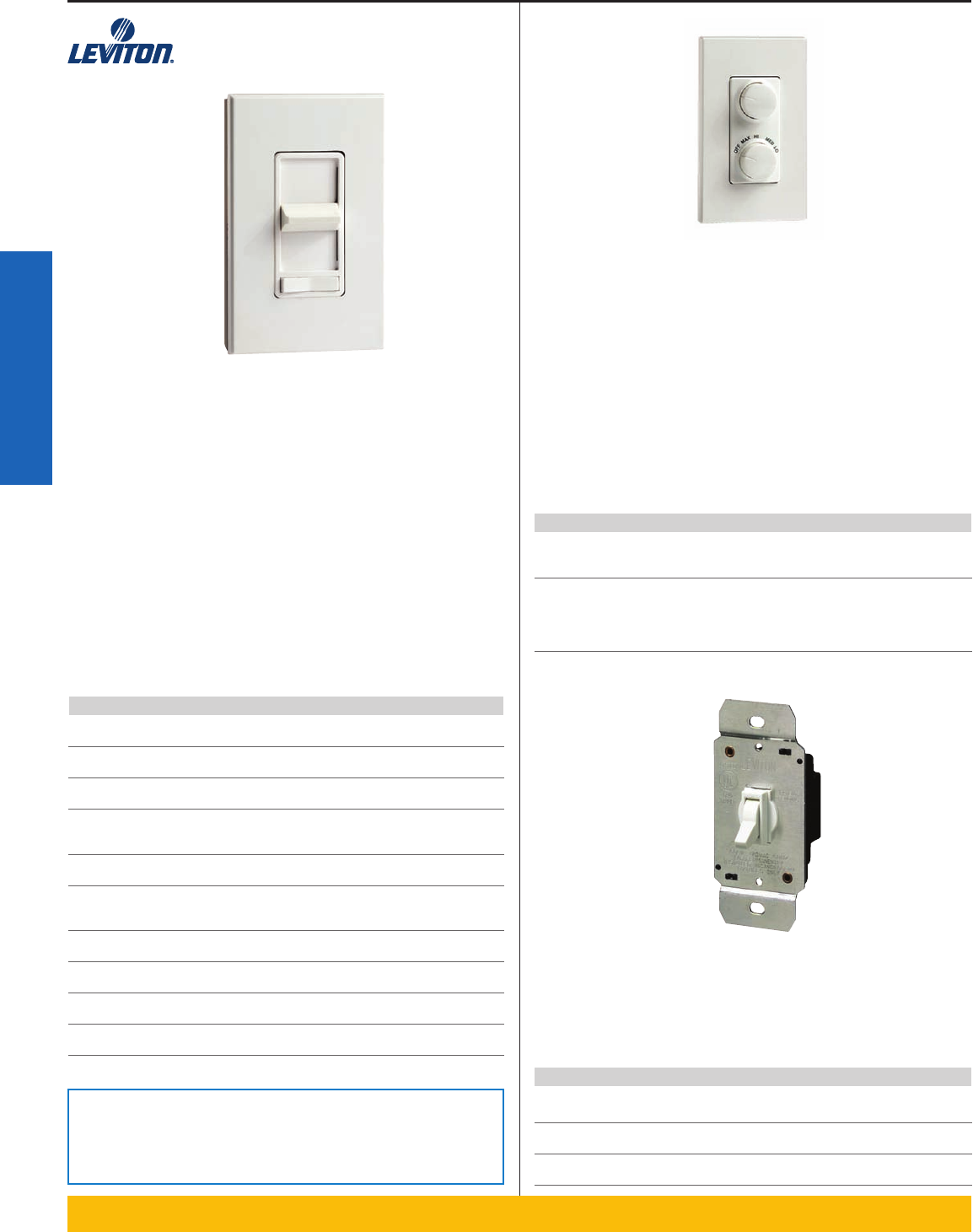

Architectural Preset Slide Dimmers

Commercial Grade, Renoir™Incandescent

120V AC 60Hz Only

• On/Off rocker switch turns lights On at last selected brightness

level

• Smooth-action, linear slide control for easy, precise operation

• Available in single-pole (one location) and 3-way (multi-location)

versions, 3-way dimmer is used with standard 3-way On/Off

switch

• Decora-styling coordinates with Leviton's extensive line of Decora

devices

• Decora-style screwless snap-on wallplate pre-sent an attractive

appearance in any application

• Slim, compact housing easily fits in standard wall boxes

• Fins are easily removed for multi-gang applications

• Large radio/TV interference filter

IllumaTech™Rotary Controls

Commercial Grade, 120V AC 60Hz

AAll IllumaTech Rotary controls combine the ease of a traditional rotary

dial with the contemporary look of Leviton Decora®.

• Combines traditional rotary dial with contemporary Decora styling

• Single pole, non-illuminated

• Dual fan speed control and dimmer is ideal for ceiling fans with

built-in light fixtures

• Attractive Decora styling coordinates perfectly with Leviton's

complete line of Decora wiring devices

• Compatible with Decora Plus screwless and Decora standard

designer wallplates

• Built-in radio/TV interference filter

• Slim, compact housing fits easily into a standard wallbox and is

suitable for multi-gang installations

Toggle Dimmers

Residential Grade, 600 Watts 120V

• Easy-to-install shallow design replaces standard switch in single

wallbox

• Built-in radio/TV interference filter

• Positive On/Off action with smooth, full-range brightness control

Model No. Hughes No. Description Color* Rating Unit List Price

RTF01-10 HGZO403 Quiet Fan Speed

Control

I, W, A 1.5 Amp EA Call

RTD01-10 HGZO402 Dual Quiet Fan

Speed Control

and Fixture

Dimmer

I, W, A 1.5 Amp

Fan

Control/

300W

Dimmer

EA Call

Model No. Hughes No. Description Color* Rating Unit List Price

80800 HEGP993 Single-Pole

(narrow fin)

I, W, GY 800W EA $40.27

80800-3 HEJM507 3-Way (nar-

row fin)

I, W, GY 800W EA 54.49

81000 HEGP995 Single-Pole

(narrow fin)

I, W, GY 1000W EA 84.05

81000-L HGZO370 Single-Pole,

Illuminated

(narrow fin)

I, W 1000W EA Call

81000-3 HEGP996 3-Way (nar-

row fin)

I, W, GY 1000W EA 103.21

81000-L3 HGZO371 3-Way,

Illuminated

(narrow fin)

I, W 1000W EA Call

81500 HEGP779 Single-Pole

(wide fin)

I, W, GY 1500W EA 157.49

81500-3 HEJM825 3-Way (wide

fin)

I, W, GY 1500W EA 174.48

82000 HEFX001 Single-Pole

(wide fin)

I, W, GY 2000W EA 218.26

82000-3 HGZO372 3-Way (wide

fin)

I, W 2000W EA Call

Model No. Hughes No. Description Unit List Price

6641 HBYW088 Single Pole Toggle Dimmer EA Call

6643 HGZO366 3-Way Toggle Dimmer EA Call

6691 HAHM123 Single Pole Illuminated

Toggle Dimmer

EA 11.85

6693 HAHM124 3-Way Illuminated

Toggle Dimmer

EA 12.36

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

See page 254 for the Leviton color chart.

252-253.qxp 9/5/07 8:22 AM Page 252

Leviton SWITCHES

hdsupply.com 253

Wiring Devices

Leviton®

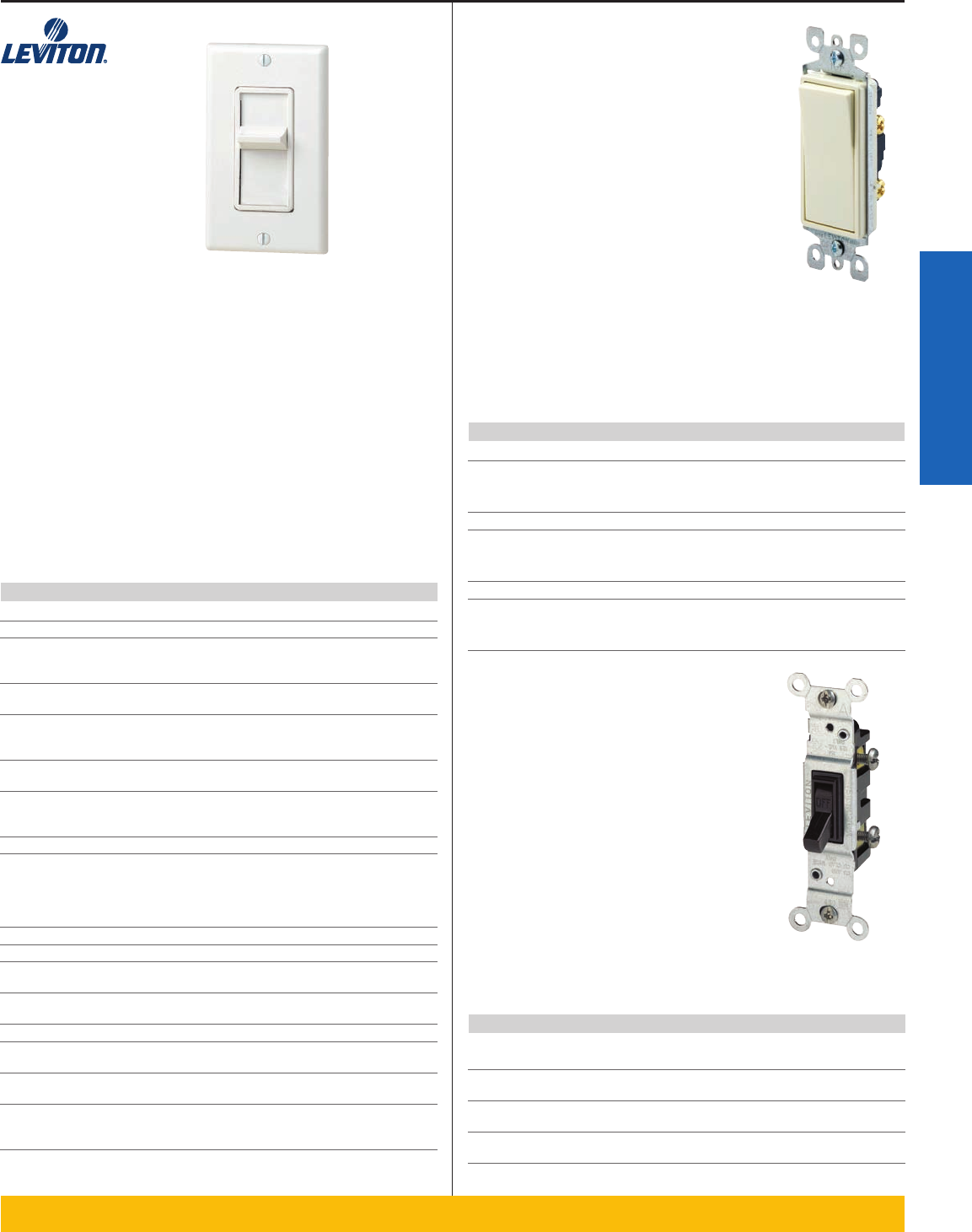

Decora Lighting Controls

SureSlide™Decora Full Range Slide Dimmers,

120V AC 60Hz Only

• All SureSlide devices have a permanently mounted smooth-action

integrated linear slide control for easy, precise operation

• SureSlide features a slim, compact housing that fits easily into a

standard wallbox and is suitable for multi-gang installations

• Preset versions provide single-pole (one-location) and multi-loca-

tion lighting control when used with a 3-way switch

• SureSlide's attractive Decora styling coordinates perfectly with

Leviton's complete line of Decora wiring devices

• Compatible with Decora screwless and Decora standard designer

wallplates

• Built-in radio/TV interference filter

• Quiet 1.5 Amp Fan Speed Controls are ideal for libraries, study

rooms and any area where ceiling fan noise could become dis-

tracting. Full range 5-amp fan speed controls also available

Decora PLUS AC Quiet

Rocker Switches

Quickwire and Side Wired Illuminated,

15 Amp 120/277V

Illuminated when load is off. Does not require a

neutral wire

• Illuminated Switch rocker illuminated when

load is Off

• Pilot Light switch rocker visible when On

even in bright light

• Switch border shields against dust and fits in wallplate to prevent

rocker binding

• Side-wiring terminals accept both solid and stranded wire to ease

installation

• Full rated current capacity with tungsten, fluorescent or resistive

loads. Motor capacity is 80% of switch rating

• Conform to all NEMA standard specifications

Model No. Hughes No. Color Unit List Price

Single Pole

5611-I HEGP953 Ivory EA $13.25

5611-W HEFM189 White EA 13.25

5611-2A HEGQ046 Almond EA 13.25

Three-Way

5613-I HEGP954 Ivory EA 17.42

5613-W HEGP955 White EA 17.42

5613-2A HEGQ047 Almond EA 17.42

Four-Way

5614-2I HEGS707 Ivory EA 35.24

5614-2W HEFS022 White EA 35.24

5614-2A HEPF598 Almond EA 35.24

Residential Grade AC Quiet

Switches

Quickwire and Side Wired

Framed Toggle, 15 Amp 120V

• Faster installation with combination of side

wiring and Quickwire push-in wiring

• Quickwire accepts conductors up to #12

AWG; #14 AWG in Canada

• Side wire accepts conductors up to #12

AWG

• Large head triple-drive combination screws (Standard, Phillips,

Robertson) for fast wiring installation.

Model No. Hughes No. Description Color* Unit List Price

1451 HGZO328 Single-Pole I, W EA Call

1453 HGZO329 3-Way I, W EA Call

1451-2 HAXI272 Single-Pole with

grounding screw

I, W, A, E EA 1.32

1453-2 HAXI276 3-Way with

grounding screw

I, W, A, E EA 2.17

54504-2 HBYV270 4-Way with

grounding screw

I, W, GY, A EA 14.78

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

Model No. Hughes No. Description Color* Unit List Price

Incandescent, 600W

6621 HEGC142 SureSlide Single-Pole I, W, GY, A EA $17.92

6621-P HBYU792 SureSlide Single-Pole

with Present On/Off

Switch

I, W, GY, E,

A

EA 24.31

6631 HGZO362 SureSlide Single-Pole

Illuminated

I, W EA Call

6631-P HGZO363 SureSlide Single-Pole

Illuminated, with Preset

On/Off Switch

I, W EA Call

6623-P HBAA813 SureSlide 3-Way with

Preset On/Off Switch

I, W, GY, E,

A

EA 32.86

6633-P HGZO364 SureSlide 3-Way

Illuminated, with Preset

On/Off Switch

I, W EA Call

Incandescent, 300W per circuit, 600W total

6628 HGZO358 SureSlide Dual Slide

Dimmer—(2) Single-

Pole Loads,

Incandescent or

Magnetic Low-Voltage

I, W, GY, A

(No Brown)

EA Call

Full-Range Fan Speed Controls, 5 Amp

6627-1 SureSlide Single-Pole I, W EA Call

6627-P HEJM529 SureSlide Single-Pole

with Present ON/OFF

I, W, A, G, E EA 50.78

6637-P HGZO365 SureSlide 3-Way with

Preset On/Off

I, W, A, G, E EA Call

Quiet Step Fan Speed Controls, 1.5 Amp

6629-P HGZO360 SureSlide

Single-Pole Quiet Step

I, W, A, GY EA Call

6629-3 HGZO359 SureSlide 3-way

Quiet Step

I, W, A, GY EA Call

6630 HGZO361 SureSlide Dual Quiet

Fan Speed and

Fixture Dimmer

I, W, A, GY EA Call

252-253.qxp 9/5/07 8:22 AM Page 253

SWITCHES Leviton

254 hdsupply.com

Wiring Devices

Note: CO/ALR devices are for connection to 12 or 10 AWG aluminum conductors.

*Add as suffix. Basic catalog number denotes Brown.

Leviton®

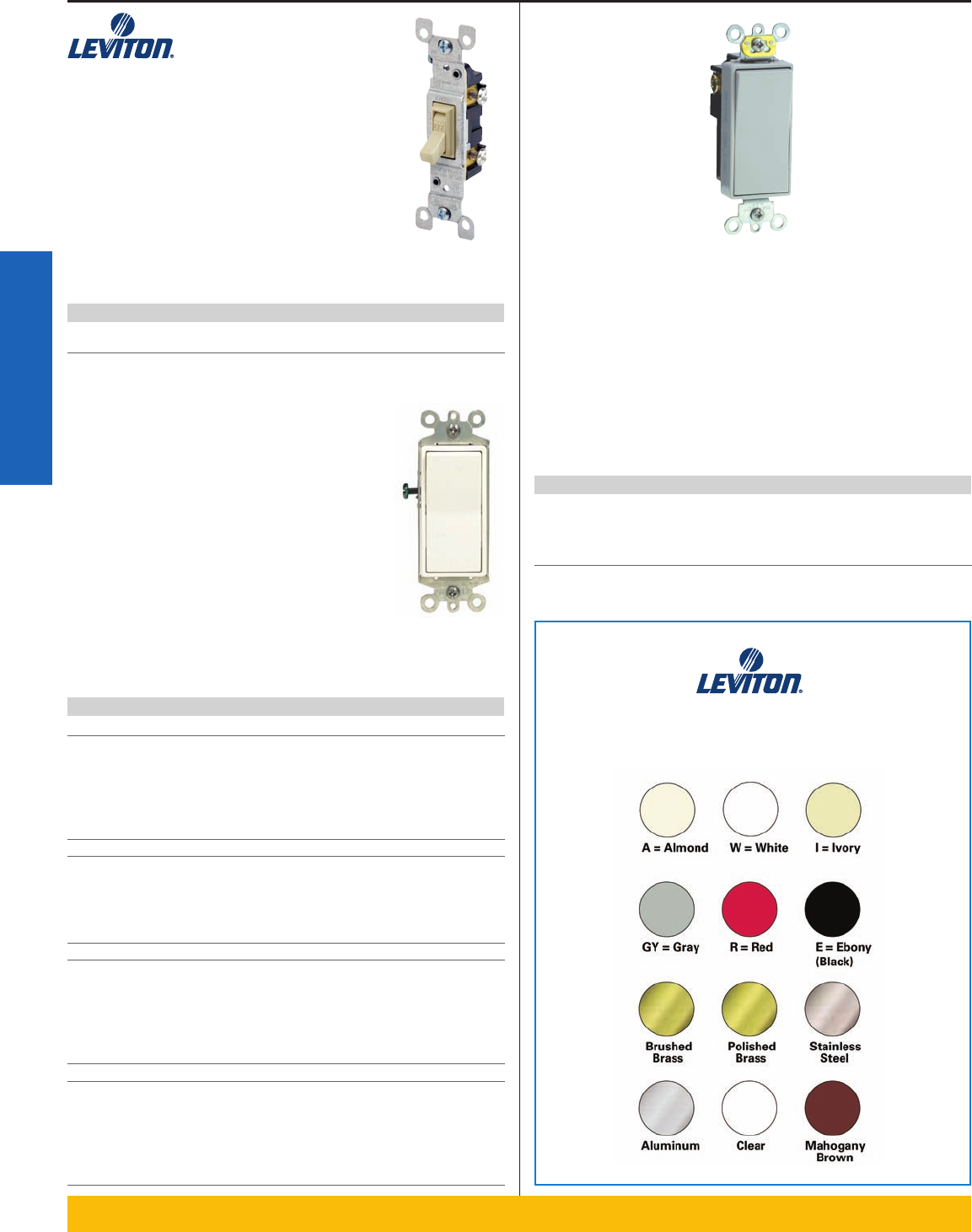

Residential Grade AC Quiet Switches

CO/ALR Side Wired Framed Toggle, 15 Amp, 120V

• Faster installation with combination of side wiring

and Quickwire push-in wiring

• Quickwire accepts conductors up to #12 AWG;

#14 AWG in Canada

• Side wire accepts conductors up to #12 AWG

• Large head triple-drive combination screws

(Standard, Phillips, Robertson) for fast wiring installation.

• Impact-resistant, durable thermoplastic toggle and frame

AC Quiet Rocker Switches

Decora 15 Amp Quickwire, 120/277V

• Switch frame shields against dust and fits in

wallplate to prevent rocker binding

• Side Wire and Quickwire (No. 12 or No. 14 cop-

per or copper-clad wire) push-in terminal wiring

options

• Sturdy construction for long service life

• Full rated current capacity with tungsten, fluorescent or resistive

loads. Motor capacity is 80% of switch rating

• Conform to all NEMA standard specifications

Model No. Hughes No. Color Unit List Price

Single-Pole

5601 HEGP947 Mahogany EA $7.13

5601-I HEGP948 Ivory EA 7.13

5601-W HEGP949 White EA 7.13

5601-2A HEGW032 Almond EA 7.13

5601-2E HEGW035 Ebony EA 8.31

5601-2GY HEGW181 Gray EA 7.13

Double-Pole

5602-2 HEJM341 Mahogany EA Call

5602-2I HEGP967 Ivory EA 28.30

5602-2W HEGP968 White EA 28.30

5602-2A HEGQ045 Almond EA 28.30

5602-2E HEJM196 Ebony EA 28.30

Three-Way

5603 HEGP950 Mahogany EA 10.03

5603-I HEGP951 Ivory EA 10.03

5603-W HEGP952 White EA 10.03

5603-2A HEGW037 Almond EA 11.69

5603-2E HEGW041 Ebony EA 11.69

5603-2GY HEGP876 Gray EA 10.03

Four-Way

5604-2 HBYV577 Mahogany EA 27.63

5604-2I HEGB709 Ivory EA 39.93

5604-2W HEGA072 White EA 27.63

5604-2A HEGW043 Almond EA 27.63

5604-2E HEGV892 Ebony EA 39.93

5604-2GY HEJR396 Gray EA 39.93

†Available in Red (-R)

*Add as suffix. Basic catalog number denotes Brown.

AC Quiet Rocker Switches

Decora Plus 20 Amp

Back and Side Wired 120/277V AC

• Full rated current capacity with tungsten, fluorescent or resistive

loads. Motor capacity is 80% of switch rating

• Back and side-wiring terminals accept both solid and stranded

wire to ease installation

• New architecturally-styled smooth-action concave rocker

• Heavy-duty impact-resistant thermoplastic construction for long

service life in commercial applications

• Two ground connection options: a green grounding screw and a

self-grounding clip

Model No. Hughes No. Description Color* Unit List Price

2651-2 HGZO333 Single-Pole with

grounding screw

I, W EA Call

Model No. Hughes No. Description Color* Unit List Price

5621-2†HEGP971 Single-Pole I, W, A, GY, E EA $16.64

5622-2 HCSM079 Double-Pole I, W, A, GY, E EA Call

5623-2†HEJM411 Three-way I, W, A, GY, E EA 24.12

5624-2 HEJM292 Four-way I, W, A, GY EA 61.16

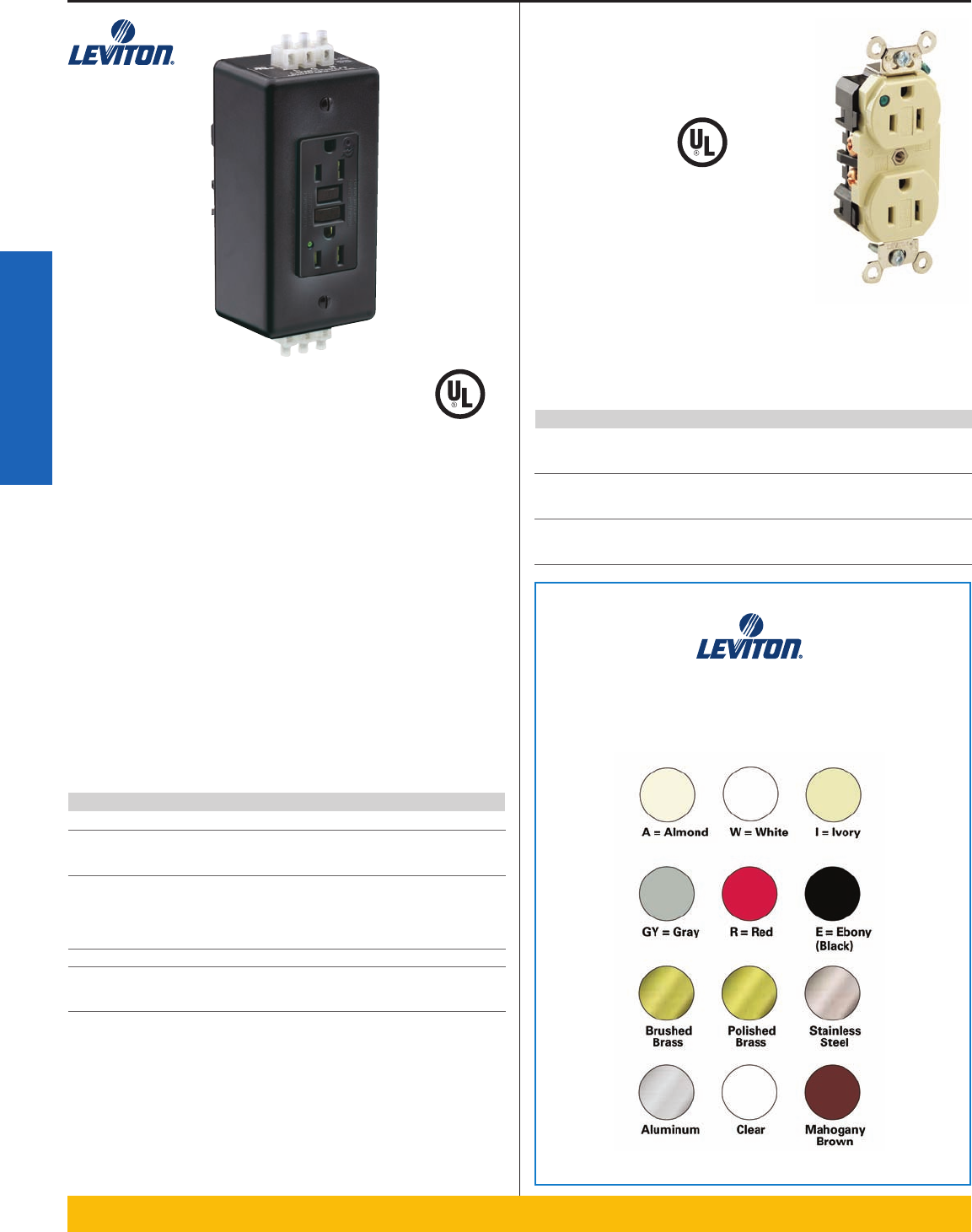

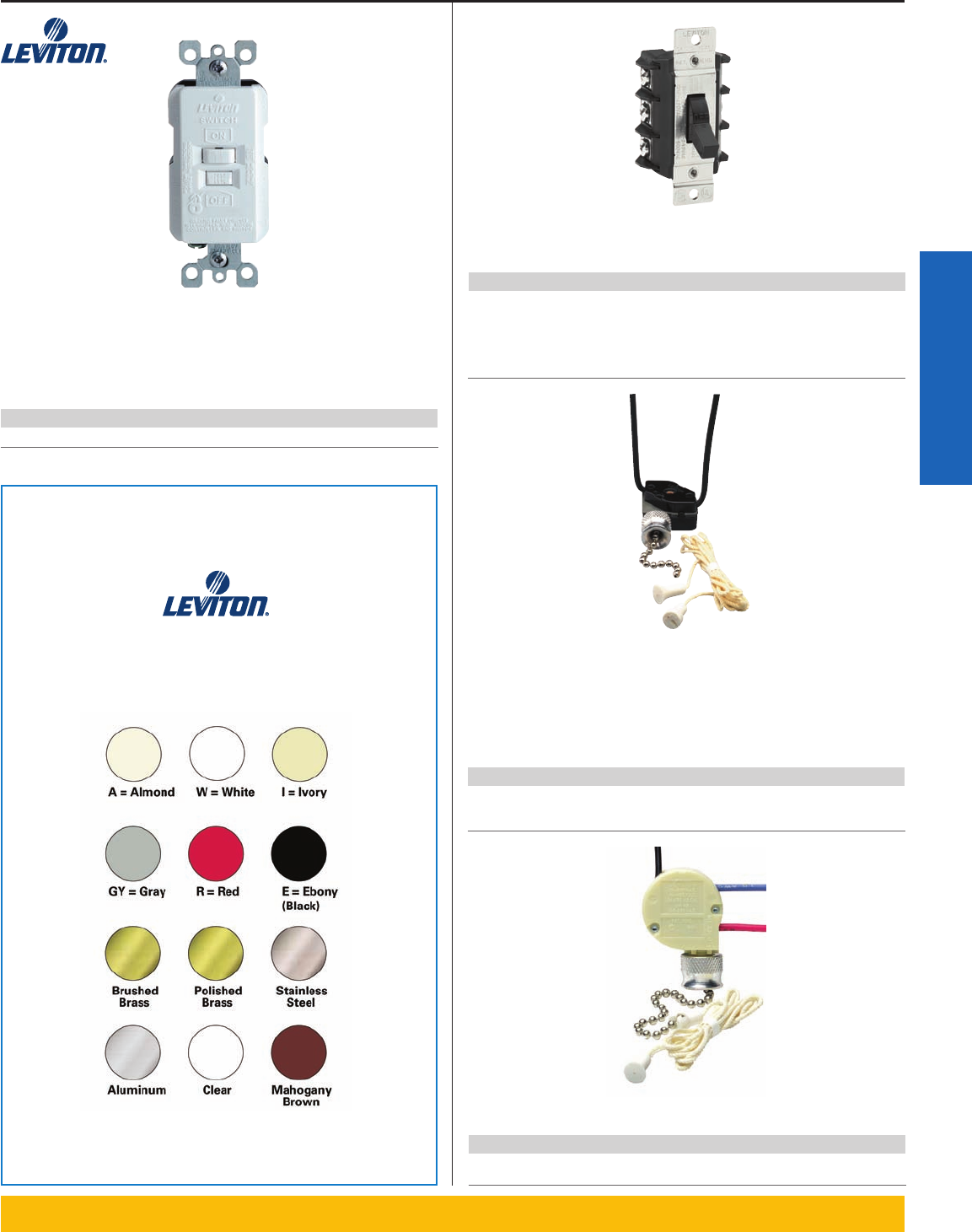

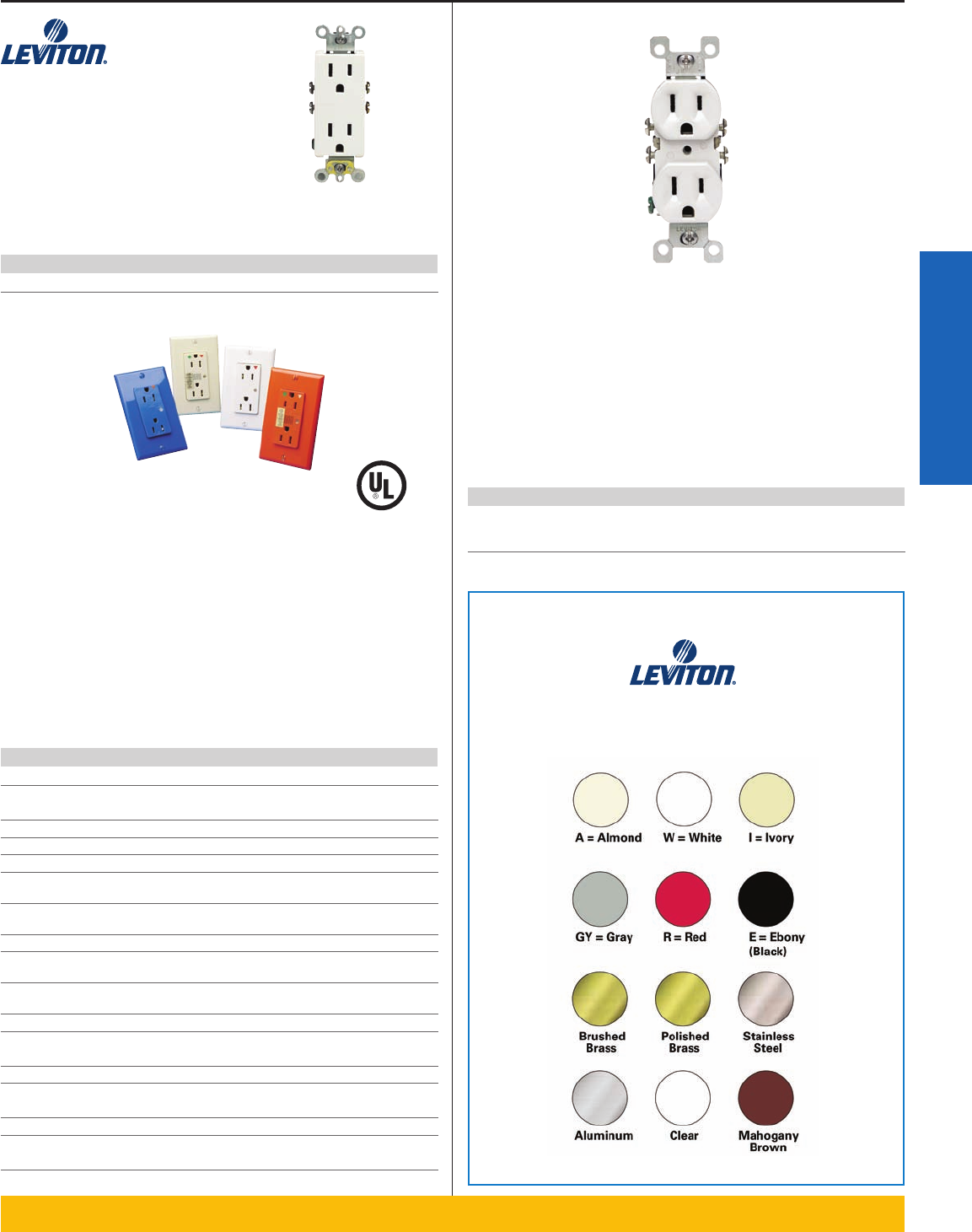

Use this color chart when ordering Leviton

switches and receptacles.

254-255.qxp 9/5/07 8:22 AM Page 254

Leviton SWITCHES

hdsupply.com 255

Wiring Devices

Leviton®

Combination Devices

Decora®15 Amp

• Elegant Decora styling provides multiple

control in a single-gang wallbox

• All devices have grounding screw

• Fit standard wall boxes

Wall Switch

PHC Powerline Single-Pole (One Location)

Equipped with Intellisense (gated automatic gain

control) and provides manual and remote On/Off

control. Can be set to any of 256DHC address

codes to switch incandescent, inductive or

resistive loads where dimming is not required. Responds to On, Off, All

Lights On/All Off commands. Wires easily into standard wall box using

terminal screws. Neutral connection requires. Pilot light is on when

switch is on. Code wheels are located beneath rocker plate. Packed

with ivory and white rocker and frame.

Model No. Hughes No. Rating Unit List Price

6291-WI HEFQ878 15A, 120V AC, 60Hz EA $422.61

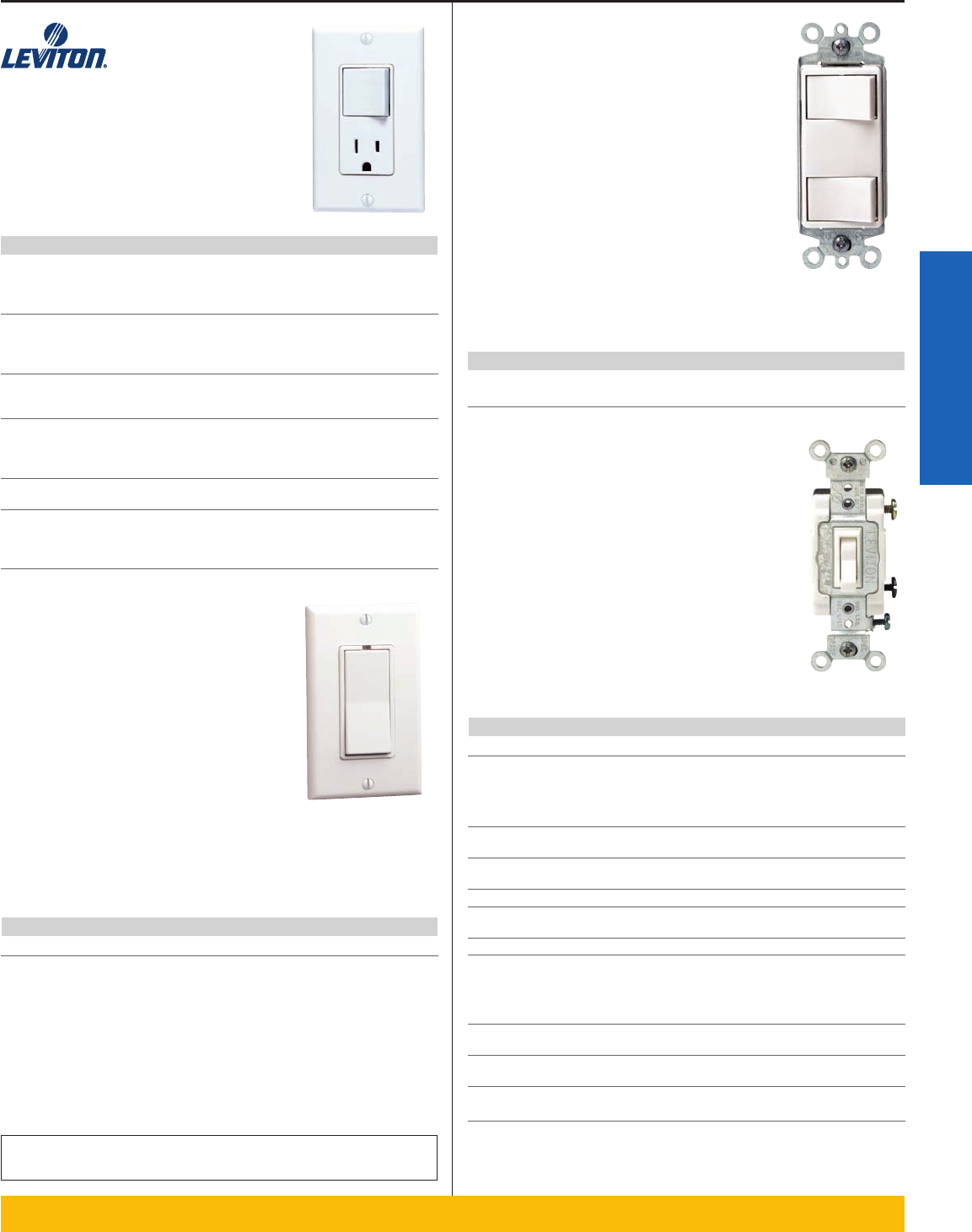

Combination Switches

Decora®

Individual Switches: 15 Amp 120V

Device Total: 20 Amp, 120V

Warning: Although each individual rocker switch is

rated up to 15A 120V, the total combined load for

both duplex or all three triplex switches must not

exceed 20 amps.

• Multi-switch combination devices save space and add conven-

ience

• Common shunted internally to all switches

• Elegant Decora styling permits ganging with other Decora devices

Commercial Grade AC Quiet Switches

Side Wired 120/277V

• Large head double-drive combination screws

(Standard, Phillips) for fast wiring

• Heavy-gauge, rust-resistant steel mounting

strap

• Accept up to #10 copper or copper-clad wire

• Convenient break-off plaster ears for best align-

ment

• Large switch contacts for maximum conductivity

Some products not available at all locations. Check with

your local HD Supply representative for product availability.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

Model No. Hughes No. Description Color* Unit List Price

15 Amp

CS115-2 HAXI296 Single-Pole Toggle I, W, GY, A EA $2.58

CS215-2 HBYW397 Double-Pole Toggle I EA 13.15

CS315-2 HAGW414 3-Way Toggle I, W, GY, A EA 4.70

CS415-2 HAYF789 4-Way Toggle I, W, GY, A EA 15.26

54501-2 HBYU672 Single-Pole, Framed

Toggle

I, W, GY EA 3.30

54502-2 HBYU467 Double-Pole, Framed

Toggle

I, W EA 10.44

54503-2 HBYU683 3-Way, Framed Toggle I, W, GY EA 5.91

54504-2 HBYV270 4-Way with

grounding screw

I, W, GY, A EA 14.78

20 Amp

CS120-2 HAHO812 Single-Pole Toggle I, W, GY, A EA 3.94

CS220-2 HAYA886 Double-Pole Toggle I, W, GY, A, E EA 16.41

CS320-2 HAFQ076 3-Way Toggle I, W, GY, A, E EA 6.09

CS420-2 HAYS535 4-Way Toggle I, W, GY, A, E EA 29.81

54521-2 HBYU673 Single-Pole, Framed

Toggle

I, W, GY EA 5.34

54522-2 HBYU674 Double-Pole, Framed

Toggle

I, W, GY EA 15.51

54523-2 HBYU675 3-Way, Framed Toggle I, W, GY EA 7.62

54524-2 HBYU466 4-Way, Framed Toggle I, W, GY EA 29.58

Model No. Hughes No. Description Color* Unit List Price

1754 HGZO331 Dual Rocker Switches I, W, A EA Call

1755 HGZO332 Three Rocker Switches I, W, A EA Call

Model No. Hughes No. Description Color Rating Unit List Price

5625 HGZO347 Single-Pole

Switch/

Receptacle

I, W,

A, GY

Switch:

15A–120V AC;

Receptacle:

15A–125V

EA Call

5626 HBYX101 Single-Pole

Switch/

Pilot Light

I, W, A Switch:

15A–120V AC;

Pilot:

1/25W–125V AC

EA Call

5634 HBYV575 Two Single-

Pole

Switches

I, W,

A, GY

15A–120V/277V

AC

EA 24.98

5641 HGZO348 3-Way

Switch/Sin

gle-Pole

Switch

I, W, A 15A–120/277V

AC

EA Call

5643 HGZO349 Two 3-Way

Switches

I, W, A 15A–120/277V

AC

EA Call

5645 HGZO350 3-Way

Switch/

Receptacle

I, W, A Switch:

15A–120V AC;

Receptacle:

15A–125V

EA Call

254-255.qxp 9/5/07 8:22 AM Page 255

SWITCHES Leviton

256 hdsupply.com

Wiring Devices

Leviton®

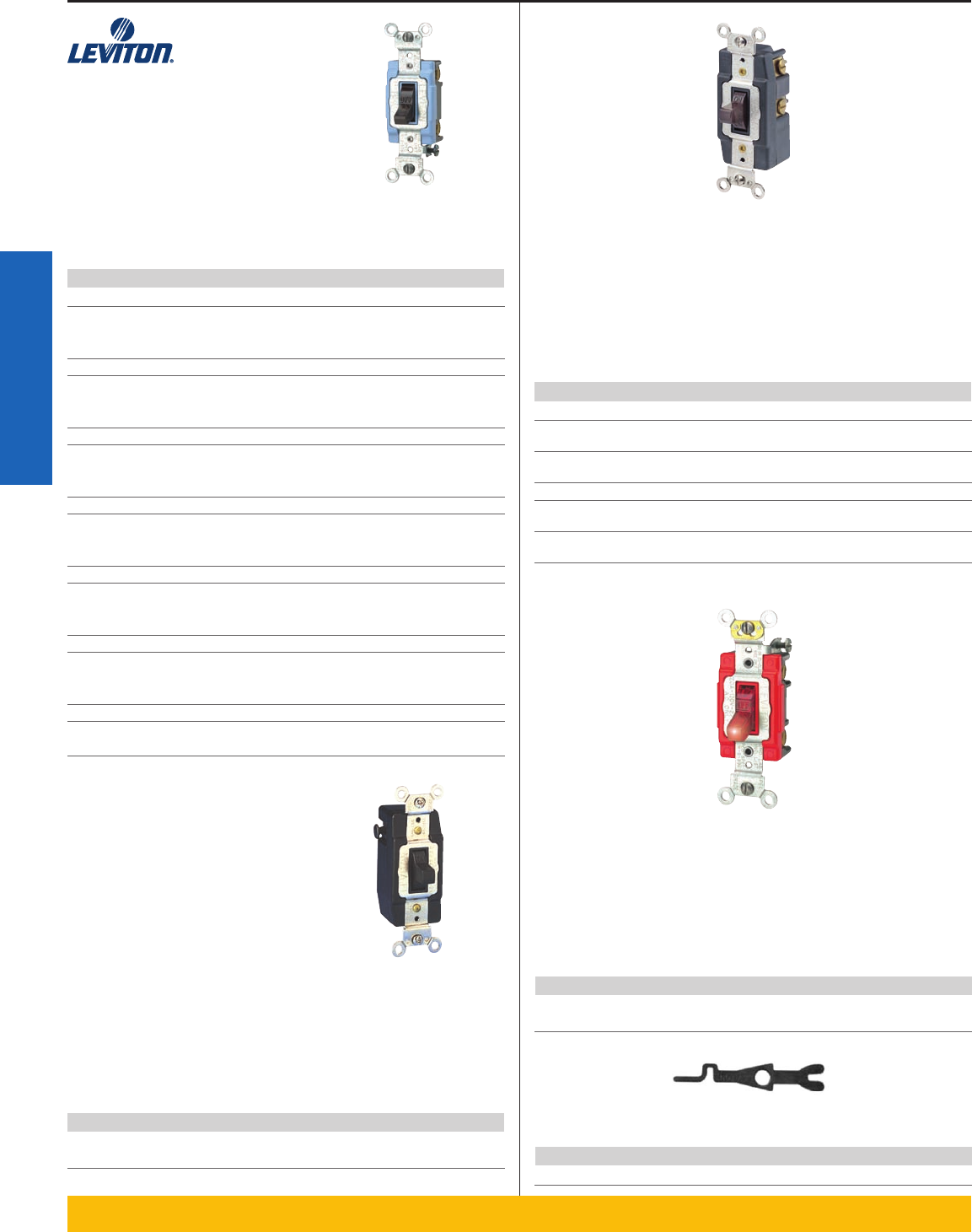

Industrial Grade AC Switches

Back and Side Wired 120/277V

• Top-of-the-line industrial quality

• Heavy gauge copper alloy one-piece arm for top performance

• Large silver cadmium-oxide contacts for long life, prevent sticking,

welding and excessive pitting

• Color-coded covers: 15 Amp-blue; 20 Amp-red; 30 Amp-green

Industrial Grade AC Switches

Back and Side Wired, Momentary Contact, 120/277V

• Single-Pole and Double-Pole versions, toggle or locking

• Positive switching action with center-off position

• Large silver cadmium-oxide contacts for long life, prevent sticking,

welding and excessive pitting

• Clamp-type terminals accept up to #10 CU wire

• Full rated current capacity on fluorescent, tungsten and resistive

loads; motor load capacity up to 80% switch current rating

Industrial Grade AC Switches

Back and Side Wired, Maintained Contact, 120/277V

• Single-Pole and Double-Pole versions, toggle or locking

• Positive switching action with center-off position

• Large silver cadmium-oxide contacts for long life, prevent sticking,

welding and excessive pitting

• Clamp-type terminals accept up to #10 CU wire

• Full rated current capacity on fluorescent, tungsten and resistive

loads; motor load capacity up to 80% switch current rating

Industrial Grade AC Switches

Back and Side Wired Pilot Light

• Pilot light switches provide top performance in punishing industri-

al applications

• Pilot light toggle illuminated when load is on.

• 120 and 277V versions in single pole and 3-way

• Fully enclosed switch mechanism in rugged housing for strength,

track and arc resistance

Model No. Hughes No. Description Rating Unit List Price

1221-PL HGZO321 Single-Pole 20 AMP 120V EA Call

1222-PL HGZO322 Double-Pole 20 AMP 120V EA Call

Locking Switch Accessories

AC Switches

Model No. Hughes No. Description Unit List Price

55500-PRT HAXG980 Key for Locking Switch EA $4.45

Model No. Hughes No. Description Color* Unit List Price

20 Amp

1285 HBYU905 Single-Pole, Double

Throw, Center Off

I, W EA $81.37

1286 HBYU906 Double-Pole, Double

Throw, Center Off

I, W EA 80.02

30 Amp

1287 HBYU907 Single-Pole, Double

Throw, Center Off

I EA 104.41

1288 HAYV012 Double-Pole, Double

Throw, Center Off

I EA 105.69

*Add as suffix. Basic catalog number denotes Brown.

Model No. Hughes No. Rating Color* Unit List Price

1257 HAGX639 20 AMP I, W, GY EA $43.12

1260 HCBB317 30 AMP Brown only EA 54.74

Model No. Hughes No. Rating Color* Unit List Price

Single-Pole Toggle

1201-2 HAWI862 15 AMP I, W, GY, R EA $11.39

1221-2 HAYF613 20 AMP I, W, GY, R, E, A EA 18.56

3031-2 HBYV291 30 AMP I, W EA 32.69

Single-Pole Locking

1201-2L HEGP768 15 AMP I, W, G, R EA 24.41

1221-2L HEGP839 20 AMP I, W, G, R EA 30.23

3031-2L HEGP988 30 AMP I, W, G, R EA 43.23

Double-Pole Toggle

1202-2 HAWI969 15 AMP I, W, GY EA 19.41

1222-2 HAKS041 20 AMP I, W, GY, R, E EA 25.06

3032-2 HAWI803 30 AMP I, W EA 42.01

Double-Pole Locking

1202-2L HEGP769 15 AMP I EA 33.06

1222-2L HEGP852 20 AMP I EA 42.85

3032-2L HEJM600 30 AMP I EA 43.23

3-Way Toggle

1203-2 HBYV286 15 AMP I, W, GY, R EA 17.29

1223-2 HAYF701 20 AMP I, W, GY, R, E EA 19.82

3033-2 HBYV293 30 AMP I, W EA 41.33

3-Way Locking

1203-2L HEGP770 15 AMP I EA 27.23

1223-2L HEGP853 20 AMP I, W, G EA 41.67

3033-2L HEJM605 30 AMP I, W, G EA 51.33

4-Way Toggle

1204-2 HBYU895 15 AMP I, W, GY EA 45.79

1224-2 HAXE888 20 AMP I, W, GY, R, E EA 53.92

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

256-257.qxp 9/5/07 8:22 AM Page 256

Leviton SWITCHES

hdsupply.com 257

Wiring Devices

Leviton®

Switch-Rated GFCI —Back and Side Wired

1.5 HP @ 120V AC Switch Rating, 20 Amp 125V Feed-Through

Blank Face, No Indicator Light, buttons match face color

Single Pole Pull Chain Switches

AC Manual Motor and Welder Starting Switch

Back and Side Wired, 30 Amp, 600V AC

Model No. Hughes No. Color Description Unit List Price

MS303 HAFP666 Black Three-pole, sin-

gle-throw AC

manual motor

starting switch,

without overload

protection.

EA $66.01

Appliance Switches

Single Pole Pull Chain Switches

• Standard finish of metal chain is nickel

• Standard leads are No. 18 AWG 105°C plastic 6"long, stripped 1⁄2"

•3

3⁄4" chain connector, 3' braided cord, end bell

• Bushing 3⁄8-27 x 3⁄8" long

• Piercing 13⁄32" dia.

Model No. Hughes No. Current Rating (Amps) Unit List Price

1689-50 HAWU571 3 amp 125V AC-L; 2 amp 125V AC

3; 3 amp 250V AC; 1/4 HP 125/250V

EA $18.69

Model No. Hughes No. Description Rating Unit List Price

10097-8 HAXZ176 Compact, Single

Circuit, Black

Leads

3 Amp 125V;

1 Amp 125V;

1 Amp 250V

EA $8.69

Model No. Hughes No. Color* Unit List Price

8590 HGZO378 I, W, A EA Call

*Add as suffix. Basic catalog number denotes Brown.

Use this color chart when ordering

Leviton switches and receptacles.

256-257.qxp 9/5/07 8:22 AM Page 257

SWITCHES Lutron

258 hdsupply.com

Wiring Devices

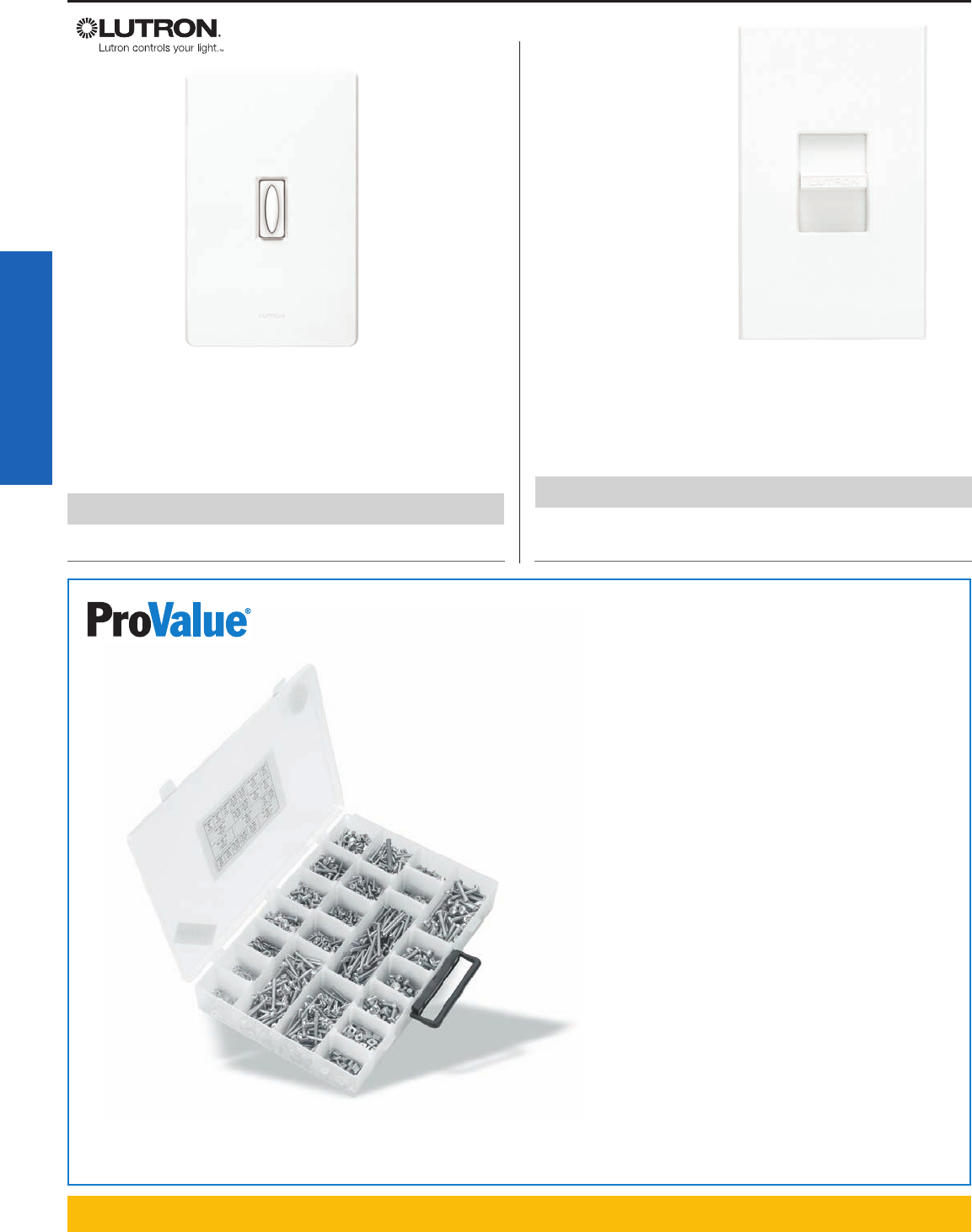

Qoto Switches

• General purpose switching of all lighting sources and motor loads.

• Electrostatic discharge protection.

• Captive button and rocker.

• Power-failure memory.

• UV stable color.

• Matte finishes: White, WH; Ivory, IV; Almond, AL; Light Almond, LA.

Nova Switches

• Square law dimming.

• Power-failure memory.

• Electrostatic discharge tested.

• Heavy-duty components for surge protection and long product life.

• Accessible air-gap switch.

• Colors: White, WH; Beige, BE; Ivory, IV; Gray, GR; Brown, BR;

Black, BL.

Model No. Hughes No.

Maximum

Capacity Type Unit List Price

N-1PS HGZO482 20A Single pole, 120/277V EA Call

N-3PS HGZO486 20A 3-way, 120/277V EA Call

N-4PS HGZO488 20A 4-way, 120/277V EA Call

Model No. Hughes No.

Maximum

Capacity Type Unit List Price

Q-1PS HGZO533 15A Single pole EA Call

Q-3PS HGZO534 15A 3-way EA Call

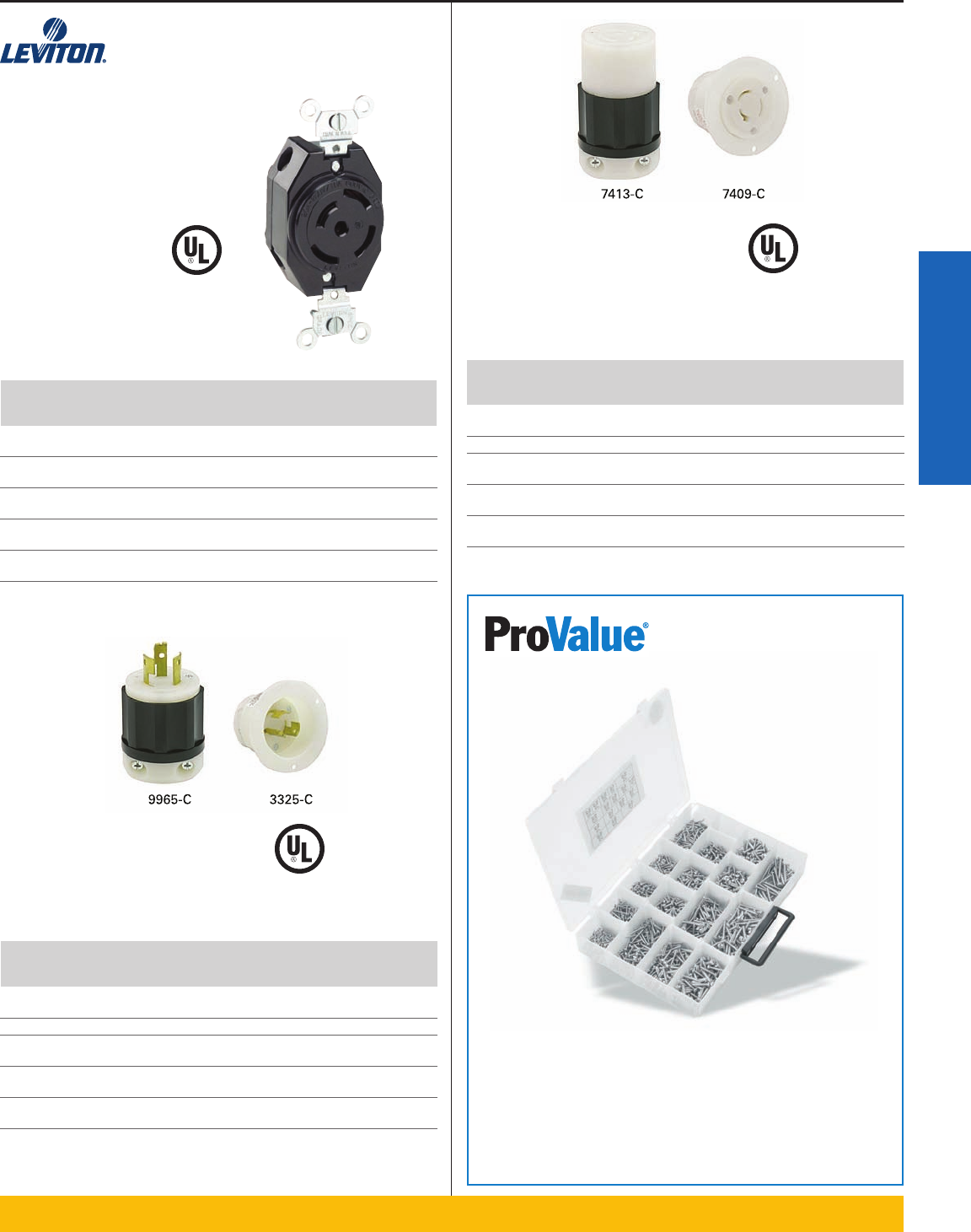

1900 Piece Nut and Washer

Assortment, PV35549

• Contains 25 screws each of: 1/4-20 x 5/8", 1/4-20 x 1"

• Contains 50 screws each of: 10-32 x 1", 1/4-20 x 1/2",

1/4-20 x 1-1/2"

• Contains 100 screws each of: 6-32 x 5/8", 8-32 x 3/8", x

5/8", x 1", x 1-1/2", x 2", 10-24 x 1-1/2", 10-32 x 3/8", x1/2"

• 100 each machine screw nuts: 6-32 square, 8-32 hex,

10-24 square, 10-32 square, 1/4-20 hex

• 100 each split washers: # 8, #10, 1/4"

258-259.qxp 9/5/07 8:23 AM Page 258

Cooper Wiring Devices SWITCHES

hdsupply.com 259

Wiring Devices

Cooper Wiring Devices

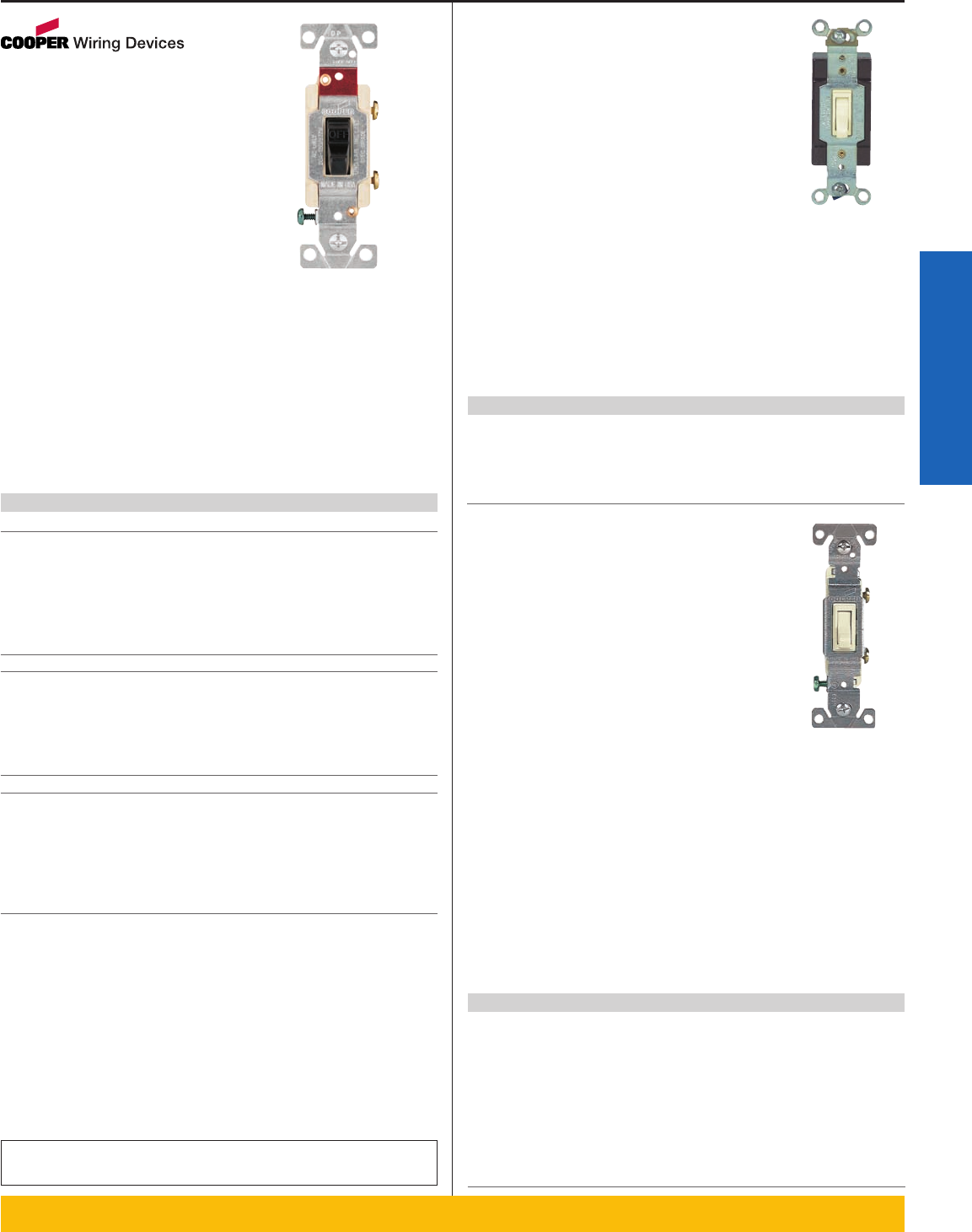

AC Quiet Switches

Commercial Grade

15, 20 Amps

• Industrial design cam action mechanism insures quiet switch

action.

• Side wire terminals accept up to #10 solid or stranded wire.

• Terminal screws backed out –ready for wiring.

• 120/277V AC rating ideal for fluorescent lighting fixtures typical in

commercial applications.

• 0.050" (1.27mm) thick steel mounting strap zinc-plated for

corrosion resistance.

• Lighted switches glow in "off"position.

• Ground screw terminal standard.

• Combination slot/Phillips head mounting and terminal screws ease

installation. (slot/Robertson screws in Canada where available).

Framed Toggle AC Quiet Switches

Commercial Grade

• 4-Way, 15 Amp, side wire only

• Industrial design cam action mechanism insures

quiet switch action.

• Single pole and three way switches feature

additional push-in common terminal for

feed-through tapping.

• 120/277V AC rating ideal for fluorescent lighting fixtures typical in

commercial applications.

• 0.050" (1.27mm) thick steel mounting strap zinc-plated for

corrosion resistance.

• Side wire terminals accept up to #10 solid or stranded wire.

• Push-in terminals accept #12 or #14 solid wire.

• Lighted switches glow in "off"position.

• Combination slot/Phillips head mounting and terminal screws ease

installation.

Model No. Hughes No. Type Color Unit List Price

1301-7A HEFZ159 Single-Pole Almond EA $0.98

1301-7B HEGY611 Single-Pole Brown EA 0.98

1301-7V HEPI841 Single-Pole Ivory EA 0.98

1301-7LA HERK417 Single-Pole Light Almond EA 0.98

1301-7W HEGX712 Single-Pole White EA 1.15

1303-7A HAYR085 3-Way Almond EA 1.65

1303-7B HALB907 3-Way Brown EA 1.65

1303-7V HEHY050 3-Way Ivory EA 1.65

1303-7LA HERK421 3-Way Light Almond EA 1.65

1303-7W HEHY051 3-Way White EA 1.94

Framed Toggle AC Quiet Switches

Standard Grade

• Longer, wider strap provides 40% more contact

area to wall board. Virtually eliminates floating

installations.

• Industrial design cam action mechanism insures quiet switch

action.

• 15 Amp, 120V AC

• Patented built-in wire stripper for #14 and #12 wire to speed

installation.

• Unbreakable top and bottom housing eliminates call-backs due to

job site breakage.

• Patented built-in wire looper for pre-looping.

• Three way switches feature additional push-in common

termination for feed-through tapping.

• Push-in terminals accept #12 or #14 solid wire only.

• Side wire terminals accept up to #10 solid or stranded wire.

• Combination slot/Phillips head mounting and terminal screws ease

installation (slot/Robertson screws in Canada where available).

Model No. Hughes No. Color Unit List Price

1242-7A HGZN852 Almond EA Call

1242-7B HGZN853 Brown EA Call

1242-7V HGZN855 Ivory EA Call

1242-7LA HGZN854 Light Almond EA Call

1242-7W HGZN856 White EA Call

Some products not available at all locations. Check with

your local HD Supply representative for product availability.

Model No. Hughes No. Color Unit List Price

Single-Pole

CS120A HCNH179 Almond EA $4.05

CS120BK HGCJ075 Black EA 4.04

CS120B HGCJ074 Brown EA 4.05

CS120GY HGCJ076 Gray EA 4.05

CS120V HGCJ077 Ivory EA 4.05

CS120LA HERK278 Light Almond EA 4.85

CS120W HFUC440 White EA 4.05

Double-Pole

CS220A HGZN944 Almond EA Call

CS220B HGCJ124 Brown EA 10.30

CS220GY HGCJ081 Gray EA 10.30

CS220V HHAF965 Ivory EA Call

CS220LA HGZN945 Light Almond EA Call

CS220W HGCJ082 White EA 10.30

3-Way

CS320A HCNH240 Almond EA 5.78

CS320BK HGZN946 Black EA Call

CS320B HGCJ088 Brown EA 5.78

CS320GY HGCJ089 Gray EA 5.78

CS320V HGCJ090 Ivory EA 2.38

CS320LA HERK279 Light Almond EA 5.78

CS320W HGCJ091 White EA 5.78

258-259.qxp 9/5/07 8:23 AM Page 259

SWITCHES Cooper Wiring Devices

260 hdsupply.com

Wiring Devices

Cooper Wiring Devices

Single Pole Canopy Switch

Push Button –Momentary Contact

• Current Rating (Amps): 125/277V AC; 1/3 HP

• ON When Door Open

• Wide variety of uses in doorways or other entries.

• 6" (152.40mm) wire leads with female disconnects: #18AWG - FT1,

rated 105°C stripped 0.50" (12.70mm).

• Brass-toned faceplate measures just 1.25" (31.75mm) wide for

convenient installation.

• Includes steel switch box with 4 KO's.

• Supplied with 4 - #6 x 0.625" (15.875mm) flathead wood screws for

box mounting, 2 - #6-32 x 0.50" (12.70mm) brass-plated device.

Model No. Hughes No. Amps Color Unit List Price

1664 HFAE900 10 White EA $28.43

Commercial Combination Devices

• Grounding terminal screw standard.

• Combination switch with additional switch has 120/277 rating ideal

for fluorescent lighting fixtures typical in commercial applications.

• Receptacles have triple wipe line contacts and double wipe

ground contacts to insure long-term plug retention.

• 0.050"(1.27mm) thick steel mounting strap zinc-plated for corrosion

resistance.

• Break-off provision for wiring both devices on same circuit or on

separate circuits.

• Terminal screws backed out –ready for wiring.

• Side wire terminals accept up to #10 solid or stranded wire.

• Pilot light may be wired to indicate power "on"or power "off".

Single-Pole, Double Combination Switches

Commercial Grade

• Switches have break-off provision for wiring both devices on

same circuit or on separate circuits.

• Grounding terminal screw standard.

• 0.050" (1.27mm) thick steel mounting strap zinc-plated for

corrosion resistance.

• Combination slot/Phillips head mounting and terminal screws ease

installation with power screwdrivers.

• Terminal screws backed out –ready for wiring.

• Side wire terminals accept up to #10 solid or stranded wire.

Model No. Hughes No.

Current

Rating (Amps) Color Unit List Price

3282A HGZN924 15A 120V AC Almond EA Call

3282V HGZN926 15A 120V AC Ivory EA Call

3282LA HGZN925 15A 120V AC Light Almond EA Call

3282W HGZN927 15A 120V AC White EA Call Some products not available at all locations. Check with

your local HD Supply representative for product availability.

Model No. Hughes No. Description Color Unit List Price

Switch: 15A 120V AC. Receptacle

274A HBQX803 Single Pole Switch with

Receptacle

Almond EA $10.67

274B HGZN916 Single Pole Switch with

Receptacle

Brown EA Call

274V HGCJ169 Single Pole Switch with

Receptacle

Ivory EA 15.01

274LA HERK471 Single Pole Switch with

Receptacle

Light

Almond

EA 10.67

274W HGCJ172 Single Pole Switch with

Receptacle

White EA 15.01

15A, 120/277V AC

271A HBQX602 Two Single Pole Switches Almond EA 12.07

271B HGCJ168 Two Single Pole Switches Brown EA 14.50

271V HGCJ170 Two Single Pole Switches Ivory EA 10.31

271LA HERK470 Two Single Pole Switches Light

Almond

EA 10.31

271W HGCI935 Two Single Pole Switches White EA 10.31

275A HGZN917 3-Way Switch/Single-Pole

Switch

Almond EA Call

275B HGZN918 3-Way Switch/Single-Pole

Switch

Brown EA Call

275V HGZN920 3-Way Switch/Single-Pole

Switch

Ivory EA Call

275LA HGZN919 3-Way Switch/Single-Pole

Switch

Light

Almond

EA Call

275W HGZN921 3-Way Switch/Single-Pole

Switch

White EA Call

260-261.qxp 9/5/07 8:23 AM Page 260

Cooper Wiring Devices SWITCHES

hdsupply.com 261

Wiring Devices

Note: Mounting hardware and terminal screws (where applicable) furnished unassembled.

Mounting hardware consists of one plated hex nut and knurl nut. Indicating plate is also

furnished for maintained ON-OFF circuits.

Model No. Hughes No. Amps Switch Type Unit List Price

3190-0001 HEGG986 6 On —Off SPST EA $3.65

3191-0001 HEGG987 6 On, Off, On SPDT EA 4.34

3192-0001 HEKY026 6 On —On SPDT EA 4.34

3193-0001 HEGG989 6 (On), Off, (On) SPDT EA 5.57

3193-1001 HEKY046 6 On, Off, (On) SPDT EA 6.32

4125-0001 HEGG985 8 On —Off SPST EA 7.73

90-0001 HEFX039 20 On —Off SPST EA 4.50

91-0001 HEGG991 20 On, Off, On SPDT EA 5.23

92-0001 HEPR046 20 On —On SPDT EA 5.23

93-0001 HEGG994 20 (On), Off, (On) SPDT EA 8.21

93-1001 HEKY134 20 On, Off, (On) SPDT EA 8.21

93-2001 HEKY148 20 (Off) —On SPST EA 6.87

93-3001 HEGG997 20 (On) —Off SPST EA 6.87

93-4001 HEKY178 20 On —(On) SPDT EA 7.85

0090-0251 HEGG990 20 Amp with

"O"ring seal

On —Off SPST EA 7.07

Note: Mounting hardware and terminal screws (where applicable) furnished unassembled.

Mounting hardware consists of one plated hex nut and knurl nut. Indicating plate is also

furnished for maintained ON-OFF circuits.

Single-Pole Toggle Switches

1⁄4" Q.C. Terminal

McGill full-size, single pole toggle switches are available in several

electrical ratings to meet a variety of requirements. Ruggedly

constructed with metallic toggle and threaded bushing to ensure

extended service life. Available with "O"ring seal in bushing for

moisture resistance. All switches are UL Recognized and CSA Certified.

• 6 Amp Single Pole: 6A, 125V AC; 3A, 250V AC; 1⁄4HP, 125–250V AC;

Suitable for 6A, 12V DC applications

• 8 Amp Single Pole: 8A, 125V AC; 4A, 250V AC; 1⁄3HP, 125–250V AC

• 20 Amp Single Pole: 20A, 125V AC; 10A, 250V AC; 1 HP, 125–250V

AC; 20A, 250V AC (non-inductive); Suitable for 20A, 12V DC

applications

Model No. Hughes No. Amps Switch Type Unit List Price

3190-0003 HENS841 6 On —Off SPST EA $3.12

3191-0003 HEGG988 6 On, Off, On SPDT EA 3.56

3192-0003 HEKX882 6 On —On SPDT EA 3.56

3193-0003 HEKY041 6 (On), Off, (On) SPDT EA 5.33

3193-1003 HEKY054 6 On, Off, (On) SPDT EA 5.77

4125-0003 HEKX992 8 On —Off SPST EA 6.64

90-0003 HEFX041 20 On —Off SPST EA 3.89

91-0003 HEKY089 20 On, Off, On SPDT EA 4.46

92-0003 HEGG993 20 On —On SPDT EA 4.46

93-0003 HEFR155 20 (On), Off, (On) SPDT EA 7.94

93-1003 HEKY141 20 On, Off, (On) SPDT EA 7.94

93-2003 HEGG996 20 (Off) —On SPST EA 6.75

93-3003 HEKY172 20 (On) —Off SPST EA 6.75

93-4003 HEKY187 20 On —(On) SPDT EA 7.59

EGS - McGill®

Single-Pole Toggle Switches

Screw Terminal

McGill full-size, single pole toggle switches are available in several

electrical ratings to meet a variety of requirements. Ruggedly

constructed with metallic toggle and threaded bushing to ensure

extended service life. Available with "O"ring seal in bushing for

moisture resistance. All switches are UL Recognized and CSA Certified.

• 6 Amp single pole: 6A, 125V AC; 3A, 250V AC; 1⁄4HP, 125–250V AC.

Suitable for 6A, 12V DC applications.

• 8 Amp Single pole: 8A, 125V AC; 4A, 250V AC; 1⁄3HP, 125–250V AC

• 20 Amp Single Pole: 20A, 125V AC; 10A, 250V AC; 1 HP, 125–250V

AC; 20A, 250V AC (non-inductive). Suitable for 20A, 12V DC

applications

“List Price” refers to manufacturer’s suggested list price.

Prices subject to change without notice.

260-261.qxp 9/5/07 8:23 AM Page 261

McGill offers a huge selection of safety

lamps and lighting products including

rough service and UL Listed

explosionproof handlamps

moc.lacirtcelelligcm.www

McGill LOCKBOX™ Lockouts allow

personnel to work confidently and

safely on electrical equipment

McGill Sensing-Safti-Gard™ Motor

Controls and GFCIs protect people

and equipment

To electrical contractors, McGill means safety.

To electrical distributors, McGill means business.

McGill continues to be the choice of distributors

because of great profits, great quality and a well

established point-of-sale program. McGill has high brand

recognition and acceptance by electrical contractors and

industrials everywhere.

If profits and exceptional quality turn you on, turn on to

McGill safety products. For a free copy of

our catalog call 888-832-0660. Or

e-mail literature@egseg.com. Visit us

on-line at www.mcgillelectrical.com.

262_EC05.qxd 11/7/05 4:45 PM Page 262

McGill SWITCHES

hdsupply.com 263

Wiring Devices

Note: Mounting hardware and terminal screws (where applicable) furnished unassembled.

Mounting hardware consists of one plated hex nut and knurl nut. Indicating plate is also

furnished for maintained ON-OFF circuits.

McGill®

Single Pole Toggle Switches

6" Wire Leads

McGill full-size, single pole toggle switches are available in several

electrical ratings to meet a variety of requirements. Ruggedly con-

structed with metallic toggle and threaded bushing to ensure extended

service life. Available with "O"ring seal in bushing for moisture resist-

ance. All switches are UL Recognized and CSA Certified.

• 8 Amp Single Pole: 8A, 125V AC; 4A, 250V AC; 1⁄3HP, 125–250V AC

Multi-Pole Toggle Switches

Screw Terminal

McGill full size double pole, 3 pole and 4 pole toggle switches are avail-

able in a variety of circuit arrangements and different terminal types to

meet your electrical requirements. Metallic toggle and threaded bush-

ing ensure extended service life. All switches are UL Recognized and

CSA Certified.

• 6 Amp, Double Pole: 6A, 125V AC; 3A, 250V AC; 1⁄4HP, 125–250V AC;

50/60 HZ; Suitable for 6A, 12V DC applications

• 15 Amp, Double Pole: 15A, 277V AC; 3⁄4HP, 125–277V AC; Suitable

for 15A, 12V DC applications

• 17 Amp, 3 Pole and 4 pole: UL Recognized; 17A, 125–277V AC; 1HP,

125V AC; 2HP, 250V AC 1, 2, or 3 phase; Suitable for 17A, 12V DC

applications

• CSA Certified; 17A, 125–250V AC; 1HP, 125V AC; 2HP, 250V AC 1, 2,

or 3 phase

Model No. Hughes No. Amps Switch Type Unit List Price

1121-0001 HEGG998 6 On —Off DPST EA $5.89

0121-0001 HEFT675 15 On —Off DPST EA 7.24

0121-0002 HEPR024 15 On, Off, On DPDT EA 8.83

0121-0003 HEGH001 15 On —On DPDT EA 8.83

0121-0004 HEKC515 15 (On), Off, (On) DPDT EA 14.14

0121-0005 HEKY251 15 (On) —Off DPST EA 11.19

0121-0006 HEKY255 15 On —(On) DPDT EA 18.55

0121-0007 HEKY260 15 On, Off, (On) DPDT EA 13.35

0121-0043 HEKY306 15 (Off) —On DPST EA 17.32

0140-3020 HEFX422 17, 3 Pole On —Off 3PST EA 14.09

0140-3023 HEFY668 17, 3 Pole On, Off, On 3PDT EA 17.93

0140-3027 HEKY357 17, 3 Pole (On), Off, (On) 3PDT EA 22.10

0140-4020 HEGH007 17, 4 Pole On —Off 4PST EA 18.55

0140-4023 HEPR028 17, 4 Pole On, Off, On 4PDT EA 23.08

Dimensions

Switch Series Bushings Bats Case

3190 & 90 Series 15/32"—32 thread 15/32" long 9/16" long 111/64" X 5/8"

4125 Series 15/32"—32 thread 9/32" long 37/64" long 13/64" X 39/64"

Model No. Hughes No. Amps Switch Type Unit List Price

4125-0004 HEFX098 8 Amp On—Off SPST EA $8.24

See pages 683-685 for Pliers

262-263.qxp 9/5/07 8:24 AM Page 263

SWITCHES Hubbell Wiring Devices

264 hdsupply.com

Wiring Devices

Hubbell Wiring Devices

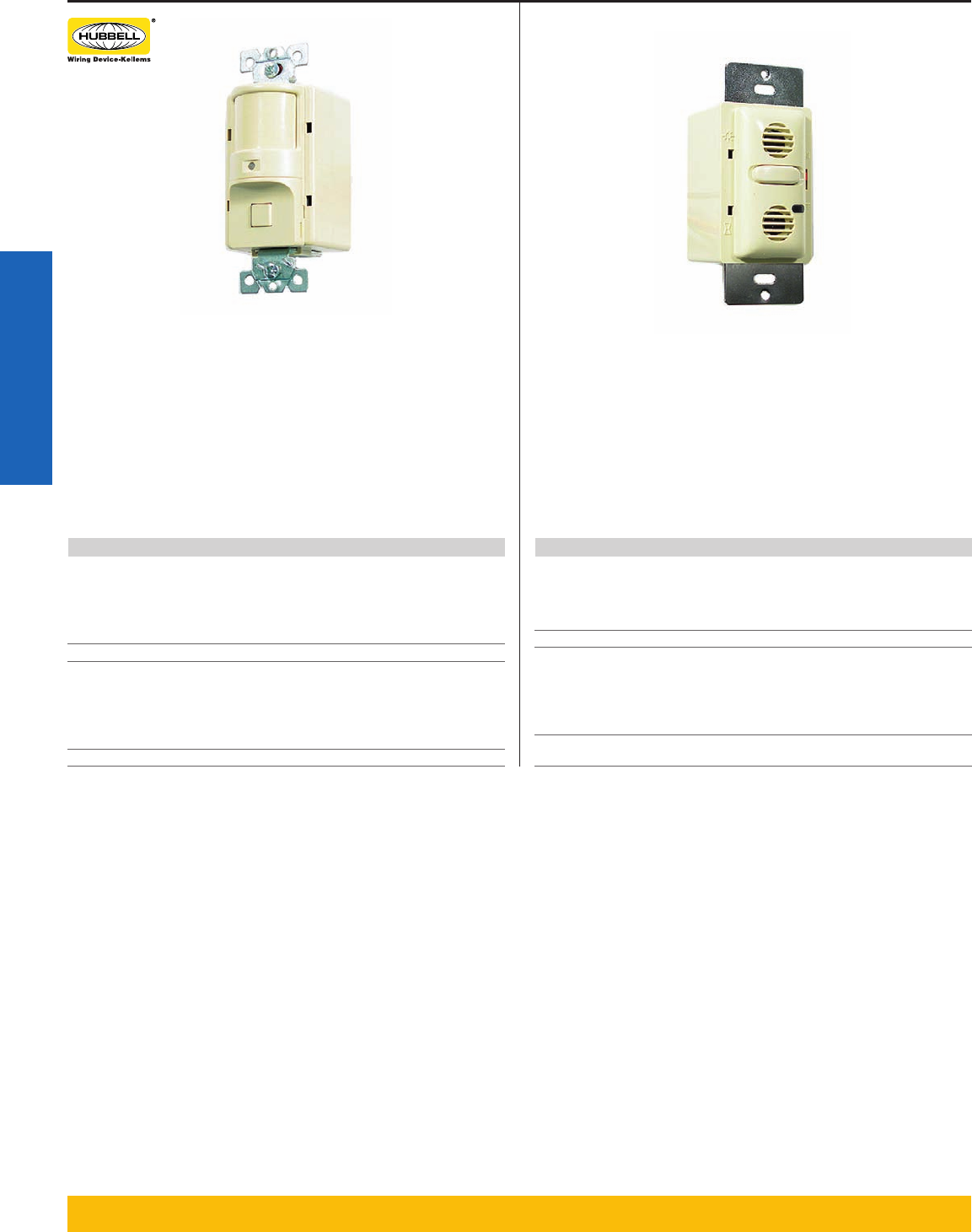

Dual-Technology Wall Switch Occupancy Sensors

H-Moss®

Hubbell ATD series wall switch sensors incorporate both ultrasonic and

passive infrared detection technologies. These dual technology sensors

provide the most reliable means of automatic lighting control. The

product offering includes standard and hard lens versions for high

abuse applications. Hubbell dual technology wall switch sensors are

the best choice for enclosed office applications.

• Nylon wall plate supplied with each sensor.

• ATD and ATU series wall switch sensors are gangable.

Ultrasonic Wall Switch Occupancy Sensor

H-Moss®

Hubbell ATU series wall switch sensors detect occupancy based on an

ultrasonic signal. Since these sensors do not require line of sight to

detect occupancy, they work particularly well in areas with obstructions

such as storage areas and restrooms. The manual override switch is

eliminated on the restroom model to prevent the light from being turned

off.

• Nylon wall plate supplied with each sensor.

• ATD and ATU series wall switch sensors are gangable.

Model No. Hughes No. Description Unit List Price

ATD1277I HBIO402 Adaptive Technology, dual (passive

infrared and ultrasonic- 40kHz),

wall switch, ivory, 120/277V AC, 25

to 600 watts at 120V AC, 60 to 1200

watts at 277V AC, 1000 sq. ft.

coverage, with photocell.

EA Call

ATD1277W HBIO403 Same as ATD1277I except white. EA Call

ATD1277HI HBIO404 Adaptive Technology, dual (passive

infrared and ultrasonic- 40kHz), wall

switch, hard lens, ivory, 120/277V

AC, 25 to 600 watts at 120V AC, 60

to 1200 watts at 277V AC, 300 sq. ft.

coverage, with photocell.

EA Call

ATD1277HW HBIO405 Same as ATD1277HI except white. EA Call

Model No. Hughes No. Description Unit List Price

ATU1277I HBIO606 Adaptive Technology, ultrasonic-

40 kHz, wall switch, ivory,

120/277V AC, 25 to 600 watts at

120V AC, 60 to 1200 watts at

277V AC, 1000 sq. ft. coverage.

EA Call

ATU1277W HBIO607 Same as ATU1277I except EA Call

ATU1277RRI HBIO608 Adaptive Technology, ultrasonic-

40 kHz, wall switch for restroom

use, ivory, 120/277V AC, 25 to 600

watts at 120V AC, 60 to 1200

watts at 277V AC, 1000 sq. ft.

coverage.

EA Call

ATU1277RRW HBIO609 Same as ATU1277RRI except

white.

EA Call

264-265.qxp 9/5/07 8:24 AM Page 264

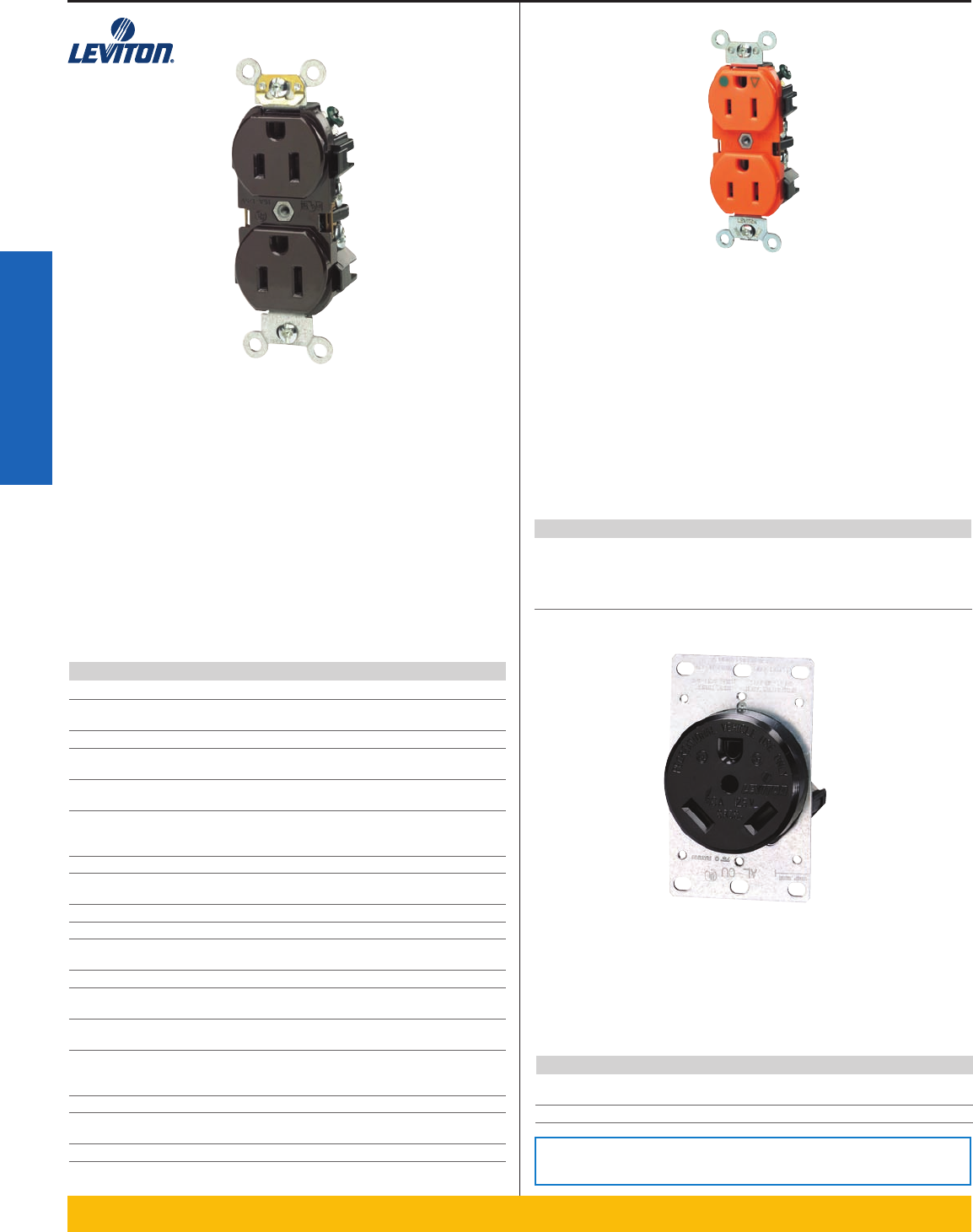

Leviton RECEPTACLES

hdsupply.com 265

Wiring Devices

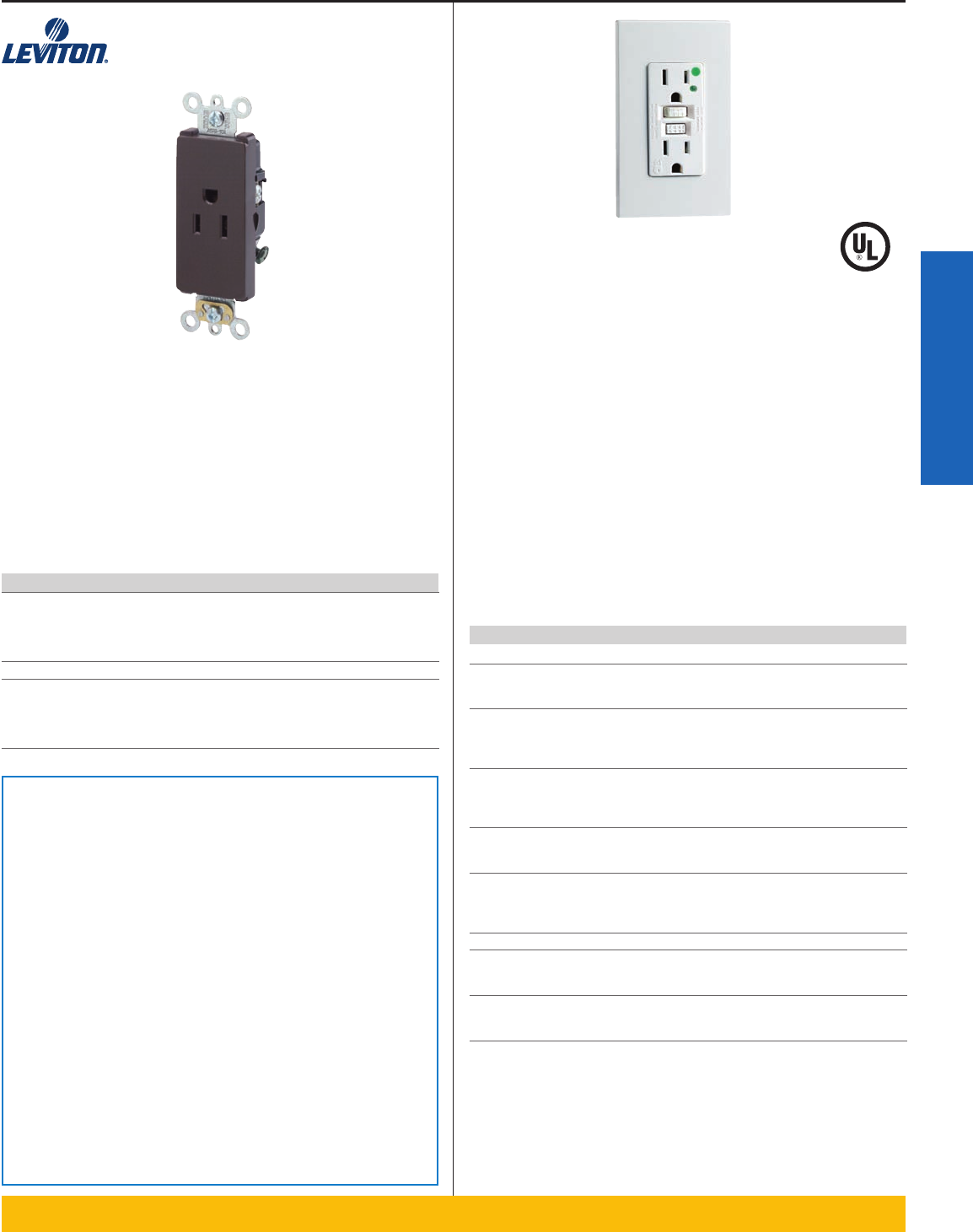

Leviton®

AC Receptacles

Decora , Duplex. Side Wire and

Quickwire NEMA 5-15R

• Side Wire and Quickwire™holes

accept No. 14 AWG copper wire for Cat No. 5325

• Heavy-gauge zinc-plated steel mounting strap

• Heavy duty double-wipe brass contacts for long service life

Decora Surge Suppressor Receptacles

Back and Side Wired NEMA 5-15R & 5-20R

• Decora-styled TVSS receptacles protect sensitive electronic

equipment against transient voltage surges

• UL 1449 Suppressed Voltage Ratings: 400V for all 3 modes

(line-neutral, line-ground, neutral ground)

• Fuse-protected internal circuitry

• Super impact-resistant Lexan face

• RFI and EMI noise filtration (-35db, @ 5KHz-5MHz)

• Supplied with Decora wallplate

• Hospital Grade and Isolated Ground versions include green LED

indicator light that goes out and audible alarm that sounds when

protection is lost

• Industrial Grade versions include green LED indicator light that

goes out when protection is lost

Residential Grade Straight Blade Receptacles

Quickwire Push-In and Side Wired, 15 Amp 125V Grounding

• Terminal screws accept up to No. 12 copper or copper-clad wire

• Quickwire push-in terminals accept No. 14 solid copper wire only

• Double-wipe power contacts for maximum conductivity and plug

retention

• Heavy-gauge, rust-resistant steel mounting strap

• Shallow design for maximum wiring room

• Break-off plaster ears for best flush alignment

• Captive mounting screws

• Break-off tabs allow easy two-circuit conversion

Model No. Hughes No. Color* Amps Unit List Price

5325 HEGP871 I, W, A, GY, E 15 EA $4.64

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

Model No. Hughes No. Type Color Unit List Price

Hospital Grade, Duplex with Indicator Light & Audible Alarm

8280 HEJK422 15A/125V I, W, A, R, B EA $52.50

8380 HEJK445 20A/125V I, W, GY, R, B EA 56.91

Hospital Grade, Single with Indicator Light & Audible Alarm

8381 HEJK427 20A/125V I, GY, R EA 33.60

Hospital Grade, Isolated Groud, Duplex with Indicator Light & Audible Alarm

8280-IG HGZO373 15A/125V I, W, G, A, R, B, O

(No Mahogany)

EA Call

8380-IG HGZO375 20A/125V I, W, A, G, B, O

(No Mahogany)

EA Call

Hospital Grade, Isolated Groud, Single with Indicator Light & Audible Alarm

8281-IG HGZO374 15A/125V I, W, A, G, O (No

Mahogany)

EA Call

8381-IG HGZO376 20A/125V I, W, B, O (No

Mahogany)

EA Call

Industrial Grade, Duplex with Indicator Light & Audible Alarm

7280 HGLP374 15A/125V I, W, GY, A, B EA 55.02

7380 HGLP379 20A/125V I, W, GY, B EA 61.53

Industrial Grade, Duplex with Indicator Light

5280 HEJN163 15A/125V I, W, GY, A, B EA 43.76

5380 HEJN180 20A/125V I, W, GY, B EA 50.02

Industrial Grade, Isolated Groud, Duplex with Indicator Light

5280-IG HERQ771 15A/125V I, W, G, A, B, O EA 69.58

5380-IG HCSO761 20A/125V I, W, G, B, O EA 54.58

Model No. Hughes No. Description Color Unit List Price

5320-CP HEFW819 Duplex Receptacle, All

Screws Backed Out,

Contractor Pack (10 bulk)

I, W, A EA $1.04

Use this color chart when ordering

Leviton switches and receptacles.

264-265.qxp 9/5/07 8:24 AM Page 265

Leviton®

Residential Grade Straight Blade Receptacle

Side Wired CO/ALR 15 Amp 125V Grounding

• Terminal screws accept up to No. 12 copper or copper-clad wire

• Quickwire push-in terminals accept No. 14 solid copper wire only

• Double-wipe power contacts for maximum conductivity and plug

retention

• Heavy-gauge, rust-resistant steel mounting strap

• Shallow design for maximum wiring room

• Break-off plaster ears and tabs

• Captive mounting screws

RECEPTACLES Leviton

266 hdsupply.com

Wiring Devices

Residential Grade Straight Blade Receptacle

Side Wired 15 Amp/125V Non-Grounding

• Terminal screws accept up to No. 12 copper or copper-clad wire

• Double-wipe power contacts for maximum conductivity and plug

retention

• Heavy-gauge, rust-resistant steel mounting strap

• Shallow design for maximum wiring room;

• Break-off plaster ears and tabs

• UL listed

Residential Grade Straight Blade Receptacle

Side Wired Clock Hanger 15 Amp/125V Grounding

Commercial Grade AC

Combination Devices

• AC quiet switches have silver-cadmium oxide

contacts and

receptacles have double-wipe contacts for

maximum conductivity

• All devices have grounding screw, except

where noted

• Side wired with terminal screws that accept up

to #12 copper or copper-clad wire

• Fit standard wallboxes

• Break-off tabs on devices with AC quiet switches permit conversion

to separate feeds (except switch/pilot light combinations)

Commercial Grade Straight Blade

Receptacles

Side Wired

• Large-head terminal screws, backed out and

staked, accept No. 10 copper or copper-clad

wire

• All power contacts are triple wipe for maxi-

mum conductivity

and plug retention —except CR series

• Heavy-gauge, rust-resistant steel mounting

strap

• Shallow design for maximum wiring room in box

• Convenient washer-type break-off plaster ears

• Captive mounting screws for fast installation where applicable

Model No. Hughes No. Description Color* Unit List Price

12650 HGZO323 Duplex Receptacle I, W EA Call

Model No. Hughes No. Description Color* Unit List Price

223 HEGQ048 Duplex Receptacle,

Plaster Ears

I, W EA $4.16

Model No. Hughes No. Description Color* Unit List Price

688 HGZO367 Flush Mount with

Square Recess

I, W EA Call

Model No. Hughes No. Rating Color* Unit List Price

Duplex Receptacle

CR15 HEFW804 15A/125V I, W, GY, E, A EA $1.65

CR20 HEFW833 20A/125V I, W, GY, E, A EA 2.04

Duplex Receptacle, Smooth Face

CRO15 HGZO384 15A/125V I, W, GY EA Call

CRO20 HGZO385 20A/125V I, W, GY EA Call

Single Receptacle

5015 HEGG361 15A/125V I, W, A EA 5.31

5801 HEFV247 20A/125V I, W, A EA 4.69

Model No. Hughes No. Description Color* Unit List Price

Switch: 15A 120V AC. Receptacle: 15A, 125V AC

5225 HEGP864 Single-Pole

Switch/Receptacle

I, W, A EA $14.72

15A, 120/277 V AC

5224 HGZO344 Two Single-Pole

Switches(Non-

Grounding)

I, W EA Call

5224-2 HAWM611 Two Single-Pole

Switches(Grounding

version)

I, W, A EA 14.22

5241 HBQX930 3-Way Switch/Single-

Pole Switch(Non-

Grounding)

I, W, A EA 23.91

5243 HBQX929 Two 3-Way

Switches(Non-

Grounding)

I, W, A EA 30.95

Switch: 15A, 120V AC. Pilot Light: 125W, 125V AC

5226 HAWN003 Single-Pole Switch/Pilot

Light

I, W, A EA 15.99

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

266-267.qxp 9/5/07 8:24 AM Page 266

Leviton RECEPTACLES

hdsupply.com 267

Wiring Devices

GFCI Personnel Protection Devices

Commercial Grade SmartLock™GFCI Receptacles

Back and Side Wired

• Test and reset functions work together so that a tripped GFCI cannot

be reset if GFCI circuit no longer provides ground fault protection

• Reset button is blocked if GFCI protection has been compromised,

reducing the possibility of end-users incorrectly assuming that a

reset GFCI is providing ground fault protection when it actually is not

• Cannot be reset if neutral is not present. GFCI can still be tripped

with test button under this condition

• Line-load diagnostic feature prevents GFCI from being reset and

stops power from being fed through to downstream devices. This

alerts installer to a lineload reversal. Note: Power will still be

available to GFCI receptacle face in this condition and there will

be no GFCI protection at the receptacle face

• The SmartLock GFCI with lockout action is designed and patented

by Leviton

• Trip threshold meets or exceeds UL requirements for tripping time

• Impact-resistant thermoplastic cover and body

• Silver-alloy contacts

• Compatible with all Decora devices: available in selected Decora

colors

Receptacles

Decora Plus, Back and Side Wired, Self-Grounding

NEMA 5-15R, 6-15R, 5-20R & 6-20R

• Heavy-gauge zinc-plated steel locked-in wrap-around strap

• Terminal screws accept up to No. 10 copper or copper-clad wire,

solid or stranded

• Back wire terminals accept up to No. 10 copper or copper-clad

wire, solid or stranded

• Labor-saving self-grounding clip

• Heavy-duty triple-wipe brass contacts for long service life

• Impact-resistant thermoplastic construction

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

Model No. Hughes No. Description Color* Unit List Price

15 Amp, 125V at Receptacle; 20 Amp Feed-Through

8599 HEIU151 Duplex, No Indicator

Light, buttons match

face color

I, W, GY,

E, A

EA $20.25

8599-CP HGZO380 Duplex, No Indicator

Light, Black & Red

buttons. Contractor

Pack

I, W (No

Brown)

EA Call

8599-L HGZO381 Duplex, No Indicator

Light, Black & Red

buttons. With 4-1/2"

leads

I, W (No

Brown)

EA Call

8598 HDXY698 Duplex with LED

Indicator Light, but-

tons match face color

I, W, A EA 78.54

8598-CPW HFBJ102 Duplex with LED

Indicator Light, Black

& Red buttons.

Contractor Pack

White

Only

EA 78.54

20 Amp, 125V at Receptacle and Feed-Through

8899 HERI548 Duplex, No Indicator

Light, buttons match

face color

I, W, GY,

E, A

EA 22.10

8898 HDXY704 Duplex with LED

Indicator Light, but-

tons match face color

I, W, A EA 24.30

Model No. Hughes No. Type Color* Unit List Price

16252 HEGQ230 15A/125V I, W, GY, E, A EA $9.91

16662 HEIW985 15A/250V I, W EA Call

16352 HEGQ234 20A/125V I, W, GY, E, A EA 18.43

16462 HEIW965 20A/250V I, W, E EA Call

Single, Self-grounding when installed in a properly grounded metal wallbox

16251 HEJL423 15A/125V I, W EA 13.17

16651 HGZO330 15A/250V I, W (No Mahogany) EA Call

16351 HEGP825 20A/125V I, W EA 17.60

16451 HEJL504 20A/250V I, W (No Mahogany) EA Call

See page 265 for the Leviton

color chart for switches

and receptacles.

266-267.qxp 9/5/07 8:24 AM Page 267

RECEPTACLES Leviton

268 hdsupply.com

Wiring Devices

Leviton®

Industrial Grade Straight Blade Receptacles

Back and Side Wired

• Impact-resistant thermoplastic nylon cover and body

• Smooth face does not collect dirt

• Four corner latches securely fasten face

• Locked-in mounting strap

• Large, triple-wipe, brass “T”contacts for superior contact and

conductivity

• Back and side-wiring options

• Brass terminal screws to reduce conductor oxidation

• Break-off tabs for easy two-circuit conversion

• Apron barrier to prevent accidental contact between terminal

screw heads and metal box

• Exclusive V-shaped, serrated back-wiring clamps for superior

contact and conductivity

Industrial Grade Straight Blade Receptacles

Back and Side Wired —Isolated Ground Receptacles

• Impact-resistant thermoplastic nylon cover and body

• Smooth face does not collect dirt

• Four corner latches securely fasten face

• Locked-in mounting strap

• Large, triple-wipe, brass "T"contacts for superior contact and

conductivity

• Brass terminal screws to reduce conductor oxidation

• Break-off tabs for easy two-circuit conversion

• Apron barrier to prevent accidental contact between terminal

screw heads and metal box

• Exclusive V-shaped, serrated back-wiring clamps for superior

contact and conductivity

Industrial Grade Straight Blade Receptacles

30 AMP 125V 2-Pole 3-Wire Grounding

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminals marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

Model No. Hughes No. Description Unit List Price

7313 HEFQ529 Flush Mount Receptacle

for Recreational Vehicles

EA $20.18

830-T HEGQ183 Matching Angle Plug EA 27.48

Model No. Hughes No. Description Color* Unit List Price

15A, 125V

5262 HEFW941 Duplex Receptacle,

Brass Strap

I, W, GY, R, E EA $18.56

5261 HEGP840 Single Receptacle I, W, GY EA 16.45

5252 HEFW938 Narrow Body Duplex

Receptacle

I, W (No

Brown)

EA 11.28

5261-CH HEGP942 Single Receptacle,

Clock hanger

Stainless

Steel

EA 55.47

5262-S HEGS704 Duplex Receptacle,

Slim Body, Smooth

Face

I, W, GY, R,

BU, A

EA 18.25

15A, 250V

5662 HEFV092 Duplex Receptacle,

Brass Strap

IEA 22.56

5661 HEJJ947 Single Receptacle IEA 19.61

20A, 125V

5362 HEFW958 Duplex Receptacle,

Brass Strap

I, W, GY, R, E EA 21.83

5361 HENZ531 Single Receptacle I, W, GY, A, E EA 18.45

5352 HEFW954 Narrow Body Duplex

Receptacle

I, W (No

Brown)

EA 16.03

5361-CH HEGP944 Single Receptacle,

Clock hanger

Stainless

Steel

EA 56.39

5362-S HEGS706 Duplex Receptacle,

Slim Body, Smooth

Face

I, W, GY, R,

BU, A

EA 21.47

20A, 250V

5462 HEPP487 Duplex Receptacle,

Brass Strap

I, GY EA 27.73

5461 HEFV270 Single Receptacle I, A, GY EA 21.51

Model No. Hughes No. Color* Rating Unit List Price

5262-IG HEFW943 B, I, W, G, R 15A/125V EA $23.20

5662-IG HCPM662 B, I, W, G, R 15A/250V EA 50.13

5362-IG HEGA298 B, I, W, A, G, R 20A/125V EA 28.89

5462-IG HCPM651 B, I, W, A, G, R 20A/250V EA 39.06

*Add as suffix. Basic catalog number denotes Brown.

*Add as suffix. Basic catalog number denotes Brown.

See page 265 for the Leviton color chart.

268-269.qxp 9/5/07 8:25 AM Page 268

Leviton RECEPTACLES

hdsupply.com 269

Wiring Devices

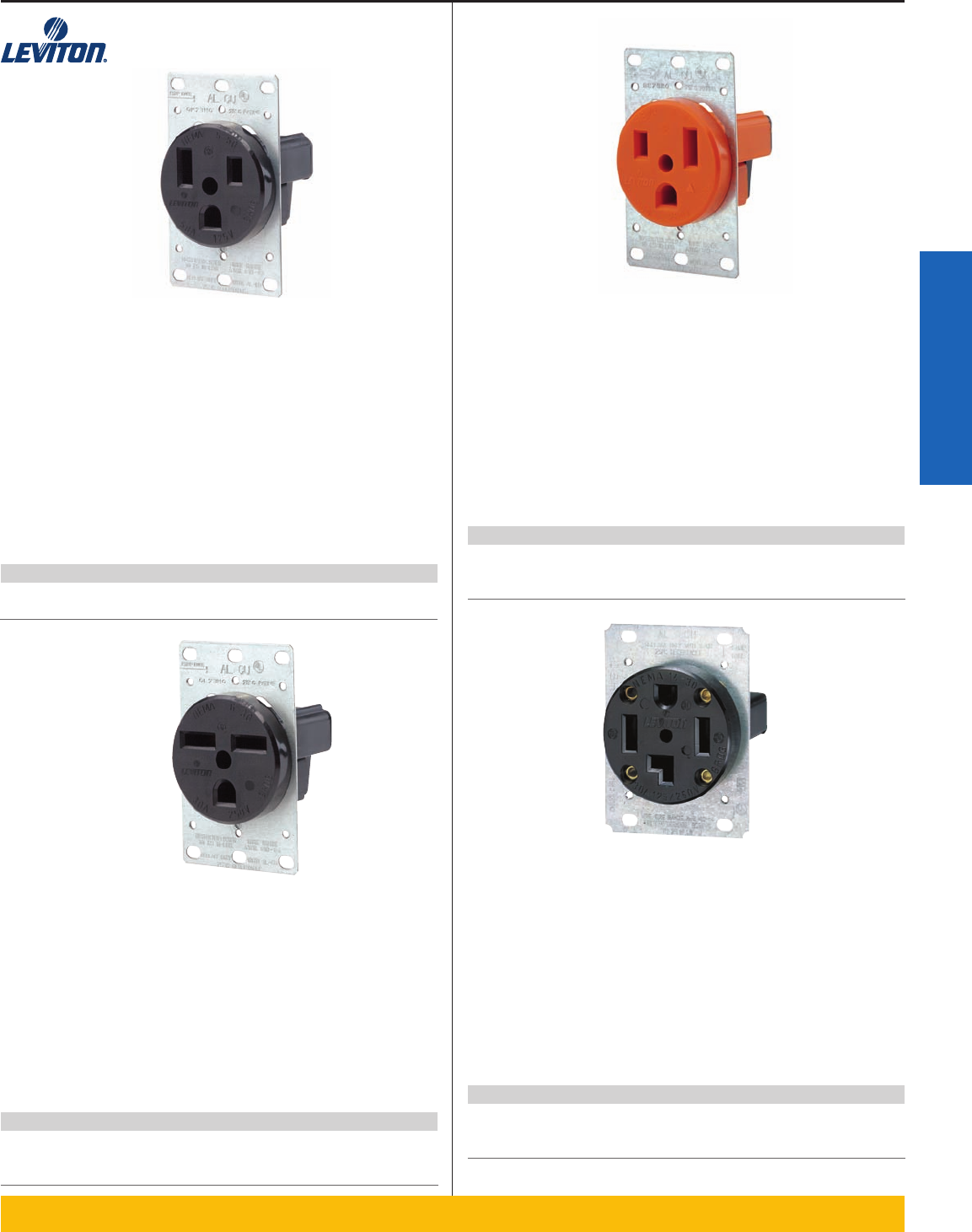

Leviton®

Industrial Grade Straight Blade Receptacles

50 AMP 125V 2-Pole 3-Wire Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

5373 HEGC978 Flush Mount Receptacle EA $24.35

9550-P HEGD064 Matching Angle Plug EA 62.43

Industrial Grade Straight Blade Receptacles

30 AMP 250V 2-Pole 3-Wire Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminals marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp for back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

5372 HEFW823 Flush Mount Receptacle EA $19.64

5376 HEGG363 Surface Mount Receptacle EA 33.92

9630-P HEGQ158 Angle Plug EA 57.45

Industrial Grade Straight Blade Receptacles

50 AMP 250V 2-Pole 3-Wire Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are COMMERCIAL GRADE and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

5374 HEFV241 Matching Receptacle EA $19.64

5378 HEFW825 Surface Mount Receptacle EA 23.47

9650-P HEFU893 Matching Receptacle EA 62.94

Industrial Grade Straight Blade Receptacles

30 AMP 125/250V 3-Pole 4-Wire Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

278 HEGA128 Flush Mount Receptacle EA $42.57

55054 HEFW843 Surface Mount Receptacles EA 23.11

9432-P HEDZ622 Angle Plug EA 72.76

268-269.qxp 9/5/07 8:25 AM Page 269

RECEPTACLES Leviton

270 hdsupply.com

Wiring Devices

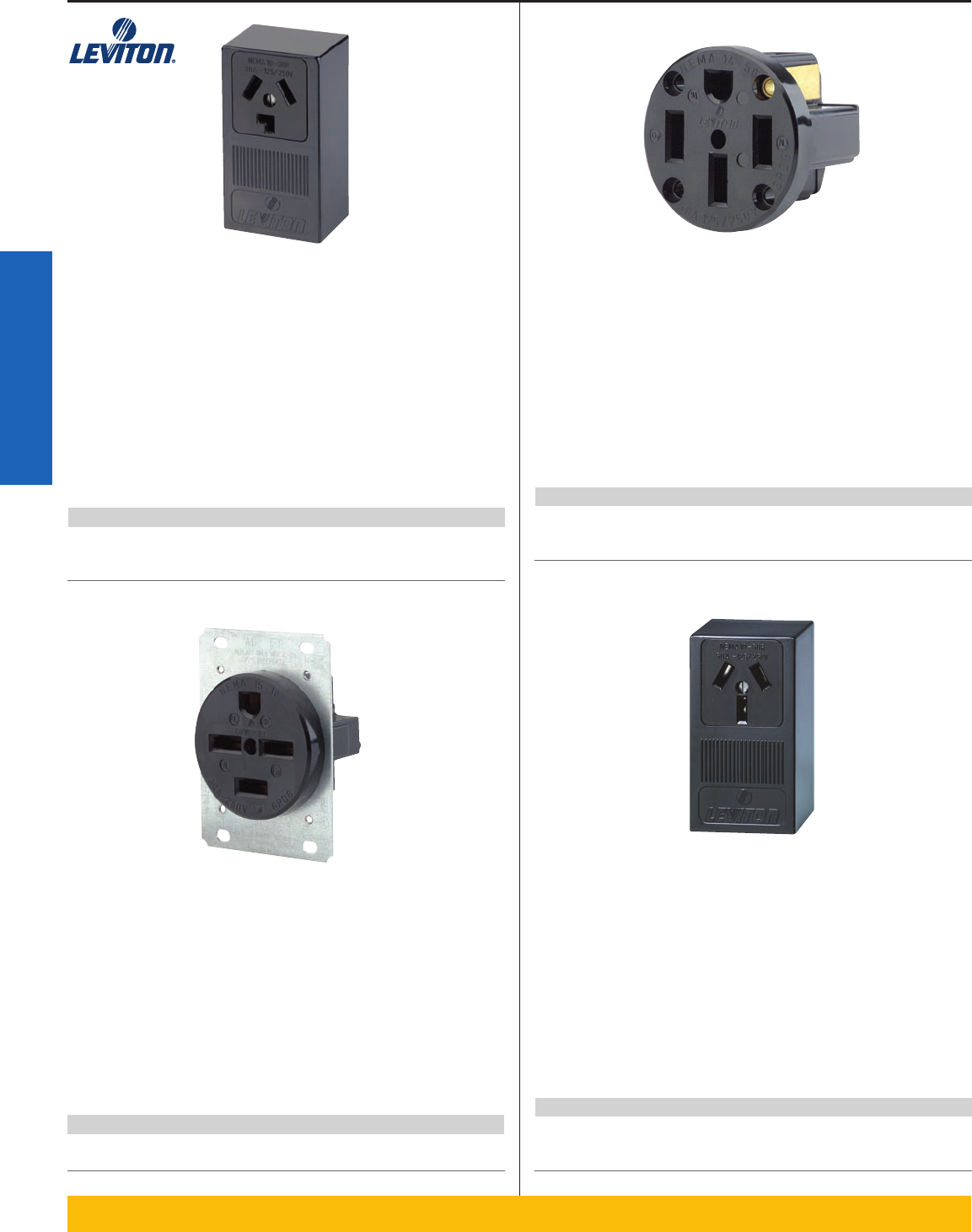

Leviton®

Industrial Grade Straight Blade Receptacles

30 Amp 125/250V 3-Pole 3-Wire Non-Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminals marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp for back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

5207 HEFW817 Flush Mount Receptacle EA $5.24

5054 HAXI284 Surface Mount Receptacle EA 7.44

9332-P HEFT751 Matching Angle Plug EA 42.77

Industrial Grade Straight Blade Receptacles

30 Amp 250V 3Ø3-Pole 4-Wire Grounding Power Devices

Fits 2-gang wallplates w/2.465" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

8430 HEFQ470 Flush Mount Receptacle EA $70.48

8432-P HEFQ474 Matching Angle Plug EA 76.69

All devices are UL Listed and UL Listed and CSA Certified.

Industrial Grade Straight Blade Receptacles

50 Amp 125/250V, 3-Pole, 4-Wire, Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

279 HEFV501 Matching Receptacle EA $42.57

55050 HEFQ524 Surface Mount Receptacle EA 23.11

9452-P HEGA706 Matching Receptacle EA 87.96

All devices are UL Listed and UL Listed and CSA Certified.

Industrial Grade Straight Blade Receptacles

50 AMP 125/250V, 3-Pole, 3-Wire

Non-Grounding Power Devices

Fits all wallplates with 2.15" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

5206 HEFV264 Flush Mount Receptacle EA $5.24

5050 HEFW814 Surface Mount Receptacle EA 7.44

9450-P HEFV043 Matching Angle Plug EA 79.60

270-271.qxp 9/5/07 8:25 AM Page 270

Leviton RECEPTACLES

hdsupply.com 271

Wiring Devices

All devices are UL Listed and UL Listed and CSA Certified.

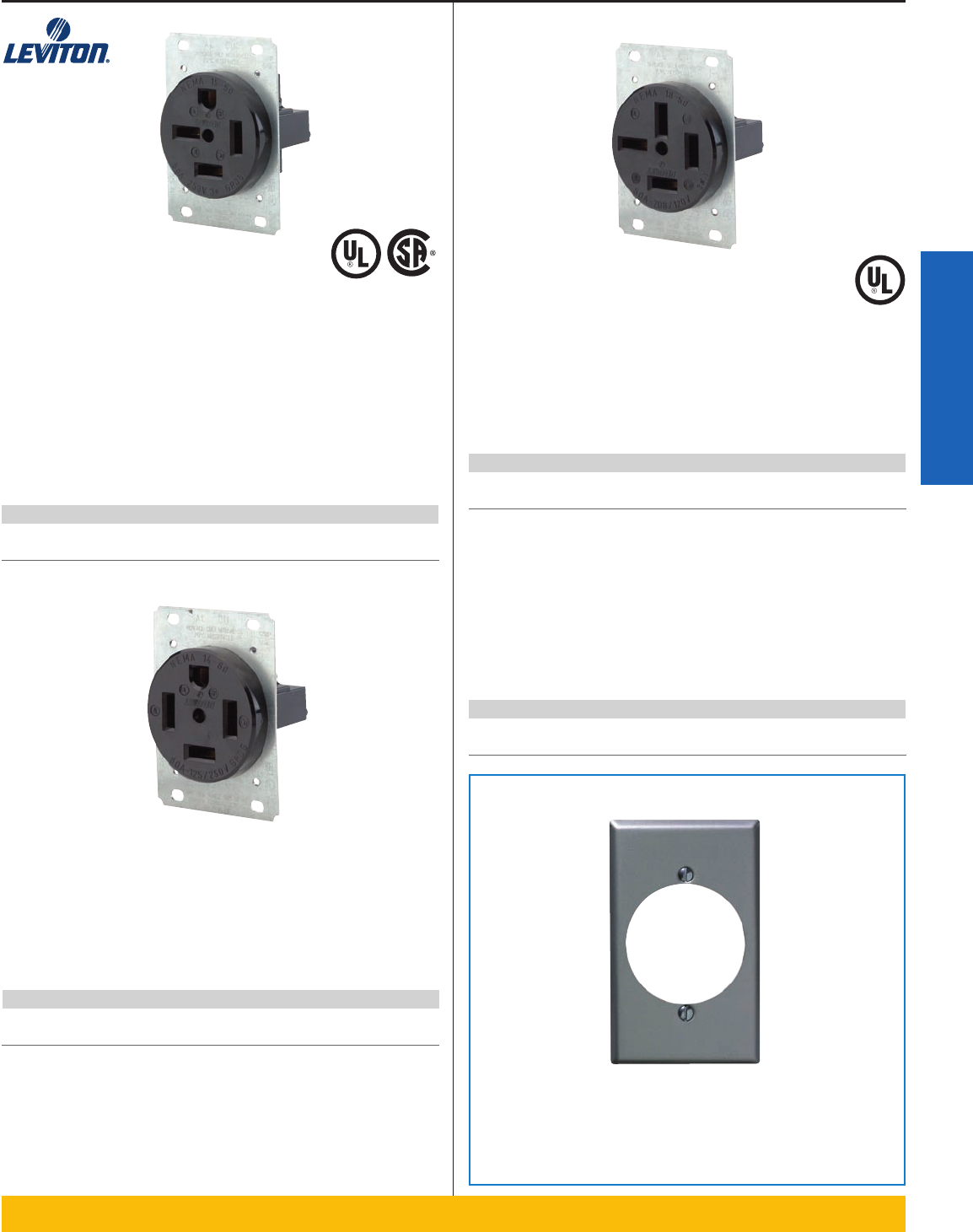

Leviton®

Industrial Grade Straight Blade Receptacles

50 Amp 250V, 3Ø, 3-Pole, 4-Wire, Grounding Power Devices

Fits wallplates with 2.465" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• UL listed and CSA certified

• All mounting hardware included

• Flush-mount devices fit single or two-gang outlet boxes

• Surface-mount devices are commercial grade and have

concentric knockouts for 3⁄4" and 1" conduit and adjustable cord

clamp and back and bottom entrance of cable

Model No. Hughes No. Description Unit List Price

8450†HEFR039 Flush Mount Receptacle EA $96.64

8452-P HEGQ159 Matching Angle Plug EA 92.27

Industrial Grade Straight Blade Receptacles

60 Amp 125/250V, 3-Pole, 4-Wire, Grounding Power Devices

Fits wallplates with 2.465" diameter hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

Model No. Hughes No. Description Unit List Price

9460 HEGE833 Flush Mount Receptacle EA $104.76

9462-P HEMH552 Matching Angle Plug EA 103.05

Industrial Grade Straight Blade Receptacles

50 Amp 120/208V, 3ØY, 4-Pole, 4-Wire

Non-Grounding Power Devices

Fits wallplates with 2.465" diameter center hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

• UL listed

Industrial Grade Straight Blade Receptacles

60 Amp 250V, 3Ø, 3-Pole, 4-Wire, Grounding Power Devices

Fits wallplates with 2.465" diameter hole.

• Made of durable thermoplastic

• Heavy-gauge, double-wipe copper alloy contacts

• Easy-to-wire terminals accept up to No. 4 AWG conductors

• Terminal marked for easy identification and fast wiring

• All mounting hardware included

Model No. Hughes No. Description Unit List Price

8460 HEFQ332 Flush Mount Receptacle EA $113.14

8462-P HEFZ389 Matching Angle Plug EA 98.36

Image Missing

IG ID: 19498

Date: 09/22/2005

Model No. Hughes No. Description Unit List Price

8350 HEGQ361 Flush Mount Receptacle EA $81.29

8352-P HEGQ160 Matching Angle Plug EA 83.39

All devices are UL Listed and CSA certified.

See page 279 for

Plastic and Metal Wallplates

270-271.qxp 9/5/07 8:25 AM Page 271

RECEPTACLES Leviton

272 hdsupply.com

Wiring Devices

Leviton®

GFCI Personnel Protection Devices

Hospital Grade SmartLock™GFCI Receptacles —Back and

Side Wired

• Test and reset functions work together so that a tripped GFCI cannot

be reset if GFCI circuit no longer provides ground fault protection

• Reset button is blocked if GFCI protection has been compromised,

reducing the possibility of end-users incorrectly assuming that a

reset GFCI is providing ground fault protection when it actually is not

• Cannot be reset if neutral is not present. GFCI can still be tripped

with test button under this condition

• Line-load diagnostic feature prevents GFCI from being reset and

stops power from being fed through to downstream devices. This

alerts installer to a line-load reversal. Note: Power will still be

available to GFCI receptacle face in this condition and there will

be no GFCI protection at the receptacle face

• The SmartLock GFCI with lockout action is designed and patented

by Leviton

• Trip threshold meets or exceeds UL requirements for tripping time

• Impact-resistant thermoplastic cover and body

• Silver-alloy contacts

• Compatible with all Decora devices: available in selected Decora

colors

Model No. Hughes No. Description Unit List Price

15 AMP 125V at Receptacle, 20 AMP Feed-Through

8598-HG HGZO379 Duplex with LED Indicator

Light, buttons match face

color

EA Call

8598-DIN HFOG400 Duplex with LED Indicator

Light, buttons match face

color DIN-Rail mounting

with terminal wiring block.

UL Recognized Component

EA 80.60

20 AMP 125V at Receptacle and Feed-Through

8898-HG HGZO383 Duplex with LED Indicator

Light, buttons match face

color

EA Call

Leviton®

Receptacles

Hospital Grade, Back and Side Wired

• Impact-resistant thermoplastic nylon

cover and body

• Four corner latches securely fasten

face

• Large, triple-wipe, brass "T" contacts

for superior contact and conductivity

• High-performance brass #10-32 termi-

nal screws to reduce conductor oxidation

• Break-off tabs for easy two-circuit conversion

• Apron barrier to prevent accidental contact between terminal

screw heads and metal box

• UL listed 498 for hospital grade, CSA and NOM certified

Use this color chart when ordering

Leviton switches and receptacles.

Model No. Hughes No. Color Description Unit List Price

8300 HEFQ379 Ivory, White,

Gray, Red or

Black

20A/125V

duplex recep-

tacle

EA $30.47

8200-H HEGQ197 Ivory, White,

Gray or Red

15A/125V slim

design recep-

tacle

EA 27.65

8300-H HEFX922 Ivory, White,

Gray or Red

20A/125V slim

design recep-

tacle

EA 30.47

272-273.qxp 9/5/07 8:26 AM Page 272

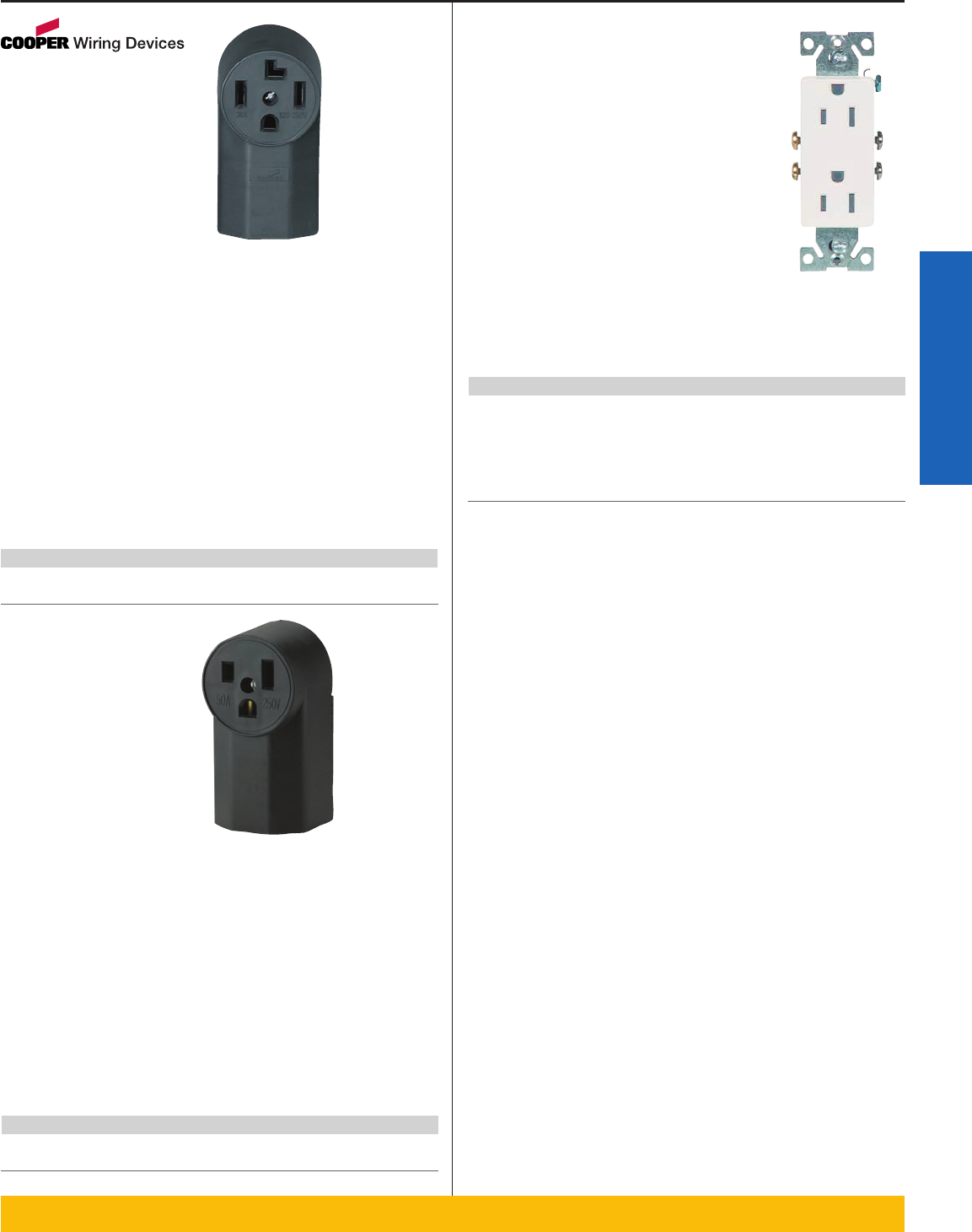

Cooper Wiring Devices RECEPTACLES

hdsupply.com 273

Wiring Devices

Cooper Wiring Devices

Single Receptacles

Commercial Grade

Model No. Hughes No. Color Unit List Price

270A HEFZ157 Almond EA $0.79

270B HEGG369 Brown EA 0.79

270V HEGG400 Ivory EA 0.79

270LA HERK466 Light Almond EA 0.79

270W HEFV090 White EA 0.79

Standard Grade Straight Blade

Duplex Receptacles

NEMA 5–15 / 15A 125V

• Longer, wider strap provides 40% more

contact area to wall board. Virtually

eliminates floating installations.

• Screw-Catch™feature automatically holds the

wallplate and mounting screw in place.

• Built-in wire stripper for #14 and #12 wire

provides backup for misplaced tools.

• Built-in wire looper designed to speed

termination of both #14 and #12 wire.

• High impact-resistant thermoplastic face and back body

eliminates job site breakage.

• Double wipe ground contacts ensure long-term ground retention.

• Easy access split circuit break-off tab.

• Side wire terminals accept up to #10 solid or stranded wire.

• Push-in terminals accept #14 solid wire.

• Terminal screws backed out –ready for wiring.

• Combination slot/Phillips head mounting and terminal screws ease

installation (slot/Robertson screws in Canada where available).

Straight Blade Receptacles

NEMA 10–30 Rating 30A 125/250V

• Heavy gauge steel mounting strap zinc-plated for corrosion

resistance.

• Receptacles for use with copper or aluminum wire.

• Surface receptacles have patented lay-in terminals and accept up

to #4 wire.

• Universal plugs include blades for 30A configurations.

• Surface receptacles 0.75" (19.05mm) and 1.0" (25.4mm) concentric

knockouts and adjustable cord clamp allow for wiring from bottom

or back.

• Flush receptacles fit one or two gang enclosures.

Model No. Hughes No. Description Color Unit List Price

125 HCNH184 Surface Black EA $5.46

38B HGZN929 Flush Brown EA Call

Straight Blade Receptacles

NEMA 10–50 Rating 50A 125/250V

• Heavy gauge steel mounting strap zinc-plated for corrosion

resistance.

• Receptacles for use with copper or aluminum wire.

• Surface receptacles have patented lay-in terminals and accept up

to #4 wire.

• Universal plugs include blades for 50A configurations.

• Flush receptacles fit one or two gang enclosures.

• High strength glass reinforced nylon body resists breakage in high

abuse areas for Catalog No. 7985N.

Model No. Hughes No. Description Color Unit List Price

7985N HBDR136 Flush Black EA $19.17

32B HGZN928 Flush Brown EA Call

122B HGZN851 Flush Off Center Brown EA Call

Model No. Hughes No. Color Unit List Price

NEMA 5-20R 20A 125V AC

1877A HBDT735 Almond EA $3.62

1877BK HBDT754 Black EA 3.62

1877B HGZN862 Brown EA Call

1877LA HERK425 Light Almond EA 3.62

1877V HGZN863 Ivory EA Call

1877W HGZN864 White EA Call

NEMA 6-20R 20A 250V AC

1876A HBDT732 Almond EA 4.78

1876BK HBDT733 Black EA 4.78

1876B HGZN859 Brown EA Call

1876LA HERK424 Light Almomd EA 4.78

1876V HGZN860 Ivory EA Call

1876W HGZN861 White EA Call

272-273.qxp 9/5/07 8:26 AM Page 273

The Power Behind The Brands.

SPEED.

ACCURACY.

DEPENDABILITY.

Stay on track with a new

line of Pre-Wired Receptacles

and Switches from Cooper

Wiring Devices.

We’ve taken the guesswork out of wiring

receptacles and switches with a full line of

factory-terminated devices. Utilizing a tried-

and-true termination method, our one-piece

pre-wired devices ensure speed and accuracy on

any installation. And every installation is done

the right way the first time, whether by a

seasoned electrician or a first year apprentice.

Check out our complete offering of

commercial, industrial and hospital grade

devices with unmatched performance, durability,

safety and NOW with pre-wired terminations.

For more information contact your

Cooper Wiring Devices distributor or visit

www.cooperwiringdevices.com today.

274_EC05.qxd 10/23/05 6:43 PM Page 1

Cooper Wiring Devices RECEPTACLES

hdsupply.com 275

Wiring Devices

Cooper Wiring Devices

Straight Blade Receptacles

Commercial Grade

• Heavy gauge steel mounting strap zinc-plated for corrosion

resistance.

• Receptacles for use with copper or aluminum wire.

• Surface receptacles have patented lay-in terminals and accept up

to #4 wire.

• Universal plugs include blades for 30A or 50A configurations.

• Surface receptacles 0.75" (19.05mm) and 1" (25.4mm) concentric

knockouts and adjustable cord clamp allow for wiring from bottom

or back.

• Flush receptacles fit one or two gang enclosures.

• High strength glass reinforced nylon body resists breakage in high

abuse areas for Catalog No. 5744N.

• NEMA 14-30 Rating 30A 125/250V Receptacles

Model No. Hughes No. Description Color Unit List Price

1225 HEQH360 Surface Black EA $53.02

1257 HGZN858 Flush Black EA Call

*Not NOM

Straight Blade Receptacles

Commercial Grade

• Heavy gauge steel mounting strap zinc-plated for corrosion

resistance.

• Receptacles for use with copper or aluminum wire.

• Surface receptacles have patented lay-in terminals and accept

up to #4 wire.

• Universal plugs include blades for 50A configurations.

• Surface receptacles 0.75" (19.05mm) and 1.0" (25.4mm) concentric

knockouts and adjustable cord clamp allow for wiring from bottom

or back.

• Flush receptacles fit one or two gang enclosures.

• High strength glass reinforced nylon body resists breakage in high

abuse areas for Catalog No. 5795N and 5709N.

• NEMA 6-50 Rating 50A 250V

Model No. Hughes No. Description Color Unit List Price

1252 HEKV756 Surface Black EA $17.25

1254* HGZN857 Flush Brown EA Call

Decorator Duplex Receptacles

Standard Grade

• Longer, wider strap provides 40% more con-

tact area to wall board. Virtually eliminates

floating installations.

• Patented built-in wire stripper for #14 and #12

wire to speed

installation.

• Patented built-in wire looper for pre-looping.

• Combination slot/Phillips head mounting and

terminal screws ease installation with power

screwdrivers. (Slot/Robertson screws in

Canada where available).

• Terminal screws backed out –ready for

wiring.

• Side wire terminals accept up to #10 solid or stranded wire.

• Push-in terminals accept #14 solid wire.

• NEMA 5-15R 15A, 125V AC

Model No. Hughes No. Color Unit List Price

1107A HEFU180 Almond EA $3.53

1107B HGZN848 Brown EA Call

1107GY HGZN849 Gray EA Call

1107V HEPI825 Ivory EA 3.53

1107LA HERK411 Light Almond EA 3.53

1107W HEPI829 White EA 3.53

274-275.qxp 9/5/07 8:26 AM Page 275

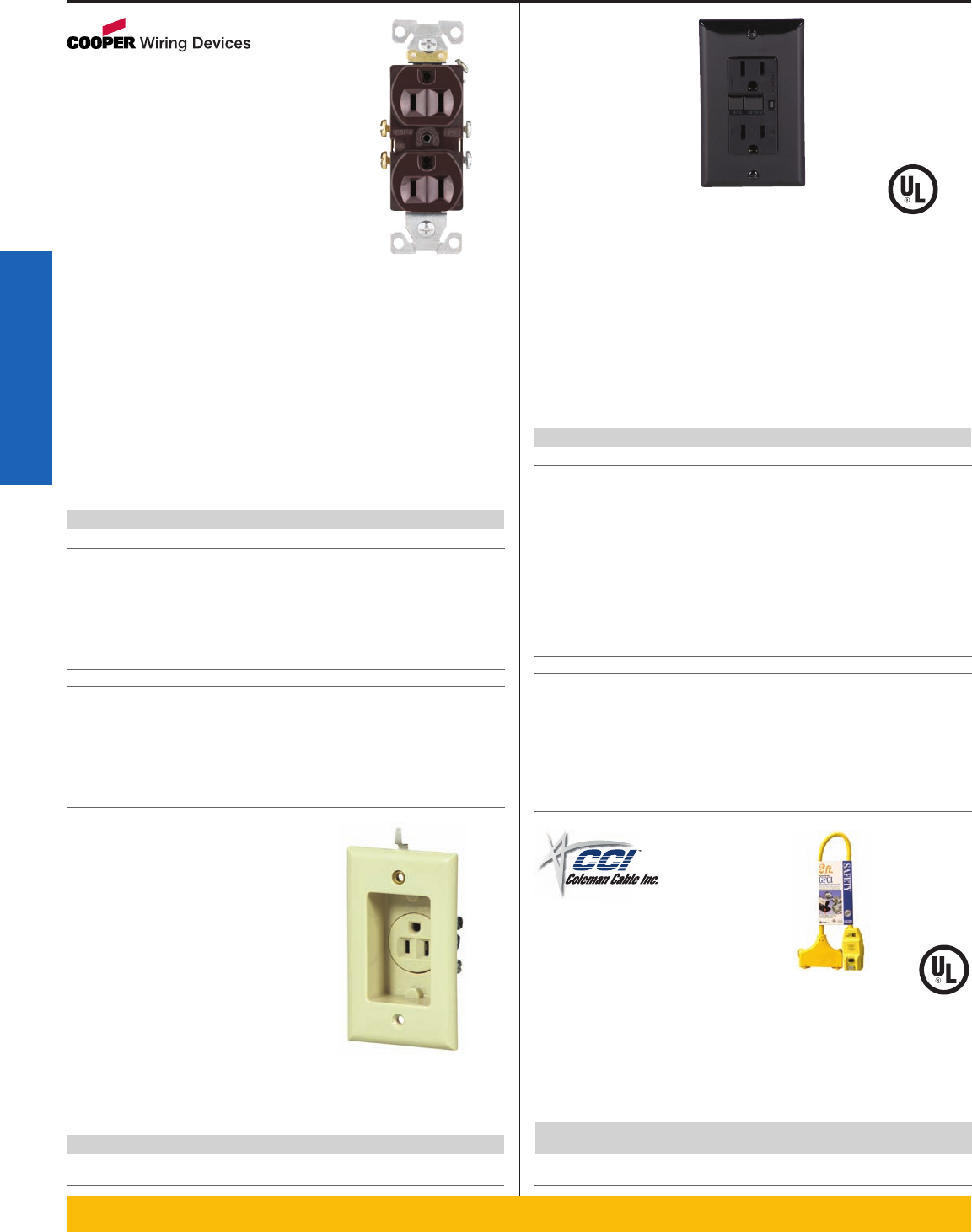

RECEPTACLES Cooper Wiring Devices

276 hdsupply.com

Wiring Devices

Cooper Wiring Devices

Duplex Receptacles

Commercial Grade

• Sturdy, compact design meets the demands of commercial spec

grade performance.

• Excellent plug blade retention provided by triple-wipe 0.032"

(0.81mm) triple-wipe brass line contacts and 0.050" (1.27mm) brass

ground.

• High impact and chemical-resistant nylon face.

• 0.035" (0.889mm) galvanized steel, wrap-around yoke mounting

strap for superior assembly security; extra length/width helps

reach large panel cutouts for Code Compliance.

• Automatic grounding system eliminates need for bonding jumper

in grounded metal enclosure, provides redundant measure of

ground continuity where jumper used.

• Screw-Catch™feature on duplex devices speeds mounting of

wallplates.

Clock Hanger Receptacles

NEMA 5–15R 15A 125V

• Single receptacle on recessed wallplate with integral hook.

• High impact and chemical-resistant nylon face.

• 0.035" (8.73mm) galvanized steel, wrap-around yoke mounting

strap for superior assembly security.

Model No. Hughes No. Description Color Unit List Price

775V HGZN938 Clock Hanger with

Thermoplastic Wallplate

Ivory EA Call

Ground Fault Circuit Interrupters

Commercial Grade

• Meets or exeeds all latest UL943 (3rd edition) Class A GFCI, UL498

requirements.

• Reset button lock-out function

• Indicator light

• Ground screw backwiring clamp

• 20 amp feed-through rating

• 8 separate backwiring holes accept up to #10 AWG stranded wire

• Durable impact-resistant thermoplastic constrution.

• Line terminal screws are backed out staked, ready to wire; load

side terminals torqued down for increased prevention of mis-

wiring.

Coleman Cable

GFCI –Ground Fault Circuit Interrupters

Provide personal protection from ground faults and open neutral

conditions anywhere electrical equipment is used. Protection for the job

site, plant floor or workshop.

• UL Listed and meets OSHA specifications.

• Compact, weatherproof/rainproof

• Molded connectors; Reinforced blades and pins

• Manual "Test/Rest"buttons

Model No. Hughes No.

Length

(Ft.) Description Specification Unit List Price

02832 HGZN769 2ft 12/3 SJTW

Tri-Source®

15A 120V/

1800W

EA Call

Model No. Hughes No. Color Type Unit List Price

NEMA 5-15R 15A, 125V AC

XGF15A HBSZ987 Almond W/Std Plate EA $18.63

XGF15BK HBSZ989 Black W/Std Plate EA 18.63

XGF15B HBSZ988 Brown W/Std Plate EA 18.63

XGF15GY HBSZ990 Gray W/Std Plate EA 18.63

XGF15V HBSZ992 Ivory W/Std Plate EA 18.63

XGF15LA HBSZ991 Light Almond W/Std Plate EA 18.63

XGF15W HBSZ993 White W/Std Plate EA 18.63

XGF15A-M HBSZ994 Almond W/Std Plate EA 19.20

XGF15V-M HBSZ996 Ivory W/Midi Plate EA 19.20

XGF15LA-M HBSZ995 Light Almond W/Midi Plate EA 19.20

XGF15W-M HBSZ997 White W/Midi Plate EA 19.20

NEMA 5-20R 20A, 125V AC

GGF20A HGZN947 Almond W/Std Plate EA Call

GGF20BK HGZN949 Black W/Std Plate EA Call

GGF20B HGZN948 Brown W/Std Plate EA Call

GGF20GY HGZN950 Gray W/Std Plate EA Call

GGF20V HGZN951 Ivory W/Std Plate EA Call

XGGF20LA HGZN952 Light Almond W/Std Plate EA Call

XGF20W HBTA010 White W/Std Plate EA 22.04

XGF15W-M HBSZ997 White W/Midi Plate EA 19.20

Model No. Hughes No. Color Unit List Price

NEMA 5-15R, 15A, 125V AC

CR15A HBDT709 Almond EA $1.91

CR15BK HBDT816 Black EA 1.91

CR15B HGCJ064 Brown EA 1.91

CR15GY HGCJ065 Gray EA 1.91

CR15LA HERK410 Light Almond EA 1.91

CR15V HGZN941 Ivory EA Call

CR15W HGCJ066 White EA 1.91

NEMA 5-20R, 20A, 125V AC

CR20A HBDT706 Almond EA 2.86

CR20BK HBDT736 Black EA 2.86

CR20B HGZN942 Brown EA Call

CR20GY HGZN943 Gray EA Call

CR20LA HERK275 Light Almond EA 2.86

CR20V HGCJ067 Ivory EA 2.86

CR20W HGCJ068 White EA 2.86

276-277.qxp 9/5/07 8:26 AM Page 276

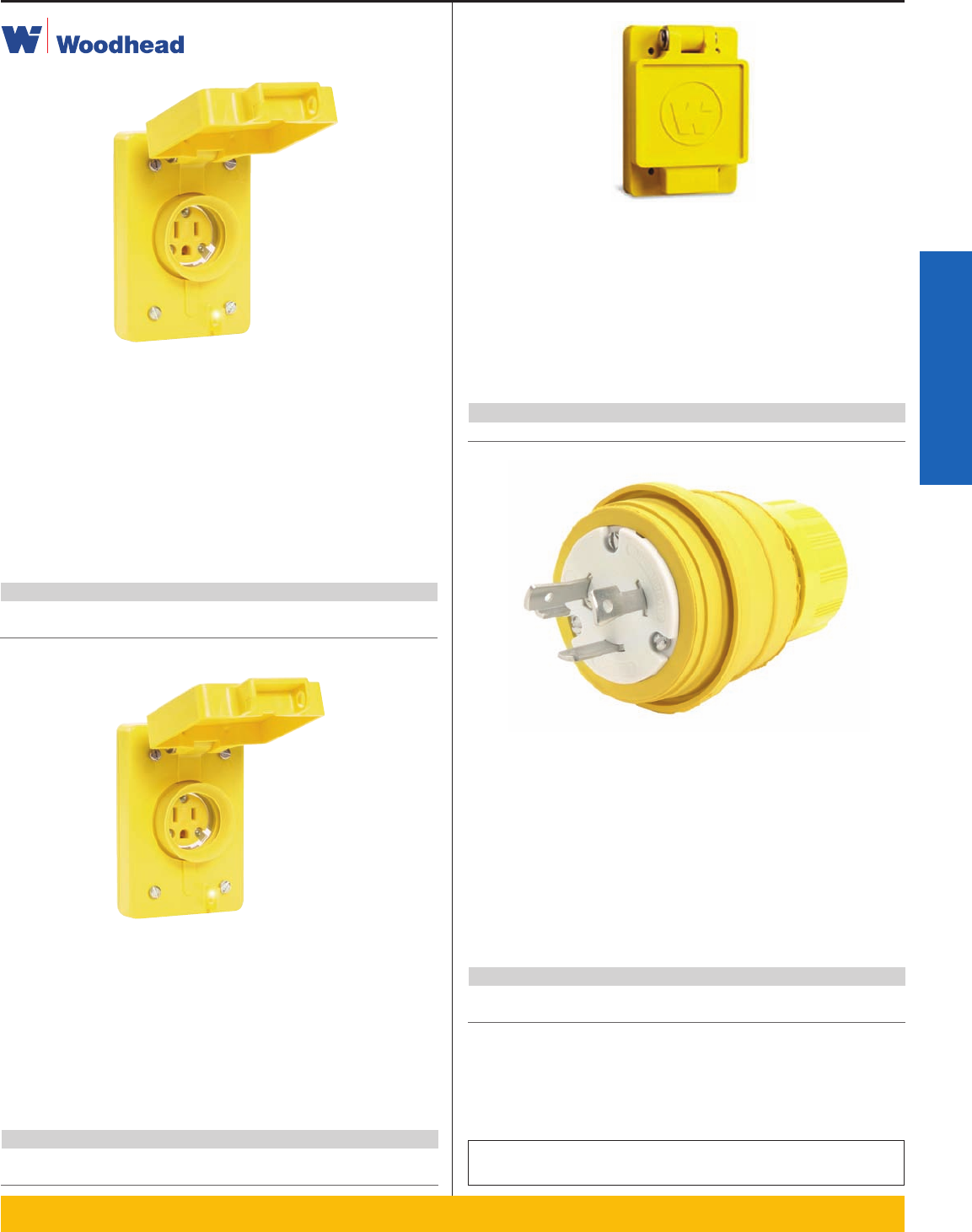

Woodhead

Receptacles with Flip Coverplates

Watertite®15 Amp

125V –2-Pole, 3-Wire

Woodhead meets your receptacle needs head-on. Single, duplex or

motor-base receptacles for wet abusive environments are covered by

Watertite®product solutions while general industrial applications are

well served by nylon Safeway®receptacles. Watertite®receptacles

feature spring-loaded flip lid covers with built-in lock-out/tag-out

capabilities and the patented triple seal for the best in wet-location

protection.

Receptacles with Flip Coverplates

Watertite®20 Amp

125V –2-Pole, 3-Wire

Woodhead meets your receptacle needs head-on. Single, duplex or

motor-base receptacles for wet abusive environments are covered by

Watertite®product solutions while general industrial applications are

well served by nylon Safeway®receptacles. Watertite®receptacles

feature spring-loaded flip lid covers with built-in lock-out/tag-out

capabilities and the patented triple seal for the best in wet-location

protection.

Model No. Hughes No. Configuration Description Unit List Price

60W33 HEGL442 NEMA 5-20 Single Flip Lid EA $42.30

67W47 HEGL445 NEMA L5-20 Single Flip Lid EA 49.01

Receptacles with Flip Coverplates

Watertite®30 Amp

125V –2-Pole, 3-Wire –NEMA L5-30

Woodhead meets your receptacle needs head-on. Single, duplex or

motor-base receptacles for wet abusive environments are covered by

Watertite®product solutions while general industrial applications are

well served by nylon Safeway®receptacles. Watertite®receptacles

feature spring-loaded flip lid covers with built-in lock-out/tag-out

capabilities and the patented triple seal for the best in wet-location

protection.

Model No. Hughes No. Description Unit List Price

69W47 HELH062 Single Flip Lid EA $53.66

Plugs and Connectors

Watertite®30 Amp

125V –2-Pole, 3-Wire –NEMA L5-30

Watertite®devices set the standard for the roughest, wettest and most

abrasive of environments. When properly mated with corresponding

connectors, Watertite®devices form an enclosure that meets the

requirements of NEMA Type 4, 4X, 6 and 6P, IP65, 66 and 67, and can

resist high-pressure hose-down up to 1,000 psi. Additional features

include: unique multiple ring seal that locks snugly, protecting against

moisture and contaminants, sturdy compression-type cord grip that

provides 205 lbs. of pull-out strength, and a protective closure cap that

seals the connector when it is not in use.

Model No. Hughes No. Description Unit List Price

28W47 HELG702 Plug EA $28.82

29W47 HELG907 Connector EA 50.49

Woodhead RECEPTACLES

hdsupply.com 277

Wiring Devices

Model No. Hughes No. Configuration Description Unit List Price

60W47 HEGL441 NEMA 5-15 Single Flip Lid EA $41.47

60W47DPLX HEMT826 NEMA 5-15 Duplex Flip Lid EA 60.15

Some products not available at all locations. Check with

your local HD Supply representative for product availability.

276-277.qxp 9/5/07 8:26 AM Page 277

RECEPTACLES Woodhead

278 hdsupply.com

Wiring Devices

Woodhead

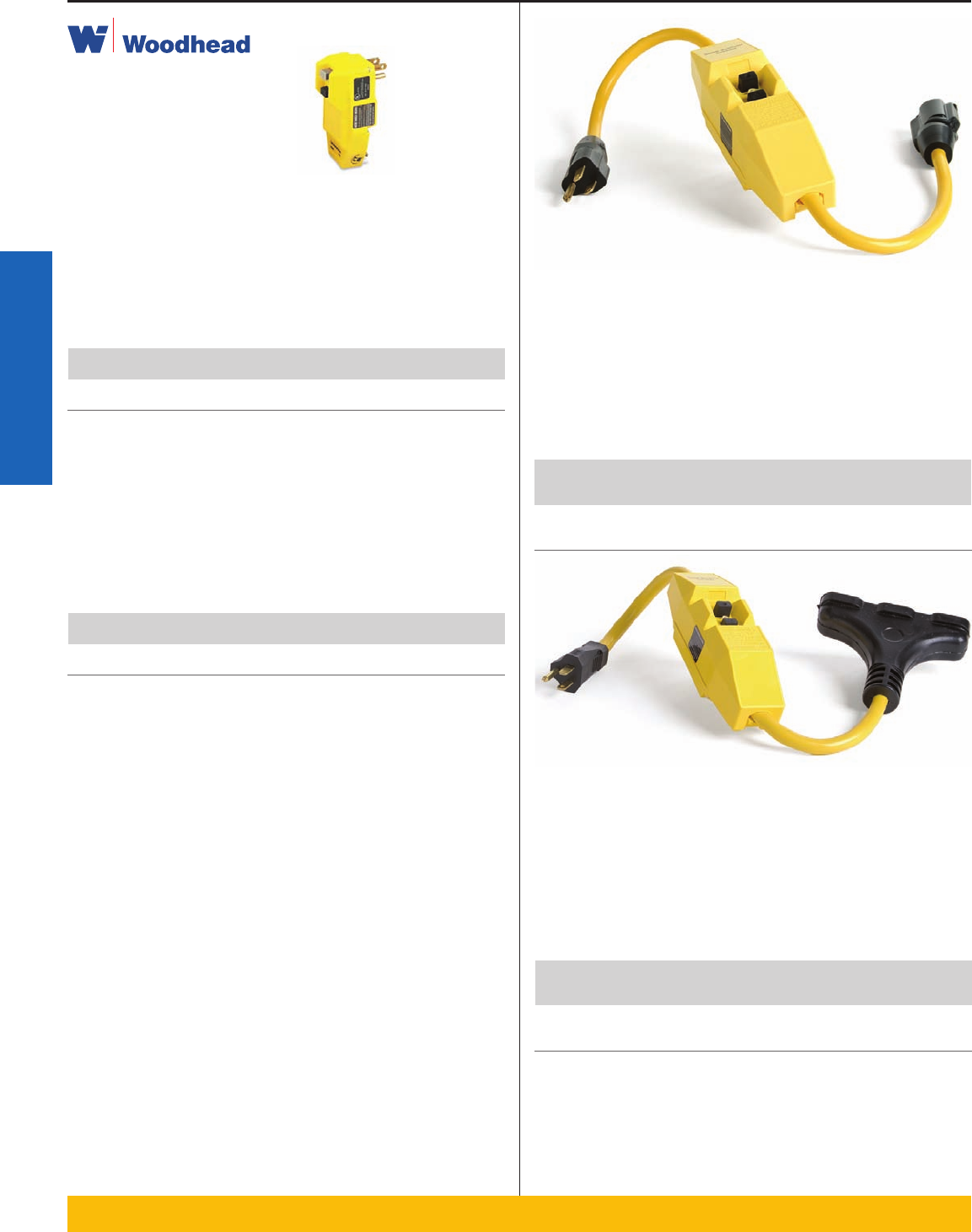

GFCI Plug

User Attachable

Woodhead's Safe-T-Chek®GFCI attachable plug products feature a

manual reset which must be activated after a power outage or a ground

fault condition, and serves to prevent the potential risk of unmonitored

equipment start-up. Additionally, contacts are spring-loaded to assure

more consistent conductivity and extend the life of each GFCI device.

Woodhead offers a complete series of OSHA –and NEC compliant

portable 15 amp ground fault circuit interrupter plug products ranging

from protected cordsets to outlet boxes.

Model No. Hughes No.

NEMA

Configuration Amps Unit List Price

15054 HELS440 5-15 15A 50/60HZ

120V AC

EA $60.57

GFCI Plug

With Pigtail and Molded Connector

Woodhead's Safe-T-Chek®GFCI attachable plug products feature a

manual reset which must be activated after a power outage or a ground

fault condition, and serves to prevent the potential risk of unmonitored

equipment start-up. Additionally, contacts are spring-loaded to assure

more consistent conductivity and extend the life of each GFCI device.

Woodhead offers a complete series of OSHA –and NEC compliant

portable 15 amp ground fault circuit interrupter plug products ranging

from protected cordsets to outlet boxes.

Model No. Hughes No.

NEMA

Configuration Amps Unit List Price

15054-1 HELS446 5-15 15A 50/60HZ

120V AC

EA $52.57

Molded Plug/Connector

Inline GFCI

Woodhead's Safe-T-Chek®GFCI products feature a manual reset which

must be activated after a power outage or a ground fault condition, and

serves to prevent the potential risk of unmonitored equipment start-up.

Additionally, contacts are spring-loaded to assure more consistent

conductivity and extend the life of each GFCI device. Woodhead offers

a complete series of OSHA –and NEC compliant portable 15, 20, and 30

Amp ground fault circuit interrupter products ranging from protected

cordsets to outlet boxes and tri-tap outlets.

Molded Plug/Tri-Cord

Inline GFCI

Woodhead's Safe-T-Chek®GFCI products feature a manual reset which

must be activated after a power outage or a ground fault condition, and

serves to prevent the potential risk of unmonitored equipment start-up.

Additionally, contacts are spring-loaded to assure more consistent

conductivity and extend the life of each GFCI device. Woodhead offers

a complete series of OSHA –and NEC compliant portable 15, 20, and 30

Amp ground fault circuit interrupter products ranging from protected

cordsets to outlet boxes and tri-tap outlets.

Model No. Hughes No.

NEMA

Configuration Amps

Cord

Length

(ft.) Unit List Price

15050-3TT HEGV862 5-15 15A

50/60HZ

120V AC

2' EA $50.06

Model No. Hughes No.

NEMA

Configuration Amps

Cord

Length

(ft.) Unit List Price

15050-1 HEGS149 5-15 15A

50/60HZ

120V AC

18' EA $46.76

278-279.qxp 9/5/07 8:27 AM Page 278

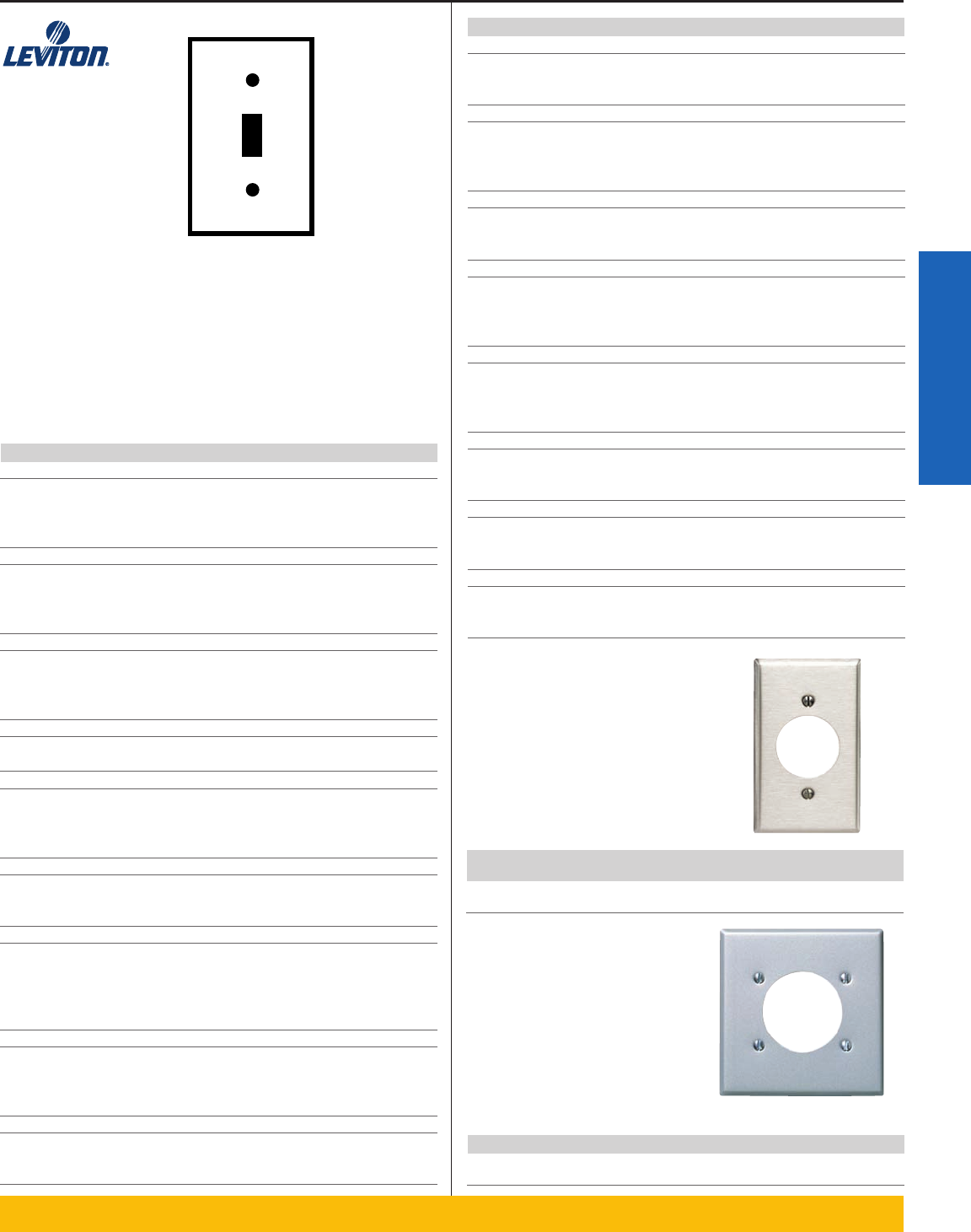

Leviton WALLPLATES

hdsupply.com 279

Wiring Devices

Leviton®

Decora Wallplates

Standard Size Smooth Plastic, Residential Grade

• A wide selection of sizes and colors to blend with any wall

covering

• Smooth face and rounded edges that resist dust accumulation

• Individual plastic wrapping to protect surfaces

• Color-matched mounting screws supplied

Model No. Hughes No. Description Unit List Price

80401 HEGP911 1-Gang EA $1.01

80409 HEGB494 2-Gang EA 2.45

80405 HEFQ782 2-Gang 1-Decora 1-Toggle EA 3.14

80455 HEFQ553 2-Gang 1-Decora 1-Duplex EA 2.85

80411 HEGP924 3-Gang EA 4.95

80431 HEJL488 3-Gang 2-Decora 1-Toggle EA 13.45

80421 HEGP927 3-Gang 2-Toggles 1-Decora EA 6.85

80412 HEIQ846 4-Gang EA 9.69

80423 HEGP978 5-Gang EA 23.24

80436 HEGP980 6-Gang EA 29.14

Receptacle Wallplates

Standard Size, Residential Grade

• 1 Gang, 1 Duplex

Model No. Hughes No. Color Unit List Price

86003 HAXI382 Ivory EA $0.49

87003 HBYW305 Gray EA 0.57

88003 HACV991 White EA 0.49

85003 HEFW870 Brown EA 0.49

82003 HACY109 Almond EA 0.57

Wallplates

Standard Size, Residential Grade

• Single Receptacle, 15 and 20 Amp

• Straight Blade and 15 Amp Locking

• 1.406" dia. Hole

Model No. Hughes No. Description Color Unit List Price

86004 HBBD730 1-Gang Ivory EA $0.71

88004 HAJQ533 1-Gang White EA 0.71

85004 HAWK593 1-Gang Brown EA 1.03

82004 HCKS538 1-Gang Almond EA 0.83

Wallplates

Standard Size Commercial Grade

Plastic and Metal Wallplates

Standard Size

Wallplate

Model No. Hughes No. Color Description Unit List Price

S126 HADT350 Black 2-gang,

1-toggle,

1-Decora-GFCI

EA $12.55

Model No. Hughes No.

Material/

Finish Description Unit List Price

84004-40 HADT188 302 S/S 1-Gang EA $2.53

Model No. Hughes No. Type

Hole

Diameter (In.) Unit List Price

Power Outlet Receptacle —One Gang —Mounting

80528-I HBYV472 Residential Grade 2.15" dia. EA $3.86

80528-W HBYW702 Residential Grade 2.15" dia. EA 4.79

4927 HBJJ536 Commercial Grade 2.15" dia. EA 2.61

84028 HBJJ538 Commercial Grade 2.15" dia. EA 5.02

Power Outlet Receptacle —Two Gang —Mounting

80526-I HAEA006 Residential Grade 2.15" dia. EA 3.95

80526-W HCPM935 Residential Grade 2.15" dia. EA 3.95

4934 HEHM091 Commercial Grade 2.15" dia. EA 3.65

84026 HEHM092 Commercial Grade 2.15" dia. EA 8.86

80409 80411

278-279.qxp 9/5/07 8:27 AM Page 279

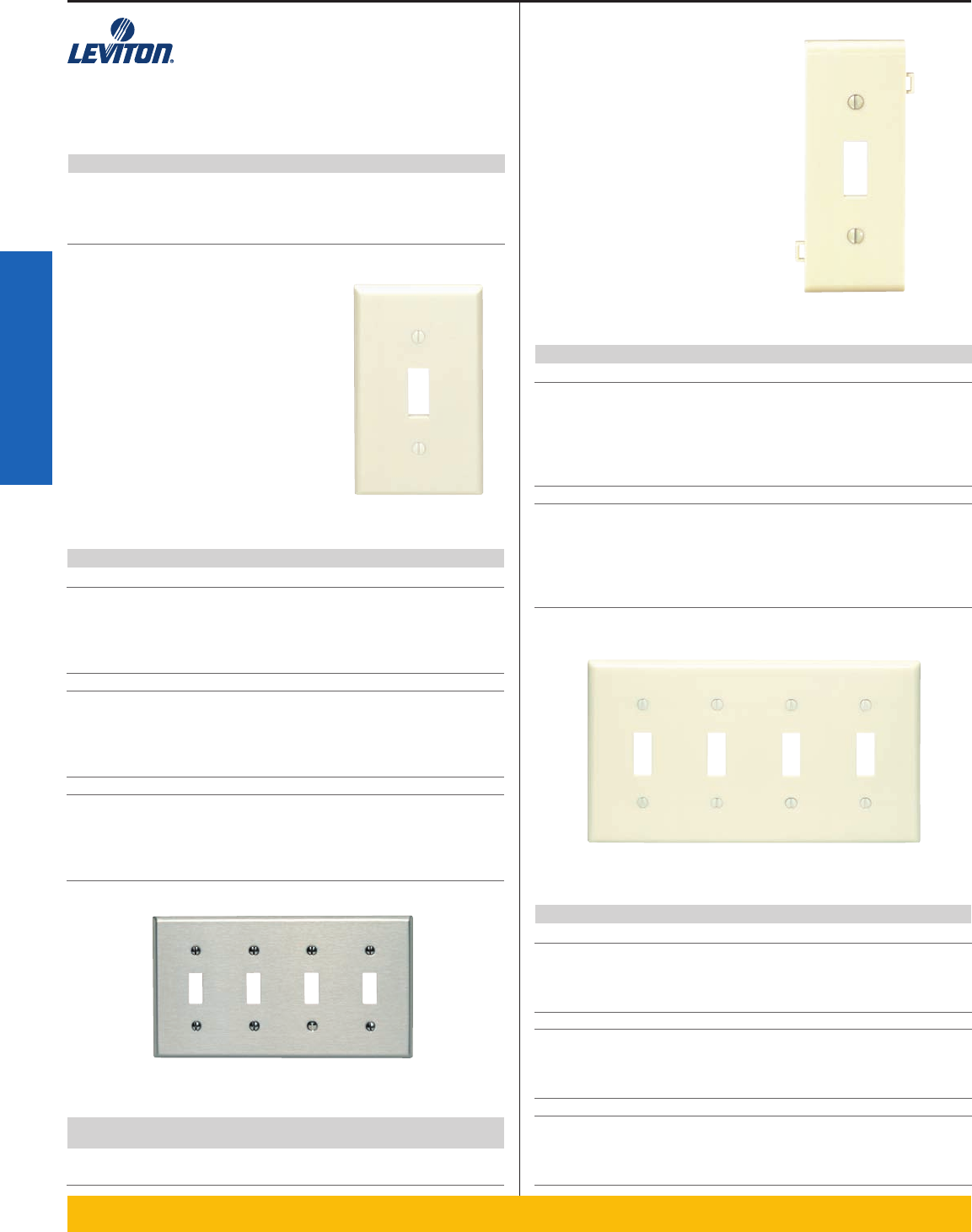

WALLPLATES Leviton

280 hdsupply.com

Wiring Devices

Leviton®

Wallplate

Model No. Hughes No. Color Unit List Price

P326-I HAXJ616 Ivory EA $6.92

P326-W HAHI252 White EA 6.92

P326 HBYW591 Brown EA 6.92

P326-A HATL852 Almond EA 6.92

Sectional Wallplates

For Multi-Gang Installations, Thermoplastic Construction

Model No. Hughes No. Description Color Unit List Price

Center Panels

PSC 8-W HGZO395 Duplex Receptacle White EA Call

PSC 8-I HGZO394 Duplex Receptacle Ivory EA Call

PSC 1-W HGZO391 Toggle Switch White EA Call

PSC 1-I HGZO390 Toggle Switch Ivory EA Call

PSC 26-W HGZO393 Decora White EA Call

PSC 26-I HGZO392 Decora Ivory EA Call

End Panels

PSE 8-W HGZO401 Duplex Receptacle White EA Call

PSE 8-I HGZO400 Duplex Receptacle Ivory EA Call

PSE 1-W HGZO397 Toggle Switch White EA Call

PSE 1-I HGZO396 Toggle Switch Ivory EA Call

PSE 26-W HGZO399 Decora White EA Call

PSE 26-I HGZO398 Decora Ivory EA Call

Toggle Switch Wallplates

Standard Size, Residential Grade

Model No. Hughes No. Color Unit List Price

1 Gang, 1 Toggle

86001 HEFW894 Ivory EA $0.49

87001 HEGQ168 Gray EA 0.57

88001 HEFU086 White EA 0.49

85001 HEFW868 Brown EA 0.49

82001 HEIQ989 Almond EA 0.57

2 Gang, 2 Toggles

86009 HEFW897 Ivory EA 0.98

87009 HEGQ165 Gray EA 1.14

88009 HEFU083 White EA 0.98

85009 HEFW875 Brown EA 0.98

82009 HEIQ990 Almond EA 1.14

3 Gang, 3 Toggles

86011 HEIW480 Ivory EA 1.46

87011 HEGQ167 Gray EA 1.71

88011 HEIP689 White EA 1.46

85011 HEFW879 Brown EA 1.46

82011 HEIQ992 Almond EA 1.46 Toggle Switch Wallplates

Standard Size, Residential Grade

Model No. Hughes No. Color Unit List Price

4-Gang

86012 HEFW900 Ivory EA $5.58

88012 HEFZ691 White EA 4.50

85012 HEGX355 Brown EA 5.58

82012 HEIQ996 Almond EA 4.50

5-Gang

86023 HAWK697 Ivory EA 14.04

88023 HACY755 White EA 14.04

85023 HBYV382 Brown EA 14.04

82023 HCKS540 Almond EA 11.32

6-Gang

86036 HAFZ243 Ivory EA 16.31

88036 HBAB911 White EA 16.31

85036 HBYV383 Brown EA 16.31

82036 HCKS542 Almond EA 13.15

Toggle Switch Wallplates

Standard Size, Commercial Grade

Model No. Hughes No.

Material/

Finish Description Unit List Price

84012 HEGP897 430 S/S 4-Gang EA $14.43

84012-40 HEGC255 302 S/S 4-Gang EA 19.84

280-281.qxp 9/5/07 8:27 AM Page 280

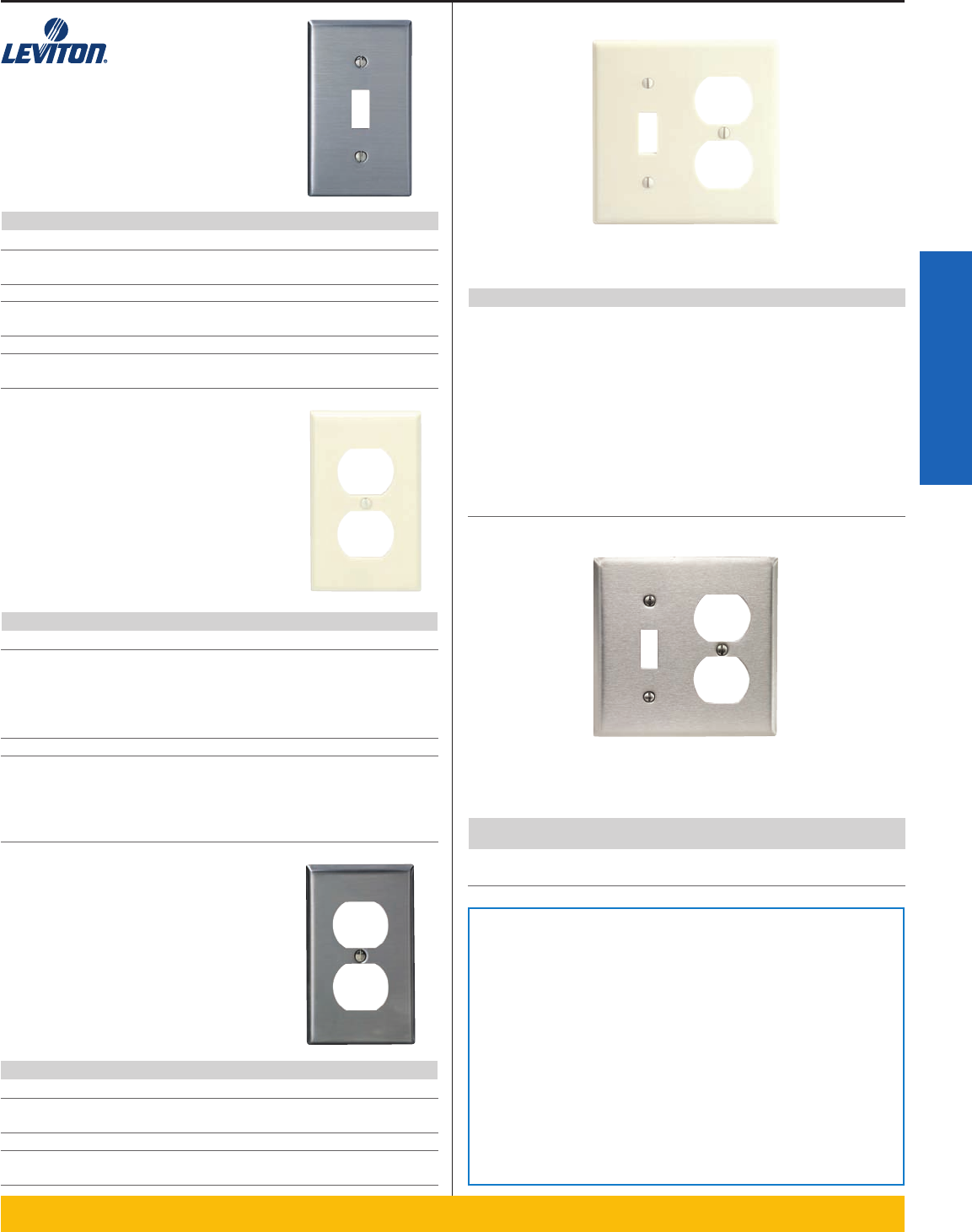

Leviton WALLPLATES

hdsupply.com 281

Wiring Devices

Leviton®

Toggle Switch Wallplates

Standard Size, Commercial Grade

Model No. Hughes No. Finish Unit List Price

1-Gang 1-Toggle

84001 HEFX978 430 S/S EA $1.94

84001-40 HEGC248 302 S/S EA 2.53

2-Gang 2-Toggle

84009 HEMD396 430 S/S EA 3.88

84009-40 HEGC243 302 S/S EA 5.06

3-Gang 3-Toggle

84011 HEGP896 430 S/S EA 5.82

84011-40 HEGC250 302 S/S EA 7.59

Duplex Receptacle Wallplates

Standard Size, Residential Grade

Model No. Hughes No. Color Unit List Price

1-GANG 1-Duplex

86003 HAXI382 Ivory EA $0.49

87003 HBYW305 Gray EA 0.57

88003 HACV991 White EA 0.49

85003 HEFW870 Brown EA 0.49

82003 HACY109 Almond EA 0.57

2-GANG 2-Duplex

86016 HAXI401 Ivory EA 0.98

87016 HBCB593 Gray EA 1.14

88016 HACV806 White EA 0.98

85016 HAXI368 Brown EA 1.14

82016 HBYW061 Almond EA 1.14

Duplex Receptacle Wallplates

Standard Size, Commercial Grade

Model No. Hughes No. Finish Unit List Price

1-GANG 1-Duplex

84003 HAXU994 430 S/S EA $1.94

84003-40 HBAM506 302 S/S EA 2.53

2-GANG 2-Duplex

84016 HAXV026 430 S/S EA 4.55

84016-40 HACY011 302 S/S EA 5.54

Toggle Switch and Duplex Receptacle Wallplates

Standard Size, Residential Grade

Model No. Hughes No. Description Color Unit List Price

86005 HAHW340 2-Gang Ivory EA $0.98

87005 HBYW304 2-Gang Gray EA 1.14

85005 HBYV376 2-Gang Brown EA 0.98

88005 HACZ076 2-Gang White EA 0.98

82005 HCKS539 2-Gang Almond EA 0.98

86021 HADZ012 3-Gang Ivory EA 5.26

87021 HBYW303 3-Gang Gray EA Call

85021 HBYV381 3-Gang Brown EA 5.26

88021 HAHB946 3-Gang White EA 4.24

82021 HCPM635 3-Gang Almond EA 4.24

P38-I HBBD860 4-Gang ivory EA 6.64

P38-W HACX988 4-Gang White EA 6.64

Toggle Switch and Duplex Receptacle Wallplates

Standard Size, Commercial Grade

Model No. Hughes No.

Material/

Finish Description Unit List Price

84005 HADT395 430 S/S 2-Gang EA $4.99

84005-40 HBYU591 302 S/S 2-gang EA 6.07

See page 272 for the Leviton color chart

for switches and receptacles.

280-281.qxp 9/5/07 8:27 AM Page 281

1-Gang 1-Decora

List PriceUnitColorHughes No.Model No.

WALLPLATES Leviton

282 hdsupply.com

Wiring Devices

Leviton®

Midway Size Nylon Wallplates

Commercial Grade

All Leviton Midway wallplates can be mounted onto larger volume

outlet boxes and/or used to hide wall irregularities. All 1-Gang Midway

wallplates are 4.875" H x 3.125" W. Midway wallplates are a full 0.375"

higher and wider than standard wallplates.

*Isolated Ground

**Emergency

Model No. Hughes No. Color Unit List Price

1-Gang 1-Toggle

PJ1-I HAWD432 Ivory EA $0.76

PJ1-E HAHH948 Black EA 0.76

PJ1-GY HCEM625 Gray EA 0.76

PJ1-W HCEM627 White EA 0.76

PJ1 HCEM628 Brown EA 0.76

PJ1-A HCKR181 Almond EA 0.76

2-Gang 2-Toggle

PJ2-I HCEM631 Ivory EA 1.52

PJ2-E HCEM630 Black EA 1.52

PJ2-GY HCEM629 Gray EA 1.52

PJ2-W HCEM632 White EA 1.52

PJ2 HCEM633 Brown EA 1.52

PJ2-A HCKR182 Almond EA 1.52

3-Gang 3-Toggle

PJ3-I HCEM635 Ivory EA 2.28

PJ3-E HBQY055 Black EA 2.28

PJ3-GY HCEM634 Gray EA Call

PJ3-W HCEM636 White EA 2.28

PJ3 HCSM653 Brown EA 3.29

PJ3-A HCKR183 Almond EA 2.28

4-Gang 4-Toggle

PJ4-I HCEM638 Ivory EA 3.04

PJ4-E HCEM637 Black EA 2.84

PJ4-W HCEM639 White EA 3.04

PJ4-A HCKR184 Almond EA 3.04

1-Gang 1-Duplex

PJ8-I HCEM648 Ivory EA 0.76

PJ8-E HAHG844 Black EA 0.76

PJ8-GY HCEM645 Gray EA 0.76

PJ8-R HAXI941 Red EA 0.76

PJ8-W HCEM649 White EA 0.76

PJ8 HCEM650 Brown EA 0.76

PJ8-A HCKR185 Almond EA 0.76

PJ8-BU HCEM644 Blue EA 0.76

PJ8-IG HCEM646 Orange* EA 0.76

PJ8-RE HCEM647 Red** EA 4.36

2-Gang 2-Duplex

PJ82-I HBQY049 Ivory EA 1.50

PJ82-E HCEM575 Black EA 1.50

PJ82-GY HCEM573 Gray EA 1.50

PJ82-R HCEM576 Red EA 1.50

PJ82-W HCEM577 White EA 1.50

PJ82 HCEM166 Brown EA 1.50

PJ82-A HCKR193 Almond EA 1.50

PJ82-RE HCEM574 Red** EA 7.84

1-Gang 1-Decora

PJ26-I HCKR189 Ivory EA 1.26

PJ26-E HAYX803 Black EA 1.26

PJ26-GY HGLP682 Gray EA 1.26

PJ26-W HCKR191 White EA 1.26

PJ26 HCKR192 Brown EA 1.26

PJ26-A HAGC714 Almond EA 1.26

PJ26-BU HCPM172 Blue EA 1.26

2-Gang 2-Decora

PJ262-I HCEM247 Ivory EA 2.53

PJ262-E HAYX829 Black EA 2.53

PJ262-GY HCEM245 Gray EA 2.53

PJ262-R HCEM248 Red EA 2.53

PJ262-W HCEM249 White EA 2.53

PJ262 HCEM578 Brown EA 2.53

PJ262-A HCEM246 Almond EA 2.53

3-Gang 3-Decora

PJ263-I HCEM579 Ivory EA 3.84

PJ263-W HCEM580 White EA 3.84

PJ263-A HBQX573 Almond EA 3.84

PJ263-GY HCPM173 Gray EA 3.84

4-Gang 4-Decora

PJ264-I HCEM582 Ivory EA 5.11

PJ264-GY HCEM581 Gray EA 5.11

PJ264-W HCEM583 White EA 5.11

PJ264-A HADG771 Almond EA 5.11

1-Gang 1-Single Receptacle 1.406" dia. Hole

PJ7-I HCEM640 Ivory EA 1.28

PJ7-R HCEM641 Red EA 1.28

PJ7-W HCEM642 White EA 1.28

PJ7-A HBQX575 Almond EA 1.28

1-Gang 1-Blank Box Mount

PJ13-I HAHM073 Ivory EA 1.26

PJ13-E HAHO713 Black EA 1.26

PJ13-GY HCEM655 Gray EA 1.26

PJ13-R HCEM656 Red EA 1.26

PJ13-W HCEM657 White EA 1.26

PJ13 HCEM658 Brown EA 1.26

PJ13-A HBQX574 Almond EA 1.26

2-Gang 2-Blank Box Mount

PJ23-I HCEM664 Ivory EA 2.56

PJ23-GY HCEM662 Gray EA 2.56

PJ23-W HCEM572 White EA 2.56

PJ23-A HCPM171 Almond EA 2.56

1-Gang 1-Telephone .406" dia. Hole, Box Mount

PJ11-I HCEM653 Ivory EA 1.28

PJ11-E HCEM652 Black EA 1.28

PJ11-GY HCEM651 Gray EA 1.28

PJ11-W HCEM654 White EA 1.28

PJ11-A HCKR186 Almond EA 1.28

2-Gang 1-Toggle, 1-Duplex

PJ18-I HCEM660 Ivory EA 1.26

PJ18-E HAZR869 Black EA 1.26

PJ18-W HCEM661 White EA 1.26

PJ18-A HCKR187 Almond EA 1.26

2-Gang 1-Toggle, 1-Decora

PJ126-I HCEM168 Ivory EA 2.56

PJ126-W HCEM241 White EA 2.56

PJ126 HCEM242 Brown EA 2.56

PJ126-A HCEM167 Almond EA 2.56

3-Gang 2-Toggle, 1-Decora

PJ226-I HAGM848 Ivory EA 4.02

PJ226-W HAGM845 White EA 4.02

PJ226 HCEM244 Brown EA 4.02

PJ226-A HCEM243 Almond EA 4.02

2-Gang 1-Decora 1-Duplex

PJ826-I HAIO169 Ivory EA 2.56

PJ826-W HBCA461 White EA 2.56

PJ826-A HCKR194 Almond EA 2.56

282-283.qxp 9/5/07 8:28 AM Page 282

Locking Receptacle Wallplate

Standard Size

Model No. Hughes No. Description

Hole

Diameter (In.) Unit List Price

84020-40 HBYU992 1-GANG 20A &

30A Locking

1.60" dia. Hole EA $7.32

Leviton WALLPLATES

hdsupply.com 283

Wiring Devices

List PriceUnitColorHughes No.Model No.

Leviton®

Larger Size Midway Size Wallplates

Residential Grade

All Leviton Larger-size wallplates are a full 0.25 inches deep to insure a

clean fit, despite protruding devices, in accordance with the latest

National Electrical Code. Each is individually packed with extra-long,

color-matched mounting screws.

All Leviton Midway wallplates can be mounted onto larger volume

outlet boxes and/or used to hide wall irregularities. All 1-Gang Midway

wallplates are 4.875" H x 3.125" W. Midway wallplates are a full 0.375"

higher and wider than standard wallplates.

Model No. Hughes No. Color Unit List Price

1-Gang 1-Toggle

80501-I HAXI418 Ivory EA $0.60

80501-W HAYZ889 White EA 0.60

80501 HAXI414 Brown EA 0.60

80501-A HCPM875 Almond EA 0.60

2-Gang 2-Toggle

80509-I HAXI434 Ivory EA 1.20

80509-W HAYZ983 White EA 1.20

80509 HBYV470 Brown EA 1.20

80509-A HCPM878 Almond EA 1.20

3-Gang 3-Toggle

80511-I HAXI441 Ivory EA 1.80

80511-W HAZA024 White EA 1.80

80511 HAXI439 Brown EA 1.80

80511-A HCPM879 Almond EA 1.80

4-Gang 4-Toggle

80512-I HEPQ900 Ivory EA 7.96

80512-W HEGB530 White EA 7.96

1-Gang 1-Duplex

80503-I HEFW931 Ivory EA 0.60

80503-W HEFZ683 White EA 0.60

80503 HEFW928 Brown EA 0.60

80503-A HBQX949 Almond EA 0.60

1-Gang 1-Phone/Cable .312" dia Hole, Box Mount

80513-I HEGB174 Ivory EA 1.02

80513-W HEFZ696 White EA 1.02

80513-A HCPM881 Almond EA 1.02

1-Gang 1-Decora

80601-I HEGC461 Ivory EA 2.08

80601-GY HEJQ570 Gray EA 2.08

80601-W HEGB789 White EA 2.08

80601 HEGW332 Brown EA 2.08

80601-A HEFR748 Almond EA 2.08

2-Gang 2-Decora

80609-I HEGE172 Ivory EA 4.16

80609-W HEGB861 White EA 4.16

80609 HEGA864 Brown EA 4.16

80609-A HEIQ023 Almond EA 4.16

3-Gang 3-Decora

80611-I HEGE176 Ivory EA 6.24

80611-W HEGB361 White EA 6.24

80611-A HEGV867 Almond EA 6.24

4-Gang 4-Decora

80612-I HEGE178 Ivory EA 14.79

80612-W HEGB934 White EA 14.79

80612-A HEGQ164 Almond EA 14.79

2-Gang 2-Duplex

80516-I HEGC809 Ivory EA 2.84

80516-W HEIS752 White EA 2.84

80516 HEIQ666 Brown EA 2.84

80516-A HBQX950 Almond EA 2.43

1-Gang 1-Receptacle 1.406" dia. Hole

80504-I HBAB380 Ivory EA 1.24

80504-W HAHB559 White EA 1.24

80504 HBAB339 Brown EA 1.24

1-Gang 1-Blank Box Mount

80514-I HEGB004 Ivory EA 0.99

80514-W HEFZ387 White EA 0.99

80514 HEGB534 Brown EA 0.99

80514-A HCPM882 Almond EA 0.85

2-Gang 2-Blank Box Mount

80525-I HAZW940 Ivory EA 5.94

80525-W HBAB775 White EA 4.79

80525 HBAB722 Brown EA 4.79

80525-A HCPM884 Almond EA 4.11

2-Gang 1-Toggle 1-Duplex

80505-I HAXI425 Ivory EA 1.20

80505-W HAZA125 White EA 1.20

80505-A HCPM877 Almond EA 1.20

2-Gang 1-Toggle 1-Blank, Box Mount

80506-I HAXZ143 Ivory EA 6.60

80506-W HBYV468 White EA 6.60

80506 HBYV467 Brown EA 6.60

2-Gang 1-Toggle 1-Decora

80605-I HEGB769 Ivory EA 4.16

80605-W HEGB815 White EA 4.16

80605-A HEJR655 Almond EA 4.16

Standard Size Wallplate

Commercial Grade, Two-Gang Mounting

Model No. Hughes No. Description Finish Unit List Price

S701-GY HBAC071 2.465"

dia. hole

Steel,

Aluminum finish

EA $3.80

282-283.qxp 9/5/07 8:28 AM Page 283

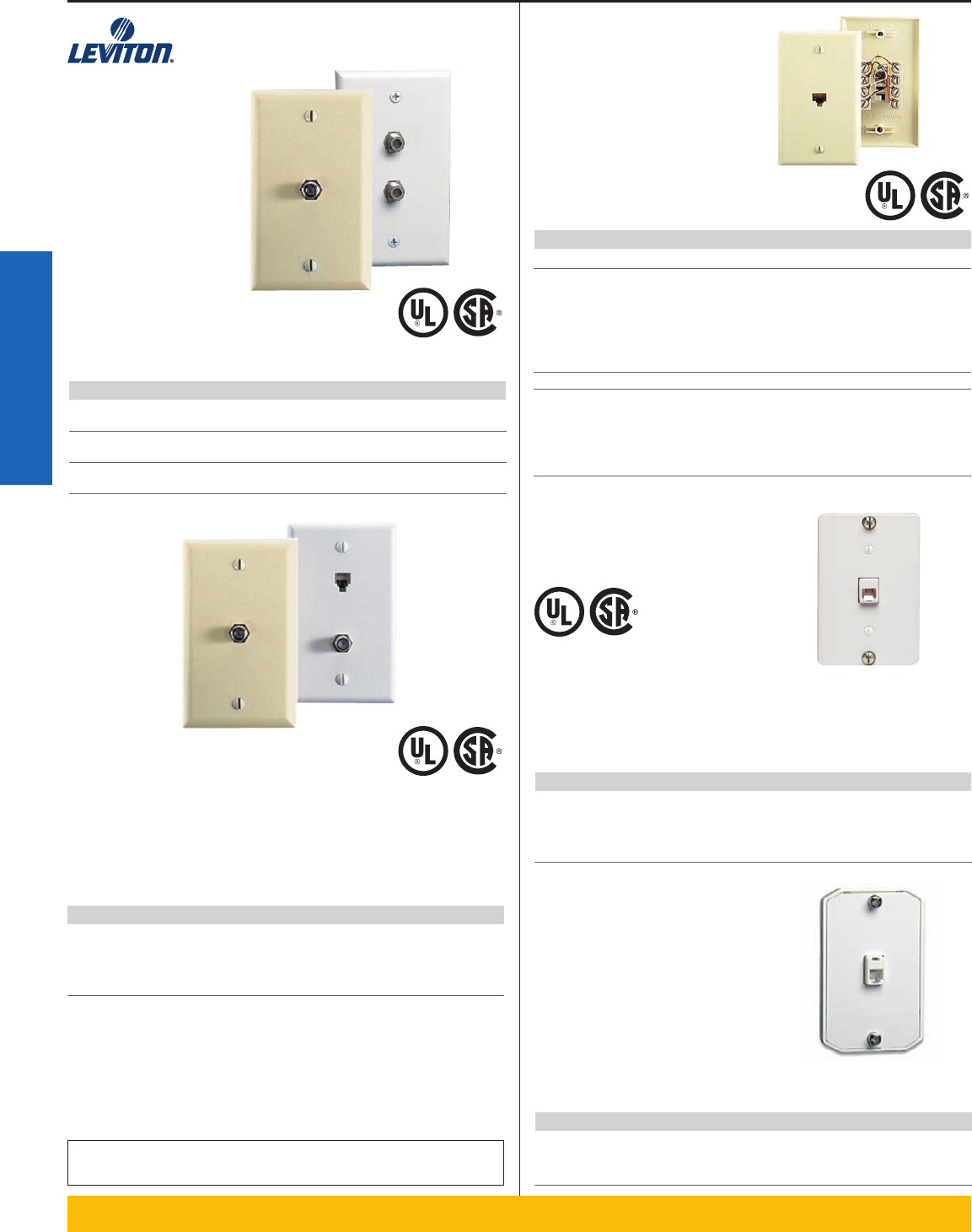

WALLPLATES Leviton

284 hdsupply.com

Wiring Devices

Leviton®

Standard Telephone/Video Wall Jacks

Type 625D F-Connector Wallplates

Wallplates have a smooth finish. UL listed and CSA certified.

Standard Telephone/Video Wall Jacks

Type 625D Combination Wall Jacks and F-Connector Wallplates

The Type 625D jacks include one modular jack (with screw terminals) for

voice, and one F-connector for cable TV or other video applications

using RG6 or RG59 coax.

• UL Listed and CSA Certified.

• 6-Position, 4-Conductor and F-Connector

†These products are UL Listed only.

Standard Telephone/Video

Wall Jacks

Type 625B4 Modular

Includes jack, plate, and mounting

hardware. Fits standard NEMA

wallboxes, Screw terminals. UL

Listed and CSA Certified.

Telephone Wall Jacks

Type 630A Quick-Connect Jack with Plastic Wallplate

Features quick-connect terminals, screw-on wallplate, metal bracket,

mounting lugs, and installation tool. Removable lugs and color-matched

plastic inserts (included) permit conversion from wall phone jack to

flush mount jack. UL Listed and CSA Certified.

Model No. Hughes No. Description Color Unit List Price

40253-I HAXI325 6-Position, 4-Conductor Ivory EA $4.75

40253-W HAZA297 6-Position, 4-Conductor White EA 4.75

40253-GY HGZO340 6-Position, 4-Conductor Gray EA Call

40253-A HCOI939 6-Position, 4-Conductor Black EA 4.75

Wall Phone Jack

Single phone jack for standard wall phone. Four color-coded

screw-down connections.

Model No. Hughes No. Color Unit List Price

40914-I HAYP835 Ivory EA $2.33

40914-W HAYP866 White EA 2.33

40914-A HCOI967 Almond EA 2.33

Model No. Hughes No. Description Color Unit List Price

80781-I HEGQ176 1-gang type

F-connector

Ivory EA $2.17

80781-W HEFV934 1-gang type

F-connector

White EA 2.17

80781-A HEGU722 C Flush-Mount

Single F-connector

Almond EA 2.17

Model No. Hughes No. Color Unit List Price

40259-I HACY153 Ivory EA $4.50

40259-W HAXD904 White EA 4.50

40259-G HBYV867 Gray EA 4.50

40259-A HCOI940 Black EA 4.50

Model No. Hughes No. Description Color Unit List Price

Smooth Finish

40249 HEGP992 6-Position, 4-Conductor Brown EA $2.79

40249-I HEFW837 6-Position, 4-Conductor Ivory EA 2.79

40249-W HEGP888 6-Position, 4-Conductor White EA 2.79

40249-A HEGU658 6-Position, 4-Conductor Almond EA 2.79

40238-I HEFQ010 6-Position, 6-Conductor Ivory EA 3.05

40238-W HEGP842 6-Position, 6-Conductor White EA 3.05

Smooth Finish, alternative construction

4625B-44I HBYW869 6-Position, 4-Conductor Ivory EA 1.78

4625B-44W HEGQ367 6-Position, 4-Conductor White EA 1.78

4625B-44G HEGQ368 6-Position, 4-Conductor Gray EA 1.74

4625B-44A HCPM571 6-Position, 4-Conductor Almond EA 1.78

4625B-44 HBYW870 6-Position, 4-Conductor Brown EA 1.78

“List Price” refers to manufacturer’s suggested list price.

Prices subject to change without notice.

284-285.qxp 9/5/07 8:28 AM Page 284

Leviton WALLPLATES

hdsupply.com 285

Wiring Devices

Leviton®

Telephone or Cable Outlet

Residential Grade, Standard Size

Telephone or Cable Outlet

Commercial Grade, Standard Size

Voice/Data/CATV Wallplate

These sturdy, high-impact wall plates for the 46000 series voice/data

devices are available for single-gang applications with standard or

Decora-compatible styling.

Standard Size Blank Plate —Box Mount

Residential Grade

Plastic Wallplate Adapters

Commercial Grade

These adapters permit the use of rotary dimmers in multi-gang Decora

installations or fill blank holes in multi-device Decora or toggle

wallplates.

Model No. Hughes No. Description Color Unit List Price

80400-I HBYV463 Dimmer Shaft Ivory EA $7.31

80400-E HBYV462 Dimmer Shaft Black EA 7.31

80400-W HBYV464 Dimmer Shaft White EA 7.31

80400-A HBYW568 Dimmer Shaft Almond EA 7.31

80414-I HBCB574 Blank Decora Ivory EA 7.36

80414-E HBYV966 Blank Decora black EA 7.36

80414-W HAWI097 Blank Decora White EA 7.36

80414-A HBYW092 Blank Decora Almond EA 7.36

80700-I HAXI199 Blank Toggle Ivory EA 4.50

80700-W HAXE068 Blank Toggle White EA 4.50

Model No. Hughes No. Color Unit List Price

80781-I HEGQ176 Ivory EA $2.17

80781-W HEFV934 White EA 2.17

Model No. Hughes No. Finish Unit List Price

84013 HBYV003 430 S/S EA $2.49

84013-40 HBYV004 302 S/S EA 3.03

Model No. Hughes No. Color Unit List Price

1-Gang 1-Blank, Box Mount

86014 HAXI389 Ivory EA $0.71

87014 HBYW300 Gray EA 0.83

88014 HAWF939 White EA 0.71

85014 HAXI364 Brown EA 0.83

82014 HBYW389 Almond EA 0.83

2-Gang 2-Blanks, Box Mount

86025 HAYP508 Ivory EA 3.30

87025 HBYW302 Gray EA 3.30

88025 HAHB814 White EA 3.30

85025 HAHB772 Brown EA 2.66

82025 HCKS541 Almond EA 3.30

Model No. Hughes No. Color Description Unit List Price

86013 HBYV393 Ivory 1-GANG Phone/Cable

.406" dia. Hole, Box Mount

EA $0.71

88013 HBYV404 White 1-GANG Phone/Cable

.406" dia. Hole, Box Mount

EA 0.71

85013 HBYV378 Brown 1-GANG Phone/Cable

.406" dia. Hole, Box Mount

EA 0.83

82013 HBYW388 Almond 1-GANG Phone/Cable

.406" dia. Hole, Box Mount

EA 0.83

284-285.qxp 9/5/07 8:28 AM Page 285

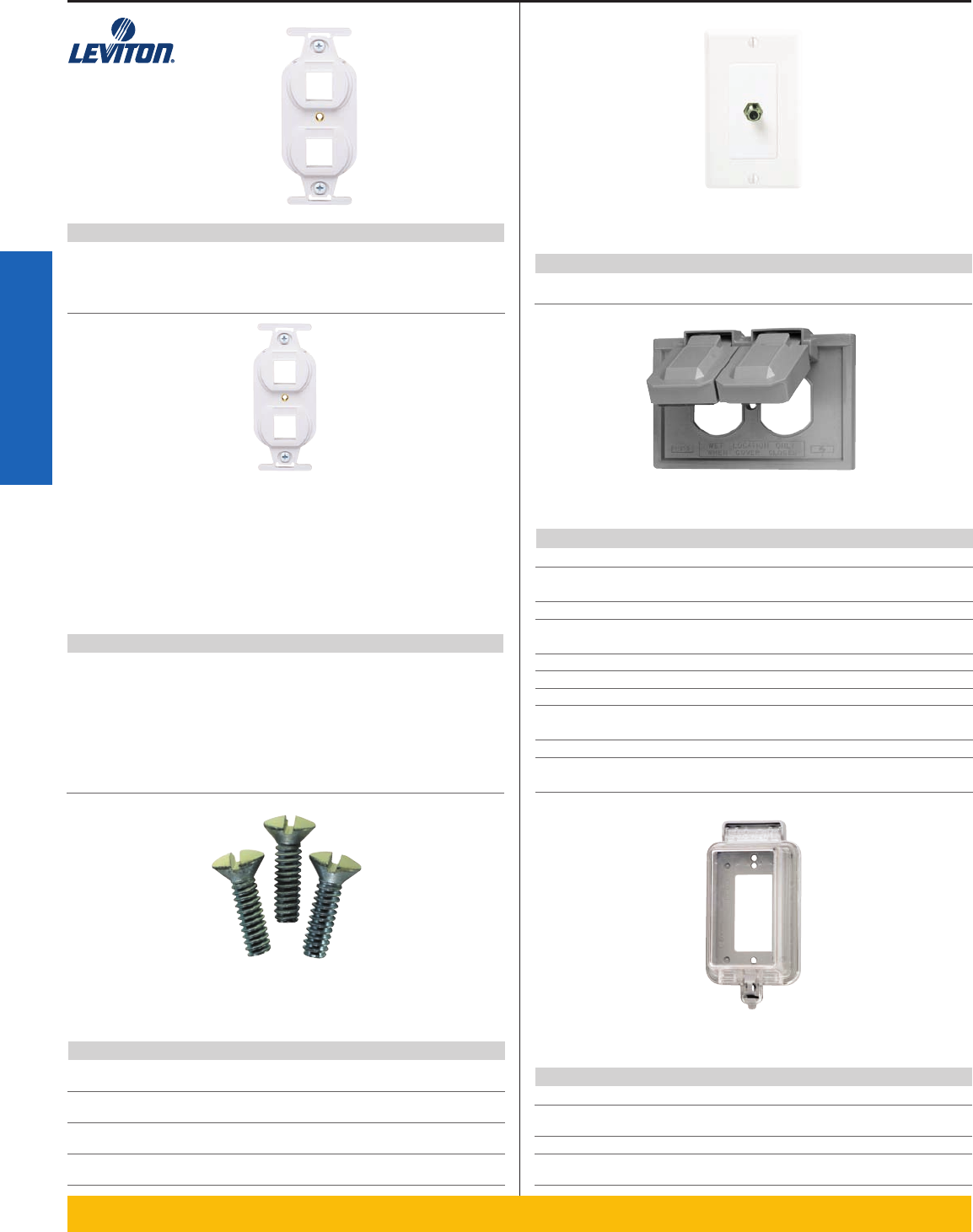

WALLPLATES Leviton

286 hdsupply.com

Wiring Devices

Leviton®

Wall Plate Insert

QuickPort®Duplex 106 Insert

Ideal for applications where two or four individual modular ports are

desired, within the standard 106/NEMA-style outline that prevails

among electrical outlets. Accepts all QuickPort®snap-in modules and fit

standard NEMA wallboxes and most floor boxes and monuments. A

recess above each module port on the Duplex 106 unit accommodates

Leviton®designation labels or handwritten port ID. Uses standard

duplex wallplates.

Wallplate Screws

Commercial Grade

Oval head milled slot

Model No. Hughes No. Description Color Unit List Price

86400-PRT HBYV401 5/16" long –

6-32 thread

Ivory 100 per box $31.88

88400-PRT HBAB998 5/16" long –

6-32 thread

White 100 per box 31.88

86000-PRT HBYV391 1/2" long –

6-32 thread

Ivory 100 per box 30.50

88000-PRT HBYV402 1/2" long –

6-32 thread

White 100 per box 30.50

Wall Jack

Single F-Connector

Model No. Hughes No. Color Unit List Price

40681 HEGP862 Ivory, White,

Gray or Almond

EA $3.46

Thermoplastic Weather-Resistant Covers

Commercial Grade

Raintight While-In-Use Covers

GFCI Accessories

Model No. Hughes No. Description Color Unit List Price

5977-GY HBYX071 GFCI, Vertical Mount Gray EA $20.25

5977-DGY HBYX072 GFCI, Vertical Mount

w/Extra Deep Cover

Gray EA 24.75

5977-CL HBYX063 GFCI, Vertical Mount Clear EA 20.25

5977-DCL HBYX064 GFCI, Vertical Mount

w/Extra Deep Cover

Clear EA 24.75

Model No. Hughes No. Color Type Unit List Price

41087-2IP HEGQ296 Ivory Duplex 106 EA $2.38

41087-2WP HEGQ297 White Duplex 106 EA 2.38

41087-2GP HGZO342 Gray Duplex 106 EA Call

41087-2EP HEJT393 Black Duplex 106 EA 2.38

Model No. Hughes No. Mounting Color Unit List Price

Duplex receptacle or combination, 1-gang, 2 independent, self-closing lids

4976-GY HAZE057 Horizontal Gray EA $3.75

4976-W HBYW508 Horizontal White EA 3.75

Duplex Receptacle or Combination Device 1-gang Self-Closing Lid

4978-GY HBYU493 Vertical Gray EA 7.33

4978-W HCBA352 Vertical White EA 7.33

Single Receptacle 1-Gang Self-Closing Lid

4979-GY HAZD970 Vertical Gray EA 7.33

Decora/GFCI 1-Gang Self-Closing Lid

4996-GY HBAA261 Horizontal Gray EA 9.77

4996-W HCBB409 Horizontal White EA 9.77

Decora/GFCI 1-Gang Self-Closing Lid

4998-GY HAZE111 Vertical Gray EA 9.77

4998-W HCBA353 Vertical White EA 9.77

Model No. Hughes No. ID Windows Color Type Unit List Price

41087-2IP HEGQ296 1 Ivory Duplex 106 EA $2.38

41087-QIP HEGV646 2 Ivory Quad 106 EA 3.37

41087-2WP HEGQ297 3 White Duplex 106 EA 2.38

41087-QWP HEJR265 4 White Quad 106 EA 3.37

41087-2GP HEGQ298 6 Gray Duplex 106 EA 2.38

41087-QGP HEGQ244 2 Gray Quad 106 EA 3.37

41087-2EP HEJT393 4 Black Duplex 106 EA 2.38

41087-QEP HEGQ245 6 Black Quad 106 EA 3.37

286-287.qxp 9/5/07 8:29 AM Page 286

Cooper Wiring Devices WALLPLATES

hdsupply.com 287

Wiring Devices

Cooper Wiring Devices

1 Gang Decorator Wallplate

• Mid-Size wallplates are 0.375" (9.53mm) longer and wider on all

sides than standard to cover large wallboard openings.

• Assures NEC®-required gap coverage for most wallboard-to-box

openings.

• Virtually unbreakable polycarbonate construction = high structural

rigidity, long-term form retention.

• Screw-Catch™feature holds plate mounting screw captive for

ease of installation.

• Superior abrasion and impact resistance.

• Color-matched mounting screws captive in 1 and 2 gang plates for

faster installation - helps eliminate lost screws on the job.

Model No. Hughes No. Color Unit List Price

PJ26A HERK397 Almond EA $0.95

PJ26B HERW965 Brown EA 0.95

PJ26BK HERW967 Black EA 0.95

PJ26BL HERW969 Blue EA 1.67

PJ26GY HERW971 Gray EA 0.95

PJ26RD HERW722 Red EA 2.35

PJ26V HERW726 Ivory EA 0.95

PJ26LA HERK349 Light Almond EA 0.95

PJ26W HERW973 White EA 0.95

1 Gang Receptacle Wallplates

• Mid-Size wallplates are 0.375" (9.53mm) longer and wider on all

sides than standard to cover large wallboard openings.

• Assures NEC®-required gap coverage for most wallboard-to-box

openings.

• Virtually unbreakable polycarbonate construction –high structural

rigidity, long-term form retention.

• Screw-Catch™feature holds plate mounting screw captive for

ease of installation.

• Superior abrasion and impact resistance.

• Color-matched mounting screws captive in 1 and 2 gang plates for

faster installation –helps eliminate lost screws on the job.

Model No. Hughes No. Color Unit List Price

PJ8A HERK389 Almond EA $0.67

PJ8B HERK304 Brown EA 0.67

PJ8BK HERK305 Black EA 0.81

PJ8GY HERK307 Gray EA 0.57

PJ8RD HERK308 Red EA 1.01

PJ8V HERK311 Ivory EA 0.57

PJ8LA HERK303 Light Almond EA 0.67

PJ8W HERK314 White EA 0.57

Toggle Switch Wallplates

• Mid-Size wallplates are 0.375" (9.53mm) longer and wider on all

sides than standard to cover large wallboard openings.

• Assures NEC®-required gap coverage for most wallboard-to-box

openings.

• Virtually unbreakable polycarbonate construction –high structural

rigidity, long-term form retention.

• Screw-Catch™feature holds plate mounting screw captive for

ease of installation.

• Superior abrasion and impact resistance.

• Color-matched mounting screws captive in 1 and 2 gang plates for

faster installation –helps eliminate lost screws on the job.

Model No. Hughes No. Color Unit List Price

1 Gang

PJ1A HERK387 Almond EA $0.57

PJ1B HERK281 Brown EA 0.57

PJ1BK HERK282 Black EA 0.57

PJ1GY HERK283 Gray EA 0.57

PJ1RD HERK284 Red EA 1.42

PJ1V HERK286 Ivory EA 0.57

PJ1LA HERK280 Light Almond EA 0.57

PJ1W HERK287 White EA 0.57

2 Gang

PJ2A HERK388 Almond EA 1.15

PJ2B HERK289 Brown EA 1.15

PJ2BK HERK290 Black EA 1.15

PJ2GY HERK291 Gray EA 1.62

PJ2RD HERK292 Red EA 2.01

PJ2V HERK294 Ivory EA 1.15

PJ2LA HERK288 Light Almond EA 1.15

PJ2W HERK295 White EA 1.15

3 Gang

PJ3A HERK407 Almond EA 1.72

PJ3B HERK297 Brown EA 1.72

PJ3BK HERK298 Black EA 2.43

PJ3GY HERK299 Gray EA 1.72

PJ3V HERK301 Ivory EA 1.72

PJ3LA HERK296 Light Almond EA 1.72

PJ3W HERK302 White EA 1.72

Some products not available at all locations. Check with

your local HD Supply representative for product availability.

286-287.qxp 9/5/07 8:29 AM Page 287

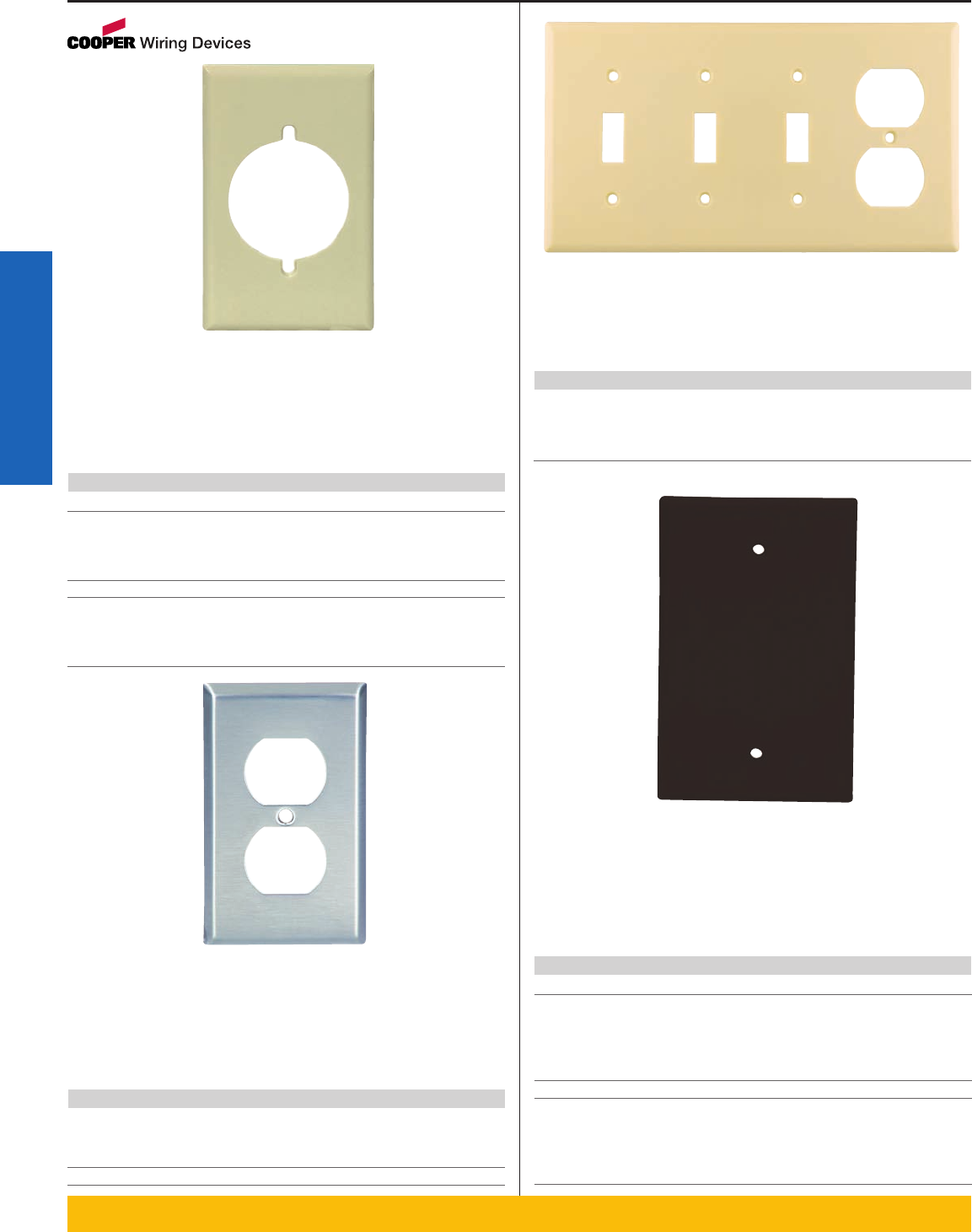

WALLPLATES Cooper Wiring Devices

288 hdsupply.com

Wiring Devices

Cooper Wiring Devices

Standard Size Power Receptacle Wallplates

Standard Grade

• Non-flammable thermoset phenolic or urea.

• Flush-fitting, warp-resistant design.

• Matching mounting screws provided.

Stainless Steel Receptacle Wallplates

Industrial Grade

• All wallplates are of type 304 stainless steel alloy for superior

non-magnetic corrosion-resistant properties.

• Plates are 0.032" (0.81mm) thick.

• Brushed satin finish resists finger marks.

• Matching stainless steel mounting screws provided.

Model No. Hughes No. Description Unit List Price

93111 HGZN940 1 Gang with 1.60"

(40.64mm) Hole for

Single Locking (20/30A

Locking Receptacle)

EA Call

93101 HGZN939 1 Gang Duplex EA Call

Standard Grade Thermoset Wallplates

4 Gang - 3 Toggles and Duplex Receptacle

• Non-flammable thermoset phenolic or urea.

• Flush-fitting, warp-resistant design.

• Matching mounting screws provided.

Model No. Hughes No. Color Unit List Price

2174A HGZN912 Almond EA Call

2174V HGZN914 Ivory EA Call

2174LA HGZN913 Light Almond EA Call

2174W HGZN915 White EA Call

Mid-Size Wallplates

Standard Grade Thermoset

• Non-flammable thermoset phenolic or urea.

• Flush-fitting, warp-resistant design.

• Mid-Size wallplates are 0.375" (9.53mm) longer and wider than

standard to cover large wall board openings.

• Matching mounting screws provided.

Model No. Hughes No. Color Unit List Price

1 Gang Mid-Size with 2.156" (54.76mm) Hole –for Power Receptacle

2068B HGZN906 Brown EA Call

2068V HGZN907 Ivory EA Call

2068W HGZN908 White EA Call

39CH HGZN932 Chrome - Metal EA Call

2 Gang with 2.156" (54.76mm) Hole –for Power Receptacles

2168B HGZN909 Brown EA Call

2168V HGZN910 Ivory EA Call

2168W HGZN911 White EA Call

68 HFIK450 Chrome - Metal EA 12.26

Model No. Hughes No. Color Unit List Price

Blank 1 Gang –Box-Mounted

2029A HAKQ742 Almond EA $0.92

2029B HGZN867 Brown EA Call

2029V HGZN868 Ivory EA Call

2029LA HERK426 Light Almond EA 0.92

2029W HGZN869 White EA Call

Combination 2 Gang Toggle and Duplex Receptacle

2038A HCNH345 Almond EA 1.07

2038B HGZN878 Brown EA Call

2038V HGZN880 Ivory EA Call

2038LA HGZN879 Light Almond EA Call

2038W HGZN881 White EA Call

288-289.qxp 9/5/07 8:29 AM Page 288

Cooper Wiring Devices WALLPLATES

hdsupply.com 289

Wiring Devices

Cooper Wiring Devices

Mid-Size Wallplates

Standard Grade

• Non-flammable phenolic or urea.

• Flush-fitting, warp-resistant design.

• Mid-Size wallplates are 0.375" (9.53mm) longer and wider than

standard size to cover large wall board openings.

• Matching mounting screws provided.

Mid-Size Receptacle Wallplates

Standard Grade

• Non-flammable thermoset phenolic or urea.

• Flush-fitting, warp-resistant design.

• Mid-Size wallplates are 0.375" (9.53mm)

longer and wider than standard to cover

large wall board openings.

• Matching mounting screws provided.

Model No. Hughes No. Color Unit List Price

1 Gang

2034A HGZN875 Almond EA Call

2034B HGZN876 Brown EA Call

2034V HCNG958 Ivory EA 0.46

2034LA HGZN877 Light Almond EA Call

2034W HCNH344 White EA 0.53

2 Gang

2039A HAYR254 Almond EA 0.91

2039B HGZN882 Brown EA Call

2039V HCNH346 Ivory EA 0.91

2039LA HERK339 Light Almond EA 0.91

2039W HCNH376 White EA 1.07

3 Gang

2041A HAYR277 Almond EA 1.37

2041B HGZN883 Brown EA Call

2041V HGZN884 Ivory EA Call

2041LA HERK341 Light Almond EA 1.37

2041W HGZN885 White EA Call

Mid-Size Toggle Switch Wallplates

Standard Grade

• Non-flammable thermoset phenolic or

urea.

• Flush-fitting, warp-resistant design.

• Mid-Size wallplates are 0.375" (9.53mm)

longer and wider than standard to cover

large wall board openings.

• Matching mounting screws provided.

Model No. Hughes No. Color Unit List Price

1 Gang

2051A HGZN888 Almond EA Call

2051B HGZN889 Brown EA Call

2051V HCNH377 Ivory EA 1.30

2051LA HGZN890 Light Almond EA Call

2051W HCNH378 White EA 1.30

2 Gang

2052A HGZN891 Almond EA Call

2052V HGZN893 Ivory EA Call

2052LA HGZN892 Light Almond EA Call

2052W HGZN894 White EA Call

3 Gang

2063A HGZN898 Almond EA Call

2063V HGZN900 Ivory EA Call

2063LA HGZN899 Light Almond EA Call

2063W HGZN901 White EA Call

4 Gang

2064A HGZN902 Almond EA Call

2064V HGZN904 Ivory EA Call

2064LA HGZN903 Light Almond EA Call

2064W HGZN905 White EA Call

2 Gang Toggle and Decorator

2053A HCNH379 Almond EA 2.57

2053V HGZN896 Ivory EA Call

2053LA HGZN895 Light Almond EA Call

2053W HGZN897 White EA Call

Model No. Hughes No. Color Unit List Price

1 Gang Duplex Receptacle with 1.406" (35.71) Hole

2031A HCSN580 Almond EA $0.92

2031B HGZN870 Brown EA Call

2031V HGZN871 Ivory EA Call

2031LA HERK427 Light Almond EA 0.92

2031W HGZN872 White EA Call

1 Gang Duplex Receptacle

2032A HGZN873 Almond EA Call

2032B HCUD576 Brown EA Call

2032V HCNG956 Ivory EA 0.46

2032LA HGZN874 Light Almond EA Call

2032W HCNG957 White EA 0.46

2 Gang Duplex Receptacle

2050A HAIG266 Almond EA 1.07

2050V HGZN886 Ivory EA Call

2050LA HERK343 Light Almond EA 1.07

2050W HGZN887 White EA Call

ome products not available at all locations. Check with

your local HD Supply representative for product availability.

288-289.qxp 9/5/07 8:29 AM Page 289

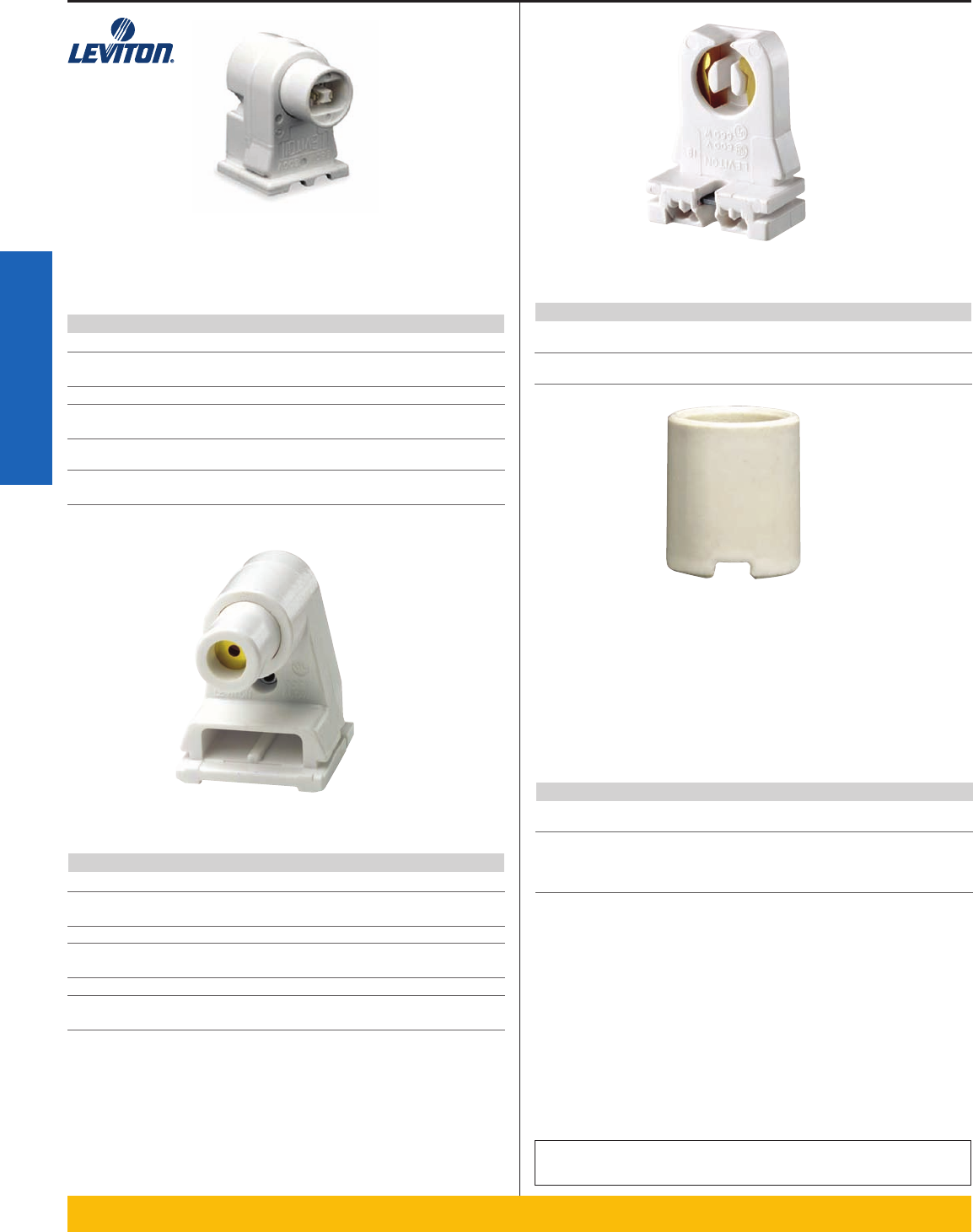

LAMPHOLDERS Leviton

290 hdsupply.com

Wiring Devices

*Suitable for outdoor applications when properly enclosed

Leviton®

Fluorescent Lampholders

For High Output Lamps –Recessed Double Contact,

Pedestal Type

*Suitable for outdoor applications when property enclosed

Fluorescent Lampholders

For Slimline, Single Pin Lamps

Model No. Hughes No. Type Rating Unit List Price

Butt-On Surface Mounting, 12" Leads

452 HBYU575 Plunger 660W 1000V EA $10.04

453 HEJJ637 Fixed 660W 600V EA 7.80

Pedestal Base, Slide-On

466 HBYU576 Plunger 660W 1000V EA 8.46

467 HEGP830 Fixed 660W 600V EA 8.30

Shallow Base, Slide-On or Lock-On Mounting, Quickwire Terminals*

2536 HEGB748 Plunger 660W 1000V EA 10.49

2537 HEGB432 Fixed 660W 600V EA 7.79

Fluorescent Lampholders

For Medium Bi-Pin Lamps —Turn-Type

Model No. Hughes No. Description Rating Unit List Price

13353-N HEGX396 Low Profile, Slide-On,

with Captive Nut

660W 600V EA $3.30

13357-N HEGB965 Tall Profile, Slide-On,

with Captive Nut

660W 600V EA 3.49

Incandescent Lampholders

Porcelain Keyless Lampholders Commercial Units

Medium Base

Single Circuit Screw Terminals

• Suitable for a wide variety of fixtures, signs and displays

• Unglazed base and ring on two-piece lampholders

• Gasket supplied with two-piece ring type rated at 90°C dry

maximum

• 600W, 250V

• 1-1/2" outside diameter

Image Missing

IG ID: 19594

Date: 09/23/2005

Model No. Hughes No. Type Rating Unit List Price

Screw Mount, Straight-in wiring Through Wireways or Screw Terminals*

464 HEGB436 Plunger 660W 600V EA $14.64

465 HEGB441 Fixed 660W 600V EA 11.69

Slide-on, Shallow Base, Quickwire Terminals*

13550 HGZO324 Plunger 660W 600V EA Call

13551 HGZO325 Fixed 660W 600V EA Call

Slide-on, Shallow Base for Power Groove and Jacketed Lamps,

Quickwire Terminals*

13556 HGZO326 Plunger 660W 600V EA Call

13557 HGZO327 Fixed 660W 600V EA Call

Model No. Hughes No. Description Unit List Price

10045 HAFQ722 Straight Body with Cap.

Screw Terminals.

EA $10.22

10085 HADC535 Straight Body with Leads.

No. 18 AWG 105°C Plastic;

9" Long, Stripped 3/4" with

Two 6/32 Mounting Screws

EA 7.86

“List Price” refers to manufacturer’s suggested list price.

Prices subject to change without notice.

290-291.qxp 9/5/07 8:29 AM Page 290

Leviton LAMPHOLDERS

hdsupply.com 291

Wiring Devices

Leviton®

Incandescent Lampholders

Outlet Box Lampholders

• Twist-lock mounting

• Pull chain models have bell at end of chain on 3 foot cord

• Medium base

Incandescent Lampholders

Porcelain Snap-In Lampholders —Medium Base

Screw Terminals

• Suitable for a wide variety of fixtures, signs and displays

• Unglazed base and ring on two-piece lampholders

• Gasket supplied with two-piece ring type rated at 90°C dry maximum

Model No. Hughes No. Description Rating Outside Diameter (In.) Unit List Price

8880 HEFS250 1-Piece, Front Mounted.

1/4" Shoulder. Panel Thickness: .025–.062"

660W 250V 1-11/16" EA $7.58

8875 HBBS300 1-Piece, Front Mounted.

Shallow Back. Panel Thickness: .030–.062"

660W 250V 1-11/16" EA 6.22

*To be used with porcelain sockets only

**To be used with phenolic sockets only

Incandescent Lampholders

Socket Extensions —Single Circuit

• Medium-to-Medium extenders available in phenolic and porcelain

• Pony cleat receptacles have open wiring terminals

• Two-piece surface-type lampholders have concealed wiring

terminals with wireways for top and continuous wiring

Model No. Hughes No. Description Rating Unit List Price

Medium-Medium

2004 HAIN342 2-Piece Porcelain; Mounting Hole 1-3/8" Dia. Extension 1-1/4"* 660W 250V EA $7.75

2005 HAXR510 1-Piece Porcelain; Slotted Mounting Hole 1-3/8" Dia. Extension 1-1/4"* 660W 250V EA 7.77

2006 HAJN138 1-Piece Phenolic. Extension 1-3/16"** 660W 250V EA 4.73

Mogul-Mogul

8647 HGZO382 1-Piece Porcelain. Extension 2-3/8" 1500W 600V EA Call

Model No. Hughes No. Description Material Outside Diameter (In.) Unit List Price

One-Piece Keyless Top Wired 660 Watt 600V

8829-CW1 HGLP385 2 Terminal Screws White Urea 4-1/2" EA $4.39

8829-CW4 HEGB820 4 Terminal Screws White Urea 4-1/2" EA 3.95

One-Piece Pull Chain Top Wired 660 Watt 250V

8827-CW1 HAZD558 2 Terminal Screws White Urea 4-1/2" EA 6.52

8827-CW4 HAZZ913 2 Terminal Screws with Captive

Clamps

White Urea 4-1/2" EA 5.88

One-Piece Keyless Top Wired 660 Watt 250V

9875 HAXI320 2 Screws, no cage lip Porcelain 4-1/2" EA 2.96

49875 HBYV269 4 Screws Porcelain 4-1/2" EA 3.14

One-Piece Pull Chain Top Wired 660 Watt 250V

29816-C HEFW840 2 Screws Porcelain 4-1/2" EA 4.66

49816-C HBYV268 2 Screws w/Captive Clamps for

4-Wire Terminals

Porcelain 4-1/2" EA 5.66

290-291.qxp 9/5/07 8:29 AM Page 291

LAMPHOLDERS Leviton

292 hdsupply.com

Wiring Devices

All devices are UL Listed.

Leviton®

Incandescent Lampholders

Porcelain and Phenolic

• Medium-to-Medium extenders

• Pony cleat receptacles have open wiring terminals

• Two-piece surface-type lampholders have concealed wiring ter-

minals with wireways for top and continuous wiring

** For temporay lighting—not waterproof.

Incandescent Lampholders

Keyless Heavy Duty Phenolic Single Circuit

Model No. Hughes No. Description Rating Unit List Price

267** HBYU508 Candelabra Base, Detachable Zinc-Plated Wire Hook.

Accepts No. 20 —No. 18 Stranded Insulated Wire

75W 125V EA $3.99

167** HAHB675 Medium Base, Detachable Zinc-Plated Wire Hook.

Accepts No. 14 —No. 12 Stranded Insulated Wire

660W 250V EA 3.26

**For temporary lighting—not waterproof.

All devices are UL Listed except Cat. No. 124-D.

Incandescent Lampholders

Pigtail Type Medium Base with Leads

Model No. Hughes No. Description Rating Unit List Price

55** HEGQ343 Vinyl, Phenolic Interior & Screw Shell, Brass Shell Contact.

Leads are No. 14 AWG, 6" Long, Stripped 3/4", Molded into Boots

660W 250V EA $8.96

124-D HAXI265 Rubber, Aluminum Screwshell. Leads are No. 16 AWG, 6" Long,

Soldered to Terminals and Sealed in Rubber Boot

660W 250V EA 3.91

Model No. Hughes No. Description Rating Unit List Price

Pony Cleat Type

10028 HBYV204 Candelabra Base; Plastic. Not UL Listed* 75W 125V EA $5.07

10020 HBYU596 Miniature Base, Plastic. Not UL Listed* 75W 125V EA 5.17

9063 HEGP824 Medium Base, Phenolic 660W 250V EA 6.08

19062 HAWP323 Medium Base, Porcelain 660W 250V EA 8.70

Surface Type

9880 HBYV200 Medium Base; Porcelain; Low 2-Piece 660W 250V EA 13.16

9882 HBYV201 Medium Base; Porcelain; High 2-Piece* 660W 250V EA 14.15

292-293.qxp 9/5/07 8:30 AM Page 292

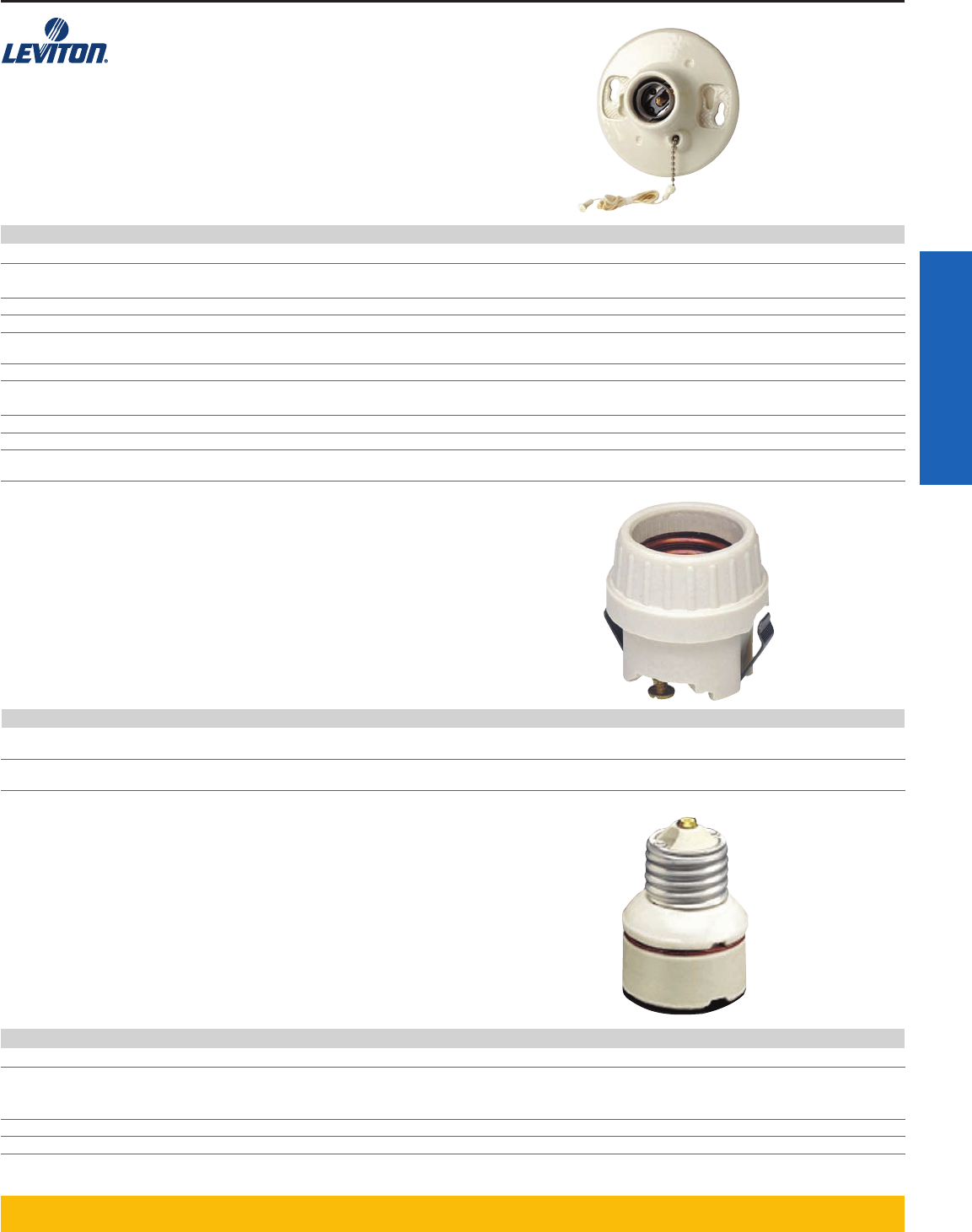

Leviton LAMPHOLDERS

hdsupply.com 293

Wiring Devices

*Leads types, lengths and ratings vary with the end use applications. Standard leads as well as variations available on inquiry.

Leviton®

Porcelain Mogul Base Lampholders

Incandescent

Model No. Hughes No. Description Rating Outside Diameter (In.) Nominal Height (in.) Unit List Price

8756 HEIR140 Keyless, Single Circuit. For high-pressure

sodium lamps up to 400 watts.

8-32 Mounting Screws on 1-3/8" Centers

1500W 600V

4KV Pulse-rated

2-5/32" 2-39/64" EA $35.52

8694 HCSM078 Keyless;. Single Circuit with 8-32

Lock Nuts on 1-3/8" Centers.

Die cast caps available upon request

1500W 600V 2-5/32" 2-11/16" EA 17.73

Outlet Box Lampholders

One-Piece Pull Chain Top Wired

660 Watt 125V Lampholder Outlet 15 Amp-125V

• Fits box size 3-1⁄4" or 4"

Model No. Hughes No. Description Unit List Price

9726-C HBAJ152 2 Screws EA $7.80

Socket Adapter

Mogul-To-Porcelain Medium

Model No. Hughes No. Description Rating Unit List Price

8681 HEFR663 1-piece, Meets

Fed. Spec. W-L-142a

660W 250V EA $4.28

See page 225 for Incandescent Lamps

292-293.qxp 9/5/07 8:30 AM Page 293

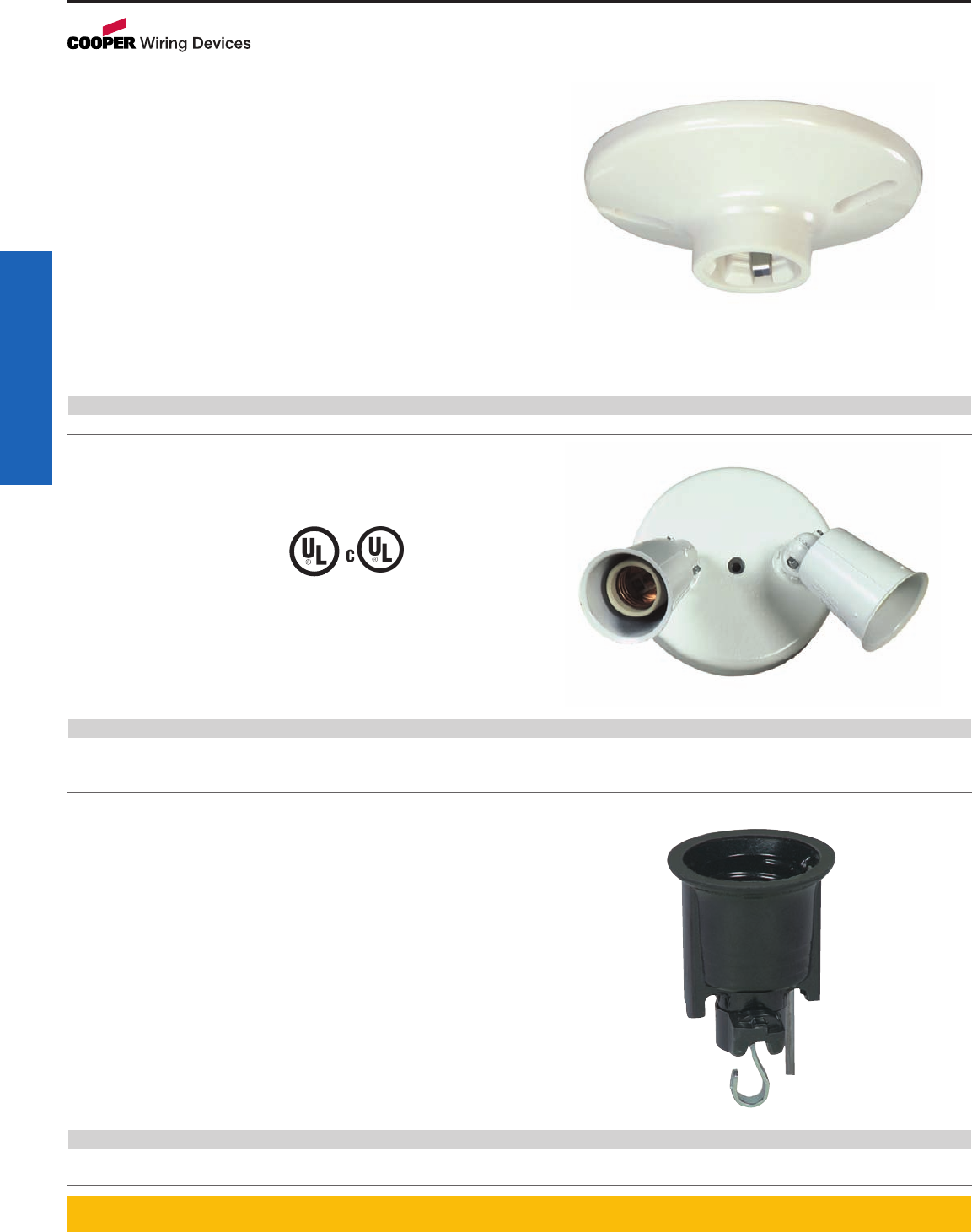

LAMPHOLDERS Cooper Wiring Devices

294 hdsupply.com

Wiring Devices

Cooper Wiring Devices

Plastic Ceiling Receptacle Lampholders

Medium Base

• Molded of high-temperature, thermoset plastic to prevent

discoloration and reduce breakage.

• Mounts on 4" (101.6mm) outlet boxes with breakout for 3.25"

(82.55mm) box mounting.

• Leads are 6" (152.4mm) 105°C insulated stranded #16, stripped 0.75"

(19.05mm).

• Pull chain devices include ball chain, 3' (0.91m) of cord, connector

and endbell.

• Top wire versions have terminal screws backed out –ready for

wiring –without removing interior.

• Push wire terminals are top wired with two push-in terminals and

two screw terminals for continuous wiring.

• Sockets available in two piece version to permit interior

replacement, dust ring protects against plaster and dirt.

• Shade grooves provided on two piece units.

Model No. Hughes No. Wattage Voltage (AC) Description No. of Terminals Switch Color Unit List Price

1174W HGZN850 660 250 One Piece 4 Top Wire Screws Keyless White EA Call

UL and cUL listed.

Outdoor Lighting

Dual Swivel Light –Metal

• Lampholders are adjustable, rotate 360°and will adjust up to 90°

angles.

• Porcelain sockets accept standard PAR 38, R 20, R 30, or R 40

reflector lamps up to 150 watts each (Total 300W).

• Heavy metal cast construction.

• Recessed back plate offers maximum wiring room.

• Fully wired and ready for fast, easy installation.

Model No. Hughes No. Description Color Unit List Price

592B HGZN933 Two PAR 38 Fixtures with Metal Base Bronze EA Call

592GY HGZN934 Two PAR 38 Fixtures with Metal Base Gray EA Call

592W HGZN935 Two PAR 38 Fixtures with Metal Base White EA Call

Sign and Scoreboard Lampholders

Medium Base Attachon

• Insulation displacement terminals for stranded wire.

• Lay in wire channels, 1⁄4turn twist top speeds installation.

• One piece terminals and contacts. No rivets or eyelets to loosen

due to heat.

• Sockets are molded of heat-resistant phenolic.

• 732 is weatherproof –suitable for outdoor use.

• Snap-in or screw-in panel mounting options.

• Keyed spring washer prevents rotation of socket after installation.

Model No. Hughes No. Wattage Voltage (AC) Description Wire Range Mounting Unit List Price

732 HGZN936 660 250 Phenolic #14 to #12 Hook EA Call

734 HGZN937 660 250 Phenolic #14 to #12 Screws EA Call

294-295.qxp 9/5/07 8:30 AM Page 294

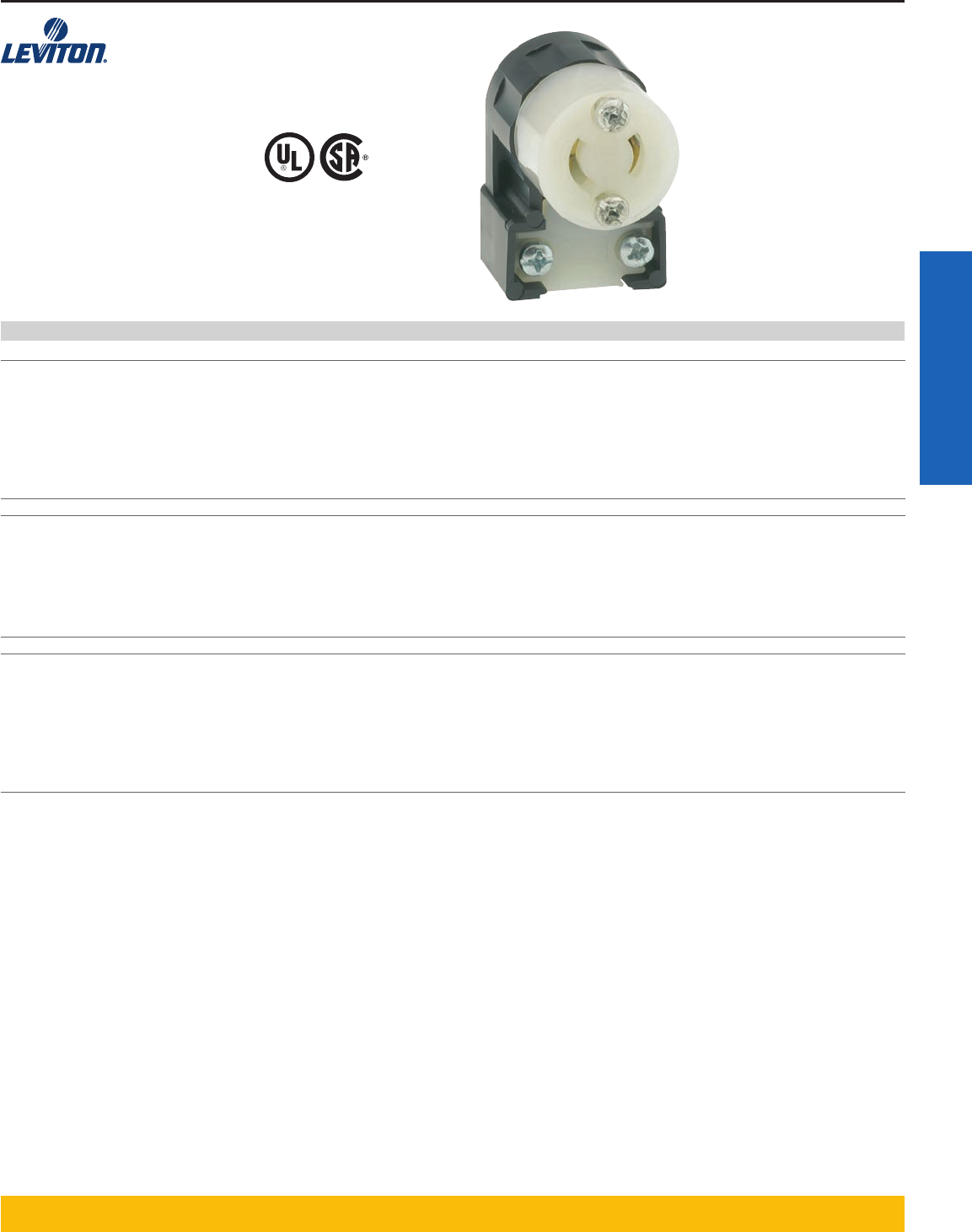

Leviton LOCKING DEVICES

hdsupply.com 295

Wiring Devices

All devices are UL Listed. Also CSA certified except where indicated by*

Leviton®

Midget Locking Devices

Industrial Grade, 15 Amp 125V

• Offer a smaller form factor for limited-space applications

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling indus-

trial settings

• Flanged inlets and outlets are built to endure hard use with

rugged nylon flanges that assure a smooth, flush fit and outstand-

ing resistance to cracking and breaking

Model No. Hughes No. Description Cord Diameter Range (in.) Wire Gauge Unit List Price

2-Pole 2-Wire Non-Grounding

ML1-P HEGX714 Midget Locking Plug .218–.43" 18–14 EA $14.20

ML1-AP HEMM856 Angle Plug .218–.43" 18–14 EA 15.49

ML1-C HEGT440 Midget Locking Connector .218–.43" 18–14 EA 13.90

ML1-AC HEMM850 Angle Connector .218–.43" 18–14 EA 17.38

ML1-PB HEMM864 Plastic Midget Locking Flanged Inlet ——EA 15.49

ML1-PER HEGT439 Plastic Midget Locking Flanged Outlet ——EA 18.07

ML1-MB HEMM861 Metal Inlet ——EA 16.78

ML1-MER HEMM841 Metal Outlet ——EA Call

2-Pole 3-Wire Grounding

ML2-P HEGW704 Midget Locking Plug .218–.43" 18–14 EA 18.07

ML2-AP HEMM902 Angle Plug .218–.43" 18–14 EA 19.62

ML2-C HEGW705 Midget Locking Connector .218–.43" 18–14 EA 22.10

ML2-AC HEMM898 Angle Connector .218–.43" 18–14 EA 24.83

ML2-PB HEMM915 Plastic Midget Locking Flanged Inlet ——EA 15.49

ML2-PER HEMM892 Plastic Midget Locking Flanged Outlet ——EA 18.07

ML2-MB HEMM908 Metal Inlet ——EA 19.88

3-Pole 3-Wire Non-Grounding*

ML3-P HEGT442 Midget Locking Plug .218–.43" 18–14 EA 18.07

ML3-AP HEMM945 Angle Plug .218–.43" 18–14 EA 24.53

ML3-C HEMM955 Midget Locking Connector .218–.43" 18–14 EA 22.84

ML3-AC HEMM942 Angle Connector .218–.43" 18–14 EA 29.79

ML3-PB HEMM950 Plastic Midget Locking Flanged Inlet ——EA 18.07

ML3-PER HEGT441 Plastic Midget Locking Flanged Outlet ——EA 20.66

ML3-MB HEMM668 Metal Inlet ——EA 22.21

ML3-MER HEMM929 Metal Outlet ——EA 27.11

294-295.qxp 9/5/07 8:30 AM Page 295

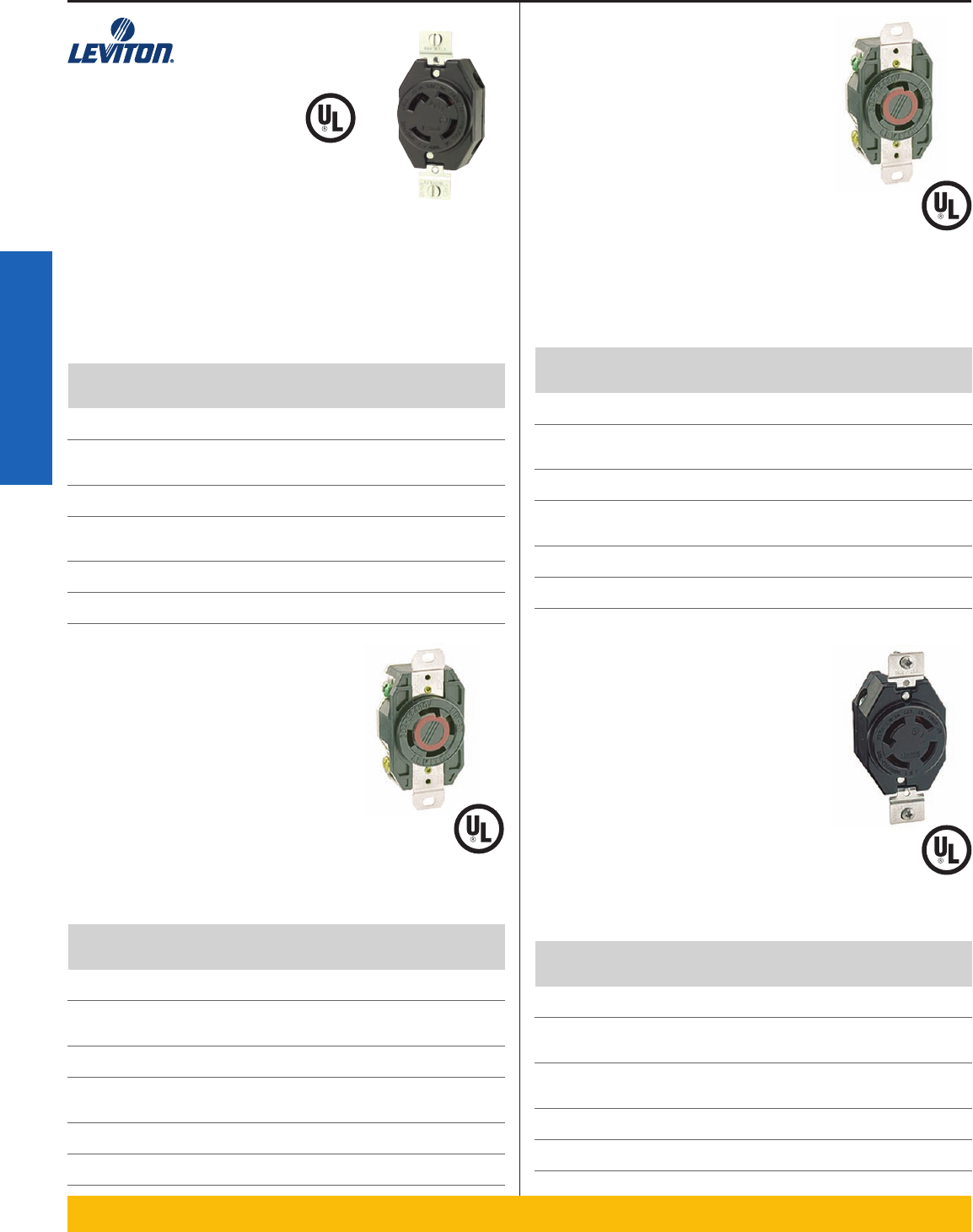

LOCKING DEVICES Leviton

296 hdsupply.com

Wiring Devices

Leviton®

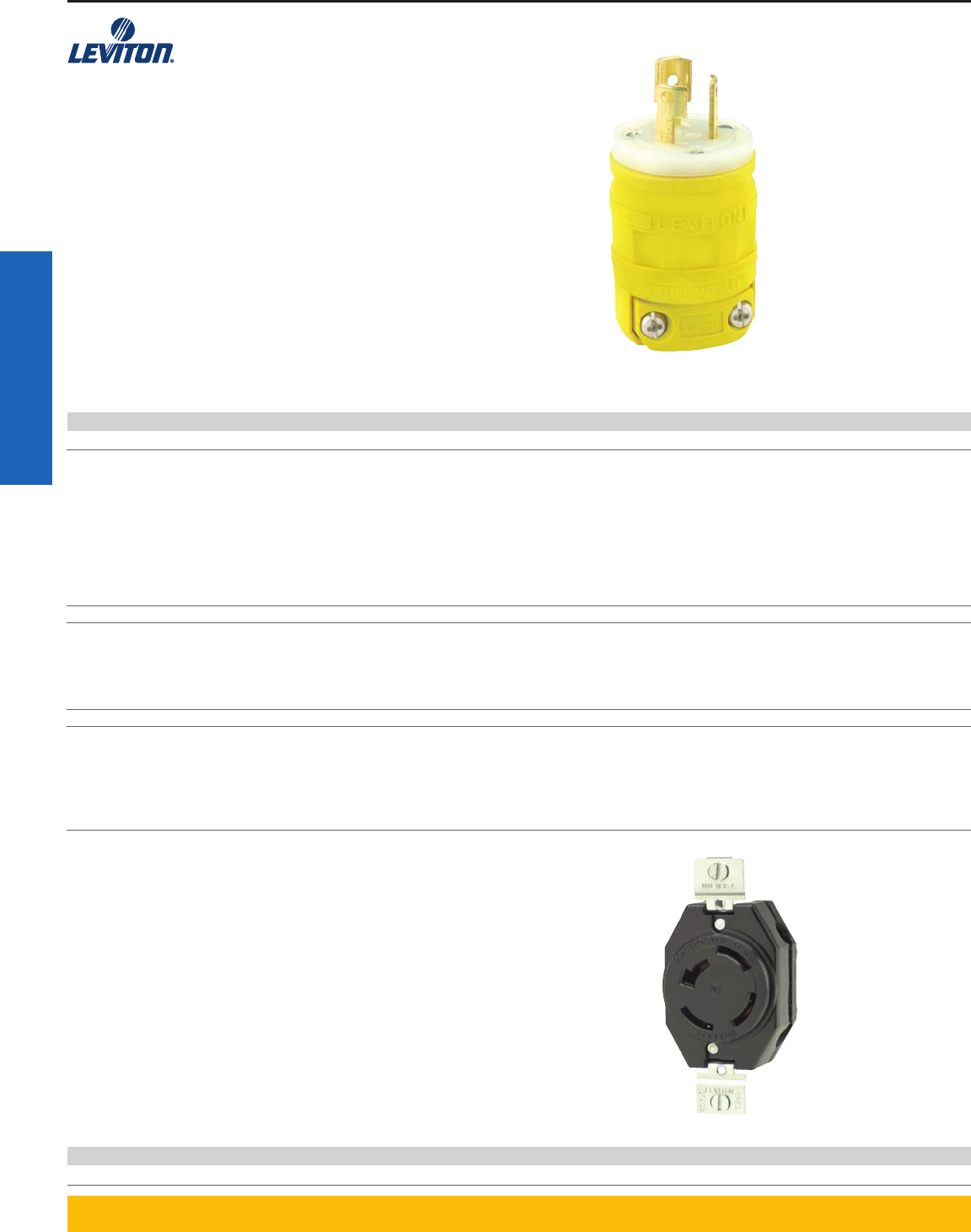

Locking Devices

Industrial Grade 15 Amp

• Locking Receptacles feature a complete range of ratings and

NEMA configurations, including isolated ground

• Locking Plugs and Connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings.

• Flanged Inlets and Outlets are built to endure hard use with

rugged nylon flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

Locking Devices

Industrial Grade, 20-Amp Non-NEMA

Model No. Hughes No. Description Cord Diameter Range (in.) Wire Gauge Unit List Price

125V 2-Pole 3-Wire Grounding. NEMA L5-15R, L5-15P

2447 HEJU938 Dustguard™Locking Plug, High Visibility Yellow EPTR Body .240–.655" 12–18 EA $13.50

2547 HEJU934 Dustguard™Locking Connector, High Visibility Yellow EPTR Body .240–.655" 12–18 EA 22.27

4710 HEFV008 Single Flush Receptacle ——EA 20.00

4715-C HEFR211 Locking Flanged Outlet ——EA 23.99

4716-C HEGC722 Locking Flanged Inlet ——EA 16.32

4720-C HEFV414 Locking Plug, Black Nylon Body .245–.700" 10–18 EA 14.34

4720-CY HEJO072 Locking Plug, Yellow Nylon Body .245–.700" 10–18 EA 15.15

4729-C HEFV417 Locking Connector, Black Nylon Body .245–.700" 10–18 EA 25.43

4729-CY HEJO087 Locking Connector, Yellow Nylon Body .245–.700" 10–18 EA 26.89

250V 2-Pole 3-Wire Grounding. NEMA L6-15R, L6-15P

4560 HEFV014 Single Flush Receptacle ——EA 22.54

4570-C HEFV288 Locking Plug, Black Nylon Body .245–.700" 10–18 EA 15.11

4579-C HEFV290 Locking Connector, Black Nylon Body .245–.700" 10–18 EA 26.76

4585-C HEFQ402 Locking Flanged Outlet ——EA 28.10

4586-C HEGQ078 Locking Flanged Inlet ——EA 20.44

277V 2-Pole 3-Wire Grounding. NEMA L7-15R, L7-15P

4750 HEGP781 Duplex Flush Receptacle, Self Grounding, Back and Side Wired ——EA 34.29

4760 HEFU076 Single Flush Receptacle ——EA 22.31

4770-C HEGF086 Locking Plug, Black Nylon Body .245–.700" 10–18 EA 16.52

4779-C HENW569 Locking Connector, Black Nylon Body .245–.700" 10–18 EA 27.17

4785-C HEJO212 Locking Flanged Outlet ——EA 29.52

4786-C HEJO206 Locking Flanged Inlet ——EA 21.57

Model No. Hughes No. Description Type Color Unit List Price

7410-B HEFV409 3ØY 120V/208V, 4-Pole, 4-Wire, Non-Grounding Single Flush Receptacle Black EA $44.10

296-297.qxp 9/5/07 8:30 AM Page 296

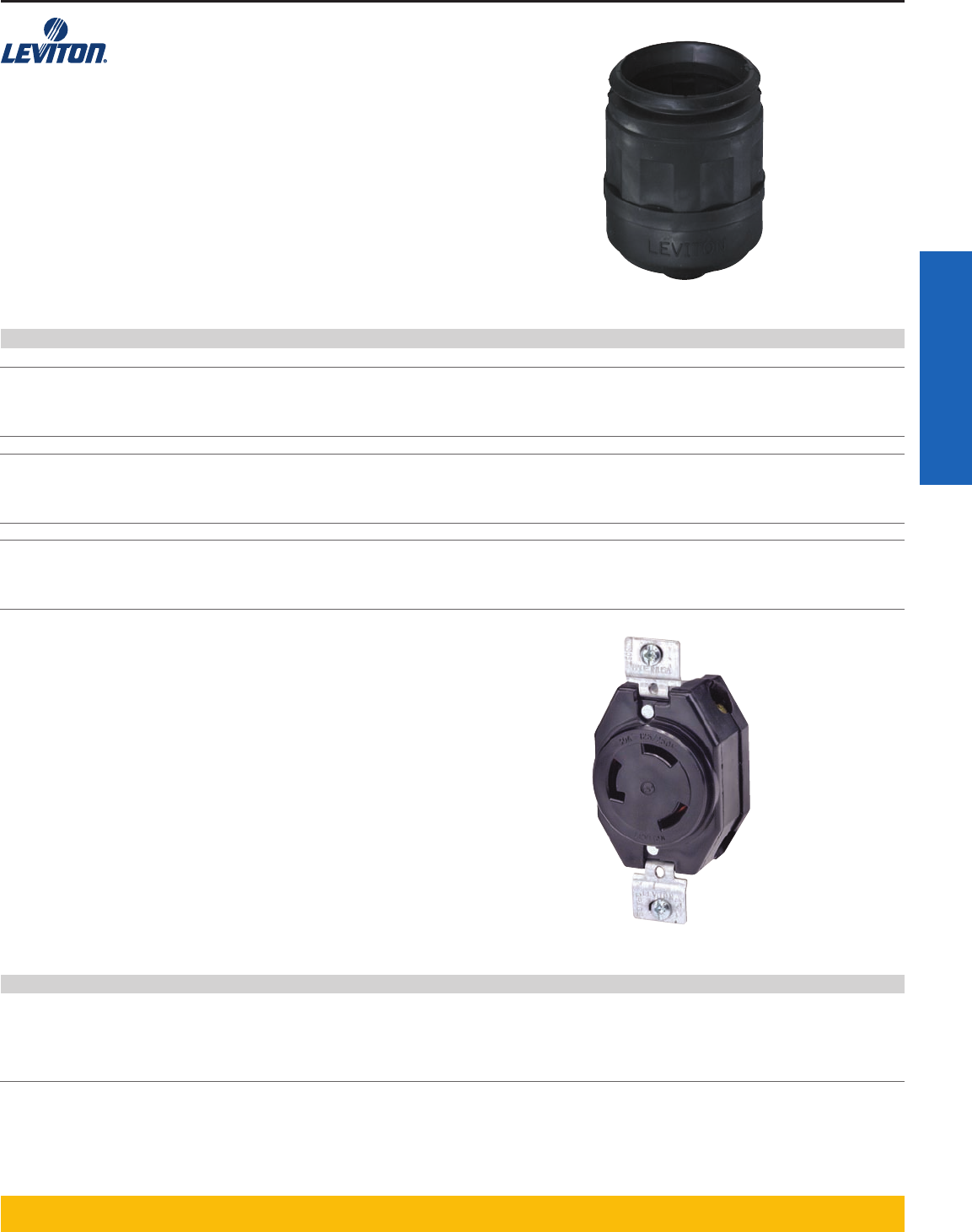

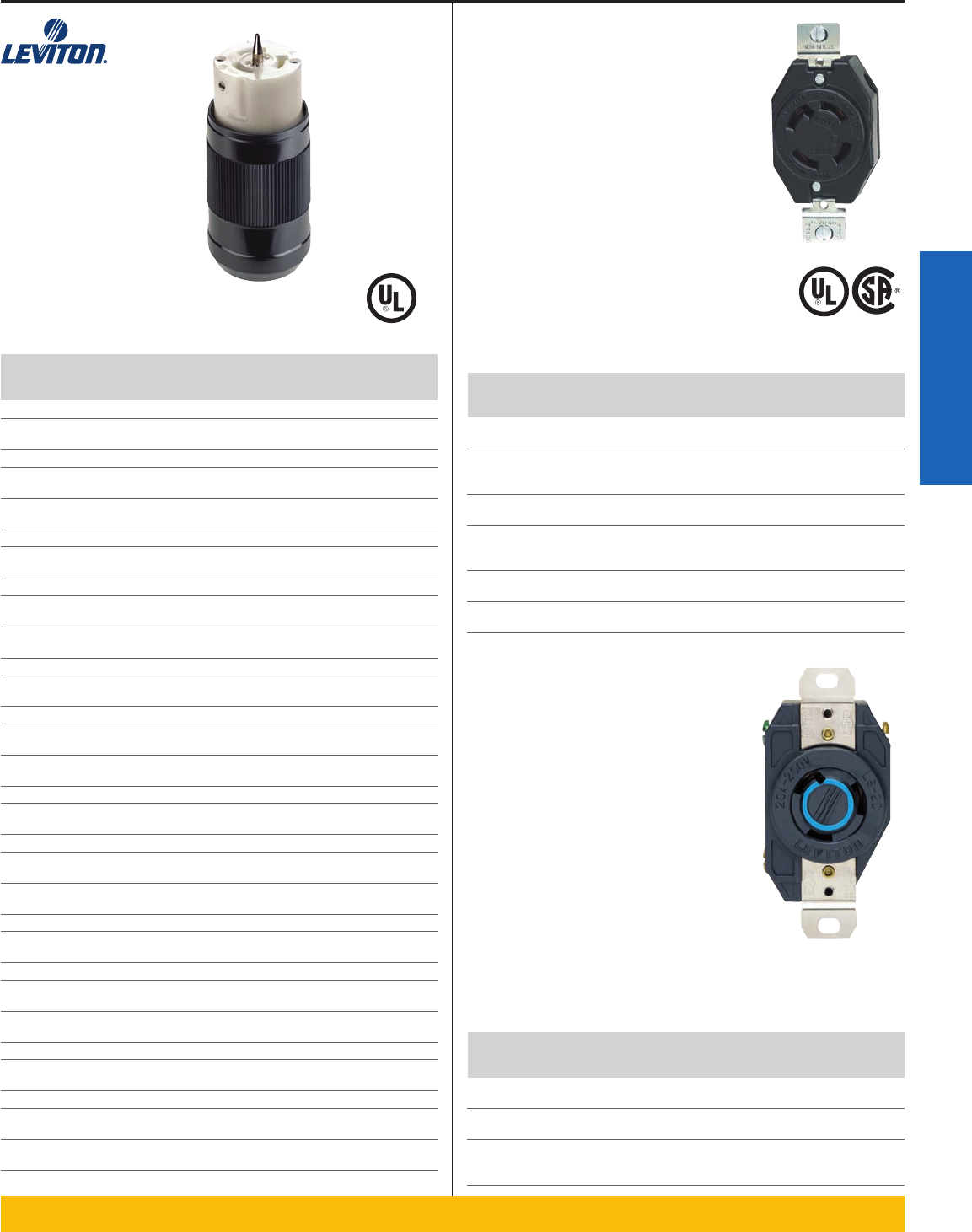

Leviton LOCKING DEVICES

hdsupply.com 297

Wiring Devices

All devices are UL Listed. Also CSA certified

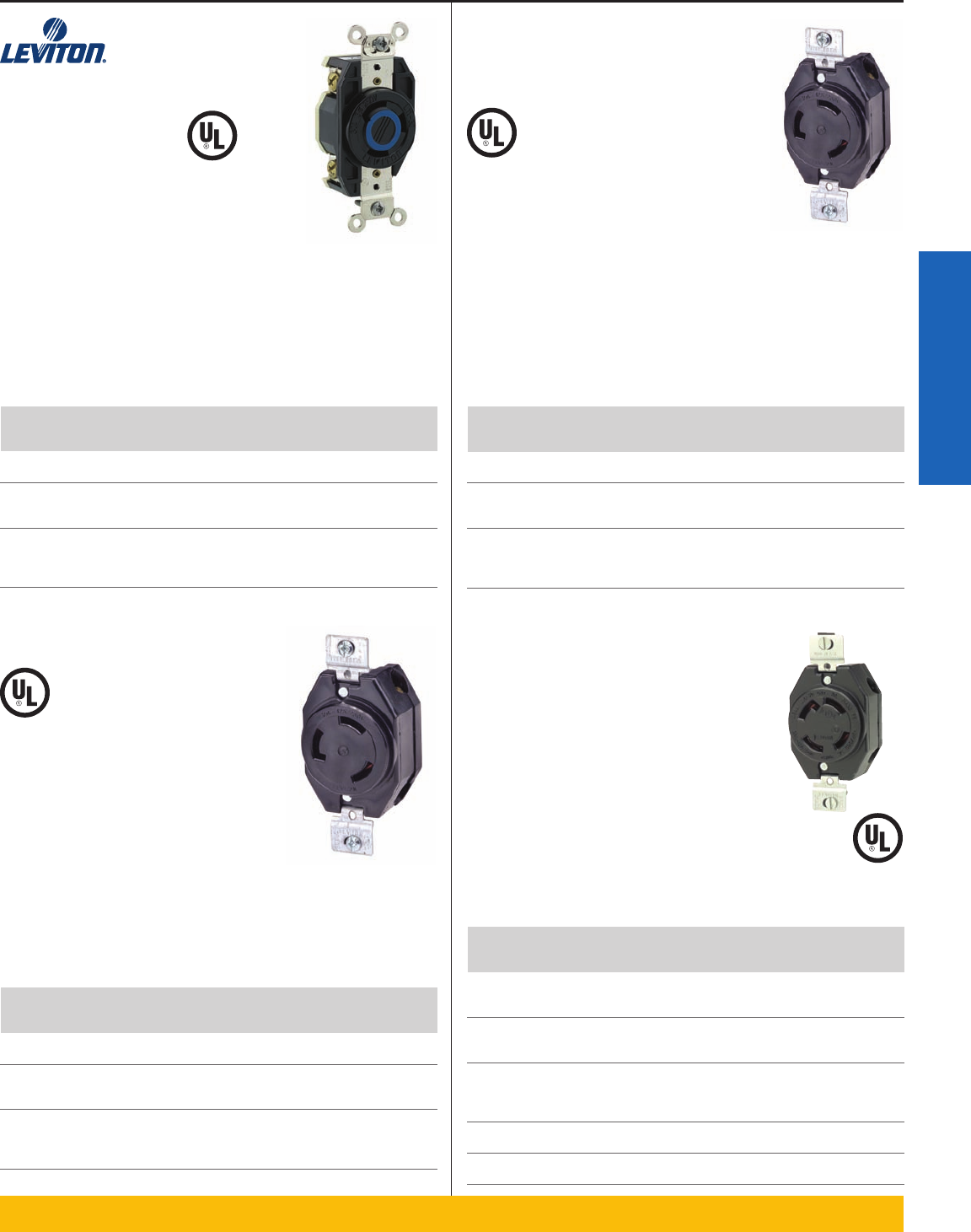

Locking Plugs and Connectors

20 Amp, 125V, 2-Pole, 3-Wire, Grounding

• Industrial grade

• V-0-MAX™locking receptacles carry a

UL 94 V-0 flammability rating, the best

rating of any material used in industrial

locking flush receptacle available today

• Locking plugs and connectors feature

heavy-duty constrution for top perform-

ance in the environmental extremes of

grueling industrial settings

• Flanged inlets and outlets are built to

endure hard use with rugged nylon

flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

• NEMA L5-20

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2310 HEFV381 V-0-MAX™Single

Flush Receptacle

——

EA $23.30

2310-IG HEGA263 V-0-MAX-™Single

Flush Receptacle,

Isolated Ground

——

EA 28.07

2311 HEFW852 Locking Plug,

Black Nylon Body

.385–.780" 10–18 EA 18.04

2313 HEFW849 Locking

Connector, Black

Nylon Body

.385–.780" 10–18 EA 28.03

2315 HEFR599 Locking

Flanged Inlet

——

EA 23.84

2316 HEGQ091 Locking

Flanged Outlet

——

EA 39.88

Locking Plugs and Connectors

20 Amp, 250V, 2-Pole, 3-Wire,

Grounding

• Industrial grade

• V-0-MAX™locking receptacles carry a

UL 94 V-0 flammability rating, the best

rating of any material used in industri-

al locking flush receptacle available

today

• Locking plugs and connectors feature

heavy-duty construction for top

performance in the environmental

extremes of grueling industrial set-

tings

• Flanged inlets and outlets are built to

endure hard use with rugged nylon

flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

• NEMA L6-20R, L6-20P

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2320 HEFV492 V-0-MAX™Single

Flush Receptacle

——

EA $23.42

2321 HEFV438 Locking Plug,

Black Nylon Body

.385–.780" 10–18 EA 18.04

2323 HEFV441 Locking

Connector, Black

Nylon Body

.385–.780" 10–18 EA 28.03

Leviton®

Locking Devices

Industrial Grade 50 Amp "California Style"CS Non-NEMA

All devices are UL Listed.

Model No. Hughes No. Description

Cord

Diameter

Range (in.)

Wire

Gauge Unit List Price

125V 2-Pole 3-Wire Grounding Non-NEMA

CS63-70* HEGQ099

Single Locking

Receptacle ——EA $90.06

CS63-61C HEGQ100 Locking Plug .680–1.125" 10–4 EA 94.04

CS63-60C HEJO709

Locking

Connector .680–1.125" 10–4 EA 111.31

CS63-77 HEJO546 Locking

Flanged Inlet ——EA 126.40

250V 2-Pole 3-Wire Grounding Non-NEMA

CS82-69* HEGV073

Single Locking

Receptacle ——EA 125.62

CS82-65C HEGD457 Locking Plug .680–1.125" 10–4 EA 98.39

CS82-64C HEGQ101

Locking

Connector .680–1.125" 10–4 EA 111.31

CS82-75 HEJO552 Locking

Flanged Inlet ——EA 126.40

125/250V 3-Pole 4-Wire Grounding Non-NEMA

CS63-69* HEIQ825

Single Locking

Receptacle ——EA 98.12

CS63-65C HEFY673 Locking Plug .680–1.125" 10–4 EA 99.75

CS63-64C HEIU506

Locking

Connector .680–1.125" 10–4 EA 129.82

CS63-75 HEIU503

Locking

Flanged Inlet ——EA 132.33

3Ø250V AC 3-Pole 4-Wire Grounding Non-NEMA

CS83-69* HEGQ095

Single Locking

Receptacle ——EA 99.47

CS83-65C HEGQ096 Locking Plug .680–1.125" 10–4 EA 99.75

CS83-64C HEGQ097

Locking

Connector .680–1.125" 10–4 EA 129.82

CS83-75 HEJD546

Locking

Flanged Inlet ——

EA 132.33

480V 2-Pole 3-Wire Grounding Non-NEMA

CS84-69* HEFY441

Single Locking

Receptacle ——EA 91.40

CS84-65C HEFT089 Locking Plug .680–1.125" 10–4 EA 95.66

CS84-64C HEJO564

Locking

Connector .680–1.125" 10–4 EA 121.62

CS84-75 HEJO571

Locking

Flanged Inlet ——EA 134.30

3Ø480V AC 3-Pole 4-Wire Grounding Non-NEMA

CS81-69* HEFR803

Single Locking

Receptacle ——EA 99.47

CS81-65C HEFR806 Locking Plug .680–1.125" 10–4 EA 99.75

CS81-64C HEGQ098

Locking

Connector .680–1.125" 10–4 EA 129.82

CS81-75 HEJO611

Locking

Flanged Inlet ——EA 132.33

296-297.qxp 9/5/07 8:31 AM Page 297

LOCKING DEVICES Leviton

298 hdsupply.com

Wiring Devices

Leviton®

Locking Plugs and Connectors

20 Amp, 277V, 2-Pole, 3-Wire, Grounding

• Industrial grade, NEMA L7-20R, L7-20P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability

rating, the best rating of any material used in industrial locking

flush receptacle available today

• Locking plugs and connectors feature heavy-duty construction

for top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with

rugged nylon flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2330 HEIQ385 V-0-MAX™Single

Flush Receptacle

——

EA $23.42

2331 HEIQ386 Locking Plug,

Black Nylon Body

.385–.780" 10–18 EA 18.04

2333 HEGQ131 Locking

Connector,

Black Nylon Body

.385–.780" 10–18 EA 28.14

2335 HEJO889 Locking

Flanged Inlet

——

EA 23.84

2336 HEJO924 Locking

Flanged Outlet

——

EA 40.02

Locking Plugs and Connectors

20 Amp, 480V, 2-Pole, 3-Wire, Grounding

• Industrial grade, NEMA L8-20R, L8-20P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability

rating, the best rating of any material used in industrial locking

flush receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2340 HEGQ148 Single Flush

Receptacle

——

EA $30.40

2341 HEFX914 Locking Plug,

Black Nylon Body

.385–.780" 10–18 EA 23.07

2343 HEFX916 Locking

Connector,

Black Nylon Body

.385–.780" 10–18 EA 44.69

2345 HEJO896 Locking

Flanged Inlet

——

EA 29.92

2346 HEGQ114 Locking

Flanged Outlet

——

EA 50.58

Locking Plugs and Connectors

20 Amp, 125/250V, 3-Pole, 4-Wire, Grounding

• Industrial grade, L14-20R, L14-20P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability

rating, the best rating of any material used in industrial locking

flush receptacle available today.

• Locking plugs and connectors feature heavy-duty construction

for top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2410 HEPP506 V-0-MAX™Single

Flush Receptacle

——

EA $32.27

2410-IG HEGE749 V-0-MAX™Single

Flush Receptacle,

Isolated Ground

——

EA 37.88

2411 HEPP504 Locking Plug,

Black Nylon Body

.595–.895" 10–18 EA 27.38

2413 HEPP502 Locking

Connector,

Black Nylon Body

.595–.895" 10–18 EA 38.36

2415 HEFN834 Locking

Flanged Inlet

——

EA 33.64

2416 HEGY512 Locking

Flanged Outlet

——

EA 47.40

298-299.qxp 9/5/07 8:31 AM Page 298

Leviton LOCKING DEVICES

hdsupply.com 299

Wiring Devices

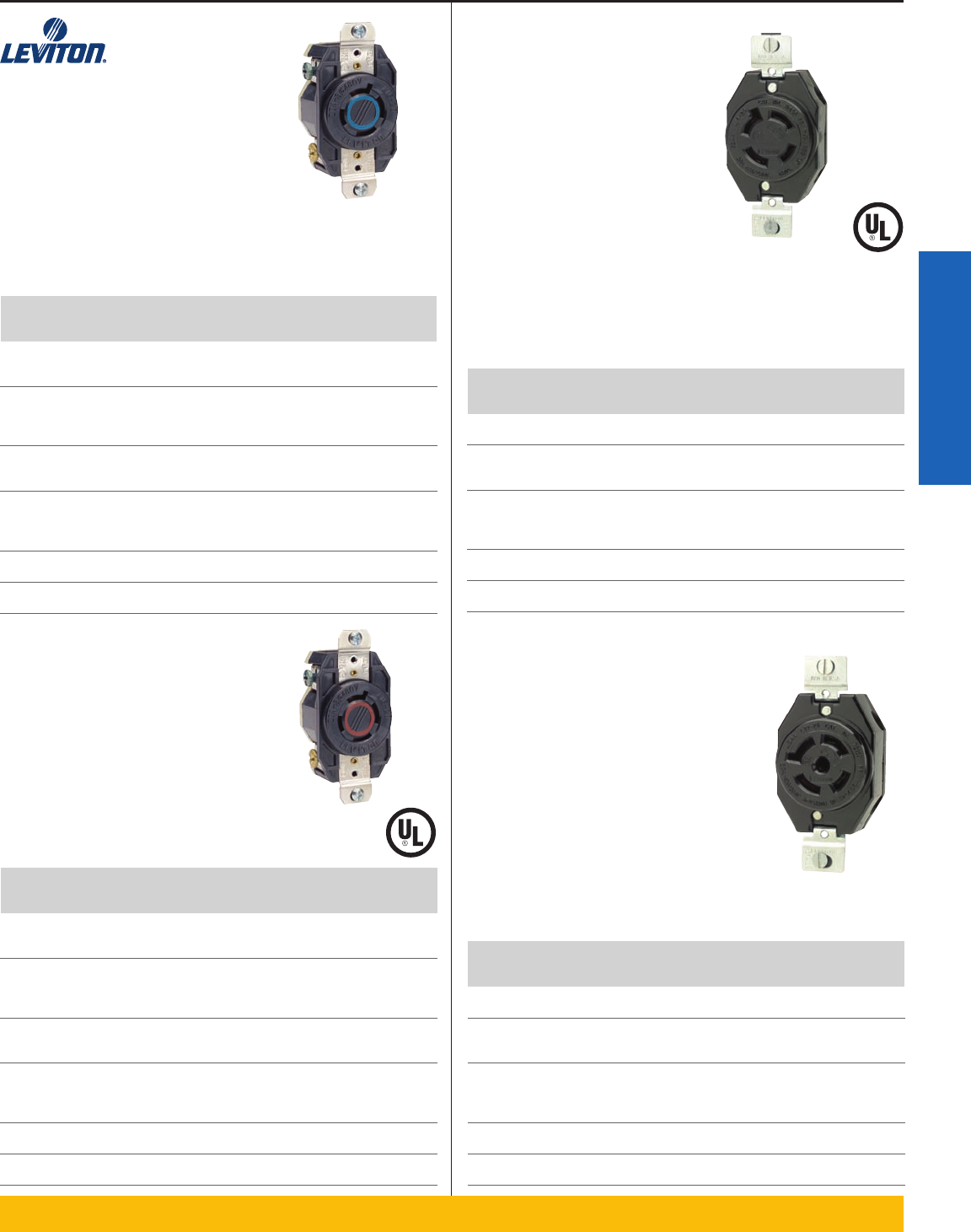

Leviton®

Locking Plugs and Connectors

20 Amp, 3Ø, 250V, 3-Pole, 4-Wire, Grounding

• Industrial grade, NEMA L15-20R, L15-20P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing.

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2420 HEFV387 V-0-MAX™

Single Flush

Receptacle

——

EA $32.38

2420-IG HEJP848 V-0-MAX™

Single Flush

Receptacle,

Isolated Ground

——

EA 38.51

2421 HEFV457 Locking Plug,

Black Nylon

Body

.595–.895" 10–18 EA 29.34

2423 HEFV463 Locking

Connector,

Black Nylon

Body

.595–.895" 10–18 EA 38.46

2425 HEGY517 Locking

Flanged Inlet

——

EA 33.64

2426 HEMO778 Locking

Flanged Outlet

——

EA 47.40

Locking Plugs and Connectors

20 Amp, 3Ø, 480V, 3-Pole, 4-Wire,

Grounding

• Industrial grade, NEMA L16-20R, L16-20P

• V-0-MAX™locking receptacles carry a UL

94 V-0 flammability rating.

• Flanged inlets and outlets are built to

endure hard use with rugged nylon flanges.

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2430 HEFZ877 V-0-MAX™

Single Flush

Receptacle

——

EA $38.37

2430-IG HEJP860 V-0-MAX™

Single Flush

Receptacle,

Isolated Ground

——

EA 45.75

2431 HEFV107 Locking Plug,

Black Nylon

Body

.595–.895" 10–18 EA 34.44

2433 HEFV029 Locking

Connector,

Black Nylon

Body

.595–.895" 10–18 EA 46.22

2435 HEFT031 Locking

Flanged Inlet

——

EA 42.61

2436 HEJP068 Locking

Flanged Outlet

——

EA 60.20

Locking Plugs and Connectors

20 Amp, 3ØY, 120/208V, 4-Pole, 5-Wire,

Grounding

• Industrial grade, NEMA L21-20R, L21-20P

• Locking receptacles feature a complete

range of ratings and NEMA configurations.

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges.

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2510 HEFS127 Single Flush

Receptacle

——

EA $39.88

2511 HEPP552 Locking Plug,

Black Nylon

Body

.595–.895" 10–18 EA 35.21

2513 HEPP555 Locking

Connector,

Black Nylon

Body

.595–.895" 10–18 EA 60.63

2515 HEGQ119 Locking

Flanged Inlet

——

EA 54.09

2516 HEGY499 Locking

Flanged Outlet

——

EA 99.55

All devices are UL Listed.

Locking Plugs and Connectors

20 Amp, 3ØY, 120/208V, 4-Pole, 4-Wire, Non-Grounding

• Industrial grade, NEMA L18-20R, L18-20P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing.

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges.

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2440 HEFT074 Single Flush

Receptacle

——

EA $53.69

2441 HEFT071 Locking Plug,

Black Nylon

Body

.595–.895" 10–18 EA 46.63

2443 HEGQ135 Locking

Connector,

Black Nylon

Body

.595–.895" 10–18 EA 64.99

2445 HEJP039 Locking

Flanged Inlet

——

EA 44.42

2446 HEJP078 Locking

Flanged Outlet

——

EA 63.10

298-299.qxp 9/5/07 8:31 AM Page 299

LOCKING DEVICES Leviton

300 hdsupply.com

Wiring Devices

Leviton®

Locking Plugs and Connectors

30 Amp, 125V, 2-Pole, 3-Wire, Grounding

• Industrial grade, L5-30R, L5-30P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing, the best rating of any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description Cord Diameter (in) Wire Gauge Unit List Price

2610†HEFV385 V-0-MAX™Single Flush Receptacle ——EA $32.60

2610-IG†HEGQ011 V-0-MAX™Single Flush Receptaclee, Isolated Ground ——EA 38.26

2611 HEFY995 Locking Plug, Black Nylon Body .385–.860 10–18 EA 28.03

2611-CY HEJP448 Locking Plug, Yellow Nylon Body .385–.860 10–18 EA 30.34

2613 HEFV429 Locking Connector, Black Nylon Body .385–.860 10–18 EA 55.85

2613-CY HEJP342 Locking Connector, Yellow Nylon Body .385–.860 10–18 EA 58.02

2615 HEFQ245 Locking Flanged Inlet ——EA 41.96

2616 HEJO983 Locking Flanged Outlet ——EA 50.58

†Uses stainless steel wallplate, Cat. No. 84020-40.

†Uses stainless steel wallplate, Cat. No. 84020-40.

Locking Plugs and Connectors

30 Amp, 250V, 2-Pole, 3-Wire, Grounding

• Industrial grade, NEMA L6-30R, L6-30P

• V-0-MAX™Locking Receptacles carry a UL 94 V-0 flammability rat-

ing, the best rating of any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description Cord Diameter (in) Wire Gauge Unit List Price

2620†HEFY339 V-0-MAX™Single Flush Receptacle ——EA $35.79

2620-IG†HEFV546 V-0-MAX™Single Flush Receptacle, Isolated Ground ——EA 41.84

2621 HEFV447 Locking Plug, Black Nylon Body .385–.860 10–18 EA 28.25

C2623 HEFV450 Locking Connector, Black Nylon Body .385–.860 10–18 EA 58.05

2625F HEIP315 Locking Flanged Inlet ——EA 56.13

2626F HEPG745 Locking Flanged Outlet ——EA 57.89

300-301.qxp 9/5/07 8:31 AM Page 300

Leviton LOCKING DEVICES

hdsupply.com 301

Wiring Devices

All devices are UL Listed.

Leviton®

Locking Plugs and Connectors

30 Amp, 3Ø, 250V, 3-Pole, 3-Wire,

Non-Grounding

• Industrial grade, NEMA L11-30R, L11-30P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing, the best rating of any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2670 HEGQ013 Single Flush

Receptacle

——

EA $62.14

2671 HEGQ129 Locking Plug,

Black Nylon

Body

.385–.860 10–18 EA 41.84

2673 HEGQ126 Locking

Connector,

Black Nylon

Body

.385–.860 10–18 EA 81.86

All devices are UL Listed.

Locking Plugs and Connectors

30 Amp, 3Ø, 480V, 3-Pole, 3-Wire, Non-

Grounding

• Industrial grade, NEMA L12-30R, L12-30P

• V-0-MAX™Locking receptacles carry a

UL 94 V-0 flammability rating, the best rat-

ing of any material used in industrial lock-

ing flush receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2680 HEGQ014 Single Flush

Receptacle

——

EA $58.44

2681 HEGQ128 Locking Plug,

Black Nylon

Body

.385–.860 10–18 EA 51.30

2683 HEJP298 Locking

Connector,

Black Nylon

Body

.385–.860 10–18 EA 99.69

All devices are UL Listed.

Locking Plugs and Connectors

30 Amp, 3Ø, 600V, 3-Pole, 3-Wire, Non-

Grounding

• Industrial grade, NEMA L13-30R, L13-30P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing, the best rating of any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2690 HEJP816 Single Flush

Receptacle

——

EA $54.74

2691 HEJP355 Locking Plug,

Black Nylon

Body

.385–.860 10–18 EA 51.30

2693 HEJP291 Locking

Connector,

Black Nylon

Body

.385–.860 10–18 EA 99.69

Locking Plugs and Connectors

30 Amp, 125/250V, 3-Pole, 4-Wire, Grounding

• Industrial grade, NEMA L14-30R, L14-30P

• V-0-MAX™locking receptacles carry a UL 94

V-0 flammability rating, the best rating of any

material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature

heavy-duty construction for top performance

in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2710 HEPP516 V-0-MAX™

Single Flush

Receptacle

——

EA $51.18

2711 HEPP512 Locking Plug,

Black Nylon

Body

.595–1.150 10–18 EA 37.49

2713 HEPP509 Locking

Connector,

Black Nylon

Body

.595–1.150 10–18 EA 77.69

2715 HEGD105 Locking

Flanged Inlet

——

EA 52.92

2716 HEJP123 Locking

Flanged Outlet

——

EA 60.81

300-301.qxp 9/5/07 8:31 AM Page 301

LOCKING DEVICES Leviton

302 hdsupply.com

Wiring Devices

Leviton®

Locking Plugs and Connectors

30 Amp, 3Ø, 250V, 3-Pole, 4-Wire, Grounding

• Industrial grade, NEMA L15-30R, L15-30P

• V-0-MAX™locking receptacles carry a UL 94 V-0 flammability rat-

ing, the best rating of any material used in Industrial locking flush

receptacle available today

• Lockin plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2720 HEFV389 V-0-MAX™Single

Flush Receptacle

——

EA $51.51

2720-IG HEGQ152 V-0-MAX™Single

Flush Receptacle,

Isolated Ground

——

EA 69.56

2721 HEFV467 Locking Plug,

Black Nylon Body

.595–1.150" 10–18 EA 37.81

2723 HEFV471 Locking

Connector,

Black Nylon Body

.595–1.150" 10–18 EA 77.91

2725 HEFX207 Locking

Flanged Inlet

——

EA 52.92

2726 HEGQ118 Locking

Flanged Outlet

——

EA 60.81

Locking Plugs and Connectors

30 Amp, 3Ø, 480V, 3-Pole, 4-Wire,

Grounding

• Industrial grade, NEMA L16-30R, L16-30P

• V-0-MAX™locking receptacles carry a UL

94 V-0 flammability rating, the best rating of

any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature

heavy-duty construction for top perform-

ance in the environmental extremes of gru-

eling industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding resist-

ance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2730 HEFW189 V-0-MAX™Single

Flush Receptacle

——

EA $51.72

2730-IG HEJP999 V-0-MAX™Single

Flush Receptacle,

Isolated Ground

——

EA 57.58

2731 HEFU888 Locking Plug,

Black Nylon Body

.595–1.150" 10–18 EA 44.32

2733 HEFW227 Locking

Connector,

Black Nylon Body

.595–1.150" 10–18 EA 93.45

2735 HEFS891 Locking

Flanged Inlet

——

EA 67.99

2736 HEGB966 Locking

Flanged Outlet

——

EA 78.15

All devices are UL Listed. Also CSA certified except where indicated by*

Locking Plugs and Connectors

30 Amp, 3Ø, 600V, 3-Pole, 4-Wire,

Grounding

• Industrial grade, NEMA L17-30R, L17-30P

• V-0-MAX™locking receptacles carry a UL

94 V-0 flammability rating, the best rating of

any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2740 HEGQ153 Single Flush

Receptacle*

——

EA $61.23

2740-IG HEJQ007 Single Flush

Receptacle,

Isolated Ground*

——

EA 66.50

2741 HEPP519 Locking Plug,

Black Nylon Body

.595–1.150" 10–18 EA 46.14

2743 HEMP402 Locking

Connector,

Black Nylon Body

.595–1.150" 10–18 EA 96.69

2745 HEMP800 Locking

Flanged Inlet

——

EA 68.17

2746 HEMQ443 Locking

Flanged Outlet

——

EA 78.15

All devices are UL Listed. Also CSA certified except where indicated by*

Locking Plugs and Connectors

30 Amp, 3ØY, 120/208V, 4-Pole, 4-Wire,

Non-Grounding

• Industrial grade, NEMA L18-30R, L18-30P

• V-0-MAX™locking receptacles carry a UL

94 V-0 flammability rating, the best rating of

any material used in industrial locking flush

receptacle available today

• Locking plugs and connectors feature

heavy-duty construction for top perform-

ance in the environmental extremes of gru-

eling

industrial settings

• Flanged inlets and outlets are built to endure hard use with rugged

nylon flanges that assure a smooth, flush fit and outstanding

resistance to cracking and breaking

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

2750 HEGQ154 Single Flush

Receptacle*

——

EA $79.18

2751 HEGQ137 Locking Plug,

Black Nylon

Body*

.595–1.150" 10–18 EA 58.81

2753 HEGQ139 Locking

Connector, Black

Nylon Body*

.595–1.150" 10–18 EA 124.34

2755 HEGQ117 Locking

Flanged Inlet*

——

EA 71.80

2756 HEJP143 Locking

Flanged Outlet*

——

EA 81.23

302-303.qxp 9/5/07 8:32 AM Page 302

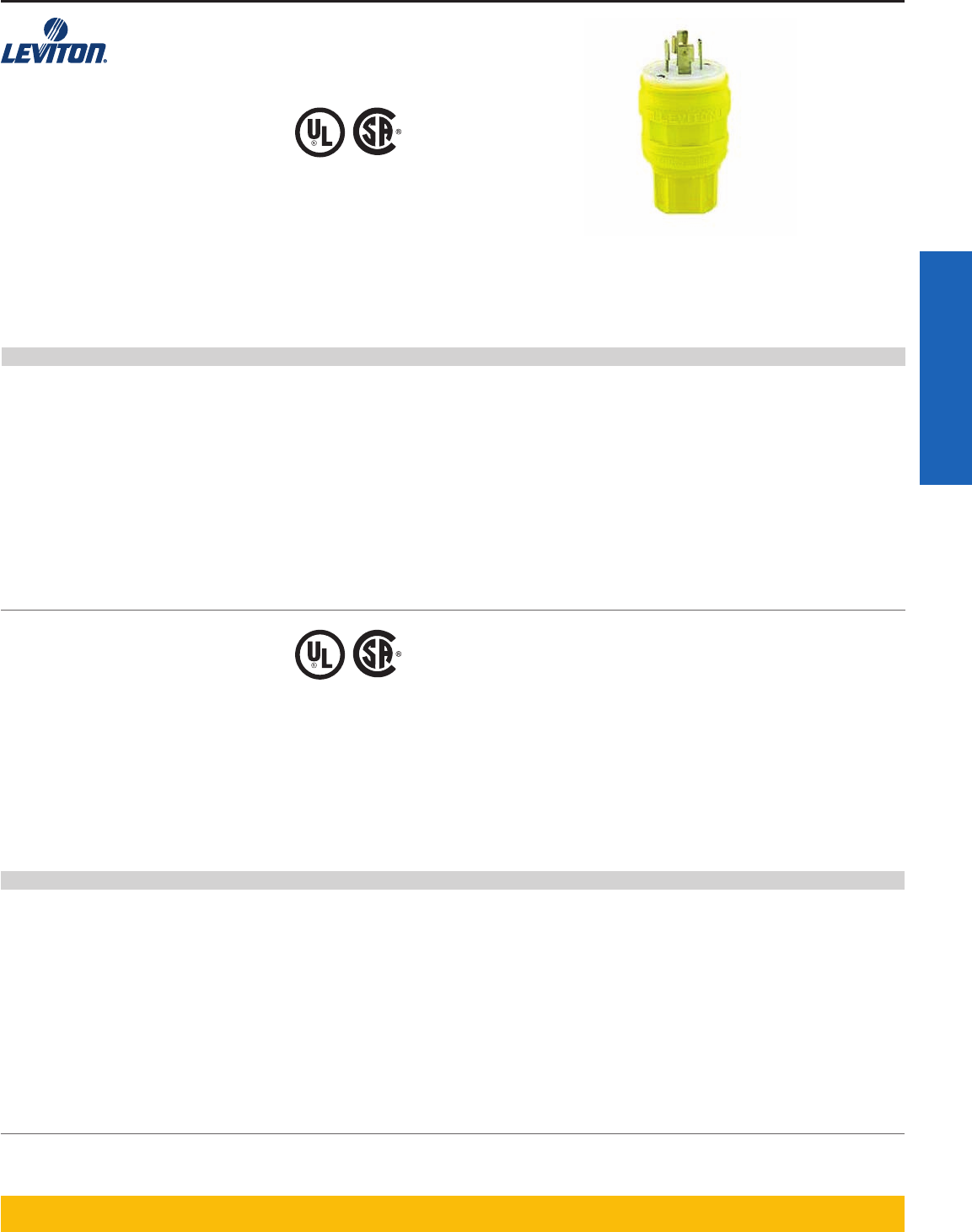

Leviton LOCKING DEVICES

hdsupply.com 303

Wiring Devices

Leviton®

Locking Plugs and Connectors

Wetguard™, Engineered to IP66 & IP67 Watertight Standards

• Industrial Grade

• IEC IP66 and IP 67 Rated, in accordance with IEC 529 as evaluated by UL and CSA

• NEMA Type 4, 4X, 6 and 6P Ratings in accordance with UL 50 and CSA 94

• Outstanding resistance to wet and damp environments, extreme temperature variations, acids, alkalis, grease, oils and solvents

• Effective "tongue and groove"construction seals out water, moisture, dirt when plugs are mated with connectors

• Innovative strain-relief grips cables securely, keeps out water and moisture

• Cord clamp range for 20A devices: 18/3–10/5 SO, ST, SJ (.375"–.870")

• Non-magnetic stainless steel fast-threading assembly screws won't interfere with sensitive equipment

• Connector "hood"closure cap seals device when not in use

Model No. Hughes No. Description Type NEMA Configuration Unit List Price

26W74 HEMN591 High-Visibility Yellow, 20A-125/250V 3-Pole, 4-Wire Plug L14-20P EA $52.27

26W75 HEMN595 High-Visibility Yellow, 20A-3Ø250V 3-Pole, 4-Wire Plug L15-20P EA 52.27

26W76 HEGT448 High-Visibility Yellow, 20A-3Ø480V 3-Pole, 4-Wire Plug L16-20P EA 51.70

26W81 HEMN611 High-Visibility Yellow, 20A-3ØY 120/208V 4-Pole, 5-Wire Plug L21-20P EA 65.87

26W81-B HEMN605 Black, 20A-3ØY 120/208V 4-Pole, 5-Wire Plug L21-20P EA 71.97

26W82 HEMN616 High-Visibility Yellow, 20A-3ØY 277/480V 4-Pole, 5-Wire Plug L22-20P EA 68.34

26W83 HEMN621 High-Visibility Yellow, 20A-3ØY 347/600V 4-Pole, 5-Wire Plug L23-20P EA 68.34

27W74 HEMN658 High-Visibility Yellow, 20A-125/250V 3-Pole, 4-Wire Connector L14-20R EA 68.93

27W75 HEMN664 High-Visibility Yellow, 20A-3Ø250V 3-Pole, 4-Wire Connector L15-20R EA 68.93

27W76 HEGT450 High-Visibility Yellow, 20A-3Ø480V 3-Pole, 4-Wire Connector L16-20R EA 68.20

27W81 HEMN678 High-Visibility Yellow, 20A-3ØY 120/208V 4-Pole, 5-Wire Connector L21-20R EA 105.13

27W81-B HEMN673 Black, 20A-3ØY 120/208V 4-Pole, 5-Wire Connector L21-20R EA 112.23

27W82 HEMN683 High-Visibility Yellow, 20A-3ØY 277/480V 4-Pole, 5-Wire Connector L22-20R EA 110.22

27W83 HEMN394 High-Visibility Yellow, 20A-3ØY 347/600V 4-Pole, 5-Wire Connector L23-20R EA 110.22

Locking Plugs and Connectors

Wetguard™, Engineered to IP66 & IP67 Watertight Standards

• Industrial Grade

• IEC IP66 and IP 67 Rated, in accordance with IEC 529 as evaluated by UL and CSA

• NEMA Type 4, 4X, 6 and 6P Ratings in accordance with UL 50 and CSA 94

• Outstanding resistance to wet and damp environments, extreme temperature variations, acids, alkalis, grease, oils and solvents

• Effective "tongue and groove"construction seals out water, moisture, dirt when plugs are mated with connectors

• Innovative strain-relief grips cables securely, keeps out water and moisture

• Cord clamp range for 15A devices: 18⁄3–10⁄3SO (.375"–.655"). For 20A devices: 18⁄3–10⁄5SO, ST, SJ (.375"–.870")

• Non-magnetic stainless steel fast threading assembly screws won't interfere with sensitive equipment

• Connector "hood"closure cap seals device when not in use

Model No. Hughes No. Description Type NEMA Configuration Unit List Price

24W47 HEGQ383 High-Visibility Yellow, 15A-125V 2-Pole, 3-Wire Plug L5-15P EA $18.58

24W49 HEGT444 High-Visibility Yellow, 15A-250V 2-Pole, 3-Wire Plug L6-15P EA 23.51

24W34 HEMN529 High-Visibility Yellow, 15A-277V 2-Pole, 3-Wire Plug L7-15P EA 28.91

26W47 HEGT447 High-Visibility Yellow, 20A-125V 2-Pole, 3-Wire Plug L5-20P EA 37.89

26W47-B HEMN566 Black, 20A-125V 2-Pole, 3-Wire Plug L5-20P EA 41.46

26W48 HEMN580 High-Visibility Yellow, 20A-250V 2-Pole, 3-Wire Plug L6-20P EA 37.89

26W49 HEMN585 High-Visibility Yellow, 20A-277V 2-Pole, 3-Wire Plug L7-20P EA 37.89

25W47 HEGQ382 High-Visibility Yellow, 15A-125V 2-Pole, 3-Wire Connector L5-15R EA 27.81

25W49 HEMN539 High-Visibility Yellow, 15A-250V 2-Pole, 3-Wire Connector L6-15R EA 37.38

25W34 HEMN536 High-Visibility Yellow, 15A-277V 2-Pole, 3-Wire Connector L7-15R EA 44.86

27W47 HEMN642 High-Visibility Yellow, 20A-125V 2-Pole, 3-Wire Connector L5-20R EA 56.58

27W47-B HEMN638 Black, 20A-125V 2-Pole, 3-Wire Connector L5-20R EA 61.86

27W48 HEMN647 High-Visibility Yellow, 20A-250V 2-Pole, 3-Wire Connector L6-20R EA 56.58

27W49 HEMN652 High-Visibility Yellow, 20A-277V 2-Pole, 3-Wire Connector L7-20R EA 56.58

302-303.qxp 9/5/07 8:32 AM Page 303

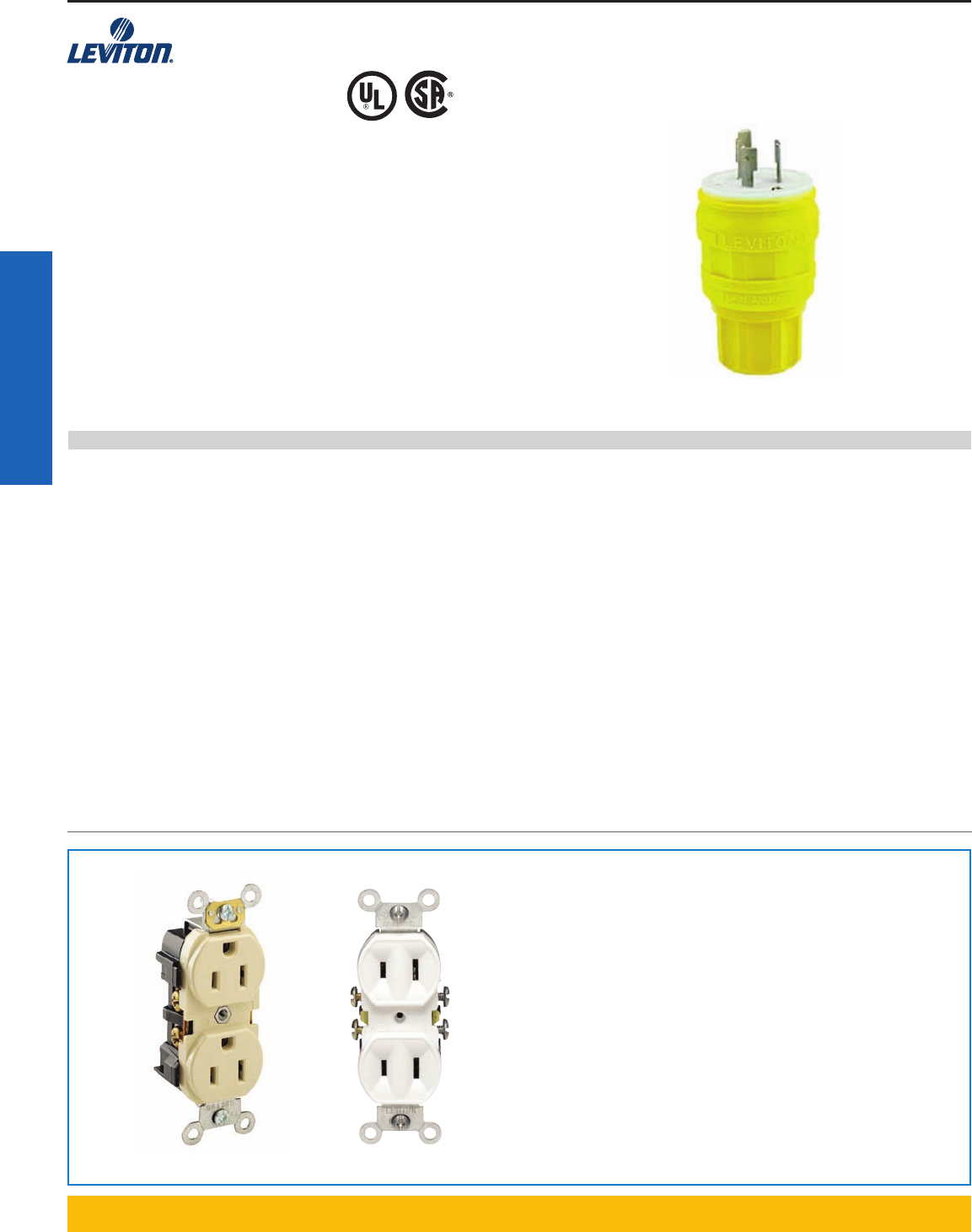

LOCKING DEVICES Leviton

304 hdsupply.com

Wiring Devices

Leviton®

Locking Devices

Wetguard™, Engineered to IP66 & IP67 Watertight Standards

• Industrial Grade

• IEC IP66 and IP 67 Rated, in accordance with IEC 529 as evaluated

by UL and CSA

• NEMA Type 4, 4X, 6 and 6P Ratings in accordance with UL 50 and

CSA 94

• Outstanding resistance to wet and damp environments, extreme

temperature variations, acids, alkalis, grease, oils and solvents

• Effective "tongue and groove"construction seals out water,

moisture, dirt when plugs are mated with connectors

• Innovative strain-relief grips cables securely, keeps out water and

moisture

• Cord clamp range for 30A devices: 12/3–8/5 SO, ST, SJ

(.625"–1.125")

• Non-magnetic stainless steel fast-threading assembly screws

won't interfere with sensitive equipment

• Connector "hood"closure cap seals device when not in use

Model No. Hughes No. Description Type NEMA Configuration Unit List Price

28W47 HEMN704 High-Visibility Yellow, 30A-125V 2-Pole, 3-Wire Plug L5-30P EA $50.35

28W47-B HEMN698 Black, 30A-125V 2-Pole, 3-Wire Plug L5-30P EA 55.02

28W48 HEMN708 High-Visibility Yellow, 30A-250V 2-Pole, 3-Wire Plug L6-30P EA 50.35

28W49 HEMN715 High-Visibility Yellow, 30A-277V 2-Pole, 3-Wire Plug L7-30P EA 50.35

28W74 HEMN719 High-Visibility Yellow, 30A-125/250V 3-Pole, 4-Wire Plug L14-30P EA 64.06

28W75 HEGT452 High-Visibility Yellow, 30A-3Ø250V 3-Pole, 4-Wire Plug L15-30P EA 64.16

28W76 HEGT453 High-Visibility Yellow, 30A-3Ø480V 3-Pole, 4-Wire Plug L16-30P EA 63.36

28W77 HEMN730 High-Visibility Yellow, 30A-3Ø600V 3-Pole, 4-Wire Plug L17-30P EA 67.03

28W81 HEMN735 High-Visibility Yellow, 30A-3ØY 120/208V 4-Pole, 5-Wire Plug L21-30P EA 74.11

28W82 HEMN739 High-Visibility Yellow, 30A-3ØY 277/480V 4-Pole, 5-Wire Plug L22-30P EA 76.98

28W83 HEMN744 High-Visibility Yellow, 30A-3ØY 347/600V 4-Pole, 5-Wire Plug L23-30P EA 80.02

29W47 HEMN402 High-Visibility Yellow, 30A-125V 2-Pole, 3-Wire Connector L5-30R EA 88.24

29W47-B HEMN756 Black, 30A-125V 2-Pole, 3-Wire Connector L5-30R EA 96.43

29W48 HEMN762 High-Visibility Yellow, 30A-250V 2-Pole, 3-Wire Connector L6-30R EA 88.24

29W49 HEMN767 High-Visibility Yellow, 30A-277V 2-Pole, 3-Wire Connector L7-30R EA 88.24

29W74 HEMN773 High-Visibility Yellow, 30A-125/250V 3-Pole, 4-Wire Connector L14-30R EA 109.93

29W75 HEMN778 High-Visibility Yellow, 30A-3Ø250V 3-Pole, 4-Wire Connector L15-30R EA 109.93

29W76 HEGT455 High-Visibility Yellow, 30A-3Ø480V 3-Pole, 4-Wire Connector L16-30R EA 108.11

29W77 HEMN786 High-Visibility Yellow, 30A-3Ø600V 3-Pole, 4-Wire Connector L17-30R EA 117.17

29W81 HEMN792 High-Visibility Yellow, 30A-3ØY 120/208V 4-Pole, 5-Wire Connector L21-30R EA 114.15

29W82 HEMN797 High-Visibility Yellow, 30A-3ØY 277/480V 4-Pole, 5-Wire Connector L22-30R EA 126.63

29W83 HATL850 High-Visibility Yellow, 30A-3ØY 347/600V 4-Pole, 5-Wire Connector L23-30R EA 140.56

See page 266-267 for

Power Outlet Receptacles

304-305.qxp 9/5/07 8:32 AM Page 304

Leviton LOCKING DEVICES

hdsupply.com 305

Wiring Devices

Leviton®

Weather-Resistant Boots

Industrial Grade

†Effictive July 1, 1981, rating of non-grounding versions was changed from 30A-250V to

comply with UL requirements. Add (-G) for grounding devices: (-G) devices are rated

30A-250V and are no longer UL Listed —for replacement use only.

All devices are UL listed. Also CSA certified except where indicated by*

Locking Devices

Industrial Grade Non-NEMA Locking Devices

• 30 Amp

• 125V/250

• 3-Pole 3-Wire

• Non-Grounding

• Locking receptacles feature a complete range of ratings and

Non-NEMA configurations, including isolated ground and

non-grounding

• Locking plugs and connectors feature heavy-duty construction

for top performance in the environmental extremes of grueling

industrial settings

• Flanged iInlets and outlets are built to endure hard use with

rugged nylon flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

Model No. Hughes No. Description Unit List Price

15 Amp Industrial Locking Plugs and Connectors

6017-L HBYW174 Locking Plug Boot, Black Thermoplastic Elastomer EA $10.56

6017-LY HBYW175 Locking Plug Boot, High-Visibility Yellow Thermoplastic Elastomer EA 10.56

6018-L HBYW177 Locking Connector Boot, Black Thermoplastic Elastomer EA 11.72

6018-LY HBYW178 Locking Connector Boot, High Visibility Yellow Thermoplastic Elastomer EA 11.72

For 3-Wire 20 Amp & 30 Amp Industrial Locking Plugs and Connectors

6031 HAYQ045 3-wire Locking Thermoplastic Elastomer Plug Boot, Black EA 15.26

6031-Y HBYW190 3-wire Locking Thermoplastic Elastomer Plug Boot, High Visibility Yellow EA 15.26

6032 HAYR084 3-wire Locking Thermoplastic Elastomer Connector Boot, Black EA 17.11

6032-Y HBYW191 3-wire Locking Thermoplastic Elastomer Connector Boot, High Visibility Yellow EA 17.11

For 4 and 5-Wire 20 Amp & 30 Amp Industrial Locking Plugs and Connectors

6033 HAYR611 4 & 5-wire Locking Thermoplastic Elastomer Plug Boot, black EA 18.95

6033-Y HBYW306 4 & 5-wire Locking Thermoplastic Elastomer Plug Boot, High Visibility Yellow EA 18.95

6034 HAYS284 4 & 5-wire Locking Thermoplastic Elastomer Connector Boot, black EA 21.54

6034-Y HBYW307 4 & 5-wire Locking Thermoplastic Elastomer Connector Boot, High Visibility Yellow EA 21.54

Model No. Hughes No. Description Cord Diameter (in) Wire Gauge Rating Unit List Price

3330 HEFV398 Single Flush Receptacle* ——Non-NEMA†EA $51.63

3331-C HEFV035 Locking Plug* .385–.860" 10–18 Non-NEMA†EA 32.64

3333-000 HHBR657 Locking Connector* .385–.860" 10–18 Non-NEMA†EA Call

3334-C HEJQ533 Locking Flanged Inlet* ——Non-NEMA†EA 42.99

3335-C HEJQ586 Locking Flanged Outlet* ——Non-NEMA†EA 61.74

304-305.qxp 9/5/07 8:32 AM Page 305

LOCKING DEVICES Leviton

306 hdsupply.com

Wiring Devices

‡Effictive July 1, rating for non-grounding versions was changed from 30A-250V AC/DC, 30A-600V AC to comply with UL requirements. Add (-G) for grounding devices: (-G) devices are rated

30A-250V AC/DC, 30A-600V AC and are no longer UL Listed —for replacement use only.

All devices are UL listed.

Leviton®

Locking Devices

Industrial Grade Non-NEMA Locking Devices

• 30 AMP

•3ØY

• 120V/208V

• 4-Pole 4-Wire

• Non-Grounding

• Locking Receptacles feature a complete range of ratings and

Non-NEMA configurations, including isolated ground and

non-grounding

• Locking Plugs and Connectors feature heavy-duty construction for

top performance in the environmental extremes of grueling

industrial settings

• Flanged Inlets and Outlets are built to endure hard use with

rugged nylon flanges that assure a smooth, flush fit and

outstanding resistance to cracking and breaking

Model No. Hughes No. Description Cord Diameter (in) Wire Gauge Rating Unit List Price

3430 HEFV401 Single Flush Receptacle ——Non-NEMA‡EA $67.58

3431-C HEGY520 Locking Plug .595–.1.150" 10–18 Non-NEMA‡EA 44.18

3433-C HEGY523 Locking Connector .595–.1.150" 10–18 Non-NEMA‡EA 97.03

3434-C HEJQ538 Locking Flanged Inlet ——Non-NEMA‡EA 68.12

3435-C HEJQ543 Locking Flanged Outlet ——Non-NEMA‡EA 74.55

**Uses stainless steel wallplate, Cat. No. 84020-40

All devices are UL Listed.

*Grounding (-G) version not available. For grounding connector, use Cat. No. 7555-G.

Locking Devices

Industrial Grade, Non-NEMA

• 15 Amp

• 125V/10A-250

• 3-Pole 3-Wire

• Non-grounding

Model No. Hughes No. Description Cord Diameter (in) Wire Gauge Unit List Price

7582** HEJR430 Single Flush Receptacle ——EA $26.24

7567-C* HEGQ243 Locking Plug .245–.700"10–18 EA 18.49

7565-C* HEGQ242 Locking Connector .245–.700"10–18 EA 30.26

7556 HEJQ353 Locking Flanged Inlet ——EA 26.97

7557 HEGQ241 Locking Flanged Outlet ——EA 25.33

306-307.qxp 9/5/07 8:32 AM Page 306

Leviton LOCKING DEVICES

hdsupply.com 307

Wiring Devices

All devices are UL Listed. Also CSA certified except where indicated by*.

◊Uses stainless steel wallplate, Cat. No. 84020-40

Leviton®

Locking Devices

Industrial Grade, Non-NEMA

• 20 Amp

• 250V AC/DC

• 10 Amp 600V AC

• 4-Pole 5-Wire Grounding

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

3520◊HEGQ256 Single Flush

Receptacle*

——

EA $48.95

3521-C HEGQ266 Locking Plug,

Black Nylon Body*

.595–.895" 10–18 EA 43.93

3523-C HEJR651 Locking Connector,

Black Nylon Body*

.595–.895" 10–18 EA 75.82

3524-C HGZO335 Locking

Flanged Inlet*

——

EA Call

3525-C HEJR810 Locking

Flanged Outlet*

——

EA 156.31

All devices are UL Listed. Also CSA certified except where indicated by*

◊Uses stainless steel wallplate, Cat. No. 84020-40. For additional wallplate selections, con-

tact your Hughes Supply representative.

Locking Devices

Industrial Grade, Non-NEMA

• 20 Amp

• 125V/250V

• 3-Pole 3-Wire

• Non-Grounding

Model

No.

Hughes

No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

7310-B◊HEFV405 Single Flush

Receptacle*

——

EA $36.86

9965-C HEFV475 Locking Plug* .385–.780" 10–18 EA 24.11

7314-C HEFV479 Locking

Connector*

.385–.780" 10–18 EA 37.03

3325-C HEGE221 Locking

Flanged Inlet*

——

EA 29.52

3326-C HEJR834 Locking

Flanged Outlet*

——

EA 50.95

All devices are UL Listed. Also CSA certified except where indicated by*

◊Uses stainless steel wallplate, Cat. No. 84020-40.

Locking Devices

Industrial Grade, Non-NEMA

• 20 Amp

•3ØY

• 120V/208V

• 4-Pole 4-Wire

• Non-Grounding

Model No. Hughes No. Description

Cord

Diameter

(in)

Wire

Gauge Unit List Price

7410-B◊HEFV409 Single Flush

Receptacle*

——

EA $44.10

7411-C HEFU898 Locking Plug* .595–.895" 10–18 EA 32.71

7413-C HEFV032 Locking

Connector*

.595–.895" 10–18 EA 42.97

7408-C HEGQ267 Locking

Flanged Inlet*

——

EA 56.33

7409-C HEJR847 Locking

Flanged Outlet*

——

EA 70.59

1600 Piece Phillips Pan Head

Screw Assortment, PV35547

• 100 of each of the following: 4 x 1/2", 4 x 1", 6 x 5/8", 6 x 3/4",

6 x 1", 6 x 1-1/4", 8 x 1/2", 8 x 5/8", 8 x 3/4", 8 x 1", 8 x 1-1/4", 10

x 5/8", 10 x 3/4", 10 x 1", 10 x 1-1/4", 10 x 1-1/2"

306-307.qxp 9/5/07 8:33 AM Page 307

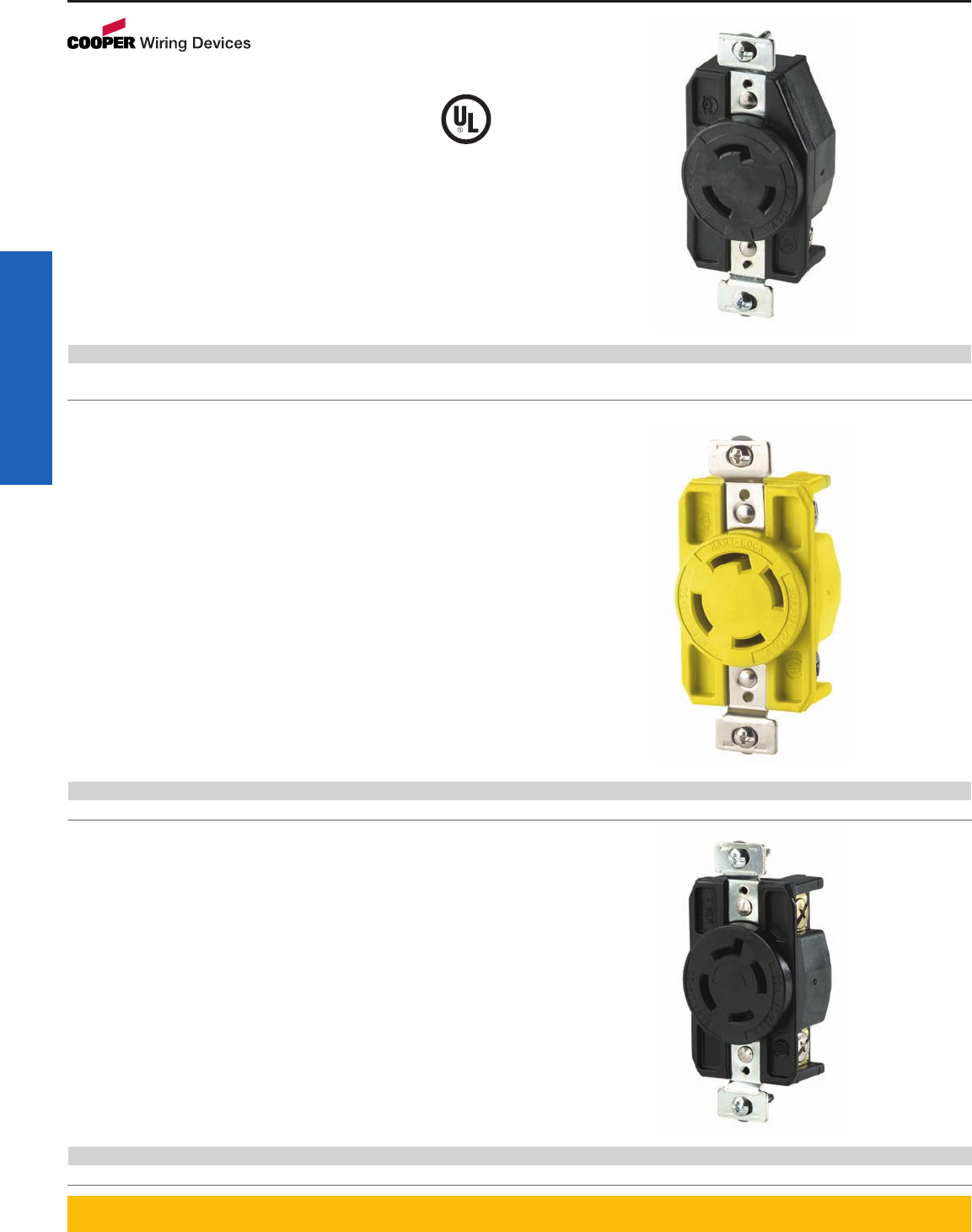

LOCKING DEVICES Cooper Wiring Devices

308 hdsupply.com

Wiring Devices

UL Listed to Federal Spec. WC-596

Cooper Wiring Devices

Locking Devices

2-Pole, 3-Wire, Grounding Industrial Specification Grade

• Rugged fiberglass reinforced nylon body.

• Clearly marked rating, NEMA configuration and approval listings

on receptacle face.

• One piece brass contacts offer superior performance and minimum

heat rise.

• Back wire terminal clamps for easy secure wiring.

• Combination head screws standard - slot/Phillips in the U.S.

• Add -C to catalog number for Canadian screws - slot/Robertson

head combination.

• Safety ground clip provided for fast installation.

Model No. Hughes No. Current Rating (Amps) Voltage (AC) NEMA Configuration Description Color Unit List Price

CWL520R HDHZ169 20 125 L5-20 Standard Black EA $18.24

CWL620R HDHZ272 20 250 L6-20 Standard Black EA 18.39

Locking Devices

3-Pole, 4-Wire, Grounding Industrial Specification Grade

Locking Receptacles

• Rugged fiberglass reinforced nylon body.

• Clearly marked rating, NEMA configuration and approval listings

on receptacle face.

• One piece brass contacts offer superior performance and minimum

heat rise.

• Back wire terminal clamps for easy secure wiring.

• Combination head screws standard - slot/Phillips in the U.S.

• Add -C to catalog number for Canadian screws - slot/Robertson

head combination.

• Safety ground clip provided for fast installation.

Model No. Hughes No. Current Rating (Amps) Voltage (AC) NEMA Configuration Description Color Unit List Price

CRL1430R HDHZ078 30 125/250 L14-30 Corrosion Resistant Yellow EA $60.53

Locking Devices

20A 3 Pole, 4 Wire Grounding Industrial Specification Grade

Locking Receptacles

• Rugged fiberglass reinforced nylon body.

• Clearly marked rating, NEMA configuration and approval listings

on receptacle face.

• One piece brass contacts offer superior performance and minimum

heat rise.

• Back wire terminal clamps for easy secure wiring.

• Combination head screws standard - slot/Phillips in the U.S.

• Add -C to catalog number for Canadian screws - slot/Robertson

head combination.

• Safety ground clip provided for fast installation.

Model No. Hughes No. Current Rating (Amps) Voltage (AC) NEMA Configuration Description Color Unit List Price

CWL1420R HDHZ139 20 125/250 L14-20 Standard Black EA $25.90

308-309.qxp 9/5/07 8:33 AM Page 308

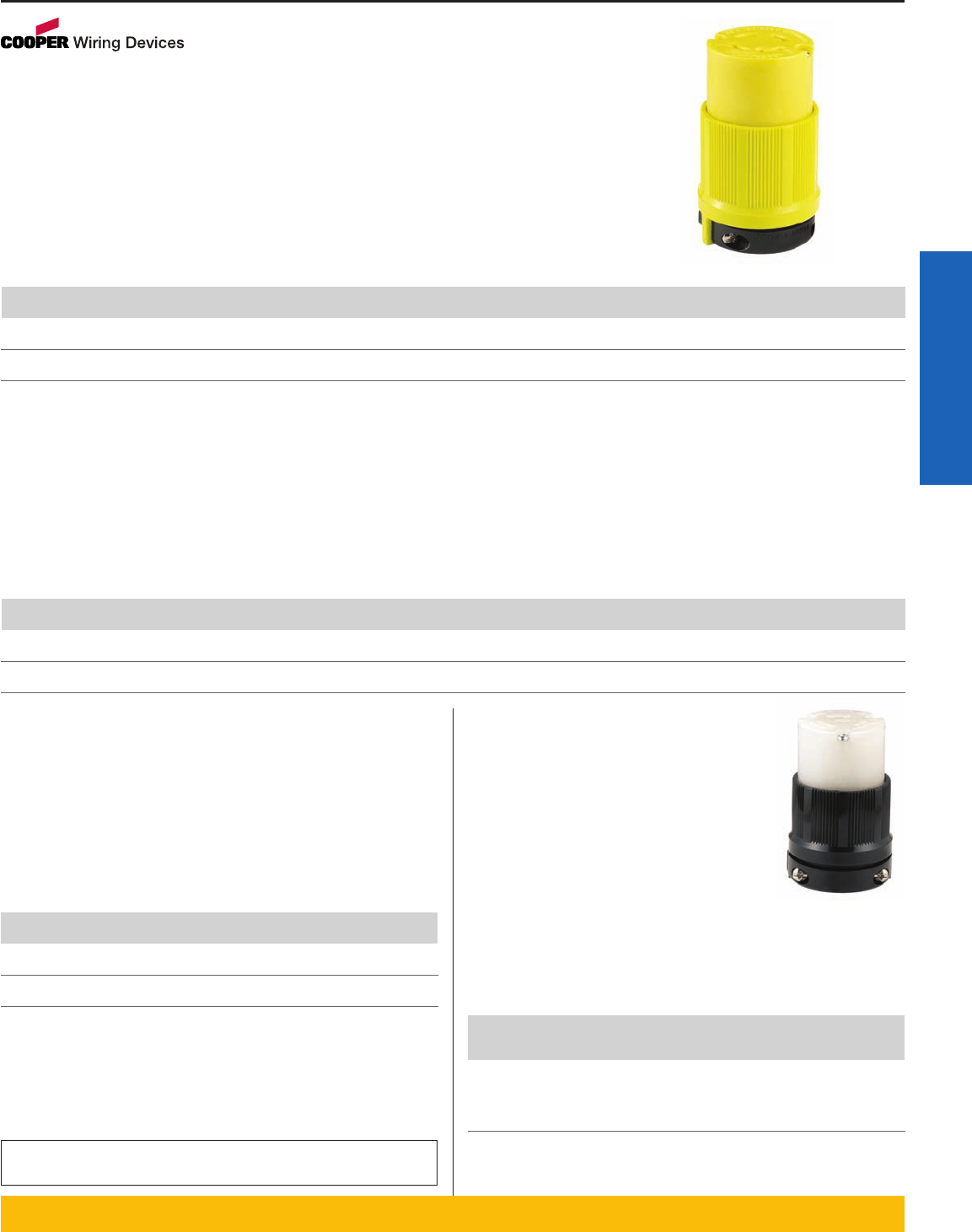

Cooper Wiring Devices LOCKING DEVICES

hdsupply.com 309

Wiring Devices

Cooper Wiring Devices

Locking Devices

30A 2 Pole, 3 Wire Grounding Industrial Specification Grade Plugs and Connectors

• Back wire Dead-Front design.

• Neoprene gasket seals cord hole from dust and debris.

• Inserts included for three separate cord grip ranges.

• Back wire terminal clamps for easy secure wiring.

• Individual wiring compartments with tapered channel for easy insertion of wires.

• Clear cover over wiring compartments allow easy inspection of wiring terminations.

• Combination head screws standard - slot/Philips in the U.S.

• Add -C to catalog number for Canadian screws - slot/Robertson head combination.

Model No. Hughes No.

Current

Rating (Amps)

Voltage

(AC)

NEMA

Configuration Cord Diameter Range (in.) Color Description Unit List Price

CRL630P HDHZ096 30 250 L6-30 Corrosion Resistant:

0.38"–1.00" (9.5mm–25.4mm)

Yellow Plug EA $33.37

CRL630C HDHZ095 30 250 L6-30 Corrosion Resistant:

0.38"–1.00" (9.5mm–25.4mm)

Yellow Connector EA 55.55

Locking Devices

30A 3 Pole, 4 Wire Grounding Industrial Specification Grade Plugs and Connectors

• Nylon construction.

• Back wire Dead-Front design.

• Neoprene gasket seals cord hole from dust and debris.

• Inserts included for three separate cord grip ranges.

• Back wire terminal clamps for easy secure wiring.

• Individual wiring compartments with tapered channel for easy insertion of wires.

• Clear cover over wiring compartments allow easy inspection of wiring terminations.

• Combination head screws standard - slot/Phillips in the U.S.

• Add -C to catalog number for Canadian screws - slot/Robertson head combination.

Model No. Hughes No.

Current

Rating (Amps)

Voltage

(AC)

NEMA

Configuration Cord Diameter Range (in.) Color Description Unit List Price

CWL1430P HDHZ143 30 125/250 L14-30 Standard: 0.63"–1.16"

(15.9mm–29.4mm)

Black & White Plug EA $30.19

CWL1430C HDHZ140 30 125/250 L14-30 Standard: 0.63"–1.16"

(15.9mm–29.4mm)

Black & White Connector EA 62.68

Locking Plugs and Connectors

Industrial Grade

3 Pole, 4 Wire Grounding NEMA L14-20, 20A 125/250V

• Back wire Dead-Front design.

• Neoprene gasket seals cord hole from dust and debris.

• Inserts included for three separate cord grip ranges.

• Back wire terminal clamps for easy secure wiring.

• Individual wiring compartments with tapered channel for easy

insertion of wires.

• Clear cover over wiring compartments allow easy inspection of

wiring terminations.

Model No. Hughes No.

Cord

Diameter (in) Color Type Unit List Price

CWL1420P HDHZ137 0.38" –1.00" Black &

White

Plug EA $22.07

CWL1420C HDHZ133 0.38" –1.00" Black &

White

Connector EA 30.96

Locking Plugs and Connectors

Industrial Grade

• All nylon construction.

• Back wire Dead-Front design.

• Neoprene gasket seals cord hole from dust

and debris.

• Inserts included for three separate cord grip

ranges.

• Back wire terminal clamps for easy secure

wiring.

• Individual wiring compartments with tapered channel for easy

insertion of wires.

• Clear cover over wiring compartments allow easy inspection of

wiring terminations.

• Combination head screws standard –slot/Phillips in the U.S.

Model No. Hughes No.

NEMA

Configuration Type

Current

Rating

(Amps) List Price

CWL520P HDHZ168 NEMA L5-20 Plug 15A 125V/AC $14.56

CWL520C HDHZ255 NEMA L5-20 Connector 15A 125V/AC 22.68

CWL620P HDHZ271 NEMA L6-20 Plug 20A 250V/AC 14.56

CWL620C HDHZ268 NEMA L6-20 Connector 20A 250V/AC 22.68

Some products not available at all locations. Check with

your local HD Supply representative for product availability.

308-309.qxp 9/5/07 8:33 AM Page 309

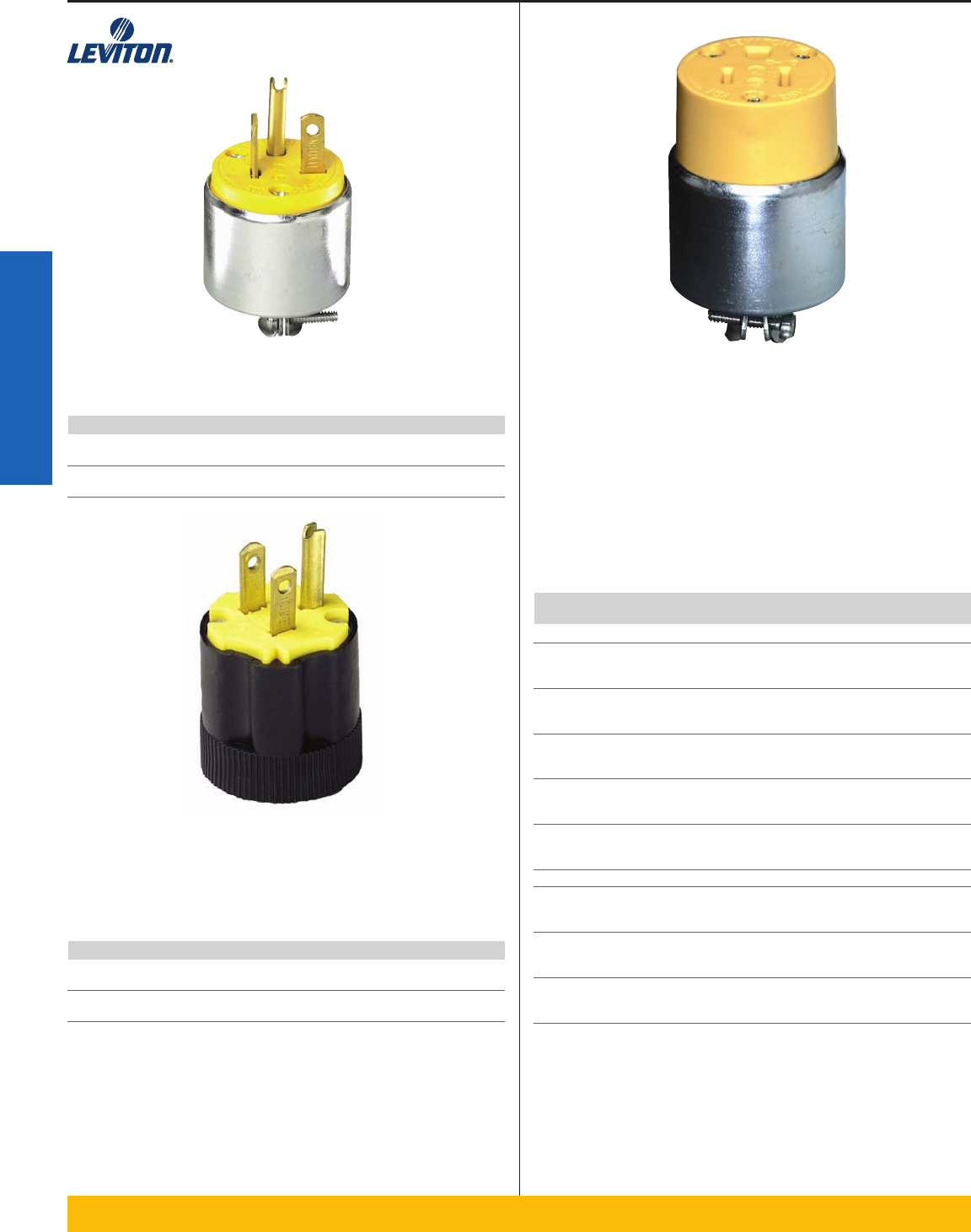

PLUGS & CONNECTORS Leviton

310 hdsupply.com

Wiring Devices

Plugs and Connectors

Residential Grade

15 Amp 125V 2-Pole, 3-Wire Grounding

• Color: Black

• Wire Gauge: 18-14

• Cord Diameter: .396-.562 inches

Model No. Hughes No. Description Unit List Price

113 HEFW783 Rubber Plug w/Vinyl

Inner Assembly

EA $5.28

114 HEFR307 Rubber Connector

mates w/No. 113 above

EA 9.69

15 Amp Plugs, Angle Plugs, Armored

Plugs and Connectors

Commercial Grade

• Triple-drive head screws —Standard, Philips, Robertson

• NEMA configuration number & rating molded on face of device for

easy identification

• Rubber body is dirt and moisture resistant

• Deep-slotted, backed out terminal screws draw backwire clamps

securely for maximum conductivity

• Husk & module keyed for easy alignment during wiring

• Built-in cord grip adjusts automatically for use with No. 18-3

through No. 12-3 cords

Model No. Hughes No. Color

Cord Diameter

Range (in.) Wire Gauge Unit List Price

15 Amp 125V 2-Pole 3-Wire Grounding

515PV HEGQ347 Yellow .245–.655" No. 18-3

through No.

12-3 cords

EA $5.19

515PA HEGA274 Yellow

Steel

Armor

.245–.655" No. 18-3

through No.

12-3 cords

EA 5.51

515PR HEGT335 Black .245–.655" No. 18-3

through No.

12-3 cords

EA 5.43

515CA HEGQ349 Yellow

Steel

Armor

.245–.655" No. 18-3

through No.

12-3 cords

EA 11.94

515CR HEFW827 Black .245–.655" No. 18-3

through No.

12-3 cords

EA 10.00

15 Amp 250V 2-Pole 3-Wire Grounding

615PV HEGQ353 Yellow .245–.655" No. 18-3

through No.

12-3 cords

EA 8.27

615PA HEGQ354 Yellow

Steel

Armor

.245–.655" No. 18-3

through No.

12-3 cords

EA 7.30

615CA HEJT460 Yellow

Steel

Armor

.245–.655" No. 18-3

through No.

12-3 cords

EA 18.53

Leviton®

Grounding Plugs

• NEMA 6-20R, 6-20P

• 20 Amp, 250V, 2-pole, 3-Wire Grounding

Model No. Hughes No. Color Description Unit List Price

620PV HEGQ355 Yellow PVC grounding

plug

EA $8.18

620PA HEGQ357 Yellow/Steel

Armor

Armored

grounding plug

EA 9.38

310-311.qxp 9/5/07 8:33 AM Page 310

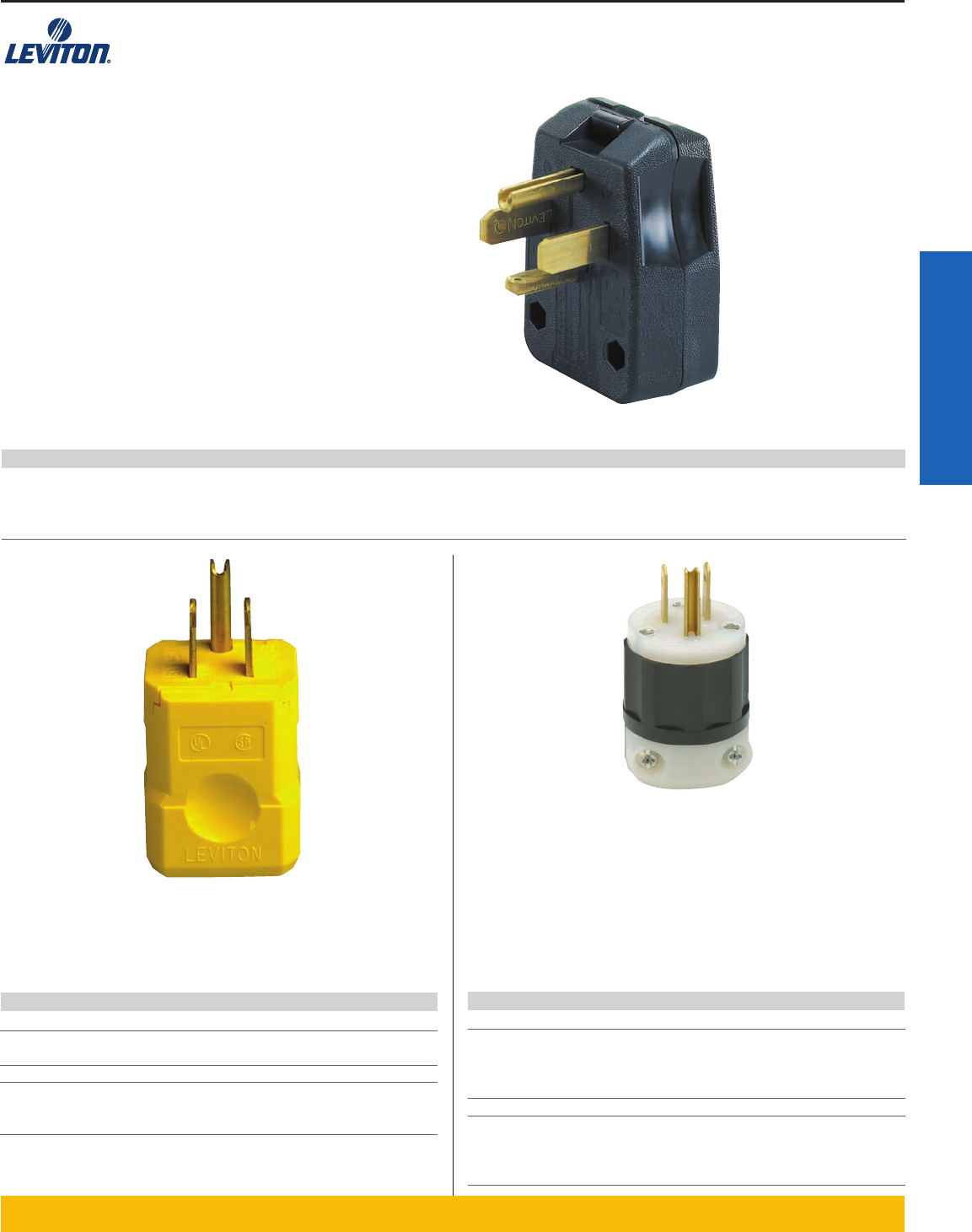

Leviton PLUGS & CONNECTORS

hdsupply.com 311

Wiring Devices

Leviton®

Dual Power Attachment Plugs

Commercial Grade. 30 Amp/50 Amp

• Tough thermoplastic shell for long life

• Shell and bottom are hinged in front for ease of assembly

• Solid brass blades with color-coded terminals simplify wiring

• Each dual combination plug supplied with 30A blades and flat 50A

blade

• Dead front right angle construction

• Interchangeable blades eliminate need for stocking different

devices

• Built-in rejection feature prevents closure if blades are incorrectly

positioned

• Versatile cord clamp suitable for use with Nos. 14, 12, 10, 8 and 6

AWG round cord and Nos. 10/3 SRDT, 8/2-10/1 SRDT and 6/2-8/1

flat wire

• Wiring stripping gauge molded into plug cover

Straight Blade Plugs and Connectors

Industrial Grade

Python™Plugs and Connectors Feature a Hinged Design for Fast, Easy

Installation and Assembly

15 Amp 125V 2-Pole, 3-Wire Grounding

Plugs and Connectors

Industrial Grade Straight Blade

15 Amp 125V 2-Pole, 3-Wire Grounding

Rugged construction resists impact, sunlight, chemicals and rough use

All contacts are solid one-piece brass for better conductivity

Triple-wipe, heavy-duty power contacts set in deep pockets to resist

damage

Captive, color-coded brass #8 terminal screws

Unique cord clamp accepts wide range of cable sizes, grips securely

without tearing cord jackets: 10-3ST–18-3SVT (.245"–.700" OD)

Model No. Hughes No. Unit List Price

Plugs

5256-VB HEFS080 EA $8.84

5256-VY HEGD670 EA 8.32

Connectors

5259-VB HEFS085 EA 17.58

5259-VY HEGD690 EA 16.53

5259-VG HGZO345 EA Call

Model No. Hughes No. Description Unit List Price

Plug

5266-C HEFW946 Black Nylon Body EA $12.36

5266-CY HEGQ073 High-Visibility Yellow Nylon Body EA 13.09

5266-CA HEFX169 Angle, Black Nylon Body EA 15.95

5266-N HEGG365 Black 2-Piece Nylon Shell EA 12.32

Connector

5269-C HEFW951 Black Nylon Body EA 22.40

5269-CY HEGD237 High-Visibility Yellow Nylon Body EA 23.83

5269-CA HEGQ074 Angle, Black Nylon Body EA 40.15

5269-N HEGB479 Black 2-Piece Nylon Shell EA 21.59

Model No. Hughes No. Rating Color Cord Diameter Range (in.) Wire Gauge Unit List Price

930 HEGG360 30 Amp 125V/50 Amp 125V Grounding Black .630–1.050" 6 max. EA $42.13

931 HEPP393 30 Amp 250V/50 Amp 250V Grounding Black .630–1.050" 6 max. EA 36.17

287-T HEFQ519 30 Amp 125/250V/50 Amp 125/250V Non-Grounding Black .687–1.050" 6 max. EA 17.78

275-T HAEA288 30 Amp 125/250V/50 Amp 125/250V Grounding Black .750–1.125" 6 max. EA 27.94

310-311.qxp 9/5/07 8:33 AM Page 311

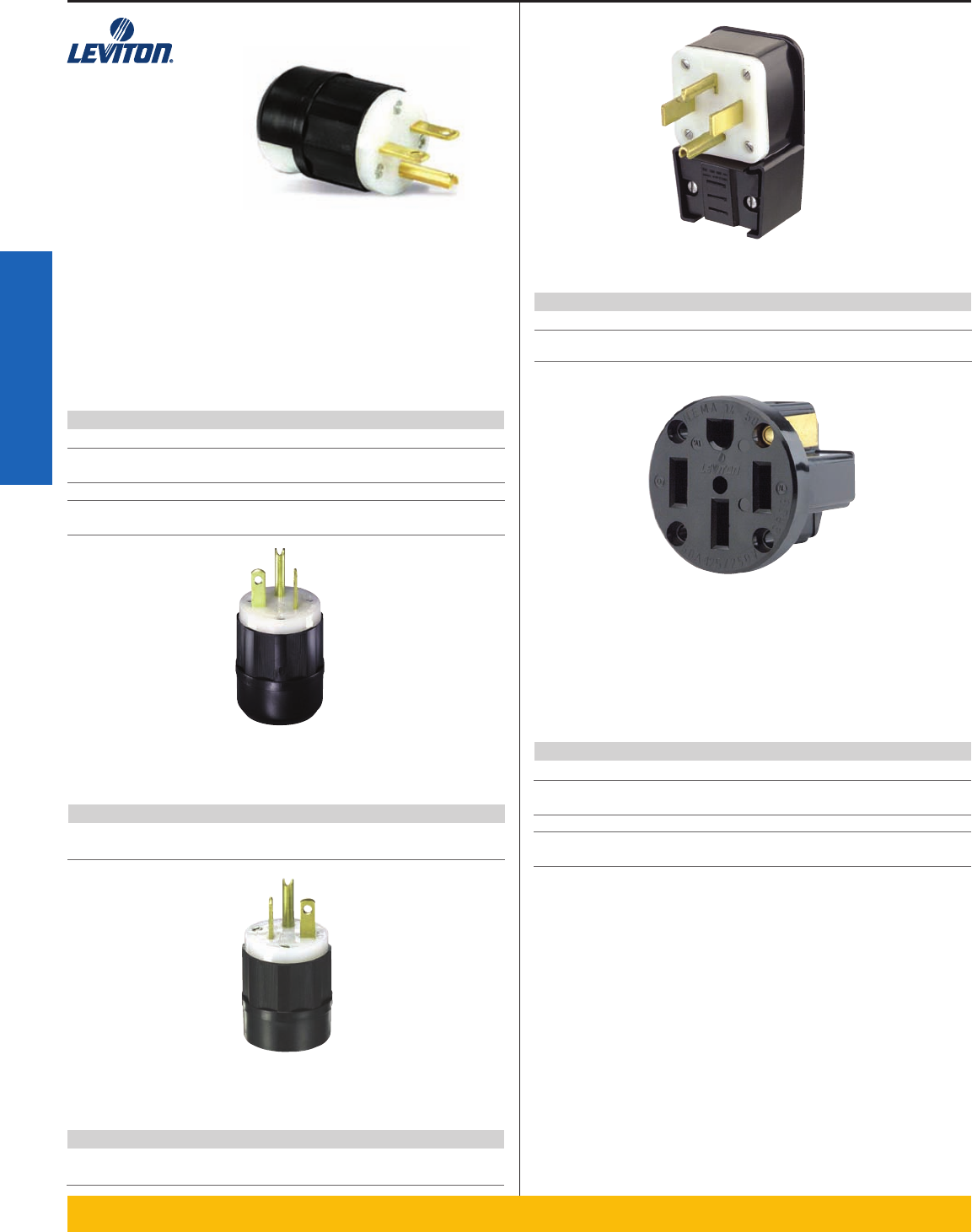

PLUGS & CONNECTORS Leviton

312 hdsupply.com

Wiring Devices

Leviton®

Plugs and Connectors

Industrial Grade Straight Blade

15 Amp 250V 2-Pole, 3-Wire Grounding

Rugged construction resists impact, sunlight, chemicals and rough use

All contacts are solid one-piece brass for better conductivity

Triple-wipe, heavy-duty power contacts set in deep pockets to resist

damage

Captive, color-coded brass #8 terminal screws

Unique cord clamp accepts wide range of cable sizes, grips securely

without tearing cord jackets: 10-3ST–18-3SVT (.245"–.700" OD)

Plugs and Connectors

Industrial Grade

20 Amp 125V 2-Pole, 3-Wire Grounding

Model No. Hughes No. Description Type Unit List Price

5366-C HEFV362 Black Nylon Body Plug EA $17.00

5369-C HEFV365 Black Nylon Body Connector EA 29.40

Plugs and Connectors

Industrial Grade

20 Amp 250V 2-Pole, 3-Wire Grounding

Model No. Hughes No. Description Type Unit List Price

5466-C HEFV377 Black Nylon Body Plug EA $19.54

5469-C HEFV496 Black Nylon Body Connector EA 32.02

Nylon Angle Plugs

Industrial Grade, 30 Amp

Model No. Hughes No. Type Unit List Price

9630-P HEGQ158 250V 2-Pole 3-Wire Grounding EA $57.45

9432-P HEDZ622 125/250V 3-Pole

4-Wire Grounding

EA 72.76

Angle Plugs

Industrial Grade, 50 Amp Nylon

• Rugged cord clamps for secure cable grip that accommodate cord

diameters from 5⁄8" to 1-3⁄8" and do not tear conductor jacket

• Made of tough, heavy-duty nylon for long service life

• Devices feature heavy-sectioned dead-front right-angle

• Pressure-clamp terminal design

• Terminals accept up to #4AWG stranded conductors

• Four-way positioning front module

• Solid brass blades for maximum conductivity

Model No. Hughes No. Description Unit List Price

Plugs

5666-C HEGW421 Black Nylon Body EA $15.44

5666-CY HEJO109 High-Visibility Yellow Nylon Body EA 16.15

Connectors

5669-C HEFV373 Black Nylon Body EA 27.78

5669-CY HEJO121 High-Visibility Yellow Nylon Body EA 29.13

Model No. Hughes No. Description Unit List Price

50 Amp 250V 2-Pole 3-Wire Grounding

9650-P HEFU893 Matching Receptacle EA $62.94

5374 HEFV241 Matching Receptacle EA 19.64

50 Amp 125/250V 3-Pole 4-Wire Grounding

9452-P HEGA706 Matching Receptacle EA 87.96

279 HEFV501 Matching Receptacle EA 42.57

312-313.qxp 9/5/07 8:34 AM Page 312

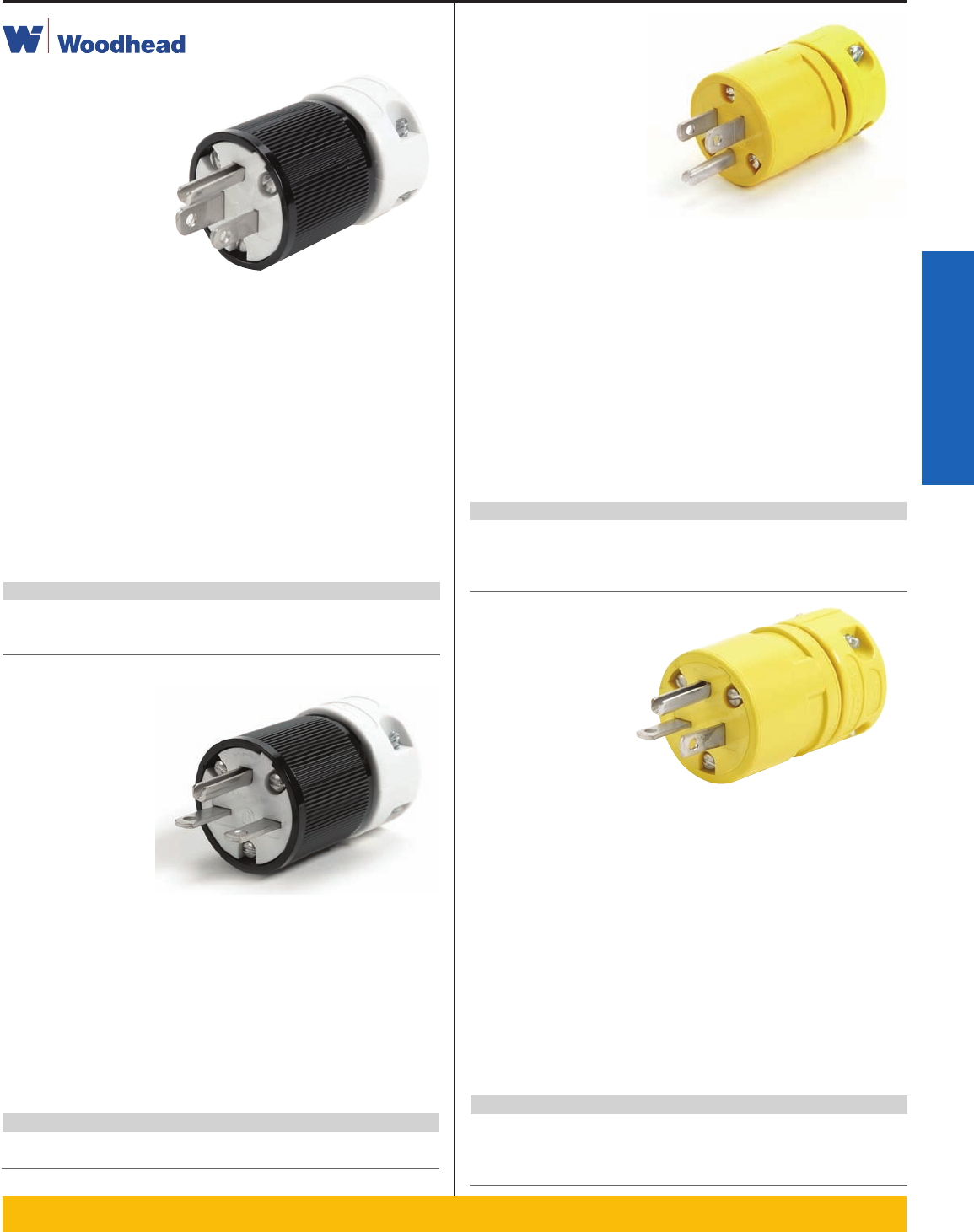

Woodhead PLUGS & CONNECTORS

hdsupply.com 313

Wiring Devices

For devices in yellow, add "YL"to the Woodhead part number.

Woodhead

Plugs and Connectors

Safeway®Rubberized Nylon 15 Amp –2-Pole, 3-Wire

Designed for rugged industrial and commercial use, Super-Safeway®

devices share some of the advanced design features of their Watertite®

counterparts. Their durable rubber housing resists heat, oil, impact, and

chemicals. A patented self-centering cord clamp provides superior

strain-relief for a range of cable sizes while speed screws aid in quick

assembly of these dead-front back-wired devices pioneered by

Woodhead. New Safeway+®wiring devices feature a 3-piece

rubberized-nylon assembly that locks the device together with just two

screws for quick, easy assembly while providing durability and

protection with a rubber-coated nylon design. Safeway®nylon plugs

and connectors are Woodhead's economical solution for industrial and

commercial applications.

Model No. Hughes No. Configuration Volts Description Unit List Price

5266 HELF609 NEMA 5-15 125V Plug EA $8.34

4720 HEGL401 NEMA L5-15 125V Plug EA 8.85

5269 HEGL397 NEMA 5-15 125V Connector EA 22.21

Plugs and Connectors

Safeway®15 Amp

250V –2-Pole, 3-Wire –NEMA 6-15

Designed for rugged industrial and commercial use, Super-Safeway®

devices share some of the advanced design feature of their Watertite®

counterparts. Their durable rubber housing resists heat, oil, impact, and

chemicals. A patented self-centering cord clamp provides superior

strain-relief for a range of cable sizes while speed screws aid in quick

assembly of these dead-front back-wired devices pioneered by

Woodhead. Safeway®nylon plugs and connectors are Woodhead's

economical solution for industrial and commercial applications.

Model No. Hughes No. Description Unit List Price

5666 HELF618 Plug EA $9.30

5669 HELF767 Connector EA 16.11

Plugs and Connectors

Super-Safeway®15 Amp –2-Pole, 3-Wire

Designed for rugged industrial and commercial use, Super-Safeway®

devices share some of the advanced design features of their Watertite®

counterparts. Their durable rubber housing resists heat, oil, impact, and

chemicals. A patented self-centering cord clamp provides superior

strain-relief for a range of cable sizes while speed screws aid in quick

assembly of these dead-front back-wired devices pioneered by

Woodhead. New Safeway+®wiring devices feature a 3-piece

rubberized-nylon assembly that locks the device together with just two

screws for quick, easy assembly while providing durability and

protection with a rubber-coated nylon design. Safeway®nylon plugs

and connectors are Woodhead's economical solution for industrial and

commercial applications.

Model No. Hughes No. Configuration Volts Description Unit List Price

1447 HEFX572 NEMA 5-15 125V Plug EA $8.13

2447 HEGL400 NEMA L5-15 125V Plug EA 8.65

1547 HEFX574 NEMA 5-15 125V Connector EA 14.42

2547 HEGL405 NEMA L5-15 125V Connector EA 14.22

Plugs and Connectors

Super-Safeway®20 Amp

125V –2-Pole, 3-Wire –NEMA 5–20 / NEMA L5–20

Designed for rugged industrial and commercial use, Super-Safeway®

devices share some of the advanced design features of their Watertite®

counterparts. Their durable rubber housing resists heat, oil, impact, and

chemicals. A patented self-centering cord clamp provides superior

stain-relief for a range of cable sizes while speed screws aid in quick

assembly of these dead-front back-wired devices pioneered by

Woodhead. New Safeway+®wiring devices features a 3-piece

rubberized-nylon assembly that locks the device together with just two

screws for quick, easy assembly while providing durability and protection

with a rubber-coated nylon design. Safeway®nylon plugs and connectors

are Woodhead's economical solution for industrial and commercial

applications. Product photos are intended to show device style only and

are not intended to reflect indicated configurations.

Model No. Hughes No. NEMA Configuration Description Unit List Price

1433 HEGL395 NEMA 5-20 Plug EA $9.87

2647 HELF874 NEMA L5-20 Plug EA 13.13

1533 HEGL398 NEMA 5-20 Connector EA 14.95

2747 HEGL406 NEMA L5-20 Connector EA 20.50

312-313.qxp 9/5/07 8:34 AM Page 313

PLUGS & CONNECTORS Woodhead

314 hdsupply.com

Wiring Devices

Woodhead

Molded Cordsets

Watertite®15 Amp –2-Pole, 3-Wire

Molded "Y"and "W"cordsets are high quality, custom-made adapters

that provide multiple outlets from a single source. They are made from

heavy-duty S0W cord and the appropriate connector bodies that fit your

environment. When ordering custom cordsets, the amperage and voltage

of the plug must be equal to or greater than that of the connectors.

Approximate overall length of the product is 3 ft.

Model No. Hughes No. Configuration Volts Description Unit List Price

14W47-Y HEPL524 NEMA 5-15 125V Standard

molded

EA $109.94

Plugs and Connectors

Watertite®15 Amp –2-Pole, 3-Wire

Watertite®devices set the standard for the roughest, wettest and most

abrasive of environments. When properly mated with corresponding

connectors, Watertite®devices from an enclosure that meets the

requirements of NEMA Type 4, 4X, 6 and 6P, IP65, 66 and 67, and can

resist high-pressure hose-down up to 1,000 psi. Additional features

include: unique multiple ring seal that locks snugly, protecting against

moisture and contaminants, sturdy compression-type cord grip that

provides 205 lbs. of pull-out strength, and a protective closure cap that

seals the connector when it is not in use. Product photos are intended to

show device style only and are not intended to reflect indicated

configurations.

Model No. Hughes No. Configuration Volts

Body

Size (mm) Unit List Price

14W47 HEGL411 NEMA 5-15 125V F2 1/2" EA $13.98

24W47 HEGL419 NEMA L5-15 125V F2 1/2" EA 13.89

15W47 HEGL414 NEMA 5-15 125V F2 1/2" EA 20.48

Cooper Wiring Devices

Vinyl Plugs and Connectors

Commercial Grade

NEMA 5-15, 15A 125V

• Solid brass plug blades are firmly embedded in body.

• Terminal screw clamps are designed to contain wire and prevent

blinding.

• Terminal screws backed out –ready for wiring.

• Terminals in individual chambers to positively insulate conductors.

Model No. Hughes No. Description Cord Diameter Range (in.) Color Type Unit List Price

4867 HGCJ142 Straight 0.25"–0.655" Yellow Plug EA $4.22

4887 HGCJ143 Straight 0.25"–0.655" Yellow Connector EA 7.46

314.qxp 9/5/07 8:34 AM Page 314
