Proximity Sensors

XS Inductive Sensors

Analog Output, DC

©1997- 2002 Schneider Electric All Rights Reserved

292 10/02

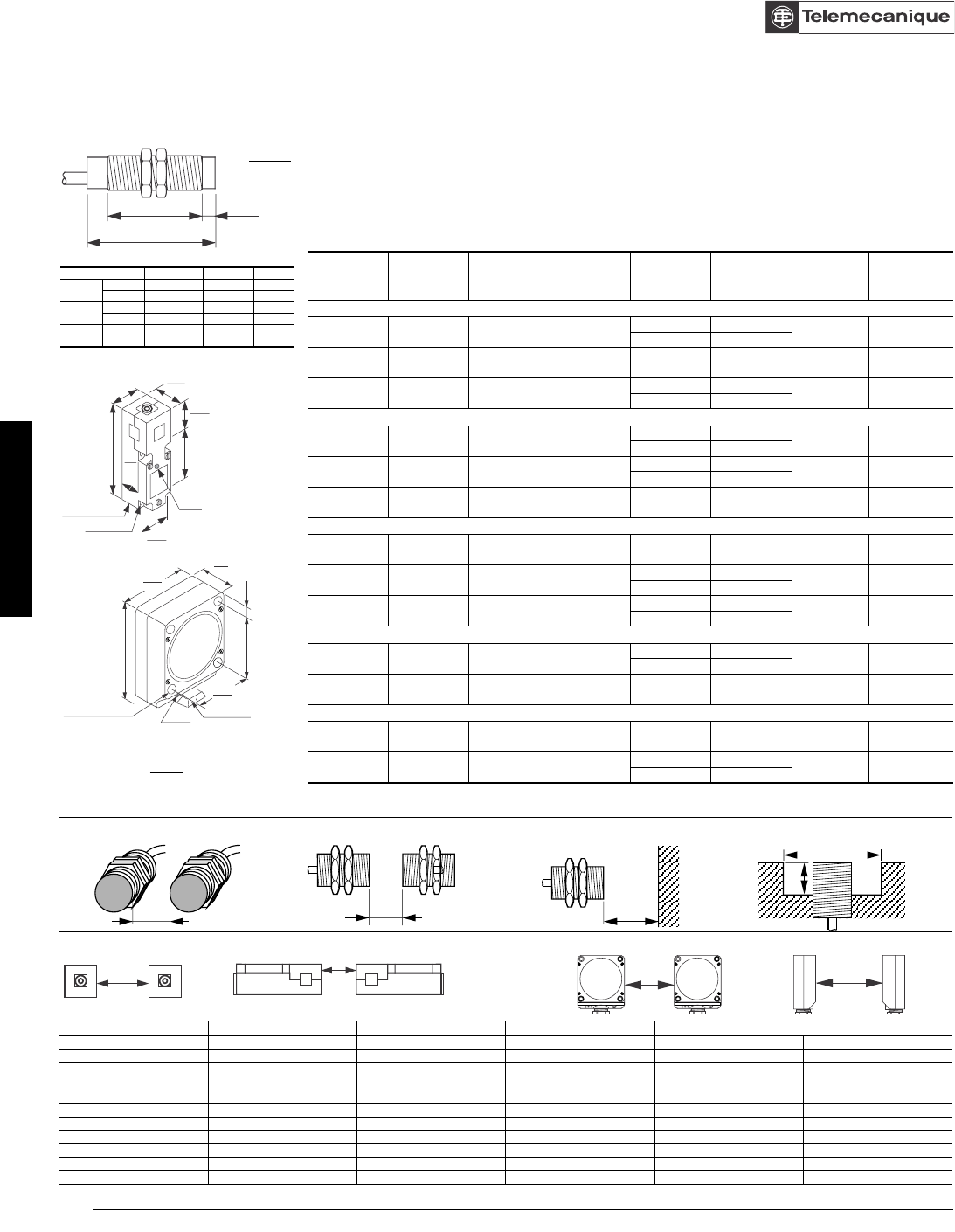

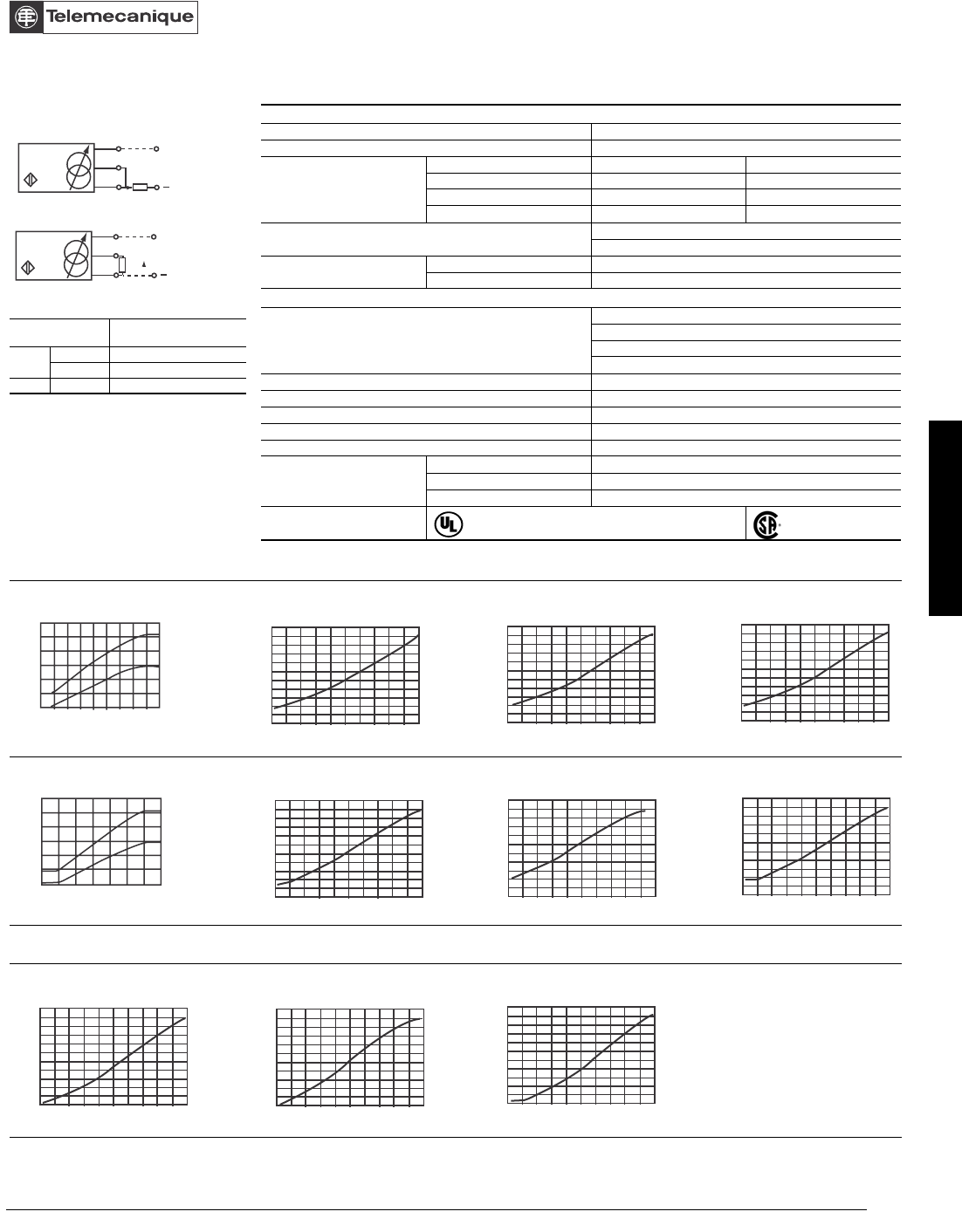

Proximity Sensors

XS Inductive Sensors / Analog Output, DC

Features:

• DC output current is directly proportional to the target distance

• Three body styles: tubular, limit switch style (with 5 position turret head), block style

• Both metal and plastic enclosures available

• Two types of output:

3 wire: 0 - 10 mA, 0 - 16 mA

2 wire: 4 - 20 mA, 4 - 14 mA

Nominal

Sensing

Distance

Enclosure

Style

Enclosure

Material

Voltage

Range

Max.

Circuit

Type

Output

Current

Operating

Frequency

Max.

Catalog

Number

12 mm Diameter - 2 meter cable

0.2 - 2 mm Shielded Metal 24 Vdc 2 wire 4 - 20 mA 1500 Hz XS1M12AB120

3 wire 0 - 16 mA

0.4 - 4 mm Non-Shielded Plastic 24 Vdc 2 wire 4 - 20 mA 1500 Hz XS4P12AB120

3 wire 0 - 16 mA

0.4 - 4 mm Non-Shielded Plastic 24-48 Vdc 2 wire 4 - 14 mA 1500 Hz XS4P12AB110

3 wire 0 - 10 mA

18 mm Diameter - 2 meter cable

0.5 - 5 mm Shielded Metal 24 Vdc 2 wire 4 - 20 mA 500 Hz XS1M18AB120

3 wire 0 - 16 mA

0.8 - 8 mm Non-Shielded Plastic 24 Vdc 2 wire 4 - 20 mA 500 Hz XS4P18AB120

3 wire 0 - 16 mA

0.8 - 8 mm Non-Shielded Plastic 24-48 Vdc 2 wire 4 - 14 mA 500 Hz XS4P18AB110

3 wire 0 - 10 mA

30 mm Diameter - 2 meter cable

1 - 10 mm Shielded Metal 24 Vdc 2 wire 4 - 20 mA 300 Hz XS1M30AB120

3 wire 0 - 16 mA

1.5 - 15 mm Non-Shielded Plastic 24 Vdc 2 wire 4 - 20 mA 300 Hz XS4P30AB120

3 wire 0 - 16 mA

1.5 - 15 mm Non-Shielded Plastic 24-48 Vdc 2 wire 4 - 14 mA 300 Hz XS4P30AB110

3 wire 0 - 10 mA

Limit Switch Style - 2 meter cable

2 - 20 mm Non-Shielded Plastic 24-48 Vdc 2 wire 4 - 14 mA 60 Hz XSCH207629

3 wire 0 - 10 mA

2 - 20 mm Non-Shielded Plastic 24 Vdc 2 wire 4 - 20 mA 60 Hz XSCH203629

3 wire 0 - 16 mA

Block Style - 2 meter cable

6 - 60 mm Non-Shielded Plastic 24-48 Vdc 2 wire 4 - 14 mA 50 Hz XSDH607629

3 wire 0 - 10 mA

6 - 60 mm Non-Shielded Plastic 24 Vdc 2 wire 4 - 20 mA 50 Hz XSDH603629

3 wire 0 - 16 mA

Minimum Mounting Clearances (mm/inches)

Side by side Face to face Facing a metal object Mounted in metal

12 mm Shielded e: 4 mm (0.16") e: 24 mm (0.94") e: 6 mm (0.24") d: 12 mm (0.47") h: 0 mm (0")

12 mm Non-shielded, 24 V e: 16 mm (0.63") e: 48 mm (1.89") e: 12 mm (0.47") d: 36 mm (1.42") h: 8 mm (0.31")

12 mm Non-shielded, 48 V e: 16 mm (0.63") e: 48 mm (1.89") e: 12 mm (0.47") d: 36 mm (1.42") h: 8 mm (0.31")

18 mm Shielded e: 10 mm (0.39") e: 60 mm (2.36") e: 15 mm (0.59") d: 18 mm (0.71") h: 0 mm (0")

18 mm Non-shielded, 24 V e: 32 mm (1.26") e: 96 mm (3.78") e: 24 mm (0.94") d: 54 mm (2.12") h: 16 mm (0.63")

18 mm Non-shielded, 48 V e: 32 mm (1.26") e: 96 mm (3.78") e: 24 mm (0.94") d: 54 mm (2.12") h: 16 mm (0.63")

30 mm Shielded e: 20 mm (0.79") e: 120 mm (4.72") e: 30 mm (1.18") d: 30 mm (1.18") h: 0 mm (0")

30 mm Non-shielded, 24 V e: 60 mm (2.36") e: 180 mm (7.08") e: 45 mm (1.77") d: 90 mm (3.54") h: 30 mm (1.18")

30 mm Non-shielded, 48 V e: 60 mm (2.36") e: 180 mm (7.08") e: 45 mm (1.77") d: 90 mm (3.54") h: 30 mm (1.18")

Limit switch style e: 80 mm (3.15") e: 160 mm (6.30")

Block style e: 300 mm (11.81") not recommended

c

b

a

Dimensions:

a = overall length (mm)

b = threaded section (mm)

c = for non-shielded sensors (mm)

1/2" NPT

conduit ent.

1.57

40

1.57

40

4.5

114.5

LED

1.

1

28

2.36

60

1.18

30

2 x .2" dia.

1.77

45

2 x 5.3mm dia.

1/2" NPT

conduit ent.

4 x dia. 5.5 mm

4 x dia. .21" LED

3.90

100

1.5

40

2.56

65

2.56

65

.29

7.5

3.10

80

XSD

Dual Dimensions inches

mm

thread

M12x1

M18x1

M30x1

XSC

Tubular Style dimensions (mm)

abc

12 mm Metal 1.9" (50) 1.6" (42) 0

Plastic 1.9" (50) 1.6" (42) 0

18 mm Metal 1.9" (50) 1.6" (42) 0

Plastic 1.6" (40.6) 1.0" (26) 8

30 mm Metal 1.9" (50) 1.6" (42) 0

Plastic 2.07" (52.6) 1.2" (32) 0.5" (13)

Sid

e

b

y s

id

e

e

Face to face

e

Facing a metal object

e

Mounting in a metal support

d

h

e

Side by side Face to face

e

e

Side by side Face to face

e

Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com

Proximity Sensors

XS Inductive Sensors

Analog Output, DC

293

10/02 © 1997-2002 Schneider Electric All Rights Reserved

Proximity Sensors

XS Inductive Sensors / Analog Output, DC

Specifications

Mechanical

Temperature range -13° F to +158° F (-25° C to +70° C)

Enclosure rating IEC Type IP67

Tightening torque (max.)

Metal Plastic

12mm 6 N•m 4.5 (lb-ft) 2 N•m 1.5 (lb-ft)

18mm 15 N•m 11.1 (lb-ft) 5 N•m 3.7 (lb-ft)

30mm 40 N•m 29.5 (lb-ft) 20 N•m 14.7 (lb-ft)

Enclosure material Metal

Plastic

Wiring Tubular 22 AWG (0.34 mm2), PvR

Limit Switch/Block style Screw term. 16 AWG(1.5 mm2)

General Characteristics

Voltage limit (including ripple)

XS1kkkk120, XS4kkkk120: 15 - 38 Vdc

XS1kkk110, XS4kkk110: 15 - 58 Vdc

XSCH207kkk, XSDH607kkk: 19 - 58 Vdc

XSCH203kkk, XSDH603kkk: 19 - 30 Vdc

Current consumption (no load) 4 mA

Max. Output current drift with the rated operating temperature 10%

Power Supply Current (no load) 4 mA

Repeat Accuracy + - 1%

Linearity error + - 4%

Protective Circuitry

Short circuit protection yes

Overload protection yes

Reverse polarity protection yes

Agency Listings (XS1, XS4) E 164869 CCN NRKH

(XSC, XSD) E 164353 CCN NKCR

LR 44087

Class 3211 03

Output Curves 4 to 20 mA, 2 wire connection (cylindrical models)

XSCH20k629 XS1M12AB120 XS1M18AB120 XS1M30AB120

XSDH20k629 XS4P12AB120 XS4P18AB120 XS4P30AB120

Output Curves 0 to 10 mA, 3-wire connection, (cylindrical models)

XS4P12AB110 XS4M18AB110 XS4P30AB110

Output current Value of R (R = load

impedance)

24 V 0 to 10 mA ≤ 1800 Ω

0 to 16 mA ≤ 1125 Ω

48 V 0 to 10 mA ≤ 4200 Ω

Ensure a minimum of 5 V between the + and

sensor output

W

iring

+

BN/1

BK/4

BU/3

mA

R

Is

Output Current

2-wire

+

BN/1

BK/4

BU/3

mA

R

IsOutput Voltage

3-wire

U=R Is

®

22

Sn = 0.2...2 mm Ø 12 mm

20

18

16

14

12

10

8

6

4

2

0

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

Sensing distance/object (mm)

Output current Is (mA)

22

Sn = 0.5...5 mm Ø 18 mm

20

18

16

14

12

10

8

6

4

2

0

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Sensing distance/object (mm)

Output current Is (mA)

22

Sn = 1....10 mm Ø 30 mm

20

18

16

14

12

10

8

6

4

2

0

0 1 2 3 4 5 6 7 8 9 10

Sensing distance/object (mm)

Output current Is (mA)

Sn = 20 mm

1 XSCH203629 2 XSCH207629

1

2

Sensing distance/object (mm)

Output current Is (mA)

20

16

12

8

4

0

0 3 6 9 12 15 18 21 24 27

22

Sn = 1.5...15 mm Ø 30 mm

20

18

16

14

12

10

8

6

4

2

0

0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15

Sensing distance/object (mm)

Output current Is (mA)

22

Sn = 0.8...8 mm Ø 18 mm

20

18

16

14

12

10

8

6

4

2

0

0 0.8 1.6 2.4 3.2 4 4.8 5.6 6.1 7.2 8

Sensing distance/object (mm)

Output current Is (mA)

22

Sn = 0.4...4 mm Ø 12 mm

20

18

16

14

12

10

8

6

4

2

0

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

Sensing distance/object (mm)

Output current Is (mA)

Sn = 6 0 mm

1 XSDH603629 2 XSDH607629

1

2

Sensing distance/object (mm)

Output current Is (mA)

20

16

12

8

4

0

0 10 20 30 40 50 60 70

11

Sn = 0.4...4 mm Ø 12 mm

10

9

8

7

6

5

4

3

2

1

0

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

Sensing distance/object (mm)

Output current Is (mA)

11

Sn = 0.8...8 mm Ø 18 mm

10

9

8

7

6

5

4

3

2

1

0

0 0.8 1.6 2.4 3.2 4 4.8 5.6 6.4 7.2 8

Sensing distance/object (mm)

Output current Is (mA)

11

Sn = 1.5...15 mm Ø 30 mm

10

9

8

7

6

5

4

3

2

1

0

0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15

Sensing distance/object (mm)

Output current Is (mA)
