HUBBELL® HEALTHCARE
Application Guide
When Safety, Reliability and Performance Matter
Think Healthcare.
Think HUBBELL.
www.hubbell-wiring.com2
Hospital Grade Devices
Delivery Systems
Occupancy Sensors
Enclosures
Data Center Solutions
Integrated Infrastructure
Hubbell Healthcare Application Guide
Table of Contents
The Hubbell Healthcare Story ....................................... 3
Overview
Hospital Facilities ....................................................................... 4-5
Healthcare Facilities ................................................................... 6-7
Application Areas

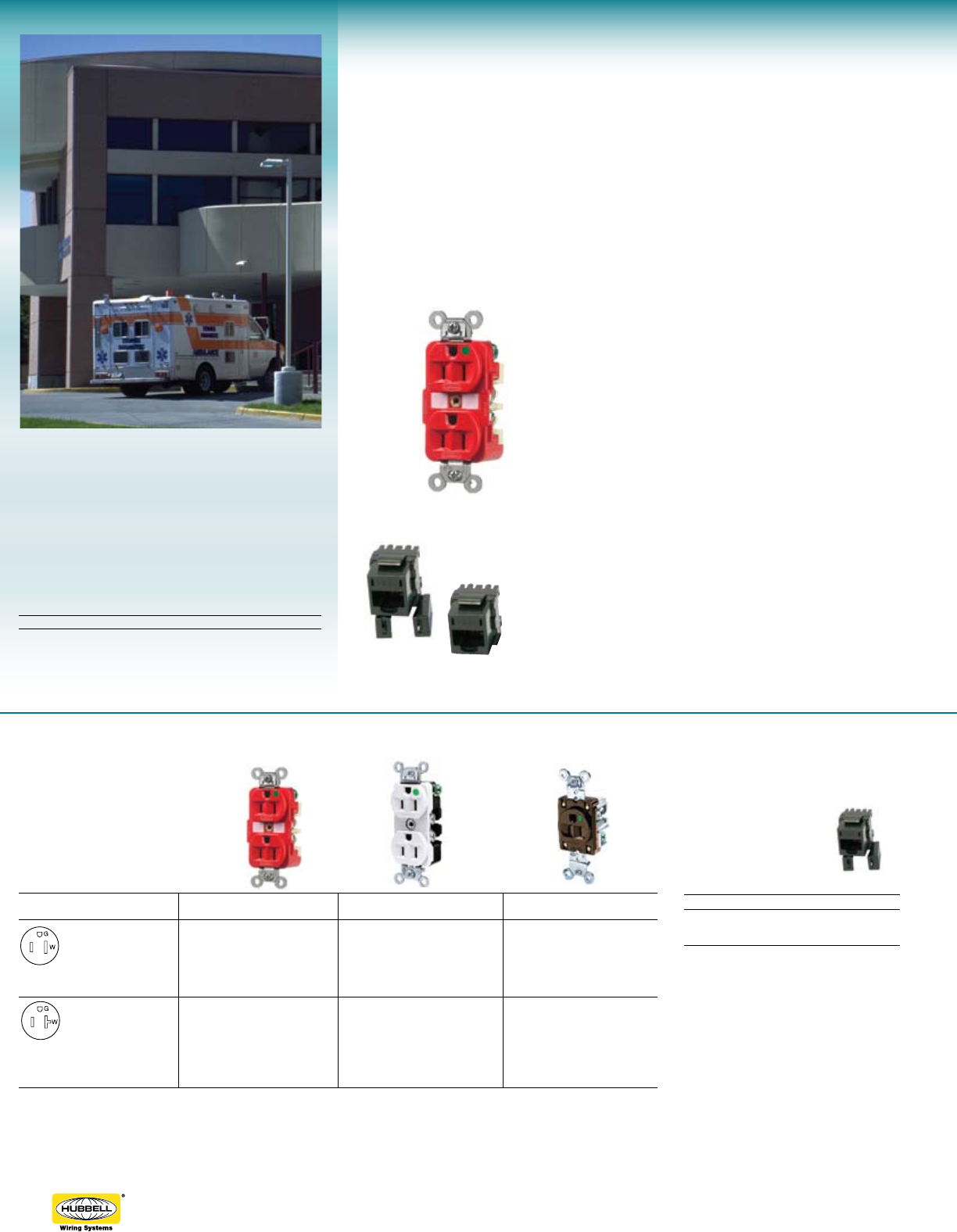

Critical Care ............................................................................. 8
Heavy Duty Hospital Grade Duplex, Illuminated and Single
Receptacles; NEXTSPEED® Cat 6A Jacks
ICU and Operating Rooms................................................... 9
Insulgrip® Plugs and Connectors; Valise® Plugs and Connectors;
Stainless Steel Wallplates

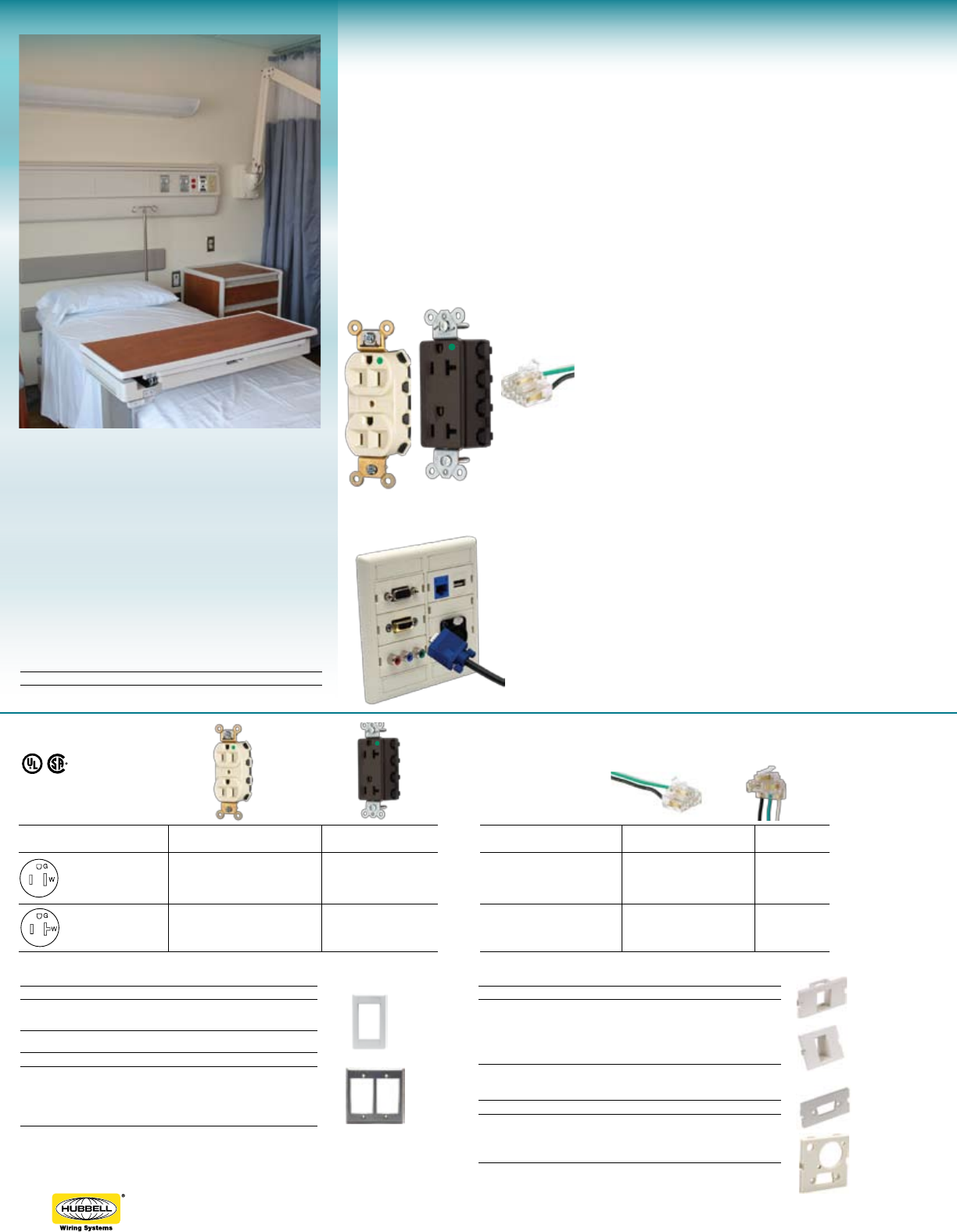

Patient Rooms ...................................................................... 10
Hospital Grade SNAPConnect™ Receptacles, iSTATION™ Plates
and Modules
Restroom Areas .................................................................... 11
Hospital Grade GFCI Receptacles; Style Line® Decorator
Receptacles; Occupancy Sensors

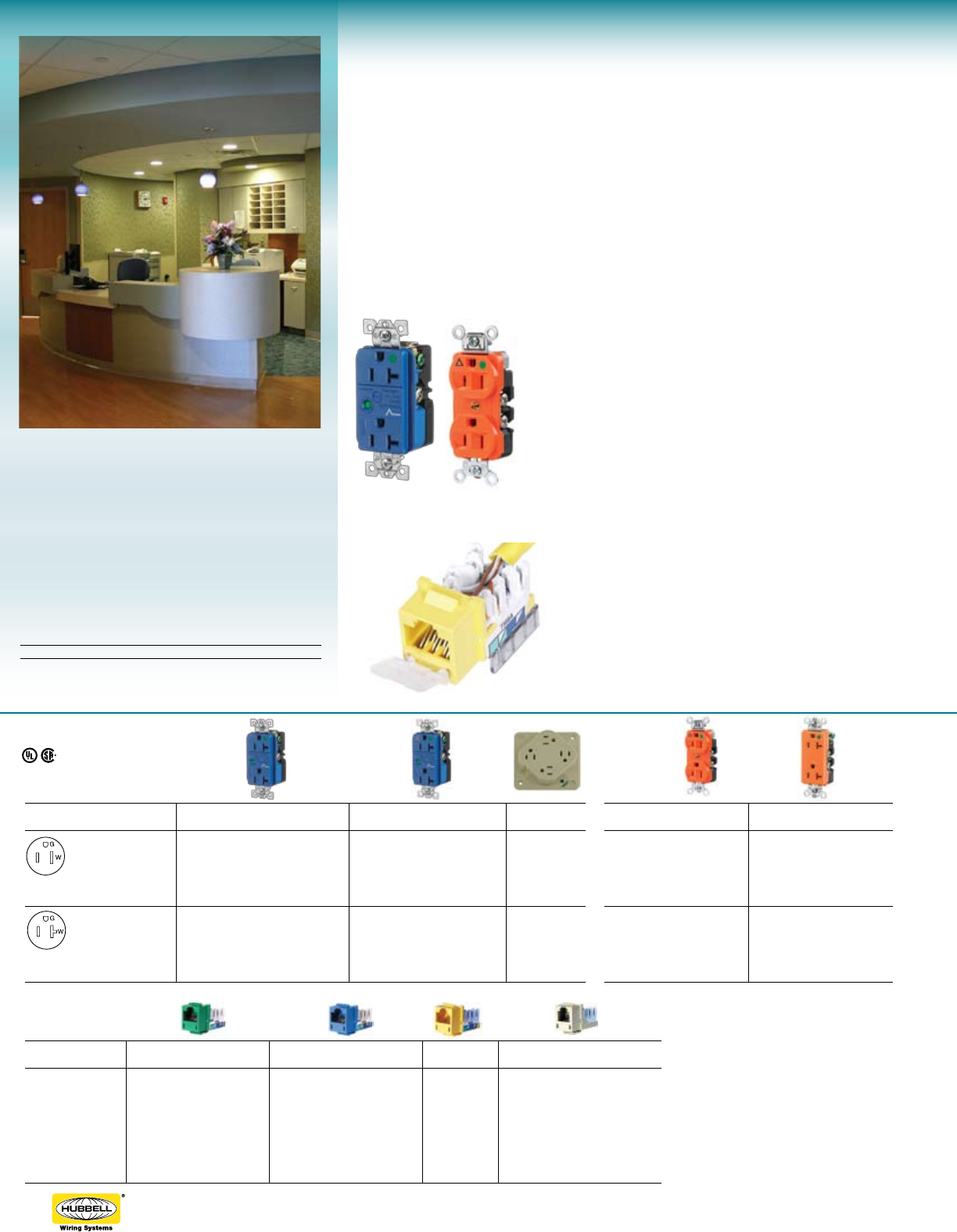

Nurse’s Station ...................................................................... 12
SpikeShield® Surge Protection and Isolated Ground Receptacles;
XCELERATOR™ Jacks

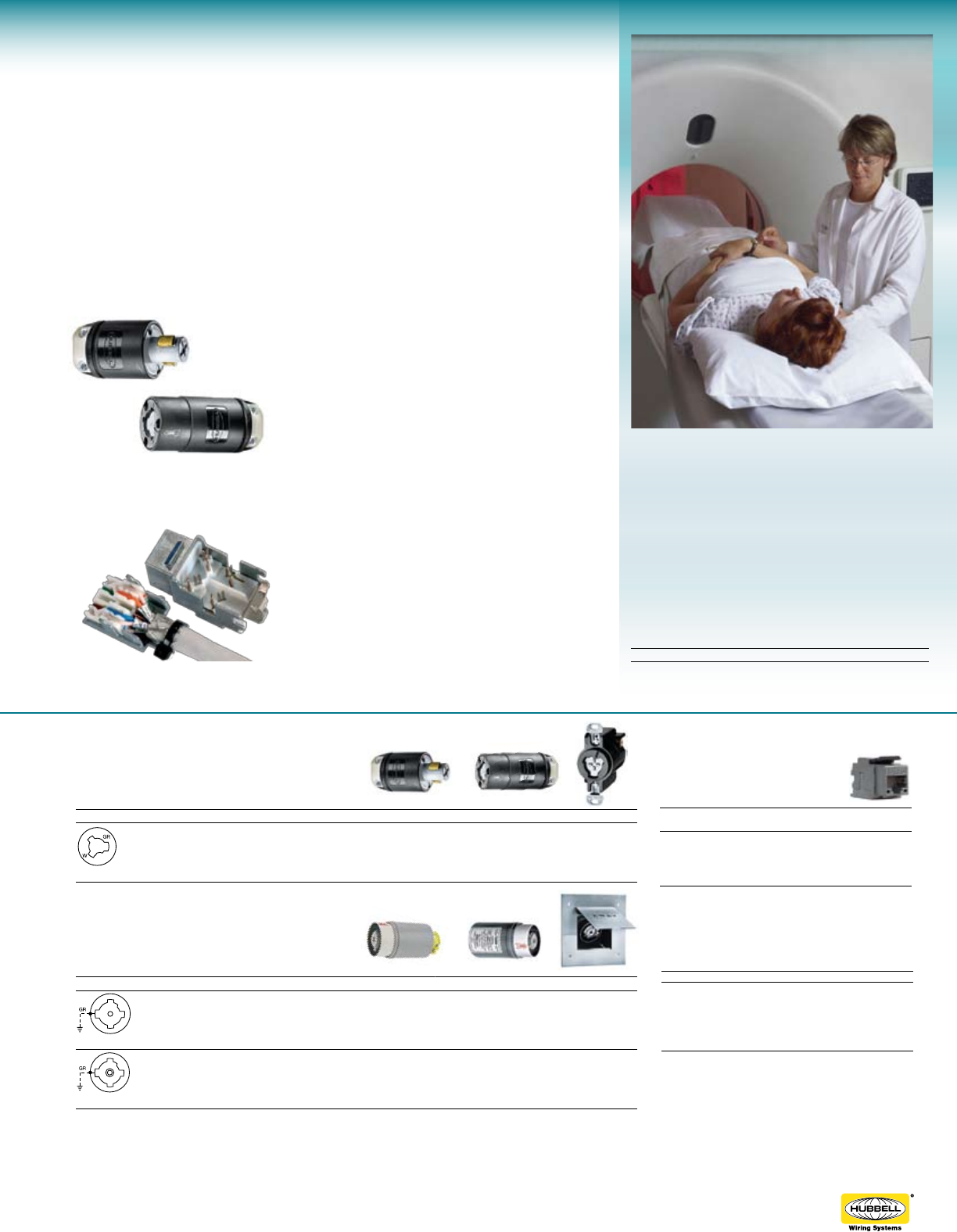

Diagnostics ............................................................................ 13
Hubbellock® Plugs, Connectors and Receptacles;
NEXTSPEED® Shielded Jacks

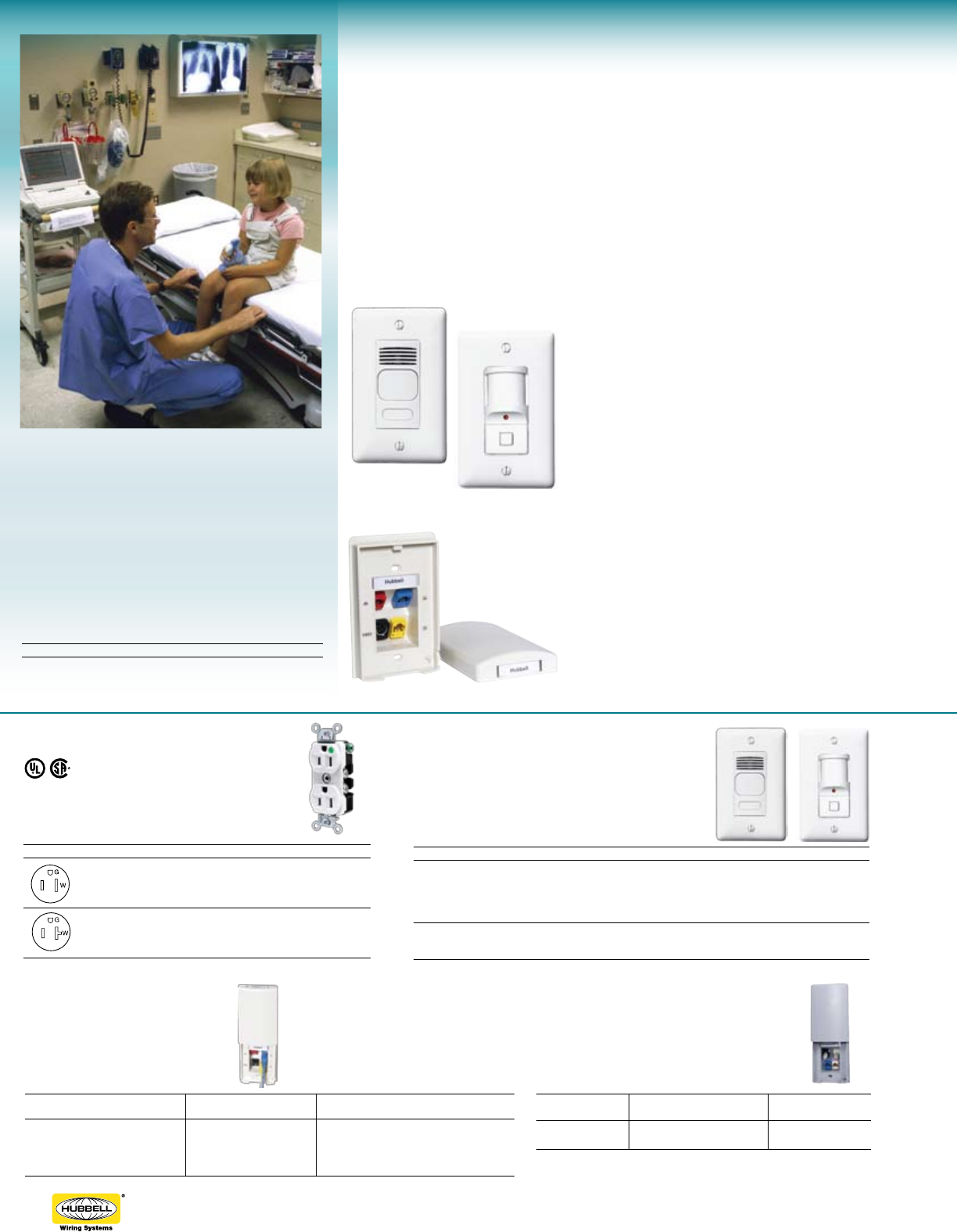

Examination Rooms ............................................................ 14
Compact Receptacles; Occupancy Wall Sensors; Secure-IT™
Face Plates

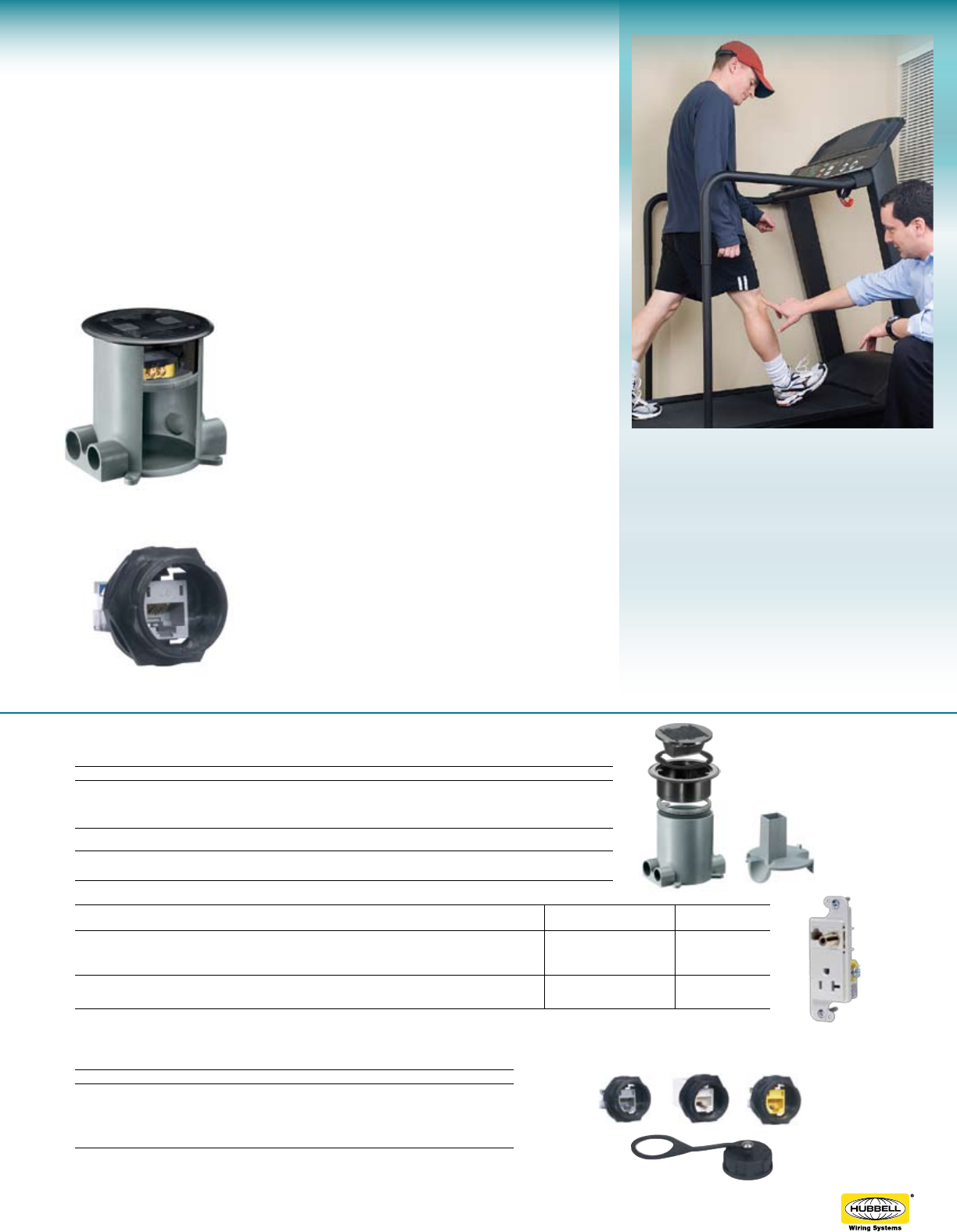

Physical Therapy Areas ...................................................... 15
Floor Boxes; JLOAD™ Multimedia Outlet; HI-IMPACT™ Copper
Connectors

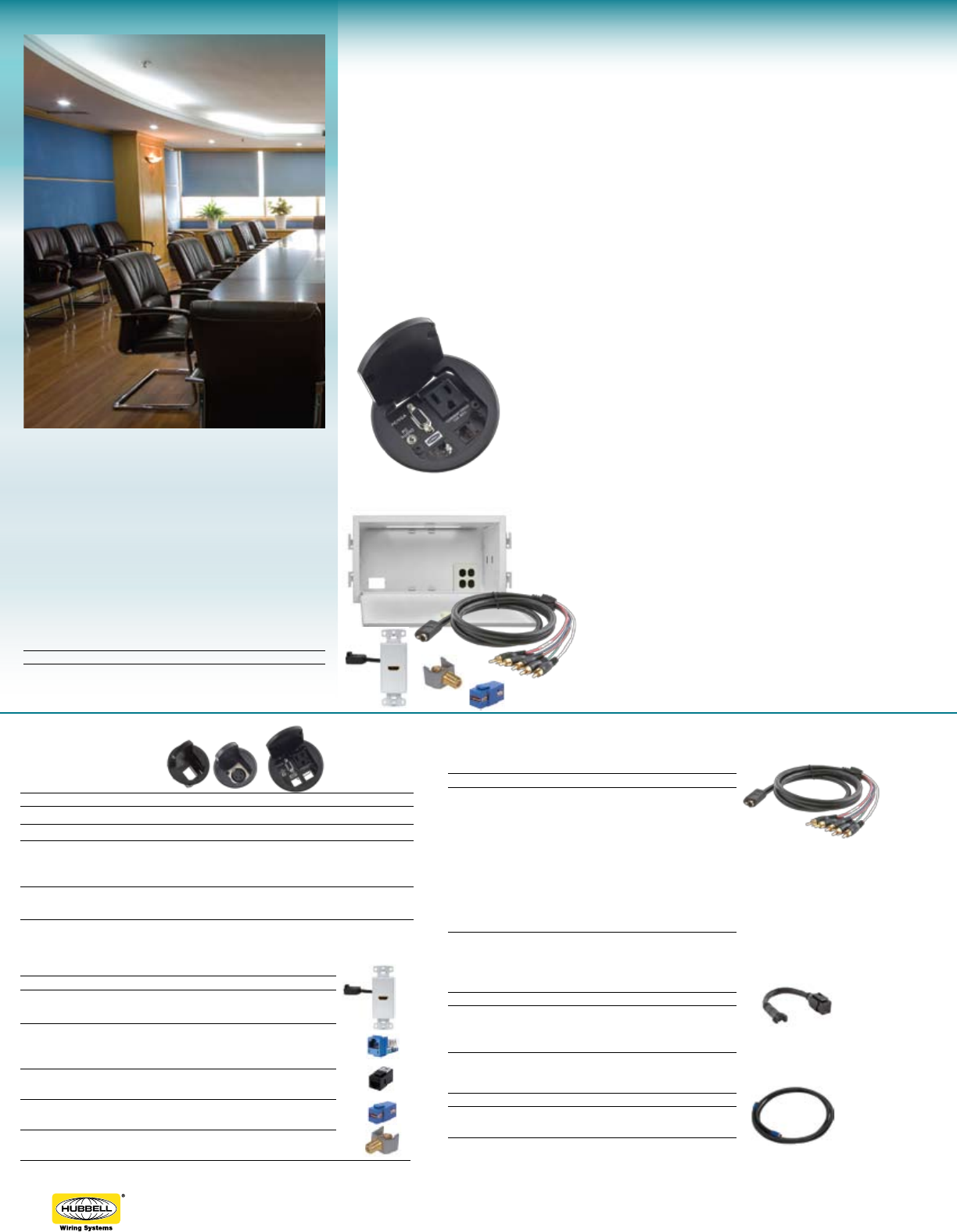

Auditoriums and Conference Rooms ............................. 16
Table Top Boxes; Multimedia Connectivity

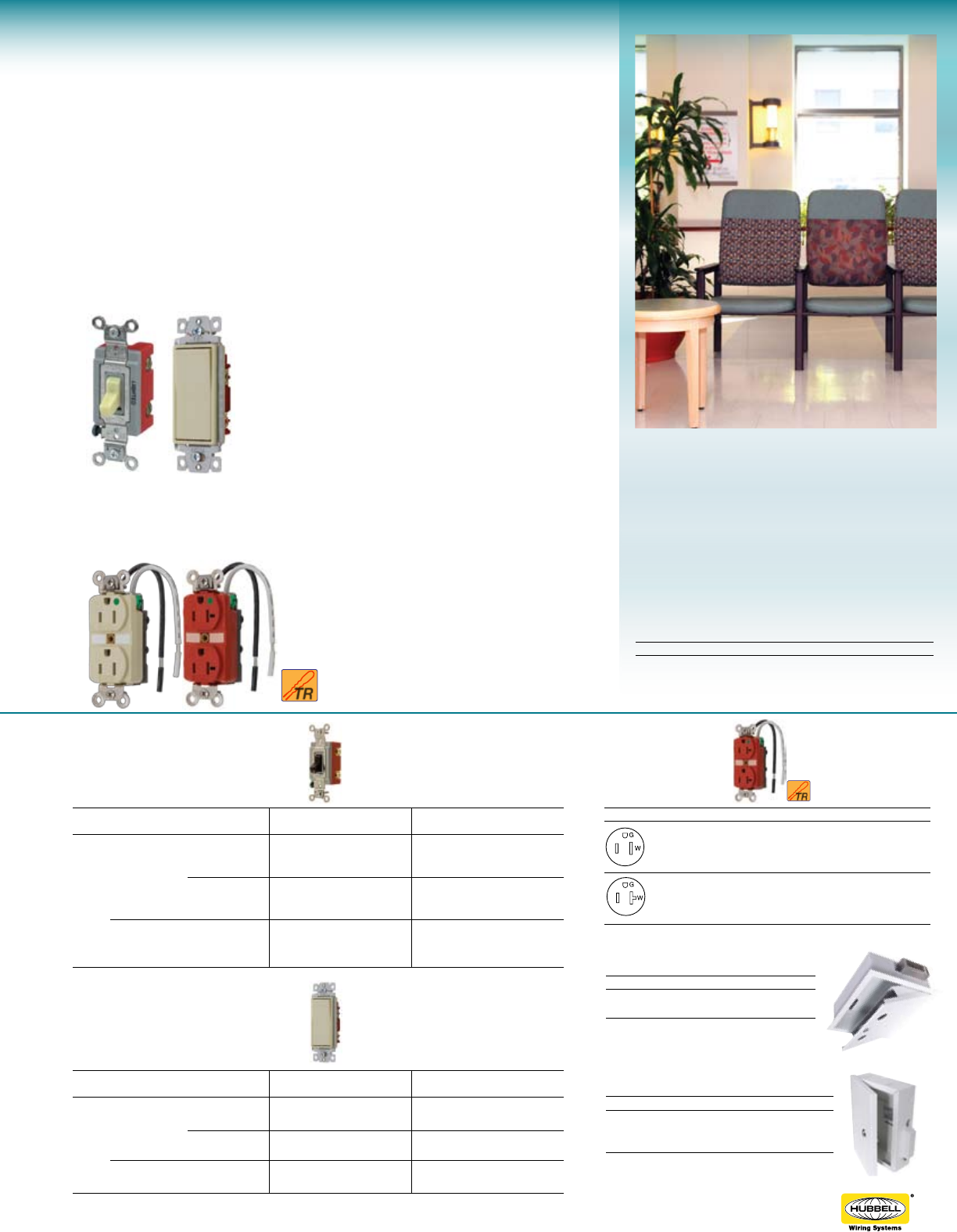

Common Areas ..................................................................... 17
Toggle and Style Line® Decorator Switches; Tamper-Resistant
Duplex Receptacles; Wireless Access Point Boxes

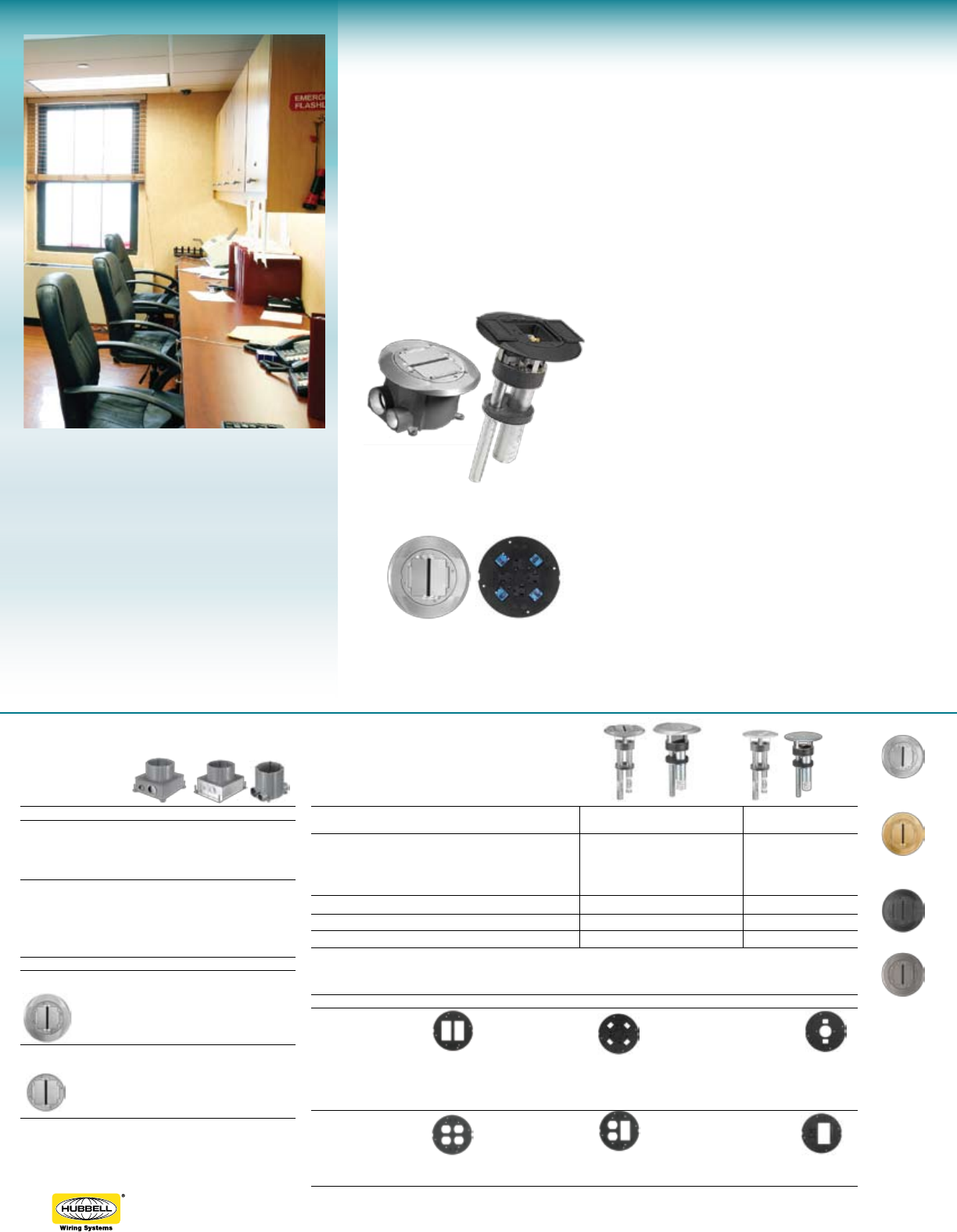

Administration ....................................................................... 18
Hubbell SystemOne Floor Boxes, Fire-Rated Poke-Throughs,
Covers and Subplates

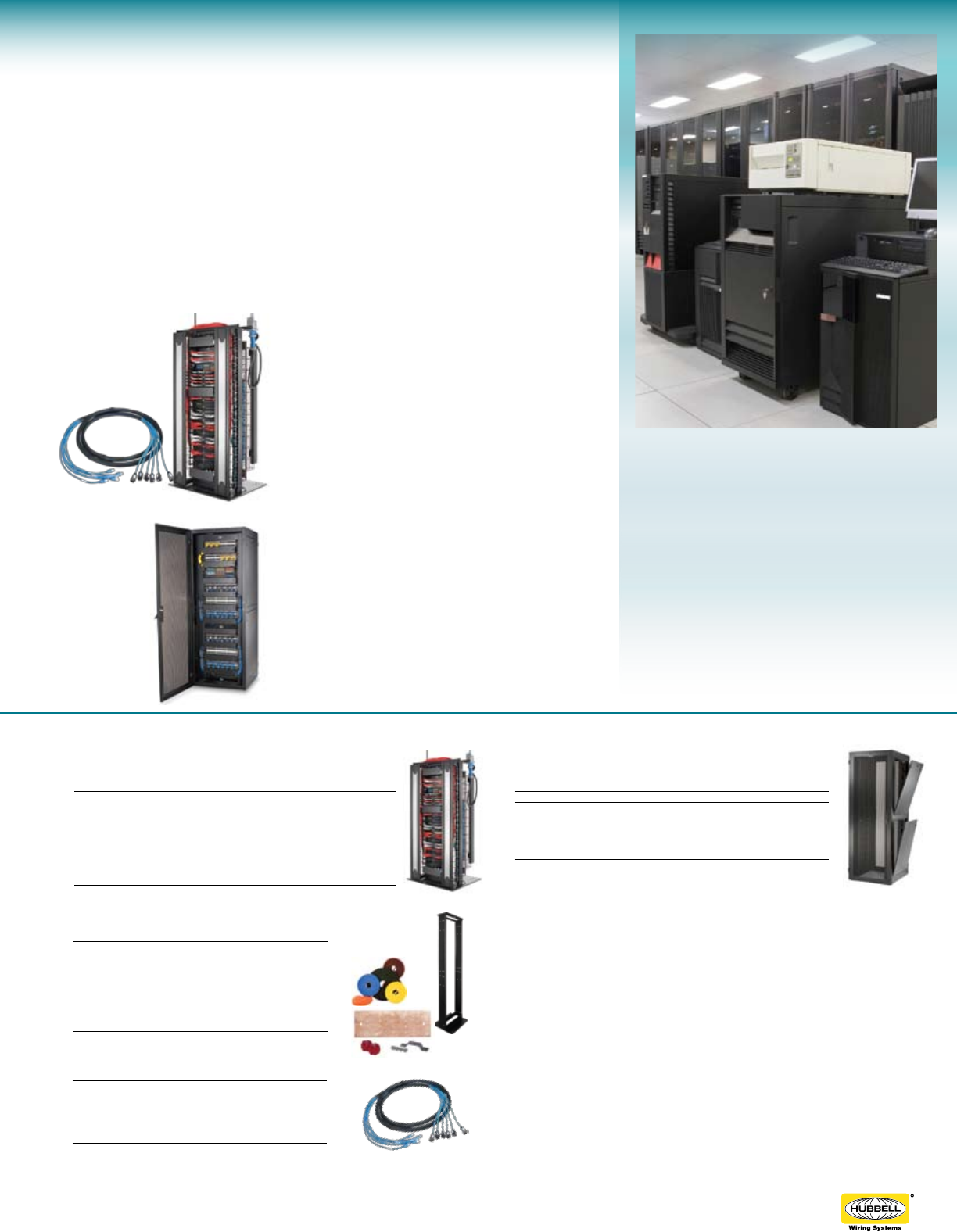

Data Centers ......................................................................... 19
Data Racks, Cables and Cabinets

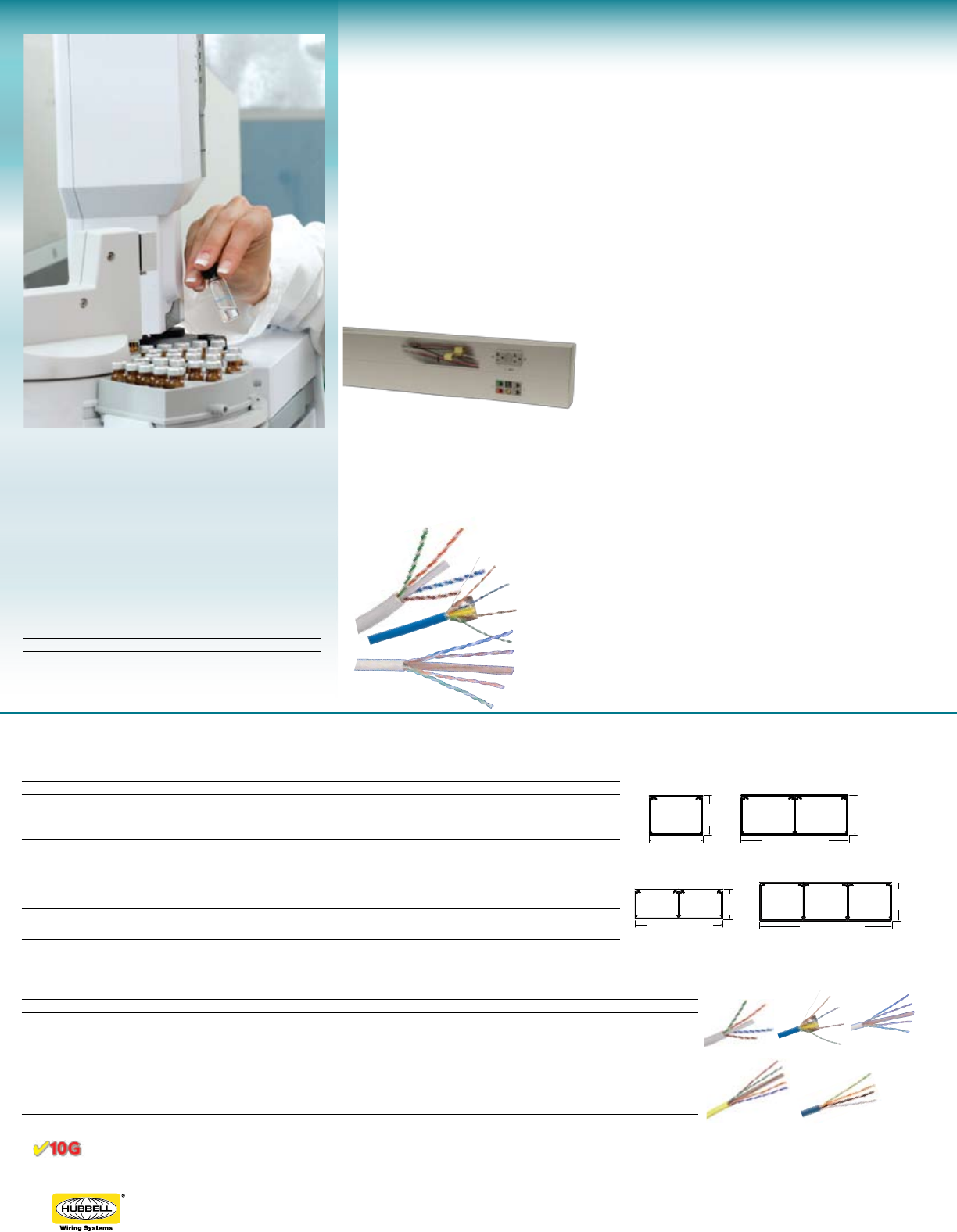

Laboratories .......................................................................... 20
Hubbell Pre-Wired Aluminum Raceway; NEXTSPEED® UTP Cables

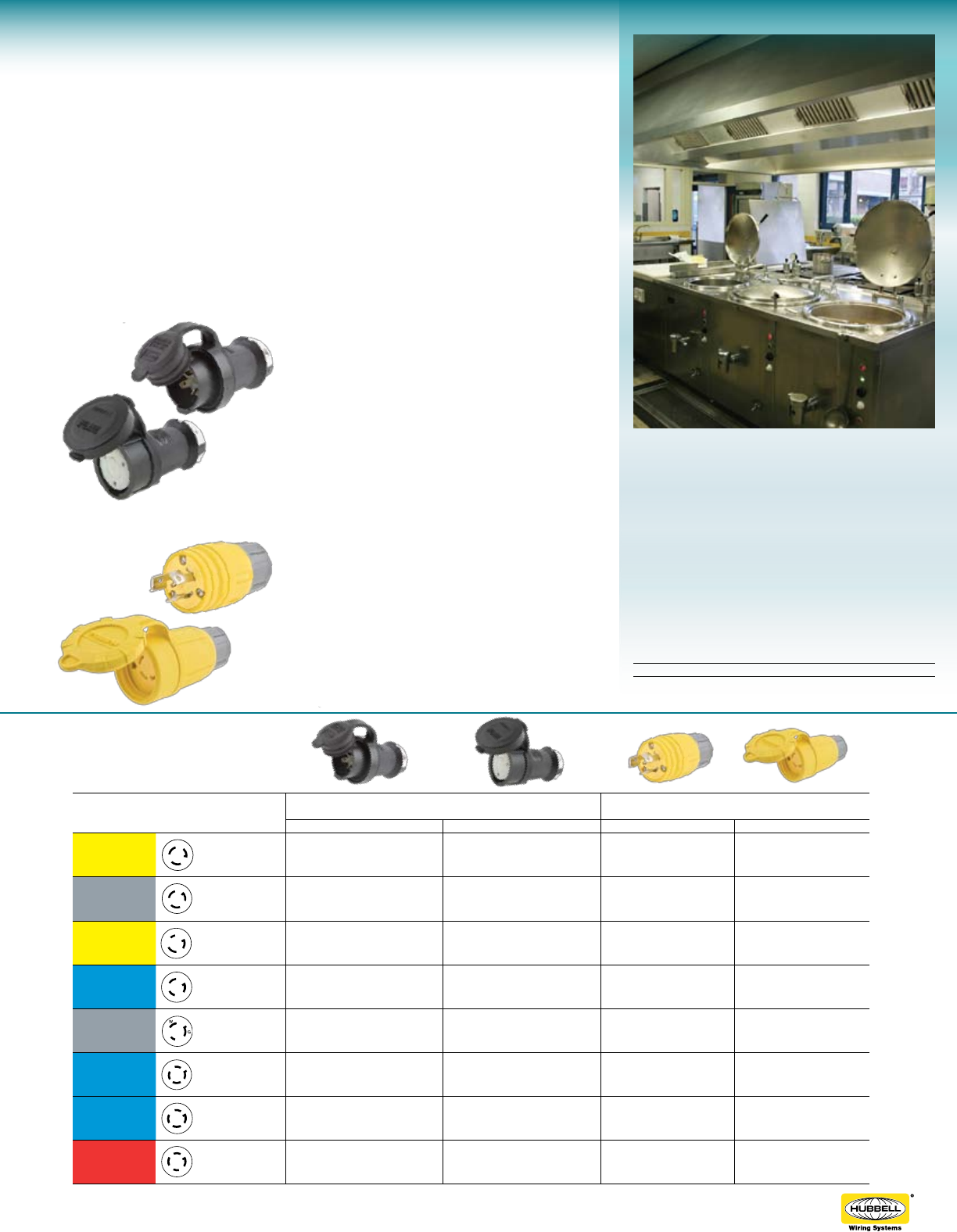

Kitchen & Food Services .................................................... 21
Watertight Safety-Shroud® Twist-Lock® and Watertight Twist-Lock®
Plugs and Connectors

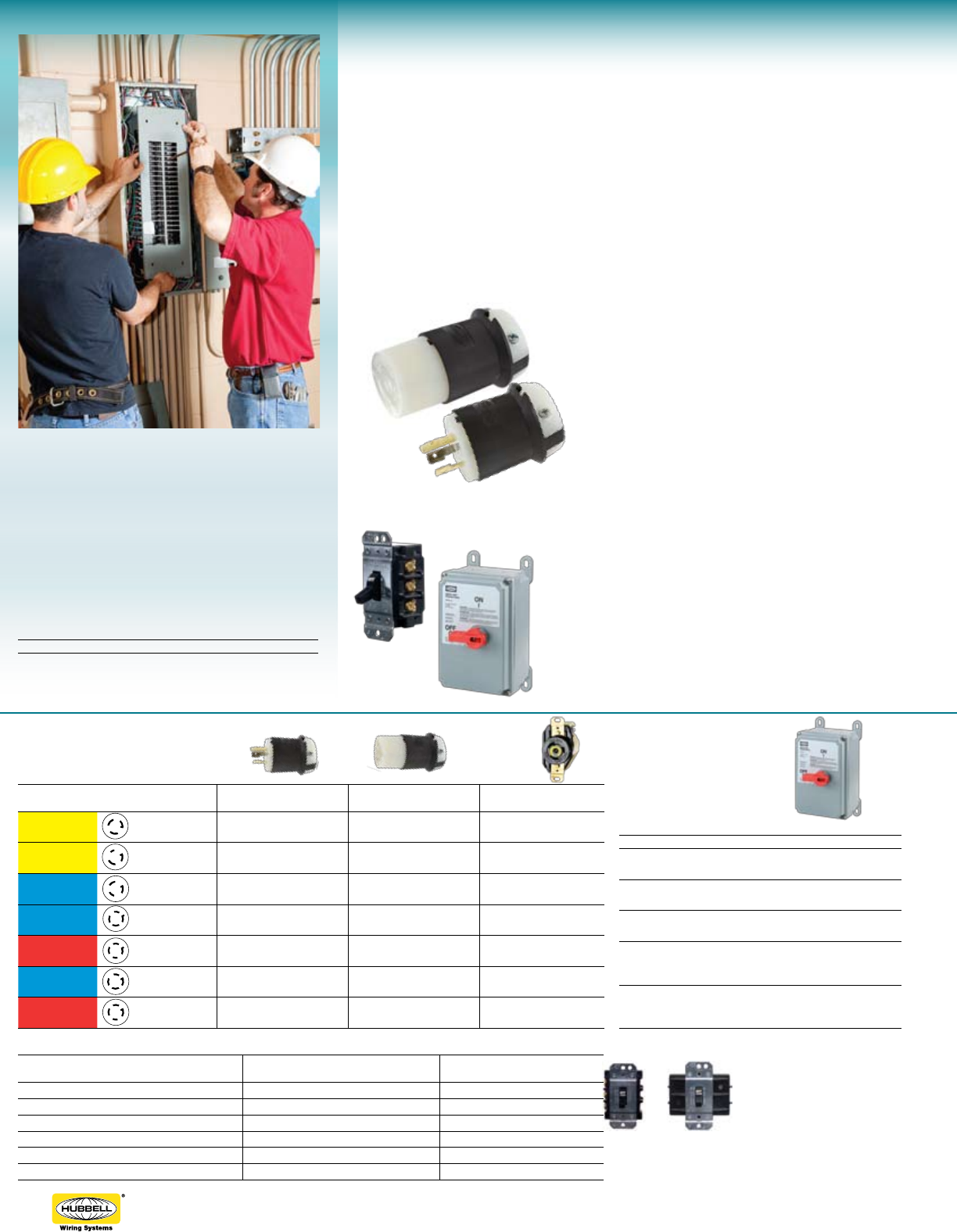

Maintenance and Plant Engineering ............................... 22
Twist-Lock® Plugs, Connectors and Receptacles; Motor
Disconnects; Circuit-Lock® Enclosures

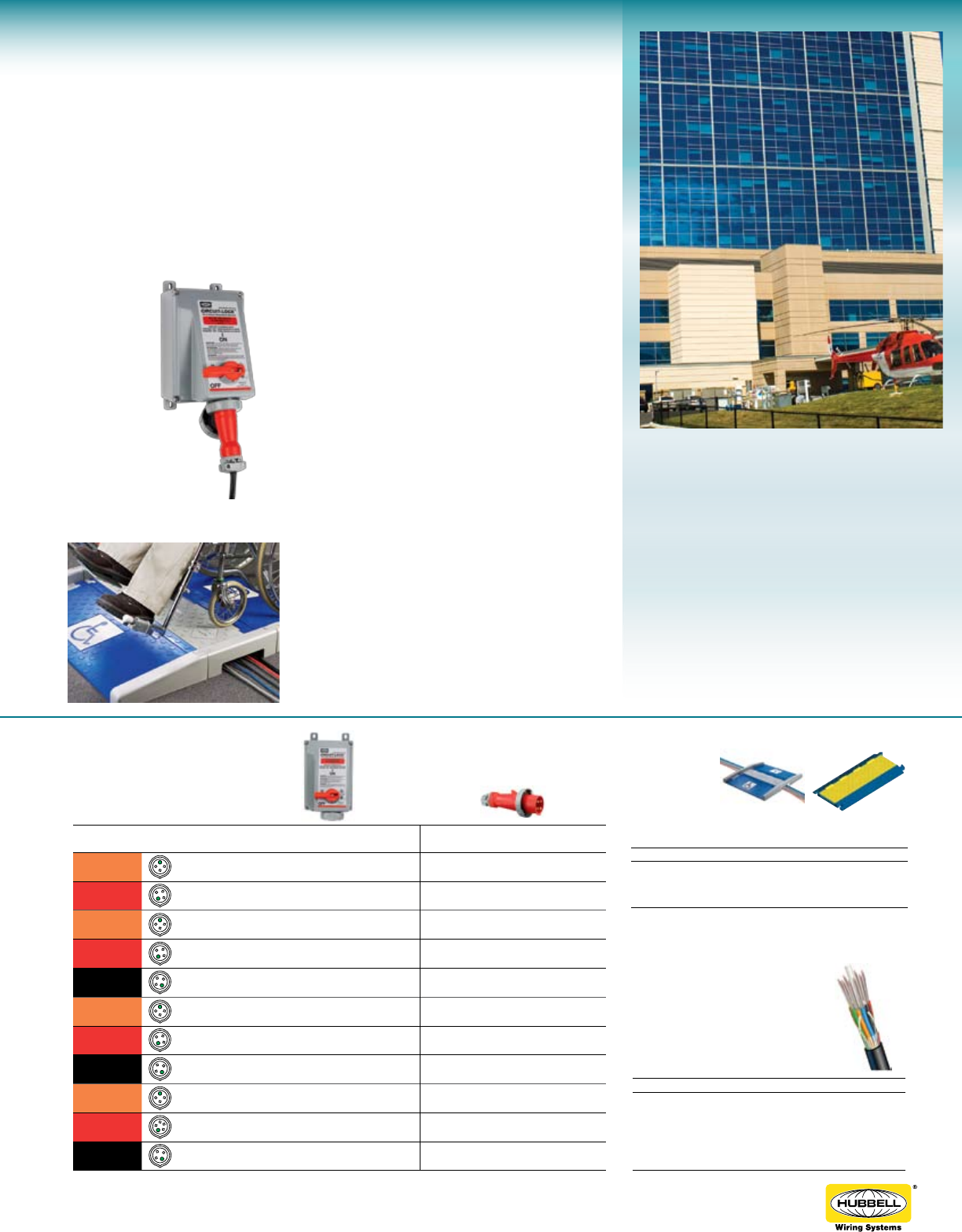

Outdoor Areas ....................................................................... 23
Mechanical Interlocks, Hose and Cable Protection Systems;
Outdoor Loose Tube Fiber Cable
www.hubbell-wiring.com 3
The Hubbell Healthcare Story
When reliability and performance matter
Our Ongoing Commitment
A lot has changed since Hubbell conceptualized the “Hospital Grade” standard back in the early 1970s
to identify and ensure product performance for the hospital environment. The healthcare industry has
experienced an evolution with several breakthroughs in sophisticated medical technologies and digital
initiatives that are improving the quality of healthcare.
The environment may have changed, but Hubbell’s commitment has not. Whether it’s new digital
diagnostic imaging equipment, mobile monitoring devices, state-of-the-art robotic surgery, or network
communications, Hubbell understands that healthcare is where safety, reliability and performance matters
most. That’s why we remain committed to developing superior products designed
to support healthcare’s evolving environment.
From the ICU to the Datacenter
With operating rooms, intensive care units, patient rooms and diagnostic centers, healthcare facilities
include a wide range of complex spaces and applications for treating patients. These facilities also must
serve a variety of visitors, care givers, administration and maintenance staff. Common areas, nurse
stations, ofces, conference rooms, kitchens and maintenance areas also all have their own unique needs.
Whether it’s in a hospital or outpatient facility, Hubbell understands the equipment, applications and
challenges of delivering power and communications in every healthcare environment—and we have the
breadth of products to ensure safety, reliability and performance.
Ensuring Maximum Sustainability
Hubbell recognizes that today’s healthcare facilities also have a need to improve efciency and cut
costs for maximum sustainability. These facilities have a long building lifespan, often expected to last for
decades. At the same time, changes and upgrades in the healthcare environment are complex due to
their 24/7 operation and strict regulations and codes. To ensure maximum sustainability, Hubbell devices
and networking products support today’s more efcient healthcare operations while providing value,
unmatched performance and extended lifespan to better match the building’s infrastructure lifecycle.
Energy Savings Convergence SafetyBandwidth
Durability
Hospital Grade is the receptacle
of choice when specifying devices
for healthcare. But while the little
green dot signies UL compliance,
hospital grade devices are not all
the same. Hubbell created the
green dot and has been providing
maximum value for healthcare
facilities ever since.
The TIA (Telecommunications
Industry Association) recommends
the following work area port
count for each designated space.
Each space has a low, medium
and high range for the number
of connections recommended
for each work area (WA). When
designing for specic areas, it
is recommended to select a
number between the mid point
and the upper range to satisfy
the application specic data and
bandwidth requirements.
L = Low: 2 to 6 outlets
M = Medium: 6 to 14 outlets
H = High: > 14 outlets
More than Just a
“Green Dot”
The TIA proposed
healthcare standard

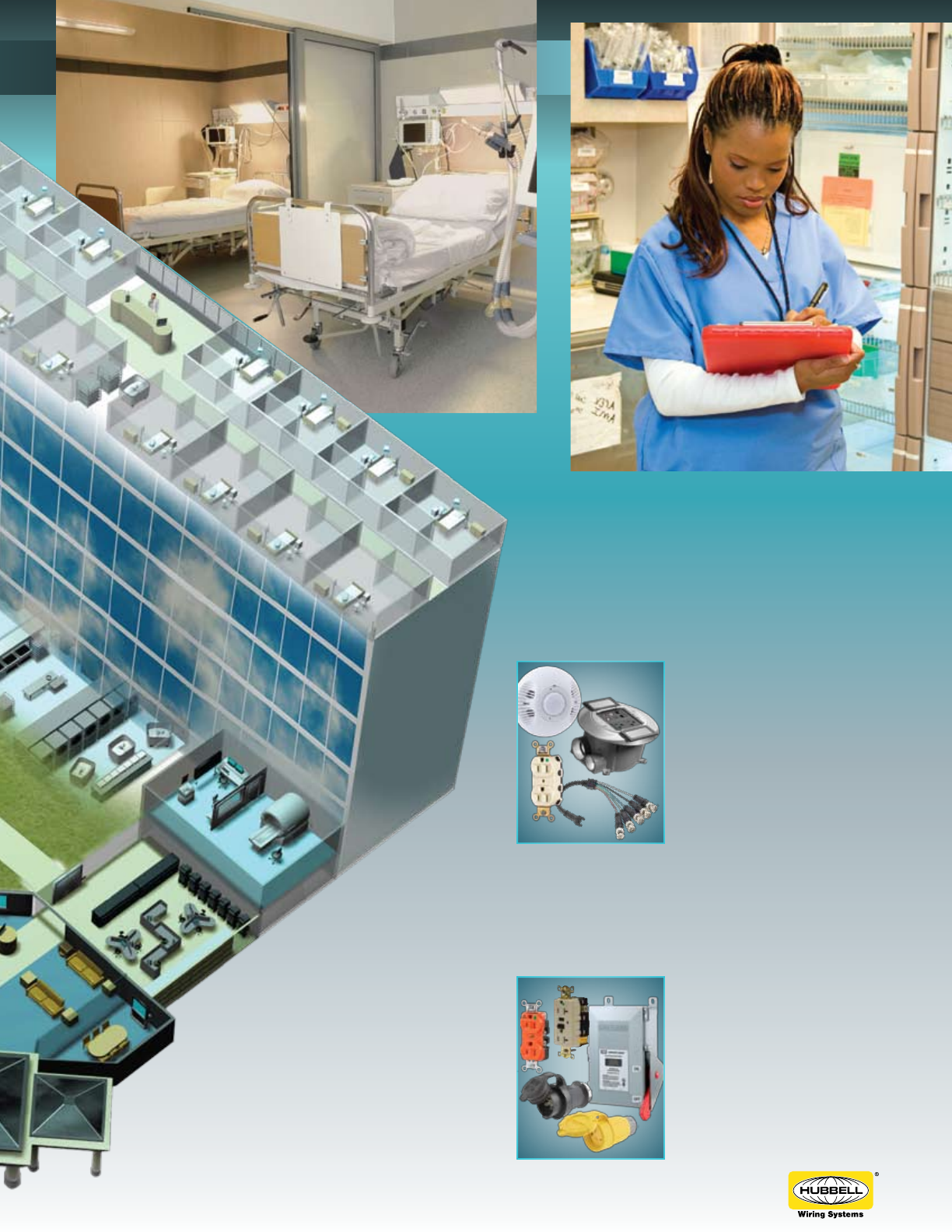

HOSPITAL FACILITIES
www.hubbell-wiring.com4
Performance
Hospitals are depended on for the reliability of their
services, procedures and patient care. Hubbell
devices ensure the reliability that hospitals and
healthcare workers need for complete peace of mind.
iFRAME® Data Center Solutions
NextSpeed® Ascent Category 6A
OptiChannel™ Keyed LC Solutions
Hubbellock® Plugs and Receptacles
Twist-Lock® Devices
Watertight Plugs and Connectors
Durability
Through years of innovation and a commitment
to superior quality, Hubbell devices maintain
their performance regardless of how many times
equipment is connected or disconnected.
Hospital Grade Receptacles
Switches
Hubbell Insulgrip®
Plugs and Connectors
Pin and Sleeve Devices
NextSpeed® Copper Systems
OptiChannel™ Fiber Systems
HOSPITAL FACILITIES
www.hubbell-wiring.com 5
Safety
Safety of patients, visitors and healthcare workers is a
number one concern for hospitals. Hubbell takes safety
extremely seriously, providing a variety of products that
ensure superior protection of people and property.
Tamper-Resistant Receptacles
GFCI and Isolated Ground
Receptacles
Motor Disconnects
TredTrak® and AccessTrak®
Watertight Plugs and Connectors
Sustainability
By providing energy savings, ease of installation and
the ability to reuse and recongure systems, Hubbell
ensures maximum value and sustainability for today’s
hospital facilities.
Occupancy and Daylight Sensors
Hubbell SNAPConnect™ Receptacles
Hubbell SystemOne Floor Boxes and
Fire-Rated Poke-Throughs
Surface Raceway
BIDnet™ Copper and Fiber
Pre-Terminated Assemblies
iSTATION™ Audio/Video Connections

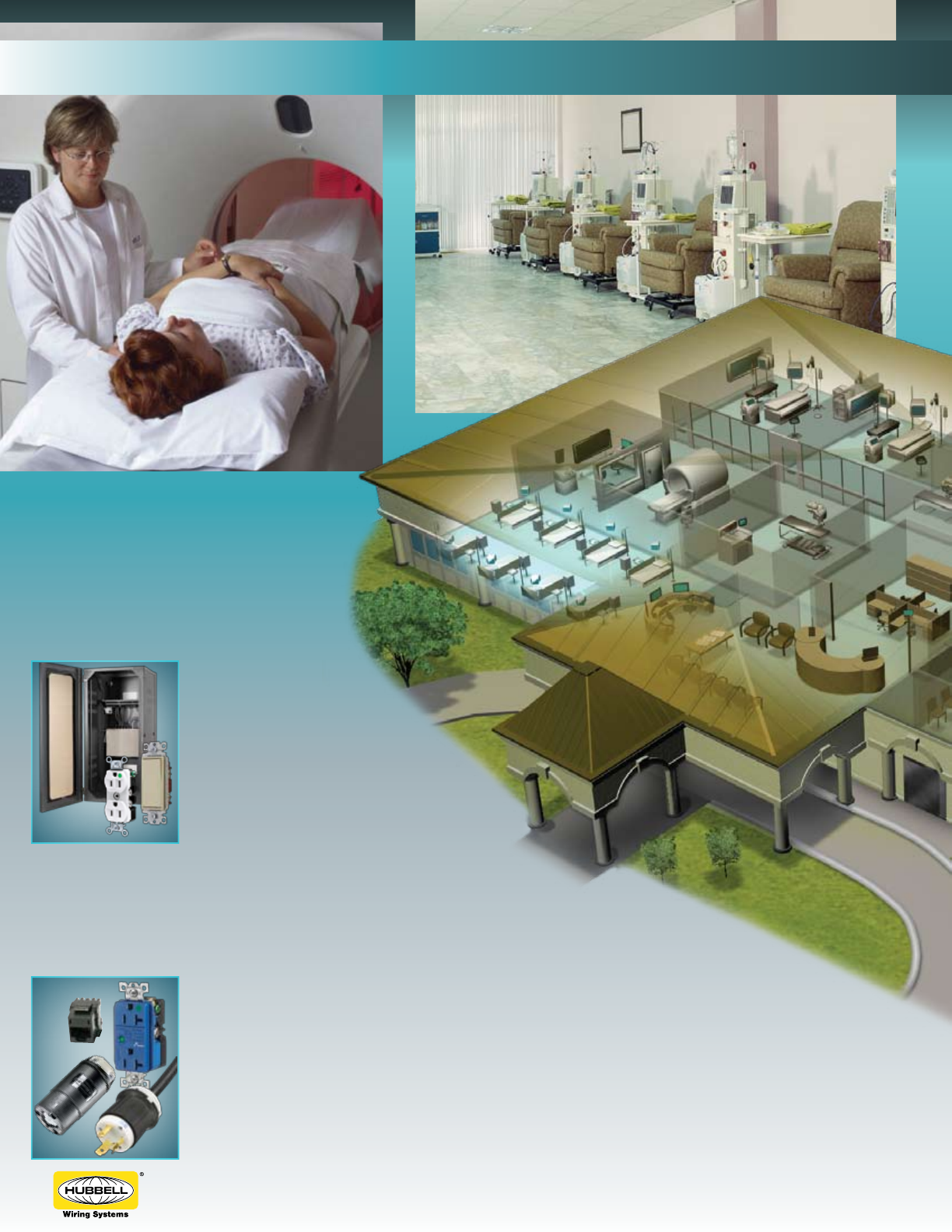

HEALTHCARE FACILITIES
www.hubbell-wiring.com6
Performance
Large healthcare networks depend on the reliability of the
infrastructure in their outpatient facilities to accomplish diagnostics
and testing. Hubbell products are designed to ensure application
assurance and provide maximum reliability inside these critical
environments.
Hubbellock® Plugs and Receptacles
Twist-Lock® Devices
Hospital Grade Surge Receptacles
50A Straight Blade Devices
NextSpeed® Ascent Category 6A
OptiChannel™ Keyed LC Connectivity Systems
Durability
Outpatient healthcare facilities require the same
level of performance as hospitals. Hubbell products
provide that performance.
Hospital Grade Receptacles
Switches
Insulgrip® Plugs and Connectors
NextSpeed® Jacks and Panels
RE-Box® and Wall Mount Cabinets
HEALTHCARE FACILITIES
www.hubbell-wiring.com 7
Safety
Different outpatient facilities serve different types of patients.
Pediatric and psychiatric clinics benet from tamper-resistant
receptacles and datacom plates while bathrooms and other
wet locations must be GFCI protected. Hubbell products
ensure maximum safety to meet these requirements.
Tamper-Resistant Receptacles
GFCI Receptacles
Illuminated Switches
TrukTrak® and AccessTrak®
RE-Box® Equipment Cabinets
Secure-IT™ Tamper-Resistant
Face Plates
Sustainability
There are many opportunities to maximize energy
efciency and control cost in outpatient healthcare
facilities. Hubbell provides several sustainable solutions
that ensure maximum value.
Occupancy and Daylight Sensors
Hubbell SNAPConnect
Hubbell SystemOne Floor Boxes
and Fire-Rated Poke-Throughs
Surface Raceway
BIDnet™ Copper and Fiber
Assemblies
iSTATION™ Audio Video Products
www.hubbell-wiring.com8
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Critical Care
Communication recommendations for outlet densities
Area Workstation LAN Connections
ICU
Neonatal ICU
Recovery
High Station
High Station
High Station
>14 in each WA
>14 in each WA
>14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Emergency Power Circuits
Emergency systems that supply power in the
event of an outage must be identied according
to the National Electric Code (NEC®) Article
517.30(E). Hubbell offers receptacles and wall
plates in a distinct color red and a selection of
wall plates clearly marked “EMERGENCY” to
meet this requirement.
HBL8200 Series
Hospital Grade Receptacles
NEMA Rating Color
Duplex Receptacle Illuminated Duplex Receptacle Single Receptacle
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A 125V Ivory
Red
White
Brown
Gray
HBL8200I
HBL8200R
HBL8200W
HBL8200
HBL8200GY
5A078
5Z823
3D285
1XC01
5Z825
HBL8200ILI
HBL8200ILR
HBL8200ILW
HBL8200ILGY
3D283
3D284
2LBX3
2LBX2
HBL8210I
HBL8210R
HBL8210W
HBL8210
HBL8210GY
3D286
4D045
2LBX5
5Z821
2LBX4
20A 125V
NEMA 5-20R
20A 125V Ivory
Red
White
Blue
Brown
Gray
HBL8300I
HBL8300R
HBL8300W
HBL8300BL
HBL8300
HBL8300GY
5A084
5Z824
3D291
1XC02
5Z826
HBL8300ILI
HBL8300ILR
HBL8300ILW
HBL8300ILGY
3D289
3D290
2LBX8
2LBX7
HBL8310I
HBL8310R
HBL8310W
HBL8310
HBL8310GY
3D292
3D293
4D065
5Z822
2LBX9
The NEXTSPEED®
Ascent Category 6A jack
Description Hubbell #
1 per Bag/Carton of 25.
25 per Bag/Carton of 1
HJ6Axx
HJ6Axx25
xx=color: AL (Almond), BK (Black), B (Blue),
EI (Electric Ivory), GL (Gold), GY (Gray),
GN (Green), OW (Office White), OR (Orange),
P (Purple), R (Red), TI (Telco Ivory), W (White)
and Y (Yellow)
HBL8200 Series Hospital Grade Receptacles
NEXTSPEED® Ascent Category 6A Jacks
Exclusive nickel-plated bypass power contact
design ensures uninterrupted power
Four-point grounding system provides redundant
grounding for low resistance to fault currents
Deep body design and one-piece nickel
plated brass ground strap provide impact and
corrosion resistance
TIA and ISO category 6A component compliance
Labor savings: exclusive 1-punch termination reduces
termination time by 75%
Mating cycles exceed industry standard by two times
Critical care spaces in a healthcare facility require 100% reliable power and
data connections without interruptions. These demanding 24/7 environments
encounter signicant abuse such as abrupt plug removal and numerous
insertions, being impacted with carts, beds and gurneys, exposure to harsh
cleaning disinfectants—all of which can contribute to damage.
Hubbell products are put through comprehensive rigorous UL, TIA, IEEE and ETL
testing, to meet requirements above and beyond the standards providing the
industry with one of the highest performing most reliable devices.
Hubbell Healthcare Application Guide
Critical Care
NEC® is a registered trademarl of the National Fire Protection Association (NFPA).
www.hubbell-wiring.com 9
Power and Communication
New advances in healthcare technology require
reliable network and communications systems for
surgeons and healthcare workers to quickly access
the information they need and contact their peers in an
emergency situation.
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Surgery/Procedure/Operating Rooms
Communication recommendations for outlet densities
Area Workstation LAN Connections
Operating Room
ICU
High Station
High Station
>14 in each WA
>14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Insulgrip® Hospital Grade Plugs and Connectors
SSF Stainless Steel Plates
Ribbed nylon housing is impact and
chemical resistant
Powerful cord grip prevent conductor
slippage and strain on terminals
Integral VARI-SIZE® insert adjusts to a wide
range of cord sizes
Superior corrosion resistance
Designed to t iSTATION™ modules and
AV connectors
Ease of use: front and rear-loading
capabilities improves tamper resistance
Like critical care areas, the ICU and operating rooms in a healthcare facility
require 100% reliable connections for the highly advanced electronic equipment,
like monitoring devices, portable imaging equipment, and various networking
connections—all of which require safe, reliable power, and extended bandwidth to
ensure uninterrupted performance.
These sterile environments are also subject to strong disinfectants and harsh
cleaners that can degrade some plastics and cause corrosion. Hubbell Hospital
Grade devices are engineered to provide the highest degree of durability.
Hubbell Healthcare Application Guide
ICU and Operating Rooms
Straight Blade
Plugs and Connectors
Amps
NEMA
Rating Poles/Wires Description
Plug Angled Plug Connector
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Grainger #
15A
125V
15A 125V
NEMA 5-15P
UL CSA
G
W
5-15 2-Pole
3-Wire
Black/White
Transparent
Valise; white
HBL8215C
HBL8215CT
HBL8115V
5A076
6C627
5Z871
HBL8215CAT
5Z869
HBL8219C
HBL8219CT
HBL8119V
5A077
6C628
5Z874
20A
125V
20A 125V
NEMA 5-20P
UL CSA
G
W
5-20 2-Pole
3-Wire
Black/White
Transparent
Valise; white
HBL8315C
HBL8315CT
HBL8364V
5Z868
6C629
2LBY2
HBL8315CAT
5Z870
HBL8319C
HBL8319CT
5Z873
2LBY1
SSF Stainless Steel Plate
Gang Ports Hubbell # Grainger #
With Label Field
Hubbell #
Single
Gang
1
2
3
4
6
SSF11
SSF12
SSF13
SSF14
SSF16
6MK51
6MK52
6MK53
6MK54
SSFL11
SSFL12
SSFL13
SSFL14
SSFL16
Two Gang 4
6
9
12
SSF204
SSF206
SSF209
SSF212
6MK56
SSFL204
SSFL206
SSFL209
SSFL212
All SSF plates will accept AV keystone connectors and XCELERATOR™ jacks.
www.hubbell-wiring.com10
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Patient Rooms
Communication recommendations for outlet densities
Area Workstation LAN Connections
Patient Room High Station >14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
The Digital Age
Patient rooms require more Data and AV connections
than ever before. Everything from video distribution,
specialty equipment connections to wireless access
points and multiple LAN connections are being
integrated into these spaces. Also ensures healthcare
workers have immediate access to electronic health
records and effective means of communicating.
Hubbell Healthcare Application Guide
Patient Rooms
iSTATION™ Plates and Modules
SNAPConnect™ Hospital Grade Receptacles
SNAPConnect™Receptacles Pigtail Terminals
Rating NEMA Color
Duplex Receptacle Style Line® Decorator
Hubbell # Description
Straight Right Angle
Hubbell #Hubbell # Grainger # Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A
125V
Ivory
Red
White
SNAP8200I
SNAP8200R
SNAP8200W
1TFZ9
1TGA2
1TGA3
SNAP2172I
SNAP2172R
SNAP2172W
Clear terminal w/ 6-inch
leads solid wire
SNAP6R1 1TFZ6 SNAP1R
20A 125V
NEMA 5-20R
20A
125V
Ivory
Red
White
SNAP8300I
SNAP8300R
SNAP8300W
1TGA8
1TGB1
1TGB2
SNAP2182I
SNAP2182R
SNAP2182W
Clear terminal w/ 6 inch
leads stranded wire
SNAP6R2 1TFZ7 SNAP2R
iSTATION™ Modular Face Plate Frames
Description Gang Hubbell #
Front loading frame 1
2
IMF1xx
IMF2xx
iSTATION™ Stainless Steel Plates
Description Gang Catalog No.
Front loading frame;
stainless steel
1
2
3
4
IMS1
IMS2
IMS3
IMS4
The IMF/IMS series accept any modules in 3 unit combinations
for 1-gang; and 6 unit combinations for 2-gang applications.
iSTATION™ Unloaded Modules
Description Hubbell #
Keystone; 1-port; 1 Unit
Keystone; 2-port; 1 Unit
SC Angled; 1-duplex; 1.5 unit
SC Angled; 2-duplex; 2 unit
IM1K1xx
IM2K1xx
IM1SCA15xx
IM2SCA2xx
iSTATION™ Modules Blank 15-pin/9-pin HDMI
Description Hubbell #
HD15/9-pin or HDMI; 1 unit
w/ 3.5mm Stereo Jack; 1.5 unit
w/ 3.5mm SJ+AV Conn; 2 unit
IMBDS1xx
IMBDSA15xx
IMB153X2xx
xx=color: AL (Almond), BK (Black), EI (Electric Ivory), GY (Gray),
LA (LightAlmond), OW (Ofce White) and W (White) xx=color: AL (Almond), BK (Black), EI (Electric Ivory), GY (Gray),
LA (LightAlmond), OW (Ofce White) and W (White)
Patient rooms are now lled with many electronic devices that need various styles of Audio,
Video, LAN, PoE and power connections. While the reliability of monitoring care equipment is
the primary concern, functionality, safety and aesthetics are also needed. Hubbell’s tamper-
resistant receptacles protect people, illuminated devices help patients and staff locate
switches and receptacles, and Style Line® Decorator devices match room décor.
To help healthcare facilities get spaces up and running faster or facilitating moves, adds and
changes, Hubbell’s SNAPConnect™ receptacles and iSTATION™ work area solutions save
signicant termination time while providing a fast and consistent installation every time.
Fast, easy installation with SNAPConnect
modular terminal instead of pigtails
Clear terminal housing with no exposed
live parts
Compact size with a clean nished look
High density capabilities
Pre-terminated X-END™ assemblies
eliminate field termination on job site
Supports multiple applications and
connector congurations
Hubbell Healthcare Application Guide
Restroom Areas
www.hubbell-wiring.com 11For complete listing of Hubbell Products see our full line catalog.
Ordering Information
GFCI Safety Code
The combination of GFCI protection and tamper-
resistant safety provides an ideal “one-stop” Hubbell
solution. Hubbell tamper-resistant GFCI devices also
include a weather resistant rating per NEC® 406.8,
providing UV and corrosion resistance for harsh, damp
applications.
While GFCIs protect people in bathrooms, scrub
rooms, kitchenettes and other potentially wet locations
throughout healthcare facilities, they should not be
used in critical care patient areas or for electrical life
support equipment in ICUs and operating rooms
because of the possibility of power interruption.
GFCI
Receptacles
Rating NEMA Color
Tamper-Resistant/Weather Resistant
AUTOGUARD Self Test Circuit Guard®Circuit Guard®
Hubbell # Grainger # Hubbell # Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A 125V Ivory
Red
White
GFR8200SGI
GFR8200SGR
GFR8200SGW
2G LY9
2GLZ3
2GLZ1
GFR8200HITR
GFR8200HRTR
GFR8200HWTR
GFR8200HILA
GFR8200HRLA
GFR8200HWLA
2XB87
1GDL4
2XB88
20A 125V
NEMA 5-20R
20A 125V Ivory
Red
White
GFR8300SGI
GFR8300SGR
GFR8300SGW
2GLZ6
2GLZ9
2GLZ7
GFR8300HITR
GFR8300HRTR
GFR8300HWTR
GFR8300HILA
GFR8300HRLA
GFR8300HWLA
2XB90
1GDL6
2XB91
Occupancy Sensor
Description Color Hubbell # Grainger #
Ultrasonic Adaptive Technology,
wall switch w/o button, 400 sq. ft.
Ivory
White
AU1277I1N
AU1277W1N
1MEA3
1MEA4
Ultrasonic Adaptive Technology,
ceiling sensor, 2000 sq. ft.
White ATU2000C 1ND62
Control unit; 120/277V AC,
50/60 Hz; for use with ceiling sensors
CU300A 2YCJ4
TR
TR
WR
WR
Style Line® Decorator
Receptacles
Rating NEMA Color*
Duplex Receptacle Isolated Ground Receptacle
Hubbell # Grainger # Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A 125V Ivory
Red
White
HBL2172I
HBL2172R
HBL2172WA
5Z853
3D531
5Z854
20A 125V
NEMA 5-20R
20A 125V Ivory
Red
White
Orange
HBL2182I
HBL2182R
HBL2182WA
5Z855
3D535
5Z856
IG2182I
IG2182WA
IG2182
4D314
NEC® is a registered trademarl of the National Fire Protection Association (NFPA).
Hubbell Healthcare Application Guide
Patient Rooms
Hospital Grade GFCI Receptacles
Ultrasonic Occupancy Sensors
Ground fault indicator ashes red when device
has lost capability to provide protection
Test button functionally tests both electronic
components and trip mechanism
No power at device face if reverse wired,
eliminating false assumption of protection
Active ultrasonic sensing provides superior
minor motion sensitivity, even in stalls
Adaptive Technology automatically adjusts
sensor settings for optimum performance
Use optional isolated relay to integrate with
building automation and HVAC systems
With a restroom in every patient room and throughout staff and public areas, hospitals
and healthcare facilities can contain hundreds of restrooms. Required by code,
receptacles in any wet area must be a ground fault circuit interrupter. Many healthcare
restrooms require hospital grade GFCIs while others can use commercial-grade
GFCIs. From extra heavy duty hospital grade and commercial receptacles to
tamper-resistant, auto grounding and self test units, Hubbell has the GFCIs needed
for restrooms and any other potentially wet areas in healthcare facilities.
In addition restrooms are an ideal area for motion sensing lighting controls. Hubbell
has a complete offering of ultrasonic ceiling and wall sensors for turning lights off
when restrooms are unoccupied.
www.hubbell-wiring.com12
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Patient Rooms
Communication recommendations for outlet densities
Area Workstation LAN Connections
Nurses Stations
Registration
High Station
Medium Station
>14 in each WA
6-14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Electronic Health Records
More and more, healthcare is moving toward
electronic communication and records. All patient
records, test results, pharmacy requests and doctors’
care orders are being logged and transferred
electronically, requiring both high-performance
network transmission and data protection. Hubbell
offers the very latest network solutions that provide
the highest bandwidth and reliability available.
Hubbell Healthcare Application Guide
Nurses Station
Surge Protection
Receptacles
Isolated
Ground
NEMA Rating Color*
Duplex Isolated Ground 4-PLEX®Duplex Style Line® Decorator
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Hubbell # Grainger # Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A
125V
Blue
Ivory
Red
Orange
White
HBL8262SA
HBL8262ISA
HBL8262RSA
HBL8262WSA
IG8262SA
IG8262ISA
IG8262RSA
IG8262OSA
IG8262WSA
IG8200R
IG8200
2LBY5
5Z827
20A 125V
NEMA 5-20R
20A
125V
Blue
Ivory
Red
Orange
White
HBL8362SA
HBL8362ISA
HBL8362RSA
HBL8362WSA
6C136
3D287
IG8362SA
IG8362ISA
IG8362RSA
IG8362OSA
IG8362WSA
3D407
4D331
HBL420HS
HBL420HIS
IG8300
IG8300R
5Z828
2LBY6
IG2182I
IG2182
IG2182WA
4D314
NEXTSPEED® and SPEEDGAIN® Category 6, 5e, 3, and USOC Jacks
XCELERATOR™
Jacks
Color
Category 6 Category 5e Category 3 6-Position USOC
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Hubbell # Grainger #
Black
Blue
Electric Ivory
Green
Orange
Red
White
Yellow
HXJ6BK
HXJ6B
HXJ6EI
HXJ6GN
HXJ6OR
HXJ6R
HXJ6W
HXJ6Y
3TY63
3TY64
3TY65
4TY67
3TY69
3TY70
3TY72
3TY73
HXJ5EBK
HXJ5EB
HXJ5EEI
HXJ5EGN
HXJ5EOR
HXJ5ER
HXJ5EW
HXJ5EY
5LV60
5LV63
5LV58
6MJ31
5LV62
5LV64
6MJ30
5LV65
HXJ3BK
HXJ3B
HXJ3EI
HXJ3GN
HXJ3OR
HXJ3R
HXJ3W
HXJ3Y
HXJUBK
HXJUB
HXJUEI
HXJUGN
HXJUOR
HXJUR
HXJUW
HXJUY
5LV40
5LV37
5LV42
5LV38
Isolated Ground
Isolates ground contacts from the mounting strap
Green grounding screw connected directly to
grounding contacts
Surge Protection Receptacles
Green LED on surge protection receptacle
indicates power is “on” and device is actively
protecting against voltage surges
Surge Protection and Isolated Ground Hospital Grade Devices
Industry’s rst tested Category 6 component
compliant jack
Labor savings: exclusive 1-punch termination
reduces termination time by 75%
Mating cycles exceed industry standards by
two times
Bulk packaged to eliminate excess packing waste
Nurse’s stations are the command center for each patient care area within a healthcare
facility. Here it is crucial to maintain accurate and timely records, pharmacy requests,
wireless nurse call systems and intra-hospital communication. This requires a high level of
network connectivity and power reliability.
As more computers are deployed, the need to protect them against transient voltage
surges is critical. Hubbell carries a complete line of the latest copper and ber datacom
network solutions as well as an entire line of surge protective devices that provide superior
point-of-use protection from voltage surges where sensitive electronic equipment is
deployed.
Hubbell Healthcare Application Guide
Diagnostics
NEXTSPEED® Shielded Jacks
Category 6/10GbE
Category
Package.
Quantity
B-Wired
Hubbell #
A-Wired
Hubbell #
6
6
5e
5e
2
24
2
24
SJ62B
SJ624B
SJ5EB
SJ5EB24
SJ62A
SJ624A
SJ5EA
SJ5EA24
Shield Colored Dust Covers
Description Color Hubbell #
100 per
package
Blue
Black
Green
Orange
Yellow
IDCSB
IDCSBK
IDCSGN
IDCSOR
IDCSY
Larger File Sizes
Diagnostic imaging equipment like digital X-ray,
MRI and ultrasound need to capture and send
images quickly and reliably. Many of these images
are contained within large size le, requiring Gigabit
and 10 Gigabit networks to deliver and store these
les in the data centers. In addition to ensuring
power continuity, Hubbell offers a full line of high
performance shielded connectivity for those certain
areas where EMI noise may be present.
www.hubbell-wiring.com 13
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Diagnostic and Treatment
Communication recommendations for outlet densities
Area Workstation LAN Connections
MRI & CT Scanner
Simulator Room
Linear Accelerator
High Station
High Station
High Station
>14 in each WA
>14 in each WA
>14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Hubbellock® Receptacles, Plugs and Connectors
NEXTSPEED® Shielded Jacks
Hubbellock®
Rating NEMA Description Hubbell # Grainger #
20A 125V AC
+
20A 125V Plug, nylon cover, thermoset interior
Plug, armored, epoxy lled, rubber cord grip
Connector, cover, thermoset interiorr
Receptacle, black, back wired
HBL23014HGB
HBL23004HG
HBL23001HGB
HBL23000HG
3D033
3D030
3D028
3D027
Hubbellock® Mobile X-Ray Devices
Rating NEMA Description Hubbell # Grainger #
50A 250V AC
50A 250V Receptacle with stainless steel plate assembly
Receptacle with cast aluminum plate assembly
Plug, with epoxy kit, less cord clamp
Plug, with cord clamp, less epoxy kit
HBL25505
HBL25503
HBL25515
HBL25525
3D061
3D062
60A 250V Receptacle with stainless steel plate assembly
Receptacle with cast aluminum plate assembly
Plug, with epoxy kit, less cord clamp
Plug, with cord clamp, less epoxy kit
HBL25605
HBL25603
HBL25615
HBL25625
Hubbell Healthcare Application Guide
Nurses Station
Prevents accidental disconnects
Molded plug contacts prevent distortion
Connections are made internal to the device
Quick and easy terminal grounding connection
Tool less termination
Third-party tested and veried
Today’s medical diagnostics are a far cry from the traditional X-ray lm of the past.
Healthcare facilities contain a variety of high-tech imaging and diagnostic equipment
that more accurately determine a patient’s condition. Many of these require higher
capacity power and data connections than traditional conventional outlets and
connectors can provide.
The Hubbellock® mobile x-ray devices are specically designed to support unique
connection points for diagnostic equipment, providing an extra margin of safety and
maintaining their connection even if they are pulled and tugged.
www.hubbell-wiring.com14
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Patient Rooms
Communication recommendations for outlet densities
Area Workstation LAN Connections
Nurses Stations
Registration
High Station
Medium Station
>14 in each WA
6-14 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Dual Technology
Hubbell H-MOSS® Occupancy Sensors are available
with dual technology, that uses both passive
infrared and ultrasonic sensing technology. Because
both technologies are used to detect occupancy,
these sensors minimize the risk of false triggering
and provide the best performing sensor for most
applications.
Hubbell Healthcare Application Guide
Examination Rooms
Tamper-Resistant
Face Plates
Size Color
Face Plate Replacement Cover Cable-Thru Plate
Hubbell # Grainger # Hubbell # Hubbell #
1-gang/4-port
1-gang/4-port
1-gang/4-port
1-gang/4-port
Black
Gray
Ofce White
White
TPF1BK
TPF1GY
TPF1OW
TPF1WH
6KB11
TPFCLBK
TPFCLGY
TPFCLOW
TPFCLWH
TPCP1BK
TPCP1GY
TPCP1OW
TPCP1WH
Weatherproof
Face Plates
Size Color
Face Plate Replacement Cover
Hubbell #
Hubbell # Grainger #
1-gang/
4-port
Gray TWPF1GY 6KB12 ERFCLGY
Occupancy Wall Switch Sensors
Secure-IT™ Plates
Occupancy Sensor
Description Color Hubbell # Grainger #
Adaptive Technology,
Dual (Ultrasonic and Passive Infrared) wall
switch with one button for manual/auto
control, 1,000 sq. ft.
Ivory
White
AD1277I1
AD1277W1
1MEA9
1MEB1
Passive Infrared, wall switch, 1,200 sq. ft. Ivory
White
WS1277I
WS1277W
1VD96
1VD98
Slender/Compact Receptacle
NEMA Rating Color Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A 125V Ivory
Red
White
HBL8200HI
HBL8200HR
HBL8200HW
4D036
4D038
4D040
20A 125V
NEMA 5-20R
20A 125V Ivory
Red
White
HBL8300HI
HBL8300HR
HBL8300HW
4D058
4D059
3D288
No neutral required for fast switch
replacement
Optional Hubbell patented adaptive
technology eliminates manual adjustments
No minimum load requirements
The sliding cover provides better protection
and longer life
Multiple labeling options for easy station
identication
Fiber and multimedia capabilities
Patient exam rooms in hospitals and outpatient healthcare facilities have a need for safe,
reliable power connections. Pediatric exam rooms require tamper-resistant receptacles
while any outlet near a sink, even a small exam room sink, must be GFCI protected.
The ample lighting needed in exam rooms are often left on when doctors and patients
leave the exam room, wasting signicant energy. By simply outtting these spaces with
occupancy sensors, the lights will turn off when the room is vacant, providing immediate
energy savings.
www.hubbell-wiring.com 15For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Hubbell Healthcare Application Guide
Physical Therapy Areas
Floor Boxes For Concrete Floors
Description Rating Color Hubbell #
Flange and Hinged Door Cover Assembly
Includes (1) duplex receptacle, gasket, oor leveling
PVC ring, high impact and chemically resistant nylon.
15A 125V Solid Brass
Almond
Black
RF406BR
RF406AL
RF406BK
PVC Floor Box with Concrete Protective Cover Gray RF400
Low Voltage Divider; for use in PVC box RF400, when
JLOAD™ Multimedia Outlet is used.
Gray RF408
JLOAD™ Multimedia Outlet
Description Rating Color
Standard Tamper-Resistant
Hubbell # Grainger # Hubbell #
JLOAD™ Multimedia Outlet; Includes
decorator frame, (1) Cat. 5e, (1) F-connector
and (1) receptacle with voltage divider.
15A 125V
20A 125V
20A 125V
See below
Black
See below
RJ620xx
RJ650BK
RJ650xx
3EAD4
RJ650xxTR
RJ620xxTR
Includes decorator frame with (2) open ports for custom
conguration and (1) power receptacle with voltage divider.
15A 125V
20A 125V
See below
See below
RJ65xx
RJ62xx
RJ65xxTR
RJ62x xTR
xx=color: AL (Almond), BK (Black), GY (Gray), I (Ivory), LA (Light Almond) and W (White)
HI-IMPACT Datacom Connectors
Description Hubbell # Grainger #
Category 6 Connector (UTP)
Category 5e Connector
Inline Coupler, Category 5e
Protective Cap
HI6
HI5E
HI5EC
HIC
6KB17
6KB18
Floor Boxes
HI-IMPACT RJ45 Connectors
JLOAD™ Multimedia Outlet
Install receptacles and voice/data devices exactly
where they are needed, in the smallest space
possible. JLOAD™ multimedia outlet; specically
designed to provide power, cat. 5e and coaxial in a
single gang box; requires JLOAD™ multimedia box
RJ600; perfect for HDTV and computer use where a
combination of power and data are needed; includes
decorator frame; one cat. 5e; one F-connector and
one power receptacle 125V with voltage divider.
An economical solution for electrical power
or a combination of power and voice/data
applications
Designed specically for slab-on-grade
installation
Quick and easy installation is assured using
a push in place leveling system
IP67 and IP66 rated for ingress protection
against dust and liquids
Durable, rugged construction for harsh
environments
Veried to Category 6 and 5e and supports
power over Ethernet (PoE and PoE+)

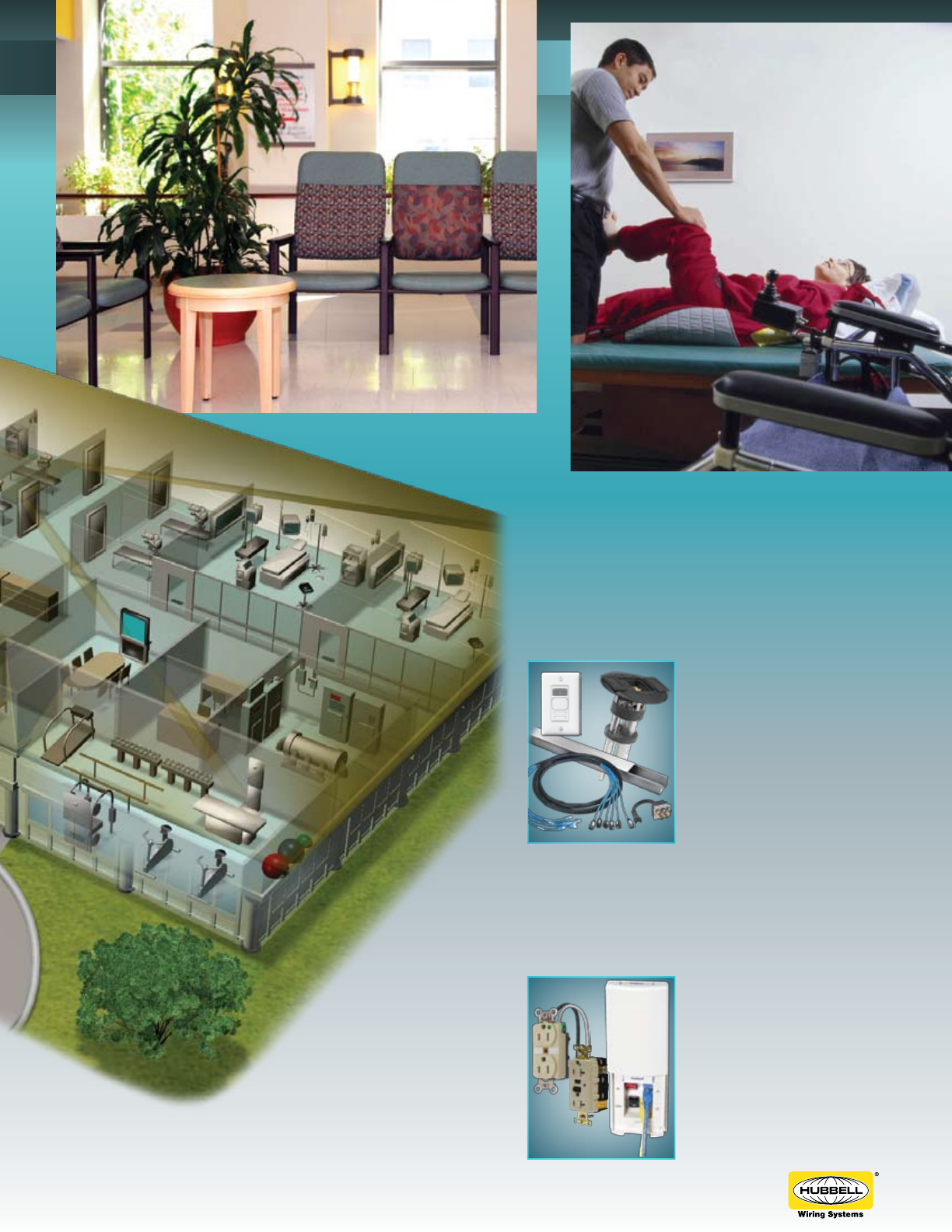

Physical therapy centers and spaces provide a variety of treatment options to help
patients develop, maintain and restore movement and function. These areas can be
a typical gym type or they can be hydrotherapy areas where water is present.
Hubbell has delivery system products including non-metallic multi-service oor
boxes that deliver both power and datacom to any point in the room.
Hubbell Multimedia Connectivity
Description Catalog Number
HDMI decorator frame, 1 port
HDMI decorator frame, 2 port
NS801xx
NS802xx
HXJ Series Jack, 10GbE
HXJ Series Jack, Cat 6
HXJ Series Jack, Cat 5e
HXJ6Axx
HXJ6xx
HXJ5Exx
Data Coupler, Cat 6
Data Coupler, Cat 5e
SFC6BK
SFC5EBK
USB Coupler, A to B, Blue
USB Coupler, A to A, Blue
SFUSBABB
SFUSBAAB
S-Video, 110 Termination
S-Video, Pass-through
SFSV110BK
SFSVBK
xx=color: AL (Almond), BK (Black), GY (Gray), I (Ivory), LA (Light Almond) or W (White)
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Operations
Communication recommendations for outlet densities
Area Workstation LAN Connections
Auditorium
Conference Room
High Station
Medium Station
>14 in each WA
6-14 in each WA
The Right Image
Having the very latest AV applications along
with power and data at the point of use is not
only critical to supporting converging
applications, it takes full advantage of today's
technological advancements.
Hubbell Healthcare Application Guide
Auditorium and Conference Rooms
Table Top Boxes
Tabletop Box
Description Catalog Number
Low Voltage; (1) keystone opening TTBKSxx*
Low Voltage; (1) XLR mic. jack installed TTBXLRxx
Dual Service; (1) pre-wired 15A outlet with 9 foot
power supply cord; (1) 3.5mm audio; (1) 15-pin
gender changer F/F; (2) keystone openings
TTBDS1xx*
Dual Service; (2) pre-wired 15A outlets w/ 9 ft. power
supply cord; (2) keystone openings
TTBDS2xx*
* Keystone modules sold separately
xx=color: BK (Black anodized alum), AL (Clear anodized alum.) or BR (solid brass)
AV Horizontal Run
Description Catalog Number
Non-Plenum, 8-Pin
Plenum, 8-Pin
VGA6xxBK
VGA6PxxBK
xx=length: 5 ft. (05) to 100 ft. (100)
Order in multiples of 5 ft.
X-End™ Coupler (8-Pin)
Description Catalog Number
4 Inch Tail
90 Degree
Straight
SFAVCT
SFAVCN
SFAVCS
X-End™ Patch Cords
Description Catalog Number
S-Video & 3.5mm
S-Video & 2 RCA
3 RCA w/ L/R Audio
3 RCA Video
3 RCA w/ S/PDIF
5 RCA w/ L/R Audio
3 RCA & S-Video
S-Video, 3 RCA w/ L/R Audio
3 RCA & 3.5mm
5-BNC RGBHV
AVS35xx
AVSRAxx
AVRCxx
AVCRxx
AVCRDxx
AVCARxx
AVSCRxx
AVSRCxx
AVC35xx
AVBxx
xx=length: 5 ft. (05), 10 ft. (10) or T1 (1" Tail)
X-END™ plug-n-play multi-media system
allows for higher capacity applications in a
smaller footprint
X-END™ system allows multiple
applications to run over the same horizontal
run – increasing exibility and reducing cost
AV Ceiling enclosure is designed for power,
data and active AV devices in the ceiling
(Cat. No.
AVCE1H)
www.hubbell-wiring.com16 For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Hubbell Multimedia Connectivity
Pre-wired receptacles with corded plug for
easy installation
Ready to integrate with X-END™ plug-n-play
system
Solid aluminum and brass construction for
durability and aesthetic nish
Large healthcare facilities include auditoriums and conference rooms where medical
seminars, continuing education and meetings are held. These spaces are critical
for communicating information. To better facilitate these meetings, auditoriums and
conference rooms must also accommodate the latest AV technology that include display
devices, sound systems, video conferencing and more.
Hubbell’s iSTATION™ and delivery system products provide the broadest range of AV,
data connectors, oor boxes and re-rated poke-throughs for the multimedia experience
needed.
Hubbell Healthcare Application Guide
Common Areas
Wireless Access
Point Ceiling Box
Description Hubbell #
Universal WAP Enclosure
CISCO Aironet 1200 Series
WBC1
WBC12
WBC1 uses key no. 2233
WBC12 uses key no. C346A
Wireless Access
Point Wall Box
Description Hubbell #
Wall Box; Ofce White
Wall Box; Black
Spare Wall Box Lock Key
WBW1OW
WBW1BK
KEY333
WBW1OW and WBW1BK uses key no. 333
Hubbell Healthcare Application Guide
Auditorium and Conference Rooms
www.hubbell-wiring.com 17
TR
TR
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Diagnostic and Treatment
Communication recommendations for outlet densities
Area Workstation LAN Connections
Family Lounge
Waiting Room
Low Station
Low Station
2 – 6 in each WA
2 – 6 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Hubbell Switches and Illuminated Switches
Tamper-Resistant
The NEC® Article 517-18 requires the use of
tamper-resistant receptacles in common areas where
children are present, as well as all pediatric areas.
Hubbell offers the industry’s best-in-class hospital
grade tamper-resistant receptacle along with a line
of GFCI and specication grade devices that include
tamper resistant shutters designed for common areas.
Hubbell tamper-resistant receptacles restrict access of
single-pronged items like paper clips, pens or keys.
HBL® Extra Heavy Duty Switches
Back and Side Wired
Rating Description Poles Color
15A 120-277V AC 20A 120-277V AC
Hubbell # Grainger # Hubbell # Grainger #
15A Nylon toggle Single Ivory
Red
White
HB L12 01I
HB L12 01R
HB L12 01W
6A699
4D264
4D265
HB L12 21I
HB L12 21R
HB L12 21W
6A700
3D362
6C541
3-Way Ivory
Red
White
HB L12 0 3 I
HB L12 0 3 R
HB L12 0 3W
5Z722
HB L12 2 3I
HB L12 2 3R
HB L12 2 3W
1X974
3D365
6C543
Lighted, nylon
toggle*
Single
Single
3-Way
Ivory
Clear
Ivory
HBL1201IL
HBL1203IL
5Z731
5Z732
HBL1221IL
HBL1221ILC
5Z733
4D272
Style Line® Decorator Switches
Back and Side Wired
Rating Description Color
15A 120-277V AC 20A 120-277V AC
Hubbell # Grainger # Hubbell # Grainger #
15A Nylon rocker Single Ivory
White
DS115I
DS115W
5Z779
5Z780
DS120I
DS120W
5Z787
5Z788
3-Way Ivory
White
DS315I
DS315W
5Z783
5Z784
DS320I
DS320W
5Z791
5Z792
Lighted, nylon
rocker*
Single
3-Way
Ivory
Ivory
DS120IL
DS320IL
5Z794
5Z796
Tamper-Resistant
Receptacles
NEMA Rating Color Hubbell # Grainger #
15A 125V
NEMA 5-15R
15A 125V Ivory
Red
White
HBL8200SGIA
HBL8200SGRA
HBL8200SGWA
5Z829
3D454
3D455
20A 125V
NEMA 5-20R
20A 125V Ivory
Red
White
HBL8300SGIA
HBL8300SGRA
HBL8300SGWA
4CV79
4CV80
4CV81
Tamper-Resistant
Hospital Grade Receptacles
Heavy duty nylon toggle resists abuse
Thermoplastic elastomer rocker assures
quiet operation and precise timing
One piece rivetless copper alloy spring
contact arm and terminal plate provides
long life
Deep face design delivers increased
impact resistance
Wire leads for fast installation and no
exposed metal
ID marking surface provides quick sure
circuit identication
NEC® is a registered trademarl of the National re Protection Association (NFPA)
Hospitals and healthcare facilities include many common areas like waiting rooms,
receptionist areas, corridors and more. These spaces require products able to
withstand day-to-day punishment while also ensuring the safety and convenience
for all staff and visitors.
Hubbell wiring devices such as switches, receptacles and wireless access boxes are
designed to last in healthcare common areas. These products support sustainability
and better match a building’s lifecycle.
www.hubbell-wiring.com18 For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Modularity and Aesthetics
SystemOne is a unique, in-oor delivery system that
can be installed in either oor boxes or re-rated
poke-throughs. The system uses a modular approach
with over twenty subplates that allow various voice,
data and AV connector congurations to t into
each. They can be customized to meet virtually every
power and communications application and are
easily replaced to accommodate future technology
expansion.
Hubbell Healthcare Application Guide
Administration
Hubbell SystemOne Subplates and Covers
Floor Boxes
Description Hubbell # Grainger #
Cast Iron
Steel
Steel AV
Non-Metallic
S1CFB
S1SFB
S1SFBAV
S1PFB
5GTL8
5GTL9
2DZL7
Fire-Rated Poke-Throughs
Description Color**
Assembled Units* Through Floor Fittings
Hubbell # Grainger # Hubbell #
(4) 20A; (4) keystone Aluminum
Black
Brass
Gray
S1PT4X4AL
S1PT4X4BL
S1PT4X4BRS
S1PT4X4GY
2DZL8
2DZL9
2DZN1
S1PT4X4FIT
Dual Style Line®see color chart S1PTx x 2DZN2 S1PTFIT
Modular AV see color chart S1PT3IMxx S1PTAVFIT
Furniture Feed see color chart S1PTFFxx
* Factory assembled units include through oor tting, cover and sub-plate
** Applies to assembled units
Floor Box
Cast aluminum construction with a
durable powder coat nish
Type Color Hubbell # Grainger #
Carpet Aluminum
Black
Brass
Gray
S1CFCAL
S1CFCBL
S1CFCBRS
S1CFCGY
2DZL4
2DZL5
2DZL6
Tile Aluminum
Black
Brass
Gray
S1TFCAL
S1TFCBL
S1TFCBRS
S1TFCGY
2DZP2
2DZP3
2DZP4
xx=Color:
AL (Aluminum
Finish)
BRS (Brass
Finish)
BL (Black)
GY (Gray)
Subplates
Description Description Description
Style Line® Decorator/
GFCI for power and/or
datacom applications
(4) 20A and (4)
keystone openings.
Power can be wired
as 1 or 2 circuit and
isolated ground.
Single Receptacle Opening
for 20A-30A Twist-Lock®
recep. (1.56 OD) and (2)
Keystone openings
Hubbell #
Grainger #
S1SP
2DZN5
Hubbell #
Grainger #
S1SP4X4
2DZN6
Hubbell #
Grainger #
S1SPTL
2DZP1
Duplex/Duplex
for power and/or
datacom applications
Hubbell #
S1SPDU
Duplex/Style Line®
Decorator for power
and/or datacom
applications
Hubbell #
S1SPTL
Hubbell AV + Power (1)
20A, 125V receptacle
and 3 unit recessed
iSTATION™
opening for Data Hubbell #
S1SP3IM
For full offering of SystemOne sub-plates and accessories, please visit our online catalog at hubbell-wiring.com.
Multi-service, multimedia and 4x4
applications
Cast iron, stamped steel and non-metallic
oor boxes
Easily installed and congurable
Hubbell SystemOne Floor Boxes and Fire-Rated Poke-Throughs for Concrete Floors
Over twenty applications of subplates to
accommodate various power and data
congurations
Can be used with both oor boxes and
poke-throughs, maintaining a uniform look
throughout the facility
Durable black, gray, brass, aluminum and
ivory powder coat nishes
From billing and reception to program coordination and human resources, a healthcare
facility is also a business and includes many administrative areas that do not require
Hospital Grade receptacles.
Fortunately, Hubbell is also a leading manufacturer of high performance commercial grade
devices and delivery systems. Our SystemOne oor boxes and re-rated poke throughs
provide cable management and exibility to deliver the right mix of power, data and AV
connections to the point of use.
Hubbell Healthcare Application Guide
Data Centers
www.hubbell-wiring.com 19For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Data Racks and Patch Cords
H2 Series Network Cabinets
Critical Power
Providing clean uninterrupted primary and backup
power in the data center is mission critical to ensuring
that all network applications remain running.
In the data center, Hubbell’s Twist-Lock® Power
Devices, IEC Pin and Sleeve connections and
customized power distribution products prevent
unintentional disconnects. Hubbell’s iFRAME® cabinets
and NEXTFRAME® cable management systems provide
for maximum airow and space utilization supporting
efciency and sustainability in the datacenter.
BIDnet™
All BIDnet pre-terminated cable assemblies
are made-to-order items. Please call out inside
sales team at (800) 626-0005 for lead-time
and availability
Integrated Solutions
NEXTFRAME® 3" and 6" Racks
NEXTFRAME® Ladder Rack System
Velcro One-Wrap Ties
Hubbell Grounding and Bounding Solutions
Vertical and Horizontal Power Strips
XXL Series Vertical Organizers
Door
Insert
Channel
Depth 6" Wide 10" Wide 15" Wide
Silver
Silver
Black
Black
14 1/8"*
18 7/8"*
14 1/8"*
18 7/8"*
XS0610
XS0615
XS0610BK
XS0615BK
XS1010
XS1515
XS1010BK
XS1515BK
XS1510
XS1515
XS1510BK
XS1515BK
Channel Depth does not include rear cable organizer. Rear cable
organizer depth is 7 3/4"
H2 Series Network Cabinets
Height Depth Color Rack Units Catalog No.
84.00"
84.00"
80.00"
80.00"
36.00"
32.00"
36.00"
32.00"
Black
Black
Black
Black
45
45
43
43
H2N8436
H2N8432
H2N8036
H2N8032
Cabinets, racks and cable management for
efcient cooling and use of space
Optical ber and copper connections,
assemblies, and patch panels
Hubbell BIDnet™ pre-terminated copper trunk
assemblies are factory tested and terminated
for maximum performance and reduced
installation time
Large open base for cable entry and exit
Perforated front and rear doors provide
enhanced airow, minimizing power
consumption
180 degree door swing provides complete
equipment access
Data centers are the very core of modern healthcare facilities, supporting all the
applications needed to maintain daily communications, electronic health records,
and critical storage and transmission of medical information. Data centers also must
support all satellite operations within the healthcare network. Healthcare facilities
need data center solution that can address both power and data while supporting
sustainability through energy savings, space efciency, reliability, and uptime.
Hubbell offers a complete solution for datacenter power and datacom. From
it’s network cabinets, data racks and patch cords to it’s broad offering of power
connections, Hubbell has the complete solution.
www.hubbell-wiring.com20 For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Ultimate Flexibility
Hubbell raceway accommodates the changing
needs of research facilities, medical test labs and
pharmacies. Raceway offers the ability to provide
standard convenience receptacles and datacomm
connections, as well as serve the power requirements
of larger equipment. Receptacles or datacomm ports
can also be easily added where needed.
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Diagnostic and Treatment
Communication recommendations for outlet densities
Area Workstation LAN Connections
Laboratory High Station >14 in each WA
Hubbell Healthcare Application Guide
Laboratories
NEXTSPEED® UTP and FTP Cable
Description Plenum Spool Plenum REELEX* Riser Spool Riser REELEX*
UTP Cable, Cat. 6A, 4-Pair*
10GbE FTP Cable, 4-Pair, 1000' length*
UTP Cable, Cat. 6 Enhanced, 4-Pair*
UTP Cable, Cat. 6, 4-Pair*
Link 6 UTP Cable
C6ASPxx
C6FTPSPx
C6ESPxx
C6SPxx
C6ASRxx
C6FTPSRx
C6ESRxx
C6RPxx
C6RPEXX
C6ASRxx
C6FTPSRx
C6ESRxx
C6SRxx
C6RRxx
C6RRExx
Category 5E UTP Cable, 4-Pair
UTP Cable, Category 5e, 4-Pair
C5EPSPxx
C5ESPxx
C5EPRPxx
C5ERPxx
C5EPSRxx
C5ESRxx
C5EPRRxx
C5ERRxx
xx= color: B (blue), GY (Gray), W (White) and Y (Yellow).
x=color: B (blue), GY (Gray) and W (White)
*
Hubbell Aluminum Pre-Wired Raceway
NEXTSPEED® UTP and FTP Cable
Aluminum Raceway
Description HBLALU3800 HBLALU4800 HBLALU5000 HBLALU7620
Base 10ft
5 ft. cover 1 channel
5 ft. cover 2 channel
HBLALU3800B10
HBLALUC5
HBLALU4800B10
HBLALUC5
HBLALU5000B10
HBLALUC57
HBLALU2C57
HBLALU7620B10
HBLALUC57
HBLALU2C57
Covers
Duplex
Rectangular
HBLALUDR
HBLALUG
HBLALUDR
HBLALUG
HBLALU57DR
HBLALU57G
HBLALU57DR
HBLALU57G
Fittings
Internal Elbow
Tee
HBLALU3817
HBLALU3815
HBLALU4817
HBLALU4815
HBLALU5017
HBLALU5015
HBLALU7617
HBLALU7615
For full offering of Raceways and ttings, please visit our online catalog at hubbell-wiring.com.
Save time and money, completing the job
quicker and on schedule with Hubbell
pre-wired raceway
Resists oxidation, corrosion and fading
Available in single, dual and three channel
with a wide selection of ttings and boxes
Specically designed to operate as a high-
performance balanced solution
Supports the latest ratied industry
standards for component compliance
Typical round design allows for ease of
installation
Medical labs require an array of power, data and AV congurations and the means
to deliver connection points precisely where needed. They can also be exposed
to corrosive chemicals and wash downs. In addition, labs typically undergo
reconguration to accommodate changing medical needs, testing and new
equipment.
Hubbell’s complete line of metal and non-metallic raceways are optimal for delivering
power and data to the point of use in medical laboratories. In addition to eld
installed raceway systems, Hubbell also offers factory pre-wired raceways which are
pallet delivered right to the jobsite, labeled by room, oor area and/or building and
ready to unpack and install.
3.00" (76.20)
5.80"
(37.42)
3.80"
(24.52)
3.80"
(24.52)
6.00" (152.40)
2.25"
(57.15)
5.80"
(37.42)
5.80"
(37.42)
5.00"
(32.26)
5.00"
(32.26)
5.00"
(32.26)
5.08" (129.03)
1.75"
(44.45)
2.25"
(57.15)
2.25"
(57.15)
7.62" (193.55)
3.00" (76.20)
5.80"
(37.42)
3.80"
(24.52)
3.80"
(24.52)
6.00" (152.40)
2.25"
(57.15)
5.80"
(37.42)
5.80"
(37.42)
5.00"
(32.26)
5.00"
(32.26)
5.00"
(32.26)
5.08" (129.03)
1.75"
(44.45)
2.25"
(57.15)
2.25"
(57.15)
7.62" (193.55)
3.00" (76.20)
5.80"
(37.42)
3.80"
(24.52)
3.80"
(24.52)
6.00" (152.40)
2.25"
(57.15)
5.80"
(37.42)
5.80"
(37.42)
5.00"
(32.26)
5.00"
(32.26)
5.00"
(32.26)
5.08" (129.03)
1.75"
(44.45)
2.25"
(57.15)
2.25"
(57.15)
7.62" (193.55)
3.00" (76.20)
5.80"
(37.42)
3.80"
(24.52)
3.80"
(24.52)
6.00" (152.40)
2.25"
(57.15)
5.80"
(37.42)
5.80"
(37.42)
5.00"
(32.26)
5.00"
(32.26)
5.00"
(32.26)
5.08" (129.03)
1.75"
(44.45)
2.25"
(57.15)
2.25"
(57.15)
7.62" (193.55)
HBLALU3800 HBLALU4800
HBLALU5000 HBLALU7620
Hubbell Healthcare Application Guide
Kitchen and Food Service
www.hubbell-wiring.com 21For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Watertight Safety-Shroud® Twist-Lock®
Watertight Twist-Lock®
Watertight Safety
Hubbell offers a variety of watertight electrical
connections. Hubbell’s Watertight Safety-Shroud®
Twist-Lock® devices are another example of Hubbell
innovation making devices better. The safety shroud
prevents unintentional contact with plug blades as it
is connected. Hubbell's pin and sleeve devices offer
durable watertight housings and higher amperage
congurations up to 200 amps. Hubbell watertight
devices are available in straight blade and
Twist-Lock® congurations.
NEMA Rating
Color Coded by Voltage
Poles/
Wires
Watertight Safety-Shroud®Watertight
Plug Connector Plug Connector
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Grainger # Hubbell # Grainger #
15A 125V
15A 125V
NEMA L5-15P
UL/CSA
0.5 HP
G
W
L5-15 2P/3W 24W47H 5RVX4 25W47H 5RVX7
15A 277V AC
15A 277V AC
NEMA L7-15P
UL/CSA
2 HP
WG
L7-15 2P/3W 24W34H 5RVX6 25W34H 5RVX9
20A 125V
20A 125V
NEMA L5-20P
UL/CSA
1 HP
G
W
L5-20 2P/3W HBL2311SW 4CT65 HBL2313SW 4CT66 26W47H 5RVY0 27W47H 5RVY7
20A 250V
20A 250V
NEMA L6-20P
UL/CSA
2 HP
G
X
Y
L6-20 2P/3W HBL2321SW 4CT73 HBL2323SW 4CT74 26W48H 5RVY1 27W48H 5RVY8
20A 277V AC
30A 277V AC
NEMA L7-30P
UL/CSA
3 HP
L7-20 2P/3W HBL2331SW 4CT81 HBL2333SW 4CT82 26W49H 5RVY2 27W49H 5RVY9
20A 3Ø 250V
20A 3Ø 250V AC
NEMA L15-20P
UL/CSA
3 HP
YG
X
Z
L15-20 3P/4W HBL2421SW 4CT97 HBL2423SW 4CT98 26W75H 5RV Y4 27W75H 5RVZ1
30A
250V AC
30A 3Ø 250V AC
NEMA L15-30P
UL/CSA
3 HP
G
Y
X
Z
L15-30 3P/4W HBL2721SW 4CV45 HBL2723SW 4CV46 28W75H 5RVZ8 29W75H 5RWA5
30A
480V AC
30A 3Ø 480V AC
NEMA L16-30P
UL/CSA
10 HP
YG
X
Z
L16-30 3P/4W HBL2731SW 4CV53 HBL2733SW 4CV54 28W76H 5RVZ9 29W76H 5RWA6
Maintains UL Type 4X watertight seal when
in use and when disconnected
Recessed blades provide protection against
bending and breaking
Neoprene sealing gland and thermoplastic
guard assure sealing when fully connected
Double insulated elastomeric cover and
thermoplastic body for extra safety
and water resistance
Easy-clean body styling
Closure cap seals out water and dirt when
not in use TIA Healthcare Standard TIA-1179 (Proposed)
Area: Operations
Communication recommendations for outlet densities
Area Workstation LAN Connections
Food Service
Cafeteria
Medium Station
Low Station
6-14 in each WA
2 -6 in each WA
Hubbell Healthcare Application Guide
Laboratories
Hospital, rehabilitation, long term care and hospice facilities include kitchens and food
service areas to feed patients, staff and visitors. These food preparation spaces have a
wide variety of power requirements. They require modularity to move in various types
of appliances as meals and menus change. Hygiene is also a critical component of
food preparation areas. Equipment and appliances often need to be disconnected and
moved for cleaning. With so many meals to prepare, package and distribute throughout
a facility, power connections need to be easy to use, safe and durable.
Hubbell offers an array of water-tight devices and data connections that meet the
durability and safety requirements that are needed in healthcare kitchens and food
service areas.
Hubbell Healthcare Application Guide
Maintenance and Plant Engineering
www.hubbell-wiring.com22
Unfused Disconnect
Switches
Description Hubbell # Grainger #
30A disconnect switch
30A w/ (1) HBLAC1
HBLDS3
HBLDS3AC
3D383
2EAV9
60A disconnect switch
60A w/ (1) HBLAC1
HBLDS6
HBLDS6AC
4CV74
2EAW3
100A disconnect switch
100A w/ (1) HBLAC1
HBLDS10
HBLDS10AC
2EAV6
4CV73
Auxiliary contacts,
“break after main break”
1 set of n/o & n/c contacts
HBLAC1 2EAV4
Auxiliary contacts,
“break before main break”
1 set of n/o contacts
HBLAC2 2EAV5
TIA Healthcare Standard TIA-1179 (Proposed)
Area: Facilities
Communication recommendations for outlet densities
Area Workstation LAN Connections
Electrical/Mechanical
Elevator/Machine
Low Station
Low Station
2-6 in each WA
2-6 in each WA
For complete listing of Hubbell Products see our full line catalog.
Ordering Information
Twist-Lock® Plugs, Connectors and Receptacles
Enclosures and Motor Disconnects
Motor Load Safety
The 2008 NEC® requires motor controllers on equipment
like HVAC units and compactors to have a disconnect
within line of sight (Article 430.102) and allows a
controller and disconnect to be the same device (Article
430.109) combining both functions in one device.
Hubbell CIRCUIT-LOCK® devices save space, time and
money. The dual rating means installing one device
instead of two for reduced complexity and faster
deployments to get up and running sooner.
Manual Motor Controller
Description
Double Pole Three Pole
Hubbell # Grainger # Hubbell # Grainger #
30A 600V AC motor controller HBL7832D 2EAV3 HBL7810D 5HA30
In Type 1 enclosure; non-metallic cover HBL13 92D 1MTD5 H BL13 8 9D 1MTD7
In metal Type 1 enclosure HB L1372D 1MTD4 HB L1379 D 1MTD6
In NEMA 3R non-metallic enclosure HB L13 R22D 1MTD8 HBL13R23D 1MTD9
In NEMA 3R ip lid enclosure HB L13 R12 D HBL13R13D
60A 600V AC motor controller HBL7862D 1MTE5 HBL7863D 1MTE6
Twist-Lock® Locking Devices
NEMA Rating
Color Coded by Voltage
Poles/
Wires
Plug Connector Receptacle
Hubbell # Grainger # Hubbell # Grainger # Hubbell # Grainger #
15A 125V
15A 125V
NEMA L5-15P
UL/CSA
0.5 HP
G
W
L5-15 2P/3W HBL4720C 5A073 HBL4729C 5A074 HBL4710 5A072
20A 125V
20A 125V
NEMA L5-20P
UL/CSA
1 HP
G
W
L5-20 2P/3W HBL2311 4A259 HBL2313 4A260 HBL2310 4A258
20A 250V
20A 250V
NEMA L6-20P
UL/CSA
2 HP
G
X
Y
L6-20 2P/3W HBL2321 5A081 HBL2323 5A082 HBL2320 5A080
20A 3Ø 250V
20A 3Ø 250V AC
NEMA L15-20P
UL/CSA
3 HP
YG
X
Z
L15-20 3P/4W HBL2421 4A268 HBL2423 4A269 HBL2420 4A267
20A 3Ø 480V
20A 3Ø 480V AC
NEMA L16-20P
UL/CSA
5 HP
YG
X
Z
L16-20 3P/4W HBL2431 6A662 HBL2433 6A663 HBL2430 6A661
30A 3Ø 250V
30A 3Ø 250V AC
NEMA L15-30P
UL/CSA
3 HP
G
Y
X
Z
L15-30 3P/4W HBL2721 4A271 HBL2723 4A272 HBL2720 4A270
30A 3Ø 480V
30A 3Ø 480V AC
NEMA L16-30P
UL/CSA
10 HP
YG
X
Z
L16-30 3P/4W HBL2731 6A659 HBL2733 6A660 HBL2730 6A658
Enclosures
UL listed as a manual motor controller as well
as “suitable as a motor disconnect”
Type 4X non-metallic enclosure is molded of
rugged Valox® to resist abuse, corrosion and
enhance safety
Motor Disconnects
Ensures reliable operation and maximum safety
NEC® is a registered trademark of the National re Protection Association (NFPA).
Valox® is a registered trademark of SABIC Innovative Plastics acquired from GE.
Thermoplastic construction is heat and
corrosion resistant for harsh environments
Ribbed nylon housing provides a secure grip
and impact and chemical resistance
Thermoplastic high heat resistant interior
construction is ideal for high-temperature
environments
Every healthcare facility includes maintenance and plant areas that are similar to an
industrial facility. Large equipment like back-up generators, compactors, loading dock
equipment, HVAC units and air handlers all need high-capacity, safe and reliable power.
Without it, an entire healthcare facility can shut down, compromising patient care.
Hubbell Twist-Lock® plugs, connectors and receptacles and CIRCUIT-LOCK® Manual
Motor Disconnects offer a variety of devices to effectively provide dependable and safe
power and control motor loads for healthcare maintenance areas.
Ordering Information
Hubbell Healthcare Application Guide
Outdoor Areas
www.hubbell-wiring.comFor complete listing of Hubbell Products see our full line catalog.
Mechanical
Interlocks
Hose and Cable Protection
Disaster Preparedness Areas
In recent years, disaster preparedness areas have
expanded from coping with natural disasters to
accidents involving hazardous materials and outside
decontamination. Many healthcare facilities have
developed systems and protocols that enable
decontamination of people outside of the building,
including outdoor decontamination showers. All of
these outdoor areas must be safe and any outdoor
equipment must have power that is both reliable and
ready in the event of a disaster.
Hose and Cable
Protection Systems
Description Hubbell # Grainger #
TrukTrak® kit
TredTrak® kit
AccessTrak® kit
HBLT T5B
HBLTRED5B
HBLAT5KITA
4CV89
4HD47
3BY36
Outdoor Loose Tube
Fiber Cable
Description
Hubbell’s OptiChannel® HFC3 Series Outdoor
Loose Tube Fiber Cable provides a rugged and
versatile high bandwidth optical cabling solution,
with easy eld termination and compact water
resistant design for space-saving installations.
IEC Mechanical
Interlocks
Rating Color Coded
by Voltage
Poles/
Wires
Mechanical Interlock Mating Plug
Hubbell # Grainger # Hubbell # Grainger #
20A
120/240V 3P/4W HBL420MI12W 1TJZ6 HBL420P12W 6C152
20A
3Ø 480V 3P/4W HBL420MI7W 1TJZ3 HBL420P7W 6C125
30A
120/240V 3P/4W HBL430MI12W HBL430P12W 3D149
30A
480V 3P/4W HBL430MI7W 6C573 HBL430P7W 5Z941
30A
3Ø 600V 3P/4W HBL430MI5W 6C572 HBL430P5W 3D150
60A
120/240V 3P/4W HBL460MI12W HBL460P12W 6C584
60A
3Ø 480V 3P/4W HBL460MI7W 6C582 HBL460P7W 5Z917
60A
3Ø 600V 3P/4W HBL460MI5W 6C581 HBL460P5W 3D162
100A
120/240V 3P/4W HBL4100MI12W HBL4100P12W 6C555
100A
3Ø 480V 3P/4W HBL4100MI7W 4CT27 HBL4100P7W 5Z926
100A
3Ø 600V 3P/4W HBL4100MI5W HBL4100P5W 3D132
AccessTrak®: expanable ve channel system
is a modular cable protection for compliance
with ADA accessibility guidelines
TredTrak®: ve channel system designed to
support pedestrian and light vehicle trafc
TrukTrak®: two, three and ve channel system
designed to support heavy trucks and fork lifts
23
Incorporates a disconnect switch and
receptacle in one compact economical unit
Patented Plug-Check™ eliminates mating or
breaking the circuit under load for maximum
safety
Non-metallic Valox® housing meets UL50 Type
4X, 12X, and IP67 for harsh environments
From air handling equipment to ambulance bays, healthcare facilities have
multiple outdoor areas that require power and cable protection. These spaces
must maintain a high level of safety for patients, staff and visitors entering and exiting
a healthcare facility.
Hubbell mechanical interlock devices provide the safety method for connecting
and disconnecting power and AccessTrak® ramping systems cover cables.
Valox® is a registered trademark of SABIC Innovative Plastics
Hubbell Premise Wiring
Hubbell Incorporated (Delaware)
14 Lord’s Hill Road
Stonington, CT 06378-0901
Phone (800) 626-0005
FAX (860) 535-8328
www.hubbell-premise.com
Available Literature
Hubbell offers an extensive literature library for product support. Downloadable PDFs are
available on line.
HUBBELL® HEALTHCARE
Application Guide
Hubbell Supports Green
All around the globe, there is a powerful shift towards “green” thinking. Now increased
interest in energy efciency and waste reduction has put sustainable building design at the
very forefront of the industrial, commercial and residential construction industries.
As a leader in the industry, Hubbell Wiring Systems recognizes its role and responsibility
in safeguarding the environment. Through its GreenWise™ Sustainability Initiative, Hubbell
designs and develops innovative products that optimize sustainable building design by
saving energy, supporting space efciency and reducing waste. Hubbell Wiring Systems
is committed to maintaining environmental stewardship in our own manufacturing and
corporate facilities through restricting the use of hazardous materials, implementing
comprehensive recycling programs and improving energy efciency.
Website Support
The Hubbell Wiring Systems website
features a landing page dedicated
to the GreenWise™ Initiative. Here
you can nd quick links to Hubbell
Green products, Green Resources and
Councils, Financial Incentives per state
and support literature.
Printed In U.S.A. Specifications subject to change without notice.
® Registered trademark of Hubbell Incorporated. WLBVM001GR 5/10
Hubbell Wiring Device-Kellems
Hubbell Incorporated (Delaware)
40 Waterview Drive
Shelton, CT 06484
Phone: (800) 288-6000
Fax: (800) 255-1031
www.hubbell-wiring.com

Navigation menu
