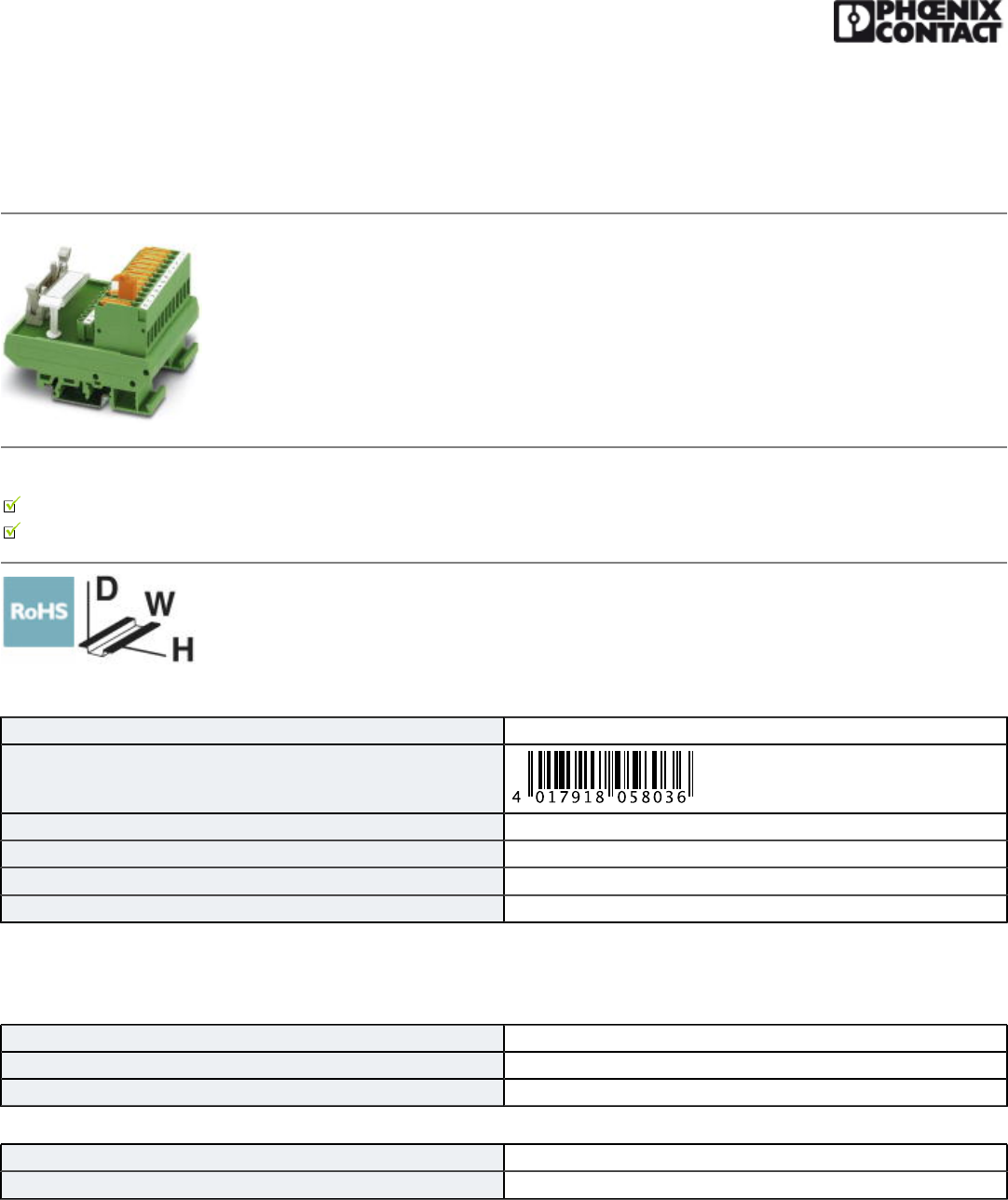

09/29/2016Page1/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VARIOFACE interface module, for 8 channels with knife disconnect terminal blocks and test sockets to the
peripherals and the system
Why buy this product
Byte-by-byte labeling
Can be used for digital I/O modules
Key Commercial Data
Packing unit 1 STK
GTIN
GTIN 4017918058036
Weight per Piece (excluding packing) 164.600 g
Custom tariff number 85369010
Country of origin Germany
Technical data
Dimensions
Width 67 mm
Height 77 mm
Depth 61 mm
Ambient conditions
Ambient temperature (operation) -20 °C ... 50 °C
Ambient temperature (storage/transport) -20 °C ... 70 °C
General
https://www.phoenixcontact.com/us/products/2290423
09/29/2016Page2/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Technical data
General
Max. perm. operating voltage 60 V DC
Max. perm. current (per branch) 1 A
Max. permissible current (separate power supply) 3 A
Number of positions 14
Status display No
Mounting position any
Degree of protection IP20
Connection data for connection 1
Connection name Field level
Connection method Screw connection with disconnect knife
Stripping length 8 mm
Screw thread M3
Conductor cross section solid 0.2 mm² ... 4 mm²
Conductor cross section flexible 0.2 mm² ... 2.5 mm²
Conductor cross section AWG 24 ... 12
Number of positions 12
Connection data for connection 2
Connection name Controller level
Connection method IDC/FLK pin strip
Number of connections 1
Number of positions 14
Pitch 2.54 mm
Supported controller
Controller ABB S800 I/O
- suitable I/O card DI810
DI811
DI814
DI818
DI830
DI831
DI840
DO810
DO814
DO818
DO840
Controller ALLEN-BRADLEY ControlLogix
https://www.phoenixcontact.com/us/products/2290423
09/29/2016Page3/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Technical data
Supported controller
- suitable I/O card 1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E
Controller ALLEN-BRADLEY PLC 5
- suitable I/O card 1771 IBN
1771 OBN
Controller ALLEN-BRADLEY SLC 500
- suitable I/O card 1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
1746 IB16
Controller SIEMENS S7-400
- suitable I/O card 6ES7 421-1BL01-0AA0
6ES7 422-1BL00-0AA0
6ES7 422-7BL00-0AB0
Controller GE-FANUC 90-30
- suitable I/O card IC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
https://www.phoenixcontact.com/us/products/2290423
09/29/2016Page4/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Technical data
Supported controller
IC693 MDL742
Controller MITSUBISHI MELSEC Q
- suitable I/O card QX81
QY81P
QX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P
Controller MITSUBISHI MELSEC L
- suitable I/O card LX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P
Controller HONEYWELL Experion PKS C200
- suitable I/O card TC-IDD 321
TC-ODD 321
Controller Schneider Electric Modicon TSX QUANTUM
- suitable I/O card DDI 353
DDI 853
DAI 353
DAI 453
DDO 353
Controller SIEMENS S7-300 / ET 200 M
- suitable I/O card CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
https://www.phoenixcontact.com/us/products/2290423

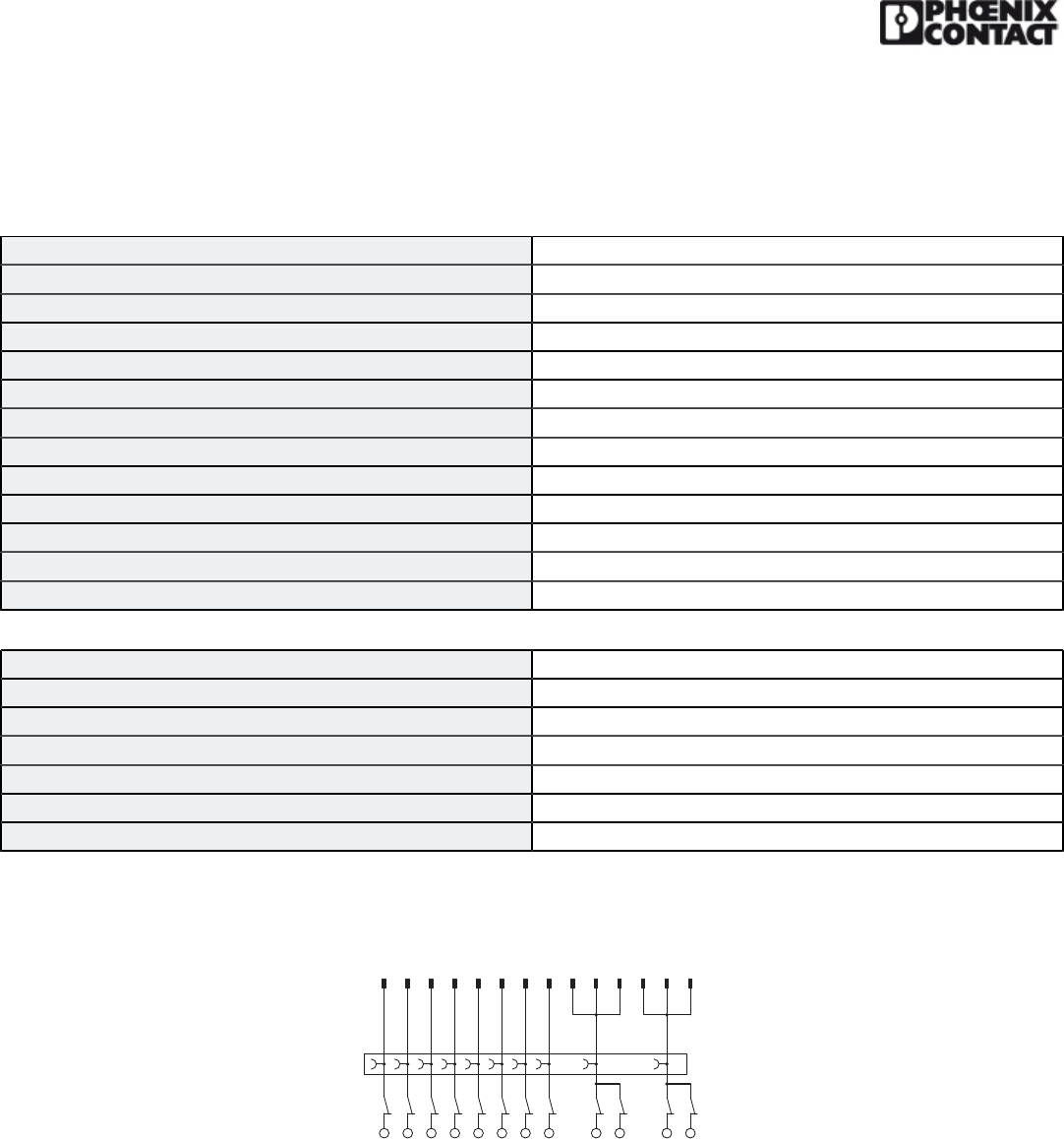

09/29/2016Page5/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Technical data
Supported controller
6ES7 321-1BH02-0AA0
6ES7 321-1BL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-1BL00-0AA0
6ES7 323-1BH01-0AA0
6ES7 323-1BL00-0AA0
6ES7 321-1BH10-0AA0
6ES7 322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
Controller GE-FANUC RX3i
- suitable I/O card IC694MDL754
IC694MDL660
Standards and Regulations
Standards/regulations DIN EN 50178
IEC60664
IEC 62103
Rated insulation voltage 63 V
Rated surge voltage 0.6 kV (Functional insulation)
Degree of pollution 2
Overvoltage category II
Drawings
Circuit diagram
1 2 3 4 5 6 7 8 9 11 13 10 12 14
1 2 3 4 5 6 7
0 + + - -
FLKM 14/KDS3-MT/PPA/PLC connection scheme
https://www.phoenixcontact.com/us/products/2290423
09/29/2016Page6/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Classifications
eCl@ss
eCl@ss 4.0 27250313
eCl@ss 4.1 27250313
eCl@ss 5.0 27250313
eCl@ss 5.1 27250313
eCl@ss 6.0 27371601
eCl@ss 7.0 27371601
eCl@ss 8.0 27141152
eCl@ss 9.0 27141152
ETIM
ETIM 2.0 EC001437
ETIM 3.0 EC001437
ETIM 4.0 EC001437
ETIM 5.0 EC002780
UNSPSC
UNSPSC 6.01 30211824
UNSPSC 7.0901 39121421
UNSPSC 11 39121421
UNSPSC 12.01 39121421
UNSPSC 13.2 39121421
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htmFILE E 238705
https://www.phoenixcontact.com/us/products/2290423
09/29/2016Page7/7
Passive module-FLKM 14/KDS3-MT/PPA/PLC-2290423
Approvals
cUL Listed http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htmFILE E 238705
EACEAC-Zulassung
cULus Listed
