Enclosed Safety Switches

Class 3100

CONTENTS

Description Page

General Duty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Heavy Duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

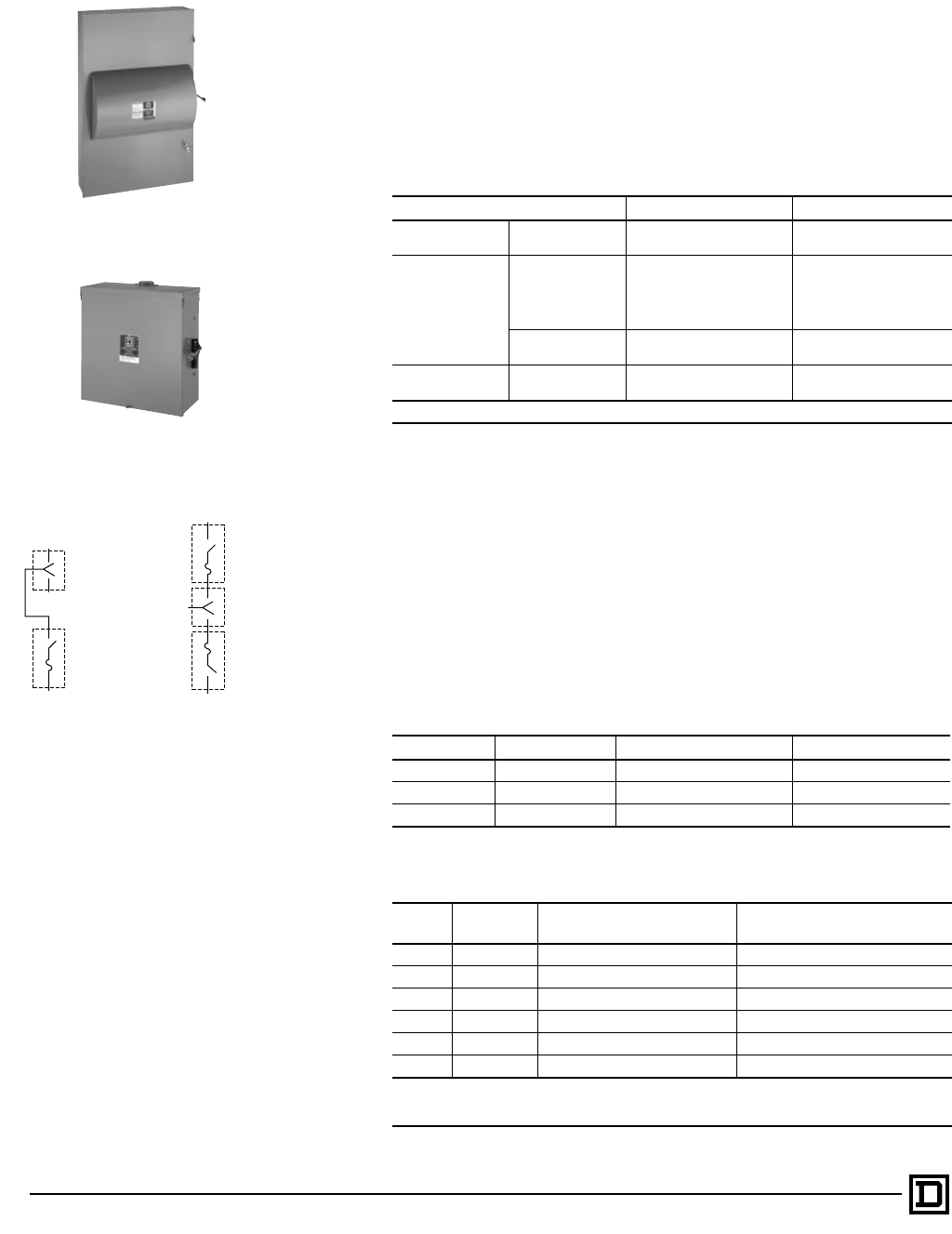

Double Throw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

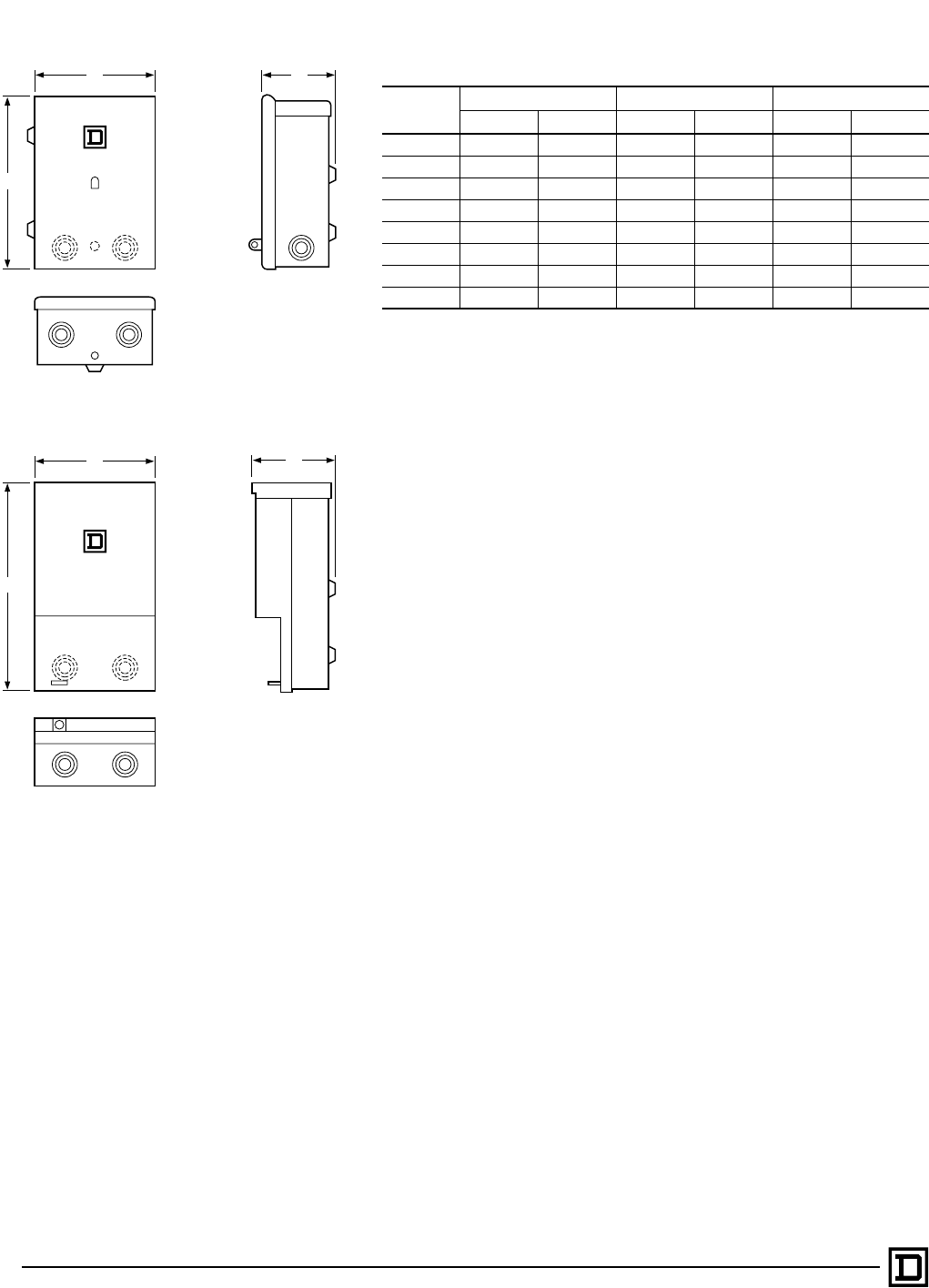

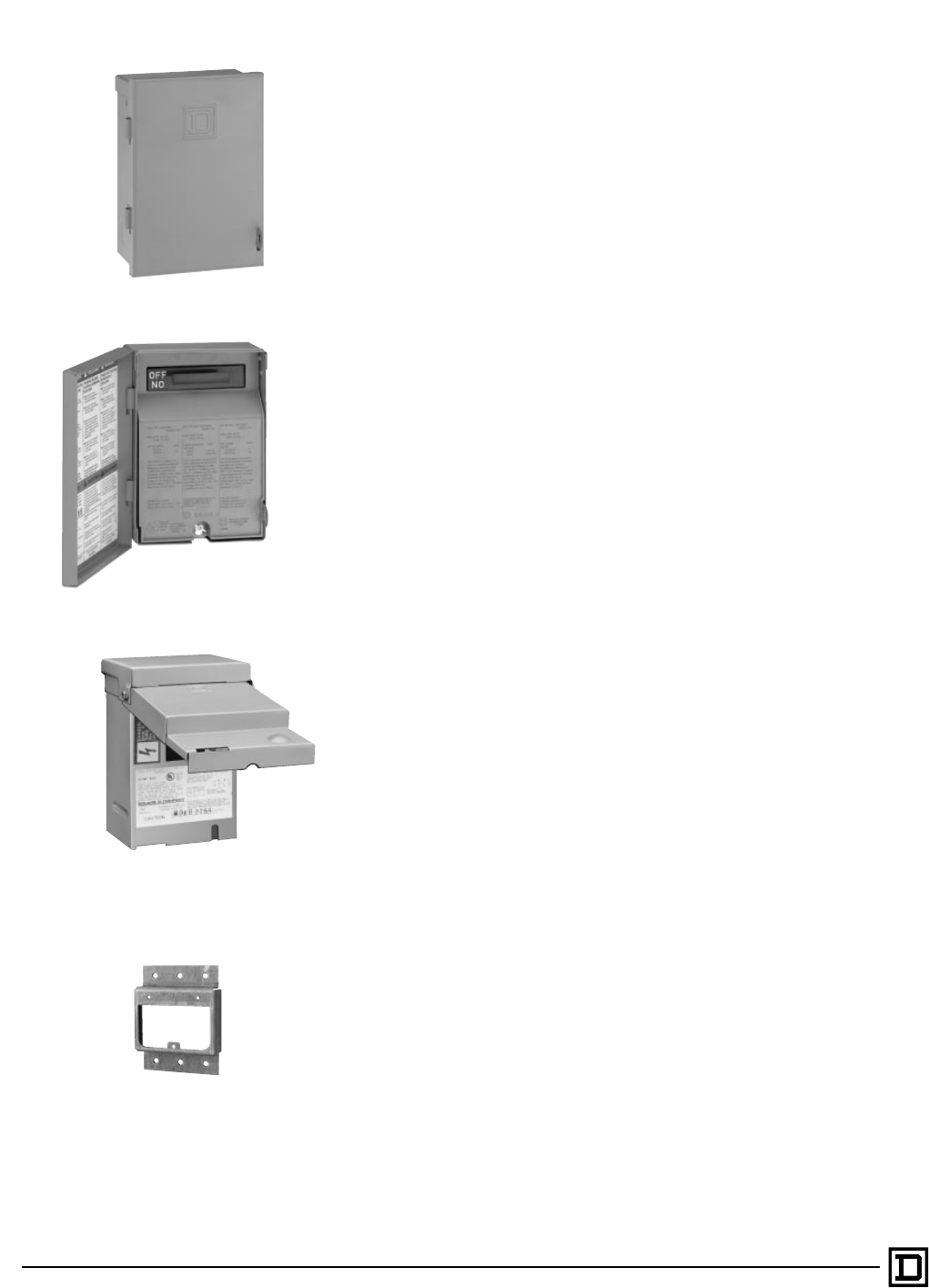

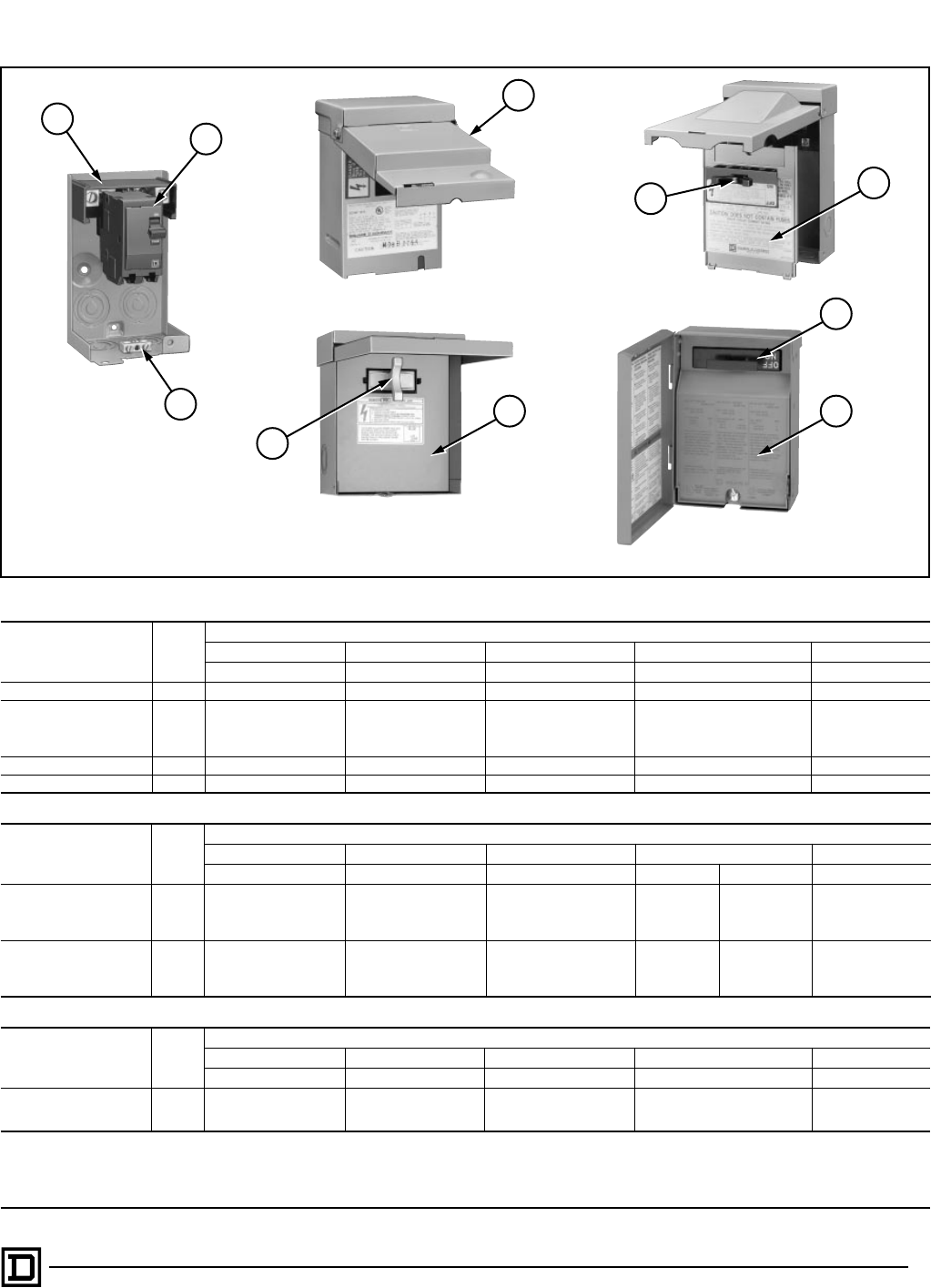

Air Conditioning Disconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

For NEMA Types 7 and 9 construction, see the latest Digest listing.

D3 2 1 N RB MISCELLANEOUS

EI1 or EI2= Factory installed electrical interlock

CLR = Class R fuse kits

FP = Fuse pullers

GL = Ground lugs

FT = Fungus proof treatment

SLC = Copper lugs

LK = Compression lugs

SPLO = Lock on

VW = Viewing window

NP = Phenolic legend plate

KI = One key interlock

KIKI = Two key interlocks

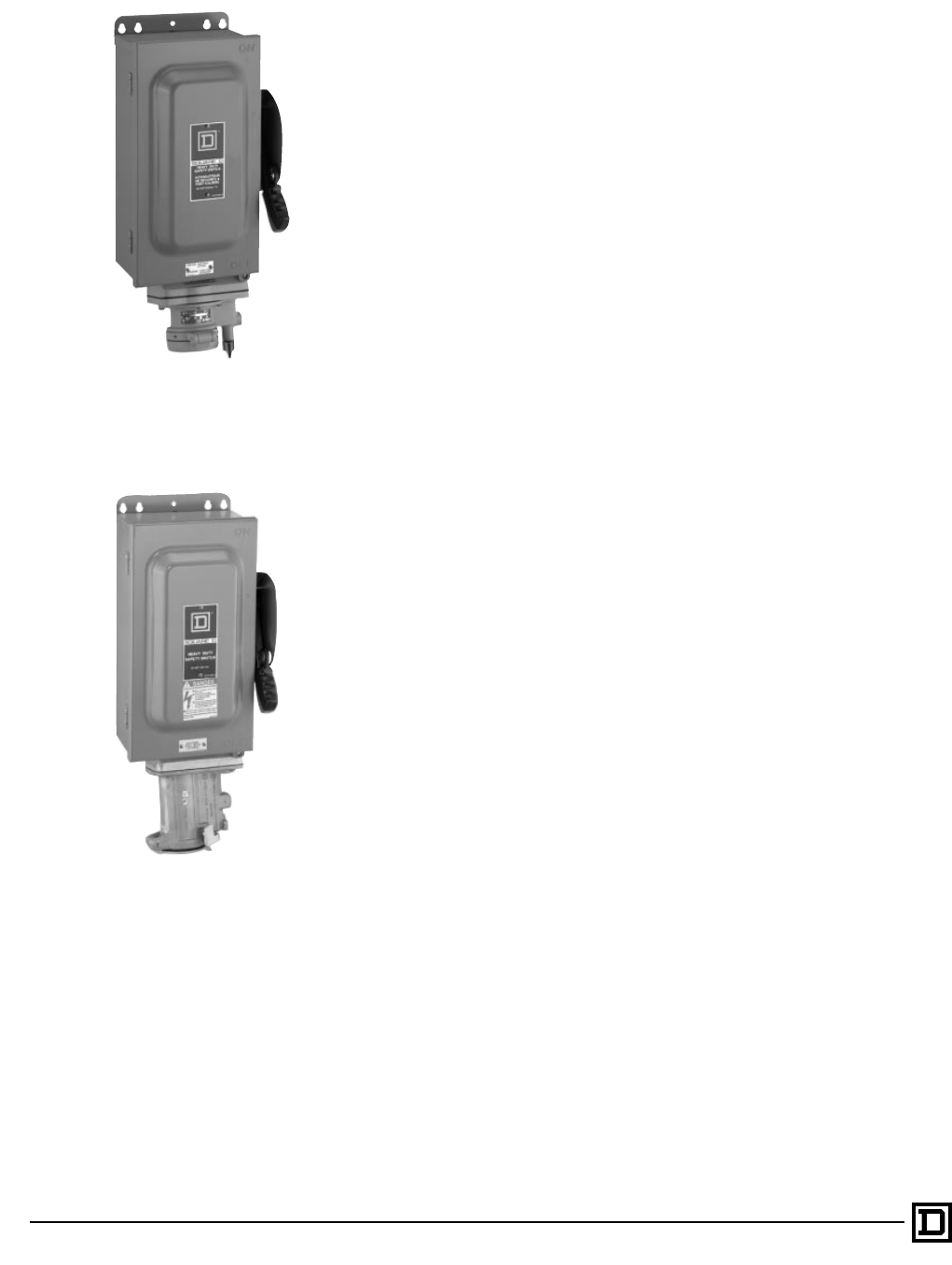

WA = Appleton interlocked receptacle

WC = Crouse-Hinds ARKTITE

interlocked receptacle

WH = HUBBELLOCK

interlocked receptacle

ENCLOSURE

No Sufﬁx = NEMA Type 1 DX = NEMA Type 4X KRYDON

A = NEMA Type 12K R = NEMA Type 3R

AWK = NEMA Type 12 (Without K.O.) RB = NEMA Type 3R (Bolt-on hub provision)

DS = NEMA Types 4, 4X, 5 (Stainless steel) RWK = NEMA Types 1, 3 & 12 (6-pole switches only)

CS = Cast aluminum DF = Fiberglass reinforced polyester

NEUTRAL

N = Factory-installed neutral (neutrals are ﬁeld installable on most general duty and heavy duty safety switches)

AMPERE RATING

1 = 30 A 3 = 100 A 5 = 400 A 7 = 800 A

2 = 60 A 4 = 200 A 6 = 600 A 8 = 1200 A

VOLTAGE RATING

1 = 120 Vac (Plug fuse) 2 = 240 Vac 6 = 600 Vac

For dc ratings, see the latest catalog listing.

BLADES—SWITCHABLE POLES

1 = 1 pole 2 = 2 poles 3 = 3 poles 4 = 4 poles 6 = 6 poles

TYPE OF SWITCH

FUSIBLE NOT FUSIBLE

L = Light Duty DU = General Duty

D = General Duty HU = Heavy Duty

H = Heavy Duty DTU = Double Throw

Catalog Numbering System for Safety Switches

Typical Safety Switch Catalog Number

12/99

General Duty Safety Switches

Table of Contents

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

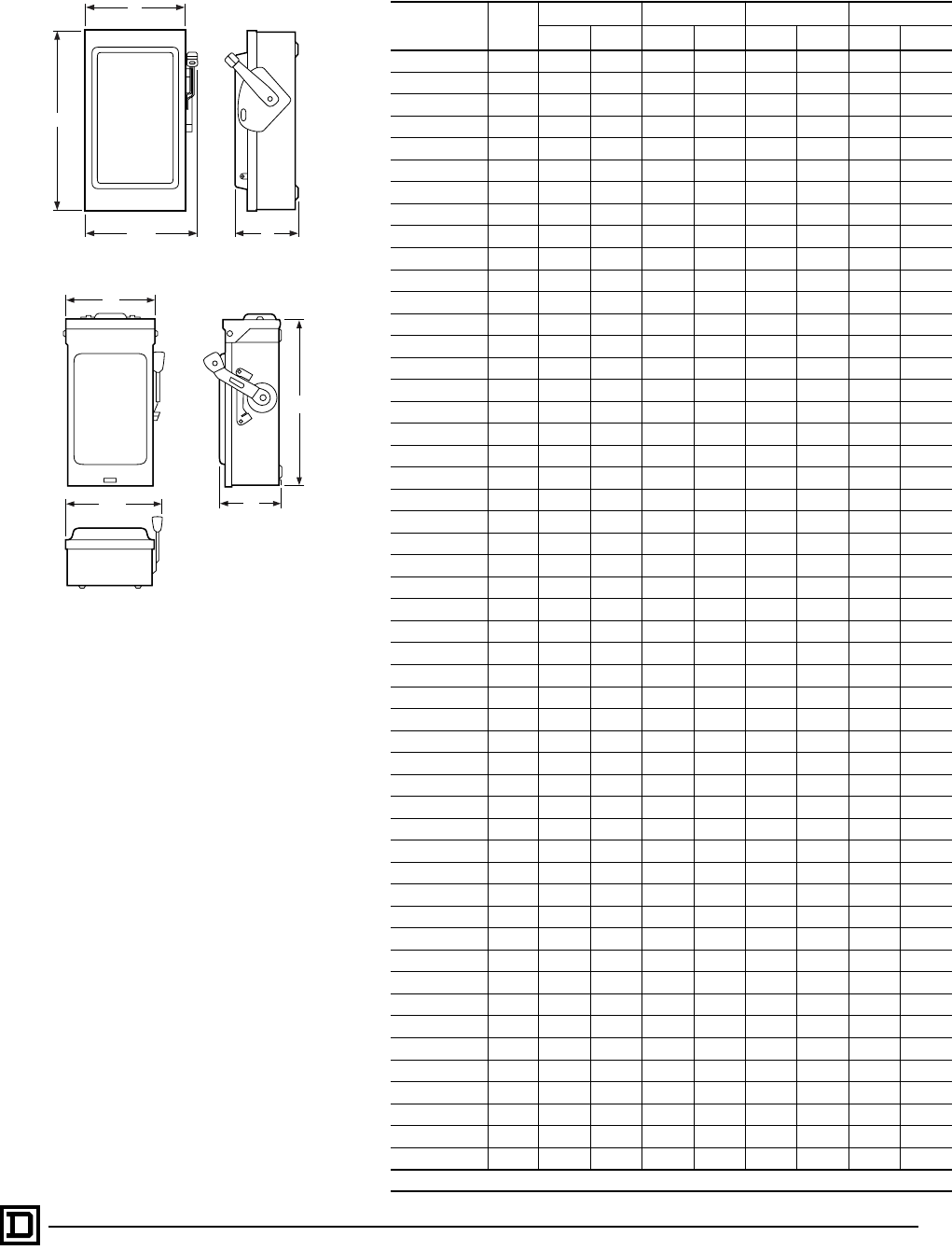

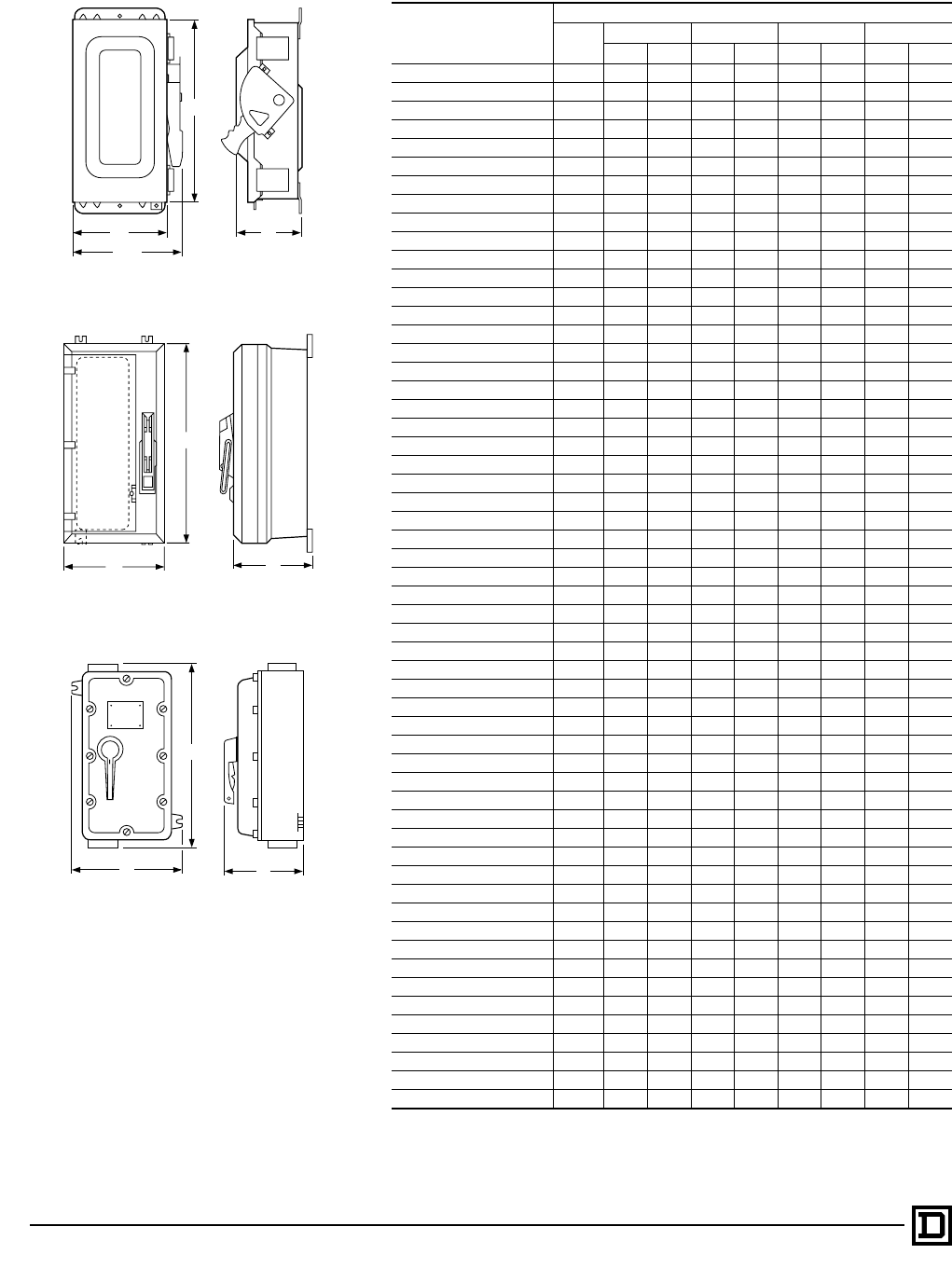

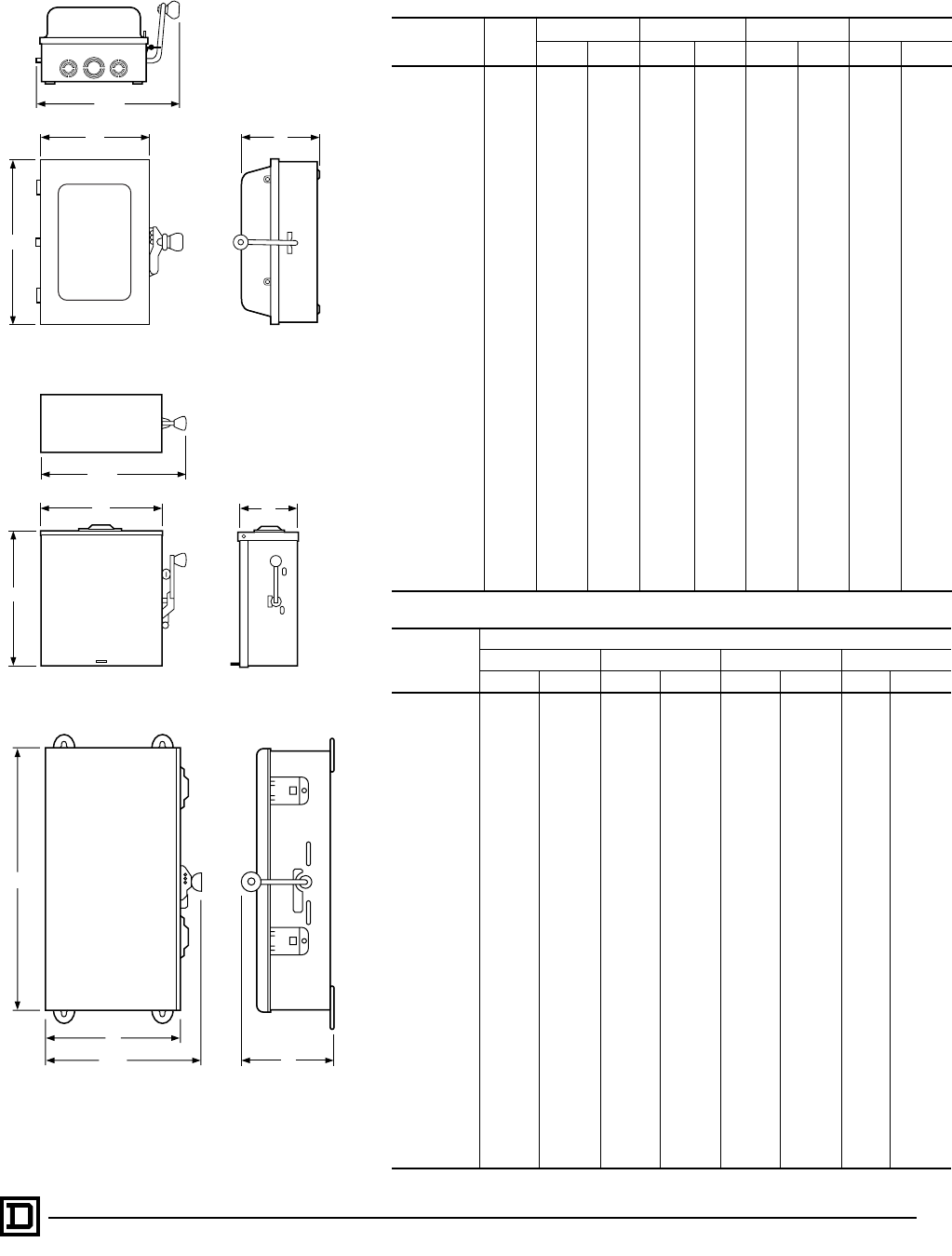

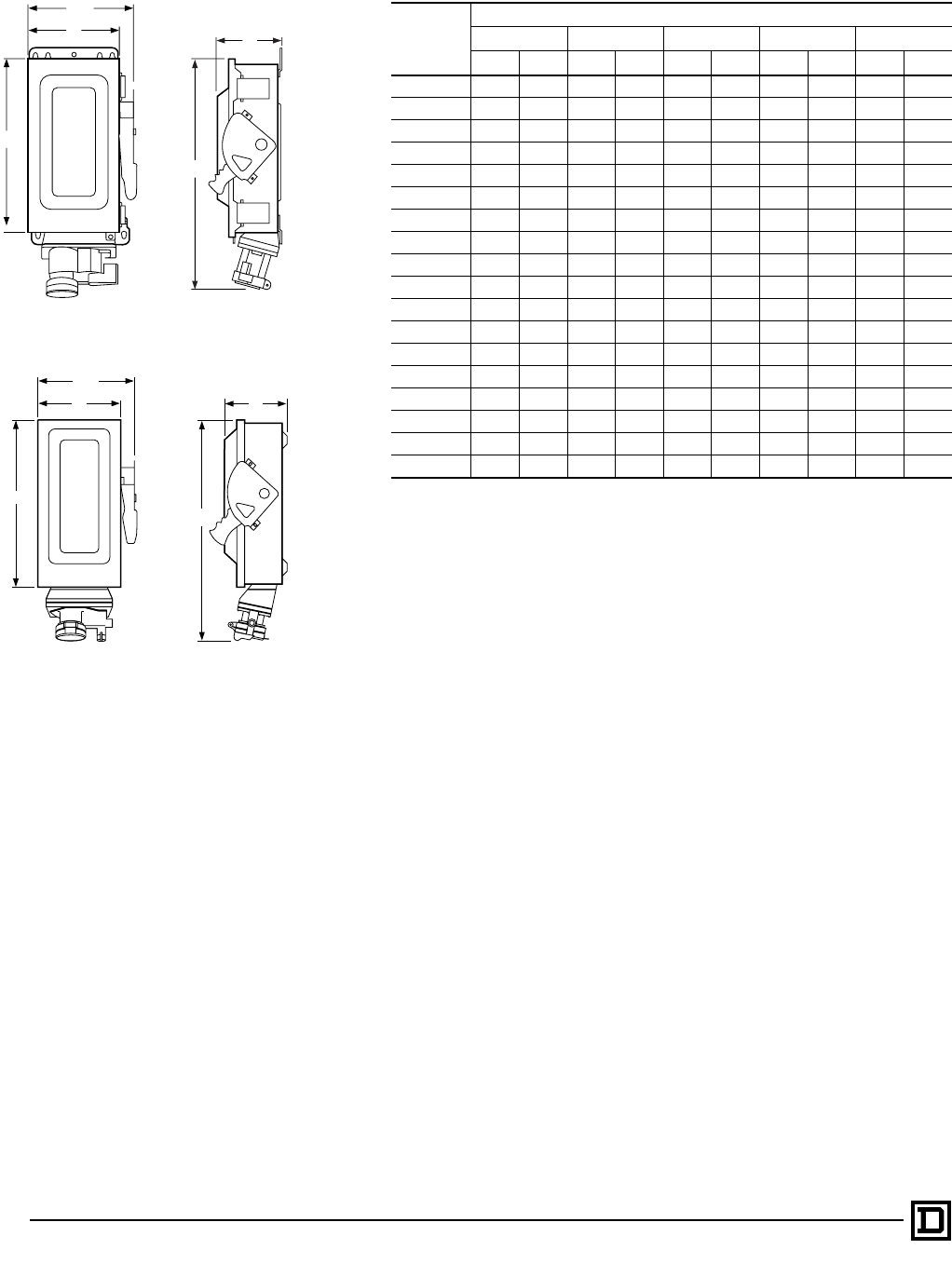

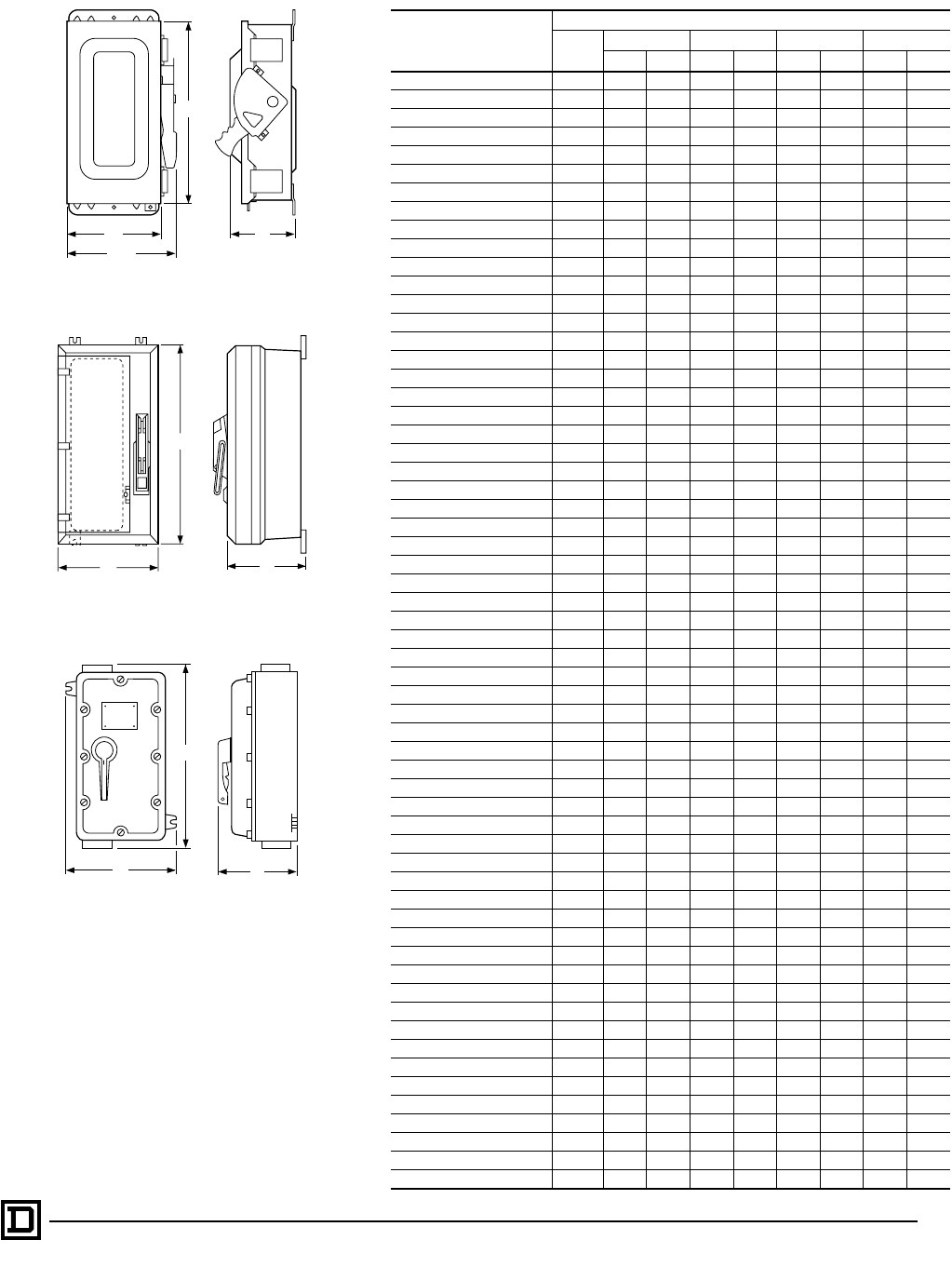

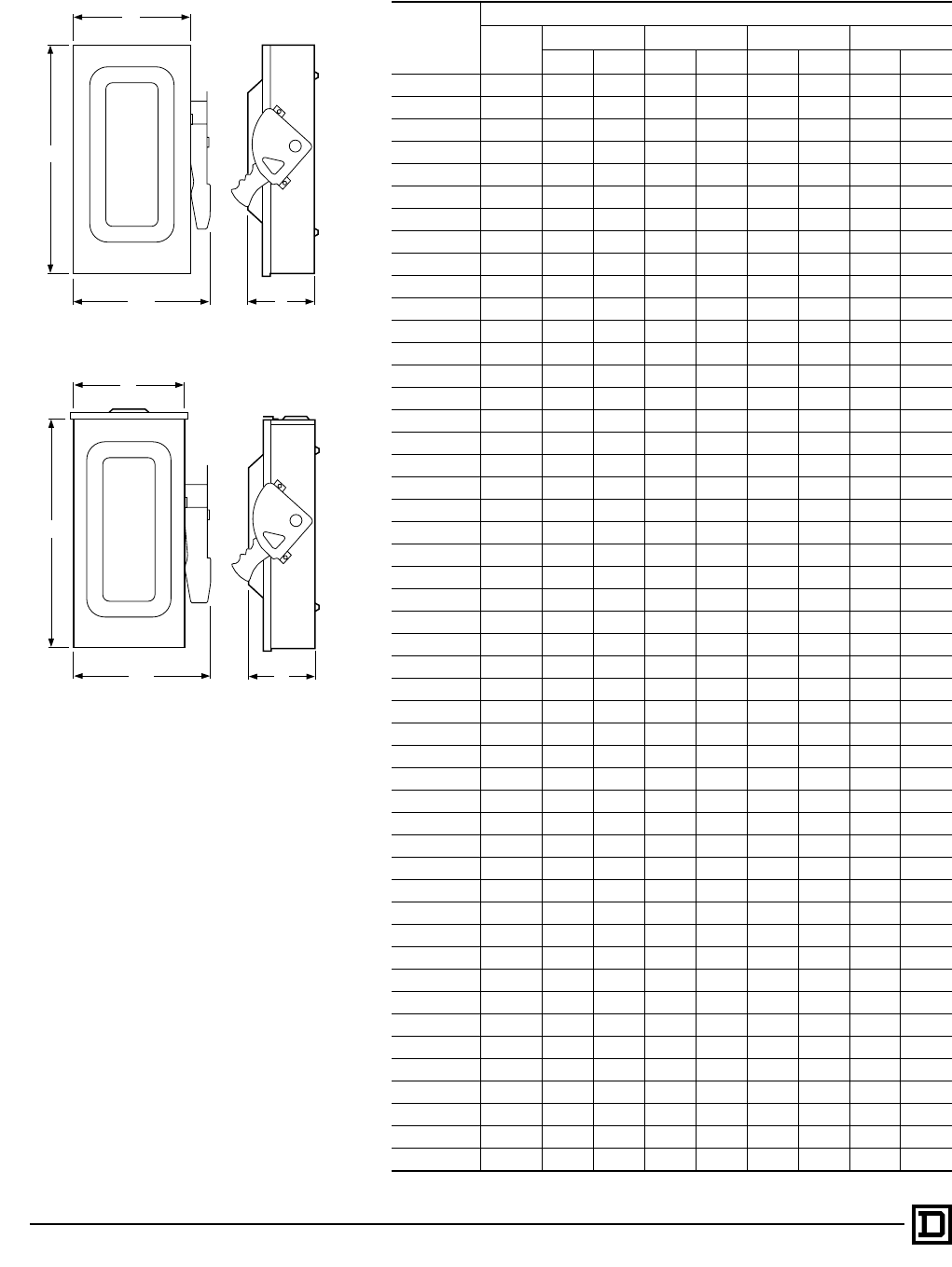

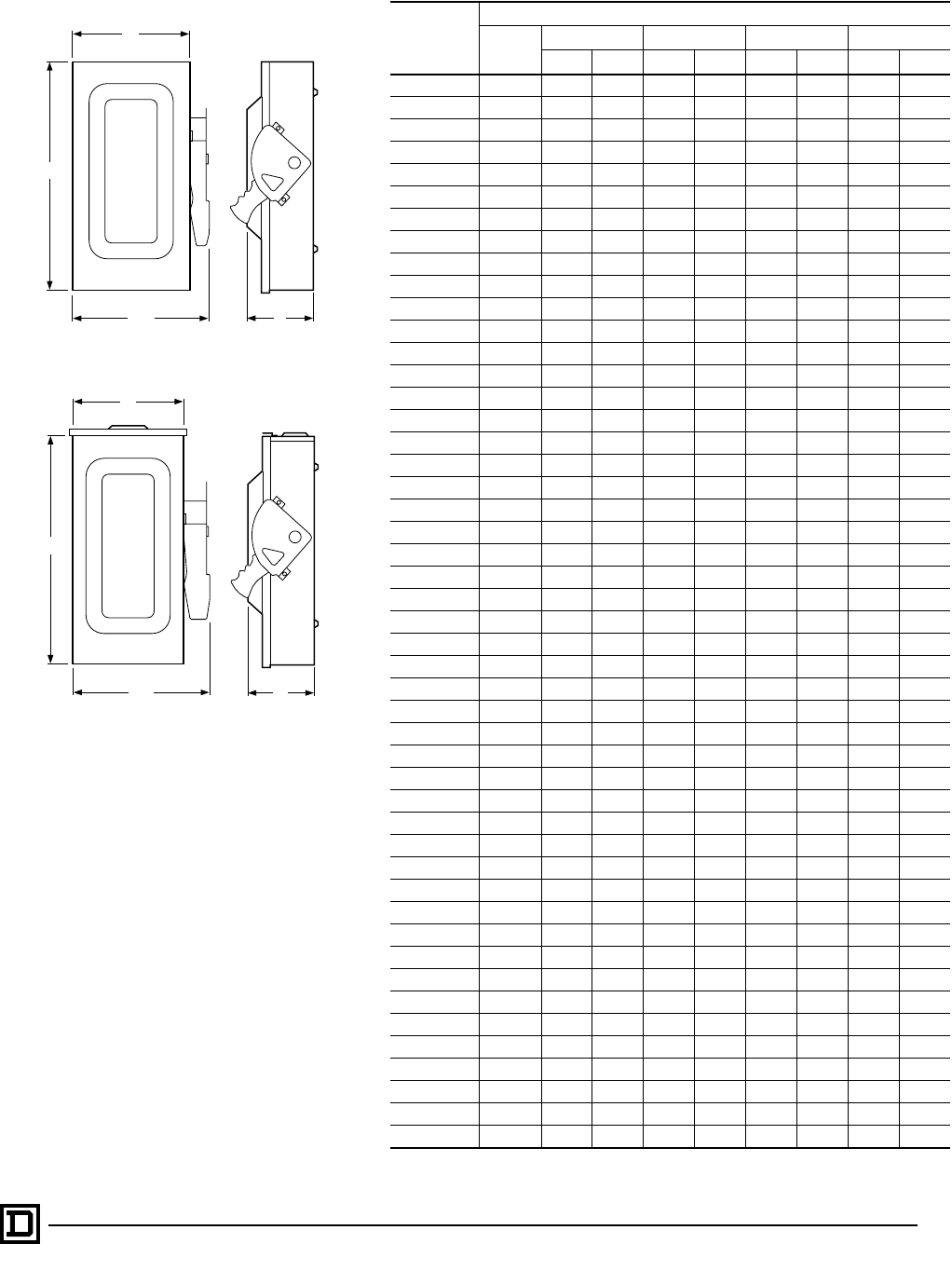

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

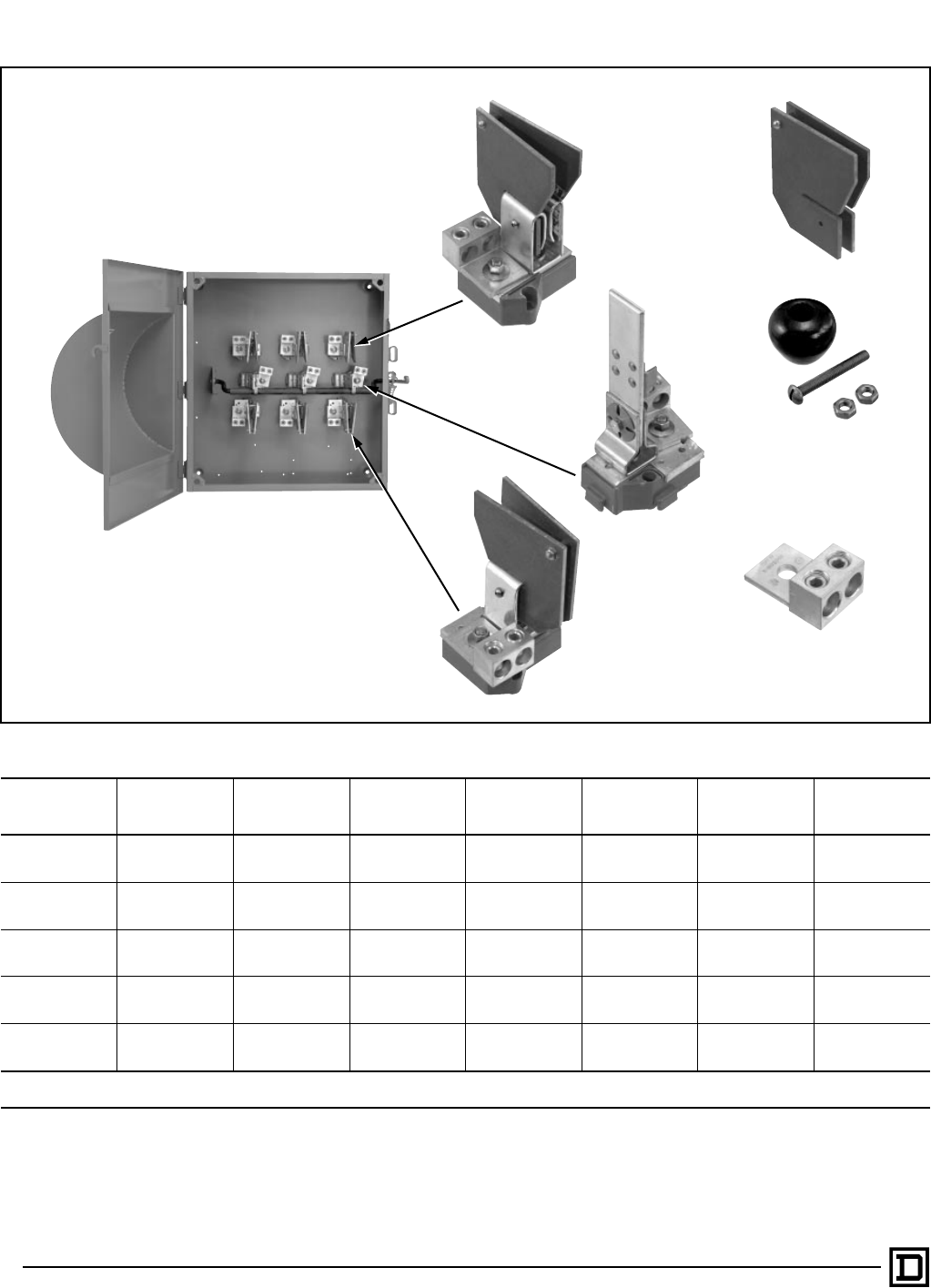

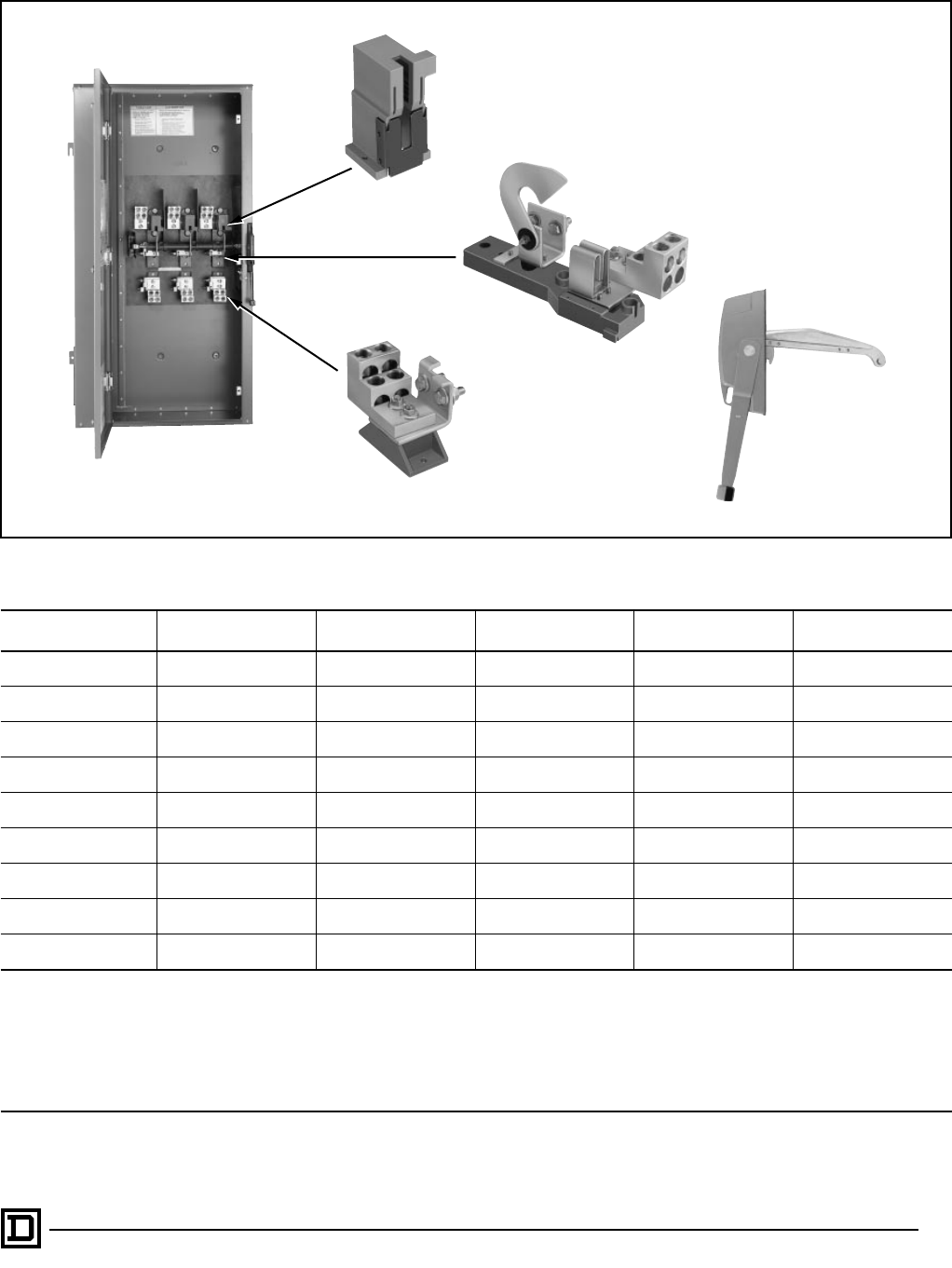

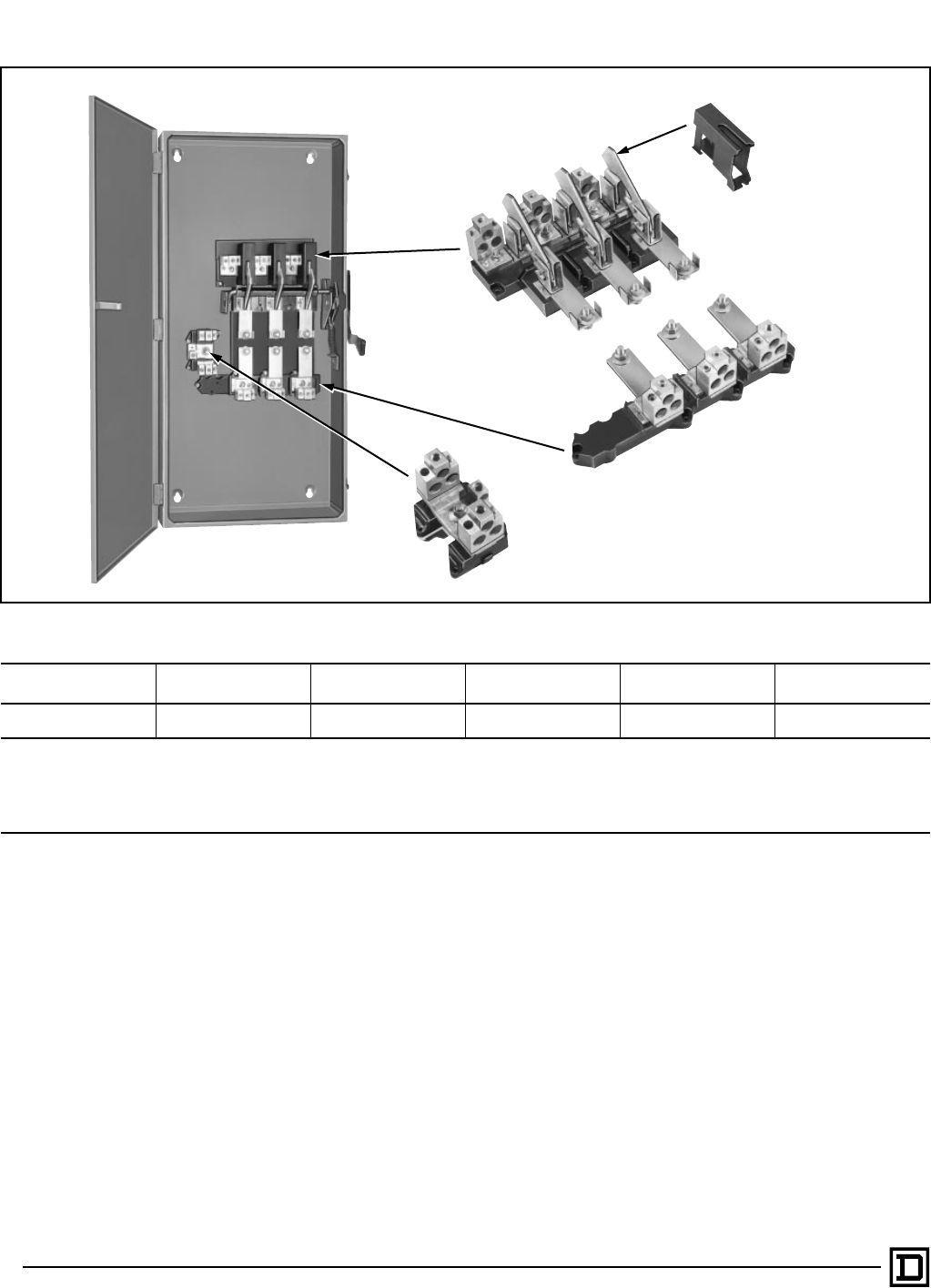

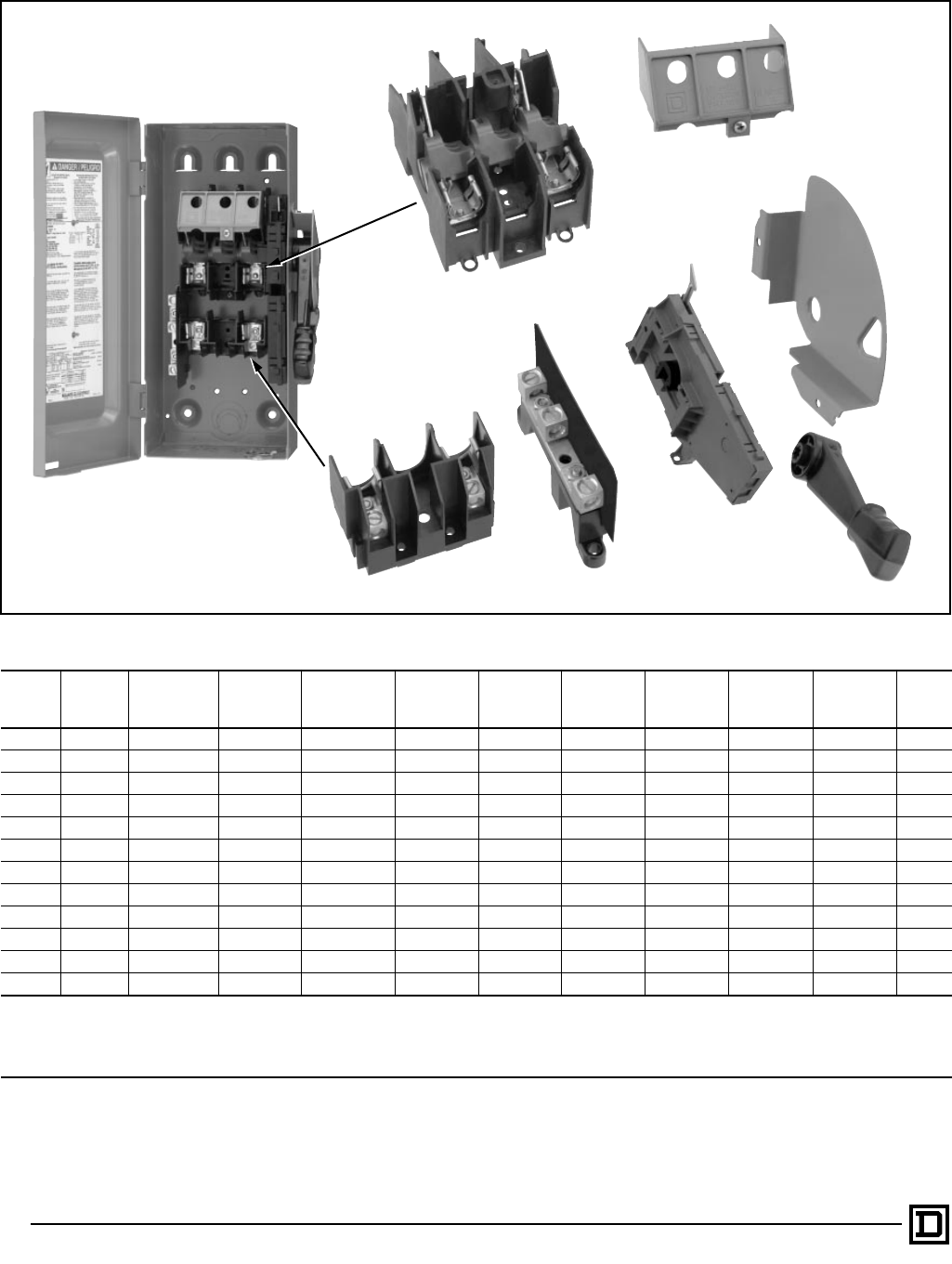

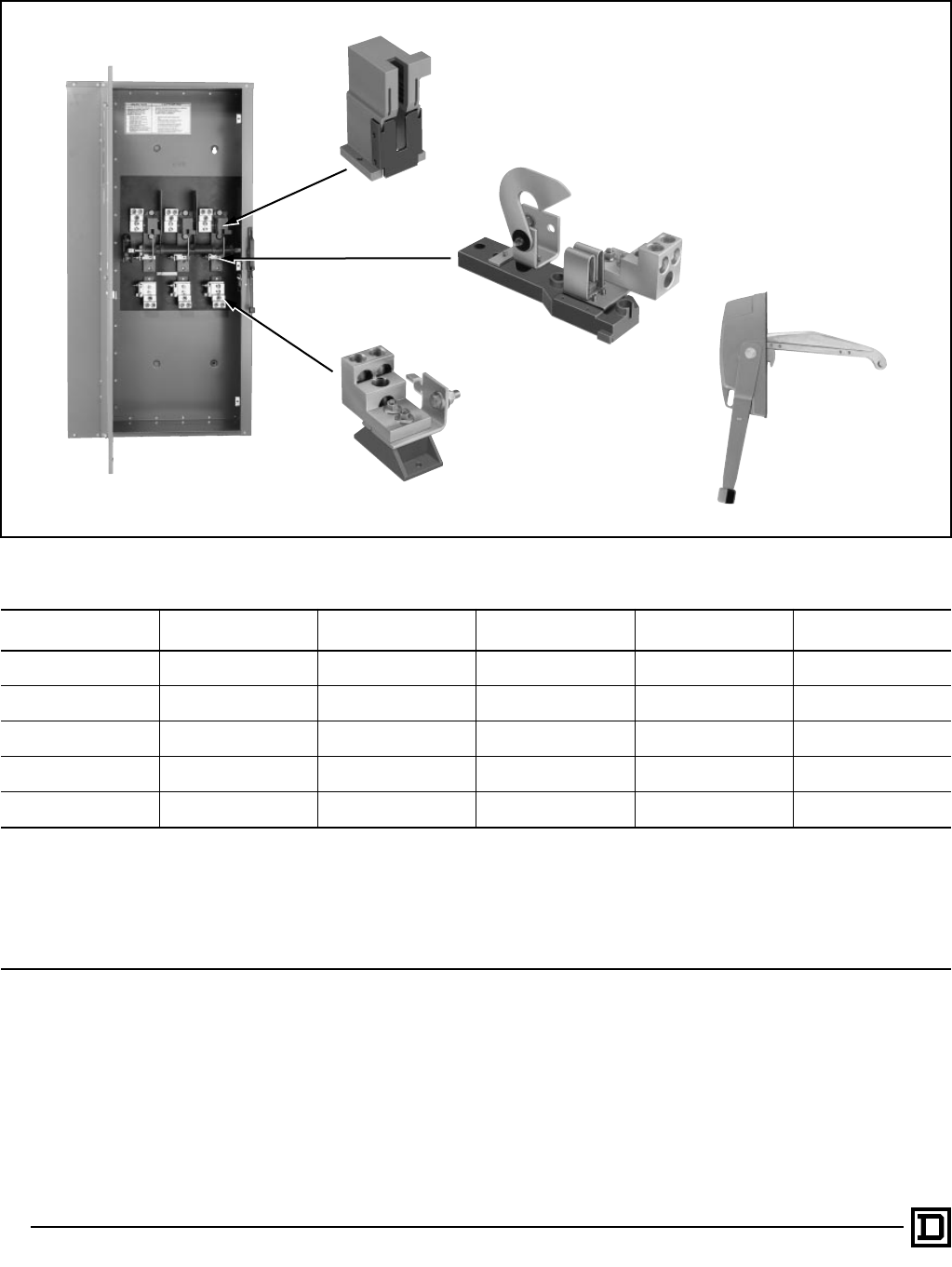

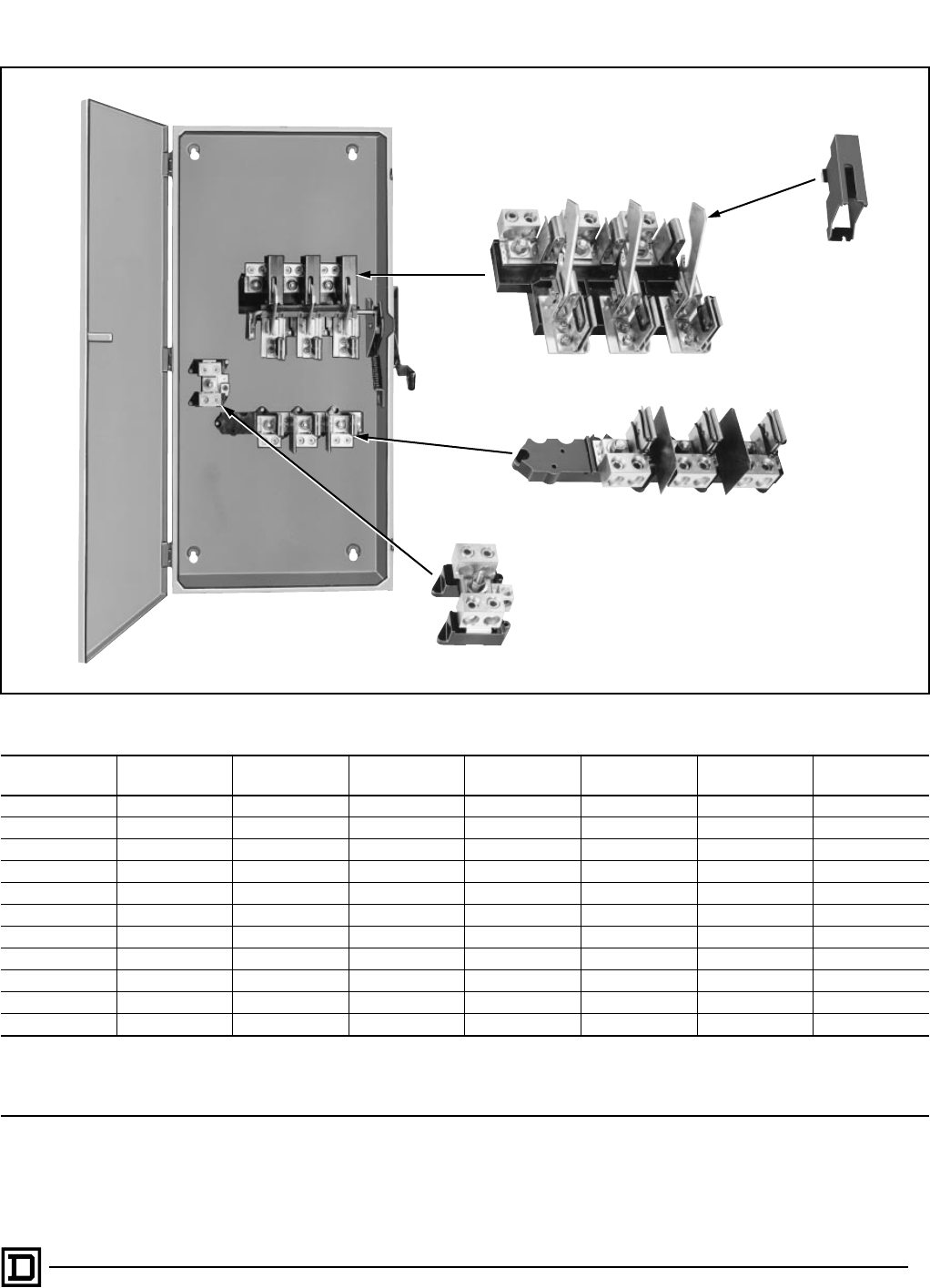

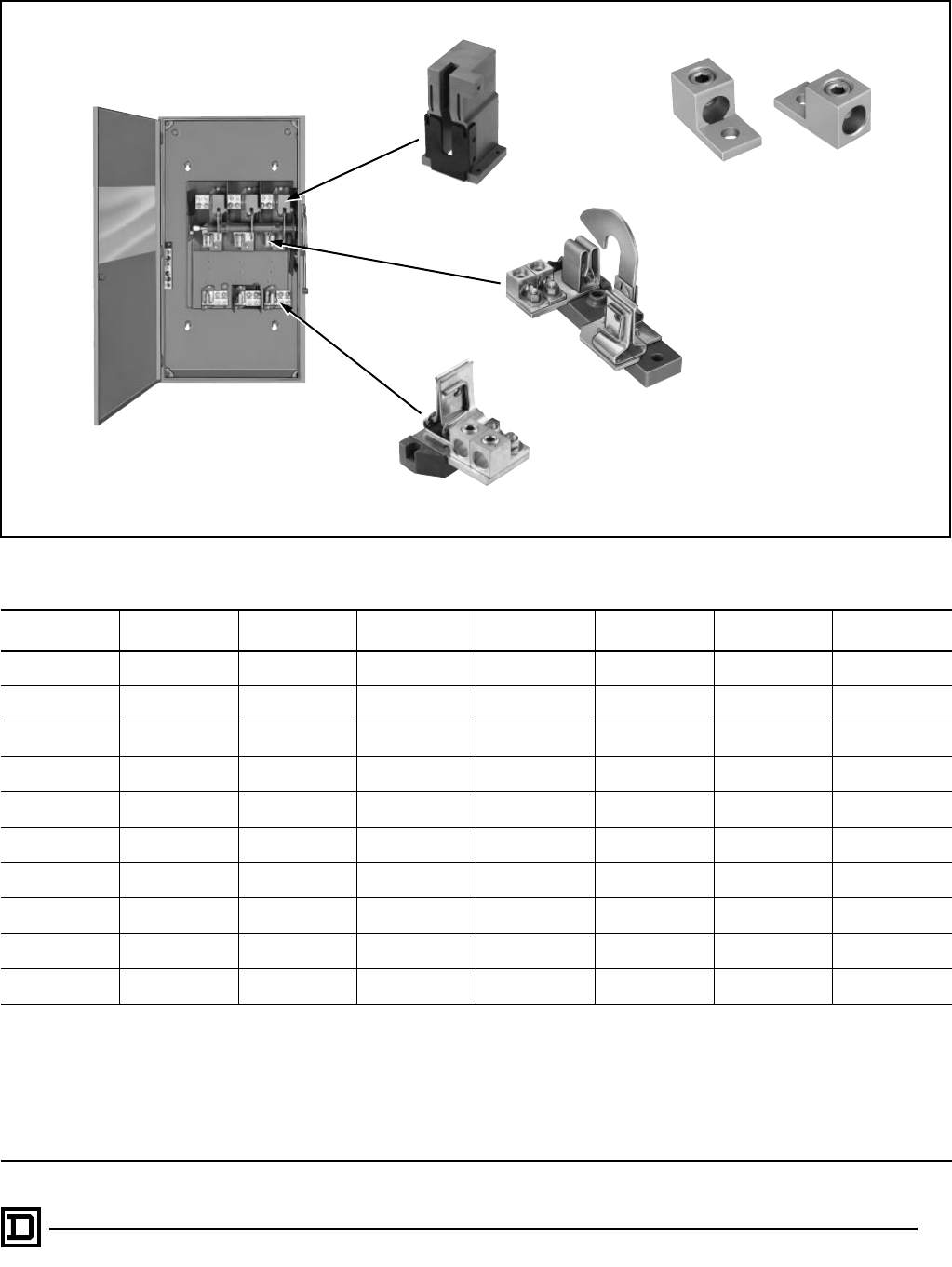

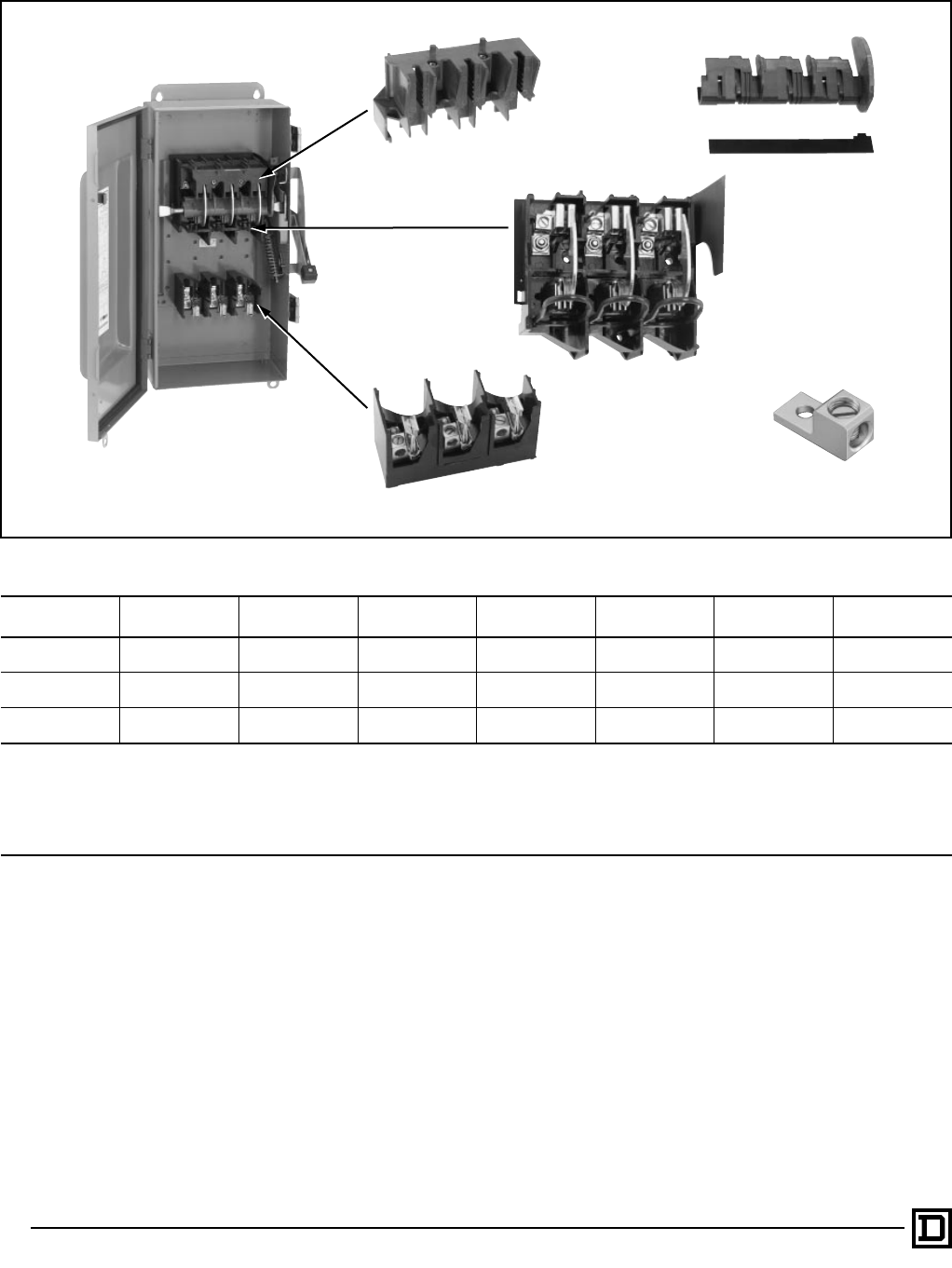

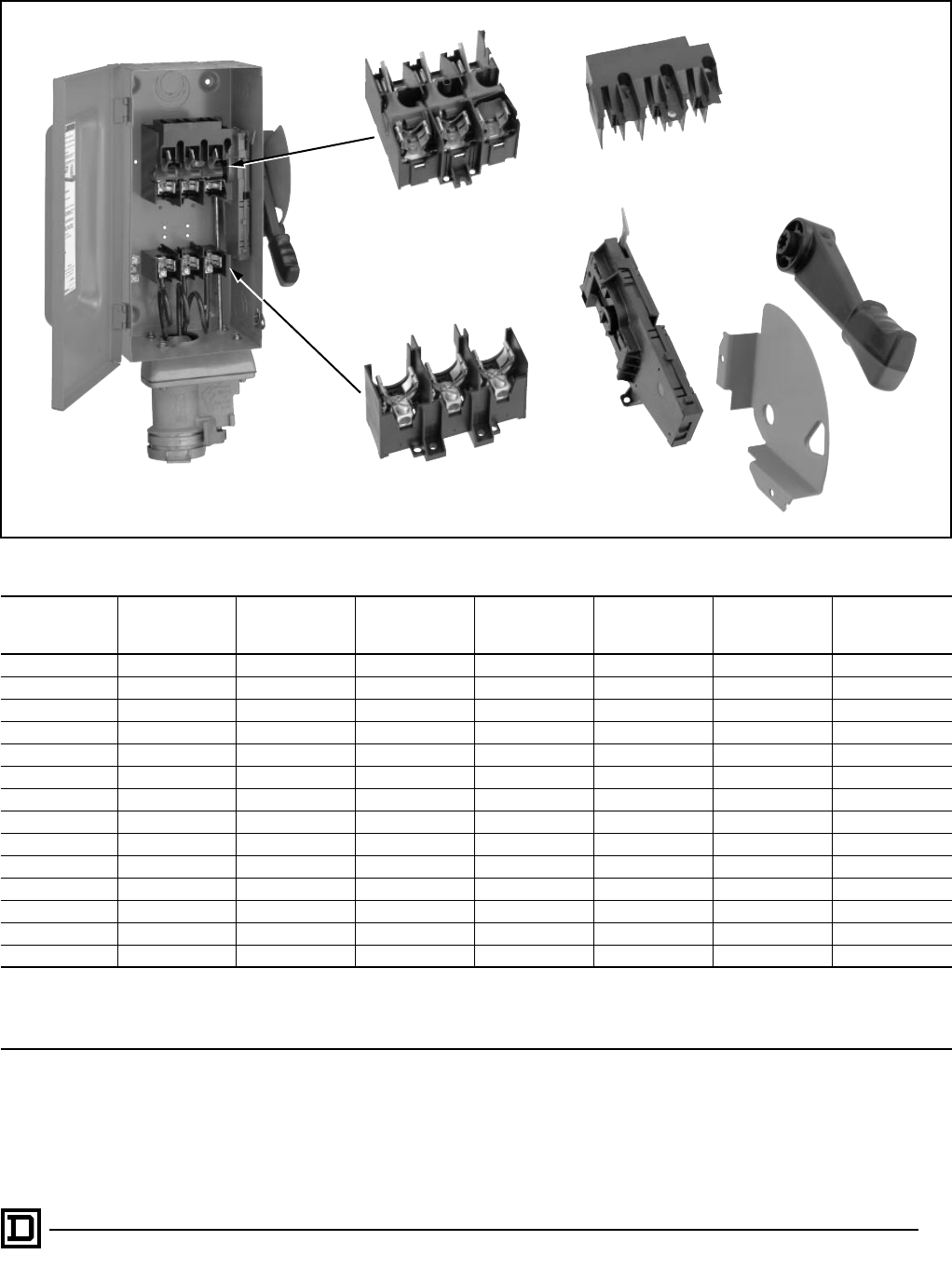

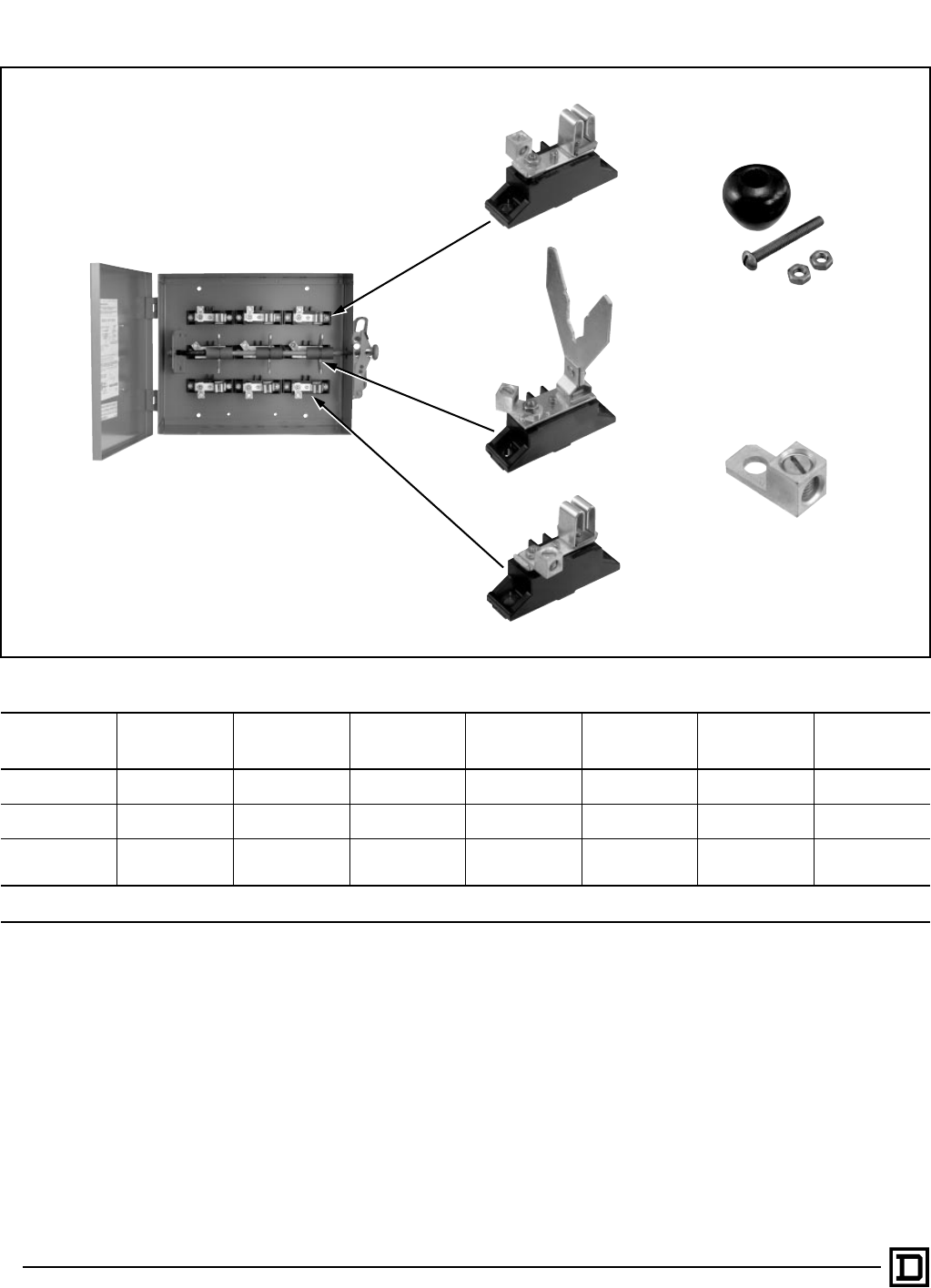

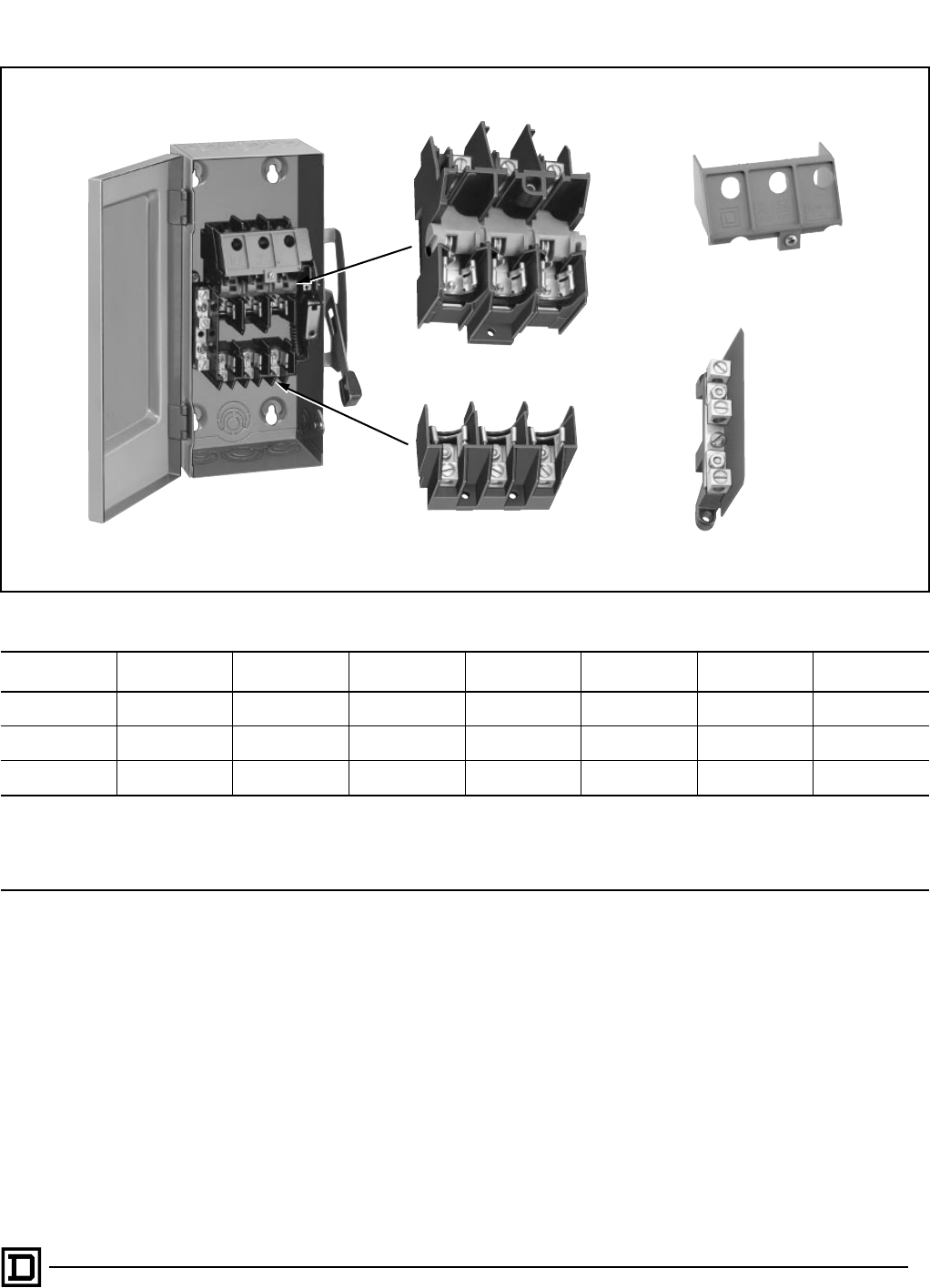

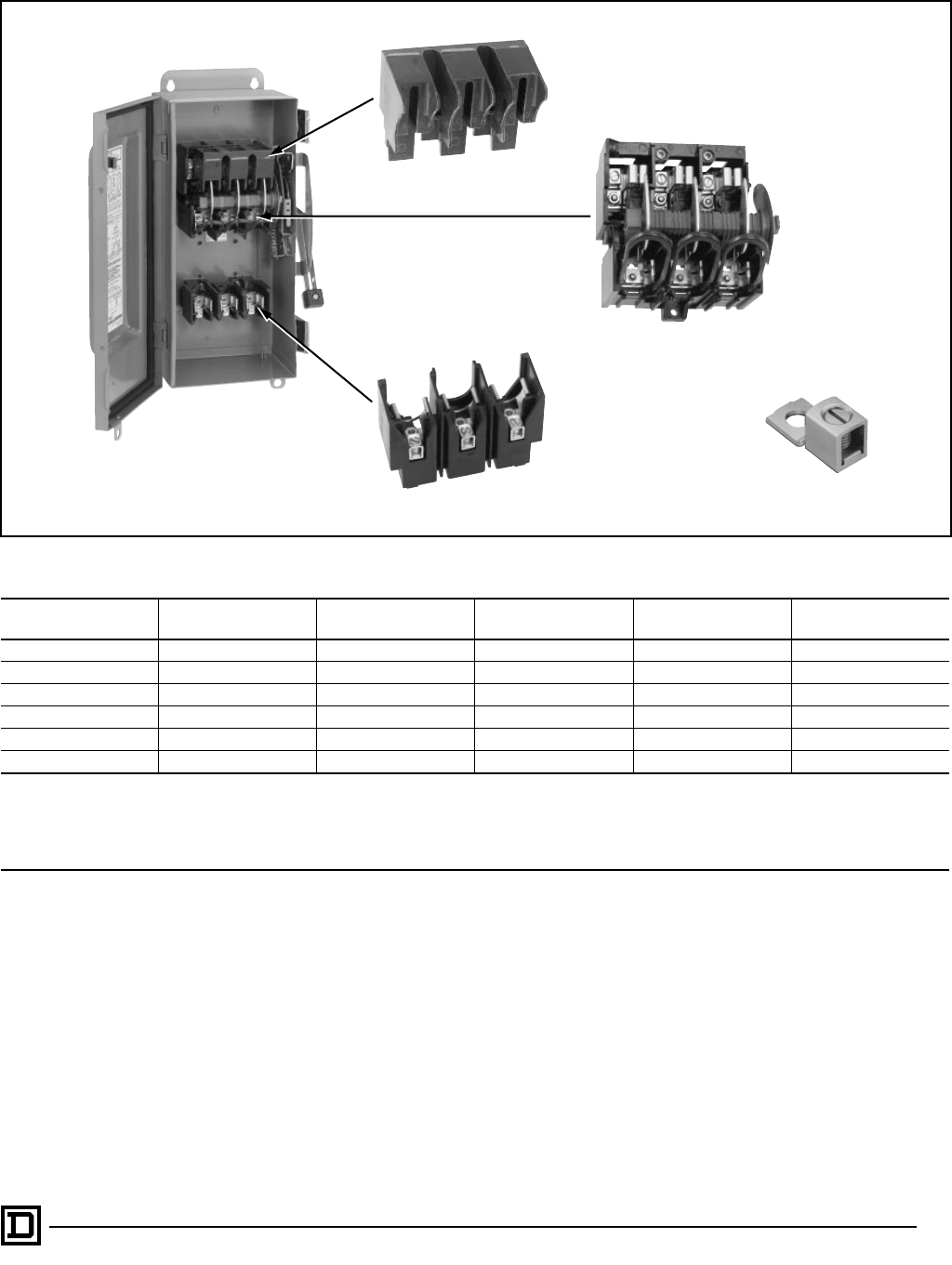

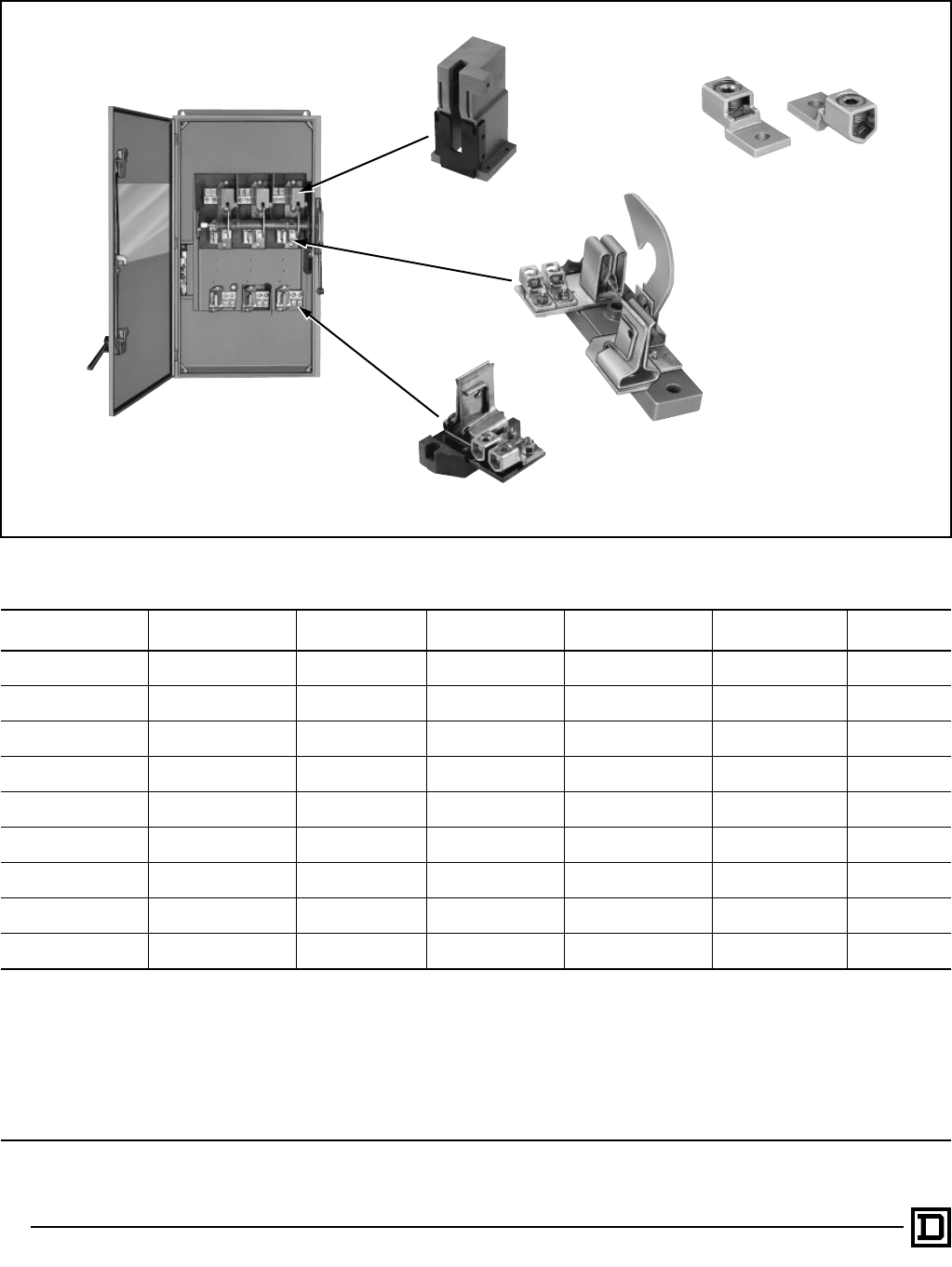

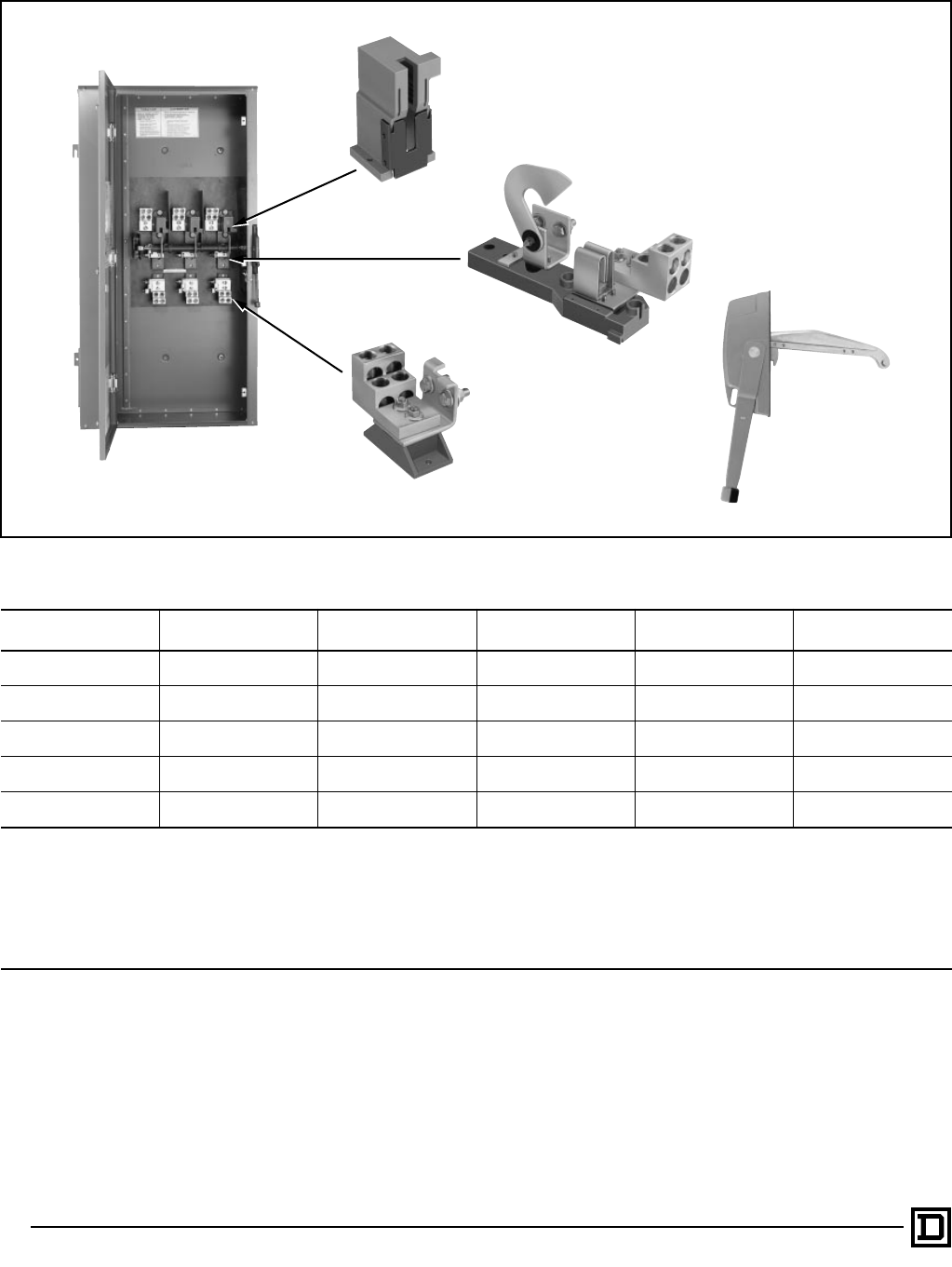

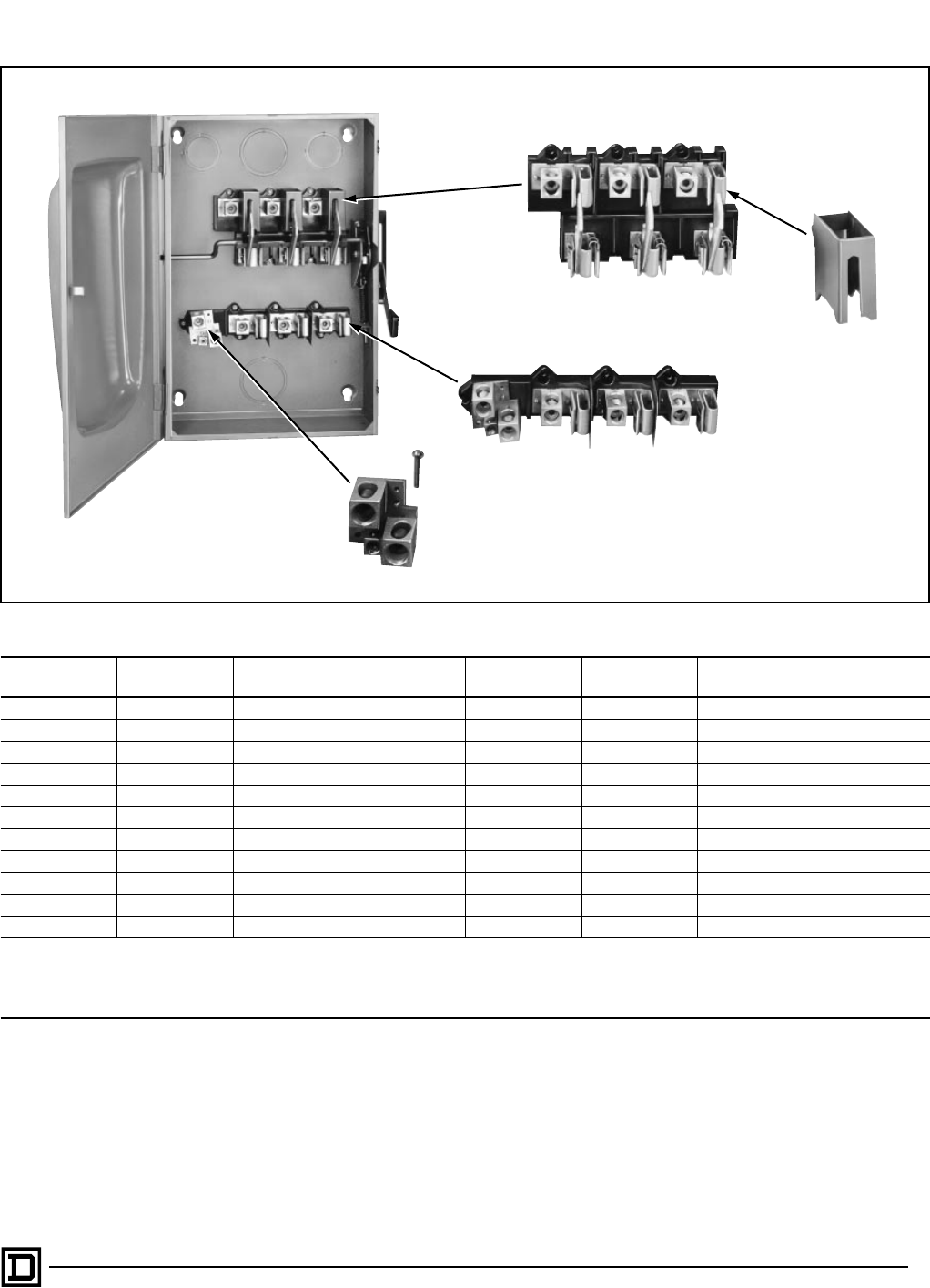

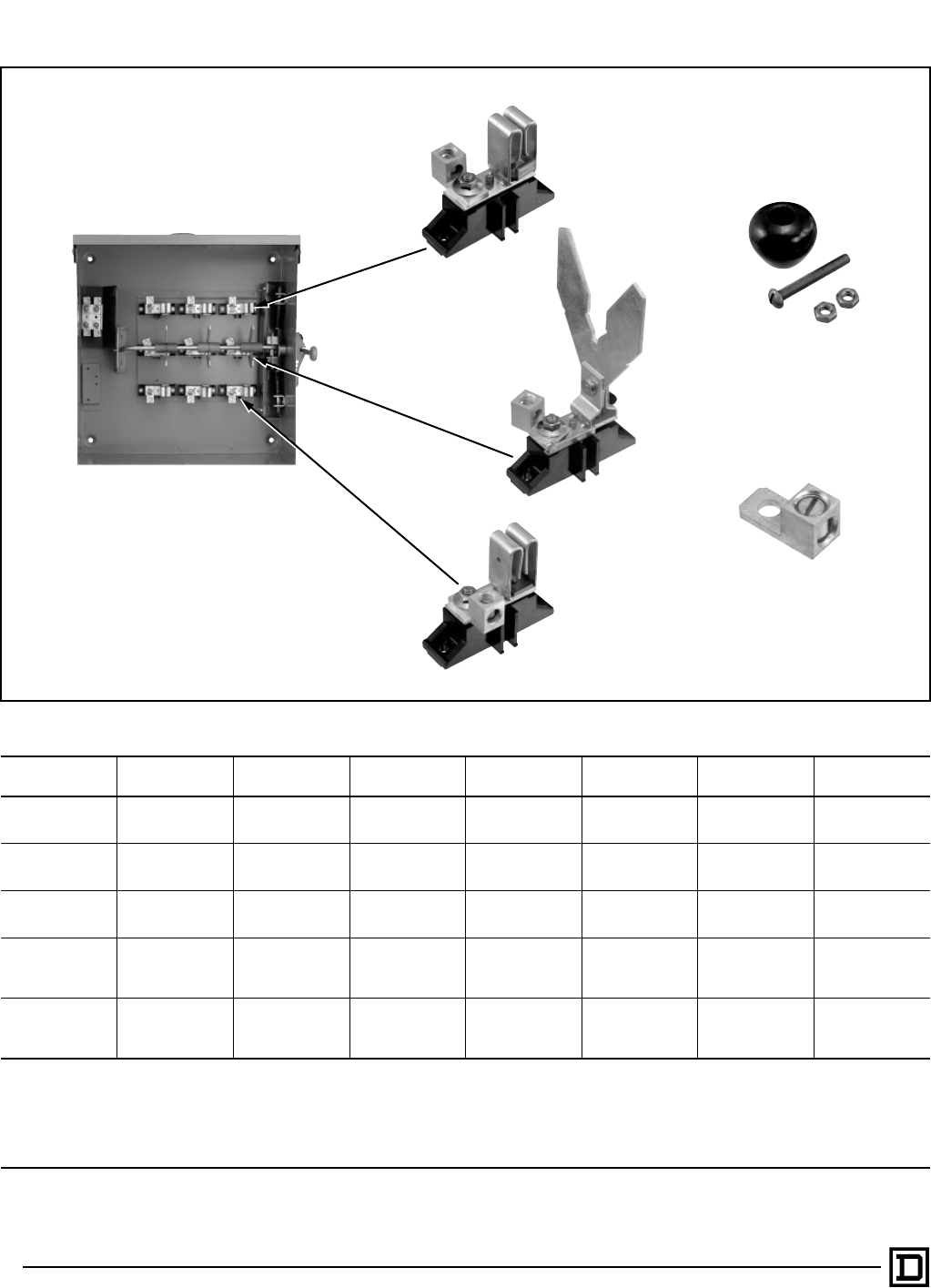

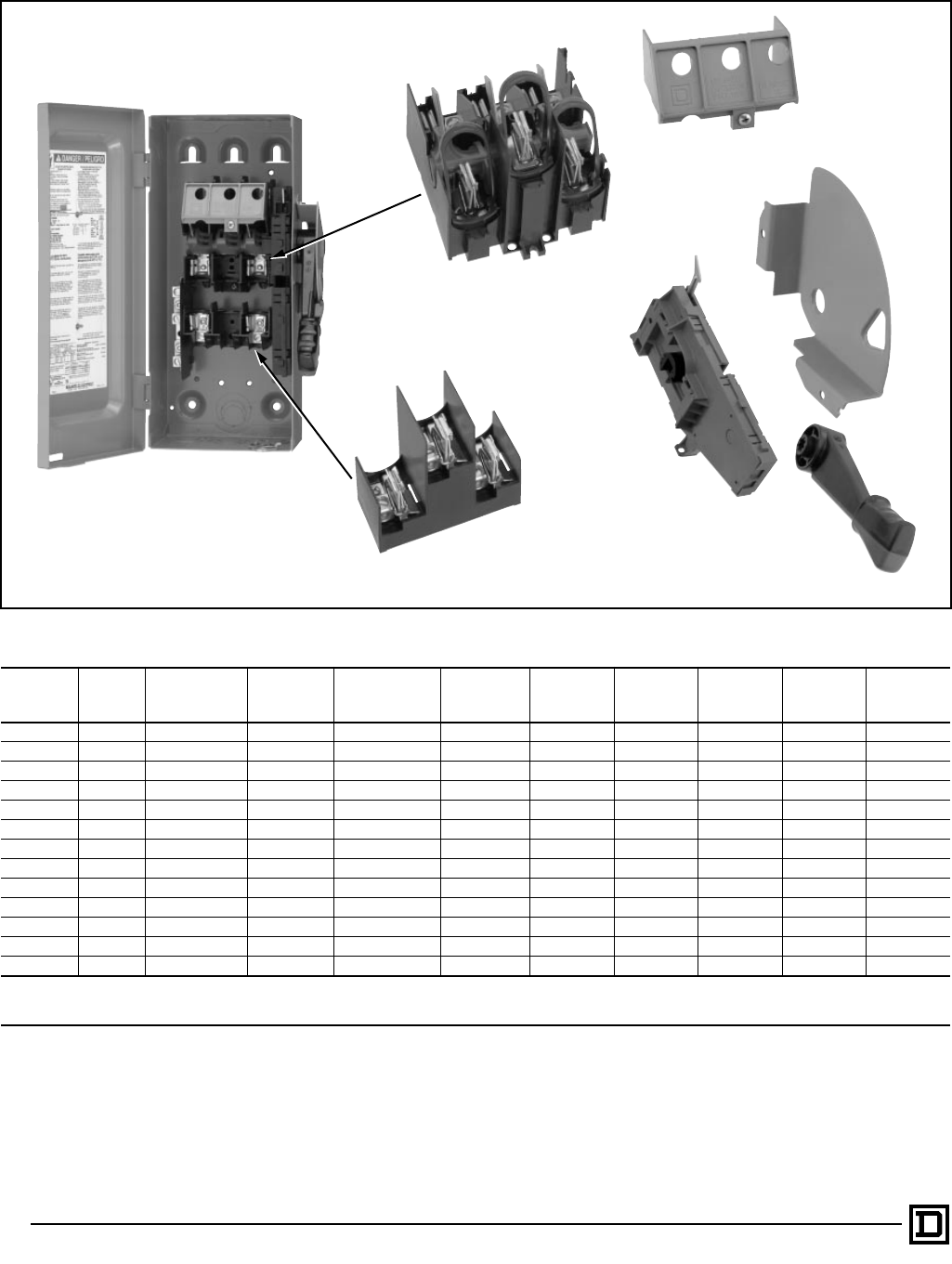

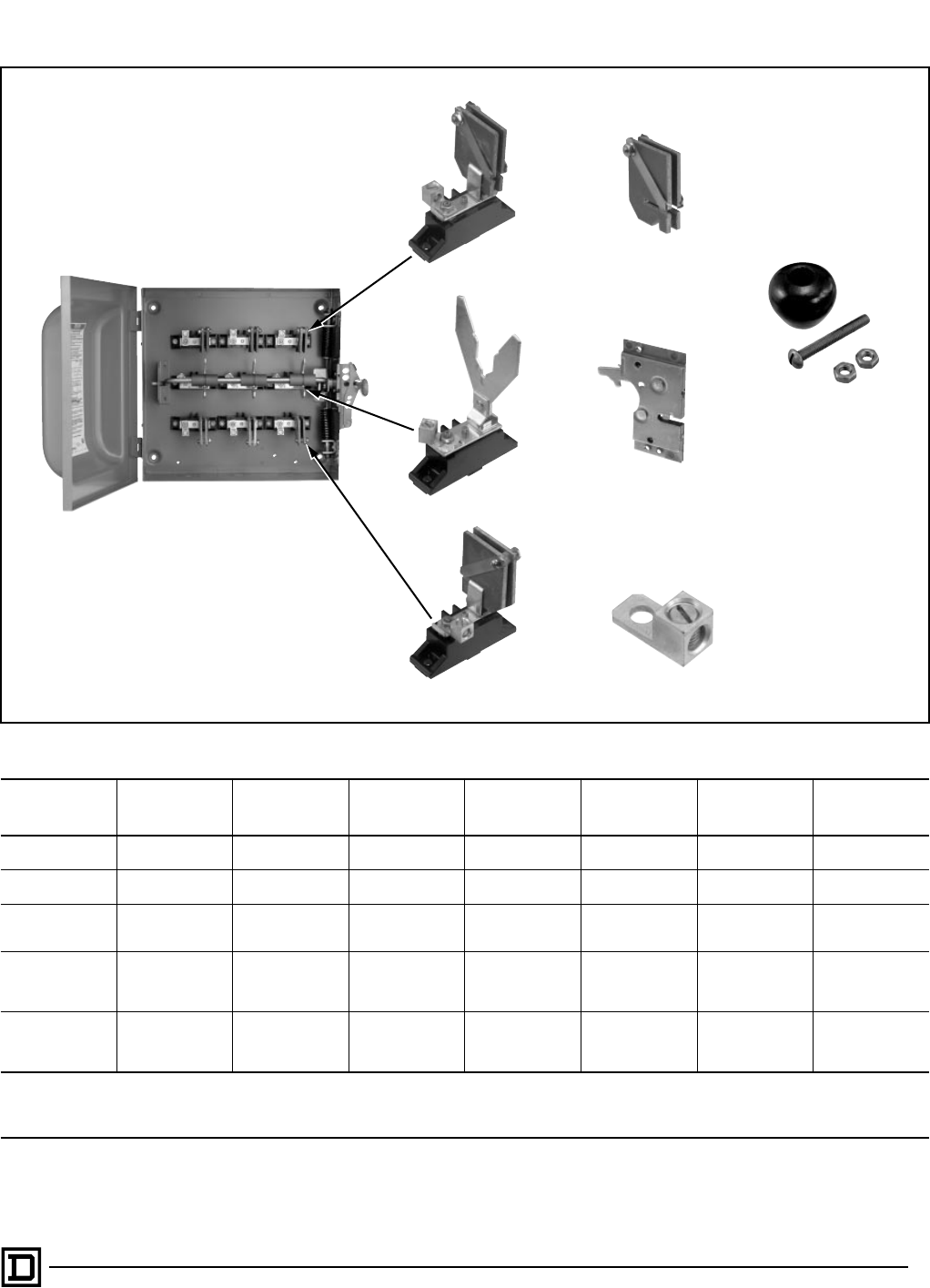

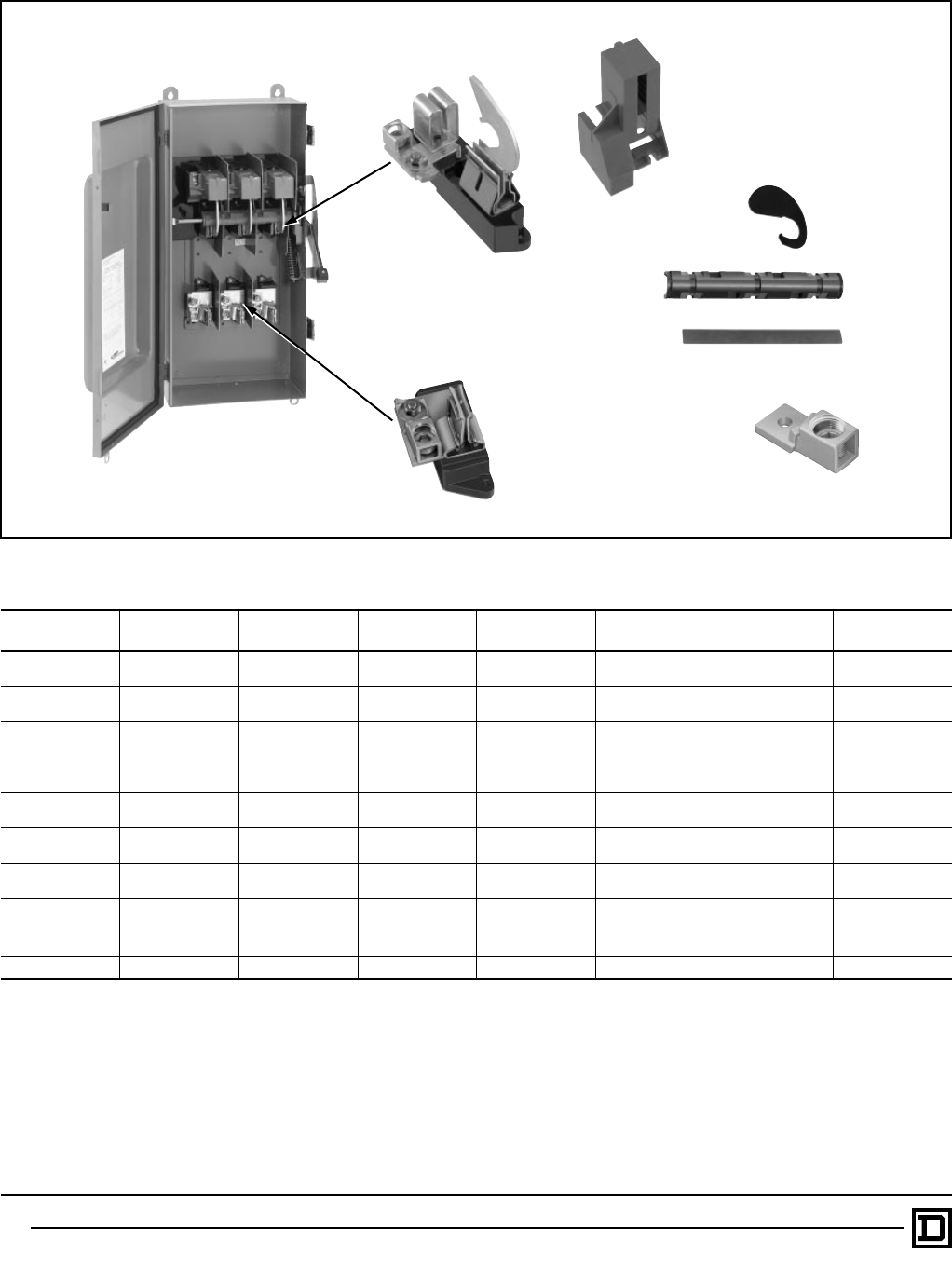

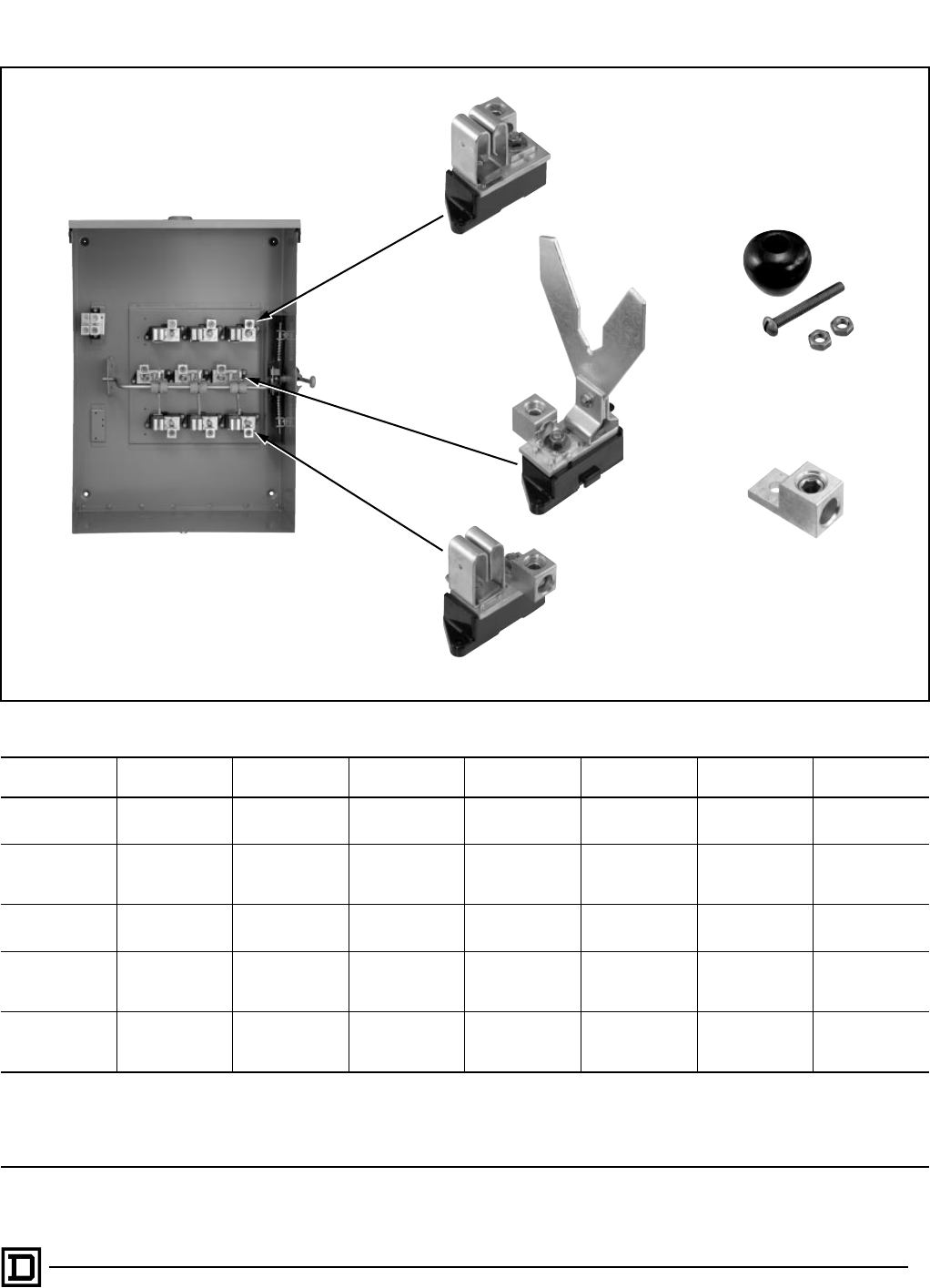

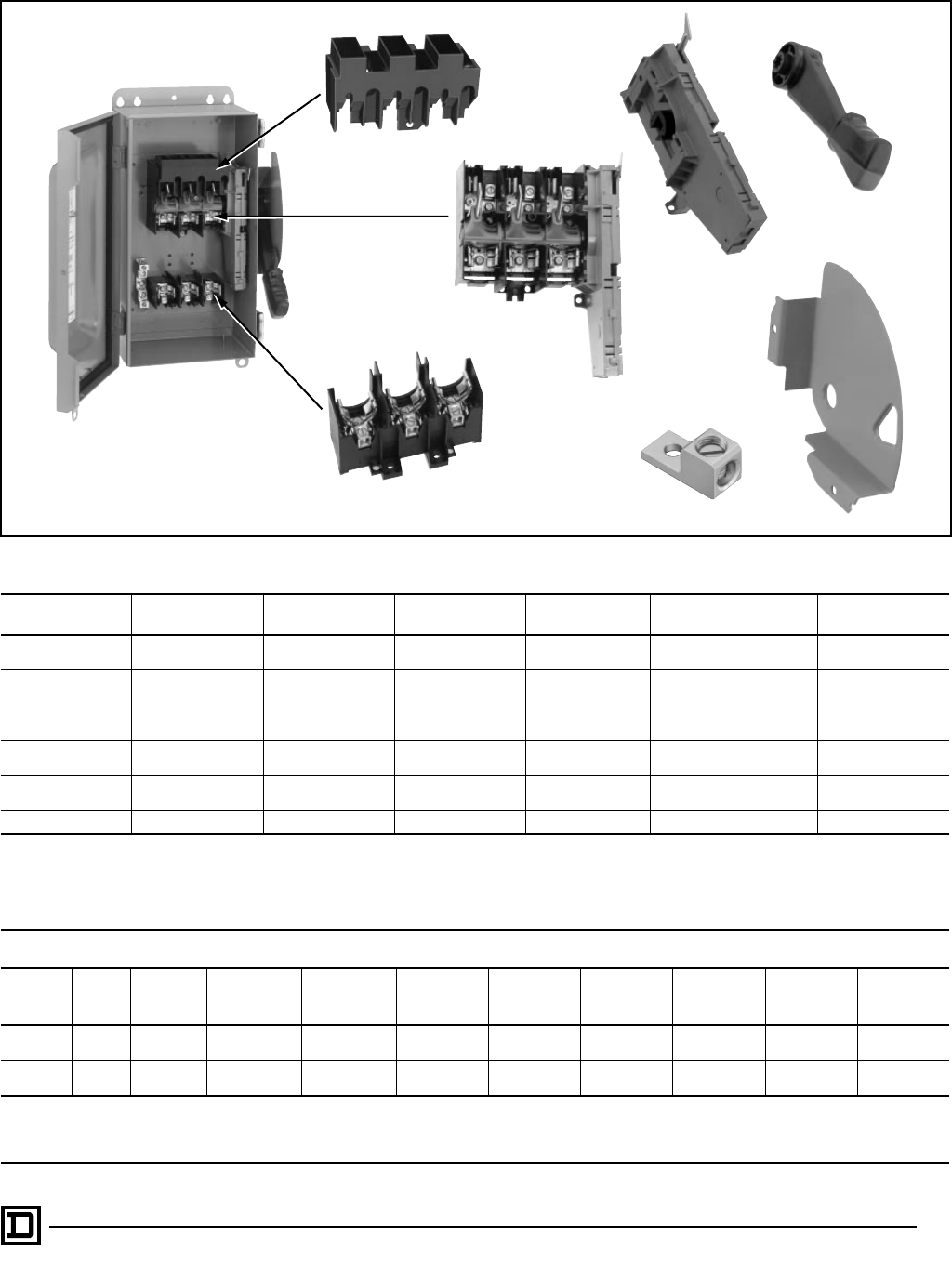

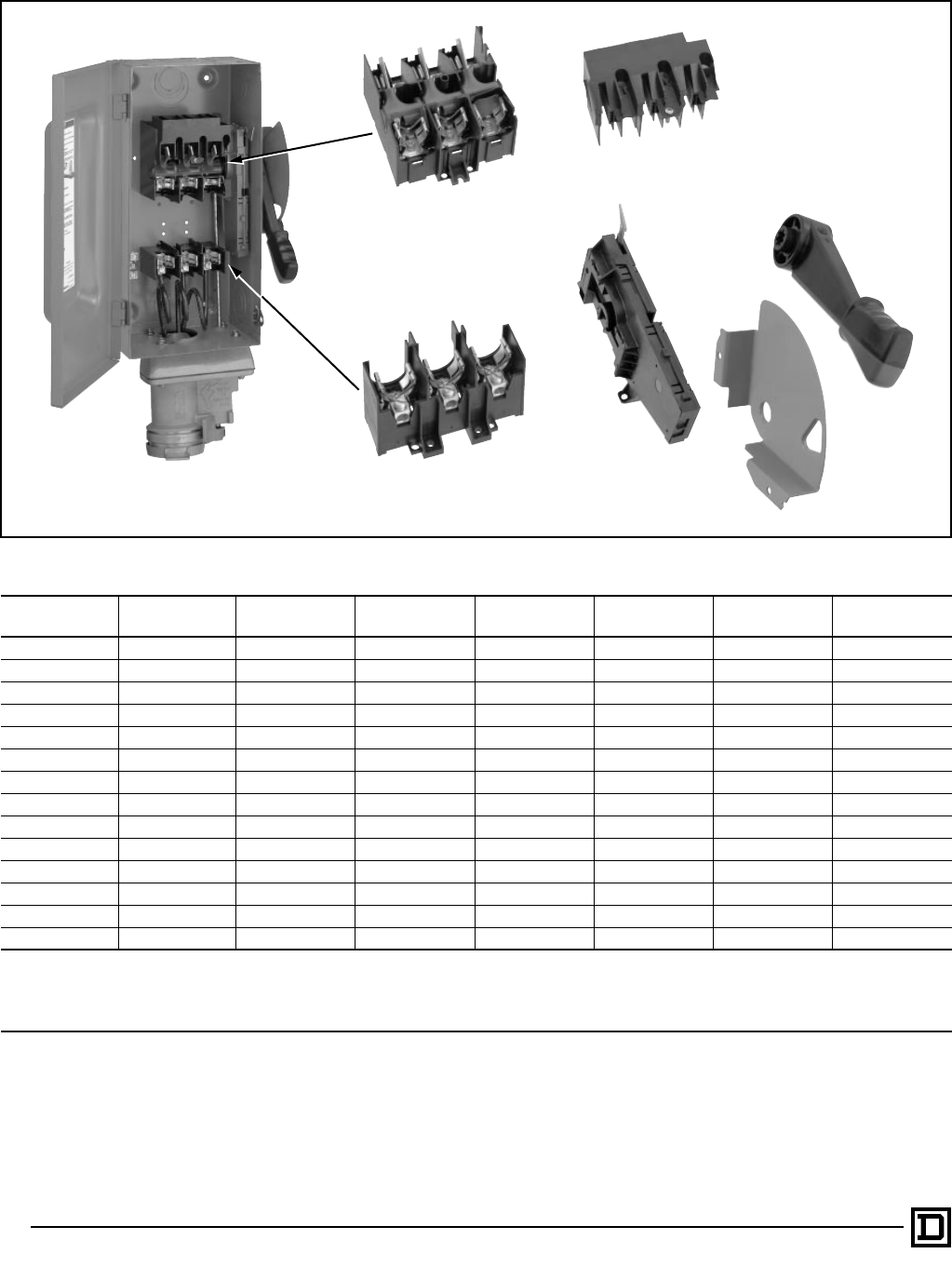

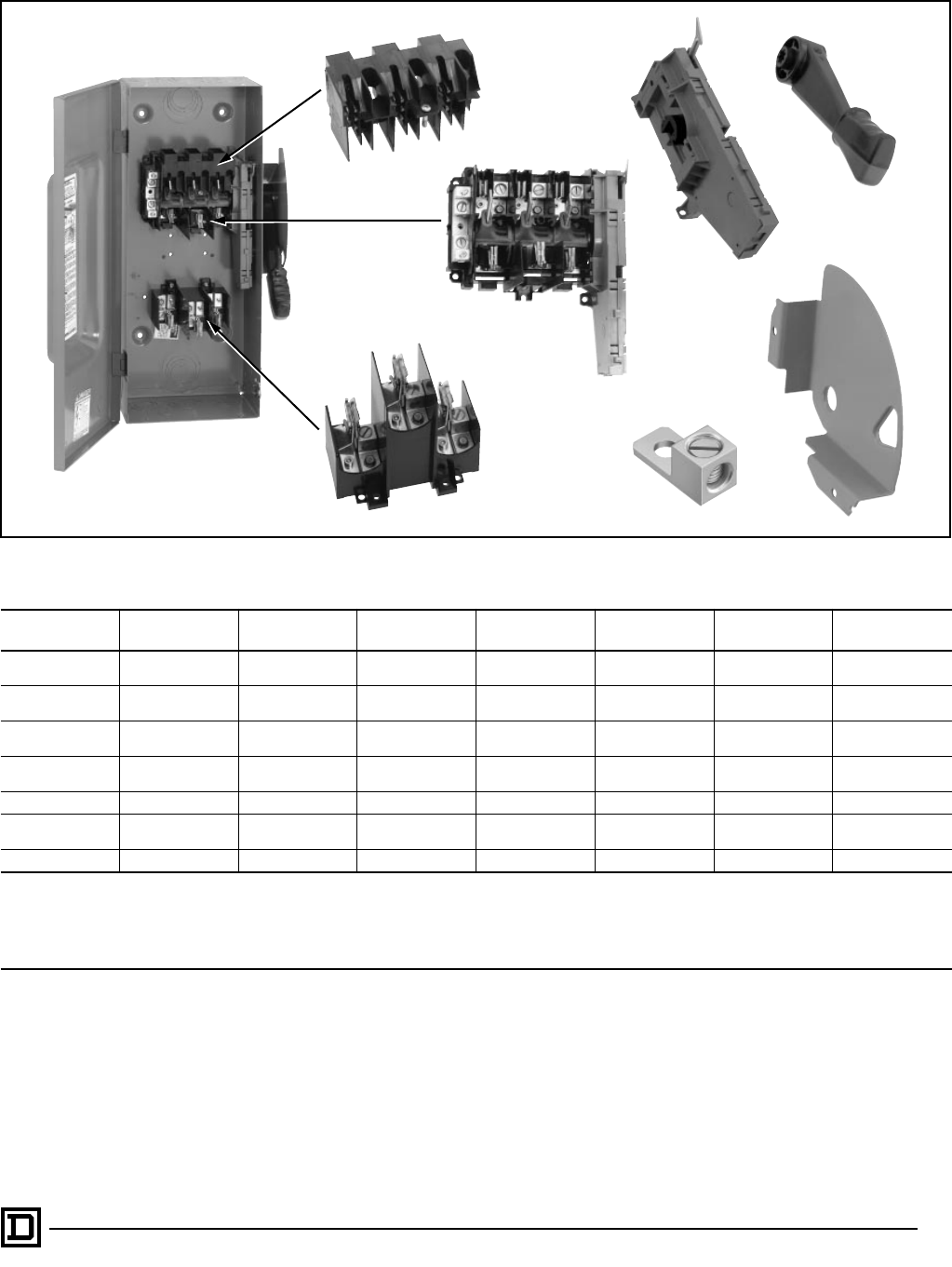

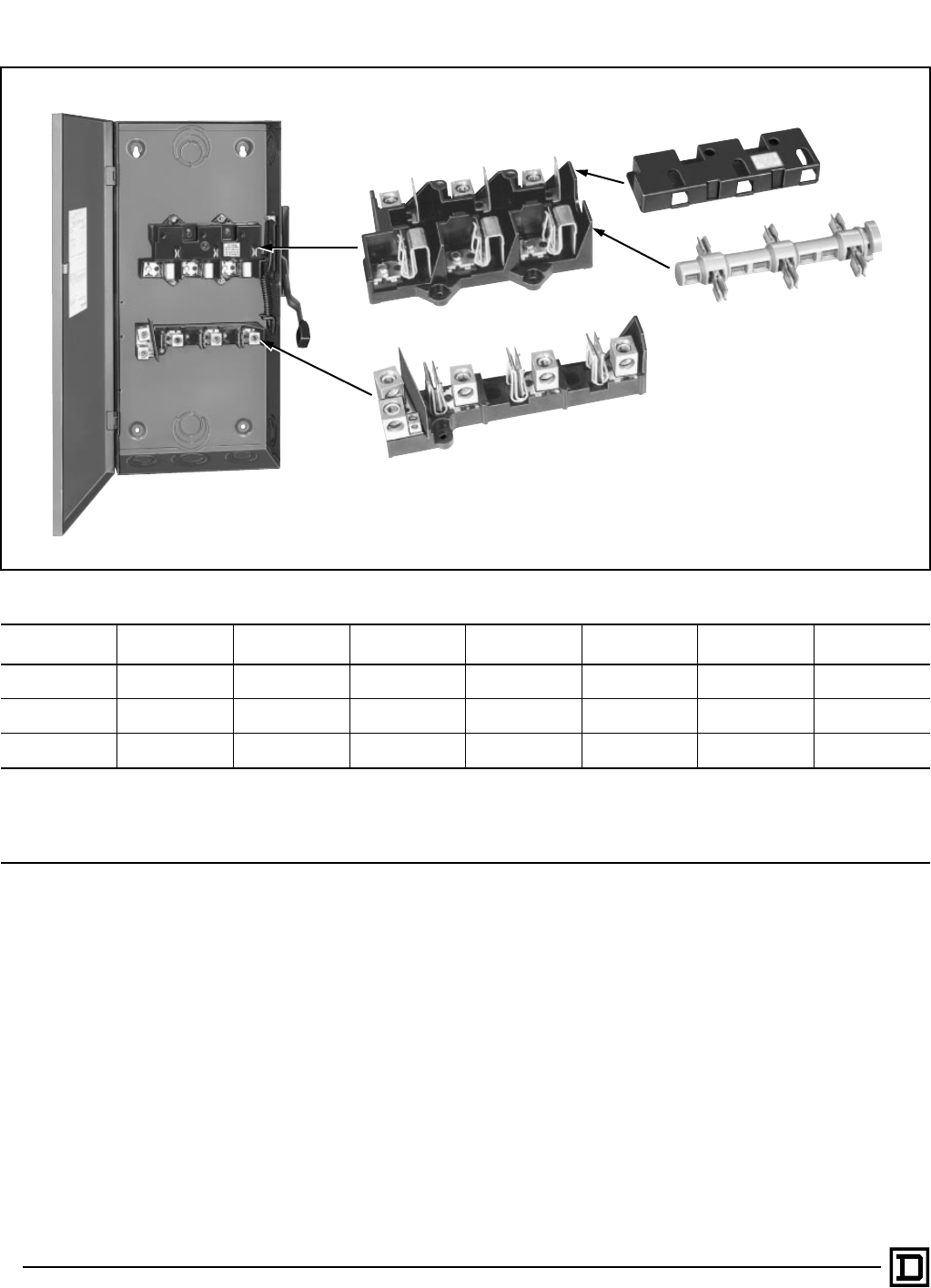

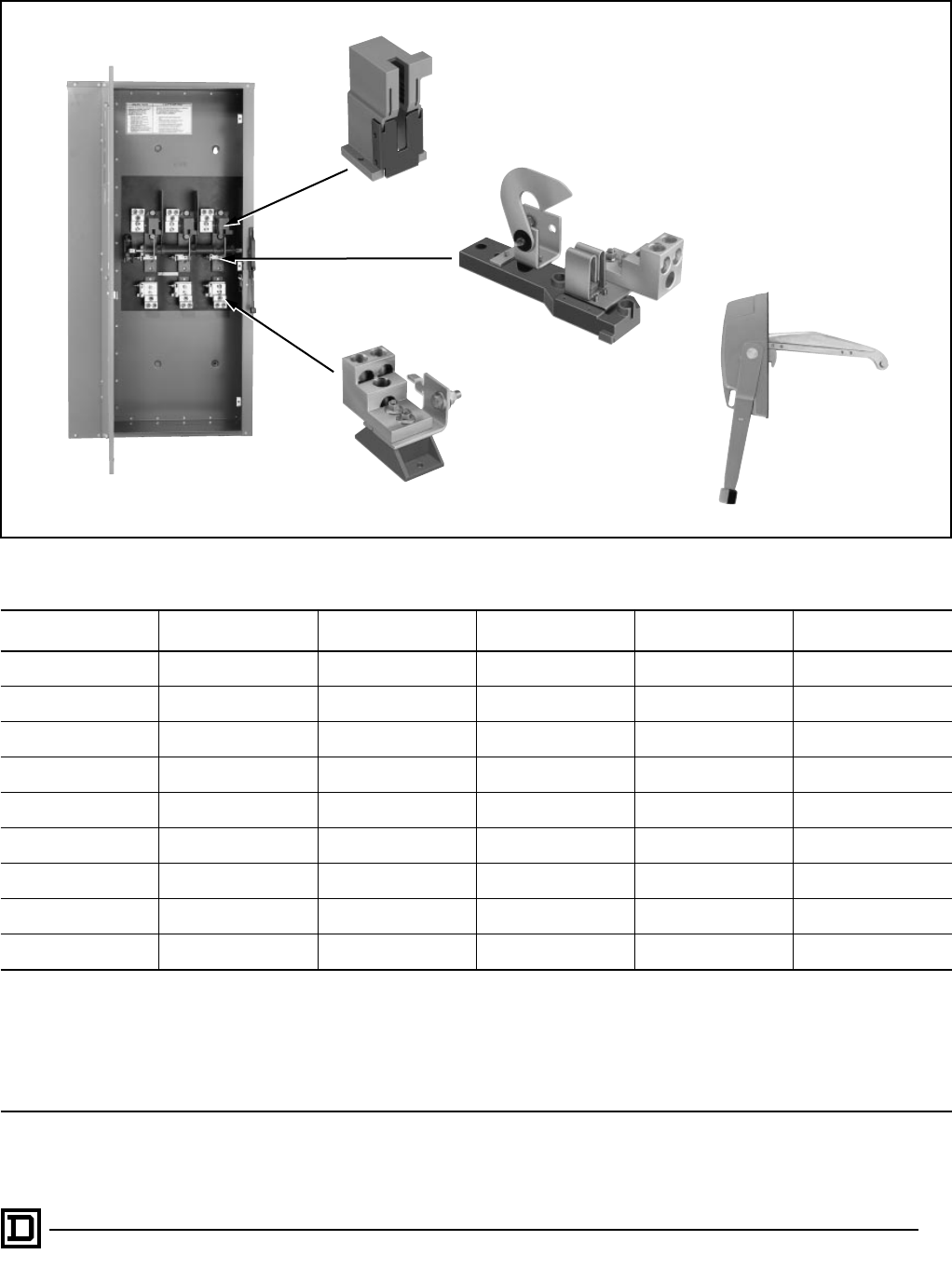

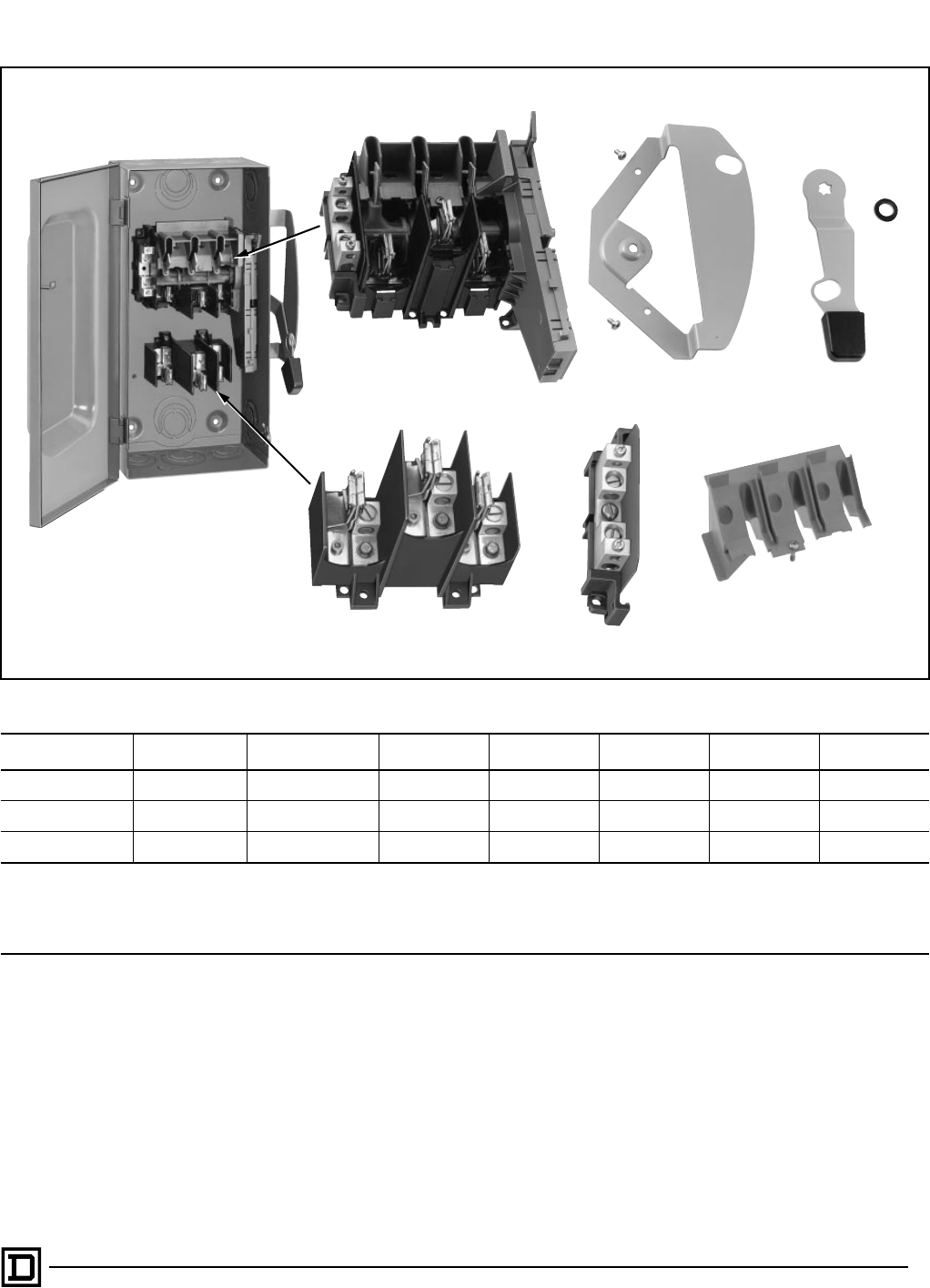

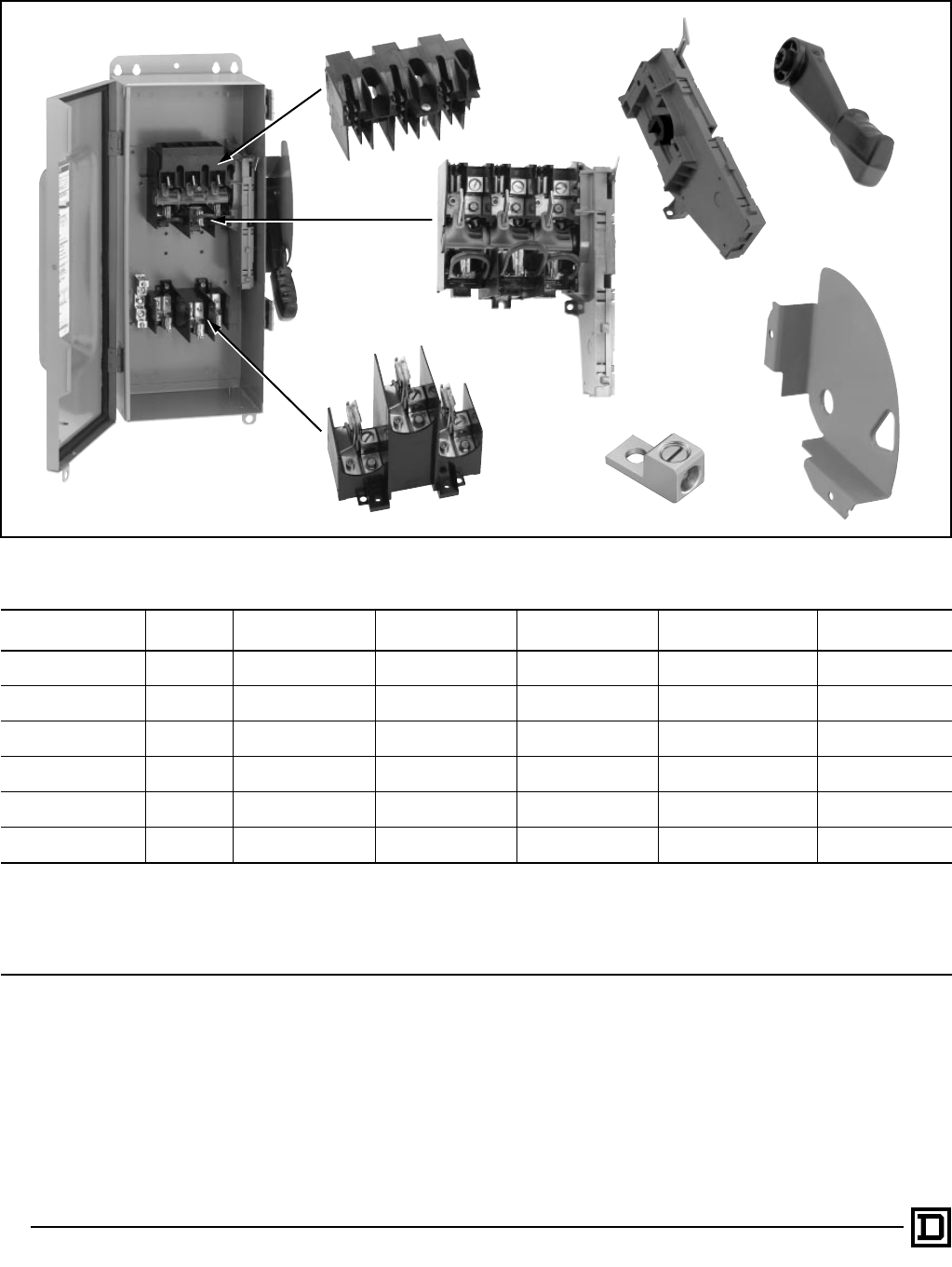

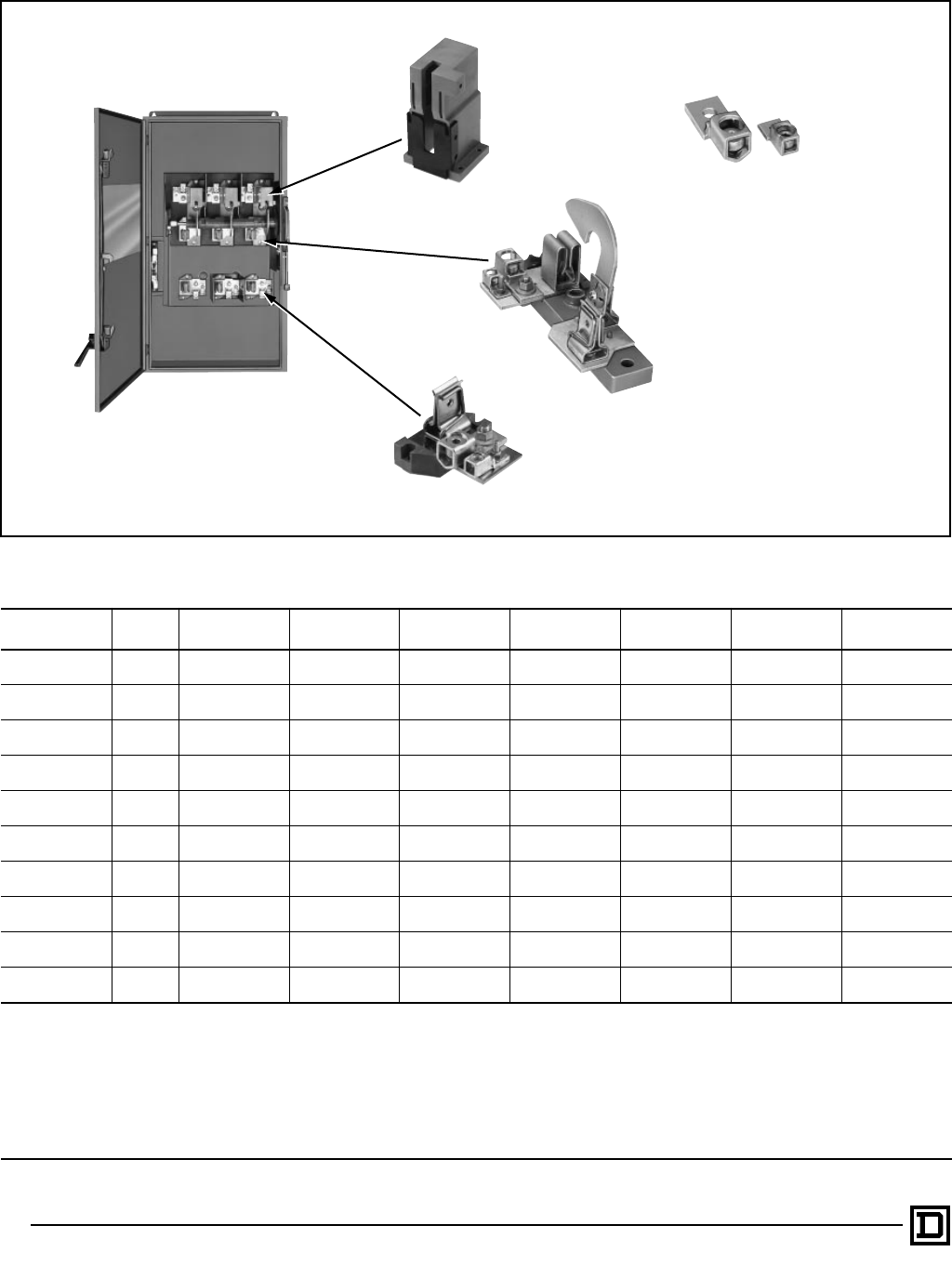

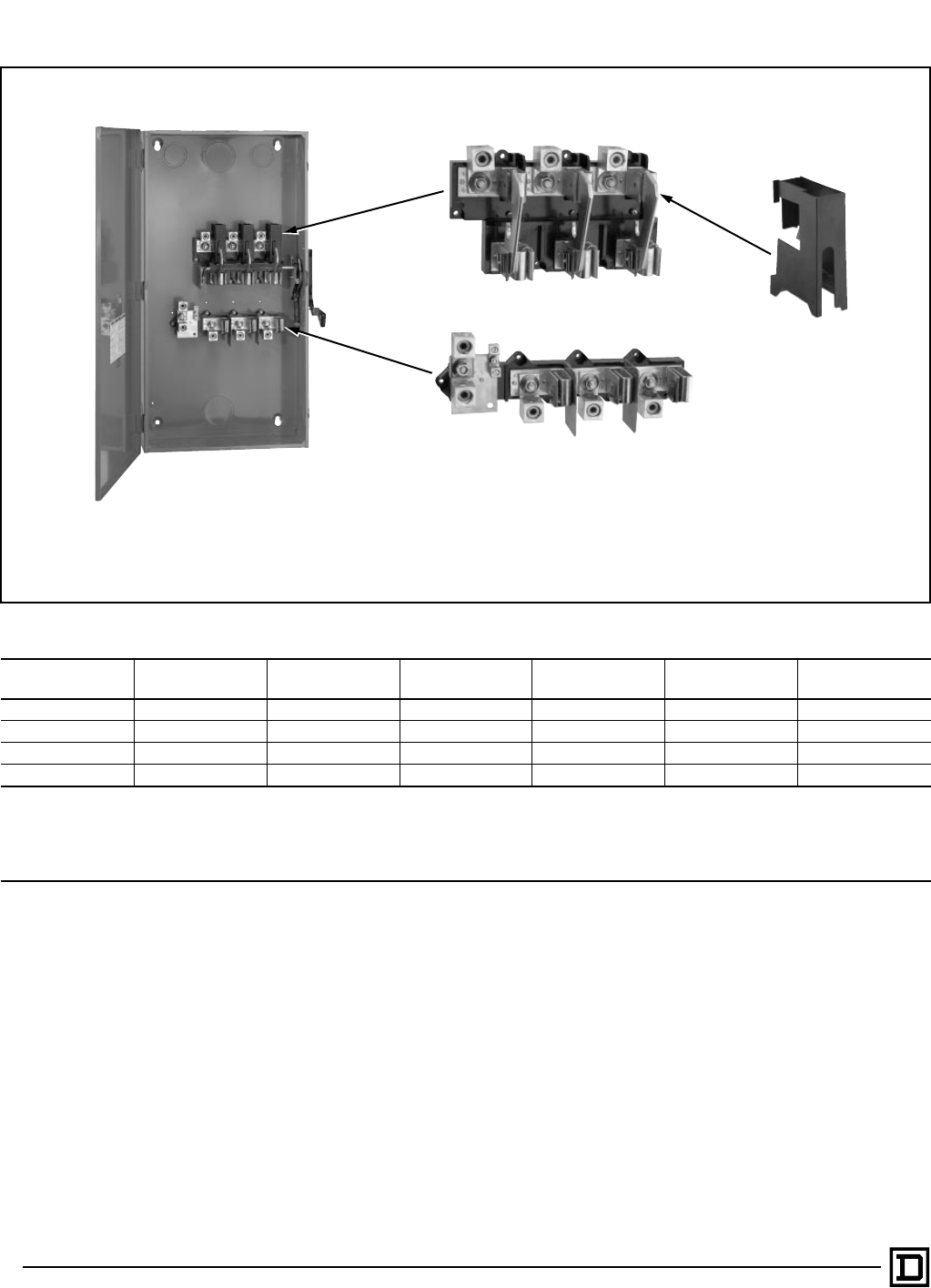

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

12/99

DESCRIPTION

General duty safety switches are designed for residential and commercial

applications where economy is a prime consideration. Typical loads are

lighting, air conditioning, and appliances. They are suitable for use as service

equipment when equipped with a neutral assembly or a service grounding kit

installed.

General duty safety switches are UL

Listed, File E2875, and meet or exceed

the NEMA Standard KS1.

CONFIGURATION

• Two fusible, switched poles with insulated, groundable neutral.

• Three fusible, switched poles with insulated, groundable neutral.

• Two or three, not fusible, switched poles without insulated, groundable

neutral.

CONSTRUCTION

• Visible blades for positive indication that the switch is “OFF.”

• Quick-make, quick-break operating mechanism.

• Lugs suitable for aluminum or copper conductors. See page 7 for

additional lug data.

• Spring reinforced, plated copper fuse clips.

• Series F handle/lockplate is a ﬁeld-replaceable modular design.

• Series F operating mechanism is an enclosed, ﬁeld-replaceable,

modular design.

• Series F NEMA Type 3R covers have side opening construction.

• Top endwalls in 30–200 A NEMA Type 3R switches have bolt-on hub

provisions.

• Multiple padlock provisions in “OFF” position.

• Tangential combination knockouts alleviate the need for offset bends.

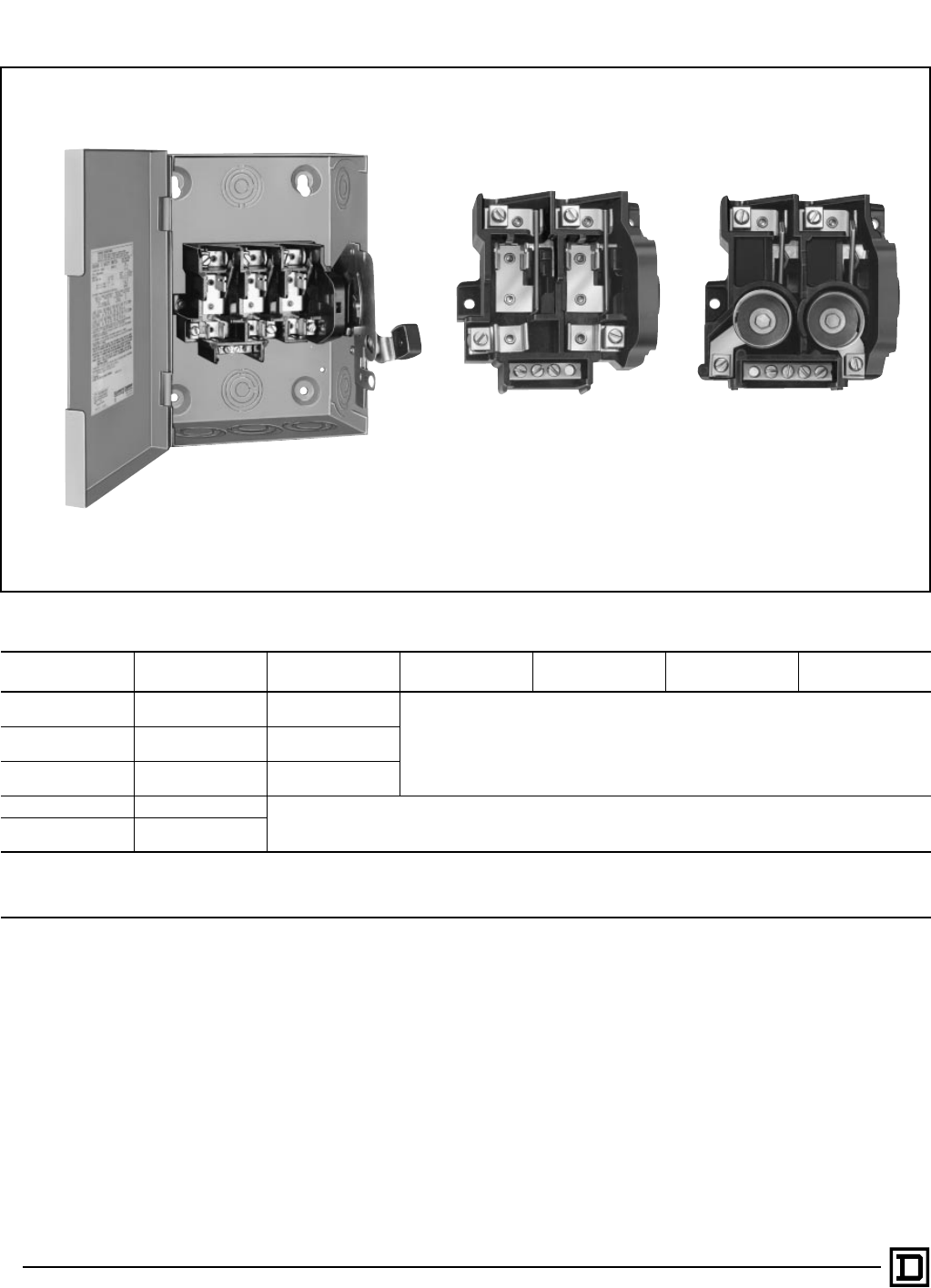

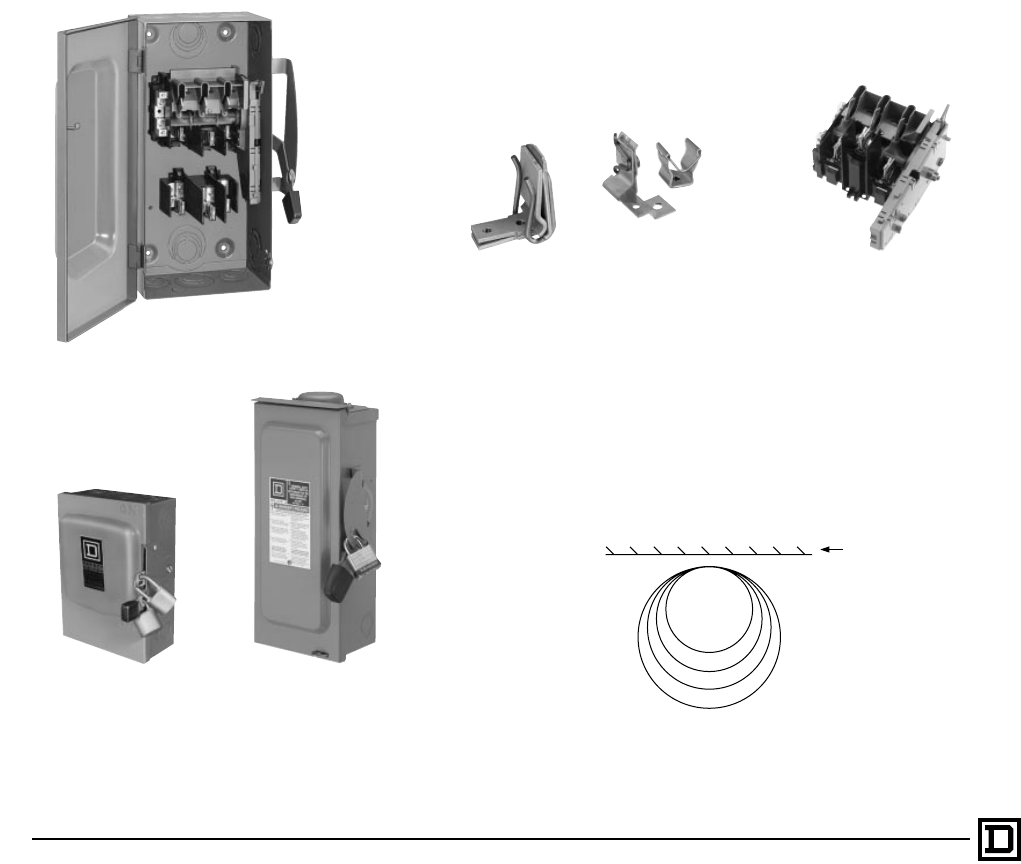

Spring Reinforced Fuse Clips Operating Mechanism

with Line Base

Series F

General Duty Safety Switches — Class 3130

Product Description

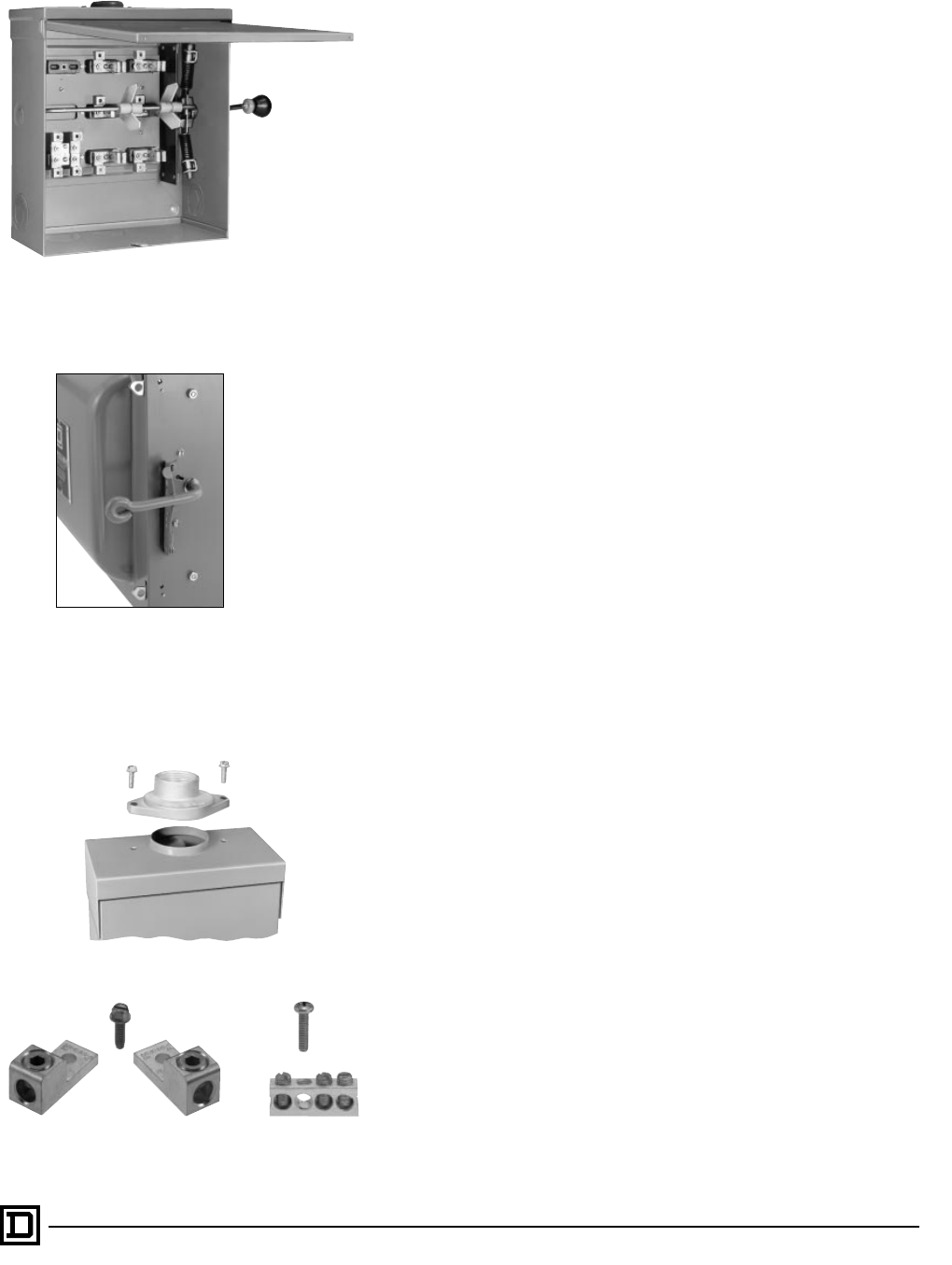

Visible Blade Construction

Tangential Knockouts

Wall

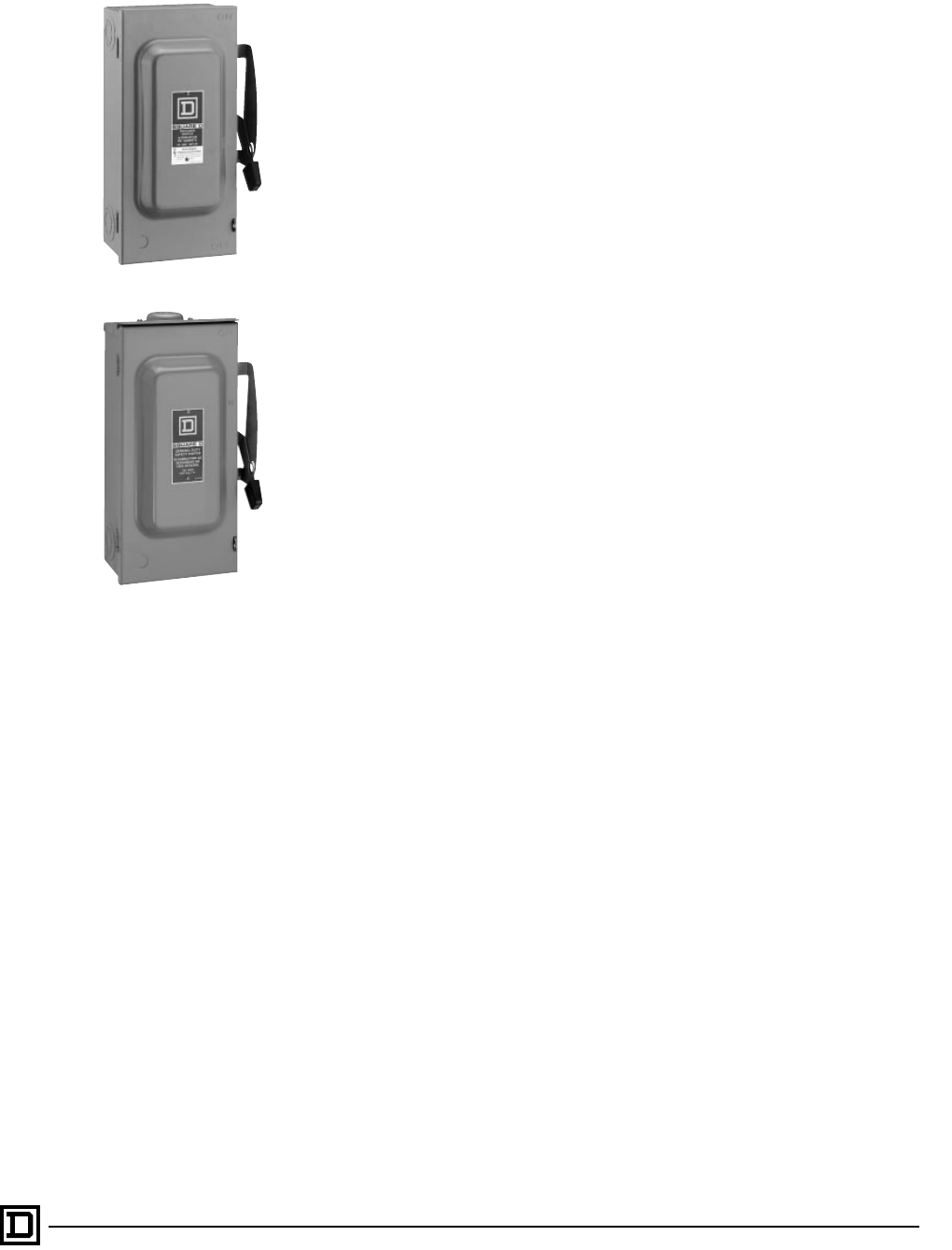

NEMA Type 1

Multiple Padlock Provisions NEMA Type 3R

12/99

ENCLOSURES

Enclosures are ﬁnished in gray, baked enamel that is electrodeposited on

cleaned, phosphatized steel.

•NEMA Type 1 general purpose, indoor.

•NEMA Type 3R general purpose, outdoor.

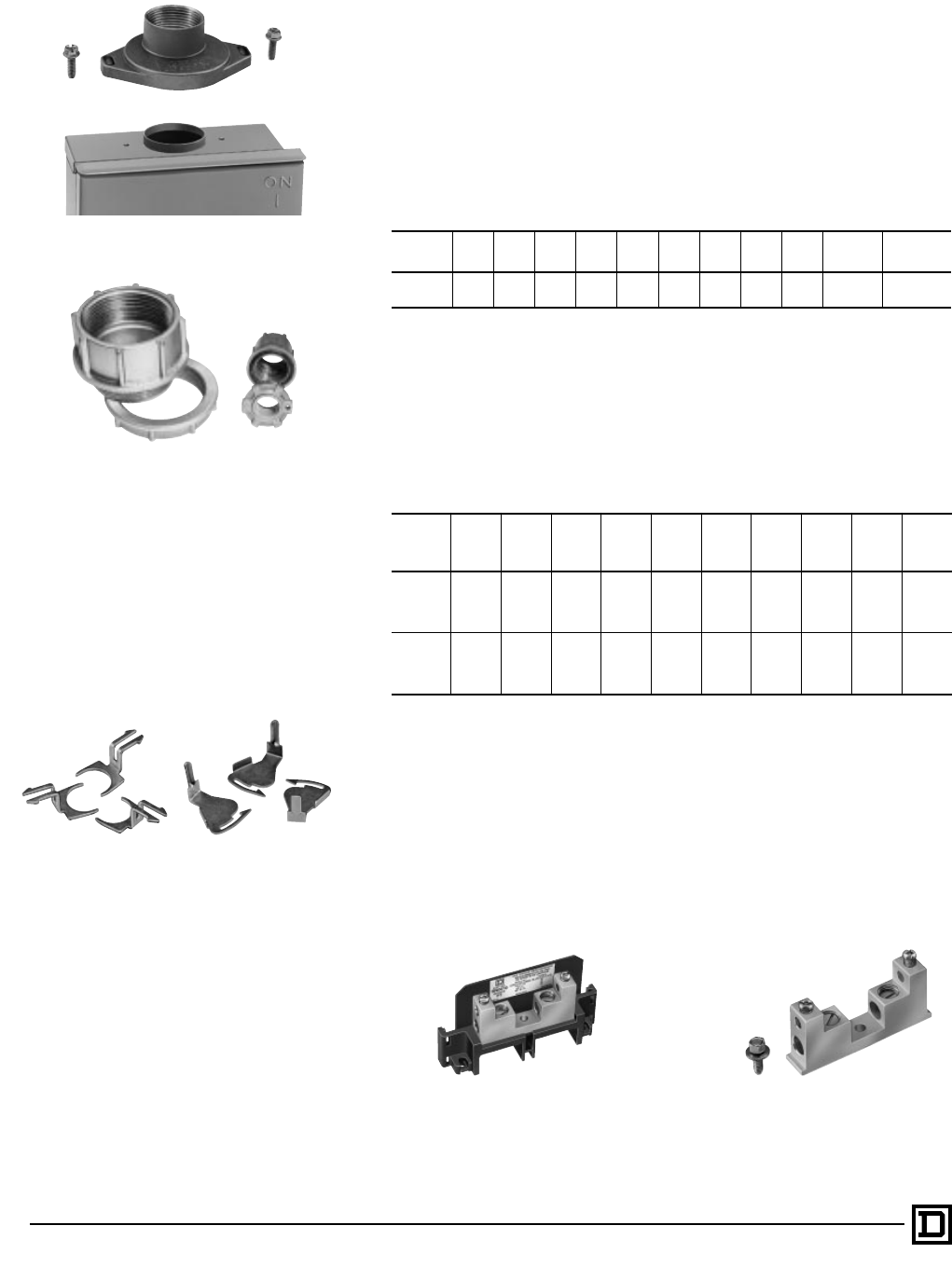

ACCESSORIES

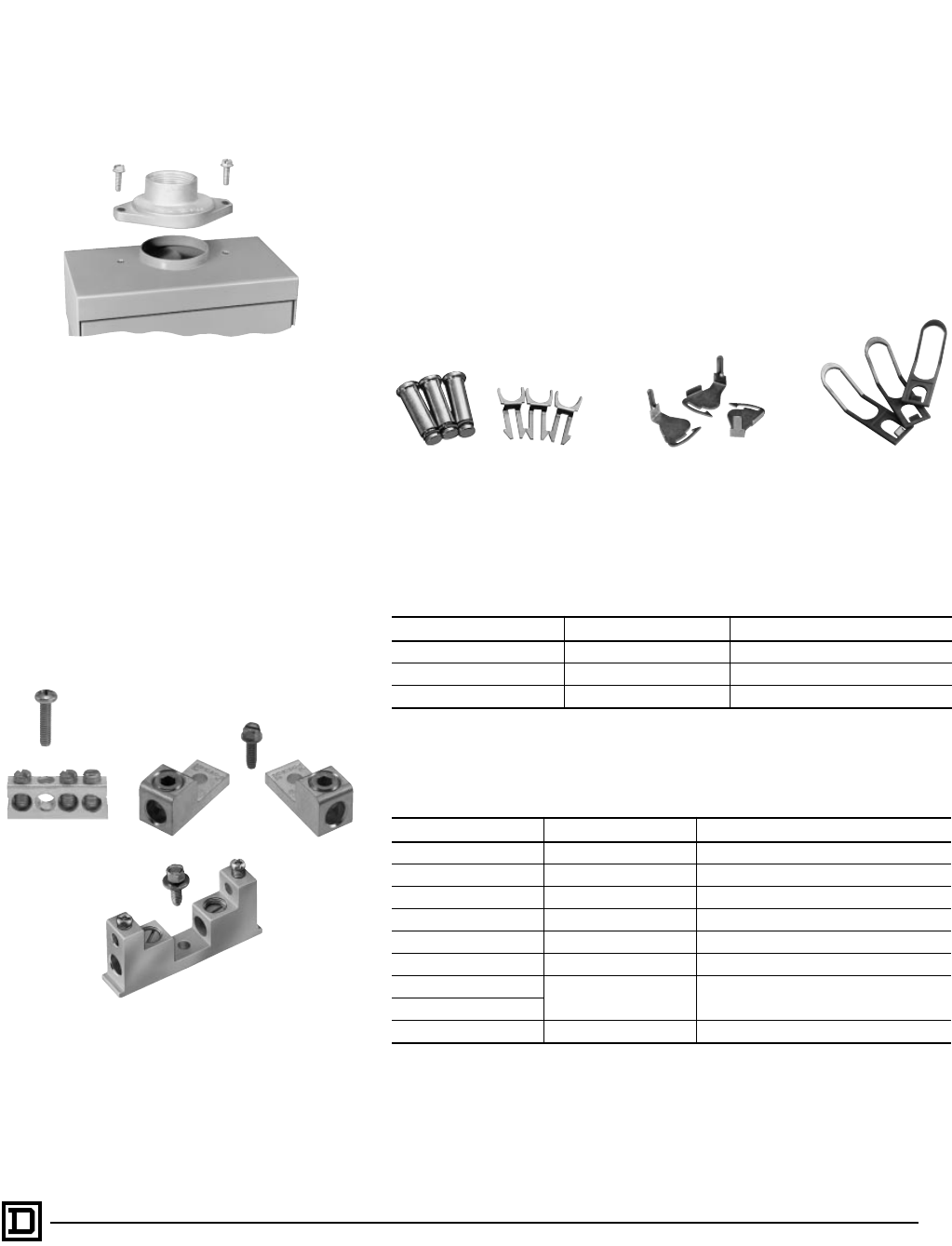

Bolt-on hubs for rainproof applications. Switches with RB sufﬁx accept

⁄

" through 2

⁄

" bolt-on hubs. Switches with R sufﬁx have blank endwalls.

Class R Fuse Kits

•For systems up to 100,000 rms symmetrical amperes.

•See page 8 for selection.

Fuse Puller Kits

Kit consists of three fuse pullers as required for a 3-pole, fusible, 60 A and

100 A general duty switch. Kits can be installed into 60 A Series E1 and F

and 100 A Series F switches.

Equipment Ground Kits

•Aluminum

•Field installable

Switch Ampere Rating Series Number Fuse Puller Kit Catalog Number

60 E1 H30FP

60 F FPK03

100 F FPK0610

Switch Ampere Rating Series Number Equipment Ground Kit Catalog Number

30 E PK3GTA-1

60 E PK3GTA-1

60 F GTK03

100 E PK0GTA-2

100 F GTK0610

200 E PK0GTA-2

400 EPK0GTA-2

(two required)

600

800 E PK0GTA-3

Class R Fuse Kits

Series E

Class R Fuse Kits

Series F

Fuse Puller Kit

Series F

General Duty Safety Switches — Class 3130

Product Description

“RB” Hub

Grounding Kits

30 A and 60 A 200 A

100 A

12/99

General Duty Safety Switches — Class 3130

Product Description

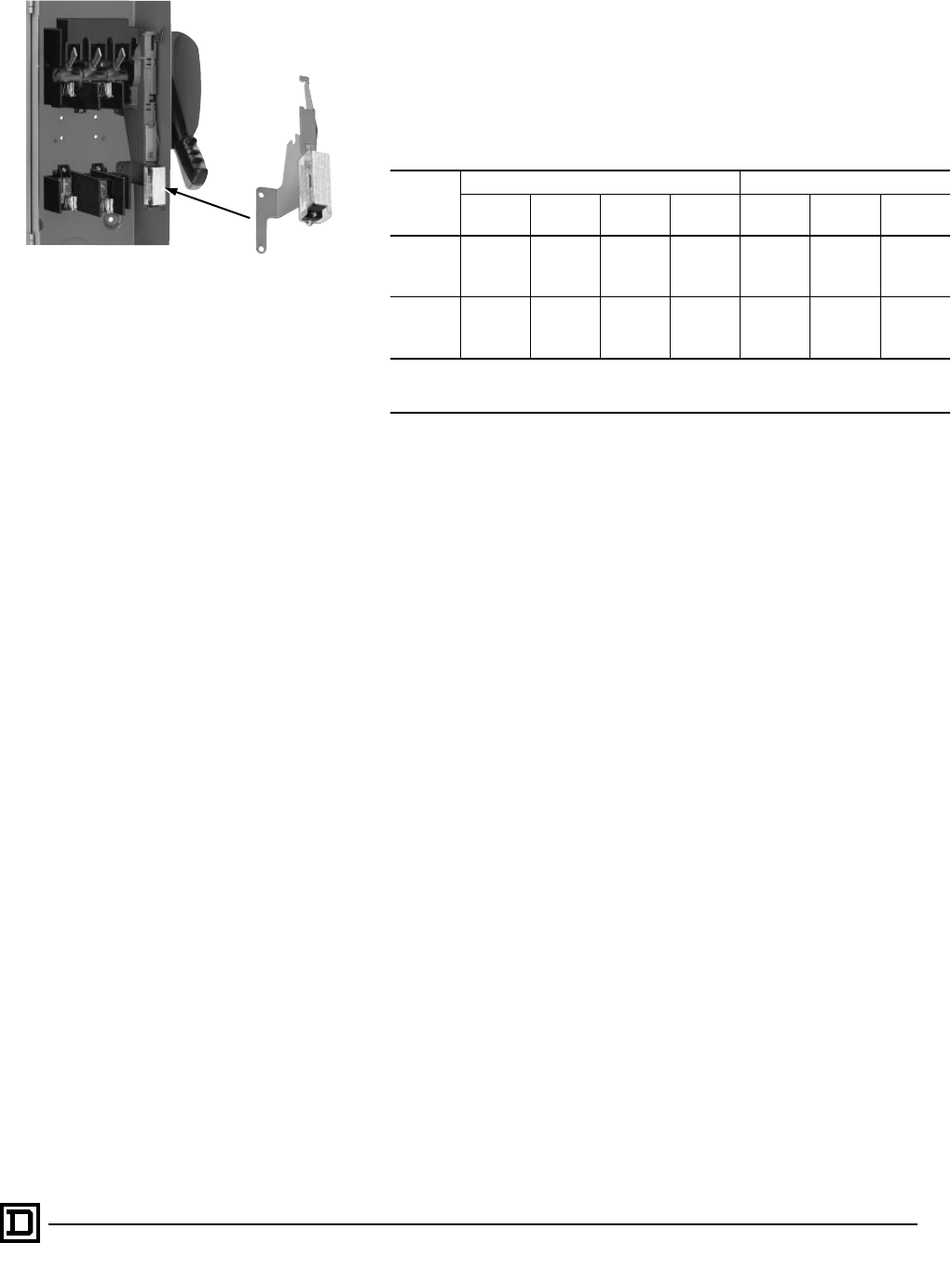

Electrical Interlock Kits

Electrical interlocks for 60 A and 100 A Series F general duty safety switches are available factory

installed or in kit form for ﬁeld installation. Each kit contains instructions for proper ﬁeld mounting. A pivot

arm operates from the switch mechanism, breaking the control circuit before the main switch blades

break. Electrical interlock kits are not offered on Series E switches.

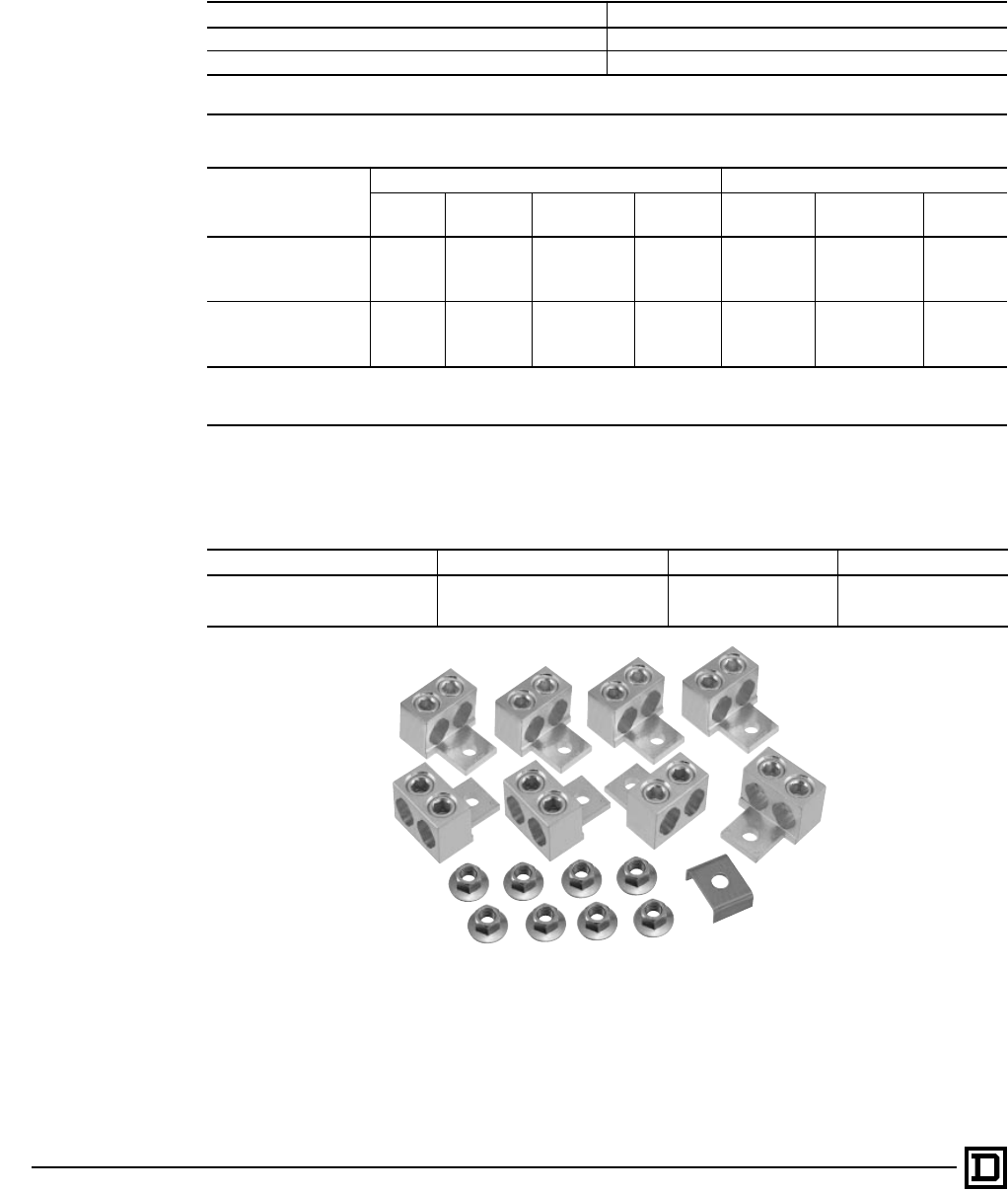

Field Installable Lug Kit

Kit consists of three line, three loads, and two neutral lugs as required for a 3-pole 400 A or 600 A

general duty switch. Kit can be installed on 400 A or 600 A Series E3 switches.

Switch Ampere Rating Electrical Interlock Kit Catalog Number

60 EIK031 or EIK032

100 EIK-1 or EIK-2

Electrical interlock kit catalog numbers with -1 sufﬁx indicate one normally open and one normally closed contact; -2 indicates two normally open

and two normally closed contacts.

Electrical Interlock Contact Ratings

Interlock Type

AC 50 or 60 Hz DC

Volts Make Break Cont. Volts Make and

Break Cont.

1 N.O./1 N.C. Contact

(-1 Sufﬁx)

120 40.0 A 15.00 A 15 A 115 .50 A 15 A

240 20.0 A 10.00 A 15 A 230 .25 A 15 A

480 10.0 A 6.00 A 15 A – – –

600 8.0 A 5.00 A 15 A 600 .05 A 15 A

2 N.O./2 N.C. Contacts

(-2 Sufﬁx)

120 30.0 A 3.00 A 10 A 115 1.00 A 10 A

240 15.0 A 1.50 A 10 A 230 .30 A 10 A

480 7.5 A .75 A 10 A – – –

600 6.0 A .60 A 10 A 600 .10 A 10 A

Single-pole single-throw interlock kits are rated

⁄

hp @ 110 and 220 Vac.

-1 Sufﬁx uses a 9007A01 limit switch.

-2 Sufﬁx uses a 9007C03 limit switch.

Switch Ampere Rating Lug Kit Catalog Number Wire Range/NEC

Lug Wire Range

400 or 600 Series E3 GD4060LK 1-1/0-600 kcmil

2-1/0-500 kcmil

4-1/0-250 kcmil

2-1/0-600 kcmil

4-1/0-250 kcmil

Optional Lug Kit for 400 A and 600 A Devices

12/99

General Duty Safety Switches — Class 3130

General Information

Application

General duty safety switches are designed for the

following applications:

• Residential and light commercial applications.

• Infrequent or moderate operations.

• 240 Vac maximum.

• Up to 100,000 rms symmetrical amperes,

using appropriately rated Class R fuses and

Class R Fuse Kits, or Class T or J fuses.

• 30–800 A.

• Horsepower rated.

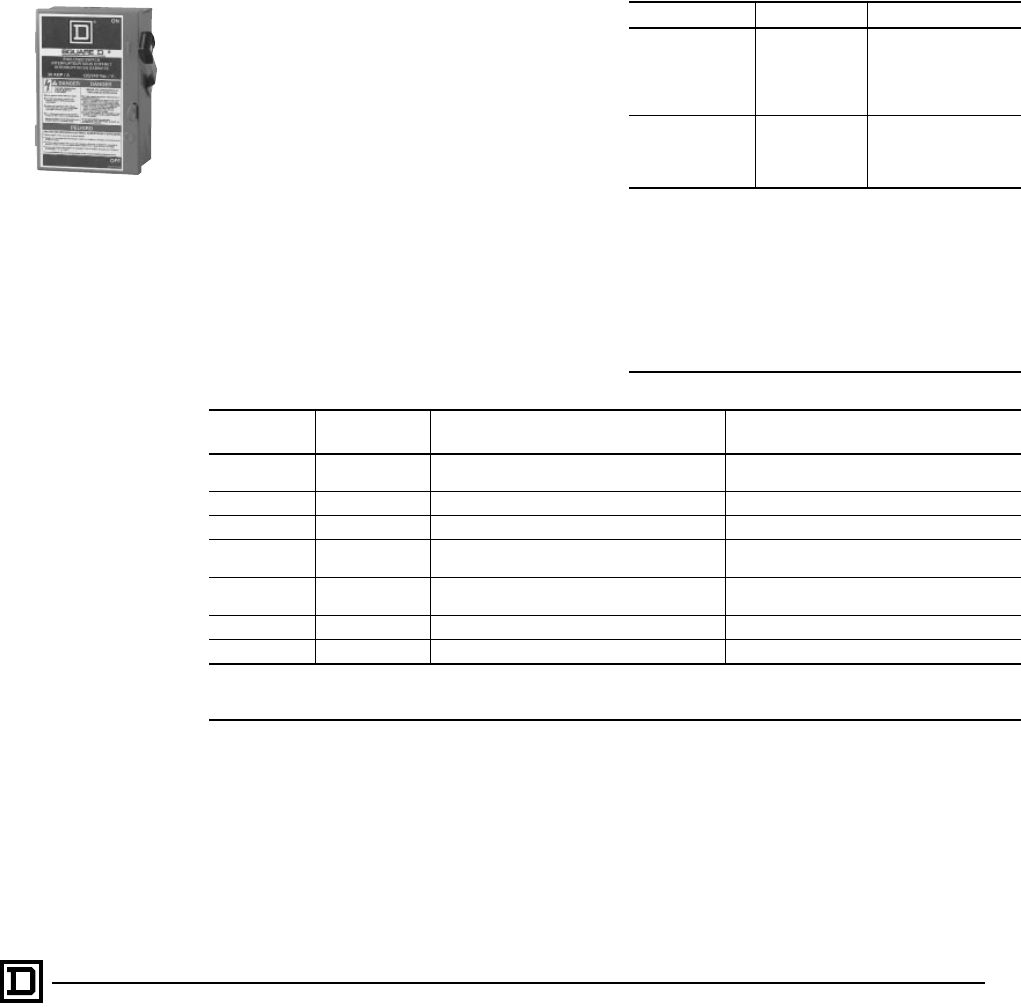

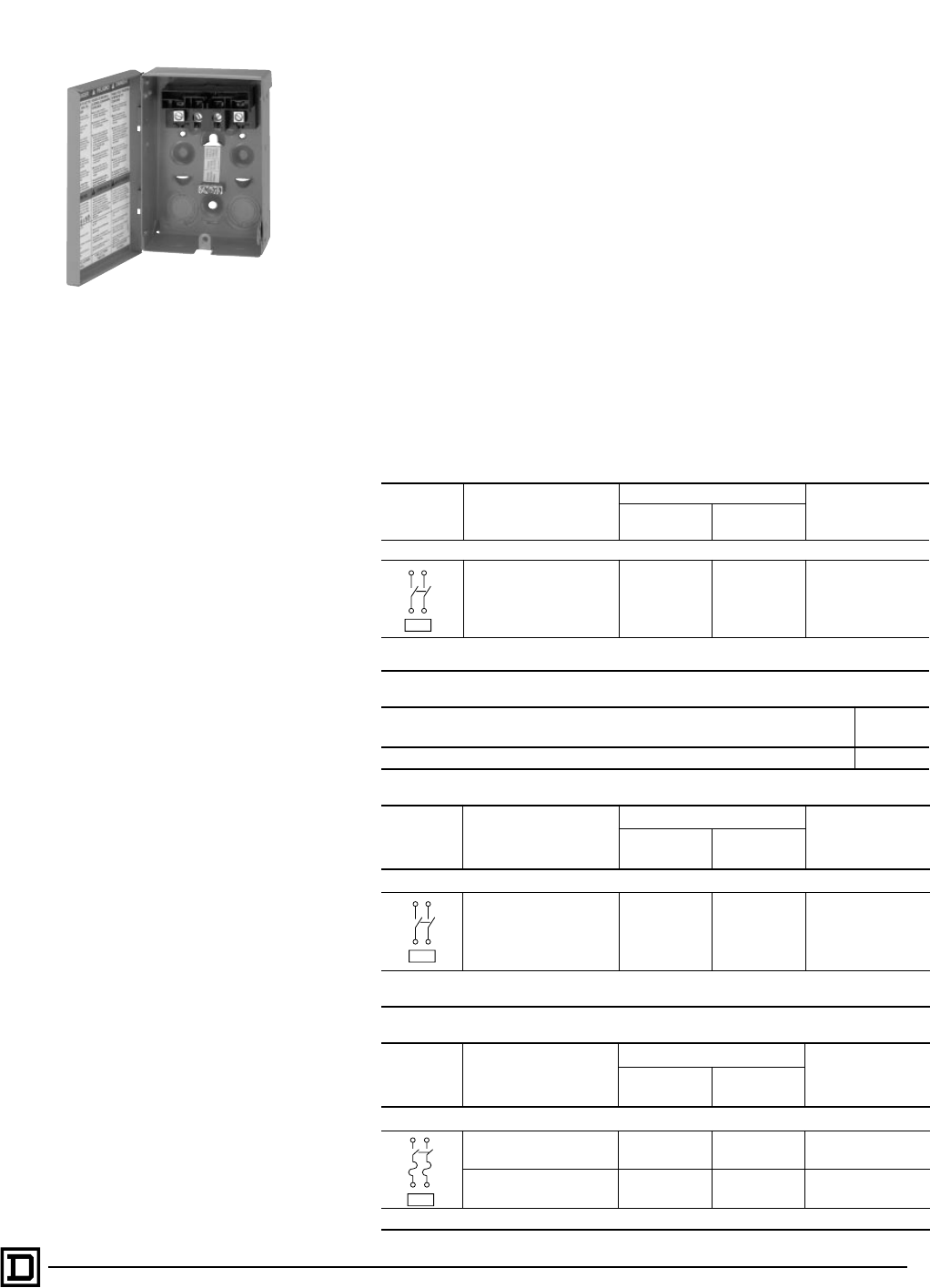

The light duty enclosed switch is ideal for home

applications in disconnecting power to

workshops, hobby rooms, furnaces and garages.

• Light duty—visible blades 10,000 A short

circuit current rating

• 30 A fusible and not-fusible

• Rreplacement parts not available.

Standards

General duty safety switches are manufactured in

accordance with these standards:

• UL 98, Standard for Enclosed and Dead Front

Switches. UL Listed under File E2875.

• NEMA Standards Publication KS1, Enclosed

Switches.

• Federal Speciﬁcations WS-865c for Type NDS

(NEMA Type 1) and Type LD (NEMA Type 3R).

UL Listed Short Circuit Withstand Rating

(RMS Symmetrical)

Terminal Lug Data

Switch Type Fuse Class Short Circuit Rating

Fusible

Plug 10,000

H 10,000

J 100,000

R 100,000

T 100,000

Not Fusible

H 10,000

J 100,000

R 100,000

T 100,000

The UL Listed short-circuit current rating for Square D Company

general duty, not fused switches is based on the switch being used

in conjunction with fuses. Evaluation of not fused switches in

conjunction with molded case circuit breakers has not been

performed. If a UL Listed short-circuit current rating is required, this

not fused switch must be replaced with a Square D general duty

fusible safety switch equipped with the appropriate class and size

fusing. The UL Listed short-circuit current rating of the fusible switch

is typically as follows: when used with Class H and K fuses–

10,000 A, Class R fuses–100,000 A. Consult the wiring diagram of

the switch to verify the UL Listed short-circuit current rating.

Ampere

Rating Conductors

Per Phase Wire Range

Wire Bending Space Per NEC

Table 373-6 Lug Wire Range

30 Line 1 12–6 AWG (Al) or 14-6 AWG (Cu)

12–6 AWG (Al) or 14–6 AWG (Cu)

Load 1 14–8 AWG (Al/Cu) 14–8 AWG (Al/Cu)

60 1 10–3 AWG (Al) or 14-3 AWG (Cu) 10–2 AWG (Al) or 14–2 AWG (Cu)

100 1 12–1 AWG (Al) or 14-1 AWG (Cu) 12–1/0 AWG (Al) or 14–1/0 AWG (Cu)

200 1 2 AWG–250 kcmil (Al)

4 AWG–250 kcmil (Cu)

2 AWG–300 kcmil (Al)

4 AWG–300 kcmil (Cu)

400 2 1/0 AWG–250 kcmil (Al/Cu) (1) 1 AWG–600 kcmil (Al/Cu) or

(2) 1/0 AWG–250 kcmil (Al/Cu)

600 2 4 AWG–500 kcmil (Al/Cu) 4 AWG–600 kcmil (Al/Cu)

800 3 3/0 AWG–500 kcmil (Al/Cu) 3/0 AWG–500 kcmil (Al/Cu)

Excluding 8 AWG solid.

6 AWG-250 kcmil on load side of not fusible devices.

6 AWG-300 kcmil on load side of not fusible devices.

L211N

12/99

General Duty Safety Switches — Class 3130

General Information

Catalog

Number Series

Class R Fuse

Kits Field

Installable

Horsepower Ratings

120 Vac 240 Vac 240 Vac

Std. Max. Std. Max.

Catalog Number 1

L111N E2 N/A

⁄

. . . 3 . . .

L211N E2 N/A

⁄

. . . 3

. . .

L221N E2 N/A

⁄

. . . 3

. . .

D211N E3 N/A

⁄

. . . 3 . . .

D211NRB E2 N/A

⁄

. . . 3 . . .

D221N E3 DRK30 . . . . . . 1

⁄

D221NRB E3 DRK30 . . . . . . 1

⁄

D222N F1 RFK03L 1

⁄

337

⁄

10 15

D222NRB F1 RFK03L 1

⁄

337

⁄

10 15

D223N F3 RFK10 . . . . . . 7

⁄

15 30

D223NRB F3 RFK10 . . . . . . 7

⁄

15 30

D224N E3 DRK1020 . . . . . . 15 25

. . . 50

D224NRB E3 DRK1020 . . . . . . 15 25

. . . 50

D225N E3 DRK40 . . . . . . . . . . . . . . . . . .

D225NR E1 DRK40 . . . . . . . . . . . . . . . . . .

D226N E3 DRK600 . . . . . . . . . . . . . . . . . .

D226NR E1 DRK600 . . . . . . . . . . . . . . . . . .

D321N E3 DRK30 . . . . . . 1

⁄

337

⁄

D321NRB E3 DRK30 . . . . . . 1

⁄

337

⁄

D322N F1 RFK03L 1

⁄

337

⁄

10 15

D322NRB F1 RFK03L 1

⁄

337

⁄

10 15

D323N F3 RFK10 . . . . . . 7

⁄

15 15 30

D323NRB F3 RFK10 . . . . . . 7

⁄

15 15 30

D324N E4 DRK1020 . . . . . . 15 25 . . . 50

D324NRB E4 DRK1020 . . . . . . 15 25 . . . 50

D325N E3 DRK40 . . . . . . . . . 50 . . . 125

D325NT E3 N/A . . . . . . . . . 50 . . . . . .

D325NR E1 DRK40 . . . . . . . . . 50 . . . 125

D325NTR E1 N/A . . . . . . . . . 50 . . . . . .

D326N E3 DRK600 . . . . . . . . . 75 . . . 150

D326NT E3 N/A . . . . . . . . . 75 . . . . . .

D326NR E1 DRK600 . . . . . . . . . 75 . . . 150

D326NTR E1 N/A . . . . . . . . . 75 . . . . . .

DU221RB

E2 N/A . . . . . . . . . . . . 3 . . .

DU222RB

E1 N/A . . . . . . . . . . . . 10 . . .

DU321

E2 N/A . . . . . . . . . . . . 3 71⁄2

DU321RBbE2 N/A . . . . . . . . . . . . 3 71⁄2

DU322bE1 N/A . . . . . . . . . . . . 10 15

DU322RBbE1 N/A . . . . . . . . . . . . 10 15

DU323bF3 N/A . . . . . . . . . . . . 15 30

DU323RBbF3 N/A . . . . . . . . . . . . 15 30

DU324bE3 N/A . . . . . . . . . . . . 25 50

DU324RBbE3 N/A . . . . . . . . . . . . 25 50

DU325bE3 N/A . . . . . . . . . . . . . . . 125

DU326cE3 N/A . . . . . . . . . . . . . . . 150

QO200TRsrk G3 N/A . . . . . . . . . . . . 10 . . .

QO260NATsr E2 N/A . . . . . . . . . . . . 10 . . .

QO2000NRBsd E1 N/A . . . . . . . . . . . . 20 . . .

QO2000NSsd E1 N/A . . . . . . . . . . . . 20 . . .

T327N E1 N/A . . . . . . . . . . . . . . . 100

T327NR E1 N/A . . . . . . . . . . . . . . . 100

jRejection kits are available for Series D2, E1, E2, and F1 switches. When installed, this kit rejects all but Class R fuses. When installed with this kit

and Class R fuses, the switch is UL Listed for use on systems with up to 100,000 RMS symmetrical amperes available fault current.

fFor corner grounded delta systems.

bSuitable for use as service equipment; requires ﬁeld installation of a service grounding kit (see Digest 171, page 3-3). Solid neutral assembly

SN225KA for the DU324 or DU324RB.

sEnclosed molded case switch; see Digest 171, page 1-20.

rIncludes factory installed grounding kit.

dIncludes factory installed solid neutral.

kNot service entrance rated; see Digest 171, page 1-20 for more information.

cSuitable for use as service equipment; requires ﬁeld installation of solid neutral assembly D600SN.

aFor single-phase horsepower rating use two switching poles.

12/99

General Duty Safety Switches — Class 3130

Dimensions

Catalog

Number Series H W W/H D

IN mm IN mm IN mm IN mm

L111NqE2 7.63 194 5.00 127 6.13 156 4.00 102

L211NqE2 7.63 194 5.00 127 6.13 156 4.00 102

L221NqE2 7.63 194 5.00 127 6.13 156 4.00 102

D211NqE3 9.25 235 6.75 171 7.25 184 3.63 92

D211NRBqE2 9.63 245 7.25 184 7.75 197 3.75 95

D221NqE3 9.25 235 6.75 171 7.25 184 3.63 92

D221NRBqE3 9.63 245 7.25 184 7.75 197 3.75 95

D222N F1 14.60 371 6.51 165 7.45 189 4.87 124

D222NRB F1 14.88 378 6.63 168 7.45 189 4.87 124

D223N F3 17.50 445 8.50 216 10.50 267 6.50 165

D223NRB F3 17.50 445 8.50 216 10.50 267 6.50 165

D224N E3 28.00 711 13.25 337 15.13 384 6.13 156

D224NRB E3 28.25 718 13.38 340 15.38 391 6.25 159

D225N E3 45.12 1146 24.00 610 24.88 632 8.88 226

D225NR E3 30.63 778 21.38 543 22.25 565 10.13 257

D226NqE3 49.13 1248 24.00 610 24.88 632 8.88 226

D226NRqE3 49.13 1248 24.75 629 25.13 638 8.88 226

D321NqE3 9.25 235 6.75 171 7.25 184 3.63 92

D321NRBqE3 9.63 245 7.25 184 7.75 197 3.75 95

D322N F1 14.60 371 6.51 165 7.45 189 4.87 124

D322NRB F1 14.88 378 6.63 168 7.45 189 4.87 124

D323N F3 17.50 445 8.50 216 10.50 267 6.50 165

D323NRB F3 17.50 445 8.50 216 10.50 267 6.50 165

D324N E4 28.00 711 13.25 337 15.13 384 6.13 156

D324NRB E4 28.25 718 13.38 340 15.38 391 6.25 159

D325NqE3 45.12 1146 24.00 610 24.88 632 8.88 226

D325NTqE3 45.12 1146 24.00 610 24.88 632 8.88 226

D325NR E1 30.63 778 21.38 543 22.25 565 10.13 257

D325NTR E1 30.63 778 21.38 543 22.25 565 10.13 257

D326NqE3 49.13 1248 24.00 610 24.88 632 8.88 226

D326NTqE3 49.13 1248 24.00 610 24.88 632 8.88 226

D326NR E1 49.13 1248 24.75 629 25.13 638 8.88 226

D326NTR E1 49.13 1248 24.75 629 25.13 638 8.88 226

DU221RBqE2 9.63 245 7.25 184 7.75 197 3.75 95

DU222RBqE1 9.63 245 7.25 184 7.75 197 3.75 95

DU321qE2 9.25 235 6.75 171 7.25 184 3.63 92

DU321RBqE2 9.63 245 7.25 184 7.75 197 3.75 95

DU322qE1 9.25 235 6.75 171 7.25 184 3.63 92

DU322RBqE1 9.63 245 7.25 184 7.75 197 3.75 95

DU323 F1 17.50 445 8.50 216 10.50 267 6.50 165

DU323RB F1 17.50 445 8.50 216 10.50 267 6.50 165

DU324 E3 28.00 711 13.25 337 15.13 384 6.13 156

DU324RB E3 28.25 718 13.38 340 15.38 391 6.25 159

DU325qE3 45.12 1146 24.00 610 24.88 632 8.88 226

DU326qE3 49.13 1248 24.00 610 24.88 632 8.88 226

QO200TRqG3 6.50 165 4.63 118 . . . . . . 3.88 99

QO260NATSqE2 9.25 235 4.88 124 . . . . . . 3.25 83

QO2000NRBqE1 14.00 356 7.75 197 . . . . . . 4.50 114

QO2000NSqE1 13.38 340 6.13 156 . . . . . . 3.50 89

T327NqE1 49.13 1248 24.00 610 24.88 632 8.88 226

T327NRqE1 49.13 1248 24.75 629 25.13 638 8.88 226

qDoes not have a cover draw as indicated in above drawing.

W/H

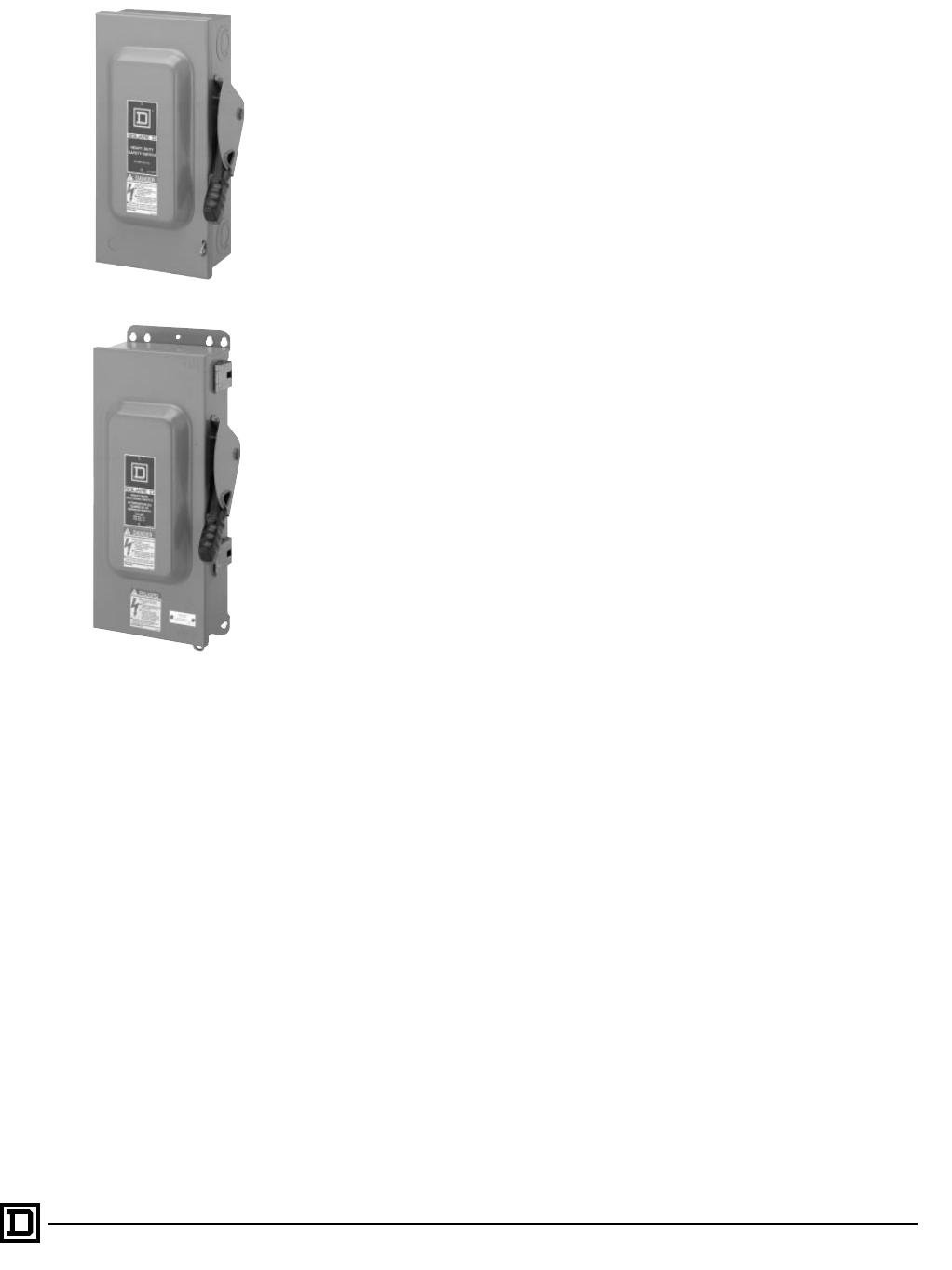

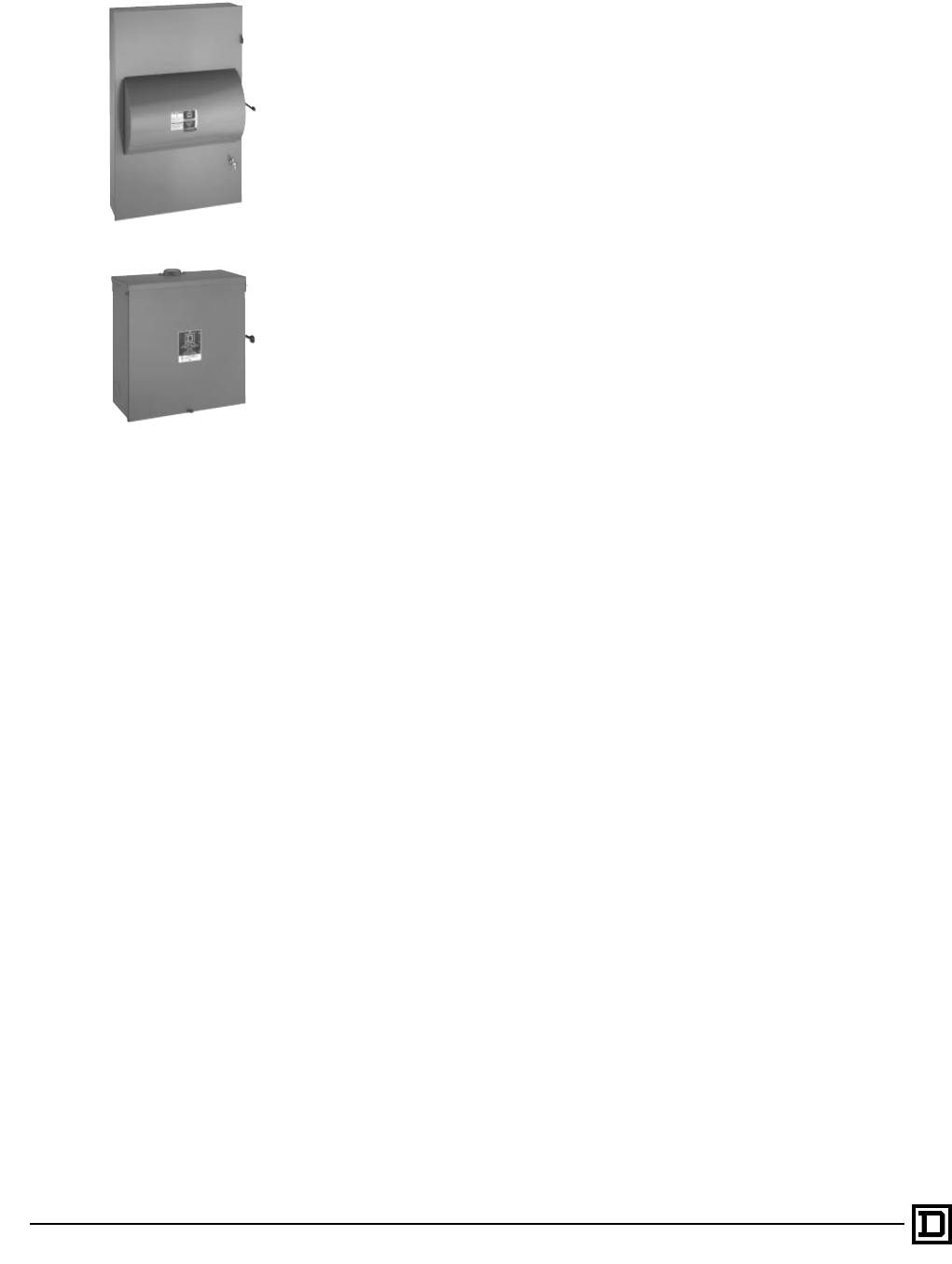

Typical NEMA Type 1

W/H

Typical NEMA Type 3R

30 A, Series E2 and E3

Switch Catalog

Number Series Complete

InterioraFuse Shell Fuse Shell

Insulator Neutral

Assembly Fuse Shell

Screw

D211N E3 DN211N

Order the complete interior.

D211NRB E2 DN211N

D221N E3 DN221N

D221NRB E3 DN221N

D321N E3 DN321N

D321NRB E3 DN321N

DU221RB E2

Order the complete device.

DU321 E2

DU321RB E2

aAdd series number after part number, e.g., DN321-E3. Complete interior includes: base assembly, neutral, and mounting screws.

Neutral bonding screw: 40283-355-50.

Black handle knob: 220601 and rivet: 24102-091-02.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Cartridge Fuse

Interior Plug Fuse

Interior

Line Base Assembly

Arc Shield

Load Base Assembly

Neutral Assembly

60 A, Series E

Catalog

Number Series Complete

Interiora

Line Base

Assembly Load Base

Assembly Arc

Shieldf

Lug

Assembly Neutral

Assembly

D222N E03 DN222NE3 40566-670-50 40560-026-50 40560-018-01 40251-016-51 SN03

D222NRB E02, E03 DN222NE3 40566-670-50 40560-026-50 40560-018-01 40251-016-51 SN03

D322N E03 DN322NE3 40566-667-50 40560-025-50 40560-018-01 40251-016-51 SN03

D322NRB E03 DN322NE3 40566-667-50 40560-025-50 40560-018-01 40251-016-51 SN03

DU322 E01 DUN322E1 40560-555-50 N/A N/A N/A N/A

DU322RB E01 DUN322E1 40560-555-50 N/A N/A N/A N/A

aComplete interior includes: line base assembly, load base assembly, neutral assembly, arc shield, and base mounting screws.

fArc shield mount screw: 40205-071-01, Series E Switches.

Base mounting screw: 21427-171-61, (3) required for line base, (2) required for load base.

Neutral mounting screw: 40205-065-01, (2) required.

Neutral bonding assembly: 40283-330-51.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

60 A, Series F

Catalog

Number Series Complete

Interiora

Line Base

Assembly Load Base

Assembly Arc

Shieldq

Mechanism

Assembly Handle

Gasket Lockplate Lug

Assembly Neutral

Assembly

D222N F01 DN222NF1 40566-421-50 40560-026-50 40560-018-01 40566-378-50 40566-387-50 N/A 40566-388-01 40251-016-51 SN03

D222NRB F01 DN222NF1 40566-421-50 40560-026-50 40560-018-01 40566-378-50 40566-387-50 40566-086-01 40566-388-01 40251-016-51 SN03

D322N F01 DN322NF1 40566-420-50 40560-025-50 40560-018-01 40566-378-50 40566-387-50 N/A 40566-388-01 40251-016-51 SN03

D322NRB F01 DN322NF1 40566-420-50 40560-025-50 40560-018-01 40566-378-50 40566-387-50 40566-086-01 40566-388-01 40251-016-51 SN03

aComplete interior includes: line base assembly, load base assembly, neutral assembly, arc shield, and base mounting screws.

qArc shield mounting screw: 40205-145-01, Series F Switches.

Base mounting screw: 21427-171-61, (3) required for line base, (2) required for load base.

Neutral mounting screw: 40205-065-01, (2) required.

Neutral bonding assembly: 40283-330-51.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

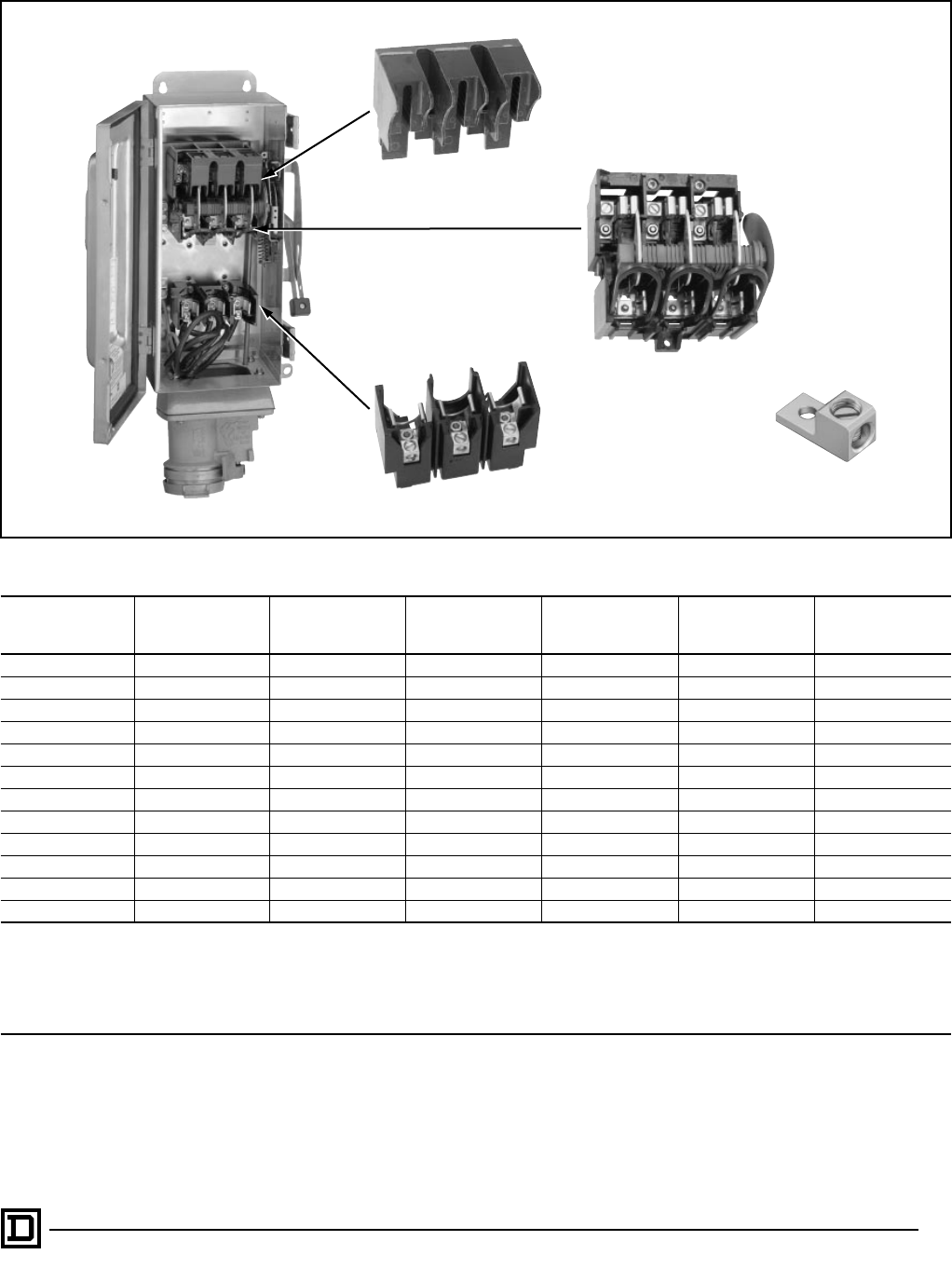

Replacement Parts

Line Base

Mechanism

Load Base Kit

Neutral Assembly

Arc Shield

Handle

Gasket

Lockplate

100 A, Series F

Switch Catalog

Number Series

Number Interior

Kit j

Load Base

Kit Neutral

Assembly Handle

Kit c

Arc Shield

Kit Lug

Kitf

D223N F01, F03 DSIF2210F DLB210F SN0610 DH10F DAS10F AL10F

D223NRB F01, F03 DSIF2210F DLB210F SN0610 DH10F DAS10F AL10F

D323N F02, F03 DSIF3210F DLB310F SN0610 DH10F DAS10F AL10F

D323NRB F01, F02, F03 DSIF3210F DLB310F SN0610 DH10F DAS10F AL10F

DU323 F01, F03 DSIU3210F . . . SN0610 DH10F DAS10F AL10F

DU323RB F01, F03 DSIU3210F . . . SN0610 DH10F DAS10F AL10F

jInterior kit includes line base, load base assembly, mechanism, arc suppressor, mounting screws, lugs, and instructions.

cHandle kit includes operating handle, gasket, guide plate, and mounting screws.

fLug kit includes (6) lug assemblies and mounting screws.

Neutral bonding assembly: 40283-456-50.

For complete interior, order interior kit and neutral assembly (if required).

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Interior Kit

Load Base Kit

Neutral Assembly

Handle Kit

Arc Shield Kit

200 A, Series E

Catalog

Number Series Complete

Interiora

Line Base

Assemblyj

Load Base

Assembly Arc

Shield Lug

Assembly Rotor j

D224N E03 DN224NE3 40510-593-50 40510-597-50 40510-540-01 40251-052-50 40510-557-50

D224NRB E03 DN224NE3 40510-593-50 40510-597-50 40510-540-01 40251-052-50 40510-557-50

D324N E04 DN324NE3 40510-594-50 40510-596-50 40510-540-01 40251-052-50 40510-556-50

D324NRB E03, E04 DN324NE3 40510-594-50 40510-596-50 40510-540-01 40251-052-50 40510-556-50

DU324 E03 DUN324E3 40510-595-50 . . . 40510-540-01 40251-052-50 40510-556-50

DU324RB E03 DUN324E3 40510-595-50 . . . 40510-540-01 40251-052-50 40510-556-50

aE04 interiors will replace E02 and E03 Interiors.

jIf line base assembly or rotor is required order both assemblies.

Bonding screw assembly: 40283-405-51.

Base mounting screw: 40205-065-01, (4) required for line base, (3) required for load base.

Arc shield mounting screw: 40205-082-01, (2) required.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

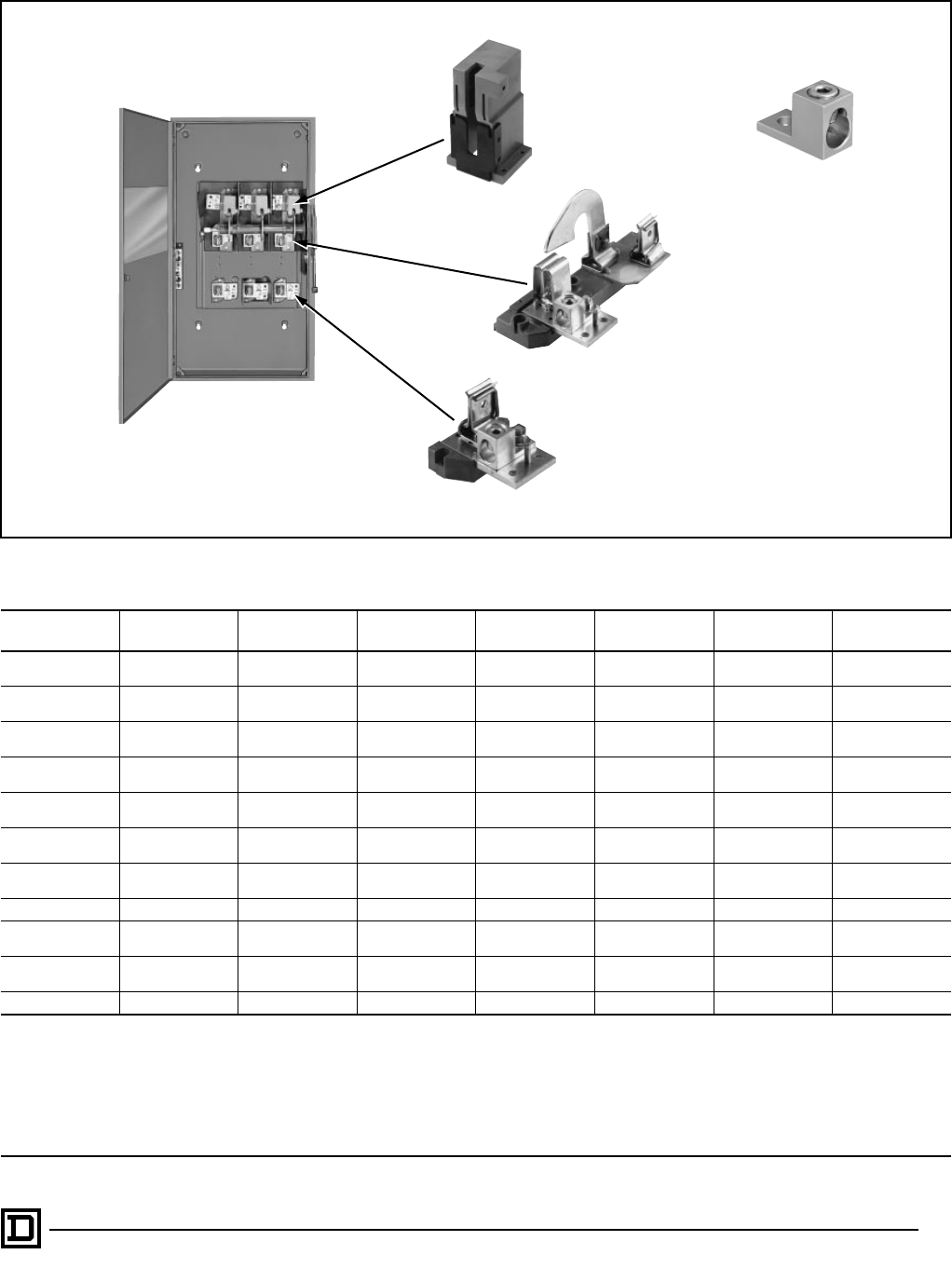

Replacement Parts

Line Base Assembly

Load Base Assembly

Arc Shield

Rotor

400 A, Series E

Catalog

Number Series Complete

Interior Line Base

Assemblya

Load Base

Assemblya

Arc

Supressorq

Lug

Assembly Neutral

Assemblyc

D225N E01 DN225NE1 40510-460-50 40510-461-50 40510-310-03 N/A 40510-462-50

D225NR E01 DN225NE1 40510-460-50 40510-461-50 40510-310-03 N/A 40510-462-50

D325 E01 DN325E1 40510-463-50 40510-464-50 40510-310-03 N/A N/A

D325N E01, E02 DN325NE2 40510-463-50 40510-465-50 40510-310-03 N/A 40510-462-50

D325NR E01 DN325NE1 40510-463-50 40510-465-50 40510-310-03 N/A 40510-462-50

D325R E01 DN325E1 40510-463-50 40510-464-50 40510-310-03 N/A N/A

D225NT E01 DN225NTE1 40510-475-50 40510-478-50 40510-310-03 N/A 40510-462-50

D225NTR E01 DN225NTE1 40510-475-50 40510-478-50 40510-310-03 N/A 40510-462-50

D325NT E01 DN325NTE1 40510-476-50 40510-480-50 40510-310-03 N/A 40510-462-50

D325NTR E01 DN325NTE1 40510-476-50 40510-480-50 40510-310-03 N/A 40510-462-50

DU325 E01 DUN325E1 40510-467-50 N/A 40510-310-03 N/A N/A

aBase mounting screws: 21427-720-41, (6) required for line base, (7) required for load base.

qArc suppressor mounting screw: 40205-082-01, (1) required.

cNeutral mounting screw: 21404-202-00, washer: 23602-117-01, (2) each required.

Neutral bonding assembly: 40283-185-79.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Line Base Assembly

Load Base Assembly

Neutral

Assembly

Arc Shield

400 A, Series E

Catalog

Number Series Complete

Interior Line Base

Assemblya

Load Base

Assemblya

Arc

Suppressorq

Lug

Assemblyc

D225N E03 DN225NE3 40510-624-50 40510-625-50 40510-574-02 40251-136-50

D325N E03 DN325NE3 40510-627-50 40510-628-50 40510-574-02 40251-136-50

D325NT E03 DN325NTE3 40510-476-51 40510-480-51 40510-574-02 40251-136-50

DU325 E03 DUN325E3 40510-467-51 . . . 40510-574-02 40251-136-50

aBase mounting screws: 21427-720-41, (6) required for line base, (7) required for load base.

qArc suppressor mounting screw: 40205-082-01, (1) required.

kNeutral mounting screw: 21404-202-00, washer: 23602-117-01, (2) each required.

cLug mounting nut: 23427-028-00.

Neutral bonding assembly: 40283-185-82.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Line Base Assembly

Load Base Assembly

Arc Shield

600 A, Series E

Catalog

Number Series Complete

Interior Line Base

Assemblya

Load Base

Assemblya

Arc

Supressorq

Lug

Assembly Neutral

Assemblyc

D226N E01, E03 DN226NE1 40510-438-51 40510-436-51 40510-574-02 40251-137-50 D600SN

D226NR E01 DN226NRE1 40510-438-51 40510-436-51 40510-574-02 40251-137-50 D600SN

D326 E01 DN326E1 40510-434-51 40510-437-51 40510-574-02 40251-137-50 . . .

D326N E01, E02, E03 DN326NE2 40510-434-51 40510-437-51 40510-574-02 40251-137-50 D600SN

D326NR E01 DN326NRE1 40510-434-51 40510-437-51 40510-574-02 40251-137-50 D600SN

D326R E01 DN326RE1 40510-434-51 40510-437-51 40510-574-02 40251-137-50 . . .

D226NT E01 DN226NTE1 40510-481-51 40510-483-51 40510-574-02 40251-137-50 D600SN

D226NTR E01 DN226NTRE1 40510-481-51 40510-483-51 40510-574-02 40251-137-50 D600SN

D326NT E01, E03 DN326NTE1 40510-482-51 40510-484-51 40510-574-02 40251-137-50 D600SN

D326NTR E01 DN326NTRE1 40510-482-51 40510-484-51 40510-574-02 40251-137-50 D600SN

DU326 E01, E03 DNU326E1 40510-440-51 . . . 40510-574-02 40251-137-50 . . .

aBase mounting screws: 21427-720-41, (6) required for line base, (7) required for load base.

qArc suppressor mounting screw: 40205-082-01, (1) required.

cNeutral mounting screw : 21404-202-00, washer: 23602-117-01, (2) each required.

Neutral bonding assembly: 40283-312-50.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Line Base Assembly

Load Base Assembly

Arc Shield

Neutral

Assembly

800 A, Series E1

Catalog

Number Complete

Interiora

Line Base

Assembly Load Base

Assembly Arc

Shield Neutral

Assembly

T327N TN327NE1 40510-512-50 40510-511-50 40510-574-02 40510-507-50

T327NR TN327NE1 40510-512-50 40510-511-50 40510-574-02 40510-507-50

aComplete interior includes: line base assembly, load base assembly, arc shields and mounting screws.

Base mounting screw: 21427-202-41, (6) for line base, (7) for load base, (4) for neutral assembly.

NEMA Type 3R cover hinge screw: 21427-20241, (2) per cover.

Arc shield mounting screw: 40205-082-01.

Neutral bonding strap assembly: 40283-312-50.

Parts not listed are not available.

General Duty Safety Switches — Class 3130

Replacement Parts

Line Base

Assembly

Load Base Assembly

Arc Shield

Neutral

Assembly

12/99

Heavy Duty Safety Switches

Table of Contents

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

20 12/99

DESCRIPTION

Visible blade heavy duty safety switches are designed for application where

maximum performance and continuity of service are required. All heavy duty

safety switches feature a quick-make, quick-break operating mechanism, a

dual cover interlock and a color-coded indicator handle. They are suitable for

use as service equipment when equipped with a ﬁeld or factory installed

neutral assembly or equipment grounding kit, unless a 600Y/347 V or

480Y/277 V, 1000 A or greater, solidly grounded WYE system is used, per

NEC 215-10. Heavy duty safety switches are UL Listed (except as noted),

File E2875 and 154828, and meet or exceed the NEMA Standard KS1.

NEMA Type 12, 12K and stainless steel switches through 200 A are UL

Marine Listed for use on vessels over 65 feet long. For UL Listed short circuit

withstand ratings, see Digest 171, page 3-6.

CONFIGURATION

• Four fusible, switched poles without insulated, groundable solid neutral.

• Six fusible, switched poles without insulated, groundable solid neutral.

• Four or six not fusible, switched poles without insulated, groundable solid

neutral.

• Three fusible, switched poles without insulated groundable solid neutral

interlocked to Appleton; Crouse-Hinds or HUBBELLOCK® receptacle.

• Three not fusible, switched poles without insulated groundable solid

neutral interlocked to Appleton, Crouse-Hinds or HUBBELLOCK

receptacle.

CONSTRUCTION

• Visible blades for positive blade position indication.

• Optional viewing window allows visual veriﬁcation of blade position

without opening door. Not available on all devices, contact Square D sales

ofﬁces.

• Red and black handle indication for switch position.

• Series F handle, mechanism, and lockplate are ﬁeld replaceable.

• Series F Type 3R devices have side opening covers.

• Highly visible embossed ON-OFF marking.

• Quick-make, quick-break, spring-driven operating mechanism.

• Front removable mechanical lugs. Refer to page 31 for further lug data.

— Standard lugs accommodate aluminum or copper cable termination on

NEMA Type 1, 3R, or 4X ﬁberglass enclosure.

— Standard lugs accommodate copper only cable termination on

NEMA Type 12, 12K or 4, 4X, 5 stainless steel.

NEMA Type 1 NEMA Type 3R NEMA Type 4, 4X and 5 NEMA Type 12

Stainless Steel

Heavy Duty Safety Switches — Class 3110

Product Description

Series E Series F

Visible Blades

Operating Mechanism

Series E Operating Mechanism

Series F

Mechanical Lugs

12/99

•Dual cover interlock keeps the cover shut when switch is ON. When the

cover is open, it interlocks the switch OFF, unless the interlock is

bypassed.

•Factory-installed fuse pullers on 30–100 A NEMA Type 4, 4X, and 5

stainless steel and NEMA Type 12 or 12K switches. Field installable on

30–100 A NEMA Type 1 and NEMA Type 3R switches.

•Class J fuse provisions on 30 A–600 A, 600 V switches and

100–600 A, 240 V switches. 600 A devices require a mounting kit (catalog

number H600J).

•30–600 A switches are shipped with standard Class H fuse spacing.

These switches will accept Class R fuses also. A ﬁeld installable rejection

kit is available which, when installed, rejects all but Class R fuses. See

pages 26 through 30 for Class R fuse kits.

•Multiple padlock provision in OFF position.

•Lock-on provisions factory or ﬁeld modiﬁcation.

•Tangential combination knockouts lessen the need for conduit offset

bends.

ENCLOSURES

•NEMA Type 1 general purpose, indoor.

•NEMA Type 3R rainproof, outdoor.

•NEMA Type 4, 4X, 5 indoor or outdoor, watertight, dusttight, and

corrosion-resistant (Type 304 stainless steel).

•NEMA Type 4X indoor or outdoor, watertight, dusttight, and corrosion-

resistant (ﬁberglass reinforced polyester enclosures).

•NEMA Type 7 and NEMA Type 9 hazardous locations:

—Class I, Groups C and D.

—Class II, Groups E, F and G.

—Class III.

•NEMA Type 12, 12K indoor, dusttight, and dripproof.

NEMA Type 12 has no knockouts (suitable for outdoor use).

NEMA Type 12K provided with knockouts.

•NEMA Type 3, 3R, 4, 4X, and 12 indoor or outdoor watertight, dusttight,

and corrosion-resistant epoxy powder coated cast aluminum.

Lock-off

Provision

Heavy Duty Safety Switches — Class 3110

Product Description

Interlock

Bypass

Fuse Pullers

Class J Fuse Provisions

Alternate mounting holes make for

easy conversion to Class J fuses.

Tangential Knockouts

Wall

22 12/99

RECEPTACLE SWITCHES

Interlocked receptacle switches are furnished with a factory-installed

3-phase 4-wire Appleton POWERTITE®, Crouse-Hinds Style 2 ARKTITE®, or

HUBBELLOCK receptacle. The fourth wire is connected to the switch

equipment ground terminal and is not a solid neutral termination. Interlocking

linkage between the receptacle and switch mechanism prevents insertion or

removal of the plug while the switch is in the “ON’’ position or insertion of any

plug other than speciﬁed. The interlocking mechanism also prevents the

switch from being turned “ON” if a plug has not been fully inserted into the

receptacle.

Appleton POWERTITE Receptacle

• Devices are UL Listed and CSA Certiﬁed, suitable for use as service

equipment.

• Receptacles are epoxy powder coated over copper-free cast aluminum

and NEMA Type 1, 3, 3R, 4, 4X, and 12 rated.

• 60 A, H362AWA and HU362AWA are stock items. All other items are non-

stock and require an 8-week lead time.

• Short circuit rating: 10,000 A when used with or protected by Class H or K

fuses; 200,000 A when used in conjunction with Class R, T or J fuses.

Crouse-Hinds ARKTITE Receptacle

• Devices are UL Listed and suitable for use as service equipment.

• 60 A, H362AWC and HU362AWC are stock items. All other items are non-

stock and require a 12-week lead time.

• Short circuit rating: 10,000 A when used with or protected by Class H or K

fuses; 200,000 A when used in conjunction with Class R, T or J fuses.

HUBBELLOCK Receptacle

• UL Listed, suitable for use as service equipment; in stock.

• Short circuit rating: 10,000 A

NOTE: The HUBBELLOCK receptacle switch uses the Square D interlocked

plug SD12781 only available from Square D.

Heavy Duty Safety Switches — Class 3110

Product Description

H362AWA

Interlocked Receptacle

Switch with Appleton, NEMA Type 3, 3R, 4, 4X

and 12 Rated Receptacle

H362AWC

Interlocked Receptacle

Switch with Crouse-Hinds

ARKTITE Receptacle

12/99

Application

Heavy duty safety switches are designed for the following applications:

• Commercial and industrial installations.

• Up to 600 Vac or 600 Vdc maximum.

• Up to 200,000 rms symmetrical amperes short circuit current.

• 30–1200 A.

• Horsepower ratings.

• Two or three fusible switched poles with or without insulated, groundable

neutral.

• Four fusible switched poles, neutral not available.

• Two or three not fusible, switched poles with or without insulated,

groundable neutral.

• Four not fusible switched poles, neutral not available.

• Six not fusible switched poles, neutral not available.

Standards

Heavy duty safety switches are manufactured in accordance with these

standards:

• UL98, Standard for Enclosed and Dead Front Switches. UL Listed under

File E2875, or E154828.

• NEMA Standards Publication KS1, Enclosed Switches.

• Federal Speciﬁcations WS-865c for Type HD.

• NOM Certiﬁed.

Heavy Duty Safety Switches — Class 3110

Product Description

24 12/99

ACCESSORIES

Square D heavy duty safety switches are UL Listed for use with the following

accessories:

Hubs

Bolt-on hubs for rainproof applications. Switches with RB sufﬁx accept 3⁄4"

through 21⁄2" bolt-on hubs. Switches with R sufﬁx have blank top endwalls.

Series F RB devices are compatible with 4" raintight trough only.

Rainproof Bolt-On Hubs—For Use on NEMA Type 3R Enclosures

NEMA Type 3R rainproof enclosures have a bolt-on closing cap factory installed. Order bolt-on hubs separately

from table above. Hubs through size 21⁄2" can be directly installed on RB devices. Devices requiring 3" or larger hubs

must have holes cut in the ﬁeld. Gaskets are provided on 3" and larger hubs.

All hubs are UL Listed for indoor and rainproof applications and suitable for use with conduit having ANSI standard

taper pipe thread.

Watertight hubs 1⁄2" through 4" zinc or chrome plated for ﬁeld installation on

NEMA Type 3R, 12 or 4, 4X, 5 stainless steel switches.

Watertight Hubs—For Use on NEMA Type 4, 4X and 5 Stainless Steel

and Type 12 Enclosures

Class R Fuse Kits

For systems up to 200,000 rms symmetrical amperes provide rejection for all

other fuse types. See pages 26 through 30 for catalog numbers.

Solid Neutral Assemblies

Field installable, insulated, groundable solid neutral assemblies. See

pages 26 through 30 for catalog numbers.

Equipment Grounding Kits

Field installable equipment grounding kits. See pages 26 through 30 for

catalog numbers.

Conduit

Size 3⁄411

1⁄411⁄222

1⁄233

1⁄24Closing

Cap Box

Coupling

Hub Cat.

Number B075 B100 B125 B150 B200 B250 B300 B350 B400 BCAP BC200

Conduit

Trade

Size

1⁄23⁄411

1⁄411⁄222

1⁄233

1⁄24

Standard

Zinc Hub

Catalog

Number

H050 H075 H100 H125 H150 H200 H250 H300 H350 H400

Chrome

Plated Hub

Catalog

Number

H050CP H075CP H100CP H125CP H150CP H200CP H250CP H300CP H350CP H400CP

Field Installable

Insulated, Groundable Neutral Field Installable

Equipment Grounding Kit

Heavy Duty Safety Switches — Class 3110

Product Description

Bolt-On Hubs

Watertight Hubs

Class R Fuse Kits

12/99

Electrical Interlock Kits

Electrical interlocks for heavy duty safety switches through 1200 A are

available factory installed or in kit form for ﬁeld installation. A pivot arm

operates from the switch mechanism, breaking the control circuit before the

main switch blades break. Switches with electrical interlock accessories

installed are UL Listed. See pages 26 through 30 for catalog numbers.

Fuse Pullers

Kit consists of three fuse pullers as required for a 3-pole, fusible, 240 V or

600 V heavy duty switch. Kits can be installed in switches manufactured after

February, 1980. Fuse pullers are supplied as standard equipment on NEMA

Type 12, 12K; NEMA Type 4, 4X, 5 stainless steel; NEMA Type 4X ﬁberglass

reinforced polyester, and KRYDON switches through 100 A. See

pages 26 through 30 for catalog numbers.

Optional Compression Lugs

Refer to page 31 for applicable options.

Electrical Interlock Contact Ratingsf

Interlock

Type

AC—50 or 60 Hz DC

Volts Make Break Cont. Volts Make &

Break Cont.

1 N.O./

1 N.C.

Contact

(-1 Sufﬁx)

120 40.0 A 15 A 15 A 115 .50 A 15 A

240 20.0 A 10 A 15 A 230 .25 A 15 A

480 10.0 A 6 A 15 A . . . . . . . . .

600 8.0 A 5 A 15 A 600 .05 A 15 A

2 N.O./

2 N.C.

Contacts

(-2 Sufﬁx)

120 30.0 A 3.0 A 10 A 115 1.00 A 10 A

240 15.0 A 1.5 A 10 A 230 .30 A 10 A

480 7.5 A .75 A 10 A . . . . . . . . .

600 6.0 A .60 A 10 A 600 .10 A 10 A

fSingle pole single throw interlock kits are rated 1/2 hp @ 110 and 220 Vac.

-1 Sufﬁx uses a 9007A01 limit switch.

-2 Sufﬁx uses a 9007C03 limit switch.

Heavy Duty Safety Switches — Class 3110

Product Description

Electrical Interlock

Series F

26 12/99

Accessories for Current Series NEMA Type 1 and NEMA Type 3R Switches

Catalog

Number Series Electrical

Interlock

(1 contact)

Electrical

Interlocks

(2 contacts) Class R Kits Solid

Neutral

Al/Cu

Solid

Neutral

Cu Only

Ground Kit

Al Ground Kit

Cu Fuse

Puller Receptacle

Plugs

H100XFA E1 N/A N/A N/A 100SN N/A Std N/A N/A N/A

H221A F1 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H221AWK F1 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H221DS E1 EK3001 EK3002 HRK30 H60SN H60SNC PK3GTA1 PKO6GTC1 Std. N/A

H221N F1 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H221NRB F1 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H222A F4 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H222AWK F4 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H222DS E1 EK3061 EIK3062 HRK60 H60SN H60SNC PK3GTA1 PKOGTC1 Std. N/A

H222N F4 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H222NRB F4 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H223A F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H223AWK F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H223DS E2 EK10201 EK10202 HRK1020 H100SN H100SNC PKOGTA2 PKOGTC2 Std. N/A

H223N F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H223NRB F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H224A E1 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H224AWK E1 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H224DS E1 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H224N E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H224NRB E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H225 E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225N E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC2 N/A N/A

H225NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC2 N/A N/A

H225NR E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225R E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H225XKA C2 N/A N/A N/A 225SNA N/A Std N/A N/A N/A

H226 E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H226AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H226DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H226N E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H226NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H226NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H226NR E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H226R E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H227 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H227AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H227N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H227NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H227NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H227R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H228 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H228AWK E4 EIK40601 EIK40602 N/A H1200SNE4 Std. PKOGTA8 N/A N/A N/A

H228N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H228NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H228NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H228R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H265 E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H265AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H265DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H265R E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H266 E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H266A E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H266AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H266DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H266R E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H267 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H267AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H267NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H267R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H268 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA7 N/A N/A N/A

H268AWK E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA7 N/A N/A N/A

H268NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H268R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA7 N/A N/A N/A

H321A F1 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H321AWK F1 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H321DS E1 EK3001 EK3002 HRK30 H60SN H60SNC PK3GTA1 PKOGTC1 Std. N/A

H321N F1 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H321NRB F1 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

Heavy Duty Safety Switches — Class 3110

Production Description

12/99

H322A F4 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H322AWK F4 EIK031 EIK032 RFK03L SN03 SN03C GTK03 GTK03C Std. N/A

H322DS E1 EK3061 EK3062 HRK60 H60SN H60SNC PK3GTA1 PKOGTC1 Std. N/A

H322N F4 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H322NRB F4 EIK031 EIK032 RFK03L Std. SN03C GTK03 GTK03C FPK03 N/A

H323A F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0601C Std. N/A

H323AWK F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0601C Std. N/A

H323DS E2 EK10201 EK10202 HRK1020 H100SN H100SNC PKOGTA2 PKOGTC2 Std. N/A

H323N F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0601C FPK0610 N/A

H323NRB F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0601C FPK0610 N/A

H324A E1 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H324AWK E2 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H324DS E1 EK10201 EK10202 HRK1020 H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

H324N E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H324NRB E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H325 E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H325AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H325DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H325N E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H325NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H325NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H325NR E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H325R E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326 E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326N E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H326NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H326NR E1 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H326R E1 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H327 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H327AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H327N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H327NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H327NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H327R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H328 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H328AWK E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H328N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H328NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H328NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H328R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H361 F1 EIK031 EIK032 RFK03H SN03 SN03C GTK03 GKT03C FPK03 N/A

H361-2A F3 EIK1 EIK2 RFK06 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H361-2AWK F3 EIK1 EIK2 RFK06 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H361A F1 EIK031 EIK032 RFK03H SN03 SN03C GTK03 GTK03C Std. N/A

H361AWA F4 EIK1 EIK2 RFK06 N/A N/A N/A Std. Std. ACP3034BC

H361AWC F4 EIK1 EIK2 RFK06 N/A N/A N/A Std. Std. APJ3485

H361AWK F1 EIK031 EIK032 RFK03H SN03 SN03C GTK03 GTK03C Std. N/A

H361CS F3 EIK1 EIK2 RFK06 N/A N/A Std. N/A FPK0610 N/A

H361CSWA F4 EIK1 EIK2 RFK06 N/A N/A N/A Std. FPK0610 ACP3034BC

H361DF F1 9999TC10 9999TC20 RFK06 H60SN H60SNC Std. N/A Std. N/A

H361DS E1 EK3001 EK3002 HRK30H H60SN H60SNC PK3GTA1 PKOGTC1 Std. N/A

H361DSWC E1 EK3001 EK3002 HRK30H N/A N/A N/A Std. Std. APJ3485

H361DSWA E2 EK3001 EK3002 HRK30H N/A N/A N/A Std. Std. ACP3034BC

H361DX F1 9999TC10 9999TC20 RFK06 H60SN H60SNC Std. N/A Std. N/A

H361N F1 EIK031 EIK032 RFK03H Std. SN03C GTK03 GTK03C FPK03 N/A

H361NRB F1 EIK031 EIK032 RFK03H Std. SN03C GTK03 GTK03C FPK03 N/A

H361RB F1 EIK031 EIK032 RFK03H SN03 SN03C GTK03 GTK03C FPK03 N/A

H361WA F5 EIK1 EIK2 RFK06 N/A N/A Std. N/A FPK0610 ACP3034BC

H361WC F5 EIK1 EIK2 RFK06 SN0610 SN0610C Std. N/A FPK0610 APJ3485

H362 F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C FPK0610 N/A

H362A F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H362AWA F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C Std. ACP6034BC

H362AWC F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C Std. APJ6485

H362AWH F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C Std. SD12781

H362AWK F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H362CS F5 EIK1 EIK2 RFK06H N/A N/A Std. N/A FPK0610 N/A

H362CSWA F5 EIK1 EIK2 RFK06H N/A N/A N/A Std. FPK0610 ACP6034BC

H362DF F1 9999TC10 9999TC20 RFK06H H60SN H60SNC Std. N/A Std. N/A

H362DS E1 EK3061 EK3062 HRK60H H60SN H60SNC PK3GTA1 PKOGTC1 Std. N/A

Accessories for Current Series NEMA Type 1 and NEMA Type 3R Switches

Catalog

Number Series Electrical

Interlock

(1 contact)

Electrical

Interlocks

(2 contacts) Class R Kits Solid

Neutral

Al/Cu

Solid

Neutral

Cu Only

Ground Kit

Al Ground Kit

Cu Fuse

Puller Receptacle

Plugs

Heavy Duty Safety Switches — Class 3110

Product Description

28 12/99

H362DSWA E2 EK3061 EK3062 HRK60H N/A N/A N/A Std. Std. ACP6034BC

H362DSWC E1 EK3061 EK3062 HRK60H N/A N/A N/A Std. Std. APJ6485

H362DX F1 9999TC10 9999TC20 RFK06H H60SN H60SNC Std. N/A Std. N/A

H362N F5 EIK1 EIK2 RFK06H Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H362NRB F5 EIK1 EIK2 RFK06H Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H362RB F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C FPK0610 N/A

H362WA F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C FPK0610 ACP6034BC

H362WC F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C FPK0610 APJ6485

H362WH F5 EIK1 EIK2 RFK06H SN0610 SN0610C GTK0610 GTK0610C FPK0610 SD12781

H363 F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C FPK0610 N/A

H363A F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H363AWA F5 EIK1 EIK2 RFK10 N/A N/A N/A Std. Std. ACP1034CD

H363AWC F5 EIK1 EIK2 RFK10 N/A N/A N/A Std. Std. APJ10487

H363AWK F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

H363CS F5 EIK1 EIK2 RFK10 N/A N/A Std. N/A FPK0610 N/A

H363CSWA F5 EIK1 EIK2 RFK10 N/A N/A N/A Std. FPK0610 ACP1034CD

H363DF F1 9999TC10 9999TC20 RFK10 SN0610 SN0610C Std. N/A Std. N/A

H363DS E1 EK10201 EK10202 HRK1020 H100SN H100SNC PKOGTA2 PKOGTC2 Std. N/A

H363DSWA E2 EK10201 EK10202 HRK1020 N/A N/A N/A Std. Std. ACP1034CD

H363DSWC E2 EK10201 EK10202 HRK1020 N/A N/A N/A Std. Std. APJ10487

H363DX F1 9999TC10 9999TC20 RFK10 SN0610 SN0610C Std. N/A Std. N/A

H363N F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H363NRB F5 EIK1 EIK2 RFK10 Std. SN0610C GTK0610 GTK0610C FPK0610 N/A

H363RB F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C FPK0610 N/A

H363WA F5 EIK1 EIK2 RFK10 N/A N/A Std. N/A FPK0610 ACP1034CD

H363WC F5 EIK1 EIK2 RFK10 N/A N/A Std. N/A FPK0610 APJ10487

H364 E2 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H364A E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H364AWK E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H364DF E1 9999R8 9999R9 HRK1020 N/A N/A Std. N/A N/A N/A

H364DS E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H364N E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H364NA E1 EK10201 EK10202 HRK1020 H200SN Std. PKOGTA2 PKOGTC2 N/A N/A

H364NAWK E1 EK10201 EK10202 HRK1020 H200SN Std. PKOGTA2 PKOGTC2 N/A N/A

H364NDS E1 EK10201 EK10202 HRK1020 H200SN Std. PKOGTA2 PKOGTC2 N/A N/A

H364NRB E1 EK10201 EK10202 HRK1020 Std. H200SNC PKOGTA2 PKOGTC2 N/A N/A

H364RB E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H365 E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H365AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H365DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H365N E2 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H365NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H365NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H365NR E2 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H365R E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366 E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366AWK E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366DS E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366N E2 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366NAWK E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H366NDS E2 EIK40601 EIK40602 HRK4060 H600SN Std. PKOGTA2 PKOGTC3 N/A N/A

H366NR E2 EIK40601 EIK40602 HRK4060 Std. H600SNC PKOGTA2 PKOGTC3 N/A N/A

H366R E2 EIK40601 EIK40602 HRK4060 H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

H367 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H367AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H367N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H367NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H367NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA7 N/A N/A N/A

H367R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

H368 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H368AWK E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H368N E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H368NAWK E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H368NR E4 EIK40601 EIK40602 N/A Std. N/A PKOGTA8 N/A N/A N/A

H368R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

H461 F5 EIK1 EIK2 RFK06 N/A N/A GTK0610 GTK0610C FPK0610 N/A

H461AWK F5 EIK1 EIK2 RFK06 N/A N/A GTK0610 GTK0610C Std. N/A

H462 F5 EIK1 EIK2 RFK06H N/A N/A GTK0610 GTK0610C FPK0610 N/A

H462AWK F5 EIK1 EIK2 RFK06H N/A N/A GTK0610 GTK0610C Std. N/A

H462DS E1 EK3061 EK3062 HRK30H N/A N/A PK3GTA1 PKOGTC1 Std. N/A

H463 F5 EIK1 EIK2 RFK10 N/A N/A GTK0610 GTK0610C FPK0610 N/A

H463AWK F5 EIK1 EIK2 RFK10 SN0610 SN0610C GTK0610 GTK0610C Std. N/A

Accessories for Current Series NEMA Type 1 and NEMA Type 3R Switches

Catalog

Number Series Electrical

Interlock

(1 contact)

Electrical

Interlocks

(2 contacts) Class R Kits Solid

Neutral

Al/Cu

Solid

Neutral

Cu Only

Ground Kit

Al Ground Kit

Cu Fuse

Puller Receptacle

Plugs

Heavy Duty Safety Switches — Class 3110

Product Description

12/99

H463DS E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 Std. N/A

H464 E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H464AWK E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H464DS E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 N/A N/A

H465 E2 EIK40601 EIK40602 HRK4060 N/A N/A PKOGTA2 PKOGTC3 N/A N/A

H465AWK E2 EIK40601 EIK40602 HRK4060 N/A N/A PKOGTA2 PKOGTC3 N/A N/A

H466 E2 EIK40601 EIK40602 HRK4060 N/A N/A PKOGTA2 PKOGTC3 N/A N/A

H60XFA E1 N/A N/A N/A 100SNA N/A Std. N/A N/A N/A

H663AWK F5 EIK1 EIK2 RFK10 N/A N/A GTK0610 GTK0610C Std. N/A

H663DS E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC2 Std. N/A

H664DS E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC3 N/A N/A

H664RWK E1 EK10201 EK10202 HRK1020 N/A N/A PKOGTA2 PKOGTC3 N/A N/A

HU265 E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU265AWK E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU265DS E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU265R E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU266 E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU266AWK E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU266DS E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU266R E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU267 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU267AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU267R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU268 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU268AWK E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU268R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU361 F1 EIK031 EIK032 N/A SN03 SN03C GTK03 GTK03C N/A N/A

HU361A F1 EIK031 EIK032 N/A SN03 SN03C GTK03 GTK03C N/A N/A

HU361AWA F4 EIK1 EIK2 N/A N/A N/A N/A Std. N/A ACP3034BC

HU361AWC F4 EIK1 EIK2 N/A N/A N/A N/A Std. N/A APJ3485

HU361AWK F1 EIK031 EIK032 N/A SN03 SN03C GTK03 GTK03C N/A N/A

HU361CS F3 EIK1 EIK2 N/A N/A N/A Std. N/A N/A N/A

HU361CSWA F4 EIK1 EIK2 N/A N/A N/A N/A Std. N/A ACP3034BC

HU361DF F1 9999TC10 9999TC20 N/A H60SN H60SNC Std. N/A N/A N/A

HU361DS E1 EK3001 EK3002 N/A H60SN H60SNC PK3GTA1 PKOGTC1 N/A N/A

HU361DSWA E2 EK3001 EK3002 N/A N/A N/A N/A Std. N/A ACP3034BC

HU361DSWC E1 EK3061 EK3062 N/A N/A N/A N/A Std. N/A APJ3485

HU361DX F1 9999TC10 9999TC20 N/A H60SN H60SNC Std. N/A N/A N/A

HU361RB F1 EIK031 EIK032 N/A SN03 SN03C GTK03 GTK03C N/A N/A

HU361WA F4 EIK1 EIK2 N/A N/A N/A Std. N/A N/A ACP3034BC

HU361WC F4 EIK1 EIK2 N/A SN0610 SN0610C Std. N/A N/A APJ3485

HU362 F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU362A F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU362AWA F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A ACP6034BC

HU362AWC F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A APJ6485

HU362AWH F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A SD12781

HU362AWK F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU362CS F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A N/A

HU362CSWA F5 EIK1 EIK2 N/A N/A N/A N/A Std. N/A ACP6034BC

HU362DF F1 9999TC10 9999TC20 N/A H60SN H60SNC Std. N/A N/A N/A

HU362DS E1 EK3061 EK3062 N/A H60SN H60SNC PK3GTA1 PKOGTC1 N/A N/A

HU362DSWA E2 EK3061 EK3062 N/A N/A N/A N/A Std. N/A ACP6034BC

HU362DSWC E1 EK3061 EK3062 N/A N/A N/A N/A Std. N/A APJ6485

HU362DX F1 9999TC10 9999TC20 N/A H60SN H60SNC Std. N/A N/A N/A

HU362RB F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU362WA F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A ACP6034BC

HU362WC F5 EIK1 EIK2 N/A SN0610 SN0610C Std. N/A N/A APJ6485

HU362WH F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A SD12781

HU363 F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU363A F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU363AWA F5 EIK1 EIK2 N/A N/A N/A N/A Std. N/A ACP1034CD

HU363AWC F5 EIK1 EIK2 N/A N/A N/A N/A Std. N/A APJ10487

HU363AWK F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU363CS F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A N/A

HU363CSWA F5 EIK1 EIK2 N/A N/A N/A N/A Std. N/A ACP1034CD

HU363DF F1 9999TC10 9999TC20 N/A SN0610 SN0610C Std. N/A N/A N/A

HU363DS E1 EK10201 EK10202 N/A H100SN H100SNC PKOGTA2 PKOGTC2 N/A N/A

HU363DSWA E2 EK10201 EK10202 N/A N/A N/A N/A Std. N/A ACP1034CD

HU363DSWC E2 EK10201 EK10202 N/A N/A N/A N/A Std. N/A APJ10487

HU363DX F1 9999TC10 9999TC20 N/A SN0610 SN0610C Std. N/A N/A N/A

HU363RB F5 EIK1 EIK2 N/A SN0610 SN0610C GTK0610 GTK0610C N/A N/A

HU363WA F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A ACP1034CD

Accessories for Current Series NEMA Type 1 and NEMA Type 3R Switches

Catalog

Number Series Electrical

Interlock

(1 contact)

Electrical

Interlocks

(2 contacts) Class R Kits Solid

Neutral

Al/Cu

Solid

Neutral

Cu Only

Ground Kit

Al Ground Kit

Cu Fuse

Puller Receptacle

Plugs

Heavy Duty Safety Switches — Class 3110

Product Description

30 12/99

HU363WC F5 EIK1 EIK2 N/A N/A N/A Std. N/A N/A APJ10487

HU364 E1 EK10201 EK10202 N/A H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

HU364A E1 EK10201 EK10202 N/A H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

HU364AWK E1 EK10201 EK10202 N/A H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

HU364DF E1 9999R8 9999R9 N/A N/A N/A Std. N/A N/A N/A

HU364DS E1 EK10201 EK10202 N/A H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

HU364RB E1 EK10201 EK10202 N/A H200SN H200SNC PKOGTA2 PKOGTC2 N/A N/A

HU365 E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU365AWK E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU365DS E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU365R E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU366 E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU366AWK E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU366DS E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU366R E2 EIK40601 EIK40602 N/A H600SN H600SNC PKOGTA2 PKOGTC3 N/A N/A

HU367 E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU367AWK E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU367R E4 EIK40601 EIK40602 N/A H800SNE4 N/A PKOGTA7 N/A N/A N/A

HU368 E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU368AWK E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU368R E4 EIK40601 EIK40602 N/A H1200SNE4 N/A PKOGTA8 N/A N/A N/A

HU461 F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU461AWK E1 EK3061 EK3062 N/A N/A N/A PK3GTA1 PKOGTC1 N/A N/A

HU461DS E1 EK3061 EK3062 N/A N/A N/A PK3GTA1 PKOGTC1 N/A N/A

HU462 F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU462AWK F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU462DS E1 EK3061 EK3062 N/A N/A N/A PK3GTA1 PKOGTC1 N/A N/A

HU463 F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU463AWK F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU463DS E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU464 E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU464AWK E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU464DS E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU465 E2 EIK1 EIK2 N/A H600SN N/A PKOGTA2 PKOGTC3 N/A N/A

HU465AWK E2 EIK40601 EIK40602 N/A N/A N/A PKOGTA2 PKOGTC3 N/A N/A

HU466 E2 EIK40601 EIK40602 N/A N/A N/A PKOGTA2 PKOGTC3 N/A N/A

HU661AWK F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU661DS E1 EK3001 EK3002 N/A N/A N/A PK3GTA1 PKOGTC1 N/A N/A

HU662AWK F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU662DS E1 EK3061 EK3062 N/A N/A N/A PK3GTA1 PKOGTC1 N/A N/A

HU663AWK F5 EIK1 EIK2 N/A N/A N/A GTK0610 GTK0610C N/A N/A

HU663DS E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU664DS E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

HU664RWK E1 EK10201 EK10202 N/A N/A N/A PKOGTA2 PKOGTC2 N/A N/A

Accessories for Current Series NEMA Type 1 and NEMA Type 3R Switches

Catalog

Number Series Electrical

Interlock

(1 contact)

Electrical

Interlocks

(2 contacts) Class R Kits Solid

Neutral

Al/Cu

Solid

Neutral

Cu Only

Ground Kit

Al Ground Kit

Cu Fuse

Puller Receptacle

Plugs

Heavy Duty Safety Switches — Class 3110

Product Description

12/99

NOTE: I

t and Ip values for Square D heavy duty safety switches are the same as published UL

maximum acceptable I

t and Ip values for corresponding class fuse.

Short Circuit Withstand Ratings

Heavy Duty

Safety Switch UL Listed

Fuse Class

UL Listed Short Circuit

Withstand Rating jj

(RMS Symmetrical Amperes)

Fusible

Not Fusibleh

K10,000

200,000

hUL Listed, short circuit withstand ratings as shown apply to not fusible switches when used in conjunction with corresponding class fuse.

jj Short circuit withstand ratings apply to AC only.

Terminal Lug Data for NEMA Type 1, 3R, and 4X Fiberglass Enclosure Switches

Ampere

Rating

NEMA

Type

Enclosure

Conductors

Per Phase

Wire Range

Wire Bending Space

Per NEC Table 373-6 Lug Wire Rangeq

Optional

VERSA-CRIMP®

Compression Lug

Field Installable

30 1, 3R, 4Xc1 12–6 AWG (Al) or 14–6 AWG (Cu) 12–2 AWG (Al) or 14–2 AWG (Cu) . . .

60 1, 3R, 4Xc1 12–3 AWG (Al) or 14–3 AWG (Cu) 12–2 AWG (Al) or 14–2 AWG (Cu) . . .

100 1, 3R, 4Xc1 12–1/0 AWG (Al) or 14–1/0 AWG (Cu) 12–1/0 AWG (Al) or 14–1/0 AWG (Cu) VCEL-021-14S1

200 1, 3R 1 6 AWG – 250 kcmil (Al/Cu) 6 AWG – 300 kcmil (Al/Cu) VCEL-030-516H

400 1, 3R 1

1/0 AWG – 750 kcmil (Al/Cu)

1/0 AWG – 300 kcmil (Al/Cu)

1/0 AWG – 750 kcmil (Al/Cu)

and

1/0 AWG – 300 kcmil (Al/Cu)

VCEL-075-12H1

VCEL-030-516H1

and

VCEL-050-12H1

600 1, 3R 2 3/0 AWG – 500 kcmil (Al/Cu) 3/0 AWG – 500 kcmil (Al/Cu) VCEL-050-12H1

800 1, 3R/5 3 3/0 AWG – 750 kcmil (Al/Cu) 3/0 AWG – 750 kcmil (Al/Cu) H8LKE2

1200 1, 3R/5 4 3/0 AWG – 750 kcmil (Al/Cu) 3/0 AWG – 750 kcmil (Al/Cu) H12LKE2

q30–100 A switches suitable for 60°C or 75°C conductors. 200–1200 A switches suitable for 75°C conductors.

c4X ﬁberglass reinforced polyester and KRYDON enclosed switches.

Terminal Lug Data for NEMA Type 4, 4X, 5, 7, 9, 12, and 12K Switches

Ampere

Rating

NEMA

Type

Enclosure

Conductors

Per Phase

Wire Range

Wire Bending Space

Per NEC Table 373-6 Lug Wire Rangeq

Optional VERSA-CRIMP®

Compression Lug

Field Installable

30 4, 4X, 5c

12, 12K 1 14–6 AWG (Cu) 14–4 AWG (Cu) . . .

60 4, 4X, 5c

12, 12K 1 14–4 AWG (Cu)d14–4 AWG (Cu) . . .

100 4, 4X, 5c

12, 12K 1 14–1 AWG (Cu) 14–1/0 AWG (Cu) VCEL-021-14S1

200 4, 4X, 5c

12, 12K 1 6 AWG – 250 kcmil (Cu)f6 AWG – 250 kcmil (Cu) VCEL-030-516H1

400 4, 4X

5, 12

1/0 AWG – 600 kcmil (Cu)

6 AWG – 250 kcmil (Cu)

1 AWG – 600 kcmil (Cu)

1 AWG – 250 kcmil (Cu)

VCEL-075-12H1

VCEL-030-516H1

and

VCEL-050-12H1

600 4, 4X

5, 12 2 4 AWG – 350 kcmil (Cu) 4 AWG – 350 kcmil (Cu) VCEL-050-12H1

800 12 3 3/0 AWG – 750 kcmil (Al/Cu) 3/0 AWG – 750 kcmil (Al/Cu) H8LKE2

1200 12 4 3/0 AWG – 750 kcmil (Al/Cu) 3/0 AWG – 750 kcmil (Al/Cu) H12LKE2

cNEMA Type 4, 4X, and 5 stainless steel.

dH60XFA – 14–6 AWG (Cu).

fH225XKA – 4 AWG–300 kcmil (Cu).

q30–100 A switches suitable for 60°C or 75°C conductors. 200–1200 A switches suitable for 75°C conductors.

Heavy Duty Safety Switches — Class 3110

General Information

32 12/99

30 A Heavy Duty Ratings, Series E and F

60 A Heavy Duty Ratings, Series E and F

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp

Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H221DS E1 . . . . . . 11⁄2 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 . . . . . . . . . . . . . . .. . . . . . . . .

H221A F1 1⁄221

1⁄2 c3 q37

1⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 . . . . . . . . . . . . . . . . . . . . .

H221AWK F1 . . . . . . 11⁄2 c3 q37

1⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 . . . . . . . . . . . . . . . . . . . . .

H221N F1 1⁄221

1⁄2 c3 q37

1⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H221NRB F1 1⁄221

1⁄2 c3 q3 c71⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H321DS E1 3 q71⁄2. . . . . . . . . . . . . . . . . . . . . . . . 5 c. . . . . . . . . . . . . . . . . . . . .

H321A F1 1⁄221

1⁄2 c3 q3 c71⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H321AWK F1 1⁄221

1⁄2 c3 q3 c71⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H321N F1 1⁄221

1⁄2 c3 q3 c71⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H321NRB F1 1⁄221

1⁄2 c3 q3 c71⁄2 q. . . . . . . . . . . . . . . . . . . . . . . . 3 5 f. . . . . . . . . . . . . . . . . . . . .

H361 F1 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q71⁄2. . . 20 . . . 5 f15 . . . . . . . . . . . . . . . . . .

H361RB F1 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q. . . 71⁄2. . . 20 . . . 5 f15 . . . . . . . . . . . . . . . . . .

H361DS E1 . . . . . . . . . . . . . . . . . . 5 15 . . . 71⁄2. . . 20 . . . 15 . . . . . . . . . . . . . . . . . .

H361A F1 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q. . . 71⁄2. . . 20 . . . 5 f15 . . . . . . . . . . . . . . . . . .

H361AWK F1 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q. . . 71⁄2. . . 20 . . . 5 f15 . . . . . . . . . . . . . . . . . .

H3612A F5 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q. . . 71⁄2. . . 20 . . . . . . 15 . . . . . . . . . . . . . . . . . .

H3612AWK F5 . . . . . . . . . . . . . . . . . . 3 c5 q71⁄2 c15 q. . . 71⁄2. . . 20 . . . . . . 15 . . . . . . . . . . . . . . . . . .

H361N F1 . . . . . . . . . . . . . . . . . . 3 c71⁄2 q5 c15 q. . . 71⁄2. . . 20 . . . 5 c15 c. . . . . . . . . . . . . . . . . .

H361NRB F1 . . . . . . . . . . . . . . . . . . 3 c71⁄2 q5 c15 q. . . 71⁄2. . . 20 . . . 5 c15 c. . . . . . . . . . . . . . . . . .

H461 F5 . . . . . . . . . 3 . . . 71⁄2. . . 5 . . . 15 . . . 71⁄2. . . 20 3 f5 f15 3 10 71⁄220 10 25

H4612DS E1 . . . . . . . . . . . . . . . . . . . . . 71⁄2. . . 20 . . . 10 . . . 25 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H461AWK F5 . . . . . . . . . 3 . . . 71⁄2. . . 5 . . . 15 . . . 71⁄2. . . 20 3 f5 f15 3 10 71⁄220 10 25

HU361 F1 . . . 2 . . . . . . 5 c10 c. . . . . . 71⁄2 c20 q. . . . . . 10 c30 3 5 15 . . . . . . . . . . . . . . . . . .

HU361RB F1 . . . 2 . . . . . . 5 c10 c. . . . . . 71⁄2 c20 q. . . . . . 10 c30 3 5 15 . . . . . . . . . . . . . . . . . .

HU361DS E1 . . . 2 . . . . . . 5 c10 c. . . . . . 71⁄2 c20 . . . . . . 10 c30 3 5 15 . . . . . . . . . . . . . . . . . .

HU361A F1 . . . 2 . . . . . . 5 c10 c. . . . . . 71⁄2 c20 q. . . . . . 10 c30 3 5 15 . . . . . . . . . . . . . . . . . .

HU361AWK F1 . . . 2 . . . . . . 5 c10 c. . . . . . 71⁄2 c20 q. . . . . . 10 c30 3 5 15 . . . . . . . . . . . . . . . . . .

HU461 F5 . . . . . . . . . . . . . . . 10 . . . . . . . . . 20 . . . . . . . . . 30 3 10 15 . . . 10 . . . 20 . . . 25

HU461DS E1 . . . . . . . . . . . . . . . 10 . . . . . . . . . 20 . . . . . . . . . 30 2 5 10 . . . 10 . . . 20 . . . 25

HU461AWK F5 . . . . . . . . . . . . . . . 10 . . . . . . . . . 20 . . . . . . . . . 30 3 10 15 . . . 10 . . . 20 . . . 25

cUse both outer switching poles.

q For corner grounded only, install neutral and use switching poles for ungrounded conductors.

fStandard hp rating.

Catalog

Number Series

120 Vac 240 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H222DS E1 . . . . . . 3 . . . 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 . . . . . . . . . . . . . . . . . . . . .

H222A F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H222AWK F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H222N F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H222NRB F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H322DS E1 . . . . . . . . . 71⁄2. . . 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 . . . . . . . . . . . . . . . . . . . . .

H322A F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H322AWK F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H322N F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H322NRB F4 11⁄233q71⁄2c10q15c. . . . . . . . . . . . . . . . . . . . . . . . 5k10k. . . . . . . . . . . . . . . . . . . . .

H362 F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362RB F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362DS E1 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362A F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362AWK F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362N F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H362NRB F5 . . . . . . . . . . . . . . . . . . 5q15c20q30c. . . 15 . . . 50 . . . . . . 30 . . . . . . . . . . . . . . . . . .

H462 F5 . . . . . . . . . 71⁄2. . . 15 . . . 15 . . . 30 . . . 15 . . . 50 5 10 30 71⁄220 15 40 20 50

H462DS E1 . . . . . . . . . . . . . . . . . . . . . 15 . . . 40 . . . 20 . . . 50 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H462AWK F5 . . . . . . . . . 71⁄2. . . 15 . . . 15 . . . 30 . . . 15 . . . 50 5 10 30 71⁄220 15 40 20 50

HU362 F5 . . . 5 . . . . . . 10q20p. . . . . . 25 q50cj . . . . . . 30q60t5 10 30 . . . . . . . . . . . . . . . . . .

HU362RB F5 . . . 5 . . . . . . 10q20p. . . . . . 25q50cj . . . . . . 30q60t5 10 30 . . . . . . . . . . . . . . . . . .

HU362DS E1 . . . 5 . . . . . . 10q20 . . . . . . 20 p50t. . . . . . 25q60t. . . 10 30 . . . . . . . . . . . . . . . . . .

HU362A F5 . . . 5 . . . . . . 10q20p. . . . . . 25q50cj . . . . . . 30 q60t5 10 30 . . . . . . . . . . . . . . . . . .

HU362AWK F5 . . . 5 . . . . . . 10q20p. . . . . . 25 q50cj . . . . . . 30q60t5 10 30 . . . . . . . . . . . . . . . . . .

HU462 F5 . . . . . . . . . . . . . . . 20 . . . . . . . . . 50 . . . . . . . . . 60 5 10 30 . . . 20 . . . 40 . . . 50

HU462DS E1 . . . . . . . . . . . . . . . 20 . . . . . . . . . 50 . . . . . . . . . 60 5 10 30 . . . 20 . . . 40 . . . 50

HU462AWK F5 . . . . . . . . . . . . . . . 20 . . . . . . . . . 50 . . . . . . . . . 60 5 10 30 . . . 20 . . . 40 . . . 50

HU662DS E1 . . . . . . . . . 20 . . . . . . . . . 50 . . . . . . . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU662AWK F5 . . . . . . . . . 20 . . . . . . . . . 50 . . . . . . . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

cFor corner grounded delta only, install neutral and use switching poles for ungrounded conductors.

qUse both outer switching poles.

kStandard hp rating.

p15 hp maximum on a corner grounded delta system.

j30 hp maximum on a corner grounded delta system.

tUse 75°C N.O. 4 Cu or N.O. 2 Al conductors.

Heavy Duty Safety Switches — Class 3110

General Information

12/99

Heavy Duty Safety Switches — Class 3110

General Information

100 A Heavy Duty Ratings, Series E and F

200 A Heavy Duty Ratings, Series E

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdcq240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H223DS E2 . . . . . . 71⁄2. . . 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . . . . . . . . . . . . .

H223AWK F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H223A F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H223N F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H223NRB F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H323DS E2 . . . . . . . . . 15 . . . 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . . . . . . . . . . . . .

H323A F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H323AWK F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H323N F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H323NRB F5 . . . . . . 71⁄2q15c15q30c. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 k. . . . . . . . . . . . . . . . . . . . .

H363 F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H363RB F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H363DS E1 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H363A F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H363AWK F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H363N F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H363NRB F5 . . . . . . . . . . . . . . . . . . 10q25c30q60c. . . 30 . . . 75 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H463 F5 . . . . . . . . . 15 . . . 30 . . . 25 . . . 60 . . . 30 . . . 75 . . . 20k30 15 30 25 50 30 50

H463DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 50 30 75

H463AWK F5 . . . . . . . . . 15 . . . 30 . . . 25 . . . 60 . . . 30 . . . 75 . . . 20k30 15 30 25 50 30 50

H663DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H663AWK F5 . . . . . . . . . 15 . . . 30 . . . 25 . . . 60 . . . 30 . . . 75 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU363 F5 . . . 71⁄2. . . . . . 20 q40ct . . . . . . 40 q75tj . . . . . . 40q75t71⁄220 50 . . . . . . . . . . . . . . . . . .

HU363RB F5 . . . 71⁄2. . . . . . 20q40ct . . . . . . 40 q75tj . . . . . . 40 q75t71⁄220 50 . . . . . . . . . . . . . . . . . .

HU363DS E1 . . . 10q. . . . . . 15q40u. . . . . . 30q75 . . . . . . 40q75u10 20 . . . . . . . . . . . . . . . . . . . . .

HU363A F5 . . . 71⁄2. . . . . . 20q40ct . . . . . . 40 q75tj . . . . . . 40 q75t71⁄220 50 . . . . . . . . . . . . . . . . . .

HU363AWK F5 . . . 71⁄2. . . . . . 20q40ct . . . . . . 40 q75tj . . . . . . 40q75t71⁄220 50 . . . . . . . . . . . . . . . . . .

HU463 F5 . . . . . . . . . . . . . . . 40 . . . . . . . . . 75 . . . . . . . . . 75 . . . 20 30 . . . 30 . . . 50 . . . 50

HU463DS E2 . . . . . . . . . . . . . . . 40 . . . . . . . . . 75 . . . . . . . . . 75 . . . 20 30 . . . 30 . . . 50 . . . 50

HU463AWK F5 . . . . . . . . . . . . . . . 40 . . . . . . . . . 75 . . . . . . . . . 75 . . . 20 30 . . . 30 . . . 50 . . . 50

HU663DS E1 . . . . . . . . . . . . . . . 40 . . . . . . . . . 75 . . . . . . . . . 75 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU663AWK F5 . . . . . . . . . . . . . . . 40 . . . . . . . . . 75 . . . . . . . . . 75 . . . . . . . . . . . . . . . . . . . . . . . . . . .

cFor corner grounded delta only, install neutral and use switching poles for ungrounded conductors.

qUse both outer switching poles.

kStandard hp rating.

p15 hp maximum on a corner grounded delta system.

a30 hp maximum on a corner grounded delta system.

tUse 75C No. 4 Cu or No. 2 Al conductors.

j60 hp maximum on corner grounded delta.

uUse 75C No. 1 copper conductor only.

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdcq240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H224DS E1 . . . . . . 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H224A E1 . . . . . . 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H224AWK E1 . . . . . . 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H224N E1 . . . . . . 15qc 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H224NRB E1 . . . . . . . . . 25 15qc 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H324DS E1 . . . . . . . . . 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H324A E2 . . . . . . . . . 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H324AWK E1 . . . . . . . . . 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H324N E1 . . . . . . . . . 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H324NRB E1 . . . . . . . . . 25 . . . 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 . . . . . . . . . . . . . . . . . . . . .

H364 E2 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364RB E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364DS E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364A E2 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364AWK E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364N E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364NRB E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364DS E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364A E2 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H364AWK E1 . . . . . . . . . . . . . . . . . . . . . 50 . . . 125 . . . 60 . . . 150 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H464 E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 50 50 50

H464DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 50 50 50

H464AWK E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 50 50 50

H664DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H664RWK E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU364 E1 . . . . . . . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50 . . . . . . . . . . . . . . . . . .

HU364RB E1 . . . . . . . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50 . . . . . . . . . . . . . . . . . .

HU364DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50 . . . . . . . . . . . . . . . . . .

HU364A E1 . . . . . . . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50 . . . . . . . . . . . . . . . . . .

HU364AWK E1 . . . . . . . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50 . . . . . . . . . . . . . . . . . .

HU464 E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . 50 . . . 50

HU464DS E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . 50 . . . 50

HU464AWK E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . 50 . . . 50

HU664DS E1 . . . . . . . . . . . . . . . 75 . . . . . . . . . 150 . . . . . . . . . 150 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU664RWK E1 . . . . . . . . . . . . . . . 75 . . . . . . . . . 150 . . . . . . . . . 150 . . . . . . . . . . . . . . . . . . . . . . . . . . .

cFor corner grounded delta only, install neutral and use switching poles for ungrounded conductors.

qUse both outer switching poles.

34 12/99

Heavy Duty Safety Switches — Class 3110

General Information

400 A Heavy Duty Ratings, Series E

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H225 E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H225R E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H225DS E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H225AWK E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H225N E2 . . . . . . . . . 5oc. . . 125 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H225NR E2 . . . . . . . . . 50c. . . 125c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H225NDS E2 . . . . . . . . . 50c. . . 125 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H225NAWK E2 . . . . . . . . . 50c. . . 125 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H325 E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325R E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325DS E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325AWK E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325N E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325NR E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325NDS E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H325NAWK E2 . . . . . . . . . 50 . . . 125 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H265 E2 . . . . . . . . . . . . . . . . . . . . . 100c. . . 250c. . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H265R E2 . . . . . . . . . . . . . . . . . . . . . 100c. . . 250c. . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H265DS E2 . . . . . . . . . . . . . . . . . . . . . 100c. . . 250c. . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H265AWK E2 . . . . . . . . . . . . . . . . . . . . . 100c. . . 250c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H365 E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H365R E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H365DS E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H365AWK E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

H365N E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H365NR E2 . . . . . . . . . . . . . . . . . . . . . 100 . . . 250 . . . 125 . . . 350 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H365NDS E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H365NAWK E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H465qE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H465AWKqE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU265 E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU265R E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU265DS E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU265AWK E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU365 E2 . . . . . . . . . . . . . . . 125 . . . . . . . . . 250 . . . . . . . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU365R E2 . . . . . . . . . . . . . . . 125 . . . . . . . . . 250 . . . . . . . . . 350 . . . 50 . . . . . . . . . . . . . . . . . . . . .

HU365DS E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU365AWK E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU465qE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU465AWKqE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

cFor corner grounded only, install neutral and use switching poles for ungrounded conductors.

qNot suitable for use as service equipment.

12/99

Heavy Duty Safety Switches — Class 3110

General Information

600 A Heavy Duty Ratings, Series E

800 A Heavy Duty Ratings, Series E

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H226 E2 . . . . . . . . . 75c. . . 200c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226R E2 . . . . . . . . . 75c. . . 200c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226DS E2 . . . . . . . . . 75c. . . 200 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226AWK E2 . . . . . . . . . 75c. . . 200 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226N E2 . . . . . . . . . 75c. . . 200c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226NR E2 . . . . . . . . . 75c. . . 200c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226NDS E2 . . . . . . . . . 75c. . . 200 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H226NAWK E2 . . . . . . . . . 75c. . . 200 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326 E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326R E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326DS E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326AWK E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326N E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326NR E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326NDS E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H326NAWK E2 . . . . . . . . . 75 . . . 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H266 E2 . . . . . . . . . . . . . . . . . . . . . 150c. . . 400 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H266R E2 . . . . . . . . . . . . . . . . . . . . . 150c. . . 400 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H266DS E2 . . . . . . . . . . . . . . . . . . . . . 150c. . . 400c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H266AWK E2 . . . . . . . . . . . . . . . . . . . . . 150c. . . 400 c. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366 E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366R E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366DS E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366AWK E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366N E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366NR E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366NDS E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H366NAWK E2 . . . . . . . . . . . . . . . . . . . . . 150 . . . 400 . . . 200 . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

H466qE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU266 E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU266R E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU266DS E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU266AWK E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU366 E2 . . . . . . . . . . . . . . . 200 . . . . . . . . . 400 . . . . . . . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU366R E2 . . . . . . . . . . . . . . . 200 . . . . . . . . . 400 . . . . . . . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU366DS E2 . . . . . . . . . . . . . . . 200 . . . . . . . . . 400 . . . . . . . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU366AWK E2 . . . . . . . . . . . . . . . 200 . . . . . . . . . 400 . . . . . . . . . 500 . . . . . . . . . . . . . . . . . . . . . . . . . . .

HU466qE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

cFor corner grounded only, install neutral and use switching poles for ungrounded conductors.

qNot suitable for use as service equipment.

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H227 E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H227R E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H227AWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H227N E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H227NR E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H227NAWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327 E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327R E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327AWK E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327N E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327NR E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H327NAWK E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H267 E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H267R E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H267AWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367 E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367R E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367AWK E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367N E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367NR E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H367NAWK E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU267 E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU267R E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU267AWK E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU367 E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU367R E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU367AWK E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

36 12/99

Heavy Duty Safety Switches — Class 3110

General Information

1200 A Heavy Duty Ratings, Series E

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc 240 Vac 480 Vac 600 Vac

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings Std. Max. Std. Max. Std. Max.

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600 2f2f2f2f2f2f

H228 E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H228R E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H228AWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H228N E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H228NR E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H228NAWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328 E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328R E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328AWK E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328N E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328NR E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H328NAWK E4 . . . . . . . . . 100 . . . 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . .

H268 E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H268R E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H268AWK E4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368 E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368R E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368AWK E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368N E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368NR E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

H368NAWK E4 . . . . . . . . . 100 . . . 250 . . . 200 . . . 500 . . . 250 . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU268 E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU268R E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU268AWK E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU368 E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU368R E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

HU368AWK E4 . . . . . . . . . 100 . . . 100 . . . . . . . . . 500 . . . . . . . . . 500 . . . . . . 50 . . . . . . . . . . . . . . . . . .

12/99

Heavy Duty Safety Switches — Class 3110

General Information

Specialty Switches

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdca

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600

Cast Aluminum Enclosures

H361CS F5 . . . . . . . . . . . . . . . . . . . . . 5 . . . 15 . . . 71⁄2. . . 20 . . . 5b . . .

H362CS F5 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . 10b . . .

H363CS F5 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . 20b . . .

HU361CS F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . 30 . . . 5b . . .

HU362CS F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . 60 . . . 10 . . .

HU363CS F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20 . . .

Fiberglass Reinforced Polyester Enclosures

H361DF F1 . . . . . . 11⁄2a3c3a71⁄2c3a5c71⁄2a15c. . . 71⁄2. . . 15 . . . 5 15

H362DF F1 . . . . . . 3a71⁄2c10a15c5a15c20a30c. . . 15 . . . 50 . . . 10 30

H363DF F1 . . . . . . 71⁄2a15c15a30c10a25c30a60c. . . 30 . . . 75 . . . 20 50

H364DF E1 . . . . . . . . . 25 . . . 60 . . . 50 . . . 125 . . . 60 . . . 150 . . . 40 50

HU361DF F1 . . . 1a . . . . . . 5a10c. . . . . . 10a20c. . . . . . . . . 30 3 10 15

HU362DF F1 . . . 5a. . . . . . 10a20fc . . . . . . 25a30fc . . . . . . . . . 60 5 10 30

HU363DF F1 . . . 71⁄220a. . . . . . 30 . . . . . . 40a75qc . . . . . . . . . 75 71⁄220 50

HU364DF E1 . . . . . . . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . 40 50

Krydon Enclosures

H361DX F1 . . . . . . 11⁄2a3c3a71⁄2c3a5c71⁄2a15c. . . 71⁄2. . . 20 . . . 5b15d

H362DX F1 . . . . . . 3a71⁄2c10a15c5a15c20a30c. . . 15 . . . 50 . . . 10b30h

H363DX F1 . . . . . . 71⁄2a15c15a30c10a25c30c60c. . . 30 . . . 75 . . . 20b50j

HU361DX F1 . . . 3 . . . . . . 5a10c. . . . . . 10a20c. . . . . . . . . 30 3 10 15

HU362DX F1 . . . 5 . . . . . . 10a20kc . . . . . . 25a50uc . . . . . . . . . 60 5 10 30

HU363DX F1 . . . 71⁄2. . . . . . 20a30c. . . . . . 40a75sc . . . . . . . . . 75 71⁄220 50

NEMA Type 7 and 9 Enclosures

H60XFA E1 . . . . . . . . . 15 . . . . . . . . . 30 . . . . . . . . . 50 . . . . . . . . . . . . . . .

H60XFA1212 E1 . . . . . . . . . 15 . . . . . . . . . 30 . . . . . . . . . 50 . . . . . . . . . . . . . . .

H100XFA E1 . . . . . . . . . 30 . . . . . . . . . 60 . . . . . . . . . 75 . . . . . . . . . . . . . . .

H100XFA1212 E1 . . . . . . . . . 30 . . . . . . . . . 60 . . . . . . . . . 75 . . . . . . . . . . . . . . .

H225XKA C2 . . . . . . . . . 60 . . . . . . . . . 125 . . . . . . . . . 150 . . . . . . . . . . . . . . .

aUse outer switching poles.

cFor corner grounded only, install neutral and use switching poles for ungrounded conductors.

f15 hp on corner grounded delta system.

p25 hp on corner grounded delta System.

q60 hp on corner grounded delta system.

bStandard hp rating.

dStandard rating 10 hp.

hStandard rating 25 hp.

jStandard rating 40 hp.

k15 hp rating on corner grounded delta system.

u30 hp rating on corner grounded delta system.

s60 hp rating on corner grounded delta system.

38 12/99

Heavy Duty Safety Switches — Class 3110

General Information

Receptacle Switches

Catalog

Number Series

120 Vac 240 Vac 480 Vac 600 Vac Vdc

Std. Max. Std. Max. Std. Max. Std. Max. Max. hp Ratings

1f1f1f3f1f3f1f3f1f3f1f3f1f3f125 250 600

H361WA F5 . . . . . . . . . . . . . . . . . . . . . 5 . . . 15 . . . 71⁄2. . . 20 . . . 5q. . .

H361DSWA E2 . . . . . . . . . . . . . . . . . . . . . 5 . . . 15 . . . 71⁄2. . . 20 . . . 5q. . .

H361CSWA F5 . . . . . . . . . . . . . . . . . . . . . 5 . . . 15 . . . 71⁄2. . . 20 . . . 5q. . .

H361AWA F5 . . . . . . . . . . . . . . . . . . . . . 5 . . . 15 . . . 71⁄2. . . 20 . . . 5q. . .

HU361WA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . 30 . . . 5q. . .

HU361DSWA E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . 30 . . . 5q. . .

HU361CSWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . 30 . . . 5q. . .

HU361AWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 . . . . . . . . . 30 . . . 5q. . .

H361WC F5 . . . . . . . . . . . . . . . . . . 3q5 7.5q15 . . . 71⁄2. . . 20 3 qk 5q. . .

H361DSWC E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H361AWC F5 . . . . . . . . . . . . . . . . . . 3q5 7.5q15 . . . 71⁄2. . . 20 3qk 5q. . .

HU361WC F5 . . . 2 5q10 . . . . . . 10q20 . . . . . . 15 q30 3q10q. . .

HU361DSWC E1 . . . 2 5q10 . . . . . . 71⁄2q20 . . . . . . 10q30 3q5q. . .

HU361AWC F5 . . . 2 5q10 . . . . . . 10 q20 . . . . . . 15q30 3q10q. . .

H362WA F5 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . 10qt . . .

H362DSWA E2 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . 10qt . . .

H362CSWA F5 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . 10qt . . .

H362AWA F5 . . . . . . . . . . . . . . . . . . . . . 15 . . . 30 . . . 15 . . . 50 . . . 10qt . . .

HU362WA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . 60 . . . 10q. . .

HU362DSWA E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . 60 . . . 10q. . .

HU362CSWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . 60 . . . 10q. . .

HU362AWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . 60 . . . 10q. . .

H362WC F5 . . . . . . . . . . . . . . . . . . 5q15 20q30 15 50 5qt 10qt . . .

H362DSWC E1 . . . . . . 3q71⁄210q15 5q15 20q30 10q15 25q50 10q. . .

H362AWC F5 11⁄233q71⁄210q15 5q15 20q30 15 50 5qt 10qt . . .

HU362WC F5 . . . 5 . . . . . . 10q20 . . . . . . 25 q50 . . . . . . 30q60 5q10q. . .

HU362DSWC E1 . . . 5 . . . . . . 10q20 . . . . . . 20 q50 . . . . . . 25 q60 10q. . .

HU362AWC F5 . . . 5 . . . . . . 10q20up . . . . . . 25 50u f. . . . . . 30q60 5q10q. . .

H362WH F5 . . . . . . . . . . . . . . . . . . 5q15 20q30 . . . 15 . . . 50 . . . . . . . . .

H362AWH F5 . . . . . . . . . . . . . . . . . . 5q15 20q30 . . . 15 . . . 50 . . . . . . . . .

HU362WH F5 . . . 5 . . . . . . 10q20 . . . . . . 25 q50 . . . . . . 30q60 . . . . . . . . .

HU362AWH F5 . . . 5 . . . . . . 10q20 . . . . . . 25q50 . . . . . . 30 q60 . . . . . . . . .

H363WA F5 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . 20t q. . .

H363DSWA E2 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . 20t q. . .

H363CSWA F5 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . 20t q. . .

H363AWA F5 . . . . . . . . . . . . . . . . . . . . . 25 . . . 60 . . . 30 . . . 75 . . . 20t q. . .

HU363WA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20q. . .

HU363DSWA E2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20q. . .

HU363CSWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20q. . .

HU363AWA F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20q. . .

H363WC F5 . . . . . . . . . . . . . . . . . . 10q25 30q60 . . . 30 . . . 75 . . . 20t q . . .

H363DSWC E1 . . . . . . . . . . . . . . . . . . 25 60 . . . 30 . . . 75 . . . 20t q. . .

H363AWC F5 . . . . . . . . . . . . . . . . . . 10q25 30q30 . . . 30 . . . 75 . . . 20t q. . .

HU363WC F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . 75 . . . 20q. . .

HU363DSWC E2 . . . 10 . . . . . . 15q40tj . . . . . . 30q75 . . . . . . 40q75tj 10q20q. . .

HU363AWC F5 . . . 71⁄2. . . . . . 20q30 . . . . . . 40 q75 . . . . . . 40q75 71⁄2 q20q. . .

qUse both outer switching poles.

k2 standard hp rating.

p15 hp maximum on a corner grounded delta system.

f30 hp maximum on a corner grounded delta system.

jUse 75°C N.O. 4 Cu or N.O. 2 Al conductors.

tStandard hp rating.

uNot applicable for corner grounded delta.

12/99

Heavy Duty Safety Switches — Class 3110

General Information

Catalog

Number

Approximate Dimensions

Series H W W/H D

IN mm IN mm IN mm IN mm

H221N F1 14.60 371 6.51 165 7.55 192 4.87 124

H221NRB F1 14.88 378 6.63 168 7.55 192 4.87 124

H222N F4 14.60 371 6.51 165 7.55 192 4.87 124

H222NRB F4 14.88 378 6.63 168 7.55 192 4.87 124

H223N F5 21.25 540 8.50 216 10.50 267 6.38 162

H223NRB F5 21.25 540 8.50 216 10.50 267 6.38 162

H224N E1 27.38 695 12.88 327 14.38 365 7.50 191

H224NRB E1 27.38 695 13.13 334 14.75 375 7.75 197

H225, N E1 50.25 1276 27.63 702 27.63 702 10.13 257

H225NR, R E1 50.31 1278 27.88 708 27.88 708 10.13 257

H226, N E1 50.25 1276 27.63 702 27.63 702 10.13 257

H226NR, R E1 50.31 1278 27.88 708 27.88 708 10.13 257

H227, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H227NR, R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H228, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H228NR, R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H265 E2 50.25 1276 27.63 702 27.63 702 10.13 257

H265R E2 50.31 1278 27.88 708 27.88 708 10.13 257

H266 E2 50.25 1276 27.63 702 27.63 702 10.13 257

H266R E2 50.31 1278 27.88 708 27.88 708 10.13 257

H267 E4 69.13 1756 36.62 930 36.62 930 17.75 451

H267R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H268 E4 69.13 1756 36.62 930 36.62 930 17.75 451

H268R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H321N F1 14.60 371 6.51 165 7.55 192 4.87 124

H321NRB F1 14.88 378 6.63 168 7.55 192 4.87 124

H322N F4 14.60 371 6.51 165 7.55 192 4.87 124

H322NRB F4 14.88 378 6.63 168 7.55 192 4.87 124

H323N F5 21.25 540 8.50 216 10.50 267 6.38 162

H323NRB F5 21.25 540 8.50 216 10.50 267 6.38 162

H324N E1 27.38 695 12.88 327 14.38 365 7.50 191

H324NRB E1 27.38 695 13.13 334 14.75 375 7.75 197

H325, N E1 50.25 1276 27.88 708 27.88 708 10.13 257

H325R, NR E1 50.31 1278 27.88 708 27.88 708 10.13 257

H326, N E1 50.25 1276 27.63 702 27.63 702 10.13 257

H326R, NR E1 50.31 1278 27.88 708 27.88 708 10.13 257

H327, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H327R, NR E4 69.13 1756 36.62 930 36.62 930 17.75 451

H328, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H328R, NR E4 69.13 1756 36.62 930 36.62 930 17.75 451

H361, N F1 14.60 371 6.51 165 7.55 192 4.87 124

H361-2 F3 17.50 445 9.00 229 10.50 267 6.38 162

H361NRB, RB F1 14.88 378 6.63 168 7.55 192 4.87 124

H362, N F5 17.50 445 9.00 229 10.50 267 6.38 162

H362NRB, RB F5 17.50 445 9.00 229 10.50 267 6.38 162

H362WH F5 18.19 462 9.00 229 10.50 267 6.81 173

H363, N F5 21.25 540 8.50 216 10.50 267 6.38 162

H363NRB, RB F5 21.25 540 8.50 216 10.50 267 6.38 162

W/H

Typical NEMA Type 1

Typical NEMA Type 3R

W/H

40 12/99

Heavy Duty Safety Switches — Class 3110

General Information

H364 E2 27.38 695 12.88 327 14.38 365 7.50 191

H364N E1 27.38 695 16.25 413 17.38 441 7.50 191

H364NRB E1 27.50 699 16.13 410 18.00 457 7.75 197

H364RB E1 27.38 695 13.13 334 14.75 375 7.75 197

H365, N E2 50.25 1276 27.63 702 27.63 702 10.13 257

H365R, NR E2 50.31 1278 27.88 708 27.88 708 10.13 257

H366, N E2 50.25 1276 27.63 702 27.63 702 10.13 257

H366NR, R E2 50.31 1278 27.88 708 27.88 708 10.13 257

H367, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H367NR, R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H368, N E4 69.13 1756 36.62 930 36.62 930 17.75 451

H368NR, R E4 69.13 1756 36.62 930 36.62 930 17.75 451

H461 F5 20.50 521 14.75 375 16.13 410 6.85 174

H462 F5 20.50 521 14.75 375 16.13 410 6.85 174

H463 F5 20.50 521 14.75 375 16.13 410 6.85 174

H464 E1 27.38 695 16.25 413 17.38 441 7.50 191

H465 E2 50.25 1276 33.88 861 33.88 861 10.13 257

H466 E2 50.25 1276 33.88 861 33.88 861 10.13 257

HU265 E2 50.25 1276 27.63 702 27.63 702 10.13 257

HU265R E2 50.31 1278 27.88 708 27.88 708 10.13 257

HU266 E2 50.25 1276 27.63 702 27.63 702 10.13 257

HU266R E2 50.31 1278 27.88 708 27.88 708 10.13 257

HU267 E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU267R E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU268 E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU268R E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU361 F1 14.60 371 6.51 165 7.55 192 4.87 127

HU361RB F1 14.88 378 6.63 168 7.55 192 4.87 124

HU362 F5 17.50 445 9.00 229 10.50 267 6.38 162

HU362RB F5 17.50 445 9.00 229 10.50 267 6.38 162

HU362WH F5 18.19 462 9.00 229 10.50 267 6.81 173

HU363 F5 21.25 540 8.50 216 10.50 267 6.38 162

HU363RB F5 21.25 540 8.50 216 10.50 267 6.38 162

HU364 E1 27.38 695 12.88 327 14.38 365 7.50 191

HU364RB E1 27.38 695 13.13 334 14.75 375 7.75 197

HU365 E2 50.25 1276 27.63 702 27.63 702 10.13 257

HU365R E2 50.31 1278 27.88 708 27.88 708 10.13 257

HU366 E2 50.25 1276 27.63 702 27.63 702 10.13 257

HU366R E2 50.31 1278 27.88 708 27.88 708 10.13 257

HU367 E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU367R E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU368 E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU368R E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU461 F5 20.50 521 14.75 375 16.13 410 6.85 174

HU462 F5 20.50 521 14.75 375 16.13 410 6.85 174

HU463 F5 20.50 521 14.75 375 16.13 410 6.85 174

HU464 E1 27.38 695 16.25 413 17.38 441 7.50 191

HU465 E2 50.25 1276 33.88 861 33.88 861 10.13 257

HU466 E2 50.25 1276 33.88 861 33.88 861 10.13 257

Catalog

Number

Approximate Dimensions

Series H W W/H D

IN mm IN mm IN mm IN mm

W/H

Typical NEMA Type 1

Typical NEMA Type 3R

W/H

12/99

Heavy Duty Safety Switches — Class 3110

Dimensions — NEMA Type 4, 4X, 5, 7, 9, 12 and 12K

Catalog

Number

Approximate Dimensions

Series H W W/H D

IN mm IN mm IN mm IN mm

H60XFA E1 15.93 405 9.87 251 9.87 251 6.96 177

H100XFA E1 15.93 405 9.87 251 9.87 251 6.96 177

H221AWK, A F1 14.60 371 6.63 168 7.55 192 4.96 126

H221DS E2 14.75 375 6.75 171 7.63 194 5.13 130

H221-2AWK E1 16.50 419 9.00 229 10.50 267 7.00 178

H222AWK, A F4 14.60 371 6.63 168 7.55 192 4.96 126

H222DS E1 16.63 422 8.13 207 9.00 229 6.13 156

H223AWK, A F5 20.50 521 9.00 229 10.50 267 7.00 178

H223DS E2 20.62 524 10.38 264 11.50 292 6.50 165

H224AWK, A E1 27.63 702 13.13 334 14.25 362 8.00 203

H224DS E1 27.63 702 13.13 334 14.25 362 8.00 203

H225AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H225NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H225XKA C2 22.56 573 10.88 276 10.88 276 7.75 197

H226AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H226NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H227AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H228AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H265AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H266AWK, A, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H267AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H268AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H321AWK, A, DS F1 14.60 371 6.63 168 7.55 192 4.96 126

H321DS E1 14.75 375 6.75 171 7.63 194 5.13 130

H322AWK, A F1 14.60 371 6.63 168 7.55 192 4.96 126

H322DS E1 16.63 422 8.13 207 9.00 229 6.13 156

H323AWK, A F5 20.50 521 9.00 229 10.50 267 7.00 178

H323DS E2 20.62 524 10.38 264 11.50 292 6.50 165

H324AWK, A, DS E2 27.63 702 13.13 334 14.25 362 8.00 203

H325AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H325NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H326AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H326NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H327AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H328AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H361CS F5 21.00 533 11.00 279 11.56 294 7.25 184

H362CS F5 21.00 533 11.00 279 11.56 294 7.25 184

H363CS F5 23.50 597 11.00 279 11.56 294 7.25 184

H361AWK, A, DS F1 14.60 371 6.63 168 7.55 192 4.96 126

H361DS E1 14.75 375 6.75 171 7.63 194 5.13 130

H361DF F1 16.50 419 11.00 279 11.00 279 8.80 224

H361DX F1 19.40 493 11.40 290 11.40 290 8.60 218

H361-2AWK, A F5 16.50 419 9.00 229 10.50 267 7.00 178

H362AWK, A F5 16.50 419 9.00 229 10.50 267 7.00 178

H362DS E1 16.63 422 8.13 207 9.00 229 6.13 156

H362AWA F5 16.50 419 9.00 229 10.50 267 7.00 178

H362AWC F5 16.50 419 9.00 229 10.50 267 7.00 178

H362AWH F5 16.50 419 9.00 229 10.50 267 7.00 178

H362DF F1 16.50 419 11.00 279 11.00 279 8.80 224

H362DX F1 19.40 493 11.40 290 11.40 290 8.60 218

H363AWK, A F5 20.50 521 9.00 229 10.50 267 7.00 178

H363DS E1 20.62 524 10.38 264 11.50 292 6.50 165

H363DF F1 24.80 630 13.70 348 13.70 348 12.00 305

H363DX F1 25.25 641 11.40 290 11.40 290 8.60 218

H364AWK, A, DS E1 27.63 702 13.13 334 14.25 362 8.00 203

H364NAWK, NA, NDS E1 27.63 702 16.25 413 17.50 445 8.00 203

H364DF E1 31.30 795 26.30 668 26.30 668 11.80 300

H365AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H365NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H366AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

W/H

Typical NEMA Type 4, 4X, 5, 12, 12K

Typical NEMA Type 7, 9

Typical NEMA Type 4X Fiberglass

Reinforced Polyester and KRYDON

42 12/99

Heavy Duty Safety Switches — Class 3110

Dimensions — NEMA Type 1 and 3R

H366NAWK, NDS E2 46.25 1175 26.25 667 26.25 667 10.13 259

H367AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H368AWK, NAWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

H461AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

H462AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

H462DS E1 16.63 422 8.13 207 9.00 229 6.13 156

H463AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

H463 DS E1 15.00 381 15.25 387 18.25 464 8.50 216

H464AWK, DS E1 27.63 702 16.25 413 17.50 445 8.00 203

H465AWK E2 46.25 1175 32.50 826 32.50 826 10.13 259

H663AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

H663DS E1 14.25 362 15.25 387 19.25 489 7.80 198

H664RWK E1 27.75 705 23.00 584 24.25 616 7.88 200

H664DS E1 33.10 841 37.72 958 41.12 1044 11.00 279

HU265AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

HU266AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

HU267AWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU268AWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU361AWK, A F1 14.60 371 6.63 168 7.55 192 4.96 126

HU361DS E1 14.75 375 6.75 171 7.63 194 5.13 130

HU361DF E1 16.50 419 11.00 279 11.00 279 8.80 224

HU361DX E1 19.40 493 11.40 290 11.40 290 8.60 218

HU362AWK, A F5 16.50 419 9.00 229 10.50 267 7.00 178

HU362DS E1 16.63 422 8.13 207 9.00 229 6.13 156

HU362AWA F5 16.50 419 9.00 229 10.50 267 7.00 178

HU362AWC F5 16.50 419 9.00 229 10.50 267 7.00 178

HU362AWH F5 16.50 419 9.00 229 10.50 267 7.00 178

HU362DF F1 16.50 419 11.00 279 11.00 279 8.80 224

HU362DX F1 19.40 493 11.40 290 11.40 290 8.60 218

HU363AWK, A F5 20.50 521 9.00 229 10.50 267 7.00 178

HU363DS E1 20.62 524 10.38 264 11.50 292 6.50 165

HU361CS F5 21.00 533 11.00 279 11.56 294 7.25 184

HU362CS F5 21.00 533 11.00 279 11.56 294 7.25 184

HU363CS F5 21.00 533 11.00 279 11.56 294 7.25 184

HU363DF F1 24.80 630 13.70 348 13.70 348 12.00 305

HU363DX F1 25.25 641 11.40 290 11.40 290 8.60 218

HU364DF E1 31.30 795 26.30 668 26.30 668 11.80 300

HU364AWK, A, DS E1 27.63 702 13.13 334 14.25 362 8.00 203

HU365AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

HU366AWK, DS E2 46.25 1175 26.25 667 26.25 667 10.13 259

HU367AWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU368AWK E4 69.13 1756 36.62 930 36.62 930 17.75 451

HU461AWK, DS E1 16.63 422 9.88 251 11.00 279 6.13 156

HU462AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

HU462DS E1 16.63 422 9.88 251 11.00 279 6.13 156

HU463AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

HU463DS E1 19.38 492 16.00 406 19.50 495 8.88 226

HU464AWK, DS E1 27.63 702 16.25 413 17.50 445 8.00 203

HU465AWK E2 46.25 1175 32.50 826 32.50 826 10.13 259

HU661AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

HU661DS E1 19.25 489 17.25 438 18.50 470 6.25 159

HU662AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

HU662DS E1 19.25 489 17.25 438 18.50 470 6.25 159

HU663AWK F5 20.50 521 14.75 375 16.13 410 6.80 173

HU663DS E1 19.25 489 17.25 438 18.50 470 6.25 159

HU664DS, RWK E1 24.38 619 23.00 584 24.25 616 7.88 200

Catalog

Number

Approximate Dimensions

Series H W W/H D

IN mm IN mm IN mm IN mm

W/H

Typical NEMA Type 4, 4X, 5, 12, 12K

Typical NEMA Type 7, 9

Typical NEMA Type 4X Fiberglass

Reinforced Polyester and KRYDON

12/99

Heavy Duty Safety Switches — Class 3110

Dimensions — NEMA Type 1 and 3R

Catalog

Number

Overall Dimensions IN/mm ± 1/16

H W W/H H/R D

IN mm IN mm IN mm IN mm IN mm

H361WA 18.19 462 9.00 229 10.50 267 24.00 610 6.81 173

H362WA 18.19 462 9.00 229 10.50 267 24.00 610 6.81 173

H363WA 21.85 555 9.00 229 10.50 267 27.60 701 6.81 173

H361AWA 16.50 419 9.00 229 10.50 267 22.25 565 7.00 178

H362AWA 16.50 419 9.00 229 10.50 267 22.25 565 7.00 178

H363AWA 20.50 521 9.00 229 10.50 267 26.25 667 7.00 178

HU361WA 18.19 462 9.00 229 10.50 267 24.00 610 6.81 173

HU362WA 18.19 462 9.00 229 10.50 267 24.00 610 6.81 173

HU363WA 21.85 555 9.00 229 10.50 267 22.25 565 7.00 178

HU361AWA 16.50 419 9.00 229 10.50 267 22.25 565 7.00 178

HU362AWA 16.50 419 9.00 229 10.50 267 22.25 565 7.00 178

HU363AWA 20.50 521 9.00 229 10.50 267 26.25 667 7.00 178

H361WC 18.19 462 9.00 229 10.50 267 25.69 652 6.81 173

H362WC 18.19 462 9.00 229 10.50 267 25.69 652 6.81 173

H363WC 21.85 555 9.04 230 10.50 267 29.35 745 6.81 173

H361AWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

H362AWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

H363AWC 20.50 521 9.00 229 10.50 267 28.05 712 7.00 178

HU361WC 18.19 462 9.00 229 10.50 267 25.69 652 6.81 173

HU362WC 18.19 462 9.00 229 10.50 267 25.69 652 6.81 173

HU363WC 21.85 555 9.04 230 10.50 267 29.35 745 6.81 173

HU361AWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

HU362AWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

HU363AWC 20.50 521 9.00 229 10.50 267 28.05 712 7.00 178

H362WH 18.19 462 9.00 229 10.50 267 21.81 554 6.81 173

H362AWH 16.50 419 9.00 229 10.50 267 21.25 540 7.00 178

HU362WH 18.19 462 9.00 229 10.50 267 21.81 554 6.81 173

HU362AWH 16.50 419 9.00 229 10.50 267 21.25 540 7.00 178

W/H

H/R

APPLETON Receptacle

(Suffix WA)

W/H

HH/R

ARKTITE Receptacle

(Suffix WC)

HUBBELLOCK Receptacle

(Suffix WH)

H/R

W/H

44 12/99

Heavy Duty Safety Switches — Class 3110

Dimensions — NEMA Type 4, 4X, 5, 7, 9, 12, and 12K

Catalog

Number

Overall Dimensions IN/mm ± 1/16

H W W/H H/R D

IN mm IN mm IN mm IN mm IN mm

H361DSWA 16.63 422 8.13 207 9.13 232 22.25 565 6.13 156

H362DSWA 16.63 422 8.13 207 9.13 232 22.25 565 6.13 156

H363DSWA 20.63 524 10.38 264 11.50 292 26.25 667 6.50 165

HU361DSWA 16.63 422 8.13 207 9.13 232 22.25 565 6.13 156

HU362DSWA 16.63 422 8.13 207 9.13 232 22.25 565 6.13 156

HU363DSWA 20.63 524 10.38 264 11.50 292 26.25 667 6.50 165

H361CSWA 18.00 457 11.00 279 11.56 294 24.33 618 7.25 184

H362CSWA 18.00 457 11.00 279 11.56 294 24.33 618 7.25 184

H363CSWA 21.40 544 11.00 279 11.56 294 27.96 710 7.25 184

HU361CSWA 18.00 457 11.00 279 11.56 294 24.33 618 7.25 184

HU362CSWA 18.00 457 11.00 279 11.56 294 24.33 618 7.25 184

HU363CSWA 18.00 457 11.00 279 11.56 294 24.33 618 7.25 184

H361DSWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

H362DSWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

H363DSWC 20.50 521 9.00 229 10.50 267 28.05 712 7.00 178

HU361DSWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

HU362DSWC 16.50 419 9.00 229 10.50 267 25.50 648 7.00 178

HU363DSWC 20.50 521 9.00 229 10.50 267 28.05 712 7.00 178

W/H

H/R

APPLETON Receptacle

(Suffix WA)

W/H

H/R

OFF

ARKTITE Receptacle

(Suffix WC)

12/99

NEMA Types 1 and 3R, 30 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyj

Load Base

Assembly Arc Suppressor

Assembly Lug Assembly Neutral

Assemblya

H221N E1, E2 HN221NE2 40566-667-50 . . . 40512-542-01 40251-016-51 H60SN

H221NRB E1, E2 HN221NE2 40566-667-50 . . . 40512-542-01 40251-016-51 H60SN

H321N E1, E2 HN321NE2 40512-574-50 . . . 40512-542-01 40251-016-51 H60SN

H321NRB E1, E2 HN321NE2 40512-574-50 . . . 40512-542-01 40251-016-51 H60SN

H361 E1, E2 HN361E2 40566-667-50 40560-025-50 40566-694-51 40251-016-51 . . .

H361-2 E1 HN3612E1 40512-420-50 40512-425-50 40512-399-50 40251-016-51 . . .

H361N E1 HN361NE1 40566-667-50 40560-025-50 40566-694-51 40251-016-51 H60SN

H361RB E1 HN361E1 40566-667-50 40560-025-50 40566-694-51 40251-016-51 . . .

H361NRB E1 HN361NE1 40566-667-50 40560-025-50 40566-694-51 40251-016-51 H60SN

H461-2 E1 HN461-2E1 40512-464-50 40512-443-50 40512-444-50 40251-016-51 . . .

HU361 E1, E2 HUN361E2 40566-668-50 . . . 40566-694-51 40251-016-51 . . .

HU361-EI E1, E2 HUN361E2 40566-668-50 . . . 40566-694-51 40251-016-51 . . .

HU361RB E1, E2 HUN361E2 40566-668-50 . . . 40566-694-51 40251-016-51 . . .

HU361RB-EI E1, E2 HUN361E2 40566-668-50 . . . 40566-694-51 40251-016-51 . . .

HU461 E1 HUN461E1 40512-446-50 . . . 40512-444-50 40251-016-51 . . .

jArc suppressor assembly not included in line base assembly.

aNeutral bonding screw: 40283-330-51.

Handle knob kit: 40283-440-50, Series E Switches.

NEMA Type 3R cover hinge screw: 21422-171-61.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Lug Assembly

46 12/99

Line Base Assembly

Load Base Assembly

Neutral Assembly Handle Assembly

Lockplate

Mechanism Assembly

Arc Suppressor Assembly

Heavy Duty Safety Switches — Class 3110

Replacement Parts

NEMA Types 1 and 3R, 30 A, Series F

Catalog

Number Series Complete

Interior Line Base

Assemblyj

Load Base

Assembly

Arc

Suppressor

Assembly

Lug

Assembly Mechanism

Assembly Handle

Gasket Lockplate Neutral

Assy.a

H221N F1 HN221NF1 40566-422-50 40566-410-50 40560-018-01 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 SN03

H221NRB F1 HN221NF1 40566-422-50 40566-410-50 40560-018-01 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 SN03

H321N F1 HN321NF1 40566-424-50 40566-411-50 40560-018-01 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 SN03

H321NRB F1 HN321NF1 40566-424-50 40566-411-50 40560-018-01 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 SN03

H361 F1 HN361F1 40566-420-50 40560-025-50 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 . . .

H361RB F1 HN361F1 40566-420-50 40560-025-50 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 . . .

H361N F1 HN361NF1 40566-420-50 40560-025-50 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 SN03

H361NRB F1 HN361NF1 40566-420-50 40560-025-50 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 . . .

HU361 F1 HUN361F1 40566-426-50 . . . 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 . . .

HU361RB F1 HUN361F1 40566-426-50 . . . 40566-694-51 40251-016-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 . . .

H461 F1, F3, F5 HSIF4603F . . . HLB2603206FsHAS0610FsAL0306FsHM0610FfHM0610FfHM0610FfHM0610Ff. . .

HU461 F1, F3, F5 HSIU4603606F . . . . . . HAS0610FsAL0306FsHM0610FfHM0610FfHM0610FfHM0610Ff. . .

sTwo required.

jArc supressor not included in line base assembly.

aNeutral bond screw: 40283-330-51.

fHM0610F includes handle, mechanism, lockplate, and gaskets.

Parts not listed are not available.

12/99

NEMA Types 4, 4X, 5 Stainless Steel, NEMA Types 12, 12K, 30 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyj

Load Base

Assembly Arc Suppressor

Assembly Lug Assembly

H221A E1 HN221AE1 40512-609-50 . . . 40512-542-01 40256-034-50

H221AWK E1 HN221AE1 40512-609-50 . . . 40512-542-01 40256-034-50

H221DS E1 HN221AE1 40512-609-50 - 40512-542-01 40256-034-50

H221-2AWK E1 HN2212AE1 40512-624-50 40512-627-50 40512-445-50 40256-034-50

H321A E1, E2 HN321AE2 40512-608-50 . . . 40512-542-01 40256-034-50

H321AWK E1 HN321AE1 40512-608-50 . . . 40512-542-01 40256-034-50

H321DS E1 HN321AE1 40512-608-50 . . . 40512-542-01 40256-034-50

H361A E1, E2 HN361AE2 40566-671-50 40560-027-50 40566-694-51 40256-034-50

H361AWK E1 HN361AE1 40566-671-50 40560-027-50 40566-694-51 40256-034-50

H361DS E1 HN361AE1 40566-671-50 40560-027-50 40566-694-51 40256-034-50

H361-2A E1 HN3612AE1 40512-492-50 40512-501-50 40512-399-50 40256-034-50

H361-2AWK E1 HN3612AE1 40512-492-50 40512-501-50 40512-399-50 40256-034-50

H461-2AWK E1 HN4612AE1 40512-498-50 40512-503-50 40512-444-50 40256-034-50

HU361A E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU361A-EI E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU361AWK E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU361AWK-EI E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU361DS E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU361DS-EI E1 HUN361AE1 40566-672-50 . . . 40566-694-51 40256-034-50

HU461AWK E1 HUN461AE1 40512-499-50 . . . 40512-444-50 40256-034-50

HU461DS E1 HUN461AE1 40512-499-50 . . . 40512-444-50 40256-034-50

jArc suppressor assembly not included in line base assembly.

Handle knob kit: 40283-440-50, Series E Switches.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

48 12/99

Heavy Duty Safety Switches — Class 3110

Replacement Parts

NEMA Types 12, 12K, 30 A, Series F

Catalog

Number Series Complete

Interior Line Base

Assemblyj

Load Base

Assembly

Arc

Suppressor

Assembly

Mechanism

Assembly Handle

Gasket Lockplate Lug

Assembly

H221A F1 HN221AF1 40566-427-50 40566-408-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H221AWK F1 HN221AF1 40566-427-50 40566-408-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H321A F1 HN321AF1 40566-428-50 40566-412-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H321AWK F1 HN321AF1 40566-428-50 40566-412-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

HU361A F1 HUN361AF1 40566-430-50 . . . 40566-694-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

HU361AWK F1 HUN361AF1 40566-430-50 . . . 40566-694-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H361A F1 HN361AF1 40566-429-50 40560-027-50 40566-694-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H361AWK F1 HN361AF1 40566-429-50 40560-027-50 40566-694-51 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40526-034-50

H361-2A F1, F3, F5 HSIF3603206CF . . . HLB3603206CF HAS0610F HM0610FfHM0610FfHM0610FfHM0610FfCL0306F

H361-2AWK F1, F3, F5 HSIF3603206CF . . . HLB3603206CF HAS0610F HM0610FfHM0610FfHM0610FfHM0610FfCL0306F

H461AWK F1, F3, F5 HSIF4603CF . . . HLB2603206CFsHAS0610FsHM0610FfHM0610FfHM0610FfHM0610FfCL0306Fa

HU461AWK F3, F5 HSIU4603606CF . . . . . . HAS0610FsHM0610FfHM0610FfHM0610FfHM0610FfCL0306Fa

HU661AWK F3, F5 HSIU6603606CF . . . . . . HAS0610FsHM0610FfHM0610FfHM0610FfHM0610FfCL0306Fa

sTwo required.

jArc suppressor assembly not included in line base assembly.

Parts not listed are not available.

Line Base Assembly

Load Base Assembly

Mechanism Assembly

Handle Assembly

Arc Suppressor Assembly

Lockplate

12/99

NEMA Types 4, 4X, 5 Stainless Steel, 60 A, Series E1

Catalog Number Complete Interior Line Base Assemblyjk Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly

H222DS HN222AE1 40512-495-50 40512-503-50 40512-445-50 40256-034-50

H322DS HN322AE1 40512-492-50 40512-501-50 40512-421-50 40256-034-50

H362DS HN362AE1 40512-491-50 40512-500-50 40512-399-50 40256-034-50

H462DS HN462AE1 40512-497-50 40512-502-50s40512-444-50s40256-034-50

HU362DS HUN362AE1 40512-493-50 . . . 40512-399-50 40256-034-50

HU462DS HUN462AE1 40512-499-50 . . . 40512-444-50s40256-034-50

sTwo required.

jArc suppressor assembly not included in line base assembly.

kBase mounting screws: 40205-065-01.

NEMA Type 3R door hinge pin: 21427-171-61.

Handle knob kit: 40283-440-50.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Lug Assembly

50 12/99

Heavy Duty Safety Switches — Class 3110

Replacement Parts

NEMA Types 1 and 3R, 60 A, Series F1, F2 and F3 (Kits include all mounting hardware.)

NEMA Types 1 and 3R, 60 A, Series F4

Catalog Number Series Interior Kit c Load Base Kit Arc Suppressor

Kit

Lug Kit

(Includes 6 Lugs)

Handle/

Mechanism Kit j

Neutral

Assemblya

H222N F1, F3 HSIF2206F HLB2603206F HAS0610F AL0306F HM0610F SN0610

H222NRB F1, F3 HSIF2206F HLB2603206F HAS0610F AL0306F HM0610F SN0610

H322N F1, F3 HSIF3206F HLB3206F HAS0610F AL0306F HM0610F SN0610

H322NRB F1, F3 HSIF3206F HLB3206F HAS0610F AL0306F HM0610F SN0610

H362 F1, F2, F3, F5 HSIF3606F HLB3606F HAS0610F AL0306F HM0610F . . .

H362N F1, F3, F5 HSIF3606F HLB3606F HAS0610F AL0306F HM0610F SN0610

H362NRB F1, F3, F5 HSIF3606F HLB3606F HAS0610F AL0306F HM0610F SN0610

H362RB F1, F3, F5 HSIF3606F HLB3606F HAS0610F AL0306F HM0610F . . .

H462 F1, F3, F5 HSIF4606F HLB2606FsHAS0610FsAL0306FsHM0610F . . .

HU362 F1, F3, F5 HSIU3606F . . . HAS0610F AL0306F HM0610F . . .

HU362RB F1, F3, F5 HSIU3606F . . . HAS0610F AL0306F HM0610F . . .

HU462 F1, F3, F5 HSIU4603606F . . . HAS0610FsAL0306FsHM0610F . . .

sTwo required.

cInterior kit includes line and load base assemblies, mechanism, arc suppressor, and instructions.

aNeutral bonding screw: 40283-456-51.

jIncludes lockplate: 40566-050-01.

For complete interior order interior kit, and neutral as required.

Parts not listed are not available.

Catalog

Number Series Complete

Interior

Line Base

Assembly j

Load Base

Assembly

Arc

Suppressor

Assembly

Mechanism

Assembly

Handle

Assembly

Handle

Gasket Lockplate Lug

Assembly

Neutral

Assemblya

H222N F4 HN222NF4 40566-421-50 40560-026-50 40560-018-01 40566-107-50 40566-700-50 N/A 40566-376-01 40251-016-51 SN03

H222NRB F4 HN222NF4 40566-421-50 40560-026-50 40560-018-01 40566-107-50 40566-700-50 40566-301-01 40566-376-01 40251-016-51 SN03

H322N F4 HN322NF4 40566-420-50 40560-025-50 40560-018-01 40566-107-50 40566-700-50 N/A 40566-376-01 40251-016-51 SN03

H322NRB F4 HN322NF4 40566-420-50 40560-025-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40251-016-51 SN03

aNeutral bonding screw: 40283-330-51.

jArc suppressor assembly not included in line base assembly.

Parts not listed are not available.

Arc Suppressor

Kit

Interior Kit

Load Base Kit Lug Kit

Mechanism

Assembly

Handle Assembly

Lockplate

12/99

NEMA Types 12, 12K, 60 A, Series F1, F2 and F3 (Kits include all mounting hardware.)

NEMA Types 12, 12K, 60 A, Series F4

Catalog Number Series Interior Kit c Load Base Kit Arc

Suppressor Kit Lug Kit

(Includes 6 Cu. Lugs) Handle/

Mechanism Kitj

H222A F1, F3 HSIF2206CF HLB2603206CF HAS0610F CL0306F HM0610F

H222AWK F1, F3 HSIF2206CF HLB2603206CF HAS0610F CL0306F HM0610F

H322A F1, F2, F3 HSIF3603206CF HLB3603206CF HAS0610F CL0306F HM0610F

H322AWK F1, F3 HSIF3603206CF HLB3603206CF HAS0610F CL0306F HM0610F

H362A F1, F2, F3, F5 HSIF3606CF HLB3606CF HAS0610F CL0306F HM0610F

H362AWK F1, F3, F5 HSIF3606CF HLB3606CF HAS0610F CL0306F HM0610F

H462AWK F1, F3, F5 HSIF4606CF HLB2606CFs HAS0610Fs CL0306Fs HM0610F

HU362A F1, F3, F5 HSIU3606CF . . . HAS0610F CL0306F HM0610F

HU362AWK F1, F3, F5 HSIU3606CF . . . HAS0610F CL0306F HM0610F

HU462AWK F1, F3, F5 HSIU4603606CF . . . HAS0610Fs CL0306Fs HM0610F

HU662AWK F1, F3, F5 HSIU6603606CF . . . HAS0610Fs CL0306Fs HM0610F

s Two required.

c Interior kit includes line and load base assemblies, mechanism, arc suppressor, and instructions.

j Includes lockplate: 40566-050-01.

For complete interior order interior kit, lug kit, fuse puller kit, and neutral as required.

Fuse puller kit: FPK0610.

Parts not listed are not available.

Catalog

Number Series Complete

Interior Line Base

Assemblyj

Load Base

Assembly

Arc

Suppressor

Assembly

Mechanism

AssemblyHandle

Gasket Lockplate Lug

Assembly

H222A F4 HN222AF4 40566-425-50 40566-361-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40256-034-50

H222AWK F4 HN222AF4 40566-425-50 40566-361-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40256-034-50

H322A F4 HN322AF4 40566-429-50 40560-027-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40256-034-50

H322AWK F4 HN322AF4 40566-429-50 40560-027-50 40560-018-01 40566-107-50 40566-700-50 40566-031-01 40566-376-01 40256-034-50

j Arc suppressor assembly not included in line base assembly.

Lockplate: 40566-376-01.

Fuse puller kit: FPK0610.

Parts not listed are not available.

Heavy Duty Safety Swtiches — Class 3110

Replacement Parts

Arc Suppressor

Kit

Interior Kit

Load Base Kit Lug Kit

Mechanism

Assembly

Handle Assembly

Lockplate

52 12/99

NEMA Types 4, 4X, 5 Stainless Steel, 100 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyjk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly Neutral

Assemblya

H223DS E1, E2 HN223AE2 40512-712-50 40512-713-50 40520-214-50 40256-014-50 . . .

H223NDS E1 HN223NAE1 40512-556-50 40512-571-50 40512-310-50 40256-014-50 H100SNC

H323DS E1, E2 HN323AE2 40512-558-50 40512-572-50 40520-214-50 40256-014-50 -

H323NDS E1 HN323NAE1 40512-570-50 40512-572-50 40512-484-50 40256-014-50 H100SNC

H363DS E1 HN363AE1 40512-558-50 40512-572-50 40520-214-50 40256-014-50 . . .

HU363DS HUN363AE1 40512-560-50 . . . 40520-214-50 40256-014-50 . . .

Handle knob kit: 40283-440-50.

kBase mounting screws: 40205-065-01.

jArc suppressor assembly not included in line base assembly.

2-pole cross bar insulator: 40512-319-01, 3-pole cross bar insulator: 40512-318-01.

2-pole dust shield: 40512-349-01, 3-pole dust shield: 40512-349-02.

aNeutral bonding screw: 40283-330-50.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Lug Assembly

Cross Bar

Dust Shield

Cross Bar Insulator

12/99

NEMA Types 1 and 3R, 100 A, Series F (Kits include all mounting hardware.)

Catalog Number Series Interior Kit c Load Base Kit Arc Suppressor

Kit Lug Kit

(Includes 6 Lugs) Handle/

Mechanism Kitj

Neutral

Assemblya

H223N F1, F3, F5 HSIF210F HLB210F HAS0610F AL10F HM0610F SN0610

H223NRB F1, F3, F5 HSIF210F HLB210F HAS0610F AL10F HM0610F SN0610

H323N F1, F3, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F SN0610

H323NRB F1, F3, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F SN0610

H363 F1, F2, F3, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F . . .

H363N F1, F2, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F SN0610

H363NRB F1, F3, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F SN0610

H363RB F1, F3, F5 HSIF310F HLB310F HAS0610F AL10F HM0610F . . .

H463 F1, F3, F5 HSIF4610F HLB210FsHAS0610FsAL10FsHM0610F . . .

HU363 F1, F3, F5 HSIU3610F . . . HAS0610F AL10F HM0610F . . .

HU363RB F1, F3, F5 HSIU3610F . . . HAS0610F AL10F HM0610F . . .

HU463 F1, F3, F5 HSIU4610F . . . HAS0610FsAL10FsHM0610F . . .

sTwo required.

cInterior kit includes line and load base assemblies, mechanism, arc suppressor, and instructions.

For complete interior order interior kit and neutral as required.

aNeutral bonding screw: 40283-456-51.

jIncludes lockplate: 40566-050-01.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Kit

Interior Kit

Load Base

Kit

Lug Kit

Mechanism

Assembly

Handle Assembly

Lockplate

54 12/99

NEMA Types 12, 12K, 100 A, Series F (Kits include all mounting hardware.)

Catalog Number Series Interior Kit cq Load Base Kit q Arc Suppressor Kit Lug Kit

(Includes 6 Cu. Lugs) Handle/

Mechanism Kitj

H223A F1, F3, F5 HSIF210CF HLB210CF HAS0610F CL10F HM0610F

H223AWK F1, F3, F5 HSIF210CF HLB210CF HAS0610F CL10F HM0610F

H323A F1, F2, F3, F5 HSIF310CF HLB310CF HAS0610F CL10F HM0610F

H323AWK F1, F3, F5 HSIF310CF HLB310CF HAS0610F CL10F HM0610F

H363A F1, F2, F3, F5 HSIF310CF HLB310CF HAS0610F CL10F HM0610F

H363AWK F1, F3, F5 HSIF310CF HLB310CF HAS0610F CL10F HM0610F

H463AWK F1, F3, F5 HSIF4610CF HLB210CFsHAS0610FsCL10FsHM0610F

H663AWK F1, F3, F5 HSIF6610CF HLB310CFsHAS0610FsCL10FsHM0610F

HU363A F1, F3, F5 HSIU3610CF . . . HAS0610F CL10F HM0610F

HU363AWK F1, F3, F5 HSIU3610CF . . . HAS0610F CL10F HM0610F

HU463AWK F1, F3, F5 HSIU4610CF . . . HAS0610FsCL10FsHM0610F

HU663AWK F1, F3, F5 HSIU6610CF . . . HAS0610FsCL10FsHM0610F

sTwo required.

qOrder lug kit for copper lugs for interior and load base kits.

cInterior kit includes line and load base assemblies, mechanism, arc suppressor, and instructions.

For complete interior order interior kit, lug kit, fuse puller kit, and neutral as required.

Fuse puller kit: FPK0610.

jIncludes lockplate: 40566-050-01.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Kit

Interior Kit

Load Base

Kit

Lug Kit

Mechanism

Assembly

Handle Assembly

Lockplate

12/99

NEMA Types 1 and 3R, 200 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyfk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly Neutral

Assemblya

H224N E1 HN224NE1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 H200SN

H224NRB E1 HN224NE1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 H200SN

H324N E1 HN324NE1 40560-280-50 40560-281-50 40512-701-02 40251-162-50 H200SN

H324NRB E1 HN324NE1 40560-280-50 40560-281-50 40512-701-02 40251-162-50 H200SN

H364 E2 HN364E2 40560-282-50 40560-281-50 40512-706-50 40251-162-50 . . .

H364N E1 HN364NE1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 H200SN

H364NRB E1 HN364NE1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 H200SN

H364RB E1 HN364E1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 . . .

H464 E1 HN464E1 40560-282-50 40560-281-50 40512-706-50 40251-162-50 . . .

HU364 E1 HUN364E1 40560-283-50 . . . 40512-706-50 40251-162-50 . . .

HU364RB E1 HUN364E1 40560-283-50 . . . 40512-706-50 40251-162-50 . . .

HU464 E1 HUN464E1 40560-283-50 . . . 40512-706-50 40251-162-50 . . .

Line base phase insulator, 2-pole, 240 V switches: 40511-373-02.

Line base phase insulator, 3- and 4-pole, 240 V switches: 40511-372-01.

Line base phase insulator, 600 V switches: 40520-253-01.

fArc suppressor assembly is included in line base assembly.

Cross bar insulator: 40511-361-01.

Dust shield: 40511-362-01.

Cross bar insulator: 40511-390-01 (4-pole).

Dust shield: 40511-391-01 (4-pole).

Handle knob kit: 40283-440-50.

Mechanism insulator: 40511-371-01.

kBase mounting screws: 40205-065-01.

Load base phase insulator: 40520-252-01.

aNeutral bonding strap assembly: 40552-194-50.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Load Base Assembly

Lug Assembly

Cross Bar Dust Shield

Cross Bar Insulator

Mechanism

Insulator

56 12/99

NEMA Types 4, 4X, 5 Stainless Steel, NEMA Types 12, 12K, 200 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyfk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly Neutral

Assemblya

H224A E1 HN224AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H224AWK E1 HN224AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H224DS E1 HN224AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H324A E1, E2 HN324AE2 40512-568-50 40560-276-50 40512-701-02 40560-270-50 . . .

H324AWK E1 HN324AE1 40512-568-50 40560-276-50 40512-701-02 40560-270-50 . . .

H324DS E1 HN324AE1 40512-568-50 40560-276-50 40512-701-02 40560-270-50 . . .

H364A E1, E2 HN364AE2 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H364AWK E1 HN364AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H364DS E1 HN364AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

H364NA E1 HN364NAE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 H200SNC

H364NAWK E1 HN364NAE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 H200SNC

H364NDS E1 HN364NAE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 H200SNC

H464AWK E1 HN464AE1 40560-275-50 40560-276-50 40512-706-50 40560-270-50 . . .

HU364A E1 HUN364AE1 40560-273-50 . . . 40512-706-50 40560-270-50 . . .

HU364AWK E1 HUN364AE1 40560-273-50 . . . 40512-706-50 40560-270-50 . . .

HU364DS E1 HUN364AE1 40560-273-50 . . . 40512-706-50 40560-270-50 . . .

HU464AWK E1 HUN464AE1 40560-273-50 . . . 40512-706-50 40560-270-50 . . .

HU664RWK E1 HUN664AE1 40560-273-50 . . . 40512-706-50 40560-270-50 . . .

Line base phase insulator, 2-pole, 240 V switches: 40511-373-02.

Line base phase insulator, 3-pole, 240 V switches and 4-pole, 240 V switches: 40511-372-01.

Line base phase insulator , 600 V switches: 40520-253-01.

fArc suppressor assembly is included in line base assembly.

Cross bar insulator: 40511-361-01.

Dust shield: 40511-362-01.

Cross bar insulator: 40511-390-01 (4-pole).

Dust shield: 40511-391-01 (4-pole).

Handle knob kit: 40283-440-50.

Mechanism insulator: 40511-371-01.

Load base phase insulator: 40520-252-01.

kBase mounting screws: 40205-065-01.

aNeutral bonding strap assembly: 40512-710-50.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Arc Suppressor

Load Base Assembly

Lug Assembly

Cross Bar Dust Shield

Cross Bar Insulator

Mechanism

Insulator

12/99

NEMA Types 1 and 3R, 400 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyjk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly Neutral

Assemblya

H225 E2 HN225E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H225R E2 HN225E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H225N E2 HN225NE2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 40552-252-50 SEL

H225NR E2 HN225NE2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 40552-252-50 SEL

H325 E1 HN325E1 40552-188-50 SEL 40552-190-50 SEL 40512-045-01 40251-136-50 . . .

H325R E1 HN325E1 40552-188-50 SEL 40552-190-50 SEL 40512-045-01 40251-136-50 . . .

H325N E1 HN325NE1 40552-188-50 SEL 40552-190-50 SEL 40512-045-01 40251-136-50 40552-252-50 SEL

H325NR E1 HN325NE1 40552-188-50 SEL 40552-190-50 SEL 40512-045-01 40251-136-50 40552-252-50 SEL

H265 E2 HN265E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H265R E2 HN265E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H365 E2 HN365E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H365R E2 HN365E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

H365N E2 HN365NE2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 40552-252-50 SEL

H365NR E2 HN365NE2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 40552-252-50 SEL

H465 E2 HN465E2 40552-188-50 SEL 40552-190-50 SEL 40512-708-50 SEL 40251-136-50 . . .

HU265 E2 HUN265E2 40552-189-50 SEL . . . 40512-708-50 SEL 40251-136-50 . . .

HU265R E2 HUN265E2 40552-189-50 SEL . . . 40512-708-50 SEL 40251-136-50 . . .

HU365 E2 HUN365E2 40552-189-50 SEL . . . 40512-708-50 SEL 40251-136-50 . . .

HU365R E2 HUN365E2 40552-189-50 SEL . . . 40512-708-50 SEL 40251-136-50 . . .

HU465 E2 HUN465E2 40552-189-50 SEL . . . 40512-708-50 SEL 40251-136-50 . . .

Handle assembly for NEMA Type 1, and 3R: 40512-172-50SEL.

Handle knob kit: 44011-427-50.

Line base assembly phase insulator: 40512-014-01 (fusible), 40552-193-01 (not fusible).

Load base phase insulator: 40552-191-01.

kBase mounting screws: 40206-009-01.

jArc suppressor assembly not included in line base assembly.

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

aNeutral bonding strap: 40283-379-50 SEL.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Load Base Assembly

Lug Assembly

Arc Suppressor

Assembly

58 12/99

NEMA Types 4, 4X, 5 Stainless Steel, NEMA Type 12, 400 A, Series E

Catalog

Number Series Complete

Interior Line Base

Assemblyjk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly

Small Lug Assembly

Large Neutral

Assemblya

H225AWK E2 HN225AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

H225NAWK E2 HN225NAE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 H600SNC

H225DS E2 HN225AE2 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 . . .

H225NDS E2 HN225NAE2 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 H600SNC

H325AWK E1 HN325AE1 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 . . .

H325NAWK E1 HN325NAE1 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 H600SNC

H325DS E1 HN325AE1 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 . . .

H325NDS E1 HN325NAE1 40552-210-50 SEL 40552-211-50 SEL 40512-045-01 40560-270-50 40256-026-50 H600SNC

H265AWK E2 HN265AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

H265DS E2 HN265AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

H365AWK E2 HN365AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

H365DS E2 HN365AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

H365NAWK E2 HN365NAE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 H600SNC

H365NDS E2 HN365NAE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 H600SNC

H465AWK E2 HN465AE2 40552-210-50 SEL 40552-211-50 SEL 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

HU265AWK E2 HUN265AE2 40552-212-50 SEL . . . 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

HU265DS E2 HUN265AE2 40552-212-50 SEL . . . 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

HU365AWK E2 HUN365AE2 40552-212-50 SEL . . . 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

HU365DS E2 HUN365AE2 40552-212-50 SEL . . . 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

HU465AWK E2 HUN465AE2 40552-212-50 SEL . . . 40512-708-50 SEL 40560-270-50 40256-026-50 . . .

Handle assembly for NEMA Type 12: 40512-172-50 SEL.

Handle assembly for NEMA Type 4, 4X, and 5 stainless steel: 40512-191-50 SEL.

Vault handle for NEMA Type 12, 4, 4X, and 5 stainless steel: 40512-194-50 SEL.

Handle knob kit: 44011-427-50.

Line base phase insulator: 40512-014-01 (fusible), 40552-193-01 (not fusible).

Load base phase insulator: 40552-191-01.

kBase mounting screws: 40206-009-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 40283-253-50 SEL.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Load Base Assembly

Small Lug

Assembly

Large Lug

Assembly

Arc Suppressor

Assembly

12/99

NEMA Types 1 and 3R, 600 A, Series E

Catalog Number Series Complete Interior Line Base

Assemblyjk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug AssemblysNeutral

Assemblya

H226 E2 HN226E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H226R E2 HN226E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H226N E2 HN226NE2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 H600SN

H226NR E2 HN226NE2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 H600SN

H266 E2 HN266E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H266R E2 HN266E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H326 E1 HN326E1 40552-185-50 SEL 40552-187-50 SEL 40512-045-01 44050-446-01 . . .

H326R E1 HN326E1 40552-185-50 SEL 40552-187-50 SEL 40512-045-01 44050-446-01 . . .

H326N E1 HN326NE1 40552-185-50 SEL 40552-187-50 SEL 40512-045-01 44050-446-01 H600SN

H326NR E1 HN326NE1 40552-185-50 SEL 40552-187-50 SEL 40512-045-01 44050-446-01 H600SN

H366 E2 HN366E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H366R E2 HN366E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

H366N E2 HN366NE2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 H600SN

H366NR E2 HN366NE2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 H600SN

H466 E2 HN466E2 40552-185-50 SEL 40552-187-50 SEL 40512-708-50 SEL 44050-446-01 . . .

HU266 E2 HUN266E2 40552-186-50 SEL . . . 40512-708-50 SEL 44050-446-01 . . .

HU266R E2 HUN266E2 40552-186-50 SEL . . . 40512-708-50 SEL 44050-446-01 . . .

HU366 E2 HUN366E2 40552-186-50 SEL . . . 40512-708-50 SEL 44050-446-01 . . .

HU366R E2 HUN366E2 40552-186-50 SEL . . . 40512-708-50 SEL 44050-446-01 . . .

HU466 E2 HUN466E2 40522-186-50 SEL . . . 40512-708-50 SEL 44050-446-01 . . .

Handle assembly for NEMA Type 1, and 3R: 40512-172-50 SEL.

Handle knob kit: 44011-427-50.

Line base phase insulator: 40512-014-01 (fusible), 40552-193-01 (not fusible).

Load base phase insulator: 40552-191-01.

kBase mounting screws: 40206-009-01.

jArc suppressor assembly not included in line base assembly.

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

aNeutral bonding strap: 40283-007-50 SEL.

sTwo required, line or load.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Load Base Assembly

Lug Assembly

Arc Suppressor

Assembly

60 12/99

NEMA Types 4, 4X, 5 Stainless Steel, NEMA Type 12, 600 A, Series E2

Catalog Number Complete Interior Line Base

Assemblyjk

Load Base

Assemblyk

Arc Suppressor

Assembly Lug Assembly sNeutral

Assemblya

H226AWK HN226AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H226NAWK HN226NAE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 H600SNC

H226DS HN226AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H226NDS HN226NAE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 H600SNC

H326AWK HN326AE1 40552-214-50 SEL 40552-215-50 SEL 40512-045-01 40256-024-50 . . .

H326NAWK HN326NAE1 40552-214-50 SEL 40552-215-50 SEL 40512-045-01 40256-024-50 H600SNC

H326DS HN326AE1 40552-214-50 SEL 40552-215-50 SEL 40512-045-01 40256-024-50 . . .

H326NDS HN326NAE1 40552-214-50 SEL 40552-215-50 SEL 40512-045-01 40256-024-50 H600SNC

H266AWK HN266AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H266DS HN266AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H366AWK HN366AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H366DS HN366AE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 . . .

H366NDS HN366NAE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 H600SNC

H366NAWK HN366NAE2 40552-214-50 SEL 40552-215-50 SEL 40512-708-50 SEL 40256-024-50 H600SNC

HU266AWK HUN266AE2 40552-216-50 SEL . . . 40512-708-50 SEL 40256-024-50 . . .

HU266DS HUN266AE2 40552-216-50 SEL . . . 40512-708-50 SEL 40256-024-50 . . .

HU366AWK HUN366AE2 40552-216-50 SEL . . . 40512-708-50 SEL 40256-024-50 . . .

HU366DS HUN366AE2 40552-216-50 SEL . . . 40512-708-50 SEL 40256-024-50 . . .

Handle assembly for NEMA Type 12: 40512-172-50 SEL.

Handle assembly for NEMA Type 4, 4X, and 5 stainless steel: 40512-191-50 SEL.

Vault handle for NEMA Type 12, 4, 4X, and 5, stainless steel: 40512-194-50 SEL.

Handle knob kit: 44011-427-50.

Line base phase insulator: 40512-014-01 (fusible), 40552-193-01 (not fusible).

Load base phase insulator: 40552-191-01.

kBase mounting screws: 40206-009-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 40283-253-50 SEL.

sTwo required, line or load.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Line Base Assembly

Load Base Assembly

Lug Assembly

Arc Suppressor

Assembly

12/99

NEMA Types 1 and 3R, 800 A, Series E4 (Series E3 parts not available.)

Catalog Number Line Base Assemblyj Load Base Assembly Arc Suppressor

Assembly Lug Assembly Neutral Assemblya

H227 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H227R 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H227N 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H227NR 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H267 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H267R 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H327 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H327R 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H327N 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H327NR 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H367 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H367R 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H367N 44011-392-51 44011-393-50 44011-394-50 44050-053-02 H800SNE4

H367NR 44011-392-51 44011-393-50 44011-394-50 44050-053-02 H800SNE4

HU267 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

HU267R 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

HU367 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

HU367R 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

Operator handle assembly: 44011-391-50.

Line base insulating plug: 44011-339-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 44011-342-50 SEL.

Handle knob kit: 44011-427-50.

Line phase barrier: 44011-195-01.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Operator Handle

Assembly

62 12/99

NEMA Type 12, 800 A, Series E4 (Series E3 parts not available.)

Catalog Number Line Base Assemblyj Load Base Assembly Arc Suppressor

Assembly Lug Assembly Neutral Assemblya

H227AWK 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H227NAWK 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H267AWK 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H267NAWK 44011-392-51 44011-393-50 44011-394-50 44050-053-02 H800SNE4

H327AWK 44011-392-50 44011-393-50 . . . 44050-053-02 . . .

H327NAWK 44011-392-50 44011-393-50 . . . 44050-053-02 H800SNE4

H367AWK 44011-392-51 44011-393-50 44011-394-50 44050-053-02 . . .

H367NAWK 44011-392-51 44011-393-50 44011-394-50 44050-053-02 H800SNE4

HU267AWK 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

HU367AWK 44011-392-53 . . . 44011-394-50 44050-053-02 . . .

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

Operator handle assembly: 44011-391-50.

Insulating plug: 44011-339-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 44011-342-50 SEL.

Handle knob kit: 44011-427-50.

Line phase barrier: 44011-195-01.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Operator Handle

Assembly

12/99

NEMA Types 1 and 3R, 1200 A, Series E4

Catalog Number Line Base Assemblyj Load Base Assembly Arc Suppressor

Assembly Lug Assembly Neutral Assemblya

H228 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H228R 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H228N 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H228NR 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H268 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H268R 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H328 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H328R 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H328N 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H328NR 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H368 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H368R 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H368N 44011-392-55 44011-393-51 44011-394-50 44050-054-02 H1200SNE4

H368NR 44011-392-55 44011-393-51 44011-394-50 44050-054-02 H1200SNE4

HU268 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

HU268R 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

HU368 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

HU368R 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

Operator handle assembly: 44011-391-50.

Insulating plug: 44011-339-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 44011-342-50 SEL.

Handle knob kit: 44011-427-50.

Line phase barrier: 44011-195-01.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Operator Handle

Assembly

64 12/99

NEMA Type 12, 1200 A, Series E4

Catalog Number Line Base Assemblyj Load Base Assembly Arc Suppressor

Assembly Lug Assembly Neutral Assemblya

H228AWK 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H228NAWK 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H268AWK 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H268NAWK 44011-392-55 44011-393-51 44011-394-50 44050-054-02 H1200SNE4

H328AWK 44011-392-54 44011-393-51 . . . 44050-054-02 . . .

H328NAWK 44011-392-54 44011-393-51 . . . 44050-054-02 H1200SNE4

H368AWK 44011-392-55 44011-393-51 44011-394-50 44050-054-02 . . .

H368NAWK 44011-392-55 44011-393-51 44011-394-50 44050-054-02 H1200SNE4

HU268AWK 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

HU368AWK 44011-392-57 . . . 44011-394-50 44050-054-02 . . .

Door thumb screw and retainer: 44050-434-01 and 44050-490-01.

Operator handle assembly: 44011-391-50.

Insulating plug: 44011-339-01.

jArc suppressor assembly not included in line base assembly.

aNeutral bonding strap: 44011-342-50 SEL.

Handle knob kit: 44011-427-50.

Line phase barrier: 44011-195-01.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Operator Handle

Assembly

12/99

Receptacle Stainless Steel, Series E

Catalog Number Series Line Base

Assemblyqjk

Load Base

Assemblyk

Arc

Suppressor

Assembly Lug AssemblycReceptacle

H361DSWA E02 40512-492-50 40512-501-50 40512-399-50 40256-034-50 WRDK3034

H361DSWC E01 40512-492-50 40512-501-50 40512-399-50 40256-034-50 25410-028-50

H362DSWA E02 40512-491-50 40512-500-50 40512-399-50 40256-034-50 WRDK6034

H362DSWC E01 40512-491-50 40512-500-50 40512-399-50 40256-034-50 25410-023-11

H363DSWA E02 40512-558-50 40512-572-50 40520-214-50 40256-014-50 WRDK1034

H363DSWC E01 40512-558-50 40512-572-50 40520-214-50 40256-014-50 25410-022-95

HU361DSWA E02 40512-493-50 . . . 40512-399-50 40256-034-50 WRDK3034

HU361DSWC E01 40512-493-50 . . . 40512-399-50 40256-034-50 25410-028-50

HU362DSWA E02 40512-493-50 . . . 40512-399-50 40256-034-50 WRDK6034

HU362DSWC E01 40512-493-50 . . . 40512-399-50 40256-034-50 25410-023-11

HU363DSWA E02 40512-560-50 . . . 40520-214-50 40256-014-50 WRDK1034

HU363DSWC E01 40512-560-50 . . . 40520-214-50 40256-014-50 25410-022-95

cLug mounting hardware – 30 and 60 ampere switches: 23425-017-00, 100 A switches: 23427-020-01

q30 and 60 ampere switches order insulator: 40520-114-01, 100 A switches order insulator: 40512-472-01.

kBase mounting screw: 40205-065-01, (3) required for line base assembly, (2) required for load base assembly.

jArc suppressor assembly not included in line base assembly.

Handle knob kit: 40283-440-50.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Assembly

Line Base Assembly

Load Base Assembly

Lug Assembly

66 12/99

Receptacle NEMA Type 1, Series F

Catalog Number Series Line Base

Assemblyjk

Load Base

Assemblyk

Arc

Suppressorq

Handle/

Mechanism Kit Lug Kit Receptacle

H361WA F1, F3, F4, F5 40566-039-50 40566-041-50 40566-355-50 HMR0306FN1 AL0306F WRDK3034

H361WC F2, F4, F5 40566-039-50 40566-041-50 40566-355-50 HMR0306FN1 AL0306F 25110-028-50

H362WA F1, F3, F4, F5 40567-207-50 40566-040-50 40566-355-50 HMR0306FN1 AL0360F WRDK6034

H362WC F2, F4, F5 40567-207-50 40566-040-50 40566-355-50 HMR0306FN1 AL0360F 25410-023-11

H362WH F1, F3, F5 40567-207-50 40566-040-50 40566-355-50 HMR0306FN1 AL0360F 40511-173-50

H363WA F1, F3, F4, F5 40566-028-50 40566-036-50 40566-355-50 HMR10FN1 AL10F WRDK1034

H363WC F4, F5 40566-028-50 40566-036-50 40566-355-50 HMR10FN1 AL10F 25410-022-50

HU361WA F1, F3, F4, F5 40566-147-50 . . . 40566-355-50 HMR0306FN1 AL0306F WRDK3034

HU361WC F2, F4, F5 40566-147-50 . . . 40566-355-50 HMR0306FN1 AL0306F 25410-028-50

HU362WA F1, F3, F4, F5 40566-091-50 . . . 40566-355-50 HMR0306FN1 AL0360F WRDK6034

HU362WC F2, F4, F5 40566-091-50 . . . 40566-355-50 HMR0306FN1 AL0360F 25410-023-11

HU362WH F1, F3, F5 40566-091-50 . . . 40566-355-50 HMR0306FN1 AL0360F 40511-173-50

HU363WA F1, F3, F4, F5 40566-085-50 . . . 40566-355-50 HMR10FN1 AL10F WRDK1034

HU363WC F4, F5 40566-085-50 . . . 40566-355-50 HMR10FN1 AL10F 25410-022-95

qArc supressor mounting screw: 40205-145-01.

kBase mounting screws: 40205-151-01, (3) required for line base, (2) required for load base.

jArc supressor assembly not included in line base assembly.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

Arc Suppressor

Kit

Line Base Kit

Load Base Kit Handle/Mechanism

Kit

12/99

Arc Suppressor

Kit

Line Base Kit

Load Base Kit Handle/Mechanism

Kit

Receptacle NEMA Type 12-3R, Series F

Catalog Number Series Line Base

Assemblyjk

Load Base

Assemblyk

Arc

Suppressor

Assemblyq

Handle/

Mechanism Kit Lug Kit Receptacle

H361AWA F1, F3, F4, F5 40566-147-50 40566-143-50 40566-355-50 HMR0306FN12 CL0306F WRDK3034

H361AWC F2, F4, F5 40566-147-50 40566-143-50 40566-355-50 HMR0306FN12 CL0306F 25110-028-50

H362AWA F1, F3, F4, F5 40567-208-50 40566-144-50 40566-355-50 HMR0306FN12 CL0360F WRDK6034

H362AWC F2, F4, F5 40567-208-50 40566-144-50 40566-355-50 HMR0306FN12 CL0360F 25410-023-11

H362AWH F1, F3, F5 40567-208-50 40566-144-50 40566-355-50 HMR0306FN12 CL0360F 40511-173-50

H363AWA F1, F3, F4, F5 40566-142-50 40566-145-50 40566-355-50 HMR10FN12 CL10F WRDK1034

H363AWC F4, F5 40566-142-50 40566-145-50 40566-355-50 HMR10FN12 CL10F 25410-022-50

HU361AWA F1, F3, F4, F5 40566-128-50 . . . 40566-355-50 HMR0306FN12 CL0306F WRDK3034

HU361AWC F2, F4, F5 40566-128-50 . . . 40566-355-50 HMR0306FN12 CL0306F 25410-028-50

HU362AWA F1, F3, F4, F5 40566-128-50 . . . 40566-355-50 HMR0306FN12 CL0360F WRDK6034

HU362AWC F2, F4, F5 40566-128-50 . . . 40566-355-50 HMR0306FN12 CL0360F 25410-023-11

HU362AWH F1, F3, F5 40566-128-50 . . . 40566-355-50 HMR0306FN12 CL0360F 40511-173-50

HU363AWA F1, F3, F4, F5 40566-141-50 . . . 40566-355-50 HMR10FN12 CL10F WRDK1034

HU363AWC F4, F5 40566-141-50 . . . 40566-355-50 HMR10FN12 CL10F 25410-022-95

kBase mounting screws: 40205-151-50, (3) required for line base, (2) required for load base.

qArc supressor mounting screw: 40205-145-01.

jArc suppressor assembly not included in line base assembly.

For complete interior, order line base, load base, arc suppressor and neutral assemblies as needed.

Parts not listed are not available.

Heavy Duty Safety Switches — Class 3110

Replacement Parts

68 12/99

Double Throw Safety Switches

Table of Contents

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

12/99

DESCRIPTION

Double throw safety switches are designed to transfer a load from one power

source to another power source.

CONSTRUCTION

• Visible blades for positive indication that the switch is “OFF”.

• Quick-make, quick-break operating mechanism on 82,000 and DTU lines.

Load make/break.

• Slow-make, slow-break operating mechanism on 92,000 line. Non-load

make/break.

• Lugs suitable for aluminum or copper conductors. See page 70 for additional

lug data.

• Phenolic insulating bases.

• Dual cover interlock on NEMA Type 1 82,000 line devices, with keyed

defeat mechanism.

• NEMA Type 3R top endwalls on 30–200 A switches have bolt-on

hub provisions.

• Padlock provisions in the center “OFF” position on 82,000, 92,000 and DTU

lines.

• Padlock provisions in both “ON” positions on 92,000 line.

• Top hinged cover on NEMA Type 3R devices.

• Welded hinges on all but NEMA Type 3R.

• Tangential knockouts alleviate the need for conduit offsets or bends.

ENCLOSURES

• Indoor, general purpose (NEMA Type 1).

• Outdoor, general purpose (NEMA Type 3R).

• Indoor, dusttight, driptight (NEMA Type 12).

• Indoor, outdoor, watertight, dustight (NEMA Type 4, 5).

• Gray baked enamel ﬁnish electrodeposited on cleaned, phosphatized steel

(NEMA Type 1, 3R, and 12).

ACCESSORIES

Bolt-on hubs for rainproof applications. Switches with RB sufﬁx accept 3⁄4"

through 21⁄2" bolt-on hubs. Switches with R sufﬁx have blank endwalls and

accept 3" through 4" bolt-on hubs.

Field installable equipment grounding kits.

Factory installed electrical interlocks (2 N.O./2 N.C. contacts).

Factory installed neutral assembly. DTU devices supplied with insulated,

groundable, bondable neutral as standard.

Lock-on provisions are standard on all 92,000 line switches. These provisions

are available factory installed on DTU and 82,000 line switches.

NOTE: Electrical interlock and neutral assemblies must be factory installed.

Double Throw Safety Switches — Class 3140

Product Description

Visible Blades

“RB” Hub

Service Ground Kits

Cover Interlock Key Opening

on 82,000 Line

70 12/99

Application

Double throw safety switches are designed for:

•Residential, light commercial, and industrial installations.

•Up to 250 Vdc and 600 Vac maximum.

•Up to 10,000 rms symmetrical amperes.

•30–600 A.

•NEMA Type 1, 3R, 4, 5, or 12 enclosures.

Diagrams 1 and 2 illustrate methods of applying fuses to double throw switches

when required.

Standards

Double throw safety switches are manufactured in accordance with standards

published in:

•UL 98, Standard for Enclosed and Dead Front Switches. UL Listed under

File E2875.

•NEMA Standards Publication KS1-1983, Enclosed Switches.

•Federal Speciﬁcations WS-865c for Type NDD

(82,000 line, NEMA Type 1 only).

Technical Data

UL Listed Short Circuit Withstand Rating (RMS Symmetrical)

Switch Type Fuse Class Short Circuit Rating

DTU

Not Fusiblec240 V H 10,000

K 10,000

82,000 Line

Not Fusiblec

240 V

H 10,000

K 10,000

R 100,000

J 100,000

T 100,000

600 V H 10,000

K 10,000

92,000 Line

Not Fusiblec

240 V or

600 V H 10,000

K 10,000

c Withstand ratings apply to not fusible switches when protected by the corresponding fuse type.

Systems

Switch Type Not Fusible Poles Neutral Load Make/Break Rated

DTU 2 or 3 Insulated, Groundable, Bondable Yes

82,000 Line 2, 3, or 4 Factory Installed Only Yes

92,000 Line 2, 3, or 4 Factory Installed Only No

Terminal Lug Dataa

Ampere

Rating Conductors

Per Phase Wire Range Wire Bending

Space per NEC Table 373-6 Lug Wire Range

30 1 12–3 AWG (Al) or 14-3 AWG (Cu)q 12–2 AWG (Al) or 14-2 AWG (Cu)

60 1 12–3 AWG (Al) or 14-3 AWG (Cu) 12–2 AWG (Al) or 14-2 AWG (Cu)

100 1 12–1 AWG (Al) or 14-1 AWG (Cu) 12–1/0 AWG (Al) or 14-1/0 AWG (Cu)

200 1 6 AWG - 300 MCM (Al/Cu) 6 AWG - 300 MCM (Al/Cu)

400 2 4 AWG - 250 MCM (Al/Cu) 4 AWG - 350 MCM (Al/Cu)

600 2 4 AWG - 500 MCM (Al/Cu) 4 AWG - 600 MCM (Al/Cu)

q 12–6 AWG (Al) or 14–6 AWG (Cu) for 92251, 92351, and 92451.

a 30-100 A switch lugs suitable for 60°C or 75°C conductors. 200–600 A switch lugs suitable for 75°C

conductors.

Double Throw Safety Switches — Class 3140

General Information

NEMA Type 1

NEMA Type 3R

Diagram 1

Fusible

Single

Throw

Switch

Load

Line

Not-Fusible

D/T Switch

Diagram 2

Load

Line

Fusible

Single

Throw

Switch

Fusible

Single

Throw

Switch

Not-Fusible

D/T Switch

12/99

Double Throw Safety Switches — Class 3140

General Information

600 Volt System Catalog Numbers

240 Volt System Catalog Numbers

System Ampere

Rating NEMA Type 1 NEMA Type 3R NEMA Type 4, 4X, 5

Stainless NEMA Type 12

Gasketedpf

2-pole, 240 Vac – 250 Vdc

30 92251 . . .

Use 3-pole 600 Vac

H92251

60 82252k. . . H82252k

100 82253uDTU223NRB uh H82253u

200 82254uDTU224NRB uh H82254u

200 82254NWfu . . . . . .

400 92255h92255Rfh H92255

600 Use 3-pole

3-pole, 240 Vac

30 92351c. . .

Use 600 Vac

H92351c

60 82352u. . . H82352u

100 82353uDTU323NRBuH82353u

200 82354uDTU324NRBuH82354u

200 DTU324N . . . . . .

400 92355 92355R H92355

600 92356c92356RfH92356

4-pole, 240 Vac

30 92451 92451RBf

Use 600 Vac

H92451q

60 92452 92452RBfH92452

100 92453 92453RBfH92453

200 92454 92454RBfH82454u

400 92455 92455RfH92455

600 92456 92456RfH92456q

fNot in PDS stock. Allow 6 weeks shipment.

qNot UL Listed or suitable for use as service equipment.

pThese devices are not UL Listed.

kRated 3 hp.

h240 Vac only.

uRated 15 hp.

c240 Vac, 250 Vdc use outside two poles for switching dc.

System Ampere

Rating NEMA Type 1 NEMA Type 3R NEMA Type 4, 4X, 5

Stainlesspf

NEMA Type 12

Gasketedpf

2-pole, 600 Vac

Use 3-pole for 2-pole Applications Use 3-pole 600 Vac Use 3-pole 600 Vac

3-pole, 600 Vac – 250 Vdc

30 . . . . . . . . . . . .

60 82342u82342RBu82342DSplu H82342u

100 82343u82343RBu82343DSplu H82343lu

200 82344ua 82344RBua 82344DSapu H82344au

400 92345q92345Rql . . . H92345q

600 92346q92346Rql . . . H92346lq

4-pole, 600 Vac

30 . . . . . . . . . . . .

60 92442q92442RBqf 92442DSqH92442q

100 92443q92443RBqf 92443DSqH92443q

200 92444q92444RBqf 92444DSqH82444

400 92445q92445Rqf . . . H92445q

600 92446q92446Rqf . . . H92446q

pThese devices are not UL Listed.

qNot UL Listed or suitable for use as service equipment.

fNot in PDS stock. Allow 6 weeks shipment.

uRated 15 hp.

a480 Vac maximum only.

l600 Vac only.

72 12/99

Double Throw Safety Switches — Class 3140

General Information

Service Grounding Kit

Field installable equipment grounding kits required for service equipment use.

Electrical Interlocks

Available factory installed only. Not UL Listed. Electrical interlocks are

furnished with 2 N.O./2 N.C. contacts and are installed in both “ON’’

positions. To order, add sufﬁx EI to standard catalog number.

Solid Neutral Assembly

Available factory installed only on 240 V and 600 V 2- and 3-pole double

throw switches. Not UL Listed. To order, add sufﬁx N to standard catalog

number.

For 240 V, not fusible applications through 200 A, refer to DTU devices listed on

Digest 171 page 3-14.

Ampere Rating Catalog Number

30 DT30SG

60 DT100SG100

200

400 PK0GTA-2

600 (2 Required)

12/99

Double Throw Safety Switches — Class 3140

Dimensions

Approximate Dimensions NEMA Types 1 and 3R

Approximate Dimensions NEMA Types 4, 4X, 5, and 12

Catalog

Number Series H W W/H D

IN mm IN mm IN mm IN mm

DTU223NRB E1 19.38 492 16.00 406 19.50 495 8.88 226

DTU224NRB E1 32.50 826 20.63 524 24.00 610 10.63 270

DTU323NRB E1 19.38 492 19.25 489 22.75 578 8.88 226

DTU324NRB E1 32.50 826 24.13 613 26.25 667 10.63 270

DTU324N E1 32.50 826 23.50 597 26.85 682 10.63 270

82252 E2 14.38 365 11.19 284 14.44 367 7.00 179

82253 E1 19.50 495 11.25 286 15.00 381 8.00 203

82254 E1 30.88 784 15.75 400 19.63 499 9.75 248

82254NW E1 30.88 784 20.00 508 23.88 607 11.75 298

82342 E1 14.38 365 14.88 378 18.50 470 7.00 178

82342RB E1 14.75 375 14.88 378 18.50 470 7.63 194

82343 E1 19.50 495 15.38 391 19.13 486 8.63 219

82343RB E1 19.38 492 16.00 406 19.50 495 8.88 226

82344 E1 30.88 784 20.00 508 23.88 607 11.75 298

82344RB E1 32.50 826 20.63 524 24.00 610 10.63 270

82352 E1 14.38 365 14.88 378 18.50 470 7.00 178

82353 E1 19.50 495 15.38 391 19.13 486 8.63 219

82354 E1 30.88 784 20.00 508 23.88 607 11.75 298

92251 E1 11.25 286 10.25 260 14.13 359 6.00 152

92255 E1 31.50 800 21.00 533 24.25 616 14.13 359

92345 E1 31.50 800 29.38 746 32.63 829 14.13 359

92345R E1 31.25 794 30.13 765 33.00 838 11.38 289

92346 E1 53.00 1346 34.25 870 37.50 953 16.38 416

92346R E1 52.63 1337 35.13 892 37.75 959 13.88 353

92351 E1 11.25 286 14.00 356 17.63 448 6.13 156

92355 E1 31.50 800 29.38 746 32.63 829 14.13 359

92355R E1 31.25 794 30.13 765 33.00 838 11.38 289

92356 E1 53.00 1346 34.25 870 37.50 953 16.38 416

92442 E1 13.38 340 17.63 448 20.88 530 6.38 162

92443 E1 22.50 572 20.25 514 24.00 610 11.13 283

92444 E1 31.13 791 24.75 629 28.25 718 11.75 298

92445 E1 31.50 800 37.75 959 41.13 1045 14.13 359

92446 E1 53.00 1346 44.25 1124 47.50 1207 16.38 416

92451 E1 13.38 340 17.63 448 20.88 530 6.38 162

92452 E1 13.38 340 17.63 448 20.88 530 6.38 162

92453 E1 22.50 572 20.25 514 24.00 610 11.13 283

92454 E1 31.13 791 24.75 629 28.25 718 11.75 298

92455 E1 31.50 800 37.75 959 41.13 1045 14.13 359

92456 E1 53.00 1346 44.25 1124 47.50 1207 16.38 416

Catalog

Number

Overall Dimensions To Within (+/-) 1/16

H W W/H D

IN mm IN mm IN mm IN mm

H92251 15.00 381 15.25 387 18.25 464 8.50 216

H92351 15.00 381 15.25 387 18.25 464 8.50 216

H92451 14.25 362 15.25 387 19.25 489 7.80 198

H82252 14.60 371 15.60 396 19.60 498 7.80 198

H82352 14.60 371 15.60 396 19.60 498 7.80 198

H92452 14.25 362 15.25 387 19.25 489 7.80 198

H82342 14.60 371 15.60 396 19.60 498 7.80 198

82342DS 14.60 371 15.60 396 19.60 498 7.80 198

H92442

92442DS 13.80 351 17.60 447 20.30 576 7.80 198

H82253 19.56 497 19.80 503 23.54 598 8.76 223

H82353 19.56 497 19.80 503 23.54 598 8.76 223

H92453 22.25 565 19.75 502 22.75 578 8.76 223

H82343 19.56 497 19.80 503 23.54 598 8.76 223

82343DS 19.56 497 19.80 503 23.54 598 8.76 223

H92443 22.25 565 19.75 502 22.75 578 8.76 223

92443DS 22.82 580 20.00 508 23.75 603 11.50 292

H82254 32.90 836 19.90 505 22.90 582 10.30 262

H82354 32.90 836 19.90 505 22.90 582 10.30 262

H82454 31.10 790 26.56 675 30.44 773 10.25 260

H82344 32.90 836 19.90 505 22.90 582 10.30 262

82344DS 32.90 836 19.90 505 22.90 582 10.30 262

H82444 31.10 790 26.56 675 30.44 773 10.25 260

92444DS 30.62 778 24.25 616 27.25 692 12.50 318

H92255 31.75 806 33.06 840 36.31 922 11.26 286

H92355 31.75 806 33.06 840 36.31 922 11.26 286

H92455 33.10 841 37.72 958 41.12 1044 11.00 279

H92345 31.75 806 33.06 840 36.31 922 11.26 286

H92445 33.10 841 37.72 958 41.12 1044 11.00 279

H92356 53.38 1356 34.38 873 37.38 949 14.50 368

H92456 53.16 1350 44.00 1118 47.25 1200 14.25 362

H92346 53.38 1356 34.38 873 37.38 949 14.50 368

H92446 53.16 1350 44.00 1118 47.25 1200 14.25 362

W/H

Typical NEMA Type 1

W/H

Typical NEMA Type 3R

W/H D

Typical NEMA Type 12

74 12/99

30 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly

Arc

Suppressor

Assembly

Handle Knob

Assembly

Cover

Interlock

Assembly Lug Assembly

92251 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

H92251 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

92351 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

H92351 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

92451 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

92451RB 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

H92451 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

Enclosure not available.

Base mounting screws: 21427-17161.

Double Throw Safety Switches — Class 3140

Replacement Parts

Handle Knob Assembly

Lug Assembly

Top Switch Base

Bottom Switch Base

Blade Assembly

12/99

Double Throw Safety Switches — Class 3140

Replacement Parts

60 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly

Arc

Suppressor

Assembly

Handle Knob

Assembly

Cover

Interlock

Assembly Lug Assembly

82252 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40284-357-50 116101 40251-016-51

H82252 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40284-357-50 116101 40251-016-51

82352 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 116101 40251-016-51

H82352 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 116101 40251-016-51

92452 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

92452RB 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

H92452 40538-424-50 40538-425-50 40538-426-50 . . . 40284-357-50 . . . 40251-016-51

82342 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40284-357-50 116101 40251-016-51

82342RB 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40284-357-50 . . . 40251-016-51

82342DS 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40538-488-50 . . . 40251-016-51

H82342 40538-424-50 40538-425-50 40538-426-50 40538-472-50 40284-357-50 . . . 40251-016-51

92442 40538-424-50 40538-435-50 40538-436-50 40538-201-50 40284-357-50 . . . 40251-016-51

92442RB 40538-424-50 40538-435-50 40538-436-50 40538-201-50 40284-357-50 . . . 40251-016-51

92442DS 40538-424-50 40538-435-50 40538-436-50 40538-201-50 40538-488-50 . . . 40251-016-51

H92442 40538-424-50 40538-435-50 40538-436-50 40538-201-50 40284-357-50 . . . 40251-016-51

Enclosure not available.

Base mounting screws: 21427-17161.

Cover interlock key: 190002 (82,000 line only).

Cover interlock assembly mounting screws: (1) 21422-17181, (1) 21427-17161.

Top Switch

Base Assembly

Handle Knob Assembly

Bottom Switch

Base Assembly Lug Assembly

Blade Assembly

Arc Suppressor

Assembly

Cover Interlock

Assembly

76 12/99

100 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly Arc Suppressor

Assembly Handle Knob

Assembly Cover Interlock

Assembly Lug Assembly

82253 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 116101 40251-018-50

DTU223NRB 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 . . . 40251-018-50

H82253 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 . . . 40251-018-50

82353 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 116101 40251-018-50

DTU323NRB 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 . . . 40251-018-50

H82353 40538-222-50 40538-223-50 40538-224-50 . . . 40284-357-50 . . . 40251-018-50

92453 40538-252-50 40538-326-50 40538-326-50 . . . 40284-357-50 . . . 40251-018-50

92453RB 40538-252-50 40538-326-50 40538-326-50 . . . 40284-357-50 . . . 40251-018-50

H92453 40538-252-50 40538-326-50 40538-326-50 . . . 40284-357-50 . . . 40251-018-50

82343 40538-222-50 40538-223-50 40538-224-50 40538-204-50 40284-357-50 116101 40251-018-50

82343RB 40538-222-50 40538-223-50 40538-224-50 40538-204-50 40284-357-50 . . . 40251-018-50

82343DS 40538-222-50 40538-223-50 40538-224-50 40538-204-50 40538-488-50 . . . 40251-018-50

H82343 40538-222-50 40538-223-50 40538-224-50 40538-204-50 40284-357-50 . . . 40251-018-50

92443 40538-252-50 40538-326-50 40538-326-50 40538-206-50 40284-357-50 . . . 40251-018-50

92443RB 40538-252-50 40538-326-50 40538-326-50 40538-206-50 40284-357-50 . . . 40251-018-50

92443DS 40538-252-50 40538-326-50 40538-326-50 40538-206-50 40538-488-50 . . . 40251-018-50

H92443 40538-252-50 40538-326-50 40538-326-50 40538-206-50 40284-357-50 . . . 40251-018-50

Enclosure not available.

Base mounting screws: 21427-17161.

Cover interlock key: 190002 (82,000 line only).

Cover interlock assembly mounting screws: (1) 21422-17101, (1) 21427-17161.

Neutral assembly for DTU223NRB: 40538-229-50.

Neutral assembly for DTU323NRB: 40538-032-50.

Photos of cover interlock assembly see 82342, page 75.

Double Throw Safety Switches — Class 3140

Replacement Parts

Handle Knob Assembly

Lug Assembly

Top Switch

Base Assembly

Top Switch

Base Assembly

Blade Assembly

12/99

Double Throw Safety Switches — Class 3140

Replacement Parts

200 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly Arc Suppressor

Assembly Handle Knob

Assembly Cover Interlock

Assembly Lug Assembly

82254 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40284-357-50 116101 40251-162-50

DTU224NRB 40538-165-50 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

H82254 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40284-357-50 . . . 40251-162-50

82354 40538-165-50 40538-132-51 40538-133-51 . . . 40284-357-50 116101 40251-162-50

DTU324N 40538-165-50 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

DTU324NRB 40538-165-50 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

H82354 40538-165-50 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

92454 40538-207-51 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

92454RB 40538-207-51 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

H82454 40538-207-51 40538-132-51 40538-133-51 . . . 40284-357-50 . . . 40251-162-50

82344 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40284-357-50 116101 40251-162-50

82344RB 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40284-357-50 . . . 40251-162-50

82344DS 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40538-488-50 . . . 40251-162-50

H82344 40538-165-50 40538-132-51 40538-133-51 40538-189-50 40284-357-50 . . . 40251-162-50

92444 40538-207-51 40538-132-51 40538-133-51 40538-197-50 40284-357-50 . . . 40251-162-50

92444RB 40538-207-51 40538-132-51 40538-133-51 40538-197-50 40284-357-50 . . . 40251-162-50

92444DS 40538-207-51 40538-132-51 40538-133-51 40538-197-50 40538-488-50 . . . 40251-162-50

H82444 40538-207-51 40538-132-51 40538-133-51 40538-197-50 40284-357-50 . . . 40251-162-50

Enclosure not available.

Base mounting screws: 40205-065-01.

Cover interlock key: 190002 (82,000 line only).

Cover interlock assembly mounting screws: (1) 21422-17101, (1) 21427-17161.

Neutral assembly for DTUs: 40538-021-50.

Photos of cover interlock assembly see 82342, page 75.

Handle Knob Assembly

Lug Assembly

Top Switch

Base Assembly

Blade Assembly

Bottom Switch

Base Assembly

78 12/99

Double Throw Safety Switches — Class 3140

Replacement Parts

400 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly

Arc

Suppressor

Assembly

Handle Knob

Assembly

Cover

Interlock

Assembly Lug Assembly

92255 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92255R 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

H92255 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92355 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92355R 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

H92355 40538-147-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92455 40538-083-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92455R 40538-083-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

H92455 40538-083-50 40538-142-51 40538-142-50 . . . 40513-001-50 . . . 40251-147-50

92345 40538-147-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

92345R 40538-147-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

H92345 40538-147-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

92445 40538-083-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

92445R 40538-083-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

H92445 40538-083-50 40538-142-51 40538-142-50 40538-194-50 40513-001-50 . . . 40251-147-50

Enclosure not available.

Base mounting screws: 40206-009-01.

Handle Knob Assembly

Lug Assembly

Top Switch

Base Assembly

Bottom Switch

Base Assembly

Blade Assembly

Arc Suppressor

Assembly

12/99

600 A, Series E2 and E3

Catalog

Number Blade

Assembly Top Switch Base

Assembly Bottom Switch

Base Assembly

Arc

Suppressor

Assembly

Handle Knob

Assembly

Cover

Interlock

Assembly Lug Assembly

92356 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

92356R 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

H92356 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

92456 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

92456R 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

H92456 40538-266-50 40538-269-50 40538-269-50 . . . 40513-001-50 . . . 40251-137-50

92346 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

92346R 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

H92346 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

92446 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

92446R 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

H92446 40538-266-50 40538-269-50 40538-269-50 40538-195-01 40513-001-50 . . . 40251-137-50

Enclosure not available.

Base mounting screws: 40206-009-01.

Double Throw Safety Switches — Class 3140

Replacement Parts

Handle Knob Assembly

Top Switch

Base Assembly

Bottom Switch

Base Assembly

Arc Suppressor

Assembly

Blade

Assembly

Lug Assembly

Air Conditioning Disconnects — Class 3150

Product Description

Description

Air conditioning disconnnects are UL Listed and CSA certiﬁed with AL/Cu

lugs. They meet NEC requirements for a disconnecting means on a single-

phase residential and commercial air conditioning installations, or other

single-phase applications such as swimming pools and pump houses.

Conﬁguration

•NEMA Type 3R outdoor.

•240 Vac 2-wire with ground.

•Fusible units available in 30 A or 60 A.

•Not-fusible units available in 60 A maximum.

•Not-fusible units available in pull-out or molded case switch versions.

•Available in metallic and non-metallic enclosures.

General Construction

•Factory installed equipment grounding terminals with slot/square drive

screws.

•Cover padlock provision.

•Convenient combination knockout provisions on side, back, and bottom

enclosure walls for maximum wiring ﬂexibility.

•When mounting disconnects with side-hinged cover, allow 1 inch (25 mm)

clearance on hinge side for door to open.

Pull-Out Switch Construction

•Side-hinged door for easy access and installation.

•Deadfront trim with captive mounting screw and molded-in wiring diagram

markings.

•Positive pull-out head contact for a durable long-lasting electrical connection.

Pull-out head storage in “OFF” position.

•Mounting slot for prehanging during installation.

•Mounting holes spaced for standard brick size mortar joints.

•Cover padlock provision.

Molded Case Switch Construction

•Metallic enclosure has removable cover housing (front, top, and side walls)

which provides open area for mounting and convenient installation.

•Easy access to wiring terminals for conductor installation.

•Optional mounting bracket, when used with metallic enclosure, simpliﬁes

installation for stucco and lapped siding applications.

Enclosures

•Metallic enclosures are galvanneal steel enclosures with gray, powder

coat paint rated NEMA Type 3R.

•Non-metallic enclosures are all NEMA Type 3R.

Accessories

Mounting bracket PKHB is speciﬁcally designed for mounting the QO200TR.

This bracket is installed directly to the stud. After the siding goes up, mount the

QO200TR air conditioning disconnect to the bracket with screws.

FP222R

QO200TR

Mounting Bracket

PKHB

Air Conditioning Disconnects — Class 3150

Product Description

Application

Air conditioning disconnects are designed for the following applications:

•Residential and light commercial applications.

•240 Vac maximum.

•Suitable for use on systems with up to 10K RMS symmetrical amperes

available fault current at 240 Vac.

•30 A and 60 A.

•Horsepower rated.

Standards

Air conditioning disconnects are manufactured in accordance with these

standards:

•UL Standard 1429, UL File Number 54X-2.

•NEMA KS-1.

Product Information

Not Fusible Air Conditioning Disconnect—Molded Case Switch

Housing Bracket

Not Fusible Air Conditioning Disconnect—Pull-out

Fusible Air Conditioning Disconnect—Pull-out

Service Ampere Rating

Catalog Number

Maximum HP

Metallic

Enclosure Non-Metallic

Enclosure

2 Wire (Molded Case Switch Included) – 240 Vac Maximum

60 QO200TR QO200TRNM 10

cDoes not contain overcurrent protection. Suitable for use on systems with up to 10,000 RMS symmetrical

amperes available fault current at 240 Vac max. when protected by a fuse or circuit breaker rated 60 A or less.

Description Catalog

Number

Bracket used with QO200TR for stucco, aluminum and vinyl siding. Order quantity multiples of 10. PKHB

Service Ampere Rating

Catalog Number

Maximum HP

Metallic

Enclosure Non-Metallic

Enclosure

2 Wire - 240 Vac Maximum

60 UFP222R UFP222RNM 10

cDoes not contain overcurrent protection. Suitable for use on system with up to 10,000 RMS symmetrical

amperes available fault current at 240 Vac max. when protected by a fuse or circuit breaker rated 60 A or less.

Service Ampere Rating

Catalog Number

Maximum HP

Metallic

Enclosure Non-Metallic

Enclosure

2 Wire (Pull-out and Fuseholder) – 240 Vac Maximum

30 FP221R FP221RNM 3

60 FP222R FP221RNM 10

kSuitable for use on systems with up to 10,000 RMS symmetrical amperes available fault current at 240 Vac.

G/B

FP222R

Air Conditioning Disconnects — Class 3150

Dimensions

Catalog

Number

HWD

IN mm IN mm IN mm

UFP222R 7.40 188 5.25 133 3.16 80

FP221R 7.40 188 5.25 133 3.16 80

FP222R 8.80 221 5.25 133 3.16 80

QO200TR 6.50 165 4.62 117 3.87 98

UFS222RNM 8.79 223 6.52 166 3.90 99

FS221RNM 8.79 223 6.52 166 3.90 99

FS22RNM 8.79 223 6.52 166 3.90 99

QO200TRM 8.79 223 6.52 166 3.90 99

Allow 1 inch (25 mm) clearance on hinge side.

12/99

Air Conditioning Disconnects — Class 3150

Replacement Parts

Not Fusible Air Conditioning Disconnect — Molded Case Switch

Catalog

Number Series

Illustration Code

AB C D E

Cover or RB Door Interior Trim Molded Case Switch Base Assembly Ground Bar

QO260NATR G2 137109 40500-264-01 QO200 40504-436-50 40230-184-75

QO200TR G3 40500-238-51 . . . QO200

40500-237-02

40500-241-01 ➁

40205-109-01 ➁

40251-054-52 ➁

40230-184-58

QO200TRNM G01 N/A 40507-144-01 QO200 40507-146-50 40230-887-50

QO2000NRB E1 40515-599-01 40515-600-02 QO2000 40515-453-50 . . .

Fusible Air Conditioning Disconnect — Pull-out

Catalog

Number Series

Illustration Code

AB C D E

Cover or RB Door Interior Trim Pull-out Line BaseqLoad BaseqGround Barj

FS221R (obsolete) E1 N/A FS222FDF 4399H42 N/A N/A DPFG

FS221R (obsolete) F1 N/A FS221RDF 96-3258-4 N/A N/A DPFG

FP221R G01 N/A 40507-114-01 40507-117-50 40507-130-50 40507-132-50➁40230-877-50

FP221RNM G01 N/A 40507-143-01 40507-140-50 40507-130-50 40507-132-50 40230-887-50

FS222R (obsolete) E1 N/A FS222FDF 4399H42 N/A N/A DPFG

FS222R (obsolete) F1 N/A FS222RDF 96-3258-4 N/A N/A DPFG

FP222R G01 N/A 40507-116-01 40507-117-50 40507-131-50 40507-133-50➁40230-877-50

FP222RNM G01 N/A 40507-143-01 40507-140-50 40507-131-50 40507-133-50 40230-887-50

Not Fusible Air Conditioning Disconnect — Pull-out

Catalog

Number Series

Illustration Code

AB C D E

Cover or RB Door Interior Trim Pull-out Base AssemblyqGround Bar

UFS222R (obsolete) F1 N/A UFS222RDF 96-3258-4 N/A . . .

UFP222R G01 N/A 40507-115-01 40507-117-50 40507-118-50 40230-877-50

UFP222RNM G01 N/A 40507-143-01 40507-140-50 40507-118-50 40230-887-50

qBase assembly mounting screws: 21594-171-21.

➁, ➂, ➃ – Quantity required.

All part numbers required.

jGround bar mounting screws: 40205-025-01.

N/A – Not available, order complete device.

Replacement boxes are not available.

Replacement covers and trims have no labels.

RB door mounting screw: 21427-171-61.

Interior trim mounting screw: 40205-130-01.

QO200TR

Series G3

FS221R, Series E1

FS222R, Series E1

FS221R, Series F1

FS222R, Series F1

UFS222R, Series F1

Square D Company

1601 Mercer Road

Lexington, KY 40511

1-888-Square D

(1-888-778-2733)

www.squared.com

Catalog No. 3100CT9801 December 1999

(Replaces 3110CT9601; 3110SB9501R11/96; Catalog Class 3130, dated 6/87; 3130SB9401;

Catalog Class 3140, dated 6/87; 3140SB9701; 3150SB9501)

Schneider Canada, Inc.

19 Waterman Avenue,

M4B 1 Y2

Toronto, Ontario

(416) 752-8020

www.schneider.ca

3100CT9801 Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
