Pro-face Operator Interfaces
AGP3000 SERIES
CONNECTIVITY - PLC CABLES - ACCESSORIES
USB 1.1 Host
Interface
(1 or 2 ports)
• Transfer Screen data
(using CA3-USBCB-01)
• Modbus Plus Communication
Module
• Barcode/2D readers
(see barcode/2D list)
• Printers (see printers list)
• USB Flash Memory
• Modem Transfer
• Download via USB memory
• Storing Recipe (ling) Data
• Storing images
• and more . . .
COM1
(115.2kbps max.)
RS-232C/422/485 1
• PLC and other controllers
(see drivers list)
• Extended Serial Scripting to
ASCII devices
• Barcode/2D readers
(see barcode/2D list)
• These interfaces are for AGP3750. See specications for
other models.
• Up to 4 PLC protocols simultaneously (33xx, 32xx can use up to 2).
• Please refer to documentation for allowable congurations.
1 AGP3302-B model has only RS-232C on COM1 port, and RS-422/485
on COM2.
Page 2

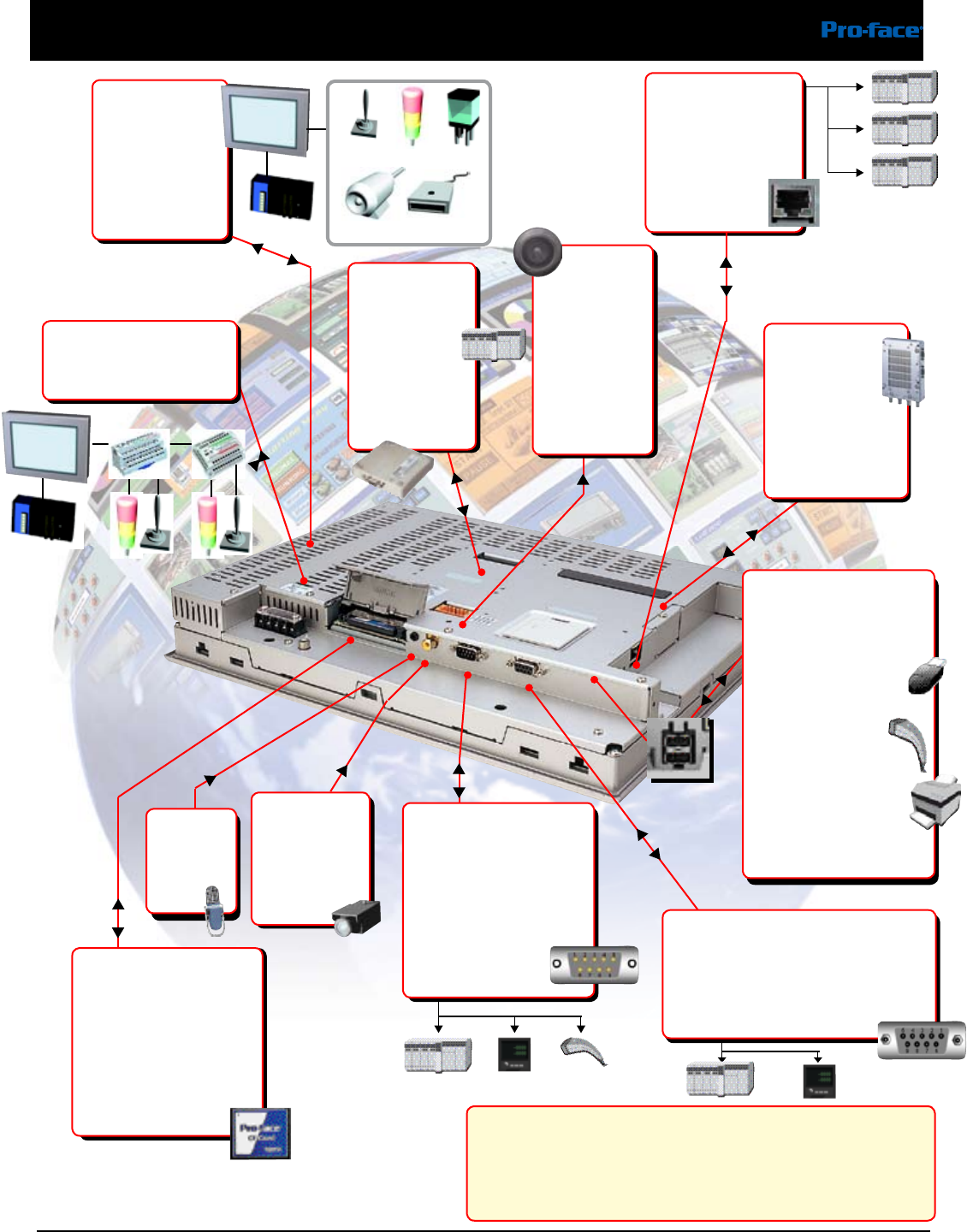

AGP3000 INTERFACE CONNECTIVITY
AUX/
Sound
Output
• Speaker output
(AGP34xx,
35xx, 36xx
and 37xx)
• Sounds must
be converted
from
.WAV format
Video
Input/
Output
• Support for
GP2000VM module
(AGP35xx, 36xx)
• 4 inputs -
NTSC or PAL
Video
Input
• Direct input
1 channel
• NTSC, PAL,
SECAM
Sound
Input
• Microphone
input
Ethernet
10/100
BaseT
• Transfer Screen data
• PLC and other
controllers
(see drivers list)
Expansion
Bus
Communication
Modules
• DeviceNet Slave
• PROFIBUS
DP Slave
• Others Planned
DIO
• Direct connection
to a wide range
of 3rd party I/O
(switches, lamps,
relays, motors
and sensors)
Switches Lamps
Sensors
Motors
Relays
Flex Network
• Featuring I/O expansion
Flex Network
• Featuring I/O Expansion
• Space saving and less wiring
COM2
(115.2kbps max.)
RS-422/485
• PLC and other controllers (see drivers list)
- Including MPI direct at 187.5kbps
• Extended Serial Scripting to ASCII devices
CompactFlash™
Card Socket
(not available on 3302B
or 32xx)
• Storing Images
• Storing Recipe (ling) data
• Download via CF card
• Storing Video
• and more . . .
Interface/Model 3200A/T 3302B 3300L/S/T 3400S/T 3450T 3500L/S 3500T/3510T 3550T/3560T 3600T 3650T 3750T
COM1
Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
(115.2kbps max.) (187.5kbps
(RS-232C ONLY)
RS-232C/422/485 for MPI direct)
DB9 Socket Type
COM2
- Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
(115.2kbps max.;
187.5kbps for MPI
direct) RS-422/485
Ethernet
10/100 BaseT Yes - Yes Yes Yes Yes Yes Yes Yes Yes Yes
USB
1.1 Host Interface 1 port 1 port 1 port 1 port 1 port 2 ports 2 ports 2 ports 2 port 2 ports 2 ports
CompactFlash
Card Socket - - Yes Yes Yes Yes Yes Yes Yes Yes Yes
Expansion Bus
- Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Video
- - - - 1 Ch Video In - - 1 Ch Video In - 1 Ch Video In 1 Ch Video In
GP2000-VM41
Support - - - - - - Yes Yes Yes Yes -
Sound
- - - Yes Yes1 Yes1 Yes Yes1 Yes1 Yes1 Yes1
DIO
- - Yes2 Yes2 - Yes2 Yes2 - Yes2 - -
Flex Network
- - Yes3 Yes3 - Yes3 Yes3 - Yes3 - -
1 Sounds must be converted from .WAV format. Note: AGP3x50 models also include one microphone input.
2 Sink or Source depending on model; refer to individual datasheets. 3 F/N AC/DC models varies; refer to individual datasheets.
AGP3000 INTERFACE CONNECTIVITY
PLC Drivers
Rockwell Automation
DF1
DH-485
EtherNet I/P (SLC500/PLC5/MicroLogix)
EtherNet I/P (Compact/Control Logix Tag Based)
DeviceNet Slave
Siemens AG
SIMATIC S7 3964(R)/RK512
SIMATIC S7 MPI Direct
SIMATIC S7 Ethernet
SIMATIC S5 CPU Direct
PROFIBUS DP Slave
GE Fanuc Automation
Series 90 Ethernet (SRTP)
Series 90-30/70 SNP
Series 90-30/70 SNP-X
Schneider Electric
Modbus Master (SIO or TCP)
Modbus Slave (SIO or TCP)
Modbus Plus
Uni-Telway
Sharp MS Corp.
JW Series Computer Link SIO
JW Series Computer Link Ethernet
TOYODA Machine Works (JTEKT Corp.)
TOYOPUC CMP-LINK SIO
TOYOPUC CMP-LINK Ethernet
TOYOPUC-PC3J Series
YOKOGAWA Electric Corp.
Personal Computer Link SIO
Personal Computer Link Ethernet
FA-M3 (Ethernet)
Toshiba Machine
PROVISOR TC200 (Serial)
Toshiba
Computer Link SIO
Meidensha
UNISEQUE Series Ethernet
LS Industrial Systems
XGT Series FEnet (Ethernet)
Master-K Series Cnet
FANUC
Power Mate Series
Fuji Electric Corp.
MICREX-F Series SIO
MICREX-SX Series SIO
YASKAWA Electric Corp.
MEMOBUS SIO
MEMOBUS Ethernet
MP Series SIO (extension)
MP Series Ethernet (extension)
OMRON Corp.
C/CV Series Host Link
C/CJ Series Host Link
CS/CJ Series Ethernet
Mitsubishi Electric Corp.
A Series CPU Direct
A Series Ethernet
A Series Computer Link
FX Series CPU Direct
FX Series Computer Link
Q Series CPU Direct
Q/QnA Serial Communication
Q/QnA Series Ethernet
QnA Series CPU Direct
QUTE Series CPU Direct
Mitsubishi Heavy Industries
DIASYS Netmation Modbus TCP
Hitachi Industrial Equipment Systems
HIDIC H Series Ethernet
HIDIC H Series
S10V Series Ethernet
Matsushita Electric Works
FP Series Computer Link SIO
KEYENCE Corp.
KV-700/1000 Series Ethernet
KV-700/1000 Series CPU Direct
Saia-Burgess Controls
SAIA S-Bus SIO
Temperature Controllers
Yamatake Corp.
Digital Controller SIO
RKC Instrument
Temp. Controller Modbus SIO
Temp. Controller SIO
OMRON Corp.
Temp. Controller CompoWay/F
Shinko Technos Co. Ltd.
Indicating Controller SIO
Fieldbus Module
PROFIBUS DP Slave
ODVA DeviceNet Slave
Other Connections
Digital Electronics Corp.
Memory Link (SIO and Ethernet)
General Ethernet (using D-Script)
Please visit out web site for the most updated
list of device drivers.
Serial
Manufacturer Model Type Comments
Aimex Corporation BR-530RS Pen Requires BB-60 power supply
OPT Electronics OPT-6125-RS Touch Scanner (read width: 65mm) Requires DC5300T for power
Denso Co. HC-36IITR Touch Scanner (read width: 61mm) Requires P-200 for power, also requires KRS-423-XF1K (from Sanwa Supply) connector cable
HHP IT3800LR-12 Linear imager
Requires cable 42203758-03 (IT3800LR-12 Reader has been shown to work but is not fully tested)
Cognex Dataman 7500 1D and 2D Barcode Scanner
Use 42206139-04E RS232 cable, also requires power supply
USB
Aimex Corporation BR-530UK Pen Power supply not required
OPT Electronics OPT-6125-USB Touch Scanner (read width: 65 mm) Power supply not required
Denso Co. HC-36TU-K Touch Scanner (read width: 61mm) Power supply not required
HHP IT5800 Hand-held Industrial Scanner 5800SR050-0F00 is complete with USB cable
Symbol LS3408-FZ Hand-held Industrial Scanner Part #LS3408-FZ20005 needs cable CBA-U01-S07ZA
LS2800 Hand-held Industrial Scanner Use Serial or USB cable available from Symbol
Epson Stylus Photo R200, R260 Inkjet printer Use USB cable FP-US00 or commercial type
Epson ECS/P24-J84(C) Command printer Use USB conversion cable IEE1284 (commercially available)
NEC PC-PR201-PL Command printer Use USB conversion cable IEE1284 (commercially available)
Ethernet
Any/All Any Remote Print Server Use Ethernet network to connect to remote print server
Drivers
Barcode, 2D Readers & Printers
Page 3
Page 4

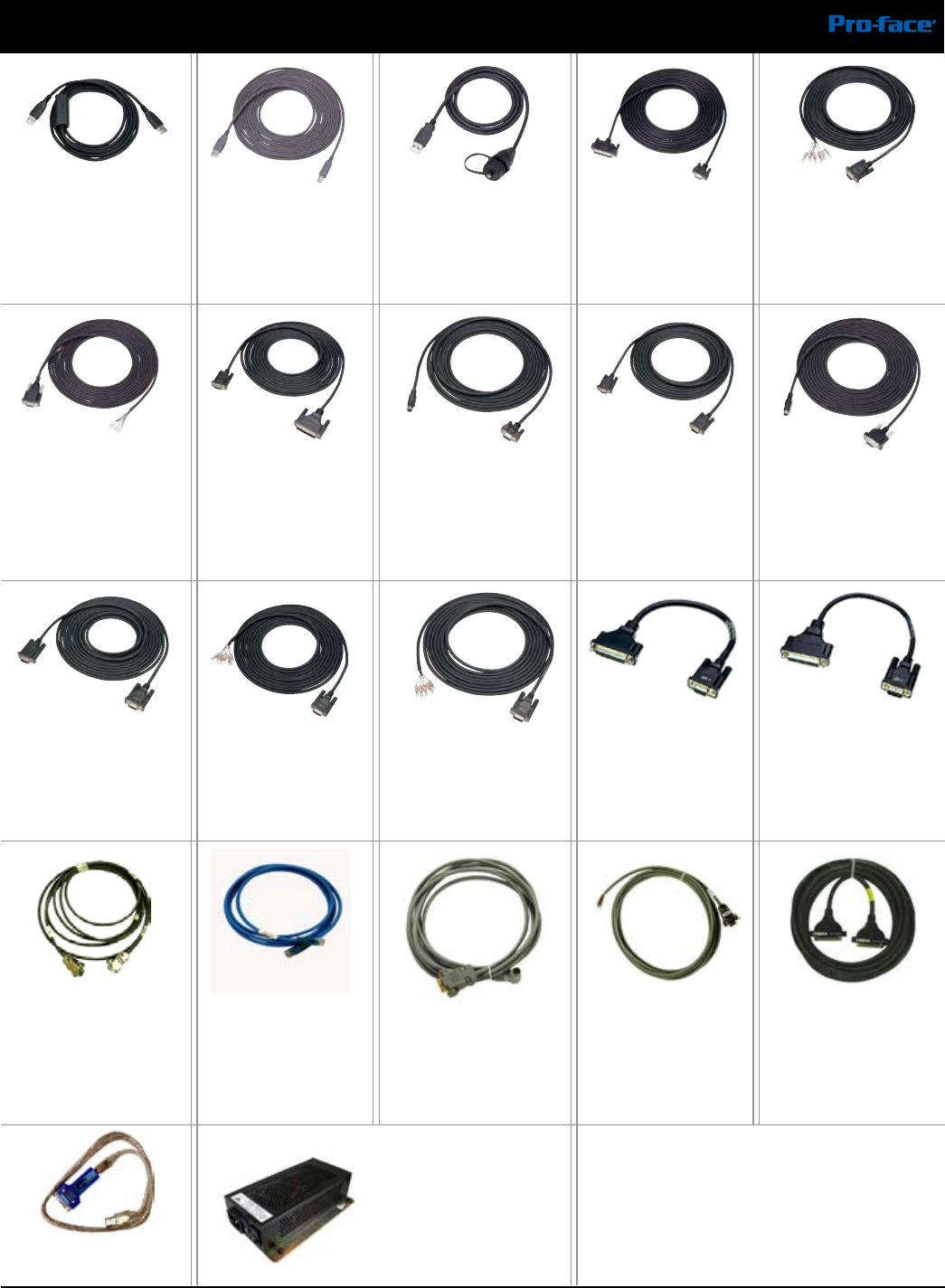

USB Transfer Cable (1m)
CA3-USBCB-01
Downloads project data created with
GP-Pro EX from PC’s USB port to
AGP’s USB port.
USB Cable (5m)
FP-US00
Connects a USB printer (TYPE-
B) port to AGP’s USB port.
USB Front Cable (1m)
CA5-USBEXT-01
USB extension cable.
RS-232C Cable (5m)
CA3-CBL232/5M-01
Connects Mitsubishi PLC
A-Series to the AGP RS-232C
COM port.
GP RS-422 Cable (5m)
CA3-CBL422-01
Connects the AGP RS-422 COM
port 2 via 9-pin plug to host
controller via open wires.
RS-422 Cable (5m)
CA3-CBL422/5M-01 Connects the
AGP RS-422 COM port 1 via 9-pin
socket to host controller via open
wires .
Mitsubishi PLC A-Series
Connection Cable (5m) CA3-
CBLA-01
Connects Mitsubishi PLC A-Series
and QnA-Series programming
console port to AGP.
Mitsubishi PLC Q-Series Cable
(5m)
CA3-CBLQ-01
Connects Mitsubishi PLC Q-Series
programming console port to AGP.
Connection Cable.
Mitsubishi PLC Q-Series Cable
(5m)
CA3-CBLLNKMQ-01
Connects Mitsubishi PLC Q-
Series to the AGP RS-232C COM
port. Link Cable.
Mitsubishi PLC FX-Series Cable
CA3-CBLFX/5M-01 (5m)
CA3-CBLFX/1M-01 (1m)
Connects Mitsubishi PLC FX-Series
programming console port to AGP
RS-422 COM port.
Omron PLC SYSMAC
Link Cable (5m)
CA3-CBLSYS-01
Connects Omron PLC SYSMAC
Series unit to the AGP RS-232C
port.
GP Multi-Link Cable (5m)
CA3-CBLMLT-01
Connects a host controller to the
AGP RS-422 port for multi-link (n:1)
communication.
9-pin-to-25-pin RS-422
Conversion Cable
CA3-CBLCBT422-01
9-pin D-sub socket to 25-pin
RS-422 cable adapter (for use with
some HMI-CAB-Cxxx cables).
GP 2 Port Adapter
Cable (5m)
CA3-MDCB11
Connects Mitsubishi PLC to the AGP
RS-422 port using 2 port adapter II
(GP070-MD11).
9-pin-to-25-pin RS-232C
Conversion Cable
CA3-CBLCBT232-01
9-pin D-sub socket to 25-pin
RS-232 cable adapter (for use with
some HMI-CAB-Cxxx cables).
Ethernet Crossover Cable
HMI-CAB-ETH
6-ft. HMI to PLC Ethernet port or to
program HMI.
PLC Adapter Cable
HMI-CAB-ST001
Connects to AGP3000/ST40x serial
port with 9 conductor open ended
wires for connecting to 3rd party
screw terminal devices.
Micrologix PLC Cable
HMI-CAB-ST106
Connects AGP3000/ST401 to PLC
RS-232 8 pin DIN port.
RS-232C Cross Type
Cable (5m)
GP410-IS00-O
25 pin D-sub connector both ends.
Requires
CA3-CBLCBT232-01.
Allen Bradley SLC 5/03, 5/04
Series Cable
HMI-CAB-ST52
HMI-CAB-ST52-30X
HMI-CAB-ST52-50X
Connects AGP3000/ST401 to
AB PLC via RS-232 9 pin D-sub.
RS-485 Isolation Unit
CA3-ISO485-01
RS-232C Isolation Unit
CA3-ISO232-01
Unit for electrically isolating a serial
interface signal from the AGP internal
current
(RS-422 and RS-485 are switchable,
or RS-232C and RS-422 are
switchable).
Serial USB cable for modem
download
CA6-USB232-01
1-Amp Power Supply
510-1000-004
2-Amp Power Supply
510-1000-041
24VDC Din Rail Mount Class 1
Div 2

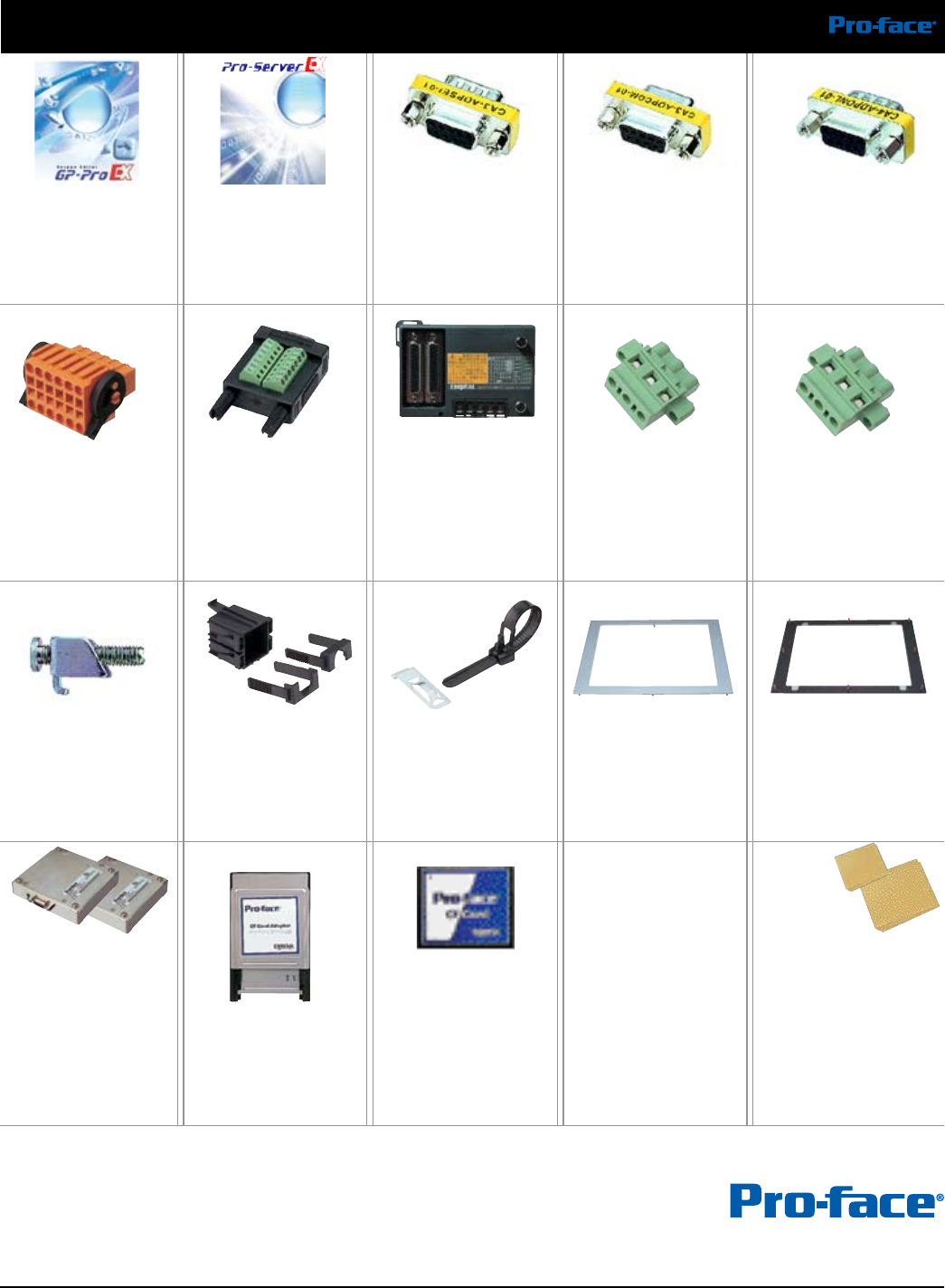

AGP3000 Accessories
COM Port Conversion Adapter
CA3-ADPCOM-01
9-pin D-sub plug to 9-pin D-sub
socket adapter.
On-line Adapter
CA4-ADPONL-01
9-pin male to 9-pin female
D-sub adapter.
Terminal Block Conversion CA3-
ADPTRM-01
9-pin male D-sub to screw terminal.
Siemens COM Port
Conversion Adapter
CA3-ADPSEI-01
Connects Siemens PLCs to the
AGP RS-485 port. 9-pin male D-
sub to 9-pin female D-sub.
Mitsubishi PLC A, QnA, FX Series
2 Port Adapter II
GP070-MD11
Allows simultaneous use of an
AGP3000 Series unit and a
Mitsubishi PLC A, QnA, FX Series
peripheral device.
Panel Cutout Adapter for
AGP3500 series
CA4-ATM10-01
Panel cutout adapter for
mounting in cutout of GP2500
(TFT).
Panel Cutout Adapter for
AGP3300 series
CA4-ATM5-01
Panel cutout adapter for mounting
in cutout of GP37W2B.
AUX Connector
CA5-AUXCNALL-01
The AUX connector for
AGP3000 series required in
case an external output is used.
Installation Fastener
CA3-ATFALL-01
Used to install the AGP3000 Series
into a solid panel (included with
unit).
USB Cable Clamp (2 port)
CA5-USBATL-01
USB Cable clamp for 2 port HMI
units to prevent disconnection.
USB Cable Clamp (1 port)
CA5-USBATM-01
USB Cable clamp for 1 port HMI units
to prevent disconnection.
Protection Sheets - disposable,
dirt-resistant cover for screen
(5 sheets/set)
15" for AGP3700 series
CA3-DFS15-01
12" for AGP3600 series
CA3-DFS12-01
10" for AGP3500 series
CA5-DFS10-01
8" for AGP3400 series
PS400-DF00
6" for AGP3300 series
CA3-DFS6-01
4" for AGP3200 series
CA6-DFS4-01
Note: AGP3200, AGP3300,
AGP3400, and AGP3500L
Backlights cannot be replaced
in the eld.
AGP3500S/GP2501S Backlight
Replacement
PS501S-BU00
AGP3500T/AGP3550T Backlight
Replacement
CA5-BLU10T-01
AGP3600T/AGP3650T Backlight
Replacement
CA3-BLU12-01
AGP3750T Backlight
Replacement
CA3-BLU15-01
GP-Pro EX Editor Software
EX-ED-V21
(Includes one user license.)
Movie Converter Software
EX-MOVCON-LICENSE
Additional User License EX-ED-
LICENSE-V21
DC Power Supply Connector
for 330x and 34x0 models
CA5-DCCNM-01
DC Power Supply Connector
for 35x0 and 36x0 models
CA5-DCCNL-01
CF Card Adapter
GP077-CFAD10
Used for read/write of CF Card data
via a PC’s PCMCIA slot.
CompactFlash Card inserts into
the unit’s CF Card slot.
128MB
CA3-CFCALL/128MB-01
256MB
CA3-CFCALL/256MB-01
512MB
CA3-CFCALL/512MB-01
Page 5
© 2007 Pro-face. Specications may change without notice. All Rights Reserved.
Other brand or product names are the property of their respective owners.
Pro-face
734-429-4971
Fax: 734-429-1010
http://www.profaceamerica.com
Customer Support Hotline:
734-944-0482
Pro-Server EX Data Management
Software
EX-SDV-V11
(Includes one user license.)
Additional User License
EX-SED-LICENSE
Doc#: AGP3000 CabConAcc(Rev F)
PROFIBUS Slave Unit
CA5-PFSALL/EX-01
PROFIBUS Slave Communication
Module for connecting AGP to
PROFIBUS DP network.
DeviceNet Slave Unit
CA6-DNSALL/EX-01
DeviceNet Slave Module
for connecting AGP to DeviceNet
network
AGP3000 Accessories
