Volume 4
Enclosures • Wireway • Trough
CONTRACTOR POCKET
Reference

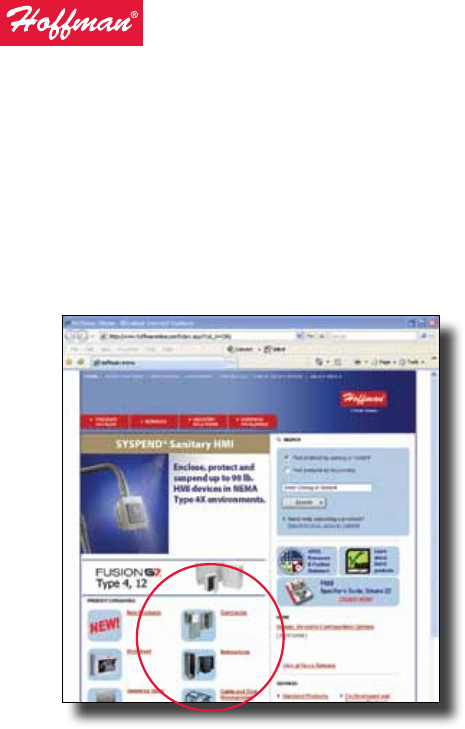

hoffmanonline.com
The comprehensive Homan brand Web site not only oers the industry’s largest
line of enclosures and accessories, but is also the most complete information
resource for enclosure education and specication:
▶ Complete online catalog featuring over 10,000 standard products
▶ Product selection and configuration tools
▶ Component, 2D and 3D drawing downloads
▶ Technical resources, specification sheets, instructions and more
▶ Thermal management, chemical resistance and hazardous location data
Information at your ngertips
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 2
The Homan Brand Provides Equipment Protection
Solutions for a Wide Variety of Industries
Pentair Technical Products’ Homan brand is recognized as an industry leader
providing a broad range of standard, modied and engineered enclosure
solutions, and extensive technical expertise.
The Commercial Construction Market
Off-the-Shelf Innovation Saves Commercial and HVAC Contractors
Time and Money
Pentair Technical Products has what you need for every application—Homan
junction boxes, weatherproof outdoor enclosures, basic panel enclosures,
wireway and trough. New product introductions include additional current
transformer cabinets, drive cabinets, cable supports and accessories, and wire
mesh cable tray products. Rely on Homan for
innovative, feature-rich standard
products that save you
time and money.

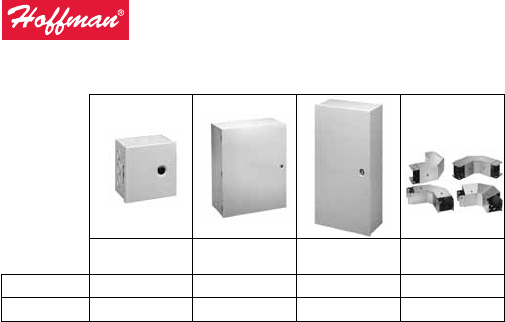

Small
Enclosures
Medium
Enclosures
Large
Enclosures
Wireway and
Trough
TYPE 1 2-12, 14-16 17, 34 18 40-51, 54, 56-59
TYPE 3R 19-29 30, 32, 38 36 52, 55, 60
Product Selection Quick Reference
1. Type 1
Screw-Cover Pull Boxes, Type 1 with Knockouts ................................................................... 2
Screw-Cover Pull Boxes, Type 1 without Knockouts ............................................................. 5
Screw-Cover Pull Boxes, Type 1, Accessories .................................................................... 9

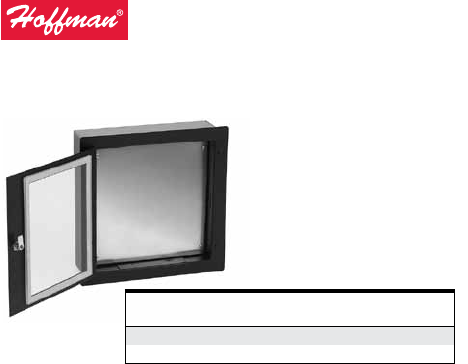

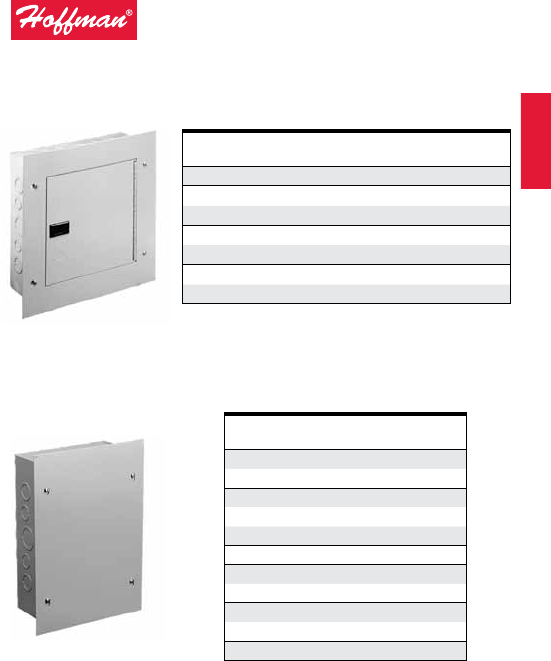

Flush-Mount Door Frames ................................................................................................. 9
Flush Covers ............................................................................................................................. 9
Type 1 Locking Window Pull Box Accessory .............................................................10
Locking Integrated Perforated Panel Enclosure, Type 1 ............................................ 11

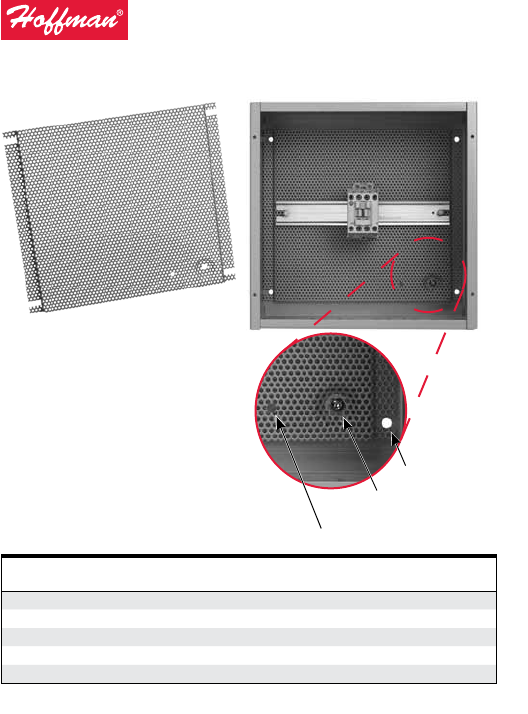

Type 1 Pull Box Perforated Panel ......................................................................................... 12

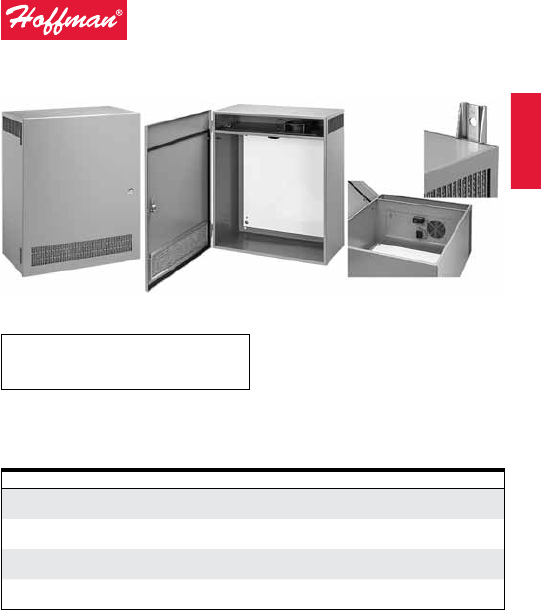

T1FLO® Vented Enclosure with Fan, Type 1 ..................................................................... 13
Hinged-Cover Cutout Boxes, Type 1 .................................................................................. 14
Hinged-Cover Small, Type 1 ..................................................................................................16
Hinged-Cover Medium, Type 1 ............................................................................................ 17
Hinged-Cover Large, Type 1 .................................................................................................. 18
Table of Contents
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 1
2. Type 3R

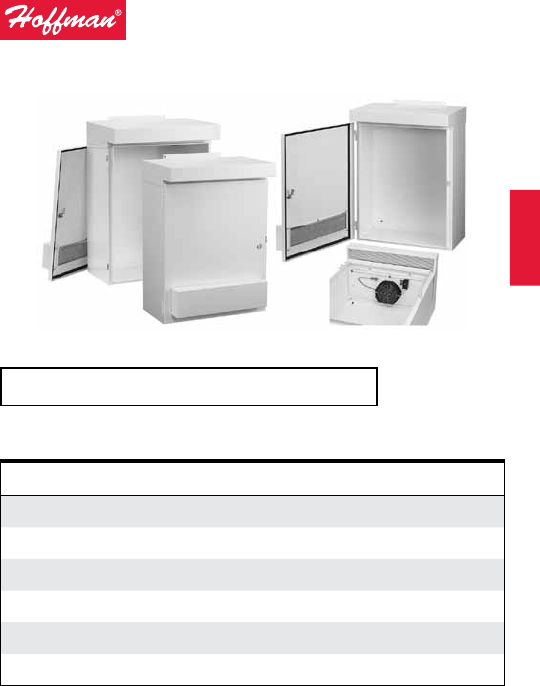

WEATHERFLO® with Fan, Type 3R ....................................................................................... 19
Horizontal-Mount, Type 3R ....................................................................................................20
Screw-Cover, Type 3R with Knockouts .................................................................................... 21
Screw-Cover, Type 3R without Knockouts ..............................................................................24
Screw-Cover Galvanized, Type 3R .......................................................................................26
Screw-Cover Gasketed, Type 3R...........................................................................................28
Hinged-Cover Small, Type 3R ................................................................................................29
Hinged-Cover Medium, Type 3R ..........................................................................................30
Hinged-Cover Lift-O, Type 3R ............................................................................................ 31
WEATHERPRO® Outdoor Pad-Mount, Type 3R ..............................................................32
3. Telephone Cabinets
Telephone Cabinet, Type 1 ....................................................................................................34
T3-Box Telephone Cabinet, Type 3R ..................................................................................36
4. Terminal Boxes
Terminal Box, Type 3R ..............................................................................................................38
Terminal Box, Type 3R, Accessories ....................................................................................39
5. Lay-In Wireway and Wiring Trough
Lay-In Galvanized Wireway, NEMA Type 1 .......................................................................40
Lay-In Painted Flat-Cover Wireway, NEMA Type 1 ........................................................44
Lay-In Hinged-Cover Wireway, NEMA Type 1 .................................................................48
Lay-In Wireway, NEMA Type 3R ............................................................................................52

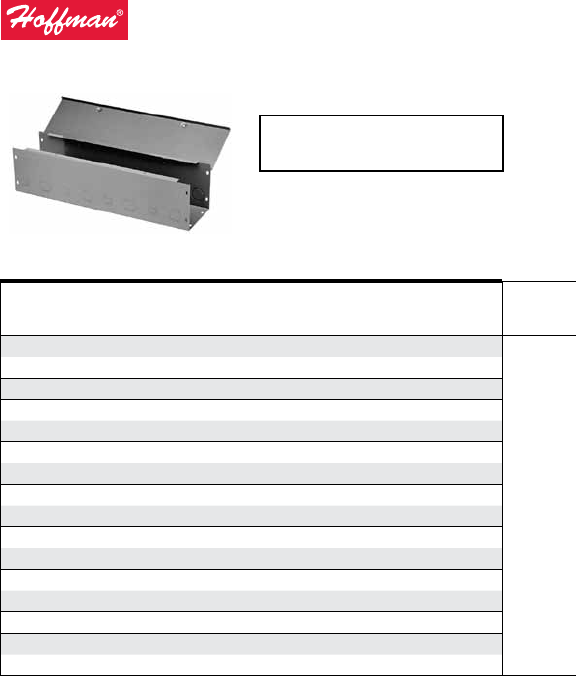

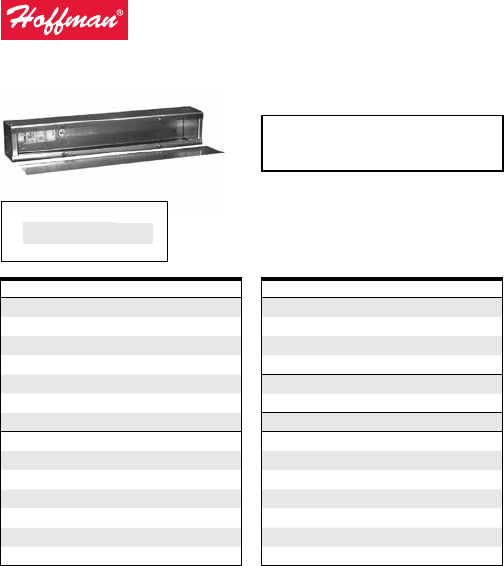

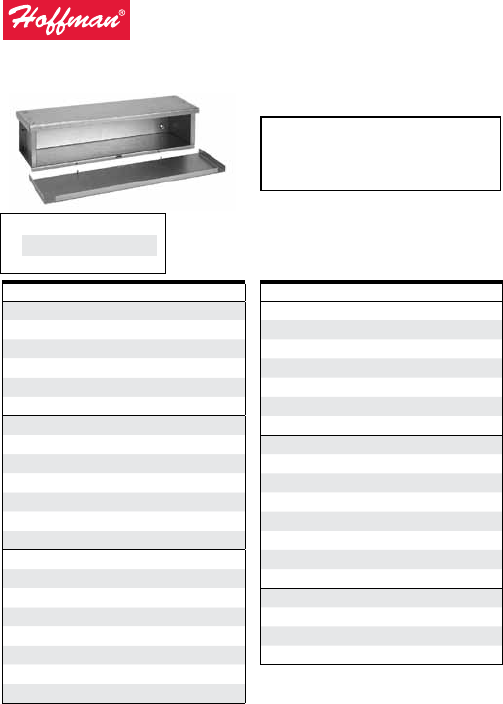

Wiring Trough, NEMA Type 1 ................................................................................................54
Wiring Trough, NEMA Type 3R ..............................................................................................55
CLEAN TRAY® Stainless Steel Cable Tray, Type 1 ........................................................... 56
EconoTrough, NEMA Type 3R ................................................................................................60
Technical Information Table of Contents ..................................................... 61

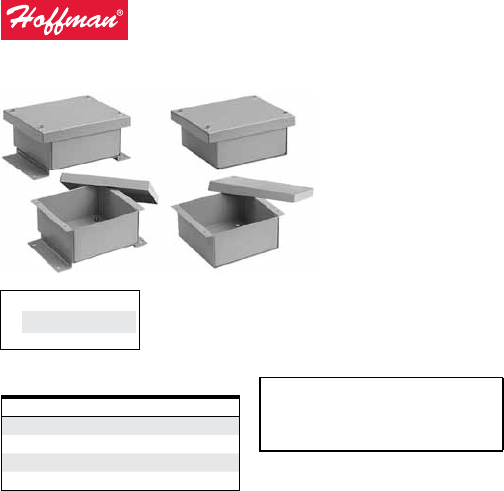

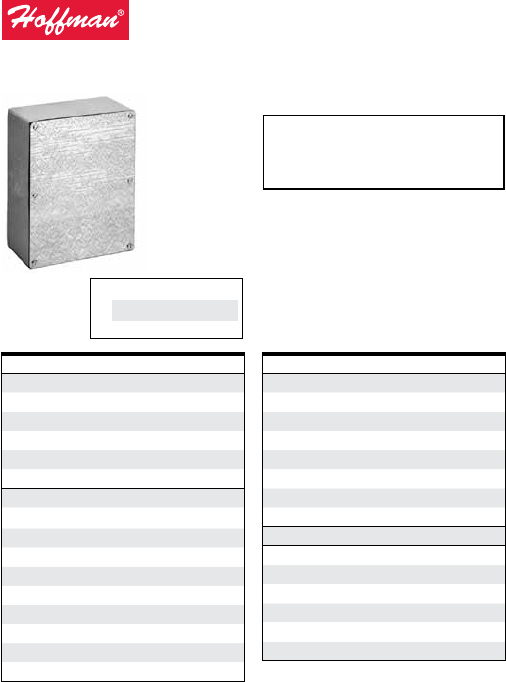

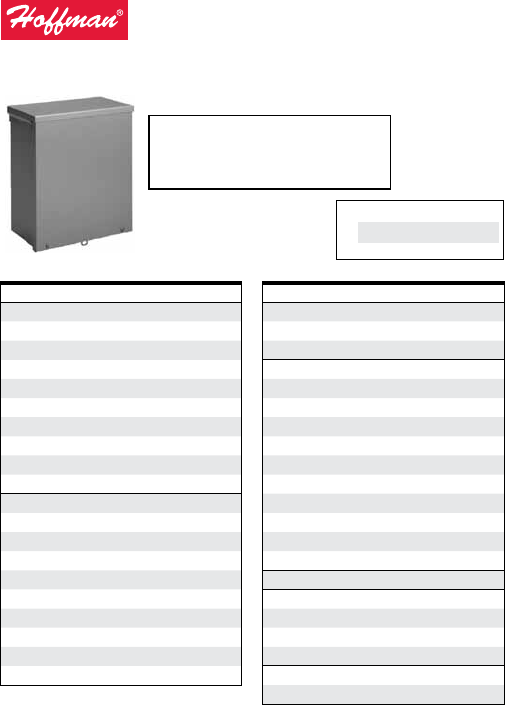

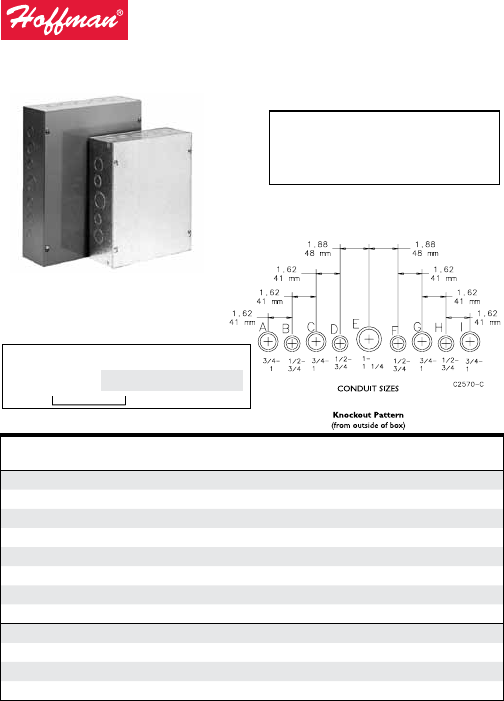

Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
2
Industry Standards
With Knockouts
E = Painted
G = Galvanized
H W D
ASE 10 X 8 X 6
{

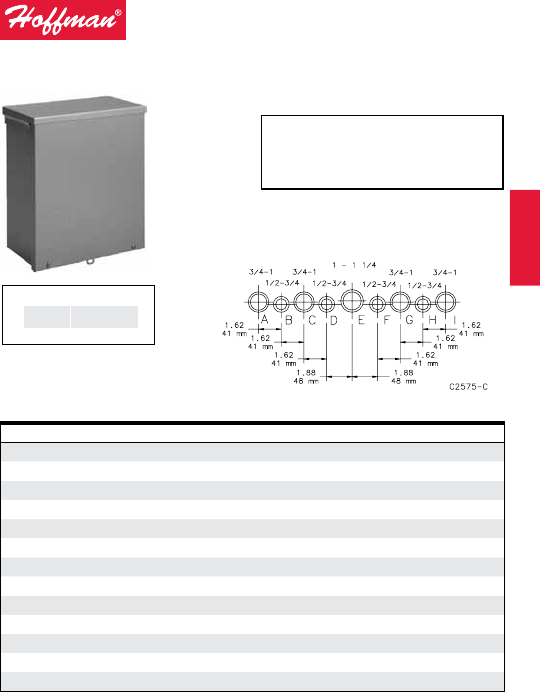

Reading Catalog Numbers
Catalog Number
Number of
Cover Screws

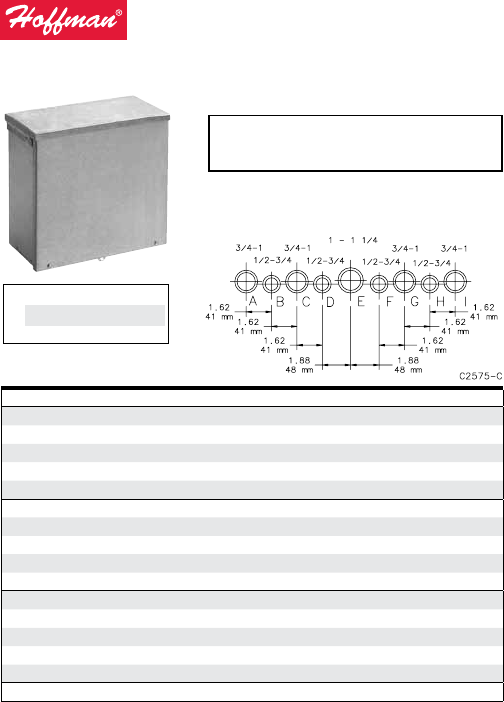

Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
ASE4X4X3 2 B-C B-C
ASG4X4X3 2 B-C B-C
ASE6X6X3 2 B-C-D B-C-D
ASG6X6X3 2 B-C-D B-C-D
ASE8X6X3 2 F-G-H-I B-C-D
ASG8X6X3 2 F-G-H-I B-C-D
ASE16X14X3 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASE18X14X3 4 A-B-C-D-E-F-G-H-I B-C-D-E-F-G-H
ASE4X4X4 2 B-C B-C
ASG4X4X4 2 B-C B-C
ASE6X4X4 2 B-C-D B-C
ASG6X4X4 2 B-C-D B-C
UL 50, 50E Listed; Type 1;
File No. E27525
cUL Listed per CSA C22.2 No 40;
Type 1; File No. E27525
NEMA/EEMAC Type 1
IEC 60529, IP30
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 3
With Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
ASE6X6X4 2 B-C-D B-C-D
ASG6X6X4 2 B-C-D B-C-D
ASE8X6X4 2 F-G-H-I B-C-D
ASG8X6X4 2 F-G-H-I B-C-D
ASE8X8X4 4 F-G-H-I F-G-H-I
ASG8X8X4 4 F-G-H-I F-G-H-I
ASE10X8X4 4 F-G-H-I F-G-H-I
ASG10X8X4 4 F-G-H-I F-G-H-I
ASE10X10X4 4 F-G-H-I C-D-E-F-G
ASG10X10X4 4 F-G-H-I C-D-E-F-G
ASE12X8X4 4 C-D-E-F-G F-G-H-I
ASG12X8X4 4 C-D-E-F-G F-G-H-I
ASE12X10X4 4 C-D-E-F-G C-D-E-F-G
ASG12X10X4 4 C-D-E-F-G C-D-E-F-G
ASE12X12X4 4 C-D-E-F-G C-D-E-F-G
ASG12X12X4 4 C-D-E-F-G C-D-E-F-G
ASE16X12X4 4 B-C-D-E-F-G-H C-D-E-F-G
ASG16X12X4 4 B-C-D-E-F-G-H C-D-E-F-G
ASE18X12X4 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASG18X12X4 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X4 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG18X18X4 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X12X4 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X24X4 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X24X4 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X4 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE6X6X6 2 B-C-D B-C-D
ASG6X6X6 2 B-C-D B-C-D
ASE8X6X6 2 F-G-H-I B-C-D
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
4
With Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
ASE8X8X6 4 F-G-H-I F-G-H-I
ASG8X8X6 4 F-G-H-I F-G-H-I
ASE10X8X6 4 F-G-H-I F-G-H-I
ASG10X8X6 4 F-G-H-I F-G-H-I
ASE10X10X6 4 F-G-H-I C-D-E-F-G
ASG10X10X6 4 F-G-H-I C-D-E-F-G
ASE12X10X6 4 C-D-E-F-G C-D-E-F-G
ASG12X10X6 4 C-D-E-F-G C-D-E-F-G
ASE12X12X6 4 C-D-E-F-G C-D-E-F-G
ASG12X12X6 4 C-D-E-F-G C-D-E-F-G
ASE16X12X6 4 B-C-D-E-F-G-H C-D-E-F-G
ASG16X12X6 4 B-C-D-E-F-G-H C-D-E-F-G
ASE16X16X6 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASG16X16X6 4 B-C-D-E-F-G-H B-C-D-E-F-G-H
ASE18X12X6 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASG18X12X6 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG18X18X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X18X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG24X24X6 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X6 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASG30X24X6 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X6 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE8X8X8 4 F-G-H-I F-G-H-I
ASE12X12X8 4 C-D-E-F-G C-D-E-F-G
ASG12X12X8 4 C-D-E-F-G C-D-E-F-G
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 5
With Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
ASE16X12X8 4 B-C-D-E-F-G-H C-D-E-F-G
ASE18X12X8 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X12X8 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE24X18X8 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X8 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X8 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE18X12X10 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X10 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X10 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X10 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X10 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X12X12 4 A-B-C-D-E-F-G-H-I C-D-E-F-G
ASE18X18X12 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X18X12 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE24X24X12 4 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE30X24X12 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
ASE36X24X12 6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
Without Knockouts
Catalog Number
Number of
Cover Screws
ASE4X4X3NK 2
ASG4X4X3NK 2
ASE6X6X3NK 2
ASG6X6X3NK 2
ASE8X6X3NK 2
Catalog Number
Number of
Cover Screws
ASG8X6X3NK 2
ASE16X14X3NK 4
ASE20X14X3NK 4
ASE4X4X4NK 2
ASG4X4X4NK 2
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
6
Catalog Number
Number of
Cover Screws
ASE6X4X4NK 2
ASG6X4X4NK 2
ASE6X6X4NK 2
ASG6X6X4NK 2
ASE8X6X4NK 2
ASG8X6X4NK 2
ASE8X8X4NK 4
ASG8X8X4NK 4
ASE10X6X4NK 4
ASG10X6X4NK 4
ASE10X8X4NK 4
ASG10X8X4NK 4
ASE10X10X4NK 4
ASG10X10X4NK 4
ASE12X6X4NK 4
ASG12X6X4NK 4
ASE12X8X4NK 4
ASG12X8X4NK 4
ASE12X10X4NK 4
ASG12X10X4NK 4
ASE12X12X4NK 4
ASG12X12X4NK 4
ASE15X15X4NK 4
ASG15X15X4NK 4
ASE16X12X4NK 4
ASG16X12X4NK 4
ASE18X12X4NK 4
ASG18X12X4NK 4
ASE18X15X4NK 4
Without Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
ASE18X18X4NK 4
ASG18X18X4NK 4
ASE24X12X4NK 4
ASE24X18X4NK 4
ASG24X18X4NK 4
ASE24X24X4NK 4
ASG24X24X4NK 4
ASE30X24X4NK 6
ASE30X30X4NK 8
ASE6X6X6NK 2
ASG6X6X6NK 2
ASE8X6X6NK 2
ASG8X6X6NK 2
ASE8X8X6NK 4
ASG8X8X6NK 4
ASE10X8X6NK 4
ASG10X8X6NK 4
ASE10X10X6NK 4
ASG10X10X6NK 4
ASE12X6X6NK 4
ASE12X8X6NK 4
ASG12X8X6NK 4
ASE12X10X6NK 4
ASG12X10X6NK 4
ASE12X12X6NK 4
ASG12X12X6NK 4
ASE16X12X6NK 4
ASG16X12X6NK 4
ASE16X16X6NK 4
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 7
Without Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
ASG16X16X6NK 4
ASE18X12X6NK 4
ASG18X12X6NK 4
ASE18X18X6NK 4
ASG18X18X6NK 4
ASE24X12X6NK 4
ASG24X12X6NK 4
ASE24X18X6NK 4
ASG24X18X6NK 4
ASE24X20X6NK 4
ASG24X20X6NK 4
ASE24X24X6NK 4
ASG24X24X6NK 4
ASE30X24X6NK 6
ASG30X24X6NK 6
ASE30X30X6NK 8
ASG30X30X6NK 8
ASE36X24X6NK 6
ASG36X24X6NK 6
ASE36X30X6NK 8
ASE36X36X6NK 8
ASG36X36X6NK 8
ASE8X8X8NK 4
ASG8X8X8NK 4
ASE10X10X8NK 4
ASG10X10X8NK 4
ASE12X10X8NK 4
ASE12X12X8NK 4
ASG12X12X8NK 4
Catalog Number
Number of
Cover Screws
ASE16X12X8NK 4
ASE18X12X8NK 4
ASG18X12X8NK 4
ASE18X18X8NK 4
ASG18X18X8NK 4
ASE24X12X8NK 4
ASG24X12X8NK 4
ASE24X18X8NK 4
ASG24X18X8NK 4
ASE24X20X8NK 4
ASG24X20X8NK 4
ASE24X24X8NK 4
ASG24X24X8NK 4
ASE30X24X8NK 6
ASG30X24X8NK 6
ASE30X30X8NK 8
ASG30X30X8NK 6
ASE36X24X8NK 6
ASG36X24X8NK 6
ASE36X36X8NK 8
ASG36X36X8NK 8
ASE12X12X10NK 4
ASG12X12X10NK 4
ASE18X12X10NK 4
ASE18X18X10NK 4
ASG18X18X10NK 4
ASE24X12X10NK 4
ASE24X18X10NK 4
ASE24X24X10NK 4
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
8
Without Knockouts (Cont.)
Catalog Number
Number of
Cover Screws
ASG24X24X10NK 4
ASE30X24X10NK 6
ASE30X30X10NK 8
ASG30X30X10NK 8
ASE36X24X10NK 6
ASG36X24X10NK 6
ASE36X36X10NK 8
ASG36X36X10NK 8
ASE12X12X12NK 4
ASG12X12X12NK 4
ASE24X12X12NK 4
ASG24X12X12NK 4
ASE18X18X12NK 4
ASG18X18X12NK 4
ASE24X18X12NK 4
ASE24X24X12NK 4
Catalog Number
Number of
Cover Screws
ASG24X24X12NK 4
ASE30X24X12NK 6
ASE30X30X12NK 8
ASG30X30X12NK 8
ASE36X24X12NK 6
ASG36X24X12NK 6
ASE36X36X12NK 8
ASG36X36X12NK 8
ASE48X48X12NK 12
ASG48X48X12NK 12
ASE30X30X16NK 8
ASE36X36X16NK 8
ASG36X36X16NK 8
ASE48X48X16NK 12
ASG48X48X16NK 12
Screw-Cover Pull Box, Type 1, Accessories
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 9
Catalog
Number
Door Size H x W
in. (mm)
Fits Box Size H x W
in. (mm)
AFDF0606P 3.00 x 3.00 (76 x 76) 6.00 x 6.00 (152 x 152)
AFDF1212P 9.00 x 9.00 (229 x 229) 12.00 x 12.00 (305 x 305)
AFDF1812P 15.00 x 9.00 (381 x 229) 18.00 x 12.00 (457 x 305)
AFDF1818P 15.00 x 15.00 (381 x 381) 18.00 x 18.00 (457 x 457)
AFDF2418P 21.00 x 15.00 (533 x 381) 24.00 x 18.00 (610 x 457)
AFDF2424P 21.00 x 21.00 (533 x 533) 24.00 x 24.00 (610 x 610)
AFDF3024P 27.00 x 21.00 (686 x 533) 30.00 x 24.00 (762 x 610)
Flush-Mount Door Frames
Screw-Cover Pull Box, Type 1, Accessories
Flush Covers Catalog
Number
Fits Box Size H x W
in. (mm)
AFE6X6 6.00 x 6.00 (152 x 152)
AFE8X6 8.00 x 6.00 (203 x 152)
AFE8X8 8.00 x 8.00 (203 x 203)
AFE10X8 10.00 x 8.00 (254 x 203)
AFE12X8 12.00 x 8.00 (305 x 203)
AFE10X10 10.00 x 10.00 (254 x 254)
AFE12X12 12.00 x 12.00 (305 x 305)
AFE18X12 18.00 x 12.00 (457 x 305)
AFE18X18 18.00 x 18.00 (457 x 457)
AFE24X18 24.00 x 18.00 (610 x 457)
AFE24X24 24.00 x 24.00 (610 x 610)
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
10
Type 1 Locking Window Pull Box Accessory
Catalog
Number
Frame Size H x W
in. (mm)
Dead Front Panel Size H x W
in. (mm)
ALDF88W 9.00 x 9.00 (229 x 293) 6.00 x 6.14 (152 x 99)
ALDF1212W 13.00 x 13.00 (330 x 330) 10.00 x 10.14 (254 x 200)
Screw-Cover Pull Box, Type 1, Accessories
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 11
Locking Integrated Perforated Panel
Enclosure, Type 1
Catalog
Number
Panel Size D x E
in. (mm)
Mounting Holes G x H
in. (mm)
Knockout Pattern
A-Sides
Knockout Pattern
B-Sides
A12126T1PP 10.25 x 10.25 (260 x 260) 9.00 x 11.00 (229 x 279) C-D-E-F-G C-D-E-F-G
A16126T1PP 14.25 x 10.25 (362 x 260) 13.00 x 11.00 (330 x 279) B-C-D-E-F-G-H C-D-E-F-G
A2016AT1PP 17.00 x 14.50 (432 x 368) 17.88 x 11.00 (454 x 279) A-B-C-D-E-F-G-H-I B-C-D-E-F-G-H
A2420AT1PP 21.00 x 18.50 (533 x 470) 21.88 x 15.00 (556 x 381) A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
A3624AT1PP 32.00 x 22.50 (813 x 572) 33.50 x 16.75 (851 x 425) — —
A3630AT1PP 32.00 x 31.50 (813 x 800) 33.50 x 22.75 (851 x 578) — —
A90P1

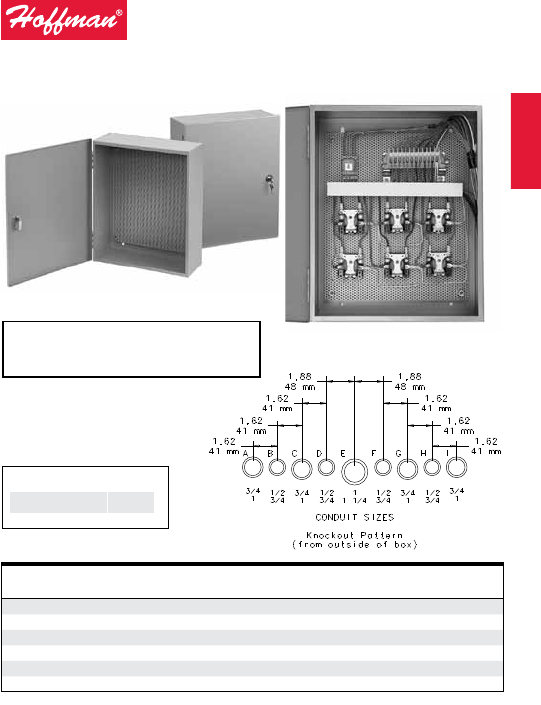

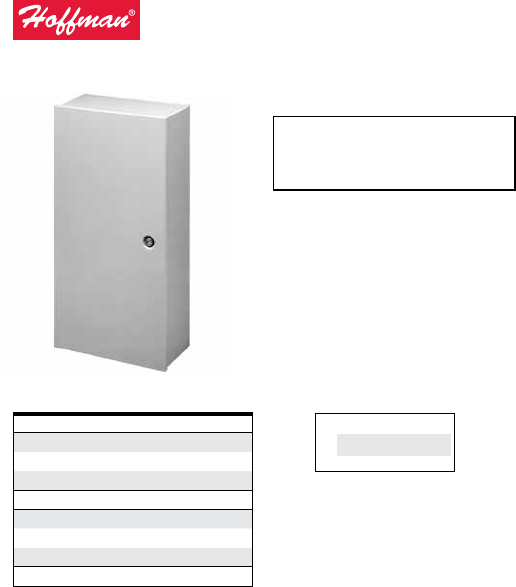

Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1;
File No. E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
H W D
A 12 12 T16
Reading Catalog Numbers
PP
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
12
Type 1 Pull Box Perforated Panel
Catalog
Number
Panel
Gauge
Panel Size
D x E (in.)
Panel Size
D x E (mm) Fits Pull Box
Fits Hinged Cover
Cutout Box
PB66PP 16 4.40 x 5.50 112 x 140 ASE6X6X__ AHE6X6X__
PB88PP 16 6.40 x 7.50 163 x 191 ASE8X8X__ AHE8X8X__
PB1212PP 16 10.40 x 11.50 264 x 292 ASE12X12X__ AHE12X12X__
PB1818PP 16 16.40 x 17.50 417 x 445 ASE18X18X__ AHE18X18X__
PB2424PP 16 22.40 x 23.50 569 x 597 ASE24X24X__ AHE14X14X__
PB1818PP and PB2424PP have ange on all four sides.
Panel mounts with
pull box mounting
means
Attach to pull box at bonding
emboss to hold panel in
place temporarily until box is
mounted
Panel grounding hole to terminate
equipment grounding conductor
PNLP
Screw-Cover Pull Boxes, Type 1
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 13

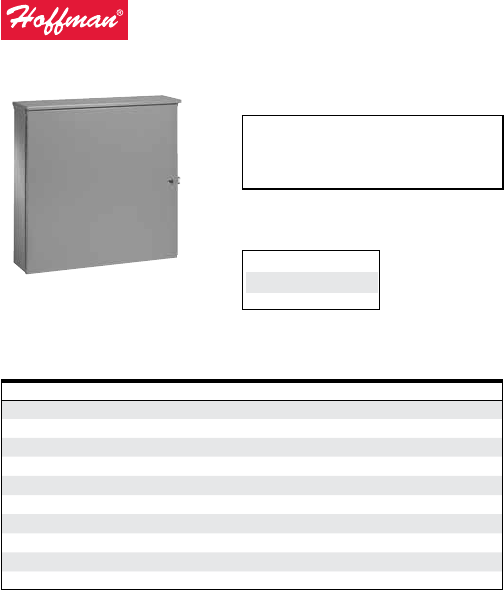

T1FLO® Vented Enclosure with Fan, Type 1
Industry Standards
UL 508A Listed; Type 1; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 1;
File No. E61997
NEMA/EEMAC Type 1
IEC 60529, IP20
Catalog Number AxBxC in. (mm) Suggested HP Solid Panel Perforated Panel
T1F80LP 28.00 x 24.00 x 12.75
(711 x 610 x 324)
3A24P24 A24P24PP
T1F130LP 34.00 x 24.00 x 12.75
(864 x 610 x 324)
Up to 20 A30P24 A30P24PP
T1F200LP 40.00 x 24.00 x 12.75
(1016 x 610 x 324)
40 A36P24 A36P24PP
T1F350LP 54.00 x 30.00 x 12.75
(1372 x 762 x 324)
Up to 75 A48P30
Hinged-Cover Cutout Boxes
Bulletin
A90P1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
14
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1;
File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30

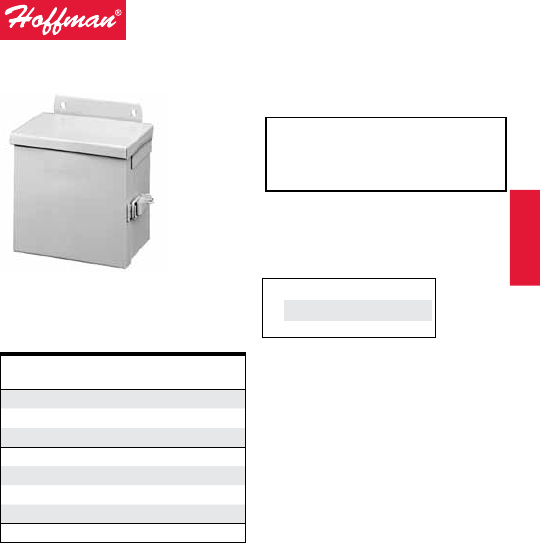

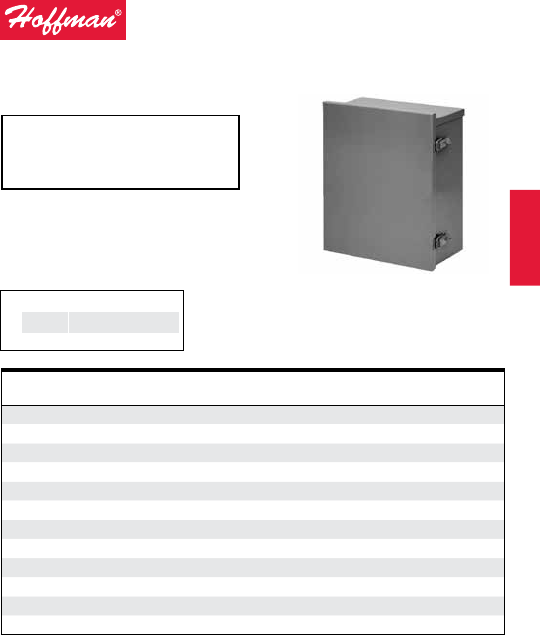

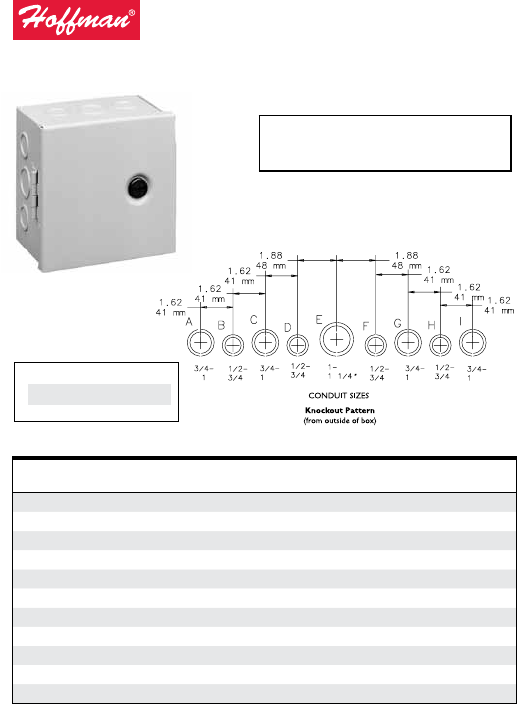

Hinged-Cover, Type 1
H W D
AHE 10 X 8 X 6
Reading Catalog Numbers
Catalog Number
Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
AHE6X4X4 B-C-D B-C
AHE6X6X4 B-C-D B-C-D
AHE8X6X4 F-G-H-I B-C-D
AHE8X8X4 F-G-H-I F-G-H-I
AHE10X8X4 F-G-H-I F-G-H-I
AHE10X10X4 F-G-H-I C-D-E-F-G
AHE12X8X4 C-D-E-F-G F-G-H-I
AHE12X10X4 C-D-E-F-G C-D-E-F-G
AHE12X12X4 C-D-E-F-G C-D-E-F-G
AHE16X12X4 B-C-D-E-F-G-H C-D-E-F-G
AHE18X12X4 A-B-C-D-E-F-G-H-I C-D-E-F-G
Hinged-Cover Cutout Boxes
Bulletin
A90P1
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 15
Catalog Number
Knockout Pattern along
“H” Sides
Knockout Pattern along
“W” Sides
AHE6X6X6 B-C-D B-C-D
AHE8X8X6 F-G-H-I F-G-H-I
AHE10X8X6 F-G-H-I F-G-H-I
AHE10X10X6 F-G-H-I C-D-E-F-G
AHE12X10X6 C-D-E-F-G C-D-E-F-G
AHE12X12X6 C-D-E-F-G C-D-E-F-G
AHE16X12X6 B-C-D-E-F-G-H C-D-E-F-G
AHE16X16X6 B-C-D-E-F-G-H B-C-D-E-F-G-H
AHE18X12X6 A-B-C-D-E-F-G-H-I C-D-E-F-G
AHE18X18X6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE24X18X6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE24X24X6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE30X24X6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE36X24X6 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
AHE36X24X8 A-B-C-D-E-F-G-H-I A-B-C-D-E-F-G-H-I
Hinged-Cover, Type 1 (Cont.)
Hinged-Cover, Type 1
Bulletin
A1sm
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
16
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1;
File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Catalog
Number Panela
Perforated
Panela
A6N64 A6N6P A6N6PP
A8N64 A8N6P A8N6PP
A8N84 A8N8P A8N8PP
A10N84 A10N8P A10N8PP
A10N104 A10N10P A10N10PP
A12N104 A12N10P A12N10PP
A12N124 A12N12P A12N12PP
A14N124 A14N12P A14N12PP
A8N66 A8N6P A8N6PP
A8N86 A8N8P A8N8PP
Catalog
Number Panela
Perforated
Panela
A10N86 A10N8P A10N8PP
A10N106 A10N10P A10N10PP
A12N106 A12N10P A12N10PP
A12N126 A12N12P A12N12PP
A14N126 A14N12P A14N12PP
A16N126 A16N12P A16N12PP
A20N126 A20N12P A20N12PP
A12N128 A12N12P A12N12PP
A14N128 A14N12P A14N12PP
H W D
A10 N 10 4
Reading Catalog Numbers

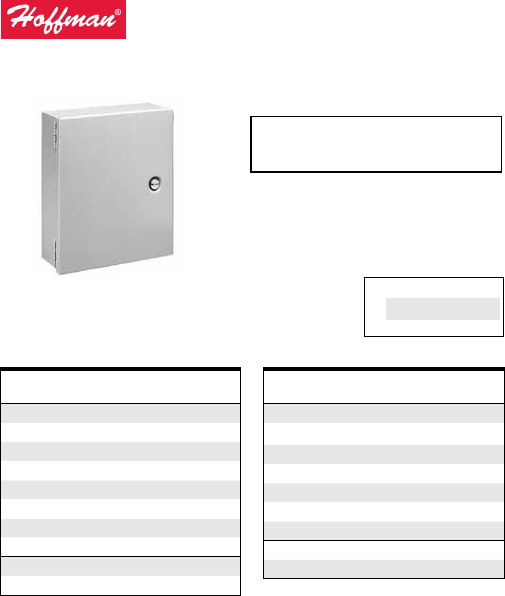

Small, Type 1
aPurchase panels separately.
Hinged-Cover, Type 1
Bulletin
A1m
1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 17
Catalog
Number
Panel
Cataloga
Perforated
Panela
A16N12ALP A16N12MP A16N12MPP
A16N16ALP A16N16MP A16N16MPP
A16N20ALP A16N20MP A16N20MPP
A20N16ALP A20N16MP A20N16MPP
A20N20ALP A20N20MP A20N20MPP
A24N16ALP A24N16MP A24N16MPP
A24N20ALP A24N20MP A24N20MPP
A24N24ALP A24N24MP A24N24MPP*
A30N24ALP A30N24MP A30N24MPP*
A36N24ALP A36N24MP A36N24MPP*
A36N30ALP A36N30MP A36N30MPP*
A16N12BLP A16N12MP A16N12MPP
A20N12BLP A20N12MP A20N12MPP
A20N16BLP A20N16MP A20N16MPP
Industry Standards
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No 40; Type 1;
File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30

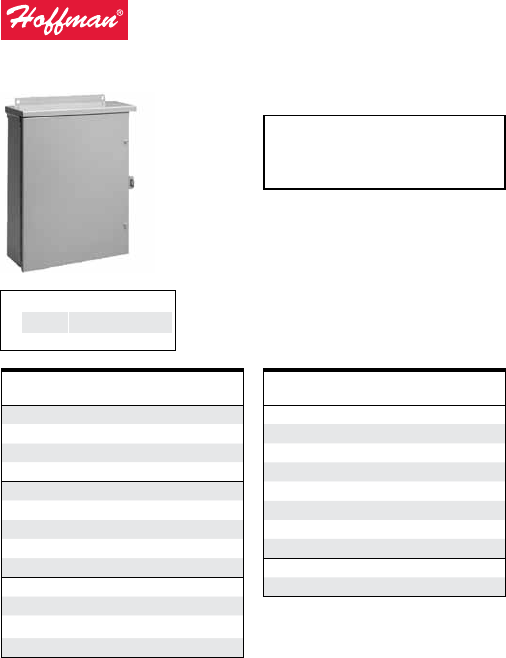

Medium, Type 1
Catalog
Number
Panel
Cataloga
Perforated
Panela
A20N20BLP A20N20MP A20N20MPP
A24N20BLP A24N20MP A24N20MPP
A24N24BLP A24N24MP A24N24MPP*
A30N20BLP A30N20MP A30N20MPP*
A30N24BLP A30N24MP A30N24MPP*
A30N30BLP A30N30MP A30N30MPP*
A36N24BLP A36N24MP A36N24MPP*
A36N30BLP A36N30MP A36N30MPP*
A18N18CLP A18N18MP A18N18MPP
A24N20CLP A24N20MP A24N20MPP
A30N24CLP A30N24MP A30N24MPP
A24N24DLP A24N24MP A24N24MPP*
A30N24DLP A30N24MP A30N24MPP*
A36N30DLP A36N30MP A36N30MPP*
H W D
A16 N 12
Reading Catalog Numbers
ALP A = 6.62 in.
B = 8.62 in.
C = 10.62 in.
D = 12.62 in.
{
a Purchase panels separately.
*Flanged on all four sides.
Hinged-Cover, Type 1
Bulletin
A1L
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
18
Industry Standards
UL 50, 50E Listed; Type 1;
File No. E27567
cUL Listed per CSA C22.2 No 40;
Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184: Type 1
IEC 60529, IP30
Catalog Number Panela
A42N3009 A42P30
A42N3609 A42P36
A48N3609 A48P36
A48N3611 A48P36
A42N3013 A42P30
A42N3613 A42P36
A48N3613 A48P36
A48N3617 A48P36
aPurchase panels separately. Optional aluminum
panels are available for most sizes.
Purchase enclosure Mounting Bracket Kit accessory
(AMFLN1) separately.
Large, Type 1
H W D
A42 N 30 09
Reading Catalog Numbers
WEATHERFLO® with Fan, Type 3R
Bulletin
A3RD
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 19
2
Industry Standards
UL 508A Listed; Type 3R; File Number E61997
cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
Catalog Number
Enclosure Size H x W x D
in. (mm) PanelaSystem CFM
WF3LP 29.00 x 24.00 x 12.00
(737 x 610 x 305)
A24P24 75
WF10LP 35.00 x 24.00 x 12.00
(889 x 610 x 305)
A30P24 160
WF25LP 41.00 x 24.00 x 12.00
(1041 x 610 x 305)
A36P24 160
WF40LP 47.00 x 24.00 x 14.00
(1194 x 610 x 356)
A42P24 200
WF75LP 55.00 x 36.00 x 16.00
(1397 x 914 x 406)
A48P36 400
WF100LP 67.00 x 36.00 x 16.00
(1702 x 914 x 706)
A60P36 500
aPurchase panels separately.
Horizontal-Mount, Type 3R
Bulletin
A90Rh
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
20
Catalog Number
A8R84HM
A10R104HM
A12R126HM
A24R206HM
Industry Standards
Maintains Type 3R rating when mounted
horizontally. Maintains Type 1 rating when
mounted vertically.
UL 50, 50E Listed; Type 3R;
File No. E27525
cUL Listed per CSA C22.2 No 94;
Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
H W D
A12 R 12 6
Reading Catalog Numbers
Screw-Cover, Type 3R
Bulletin
A90s3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 21
2
Industry Standards
UL 50, 50E Listed; Type 3R;
File No. E27525
cUL Listed per CSA C22.2 No 94;
Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
H W D
A12 R 10 4
Reading Catalog Numbers
Catalog Number Body Style Knockout Pattern
A4R44 A B-C
A6R44 A B-C
A12R44 A B-C
A6R64 A B-C-D
A8R64 A B-C-D
A8R84 A F-G-H-I
A10R84 A F-G-H-I
A12R84 A F-G-H-I
A10R104 A C-D-E-F-G
A12R104 A C-D-E-F-G
A12R124 A C-D-E-F-G
A18R124 A C-D-E-F-G
A18R184 B A-B-C-D-E-F-G-H-I
With Knockouts
Horizontal-Mount, Type 3R
Bulletin
A90Rh
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
22
Screw-Cover, Type 3R
Catalog Number Body Style Knockout Pattern
A6R66 A B-C-D
A8R86 A F-G-H-I
A10R86 A F-G-H-I
A10R106 A C-D-E-F-G
A12R86 A F-G-H-I
A12R106 A C-D-E-F-G
A12R126 A C-D-E-F-G
A15R126 A C-D-E-F-G
A16R126 A C-D-E-F-G
A18R126 A C-D-E-F-G
A18R186 B A-B-C-D-E-F-G-H-I
A24R126 B C-D-E-F-G
A24R186 B A-B-C-D-E-F-G-H-I
A24R246 B A-B-C-D-E-F-G-H-I
A8R88 A F-G-H-I
A12R128 A C-D-E-F-G
A15R128 A C-D-E-F-G
A18R128 A C-D-E-F-G
A24R168 B C-D-E-F-G
A18R188 B A-B-C-D-E-F-G-H-I
A24R188 B A-B-C-D-E-F-G-H-I
A24R208 B A-B-C-D-E-F-G-H-I
A24R248 C A-B-C-D-E-F-G-H-I
A30R248 C A-B-C-D-E-F-G-H-I
A48R368 C A-B-C-D-E-F-G-H-I
A18R1810 BA-B-C-D-E-F-G-H-I
A24R1810 BA-B-C-D-E-F-G-H-I
A24R2410 C A-B-C-D-E-F-G-H-I
A30R2410 C A-B-C-D-E-F-G-H-I
With Knockouts (Cont.)
A90s3
Screw-Cover, Type 3R
Bulletin
A90s3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 23
2
Catalog Number Body Style Knockout Pattern
A24R2412 C A-B-C-D-E-F-G-H-I
A30R3012 C A-B-C-D-E-F-G-H-I
A36R3012 C A-B-C-D-E-F-G-H-I
A36R3612 C A-B-C-D-E-F-G-H-I
A30R3016 C A-B-C-D-E-F-G-H-I
A48R3616 C A-B-C-D-E-F-G-H-I
With Knockouts (Cont.)
Screw-Cover, Type 3R
Bulletin
A90s3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
24
Catalog Number Body Style
A4R44NK A
A6R64NK A
A8R64NK A
A8R84NK A
A10R84NK A
A12R84NK A
A10R104NK A
A12R104NK A
A12R124NK A
A18R184NK B
A6R66NK A
A18R66NK A
A8R86NK A
A10R86NK A
A10R106NK A
A12R106NK A
A12R126NK A
A15R126NK A
A16R126NK A
A18R126NK A
Without Knockouts
Catalog Number Body Style
A18R186NK B
A24R186NK B
A24R246NK B
A8R88NK A
A24R88NK A
A12R128NK A
A15R128NK A
A18R128NK A
A18R188NK B
A24R188NK B
A24R208NK B
A24R248NK C
A30R248NK C
A48R368NK C
A24R2410NK C
A24R2412NK C
A30R3012NK C
A36R3012NK C
A36R3612NK C
A30R3016NK C
A48R3616NK C
Reading Catalog Numbers
H W D
A12 R 12 4 NK
Industry Standards
UL 50, 50E Listed; Type 3R;
File No. E27525
cUL Listed per CSA C22.2 No 94;
Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Screw-Cover, Type 3R
Bulletin
A90s3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 25
2

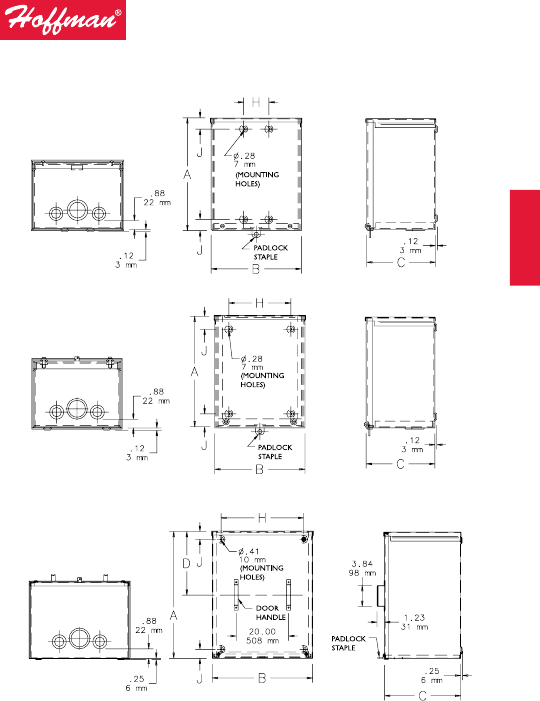

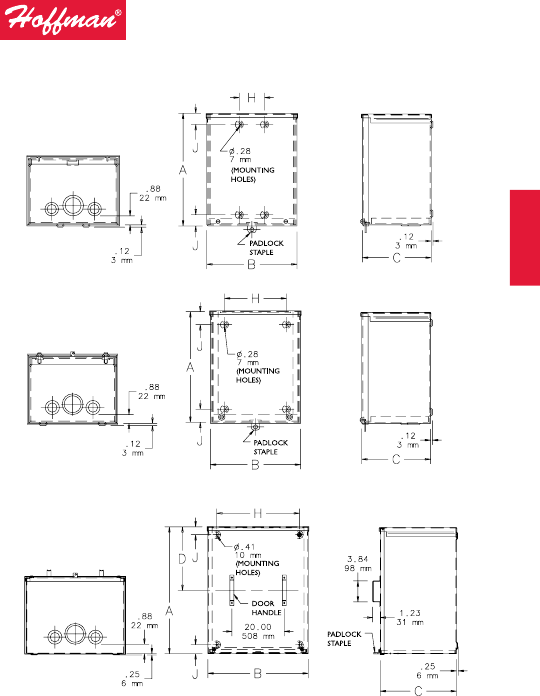

Body Style A
Body Style B
Body Style C
Screw-Cover Galvanized, Type 3R
Bulletin
A90g3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
26
Catalog Number Body Style Knockout Pattern
A4R44GV A B-C
A6R64GV A B-C
A8R84GV A B-C-D
A10R104GV A C-D-E-F-G
A12R124GV A C-D-E-F-G
A6R66GV A B-C-D
A8R86GV A F-G-H-I
A10R106GV A C-D-E-F-G
A12R126GV A C-D-E-F-G
A18R186GV B A-B-C-D-E-F-G-H-I
A8R88GV A F-G-H-I
A8R88GVNK A —
A10R108GVNK A —
A12R128GV A C-D-E-F-G
A24R248GV C A-B-C-D-E-F-G-H-I
A24R2410GV C A-B-C-D-E-F-G-H-I
Industry Standards
UL50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R;
File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
H W D
A12 R 12 4
Reading Catalog Numbers
GV
Screw-Cover Galvanized, Type 3R
Bulletin
A90g3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 27
2
Body Style A
Body Style B
Body Style C
Screw-Cover Gasketed, Type 3
Bulletin
A90gs
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
28
Catalog Number
A664GSC
A864GSC
A884GSC
A1084GSC
A10104GSC
A12124GSC
A666GSC
A886GSC
A10106GSC
A12106GSC
A12126GSC
A16126GSC
A16166GSC
A18186GSC
A20166GSC
A24246GSC
Catalog Number
A888GSC
A10108GSC
A12128GSC
A16168GSC
A20208GSC
A24208GSC
A24248GSC
A30248GSC
A242410GSC
A121212GSC
A161612GSC
A202012GSC
A242412GSC
A303012GSC
A363612GSC
Industry Standards
UL 508A Listed; Type 3, 12;
File No. E61997
cUL Listed per CSA C22.2 No 94;
Type 3, 12; File No. E61997
NEMA/EEMAC Type 3 and 12 (except for
mounting provisions)
CSA, File 42184: Type 4 and 12
IEC 60529, IP66
H W D
A6 6 4 GSC
Reading Catalog Numbers
Hinged-Cover Small , Type 3R
Bulletin
A3sm
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 29
2
Industry Standards
UL 50, 50E Listed; Type 3R;
File No. E27567
cUL Listed per CSA C22.2 No 94;
Type 3R File No. E27567
NEMA/EEMAC Type 3R
IEC 60529, IP32
Catalog
Number Panela
Perforated
Panela
A6R44HCR A6N4P —
A6R64HCR A6N6P A6N6PP
A8R64HCR A8N6P A8N6PP
A8R86HCR A8N8P A8N8PP
A10R86HCR A10N8P A10N8PP
A12R106HCR A12N10P A12N10PP
A12R126HCR A12N12P A12N12PP
A12R1210HCR A12N12P A12N12PP
H W D
A6 6 4 HCR
Reading Catalog Numbers
R
aPurchase panels separately.
Hinged-Cover Medium, Type 3R
Bulletin
A3m
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
30
Catalog
Number Panela
Perforated
Panela
A16R126HCR A16P12 A16P12PP
A16R166HCR A16P16 A16P16PP
A18R186HCR A18P18 A18P18PP
A20R166HCR A20P16 A20P16PP
A20R208HCR A20P20 A20P20PP
A24R208HCR A24P20 A24P20PP
A24R248HCR A24P24 A24P24PP*
A30R248HCR A30P24 A30P24PP*
A30R308HCR A30P30 A30P30PP*
A18R1810HCR A18P18 A18P18PP
A24R2410HCR A24P24 A24P24PP*
A30R2410HCR A30P24 A30P24PP*
A36R3610HCR A36P36 A36P36PP*
Industry Standards
UL 50, 50E Listed; Type 3R;
File No. E27567
cUL Listed per CSA C22.2 No 94;
Type 3R File No. E27567
NEMA/EEMAC Type 3R
IEC 60529, IP32
H W D
A16 R 12 6
Reading Catalog Numbers
HCR
Catalog
Number Panela
Perforated
Panela
A30R3012HCR A30P30 A30P30PP*
A36R2412HCR A36P24 A36P24PP*
A36R3012HCR A36P30 A36P30PP*
A36R3612HCR A36P36 A36P36PP*
A42R3012HCR A42P30 —
A42R3612HCR A42P36 —
A48R3612HCR A48P36 —
A60R3612HCR A60P36 —
A30R3016HCR A30P30 A30P30PP*
A48R3616HCR A48P36 —
aPurchase panels separately.
*Flanged on all four sides.
Hinged-Cover Lift-O, Type 3R
Bulletin
A3Lo
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 31
2
Catalog Number Panela
Panel
Mounting Kitb
Mounting
Bracket Kitb
A8R64HCLO A6P6 APMK3RLO16 AMFK3RLO16
A8R86HCLO A8P6 APMK3RLO16 AMFK3RLO16
A10R86HCLO A8P8 APMK3RLO16 APMK3RLO16
A12R106HCLO A10P10 APMK3RLO16 AMFK3RLO16
A12R126HCLO A12P10 APMK3RLO16 AMFK3RLO16
A16R126HCLO A14P12 APMK3RLO16 AMFK3RLO16
A16R166HCLO A16P16 APMK3RLO14 AMFK3RLO14
A20R166HCLO A20P16 APMK3RLO14 AMFK3RLO14
A20R208HCLO A20P20 APMK3RLO14 AMFK3RLO14
A24R208HCLO A24P20 APMK3RLO14 AMFK3RLO14
A24R248HCLO A24P24 APMK3RLO14 AMFK3RLO14
A30R248HCLO A30P24 APMK3RLO14 AMFK3RLO14
aPurchase panels separately.
bOrder Panel Mounting Kit and Mounting Bracket Kit separately.
(A Panel Mounting Kit must be ordered to install panel.)
Industry Standards
UL 50, 50E Listed; Type 3R;
File No. E27567
cUL Listed per CSA C22.2 No 94;
Type 3R File No. E27567
NEMA/EEMAC Type 3R
CSA, File 42184: Type 3R
IEC 60529, IP32
H W D
A16 R 12 6
Reading Catalog Numbers
HCLO
Bulletin
A3m
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
32
WEATHERPRO® Outdoor Pad-Mount, Type 3R
H W D
A60 R 28 18
Reading Catalog Numbers
FSLP
Single-Door
Catalog Number Panel
A60R2518FSLP A49P21N
A60R2524FSLP A49P21N
A72R2518FSLP A61P21N
A60R3618FSLP A49P32N
A72R3618FSLP A61P32N
A72R3624FSLP A61P32N
Purchase panels separately.
Industry Standards
UL 508A Listed; Type 3R; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R;
File No. E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32
WEATHERPRO® Outdoor Pad-Mount, Type 3R
Bulletin
A3Lo
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 33
2

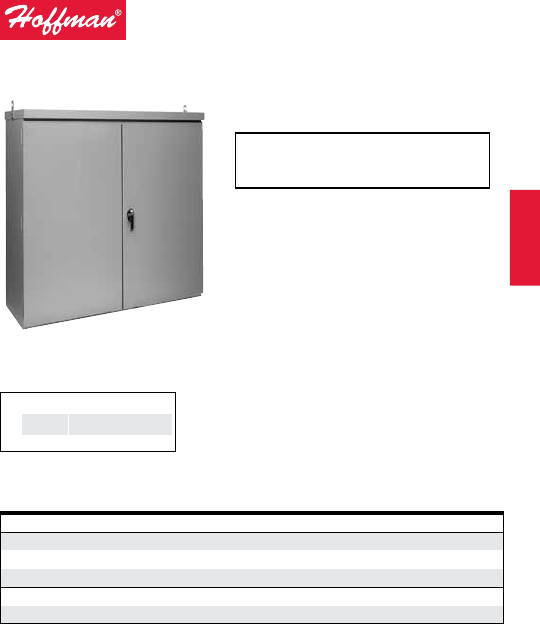

Two-Door
Catalog Number Panel
A60R5218FSLP A49P48N
A60R5224FSLP A49P48N
A60R7224FSLP A49P68N
A72R7218FSLP A61P68N
A72R7224FSLP A61P68N
Purchase panels separately.
H W D
A60 R 52 18
Reading Catalog Numbers
FSLP
Industry Standards
UL 508A Listed; Type 3R; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3R;
File No. E61997
NEMA/EEMAC Type 3R
IEC 60529, IP32

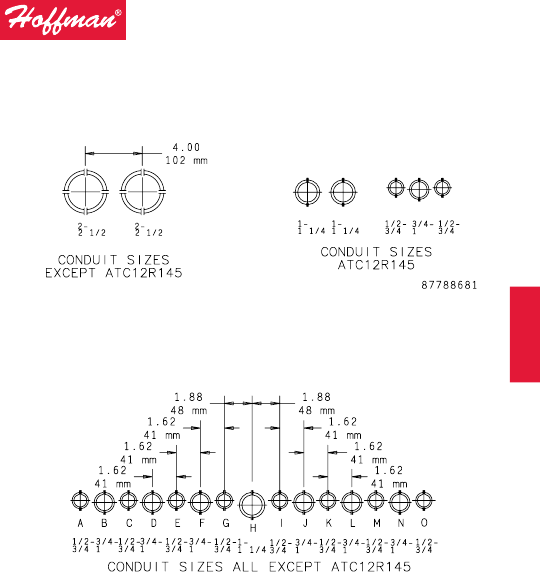

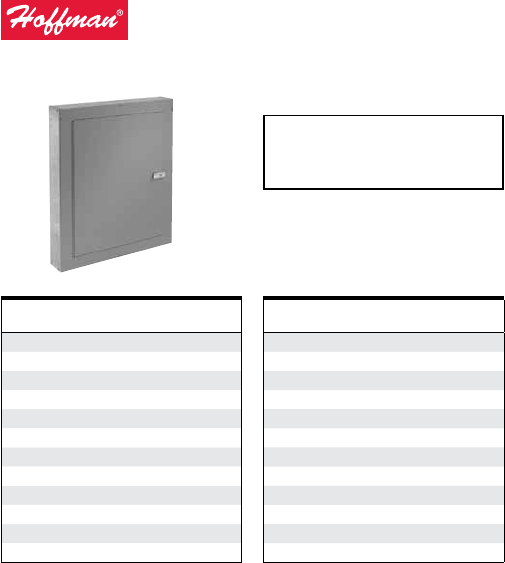

Telephone Cabinet, Type 1
Bulletin
t90
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
34
Industry Standards
UL 50, 50E Listed; Type 1;
File No. E27567
cUL Listed per CSA C22.2 No 40;
Type 1; File No. E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
Catalog
Number Mounted
ATC10104S Surface
ATC10104F Flush
ATC12124S Surface
ATC12124F Flush
ATC18124S Surface
ATC18124F Flush
ATC18184S Surface
ATC18184F Flush
ATC24184S Surface
ATC24184F Flush
ATC24244S Surface
ATC24244F Flush
Catalog
Number Mounted
ATC30244S Surface
ATC30244F Flush
ATC30304S Surface
ATC36244S Surface
ATC36244F Flush
ATC36364S Surface
ATC36364F Flush
ATC12126S Surface
ATC12126F Flush
ATC18126S Surface
ATC18126F Flush
ATC18186S Surface
3/4-inch-thick plywood panel
included.
Telephone Cabinet, Type 1
Bulletin
t90
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 35
3
H W D
ATC 12 12 4
Reading Catalog Numbers
SS = Surface
F = Flush
{
Catalog
Number Mounted
ATC18186F Flush
ATC24186S Surface
ATC24186F Flush
ATC24246S Surface
ATC24246F Flush
ATC30246F Flush
ATC30306S Surface
ATC30306F Flush
ATC36246S Surface
ATC36246F Flush
ATC36306S Surface
ATC36306F Flush
ATC36366S Surface
ATC36366F Flush
ATC36308S Surface
ATC36308F Flush
T3-Box Telephone Cabinet, Type 3R
Bulletin
t90R3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
36
Industry Standards
UL 50, 50E Listed; Type 3R; File No. E27567
UL 497 / 1863 Listed; File No. E230874
cUL Listed per CSA C22.2 No 94; Type 3R;
File No. E27567
NEMA Type 3R
IEC 60529 IP32
Catalog Number Door Conduit Pattern
ATC12R145 Single G-H-I
ATC36R366 Single C-D-E-F-G-H-I-J-K-L-M
ATC26R248 Single E-F-G-H-I-J-K
ATC36R248 Single E-F-G-H-I-J-K
ATC36R308 Single D-E-F-G-H-I-J-K-L
ATC36R369 Single C-D-E-F-G-H-I-J-K-L-M
ATC42R369 Double C-D-E-F-G-H-I-J-K-L-M
ATC48R369 Double C-D-E-F-G-H-I-J-K-L-M
ATC48R489 Double A-B-C-D-E-F-G-H-I-J-K-L-M-N-O
ATC36R3612 Single C-D-E-F-G-H-I-J-K-L-M
3/4-inch-thick plywood panel
included.
H W D
ATC 12 14 5
Reading Catalog Numbers
R
T3-Box Telephone Cabinet, Type 3R
Bulletin
t90R3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 37
3
Terminal Box, Type 3R
Bulletin
s90b3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
38
Catalog
Number A x B x C in. (mm) Volts Amps
Number
of Bars
TB3R101 18.00 x 10.75 x 4.50
(457 x 273 x 114)
120/240 100 3
TB3R103 18.00 x 10.75 x 4.50
(457 x 273 x 114)
600 100 4
TB3R103240 18.00 x 10.75 x 4.50
(457 x 273 x 114)
120/240 100 4
TB3R201 23.00 x 14.00 x 4.50
(584 x 356 x 114)
120/240 200 3
TB3R203 23.00 x 14.00 x 4.50
(584 x 356 x 114)
600 200 4
TB3R203240 23.00 x 14.00 x 4.50
(584 x 356 x 114)
120/240 200 4
TB3R401 27.00 x 20.50 x 6.00
(686 x 521 x 152)
120/240 400 3
TB3R403 27.00 x 20.50 x 6.00
(686 x 521 x 152)
600 400 4
Industry Standards
UL 1773 Listed; Type 3R;
File No. E256098
UL 50, 50E Listed; Type 3R;
File No. E27525
cUL Listed per CSA C22.2 No 94;
Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
Terminal Box, Type 3R, Accessories
Bulletin
s90b3
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 39
4
Catalog
Number
Fits Conduit
Size (in.)
Fits Conduit
Size (mm)

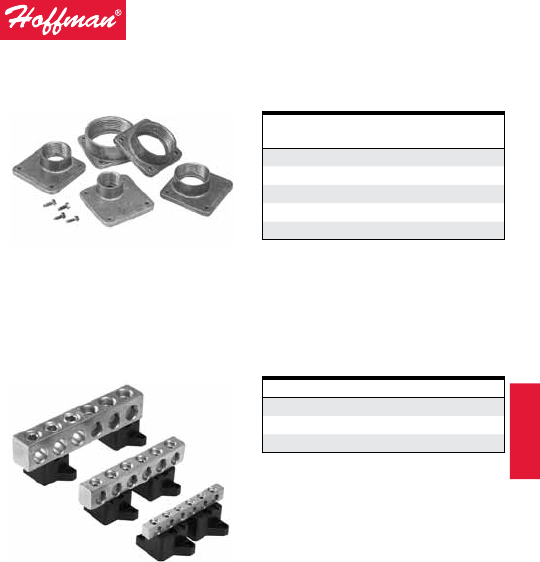

TBHUB10 1.00 25
TBHUB12 1.25 32
TBHUB15 1.50 38
TBHUB20 2.00 51
TBHUB25 2.50 64
Interchangeable Bolt-On Hub
Catalog Number Wire Range
TBL100 (6) #14-2/0
TBL200 (6) #6-350 MCM
TBL400 (6) #4-600 MCM
Lug Assembly

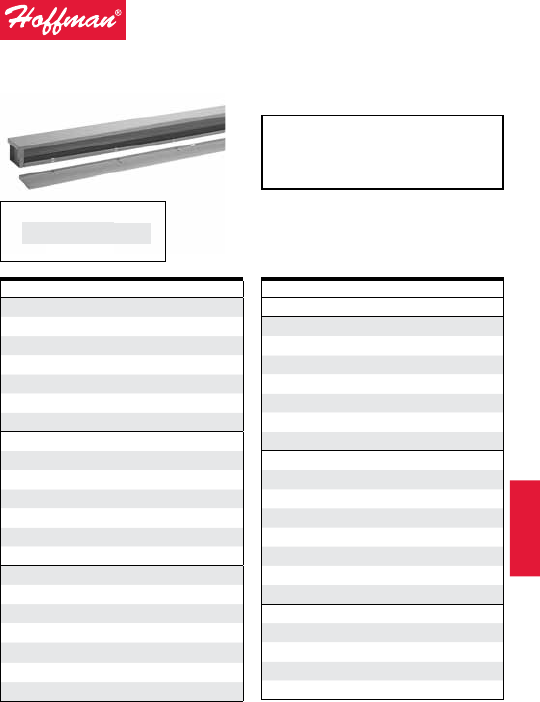

Lay-In Galvanized Wireway, NEMA Type 1
Bulletin
f40g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
40
Industry Standards
UL 870 Listed; File No. E27524
cUL Listed per CSA C22.2 No. 26;
File No. E27524
NEMA/EEMAC: Type 1
IEC 60529, IP30
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm

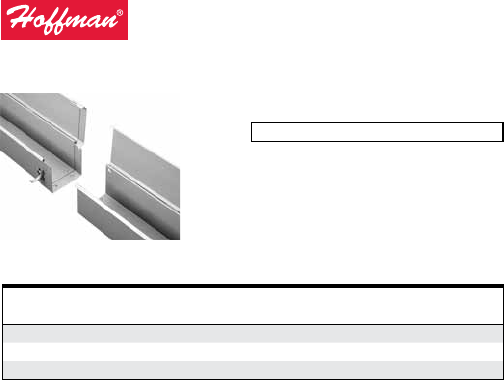

12.00-in. (305-mm) Straight Section with knockouts F44T112GVWK F66T112GVWK F88T112GVWK
12.00-in. (305-mm) Straight Section without knockouts F22T112GV F44T112GV F66T112GV F88T112GV F1010T112GV F1212T112GV
18.00-in. (455-mm) Straight Section with knockouts
18.00-in. (455-mm) Straight Section without knockouts F44T118GV F66T118GV F88T118GV
24.00-in. (610-mm) Straight Section with knockouts F22T124GVWK F44T124GVWK F66T124GVWK F88T124GVWK
24.00-in. (610-mm) Straight Section without knockouts F22T124GV F44T124GV F66T124GV F88T124GV F1010T124GV F1212T124GV
36.00-in. (914-mm) Straight Section with knockouts F22T136GVWK F44T136GVWK F66T136GVWK F88T136GVWK
36.00-in. (914-mm) Straight Section without knockouts F22T136GVWK F44T136GV F66T136GV F88T136GV F1010T136GV F1212T136GV
48.00-in. (1219-mm) Straight Section with knockouts F44T148GVWK F66T148GVWK F88T148GVWK
48.00-in. (1219-mm) Straight Section without knockouts F22T148GV F44T148GV F66T148GV F88T148GV F1010T148GV F1212T148GV
60.00-in. (1524-mm) Straight Section with knockouts F22T160GVWK F44T160GVWK F66T160GVWK F88T160GVWK
60.00-in. (1524-mm) Straight Section without knockouts F22T160GV F44T160GV F66T160GV F88T160GV F1010T160GV F1212T160GV
72.00-in. (1829-mm) Straight Section with knockouts F44T172GVWK F66T172GVWK F88T172GVWK
72.00-in. (1829-mm) Straight Section without knockouts F44T172GV F66T172GV F88T172GV F1010T172GV
120.00-in. (3048-mm) Straight Section with knockouts F22T1120GVWK F44T1120GVWK F66T1120GVWK F88T1120GVWK
120.00-in. (3048-mm) Straight Section without knockouts F22T1120GV F44T1120GV F66T1120GV F88T1120GV F1010T1120GV F1212T1120GV
Lay-In Galvanized Wireway, NEMA Type 1
Bulletin
f40g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 41
5
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
12.00-in. (305-mm) Straight Section with knockouts F44T112GVWK F66T112GVWK F88T112GVWK
12.00-in. (305-mm) Straight Section without knockouts F22T112GV F44T112GV F66T112GV F88T112GV F1010T112GV F1212T112GV
18.00-in. (455-mm) Straight Section with knockouts
18.00-in. (455-mm) Straight Section without knockouts F44T118GV F66T118GV F88T118GV
24.00-in. (610-mm) Straight Section with knockouts F22T124GVWK F44T124GVWK F66T124GVWK F88T124GVWK
24.00-in. (610-mm) Straight Section without knockouts F22T124GV F44T124GV F66T124GV F88T124GV F1010T124GV F1212T124GV
36.00-in. (914-mm) Straight Section with knockouts F22T136GVWK F44T136GVWK F66T136GVWK F88T136GVWK
36.00-in. (914-mm) Straight Section without knockouts F22T136GVWK F44T136GV F66T136GV F88T136GV F1010T136GV F1212T136GV
48.00-in. (1219-mm) Straight Section with knockouts F44T148GVWK F66T148GVWK F88T148GVWK
48.00-in. (1219-mm) Straight Section without knockouts F22T148GV F44T148GV F66T148GV F88T148GV F1010T148GV F1212T148GV
60.00-in. (1524-mm) Straight Section with knockouts F22T160GVWK F44T160GVWK F66T160GVWK F88T160GVWK
60.00-in. (1524-mm) Straight Section without knockouts F22T160GV F44T160GV F66T160GV F88T160GV F1010T160GV F1212T160GV
72.00-in. (1829-mm) Straight Section with knockouts F44T172GVWK F66T172GVWK F88T172GVWK
72.00-in. (1829-mm) Straight Section without knockouts F44T172GV F66T172GV F88T172GV F1010T172GV
120.00-in. (3048-mm) Straight Section with knockouts F22T1120GVWK F44T1120GVWK F66T1120GVWK F88T1120GVWK
120.00-in. (3048-mm) Straight Section without knockouts F22T1120GV F44T1120GV F66T1120GV F88T1120GV F1010T1120GV F1212T1120GV
Lay-In Galvanized Wireway, NEMA Type 1
Bulletin
f40g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
42
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
90° Elbow F2290EGV F4490EGV F6690EGV F8890EGV F101090EGV F121290EGV
90° Elbow Inside Opening F2290EINGV F4490EINGV F6690EINGV F8890EINGV F101090EINGV F121290EINGV
90° Elbow Outside Opening F2290EOUTGV F4490EOUTGV F6690EOUTGV F8890EOUTGV F101090EOUTGV F121290EOUTGV
45° Elbow F2245EGV F4445EGV F6645EGV F8845EGV F101045EGV F121245EGV
Telescope Fitting F22GAGV F44GAGV F66GAGV F88GAGV F1010GAGV F1212GAGV
Panel Adapter F22GPAGV F44GPAGV F66GPAGV F88GPAGV F1010GPAGV F1212GPAGV
Closure Plate with knockouts F22GCPGV F44GCPGV F66GCPGV F88GCPGV — F1212GCPGV
Closure Plate without knockouts F22GCPNKGV F44GCPNKGV F66GCPNKGV F88GCPNKGV F1010GCPNKGV F1212GCPNKGV
Reducer — F44G22R F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB
Support Hanger F22GSHGV F44GSHGV F66GSHGV F88GSHGV F1010GSHGV F1212GSHGV
Universal U-Connector F22GUCGV F44GUCGV F66GUCGV F88GUCGV F1010GUCGV F1212GUCGV
f40gf
Lay-In Galvanized Wireway, NEMA Type 1
Bulletin
f40g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 43
5
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
90° Elbow F2290EGV F4490EGV F6690EGV F8890EGV F101090EGV F121290EGV
90° Elbow Inside Opening F2290EINGV F4490EINGV F6690EINGV F8890EINGV F101090EINGV F121290EINGV
90° Elbow Outside Opening F2290EOUTGV F4490EOUTGV F6690EOUTGV F8890EOUTGV F101090EOUTGV F121290EOUTGV
45° Elbow F2245EGV F4445EGV F6645EGV F8845EGV F101045EGV F121245EGV
Telescope Fitting F22GAGV F44GAGV F66GAGV F88GAGV F1010GAGV F1212GAGV
Panel Adapter F22GPAGV F44GPAGV F66GPAGV F88GPAGV F1010GPAGV F1212GPAGV
Closure Plate with knockouts F22GCPGV F44GCPGV F66GCPGV F88GCPGV — F1212GCPGV
Closure Plate without knockouts F22GCPNKGV F44GCPNKGV F66GCPNKGV F88GCPNKGV F1010GCPNKGV F1212GCPNKGV
Reducer — F44G22R F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB
Support Hanger F22GSHGV F44GSHGV F66GSHGV F88GSHGV F1010GSHGV F1212GSHGV
Universal U-Connector F22GUCGV F44GUCGV F66GUCGV F88GUCGV F1010GUCGV F1212GUCGV
f40gf
Lay-In Painted Flat-Cover Wireway, NEMA Type 1
Bulletin
f40fc
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
44
Industry Standards
UL 870 Listed; File No. E27524
cUL CSA C22.2 No. 26 Listed;
File No. E27524
NEMA/EEMAC Type 1
IEC 60529
Description
2.50 x 2.50 in. 3.00 x 3.00 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 76 x 76 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
12.00-in. (305-mm) Straight Section with knockouts F22T112GVPWK F44T112GVPWK F66T112GVPWK F88T112GVPWK F1212T112GVPWK
12.00-in. (305-mm) Straight Section without knockouts F22T112GVP F44T112GVP F66T112GVP F88T112GVP F1010T112GVP F1212T112GVP
18.00-in. (455-mm) Straight Section without knockouts F44T118GVP F66T118GVP F88T118GVP F1212T118GVPWK
24.00-in. (610-mm) Straight Section with knockouts F22T124GVPWK F44T124GVPWK F66T124GVPWK F88T124GVPWK F1212T124GVPWK
24.00-in. (610-mm) Straight Section without knockouts F22T124GVP F44T124GVP F66T124GVP F88T124GVP F1010T124GVP F1212T124GVP
36.00-in. (914-mm) Straight Section with knockouts F22T136GVPWK F44T136GVPWK F66T136GVPWK F88T136GVPWK F1212T136GVPWK
36.00-in. (914-mm) Straight Section without knockouts F22T136GVP F44T136GVP F66T136GVP F88T136GVP F1010T136GVP F1212T136GVP
48.00-in. (1219-mm) Straight Section with knockouts F22T148GVPWK F44T148GVPWK F66T148GVPWK F88T148GVPWK F1212T148GVPWK
48.00-in. (1219-mm) Straight Section without knockouts F22T148GVP F44T148GVP F66T148GVP F88T148GVP F1010T148GVP F1212T148GVP
60.00-in. (1524-mm) Straight Section with knockouts F22T160GVPWK F44T160GVPWK F66T160GVPWK F88T160GVPWK F1212T160GVPWK
60.00-in. (1524-mm) Straight Section without knockouts F22T160GVP F33T160GVP F44T160GVP F66T160GVP F88T160GVP F1010T160GVP F1212T160GVP
72.00-in. (1829-mm) Straight Section with knockouts F44T172GVPWK F66T172GVPWK
72.00-in. (1829-mm) Straight Section without knockouts F44T172GVP F66T172GVP F88T172GVP F1010T172GVP
120.00-in. (3048-mm) Straight Section with knockouts F22T1120GVPWK F44T1120GVPWK F66T1120GVPWK F88T1120GVP
120.00-in. (3048-mm) Straight Section without knockouts F22T1120GVP F33T1120GVP F44T1120GVP F66T1120GVP F88T1120GVP F1010T1120GVP F1212T1120GVP
Bulletin
f40fc
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 45
Lay-In Painted Flat-Cover Wireway, NEMA Type 1
5
Description
2.50 x 2.50 in. 3.00 x 3.00 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 76 x 76 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
12.00-in. (305-mm) Straight Section with knockouts F22T112GVPWK F44T112GVPWK F66T112GVPWK F88T112GVPWK F1212T112GVPWK
12.00-in. (305-mm) Straight Section without knockouts F22T112GVP F44T112GVP F66T112GVP F88T112GVP F1010T112GVP F1212T112GVP
18.00-in. (455-mm) Straight Section without knockouts F44T118GVP F66T118GVP F88T118GVP F1212T118GVPWK
24.00-in. (610-mm) Straight Section with knockouts F22T124GVPWK F44T124GVPWK F66T124GVPWK F88T124GVPWK F1212T124GVPWK
24.00-in. (610-mm) Straight Section without knockouts F22T124GVP F44T124GVP F66T124GVP F88T124GVP F1010T124GVP F1212T124GVP
36.00-in. (914-mm) Straight Section with knockouts F22T136GVPWK F44T136GVPWK F66T136GVPWK F88T136GVPWK F1212T136GVPWK
36.00-in. (914-mm) Straight Section without knockouts F22T136GVP F44T136GVP F66T136GVP F88T136GVP F1010T136GVP F1212T136GVP
48.00-in. (1219-mm) Straight Section with knockouts F22T148GVPWK F44T148GVPWK F66T148GVPWK F88T148GVPWK F1212T148GVPWK
48.00-in. (1219-mm) Straight Section without knockouts F22T148GVP F44T148GVP F66T148GVP F88T148GVP F1010T148GVP F1212T148GVP
60.00-in. (1524-mm) Straight Section with knockouts F22T160GVPWK F44T160GVPWK F66T160GVPWK F88T160GVPWK F1212T160GVPWK
60.00-in. (1524-mm) Straight Section without knockouts F22T160GVP F33T160GVP F44T160GVP F66T160GVP F88T160GVP F1010T160GVP F1212T160GVP
72.00-in. (1829-mm) Straight Section with knockouts F44T172GVPWK F66T172GVPWK
72.00-in. (1829-mm) Straight Section without knockouts F44T172GVP F66T172GVP F88T172GVP F1010T172GVP
120.00-in. (3048-mm) Straight Section with knockouts F22T1120GVPWK F44T1120GVPWK F66T1120GVPWK F88T1120GVP
120.00-in. (3048-mm) Straight Section without knockouts F22T1120GVP F33T1120GVP F44T1120GVP F66T1120GVP F88T1120GVP F1010T1120GVP F1212T1120GVP
Lay-In Painted Flat-Cover Wireway, NEMA Type 1
Bulletin
f40fc
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
46
Description
2.50 x 2.50 in. 3.00 x 3.00 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 76 x 76 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
90° Flush Tee F22GT F33GT F44GT F66GT F88GT F1010GT F1212GT
Sweep Tee F22T F44T F66T F88T F1010T F1212T
Cross Fitting F22X F44X F66X F88X F1010X F1212X
90° Sweep Elbow F22G90SE F44G90SE F66G90SE F88G90SE F1010G90SE F1212G90SE
90° Elbow-Tee-Cross F22G90TX F33G90TX F44G90TX F66G90TX F88G90TX F1010G90TX F1212G90TX
90° Elbow F22G90E F33G90E F44G90E F66G90E F88G90E F1010G90E F1212G90E
90° Elbow Outside Opening F2290EOUT F4490EOUT F6690EOUT F8890EOUT F101090EOUT F121290EOUT
90° Elbow Inside Opening F2290EIN F4490EIN F6690EIN F8890EIN F101090EIN F121290EIN
45° Elbow F22G45E F33G45E F44G45E F66G45E F88G45E F1010G45E F1212G45E
Telescope Fitting F22GAA F44GAA F66GAA F88GAA F1010GAA F1212GAA
Open Adapter F22GOA F44GOA F66GOA F88GOA F1010GOA F1212GOA
Panel Adapter F22GPA F33GPA F44GPA F66GPA F88GPA F1010GPA F1212GPA
Closure Plate with knockouts F22GCP F44GCP F66GCP F88GCP F1010GCP F1212GCP
Closure Plate without knockouts F22GCPNK F33GCPNK F44GCPNK F66GCPNK F88GCPNK F1010GCPNK F1212GCPNK
Reducer F33G22R F44G22R
F44G33R
F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB
Support Hanger F22GSH F44GSH F66GSH F88GSH F1010GSH F1212GSH
Universal U-Connector F22GUC F33GUC F44GUC F66GUC F88GUC F1010GUC F1212GUC
Barrier Kit, bolt-on
Each barrier 60.00 in. (1524 mm)
F33BK60 F44BK60 F66BK60 F88BK60
f40Pf
Bulletin
f40fc
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 47
Lay-In Painted Flat-Cover Wireway, NEMA Type 1
5
Description
2.50 x 2.50 in. 3.00 x 3.00 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in. 12.00 x 12.00 in.
64 x 64 mm 76 x 76 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm
90° Flush Tee F22GT F33GT F44GT F66GT F88GT F1010GT F1212GT
Sweep Tee F22T F44T F66T F88T F1010T F1212T
Cross Fitting F22X F44X F66X F88X F1010X F1212X
90° Sweep Elbow F22G90SE F44G90SE F66G90SE F88G90SE F1010G90SE F1212G90SE
90° Elbow-Tee-Cross F22G90TX F33G90TX F44G90TX F66G90TX F88G90TX F1010G90TX F1212G90TX
90° Elbow F22G90E F33G90E F44G90E F66G90E F88G90E F1010G90E F1212G90E
90° Elbow Outside Opening F2290EOUT F4490EOUT F6690EOUT F8890EOUT F101090EOUT F121290EOUT
90° Elbow Inside Opening F2290EIN F4490EIN F6690EIN F8890EIN F101090EIN F121290EIN
45° Elbow F22G45E F33G45E F44G45E F66G45E F88G45E F1010G45E F1212G45E
Telescope Fitting F22GAA F44GAA F66GAA F88GAA F1010GAA F1212GAA
Open Adapter F22GOA F44GOA F66GOA F88GOA F1010GOA F1212GOA
Panel Adapter F22GPA F33GPA F44GPA F66GPA F88GPA F1010GPA F1212GPA
Closure Plate with knockouts F22GCP F44GCP F66GCP F88GCP F1010GCP F1212GCP
Closure Plate without knockouts F22GCPNK F33GCPNK F44GCPNK F66GCPNK F88GCPNK F1010GCPNK F1212GCPNK
Reducer F33G22R F44G22R
F44G33R
F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB
Support Hanger F22GSH F44GSH F66GSH F88GSH F1010GSH F1212GSH
Universal U-Connector F22GUC F33GUC F44GUC F66GUC F88GUC F1010GUC F1212GUC
Barrier Kit, bolt-on
Each barrier 60.00 in. (1524 mm)
F33BK60 F44BK60 F66BK60 F88BK60
f40Pf
Lay-In Hinged-Cover Wireway, NEMA Type 1
Bulletin
f40
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
48
Industry Standards
UL 870 Listed; File No. E27524
cUL CSA C22.2 No. 26 Listed;
File No. E27524
NEMA/EEMAC Type 1
IEC 60529, IP30
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in.
Not Hinged
12.00 x 12.00 in.
Hinged
12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm 305 x 305 mm
12.00-in. (305-mm) Straight Section with knockouts F22G12WK F44G12WK F66G12WK
12.00-in. (305-mm) Straight Section without knockouts F22G12 F44G12 F66G12 F88G12 F1010G12 F1212G12 F1212G12H
18.00-in. (455-mm) Straight Section without knockouts F44G18 F66G18 F88G18
24.00-in. (610-mm) Straight Section with knockouts F22G24WK F44G24WK F66G24WK
24.00-in. (610-mm) Straight Section without knockouts F22G24 F44G24 F66G24 F88G24 F1010G24 F1212G24 F1212G24H
36.00-in. (914-mm) Straight Section with knockouts F22G36WK F44G36WK F66G36WK
36.00-in. (914-mm) Straight Section without knockouts F22G36 F44G36 F66G36 F88G36 F1010G36 F1212G36 F1212G36H
48.00-in. (1219-mm) Straight Section with knockouts F22G48WK F44G48WK F66G48WK
48.00-in. (1219-mm) Straight Section without knockouts F22G48 F44G48 F66G48 F88G48 F1010G48 F1212G48 F1212G48H
60.00-in. (1524-mm) Straight Section with knockouts F22G60WK F44G60WK F66G60WK
60.00-in. (1524-mm) Straight Section without knockouts F22G60 F44G60 F66G60 F88G60 F1010G60 F1212G60 F1212G60H
72.00-in. (1829-mm) Straight Section with knockouts F44G72WK F66G72WK
72.00-in. (1829-mm) Straight Section without knockouts F44G72 F66G72 F88G72 F1010G72 F1212G72 F1212G72H
96.00-in. (2438-mm) Straight Section without knockouts F44G96 F66G96 F88G96 F1010G96 F1212G96
120.00-in. (3048-mm) Straight Section with knockouts F22G120WK F44G120WK F66G120WK
120.00-in. (3048-mm) Straight Section without knockouts F22G120 F44G120 F66G120 F88G120 F1010G120 F1212G120 F1212G120H
Lay-In Hinged-Cover Wireway, NEMA Type 1
Bulletin
f40
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 49
5
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in.
Not Hinged
12.00 x 12.00 in.
Hinged
12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm 305 x 305 mm
12.00-in. (305-mm) Straight Section with knockouts F22G12WK F44G12WK F66G12WK
12.00-in. (305-mm) Straight Section without knockouts F22G12 F44G12 F66G12 F88G12 F1010G12 F1212G12 F1212G12H
18.00-in. (455-mm) Straight Section without knockouts F44G18 F66G18 F88G18
24.00-in. (610-mm) Straight Section with knockouts F22G24WK F44G24WK F66G24WK
24.00-in. (610-mm) Straight Section without knockouts F22G24 F44G24 F66G24 F88G24 F1010G24 F1212G24 F1212G24H
36.00-in. (914-mm) Straight Section with knockouts F22G36WK F44G36WK F66G36WK
36.00-in. (914-mm) Straight Section without knockouts F22G36 F44G36 F66G36 F88G36 F1010G36 F1212G36 F1212G36H
48.00-in. (1219-mm) Straight Section with knockouts F22G48WK F44G48WK F66G48WK
48.00-in. (1219-mm) Straight Section without knockouts F22G48 F44G48 F66G48 F88G48 F1010G48 F1212G48 F1212G48H
60.00-in. (1524-mm) Straight Section with knockouts F22G60WK F44G60WK F66G60WK
60.00-in. (1524-mm) Straight Section without knockouts F22G60 F44G60 F66G60 F88G60 F1010G60 F1212G60 F1212G60H
72.00-in. (1829-mm) Straight Section with knockouts F44G72WK F66G72WK
72.00-in. (1829-mm) Straight Section without knockouts F44G72 F66G72 F88G72 F1010G72 F1212G72 F1212G72H
96.00-in. (2438-mm) Straight Section without knockouts F44G96 F66G96 F88G96 F1010G96 F1212G96
120.00-in. (3048-mm) Straight Section with knockouts F22G120WK F44G120WK F66G120WK
120.00-in. (3048-mm) Straight Section without knockouts F22G120 F44G120 F66G120 F88G120 F1010G120 F1212G120 F1212G120H
Lay-In Hinged-Cover Wireway, NEMA Type 1
Bulletin
f40
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
50
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in.
Not Hinged
12.00 x 12.00 in.
Hinged
12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm 305 x 305 mm
90° Flush Tee F22GT F44GT F66GT F88GT F1010GT F1212GT F1212GT
Sweep Tee F22T F44T F66T F88T F1010T F1212T F1212T
Cross Fitting F22X F44X F66X F88X F1010X F1212X F1212X
90° Sweep Elbow F22G90SE F44G90SE F66G90SE F88G90SE F1010G90SE F1212G90SE F1212G90SE
90° Elbow-Tee-Cross F22G90TX F44G90TX F66G90TX F88G90TX F1010G90TX F1212G90TX F1212G90TX
90° Elbow F22G90E F44G90E F66G90E F88G90E F1010G90E F1212G90E F1212G90E
90° Elbow Outside Opening F2290EOUT F4490EOUT F6690EOUT F8890EOUT F101090EOUT F121290EOUT F121290EOUT
90° Elbow Inside Opening F2290EIN F4490EIN F6690EIN F8890EIN F101090EIN F121290EIN F121290EIN
45° Elbow F22G45E F44G45E F66G45E F88G45E F1010G45E F1212G45E F1212G45E
Telescope Fitting F22GAA F44GAA F66GAA F88GAA F1010GAA F1212GAA F1212GAA
Open Adapter F22GOA F44GOA F66GOA F88GOA F1010GOA F1212GOA F1212GOA
Panel Adapter F22GPA F44GPA F66GPA F88GPA F1010GPA F1212GPA F1212GPA
Closure Plate without knockouts F22GCPNK F44GCPNK F66GCPNK F88GCPNK F1010GCPNK F1212GCPNK F1212GCPNK
Closure Plate with knockouts F22GCP F44GCP F66GCP F88GCP F1010GCP F1212GCP F1212GCP
Reducer F44G22R F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB F1212GDB
Support Hanger F22GSH F44GSH F66GSH F88GSH F1010GSH F1212GSH F1212GSH
Universal U-Connector F22GUC F44GUC F66GUC F88GUC F1010GUC F1212GUC F1212GUC
Barrier Kit, bolt-on Each barrier 60.00 in. (1524 mm) F44BK60 F66BK60 F88BK60
f40Pf
Lay-In Hinged-Cover Wireway, NEMA Type 1
Bulletin
f40
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 51
5
Description
2.50 x 2.50 in. 4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in. 10.00 x 10.00 in.
Not Hinged
12.00 x 12.00 in.
Hinged
12.00 x 12.00 in.
64 x 64 mm 102 x 102 mm 152 x 152 mm 203 x 203 mm 254 x 254 mm 305 x 305 mm 305 x 305 mm
90° Flush Tee F22GT F44GT F66GT F88GT F1010GT F1212GT F1212GT
Sweep Tee F22T F44T F66T F88T F1010T F1212T F1212T
Cross Fitting F22X F44X F66X F88X F1010X F1212X F1212X
90° Sweep Elbow F22G90SE F44G90SE F66G90SE F88G90SE F1010G90SE F1212G90SE F1212G90SE
90° Elbow-Tee-Cross F22G90TX F44G90TX F66G90TX F88G90TX F1010G90TX F1212G90TX F1212G90TX
90° Elbow F22G90E F44G90E F66G90E F88G90E F1010G90E F1212G90E F1212G90E
90° Elbow Outside Opening F2290EOUT F4490EOUT F6690EOUT F8890EOUT F101090EOUT F121290EOUT F121290EOUT
90° Elbow Inside Opening F2290EIN F4490EIN F6690EIN F8890EIN F101090EIN F121290EIN F121290EIN
45° Elbow F22G45E F44G45E F66G45E F88G45E F1010G45E F1212G45E F1212G45E
Telescope Fitting F22GAA F44GAA F66GAA F88GAA F1010GAA F1212GAA F1212GAA
Open Adapter F22GOA F44GOA F66GOA F88GOA F1010GOA F1212GOA F1212GOA
Panel Adapter F22GPA F44GPA F66GPA F88GPA F1010GPA F1212GPA F1212GPA
Closure Plate without knockouts F22GCPNK F44GCPNK F66GCPNK F88GCPNK F1010GCPNK F1212GCPNK F1212GCPNK
Closure Plate with knockouts F22GCP F44GCP F66GCP F88GCP F1010GCP F1212GCP F1212GCP
Reducer F44G22R F66G44R F88G66R F1010G88R F1212G88R
F1212G1010R
F1212G88R
F1212G1010R
Drop and Bracket Hanger F22GDB F44GDB F66GDB F88GDB F1010GDB F1212GDB F1212GDB
Support Hanger F22GSH F44GSH F66GSH F88GSH F1010GSH F1212GSH F1212GSH
Universal U-Connector F22GUC F44GUC F66GUC F88GUC F1010GUC F1212GUC F1212GUC
Barrier Kit, bolt-on Each barrier 60.00 in. (1524 mm) F44BK60 F66BK60 F88BK60
f40Pf
Lay-In Wireway, NEMA Type 3R
Bulletin
f30g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
52
Description
4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in.
102 x 102 mm 152 x 152 mm 203 x 203 mm
12.00-in. (305-mm) Male Straight Section F44T3R12 F66T3R12 F88T3R12
60.00-in. (1524-mm) Male Straight Section F44T3R60 F66T3R60 F88T3R60
120.00-in. (3048-mm) Male Straight Section F44T3R120 F66T3R120 F88T3R120
Industry Standards
UL 870 Listed; File No. E27524; Raintight
NEMA/EEMAC Type 3R
CSA File No. 42184, Type 3R
IEC 60529, IP32
Lay-In Wireway, NEMA Type 3R
Bulletin
f30g
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 53
5
Description
4.00 x 4.00 in. 6.00 x 6.00 in. 8.00 x 8.00 in.
102 x 102 mm 152 x 152 mm 203 x 203 mm
90° Flush Tee F44T3RT F66T3RT F88T3RT
30° Sweep Elbow F44T3R30SE F66T3R30SE F88T3R30SE
90° Elbow-Tee-Cross F44T3RTX F66T3RTX F88T3RTX
90° Elbow F44T3R90E F66T3R90E F88T3R90E
Panel Adapter F44T3RPA F66T3RPA F88T3RPA
Closure Plate F44T3RCP F66T3RCP F88T3RCP
Reducer — F66T3R44R F88T3R66R
Drop and Bracket Hanger F44T3RDH F66T3RDH F88T3RDH
Wall Hanger F44T3RWH F66T3RWH F88T3RWH
Universal U-Connector F44T3RUC F66T3RUC F88T3RUC
Wiring Trough, NEMA Type 1
Bulletin
f40t1
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
54
Catalog Number
A4412T1T
A4424T1T
A4436T1T
A4448T1T
A4460T1T
A4472T1T
A4496T1T
A6612T1T
A6624T1T
A6636T1T
A6648T1T
A6660T1T
A6672T1T
A6696T1T
Catalog Number
A8824T1T
A8836T1T
A8848T1T
A8860T1T
A8872T1T
A8896T1T
A101048T1T
A121224T1T
A121236T1T
A121248T1T
A121260T1T
A121272T1T
A121296T1T
A1212120T1T
H W L
A4 4 12
Reading Catalog Numbers
T1T
Industry Standards
UL 870 Listed; File No. E27524
cUL CSA C22.2 No. 26 Listed;
File No. E27524
NEMA/EEMAC: Type 1
IEC 60529, IP30
Wiring Trough, NEMA Type 3R
Bulletin
f40Pt
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 55
5
Industry Standards
UL 870 Listed; File No. E27524;
Raintight
cUL CSA C22.2 No. 26 Listed;
File No. E27524; Raintight
NEMA/EEMAC Type 3R
IEC 60529, IP32
Catalog Number
A4412RT
A4418RT
A4424RT
A4436RT
A4448RT
A4460RT
A4472RT
A6612RT
A6618RT
A6624RT
A6636RT
A6648RT
A6660RT
A6672RT
A8812RT
A8824RT
A8836RT
A8848RT
A8860RT
A8872RT
A8896RT
Catalog Number
A88116RT
A101024RT
A101036RT
A101048RT
A101060RT
A101096RT
A101072RT
A1010116RT
A121224RT
A121236RT
A121248RT
A121260RT
A121272RT
A121284RT
A121296RT
A1212116RT
A141448RT
A141472RT
A141484RT
A141496RT
A1414116RT
H W L
A4 4 12
Reading Catalog Numbers
RT
CLEAN TRAY® Stainless Steel Cable Tray, Type 1
Bulletin
f23
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
56
Industry Standards
UL Classied; File No. E263414
This product is classied as to its
suitability as an equipment grounding
conductor only.
NEMA/EEMAC Type 1
Description
2.00 x 2.00 in. 4.00 x 4.00 in. 4.00 x 4.00 in. 4.00 x 6.00 in. 6.00 x 6.00 in.
51 x 51 mm 102 x 102 mm 102 x 102 mm 102 x 152 mm 152 x 152 mm
10-ft. Straight Section, Standard Cover CT22120SS CT33120SS CT44120SS CT46120SS CT66120SS
10-ft. Straight Section, Perforated CT22P120SS CT33P120SS CT44P120SS CT46P120SS CT66P120SS
10-ft. Straight Section, 20° Sloped Cover CTS33120SS CTS44120SS CTS46120SS CTS66120SS
10-ft. Straight Section, Perforated 20° Sloped Cover CTS33P120SS CTS44P120SS CTS46P120SS CTS66P120SS
Divider Straight Section CT33DSS CT44DSS CT66DSS
Telescopic Straight Section (18.74 in. to 30.61 in.) CT22TSS CT33TSS CT44TSS CT46TSS CT66TSS
Divider, Telescopic Straight Section CT33TDSPSS CT44TDSPSS CT66TDSPSS
90-Degree Elbows, Front Cover CT22EFC90SS CT33EFC90SS CT44EFC90SS CT46EFC90SS CT66EFC90SS
90-Degree Elbows, Front Cover without Tabs CT22EFCNT90SS CT33EFCNT90SS CT44EFCNT90SS CT46EFCNT90SS CT66EFCNT90SS
90-Degree Elbows, Inside Cover CT22EIC90SS CT33EIC90SS CT44EIC90SS CT46EIC90SS CT66EIC90SS
90-Degree Elbows, Outside Cover CT22EOC90SS CT33EOC90SS CT44EOC90SS CT46EOC90SS CT66EOC90SS
90-Degree Elbows, Front Cover Perforated CT22PEFC90SS CT33PEFC90SS CT44PEFC90SS CT46PEFC90SS CT66PEFC90SS
90-Degree Elbows, Front Cover Sloped Inward CTS33EFC90SS CTS44EFC90SS CTS46EFC90SS CTS66EFC90SS
90-Degree Elbows, Front Cover Sloped Inward Perforated CTS33PEFC90SS CTS44PEFC90SS CTS46PEFC90SS CTS66PEFC90SS
90-Degree Elbows, Perforated without Tabs CT22PEFCNT90SS CT33PEFCNT90SS CT44PEFCNT90SS CT46PEFCNT90SS CT66PEFCNT90SS
90-Degree Elbows, Front Cover Sloped Inward without Tabs CTS44EFCNT90SS CTS46EFCNT90SS CTS66EFCNT90SS
90-Degree Elbows, Front Cover Sloped Outward with Tabs CTS44EFCO90SS CTS46EFCO90SS CTS66EFCO90SS
90-Degree Elbows, Front Cover Sloped Outward without Tabs CTS44EFCONT90SS CTS46EFCONT90SS CTS66EFCONT90SS
90-Degree Elbows, Inside Cover Sloped CTS44EIC90SS CTS46EIC90SS CTS66EIC90SS
90-Degree Elbows, Outside Cover Sloped CTS44EOC90SS CTS46EOC90SS CTS66EOC90SS
45-Degree Elbows, Front Cover CT22EFC45SS CT33EFC45SS CT44EFC45SS CT46EFC45SS CT66EFC45SS
45-Degree Elbows, Inside Cover CT22EIC45SS CT33EIC45SS CT44EIC45SS CT46EIC45SS CT66EIC45SS
CLEAN TRAY® Stainless Steel Cable Tray, Type 1
Bulletin
f23
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 57
5
Description
2.00 x 2.00 in. 4.00 x 4.00 in. 4.00 x 4.00 in. 4.00 x 6.00 in. 6.00 x 6.00 in.
51 x 51 mm 102 x 102 mm 102 x 102 mm 102 x 152 mm 152 x 152 mm
10-ft. Straight Section, Standard Cover CT22120SS CT33120SS CT44120SS CT46120SS CT66120SS
10-ft. Straight Section, Perforated CT22P120SS CT33P120SS CT44P120SS CT46P120SS CT66P120SS
10-ft. Straight Section, 20° Sloped Cover CTS33120SS CTS44120SS CTS46120SS CTS66120SS
10-ft. Straight Section, Perforated 20° Sloped Cover CTS33P120SS CTS44P120SS CTS46P120SS CTS66P120SS
Divider Straight Section CT33DSS CT44DSS CT66DSS
Telescopic Straight Section (18.74 in. to 30.61 in.) CT22TSS CT33TSS CT44TSS CT46TSS CT66TSS
Divider, Telescopic Straight Section CT33TDSPSS CT44TDSPSS CT66TDSPSS
90-Degree Elbows, Front Cover CT22EFC90SS CT33EFC90SS CT44EFC90SS CT46EFC90SS CT66EFC90SS
90-Degree Elbows, Front Cover without Tabs CT22EFCNT90SS CT33EFCNT90SS CT44EFCNT90SS CT46EFCNT90SS CT66EFCNT90SS
90-Degree Elbows, Inside Cover CT22EIC90SS CT33EIC90SS CT44EIC90SS CT46EIC90SS CT66EIC90SS
90-Degree Elbows, Outside Cover CT22EOC90SS CT33EOC90SS CT44EOC90SS CT46EOC90SS CT66EOC90SS
90-Degree Elbows, Front Cover Perforated CT22PEFC90SS CT33PEFC90SS CT44PEFC90SS CT46PEFC90SS CT66PEFC90SS
90-Degree Elbows, Front Cover Sloped Inward CTS33EFC90SS CTS44EFC90SS CTS46EFC90SS CTS66EFC90SS
90-Degree Elbows, Front Cover Sloped Inward Perforated CTS33PEFC90SS CTS44PEFC90SS CTS46PEFC90SS CTS66PEFC90SS
90-Degree Elbows, Perforated without Tabs CT22PEFCNT90SS CT33PEFCNT90SS CT44PEFCNT90SS CT46PEFCNT90SS CT66PEFCNT90SS
90-Degree Elbows, Front Cover Sloped Inward without Tabs CTS44EFCNT90SS CTS46EFCNT90SS CTS66EFCNT90SS
90-Degree Elbows, Front Cover Sloped Outward with Tabs CTS44EFCO90SS CTS46EFCO90SS CTS66EFCO90SS
90-Degree Elbows, Front Cover Sloped Outward without Tabs CTS44EFCONT90SS CTS46EFCONT90SS CTS66EFCONT90SS
90-Degree Elbows, Inside Cover Sloped CTS44EIC90SS CTS46EIC90SS CTS66EIC90SS
90-Degree Elbows, Outside Cover Sloped CTS44EOC90SS CTS46EOC90SS CTS66EOC90SS
45-Degree Elbows, Front Cover CT22EFC45SS CT33EFC45SS CT44EFC45SS CT46EFC45SS CT66EFC45SS
45-Degree Elbows, Inside Cover CT22EIC45SS CT33EIC45SS CT44EIC45SS CT46EIC45SS CT66EIC45SS
CLEAN TRAY® Stainless Steel Cable Tray, Type 1
Bulletin
f23
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
58
Description
2.00 x 2.00 in. 4.00 x 4.00 in. 4.00 x 4.00 in. 4.00 x 6.00 in. 6.00 x 6.00 in.
51 x 51 mm 102 x 102 mm 102 x 102 mm 102 x 152 mm 152 x 152 mm
45-Degree Elbows, Outside Cover CT22EOC45SS CT33EOC45SS CT44EOC45SS CT46EOC45SS CT66EOC45SS
45-Degree Elbows, Front Cover Perforated CT22PEFC45SS CT33PEFC45SS CT44PEFC45SS CT46PEFC45SS CT66PEFC45SS
45-Degree Elbows, Front Cover Sloped CTS33EFC45SS CTS44EFC45SS CTS46EFC45SS CTS66EFC45SS
45-Degree Elbows, Front Cover Sloped Perforated CTS33PEFC45SS CTS44PEFC45SS CTS46PEFC45SS CTS66PEFC45SS
45-Degree Elbows, Front Cover Sloped Outward CTS44EFCO45SS CTS46EFCO45SS CTS66EFCO45SS
45-Degree Elbows, Inside Cover Sloped CTS44EIC45SS CTS46EIC45SS CTS66EIC45SS
45-Degree Elbows, Outside Cover Sloped CTS44EOC45SS CTS46EOC45SS CTS66EOC45SS
Variable-Angle Elbow Fitting CT22VSS CT33VSS CT44VSS CT46VSS CT66VSS
90-Degree Tee, Front Cover CT22TFCSS CT33TFCSS CT44TFCSS CT46TFCSS CT66TFCSS
90-Degree Tee, Inside Cover CT33TICSS CT44TICSS CT46TICSS CT66TICSS
90-Degree Tee, Outside Cover CT22TOCSS CT33TOCSS CT44TOCSS CT46TOCSS CT66TOCSS
90-Degree Tee, Front Cover Perforated CT22PTFCSS CT33PTFCSS CT44PTFCSS CT46PTFCSS CT66PTFCSS
90-Degree Tee, Front Cover Sloped CTS33TFCSS CTS44TFCSS CTS46TFCSS CTS66TFCSS
90-Degree Tee, Front Cover Sloped Perforated CTS33PTFCSS CTS44PTFCSS CTS46PTFCSS CTS66PTFCSS
90-Degree Tee, Front Cover Sloped Outward CTS44TFCOSS CTS46TFCOSS CTS66TFCOSS
90-Degree Tee, Inside Cover Sloped CTS44TICSS CTS46TICSS CTS66TICSS
90-Degree Tee, Outside Cover Sloped CTS44TOCSS CTS46TOCSS CTS66TOCSS
Divider 90-Degree Tee, Front Cover CT33DTFCSS CT44DTFCSS CT46DTFCSS CT66DTFCSS
Divider 90-Degree Tee, Inside Cover CT33DTICSS CT44DTICSS CT66DTICSS
Divider 90-Degree Tee, Outside Cover CT33DTOCSS CT44DTOCSS CT46TOCSS CT66DTOCSS
Divider 90-Degree Elbow, Front Cover CT33DEFC90SS CT44DEFC90SS CT46DEFC90SS CT66DEFC90SS
Divider 90-Degree Elbow, Inside Cover CT33DEIC90SS CT44DEIC90SS CT66DEIC90SS
Divider 90-Degree Elbow, Outside Cover CT33DEOC90SS CT44DEOC90SS CT66DEOC90SS
Divider 45-Degree Elbow, Front Cover CT33DEFC45SS CT44DEFC45SS CT46DEFC45SS CT66DEFC45SS
Divider 45-Degree Elbow, Inside Cover CT33DEIC45SS CT44DEIC45SS CT66DEIC45SS
Divider 45-Degree Elbow, Outside Cover CT33DEOC45SS CT44DEOC45SS CT66DEOC45SS
CLEAN TRAY® Stainless Steel Cable Tray, Type 1
Bulletin
f23
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 59
5
Description
2.00 x 2.00 in. 4.00 x 4.00 in. 4.00 x 4.00 in. 4.00 x 6.00 in. 6.00 x 6.00 in.
51 x 51 mm 102 x 102 mm 102 x 102 mm 102 x 152 mm 152 x 152 mm
45-Degree Elbows, Outside Cover CT22EOC45SS CT33EOC45SS CT44EOC45SS CT46EOC45SS CT66EOC45SS
45-Degree Elbows, Front Cover Perforated CT22PEFC45SS CT33PEFC45SS CT44PEFC45SS CT46PEFC45SS CT66PEFC45SS
45-Degree Elbows, Front Cover Sloped CTS33EFC45SS CTS44EFC45SS CTS46EFC45SS CTS66EFC45SS
45-Degree Elbows, Front Cover Sloped Perforated CTS33PEFC45SS CTS44PEFC45SS CTS46PEFC45SS CTS66PEFC45SS
45-Degree Elbows, Front Cover Sloped Outward CTS44EFCO45SS CTS46EFCO45SS CTS66EFCO45SS
45-Degree Elbows, Inside Cover Sloped CTS44EIC45SS CTS46EIC45SS CTS66EIC45SS
45-Degree Elbows, Outside Cover Sloped CTS44EOC45SS CTS46EOC45SS CTS66EOC45SS
Variable-Angle Elbow Fitting CT22VSS CT33VSS CT44VSS CT46VSS CT66VSS
90-Degree Tee, Front Cover CT22TFCSS CT33TFCSS CT44TFCSS CT46TFCSS CT66TFCSS
90-Degree Tee, Inside Cover CT33TICSS CT44TICSS CT46TICSS CT66TICSS
90-Degree Tee, Outside Cover CT22TOCSS CT33TOCSS CT44TOCSS CT46TOCSS CT66TOCSS
90-Degree Tee, Front Cover Perforated CT22PTFCSS CT33PTFCSS CT44PTFCSS CT46PTFCSS CT66PTFCSS
90-Degree Tee, Front Cover Sloped CTS33TFCSS CTS44TFCSS CTS46TFCSS CTS66TFCSS
90-Degree Tee, Front Cover Sloped Perforated CTS33PTFCSS CTS44PTFCSS CTS46PTFCSS CTS66PTFCSS
90-Degree Tee, Front Cover Sloped Outward CTS44TFCOSS CTS46TFCOSS CTS66TFCOSS
90-Degree Tee, Inside Cover Sloped CTS44TICSS CTS46TICSS CTS66TICSS
90-Degree Tee, Outside Cover Sloped CTS44TOCSS CTS46TOCSS CTS66TOCSS
Divider 90-Degree Tee, Front Cover CT33DTFCSS CT44DTFCSS CT46DTFCSS CT66DTFCSS
Divider 90-Degree Tee, Inside Cover CT33DTICSS CT44DTICSS CT66DTICSS
Divider 90-Degree Tee, Outside Cover CT33DTOCSS CT44DTOCSS CT46TOCSS CT66DTOCSS
Divider 90-Degree Elbow, Front Cover CT33DEFC90SS CT44DEFC90SS CT46DEFC90SS CT66DEFC90SS
Divider 90-Degree Elbow, Inside Cover CT33DEIC90SS CT44DEIC90SS CT66DEIC90SS
Divider 90-Degree Elbow, Outside Cover CT33DEOC90SS CT44DEOC90SS CT66DEOC90SS
Divider 45-Degree Elbow, Front Cover CT33DEFC45SS CT44DEFC45SS CT46DEFC45SS CT66DEFC45SS
Divider 45-Degree Elbow, Inside Cover CT33DEIC45SS CT44DEIC45SS CT66DEIC45SS
Divider 45-Degree Elbow, Outside Cover CT33DEOC45SS CT44DEOC45SS CT66DEOC45SS
EconoTrough, NEMA Type 3R
Bulletin
f40gt
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
60
H W L
F4 4 12
Reading Catalog Numbers
RTGV
Industry Standards
UL 870 Listed; File No. E27524;
Raintight
cUL CSA C22.2 No. 26 Listed;
File No. E27524; Raintight
NEMA/EEMAC Type 3R
IEC 60529, IP 32
Catalog Number
F4412RTGV
F4424RTGV
F4436RTGV
F4448RTGV
F4460RTGV
F4472RTGV
F6612RTGV
F6618RTGV
F6624RTGV
F6636RTGV
F6648RTGV
F6660RTGV
F6672RTGV
F8812RTGV
F8824RTGV
F8836RTGV
F8848RTGV
F8860RTGV
F8872RTGV
F8896RTGV
F88116RTGV
Catalog Number
F101024RTGV
F101036RTGV
F101048RTGV
F101060RTGV
F101072RTGV
F101096RTGV
F1010116RTGV
F121224RTGV
F121236RTGV
F121248RTGV
F121260RTGV
F121272RTGV
F121284RTGV
F121296RTGV
F1212116RTGV
F141448RTGV
F141472RTGV
F141496RTGV
F1414116RTGV
Technical Information Table of Contents
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 61
Technical Information
Industry Standards
Comparison of Specic Non-Hazardous Applications - Outdoors ........................62
Comparison of Specic Non-Hazardous Applications - Indoors ............................62
Cross-Reference NEMA, UL, CSA vs. IEC Enclosure Type ............................................63
NEMA, UL and CSA Ratings - Non-Hazardous Locations ...........................................64
Enclosure Type Rating vs. IP Rating ....................................................................................66
Specifying Enclosure Materials ............................................................................................67
Glossary - Non-Hazardous Environmental Conditions ...............................................68
Thermal Management
Critical Parameters (upper temperature limits) .............................................................70
Electrical Reference
Ohm’s Law ....................................................................................................................................72
Series and Parallel Circuits .....................................................................................................73
Common Electrical Distribution ..........................................................................................73
Electrical Formulas .................................................................................................................... 74
Capacitance .................................................................................................................................75
Impedance / Reactance........................................................................................................... 76
Resistor Color Code ...................................................................................................................77
Full-Load Current (Amps) for DC Motors ..........................................................................78
Full-Load Current (Amps) for Single-Phase AC Motors ...............................................79
Glossary of Electrical Terms ...................................................................................................79
Measurement
Gauge Equivalents ....................................................................................................................80
English-to-Metric Conversions .............................................................................................80
Celcius-to-Fahrenheit Conversions .................................................................................... 81
Decimal / Fraction / mm Equivalents .................................................................................82
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
62
Type of Enclosure
Provides a Degree of Protection Against
the Following Environmental Conditions 3 3Ra3RXa4 4X 6
Incidental contact with the enclosed equipment • • • • • •
Rain, snow and sleetb••••••
Sleetc
Windblown dust • • • •
Hose-down • • •
Corrosive agents • •
Occasional temporary submersion •
a These enclosures may be ventilated.
b External operating mechanisms are not required to be operable when enclosure is ice covered.
c External operating mechanisms are operable when enclosure is ice covered.
Comparison of Specic Non-Hazardous Applications
in Outdoor Locations
in Indoor Locations Type of Enclosure
Provides a Degree of Protection Against
the Following Environmental Conditions 1a4 4X 6 12 12K 13
Incidental contact with the enclosed equipment • • • • • • •
Falling dirt • • • • • • •
Falling liquids and light splashing • • • • • •
Dust, lint, bers and yingsb••••••
Hose-down and splashing water • • •
Oil and coolant seepage • • •
Oil or coolant spraying and splashing •
Corrosive agents •
Occasional temporary submersion •
a These enclosures may be ventilated. However, Type 1 may not provide protection against small particles of falling dirt when
ventilation is provided in the enclosure top. Consult Homan for more information.
b These bers and yings are non-hazardous materials and are not considered Class II type ignitable bers or combustible yings.
For Class III type ignitable bers or combustible yings see the National Electrical Code Section 505.
The preceding tables are reproduced by permission of the National Electrical Manufacturers Association from NEMA
Standards Publication 250 “Enclosures for Electrical Equipment (1000 Volts Maximum)”.
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 63
Technical Information
Cross-Reference (Approximate)
NEMA, UL, CSA vs. IEC Enclosure Type
Enclosure Rating IP20 IP22 IP55 IP64 IP65 IP66 IP67
Type 1 •
Type 3 •
Type 3R, 3RX •
Type 4 •
Type 4X •
Type 6 •
Type 12, 12K •
Type 13 •
IEC 60529 has no equivalents to NEMA enclosure Types 7, 8, 9, 10 or 11.
• Indicates compliance.
NEMA, UL and CSA are standard-writing organizations commonly recognized
in North America. Their ratings are based on similar application descriptions
and expected performance. UL and CSA both require enclosure testing by
qualied evaluators in their certied labs. They also send site inspectors
to make sure a manufacturer adheres to prescribed manufacturing
methods and material specications. NEMA, on the other hand, does not
require independent testing and leaves compliance completely up to the
manufacturer.
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
64
NEMA, UL and CSA Ratings Non-Hazardous Locations
Enclosure
Type NEMA UL CSA
Indoor Type 1 Enclosures are intended for indoor use
primarily to provide a degree of protection
against contact with the enclosed
equipment or locations where unusual
service conditions do not exist.
Indoor use primarily to provide protection
against contact with the enclosed
equipment and against a limited amount
of falling dirt.
General purpose enclosure. Protects
against accidental contact with live parts.
Indoor Type 12 Enclosures are intended for indoor use
primarily to provide a degree of protection
against dust, falling dirt and dripping
noncorrosive liquids.
Indoor use to provide a degree of
protection against dust, dirt, ber yings,
dripping water and external condensation
of noncorrosive liquids.
Indoor use; provides a degree of protection
against circulating dust, lint, bers and
yings; dripping and light splashing of
non-corrosive liquids; not provided with
knockouts.
Indoor Type 12K Enclosures with knockouts are intended
for indoor use primarily to provide a
degree of protection against dust, falling
dirt and dripping noncorrosive liquids.
Indoor use to provide a degree of
protection against dust, dirt, ber yings,
dripping water and external condensation
of noncorrosive liquids.
Indoor use: provides a degree of protection
against circulating dust, lint, bers and
yings; dripping and light splashing of
noncorrosive liquids; not provided with
knockouts.
Indoor Type 13 Enclosures are intended for indoor use
primarily to provide a degree of protection
against dust, spraying of water, oil and
noncorrosive coolant.
Indoor use to provide a degree of
protection against lint, dust seepage,
external condensation and spraying of
water, oil and noncorrosive liquids.
Indoor use; provides a degree of
protection against circulating dust, lint,
bers and yings; seepage and spraying
of non-corrosive liquids, including oils
and coolants.
Outdoor Type 3 Enclosures are intended for outdoor use
primarily to provide a degree of protection
against windblown dust, rain and sleet;
undamaged by the formation of ice on
the enclosure.
Outdoor use to provide a degree of
protection against windblown dust and
windblown rain; undamaged by the
formation of ice on the enclosure.
Indoor or outdoor use; provides a degree
of protection against rain, snow and
windblown dust; undamaged by the
external formation of ice on the enclosure.
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 65
Technical Information
Enclosure
Type NEMA UL CSA
Outdoor Type 3R Enclosures are intended for outdoor use
primarily to provide a degree of protection
against falling rain and sleet; undamaged
by the formation of ice on the enclosure.
Outdoor use to provide a degree
of protection against falling rain;
undamaged by the formation of ice on
the enclosure.
Indoor or outdoor use; provides a degree
of protection against rain and snow;
undamaged by the external formation of
ice on the enclosure.
Outdoor Type 3RX Enclosures are intended for outdoor use
primarily to provide a degree of protection
against corrosion, falling rain and sleet;
undamaged by the formation of ice on
the enclosure.
Not specically dened. Not specically dened.
Outdoor Type 4 Enclosures are intended for indoor or
outdoor use primarily to provide a degree
of protection against windblown dust and
rain, splashing water and hose directed
water; undamaged by the formation of ice
on the enclosure.
Either indoor or outdoor use to provide a
degree of protection against falling rain,
splashing water and hose-directed water;
undamaged by the formation of ice on
the enclosure.
Indoor or outdoor use; provides a degree of
protection against rain, snow, windblown
dust, splashing and hose-directed water;
undamaged by the external formation of
ice on the enclosure.
Outdoor Type 4X Enclosures are intended for indoor
or outdoor use primarily to provide a
degree of protection against corrosion,
windblown dust and rain, splashing water
and hose-directed water; undamaged by
the formation of ice on the enclosure.
Either indoor or outdoor use to provide a
degree of protection against falling rain,
splashing water and hose-directed water;
undamaged by the formation of ice on the
enclosure; resists corrosion.
Indoor or outdoor use; provides a degree of
protection against rain, snow, windblown
dust, splashing and hose-directed water;
undamaged by the external formation of
ice on the enclosure; resists corrosion.
Outdoor Type 6 Enclosures are intended for use
indoors or outdoors where
occasional submersion is
encountered; limited depth;
undamaged by the formation of ice
on the enclosure.
Indoor or outdoor use to provide a
degree of protection against entry of
water during temporary submersion
at a limited depth; undamaged by
the external formation of ice on the
enclosure.
Indoor or outdoor use; provides a
degree of protection against
the entry of water during temporary
submersion at a limited
depth. Undamaged by the external
formation of ice on the
enclosure; resists corrosion.
See footnotes on page 66
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
66
a This material is reproduced with permission from NEMA. The preceding descriptions, however, are not intended to be
complete representations of National Electrical Manufacturers Association standards for enclosures nor those of the
Electrical and Electronic Manufacturers Association of Canada.
b This material is reproduced with permission from Underwriters Laboratories Inc. Enclosures for Electrical Equipment,
UL 50, and Industrial Control Panels, UL 508A.
Underwriters Laboratories (UL) shall not be responsible for the use of or reliance upon a UL Standard by anyone.
UL shall not incur any obligation or liability for damages, including consequential damages, arising out of or in
connection with the use, interpretation of, or reliance upon a UL Standard.
c This material is reproduced with permission from the Canadian Standards Association.
Enclosure Type Rating vs. IP Rating
Electrical enclosures are rated by Type (NEMA 250 / UL 50, 50E), and/or IP rating
(IEC 60529) based upon the degree of protection provided. Type ratings and IP
ratings have only the following in common:
1. A degree of protection for persons from hazardous components inside the
enclosure
2. A degree of protection for equipment inside the enclosure from ingress of
solid foreign objects, including dust
3. A degree of protection for equipment inside the enclosure from ingress of
water
NEMA 250 and UL 50 and 50E Type rating documentation denes additional
requirements that a Type-rated enclosure must meet. These include:
• Mechanical impact on enclosure walls
• Gasket aging and oil resistance
• Corrosion resistance
• Door and cover latching requirements
• Sheet metal gauge construction requirements (UL 50 only)
Electrical enclosures that carry only an IP rating have not been designed or
tested to the additional Type-rating requirements. For this reason, and because
the tests and evaluations for other characteristics are not identical, the IP
ratings cannot be exactly equated with NEMA enclosure Types.
Electrical enclosures manufactured by Homan are tested for and carry
both Type and IP ratings.
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 67
Technical Information
Specifying Enclosure Materials
While some enclosure materials oer exceptional corrosion resistance,
they may not provide the physical strength required to support internal
components. This graph plots primary enclosure materials on a grid of physical
strength and corrosion resistance.

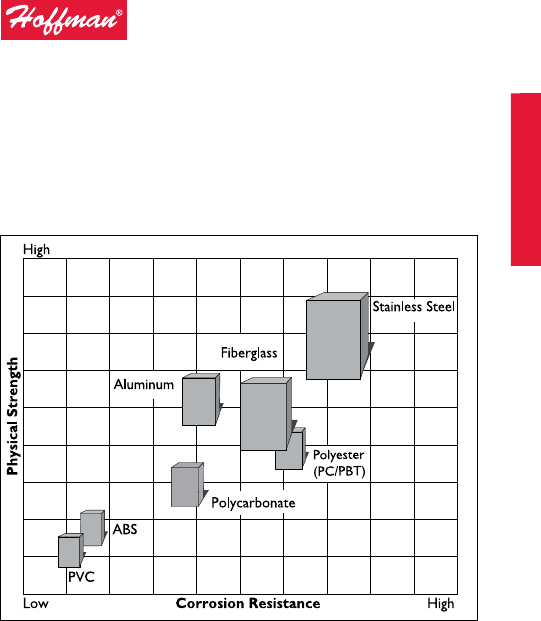

Strength/Corrosion Resistance of Enclosure Materials
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
68
Corrosion-Resistant—Constructed to provide a degree of protection
against exposure to corrosive agents such as salt spray. Type 3RX and 4X
enclosures meet this requirement.
Damp Locations—Locations protected from weather and not subject to
saturation with water or other liquids but subject to moderate degrees of
moisture. Examples of damp locations include partially protected areas under
canopies, marquees, roofed open porches and like locations, and interior
locations subject to moderate degrees of moisture, such as some basements,
some barns and some cold-storage warehouses. See the indoor enclosure
types and select a type rating that ts the specic application.
Dust-tight—Constructed so that circulating or airborne dust will not enter
the enclosure under specied test conditions. Type 3, 4, 4X, 12, 12K and 13
enclosures meet this requirement.
Drip-tight—Constructed so that falling moisture or dirt does not enter
the enclosure under specied test conditions. Type 3, 4, 4X, 12, 12K and 13
enclosures meet this requirement.
Indoor—Not to be exposed to weather. Type 1, 12, 12K and 13 enclosures
meet this requirement.
Oil-Resistant—Constructed so that oil will not interfere with successful
operation of equipment. Type 12 and 13 enclosures meet this requirement.
Oil-tight—Constructed so that oil will not enter the enclosure under specied
test conditions. Type 13 enclosures meet this requirement.
Outdoor—Constructed or protected so that exposure to the weather will
not interfere with successful operation of equipment. Type 3, 3R, 4, 4X and 6
enclosures meet this requirement. These ratings can also be used indoors.
Glossary Terms Specifying Non-Hazardous Environmental
Conditions
Industry Standards (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 69
Technical Information
Rainproof—Constructed, protected or treated to prevent beating rain from
interfering with the successful operation of the apparatus or result in wetting
of live parts and wiring within the enclosure under specied test conditions.
Type 3R and 3RX enclosures meet this requirement.
Rain-tight—Constructed or protected so that exposure to beating rain will
not result in water entering the enclosure under specied test conditions. Type
3, 4, 4X and 6 enclosures meet this requirement.
Water-tight—Constructed so that moisture will not enter the enclosure when
it is subjected to a stream of water under specied test conditions. Type 4, 4X
and 6 enclosures meet this requirement.
Weatherproof—Constructed or protected so that exposure to the weather
will not interfere with successful operation of the equipment. Rainproof,
raintight or watertight equipment can fulll the requirements for weatherproof
where varying weather conditions other than wetness, such as snow, ice, dust
or temperature extremes, are not a factor.
Wet Locations—Installations underground or in concrete slabs or masonry
in direct contact with the earth; in locations subject to saturation with water
or other liquids, such as vehicle washing areas; and in unprotected locations
exposed to weather. Use weatherproof enclosures with a type rating that ts
the specic application.
Thermal Management
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
70
Critical Parameters (upper temperature limits)
Enclosure Heat Load Calculations
Drive heat:
WD = ([HP x 745.7 Watts/HP] / EM) x (I-ED) Watts
Total heat:
Estimate an additional 25%a for wire connections and other components.
WT = WD x 1.25a Watts
Required airow:
CFM = (WT x 3.16) / (Tint - Tamb) Ft3 / Min.
a This is an estimated factor. Further investigation is necessary to obtain actual
total heat dissipated in enclosure.
Thermal Management (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 71
Technical Information
Variable Descriptions Variables Typical Values
Maximum ambient temperature Tamb 104 F
Maximum internal temperature Tint 122 F
Typical temperature rise (Tint - Tamb) 15 F
Full-load drive power hp
Motor eciencyb EM.80-.96
Drive eciencyb ED.96-.98
Drive heat loss WD
Total heat loss WT
Required airow CFM
b Use full-load eciency. Motor and drive eciency will vary based on HP and voltage.
Sample Values
Drive
Horsepower
(hp)
Typical Full
Load
Rating - Motor
Eciency
Typical Full
Load
Rating - Drive
Eciency
Drive
Heat
Loss WD
(Watts)
Additional
Heat
Lossa
(Watts)
Total
Heat
Loss WT
(Watts)
Airow when
Tint - Tamb
= 15 F
(CFM)
3 .86 .97 78 20 98 21
10 .90 .97 249 62 311 65
25 .91 .97 615 154 768 162
40 .92 .98 648 162 811 171
75 .93 .98 1203 301 1503 317
100 .94 .98 1587 397 1983 418
a Additional Heat Loss - This is an estimated factor. Further investigation is necessary to obtain actual total
heat dissipated in enclosure.
Electrical Reference
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
72

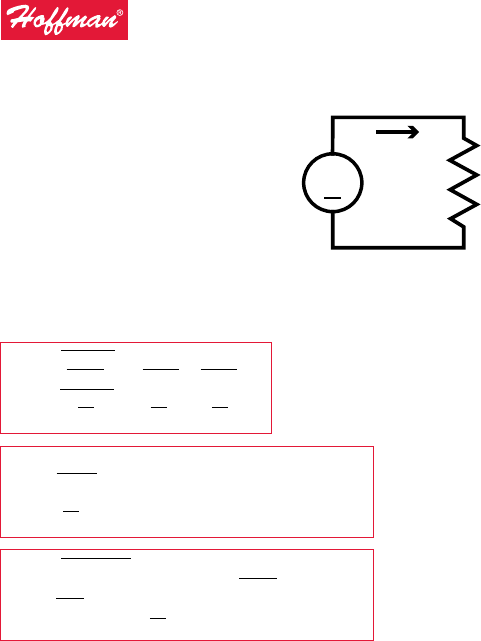

Ohm’s Law
The relationship between voltage,
current and resistance in an electrical
circuit where:
I = current (amps)
V = E = volts (electromotive force or
potential dierence)
R = resistance (ohms)
P = power (Watts)
In mathematical terms:
I = E ÷ R
E = I x R
R = E ÷ I
Amps = √ = =
I = √ = =
Watts = = Volts x Amps = Amps2 x Ohms
P = = E x I = I2 x R
Volts = √ Watts x Ohms = Amps x Ohms =
E = √ P x R = I x R =
I
R
V+
_
Watts
Ohms
P
R
E
R
Watts
Volts
Volts
Ohms
P
E
Volts2
Ohms
E2
R
Watts
Amps
P
I
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 73
Technical Information
Series Circuits
Total Volts = ET = E1 + E2 + E3
Total Amps = IT = I1 = I2 = I3
Total Ohms = RT = R1 + R2 + R3
Parallel Circuits
If total current and total voltage are unknown, use this formula:
= + +
The total resistance of several matching resistors (same resistance in each
one) connected in parallel equals the resistance of one resister divided by
the number of resistors:
RT = where RT is total resistance, R is the resistance
of one resistor and N is the number of resistors
Common Electrical Distribution
120/240 Volt Single-Phase Three-Wire System
120/240 Volt Three-Phase Four-Wire System (Delta High Leg)
120/208 Volt Three-Phase Four-Wire System (WYE Connected)
277/480 Volt Three-Phase Four-Wire System (WYE Connected)
1
RT
1
R1
1
R2
1
R3
R
N
Ohms = = =
R = = =
Volts2
Watts
Watts
Amps2
Volts
Amps
E2
P
P
I2
E
I
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
74
Electrical Formulas
Horsepower (HP)
DC E x I x % Eciency
746
Single
Phase AC
E x I x % Eciency x PF
746
2 Phase-4
Wire AC
E x I x % Eciency x PF x 2
746
3 Phase AC E x I x % Eciency x PF x 1.73
746
Kilowatts (KW)
DC E x I
1000
Single
Phase AC
E x I x PF
1000
2 Phase-4
Wire AC
E x I x PF x 2
1000
3 Phase AC E x I x PF x 1.73
1000
Kilovolt Amps (KVA)
DC —
Single
Phase AC
E x I
1000
2 Phase-4
Wire AC
E x I x 2
1000
3 Phase AC E x I x 1.73
1000
Where E = Volts
I = Amps
W = Watts
Amps when HP is known
DC HP x 746
E x % Eciency
Single
Phase AC
HP x 746
E x % Eciency x PF
2 Phase-4
Wire AC
HP x 746
E x % Eciency x PF x 2
3 Phase AC HP x 746
E x % Eciency x PF x 1.73
Amps when KW is known
DC KW x 1000
E
Single
Phase AC
KW x 1000
E x PF
2 Phase-4
Wire AC
KW x 1000
E x PF x 2
3 Phase AC KW x 1000
E x PF x 1.73
Amps when KVA is known
DC —
Single
Phase AC
KVA x 1000
E
2 Phase-4
Wire AC
KVA x 1000
E x 2
3 Phase AC KVA x 1000
E x 1.73
% Eciency =
PF = Power Factor
Output (Watts)
Input (Watts)
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 75
Technical Information
Capacitance (C)
C = =
Where C is capacitance in farads, Q is the quantity of stored electrical
charge in coulombs and E is the dierence in potential in volts.
Therefore, stored electric charge can be calculated using the formula:
Q = CV
The dierence in potential or voltage of the capacitor can be calculated
using the formula:
E = Q/C
The total capacitance in a circuit containing capacitors in parallel:
CT = C1 + C2 + C3 . . .
The total capacitance in a circuit containing capacitors in series:
= + + + . . .
Q
E
Coulombs
Volts
1
C1
1
C2
1
C3
1
CT
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
76
Impedance
The impedance (Z) is the combination of resistance and reactance in an
alternating current circuit.
Z =
Z = √ R2 + X2
Z = √ R2 + (XL - XC)2
Where:
Z = impedance (in ohms)
R = resistance (in ohms)
E = volts
I = amps
X = reactance (in ohms)
XL = inductive reactance (in ohms)
XC = capacitive reactance (in ohms)
Reactance
Reactance (X) is a component of impedance caused by inductance and
capacitance to an alternating current in a given circuit.
Inductive reactance:
XL = 2 x 3.1416 x F x L
Where:
F = frequency (in Hertz)
L = inductance (in Henry)
Capacitive reactance:
XC = where C = conductance (in Farads)
E
I
1
2 x 3.1416 x F x C
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 77
Technical Information

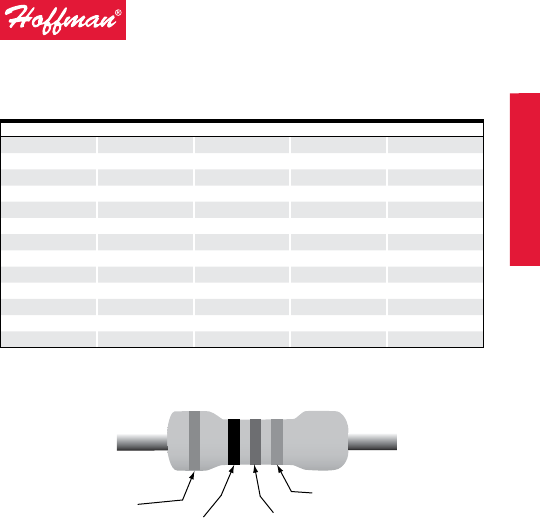

Resistor Color Code
Band Color 1st Band 2nd Band Multiplier % Tolerance
Black 0 0 1
Brown 1 1 10
Red 2 2 100
Orange 3 3 1,000
Yellow 4 4 10,000
Green 5 5 100,000
Blue 6 6 1,000,000
Violet 7 7 10,000,000
Gray 8 8 100,000,000
White 9 9 1,000,000,000
Gold 0.1 ± 5%
Silver 0.01 ± 10%
No Band ± 20%
1st
band 2nd
band
Multiplier
% Tolerance
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
78
Full–Load Current (Amps) for DC Motors
Motors running at base speed.
HP 90 V 120 V 180 V 240 V 500 V 550 V
1/4 4 3.1 2 1.6 – –
1/3 5.2 4.1 2.6 2 – –
1/2 6.8 5.4 3.4 2.7 – –
3/4 9.6 7.6 4.8 3.8 – –
1 12.2 9.5 6.1 4.7 – –
1 1/2 – 13.2 8.3 6.6 – –
2 – 17 10.8 8.5 – –
3 – 25 16 12.2 – –
5 – 40 27 20 – –
7 1/2 – 58 – 29 13.6 12.2
10 – 76 – 38 18 16
15 – – – 55 27 24
20 – – – 72 34 31
25 – – – 89 43 38
30 – – – 106 51 46
40 – – – 140 67 61
50 – – – 173 83 75
60 – – – 206 99 90
75 – – – 255 123 111
100 – – – 341 164 148
125 – – – 425 205 185
150 – – – 506 246 222
200 – – – 675 330 294
Table based on 2008 National Electrical Code.
Electrical Reference (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 79
Technical Information
Full-Load Current (Amps) for Single-Phase AC Motors
HP 115 V 200 V 208 V 230 V
1/6 4.4 2.5 2.4 2.2
1/4 5.8 3.3 3.2 2.9
1/3 7.2 4.1 4 3.6
1/2 9.8 5.6 5.4 4.9
3/4 13.8 7.9 7.6 6.9
1 16 9.2 8.8 8
1 1/2 20 11.5 11 10
2 24 13.8 13.2 12
3 34 19.6 18.7 17
5 56 32.2 30.8 28
7 1/2 80 46 44 40
10 100 57.5 55 50
Amps listed are for voltage ranges of 110-120 and 220-240.
Glossary of Electrical Terms
Capacitance—a measure of the amount of electric charge stored (or
separated) for a given electric potential.
Impedance—the generalization of the concept of resistance from DC to AC. It
is a way to represent how much current will ow with a specied (AC) voltage
across the impedance. If there is one volt AC across an impedance that lets
one ampere of AC current ow, the impedance is dened by the AC version of
Ohm’s law and is one ohm.
Potential— the potential energy per unit of charge associated with a static
(time-invariant) electric field, also called the electrostatic potential, typically
measured in volts.
Power Factor— the power factor of an AC electric power system is defined as
the ratio of the real power to the apparent power, and is a number between 0
and 1.
Reactance— the imaginary part of impedance caused by the presence of
inductors or capacitors in the circuit.
Measurement
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
80
Gauge Equivalents
Gauge Number
Nominal Thickness
in inches
Nominal Thickness
in millimeters
7 Gauge 0.179 4.547
8 Gauge 0.164 4.166
9 Gauge 0.150 3.810
10 Gauge 0.134 3.404
11 Gauge 0.120 3.048
12 Gauge 0.105 2.667
13 Gauge 0.090 2.286
14 Gauge 0.075 1.905
15 Gauge 0.067 1.702
16 Gauge 0.060 1.524
17 Gauge 0.054 1.372
18 Gauge 0.048 1.219
19 Gauge 0.042 1.067
20 Gauge 0.036 0.914
21 Gauge 0.033 0.838
22 Gauge 0.030 0.762
English-to-Metric Conversions
English Metric
1 inch 2.54 centimeters = 25.4 millimeters
12 inches = 1 foot 30.48 centimeters = 304.8 millimeters
3 feet = 1 yard .914 meters = 91.44 centimeters
1 inch26.45 centimeters2
1 foot2 = 144 inches2929.03 centimeters2
9 feet2 = 1 yard2 = 1296 inches28361.3 centimeters2 = 0.83613 meters2
640 acres = 1 mile22.59 kilometers2
1 ft.3 = 1,728 inches233.98 meters2
1 yard2 = 27 ft.2.76 meters2
2 pints = 1 quart = .5 gallon .94 liter
16 oz. = 1 lb. 453.59 grams = .454 kg
2,000 lb. = 1 ton 1016 kg
Measurement (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 81
Technical Information
Celcius-to-Fahrenheit Conversions
°C °F °C °F °C °F °C °F
0 32
1 33.8 26 78.8 51 123.8 76 168.8
2 35.6 27 80.6 52 125.6 77 170.6
3 37.4 28 82.4 53 127.4 78 172.4
4 39.2 29 84.2 54 129.2 79 174.2
5 41 30 86 55 131 80 176
6 42.8 31 87.8 56 132.8 81 177.8
7 44.6 32 89.6 57 134.6 82 179.6
8 46.4 33 91.4 58 136.4 83 181.4
9 48.2 34 93.2 59 138.2 84 183.2
10 50 35 95 60 140 85 185
11 51.8 36 96.8 61 141.8 86 186.8
12 53.6 37 98.6 62 143.6 87 188.6
13 55.4 38 100.4 63 145.4 88 190.4
14 57.2 39 102.2 64 147.2 89 192.2
15 59 40 104 65 149 90 194
16 60.8 41 105.8 66 150.8 91 195.8
17 62.6 42 107.6 67 152.6 92 197.6
18 64.4 43 109.4 68 154.4 93 199.4
19 66.2 44 111.2 69 156.2 94 201.2
20 68 45 113 70 158 95 203
21 69.8 46 114.8 71 159.8 96 204.8
22 71.6 47 116.6 72 161.6 97 206.6
23 73.4 48 118.4 73 163.4 98 208.4
24 75.2 49 120.2 74 165.2 99 210.2
25 77 50 122 75 167 100 212
°C = 5/9 x (°F - 32)
°F = (9/5 x °C) + 32
Measurement
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
82
Decimal Fraction mm
.0156 1/64 .396
.0313 1/32 2/64 .795
.0469 3/64 1.191
.0625 1/16 2/32 4/64 1.588
.0781 5/64 1.984
.0938 3/32 6/64 2.383
.1094 7/64 2.779
.1250 1/8 2/16 4/32 8/64 3.175
.1406 9/64 3.571
.1562 5/32 10/64 3.768
.1719 11/64 4.366
.1875 3/16 6/32 12/64 4.763
.2031 13/64 5.159
.2188 7/32 14/64 5.558
.2344 15/64 5.954
.2500 1/4 2/8 4/16 8/32 16/64 6.350
.2656 17/64 6.746
.2812 9/32 18/64 7.143
.2969 19/64 7.541
.3125 5/16 10/32 20/64 7.938
.3281 21/64 8.334
.3438 11/32 22/64 8.733
.3594 23/64 9.129
.3750 3/8 6/16 12/32 24/64 9.525
.3906 25/64 9.921
.4062 13/32 26/64 10.317
.4219 27/64 10.716
.4375 7/16 14/32 28/64 11.112
.4531 29/64 11.509
.4688 15/32 30/64 11.908
.4844 31/64 12.304
.5000 1/2 2/4 4/8 8/16 16/32 32/64 12.700
Decimal / Fraction / mm Equivalents
Measurement (Cont.)
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products 83
Technical Information
Decimal Fraction mm
.5156 33/64 13.096
.5312 17/32 34/64 13.492
.5469 35/64 13.891
.5625 9/16 18/32 36/64 14.288
.5781 37/64 14.684
.5938 19/32 38/64 15.083
.6094 39/64 15.479
.6250 5/8 10/16 20/32 40/64 15.875
.6406 41/64 16.271
.6562 21/32 42/64 16.667
.6719 43/64 17.066
.6876 11/16 22/32 44/64 17.465
.7031 45/64 17.859
.7188 23/32 46/64 18.258
.7344 47/64 18.654
.7500 3/4 6/8 12/16 24/32 48/64 19.050
.7656 49/64 19.446
.7812 25/32 50/64 19.842
.7969 51/64 20.241
.8125 13/16 26/32 52/64 20.637
.8281 53/64 21.034
.8438 27/32 54/64 21.433
.8465 55/64 21.501
.8750 7/8 14/16 28/32 56/64 22.225
.8906 57/64 22.621
.9062 29/32 58/64 23.017
.9219 59/64 23.416
.9375 15/16 30/32 60/64 23.813
.9531 61/64 24.209
.9688 31/32 62/64 24.608
.9844 63/64 25.004
1.000 1 4/4 8/8 16/16 32/32 64/64 25.400
Decimal / Fraction / mm Equivalents (Cont.)
Measurement
Subject to change without notice
PH 763 422 2211 • homanonline.com © 2010 Pentair Technical Products
84
Notes
THREE EASY WAYS TO CONTACT US
If you have questions, comments or need technical
support for our products
and services, choose from the
contact information below.
3SUBMIT QUESTIONS
VIA OUR ONLINE FORM
Enter your questions or comments
at homanonline.com, and we will
respond as quickly as possible.
2GO ONLINE
TO FIND A SALES OFFICE
Go to homanonline.com to locate
your local Hoffman sales office and
speak with a representative who can
match you with a local distributor.
1
RETURNS & CLAIMS
Tel: 763.422.2642
Fax: 763.422.2602
INTERNATIONAL
Customer Service
Tel: 763.422.2570
Fax: 763.422.2606
CALL
INDUSTRIAL/CONTRACTOR
Customer Service and Orders
Tel: 763.422.2211
Fax: 763.422.2600
Technical Applications
Tel: 763.422.2175
Fax: 763.422.2600
Homan Contractor Pocket Reference, Volume 4, is published by Pentair
Technical Products, 2100 Homan Way, Anoka, MN 55303. Extracts from
this literature may be copied or reproduced only with prior approval from
Pentair Technical Products' Marketing Communications Department and if
the originator is credited. Pentair Technical Products' policy is to continually
develop and improve products. The company reserves the right to change
product detail and technical specications. We cannot accept any liability for
publication errors and omissions.
©2010 Pentair Technical Products Cat-00014 D
For worldwide locations, see pentairtechnicalproducts.com
NORTH AMERICA
Pentair Technical Products
2100 Homan Way
Anoka, MN 55303-1745
Tel: +1 (763) 421-2240
170 Commerce Drive
Warwick, RI 02886
Tel. +1 (401) 732-3770
7328 Trade Street
San Diego, CA 92121
Tel. +1 (858) 740-2400
1120 Rock Road
Radford, VA 24141
Tel: +1 (540) 639-4440
Pentair Technical Products
Homan Enclosures Inc.
111 Grangeway Ave., #504
Scarborough, ON M1H 3E9
Tel: +1 (416) 289-2770
Pentair Technical Products
Homan Enclosures Mexico,
S. de R.L. de C.V.
Arquimedes 33 Piso 1
Colonia Palmas Polanco
Mexico DF 11560
Tel: +52 55 5280 1449
SOUTH AMERICA
Pentair Technical Products
Pentair Taunus Eletrometalurgica Ltda
Rua Joao Marcon, 165
18550.000 – Centro Boituva – SP Brazil
Tel: +55 15 3363 9100
EUROPE
Pentair Technical Products
Schro GmbH
Langenalber Straße 96-100
75334 Straubenhardt, Germany
Tel. +49 (0)7082 794-0
Pentair Technical Products
Schro UK Ltd.
Maylands Avenue
Hemel Hempstead
Herts HP2 7DE Great Britain
Tel. +44 (0)1442 240 471
Pentair Technical Products
Schro SAS
Z.I. 4, rue du Marais
Boîte Postale 16
67660 Betschdorf, France
Tel. +33 (0)3 88 90 64 90
Pentair Technical Products
Schro Scandinavia AB
Flygfältsgatan 11
P.O. Box 2003
12821 Skarpnäck, Sweden
Tel. +46 (0) 8 683 61 00
Pentair Technical Products
Schro Scandinavia AB
Peräsimentie 8
FIN-03100 Nummela
Finland
Tel. +358 9 222 68 00
Pentair Technical Products
Schro S.r.l.
Via Brughiera 1
20010 Pregnana Milanese (MI)
Italy
Tel. +39 02 932 714-1
Pentair Technical Products
Pentair Poland
Sp.z.o.o.
ul. Marynarska 21
PL-02-674 Warszawa Poland
Tel. +48 (0) 22 607 06 16
ASIA
Pentair Technical Products
21st Floor of Cloud Nine Plaza
No. 1118 West Yan'an Road
Changning District, Shanghai
P.R. China
Tel: +86 400 820 1133
Pentair Technical Products India
Pvt. Ltd.
Unit 1, Factory 2
(Sai Lakshmi Industrial Campus)
Kannamangala, Bidarahalli Hobli
Whiteeld – Hoskote Road
Bangalore – 560 067
Tel: +91 80 2845 4640
Pentair Technical Products
Homan Schro Pte Ltd.
18 Boon Lay Way
TradeHub 21, #04-110/111
Singapore 609966
Tel: +65 6795 2213
Pentair Technical Products
Schro K.K.
Nisso No.13 Bldg. 4F
2-5-1 Shinyokohama
Kohoku-ku yokohama-shi
Kanagawa 222-0033 Japan
Tel. +81 (0)45 476 02 81
