fiber
systems
FIBER
B3 LEVITON.COM | 800.722.2082 / +1.425.486.2222
1. OPTICAL FIBER
Leviton’s fiber connectivity systems support all fiber types, including:
• 50/125µmlaseroptimizedmultimode(OM3/OM4)(seepageB6)
• 62.5/125µmor50/125µmmultimode(OM1/OM2)(seepageB7)
• Single-mode(OS1/OS2)(seepageB8)
Two key factors will determine the best fiber for your application:
bandwidthcapacityandtransmissiondistance.Seethespecication
chartsforeachbertypeonthefollowingpages.Determinewhichber
type is best for your project, and then select complementary Leviton
componentsforacompleteberinfrastructuresystem.
2. ENCLOSURES (see pages B9-B30)
Chooseyouridealenclosuresbasedonapplicationsizeanddensity,
space configuration, plus any special needs such as those in a data
centerorserviceproviderenvironment.
• 1–10RUrack/cabinetandwallmountingoptions
• Opt-X® and LightSpace® (LGX® footprint) styles
• Replicator® high-density port-replicated
• Flush-mountpanels
• Upto576-beror288-channelcapacity
• Availableemptyorbuildyourownpre-congured
3. ENCLOSURE ACCESSORIES (see pages B31-B42)
Leviton’s MTP® modules are 100% factory tested and reduce installation
time.Or,choosefromawideselectionofOpt-XandLightSpace(LGX
footprint)adapterplatesfordiscreteconnectors.Metalandinjection-
moldedsplicetraysprotectandmanageberslack.
• MTPmodulesfeatureanewspace-savingdesign
• AdapterplatesavailablewithSC,ST,LC,orMTPadapters
• 6-,8-,12-,16-,and24-bercounts
• Splicetraysavailableinheatshrinkorribbonstyles
4. PATCH CORDS & CONNECTORS (see pages B53-B58,
and B60-B63)
• PatchcordscomewithSC,ST,andLCconnectors
• Hybridcongurationsavailable
• SecureKeyedLCpatchcordslockintoanyindustrycompliantadapter
or interface
• 1-,2-,3-,5-,and10-meterstandardlengths;customlengthsavailable
• FastCAM® pre-polished connectors in SC, ST, and LC styles
• Fast-Cure® anaerobic adhesive-style connectors in SC, ST, and LC styles
• Thread-Lock® mechanical-style connectors in SC and ST styles
• Connectorsavailableinmultimodeandsingle-modeversions
System Overview
FIBER SYSTEMS | System Overview
fiber
systems
FIBER
B4
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Leviton recommends using pre-terminated trunks and harnesses
wheneverpossible.With100%factorytestingandnoneedforeld
terminationsorsplices,installationtimeisreducedbyupto70%.
Plug-n-play pre-terminated MTP® Modules feature a space-saving design
withanotchedbackforasmallerfootprintandexcellentradiuscontrol.
All Leviton pre-terminated solutions are made to your specifications:
fiber and cable type, fiber count, connector type, breakout leg types,
length,andmore.
TRUNK CABLES (See pages B44-48)
• MTPtoMTP,including12-and24-berMTPconnector
• Discretetodiscrete(ST,SC,LC,FC,MT-RJ,andMU)
• MTPtodiscrete
• Single-mode,multimode,andlaseroptimizedmultimodetypesavailable
• SecureKeyedLCtrunkslockintoanyindustrycompliantadapterorinterface
HARNESSES (See pages B49-51)
•MTPtoMTPconnectors
•MTPtodiscreteconnectors(ST,SC,LC,FC,MT-RJ,andMU)
• Single-mode,multimode,andlaseroptimizedmultimodetypesavailable
• SecureKeyedLCharnesseslockintoanyindustrycompliantadapterorinterface
MTP MODULES (See pages B35-36)
• 12-or24-berMTPconnectorsontheback
• MTPconnectorsordiscreteconnectorsonthefront,includingLC,SC,andMU
• Single-mode,multimode,andlaseroptimizedmultimodetypesavailable
Pre-terminated Solutions
FIBER PRE-TERMINATED CABLING PERFORMANCE (dB)
FIBER SYSTEMS | Pre-terminated Solutions
MTP
MODULES &
HARNESSES
MULTIMODE SINGLE-MODE
12-fiber
Premium
Max IL
24-fiber
Premium
Max IL
Typical
IL
Max
IL
LC 0.50 0.50 0.60 1.00
SC 0.50 —0.60 1.00
MU 0.50 —0.60 1.00
CONNECTOR
MATED PAIRS
MULTIMODE SINGLE-MODE
Duplex
Typical IL
Duplex
Max IL
12-fiber
Standard
Typical IL
12-fiber
Standard
Max IL
12- &
24-fiber
Premium
Max IL
Typical
IL
Max
IL
LC 0.15 0.25 — — — 0.25 0.35
SC 0.20 0.25 — — — 0.25 0.35
MU 0.15 0.25 — — — 0.25 0.35
MTP — — 0.35 0.50 0.35 0.35 0.60
fiber
systems
FIBER
B5 LEVITON.COM | 800.722.2082 / +1.425.486.2222
Prepare for 40/100G with Leviton's Pre-terminated
Multimode System
FIBER SYSTEMS | Pre-terminated Solutions > Opt-X® Unity 40/100G
MIGRATION SOLUTIONS TO
OPT-X UNITY 40/100G SYSTEM
from existing 10G networks
• Premium 12-fiber MTP trunks
• Premium 12-fiber MTP harnesses
• 24-fiber and premium 12-fiber array patch cords
• Premium 12-fiber MTP modules
OPTICAL
FIBER TYPE
MAX.
CHANNEL
INSERTION
LOSS
MAX.
CONNECTOR
LOSS
MAX
DISTANCE
OM3 1.9dB 1.5dB 100 meters
OM4 1.5dB 1.0dB 150 meters
OPT-X UNITY 40/100G MULTIMODE CHANNEL
REQUIREMENTS (IEEE802.3ba)
COLOR CODED BOOTS ON MTP
Red-24FiberBlack-12FiberGray-8Fiber
Contact dcteam@leviton.com
for help designing your
10/40/100G migration plan.
OPT-X UNITY 40/100G SYSTEM
• 24-fiber MTP trunks
• 24-fiber MTP harnesses
• 24-fiber MTP array patch cords
• 24-fiber MTP modules
InJune2010,theIEEEpublishednewstandardsformeetingEthernetspeedsof40Gbpsforlocalserverand
computingapplicationsand100Gbpsfornetworkaggregationapplications.IEEE802.3barespondstotheneeds
of many bandwith-hungry data centers and enterprise networks requiring speeds beyond 10 Gbps, and provides
specicationsforcommunicationsacrosscopper,multimodeber,andsingle-modebercabling.
Leviton’spre-terminatedOpt-XUnity40/100Glaseroptimizedmultimode(LOMM)systemoffersanideal
migrationpathto40/100Gspeeds,andmeetsthenewIEEE802.3bastandard.Thesystemfeatures
pre-terminated trunks, harnesses, array cords, and MTP®modulestohelpyoufuture-proofyournetworks.
SeepagesB36-B52fordetailedproductinformation.
• System of trunks, harnesses, and modules are 40/100G ready
• Industry-leading 24-fiber MTP system
• Trunks, harnesses, modules, and array cords use best-in-class MTP multi-fiber connectors
• Availableinlaseroptimizedmultimode(OM3/OM4)
• Third party verification of 40/100G channel performance Channel tested by
Intertek(ETL)
®
fiber
systems
FIBER
B6
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
FIBER SYSTEMS | OM3/OM4
50/125 µm Laser Optimized Multimode Systems
(OM3/OM4)
SPECIFICATIONS
50/125 µm LOMM SYSTEM
(OM3)
50/125 µm LOMM SYSTEM
(OM4)
850 nm 1300 nm 850 nm 1300 nm
Maximum Attenuation (dB/km) 3.0 1.0 3.0 1.0
Overll Launch Minimum Bandwidth (MHz•km) 1500 50023500 5002
Effective Modal Bandwidth (EMB)(MHz•km) 20001N/A 47001–––
1G Transmission Distance (meters) 1000 600 1000 600
10G Transmission Distance (meters) 300 300 550 300
Opt-X® Unity 40/100G Transmission Distance (meters) 100 n/a 150 n/a
CONNECTORS
DESCRIPTION FAST-CURE®FA S TC A M ®
SC LOMM 49990-LSC 49991-LSC
LC LOMM 49990-LDL 49991-LLC
PATCH CORDS & PIGTAILS OM3 OM4
DESCRIPTION SC-SC LC-LC SC-SC LC-LC
50/125µmLOMM 5L*SC-Mxx 5L*LC-Mxx 54*SC-Mxx 54*LC-Mxx
12-berIndividualColor-Coded50µmLOMMPigtailKit,3meterlength 5LPSC-KIT 5LPLC-KIT 54PSC-KIT 54PLC-KIT
OPT-X® ADAPTER PLATES
3-PackDuplexSCLOMM,(6-ber)aqua,zirconiaceramicsleeve 5F100-3AC
6-PackDuplexSCLOMM,(12-ber)aqua,zirconiaceramicsleeve 5F100-6AC
6-PackDuplexLCLOMM,(12-ber)aqua,zirconiaceramicsleeve 5F100-12A
6-PackQuadLCLOMM,(24-ber)aqua,zirconiaceramicsleeve 5F100-24A
OPT-X MTP® MODULES OM3 OM4
MTP - SC, 12-fiber FM-E012BAC0C FM-F012BAC0C
MTP - LC, 12-fiber FM-E012CAC0C FM-F012CAC0C
MTP - LC, 24-fiber FM-E024CAC0C FM-F024CAC0C
STANDARDS SUPPORTED
100BASE-FX,1GBASE-SX,1GBASE-LX,10GBASE-S,10GBASE-LX4,10GBASE-LRM,40GBASE-SR4,100GBASE-SR10
1,2,4,8,10,and16GigabitFibreChannelInniband
APPLICATIONS
• Data center infrastructure
• High-bandwidth enterprise, building automation, and security
• Medium-to-large enterprise networks
• High-performance computer clusters
• Migration path to Opt-X Unity 40/100G
• VCSEL-basedpropagation
1. The effective modal bandwidth is determined based on an overfill launch (OFL) per TIA-455-204, except on laser
optimizedbertypes.
2. 10GbEtransmissionat1,300nmonlyappliesto10GBASE-LX4(CWDM).
*=Simplex(S),Duplex(D),Pigtail(P).
xx=Lengthinmeters(01),(02),(03),(05),(10).
LASER OPTIMIZED MULTIMODE (LOMM) FIBER COMPONENTS
For Leviton Fiber Enclosures
see pages B9-B30.
fiber
systems
FIBER
B7 LEVITON.COM | 800.722.2082 / +1.425.486.2222
62.5/125 µm or 50/125 µm Multimode Systems
(OM1/OM2)
SPECIFICATIONS 62.5/125 µm MULTIMODE
SYSTEM (OM1)
50/125 µm MULTIMODE
SYSTEM (OM2)
850 nm 1300 nm 850 nm 1300 nm
Maximum Attenuation (dB/km) 3.5 1.0 3.0 1.0
OverllLaunchMin.Bandwidth(MHz•km) 200 500 950 500
1G Transmission Distance (meters) 300 600 750 600
10G Transmission Distance (meters) 36 300 150 300
STANDARDS SUPPORTED
100BASE-FX,1GBASE-SX,1GBASE-LX,10GBASE-S,
10GBASE-LX4,10GBASE-LRM;
1, 2, and 4 Gigabit Fibre Channel
APPLICATIONS
• Buildingbackbonesandzonecabling
• Legacycabling(62.5/125µmber/OM1)
• Low-bandwidth enterprise, building automation,
and security
• Small-to-medium enterprise networks
• LED-basedpropagation(62.5/125µmber/OM1)
• LED-orlaser-basedpropagation
(50/125µmber/OM2)
*=Simplex(S),Duplex(D),Pigtail(P).
xx=Lengthinmeters(01),(02),(03),(05),(10).
CONNECTORS
DESCRIPTION
62.5/125 µm or
50/125 µm
FAST-CURE®
62.5/125 µm
FA S TC A M ®
50/125 µm
FASTCAM®
SC MM 49990-MSC 49991-MSC 49991-5SC
ST MM 49990-MST 49991-MST 49991-5ST
LC MM 49990-MDL 49991-MDL 49991-5LC
PATCH CORDS & PIGTAILS
DESCRIPTION SC-SC LC-LC ST-ST
62.5/125µmMM 62*SC-Mxx 62*LC-Mxx 62*ST-Mxx
50/125µmMM 50*SC-Mxx 50*LC-Mxx 50*ST-Mxx
12-berIndividualColor-Coded62.5/125µmMMPigtailKit,3meterlength 62PSC-KIT 62PLC-KIT 62PST-KIT
12-berIndividualColor-Coded50µmMMPigtailKit,3meterlength 50PSC-KIT 50PLC-KIT 50PST-KIT
OPT-X® ADAPTER PLATES
6-PackSTMM,6-ber,phosphorbronzesleeve 5F100-1ST
3-PackDuplexSCMM,6-ber,beige,phosphorbronzesleeve 5F100-3BC
6-PackDuplexSCMM,12-ber,beige,phosphorbronzesleeve 5F100-6BC
6-PackDuplexLCMM,12-ber,beige,phosphorbronzesleeve 5F100-12P
6-PackQuadLCMM,24-ber,beige,phosphorbronzesleeve 5F100-24P
OPT-X MTP® MODULES
DESCRIPTION 62.5/125 µm 50/125 µm
MTP - SC, 12-fiber FM-C012BAC0 FM-B012BAC0
MTP - LC, 12-fiber FM-C012CAC0 FM-B012CAC0
MTP - LC, 24-fiber FM-C024CAC0 FM-B024CAC0
MULTIMODE (MM) FIBER COMPONENTS
FIBER SYSTEMS | OM1/OM2
For Leviton Fiber Enclosures
see pages B9-B30.
fiber
systems
FIBER
B8
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Single-Mode System (OS1/OS2)
SPECIFICATIONS SINGLE-MODE SYSTEM (OS1) SINGLE-MODE SYSTEM (OS2)
1310 nm 1550 nm 1310 nm 1550 nm
Maximum Attenuation (dB/km) 0.5 0.4 0.4 0.3
1G Transmission Distance (meters) 5,000 n/a 5,000 n/a
10G Transmission Distance (meters) 10,000 n/a 10,000 n/a
STANDARDS SUPPORTED
1GBASE-LX,10GBASE-LX,10GBASE-LX4,10GBASE-L,10GBASE-EX
1,2,4,8,10,and16GigabitFibreChannel
APPLICATIONS
• Campus and building backbones
• Entrancefacilitiesandequipmentrooms
• Long distances
• Carrier equipment
*=Simplex(S),Duplex(D),Pigtail(P).
xx=Lengthinmeters(01),(02),(03),(05),(10).
CONNECTORS
DESCRIPTION FAST-CURE®FA S TC A M ®
SC SM UPC 49990-SSC 49991-SSC
ST SM UPC 49990-SST 49991-SST
LC SM UPC 49990-SDL 49991-SLC
PATCH CORDS & PIGTAILS
DESCRIPTION SC-SC LC-LC ST-ST
SM UPC UP*SC-Sxx UP*LC-Sxx UP*ST-Sxx
SM APC APSSC-Sxx Custom N/A
12-fiber Individual Color-Coded SM/UPC Pigtail Kit, 3 meter length UPPSC-KIT UPPLC-KIT Custom
OPT-X® ADAPTER PLATES
DESCRIPTION PART NO.
6-PackSTSM,6-ber,zirconiaceramicsleeve 5F100-6ZT
3-PackDuplexSCSM,6-ber,blue,zirconiaceramicsleeve 5F100-3ZC
6-PackDuplexSCSM,12-ber,blue,zirconiaceramicsleeve 5F100-6ZC
6-PackDuplexLCSM,12-ber,blue,zirconiaceramicsleeve 5F100-12Z
6-PackQuadLCSM,24-ber,blue,zirconiaceramicsleeve 5F100-24Z
OPT-X MTP® MODULES
DESCRIPTION PART NO.
MTP - SC, 12-fiber FM-A012BAC0
MTP - LC, 12-fiber FM-A012CAC0
MTP - LC, 24-fiber FM-A024CAC0
SINGLE-MODE (SM) FIBER COMPONENTS
FIBER SYSTEMS | OS1/OS2
For Leviton Fiber Enclosures
see pages B9-B30.
B9B9 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES
FEATURED
PRODUCTS
Opt-X Ultra®
EnclosuresB11
Opt-X® 1000i & 500i
EnclosuresB13-B15
High-Density
Replicator® B21
e2XHD Patching
System B17
Leviton manufactures a wide variety of fiber enclosures for all your
project needs: rack- and wall-mount, 1RU to 10RU, and application-
specicmodels.TheOpt-XUltraseriesjoinsasleekexteriorwith
an unparalleled feature set, tailor-made Replicator enclosures
offercustomizedconnectivityforStorageAreaNetwork(SAN)
switches, while the broad LightSpace® product line is designed to
meetvirtuallyanyserviceproviderrequirement.Roundingoutour
enclosure selection are the Opt-X 1000i and 500i models, flush-
mount panels and enclosures, and the patented, mount-anywhere
VertiGO®Zero-Uline.
New
New
Quality and Performance in Every Solution
Gary Bernstein, RCDD, CDCD
Director of Product Management, Fiber & Data Center Solutions
Gary and his team have global responsibility for our fiber and data center solutions. With more
than 15 years experience in the telecom industry, Gary has done a little bit of everything, from
sales, marketing, and product management to representing Leviton on various TIA and IEEE
standards committees. He speaks regularly at industry events, including DatacenterDynamics,
AFCOM, and BICSI, and has authored several technical articles. Gary works closely with
customers to deliver the right solutions for their applications, and when they need a unique
solution, he will work with Leviton’s engineering development team to build it.
enclosures
B10
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
HIGH-DENSITY REPLICATOR® ENCLOSURE
Leviton’s high-density Replicator enclosures were developed to support Storage Area
Network(SAN)switches.Theport-replicatedenclosuresprovideone-to-onelogicalport
management (LPM) replication of the high-density fiber switches and other core equipment
atmaindistribution.Eachenclosureistailoredtocustomer-speciedvendorequipment,
includingSANarchitecturedevicesfromCisco,IBM,EMC,Brocade,andothers.Kits,which
include trunks, MTP®panels,andharnessesalongwiththeenclosure,areavailableaswell.
ENCLOSURES | Rack-Mount > Featured Solutions
OPT-X ULTRA®
Opt-X Ultra enclosures, designed for large enterprise and data
centers, are packed full of features, including a removable sliding tray,
transparentandremovablehingeddoors,anda17"depthforhigh-
densitybertermination.Theenclosuresachieveaunique
high-endappearanceusingdurablepolycarbonateand16-gauge
powder-coatedsteel.
OPT-X® 1000i
The Opt-X 1000i rack-mount enclosure, built for medium enterprise
applications, allows for easy field termination of connectors, splicing,
orpre-terminatedplug-n-playsolutions.Itisofferedin1RUto4RU
sizes,andfeaturesaslidingtrayandberringsforcablerouting.
OPT-X 500i
The economical Opt-X 500i rack-mount enclosure, ideal for small
enterprise applications, features a one-piece removable cover for
completeaccessibilitytothebackoftheenclosure.500ienclosures
areofferedin1RU,2RU,and3RUsizes.
FIBER
enclosures
B11 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES | Rack-Mount > Opt-X Ultra®
RECOMMENDED
APPLICATIONS:
Data Centers
EquipmentRoom
EntranceFacility
Telecommunications
Room
19"and23"Racks
and Cabinets
OPT-X ULTRA RACK-MOUNT ENCLOSURES
DESCRIPTION MAXIMUM CAPACITY PART NO.
Fibers (using LC) Adapter Plates Splice Trays* MTP Modules
[A] Opt-X Ultra 1RU, empty, sliding tray 72 3 3 3 5R1UH-S03
[B] Opt-X Ultra 2RU, empty, sliding tray 144 6 6 6 5R2UH-S06
[C] Opt-X Ultra 4RU, empty, sliding tray 288 12 12 12 5R4UH-S12
AND
OR
OPT-X ULTRA 1RU/2RU/4RU RACK-MOUNT ENCLOSURES
• Stylishandinnovativedesignfortoday’smostadvancednetworksandsettings
• Slidingtrayremovescompletelyfromenclosuretofacilitateeldterminations
and splicing
• Slidingtraywithfrontandrearstopglidesforwardandbackwardproviding
accessibility to front and rear of bulkhead after installation
• 17"depthforhigh-densityberterminationand/orsplicing
• Frontsaddlespivotforimprovedpatchcordroutingandorganization
• Removabletransparenthingeddoorsandslide-awaycoversalloweasyaccess
during install and visibility of interior after install
• Patchcordbendradiusguidesminimizemacrobending
• Stackableandadjustableberringssimplifycablemanagement
• Constructedofdurablepolycarbonateplasticandblackpowder-coated
16-gaugesteel
• Multiplemountingbracketpositionsfor19"or23"rackandcabinetinstallation
(23"1RUmountingbracketsoldseparately)
• AlsoacceptsLightSpace® (LGX® Footprint) adapter plate mounting modules by
special order
• MadeintheUnitedStates
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.
SeepageB32forsplicetraydimensionandselectionguide.
CA B
FIBER
MakeToOrderEnclosures
SPOTLIGHT
What do you get when you order a custom fiber enclosure from Leviton?
Everythingyouneed.Yourorderarrivesinonebox,withyourmodulesor
adapterplates,andsplicetraysalreadyinstalledjustasyouspecied.
We put everything together for you, with no extra bags, boxes, or
questions.Allyouhavetodoisplugandplay.
enclosures
B12
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
A=6-PackPlate-6bers(SC,ST)
B=8-PackPlate-8bers(SC,ST)
C=Duplex6-PackPlate-12bers
(SC & LC only)
E=Duplex8-PackPlate-16bers(LConly)
F=Quad6-PackPlate-24bers(LConly)
L = MTP Module - 12 fibers (SC, ST, LC)
M = MTP Module - 24 fibers (LC only)
ADAPTER PLATES OR MTP MODULE
SELECTION
ENCLOSURES | Rack-Mount > Opt-X Ultra®
ACCESSORIES
DESCRIPTION PART NO.
Fiber Cable Management 1/4 Ring Kit (bag of four 1/4 rings) 5R100-14R
Universal Opt-X Cable Clamp Kit, Single Cable Grommet
(for enclosure mounting) 5RCMP-KIT
Universal Opt-X Cable Clamp Kit, Multiple Cable Grommet
(for enclosure mounting) 5RCMP-KT2
Universal Clamp Kit, Single and Multiple Cable Grommet
(for rack mounting) 5RCMR-KIT
1RU23"RackandCabinetMountingBracket 5R1RU-023
Replacement Door 5D000-*UN
Replacement Door w/ Lock 5D000-*UL
Replacement Covers 5C000-RPL
Replacement Covers, metal 5CMTL-RPL
Opt-X Ultra Patch Cord Bend Radius Bracket, (bag of two) 5PCBR-*BT
19=19"
23=23"
MOUNTING
EAR POSITION
A = Locking
front door
B = Locking
rear door
C = Both doors
N = None
SECURITY
OPTIONS
A = Heatshrink, foam holders,
up to 12 fibers (molded tray)
B = Heatshrink, plastic holders,
up to 12 fibers (molded tray)
D = Bare fusion, plastic holders,
up to 12 fibers (metal tray)
K = Heatshrink, plastic holders,
up to 24 fibers (molded tray)
N = None
SPLICE TRAY STYLE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
FIBER TYPE
ENCLOSURE
STYLE
1OPTX = 1U OptX
2OPTX = 2U OptX
4OPTX = 4U OptX
1LGX = 1U LGX*
2LGX = 2U LGX*
4LGX = 4U LGX*
PART NUMBER CONFIGURATOR - OPT-X ULTRA ENCLOSURES
NUMBER OF
ADAPTER PLATES
01 = 1
02 = 2
03 = 3
04 = 4
05 = 5
06=6
07=7
08=8
09=9
10 = 10
11 = 11
12 = 12
ADAPTER TYPE &
PIGTAIL SELECTION
A = ST
B = SC
C = LC
E= SC/APC
F = LC/APC
H = ST + pigtail
J= SC+pigtail
K = LC + pigtail
M = SC/APC + pigtail
N = LC/APC + pigtail
NO. OF SPLICE TRAYS
01 = 1 08=8
02 = 2 09=9
03 = 3 10 = 10
04 = 4 11 = 11
05 = 5 12 = 12
06=6 N = None
07=7
CABLE
CLAMP KIT
Y=Yes
N = No
Ultra XXXXX- X XX X X X XX X X XX N
Example:Ultra 1OPTX-C03EKB3CY19N;1RUOpt-XUltraEnclosurepre-conguredwith(3)6-packplatesloadedwithduplexLC
adapters (aqua color) pre-terminated with color-coded pigtails, (3) heat shrink style injection-molded splice trays (for up to 12 fiber
splicing),lockingfeatureonbothdoors,withcableclampkit,and19"mountingears[CONFIGURATIONFOR36FIBERS].
* = Rack Units: 1RU (1), 2RU (2), 4RU (4)
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082 OR VISIT WWW.LEVITON.COM/CONFIGURATOR.
WHEN SELECTING MTP® MODULES, THERE IS NO CONFIGURATION FOR PIGTAILS OR SPLICE TRAYS.
Cable Management Ring Kit
(includes four 1/4 rings)
Enclosure-Mount
Universal Clamp Kit
Rack-Mount
Universal Clamp Kit
Bend Radius Brackets
* LGX or LightSpace
footprint.
FIBER
enclosures
B13 LEVITON.COM | 800.722.2082 / +1.425.486.2222
FIBER
ENCLOSURES | Rack-Mount > Opt-X® 1000i
OPT-X 1000i 1RU/2RU/3RU/4RU ENCLOSURES
•Slidingtrayglidesforward(withstop)andbackward,andremoves(1RU,2RU)foreasy
field terminations and splicing
• 15"depthforhigh-densityberterminationand/orsplicing
• Constructedof16-gaugesteel,powder-coatedblack
• 19"or23"enclosurerack-mountoption(23"1RUmountingbracketsoldseparately)
• Enclosuresprotrude4.5"frommountingearstoalignwithVersi-Duct® Cable
Management System
• AcceptsOpt-Xadapterplatesand/orOpt-XMTP®modules/cassettes.LightSpace®
(LGX® footprint) compatible versions also available by special order
•Lockingdooroptionavailableonfront,rear,orbothdoors
• Accessory kit consists of cable ties, mounting ear screws, and port ID label
• ReplacesOpt-X1000andRDPSeriesEnclosures
• MadeintheUnitedStates
A
E
OPT-X 1000i RACK-MOUNT ENCLOSURES
DESCRIPTION PART NO.
[A] Opt-X1000i,1RUEnclosure,empty 5R1UM-F03
[B] Opt-X1000i,1RUEnclosure,empty,withslidingtray 5R1UM-S03
[C] Opt-X1000i,2RUEnclosure,empty 5R2UM-F06
Opt-X1000i,2RUEnclosure,empty,withslidingtray 5R2UM-S06
Opt-X1000i,3RUEnclosure,empty(horizontaladapterplate/moduleorientation) 5R3UM-F09
[D] Opt-X1000i,3RUEnclosure,empty(verticaladapterplate/moduleorientation) 5R3UM-F12
[E] Opt-X1000i,4RUEnclosure,empty(verticaladapterplate/moduleorientation) 5R4UM-F12
Opt-X1000i,4RUEnclosure,empty(horizontaladapterplate/moduleorientation) 5R4UM-F15
RECOMMENDED
APPLICATIONS:
EquipmentRoom
Telecommunications
Room
19"and23"Racks
and Cabinets
D
C
B
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
OPT-X 1000i RACK-MOUNT ENCLOSURE DENSITY
RACK UNIT FIBERS (USING LC) ADAPTER PLATE OR MTP MODULE/CASSETTE SPLICE TRAYS*
1RU 72 Up to 3 Up to 3
2RU 144 Upto6 Upto6
3RU 216 Upto9(horizontaladapterplate/moduleorientation) Up to 12
3RU/4RU 288 Up to 12 (vertical adapter plate/module orientation) Up to 12
4RU 360 Upto15(horizontaladapterplate/moduleorientation) Up to 12
New New New
New New
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.SeepageB32forsplicetraydimensionandselectionguide.
enclosures
B14
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Example:1000i 1OPTX-C03EKB3CY19N;1RUOpt-X1000iEnclosurepre-conguredwith(3)6-packplatesloadedwithduplexLC
adapters (aqua color) pre-terminated with color-coded pigtails, (3) heat shrink style injection-molded splice trays (for up to 12 fiber
splicing),lockingfeatureonbothdoors,withcableclampkit,and19"mountingears[CONFIGURATIONFOR36FIBERS].
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082 OR VISIT WWW.LEVITON.COM/CONFIGURATOR.
WHEN SELECTING MTP® MODULES, THERE IS NO CONFIGURATION FOR PIGTAILS OR SPLICE TRAYS.
FIBER
ENCLOSURES | Rack-Mount > Opt-X® 1000i
ACCESSORIES
DESCRIPTION PART NO.
Universal Opt-X Clamp Kit, Single Cable Grommet
(for enclosure mounting) 5RCMP-KIT
Universal Opt-X Clamp Kit, Multiple Cable Grommet
(for enclosure mounting) 5RCMP-KT2
Universal Clamp Kit, Single and Multiple Cable Grommet
(for rack mounting) 5RCMR-KIT
Fiber Cable Management 1/4 Ring Kit
(bag of four 1/4 rings) 5R100-14R
1RU23"RackandCabinetMountingBracket 5R1RU-023
Lock and Key 5L000-KAL
Cable Management Ring Kit
(includes four 1/4 rings)
PART NUMBER CONFIGURATOR - OPT-X 1000i RACK-MOUNT ENCLOSURES
A=6-PackPlate-6bers(SC,ST)
B=8-PackPlate-8bers(SC,ST)
C=Duplex6-PackPlate-12bers
(SC & LC only)
E=Duplex8-PackPlate-16bers(LConly)
F=Quad6-PackPlate-24bers(LConly)
L = MTP Module - 12 fibers (SC, ST, LC)
M = MTP Module - 24 fibers (LC only)
ADAPTER PLATES OR MTP MODULE
SELECTION
19=19"
23=23"
MOUNTING
EAR POSITION
A = Locking
front door
B = Locking
rear door
C = Both doors
N = None
SECURITY
OPTIONS
A = Heatshrink, foam holders,
up to 12 fibers (molded tray)
B = Heatshrink, plastic holders,
up to 12 fibers (molded tray)
D = Bare fusion, plastic holders,
up to 12 fibers (metal tray)
K = Heatshrink, plastic holders,
up to 24 fibers (molded tray)
N = None
SPLICE TRAY STYLE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
FIBER TYPE
ENCLOSURE STYLE
1OPTX = 1RU Opt-X*
1OPTXW = 1RU Opt-X w/ tray
2OPTX = 2RU Opt-X
2OPTXW = 2RU Opt-X w/ tray
3OPTXH = 3RU Opt-X
(Horizontaladapterplates)
3OPTXV = 3RU Opt-X
(Vertical adapter plates)
4OPTXH = 4RU Opt-X
(Horizontaladapterplates)
4OPTXV = 4RU Opt-X
(Vertical adapter plates)
1LGX = 1RU LGX®*
1LGXW = 1RU LGX w/ tray*
2LGX = 2RU LGX*
2LGXW = 2RU LGX w/ tray*
4LGX = 4RU LGX*
NUMBER OF
ADAPTER PLATES
01 = 1
02 = 2
03 = 3
04 = 4
05 = 5
06=6
07=7
08=8
09=9
10 = 10
11 = 11
12 = 12
13 = 13
14 =14
15 = 15
ADAPTER TYPE &
PIGTAIL SELECTION
A = ST
B = SC
C = LC
E= SC/APC
F = LC/APC
H = ST + pigtail
J= SC+pigtail
K = LC + pigtail
M = SC/APC + pigtail
N = LC/APC + pigtail
NO. OF
SPLICE TRAYS
01 = 1
02 = 2
03 = 3
04 = 4
05 = 5
06=6
07=7
08=8
09=9
10 = 10
11 = 11
12 = 12
N = None
CABLE CLAMP KIT
Y=Yes
N = No
1000i XXXXX- X XX X X X XX X X XX N
Enclosure-Mount
Universal Clamp Kit
Rack-Mount
Universal Clamp Kit
*IfusingoriginalRDPSeriesenclosures,useLightSpaceadapterplates.
Rack-Mount
Universal Clamp Kit
Installed
enclosures
B15 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES | Rack-Mount > Opt-X® 500iEnclosures
FIBER
Opt-X® 500i, 1RU Opt-X 500i, 2RU Opt-X 500i, 3RU
Opt-X 500i Flush-Mount Rack Enclosures
• Flush-mount adapter bulkhead for ease of moves, adds, and changes
• One-piece removable cover allows for complete accessibility to the back of the enclosure
• Constructedof16-gaugesteel,powder-coatedblack
• Accepts Opt-X adapter plates and/or Opt-X MTP® modules/cassettes
• Acceptsinjectionmoldedsplicetraysand4''x7''metalsplicetrays
• Enclosureiscapableofstoringupto3metersof900µmtightbufferedberperadapter
• Accessory kit consists of cable ties, mounting ear screws, and port ID label
• Optional cable strain relief mounting kits (for installation on side of enclosure or on rack post)
• 1RUand3RUush-mountpanelsacceptOpt-Xadapterplatesandmountto19''racksandcabinets
• Optional add-on patch cord cable management tray (sold separately) uses existing rack unit
• Replaces Opt-X 500 and 250 enclosures
• MadeintheUnitedStates
RECOMMENDED
APPLICATIONS:
EquipmentRoom
Telecommunications
Room
19"racksandcabinets
1RU, 3RU Opt-X 500i
Flush-Mount Panels
PatchCordManagementTrayshelprouteandorganizecablesonOpt-X500i
enclosures.Thetraysfeatureidenticationlabelsandfrontsaddlesthatpivotfor
easierrouting.Becausetheymountdirectlytothefrontoftheenclosures,theydo
notrequireadditionalrackspace.Availablein1RUand2RUsizes,thetrayscanbe
used with any Leviton 1RU Flush-mount MTP enclosure and 2RU trays can be used
with3RU500ienclosures.
Patch Cord Management Tray
SPOTLIGHT
AC
B
DE
OPT-X 500i RACK-MOUNT ENCLOSURES
DESCRIPTION PART NO.
[A] Opt-X500i,1RUEnclosure,empty 5R1UL-F03
[B] Opt-X500i,2RUEnclosure,empty 5R2UL-F06
[C] Opt-X500i,3RUEnclosure,empty 5R3UL-F12
[D] Opt-X 500i, 1RU Panel, empty 5R1UE-OPX
[E] Opt-X 500i, 3RU Panel, empty 5R3UE-OPX
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.SeepageB32forsplicetraydimensionandselectionguide.
OPT-X 500i RACK-MOUNT ENCLOSURE DENSITY
RACK UNIT FIBERS (USING LC) ADAPTER PLATE OR MTP MODULE/CASSETTE SPLICE TRAYS*
1RU 72 Up to 3 Up to 3
2RU 144 Upto6 Upto6
3RU 288 Up to 12 Up to 12
enclosures
B16
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Rack-Mount > Opt-X Accessories
FIBER
* = Rack Units: 1RU (1), 2RU (2), 4RU (4)
Rack-Mount Universal Clamp Kit
(5RCMR-KIT)*
Cable Management Ring Kit
(includes four 1/4 rings)
(5R100-14R)
Enclosure-MountUniversalClampKit
(5RCMP-KIT)*
1RU, 2RU Patch Cord Management Trays
(5R1UL-CMT, 5R2UL-CMT)
Bend Radius Brackets (5PCBR-*BT)
Fiber Optic Fanout Kit
SPOTLIGHT
Protect bare fiber and prepare loose tube cable for direct termination with
LevitonFiberOpticFanoutKits.Stackmultiplefanoutkitsinsideafiber
enclosuretosavespace.Availableintwolengths,these6-or12-fiberkits
separate250µmfibersandroutethemintocolor-coded900µmbuffer
tubes.Theeasy-to-usekitsworkwithanymanufacturer’sloose-tube
cablingandanyindustry-standardconnectors.Tolearnmore,watcha
termination demonstration at youtube.com/levitonmfg.
AVAILABLE FOR
Opt-X Ultra®
Opt-X® 1000i
Opt-X 500i
DESCRIPTION PART NO.
Fiber Cable Management 1/4 Ring Kit (bag of four 1/4 rings) 5R100-14R X X X
Universal Opt-X Clamp Kit, Single Cable Grommet (for enclosure mounting) 5RCMP-KIT X X X
Universal Opt-X Clamp Kit, Multiple Cable Grommet (for enclosure mounting) 5RCMP-KT2 X X X
Universal Clamp Kit, Single and Multiple Cable Grommet (for rack mounting) 5RCMR-KIT X X X
1RU23"RackandCabinetMountingBracket 5R1RU-023 X X
Replacement Door 5D000-*UN X
Replacement Door with Lock 5D000-*UL X
Replacement Covers 5C000-RPL X
Covers, metal 5CMTL-RPL X
Opt-X Ultra Patch Cord Bend Radius Bracket (bag of two) 5PCBR-*BT X
Lock and Key 5L000-LAK X
Patch Cord Management Tray, 1RU (for use with 1RU enclosure) 5R1UL-CMT X
Patch Cord Management Tray, 2RU (for use with 2 & 3RU enclosure) 5R2UL-CMT X
enclosures
B17 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES | Rack-Mount > e2XHD Patching System
FIBER

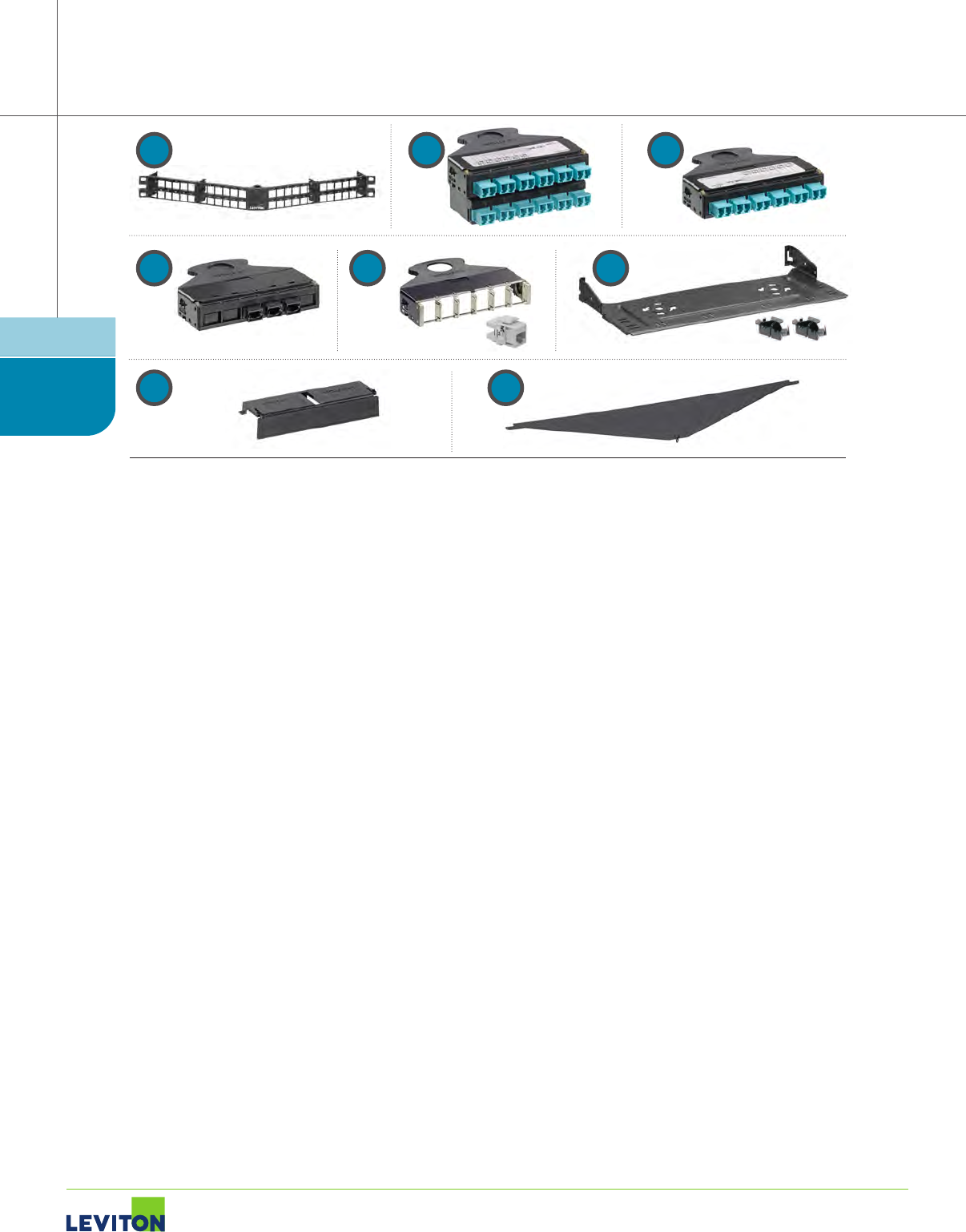

C
1RU HIGH DENSITY ANGLED PANEL
• Holdsupto48berchannelsor48copperports
• Acceptsupto8coppercassettes
• Acceptsupto8singleheightor4doubleheight
fiber cassettes
• Mountsonstandard19”relayracksorcabinets
• Alignmenttabsonrearofpanelmakescassette
insertion easy
MTP-LC FIBER CASSETTE
• Usedexclusivelywith1RUHighDensityAngledPanel
• Easilysnapsintorearofpanel
• Availablein12-or24-ber,OM3,OM4,single-mode
• Allowsforsimplemigrationpathto40GbEnetworks
with MTP cassettes
• MTPAdapterisadjustable,allowingforeasycable
routing and proper bending radius
• Releasemechanismallowsforsimple,tool-free
removal
• Allcassettesuseeither24-beror12-berlow-loss
MTP connectors
ANGLED PANEL BLANK INSERT
• Blocksanyunusedcassetteopenings
• Reservescapacityforfuturecopperorbercassettes
• Easilysnapsintorearofpanel
COPPER CASSETTE KIT
• Usedexclusivelywith1RUHighDensityAngledPanel
• Easilysnapsintorearofpanel
• SuppliedasakitwithcassetteandsixCAT6Aor
CAT6QuickPortConnectors
• Connectorssnapintocassetteaftertermination
• AXTbarrierreducesaliencrosstalkbetweenports
• Releasemechanismallowsforsimple,tool-free
removal
REAR CABLE MANAGER
• MountsdirectlytorearofHighDensityAngledPanel,
no tools or screws required
• Supportsbothcopperandbercables
• Cablemanagementringsincludedtohelpmanage
and route incoming fiber cables
• Built-inVelcro® Brand tie downs secure fiber or
copper cables
• Optionalcablestrainreliefkitavailableforincoming
fiber cables
ANGLED PANEL TOP COVER
• Usesnoadditionalrackspace
• Minimizesdustanddebrisbehindpanels
• Protectscassettesmountedinpanel
• Canberetrottedafterpanelisinstalled
The e2XHD Patching System provides simple termination and improved cabling routing for both fiber
andcopperapplications.Cassettesquicklysnapinandpulloutofthehighdensityangledpanel,making
installationandmaintenanceeasierthanever.Coppercassettesuseeld-terminatedconnectors,whileber
cassettesarepre-terminated.Panelcoversandblankmodulesofferextraprotectionfromdustanddamage.
A
E
New
New
F
New
GH
New
B
New
D
New
New New
enclosures
B18
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Rack-Mount > e2XHD Patching System
FIBER
MTP Adapter
SPOTLIGHT
The e2XHD Fiber Cassette features an MTP adapter that
swivelstothreepositionsforeasiercablerouting.Usedin
conjunction with the patching system’s rear cable manager
and cable management rings, the adapter delivers an ideal
solution for eliminating cable tension and ensuring proper
bendradius.
e2XHD PATCHING SYSTEM (for fiber cassettes, use configurator below)
DESCRIPTION PART NO.
[A] e2XHD 1RU High Density Angled Panel E2X1A-D48
[B] e2XHD 24-fiber MTP-LC Fiber Cassette (see configurator below)
[C] e2XHD 12-fiber MTP-LC Fiber Cassette (see configurator below)
[D] e2XHD MTP-MTP Fiber Cassette (see configurator below)
[E] e2XHD6-portCAT6ACassetteKit* E2X6A-xxx
e2XHD6-portCAT6CassetteKit* E2X61-xxx
[F] e2XHDRearCableManager,withcablemanagementrings(four1/4"rings) E2XHD-CMB
[G] e2XHD Angled Panel Blank Insert E2XHD-BLK
[H] e2XHD Angled Panel Top Cover E2XHD-COV
UniversalOpt-XClampKit,SingleCableGrommet(forenclosuremounting,seepageB16) 5RCMP-KIT
xxx=colors:Black(BLK),Blue(BLU),Green(GRN),Yellow(YEL),Red(RED)
*CAT6Acassettesincludesix6110GQuickPort®Connectors.CAT6cassettesincludesix61110QuickPortConnectors.
PART NUMBER CONFIGURATOR – e2XHD MTP FIBER CASSETTE
Example:FME2XHD-E012CKQDBC;12-berOM3,LC(aquacolor)toMTPconnector,MethodB(core)polarity.
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082.
POLARITY
A = Method A
BC = Method B,
Core, black
BE=MethodB,
Edge,white
C = Method C
FIBER
COUNT
012 = 12
024 = 24
FIBER TYPE
E=OM3
F = OM4
A = OS2
CONNECTOR TYPE
C = LC
M=8FMTP(female)
MTP FIBER
COUNT
K = 12F MTP
H = 24F MTP
FOOTPRINT
D = 12 Fiber
(single
cassette
height)
E=24Fiber
(double
cassette
height)
COLOR
Q = MM aqua
adapter
L = SM blue
adapter
K = Black
(MTP only)
FME2XHD - X XXX X X X X XX
enclosures
B19 LEVITON.COM | 800.722.2082 / +1.425.486.2222
POLARITY
A = MTP
Method A
B = MTP
Method B
C = MTP
Method C
(Standard)
N = None (for
panels w/o
harnesses)
FIBER
COUNT
072
096
144
192
288
512
576
FIBER TYPE
A = 0S1
B = OM2
C = OM1
E=OM3
F = OM4
ENCLOSURE STYLE
4=4RU(upto288bers
or 144 channels)
6=6RU(upto288bers
or 144 channels)
8=8RU(upto576bers
or288channels)
CONNECTOR TYPE
A = ST
B = SC
C = LC
D = LC (w/ shutters)
U = MU
MTP FIBER
COUNT
A = 12 MTP
(Standard)
N = None
FOOTPRINT
19=19"
(Standard)
23=23"
COLOR
0 = Black
(Standard)
2 = Beige
FPX - X XXX X X XX X X
PART NUMBER CONFIGURATOR – FLUSH-MOUNT ENCLOSURES (4RU, 6RU, & 8RU ONLY)
Example:FP6-A288CN190C;6RUFlush-MountEnclosurepre-conguredwithonlyduplexLC(bluecolor)adapters,OS1,MTPMethodCpolarity
[CONFIGURATIONFOR288FIBERS].Picturedaboveatleft.
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082.
FLUSH-MOUNT ENCLOSURE DENSITY, MAXIMUM FIBER COUNT
SIZE/TYPE SC LC MU ST
1RUPanel/Enclosure 72 144 72 72
4RUEnclosure 144 288 144 144
6RUEnclosure 144 288 288 144
8RUEnclosure 288 576 576 288
ENCLOSURES | Rack-Mount > Flush-Mount
RECOMMENDED
APPLICATIONS:
Data Center Server,
Zone,orMDA
EquipmentRoom
Telecommunications
Room
19"Racksand
Cabinets
HIGH-DENSITY FLUSH-MOUNT SERIES FIBER TERMINATION ENCLOSURES
• Staggered,ergonomicdesignallowseasyaccesstoconnectors(1RU,6RU,and8RU
enclosures only)
•IncorporatesLPMusingcustomsilkscreening(modular,numeric,andhexadecimal)
for easy port identification
• 4RUaccommodates6-packLightSpace® (LGX® footprint) adapter plates and
plug-n-play modules
• 6RUand8RUhingedfrontpanelopensto60ºforeasyaccessandallowsenclosures
to be placed back to back in a single cabinet
• Customconguredoptionsavailable
• Constructedof16-gaugesteel,powder-coatedblack
• Enclosuremountsonstandard19"racksandcabinets
• Accepts1RUPatchCordManagementtray(5R1UL-CMT)
4RUEnclosure,144-berOM3,LC(noMTP)6RUEnclosure,288-berOS2,LC(noMTP) 8RUEnclosure,576-berOM3,MTP-LC
FIBER
enclosures
B20
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Rack-Mount > Flush-Mount
POLARITY
A = MTP Method A
B = MTP Method B
C = MTP Method C
(Standard)
N = None (for panels
w/o harnesses)
FIBER
COUNT
024
036
048
072
096
144
XXX = Other
FIBER TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
CONNECTOR TYPE
A = ST
B = SC
C = LC
D = LC w/ shutters
U = MU
MTP FIBER COUNT
A = 12 (standard)
N = None
COLOR
0 = Black
(Standard)
2 = Beige
FM - X XXX X X B X X
PART NUMBER CONFIGURATOR - FLUSH-MOUNT ENCLOSURES & PANELS (1RU ONLY)
Example:FM-E048CAB0C;1RUFlush-MountEnclosurepre-conguredduplexLC(aquacoloradapters)to12-berMTP®, OM3, MTP Method C
polarity[CONFIGURATIONFOR48FIBERS].Picturedaboveattop.
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082.
HIGH-DENSITY FLUSH-MOUNT SERIES FIBER TERMINATION PANELS
• Staggered,ergonomicdesignallowseasyaccesstoconnectors
• Incorporateslogicalportmanagement(LPM)usingcustomsilkscreening
(modular, numeric, and hexadecimal) for easy port identification
• Constructedof16-gaugesteel,powder-coatedblack
• Panelmountsonstandard19"racksandcabinets
• Accepts1RUPatchCordManagementtray(5R1UL-CMT)
1RUPanel,72-ber,OS2,MU
1RUEnclosure,48-berOM3,MTP-LC
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
The Opt-X 500i Patch Cord Management Tray provides convenient routing
andprotectionusingthesamerackunitspaceastheenclosure.Itcanalso
beusedwithanyLeviton1RUFlush-MountMTPenclosure.
RECOMMENDED
APPLICATIONS:
Data Center Server,
Zone,orMDA
EquipmentRoom
Telecommunications
Room
19"Racksand
Cabinets
FOOTPRINT
B = 1RU
Rack-mount
1RUPanel,72-berOM1,LC FIBER
enclosures
B21 LEVITON.COM | 800.722.2082 / +1.425.486.2222
REPL-BRDE2400-LCMTP096OM3C:
Brocade12/24kReplicator8RUEnclosure,
96channel,MTPtoLC,OM3,Fiber
REPLICATOR ENCLOSURES
• Canbeconguredtoreplicateanyswitch
• Uniquelogicalportmanagement(LPM)design
• Kitsavailablewithtrunks,MTP® panels, and harnesses
• Fullfrontaccesstoallterminationsviafolddownpanel
• Shallowdepthallowsback-to-backmountingincabinetsand4-postracksforhigh-densityapplications
• Upto384-channelcapacity(768berstrands)
• AvailablewithLCandMUconnectorinterfaces
ENCLOSURES | Rack-Mount > Replicator®
REPL-CSCO9513-LCMTP576OM3C:
Cisco9513Replicator8RUEnclosure,Beige
288channel,MTPtoLC,OM3,Fiber
For assistance configuring
enclosure and/or kit,
please call 800.722.2082.
FIBER
MTP - MTP Trunk MTP - MTP Trunk
Main Distribution
.35dB Loss .35dB Loss
MTP - LC Harness MTP - LC Harness
LC - LC Jumper
Total Loss = 1.9dB
.25dB Loss .25dB Loss
In Equipment Zone In Equipment Zone
Storage
Device
Cisco
9513
Switch
TIA-568-C.3
10 GBE Loss limit = 2.6dB
This topology results in 0.7dB margin.
.35dB .35dB
TYPICAL REPLICATOR KIT TOPOLOGY
enclosures
B22
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Zero-U > VertiGO®
VERTIGO ZERO-U PATCH PANELS
DESCRIPTION PART NO.
[A] QuickPort12-PortZero-U,panelonly 49280-QP0
QuickPort12-PortZero-U,panelwith3"cablechannel 49280-QP3
QuickPort12-PortZero-U,panelwith6"cablechannel 49280-QP6
[B] Opt-XAdapterPlateZero-U,panelonly 49280-AP0
Opt-XAdapterPlateZero-U,panelwith3"cablechannel 49280-AP3
Opt-XAdapterPlateZero-U,panelwith6"cablechannel 49280-AP6
A
VERTIGO ZERO-U PATCH PANELS
• Allstylessoldempty,witheitherQuickPort®
or Opt-X® style openings
• Zero-Uusesnorackspace
• Lowproledesignfullycoversconnections
• Improvescabinetcenterairowbyrouting
rear cable along outer edges
• Styleswith3"and6"channelsprovide
additional cable management space
• Hingeddoorsprovideeasyaccessto
termination field
• Magniedlabelholdersmakeforeasyreading
• Supportscopperandberinstallations
VERTIGO RACK-MOUNT PLUG-N-PLAY PATCH PANELS
• Pre-conguredforfastnetworkdeployment.
• Adjustablemountingearsprovideveuniqueoffsetdistancesforenhancedhorizontalcablemanagement
• Integratedcablemanager
• AcceptsallOpt-Xadapterplates,allowingforamixofcopper,ber,andmultimediaconnectivity
• ProvideseitherMTP® Plug-n-Play or discrete point termination
• AllVertiGORack-MountPlug-n-PlayPatchPanelssoldascustomcongurations.Call800.722.2082formoreinformation
VERTIGO FIBER PLUG-N-PLAY PATCH PANELS
• Pre-conguredforfastnetworkdeployment.
• Mountsverticallytostandard19"racksorcabinetswhileconsumingnohorizontalrackspace
• AcceptsallOpt-Xadapterplates,allowingforamixofcopper,ber,andmultimediaconnectivity
• Internalmetaldividerprovidesseparationofcopperandbercabling
• ProvideseitherMTPPlug-n-Playordiscretepointtermination
• Canmounttothebackrailsofracksandcabinets,laddertray,walls,orinunder-oorapplicationsformaximumversatility
• AllVertiGOFiberPlug-n-PlayPatchPanelssoldascustomcongurations.Call800.722.2082formoreinformation
Fiber Plug-n-Play Patch Panel
VertiGO Rack-Mount Plug-n-Play Patch Panels
B
FIBER
enclosures
B23 LEVITON.COM | 800.722.2082 / +1.425.486.2222
B23 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES | Rack-Mount > Zero-U > MTP® Brackets
C
FIBER PLUG-N-PLAY MTP BRACKETS
DESCRIPTION 6 MTP ADAPTERS 9 MTP ADAPTERS 10 MTP ADAPTERS 12 MTP ADAPTERS
Straight Bracket w/ Adapters [A] FB106-0ST FB109-0ST
90˚AngledBracketw/Adapters FB106-090 [B] FB109-090
Standard 12 MTP-Adapter
Bracket [C] FB112-000
Straight Vertical MTP Bracket [D] FB110-VST
45˚AngledMTPBracket [E] FB112-045
FIBER PLUG-N-PLAY MTP BRACKETS
• Availableinvarioussizesandcongurationstoaccommodate6to12adapters
• Mounttobackrail(rightorleftside)ofracksandcabinets,freeingupvaluablespace
• Providedirectconnectiontotrunkcablesandharnesses
• Customcongurationsavailable,call800.722.2082formoreinformation
• Availablewithshuttersviaspecialorder
B
A
UNIVERSAL FIBER PLUG-N-PLAY BRACKETS
• AcceptallLightSpace® (LGX®Footprint)6-and8-packadapterplates
• AvailableinbothMTPPlug-n-Playanddiscreteconnector/plugterminationcongurations
• Mounttobackrail(rightorleftside)ofracksandcabinets,freeingupvaluablespace
• MTPtrunkcablecanbeterminatedtoeitherthetoporbottomsurfaceoftheproduct
• Availableinopenorfullyclosedcongurations
• Customcongurationsavailable,call800.722.2082formoreinformation
DE
Universal Plug-n-Play
bracket, closed
For assistance configuring
enclosure and/or kit,
please call 800.722.2082.
FIBER
B24
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
The Industry's Best Service & Support
Dennis Manes, RCDD
Fiber and Data Center Principal Applications Engineer
Dennis has a hand in a little of everything at Leviton, and our satisfied customers are thankful
for it. He helps develop innovative new products while ensuring they meet industry standards
and user requirements. He designs data center layouts and cable pathways, customized to
each installation. He provides installation support for operations nationwide and abroad. On top
of all that, he leads Leviton’s crack team of Technical Support Representatives, ready to assist
customers with product, installation, and design support. With all his expertise and tireless
effort, sometimes we wonder if Dennis has a secret twin or clone army.
B24
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
enclosures
B24
ENCLOSURES | Rack-Mount > Zero-U > Vertical Patching Brackets
VERTICAL PATCHING BRACKETS
• Enableverticalmountingofpatchpanels,adapter
plates (Opt-X® and LightSpace®), and managers to
standard19"racksandcabinets
• Alignorreplicatepatchpanel/adapterplate
ports with the ports that reside on servers or
switches within the same or adjacent rack/cabinet
• 48-portcopperpanelsreplicatetypical1G/10G
copper switch blades
• 48-channelberchannelsreplicatetypical10G
fiber switch blades
• Uptoten1RUcopper/berpatchpanelsand
cable managers can be mounted vertically
utilizing10RUspace
• UptotwelveOpt-XorLightSpaceadapterplates
canbemountedverticallyutilizing5RUspace
VERTICAL PATCHING BRACKET
DESCRIPTION PART NO.
VerticalPatchingBracket,19"(setoftwo) [F] VERPB-019
F
Horizontalcablemanagerssoldseparately,seepageC5
FIBER
enclosures
B25 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURES | Rack-Mount > LightSpace® > DP/DPS/DPC Series
A B
RECOMMENDED
APPLICATIONS:
Central Office or
HeadEnd,CLEC
19"and23"Racks
and Cabinets
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
your own!
Build
LIGHTSPACE DP SERIES OPTICAL DISTRIBUTION ENCLOSURES
• DP-525andDP-700acceptLightSpace(LGX®footprint)6-or8-packadapterplates
• DP-105onlyacceptsLightSpace12-packadapterplates
• Removablefrontdoor
• Reardoorwithkeylockoption
• Upperandlowerpatchcordbendradiusbrackets
• Flipcardforconnectoridentication
LIGHTSPACE DPS SERIES OPTICAL SPLICE ENCLOSURES
• Frontaccessibilitytosplicetrays
• Removablefrontdoorwithkeylockoption
• Reardoorwithkeylockoption
• Connectoridenticationlabel
LIGHTSPACE DPC SERIES OPTICAL DISTRIBUTION & SPLICE ENCLOSURES
• AllthefeaturesofDPandDPSSeriesEnclosures
• DPC-525andDPC-700acceptLightSpace(LGXfootprint)6-or8-packadapterplates
• DPC-105acceptsLightSpace12-packadapterplates
RACK-MOUNT LIGHTSPACE KEY FEATURES
• Largecablemanagementringsforenhancedjumperrouting
• Stackableforcustomsizing
• Frontcablemanagementsaddles
• Sideentryforbackbonecable
• Enclosuresarecustomcongurable
• Constructedofhigh-strengthaluminum,powder-coatedcentralofcewhite
• Mountsonstandard19"and23"racksandcabinets
• UtilizesLightSpaceadapterplates(seepagesB37-B38)
To configure enclosure, visit
www.leviton.com/configurator
or call 800.722.2082.
C
FIBER
enclosures
B26
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Rack-Mount > LightSpace® > DP/DPS/DPC Series
LIGHTSPACE DP OPTICAL DISTRIBUTION ENCLOSURES, STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
Fibers
(using LC) Adapter
Plates Splice
Trays* MTP®
Modules
DP-525, 3RU, empty 144 6N/A N/A DP03U-STD
[A] DP-700,4RU,empty 288 12 N/A N/A DP04U-STD
DP-105,6RU,empty 288 12 N/A N/A DP06U-STD
LIGHTSPACE DPS OPTICAL SPLICE ENCLOSURES, STANDARD PART NUMBERS
DPS-525, 3RU, empty N/A N/A 4N/A DPS3U-STD
[B] DPS-700,4RU,empty N/A N/A 6N/A DPS4U-STD
DPS-105,6RU,empty N/A N/A 12 N/A DPS6U-STD
LIGHTSPACE DPC OPTICAL DISTRIBUTION & SPLICE ENCLOSURES, STANDARD PART NUMBERS
DPC-525,6RU,empty 144 64N/A DPC6U-033
DPC-752,7RU,empty 288 12 4 N/A DPC7U-043
[C] DPC-700,8RU,empty 288 12 6N/A DPC8U-STD
DPC-105, 12RU, empty 288 12 12 N/A DPC12-066
AND
OR
ACCESSORIES
DESCRIPTION PART NO.
DP/DPS/DPCCableClampKit(.25"-1.25"Dia) DPCMP-UNV
Key Lock Kit DPLOK-KIT
Grounding Kit DPGRD-KIT
Cable Clamp Kit Grounding KitKey Lock Kit
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.
SeepageB32forsplicetraydimensionandselectionguide.
FIBER
enclosures
B27 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CPC CUSTOMER PREMISE ENCLOSURES, STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
Fibers
(using LC) Adapter
Plates Splice
Trays* MTP®
Modules
[A] CPC-12, empty 48 2 4 N/A CPC12-STD
[B] CPC-24, empty 96 4 4 N/A CPC24-STD
[C] CPC-48,empty 192 8 6 N/A CPC48-STD
A B C
ENCLOSURES | Wall-Mount > LightSpace® > CPC Series
AND
OR
RECOMMENDED
APPLICATIONS:
Central Office or
HeadEnd
Wall-Mount
ACCESSORIES
DESCRIPTION PART NO.
CP Cable Clamp Kit (small)
(.25"-.50"diametercable),
usewithCPC12/24/48
CPCSR-001
CP Cable Clamp Kit (large)
(.50"-.75"diametercable),
usewithCPS24/48
CPCSR-002
CP Grounding Kit, single cable CPGRD-KIT
CP Key Lock Kit CPLOK-KIT
CP Cable Clamp Kit (small)
CP Cable Clamp Kit (large) CP Key Lock Kit
CP Grounding Kit
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
LIGHTSPACE CPC SERIES CUSTOMER PREMISE ENCLOSURES
• Wide-swingradiusdoorsprovidefullaccessduringinstallationandmaintenance
• Doubledoorswithslamlatchesprovideseparationbetweenserviceprovider
and customer
• Toporbottomcableentry
• Stackable,allowingforadditionalcapacity
• Constructedofhigh-strengthaluminum,powder-coatedcentralofcewhite
• AcceptsallLevitonsplicetrays
• UtilizesLightSpaceadapterplates(seepagesB37-B38)
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.
SeepageB32forsplicetraydimensionandselectionguide.
FIBER
enclosures
B28
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Wall-Mount > LightSpace® > CPS Series
CPS CUSTOMER PREMISE SPLICE ENCLOSURES, STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
Fibers
(using LC) Adapter
Plates Splice
Trays* MTP®
Modules
[A] CPS-12, empty N/A N/A 4N/A CPS12-STD
[B] CPS-24, empty N/A N/A 4N/A CPS24-STD
[C] CPS-48,empty N/A N/A 6N/A CPS48-STD
AND
OR
A
RECOMMENDED
APPLICATIONS:
Central Office or
HeadEnd
Enterprise
B C
CP Cable Clamp Kit (small)
CP Cable Clamp Kit (large) CP Key Lock Kit
CP Grounding Kit
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
LIGHTSPACE CPS SERIES CUSTOMER PREMISE SPLICE ENCLOSURES
• Singlexedleft-hingeddoorwithwide-swingradiusdesignforeasyaccess
• Toporbottomcableentry
• Stackable,allowingforadditionalcapacity
• Padlockprovision
• Constructedofhigh-strengthaluminum,powder-coatedcentralofcewhite
• AcceptsallLevitonsplicetrays
ACCESSORIES
DESCRIPTION PART NO.
CP Cable Clamp Kit (small)
(.25"-.50"diametercable),
usewithCPC12/24/48
CPCSR-001
CP Cable Clamp Kit (large)
(.50"-.75"diametercable),
usewithCPS24/48
CPCSR-002
CP Grounding Kit, single cable CPGRD-KIT
CP Key Lock Kit CPLOK-KIT
*Maximumsplicetraycapacityislimitedbyheightofselectedsplicetray.
SeepageB32forsplicetraydimensionandselectionguide.
FIBER
enclosures
B29 LEVITON.COM | 800.722.2082 / +1.425.486.2222
A CB
ENCLOSURES | Wall-Mount > LightSpace® > Indoor/Outdoor NIDs
RECOMMENDED
APPLICATIONS:
Demarcation Point
Telecommunications
Room
EquipmentRoom
Wall-Mount
NETWORK INTERFACE DEVICES (NIDS), STANDARD PART NUMBERS
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
Fibers
(using LC) Adapter
Plates Splice
Trays* MTP®
Modules
[A] NID 3500, double door, empty 12 1 1 N/A N3500-STD
[B] NID 502H, single door, empty 12 1 1 N/A N502H-STD
[C] NID 530, single door, left hinge, empty 82 Adapters 1N/A N5300-STD
AND
OR
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
LIGHTSPACE NETWORK INTERFACE DEVICES (NIDS)
• 3500modelhasdoubleupper-hingedoors
• 502Hmodelhasasingleupper-hingedoor
• 530modelhassingleleft-hingedoor
• 502Hand3500modelshavepadlockprovisionforaddedsecurity
• Allenclosuresarecustomcongurable
• Uniquehinging mechanism holds the door open for easy installation and servicing
• Utilizes LightSpace adapter plates(seepagesB37-B38)
ADAPTER PLATE SELECTION
A=6-PackPlate-
6bers(SC,ST)
(FN502, FN350 only)
G = 2-Pack Plate -
2 fibers (SC, LC)
(FN530only)
B=8-PackPlate-
8bers(SC,ST)
(FN502, FN350 only)
H = Duplex 2-Pack
Plate - 4 fibers
(SC, LC) (FN530
only)
C=Duplex6-PackPlate-
12 fibers (SC, LC)
(FN502, FN350 only)
K = Quad 2-Pack
Plate-8bers
(LC) (FN530 only)
NID STYLE
502*
350*
530*
FIBER TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
ADAPTER TYPE & PIGTAIL
SELECTION
A = ST H = ST + pigtail
B = SC J=SC+pigtail
C = LC K = LC + pigtail
E=SC/APC M = SC/APC + pigtail
F = LC/APC N = LC/APC + pigtail
SPLICE TRAY
OPTIONS
Y=SpliceTray
N = None
FNXXX - X X X X
PART NUMBER CONFIGURATOR - NIDS
Example: FN502-CEKY;FiberNID502Enclosurepre-conguredwith6-packplateloadedwithduplexLCadapters(aquacolor)
pre-terminatedwithcolor-codedpigtailsand(1)splicetray.
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082 OR VISIT WWW.LEVITON.COM/CONFIGURATOR.
*SeechartaboveforNIDcapacity.
*Accepts12-berMiniMoldedSpliceTrayT5PLS-12F(pageB39).
SeepageB32forsplicetraydimensionandselectionguide.
Pigtails, splice
tray and adapter
plate sold
separately.
FIBER
enclosures
B30
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURES | Wall-Mount > Opt-X® 1000
A B C
RECOMMENDED
APPLICATIONS:
Telecommunications
Room
EquipmentRoom
OPT-X 1000 SMALL WALL-MOUNT ENCLOSURES
DESCRIPTION
MAXIMUM CAPACITY
PART NO.
Fibers
(using LC) Adapter
Plates Splice
Trays MTP
Modules
Small, empty, solid metal door, no lock 48 2N/A 2 5W110-00N
[A] Small, empty, split metal door and one lock/key 48 2N/A 2 5W120-00N
Small, empty, solid metal door and one lock/key 48 2N/A 25W170-00N
OPT-X 1000 MEDIUM WALL-MOUNT ENCLOSURES
Medium, empty, solid metal door, no lock 96 464 5W310-00N
[B] Medium, empty, split metal door and one lock/key 96 464 5W320-00N
Medium, empty, solid metal door and one lock/key 96 4645W370-00N
OPT-X 1000 LARGE WALL-MOUNT ENCLOSURES
[C] Large, empty, solid metal door, no lock 288 12 612 5W710-00N
Large, empty, split metal door and one lock/key 288 12 612 5W720-00N
Large, empty, solid metal door and one lock/key 288 12 612 5W770-00N
ACCESSORIES
Lock and Key 5L000-L0K
AND
OR
OPT-X 1000 WALL-MOUNT FIBER OPTIC ENCLOSURES
• Self-healinggrommetmaterialprotectscableandminimizesdustbuild-up
• Adjustablebermanagementringseasilyattachtomountingstuds
• Groundterminallugprovidesgroundingoptionorcablestrainrelief
• Cutoutonsideofenclosureallowsaccesstoadapterbulkheadwhendoorsareopen
• Dooroptions:splitwithsinglelockonserviceside(optionallockavailabletoinstallon
customer side), solid with or without single lock on customer side
• Constructedof16-gaugesteel,powder-coatedblack
Opt-XadapterplatesareavailableonpagesB33-B34.
FIBER
B31
ENCLOSURE ACCESSORIES
FEATURED
PRODUCTS
Opt-X®
Adapter Plates B33
Opt-X Unity
MTP Modules B36
Injection-Molded
Splice Trays B39
CustomizeyourLevitonenclosureswithourwideselection
ofaccessories.AdapterplatesandMTPmodulesare
available with your choice of connector in Opt-X and
LightSpace® (LGX®footprint)styles.Choosetraditional
metal or injection-molded splice trays along with splice
holdersandsleeves.Alsondbermanagementrings,
replacement parts, and other model-specific items to tailor
Levitonenclosurestoyouruniqueapplication.
New
enclosure
accessories
B32
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Heat Shrink (Plastic Holders)
Heat Shrink (Foam Holders)
Bare Fusion
Opt-X Ultra/1000i/500i (Rack-Mount)
LightSpace DPC/DPS (Rack-Mount)
Opt-X 1000 (Wall-Mount)
LightSpace CPC/CPS (Wall-Mount)
NIDS (Wall-Mount)
METAL SPLICE TRAY (0.35" HEIGHT)
12-fiber Mini, 4" W x 7" L T47HS-P06 T47BF-P06 ••••
12-fiber Mini, w/ standoff,
4" W x 7" L (0.57" Height) 5T000-00T ••••
12-fiber Standard, 4" W x 11.75" L T4LHS-P06 T4LHS-F06 T4LBF-P06 •••
24-fiber High-Density, 4" W x 11.75" L T4LHS-P12 T4LHS-F12 T4LBF-P12 •••
12-fiber Standard, 5" W x 11.75" L T5LHS-P06 T5LHS-F06 T5LBF-P06 •••
24-fiber High-Density, 5" W x 11.75" L T5LHS-B12 T5LHS-F12 T5LBF-P12 •••
INJECTION MOLDED SPLICE TRAY (MINI – 0.39" HEIGHT, HIGH-DENSITY - 0.56" HEIGHT)
12-fiber Mini, 3.74" W x 5.59" L T5PLS-12F • • • •
24-fiber High-Density, 4.5" W x 7.63" L T5PLS-24F • • •
CHOOSING YOUR ADAPTER PLATES OR MTP® MODULES
CHOOSING YOUR SPLICE TRAYS
Leviton offers two styles of adapter plates or MTP modules: Opt-X®
and LightSpace® (LGX®footprint).Eachstyleisappropriateforspecic
Levitonenclosures.
OPT-X
• ExclusivedesignworkswithOpt-XSeries,includingtheadvancedOpt-XUltra®,
as well as Opt-X 1000i, Opt-X 500i, and wall-mount Opt-X 1000
• UptofteenOpt-X-styleplatesormodules(evenquadLCs)canbeusedina
4RU enclosure
LIGHTSPACE
• Industrystandardstyle(LGXfootprint)adapterplatesandmodulestin
LightSpace and NIDs
21
43
65
21
43
65
OPT-X LIGHTSPACE
Leviton offers several styles
of metal and injection-
moldedsplicetrays.
Use this chart to help
determine which style will
tyourspecicneeds.
Seeberenclosuresectionforsplicetraycapacityinformation.
ENCLOSURE ACCESSORIES | Selection Guide
FIBER
enclosure
accessories
B33 LEVITON.COM | 800.722.2082 / +1.425.486.2222
OPT-X ADAPTER PLATES
• UniquedesignworkswithLeviton’sexclusiveOpt-Xseries,includingtheadvanced
Opt-X Ultra®, as well as Opt-X 1000i, Opt-X 500i, and wall-mount Opt-X 1000
• Captivepush/pullfastenersallowforquick,tool-freeinstallationandremoval
• Availablein3-,6-,and8-pack(6to24bers)
• FitsinallOpt-Xrack-mountandwall-mountenclosuresandVertiGO® panels
• AvailableinST,SC,LC,andMTP®
• MTPandLCadapterplateswithshuttersavailablebyspecialorder
ENCLOSURE ACCESSORIES | Adapter Plates > Opt-X®
EA FB C D
O
S VT WR UP
IJKH ML
G
RACK-MOUNT ENCLOSURES
1RU (for 1000i & 500i)
Holds up to 3 adapter plates
6-pkST=upto18bers
8-pkST=upto24bers
3-pkDplxSC=upto18bers
6-pkDplxSC=upto36bers
6-pkDplxLC=upto36bers
6-pkQuadLC=upto72bers
2RU (for 1000i & 500i)
Holds up to 6 adapter plates
6-pkST=upto36bers
8-pkST=upto48bers
3-pkDplxSC=upto36bers
6-pkDplxSC=upto72bers
6-pkDplxLC=upto72bers
6-pkQuadLC=upto144bers
8-pkDplxLC=upto96bers
3RU (for 1000i)
Holds up to 9/12 adapter plates
6-pkST=upto54/72bers
8-pkST=upto72/96bers
3-pkDplxSC=upto54/72bers
6-pkDplxSC=upto108/144bers
6-pkDplxLC=upto108/144bers
6-pkQuadLC=upto216/288bers
8-pkDplxLC=upto144/192bers
3RU (for 500i)
Holds up to 12 adapter plates
6-pkST=upto72bers
8-pkST=upto96bers
3-pkDplxSC=upto72bers
6-pkDplxSC=upto144bers
6-pkDplxLC=upto144bers
6-pkQuadLC=upto288bers
8-pkDplxLC=upto192bers
4RU (for 1000i)
Holds up to 12/15 adapter plates
6-pkST=upto72/90bers
8-pkST=upto96/120bers
3-pkDplxSC=upto72/90bers
6-pkDplxSC=upto144/180bers
6-pkDplxLC=upto144/180bers
6-pkQuadLC=upto288/360bers
8-pkDplxLC=upto192/240bers
OPT-X ENCLOSURE DENSITY
N
Q
Key Down MTP Adapter
Key Up MTP Adapter
FIBER
enclosure
accessories
B34
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Additionaladapterplatecongurationsavailable.Pleasecontactinsidesalesat800.722.2082formoreinformation.
ENCLOSURE ACCESSORIES | Adapter Plates > Opt-X®
OPT-X FIBER ADAPTER PLATES
DESCRIPTION PART NO.
[A] 6-PackSTMM(6-ber),phosphorbronzesleeve 5F100-1ST
[B] 6-PackSTSM(6-ber),zirconiaceramicsleeve 5F100-6ZT
[C] 8-PackSTMM(8-ber),phosphorbronzesleeve 5F100-8ST
[D] 8-PackSTSM(8-ber),zirconiaceramicsleeve 5F100-8ZT
[E] 3-PackDuplexSCMM(6-ber),beige,phosphorbronzesleeve 5F100-3BC
[F] 3-PackDuplexSC/APCSM(6-ber),green,zirconiaceramicsleeve 5F100-3CA
[G] 3-PackDuplexSCSM(6-ber),blue,zirconiaceramicsleeve 5F100-3ZC
[H] 3-PackDuplexSCMMLaserOptimized(6-ber),aqua,zirconiaceramicsleeve 5F100-3AC
[I] 6-PackDuplexSCMM(12-ber),beige,phosphorbronzesleeve 5F100-6BC
[J] 6-PackDuplexSCMMLaserOptimized(12-ber),aqua,zirconiaceramicsleeve 5F100-6AC
[K] 6-PackDuplexSCSM(12-ber),blue,zirconiaceramicsleeve 5F100-6ZC
[L] 6-PackDuplexSC/APCSM(12-ber),green,zirconiaceramicsleeve 5F100-6CA
[M] 6-PackDuplexLCMM(12-ber),beige,phosphorbronzesleeve 5F100-12P
[N] 6-PackDuplexLCSM(12-ber),blue,zirconiaceramicsleeve 5F100-12Z
[O] 6-PackDuplexLC/APCSM(12-ber),green,zirconiaceramicsleeve 5F100-12V
[P] 6-PackDuplexLCMMLaserOptimized(12-ber),aqua,zirconiaceramicsleeve 5F100-12A
8-PackLCMM(16-ber),beige,phosphorbronzesleeve 5F100-16P
[Q] 8-PackLCMM(16-ber),aqua,zirconiaceramicsleeve 5F100-16A
8-PackLCSM(16-ber),blue,zirconiaceramicsleeve 5F100-16Z
[R] 6-PackQuadLCMM(24-ber),beige,phosphorbronzesleeve 5F100-24P
[S] 6-PackQuadLCSM(24-ber),blue,zirconiaceramicsleeve 5F100-24Z
[T] 6-PackQuadLCMMLaserOptimized(24-ber),aqua,zirconiaceramicsleeve 5F100-24A
[U] 6-PackMTP®(72-ber),MethodAandC(Keyup/Keydown) 5F100-6MP
6-PackMTP(72-ber),MethodB(Keyup/Keyup) 5F100-6MB
8-PackMTP(96-ber),MethodAandC(Keyup/Keydown) 5F100-8MP
8-PackMTP(96-ber),MethodB(Keyup/Keyup) 5F100-8MB
[V] Blank Plate, plastic 5F100-BPP
Blank Plate, metal 5F100-BLK
[W] 6-Pack,QuickPort®, empty 5F100-6QP
WALL-MOUNT ENCLOSURES
Small
Holds up to 2 adapter plates
6-pkST=upto12bers
8-pkST=upto16bers
3-pk Dplx SC = up to 12 fibers
6-pkDplxSC=upto24bers
6-pkDplxLC=upto24bers
6-pkQuadLC=upto48bers
Medium
Holds up to 4 adapter plates
6-pkST=upto24bers
8-pkST=upto32bers
3-pk Dplx SC = up to 24 fibers
6-pkDplxSC=upto48bers
6-pkDplxLC=upto48bers
6-pkQuadLC=upto96bers
Large
Holds up to 12 adapter plates
6-pkST=upto72bers
8-pkST=upto96bers
3-pkDplxSC=upto72bers
6-pkDplxSC=upto144bers
6-pkDplxLC=upto144bers
6-pkQuadLC=upto288bers
OPT-X ENCLOSURE DENSITY
FIBER
enclosure
accessories
B35 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURE ACCESSORIES | MTP® Modules > 12-fiber MTP
Modulesareequippedwithpinned(male)MTPconnectors.
StandardMTPconnectorterminates12bers.
StandardcolorforOpt-XandLightSpace(LGXFootprint)modulesisblack.
LevitonPlug-n-Play12-bersolutionfollowsTIA-568-C.0FiberPolarityguidelines.
AdditionalMTPmodulecongurationsavailable.
Contactinsidesalesat800.722.2082orvisitwww.leviton.com/conguratorformoreinformation.
MTP-SC,12-fiber
PART NUMBER CONFIGURATOR – 12-FIBER MTP PREMIUM MODULES
Example:FM-B012BAC0A;12-ber50/125µmstdMM,SCtoMTPconnector,blackcolor,MTPMethodA.
FOR ASSISTANCE CONFIGURING YOUR ENCLOSURE, PLEASE CALL 800.722.2082 OR VISIT
WWW.LEVITON.COM/CONFIGURATOR.
12-FIBER MTP MODULES
• AvailableinOpt-X® and LightSpace® (LGX® footprint) styles
• Plug-n-playmoduleeliminatesneedforeldterminationorsplices
• Eachmodulesupportsupto24bers(LC)
• Bend-insensitiveberusedinOM3/OM4modules
• Allpremium12-berMTPmodulesuselow-lossMTPconnectors
• Lowinsertionlossof0.5dBmaximum
• 100%factorytestedwithtestresultsincludedwitheachmodule
• SeespecicenclosurepagesforMTPmodulecapacity
• Availablewithshuttersbyspecialorder
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
1x24 Fiber MTP
(back view)
2x12 Fiber MTP
(back view)
TWO CONFIGURATIONS AVAILABLE:
FIBER
COUNT
012
024
FIBER TYPE
A = OS1
B = OM2
C = OM1
E=OM3
F = OM4
CONNECTOR
TYPE
B = SC
C = LC
D = LC
(w/ shutters)
E=SC/APC
F = LC/APC
H = LC/APC
(w/ shutters)
U = MU
MTP FIBER
COUNT
A = 12
FOOTPRINT
A = LightSpace
(LGX footprint)
C = Opt-X
(Standard)
COLOR
0 = Black
(Standard)
2 = Beige
FM - X XXX X A X X X
POLARITY
A = MTP Method A
BC = MTP Method B,
Core, Black Latches
BE=MTPMethodB,
Edge,WhiteLatches
C = MTP Method C
(Standard)
MTP-LC, 24-fiber MTP-LC Module w/ Shutters
FIBER
enclosure
accessories
B36
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
ENCLOSURE ACCESSORIES | MTP® Modules > Opt-X® Unity 40/100G
MTP-LC, 24-fiber MTP-MTP, 24-fiber
OM3 10G Fiber Testing
SPOTLIGHT
Leviton’sOM3fibersystemhasbeenthird-partytestedbyIntertek(ETL)andshowntoexceedtheperformance
requirementstosupport10GBASE-S.Thismakesusthefirstmanufacturertohaveanindependentfiberchannel
verificationcompleted.Intertektestedthreedifferentfiberchannelconfigurationstoassurecompliancetothe
maximuminsertionlossrequirementsspecifiedintheTIA-568-C.0standard.ThechannelsusedallofLeviton’sOM3
system products, including pre-terminated MTP trunks, MTP-LC cassettes, MTP harnesses, MTP brackets, and patch
cords.Thechannelswereconfiguredtoshowtypicaldatacenterapplicationsaswellasmaximumflexibility.
Mated-pair channel
tested by Intertek
(ETL)
Storage
Equipment
Server
Equipment
®
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
40GBASE-SR4,8-berMTP
100GBASE-SR10,2x12-berMTPs
100GBASE-SR10,24-berMTP
OPT-X UNITY 40/100G MTP MODULES
• AvailableinOpt-Xstylefootprint
• Allowseasymigrationfrom10Gto40Gor100G
• Eachmodulesupportsupto48bersusingMTP,or24bersusingLC
• Allmodulesuseeither24-beror12-berlow-lossMTPconnectors
• Bend-insensitiveberusedinOM3/OM4modules
• MTP-MTPmodulesareusedwithMTParraycordsonpageB52
• SeespecicenclosurepagesforMTPmodulecapacity
• Latchesarecolorcoded:black=core,white=edge
OPT-X UNITY 40/100G MTP MODULES, COMMON CONFIGURATIONS
DESCRIPTION PART NO.
MTP Core Module, 24-fiber, 24F MTP-LC, Method B, black latches (core) FM -*024CDC0BC
MTPEdgeModule,24-ber,24FMTP-LC,MethodB,whitelatches(edge) FM-*024CDC0BE
MTP-MTPModule,24-ber,24FMTP-3x8FMTP,MethodB FM-*024NDC0E
MTP-MTPModule,48-ber,2x24FMTP-6X8FMTP,MethodB FM-*048NDC0B
MTP-MTPModule,24-ber,2x12FMTP-3x8FMTP,MethodB FM -*024NCC0B
OtherMTPpolarityoptionsavailable.Contactinsidesalesat800.722.2082formoreinformation.
*=OM3(E),orOM4(F).
FIBER
enclosure
accessories
B37 LEVITON.COM | 800.722.2082 / +1.425.486.2222
ENCLOSURE ACCESSORIES | Adapter Plates > LightSpace®
A
M N
KB C D EF G H I J
LO P Q R TS U V
LIGHTSPACE RACK-MOUNT ENCLOSURE FIBER DENSITY CHART
LIGHTSPACE ADAPTER PLATES
• Industrystandardstyle(LGX® footprint) adapter plates fit in all LightSpace wall-mount and rack-mount enclosures,
and NIDs
• Captivepush/pullfastenersallowforquick,tool-freeinstallationandremoval
• Availablein6-,8-,and12-packs
• All6-and8-packsalsoavailableinblack
• AvailableinSC,ST,LC,andMTP®
OPTICAL DISTRIBUTION ENCLOSURES
DP/DPC 525 DP/DPC 700 DP/DPC 105
Holds up to six 6-pack or 8-pack plates
6-Packs=upto36bers
8-Packs=upto48bers
Duplex6-Packs=upto72bers
Quad6-Packs=upto144bers
Holds up to twelve 6-pack or 8-pack plates
6-Packs=upto72bers
8-Packs=upto96bers
Duplex6-Packs=upto144bers
Quad6-Packs=upto288bers
Holds up to twelve 12-pack plates
12-Packs = up to 144 fibers
FIBER
enclosure
accessories
B38
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
ENCLOSURE ACCESSORIES | Adapter Plates > LightSpace®
LIGHTSPACE FIBER ADAPTER PLATES
DESCRIPTION PART NO.
[A] 6-PackSCMM(6-ber),beige,phosphorbronzesleeve APLW6-SCM
[B] 6-PackSCSM(6-ber),blue,zirconiaceramicsleeve APLW6-SCS
[C] 6-PackSC/APCSM(6-ber),green,zirconiaceramicsleeve APLW6-SCA
6-PackDuplexSC/APCSM(12-ber),green,zirconiaceramicsleeve APLW6-SDA
[D] 6-PackDuplexSCMM(12-ber),beige,phosphorbronzesleeve APLW6-SDM
[E] 6-PackDuplexSCSM(12-ber),blue,zirconiaceramicsleeve APLW6-SDS
6-PackSTMM(6-ber),phosphorbronzesleeve APLW6-STM
[F] 6-PackSTSM(6-ber),zirconiaceramicsleeve APLW6-STS
[G] 6-PackDuplexLCMM(12-ber),beige,phosphorbronzesleeve APLW6-LDM
[H] 6-PackDuplexLCSM(12-ber),blue,zirconiaceramicsleeve APLW6-LDS
[I] 6-PackQuadLCMM(24-ber),beige,phosphorbronzesleeve APLW6-LQM
[J] 6-PackQuadLCSM(24-ber),blue,zirconiaceramicsleeve APLW6-LQS
6-PackMTP®MM(72-ber) APLW6-6MP
[K] 8-PackSTMM(8-ber),phosphorbronzesleeve APLW8-STM
8-PackSTSM(8-ber),zirconiaceramicsleeve APLW8-STS
[L] 8-Pack(White)SCMM(8-ber),beige,phosphorbronzesleeve APLW8-SCM
[M] 8-Pack(White)SCSM(8-ber),blue,zirconiaceramicsleeve APLW8-SCS
[N] 8-Pack(White)SC/APCSM(8-ber),green,zirconiaceramicsleeve APLW8-SCA
[O] 12-Pack(White)SCMM(12-ber),beige,phosphorbronzesleeve(DPorDPC105Enclosureonly) APL12-SCM
[P] 12-Pack(White)SCSM(12-ber),blue,zirconiaceramicsleeve(DPorDPC105Enclosureonly) APL12-SCS
[Q] 12-Pack(White)SC/APCSM(12-ber),green,zirconiaceramicsleeve(DPorDPC105Enclosureonly) APL12-SCA
12-pack(White)STMM(12-ber),beige,phosphorbronzesleeve(DPorDPC105Enclosureonly) APL12-STM
[R] 12-Pack(White)STSM(12-ber),blue,zirconiaceramicsleeve(DPorDPC105Enclosureonly) APL12-STS
[S] 12-Pack(White)DuplexLCMM(24-ber),beige,phosphorbronzesleeve(DPorDPC105Enclosureonly) APL12-LDM
[T] 12-Pack(White)DuplexLCSM(24-ber),blue,zirconiaceramicsleeve(DPorDPC105Enclosureonly) APL12-LDS
[U] Blank Plate, metal APLW6-BLK
[V] 12-Pack(White)blank(DPorDPC105Enclosureonly) APL12-BLK
Additionaladapterplatecongurationsavailable,suchaslaseroptimizedmultimodeadapters(inaqua)forSCandLC.
Contactinsidesalesat800.722.2082formoreinformation.
LIGHTSPACE WALL-MOUNT ENCLOSURE FIBER DENSITY CHART
CUSTOMER PREMISE ENCLOSURES
CPC-12
Holds up to two 6-pack or 8-pack plates
6-Packs=upto12bers
8-Packs=upto16bers
Duplex6-Packs=upto24bers
Quad6-Packs=upto48bers
CPC-24
Holds up to four 6-pack or 8-pack plates
6-Packs=upto24bers
8-Packs=upto32bers
Duplex6-Packs=upto48bers
Quad6-Packs=upto96bers
CPC-48
Holds up to eight 6-pack or 8-pack plates
6-Packs=upto48bers
8-Packs=upto64bers
Duplex6-Packs=upto96bers
Quad6-Packs=upto192bers
FIBER
enclosure
accessories
B39 LEVITON.COM | 800.722.2082 / +1.425.486.2222
METAL SPLICE TRAYS
• Availablein4"and5"sizeswith12-or24-bercapacity
• Heatshrink,heatshrinkfoam,andbarefusionstylesavailable
• Mountingholeswithspaceblockspreventberdamage
• CompatiblewithOpt-XandLightSpaceenclosures
• Mountinghardwareincludedwith5T000-00T
INJECTION-MOLDED SPLICE TRAYS
• 12-berminiand24-berhigh-densitysplicetrays
• Protectandmanageheatshrinkstylesplicedbers
• Heatshrinksplicesleevesincluded
• Ratchetactionclampswithfoamrubberpaddingminimize
damage to fibers
• CompatiblewithLevitonOpt-XUltra®, Opt-X® 1000i, and Opt-X 1000
Series, plus LightSpace® wall-mount enclosures
• 12-bersplicetraycompatiblewithLevitonnetworkinterface
devices (NIDs)
ENCLOSURE ACCESSORIES | Splice Trays
A B C D EF G
Splicetraymountinghardwaresoldseparatelyexceptasnoted.Additionalcongurationsavailableincludingmechanicalsplice.
Contactinsidesalesat800.722.2082formoreinformation.
Splice Tray Mounting Hardware Kit
ACCESSORIES
DESCRIPTION PART NO.
Splice Tray Mounting
Hardware Kit SPLMT-HKT
INJECTION-MOLDED SPLICE TRAYS
DESCRIPTION PART NO.
[A] 12-berMini,3.74"Wx5.59"Lx0.56"H(includes14heatshrinksplicesleeves) T5PLS-12F
[B] 24-berHigh-Density,4.5"Wx7.63"Lx0.50"H(includes26heatshrinksplicesleeves) T5PLS-24F
METAL SPLICE TRAYS
DESCRIPTION HEAT SHRINK (PLASTIC) HEAT SHRINK (FOAM) BARE FUSION
[C] 12-berMini,4"Wx7"Lx0.35"H T47HS-P06 T47BF-P06
12-berMini,withstandoff4"Wx7"Lx0.57"H 5T000-00T
[D] 12-berStandard,4"Wx11.75"Lx0.35"H T4LHS-P06 T4LHS-F06 T4LBF-P06
[E] 24-berHigh-Density,4"Wx11.75"Lx0.35"H T4LHS-P12 T4LHS-F12 T4LBF-P12
[F] 12-berStandard,5"Wx11.75"Lx0.35"H T5LHS-P06 T5LHS-F06 T5LBF-P06
[G] 24-berHigh-Density,5"Wx11.75"Lx0.35"H T5LHS-B12 T5LHS-F12 T5LBF-P12
RIBBON STYLE SPLICE TRAYS
DESCRIPTION PART NO.
72-berRibbonStyle,quartz,6"Wx10"Lx0.35"H T6XRB-40Q
FIBER
enclosure
accessories
B40
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
FUSION SPLICE SLEEVES
• Standard40mmand60mmsizes,plusminiandmicrosleevesforsmallertraysandbers
• Preciselengthsfreeofallburrsandsharpedges
• Clearoutertubeforviewingbercolor
SPLICE HOLDERS
• 6-and12-berdesignsinfoamandsolidplasticoptions
• Mini,micro,andmechanicaloptionsavailable
• StylesaccommodatetheentirerangeofLevitonfusionsplicesleeves
ENCLOSURE ACCESSORIES | Splice Holders & Sleeves
SPLICE HOLDERS
DESCRIPTION PART NO.
[A] SpliceHolder,heatshrink(blackplastic),6-bercapacity FSHHS-P06
SpliceHolder,heatshrink(blackplastic),8-bercapacity FSHHS-P08
[B] SpliceHolder,heatshrink(blackfoam),6-bercapacity FSHSL-F06
[C] SpliceHolder,minisleeves(blackfoam),6-bercapacity FSHMI-F06
[D] SpliceHolder,microsleeves(blackfoam),6-bercapacity FSHMR-F06
Splice Holder, bare fusion, 12-fiber capacity FSHBF-P12
[E] Splice Holder, heat shrink (LGX®footprint),6-bercapacity FSHAT-F06
SpliceHolder,ribbon,6position,72-bercapacity FSHRB-F06
FUSION SPLICE SLEEVES
DESCRIPTION STANDARD
50/PACK
SLIM
100/PACK
MINI
100/PACK
MICRO
100/PACK
RIBBON
25/PACK
FusionSpliceSleeve,60mm [F] FSSSD-060 FSSSL-060
Fusion Splice Sleeve, 40 mm FSSSD-040 FSSSL-040 [G] FSSMI-040 [H] FSSMR-040
Fusion Splice Sleeve, 25 mm FSSMI-025 FSSMR-025
FusionSpliceSleeve,quartz,40mm [I] FSSRB-Q40
BA
F G H I
CDE
FIBER
enclosure
accessories
B41 LEVITON.COM | 800.722.2082 / +1.425.486.2222
OPT-X ULTRA® ACCESSORIES
DESCRIPTION PART NO.
[A] Fiber Cable Management 1/4 Ring Kit, (bag of four 1/4 rings) 5R100-14R
[B] Universal Opt-X Clamp Kit, Single Cable Grommet (for enclosure mounting) 5RCMP-KIT
Universal Opt-X Clamp Kit, Multiple Cable Grommet (for enclosure mounting) 5RCMP-KT2
[C] Universal Clamp Kit, Single and Multiple Cable Grommet (for rack mounting) 5RCMR-KIT
[D] Opt-X Ultra® Patch Cord Bend Radius Bracket (bag of two) 5PCBR-*BT
1RU23"RackandCabinetMountingBracket 5R1RU-023
Replacement Door 5D000-*UN
Replacement Door w/ lock 5D000-*UL
Replacement Cover, plastic 5C000-RPL
Replacement Cover, metal 5CMTL-RPL
Grounding Kit DPGRD-KIT
OPT-X 1000i & 500i ACCESSORIES
DESCRIPTION PART NO.
[A] Fiber Cable Management 1/4 Ring Kit (bag of four 1/4 rings) 5R100-14R
[B] Universal Opt-X Clamp Kit, Single Cable Grommet (for enclosure mounting) 5RCMP-KIT
Universal Opt-X Clamp Kit, Multiple Cable Grommet (for enclosure mounting) 5RCMP-KT2
[C] Universal Clamp Kit, Single and Multiple Cable Grommet (for rack mounting) 5RCMR-KIT
[E] Opt-X 500i Patch Cord Management Tray, 1RU 5R1UL-CMT
[F] Opt-X 500i Patch Cord Management Tray, 2/3RU 5R2UL-CMT
1RU23"RackandCabinetMountingBracket 5R1RU-023
LockandKey(forOpt-X1000Wall-mountEnclosure) 5L000-L0K
LockandKey(forOpt-X1000iRack-mountEnclosure) 5L000-LAK
OPT-X ACCESSORIES
Choosecablemanagementandstrainreliefoptions,doorsandlocks,aswellasslidemountkitsandbrackets.
A B
C
F
ENCLOSURE ACCESSORIES | Opt-X®
D
E
* = Rack Units: 1RU (1), 2RU (2), 4RU (4)
Cable Clamp Kits
SPOTLIGHT
Cableclampkitsminimizeexcessivepulling,bending,andcrushingforcesoncable.Thekitscome
withasinglecablegrommetandagrommetformultiplecables.TheOpt-X Enclosure-mount
Universal Clamp Kit makes it easy to identify cables, and decreases the need for tie-wraps inside
theenclosure.Thekitalsocreatesatransitionpointfromjacketedcabletobufferedberor
subunits.TheOpt-X Rack-mount Universal Clamp Kit is ideal for vertical strain relief and strain
reliefatthetoporbottomofarack/cabinet.Useitforinstallationswithminimalverticalcable
pathwaysandlittlespaceforanenclosure-mountcableclampkit.
FIBER
enclosure
accessories
B42
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
LIGHTSPACE DP, DPS & DPC SERIES ACCESSORIES
DESCRIPTION PART NO.
[A] CableClampKit(.25"-1.25"diameter) DPCMP-UNV
[B] Key Lock Kit DPLOK-KIT
[C] Grounding Kit DPGRD-KIT
LIGHTSPACE CPC & CPS SERIES ACCESSORIES
DESCRIPTION PART NO.
[D] CableClampKit(.25"-.50"diametercable),usewithCPC/CPS12/24/48 CPCSR-001
[E] CableClampKit(.50"-.75"diametercable),usewithCPC/CPS24/48 CPCSR-002
[F] Key Lock Kit CPLOK-KIT
[G] Grounding Kit, single cable CPGRD-KIT
LIGHTSPACE OCS & VSC SERIES ACCESSORIES
DESCRIPTION PART NO.
[H] CableClampKit(.25"-.50"diameter) VCCFK-0SM
[I] CableClampKit(.50"-.75"diameter) VCCFK-0LG
[J] Grounding and Bonding Kit VSCGB-KIT
LIGHTSPACE ACCESSORIES
A-C D-G H-J
ENCLOSURE ACCESSORIES | LightSpace® & Fan-Out Kits
Selectcableclampkits,keylocks,strainreliefoptions,orgroundingsolutions.
FIBER OPTIC FAN-OUT KITS
DESCRIPTION PART NO.
[A] 24"FiberOpticFan-OutKit,6-ber 49887-06S
24"FiberOpticFan-OutKit,12-ber 49887-12S
36"FiberOpticFan-OutKit,6-ber 49887-06L
36"FiberOpticFan-OutKit,12-ber 49887-12L
Fan-Out Consumables Kit 49800-FAN
FIBER OPTIC FAN-OUT KITS
• Protectbareberandprepareloosetubecablefordirectterminationtoindustry-standardconnectors
• Separate250µmbersandrouteintocolor-coded900µmbuffertubeswithnoproprietarytools
• Availablein6-or12-strandkitsand24"or36"lengths
• Workswithcablingfromanymanufacturer(willaccommodatebuffertubediameterupto3.5mmmax)
A
FIBER
B43
FEATURED
PRODUCTS
Secure Keyed LC
Trunk Cables B48
Opt-X® Unity
40/100G System:
Pre-terminated
Trunk Cables B44
Harnesses B49
Array Cords B52
CABLE ASSEMBLIES
Simplify fiber connection and termination with Leviton cable
assemblies.TakeadvantageofournewSecureKeyedLCand
Opt-X Unity 40/100G assemblies to protect and future-proof your
criticalnetworks.Pre-terminatedtrunkcablesandharnesses,
plus multimode, single-mode, and pigtail assemblies are all
madetocustomerspecications.Choosecabletype,connector
combinations,length,mode,andmore.Congureonlineat
leviton.com/conguratororusetheconguratorsinthiscatalog.
New
cable
assemblies
B44
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
CABLE ASSEMBLIES | Pre-terminated Trunk Cables > Opt-X® Unity 40/100G
OPT-X UNITY 40/100G PRE-TERMINATED TRUNK CABLES
• New! MTP® to MTP trunk cables support 40/100G speeds
• Terminationsavailablein24-,12-,and8-bercongurations
• Migrationsolutionto40/100Gfromexisting10Gnetworkswithpremium12-berMTPtrunkconguration
• Upto70%fasterinstallthaneld-terminatedtrunks
• Allorderscustomizedforcabletype,length,staggering,bercount,andlabeling
• MTPpolarityoptionsareTIAmethodsA,B,orC(MethodBisstandard)
• 100%factorytested,withtestresultsincludedforeachassembly
• Allassemblieslabeledwithserialnumberandlengthfortraceabilityandeasyre-order
MTP-MTP (2x12) Connector detail MTP-MTP (1x24)
New New
Migration Path to 40G & 100G
SPOTLIGHT
Leviton’snewPre-terminatedMTPsolutionsofferanidealmigrationpathfrom10Gto40Gand100Gchannels.TheOpt-XUnity40/100G
systemfeaturesMTPtrunks,harnesses,arraycords,adapterplates,andmodulestohelpfuture-proofyournetworks.
10G
Leviton components for a 10G
channel include 24-fiber MTP-LC
modulesandLCduplexpatchcords.
40G
Migration from 10G to a 40G system
replaces LC with MTP components, such
as2x12-fiberto3x8-fiberMTPmodules
and8-fiberMTParraycords.
100G
Moving from 40G to 100G replaces MTP
modules with MTP adapter plates and uses
24-fiberMTParraycords.
12- or 24-fiber MTP Trunk Cable
MTP MTP
COLOR CODED BOOTS ON MTP
Red-24FiberBlack-12FiberGray-8Fiber
See page B5 for
Opt-X Unity 40/100G
System Overview.
FIBER
cable
assemblies
B45 LEVITON.COM | 800.722.2082 / +1.425.486.2222
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
100GBASE-SR10,2x12-berMTPs
100GBASE-SR10,24-berMTP
Example:FT-EB024LL100F36C36CNYNBS;Fibertrunk,24-berlaseroptimizedmultimodeplenumcable(OM3),MTPtoMTP,overall
lengthof100feetwithoutbreakoutlengths(to3mmjacketedber)of36"onbothends,withnopullingeye.Firstendterminationis
staggered.Secondendterminationiseven,withMTPmethodBpolarity.Standardlabeling.
FOR ASSISTANCE CONFIGURING YOUR TRUNK CABLE, PLEASE CALL 800.722.2082.
PART NUMBER CONFIGURATOR – OPT-X UNITY 40/100G MTP® TRUNK CABLES
Congurationsarenotvalidunlessconrmedbyinsidesales.
TypicalMTPbertrunksareequippedwithpinless(female)MTPconnectors.
Fibertrunklengthsgreaterthan125'areplacedinspool.
Application Note: When installed in conduit, pulling eye end should be staggered.
LABELING
S = Standard
C = Custom
F = Feet
M = Meters
UNIT OF
MEASURE
BREAKOUT
LENGTH
(INCHES)
SECOND END
12-99
(Typ36")
SECOND END
TERMINATION
H = 24 F MTP
(male)
J=24FMTP
(female)
K = Premium
12 F MTP (male)
L = Premium
12 F MTP (female)
PULLING
EYE
Y=Yes
N = No
STAGGERED
FIRST END
TERMINATION
Y=Yes
N = No
POLARITY
A = MTP
Method A
B = MTP
Method B
(Standard)
C = MTP
Method C
C=3mmJacketedFiber
BREAKOUT LEG
TYPE FIRST END
TERMINATION
C=3mmJacketedFiber
BREAKOUT LEG
TYPE SECOND END
TERMINATION
Y=Yes
N = No
STAGGERED
SECOND END
TERMINATION
FIBER TYPE
E=OM3
F = OM4
A = Riser I/O Dry Loose Tube
B = Plenum I/O Dry Loose
Tube (Standard)
C = Plenum Armor I/O Dry
Loose Tube (Standard)
J=LSZHI/ODryLooseTube
CABLE TYPE
FIBER COUNT
(STRANDS)
012
024
036
048
072
096
144
H = 24 F MTP (male)
J= 24 F MTP
(female)
K = Premium
12 F MTP (male)
L = Premium
12 F MTP
(female)
FIRST END
TERMINATION
001-999
CABLE
LENGTH
BREAKOUT
LENGTH
(INCHES)
FIRST END
12-99
(Typ36")
CABLE ASSEMBLIES | Pre-terminated Trunk Cables > Opt-X® Unity 40/100G
For 40/100G MTP trunks only,
see page B46 for standard trunks.
MTP-MTP (2x12)
NOTE:
Per IEEE802.3ba
FIBER
FT- X X XXX X X XXX X XX C XX C X - X X X X
cable
assemblies
B46
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
LC-LC MTP-LC
PRE-TERMINATED TRUNK CABLES
• Plug-n-playbereliminatestheneedforeldterminationsorsplices
• Upto70%fasterinstallthaneld-terminatedtrunks
• Allorderscustomizedforlength,staggering,connectortype,breakoutstyle,bercount,andlabeling
• Discreteconnectorsareheat-curedanduseceramicferrulesandsleevesforoptimalperformance
• Optionalpullingeyeprotectsconnectorsandeasesinstallation
• AvailableinLC,MU,ST,SC,FC,MT-RJ,andMTP®
• MTPpolarityoptionsareTIAmethodsA,B,orC
• Industry-bestturnaroundtimeondelivery
• 100%factorytested,withtestresultsincludedforeachassembly
• Allassemblieslabeledwithserialnumberandlengthfortraceabilityandeasyre-order
CABLE ASSEMBLIES | Pre-terminated Trunk Cables > Standard
SECOND END
TERMINATION
FIRST END
TERMINATION
NOTE: OPTIONAL PULLING EYE ON FIRST END (not shown)
BREAKOUT LENGTH (IN)
BREAKOUT LENGTH (IN)
CABLE LENGTH (FT)
FIBER TYPE
CABLE TYPE
FIBER COUNT
ALIGNMENT: STAGGERED
(1.5" every sub-unit of 12 fibers)
ALIGNMENT: EVEN
BREAKOUT LEG BREAKOUT LEG
MAKE-TO-ORDER (MTO) PRE-TERMINATED TRUNK CABLE OPTIONS:
MU Fiber Trunk
New
PullingEye
SPOTLIGHT
Thepullingeyeprotectsfiberconnectorson12-through144-fibertrunkcables.Itcompletely
covers the breakout length, transferring any pulling force from the assembly to the pulling
eyesleeve.Customerscanspecifywhichendtohavethepullingeyeinstalled.
Also available: a high tensile load option that attaches to Kevlar®.
Standard Pre-terminated
Trunk Cable configurator
shown on page B47.
FIBER
cable
assemblies
B47 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CABLE ASSEMBLIES | Pre-terminated Trunk Cables > Standard
Example:FT-EB024CS150F36C36CYYNBS;Fibertrunk,24-berlaseroptimizedmultimode(OM3)plenumcable,LCtoMTP,overall
lengthof150feetwithbreakoutlengths(to3mmjacketedber)of36"onbothends,withpullingeyeonrstendconnector
termination.Firstendterminationisstaggered.Secondendterminationiseven,withMTPMethodBpolarity.Standardlabeling.
FOR ASSISTANCE CONFIGURING YOUR TRUNK CABLE, PLEASE CALL 800.722.2082 OR VISIT WWW.LEVITON.COM/CONFIGURATOR.
PART NUMBER CONFIGURATOR - MTP® AND DISCRETE TRUNK CABLES
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
Congurationsarenotvalidunlessconrmedbyinsidesales.
Typical MTP®bertrunksareequippedwithpinless(female)MTPconnectors.
Fibertrunklengthsgreaterthan125'areplacedinspool.
Distributionstylecablesstockedupto24bercount.
LevitonPlug-n-PlaysolutionfollowsTIA-568-C.3methodCberpolarityguidelinesforarrayconnectors.
Application Note: When installed in conduit, pulling eye end should be staggered.
LABELING
S = Standard
C = Custom
F = Feet
M = Meters
UNIT OF
MEASURE
BREAKOUT
LENGTH
(INCHES)
SECOND END
12-99(Typ36")
SECOND END
TERMINATION
A = ST
B = SC
C = LC (duplex clips)
E= SC/APC
F = LC/APC
S = MTP (female)
T = MTP (male)
U = MU
V = LC (uniboot)
Z=Pigtail
X = Other
PULLING
EYE
Y=Yes
N = No
STAGGERED
FIRST END
TERMINATION
Y=Yes
N = No
POLARITY
A = MTP
Method A
B = MTP
Method B
C = Method C
(Standard)
A=900µmbufferedber
(for SC, ST, LC, MU)
B = 2mm jacketed fiber
(for LC, MU)
C = 3mm jacketed fiber
(for SC, ST, LC, MTP)
BREAKOUT LEG
TYPES FIRST END
TERMINATION
A=900µmbufferedber
(for SC, ST, LC, MU)
B = 2mm jacketed fiber
(forLC,MU,MT-RJ)
C = 3mm jacketed fiber
(for SC, ST, LC, MTP)
BREAKOUT LEG
TYPES SECOND END
TERMINATION
Y=Yes
N = No
STAGGERED
SECOND END
TERMINATION
FIBER TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
A = Riser I/O Dry Loose Tube
B = Plenum I/O Dry Loose
Tube (Standard)
C = Plenum Armor I/O Dry
Loose Tube
G = Riser Distribution
H = Plenum Distribution
J=LSZHI/ODryLooseTube
K=LSZHDistribution
CABLE TYPE
FIBER COUNT
(STRANDS)
004
006
012
024
036
048
072
096
144
XXX = Other
A = ST
B = SC
C = LC (duplex clips)
D = FC
E= SC/APC
F = LC/APC
G = FC/APC
Q = MTRJ(female)
R = MTRJ(male)
S = MTP (female)
T = MTP (male)
U = MU
V = LC (uniboot)
X = Other
FIRST END
TERMINATION
001-999
CABLE
LENGTH
BREAKOUT
LENGTH
(INCHES)
FIRST END
12-99(Typ36")
FT- X X XXX X X XXX X XX X XX X X - X X X X
MTP-LC
FIBER
cable
assemblies
B48
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
LABELING
S = Standard
C = Custom
F = Feet
M = Meters
UNIT OF
MEASURE
CABLE ASSEMBLIES | Pre-terminated Trunk Cables > Secure Keyed LC
PART NUMBER CONFIGURATOR – SECURE KEYED LC FIBER TRUNK CABLES
A = Riser I/O Dry Loose Tube
B = Plenum I/O Dry Loose
Tube (Standard)
C = Plenum Armor I/O Dry
Loose Tube (Standard)
G = Riser Distribution
(Standard)
H = Plenum Distribution
CABLE TYPE
A = MTP
Method A
B = MTP
Method C
C = MTP
Method B
POLARITY
PULLING
EYE
Y=Yes
N = No
2ND END
STAGGERED
TERMINATION
Y=Yes
N = No
Y=Yes
N = No
1ST END
STAGGERED
TERMINATION
FIBER
TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
FIBER
COUNT
004
006
012
024
036
048
072
096
144
TERMINATION (SECOND END)
A = ST S = MTP (female)
B = SC (duplex clip) T = MTP (male)
C = LC (duplex clip) U = MU
E=SC/APC Z=Pigtail
F = LC/APC
K = Secured Keyed
LC Duplex (unibody)
1ST BREAK-
OUT (INCHES)
12-99(Typ36")
001-999
CABLE
LENGTH
K = Secure Keyed
LC Duplex
(unibody)
TERMINATION
(FIRST END)
2ND BREAK-
OUT (INCHES)
12-99(Typ36")
A=900µm
buffered
fiber
C = 3mm
jacketed
fiber
1ST BREAK-
OUT LEG
A=900µm
buffered
fiber
B = 2mm
jacketed
fiber
C = 3mm
jacketed
fiber
2ND BREAK-
OUT LEG
Example:FTO-EB012KK150F36C36CYYNCS;Fibertrunk,12-ber,laseroptimizedmultimode(OM3)plenumcable,keyedduplexLC
(orange)tokeyedduplexLC(orange),overalllengthof150feetwithbreakoutlengths(to3mmjacketedber)of36"onbothends,
withpullingeyeonrstendconnectortermination.Firstendterminationisstaggered,secondendterminationiseven.Polarityis
MTPMethodB.Standardlabeling.
FOR ASSISTANCE CONFIGURING YOUR TRUNKS OR FOR CONFIGURATIONS NOT SHOWN, PLEASE CALL 800.722.2082.
W = White
Y=Yellow
O = Orange
R = Red
L = Blue
V = Green
G = Slate
E=Black
KEYED
COLOR
SecureKeyedLCtoSecureKeyedLC,12-ber,50/125µm
PRE-TERMINATED SECURE KEYED LC TRUNK CABLES
• Unibodydesignpreventsunauthorizedandinadvertent
moves, adds, and changes (MACs)
• DuplexLCconnectorscanonlyberemovedwith
matching color extraction tool
• Choosefromeightcolorstosegregateand
secure networks
• DuplexLCconnectorsplugintoanyindustry-compliant
LC adapter or interface
• Standardpolarity:A-BorMTP®MethodC;othersavailable
• Standardbreakoutlengthscanbestaggeredforbetter
cable routing and management
• Trunksover125'longareshippedonspools,orupon
request for shorter lengths
• MadeintheUnitedStates
New
For Secure Keyed LC connectors,
accessories, and colors, see page B62.
FIBER
FTX - X X XXX K X XXX X XX X XX X X - X X X X
cable
assemblies
B49 LEVITON.COM | 800.722.2082 / +1.425.486.2222
40GBASE-SR4,8-berMTP
100GBASE-SR10,2x12-berMTPs
100GBASE-SR10,24-berMTP
2x12-berMTPto3x8-berMTPs
50/125µmLOMM
24-berMTPto3x8-berMTP
50/125µmLOMM
24-fiber MTP to 2x12-fiber MTP
50/125µmLOMM
Example:FH-EH024HH836BE;FiberHarness,24-berlaseroptimizedmultimodecable(OM3),MTP-MTP,overalllengthof8'with
breakoutlengthof36".PolarityisMTPmethodB.Terminatedonbothendswith24-bermaleMTP.
FOR ASSISTANCE CONFIGURING YOUR HARNESS, PLEASE CALL 800.722.2082.
PART NUMBER CONFIGURATOR – OPT-X UNITY 40/100G MTP ARRAY HARNESSES
OPT-X UNITY 40/100G MTP ARRAY HARNESSES
• Pre-terminatedMTPtoMTPconnectorsinlaseroptimizedmultimode
• Customshortlengthcableforcabinet/rackpatching
•Customstaggeringavailable
• MTPpolarityoptionsareTIAmethodA,B,orC(MethodBStandard)
• UsedinconjunctionwithMTPbrackets(Zero-U)oradapterplates
• 100%factorytested,withtestresultsincludedforeachassembly
• Allassemblieslabeledwithserialnumberandlengthfortraceability
and easy re-order
• Foruseinattachingdirectlyto40/100Gtransceivers
• Usedin12-or24-bercablingsystems
• Colorcodedboots
CABLE ASSEMBLIES | MTP® Array Harnesses > Opt-X® Unity 40/100G
FIBER TYPE
E=OM3
F = OM4
CABLE
TYPE
H = Harness
FIBER
COUNT
024
FIRST END
TERMINATION
H = 24 F MTP (male)
J=24FMTP(female)
SECOND END
TERMINATION
H = 24 F MTP (male)
J= 24 F MTP
(female)
K = Premium
12 F MTP (male)
L = Premium
12 F MTP (female)
M = Premium
8FMTP (female)
CABLE
LENGTH
(FEET)
3
5
6
8
X = Other
BREAKOUT
LENGTH
(INCHES)
0-48
XX = Other
Harnessesaretypicallyequippedwithpinned(male)connectorsononeend.
Standardharnessesaresuppliedwithstraightpolarity.
FH X H 024 X X X XX X
POLARITY
A = MTP Method A
BC = MTP Method
B, Core, Black
Latches
BE=MTPMethod
B,Edge,
White
Latches
C = MTP Method C
(Standard)
New
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Tx Tx Tx Tx Rx Rx Rx Rx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Tx Tx Tx Tx Tx Tx Tx Tx Tx Tx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx Rx Rx
NOTE:
Per IEEE802.3ba
New New
See page B5 for Opt-X Unity
40/100G System Overview.
FIBER
cable
assemblies
B50
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
CABLE ASSEMBLIES | Harnesses
FIBER TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
CABLE
TYPE
H = Harness
FIBER
COUNT
012
024
FIRST END
TERMINATION
S = 12F MTP (female)
T = 12F MTP (male)
(Standard)
SECOND END
TERMINATION
A = ST
B = SC
C = LC
Q=MT-RJ(female)
U = MU
V = LC (uniboot)
CABLE
LENGTH
(FEET)
3
5
6
8
X = Other
BREAKOUT
LENGTH
(INCHES)
0-48
XX = Other
MTP-LC, LOMM MTP-SC, SM
Harnessesaretypicallyequippedwithpinned(male)connectorsononeend.
Standardharnessesaresuppliedwithstraightpolarity.
LevitonPlug-n-PlaysolutionfollowsTIA-568-C.0berpolarityguidelines.
Example:FH-EH012TB836C;FiberHarness,12-berlaseroptimizedmultimodecable(OM3),12-berMTP-SC,
overalllengthof8'withbreakoutlengthof36".PolarityisMTPMethodC.
FOR ASSISTANCE CONFIGURING YOUR HARNESS, PLEASE CALL 800.722.2082 OR VISIT
WWW.LEVITON.COM/CONFIGURATOR.
FH X H 0XX X X X XX X
PART NUMBER CONFIGURATOR - HARNESSES
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
HARNESSES
• Pre-terminatedMTP®todiscreteconnectors(SC,LC,MU,ST,MT-RJ)inallbertypes
• Customshortlengthcablereducescongestionincabinet/rackpatchingapplications
•Customstaggeringavailable
• Straightpolarityconguration
• UsedinconjunctionwithMTPbrackets(Zero-U)orFlushMountSeriesMTP1RUpanelsasplug-n-playsolution
• UsedasdirectconnectintoSANequipment
• 100%factorytested,withtestresultsincludedforeachassembly
• Allassemblieslabeledwithserialnumberandlengthfortraceabilityandeasyre-order
MTP-SC, LOMM
POLARITY
A = MTP Method A
BC = MTP Method
B, Core, Black
Latches
BE=MTPMethod
B,Edge,
White
Latches
C = MTP Method C
(Standard)
FIBER
cable
assemblies
B51 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CABLE ASSEMBLIES | Harnesses > Secure Keyed LC MTP®
BREAKOUT
LENGTH
(INCHES)
00-48
3
5
6
8
X = Other
CABLE LENGTH
(FEET)
FIBER TYPE
A = OS2
B = OM2
C = OM1
E=OM3
F = OM4
W = White
Y=Yellow
O = Orange
R = Red
L = Blue
V = Green
G = Slate
E=Black
KEYED COLOR
FIBER COUNT
(STRANDS)
012
024
S = MTP (female)
T = MTP (male)
1ST END
TERMINATION
2ND END
TERMINATION
K = Secure Keyed LC
Duplex (uni-body)
H = Harness
CABLE TYPE
FHX - X H 0XX X K X XX
PART NUMBER CONFIGURATOR - SECURE KEYED LC MTP-LC HARNESSES
Example:FHR-EH012SK0636;FiberHarness,12-berlaseroptimizedmultimodecable(OM3),MTP-LC,MTPtokeyedduplex
LC(red),overalllengthof6'withbreakoutlengthof36".
FOR ASSISTANCE CONFIGURING YOUR PATCH CORDS OR FOR CONFIGURATIONS NOT SHOWN, PLEASE CALL 800.722.2082.
Secure Keyed MTP-LC Harness
SECURE KEYED LC HARNESSES
• Unibodydesignpreventsunauthorizedandinadvertentmoves,
adds, and changes (MACs)
• DuplexLCconnectorscanonlyberemovedwithmatchingcolor
extraction tool
• Choosefromeightcolorstosegregateandsecurenetworks
• DuplexLCconnectorsplugintoanyindustrycompliantLCadapter
or interface
• PolarityisAtoA
• HarnessesarepartofLeviton’sMake-to-Order(MTO)program
• MadeintheUnitedStates
New
For Secure Keyed LC connectors,
accessories, and colors, see page B62.
FIBER
cable
assemblies
B52
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
cable
assemblies
CABLE ASSEMBLIES | Opt-X® Unity 40/100G Array Cords
24-fiber MTP Array Patch Cord
New
OPT-X UNITY 40/100G MTP ARRAY CORDS
• 50/125µmlaseroptimizedmultimode,OM3andOM4
• 8-,12-,and24-berMTP® array cords offer migration path from 10G to 40/100G
• Availableinlengthsof1,2,3,5,and10meters
• SeepageB5forOpt-XUnity40/100Gsystemoverview
50/125 µm MULTIMODE ARRAY CORDS (OM3/OM4)
DESCRIPTION PART NO.
OM3 MTP-MTP, 1 meter 5L*T†-M01
OM3 MTP-MTP, 2 meters 5L*T†-M02
OM3 MTP-MTP, 3 meters 5L*T†-M03
OM3 MTP-MTP, 5 meters 5L*T†-M05
OM3 MTP-MTP, 10 meters 5L*T†-M10
OM4 MTP-MTP, 1 meter 54*T†-M01
OM4 MTP-MTP, 2 meters 54*T†-M02
OM4 MTP-MTP, 3 meters 54*T†-M03
OM4 MTP-MTP, 5 meters 54*T†-M05
OM4 MTP-MTP, 10 meters 54*T†-M10
*=Fibercount.(2)=12bers,(8)=8bers,(4)=24bers.
† = Polarity (A) = Type A
= Polarity (B) = Type B
= Polarity (C) = Type C
New New
12-fiber MTP Array Patch Cord 8-berMTPArrayPatchCord
FIBERFIBER
cable
assemblies
B53 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CABLE ASSEMBLIES | Multimode Patch Cords
LC-LC Duplex
62.5/125µmMM
SC-SC Duplex
50/125µmLOMM
LC-SC Duplex
50/125µmLOMM
ST-SC Duplex
62.5/125µmLOMM
MULTIMODE PATCH CORDS
• AvailableinstandardSC,ST,LC,orhybridoptionsinlengthsof1,2,3,5,or10meters
• Riser-ratedsimplexorduplexzip-cordmultimodecable
• Standard50/125µmand62.5/125µminorangejacketcable
• <0.4dBinsertionloss,>25dBbackreection
LASER OPTIMIZED PATCH CORDS
• 50/125µmlaseroptimizedmultimodecable(aquajacket)
• Reversepolarityconguration
• <0.4dBinsertionloss,>25dBbackreection
PART NUMBER CONFIGURATOR – CUSTOM FIBER OPTIC PATCH CORDS & PIGTAILS
Example: 62DST-M15;FiberPatchCord,62.5/125µm(OM1)duplexriser-ratedcable,ST to ST,15meterlength.
FOR ASSISTANCE CONFIGURING YOUR CABLE ASSEMBLY, PLEASE CALL 800.722.2082.
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
CABLE TYPE
S = Simplex (riser)
D = Duplex (riser)
W = Simplex (plenum)
Y=Duplex(plenum)
P = Pigtail
CABLE LENGTH
For feet, enter length
as three characters
Example:8ft=008
For meters enter M
then the length as
two characters
Example:4m=M04
XX X XX - XXX
Forlengthsgreaterthan99meters,call
insidesalesforpartnumber.
CORE STYLE/POLISH TYPE
Multimode Core
50 = 50/125µm(OM2)
62=62.5/125µm(OM1)
5L = 50/125µmlaseroptimized
(10G-300 m) (OM3)
54 = 50/125µmlaseroptimized
(10G-550 m) (OM4)
Single-Mode Core
UP = UPC Polish (ultra physical contact)
AP = APC Polish
(angle physical contact)
CONNECTOR COMBINATIONS
Standard & Pigtail Hybrid
ST = ST to ST CT = SC to ST
SC = SC to SC CL = SC to LC
LC = LC to LC TL = ST to LC
FIBER
cable
assemblies
B54
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
62.5/125 µm MULTIMODE (OM1)
DESCRIPTION LENGTH
(METERS) DUPLEX SIMPLEX
SC-SC 1 62DSC-M01 62SSC-M01
SC-SC 2 62DSC-M02 62SSC-M02
SC-SC 3 62DSC-M03 62SSC-M03
SC-SC 5 62DSC-M05 62SSC-M05
SC-SC 10 62DSC-M10 62SSC-M10
ST-ST 162DST-M01 62SST-M01
ST-ST 262DST-M02 62SST-M02
ST-ST 362DST-M03 62SST-M03
ST-ST 562DST-M05 62SST-M05
ST-ST 10 62DST-M10 62SST-M10
LC-LC 162DLC-M01 62SLC-M01
LC-LC 262DLC-M02 62SLC-M02
LC-LC 362DLC-M03 62SLC-M03
LC-LC 562DLC-M05 62SLC-M05
LC-LC 10 62DLC-M10 62SLC-M10
SC-ST 1 62DCT-M01 62SCT-M01
SC-ST 2 62DCT-M02 62SCT-M02
SC-ST 3 62DCT-M03 62SCT-M03
SC-ST 5 62DCT-M05 62SCT-M05
SC-ST 10 62DCT-M10 62SCT-M10
SC-LC 1 62DCL-M01 62SCL-M01
SC-LC 2 62DCL-M02 62SCL-M02
SC-LC 3 62DCL-M03 62SCL-M03
SC-LC 5 62DCL-M05 62SCL-M05
SC-LC 10 62DCL-M10 62SCL-M10
50/125 µm MULTIMODE (OM2)
DESCRIPTION LENGTH
(METERS) DUPLEX SIMPLEX
SC-SC 1 50DSC-M01 50SSC-M01
SC-SC 2 50DSC-M02 50SSC-M02
SC-SC 3 50DSC-M03 50SSC-M03
SC-SC 5 50DSC-M05 50SSC-M05
SC-SC 10 50DSC-M10 50SSC-M10
ST-ST 1 50DST-M01 50SST-M01
ST-ST 2 50DST-M02 50SST-M02
ST-ST 3 50DST-M03 50SST-M03
ST-ST 5 50DST-M05 50SST-M05
ST-ST 10 50DST-M10 50SST-M10
LC-LC 1 50DLC-M01 50SLC-M01
LC-LC 2 50DLC-M02 50SLC-M02
LC-LC 3 50DLC-M03 50SLC-M03
LC-LC 5 50DLC-M05 50SLC-M05
LC-LC 10 50DLC-M10 50SLC-M10
50/125 µm LASER OPTIMIZED MULTIMODE (OM3)
DESCRIPTION LENGTH
(METERS) DUPLEX
SC-SC 1 5LDSC-M01
SC-SC 2 5LDSC-M02
SC-SC 3 5LDSC-M03
SC-SC 5 5LDSC-M05
SC-SC 10 5LDSC-M10
LC-LC 1 5LDLC-M01
LC-LC 2 5LDLC-M02
LC-LC 3 5LDLC-M03
LC-LC 5 5LDLC-M05
LC-LC 10 5LDLC-M10
SC-LC 1 5LDCL-M01
SC-LC 2 5LDCL-M02
SC-LC 3 5LDCL-M03
SC-LC 5 5LDCL-M05
SC-LC 10 5LDCL-M10
CABLE ASSEMBLIES | Multimode Patch Cords
FIBER
cable
assemblies
B55 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CABLE ASSEMBLIES | Single-mode Patch Cords
APC SC-SC Simplex SM
UPC ST-SC Simplex SMUPC LC-LC Simplex SM
APC SINGLE-MODE PATCH CORDS (OS1)
DESCRIPTION LENGTH
(METERS) SIMPLEX
SC-SC 1 APSSC-S01
SC-SC 2 APSSC-S02
SC-SC 3 APSSC-S03
SC-SC 5 APSSC-S05
SC-SC 10 APSSC-S10
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
SINGLE-MODE PATCH CORDS
• AvailableinstandardSC,ST,LC,orhybridoptionsin1,2,3,5,or10meterlengths
• Riser-ratedsimplexorduplexzipcordsingle-modecable
• UPCorAPCpolishstyleconnectors
• <0.3dBinsertionloss,-55dB(UPC)/-65dB(APC)backreection
• Low-SmokeZero-Halogen(LSZH)OS2availablebyspecialorder
SEE PAGE B53 FOR CONFIGURATOR.
Contactinsidesalesat800.722.2082forothercongurations.
UPC SINGLE-MODE PATCH CORDS (OS1)
DESCRIPTION LENGTH
(METERS) DUPLEX SIMPLEX
SC-SC 1 UPDSC-S01 UPSSC-S01
SC-SC 2 UPDSC-S02 UPSSC-S02
SC-SC 3 UPDSC-S03 UPSSC-S03
SC-SC 5 UPDSC-S05 UPSSC-S05
SC-SC 10 UPDSC-S10 UPSSC-S10
ST-ST 1 UPDST-S01 UPSST-S01
ST-ST 2 UPDST-S02 UPSST-S02
ST-ST 3 UPDST-S03 UPSST-S03
ST-ST 5 UPDST-S05 UPSST-S05
ST-ST 10 UPDST-S10 UPSST-S10
LC-LC 1 UPDLC-S01 UPSLC-S01
LC-LC 2 UPDLC-S02 UPSLC-S02
LC-LC 3 UPDLC-S03 UPSLC-S03
LC-LC 5 UPDLC-S05 UPSLC-S05
LC-LC 10 UPDLC-S10 UPSLC-S10
SC-ST 1 UPDCT-S01 UPSCT-S01
SC-ST 2 UPDCT-S02 UPSCT-S02
SC-ST 3 UPDCT-S03 UPSCT-S03
SC-ST 5 UPDCT-S05 UPSCT-S05
SC-ST 10 UPDCT-S10 UPSCT-S10
SC-LC 1 UPDCL-S01 UPSCL-S01
SC-LC 2 UPDCL-S02 UPSCL-S02
SC-LC 3 UPDCL-S03 UPSCL-S03
SC-LC 5 UPDCL-S05 UPSCL-S05
SC-LC 10 UPDCL-S10 UPSCL-S10
FIBER
cable
assemblies
B56
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
AD
B
CABLE ASSEMBLIES | Pigtails
C
MULTIMODE PIGTAIL (3 METERS)
DESCRIPTION SIMPLEX
[A] SC62.5/125µm(OM1) 62PSC-M03
ST62.5/125µm(OM1) 62PST-M03
[B] LC62.5/125µm(OM1) 62PLC-M03
SC50/125µm(OM2) 50PSC-M03
ST50/125µm(OM2) 50PST-M03
LC50/125µm(OM2) 50PLC-M03
SC50/125µm(OM3) 5LPSC-M03
LC50/125µm(OM3) 5LPLC-M03
12-FIBER PIGTAIL KITS
DESCRIPTION PART NO.
[D] 12-berIndividualColor-Coded62.5/125µmSCMMPigtailKit,3meterlength 62PSC-KIT
12-berIndividualColor-Coded50/125µmSCMMPigtailKit,3meterlength 50PSC-KIT
12-berIndividualColor-Coded50/125µmSCLOMM(10G-300m)PigtailKit,3meterlength 5LPSC-KIT
12-fiber Individual Color-Coded SC SM Pigtail Kit, 3 meter length UPPSC-KIT
12-berIndividualColor-Coded62.5/125µmLCMMPigtailKit,3meterlength 62PLC-KIT
12-berIndividualColor-Coded50/125µmLCMMPigtailKit,3meterlength 50PLC-KIT
12-berIndividualColor-Coded50/125µmLCLOMM(10G-300m)PigtailKit,3meterlength 5LPLC-KIT
12-fiber Individual Color-Coded LC SM Pigtail Kit, 3 meter length UPPLC-KIT
12-berIndividualColor-Coded62.5/125µmSTMMPigtailKit,3meterlength 62PST-KIT
12-berIndividualColor-Coded50/125µmSTMMPigtailKit,3meterlength 50PST-KIT
SINGLE-MODE PIGTAIL (3 METERS, OS1)
DESCRIPTION SIMPLEX
[C] SC UPC polish UPPSC-S03
ST UPC polish UPPST-S03
LC UPC polish UPPLC-S03
SC APC polish APPSC-S03
LC APC polish APPLC-S03
l
e
v
i
t
o
n
.
c
o
m
/
c
o
n
f
i
g
u
r
a
t
o
r
Build
your own!
PIGTAIL FIBER OPTIC CABLE ASSEMBLIES
• AvailableinSC,ST,orLCconnectorstyles
• Standardmultimode,laseroptimizedmultimode,orsingle-modebertypes
• Standard900µmbufferedbercablein3meterlength,colorwhite
• Applicationuse:fusionormechanicalsplicing
• 12-bercolor-codedpigtailkit,colorsperTIA-598-A
• Low-SmokeZero-Halogen(LSZH)OS2availablebyspecialorder
Contactinsidesalesat800.722.2082for6berpigtailkits,othercongurations,orcustomlengths.
SEE PAGE B53 FOR CONFIGURATOR.
FIBER
cable
assemblies
B57 LEVITON.COM | 800.722.2082 / +1.425.486.2222
Secure Keyed LC
SPOTLIGHT
Leviton’s Secure Keyed LC Fiber System preventsunauthorizedand
inadvertent changes in highly sensitive government applications such
as data centers, telecommunications rooms, workstation areas, and
secureITnetworks,creatinganideal"lock-in"system.Onceconnected
to a port, the locking design — built into the body of each duplex LC
connector — prevents removal by hand, and the connector can only be
removedwithamatchingcolorextractiontool.Eightkeyedconnector
colorsareavailabletosegregatenetworks.Thesystemismadeupof
trunks, harnesses, patch cords, pigtails, connectors, port protection
plugs, extraction tools, and QuickPort®beradapters.AllSecureKeyed
LC assemblies and connectors work with any industry compliant LC
duplexorquadadapter.
CABLE ASSEMBLIES | Secure Keyed LC Patch Cords & Pigtails
SECURE KEYED LC PATCH CORDS & PIGTAILS
• Unibodydesignpreventunauthorizedandinadvertentmoves,adds,andchanges(MACs)
• DuplexLCconnectorscanonlyberemovedwithmatchingcolorextractiontool
• Choosefromeightcolorstosegregateandsecurenetworks
• DuplexLCconnectorplugsintoanyindustrycompliantLCadapterorinterface
• Allconnectorsareheatcuredanduseceramicferrulesforoptimalperformance
• PolarityoptionsofAtoBorAtoA
• MadeintheUnitedStates
SecureKeyedLCtoSecureKeyedLC,50/125µmLOMM
New
FIBER
X X X K X - XXX
cable
assemblies
B58
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
cable
assemblies
CABLE ASSEMBLIES | Secure Keyed LC Patch Cords & Pigtails
For Secure Keyed LC connectors,
accessories, and colors, see page B62.
FIBERFIBER
PART NUMBER CONFIGURATOR – SECURE KEYED LC FIBER PATCH CORDS & PIGTAILS
Example:3RDKK-M03;FiberPatchcord,OM3duplexriser-rated,keyedduplexunibodyLC(red)tokeyedduplexLC,3-meterlength,
polarityisAtoB.
FOR ASSISTANCE CONFIGURING YOUR PATCH CORDS OR FOR CONFIGURATIONS NOT SHOWN, PLEASE CALL 800.722.2082.
CABLE LENGTH
For feet, enter length as
three characters
Example:8ft=008
For meters enter M then
the length as
two characters
Example:4m=M04
FIBER TYPE
1 = OM1
2 = OM2
3 = OM3
4 = OM4
U = OS2
KEYED
COLOR
W = White
Y=Yellow
O = Orange
R = Red
L = Blue
V = Green
G = Slate
E=Black
FIRST END
TERMINATION
K = Keyed Duplex LC
(unibody)
SECOND END
TERMINATION
K = Keyed Duplex LC
(unibody)
L = Std LC (duplex clips)
C = SC (duplex clips)
U = MU
M=MT-RJ
T = ST
F = FC
N = None
CABLE TYPE/
POLARITY
D = Duplex Riser-Rated
A to B Polarity
Y=DuplexPlenum-Rated
A to B Polarity
E=DuplexRiser-Rated
A to A Polarity
Z=DuplexPlenum-Rated
A to A Polarity
P = Pigtail Riser-Rated
X X X K X - XXX
B59
FEATURED
PRODUCTS
FastCAM®
Connectors B60
Secure Keyed LC
Connectors &
Accessories B62
Leviton has everything you need to properly terminate your fiber
network.FastCAM®, Fast-Cure®, and Thread-Lock® connectors are
availableinLC,SC,andSTstyles.NewSecureKeyedLCField-
Installable Connectors lock into any industry compliant adapters
andpreventunauthorizedmoves,adds,andchanges(MACs).
To extend fiber to the workstation, we also offer QuickPort®
footprint fiber adapters that fit into our standard wallplates
andMultimediaOutletSystem(MOS)housings.SeetheCopper
Work Area section for copper workstation connectivity products,
includingconnectorsandanextensivewallplateselection.
CONNECTORS & HOUSINGS
New
connectors
& housings
B60
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
CONNECTORS & HOUSINGS | Connectors > FastCAM®
A-D E-G
FASTCAM CONNECTORS – 1 PER BAG
DESCRIPTION PART NO.
[A] FastCAM SC Single-Mode Connector, blue 49991-SSC
[B] FastCAMSC50/125µmLaserOptimizedMultimodeConnector,aqua 49991-LSC
[C] FastCAMSC62.5/125µmMultimodeConnector,beige 49991-MSC
[D] FastCAMSC50/125µmMultimodeConnector,black 49991-5SC
[E] FastCAMST50/125µmMultimodeConnector,black 49991-5ST
[F] FastCAM ST Single-Mode Connector, blue 49991-SST
[G] FastCAMST62.5/125µmMultimodeConnector,beige 49991-MST
[H] FastCAM LC Single-Mode Connector, blue 49991-SLC
[I] FastCAMLC50/125µmLaserOptimizedMultimodeConnector,aqua 49991-LLC
[J] FastCAMLC62.5/125µmMultimodeConnector,beige 49991-MLC
[K] FastCAMLC50/125µmMultimodeConnector,black 49991-5LC
SeepagesB67-B72forFastCAMtoolsandconsumables.
FASTCAM CONNECTORS
• Pre-polished,eld-installableconnectors
• Designedfordatacenterandotherapplicationsthatrequirefastnetworkdeployment
• Useprecisionzirconiaferrules
• Requirenopolishingorepoxycuring;provideimmediatetermination
• Precisionmechanicalterminationusesmoldedv-groovetechnologytoretainandaligntheber
• Terminatedon250µmor900µmbufferedberand/or2or3mmjacketedber
• Availableinmultimode,laseroptimizedmultimode,andsingle-modeconnectorstyles
• HigheryieldswithVisualFaultLocator(VFL)compatibleLC,SC,andSTconnectors
Visual Fault Locator (VFL)
SPOTLIGHT
Quickly diagnose and repair optical fiber damage with Leviton’s
newVisualFaultLocator(VFL).Thepocket-sizedtoolusesa
bright red laser to locate faults including tight bends, breaks,
anddefectiveconnectors.IncludedwitheachVFLarea2.5mm
ferruleinterface,1.25mmadapter,andsoftcarryingcase.Use
withLC,SCandSTFastCAMconnectors.
FastCAM
Components
H-K
FIBER
connectors
& housings
B61 LEVITON.COM | 800.722.2082 / +1.425.486.2222
A B E-G
CONNECTORS & HOUSINGS | Connectors > Fast-Cure®
FAST-CURE ADHESIVE CONNECTORS
DESCRIPTION OS2 OM1 & OM2
MULTIMODE
OM3 & OM4
LO MULTIMODE
[A] ST Fast-Cure Connector 49990-SST 49990-MST
[B] SC Fast-Cure Connector 49990-SSC(blue) 49990-MSC(beige) 49990-LSC(aqua)
[C] LC Fast-Cure Connector with 3 mm boot 49990-SL2(blue) 49990-ML2(beige) 49990-LL2(aqua)
[D] LCFast-CureConnectorwith.9mmboot 49990-SDL(blue) 49990-MDL(beige) 49990-LDL(aqua)
FAST-CURE ACCESSORIES
DESCRIPTION OS2 OM1, OM2, OM3, & OM4
[E] SC Duplex Clip for Fast-Cure Connector, black (bag of 25) 49886-DSC
[F] LC Duplex Clip for Fast-Cure Connector, beige (bag of 25) 49886-DLM
[G] LC Duplex Clip for Fast-Cure Connector, blue (bag of 25) 49886-DLS
SeepagesB67-B72forFast-Curetoolsandconsumables.
Ceramicvs.PolymerFerrules
SPOTLIGHT
Fiber optic ferrules, which assure accurate alignment of fiber-to-
fibercoreinterfaces,canbeconstructedofzirconiaceramicor
polymercomposites.Whilethetwomaterialsoffercomparable
performance in several areas, ceramic ferrules are superior in the
key attributes of reliability (withstanding day-to-day environmental
stressors)anddurability(withstandingrepeatedmatings/MACs).
Leviton builds its connectors using only ceramic ferrules, so our
customers can be assured of the best fiber connector performance
inanyapplication.
FAST-CURE CONNECTORS
• Anaerobicadhesive-style,eld-installableconnectors
• Handpolishingrequired
• Mostrobustconnection,idealforoutsideplantapplications
• AvailableinST,SC,andLCconnectorstyles
• AvailableinLOMM,multimode,andsingle-modeversions
• 900µmand3mmbootsincludedwithSCandSTconnectors Fast-Cure
Components
C D
FIBER
connectors
& housings
B62
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
SECURE KEYED LC FIELD-INSTALLABLE CONNECTORS
DESCRIPTION PART NO.
[A] SecureKeyedLCField-InstallableConnector,900µm,MM/SM 4999K-xLC
[B] 900µmBoots(bagof50) 4999K-ttt
SECURE KEYED LC ACCESSORIES
DESCRIPTION PART NO.
[C] Port Protection Plug w/ Dust Cap PPRTN-xLG
[D] ExtractionToolw/DustCap ETRTN-xTL
Dust Caps (bag of 10) DUSTK-CAP
CONNECTORS & HOUSINGS | Connectors > Secure Keyed LC
SECURE KEYED LC CONNECTORS & SYSTEM ACCESSORIES
• FieldinstallableduplexLCconnectorslockintoanyindustry
compliant LC adapter or interface
• Anaerobicadhesive-style,requireshandpolishing
• Connectorscanonlyberemovedwithmatchingcolorextractiontool
• Extractiontoolsallowforeasyconnectorremovalfromadapter
plates and wallplates
• 900µmbootsidentifybertype
• PortprotectionplugsenableunusedLCportstobelocked
• Dustcapsprotectconnectorsuponremovalfromaport,promoting
good fiber discipline
C D
A
x=colors:Choosefromanyofthecolorsbelow.
ttt=Beige(BGE),Black(BLK),Aqua(AQU),Blue(BLU)
New New New
White (W) Slate (G) Black(E)
Yellow(Y) Orange (O) Green (V)Red (R) Blue (L)
Leviton’sSecureKeyedLCFiberSystempreventsunauthorizedandinadvertentchangesinhighly
sensitive applications such as government and military networks, data centers and colocation
equipment rooms, and financial, academic, and health care market sectors, creating an ideal
"lock-in"system.Onceconnectedtoaport,thelockingdesign—builtintothebodyofeachduplex
LC connector — prevents removal by hand, and the connector can only be removed with a matching
colorextractiontool.
Boots sold separately B
Filed installable duplex LC Connector components
Secure Keyed LC system also includes
trunk cables (B48), harnesses (B51),
patch cords & pigtails (B57)
FIBER
connectors
& housings
B63 LEVITON.COM | 800.722.2082 / +1.425.486.2222
CONNECTORS & HOUSINGS | Thread-Lock® Connectors & QuickPort® Adapters
QUICKPORT FIBER ADAPTERS
DESCRIPTION PART NO.
[A]QuickPortSTFiberOpticAdapter,MM,phosphorbronzesleeve 41084-S*F
 QuickPortSTFiberOpticAdapter,SM/MM,zirconiaceramicsleeve 41084-S*Z
[B]QuickPortSimplexSCAdapter,MM,phosphorbronzesleeve,femalefront/back 41085-M*C
 QuickPortSimplexSCAdapter,SM/MM(10GLOMM),zirconiaceramic,femalefront/back 41085-S*C
[C]QuickPortDuplexLCAdapter,MM,phosphorbronzesleeve,beige 41085-ML*
[D] QuickPortDuplexLCAdapter,SM,zirconiaceramicsleeve,blue 41085-SL*
[E] QuickPortDuplexLCAdapter,10GLOMM,zirconiaceramicsleeve,aqua 41085-LL*
QuickPort MTP Adapter, SM/MM 41085-TP*
*=Colors:Choosefromanyofthecolorsbelow.
A B
White (W) Ivory (I) Slate (G) Black(E)
QUICKPORT FIBER ADAPTERS
• SnapintoallQuickPortopeningsand
Multimedia Outlet System (MOS) housings
• Tool-freeplugandplayinstallation
• Offeredwithprecisionphosphorbronze
orzirconiaceramicalignmentsleeve
ML (C) and SL (D) part numbers also available in:
Yellow(Y) Red (R) Blue (L) Green (V)
THREAD-LOCK CONNECTORS
DESCRIPTION SINGLE-MODE MULTIMODE
[A] SC Thread-Lock Connector 49884-SSC(blue) 49884-MSC(beige)
[B] ST Thread-Lock Connector 49882-SST 49882-MST
THREAD-LOCK ACCESSORIES
DESCRIPTION PART NO.
[C] Silicon Build-Up Sleeve Kit, includes one of each type of sleeve (bag of 10) 49885-SBS
[D] SC Duplex Clip for Thread-Lock Connector, black (bag of 25) 49884-DPC
Retention Nylon Sleeve (bag of 10) 49885-SLV
A B C D
SeepagesB67-B72forThread-Locktoolsandconsumables.
THREAD-LOCK CONNECTORS
• Mechanical-styleeld-installableconnectors
• Handpolishingrequired
• Forinsideplantapplications
• Connectorsarereusable Thread-Lock
Components
C-E
FIBER
connectors
& housings
B64
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
CONNECTORS & HOUSINGS | QuickPort® Wallplates
A
SeepagesA44-A46intheCoppersectionforLeviton’scompleteselectionofQuickPortwallplates.
†=Dual-Gang1-and2-PortwallplatesonlyhavetwoIDwindowsontop.
QUICKPORT WALLPLATES
• CompatiblewithallQuickPortconnectorsandadapters
• ULListed,re-retardantmaterialratedUL94V-O
• Manufacturedfromhigh-qualityABSplasticwhichprovidessuperiorresistancetoimpacts,chemicals,and
solvents as compared to other plastics
• Midsizeplates,madeofsmooth-nishnylon,hideirregulardrywallcutsandaws
White BrownLight
Almond
Ivory Grey Black
[A] QUICKPORT ANGLED SINGLE-GANG WALLPLATES
DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK BROWN
4-Port Wallplate 41081-4WP 41081-4TP 41081-4IP
2-Port Wallplate 41081-2WP 41081-2TP 41081-2IP
4-Port Wallplate w/ ID window 42081-4WS 42081-4TS 42081-4IS
2-Port Wallplate w/ ID window 42081-2WS 42081-2TS 42081-2IS
[B] QUICKPORT MIDSIZE SINGLE-GANG WALLPLATES
DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK BROWN
6-PortWallplate 41091-6WN 41091-6TN 41091-6IN 41091-6BN
4-Port Wallplate 41091-4WN 41091-4TN 41091-4IN 41091-4BN
3-Port Wallplate 41091-3WN 41091-3TN 41091-3IN 41091-3BN
2-Port Wallplate 41091-2WN 41091-2TN 41091-2IN 41091-2BN
1-Port Wallplate 41091-1WN 41091-1TN 41091-1IN 41091-1BN
[C] QUICKPORT DUAL-GANG WALLPLATES WITH ID WINDOWS
DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK BROWN
12-Port Wallplate 42080-12W 42080-12T 42080-12I 42080-12G 42080-12E
8-PortWallplate 42080-8WP 42080-8TP 42080-8IP 42080-8GP 42080-8EP
6-PortWallplate 42080-6WP 42080-6TP 42080-6IP 42080-6GP 42080-6EP
4-Port Wallplate 42080-4WP 42080-4TP 42080-4IP 42080-4GP 42080-4EP
3-Port Wallplate 42080-3WP 42080-3TP 42080-3IP 42080-3GP 42080-3EP
2-Port Wallplate†42080-2WP 42080-2TP 42080-2IP 42080-2GP 42080-2EP
1-Port Wallplate†42080-1WP 42080-1TP 42080-1IP 42080-1GP 42080-1EP
B C FIBER
connectors
& housings
B65 LEVITON.COM | 800.722.2082 / +1.425.486.2222
FIBER INSERTS FEATURES:
• Modulesareavailablein0.5,1,1.5,2,and3unithighsizes
• Surface-mountboxacceptsonly1unithighmodules
• Platesaccept3unitshightotal
• AvailableinstandardQuickPort®footprintaswellasmorespecializedmodules
• Snap-ininstallationintowallplatesandsurfacemountboxes
• Front-loadinstallationsimpliesmoves,adds,andchanges(MACs)
• Angledgeometryprotectscabling
The innovative Multimedia Outlet System (MOS) consists of a surface-mount box and single- and
dual-gangwallplatesthatacceptawidevarietyofber,copper,andA/Vconnectors.Thesingle-
gangwallplateandsurface-mountboxacceptsuptosixconnectors;dual-gangacceptsuptotwelve.
MOS SURFACE-MOUNT BOX AND WALLPLATE HOUSINGS
DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK
[A] Single-Gang Wallplate 41290-SMW 41290-SMT 41290-SMI 41290-SMG 41290-SME
[B] Dual-Gang Wallplate 41290-DMW 41290-DMT 41290-DMI 41290-DMG 41290-DME
[C] Surface-Mount Box 41296-MMW 41296-MMT 41296-MMI 41296-MMG 41296-MME
[D] Fiber Storage/Spacer Ring 41290-DRW 41290-DRI 41290-DRG 41290-DRE
[E] Decora® Insert, holds one 1-unit high
MOS module 41649-00W 41649-00I
CONNECTORS & HOUSINGS | Multimedia Outlet System (MOS)
A B C D E
SeecolorswatchesonpageB66.
See pages A41-A42 for copper
and A/V MOS products.
FIBER
connectors
& housings
B66
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
Light
Almond
White Ivory Grey Black
MOS QUICKPORT® ADAPTERS & BLANK MODULES
DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK
[I] 1-Port QuickPort Module (1 unit high) 41291-1MW 41291-1MT 41291-1MI 41291-1MG 41291-1ME
[J] 2-Port QuickPort Module (1 unit high) 41291-2QW 41291-2QT 41291-2QI 41291-2QG 41291-2QE
[K] 2-Port45˚ExitAngledQuickPortModule(1.5unitshigh) 41294-2QW 41294-2QT 41294-2QI 41294-2QG 41294-2QE
[L] BlankModule(0.5unitshigh) 41295-5BW 41295-5BT 41295-5BI 41295-5BG 41295-5BE
[M] Blank Module (1 unit high) 41291-1BW 41291-1BT 41291-1BI 41291-1BG 41291-1BE
[N] BlankModule(1.5unitshigh) 41294-2BW 41294-1BT 41294-2BI 41294-2BG 41294-2BE
[O] Blank Module (2 units high) 41292-2BW 41292-2BT 41292-2BI 41292-2BG 41292-2BE
MOS FIBER INSERTS
DESCRIPTION WHITE IVORY GREY BLACK
[A] 1DuplexSC,zirconiaceramic,SMblue,(1unithigh) 41291-2CW 41291-2CI 41291-2CG 41291-2CE
[B] 1DuplexSC,zirconiaceramic,SMblue,45˚exit(1.5unitshigh) 41294-2CW 41294-2CI 41294-2CG 41294-2CE
[C] 1DuplexSC,zirconiaceramic,SMblue,45˚exit(2unitshigh) 41292-2CW 41292-2CI 41292-2CG 41292-2CE
[D] 2DuplexSC,zirconiaceramic,SMblue,45˚exit(3unitshigh) 41293-4CW 41293-4CI 41293-4CG 41293-4CE
1DuplexST,zirconiaceramic,SM,(1unithigh) 41291-ZTW 41291-ZTI 41291-ZTG 41291-ZTE
[E] 1DuplexST,phosphorbronze,MM,(1unithigh) 41291-2TW 41291-2TI 41291-2TG 41291-2TE
1DuplexST,zirconiaceramic,SM,45˚exit(1.5unitshigh) 41294-ZTW 41294-ZTI 41294-ZTG 41294-ZTE
[F] 1DuplexST,phosphorbronze,MM,45˚exit(1.5unitshigh) 41294-2TW 41294-2TI 41294-2TG 41294-2TE
1DuplexST,zirconiaceramic,SM,45˚exit(2unitshigh) 41292-ZTW 41292-ZTI 41292-ZTG 41292-ZTE
[G] 1DuplexST,phosphorbronze,MM,45˚exit(2unitshigh) 41292-2TW 41292-2TI 41292-2TG 41292-2TE
1DuplexST,zirconiaceramic,SM,45˚exit(3unitshigh) 41293-ZTW 41293-ZTI 41293-ZTG 41293-ZTE
[H] 2DuplexST,phosphorbronze,MM,45˚exit(3unitshigh) 41293-4TW 41293-4TI 41293-4TG 41293-4TE
CONNECTORS & HOUSINGS | Multimedia Outlet System (MOS)
IJK L M N O
For multimode SC adapters in beige, black or aqua housing, please contact Inside Sales at 800.722.2082.
A B C D EF HG
For LC adapters, use QuickPort modules
above and LC adapters on page B63.
FIBER
B67
TOOLS & CONSUMABLES
FEATURED
PRODUCTS
Connector Cleaning
Tools B71
Visual Fault
Locator (VFL) B71
LYNXCleaverB71
Differentterminationtypesrequireuniquetools.Levitonhas
everything you need to terminate Fast-Cure® (adhesive polish),
Thread-Lock® (compression polish), and FastCAM® (pre-polished)
connectors.WealsooffercleaningtoolsforLC,SC,andMTP®
connectors.Choosefromcompletekits,ormixandmatch
individualtools,andawidevarietyofconsumables.
New
tools &
consumables
B68
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
TOOLS & CONSUMABLES | Featured Products
LEVITON 200X INSPECTION SCOPES
VISUAL FAULT LOCATOR (VFL)
FA STCA M ® TERMINATION TOOLS
ONLINE TRAINING VIDEOS & ANIMATIONS
Reduce the chances of over-polishing with Leviton’s high-powered
inspectionscopes.Viewsingle-modeandmultimodeendface
polishessafelywithourobliqueviewingtechnology;fulllasereye
protectionisprovidedthroughwavelengthsof850–1550nanometers
(nm).Ruggedmetalandrubberconstructionstandsuptojobsite
abusewhileofferinganergonomicgrip.SeepageB71.
Quickly diagnose and repair optical fiber damage with Leviton’s
newVisualFaultLocator(VFL).Thepocket-sizedtoolusesa
bright red laser to locate faults, including tight bends, breaks, and
defectiveconnectors.IncludedwitheachVFLarea2.5mmferrule
interface,1.25mmadapter,andsoftcarryingcase.Usewith
FastCAM®LCandSCconnectorsforenhancedterminations.
SeepageB71forpartnumbers.
IncreaseyourexpertisewithLeviton’sonlinebertraining.Animated,
step-by-stepinstructionsonterminatingFastCAM250µmor900µm
fiber, using our fan-out kits, or terminating Fast-Cure® or Thread-Lock®
connectors,areallavailablewithjustaclickofthemouse.AllofLeviton’s
training animations feature clear, easy-to-understand graphics paired
withon-screenwritteninstructionsformaximumeffectiveness.Visit
www.leviton.com/support.
FastCAM terminations and fusion splicing both require precision
cleaving.GettheaccuracyyouneedwiththeLYNXCleaver.Acleave
angleof90°+/-.5°isguaranteed;the16-positionbladeremains
sharpthroughapproximately48,000cleaves.Clean-upiseliminated
withthebuilt-inwasteholder.Foraself-containedworkspace,mount
theLYNXtotheoptionalworktrayandusethegooseneckLEDfor
tasklighting.SeepageB71.
FIBER
tools &
consumables
B69 LEVITON.COM | 800.722.2082 / +1.425.486.2222
A B
TOOLS & CONSUMABLES | Fiber Optic Tool Kits
FIBER OPTIC LIGHT TOOL KIT
• Essentialtoolsetforquickeld-terminationofThread-Lock® and Fast-Cure® connectors
• Terminatesbothmultimodeandsingle-modeber
FIBER OPTIC THREAD-LOCK TOOL KIT
• AcomprehensivetoolsetforterminatinganySCorSTThread-Lockconnectors
• Terminatesbothmultimodeandsingle-modeber
FIBER OPTIC FAST-CURE TOOL KIT
• Allthetoolsyouneedforterminatingmultimodeorsingle-modeSC,ST,orLCFast-Cureadhesiveconnectors
• Adhesive/acceleratorkitsoldseparately,seepageB72
FIBER OPTIC FASTCAM® TOOL KIT
• PrecisioncleavingforguaranteedFastCAMconnectorperformance
• Terminatesbothmultimodeandsingle-modeber
CD
Consumablessoldseparately,seepageB72.
FIBER
tools &
consumables
B70
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
TOOLS & CONSUMABLES | Fiber Optic Tool Kits
FIBER OPTIC TOOL KITS
DESCRIPTION PART NO.
[A] Light Tool Kit 49800-MTK
[B] Thread-Lock Tool Kit 49800-UTP
[C] Fast-Cure Tool Kit 49800-FTK
 FastCAMToolKitw/LYNXCleaver 49800-MSK
[D]FastCAMToolKitw/LYNXCleaver,worktray,&LEDlight 49800-LAK
FastCAMToolKitw/CT-30ACleaver(cleavershownonpageB71) 49800-SMK
LIGHT TOOL KIT
49800-MTK
THREAD-LOCK®
TOOL KIT
49800-UTP
FAST-CURE®
TOOL KIT
49800-FTK
FA S TC A M ®
TOOL KIT
49800-MSK
Standard Tool Kit Carrying Case • •
250 µm Buffer Remover • •
900 µm Buffer Remover • • •
Jacket Stripper • • • •
Aramid Strand Scissors • • •
Safety Glasses • •
Sapphire Scribe • • •
2.5 mm Polishing Puck • • •
3" x 6" Polishing Pad • • •
ST/SC Combination Tightening Tool • •
Versa-Cleave® Tool •
LYNX Cleaver •
200x Inspection Scope • •
Piano Wire • •
Lint-Free Dry Wipes • •
Alcohol Pads • •
12 µm Aluminum Oxide Lapping Film •
3 µm Aluminum Oxide Lapping Film •
0.3 µm Aluminum Oxide Lapping Film •
Crimp Tool •
LC Scope Adapter •
LC Polishing Puck •
IndividualconsumablesavailableonpageB72.
FIBER OPTIC TOOL KITS CONTENTS
FIBER
tools &
consumables
B71 LEVITON.COM | 800.722.2082 / +1.425.486.2222
A, B HC, D
TOOLS & CONSUMABLES | Fiber Optic Tools
UNIVERSAL TOOLS & ACCESSORIES
DESCRIPTION PART NO.
[A] 250µmBufferRemover(yellowhandle) 49886-BR2
[B] 900µmBufferRemover(redhandle) 49886-BR9
[C] JacketStripper 49886-STP
[D] Aramid Strand Scissors 49886-SIS
Marking Pen 49886-SMP
Safety Glasses 49886-GLS
Sapphire Scribe 49886-SCR
2.5mmPolishingPuck 49886-PUC
3"x6"PolishingPad 49886-PAD
Opt-X® Tool Kit Carrying Case 49886-CSE
Safety Pad 49886-SPD
200x Inspection Scope 49886-FSP
LC Scope Adapter (works w/ 200x scope only) 49886-LCS
Duplex LC Scope Adapter (works w/ 200x scope only) 49886-LCD
MTP® Scope Adapter (works w/ 200x scope only) 49886-MCS
FiberOpticCrimpToolwith.128/.151/.178hexdie 49886-FCT
1.25mm(LC)PolishingPuck 49886-LCP
Tool Kit Carrying Case 49886-FCC
[E] MTP Module Cleaning Tool 49886-MCT
MTP Module Cleaning Tool Refill (male) 49886-MCR
[F] LC Connector Cleaning Tool 49886-LCT
[G] SC Connector Cleaning Tool 49886-SCT
[H] MTP Connector Cleaning Tool (female) 49886-UFT
MTP Connector Cleaning Tool (male) 49886-UMT
IJ
LM
THREAD-LOCK® SPECIFIC TOOLS
DESCRIPTION PART NO.
ST/SC Combination Tightening Tool 49886-CTT
Versa-Cleave® Tool 49886-TVC
FA ST CA M ® SPECIFIC TOOLS
DESCRIPTION PART NO.
[I] Work Tray 49886-LNT
[J] GooseneckLED 49886-LGN
[K] LYNXCleaver 49886-LNX
[L] Fujikura CT-30A Cleaver 49886-CTA
[M] VisualFaultLocator(VFL)(2.5and1.25
mm adapters included) 49886-VFL
Replacement1.25mmAdapterforVFL 49886-FLA
E
K
G
F
New
New
New
New
New
FIBER
tools &
consumables
B72
Visit our Knowledgebase at communities.leviton.com • Tech Support | 800.824.3005 / +1.425.486.2222
TOOLS & CONSUMABLES | Consumable Products & Kits
CONSUMABLES KITS
DESCRIPTION PART NO.
[A] Universal Consumables Kit 49800-CON
[B] Fast-Cure Consumables Kit 49800-FCC
[C] Adhesive/Accelerator Kit 49800-680
[D] Fan-Out Consumables Kit 49800-FAN
CONSUMABLES
DESCRIPTION PART NO.
Piano Wire 49886-WRE
Lint-Free Dry Wipes (100 per pack) 49886-DWP
Alcohol Pads (100 per pack) 49886-APD
12µmAluminumOxideLappingFilm,pink(100perpack) 49886-12F
3µmAluminumOxideLappingFilm,yellow(100perpack) 49886-03F
0.3µmAluminumOxideLappingFilm,lightblue(100perpack) 49886-X3F
Replacement Needles (25 per pack) 49886-FCN
Replacement Syringes (25 per pack) 49886-SYR
A B D
FAST-CURE® CONSUMABLES KIT
EverythingfromtheUniversalKit,plusspecialized
suppliesforFast-Cureterminations. Additional included
items:
• 25syringes
• 25needles
• Adhesiveandaccelerator
FAN-OUT CONSUMABLES KIT
Kitterminatesaminimumof10FiberOpticFan-OutKits.
Set includes:
• 20lint-freedrywipes
• 10alcoholpads
• 10D’Gel® packets
• Sealant
• Talcpowder
UNIVERSAL CONSUMABLES KIT
All the basic supplies needed to clean and polish fiber
opticconnectors.Set includes:
• 50lint-freedrywipes
• 50alcoholpads
• 30sheets12µmlappinglm
• 30sheets3µmlappinglm
• 30sheets0.3µmlappinglm
• Pianowire
ADHESIVE/ACCELERATOR KIT
Set includes:
• Loctite680adhesive
• Loctite7649acceleratorwithsyringe
• Twoneedles
C
FIBER

Navigation menu
