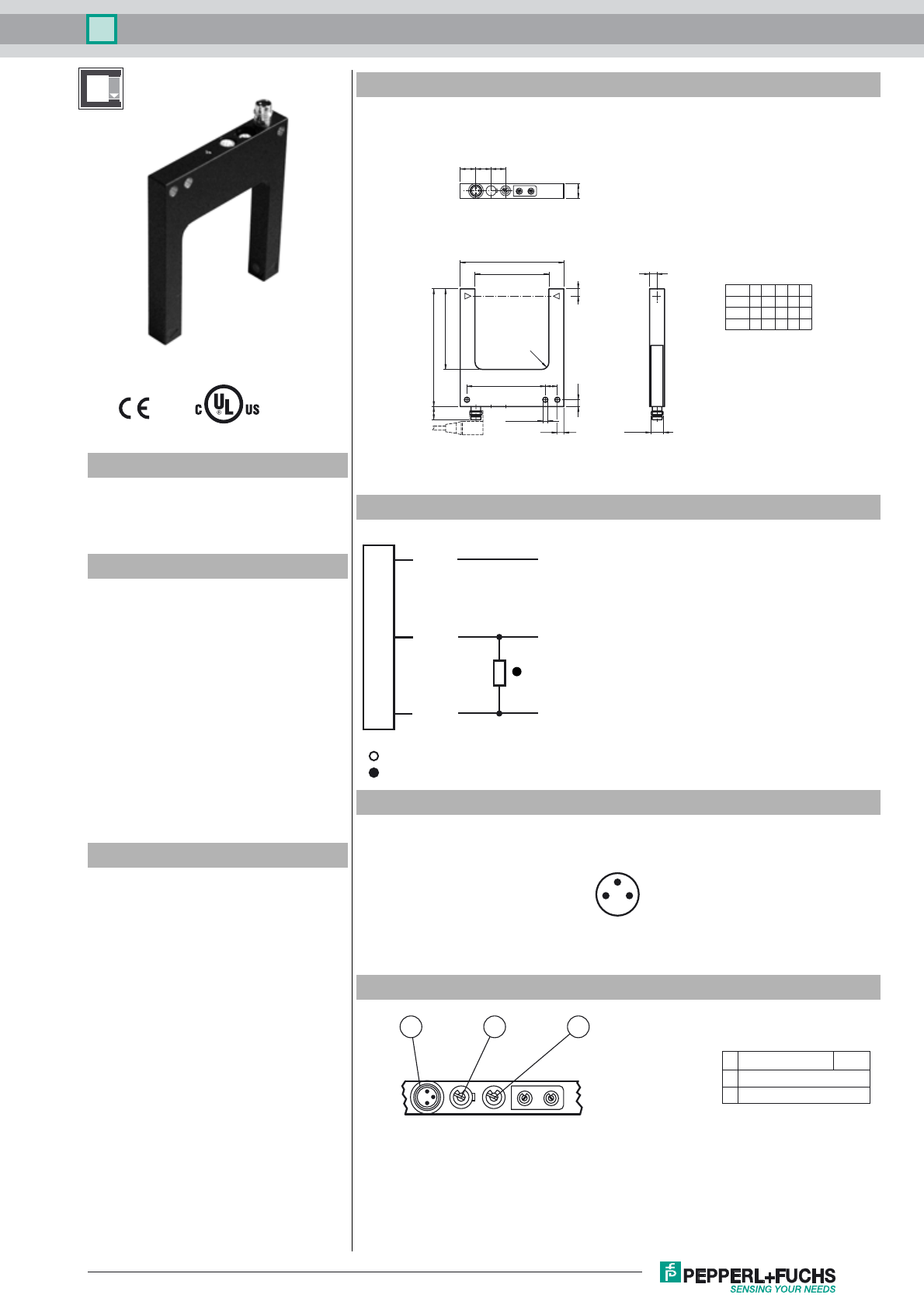

Photoelectric slot sensor
GL80-RT/32/40a/98a
Release date: 2015-02-27 09:19 Date of issue: 2015-02-27 199991_eng.xml
Dimensions
Electrical connection
Pinout
Indicators/operating means
M8 x 1
10
L2
L1
L49
L3
5
3 x ø 4.3
4.5 5
10.5 10 10.5
L5 8
R5
4.5
HD-+
L1 L2 L3 L4 L5
GL30... 30 50 35 60 33
GL50... 50 70 55 80 53
GL80... 80 100 55 80 83
4
1
3
+UB
Q
0 V
/98a
= Light on
= Dark on
1
4
3
1 Functional display red
2 Light-/dark switch
3 Sensitivity adjuster
1 2 3
HD-+
Model Number
GL80-RT/32/40a/98a
Photoelectric slot sensor
with 3-pin, M8 x 1 connector
Features
• Optimized for the detection of small
parts
• High switching frequency
• Multiple device installation possible,
no mutual interference (no cross-talk)
• Sensitivity adjuster and light/dark
switch as standard features of this se-
ries
• Visible red light
• Degree of protection IP67
• cULus approval
• Diecast zinc housing, powder coated
Product information
Photoelectric slot sensors offer vast installa-
tion benefits thanks to their housing design.
When it comes to operation, these new gen-
eration devices boast features such as high
resolution, high repeatability, automatic sig-
nal threshold adjustment, ambient light resis-
tance, and detection of and/or light
transmission through transparent objects.
Cross-talk protection enables parallel instal-
lation of devices despite extremely high
switching frequency. These characteristics
guarantee reliable detection of small parts,
from 0.3 mm, across the entire detection
range, even in very fast moving applications.
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
Photoelectric slot sensor
GL80-RT/32/40a/98a
2
Release date: 2015-02-27 09:19 Date of issue: 2015-02-27 199991_eng.xml
Technical data
General specifications
Light source LED
Light type modulated visible red light
Tests EN 60947-5-2
Target size 0.3 mm
Slot width 80 mm
Ambient light limit 100000 Lux
Functional safety related parameters
MTTFd 1290 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Function indicator LED red in connector
Control elements Sensitivity adjuster, light/dark switch
Electrical specifications
Operating voltage UB10 ... 30 V DC, class 2
Ripple 10 %
No-load supply current I0≤ 15 mA
Output
Switching type light/dark on
Signal output 1 PNP, short-circuit protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA
Repeat accuracy 0.05 mm
Switching frequency f 3 kHz
Response time ≤ 160 µs
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Storage temperature -20 ... 75 °C (-4 ... 167 °F)
Mechanical specifications
Degree of protection IP67
Connection M8 connector, 3-pin
Material
Housing powder coated diecast zinc
Optical face glass
Mass 125 g
Approvals and certificates
CE conformity CE
UL approval cULus
CCC approval CCC approval / marking not required for products rated ≤36 V
Other suitable accessories can be found at
www.pepperl-fuchs.com
Accessories
V3-GM-2M-PUR
Cable socket, M8, 3-pin, PUR cable
V3-WM-2M-PUR
Cable socket, M8, 3-pin, PUR cable
