Wiring Device-Kellems
SwivelLok®
Multi-Position
Liquidtight Connector
With the introduction of a 3/8” version, enhanced
SwivelLok®multi-position liquidtight connectors
are now available in 3/8”, 1/2”, 3/4” and 1” sizes in
both gray and black nylon. When teamed with
PolyTuff®I flexible liquidtight nonmetallic conduit
or PolyTuff®II flexible liquidtight nonmetallic tub-
ing, it becomes the
SwivelLok®system
. Now
there’s one connector that can handle any angle
from 0° to 90°. Easily feed the conductors through
the SwivelLok®connector in the straight position
and then simply swivel it to the desired angle. No
need to spend time forcing wires through 45° and
90° connectors, one SwivelLok®connector can
handle all your liquidtight applications. SwivelLok®
connectors— innovation, quality and performance
in one liquidtight connector system engineered to
save time and installed cost.
Features
• Swivels into any position between straight and
90 degrees.
• Indexes every 15 degrees when twisted.
• Smooth ferrule.
• Multiple position capability.
• Meets same UL and CSA performance stan-
dards as all Hubbell liquidtight fittings.
Benefits
• Saves time by feeding wires through straight,
then twisting to desired position. No more fish-
ing wires through 90 degree connectors.
Same fitting may be used in any desired posi-
tion.
• Easy position selection.
• Eliminates threading on at installation. Saves
time. Provides superior conduit pull-out reten-
tion.
• Less inventory and broader application capacity.
• High reliability.

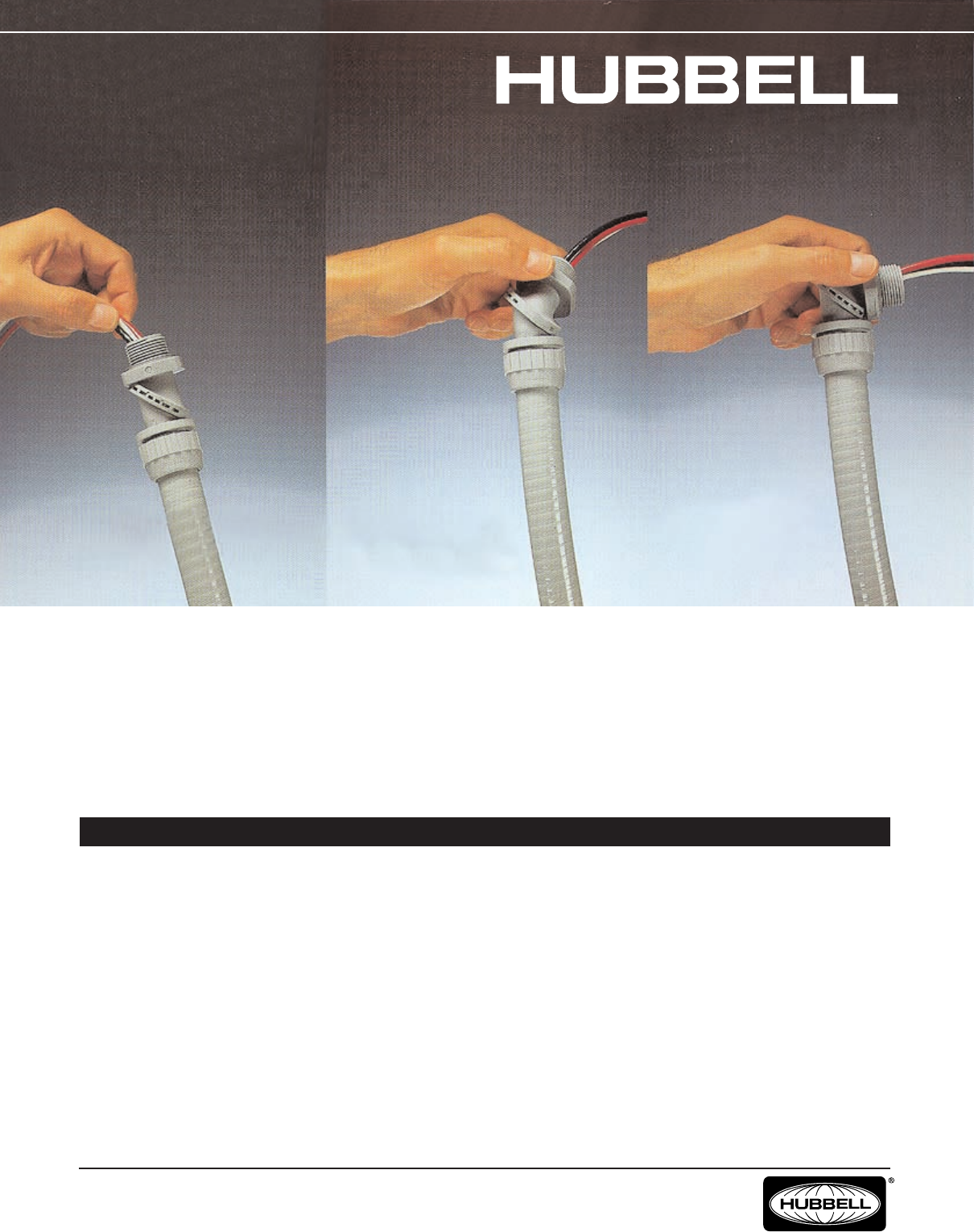

3. Ready to
install.
1. Feed wires through in
straight position. 2. Index toward
desired angle.
Ordering Information Dimensional Chart
SwivelLok Connectors...Make it a System
Printed In U.S.A. Specifications subject to change without notice. ® Registered trademark of Hubbell Incorporated H4539
Wiring Device - Kellems
Hubbell Incorporated (Delaware) • 185 Plains Road • Milford, CT 06460-2420 • (203) 882-4800 • FAX (800) 255-1031
World Wide Web URL:
http://www.hubbell-wiring.com
Worldwide Locations
Hubbell Canada (905) 839-1138, Fax (905) 839-9108
Hubbell Ltd. England (441) 234-855444, Fax (441) 234-854008
Hubbell-Taian Co., Ltd., (886) 2 567-5995, Fax (886) 2 567-4853
Hubbell Int’l. Inc., Korea Branch (82) 2 607-1362, Fax (82) 2 603-7386
Hubbell de Mexico, S.A. de C.V. (52) 5 575-2022, Fax (52) 5 559-8626
Caribe Sales Agencies, Puerto Rico (809) 720-7185, Fax (809) 789-2796
Hubbell S.E. Asia Pte., Ltd., (65) 382-1600, Fax (65) 382-3727
Hubbell Inc. Middle East (971) 4 369-763, Fax (971) 4 360-541
B
A
D
C
F
E
Catalog
Number Size Color
PS0389NGY 3/8”GRAY
PS0509NGY 1/2”GRAY
PS0759NGY 3/4”GRAY
PS1009NGY 1”GRAY
PS0389NBK 3/8”BLACK
PS0509NBK 1/2”BLACK
PS0759NBK 3/4”BLACK
PS1009NBK 1”BLACK
Catalog Trade
Number Size A B C D E F
PS0389NGY A/C* A/F*
PS0389NBK 3/8”3.268 .569 1.406 1.298 1.300 1.426 1.998
PS0509NGY
PS0509NBK 1/2”3.268 .569 1.406 1.298 1.300 1.426 1.998
PS0759NGY
PS0759NBK 3/4”3.659 .581 1.650 1.525 1.525 1.593 2.229
PS1000NGY
PS1009NBK 1”3.996 .718 1.937 1.798 1.798 1.838 2.296
*A/C = Across corners, A/F* = Across flats
When teamed with PolyTuff I flexible liquidtight nonmetallic conduit or PolyTuff II flexible
liquidtight nonmetallic tubing, it becomes the
SwivelLok System
. Add straight, 90 degree or
SwivelLok connectors where applicable to make PolyTuff nonmetallic conduit or tubing the
choice for any job. PolyTuff liquidtight systems: the system you want to connect with.
Systems Ordering Information
Trade Polytuff I Straight Gray 90° Gray PolyTuff II Straight Black 90° Black
Size Gray Conduit Connectors Connectors Black Tubing Connectors Connectors
1/4”- - - B2025 F2025 F20259
3/8”G1038 P038NGYA PSO389NGY* B2038 P038NBKA PS0389NBK*
1/2”G1050 P050NGYA PS0509NGY* B2050 P050NBKA PS0509NBK*
3/4”G1075 P075NGYA PS0759NGY* B2075 P075NBKA PS0759NBK*
1”G1100 P100NGYA PS1009NGY* B2100 P100NBKA PS1009NBK*
1 1/4”G1125 P125NGY P1259NGY B2125 P125NBK P1259NBK
1 1/2”G1150 P150NGY - B150NBK B150NBK -
2”G1200 P200NGY - B2200 P200NBK -
*SwivelLok Connector
