Quality wiring devices for new construction,
renovation or replacement in any home
2014 Residential
Buyer’s Guide
United States
Eaton Wiring Devices
203 Cooper Circle
Peachtree City, GA 30269
United States
Eaton.com
Arrowhart.com
Canada
Eaton Wiring Devices
5925 McLaughlin Road
Mississauga, Ontario, L5R 1B8
Canada
EatonCanada.ca
Arrowhart.com
Mexico
Carr. Tlalnepantla -
Cuautitlan Km 17.8 s/n
Col. Villa Jardin esq.
Cerrada 8 de Mayo
Cuautitlan, Mexico CP 54800
Mexico
Eaton.mx
Arrowhart.com
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2014 Eaton
All Rights Reserved
Printed in USA
Publication No. E825-0010-14
June 2014
2014 Residential Buyer’s Guide
Visit our website:
www.Cooperwiringdevices.com
Energizing a world
that demands more.
We deliver:
• Electrical solutions that use less energy, improve power reliability and make the places
we live and work safer and more comfortable
• Hydraulic and electrical solutions that enable machines to deliver more productivity
without wasting power
• Aerospace solutions that make aircraft lighter, safer and less costly to operate, and
help airports operate more efficiently
• Vehicle drivetrain and powertrain solutions that deliver more power to cars,
trucks and buses, while reducing fuel consumption and emissions
Discover today’s Eaton.
Powering business worldwide
As a global power management company, we help
customers worldwide manage the power needed for
buildings, aircraft, trucks, cars, machinery and businesses.
Eaton’s innovative technologies help customers manage
electrical, hydraulic and mechanical power more reliably,
efficiently, safely and sustainably.
We provide integrated solutions that help make energy,
in all its forms, more practical and accessible.
With 2013 sales of $22 billion, Eaton has approximately
100,000 employees around the world and sells products
in more than 175 countries.
Eaton.com
Eaton and Cooper united.
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide 1
Table of contents
Residential products overview 2-3
How to use this catalog 4-5
Section A, Lighting Controls
Aspire RF wireless system A-2
Aspire design collection A-16
Dimmers & lighting control accessories A-26
Occupancy & vacancy sensors A-36
Timers A-42
Dimensional data A-45
Section B, Wiring Devices
Switches B-2
Combination Devices B-12
USB Receptacles B-14
Receptacles B-20
GFCIs B-30
Power Devices B-36
Plugs & Connectors B-46
Lampholders B-56
Dimensional data B-68
Section C, Wallplates & Weather Protective Covers
Material Information C-4
Quick Reference Guide C-6
Dimensional Information C-8
Standard Size Wallplates C-9
Mid-Size Wallplates C-16
Oversize Wallplates C-23
Wallplate Accessories C-25
While-In-Use Boxes C-28
Weather Protective Covers C-29
Section D, Data & Connectivity
Modular Connectivity Points D-2
Multimedia Wallplates D-6
Connectivity Points D-10
Section E, Accessories
Surge Protection E-2
Taps & Adapters E-3
Accessories E-4
Section F, Technical References
NEMA Configuration Chart F- 2
Power Devices Cross Reference F- 3
Common Industry Information F- 4
Wiring & Coverage Diagrams F- 10
Lighting Control Basics F- 18
Panel Cutout Dimensional Data F-20
NAFTA Compliance F-21
Index
Energy saving
lighting controls
Address growing “green” aspirations and create
ambiance in any space with energy saving home
automation & lighting controls
Products in this buyer’s guide
Lighting Controls
Aspire design
collection
Dimmers & lighting
control accessories
Timers
Aspire RF
wireless system
Occupancy &
vacancy sensors
Wiring devices for
every need, home-wide
Functionality is paramount in the modern home—
our wiring devices provide reliable service, compliance
and solutions
Power devices
Switches
GFCIs
Plugs &
connectors Lampholders
Combination
devices
USB
receptacles Receptacles
Wiring Devices
EATON 2014 Residential Buyers Guide 2
www.eaton.com
www.cooperwiringdevices.com
Finish off wiring device
installations perfectly
Décor-savvy homeowners require high-quality
modern wallplates & covers to complete the job
Flexible home
media connectivity
Address growing “green” aspirations and create
ambiance in any space with energy saving home
automation & lighting controls
Wallplates & Weather
Protective Covers
Mid-size
wallplates
Oversize
wallplates
Standard size
wallplates
Wallplate
accessories
While-in-use
boxes
Weather protective
covers
Data & Connectivity
Multimedia
wallplates
Connectivity
points
Modular
connectivity
EATON 2014 Residential Buyers Guide 3
www.eaton.com
www.cooperwiringdevices.com

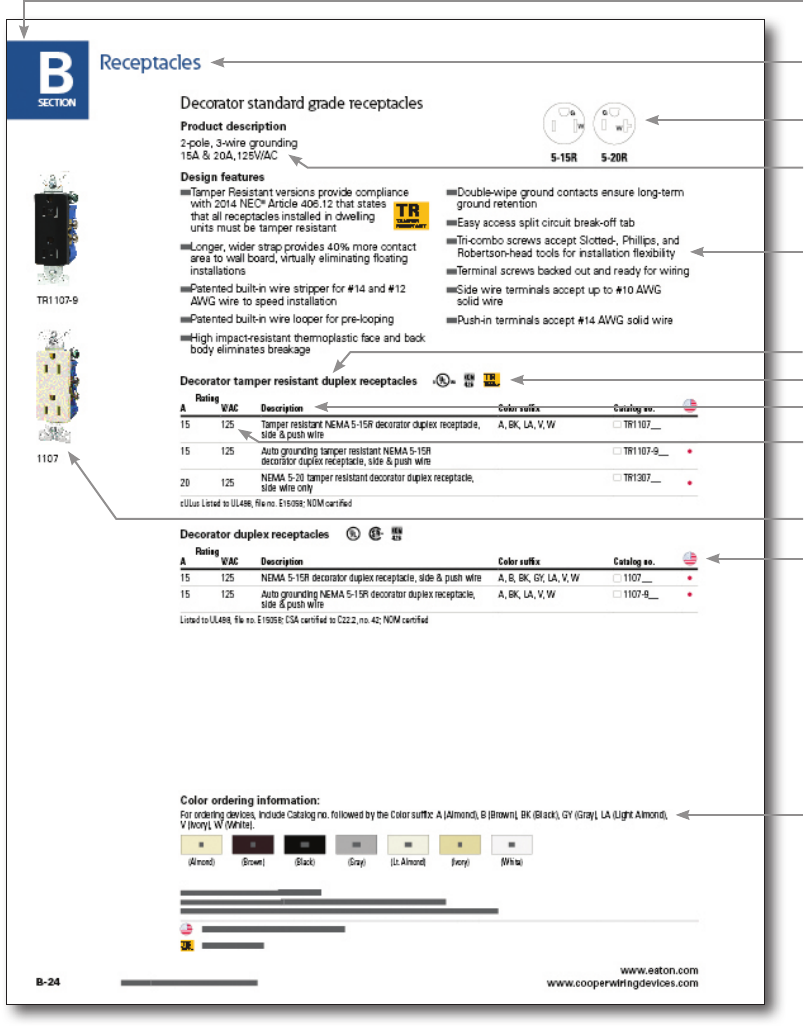

How to use this catalog
Eaton’s Cooper Wiring Devices Residential Buyer’s Guide has been created with you in mind! We’ve developed this
guide to speed your access to all of the product and data you need quickly and efficiently.
Section opener
The beginning of each section
provides an overview of the
families each section contains
Product catalog pages
Where you are in the catalog
appears in the top bar
Features of the products
on this page
Description & ordering
information
Family introduction
Each family introduction provides
an overview of the different
product groupings within the
family, available colors, key
features, and specialty solutions
Available colors in this family
Product groupings within
family with page numbers
Alphanumeric index
Located at the back of the
buyer’s guide, the alphanumeric
index allows you to quickly
locate a specific catalog item’s
page number
Dimensional data pages
Lists the dimensions of the
products within that section;
in the case of wallplates, shows
the necessary spacing and
mounting dimensional information
Visual reference of each family
contained in the section with
page numbers
Key product features
Product solutions for today’s
special needs and where to
find them in the catalog
NEMA chart index
Located in the Technical Reference
section, the NEMA chart allows
you to search and identify the
product you need by applicable
NEMA configuration
EATON 2014 Residential Buyers Guide 4
www.eaton.com
www.cooperwiringdevices.com
Color coded for easy
section location
Configurations & ratings
of devices on this page
Product sub-group
Rating and wiring type
NAFTA compliance
Item description
NEMA configuration(s)
Color ordering information
Features of products on
this page
Catalog section & family
Testing and compliance
Product image
*Products that are identified as NAFTA compliant may qualify under the Buy American Act or ARRA
program guidelines. Consult specific project guidelines and compliance requirements to assure
suitability for your project needs. See page F-21 for more information.
We are committed to an ongoing program of product innovation, development and improvement.
Therefore, data in this catalog, including product availability and/or specifications, is subject to change
without notice. For specific product inquiries, contact techsupport@cooperingwiringdevices.com.
How to use this catalog
EATON 2014 Residential Buyers Guide 5
www.eaton.com
www.cooperwiringdevices.com
A
SECTION
Lighting Controls
Experience the ultimate in lighting controls with
innovative technology and style from Eaton’s Wiring
Devices. Bridging state-of-the-art lighting control with
contemporary aesthetics, Eaton’s line of wallbox dimmers,
occupancy sensors, architectural and wireless devices can
reduce energy usage, improve ambiance and enhance the
elegance of a room.
Aspire design
collection
A-16
Dimmers & lighting
control accessories
A-26
Timers
A-42
Aspire RF
wireless system
A-2
Occupancy &
vacancy sensors
A-36
A
SECTION
www.eaton.com
www.cooperwiringdevices.com A-1
EATON 2014 Residential Buyers Guide
Aspire RF wireless system
Aspire RF wireless system families
RF controllers,
accessories
& keypads
A-4–A-6
RF smart
dimmers
A-7
RF
switches
A-9
RF
receptacles
A-10
RF lighting
control
accessories
A-11–A-12
RF climate
control
A-13
Decorator colors:
Aspire RF wireless system colors
Lt. Almond
Designer colors:
White
Alpine White Desert Sand
Silver Granite White Satin
Aspire RF wireless system
Experience the elegance of sophisticated design combined with robust, reliable, and scalable
wireless technology. Set the mood for family movies, entertaining friends, or a romantic dinner
by controlling lighting, thermostats, and even appliances.
Black
A-2 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
• Great for new construction or remodeling; no new wiring is needed
• Versions with no neutral are great for remodeling/retrofit applications
• Powered by Z-Wave® technology; compatible with other Z-Wave networked devices
• Control over 200 devices with a single controller locally or via a computer remotely
• Each device in the network can be personalized for easy reference
• Simple and intuitive programming
• Pre-programmed settings provide energy savings and comfort
• Programmable rapid and delayed fading
• Softly curving arch, contrasting textures, velvet-smooth quiet actuation and colors
that subtly complement each other make Aspire RF devices an integral element
of any décor
• Wall-mounted devices available in seven color finishes
• One RF switch or dimmer can control up to five RF devices
• Turn lights ON and OFF and adjust the light intensity to create any mood or
environment with a single touch on one of the Aspire RF controllers
• LED light-level display that is visible in full daylight and dims in intensity
when lights are turned OFF
• Add non-RF household items to the network by plugging them into
Aspire RF receptacles
The Aspire RF difference
See pages A-4 to A-15
Shown:
RFTSTAT02
Energy savings
Aspire RF facilitates “going green" by
managing lighting and temperature control
through motion sensors, thermostats, plus
shade and blind motor controls.
Specific Aspire RF wireless system solutions for today's needs
Shown:
RFOSW03
Safety & security
Arrive home to a well-lit house, create a safe
lighted pathway as you enter the home with the
touch of a button, or create a “lived-in" look to
enhance security when you are away.
See pages A-4 to A-15
Shown:
RFTDCSG
Convenience & automation
Add comfort with preprogrammed settings,
create any lighting scenario or control appliances
house-wide with intelligent wireless technology
and a wide range of device solutions.
See pages A-4 to A-15
A-3
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Handheld & table top controllers
Rating
V/DC V/AC Description Catalog no.
Handheld controller, battery operated (2 AA Batteries) RFHDCSG
5 120 Tabletop controller, battery or AC power supply operated or 3AA batteries RFTDCSG
Complies with FCC Part 15, Class B; Z-Wave Compliant certified
Home controller
Rating
V/AC Hz Description Catalog no.
120 50/60 Home controller, software included RFTCP
240
Complies with FCC Part 15, Class B; Z-Wave® Compliant certified
Wireless RF controllers
• Network is controlled using Z-Wave technology
• One is required per job for commissioning or
system modification
• Provides seamless integration working with all
Aspire RF components and a comprehensive
array of third party devices
• Easy user-interface guides user step by step
through the installation process
• Handheld & tabletop controllers offer unique
one-touch keypad options for lighting scenes
and sequences
• Handheld & tabletop controllers offer All ON,
All OFF and Panic buttons for energy savings
and security functions
• Control your Z-Wave network from any location
using a home or remote computer
• Home controller is a fan-less, diskless design
for ultimate mechanical reliability
• Home controller includes USB ports for
integration with the most commonly used
technology interfaces
• Home controller’s ultra low power consumption
conserves energy and lowers utility bills
• Home controller features built-in web server for
remote access from anywhere
• Home controller can control lighting, temperature,
blinds, security, and much more
• Home controller supports a variety of user
interfaces, including in-wall button controllers,
touchscreens, wireless remotes, PDAs, Pocket
PCs, cellphones, and voice (microphones)
• Home controller’s built-in power failure recovery
feature runs events missed during outages when
power is restored
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Aspire RF wireless system
RFHDCSG
RFTDCSG
RFTCP
Product description
Primary or secondary Z-Wave® controllers
AA batteries or 120V/AC 5V/DC power supply
120-240V, 50/60Hz power supply
Design features
A-4 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Wireless RF interface accessories
Aspire RF wireless system
• Allows communication with third party control
systems using an RS232 port to control
Z-Wave® devices
• Enables use of a personal computer to set up
and commission Aspire RF systems and other
compatible Z-Wave devices
• Integrate with personal computers or other digital
equipment that supports RS232 connections
• Serial string command (ASCII) set allows
monitoring and control of lighting
• Provides 2-way communication between
controlling system and Z-Wave devices for
instant status updates
• Battery power option allows device to be portable
for commissioning process
• Use as a Primary or Secondary Controller
in network
• LED status indicators provide visual display of device
programming
• Power failure memory allows device to retain all
settings that were in prior to power interruption
once power is restored
• One DB9 RS232 jack for connecting to a
serial device
• 9600 and 115200 Baud rate supported
over RS232
Product description
ASCII -RS232
AA batteries or 120V/AC, 9 V/DC power supply
9600 or 115200 Baud rate
Design features
Serial interface programming module
Rating
VDC V/AC Description Catalog no.
5 120 Serial Interface Programming Module, RS232-ASCII, 2 AA batteries RF232
Complies with FCC Part 15, Class B; Z-Wave® Compliant certified
RF232
A-5
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
RF scene control keypads
Wall mount 5-scene keypad
Rating
Hz V/AC Description Color suffix Catalog no.
60 120 Wall mount 5-button keypad, compatible with engraved button kit,
wire leads
AW, DS, SG, WS RFWC5__
Engraved 5-button keypad kit AW, DS, SG, WS RFWDK__
Note: Custom Engraving Order Form Required for denoting button text. Complies with FCC Part 15, Class B; CULus Listed to UL1472, file no. E47967,
certified to CSA C22.2 no. 187.1, NOM certified
Aspire RF wireless system
• Activates scenes associated with Aspire RF
devices and other Z-Wave® compliant devices
• Provides individual scene Dim/Bright function
by pressing and holding any active (ON)
scene’s button
• Stores up to 5 scenes for activation (ON/OFF)
• Fits standard-sized wallbox and utilizes existing
120V/AC 60Hz wiring (neutral required)
• Oval side button provides easy access for turning
off all devices associated with scene keypad
• Blue LED provided on each button for scene
status notification
• Blue LEDs provide location feature by dimming
when scene has been deactivated
• Transfer function on primary controllers allows
user to easily copy scene information from
controller to each button on scene keypad
• Patented indicator system alerts if scene keypad
is not set up in the network
• Custom engraved button kits available by
special order
• Aesthetically matches the Aspire Design
Collection and compatible with Aspire
screwless wallplates for a unified look across
RF and traditional devices
Product description
5-Scene control
60Hz, 120V/AC
Design features
RFWC5WS
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
A-6 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
RF all load smart dimmer master
Rating Compatible Designer Decorator
W/AC V/AC Hz lamp types Description color suffix color suffix Catalog no.
300 120 60 Dimmable LED/CFL RF Smart dimmer master,
AL series, single-pole/
multi-location with presets
and LEDs, neutral required
AW, DS, SG, WS DBK, DLA, DW RF9540-N__
600 120 60 INC, ELV, MLV, FLR
Complies with Z-Wave®, FCC, cULus, NOM certified
RF9540-NAW
Designer series
Aspire RF wireless system
RF all load smart dimmers
• Rated for use with 300W of dimmable LED
or CFL, and 600W of incandescent, magnetic
low-voltage, electronic low-voltage and dimmable
fluorescent
• Adjustable low-end and high-end dimming range
to prevent lamp flickering
• Selectable Rapid Start feature to ensure lamp
start-up at low preset light levels
• No de-rating required in multi-gang installations
• Compatible with Aspire RF accessory dimmer
(RF9542-Z) for wireless 3-way control, eliminating
the need for traditional 3-way wiring or dedicated
traveller wire
• Can be associated with up to 5 other devices
• Air-gap switch disconnects power from load
forcing an OFF condition
• Neutral wire required for installation
• Decorator and designer series products offer the
samefunctionality with two distinct styles
• Electro-mechanical push pad for ON/OFF
operation with separateDIM/BRIGHT bar
• Seven step blue LED display alongside push
pad indicates selected light level and reduces
brightness when OFF (nightlight feature)
• Programmable rapid and delayed fading up to
4 minutes (default is 10 seconds)
• Adjustable ramp rate (up to 4 minutes)
• Child lockout feature
• Pressing and holding push pad for 2 seconds
brings light to full brightness without affecting
preset levels
Product description
Single-pole, 3-way, multi-location
120V/AC, 60Hz
Rated for all common lighting loads— dimmable LED, dimmable CFL, INC/HAL, ELV, MLV, FLR
Design features
RF9540-NDW
Decorator series
Derated information: F-19 Dimensional Information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin), DBK (Decorator Black), DLA (Decorator Light Almond), DW (Decorator White).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
Designer series color options:
Decorator series color options:
DBK DLA DW
Decorator
Black
Decorator
Light Almond
Decorator
White
Rated for all common lighting loads
Dimmable Compact Fluorescent
(CFL)
Dimmable Light-Emitting Diodes
(LED)
Electronic & Magnetic
Low-Voltage (ELV)
Incandescent/Halogen (INC/HAL)
Fluorescent (FLR)
A-7
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
RF smart dimmers
• Turn lights ON and OFF and adjust the light
intensity to create any mood or environment
with a single touch on one of the Aspire RF
controllers
• Versions with no neutral ideal for remodeling/
retrofit applications
• Electro-mechanical push pad for ON/OFF
operation with separate Dim/Bright bar
• LED light-level display for presetting illumination
levels and master/accessory units for
multi-location control
• Amber LED at bottom of LED display indicates
ON/OFF load status
• Seven step blue LED display indicates selected
light level —and reduces brightness when OFF
(location feature)
• RF Accessory RF9542 works with no neutral
RF Dimmers to provide traditional multi-location
control for up to 3 additional locations using
traditional 3-way traveller wires
• All Aspire RF master dimmers can be used for
multi-location control with the RF9542-Z
• Can be associated with up to 5 other devices
• All-ON/All-OFF capability
• Panic Mode capability
• Patented indicator system alerts if dimmer is not
set up in the network
Product description
Single-pole, 3-way, multi-location
600W or 1000W; 60Hz, 120V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent
Design features
RF9540-NAW
Designer series
RF9542-ZDS
Designer series
Smart dimmer system master & accessories
Rating Designer Decorator
W/AC V/AC Hz Description color suffix color suffix Catalog no.
600 120 60 RF Smart incandescent (no neutral required) AW, DS, SG, WS DBK, DLA, DW RF9534__
1000 120 60 RF Smart incandescent/magnetic low voltage AW, DS, SG, WS DBK, DLA, DW RF9536-N__
1000 120 60 RF Smart incandescent (no neutral required) AW, DS, SG, WS DBK, DLA, DW RF9536__
1000 120 60 RF Smart electronic low voltage AW, DS, SG, WS DBK, DLA, DW RF9537-N__
1000 120 60 RF accessory w/LEDs, compatible with
RF master dimmers (neutral required)
AW, DS, SG, WS DBK, DLA, DW RF9542-Z__
120 60 Non-RF accessory w/LEDs, compatible only
with RF9534 & RF9536 (no neutral required)
AW, DS, SG, WS DBK, DLA, DW RF9542__
Complies with Z-Wave®, FCC, cULus, NOM certified
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin), DBK (Decorator Black), DLA (Decorator Light Almond), DW (Decorator White).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
Designer series color options:
Decorator series color options:
DBK DLA DW
Decorator
Black
Decorator
Light Almond
Decorator
White
RF9540-NDW
Decorator series
A-8 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
Switches
Rating Designer Decorator
A V/AC Hz Description color suffix color suffix Catalog no.
15 120 60 15A single-pole; LED, CFL, INC, MLV, ELV, FLR AW, DS, SG, WS DBK, DLA, DW RF9501__
8 120 60 8A single-pole, no neutral required,
incandescent only
AW, DS, SG, WS DBK, DLA, DW RF9518__
Accessory switch, compatible with RF9501 and
RF9518
AW, DS, SG, WS DBK, DLA, DW RF9517__
Non-RF accessory switch, compatible with
RF9518 only
AW, DS, SG, WS DBK, DLA, DW RF9520__
Complies with FCC Part 15, Class B; CULus Listed to UL1472, file no. E47967, certified to CSA C22.2 no. 187.1; NOM certified
RF switches
• Compatible with Aspire RF Accessory Switch
(RF9517) for wireless 3-way control eliminating
the need for traditional 3-way wiring (up to
5 locations)
• Electro-mechanical push button for
ON/OFF operation
• Blue LED illuminates to indicate ON/OFF status
• RF9518 is compatible with RF9520 for use with
traditional 3-way traveller wires
• RFI filtering for radio, audio, and video equipment
• Patented indicator system alerts if switch is not
set up in the network
• Can be associated with up to 5 other devices
• Programmable delayed OFF mode (up to
4 minutes), default is 10 seconds
• Child lockout feature
• All-ON/All-OFF capability
• Panic mode capability
• Configurable “Power ON Status”
(ON/OFF/last level)
• The designer series aesthetically matches the
Aspire Design Collection and compatible with
Aspire screwless wallplates for a unified look
across RF and traditional devices
Product description
Single-pole, 3-way, multi-location
8A or 15A, 60 Hz, 120V/AC
LED, CFL, incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent
Design features
RF9501DW
Decorator series
RF9518DBK
Decorator series
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin), DBK (Decorator Black), DLA (Decorator Light Almond), DW (Decorator White).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
Designer series color options:
Decorator series color options:
DBK DLA DW
Decorator
Black
Decorator
Light Almond
Decorator
White
RF9501AW
Designer series
A-9
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
RF duplex receptacles
• Tamperresistantreceptaclesprovidecompliance
with2014NEC®Article406.12whichstatesthat
all15Aand20A,125V/ACreceptacles
installedindwellingunitsmustbe
tamperresistant
• OffersULListedsafetyshuttersystem
thatpreventsinsertionofforeignobjects
intoreceptacle
• TRdesignationonfaceofdevicemakesiteasy
toidentifyataglance
• Electro-mechanicalpushbuttonlocatedatcenter
ofdeviceforinclusionandON/OFFoperation
• CenterblueLEDilluminatestoindicate
ON/OFFstatus
• ProvidesRFcontrolofoneoutletleavingthe
otheronefornormaluse
• Childlockoutfeature
• AbilitytobecontrolledremotelybyotherRF
devicesthroughassociation
• All-ON/All-OFFinclusion
• Panicmodecapability
• Patentedindicatorsystemalertsifreceptacle
isnotsetupinthenetwork
• Configurable“PowerONStatus”
(ON/OFF/lastlevel)
• Pre-strippedwireleadsforeaseofinstallation
Product description
2-pole,3-wiregrounding
15A,125V/AC
Design features
Receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant NEMA 5-15R split control duplex receptacle,
wire leads
AW, BK, DS, SG, WS RFTR9505-T__
Complies with FCC Part 15, Class B; cULus Listed to UL38DS, file no. E325082; NOM certified
RFTR9505-TDS
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin), BK (Black).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
BK
(Black)
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
A-10 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
• Provides an upgrade for any standard receptacle
with a plug-in Lamp Dimming Module to control
the light level of any lamp, or a Switch Module
for ON/OFF operation
• Lamp Dimming Module’s Sensing feature allows
lamp to be turned ON manually using the lamp’s
switch or the integrated ON/OFF button
• Lamp Dimming Module provides polarized
300W-120VAC NEMA 1-15R receptacle for use
with incandescent lamps
• Lamp Dimming Module’s electro-mechanical push
button located on side of device for inclusion and
ON/OFF/Dim/Bright operation
• Lamp Dimming Module offers an adjustable ramp
rate (up to 4 minutes)
• Appliance Switch Module provides 120V/AC
NEMA 1-15R receptacle for use with a wide
variety of lamps
• Appliance Switch Module’s electro-mechanical
push button located on side of device for
inclusion and ON/OFF operation
• Modules can be controlled remotely by other RF
devices through association of up to 5 devices
• Quiet relay switching
• Amber LED indicates ON/OFF load status
• Single button programming
• Can be included in Scenes
• Child lockout feature
• All-ON/All-OFF inclusion
• Panic mode capability
• Patented indicator system alerts if module is not
set up in the network
• Configurable “Power ON Status”
(ON/OFF/last level)
• Power failure memory
RF lighting control accessories
Product description
2-pole, 2-wire non-grounding
300W, 15A 120V/AC
600W, 120V/AC
Design features
RFLDM
RFAPM
Plug-in lamp dimming module
Rating
W V/AC Description Color Catalog no.
300 120 Plug-in lamp dimming module W RFLDM
Complies with FCC Part 15, Class B; cULus Listed to UL244A, file no. E325082
Plug-in appliance switch module
Rating
W V/AC Description Color Catalog no.
600 120 Plug-in switch appliance module W RFAPM
Complies with FCC Part 15, Class B; cULus Listed to UL244A, file no. E325082
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
W (White)
W
(White)
A-11
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
• Provides 3-in-1 sensor functionality with
motion sensor, light sensor (photocell) and
temperature sensor
• Embedded with reliable Z-Wave® intelligent
wireless technology
• Adjustable wake-up notification
• Passive Infrared Sensor (PIR):
- 30 ft. range
- 90º coverage
- Adjustable sensitivity
• Programmable timeout (1 to 255 minutes);
default is 20 minutes
• LED motion indicator
• Light sensor detects light level in area allowing
lights to remain off if sufficient natural light
is present
• Temperature sensor: 20º - 150º F range,
0.2º F resolution
• Single button programming for Z-Wave® inclusion
• Can be associated with up to 4 devices
• Two piece wall-mount enclosure
• Surface mounts to any flat or angled surface
• Pre-selected drill locations for screws provided on
back housing for ease of installation
• Battery powered (3 AAA)
• 1 year battery life
Product description
Passive Infrared Sensor (PIR)
90º coverage, 30ft. range
Battery operated
Design features
RF occupancy sensor
RFOSW03
Wall mount motion sensor
Description Color Catalog no.
Motion sensor with photocell & temperature sensor W RFOSW03
Complies with FCC Part 15, Class B; Z-Wave® Compliant certified
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
W (White)
W
(White)
A-12 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
• Compatible with the majority of central HVAC
systems (gas, electric and heat pump)
• Embedded with reliable Z-Wave® intelligent
wireless technology
• Can be included in Z-Wave Scenes and Events
and can be used by control systems as
temperature trigger for automated functions
• Control and monitor thermostat remotely from
Aspire RF controller or from anywhere (requires
internet connection and professional software)
• Adjustable Contrast and Backlit settings (timeout,
low and night visibility)
• On-screen Clock provides current time
• Setpoint display and control for easy adjustment
• Four function control buttons act as “soft
keys”; the function of the button is defined by
“on-screen labels” that are dynamic and change
when you change screens
• Installer Menu screen for easy set-up
and programming
• On-screen setup of HVAC Type, Fan Type,
Changeover Type for HP systems, F/C mode
and sensor calibration
• Central HVAC systems or separate heating/
cooling systems with separate RH/RC
transformers (split)
• Standard gas/electric HVAC systems: 2-stage
heating, 2-stage cooling
• Heat pump HVAC systems: 3-stage heating,
2-stage cooling
• Heat pump change over valve (reversing valve):
selectable for change over with heat or change
over with cool (O or B output)
• Emergency Heat: in heat pump mode,
Emergency Heat mode is selectable from
the thermostat
• Fan system: selectable for gas or electric
heat systems
• Programmable schedule (4 setpoint changes
per day, for up to 7 different days) with Run,
Hold and Away (energy saver) modes
• Filter and Maintenance tracker provides alert
messages for filter change and service call
• Usage graphs show daily heating and cooling
run time hours for a week
• Compressor short cycle protection delay of
6 minutes (adjustable)
• Automatic heating and cooling changeover
• Fan Cycler feature
• Wall mount or mounts on single-gang
junction box
• Energy Star compliant
RF Helios energy management thermostat
Product description
Standard or heat pump HVAC systems
24V/AC
Design features
Energy management thermostat
Description Color Catalog no.
Energy management wireless thermostat W RFTSTAT02
Complies with FCC Part 15, Class B; Z-Wave® Compliant certified
Dimensional information: A-45 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
W (White)
W
(White)
RFTSTAT02
A-13
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire RF wireless system
• Available in two colors to coordinate with the
rest of the Aspire RF product line: Desert Sand
and White Satin (select White Satin wallplates for
Alpine White devices)
• Screwless wallplates clip smoothly into place
with gentle pressure
• Clearly marked top edges make mounting
wallplates easy to orient and attach
• Virtually unbreakable polycarbonate construction
• Single-gang through six-gang wallplates.
Standard decorator-sized opening
• Mid-sized to cover wall imperfections and large
wallboard openings
• Wallplates appear to float freely on the surface of
the wall, framing every device beautifully
• Screw-Catch feature holds backplate mounting
screws captive for ease of installation
Product description
Mid-size thermoplastic
Design features
Aspire coordinating screwless wallplates
Mid-size screwless aspire wallplates
Description Color suffix Catalog no.
1-gang Aspire wallplate DS, SG, WS 9521__
2-gang Aspire wallplate DS, SG, WS 9522__
3-gang Aspire wallplate DS, SG, WS 9523__
4-gang Aspire wallplate DS, SG, WS 9524__
5-gang Aspire wallplate DS, SG, WS 9525__
6-gang Aspire wallplate DS, SG, WS 9526__
1-gang wallplate BK PJS26__
2-gang wallplate BK PJS262__
3-gang wallplate BK PJS263__
4-gang wallplate BK PJS264__
5-gang wallplate BK PJS265__
6-gang wallplate BK PJS266__
cULus Listed to UL5154D, file no. E33216
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: DS (Desert Sand), SG (Silver Granite),
WS (White Satin), BK (Black).
DS DS SG SG WS WS
Desert Sand Silver Granite White Satin
BK
(Black)
9521
9522
A-14 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
A
SECTION
A-15
Switches
A-23
Timers
A-22
Dimmers
& fan
controls
A-18–A-21
Screwless
wallplates
A-24
Aspire design collection
Aspire design collection families
Aspire design collection
Aspire’s award-winning, unique and sophisticated appearance becomes an integral element
of interior design while providing precise, adjustable lighting controls to create a sense of ambiance
and reduce energy costs. This clean, modern look with contrasting textures and complementary
colors is available in devices for the entire home so everything on your walls match.
Aspire designer collection colors
Designer colors:
Alpine White Desert Sand
Silver Granite White Satin
A-16 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
A
SECTION
• All products designed for ease of installation
• Award-winning architectural design that becomes an integral element of décor
• 4 coordinating color and texture combinations designed for today’s homes
• Affordable luxury upgrade
• Wide array of devices to cover every application for a complete, finished look
throughout an entire home
• Smooth, quiet actuation with proven design features and functionality combine
with quality construction to provide years of dependable service
The Aspire difference
Specific designer collection solutions for today's needs
Shown:
9542DS
Shown:
9530AW
Shown:
9534SG
Shown:
9530SG
See pages A-19 to A-19
Setting the mood
Aspire features an award winning, stylish design
and smooth, precise lighting control to set the
right mood for any occasion.
Energy savings
Aspire features microprocessor-controlled and
mechanical dimmers, as well as matching timers
that provide significant energy savings in addition
to ambiance and light control.
See pages A-18 to A-22
A-17
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Smart dimmers
• Available in three distinctive, two-tone color
combinations: White Satin, Desert Sand, and
Silver Granite, plus single-tone Alpine White
• LED light level display for presetting illumination
levels and master/accessory units for
multi-location control
• Seven step green LED display alongside push
pad indicates selected light level—and reduces
brightness when OFF (location feature)
• Virtually unbreakable top and backbody
• 600W dimmers have wrap around strap to
eliminate the need for de-rating for 1 or 2 gangs
• For incandescent/halogen/magnetic low-voltage
lighting, electronic low-voltage lighting, and
fluorescent lighting
• Electro-mechanical push pad for ON/OFF
operation with separate Dim/Bright bar
• Preset feature allows user to return to previous
light setting when turning lights ON
• Illumination level may be adjusted with switch in
on or off position
• 10 second delayed-OFF feature by pressing and
holding push pad for 2 seconds when dimmer
is ON
• Pressing and holding push pad for 2 seconds
when dimmer is off brings light to full brightness
• Amber LED at bottom of LED display indicates
ON/OFF load status
• Master controls as many as 5 accessory units for
multiple location installations
Product description
Single-pole & multi-location
600W, 1000W, 120V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage
Design features
Smart dimmer system master & accessories
Rating
W V/AC Description Color suffix Catalog no.
600 120 Smart incandescent/halogen/ magnetic low-voltage, single-pole AW, DS, SG, WS 9534__
1000 120 Smart incandescent/halogen/ magnetic low-voltage, single-pole AW, DS, SG, WS 9536__
1000 120 Electronic low-voltage, single-pole AW, DS, SG, WS 9537__
——Accessory dimmer, multi-location AW, DS, SG, WS 9542__
cULus Listed to UL1472, file no. E47967; NOM certified
Aspire design collection
9534
9537
9542
Derated Information: F-19 Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
A-18 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire design collection
Slide dimmers
• Available in three distinctive, two-tone color
combinations: White Satin, Desert Sand, and
Silver Granite, plus single-tone Alpine White
• All units are available in combined single-pole/
3-way versions
• Replaces a standard switch and offers dimmer
capabilities
• Neutral is not required for installation of device
• Dimmers can be adjusted with or without the
lights on; preset feature returns the light level
to its prior setting without readjustment
• Electrostatic discharge protection
• Incandescent/halogen and magnetic
low-voltage offered in single unit versions
• Power failure memory
• Square law dimming—perceived dimming level
is proportional to the slider position
• Virtually unbreakable top and backbody
• Switch has quiet, smooth actuation
Product description
Single-pole & 3-way
600W or 1000W, 120V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage
Design features
Slide dimmers
Rating
W V/AC Description Color suffix Catalog no.
600 120 Incandescent/halogen/magnetic low-voltage dimmer, single-pole/3-way
with preset
AW, DS, SG, WS 9530__
600 120 Electronic low-voltage dimmer, single-pole/3-way with preset AW, DS, SG, WS 9531__
1000 120 Incandescent/halogen/magnetic low-voltage dimmer, single-pole/3-way
with preset
AW, DS, SG, WS 9532__
1000 120 Electronic low-voltage dimmer, single-pole/3-way with preset AW, DS, SG, WS 9533__
cULus Listed to UL1472, file no. E47967; NOM certified
Derated information: F-19 Dimensional information: A-46 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
9530
9532
A-19
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Slide dimmers
• Available in three distinctive, two-tone color
combinations: White Satin, Desert Sand, and
Silver Granite, plus single-tone Alpine White
• All units are available in combined single-pole/
3-way versions
• Replaces a standard switch and offers
dimmer capabilities
• Neutral is required for installation of some
ASPIRE devices
• Dimmers can be adjusted with or without the
lights on; preset feature returns the light level
to its prior setting without readjustment
• Electrostatic discharge protection
• Radio Frequency Interface filtering is standard
on all models
• Power failure memory
• Square law dimming— perceived dimming level
is proportional to the slider position
• Virtually unbreakable top and back body
• Switch has quiet, smooth actuation
Product description
Single-pole & 3-way
300W, 600W, 8A 120V/AC or 277V/AC
Incandescent/halogen, fluorescent, compact fluorescent, LED
Design features
Aspire design collection
Fluorescent dimmers
Rating
A V/AC Description Color suffix Catalog no.
8 120 Fluorescent dimmer, single-pole/3-way with preset Mark 10®,
AmbiStar® & Tu-Wire® compatible
AW, DS, SG, WS 9568__
8 277 Fluorescent dimmer, single-pole/3-way with preset Mark 10®, compatible AW, DS, SG, WS 95687__
cULus Listed to UL1472, file no. E47967; NOM certified
LED & compact fluorescent dimmers
Rating
W V/AC Description Color suffix Catalog no.
300 120 LED/CFL, single-pole/3-way AW, DS, SG, WS 9573__
600 120 Incandescent/halogen
For a list of compatible dimmable LED & CFL lamps and fixtures, see product page at www.cooperwiringdevices.com.
cULus Listed to UL1472, file no. E47967; NOM certified
Derated Information: F-19 Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
9568
9573
A-20 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire design collection
Fan speed controls
• Available in three distinctive, two-tone color com-
binations: White Satin, Desert Sand, and Silver
Granite, plus single-tone Alpine White
• All units are available in combined
Single-pole/3-way versions
• Replaces a standard switch and adds fan
control capabilities
• Neutral is not required for installation of device
• Electrostatic discharge protection
• Radio Frequency Interface filtering is standard
on all models
• Power failure memory
• Virtually unbreakable top and backbody
• Switch has quiet, smooth actuation
• Easy-access ground screws
• Tri-Combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
Product description
Single-pole & 3-way
1.5A or 5A 120V/AC
3-speed or fully variable
Design features
Fan speed controls
Rating
A V/AC Description Color suffix Catalog no.
1.5 120 Quiet 3-speed fan control, single-pole/3-way, side wire AW, DS, SG, WS 9544__
5 120 Fully variable fan speed control, single-pole/3-way, side wire AW, DS, SG, WS 9543__
cULus Listed to UL1917, file no. E202842; NOM certified
Derated Information: F-19 Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
9543
A-21
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Timers
• Perfect for both new construction and retrofit
with no neutral required for installation
• Available in both Hours and Minutes versions
• Five (5) preset time intervals
• Easily programmable to alternate time intervals
to suit your needs
• Color change faceplate kits available
• Works with all popular load types: incandescent/
halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent,
and LED
• Horsepower rated for 1/4 HP motor loads
• LED indication of time interval selected and
countdown
Product description
Single-pole
15A, 120V/AC; 1800W
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent,
compact fluorescent, LED
Design features
Aspire design collection
Timers
Rating
A V/AC W Description Color suffix Catalog no.
15 120 1800 5-button minute timer with OFF button, single-pole AW, DS, SG, WS, C1, C2, C3 9590__
15 120 1800 5-button hour timer with OFF button, single-pole AW, DS, SG, WS, C1, C2, C3 9591__
cULus Listed to UL60730-1A & 60730-2-7, file no. E325082; certified to CSA E60730-1:02 & E60730-2-9:01; NOM certified
Color change kits for Aspire timers
Description Color suffix Catalog no.
Color Change Kit 1 (5,10,15,30,60) for Minute Timer AW, DS, SG, WS 951MK__-P
Color Change Kit 1 (5,10,20,30,60) for Minute Timer AW, DS, SG, WS 952MK__-P
Color Change Kit 1 (5,15,30,45,60) for Minute Timer AW, DS, SG, WS 953MK__-P
Color Change Kit 4 (1,5,10,15,30) for Minute Timer AW, DS, SG, WS 954MK__-P
Color Change Kit 5 (1,10,15,20,30) for Minute Timer AW, DS, SG, WS 955MK__-P
Color Change Kit 1 (1,2,4,8,12) for Hour Timer AW, DS, SG, WS 951HK__-P
Color Change Kit 2 (1,3,6,9,12) for Hour Timer AW, DS, SG, WS 952HK__-P
Color Change Kit 3 (2,4,8,12,24) for Hour Timer AW, DS, SG, WS 953HK__-P
Color Change Kit 4 (30,1,2,4,8) for Hour Timer AW, DS, SG, WS 954HK__-P
Color Change Kit 5 (15,30,1,2,4) for Hour Timer AW, DS, SG, WS 955HK__-P
AW AW DS DS SG SG WS WS
(Alpine White) (Desert Sand) (Silver Granite) (White Satin)
Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
DS DS SG SG WS WS
AW AW DS DS SG SG
C1 Color Kit: Desert Sand, Silver Granite, White Satin
AW AW DS DS WS WS
C2 Color Kit: Alpine White, Desert Sand, Silver Granite
C3 Color Kit: Alpine White, Desert Sand, White Satin
9591
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand), SG (Silver Granite),
WS (White Satin), C1 (Color Change Kit: DS, SG, WS), C2 (Color Change Kit: AW, DS, SG), C3 (Color Change Kit: AW, DS, WS)
A-22 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire design collection
Switches
• Available in three distinctive, two-tone color
combinations: White Satin, Desert Sand, and
Silver Granite, plus single-tone Alpine White
• 120/277V/AC rating ideal for fluorescent lighting
fixtures typical in commercial applications
• Virtually unbreakable, ultrasonically welded top
and back body
• Long, broad mounting strap virtually eliminates
floating installations
• Easy-access ground screws
• Tri-Combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
• Push-in terminals accept #14 AWG solid wire
• Backwire clamps (4-Way models only) on the side
terminals provide for easy installation of #12 and
#14 AWG wire
• Lighted switches glow in OFF position
Product description
Single-pole, 3-way, 4-way
15A, 120/277V/AC
20A, 120/277V/AC
Design features
9503
9504
Switches
Rating
A V/AC Description Color suffix Catalog no.
15 120/277 Single-pole, side wire & push wire AW, DS, SG, WS 9501__
15 120/277 3-way, side wire & push wire AW, DS, SG, WS 9503__
15 120/277 4-way, back wire & push wire AW, DS, SG, WS 9504__*
20 120/277 Single-pole, side wire & push wire AW, DS, SG, WS 9515__
20 120/277 3-way, side wire & push wire AW, DS, SG, WS 9516__
cULus Listed to UL20, file no. E18704
* UL verified to Federal Spec. WC-896E; NOM certified
Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: AW (Alpine White), DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
AW AW DS DS SG SG WS WS
Alpine White Desert Sand Silver Granite White Satin
A-23
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Aspire coordinating screwless wallplates
• Available in three distinctive colors to coordinate
with the rest of the Aspire product line: Desert
Sand, Silver Granite and White Satin (select White
Satin wallplates for Alpine White devices)
• Screwless wallplates clip smoothly into place
with gentle pressure
• Clearly marked top edges make mounting
wallplates easy to orient and attach
• Virtually unbreakable polycarbonate construction
• Standard decorator-sized opening
• Mid-sized to cover wall imperfections and large
wallboard openings
• Wallplates appear to float freely on the surface
of the wall, framing every device beautifully
• Screw-Catch feature holds backplate mounting
screws captive for ease of installation
Product description
Mid-size thermoplastic
Design features
Aspire design collection
Mid-size screwless wallplates
Description Color suffix Catalog no.
1-Gang Aspire wallplate DS, SG, WS 9521__
2-Gang Aspire wallplate DS, SG, WS 9522__
3-Gang Aspire wallplate DS, SG, WS 9523__
4-Gang Aspire wallplate DS, SG, WS 9524__
5-Gang Aspire wallplate DS, SG, WS 9525__
6-Gang Aspire wallplate DS, SG, WS 9526__
cULus Listed to UL5154D, file no. E33216
Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: DS (Desert Sand),
SG (Silver Granite), WS (White Satin).
DS DS SG SG WS WS
Desert Sand Silver Granite White Satin
9521
9522
A-24 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
A
SECTION
A-25
Dimmers & lighting controls
Dimmer families
Smart
dimmers
A-28, A-29
Devine
dimmers &
fan controls
A-30, A-34
Skye
dimmers &
fan controls
A-31, A-34
Trace
dimmers &
fan controls
A-32
React
dimmers &
fan controls
A-33
Power
extenders
A-35
Dimmer colors
Dimmers
From the latest in decorator styles to timeless traditional styles, Eaton dimmers offer an
extensive array of forms and options to seamlessly create ambiance and reduce energy
consumption without compromising aesthetics, features or performance. Eaton also includes
dimmers for fluorescent, compact fluorescent and LED loads.
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
A-26 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
• Single-pole & 3-way combined in a single unit for most models
• Dimmers are available for the following light load types: incandescent/halogen,
magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent
and LED
• Wide offering of “no neutral required for installation” models
• Solid state dimming at full rated wattage capacities for energy savings and lamp
life extension
• Voltage compensation on fluorescent-capable dimmers for flicker-free dimming
• Dimmer electronics have built-in surge protection
• Air-gap switches give easy power disconnection for safe re-lamping
• Power-failure memory returns lights to their previous state after a power outage
• Electronic circuitry is protected from static discharge
• Some decorator dimmers feature LED locator lights; lighted rotary and toggle
version dimmers are also available
The Eaton difference
See pages A-28 to A-35
Shown:
SAL06P-W
Energy savings
Both microprocessor-controlled and mechanical
dimmers are available, that can provide energy
savings in addition to ambiance.
Specific dimmer solutions for today's needs
Shown:
DAL06P-C1
Safety & security
With multiple decorator designs, toggle options,
and color choices it’s easy to replace an existing
switch and maintain a pleasing aesthetic in
single-gang or multi-gang installations.
See pages A-28 to A-35
Shown:
AAL06-C2
Convenience & automation
Microprocessor controlled “smart” dimmers
offer a variety of additional features like soft-ON,
fade-OFF, delayed-OFF, and full-bypass-ON for
even greater aesthetics and comfort.
See pages A-28, A-29
A-27
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
All load smart dimmers
• Rated for use with 300W of dimmable LED
or CFL, and 600W of incandescent, magnetic
low-voltage, electronic low-voltage and
dimmable fluorescent
• Electro-mechanical push pad for ON/OFF
operation with separate DIM/BRIGHT
bar (AAL06)
• 10-second delayed OFF feature (AAL06)
• Selectable Rapid Start feature to ensure lamp
start-up at low preset light levels (AAL06)
• LED light level display for presetting illumination
levels and master/accessory units for
multi-location control (AAL06)
• Adjustable low-end and high-end dimming range
to prevent lamp flickering (AAL06)
• No de-rating required for CFL/LED in multi-gang
installations (AAL06)
• Preset feature allows user to return to previous
light level when turning lights ON (DAL06P,
SAL06P, TAL06P)
• Adjustable low-end dimming range (DAL06P,
SAL06P, TAL06P)
• Fully adjustable Rapid Start setting for optimal
lamp start-up at low preset light levels
(DAL06P, TAL06P)
• Fixed Rapid Start provides quick power burst
to ensure lights start even at low preset light
levels (SAL06P)
• No de-rating required in multi-gang installations
(DAL06P, SAL06P, TAL06P)
• Each color kit package includes 3 colors
(except SAL06P)
• Incandescent, magnetic low-voltage, CFL, LED,
FLR, ELV offered in single unit on SAL06P
Product description
Single-pole & multi-location
600W/VA, 1000W/VA, 120V/AC
Rated for all common lighting loads - Dimmable LED, Dimmable CFL, INC/HAL, ELV, MLV, FLR
Design features
All load smart dimmers
Rating
W/AC V/AC Compatible lamp types Description Color suffix Catalog no.
300 120 Dimmable LED/CFL Smart dimmer master, AL series,
single-pole/multi-location with
presets and LEDs, neutral required
C1, C2, C4, C5 AAL06-__
600 120 INC, HAL, FLR, MLV, ELV
300 120 Dimmable LED/CFL Decorator dimmer, single-pole/
3-way, preset
C1, C2, C4, C5 DAL06P-__
600 120 INC, HAL, FLR, MLV, ELV
300 120 Dimmable LED/CFL Slide dimmer, single-pole/3-way
with preset & LED indicator
A, BK, GY, LA, V, W SAL06P-__
600 120 INC, HAL, FLR, MLV, ELV
300 120 Dimmable LED/CFL Toggle dimmer, single-pole/
3-way preset
C1, C2, C4, C5 TAL06P-__
600 120 INC, HAL, FLR, MLV, ELV
Dimmers & lighting controls
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond), V (Ivory),
W (White), C1 (Color Change Kit: A, W, V), C2 (Color Change Kit: LA, W, V), C4 (Color Change Kit: BK, W, V), C5 (Color Change Kit: BK, W, GY).
C1 Color Kit
A (Almond), W (White), V (Ivory)
A W V
C2 Color Kit
LA (Light Almond), W (White), V (Ivory)
LA W V
C4 Color Kit
BK (Black), W (White), V (Ivory)
BK W V
C5 Color Kit
BK (Black), W (White), GY (Gray)
BK W GY
Derating Information: F-19 Dimensional Information: A-47, A-48 Specification Information: Please visit www.cooperwiringdevices.com
Mark 10® and AmbiStar® are registered trademarks of Philips Advance; Tu-Wire® is a registered trademark of Lutron.
Compliances, specifications and availability are subject to change without notice.
Dimmer features Accell (AAL06) Devine (DAL06P) Skye (SAL06P) Trace (TAL06P)
Rapid start
feature
Selectable
ON or OFF
Fully adjustable Fixed ON Fully adjustable
Adjustable
high-end trim
•
Adjustable
low-end trim
••••
Wiring
configurations
Single-pole or
multi-location
Single-pole
or 3-way
Single-pole
or 3-way
Single-pole
or 3-way
Color change kits • • •
Rated for all common lighting loads
Dimmable Compact Fluorescent
(CFL)
Dimmable Light-Emitting Diodes
(LED)
Electronic & Magnetic
Low-Voltage (ELV)
Incandescent/Halogen (INC/HAL)
Fluorescent (FLR)
AAL06
DAL06P
SAL06P
TAL06P
A-28 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimmers & lighting controls
Product description
Single-pole & multi-location
600W/VA, 1000W/VA, 120V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
Accell smart dimmers
• Electro-mechanical push pad for ON/OFF
operation with separate Dim/Bright bar
• Preset feature allows user to return to previous
light setting when turning lights on
• LED light level display for presetting illumination
levels and master/accessory units for
multi-location control
• Amber LED at bottom of LED display indicates
ON/OFF load status
• Offers a 10 second delayed-off feature by
pressing and holding push pad for 2 seconds
when dimmer is ON
• Digital circuitry provides aesthetically pleasing
soft-on/fade-off that extends lamp life
• Compatible with any decorator wallplate
ARD
Smart dimmers, wire leads
Rating
W/AC V/AC Compatible lamp types Description Color suffix Catalog no.
1000 120 INC, HAL, MLV Smart dimmer master, presets A, B, BK, GY, LA, V, W, C1, C2 AIM10-__
1000 120 FLR Smart dimmer master with presets,
Mark 10®, AmbiStar® & Tu-Wire®
compatible, neutral required
A, B, BK, GY, LA, V, W, C1, C2 AF10-__
——Dimmable LED/CFL Master dimmer color change
faceplate
A, B, BK, GY, LA, V, W AMC-__-BP
— 120 — Accessory dimmer, multi-location
with presets and LEDs; must be
used with AAL06, AIM10 or AF10
A, B, BK, GY, LA, V, W, C1, C2 ARD-__
——— Accessory dimmer color change
faceplate
A, B, BK, GY, LA, V, W ARC-__-BP
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond), V (Ivory),
W (White), C1 (Color Change Kit: A, W, V), C2 (Color Change Kit: LA, W, V), C4 (Color Change Kit: BK, W, V), C5 (Color Change Kit: BK, W, GY).
C1 Color Kit
A (Almond), W (White), V (Ivory)
A W V
C2 Color Kit
LA (Light Almond), W (White), V (Ivory)
LA W V
C4 Color Kit
BK (Black), W (White), V (Ivory)
BK W V
C5 Color Kit
BK (Black), W (White), GY (Gray)
BK W GY
Derating Information: F-19 Dimensional Information: A-47 Specification Information: Please visit www.cooperwiringdevices.com
Mark 10® and AmbiStar® are registered trademarks of Philips Advance; Tu-Wire® is a registered trademark of Lutron.
Compliances, specifications and availability are subject to change without notice.
A-29
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimmers & lighting controls
Devine decorator dimmers
Product description
Single-pole & 3-way
300W, 600W/VA, 1000W/VA, or 8A; 120V/AC or 277V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
• Preset feature allows user to return to previous
light setting when turning lights on
• Integrated linear slide control for easy, precise
operation
• All units are available in combined single-pole/
3-way versions
• Device can be wired into either 3-way location
(load side or line side)
• Neutral is not required for installation of device
• Replaces a standard switch and offers dimmer
capabilities
• Square Law Dimming— perceived dimming level
is proportional to the slider position
• Power failure memory
• Electrostatic discharge protection
• Precise color matching
• Compatible with any decorator wallplate
DF8AP
DF10P
Dimmers, back & side wire
Rating
W/AC V/AC Compatible lamp types Description Color suffix Catalog no.
1000 120 INC, HAL, MLV Incandescent/halogen/magnetic
low-voltage dimmer, single-pole/
3-way with preset
A, B, BK, GY, LA, V, W DI10P-__
cULus Listed to UL1472, file no. E47967; NOM certified
Fluorescent dimmers, back & side wire
Rating
A V/AC Description Color suffix Catalog no.
8 120 Fluorescent dimmer; single-pole/3-way with preset;
Mark 10®, AmbiStar® & Tu-Wire® compatible
A, B, BK, GY, LA, V, W DF8AP-__
8 277 Fluorescent dimmer, single-pole/3-way with preset,
Mark 10® compatible
A, B, BK, GY, LA, V, W DF8AP7-__
cULus Listed to UL1472, file no. E47967; NOM certified
0-10V Dimmer, back & side wire
Rating
Watt V/AC Compatible lamp types Description Color suffix Catalog no.
1200 120 Dimmable LED/FLR
0-10V ballasts
Decorator dimmer, single-pole/
3-way, preset
C1, C2, C4, C5 DF10P-__
1600 277
——— Color change faceplate for DF10P A, BK, GY, LA, V, W DCK1-__
cULus Listed to UL1472, file no. E47967; NOM certified
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond), V (Ivory),
W (White), C1 (Color Change Kit: A, W, V), C2 (Color Change Kit: LA, W, V), C4 (Color Change Kit: BK, W, V), C5 (Color Change Kit: BK, W, GY).
C1 Color Kit
A (Almond), W (White), V (Ivory)
A W V
C2 Color Kit
LA (Light Almond), W (White), V (Ivory)
LA W V
C4 Color Kit
BK (Black), W (White), V (Ivory)
BK W V
C5 Color Kit
BK (Black), W (White), GY (Gray)
BK W GY
Derating Information: F-19 Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Mark 10® and AmbiStar® are registered trademarks of Philips Advance; Tu-Wire® is a registered trademark of Lutron.
Compliances, specifications and availability are subject to change without notice.
A-30 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimmers & lighting controls
Skye slide dimmers
Product description
Single-pole & 3-way
300W, 600W/VA, 1000W/VA, or 8A; 120V/AC or 277V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
• Preset feature allows user to return to previous
light setting when turning lights ON
• Integrated full slide control for easy,
precise operation
• Preset versions can be wired as single-pole
or 3-way
• Device can be wired into either 3-way location
(load side or line side)
• Green LED softly illuminates when device is off,
acting as a night light (preset versions only)
• Neutral is not required for installation of device
• Replaces a standard switch and offers dimmer
capabilities
• Square Law Dimming—perceived dimming level
is proportional to the slider position
• Power failure memory
• Electrostatic discharge protection
• Precise color matching
• Compatible with any decorator wallplate
Derating Information: F-19 Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
SI061-V
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Dimmers, back & side wire
Rating
W V/AC Compatible lamp types Description Color suffix Catalog no.
600 120 Incandescent/halogen Dimmer, single-pole non-preset A, B, BK, GY, LA, V, W SI061-__
1000 120 Incandescent/halogen/
magnetic low-voltage
Dimmer, single-pole/3-way with
preset & LED indicator
A, B, BK, GY, LA, V, W SI10P-__
cULus Listed to UL1472, file no. E47967; NOM certified
Fluorescent dimmers, back & side wire
Rating
A V/AC Description Color suffix Catalog no.
8 277 Fluorescent dimmer, single-pole/3-way with preset &
LED indicator, Mark 10® compatible
A, B, BK, GY, LA, V, W SF8AP7-__
cULus Listed to UL1472, file no. E47967; NOM certified
0-10V Dimmer, back & side wire
Rating
Watt V/AC Compatible lamp types Description Color suffix Catalog no.
1200 120 Dimmable LED/FLR
0-10V ballasts
Slide dimmer, single-pole/3-way,
preset
A, B, BK, GY, LA, V, W SF10P-__
1600 277
cULus Listed to UL1472, file no. E47967; NOM certified
SF10P
A-31
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimmers & lighting controls
Trace toggle dimmers & fan speed controls
Product description
Single-pole & 3-way
300W/600W or 1000W; 5A; 120V/AC
Incandescent/halogen,magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
• Integrated toggle switch for ON/OFF and
Dim/Bright operation (non-present version)
• Single-pole and 3-way wiring offered in a
single unit
• Matches existing wall switches
• Replaces a standard switch and offers
dimmer capabilities
• Fully variable fan control allows for precise
fan speed setting
• Power failure memory
• Precise color matching
• Compatible with any traditional toggle switch
wallplate or screwless toggle wallplate
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Derating Information: F-19 Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
TI061
TI061L
Incandescent/halogen dimmers
Rating
W V/AC Description Color suffix Catalog no.
600 120 Incandescent/halogen dimmer, single-pole/3-way non-preset A, B, BK, LA, V, W TI061-__
600 120 Lighted incandescent/halogen dimmer, single-pole/3-way
non-preset
N/A (Clear) TI061L
1000 120 Incandescent/halogen dimmer, single-pole/3-way non-preset A, B, BK, LA, V, W TI3101-__
1000 120 Lighted incandescent/halogen dimmer, single-pole/3-way
non-preset
N/A (Clear) TI3101L
cULus Listed to UL1472, file no. E47967 & CSA C22.2 no. 18
Fan speed controls
Rating
A V/AC Description Color suffix Catalog no.
5 120 Fully variable fan speed control, single-pole non-preset,
wire leads
A, B, BK, GY, LA, V, W TFS5-__
cULus Listed to UL1917, file no. E202842 & CSA C22.2 no. 156; NOM certified
A-32 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Product description
Single-pole & 3-way
1.5A or 5A 120V/AC; combo 1.5A/300W
3-speed or fully variable
Design features
React rotary dimmers & fan speed controls
Dimmers & lighting controls
• Integrated rotary dial for ON/OFF and Dim/Bright
operation
• Preset versions offer single-pole and 3-way wiring
in a single unit
• Neutral is not required for installation of device
• Fully variable fan control allows for precise fan
speed setting
• Quiet 3-speed fan control allows for Low,
Medium, and High fan speed settings
• Precise color matching
• Compatible with any traditional switch wallplate
or screwless toggle wallplate
RI061
RDC15
Incandescent/halogen dimmers
Rating
W V/AC Description Color suffix Catalog no.
600 120 Incandescent/halogen dimmer, single-pole non-preset A, LA, V, W RI061-__
600 120 Incandescent/halogen dimmer, single-pole/3-way with preset A, LA, V, W RI06P-__
1000 120 Lighted incandescent/halogen dimmer, single-pole/3-way with preset A, LA, V, W RI06PL-__
1000 120 Incandescent/halogen dimmer, single-pole non-preset A, LA, V, W RI101-__
cULus Listed to UL1472, file no. E47967 & CSA C22.2 no. 184.1; NOM certified
Combination fan speed control/dimmer & fan speed controls
Rating
W A V/AC Description Color suffix Catalog no.
300 1.5 120 Combined, quiet 3-speed fan control & dimmer, single-pole non-preset,
incandescent/halogen
A, LA, V, W RDC15__
300 2.5 120 Combined, quiet 3-speed fan control & dimmer, single-pole non-preset,
incandescent/halogen
A, LA, V, W RDC25__
300 1.5 120 Quiet 3-speed fan control, single-pole non-preset, wire lead A, LA, V, W RFS15-__
300 5 120 Fully variable fan speed control, single-pole non-preset A, LA, V, W RFS5-__
cULus Listed to UL1917, file no. E202842 & CSA C22.2 no. 156
Replacement knobs for rotary dimmers & fan speed controls
Description Color suffix Catalog no.
Replacement knob for lighted rotary dimmer RI06PL A, B, BK, GY, LA, V, W RKRL-__-BP
Replacement knob for rotary dimmers RI061, RI06P & RI101 A, B, BK, GY, LA, V, W RKRD-__-BP
Replacement knobs for rotary fan controls RFS15 & RFS5 A, B, BK, GY, LA, V, W RKRC-__-BP
Derating Information: F-19 Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
A-33
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Product description
Single-pole & 3-way
1.5A or 5A 120V/AC; combo 1.5A/300W
3-speed or fully variable
Design features
Fan speed controls
Dimmers & lighting controls
• Quiet Fan Speed Control versions have special
circuitry to reduce fan motor noise at low speeds
• Combined single-pole/3-way versions are available
• Replaces a standard switch and offers dimming
and/or fan speed control capabilities
• Neutral is not required for installation of device
• Electrostatic discharge protection
• Power failure memory
• Virtually unbreakable top and backbody
• Switch has quiet, smooth actuation
• Easy-access ground screws
• Compatible with any decorator wallplate
DFS15P
SFS5P
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
SDC15
Devine fan speed control
Rating
AV/AC Description Color suffix Catalog no.
1.5 120 Quiet 3-speed fan control, single-pole/3-way with preset A, B, BK, GY, LA, V, W DFS15P-__
cULus Listed to UL1917, file no. E202842; NOM certified
Skye fan speed controls
Rating
A V/AC Description Color suffix Catalog no.
1.5 120 1.5A quiet 3-speed fan control, single-pole/3-way with preset A, B, BK, GY, LA, V, W SFS15P-__
5 120 5A fully variable fan speed control, single-pole A, B, BK, GY, LA, V, W SFS5-__
5 120 5A fully variable fan speed control, single-pole/3-way
with preset
A, B, BK, GY, LA, V, W SFS5P-__
cULus Listed to UL1917, file no. E202842; NOM certified
Skye combination fan speed control & dimmer
Rating
A V/AC W Description Color suffix Catalog no.
1.5 120 300 Combined 1.5A quiet 3-speed fan control & 300W dimmer,
single-pole, incandescent/halogen
A, B, BK, GY, LA, V, W SDC15-__
cULus Listed to UL1917, file no. E202842; NOM certified
A-34 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Product description
1920W/VA
Incandescent, halogen, magnetic low-voltage, fluorescent, neon/cold cathode
Design features
Power extenders
Dimmers & lighting controls
• Aluminum heat sink with snap-on cover (P19-W
and PF19-W)
• P19-W and PF19-W can be surface- or
flush-mounted using 1900 Box and 2-Gang
raised cover
• Extends the capacity of dimmers and
emulates connected dimmers in dimming
range and resolution
• Low-end trim setting for minimum brightness level
Power extenders
Rating
W/VA Description Color Catalog no.
1920 For incandescent/halogen, magnetic low-voltage, neon cold cathode,
back wire
W P19-W •
1920 For dimmable fluorescent ballasts, Mark 10® & Tu-Wire® compatible,
back wire
W PF19-W •
P19-W
W
(White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: W (White).
Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
A-35
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
A
SECTION
Occupancy & vacancy sensors
The lighting controls that deliver the greatest energy savings are occupancy and vacancy sensors.
Eaton sensors are ideal for any application with universal load and wiring compatibility, selectable,
and dimmable nightlight option on most models, unparalleled mode features, plus all Eaton
sensors are available as either occupancy or vacancy types.
Gray Ivory
White
Almond Black
Lt. Almond
Occupancy & vacancy sensors
Occupancy & vacancy sensor families
Dimmer
sensors
A-38
Dual switch
sensors with
nightlight
A-39
Switch
sensors with
nightlight
A-40
Standard
series switch
sensors
A-41
Occupancy & vacancy sensor colors
A-36 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
• Occupancy and Title 24 vacancy sensor versions for flexibility
• Single-pole & 3-way combined in a single unit in non-dimming
senor switches
• Sensors are available for the following light load types: incandescent/halogen,
magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent
and LED
• Nightlights are dimmable plus have selectable ON/OFF modes
• Ambient light override feature keeps lights from turning on if sufficient
light is already present for greater energy savings
• Color change kits available in most models for enhanced aesthetics
• Most sensors offer electronic ballast compatibility
• Dimming sensors and dual switch sensor models available
• Easily replaces a standard light or fan switch
See pages A-38 to A-41
See pages A-39, A-40
The Eaton difference
Shown:
OS106D1-W
Advanced energy savings
Step up to the next level in energy savings with
occupancy or vacancy sensors that offer dimming
capabilities for maximum ambiance control with the
most energy savings.
Specific occupancy & vacancy sensor solutions for today's needs
Shown:
OS310U-BK
Integrated nightlights
Switches with integrated nightlights are ideal for
children’s rooms with a dimmable light level,
selectable ON/OFF and operation independent of
the sensing function.
Shown:
OS310R-V
Dual switch sensors
Dual relay sensors are the perfect solution for single
point control of two loads from one location, offering
even more energy saving opportunities and flexibility
than ever.
See page A-39
A-37
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimming motion sensors
Rating
W/VA V/AC Description Color suffix Catalog no.
600 120 Incandescent/halogen, magnetic low-voltage occupancy sensor
& dimmer, single-pole with LED
A, BK, GY, LA, V, W OS106D1-__
600 120 Incandescent/halogen, magnetic low-voltage vacancy sensor
& dimmer, single-pole with LED
A, BK, GY, LA, V, W VS106D1-__
cULus Listed to UL244A & UL1472, file no. E325082; NOM certified
Dimmer color change kits
Description Color suffix Catalog no.
Color change kit for dimmer sensor A, BK, GY, LA, V, W SCKD-__-BP
Product description
Single-pole
600W/VA; 120V/AC
Incandescent/halogen, magnetic low-voltage
Design features
Dimming motion sensors
Occupancy & vacancy sensors
• Full-range Preset dimming control provided with
horizontal dim/bright bar
• Digital circuitry provides aesthetically pleasing
soft ON/fade OFF that extends bulb life
• Preset and light level change is easily shown with
horizontal row of green LEDs
• Works with popular load types: halogen,
incandescent and magnetic low-voltage
• Single green LED indicates load status, provides
locator light in dark and blinks to indicate
motion detection
• LED serves as air-gap switch disconnecting
power from load, forcing an OFF condition
• Push pad design provides minimal travel and
crisp actuation
• Replaces a standard light switch
• Provides 180 degree field of view and 1000 sq. ft.
of major motion coverage
• Selectable time delay of 5 seconds (test),
5 minutes, 15 minutes and 30 minutes for lights
to remain on after room is vacated
• Reverse mode allows light to stay off in a room
when motion is detected
• Occupancy sensor provides a selectable ambient
light override preventing lights from switching ON
when there is acceptable natural light
• Occupancy sensor version allows toggling
between Auto-ON/Auto-OFF or Manual
ON/Auto-OFF mode with a simple press and
hold of switch
• Occupancy sensor provides for a bypass feature
to allow the sensor to perform as a traditional
switch (Manual ON/Manual OFF)
• Vacancy sensor meets California 2008 Title 24
• Electrostatic discharge protection
• No leakage to load in off mode
• Uniform color matched PIR lens to
device housing
• Color change faceplate kits provide for a simple
in field change
• Neutral required for installation of device
• Mid-size decorator wallplate included
with product
OS106D1
Derating Information: F-19 Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
ABK GY LA V W
(Almond) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
A-38 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Derating Information: F-19 Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
ABK GY LA V W
(Almond) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Occupancy & vacancy sensors
Product description
Single-pole & 3-way
1000W/VA, 120V/AC; 1/6 HP Motor
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
Dual relay motion sensors
• Can be wired as a single-pole or 3-way device
• Selectable ON/OFF LED nightlight with press and
hold dimming function
• Works with all popular load types: incandescent,
magnetic low-voltage, electronic low-voltage,
fluorescent, CFL, and LED
• Contains two switches to control two
independent lighting loads or circuits (light
and/or fan)
• Green LED indicates load status, provides
locator light in dark and blinks to indicate
motion detection
• Replaces a standard light or fan switch
• Provides 180 degree field of view and 1000 sq. ft.
of major motion coverage
• Provides 3-way operation when used with a
3-way switch or sensor
• Selectable time delay of 5 seconds (test),
5 minutes, 15 minutes and 30 minutes for lights
to remain ON after room is vacated
• Reverse mode allows light to stay off in a room
when motion is detected
• Occupancy sensors time delay default set to
5 minutes; vacancy sensors time delay default
set to 30 minutes
• Occupancy sensor provides a selectable ambient
light override preventing lights from switching ON
when there is acceptable natural light
• Occupancy sensor version allows toggling
between Auto-ON/Auto-OFF or Manual
ON/Auto-OFF mode with a simple press and
hold of switch
• Occupancy sensor provides for a bypass feature
to allow the sensor to perform as a traditional
switch (Manual ON/Manual OFF)
• Vacancy sensor meets California 2008 Title 24
• No leakage to load in off mode
• Uniform color matched PIR lens to
device housing
• Color change faceplate kits provide for a simple
in field change
• Neutral required for installation of device
• Mid-size decorator wallplate included
with product
OS310R
Dual relay motion sensors
Rating HP
W/VA V/AC Motor Description Color suffix Catalog no.
600 120 1/6 Incandescent/halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent, & LED occupancy
sensor dual switch; single-pole/3-way with nightlight & LED
A, BK, GY, LA, V, W OS310R-__
600 120 1/6 Incandescent/halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent, & LED vacancy
sensor dual switch; single-pole/3-way with nightlight & LED
A, BK, GY, LA, V, W VS310R-__
cULus Listed to UL244A, file no. E325082; NOM certified
Dual-relay motion sensor color change kit
Description Color suffix Catalog no.
Color change kit for dual relay motion sensor A, BK, GY, LA, V, W SCKR-__-BP
A-39
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Motion sensors
Rating HP
W/VA V/AC Motor Description Color suffix Catalog no.
1000 120 1/6 Incandescent/halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent, & LED occupancy
sensor switch; single-pole/3-way with nightlight & LED
A, BK, GY, LA, V, W OS310U-__
1000 120 1/6 Incandescent/halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent, & LED vacancy
sensor switch; single-pole/3-way with nightlight & LED
A, BK, GY, LA, W VS310U-__
cULus Listed to UL244A, file no. E325082; NOM certified
Motion sensor color change kits
Description Color suffix Catalog no.
Color change kit for motion sensor A, BK, GY, LA, V, W SCK1-__BP
Occupancy & vacancy sensors
Product description
Single-pole & 3-way
1000W/VA, 120V/AC; 1/6 HP Motor
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
Motion sensors
• Can be wired as a single-pole or 3-way device
• Selectable ON/OFF LED nightlight with press and
hold dimming function
• Works with all popular load types: incandescent,
magnetic low-voltage, electronic low-voltage,
fluorescent, cfl, and LED
• Green LED indicates load status, provides
locator light in dark and blinks to indicate
motion detection
• Push pad design provides minimal travel and
crisp actuation
• Replaces a standard light or fan switch
• Provides 180 degree field of view and 1000 sq. ft.
of major motion coverage
• Provides 3-way operation when used with a
3-way switch or sensor
• Selectable time delay of 5 seconds (test),
5 minutes, 15 minutes and 30 minutes for lights
to remain on after room is vacated
• Occupancy sensors time delay default set to
5 minutes; vacancy sensor’s time delay default
set to 30 minutes
• Occupancy sensor provides a selectable ambient
light override preventing lights from switching ON
when there is acceptable natural light
• Occupancy sensor version allows toggling
between Auto-ON/Auto-OFF or Manual
ON/Auto-OFF mode with a simple press and
hold of switch
• Occupancy sensor provides for a bypass feature
to allow the sensor to perform as a traditional
switch (Manual ON/Manual OFF)
• Vacancy sensor meets California 2008 Title 24
• Electrostatic discharge protection
• No leakage to load in off mode
• Uniform color matched PIR lens to
device housing
• Color change faceplate kits provide for a simple
in field change
• Neutral required for installation of device
• Mid-size decorator wallplate included
with product
VS310U
Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
ABK GY LA V W
(Almond) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
A-40 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Product description
Single-pole & 3-way
600W/VA, 120V/AC
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
Motion sensors
Occupancy & vacancy sensors
• Passive infrared technology
• Replaces a standard light or fan switch
• Sensors provide up to 180 degree field of view
and 450 sq. ft. of major motion coverage
• No neutral required for installation of device
• Can be wired as a single-pole or 3-way device
• Works with nearly all load types
• Selectable time delay of 5 seconds to 30 minutes
for lights to remain on after room is vacated
• Occupancy sensor provides a selectable ambient
light override preventing lights from switching ON
when there is acceptable natural light
• Electrostatic discharge protection
• No leakage to load in off mode
• Compact housing fits easily into a standard wall
box and is suitable for multi-gang installations
• Compatible with decorator-style wallplates and
designer screwless wallplates
• High-gloss finish complements any decor
Motion sensors
Rating
W/VA V/AC Description Color suffix Catalog no.
600 120 Incandescent, halogen, fluorescent, MLV, ELV, LED,
CFL occupancy switch sensor; single-pole/3-way; auto-ON
A, BK, GY, LA, V, W OS306U-__
600 120 Incandescent, halogen, fluorescent, MLV, ELV, LED, CFL
vacancy sensor switch; single-pole/3-way; Title 24; manual ON
A, BK, GY, LA, V, W VS306U-__
Note: Sensors are rated for 120V/AC unless otherwise noted. cULus Listed to UL773A, file no. E191639
VS306U-W
Dimensional Information: A-48 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
ABK GY LA V W
(Almond) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
A-41
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Timers
Timers not only save energy, they also can provide added peace of mind from knowing that heating
devices will not be inadvertently left on causing potential safety and/or fire hazards. Using timers
for landscape lighting, closets, attics, basements, garages and utility areas can lower energy costs
and prevent lights being left on for days.
Timers
Timer families
Accell
timers
A-44
Timer colors
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
A-42 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
• Programmable hour or minute time delay in 2 modes for preset groups or down
to 1 minute increments
• Universal compatibility with all light load types: incandescent/halogen, magnetic
low-voltage, electronic low-voltage, fluorescent, compact fluorescent and LED
• No neutral required for installation
• Rated for up to 1800W loads AC at 120V
• Aspire timers match the aesthetics of all Aspire RF and Aspire devices
• Accell timers match Accell dimmers in design and also coordinate well with
Devine and Skye families
• Available in all Aspire color combinations as well as 7 standard device colors,
color change kits also available for quick changes
The Eaton difference
See page A-44
Shown:
PT18M
Bathroom controls
Timers are perfect for controlling fans, heat lamps
or wall heaters, towel warming rails, radiant floor
heating systems, whirlpool tubs, and saunas.
Specific timer solutions for today's needs
Shown:
PT18H
Pool, spa & outdoor areas
Power-hungry pool heaters and spa motors are
ideal candidates for timed controls, as well as
patio & landscape lighting, or driveway snow
and ice-melting systems.
See page A-44
A-43
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Timers
Product description
Single-pole
15A, 120V/AC; 1800W
Incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent, LED
Design features
Accell timers
• Perfect for both new construction and retrofit
with no neutral required for installation
• Available in both Hours and Minutes versions
• Five (5) preset time intervals
• Easily programmable to alternate time intervals
to suit your needs
• Color change faceplate kits available
• Works with all popular load types: incandescent/
halogen, magnetic low-voltage, electronic
low-voltage, fluorescent, compact fluorescent,
and LED
• Horsepower rated for 1/4 HP motor loads
• LED indication of time interval selected and
countdown
PT18M
Accell timers
Rating
A V/AC W Description Color suffix Catalog no.
15 120 1800 5-button minute timer with OFF, single-pole A, B, BK, GY, LA, V, W, C1, C2 PT18M__
15 120 1800 5-button hour timer with OFF, single-pole A, B, BK, GY, LA, V, W, C1, C2 PT18H__
cULus Listed to UL60730-1A & 60730-2-7, file no. E325082; certified to E60730-2-9:01; NOM certified
Color change kits for Accell timers
Description Color suffix Catalog no.
Color Change Kit 1 (5,10,15,30,60) for Minute Timer A, BK, GY, LA, V, W PT1MK-__-P
Color Change Kit 2 (5,10,20,30,60) for Minute Timer A, BK, GY, LA, V, W PT2MK-__-P
Color Change Kit 3 (5,15,30,45,60) for Minute Timer A, BK, GY, LA, V, W PT3MK-__-P
Color Change Kit 4 (1,5,10,15,30) for Minute Timer A, BK, GY, LA, V, W PT4MK-__-P
Color Change Kit 5 (1,10,15,20,30) for Minute Timer A, BK, GY, LA, V, W PT5MK-__-P
Color Change Kit 1 (1,2,4,8,12) for Hour Timer A, BK, GY, LA, V, W PT1HK-__-P
Color Change Kit 2 (1,3,6,9,12) for Hour Timer A, BK, GY, LA, V, W PT2HK-__-P
Color Change Kit 3 (2,4,8,12,24) for Hour Timer A, BK, GY, LA, V, W PT3HK-__-P
Color Change Kit 4 (30,1,2,4,8) for Hour Timer A, BK, GY, LA, V, W PT4HK-__-P
Color Change Kit 5 (15,30,1,2,4) for Hour Timer A, BK, GY, LA, V, W PT5HK-__-P
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White), C1 (Color Change Kit: A, W, V), C2 (Color Change Kit: LA, W, V).
C1 Color Kit
A (Almond), W (White), V (Ivory)
A W V
Dimensional Information: A-46 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
C2 Color Kit
LA (Light Almond), W (White), V (Ivory)
LA W V
PT18H
A-44 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimensional data
Aspire RF: wireless controllers & interface
Family A (Depth) B (Height) C (Width)
Handheld controller 1.37"
(34.8mm)
6.75"
(171.5mm)
2.85"
(72.4mm)
Tabletop controller 1.70"
(25.4mm)
4.50"
(114.3mm)
6.25"
(158.8mm)
Home controller 5.00"
(127mm)
1.75"
(44.5mm)
7.00"
(117.8mm)
Serial interface module 1.08"
(27.4mm)
4.19"
(106.4mm)
2.68"
(68.1mm)
Aspire RF: devices
Family A B C D E
5-scene wall mount keypad 1.50"
(38.1mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
1.69"
(43.0mm)
1.36"
(34.5mm)
600W smart dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.36"
(34.5mm)
1000W smart dimmers & switch RF9518 2.45"
(62.2mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.36"
(34.5mm)
Accessory dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.36"
(34.5mm)
Switches RF9501, RF9517, RF9520 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.56"
(65.0mm)
1.63"
(41.4mm)
Receptacles 1.30"
(33.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.77"
(70.3mm)
1.40"
(35.5mm)
Aspire RF: specialty devices
Family A (Height) B (Width) C (Depth)
Plug-in lamp & appliance modules 3.48"
(88.4mm)
2.86"
(72.7mm)
1.30"
(33.1mm)
Occupancy sensor 3.13"
(79.6mm)
2.50"
(63.5mm)
2.18"
(55.2mm)
Thermostat 4.00"
(101.6mm)
5.70"
(144.8mm)
1.20"
(30.5mm)
C
B
A
A
C
B
A
C
BD
E
A-45
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimensional data
Aspire
Family A B C D E
600W smart dimmers & accessory dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.38"
(35.1mm)
1000W smart dimmers 2.45"
(62.1mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.38"
(35.1mm)
Slide dimmers & fan speed controls 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.69"
(68.3mm)
1.27"
(32.3mm)
Single-pole & 3-way switches 1.44"
(36.6mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.74"
(69.6mm)
0.97"
(24.6mm)
4-way switches 1.44"
(36.6mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.60"
(66.1mm)
1.18"
(30.0mm)
Timers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.59"
(65.8mm)
1.39"
(35.4mm)
Dimmers: Accell
Family A B C D E
600W smart dimmers &
accessory dimmers
1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.59"
(65.8mm)
1.38"
(35.1mm)
1000W smart dimmers 2.44"
(62.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.59"
(65.8mm)
1.38"
(35.1mm)
Timers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.59"
(65.8mm)
1.39"
(35.4mm)
Dimmers: Devine
Family A B C D E
600W dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.28"
(32.6mm)
1000W dimmers 2.45"
(62.2mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.28"
(32.6mm)
Fluorescent dimmers 2.45"
(62.2mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.28"
(32.6mm)
Fan speed controls 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.28"
(32.6mm)
Dimmers: Skye
Family A B C D E
600W dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.27"
(32.4mm)
1000W dimmers 2.45"
(62.2mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.27"
(32.4mm)
Fluorescent dimmers 2.45"
(62.2mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.27"
(32.4mm)
Fan speed controls 1.80"
(45.7mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.27"
(32.4mm)
A
C
BD
E
A
CB D
E
A
CB D
E
A
CB D
E
A-46 EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
Dimensional data
Dimmers: React
Family A B C D E
600W Dimmers 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.20"
(55.9mm)
1.30"
(33.0mm)
1000W Dimmers 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.70"
(68.7mm)
1.43"
(36.3mm)
Combination dimmers & fan speed control 1.63"
(41.4mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.70"
(68.7mm)
1.46"
(37.0mm)
Fan speed controls 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.20"
(55.9mm)
1.30"
(33.0mm)
Dimmers: Trace
Family A B C D E
600W Dimmers 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.71"
(68.8mm)
1.36"
(34.5mm)
1000W Dimmers 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.72"
(69.1mm)
1.43"
(36.3mm)
Fan speed controls 1.70"
(43.2mm)
3.28"
(83.3mm)
2.38"
(60.5mm)
2.30"
(58.4mm)
1.40"
(35.6mm)
Dimmers: power extenders
Family A (Height) B (Width) C (Depth)
Power Extenders 4.85"
(123.2mm)
4.65"
(118.0mm)
2.07"
(52.6mm)
Occupancy & vacancy sensors
Family A B C D E
Occupancy/vacancy dimmers 1.80"
(45.7mm)
3.81"
(96.8mm)
3.21"
(81.5mm)
2.59"
(65.8mm)
1.40"
(35.6mm)
Occupancy/vacancy dual switches 1.80"
(45.7mm)
3.81"
(96.8mm)
3.21"
(81.5mm)
2.59"
(65.8mm)
1.40"
(35.6mm)
Occupancy/vacancy switches 1.80"
(45.7mm)
3.81"
(96.8mm)
3.21"
(81.5mm)
2.59"
(65.8mm)
1.40"
(35.6mm)
Occupancy & vacancy sensors: standard series
Family A B C D E
OS306U 1.8"
(45.72mm)
3.81"
(96.8mm)
3.21"
(81.5mm)
2.59"
(65.8mm)
1.40"
(35.6mm)
VS306U 1.8”
(45.72mm)
3.81"
(96.8mm)
3.21"
(81.5mm)
2.59"
(65.8mm)
1.40"
(35.6mm)
A
C
BD
E
A
C
BD
E
A
C
BD
E
A
C
BD
E
C
B
A
A-47
EATON 2014 Residential Buyers Guide
A
SECTION
www.eaton.com
www.cooperwiringdevices.com
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide
B
SECTION
B-1
Wiring Devices
Our broad line of wiring devices delivers reliable performance, quality
construction, and labor-saving features that make our devices faster and
easier to install. You will find a wide color palette suited to today’s new and
existing homes, along with a complete decorator offering for home-wide
contemporary styling. A host of devices are also available within this section
for enhancing the safety of a home—from tamper resistant receptacles to
combination nightlights.
Power devices
B-36
Switches
B-2
GFCIs
B-30
Plugs &
connectors
B-46
Lampholders
B-56
Combination
devices
B-12
USB
receptacles
B-14
Receptacles
B-20
Switches
Our comprehensive line of switches encompasses everything from upscale decorator designs
to standard toggle switches and even special-use replacement switches. All of our switches are
engineered for smooth action and years of safe, dependable service no matter what the
application, type of load or use.
Switches
Switch families
Decorator
standard
grade
B-4
Heavy
duty grade
toggle
B-5
Standard
grade
toggle
B-6
Standard
grade
CO/ALR
toggle
B-7
Heavy
duty grade
canopy
switches
B-8
Miscellaneous
standard
grade
switches
B-10
Switch colors
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-2
SECTION
The Eaton difference
See page B-4
Shown:
7503
Aesthetic upgrades
Complete the look of a beautiful redecoration,
renovation or new home with decorator switches
that provide contemporary styling to coordinate
perfectly with today’s décor.
Specific switch solutions for today's needs
Shown:
1301-7LT
Device locator lighting
There are areas in every home where it is
difficult to visually locate a switch in low-light or
dark conditions. Lighted switches emit a soft glow
that makes them easy to find without fumbling.
See page B-6
Shown:
5221-7
Aluminum wiring
There are many homes that still contain aluminum
wiring. Hybrid copper & aluminum compatible (CO/
ALR) switches are required for aluminum wiring.
See page B-7
• Built-in patented wire stripper provides handy backup for misplaced tools
• Longer, wider strap provides 40% more contact area to wallboard, virtually
eliminating floating installations
• Ultrasonic welded thermoplastic top and bottom housing eliminate call-backs
due to job-site breakage
• Cam action mechanism inside for quiet switch action
• Built-in wire looper to speed termination of both #14 and #12 AWG wire
• Slotted, Phillips and Robertson Tri-combo screw heads offer greater
installation flexibility
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-3
Decorator switches
Rating
A V/AC Description Color suffix Catalog no.
15 120/277 Single-pole, back wire, push wire A, B, BB, BK, GY, LA,
SG, V, W
7501__ •
15 120/277 Auto-grounding single-pole, back wire, push wire A, B, BB, BK, GY, LA,
SG, V, W
7501-9__ •
15 120/277 3-way, back wire, push wire A, B, BK, GY, LA, V, W 7503__ •
15 120/277 Auto-grounding 3-way, back wire, push wire A, B, BK, GY, LA, V, W 7503-9__ •
15 120/277 4-way, back wire, push wire A, B, BK, GY, LA, V, W 7504__
15 120/277 Lighted single-pole, back wire, push wire A, LA, V, W 7511__
15 120/277 Lighted 3-way, back wire, push wire A, LA, V, W 7513__
cULus Listed to UL20, file no. E18704; 7504 also UL Listed to Federal Spec WS-896E
Product description
Single-pole, 3-way, 4-way
15A,120/277V/AC
Design features
Decorator standard grade switches
Switches
• Thermoplastic rocker, top and backbody are
virtually unbreakable, promising years of
durable performance
• Ultrasonic welding and integrated construction
of the strap and body provide superior integrity
• Backwire clamps on the side terminals provide for
easy installation of #12 and #14 AWG wire
• Push-in terminals accept #14 AWG solid wire
• Stippled ground screw terminal standard
• 120/277V/AC rating ideal for fluorescent lighting
fixtures and a broad variety of applications
• Long, broad mounting strap virtually eliminates
floating installations
• Patented built-in wire stripper for #12 and #14
AWG wire to speed installation
• Tri-combo screws accept Slotted, Phillips, and
Robertson-head tools for installation flexibility
• Lighted switches glow in “OFF” position
7501
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BB (Brushed Bronze), BK (Black), GY (Gray),
LA (Light Almond), SG (Silver Granite), V (Ivory), W (White).
Dimensional Information: B-68 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA SG V W
(Almond) (Brown) (Brushed Bronze) (Black) (Gray) (Lt. Almond) (Silver Granite) (Ivory) (White)
BB
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-4
Heavy duty toggle switches
Rating
A V/AC Description Color suffix Catalog no.
15 120/277 Single-pole, back & side wire A, LA, V, W CSB115ST__ •
15 120/277 3-Way, back & side wire A, B, LA, V, W CSB315ST__ •
cULus Listed to UL20, file no. E18704; NOM certified
Switches
Product description
Single-pole & 3-way
15A,120/277V/AC
Design features
Heavy duty grade toggle switches
• Larger contacts and robust design for extended
switch life
• Backwire clamps on the side terminals provide for
easy installation of #12 and #14 wire
• 120/277V/AC rating ideal for fluorescent lighting
fixtures and a broad variety of applications
• Long, broad steel mounting strap zinc-plated for
corrosion resistance, virtually eliminates floating
installations
• Patented built-in wire stripper for #12 and #14
wire to speed installation
• Ground screw terminal standard
• Stippled line and ground contacts standard
• Tri-combo head mounting and terminal screws
ease installation. Side wire terminals accept up
to #10 solid wire
CSB115ST
ABLA V W
(Almond) (Brown) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), LA (Light Almond),
V (Ivory), W (White).
Dimensional Information: B-68 Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-5
Toggle switches, non-grounding
Rating
A V/AC Description Color suffix Catalog no.
15 120 Single-pole, side wire & push wire B, LA, V, W 1301__ •
15 120 3-way, back wire, side wire & push wire B, LA, V, W 1303__ •
cULus Listed to UL20, file no. E18704; 7504 also UL Listed to Federal Spec WS-896E
Toggle switches, grounding
Rating
A V/AC Description Color suffix Catalog no.
15 120 Single-pole, side wire & push wire A, B, LA, V, W 1301-7__ •
Single-pole, side wire & push wire, auto ground A, B, LA, V, W 1301-9__ •
15 120 3-way, back wire, side wire & push wire A, B, LA, V, W 1303-7__ •
3-way, side wire & push wire, auto ground A, B, LA, V, W 1303-9__ •
15 120 4-way, side wire & push wire A, B, LA, V, W 1242-7__
15 120 Single-pole, less ears, side wire & push wire A, B, LA, W 1301-73__ •
15 120 Lighted, single-pole, side wire & push wire LA, V, W 1301-7LT__ •
15 120 Lighted, 3-way, side wire & push wire V, W 1303-7LT__ •
cULus Listed to UL20, file no. E18704; NOM certified. Lighted models also CSA certified to C22.2, no. 111
Product description
Single-pole, 3-way, 4-way
15A,120V/AC
Design features
Standard grade toggle switches
Switches
• 3-way switches feature additional push-in
common termination for feed-through tapping
• Push-in terminals accept #14 AWG solid wire
only; side wire terminals accept up to #10 AWG
solid wire
• Long, broad mounting strap virtually eliminates
floating installations
• Patented built-in wire stripper for #12 and #14
AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• Tri-combo screws accept Slotted, Phillips,
and Robertson-head tools for installation flexibility
• Lighted models’ toggle glows in “OFF” position
ABLA V W
(Almond) (Brown) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-68
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-22
1303
1301-7
1301-73
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-6
CO/ALR toggle switches
Rating
A V/AC Description Color suffix Catalog no.
15 120 Single-pole, side wire V, W 5221-7__ •
15 120 3-way, side wire V, W 5223-7__ •
Listed to UL20, file no. E18704; CSA certified to C22.2, no. 111
Switches
Product description
Single-pole & 3-way
15A,120V/AC
Design features
Standard grade CO/ALR toggle switches
• For direct connection to aluminum or copper wire
• Industrial design cam action mechanism ensures
quiet switch action
• Side wire terminals accept up to #10 AWG
solid copper wire, and up to #10 AWG solid
aluminum wire
• Terminal screws backed out —ready for wiring
• Patented built-in wire stripper for #12 and #14
wire to speed installation
• Combination Slot/Phillips head mounting and
terminal screws ease installation (Slot/Robertson
screws in Canada where available)
• Long, broad mounting strap virtually eliminates
floating installations
5221-7
V W
(Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-7
Switches
Feed-through cord switch
Rating
A V/AC Description Color suffix Catalog no.
3 120 Feed-through cord switch for #18 AWG SPT-1 cord, ON-OFF sequence,
insulation displacement terminals
B, V, W 410__
cULus Listed to UL20, file no. E208228
Feed-through cord switch
Rating
A V/AC Description Color suffix Catalog no.
3 120 Feed-though cord switch for flat or round cords, ON-OFF sequence,
insulation displacement terminals
Fits the following cord types: #18/2 SPT-1, SPT2 or HPN Cord; #16/2 SPT-1,
SPT2 or HPN Cord; Round Type SVT Cord (max. dia. 9/32”, 7.14mm)
B, V, W 933__ •
Listed to UL20, file no. E47968; CSA certified to C22.2, no. 111; NOM certified
Product description
Feed-through cord switches
Design features
Miscellaneous standard grade switches
• Insulation displacement terminals eliminate need
for stripping insulation from cord conductors
• For in-line, ON/OFF switching
410
933
BV W
(Brown) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: BK (Black), V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-8
Switches
Pull chain canopy switches
Rating
A V/AC VL Description Color Catalog no.
6
3
1
125
250
125 Pull chain with end bell, single-pole, ON-OFF sequence NP 458NP
Pull chain with end bell, single-pole, ON-OFF sequence BD 458BD
UL Recognized component for US & Canada, file no. E89885
Pull chain canopy switches
Rating
A V/AC Description Color Catalog no.
3
3
6
125 “T”
250
250
Single-pole, side wire NP 442
UL Recognized component for US & Canada, file no. E89885
Pull chain canopy switches
Rating
A V/AC Description Color Catalog no.
3
6
250
125
Pull chain with end bell, two-circuit Lo-Med-Hi-OFF sequence BD 460
UL Recognized component for US & Canada, file no. E89885
Push button canopy switches
Rating
A V/AC VL Description Color Catalog no.
1
3
250 125 Metal push button, single-pole, ON-OFF sequence NP 449NP
UL Recognized component for US & Canada, file no. E81103
Product description
Single-pole, two-circuit
1A,125V/AC; 1A, 250V/AC;
3A,125V/AC; 3A, 250V/AC;
6A,125V/AC; 6A, 250V/AC
Design features
Canopy switches
• Wide variety of sizes for use in fixtures,
appliances, doorways and with equipment
• Shank is threaded 15/32”-32 x 15/32”
(11.8mm) long
• Hex nut and finishing nut furnished
• 6” (152.4mm) wire lead terminals, #18 105ºC
stripped 0.75” (19.1mm)
458BD
442
460
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
BD (Brass), ND (Nickel)
(Brass) (Nickel)
BD NP
449NP
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-9
Switches
Circuit control toggle switch
Rating
A V/AC Description Color suffix Catalog no.
1
1
3
125
“T”
250
125
Metal bat handle, single-pole single throw circuit, ON-OFF sequence Silver 452
UL Recognized component for US & Canada, file no. E18704; CSA certified
Product description
Single-pole, single throw
1A,125V/AC; 1A,250V/AC; 3A,125V/AC
Design features
Circuit control switches
• Shank is threaded 15/32”-32 x 15/32”
(11.8mm) long
• Keyed shank, indicator plate and finishing
nut furnished
• 6” (152.4mm) wire lead terminals, #18 AWG
105ºC stripped 0.75” (19.1mm)
452
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-10
B-11
B
SECTION
Combination devices
Combination device families
Combination
USB charger
with tamper
resistant
receptacle
B-14
Decorator
heavy duty
grade
combination
devices
B-15
Traditional
style heavy
duty grade
combination
devices
B-16
Combination device colors
Dimmable
nightlight
heavy duty
grade
combination
devices
B-18
Brown Ivory
White
Almond Black
Lt. Almond
Combination devices
Providing either 2 or 3 devices in a single-gang box with decorator or traditional styling, our broad
line of combination devices encompasses switches, receptacles, pilot lights and nightlights.
Bathrooms, kitchens, basements and hallways are all locations that often require or can benefit
from the space savings and convenience of combination devices.
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-12
SECTION
The Eaton difference
See page B-15
Shown:
7728
Light & motor control
Combination switches are horsepower rated to carry
motor loads such as bathroom fans and garbage
disposals on the same or separate circuits.
Specific combination device solutions for today's needs
Shown:
TR7735
LED nightlight combinations
Ideal for bathrooms, hallways, stairs and landings,
flush-mount LED nightlight combination devices
provide added safety and comfort along with
switch or receptacle functionality.
See page B-18
Shown:
TR7740
USB charging devices
Perfect for quickly and easily charging most
electronic components without powered computers
or bulky adapters.
See page B-14
• Convenient patented built-in wire stripper speeds installation
• Steel mounting strap is zinc-plated for added corrosion resistance
• USB Receptacles allow for quick and convenient charging of most
electronic components
• Nightlight models feature dimmable LED lamps
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-13
• Standard AC receptacle with two USB charging
ports for conveniently charging most electronic
components
• Dual USB charging ports charge most
compatible electronic devices that charge via
a 5V power adapter
• Three (3) pre-stripped 6” wire leads for line,
neutral and ground for quick and easy installation
(TR7745 and TR7746 only)
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Automatic grounding system eliminates need
for bonding jumper in grounded metal enclosure
and provides redundant measure of ground
continuity where jumper is used
• Thermoplastic top and back-body are virtually
unbreakable to deliver years of durable
performance
• Steel mounting strap is zinc-plated for added
corrosion resistance
• Convenient patented built-in wire strippers
speeds installation
• Backwire clamps on side terminals provide
for easy installation of #12 and #14 AWG wire
(TR7740)
• Triple wipe blade contacts and double wipe
ground contacts to insure long-term
plug retention
• Replaces a standard duplex receptacle
Product description
2-pole, 3-wire grounding
15A,125V/AC, 5V DC 700MA
15A,125V/AC, 5V DC 2.1A
20A,125V/AC, 5V DC 2.1A
Design features
Combination USB charger with tamper resistant receptacle
Combination devices
Combination USB charger with TR receptacle
Rating
A V/AC A V/DC Description Color suffix Catalog no.
15 125 0.70 5 Combination USB charger with TR receptacle A, BK, GY, LA, V, W TR7740__
15 125 2.1 5 USB charger with TR duplex receptacle, wire leads A, B, BK, GY, LA, V, W TR7745__
20 125 2.1 5 USB charger with TR duplex receptacle, wire leads A, B, BK, GY, LA, V, W TR7746__
cULus Listed UL 498 and UL1310; NOM certified
TR7740
TR7745
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-14
• 120/277V/AC rating ideal for fluorescent
lighting fixtures and a broad variety
of applications
• Switches are horsepower rated for motor loads
per UL 20
• Thermoplastic rocker, top and backbody are
virtually unbreakable to deliver years of durable
performance
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Steel mounting strap is zinc-plated for added
corrosion resistance
• Convenient patented built-in wire stripper
speeds installation
• Backwire clamps on side terminals provide for
easy installation of #12 and #14 AWG wire
• Triple wipe blade contacts and double wipe
ground contacts to insure long-term
plug retention (TR7730)
• Tri-combo screw heads offer greater
installation flexibility
Decorator combination switches
Rating
A V/AC Description Color suffix Catalog no.
600 120 Two single-pole switches, back & side wire A, BK, LA, V, W 7728__
600 120 Three single-pole switches, back & side wire A, BK, LA, V, W 7729__
1000 120 Two 3-way switches, back & side wire A, BK, LA, V, W 7731__
1000 120 One single-pole switch w/ one 3-way switch, back & side wire A, BK, LA, V, W 7732__
cULus Listed to UL20, file no. E18704; NOM certified
Decorator combination switch with receptacle
Rating
A V/AC Description Color suffix Catalog no.
15 120 One single-pole switch with
one tamper resistant NEMA 5-15R receptacle,
back & side wire
A, BK, LA, V, W TR7730__
15 125
cULus Listed to UL20, file no. E18704; NOM certified
Horsepower rated for motor loads per UL 20
Rating
A 120V/AC 240V/AC Max. Amps
15 1/2 HP 2 HP 12
Product description
Single-pole, 3-way
15A,120V/AC switches
15A,125V receptacles
Design features
Decorator heavy duty grade combination devices
Combination devices
ABK LA V W
(Almond) (Black) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), LA (Light Almond), V (Ivory), W (White).
7729
TR7730
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-15
• Combination switches with pilot light (277 & 294)
can be wired to indicate power ON or power OFF
• 120/277V/AC rating ideal for fluorescent lighting
fixtures and a broad variety of applications
• Switches are horsepower rated for motor loads
per UL 20
• Thermoplastic toggle, top and backbody are
virtually unbreakable to deliver years of durable
performance
• Ultrasonic welding and integrated construction
of the strap and body provide superior ground
integrity even under heavy use
• Automatic grounding system eliminates the need
for bonding jumper in grounded metal enclosure
and provides redundant measure of ground
continuity where a jumper is used
• Steel mounting strap is zinc-plated for added
corrosion resistance
• Convenient patented built-in wire stripper
speeds installation
• Backwire clamps on side terminals provide for
easy installation of #12 and #14 AWG wire
• Terminal screws are backed out and ready for
wiring to enhance ease of installation
• Tri-combo screw heads offer greater
installation flexibility
Product description
Single-pole, 3-way, pilot light
15A,120/277V/AC switches; 15A, 120V/AC switches
Design features
Traditional heavy duty grade combination devices
Combination devices
271
277
Toggle combination switches
Rating
A V/AC W V Description Color suffix Catalog no.
15 120/277 Two single-pole switches, back & side wire A, B, LA, V, W 271__
15 120/277 Two 3-way switches, back & side wire LA, V, W 276__
15 120 1/25 125 One single-pole switch with pilot light, back & side wire B, LA, V, W 277__
cULus Listed to UL20, file no. E18704; CSA certified to C22.2, no. 111; NOM certified, except 275; NOM certified
Toggle combination switches
Rating
A V/AC W V Description Color suffix Catalog no.
15 120/277 One single-pole switch with one 3- way switch,
back & side wire
B, LA, V, W 275__
15 120 1/25 125 One 3-way switch with pilot light, back & side wire B, V 294__
cULus Listed to UL20/UL498, file no. E18704; CSA certified to C22.2, no. 111, except 294
Horsepower rated for motor loads per UL 20
Rating
A 120V/AC 240V/AC Max. Amps
15 1/2 HP 2 HP 12
ABK LA V W
(Almond) (Black) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), LA (Light Almond), V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-16
• Combination switch with receptacle
features UL Listed tamper resistant
shutters that prevent the insertion
of foreign objects
• Neon pilot light is ON when switch is ON
(TR274 & TR291)
• Switches are horsepower rated for motor
loads per UL 20
• Thermoplastic toggle, top and backbody are
virtually unbreakable to deliver years of durable
performance
• Automatic grounding system eliminates the need
for bonding jumper in grounded metal enclosure
and provides redundant measure of ground
continuity where a jumper is used
• Steel mounting strap is zinc-plated for added
corrosion resistance
• Backwire clamps on side terminals provide for
easy installation of #12 and #14 AWG wire
• Triple wipe blade contacts and double wipe
ground contacts ensure long-term plug retention
on receptacles
• Tri-combo screw heads offer greater
installation flexibility
Toggle combination switch with receptacle
Rating
A V/AC Description Color suffix Catalog no.
15
15
120
125
One single-pole switch with one tamper resistant NEMA 5-15R
2-pole, 3-wire receptacle, back & side wire
A, B, BK, LA,
V, W
TR274__
15
15
120
125
One 3-way switch with one tamper resistant NEMA 5-15R
2-pole, 3-wire receptacle, back & side wire
A, B, BK, LA,
V, W
TR293__
cULus Listed to UL20/UL498, file no. E18704; NOM certified
Toggle combination switch with receptacle
Rating
A V/AC Description Color suffix Catalog no.
15
20
120
125
One single-pole switch with one tamper resistant NEMA 5-20R
2-pole, 3-wire receptacle, back & side wire
A, B, BK, LA,
V, W
TR291__
cULus Listed to UL20/UL498, file no. E18704; NOM certified
Horsepower rated for motor loads per UL 20
Rating
A 120V/AC 240V/AC Max. Amps
15 1/2 HP 2 HP 12
20 1 HP 2 HP 16
Product description
Single-pole, 3-way
15A,120V/AC switches
15A,125V/AC receptacles
20A,125V/AC receptacles
Design features
Traditional heavy duty grade combination devices
Combination devices
AB BK LA V W
(Almond) (Brown) (Black) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown) BK (Black), LA (Light Almond),
V (Ivory), W (White).
TR274
TR291
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper Resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-17
• Light sensor turns the nightlight ON when
ambient light is low, and OFF when ambient
light is high
• Nightlights are dimmable to desired light level
• Long-lasting energy efficient LED bulbs are rated
for 50,000 hours lamp life
• Nightlight features full dimming as well as
3 preset levels to easily match light levels on
devices mounted in series
• Nightlights use 3 LED lamps that consume a
maximum of 1 watt of energy
• Combination nightlight/receptacle
(TR7735 & TR7736) features UL Listed
Tamper Resistant shutters that prevent
the insertion of foreign objects
• Automatic grounding system eliminates the need
for bonding jumper in grounded metal enclosure
and provides redundant measure of ground
continuity where a jumper is used
• Terminal screws are backed out and ready for
wiring to enhance ease of installation
• Devices mounted in series can be controlled by
an external switch in guide light mode
Product description
Single-pole 15A,120V/AC
15A,125V/AC switches
15A,125V/AC; 20A,125V/AC receptacles
120V nightlight
Design features
Dimmable LED nightlight heavy duty grade combination devices
Combination devices
LED nightlight combination with switch
Rating
A V/AC W Description Color suffix Catalog no.
15 120 1 One single-pole switch with nightlight, back & side wire A, BK, LA, V, W 7738__
cULus Listed to UL20, file no. E18704; NOM certified
LED nightlight combination with receptacle
Rating
A V/AC W Description Color suffix Catalog no.
15
15
120
125
1Nightlight with one tamper resistant NEMA 5-15R
2-pole, 3-wire receptacle, back & side wire
A, BK, LA, V, W TR7735__
20
20
120
125
1Nightlight with one tamper resistant NEMA 5-20R
2-pole, 3-wire receptacle, back & side wire
A, BK, LA, V, W TR7736__
cULus Listed to UL498, file no. E15058; NOM certified
Full LED nightlight
Rating
V/AC W Description Color suffix Catalog no.
120 1 Full hallway nightlight, back & side wire A, BK, LA, V, W 7737__
cULus Listed to UL1598, file no. E334295; NOM certified
ABK LA V W
(Almond) (Black) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), LA (Light Almond), V (Ivory), W (White).
7738
TR7735
7737
Dimensional information: B-68
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-18
B-19
B
SECTION
Receptacles
Receptacle families
Outlet
branch
circuit AFCI
B-22
Heavy duty
grade
B-23
Decorator
standard
grade
B-24
Standard
grade
B-25
Specialty
standard
grade
B-28
Academy
series
outlets
B-29
Receptacle colors
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
Receptacles
From decorator and standard styles to tamper resistant receptacles, our broad line covers
virtually any need throughout a house. All of our receptacles are designed for long-term
reliability and ease of installation, while meeting and exceeding the latest industry and UL
performance standards.
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-20
SECTION
The Eaton difference
See page B-23
Shown:
TR270
Child safety
Tamper resistant receptacles not only provide code
compliance, they also deliver automatic, continual
protection from electrical injury as a result of
inserting foreign objects.
Specific receptacle solutions for today's needs
Shown:
TR780
Home entertainment devices
Today’s flat-screen televisions mount closely to
the wall, requiring recessed receptacles to permit
tight mounting clearances and leave more room
for cord control.
See page B-28
Shown:
5270
Aluminum wiring
There are many homes that still contain aluminum
wiring. Using hybrid copper & aluminum compatible
(CO/ALR) receptacles can reduce the hazards of
aluminum wiring.
See page B-27
• Extra durability Heavy Duty Grade models available for high abuse areas
• Screw-Catch feature on traditional duplex devices automatically holds the
wallplate mounting screw in place
• Built-in wire looper to speed termination of both #14 and #12 AWG wire
• Slotted, Phillips and Robertson Tri-combo screw heads offer greater
installation flexibility
• Tamper Resistant versions provide compliance with 2014 NEC® section 406.12
and provide significantly improved protection over traditional receptacles with
removable plastic safety caps
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-21
• Designed to recognize an arc fault and quickly
trip to stop the flow of electricity to prevent
the electrical system from being an ignition
source of fire
• Meets 2014 NEC® 406.4 (D)(4) requirements for
replacement receptacles for dwelling units
• Meets 2014 NEC® requirements when installed as
defined in Article 210.12 (A) for dwelling units
• Proven Eaton AFCI technology refined over
several years to minimize unwanted tripping
• Lockout feature provides safest design by
prohibiting the AFCI from resetting if the AFCI
circuit is not functioning properly
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Perfect for use in dwelling units, remodel/
retrofit applications, dormitories and
commercial buildings
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
Design features
Outlet branch circuit AFCI receptacles
Receptacles
Tamper resistant AFCI receptacle
Rating
A V/AC Description Color suffix Catalog no.
15 120 AFCI duplex receptacle, tamper resistant A, B, BK, GY, LA, V, W TRAFCI15__
20 125 AFCI duplex receptacle, tamper resistant A, B, BK, GY, LA, V, W TRAFCI20__
TRAFCI15W
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
TRAFCI20V
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-22
• Heavy duty grade receptacles are designed
and built for heavier use and feature enhanced
ground contacts
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Durable impact-resistant thermoplastic face and
back body is virtually unbreakable and also
chemical-resistant
• Side-wire terminals accept up to #10 AWG
solid wire
• Screw-Catch feature on duplex devices speeds
mounting of wallplates
• Galvanized steel wrap-around mounting strap
for superior assembly security
• Patented built-in wire stripper for #12 and
#10 AWG wire (except TRCR models) to
speed installation
• Duplex and decorator devices feature automatic
grounding system that eliminates the need for
bonding jumper in grounded metal enclosures
and provides a redundant measure of ground
continuity where a jumper is used
Heavy duty tamper resistant duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 120 Tamper resistant NEMA 5-15R duplex receptacle, side wire A, B, BK, GY, LA, V, W TRCR15__
20 125 Tamper resistant NEMA 5-20R duplex receptacle, side wire A, B, BK, GY, LA, V, W TRCR20__
cULus Listed to UL498, file no. E15058; NOM certified
Heavy duty tamper resistant single receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant NEMA 5-15R decorator single receptacle,
side wire
B, BK, V, W TR6250__ •
15 125 Tamper resistant NEMA 5-15R single receptacle, side wire A, B, BK, LA, V, W TR817__
20 125 Tamper resistant NEMA 5-20R decorator single receptacle,
side wire
LA, V, W TR6350__
20 125 Tamper resistant NEMA 5-20R single receptacle, side wire A, B, BK, LA, V, W TR1877__
cULus Listed to UL498, file no. E15058; NOM certified
Heavy duty single receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 5-15R Single receptacle, side wire B, BK, LA, V, W 817__ •
20 125 5-20R Single receptacle, side wire A, B, BK, LA, V, W 1877__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
Design features
Heavy duty grade receptacles
Receptacles
TRCR20
TR6250
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-68, B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Tamper resistant
1877
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-23
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Longer, wider strap provides 40% more contact
area to wall board, virtually eliminating floating
installations
• Patented built-in wire stripper for #14 and #12
AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• High impact-resistant thermoplastic face and back
body eliminates breakage
• Double-wipe ground contacts ensure long-term
ground retention
• Easy access split circuit break-off tab
• Tri-combo screws accept Slotted-, Phillips, and
Robertson-head tools for installation flexibility
• Terminal screws backed out and ready for wiring
• Side wire terminals accept up to #10 AWG
solid wire
• Push-in terminals accept #14 AWG solid wire
Decorator tamper resistant duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant NEMA 5-15R decorator duplex receptacle,
side & push wire
A, B, BK, GY, LA, V, W TR1107__ •
15 125 Auto grounding tamper resistant NEMA 5-15R
decorator duplex receptacle, side & push wire
A, B, BK, LA, V, W TR1107-9__ •
20 125 NEMA 5-20 tamper resistant decorator duplex receptacle,
side wire only
A, B, BK, GY, LA, V, W TR1307__ •
cULus Listed to UL498, file no. E15058; NOM certified
Decorator duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R decorator duplex receptacle, side & push wire A, B, BK, GY, LA, V, W 1107__ •
15 125 Auto grounding NEMA 5-15R decorator duplex receptacle,
side & push wire
A, BK, LA, V, W 1107-9__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
15A & 20A,125V/AC
Design features
Decorator standard grade receptacles
Receptacles
TR1107-9
1107
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-68, B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Tamper resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-24
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Tamper and weather resistant receptacles provide
both tamper resistant safety and
ensure weather resistance in wet
and damp outdoor locations
• Longer, wider strap provides 40% more contact
area to wall board, virtually eliminating floating
installations
• Patented built-in wire stripper for #14 and #12
AWG wire to speed installation
• Push-in terminals accept #14 AWG solid wire
• Patented built-in wire looper for pre-looping
• High impact-resistant thermoplastic face and back
body eliminates breakage
• Double-wipe ground contacts ensure long-term
ground retention
• Easy access split circuit break-off tab
• Tri-combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
• Terminal screws backed out and ready for wiring
• Side wire terminals accept up to #10 AWG
solid wire
Tamper resistant duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant NEMA 5-15R duplex receptacle,
side & push wire
A, B, BK, LA, V, W TR270__ •
15 125 Auto grounding tamper resistant NEMA 5-15R,
duplex receptacle, side & push wire
A, B, LA, V, W TR270-9__ •
20 125 NEMA 5-20 tamper resistant duplex receptacle,
2-pole, 3-wire, side wire A, B, BK, GY, LA, V, W TR370__
cULus Listed to UL498, file no. E15058; NOM certified
Tamper & weather resistant duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper & weather resistant NEMA 5-15R
duplex receptacle, side & push wire
LA, V, W TWR270__ •
cULus Listed to UL498, file no. E15058; NOM certified
Duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R duplex receptacle, side & push wire A, B, BLK, LA, V, W 270__ •
15 125 Auto grounding NEMA 5-15R duplex receptacle,
side & push wire
A, B, LA, V, W 270-9__ •
15 125 NEMA 5-15R duplex receptacle, less ears, side & push wire A, B, BK, LA, V, W 4270__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
2-pole, 2-wire non-grounding
15A & 20A,125V/AC
Design features
Standard grade receptacles
Receptacles
TR270
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White).
TWR270
Dimensional information: B-68, B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21 Tamper & weather resistant
Tamper resistant
270
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-25
Duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 1-15R duplex receptacle, non-grounding, side wire B, V, W 736__ •
Listed to UL498, file no. E15058; NOM certified
Duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R duplex receptacle, 8 quick wire ports, push wire V, W 298__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
2-pole, 2-wire non-grounding
15A,125V/AC
Standard grade receptacles
Receptacles
AB BK LA V W
(Almond) (Brown) (Black) (Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), LA (Light Almond),
V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
298
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-26
• For direct connection to aluminum or copper wire
• Double-wipe ground contacts ensure long-term
ground retention
• Combination Slotted/Phillips head mounting and
terminal screws for installation flexibility
• Easy access split circuit break-off tab
• Terminal screws backed out and ready for wiring
• Side wire terminals accept up to #10 solid copper
wire or solid aluminum wire
Product description
2-pole, 3-wire grounding
15A,125V/AC
Design features
CO/ALR standard grade receptacles
Receptacles
5270
CO/ALR duplex receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 1-15R duplex receptacle, non-grounding, side wire V, W 5270__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
V W
(Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: V (Ivory), W (White).
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-27
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Surface receptacles for use with surface mounted
wiring to expand convenience receptacles on solid
plaster, brick or concrete walls
• Floor box assembly includes heavy-duty single
receptacle on recessed mounting strap,
18 cu. in. steel back box, solid brass cover,
gasket and threaded brass closure cap with
watertight neoprene rubber “O” ring
• High impact-resistant thermoplastic face and back
body eliminates breakage
• Double-wipe ground contacts ensure long-term
ground retention
• Tri-combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
• Side wire terminals accept up to #10 AWG
solid wire
• Recessed receptacles feature a virtually
unbreakable thermoplastic housing and tamper
resistant shutters
Recessed receptacles
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant NEMA 5-15R single receptacle, with clock hanger,
side wire
W TR775__ •
15 125 Tamper resistant NEMA 5-15R duplex receptacle, side wire W TR780__
cULus Listed to UL498, file no. E15058; NOM certified
Surface receptacle NEMA 5-15R
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R duplex surface receptacle B, V 78__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Surface receptacle NEMA 6-15R
Rating
A V/AC Description Color suffix Catalog no.
15 250 NEMA 6-15R duplex surface receptacle V 74__ •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified except 74
Floor box receptacles
Rating
A V/AC Description Color Catalog no.
15 125 Tamper resistant NEMA 5-15R single receptacle brass floor box assembly,
back & side wire
B TR5797
cULus Listed to UL498, file no. E15058
Product description
2-pole, 3-wire grounding
2-pole, 2-wire non-grounding
15A, 250V/AC
Design features
Specialty standard grade receptacles
Receptacles
B BK V W
(Brown) (Black) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), BK (Black), V (Ivory), W (White).
TR780
78
TR5797
Dimensional information: B-68 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Tamper resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-28
Academy series outlets
Rating
A V/AC Description Color suffix Catalog no.
10 125 NEMA 1-15R polarized cord outlet, for 18-2 SPT-1, SPT-2 or HPN cord B, BK, W 2607__
Listed to UL498, file no. E15012; NOM certified
Academy series outlets
Rating
A V/AC Description Color suffix Catalog no.
10 125 NEMA 1-15R cord end triple outlet cube tap, for 18-2 SPT-1 cord B, W 2602__
10 125 NEMA 1-15R cord end triple outlet table tap, for 18-2 SPT-1 cord B, W 2603__
10 125 NEMA 1-15R polarized in-line outlet, for 18-2 SPT-1 or HPN cord B, BK, W 2606__
10 125 NEMA 1-15R in-line outlet, for 18-2 SPT-1 cord B, BK, W 2609__
• High impact resistant thermoplastic housing
is virtually indestructible
• Outlets quickly add a receptacle to ordinary
household wire
• Insulation piercing terminals eliminate the need
for tools— just snap in unstripped wire and
device is ready for use
Product description
2-pole, 2-wire non-grounding
10A,125V/AC
Design features
Academy series standard grade outlets
Receptacles
B BK W
(Brown) (Black) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), BK (Black), LA (Light Almond), V (Ivory), W (White).
Dimensional information: B-69
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
2607
2602
2603
2606
2609
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-29
GFCIs
Our Ground Fault Circuit Interrupters (GFCIs) provide state-of-the-art, dependable electric shock
protection that is fully compliant with the latest NEC® & UL943 standards. In addition to being
tested to the highest standards, our GFCIs will deny power and prevent re-setting if the device is
no longer able to provide safe, protected power.
GFCIs
GFCI families
Heavy
duty
grade
B-32–B-35
Tamper
resistant
heavy
duty
grade
B-32, B-34
Specialty
heavy
duty
grade
B-35
GFCI colors
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-30
SECTION
The Eaton difference
See page B-32
Shown:
TRVGF15
Tamper resistance
Tamper resistant GFCIs provide shock protection,
code compliance, and also deliver automatic,
continual protection from electrical injury as a
result of inserting foreign objects.
Specific GFCI solutions for today's needs
Shown:
WRVGF15
Weather resistance
Weather resistant GFCIs are constructed with
enhanced nylon and corrosion resistant metal
components for use in outdoor applications with
appropriate weatherproof enclosures.
See page B-32
Shown:
VGFD20
Motor load GFCIs
Our line includes specialty GFCIs for specific needs,
like hot tubs requiring installed dead-front GFCI
protection, or tight bathroom spaces that need a
combination switch and GFCI.
See page B-35
• Large visual indicator light gives quick notification of a tripped or
“end of life” condition
• Unbreakable nylon construction provides unsurpassed chemical and
impact resistance
• Ground termination with backwire clamp provides secure wiring and reduces
installation time
• Horizontal Test/Reset button alignment provides larger unobstructed area; buttons
color matched for superior aesthetics
• Line-load mis-wiring protection, will not provide power downstream when
wired incorrectly
• Tamper Resistant versions provide compliance with 2014 NEC® section 406.12
and provide significantly improved protection over traditional receptacles with
removable plastic safety caps
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-31
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Weather resistant receptacles comply
with 2014 NEC® Article 406.9 that states
that all receptacles installed in wet or
damp locations must be weather resistant
• UL Listed, fully compliant with all latest
UL943 (4th edition) Class A GFCI requirements
• Nightlight is controlled by a light sensor that
turns the light on in the dark and off in the light
(TRVGFNL15 and TRVGFNL20 only)
• Nightlight LEDs produce color temperature of
3000-3500k for a warm “incandescent-like” glow
(TRVGFNL15 and TRVGFNL20 only)
• 10 kA short circuit current rating per Supplement
SA of UL943
• Shock Sentry lock-out function protects from
miswired line-load connections and GFCI circuitry
damage
• Large visual indicator light provides quick visual
reference of a tripped or “end of life” condition
• 20A feed through rating
• Matching standard size thermoplastic wallplate
included unless mid-size noted
Product description
2-pole, 3-wire grounding
15A,125V/AC
15A,125V/AC
Design features
Heavy duty grade GFCIs
GFCIs
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
R (Red), V (Ivory), W (White).
TRVGF20
TWRVGF15
Dimensional information: B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant Tamper & weather resistant
Weather resistant
Tamper resistant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper resistant duplex GFCI with nightlight, back & side wire A, BK, LA, V, W TRVGFNL15__
20 125 Tamper resistant duplex GFCI with nightlight, back & side wire A, BK, LA, V, W TRVGFNL20__
15 125 Tamper resistant NEMA 5-15R duplex GFCI, back & side wire A, B, BK, GY, LA, V, W TRVGF15__
15 125 Tamper resistant NEMA 5-15R duplex GFCI,
with mid-size wallplate, back & side wire
A, LA, V, W TRVGF15__-M
15 125 Automatic grounding tamper resistant NEMA 5-15R
duplex GFCI, back & side wire
A, B, BK, GY, LA, V, W TRVGF15-AG
20 125 Tamper resistant NEMA 5-20R duplex GFCI, back & side wire A, B, BK, GY, LA, RD, V, W TRVGF20__
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
Tamper & weather resistant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper & weather resistant NEMA 5-15R duplex GFCI, back & side wire B, GY, LA, V, W TWRVGF15__
20 125 Tamper & weather resistant NEMA 5-20R duplex GFCI, back & side wire A, B, GY, LA, V, W TWRVGF20__
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
Weather resistant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Weather resistant NEMA 5-15R duplex GFCI, back & side wire B, GY, V, W WRVGF15__
20 125 Weather resistant NEMA 5-20R duplex GFCI, back & side wire B, BK, GY, V, W WRVGF20__
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-32
Heavy duty grade GFCIs
GFCIs
Ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R duplex GFCI, back & side wire A, B, BK, GY, LA, V, W VGF15__
15 125 NEMA 5-15R duplex GFCI, with mid-size wallplate,
back & side wire
A, LA, V, W VGF15__-M
15 125 Automatic grounding NEMA 5-15R duplex GFCI,
back & side wire
V, W VGF15__-AG
20 125 NEMA 5-20R duplex GFCI, back & side wire A, B, BK, GY, LA, RD, V, W VGF20__
20 125 Automatic grounding NEMA 5-20R duplex GFCI,
back & side wire
V, W VGF20__-AG
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
R (Red), V (Ivory), W (White).
Dimensional information: B-69 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
• UL Listed, fully compliant with all latest
UL943 (4th edition) Class A GFCI requirements
• 10 kA short circuit current rating per UL943
• Shock Sentry lock-out function protects from
miswired line-load connections and GFCI
circuitry damage
• Large visual indicator light provides quick visual
reference of a tripped or “end of life” condition
• 20A feed through rating
• Matching standard size thermoplastic wallplate
included unless mid-size noted
Product description
2-pole, 3-wire grounding
15A,125V/AC
15A,125V/AC
Design features
VGF20
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-33
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• UL Listed, fully compliant with all latest
UL943 (4th edition) Class A GFCI requirements
• 10 kA short circuit current rating per Supplement
SA of UL943
• Shock Sentry lock-out function protects
from miswired line-load connections and
GFCI circuitry damage
• Large visual indicator light provides quick visual
reference of a tripped or “end of life” condition
• 20A feed through rating
• Longer, wider “bridged” strap provides 40% more
contact area with wallboard, virtually eliminating
floating installations
• Matching standard size thermoplastic wallplate
included unless mid-size noted
Heavy duty grade GFCIs
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
Design features
GFCIs
VGF20F
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
R (Red), V (Ivory), W (White).
NAFTA compliant tamper resistant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper Resistant NEMA 5-15R duplex GFCI, back & side wire B, BK, GY, LA, RD, V, W TRVGF15F__ •
20 125 Tamper Resistant NEMA 5-20R duplex GFCI, back & side wire B, BK, GY, LA, RD, V, W TRVGF20F__ •
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
NAFTA compliant tamper & weather resistant resistant
ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Tamper & Weather Resistant NEMA 5-15 duplex GFCI, back & side wire B, GY, LA, V, W TWRVGF15F__ •
20 125 Tamper & Weather Resistant NEMA 5-15 duplex GFCI, back & side wire B, GY, LA, V, W TWRVGF20F__ •
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
NAFTA compliant weather resistant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 Weather Resistant NEMA 5-15 duplex GFCI, back & side wire B, GY, V, W WRVGF15F__ •
20 125 Weather Resistant NEMA 5-15 duplex GFCI, back & side wire B, GY, V, W WRVGF20F__ •
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
NAFTA compliant ground fault circuit interrupters
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 5-15R duplex GFCI, back & side wire B, BK, GY, LA, RD, V, W VGF15F__ •
20 125 NEMA 5-20R duplex GFCI, back & side wire B, BK, GY, LA, RD, V, W VGF20F__ •
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
Dimensional information: B-69
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21 Weather resistant
Tamper resistant Tamper & weather resistant
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-34
GFCIs
Combination ground fault circuit interrupter & switch
Rating
A V/AC Description Color suffix Catalog no.
15 125 Combination NEMA 5-15R GFCI with feed through single-pole switch,
rated 1800W @ 120V/AC, 60Hz, with mid-size wallplate, back & side wire
A, LA, V, W VGFS15__-MSP
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
Dead front ground fault circuit interrupter
Rating
A V/AC Description Color suffix Catalog no.
20 125 Blank face dead front GFCI, rated as 1.5 HP motor control switch,
back & side wire
A, BK, LA, V, W VGFD20__
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
R (Red), V (Ivory), W (White).
Dimensional information: B-69
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Specialty heavy duty grade GFCIs
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
VGFS15
VGFD20
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-35
Power devices
Power device families
Heavy duty
grade power
receptacles
B-41
Heavy duty
grade power
plugs &
adapters
B-44
Power device colors
Range &
dryer power
plugs
B-40
Range &
dryer power
receptacles
B-38 Brown
White
Almond Black
Lt. Almond
Ivory
Stainless Steel
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-36
Power devices
Today’s homes feature sophisticated appliances requiring power devices that are more
durable and reliable than ever, and our power devices are specifically designed to meet those
challenges. They can also deliver reliable connection points for generators, welders, other heavy
workshop tools along with recreational vehicles.
SECTION
The Eaton difference
See page B-40
Shown:
S21
Newer home solutions
Current code requires range & dryer applications
to use 4-wire grounding connections. Homes
built after 1996 usually have 4-wire grounding
connection points for dryers & ranges.
Specific power device solutions for today's needs
Shown:
32B
Remodel/retrofit solutions
Homes built prior to 1996 that haven’t been
re-wired will typically use 3-wire non-grounding
connection points for ranges and dryers, which
we support with a complete line of power devices.
See page B-38
Shown:
1264
Solutions for welders, generators and RVs
Power devices are also used by other equipment.
Our broad offering includes 30A, 50A & 60A devices
for specialty connection point needs.
See pages B-41 to B-44
• Receptacles will accept copper or aluminum wire
• Surface mount receptacles feature patented lay-in terminals that accept
up to #4 AWG wire
• Surface mount receptacles allow wiring from back or bottom and feature
concentric back knockouts plus an adjustable cord clamp
• Flush mount receptacles feature a heavy gauge galvanized steel mounting strap
for corrosion resistance and fit in either 1- or 2-Gang enclosures
• “Universal” model plugs include blades for both 30A & 50A configurations of the
same voltage
• Plug terminals feature pressure plates to protect wires
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-37
Flush power receptacles
Rating
A V/AC Description Color Catalog no.
30 125/250 NEMA 10-30R flush mount dryer power receptacle, matching plug S80 B 38B •
50 125/250 NEMA 10-50R flush mount range power receptacle, matching plug S80 B 32B •
cULus Listed to UL498 & UL943, file no. E60120; NOM certified
Surface power receptacles
Rating
A V/AC Description Color Catalog no.
30 125/250 NEMA 10-30R flush mount dryer power receptacle, matching plug S80 BK 125 •
50 125/250 NEMA 10-50R flush mount range power receptacle, matching plug S80 BK 112 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Flush power receptacles
Rating
A V/AC Description Color Catalog no.
30 125/250 NEMA 14-30R flush mount dryer power receptacle, matching plug S21 BK 1257 •
50 125/250 NEMA 14-50R flush mount range power, matching plug S21 BK 1258 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
• For replacement use in older homes with 3-wire
range and dryer connection points
• Heavy gauge galvanized steel mounting strap for
corrosion resistance
• Flush receptacles fit one-gang or two-gang
enclosures
• For use with copper or aluminum wire
• Surface receptacles have patented lay-in
terminals that accept up to #4 AWG wire
• Surface receptacle backs feature concentric
knockouts and an adjustable cord clamp to allow
wiring from back or bottom
Range & dryer power receptacles
Product description
3-pole, 3-wire non-grounding
30A,125/250V/AC
50A,125/250V/AC
Design features
Power devices
B BK
(Brown) (Black)
Color ordering information:
B (Brown), BK (Black)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
32B
112
1258
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-38
Surface power receptacles
Rating
A V/AC Description Color Catalog no.
30 125/250 NEMA 14-30R surface mount dryer power receptacle, matching plug S21 BK 1225 •
50 125/250 NEMA 14-50R surface mount range power receptacle, matching plug S21 BK 1212 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Panel power receptacles
Rating
A V/AC Description Color Catalog no.
50 125 NEMA 14-50R panel mount range power receptacle, matching plug S21 BK 58 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Compatible wallplates / standard size for flush power receptacles
Description Color suffix Catalog no.
Thermoset 1-gang wallplate for one power receptacle A, B, V, W 2068__ •
Thermoset 2-gang wallplate for one power receptacle A, B, LA, V, W 2168__ •
Listed to UL498, file no. E15058
Compatible wallplates / standard size for flush power receptacles
Description Color Catalog no.
1-gang wallplate for one power receptacle Stainless Steel 93221 •
2-gang wallplate for one power receptacle Stainless Steel 93227 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42
Compatible wallplates / standard size for flush power receptacles
Description Color suffix Catalog no.
Nylon 1-gang wallplate for one power receptacle V 5068 •
Polycarbonate 1-gang wallplate of one power receptacle B, BK, V, W PJ724__
Polycarbonate 2-gang wallplate for one power receptacle B, V, W PJ703__
Listed to UL498, file no. E15058
Range & dryer power receptacles
Product description
3-pole, 4-wire grounding
30A,125/250V/AC
50A,125/250V/AC
Power devices
1212
58
AB BK LA V W
(Almond) (Brown) (Black) (Lt. Almond) (Ivory) (Stainless Steel) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), LA (Light Almond),
V (Ivory), Stainless Steel, W (White).
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-39
Universal power plugs
Rating
A V/AC Description Color Catalog no.
30 125/250 Universal NEMA 10-30P/10-50P range or dryer power plug;
matching receptacles 38B, 125
BK S80 •
50 125/250 Angled NEMA 10-30P/10-50P range or dryer power plug;
matching receptacles 32B, 112
Listed to UL498, file no. E15012; NOM certified
Product description
3-pole, 3-wire non-grounding
30A,125/250V/AC
50A,125/250V/AC
Design features
Range & dryer power plugs
• For replacement use in older homes with
3-wire range and dryer connection points
• Universal plugs include blades for both 30A
and 50A configurations of the same voltage
• Terminals have pressure plates to protect wires
• Body made of abuse-resistant thermoplastic
• Accepts #10 - #8 AWG wire
Power devices
Product description
3-pole, 4-wire grounding
30A, 125/250V/AC
50A, 125/250V/AC
Design features
Range & dryer power plugs
• For replacement use in newer homes with
4-wire range and dryer connection points
• Universal plugs include blades for both 30A
and 50A configurations of the same voltage
• Terminals have pressure plates to protect wires
• Body made of durable thermoplastic
• Accepts #10 - #4 AWG wire
S21
S80
Universal power plugs
Rating
A V/AC Description Color Catalog no.
30 125/250 Universal NEMA 14-30P/14-50P range or dryer power plug;
matching receptacles 1257, 1225
BK S21 •
50 125/250 Angled NEMA 14-30P/14-50P range or dryer power plug;
matching receptacles 1212, 1258
Listed to UL498, file no. E15012; NOM certified
BK
(Black)
Color ordering information:
BK (Black)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-40
W
G
• Heavy gauge galvanized steel mounting strap for
corrosion resistance
• For use with copper or aluminum wire
• Flush receptacles fit one-gang or two-gang
enclosures
• Surface receptacles have patented lay-in termi-
nals that accept up to #4 AWG wire
• Surface receptacle backs feature concentric
knockouts and an adjustable cord clamp to allow
wiring from back or bottom
Flush power NEMA TT
Rating
A V/AC Description Color Catalog no.
30 125 NEMA TT-30R flush mount power receptacle, matching plug 83 BK 1263 •
Listed to UL498, file no. E15058; CSA certified to CSA C22.2, no. 42
Flush power NEMA 5-30R & NEMA 6-30R
Rating
A V/AC Description Color Catalog no.
30 125 NEMA 5-30R flush mount power receptacle, matching plug S41 BK 1233 •
30 250 NEMA 6-30R flush mount power receptacle, matching plug S42 BK 1234 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Surface power receptacle
Rating
A V/AC Description Color Catalog no.
30 250 NEMA 6-30R surface mount power receptacle, matching plug S42 BK 1232 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Panel power receptacles
Rating
A V/AC Description Color Catalog no.
30 125 NEMA TT-30R panel mount power receptacle, matching plug 83 BK U1263 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
30A,125V/AC
30A, 250V/AC
Design features
Heavy duty grade power receptacles
Power devices
BK
(Black)
Color ordering information:
BK (Black)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1263
1232
U1263
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-41
Flush power receptacles
Rating
A V/AC Description Color Catalog no.
50 125 NEMA 5-50R flush mount power receptacle, matching plug A41 BK 1253 •
50 250 NEMA 6-50R flush mount power receptacle, matching plug S42 BK 1254 •
Listed to UL498, file no. E15058; CSA certified to CSA C22.2, no. 42
Surface power receptacles
Rating
A V/AC Description Color Catalog no.
50 250 NEMA 6-50R surface mount power receptacle, matching plug S42 BK 1252 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Compatible wallplates / standard size for flush power receptacles
Description Color suffix Catalog no.
Thermoset 1-gang wallplate for one power receptacle A, B, V, W 2068__ •
Thermoset 2-gang wallplate for one power receptacle A, B, LA, V, W 2168__ •
Listed to UL498, file no. E15058
Compatible wallplates / standard size for flush power receptacles
Description Color Catalog no.
1-gang wallplate for one power receptacle Stainless Steel 93221 •
2-gang wallplate for one power receptacle Stainless Steel 93227 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42
Compatible wallplates / standard size for flush power receptacles
Description Color suffix Catalog no.
Nylon 1-gang wallplate for one power receptacle V 5068 •
Polycarbonate 1-gang wallplate of one power receptacle B, BK, V, W PJ724__
Polycarbonate 2-gang wallplate for one power receptacle B, V, W PJ703__
Listed to UL498, file no. E15058
Heavy duty grade power receptacles
Product description
2-pole, 3-wire grounding
50A,125V/AC
50A, 250V/AC
Design features
Power devices
1253
1252
• Heavy gauge galvanized steel mounting strap
for corrosion resistance
• For use with copper or aluminum wire
• Flush receptacles fit one-gang or two-gang
enclosures
• Surface receptacles have patented lay-in
terminals that accept up to #4 AWG wire
• Surface receptacle backs feature concentric
knockouts and an adjustable cord clamp to allow
wiring from back or bottom
AB BK LA V W
(Almond) (Brown) (Black) (Lt. Almond) (Ivory) (Stainless Steel) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), LA (Light Almond),
V (Ivory), Stainless Steel, W (White).
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-42
Flush power receptacles
Rating
A V/AC Description Color Catalog no.
20 125/250 10-20R flush mount power receptacle, side wire, matching plug 2836 V 805__ •
Listed to UL498, file no. E15058; CSA certified to CSA C22.2, no. 42; NOM certified
Product description
3-pole, 3-wire non-grounding
20A,125/250V/AC
60A,125/250V/AC
Design features
Heavy duty grade power receptacles
• Heavy gauge galvanized steel mounting strap
for corrosion resistance
• For use with copper wire
• Accepts #14 - #10 AWG wire
Power devices
Product description
3-pole, 4-wire grounding
60A, 125/250V/AC
Design features
Heavy duty grade power receptacles
• For use with copper or aluminum wire • Accepts #4 - #10 AWG wire
60
Panel power receptacles
Rating
A V/AC Description Color Catalog no.
60 125/250 NEMA 14-60R panel mount power receptacle, matching plug S20 BK 60 •
Listed to UL498, file no. E15058; CSA certified to C22.2, no. 42; NOM certified
Compatible wallplates / standard size for panel mount power receptacles
Description Color suffix Catalog no.
Nylon 2-gang wallplate for one power receptacle V, W 5169__ •
Compatible wallplates / standard size for panel mount power receptacles
Description Color suffix Catalog no.
2-gang wallplate for one power receptacle Stainless Steel 93223 •
1263
BK V W
(Black) (Ivory) (Stainless Steel) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: BK (Black), V (Ivory), Stainless Steel, W (White).
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-43
Power plugs & adapters
Rating
A V/AC Description Color Catalog no.
30 125 Angled NEMA TT-30P power plug, matching receptacle 1263 BK 83 •
30 125 NEMA TT-30 travel trailer plug to receptacle adapter BK 1264 •
83: Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
30A,125/250V/AC
50A,125/250V/AC
Design features
Heavy duty grade power plugs & adapters
• Terminals have pressure plates to protect wires
• 83 accepts #12 - #10 AWG wire
• 1264 adapts travel trailer plug to female 15A or
20A, 125V/AC NEMA 5-15R or 5-20R receptacle
Power devices
Product description
2-pole, 3-wire grounding
30A, 125V/AC; 30A, 250V/AC
50A, 125V/AC; 50A, 250V/AC
Design features
Heavy duty grade power plugs & adapters
• Universal plugs include blades for both 30A and
50A configurations of the same voltage
• Terminals have pressure plates to protect wires
• Bodies made of durable thermoplastic
• Accepts #10 - #6 AWG wire
S41
83
Universal power plugs
Rating
A V/AC Description Color Catalog no.
30 125 Universal NEMA 5-30P/5-50P power plug, matching receptacle 1233 BK S41 •
50 125 Angled NEMA 5-30P/5-50P power plug, matching receptacle 1253
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
Universal power plugs
Rating
A V/AC Description Color Catalog no.
30 250 Universal NEMA 6-30P/6-50P power plug;
matching receptacles 1232, 1234
BK S42 •
50 250 Angled NEMA 6-30P/6-50P power plug; matching receptacles 1252, 1254
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
BK
(Black)
Color ordering information:
BK (Black)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1264
S42
TT-30P
W
G
TT-30P
W
G
W
G
TT-30R
W
G
TT-30R
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-44
Power plugs
Rating
A V/AC Description Color Catalog no.
60 125/250 Angled NEMA 14-60 P power plug, matching receptacle 60 BK S20 •
cULus Listed to UL498, file no. E15012; NOM certified
Power plugs
Rating
A V/AC Description Color Catalog no.
30 125 NEMA 10-20P power plug; matching receptacle 805 Y 2836
cULus Listed to UL498, file no. E15012; NOM certified
Product description
3-pole, 3-wire non-grounding
30A,125/250V/AC
60A,125/250V/AC
Design features
Heavy duty grade power plugs & adapters
• Armored housing resists abuse and is
automatically grounded
• Solid brass plug blades are firmly embedded
in body
• Terminals in individual chambers to positively
insulate conductors
• Accepts #14 - #10 AWG wire
Power devices
Product description
3-pole, 4-wire grounding
60A, 125/250V/AC
Design features
Heavy duty grade power plugs & adapters
• Terminals have pressure plates to protect wires
• Body made of abuse-resistant thermoplastic
• Accepts #10 - #6 AWG wire
S20
2836
BK Y
(Black) (Yellow)
Color ordering information:
BK (Black), Y (Yellow)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-45
Plugs & connectors
Plug & connector families
Standard
grade
spring action
B-53
Heavy duty
grade
quick grip
B-48
Heavy duty
grade vinyl
B-49
Heavy duty
& standard
grade
rubber
B-52
Standard
grade
thermoplastic
B-54
Academy
series plugs
B-55
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-46
Plugs & connectors
Our compact yet rugged plugs and connectors are available in a broad range of designs,
materials and configurations for virtually any replacement application or do-it-yourself extension
cord creation. Heavy duty grade devices are ideal for more abusive use while standard grade is
ideal for everyday items like lamps and vacuums.
SECTION
The Eaton difference
See page B-48
Shown:
AH5965
Extension cords
Heavy-duty extension cord ends receive a lot of
abuse in working situations. Quick grip plugs &
connectors install easily, speeding replacement,
and are built to last.
Specific plug & connector solutions for today's needs
Shown:
1709
Cold conditions
Most plastics become more brittle and the chance
of breakage increases below freezing. Rubber
plugs & connectors keep flexibility in lower
temperatures for less breakage.
See page B-52
Shown:
SA940
Appliance cord end replacement
Household appliances often require cord end
replacement. Spring action plugs are available
with cord clips and are quick and easy to install.
See page B-53
• High impact-resistant housings for long-term durability
• Plug blades firmly embedded in body
• Angled plugs allow placement of cords in convenient locations
• Heavy duty grade plugs feature solid brass plug blades and terminals in individual
chambers for positive conductor insulation
• Heavy duty grade plugs & connectors feature strain relief clamps to extend
cord life
• Spring action plugs & connectors are designed for easy installation and some also
provide an integrated cord clip for storage on appliances
• Academy series plugs feature insulation-piercing terminals that eliminate
wire stripping
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-47
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Quick grip plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.22-0.66” (5.6-16.8mm) BK, Y AH5965__ AH5969__
20 125 NEMA 5-20, straight body 0.22-0.66” (5.6-16.8mm) BK, Y AH5364__ AH5369__ •
cULus Listed to UL498, file no. E15012; certified to CSA C22.2, no. 42; UL verified to Federal Spec. WC-596G
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
Design features
Heavy duty grade quick grip plugs & connectors
• Single-piece hinged body reduces number of
assembly screws and speeds installation
• Signature exterior design molds to hand with
scallop feature for extra grip to ease insertion
and removal
• Rugged nylon construction resists abuse
• Clear terminal cover for visual verification of
secure termination
• Roomy wiring chamber and terminal cover
featuring large funneled wire entry for easy and
proper wire installation
• Tri-combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
Plugs & connectors
Product description
2-pole, 3-wire grounding
15A, 250V/AC
20A, 250V/AC
Design features
Heavy duty grade quick grip plugs & connectors
• Single-piece hinged body reduces number
of assembly screws and speeds installation
• Signature exterior design molds to hand with
scallop feature for extra grip to ease insertion
and removal
• Rugged nylon construction resists abuse
• Clear terminal cover for visual verification of
secure termination
• Roomy wiring chamber and terminal cover
featuring large funneled wire entry for easy and
proper wire installation
• Tri-combo screws accept Slotted-, Phillips-, and
Robertson-head tools for installation flexibility
AH5669
AH5965
BK Y
(Black) (Yellow)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: BK (Black), Y (Yellow).
Quick grip plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 250 NEMA 6-15, straight body 0.22-0.66” (5.6-16.8mm) BK, Y AH5666__ AH5669__ •
20 250 NEMA 6-20, straight body 0.22-0.66” (5.6-16.8mm) BK, Y AH5464__ AH5469__ •
cULus Listed to UL498, file no. E15012; certified to CSA C22.2, no. 42; UL verified to Federal Spec. WC-596G
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-48
Y
(Yellow)
Color ordering information:
Y (Yellow)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Armored vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.25-0.63” (6.4-16.0mm) Y 2867 2887 •
20 125 NEMA 5-20, straight body 0.25-0.63” (6.4-16.0mm) Y 2809 2228 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
15A,125V/AC
20A,125V/AC
Design features
Heavy duty grade armored vinyl plugs & connectors
• Armored housing resists abuse and is
automatically grounded
• Solid brass plug blades are firmly embedded
in body
• Terminals in individual chambers to positively
insulate conductors
• Terminal screws backed out and ready for wiring
• Terminal screw clamps are designed to contain
wire and prevent binding
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
Plugs & connectors
Product description
2-pole, 3-wire grounding
15A, 250V/AC
20A, 250V/AC
Design features
Heavy duty grade armored vinyl plugs & connectors
• Armored housing resists abuse and is
automatically grounded
• Solid brass plug blades are firmly embedded
in body
• Terminals in individual chambers to positively
insulate conductors
• Terminal screws backed out and ready for wiring
• Terminal screw clamps are designed to contain
wire and prevent binding
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
2227
2867
Armored vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 250 NEMA 6-15, straight body 0.25-0.63” (6.4-16.0mm) Y 2866 2227 •
20 250 NEMA 6-20, straight body 0.25-0.63” (6.4-16.0mm) Y 3809 2229 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-49
Armored vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 277 NEMA 7-15, straight body 0.25-0.63” (6.4-16.8mm) Y 2839 — •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42
Product description
2-pole, 3-wire grounding
15A, 277V/AC
Design features
Heavy duty grade armored vinyl plugs & connectors
• Armored housing resists abuse and is
automatically grounded
• Solid brass plug blades are firmly embedded
in body
• Terminals in individual chambers to positively
insulate conductors
• Terminal screws backed out and ready for wiring
• Terminal screw clamps are designed to contain
wire and prevent binding
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
Plugs & connectors
Product description
2-pole, 2-wire non-grounding
15A,125V/AC
Design features
Heavy duty grade vinyl plugs & connectors
• Solid brass plug blades are firmly embedded
in body
• Vinyl plugs and connectors resist chemical attack
and are less brittle in extremely low temperatures
• Vinyl angle plugs have eight possible positions for
maximum convenience
• Terminal screws backed out and ready for wiring
• Terminals in individual chambers to positively
insulate conductors
• Terminal screw clamps are designed to contain
wire and prevent binding
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
4862
2839
Vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 125 NEMA 1-15, straight body 0.25-0.63” (6.4-16.0mm) Y 4862 4882 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 4882
Y
(Yellow)
Color ordering information:
Y (Yellow)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-50
Y W
(Yellow) (White)
Color ordering information:
Y (Yellow), W (White)
Dimensional information: B-70 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.25-0.66” (6.4-16.6mm) Y 4867 4887 •
15 125 NEMA 5-15, angled body 0.25-0.66” (6.4-16.6mm) Y 4867AN •
15 125 NEMA 5-15, angled body 0.25-0.66” (6.4-16.6mm) W 4867ANW •
20 125 NEMA 5-20, straight body 0.25-0.66” (6.4-16.6mm) Y 4409 4228 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 4228
Vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
— — NEMA 5-20, angled body 0.25-0.66” (6.4-16.6mm) Y 4409AN •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 4227 & 4229
Vinyl plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 250 NEMA 6-15, straight body 0.25-0.66” (6.4-16.6mm) Y 4866 4227 •
15 250 NEMA 6-15, angled body 0.25-0.66” (6.4-16.6mm) Y 4866AN •
20 250 NEMA 6-20, straight body 0.25-0.66” (6.4-16.6mm) Y 4509 4229 •
20 250 NEMA 6-20, angled body 0.25-0.66” (6.4-16.6mm) Y 4509AN •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 4227 & 4229
Product description
2-pole, 3-wire grounding
15A & 20A,125V/AC
15A & 20A, 250V/AC
Design features
Heavy duty grade vinyl plugs & connectors
• Solid brass plug blades are firmly embedded
in body
• Vinyl plugs and connectors resist chemical attack
and are less brittle in extremely low temperatures
• Vinyl angle plugs have eight possible positions
for maximum convenience
• Terminal screws backed out and ready for wiring
• Terminals in individual chambers to positively
insulate conductors
• Terminal screw clamps are designed to contain
wire and prevent binding
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
Plugs & connectors
4867ANW
4229
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-51
Thermoplastic rubber plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.25-0.60” (6.4-15.2mm) BK 1709 222 •
1709: cULus Listed to UL498, file no. E15012; NOM certified
222: Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
Product description
2-pole, 3-wire grounding
15A,125V/AC
Design features
Heavy duty grade rubber plugs & connectors
• Solid brass plug blades are firmly embedded
in body
• Thermoplastic rubber plugs & connectors
maintain flexibility in extremely low temperatures
• Terminals in individual chambers to positively
insulate conductors
• Terminal screw clamps are designed to contain
wire and prevent binding
• Terminal screws backed out and ready for wiring
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
Plugs & connectors
Product description
2-pole, 2-wire non-grounding
15A,125V/AC
Design features
Standard grade rubber plugs & connectors
• Plug blades are firmly embedded in body
• Rubber plugs & connectors maintain flexibility
in low temperatures
• Angle plugs allow placement of cord in
convenient location
• Terminal screws backed out and ready for wiring
• Combination Slot/Phillips head mounting and
terminal screws for installation flexibility (Slot/
Robertson screws in Canada where available)
1709
Rubber plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.33” (8.3mm) BK, W 183__ 4882 •
15 125 NEMA 5-15, straight body,
polarized
0.33” (8.3mm) BK, W 183-6__ •
15 125 NEMA 5-15, angled body 0.33” (8.3mm) BK 84 •
15 125 NEMA 5-15, angled body,
polarized
0.33” (8.3mm) BK, W 84-6__ •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 86
BK W
(Black) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: BK (Black), W (White)
Dimensional information: B-70, B-71 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
183
86
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-52
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), BK (Black), GD (Translucent Gold), W (White).
Dimensional information: B-71 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Spring action plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 125 NEMA 1-15, straight body,
polarized, with cord clip
0.33” (8.3mm) W SA940__ •
15 125 NEMA 1-15, straight body,
polarized, with cord clip
0.33” (8.3mm) BK SA940__ •
15 125 NEMA 1-15, straight body,
polarized
0.33” (8.3mm) B, BK, GD, W SA540__ SA155__ •
15 125 NEMA 1-15, straight body,
polarized
0.33” (8.3mm) BK SA540 SA155 •
cULus Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42
Product description
2-pole, 2-wire non-grounding
15A,125V/AC
Design features
Standard grade spring action thermoplastic plugs & connectors
• Made of high impact-resistant thermoplastic for
long-term durability
• Cord clips on equipped plugs provide easy
storage on appliances such as vacuum
cleaners and fans
Plugs & connectors
Product description
2-pole, 2-wire grounding
15A,125V/AC
Design features
Standard grade spring action thermoplastic plugs & connectors
• Made of high impact-resistant thermoplastic for
long-term durability
• Plug blades firmly embedded in body
Spring action plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 125 NEMA 5-15, straight body 0.33” (8.3mm) BK SA399__ SA993__ •
Listed to UL498, file no. E15012; CSA certified to CSA C22.2, no. 42; SA933 also NOM certified
SA399
SA993
SA940
SA155
B BK W
(Brown) (Black) (Translucent Gold) (White)
GD
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-53
Thermoplastic plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color suffix catalog no. catalog no.
15 125 NEMA 1-15, flat handle body 0.31” (7.9mm) BK, W 1912__ •
15 125 NEMA 1-15, round body 0.41” (10.4mm) BK 3123 •
15 125 NEMA 1-15, cylindrical body 0.25-0.67” (6.4-17.0mm) RN 6882 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified except 6882
Product description
2-pole, 2-wire non-grounding
15A,125V/AC
Design features
Standard grade thermoplastic plugs & connectors
• Tough thermoplastic construction • Plug blades firmly embedded in body
Plugs & connectors
Product description
2-pole, 3-wire grounding
15A,125V/AC
Design features
Standard grade thermoplastic plugs & connectors
• Tough thermoplastic construction • Plug blades firmly embedded in body
Thermoplastic plugs & connectors
Rating Plug Connector
A V/AC Description Cord diameter Color catalog no. catalog no.
15 125 NEMA 5-15, cylindrical body 0.67” (17.0mm) RN 6867 6887 •
Listed to UL498, file no. E15012; CSA certified to C22.2, no. 42; NOM certified
BK RN W
(Black) (Orange) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: BK (Black), RN (Orange), W (White).
Dimensional information: B-71 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
6867
6887
1912
3123
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-54
Plugs & connectors
Academy series standard grade plugs
Product description
2-pole, 2-wire non-grounding
10A,125V/AC
15A,125V/AC
Design features
Academy series plugs
Rating
A V/AC Description Color suffix Catalog no.
10 125 NEMA 1-15R easy install plug, for 18-2 SPT-1 cord B, BK, W 2601__
10 125 NEMA 1-15R easy install plug, polarized, for 18-2 SPT-1 cord B, W 2601-6__
UL recognized component to UL498 for US & Canada, file no. E15012
Academy series plugs
Rating
A V/AC Description Color suffix Catalog no.
15 125 NEMA 1-15R super plug, for 18-2 or 16-2 SPT-1 and 18-2 or 16-2 HPN cord B, BK, W 2600__
15 125 NEMA 1-15R super plug, polarized, for 18-2 or 16-2 SPT-1 and 18-2
or 16-2 HPN cord
B, W 2600-6__
UL recognized component to UL498 for US & Canada, file no. E15012
• High impact-resistant thermoplastic housing
with finger-grip grooves
• Insulation piercing terminals eliminate the need
for tools— just snap in unstripped wire and device
is ready for use
• Plug blades firmly embedded in body
• Super Plug has right angle design and built-in
strain relief
2601-6
2600
B BK W
(Brown) (Black) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown) BK (Black), W (White).
Dimensional information: B-71 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-55
Lampholders
Lampholder families
Pigtail
lampholders
B-62
Ceiling
lampholders
B-58 B-59
Fluorescent
lampholders
B-60
Special use
lampholder
assemblies
B-62
Lampholder
adapters &
accessories
B-64
Lampholders
Our extensive lampholder line covers applications inside and outside the home, incandescent
and fluorescent lamp loads, temporary lighting needs, and a variety of adapters for new and
replacement lighting applications. They are ideal for areas such as garages, closets, attics,
basements, utility rooms, sheds and outbuildings.
Incandescent
shell & fixture
sockets
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-56
SECTION
The Eaton difference
Specific lampholder solutions for today's needs
• Ceiling lampholders are available in keyless or pull chain styles
• Ceiling lampholders also available with a 15A 125V/AC outlet
• Top wire ceiling lampholders have terminal screws backed out and ready for wiring
without removing the interior
• Lampholder adapters available in various configurations such as one socket to two
outlets and one socket
• Lampholder adapters available with keyless or pull chain switch actuation
See page B-58
Shown:
604
Ceiling mounts
Our vast line of porcelain and plastic ceiling mount
lampholders fit a wide variety of applications and
needs for every room in the home, from attic to
basement, closet to garage.
Shown:
718
Lampholder adapters
We offer a variety of lampholder adapters that can
easily add a receptacle or convert a lampholder to
a receptacle for applications where a receptacle
is needed but not easily accessible like attics,
basements, closets, and storage sheds.
See pages B-64, B-66
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-57
• Mounts on 4” (101.6mm) outlet boxes with
breakout for 3.25” (82.5mm) box mounting
• Leads are 6” (152.4mm) 221ºF (105ºC) insulated
stranded #16 AWG, stripped 0.75” (19.0mm)
• Top wire versions have terminal screws backed
out—ready for wiring—without removing interior
• Push wire terminals are top wired with two
push-in terminals and two screw terminals for
continuous wiring
• Pull chain devices include ball chain, 3’ (0.9m)
of cord, connector and end bell
• Porcelain models made of high-strength
insulator porcelain; pull chain versions feature
removable interiors
• Plastic models made with high-temperature
thermoset plastic to reduce breakage
Porcelain ceiling lampholder
Rating
A V/AC W Description Color Catalog no.
15 125 660 Two-piece, with NEMA 1-15P 2P, 2W outlet 2 screw terminals,
pull chain switch, top wire
W 669
15 125 660 Two-piece, with NEMA 5-15P 2P, 3W outlet 2 screw terminals,
pull chain switch, top wire
W 667
250 660 One-piece, with feed-through, 4 screw terminals, keyless switch,
top wire
W 604
250 660 Two-piece, with feed-through 4 screw terminals, pull chain switch,
top wire
W 659
cULus Listed to UL 496, file no. E7430; NOM certified
Plastic ceiling lampholder
Rating
W V/AC Description Color Catalog no.
600 250 Two-piece, push wire/top wire, pull chain switch W S759W-CD
600 250 Two-piece, 6” (152.4mm) wire leads, pull chain switch W S788W
660 250 Two-piece, with 15A 125V/AC NEMA 1-15P 2P,
2W outlet push wire/top wire, pull chain switch
W S860W
660 250 Two-piece, with 15A 125V/AC NEMA 5-15P 2P,
3W outlet push wire/top wire, pull chain switch
W S865W
660 250 One-piece, 4 top wire screws, keyless switch W S1174W •
660 250 One-piece, 6” (152.4mm) wire leads, keyless switch W S1174-6W •
660 250 Two-piece, push wire/top wire, keyless switch W S768W
660 250 Two-piece, 6” (152.4mm) wire leads, keyless switch W S768-6W
cULus Listed to UL 496, file no. E7430; NOM certified
Product description
Medium base
660W,125V/AC
660W, 250V/AC
600W, 250V/AC
Design features
Ceiling receptacle lampholders
Lampholders
W
(White)
Color ordering information:
W (White)
Dimensional information: B-71 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
667
669
S788W
S1174W
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-58
Electrolier metal shell lampholders
Rating
W V/AC Description Color Catalog no.
250 250 One circuit turn knob switch Brass Dipped Aluminum 917ABD
250 250 Two circuit (3-way) turn knob switch Brass Dipped Aluminum 925ABD
660 250 One circuit pull chain switch Brass Dipped Aluminum 980ABD
660 250 One circuit push through switch Brass Dipped Aluminum 940ABD
660 250 Keyless switch Brass Dipped Aluminum 975ABD
cULus Listed to UL496, file no. E7430
Metal shell lampholder interiors
Rating Catalog no.
W V/AC Description Fits Catalog
250 250 One circuit pull chain switch 659 962
250 250 Two circuit (3-way) turn knob switch 925 3925
660 250 One circuit pull chain switch 980 2982
660 250 One circuit push through switch 940 942
UL recognized component to UL496 for US & Canada, file no. E7430
Product description
Medium base
250W, 250V/AC
660W, 250V/AC
Design features
Incandescent shell & fixture sockets
• Caps threaded 0.13” (3.2mm)—27 I.P.S. fits
standard lamp stems
• Set screw prevents rotation of socket
• Two circuit (3-way) sockets operate dual filament
lamps on sequence of low, medium, high, off
Lampholders
Product description
Medium base
250W, 250V/AC
660W, 250V/AC
Design features
Incandescent shell & fixture sockets
• Molded of heat- and impact-resistant phenolic
or urea
• Interiors are UL component recognized
2982
940ABD
Color ordering information:
BD (Brass Dipped)
Dimensional information: B-72 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
(Brass Dipped)
BD
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-59
Fixture sockets
Rating
W V/AC Description Color Catalog no.
660 250 Phenolic keyless switch, screw terminals
Bracket height: 0.44” (11.1mm), overall height: 1.88” (47.8mm)
BK 968
Listed to UL496, file no. E7430; CSA certified to C22.2, no. 42
Fixture sockets
Rating
W V/AC Description Color Catalog no.
660 250 Porcelain keyless switch, screw terminals
Bracket height: 0.44” (11.1mm), overall height: 1.88” (47.8mm)
W 969
cULus Listed to UL496, file no. E7430; NOM certified
Incandescent shell & fixture sockets
Lampholders
969
2501W
2500W
968
Product description
Medium base
660W, 250V/AC
Design features
• Interiors have removable turn knobs • Hickeys and nipples are threaded for mounting on
standard fixture, lamp stems or brackets
Product description
Recessed double contact
660W, 600V/AC
Design features
Fluorescent lampholders
• For replacement use in fluorescent
lighting fixtures
• Recessed double-contact (2500, 2501)
lampholders can be used for flush or
surface mounting
• Captive pal nut for easy mounting
• Push-in wire terminals feature release slots
• Molded of durable white thermoset plastic
Recessed double contact lampholders
Rating
W V/AC Description Color Catalog no.
660 600 Plunger type, push wire cap, screw switch W 2501W
660 600 Stationary type, push wire cap, screw switch W 2500W
Listed to UL1570; CSA certified
BK W
(Black) (White)
Color ordering information:
BK (Black), W (White)
Dimensional information: B-72 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-60
Slimline lampholders
Rating
W V/AC Description Color Catalog no.
660 600 Stationary type, push wire cap, slide-on switch W 2506W
660 600 Stationary type, push wire cap, screw switch W 2503W
Listed to UL1570; CSA certified
Slimline lampholders
Rating
W V/AC Description Color Catalog no.
660 600 Plunger type, push wire cap, slide-on switch W 2507W
660 600 Plunger type, push wire cap, screw switch W 2504W
Listed to UL1570; CSA certified
Slimline lampholders
Rating
W V/AC Description Color Catalog no.
660 600 Standard type, push wire, slide-on & screw switch W 2509W
660 600 Short type, push wire, slide-on & screw switch W 2510W
660 600 Standard type, screw terminals, screw switch W 924W
2509W & 2510W: Listed to UL1570; CSA certified
924: cULus Listed to UL496, file no. E5833, certified to CSA C22.2, no. 43; NOM certified
Product description
Single pin
660W, 600V/AC
Design features
Fluorescent lampholders
• For replacement use in fluorescent
lighting fixtures
• Plunger lampholders feature non-sticking,
spring-loaded plunger to hold lamp securely
• Captive pal nut for easy mounting
• Push-in wire terminals feature release slots
• Molded of durable white thermoset plastic
Lampholders
Product description
Medium bi-pin
660W 600V/AC
Design features
Fluorescent lampholders
• For replacement use in fluorescent
lighting fixtures
• Use for flush or surface mounting
• Captive pal nut for easy mounting
• Push-in wire terminals feature release slots
• Molded of durable white thermoset plastic
Color ordering information:
W (White)
Dimensional information: B-72 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
W
(White)
2504W
2510W
924W
2506W
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-61
Pigtail lampholders
Rating
W V/AC Description Color Catalog no.
660 250 Phenolic, wire size #14 AWG BK 722 •
Listed to UL496, file no. E7430; CSA certified to 22.2, no. 43; NOM certified
Pigtail lampholders
Rating
W V/AC Description Color Catalog no.
660 600 Weatherproof rubber, wire size #14 AWG BK 145
cULus Listed to UL496, file no. E7430
Product description
Medium base
660W, 250V/AC
660W, 600V/AC
Design features
Pigtail lampholders
• For use in light strings and related applications
• Wire leads are 5” (127.0mm) of color-coded
stranded wire, stripped 1” (25.4mm) for
easy connection
• Rubber sockets have an extended lip to seal
against bulb
• Metal shell interiors are aluminum
Lampholders
Product description
Outdoor lighting
150W,13A,120V/AC
Design features
Special use lampholder assemblies
• Mountable to wall, ceiling or floor via base
mounting holes, or use included spike for
lawn & garden mounting
• Weatherproof gasket allows indoor or
outdoor use
• PAR 38 light fixture accepts up to 150W bulb
• Wing nut allows for lighting angle adjustment
• Landscape green color blends with grass
and shrubs
S591
722
Plastic floodlight lampholder
Rating
A V/AC W Description Color Catalog no.
13 120 150 PAR 38 fixture with 6’ (1.8m) 18-2 SJT polarized power cord Green S591 •
Listed to UL153, file no. E201084
BK
(Black) (Green)
Color ordering information:
BK (Black), Green
Dimensional information: B-72, B-73
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
145
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-62
Trouble lampholders
Rating
A V/AC Description Color Catalog no.
13 125 Push switch trouble lampholder with plastic guard and NEMA 5-15R
2P, 3W outlet on 25’ (7.6m) 18-2 SJT W-A power cord
BK & Y 1078-25
13 125 Push switch trouble lampholder with plastic guard and NEMA 5-15R
2P, 3W outlet on 50’ (15.24m) 18-2 SJT W-A power cord
BK & Y 1078-50
Listed to UL496, file no. E7430; CSA certified to 22.2, no. 43; NOM certified
Replacement trouble lamp handles & interiors
Rating
A V/AC Description Color Catalog no.
6 125 Push switch replacement trouble lamp handle with interior and
two NEMA 1-15 2P, 2W outlets; use with Cat. #944
Y 1071
15 125 Replacement trouble lamp handle interior for push switch with
two NEMA 1-15 2P, 2W outlets; fits Cat. #1071
944
944: UL recognized component to UL496, E7430 for US & Canada, CSA C22.2, no. 43
Replacement trouble lamp handles & interiors
Description Color Catalog no.
Nylon 1-gang wallplate for one power receptacle Y 1467
Polycarbonate 2-gang wallplate for one power receptacle Steel 467
Product description
Trouble lamp medium base
13A,125V/AC
Design features
Special use lampholder assemblies
• Heavy duty thermoplastic jacketed cord
for rough surfaces
• Plastic guard rated to 75W
• Plugs and handles feature built-in finger grips
for secure handling
Lampholders
Product description
Trouble lampholder accessories
6A,125V/AC
15A,125V/AC
Design features
Special use lampholder assemblies
• Interiors feature one piece side outlet contacts
permanently fastened
• Reflector guards fit all trouble lamp handles
• Vinyl reflector guard is high-strength
impact-resistant thermoplastic
Color ordering information:
BK (Black), Steel, W (White), Y (Yellow)
Dimensional information: B-73 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
BK W Y
(Black) (Steel) (White) (Yellow)
1071
944
467
1078-25
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-63
Lampholders
Outlet adapter
Rating
W V/AC Description Color suffix Catalog no.
660 125 Converts one NEMA 1-15R outlet to one socket, keyless switch B, V, W 738__ •
Listed to UL496 & UL498, file no. E15055; CSA certified to C22.2, no. 42 & 43; NOM certified
Closet light lampholder
Rating
W V/AC Description Color Catalog no.
100 120 Automatic closet light lampholder on 9’ (2.7m) 18-2 SPT-1 power cord V C386
Product description
Miscellaneous assemblies
100W,120V/AC
Design features
Special use lampholder assemblies
• Utility lampholder features removable
threaded reflector
• Utility lampholder fully adjustable with 360º
rotation and 180º angle adjustment
• Automatic closet light lampholder contains an
automatic switch that is activated by opening
or closing of hinged or sliding doors
Product description
Polarized, medium base
660W,125V/AC
Design features
Lampholder adapters & accessories
• Terminals have pressure plates to protect wires
• Body made of abuse-resistant thermoplastic
• Accepts #10 - #6 AWG wire
738
C386
BV W
(Brown) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), V (Ivory), W (White).
Dimensional information: B-73 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-64
• Outlets on adapters are 2-wire polarized • Pull chain on catalog number 718 controls the
bulb socket, side outlets are continually ON
Socket adapters
Rating
W V/AC Description Color suffix Catalog no.
660 125 Converts one socket to one socket with two 250W NEMA 1-15R
2P, 2W outlets, pull chain switch
B, V 718__ •
660 250 Converts one socket to two sockets, keyless switch B, V, W 700__ •
Listed to UL496 & UL498, file no. E15055; CSA certified to C22.2, no. 42 & 43; NOM certified
Socket adapters
Rating
W V/AC Description Color suffix Catalog no.
660 125 Converts one socket to one socket with two 250W NEMA 1-15R
2P, 2W outlets, keyless switch
B, V 715__ •
cULus Listed to UL496 & UL498, file no. E15055; certified to CSA C22.2, no. 42 & 43; NOM certified
Socket adapters
Rating
W V/AC Description Color suffix Catalog no.
660 125 Converts one socket to one 125V NEMA 1-15R 2P, 2W outlet,
keyless switch
B, W 758__
cULus Listed to UL496 & UL498, file no. E136278; certified to CSA C22.2, no. 42 & 43
Socket adapters
Rating
W V/AC Description Color Catalog no.
660 125 Converts one socket to one 125V NEMA 1-15R 2P, 2W outlet, keyless B 808 •
cULus Listed to UL496 & UL498, file no. E136278; certified to CSA C22.2, no. 42 & 43
Product description
Polarized, medium base
660W,125V/AC
660W, 250V/AC
Design features
Lampholder adapters & accessories
BV W
(Brown) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), V (Ivory), W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
715
758
700
Lampholders B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-65
Socket extensions
Rating
W V/AC Description Color Catalog no.
660 250 Phenolic medium base socket, extends 1.38” (34.9mm) BK 1054
Listed to UL496, file no. E15055; CSA certified to C22.2, no. 43; NOM certified
Dimensional information: B-73
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
Color ordering information:
BK (Black), Steel, Y (Yellow)
BK Y
(Black) (Steel) (Yellow)
• One piece screwshell with porcelain base
Product description
Keyless switch
Medium base
660W, 250V/AC
Design features
Lampholder adapters & accessories
Lampholders
469
1054
Lamp guards
Description Color Catalog no.
Nylon 1-gang wallplate for one power receptacle Steel 469B
Polycarbonate 2-gang wallplate for one power receptacle Y 1465Y •
Product description
Lamp guards
Design features
Lampholder adapters & accessories
• 1.50” (38.1mm) clamp fits ceiling lampholders,
sign and scoreboard Attachon lampholders
• 1465 is high-strength impact-resistant
thermoplastic
• Easy-open guard permits relamping without
removing guard
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-66
Lamp guards
Description Color Catalog no.
Ball chain with end bell and connector, 3’ (0.9m), #6, 0.13” (3.18mm) diameter BB 331BB •
Ball chain with end bell and connector, 3’ (0.9m), #6, 0.13” (3.18mm) diameter NP 331NP •
Ball chain, 100’ (30.5m) spool BB 309-100
Connector BB 307
Pull cord with end bell and connector, 3’ (0.9m) NP 315
Product description
Ball & chain accessories
Design features
Lampholder adapters & accessories
• Flasher buttons are medium-based and offer
choices of flash frequencies
Lampholders
331BB
307
315
Color ordering information:
Brass, Nickel
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
(Brass) (Nickel)
BB NP
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-67
Dimensional data
A
C
BD
E
A
C
BD
E
Switches
Family A B C D E
Decorator standard grade, single-pole
& 3-way
1.44” (36.6mm) 3.81” (96.8mm) 3.28"
(83.3mm)
2.74” (69.6mm) 0.97” (24.6mm)
Decorator standard grade, 4-way 1.44” (36.6mm) 3.81"
(96.8mm)
3.28"
(83.3mm)
2.60” (66.1mm) 1.38"
(35.1mm)
Heavy duty grade toggle 1.31” (33.3mm) 3.28” (83.3mm) 2.38” (60.5mm) 2.00” (50.8mm) 1.05” (26.7mm)
Standard grade toggle 1.31” (33.3mm) 3.28” (83.3mm) 2.38” (60.5mm) 2.13” (54.1mm) 0.88” (22.4mm)
Standard grade toggle, less ears 0.75” (19.1mm) 3.28” (83.3mm) 2.38” (60.5mm) 2.13” (54.1mm) 0.88” (22.4mm)
CO/ALR standard grade toggle 1.31” (33.3mm) 3.28” (83.3mm) 2.38” (60.5mm) 2.13” (54.1mm) 0.88” (22.4mm)
C
BD
E
AA
C
BD
E
Combination devices
Family A B C D E
Decorator combination 1.30"
(33.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.65"
(67.3mm)
1.08"
(27.4mm)
Traditional combination 1.30"
(33.0mm)
4.19"
(106.4mm)
3.28"
(83.3mm)
2.65"
(67.3mm)
1.08"
(27.4mm)
Nightlight combination 1.30"
(33.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.65"
(67.3mm)
1.08"
(27.4mm)
A
C
BD
E
A
C
BD
E
Duplex receptacle
Family or Catalog no. ABCDE
Heavy duty grade tamper resistant 1.24"
(31.5mm)
4.00"
(101.6mm)
3.23"
(82.0mm)
2.63"
(66.8mm)
1.04"
(26.4mm)
Decorator standard grade 1.30"
(33.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.12"
(53.8mm)
0.69"
(17.5mm)
Standard grade, except 298 1.31"
(33.3mm)
4.19"
(106.4mm)
3.28"
(83.3mm)
2.63"
(66.8mm)
0.69"
(17.5mm)
298 1.31"
(33.3mm)
4.19"
(106.4mm)
3.28"
(83.3mm)
2.63"
(66.8mm)
0.74"
(18.8mm)
CO/ALR standard grade 1.38"
(35.1mm)
4.06"
(103.1mm)
3.28"
(83.3mm)
2.61"
(66.3mm)
0.71"
(18.0mm)
A
B
C
B
A
C
Circuit control switches
Catalog no. A B C
452 0.50"
(12.7mm)
0.88"
(22.4mm)
0.53"
(13.5mm)
Feed-through cord switches
Catalog no. ABC
410 1.35"
(34.5mm)
0.91"
(23.1mm)
0.55"
(14.0mm)
933 2.49"
(63.4mm)
1.47"
(36.7mm)
1.25"
(31.6mm)
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-68
Dimensional data
A
C
BD
E
A
C
BD
E
A
C
B
DE
C
B
D
A
B
C
A
B
C
A
A
C
BD
E
Single receptacles
Family A B C D E
Heavy duty grade decorator 1.32"
(33.5mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
1.98"
(50w.3mm)
0.82"
(20.8mm)
Heavy duty grade traditional 1.31"
(33.3mm)
3.28"
(83.3mm)
2.38"
(60.3mm)
2.07"
(52.6mm)
0.83"
(12.1mm)
Recessed & floor box receptacles
Family A B C D E
Single receptacle 2.75"
(69.9mm)
4.50"
(114.3mm)
3.28"
(83.3mm)
0.85"
(21.6mm)
1.77"
(45.0mm)
Duplex receptacle 2.72"
(69.1mm)
4.48"
(113.8mm)
3.28"
(83.3mm)
0.93"
(23.6mm)
2.00"
(50.8mm)
Floor box receptacle 2.75"
(69.9mm)
4.50"
(114.3mm)
1.75"
(44.5mm)
3.50"
(88.9mm)
—
Surface receptacles
Catalog Nos. ABC
74 & 78 1.90"
(48.3mm)
3.60"
(91.4mm)
1.12"
(28.4mm)
Academy series outlets
Catalog no. A B C
2602 0.81"
(20.6mm)
2.02"
(51.3mm)
0.81"
(20.6mm)
2603 1.15"
(29.2mm)
2.58"
(65.5mm)
0.84"
(21.3mm)
2606 1.08"
(27.4mm)
1.25"
(31.8mm)
0.88"
(22.4mm)
2607 1.25"
(31.8mm)
1.08"
(27.4mm)
0.88"
(22.4mm)
2609 1.09"
(27.7mm)
0.44"
(11.2mm)
0.78"
(19.8mm)
GFCIs & AFCIs
Family A B C D E
GFCIs/AFCIs 1.30"
(33.0mm)
3.81"
(96.8mm)
3.28"
(83.3mm)
2.67"
(67.8mm)
1.20"
(30.5mm)
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-69
Dimensional data
B
AF
C
E
D
B
A
C
A
B
D
B
A
C
B
A
1.65”
(41.9mm)
1.93”
(49.0mm)
1.87”
(47.5mm)
805V
2.28”
(60.3mm)
1.31”
(33.3mm)
3.28”
(83.3mm) 1.98”
(50.3mm)
0.99”
(25.1mm)
2836
B
A
C
A
B
A
B
C
B
A
C
Catalog Nos. A B C D (depth) EF (face dia.)
30 & 1200 Series 3.28"
(83.3mm)
2.38"
(60.5mm)
1.81"
(46.0mm)
1.42"
(36.1mm)
2.50"
(63.5mm)
2.10"
(53.5mm)
Power devices, flush receptacles
Power devices, angled plugs
Cat. Nos. ABC Cord Diameter
S80 & 83 2.92"
(74.2mm)
1.03"
(26.2mm)
2.80"
(71.1mm)
S80: 0.80" (20.3mm) max.
83: 0.64" (16.3mm) max.
S41 & S42
S20 & S21
3.37"
(85.6mm)
1.38"
(35.1mm)
2.87"
(72.9mm)
S41 & S42: 1.10" (27.9mm)
S20 & S21: 1.13" (28.7mm)
Power devices, angled plugs
Family A B C D Cord Diameter
Quick grip 1.40"
(35.6mm)
1.95"
(49.7mm)
1.68"
(42.6mm)
— 0.22-0.66"
(5.6-16.8mm)
Armored vinyl 1.65"
(41.9mm)
1.93"
(49.0mm)
1.87"
(47.4mm)
— 0.25-0.63"
(6.4-15.9mm)
Vinyl 1.65"
(41.9mm)
1.54"
(39.1mm)
— — 0.25-0.66"
(6.4-16.8mm)
Angled vinyl 1.25"
(31.8mm)
1.42"
(36.1mm)
1.50"
(38.1mm)
1.95"
(49.5mm)
0.25-0.66"
(6.4-16.8mm)
Rubber 1.54"
(39.1mm)
2.00"
(50.8mm)
— — 0.25-0.60"
(6.4-15.2mm)
Catalog Nos. ABC
100 & 1200 Series 2.10"
(53.3mm)
4.75"
(120.7mm)
2.50"
(63.5mm)
Power devices, surface receptacles
Catalog Nos. A B
58, 60 2.80"
(71.1mm)
2.80"
(71.1mm)
U1263 1.69"
(42.9mm)
2.09"
(53.1mm)
Power devices, panel mount receptacles
Family A B C Cord Dia.
Quick grip 1.40"
(35.6mm)
2.57"
(65.4mm)
1.65"
(42.0mm)
0.22-0.66"
(5.6-16.8mm)
Armored vinyl 1.35"
(34.3mm)
2.60"
(66.0mm)
1.50"
(38.1mm)
0.25-0.63"
(6.4-15.9mm)
Vinyl 1.35"
(34.3mm)
2.61"
(66.3mm)
1.54"
(39.1mm)
0.25-0.66"
(6.4-16.6mm)
Rubber 1.36"
(34.5mm)
2.90"
(73.7mm)
1.54"
(39.1mm)
0.25-0.60"
(6.4-15.2mm)
Heavy duty grade connectors
Miscellaneous
Power Devices
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-70
Dimensional data
B
A
D
C
A
C
B
A
C
B
B
A
E
C
D
B
A
E
C
D
A
C
B
A
C
B
A
B
A
B
C
A
C
B
A
B
A
B
C
A
B
C
Standard rubber plugs & connectors
Family A B C D Cord Dia.
Plug 1.17"
(29.7mm)
1.25"
(31.8mm)
0.71"
(18.0mm)
0.73"
(18.5mm)
0.33"
(8.4mm)
Angled plug 1.17"
(29.7mm)
1.15"
(29.2mm)
0.73"
(18.5mm)
— 0.33"
(8.4mm)
Connector 1.18"
(30.0mm)
2.00"
(50.8mm)
0.71"
(18.0mm)
— 0.33"
(8.4mm)
Ceiling mount lampholders
Family A B C
Porcelain one piece 4.50"
(114.3mm)
1.50"
(38.1mm)
1.70"
(43.2mm)
Porcelain two piece 4.50"
(114.3mm)
2.14"
(54.4mm)
1.63"
(41.4mm)
Plastic one piece 4.56"
(115.8mm)
1.52"
(38.6mm)
1.59"
(40.4mm)
Plastic two piece 4.63"
(117.6mm)
2.16"
(54.9mm)
1.63"
(41.4mm)
Spring action plugs & connectors
Family A B C D E Cord Dia.
2P, 2W Plug 1.16"
(29.5mm)
1.37"
(34.8mm)
0.75"
(19.1mm)
0.62"
(15.7mm)
0.75"
(19.1mm)
0.33"
(8.4mm)
2P, 2W Connector 1.17"
(29.7mm)
1.78"
(45.2mm)
0.75"
(19.1mm)
0.62"
(15.7mm)
0.75"
(19.1mm)
0.33"
(8.4mm)
2P, 3W Plug 1.08"
(27.4mm)
1.56"
(39.6mm)
0.70"
(17.8mm)
0.70"
(17.8mm)
1.22"
(31.0mm)
0.32"
(8.1mm)
2P, 3W Connector 1.08"
(27.4mm)
2.25"
(57.2mm)
0.70"
(17.8mm)
0.70"
(17.8mm)
1.22"
(31.0mm)
0.32"
(8.1mm)
Standard thermoplastic plugs & connectors
Family A B C Cord Dia.
Flat plugs 1.48"
(37.6mm)
1.19"
(30.2mm)
0.92"
(23.4mm)
0.31"
(7.9mm)
Round plugs 1.28"
(32.5mm)
1.50"
(38.1mm)
0.75"
(19.1mm)
0.41"
(10.3mm)
Cylindrical plugs 1.54"
(39.1mm)
1.72"
(43.7mm)
— 0.67"
(17.0mm)
Cylindrical con-
nectors
1.37"
(34.8mm)
2.60"
(66.0mm)
1.54"
(39.1mm)
0.67"
(17.0mm)
Academy series plugs
Family A B C D E Cord Dia.
Easy install plug 1.16"
(29.5mm)
1.37"
(34.8mm)
0.75"
(19.1mm)
0.62"
(15.7mm)
0.75"
(19.1mm)
0.33"
(8.4mm)
Super plug 1.17"
(29.7mm)
1.78"
(45.2mm)
0.75"
(19.1mm)
0.62"
(15.7mm)
0.75"
(19.1mm)
0.33"
(8.4mm)
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-71
Dimensional data
B
A
C
A
B
C
A
B
A
B
C
A
C
B
D
F
E
A
B
C
D
F
E
A
B
C
D
E
A
B
D
C
Metal shell lampholders interiors
Catalog no. A B
962 1.87" (47.5mm) 1.09" (27.7mm)
3925 1.78" (45.2mm) 1.09" (27.7mm)
2982 1.71" (43.4mm) 1.09" (27.7mm)
942 1.74" (44.2mm) 1.09" (27.7mm)
Metal shell lampholders
Family A B C
Turn Knob, Pull Chain,
Push Through
1.40"
(35.6mm)
2.35"
(59.7mm)
1.25"
(31.8mm)
Keyless 1.40"
(35.6mm)
2.00"
(50.8mm)
1.25"
(31.8mm)
Fixture sockets
Catalog no. ABC
968 1.35"
(34.3mm)
0.40"
(10.2mm)
1.85"
(47.0mm)
969 1.38"
(35.1mm)
0.44"
(11.2mm)
1.90"
(48.3mm)
Pigtail lampholders
Catalog no. A B C D
722 1.60"
(40.6mm)
— 1.47"
(37.3mm)
1.32"
(33.5mm)
124 1.63"
(41.4mm)
1.36"
(34.5mm)
1.75"
(44.5mm)
1.50"
(38.1mm)
145 1.63"
(41.4mm)
1.36"
(34.5mm)
1.75"
(44.5mm)
1.50"
(38.1mm)
Fluorescent lampholders, recessed double contact
Catalog no. A B C D E F
2500W 1.12"
(28.4mm)
2.31"
(58.7mm)
1.81"
(46.0mm)
1.44"
(36.6mm)
0.59"
(15.0mm)
1.17"
(29.7mm)
2501W 1.12"
(28.4mm)
2.31"
(58.7mm)
1.81"
(46.0mm)
1.44"
(36.6mm)
0.59"
(15.0mm)
1.17"
(29.7mm)
Fluorescent lampholders, slimline
Catalog no. A B C D E F
2503W 1.12"
(28.4mm)
2.33"
(59.2mm)
1.66"
(42.2mm)
1.45"
(36.8mm)
0.59"
(15.0mm)
1.17"
(29.7mm)
2504W 1.12"
(28.4mm)
2.33"
(59.2mm)
1.66"
(42.2mm)
1.45"
(36.8mm)
0.59"
(15.0mm)
1.17"
(29.7mm)
2506W 1.13"
(28.7mm)
1.73"
(43.9mm)
1.48"
(37.6mm)
1.31"
(33.2mm)
0.32"
(8.1mm)
1.30"
(33.0mm)
2507W 1.13"
(28.7mm)
1.73"
(43.9mm)
1.50"
(38.1mm)
1.31"
(33.2mm)
0.32"
(8.1mm)
1.30"
(33.0mm)
Fluorescent lampholders, medium bi-pin
Catalog no. ABCDE
924W 1.00"
(25.4mm)
2.37"
(60.2mm)
1.44"
(36.6mm)
0.62"
(15.7mm)
1.18"
(30.0mm)
2509W 1.00"
(25.4mm)
2.03"
(51.6mm)
1.35"
(34.3mm)
0.37"
(9.4mm)
1.17"
(29.7mm)
2510W 1.00"
(25.4mm)
1.67"
(42.2mm)
1.25"
(31.8mm)
0.38"
(9.7mm)
0.88"
(22.4mm)
B
SECTION
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide B-72
Dimensional data
A
B
C
D
C
B
F
A
E
A
C
B
A
B
CD
A
B
C
B
A
D
Outdoor floodlight lampholder
Catalog no. A B C D E F
S591 2.75"
(69.9mm)
2.75"
(69.9mm)
2.25"
(57.2mm)
4.02"
(102.1mm)
4.50"
(114.3mm)
1.00"
(25.4mm)
Closet light lampholder
Catalog no. A B C D
C386 2.87"
(72.9mm)
2.03"
(50.8mm)
1.30"
(33.0mm)
1.42"
(36.1mm)
Trouble lampholder accessories
Catalog no. A B C D
1071 1.69"
(42.9mm)
6.50"
(165.1mm)
— —
944 1.09"
(27.7mm)
1.72"
(43.7mm)
1.05"
(26.7mm)
2.37"
(60.2mm)
Lamp reflectors & guards
Catalog no. ABC
1467 6.25"
(158.8mm)
8.00"
(203.2mm)
4.34"
(110.2mm)
467 6.25"
(158.8mm)
8.25"
(209.6mm)
3.66"
(93.0mm)
469B 5.63"
(143.0mm)
1.50"
(38.1mm)
3.87"
(98.3mm)
1465Y 6.50"
(165.1mm)
2.03"
(51.6mm)
5.18"
(131.6mm)
B
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide B-73
C
SECTION
Wallplates & Weather
Protective Covers
Our broad offering of wallplates are the final touch for any application and
are available in standard size, mid-size and oversize. Choose from a variety
of materials, colors, and configurations to match any combination of device
and décor. Weather protective covers are available in a wide selection of
configurations to maintain the integrity of outdoor devices.
Mid-size wallplates
C-17
Oversize wallplates
C-24
Standard size
wallplates
C-10
Wallplate
accessories
C-26
While-in-use boxes
C-29
Weather protective
covers
C-30
C
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide C-1
Wallplates
Wallplate families
Standard size
wallplates
C-10
Mid-size
wallplates
C-17
Oversize
wallplates
C-24
Wallplate
accessories
C-26
Wallplate colors
Gray
Brown
Ivory
White
Almond Black
Lt. Almond
Brushed Bronze
Blue
Red
Solid Brass
Stainless Steel
Wallplates
Our extensive line of wallplates is designed and manufactured to perform in a wide range of
applications; no matter what you need, you’ll find the desired material, configuration, size and
color. Their heavy-duty construction provides outstanding performance throughout a home.
Available in one- through six-Gang configurations.
C-2
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
• Mid-size screwless wallplates deliver the ultimate in designer looks with
a screwless finish; they are fast and easy to install, virtually unbreakable
and easy to clean
• Mid-size & oversize wallplates are designed for use in applications where
additional wall coverage is needed
• Extra depth wallplates are available for use with old work outlet boxes for
a flush fit to the wall
• Available wallplate materials include virtually unbreakable nylon &
polycarbonate thermoplastics, 302/304 corrosion resistant stainless steel,
solid brass, and thermoset
• Nylon & polycarbonate wallplates feature Screw-Catch, a timesaving
feature that holds mounting screws captive to simplify installation
• Our wallplates are manufactured according to the performance & dimensional
requirements of Federal Specification WP-455, NEMA Standard WD-1,
UL Standard 514 and the NEC®
The Eaton difference
See pages C-17 to C-19
Shown:
PJS1
Aesthetic upgrade
Our screwless wallplates come in 3 different
openings for upgrading the look of toggle switches,
GFCIs, rotary dimmers and duplex receptacles
without having to change out devices!
Specific wallplate solutions for today's needs
Shown:
93101
Corrosion resistance
Solid brass and stainless steel wallplates offer
durable, elegant corrosion resistance making
them ideal for high-moisture locations like
kitchens, baths, garages and basements.
See pages C-10 to C-25
Shown:
PJ26
Impact resistance
Thermoplastic polycarbonate and nylon wallplates
are virtually unbreakable, warp resistant, abrasion
resistant and soil resistant, making them ideal for
high-traffic areas.
See pages C-10 to C-26
www.eaton.com
www.cooperwiringdevices.com C-3
EATON 2014 Residential Buyers Guide
C
SECTION
Compliances, specifications and availability are subject to change without notice.
Wallplate material information
Thermoplastic nylon or polycarbonate wallplates
Design features
• Rugged construction reduces installation cost
due to less plate breakage and resists bowing
to provide a smooth, flat installation
• Exclusive timesaving Screw-Catch feature holds
mounting screws captive and simplifies installation
• High gloss finish is soil resistant
• Polycarbonate wallplates are virtually
unbreakable with high structural rigidity,
long-term form retention, plus superior impact and
abrasion resistance
• Nylon wallplates have a flush-fitting, warp
resistant design
• Matching mounting screws provide
Testing & code compliance
• cULus listed to UL514C, file no. E33216, certified
to CSA C22.2, no. 42.1
Material characteristics
• Flammability: meets UL94 requirements; 5V rated
• Temperature rating: -40ºC to 70ºC (-40ºF to 158ºF)
Thermoset wallplates
Design features
• Extensive line of non-flammable thermoset plates
provides flush-fitting, warp resistant performance
Testing & code compliance
• cULus listed to UL514C, file no. E33216, certified to
CSA C22.2, no. 42.1
Material characteristics
• Flammability: Meets UL94 requirements; 5V rated
• Temperature rating: -40ºC to 65ºC (-40ºF to 149ºF)
302/304 Stainless steel wallplates
Design features
• Superior non-corrosive and non-magnetic
properties for applications needing protection
from those elements
• Stainless steel alloy contains 18% chromium and
8% nickel for corrosion resistance
• Stamped from 0.032” (0.81mm) thick material
• Horizontally satin-brushed surface finish
resists finger prints
• All plates are coated with clear, removable
PVC to safeguard the surface during handling
and installation
• Matching stainless steel mounting
screws provided
Testing & code compliance
• Listed to UL514D, file no. E92122, certified to
CSA C22.2, no.42.1
Material characteristics
• Temperature rating: -40ºC to 70ºC (-40ºF to 158ºF)
Solid brass wallplates
Design features
• Line of handsomely crafted, elegant solid
brass designs in 11 popular NEMA standard
size configurations
• Strong, corrosion resistant and coated with
transparent lacquer to resist premature oxidation
• Horizontally satin-brushed surface finish
resists fingerprints
• Matching brass-plated steel screws resist
damage during installation
• All plates are coated with clear, removable
PVC to safeguard the surface during handling
and installation
• Solid brass material is a 70/30 alloy (#26C),
.040” (1.02mm) thick
Testing & code compliance
• Listed to UL514D, file no. E92003
Material characteristics
• Temperature rating: -40ºC to 70ºC (-40ºF to 158ºF)
C-4
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Wallplate dimensional information
Device or strap
2.37”
(60.3mm)
3.28”
(83.3mm)
Box
3.81”
(96.7mm)
Decorator/GFCI
3.25”
(82.5mm)
1.37”
(34.9mm)
FS box
2.46”
(61.7mm)
4-wire
power device
2.15”
(54.7mm)
Off center
power device
2.15”
(54.7mm)
3-wire
power device
1.59”
(40.4mm)
Single locking
receptacle
20/30 Amp
1.41”
(35.7mm)
Single receptacle
Toggle
0.93”
(23.8mm)
0.40”
(10.3mm)
1.31”
(33.3mm)
2.64”
(67.1mm)
Decorator Duplex receptacle
1.13”
(28.7mm)
1.53”
(38.9mm)
1.34”
(34.0mm)
Mounting holes for wallplates and covers
These are the most common nominal spacings for mounting holes on wallplates and covers. Holes are normally countersunk
for oval head #6-32 screws.
Cover opening dimensions
Nominal dimensions for cover openings conform to industry standards and practices.
Plate opening dimensions
Nominal dimensions for plate openings conform to industry standards and practices.
www.eaton.com
www.cooperwiringdevices.com C-5
EATON 2014 Residential Buyers Guide
C
SECTION
Wallplate quick reference guide
Toggle
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Brass Thermoset Polycarbonate Screwless
Stainless
Steel Thermoset
Stainless
Steel
1-Gang 2134__ 5134__ 93071 94071 2034__ PJ1__ PJS1__ 93971 2144__ 93871
2-Gang 2139__ 5139__ 93072 94072 2039__ PJ2__ PJS2__ 93972 2149__ 93872
3-Gang 2141__ 5141__ 93073 94073 2041__ PJ3__ PJS3__ 93973 2741__ 93873
4-Gang 2154__ 5154__ 93074 — 2054__ PJ4__ PJS4__ — — 93874
5-Gang 2155__ — 93075 — — PJ5__ — — — —
6-Gang 2156__ — 93076 — — PJ6__ — — — —
Decorator/GFCI
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Brass Thermoset Polycarbonate Screwless
Stainless
Steel Thermoset
Stainless
Steel
1-Gang 2151__ 5151__ 93401 94401 2051__ PJ26__ PJS26__ 93934 2751__ 93834
2-Gang 2152__ 5152__ 93402 94402 2052__ PJ262__ PJS262__ 93935 — —
3-Gang 2163__ — 93403 — 2063__ PJ263__ PJS263__ 93936 — —
4-Gang 2164__ — 93404 — 2064__ PJ264__ PJS264__ — — —
5-Gang 2165__ — 93405 — — PJ265__ PJS265__ — — —
6-Gang 2166__ — 93406 — — PJ266__ PJS266__ — — —
Duplex receptacle
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Brass Thermoset Polycarbonate Screwless
Stainless
Steel Thermoset
Stainless
Steel
1-Gang 2132__ 5132__ 93101 94101 2032__ PJ8__ PJS8__ 93901 2142__ 93801
2-Gang 2150__ 5150__ 93102 94102 2050__ PJ82__ — 93902 2750__ 93802
3-Gang — — 93103 — — — — — — —
Blank
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Brass Thermoset Polycarbonate Screwless
Stainless
Steel Thermoset
Stainless
Steel
1-Gang 2129__ 5129__ 93151 94151 2029__ PJ13__ — 93951 2729__ 93851
2-Gang 2137__ 5137__ 93152 — 2037__ PJ23__ — — — 93852
3-Gang — — 93153 — — — — — — —
4-Gang — — 93154 — — — — — — —
1-strap mt. ————— PJ14__ — — — —
Compliances, specifications and availability are subject to change without notice.
C-6
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Wallplate quick reference guide
Power outlet
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Chrome Thermoset Polycarbonate Screwless
Stainless
Steel Thermoset
Stainless
Steel
1-1.40" Hole 2131__ 5131__ 93091 — — PJ7__ — — 2731__ 93891
1-1.59" Hole — — 93111 — — PJ720__ — — — —
1-2.15" Hole — — 93221 39CH 2068__ PJ724__ — — — —
2-2.15" Hole 2168__ — 93227 68 — PJ703__ — — — —
Combination
Standard size Mid-Size Oversize
Gang Thermoset Nylon
Stainless
Steel Brass Thermoset Polycarbonate
Stainless
Steel Thermoset
Toggle & duplex receptacle 2138__ 5138__ 93532 94532 2038__ PJ18__ 93932 2148__
Toggle & decorator 2153__ 5153__ 93432 94432 2053__ PJ126__ 93937 —
Toggle & blank — 5171__ — — — PJ113__ — —
Duplex receptacle & blank — 5170__ — — — PJ138__ — —
Duplex receptacle & decorator 2157__ — — — — PJ826__ — —
*Note: See pages C9-C24 for full specifications and available color options.
Compliances, specifications and availability are subject to change without notice.
Color ordering information:
A (Almond), B (Brown), BK (Black), BL, (Blue), GY (Gray), LA (Light Almond), RD (Red), V (Ivory), W (White), Solid Brass, Stainless Steel, BB (Brushed Bronze).
AB BK BL GY LA RD V W
(Almond) (Brown) (Black) (Blue) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Solid Brass) (Stainless Steel) (Brushed Bronze)
BB
Standard size Mid-Size
Gang Thermoset Nylon Stainless Steel Polycarbonate
2 Toggles & duplex receptacle 2158__ 5158__ 93543 PJ28__
2 Toggles & decorator 2173__ — 93443 PJ226__
Size options
2.75” (69.85mm)
Oversize
Mid-size
Standard
5.25”
(133.4mm)
4.50”
(114.3mm)
4.88”
(123.8mm)
3.13” (79.4mm)
3.50” (88.9mm)
www.eaton.com
www.cooperwiringdevices.com C-7
EATON 2014 Residential Buyers Guide
C
SECTION
Wallplate dimensional information
Wallplate sizes
Gang Description Height Width First gang to edge Gang to gang
1-Gang Standard 4.50" (114.3mm) 2.75" (34.9mm) 1.37" (34.9mm) —
Mid-Size 4.87" (123.8mm) 3.13" (79.4mm) 1.56" (39.7mm) —
Oversize 5.25" (133.4mm) 3.5" (88.9mm) 1.75" (44.4mm) —
2-Gang Standard 4.50" (114.3mm) 4.56" (115.9mm) 1.37" (34.9mm) 1.81" (46.0mm)
Mid-Size 4.87" (123.8mm) 4.94" (125.4mm) 1.56" (39.7mm) 1.81" (46.0mm)
Oversize 5.25" (133.4mm) 5.31" (134.9mm) 1.75" (44.4mm) 1.81" (46.0mm)
3-Gang Standard 4.50" (114.3mm) 6.37" (161.9mm) 1.37" (34.9mm) 1.81" (46.0mm)
Mid-Size 4.87" (123.8mm) 6.75" (171.4mm) 1.56" (39.7mm) 1.81" (46.0mm)
Oversize 5.25" (133.4mm) 7.17" (182.2mm) 1.75" (44.4mm) 1.81" (46.0mm)
4-Gang Standard 4.50" (114.3mm) 8.19" (207.9mm) 1.37" (34.9mm) 1.81" (46.0mm)
Mid-Size 4.87" (123.8mm) 8.56" (217.5mm) 1.56" (39.7mm) 1.81" (46.0mm)
Oversize 5.25" (133.4mm) 8.94" (227.0mm) 1.75" (44.4mm) 1.81" (46.0mm)
5-Gang Standard 4.50" (114.3mm) 10.00" (254.0mm) 1.37" (34.9mm) 1.81" (46.0mm)
Mid-Size 4.87" (123.8mm) 10.37" (263.5mm) 1.56" (39.7mm) 1.81" (46.0mm)
6-Gang Standard 4.50" (114.3mm) 11.81" (300.0mm) 1.37" (34.9mm) 1.81" (46.0mm)
Mid-Size 4.87" (123.8mm) 12.18" (309.5mm) 1.56" (39.7mm) 1.81" (46.0mm)
Compliances, specifications and availability are subject to change without notice.
4.50”
(114.3mm)
11.81” (300.1mm)
1.37”
(34.9mm)
1.81”
(46.1mm)
Standard
4.87”
(123.8mm)
6.75” (171.4mm)
1.56”
(39.7mm)
1.81”
(46.1mm)
Mid-size
5.25”
(133.4mm)
5.31” (134.9mm)
1.75”
(44.4mm)
1.81”
(46.1mm)
Oversize Oversize Mid-size Standard
2.75” (69.85mm)
5.25”
(133.4mm)
4.50”
(114.3mm)
4.88”
(123.8mm)
3.13” (79.4mm)
3.50” (88.9mm)
C-8
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Standard size wallplates
Standard size wallplates—toggle switch
Product description
1-Gang, 2-Gang, 3-Gang, 4-Gang, 5-Gang, 6-Gang
Wallplate sizes
Gang Material Color suffix Catalog no.
1-Gang toggle Nylon A, B, BK, GY, LA, RD, V, W 5134__ •
Thermoset A, B, LA, V, W 2134__ •
302/304 Stainless Steel — 93071 •
Solid Brass — 94071 •
2-Gang toggle Nylon A, B, BK, GY, LA, RD, V, W 5139__ •
Thermoset A, B, LA, V, W 2139__ •
302/304 Stainless Steel — 93072 •
Solid Brass — 94072 •
3-Gang toggle Nylon A, B, BK, GY, LA, V, W 5141__ •
Thermoset A, B, LA, V, W 2141__ •
302/304 Stainless Steel — 93073 •
Solid Brass — 94073 •
4-Gang toggle Nylon A, B, BK, GY, LA, V, W 5154__ •
Thermoset A, B, LA, V, W 2154__ •
302/304 Stainless Steel — 93074 •
5-Gang toggle Thermoset A, B, LA, V, W 2155__ •
302/304 Stainless Steel — 93075 •
6-Gang toggle Thermoset A, B, V, W 2156__ •
302/304 Stainless Steel — 93076 •
1-Gang
2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
AB BK BL GY LA RD V W
(Almond) (Brown) (Black) (Blue) (Gray) (Lt. Almond) (Red) (Ivory) (White)
(Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), BL, (Blue), GY (Gray),
LA (Light Almond), RD (Red), V (Ivory), W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
www.eaton.com
www.cooperwiringdevices.com C-9
EATON 2014 Residential Buyers Guide
C
SECTION
Standard size wallplates
Standard size duplex receptacle wallplates
Product description
1-Gang, 2-Gang, 3-Gang
Duplex receptacle
Gang Material Color suffix Catalog no.
1-Gang duplex receptacle Nylon A, B, BK, GY, LA, RD, V, W 5132__ •
Thermoset A, B, LA, V, W 2132__ •
302/304 Stainless Steel — 93101 •
Solid Brass — 94101 •
2-Gang duplex receptacle Nylon A, B, BK, GY, LA, RD, V, W 5150__ •
Thermoset A, B, LA, V, W 2150__ •
302/304 Stainless Steel — 93102 •
Solid Brass — 94102 •
3-Gang duplex receptacle 302/304 Stainless Steel — 93103 •
Standard size single receptacle wallplates
Product description
1-Gang
Single receptacles
Gang Material Color suffix Catalog no.
1-Gang single receptacle Nylon A, B, BK, GY, RD, V, W 5131__ •
Thermoset A, B, LA, V, W 2131__ •
302/304 Stainless Steel — 93091 •
Solid Brass — 94091 •
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1-Gang
2-Gang
3-Gang
1-Gang
C-10
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Standard size wallplates
Standard size decorator wallplates
Product description
1-Gang, 2-Gang, 3-Gang,
4-Gang, 5-Gang, 6-Gang
Decorator
Gang Material Color suffix Catalog no.
1-Gang decorator Nylon A, B, BL, BK, GY, LA, RD, V, W 5151__ •
Thermoset A, B, BK, GY, LA, V, W 2151__ •
302/304 Stainless Steel — 93401 •
Solid Brass — 94401 •
2-Gang decorator Nylon A, B, BK, GY, LA, V, W 5152__ •
Thermoset A, B, BK, GY, LA, V, W 2152__ •
302/304 Stainless Steel — 93402 •
Solid Brass — 94402 •
3-Gang decorator Thermoset A, B, GY, LA, V, W 2163__ •
302/304 Stainless Steel — 93403 •
4-Gang decorator Thermoset A, B, LA, V, W 2164__ •
302/304 Stainless Steel — 93404 •
5-Gang decorator Thermoset A, B, LA, V, W 2165__ •
302/304 Stainless Steel — 93405 •
6-Gang decorator Thermoset A, B, LA, V, W 2166__ •
302/304 Stainless Steel — 93406 •
AB BK BL GY LA RD V W
(Almond) (Brown) (Black) (Blue) (Gray) (Lt. Almond) (Red) (Ivory) (White)
(Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), BL, (Blue), GY (Gray),
LA (Light Almond), RD (Red), V (Ivory), W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1-Gang
2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
www.eaton.com
www.cooperwiringdevices.com C-11
EATON 2014 Residential Buyers Guide
C
SECTION
1-Gang
2-Gang
3-Gang
4-Gang
Horizontal
Vertical
Standard size wallplates
Standard size blank wallplates
Product description
1-Gang, 2-Gang, 3-Gang, 4-Gang
Blank, box mounted
Gang Material Color suffix Catalog no.
1-Gang decorator Nylon A, B, BK, GY, LA, V, W 5129__ •
Thermoset A, B, LA, V, W 2129__ •
302/304 Stainless Steel — 93151 •
Solid Brass — 94151 •
2-Gang decorator Nylon A, B, BK, GY, LA, V, W 5137__ •
Thermoset A, B, LA, V, W 2137__ •
302/304 Stainless Steel — 93152 •
3-Gang decorator 302/304 Stainless Steel — 93153 •
4-Gang decorator 302/304 Stainless Steel — 93154 •
Standard size—louvered
Product description
Horizontal & vertical
Single receptacles
Gang Material Color suffix Catalog no.
1-Gang horizontal louver 302/304 Stainless Steel — 93630 •
1-Gang vertical louver 302/304 Stainless Steel — 93631 •
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White) (Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
C-12
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
0.38" Hole
0.63" Hole
Toggle & Duplex
Receptacle
Toggle & Single
Receptacle
Toggle & Decorator
Toggle & Blank
Duplex Receptacle
& Blank
Duplex Receptacle
& Decorator
Standard size wallplates
Standard size combination wallplates
Product description
1-Gang, 2-Gang
Telephone & coax
Gang Material Color suffix Catalog no.
1-Gang with 0.38” (9.5mm) hole Nylon B, GY, V, W 5128__ •
Thermoset A, B, LA, V, W 2128__ •
302/304 Stainless Steel — 93696 •
1-Gang with 0.63” (15.9mm) hole Nylon B, GY, V, W 5159__ •
Thermoset A, B, BK V, W, LA, V, W 2159__ •
302/304 Stainless Steel — 93591 •
Combination 2-Gang
Gang Material Color suffix Catalog no.
2-Gang toggle & duplex receptacle Nylon A, B, BK, GY, LA, V, W 5138__ •
Thermoset A, B, LA, V, W 2138__ •
302/304 Stainless Steel — 93532 •
Solid Brass — 94532 •
2-Gang toggle & single receptacle 302/304 Stainless Steel — 93512 •
2-Gang toggle & decorator Nylon A, B, BK, GY, LA, V, W 5153__ •
Thermoset A, B, LA, V, W 2153__ •
302/304 Stainless Steel — 93432 •
Solid Brass — 94432 •
2-Gang toggle & blank Nylon A, B, BK, LA, V 5171__ •
2-Gang duplex receptacle & blank Nylon A, B, BK, LA, V 5170__ •
2-Gang duplex receptacle & decorator Thermoset A, LA, V, W 2157__ •
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White) (Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
www.eaton.com
www.cooperwiringdevices.com C-13
EATON 2014 Residential Buyers Guide
C
SECTION
Standard size wallplates
Standard size combination wallplates
Product description
3-Gang, 4-Gang
Combination 3-Gang
Description Material Color suffix Catalog no.
3-Gang
2 toggles & duplex receptacle
Nylon B, GY, V, W 5158__ •
Thermoset A, B, LA, V, W 2158__ •
302/304 Stainless Steel — 93543 •
3-Gang
2 toggles & decorator
Thermoset A, LA, V, W 2173__ •
302/304 Stainless Steel — 93443 •
Combination 4-Gang
Description Material Color suffix Catalog no.
4-Gang
3 toggles & duplex receptacle
Thermoset A, LA, V, W 2174__ •
302/304 Stainless Steel — 93554 •
Standard size power outlet wallplates
Product description
1-Gang, 2-Gang
Power outlet
Description Material Color suffix Catalog no.
1-Gang with 1.59” (40.5mm) hole 302/304 Stainless Steel — 93111 •
1-Gang with 2.15” (54.8mm) hole 302/304 Stainless Steel — 93221 •
2-Gang with 2.15” (54.8mm) hole Thermoset A, B, LA, V, W 2168__ •
302/304 Stainless Steel — 93227 •
2-Gang with 2.28” (57.9mm) hole 302/304 Stainless Steel — 93228 •
2-Gang with 2.47” (62.7mm) hole Nylon V, W 5169__ •
302/304 Stainless Steel — 93223 •
Standard size wallplate guide for power devices
Power device catalog no. Wallplate catalog no.
32B, 38B, 1233, 1234, 1253, 1254, 1257, 1258, 1263 2068, 2168, 93221, 93227
ABGY LA V W
(Almond) (Brown) (Gray) (Lt. Almond) (Ivory) (White) (Solid Brass) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), GY (Gray), LA (Light Almond), V (Ivory),
W (White), Solid Brass, Stainless Steel.
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
2 Toggles &
Duplex Receptacle
2 Toggles
& Decorator
3 Toggles & Duplex
Receptacle
1-Gang
1.59" Hole
1-Gang
2.15" Hole
2-Gang
2.15" Hole
2-Gang
2.28" Hole
2-Gang
2.47" Hole
C-14
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Standard size wallplates
Standard size extra depth wallplates
Product description
1-Gang, 2-Gang
Extra depth*
Description Material Color suffix Catalog no.
1-Gang toggle Thermoset V, W 4134__ •
1-Gang duplex receptacle Thermoset V, W 4132__ •
2-Gang toggle Thermoset V, W 4139__ •
2-Gang duplex receptacle Thermoset V, W 4150__ •
2-Gang blank Thermoset V, W 4137__ •
2-Gang toggle & duplex receptacle Thermoset V, W 4138__ •
2-Gang toggle & blank Thermoset V, W 4171__ •
2-Gang duplex receptacle & blank Thermoset V, W 4170__ •
*Extra depth wallplates are approximately 10% deeper than standard size/standard depth counterparts.
V W
(Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: V (Ivory), W (White).
Certification information: 2000 and 5000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1-Gang
Toggle
1-Gang Duplex
Receptacle
2-Gang
Toggle
2-Gang Duplex
Receptacle
2-Gang Blank 2-Gang Toggle
& Duplex
Receptacle
2-Gang
Toggle
& Blank
2-Gang Duplex
Receptacle
& Blank
www.eaton.com
www.cooperwiringdevices.com C-15
EATON 2014 Residential Buyers Guide
C
SECTION
Mid-size wallplates
Mid-size wallplates—toggle switch
Product description
1-Gang, 2-Gang, 3-Gang,
4-Gang, 5-Gang, 6-Gang
Toggle switch
Description Material Color suffix Catalog no.
1-Gang toggle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ1__
Thermoset A, B, LA, V, W 2034__ •
302/304 Stainless Steel — 93971 •
2-Gang toggle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ2__
Thermoset A, B, LA, V, W 2039__ •
302/304 Stainless Steel — 93972 •
3-Gang toggle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ3__
Thermoset A, B, LA, V, W 2041__ •
302/304 Stainless Steel — 93973 •
4-Gang toggle Polycarbonate A, B, BK, GY, LA, V, W PJ4__
Thermoset A, LA, V, W 2054 •
5-Gang toggle Polycarbonate A, B, BK, GY, LA, V, W PJ5__
6-Gang toggle Polycarbonate A, B, BK, GY, LA, V, W PJ6__
Mid-size screwless wallplates—toggle switch
Product description
1-Gang, 2-Gang, 3-Gang, 4-Gang
Screwless toggle switch
Description Material Color suffix Catalog no.
1-Gang toggle Polycarbonate A, B, BB, BK, LA, V, W PJS1__
2-Gang toggle Polycarbonate A, B, BB, BK, LA, V, W PJS2__
3-Gang toggle Polycarbonate A, LA, V, W PJS3__
4-Gang toggle Polycarbonate A, LA, V, W PJS4__
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White), BB (Brushed Bronze), Stainless Steel.
Certification information: 2000, 5000 and PJ series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1-Gang 2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
1-Gang 2-Gang
3-Gang
4-Gang
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Brushed Bronze) (Stainless Steel)
BB
C-16
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), BL, (Blue), GY (Gray),
LA (Light Almond), RD (Red), V (Ivory), W (White), BB (Brushed Bronze), Stainless Steel.
Certification information: 2000, 5000 and PJ series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified;
94000 are UL certified Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK BL GY LA RD V W
(Almond) (Brown) (Black) (Blue) (Gray) (Lt. Almond) (Red) (Ivory) (White)
(Brushed Bronze) (Stainless Steel)
BB
Product description
1-Gang, 2-Gang
Duplex receptacle
Description Material Color suffix Catalog no.
1-Gang duplex receptacle Polycarbonate A, B, BK, BL, GY, LA, RD, V, W PJ8__
Thermoset A, B, LA, V, W 2032__ •
302/304 Stainless Steel — 93901 •
2-Gang duplex receptacle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ82__
Thermoset A, LA, V, W 2050__ •
302/304 Stainless Steel — 93902 •
Screwless duplex receptacle
Description Material Color suffix Catalog no.
1-Gang duplex receptacle Polycarbonate A, B, BB, BK, LA, V, W PJS8__
Single receptacles
Description Material Color suffix Catalog no.
1-Gang with 1.41” (35.7mm) hole Thermoset A, B, LA, V, W 2031__ •
302/304 Stainless Steel — 93991 •
Mid-size wallplates
Mid-size wallplates—duplex, screwless & single receptacles
1-Gang
2-Gang
1-Gang
1-Gang
www.eaton.com
www.cooperwiringdevices.com C-17
EATON 2014 Residential Buyers Guide
C
SECTION
1-Gang 2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
1-Gang 2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
Mid-size wallplates
Mid-size decorator wallplates
Product description
1-Gang, 2-Gang, 3-Gang,
4-Gang, 5-Gang, 6-Gang
Decorator
Description Material Color suffix Catalog no.
1-Gang decorator Polycarbonate A, B, BK, BL, GY, LA, RD, V, W PJ26__
Thermoset A, B, LA, V, W 2051__ •
302/304 Stainless Steel — 93934 •
2-Gang decorator Polycarbonate A, B, BK, GY, LA, RD, V, W PJ262__
Thermoset A, LA, V, W 2052__ •
302/304 Stainless Steel — 93935 •
3-Gang decorator Polycarbonate A, B, BK, GY, LA, V, W PJ263__
Thermoset A, LA, V, W 2063__ •
302/304 Stainless Steel — 93936 •
4-Gang decorator Polycarbonate A, B, BK, GY, LA, V, W PJ264__
Thermoset A, LA, V, W 2064__ •
5-Gang decorator Polycarbonate A, B, BK, GY, LA, V, W PJ265__
6-Gang decorator Polycarbonate A, B, BK, GY, LA, V, W PJ266__
Mid-size screwless decorator wallplates
Product description
1-Gang, 2-Gang, 3-Gang,
4-Gang, 5-Gang, 6-Gang
Screwless Decorator
Description Material Color suffix Catalog no.
1-Gang decorator Polycarbonate A, B, BB, BK, GY, LA, V, W PJS26__
2-Gang decorator Polycarbonate A, B, BB, BK, LA, V, W PJS262__
3-Gang decorator Polycarbonate A, BB, BK, LA, V, W PJS263__
4-Gang decorator Polycarbonate A, BK, LA, V, W PJS264__
5-Gang decorator Polycarbonate A, BK, LA, V, W PJS265__
6-Gang decorator Polycarbonate A, BK, LA, V, W PJS266__
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White), BB (Brushed Bronze), Stainless Steel.
Certification information: 2000 and PJ series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Brushed Bronze) (Stainless Steel)
BB
C-18
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Mid-size wallplates
Product description
1-Gang, 2-Gang
Blank, box & strap mounted
Description Material Color suffix Catalog no.
1-Gang blank, box mounted Polycarbonate A, B, BK, GY, LA, V, W PJ13__
Thermoset A, B, LA, V, W 2029__ •
302/304 Stainless Steel — 93951 •
1-Gang blank, strap mounted Polycarbonate A, B, BK, LA, V, W PJ14__
2-Gang blank, box mounted Polycarbonate A, B, BK, GY, LA, V, W PJ23__
Thermoset A, LA, V, W 2037__ •
Blank, box & strap mounted wallplates
Telephone & coax
Description Material Color suffix Catalog no.
1-Gang with 0.38”
(9.5mm) hole
Thermoset V, W 2028__ •
302/304 Stainless Steel — 93996 •
1-Gang with 0.40” (10.2mm) hole,
box mounted
Polycarbonate A, B, BK, LA, V, W PJ11__
Mid-size screwless telephone & coax
Product description
1-Gang, 2-Gang, 3-Gang,
4-Gang, 5-Gang, 6-Gang
1-Gang
2-Gang
0.375" Hole
0.406" Hole
AB BK GY LA V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Ivory) (White) (Stainless Steel)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
V (Ivory), W (White), Stainless Steel.
Certification information: 2000 and PJ series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
www.eaton.com
www.cooperwiringdevices.com C-19
EATON 2014 Residential Buyers Guide
C
SECTION
Mid-size wallplates
Mid-size combination wallplates
Product description
2-Gang, 3-Gang
Combination 2-Gang
Description Material Color suffix Catalog no.
2-Gang toggle & duplex receptacle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ18__
Thermoset A, B, LA, V, W 2038__ •
302/304 Stainless Steel — 93932 •
2-Gang toggle & decorator Polycarbonate A, B, BK, GY, LA, V, W PJ126__
Thermoset A, LA, V, W 2053__ •
302/304 Stainless Steel — 93937 •
2-Gang toggle & blank Polycarbonate A, B, LA, V, W PJ113__
2-Gang duplex receptacle & blank Polycarbonate A, B, BK, GY, LA, RD, V, W PJ138__
2-Gang duplex receptacle & decorator Polycarbonate A, B, BK, GY, LA, RD, V, W PJ826__
Combination 3-Gang
Description Material Color suffix Catalog no.
3-Gang 2 toggles & duplex receptacle Polycarbonate A, B, BK, GY, LA, RD, V, W PJ28__ •
3-Gang 2 toggles & decorator Polycarbonate A, B, BK, GY, LA, V, W PJ226__ •
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White), Stainless Steel.
Certification information: 2000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Stainless Steel)
Toggle & Duplex Receptacle
Toggle & Decorator
Toggle & Blank
2-Gang Duplex
Receptacle & Blank
Duplex Receptacle
& Decorator
2 Toggles & Duplex
Receptacle
2 Toggles & Decorator
C-20
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Mid-size wallplates
Product description
1-Gang, 2-Gang
Power outlet
Description Material Color suffix Catalog no.
1-Gang with 1.40” (35.7mm) hole Polycarbonate A, B, BK, GY, LA, RD, V, W PJ7__
1-Gang with 1.59” (40.5mm) hole Polycarbonate B, GY, V, W PJ720__
1-Gang with 2.15” (54.8mm) hole Thermoset A, B, V, W 2068__ •
1-Gang with 2.15” (54.6mm) hole Polycarbonate B, BK, V, W PJ724__
Nylon V 5068__ •
2-Gang with 2.15” (54.6mm) hole Polycarbonate B, V, W PJ703__
Mid-size wallplate guide for power devices
Power device catalog no. Wallplate catalog no.
32B, 38B, 1233, 1234, 1253, 1254, 1257, 1258, 1263 2068, 5068, PJ724, PJ703
Mid-size power outlet wallplates
1-Gang 1.40" Hole
1-Gang 1.59" Hole
1-Gang 2.15" Hole
2-Gang 2.15" Hole
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White).
Certification information: 2000 and PJ series wallplates are cULus certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
www.eaton.com
www.cooperwiringdevices.com C-21
EATON 2014 Residential Buyers Guide
C
SECTION
Mid-size wallplates
Mid-size sectional wallplates
Product description
1-Gang
Sectional wallplates
Description Material Location Color Catalog no.
1-Gang toggle Polycarbonate Center V, W STC1__
Polycarbonate End V, W STE1__
1-Gang decorator Polycarbonate Center V, W STC26__
Polycarbonate End V, W STE26__
1-Gang duplex receptacle Polycarbonate Center V, W STC8__
Polycarbonate End V, W STE8__
1-Gang blank Polycarbonate Center V, W STC14__
Polycarbonate End V, W STE14__
1-Gang single receptacle
1.40” (35.7mm) hole
Polycarbonate Center V, W STC7__
Polycarbonate End V, W STE7__
Center End
Toggle
Decorator
Duplex Receptacle
Blank
Single Receptacle
V W
(Ivory) (White)
Color ordering information:
V (Ivory), W (White)
Certification information: ST series wallplates are cULus certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
C-22
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Oversize wallplates
Product description
1-Gang, 2-Gang, 3-Gang, 4-Gang
Toggle switch
Description Material Color suffix Catalog no.
1-Gang toggle Thermoset A, B, LA, V, W 2144__ •
302/304 Stainless Steel — 93871 •
2-Gang toggle Thermoset A, B, LA, V, W 2149__ •
302/304 Stainless Steel — 93872 •
3-Gang toggle Thermoset V, W 2741__ •
302/304 Stainless Steel — 93873 •
4-Gang toggle 302/304 Stainless Steel — 93874 •
Oversize toggle switch wallplates
Duplex receptacles
Description Material Color suffix Catalog no.
1-Gang duplex receptacle Thermoset A, B, LA, V, W 2142__ •
302/304 Stainless Steel — 93801 •
2-Gang duplex receptacle Thermoset V, W 2750__ •
302/304 Stainless Steel — 93802 •
Single receptacles
Description Material Color suffix Catalog no.
1-Gang with 1.40” (35.7mm) hole Thermoset V, W 2731__ •
302/304 Stainless Steel — 93891 •
Oversize duplex & single receptacle wallplates
Product description
1-Gang, 2-Gang
Decorator
Description Material Color suffix Catalog no.
1-Gang decorator Thermoset V, W 2751__ •
302/304 Stainless Steel — 93834 •
Oversize decorator receptacle wallplates
Product description
1-Gang
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White), Stainless Steel.
Certification information: 2000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White) (Stainless Steel)
1-Gang 2-Gang
3-Gang
4-Gang
1-Gang
2-Gang
1-Gang
1-Gang
www.eaton.com
www.cooperwiringdevices.com C-23
EATON 2014 Residential Buyers Guide
C
SECTION
Oversize wallplates
Product description
1-Gang, 2-Gang
Blank, box mounted
Description Material Color suffix Catalog no.
1-Gang blank Thermoset V, W 2729__ •
302/304 Stainless Steel — 93851 •
2-Gang blank 302/304 Stainless Steel — 93852 •
Oversize blank, box mounted wallplates
Telephone & coax
Description Material Color suffix Catalog no.
1-Gang with 0.38” (9.5mm) hole Thermoset V, W 2728__ •
302/304 Stainless Steel — 93896 •
Oversize telephone & coax wallplates
Product description
1-Gang, 2-Gang
Combination 2-Gang
Description Material Color suffix Catalog no.
2-Gang toggle & duplex receptacle Thermoset B, V, W 2148__ •
Oversize combination wallplates
Product description
2-Gang
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), V (Ivory), W (White), Stainless Steel.
Certification information: 2000 series wallplates are cULus certified; 93000 series wallplates are UL and CSA certified
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
BV W
(Brown) (Ivory) (White) (Stainless Steel)
1-Gang
2-Gang
0.375" Hole
Toggle & Duplex Receptacle
C-24
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Wallplate accessories
Description Material Color suffix Catalog no.
GFCI extension ring for use with GFCI’s,
7/8” spacer, cULus Certified
Polypropylene B, BLK, LA, V, W GFER__
Adapter—decorator to blank Polypropylene B, LA, V, W 2160__ •
Adapter—decorator to toggle Polypropylene V, W 2161__ •
Toggle & receptacle wallplate screws
#6-32 x 1/2”
Metal, baked enamel head B, LA, V, W 231__
Nylon RD, V, W 232__
Toggle & receptacle wallplate screws
#6-32 x 5/16”
LA, V, W 2231__
GFER: cULus Listed to UL514C, CSA certified to C22.2, no. 18-98
Sub-frame & blank insert
Description Color suffix Catalog no.
Blank insert and strap for any switch plate 756__
Louvered wallplate accessories
Description Material Catalog no.
Recessed pilot light lamp holder with 6
watt clear S-6 bulb
Polypropylene 153 •
Listed to UL496, file no. E18522; CSA certified to C22.2, no. 43
Wallplate accessories
Product description
GFCI extension ring, adapters, wallplate screws, blank insert & pilot light lamp holder
Wallplate accessories
LED Steplight
Description Color suffix Catalog no.
15A, 120V/AC LED steplight, includes vertical & horizontal louvered wallplates A, LA, W 7739-BOX
cULus Listed to UL 1598, file no. E328628; CSA certified to C22.2, no. 43
LED steplight
Product description
15A, 120V/AC
2161
GFER
231
153
7739-BOX Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White).
Dimensional information: C-5, C-6 Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
AB BK GY LA RD V W
(Almond) (Brown) (Black) (Gray) (Lt. Almond) (Red) (Ivory) (White)
756
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide
C
SECTION
C-25
Weather protective covers
Weather protective cover families
While-in-use
boxes
C-29
Weatherproof
receptacle
covers
C-30
Weatherproof
switch
covers
C-30
Weather
protective
receptacle
covers
C-30
Weather protective cover colors
Weather protective covers
Our wide line of weatherproof and weather protective products are designed for impact resistance,
corrosion resistance, UV resistance and longevity in virtually any outdoor or indoor wet or damp
location. They are ideal for patio and pool areas, decks, garages, seasonal lighting, house exterior
and landscape service receptacles.
Gray
White
Black
C-26
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
• While-In-Use boxes offer complete protection of electrical connections,
even when cords are plugged in
• Award-winning design offers superior functionality with patented polycarbonate
movable hinges that permit easy horizontal or vertical mounting
• Durable one-piece corrosion resistant polycarbonate cover offers additional
strength and weather protection
• Deep, see-through design of cover offers plenty of space for plugs and cords
along with easy visual access
• Easy to open/close with a lockable clasp
• Pre-applied gasket makes it easy to mount box properly
• Cord opening fits #12 AWG or lighter cords
• Three easy-to-install molded insets for use with decorator devices, duplex
or single receptacles, and toggle switches
The Eaton difference
See page C-29
Shown:
WIU-1
Code compliance
The 2014 NEC® Article 406.9 (B)(1) requires
receptacles located outdoors on 1- or 2-family
dwellings in wet locations to be installed in
enclosures that are weatherproof with or
without a plug inserted.
Specific weather protective cover solutions for today's needs
Shown:
S2983
Weatherproof switch protection
Boat houses and lifts are challenging corrosive
environments for switches that need to be
protected yet functional. Weather protective
switch covers are also lockable for security.
See page C-29
Shown:
S1962
“Protective only” covers
These covers offer “damp location” protection in par-
tially protected outdoor areas such as covered open
porches or gazebos and interior areas such
as basements or barns.
See page C-29
www.eaton.com
www.cooperwiringdevices.com C-27
EATON 2014 Residential Buyers Guide
C
SECTION
WeatherBox while-in-use weather protective covers
• Meets 2014 NEC® 406.9 (B)(1) Extra Duty
requirement for any application (WIU-1X,
WIU-2X series only)
• Rugged UV-resistant polycarbonate cover
and back protects devices without cracking
or breaking and is non-corrosive and
non-conductive
• Moveable hinges reposition easily for vertical
or horizontal mounting (WIU-1 only)
• 1-Gang box includes 3 inserts for
16 different configurations
• 2-Gang box includes 3 inserts for over 60
different configurations
• Box inserts accommodate decorator devices,
duplex receptacles, a variety of different single
receptacle sizes and toggle switches
• Exceeds UL outdoor low voltage landscape
lighting requirements
• Box cover includes pre-mounted gasket
• Meets Canadian Electrical Code rule 26-702
Product description
1-Gang self-closing
2-Gang self-closing
Design features
WIU-1
WIU-1D
WIU-2
While-in-use weather protective covers
Standard depth
# of available
Gang Description configurations Color Catalog no.
1-Gang Horizontal/vertical mount 16 GY WIU-1
1-Gang Horizontal/vertical mount 16 W WIU-1W
2-Gang Horizontal/vertical mount 60+ GY WIU-2
2-Gang Horizontal/vertical mount 60+ W WIU-2W
cULus Listed to UL514D, file no. E33216, certified to CSA C22.2 no. 42; meets NEMA 3R requirements
Extra depth
# of available
Gang Description configurations Color Catalog no.
1-Gang Horizontal/vertical mount 16 GY WIU-1D
cULus Listed to UL514D, file no. E33216, certified to CSA C22.2 no. 42; meets NEMA 3R requirements
Extra duty
Gang Description Color Catalog no.
1-Gang Horizontal mount GY WIU-1HX
1-Gang Horizontal mount W WIU-1WHX
1-Gang Vertical mount GY WIU-1VX
1-Gang Vertical mount W WIU-1WVX
2-Gang Horizontal/vertical mount GY WIU-2X
2-Gang Horizontal/vertical mount W WIU-2WX
WIU-2X & WIU-2WX: cULus Listed to UL514D, file no. E33216; meets NEMA 3R requirements
Compliances, specifications and availability are subject to change without notice.
GY W
(Gray) (White)
Color ordering information:
Base device is gray. For white, add Color suffix: W (White).
WIU-1HX
WIU-2X
C-28
www.eaton.com
www.cooperwiringdevices.com
EATON 2014 Residential Buyers Guide
C
SECTION
Weather protective covers
Product description
Weatherproof or protective only 1-Gang, self-closing lids
1-Gang, stay open lids
Design features
Non-metallic protective covers
• Weatherproof models are UL Listed for wet
locations with cover closed
• Weatherproof models meet 2014 NEC® 406.9 (A)
and 406.9 (B)(2), except for switch cover which
meets 2014 NEC® 404.5
• Tough plastic construction resistant to high
impact and sunlight
• Non-corrosive and non-conductive
• Gasket provided seals both device openings
and edges
• Switch cover features factory-attached to cover
gasket, minimizing labor for installer
• Red switch cover handle for easy visual
location (S2983)
• Switch cover lockable in “ON” or “OFF”
position (S2983)
• “Protective only” covers not for use in wet
locations (S1961/2)
Weatherproof single receptacle cover
Description Color Catalog no. Color Catalog no.
Self-closing, horizontal mount Gray S1951 White S1951W •
Listed to UL514D, file no. E33216; CSA certified to C22.2, no. 42.1
Weatherproof duplex receptacle/combination device cover
Description Color Catalog no. Color Catalog no.
2 self-closing lids, horizontal mount Gray S1952 White S1952W •
Oversized, 2 self-closing lids, horizontal mount Gray S1954 — — •
1 self-closing lid, vertical mount Gray S2962 White S2962W •
1 self-closing lid, horizontal mount Gray S3962 White S3962W •
Listed to UL514D, file no. E33216; CSA certified to C22.2, no. 42.1, except S1954
Weatherproof GFCI/decorator device cover
Description Color Catalog no. Color Catalog no.
1 self-closing lid, vertical mount Gray S2966 White S2966W •
1 self-closing lid, horizontal mount Gray S3966 White S3966W •
1 self-closing lid, horizontal mount Black S3966BK — — •
Listed to UL514D, file no. E33216; CSA certified to C22.2, no. 42.1, except S1954
Weatherproof switch cover
Description Color Catalog no.
Flush mount cover, vertical mount Gray S2983 •
Listed to UL514D, file no. E33216; CSA certified to C22.2, no. 42.1
Protective only, single or duplex receptacle/combination device cover
Description Color Catalog no. Color suffix Catalog no.
Single receptacle, stay-open, horizontal mount Gray S1961 W S1961W •
Duplex receptacle/combo, stay-open, horizontal mount Gray S1962 BK, W S1962__ •
Listed to UL514D, file no. E33216; CSA certified to C22.2, no. 42.1
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
BK GY W
(Black) (Gray) (White)
Color ordering information:
BK (Black), GY (Gray), W (White)
S1952
S1954
S2962
S2983
S1961
www.eaton.com
www.cooperwiringdevices.com C-29
EATON 2014 Residential Buyers Guide
C
SECTION
D
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide
D
SECTION
D-1
Data & Connectivity
Depend on Eaton’s Cooper Wiring Devices to provide flexible, well-networked
solutions for every home, every lifestyle and every budget. Eaton’s data and
connectivity devices allow clean and seamless integration of communication,
networking, entertainment and multimedia into the home. Flexible options
and colors ensure design requirements are always fulfilled.
Multimedia
wallplates
D-6
Connectivity
points
D-10
Modular
connectivity
D-2
MediaSync tools
& accessories
D-14
Modular connectivity points
Our full line of modular communications outlets combined with modular wallplates deliver
maximum flexibility at connection points throughout the home. Modular jacks and adapters
provide connection points for a variety of voice, video, data, and audio formats and are designed
with quality, ease of installation and compatibility in mind.
Modular connectivity points
Modular connectivity point families
Modular
jacks &
adapters
D-4
Modular
wallplates
D-5
Decorator
modular
mounting
strap
inserts
D-5
Modular connectivity point colors
Ivory
White
Lt. Almond
D
SECTION
EATON 2014 Residential Buyers Guide D-2
www.eaton.com
www.cooperwiringdevices.com
SECTION
The Eaton difference
See page D-4
Shown:
5546-6W
Improved performance
Modular devices offer improved quality and
performance over pre-mounted devices, whether
you are delivering connection points for video,
data, voice or audio services.
Specific modular connectivity point solutions for today's needs
Shown:
5552-5EW
Flexibility & future-proofing
The modularity of this type of connection point
allows the maximum flexibility, customization and
future-proofing in a home. Changing plates or jacks
and adapters is fast and easy.
See page D-4
Shown:
5547-3EW
Data & voice
Networking a home means more than just providing
a phone jack or two and some coax connections.
Our modular connection points are the foundation
of providing all service types.
See page D-4
• Mid-size modular wallplates feature rugged thermoplastic construction
• Modular wallplates accept any combination of 110 style modular jacks,
inserts and adapters
• All jacks and adapters clip smoothly into place from behind in our flush-mount
modular wallplates
• All jacks are 110 style and feature IDC termination for simple and fast installation
• Jacks feature color coding wiring labels for both T568A/B and USOC
• Video connectors do not require soldering
D
SECTION
EATON 2014 Residential Buyers Guide D-3
www.eaton.com
www.cooperwiringdevices.com
Product description
Voice, data, Category 3 RJ11, Category 6 RJ45,
Category 5E RJ45, RG6 F-Type coax
Design features
Modular jacks & adapters
Modular connectivity points
• 110 style modular jacks
• Data jacks have 8 positions and 8 conductors for
high-speed LAN applications
• Category 3 jacks have 6 positions and
6 conductors for voice and/or data applications
• Category 6 jacks are rated for 650MHz,
Category 5E jacks are rated for 160 MHz
• IDC termination for simple and fast installation
• Color coding wiring labels for both T568A/B
and USOC
• Video connectors require no soldering
• All jacks and adapters clip smoothly into place
in our flush-mount modular wallplates
5546-6
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: LA (Light Almond), V (Ivory), W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
LA V W
(Lt. Almond) (Ivory) (White)
5547-5E
5547-3E
5552-5E
5550-5E
Modular jacks & adapters
Description Features Color suffix Catalog no.
Data jack, category 6 RJ45 8-position, 8-conductor 568A/B wiring LA, V, W 5546-6__
Data jack, category 5e RJ45 8-position, 8-conductor 568A/B wiring LA, V, W 5547-5E__
Voice jack, category 3 RJ11 6-position, 6-conductor USDOC wiring LA, V, W 5547-3E__
Video connector, F-type coax For RG6 applications TV/satellite LA, V, W 5552-5E__
Blank insert For filling empty portssolid blank face LA, V, W 5550-5E__
D
SECTION
EATON 2014 Residential Buyers Guide D-4
www.eaton.com
www.cooperwiringdevices.com
Modular connectivity points
Product description
Single-pole & 3-way
15A, 120/277V/AC
Design features
Flush mount modular wallplates & inserts
• Rugged thermoplastic construction
resists breakage
• Accepts any combination of 110 style modular
jacks, adapters and inserts
• Mid-size plates match mid-size PJ wallplate
dimensions (see Section C) and provide
overlap for irregular drywall cuts
• Mounting straps accept 110 style jacks,
adapters and inserts and fit into decorator-sized
wallplate openings
5540LA-MSP
LA V W
(Lt. Almond) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: LA (Light Almond), V (Ivory), W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Mid-size
Description Color suffix Catalog no.
1-port modular wallplate LA, V, W 5510__-MSP
2-port modular wallplate LA, V, W 5520__-MSP
3-port modular wallplate LA, V, W 5530__-MSP
4-port modular wallplate LA, V, W 5540__-MSP
cULus Listed to UL1863, file no. E142334; FCC part 68 requirements
Decorator mounting strap inserts
Description Color suffix Catalog no.
1-port decorator modular mounting strap LA, V, W 5521-5E__
2-port decorator modular mounting strap LA, V, W 5522-5E__
3-port decorator modular mounting strap LA, V, W 5523-5E__
cULus Listed to UL1863, file no. E142334; FCC part 68 requirements
5523-5EW
D
SECTION
EATON 2014 Residential Buyers Guide D-5
www.eaton.com
www.cooperwiringdevices.com
Multimedia wallplates
Our home theater solutions make it easy to surround yourself with sound, simplify home theater
connections and provide simple, clean ways to manage cable installations for home electronics.
Cable management plates come in a variety of configurations, can accommodate all cable run
needs and can even provide surge protected power.
Multimedia wallplates
Multimedia wallplate families
Multimedia
wallplates
with surge
protection
D-8
Multimedia
wallplates
with
receptacles
D-9
Multimedia
wallplates
D-9
D
SECTION
EATON 2014 Residential Buyers Guide D-6
www.eaton.com
www.cooperwiringdevices.com
SECTION
The Eaton difference
Specific multimedia wallplate solutions for today's needs
• Multimedia wallplates are ideal for both new construction and retrofit
• Multimedia wallplates with surge protection or receptacles are ideal for
flat panel TV installations
• Multimedia wallplates with surge protection receptacles protect expensive
electronics from power surges and have replaceable surge protection modules
• Multimedia wallplates are mountable in either direction
• All multimedia wallplates eliminate unsightly wires, cables, and cords
See pages D-8
Shown:
35M2S
Power & surge protection
Manage cables and provide power—choose
wallplates that integrate receptacles or surge
protection receptacles with replacement surge
modules for protection of electronics.
Shown:
35M1
Cable management
A recessed, low-profile reverse nose design
provides attractive, neat and clean installation,
eliminating unsightly wires and plug heads while
allowing mounting in either direction.
See pages D-9
D
SECTION
EATON 2014 Residential Buyers Guide D-7
www.eaton.com
www.cooperwiringdevices.com
Product description
2-pole, 3-wire grounding
15A, 125V/AC
Design features
Multimedia wallplates with surge protection
Multimedia wallplates
• Protects expensive electronics from surge strikes
• Protection up to 12kA peak surge current, 340J
energy rating, 600Vpk voltage protection rating
• Large cable organizer opening for all popular
low-voltage cables to manage and conceal cables
• Audible signal alerts you to protection failure
• Allows for continued use of receptacle after
protection failure
• Provides simple surge module replacement
without re-wiring device
• Mounts horizontally or vertically
• Ideal solution for flat panel TV installations
• Easy to install with no additional parts needed
35M2S
Modular jacks & adapters
Rating
A V/AC Description Color Catalog no.
15 125 Multimedia wallplate with recessed duplex surge receptacle W 35M2S-__
cETLus listed to UL1863 & ANSI/UL60950-1, CSA C22.2 no. 60950-1-03; complies with all TIA/EIA 568-A & 570-B requirements
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
W
(White)
D
SECTION
EATON 2014 Residential Buyers Guide D-8
www.eaton.com
www.cooperwiringdevices.com
Product description
2-pole, 3-wire grounding
15A, 125 V/AC
Design features
Multimedia wallplates with receptacles
• Provides power receptacle and cable
management in one convenient unit
• Tamper resistant receptacles provide compliance
with 2014 NEC® Article 406.12 which states that
all 15A and 20A, 125V/AC receptacles
installed in dwelling units must be
tamper resistant
• Ideal solution for flat panel TV installations
• Large cable organizer opening for all popular
low-voltage cables to manage and conceal cables
• Mounts horizontally or vertically, mounting
clamps included
• Easy to install with no additional parts needed
Multimedia wallplates
Mid-size
Description Color suffix Catalog no.
1-gang multimedia wallplate W 35M1__
1-gang multimedia wallplate with mounting clamps W 35M12__
2-gang multimedia wallplate W 35M2__
cETLus listed to UL1863 & ANSI/UL60950-1, CSA C22.2 no. 60950-1-03; complies with all TIA/EIA 568-A & 570-B requirements
Product description
Standard size
Design features
Multimedia wallplates
• Rugged thermoplastic construction
resists breakage
• For new construction or retrofit
• Perfect for flat panel TV installations
• Mounts horizontally or vertically
• Eliminates unsightly wires, cables, and cords
Cable management wallplate with power receptacle
Rating
A V/AC Description Color Catalog no.
15 125 Multimedia wallplate with recessed single receptacle, side wire White 35MRW
cETLus listed to UL1863 & ANSI/UL60950-1, CSA C22.2 no. 60950-1-03; complies with all TIA/EIA 568-A & 570-B requirements
35MR
35M1
35M12
35M2
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: W (White).
W
(White)
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Tamper resistant
D
SECTION
EATON 2014 Residential Buyers Guide D-9
www.eaton.com
www.cooperwiringdevices.com
Connectivity points
In today’s homes, service connection points are nearly as important as media distribution itself.
Finish off service connection points with wallplates that give you the flexibility and style you
need. Decorator inserts upgrade connection points to a designer look, come in a variety of
configurations and are compatible with any decorator wallplate.
Connectivity points
Connectivity point families
Decorator
inserts with
connectors
D-12
Standard size
wallplates
with
connectors
D-13
Mid-size
wallplates
with
connectors
D-13
Connectivity point colors
Ivory
White
Lt. Almond
D
SECTION
EATON 2014 Residential Buyers Guide D-10
www.eaton.com
www.cooperwiringdevices.com
SECTION
The Eaton difference
See page D-13
Shown:
3536-4
Quick & simple installation
One-piece design and construction reduces time on
the job, plus there are fewer parts to keep track of
and less waste. Available in many common service
point configurations.
Specific connectivity point solutions for today's needs
Shown:
3521-4
Contractor-friendly
Connectivity points offer contractors solutions at
economical price points that most building and
remodeling jobs require, yet feature the quality
and durability they need.
See page D-13
Shown:
3562
Options to match common wallplates
Our connectivity point wallplates and inserts match
standard wallplate sizes and styles to coordinate
perfectly with any new or existing installation.
See page D-12
• Offered in standard size and mid-size versions to match existing or new
wiring devices
• Molded housing provides stability during installation and offers a simple
installation practice with one-piece construction and no loose parts
• Available in the 3 popular service combinations: voice, video, & voice/video
to meet the most common applications throughout a home
• Decorator strap versions offered to provide a seamless breadth of line and
to compliment and decorator installation
D
SECTION
EATON 2014 Residential Buyers Guide D-11
www.eaton.com
www.cooperwiringdevices.com
Product description
Mounting strap jacks & adapters
Category 3 RJ11, RJ14
Coax Type F
Design features
Decorator inserts with connectors
Connectivity points
• Flush mount telephone jacks for use in
Category 3 RJ11 & RJ14 applications
• Type F Coaxial jack ideal for use with cable,
satellite, TVs, DVDs, video applications and
outdoor antennas
• 100% computer-tested to assure consistent high
quality and reliable performance
• Fits in standard decorator wallplate openings
2162
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: LA (Light Almond), V (Ivory), W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
LA V W
(Lt. Almond) (Ivory) (White)
3560-4
3562
Decorator mounting strap inserts with connectors
Description Color suffix Catalog no.
Single Type F coaxial adapter, decorator insert LA, V, W 2162__
Single 4-conductor telephone jack, decorator insert Type 625 screw terminals LA, V, W 3560-4__
Combination telephone jack & coaxial adapter, decorator insert, one 4-conductor phone jack,
one Type F coax jack
LA, V, W 3562__
cULus Listed to UL1863, file no. E142334; FCC part 68 requirements
D
SECTION
EATON 2014 Residential Buyers Guide D-12
www.eaton.com
www.cooperwiringdevices.com
Wallplates with connectors
Connectivity points
1172
3521-4
3535-4
Product description
Standard size
Mid-size
Category 3 RJ11, RJ14, RJ25; coax Type F
Design features
• Telephone jacks for use in Category 3 RJ11,
RJ14 or RJ25 applications
• Type F Coaxial jack ideal for use with cable,
satellite, TVs, DVDs, video applications and
outdoor antennas
• 100% computer-tested to assure consistent high
quality and reliable performance
• Telephone jacks feature color-notched terminals
and wire for easy wiring
Standard size wallplates with connectors
Description Color suffix Catalog no.
Single coaxial adapter with wallplate, Type F LA, V, W 1172__
Surface mount telephone jack quick mount wallplate, RJ11 or RJ14, 4-conductor,
630A screw terminals
LA, V, W 3521-4__
Telephone jack with wallplate, RJ11 or RJ14, 4-conductor, 625B4 screw terminals LA, V, W 3532-4__
Combination coax & telephone jack with wallplate, 4-conductor, screw terminals,
Type F
LA, V, W 3535-4__
cULus Listed to UL1863, file no. E142334; FCC part 68 requirements
Mid-size wallplates with connectors
Description Color suffix Catalog no.
Single coaxial adapter with wallplate, Type F LA, V, W 2072__
Telephone jack with wallplate, RJ11 or RJ14, 4-conductor, 625B4 screw terminals LA, V, W 3533-4__
Two telephone jacks with wallplate, RJ11 or RJ14, 4-conductor, 625B3 screw terminals LA, V, W 3547-4__
Combination coax & telephone jack with wallplate, 4-conductor, screw terminals, Type F LA, V, W 3536-4__
cULus Listed to UL1863, file no. E142334; FCC part 68 requirements
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: LA (Light Almond), V (Ivory), W (White).
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
LA V W
(Lt. Almond) (Ivory) (White)
2072
3536-4
D
SECTION
EATON 2014 Residential Buyers Guide D-13
www.eaton.com
www.cooperwiringdevices.com
MediaSync tools & accessories
The MediaSync line would not be complete without all the tools and accessories you need to
do a complete home networking installation from service entrance, to distribution panel, to
connectivity points. Complete installations quickly with professional quality tools and connectors
that will help ensure you meet TIA/EIA 570B requirements.
MediaSync tools & accessories
Tool & accessory families
Video
service:
connectors &
4-way splitter
D-16
Data &
voice service:
connector
D-17
D
SECTION
EATON 2014 Residential Buyers Guide D-14
www.eaton.com
www.cooperwiringdevices.com
SECTION
The MediaSync difference
See page D-16
Shown:
2076-16
Better video resolution
Using our video service compression connector tool
with RG6 compression connectors in the wiring
backbone of your home network delivers superior
video resolution to every outlet.
Specific tool & accessory solutions for today's needs
Shown:
5569E1
Reliable home networking
Get the peace of mind that comes with superior
and reliable home networking connections by
using RJ45 EZ™ connectors that have been
installed with the EZ crimping tool.
See page D-17
• Video service compression connector tool is 3 tools in 1 with adapters
for F, RCA & BNC connectors that mount in the handle for easy storage
• The coaxial cable stripper includes a hex wrench for adjusting blade
stripping depth
• EZ-RJ45® crimping tool ensures a uniform crimp every cycle from the
ratcheted straight action crimping motion
• Data & voice service 110 punchdown tool simultaneously seats and trims
wire in 110 and 66 style cross connects
• The Category 5/6 cable jacket stripper requires no adjustment and will not
nick inner conductors of Cat 5, 5e or 6 twisted pair cables
D
SECTION
EATON 2014 Residential Buyers Guide D-15
www.eaton.com
www.cooperwiringdevices.com
Product description
RG6, Type F Coax
Splitters
Design features
Video service connectors & accessories
MediaSync tools & accessories
• Twist-on connector does not require a
crimping tool
• 2076-16 1-piece crimp-on F-connector has an
attached crimp ring in an RG6 configuration
• Video splitter features die-cast body with
mounting tabs and a grounding screw
2078-T6
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
2076-16
2080-3
Video service connectors
Description Catalog no.
Twist-on connector for RG6, bag of 25 2078-T6
1-Piece crimp-on connector for RG6, bag of 25 2076-16
Video service accessory
Description Catalog no.
4-Way splitter 2080-4
D
SECTION
EATON 2014 Residential Buyers Guide D-16
www.eaton.com
www.cooperwiringdevices.com
Data & voice service connector
MediaSync tools & accessories
5569E1
Product description
RJ45
110 Punchdown
Design features
• EZ-RJ45 connectors are modular plugs that allow
wire pairs to be inserted through the front of the
connectors, work with solid or stranded wire, and
are a simple 1-piece design without bars or liners
Data & voice service connector
Description Catalog no.
4-Pair/8-conductor EZ-RJ45® connectors, box of 100 5569E1
Specification information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
D
SECTION
EATON 2014 Residential Buyers Guide D-17
www.eaton.com
www.cooperwiringdevices.com
E
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide
E
SECTION
E-1
Accessories
Eaton’s Cooper Wiring Devices offers a broad line of
accessories for a wide range of needs throughout the
home. Here you will find surge protection adapters,
grounded and ungrounded outlet taps and adapters plus
accessories used for device testing, installation, and safety.
All our accessories are manufactured to rigorous quality
standards from high quality materials.
Taps & adapters
E-3
Accessories
E-4
Surge protection
E-2
1176V
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: V (Ivory).
Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
V
(Ivory)
Product description
2-pole, 3-wire grounding
15A, 125V/AC
NEMA 5-15R
Design features
Surge protection adapters, plug-in
• Provides full three mode surge protection for hot
to neutral, hot to ground and neutral to ground
(except 1156CG)
• Center mounting screw provided for permanent
attachment to receptacle
• EMI/RFI filtering minimizes line noise
• High impact-resistant thermoplastic for
long-term durability
• Coaxial protection provided with “F”
type connectors
• Telephone/fax/modem protection provided with
RJ11-type telephone ports (4-wire protection)
• $5,000 Connected Equipment Warranty on
1161CG, 1162CG and 1177CG
• $2,500 Connected Equipment Warranty on
1156CG
Surge protection
Product description
2-pole, 3-wire grounding
15A, 125V/AC
NEMA 5-15R
Design features
Surge protection adapters, plug-in
• Portable strip provides 7 surge-protected
outlets for stereos, TVs, computers or other
electronic-based equipment
• Full mode surge protection for hot to neutral,
hot to ground and neutral to ground
• High impact-resistant thermoplastic for
long-term durability
• Supplied with 14/3 SJT 4’ (1.22m) portable cord
• ON/OFF switch indicates power to unit
• Resettable 15 amp circuit breaker
Six outlet surge adapters, plug-in
Rating Joules/max. surge Max. surge
A V/AC current MCOV current Description Color Catalog no.
15 125 170J; 150V/AC; RMS 12kA/mode Full protection Computer Gray 1177CG
15 125 170J; 150V/AC; RMS 12kA/mode Full protection,
with 2 telephone jacks
Computer Gray 1162CG
15 125 170J; 150V/AC; RMS 12kA/mode Basic protection Computer Gray 1156CG
cULus Listed to UL20, file no. E18704; NOM certified
Surge protection power strip
Rating
A V/AC Joules Description Color suffix Catalog no.
15 125 70 Full protection, 7-outlet with circuit breaker, cord connected V 1176V
cULus Listed to UL498, file no. E303929
1162CG
1177CG
E
SECTION
EATON 2014 Residential Buyers Guide E-2
www.eaton.com
www.cooperwiringdevices.com
Outlet taps, plug-in, NEMA 5-15
Rating
A V/AC Description Color suffix Catalog no.
15 125 Six outlet tap, duplex receptacle to 6 outlets V, W 1146__
15 125 Three outlet tap, single receptacle to 3 outlets B, V, W 1147__
15 125 Swivel three outlet tap, single receptacle to 3 outlets W 1147LT__
15 125 Three outlet cube tap, polarized, single receptacle to 3 outlets RN 4402__
15 125 Three outlet cube tap, single receptacle to 3 outlets B, V, W 1482__
15 125 Swivel three outlet tap, single receptacle to 3 outlets W 1192__
cULus Listed to UL498, file no. E241182
Outlet taps, plug-in, NEMA 1-15
Rating
A V/AC Description Color suffix Catalog no.
15 125 Six outlet tap, duplex receptacle to 6 outlets V, W 1746__
15 125 Three outlet tap, single receptacle to 3 outlets B, V, W 1747__
15 125 Swivel three outlet tap, single receptacle to 3 outlets W 1792__
15 125 Three outlet cube tap, polarized, single receptacle to 3 outlets B, W 4400__
15 125 Three outlet cube tap, single receptacle to 3 outlets B, W 400__
cULus Listed to UL498, file no. E241182 (except 400)
Outlet adapters, plug-in, NEMA 1-15 to NEMA 5-15
Rating
A V/AC Description Color suffix Catalog no.
15 125 Single outlet grounding adapter, with grounding lug GY, W 419__
15 125 Swivel three outlet tap, single receptacle to 3 outlets B, V 1219__
15 125 Three outlet cube tap, polarized, single receptacle to 3 outlets W SA483__ •
UL Listed to file no. E241182 (except SA483, file no. 15054)
Taps & adapters
Product description
2-pole, 3-wire grounding
2-pole, 2-wire non-grounding
15A, 125V/AC
NEMA 5-15R, NEMA 1-15R
Design features
Outlet taps, plug-in
• Molded of high impact-resistant plastic for
long-term durability
• Six outlet taps provide center mounting screw for
permanent attachment to receptacle (1146 only)
• Lighted tap has long-life neon bulb built into body
that lights when plugged in (1147LT only)
• Swivel adapters hug cords close to wall in
tight-fitting places such as behind furniture
and office equipment
• Solid brass blades for long life and low heat rise
at full load
• Grounding adapters convert 2-pole polarized
outlets to 3-wire grounding outlets; grounding lug
fastens to wallplate mounting screw for excellent
ground connection (419, 1219, SA483)
BGY RN V W
(Brown) (Gray) (Orange) (Ivory) (White)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: B (Brown), GY (Gray), RN (Orange), V (Ivory), W (White).
Specification Information: Please visit www.cooperwiringdevices.com
Compliances, specifications and availability are subject to change without notice.
Indicates NAFTA compliant - Page F-21
1146
1147LT
4402
1482
1192
419
E
SECTION
EATON 2014 Residential Buyers Guide E-3
www.eaton.com
www.cooperwiringdevices.com
Color ordering information:
B (Brown)
Compliances, specifications and availability are subject to change without notice.
B
(Brown)
Product description
For AC or DC Electrical Circuits
Design features
Circuit tester
• For testing AC or DC electrical circuits
• Detects the presence of power on either
AC or DC circuits
• Identifies circuit conductors
• Rugged polycarbonate construction
Accessories
Product description
Outlet Caps
Design features
Safety caps
• Increases child safety by covering electrical
outlets when not in use by restricting access
to live parts
• Constructed of impact-resistant thermoplastic
Circuit tester
Description Color Catalog no.
Safety cap Clear 29CL
Listed to UL2255, file no. E13251
Circuit tester
Description Color suffix Catalog no.
AC or DC circuit tester B 914
Listed to UL1436, file no. E143353
914
29CL
E
SECTION
EATON 2014 Residential Buyers Guide E-4
www.eaton.com
www.cooperwiringdevices.com
E
SECTION
E-5
F
SECTION
Technical
Reference
We’ve made it quick and easy to find the important industry and product
data you are looking for, including NEMA configurations, electrical codes,
industry standards, relevant definitions, general wiring device information,
and wiring diagrams.
Power devices
cross reference
F-3
Common industry
information
F-4
NEMA configuration
chart
F-2
Lighting control
basics
F-18
Panel cutout
dimensional data
F-20
NAFTA
compliance
F-21
Wiring coverage
diagrams
F-10
F
SECTION
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide F-1
Poles, wires
Rating
NEMA prefix
30A Straight blade 50A Straight blade 60A Straight blade
Receptacles Plugs Receptacles Plugs Receptacles Plugs
2-pole, 3-wire
grounding
125V/AC 5
1233  S41 A1253 S41 A
250V/AC 6
1232 S
1234
S42 A1252 S
1254
S42 A
3-pole,
3-wire
125/250V/AC 10
38B
125 S
S80 A32B
112 S
S80 A
3-pole, 4-wire
grounding
125/250V/AC 14
1225 S
1257
S21 A58 P
1212 S
1258
S21 A60 PS20 AN
NEMA straight blade configurations
Poles, wires
Rating
NEMA prefix
15A Straight blade 20A Straight blade
Receptacles, connectors
& outlets Plugs Receptacles, connectors Plugs
2-pole,
2-wire
125V/AC 1
4882
86 -
2602 -
2603 -
2606 -
2607 -
2609 -
6882
SA155
4862
84
183
1912
2600
2601
3123
SA540
SA940
2-pole, 3-wire grounding
125V/AC 5
222
817
2887
4887
AH5969 O
TR817 R
TR6250 DR
TRCR15 R
TRVGF15 GR
TWRVGF15 GRW
WRVGF15 GW
VGF15 G
78 S
270
298
1107 D
4270
5270 L
6887
SA993 
TR270 R
TR775 R
TR780 R
TR1107 DR
TR5797 R
1709
2867
4867
AH5965 O
6867
SA399
1877
2228
4228
AH5369 O
TR1877 R
TR6350 DR
TRCR20 R
TRVGF20 GR
TWRVGF20 GRW
VGF20 G
WRVGF20 GW
2809
4409
AH5364 O
250V/AC 6
2227
4227
AH5669 O
74 S2866
4866
AH5666 O
2229
4229
AH5469 O
3809
4509
AH5464 O
277V/AC 7
5302 2839
3-pole,
3-wire
125/250V/AC 10
805 2836
Straight blade legend: How to use the chart
Core catalog number color indicates a device’s grade: BLACK = Heavy duty grade A suffix combining a RED shape and alpha letter indicates
a device’s body and type.
BLUE = Standard grade
Device body: Device type:
Duplex
receptacle
Single
receptacle
Plug AAngled LCO/ALR LCO/ALR
Connector DDecorator OQuick grip OQuick grip
-Outlet GGFCI PPanel mount PPanel mount
F-2
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Rating:
Amps
V/AC
Receptacle/
Plug NEMA
Configuration
Flush
Receptacle Wallplate
Surface
Receptacle
Panel Mount
Receptacle Plugs Adapters
2-pole, 3-wire grounding
30A
125V 1233
(Brown)
Standard size:
2068, 2168, 93221, 93227
Mid-size:
5068, PJ703, PJ724
S41
(Black)
30A
125V
TT-30P
W
G
TT-30P
W
G
W
G
TT-30R
W
G
TT-30R
1263
(Black) U1263
(Black)
83
(Black)
1264
TT-30 Plug to NEMA
5-15R or 5-20R
(Black)
30A
125V 1234
(Black) 1232
(Black)
S42
(Black)
50A
125V 1253
(Brown) S41
(Black)
50A
125V 1254
(Black) 1252
(Black)
S42
(Black)
3-pole, 3-wire non-grounding
20A
125/250V 805
(Ivory) 2836
(Yellow)
30A
125/250V
Dryer 38B
(Brown) Standard size:
2068, 2168, 93221, 93227
Mid-size:
5068, PJ703, PJ724
125
(Black)
S80
(Black)
50A
125/250V
Range 32B
(Brown) 112
(Black)
S80
(Black)
3-pole, 4-wire grounding
30A
125/250V
Dryer 1257
(Black) Standard size:
2068, 2168, 93221, 93227
Mid-size:
5068, PJ703, PJ724
1225
(Black)
S21
(Black)
50A
125/250V
Range 1258
(Black) 1212
(Black)
58
(Black)
S21
(Black)
60A
125/250V 60
(Black)
S20
(Black)
Power devices cross reference
Straight blade power devices – 20A, 30A, 50A & 60A
www.eaton.com
www.cooperwiringdevices.com F-3EATON 2014 Residential Buyers Guide
F
SECTION
NEMA
National Electrical Manufacturers Association
Comprised of electrical manufacturers, NEMA provides a forum
for the standardization and testing of electrical equipment,
enabling consumers to select from a range of safe, effective,
and compatible electrical products. NEMA-standards of testing is
frequently required by both government and third-party endorsees
such as UL and CSA prior to their approval.
www.NEMA.org
NFPA
National Fire Protection Association
The mission of the international non-profit NFPA is to reduce the
worldwide burden of fire and other hazards on the quality of life by
providing and advocating scientifically based consensus codes and
standards, research, training and education. The NFPA authors the
NEC® and NPPA 70E electrical safety in the workplace.
www.nfpa.org
NOM
Normas Officials de Mexico (Official Mexican Standards)
The Official Mexican Standards (referred to as Normas or NOMs)
augment the Mexican Hazardous Materials Land Transportation
Regulation and provide information relative to importing and
exporting hazardous materials from and to Mexico.
OSHA
Occupational Health and Safety Administration,
U.S. Department of Labor
OSHA’s mission is to assure safe and healthful working conditions
for working men and women (having been authorized to enforce
standards first created under the Occupational Health and Safety
Act of 1970 and since evolved), by assisting and encouraging
the States in their efforts to assure safe and healthful working
conditions.
www.osha.gov
UL
Underwriters Laboratories
Underwriters Laboratories Inc. (UL) is an independent, not-for-
profit product safety testing and certification organization.
www.ul.com
NSF
National Sanitation Foundation
NSF International helps protect people by certifying products
and writing standards for consumer goods. As an independent,
not-for-profit organization, NSF works toward allowing everyone
to live safer.
www.nsf.org
ANSI
American National Standards Institute, Inc.
ANSI is a private, non-profit organization that administers and
coordinates the U.S. voluntary standardization and conformity
assessment system. The Institute’s mission is to enhance both the
global competitiveness of U.S. business and the U.S. quality of life
by promoting and facilitating voluntary consensus standards and
conformity assessment systems and safeguarding their integrity.
www.ansi.org
CEC Title 24
California Energy Commission’s Energy Efficiency
Standards for Residential and Nonresidential Buildings
Part of the California State Building Code, Title 24 requires a
minimum level of energy efficiency for all new heated or cooled
structures, including additions and alterations to existing homes
and most commercial buildings. Energy efficient lighting and
controls must be incorporated per the current standards.
Energy-efficient lighting fixtures (often fluorescent) are required
as well as the use of dimmers and vacancy/occupancy sensors.
The standard covers all rooms in a home except closets under
70 square feet.
www.energy.ca.gov/title24
CSA
Canadian Standards Association
The Canadian Standards Association is a not-for-profit,
membership-based association that conducts product safety
testing, and issues certifications.
www.csa.org
GSA
General Services Administration Federal Supply Service
GSA’s Federal Supply Service provides federal customers with a
specific list of manufacturer’s products that have been approved
to meet stated requirements. The most frequently cited Federal
Specifications regarding electrical wiring devices are those for
Electrical Power Connector, Plug, Receptacle and Cable Outlet
(Fed. Spec. W-C 596) and for Toggle and Lock, Flush Mounted
Switches (Fed. Spec. W-S 896).
www.gsa.gov
NEC®
National Electrical Code®
Published by the NFPA (see listing) as NFPA 70, the National
Electrical Code. This publication, renewed every 3 years under the
auspices of ANSI, provides for the adequate protection of life and
property from dangers associated with the use of electricity. It is
now adopted and enforced in all 50 states in the United States
and is also the basis for electrical codes in several other countries.
www.nfpa.org
Common industry information
Organization abbreviations glossary
Common abbreviations for organizations often referred to in the electrical
industry and also noted throughout the Arrow Hart catalog
F-4
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Common industry information
Standards development organizations
ANSI American National Standards Institute
ASME American Society of Mechanical Engineers
BRC British Retail Consortium
CANENA Consejo de Armonizacion de Normas Electrotecnicas de Norte
America (Council for Harmonization of Electrotechnical Standardization of
North America)
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronics Engineers
ISA Instrument Society of America
ISO International Standards Organization
NFPA National Fire Protection Agency
NSF National Sanitation Foundation
SAE Society of Automotive Engineers
SME Society of Manufacturing Engineers
Certification agencies
ANCE National Association of Normalization and Certification of the
Electrical Sector (Mexico)
BSI British Standards Institute
CCC China Compulsory Certification
CI European Compliance (This is not a certification agency, but CE is the
European Compliance Mark)
CSA Canadian Standards Association
cUL Certified to CSA Standards by Underwriters Laboratories
cULus Meets Canadian & US UL requirements
DESC Defense Electronic Supply Center
ETL Electrical Testing Laboratories
FCC Federal Communications Commission
FM Factory Mutual
IAPA Independent Accident and Protection Association (Canada)
LEED Leadership in Energy and Environmental Design
NRTL National Recognized Testing Laboratories
OSHA Occupational Safety and Health Administration
TUV TUV Rheinland of N.A., Inc.
VDE Verband Deutscher Elektrotechniker (Germany)
UL Underwriters Laboratories
UL standards pertaining to Eaton’s Cooper Wiring Devices
UL20 General-use switches
UL50 Enclosures for electrical equipment
UL94 Flammability testing for materials, plastic
UL486E Equipment and wiring terminals
UL496 Lampholders
UL498 Plugs, connectors, receptacles, inlets, outlets
UL498A Taps and adapters
UL508 Industrial equipment (including motor control switches)
UL514A Metallic boxes/covers/wallplates
UL514D Nonmetallic boxes/covers/wallplates
UL817 Cord sets
UL943 GFCIs
UL1054 Special use switches
UL1363 Temporary power taps
UL1436 Outlet circuit testers
UL1449 Surge suppression devices
UL1472 Dimmers
UL1567 Switches and receptacles used with AL wire
UL1699 Arc fault circuit interrupters
Codes & standards
CEC Canadian Electrical Code
CEE European Electrotechnical Committee
NEC National Electrical Code®
NMX Normas Mexicanas
NOM Normas Oficiales de Mexicanas (Official Mexican Standard)
Industry associations
ABYC American Boat and Yacht Council
ASHE American Society of Healthcare Engineering
BICSI Building Industry Consulting Services International
BOMA Building Owners Management Association
CANAME Camara Nacional de Manufacturas Electricas (Mexico)
CEMRA Canadian Electrical Manufacturers Representatives Association
ECOC Electrical Contractors of Canada
EFI Electro-Federation Incorporated
EIA Electronics Industry Association
EPRI Electric Power Research Institute
IAEI International Association of Electrical Inspectors
IBI Intelligent Building Institute
IECA Independent Electrical Contractors Association
IFMA International Facilities Management Association
NAED National Association of Electrical Distributors
NAW National Association of Wholesalers
NECA National Electrical Contractors Association
NEMA National Electrical Manufacturers Association
NEMRA National Electrical Manufacturers Representative Association
NMDA National Marine Distributor Association
NMRA National Marine Representative Association
SEMI Semi-Conductor Equipment and Material International
TIA Telecommunications Industry Association
USGBC US Green Building Council
UL standards pertaining to Eaton’s Cooper Wiring Devices
UL1786 Night-lights
UL1863 Communications circuit accessories
UL1917 Solid state fan speed control
FSWC596 Fed. Spec. receptacles
FSWS896 Fed. Spec. switches
CSA standards pertaining to Eaton’s Cooper Wiring Devices
C22.2 No. 0.17 Polymeric materials
C22.2 No. 12 Night lights
C22.2 No. 42 General-use receptacles, attachment plugs
C22.2 No. 55 Special-use switches
C22.2 No. 111 General-use switches
C22.2 No. 144 GFCI
C22.2 No. 182.1 Industrial-type, special-use attachment plugs, receptacles and
connectors. Pin and sleeve devices
C22.2 No. 182.2 Industrial locking type
Organization acronyms
Common UL & CSA standards for wiring devices
www.eaton.com
www.cooperwiringdevices.com F-5EATON 2014 Residential Buyers Guide
F
SECTION
Common industry information
General purpose wiring device definitions from NEMA Standard WD-1
NEMA standards pertaining to Arrow Hart Products
(in accordance with NEMA Standard WD-1)
WD 1-1.10 Receptacle
This device features female contacts, and is installed primarily at
an outlet or on equipment meant to establish electrical connection
with an inserted plug.
NEMA Standard 7-1-1967
WD 1-1.11 Slant symbol (/)
As it applies to wiring device ratings, the “slant” line ( /) indicates
that there’s more than one voltage potential present between
different terminals of a wiring device.
NEMA Standard 7-1-1967
WD 1-1.12 Switch
There are several different types of switches available for making,
breaking or changing electrical circuit connections, including:
A. Single-pole switch (single-pole, single-throw), which
makes or breaks the connection of a single conductor.
B. Double-pole switch (double-pole, single-throw), which
makes or breaks the connection of two conductors on
a single branch circuit.
C. Three-way switch (single-pole, double-throw), which
changes the connection of a single conductor and is
most often utilized in tandem to better control one
piece of equipment from two locations.
D. Four-way switch (double-pole, double-throw revers-
ing) is a double-pole switch used with two three-way
switches to control a single piece of equipment from
more than two locations.
NEMA Standard 7-13-1967
WD 1-1.13 Terminal (on a wiring device)
A terminal is a fixed location on a wiring device where a conductor
is designated for connection.
NEMA Standard 7-13-1967
WD 1-1.14 Wire (plugs and receptacles)
As it applies in designating plugs and receptacles, the term “wire”
stands for the number of either regularly current-carrying or
equipment grounding connected conductors.
NEMA Standard 7-13-1967
For answers to technical questions or for more information on UL, CSA and
NEMA standards pertaining to Eaton’s Cooper Wiring Devices’ products,
please contact us at the following toll free number: 1-866-853-4293.
Website: www.cooperwiringdevices.com
WD 1-1.01 Cord connector
A portable receptacle with means for attachment to a flexible cord;
the cord connector is not intended for permanent mounting.
NEMA Standard 7-13-1967
WD 1-1.02 Grounded conductor (system ground)
This is a usually current-carrying circuit conductor that’s
purposely connected to earth ground and is identified as
the white conductor.
NEMA Standard 7-13-1967
WD 1-1.03 Grounding conductor (equipment ground)
Unlike the System Ground version, this conductor connects
non-current-carrying metallic equipment parts to earth ground,
providing a specific path for fault current to ground. It can be bare
or covered, in which case it is identified as the green conductor,
or green with yellow stripes.
NEMA Standard 7-13-1967
WD 1-1.04 Lampholder
Lampholders mechanically support an electric lamp and electrically
connect it to a circuit.
NEMA Standard 7-13-1967
WD 1-1.05 Male base (inlet)
Designed for flush or surface mounting on an appliance or
other equipment, male-based plugs serve to connect utilization
equipment to a connector.
NEMA Standard 7-13-1967
WD 1-1.06 Outlet
An outlet is a point on the wiring system at which current is taken
to supply utilization equipment.
NEMA Standard 7-13-1967
WD 1-1.07 Plug
The male blades of our plugs serve to connect the conductors of
the attached, flexible cord with those of the female receptacle.
NEMA Standard 7-1-1967
WD 1-1.08 Polarization (plugs and receptacles)
Polarization assures the correct positioning for proper mating of
plugs and receptacles of the same rating.
NEMA Standard 7-1-1967
WD 1-1.09 Pole
When used to designate plugs and receptacles, “pole” refers to
a terminal that is connected to a regularly current-carrying circuit
conductor. In switches, the number of poles indicates how many
conductors are being controlled.
NEMA Standard 7-1-1967
F-6
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Article 210 — Branch circuits
210.8 Ground-fault circuit-interrupter protection for personnel
210.21 Branch circuit ratings, outlet devices
210.24 Branch circuit requirements - summary
210.50 Required outlets, general
210.60 Required outlets, guest rooms, guest suites, dormitories
and similar occupancies
210.62 Required outlets, show windows
210.70 Lighting outlets required
Article 404 — Switches
404.2 Installation, switch connections
404.3 Installation, enclosure
404.4 Installation, damp or wet locations
404.9 Installation, provisions for general-use snap switches
404.14 Rating and use of snap switches
404.15 Construction specifications, marking
Article 406 — Receptacles, cord connectors
& attachment plugs (caps)
406.3 Receptacle rating and type
406.4 General installation requirements
406.5 Receptacle mounting
406.6 Receptacle faceplates (cover plates)
406.7 Attachment plugs, cord connectors and flanged surface devices
406.8 Noninterchangeability
406.9 Receptacles in damp or wet locations
406.10 Grounding-type receptacles, adapters, cord connectors and
attachment plugs
406.12 Tamper-resistant receptacles in dwelling units
406.13 Tamper-resistant receptacles in guest rooms and guest suites
406.14 Tamper-resistant receptacles in child care facilities
Article 430 — Motors, motor circuits & controllers
430.8 Marking on controllers
430.81 Motor controllers, general
430.82 Motor controllers, controller design
430.83 Motor controllers, ratings
430.90 Combination fuseholder and switch as controller
430.102 Disconnecting means, location
430.109 Disconnecting means, type
Article 517 — Health care facilities
517.2 Definitions
517.10 Wiring and protection, applicability
517.13 Grounding of receptacles and fixed electrical equipment in patient
care areas
517.14 Panelboard bonding
517.16 Use of isolated ground receptacles
517.17 Ground-fault protection
517.18 Wiring and protection, general care areas
517.19 Wiring and protection, critical care areas
517.20 Wiring and protection, wet procedure locations
517.21 Ground-Fault-Circuit-Interrupter protection for personnel
517.30 Essential electrical systems for hospitals
517.31 Branches requiring automatic connection
517.35 Sources of power
517.40 Essential electrical systems for nursing homes and limited care facilities
517.41 Essential electrical systems (nursing homes, etc.)
517.45 Essential electrical systems for other health care facilities
517.61 Inhalation anesthetizing locations, wiring and equipment
517.62 Inhalation anesthetizing locations, grounding
517.63 Grounded power systems in anesthetizing locations
517.64 Inhalation anesthetizing locations, low-voltage equipment
and instruments
517.71 X-ray installations connection to supply circuit
517.72 X-ray installations disconnecting means
517.160 Isolated power systems
Article 555 — Marinas & boatyards
555.1 Scope
555.13 Wiring methods and installations
555.15 Grounding
555.17 Disconnecting means for shore power connection(s)
555.19 Receptacles (including GFCI)
Article 590 — Temporary installations
590.4 General (including receptacles and GFCI)
590.6 Ground-fault protection for personnel
Article 604 — Manufactured wiring systems
604.2 Definition
604.6 Construction (including receptacles and connectors)
Article 630 — Electric welders
630.13 Arc welders, disconnecting means
630.33 Resistance welders, disconnecting means
Article 647 — Sensitive electronic equipment
647.7 Receptacles (including isolated ground receptacles)
Article 660 — X-ray equipment
660.4 Connection to supply circuit
660.5 Disconnecting means
Article 700 — Emergency systems
700.26 Overcurrent protection, ground-fault protection of equipment
Common industry information
Selected articles, National Electric Code (NEC®) requirements for
wiring devices from NFPA 70™, NEC® 2014 Edition
www.eaton.com
www.cooperwiringdevices.com F-7EATON 2014 Residential Buyers Guide
F
SECTION
Common industry information
Straight blade configuration
NEMA AC HP Rating Rating
1-15 0.5 15A-125V
2-15 1.5* 15A-250V
2-20 2* 20A-250V
2-30 2* 30A-250V
5-15 0.5 15A-125V
5-20 1 20A-125V
5-30 2 30A-125V
5-50 2 50A-125V
6-15 1.5* 15A-250V
6-20 2* 20A-250V
6-30 2* 30A-250V
6-50 3* 50A-250V
7-15 2 15A-277V/AC Only
7-20 2 20A-277V/AC Only
7-30 3 30A-277V/AC Only
7-50 5 50A-277V/AC Only
10-20 2L-L*/1 L-N 20A-125/250V
10-30 2 L-L*/2 L-N 30A-125/250V
10-50 3 L-L*/2 L-N 50A-125/250V
11-15 2 15A-3Ø 250V
11-20 3 20A-3Ø 250V
11-30 3 30A-3Ø 250V
11-50 7.5 50A-3Ø 250V
14-15 1.5 L-L*/0.5 L-N 15A-125/250V
14-20 2 L-L*/1 L-N 20A-125/250V
14-30 2 L-L*/2 L-N 30A-125/250V
14-50 3 L-L*/2 L-N 50A-125/250V
14-60 3 L-L*/2 L-N 60A-125/250V
15-15 2 15A-3Ø 250V
15-20 3 20A-3Ø 250V
15-30 3 30A-3Ø 250V
15-50 7.5 50A-3Ø 250V
15-60 10 60A-3Ø 250V
18-15 2 15A-3ØY 120/208V
18-20 2 20A-3ØY 120/208V
18-30 3 30A-3ØY 120/208V
18-50 7.5 50A-3ØY 120/208V
18-60 7.5 60A-3ØY 120/208V
L-L denotes phase-to-phase HP rating
L-N denotes phase-to-neutral HP rating
*Suitable for 208V motor applications at HP rating
Horsepower ratings for NEMA configurations
(plugs & receptacles only)
F-8 EATON 2014 Residential Buyers Guide
F
SECTION
Diameter ranges of jacketed cord in accordance with standard UL62
Acceptable range for overall diameter of jacketed cord
Type of cord Avg. size 2-Conductor 3-Conductor 4-Conductor 5-Conductor
SV, SVO, SVT SVTO 18 0.22"-0.26"
(5.6mm-6.6mm)
0.23"-0.27"
(5.8mm-6.9mm)
— —
SJ, SJO, SJT, SJTO 18 0.28"-0.32"
(7.1mm-8.1mm)
0.30"-0.34"
(7.6mm-8.6mm)
0.33"-0.37"
(8.4mm-9.4mm)
—
16 0.31"-0.34"
(7.9mm-8.6mm)
0.33"-0.36"
(8.4mm-9.1mm)
0.35"-0.40"
(8.9mm-10.2mm)
—
14 0.34"-0.38"
(8.6mm-9.7mm)
0.36"-0.40"
(9.1mm-10.2mm)
0.39"-0.44"
(9.9mm-11.2mm)
—
12 0.41"-0.46"
(10.4mm-11.7mm)
0.43"-0.48"
(10.9mm-12.2mm)
0.47"-0.52"
(11.9mm-13.2mm)
—
10 0.54"-0.61"
(13.7mm-15.5mm)
0.57"-0.64"
(14.5mm-16.3mm)
0.63"-0.70"
(16.0mm-17.8mm)
—
S, SO, ST, STO 18 0.34"-0.39"
(8.6mm-9.9mm)
0.36"-0.40"
(9.1mm-10.2mm)
0.39"-0.43"
(9.9mm-10.9mm)
0.46"-0.51"
(11.7mm-13.0mm)
16 0.37"-0.41"
(9.4mm-10.4mm)
0.39"-0.43"
(9.9mm-10.9mm)
0.41"-0.46"
(10.4mm-11.7mm)
0.49"-0.55"
(12.4mm-14.0mm)
14 0.50"-0.55"
(12.7mm-14.0mm)
0.52"-0.58"
(13.2mm-14.7mm)
0.56"-0.62"
(14.2mm-15.7mm)
0.63"-0.71"
(16.0mm-18.0mm)
12 0.57"-0.63"
(14.5mm-16.0mm)
0.59"-0.66"
(15.0mm-16.8mm)
0.64"-0.71"
(16.3mm-18.0mm)
0.70"-0.77"
(17.8mm-19.6mm)
10 0.62"-0.69"
(15.7mm-17.5mm)
0.65"-0.72"
(16.5mm-18.3mm)
0.70"-0.78"
(17.8mm-19.8mm)
0.76"-0.84"
(19.3mm-21.3mm)
8 0.78"-0.88"
(19.8mm-22.4mm)
0.83"-0.93"
(21.1mm-23.6mm)
0.93"-1.05"
(23.6mm-26.7mm)
1.00"-1.15"
(25.4mm-29.2mm)
6 0.92"-1.05"
(23.4mm-26.7mm)
0.97"-1.10"
(24.6mm-27.9mm)
1.05"-1.20"
(26.7mm-30.5mm)
1.18"-1.33"
(30.0mm-33.8mm)
4 1.06"-1.21"
(26.9mm-30.7mm)
1.13"-1.28"
(28.7mm-32.5mm)
1.25"-1.45"
(31.8mm-3.8mm)
—
2 1.21"-1.40"
(30.7mm-35.6mm)
1.30"-1.50"
(33.0mm-38.1mm)
1.45"-1.65"
(36.8mm-41.9mm)
—
Key
SService WWeather approved
JJunior PParallel
TThermoplastic/Vinyl
Examples
SJT Hard usage thermoplastic rubber-insulated conductors
and overall thermoplastic jacket. 300V up to 105ºC.
SJTW Hard usage thermoplastic or rubber-insulated conductors and overall
thermoplastic jacket. 300V up to 105ºC.
Weather resistant for outdoor use.
SPT-1 All thermoplastic construction, parallel jacketed.
300V up to 105ºC, 2 or 3-conductor (18 gauge).
SPT-2 Same as SPT-1, but heavier construction (18-16 gauge).
SPT-3 Same as SPT-2, but heavier construction (18-10 gauge).
SRDT Portable range or dryer cable, 3-conductor parallel type or 4 insulated
conductors, jacketed. All thermoplastic construction. 300V, maximum
temperature of 60ºC.
HPN Two-conductor, neoprene-insulated heater cord. Parallel construction.
For use in damp locations. 300V, 90ºC.
Wire and cable information
Wire & cable type abbreviations
www.eaton.com
www.cooperwiringdevices.com F-9EATON 2014 Residential Buyers Guide
F
SECTION
2-pole, 2-wire non-grounding: 125V
2-pole, 3-wire grounding: 250V
3-pole, 3-wire non-grounding: 125/250V
Wiring diagrams by NEMA configurations
Wiring & coverage diagrams
2-pole, 3-wire grounding: 125V
2-pole, 3-wire grounding: 277V AC
3-pole, 4-wire grounding: 125/250V
2 Single-pole switches
No. 271
Single-pole switch and 2-pole, 3-wire 20A U
grounding receptacle
No. 291
Single-pole switch and neon pilot light
No. 277
23
23
Single-pole switch and 2-pole, 3-wire U grounding receptacle
Cat. No. 274
Combination devices
F-10
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Wiring & coverage diagrams
15A-125V
GFCI: feed-through installation with non-protected
receptacles downstream
Receptacles
GFCI: feed-through installation with protection
provided downstream
GFCI: feed-through installation with both protected
and non-protected receptacles downstream
AC Switches & standard switches
Switches
Lighted switch, single-pole and 3-way
www.eaton.com
www.cooperwiringdevices.com F-11EATON 2014 Residential Buyers Guide
F
SECTION
Aspire RF INC, MLV, ELV
Dimmer with neutral Single-pole
RF9536-N, RF9537-N (also FLR), RF9540-N (also LED, CFL, FLR)
Aspire RF, Aspire, Accell INC, MLV, ELV
Dimmer without neutral Single-pole
RF9534, RF9536, 9534, 9536, 9537, AIM10
Accell FLR
Dimmer with neutral Single-pole
AF10
Accell INC, MLV, ELV, FLR, LED, CFL
Dimmer with neutral Single-pole
AAL06
Dimmers & fan speed controls
Wiring & coverage diagrams
Aspire RF INC, MLV, ELV
Dimmer with neutral Multi-location
RF9536-N, RF9537-N (also FLR), RF9542-Z, RF9540-N (also LED, CFL, FLR)
Aspire RF, Aspire, Accell INC, MLV, ELV
Dimmer without neutral Multi-location
RF9534, RF9536, RF9542, 9534, 9536, 9537, 9542, AIM10, ARD
Accell FLR
Dimmer with neutral Multi-location
AF10, ARD
Accell INC, MLV, ELV, FLR, LED, CFL
Dimmer with neutral Multi-location
AAL06, ARD
F-12
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Wiring & coverage diagrams
Aspire INC, MLV, ELV
Slide dimmer Single-pole
9530, 9531, 9532, 9533
Aspire, Devine, Skye FLR
Slide dimmer Single-pole
9568, 95687, DF8AP, DF8AP7, SF8AP7
BLACK
NEUTRAL
YL
LINE
120V AC - 60 HZ
(9568, DF8AP, SF8AP)
277V AC - 60HZ
(95687, DF8AP7, SF8AP7)
BALLAST
GREEN
WHITE
HOT
LOAD
BK
Aspire LED, CFL, INC
Slide dimmer Single-pole
9573
Black
Neutral
Line
120V AC - 60 Hz
Green
White
Hot
LOAD
LED
CFL
INC
Yellow
Devine, Skye INC, MLV, ELV, FLR, LED, CFL
Slide dimmer Single-pole
DAL06P, SAL06P
Black
Neutral
Line
120V AC - 60 Hz
Green
White
Hot
LOAD
LED
CFL
INC
MLV
ELV
FLR
Yellow
Dimmers & fan speed controls
Aspire INC, MLV, ELV
Slide dimmer 3-way
9530, 9531, 9532, 9533
Aspire, Devine, Skye FLR
Slide dimmer 3-way
9568, 95687, DF8AP, DF8AP7, SF8AP7
Aspire LED, CFL, INC
Slide dimmer 3-way
9573
Black
Line
120V AC - 60 Hz
Neutral
White
Black Hot
Green
LOAD
Travellers
Tag
3-WAY SWITCH DIMMER
LED
CFL
INC
Yellow
Yellow
Yellow
Black
Devine, Skye INC, MLV, ELV, FLR, LED, CFL
Slide dimmer 3-way
DAL06P, SAL06P
Black
Line
120V AC - 60 Hz
Neutral
White
Black Hot
Green
LOAD
Travellers
Tag
3-WAY SWITCH DIMMER
LED
CFL
INC
MLV
ELV
FLR
Yellow
Yellow
Yellow
Black
www.eaton.com
www.cooperwiringdevices.com F-13EATON 2014 Residential Buyers Guide
F
SECTION
Aspire 3 speed & fully variable
Slide fan Single-pole
9544, 9543
Devine INC, MLV
Dimmer & fan Single-pole
DI10P, DFS15P
Skye INC, MLV
Dimmer & fan Single-pole
SI061, SI10P, SFS15P, SFS5P, SFS5
Black
Neutral
YL
Line
120V AC - 60 Hz
Green
White
Hot
BK
White
Black
Skye 3 speed, INC
Slide fan / dimmer Single-pole
SDC15
Dimmers & fan speed controls
Wiring & coverage diagrams
Aspire 3 speed & fully variable
Slide fan 3-way
9544, 9543
Devine INC, MLV
Dimmer & fan 3-way
DI10P, DFS15P
Skye INC, MLV
Dimmer & fan 3-way
SI10P, SFS15P, SFS5P, SFS5
Trace, React Fully variable
Toggle & rotary fan Single-pole
TFS5, RFS5, RFS15
HOT
120V AC
NEUTRAL
WHITE
BLACK
BLACKBLACK
GREEN
F-14
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Wiring & coverage diagrams
Dimmers & fan speed controls
Trace INC
Toggle dimmer 3-way
TI061, TI061L, TI3101, TI3101L
React INC
Rotary dimmer 3-way
RI06P, RI06PL
Occupancy & vacancy sensors
Sensor switch All load types
OS310U, VS310U Single-pole
NEUTRAL
WHITE
OS310U OR VS310U SENSOR
LIGHT
FIXTURE
3-WAY
BLUE
OUTPUT
RED
NEUTRAL
WHITE
NEUTRAL
WHITE
HOT
(BLACK)
HOT
(BLACK)
GROUND
GREEN
Dual switch All load types
OS310R, VS310R Single-pole
Sensor switch All load types
OS310U, VS310U 3-way
OS310U OR VS310U SENSOR
SECOND LOCATIONFIRST LOCATION
3 TRAVELER WIRES ARE REQUIRED
NEUTRAL
WHITE
LIGHT
FIXTURE
OUTPUT
RED
HOT
BLACK
GREEN
GROUND
3-WAY
BLUE
BLACK TRAVELER
RED TRAVELER
3-WAY
SWITCH
WHITE TRAVELER
NEUTRAL
NEUTRAL
WHITE
NEUTRAL
WHITE
HOT
BLACK
Dual switch All load types
OS310R, VS310R 3-way
HOT #2
YELLOW
Trace INC
Toggle dimmer Single-pole
TI061, TI061L, TI3101, TI3101L
React INC
Rotary dimmer Single-pole
RI061, RI101, RI06P, RI06PL
React 4 Speed/INC & Fully Variable /INC
Rotary fan /dimmer Single-pole
RDC15, RDC25
www.eaton.com
www.cooperwiringdevices.com F-15EATON 2014 Residential Buyers Guide
F
SECTION
Occupancy & vacancy sensors
Wiring & coverage diagrams
Sensor dimmer INC, MLV
OS106D1, VS106D1 Single-pole
Standard sensor INC, MLV, ELV, FLR, LED, CFL
OS306U, VS306U Single-pole
DIAGRAM 1: SENSOR IN ONE LOCATION
OS306U or VS306U Sensor
Light Fixture
White
Neutral
White
Neutral
Ground
Bare Green
3-Way
Blue
Black
Hot
Black
Hot
Black Output
Red
Standard sensor INC, MLV, ELV, FLR, LED, CFL
OS306U, VS306U 3-Way with sensor in location with hot wire
Hot
Output
Red
Blue
3-Way Red Traveler
Black Traveler
Light Fixture
White
Black
Hot
Neutral
Ground
BlackBlack
Bare Green
White
First Location
Second Location
White Neutral
2 traveler wires are required
3-Way
Switch
OS306U or
VS306U sensor
Ground
Bare
Standard sensor INC, MLV, ELV, FLR, LED, CFL
OS306U, VS306U 3-Way with switch in location with hot wire
First Location Second Location
3 traveler wires are required
DIAGRAM 2A: SWITCH IN LOCATION WITH HOT WIRE
3-Way Switch
OS306U or VS306U Sensor
Hot
Black
Hot
Black
Black
3-Way
Blue
NeutralNeutral
Neutral
White
White
Light Fixture
Black Traveler
Red Traveler
White Traveler
Red
Output
Ground
Bare Green
Ground
Bare Green
Timers
Aspire, Accell INC, MLV, ELV, FLR, LED, CFL
Timers Single-pole
9590, 9591, PT18M, PT18H
RED
OUTPUT
(BARE) GREEN
(WHITE/NEUTRAL)
GROUND
HOT
(BLACK) BLACK (BLACK)
Light
Fixture
HOT
F-16
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Wiring & coverage diagrams
Occupancy & vacancy sensor coverage areas
Aspire RF Motion, light & temperature sensing
Occupancy sensor: RFOSW03 90º Coverage
10m
(33ft)
10m
(33ft)
5m
(16ft)
5m
(16ft)
10m
(33ft)
0
10m
(33ft)
88.2º
TOP VIEW:
Top view
SIDE VIEW:
1.7m
(6ft)
3.7m
(12ft)
7m
(23ft)
15.6m
(51ft)
18m
(60ft)
2.1m
(6.8ft)
Side view
Standard series All load types
Sensor: OS306U, VS306U
0
15’
MAJOR MOTION
450 SQ. FT.
25’
0
8’
12’
8’
12’
Sensor switch All load types
OS310U, VS310U, OS310R, VS310R, OS106D1, VS106D1
0
15’
MAJOR MOTION
1000 SQ. FT.
36’ 0
MINOR MOTION
300 SQ. FT.
8’
15’
8’
15’
www.eaton.com
www.cooperwiringdevices.com F-17EATON 2014 Residential Buyers Guide
F
SECTION
Lighting control basics
Matching the dimmer to the load
A large selection of lighting sources are available in
today’slighting environment. These sources have specific
individual characteristics which require mating a particular
dimmer for each load type (source). For proper use it
is important to pick a dimmer that is designed and UL
tested for that specific lighting load type.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Incandescent/halogen
Line-voltage tungsten filament lamps, including
line-voltage (120V) halogen lamps
Electrical characteristic: resistive
Special requirements: rated for cold filament inrush.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Magnetic Low-Voltage (MLV)
Magnetic transformer-supplied low-voltage lighting
(6 volt, 12 volt, or 24 volt)
Electrical characteristic: inductive
Special requirements: symmetric cycles (VDC ≤ 2),
smooth turn off
Include transformer losses when calculating the load.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Electronic Low-Voltage (ELV)
Electronic (solid-state) transformer-supplied
low-voltage lighting
Electrical characteristic: capacitive
Special characteristic: very smooth turn on.
Neutral wire connection required.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Fluorescent (FLR)
Electronic fluorescent dimming ballast
Special dimmers are designed and UL listed to send
power and control signals to each type of electronic
fluorescent dimming ballast.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Light Emitting Diode (LED)
Electronic LED driver special dimmers are designed
to send power and control signals to each type of
electronic LED drive.
Special requirements: LED light source must be properly
matched to LED driver, and LED driver must meet control
spec for control type.
INCANDESCENT &
HALOGEN LIGHTING
MAGNETIC LOW
VOLTAGE LIGHTING
ELECTRONIC LOW
VOLTAGE LIGHTING
FLUORESCENT
LIGHTING
LED
LIGHTING
FAN SPEED
CONTROL
CFL
NEON/COLD CATHODE
Fan controls
There are two styles of fan control. Select the one that is
right for your application:
Fully variable
•Fullyvariablefanspeed
•Usedforcontrollingone
or more ceiling fan(s) or
exhaust fan(s)
Quiet 3-speed
•Threespeedsplusoff
•Willnotcausefan
motor hum
•Usedforcontrolling
one ceiling fan only
Consult with Eaton’s Cooper Wiring Devices for driver
compatibility: www.cooperwiringdevices.com.
Magnetic low-voltage dimmer ratings
The stated VA (volt-ampere) rating is the rated capacity of the
dimmer which includes the magnetic transformer heat losses
and the lamp load. A CORE™ SAVANT dimmer UL listed for
1000VA can be loaded with a full 1000VA of lamp load. A
transformer dissipates up to 20% of the connected load as heat.
Better transformers dissipate less than 10% as heat. Added
together, the lamp load and the transformer loss determine the
dimmer capacity required. See the example below.
10
00VA 200W Heat 800W
p
ower to transformer and transformer losses
lamp load
p
ower through dimmer(UL limit: ≥ 80% efcient)
Electronic low-voltage dimmer ratings
Electronic Low-Voltage transformers do dissipate some heat. These
inefficiencies are small enough to be accounted for in the dimmer
rating. A CORE dimmer UL listed for 600W can be loaded with a
full 600W of lamp load. If ganged with other dimmers, standard
derating rules apply.
Heat dissipation
During normal operation, dimmers will get warm to the
touch. Wallbox dimmer efficiency is typically around 99%; the
remaining 1% is dissipated as heat. Therefore, a 600W load on a
600W dimmer would produce around 6 watts of heat. Operating
on its rated load, CORE dimmers will stay below the UL limits
of 140º F (60º C). Use screwless wallplates to avoid contact with
metal screws that may feel warm to the touch.
Single-Pole
DIMMER
MULTI-LOCATION MASTER
MULTI-LOCATION ACCESSORY
SINGLE POLE
3-WAY
FAN SPEED CONTROL
OCCUPANCY SENSOR
Single-pole dimmers provide control from one location.
3-way/4-way
3-Way dimmers adjust the light level from one location. When used with
3-way and 4-way switches, the lights can be turned on to the dimmer
level or off from many locations.
Multi-location
Multi-location dimmers can be used with dimmers for full dimming control
of the lights from two or more locations.
F-18
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Dimmer derating chart
Dimmers Single-gang Double-gang Triple-gang or more
Trace
Incandescent 600W 600W 600W
Incandescent 1000W 900W 800W
Fully variable fan 5A 5A 5A
React
Incandescent 600W 600W 600W
Incandescent 1000W 900W 800W
Dual 4-speed/dimmer 2.5A / 300W 2.5A / 300W 2.5A / 300W
Dual 4-speed/dimmer 1.5A / 300W 1.5A / 300W 1.5A / 300W
3-Speed fan 1.5A 1.5A 1.5A
Fully variable fan 5A 5A 5A
Trace w/ preset
Incandescent 600W 600W 600W
Magnetic low-voltage 600VA 600VA 600VA
Fluorescent Refer to Spec sheet for more information
Electronic low-voltage 600W 600W 600W
LED/CFL 300W 300W 300W
Skye
Incandescent 600W 500W 500W
Incandescent 1000W 850W 650W
Magnetic low-voltage 600VA 500VA 500VA
Magnetic low-voltage 1000VA 850VA 650VA
Fluorescent 8.3A 6.6A 5.4A
Dual 3-speed/dimmer 1.5A / 300W 1.5A / 300W 1.5A / 300W
3-Speed fan 1.5A 1.5A 1.5A
Fully variable fan 5A 5A 5A
LED/CFL 300W 300W 300W
Devine
Incandescent 600W 500W 500W
Incandescent 1000W 800W 650W
Magnetic low-voltage 600VA 500VA 500VA
Magnetic low-voltage 1000VA 800VA 650VA
Electronic low-voltage 600VA 600VA 600VA
Fluorescent 8.3A 6.6A 5.4A
3-Speed fan 1.5A 1.5A 1.5A
LED/CFL 300W 300W 300W
Lighting control basics
Dimmers Single-gang Double-gang Triple-gang or more
Accell
Incandescent 1000W 800W 800W
Magnetic low-voltage 1000VA 800VA 800VA
Fluorescent 8.3A 6.6A 6.6A
Accell AL series
Incandescent 600W 550W 500W
Magnetic low-voltage 600W 550W 500W
Fluorescent Refer to Spec sheet for more information
LED/CFL 300W 300W 300W
Aspire slide
Incandescent 600W 600W 600W
Incandescent 1000W 900W 800W
Magnetic low-voltage 600VA 600VA 600VA
Magnetic low-voltage 1000VA 900VA 800VA
Electronic low-voltage 600VA 600VA 600VA
Electronic low-voltage 1000VA 900VA 800VA
Fluorescent 8.3A 6.6A 5.4A
3-Speed fan 1.5A 1.5A 1.5A
Fully variable fan 5A 5A 5A
Aspire
Incandescent 600W 600W 500W
Incandescent 1000W 800W 700W
Magnetic low-voltage 600VA 600VA 500VA
Magnetic low-voltage 1000VA 800VA 700VA
Electronic low-voltage 600VA 600VA 500VA
Electronic low-voltage 1000VA 800VA 700VA
Fluorescent 8.3A 6.6A 6.6A
Aspire RF
Incandescent 600W 600W 600W
Incandescent 1000W 800W 800W
Incandescent (no neutral) 600W 600W 600W
Incandescent (no neutral) 1000W 800W 800W
Magnetic low-voltage 600VA 600VA 600VA
Magnetic low-voltage 1000VA 800VA 800VA
Electronic low-voltage 600VA 600VA 600VA
Electronic low-voltage 1000VA 800VA 800VA
Fluorescent 1000VA 800VA 800VA
LED/CFL 300W 300W 300W
Sensors (dimmer version only)
Incandescent 600W 600W 600W
Magnetic low-voltage 600VA 600VA 600VA
Fins Removed
Ganging and Derating Dimmers
A typical dimmer is wider than a switch. This increased size helps the dimmer dissipate internal heat
which is normal to operation.
Dimmers can be ganged together such that the space is the same as for switches. A portion of the
fins (heat sink) must be removed. The fins are grooved to make the removal of fins easy with a pair
of pliers. The removal of these fins reduces the wattage capacity (load) the dimmer can control.
Derating information is provided in the “CORE Derating Chart”. The dimmer can be loaded with
the full derated capacity indicated.
www.eaton.com
www.cooperwiringdevices.com F-19EATON 2014 Residential Buyers Guide
F
SECTION
Fluorescent lampholder panel cutout dimensional data
Panel cutout dimensional data
Panel cutouts
2500, 2501, 2503, 2504 2505, 2506
Panel Cutouts
2500, 2501, 2503, 2504 2505, 2506
1.343"
(34.11mm)
1.130"
(28.70mm)
1.130"
(28.70mm)
0.1875" (4.76mm)
Diam. Hole or
Wide Slot
1.130"
(28.70mm)
1.130"
(28.70mm)
Slide-on Slot for
20 Gauge Panel
Panel cutouts
2509, 2510 924
Panel Cutouts
2509, 2510 924
0.156" (3.96mm)
Diam.
Hole or
Wide Slot
0.344"
(8.74mm)
1.016"
(25.81mm)
0.188"
(4.77mm)
0.156" (3.96mm)
Diam. Hole or
Wide Slot
Slide on Slot for
20 Gauge Panel
0.344"
(8.74mm)
1.016"
(25.81mm)
0.188"
(4.77mm)
F-20
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
F
SECTION
Buy American Provision, American Recovery and Reinvestment Act
(ARRA) (Section 1605)
ARRA Section 1605 establishes requirements for federal government projects funded with stimulus
monies: “None of the funds appropriated or otherwise made available by [the ARRA] may be used for a
project for the construction, alteration, maintenance, or repair of a public building or public work unless all
of the iron, steel, and manufactured goods used in the project are produced in the United States.” Iron and
steel used as components or subcomponents of other manufactured construction materials do not need to
be produced in the United States. There is no requirement that components and subcomponents be U.S.-
origin provided the manufactured construction material is “produced in the United States.” (FAR 25.001(c)
(4)) Section 1605 does not contain a domestic cost requirement. However, the government has not defined
“produced” for purposes of the ARRA Buy American provision. Many commentators have adopted the
“substantial transformation” test to determine whether a manufactured article is “produced” in the
United States for purposes of Section 1605. Section 1605 contains a requirement that the Buy American
provision be applied in a manner consistent with U.S. obligations under international agreements. As
a result, national treatment is extended to products from countries with which the United States has
entered a free trade agreement (e.g., Canada, Mexico, Bahrain, Chile, etc.) and to products from countries
that have signed the WTO Government Procurement Agreement. National treatment is also extended to
least developed countries (LDCs) (e.g., Bhutan, Mali, Zambia, etc.) but not to Caribbean basin countries
(e.g., Belize, Haiti, Bahamas, etc.). Products that are identified as NAFTA compliant may qualify under
the Buy American Act or ARRA program guidelines. Consult specific project guidelines and compliance
requirements to assure suitability for your project needs.
NAFTA compliant products
meet specifications at time
of print. Product listing
subject to change.
For specific product details,
visit www.arrowhart.com or
email cwdmarketing@eaton.com.
Buy American Act (US Code, Title 41, Section 10 (a-d))
The Buy American Act (often BAA, not to be confused with the Buy America (no “n”) Act) applies to all
U.S. federal government agency purchases of goods over certain contract thresholds. The BAA restricts
purchases of supplies and construction materials to domestic products, unless an exception or waiver
applies. Unmanufactured products must be mined or produced in the United States. There is a two-part
test for manufactured articles: (1) article must be manufactured in the United States, and (2) cost of U.S.
components must exceed 50% of the cost of all components in the item. Note: this calculation does not
include labor and overhead for final assembly in the United States. The component cost test is waived
for commercial-off-the-shelf (COTS) items. (FAR 25.001(c)(1). BAA waivers may be available, often at the
discretion of the contracting officer.
Restriction of the use of certain hazardous substances (RoHS)
Parts are manufactured and designed in accordance with article 4 of the European Union’s RoHS2 directive
2011/65/EU
NAFTA compliant
www.eaton.com
www.cooperwiringdevices.com F-21EATON 2014 Residential Buyers Guide
F
SECTION
Today’s home
Whether a home’s style is traditional, modern, casual, cozy or rustic, it will demand more from
wiring devices than in years past. Eaton’s Cooper Wiring Devices is dedicated to providing the
up-to-date wiring device solutions that today’s homes need.
Advanced energy saving solutions
From multiple functionality occupancy
and vacancy sensors to wireless RF
controls, smart dimmers and timers,
Eaton’s Cooper Wiring Devices offers
advanced technology energy-saving
devices to address “green” initiatives.
Functional safety & comfort solutions
From children to aging baby boomers
keeping their independence, providing
built-in low-level area lighting is an
important issue today—one easily solved
by using multifunctional nightlight devices.
Child safety tamper resistant solutions
Tamper resistant receptacles not only
provide code compliance, but they
also help keep curious children safe by
delivering automatic, continual protection
from electrical injury as a result of
inserting foreign objects.
2010 Southern Living Idea House, Abercorn Place, featuring Aspire wiring devices
www.eaton.com
www.cooperwiringdevices.comEATON 2014 Residential Buyers Guide
Arrow Hart
Visit Eaton’s Cooper Wiring Devices online for full-service,
24/7 access:
• Extensive product and keyword search capability
• Multiple navigation paths to product information: product
category, solutions, markets and brands
• Access to product literature, videos, configurators, and
interactive product selectors
See it all online at www.cooperwiringdevices.com.
A distinguished heritage of industrial & commercial solutions
Leadership and innovation have been the foundation of our
company for over 120 years. We are continuing to set new industry
standards for delivering high performance and expertly-designed
wiring devices that provide solutions for virtually every industrial
and commercial need.
No other manufacturer can boast the range and diversity of
wiring device products we have available: a solid portfolio of
quality devices covering a diverse range of specification and
hospital grade wiring device solutions for industrial, institutional
and commercial applications.
www.eaton.com
www.arrowhart.com EATON 2014 Arrow Hart Buyers Guide
www.eaton.com
www.cooperwiringdevices.com EATON 2014 Residential Buyers Guide
Index-1 EATON 2014 Residential Buyers Guide
www.eaton.com
www.cooperwiringdevices.com
Index
AAL06 .......................... A-28
AF10 ............................ A-29
AH5364 ........................ B-48
AH5369 ........................ B-48
AH5464 ........................ B-48
AH5469 ........................ B-48
AH5666 ........................ B-48
AH5669 ........................ B-48
AH5965 ........................ B-48
AH5969 ........................ B-48
AIM10 .......................... A-29
AMC-__-BP .................. A-29
ARC-__-BP ................... A-29
ARD ............................. A-29
C386 ............................ B-64
CSB115ST ...................... B-5
CSB315ST ...................... B-5
DAL06P ........................ A-28
DCK1 ........................... A-30
DF8AP ......................... A-30
DF8AP7 ....................... A-30
DF10P .......................... A-30
DFS15P ........................ A-34
DI10P ........................... A-30
GFER ........................... C-25
OS106D1 ..................... A-38
OS306U ....................... A-41
OS310R ....................... A-39
OS310U ....................... A-40
P19-W .......................... A-35
PF19-W ........................ A-35
PJ1 ............................... C-16
PJ2 ............................... C-16
PJ3 ............................... C-16
PJ4 ............................... C-16
PJ5 ............................... C-16
PJ6 ............................... C-16
PJ7 ............................... C-21
PJ8 ............................... C-17
PJ11 ............................. C-19
PJ13 ............................. C-19
PJ14 ............................. C-19
PJ18 ............................. C-20
PJ23 ............................. C-19
PJ26 ............................. C-18
PJ28 ............................. C-20
PJ82 ............................. C-17
PJ113 ........................... C-20
PJ126 ........................... C-20
PJ138 ........................... C-20
PJ226 ........................... C-20
PJ262 ........................... C-18
PJ263 ........................... C-18
PJ264 ........................... C-18
PJ265 ........................... C-18
PJ266 ........................... C-18
PJ703 ........ B-39, B-42, C-21
PJ720 ........................... C-21
PJ724 ........ B-39, B-42, C-21
PJ826 ........................... C-20
PJS1 ............................ C-16
PJS2 ............................ C-16
PJS3 ............................ C-16
PJS4 ............................ C-16
PJS8 ............................ C-17
PJS26 ................. A-14, C-18
PJS262 ............... A-14, C-18
PJS263 ............... A-14, C-18
PJS264 ............... A-14, C-18
PJS265 ............... A-14, C-18
PJS266 ............... A-14, C-18
PT1HK-__-P .................. A-44
PT1MK-__-P ................. A-44
PT2HK-__-P .................. A-44
PT2MK-__-P ................. A-44
PT3HK-__-P .................. A-44
PT3MK-__-P ................. A-44
PT4HK-__-P .................. A-44
PT4MK-__-P ................. A-44
PT5HK-__-P .................. A-44
PT5MK-__-P ................. A-44
PT18H .......................... A-44
PT18M ......................... A-44
RDC15 ......................... A-33
RDC25 ......................... A-33
RF232 ............................ A-5
RF9501 .......................... A-9
RF9517 .......................... A-9
RF9518 .......................... A-9
RF9520 .......................... A-9
RF9534 .......................... A-8
RF9536 .......................... A-8
RF9536-N ....................... A-8
RF9537-N ....................... A-8
RF9540-N ....................... A-7
RF9542 .......................... A-8
RF9542-Z ....................... A-8
RFAPM ........................ A-11
RFHDCSG ...................... A-4
RFLDM ........................ A-11
RFOSW03 .................... A-12
RFS5 ............................ A-33
RFS15 .......................... A-33
RFTCP ............................ A-4
RFTDCSG ...................... A-4
RFTR9505-T ................. A-10
RFTSTAT02 .................. A-13
RFWC5 .......................... A-6
RFWDK .......................... A-6
RI06P ........................... A-33
RI06PL ......................... A-33
RI061 ........................... A-33
RI101 ............................ A-33
RKRC-__-BP ................. A-33
RKRD-__-BP ................. A-33
RKRL-__-BP .................. A-33
S20 .............................. B-45
S21 .............................. B-40
S42 .............................. B-44
S80 .............................. B-40
S591 ............................ B-62
S759W-CD ................... B-58
S768-6W ...................... B-58
S768W ......................... B-58
S788W ......................... B-58
S860W ......................... B-58
S865W ......................... B-58
S1174-6W ..................... B-58
S1174W ........................ B-58
S1951........................... C-29
S1951W ....................... C-29
S1952........................... C-29
S1952W ....................... C-29
S1954........................... C-29
S1961........................... C-29
S1961W ....................... C-29
S1962........................... C-29
S2962 .......................... C-29
S2962W ....................... C-29
S2966 .......................... C-29
S2966W ....................... C-29
S2983 .......................... C-29
S3962 .......................... C-29
S3962W ....................... C-29
S3966 .......................... C-29
S3966BK ...................... C-29
S3966W ....................... C-29
SA155 .......................... B-53
SA399 .......................... B-53
SA483 ............................ E-3
SA540 .......................... B-53
SA940 .......................... B-53
SA993 .......................... B-53
SAL06P ........................ A-28
SCK1-__BP ................... A-40
SCKD-__-BP ................. A-38
SDC15.......................... A-34
SF8AP7 ........................ A-31
SF10P .......................... A-31
SFS5 ............................ A-34
SFS5P .......................... A-34
SFS15P ........................ A-34
SI10P ........................... A-31
SI061 ........................... A-31
STC1 ............................ C-22
STC7 ............................ C-22
STC8 ............................ C-22
STC14 .......................... C-22
STC26 .......................... C-22
STE1 ............................ C-22
STE7 ............................ C-22
STE8 ............................ C-22
STE14 .......................... C-22
STE26 .......................... C-22
TAL06P ........................ A-28
TFS5 ............................ A-32
TI061............................ A-32
TI061L.......................... A-32
TI3101 .......................... A-32
TI3101L ........................ A-32
TR270 .......................... B-25
TR270-9 ....................... B-25
TR274 ........................... B-17
TR291 .......................... B-17
TR293 .......................... B-17
TR370 .......................... B-25
TR775 .......................... B-28
TR780 .......................... B-28
TR817 .......................... B-23
TR1107 ......................... B-24
TR1107-9 ...................... B-24
TR1307 ........................ B-24
TR1877 ........................ B-23
TR5797 ........................ B-28
TR6250 ........................ B-23
TR6350 ........................ B-23
TR7730 ........................ B-15
TR7735 ........................ B-18
TR7736 ........................ B-18
TR7740 ......................... B-14
TR7745 ......................... B-14
TR7746 ......................... B-14
TRAFCI15..................... B-22
TRAFCI20 .................... B-22
TRCR15 ........................ B-23
TRCR20 ....................... B-23
TRVGF15 ...................... B-32
TRVGF15-AG ................ B-32
TRVGF15F .................... B-34
TRVGF15__-M .............. B-32
TRVGF20 ...................... B-32
TRVGF20F .................... B-34
TRVGFNL15 ................. B-32
TRVGFNL20 ................. B-32
TWR270 ....................... B-25
TWRVGF15 .................. B-32
TWRVGF15F ................ B-34
TWRVGF20 .................. B-32
TWRVGF20F ................ B-34
U1263 .......................... B-41
VGF15 .......................... B-33
VGF15__-AG ................. B-33
VGF15F ........................ B-34
VGF15__-M .................. B-33
VGF20 .......................... B-33
VGF20__-AG ................. B-33
VGF20F ........................ B-34
VGFD20 ....................... B-35
VGFS15__-MSP............ B-35
VS106D1 ...................... A-38
VS306U ........................ A-41
VS310R ........................ A-39
VS310U ........................ A-40
WIU-1 .......................... C-28
WIU-1D ........................ C-28
WIU-1HX ...................... C-28
WIU-1VX ...................... C-28
WIU-1W ....................... C-28
WIU-1WHX .................. C-28
WIU-1WVX .................. C-28
WIU-2 .......................... C-28
WIU-2W ....................... C-28
WIU-2WX ..................... C-28
WIU-2X ........................ C-28
WRVGF15 .................... B-32
WRVGF15F .................. B-34
WRVGF20 .................... B-32
WRVGF20F .................. B-34
29CL .............................. E-4
32B ..................... B-38, C-14
35M1 ............................. D-9
35M2 ............................. D-9
Index-2
EATON 2014 Residential Buyers Guide
www.eaton.com
www.cooperwiringdevices.com
Index
35M2S ........................... D-8
35M12 ........................... D-9
35MRW ......................... D-9
38B ..................... B-38, C-14
58................................. B-39
60................................. B-43
74 ................................. B-28
78................................. B-28
83................................. B-44
84................................. B-52
84-6.............................. B-52
112 ............................... B-38
125 ............................... B-38
145 ............................... B-62
153 ............................... C-25
183 ............................... B-52
183-6 ............................ B-52
222............................... B-52
231............................... C-25
232............................... C-25
270............................... B-25
270-9............................ B-25
271............................... B-16
275............................... B-16
276 ............................... B-16
277............................... B-16
294............................... B-16
298............................... B-26
307............................... B-67
309-100 ........................ B-67
315 ............................... B-67
331BB .......................... B-67
331NP .......................... B-67
400 ................................ E-3
410 ................................. B-8
419 ................................. E-3
442................................. B-9
449NP ............................ B-9
452............................... B-10
458BD ............................ B-9
458NP ............................ B-9
460................................. B-9
467............................... B-63
469B ............................ B-66
604............................... B-58
659...................... B-58, B-59
667............................... B-58
669............................... B-58
700 .............................. B-65
715 ............................... B-65
718 ............................... B-65
722............................... B-62
736............................... B-26
738............................... B-64
756............................... C-25
758............................... B-65
805............................... B-43
808............................... B-65
817 ............................... B-23
914 ................................. E-4
917ABD ....................... B-59
924W ........................... B-61
925............................... B-59
925ABD ....................... B-59
933................................. B-8
940............................... B-59
940ABD ....................... B-59
942............................... B-59
944............................... B-63
951HK__-P ................... A-22
951MK__-P .................. A-22
952HK__-P ................... A-22
952MK__-P .................. A-22
953HK__-P ................... A-22
953MK__-P .................. A-22
954HK__-P ................... A-22
954MK__-P .................. A-22
955HK__-P ................... A-22
955MK__-P .................. A-22
962............................... B-59
968............................... B-60
969............................... B-60
975ABD ....................... B-59
980............................... B-59
980ABD ....................... B-59
1054 ............................. B-66
1071 ............................. B-63
1078-25 ........................ B-63
1078-50 ........................ B-63
1107 ............................. B-24
1107-9 .......................... B-24
114 6 ............................... E-3
114 7 ............................... E-3
1147LT ........................... E-3
1156CG .......................... E-2
1162CG .......................... E-2
1172 ............................. D-13
1176V ............................. E-2
1177CG .......................... E-2
119 2 ............................... E-3
1212 ............................. B-39
1219 ............................... E-3
1225 ............................. B-39
1232 ............................. B-41
1233 .................... B-41, C-14
1234 .................... B-41, C-14
1242-7 ............................ B-6
1252 ............................. B-42
1253 .................... B-42, C-14
1254 .................... B-42, C-14
1257 .................... B-38, C-14
1258 .................... B-38, C-14
1263 .................... B-41, C-14
1264 ............................. B-44
1301 ............................... B-6
1301-7 ............................ B-6
1301-7LT ......................... B-6
1301-9 ............................ B-6
1301-73 .......................... B-6
1303 ............................... B-6
1303-7 ............................ B-6
1303-7LT ........................ B-6
1303-9 ............................ B-6
1465Y........................... B-66
1467 ............................. B-63
1482 ............................... E-3
1709 ............................. B-52
174 6 ............................... E-3
174 7 ............................... E-3
1792 ............................... E-3
1877 ............................. B-23
1912 ............................. B-54
2028............................. C-19
2029............................. C-19
2031............................. C-17
2032............................. C-17
2034............................. C-16
2037............................. C-19
2038............................. C-20
2039............................. C-16
2041............................. C-16
2050............................. C-17
2051............................. C-18
2052............................. C-18
2053............................. C-20
2054............................. C-16
2063............................. C-18
2064............................. C-18
2068. B-39, B-42, C-14, C-21
2072............................. D-13
2076-16 ........................ D-16
2078-T6........................ D-16
2080-4.......................... D-16
2128 ............................. C-13
2129 ............................. C-12
2131 ............................. C-10
2132 ............................. C-10
2134 ............................... C-9
2137 ............................. C-12
2138 ............................. C-13
2139 ............................... C-9
2141 ............................... C-9
2142 ............................. C-23
2144 ............................. C-23
2148 ............................. C-24
2149 ............................. C-23
2150 ............................. C-10
2151 ............................. C-11
2152 ............................. C-11
2153 ............................. C-13
2154 ............................... C-9
2155 ............................... C-9
2156 ............................... C-9
2157 ............................. C-13
2158 ............................. C-14
2159 ............................. C-13
2160 ............................. C-25
2161 ............................. C-25
2162 ............................. D-12
2163 ............................. C-11
2164 ............................. C-11
2165 ............................. C-11
2166 ............................. C-11
2168 .......... B-39, B-42, C-14
2173 ............................. C-14
2 174 ............................. C-14
2227............................. B-49
2228............................. B-49
2229............................. B-49
2231............................. C-25
2500W ......................... B-60
2501W ......................... B-60
2503W ......................... B-61
2504W ......................... B-61
2506W ......................... B-61
2507W ......................... B-61
2509W ......................... B-61
2510W ......................... B-61
2600 ............................ B-55
2600-6 ......................... B-55
2601 ............................. B-55
2601-6 .......................... B-55
2602............................. B-29
2603............................. B-29
2606............................. B-29
2607............................. B-29
2609............................. B-29
2728............................. C-24
2729............................. C-24
2731............................. C-23
2741 ............................. C-23
2750............................. C-23
2751............................. C-23
2809............................. B-49
2836............................. B-45
2839............................. B-50
2866............................. B-49
2867............................. B-49
2887............................. B-49
2982............................. B-59
3123 ............................. B-54
3521-4 .......................... D-13
3532-4.......................... D-13
3533-4.......................... D-13
3535-4.......................... D-13
3536-4.......................... D-13
3547-4 .......................... D-13
3560-4.......................... D-12
3562............................. D-12
3809............................. B-49
3925............................. B-59
4132 ............................. C-15
4134 ............................. C-15
4137 ............................. C-15
4138 ............................. C-15
4139 ............................. C-15
4150 ............................. C-15
4170 ............................. C-15
4171 ............................. C-15
4227............................. B-51
4228............................. B-51
4229............................. B-51
4270............................. B-25
4400 .............................. E-3
4402............................... E-3
4409............................. B-51
4409AN ........................ B-51
4509............................. B-51
4509AN ........................ B-51
4862............................. B-50
4866............................. B-51
4866AN ........................ B-51
Index-3 EATON 2014 Residential Buyers Guide
www.eaton.com
www.cooperwiringdevices.com
Index
4867............................. B-51
4867AN ........................ B-51
4867ANW .................... B-51
4882.................... B-50, B-52
4887............................. B-51
5068.......... B-39, B-42, C-21
5128 ............................. C-13
5129 ............................. C-12
5131 ............................. C-10
5132 ............................. C-10
5134 ............................... C-9
5137 ............................. C-12
5138 ............................. C-13
5139 ............................... C-9
5141 ............................... C-9
5150 ............................. C-10
5151 ............................. C-11
5152 ............................. C-11
5153 ............................. C-13
5154 ............................... C-9
5158 ............................. C-14
5159 ............................. C-13
5169 .................... B-43, C-14
5170 ............................. C-13
5171 ............................. C-13
5221-7 ............................ B-7
5223-7............................ B-7
5270............................. B-27
5510__-MSP .................. D-5
5520__-MSP .................. D-5
5521-5E .......................... D-5
5522-5E ......................... D-5
5523-5E ......................... D-5
5530__-MSP .................. D-5
5540__-MSP .................. D-5
5546-6............................ D-4
5547-3E ......................... D-4
5547-5E ......................... D-4
5550-5E ......................... D-4
5552-5E ......................... D-4
5569E1 ........................ D-17
6867............................. B-54
6882............................. B-54
6887............................. B-54
7501 ............................... B-4
7501-9 ............................ B-4
7503............................... B-4
7503-9............................ B-4
7504............................... B-4
7511 ............................... B-4
7513 ............................... B-4
7728............................. B-15
7729............................. B-15
7731............................. B-15
7732............................. B-15
7737............................. B-18
7738............................. B-18
7739-BOX .................... C-25
9501 ............................. A-23
9503............................. A-23
9504............................. A-23
9515 ............................. A-23
9516 ............................. A-23
9521.................... A-14, A-24
9522.................... A-14, A-24
9523.................... A-14, A-24
9524.................... A-14, A-24
9525.................... A-14, A-24
9526.................... A-14, A-24
9530............................. A-19
9531............................. A-19
9532............................. A-19
9533............................. A-19
9534............................. A-18
9536............................. A-18
9537............................. A-18
9542............................. A-18
9543............................. A-21
9544............................. A-21
9568............................. A-20
9573............................. A-20
9590............................. A-22
9591............................. A-22
93071............................. C-9
93072............................. C-9
93073............................. C-9
93074 ............................. C-9
93075............................. C-9
93076 ............................. C-9
93091........................... C-10
93101 ........................... C-10
93102 ........................... C-10
93103 ........................... C-10
93 111 ........................... C-14
93151 ........................... C-12
93152 ........................... C-12
93153 ........................... C-12
93154 ........................... C-12
93221........ B-39, B-42, C-14
93223.................. B-43, C-14
93227........ B-39, B-42, C-14
93228........................... C-14
93401 ........................... C-11
93402........................... C-11
93403........................... C-11
93404........................... C-11
93405........................... C-11
93406........................... C-11
93432........................... C-13
93443........................... C-14
93512 ........................... C-13
93532........................... C-13
93543........................... C-14
93554........................... C-14
93591........................... C-13
93630........................... C-12
93631........................... C-12
93696........................... C-13
93801 ........................... C-23
93802........................... C-23
93834........................... C-23
93851........................... C-24
93852........................... C-24
93871........................... C-23
93872........................... C-23
93873........................... C-23
93874 ........................... C-23
93891........................... C-23
93896........................... C-24
93901 ........................... C-17
93902........................... C-17
93932........................... C-20
93934........................... C-18
93935........................... C-18
93936........................... C-18
93937........................... C-20
93951........................... C-19
93971........................... C-16
93972........................... C-16
93973........................... C-16
93991........................... C-17
93996........................... C-19
94071............................. C-9
94072............................. C-9
94073............................. C-9
94091........................... C-10
94101 ........................... C-10
94102 ........................... C-10
94151 ........................... C-12
94401 ........................... C-11
94402........................... C-11
94432........................... C-13
94532........................... C-13
95687........................... A-20
Quality wiring devices for new construction,
renovation or replacement in any home
2014 Residential
Buyer’s Guide
United States
Eaton Wiring Devices
203 Cooper Circle
Peachtree City, GA 30269
United States
Eaton.com
Arrowhart.com
Canada
Eaton Wiring Devices
5925 McLaughlin Road
Mississauga, Ontario, L5R 1B8
Canada
EatonCanada.ca
Arrowhart.com
Mexico
Carr. Tlalnepantla -
Cuautitlan Km 17.8 s/n
Col. Villa Jardin esq.
Cerrada 8 de Mayo
Cuautitlan, Mexico CP 54800
Mexico
Eaton.mx
Arrowhart.com
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2014 Eaton
All Rights Reserved
Printed in USA
Publication No. E825-0010-14
June 2014
2014 Residential Buyer’s Guide
Visit our website:
www.Cooperwiringdevices.com

Navigation menu
