Wall-Mount Preferred-Cutout Disconnect Enclosures
Wall-Mount Fixed-Depth Allen-Bradley Disconnect Enclosures
- Wall-Mount Fixed-Depth AB Cutout Overview
  - Fixed-Depth Allen-Bradley Cutout Overview
- Type 12, 13 Fixed-Depth AB Disconnects
  - Allen-Bradley® 1494 Cutout Disconnect Enclosure, Type 12

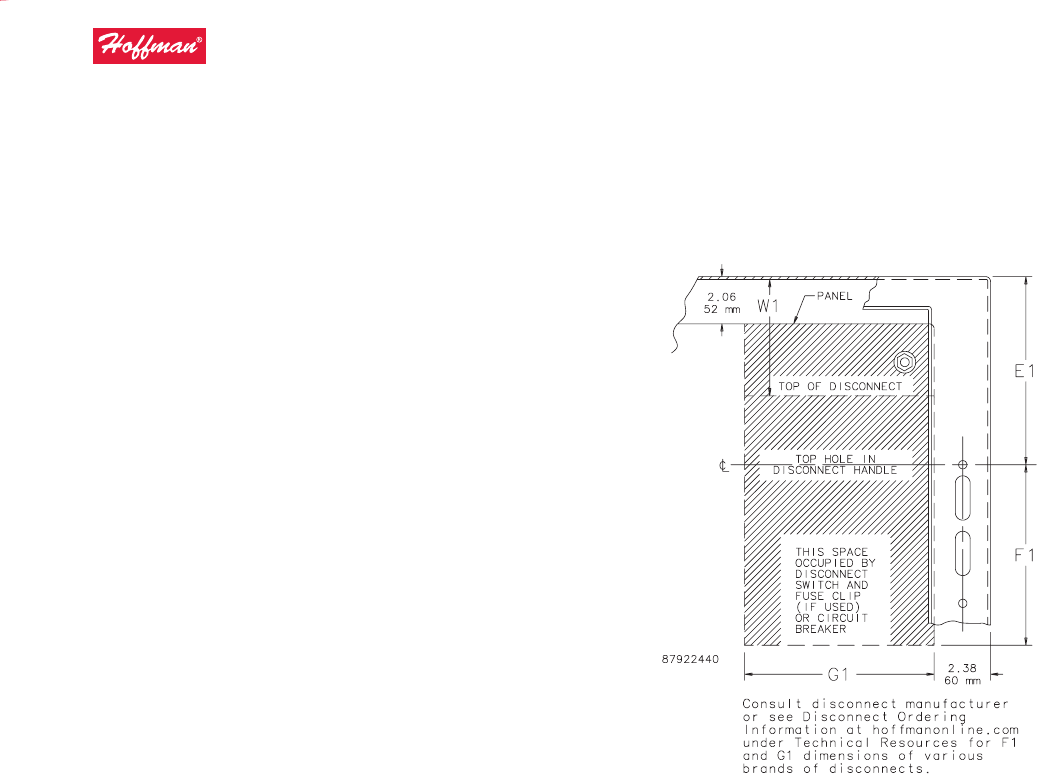

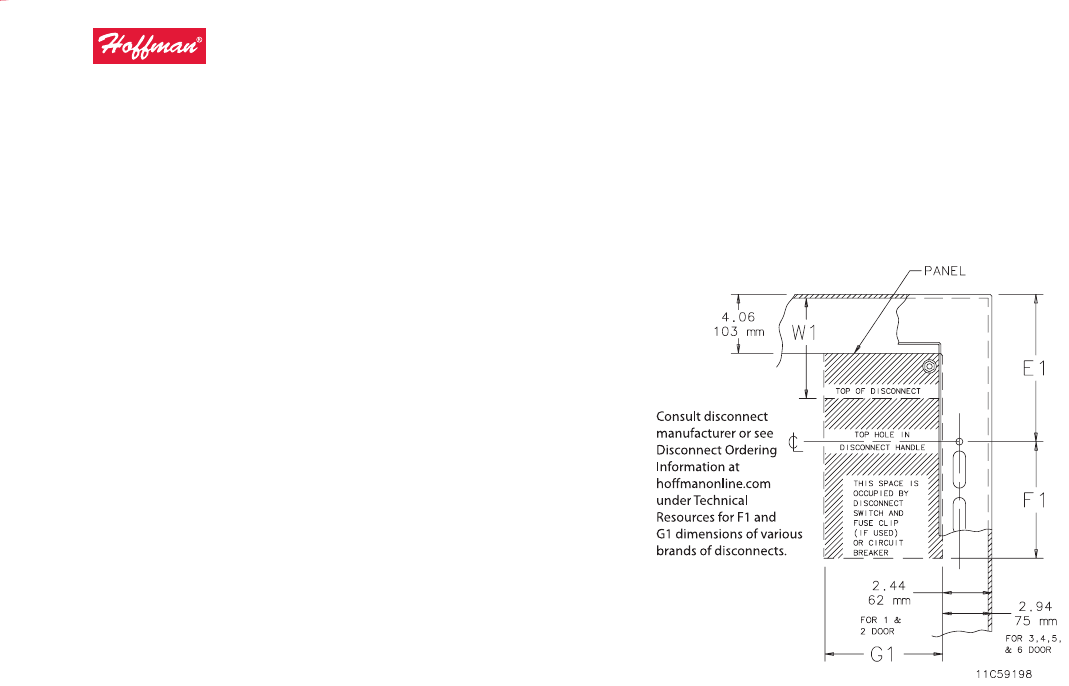

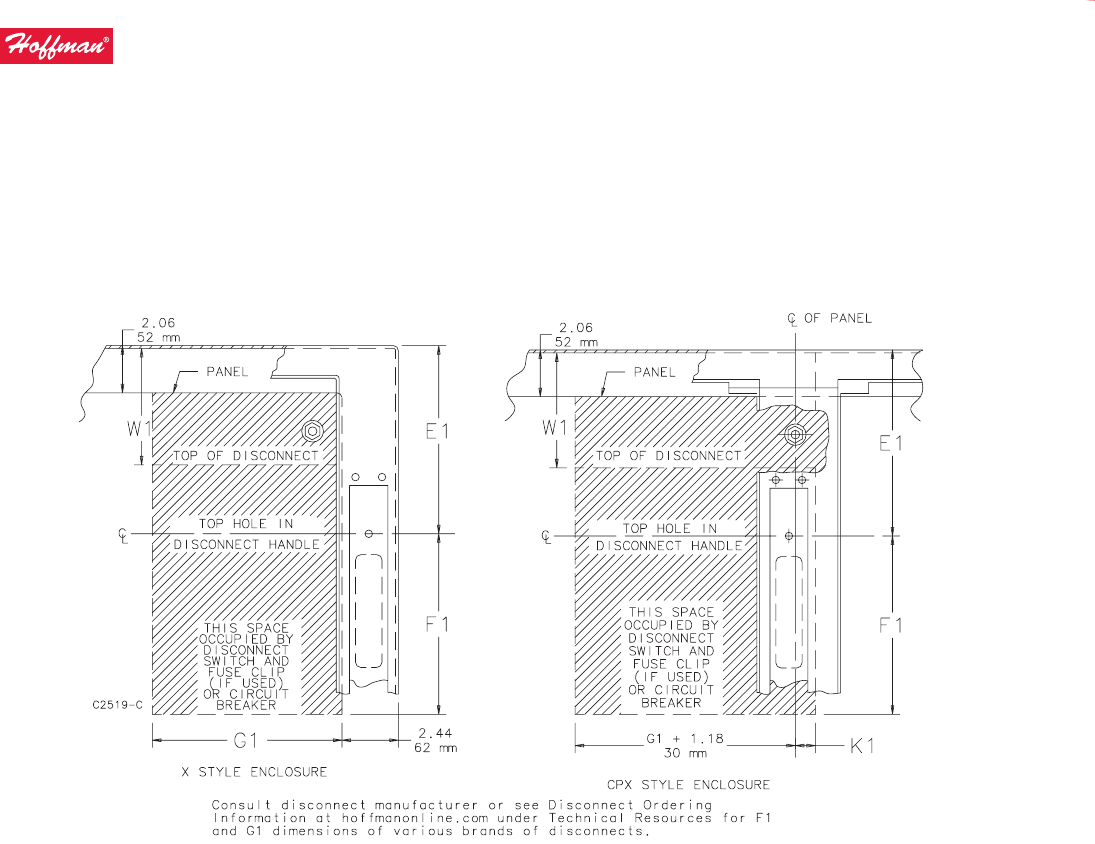

  - Disconnect Mounting Space
Free-Stand Preferred-Cutout Disconnect Enclosures
Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures
Free-Stand Universal-Cutout Disconnect Enclosures
SEQUESTR® Preferred-Cutout Disconnect Enclosures
- SEQUESTR® External Disconnect Preferred-Cutout Overview
  - SEQUESTR® Preferred-Cutout Overview
- SEQUESTR® External Disconnect Enclosures
Disconnect Enclosure Accessories
- Accessories for Free-Stand or Floor-Mount Disconnect Enclosures

310

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

PH (763) 422-2211

FX (763) 422-2600

PH (763) 422-2211

FX (763) 422-2600 5

Disconnect

Featured

Products

in this

Chapter

▶ CONCEPT® Disconnect Enclosure,

Type 4X P. 317

▶ Fiberglass Disconnect, Type 4X P. 328

▶ WATERSHED® Disconnect Enclosure,

Type 4X P. 340

▶ SEQUESTR™ External Disconnect

Enclosure Package, Type 12 P. 408

CHAPTER

311

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

CHAPTER CONTENTS

Wall-Mount Preferred-Cutout Disconnect

Enclosures

Wall-Mount Preferred-Cutout Overview

Preferred-Cutout Overview . . . . . . . . . . . . . . . . . . . . . . 312

Preferred Cutout, Disconnect Enclosure, Type 12

Preferred Cutout, Disconnect Enclosure, Type 12 . 313

POWERGLIDE® Defeater Handle Kit . . . . . . . . . . . . . . .316

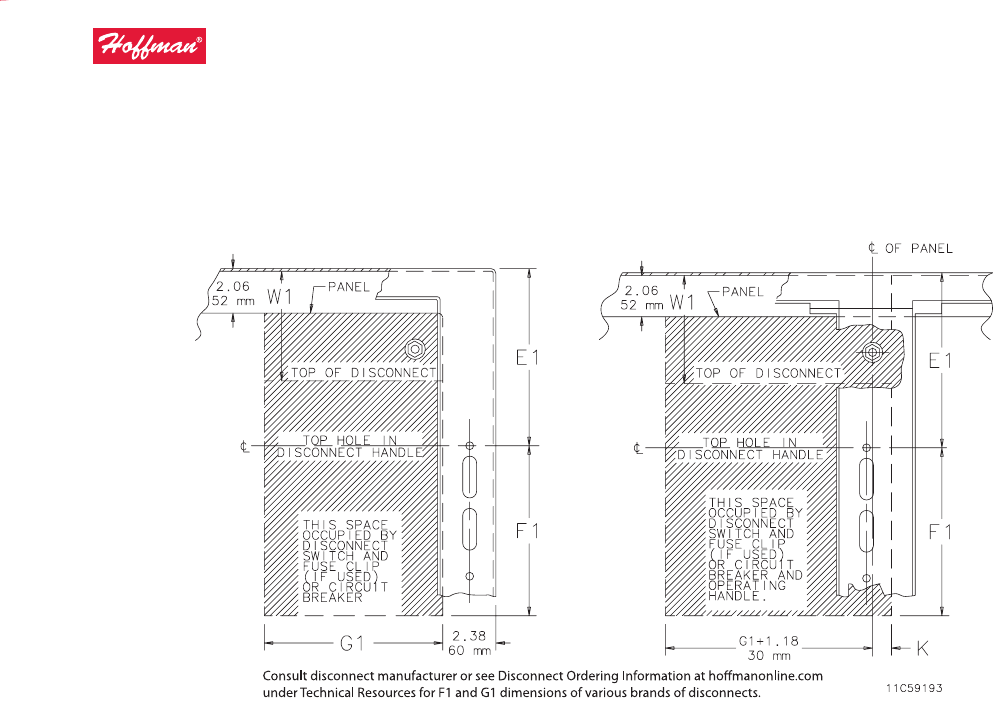

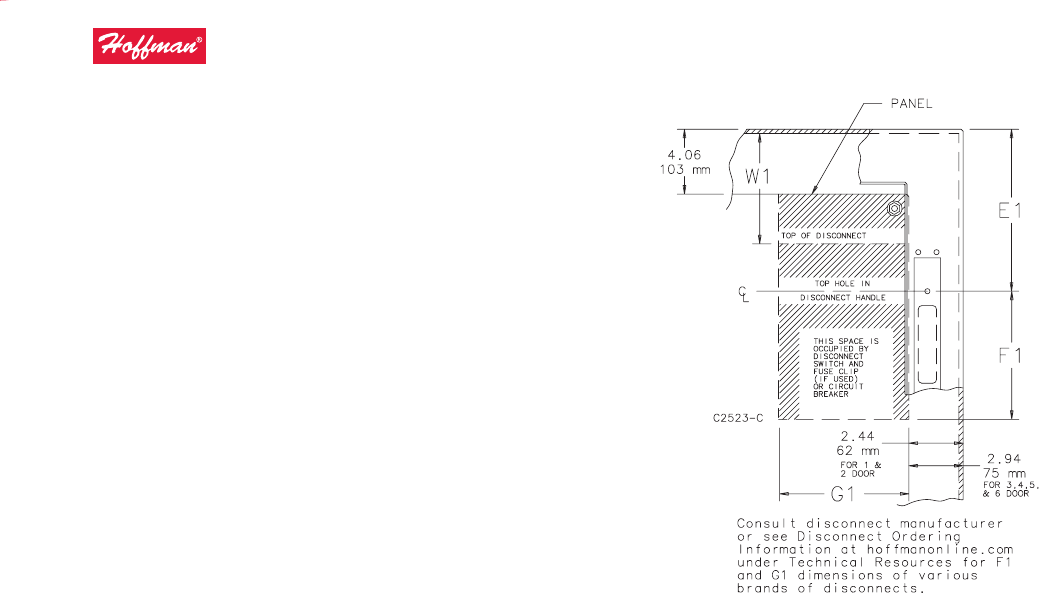

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .316

CONCEPT® Wall-Mount Disconnect Enclosures

CONCEPT® Disconnect Enclosure, Type 4 . . . . . . . . . 317

CONCEPT® Disconnect Enclosure, Type 4X . . . . . . . . 319

CONCEPT® with Quarter-Turn Latches Disconnect

Enclosure, Type 4X ..............................322

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .323

Type 4 and 12 Wall-Mount Disconnect Enclosures

Disconnect Enclosure with Clamps, Type 4 . . . . . . .324

Disconnect Enclosure with Clamps, Type 4X . . . . . .326

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .327

Fiberglass Disconnect Enclosures

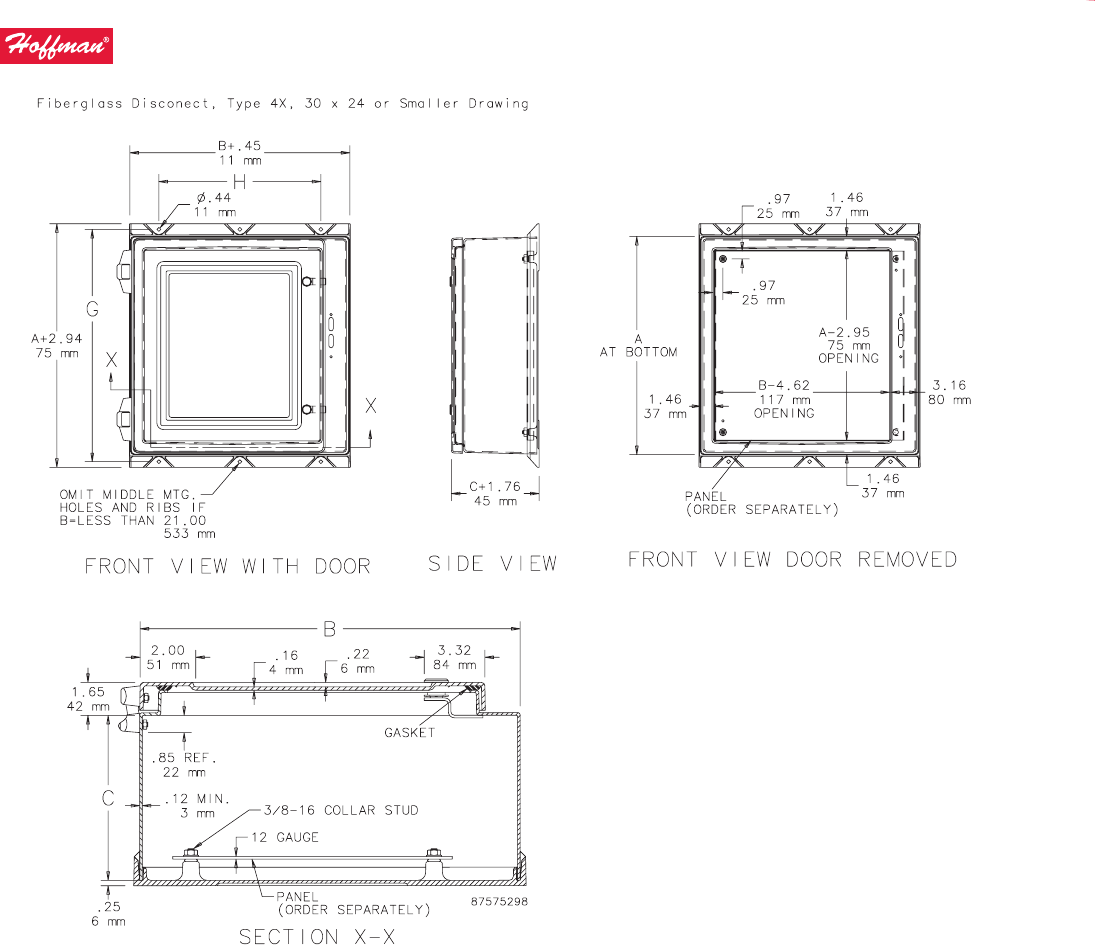

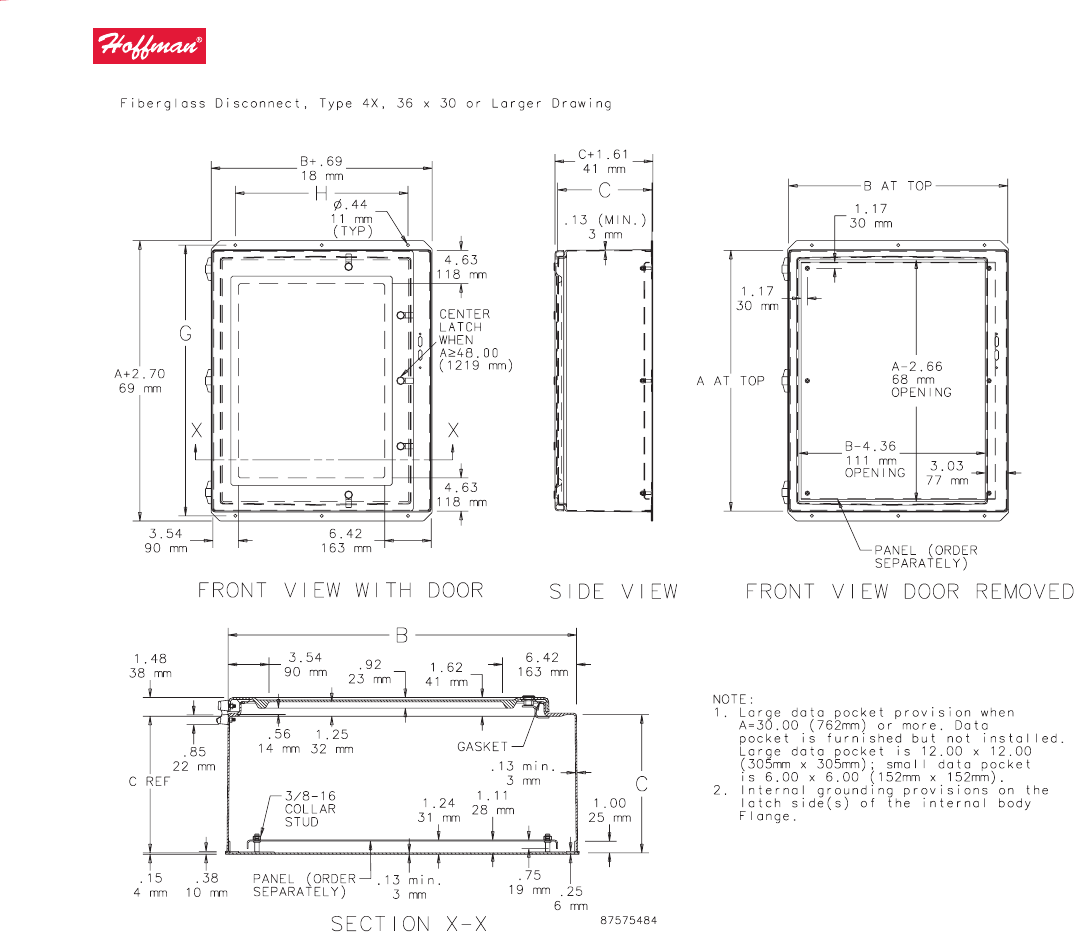

Fiberglass Disconnect, Type 4X . . . . . . . . . . . . . . . . . . .328

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .331

Low-Prole Type 12 Disconnect Enclosures and

Accessories

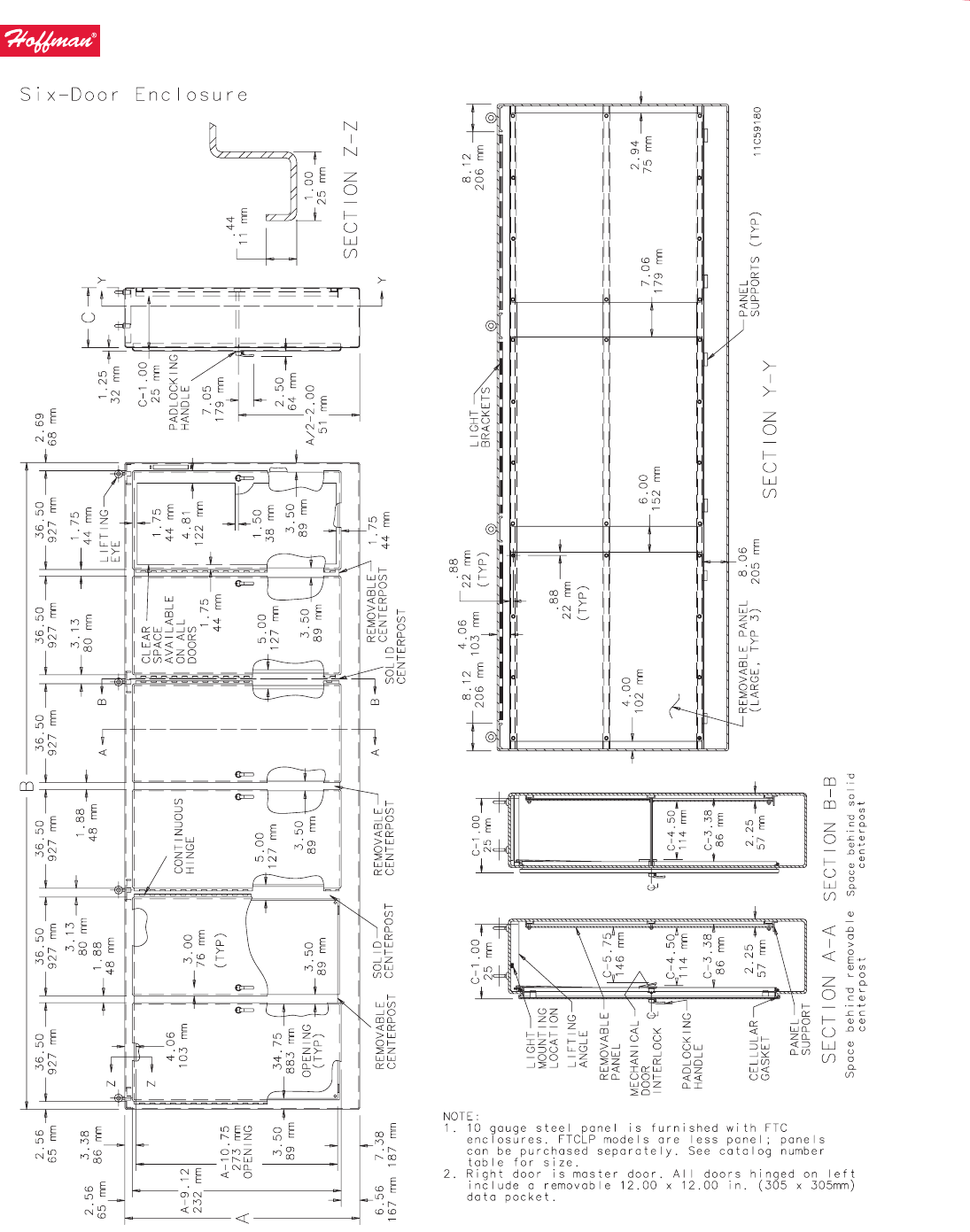

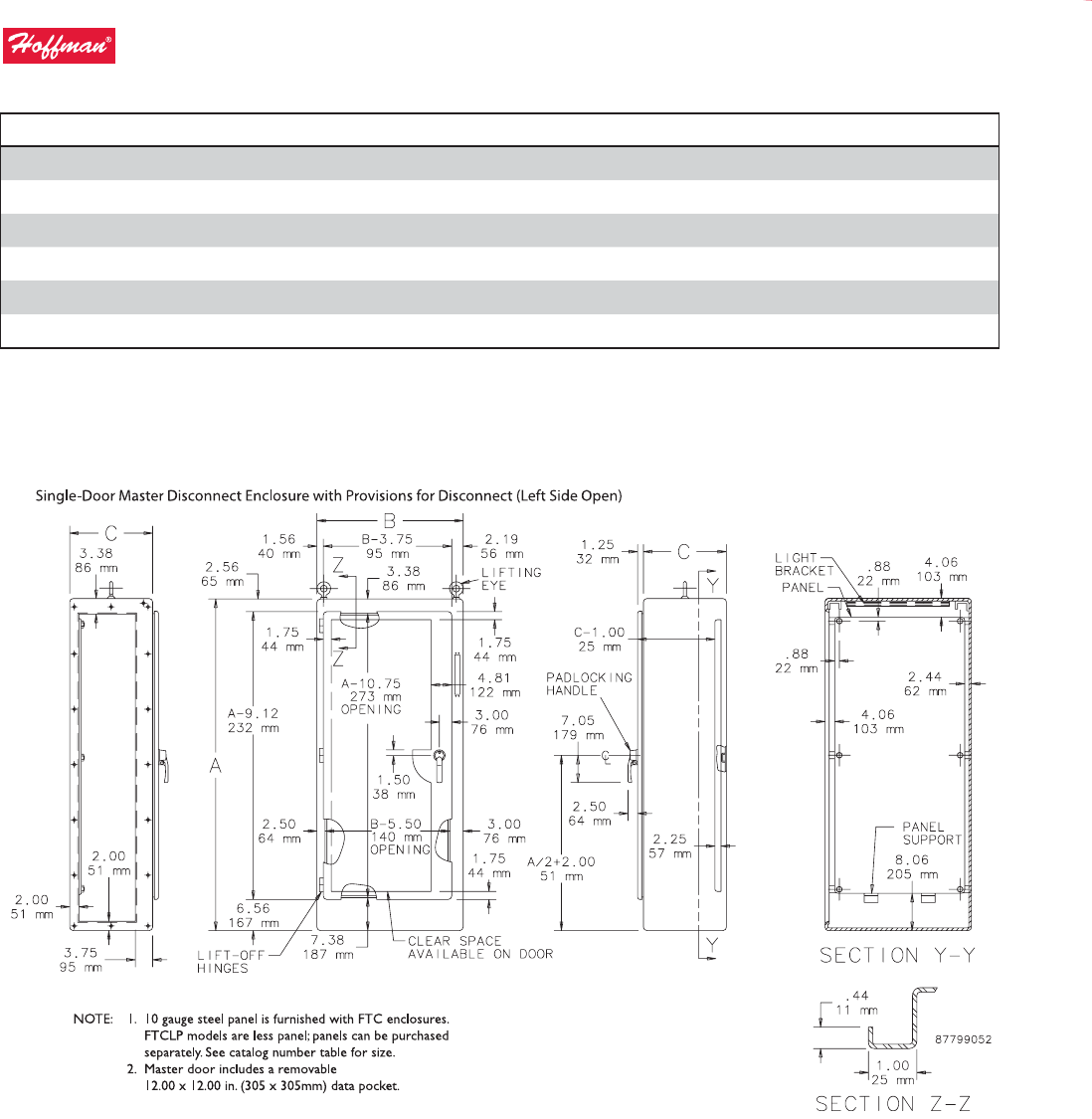

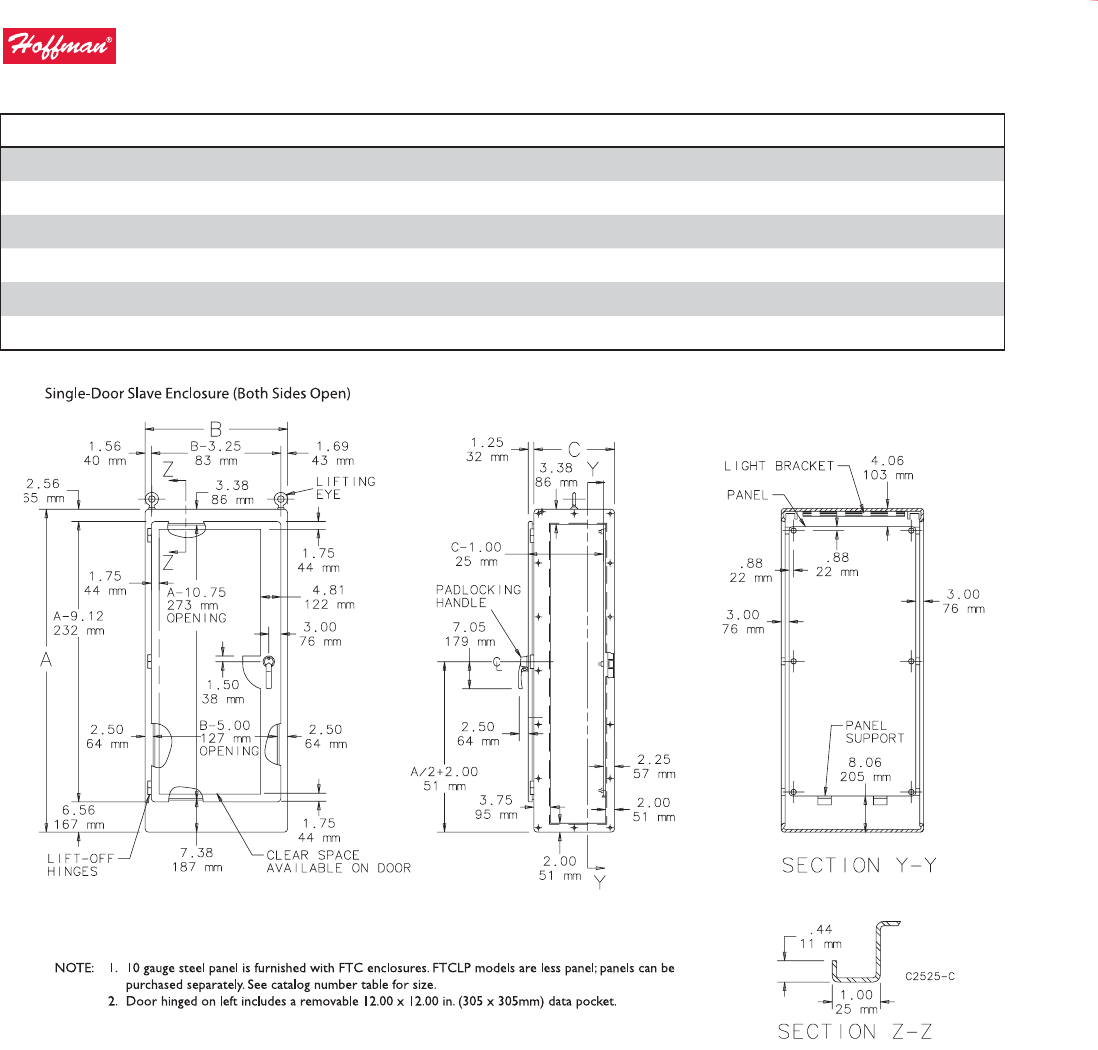

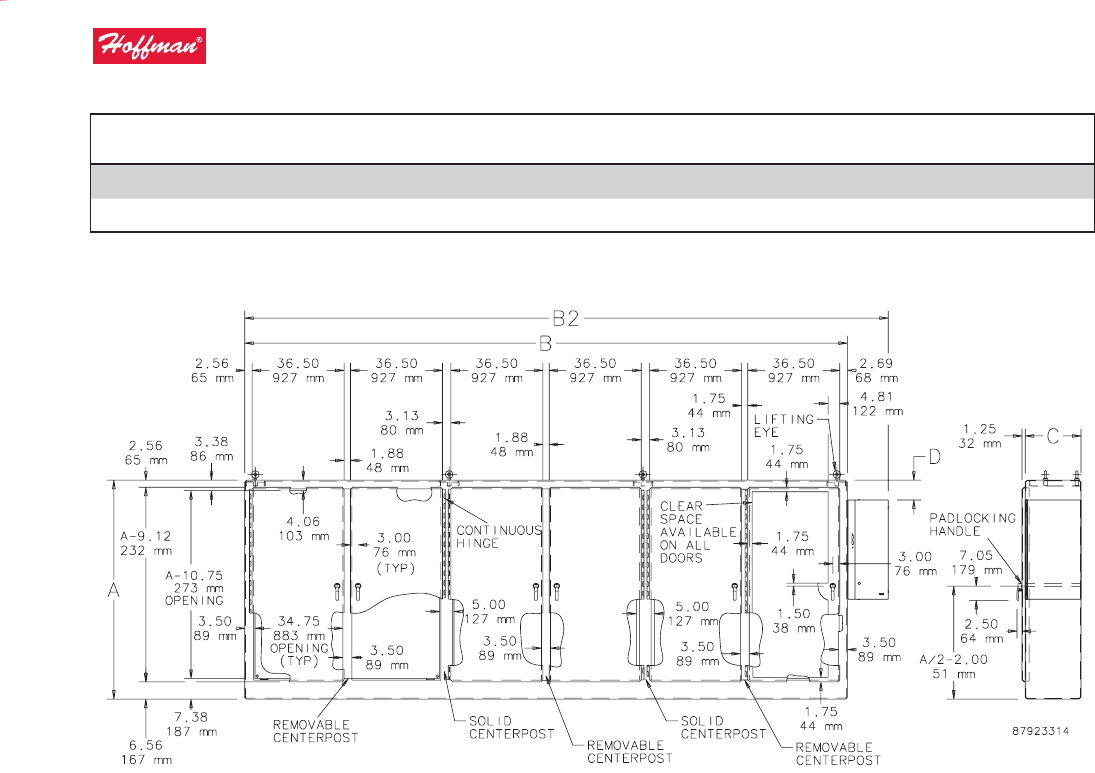

Low-Prole, One- to Five-Door Disconnect Enclosure,

Type 12 ........................................332

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .339

Panels for A26 Low-Prole Type 12 Disconnect

Enclosures ......................................339

Homan WATERSHED® Wall-Mount Disconnect

Enclosures

WATERSHED® Disconnect Enclosure, Type 4X . . . . .340

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .341

Mounting Bracket Kit .............................342

Stand-O Kit .....................................342

Padlocking Handle Kit ............................342

Padlocking Latch Kit .............................342

Wall-Mount Fixed-Depth Allen-Bradley

Disconnect Enclosures

Wall-Mount Fixed-Depth AB Cutout Overview

Fixed-Depth Allen-Bradley Cutout Overview . . . . 344

Type 12, 13 Fixed-Depth AB Disconnects

Allen-Bradley® 1494 Cutout Disconnect Enclosure,

Type 12 .........................................345

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .347

Free-Stand Preferred-Cutout Disconnect

Enclosures

Free-Stand Preferred-Cutout Disconnect Overview

Preferred-Cutout Overview . . . . . . . . . . . . . . . . . . . . . .348

Free-Stand Disconnect Enclosures and Accessories

Free-Stand Disconnect Enclosure, Type 1 . . . . . . . . .349

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .352

Gasket Kits .......................................352

PROLINE-DD Modular Enclosures and Accessories

PROLINE®-DD Disconnect Enclosure, Type 12 . . . . .353

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .355

PROLINE®-DD Modular Subpanel . . . . . . . . . . . . . . . . .355

PROLINE®-DD Modular 100-mm Bases . . . . . . . . . . . .355

Free-Stand Stainless Steel Preferred-

Cutout Disconnect Enclosures

Free-Stand Preferred-Cutout Stainless Steel

Disconnect Overview

Preferred-Cutout Overview . . . . . . . . . . . . . . . . . . . . . .356

Stainless Steel Two-Door Disconnect Enclosure

Two-Door Stainless Steel Enclosures for Flange-

Mounted Disconnects, Type 4X . . . . . . . . . . . . . . . . .357

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .360

Stainless Steel General Purpose Disconnect

Enclosures

General Purpose Stainless Steel Two-Door

Floor-Mount Disconnect Enclosures, Type 4X . . .362

General Purpose Single-Door Free-Stand

Disconnect, Type 4X ............................364

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .366

Stainless Steel Heavy Duty Disconnect Enclosures

Stainless Steel Heavy-Duty Free-Stand Enclosures

for Flange-Mount Disconnects, Type 4X . . . . . . . . .368

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .374

Homan WATERSHED® Stainless Steel

Homan WATERSHED® Free-Standing SS

Disconnect Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . .376

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .378

Sanitary Leg Kits .................................379

Free-Stand Universal-Cutout Disconnect

Enclosures

Free-Stand Universal-Cutout Disconnect Overview

Universal Cutout Overview . . . . . . . . . . . . . . . . . . . . . . .380

Free-Stand Type 12 Disconnect Enclosures

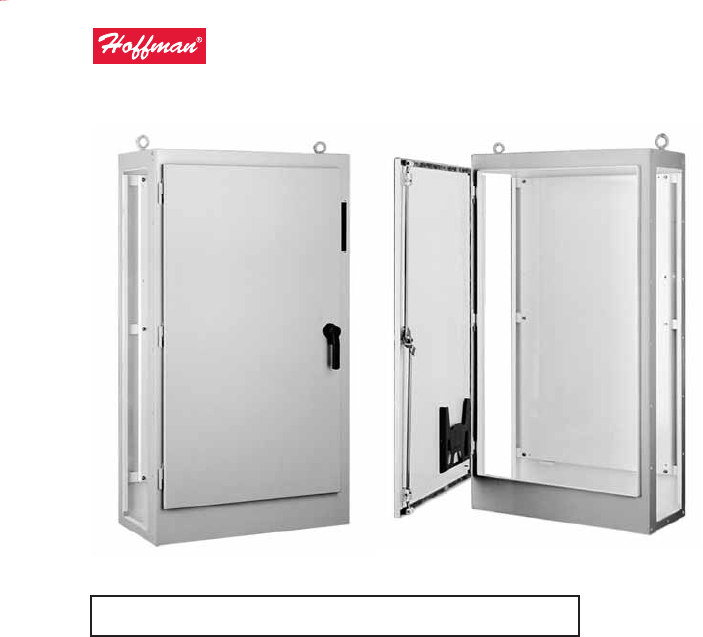

Two-Door with Floor Stands Disconnect

Enclosure, Type 12 ..............................381

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .385

Heavy-Duty Free-Stand Disconnect Enclosure,

Type 12 .........................................386

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .396

Type 12 Modular Free-Stand Disconnect Enclosures

and Accessories

Modular Disconnect Enclosure, Type 12 . . . . . . . . . .398

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . .403

End Plates ....................................... 404

Flat End Plates .................................. 404

Barriers ..........................................405

Gasket Kit ........................................405

SEQUESTR® Preferred-Cutout Disconnect

Enclosures

SEQUESTR® External Disconnect Preferred-Cutout

Overview

SEQUESTR® Preferred-Cutout Overview . . . . . . . . . 406

SEQUESTR® External Disconnect Enclosures

SEQUESTR® External Disconnect Enclosure,

Type 12 .........................................407

SEQUESTR® External Disconnect Enclosure

Package, Type 12 .............................. 408

Disconnect Mounting Space . . . . . . . . . . . . . . . . . . . . . 415

Disconnect Enclosure Accessories

Accessories for Free-Stand or Floor-Mount

Disconnect Enclosures

Operator Adapters for Universal Cutouts . . . . . . . . .416

Operator Adapters for Preferred Cutouts . . . . . . . . . 416

Blank Adapter Plates, Mild Steel . . . . . . . . . . . . . . . . . . 416

Blank Adapter Plates, Stainless Steel . . . . . . . . . . . . . . 417

Enclosure Stabilizers .............................417

Platform Assembly ...............................417

312

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Wall-Mount Preferred-Cutout Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect

Wall-Mount P referred -Cutout Di sconnect E nclosure s

Wall-Mount P referred -Cutout Ove rview

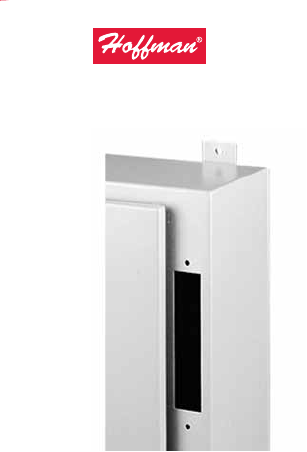

Preferred-Cutout Overview

Application

Enclosures having the preferred cutout are sized for use with up to

200A disconnect switches and up to 400A circuit breakers unless

otherwise specied. The preferred cutout accepts the smaller

operating handle whose mounting hole centers are 4.688 in. apart.

Preferred cutouts are standard in mild steel wall-mount enclosures,

modular enclosures and some select large mild steel enclosures.

They are also present on all standard stainless steel oerings. Mild

steel operator adapter plates with brand specic preferred cutouts

are available for enclosures with a rectangular universal cutout.

Preferred cutouts are designed to house the following:

Allen-Bradley

• Bulletin 1494V disconnect switches with ange-mount variable-

depth operating mechanisms and Bulletin 1494V ange-mount

variable-depth operating mechanisms for circuit breakers

• Bulletin 140U exible cable operating mechanisms for 140U

molded case circuit breakers

• Bulletin 1494C cable-operated disconnect switches with ange-

mount handles

• Bulletin 194RC cable-operated ange-mount handles for use with

the NFPA 79 compliant 194R IEC rotary disconnect switches

Allen-Bradley Bulletin 1494V-R1, -R2 and -W2 operating handles and

Allen-Bradley Bulletin 1494F disconnect devices or Bulletin 1494D circuit

breaker operators will NOT t these enclosures.

ABB Controls ange-mount variable-depth operating mechanisms

for disconnect switches and circuit breakers. Also the cable version

for circuit breakers.

Eaton Cutler-Hammer Type C361 ange-mount variable-depth

operating mechanisms with disconnect switches and Type C371

 ange-mount variable-depth operating mechanisms for circuit

breakers.

General Electric Type STDA ange handles and variable-depth

operating mechanisms for disconnect switches and circuit breakers.

Also SPECTRAFLEX™ cable operators for circuit breakers.

Siemens ITE MAX FLEX® ange-mount variable-depth operating

handles for circuit breakers.

Schneider Square D® Class 9422 disconnect switches with ange-

mount variable-depth operating mechanisms or cable mechanisms

and Class 9422 ange-mount variable-depth operating mechanisms

or cable mechanisms for circuit breakers.

These enclosures will NOT accept Square D Class 9422 bracket-mounted

disconnect devices, Class 9422TG1 or TG2 devices.

Ordering

The disconnect switch, operating handle, and operating mechanism

must be ordered from disconnect equipment supplier. See Technical

Information in the Homan Specier’s Guide for wire bend space

available when various manufacturers’ disconnect switches are

installed, or Disconnect Ordering Information at homanonline.com

for disconnect ordering guidelines and wire bend space available.

Check the enclosure dimension drawings to verify the chosen

disconnect switch will t in the enclosure.

313

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

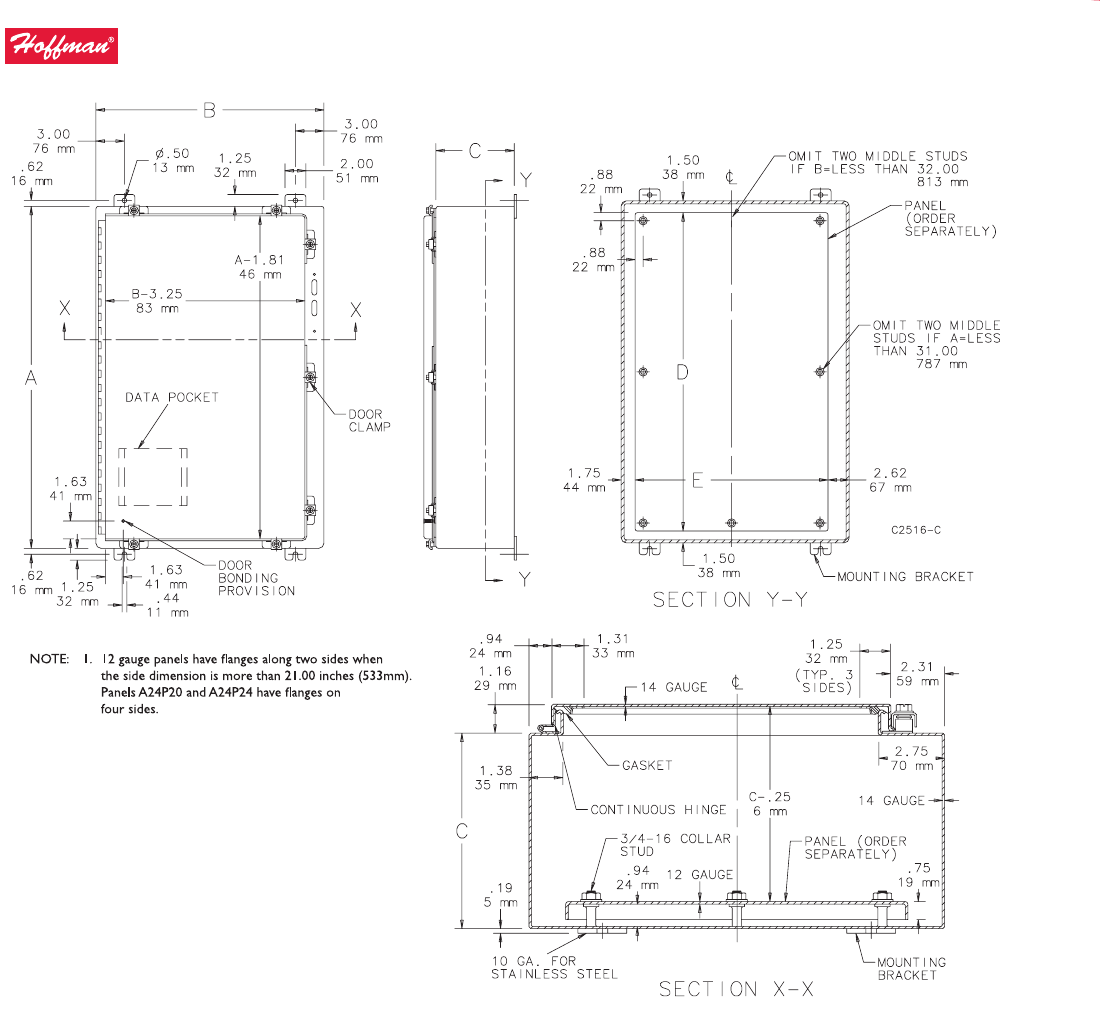

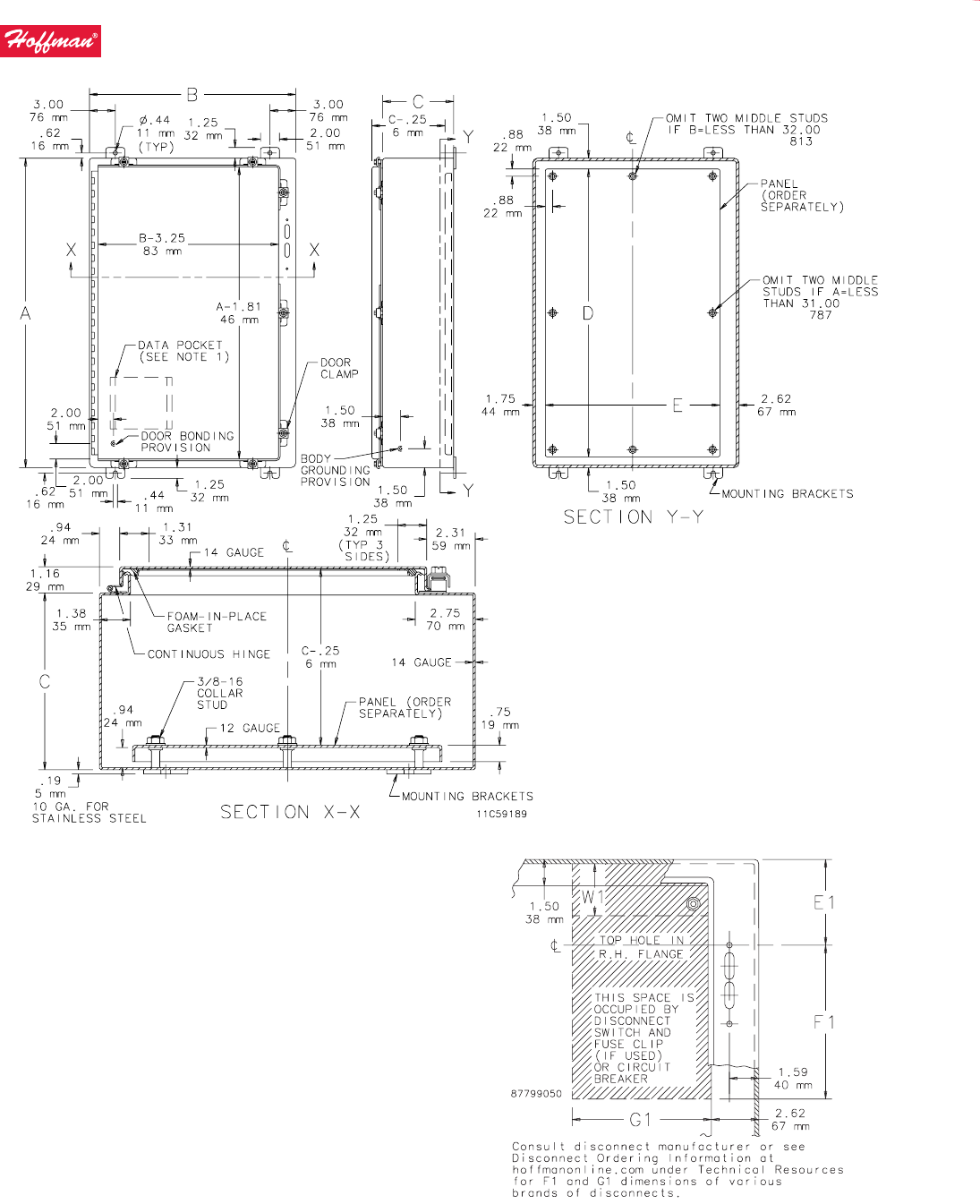

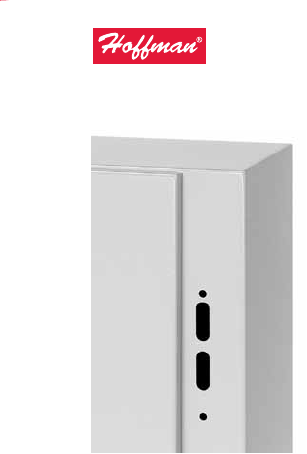

Preferred Cutout, Disconnect Enclosure, Type 12

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Preferred Cuto ut, Disco nnect Encl osure, Type 12

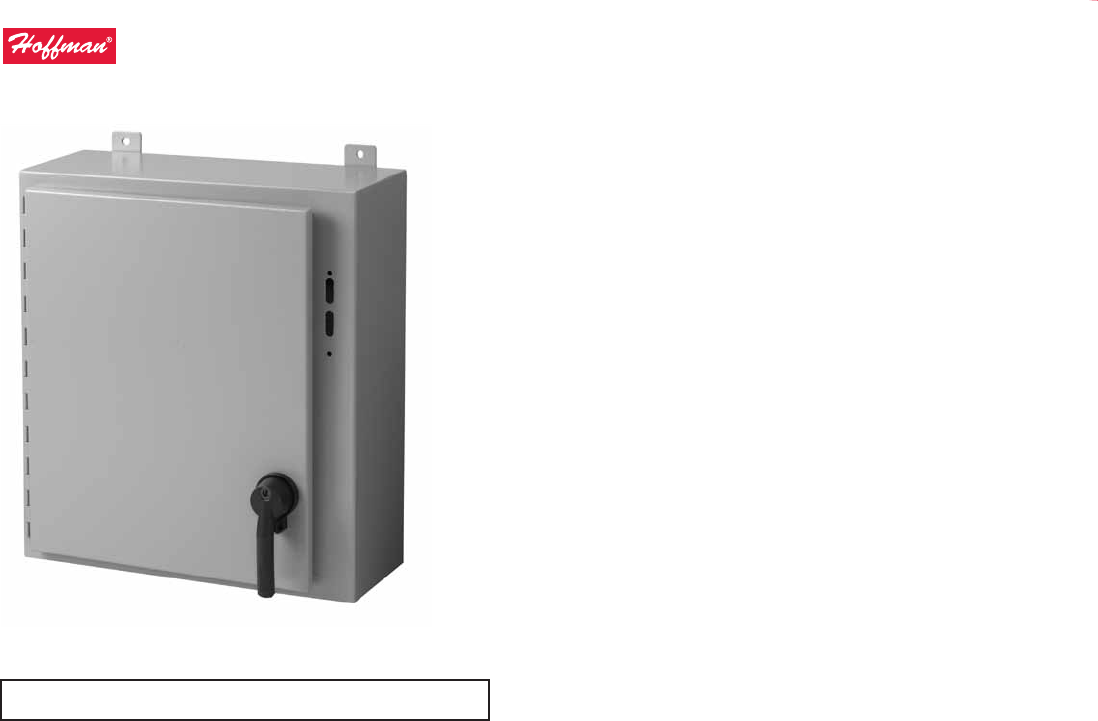

Preferred Cutout, Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12, 13; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997

NEMA/EEMAC Type 12, 13

CSA File No. 42186: Type 12

IEC 60529, IP65

Application

These general purpose disconnect enclosures accept major brand

disconnect switches and circuit breakers, available with or without

the Homan-supplied defeater door handle and handle hardware.

Features

• Includes latch pivot post(s) and cover interlock bracket welded

to door, cover latch bar for door, and instructions for installing

disconnects

• Model numbers ending with “PL” include handle and handle

latching hardware

Specications

• 14 gauge steel

• Seams continuously welded and ground smooth

• Bonding provision on door

• External mounting brackets

• External-formed ange around all sides of enclosure opening

• Removable door with continuous hinge

• Data pocket is high impact thermoplastic

• Oil-resistant gasket

• Collar studs for mounting optional panels

• Holes in body and door for mounting operating handle, operating

mechanism, and door closing mechanism

• Available with or without Homan supplied padlocking defeater

handle and latching system

Finish

White inside with ANSI 61 gray outside nish.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

Compact Cooling Fans

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

POWERGLIDE® Defeater Handle Kit

Steel and Stainless Steel Window Kits

Ordering

Note: Some exible cable operating mechanisms may not work

in 8-in. deep enclosures due to interference with cable control

hardware on inside of ange.

Depending on model, order as follows:

PL models:

• Operating mechanism and disconnect switch or circuit breakers

• Operating handle

All other models:

• Operating mechanism and disconnect switch or circuit breakers

• Operating handle

• POWERGLIDE® Defeater Handle Kit

—or—

• Operating mechanism and disconnect switch or circuit breakers

• Operating handle

• Door hardware

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A25

314

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Preferred Cutout, Disconnect Enclosure, Type 12

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in. AxBxC mm Footnotes With or Without Handle Panel Conductive Panel

Panel Size

D x E (in.)

Panel Size

D x E (mm)

Data Pocket Size

D x E (in.)

Data Pocket Size

D x E (mm)

A20SA2208LP 20.00 x 21.38 x 8.00 508 x 543 x 203 — Without A20P20 A20P20G 17.00 x 17.00 432 x 432 6.00 x 6.00 152 x 152

A20SA2208LPPL 20.00 x 21.38 x 8.00 508 x 543 x 203 — With A20P20 A20P20G 17.00 x 17.00 432 x 432 6.00 x 6.00 152 x 152

A24SA2208LP 24.00 x 21.38 x 8.00 610 x 543 x 203 — Without A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152

A24SA2208LPPL 24.00 x 21.38 x 8.00 610 x 543 x 203 — With A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152

A24SA2608LP 24.00 x 25.38 x 8.00 610 x 645 x 203 — Without A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152

A24SA2608LPPL 24.00 x 25.38 x 8.00 610 x 645 x 203 — With A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152

A30SA2208LP 30.00 x 21.38 x 8.00 762 x 543 x 203 — Without A30P20 A30P20G 27.00 x 17.00 686 x 432 6.00 x 6.00 152 x 152

A30SA2208LPPL 30.00 x 21.38 x 8.00 762 x 543 x 203 — With A30P20 A30P20G 27.00 x 17.00 686 x 432 6.00 x 6.00 152 x 152

A30SA2608LP 30.00 x 25.38 x 8.00 762 x 645 x 203 — Without A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A30SA2608LPPL 30.00 x 25.38 x 8.00 762 x 645 x 203 — With A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A36SA2608LP 36.00 x 25.38 x 8.00 914 x 645 x 203 — Without A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305

A36SA2608LPPL 36.00 x 25.38 x 8.00 914 x 645 x 203 — With A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305

A36SA3208LP 36.00 x 31.38 x 8.00 914 x 797 x 203 — Without A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A36SA3208LPPL 36.00 x 31.38 x 8.00 914 x 797 x 203 — With A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A42SA3208LP 42.00 x 31.38 x 8.00 1067 x 810 x 203 — Without A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3208LPPL 42.00 x 31.38 x 8.00 1067 x 810 x 203 — With A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3808LP 42.00 x 37.38 x 8.00 1067 x 949 x 203 — Without A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A42SA3808LPPL 42.00 x 37.38 x 8.00 1067 x 949 x 203 — With A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A48SA3808LP 48.00 x 37.38 x 8.00 1219 x 949 x 203 — Without A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A48SA3808LPPL 48.00 x 37.38 x 8.00 1219 x 949 x 203 — With A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A60SA3808LP 60.00 x 37.38 x 8.00 1524 x 949 x 203 — Without A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A60SA3808LPPL 60.00 x 37.38 x 8.00 1524 x 949 x 203 — With A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A20SA2210LP 20.00 x 21.38 x 10.00 508 x 543 x 254 — Without A20P20 A20P20G 17.00 x 17.00 432 x 432 6.00 x 6.00 152 x 152

A20SA2210LPPL 20.00 x 21.38 x 10.00 508 x 543 x 254 — With A20P20 A20P20G 17.00 x 17.00 432 x 432 6.00 x 6.00 152 x 152

A24SA2210LP 24.00 x 21.38 x 10.00 610 x 543 x 254 — Without A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152

A24SA2210LPPL 24.00 x 21.38 x 10.00 610 x 543 x 254 — With A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152

A24SA2610LP 24.00 x 25.38 x 10.00 610 x 645 x 254 — Without A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152

A24SA2610LPPL 24.00 x 25.38 x 10.00 610 x 645 x 254 — With A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152

A30SA2210LP 30.00 x 21.38 x 10.00 762 x 543 x 254 — Without A30P20 A30P20G 27.00 x 17.00 686 x 432 6.00 x 6.00 152 x 152

A30SA2210LPPL 30.00 x 21.38 x 10.00 762 x 543 x 254 — With A30P20 A30P20G 27.00 x 17.00 686 x 432 6.00 x 6.00 152 x 152

A30SA2610LP 30.00 x 25.38 x 10.00 762 x 645 x 254 — Without A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A30SA2610LPPL 30.00 x 25.38 x 10.00 762 x 645 x 254 — With A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A36SA2610LP 36.00 x 25.38 x 10.00 914 x 645 x 254 — Without A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305

A36SA2610LPPL 36.00 x 25.38 x 10.00 914 x 645 x 254 — With A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305

A36SA3210LP 36.00 x 31.38 x 10.00 914 x 797 x 254 — Without A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A36SA3210LPPL 36.00 x 31.38 x 10.00 914 x 797 x 254 — With A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A42SA3210LP 42.00 x 31.38 x 10.00 1067 x 797 x 254 — Without A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3210LPPL 42.00 x 31.38 x 10.00 1067 x 797 x 254 — With A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3810LP 42.00 x 37.38 x 10.00 1067 x 949 x 254 — Without A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A42SA3810LPPL 42.00 x 37.38 x 10.00 1067 x 949 x 254 — With A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A48SA2610LPPL 48.00 x 25.38 x 10.00 1219 x 645 x 254 — With A48P24 A48P24G 45.00 x 21.00 1143 x 533 12.00 x 12.00 305 x 305

A48SA3810LP 48.00 x 37.38 x 10.00 1219 x 949 x 254 — Without A48P36 A48P24G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A48SA3810LPPL 48.00 x 37.38 x 10.00 1219 x 949 x 254 — With A48P36 A48P24G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A60SA3810LP 60.00 x 37.38 x 10.00 1524 x 949 x 254 — Without A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A60SA3810LPPL 60.00 x 37.38 x 10.00 1524 x 949 x 254 — With A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A60SA3812LPPL 60.00 x 37.38 x 12.00 1524 x 949 x 305 — With A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A36SA3216LPPL 36.00 x 31.38 x 16.00 914 x 797 x 406 — With A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A42SA3216LPPL 42.00 x 31.38 x 16.00 1067 x 797 x 406 — With A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3816LPPL 42.00 x 37.38 x 16.00 1067 x 949 x 406 — With A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A48SA3816LPPL 48.00 x 37.38 x 16.00 1219 x 949 x 406 — With A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A60SA3816LP 60.00 x 37.38 x 16.00 1524 x 949 x 406 — Without A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A60SA3816LPPL 60.00 x 37.38 x 16.00 1524 x 949 x 406 — With A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A30SA2612LP 30.00 x 25.38 x 12.00 762 x 645 x 305 a Without A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A30SA2612LPPL 30.00 x 25.38 x 12.00 762 x 645 x 305 a With A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305

A36SA3212LP 36.00 x 31.38 x 12.00 914 x 797 x 305 a Without A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A36SA3212LPPL 36.00 x 31.38 x 12.00 914 x 797 x 305 a With A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A42SA3212LP 42.00 x 31.38 x 12.00 1067 x 797 x 305 a Without A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3212LPPL 42.00 x 31.38 x 12.00 1067 x 797 x 305 a With A42P30 A42P30G 39.00 x 27.00 991 x 686 6.00 x 6.00 152 x 152

A42SA3812LP 42.00 x 37.38 x 12.00 1067 x 949 x 305 a Without A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A42SA3812LPPL 42.00 x 37.38 x 12.00 1067 x 949 x 305 a With A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305

A48SA3812LP 48.00 x 37.38 x 12.00 1219 x 949 x 305 a Without A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A48SA3812LPPL 48.00 x 37.38 x 12.00 1219 x 949 x 305 a With A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A60SA3812LP 60.00 x 37.38 x 12.00 1524 x 949 x 305 a Without A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

A36SA3216LP 36.00 x 31.38 x 16.00 914 x 797 x 406 a Without A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305

A48SA3816LP 48.00 x 37.38 x 16.00 1219 x 949 x 406 a Without A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305

A60SA3812A24LP 60.00 x 37.38 x 12.00 1524 x 949 x 305 b Without A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305

aWhen using a Siemens ITE circuit breaker and an enclosure with an A dimension of 30-, 36- or 42-in., verify the amount of wire bend space required for both the line and load sides. Enclosures 12- and 16-in. deep can be

modied to accept Siemens ITE 800 A and 1200 A circuit breakers. (Consult factory for details.)

bCatalog number A60SA3812A24LP enclosure will receive only 400 A and 600 A Allen-Bradley Bulletin 1494V disconnect switches, and Siemens ITE 800 Amp and 1200 Amp circuit breakers. The 400 Amp and 600 Amp Allen-

Bradley disconnect switch will not t any other size enclosure from the Bulletin A25 family. Blank Adapter Plates will not t catalog number A60SA3812A24LP.

Purchase panels separately.

315

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Preferred Cutout, Disconnect Enclosure, Type 12

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Table 430.10(B) Minimum Wire Bending Space at the Terminals of Enclosed Motor Controllers

Size of Wire (AWG or kcmil) Wires per Terminal 1 (mm) Wires per Terminal 1 (in.) Wires per Terminal 2(mm) Wires per Terminal 2 (in.)

14-10 Not specied Not specied — —

8-6 30 1.5 — —

4-3 50 2 — —

2 65 2.5 — —

1 75 3 — —

1/0 125 5 125 5

2/0 150 6 150 6

3/0-4/0 175 7 175 7

250 200 8 200 8

300 250 10 250 10

350-500 300 12 300 12

600-700 350 14 400 16

750-900 450 18 475 19

material is not the complete and ocial position of the NFPA on the referenced subject which is represented only by the standard in its entirety.

Where provision for 3 or more wires per terminal exists, the minimum wire bending space shall be in accordance with the requirements of Article 312.

316

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Preferred Cutout, Disconnect Enclosure, Type 12

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

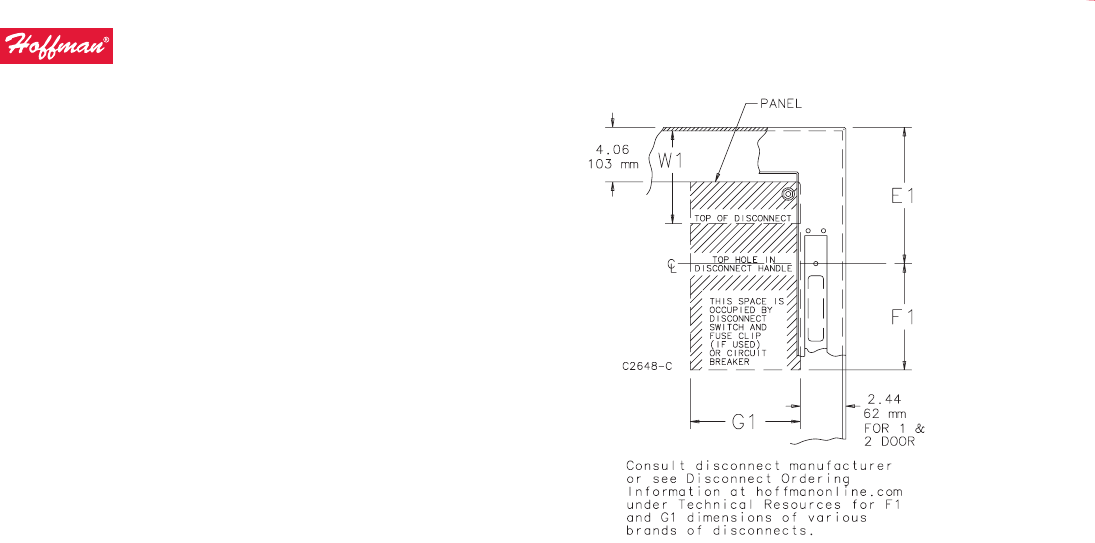

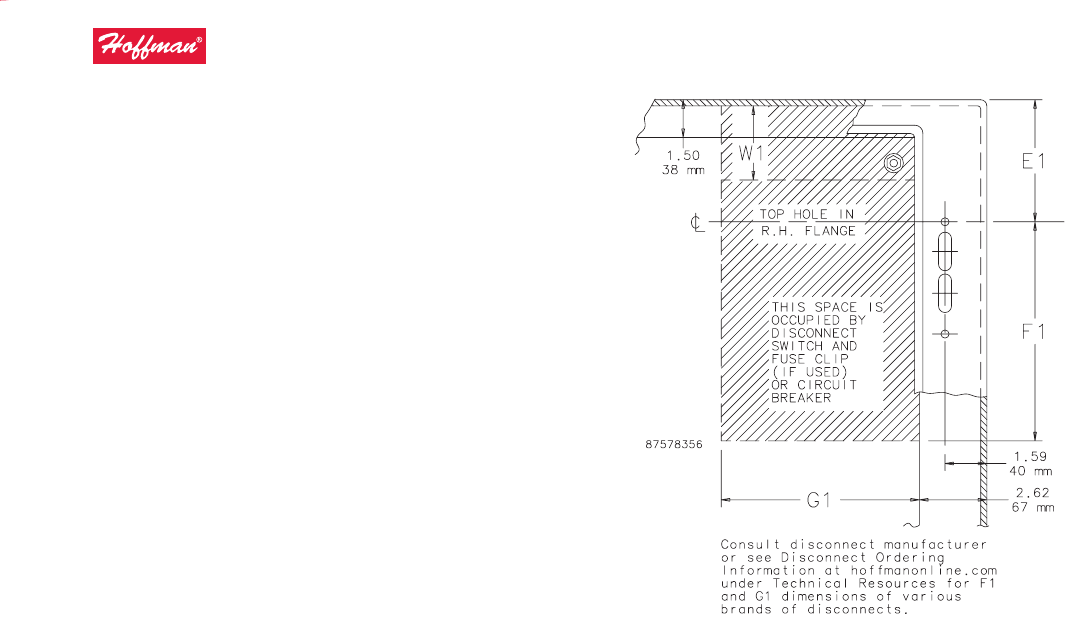

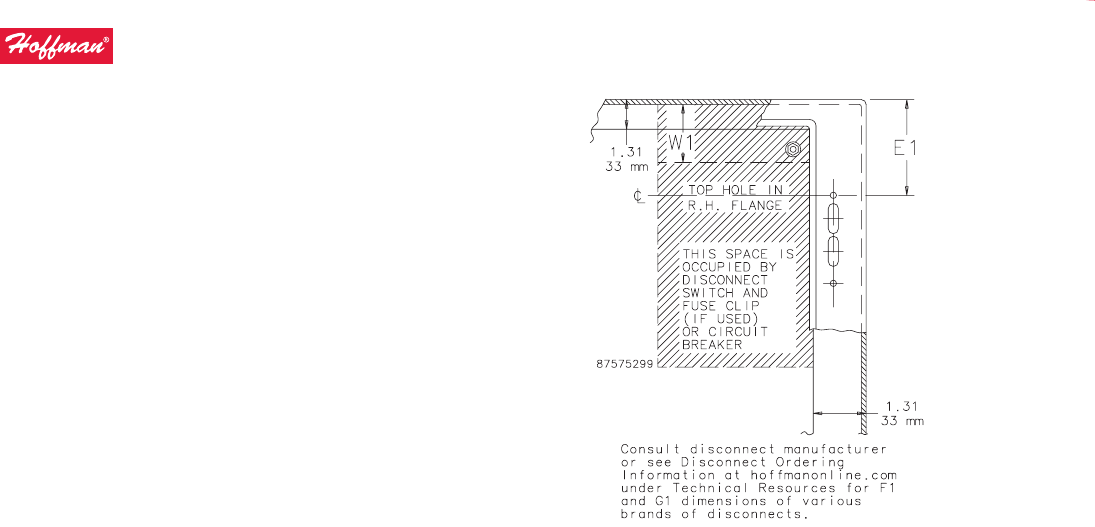

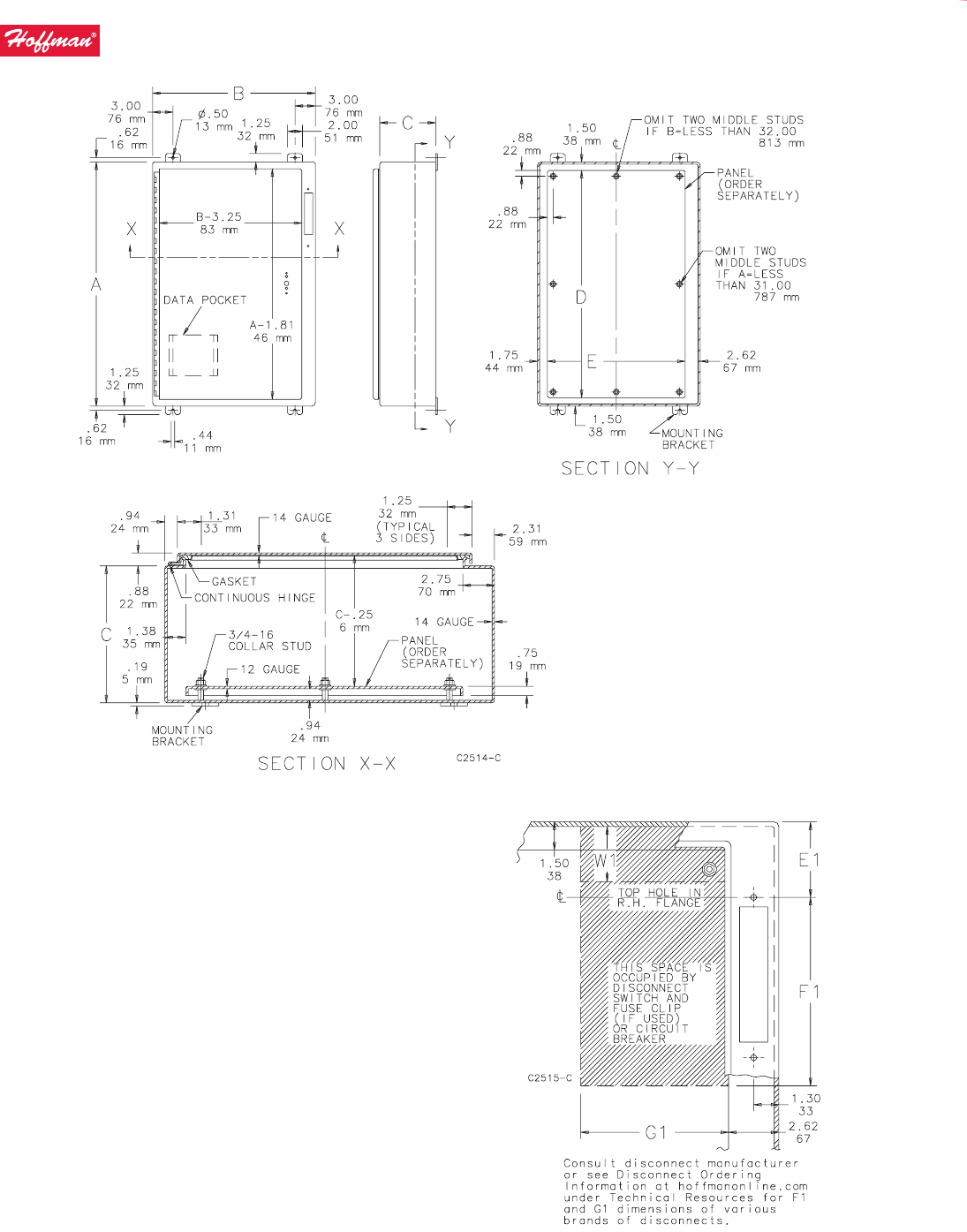

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1 in Disconnect Mounting Space diagram. Wiring space W1 is

available when disconnect is installed in the enclosure.

E1 = 4.75 in. (121 mm) when C = 8.00 in. (203 mm)

E1 = 7.09 in. (180 mm) when C =10.00 in. (254 mm)

E1 = 11.62 in. (294 mm) when C = 12.00 in. (305 mm)

E1 = 11.62 in. (294 mm) when C = 16.00 in. (406 mm)

E1 = 18.38 in. (467 mm) for A60SA3812A24LP

W1 = Wiring Space.

See Technical Information for wire bend space.

Refer to NATIONAL ELECTRICAL CODE 2005 article 430.10(B) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

POWERGLIDE® Defeater Handle Kit

This clockwise defeater model

includes door hardware for Bulletin

A25 enclosures.

Bulletin: A80

Catalog Number Description

AL55CWD Medium POWERGLIDE Handle - Clockwise opening with defeater and door hardware

317

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

CONCEPT® Wall -Mount Di sconnec t Enclosur es

CONCEPT® Disconnect Enclosure, Type 4

Industry Standards

Mounting brackets required to maintain UL/CSA external mounting

requirement.

UL 508A Listed; Type 4, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997

NEMA/EEMAC Type 4, 12, Type 13

CSA File No. 42186: Type 4, 12

VDE, IP66

IEC 60529, IP66

Application

Use CONCEPT® Disconnect Enclosures in applications that require

stylized design features and a preferred cutout for the disconnect

switch or circuit breaker. Accepts major brand disconnect switches

and circuit breakers and is supplied with a Homan-integrated tool-

to-open handle.

Furnished with Enclosures

1. Door interlock bracket welded to door

2. Door latching system (2-point or 3-point) installed on door

3. Instructions to locate and install disconnect

4. Hardware kit consisting of padlocking door handle, panel

mounting nuts, grounding hardware and sealing washers for

mounting holes

Specications

• 16 or 14 gauge steel (see table)

• Seams continuously welded and ground smooth

• External-formed 90-degree body ange

• Bonding provision on door; grounding stud on body

•

Holes provided in body for mounting disconnect operating handle

and operating mechanism

• Panel mounting studs t optional CONCEPT panels and other

accessories

•

Mounting holes in back of body for direct mounting or for optional

external mounting brackets

• Hidden hinges for clean, aesthetic appearance

• Removable corner-formed doors

• Provisions on door for optional high-impact thermoplastic data

pocket

• Seamless foam-in-place gasket

• Door alignment device on doors wider than 30 in.

• Latching system interlocks with the disconnect handle for added

safety

• Unique integrated door handle with tool-to-open feature and

padlocking option

• Self-grounding latch system with double seal

• Four hinges on 60-inch-high doors

• Simple easy-to-remove and install hinge pins with built-in

captivation clip

• High-torque threadless studs and fasteners on door

• Illustrated instruction sheet included

Finish

Two standard nishes are available:

• ANSI 61 gray polyester powder coating inside and out

• RAL 7035 textured light-gray polyester powder coating inside and

out

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

Compact Cooling Fans

PANELITE™ Enclosure Lights Overview

CONCEPT® Panels

Mounting-Bracket Kits

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: CWD

318

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in./mm Finish

Door

Gauge

Body

Gauge CONCEPT Panel Conductive Panel

Panel Size

D x E

in./mm

Mounting

G x H

in./mm

Latches

Qty.

Latches

Style

in./mm

CDSC20228 20.00 x 22.00 x 8.00

508 x 559 x 203

ANSI 61 Gray 14 16 CP2020 CP2020G 18.20 x 18.20

462 x 462

18.50 x 20.50

470 x 521

1 2-point 5.00

127

CDSC20228LG 20.00 x 22.00 x 8.00

508 x 559 x 203

RAL 7035 Gray 14 16 CP2020 CP2020G 18.20 x 18.20

462 x 462

18.50 x 20.50

470 x 521

1 2-point 5.00

127

CDSC24228 24.00 x 22.00 x 8.00

610 x 559 x 203

ANSI 61 Gray 14 16 CP2420 CP2420G 22.20 x 18.20

564 x 462

22.50 x 20.50

572 x 521

1 2-point 6.00

152

CDSC24228LG 24.00 x 22.00 x 8.00

610 x 559 x 203

RAL 7035 Gray 14 16 CP2420 CP2420G 22.20 x 18.20

564 x 462

22.50 x 20.50

572 x 521

1 2-point 6.00

152

CDSC24268 24.00 x 26.00 x 8.00

610 x 660 x 203

ANSI 61 Gray 14 16 CP2424 CP2424G 22.20 x 22.20

564 x 564

22.50 x 24.50

572 x 622

1 2-point 6.00

152

CDSC24268LG 24.00 x 26.00 x 8.00

610 x 660 x 203

RAL 7035 Gray 14 16 CP2424 CP2424G 22.20 x 22.20

564 x 564

22.50 x 24.50

572 x 622

1 2-point 6.00

152

CDSC30268 30.00 x 26.00 x 8.00

762 x 660 x 203

ANSI 61 Gray 14 16 CP3024 CP3024G 28.20 x 22.20

716 x 564

28.50 x 24.50

724 x 622

1 2-point 6.00

152

CDSC30268LG 30.00 x 26.00 x 8.00

762 x 660 x 203

RAL 7035 Gray 14 16 CP3024 CP3024G 28.20 x 22.20

716 x 564

28.50 x 24.50

724 x 622

1 2-point 6.00

152

CDSC36268 36.00 x 26.00 x 8.00

914 x 660 x 203

ANSI 61 Gray 14 14 CP3624 CP3624G 34.20 x 22.20

869 x 564

34.50 x 24.50

876 x 622

1 2-point 6.00

152

CDSC36268LG 36.00 x 26.00 x 8.00

914 x 660 x 203

RAL 7035 Gray 14 14 CP3624 CP3624G 34.20 x 22.20

869 x 564

34.50 x 24.50

876 x 622

1 2-point 6.00

152

CDSC36328 36.00 x 32.00 x 8.00

914 x 813 x 203

ANSI 61 Gray 14 14 CP3630 CP3630G 34.20 x 28.20

869 x 716

34.50 x 30.50

869 x 775

1 2-point 6.00

152

CDSC36328LG 36.00 x 32.00 x 8.00

914 x 813 x 203

RAL 7035 Gray 14 14 CP3630 CP3630G 34.20 x 28.20

869 x 716

34.50 x 30.50

869 x 775

1 2-point 6.00

152

CDSC423212 42.00 x 32.00 x 12.00

1067 x 813 x 305

ANSI 61 Gray 14 14 CP4230 CP4230G 40.20 x 28.20

1021 x 716

40.50 x 30.50

1029 x 775

1 3-point 21.00

533

CDSC423212LG 42.00 x 32.00 x 12.00

1067 x 813 x 305

RAL 7035 Gray 14 14 CP4230 CP4230G 40.20 x 28.20

1021 x 716

40.50 x 30.50

1029 x 775

1 3-point 21.00

533

CDSC423812 42.00 x 38.00 x 12.00

1067 x 965 x 305

ANSI 61 Gray 14 14 CP4236 CP4236G 40.20 x 34.20

1021 x 869

40.50 x 36.50

1029 x 927

1 3-point 21.00

533

CDSC423812LG 42.00 x 38.00 x 12.00

1067 x 965 x 305

RAL 7035 Gray 14 14 CP4236 CP4236G 40.20 x 34.20

1021 x 869

40.50 x 36.50

1029 x 927

1 3-point 21.00

533

CDSC483812 48.00 x 38.00 x 12.00

1219 x 965 x 305

ANSI 61 Gray 14 14 CP4836 CP4836G 46.20 x 34.20

1173 x 869

46.50 x 36.50

1181 x 927

1 3-point 24.00

610

CDSC483812LG 48.00 x 38.00 x 12.00

1219 x 965 x 305

RAL 7035 Gray 14 14 CP4836 CP4836G 46.20 x 34.20

1173 x 869

46.50 x 36.50

1181 x 927

1 3-point 24.00

610

CDSC603812 60.00 x 38.00 x 12.00

1524 x 965 x 305

ANSI 61 Gray 14 14 CP6036 CP6036G 58.20 x 34.20

1478 x 869

58.50 x 36.50

1486 x 927

1 3-point 30.00

762

CDSC603812LG 60.00 x 38.00 x 12.00

1524 x 965 x 305

RAL 7035 Gray 14 14 CP6036 CP6036G 58.20 x 34.20

1478 x 869

58.50 x 36.50

1486 x 927

1 3-point 30.00

762

Purchase panels separately.

319

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

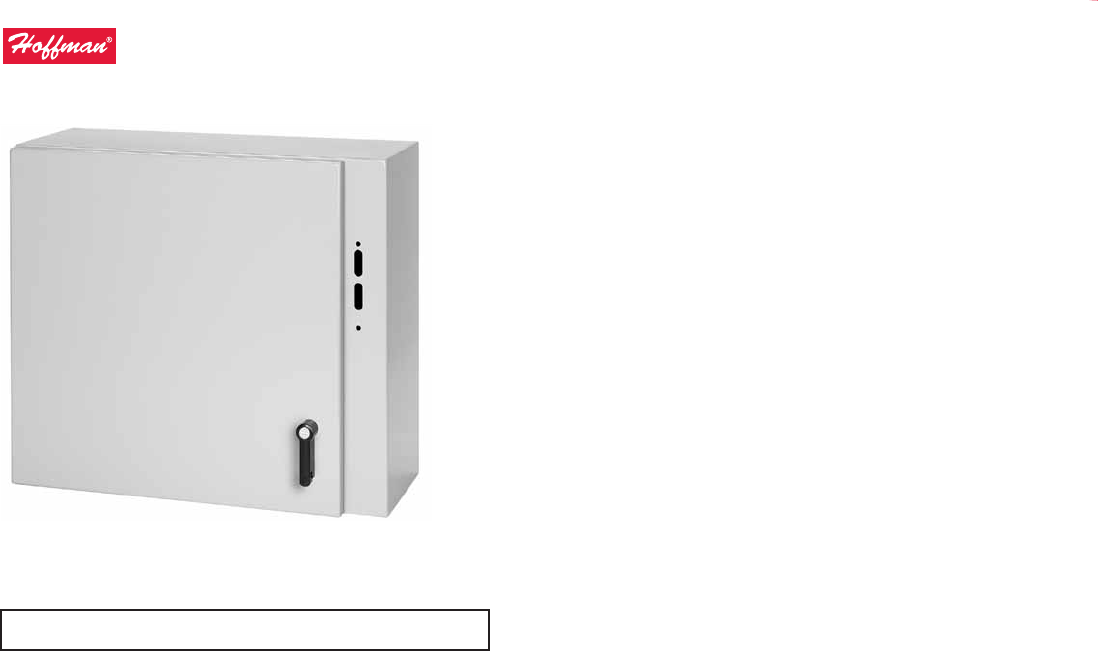

CONCEPT® Disconnect Enclosure, Type 4X

Industry Standards

Mounting brackets required to meet UL/cUL external mounting

requirement.

UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC Type 3R, 4, 4X, 12, 13

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

Use CONCEPT® Disconnect Enclosures in applications that require

stylized design features and a preferred cutout that accepts major

brand disconnect switches and circuit breakers.

Furnished with Enclosures

1. Door interlock bracket welded to door

2. Door latching system (2-point or 3-point) installed on door

3. Instructions to locate and install disconnect

4. Hardware kit consisting of padlocking door handle, panel

mounting nuts, grounding hardware and sealing washers for

mounting holes

Specications

• 14 and 16 gauge Type 304 or 316L stainless steel

• Seams continuously welded and ground smooth

• External-formed 90-degree body ange

• Integral door ramp to properly align door and gasket to body

 ange

• Holes provided in right-hand ange are for mounting disconnect

operating handle and operating mechanism

• Panel mounting studs t optional CONCEPT panels and other

accessories (purchase panels separately)

•

Mounting holes in back of body for direct mounting or for optional

external mounting brackets

• Stainless steel hidden hinges

• Standard full-access door opening

• Corner formed doors are interchangeable and easily removable by

pulling captive hinge pins

• Provisions on door for optional high-impact thermoplastic data

pocket

• Seamless foam-in-place gasket

• Door latching system (2- or 3-point) installed on door interlocks

with disconnect handle for added safety

• Interlock bracket welded to door

• Unique integrated door handle with tool-to-open feature and

padlock option installed on door

• Self-grounding latch system with double seal

• Bonding provision on door; grounding stud on body

•

Includes hardware kit (consisting of padlocking door handle, panel

mounting nuts, grounding hardware and sealing washers for

mounting holes) and instructions for installing disconnects

Finish

Sides, top bottom and door have smooth #4 brushed nish. Handle is

die-cast with black textured polyester powder paint.

Accessories

See also Accessories.

Blank Adapter Plates, Stainless Steel

Compact Cooling Fans

Mounting-Bracket Kits

PANELITE™ Enclosure Lights Overview

CONCEPT® Panels

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: CWSD

320

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in./mm

Stainless

Steel

Type

Door

Gauge Body Gauge CONCEPT Panel Conductive Panel

Panel Size

D x E

in./mm

Mounting

G x H

in./mm

Latches

Style

in./mm

CDSC20228SS 20.00 x 22.00 x 8.00

508 x 559 x 203

304 14 16 CP2020 CP2020G 18.20 x 18.20

462 x 462

18.50 x 20.50

470 x 521

1 - 2 point 5.00

127

CDSC24228SS 24.00 x 22.00 x 8.00

610 x 559 x 203

304 14 16 CP2420 CP2420G 22.20 x 18.20

564 x 462

22.50 x 20.50

572 X 521

1 - 2 point 6.00

152

CDSC24268SS 24.00 x 26.00 x 8.00

610 x 660 x 203

304 14 16 CP2424 CP2424G 22.20 x 22.20

564 x 564

22.50 x 24.50

572 x 622

1 - 2 point 6.00

152

CDSC30268SS 30.00 x 26.00 x 8.00

762 x 660 x 203

304 14 16 CP3024 CP3024G 28.20 x 24.50

716 x 564

28.50 x 24.50

724 x 622

1 - 2 point 6.00

152

CDSC36268SS 36.00 x 26.00 x 8.00

914 x 660 x 203

304 14 16 CP3624 CP3624G 32.20 x 22.20

869 x 564

34.50 x 24.50

876 x 622

1 - 2 point 6.00

152

Enclosure doors have 2 quarter-turn latches and a handle with 2- or 3-point latch.

Purchase panels separately. Optional plated CONCEPT panels available. Optional NEMA style and stainless steel panels require conversion kit catalog number CCPM4.

321

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

322

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

CONCEPT® with Quarter-Turn Latches Disconnect Enclosure, Type 4X

Industry Standards

Mounting brackets required to meet UL/cUL external mounting

requirement.

UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC Type 3R, 4, 4X, 12, 13

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

For use in disconnect applications that require larger controls and

stylized design features, CONCEPT® Disconnect Enclosures feature

two additional quarter-turn latches and a door-alignment device for

secure closure and security.

Furnished with Enclosures

1. Door interlock bracket welded to door

2. Door latching system (2-point or 3-point) installed on door

3. Instructions to locate and install disconnect

4. Hardware kit consisting of padlocking door handle, panel

mounting nuts, grounding hardware, and sealing washers for

mounting holes

Specications

• 14 gauge Type 304 stainless steel

• Seams continuously welded and ground smooth

• External-formed 90-degree body ange

• Integral door alignment device to properly align door and gasket

to body ange

•

Holes provided in body for mounting disconnect operating handle

and operating mechanism

• Panel mounting studs t optional CONCEPT panels and other

accessories (purchase panels separately)

•

Mounting holes in back of body for direct mounting or for optional

external mounting brackets

• Stainless steel hidden hinges

• Standard full-access door opening

• Corner-formed doors are interchangeable and easily removable by

pulling captive hinge pins

• Provisions on door for optional high-impact thermoplastic data

pocket

• Seamless foam-in-place gasket

• Door latching system (2- or 3-point) installed on door and

interlocks with the disconnect handle for added safety

• Interlock bracket welded to door

• Unique integrated door handle with tool-to-open feature and

padlock option installed on door

• Self-grounding latch system with double seal

• Bonding provision on door; grounding stud on body

•

Includes hardware kit (consisting of padlocking door handle, panel

mounting nuts, grounding hardware and sealing washers for

mounting holes) and instructions for installing disconnects

Finish

Sides and body have smooth #4 brushed nish. Optional mild steel

panels are painted white. Handle is die-cast with black textured

polyester powder paint.

Accessories

See also Accessories.

Blank Adapter Plates, Stainless Steel

Compact Cooling Fans

Mounting-Bracket Kits

PANELITE™ Enclosure Lights Overview

CONCEPT® Panels

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: CWSD

323

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

CONCEPT® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in. AxBxC mm

Stainless

Steel

Type

Door

Gauge

Body

Gauge

CONCEPT

Panel

Conductive

Panel

Panel Size

D x E (in.)

Panel Size

D x E (mm)

Mounting

G x H (in.)

Mounting

G x H (mm)

Latches

Style J (in.) J (mm)

CDSC36328SSR 36.00 x 32.00 x 8.00 914 x 813 x 203 304 14 14 CP3630 CP3630G 34.20 x 28.20 869 x 716 34.50 x 30.50 869 x 775 1 - 2-point 6.00 152

CDSC423212SSR 42.00 x 32.00 x 12.00 1067 x 813 x 305 304 14 14 CP4230 CP4230G 40.20 x 28.20 1021 x 716 40.50 x 30.50 1029 x 775 1 - 3-point 21.00 533

CDSC423812SSR 42.00 x 38.00 x 12.00 1067 x 965 x 305 304 14 14 CP4236 CP4236G 40.20 x 34.20 1021 x 869 40.50 x 36.50 1029 x 927 1 - 3-point 21.00 533

CDSC483812SSR 48.00 x 38.00 x 12.00 1219 x 9656 x 305 304 14 14 CP4836 CP4836G 46.20 x 34.20 1173 x 869 46.50 x 36.50 1181 x 927 1 - 3-point 24.00 610

CDSC603812SSR 60.00 x 38.00 x 12.00 1524 x 965 x 305 304 14 14 CP6036 CP6036G 58.20 x 34.20 1478 x 869 58.50 x 36.50 1486 x 927 1 - 3-point 30.00 762

Enclosure doors have 2 quarter-turn latches and a handle with 2- or 3-point latch.

Purchase panels separately. Optional plated CONCEPT panels available. Optional NEMA style and stainless steel panels require conversion kit catalog number CCPM4.

PP



PP



PP



%RG\2SHQLQJ

%

PP

6SDFH

$

PP

'RRU

&OHDU

2SHQLQJ

$

PP

%RG\

'RRU&OHDU6SDFH

%

PP



PP



PP



PP



PP



'RRU

%RQGLQJ

3URYLVLRQ

'RRU$OLJQPHQW

'HYLFH



PP



PP



PP



PP



PP



PP

3DQHO

*D

ZKHQ





*D

ZKHQ



%RG\

*URXQGLQJ

6WXG

6HH'HWDLO



PP



PP



PP

(



PP



PP



PP

6(&7,21<<

2PLW

PLGGOH

VWXGLI

$

0LGGOHVWXGV

ZKHQ%!

3DQHO

2UGHU

6HSDUDWHO\

'(7$,/

127('RRUKDVSURYLVLRQIRUGDWDSRFNHW8VHODUJH

GDWDSRFNHWZKHQ$ PPRUPRUH

DQG% PPRUPRUH

PP



PP



PP



Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1. Wiring space W1 is available when disconnect is installed in

the enclosure.

E1 = 4.75 in. (121 mm) when C = 8.00 in. (203 mm)

E1 = 11.62 in. (294 mm) when C = 12.00 in. (305 mm)

W1 = Wiring Space.

See Technical Information for wire bend space.

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine whether wiring space is

adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

324

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Type 4 and 12 Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Type 4 and 12 Wall-Moun t Disconne ct Enclos ures

Disconnect Enclosure with Clamps, Type 4

Industry Standards

UL 508A Listed; Type 4, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997

NEMA/EEMAC Type 3, 4, 12, 13

CSA File No. 42186: Type 4, 12

IEC 60529, IP66

Application

For disconnect applications in which a clamp-secured door is

preferred. Clamps on three sides of the door keep liquid and

contaminants out. Preferred cutout accepts major brand disconnect

switches and circuit breakers.

Furnished with Enclosures

1. Bracket welded to door for attaching disconnect door catch

(interlock)

2. Instructions to locate and install disconnect switches, circuit

breakers and operating mechanisms

Specications

• 14 gauge steel

• Seams continuously welded and ground smooth

• External mounting brackets

• External-formed ange around all sides of enclosure opening

• Stainless steel door clamps on three sides of door

• Removable door with continuous hinge

• Data pocket is high impact thermoplastic

• Type 4 rated door gasket

• Collar studs for mounting optional panels

• Holes in body for mounting disconnect operating handle and

operating mechanism

• Bonding provision on door

• Bracket welded to door for attaching disconnect door catch

(interlock) and instructions for installing disconnects

Finish

ANSI 61 gray polyester powder coating inside and out.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

Industrial Corrosion Inhibitors

Electric Heater

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A19

Standard Product

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size

D x E

in./mm

Data Pocket Size

in./mm

Number of

Clamps

A24HS2108LP 24.00 x 21.38 x 8.00

610 x 543 x 203

A24P20 A24P20G 21.00 x 17.00

533 x 432

6.00 x 6.00

152 x 152

A24HS2508LP 24.00 x 25.38 x 8.00

610 x 645 x 203

A24P24 A24P24G 21.00 x 21.00

533 x 533

6.00 x 6.00

152 x 152

A30HS2508LP 30.00 x 25.38 x 8.00

762 x 645 x 203

A30P24 A30P24G 27.00 x 21.00

686 x 533

12.00 x 12.00

305 x 305

A36HS2508LP 36.00 x 25.38 x 8.00

914 x 645 x 203

A36P24 A36P24G 33.00 x 21.00

838 x 533

12.00 x 12.00

305 x 305

A36HS3108LP 36.00 x 31.38 x 8.00

914 x 797 x 203

A36P30 A36P30G 33.00 x 27.00

838 x 686

12.00 x 12.00

305 x 305

A42HS3112LP 42.00 x 31.38 x 12.00

1067 x 797 x 305

A42P30 A42P30G 39.00 x 27.00

991 x 686

6.00 x 6.00

152 x 152

A42HS3712LP 42.00 x 37.38 x 12.00

1067 x 949 x 305

A42P36 A42P36G 39.00 x 33.00

991 x 838

12.00 x 12.00

305 x 305

A48HS3712LP 48.00 x 37.38 x 12.00

1219 x 949 x 305

A48P36 A48P36G 45.00 x 33.00

1143 x 838

12.00 x 12.00

305 x 305

A60HS3712LP 60.00 x 37.38 x 12.00

1524 x 949 x 305

A60P36 A60P36G 57.00 x 33.00

1448 x 838

12.00 x 12.00

305 x 305

Purchase panels separately.

325

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Type 4 and 12 Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

326

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Type 4 and 12 Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Enclosure with Clamps, Type 4X

Industry Standards

UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13

CSA File No. 42186: Type 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

For disconnect applications in which a clamp-secured door is

preferred, this enclosure features clamps on three sides to keep

liquids and contaminants from entering and a preferred cutout that

accepts major brand disconnect switches and circuit breakers.

Furnished with Enclos ure

1. Bracket welded to door for attaching disconnect door catch

(interlock)

2. Instructions to locate and install disconnect switches, circuit

breakers and operating mechanisms

Specications

• 14 gauge Type 304 or Type 316L stainless steel

• Seams continuously welded and ground smooth

• External mounting brackets

• External-formed ange around all sides of enclosure opening

• Stainless steel door clamps on three sides of door

• Door removed by pulling stainless steel continuous hinge pin

• Data pocket is high-impact thermoplastic

• Seamless foam-in-place gasket

• Collar studs provided for mounting optional panels

•

Holes provided in body for mounting disconnect operating handle

and operating mechanism

• Bonding provision on door; ground stud on body

• All exterior hardware on Type 316L enclosures matches the

enclosure material

• Bracket welded to door to attach disconnect door catch (interlock)

• Includes instructions for installing disconnect switches, circuit

breakers and operating mechanisms

Finish

Sides and body have smooth #4 brushed nish.

Accessories

See also Accessories.

Blank Adapter Plates, Stainless Steel

Industrial Corrosion Inhibitors

Electric Heater

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Terminal Block Kit Assembly for Type 4, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A19S

Standard Product

Catalog Number AxBxC in. AxBxC mm

Stainless

Steel

Type Panel

Conductive

Panel

Panel Size

D x E (in.)

Panel Size

D x E (mm)

Data Pocket

Size (in.)

Data Pocket

Size (mm)

Number

of Clamps

A24HS2108SSLP 24.00 x 21.38 x 8.00 610 x 543 x 203 304 A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152 5

A24HS2108SS6LP 24.00 x 21.38 x 8.00 610 x 543 x 203 316L A24P20 A24P20G 21.00 x 17.00 533 x 432 6.00 x 6.00 152 x 152 5

A24HS2508SSLP 24.00 x 25.38 x 8.00 610 x 645 x 203 304 A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152 5

A24HS2508SS6LP 24.00 x 25.38 x 8.00 610 x 645 x 203 316L A24P24 A24P24G 21.00 x 21.00 533 x 533 6.00 x 6.00 152 x 152 5

A30HS2508SSLP 30.00 x 25.38 x 8.00 762 x 645 x 203 304 A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305 5

A30HS2508SS6LP 30.00 x 25.38 x 8.00 762 x 645 x 203 316L A30P24 A30P24G 27.00 x 21.00 686 x 533 12.00 x 12.00 305 x 305 5

A36HS2508SSLP 36.00 x 25.38 x 8.00 914 x 645 x 203 304 A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305 5

A36HS2508SS6LP 36.00 x 25.38 x 8.00 914 x 645 x 203 316L A36P24 A36P24G 33.00 x 21.00 838 x 533 12.00 x 12.00 305 x 305 5

A36HS3108SSLP 36.00 x 31.38 x 8.00 914 x 797 x 203 304 A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305 7

A36HS3108SS6LP 36.00 x 31.38 x 8.00 914 x 797 x 203 316L A36P30 A36P30G 33.00 x 27.00 838 x 686 12.00 x 12.00 305 x 305 7

A42HS3112SSLP 42.00 x 31.38 x 12.00 1067 x 797 x 305 304 A42P30 A42P30G 39.00 x 27.00 991 x 686 12.00 x 12.00 305 x 305 10

A42HS3112SS6LP 42.00 x 31.38 x 12.00 1067 x 797 x 305 316L A42P30 A42P30G 39.00 x 27.00 991 x 686 12.00 x 12.00 305 x 305 10

A42HS3712SSLP 42.00 x 37.38 x 12.00 1067 x 949 x 305 304 A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305 10

A42HS3712SS6LP 42.00 x 37.38 x 12.00 1067 x 949 x 305 316L A42P36 A42P36G 39.00 x 33.00 991 x 838 12.00 x 12.00 305 x 305 10

A48HS3712SSLP 48.00 x 37.38 x 12.00 1219 x 949 x 305 304 A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305 10

A48HS3712SS6LP 48.00 x 37.38 x 12.00 1219 x 949 x 305 316L A48P36 A48P36G 45.00 x 33.00 1143 x 838 12.00 x 12.00 305 x 305 10

A60HS3712SSLP 60.00 x 37.38 x 12.00 1524 x 949 x 305 304 A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305 11

A60HS3712SS6LP 60.00 x 37.38 x 12.00 1524 x 949 x 305 316L A60P36 A60P36G 57.00 x 33.00 1448 x 838 12.00 x 12.00 305 x 305 11

Purchase panels separately. Optional stainless steel, composite or aluminum panels are available for most sizes

327

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Type 4 and 12 Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1,

and G1. Wiring space W1 is available when disconnect is installed in

the enclosure.

E1 = 8.62 in. (219 mm) when C = 8.00 in. (203 mm)

E1 = 11.62 in. (294 mm) when C = 12.00 in. (305 mm)

W1 = Wiring Space

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine whether wiring space is

adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

328

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Fiberglass Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Fiberglass D isconnec t Enclosur es

Fiberglass Disconnect, Type 4X

Industry Standards

UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3, 3R, 4, 4X, 12, 13; File

No. E61997

Enclosure ammability evaluated per UL 508A

NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

For eective and economical disconnect protection in the harshest

corrosive environments, these enclosures provide secure door

closure through the use of Type 304 stainless steel slotted quarter-

turn latches.

Specications

• Fiberglass-reinforced material has excellent temperature and

chemical resistance qualities and exhibits outstanding physical

properties

• Seams are sealed; no holes or knockouts

• Seamless foam-in-place gasket assures water-tight and dust-tight

seal

• Fiberglass material is easily drilled, led or sawed

• Hinges are berglass-reinforced polyester

• Doors are secured with Type 304 stainless steel slotted quarter-

turn latches

• Data pocket is high-impact thermoplastic

•

Copper ashed steel collar studs for mounting optional panels and

terminal block kits

•

Holes provided in body for mounting disconnect operating handle

and operating mechanism

• Internal grounding provisions for quarter-turn latches

• Includes bracket axed to door for attaching disconnect door

catch (interlock) and instructions for installing disconnects

Finish

Fiberglass material is light-gray inside and out. Optional steel panels

are painted white. Optional stainless steel, aluminum, conductive and

composite panels are unpainted.

Accessories

See also Accessories.

Frameless Window Kit

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Terminal Block Kit Assembly for Type 4, 12 and 13 Enclosures

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A17WD

Standard Product

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size

in./mm

Mounting G x H

in./mm

Number of

Latches

A20HS1610GQRLP 20.19 x 16.25 x 10.00

513 x 413 x 254

A20P16 A20P16G 17.00 x 13.00

432 x 330

21.81 x 10.00

554 x 254

A24HS2008GQRLP 24.25 x 20.25 x 8.00

616 x 514 x 203

A24P20 A24P20G 21.00 x 17.00

533 x 432

25.86 x 14.00

657 x 356

A24HS2408GQRLP 24.19 x 24.19 x 8.00

614 x 614 x 203

A24P24 A24P24G 21.00 x 21.00

533 x 533

25.81 x 18.00

656 x 457

A24HS2412GQRLP 24.19 x 24.19 x 12.00

614 x 614 x 305

A24P24 A24P24G 21.00 x 21.00

533 x 533

25.81 x 18.00

656 x 457

A30HS2412GQRLP 30.25 x 24.25 x 12.00

768 x 616 x 305

A30P24 A30P24G 27.00 x 21.00

686 x 533

31.95 x 18.00

812 x 457

A36HS3012GQRLP 36.25 x 30.25 x 12.00

921 x 768 x 305

A36P30 A36P30G 33.00 x 27.00

838 x 686

37.58 x 24.00

955 x 610

A48HS3612GQRLP 48.25 x 36.25 x 12.00

1226 x 921 x 305

A48P36 A48P36G 45.00 x 33.00

1143 x 838

49.58 x 30.00

1259 x 762

A60HS3612GQRLP 60.25 x 36.25 x 12.00

1530 x 921 x 305

A60P36 A60P36G 57.00 x 33.00

1448 x 838

61.58 x 30.00

1564 x 762

Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories.

No additional “C” dimensions available.

329

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Fiberglass Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

330

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Fiberglass Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

331

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Fiberglass Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown in Disconnect

Mounting Space Diagram. Wiring space W1 is available when

disconnect is installed in the enclosure.

E1 = 8.62 in. (219 mm) when A < 30.00 in. (768 mm) and C = 8.00 in.

(203 mm), 10.00 in. (254 mm) or 12.00 in. (305 mm)

E1 = 11.62 in. (295 mm) when A > 30.00 in. (768 mm) and C = 12.00 in.

(305 mm)

W1 = Wiring Space.

See Technical Information for wire bend space.

Refer to National Electrical Code® 2005 article 430-10(b) for wiring

space required for line side conductors to be connected to

disconnect.

Verify your application to determine whether wiring space is

adequate.

332

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

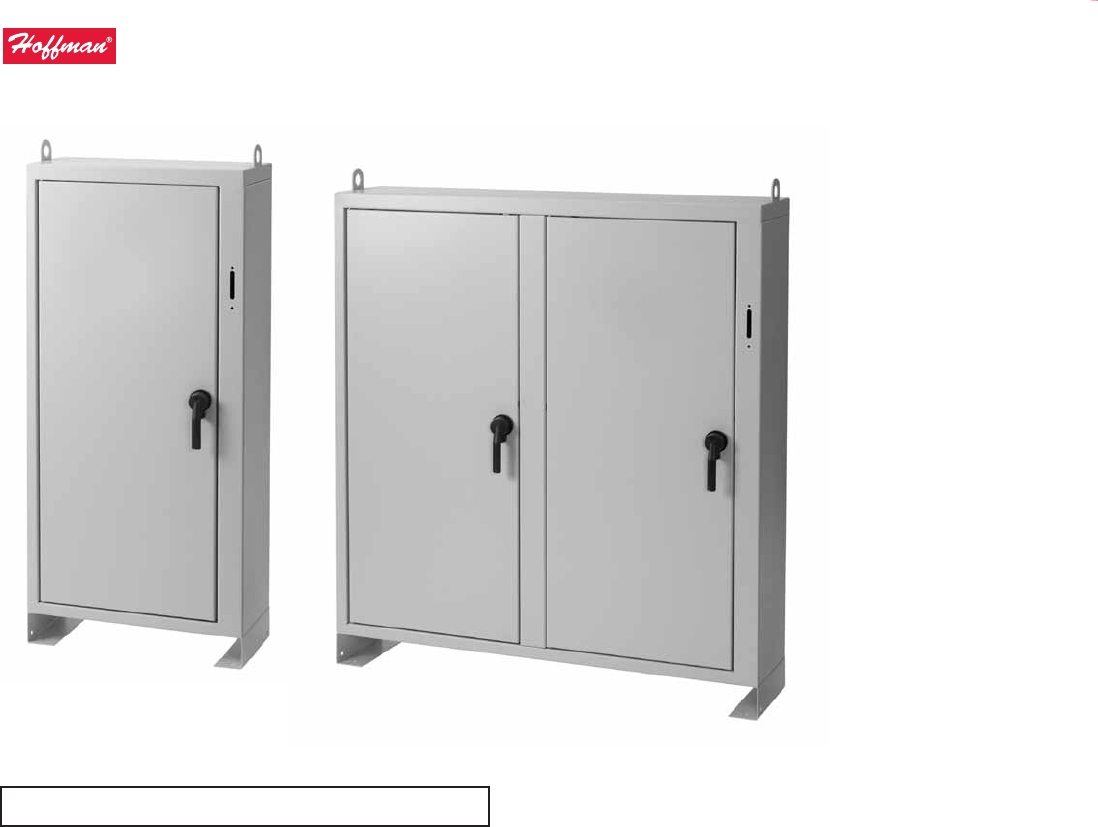

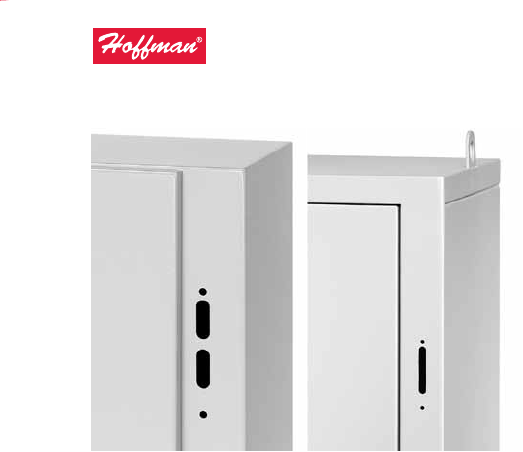

Low-Prole Type 12 Dis connect E nclosure s and Access ories

Low-Prole, One- to Five-Door Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

IEC 60529, IP55

Application

Available in one- to four-door wall-mount and one- to ve-door

free-stand models, the larger wall-mount sizes accommodate more

components and are ideal for applications with limited oor space.

Free-stand enclosures are 48- and 60-in. high to provide a clear line

of site above the enclosure.

Specications

• 14, 12 or 10 gauge steel

• Seams continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough excludes liquids and contaminants

• Heavy duty lifting eyes anchor into reinforced top on larger models

• Removable centerposts for easy panel installation

• Heavy gauge continuous hinges

• Heavy duty latch mechanism operated by zinc die-cast padlocking

defeater handle on all doors. 2-point latch on enclosures up to

36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and

above.

• Oil-resistant gasket

• Removable 10 gauge steel panels mount on collar studs. Purchase

panels separately.

• Master door is far right-hand door on all enclosures

• Defeater on master door requires a screwdriver to open

• Mechanical interlock activated by master door prevents slave

doors from being opened rst. Doors can be closed in any order.

• Preferred cutout on right ange provides mounting for most

disconnect switches and circuit breakers

• Enclosures with three to ve doors have three stieners on rear of

body

Finish

ANSI 61 gray inside and outside over pretreated surfaces. Optional

panels have white or conductive nish.

Accessories

See also Accessories.

Electric Heater

INTERSAFE® Data Interface Ports, Type 4/4X/12

PANELITE™ Enclosure Lights Overview

Panels for A26 Low-Prole Type 12 Disconnect Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A26M1, A26M2, A26MM

Standard Product Low Prole Type 12 One-Door Disconnect Enclosures

Catalog Number AxBxC in. AxBxC mm Description

Body

Gauge Panel Conductive Panel

Panel

Qty.

Lifting

Eyes

A30X1E2808 30.00 x 28.25 x 8.00 762 x 718 x 203 Wall-Mount 14 A25P21 A25P21G 1 0

A30X1E2810 30.00 x 28.25 x 10.00 762 x 718 x 254 Wall-Mount 14 A25P21 A25P21G 1 0

A36X1E2808 36.00 x 28.25 x 8.00 914 x 718 x 203 Wall-Mount 14 A31P21 A31P21G 1 0

A36X1E2810 36.00 x 28.25 x 10.00 914 x 718 x 254 Wall-Mount 14 A31P21 A31P21G 1 0

A42X1E2808 42.00 x 28.25 x 8.00 1067 x 718 x 203 Wall-Mount 14 A37P21 A37P21G 1 0

A42X1E2810 42.00 x 28.25 x 10.00 1067 x 718 x 254 Wall-Mount 14 A37P21 A37P21G 1 0

A48X1E4010 48.00 x 40.25 x 10.00 1219 x 1022 x 254 Free-Stand 12 A42P33 A42P33G 1 2

A48X1E4024 48.00 x 40.25 x 24.00 1219 x 1022 x 610 Free-Stand 12 A42P33 A42P33G 1 2

A48X1E4018 48.00 x 40.25 x 18.00 1220 x 1023 x 457 Free-Stand 12 A42P33 A42P33G 1 2

A60X1E4008 60.00 x 40.25 x 8.00 1524 x 1022 x 203 Free-Stand 12 A54P33 A54P33G 1 2

A60X1E4010 60.00 x 40.25 x 10.00 1524 x 1022 x 254 Free-Stand 12 A54P33 A54P33G 1 2

A60X1E4018 60.00 x 40.25 x 18.00 1525 x 1023 x 457 Free-Stand 12 A54P33 A54P33G 1 2

A60X1E4024 60.00 x 40.25 x 24.00 1525 x 1023 x 610 Free-Stand 12 A54P33 A54P33G 1 2

Purchase panels separately.

333

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Low Prole Type 12 Two-Door Disconnect Enclosures

Catalog Number AxBxC in. AxBxC mm Description

Body

Gauge Panel Conductive Panel

Panel

Qty.

Body

Stiener

Lifting

Eyes

A30X2E5408 30.00 x 54.50 x 8.00 762 x 1384 x 203 Wall-Mount 12 A25P48 A25P48G 1 0 0

A30X2E5410 30.00 x 54.50 x 10.00 762 x 1384 x 254 Wall-Mount 12 A25P48 A25P48G 1 0 0

A36X2E5408 36.00 x 54.50 x 8.00 914 x 1384 x 203 Wall-Mount 12 A31P48 A31P48G 1 0 0

A36X2E5410 36.00 x 54.50 x 10.00 914 x 1384 x 254 Wall-Mount 12 A31P48 A31P48G 1 0 0

A42X2E5408 42.00 x 54.50 x 8.00 1067 x 1384 x 203 Wall-Mount 12 A37P48 A37P48G 1 0 0

A42X2E5410 42.00 x 54.50 x 10.00 1067 x 1384 x 254 Wall-Mount 12 A37P48 A37P48G 1 0 0

A48X2E7808 48.00 x 78.50 x 8.00 1219 x 1994 x 203 Free-Stand 12 A42P72 A42P72G 1 0 2

A48X2E7810 48.00 x 78.50 x 10.00 1219 x 1994 x 254 Free-Stand 12 A42P72 A42P72G 1 0 2

A48X2E7812 48.00 x 78.50 x 12.00 1219 x 1994 x 305 Free-Stand 12 A42P72 A42P72G 1 0 2

A48X2E7818 48.00 x 78.50 x 18.00 1219 x 1994 x 457 Free-Stand 12 A42P72 A42P72G 1 0 2

A48X2E7824 48.00 x 78.50 x 24.00 1219 x 1994 x 610 Free-Stand 12 A42P72 A42P72G 1 0 2

A60X2E7808 60.00 x 78.50 x 8.00 1524 x 1994 x 203 Free-Stand 12 A54P72 A54P72G 1 0 2

A60X2E7810 60.00 x 78.50 x 10.00 1524 x 1994 x 254 Free-Stand 12 A54P72 A54P72G 1 0 2

A60X2E7818 60.00 x 78.50 x 18.00 1524 x 1995 x 457 Free-Stand 12 A54P72 A54P72G 1 0 2

A60X2E7824 60.00 x 78.50 x 24.00 1524 x 1994 x 610 Free-Stand 12 A54P72 A54P72G 1 0 2

Purchase panels separately.

Standard Product Low Prole Type 12 Three-Door Disconnect Enclosures

Catalog Number AxBxC in. AxBxC mm Description

Body

Gauge Panel Conductive Panel

Panel

Qty.

Body

Stiener

Lifting

Eyes

A30X3E8310 30.00 x 82.25 x 10.00 762 x 2089 x 254 Wall-Mount 12 A25P21, A25P48 A25P21G, A25P48G 1, 1 0 2

A36X3E8310 36.00 x 82.25 x 10.00 914 x 2089 x 254 Wall-Mount 12 A31P21, A31P48 A31P21G, A31P48G 1, 1 0 2

A42X3E8310 42.00 x 82.25 x 10.00 1067 x 2089 x 254 Wall-Mount 12 A37P21, A37P48 A37P21G, A37P48G 1, 1 0 2

A48X3E11910 48.00 x 118.25 x 10.00 1219 x 3004 x 254 Free-Stand 12 A42P33, A42P72 A42P33G, A42P72G 1, 1 3 2

A48X3E11912 48.00 x 118.25 x 12.00 1219 x 3004 x 305 Free-Stand 12 A42P33, A42P72 A42P33G, A42P72G 1, 1 3 2

A48X3E11918 48.00 x 118.25 x 18.00 1219 x 3004 x 457 Free-Stand 12 A42P33, A42P72 A42P33G, A42P72G 1, 1 3 2

A60X3E11910 60.00 x 118.25 x 10.00 1524 x 3004 x 254 Free-Stand 12 A54P33, A54P72 A54P33G, A54P72G 1, 1 3 2

A60X3E11912 60.00 x 118.25 x 12.00 1524 x 3004 x 305 Free-Stand 12 A54P33, A54P72 A54P33G, A54P72G 1, 1 3 2

A60X3E11918 60.00 x 118.25 x 18.00 1524 x 3004 x 457 Free-Stand 12 A54P33, A54P72 A54P33G, A54P72G 1, 1 3 2

A60X3E11924 60.00 x 118.25 x 24.00 1524 x 3004 x 610 Free-Stand 12 A54P33, A54P72 A54P33G, A54P72G 1, 1 3 2

Purchase panels separately.

Standard Product Low Prole Type 12 Four-Door Disconnect Enclosures

Catalog Number AxBxC in. AxBxC mm Description

Body

Gauge Panel Conductive Panel

Panel

Qty.

Body

Stiener

Lifting

Eyes

A42X4E10810 42.00 x 108.50 x 10.00 1067 x 2756 x 254 Wall-Mount 10 A37P48 A37P48G 2 0 4

A48X4E15710 48.00 x 156.50 x 10.00 1219 x 3975 x 254 Free-Stand 10 A42P72 A42P72G 2 3 4

A48X4E15712 48.00 x 156.50 x 12.00 1219 x 3975 x 305 Free-Stand 10 A42P72 A42P72G 2 3 4

A48X4E15718 48.00 x 156.50 x 18.00 1219 x 3977 x 457 Free-Stand 10 A42P72 A42P72G 2 3 4

A60X4E15710 60.00 x 156.50 x 10.00 1524 x 3975 x 254 Free-Stand 10 A54P72 A54P72G 2 3 4

A60X4E15712 60.00 x 156.50 x 12.00 1524 x 3975 x 305 Free-Stand 10 A54P72 A54P72G 2 3 4

A60X4E15716 60.00 x 156.50 x 16.00 1524 x 3975 x 406 Free-Stand 10 A54P72 A54P72G 2 3 4

A60X4E15718 60.00 x 156.50 x 18.00 1524 x 3975 x 457 Free-Stand 10 A54P72 A54P72G 2 3 4

Purchase panels separately.

Standard Product Low Prole Type 12 Five-Door Disconnect Enclosures

Catalog Number AxBxC in. AxBxC mm Description

Body

Gauge Panel Conductive Panel

Panel

Qty.

Body

Stiener

Lifting

Eyes

A48X5E19612 48.00 x 196.25 x 12.00 1219 x 4987 x 305 Free-Stand 10 A42P33, A42P72 A42P33G, A42P72G 1, 2 3 4

A48X5E19618 48.00 x 196.25 x 18.00 1219 x 4987 x 457 Free-Stand 10 A42P33, A42P72 A42P33G, A42P72G 1, 2 3 4

A60X5E19610 60.00 x 196.25 x 10.00 1524 x 4987 x 254 Free-Stand 10 A54P33, A54P72 A54P33G, A54P72G 1, 2 3 4

A60X5E19612 60.00 x 196.25 x 12.00 1524 x 4987 x 305 Free-Stand 10 A54P33, A54P72 A54P33G, A54P72G 1, 2 3 4

A60X5E19616 60.00 x 196.25 x 16.00 1524 x 4987 x 406 Free-Stand 10 A54P33, A54P72 A54P33G, A54P72G 1, 2 3 8

A60X5E19618 60.00 x 196.25 x 18.00 1524 x 4987 x 457 Free-Stand 10 A54P33, A54P72 A54P33G, A54P72G 1, 2 3 8

Purchase panels separately.

334

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

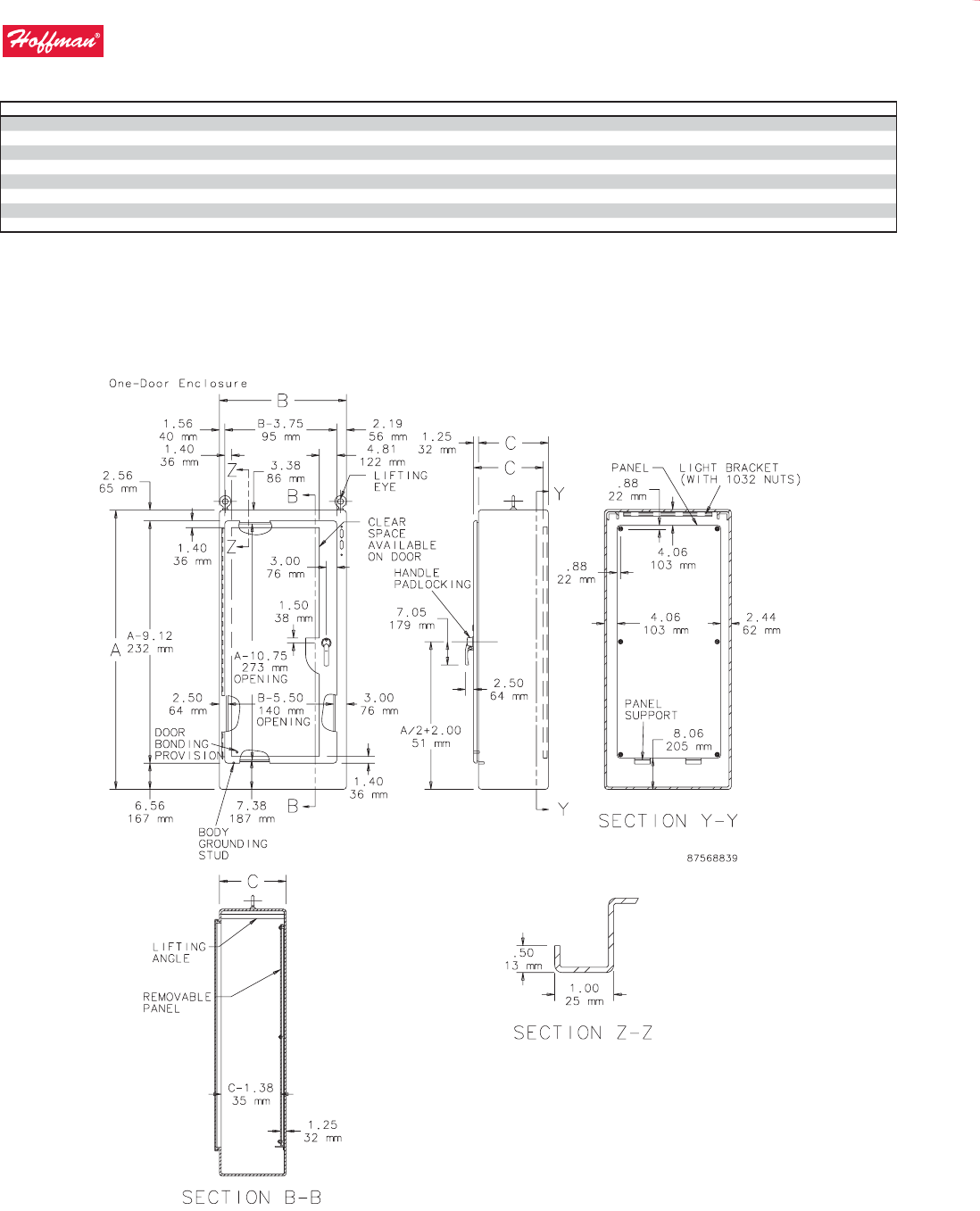

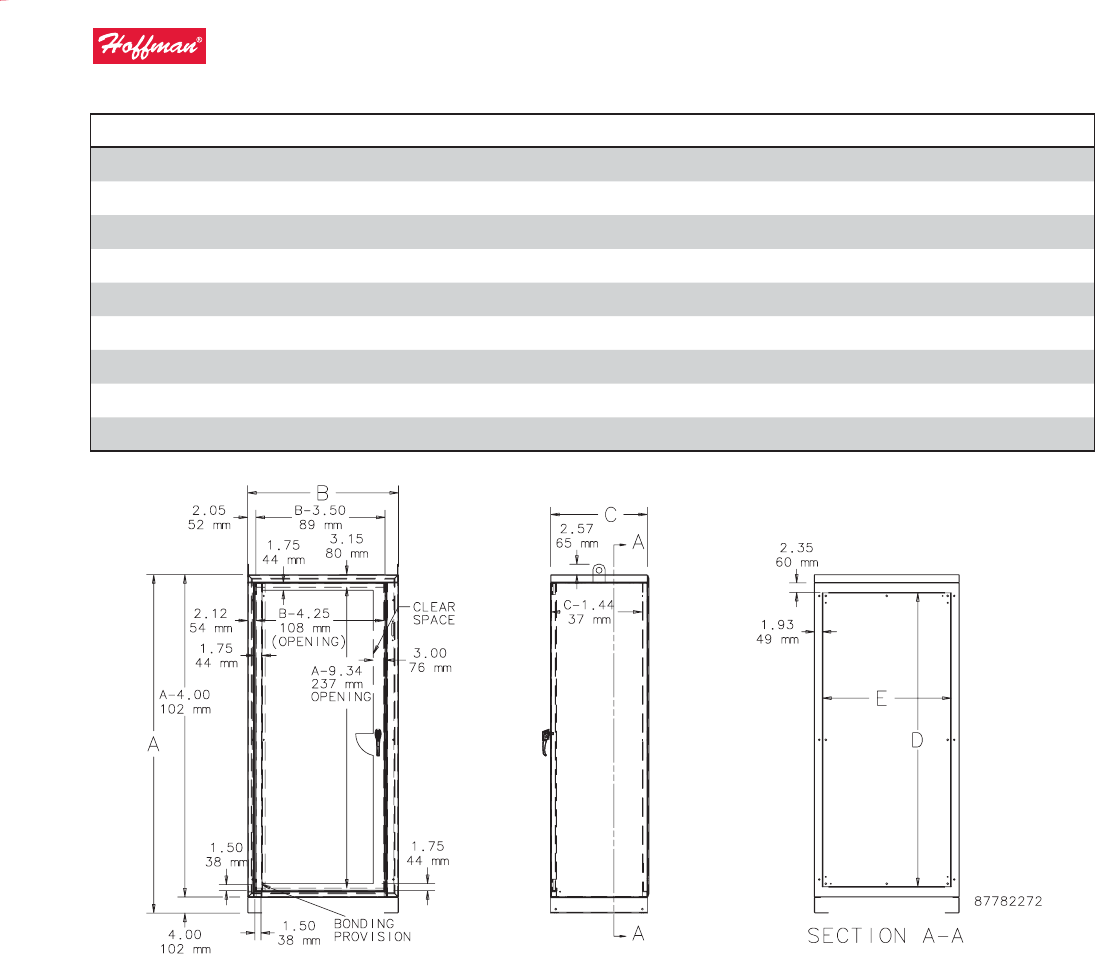

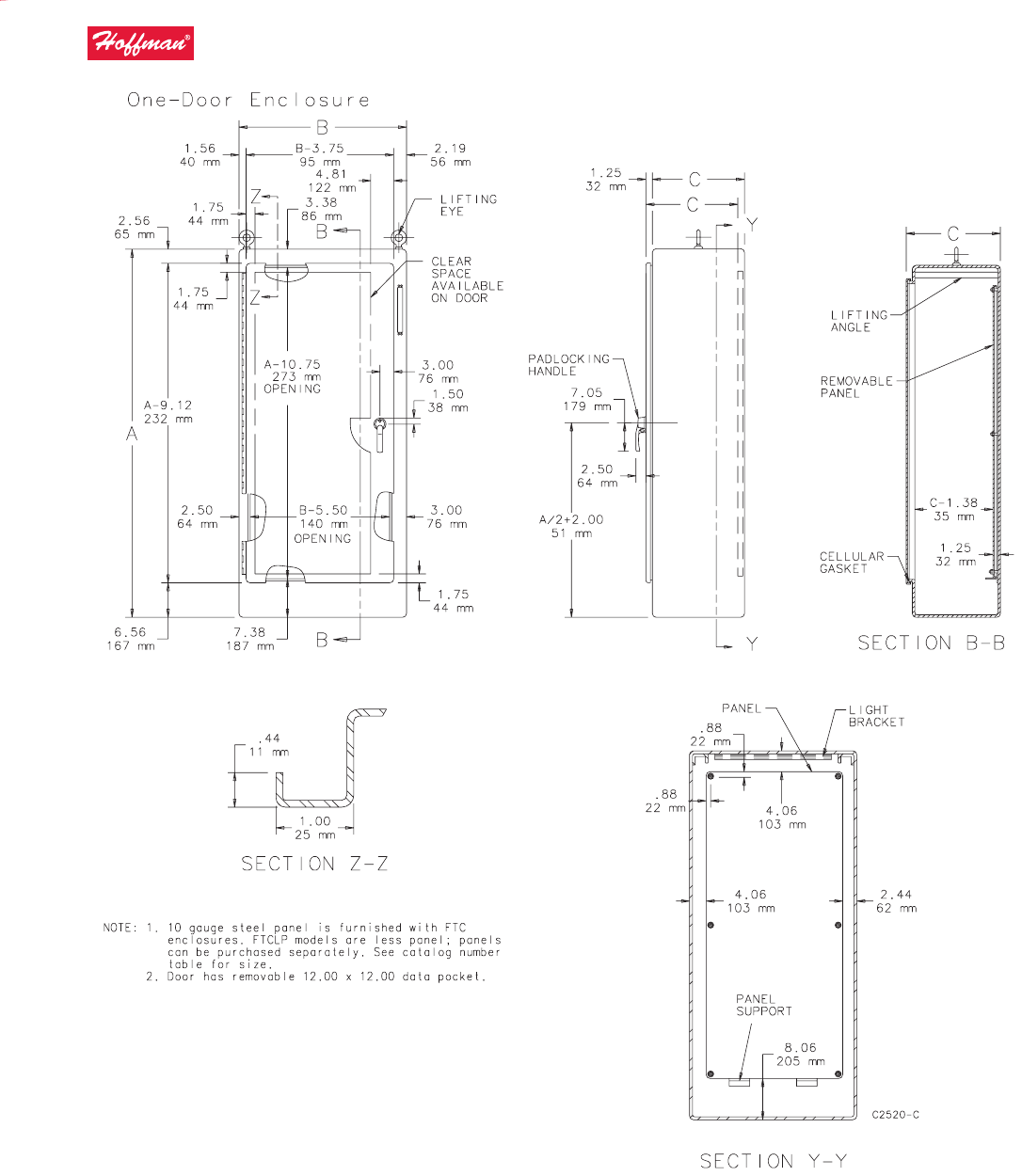

23(1,1*

%

>@











 >@

%





























%21',1*3529,6,21

%2'<*5281',1*678'









>@

 



02817,1*

%5$&.(76

21/<21

:$//02817

(1&/2685(6

3$'/2&.,1*

+$1'/(





















6(&7,21<<



3$1(/

/,*+7&+$11(/

3$1(/68332576









6(&7,21==

6LQJOH'RRU(QFORVXUH

335

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com



 >@

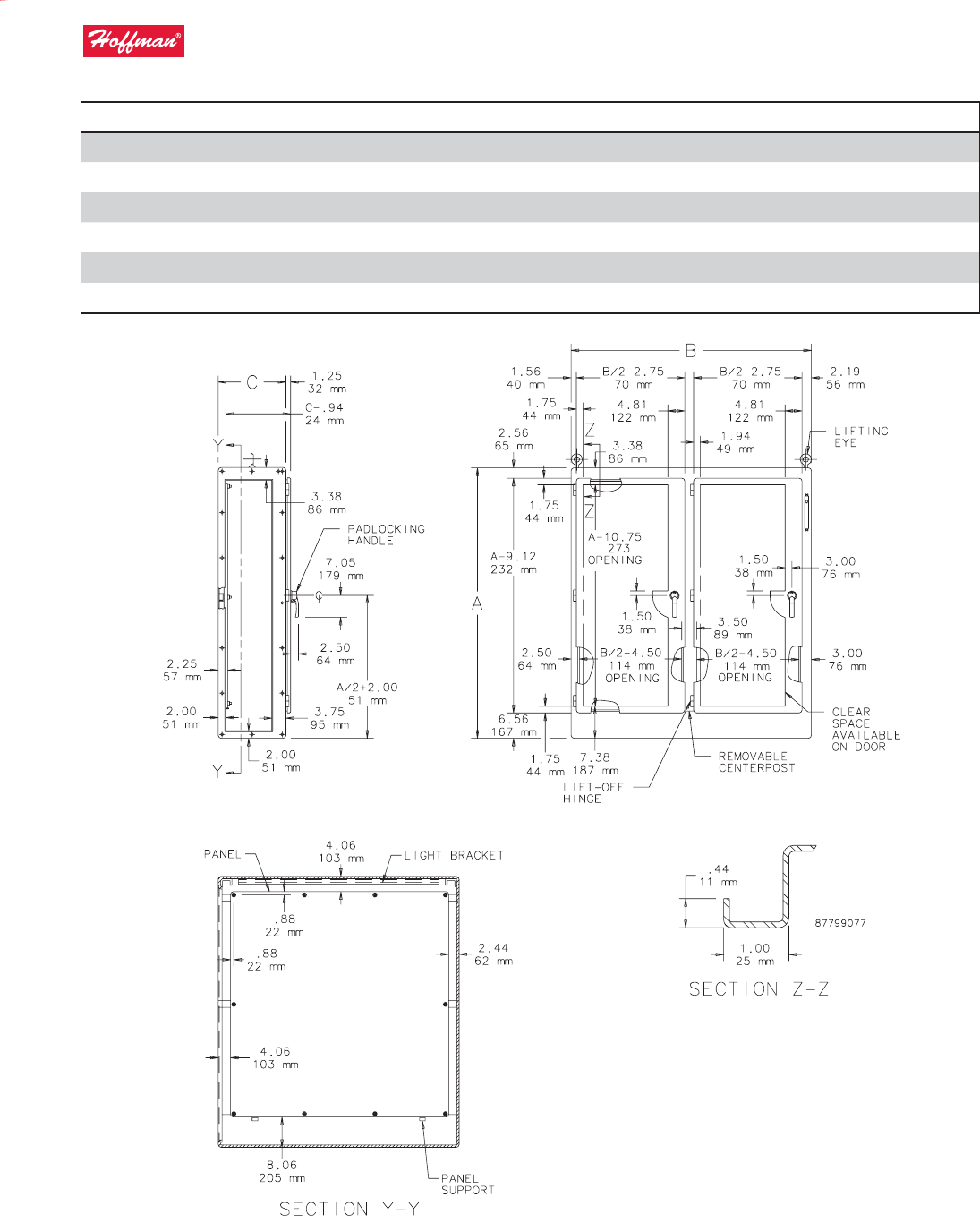

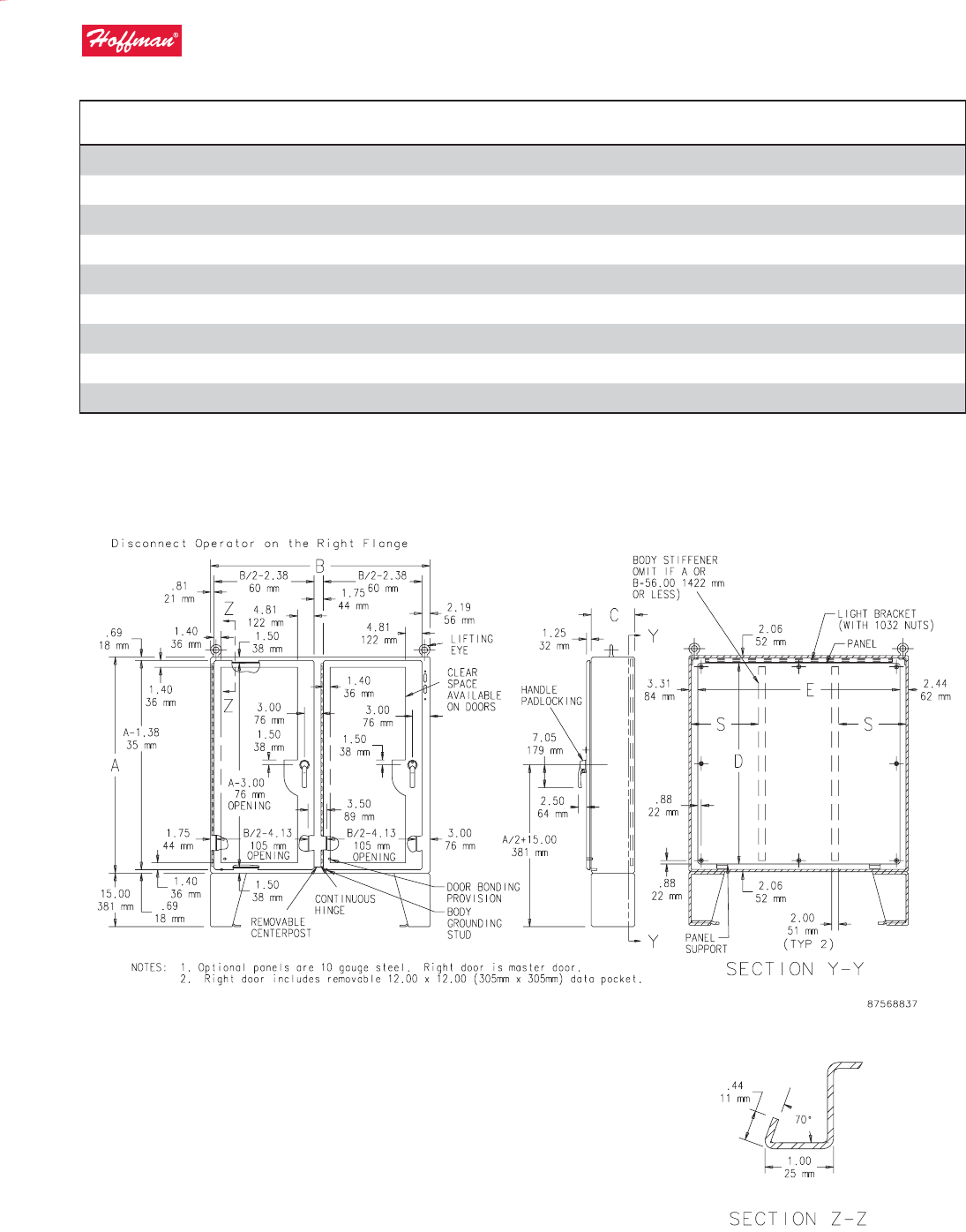

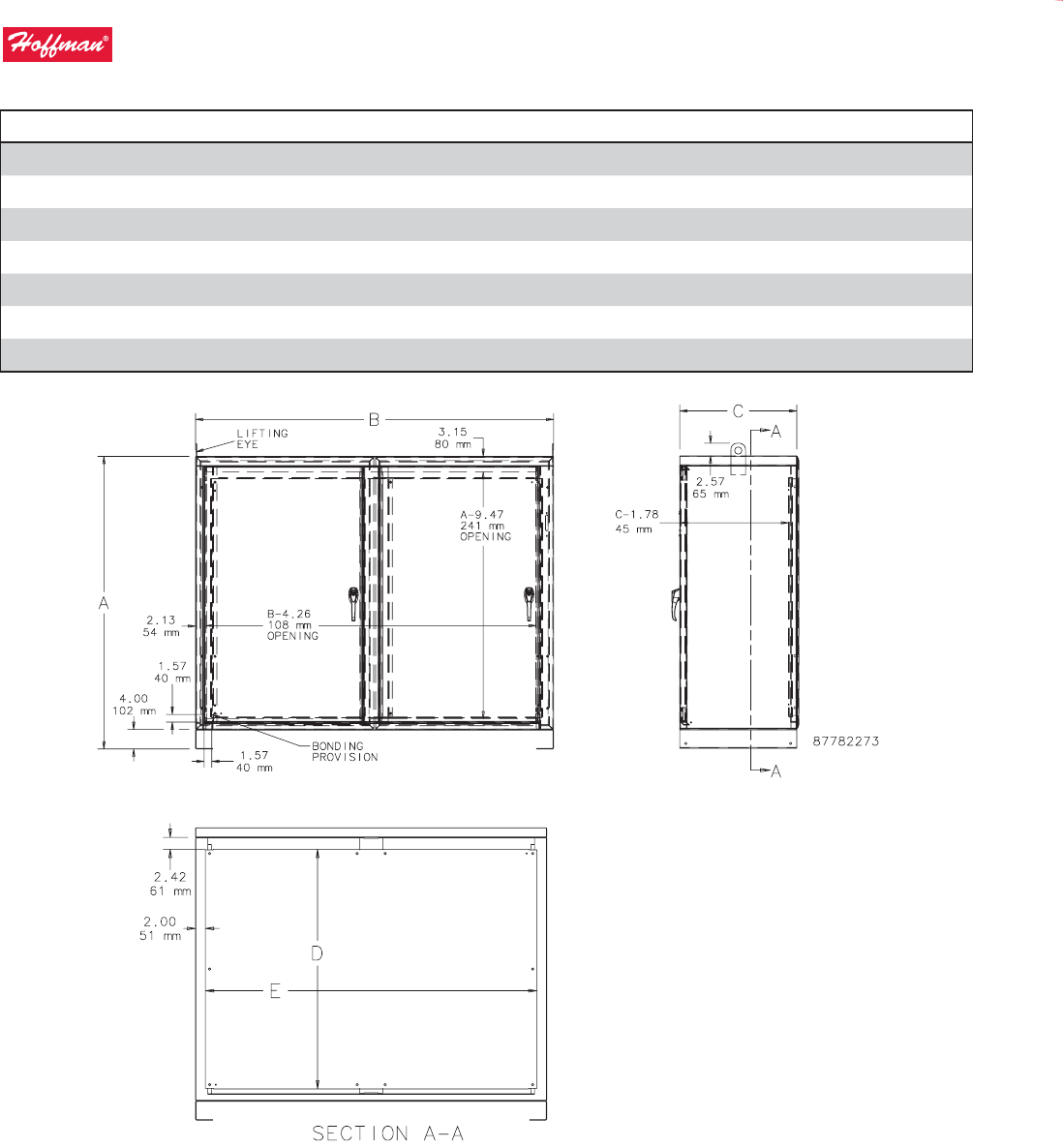

%7<3









23(1,1*

%

>@





























%21',1*3529,6,21

%2'<*5281',1*678'

5(029$%/(

&(17(53267













/,)7,1*(<(

3$'/2&.,1*

+$1'/(















PP





6(&7,21<<

3$1(/

/,*+7&+$11(/

3$1(/68332576











6(&7,21==

7ZR'RRU(QFORVXUH

336

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com





















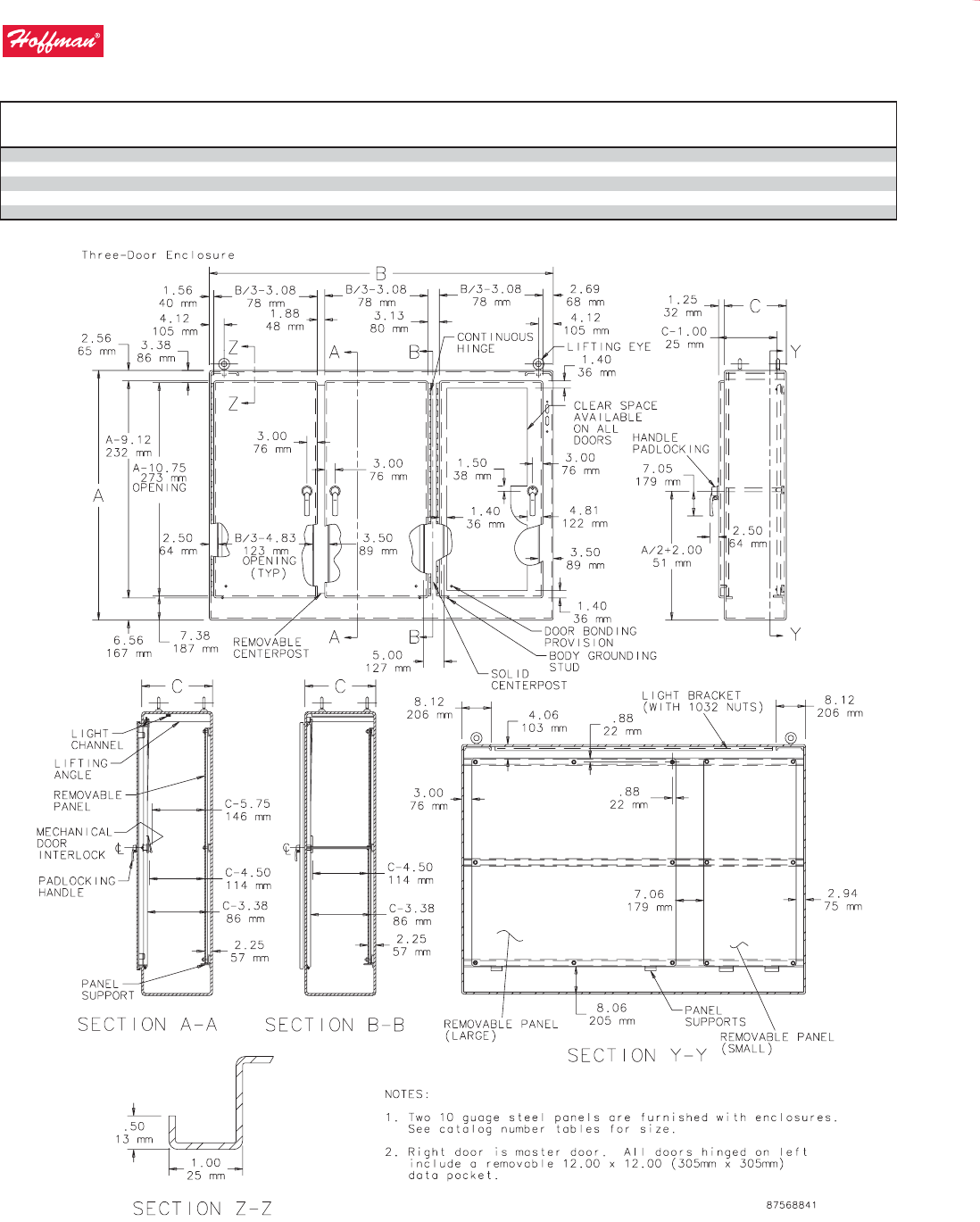

7<3

%

>@

23(1,1*













7<3

%

>@

























/,)7,1*(<(

&/($563$&(

62/,'

&(17(53267

5(029$%/(

&(17(53267

'225%21',1*

3529,6,21

%2'<*5281',1*678'

7KUHH'RRU(QFORVXUH





>@

&













3$'/2&.,1*

+$1'/(





























6(&7,21<<

/,*+7&+$11(/

67,))(1(5621

)5((67$1'21/<

5(029$%/(3$1(//$5*(

5(029$%/(3$1(/60$//

3$1(/

68332576









6(&7,21==



337

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com









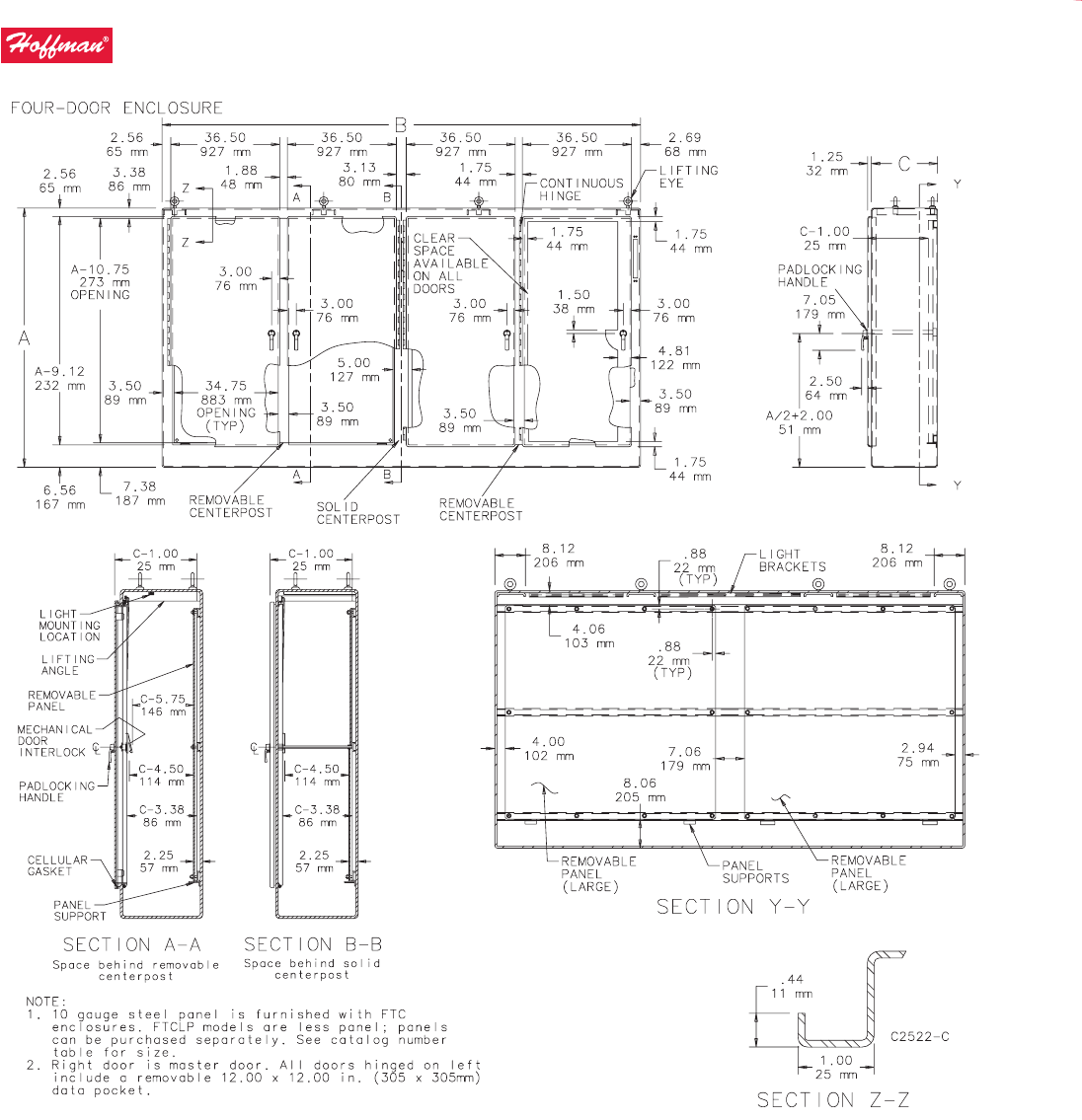

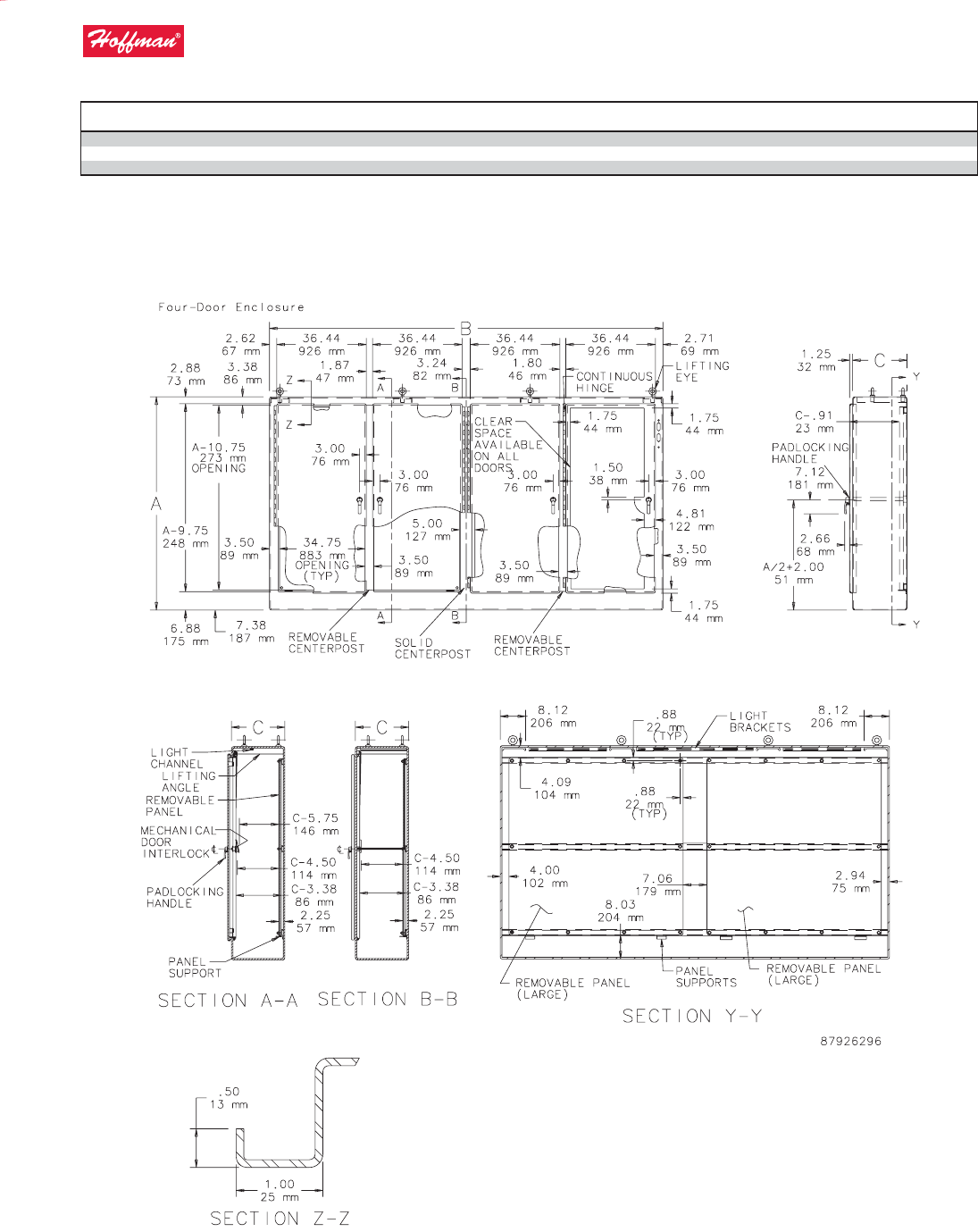

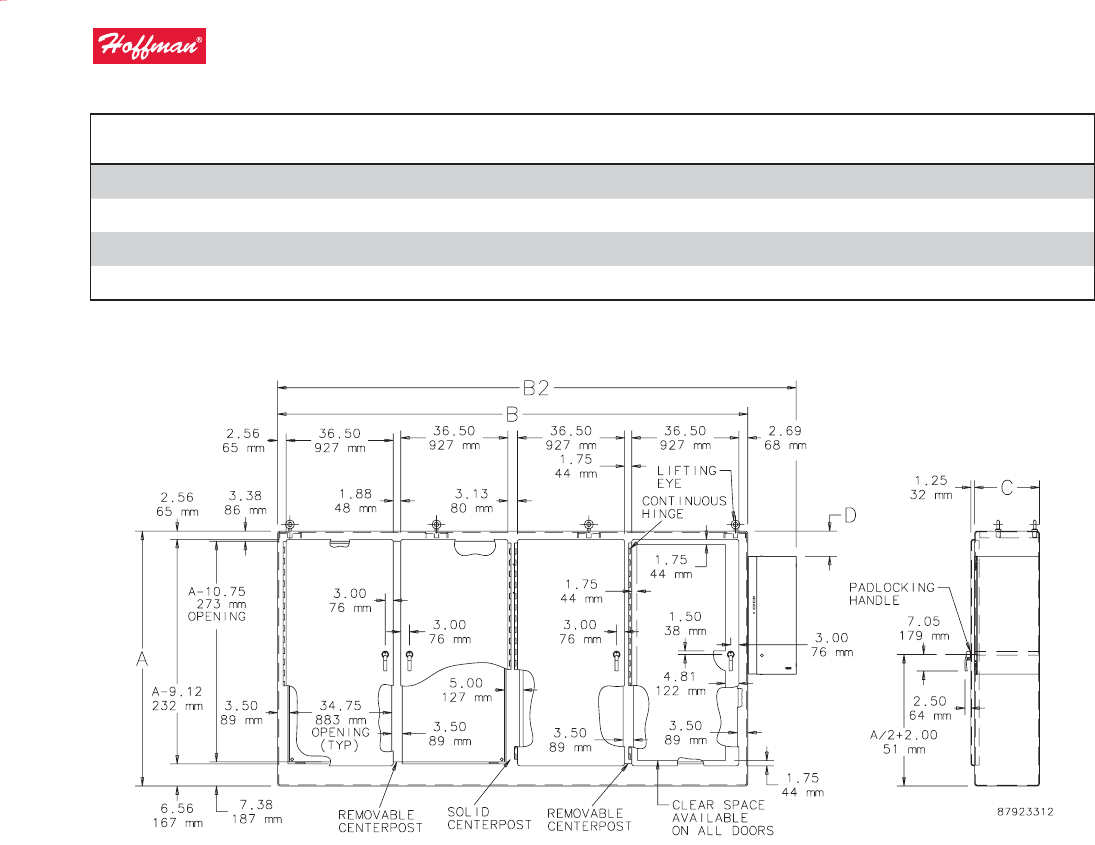

23(1,1*

%

>@

>@

%7<3



















7<3































)RXU'RRU(QFORVXUH



/,)7,1*(<(

'225

%21',1*

3529,6,21

%2'<

*5281',1*

678'

5(029$%/(

&(17(53267

5(029$%/(

&(17(53267

62/,'

&(17(53267

&/($5

63$&(

>@

&

















3$'/2&.,1*

+$1'/(



 

 























6(&7,21<<

3$1(/

67,))(1(5621

)5((67$1'21/<

5(029$%/(3$1(/

/$5*(

3$1(/68332576

5(029$%/(3$1(/

/$5*(









6(&7,21==

338

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

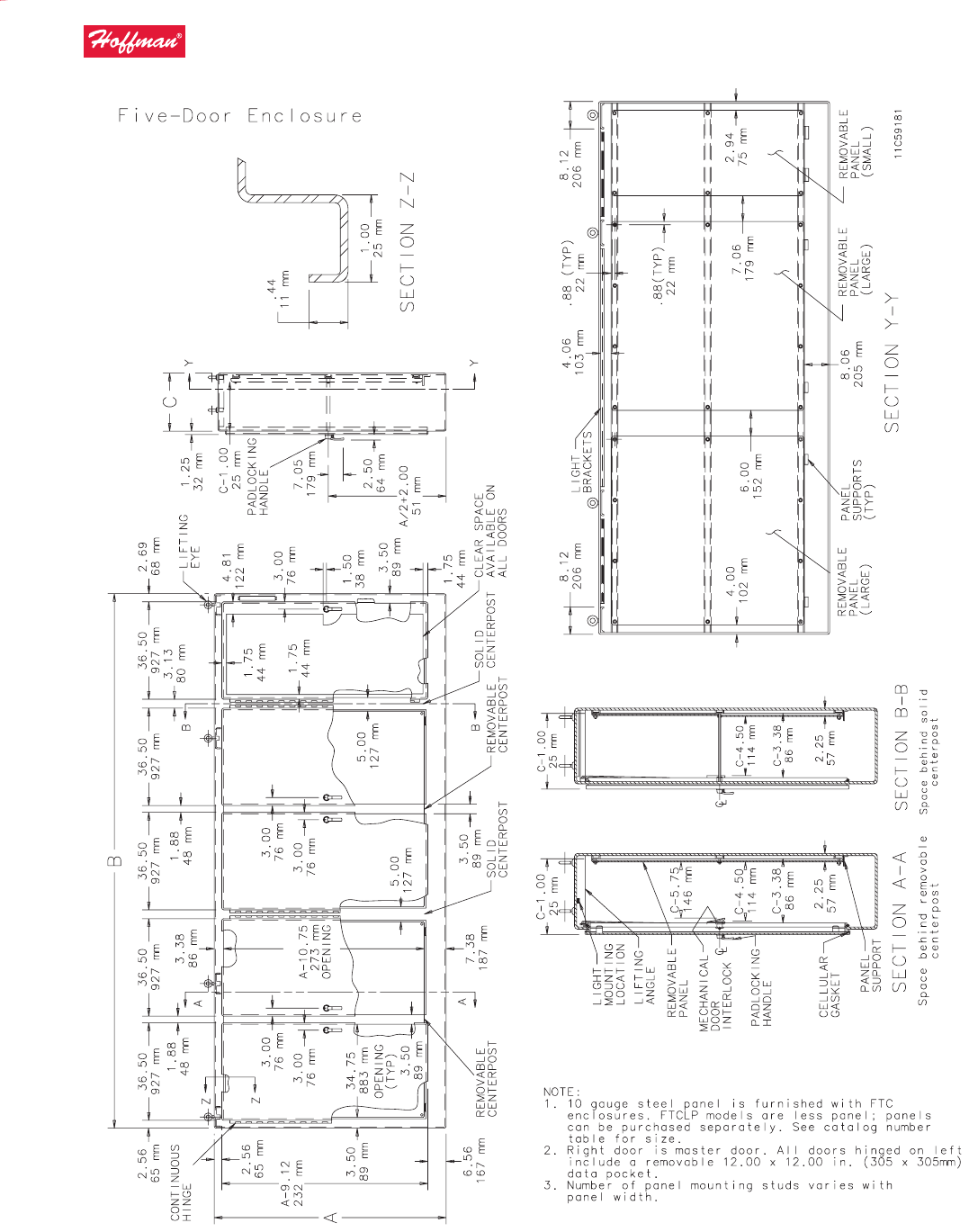

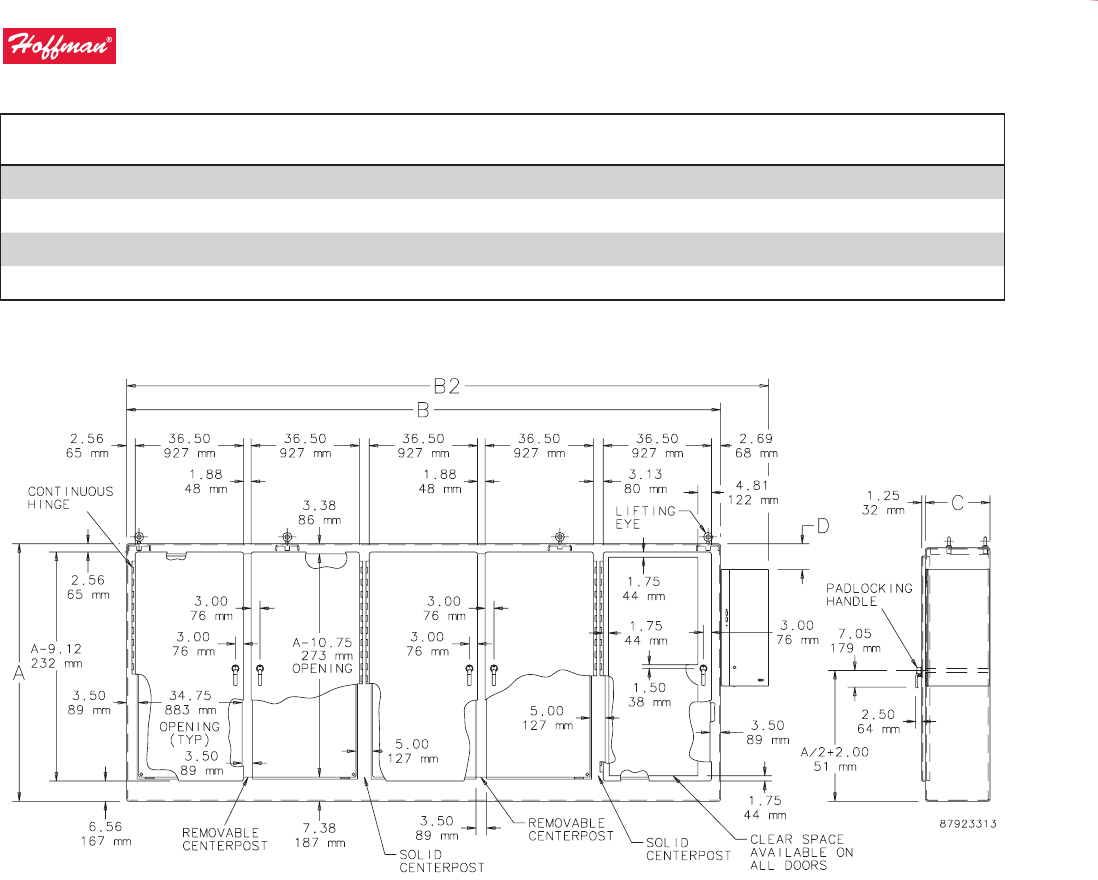

7<3

%

>@

23(1,1*





>@

%



7<3





7<3

 

7<3





PP













































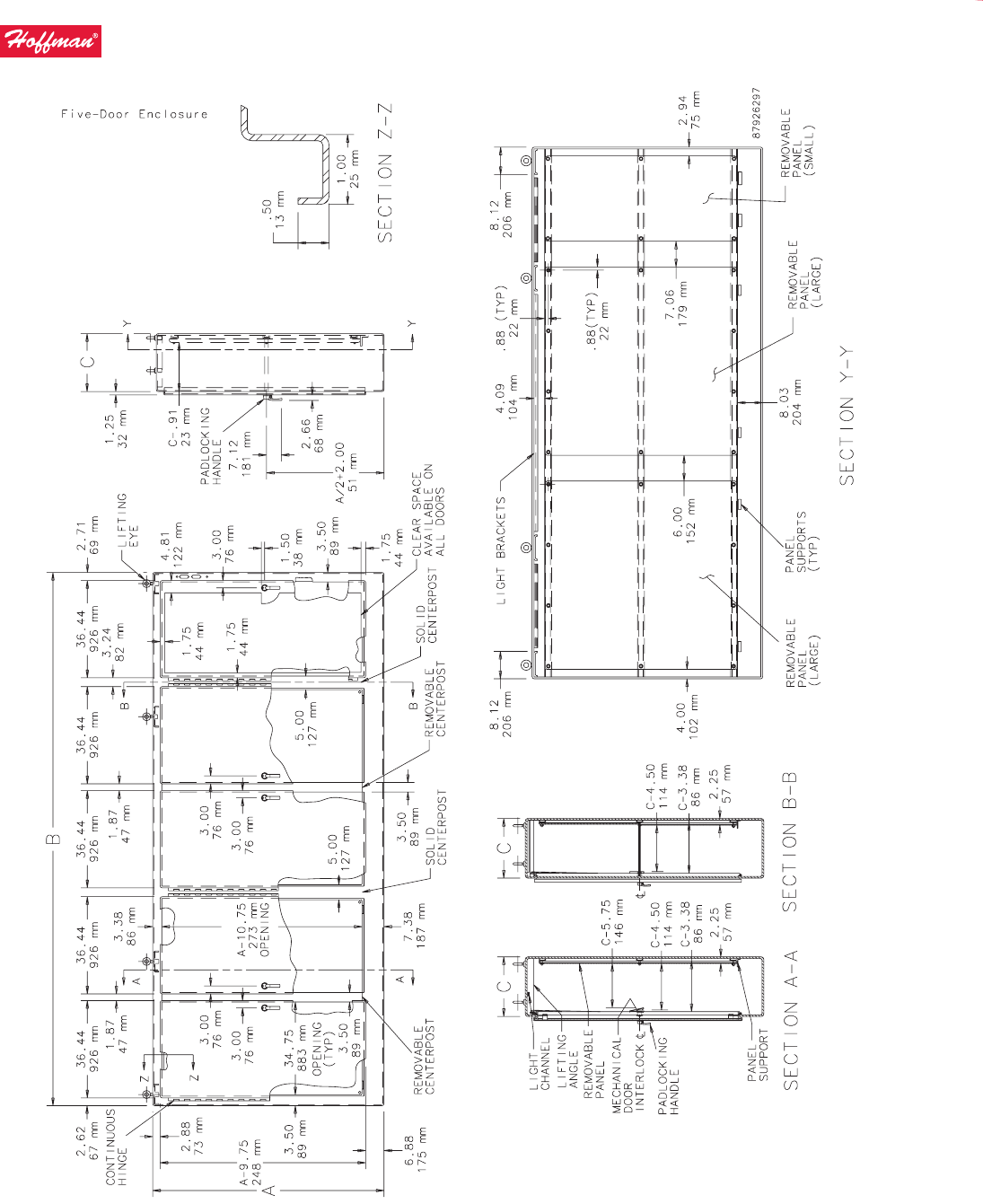

)LYH'RRU(QFORVXUH

'225%21',1*

3529,6,21

%2'<*5281',1*

678'

5(029$%/(

&(17(53267

62/,'

&(17(53267

5(029$%/(

&(17(53267

62/,'

&(17(53267

&/($5

63$&(

/,)7,1*(<(









&



>@









3$'/2&.,1*

+$1'/(















 



















6(&7,21<<



67,))(1(56

5(029$%/(

3$1(//$5*(

5(029$%/(

3$1(//$5*(

5(029$%/(

3$1(/60$//

3$1(/

68332576

/,*+7

%5$&.(76









6(&7,21==

339

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Low-Prole Type 12 Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1 in Disconnect Mounting Space diagram. Wiring space W1 is

available when disconnect is installed in the enclosure.

E1 = 4.75 in. (121 mm) when C = 8.00 in. (203 mm)

E1 = 7.09 in. (180 mm) when C =10.00 in. (254 mm)

E1 = 11.62 in. (294 mm) when C = 12.00 in. (305 mm)

E1 = 11.62 in. (294 mm) when C = 16.00 in. (406 mm)

E1 = 18.38 in. (467 mm) for A60SA3812A24LP

W1 = Wiring Space.

See Technical Information for wire bend space.

Refer to NATIONAL ELECTRICAL CODE 2005 article 430.10(B) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

Panels for A26 Low-Prole Type 12 Disconnect

Enclosures

Optional panels for low-prole Type 12 enclosures (Bulletin A26)

are 10 gauge steel. Finish is white polyester powder paint or a

conductive, corrosion-resistant coating. Mounting hardware included

with enclosure.

Bulletin: A26P

Catalog Number Finish

Panel Size

D x E (in.)

Panel Size

D x E (mm) Fits Bay

A25P21 Painted steel 25.88 x 21.75 657 x 552 1

A31P21 Painted steel 31.88 x 21.75 810 x 552 1

A31P21G Conductive 31.88 x 21.75 810 x 552 1

A37P21 Painted steel 37.88 x 21.75 962 x 552 1

A37P21G Conductive 37.88 x 21.75 962 x 552 1

A42P33 Painted steel 42.88 x 33.75 1089 x 857 1

A42P33G Conductive 42.88 x 33.75 1089 x 857 1

A54P33 Painted steel 54.88 x 33.75 1394 x 857 1

A54P33G Conductive 54.88 x 33.75 1394 x 857 1

A25P48 Painted steel 25.88 x 48.00 657 x 1219 2

A25P48G Conductive 25.88 x 48.00 657 x 1219 2

A31P48 Painted steel 31.88 x 48.00 810 x 1219 2

A31P48G Conductive 31.88 x 48.00 810 x 1219 2

A37P48 Painted steel 37.88 x 48.00 962 x 1219 2

A37P48G Conductive 37.88 x 48.00 962 x 1219 2

A42P72 Painted steel 42.88 x 72.00 1089 x 1829 2

A42P72G Conductive 42.88 x 72.00 1089 x 1829 2

A54P72 Painted steel 54.88 x 72.00 1394 x 1829 2

A54P72G Conductive 54.88 x 72.00 1394 x 1829 2

340

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

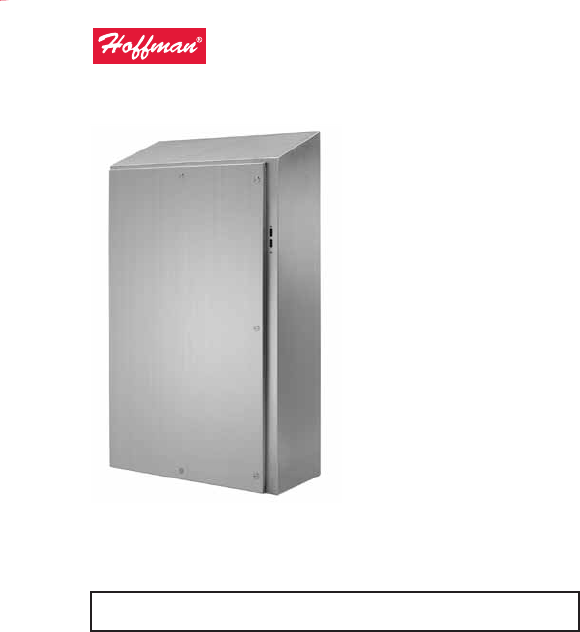

Homan WATERSHE D® Wall-Mo unt Discon nect Encl osures

WATERSHED® Disconnect Enclosure, Type 4X

Industry Standards

Mounting brackets required to meet UL/cUL external mounting

requirement.

UL 508A Listed; Type 4, 4X, 12; File Number E61997

cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997

NSF 169

NEMA/EEMAC Type 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

Specically designed for disconnect applications in sanitary

washdown production environments, such as food and beverage

manufacturing. Homan WATERSHED® Disconnect Enclosures feature

a sloped top, sloped door edges, bullet-style hinges and additional

unique features that facilitate washdown runo.

Specications

• 14 gauge Type 304 stainless steel

• Seams continuously welded and ground smooth

• Smooth Type 304 stainless steel lift-o bullet-style hinges

• Hinges are shielded by door edges

•

Hinged side of door has provisions to allow direct ushing of hinge

area

• 20-degree sloped top

• 170-degree door opening

• Door edges are sloped 20 degrees at top and bottom

• Slanted ange trough collar along the top edge of the enclosure

opening

• Stainless steel quarter-turn latches with ush slotted insert

• Seamless foam-in-place gasket

• Self-grounding latch system

• Bonding provision on door; grounding stud on body

• Panel studs t optional NEMA size panels

• Preferred cutout on right ange provides mounting for most

disconnect operators

•

Mounting holes in back of body for direct mounting or for optional

stand-o kit or external mounting brackets

• Furnished hardware kit consists of panel mounting nuts,

grounding hardware and sealing washers for wall-mounting holes

Finish

Sides, top, bottom and door have a #4 brushed nish.

Accessories

See also Accessories.

Mounting Bracket Kit

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Stand-O Kit

Padlocking Handle Kit

Padlocking Latch Kit

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: WS1D

341

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in./mm

in./mm

Latch

Qty. Panel Conductive Panel

WS24HS2508SS 24.00 x 25.00 x 8.00

610 x 635 x 203

24.53

623

27.44

697

25.89

658

8.00

203

22.50

572

24.39

620

4 A24P24 A24P24G

WS30HS2508SS 30.00 x 25.00 x 8.00

762 x 635 x 203

30.53

775

33.44

849

25.89

658

8.00

203

28.50

724

24.39

610

4 A30P24 A30P24G

WS36HS3108SS 36.00 x 31.00 x 8.00

914 x 787 x 203

36.70

932

39.58

1005

31.89

810

8.00

203

34.50

876

30.39

772

5 A36P30 A36P30G

WS48HS3716SS 48.00 x 37.00 x 16.00

1219 x 940 x 406

48.86

1241

54.66

1388

37.89

962

16.00

406

46.50

1181

36.39

924

5 A48P36 A48P36G

WS60HS3716SS 60.00 x 37.00 x 16.00

1524 x 940 x 406

60.87

1546

66.66

1693

37.89

962

16.00

406

58.50

1486

36.39

924

5 A60P36 A60P36G

Purchase panels separately. Optional Stainless steel, composite and aluminum panels available for most sizes.

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1 in diagram. Wiring space W1 is available when disconnect is

installed in the enclosure.

E1 = 4.75 in. (121 mm) when C = 8.00 in. (203 mm)

E1 = 11.62 in. (294 mm) when C = 16.00 in. (406 mm)

W1 = Wiring space.

See Technical Information for wire bend space.

Refer to National Electrical Code®, 2005 article 430-10(B) for wiring

space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

342

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Mounting Bracket Kit Type 304 stainless steel brackets are eld-installable. Brackets

maintain Type 4X rating. All hardware is included. Four brackets per

kit.

Top brackets must be mounted to the sides of enclosure.

Bulletin: A80

Catalog Number Description

CMFKSS Type 304 stainless steel mounting bracket kit

Stand-O Kit

Stand-os provide space between wall-mount enclosure and wall

for better washdown accessibility. Maintains Type 4X rating. Sealing

washers included. Four stand-os per kit.

Bulletin: WSY

Catalog Number C (in.) C (mm)

WSSOK1SS 1.00 25

WSSOK2SS 2.00 51

WSSOK4SS 4.00 102

WSSOK6SS 6.00 152

Padlocking Handle Kit Type 304 stainless steel padlocking handle for use on Homan

WATERSHED® Wall-Mount Enclosures. Maintains Type 4X rating.

Bulletin: WSY

Catalog Number Description

WSHPL Stainless Steel Padlocking Handle

Padlocking Latch Kit Type 304 stainless steel padlocking latch for use on Homan

WATERSHED® Wall-Mount Enclosures. Maintains Type 4X rating.

Bulletin: WSY

Catalog Number Description

WSLPL Padlocking Latch Kit

343

Disconnect: Wall-Mount Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Wall-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

344

Disconnect: Wall-Mount Fixed-Depth Allen-Bradley Disconnect Enclosures

Wall-Mount Fixed-Depth AB Cutout Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Wall-Mount Fi xed-Dep th Allen- Bradley Di sconnec t Enclosur es

Wall-Mount Fi xed-Dep th AB Cutout Ove rview

Fixed-Depth Allen-Bradley Cutout Overview

Application

Enclosures having the “Allen-Bradley” cutout are ONLY compatible

with xed-depth Allen-Bradley devices up to 1494F Series C. This

cutout is ONLY found on A22 Enclosures and on adapter plates in the

A21ABA Adapter Kit.

Ordering

The disconnect switch, operating handle, and operating mechanism

must be ordered separately. See Technical Information in the

Homan Specier’s Guide for wire bend space available, or

Disconnect Ordering Information at homanonline.com for

disconnect ordering guidelines and wire bend space available.

Check the enclosure dimension drawings to make sure the chosen

disconnect switch will t in the enclosure.

A complete assembly consists of:

1. An enclosure

2. Guide bracket(s) and door catch welded to door

3. Locking bar(s) for door hardware

4. Spacers and screws to support disconnect to panel

5. Instructions to locate and install disconnects

345

Disconnect: Wall-Mount Fixed-Depth Allen-Bradley Disconnect Enclosures

Type 12, 13 Fixed-Depth AB Disconnects

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Type 12, 13 Fixed-Depth AB D isconne cts

Allen-Bradley® 1494 Cutout Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12, 13; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997

NEMA/EEMAC Type 12, 13

CSA File No. 42186: Type 12

IEC 60529, IP65

Application

These enclosures house Allen-Bradley® Bulletin 1494F ange-mount

disconnect switches and Bulletin 1494D ange-mount operators for

circuit breakers.

Furnished with Enclosure

1. Guide bracket(s) and door catch welded to door

2. Locking bar(s) for door hardware

3. Spacers and screws to support disconnect to panel

4. Instructions to locate and install disconnects

Specications

• 14 gauge steel

• Seams continuously welded and ground smooth

• External mounting brackets

• External-formed ange around all sides of enclosure opening

• Removable door with continuous hinge

• Type 12 rated door gasket

• Collar studs provided for mounting optional panels

• Holes provided in body and door for mounting disconnect switch,

operating mechanism and door hardware

• Data pocket is high impact thermoplastic

• Guide bracket(s) and door catch welded to door

• Includes locking bar(s) for door hardware, spacers and screws

to support disconnect panel, and instructions for installing

disconnects

Finish

White inside with ANSI 61 gray outside nish.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

Electric Heater

Compact Cooling Fans

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A22

346

Disconnect: Wall-Mount Fixed-Depth Allen-Bradley Disconnect Enclosures

Type 12, 13 Fixed-Depth AB Disconnects

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size

D x E

in./mm

Data Pocket Size

in./mm

A20AB2208LP 20.00 x 21.38 x 8.00

508 x 543 x 203

A20P20 A20P20G 17.00 x 17.00

432 x 432

6.00 x 6.00

152 x 152

A24AB2208LP 24.00 x 21.38 x 8.00

610 x 543 x 203

A24P20 A24P20G 21.00 x 17.00

533 x 432

6.00 x 6.00

152 x 152

A24AB2608LP 24.00 x 25.38 x 8.00

610 x 645 x 203

A24P24 A24P24G 21.00 x 21.00

533 x 533

6.00 x 6.00

152 x 152

A30AB2208LP 30.00 x 21.38 x 8.00

762 x 543 x 203

A30P20 A30P20G 27.00 x 17.00

686 x 432

6.00 x 6.00

152 x 152

A36AB2608LP 36.00 x 25.38 x 8.00

914 x 645 x 203

A36P24 A36P24G 33.00 x 21.00

838 x 533

12.00 x 12.00

305 x 305

A24AB2210LP 24.00 x 21.38 x 10.00

610 x 543 x 254

A24P20 A24P20G 21.00 x 17.00

533 x 432

6.00 x 6.00

152 x 152

A24AB2610LP 24.00 x 25.38 x 10.00

610 x 645 x 254

A24P24 A24P24G 21.00 x 21.00

533 x 533

6.00 x 6.00

152 x 152

A30AB2210LP 30.00 x 21.38 x 10.00

762 x 543 x 254

A30P20 A30P20G 27.00 x 17.00

686 x 432

6.00 x 6.00

152 x 152

A30AB2610LP 30.00 x 25.38 x 10.00

762 x 645 x 254

A30P24 A30P24G 27.00 x 21.00

686 x 533

12.00 x 12.00

305 x 305

A36AB2610LP 36.00 x 25.38 x 10.00

914 x 645 x 254

A36P24 A36P24G 33.00 x 21.00

838 x 533

12.00 x 12.00

305 x 305

A36AB3210LP 36.00 x 31.38 x 10.00

914 x 797 x 254

A36P30 A36P30G 33.00 x 27.00

838 x 686

12.00 x 12.00

305 x 305

A42AB3210LP 42.00 x 31.38 x 10.00

1067 x 797 x 254

A42P30 A42P30G 39.00 x 27.00

991 x 686

6.00 x 6.00

152 x 152

A42AB3810LP 42.00 x 37.38 x 10.00

1067 x 949 x 254

A42P36 A42P36G 39.00 x 33.00

991 x 838

12.00 x 12.00

305 x 305

A48AB3810LP 48.00 x 37.38 x 10.00

1219 x 949 x 254

A48P36 A48P36G 45.00 x 33.00

1143 x 838

12.00 x 12.00

305 x 305

A60AB3810LP 60.00 x 37.38 x 10.00

1524 x 949 x 254

A60P36 A60P36G 57.00 x 33.00

1448 x 838

12.00 x 12.00

305 x 305

A36AB3212LP 36.00 x 31.38 x 12.00

914 x 797 x 305

A36P30 A36P30G 33.00 x 27.00

838 x 686

12.00 x 12.00

305 x 305

A42AB3212LP 42.00 x 31.38 x 12.00

1067 x 797 x 305

A42P30 A42P30G 39.00 x 27.00

991 x 686

6.00 x 6.00

152 x 152

A42AB3812LP 42.00 x 37.38 x 12.00

1067 x 949 x 305

A42P36 A42P36G 39.00 x 33.00

991 x 838

12.00 x 12.00

305 x 305

A48AB3812LP 48.00 x 37.38 x 12.00

1219 x 949 x 305

A48P36 A48P36G 45.00 x 33.00

1143 x 838

12.00 x 12.00

305 x 305

A60AB3812LP 60.00 x 37.38 x 12.00

1524 x 949 x 305

A60P36 A60P36G 57.00 x 33.00

1448 x 838

12.00 x 12.00

305 x 305

A48AB3816LP 48.00 x 37.38 x 16.00

1219 x 949 x 406

A48P36 A48P36G 45.00 x 33.00

1143 x 838

12.00 x 12.00

305 x 305

A60AB3816LP 60.00 x 37.38 x 16.00

1524 x 949 x 406

A60P36 A60P36G 57.00 x 33.00

1448 x 838

12.00 x 12.00

305 x 305

Purchase panels separately.

347

Disconnect: Wall-Mount Fixed-Depth Allen-Bradley Disconnect Enclosures

Type 12, 13 Fixed-Depth AB Disconnects

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1. Wiring space W1 is available when disconnect is installed in

the enclosure.

E1 = 6.75 in. (171 mm) when C = 10.00 in. (254 mm)

E1 = 9.50 in. (241 mm) when C = 12.00 in. (305 mm) except enclosures

for 200 A switches)

E1 = 9.50 in. (241 mm) when C = 16.00 in. (406 mm)

W1 = Wiring Space

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

348

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

Free-Stand Preferred-Cutout Disconnect Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Free-Stand Pre ferred- Cutout Disc onnect En closures

Free-Stand Pre ferred- Cutout Disc onnect Ove rview

Preferred-Cutout Overview

Application

Enclosures having the preferred cutout are sized for use with up to

200A disconnect switches and up to 400A circuit breakers unless

otherwise specied. The preferred cutout accepts the smaller

operating handle whose mounting hole centers are 4.688 in. apart.

Preferred cutouts are standard in mild steel wall-mount enclosures,

modular enclosures and some select large mild steel enclosures. They

are also present on all standard stainless steel oerings.

Operator adapter for preferred cutouts must be ordered separately to

be used with A21S, A28S4 and A4S enclosures.

Preferred cutouts are designed to house the following:

Allen-Bradley

• Bulletin 1494V disconnect switches with ange-mount variable-

depth operating mechanisms and Bulletin 1494V ange-mount

variable-depth operating mechanisms for circuit breakers

• Bulletin 140U exible cable operating mechanisms for 140U

molded case circuit breakers

• Bulletin 1494C cable-operated disconnect switches with ange-

mount handles

• Bulletin 194RC cable-operated ange-mount handles for use with

the NFPA 79 compliant 194R IEC rotary disconnect switches

Allen-Bradley Bulletin 1494V-R1, -R2 and -W2 operating handles and

Allen-Bradley Bulletin 1494F disconnect devices or Bulletin 1494D circuit

breaker operators will NOT t these enclosures.

ABB Controls ange-mount variable-depth operating mechanisms

for disconnect switches and circuit breakers. Also the cable version

for circuit breakers.

Eaton Cutler-Hammer Type C361 ange-mount variable-depth

operating mechanisms with disconnect switches and Type C371

 ange-mount variable-depth operating mechanisms for circuit

breakers.

General Electric Type STDA ange handles and variable-depth

operating mechanisms for disconnect switches and circuit breakers.

Also SPECTRAFLEX™ cable operators for circuit breakers.

Siemens ITE MAX FLEX® ange-mount variable-depth operating

handles for circuit breakers.

Schneider Square D® Class 9422 disconnect switches with ange-

mount variable-depth operating mechanisms or cable mechanisms

and Class 9422 ange-mount variable-depth operating mechanisms

or cable mechanisms for circuit breakers.

These enclosures will NOT accept Square D Class 9422 bracket-mounted

disconnect devices, Class 9422TG1 or TG2 devices.

Ordering

Order the disconnect switch, operating handle and operating

mechanism separately. See Technical Information in the Homan

Specier’s Guide for wire bend space available when various

manufacturers’ disconnect switches are installed or Disconnect

Ordering Information at homanonline.com for disconnect ordering

guidelines and wire bend space available. Check the enclosure

dimension drawings to verify the chosen disconnect switch will t in

the enclosure.

All 24.12-in. (613-mm) and deeper enclosures using short

connecting rods by the following manufacturers require a Homan

platform assembly, catalog number ADSCPA, purchased separately.

• ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices

• Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see Disconnect Enclosure Accessories)

• General Electric Type TDA devices (see Disconnect Enclosure

Accessories)

• Schneider Square D® Class 9422 devices (see Disconnect Enclosure

Accessories)

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Eaton Cutler-Hammer operating mechanisms C371E and C371F

order catalog number C371CS1 connecting rod. For C371G and

C371K order catalog number C371CS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod

• For Schneider Square D devices, order catalog number 9422-R2

extra long operating rod(s). Some devices require two rods.

Consult factory for space occupied on panel when platform is used.

349

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Free-Stand Di sconnect E nclosure s and Access ories

Free-Stand Disconnect Enclosure, Type 1

Industry Standards

UL508A Listed; Type 1; File No. E61997

cUL Listed per CSA C22.2 No. 14; Type 1; File No. E61997

NEMA/EEMAC Type 1

IEC 60529 IP30

Application

Free-Stand Disconnect Enclosures, Type 1, are an economical way to

protect electrical and electronic equipment in applications that do

not require extensive environmental protection.

Specications

• 14 gauge steel body and door; 12 gauge back covers

• 4-in. high 10 gauge steel integral lifting base

• Modied preferred disconnect cutout

• Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less

than nominal height.

• Sturdy 7 gauge lifting tabs

• Flush doors

• 3-point latch with heavy-duty handle

• Screwdriver defeater in handle on master door

• Padlock provision in handle

• Predrilled holes in lifting base provide bolt-down capability

• Bonding provision on each door

• Studs included for mounting optional panels on threaded bolts

• Optional rack angles mount to top and bottom of front anges

Finish

RAL 7035 light gray polyester powder paint inside and outside.

Optional panels have white or conductive nish.

Accessories

See also Accessories.

Rack-Angle Mounted Drawer

Rack-Mount Steel Shelf

Rack Mounting Angle Kit - L Style

Electric Heater

Compact Cooling Fans

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A38D

350

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Free-Stand Type 1 Large One-Door Disconnect Enclosures

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size D x E

in./mm Use Rack Angle

A60XN2712FSLP 60.00 x 27.00 x 12.00

1524 x 686 x 305

A49P21N A49P21NG 49.16 x 21.50

1249 x 546

ARA6019THG

A60XN2718FSLP 60.00 x 27.00 x 18.00

1524 x 686 x 457

A49P21N A49P21NG 49.16 x 21.50

1249 x 546

ARA6019THG

A60XN2724FSLP 60.00 x 27.00 x 24.00

1524 x 686 x 610

A49P21N A49P21NG 49.16 x 21.50

1249 x 546

ARA6019THG

A60XN3718FSLP 60.00 x 37.50 x 18.00

1524 x 953 x 457

A49P32N A49P32NG 49.16 x 32.00

1249 x 813

ARA6019THG

A72XN2718FSLP 72.00 x 27.00 x 18.00

1829 x 686 x 457

A61P21N A61P21NG 61.16 x 21.50

1553 x 546

ARA7219THG

A72XN3718FSLP 72.00 x 37.50 x 18.00

1829 x 953 x 457

A61P32N A61P32NG 61.16 x 32.00

1553 x 813

ARA7219THG

A72XN3724FSLP 72.00 x 37.50 x 24.00

1829 x 953 x 610

A61P32N A61P32NG 61.16 x 32.00

1553 x 813

ARA7219THG

A84XN2718FSLP 84.00 x 27.00 x 18.00

2134 x 686 x 457

A73P21N A73P21NG 73.16 x 21.50

1858 x 546

ARA8419THG

A84XN3724FSLP 84.00 x 37.50 x 24.00

2134 x 953 x 610

A73P32N A73P32NG 73.16 x 32.00

1858 x 813

ARA8419THG

Purchase panels separately.

351

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Free-Stand Type 1 Large Two-Door Disconnect Enclosures

Catalog Number AxBxC in./mm Panel Conductive Panel`

Panel Size D x E

in./mm Use Rack Angle

A60XN5312FSLP 60.00 x 53.50 x 12.00

1524 x 1359 x 305

A49P48N A49P48NG 49.16 x 48.00

1249 x 1219

ARA6019THG

A60XN5318FSLP 60.00 x 53.50 x 18.00

1524 x 1359 x 457

A49P48N A49P48NG 49.16 x 48.00

1249 x 1219

ARA6019THG

A60XN7324FSLP 60.00 x 73.50 x 24.00

1524 x 1867 x 610

A49P68N A49P68NG 49.16 x 68.00

1249 x 1727

ARA6019THG

A72XN7318FSLP 72.00 x 73.50 x 18.00

1829 x 1867 x 457

A61P68N A61P68NG 61.16 x 68.00

1553 x 1727

ARA7219THG

A72XN7324FSLP 72.00 x 73.50 x 24.00

1829 x 1867 x 610

A61P68N A61P68NG 61.16 x 68.00

1553 x 1727

ARA7219THG

A84XN7318FSLP 84.00 x 73.50 x 18.00

2134 x 1867 x 457

A73P68N A73P68NG 73.16 x 68.00

1858 x 1727

ARA8419THG

A84XN7324FSLP 84.00 x 73.50 x 24.00

2134 x 1867 x 610

A73P68N A73P68NG 73.16 x 68.00

1858 x 1727

ARA8419THG

Purchase panels separately.

352

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnect is located 11.62 in. from outside top of enclosure. Wiring space is available when disconnect is installed in the enclosure.

See Technical Information section for wire bend space.

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for wiring space required for line side conductors to be connected to

disconnect. Verify your application to determine whether wiring space is adequate.

Consult Space Occupied by Disconnect drawing to determine whether the disconnect device you are using will t the enclosure size you have selected.

Gasket Kits

Apply self-adhesive strip gaskets for gasketed NEMA 1 solution. Each

kit includes sucient gasket for any one- or two-door enclosure.

Choose kit by number of doors.

Bulletin: A38P

Catalog Number Description

A38GSKT For one-door enclosures

A38GSKT2 For two-door enclosures

353

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

PROLINE-DD Modular Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

PROLINE-DD M odular En closures a nd Accesso ries

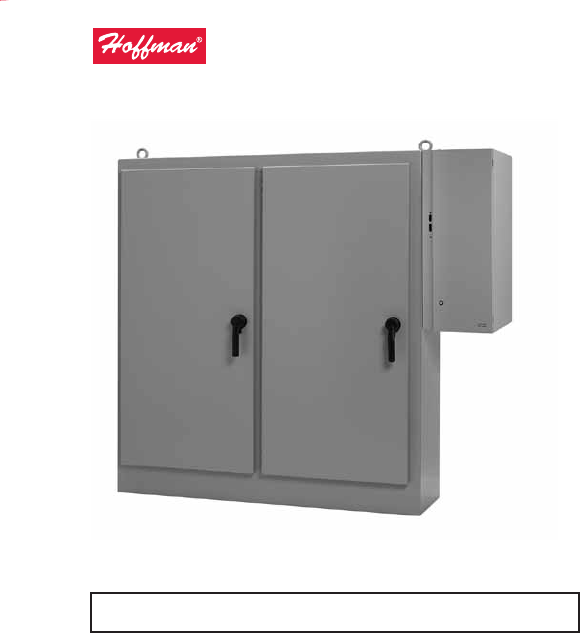

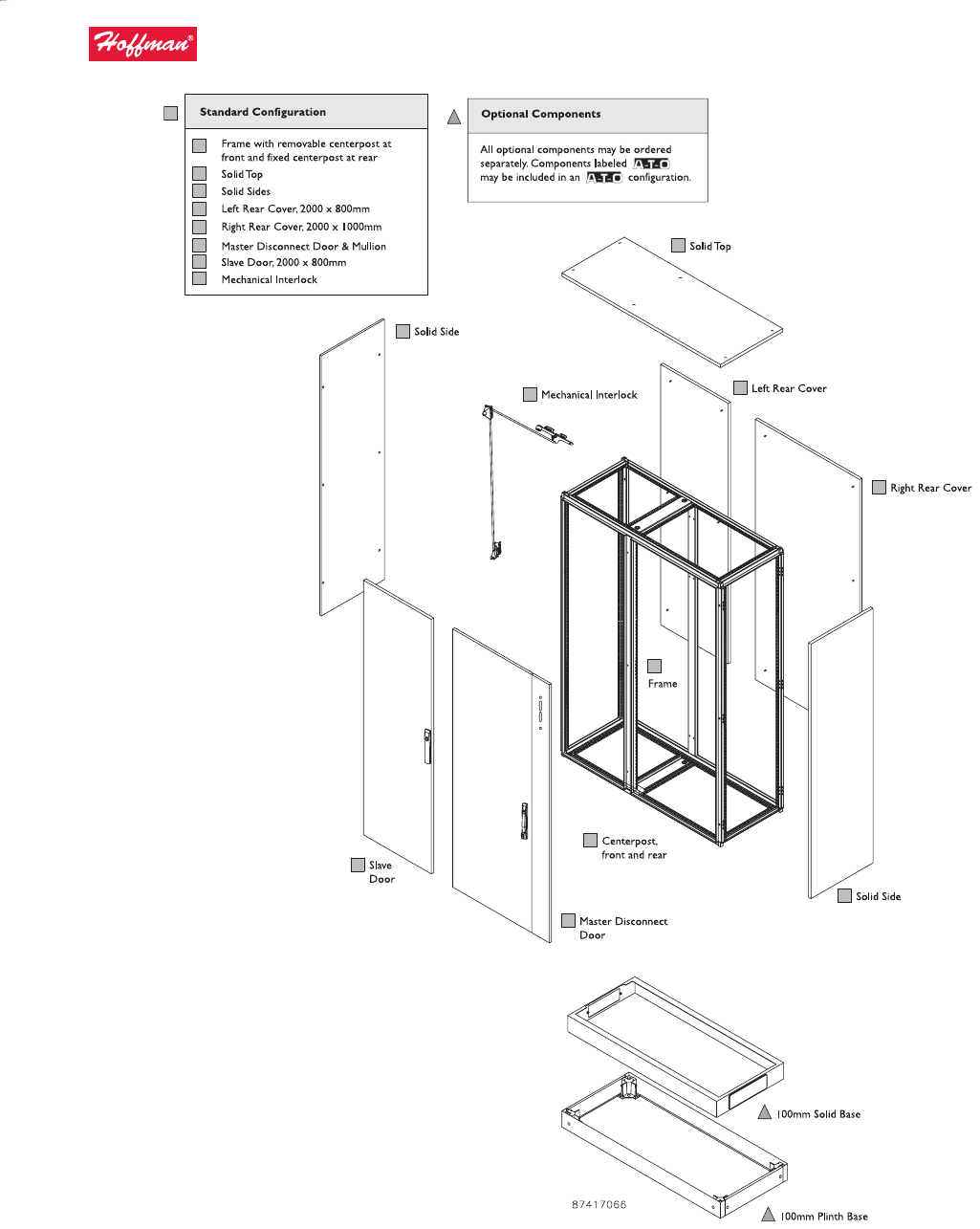

PROLINE®-DD Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12; File Number E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA File Number 42186: Type 12

VDE IP55

IEC 60529, IP55

Application

For a modular disconnect system with application exibility, choose

a PROLINE®-DD Modular Enclosure. These two-door packages and

their components are compatible with any of the standard ange-

mounted disconnect switches and mechanisms described below.

Allen-Bradley

• Bulletin 1494V variable-depth ange-operated disconnect

switches and circuit breaker mechanisms.

• Bulletin 140U exible cable operating mechanisms for 140U

molded case circuit breakers.

These enclosures do not accept Allen-Bradley Bulletin 1494F disconnect

devices or Bulletin 1494D circuit breaker operators.

ABB Controls Disconnect switches up to and including 200 A, also

operators for ABB circuit breakers up to 800 A.

Eaton Cutler-Hammer Variable-depth disconnect switches up to

and including 200 A, operators for C-H Westinghouse circuit breakers

up to 600 A and FLEX SHAFT™ handle mechanisms for circuit

breakers.

General Electric Type TDA variable-depth operating mechanisms

for disconnect switches up to and including 200 A as well as operator

mechanisms or SPECTRAFLEX™ cable operators for circuit breakers

up to 600 amp.

Siemens ITE MAX FLEX™ ange-mounted variable-depth operating

handles for disconnect switches and circuit breakers as well as some

xed-depth operators for disconnect switches.

Schneider Square D Class 9422 disconnect switches up to and

including 200 A, with variable-depth or cable mechanisms for 30, 60

or 100 A. Also circuit breakers with variable-depth operators or cable

mechanisms up to 400 A.

Bulletin: P20DC

Standard Product

Catalog Number AxBxC in./mm

Nominal Size

mm/in.

PTDDC20185 78.11 x 78.18 x 19.65

1984 x 1808 x 499

2000 x 1800 x 500

PTDDC20186 78.11 x 78.18 x 23.58

1984 x 1808 x 599

2000 x 1800 x 600

354

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

PROLINE-DD Modular Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

355

Disconnect: Free-Stand Preferred-Cutout Disconnect Enclosures

PROLINE-DD Modular Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1. Wiring space W1 is available when disconnect is installed in

the enclosure.

See Technical Information for E1 Spacing by Enclosure Height for various

disconnect switch manufacturers.

W1 = Wiring Space.

See Technical Information chapter for wire bend space.

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect.

Verify your application to determine whether wiring space is

adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

PROLINE®-DD Modular Subpanel

The Subpanel mounts inside the PROLINE-DD Modular Enclosures.

The subpanel size is 2000 x 1800 mm and is constructed of 10 gauge

steel. It also has glide blocks to facilitate handling and installation

(hardware is included).

Bulletin: P20

Catalog Number AxB in./mm Type

Used with

Assembled

Enclosure 1

Used with

Assembled

Enclosure 2

PPF2018 78.70 x 70.90

2000 x 1800

Subpanel White Painted Finish PTDDC20185 PTDDC20186

PPF2018G 78.70 x 70.90

2000 x 1800

Subpanel Conductive Finish PTDDC20185 PTDDC20186

PROLINE®-DD Modular 100-mm Bases

These 100-mm solid and plinth bases mount to PROLINE-DD Modular

Enclosures. Gland plates are necessary to maintain Type 12 rating

when using plinth base.

Bulletin: P20

Catalog Number Type

Used with

Assembly D (mm) D (in.)

PB1185 100-mm Solid Base PTDDC20185 459 18.07

PB1186 100-mm Solid Base PTDDC20186 559 22.01

PPB1186 100-mm Plinth Base PTDDC20186 559 22.01

356

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Free-Stand Preferred-Cutout Stainless Steel Disconnect Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Free-Stand Sta inless Ste el Preferr ed-Cutou t Disconne ct Enclosu res

Free-Stand Pre ferred- Cutout Stai nless Stee l Disconne ct Overvie w

Preferred-Cutout Overview

Application

Enclosures having the preferred cutout are sized for use with up to

200 A disconnect switches and up to 400A circuit breakers unless

otherwise specied. The preferred cutout accepts the smaller

operating handle whose mounting hole centers are 4.688 in. apart.

Preferred cutouts are standard in mild steel wall-mount enclosures,

modular enclosures and some select large mild steel enclosures. They

are also present on all standard stainless steel oerings.

Operator adapters for preferred cutouts must be ordered separately

to be used with A21S, A28S4, WS2D and A4S enclosures.

Preferred cutouts are designed to house the following:

Allen-Bradley

• Bulletin 1494V disconnect switches with ange-mount variable-

depth operating mechanisms and Bulletin 1494V ange-mount

variable-depth operating mechanisms for circuit breakers

• Bulletin 140U exible cable operating mechanisms for 140U

molded case circuit breakers

• Bulletin 1494C cable-operated disconnect switches with ange-

mount handles

• Bulletin 194RC cable-operated ange-mount handles for use with

the NFPA 79 compliant 194R IEC rotary disconnect switches

Allen-Bradley Bulletin 1494V-R1, -R2 and -W2 operating handles and

Allen-Bradley Bulletin 1494F disconnect devices or Bulletin 1494D circuit

breaker operators will NOT t these enclosures.

ABB Controls ange-mount variable-depth operating mechanisms

for disconnect switches and circuit breakers. Also the cable version

for circuit breakers.

Eaton Cutler-Hammer Type C361 ange-mount variable-depth

operating mechanisms with disconnect switches and Type C371

 ange-mount variable-depth operating mechanisms for circuit

breakers.

General Electric Type STDA ange handles and variable-depth

operating mechanisms for disconnect switches and circuit breakers.

Also SPECTRAFLEX™ cable operators for circuit breakers.

Siemens ITE MAX FLEX® ange-mount variable-depth operating

handles for circuit breakers.

Schneider Square D® Class 9422 disconnect switches with ange-

mount variable-depth operating mechanisms or cable mechanisms

and Class 9422 ange-mount variable-depth operating mechanisms

or cable mechanisms for circuit breakers.

These enclosures will NOT accept Square D Class 9422 bracket-mounted

disconnect devices, Class 9422TG1 or TG2 devices.

Ordering

Order the disconnect switch, operating handle and operating

mechanism separately. See Technical Information in the Homan

Specier’s Guide for wire bend space available when various

manufacturers’ disconnect switches are installed or Disconnect

Ordering Information at homanonline.com for disconnect ordering

guidelines and wire bend space available. Check the enclosure

dimension drawings to verify the chosen disconnect switch will t in

the enclosure.

All 24.12-in. (613-mm) and deeper enclosures using short

connecting rods by the following manufacturers require a Homan

platform assembly, catalog number ADSCPA, purchased separately.

• ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices

• Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see Disconnect Enclosure Accessories)

• General Electric Type TDA devices (see Disconnect Enclosure

Accessories)

• Schneider Square D® Class 9422 devices (see Disconnect Enclosure

Accessories)

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Eaton Cutler-Hammer operating mechanisms C371E and C371F

order catalog number C371CS1 connecting rod. For C371G and

C371K order catalog number C371CS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod

• For Schneider Square D devices, order catalog number 9422-R2

extra long operating rod(s). Some devices require two rods.

Consult factory for space occupied on panel when platform is used.

357

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Two-Door Disconnect Enclosure

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Stainless Ste el Two-Door D isconnec t Enclosu re

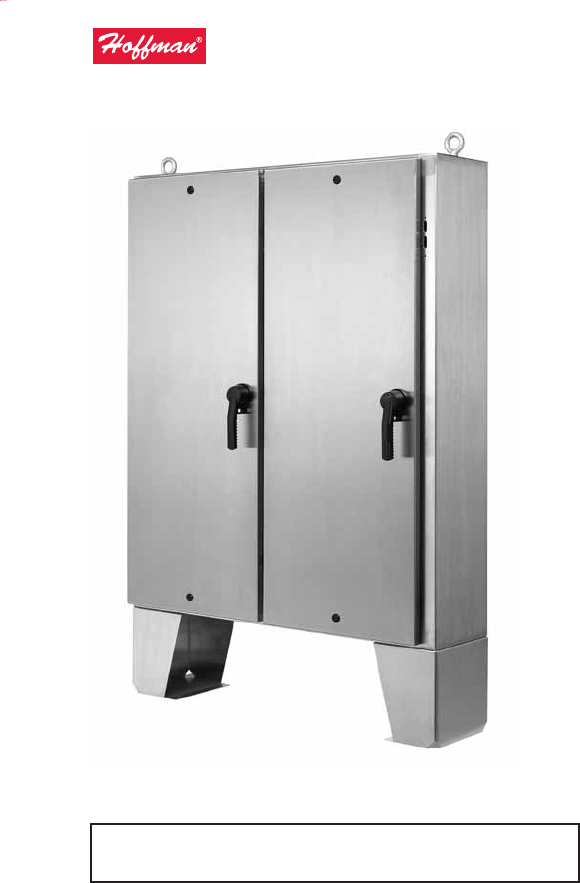

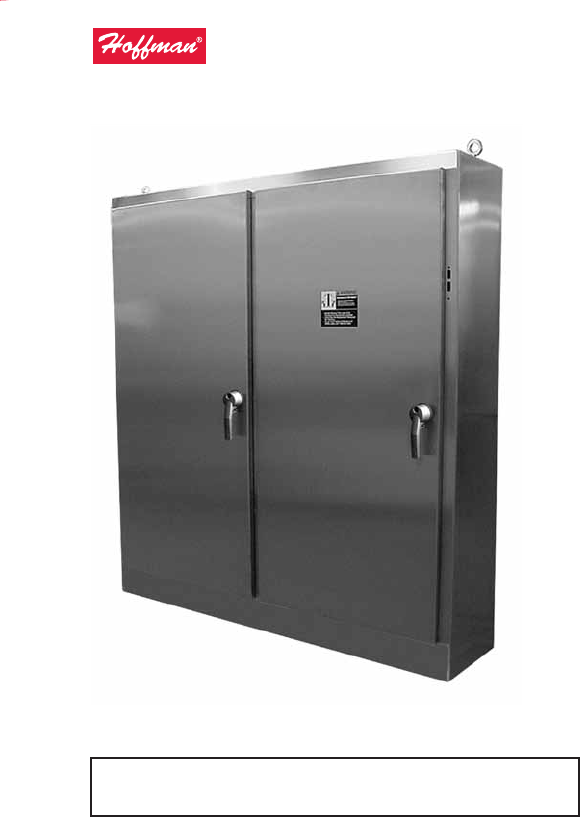

Two-Door Stainless Steel Enclosures for Flange-Mounted Disconnects, Type 4X

Industry Standards

UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC Type 3R, 4, 4X, 12

CSA File No. 42186: Type 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Specications

• Manufactured from 12 gauge Type 304 stainless steel

• Seams continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough collar excludes liquids and contaminants

• Removable centerposts permit easy panel installation

• Heavy-gauge continuous hinges

• Rollers on ends of latch rods for easier door closing

• Heavy-duty lifting eyes are Type 316 stainless steel

• Data pocket is high-impact thermoplastic

• 15-in. oor stands are welded to enclosure

• Seamless foam-in-place gasket provides oil-tight and dust-tight

seal against contaminants

• Panel supports

• Collar studs provided for mounting optional panels

• Heavy-duty 3-point latching mechanism operated by Type 316

stainless steel POWERGLIDE® padlocking handle on all doors

• Masterdoor is right-hand door on X enclosures and left-hand door

on CPX enclosures

• Type 316 stainless steel handle with defeater on master door

• Type 316 stainless steel handle (non-defeater) on slave door

• Mechanical interlock operated by master door prevents slave door

from being opened rst; doors can be closed in any order

• Preferred cutout on right ange provides mounting for most

disconnect operators

• Bonding provision on doors; grounding studs on body

• Accessory mounting channel provided in enclosure top

Finish

Stainless steel enclosures are unpainted. Sides and body have smooth

#4 brushed nish. Optional mild steel panels are painted white.

Optional conductive panels are available.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

INTERSAFE® Data Interface Ports, Type 4/4X/12

Operator Adapters for Universal Cutouts

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A21S4

358

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Two-Door Disconnect Enclosure

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

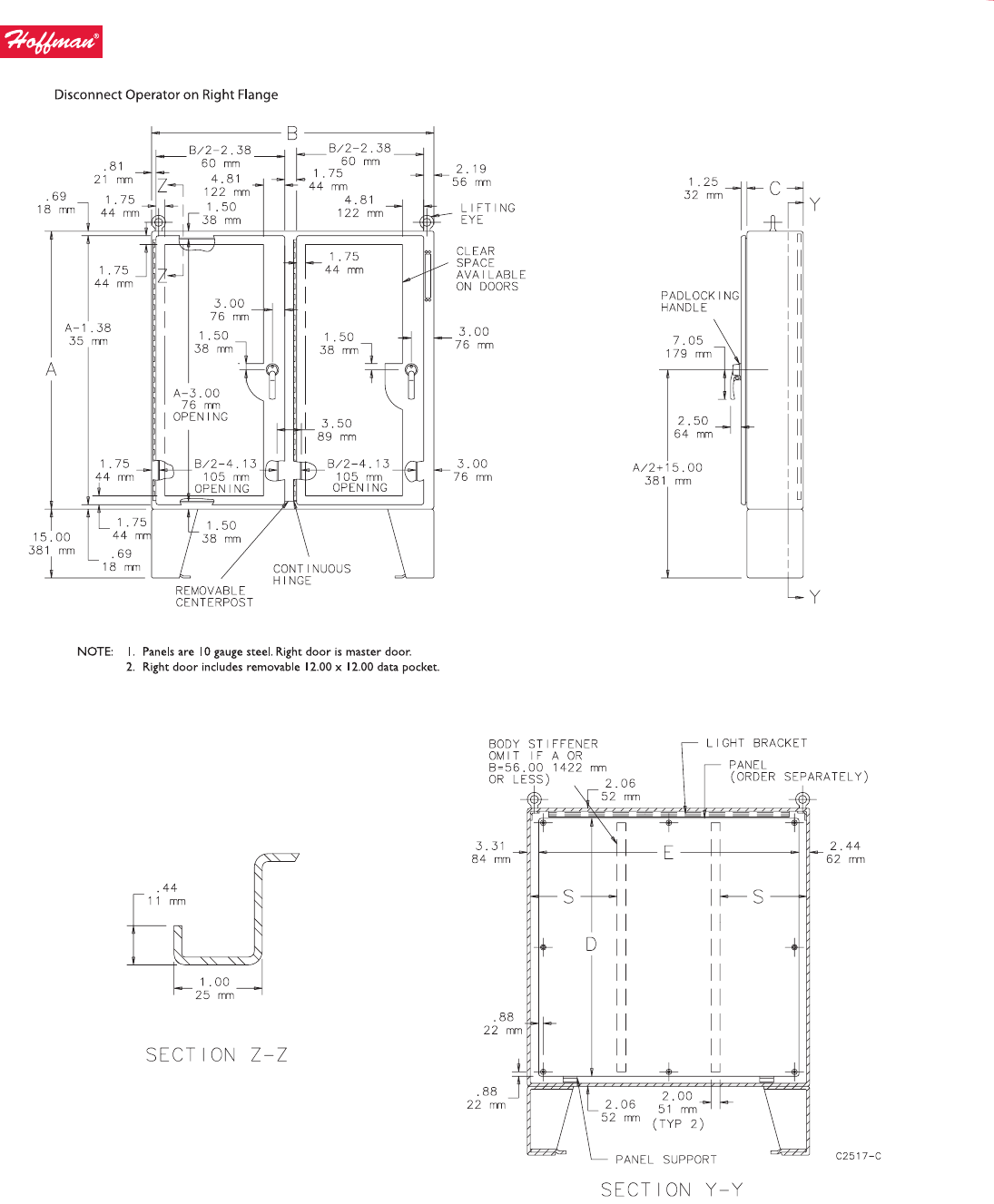

Standard Product Two-Door with Provision for Disconnect Operator on Right Flange

Catalog Number AxBxC in./mm Panel

Conductive

Panel

Panel Size

D x E

in./mm

A60X4912SSLPN4 60.12 x 49.75 x 12.12

1527 x 1264 x 308

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

A60X6112SSLPN4 60.12 x 61.75 x 12.12

1527 x 1568 x 308

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

A72X6112SSLPN4 72.12 x 61.75 x 12.12

1832 x 1568 x 308

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

A72X7312SSLPN4 72.12 x 73.75 x 12.12

1832 x 1873 x 308

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

A60X4918SSLPN4 60.12 x 49.75 x 18.12

1527 x 1264 x 460

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

A60X6118SSLPN4 60.12 x 61.75 x 18.12

1527 x 1568 x 460

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

A72X6118SSLPN4 72.12 x 61.75 x 18.12

1832 x 1568 x 460

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

A72X7318SSLPN4 72.12 x 73.75 x 18.12

1832 x 1873 x 460

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

A72X7324SSLPN4 72.12 x 73.75 x 24.12

1832 x 1873 x 613

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

Purchase panels separately.

All 24.12-in. (613 mm) and deeper enclosures using short connecting rods in the following models require a Homan platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Schneider Square D Class 9422

devices (see next paragraph for option)

The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod.

For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra

long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

359

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Two-Door Disconnect Enclosure

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

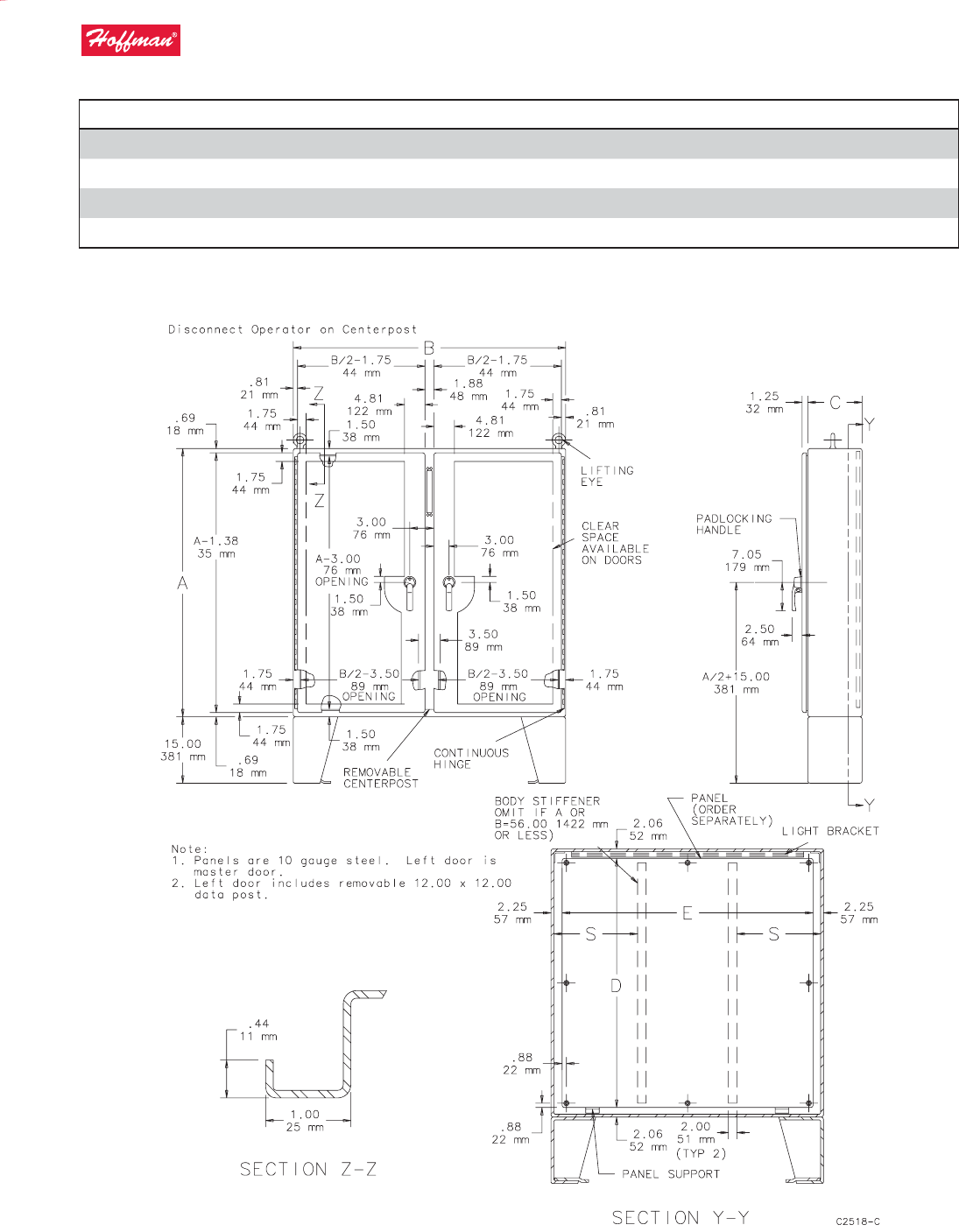

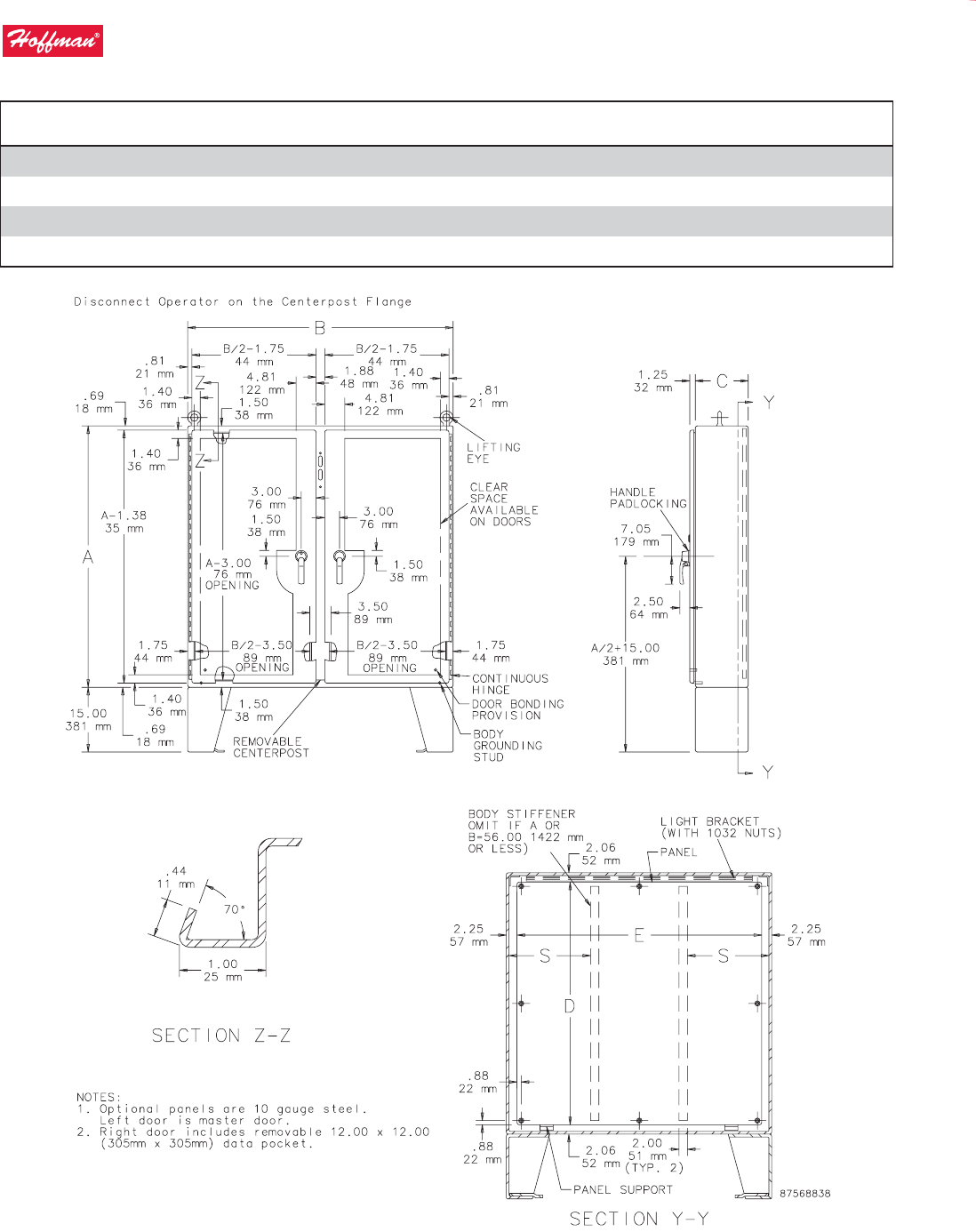

Standard Product Two-Door with Provision for Disconnect Operator on Centerpost

Catalog Number AxBxC in./mm Panel

Conductive

Panel

Panel Size

D x E

in./mm

A60CPX4812SSLPN4 60.12 x 48.50 x 12.12

1527 x 1232 x 308

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

A60CPX6012SSLPN4 60.12 x 60.50 x 12.12

1527 x 1537 x 308

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

A72CPX7212SSLPN4 72.12 x 72.50 x 12.12

1832 x 1842 x 308

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

A72CPX7218SSLPN4 72.12 x 72.50 x 18.12

1832 x 1842 x 460

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

Purchase panels separately.

360

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Two-Door Disconnect Enclosure

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1, G1 and K. Wiring Space W1 is available when disconnect is installed in

the enclosure. See the Technical Information chapter for E1 Spacing by Enclosure Height for various disconnect switch manufacturers.

Refer to National Electrical Code®, 2005 article 430-10(b) for wiring space required for line side conductors to be connected to disconnect.

Verify your application to determine if wiring space is adequate.

361

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Two-Door Disconnect Enclosure

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

362

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Stainless Ste el Genera l Purpose Di sconnect E nclosure s

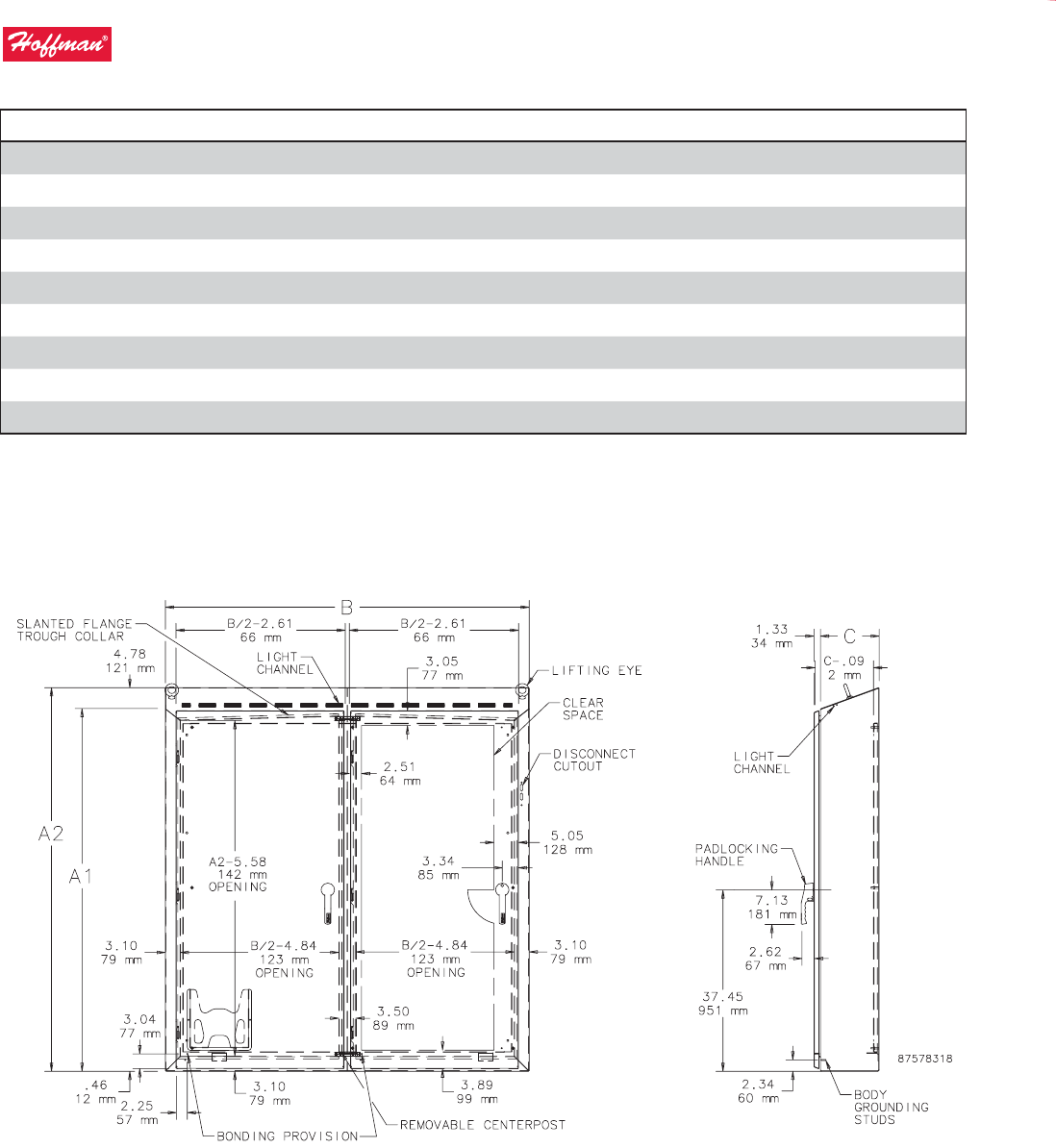

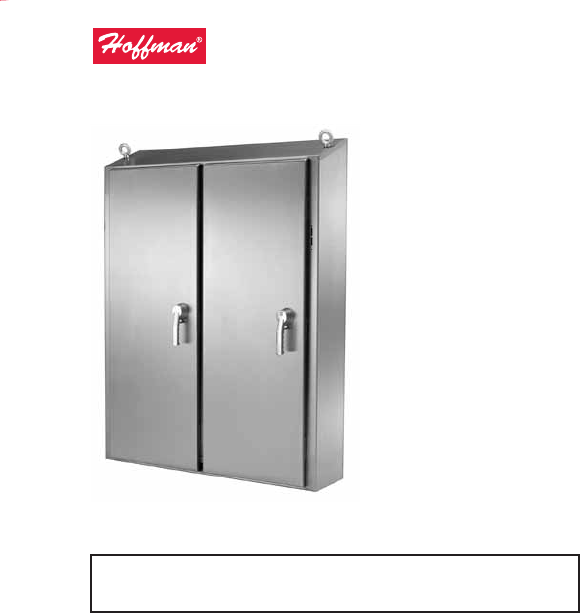

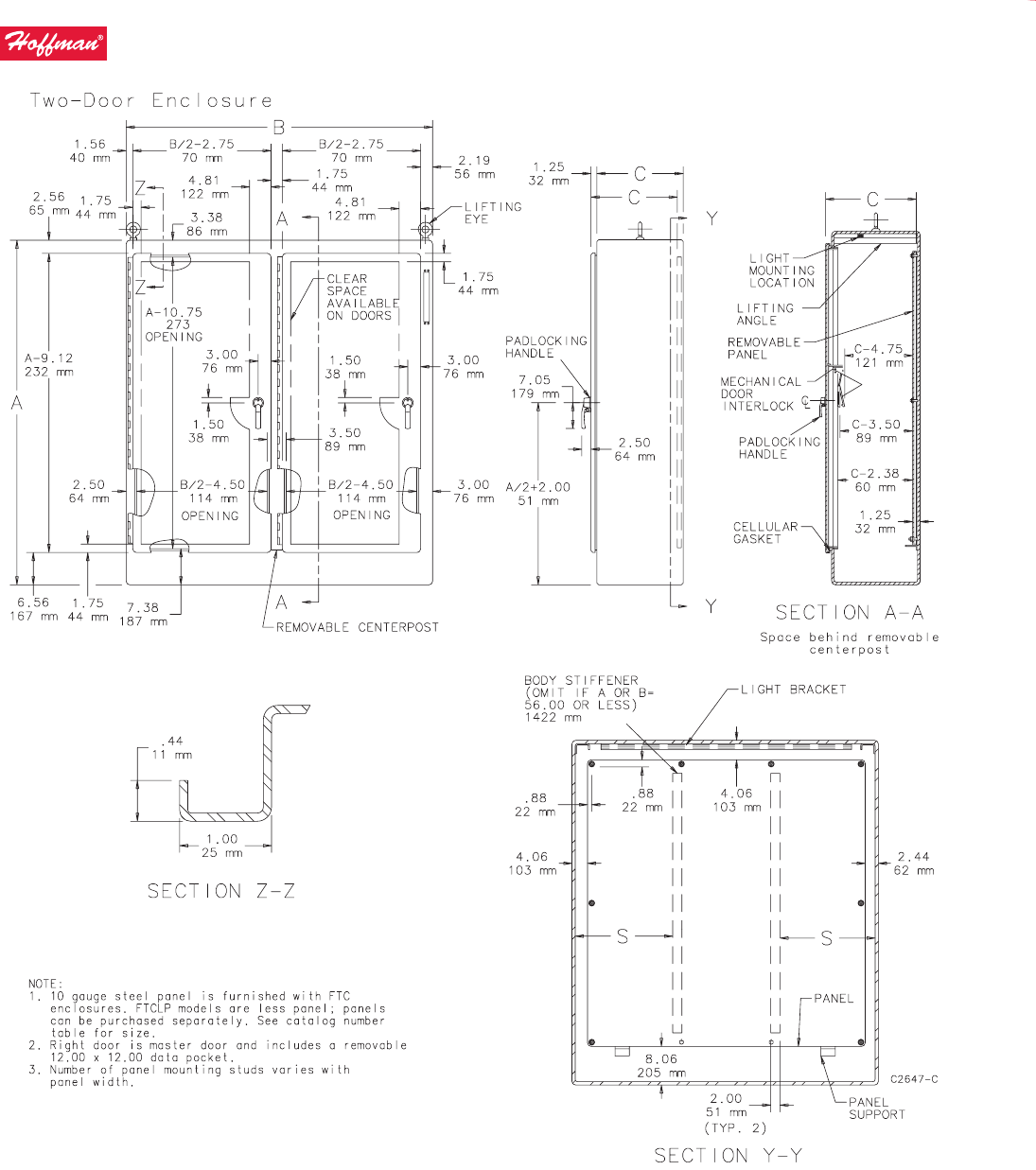

General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X

Industry Standards

UL508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC: Type 3R, 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

This disconnect enclosure is designed to house electronic controls

and components. It provides protection from noncorrosive or mildly

corrosive elements in both indoor and outdoor environments.

Typical applications are in the food and beverage, packaging, water,

petroleum and chemical processing industries. Designed to house

the most popular disconnect switches and circuit breakers.

Features

• Seams continuously welded and ground smooth

• Seamless foam-in-place one-piece gasket provides water-, oil- and

dust-tight seal against contaminants

• Heavy-duty three-point latching mechanism on each door,

operated by Homan’s black die-cast POWERGLIDE® padlocking

handle. Black die-cast quarter-turn latches with slotted insert

provided on the top and bottom of each door.

• Master door is far right-hand door on all enclosures

• Master door handle provided with integral screwdriver defeater

• Mechanical interlock activated by master door prevents slave door

from being opened rst. Doors can be closed in any order.

• Concealed hinges provide 180-degree door opening and allow

easy door removal and cleaning of hinge area

• Bolt-on 15-in.-high stainless steel oor stands

• Heavy-duty Type 316L stainless steel lifting eyes

• Collar studs on inside of enclosure back for optional mounting

panels

• Removable centerpost for easy panel installation

• Bonding provisions on doors and ground studs on body

• No interior stieners to obstruct component mounting

• Provisions for mounting optional uorescent light packages

Specications

• 14 gauge doors and 12 gauge body from Type 304 stainless steel

• Flange trough collar on all four sides of door openings

•

Data pocket is high-impact plastic attached with pressure-sensitive

adhesive

• Preferred cutout on right-hand ange provides mounting for most

disconnect operators

Finish

Stainless steel enclosures are unpainted. External surfaces of front,

sides, top and bottom have a #4 nish. Interior welds are not nished.

Optional panels have white or conductive nish.

Accessories

See also Accessories.

Electric Heater

Electrical Interlocks

PANELITE™ Enclosure Lights Overview

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A4S2

363

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

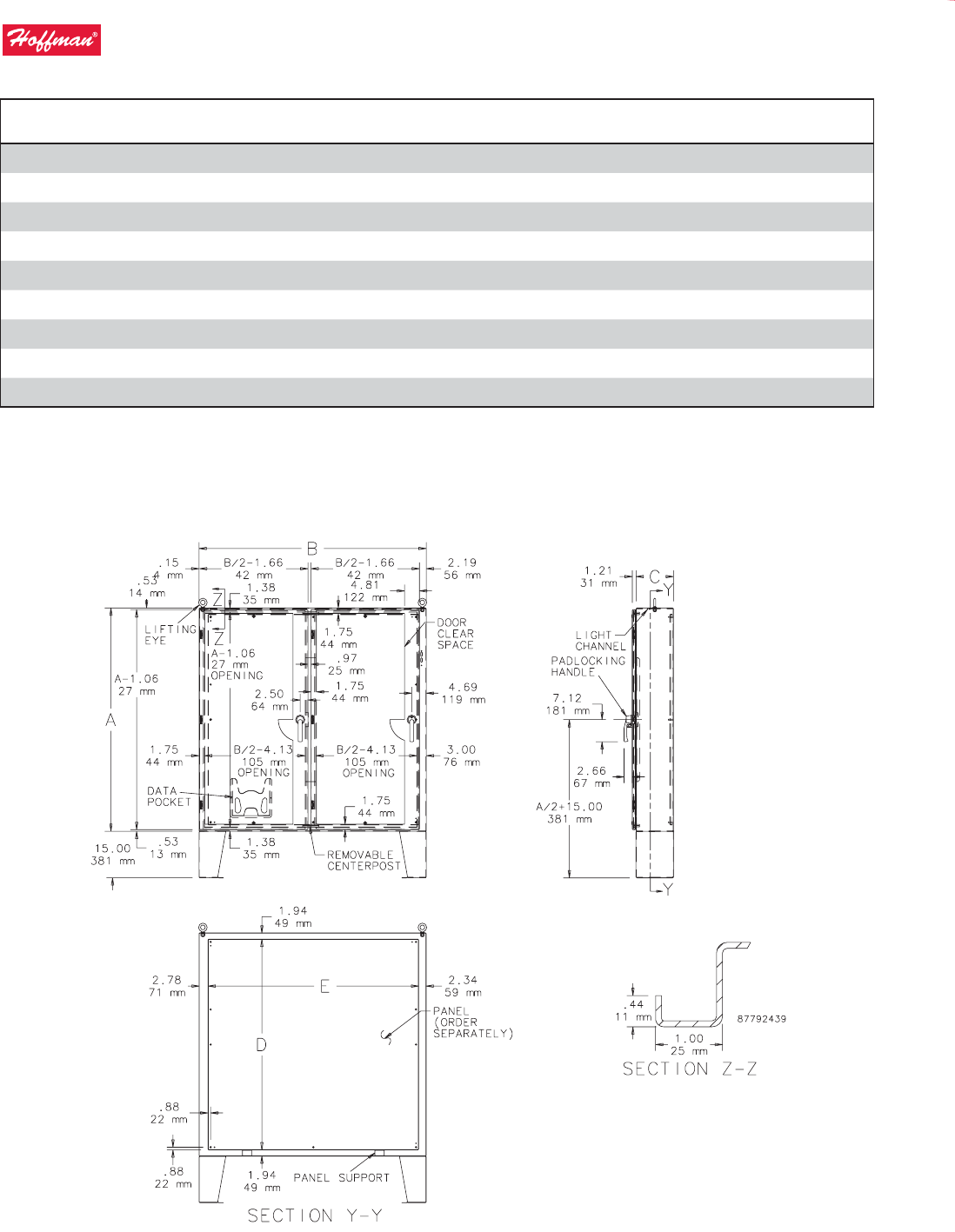

Standard Product

Catalog Number AxBxC in./mm Panel

Conductive

Panel

Panel Size

D x E

in./mm

No. of

Quarter-turn

Latches

A60HX4912SSLPQT 60.06 x 49.31 x 12.06

1526 x 1253 x 306

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

A60HX4918SSLPQT 60.06 x 49.31 x 18.06

1526 x 1253 x 459

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

A60HX6112SSLPQT 60.06 x 61.31 x 12.06

1526 x 1557 x 306

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

A60HX6118SSLPQT 60.06 x 61.31 x 18.06

1526 x 1557 x 459

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

A72HX6112SSLPQT 72.06 x 61.31 x 12.06

1830 x 1557 x 306

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

A72HX6118SSLPQT 72.06 x 61.31 x 18.06

1830 x 1557 x 459

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

A72HX7312SSLPQT 72.06 x 73.31 x 12.06

1830 x 1862 x 306

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

A72HX7318SSLPQT 72.06 x 73.31 x 18.06

1830 x 1862 x 459

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

A72HX7324SSLPQT 72.06 x 73.31 x 24.06

1830 x 1862 x 611

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

Purchase panels separately

All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Homan platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls ange-operated devices

devices (see next paragraph for option)

long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

364

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

General Purpose Single-Door Free-Stand Disconnect, Type 4X

Industry Standards

UL508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC: Type 3R, 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX

Application

This single door stainless steel enclosure with quarter-turn latches is

designed to house electronic controls and components. It provides

protection from non-corrosive or mildly corrosive elements in both

indoor and outdoor environments. Typical applications are in the

pharmaceutical, food and beverage, packaging, water, petroleum

and chemical processing industries.

Specications

• Type 304 stainless steel 14 gauge doors and body, and 14 or 12

gauge back

• Seams continuously welded and ground smooth

• Flange trough collar on all four sides of door openings

• Seamless foam-in-place one-piece gasket provides water-, oil- and

dust-tight seal against contaminants

• Heavy-duty three-point latching mechanism on each door,

operated by Homan’s black die-cast POWERGLIDE® padlocking

handle. Black die-cast quarter-turn latches with slotted insert

provided on the top and bottom of each door.

• Black Die-Cast POWERGLIDE handle has integral screwdriver

defeater

• Collar studs on inside of enclosure back for optional mounting

panels

• Concealed stainless steel hinges provide 180-degree door

opening and allow easy door removal and cleaning of hinge area

• Heavy-duty Type 316L stainless steel lifting eyes

• Bonding provision on door; grounding stud on body

• High-impact plastic Data Pocket kit included with enclosure

• Accessory mounting channel provided in enclosure top

Finish

Stainless steel enclosures are unpainted. External surfaces of front,

sides, top and bottom have a #4 nish. Interior welds are not nished.

Optional mild steel back panels are painted white. Optional

conductive back panels are available.

Accessories

See also Accessories.

Heaters

PANELITE™ Enclosure Lights Overview

Panel Support Kit

Panels for Type 3R, 4,4X, 12 and 13 Enclosures

Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A30S4

Standard Product

Catalog Number AxBxC in./mm Panel

Conductive

Panel

Panel Size D x E

in./mm

A72HXS2718SSLPQT 72.13 x 26.50 x 18.13

1832 x 673 x 461

A72PM28 A72PM28G 60.00 x 21.75

1524 x 552

A72HXS3224SSLPQT 72.13 x 32.50 x 24.12

1832 x 826 x 613

A72PM34 A72PM34G 60.00 x 27.75

1524 x 705

A72HXS3924SSLPQT 72.13 x 38.50 x 24.15

1832 x 978 x 613

A72PM40 A72PM40G 60.00 x 33.75

1524 x 857

365

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com













%



















366

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1,

G1 and K. Wiring Space W1 is available when disconnect is installed in

the enclosure.

See the Technical Information chapter for E1 Spacing by Enclosure Height

for various disconnect switch manufacturers.

Refer to National Electrical Code®, 2005 article 430-10(b) for wiring

space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

All 24.12-in. (613-mm) and deeper enclosures using short

connecting rods by the following manufacturers require a Homan

platform assembly, catalog number ADSCPA, purchased separately.

• ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices

• Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see Disconnect Enclosure Accessories)

• General Electric Type TDA devices (see Disconnect Enclosure

Accessories)

• Schneider Square D® Class 9422 devices (see Disconnect Enclosure

Accessories)

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Eaton Cutler-Hammer operating mechanisms C371E and C371F

order catalog number C371CS1 connecting rod. For C371G and

C371K order catalog number C371CS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod

• For Schneider Square D devices, order catalog number 9422-R2

extra long operating rod(s). Some devices require two rods.

Consult factory for space occupied on panel when platform is used.

Be sure to match the disconnect device you are using with the

correct enclosure size.

A Complete Assembly Consists of:

1. An enclosure

2. A panel

3. A disconnect device.

Consult the Technical Information chapter of this catalog for

wire bend information and homanonline.com for disconnect

manufacturer information.

Disconnect switch (or circuit breakers), operating handle and operating

mechanism are not furnished with enclosure.

367

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel General Purpose Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

368

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Stainless Ste el Heavy D uty Disco nnect Encl osures

Stainless Steel Heavy-Duty Free-Stand Enclosures for Flange-Mount Disconnects, Type 4X

Industry Standards

UL 508A Listed 508; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No.

E61997

NEMA/EEMAC Type 3R, Type 4, 4X, 12

CSA File No. 42186: Type 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

This disconnect enclosure is designed to house electronic controls

and components. It provides protection from noncorrosive or mildly

corrosive elements in both indoor and outdoor environments.

Typical applications are in the food and beverage, packaging, water,

petroleum and chemical processing industries. Designed to house

the most popular disconnect switches and circuit breakers.

Specications

• Manufactured from 12 gauge Type 304 stainless steel

• Seams continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough collar excludes liquids and contaminants

• Heavy-duty lifting eyes anchor into reinforced top

• Removable centerposts permit easy panel installation

• Heavy-gauge continuous hinges

• Heavy-duty 3-point latching mechanism operated by Type 316L

stainless steel POWERGLIDE® padlocking handle on all doors

• Ends of latch rods have rollers for easier door closing

• Panel supports

• Data pocket is high-impact thermoplastic

• Seamless foam-in-place gasket provides oil-tight and dust-tight

seal against contaminants

• Removable 10 gauge steel panels mount on collar studs

• Master door is far right-hand door on all enclosures

• Type 316 stainless steel handle with defeater on master door

• Type 316 stainless steel handle (non-defeater) on slave door

• Mechanical interlock activated by master door prevents slave

doors from being opened rst. Doors can be closed in any order.

• Preferred cutout on right ange provides mounting for most

disconnect operators

• Bonding provision on doors; grounding studs on body

• Accessory mounting channel provided in enclosure top

Finish

Stainless steel enclosures are unpainted. Sides and body have

smooth #4 brushed nish. White mild steel panels are furnished with

enclosure. Optional conductive panels are available.

Accessories

See also Accessories.

Electric Heater

Compact Cooling Fans

Floor Stand Kit

PANELITE™ Enclosure Lights Overview

Operator Adapters for Preferred Cutouts

An operator adapter for a preferred cutout must be ordered separately.

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A28S4

369

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

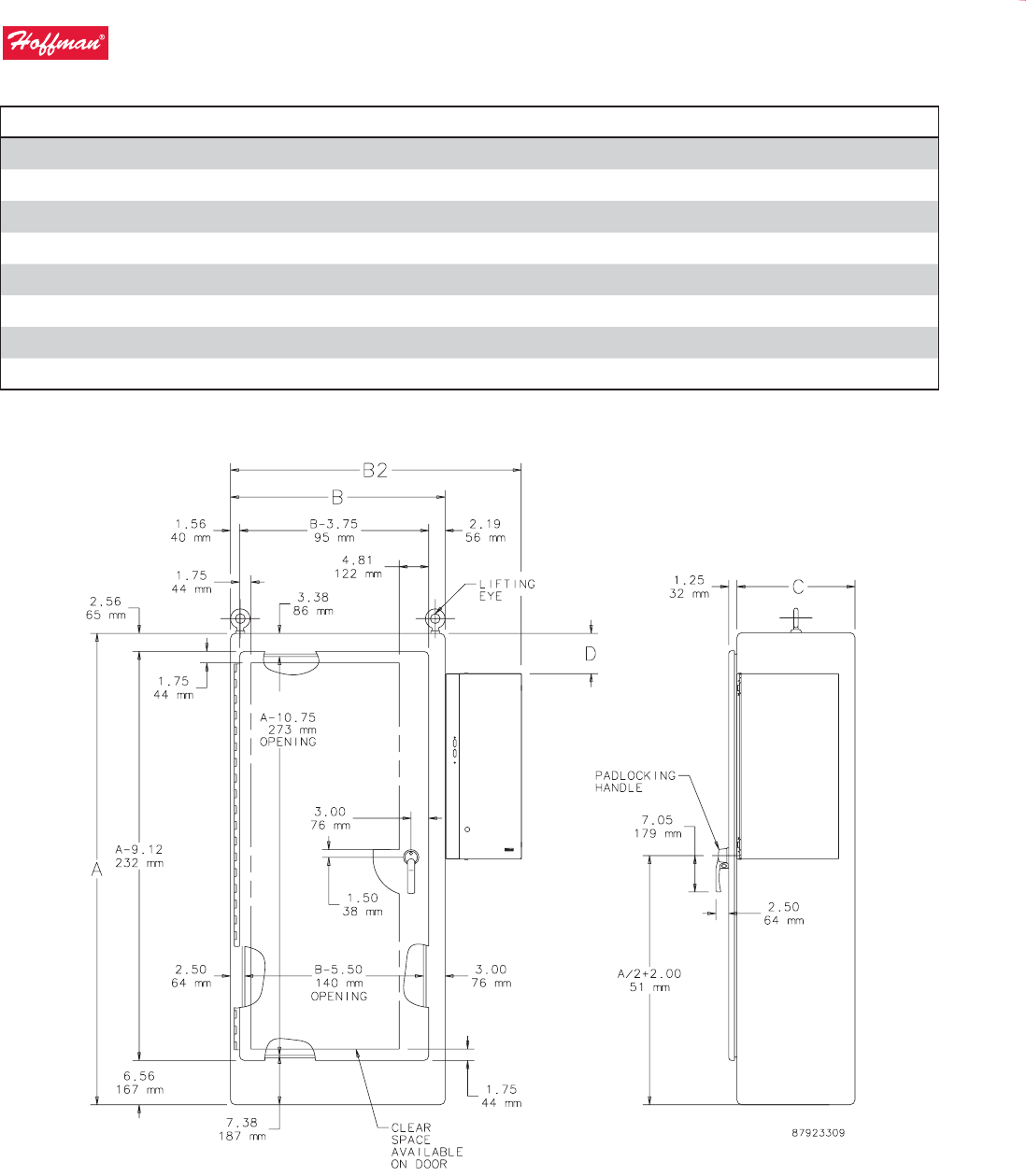

Standard Product One-Door Enclosures

Catalog Number AxBxC in. AxBxC mm Panel Conductive Panel Panel Size (in.) Panel Size (mm)

A72XM2818SSN4 72.12 x 28.25 x 18.12 1832 x 718 x 460 A72PM28 A72PM28G 60.00 x 21.75 1524 x 552

A72XM3418SSN4 72.12 x 34.25 x 18.12 1832 x 870 x 460 A72PM34 A72PM34G 60.00 x 27.75 1524 x 705

A72XM4018SSN4 72.12 x 40.25 x 18.12 1832 x 1022 x 460 A72PM40 A72PM40G 60.00 x 33.75 1524 x 857

A84XM4018SSN4 84.12 x 40.25 x 18.12 2137 x 1022 x 460 A84PM40 A84PM40G 72.00 x 33.75 1829 x 857

A90XM4018SSN4 90.12 x 40.25 x 18.12 2289 x 1022 x 460 A90PM40 A90PM40G 78.00 x 33.75 1981 x 857

A90XM4020SSN4 90.12 x 40.25 x 20.12 2289 x 1022 x 511 A90PM40 A90PM40G 78.00 x 33.75 1981 x 857

A84XM4024SSN4 84.12 x 40.25 x 24.12 2137 x 1022 x 613 A84PM40 A84PM40G 72.00 x 33.75 1829 x 857

A90XM4024SSN4 90.12 x 40.25 x 24.12 2289 x 1022 x 613 A90PM40 A90PM40G 78.00 x 33.75 1981 x 857

White mild steel panels are furnished with enclosure. Purchase conductive panels separately.

• Cutler-Hammer C361 devices • Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Square D Class 9422 devices (see next

paragraph for option)

The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For

C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating

rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

370

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

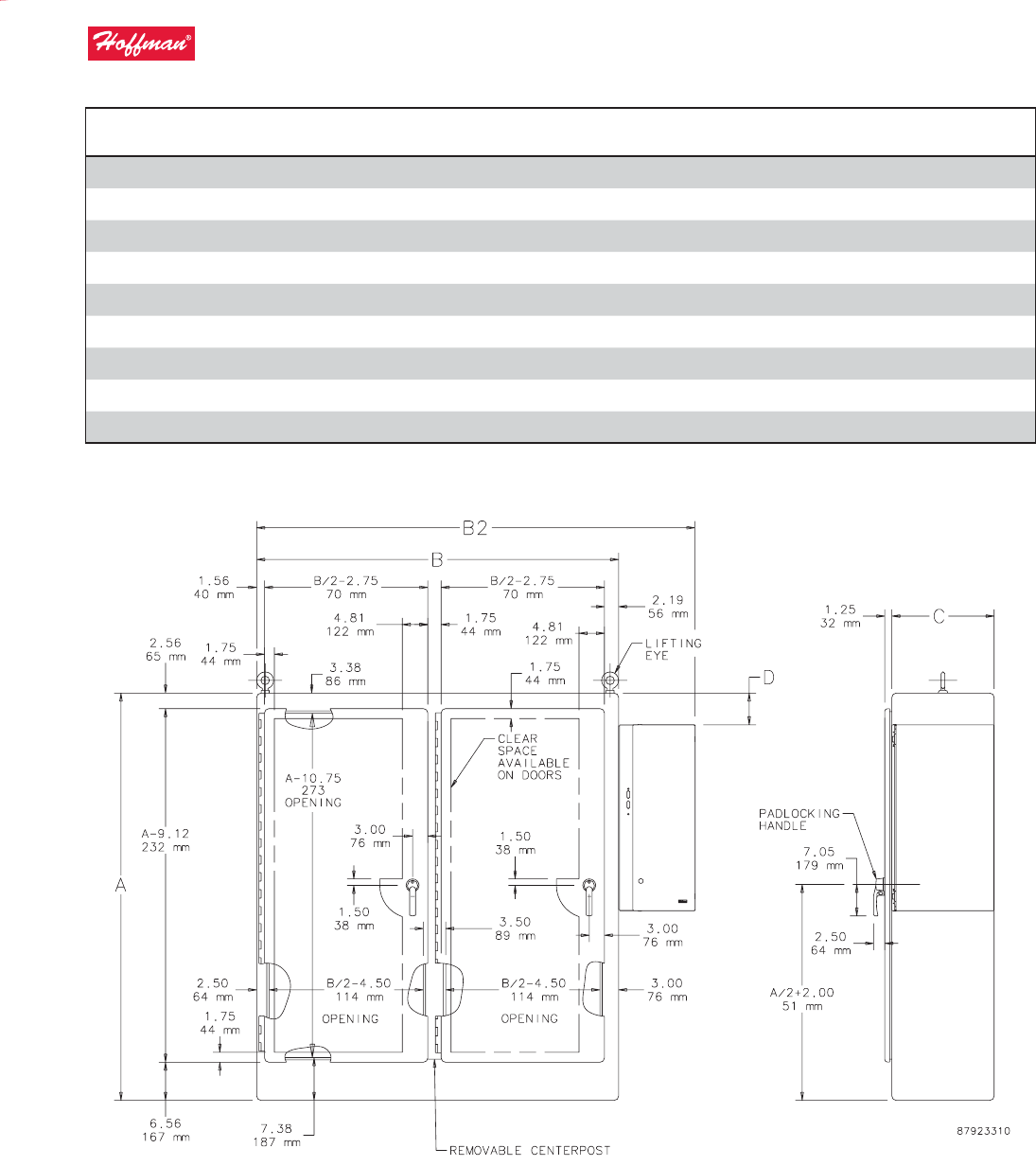

Standard Product Two-Door Enclosures

Catalog Number AxBxC in. AxBxC mm Panel Conductive Panel Panel Size (in.) Panel Size (mm)

A72XM5418SSN4 72.12 x 54.50 x 18.12 1832 x 1384 x 460 A72PM54 A72PM54G 60.00 x 48.00 1524 x 1219

A72XM6618SSN4 72.12 x 66.50 x 18.12 1832 x 1689 x 460 A72PM66 A72PM66G 60.00 x 60.00 1524 x 1524

A72XM7818SSN4 72.12 x 78.50 x 18.12 1832 x 1994 x 460 A72PM78 A72PM78G 60.00 x 72.00 1524 x 1829

A84XM7818SSN4 84.12 x 78.50 x 18.12 2137 x 1994 x 460 A84PM78 A84PM78G 72.00 x 72.00 1829 x 1829

A90XM7818SSN4 90.12 x 78.50 x 18.12 2289 x 1994 x 460 A90PM78 A90PM78G 78.00 x 72.00 1981 x 1829

A90XM7820SSN4 90.12 x 78.50 x 20.12 2289 x 1994 x 511 A90PM78 A90PM78G 78.00 x 72.00 1981 x 1829

A72XM7824SSN4 72.12 x 78.50 x 24.12 1832 x 1994 x 613 A72PM78 A72PM78G 60.00 x 72.00 1524 x 1829

A84XM7824SSN4 84.12 x 78.50 x 24.12 2137 x 1994 x 613 A84PM78 A84PM78G 72.00 x 72.00 1829 x 1829

A90XM7824SSN4 90.12 x 78.50 x 24.12 2289 x 1994 x 613 A90PM78 A90PM78G 78.00 x 72.00 1981 x 1829

White mild steel panels are furnished with enclosure. Purchase conductive panels separately.

371

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

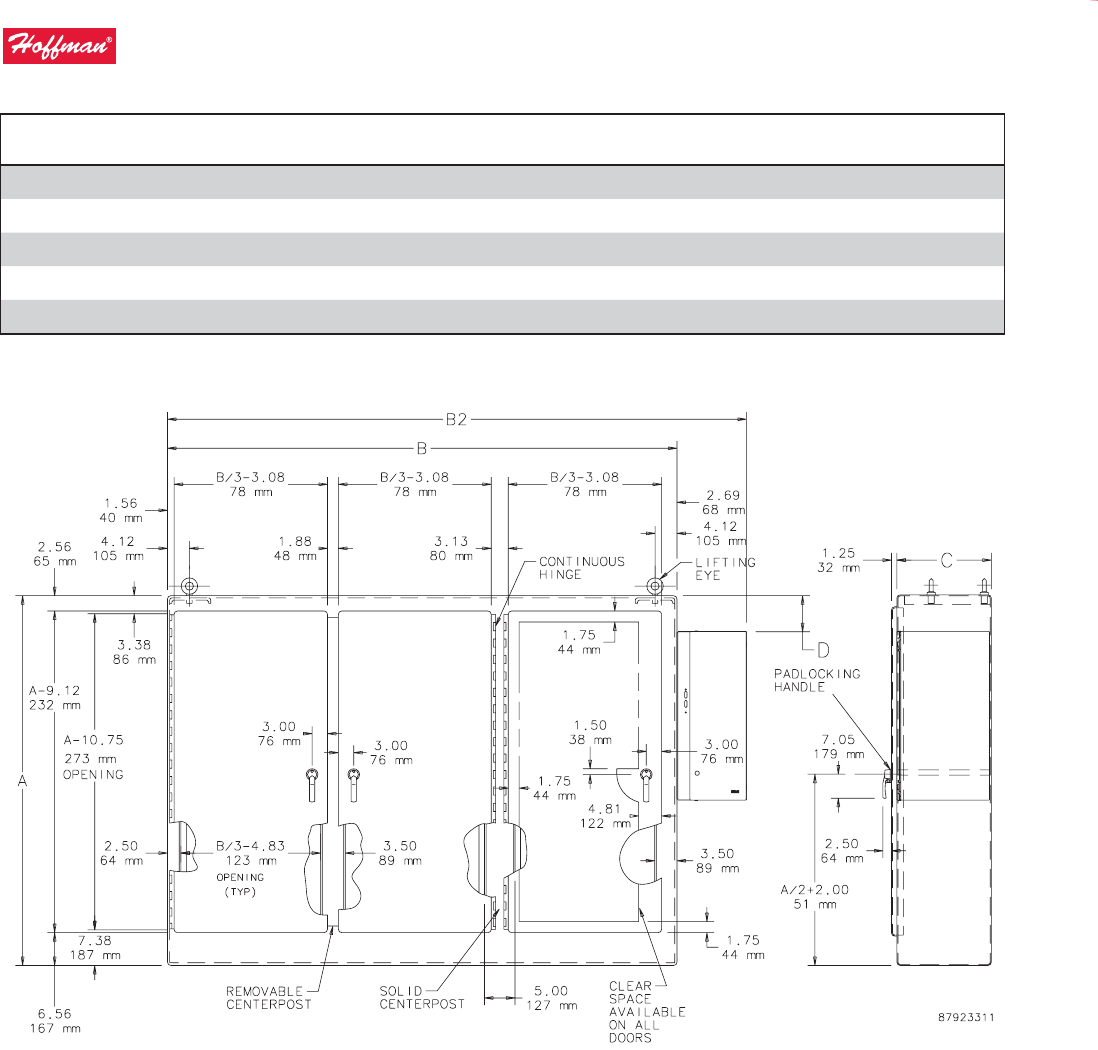

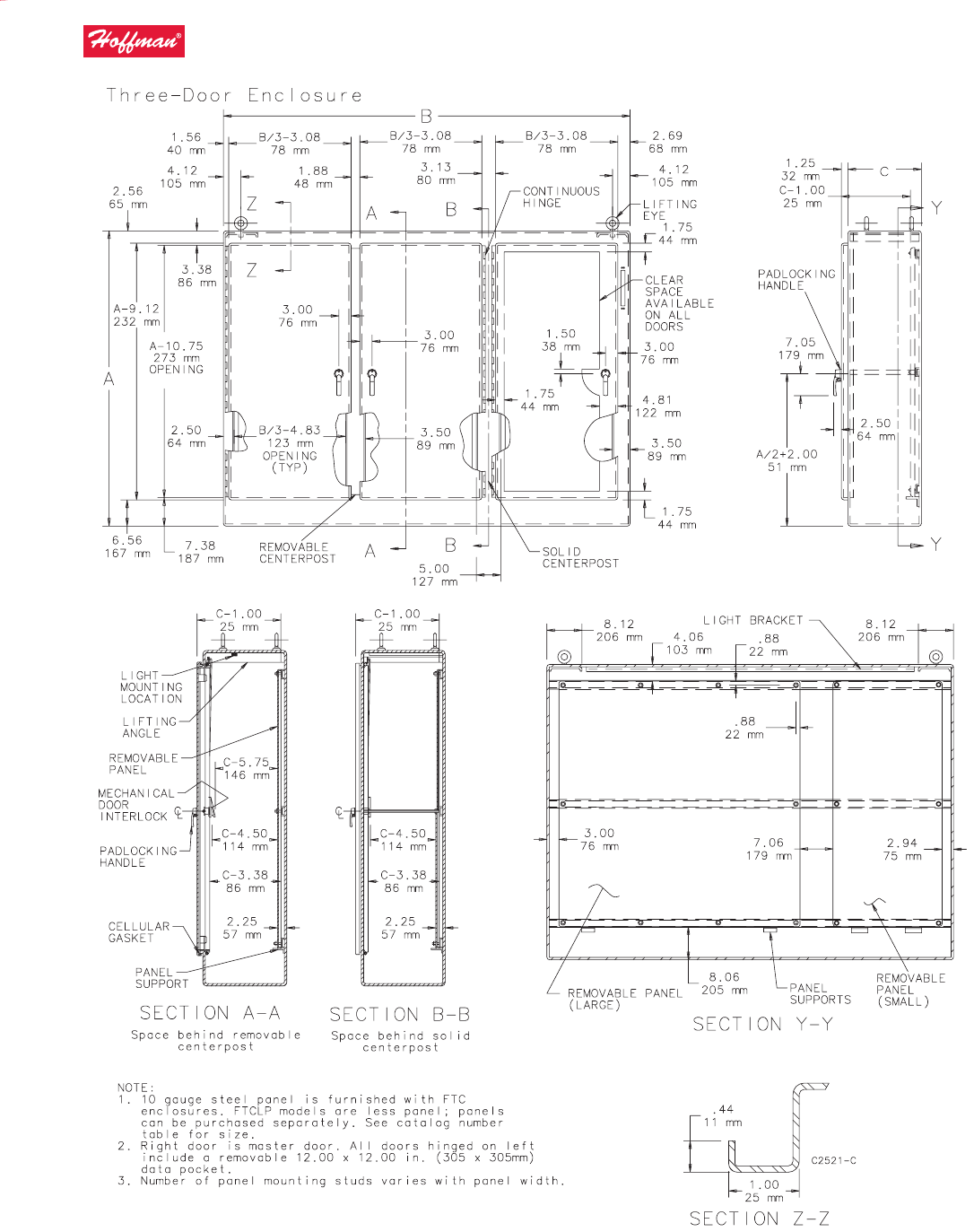

Standard Product Three-Door Enclosures

Catalog Number AxBxC in. AxBxC mm

Large

Panel

Conductive

Large

Panel

Number of

Large

Panels

Size of

Large

Panels (in.)

Size of

Large

Panels (mm)

Small

Panel

Small

Conductive

Panel

Number of

Small

Panels

Size of

Small

Panels (in.)

Size of

Small

Panels (mm)

A72XM3EQ18SSN4 72.12 x 100.75 x 18.12 1832 x 2559 x 460 A72PM66 A72PM66G 1 60.00 x 60.00 1524 x 1524 A72PM34 A72PM34G 1 60.00 x 27.75 1524 x 705

A72XM3EW18SSN4 72.12 x 118.75 x 18.12 1832 x 3016 x 460 A72PM78 A72PM78G 1 60.00 x 72.00 1524 x 1829 A72PM40 A72PM40G 1 60.00 x 33.75 1524 x 857

A84XM3EW18SSN4 84.12 x 118.75 x 18.12 2137 x 3016 x 460 A84PM78 A84PM78G 1 72.00 x 72.00 1829 x 1829 A84PM40 A84PM40G 1 72.00 x 33.75 1829 x 857

A84XM3EW24SSN4 84.12 x 118.75 x 24.12 2137 x 3016 x 613 A84PM78 A84PM78G 1 72.00 x 72.00 1829 x 1829 A84PM40 A84PM40G 1 72.00 x 33.75 1829 x 857

A90XM3EW24SSN4 90.12 x 118.75 x 24.12 2289 x 3016 x 613 A90PM78 A90PM78G 1 78.00 x 72.00 1981 x 1829 A90PM40 A90PM40G 1 78.00 x 33.75 1981 x 857

White mild steel panels are furnished with enclosure. Purchase conductive panels separately.

372

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Four- and Five-Door Enclosures

Catalog Number AxBxC in. AxBxC mm

Number of

Doors Panel

Number

of Panels

Size of

Panels (in.)

Sizes of

Panels (mm)

A72XM4EW18SSN4 72.12 x 158.00 x 18.12 1832 x 4013 x 460 4 A72PM78 2 60.00 x 72.00 1524 x 1829

A84XM4EW18SSN4 84.12 x 158.00 x 18.12 2137 x 4013 x 460 4 A84PM78 2 72.00 x 72.00 1829 x 1829

A84XM5EW24SSN4 84.12 x 197.75 x 24.12 2137 x 5023 x 613 5 A84PM78 and A84PM40 2 and 1 72.00 x 72.00 and 72.00 x 33.75 1829 x 1829 and 1329 x 857

White mild steel panels are furnished with enclosure. Optional conductive panels are available.

devices (see next paragraph for option)

long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

373

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

374

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects will occupy space on panel shown by dimensions E1, F1

and G1 in the diagram. Wiring space W1 is available when disconnect

is installed in the enclosure.

See the Technical Information section for E1 Spacing by Enclosure Height

for various disconnect switch manufacturers.

Refer to National Electrical Code®, 2005 article 430-10(b) for wiring

space required for line side conductors to be connected to

disconnect.

Verify your application to determine if wiring space is adequate.

All 24.12-in. (613-mm) and deeper enclosures using short

connecting rods by the following manufacturers require a Homan

platform assembly, catalog number ADSCPA, purchased separately.

• ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices

• Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see Disconnect Enclosure Accessories)

• General Electric Type TDA devices (see Disconnect Enclosure

Accessories)

• Schneider Square D® Class 9422 devices (see Disconnect Enclosure

Accessories)

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Eaton Cutler-Hammer operating mechanisms C371E and C371F

order catalog number C371CS1 connecting rod. For C371G and

C371K order catalog number C371CS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod

• For Schneider Square D devices, order catalog number 9422-R2

extra long operating rod(s). Some devices require two rods.

Consult factory for space occupied on panel when platform is used.

A Complete Assembly Consists of:

1. An enclosure

2. A panel

3. An operator adapter (see Disconnect Enclosure Accessories in

this publication to select the proper operator adapter for the

brand and type of disconnect being used). Door hardware is

furnished with enclosure.

4. A disconnect device.

375

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Stainless Steel Heavy Duty Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

376

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Stainless Steel

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Homan WATERSHE D® Stainle ss Steel

Homan WATERSHED® Free-Standing SS Disconnect Enclosures

Industry Standards

UL 508A Listed; Type 3, 3R, 4, 4X, 12; File Number E61997

cUL Listed per CSA C22.2 No. 94; Type 3, 3R, 4, 4X, 12; File No.

E61997

NSF 169

NEMA/EEMAC: Type 3R, 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

Application

The Homan WATERSHED® Stainless Steel Free-Stand Disconnect

Enclosure, with its unique design and type 4X rating, is a perfect t

for mounting electrical or high-tech electronic equipment in settings

such as sanitary washdown production environments, petrochemical

plants, pulp and paper facilities, and water treatment plants.

Specications

• Manufactured from 12 gauge Type 304 stainless steel; back is 10

gauge

• Seams continuously welded and ground smooth

• Smooth Type 304 stainless steel lift-o bullet-style hinges

• Hinges are shielded by door edges

• Hinged side of door has provisions to allow direct ushing of hinge

area

• 20-degree sloped top facilitates runo of water and cleaning

solutions and prohibits placement of objects on top of enclosure

• 170-degree door opening

• Door edges are sloped 20 degrees at top and bottom edges to

facilitate runo

• Slanted ange trough collar prohibits pooling of uids along the

top edge of the enclosure opening

• Heavy-duty three-point latching mechanism operated by a Type

316 stainless steel POWERGLIDE® padlocking handle on all doors

• Master door has POWERGLIDE handle with integral screwdriver

defeater

• Mechanical interlock activated by master door prevents slave

doors from being opened rst. Doors can be closed in any order.

• Master door is far right-hand door on all enclosures

• Seamless foam-in-place one-piece gasket provides an oil-tight,

water-tight and dust-tight seal against contaminants

• Bonding provision on doors; grounding stud on body

• Accessory mounting channel provided in enclosure top

• Heavy-duty lifting eyes are Type 316 stainless steel

• Removable centerpost permits easy panel installation

• Panel studs accept optional NEMA-size panels

• Preferred cutout on right ange provides mounting for most

disconnect operators

• Mounting holes in bottom of enclosure for direct mounting or for

optional sanitary legs or stainless steel oor stands

• Furnished hardware kit consists of panel mounting nuts,

grounding hardware and hole seals for bottom mounting holes

• Ends of latch rods have rollers for easier

Finish

Stainless steel enclosures are unpainted. External surfaces have a #4

brushed nish. Optional mild steel panels are painted white. Optional

conductive panels are available.

Accessories

See also Accessories.

Industrial Corrosion Inhibitors

Floor Stand Kit

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Operator Adapters for Preferred Cutouts

Sanitary Leg Kits

An operator adapter for a preferred cutout must be ordered separately.

Bulletin: WS2D

377

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Stainless Steel

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product

Catalog Number AxBxC in./mm

in./mm

in./mm Panel Conductive Panel

WS62XM5112SS 62.00 x 51.00 x 12.00

1575 x 1295 x 305

62.81

1595

67.20

1707

51.09

1298

12.12

308

A60P48 A60P48G

WS62XM5118SS 62.00 x 51.00 x 18.00

1575 x 1295 x 457

62.81

1595

67.20

1707

51.09

1298

18.12

460

A60P48 A60P48G

WS62XM6312SS 62.00 x 63.00 x 12.00

1575 x 1600 x 305

62.81

1595

67.20

1707

63.09

1602

12.12

305

A60P60 A60P60G

WS62XM6318SS 62.00 x 63.00 x 18.00

1575 x 1602 x 457

62.81

1595

67.20

1707

63.09

1602

18.12

460

A60P60 A60P60G

WS74XM6312SS 74.00 x 63.00 x 12.00

1880 x 1600 x 305

74.81

1900

79.20

2012

63.09

1602

12.12

305

A72P60 A72P60G

WS74XM6318SS 74.00 x 63.00 x 18.00

1880 x 1600 x 457

74.81

1900

81.38

2067

63.09

1602

18.12

460

A72P60 A72P60G

WS74XM7512SS 74.00 x 75.00 x 12.00

1880 x 1905 x 305

74.81

1900

79.20

2012

75.09

1907

12.12

305

A72P72 A72P72G

WS74XM7518SS 74.00 x 75.00 x 18.00

1880 x 1905 x 457

74.81

1900

81.38

2067

75.09

1907

18.12

460

A72P72 A72P72G

WS74XM7524SS 74.00 x 75.00 x 24.00

1880 x 1905 x 610

74.81

1900

83.57

2123

75.09

1907

24.12

613

A72P72 A72P72G

A x B x C are nominal dimensions.

Purchase panels separately.

All 24.12-in. (613-mm) and deeper enclosures using short connecting rods by the following manufacturers require a Homan platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls ange-operated

devices • Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism (see next paragraph for option) • General Electric Type TDA devices (see next paragraph for

option) • Schneider Square D Class 9422 devices (see next paragraph for option)

long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

378

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Stainless Steel

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects are located by dimension E1. Wiring space W1 is

available when disconnect is installed in the enclosure.

E1 = 8.62 in. (219 mm) when C = 8.00 in. (203 mm)

E1 = 11.62 in. (295 mm) when C = 12.00 in. (305 mm)

W1 = Wiring Space.

See Technical Information for wire bend space.

Refer to National Electrical Code ® 2005 article 430.10(B) for wiring

space required for line side conductors to be connected to

disconnect. Verify your application to determine if wiring space is

adequate.

Verify your application to determine if wiring space is adequate.

379

Disconnect: Free-Stand Stainless Steel Preferred-Cutout Disconnect Enclosures

Homan WATERSHED® Stainless Steel

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Sanitary Leg Kits

Sanitary Leg Kits provide space

between the enclosure and the oor

for better washdown accessibility.

Available with xed or independently

adjustable legs. Adjustable leg

shown. Four legs per kit. Maintains

NEMA Type 4X rating when properly

installed on a Homan Type 4X

enclosure.

Bulletin: WSY

Catalog Number Description Size L (in.) Size L (mm)

WSASLKSS Adjustable Sanitary Leg Kit 11.50 -12.50 292 -318

WSFSLKSS Fixed Sanitary Leg Kit 12.00 305

380

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Universal-Cutout Disconnect Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Free-Stand Uni versal- Cutout Disc onnect Enc losures

Free-Stand Uni versal- Cutout Disc onnect Ove rview

Universal Cutout Overview

Application

The universal cutout is used in large freestand and oorstand

enclosures, i.e., Bulletins A21(S), A28(S) and A34. Operator Adapter

Kits are required in order to install the various manufacturers’

hardware. Note that 400 A (or greater) disconnect switches and

600 A (or greater) circuit breakers need to use the “Large” or “High

Amp” cutout, which is provided in the A21ABVA kit for Allen-Bradley

variable-depth disconnect switches or the A21ITE kit for Siemens (and

select other manufacturers) ex-cable devices. The “Large” or “High

Amp” cutout accepts the larger operating handle whose mounting

hole centers are 6.500-in. apart.

Universal cutouts are designed to house the following:

Allen-Bradley

• Bulletin 1494F ange-mount disconnect switches and Bulletin

1494D ange-mount operators for circuit breakers

• Bulletin 1494V disconnect switches with ange-mount variable-

depth operating mechanisms and Bulletin 1494V ange-mount

variable-depth operating mechanisms for circuit breakers

• Bulletin 140U exible cable operating mechanisms for 140U

molded case circuit breakers

• Bulletin 1494C cable-operated disconnect switches with ange-

mount handles

• Bulletin 194RC cable-operated ange-mount handles for use with

the NFPA 79 compliant 194R IEC rotary disconnect switches

Allen-Bradley Bulletin 1494V-R1, -R2 and -W2 operating handles and

Allen-Bradley Bulletin 1494F disconnect devices or Bulletin 1494D circuit

breaker operators will NOT t these enclosures.

ABB Controls ange-mount variable-depth operating mechanisms

for disconnect switches and circuit breakers. Also the cable version

for circuit breakers.

Eaton Cutler-Hammer Type C361 disconnect switches and operator

mechanisms, and Type C371 circuit breakers and circuit breaker

operating mechanisms. Also Type SM safety handle mechanisms and

FLEX SHAFT™ handle operators for circuit breakers.

General Electric Type STDA ange handles and variable-depth

operating mechanisms for disconnect switches and circuit breakers.

Also SPECTRAFLEX™ cable operators for circuit breakers.

Siemens ITE MAX FLEX® ange-mount variable-depth operating

handles for disconnect switches and circuit breakers.

Schneider Square D® disconnect switches and circuit breakers used

with Class 9422 ange-mount variable-depth operating mechanisms

or cable mechanisms.

These enclosures will NOT receive Class 9422 bracket-mount disconnect

devices, Class 9422TG1 or TG2 devices.

Disconnect Enclosures with Universal Cutout

Universal cutout requires an operator adapter for the brand and type

of disconnect being used. See Disconnect Enclosure Accessories to

select the operator adapter.

Ordering

The disconnect switch, operating handle and operating mechanism

must be ordered separately. See Technical Information in the

Homan Specier’s Guide for wire bend space available when various

manufacturers’ disconnect switches are installed, or Disconnect

Ordering Information at homanonline.com for disconnect ordering

guidelines and wire bend space available. Check the enclosure

dimension drawings to verify the chosen disconnect switch will t in

the enclosure.

All 24.12-in. (613-mm) and deeper enclosures using short

connecting rods by the following manufacturers require a Homan

platform assembly, catalog number ADSCPA, purchased separately.

• ABB Controls ange-operated devices

• Eaton Cutler-Hammer C361 devices

• Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see Disconnect Enclosure Accessories)

• General Electric Type TDA devices (see Disconnect Enclosure

Accessories)

• Schneider Square D® Class 9422 devices (see Disconnect Enclosure

Accessories)

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Eaton Cutler-Hammer operating mechanisms C371E and C371F

order catalog number C371CS1 connecting rod. For C371G and

C371K order catalog number C371CS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod

• For Schneider Square D devices, order catalog number 9422-R2

extra long operating rod(s). Some devices require two rods.

Consult factory for space occupied on panel when platform is used.

381

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Free-Stand Type 12 Disc onnect En closures

Two-Door with Floor Stands Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA File No. 42186: Type 12

IEC 60529, IP55

Application

A disconnect can be installed on the centerpost or right side of this

enclosure. Floor stands provide additional height and access for

cleaning under the enclosure.

Specications

• 10 gauge steel

• Seams continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough excludes liquids and contaminants

• Removable centerposts permit easy panel installation

• Heavy gauge continuous hinges

• Heavy-duty 3-point latching mechanism operated by padlocking

handle on all doors

• Rollers on ends of latch rods for easier door closing

• Heavy-duty lifting eyes anchor into reinforced top

• Data pocket is high impact thermoplastic

• 15-in. oor stands are welded to enclosure

• Provisions for mounting lights

• Oil-resistant door gasket

• Panel supports

• Collar studs provided for mounting optional panels

• Master door is right-hand door on X enclosures and left-hand door

on CPX enclosures

• Integral defeater on master door handle requires a screwdriver to

open

• Mechanical interlock operated by master door prevents slave door

from being opened rst. Doors can be closed in any order.

• Includes door hardware

Finish

White interior with ANSI 61 gray exterior nish over pretreated

surfaces. Optional panels have white or conductive nish.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

INTERSAFE® Data Interface Ports, Type 4/4X/12

Operator Adapters for Universal Cutouts

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Steel and Stainless Steel Window Kits

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A21

382

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

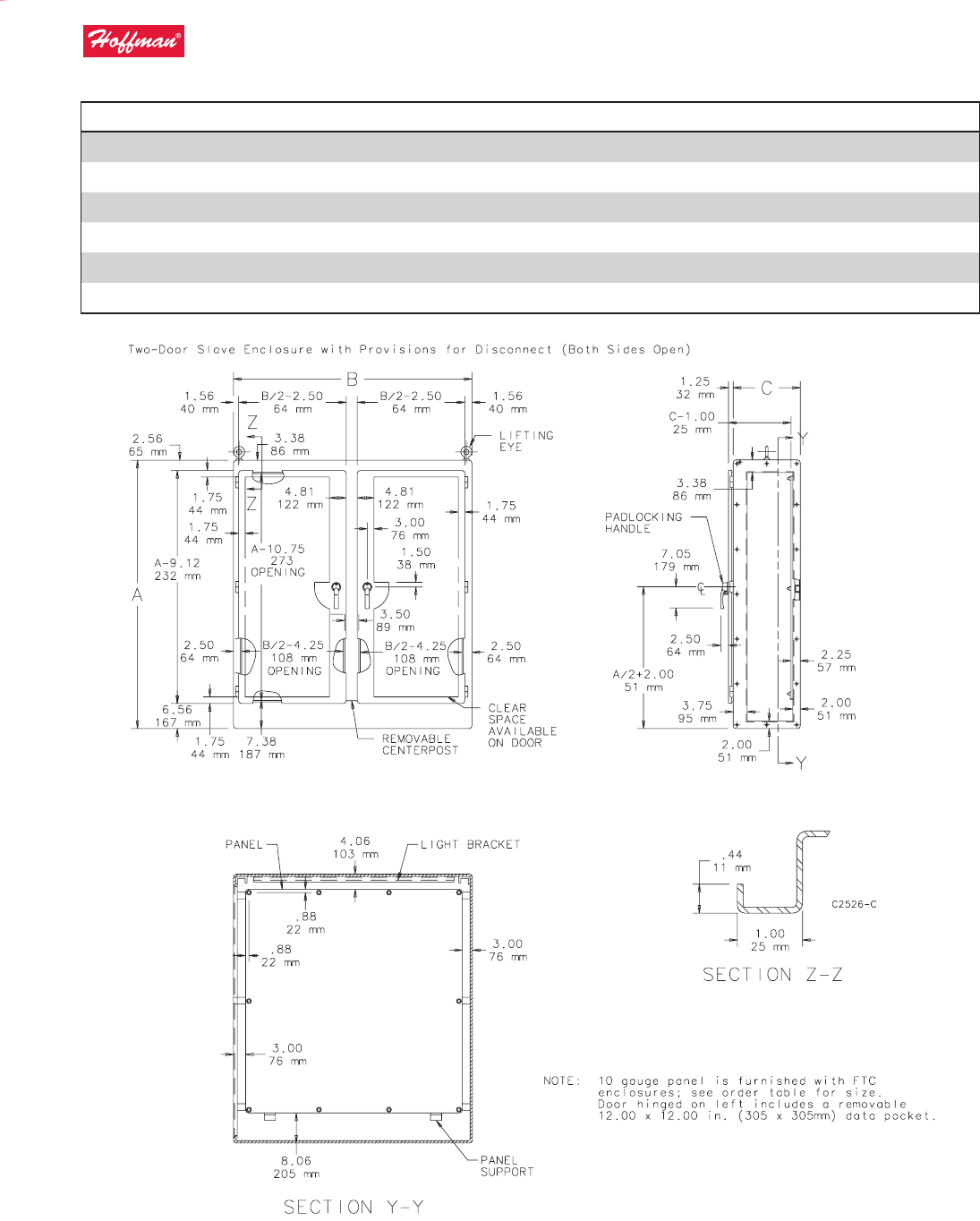

Standard Product Provision for Disconnect Operator on Right Flange

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size D x E

in./mm

Stiener Position S

in./mm

A60X4912LPFTC 60.12 x 49.75 x 12.12

1527 x 1264 x 308

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

None

A60X6112LPFTC 60.12 x 61.75 x 12.12

1527 x 1568 x 308

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

21.00

533

A72X6112LPFTC 72.12 x 61.75 x 12.12

1832 x 1568 x 308

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

21.00

533

A72X7312LPFTC 72.12 x 73.75 x 12.12

1832 x 1873 x 308

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

24.00

610

A60X4918LPFTC 60.12 x 49.75 x 18.12

1527 x 1264 x 460

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

None

A60X6118LPFTC 60.12 x 61.75 x 18.12

1527 x 1568 x 460

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

21.00

533

A72X6118LPFTC 72.12 x 61.75 x 18.12

1832 x 1568 x 460

A72P60 A72P60G 68.00 x 56.00

1727 x 1422

21.00

533

A72X7318LPFTC 72.12 x 73.75 x 18.12

1832 x 1873 x 460

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

24.00

610

A60X4924LPFTC 60.12 x 49.75 x 24.12

1527 x 1264 x 613

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

None

A60X6124LPFTC 60.12 x 61.75 x 24.12

1527 x 1568 x 613

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

21.00

533

A72X7324LPFTC 72.12 x 73.75 x 24.12

1832 x 1873 x 613

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

24.00

610

Purchase panels separately.

All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Homan platform assembly, catalog number ADSCLPA, purchased separately. • ABB Controls ange-operated

devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism (see footnote below) • General Electric Type TDA devices (see footnote below) • Schneider

Square D Class 9422 devices (see footnote below)

long operating rod(s). Some devices require two rods.

383

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

384

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Provision for Disconnect Operator on Centerpost

Catalog Number AxBxC in./mm Panel Conductive Panel

Panel Size D x E

in./mm

Stiener Position S

in./mm

A60CPX4812LPFTC 60.12 x 48.50 x 12.12

1527 x 1232 x 308

A60P48 A60P48G 56.00 x 44.00

1422 x 1118

None

A60CPX6012LPFTC 60.12 x 60.50 x 12.12

1527 x 1537 x 308

A60P60 A60P60G 56.00 x 56.00

1422 x 1422

21.00

533

A72CPX7212LPFTC 72.12 x 72.50 x 12.12

1832 x 1841 x 308

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

24.00

610

A72CPX7218LPFTC 72.12 x 72.50 x 18.12

1832 x 1841 x 460

A72P72 A72P72G 68.00 x 68.00

1727 x 1727

24.00

610

Purchase panels separately.

rod(s). Some devices require two rods.

385

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects are located by dimension E1. Wiring space W1 is available when disconnect is installed in the enclosure. See Technical

Information chapter for E1 Spacing by Enclosure Height for various disconnect switch manufacturers.

W1 = Wiring Space

See Technical Information chapter for wire bend space.

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for wiring space required for line side conductors to be connected to

disconnect. Verify your application to determine whether wiring space is adequate.

Consult Space Occupied by Disconnect drawing to determine whether the disconnect device you are using will t the enclosure size you have selected.

386

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Heavy-Duty Free-Stand Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA File No. 42186: Type 12

IEC 60529, IP55

Application

Simple, heavy-duty and cost-eective, this disconnect enclosure can

be ordered with one to six doors to t a range of applications.

Specications

• 10 gauge steel

• Seams continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough excludes liquids and contaminants

• Heavy-duty lifting eyes anchor into reinforced top

• Removable centerposts permit easy panel installation

• Heavy gauge continuous hinges

• Heavy-duty 3-point latching mechanism operated by padlocking

handle on all doors

• Ends of latch rods have rollers for easier door closing

• Panel supports

• Data pocket is high-impact thermoplastic

• Oil-resistant gasket

• Master door is far right-hand door on all enclosures

• Defeater on primary door requires a screwdriver to open

• Mechanical interlock activated by master door prevents slave

doors from being opened rst. Doors can be closed in any order.

• Universal cutout on right ange provides mounting for most

disconnect operators by using operator adapters

• Models available with panel included or panel sold separately

• FTC models include removable painted 10 gauge steel panels

which mount on collar studs

• Includes door hardware

Finish

White inside with ANSI 61 gray outside nish over pretreated

surfaces. Panels have white or conductive nish.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

Blower Fan Package

Floor Stand Kit

Operator Adapters for Universal Cutouts

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A28M1, A28M2, A28MM

Standard Product One-Door Enclosures

Catalog Number AxBxC in./mm With or Without Panel Painted Panel Conductive Panel

Panel Size

in./mm

A72XM2818FTC 72.12 x 28.25 x 18.12

1832 x 718 x 460

With A72PM28 A72PM28G 60.00 x 21.75

1524 x 552

A72XM2818FTCLP 72.12 x 28.25 x 18.12

1832 x 718 x 460

Without — — —

—

A72XM3418FTC 72.12 x 34.25 x 18.12

1832 x 870 x 460

With A72PM34 A72PM34G 60.00 x 27.75

1524 x 705

A72XM3418FTCLP 72.12 x 34.25 x 18.12

1832 x 870 x 460

Without — — —

—

A72XM4018FTC 72.12 x 40.25 x 18.12

1832 x 1022 x 460

With A72PM40 A72PM40G 60.00 x 33.75

1524 x 857

A72XM4018FTCLP 72.12 x 40.25 x 18.12

1832 x 1022 x 460

Without — — —

—

A84XM4018FTC 84.12 x 40.25 x 18.12

2137 x 1022 x 460

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

A84XM4018FTCLP 84.12 x 40.25 x 18.12

2137 x 1022 x 460

Without — — —

—

A90XM4018FTC 90.12 x 40.25 x 18.12

2289 x 1022 x 460

With A90PM40 A90PM40G 78.00 x 33.75

1981 x 857

A90XM4018FTCLP 90.12 x 40.25 x 18.12

2289 x 1022 x 460

Without — — —

—

A90XM4020FTC 90.12 x 40.25 x 20.12

2289 x 1022 x 511

With A90PM40 A90PM40G 78.00 x 33.75

1981 x 857

387

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Catalog Number AxBxC in./mm With or Without Panel Painted Panel Conductive Panel

Panel Size

in./mm

A90XM4020FTCLP 90.12 x 40.25 x 20.12

2289 x 1022 x 511

Without — — —

—

A84XM4024FTC 84.12 x 40.25 x 24.12

2137 x 1022 x 613

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

A84XM4024FTCLP 84.12 x 40.25 x 24.12

2137 x 1022 x 613

Without — — —

—

A90XM4024FTC 90.12 x 40.25 x 24.12

2289 x 1022 x 613

With A90PM40 A90PM40G 78.00 x 33.75

1981 x 857

A90XM4024FTCLP 90.12 x 40.25 x 24.12

2289 x 1022 x 613

Without — — —

—

paragraph for option)

C371G and C371K order catalog number C371CS2. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some

devices require two rods. Consult factory for space occupied on panel when platform is used.

Enclosures with panel include a painted panel. Order conductive panels separately.

388

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Two-Door Enclosures

Catalog Number AxBxC in./mm With or Without Panel

Stiener Locations

in./mm Painted Panel Conductive Panel

Panel Size

in./mm

A72XM5418FTC 72.12 x 54.50 x 18.12

1832 x 1384 x 460

With None

None

A72PM54 A72PM54G 60.00 x 48.00

1524 x 1219

A72XM5418FTCLP 72.12 x 54.50 x 18.12

1832 x 1384 x 460

Without None

None

— — —

—

A72XM6618FTC 72.12 x 66.50 x 18.12

1832 x 1689 x 460

With 21.00

533

A72PM66 A72PM66G 60.00 x 60.00

1524 x 1524

A72XM6618FTCLP 72.12 x 66.50 x 18.12

1832 x 1689 x 460

Without 21.00

533

— — —

—

A72XM7818FTC 72.12 x 78.50 x 18.12

1832 x 1994 x 460

With 24.00

610

A72PM78 A72PM78G 60.00 x 72.00

1524 x 1829

A72XM7818FTCLP 72.12 x 78.50 x 18.12

1832 x 1994 x 460

Without 24.00

610

— — —

—

A84XM7818FTC 84.12 x 78.50 x 18.12

2137 x 1994 x 460

With 24.00

610

A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

A84XM7818FTCLP 84.12 x 78.50 x 18.12

2137 x 1994 x 460

Without 24.00

610

— — —

—

A90XM7818FTC 90.12 x 78.50 x 18.12

2289 x 1994 x 460

With 24.00

610

A90PM78 A90PM78G 78.00 x 72.00

1981 x 1829

A90XM7818FTCLP 90.12 x 78.50 x 18.12

2289 x 1994 x 460

Without 24.00

610

— — —

—

A90XM7820FTC 90.12 x 78.50 x 20.12

2289 x 1994 x 511

With 24.00

610

A90PM78 A90PM78G 78.00 x 72.00

1981 x 1829

A90XM7820FTCLP 90.12 x 78.50 x 20.12

2289 x 1994 x 511

Without 24.00

610

— — —

—

A72XM7824FTC 72.12 x 78.50 x 24.12

1832 x 1994 x 613

With 24.00

610

A72PM78 A72PM78G 60.00 x 72.00

1524 x 1829

A72XM7824FTCLP 72.12 x 78.50 x 24.12

1832 x 1994 x 613

Without 24.00

610

— — —

—

A84XM7824FTC 84.12 x 78.50 x 24.12

2137 x 1994 x 613

With 24.00

610

A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

A84XM7824FTCLP 84.12 x 78.50 x 24.12

2137 x 1994 x 613

Without 24.00

610

— — —

—

A90XM7824FTC 90.12 x 78.50 x 24.12

2289 x 1994 x 613

With 24.00

610

A90PM78 A90PM78G 78.00 x 72.00

1981 x 1829

A90XM7824FTCLP 90.12 x 78.50 x 24.12

2289 x 1994 x 613

Without 24.00

610

— — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

Standard Product Three-Door Enclosures

Catalog Number AxBxC in./mm

With or

Without

Panel

Large

Painted

Panel

Large

Conductive

Panel

No. of

Large

Panels

Large

Panel

Size

in./mm

Small

Painted

Panel

Small

Conductive

Panel

No. of

Small

Panels

Small

Panel

Size

in./mm

A72XM3EQ18FTC 72.12 x 100.75 x 18.12

1832 x 2559 x 460

With A72PM66 A72PM66G 1 60.00 x 60.00

1524 x 1524

A72PM34 A72PM34G 1 60.00 x 27.75

1524 x 705

A72XM3EQ18FTCLP 72.12 x 100.75 x 18.12

1832 x 2559 x 460

Without — — — —

—

— — — —

—

A72XM3EW18FTC 72.12 x 118.75 x 18.12

1832 x 3017 x 460

With A72PM78 A72PM78G 1 60.00 x 72.00

1524 x 1829

A72PM40 A72PM40G 1 60.00 x 33.75

1524 x 857

A72XM3EW18FTCLP 72.12 x 118.75 x 18.12

1832 x 3017 x 460

Without — — — —

—

— — — —

—

A84XM3EW18FTC 84.12 x 118.75 x 18.12

2137 x 3017 x 460

With A84PM78 A84PM78G 1 72.00 x 72.00

1829 x 1829

A84PM40 A84PM40G 1 72.00 x 33.75

1829 x 857

A84XM3EW18FTCLP 84.12 x 118.75 x 18.12

2137 x 3017 x 460

Without — — — —

—

— — — —

—

A84XM3EW24FTC 84.12 x 118.75 x 24.12

2137 x 3017 x 613

With A84PM78 A84PM78G 1 72.00 x 72.00

1829 x 1829

A84PM40 A84PM40G 1 72.00 x 33.75

1829 x 857

A84XM3EW24FTCLP 84.12 x 118.75 x 24.12

2137 x 3017 x 613

Without — — — —

—

— — — —

—

A90XM3EW24FTC 90.12 x 118.75 x 24.12

2289 x 3017 x 613

With A90PM78 A90PM78G 1 78.00 x 72.00

1981 x 1829

A90PM40 A90PM40G 1 78.00 x 33.75

1981 x 857

A90XM3EW24FTCLP 90.12 x 118.75 x 24.12

2289 x 3017 x 613

Without — — — —

—

— — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

389

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Four-Door Enclosures

Catalog Number AxBxC in./mm With or Without Panel Large Painted Panel

Conductive

Large Panel

Number of

Large Panels

Size of Large Panels

in./mm

A84XM4EW18FTC 84.12 x 158.00 x 18.12

2137 x 4013 x 460

With A84PM78 A84PM78G 2 72.00 x 72.00

1829 x 1829

A84XM4EW18FTCLP 84.12 x 158.00 x 18.12

2137 x 4013 x 460

Without — — — —

—

A90XM4EW18FTC 90.12 x 158.00 x 18.12

2289 x 4013 x 460

With A90PM78 A90PM78G 2 78.00 x 72.00

1981 x 1829

A90XM4EW18FTCLP 90.12 x 158.00 x 18.12

2289 x 4013 x 460

Without — — — —

—

A84XM4EW24FTC 84.12 x 158.00 x 24.12

2137 x 4013 x 613

With A84PM78 A84PM78G 2 72.00 x 72.00

1829 x 1829

A84XM4EW24FTCLP 84.12 x 158.00 x 24.12

2137 x 4013 x 613

Without — — — —

—

A90XM4EW24FTC 90.12 x 158.00 x 24.12

2289 x 4013 x 613

With A90PM78 A90PM78G 2 78.00 x 72.00

1981 x 1829

A90XM4EW24FTCLP 90.12 x 158.00 x 24.12

2289 x 4013 x 613

Without — — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

Standard Product Five-Door Enclosures

Catalog Number AxBxC in./mm

With or

Without

Panel

Large

Painted

Panel

Conductive

Large

Panel

No. of

Large

Panels

Large

Panel

Size

in./mm

Small

Painted

Panel

Conductive

Small

Panel

No. of

Small

Panels

Small

Panel

Size

in./mm

A84XM5EW18FTC 84.12 x 197.75 x 18.12

2137 x 5023 x 460

With A84PM78 A84PM78G 2 72.00 x 72.00

1829 x 1829

A84PM40 A84PM40G 1 72.00 x 33.75

1829 x 857

A84XM5EW18FTCLP 84.12 x 197.75 x 18.12

2137 x 5023 x 460

Without — — — —

—

— — — —

—

A90XM5EW18FTC 90.12 x 197.75 x 18.12

2289 x 5023 x 460

With A90PM78 A90PM78G 2 78.00 x 72.00

1981 x 1829

A90PM40 A90PM40G 1 78.00 x 33.75

1981 x 857

A90XM5EW18FTCLP 90.12 x 197.75 x 18.12

2289 x 5023 x 460

Without — — — —

—

— — — —

—

A84XM5EW24FTC 84.12 x 197.75 x 24.12

2137 x 5023 x 613

With A84PM78 A84PM78G 2 72.00 x 72.00

1829 x 1829

A84PM40 A84PM40G 1 72.00 x 33.75

1829 x 857

A84XM5EW24FTCLP 84.12 x 197.75 x 24.12

2137 x 5023 x 613

Without — — — —

—

— — — —

—

A90XM5EW24FTC 90.12 x 197.75 x 24.12

2289 x 5023 x 613

With A90PM78 A90PM78G 2 78.00 x 72.00

1981 x 1829

A90PM40 A90PM40G 1 78.00 x 33.75

1981 x 857

A90XM5EW24FTCLP 90.12 x 197.75 x 24.12

2289 x 5023 x 613

Without — — — —

—

— — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

Standard Product Six-Door Enclosures

Catalog Number AxBxC in./mm With or Without Panel Large Painted Panel

Conductive

Large Panel

Number of

Large Panels

Size of Large Panels

in./mm

A84XM6EW24FTC 84.12 x 236.00 x 24.12

2137 x 5994 x 613

With A84PM78 A84PM78G 3 72.00 x 72.00

1829 x 1829

A84XM6EW24FTCLP 84.12 x 236.00 x 24.12

2137 x 5994 x 613

Without — — — —

—

A90XM6EW24FTC 90.12 x 236.00 x 24.12

2289 x 5994 x 613

With A90PM78 A90PM78G 3 78.00 x 72.00

1981 x 1829

A90XM6EW24FTCLP 90.12 x 236.00 x 24.12

2289 x 5994 x 613

Without — — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

390

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

391

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

392

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

393

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

394

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

395

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

396

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects are located by dimension E1. Wiring space W1 is

available when disconnect is installed in the enclosure. See Technical

Information chapter for E1 Spacing by Enclosure Height for various

disconnect switch manufacturers.

W1 = Wiring Space

See Technical Information chapter for wire bend space.

Refer to NATIONAL ELECTRICAL CODE, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect. Verify your application to determine whether wiring

space is adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

397

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Free-Stand Type 12 Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Notes

398

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Type 12 Modular Free-S tand Disco nnect Encl osures and A ccessori es

Modular Disconnect Enclosure, Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA Type 12

CSA File No. 42186: Type 12

IEC 60529, IP55

Application

Modular disconnect enclosures provide conguration exibility and

versatility. One- and two-door models can be bolted together in any

conguration. Slave enclosures can be added or removed as required.

Features

One-Door Disconnect Enclosure (left side open): Universal cutout

on right ange provides mounting for most disconnect operators

by using operator adapters. Right side is closed since disconnect

operator cannot be obscured by a door. Master door is hinged on left.

Defeater on master door requires a screwdriver to open. Master door

activates mechanical interlock which prevents slave doors from being

opened rst. Doors may be closed in any order. Interlock is furnished.

Two-Door Disconnect Enclosure (left side open): Universal cutout

on right ange provides mounting for most disconnect operators

by using operator adapters. Right side is closed. Master door is

right-hand door. Both doors hinged on left. Defeater on master door

requires a screwdriver to open. Master door activates mechanical

interlock which prevents slave doors from being opened rst. Doors

may be closed in any order. Removable centerpost permits easy

panel installation. Interlock is furnished.

One-Door Slave Enclosure (both sides open): Door hinged on left.

Interlock is furnished.

Two-Door Slave Enclosure (both sides open): Right-hand door

hinged on right and left-hand door hinged on left. Removable

centerpost permits easy panel installation. Interlock is furnished.

Specications

• 10 gauge steel

• Seams are continuously welded and ground smooth

• Body stieners in larger enclosures for extra rigidity

• Body ange trough excludes liquids and contaminants

• Heavy-duty lifting eyes anchor into reinforced top

• Heavy gauge lift-o hinges

• Heavy-duty 3-point latching mechanism operated by padlocking

handle on all doors

• Rollers on ends of latch rods for easier door closing

• Data pocket is high-impact thermoplastic

• Oil-resistant door gasket

• Panel supports

• Removable 10 gauge steel panels mount on collar studs

• Bonding provision on door

• Mechanical interlock standard on each enclosure. Parts required

to connect interlock system between adjacent enclosures are

provided.

• Interlock rods are furnished with enclosures. Gasket kits and end

plate purchased separately.

• Models available with panel include painted panel; conductive

panel sold separately

Finish

ANSI 61 gray nish inside and outside over pretreated surfaces. Panels

have white or conductive nish. Flat end plates are ANSI 61 gray

inside and outside.

Accessories

See also Accessories.

Blank Adapter Plates, Mild Steel

End Plates

PANELITE™ Enclosure Lights Overview

Operator Adapters for Universal Cutouts

Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Center Panel Supports

Modication and Customization

Homan excels at modifying and customizing products to your

specications. Contact your local Homan sales oce or distributor

for complete information.

Bulletin: A34

399

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Master Modular Type 12 Enclosures for Flange-Mount Disconnects, One-Door (left side open)

Catalog Number AxBxC in./mm With or Without Panel Panel Conductive Panel

Panel Size D x E

in./mm

AMOD72X4018FTC 72.12 x 40.25 x 18.12

1832 x 1020 x 460

With A72PM40 A72PM40G 60.00 x 33.75

1524 x 857

AMOD72X4018FTCLP 72.12 x 40.25 x 18.12

1832 x 1020 x 460

Without — — —

—

AMOD84X4018FTC 84.12 x 40.25 x 18.12

2137 x 1020 x 460

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

AMOD84X4018FTCLP 84.12 x 40.25 x 18.12

2137 x 1020 x 460

Without — — —

—

AMOD84X4024FTC 84.12 x 40.25 x 24.12

2137 x 1020 x 613

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

AMOD84X4024FTCLP 84.12 x 40.25 x 24.12

2137 x 1020 x 613

Without — — —

—

paragraph for option)

devices require two rods. Consult factory for space occupied on panel when platform is used.

Enclosures with panel include a painted panel. Order conductive panels separately.

400

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Master Modular Type 12 Enclosures for Flange-Mount Disconnects, Two-Door (left side open)

Catalog Number AxBxC in./mm With or Without Panel Panel Conductive Panel

Panel Size D x E

in./mm

AMOD72X7818FTC 72.12 x 78.50 x 18.12

1832 x 1994 x 460

With A72PM78 A72PM78G 60.00 x 72.00

1524 x 1829

AMOD72X7818FTCLP 72.12 x 78.50 x 18.12

1832 x 1994 x 460

Without — — —

—

AMOD84X7818FTC 84.12 x 78.50 x 18.12

2137 x 1994 x 460

With A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

AMOD84X7818FTCLP 84.12 x 78.50 x 18.12

2137 x 1994 x 460

Without — — —

—

AMOD84X7824FTC 84.12 x 78.50 x 24.12

2137 x 1994 x 613

With A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

AMOD84X7824FTCLP 84.12 x 78.50 x 24.12

2137 x 1994 x 613

Without — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

401

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Slave Modular Type 12 Enclosures for Flange-Mount Disconnects, One-Door (both sides open)

Catalog Number AxBxC in./mm With or Without Panel Panel Conductive Panel

Panel Size D x E

in./mm

AMOD723918FTC 72.12 x 39.75 x 18.12

1832 x 1010 x 460

With A72PM40 A72PM40G 60.00 x 33.75

1524 x 857

AMOD723918FTCLP 72.12 x 39.75 x 18.12

1832 x 1010 x 460

Without — — —

—

AMOD843918FTC 84.12 x 39.75 x 18.12

2137 x 1010 x 460

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

AMOD843918FTCLP 84.12 x 39.75 x 18.12

2137 x 1010 x 460

Without — — —

—

AMOD843924FTC 84.12 x 39.75 x 24.12

2137 x 1010 x 613

With A84PM40 A84PM40G 72.00 x 33.75

1829 x 857

AMOD843924FTCLP 84.12 x 39.75 x 24.12

2137 x 1010 x 613

Without — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

402

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Slave Modular Type 12 Enclosures for Flange-Mount Disconnects, Two-Door (both sides open)

Catalog Number AxBxC in./mm With or Without Panel Panel Conductive Panel

Panel Size D x E

in./mm

AMOD727718FTC 72.12 x 78.00 x 18.12

1832 x 1981 x 460

With A72PM78 A72PM78G 60.00 x 72.00

1524 x 1829

AMOD727718FTCLP 72.12 x 78.06 x 18.12

1832 x 1981 x 460

Without — — —

—

AMOD847718FTC 84.12 x 78.00 x 18.12

2137 x 1981 x 460

With A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

AMOD847718FTCLP 84.12 x 78.00 x 18.12

2137 x 1981 x 460

Without — — —

—

AMOD847724FTC 84.12 x 78.00 x 24.12

2137 x 1981 x 613

With A84PM78 A84PM78G 72.00 x 72.00

1829 x 1829

AMOD847724FTCLP 84.12 x 78.00 x 24.12

2137 x 1981 x 613

Without — — —

—

Enclosures with panel include a painted panel. Order conductive panels separately.

403

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnect Mounting Space

Disconnects are located by dimension E1. Wiring space W1 is

available when disconnect is installed in the enclosure. See Technical

Information section for E1 Spacing by Enclosure Height for various

disconnect switch manufacturers.

W1 = Wiring Space.

See Technical Information section for wire bend space.

Refer to NATIONAL ELECTRICAL CODE®, 2005 article 430-10(b) for

wiring space required for line side conductors to be connected to

disconnect. Verify your application to determine whether wiring

space is adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

404

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

End Plates

Used to seal open end(s) of an assembly of modular enclosures.

The 2.50-in. deep End Plates allow extra wiring space. Gasket and

mounting bolts are included.

Bulletin: A34Y

Catalog Number AxC in./mm

AMOD72EPT 72.12 x 18.12

1832 x 460

AMOD84EPT 84.12 x 18.12

2137 x 460

AMOD8424EPT 84.12 x 24.12

2137 x 613

Flat End Plates

Used to seal open end(s) of an assembly of modular enclosures.

The Flat End Plate provides a low prole cover for the open end of

a modular enclosure. Studs welded to the end plate eliminate bolt

holes. Gasket and mounting hardware are furnished.

Bulletin: A34Y

Catalog Number AxC in./mm

AMOD7218FEP 72.12 x 18.12

1832 x 460

AMOD8418FEP 84.12 x 18.12

2137 x 460

AMOD8424FEP 84.12 x 24.12

2137 x 613

405

Disconnect: Free-Stand Universal-Cutout Disconnect Enclosures

Type 12 Modular Free-Stand Disconnect Enclosures and Accessories

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Barriers

Used to provide a barrier between individual enclosures in an

assembly of modular enclosures. The at plate is gasketed on both

sides and inserted between two modular enclosures. Bolts and

instructions are included.

Bulletin: A34Y

Catalog Number AxC in./mm

AMOD7218BAP 72.12 x 18.12

1832 x 460

AMOD8418BAP 84.12 x 18.12

2137 x 460

AMOD8424BAP 84.12 x 24.12

2137 x 613

Gasket Kit

Used to maintain enclosure rating when modular enclosures are

joined together; includes a one-piece gasket, bolts and instructions.

Bulletin: A34Y

Catalog Number AxC in./mm

AMOD7218FGK 72.12 x 18.12

1832 x 460

AMOD8418FGK 84.12 x 18.12

2137 x 460

AMOD8424FGK 84.12 x 24.12

2137 x 613

406

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Preferred-Cutout Overview

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

SEQUESTR® Pre ferred- Cutout Disc onnect Enc losures

SEQUESTR® Ex ternal Di sconnect P referred -Cutout Ove rview

SEQUESTR® Preferred-Cutout Overview

Application

The SEQUESTR® enclosures have the standard preferred cutout on

the left-hand ange. They accept left-hand 1494V Allen-Bradley

variable-depth devices and left-hand Class 9422 Square D variable-

depth devices.

SEQUESTR cutouts are designed to house the following:

Allen-Bradley Bulletin 1494V DSX left-hand disconnect switches

with ange-mount variable depth operating mechanisms and

Bulletin 1494V ange-mount variable-depth operating mechanisms

for circuit breakers.

These enclosures will NOT accept Allen-Bradley Bulletin 1494F disconnect

devices or Bulletin 1494D circuit breaker operators.

Schneider Square D® Class 9422 disconnect switches with ange-

mount left-hand variable-depth operating mechanisms and Class

9422 ange-mount left-hand variable-depth operating mechanisms

for circuit breakers.

These enclosures will NOT accept Square D Class 9422 bracket-mounted

disconnect devices, Class 9422TGI or TG2 devices.

Ordering

Disconnect switch (or circuit breakers), operating handle and

operating mechanism are not furnished with enclosure. Consult

the Homan Specier’s Guide Technical Information chapter for

wire bend information and homanonline.com for disconnect

manufacturer information. Consult drawings to match the disconnect

device you are using with the correct enclosure size.

A complete assembly consists of:

1. An Enclosure

2. Door interlock brackets

3. Door latching system (2-point on SEQUESTR Enclosure,

3-point on main control cabinet doors)

4. Instructions to locate and install disconnect

5. Grounding hardware kit

6. Conductive panel in SEQUESTR External Disconnect

Enclosure

407

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

SEQUESTR® Ex ternal Di sconnect E nclosure s

SEQUESTR® External Disconnect Enclosure,

Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA File No. 42186: Type 12

IEC 60529, IP55

Application

Retrot disconnect enclosures to isolate incoming power and help

mitigate arc ash occurrences by moving the disconnect switch to

the SEQUESTR® Enclosure. Power is passed-through to the main

enclosure.

Features

• Interlocks with doors of main control cabinet when the disconnect

switch is powered ON

• Maintains UL Type 12 rating

• Provision for pass-through power into the main cabinet—blank

plate for customer modication

• Preferred disconnect cutout

• Quarter-turn screwdriver slot latch

• Hidden hinges

• Bonding provision on door

• Conductive back panel included

• Installation hardware and templates included

Specications

• 16 gauge steel

• Continuously welded and ground seams all around

• Hinged on right side

Finish

• ANSI 61 gray exterior and interior

• Included back panel has conductive nish

Accessories

See also Accessories.

Industrial Corrosion Inhibitors

Touch-Up Paint

Bulletin: A70D

Standard Product External Disconnect Enclosure including

back panel

Catalog Number A (in.) A (mm) B (in.) B (mm) C (in.) C (mm)

AXD18 34.45 875 14.00 356 18.12 460

AXD20 34.45 875 14.00 356 20.12 511

AXD24 34.45 875 14.00 356 24.12 613

Optional Terminal Plates

Catalog Number For

ATBP3060 30 and 60 amp switches

ATBP100 100 amp switches

ATBP200 200 amp switches

IP20 rated

Optional Replacement Conductive Panel

Catalog Number Panel Size (in.) Panel Size (mm) Description

A31P12G 31.00 x 12.16 787 x 309 16 gauge

408

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

SEQUESTR® External Disconnect Enclosure Package, Type 12

Industry Standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA File No. 42186: Type 12

IEC 60529, IP55

Application

The SEQUESTR® External Disconnect Enclosure Package helps

mitigate arc ash occurrences when working on interior components

by isolating incoming power from the main enclosure. Shipped as

one unit for new installations, the disconnect switch and fuse block/

circuit breaker are mounted in the external enclosure, with terminal

connections to bring power to the main enclosure.

Features

•

Interlocks doors of main control cabinet when disconnect switch is

powered ON

• Mechanical interlock on main control enclosure activated by

master door prevents slave door from being opened rst

• Provision for pass-through power into the main enclosure

• Preferred disconnect cutout

• Quarter-turn, screwdriver slot latch on SEQUESTR™ Enclosure

• Rugged POWERGLIDE® Handle with three-point latch on main

control enclosure

• Grounding studs on body

• Bonding provision on door

• Conductive back panel included in SEQUESTR External Disconnect

Enclosure

• Optional back panel for main control cabinet for maximum

ordering exibility

• SEQUESTR External Disconnect Enclosure is shipped unattached

for easy disconnect installation

Specications

• A28X base enclosure

• A70D external disconnect enclosure

•

External disconnect enclosure 16 gauge steel; main control cabinet

10 gauge steel

• Continuously welded and ground seams all around

• Body ange trough excludes liquids and contaminants

• Heavy duty lifting eyes anchored into reinforced top

• Removable centerposts for easy back panel installation

• No disconnect cutout on main control cabinet

Finish

•

SEQUESTR External Disconnect Enclosure ANSI 61 gray exterior and

interior

• A28X main control cabinet ANSI 61 gray exterior and white interior

• SEQUESTR External Disconnect Enclosure back panel has

conductive nish

Accessories

See also Accessories.

Industrial Corrosion Inhibitors

Floor Stand Kit

PANELITE™ Enclosure Lights Overview

Bulletin: A28X1, A28X2 , A28XM

409

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product One-Door Enclosure

Catalog Number AxBxC in./mm

in./mm

in./mm Panel

Panel Size

in./mm

A72XD2818FTCLP 72.12 x 28.25 x 18.12

1832 x 718 x 460

42.25

1073

A72PM28 60.00 x 21.75

1524 x 552

A72XD3418FTCLP 72.12 x 34.25 x 18.12

1832 x 870 x 460

48.25

1226

A72PM34 60.00 x 27.75

1524 x 705

A72XD4018FTCLP 72.12 x 40.25 x 18.12

1832 x 1022 x 460

54.25

1378

A72PM40 60.00 x 33.75

1524 x 857

A84XD4018FTCLP 84.12 x 40.25 x 18.12

2137 x 1022 x 460

54.25

1378

6.00

152

A84PM40 72.00 x 33.75

1829 x 857

A90XD4018FTCLP 90.12 x 40.25 x 18.12

2289 x 1022 x 460

54.25

1378

9.00

229

A90PM40 78.00 x 33.75

1981 x 857

A90XD4020FTCLP 90.12 x 40.25 x 20.12

2289 x 1022 x 511

54.25

1378

9.00

229

A90PM40 78.00 x 33.75

1981 x 857

A84XD4024FTCLP 84.12 x 40.25 x 24.12

2137 x 1022 x 613

54.25

1378

6.00

152

A84PM40 72.00 x 33.75

1829 x 857

A90XD4024FTCLP 90.12 x 40.25 x 24.12

2289 x 1022 x 613

54.25

1378

9.00

229

A90PM40 78.00 x 33.75

1981 x 857

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

410

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Two-Door Enclosures

Catalog Number AxBxC in./mm

in./mm

Stiener

Locations

in./mm Panel

Panel Size

in./mm

A72XD5418FTCLP 72.12 x 54.50 x 18.12

1832 x 1384 x 460

68.50

1740

None

A72PM54 60.00 x 48.00

1524 x 1219

A72XD6618FTCLP 72.12 x 66.50 x 18.12

1832 x 1689 x 460

80.50

2045

21.00

533

A72PM66 60.00 x 60.00

1524 x 1524

A72XD7818FTCLP 72.12 x 78.50 x 18.12

1832 x 1994 x 460

92.50

2350

24.00

610

A72PM78 60.00 x 72.00

1524 x 1829

A84XD7818FTCLP 84.12 x 78.50 x 18.12

2137 x 1994 x 460

92.50

2350

6.00

152

24.00

910

A84PM78 72.00 x 72.00

1829 x 1829

A90XD7818FTCLP 90.12 x 78.50 x 18.12

2289 x 1994 x 460

92.50

2350

9.00

229

24.00

610

A90PM78 78.00 x 72.00

1981 x 1829

A90XD7820FTCLP 90.12 x 78.50 x 20.12

2289 x 1994 x 511

92.50

2350

9.00

229

24.00

610

A90PM78 78.00 x 72.00

1981 x 1829

A72XD7824FTCLP 72.12 x 78.50 x 24.12

1832 x 1994 x 613

92.50

2350

24.00

610

A72PM78 60.00 x 72.00

1524 x 1829

A84XD7824FTCLP 84.12 x 78.50 x 24.12

2137 x 1994 x 613

92.50

2350

6.00

152

24.00

610

A84PM78 72.00 x 72.00

1829 x 1829

A90XD7824FTCLP 90.12 x 78.50 x 24.12

2289 x 1994 x 613

92.50

2350

9.00

229

24.00

610

A90PM78 78.00 x 72.00

1981 x 1829

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

411

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Three-Door Enclosures

Catalog Number AxBxC in./mm

in./mm

in./mm Large Panel

Number of

Large Panels

Size of

Large Panels

in./mm Small Panel

Number of

Small Panels

Size of

Small Panels

in./mm

A72XD3EQ18FTCLP 72.12 x 100.75 x 18.12

1832 x 2559 x 460

114.75

2915

A72PM66 1 60.00 x 60.00

1524 x 1524

A72PM34 1 60.00 x 27.75

1524 x 705

A72XD3EW18FTCLP 72.12 x 118.75 x 18.12

1832 x 3016 x 460

132.75

3372

A72PM78 1 60.00 x 72.00

1524 x 1829

A72PM40 1 60.00 x 33.75

1524 x 857

A84XD3EW18FTCLP 84.12 x 118.75 x 18.12

2137 x 3016 x 460

132.75

3372

6.00

152

A84PM78 1 72.00 x 72.00

1829 x 1829

A84PM40 1 72.00 x 33.75

1829 x 857

A84XD3EW24FTCLP 84.12 x 118.75 x 24.12

2137 x 3016 x 613

132.75

3372

6.00

152

A84PM78 1 72.00 x 72.00

1829 x 1829

A84PM40 1 72.00 x 33.75

1829 x 857

A90XD3EW24FTCLP 90.12 x 118.75 x 24.12

2289 x 3016 x 613

132.75

3372

9.00

229

A90PM78 1 78.00 x 72.00

1981 x 1829

A90PM40 1 78.00 x 33.75

1981 x 857

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

412

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Four-Door Enclosures

Catalog Number AxBxC in./mm

in./mm

in./mm Large Panel

Number of

Panels

Size of

Panels

in./mm

A84XD4EW18FTCLP 84.12 x 158.00 x 18.12

2137 x 4013 x 460

172.00

4369

6.00

152

A84PM78 2 72.00 x 72.00

1829 x 1829

A90XD4EW18FTCLP 90.12 x 158.00 x 18.12

2289 x 4013 x 460

172.00

4369

9.00

229

A90PM78 2 78.00 x 72.00

1981 x 1829

A84XD4EW24FTCLP 84.12 x 158.00 x 24.12

2137 x 4013 x 613

172.00

4369

6.00

152

A84PM78 2 72.00 x 72.00

1829 x 1829

A90XD4EW24FTCLP 90.12 x 158.00 x 24.12

2289 x 4013 x 613

172.00

4369

9.00

229

A90PM78 2 78.00 x 72.00

1981 x 1829

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

413

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Five-Door Enclosures

Catalog Number AxBxC in./mm

in./mm

in./mm Large Panel

Number of

Large Panels

Size of

Large Panels

in./mm Small Panel

Number of

Small Panels

Size of

Small Panels

in./mm

A84XD5EW18FTCLP 84.12 x 197.75 x 18.12

2137 x 5023 x 460

211.00

5359

6.00

152

A84PM78 1 72.00 x 72.00

1829 x 1829

A84PM40 1 72.00 x 33.75

1829 x 857

A90XD5EW18FTCLP 90.12 x 197.75 x 18.12

2289 x 5023 x 460

211.00

5359

9.00

229

A90PM78 1 78.00 x 72.00

1981 x 1829

A90PM40 1 78.00 x 33.75

1981 x 857

A84XD5EW24FTCLP 84.12 x 197.75 x 24.12

2137 x 5023 x 613

211.00

5359

6.00

152

A84PM78 1 72.00 x 72.00

1829 x 1829

A84PM40 1 72.00 x 33.75

1829 x 857

A90XD5EW24FTCLP 90.12 x 197.75 x 24.12

2289 x 5023 x 613

211.00

5359

9.00

229

A90PM78 1 78.00 x 72.00

1981 x 1829

A90PM40 1 78.00 x 33.75

1981 x 857

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

414

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Standard Product Six-Door Enclosure

Catalog Number AxBxC in./mm

in./mm

in./mm Large Panel

Number of

Large Panels

Size of

Panels

in./mm

A84XD6EW24FTCLP 84.12 x 236.00 x 24.12

2137 x 5994 x 613

250.00

6350

6.00

152

A84PM78 3 72.00 x 72.00

1829 x 1829

A90XD6EW24FTCLP 90.12 x 197.75 x 24.12

2289 x 5023 x 613

250.00

6350

9.00

229

A90PM78 3 78.00 x 72.00

1981 x 1829

B dimension is large enclosure without External Disconnect Enclosure.

B2 dimension is overall size including External Disconnect Enclosure.

Purchase panels separately.

415

Disconnect: SEQUESTR® Preferred-Cutout Disconnect Enclosures

SEQUESTR® External Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Optional Terminal Plates

Catalog Number For

ATBP3060 30 and 60 amp switches

ATBP100 100 amp switches

ATBP200 200 amp switches

Terminal Plates are IP20 rated.

Disconnect Mounting Space

Disconnects are located by dimension E1. Wiring space W1 is

available when disconnect is installed in the enclosure.

See the Homan Specier’s Guide Technical Information chapter

for E1 Spacing by Enclosure Height for various disconnect switch

manufacturers.

Refer to National Electrical Code® 2005 article 430.10(B) for

wiring space required for line side conductors to be connected to

disconnect. Verify your application to determine if wiring space

is adequate.

Consult Space Occupied by Disconnect drawing to determine whether

the disconnect device you are using will t the enclosure size you have

selected.

416

Disconnect: Disconnect Enclosure Accessories

Accessories for Free-Stand or Floor-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Disconnec t Enclosur e Accessori es

Accessories f or Free-Sta nd or Floor-M ount Disc onnect Enc losures

Operator Adapters for Universal Cutouts Used on all Homan disconnect enclosures with a universal ange

cutout.

An operator adapter is required to install a disconnect in Bulletin

A21, A28 and A34 Homan enclosures that have a universal

cutout. Operator adapters include an adapter plate and additional

components needed to interlock the master door with the

disconnect operating mechanism. Panel drilling and installation

instructions are furnished with each operator adapter.

Each brand and type of disconnect requires a dierent operator

adapter. Be sure to select the correct operator adapter and enclosure

for the disconnect device selected.

Bulletin: A80

Catalog Number Brand and Type of Operator

A21ABA Allen-Bradley 1494F and 1494D xed-depth mechanisms

A21ABVA Allen-Bradley 1494V variable-depth mechanisms;

Allen-Bradley 140U, 1494C, and 194RC cable-operated mechanisms

A21CHVA ABB Controls variable-depth;

S1, S2, T5 cable size; Cutler-Hammer C361, C371, and C371 Flex Shaft

A21WHA Eaton Cutler-Hammer/Westinghouse SM mechanisms

A21WHAMTA Eaton Cutler-Hammer/Westinghouse AMT and ex-cable mechanisms

A21GETDA General Electric STDA and ex-cable mechanisms

A21ITE Siemens I-T-E Max-Flex™ ; ABB Controls Cable S3-S5, S6, S7

A21SDA Square D® Class 9422 variable-depth and ex-cable mechanisms

Operator Adapters for Preferred Cutouts An operator adapter is required to install a disconnect in Bulletin

A21S4, A28S4 and WS2D Homan enclosures that have a preferred

cutout. Operator adapters include components needed to interlock

the master door with the disconnect operating mechanism. Panel

drilling and installation instructions are furnished with each operator

adapter.

Each brand and type of disconnect requires a dierent operator

adapter. Be sure to select the proper operator adapter and enclosure

for the disconnect that you have selected.

Bulletin: A28Y

Catalog Number Brand and Type of Operator

APCABVA Allen-Bradley 1494V variable-depth

APCCHVA Eaton Cutler-Hammer C361, C371 and C371 Flex Shaft™

APCGETDA General Electric STDA

APCITE Siemens I-T-E Max-Flex™

APCSDA Schneider Square D® Class 9422 variable-depth and cable mechanisms

Blank Adapter Plates, Mild Steel Used to cover ange cutouts in disconnect enclosures when

disconnects are not installed. This greatly increases the versatility of

disconnect enclosures enabling them to also be used as regular Type

12 enclosures.

Homan adapter plates are made from heavy gauge steel and have

an oil-resistant gasket to maintain a dust-tight and oil-tight seal.

Mounting hardware and instructions are included.

Door hardware is not furnished with blank adapter plate. Door

hardware must be ordered separately from the disconnect

manufacturer when using catalog numbers A22BAP on Bulletin A22

Enclosures and A3456BAP on Bulletin A25 Enclosures.

Bulletin: A80

Catalog Number For Mild Steel Enclosure Bulletin Number

A21BAP A21, A28, A34 (Universal Cutouts)

A22BAP A22 only

A3456BAP A19, CW1, A25, A26 (Preferred Cutouts)

A22BAP will t all Bulletin A22 enclosures except A48AB3812A2LP and A60AB3812A2LP.

A3456BAP will t all Bulletin A25 enclosures except A60SA3812A24LP.

417

Disconnect: Disconnect Enclosure Accessories

Accessories for Free-Stand or Floor-Mount Disconnect Enclosures

PH (763) 422-2211 • FX (763) 422-2600 • homanonline.com

Blank Adapter Plates, Stainless Steel Used to cover ange cutouts in disconnect enclosures when

disconnects are not installed.

Homan adapter plates are made from heavy gauge Type 304

stainless steel and have an oil-resistant gasket to maintain the dust-

tight and oil-tight qualities of the enclosure. The plates have a #4

brushed nish. All necessary mounting hardware and instructions are

included.

Bulletin: A80

Catalog Number For Enclosure Bulletin Number

A2128BAPSS A19S, CWS, A21S4, A28S4 and WS2D with preferred cutouts

Enclosure Stabilizers Helps prevent injury to workers by stabilizing oor-mount enclosures

which are not bolted down. To install, slip the stabilizer under the

 oor stand and tighten two thumb screws. Made from .19-in. (5-mm)

steel plate. Bright orange nish.

Bulletin: A80

Catalog Number Description

AENST Two stabilizers

Platform Assembly

Application

The Platform Assembly is a 6.00-in. (152-mm) high spacer that

is required with all 24.12-in. (613-mm) and deeper disconnect

enclosures when short connecting rods are used with the following

disconnect models.

• ABB Controls ange-operated devices

• Cutler-Hammer C361 devices

• Cutler-Hammer C371 mechanisms which use C371E, F, G, K

operating mechanism (see next paragraph for option)

• General Electric Type TDA devices

• Square D® Class 9422 devices

Consult factory for space occupied on panel when platform is used.

Ordering

The platform assembly can be omitted if long connecting rods are

ordered in place of short connecting rods.

• For Cutler-Hammer Operating mechanisms C37IE and C37IF, order

catalog number C37ICSI connecting rod. For C37IG and C37IK,

order catalog number C37ICS2 connecting rod.

• For General Electric devices, order catalog number TDSR extended

length drive rod.

• For Square D devices, order catalog number 9422-R2 extra long

operating rod(s). Some devices require two rods.

Bulletin: A28Y

Catalog Number Description

ADSCPA Set of 4 rods and mounting hardware

Specifiers Guide Chapter 5 133663 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
