TS8 Modular Enclosure Systems
TS8 Overview
1230 Rittal Handbook 31/Appendix
D
TS8 Modular Enclosure Systems
Dimensions mm (inches) Part No. TS
Height Width Depth Sheet steel
Single-Door
1400 (55.1) 600 (23.6) 600 (23.6) 8646.500
1400 (55.1) 600 (23.6) 800 (31.5) 8648.500
1400 (55.1) 800 (31.5) 600 (23.6) 8846.500
1400 (55.1) 800 (31.5) 800 (31.5) 8848.500
1600 (63.0) 600 (23.6) 600 (23.6) 8666.500
1600 (63.0) 600 (23.6) 800 (31.5) 8668.500
1600 (63.0) 800 (31.5) 600 (23.6) 8866.500
1600 (63.0) 800 (31.5) 800 (31.5) 8868.500
1800 (70.9) 1000 (39.4) 500 (19.7) 8085.500
1800 (70.9) 1000 (39.4) 600 (23.6) 8086.500
2200 (86.6) 1000 (39.4) 600 (23.6) 8026.500
2200 (86.6) 1000 (39.4) 800 (31.5) 8028.500
2200 (86.6) 600 (23.6) 800 (31.5) 8628.500
2200 (86.6) 800 (31.5) 800 (31.5) 8828.500
Double-Door
1400 (55.1) 1200 (47.2) 600 (23.6) 8246.500
1400 (55.1) 1200 (47.2) 800 (31.5) 8248.500
1600 (63.0) 1200 (47.2) 600 (23.6) 8266.500
1600 (63.0) 1200 (47.2) 800 (31.5) 8268.500
1800 (70.9) 1600 (63.0) 400 (15.7) 8901.210
1800 (70.9) 1600 (63.0) 500 (19.7) 8901.220
1800 (70.9) 1600 (63.0) 600 (23.6) 8901.230
1800 (70.9) 1800 (70.9) 400 (15.7) 8901.250
1800 (70.9) 1800 (70.9) 500 (19.7) 8901.260
1800 (70.9) 1800 (70.9) 600 (23.6) 8901.270
2200 (86.6) 1200 (47.2) 800 (31.5) 8228.500
FMD
1400 (55.1) 1000 (39.4) 500 (19.7) 8945.500
1400 (55.1) 800 (31.5) 500 (19.7) 8945.580
1600 (63.0) 800 (31.5) 500 (19.7) 8965.500
1600 (63.0) 800 (31.5) 600 (23.6) 8966.500
1800 (70.9) 1000 (39.4) 500 (19.7) 8980.500
1800 (70.9) 1600 (63.0) 400 (15.7) 8901.600
1800 (70.9) 1600 (63.0) 500 (19.7) 8901.610
1800 (70.9) 1800 (70.9) 400 (15.7) 8901.620
1800 (70.9) 1800 (70.9) 500 (19.7) 8901.630
1800 (70.9) 1800 (70.9) 600 (23.6) 8901.640
2000 (78.7) 1000 (39.4) 500 (19.7) 8995.500
2000 (78.7) 1000 (39.4) 600 (23.6) 8996.500
2000 (78.7) 1600 (63.0) 500 (19.7) 8901.650
2000 (78.7) 1600 (63.0) 600 (23.6) 8901.660
2000 (78.7) 1600 (63.0) 800 (31.5) 8901.670
2000 (78.7) 1800 (70.9) 500 (19.7) 8901.680
2000 (78.7) 1800 (70.9) 600 (23.6) 8901.690
2000 (78.7) 800 (31.5) 800 (31.5) 8908.500
2200 (86.6) 800 (31.5) 600 (23.6) 8926.500
2200 (86.6) 1000 (39.4) 500 (19.7) 8958.500
Dimensions mm (inches) Part No. TS
Height Width Depth Sheet steel
Electronic Enclosures
Single-Door
1800 (70.9) 600 (23.6) 800 (31.5) 8688.500
1800 (70.9) 800 (31.5) 800 (31.5) 8888.500
1800 (70.9) 1000 (39.4) 800 (31.5) 8088.500
2000 (78.7) 400 (15.7) 500 (19.7) 8405.500
2000 (78.7) 1000 (39.4) 600 (23.6) 8006.530
2000 (78.7) 1000 (39.4) 800 (31.5) 8008.530
2200 (86.6) 600 (23.6) 500 (19.7) 8625.500
2200 (86.6) 800 (31.5 500 (19.7) 8825.500
2200 (86.6) 1000 (39.4) 500 (19.7) 8058.500
2200 (86.6) 400 (15.7) 600 (23.6) 8426.500
Double-Door
1800 (70.9) 1600 (63.0) 800 (31.5) 8901.240
1800 (70.9) 1200 (47.2) 800 (31.5) 8288.500
1800 (70.9) 1800 (70.9) 800 (31.5) 8901.280
2000 (78.7) 1600 (63.0) 600 (23.6) 8901.400
2000 (78.7) 1600 (63.0) 500 (19.7) 8901.290
2000 (78.7) 1800 (70.9) 500 (19.7) 8901.420
2000 (78.7) 1800 (70.9) 600 (23.6) 8901.430
2000 (78.7) 1600 (63.0) 800 (31.5) 8901.410
2000 (78.7) 1800 (70.9) 800 (31.5) 8901.440
2200 (86.6) 1200 (47.2) 500 (19.7) 8225.500
Type 4 Enclosures
Single-Door
1800 (70.9) 600 (23.6) 600 (23.6) 8686.640
1800 (70.9) 800 (31.5) 600 (23.6) 8886.640
2000 (78.7) 600 (23.6) 600 (23.6) 8606.640
2000 (78.7) 800 (31.5) 600 (23.6) 8806.640
Dimensions mm (inches) Part No. TS
Height Width Depth Stainless steel
Type 4X Enclosures
Single-Door
1800 (70.9) 600 (23.6) 600 (23.6) 8458.640
1800 (70.9) 800 (31.5) 600 (23.6) 8459.640
2000 (78.7) 600 (23.6) 600 (23.6) 8452.640
2000 (78.7) 800 (31.5) 600 (23.6) 8450.640

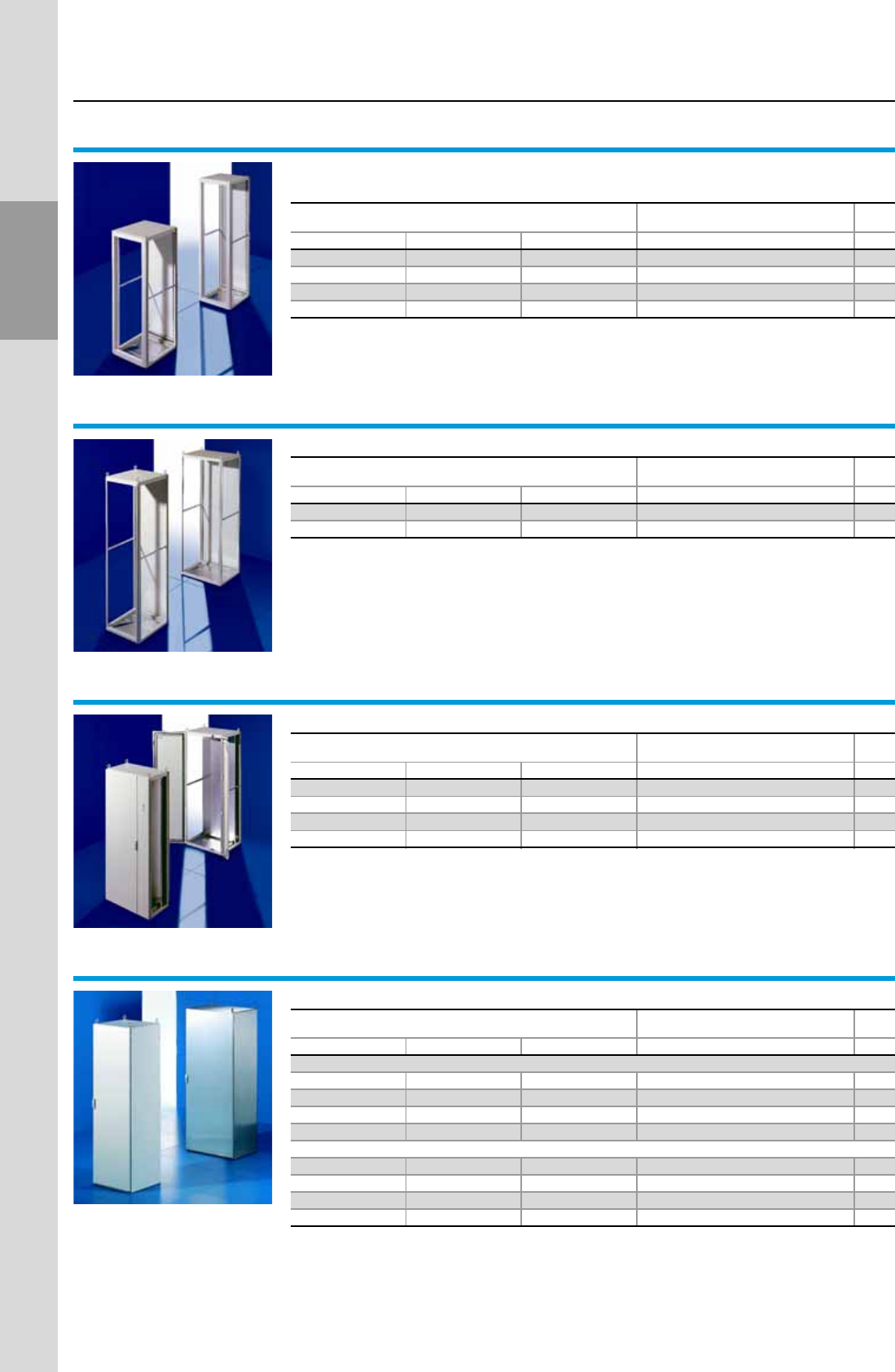

TS8 Modular enclosure systems
Industrial Enclosures
30 Rittal Handbook 31/Enclosure Systems
A
1.
Industrial Enclosures
1.4 TS8 modular enclosure systems
Electronic enclosure
Approvals:
●UL
●C-UL
Dimensions
mm (inches) Part No. TS8 Page
Height Width Depth Enclosure
1600 (63.0) 600 (23.6) 600 (23.6) 8410.510 148
1600 (63.0) 600 (23.6) 800 (31.5) 8418.510 148
2000 (78.7) 600 (23.6) 600 (23.6) 8430.510 148
2000 (78.7) 600 (23.6) 800 (31.5) 8438.510 148
For modular front design
Dimensions
mm (inches) Part No. TS Page
Height Width Depth Enclosure
2000 (78.7) 600 (23.6) 600 (23.6) 8606.512 149
2000 (78.7) 800 (31.5) 600 (23.6) 8806.512 149
FMD enclosures
Approvals:
●UL
●C-UL
Dimensions
mm (inches) Part No. TS Page
Height Width Depth Enclosure
1800 (70.9) 800 (31.5) 400 (15.7) 8984.500 150
1800 (70.9) 800 (31.5) 500 (19.7) 8985.500 150
2000 (78.7) 800 (31.5) 500 (19.7) 8905.500 150
2000 (78.7) 800 (31.5) 600 (23.6) 8906.500 150
IP 65/NEMA 4X, NEMA 4
Approvals:
●UL
●C-UL
Dimensions
mm (inches) Part No. TS Page
Height Width Depth Enclosure
NEMA 4X, stainless steel
1800 (70.9) 600 (23.6) 600 (23.6) 8458.640 151
1800 (70.9) 800 (31.5) 600 (23.6) 8459.640 151
2000 (78.7) 600 (23.6) 600 (23.6) 8452.640 151
2000 (78.7) 800 (31.5) 600 (23.6) 8450.640 151
NEMA 4, sheet steel
1800 (70.9) 600 (23.6) 600 (23.6) 8686.540 151
1800 (70.9) 800 (31.5) 600 (23.6) 8886.540 151
2000 (78.7) 600 (23.6) 600 (23.6) 8606.540 151
2000 (78.7) 800 (31.5) 600 (23.6) 8806.540 151
For additional sizes and part numbers, please refer to the back of the catalog.

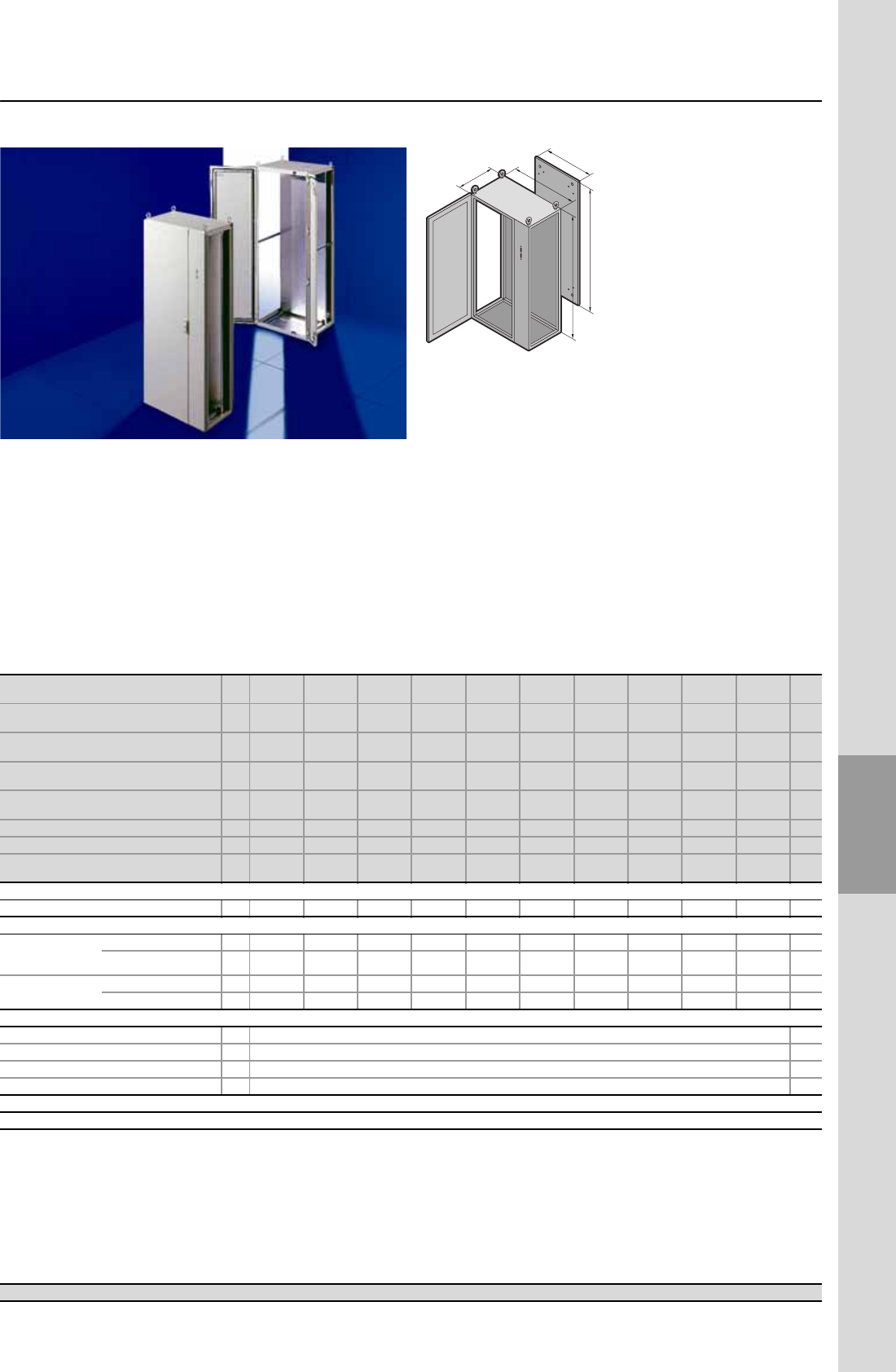

FMD Enclosures
TS8 Modular Enclosure Systems
1237Rittal Handbook 31/U.S. Specific Appendix
D
TS8 Modular Enclosure Systems
T
B
B2
H
F
G
Material:
Enclosure frame, roof, rear wall
and gland plates:
1.5 mm (16 ga) sheet steel
Door and trim panel:
2.0 mm (14 ga)
Mounting panel:
3.0 mm (11 ga)
Finish:
Enclosure frame:
Dipcoat-primed
Door, trim panel, roof and
rear wall:
Dipcoat-primed, powder-coated
on the outside in textured
RAL 7035 (light gray)
Mounting panel and gland
plates:
Zinc-plated
Protection ratings:
IP 55 to EN 60 529/10.91
NEMA Type 12 (with fitted
disconnect handle installed)
Note:
Universal cutout accepts opera-
tor handles up to 200A. For
applications above 200A
contact your local Rittal
representative.
Configuration:
Enclosure frame, door (left
hinged), trim panel (right
hinged, with a swing lever at the
top and bottom with cutout for
FMD handle), roof, rear wall,
mounting panel, three piece
gland plates.
Includes handle interlocking
kit 8611.310.
Certifications,
see page 30.
Height (H) in mm (inches) PU 1400
(55.1) 1400
(55.1) 1600
(63.0) 1600
(63.0) 1800
(70.9) 1800
(70.9) 1800
(70.9) 1800
(70.9) 1800
(70.9) 1800
(70.9) Page
Width (B) in mm (inches) 1000
(39.4) 800
(31.5) 800
(31.5) 800
(31.5) 1000
(39.4) 1600
(63.0) 1600
(63.0) 1800
(70.9) 1800
(70.9) 1800
(70.9)
Depth (T) in mm (inches) 500
(19.7) 500
(19.7) 500
(19.7) 600
(23.6) 500
(19.7) 400
(15.8) 500
(19.7) 400
(15.8) 500
(19.7) 600
(23.6)
Mounting panel height (G1)
in mm (inches) 1296
(51.0) 1296
(51.0) 1496
(58.9) 1496
(58.9) 1696
(66.8) 1696
(66.8) 1696
(66.8) 1696
(66.8) 1696
(66.8) 1696
(66.8)
Mounting panel width (F1)
in mm (inches) 899
(35.4) 699
(27.5) 699
(27.5) 699
(27.5) 899
(35.4) 1499
(59) 1499
(59) 1699
(66.9) 1699
(66.9) 1699
(66.9)
Part No. TS 18945.500 8945.580 8965.500 8966.500 8980.500 8901.600 8901.610 8901.620 8901.630 8901.640
Door(s) 2 2 2 2 2 2 2 2 2 2
Weight in kg (lb) 92.3
(203.4) 73.8
(162.7) 84.3
(185.9) 101.2
(223.1) 118.6
(261.5) 151.8
(334.7) 189.8
(418.4) 170.8
(376.5) 213.5
(470.7) 256.2
(564.8)
Walls
Sidewalls 2 8145.235 8145.235 8165.235 8166.235 8185.235 8184.235 8185.235 8184.235 8185.235 8186.235 853
Base/plinth
Components from
and rear
in mm (inches)
Height 100 mm (3.9″) 1 set 8601.000 8601.800 8601.800 8601.800 8601.000 8901.900 8901.900 8901.920 8901.920 8901.920 835
Height 200 mm (7.9″) 1 set 8602.000 8602.800 8602.800 8602.800 8602.000 8901.910 8901.910 8901.930 8901.930 8901.930 835
Side panels in
mm (inches)
Height 100 mm (3.9″) 1 set 8601.050 8601.050 8601.050 8601.060 8601.050 8601.040 8601.050 8601.040 8601.050 8601.060 835
Height 200 mm (7.9″) 1 set 8602.050 8602.050 8602.050 8602.060 8602.050 8602.040 8602.050 8602.040 8602.050 8602.060 835
Accessories
Slave door interlocking kit 1 4911.000 892
Interlocking Rods 600 mm (23.6″) 10 4916.000 892
Interlocking Rods 800 mm (31.5″) 10 4918.000 892
Interlocking Rods 1200 mm (47.2″) 10 4920.000 892
Lock systems
Standard double-bit lock insert may be exchanged for other lock inserts and comfort handle, see pages 881 – 882.
Accessories Page 832 Adjacent cubicle latch mechanism Page 883
TS8 Modular Enclosure Systems:FMD Enclosures
