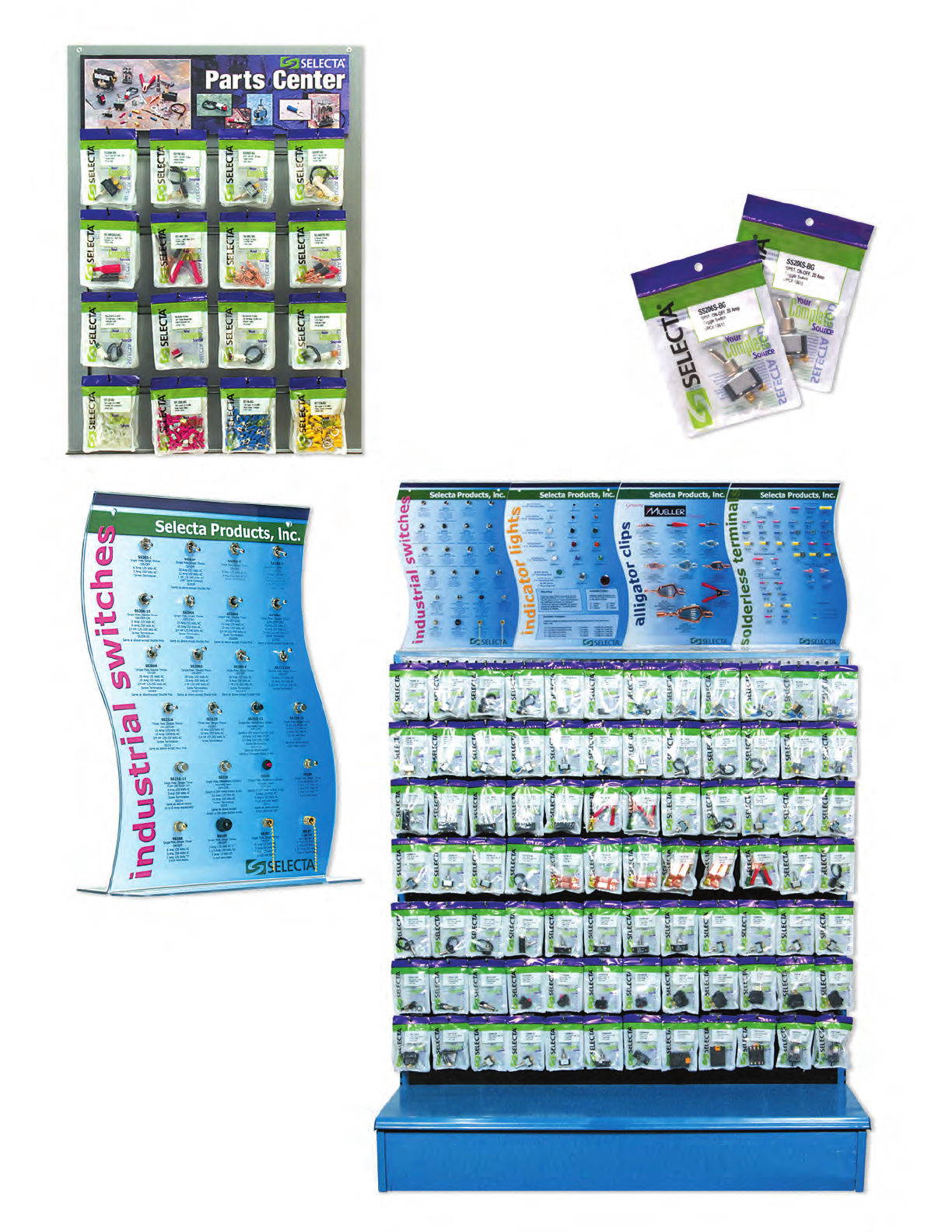

Selecta Bagged Product
SELECTA POLY BAGS
Your customers can get
“hands on” with the product
without destroying the package.
Poly bags fit on the gondola
as well as our wall / counter
display units.
SELECTA WALL RACK
Part #SSWALLRACK
This unit is FREE with any new Selecta Kit
that contains Poly Zip-Lock Bagged Products.
Kit #s: SS-DA-37/111; SL-DA-42/156;
SC-DA-20/82; and ST-DA-42/74
SELECTA GONDOLA UNIT
(at right)
Part #SSG
This gondola unit is FREE with any order
of two or more Selecta Kits that contain
Poly Zip-Lock Bagged Products.
Kit #s: SS-DA-37/111; SL-DA-42/156;
SC-DA-20/82; and ST-DA-42/74
SELECTA PLEXI SWITCH DISPLAY
Part #SS-TPPR-D
Eye catching and functional, these plexi displays
fit on counters, slatwalls or pegboards.
Includes Toggles, Pushbutton, Pullchain and
Rotary Switches.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
TABLE OF CONTENTS
Displays and Bagged Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Front Cover
Our Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Switches ........................................................................ 1 - 12
Toggle Switches
................................................................ 1 - 4
Maintain Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
SPST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SPDT ............................................................................2
DPST ......................................................................... 2 - 3
DPDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3PST ............................................................................3
3PDT ............................................................................3
4PST ............................................................................3
4PDT ............................................................................3
Momentary Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pushbutton Switches
................................................................5
Pullchain Switches
.................................................................6
Rotary Switches
...................................................................6
Rocker Switches
............................................................... 7 - 12
Small Appliance .................................................................... 7 - 8
Maintained Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Momentary Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Large Appliance ................................................................... 9 - 10
Maintained Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Momentary Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Internationally Approved ........................................................... 11 - 12
Part Number Numeric Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Product Alpha Index ..........................................................................14
Manufacturers Line Card ..........................................................Inside Back Cover
All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
©2011 SELECTA PRODUCTS, INC.
“SELECTA” is a registered trademark (Marca Registrada, “Marque Déposée”) of Selecta Products, Inc. a California corporation.
i
One Stop Shopping - Consolidating Vendors and Orders
One purchase order, one invoice, one receivable, one check to cut, one Rep
and one Customer Service Department. Saves transaction costs and time!
Low Combinable Minimum Order & Free Freight Requirement
All brands & products are fully combinable for our
$50 minimum order and $500 order free freight requirement.
Two Shipping Locations
90% of our distributors will receive their shipments within 2 days
of placement of their order! Memphis, TN and Tehachapi, CA are our
two major shipping centers for all of our standard stock
including ACORN Fasteners.
Expanded Shipping Hours
Orders received by 4:30 p.m. will ship the same day!
98% Fill Rate
Standard stock items average over 98% fill rate the day the order is placed.
Customer Service Hours
6 a.m. to 5 p.m., Monday through Thursday; 6 a.m. to 4:30 p.m., Friday, Pacific Time.
We Sell Only to Distributors!
Associations
Selecta is proud to be a Vendor/Supplier Member
of these great organizations, earning you full credits
for all brands and products you purchase through Selecta.
Local Reps
Local NEMRA and ERA Reps that know you and your marketplace, call on you to serve your needs.
Outsourcing & Bulk Services
You have access to all brand name products on orders of any volume
to meet the needs of your OEM and MRO customers.
Selecta Advantages
Literature
Selecta offers Catalogs, POP Brochures, Line Cards &
Promo Flyers to help you identify your needs
for our products and services.

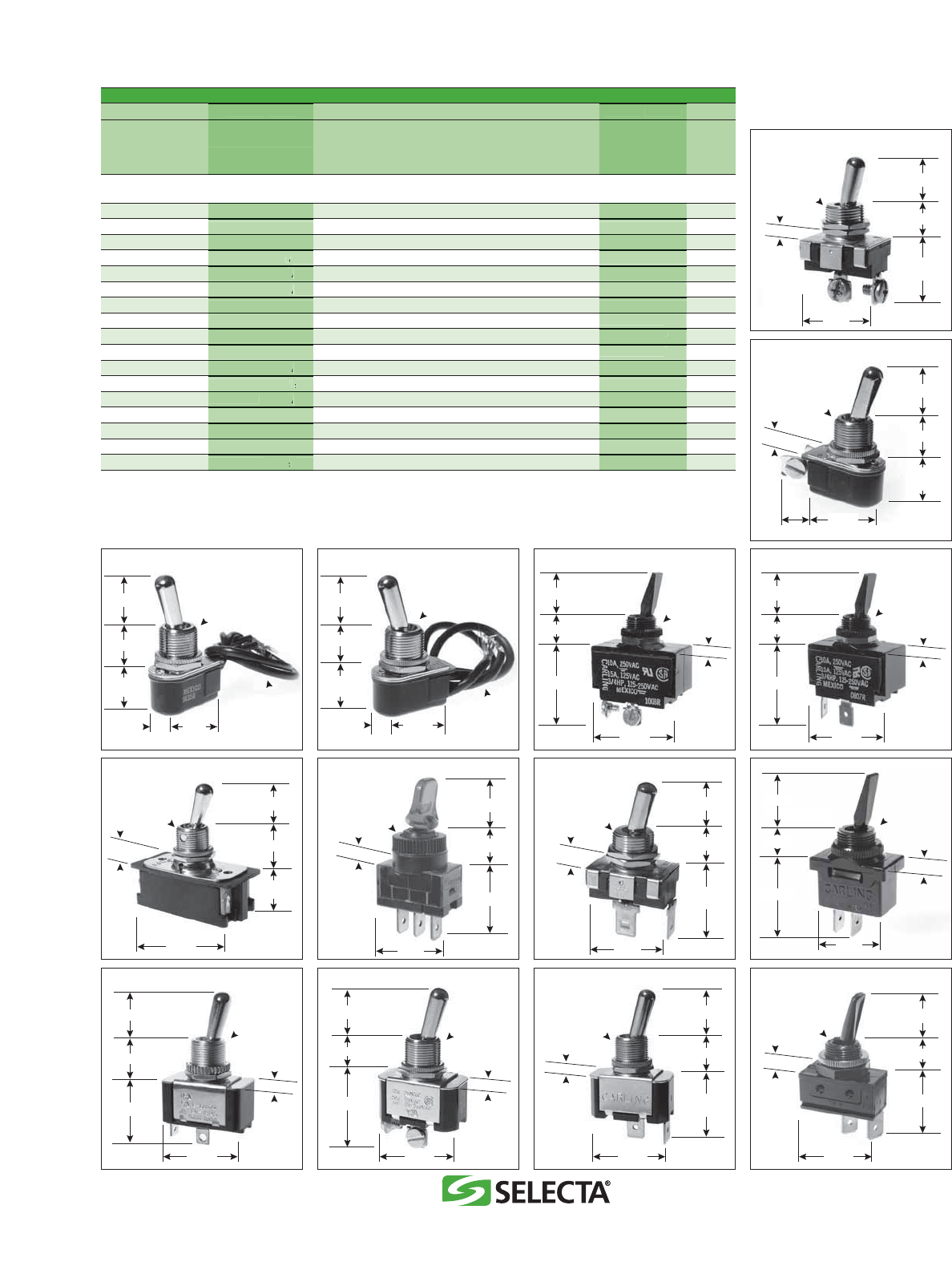

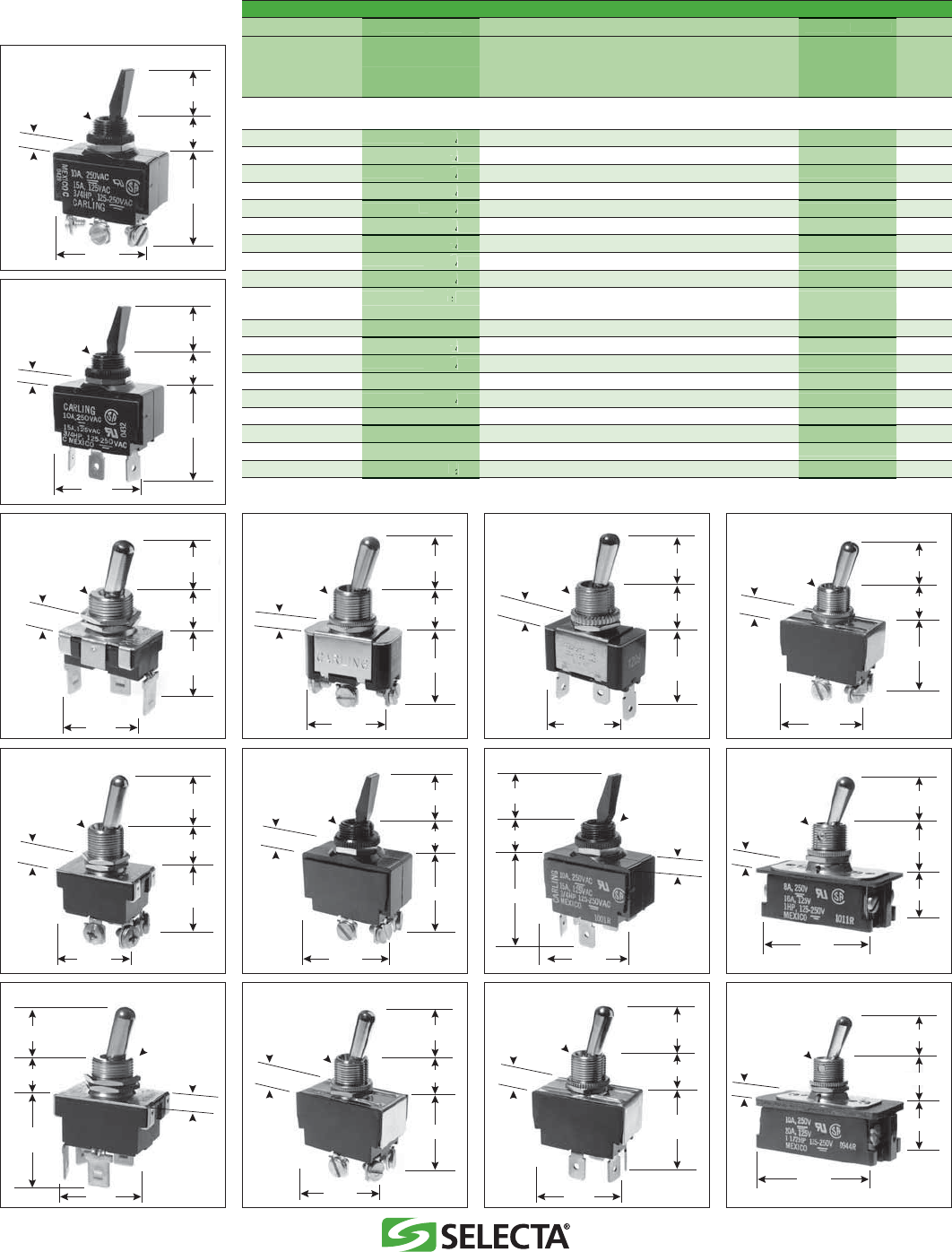

TOGGLE SWITCHES • UTILITY & HEAVY DUTY
.50” MOUNTING HOLE DIAMETER
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ACTUATOR ACTUATOR LIGHTED TERMINATION FIG.
THROWS FUNCTIONS 125- STYLE MATERIAL TOGGLE/ TYPE NO.
125 250 250 TOGGLE
VAC VAC VAC COLOR
SPST ON-OFF 6 3 BAT BRASS/NICKEL NO/NICKEL SCREW SS201-1-BG 1
SPST ON-OFF 6* 3* BAT BRASS/NICKEL NO/NICKEL SCREW SS204-4-BG 2
SPST ON-OFF 6* 3* BAT BRASS/NICKEL NO/NICKEL WIRE SS204W-BG 3
SPST ON-OFF 10* 5* 1
/
4
* BAT BRASS/NICKEL NO/NICKEL WIRE SS205-5-BG 4
SPST ON-OFF 15 10 3
/
4
FLAT NYLON NO/BLACK SCREW SS508-BG 5
SPST ON-OFF 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS501-BG 6
SPST ON-OFF 16* 8* 1* BAT BRASS/NICKEL NO/NICKEL SCREW SS209-8-BG 7
SPST ON-OFF FLAT PLASTIC YES/AMBER3 .250” SPADE SS110A-BG1 8
SPST ON-OFF FLAT PLASTIC YES/GREEN3 .250” SPADE SS110G-BG1 8
SPST ON-OFF FLAT PLASTIC YES/RED3 .250” SPADE SS110R-BG1 8
SPST ON-OFF 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS113-BG¹ 9
SPST ON-OFF 20 10 11
/
2
FLAT NYLON NO/BLACK .250” SPADE SS106-BG¹ 10
SPST ON-OFF 20 10Δ 3
/
4
BAT BRASS/NICKEL NO/NICKEL SOLDER LUGS SS256L-BG 11
SPST ON-OFF 20 12 1 BAT BRASS/NICKEL NO/NICKEL SCREW SS206S-BG 12
SPST ON-OFF 20 12 1 BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206SP-BG 13
SPST ON-OFF 20 12 1 BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS202P-BG¹ 13
SPST ON-OFF 20 20 1
/
2
‡ FLAT NYLON NO/BLACK .250” SPADE SS251SP-BG 14
NOMINA
L
RATIN
G
AMPS AMPS H.P.
125-
125 250 250
VA
C
VA
C
VA
C
6
3
6
*
3
*
6
*
3
*
10* 5*
1
/
1
4
//
*
4
15 10
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
/
/
4
16* 8* 1*
20
1
0
3
/
3
4
/
/
4
20
1
0
1
1
/
1
2
/
/
2
20 10
Δ
3
/
3
4
//
4
20 12 1
20 12 1
20 12 1
20
20
1
/
1
2
/
/
‡
*Stated Amperage and voltage also valid for D.C. Rating
‡ Also 1 HP 250 VAC; 20 Amps 6-28 VDC; 16(4) Amps 250 VAC T85
³ Lamp rated 12 VDC
Δ Rated 10 Amps 277 VAC
1Separate Female Quick Connect Solderless Insulated Terminals, ST-16, provided with switch when ordered with suffix “BG”
C
ATALO
G
NUMBER
SS20
1-1-B
G
SS204
-
4
-B
G
SS204
W-B
G
SS205-5-BG
SS508-BG
SS50
1-B
G
SS209-8-BG
SS
11
0
A-B
G
1
SS
11
0G
-B
G
1
SS
11
0
R-B
G
1
SS
11
3
-B
G
¹
SS
1
06
-B
G
¹
SS256L-BG
SS206S-BG
SS
2
06S
P-B
G
SS
2
0
2P-B
G
¹
SS25
1
S
P-B
G
continued on page 2
20 AMPS 12 VDC3
20 AMPS 12 VDC3
20 AMPS 12 VDC3
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.560”
Max
.890”.524”
6” Wire Leads
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.890”.524”
6” Wire Leads
.560”
Max
15/32 - 32
Mounting hole: .50” Dia.
.65”
.469”
.933”W
1.126”
.63”
15/32 - 32
Mounting hole: .50” Dia.
.562”
.325”
.900”
MaxW
.925”
.660”
.520”
15/32 - 32
Mounting hole: .50” Dia.
.669”
.441”
.953”W
.960”
.836”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.765”
Max
1.764”
15/32 - 32
Mounting hole: .50” Dia.
.562”
.325”
.900”
MaxW
.925”
.660”
15/32 - 32
Mounting hole: .50” Dia.
.667”
.393”
.846”W
1.004”
.54”
.634”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.107”
MaxW
1.134”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.280”
1.062”W
1.0”
.588”
.524”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.560”
Max
.890”
.415”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.235”W
1.375”
.750”
Fig. 11
Fig. 4Fig. 3
Fig. 13
Fig. 10
Fig. 14
Fig. 8Fig. 7 Fig. 9
Fig. 1
Fig. 2
Fig. 5
MAINTAINED CONTACT
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.302”W
1.375”
.750”
Fig. 6
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.04”W
1.134”
.634”
Fig. 12
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
1
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
2

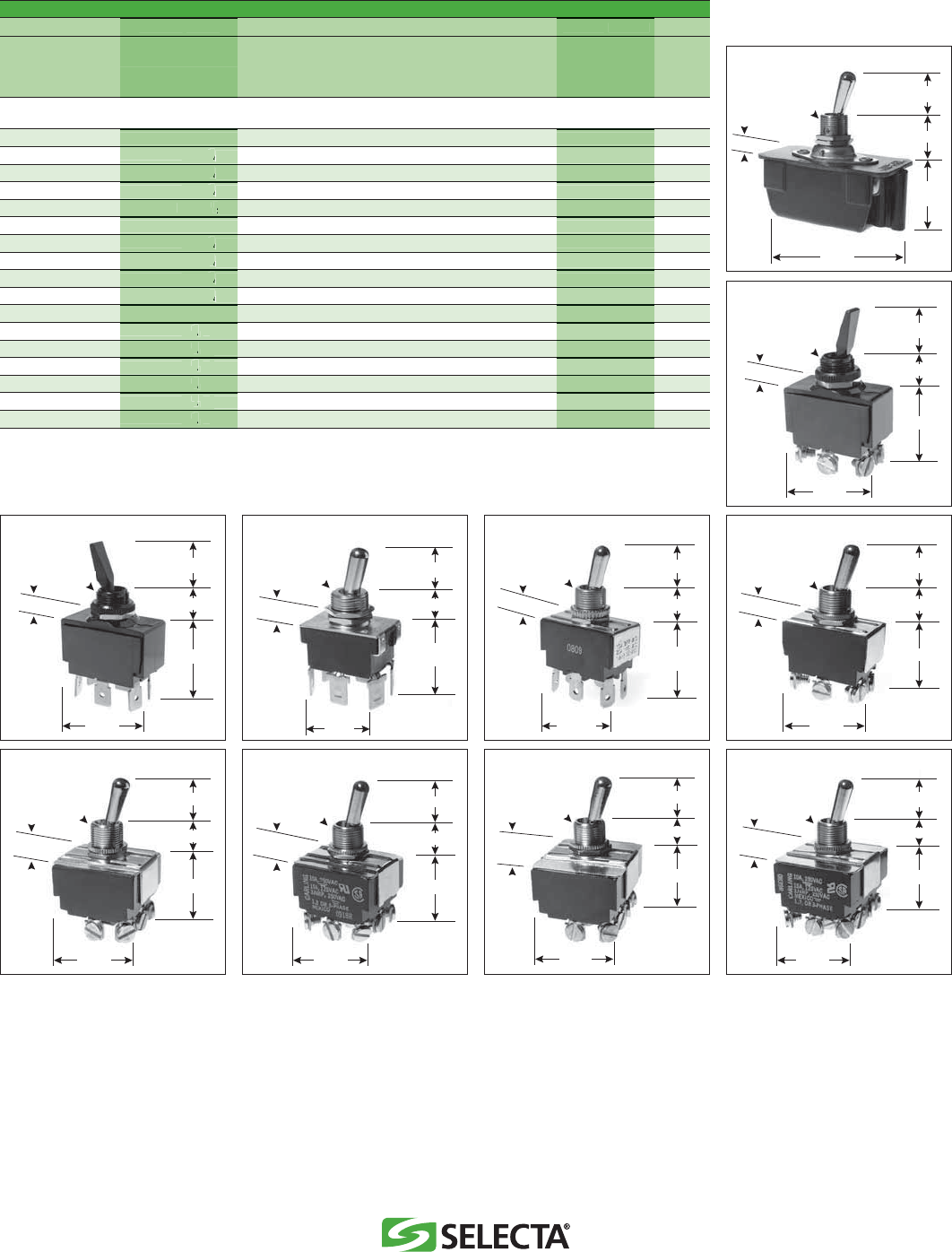

TOGGLE SWITCHES • UTILITY & HEAVY DUTY
SPDT ON-ON 15 10 3
/
4
FLAT NYLON NO/BLACK SCREW SS509-BG 1
SPDT ON-ON 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS502-BG 2
SPDT ON-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS114-BG¹ 3
SPDT ON-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS206R-BG 4
SPDT ON-ON 20 10Δ 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206RP-BG 5
SPDT ON-OFF-ON 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS503-BG 2
SPDT ON-OFF-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS115-BG¹ 3
SPDT ON-OFF-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206P-BG 5
SPDT ON-OFF-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS206-15-BG 4
2 1 & 2 ON- 15 10 1
/
2
@ BAT BRASS/NICKEL NO/NICKEL SCREW SS230-BG 6
CIRCUITS 1 ON-OFF 250
DPST ON-OFF 6 3 BAT BRASS/NICKEL NO/NICKEL SCREW SS267S-BG 7
DPST ON-OFF 15 10 3
/
4
FLAT NYLON NO/BLACK SCREW SS510-BG 8
DPST ON-OFF 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS505-BG 9
DPST ON-OFF 16* 8* 1* BAT BRASS/NICKEL NO/NICKEL SCREW SS210-9-BG 10
DPST ON-OFF 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS116-BG¹ 11
DPST ON-OFF 20 BAT BRASS/NICKEL NO/NICKEL SCREW SS207-7A-BG 12
DPST ON-OFF 20 BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS207P-BG 13
DPST ON-OFF 20 BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS203P-BG¹ 13
DPST ON-OFF 20* 10* 11
/
2
* BAT BRASS/NICKEL NO/NICKEL SCREW SS211-16A-BG 14
Δ Rated 10 Amps 277 VAC *Stated Amperage and voltage also valid for D.C. Rating
1Separate Female Quick Connect Solderless Insulated Terminals, ST-16, provided with switch when ordered with suffix “BG” continued on page 3
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.148”W
1.308”
.750
15/32 - 32
Mounting hole: .50” Dia.
.562”
.325”
.900”
MaxW
.925”
.660”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.04”W
1.134”
.634”
15/32 - 32
Mounting hole: .50” Dia.
.65” A /.687” B
.469” A /.465” B
1.13” AW
1.107” BW
1.126” A
1.134” B
SS206RP-BG = A
SS206P-BG = B
.63” A
.634” B
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.302”W
1.375”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.468”
1.090”
MaxW
1.310”
.690”
15/32 - 32
Mounting hole: .50” Dia.
.562”
.325”
1.090”
MaxW
1.130”
.690”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.235”W
1.375”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.235”W
1.375”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.302”W
1.375”
.750”
1.0”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.895”
2.093”
.836”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
.765”
1.764”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.148”W
1.308”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687” Max
.469” Max
1.252”
MaxW
1.312”
Max
.50” MOUNTING HOLE DIAMETER
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ACTUATOR ACTUATOR LIGHTED TERMINATION FIG.
THROWS FUNCTIONS 125- STYLE MATERIAL TOGGLE/ TYPE NO.
125 250 250 TOGGLE
VAC VAC VAC COLOR
15 10
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
/
/
4
2
0
1
0
3
/
3
4
//
4
2
0
1
0
3
/
3
4
/
/
4
20
1
0
Δ
3
/
3
4
/
/
4
15 1
0
3
/
3
4
//
4
20
1
0
3
/
3
4
/
/
4
20
1
0
3
/
3
4
/
/
4
20 10
3
/
3
4
//
4
15 10
1
/
1
2
/
/
2
@
2
50
6 3
1
5
1
0
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
/
/
4
1
6
*
8
* 1*
20
1
0
3
/
3
4
/
/
4
20
20
20
2
0
* 1
0
*
1
1
/
1
2
/
/
*
N
O
MINA
L
RATIN
G
AMP
S
AMP
S
H.P.
1
2
5-
12
5
2
50
2
50
VAC VAC VAC
SS509-BG
SS50
2-B
G
SS
114-B
G
¹
SS206R-BG
SS206
RP-B
G
SS
5
03
-B
G
SS
115-B
G
¹
SS206
P-B
G
SS206-15-BG
SS230-BG
SS267S-BG
SS
51
0
-B
G
SS505
-B
G
SS2
1
0
-
9
-B
G
SS
11
6
-B
G
¹
SS20
7-7A-B
G
SS207P-BG
SS203P-BG¹
SS211-16A-BG
C
ATAL
OG
NUMBER
Fig. 1
Fig. 2
Fig. 3
Fig. 7 Fig. 10
Fig. 4 Fig. 5 Fig. 6
Fig. 9
Fig. 14
Fig. 13Fig. 12
Fig. 11
Fig. 8
MAINTAINED CONTACT
TOGGLE SWITCHES • UTILITY & HEAVY DUTY
DPST ON-OFF 20* 2^ BAT BRASS/NICKEL NO/NICKEL SCREW SS627-BG 1
DPDT ON-ON 15 10 3
/
4
FLAT NYLON NO/BLACK SCREW SS511-BG 2
DPDT ON-ON 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS506-BG 3
DPDT ON-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS117-BG¹ 4
DPDT ON-ON 20 10Δ 1
1
/
2
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS208RP-BG 5
DPDT ON-ON 20 BAT BRASS/NICKEL NO/NICKEL SCREW SS208R-BG 6
DPDT ON-OFF-ON 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS208P-BG 5
DPDT ON-OFF-ON 15 10 3
/
4
FLAT NYLON NO/BLACK SCREW SS512-BG 2
DPDT ON-OFF-ON 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS507-BG 3
DPDT ON-OFF-ON 20 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS118-BG¹ 4
DPDT ON-OFF-ON 20 BAT BRASS/NICKEL NO/NICKEL SCREW SS208-16-BG 6
3PST ON-OFF 15 10
3
/
4
@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS212S-BG² 7
3PDT ON-ON 15 10
3
/
4
@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS212-BG² 8
3PDT ON-OFF-ON 15 10
3
/
4
@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS212A-BG² 8
4PST ON-OFF 15 10
3
/
4@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS219S-BG² 9
4PDT ON-ON 15 10
3
/
4
@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS219-BG² 10
4PDT ON-OFF-ON 15 10
3
/
4
@ 250 BAT BRASS/NICKEL NO/NICKEL SCREW SS220-BG² 10
*Stated Amperage and voltage also valid for D.C. Rating
^2 HP 250 VAC/DC; 1½ HP 125 VAC/DC
1Separate Female Quick Connect Solderless Insulated Terminals, ST-16, provided with switch when ordered with suffix “BG”
Δ Rated 10 Amps 277 VAC
2Also rated 1, 2, or 3 phase
continued on page 4
15/32 - 32
Mounting hole: .50” Dia.
.65” A /.687” B
.469” A /.465” B
1.213” AW
1.215” BW
1.307” A
1.308” B
SS208RP-BG = A
SS208P-BG = B
.748” A
.750” B
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.235”W
1.375”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.302”W
1.375”
.750”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.148”W
1.308”
1.436”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.173”W
1.308”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.173”W
1.308”
1.088”
1.088”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.173”W
1.308”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.173”W
1.308”
1.436”
15/32 - 32
Mounting hole: .50” Dia.
.813”
.469”
1.26”
Max
2.64”
.690”
15/32 - 32
Mounting hole: .50” Dia.
.562”
.325”
1.090”
MaxW
1.130”
.50” MOUNTING HOLE DIAMETER
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ACTUATOR ACTUATOR LIGHTED TERMINATION FIG.
THROWS FUNCTIONS 125- STYLE MATERIAL TOGGLE/ TYPE NO.
125 250 250 TOGGLE
VAC VAC VAC COLOR
20* 2^
1
5
1
0
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
//
4
20
1
0
3
/
3
4
//
4
20
1
0
Δ
1
1
/
1
2
/
/
2
20
15 10
3
/
3
4
//
4
15 10
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
//
4
2
0
1
0
3
/
3
4
//
4
20
1
5
1
0
3
/
3
4
/
/
@
2
5
0
15 1
0
3
/
3
4
/
/
@
2
5
0
15 1
0
3
/
3
4
/
/
@
2
5
0
15 1
0
3
/
3
4
/
/
@
2
5
0
15 10
3
/
3
4
/
/
@
2
50
15 10
3
/
3
4
/
/
@
2
50
N
O
MINA
L
RATIN
G
AMP
S
AMP
S
H.P.
1
2
5-
12
5
2
50
2
50
VAC VAC VAC
SS627-BG
SS511-BG
SS506
-B
G
SS
117-B
G
¹
SS208
RP-B
G
SS208
R-B
G
SS208P-BG
SS512-BG
SS50
7-B
G
SS
11
8
-B
G
¹
SS208-16-BG
SS2
1
2S
-B
G
²
SS2
1
2
-B
G
²
SS2
1
2
A-B
G
²
SS2
1
9S
-B
G
²
SS219-BG²
SS220-BG²
C
ATAL
OG
NUMBER
Fig. 1
Fig. 4
Fig. 2
Fig. 7 Fig. 8
Fig. 3 Fig. 6
Fig. 9
Fig. 5
Fig. 10
MAINTAINED CONTACT
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 3
All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
4
TOGGLE SWITCHES • UTILITY & HEAVY DUTY
SPST OFF-(ON) 6 3 BAT BRASS/NICKEL NO/NICKEL SCREW SS277S-BG 1
SPST OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS206A-BG 2
SPST OFF-(ON) 20 10Δ 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206AP-BG 3
SPDT ON-OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS206B-BG 4
SPDT ON-OFF-(ON) 20 10Δ 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206BP-BG 5
SPDT (ON)-OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS206C-BG 4
SPDT (ON)-OFF-(ON) 15 10 3
/
4
FLAT NYLON NO/BLACK .250” SPADE SS504-BG 6
SPDT (ON)-OFF-(ON) 20 10Δ 3
/
4
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS206CP-BG 5
DPST OFF-(ON) 20 10Δ 1
1
/
2
BAT BRASS/NICKEL NO/NICKEL SCREW SS208A-BG 7
DPST ON-(OFF) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS208D-BG 8
DPDT ON-(ON) 20 10Δ 1
1
/
2
BAT BRASS/NICKEL NO/NICKEL SCREW SS208E-BG 9
DPDT ON-OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS208B-BG 10
DPDT (ON)-OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS208C-BG 10
DPDT (ON)-OFF-(ON) 20 10Δ 1
1
/
2
BAT BRASS/NICKEL NO/NICKEL .250” SPADE SS208CP-BG 11
3PDT (ON)-OFF-(ON) 15 10 3
/
4
BAT BRASS/NICKEL NO/NICKEL SCREW SS212C-BG² 12
Δ Rated 10 Amps 277 VAC
2Also rated 1, 2, or 3 phase
.50” MOUNTING HOLE DIAMETER
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ACTUATOR ACTUATOR LIGHTED TERMINATION FIG.
THROWS FUNCTIONS 125- STYLE MATERIAL TOGGLE/ TYPE NO.
125 250 250 TOGGLE
VAC VAC VAC COLOR
.50” MOUNTING HOLE DIAMETER
MAINTAINED CONTACT
6 3
15 10
3
/
3
4
//
4
20
1
0
Δ
3
/
3
4
//
4
15 1
0
3
/
3
4
/
/
4
20
1
0
Δ
3
/
3
4
//
4
15 1
0
3
/
3
4
//
4
15 10
3
/
3
4
/
/
4
20 10
Δ
3
/
3
4
//
4
20 10
Δ
1
1
/
1
2
/
/
2
15 10
3
/
3
4
/
/
4
20 10
Δ
1
1
/
1
2
/
/
2
15 1
0
3
/
3
4
//
4
15 1
0
3
/
3
4
/
/
4
20
1
0
Δ
1
1
/
1
2
/
/
2
15 1
0
3
/
3
4
//
4
NOMINA
L
RATIN
G
AMPS AMPS H.P.
125-
125 250 250
VA
C
VA
C
VA
C
SS277S-BG
SS206A-BG
SS206
AP-B
G
SS206
B-B
G
SS206
BP-B
G
SS206C
-B
G
SS504-BG
SS206CP-BG
SS208A-BG
SS208D-BG
SS208E-BG
SS208
B-B
G
SS208C
-B
G
SS208C
P-B
G
SS2
1
2C
-B
G
²
C
ATALO
G
NUMBER
15/32 - 32
Mounting hole: .50” Dia.
.687”
.379”
1.302”W
1.375”
.750”
15/32 - 32
Mounting hole: .50” Dia.
.65”
.469”
1.13”W
1.126”
.63”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.04”W
1.134”
.634”
15/32 - 32
Mounting hole: .50” Dia.
.65”
.469”
1.13”W
1.126”
.63”
1.436”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.265”
MaxW
1.308”
.748”
15/32 - 32
Mounting hole: .50” Dia.
.645”
.469”
1.083”W
1.307”
.748”
15/32 - 32
Mounting hole: .50” Dia.
.65”
.469”
1.103”W
1.307”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.468”
.900”W
.925”
.660”
.634”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.04”W
1.134”
Fig. 1
Fig. 2
Fig. 3
Fig. 7
Fig. 4 Fig. 5 Fig. 6
Fig. 12
Fig. 9
MOMENTARY CONTACT
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.148”W
1.308”
Fig. 8
.750”
15/32 - 32
Mounting hole: .50” Dia.
.645”
.469”
1.193”W
1.307”
Fig. 11
.750”
15/32 - 32
Mounting hole: .50” Dia.
.687”
.465”
1.148”W
1.308”
Fig. 10
夝 Switch height measurement in Figures above, includes body and terminals combined

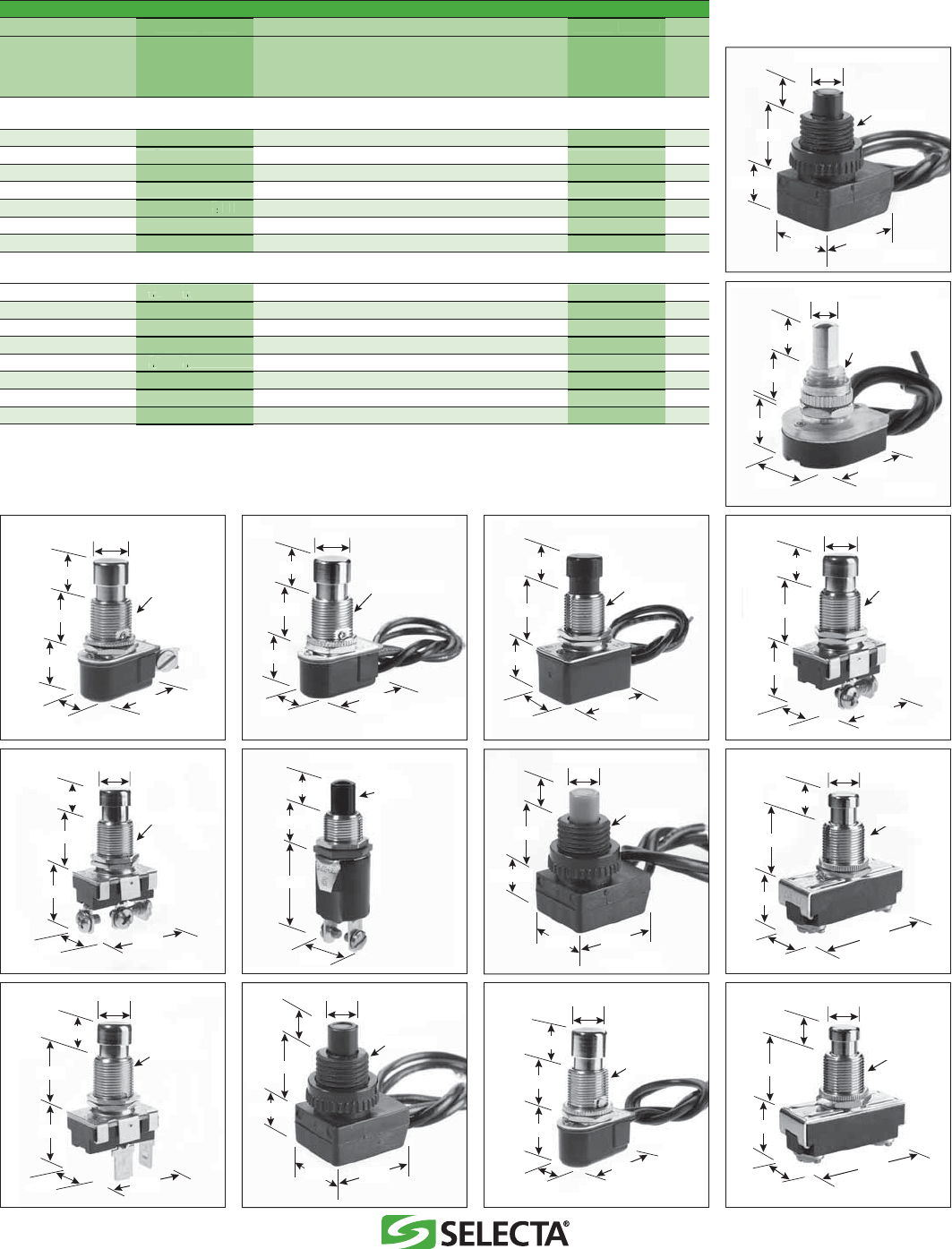

PUSHBUTTON SWITCHES
PUSHBUTTON SWITCHES
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ACTUATOR ACTUATOR TERMINATION MOUNTING FIG.
THROWS FUNCTIONS 125- STYLE MATERIAL TYPE HOLE NO.
125 250 250 DIAMETER
VAC VAC VAC
SPST PUSH ON-PUSH OFF 3† STRAIGHT NYLON WIRE .38” SS103-BG 1
SPST PUSH ON-PUSH OFF 6‡ 3 STRAIGHT BRASS/BRONZE WIRE .39” SS104-BG 2
SPST PUSH ON-PUSH OFF 6* 3* CAP BRASS/NICKEL SCREW .50” SS216-11-BG 3
SPST PUSH ON-PUSH OFF 6* 3* CAP BRASS/NICKEL WIRE .50” SS215-10-BG 4
SPST PUSH ON-PUSH OFF 8^* 4*
1
/
3 @ 125 CAP NYLON WIRE .50” SS105-BG 5
SPST PUSH ON-PUSH OFF 15 10 CAP BRASS/NICKEL SCREW .50” SS224-BG 6
SPDT PUSH ON-PUSH ON 15 10 CAP BRASS/NICKEL SCREW .50” SS223S-BG 7
SPST N.O. OFF-(ON) 3
/
4
* 1
/
4
* STRAIGHT NYLON SCREW .50” SS213-13-BG 8
SPST N.O. OFF-(ON) 3† STRAIGHT NYLON WIRE .38” SS101-BG 9
SPST N.O. OFF-(ON) 15 10 CAP BRASS/NICKEL SCREW .50” SS228-BG 10
SPST N.O. OFF-(ON) 15 10 CAP BRASS/NICKEL .250” SPADE .50” SS232P-BG 11
SPST N.C. ON-(OFF) 3
/
4
* 1
/
4
* STRAIGHT NYLON SCREW .50” SS214-14-BG 8
SPST N.C. ON-(OFF) 3† STRAIGHT NYLON WIRE .38” SS102-BG 12
SPST N.C. ON-(OFF) 6* 3* CAP BRASS/NICKEL WIRE .50” SS233W-BG 13
SPST N.C. ON-(OFF) 15 10 CAP BRASS/NICKEL SCREW .50” SS229-BG 14
NOMINA
L
RATIN
G
AMPS AMPS H.P.
125-
125 250 250
VA
C
VA
C
VA
C
3
†
6
‡
3
6
*
3
*
6* 3*
8^* 4*
1
/
1
3
/
/
@
1
25
15 10
15 10
3
/
3
4
/
/
*
4
1
/
1
4
/
/
*
4
3
†
15 1
0
15 10
3
/
3
4
/
/
*
4
1
/
1
4
/
/
*
4
3
†
6* 3*
15 10
† Rated 3 Amps Inductive 125 VAC; 2 Amps, 125VAC-L
‡ Also rated 3 Amps 125VAC-L
*Stated Amperage and voltage also valid for D.C. Rating
^ Also rated 10 Amps 125 VAC
CATALOG
N
UMBE
R
SS
1
03
-B
G
SS
1
04
-B
G
SS2
1
6
-11-B
G
SS215-10-BG
SS105-BG
SS224-BG
SS223S-BG
SS2
1
3
-1
3
-B
G
SS
1
0
1-B
G
SS228
-B
G
SS232P-BG
SS214-14-BG
SS102-BG
SS233W-BG
SS229-BG
continued on page 2
Mounting Hole: .50” Dia.
.900”W
.561”
.415”
15/32-32 TPI
.925”
.660”
.406”
.524”
Mounting Hole: .50” Dia.
.542”
.562”
.44”
15/32-32 TPI
1.305”
.406” .406”
.524”
Mounting Hole: .50” Dia.
.542”
.562”
.44”
6” Wire leads
15/32-32 TPI
1.183”
max .640”
Mounting Hole: .50” Dia.
.615”
.561”
.405”
15/32-32 TPI
6” Wire leads
.980”
Mounting Hole: .50” Dia.
.604”W
.576”
.562”
.32”
1.382”
.345”
15/32 – 32 TPI
Mounting Hole: .50” Dia.
.900”W
.561”
.415”
15/32-32 TPI
.925”
.406”
.660”
Mounting Hole: .50” Dia.
.468”
1.093”W
.656”
.375” A / .406” B .31” Dia.
SS213-13-BG = A
SS214-14-BG = B
Mounting Hole: .38” Dia.
.660”
530”
.333” max
.43”
.20”
max
.220”
3/8-27 THC
Mounting Hole: .38” Dia.
4” Wire leads
.333” max
.43”
.220”
.660”
530”
.20”
max
3/8-27 THC
.787”
Mounting Hole: .39” Dia.
.354”
.375”
.355” 3/8-27 UNS
6” Wire leads
.906”
.220”
MAINTAINED CONTACT
Fig. 1
Fig. 2
Fig.6Fig. 5Fig. 4Fig. 3
Fig. 7 Fig. 8 Fig. 9 Fig. 10
MOMENTARY CONTACT
Mounting Hole: .50” Dia.
.604”W
.576”
.562”
.24”
1.382”
.345”
15/32 – 32 TPI
Mounting Hole: .50” Dia.
.900”W
.561”
.415”
.406”
15/32-32 TPI
.925”
.660”
Mounting Hole: .38” Dia.
.333” max
.43”
.220”
.660”
530”
.20”
max
3/8-27 THC
Mounting Hole: .50” Dia.
.542”
.524”
.562”
.44”
15/32-32 TPI
1.183”
max
.406”
Fig. 11 Fig. 12 Fig. 13 Fig. 14
All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 5
夝 Switch height measurement in Figures above, includes body and terminals combined
All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
6
.375” - 27NS - 2
.406” Hux nut
.60”
.453”.312”
Mounting Hole: .375” Dia.
.788”
Mounting Hole: .50” Dia.
.355”
.625”
.557” max
6” Wire leads
.906”
Fig. 4 Fig. 5

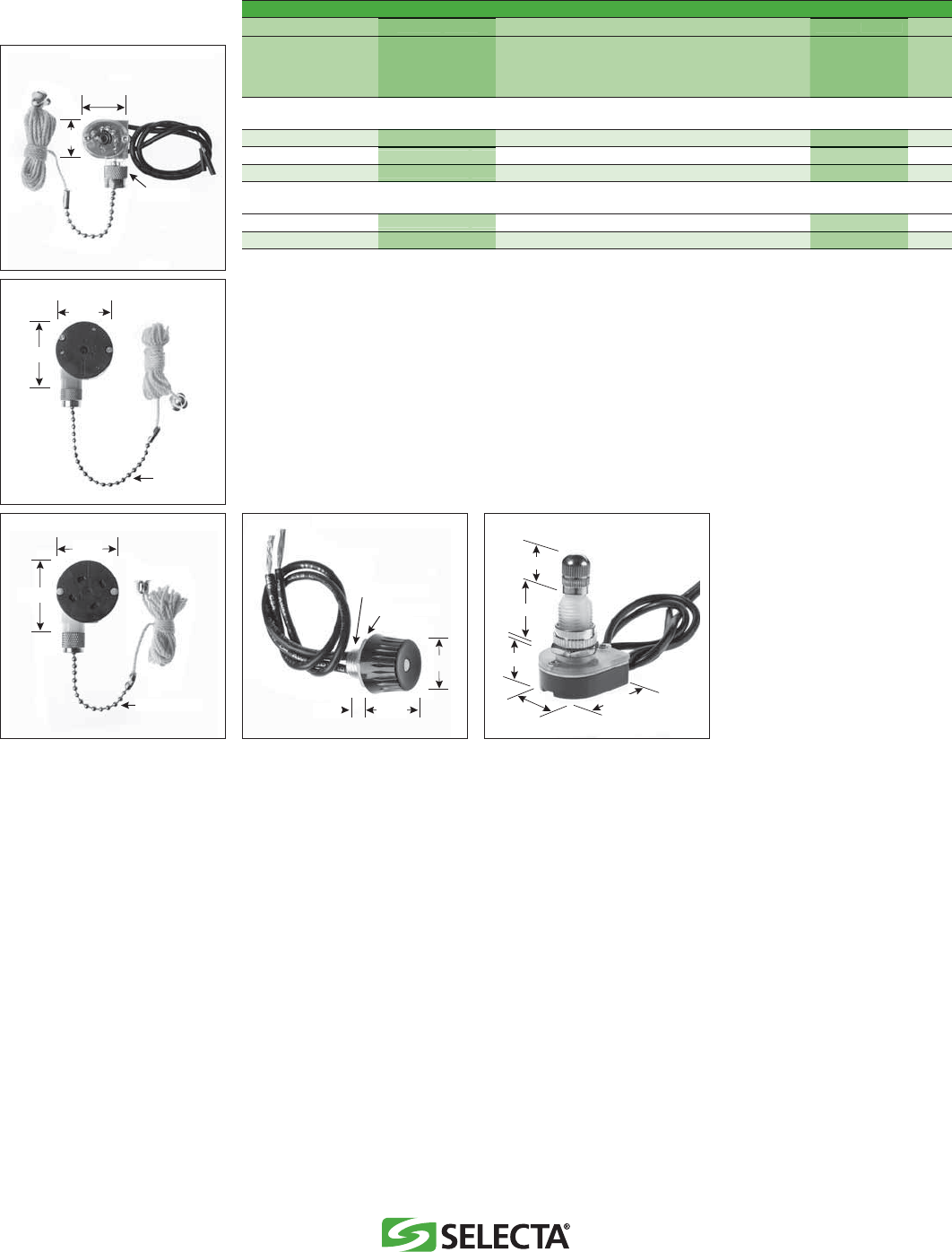

PULLCHAIN & ROTARY SWITCHES
PULLCHAIN & ROTARY SWITCHES
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS AMPS ACTUATOR TERMINATION BODY MOUNTING FIG.
THROWS FUNCTIONS TYPE TYPE MATERIAL HOLE NO.
125 250 125 DIAMETER
VAC VAC VAC-Lº
SPST ON-OFF 6 3 3 “L” CHAIN WIRE LEADS MOLDED PLASTIC .39” SS107-BG 1
SPDT OFF-ON-ON 6 3 3 “L” CHAIN PUSH-IN MOLDED PLASTIC .39” SS126-BG 2
SP3T OFF-ON-ON-ON 6 3 3 “L” CHAIN PUSH-IN MOLDED PLASTIC .39” SS127-BG 3
SPST ON-OFF 3** 1.5 3 “L” ROUND KNOB WIRE LEADS BRASS/NICKEL# .375” SS109-BG 4
SPST ON-OFF 6 3 3 “L” KNOB WIRE LEADS PLASTIC .39” SS108-BG 5
NOMINA
L
RATIN
G
AMPS AMPS AMPS
125 250 125
VA
C
VA
C
VA
C
-L
º
6
3
3
“L”
6
3
3
“L”
6
3
3
“L”
3
** 1.
5
3
“L”
6
3
3
“L”
CATALOG
N
UMBE
R
SS
1
0
7-B
G
SS
1
26
-B
G
SS
1
2
7-B
G
SS109-BG
SS
1
08
-B
G
PULLCHAIN SWITCHES
ROTARY SWITCHES
º “L” = AC lamploaded
** Also rated 5 Amps 12 VDC
# Actuator Material is Nylon; Bushing Material is Brass/Nickel Plate
2.56” Ball Chain
1.228”
Mounting Hole: .39” Dia.
1.7087”
3/8-24 UNF
.788”
.910”
Mounting Hole: .39” Dia.
1.236”
Mounting Hole: .39” Dia.
1.709”
3.9” Ball Chain
Fig. 1
Fig. 2
Fig. 3

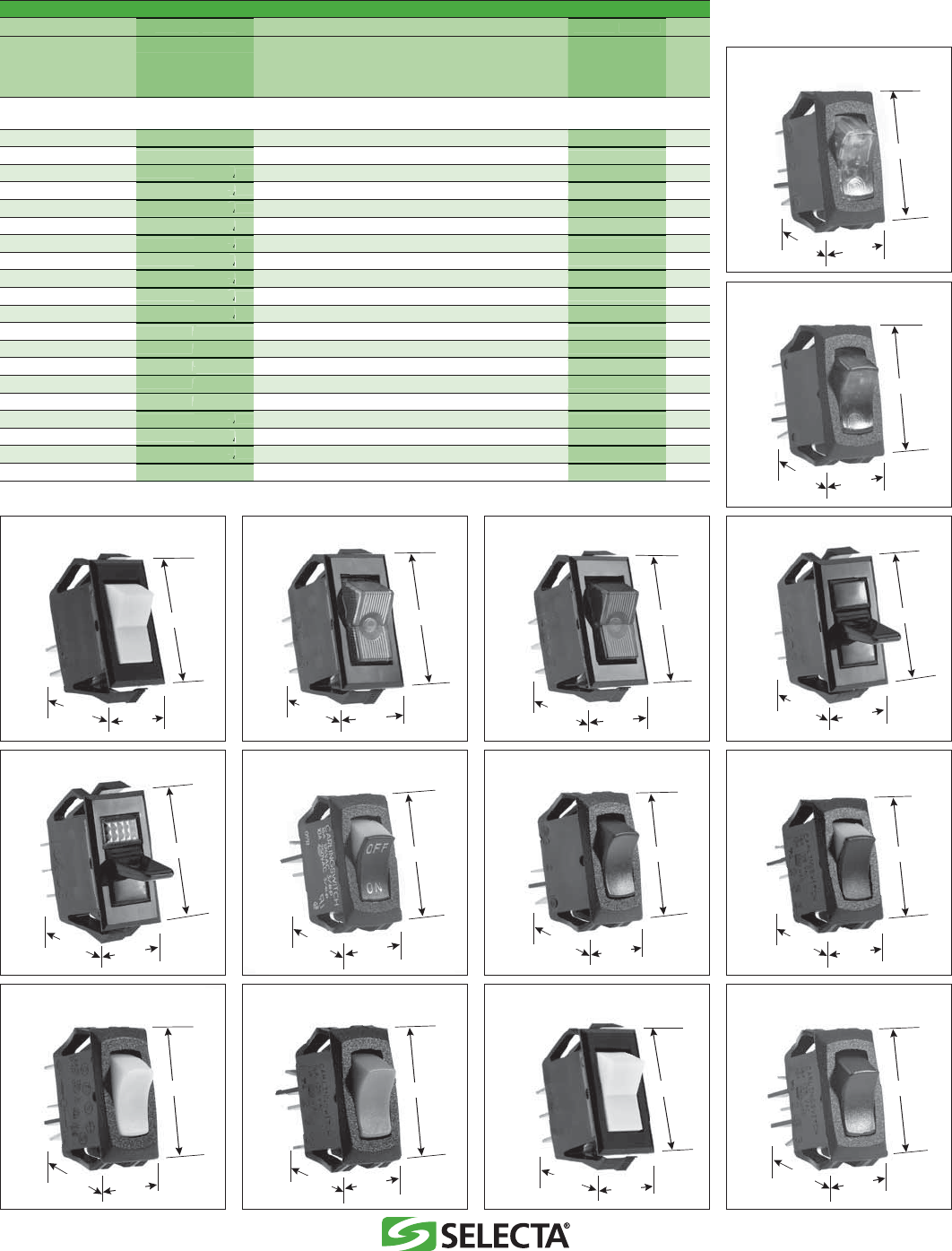

ROCKER SWITCHES • SMALL APPLIANCE
.550” X 1.125” PANEL CUTOUT • .250” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ROCKER ACTUATOR/ VISI-ROCKER® LAMP FIG.
THROWS FUNCTIONS 125- ACTUATOR LENS END COLOR/ VOLTAGE NO.
125 250 250 SHAPE COLORS IMPRINTING
VAC VAC VAC
SPST ON-OFF CURVED AMBER/TRANSPARENT NONE/NONE 12V INCANDESCENT SS1207-BG 1
SPST ON-OFF CURVED RED/TRANSPARENT NONE/NONE 12V INCANDESCENT SS1209-BG 2
SPST ON-OFF 15 10 3
/
4
“V” STYLE WHITE/NONE NONE/NONE NONE SS1218-BG 3
SPST ON-OFF 15 10 3
/
4
“V” STYLE AMBER/TRANSPARENT NONE/NONE 125V NEON SS1225-BG 4
SPST ON-OFF 15 10 3
/
4
“V” STYLE RED/TRANSPARENT NONE/NONE 125V NEON SS1227-BG 5
SPST ON-OFF 15 10 3
/
4
“V” STYLE GREEN/TRANSPARENT NONE/NONE 12V INCANDESCENT SS1229-BG 5
SPST ON-OFF 15 10 3
/
4
PADDLE BLACK/NONE NONE/NONE NONE SS1230-BG 6
SPST ON-OFF 15 10 3
/
4
PADDLE BLACK/AMBER NONE/NONE 125V NEON SS1237-BG 7
SPST ON-OFF 15 10 3
/
4
PADDLE BLACK/RED NONE/NONE 125V NEON SS1239-BG 7
SPST ON-OFF 16 10 3
/
4
CURVED BLACK/NONE RED/ON-OFF2 NONE SS1201-BG 8
SPST ON-OFF 16 10 3
/
4
CURVED BLACK/NONE NONE/NONE NONE SS1203-BG 9
SPST ON-OFF 16 101 CURVED BLACK/NONE RED/NONE NONE SS1202-BG 10
SPST ON-OFF 16 101 CURVED AMBER/TRANSPARENT NONE/NONE 125V NEON SS1208-BG 1
SPST ON-OFF 16 101 CURVED AMBER/TRANSLUCENT NONE/NONE 125V NEON SS1214-BG 11
SPST ON-OFF 16 101 CURVED RED/TRANSPARENT NONE/NONE 125V NEON SS1210-BG 2
SPST ON-OFF 16 101 CURVED RED/TRANSLUCENT NONE/NONE 125V NEON SS1216-BG 12
SPDT ON-ON 15 10 3
/
4
“V” STYLE WHITE/NONE NONE/NONE NONE SS1221-BG 13
SPDT ON-ON 16 10 3
/
4
CURVED BLACK/NONE NONE/NONE NONE SS1205-BG 14
SPDT ON-OFF-ON 15 10 3
/
4
“V” STYLE WHITE/NONE NONE/NONE NONE SS1223-BG 13
SPDT ON-OFF-ON 16 10 CURVED BLACK/NONE NONE/NONE NONE SS1206-BG 14
N
O
MINAL RATIN
G
AMP
S
AMP
S
H.P.
1
25
-
12
5
2
50
2
50
VAC VAC VAC
1
5
1
0
3
/
3
4
/
/
4
15 10
3
/
3
4
//
4
15 10
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
//
4
1
5
1
0
3
/
3
4
/
/
4
1
5
1
0
3
/
3
4
/
/
4
1
6
1
0
3
/
3
4
//
4
1
6
1
0
3
/
3
4
/
/
4
1
6
1
0
1
16 10
1
16 10
1
1
6
1
0
1
1
6
1
0
1
1
5
1
0
3
/
3
4
/
/
4
1
6
1
0
3
/
3
4
/
/
4
15 1
0
3
/
3
4
//
4
1
6
1
0
¹ 10 (4) Amps 250 VAC μT85
² On-Off same color as Visi (Red)
C
ATAL
OG
NUMBER
SS
12
0
7-B
G
SS
12
09
-B
G
SS
1
2
1
8
-B
G
SS1225-BG
SS1227-BG
SS
122
9
-B
G
SS1230-BG
SS
12
3
7-B
G
SS
1
239
-B
G
SS
1
20
1-B
G
SS
1
203
-B
G
SS
1
202
-B
G
SS1208-BG
SS1214-BG
SS
121
0
-B
G
SS
121
6
-B
G
SS
1
22
1-B
G
SS
1
20
5-B
G
SS
1
223
-B
G
SS
1
206
-B
G
continued on page 2
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
MAINTAINED CONTACT
Fig. 1
Fig. 2
Fig.6Fig. 5Fig. 4Fig. 3
Fig. 7 Fig. 8 Fig. 9 Fig. 10
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Fig. 11
12 Volts Incandescent
12 Volts Incandescent
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Fig. 12 Fig. 13 Fig. 14
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 7
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
8

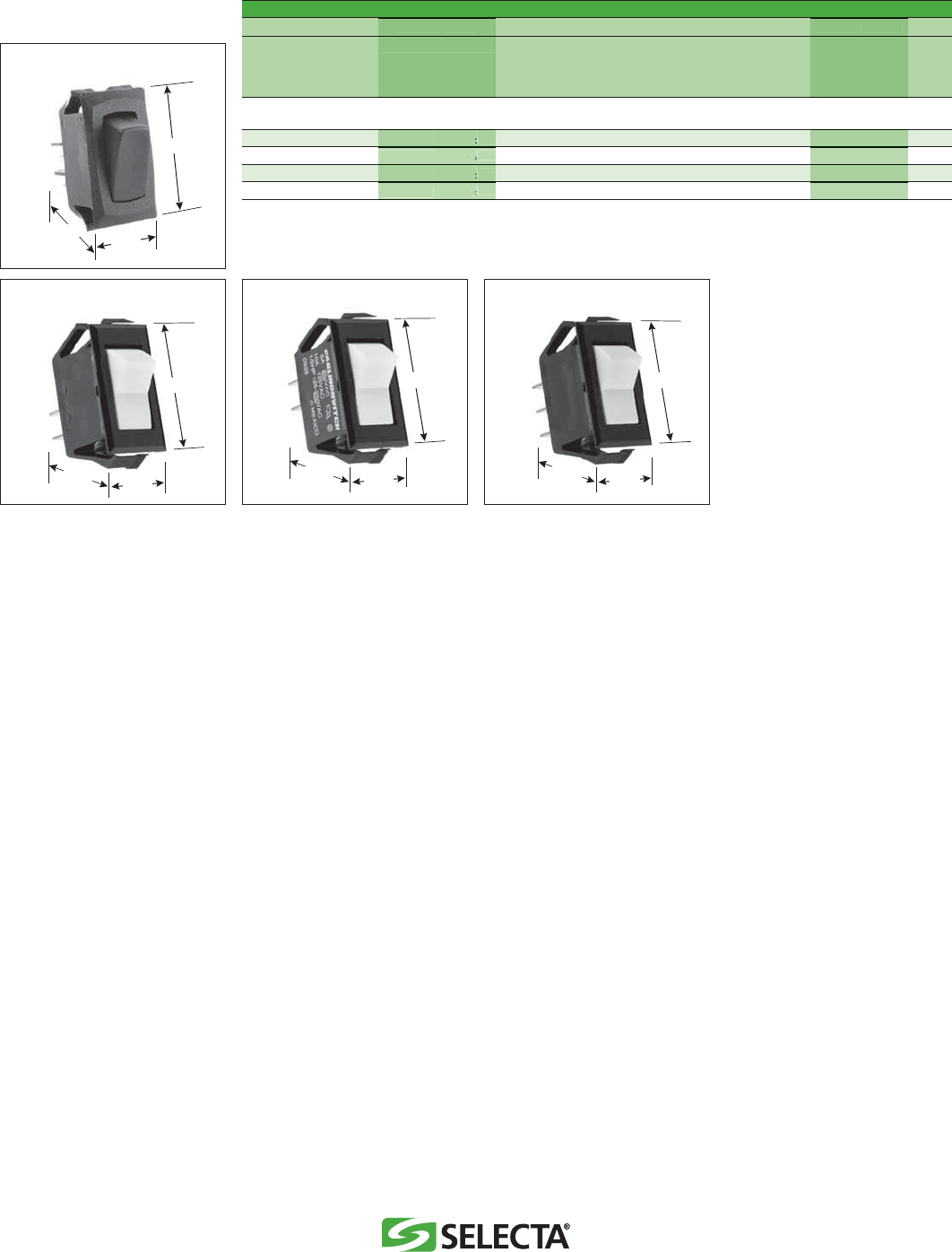

ROCKER SWITCHES • SMALL APPLIANCE
.550” X 1.125” PANEL CUTOUT • .250” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ROCKER ACTUATOR/ VISI-ROCKER LAMP FIG.
THROWS FUNCTIONS 125- ACTUATOR LENS END COLOR/ VOLTAGE NO.
125 250 250 SHAPE COLORS IMPRINTING
VAC VAC VAC
SPST (ON)-OFF 12 8 1
/
2
STRAIGHT BLACK/NONE NONE/NONE NONE SS1204-BG 15
SPST (ON)-OFF 15 10 3
/
4
“V” STYLE WHITE/NONE NONE/NONE NONE SS1219-BG 16
SPST ON-(OFF) 10 5 1
/
2
“V” STYLE WHITE/NONE NONE/NONE NONE SS1220-BG 17
SPDT ON-(ON) 10 5 1
/
2
“V” STYLE WHITE/NONE NONE/NONE NONE SS1222-BG 18
N
O
MINAL RATIN
G
AMP
S
AMP
S
H.P.
1
25
-
12
5
2
50
2
50
VAC VAC VAC
12 8
1
/
1
2
//
2
15 1
0
3
/
3
4
/
/
4
1
0
5
1
/
1
2
/
/
2
10 5
1
/
1
2
//
2
C
ATAL
OG
NUMBER
SS
1
204
-B
G
SS
1
2
1
9
-B
G
SS
1
220
-B
G
SS1222-BG
MOMENTARY CONTACT
Panel Cut Out: .550” x 1.125”
1.224”
.654”
1.1”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Fig. 18Fig. 17
Fig. 15
Panel Cut Out: .550” x 1.125”
1.226”
.665”
1.185”W
Fig. 16

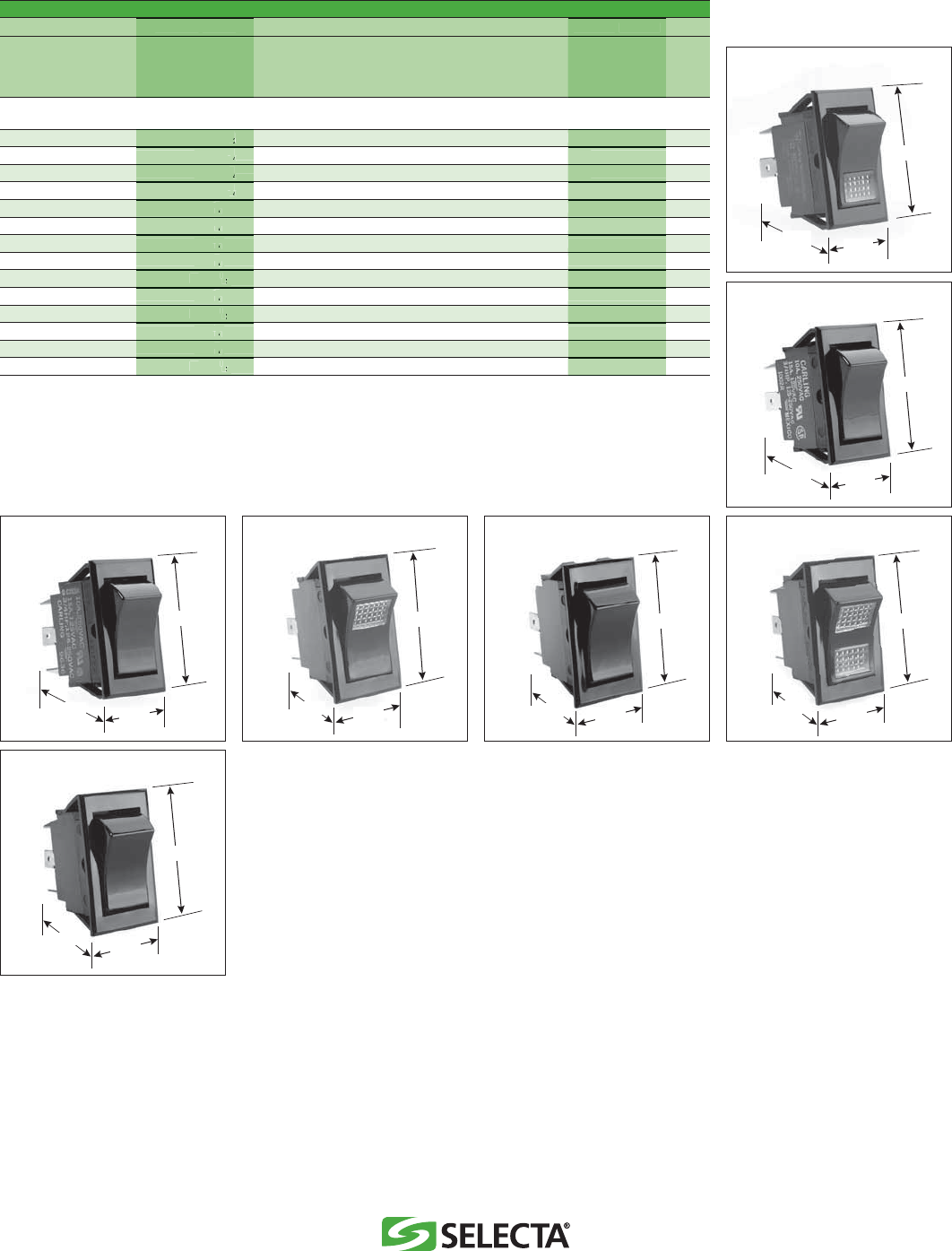

ROCKER SWITCHES • LARGE APPLIANCE
.830” x 1.450” PANEL CUTOUT • .250” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. FIRST SECOND LAMP FIG.
THROWS FUNCTIONS 125- LENS LENS VOLTAGE NO.
125 250 250 COLOR COLOR
VAC VAC VAC
SPST ON-OFF 15 10 1
/
2
RED - 125V NEON SS1101-R-125-BG 1
SPST ON-OFF 15 10 3
/
4
- - - SS1101-BG 2
SPDT ON-ON 15 10 3
/
4
- - - SS1102-BG 3
SPDT ON-OFF-ON 15 10 3
/
4
- - - SS1103-BG 3
DPST ON-OFF 15 10 3
/
4
@250 RED - 12V INCANDESCENT SS1104-R-12-BG 4
DPST ON-OFF 15 10 3
/
4
@250 RED - 125V NEON SS1104-R-125-BG 4
DPST ON-OFF 15 10 3
/
4
@250 AMBER - 12V INCANDESCENT SS1104-A-12-BG 4
DPST ON-OFF 15 10 3
/
4
@250 AMBER - 125V NEON SS1104-A-125-BG 4
DPST ON-OFF 20 20Δ 1
1
/
2 /2* - - - SS1104-BG 5
DPDT ON-ON 15 10 3
/
4
@250 RED AMBER 125V NEON SS1105-RA-125-BG 6
DPDT ON-ON 20 20Δ 1
1
/
2 /2* - - - SS1105-BG 7
DPDT ON-OFF-ON 15 10 3
/
4
@250 RED RED 125V NEON SS1106-RR-125-BG 6
DPDT ON-OFF-ON 15 10 3
/
4
@250 AMBER AMBER 125V NEON SS1106-AA-125-BG 6
DPDT ON-OFF-ON 20 20Δ 1
1
/
2 /2* - - - SS1106-BG 7
N
O
MINAL RATIN
G
AMP
S
AMP
S
H.P.
1
25
-
12
5
2
50
2
50
VAC VAC VAC
1
5
1
0
1
/
1
2
//
2
15 1
0
3
/
3
4
/
/
4
15 1
0
3
/
3
4
/
/
4
15 10
3
/
3
4
//
4
15 10
3
/
3
4
/
/
@
250
1
5
1
0
3
/
3
4
/
/
@
250
1
5
1
0
3
/
3
4
/
/
@
250
1
5
1
0
3
/
3
4
/
/
@250
20
20
Δ
1
1
/
1
2
/
/
/2
*
15 1
0
3
/
3
4
/
/
@
250
20
20
Δ
1
1
/
1
2
/
/
/2
*
15 1
0
3
/
3
4
/
/
@
250
15 10
3
/
3
4
/
/
@
250
20 2
0
Δ
1
1
/
1
2
/
/
/
2*
Δ Rated 20 Amps 125 VAC - 277 VAC
* 1½ H.P. @ 125 VAC, 2 H.P @ 250 VAC
C
ATAL
OG
NUMBER
SS
11
0
1-R-1
2
5-B
G
SS
11
0
1-B
G
SS
11
02
-B
G
SS1103-BG
SS1104-R-12-BG
SS
11
0
4-R-12
5
-B
G
SS
11
0
4-A-12-B
G
SS
11
0
4-A-12
5
-B
G
SS
11
04
-B
G
SS
11
0
5-RA-1
2
5-B
G
SS
11
0
5-B
G
SS
11
06
-RR-1
2
5-B
G
SS1106-AA-125-BG
SS1106-BG
continued on page 2
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
MAINTAINED CONTACT
Fig. 1
Fig. 2
Fig.6Fig. 5Fig. 4Fig. 3
Fig. 7
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 9
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
10

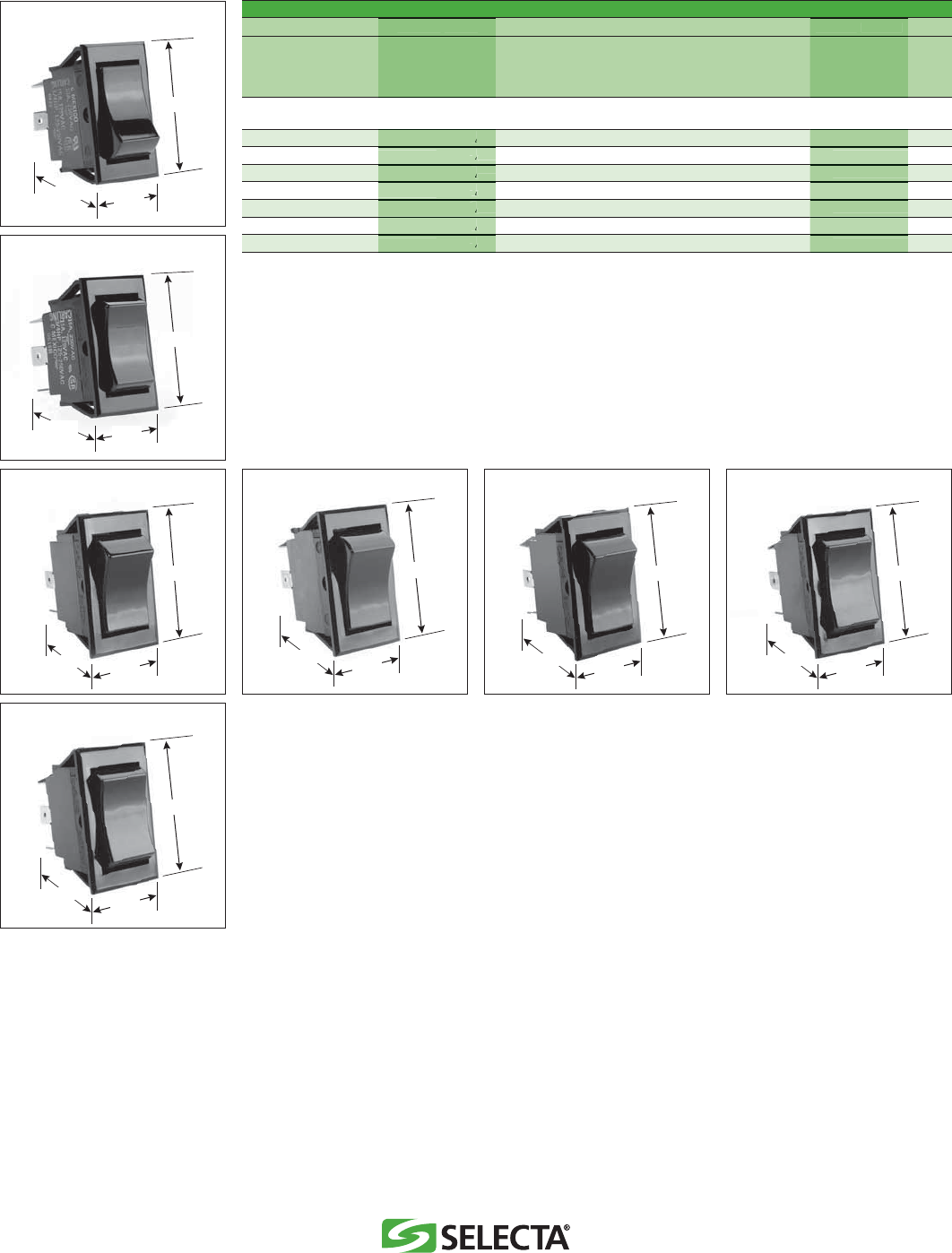

Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Fig. 13Fig. 12Fig. 11Fig. 10
Fig. 14
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Panel Cut Out: .830” x 1.450”
1.70”
.960”
1.506”W
Fig. 8
Fig. 9
ROCKER SWITCHES • LARGE APPLIANCE
.830” x 1.450” PANEL CUTOUT • .250” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. FIRST SECOND LAMP FIG.
THROWS FUNCTIONS 125- LENS LENS VOLTAGE NO.
125 250 250 COLOR COLOR
VAC VAC VAC
SPST (ON)-OFF 15 10 3
/
4 - - - SS1107-BG 8
SPDT (ON)-OFF-(ON) 15 10 3
/
4
- - - SS1111-BG 9
DPST (ON)-OFF 15 10 3
/
4
- - - SS1112-BG 10
DPST (OFF)-ON 15 10 3
/
4
- - - SS1113-BG 11
DPDT (ON)-ON 15 10 3
/
4
- - - SS1114-BG 12
DPDT (ON)-OFF-ON 15 10 3
/
4
- - - SS1115-BG 13
DPDT (ON)-OFF-(ON) 15 10 3
/
4
- - - SS1116-BG 14
N
O
MINAL RATIN
G
AMP
S
AMP
S
H.P.
12
5
-
125 250 250
VAC VAC VAC
15 10
3
/
3
4
/
/
4
15 1
0
3
/
3
4
/
/
4
15 10
3
/
3
4
//
4
15 10
3
/
3
4
/
/
4
15 10
3
/
3
4
/
/
4
15 10
3
/
3
4
//
4
15 10
3
/
3
4
/
/
4
C
ATAL
OG
NUMBER
SS
11
0
7-B
G
SS
1111-B
G
SS1112-BG
SS1113-BG
SS
1114-B
G
SS
111
5
-B
G
SS
111
6
-B
G
MOMENTARY CONTACT

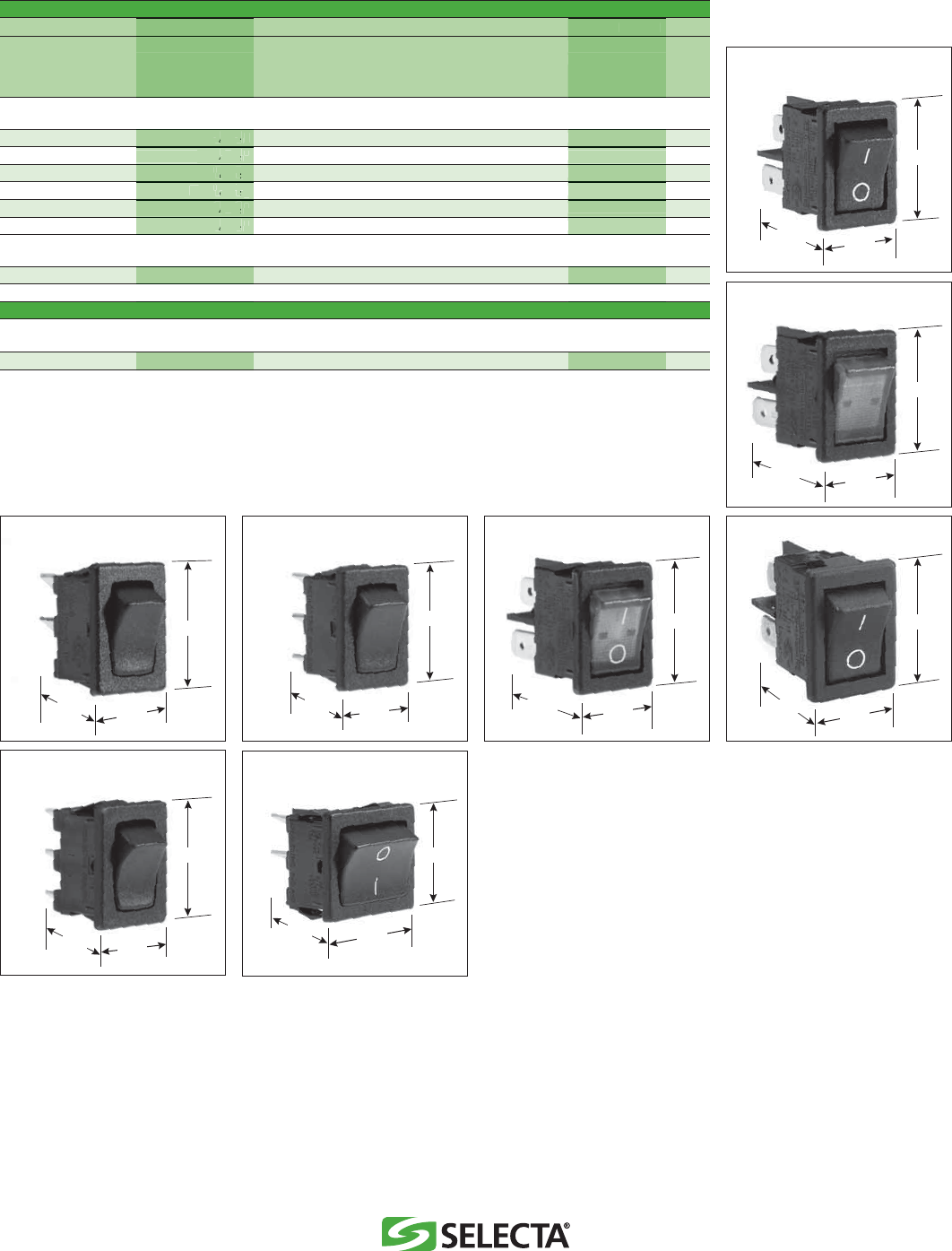

ROCKER SWITCHES • INTERNATIONALLY APPROVED
.780” x .508” PANEL CUTOUT • .187” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ROCKER ACTUATOR/ IMPRINTING LAMP FIG.
THROWS FUNCTIONS 125- ACTUATOR LENS COLOR VOLTAGE NO.
125 250 250 SHAPE COLOR & MARKING TERM.
VAC VAC VAC
SPST ON-OFF 15§ 1
/
4 & 1
/
2 * CURVED BLACK WHITE “O/I” VERTICAL - SS-920-BG 1
SPST ON-OFF 15§ 1
/
4 & 1
/
2 * CURVED RED - 125 V SS-921-BG 2
SPST ON-OFF 16† 1
/
4
& 1
/
2 ‡ CURVED BLACK - - SS-902-BG 3
SPDT ON-ON 10Δ 1
/
4
& 1
/
2 ‡ CURVED BLACK - - SS-903-BG 4
DPST ON-OFF 15§ 1
/
4 & 1
/
2 * CURVED GREEN WHITE “O/I” VERTICAL 125 V SS-922-BG 5
DPST ON-OFF 15§ 1
/
4 & 1
/
2 * CURVED BLACK WHITE “O/I” VERTICAL - SS-923-BG 6
SPDT (ON)-ON 6¥ CURVED BLACK - - SS-904-BG 7
N
O
MINAL RATIN
G
AMP
S
AMP
S
H.P.
12
5
-
125 250 250
VAC VAC VAC
15
§
1
/
1
4
/
/
&
1
/
1
2
/
/
*
15
§
1
/
1
4
/
/
&
1
/
1
2
/
/
*
16
†
1
/
1
4
//
&
1
/
1
2
/
/
‡
1
0
Δ
1
/
1
4
/
/
&
1
/
1
2
/
/
‡
15§
1
/
1
4
/
/
&
1
/
1
2
/
/
*
15
§
1
/
1
4
/
/
&
1
/
1
2
/
/
*
6
¥
§ Rated 15 Amps Non-Inductive 250 VAC; 14 Amps Inductive 250 VAC; 10 Amps 277 VAC
* Rated ¼ HP 125 VAC; ½ HP 250 VAC
† Rated 16 Amps 250 V; 10 Amps 277 V
‡ Rated ¼ HP 125 V; ½ HP 277 V
Δ Rated 10 Amps 277V
¥ Rated 6 Amps 277V
C
ATAL
OG
NUMBER
SS
-
920
-B
G
SS
-
92
1-B
G
SS-902-BG
SS
-
903
-B
G
SS
-
9
22-B
G
SS
-
9
2
3
-B
G
SS
-
904
-B
G
continued on page 2
Panel Cut Out: .780” x .508”
.827”
.591”
.9055”W
Panel Cut Out: .780” x .508”
.8274”
.591”
.784”W
Panel Cut Out: .780” x .508”
.8274”
.591”
.784”W
Panel Cut Out: .780” x .508”
.827”
.591”
.9055”W
Panel Cut Out: .780” x .508”
.8274”
.591”
.784”W
Panel Cut Out: .780” x .508”
.8274”
.591”
.9055”W
Panel Cut Out: .780” x .508”
.827”
.591”
.9055”W
MAINTAINED CONTACT
Fig. 1
Fig. 2
Fig.6Fig. 5Fig. 4Fig. 3
Fig. 7
MOMENTARY CONTACT
Panel Cut Out: .7795” x .8622”
.827”
.945”
.784”W
Fig. 8
.7795” x .8622” PANEL CUTOUT • .187” Q.C. TERMINATION
DPST ON-OFF 10Δ 1
/
4
& 1
/
2 ‡ CURVED BLACK WHITE “O/I” VERTICAL - SS-918-BG 8
MAINTAINED CONTACT
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 11
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
12
Panel Cut Out: 1.185” x .874”
1.26”
.984”
.996”W
Panel Cut Out: 1.185” x .874”
1.26”
.984”
.996”W
Fig. 9
Fig. 10
ROCKER SWITCHES • INTERNATIONALLY APPROVED
1.185” x .874” PANEL CUTOUT • .250” Q.C. TERMINATION
NOMINAL RATING CATALOG NUMBER
POLES & CIRCUIT AMPS AMPS H.P. ROCKER ACTUATOR/ IMPRINTING LAMP FIG.
THROWS FUNCTIONS 125- ACTUATOR LENS COLOR VOLTAGE NO.
125 250 250 SHAPE COLOR & MARKING TERM.
VAC VAC VAC
DPST ON-OFF 16 1
/
2
& 1≈ CURVED∫ GREEN WHITE “O/I” VERTICAL 125 V SS964-BG 9
DPST ON-OFF 16 1
/
2
& 1≈ CURVED∫ RED RED “O” 125 V SS-951-BG 10
DPST ON-OFF 20+ 1
/
2
& 1≈ CURVED∫ MATTE BLACK WHITE “O/I” VERTICAL - SS-961-BG 11
NOMINAL RATIN
G
AMPS AMPS H.P.
125-
1
2
5
2
5
0
2
5
0
VA
C
VA
C
VA
C
1
6
1
/
1
2
//
&
1
≈
1
6
1
/
1
2
/
/
&
1
≈
2
0
+
1
/
1
2
//
&
1
≈
≈Rated 1
/
2 HP 125 VAC; 1 HP 250 VAC.
∫ Shallow Curve
+ Rated 20 Amps 250 VAC; 7 Amps 72 VDC; 14 Amps 36 VDC
* Rated ¼ HP 125 VAC; ½ HP 250 VAC
^ 1
/
8HP 125 VAC; 1
/
3HP 250 VAC
C
ATALOG
N
UMBE
R
SS96
4-B
G
SS
-
95
1-B
G
SS
-
96
1-B
G
MAINTAINED CONTACT
1.07” x .48” PANEL CUTOUT • .250” Q.C. TERMINATION
SPST ON-OFF 20 1
/
2
& 1≈ CURVED∫ BLACK - - SS-959-BG 13
MAINTAINED CONTACT
1.185” x .874” PANEL CUTOUT • .187” Q.C. TERMINATION
DPDT (ON)-OFF-(ON) 16 1
/
4 & 1
/
2 * CURVED∫ BLACK - - SS-965-BG 12
MOMENTARY CONTACT
Panel Cut Out: 1.185” x .874”
1.26”
.984”
.996”W
Panel Cut Out: 1.185” x .874”
1.26”
.984”
.996”W
Panel Cut Out: 1.07” x .48”
1.189”
.551”
.996”W
Fig. 13Fig. 12Fig. 11
夝 Switch height measurement in Figures above, includes body and terminals combined All specifications and dimensions are for reference only. If specific information is needed and/or
of critical nature, contact Selecta Products headquarters for specific information before ordering.
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com 13
PART NUMBER NUMERIC INDEX
SS101-BG ................. 5
SS102-BG ................. 5
SS103-BG ................. 5
SS104-BG ................. 5
SS105-BG ................. 5
SS106-BG ................. 1
SS107-BG ................. 6
SS108-BG ................. 6
SS109-BG ................. 6
SS1101-BG. . . . . . . . . . . . . . . . 9
SS1101-R-125-BG .......... 9
SS1102-BG. . . . . . . . . . . . . . . . 9
SS1103-BG. . . . . . . . . . . . . . . . 9
SS1104-A-125-BG ..........9
SS1104-A-12-BG ...........9
SS1104-BG. . . . . . . . . . . . . . . . 9
SS1104-R-125-BG .......... 9
SS1104-R-12-BG ........... 9
SS1105-BG. . . . . . . . . . . . . . . . 9
SS1105-RA-125-BG .........9
SS1106-AA-125-BG ......... 9
SS1106-BG. . . . . . . . . . . . . . . . 9
SS1106-RR-125-BG ......... 9
SS1107-BG. . . . . . . . . . . . . . . 10
SS110A-BG. . . . . . . . . . . . . . . . 1
SS110G-BG ...............1
SS110R-BG. . . . . . . . . . . . . . . . 1
SS1111-BG. . . . . . . . . . . . . . . 10
SS1112-BG. . . . . . . . . . . . . . . 10
SS1113-BG. . . . . . . . . . . . . . . 10
SS1114-BG. . . . . . . . . . . . . . . 10
SS1115-BG. . . . . . . . . . . . . . . 10
SS1116-BG. . . . . . . . . . . . . . . 10
SS113-BG ................. 1
SS114-BG ................. 2
SS115-BG ................. 2
SS116-BG ................. 2
SS117-BG ................. 3
SS118-BG ................. 3
SS1201-BG. . . . . . . . . . . . . . . . 7
SS1202-BG. . . . . . . . . . . . . . . . 7
SS1203-BG. . . . . . . . . . . . . . . . 7
SS1204-BG. . . . . . . . . . . . . . . . 8
SS1205-BG. . . . . . . . . . . . . . . . 7
SS1206-BG. . . . . . . . . . . . . . . . 7
SS1207-BG. . . . . . . . . . . . . . . . 7
SS1208-BG. . . . . . . . . . . . . . . . 7
SS1209-BG. . . . . . . . . . . . . . . . 7
SS1210-BG. . . . . . . . . . . . . . . . 7
SS1214-BG. . . . . . . . . . . . . . . . 7
SS1216-BG. . . . . . . . . . . . . . . . 7
SS1218-BG. . . . . . . . . . . . . . . . 7
SS1219-BG. . . . . . . . . . . . . . . . 8
SS1220-BG. . . . . . . . . . . . . . . . 8
SS1221-BG. . . . . . . . . . . . . . . . 7
SS1222-BG. . . . . . . . . . . . . . . . 8
SS1223-BG. . . . . . . . . . . . . . . . 7
SS1225-BG. . . . . . . . . . . . . . . . 7
SS1227-BG. . . . . . . . . . . . . . . . 7
SS1229-BG. . . . . . . . . . . . . . . . 7
SS1230-BG. . . . . . . . . . . . . . . . 7
SS1237-BG. . . . . . . . . . . . . . . . 7
SS1239-BG. . . . . . . . . . . . . . . . 7
SS126-BG ................. 6
SS127-BG ................. 6
SS201-1-BG ...............1
SS202P-BG. . . . . . . . . . . . . . . . 1
SS203P-BG. . . . . . . . . . . . . . . . 2
SS204-4-BG ...............1
SS204W-BG ............... 1
SS205-5-BG ...............1
SS206-15-BG ..............2
SS206A-BG. . . . . . . . . . . . . . . . 4
SS206AP-BG ..............4
SS206B-BG. . . . . . . . . . . . . . . . 4
SS206BP-BG. . . . . . . . . . . . . . . 4
SS206C-BG. . . . . . . . . . . . . . . . 4
SS206CP-BG. . . . . . . . . . . . . . . 4
SS206P-BG. . . . . . . . . . . . . . . . 2
SS206R-BG. . . . . . . . . . . . . . . . 2
SS206RP-BG. . . . . . . . . . . . . . . 2
SS206S-BG. . . . . . . . . . . . . . . . 1
SS206SP-BG. . . . . . . . . . . . . . . 1
SS207-7A-BG . . . . . . . . . . . . . . 2
SS207P-BG. . . . . . . . . . . . . . . . 2
SS208-16-BG ..............3
SS208A-BG. . . . . . . . . . . . . . . . 4
SS208B-BG. . . . . . . . . . . . . . . . 4
SS208C-BG. . . . . . . . . . . . . . . . 4
SS208CP-BG. . . . . . . . . . . . . . . 4
SS208D-BG. . . . . . . . . . . . . . . . 4
SS208E-BG. . . . . . . . . . . . . . . . 4
SS208P-BG. . . . . . . . . . . . . . . . 3
SS208R-BG. . . . . . . . . . . . . . . . 3
SS208RP-BG. . . . . . . . . . . . . . . 3
SS209-8-BG ...............1
SS210-9-BG ...............2
SS211-16A-BG ............. 2
SS212A-BG. . . . . . . . . . . . . . . . 3
SS212-BG ................. 3
SS212C-BG. . . . . . . . . . . . . . . . 4
SS212S-BG. . . . . . . . . . . . . . . . 3
SS213-13-BG ..............5
SS214-14-BG ..............5
SS215-10-BG ..............5
SS216-11-BG ..............5
SS219-BG ................. 3
SS219S-BG. . . . . . . . . . . . . . . . 3
SS220-BG ................. 3
SS223S-BG. . . . . . . . . . . . . . . . 5
SS224-BG ................. 5
SS228-BG ................. 5
SS229-BG ................. 5
SS230-BG ................. 2
SS232P-BG. . . . . . . . . . . . . . . . 5
SS233W-BG ............... 5
SS251SP-BG. . . . . . . . . . . . . . . 1
SS256L-BG . . . . . . . . . . . . . . . . 1
SS267S-BG. . . . . . . . . . . . . . . . 2
SS277S-BG. . . . . . . . . . . . . . . . 4
SS501-BG ................. 1
SS502-BG ................. 2
SS503-BG ................. 2
SS504-BG ................. 4
SS505-BG ................. 2
SS506-BG ................. 3
SS507-BG ................. 3
SS508-BG ................. 1
SS509-BG ................. 2
SS510-BG ................. 2
SS511-BG ................. 3
SS512-BG ................. 3
SS627-BG ................. 3
SS-902-BG ...............11
SS-903-BG ...............11
SS-904-BG ...............11
SS-918-BG ...............11
SS-920-BG ...............11
SS-921-BG ...............11
SS-922-BG ...............11
SS-923-BG ...............11
SS-951-BG ...............12
SS-959-BG ...............12
SS-961-BG ...............12
SS964-BG ................ 12
SS-965-BG ...............12
Part Page
Number Number
Part Page
Number Number
Part Page
Number Number
SELECTA PRODUCTS, INC. • Tehachapi, CA • Memphis, TN • Bristol, CT • 800-722-6445 • 800-433-4319 FAX • www.selectaproductsinc.com
14
PRODUCT ALPHA INDEX
Pullchain Switches
........................................................................6
Pushbutton Switches
.......................................................................5
Rotary Switches
...........................................................................6
Rocker Switches
...................................................................... 7 - 12
Internationally Approved ........................................................... 11 - 12
Large Appliance ................................................................... 9 - 10
Maintained Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Momentary Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Small Appliance .................................................................... 7 - 8
Maintained Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Momentary Contact. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Toggle Switches
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
Maintain Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
SPST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SPDT ............................................................................2
DPST ......................................................................... 2 - 3
DPDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3PST ............................................................................3
3PDT ............................................................................3
4PST ............................................................................3
4PDT ............................................................................3
Momentary Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Anchors
ACORN
Auger Bits
ACORN
Batteries
DURACELL®
PROCELL®
Battery & Test Clips
Mueller
Bits (Insert)
ACORN
Bolts
ACORN
Chemical, Cleaners
& Degreasers
Chemtronics
CRC
Circuit Board
Rework & Repair
Circuitworks®
Circuit Breakers
Carling Technologies
CopperLogic
E-T-A
Moeller (CopperLogic)
Potter & Brumfield
Tyco Electronics / P&B
Contactors
Arrow Hart - Controls
Cutler-Hammer
Eaton
Furnas™
Siemens® / Furnas™
Sprecher + Schuh
Desoldering Braid
Chem-Wik®
Soder-Wick®
Drill Bits
ACORN
Dusters (Aerosol)
CRC
Chemtronics
Fasteners
ACORN
Flashlights
DURACELL®
DAYLITE®
Garrity®
Mag-Lite®
Pelican®
PROCELL®
Indicator Lights/
Pilot Lights
Arcolectric (Elektron)
Elektron Components
Selecta Products
Solico
Insulators
Mueller
Liquid Level Controls
ABB / SSAC
Go Switch
SSAC
Topworx
Motor Protectors
ABB / SSAC
CopperLogic
Go Switch
Moeller (CopperLogic)
Sprecher + Schuh
SSAC
Topworx
Nuts
ACORN
Paint
CRC
Photoelectrics
PEPPERL+FUCHS
Pressure Sensors
Honeywell
MICRO SWITCH™
Proximity Controls
Go Switch
PEPPERL+FUCHS
Topworx
Relays
Potter & Brumfield
Selecta Products
Sprecher + Schuh
Tyco Electronics / P&B
Safety Glasses
Gateway Safety®
Smith & Wesson
Screws
ACORN
Switches
Arcolectric (Elektron)
Arrow Hart (Eaton)
Carling Technologies
Cutler-Hammer
Eaton Commercial
Elektron Components
Honeywell
ITW Switches
LINEMASTER®
MICRO SWITCH™
NKK
Otto Controls
Selecta Products
Switches - Mil. Spec
Honeywell
ITW Switches
MICRO SWITCH™
Otto Controls
Switch Seals & Guards
AME Corporation
Arcolectric (Elektron)
APM Hexseal
Elektron Components
Terminals (Solderless)
Selecta Products
Test Leads
Mueller
Time Delay Relays
ABB / SSAC
SSAC
Washers
ACORN
Manufacturers Line Card
Product directory AlPhA directory
cABB / SSAC
cACORN
cAME Corporation
cAPEM
cAPM Hexseal
cArcolectric (Elektron)
cArrow Hart (Eaton)
cArrow Hart Controls (DPs)
cCarling Technologies
cChemtronics
cChem-Wik®
cCircuitworks®
cCopperLogic
cCRC
cCutler-Hammer (DPs)
cDAYLITE®
cDURACELL®
cEaton Commercial
cElektron Components
cE-T-A
cFurnas™
cGarrity®
cGateway Safety®
cGo Switch
cHoneywell
cITW Chemtronics
cITW Switches
cLINEMASTER®
cMag-Lite®
cMICRO SWITCH™
cMoeller (CopperLogic)
cMueller (Clips)
cMueller (Test Leads)
cNKK
cOtto Controls
cPelican®
cPEPPERL+FUCHS
cPotter & Brumfield
cPROCELL®
cSelecta Products
cSiemens® / Furnas™
cSmith & Wesson (Glasses)
cSoder-Wick®
cSolico
cSprecher + Schuh
cSSAC
cTopworx
cTyco Electronics / P&B
Legend
cOne cTwo
cThree cFour
SC/SP/WD/CP/15M/FEB ©2011 SELECTA PRODUCTS, INC.
“SELECTA” is a registered trademark (Marca Registrada, “Marque Déposée”)
of Selecta Products, Inc. a California corporation.
• The brands your customers prefer
• Low combinable minimum order
and free freight requirement
• One stop shopping – resulting in
vendor reductions
• One purchase order, one receivable,
one accounts payable
• Quick delivery – 90% of our
customers receive their shipments
within two days of their order
placement
• 98% fill rate on day of order for
standard stock items!
• Local Rep support
• Buying Associations support
and credits
• Attractive and effective POP Systems
• We sell only to Distributors!
Selecta Benefits:
SELECTA PRODUCTS, INC.
Tehachapi, CA • Memphis, TN • Bristol, CT
Phone: 800-722-6445 • Fax: 800-433-4319
selecta@selectaproductsinc.com
www.selectaproductsinc.com
