Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.1

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

SwitchLine

Non-fusible disconnect switches

16A – 3150A, 600V

ABB SwitchLine includes 16 different amperage sizes from 16A to 3150A.

The basic construction provides exibility, safety, and high performance in an

extremely compact size. ABB SwitchLine is a perfect choice for all switching

applications from industrial motor control to construction safety switches.

SwitchLine Non-fusible

Disconnect switches

S: Description

Disconnect

switches

Non-fusible

18.2 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

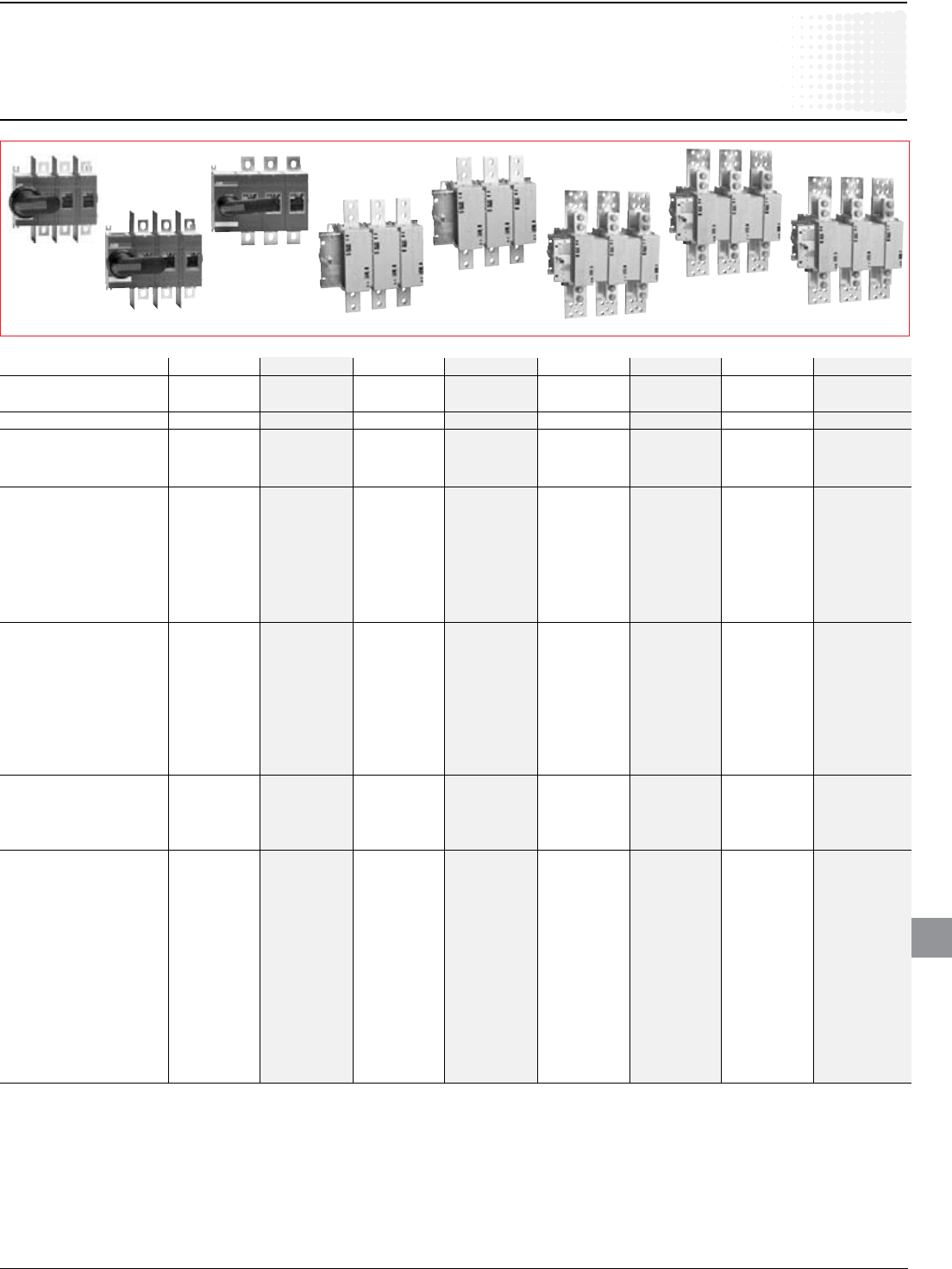

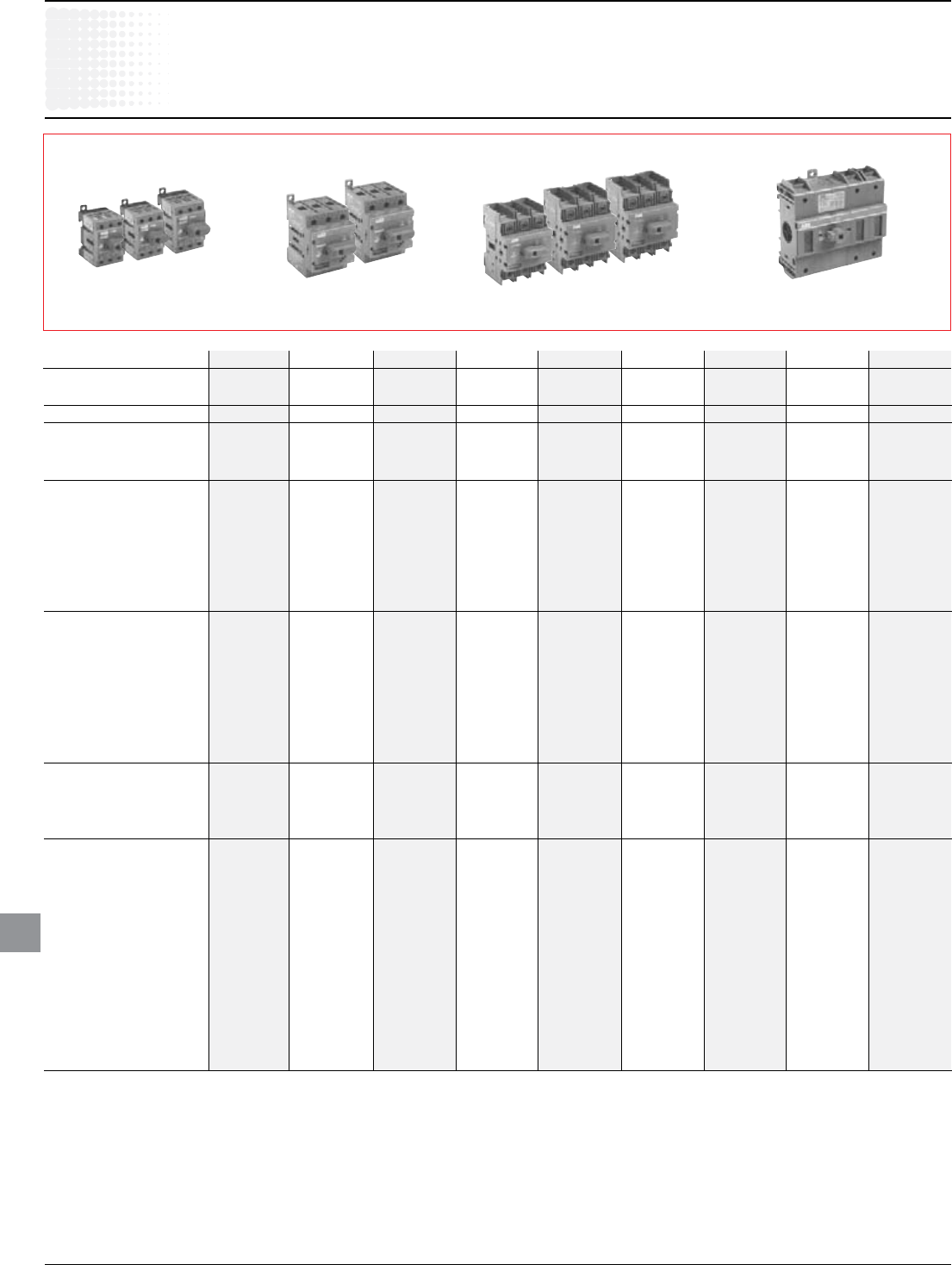

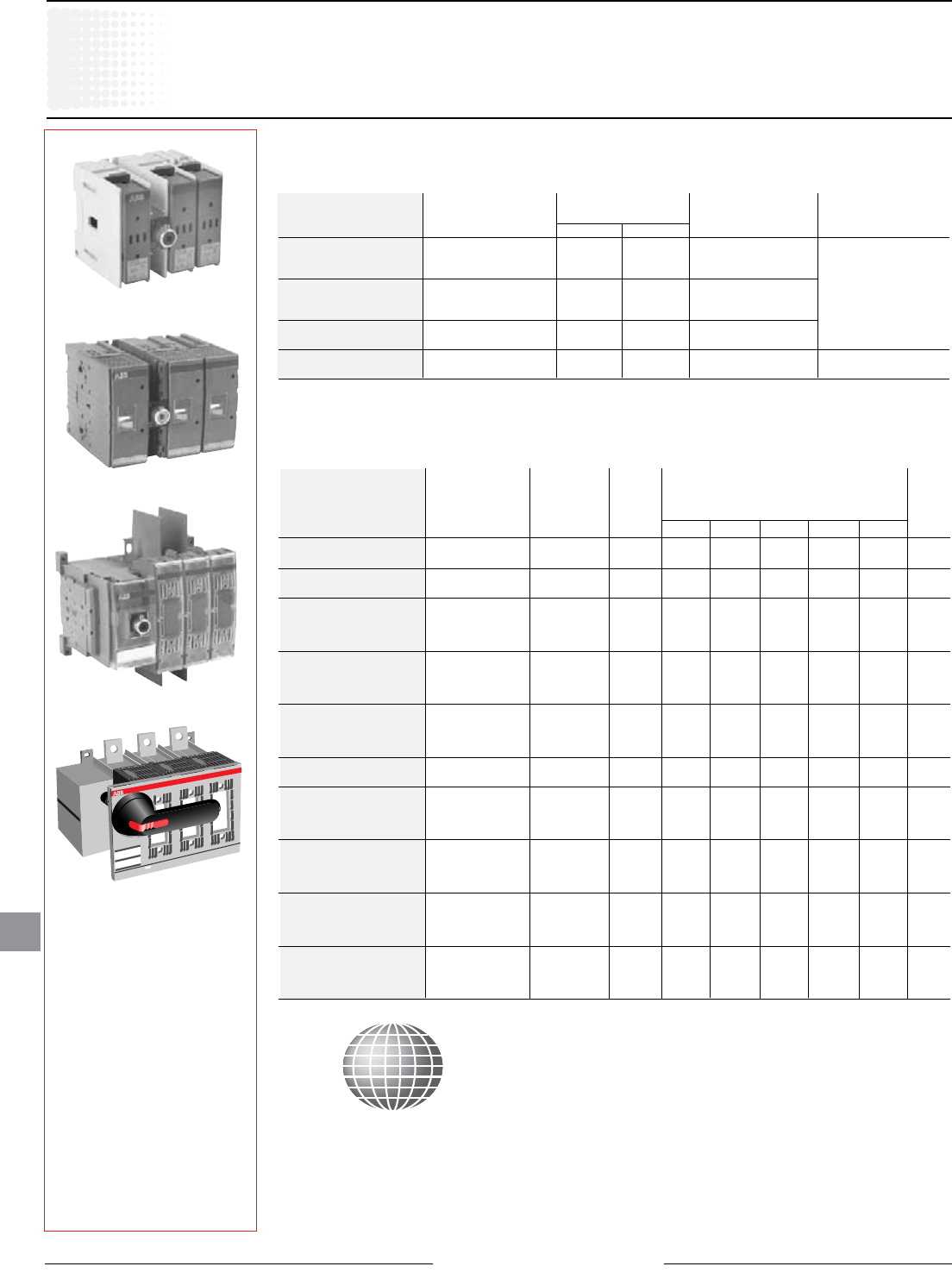

General information

Selection guide

OT16E3 – OT160E3

1 UL listed switches are also CSA approved.

2 For complete technical information please see page 18.38 – 18.70.

3 Switch only.

Catalog number 3 pole OT16E3 OT25E3 OT32E3 OT45E3 OT63E3 OT30E3 OT60E3 OT100E3 OT160E3

OT16E3 OT25E3 OT32E3 OT45E3 OT63E3 OT30E3 OT60E3 OT100E3 OT160E3

General purpose A 16 25 40 60 80 30 60 100 125

amp rating

Catalog reference Page # 18.10 18.10 18.10 18.10 18.10 18.10 18.10 18.10 18.20

Approvals 1

2 pole N/A N/A N/A N/A N/A N/A N/A N/A UL98

3 pole UL508 UL508 UL508 UL508 UL508 UL98 UL98 UL98 UL98

4 pole UL508 UL508 UL508 UL508 UL508 UL98 UL98 UL98 UL98

Technical ratings – UL,CSA 2

Max operating voltage V 600 600 600 600 600 600 600 600 600

Max horsepower rating

Three phase

240V HP 5 7.5 10 15 20 10 20 30 40

480V HP 10 15 20 30 40 20 40 50 75

600V HP 10 20 25 30 40 30 40 50 100

Single phase

120V HP 1 1.5 2 2 2 2 3 5 7.5

240V HP 2 3 5 5 5 5 7.5 15 20

Technical ratings – IEC2

Rated insulation and operational

voltage. AC20 and DC20 V 750 750 750 750 750 750 750 750 750

Rated thermal current, Ith

AC 20/DC 20 open A 25 32 40 63 80 40 63 115 200

AC 20/DC 20 enclosed A 25 32 40 63 80 40 63 115 160

AC 21A ≤500V A 16 25 32 63 80 40 63 100 160

≤690V A 16 25 32 63 80 40 63 100 160

Rated operational power AC23

400/415V kW 7.5 9 11 22 37 15 18.5 37 75

690V kW 7.5 9 11 15 18.5 15 15 37 75

Physical characteristics

Weight 3 3 pole lb 0.24 0.24 0.24 0.59 0.59 0.79 0.79 0.79 2.42

Dimension 3 pole H in 2.68 2.68 2.68 3.60 3.60 3.94 3.94 3.94 5.00

W in 1.38 1.38 1.38 2.07 2.07 2.76 2.76 2.76 4.96

D in 2.20 2.20 2.20 2.85 2.85 2.95 2.95 2.95 2.93

Accessories

Terminal lug kit Integral Integral Integral Integral Integral Integral Integral Integral Integral

Terminal shroud • • • • • • • • —

Auxiliary contact • • • • • • • • •

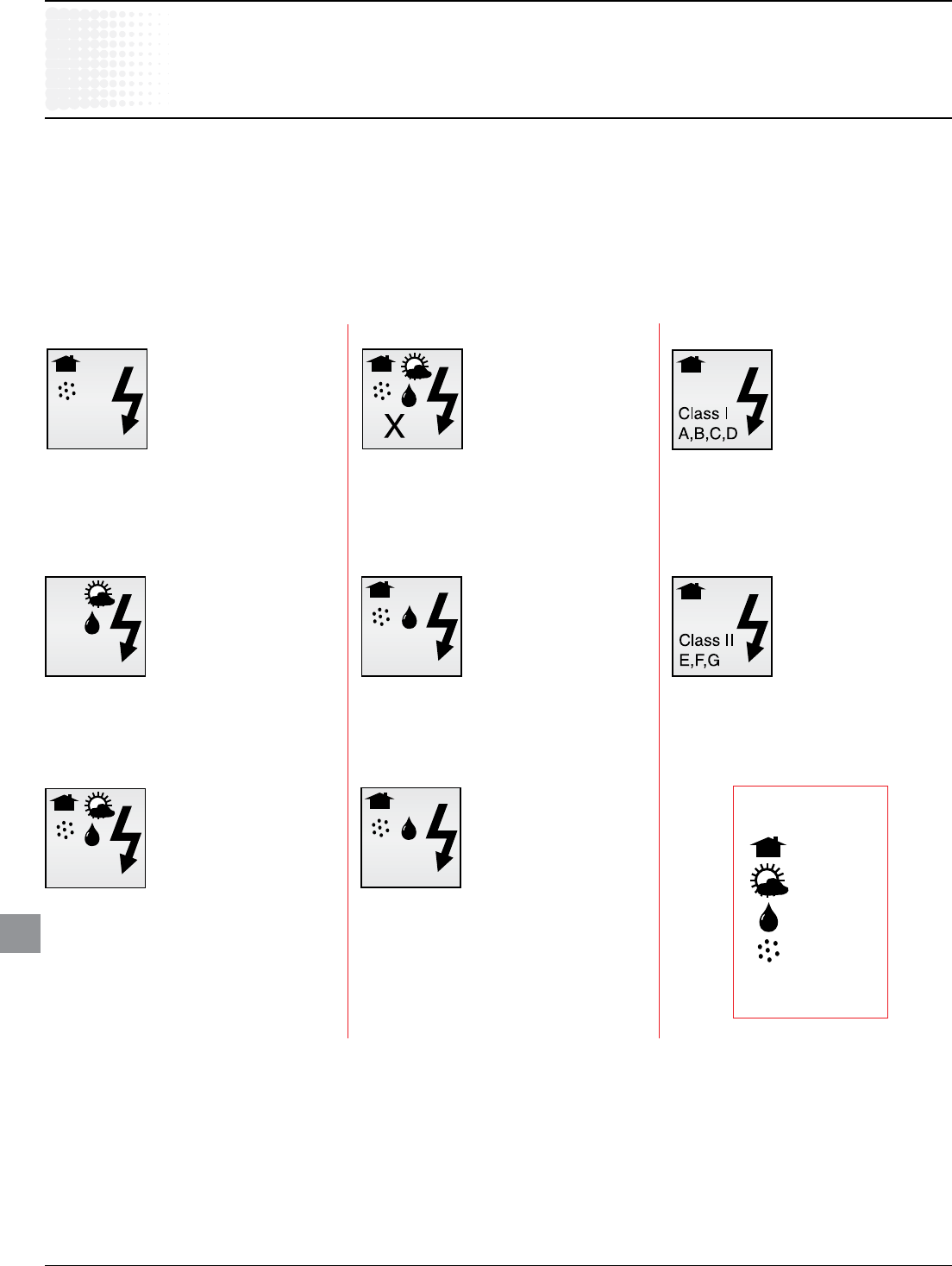

Handle UL/NEMA type

Type 1, 3R, 12 • • • • • • • • •

Type 1, 3R, 4, 4X, 12 • • • • • • • • •

Handle type

Selector • • • • • • • • —

Pistol • • • • • • • • •

Conversion kits

6 pole • • • • • • • • •

Transfer • • • • • • • • •

Bypass • • • • • • • • •

Mechanical interlock • • • • • • • • •

Electrical interlock — — — — — — — — —

• = Available

— = Not available UL listed, CSA approved, IEC rated, CE marked

S: Selection guide

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.3

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

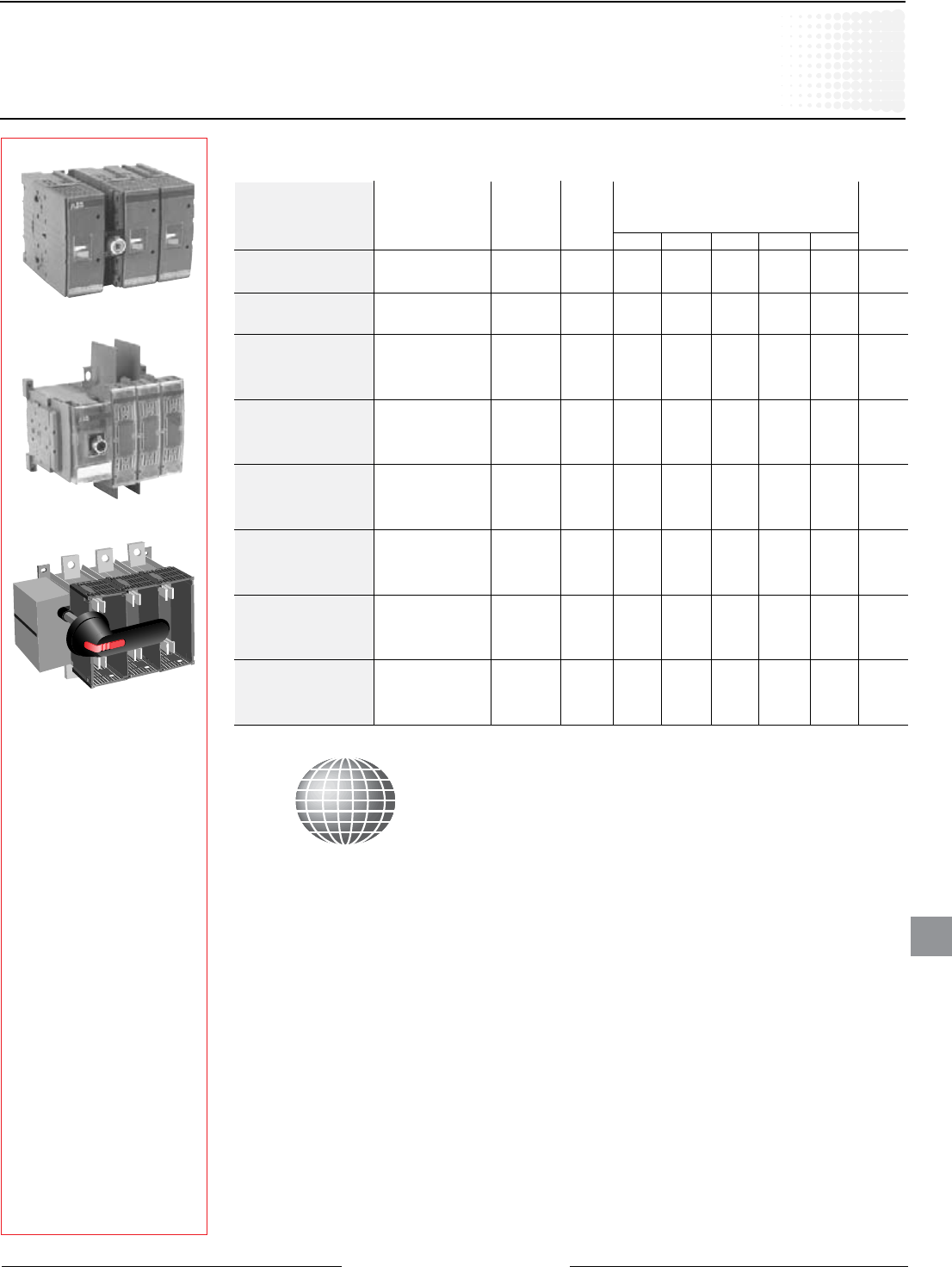

General information

Selection guide

OT200 – OT600 & OETL-NF800A – OETL-NF3150

1 UL listed switches are also CSA approved.

2 For complete technical information please see page 18.38 – 18.70.

3 Switch only

4 IEC 947-3 Utilization Category B, Infrequent operation

S = Standard feature

• = Available

— = Not available

UL listed, CSA approved, IEC rated, CE marked

OT200U03 OT400U03 OT600U03 OETL-NF800ASW OETLNF1200SW OETL-NF1600SW OETL-NF2000SW OETL-NF3150SW

Catalog number 3 pole OT200U03 OT400U03 OT600U03 OETL-NF800A OETL-NF1200 OETL-NF1600 OETL-NF2000 OETL-NF3150

General purpose A 200 400 600 800 1200 1600 2000 3150

amp rating

Catalog reference Page # 18.23 18.26 18.26 18.26 18.30 18.30 18.30 18.30

Approvals1

2 pole N/A N/A UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC

3 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC

4 pole IEC UL98 & IEC UL98 & IEC IEC IEC IEC IEC IEC

Technical ratings – UL,CSA 2

Max operating voltage V 600 600 600 600 600 600 600 600

Max horsepower rating

Three phase

240V HP 75 125 200 250 — — — —

480V HP 150 250 450 500 — — — —

600V HP 200 350 500 600 — — — —

Single phase

120V HP — — — — — — — —

240V HP — — — — — — — —

Technical ratings – IEC 2

Rated insulation and operational

voltage. AC20 and DC20 V 1000 1000 1000 1000 1000 1000 1000 1000

Rated thermal current, Ith

AC 20/DC 20 open A 250 400 800 1250 1600 2500 2500 3150

AC 20/DC 20 enclosed A 250 400 800 1250 1600 2300 2300 2600

AC 21A ≤500V A 250 400 800 1250 1600 25004 25004 31504

≤690V A 250 400 800 1250 1600 25004 25004 31504

Rated operational power AC23

400/415V kW 132 220 400 400 400 400 400 400

690V kW 240 355 800 — — — — —

Physical characteristics

Weight 3 3 pole lb 2.9 5.7 11.4 35.9 38.55 127.7 127.7 127.7

Dimension 3 pole H in 6.69 8.66 10 19.09 19.09 25.04 25.04 25.04

W in 6.67 8.7 10.64 14.29 14.29 18.43 18.43 18.43

D in 3.30 3.35 5.56 4.92 4.92 10.67 10.67 10.67

Accessories

Terminal lug kit OZXA-200 OZXA-400 OZXA-800 OZXA-30 OZXA-28 OZXA-28 OZXA-28/2 OZXA-28/2

Terminal shroud • • • • • — — —

Auxiliary contact • • • • • • • •

Handle UL/NEMA type

Type 1, 3R, 12 • • • • • • • •

Type 1, 3R, 4, 4X, 12 • • • • • • • •

Handle type

Selector — — — — — — — —

Pistol • • • • • • • •

Conversion kits

6 pole • • • • • — — —

Transfer • • • • • — — —

Bypass • • • • • — — —

Mechanical interlock • • • • • • • •

Electrical interlock • • • • • • • •

S: Selection guide

Disconnect

switches

Non-fusible

18.4 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

General information

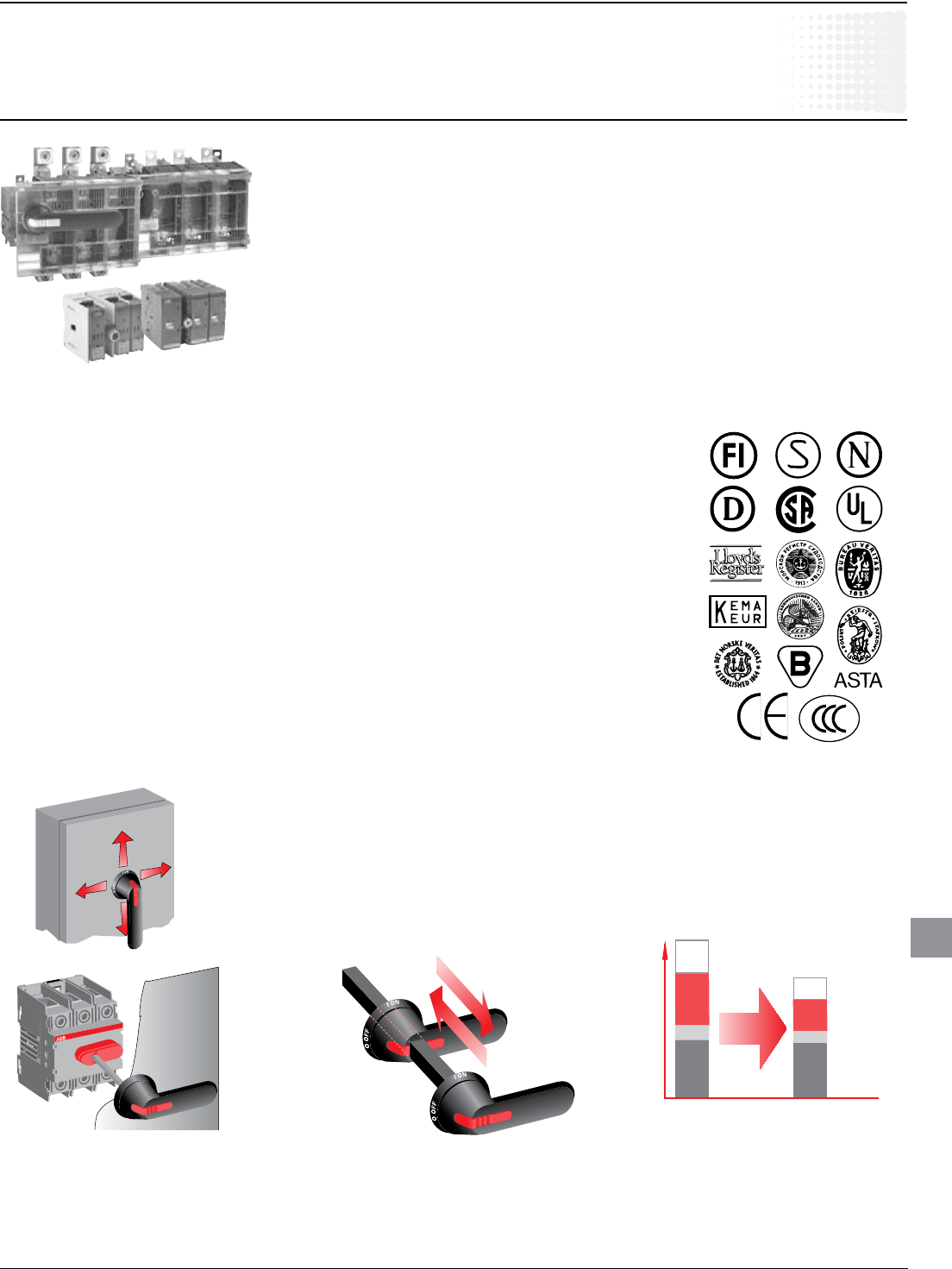

Versatility

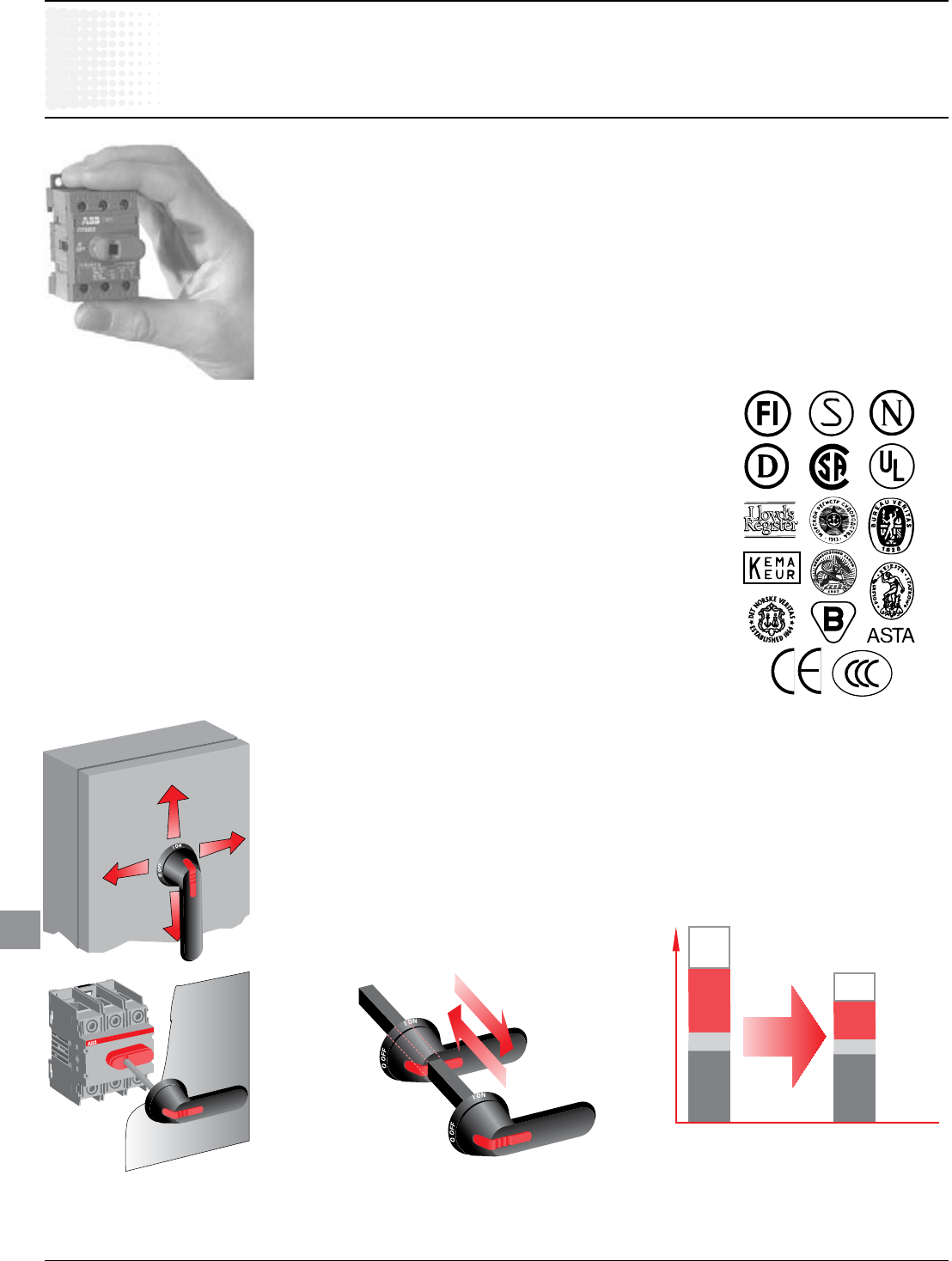

ABB SwitchLine non-fusible disconnect switches are designed to offer maximum versatility in

many ways.

Broad range

SwitchLine is seventeen amperage sizes from 16A – 3150A. All sizes are compact, heavy duty,

600V disconnect switches. Many sizes are available in 2, 3, 4, 6, and 8 pole congurations.

Compact size

The SwitchLine’s compact dimensions allow panel size reduction in new applications or easily

retrot into space-sensitive existing installations.

International acceptance

UL listed, CSA approved, IEC rated, CE marked, and most other international standards.

UL98 (CSA 22.2 No.4) — UL File # E101914, CSA File #LR58077

For OT30, OT60, OT100, OT160, OT200, OT400, OT600, OETL-NF800 – OETL-NF2000 switches,

OH_ pistol grip handles

Suitable for use as motor disconnects or industrial control panel disconnects on service entrance

equipment, panelboards, switchboards, industrial control equipment, motor control centers, etc.

and are horsepower rated and ampere rated.

UL508 (CSA 22.2 No. 14) — UL File # E63822, CSA File #LR58247

For OT16 – OT63 switches, OH_ selector handles

Suitable for use in equipment or machinery as motor controllers & motor disconnects and are

horsepower and ampere rated.

IEC

Tested in accordance to IEC 947-1 and 3, IEC 664, IEC 269, and IEC 204

Compliance with the European Machine Directive IEC 204 (EN 60204)

Installation options

Rotary through the door: available in all sizes, 16A – 3150A

Flange: versions available in 30A, 60A, 100A, & 200A sizes

A rotary disconnect switch may be installed nearly anywhere in a control panel — mounting is

not limited to the upper right hand corner of the panel.

Mount the switch where it conveniently ts in your panel and simply install the handle on the

door, in line with the switch. The switch and handle are mechanically linked through an easily

adjusted shaft. This allows fast and easy installation into panels of different depths and layouts.

Rotary through the door installation Easily adjusted shaft Lower installed costs

Total installed costs

Traditional

switches

ABB

switches

Cost reduction Switches

Accessories

Installation

Space

OFF

S: General information

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.5

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

General information

Broad range of accessories

• Handles — UL/NEMA type 1, 3R, 4, 4X, 12;

IP54, 65, 66

• Auxiliary contacts available for every switch size

• Additional power poles

• Additional terminal poles (neutrals & grounds)

• Terminal shrouds

• 6 & 8 pole mechanisms

• Transfer mechanisms

• Bypass mechanisms

• Mechanical interlock mechanisms

• Electro-mechanical interlock mechanisms

• Motor operators

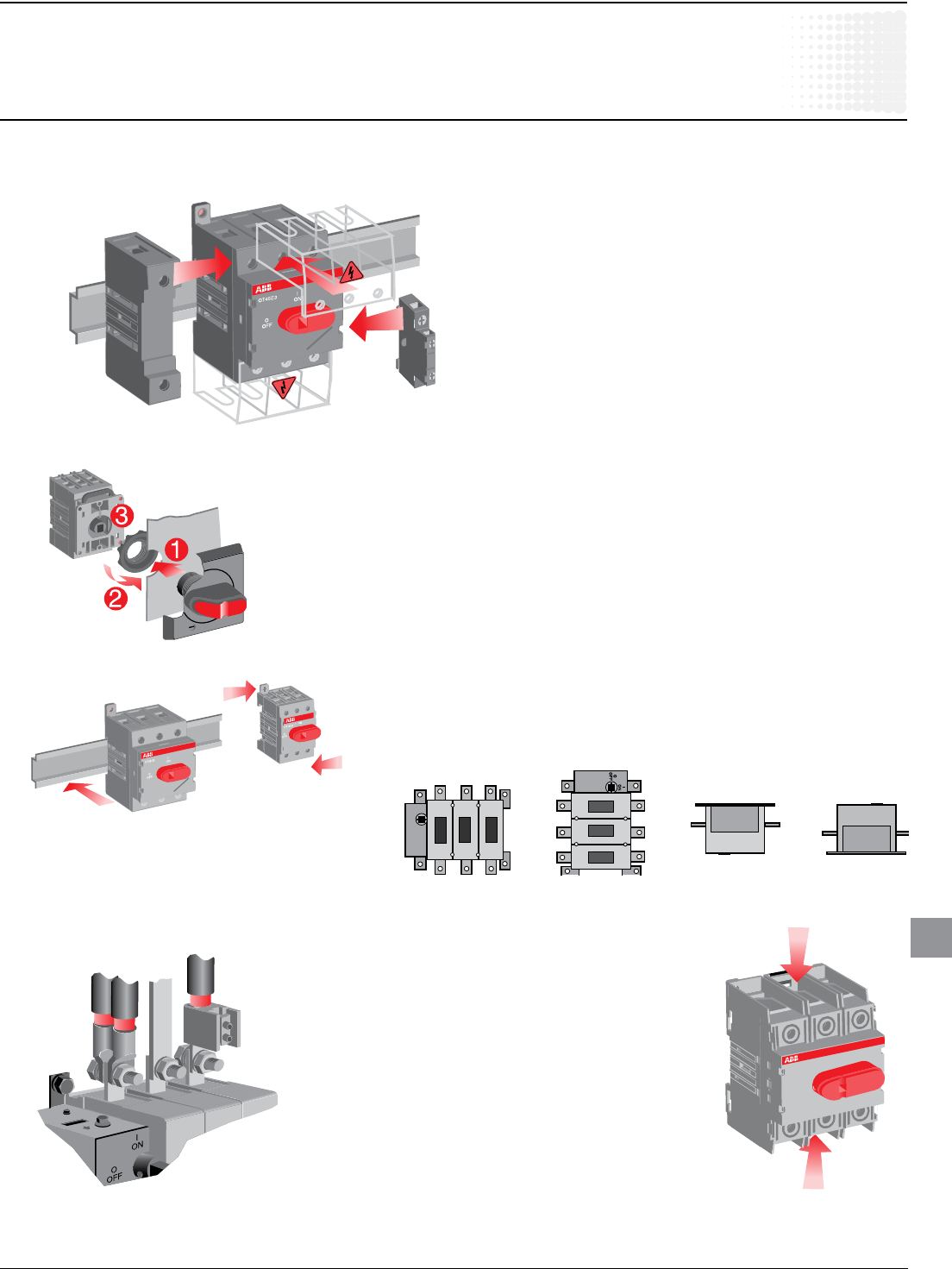

Mounting

SwitchLine disconnect switches offer several mounting possibilities:

• Door mounting on an enclosure door or sidewall, 16A – 125A

• DIN rail mounting, 16A – 125A

• Base mounting with screws, 16A – 3150A

Incoming power feeds

SwitchLine disconnect switches can be

used equally well with either top or bottom

incoming power feeds.

Terminal connections

Versatile connecting possibilities, 200A – 3150A:

• Ring tongue crimp on lugs

• Direct bus

• Terminal lugs

DIN rail mounting

Base mounting

with screws

Door mounting

Mounting positions

SwitchLine disconnect switches may be mounted in any position:

Vertical Horizontal Ceiling Floor

Top feed

I

Bottom feed

OFF

S: General information

Disconnect

switches

Non-fusible

18.6 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

MAIN SWITCH

General information

1 Please consult ABB sales ofce for additional information.

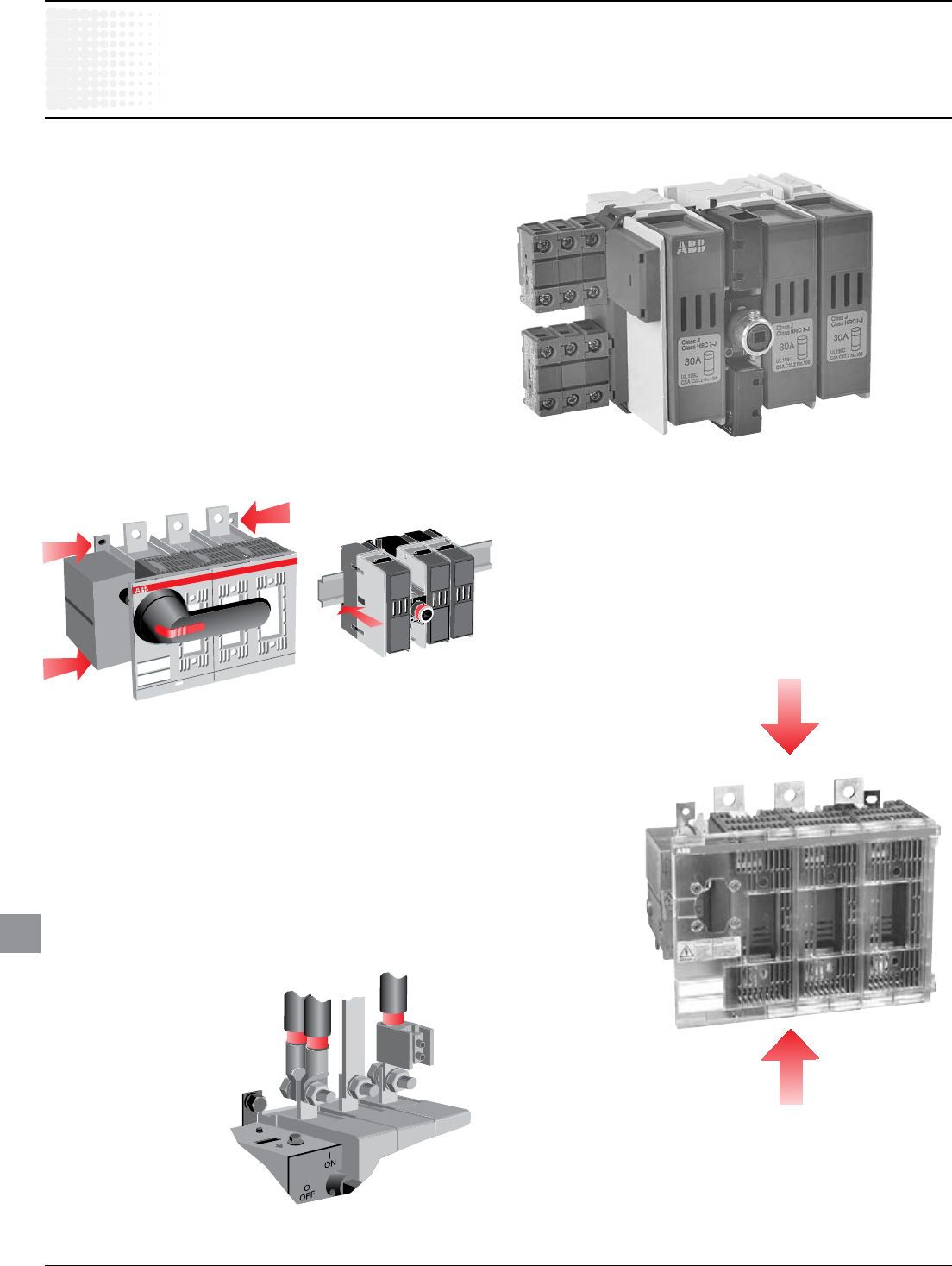

Modular construction

Modular construction 1

Modular switch construction allows the operating mechanism to be placed at either end of the

switch or anywhere in-between, 125A – 3150A.

Finger proof

Dead-front construction plus terminal shrouds reduce the risk

of touching live parts, improving the safety and reliability of the

installation.

Door interlock

The handle and shaft provide a door interlock; the door can not be

opened when the switch is in the “ON” position. NOTE: Some handles

provide a method for qualied personnel to circumvent the door interlock.

This is commonly referred to as a “defeater” mechanism.

Handle and mechanism padlocked OFF

Padlockable

Handles can be padlocked in the “OFF” position with up to three padlocks:

Additionally, the switch mechanism can be directly padlocked in the “OFF”

position when the door is open. NOTE: Some handles can be ordered with the

ability to padlock in both the “ON” & “OFF” positions, please consult your ABB

sales ofce.

Door interlock

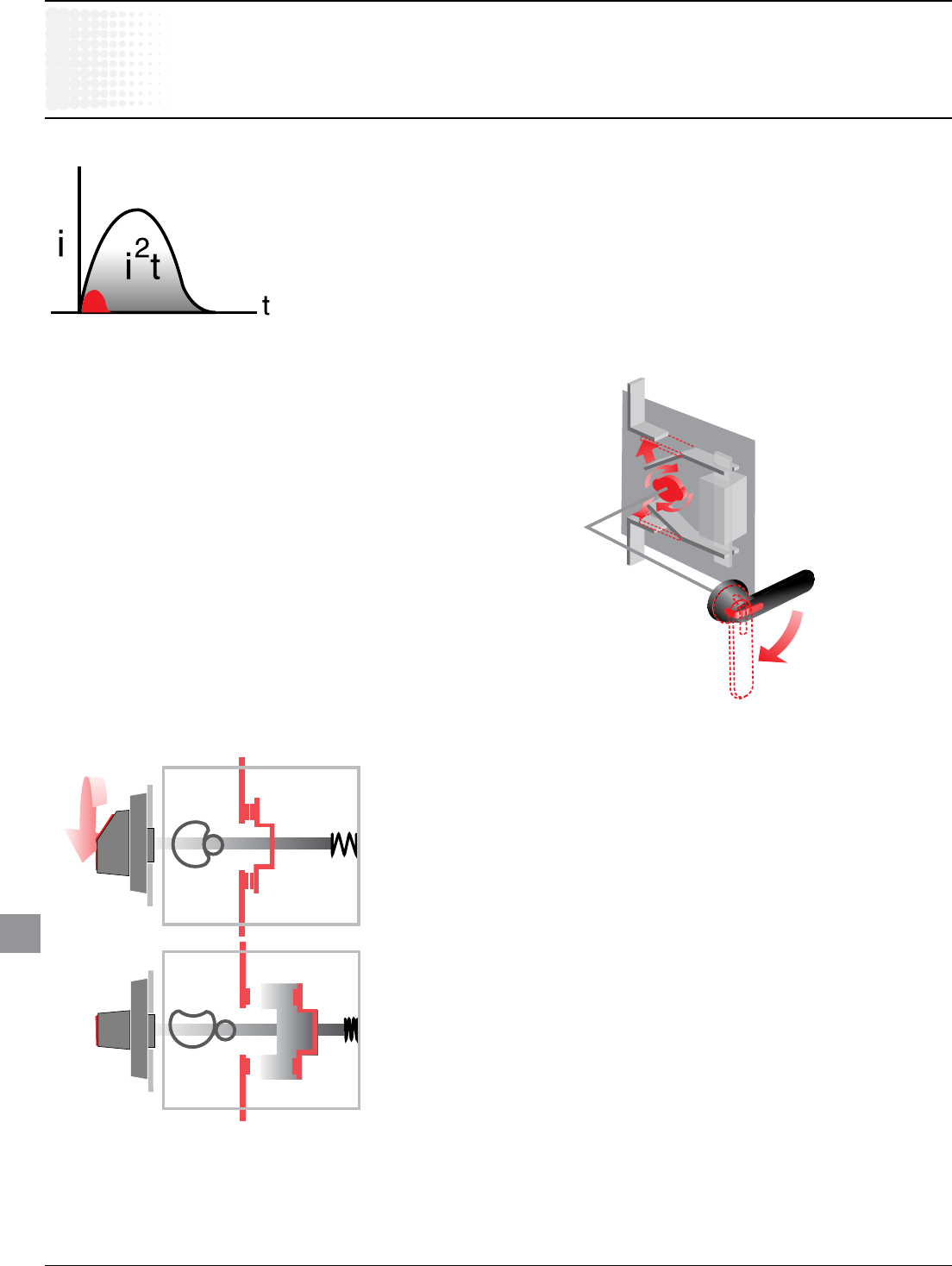

Positive opening operation

All switches operate according to the “positive opening operation” principle.

This means the contacts are opened and closed by a driven mechanism, a solid

moving bridge, not merely springs. This provides reliable position indication to

the user; if the switch is in the “OFF” position, the contacts are open.

Positive opening operation

S: General information

Disconnect

switches

Non-fusible

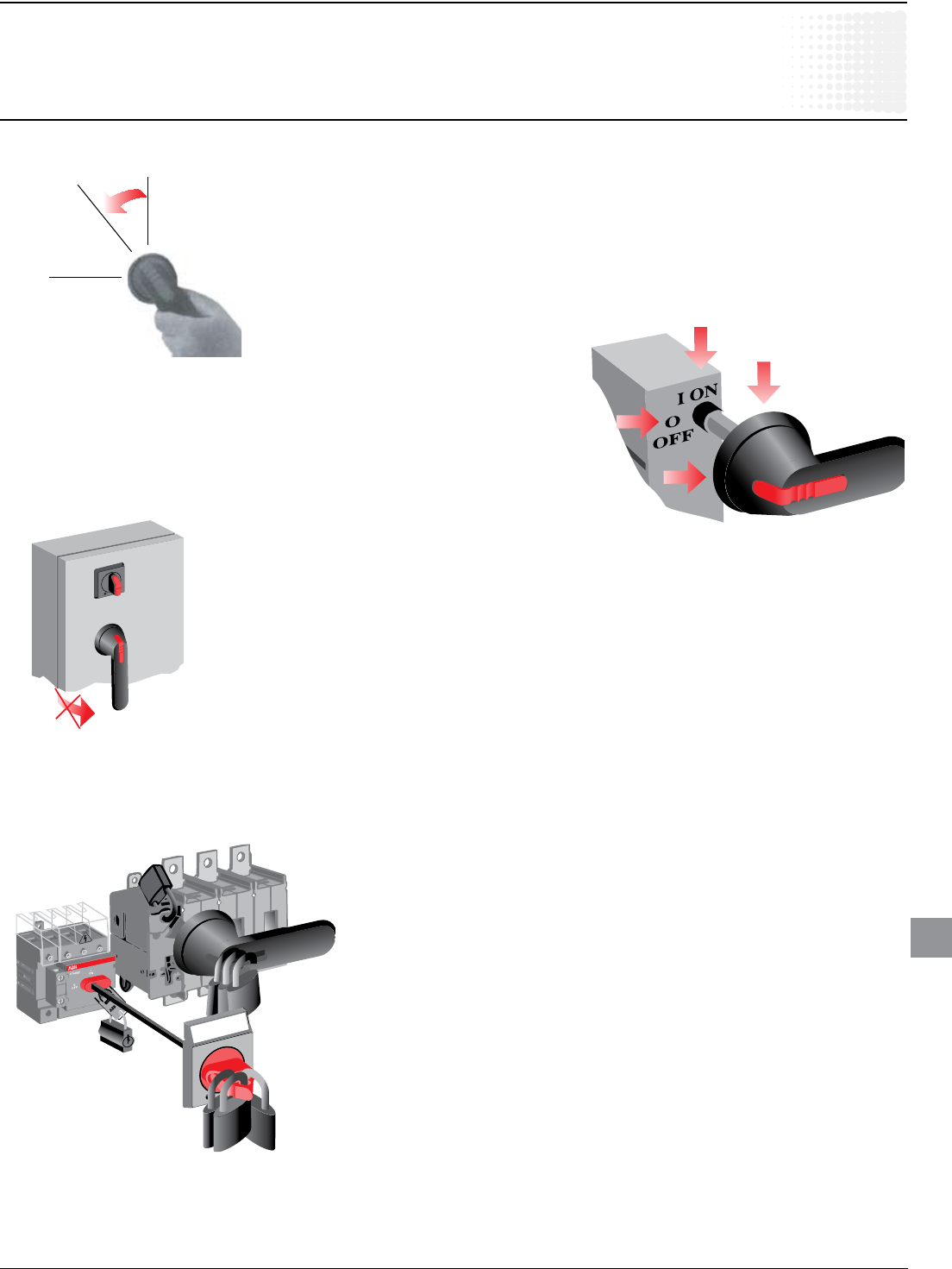

Low Voltage Products & Systems 18.7

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

OFF

45o

Max

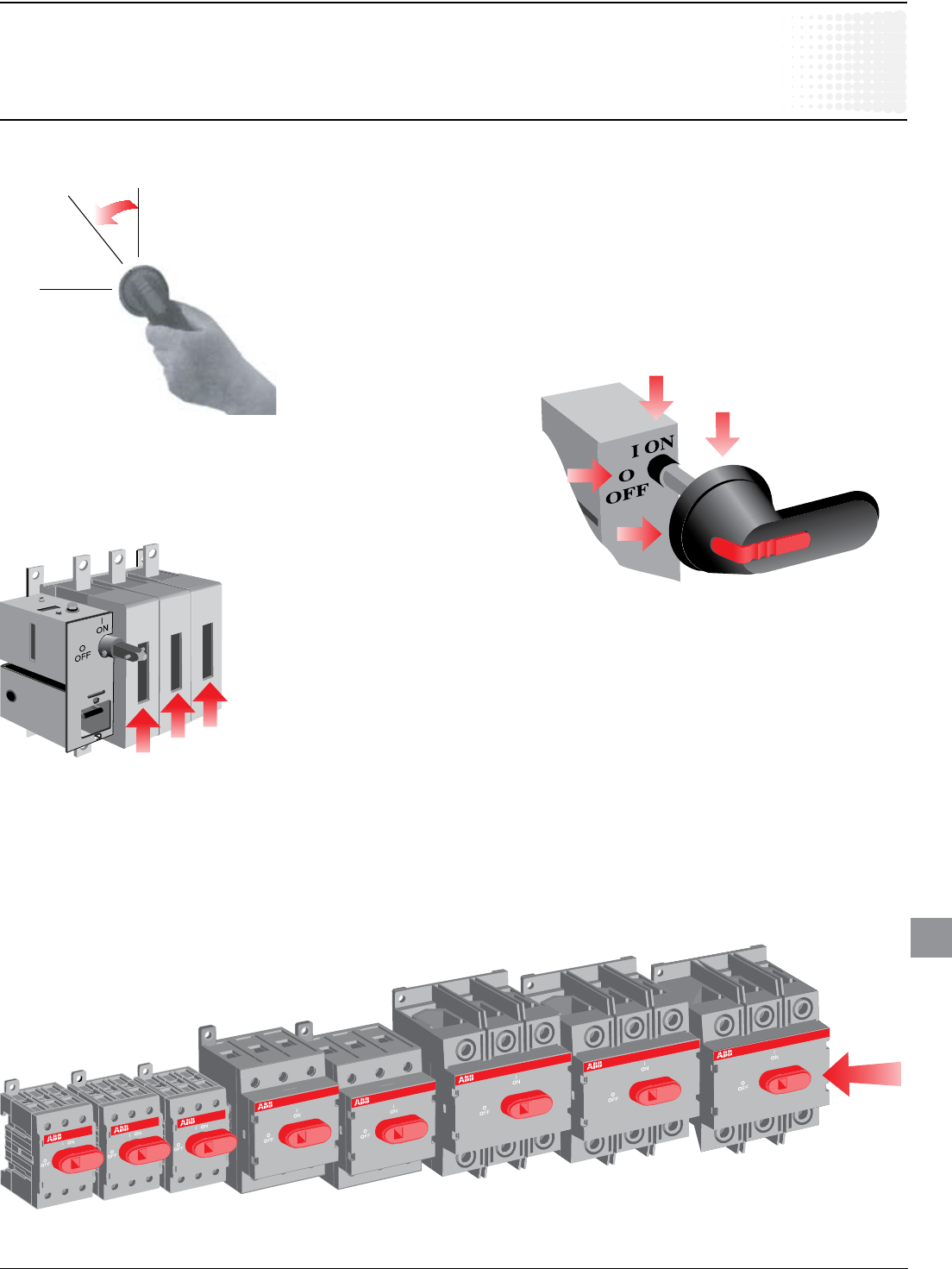

Welded contact protection

Positive opening operation safeguards users in case of welded contacts due to an

overload or short circuit.

The switch can not reach the “OFF” position unless the contacts are truly open. If any

or all of the contacts are welded shut, the switch mechanism will only allow the handle

to operate a maximum of 45o. This safeguards personnel by:

• alerting them a problem has occurred

• maintaining the door interlock and

• not allowing a padlock to be inserted.

General information

Track resistant material

Excellent track resistant material, CTI > 600V, IEC 112, reduces the risk of ashover

between phases in even the most severe circumstances.

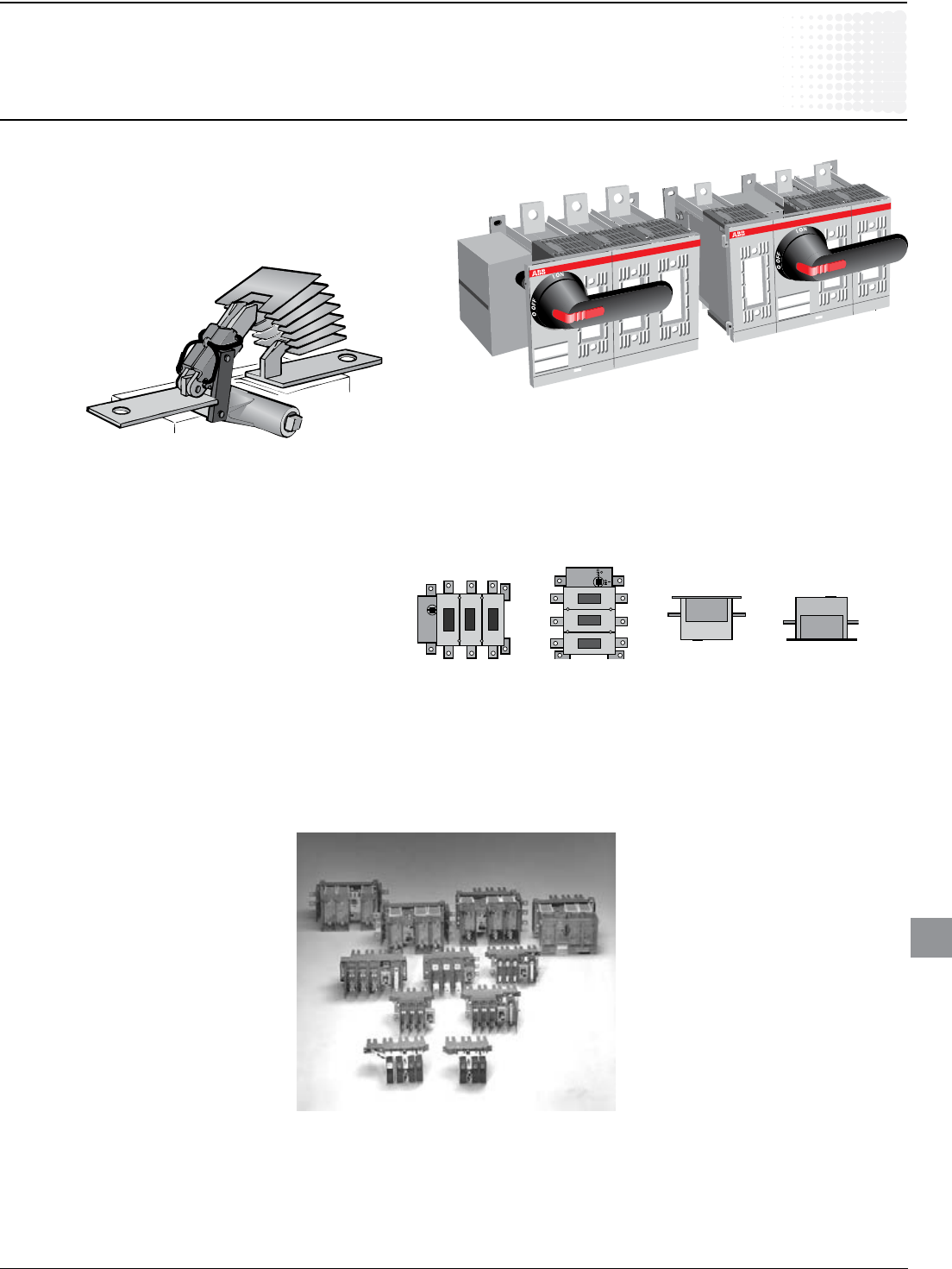

Windows for

viewing blades

Clear position indication

All switches and handles have clear “ON” and “OFF” designations. Whether the

door is open or closed, it is possible to simply look at the switch and determine

if the switch is “ON” or “OFF”.

Visible blades

Visible blades offer additional safety from 125A — 1200A.

Constant control

The OT16E3 to OT100E3 provide the user with constant control over the power circuit. Whether the enclosure door is open or

closed, qualied personnel have the ability to manually operate the switch. This is most meaningful when qualied personnel are

working with the enclosure door open: In case of an emergency down-stream, the main three phase power can be disconnected

immediately using the red, direct mounted handle.

S: General information

Disconnect

switches

Non-fusible

18.8 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

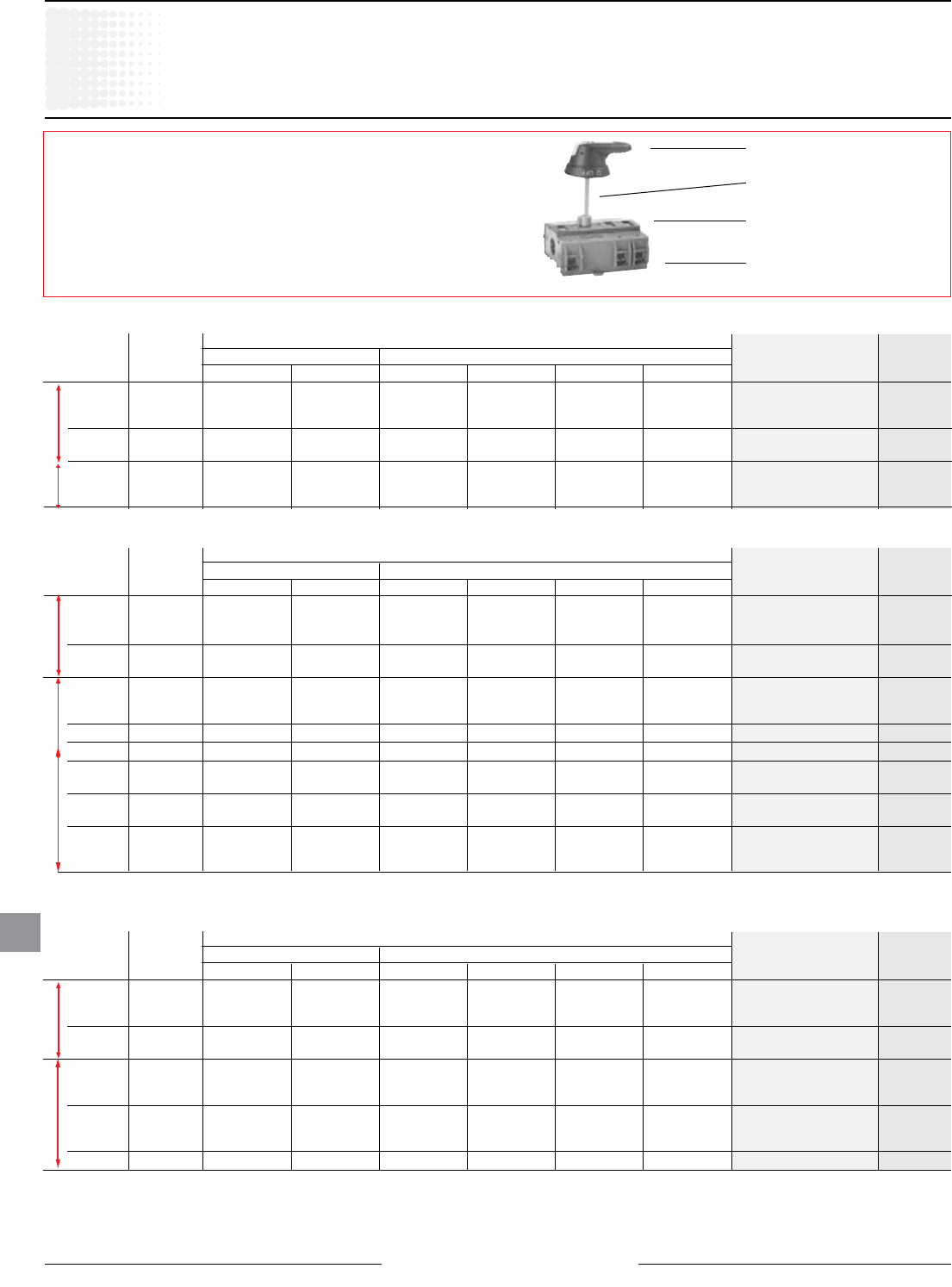

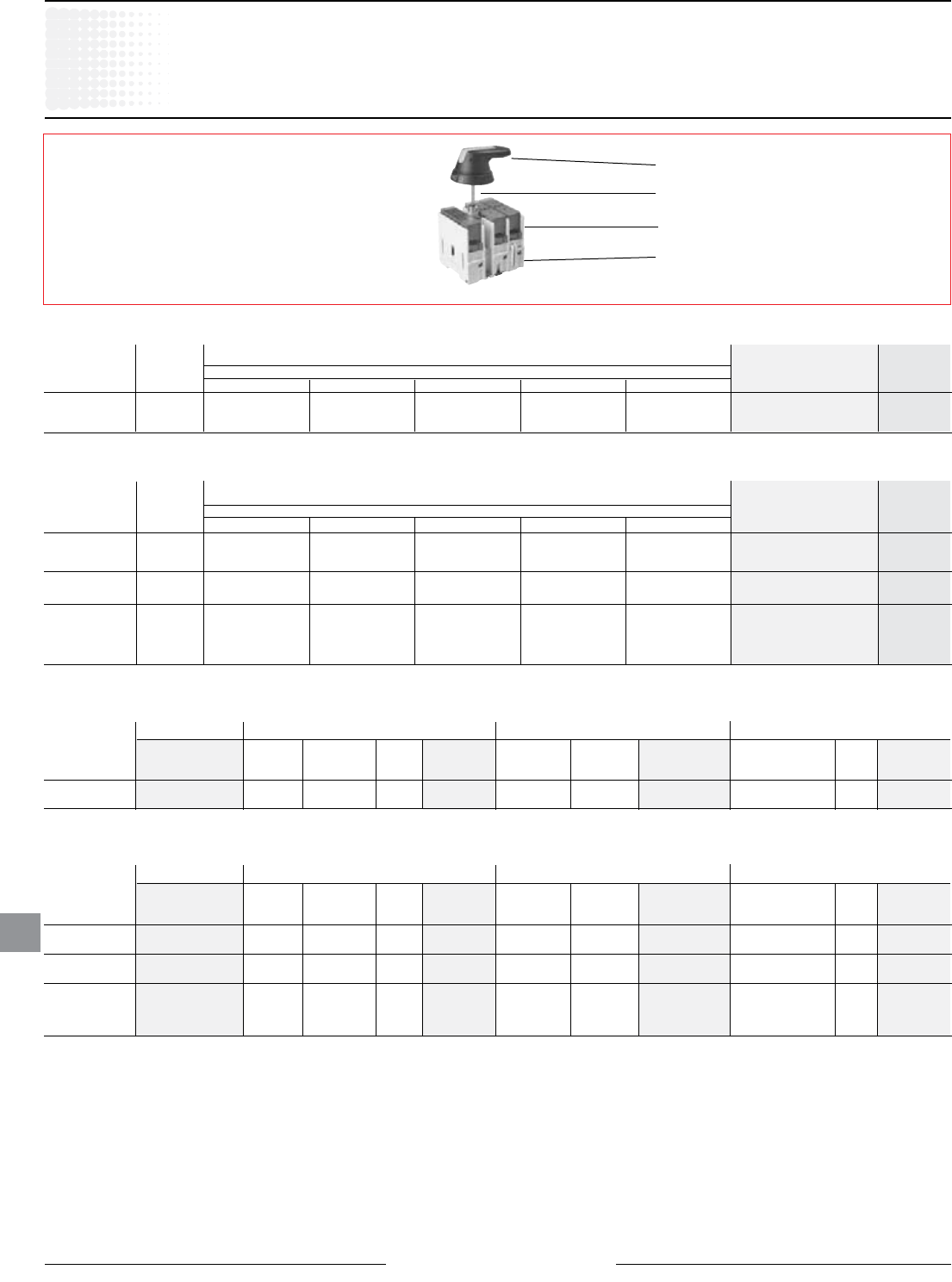

Kits

16A–3150A,600V,3pole1

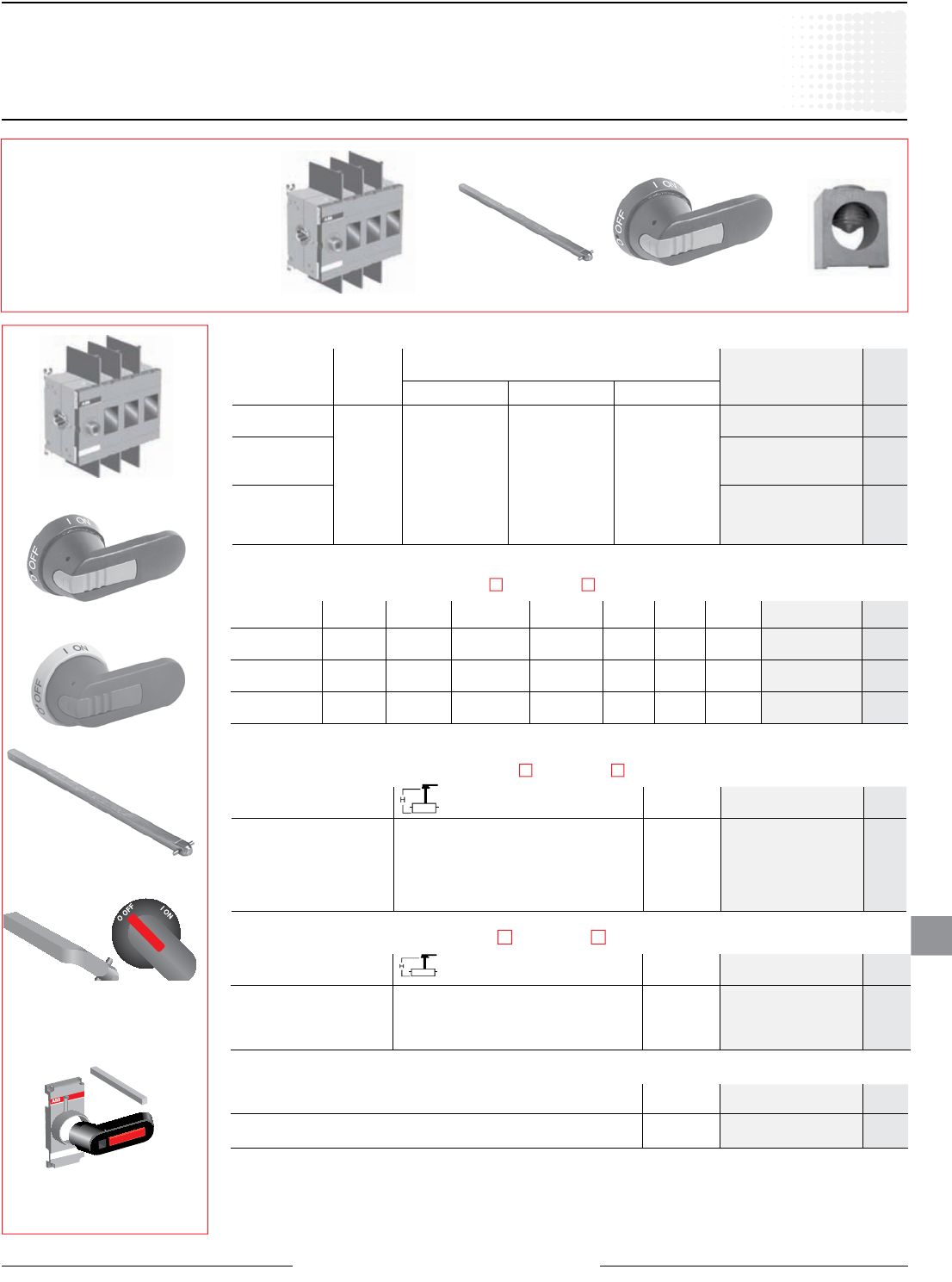

Kits with base & DIN rail mounted switches and selector handles

Each kit includes:

 1threepole1 switch

1 handle

1 shaft

1 terminal lug kit

Discount schedule H1: NF,16A–100A

Discount schedule H2: NF,125A–800A

Discount schedule H3: NF,1200A–3150A

Kits with door mounted switches

 16 16 1 2 3 5 10 10 OT16B2A1-180 $ 100

 25 25 1.5 3 7.5 7.5 15 20 OT25B2A1-180 106

 40 40 2 5 10 10 20 25 OT32B2A1-180 110

 60 63 2 5 15 15 30 30 OT45B2A1-180 134

 80 80 2 5 20 20 40 40 OT63B2A1-180 154

 30 40 2 5 10 10 20 30 OT30B2A1-180 184

 60 63 3 7.5 20 20 40 40 OT60B2A1-180 209

 100 115 5 15 25 30 50 50 OT100B2A1-180 234

UL IEC    Maximumhorsepowerrating    Kit

generalpurpose AC21  Singlephase   Threephase   catalog List

amprating amprating 120V 240V 200V – 208V 240V 480V 600V number price

 16 16 1 2 3 5 10 10 OT16ET3S $ 98

 25 25 1.5 3 7.5 7.5 15 20 OT25ET3S 104

 40 40 2 5 10 10 20 25 OT32ET3S 108

 60 63 2 5 15 15 30 30 OT45ET3S 132

 80 80 2 5 20 20 40 40 OT63ET3S 152

 30 40 2 5 10 10 20 30 OT30ET3S 182

 60 63 3 7.5 20 20 40 40 OT60ET3S 207

 100 115 5 15 25 30 50 50 OT100ET3S 232

 30 40 2 5 10 10 20 30 OT30ET3P 254

 60 63 3 7.5 20 20 40 40 OT60ET3P 279

 100 115 5 15 25 30 50 50 OT100ET3P 304

 125 160 7.5 20 30 40 75 100 OT160ET3P 640

Kit

handle

switch

shaft2

terminal lug kit3

Kits with base and/or DIN rail mounted switches and pistol handles

 16 16 1 2 3 5 10 10 OT16B6-170 $ 162

 25 25 1.5 3 7.5 7.5 15 20 OT25B6-170 168

 40 40 2 5 10 10 20 25 OT32B6-170 172

 60 63 2 5 15 15 30 30 OT45B6-170 196

 80 80 2 5 20 20 40 40 OT63B6-170 216

 30 40 2 5 10 10 20 30 OT30B6-170 246

 60 63 3 7.5 20 20 40 40 OT60B6-170 271

 100 115 5 15 25 30 50 50 OT100B6-170 296

 125 160 7.5 20 30 40 75 100 OT160B6-210 516

 200 250 — — 60 75 150 200 OTK200B8-210 796

 400 630 — — 100 125 250 350 OTK400B4-280 1736

 600 800 — — 150 200 400 500 OTK600B4-280 2706

 800 1250 — — 200 250 500 600 OT800B4-280 5066

 1200 1600 — — — — — — OT1200B4-280 7926

 1600 2500 — — — — — — OT1600M8-325 17,630

 2000 2500 — — — — — — OT2000M8-325 19,430

 — 3150 — — — — — — OT3150M8-325 21,130

1 Fourpolesareavailable—pleasereferenceaccessoriespages18.12&18.21.

2 Shaftisnotrequiredwithdoormountedswitch,exceptOT160ET3.

3 16A–125Aswitchesincludestandardintegralterminallugs.

4 Availableasakitusingthestandardbasemountswitchandadoormountbracket.

UL IEC    Maximumhorsepowerrating    Kit

generalpurpose AC21  Singlephase   Threephase   catalog List

amprating amprating 120V 240V 200V – 208V 240V 480V 600V number price

UL IEC    Maximumhorsepowerrating    Kit

generalpurpose AC21  Singlephase   Threephase   catalog List

amprating amprating 120V 240V 200V – 208V 240V 480V 600V number price

UL 98

UL 98 UL508 UL508

UL 98 UL508

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.9

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Kit components

16A–3150A,600V,3pole1

Ifotherhandlesorshaftsaredesired,pleaseorderfromtheindividualcomponentpages18.10,18.11,18.20,18.23,18.26,18.30and18.31.

Kit components 2 for base & DIN rail mounted switches with selector handles

Switch Handle 4 Shaft Terminal lugs

Kit De- Mounting

 catalog Catalog NEMA Marking feat- Catalog depth5 Length Catalog Wire Wire Catalog

 number number type  able number (inches) (inches/mm) number size type number

Kit components 2 for door mounted switches

 OT16B6-170 OT16E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.0 – 7.5 6.7/170 OXP5X170 #18–8 Cu Integral

 OT25B6-170 OT25E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.0 – 7.5 6.7/170 OXP5X170 #18–8 Cu Integral

 OT32B6-170 OT32E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.0 – 7.5 6.7/170 OXP5X170 #18–8 Cu Integral

 OT45B6-170 OT45E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.7 – 8.1 6.7/170 OXP5X170 #14–4 Cu Integral

 OT63B6-170 OT63E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.7 – 8.1 6.7/170 OXP5X170 #14–4 Cu Integral

 OT30B6-170 OT30E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.2 – 8.2 6.7/170 OXP5X170 #14–4 Cu Integral

 OT60B6-170 OT60E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.2 – 8.2 6.7/170 OXP5X170 #14–4 Cu Integral

 OT100B6-170 OT100E3 1,3R,12 O/I&Off/On Yes OHB65J5 7.2 – 8.2 6.7/170 OXP5X170 #8–1/0 Cu Integral

 OT160B6-210 OT160E3 1,3R,12 O/I&Off/On Yes OHB65J6 7.3 – 8.5 8.3/210 OXP6X210 #8–1/0 Cu Integral

 OTK200B8-210 OT200U03 1,3R,12 O/I&Off/On Yes OHB80J6 7.4 – 9.6 8.3/210 OXP6X210 #4–300kcmil Cu/Al OZXA-200

 OTK400B4-280 OT400U03 1,3R,12 O/I&Off/On Yes OHB145J12 10.2 – 13.4 11.0/280 OXP12X280 #2–600kcmil Cu/Al OZXA-400

 OTK600B4-280 OT600U03 1,3R,12 O/I&Off/On Yes OHB145J12 10.2 – 14.5 11.0/280 OXP12X280 (2)#2–600kcmil Cu/Al OZXA-800

 OT800B4-280 OETL-NF800ASW 1,3R,12 O/I&Off/On Yes OHB145J12 11.6 – 15.3 11.0/280 OXP12X280 (2)#2–600kcmil Cu/Al OZXA-30

 OT1200B4-280 OETL-NF1200SW 1,3R,12 O/I&Off/On Yes OHB145J12 11.6 –15.3 11.0/280 OXP12X280 (4)#2–600kcmil Cu/Al OZXA-28

 OT1600M8-325 OETL-NF1600SW 1,3R,4,4X,12 Off/On — YASDA-8 13.4 – 23.1 12.8/325 OXP12X325 (4)#2–600kcmil Cu/Al OZXA-28

 OT2000M8-325 OETL-NF2000SW 1,3R,4,4X,12 Off/On — YASDA-8 13.4–23.1 12.8/325 OXP12X325 (8)#2–600kcmil Cu/Al OZXA-28/2

 OT3150M8-325 OETL-NF3150SW 1,3R,4,4X,12 Off/On — YASDA-8 13.4–23.1 12.8/325 OXP12X325 (8)#2–600kcmil Cu/Al OZXA-28/2

OT16B2A1-180 OT16E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.4 – 8.1 7.1/180 OXS5X180 #18–8 Cu Integral

OT25B2A1-180 OT25E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.4 – 8.1 7.1/180 OXS5X180 #18–8 Cu Integral

 OT32B2A1-180 OT32E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.4 – 8.1 7.1/180 OXS5X180 #18–8 Cu Integral

 OT45B2A1-180 OT45E3 1,3R,12 O/I&Off/On — OHB2AJ1 8.1 – 8.7 7.1/180 OXS5X180 #14–4 Cu Integral

 OT63B2A1-180 OT63E3 1,3R,12 O/I&Off/On — OHB2AJ1 8.1 – 8.7 7.1/180 OXS5X180 #14–4 Cu Integral

 OT30B2A1-180 OT30E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.6 – 8.6 7.1/180 OXS5X180 #14–4 Cu Integral

 OT60B2A1-180 OT60E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.6 – 8.6 7.1/180 OXS5X180 #14–4 Cu Integral

 OT100B2A1-180 OT100E3 1,3R,12 O/I&Off/On — OHB2AJ1 7.6 – 8.6 7.1/180 OXS5X180 #8–1/0 Cu Integral

Each kit includes:

 1threepole1 switch

1 handle

1 shaft

1 terminal lug kit

Kit

handle

switch

shaft 2

terminal lug kit 3

Kit components 2 for base and/or DIN rail mounted switches with pistol handles

Discount schedule H1: NF,16A–100A

Discount schedule H2: NF,125A–800A

Discount schedule H3: NF,1200A–3150A

OT16ET3S OT16ET3 1,3R,12 O/I&Off/On — OHB2PJ    Noshaftrequired #18–8 Cu Integral

OT25ET3S OT25ET3 1,3R,12 O/I&Off/On — OHB2PJ    Noshaftrequired #18–8 Cu Integral

 OT32ET3S OT32ET3 1,3R,12 O/I&Off/On — OHB2PJ    Noshaftrequired #18–8 Cu Integral

 OT45ET3S OT45ET3 1,3R,12 O/I&Off/On — OHB2RJ    Noshaftrequired #14–4 Cu Integral

 OT63ET3S OT63ET3 1,3R,12 O/I&Off/On — OHB2RJ    Noshaftrequired #14–4 Cu Integral

 OT30ET3S OT30ET3 1,3R,12 O/I&Off/On — OHB2RJ    Noshaftrequired #14–4 Cu Integral

 OT60ET3S OT60ET3 1,3R,12 O/I&Off/On — OHB2RJ    Noshaftrequired #14–4 Cu Integral

 OT100ET3S OT100ET3 1,3R,12 O/I&Off/On — OHB2RJ    Noshaftrequired #8–1/0 Cu Integral

 OT30ET3P OT30ET3 1,3R,12 O/I&Off/On — OHB65J5   IncludesOHZX6adapter #14–4 Cu Integral

 OT60ET3P OT60ET3 1,3R,12 O/I&Off/On — OHB65J5   IncludesOHZX6adapter #14–4 Cu Integral

 OT100ET3P OT100ET3 1,3R,12 O/I&Off/On — OHB65J5   IncludesOHZX6adapter #8–1/0 Cu Integral

 OT160ET3P OT160ET3 1,3R,12 Off/On — OHB65J6 — 5.2/130 OXP6X130 #8–1/0 Cu Integral

1 Otherpolecongurationsavailable;pleaseseeindividualcomponents.

2 Formoreinformationpleaseseeindividualcomponents.

3 16A–125Aswitchesincludestandardintegralterminallugs.

4 Handlesareblackandacceptthreepadlocks.Forotherhandlesseeindividualcomponents.

5 Mountingdepthisthedistancefromtheoutsideofdoortothedisconnectswitchmounting

plate.Shaftcanbecuttodesiredlength.

6 Consistsofstandardbasemountedswitchwithdoormountconversionbracket.

Switch Handle 4 Shaft Terminal lugs

Kit De- Mounting

 catalog Catalog NEMA Marking feat- Catalog depth5 Length Catalog Wire Wire Catalog

 number number type  able number (inches) (inches/mm) number size type number

Switch Handle 4 Shaft Terminal lugs

Kit De- Mounting

 catalog Catalog NEMA Marking feat- Catalog depth Length Catalog Wire Wire Catalog

 number number type  able number (inches) (inches/mm) number size type number

Disconnect

switches

Non-fusible

18.10 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

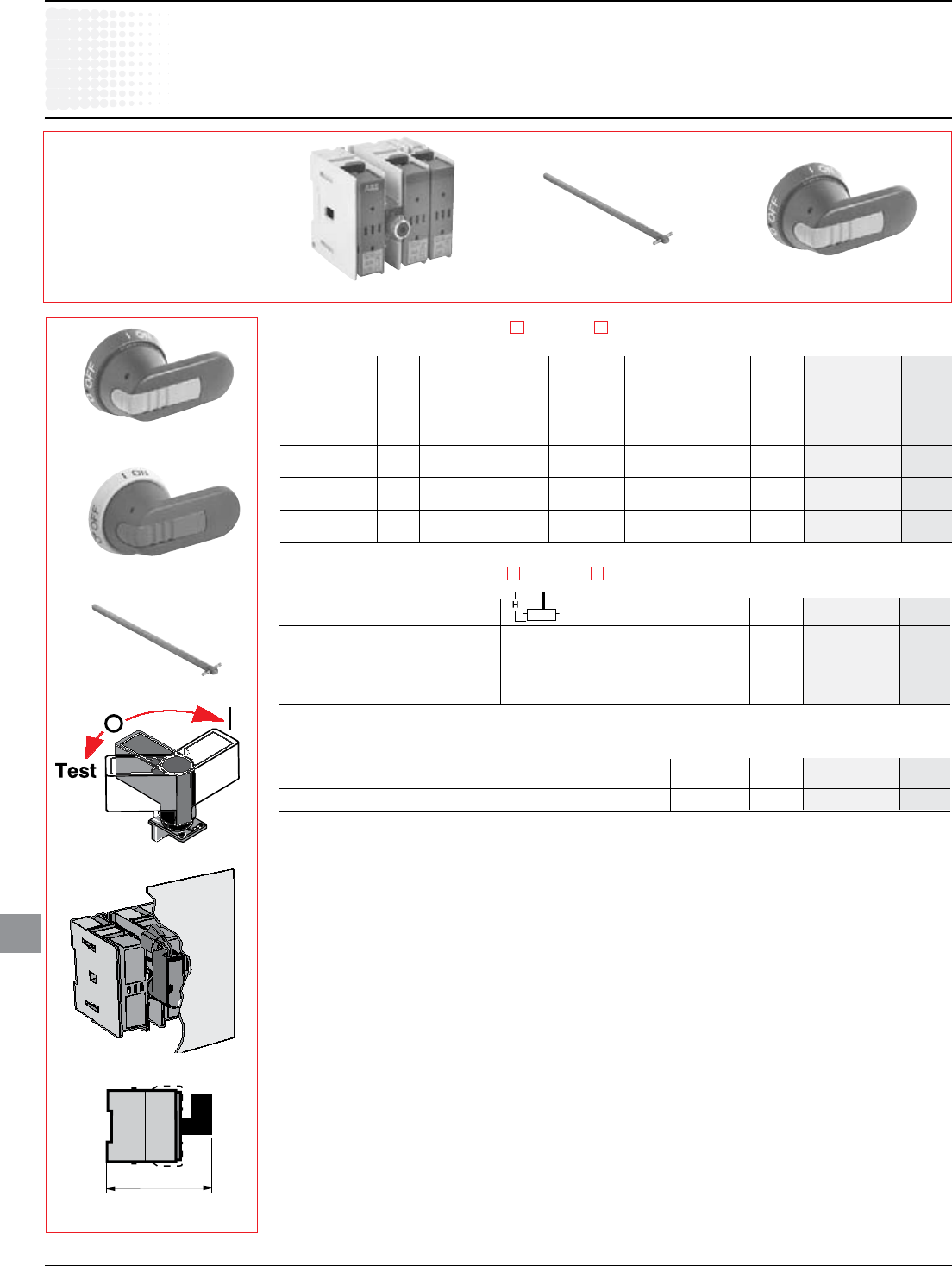

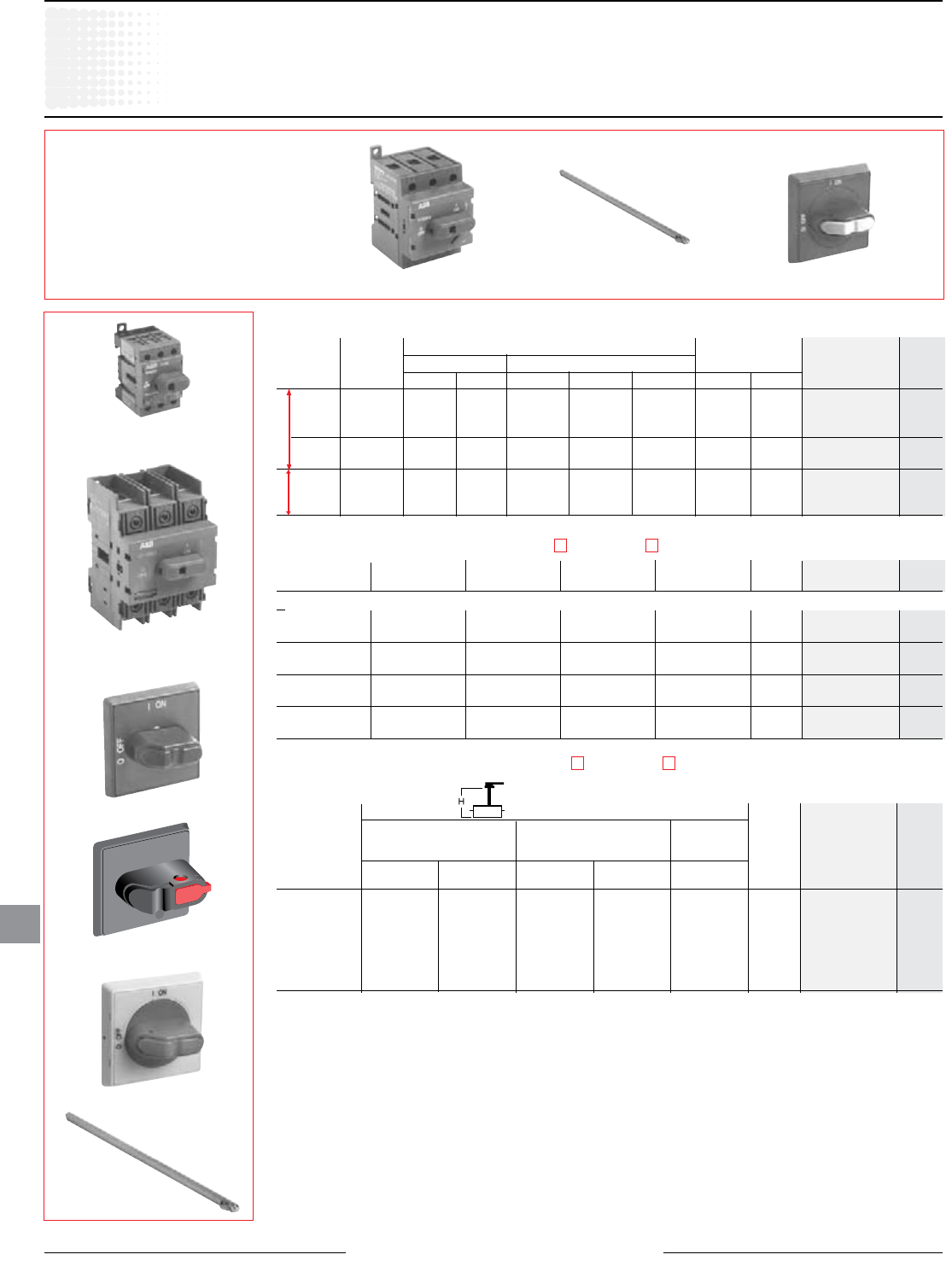

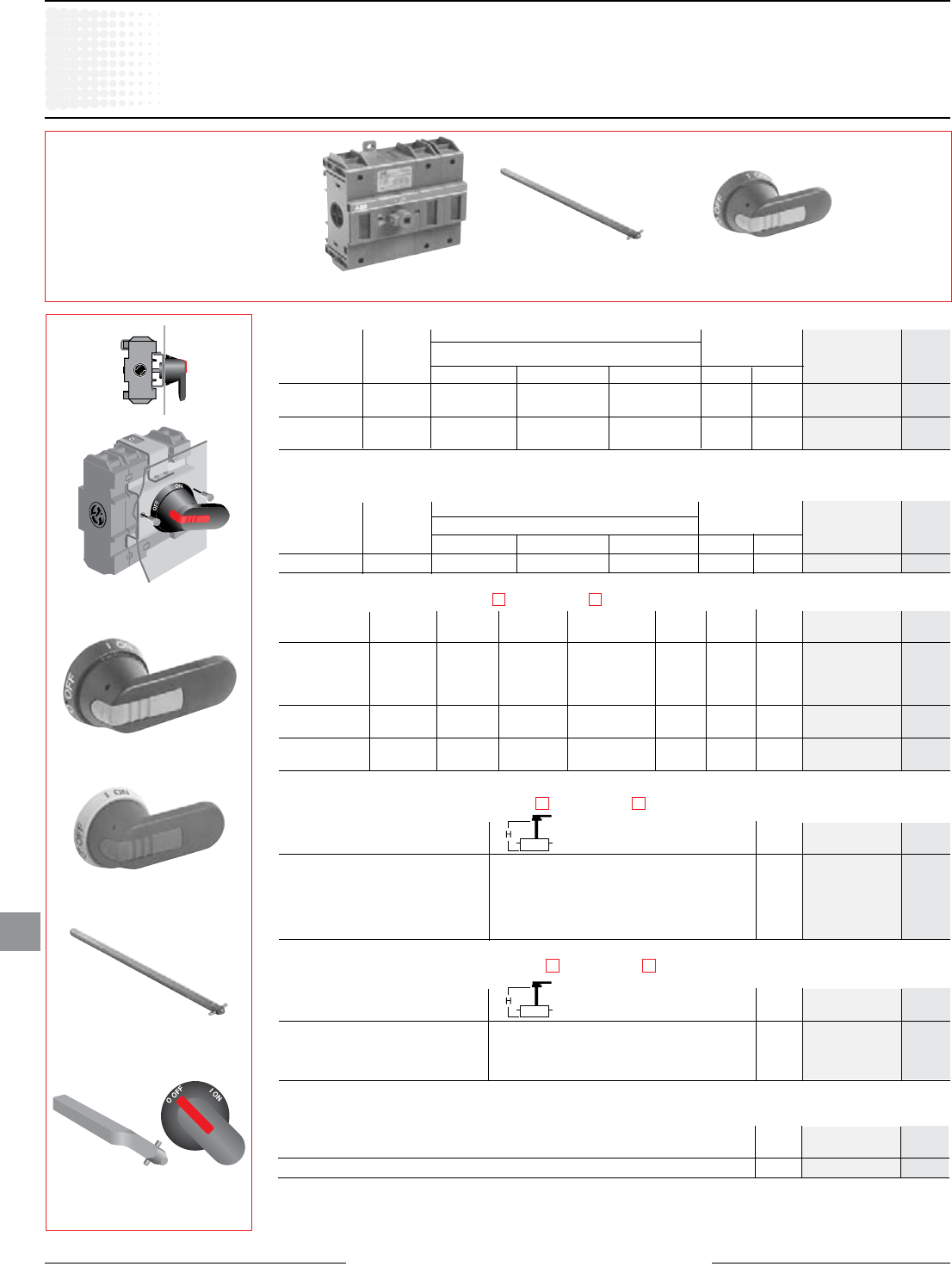

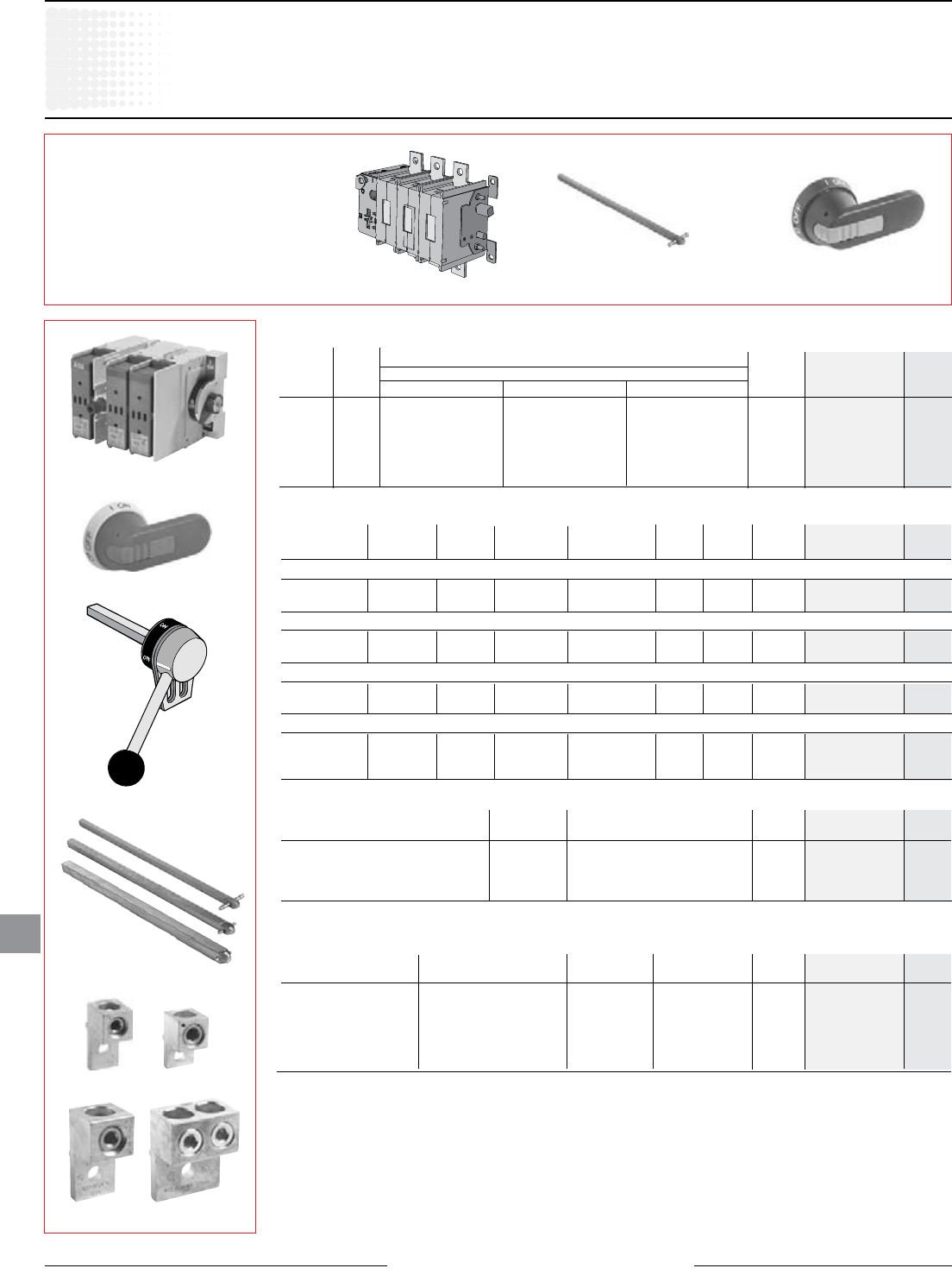

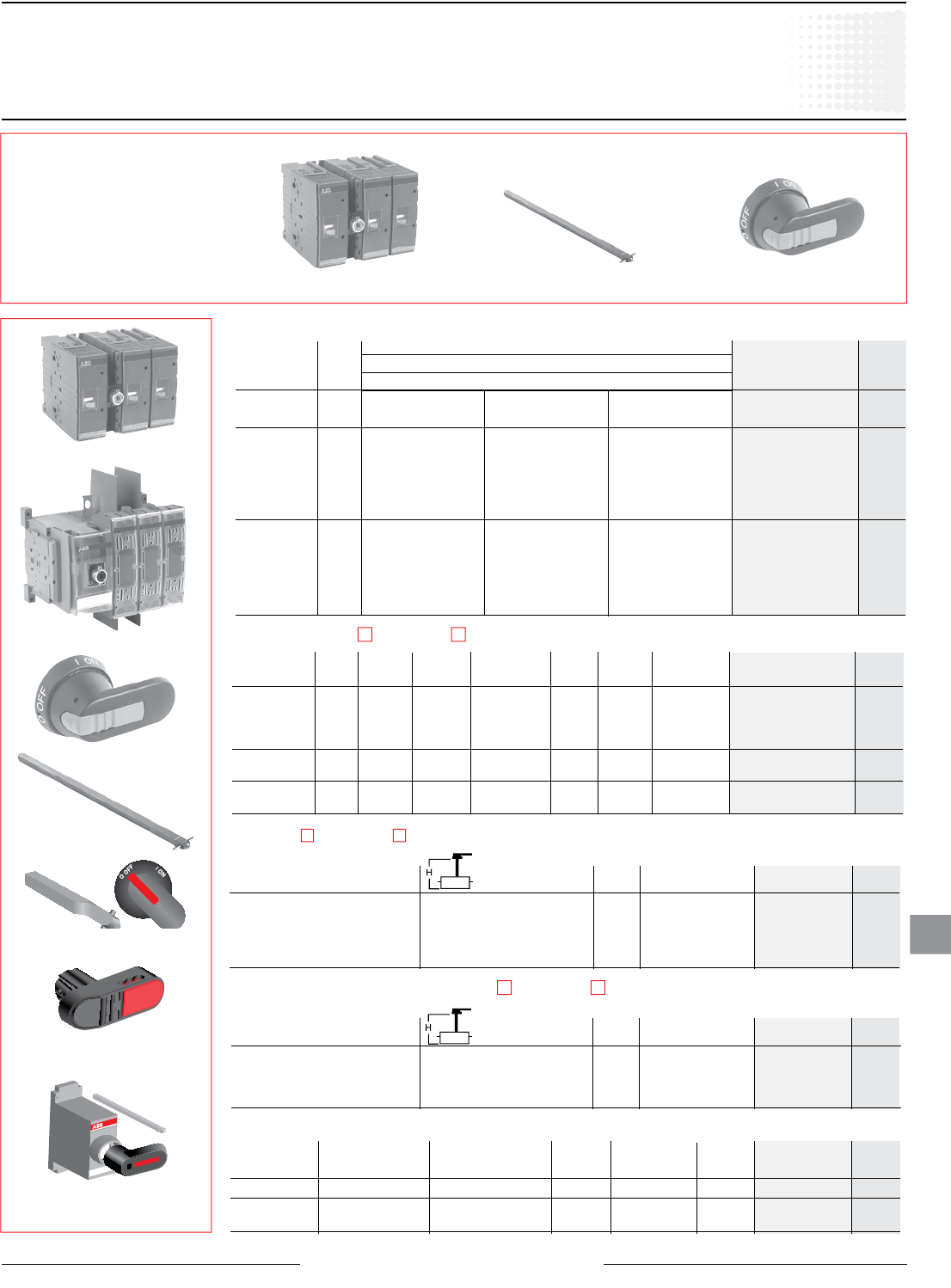

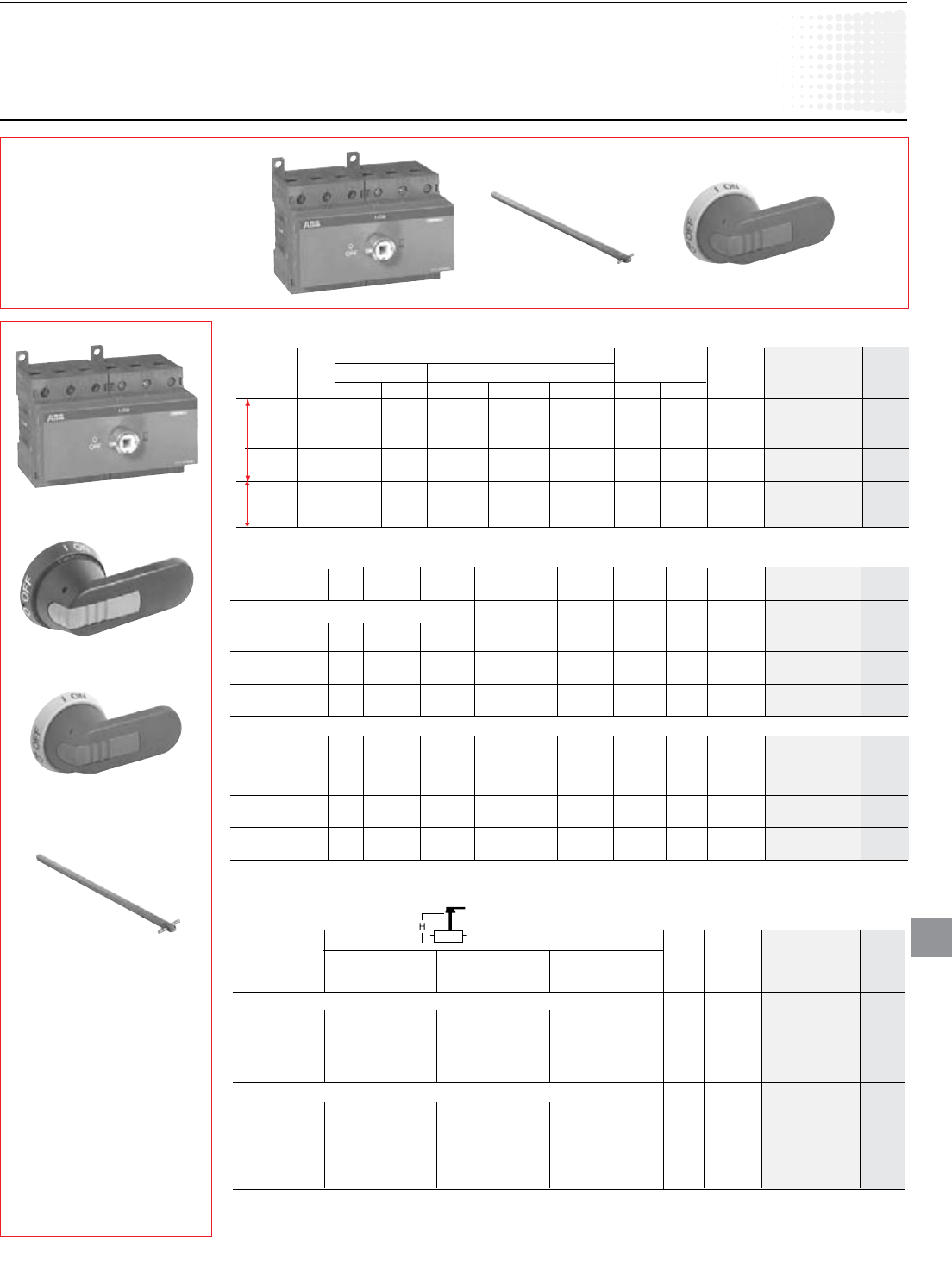

16A – 100A, Base & DIN rail mounted

Selector handles —forusewithshafts .20x.20"( 5x5mm)

Discount schedule H1: NF,16A–100A

Discount schedule H6: Handles,shaftsandaccessories

Foracompleteassembly,

pleaseselectoneofeach:

1 switch

1 handle

1 shaft  OT63E3 + OXS5X180 + OHB2AJ1

1 Asnaponfourthpolemaybeadded—pleasereferenceaccessoriespg18.12.

2 NotsuitableforusewithOT30E3,OT60E3,OT100E3.

3 Mountingdepthisthedistancefromtheoutsideofdoortothedisconnectswitchmountingplate.Shaftcanbecuttodesiredlength.

 3.3/85 4.2–5.0 3.6–4.3 4.9–5.6 4.4–5.0 3.9–4.9 0.04 OXS5X85 $ 4

 4.1/105 5.0–5.8 4.4–5.1 5.7–6.4 5.1–5.8 4.7–5.7 0.04 OXS5X105 4

 4.7/120 5.6–6.4 5.0–5.8 6.3–7.0 5.7–6.4 5.3–6.3 0.05 OXS5X120 4

 5.1/130 6.0–6.7 5.4–6.1 6.7–7.4 6.1–6.8 5.6–6.7 0.05 OXS5X130 6

 7.1/180 7.1–8.7 7.4–8.1 8.6–9.4 8.1–8.7 7.6–8.6 0.08 OXS5X180 6

 9.8/250 10.7–11.5 10.1–10.8 11.4–12.1 10.9–11.5 10.4–11.4 0.10 OXS5X250 12

 13/330 13.8–14.6 13.3–14.0 14.6–15.3 14.0–14.7 13.5–14.5 0.14 OXS5X330 20

OHB1AH1

OXS5X__

OHB3AH1

OHY2AJ

 Mountingdepth3 in inches

OT16E3 OT45E3 OT30E3

 Shaft OT25E3  OT63E3 OT60E3 Weight Catalog List

 length OT32E3   OT100E3 (lbs) number price

 inches/mm OH_1_& OH_2_ OH_1_& OH_2_ OH_2_

  OH_3_  OH_3_

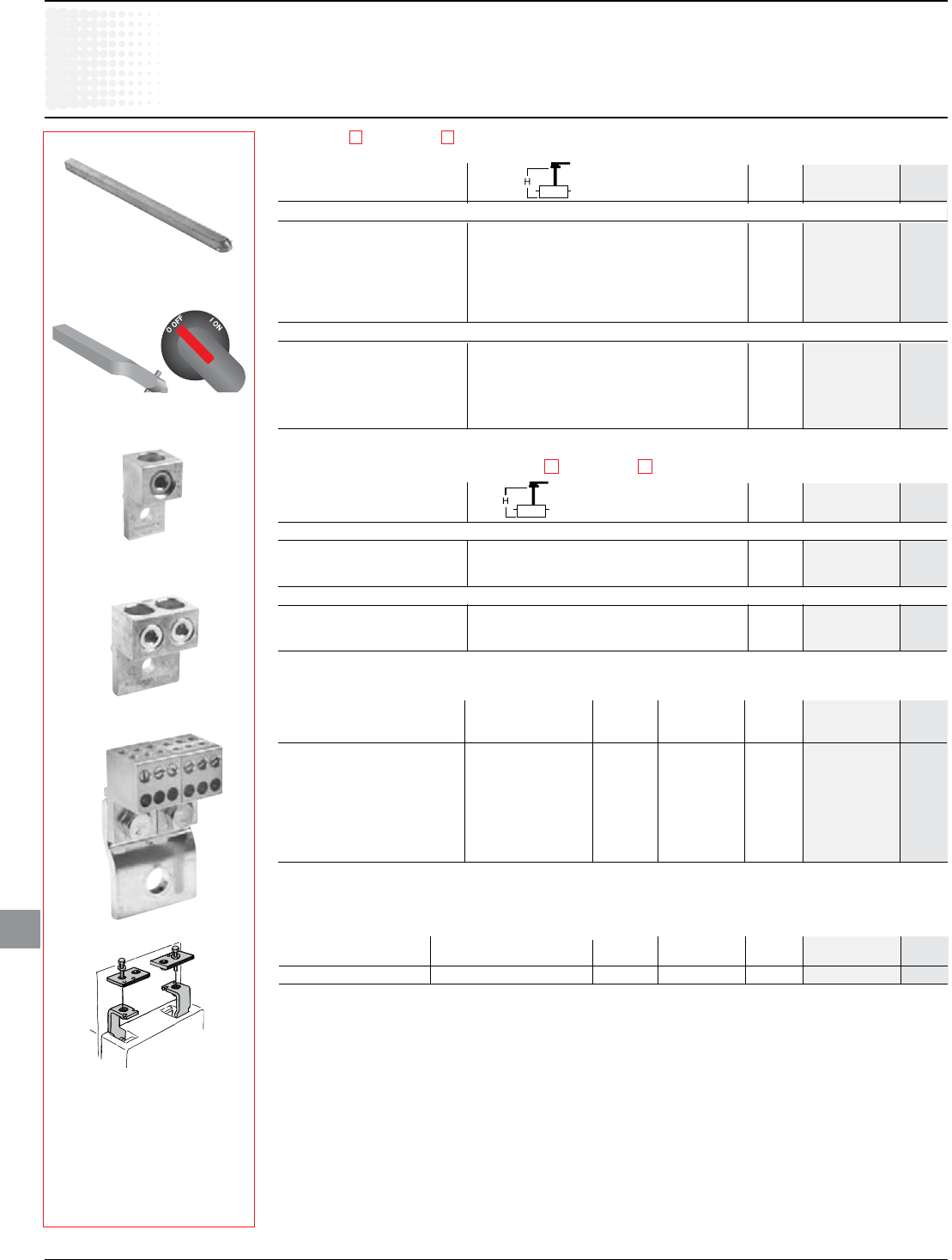

Shafts —forusewithOHselectorhandles .20x.20"( 5x5mm)

 UL/NEMA IEC Color Defeat- Padlock- Weight Catalog List

 type type  able able (lbs) number price

OT16E3

OT25E3

OT32E3

OT30E3

OT60E3

OT100E3

All marked both O/I & Off/On

 1 IP54 Black — — 0.09 OHB1AH12 $ 22

 1 IP54 Red/Yel — — 0.09 OHY1AH12 22

 1 IP54 Black — Yes 0.12 OHB3AH12 24

 1 IP54 Red/Yel — Yes 0.12 OHY3AH12 24

 1,3R,12 IP65 Black — Yes 0.16 OHB2AJ1 28

 1,3R,12 IP65 Red/Yel — Yes 0.16 OHY2AJ1 28

 1,3R,12 IP65 Black Yes Yes 0.16 OHB2AJ 30

 1,3R,12 IP65 Red/Yel Yes Yes 0.16 OHY2AJ 30

16 – 100 Amp switches, 600V, 3 pole1

 16 16 1 2  5 10 10 #18–8 Cu OT16E3 $ 66

 25 25 1.5 3 7.5 15 20 #18–8 Cu OT25E3 72

 40 40 2 5 10 20 25 #18–8 Cu OT32E3 76

 60 63 2 5 15 30 30 #14–4 Cu OT45E3 100

 80 80 2 5 20 40 40 #14–4 Cu OT63E3 120

 30 40 2 5 10 20 30 #14–4 Cu OT30E3 150

 60 63 3 7.5 20 40 40 #14–4 Cu OT60E3 175

 100 115 5 15  30 50 50 #8–1/0 Cu OT100E3 200

UL IEC

general AC21  Maximumhorsepowerrating   Terminallugs

 purpose amp Singlephase  Threephase   Catalog List

amprating rating 120V 240V 240V 480V 600V Wiresize Wiretype

number price

UL508UL 98

I ON

O OFF

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.11

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

1 Mountingdepthisthedistancefromtheoutsideofdoortothedisconnectswitchmountingplate.Shaftcanbecuttodesiredlength.

2 .1875"(3/16")diametershacklerequired.

3 SetscrewFLSWM5X8AXneededwithreplacementknobsCXBY__.

Discount schedule H6: Handles,shaftsandaccessories

 5.9/150 6.2–6.7 6.9–7.4 6.4–7.4 0.07 OXP5X150 $ 14

 6.7/170 7.0–7.5 7.7–8.1 7.2–8.1 0.08 OXP5X170 16

 10.4/265 10.7–11.3 11.4–11.9 10.9–11.9 0.12 OXP5X265 18

 15.8/400 16.0–16.6 16.8–17.2 16.2–17.2 0.18 OXP5X400 30

19.7/500 20.0–20.5 20.7–21.1 20.1–21.1 0.23 OXP5X500 42

Shafts —forusewithpistolhandles .20x.20"( 5x5mm)

   Mountingdepth1(inches)

Shaft OT16E3 OT30E3

 length OT25E3 OT45E3 OT60E3 Weight Catalog List

 (inches/mm) OT32E3 OT63E3 OT100E3 (lbs.) number price

OHB__J5

OHB__L5

OHY__J5

OHY__L5

OXP5X__

Pistol handles —forusewithshafts .20x.20"( 5x5mm)

Length

 UL/NEMA IEC Color Marking inches/ Defeatable Padlockable Weight Catalog List

 type type   mm   (lbs.) number price

 1,3R,12 IP65 Black O/I&Off/On 1.8/45 Yes Yes 0.28 OHB45J5 $ 70

 1,3R,12 IP65 Red/Yel O/I&Off/On 1.8/45 Yes Yes 0.28 OHY45J5 70

 1,3R,12 IP65 Black O/I&Off/On 2.6/65 Yes Yes 0.29 OHB65J5 80

 1,3R,12 IP65 Red/Yel O/I&Off/On 2.6/65 Yes Yes 0.29 OHY65J5 80

 1,3R,12,4,4X IP66 Black O/I&Off/On 2.6/65 Yes Yes 0.29 OHB65L5 120

 1,3R,12,4,4X IP66 Red/Yel O/I&Off/On 2.6/65 Yes Yes 0.29 OHY65L5

1,3R,12,4,4X IP66 Stainless O/I&Off/On 1.8/45 Yes Yes 1.40 OHM45L5 700

   Steel  2.6/65   1.60 OHM65L5 700

16A – 100A, Base & DIN rail mounted

Handles&shafts

CXBY68135

CXBY68306  1 Red OT16,OT25,OT32 1.0 — CXBY68135 $ 8

1 Red OT30,OT45–OT100 1.4 — CXBY68306 12

1 Red OT30,OT45–OT100 1.6 Yes2 CXBY68419/1 14

 Metalcollar  OT16–OT100 — — OTZS1 13

Setscrew  OT16–OT100 — — FLSWM5XAX 2 3

 UL/NEMA Color Foruse Length Padlockable Catalog List

 Type  on: (inches)  number price

Replacement knob —mountsdirectlytoswitch;noshaftnecessary

CXBY68419/1

OXP5X__/45

OTZS1

Item For use Length Padlockable Catalog List

   (inches) (inches) number price

Modular adapter cover —forOT16,OT25,OT32

Adaptercover  OT16,OT25OT32 — Yes OHY7 $ 28

Apadlockcanbeusedwiththeadaptercover.

OHY7

Twisted shafts—Rotateshandle45° .20x.20"( 5x5mm)

 5.9/150 6.2–6.7 6.9–7.4 6.4–7.4 0.07 OXP5X150-45 $ 14

 6.7/170 7.0–7.5 7.7–8.1 7.2–8.1 0.08 OXP5X170-45 16

 10.4/265 10.7–11.3 11.4–11.9 10.9–11.9 0.12 OXP5X265-45 18

 15.8/400 16.0–16.6 16.8–17.2 16.2–17.2 0.18 OXP5X400-45 30

19.7/500 20.0–20.5 20.7–21.1 20.1–21.1 0.23 OXP5X500-45 42

   Mountingdepth1(inches)

Shaft OT16E3 OT30E3

 length OT25E3 OT45E3 OT60E3 Weight Catalog List

 (inches/mm) OT32E3 OT63E3 OT100E3 (lbs.) number price

Disconnect

switches

Non-fusible

18.12 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Discount schedule H6: Handles,shaftsandaccessories

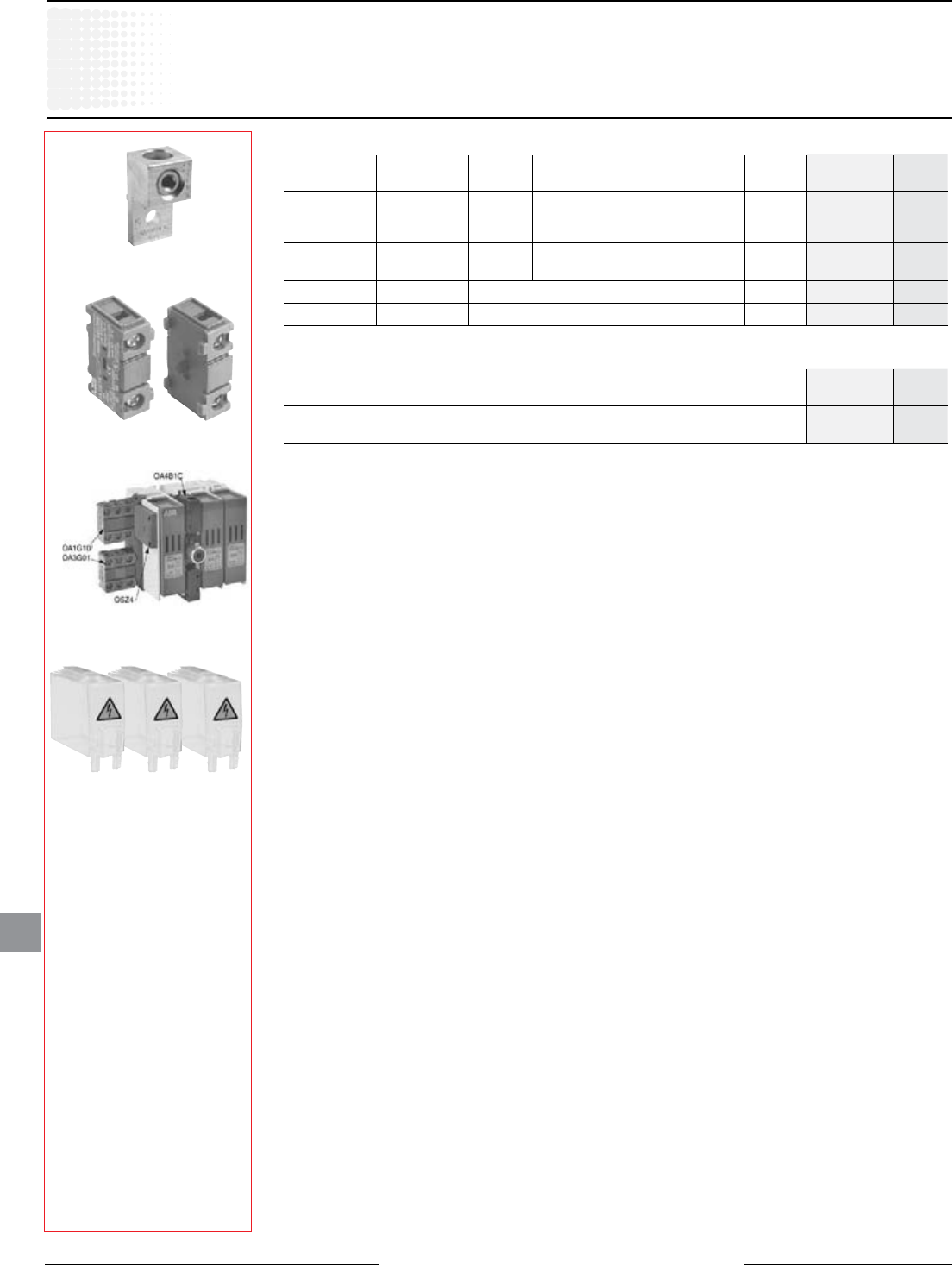

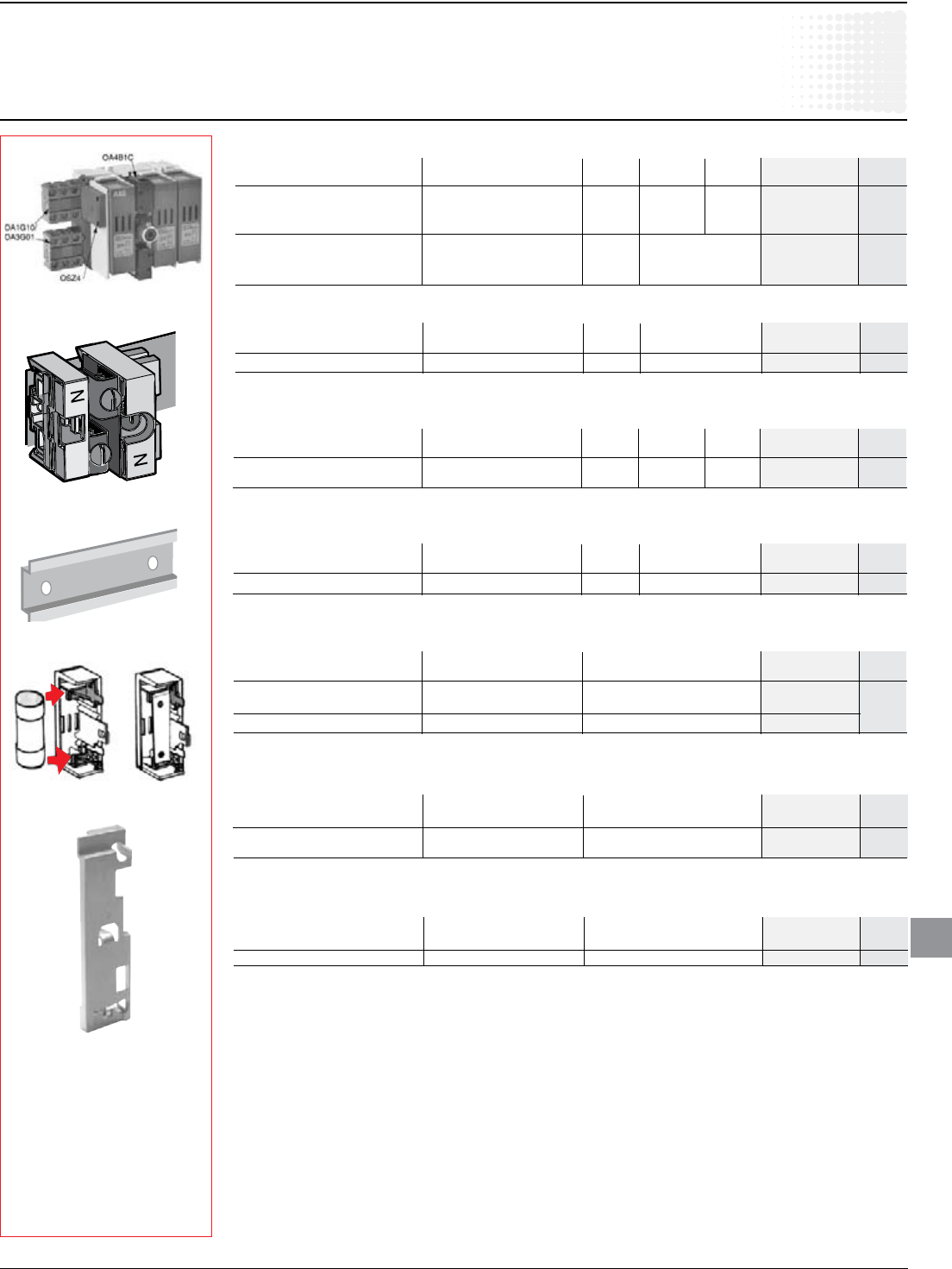

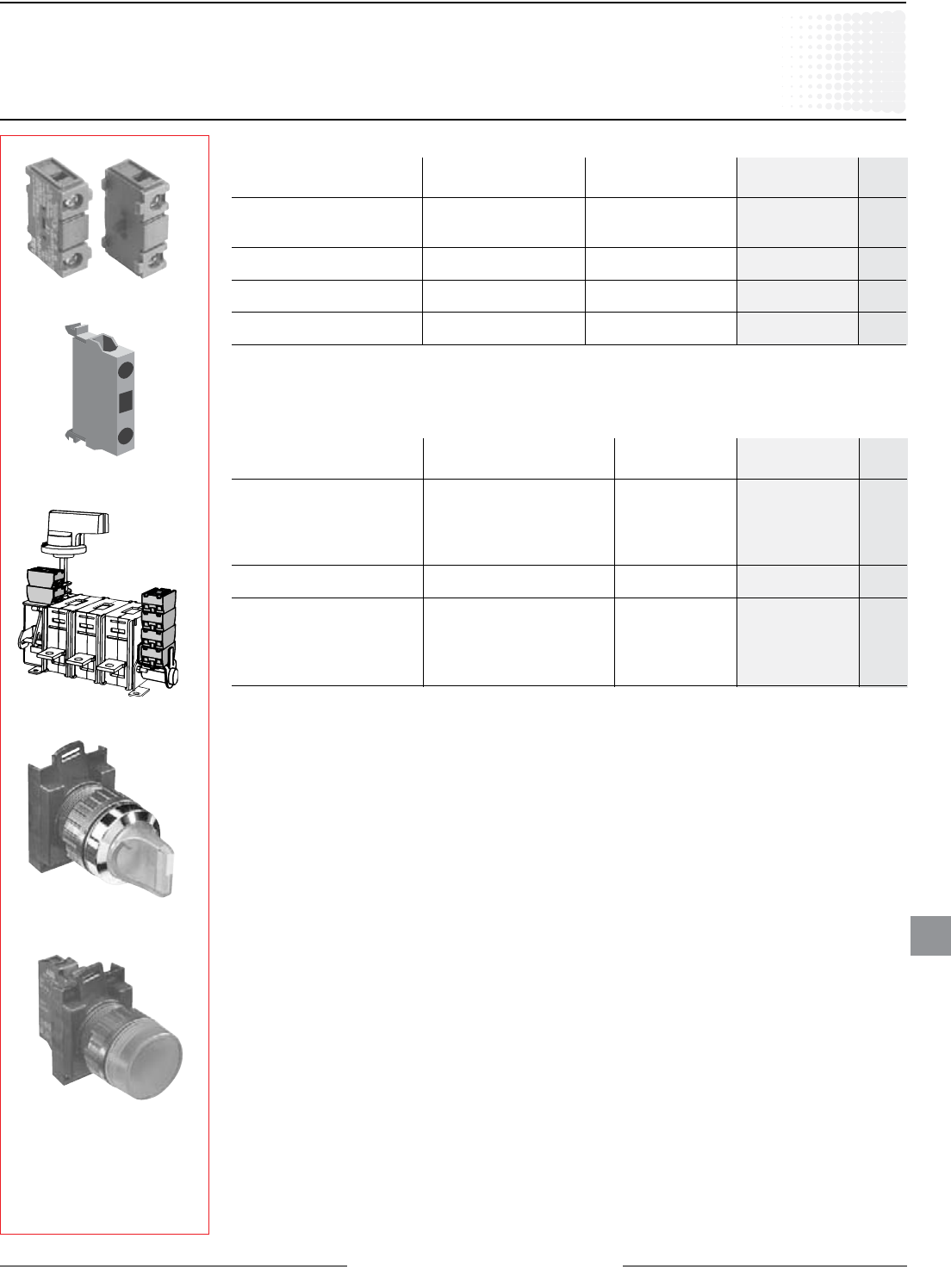

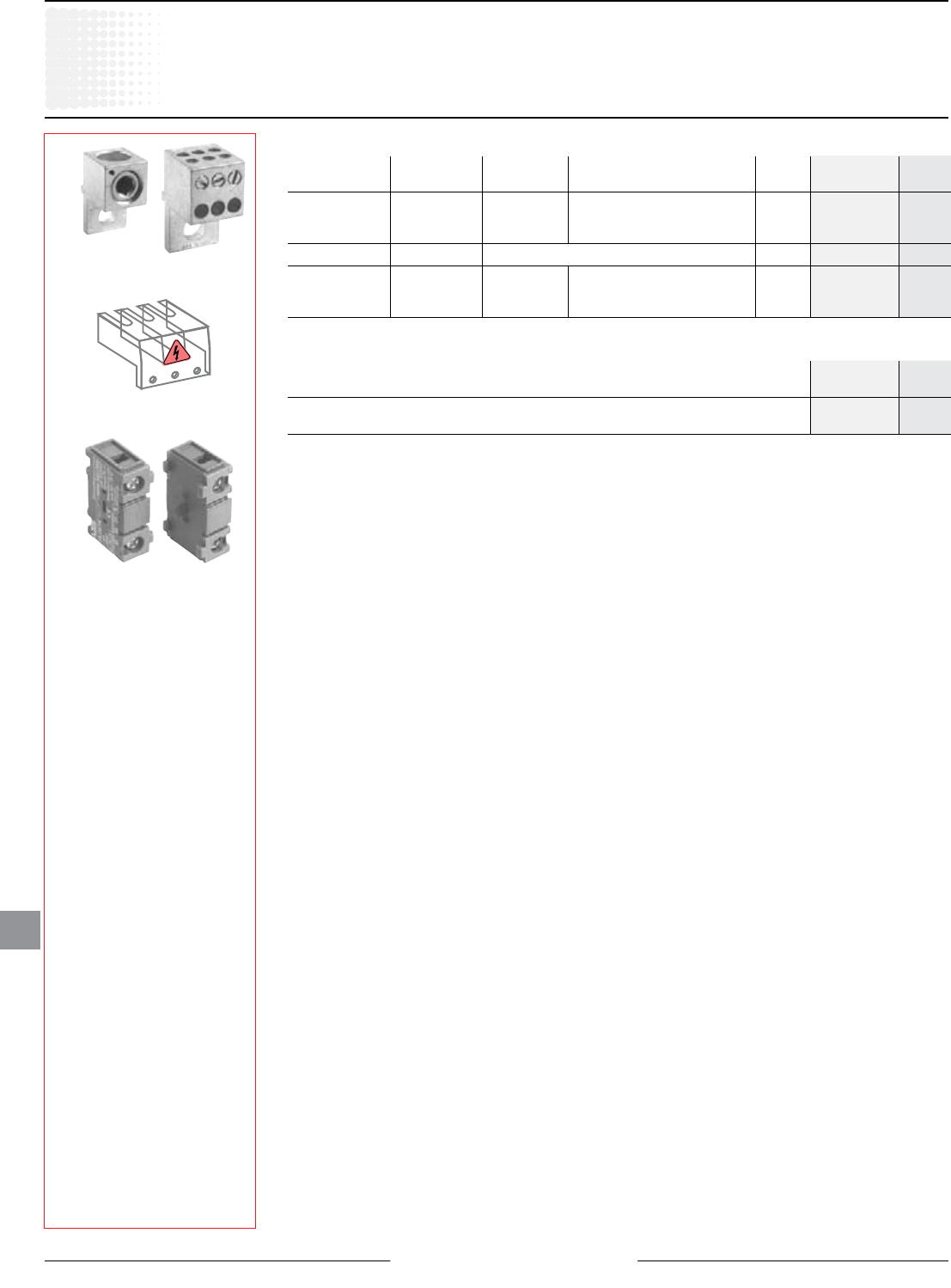

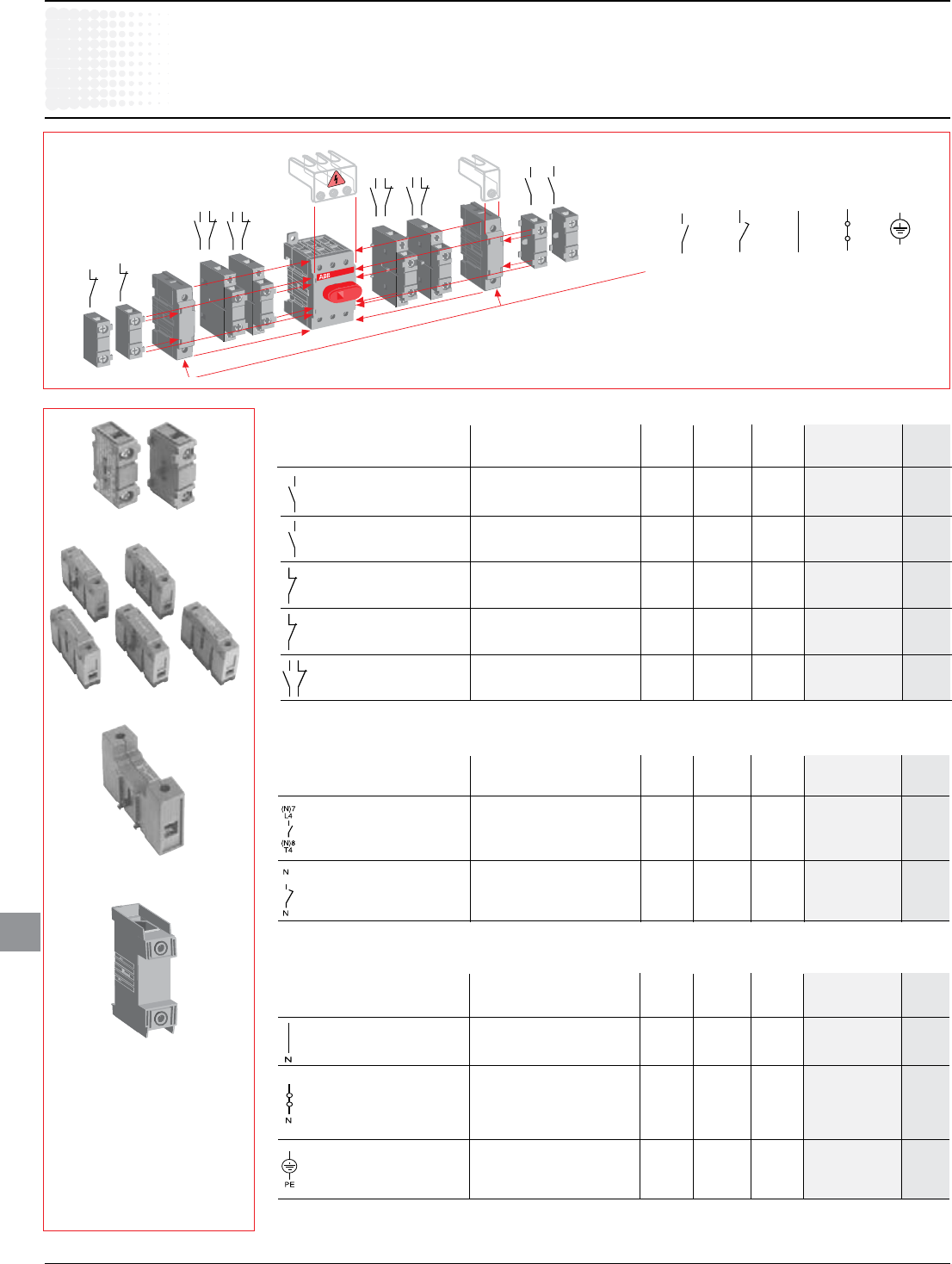

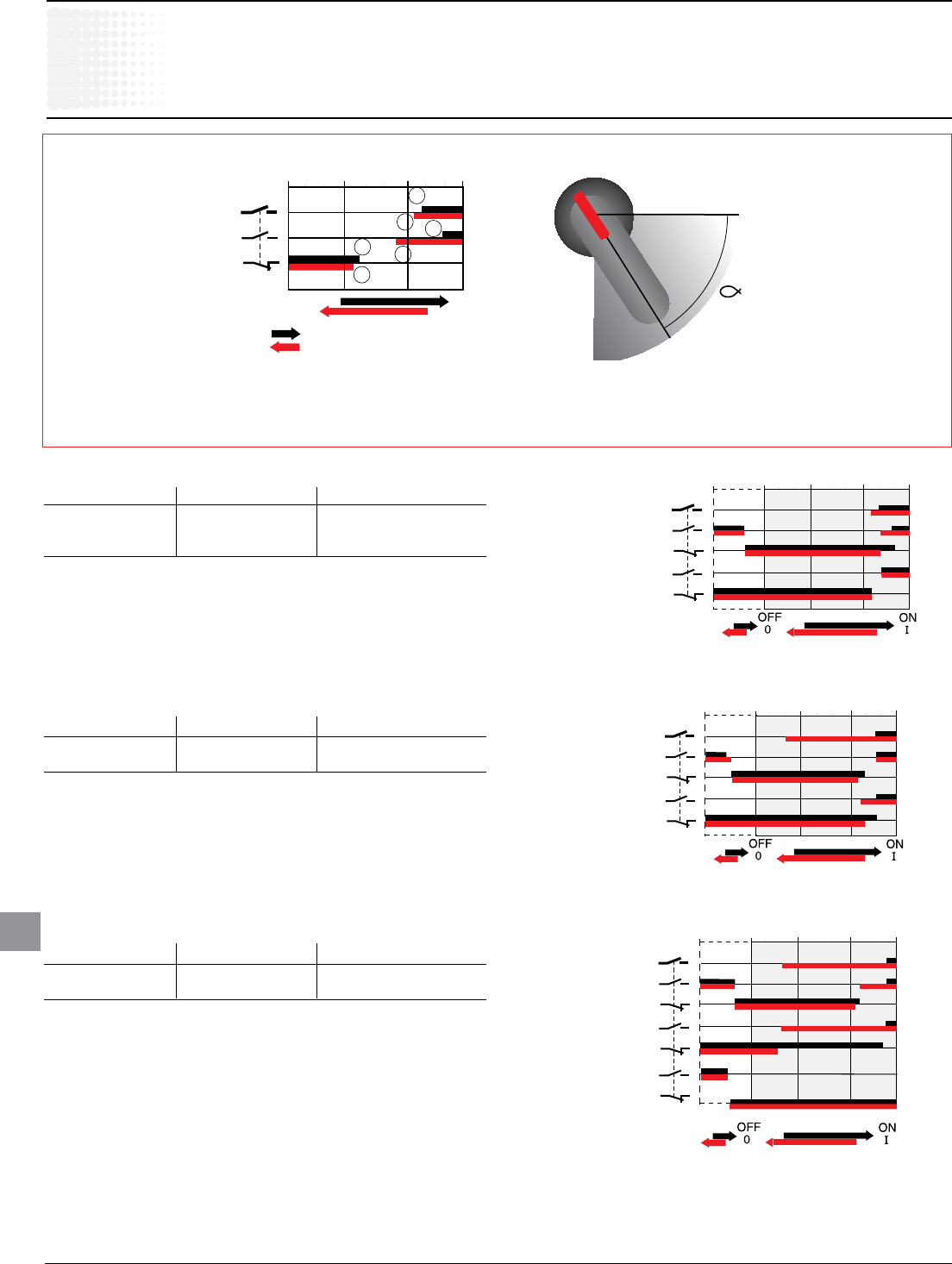

Auxiliary contacts 1 — snap-on mounting

1 ULFile#E83510

2 Switchacceptsonepowerpoleoroneterminalpoleperside.Onlyonepowerpoleperswitch.

16A – 100A, Base & DIN rail mounted

Accessories

AC AC

 Description Foruseon: Weight thermal rated Catalog List

   (lbs.) amprating voltage number price

AC AC

 Description Foruseon: Weight thermal rated Catalog List

   (lbs.) amprating voltage number price

  OT16,OT25,OT32 0.07 40 600 OTPN32EP $ 20

Solid neutral 2 OT45,OT63 0.13 80 600 OTPN63EP 36

  OT30,OT60,OT100 0.31 100 600 OTPN125EP 50

  OT16,OT25,OT32 0.07 40 600 OTPD32EP 28

Detachable neutral 2 OT45,OT63 0.13 80 600 OTPD63EP 36

  OT30,OT60 0.31 60 600 OTPD60EP 50

OT100 0.31 100 600 OTPD125EP 54

  OT16,OT25,OT32 0.07 40 600 OTPE32EP 20

Ground terminal 2 OT45,OT63 0.13 80 600 OTPE63EP 36

  OT30,OT60,OT100 0.31 100 600 OTPE125EP 50

Terminal poles

• Switchacceptsoneterminalpoleperside

• Mountsonleftorrightsideofswitch

1 N.O.

 mountsonright OT16–OT100 0.07 10 600 OA1G10 $ 20

side of switch only

1 N.O.

 mountsonleft OT16E3C–OT100E3C 0.07 10 600 OA7G10 20

side of switch only

1 N.C.

 mountsonleft OT16–OT100 0.07 10 600 OA1G01 20

side of switch only

1 N.C.

 mountsonright OT16E3C–OT100E3C 0.07 10 600 OA3G01 20

side of switch only

1 N.O. & 1 N.C.

 mountsonleftorright OT16–OT100 0.07 10 600 OA2G11 40

side of switch

Max. two contacts on each side of switch

Power poles

• Onlyonepowerpoleperswitch

• Mountsonleftorrightsideofswitch

AC AC

 Description Foruseon: Weight thermal rated Catalog List

   (lbs.) amprating voltage number price

  OT16,OT25,OT32 0.07 40 600 OTPS32EP $ 36

 Fourthpole2 OT45,OT63 0.13 80 600 OTPS63EP 44

  OT30,OT60 0.31 60 600 OTPS60EP 54

OT100 0.31 100 600 OTPS125EP 54

  OT16,OT25,OT32 0.07 40 600 OTPL32EP 36

 Late-break/early-make2 OT45,OT63 0.13 80 600 OTPL63EP 44

  OT30,OT60,OT100 0.31 100 600 OTPL125EP 54

OTP_63EP

OA1G__

OTP_32EP

OTP_125EP

OFF

OT16E3

(N)7

(N)8

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.13

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

16A – 100A, Base & DIN rail mounted

Accessories

OTS32T3 OTS32T1

OTS63T3 OTS63T1

 OTS125T3 OTS125T1

DS-SA1 DS-SA2

STL-ST

OP__2

OP__2EN1

DINRAIL

OETL-ZW16

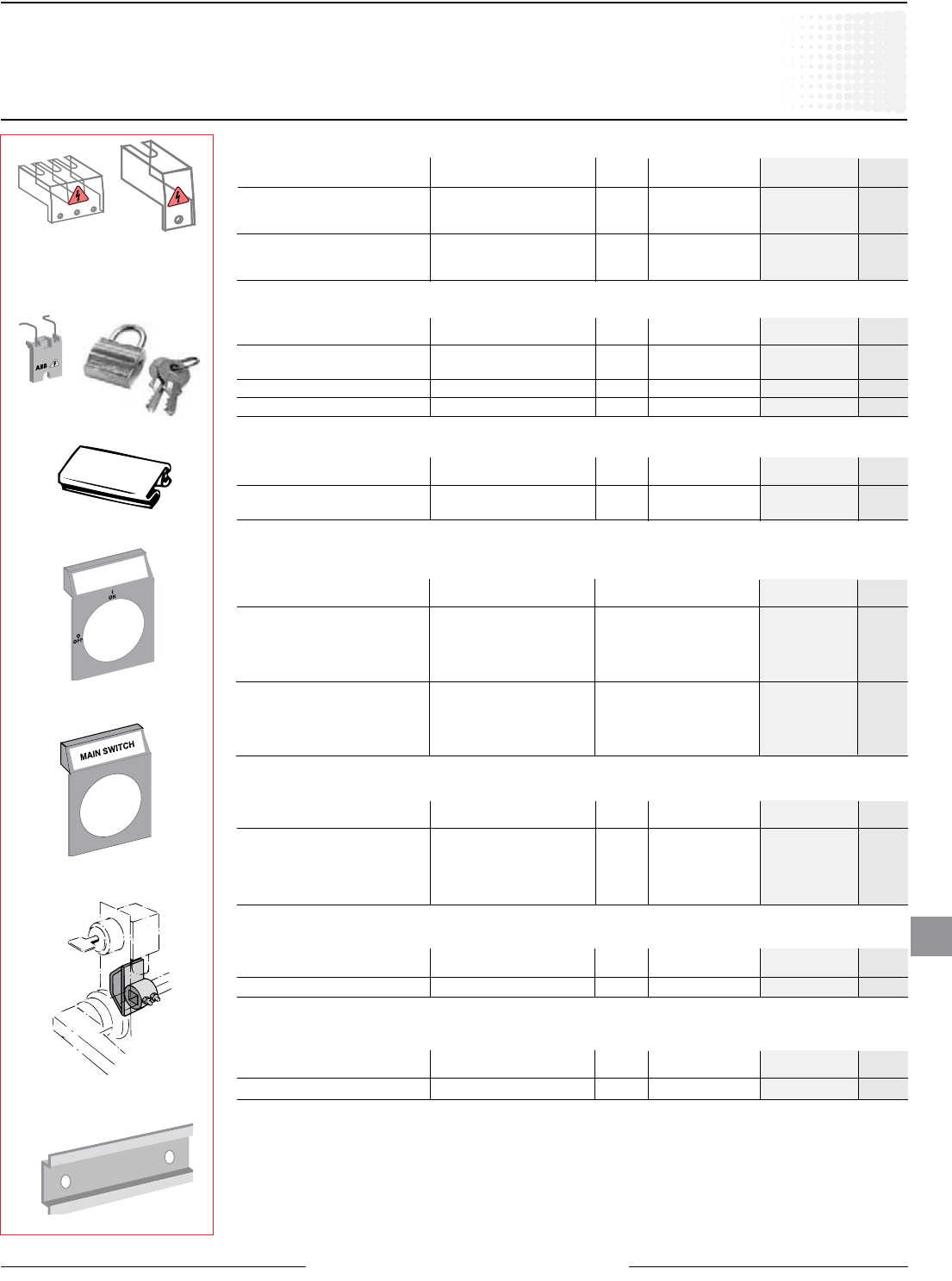

Locking accessories

Cam attachment forKirkKey,

 Castell,Lowe&FletcherandRonis

 interlock.Foradaptingtothe 5,6&8mmshafts 0.29 OETL-ZW16 $ 190

interlock system. The interlock

is not included.

Description Foruseon: Weight Catalog List

   (lbs.)   number price

Legend plates for selector handles

Blankplate

 Black OH_1_&OH_3_  OPB1 $ 6

 Yellow OH_1_&OH_3_  OPY1 6

 Black OH_2_  OPB2 8

 Yellow OH_2_  OPY2 8

Platemarkedwith:MAINSWITCH

 Black OH_1_&OH_3_  OPB1EN1 10

 Yellow OH_1_&OH_3_  OPY1EN1 10

 Black OH_2_  OPB2EN1 12

 Yellow OH_2_  OPY2EN1 12

Description Foruseon: Catalog List

      number price

DIN rail

Description Foruseon: Weight Length Catalog List

   (lbs.) inches/mm number price

 35mmDINRail OT16–OT100 2.96 39.4/1000 DINRAIL $ 52

Shaft support

 Shaftsupport OT16–OT100 0.30  OETL-ZX58 $ 14

Theshaftsupportisusedfordisconnectsinstalledindeepenclosures.

Description Foruseon: Weight Catalog List

   (lbs.)  number price

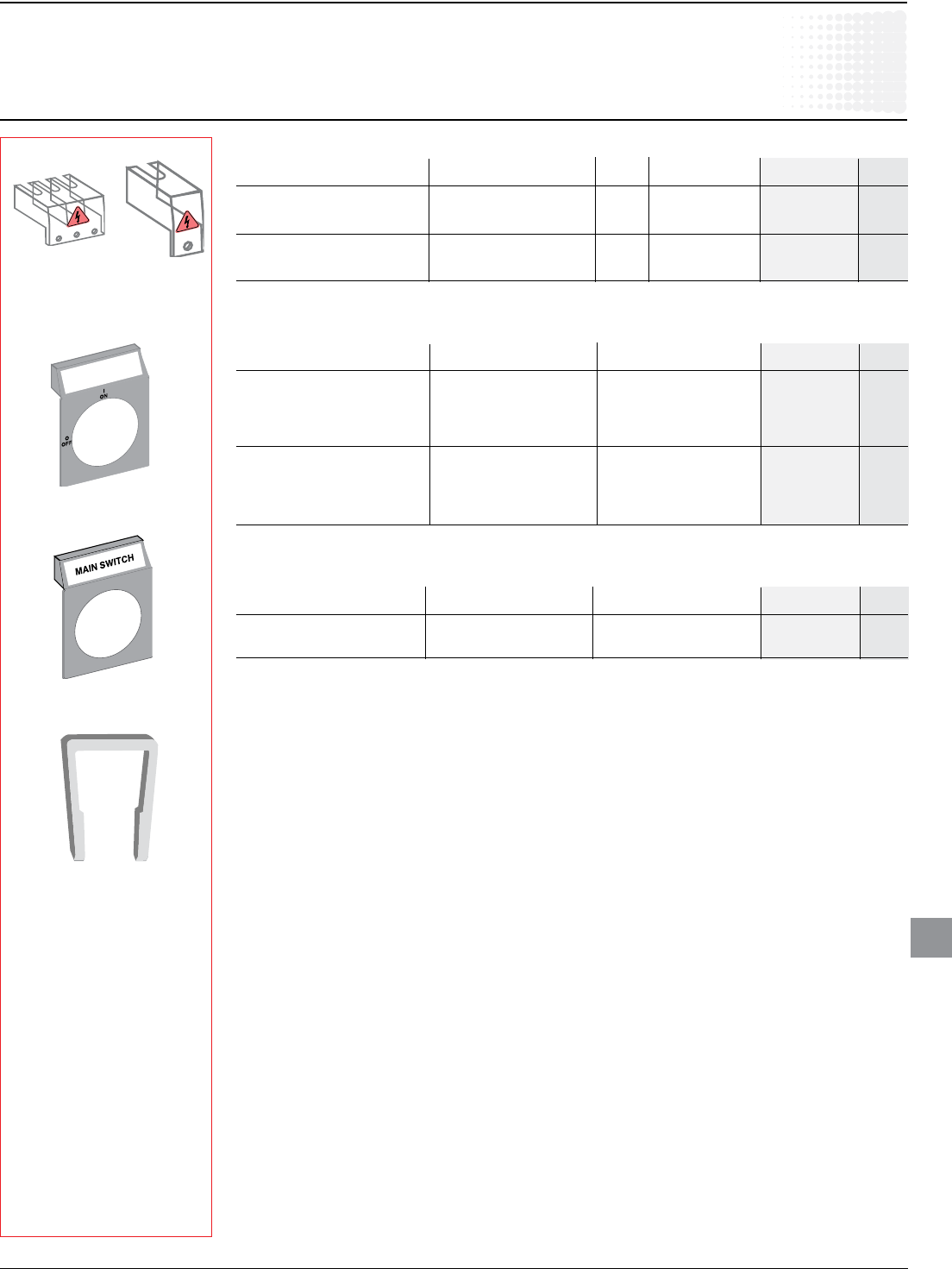

Terminal shrouds 1—snaponmountingforlineorloadside

 3pole OT16,OT25,OT32 0.02 OTS32T3 $ 8

 includesoneshroud OT45,OT63 0.02 OTS63T3 12

 forlineorloadside OT30,OT60,OT100 0.02 OTS125T3 20

 4thpole OTP_32EP 0.02 OTS32T1 4

 includesoneshroud OTP_63EP 0.02 OTS63T1 6

 forlineorloadside OTP_125EP 0.02 OTS125T1 10

Description Foruseon: Weight Catalog List

   (lbs.)   number price

1AlldisconnectsareIP20touchsafeasstandard.Terminalshroudsprovideanadditionallevelofprotection.

1 Pkg. of label carriers OT30,OT45–OT100 100pieces STL-ST $ 74

 1Pkgofblankdescriptionlabels  315pieces ST-E 12

Labelling accessories

Description Foruseon: Package Catalog List

    quantity number price

Discount schedule H6: Handles,shaftsandaccessories

Discount schedule CB8: STL-ST & ST-E

Padlocking adapter

Description Foruseon: Weight Catalog List

   (lbs.)   number price

Adapterforonepadlock OT30,OT45-OT100 0.02 DS-SA1 $ 10

withamax.0.137"shackle 

 PadlockforDS-SA1 OT30,OT45-OT100 0.22  DS-SA2 28

 Adapterandpadlock OT30,OT45-OT100 0.24  DS-SA3 38

I

O

OFF

Disconnect

switches

Non-fusible

18.14 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

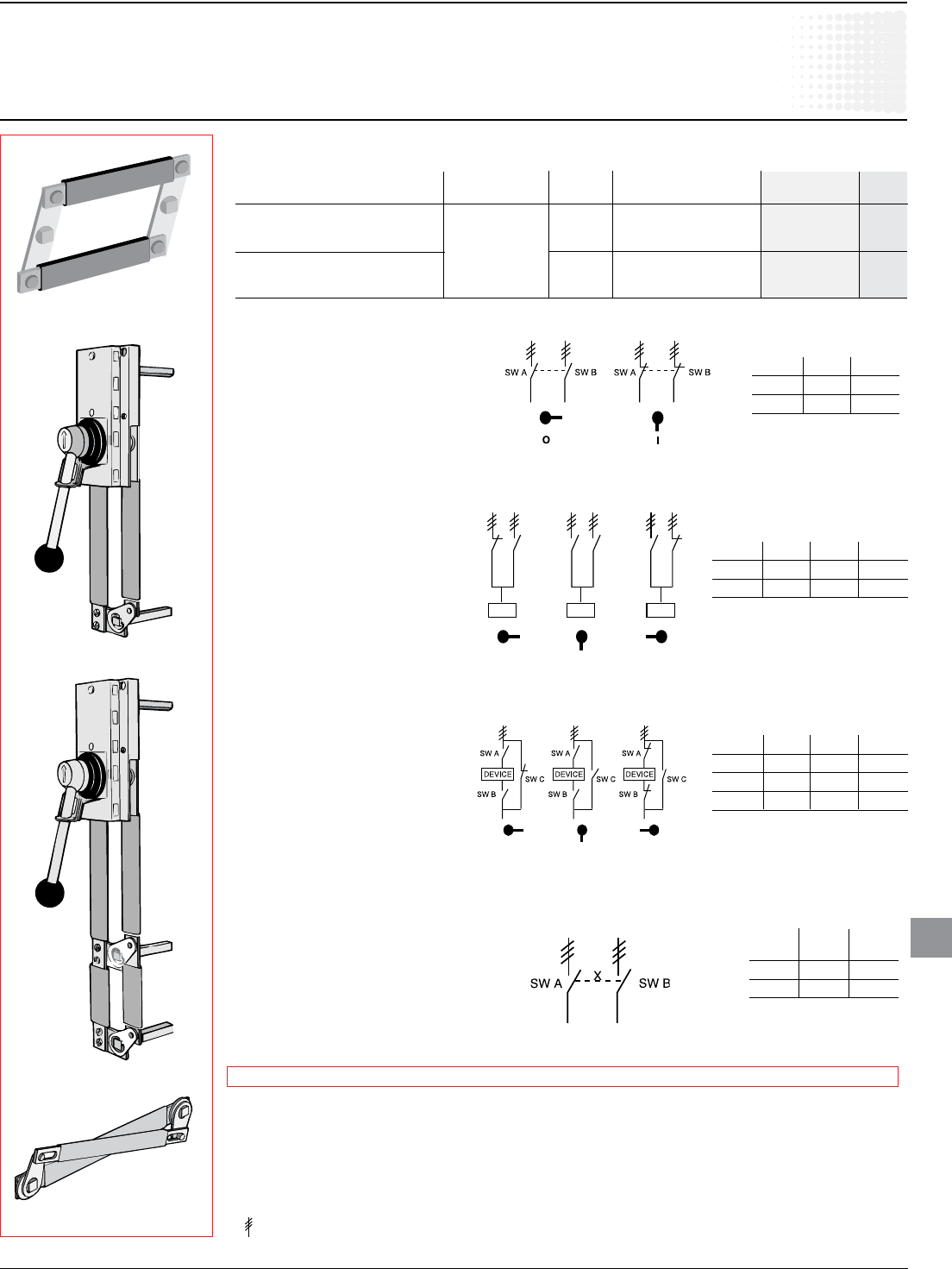

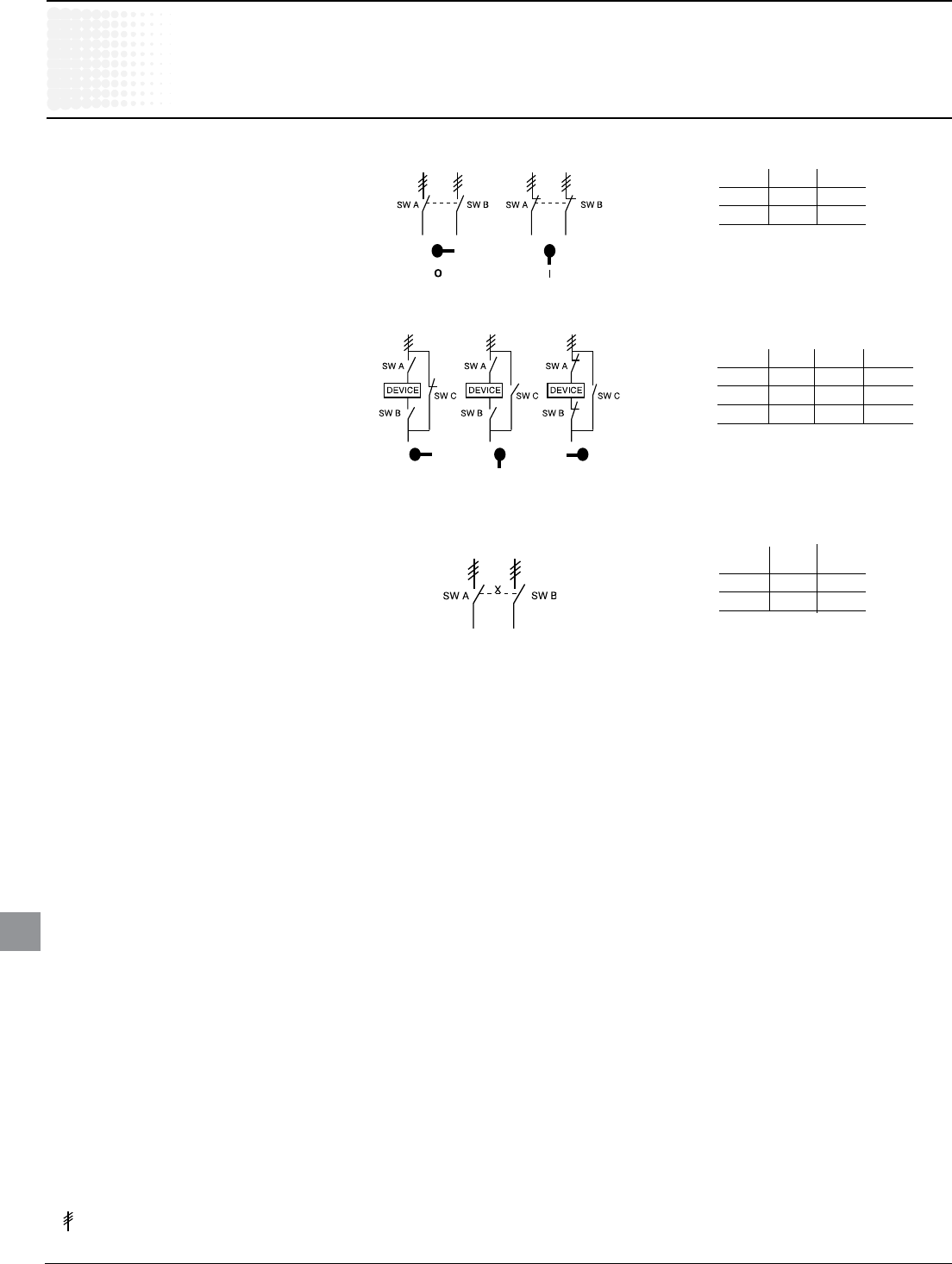

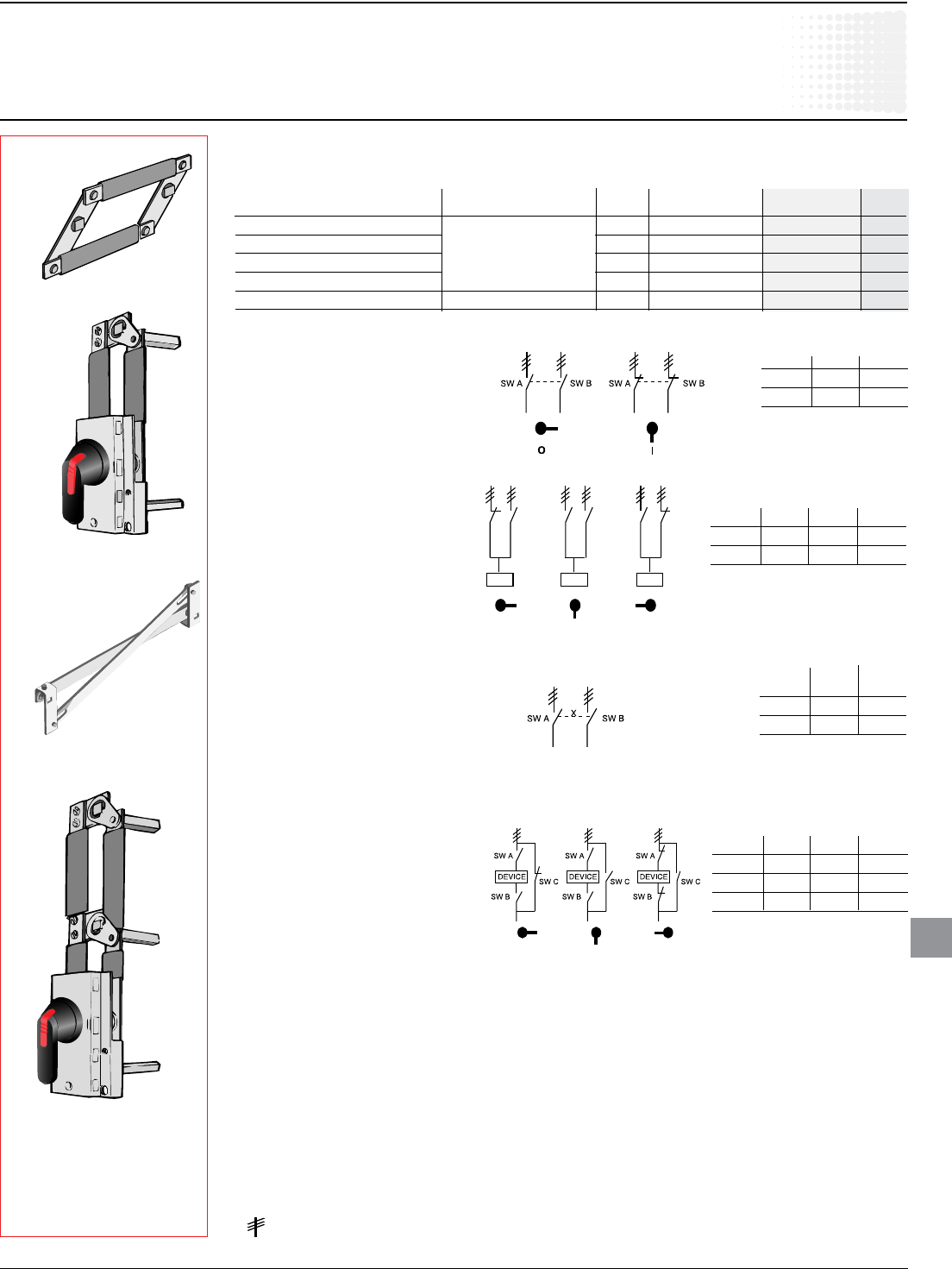

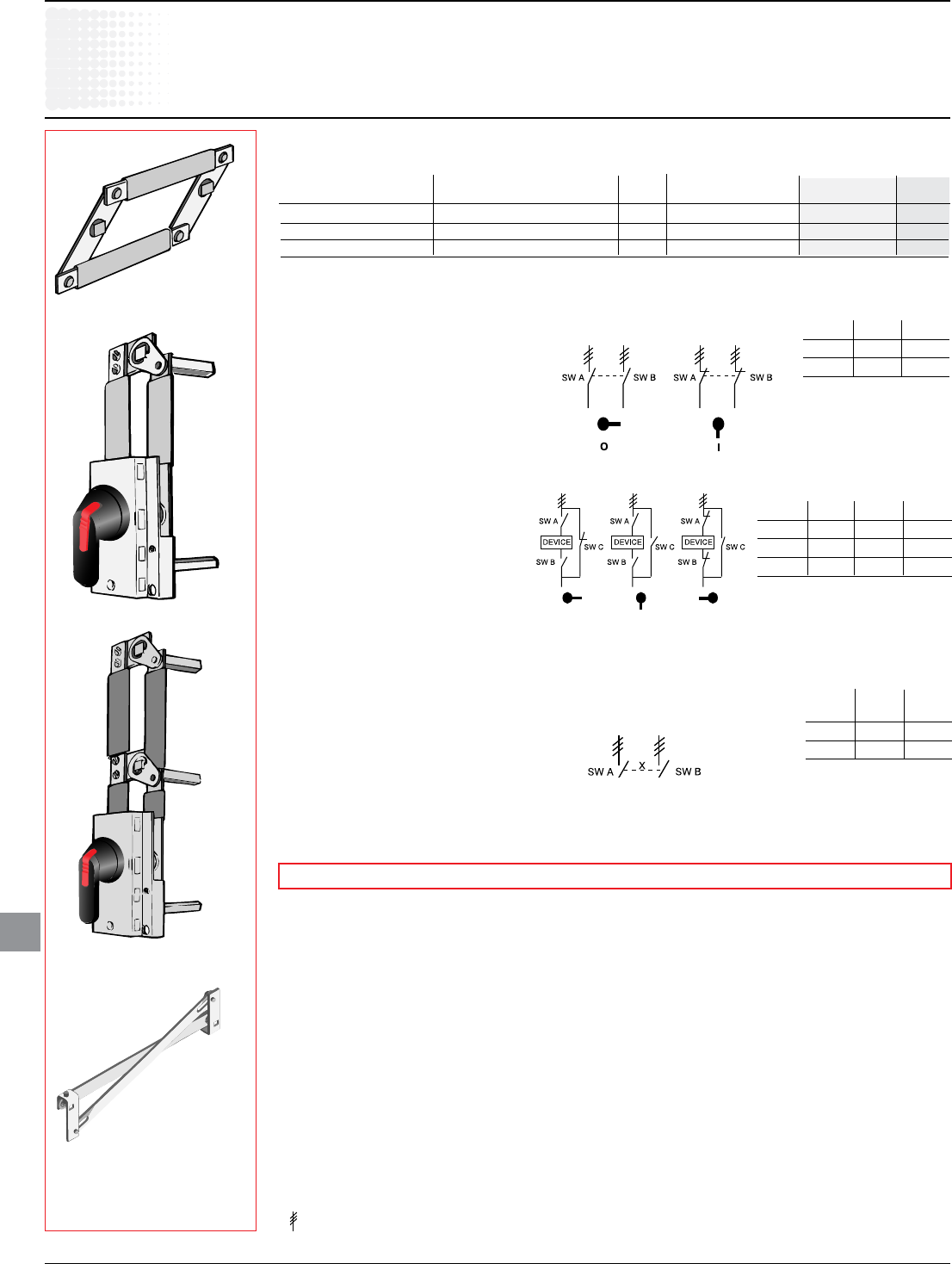

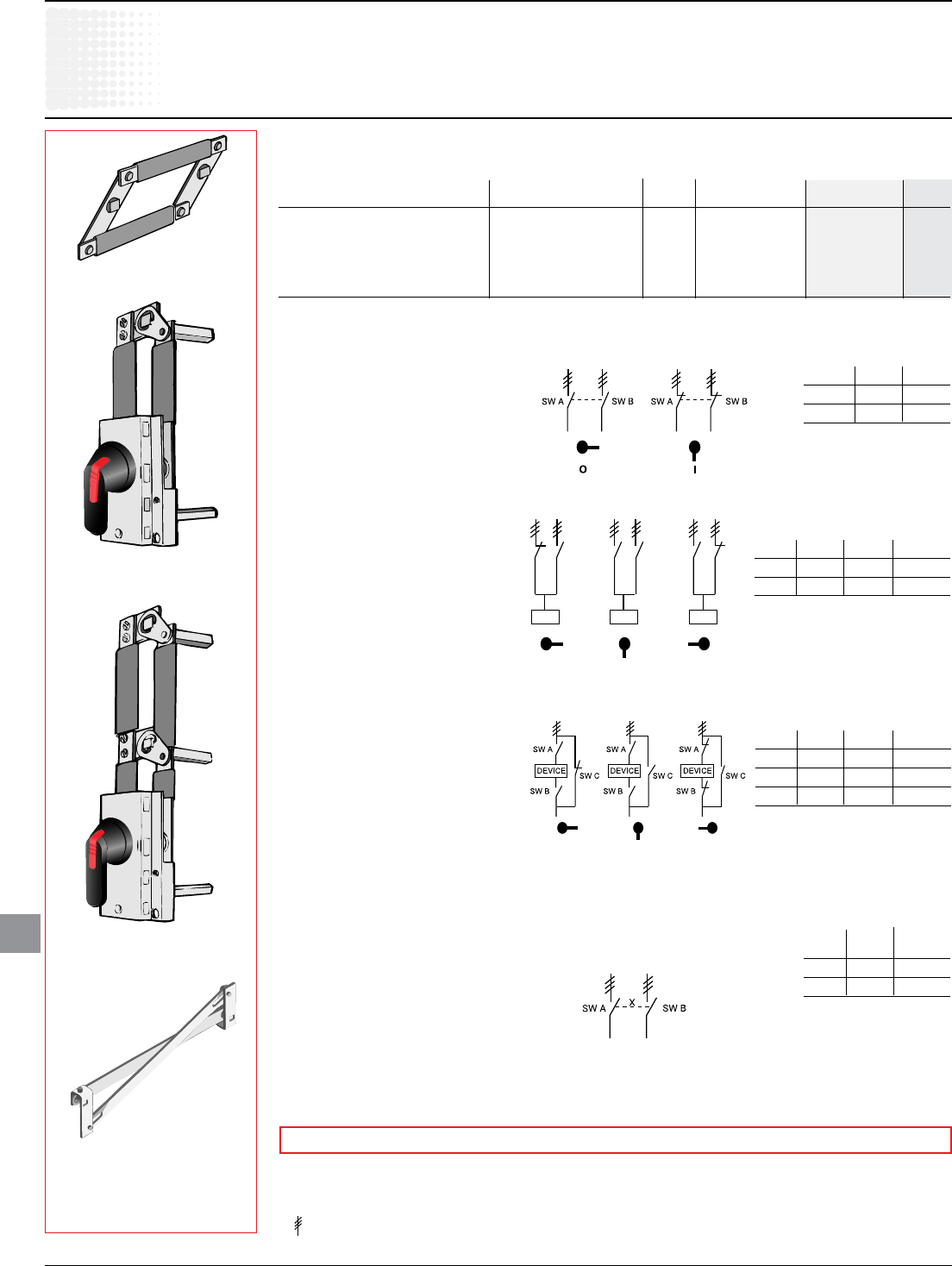

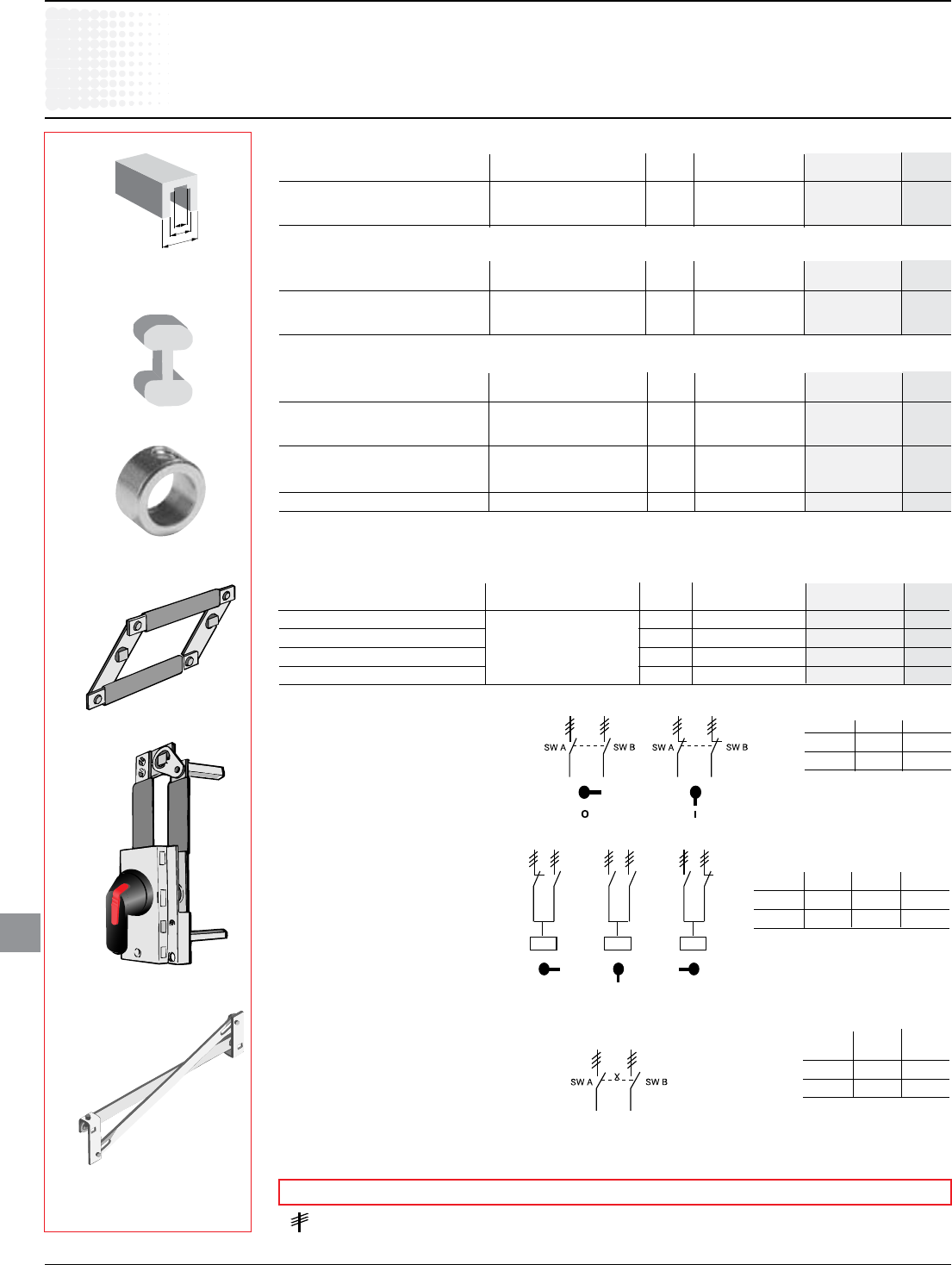

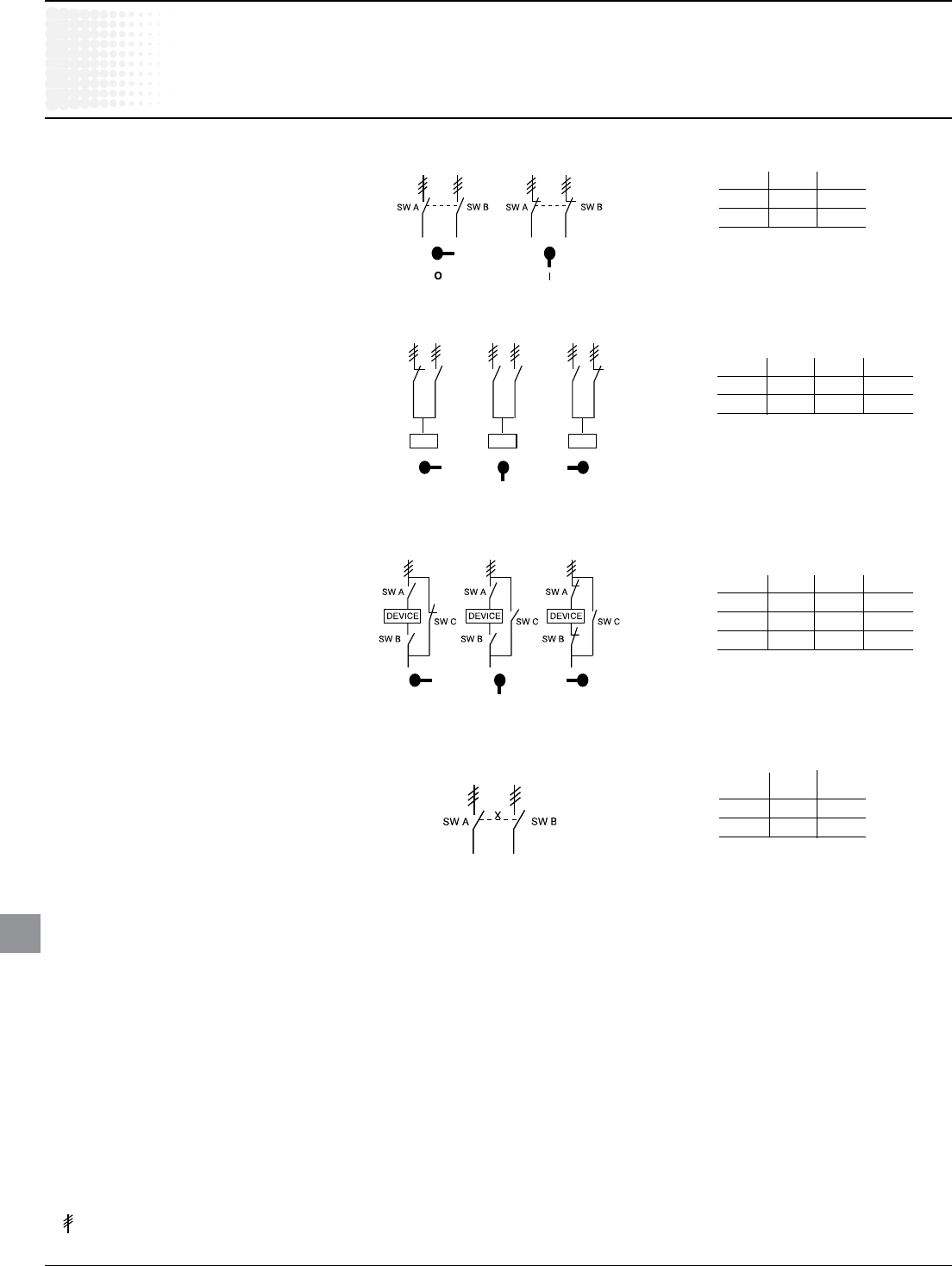

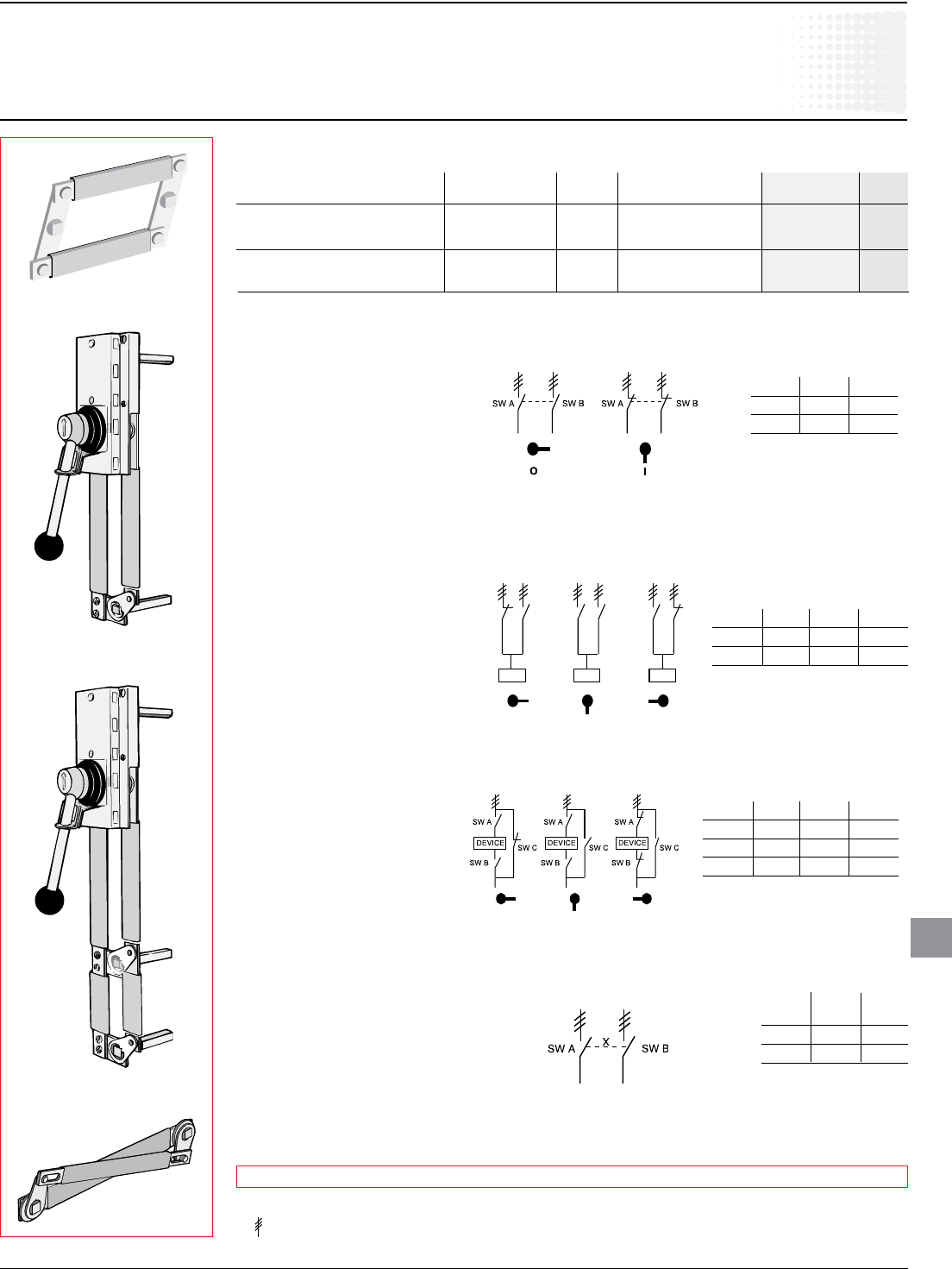

Transfer — OTZW6, OTZW6X

Transfer mechanism manually transfers

betweentwopowersourcesusingtwo

switchesandacenterOFFposition.

A3-positionhandleisincluded:

OHB80J6E011(ULType1,3R&12)or

OHB80L6E011(ULType1,3R,4,4X,12)

Shaftsincluded.Equipmentrequiredfor

acompleteinstallation:

• Oneconversionmechanism

• Twodisconnectswitches(seepage

 18.10.)

Bypass — OTZW17, OTZW17X

Bypassmechanismoperatesthreeswitches:

Twoswitchesinseriesandonechangeover

switchtoallowpowerbypass.

A3-positionhandleisincluded:

OHB80J6E011(ULType1,3R&12)or

OHB80L6E011(ULType1,3R,4,4X,12)

Shaftsincluded.Equipmentrequiredfora

completeinstallation:

• Oneconversionmechanism

• Threedisconnectswitches(seepage 

 18.10.)

6 or 8 pole — OTZW8

6(8)polemechanismallowstwoswitches

controlledbyonehandletoopenorclose

simultaneously.

Equipmentrequiredforacompleteinstallation:

• Oneconversionmechanism

• Twodisconnectswitches(seepage18.10)

• Onehandle1(seepage18.10–18.11)

• Oneshaft(seepage18.10–18.11)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O=Open

POS. I POS. O POS. II

SW. A X O O

SW. B O O X

X = Closed

O=Open

POS. I POS. O POS. II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O=Open

1 OT16E3–OT32E3canuseaselectororpistolhandle.Allothersizesmustuseapistolhandle.

2 =Threepoles

Conversion mechanisms

• ForusewithBaseandDINrailmountedswitchesonly

• Switchesarenotincluded

Description Foruseon: Weight UL/NEMA Catalog List

   (lbs.) type number price

 6or8pole OT16–OT100 0.33 — OTZW8 $ 60

 Transfer OT16–OT100 1.87 1,3R,12 OTZW6 240

 Transfer OT16–OT100 1.87 1,3R, 4, 4X,12 OTZW6X 280

 Bypass OT16–OT100 1.54 1,3R,12 OTZW17 340

 Bypass OT16–OT100 1.54 1,3R, 4, 4X,12 OTZW17X 380

 Mechanicalinterlock OT16–OT100 0.33 — OETL-ZW24 80

16A – 100A, Base & DIN rail mounted

Accessories

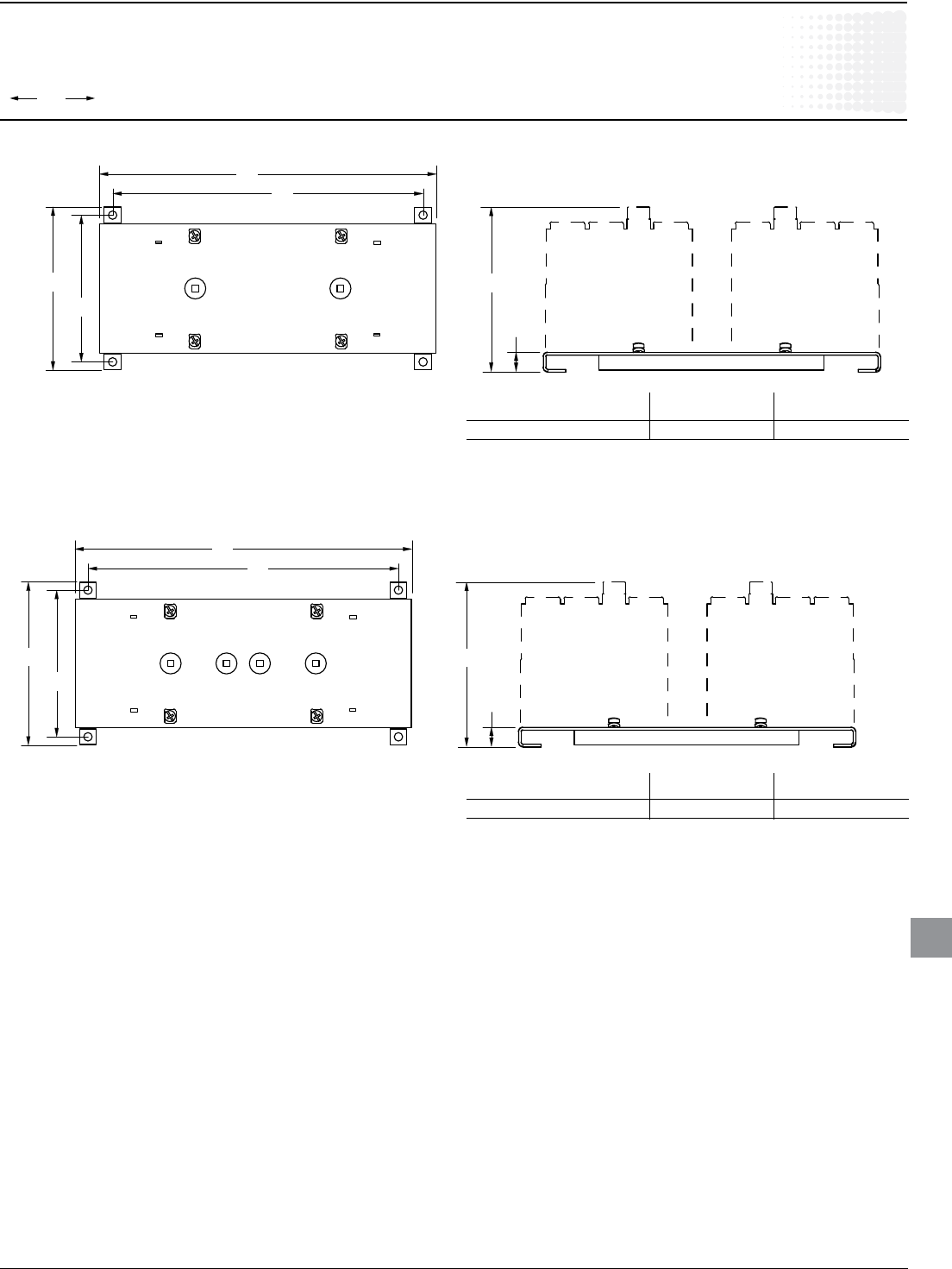

Drawing and mounting information found on pg 18.65

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O=Open

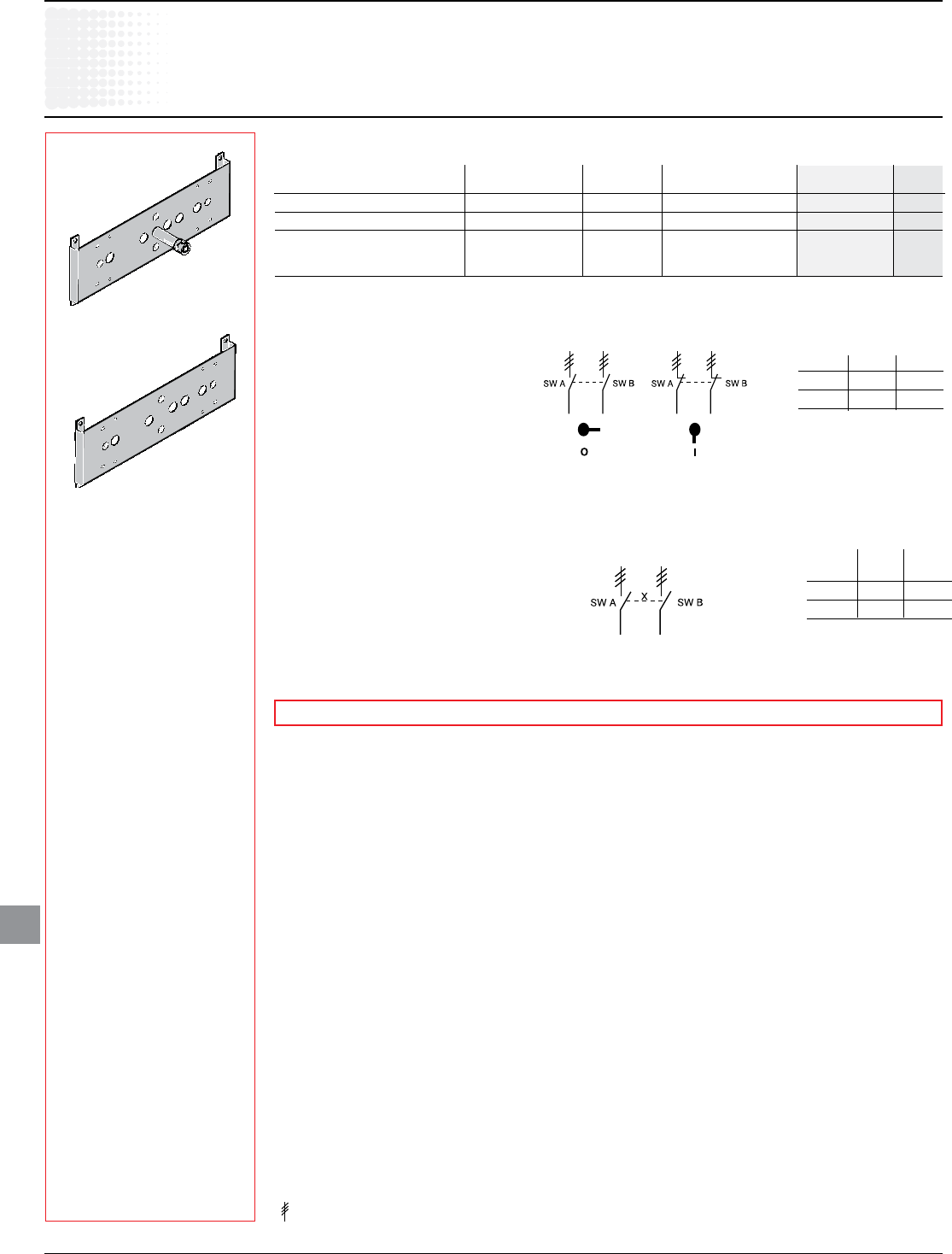

Mechanical interlock — OETL-ZW24

Mechanicalinterlockmechanismpreventsboth

switchesfrombeingintheONpositionatthe

same time.

Equipmentrequiredforacompleteinstallation:

• Oneconversionmechanism

• Twodisconnectswitches(seepage18.10)

• Twohandles(seepage18.10–18.11)

• Twoshafts(seepage18.10–18.11)

Discount schedule H6: Handles,shaftsandaccessories

OTZW8

OTZW6

OTZW17

OETL-ZW24

) / ))

,/!$ ,/!$ ,/!$

37! 37" 37! 37" 37! 37"

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.15

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

16A – 100A, Base & DIN rail mounted

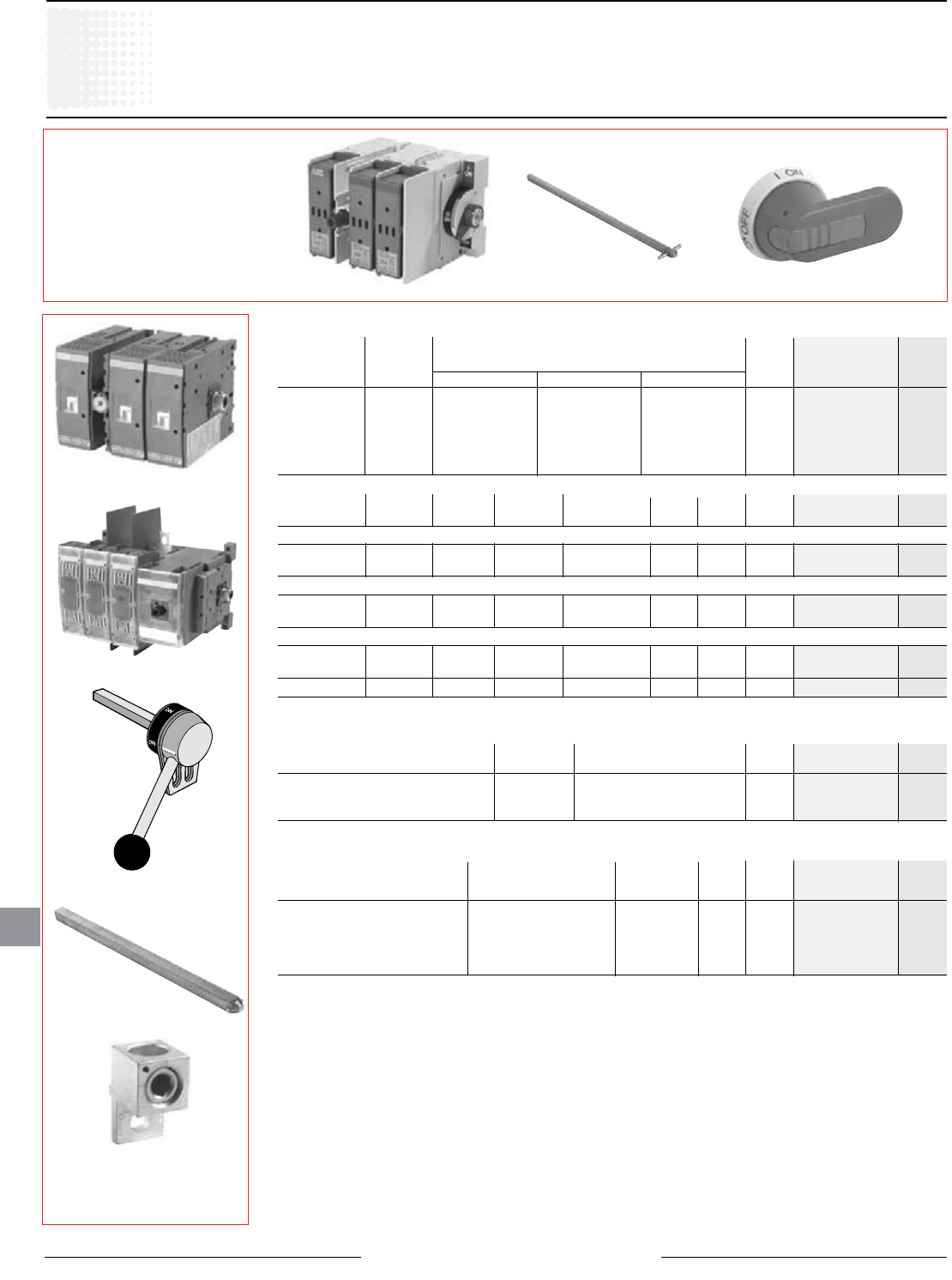

6 Pole switches

16 – 100 Amp switches, 600V, 6 pole 1

Foracompleteassembly,

pleaseselectoneofeach:

1 switch

1 handle

1 shaft

1 Asnap-onpowerpolemaybeaddedtobuilda7or8poleswitch;pleasereferenceaccessories,page18.12.

2 Mountingdepthisthedistancefromtheoutsideofdoortothedisconnectswitchmountingsurface.Shaftcanbecuttodesiredlength.

 16 16 1 2  5 10 10    OT16E6 $ 192

 25 25 1.5 3 7.5 15 20 #18–8 Cu 5 OT25E6 204

 40 40 2 5  10 20 25    OT32E6 212

 60 63 2 5  15 30 30 #14–4 Cu 6 OT45E6 260

 80 80 2 5  20 40 40    OT63E6 300

 30 40 2 5  10 20 30 #14–4   OT30E6 360

 60 63 3 7.5  20 40 40 #14–4 Cu 6 OT60E6 410

 100 115 5 15  30 50 50 #8–1/0   OT100E6 460

 UL IEC Maximumhorsepowerratings

general AC21

Singlephase Threephase

Terminal lugs Shaft Catalog List

 purpose amp    size number price

 amprating rating 120V 240V 240V 480V 600V Wiresize Wiretype (mm)

UL508UL 98

 UL/NEMA IEC Color Length Marking Defeat- Padlock- Weight Shaft Catalog List

 type type  in/mm  able able (lbs) size (mm) number price

Pistol handles —5&6mm,forusewith6-poleswitches

Discount schedule H1: NF,16–100A

Discount schedule H6:Handles,shaftsandaccessories

 Mountingdepth2 (inches) 

 Shaft OT16E6 OT45E6 OT30E6 Weight Shaft Catalog List

 length OT25E6 OT63E6 OT60E6 (lbs) size number price

 (inches/mm) OT32E6  OT100E6  (mm)

Shafts —5&6mm,forusewith6poleswitches

5mm—forusewithOT16,OT25&OT32

5.9/160 7.2 — — 0.07  OXP5X150 $ 14

6.7/170 8.0 — — 0.08  OXP5X170 16

 10.4/265 11.7 — — 0.12 5 OXP5X265 18

 15.8/400 17.0 — — 0.18  OXP5X400 30

 19.7/500 21.0 — — 0.23  OXP5X500 42

6mm—forusewithOT45,OT63,OT30E6,OT60E6&OT100E6

 5.2/130 — 6.6 6.7 0.08  OXP6X130 12

 5.9/150 — 7.4 7.5 0.09  OXP6X150 12

 8.3/210 — 9.7 9.8 0.13 6 OXP6X210 16

 11.4/290 — 12.9 13.0 0.18  OXP6X290 20

 14.2/360 — 15.6 15.7 0.23  OXP6X360 24

 16.9/430 — 18.4 18.5 0.27  OXP6X430 28

OT45E6

 OT45E6 + OXP6X210 + OHY_J6

OXP5X__

OHY__J6

OHB__J6

5mm—forusewithOT16,OT25&OT32

1,3R,12 IP65 Black 2.6/65 O/I&Off/On Yes Yes 0.29 5 OHB65J5 $ 80

   Red/Yel       OHY65J5

1,3R,4,4X,12 IP66 Black 2.6/65 O/I&Off/On Yes Yes 0.29 5 OHB65L5 120

   Red/Yel       OHY65L5

1,3R,4,4X,12 IP66 Stainless 2.6/65 O/I&Off/On Yes Yes 1.60 5 OHM65L5 700

Steel

6mm—forusewithOT45,OT63,OT30E6,OT60E6&OT100E6

   Black 2.6/65    0.29  OHB65J6 80

1,3R,12 IP65 Red/Yel 2.6/65 O/I&Off/On Yes Yes 0.29 6

OHY65J6 80

   Black 3.1/80    0.30  OHB80J6 90

   Red/Yel 3.1/80    0.30  OHY80J6 90

1,3R,4,4X,12 IP66 Black 3.1/80 O/I&Off/On Yes Yes 0.30 6 OHB80L6 130

   Red/Yel       OHY80L6 130

1,3R,4,4X,12 IP66 Stainless 2.65/65 O/I&Off/On Yes Yes 1.60 6 OHM65L6 750

Steel

Disconnect

switches

Non-fusible

18.16 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

16A – 100A, Base & DIN rail mounted

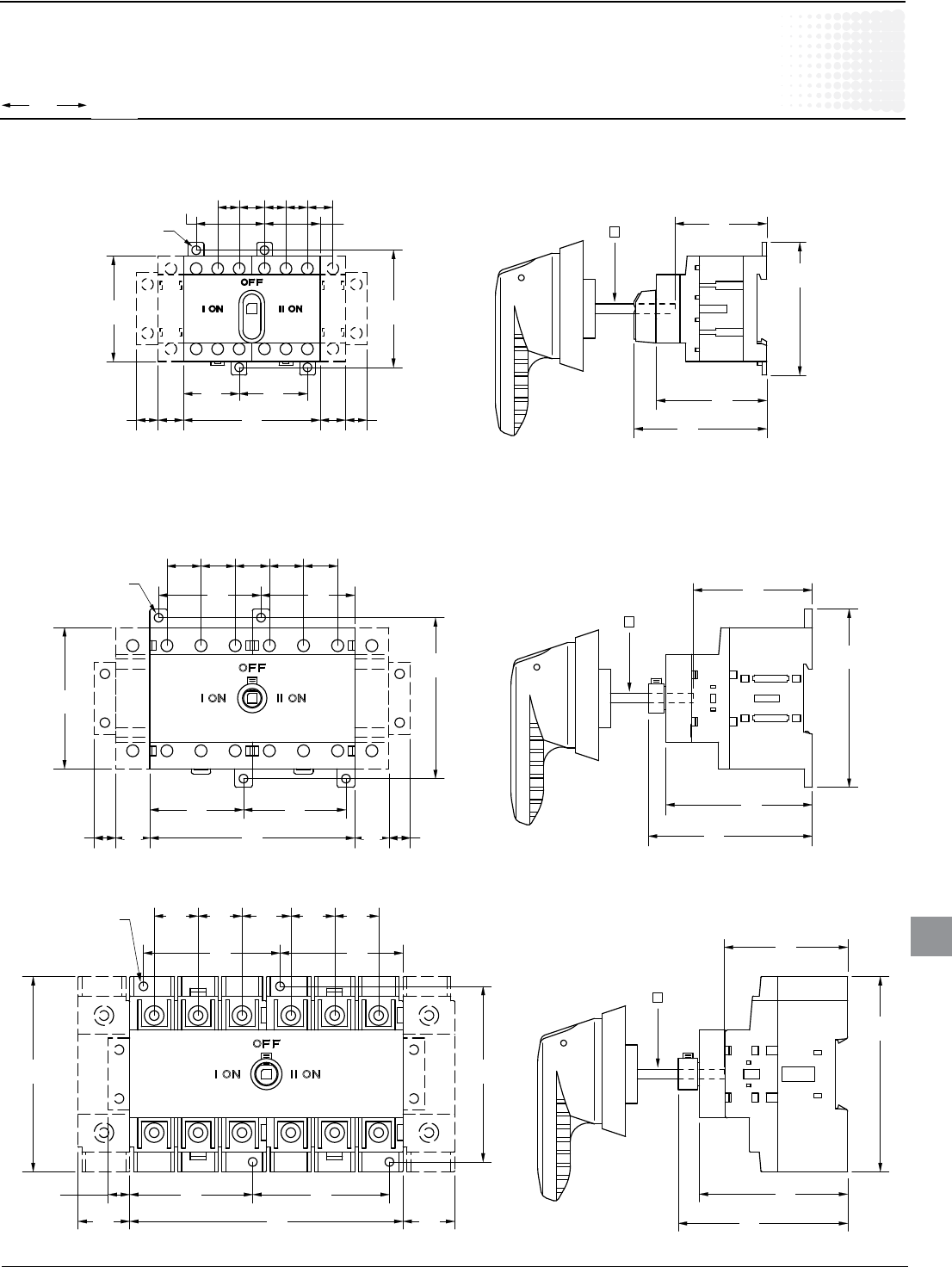

3 Pole transfer switches

16 – 100 Amp–600V,3Poletransferswitches 1

1 Asnaponpowerpolemaybeaddedtobuilda4poletransferswitch;pleasereferenceaccessoriesandauxiliarycontact

informationonpage18.12.

2 NotsuitableforusewithOT30E3C,OT60E3C,OT100E3C.

3 Mountingdepthisthedistancefromtheoutsideofdoortothedisconnectswitchmountingplate.Shaftcanbecuttodesiredlength.

 16 16 1 2  5 10 10    OT16E3C $ 258

 25 25 1.5 3 7.5 15 20 #18–8 Cu 5 OT25E3C 270

 40 40 2 5 10 20 25    OT32E3C 288

 60 63 2 5 15 30 30 #14–4 Cu 5 OT45E3C 328

 80 80 2 5 20 40 40    OT63E3C 368

 30 40 2 5 10 20 30 #14–4   OT30E3C 428

 60 63 3 7.5 20 40 40 #14–4 Cu 5 OT60E3C 478

 100 115 5 15 30 50 50 #8–1/0   OT100E3C 514

 UL IEC Maximumhorsepowerratings

general AC21

Singlephase Threephase

Terminal lugs Shaft Catalog List

 purpose amp    size number price

 amprating rating 120V 240V 240V 480V 600V Wiresize Wiretype (mm)

 UL/NEMA IEC Color Length Defeat- Padlock- Weight Shaft Catalog List

 type type  in/mm able able (lbs) size (mm) number price

Pistol handles —5mm,forusewithtransferswitches;markedI/ON-O/OFF-II/ON

1,3R,12 IP65 Black 2.6/65 Yes Yes 0.29 5 OHB65J5E011 $ 90

   Red/Yel      OHY65J5E011

1,3R,4,4X,12 IP66 Black 2.6/65 Yes Yes 0.29 5 OHB65L5E011 130

   Red/Yel      OHY65L5E011

 5.9/160 7.2 7.4 7.5 0.07  OXP5X150 $ 14

6.7/170 8.0 8.2 8.3 0.08  OXP5X170 16

 10.4/265 11.7 11.9 12.0 0.12 5 OXP5X265 18

 15.8/400 17.0 17.2 17.3 0.18  OXP5X400 30

 19.7/500 21.0 21.2 21.3 0.23  OXP5X500 42

 Mountingdepth2 (inches) 

 Shaft OT16E3 OT45E3 OT30E3 Weight Shaft Catalog List

 length OT25E3 OT63E3 OT60E3 (lbs) size number price

 (inches/mm) OT32E3  OT100E3  (mm)

Shafts for pistol handles —5mm,forusewithtransferswitches

Discount schedule H1: NF,16–100A

Discount schedule H6:Handles,shaftsandaccessories

 OT45E3C + OXP5X170 + OHB_J5

 UL/NEMA IEC Color Defeatable Padlockable Weight Catalog List

 type type    (lbs.) number price

Selector handles —5mm,forusewithtransferswitches;markedI/ON-O/OFF-II/ON

1,3R,12 IP65 Black Yes Yes 0.16 OHB2AJE0112 $ 40

   Red/Yel      OHY2AJE0112

 3.3/85 3.6-4.3 4.4-5.0 3.9-4.9 0.04  OXS5X85 $ 4

4.1/105 4.4-5.1 5.1-5.8 4.7-5.7 0.04  OXS5X105 4

 4.7/120 5.0-5.8 5.7-6.4 5.3-6.3 0.05  OXS5X120 4

 5.1/150 5.4-6.1 6.1-6.8 5.6-6.7 0.05 5 OXS5X150 6

 7.1/180 7.4-8.1 8.1-8.7 7.6-8.6 0.08  OXS5X180 6

 9.8/250 10.1-10.8 10.9-11.5 10.4-11.4 0.1  OXS5X250 12

 13/330 13.3-14.0 14.0-14.7 13.5-14.5 0.14  OXS5X330 20

 Mountingdepth2 (inches) 

 Shaft OT16E3C OT45E3C OT30E3C Weight Shaft Catalog List

 length OT25E3C OT63E3C OT60E3C (lbs) size number price

 (inches/mm) OT32E3C  OT100E3C  (mm)

Shafts for selector handles —5mm,forusewithtransferswitches

Foracompleteassembly,

pleaseselectoneofeach:

1 switch

1 handle

1 shaft

UL508UL 98

OXS5X__

OT45E3C

OHY__J5

OHB__J5

OHB2AJE011

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.17

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Selector handles

16 – 100 Amp switches, 600V, 3 pole12

16A – 100A, Door mounted

Foracompleteassembly,

pleaseorderoneofeach:

1 switch

1 handle

1 Asnaponfourthpolemaybeadded—pleasereferenceaccessoriespg18.18.

2 Door mounted switches do not require shafts.

OT16ET3

OT25ET3

OT32ET3

OHY1__

OHB2__

OHY2__

UL IEC

general AC21 Maximumhorsepowerrating Terminallugs

purpose amp  Singlephase  Threephase   Catalog List

 amprating rating 120V 240V 240V 480V 600V Wiresize Wiretype number price

 OT45ET3 OHB2RJ

OHB3__

Description Foruseon: Weight Catalog List

   (lbs)  number price

Pistol grip handle adapter

 Adapterpiece OT30,OT60,OT100  0.18  OHZX6 $ 20

 forpistolgriphandle

Includeshardwareandashaft.Forpistolgriphandles.

Discount schedule H1: NF,16A–100A

Discount schedule H6: Handles,shaftsandaccessories

UL508

UL 98

I ON

O OFF

All marked both O/I & Off/On

Snap-on mounting — for use on OT16, 25, 32ET3

 1 IP54 Black — — 0.10 OHB1PH $ 22

 1 IP54 Red/Yel — — 0.10 OHY1PH 22

 1 IP54 Black — Yes 0.13 OHB3PH 24

 1 IP54 Red/Yel — Yes 0.13 OHY3PH 24

 1,3R,12 IP65 Black — Yes 0.17 OHB2PJ 28

 1,3R,12 IP65 Red/Yel — Yes 0.17 OHY2PJ 28

Screwmounting—foruseonOT16–OT100.ForOT30,OT60,OT100useOH_2_only

 1 IP54 Black — — 0.11 OHB1RH 40

 1 IP54 Red/Yel — — 0.11 OHY1RH 40

 1 IP54 Black — Yes 0.14 OHB3RH 42

 1 IP54 Red/Yel — Yes 0.14 OHY3RH 42

 1,3R,12 IP65 Black — Yes 0.18 OHB2RJ 46

 1,3R,12 IP65 Red/Yel — Yes 0.18 OHY2RJ 46

 UL/NEMA IEC Color Defeat- Padlock- Weight Catalog List

 type type  able able (lbs) number price

 16 16 1 2  5 10 10 #18–8 Cu OT16ET3 $ 70

 25 25 1.5 3 7.5 15 20 #18–8 Cu OT25ET3 76

 40 40 2 5 10 20 25 #18–8 Cu OT32ET3 80

 60 63 2 5 15 30 30 #14–4 Cu OT45ET3 104

 80 80 2 5 20 40 40 #14–4 Cu OT63ET3 124

 30 40 2 5 10 20 30 #14–4 Cu OT30ET3 154

 60 63 3 7.5 20 40 40 #14–4 Cu OT60ET3 179

 100 115 5 15 30 50 50 #8–1/0 Cu OT100ET3 204

Door mounted switches do not provide door interlock

Disconnect

switches

Non-fusible

18.18 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Door mounted switches

16A – 100A, Door mounted

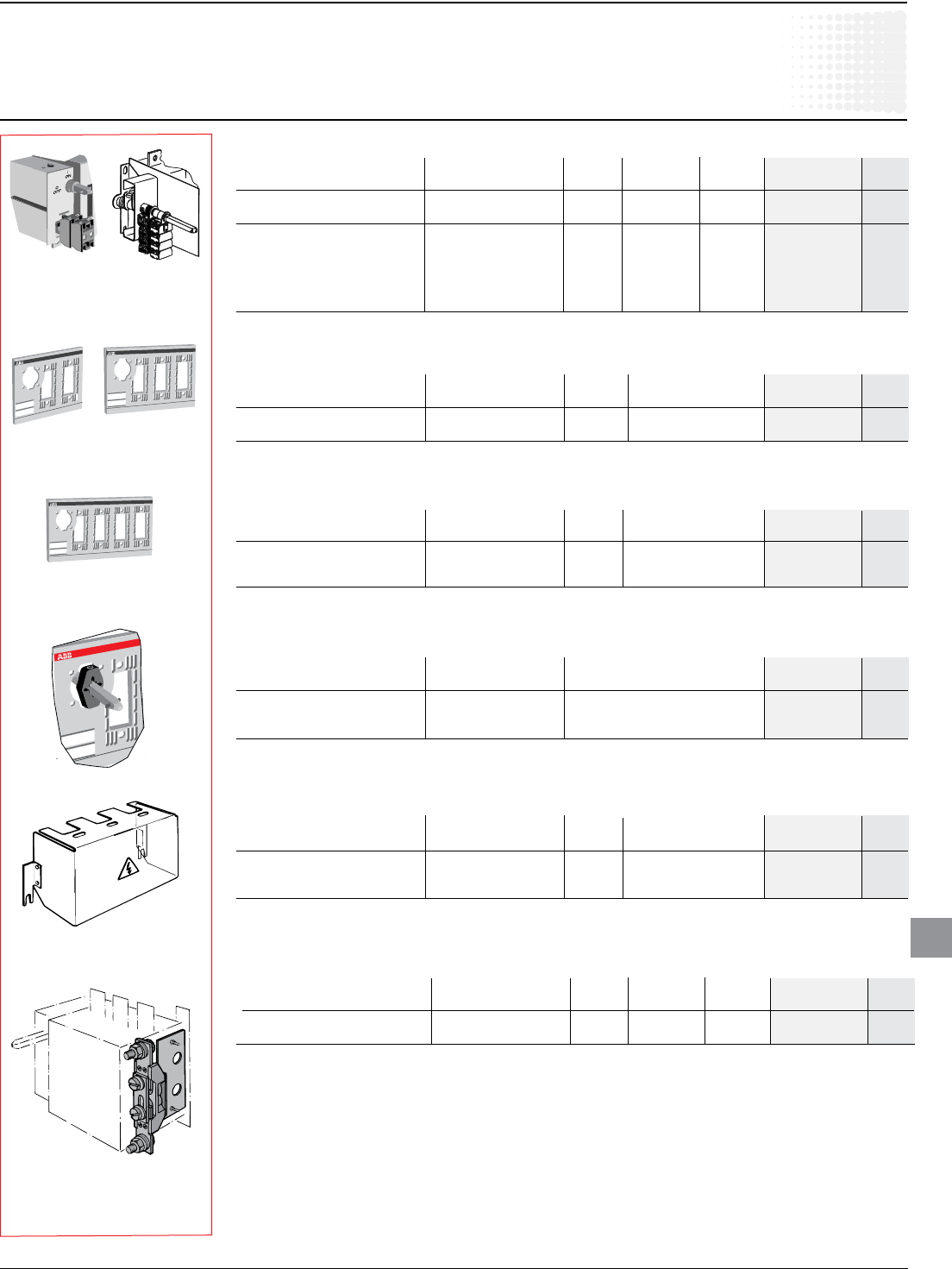

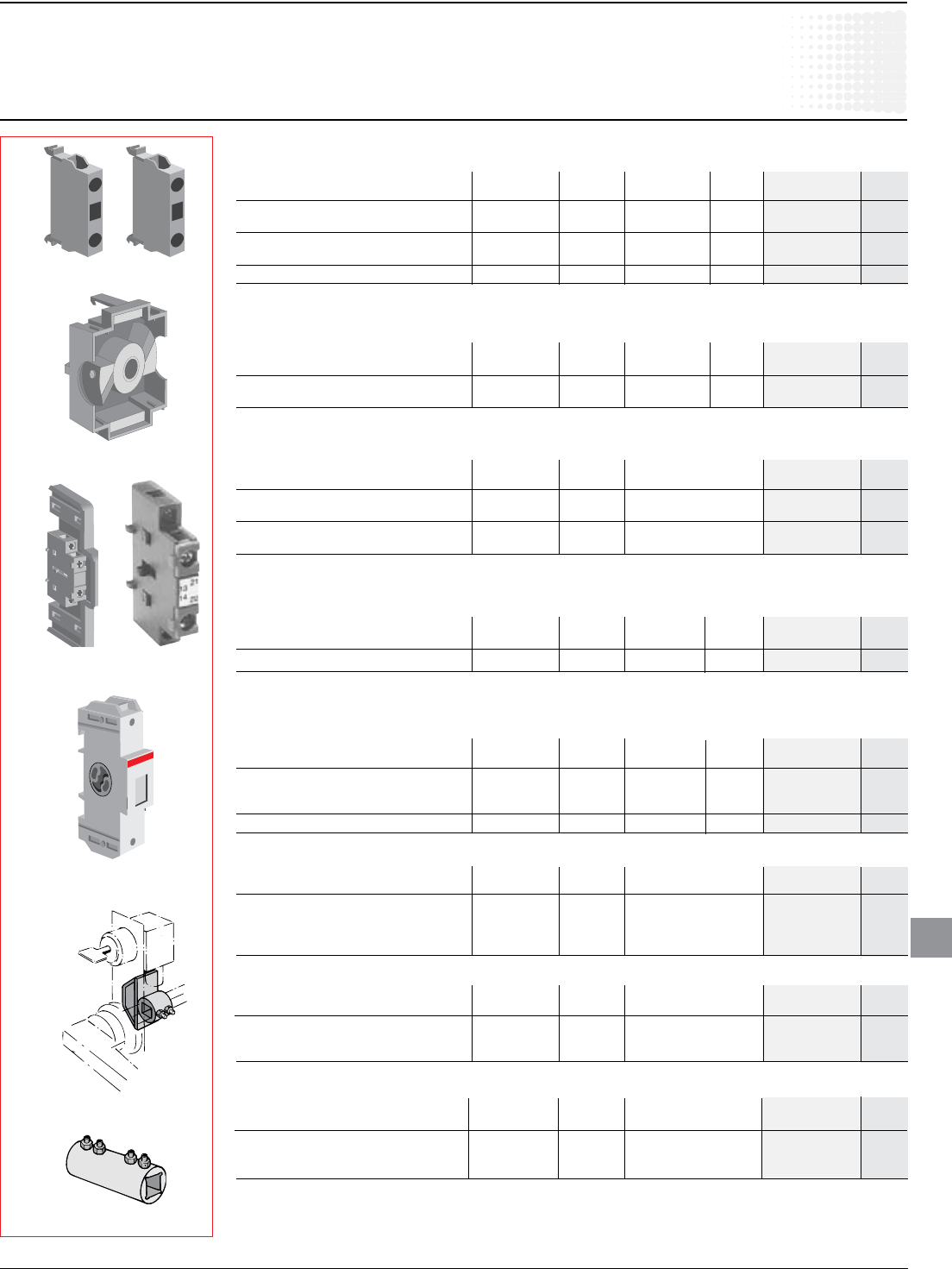

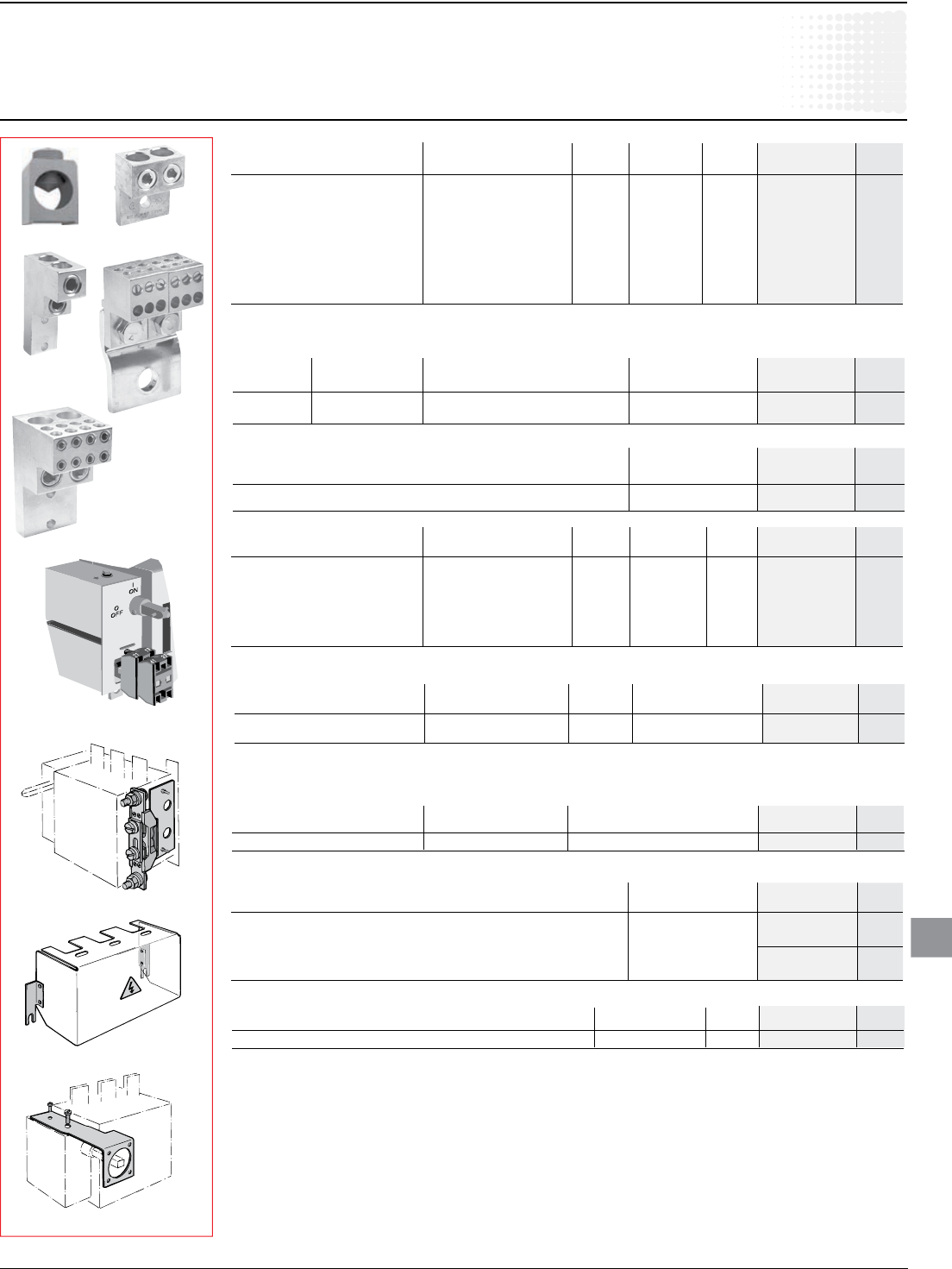

Accessories

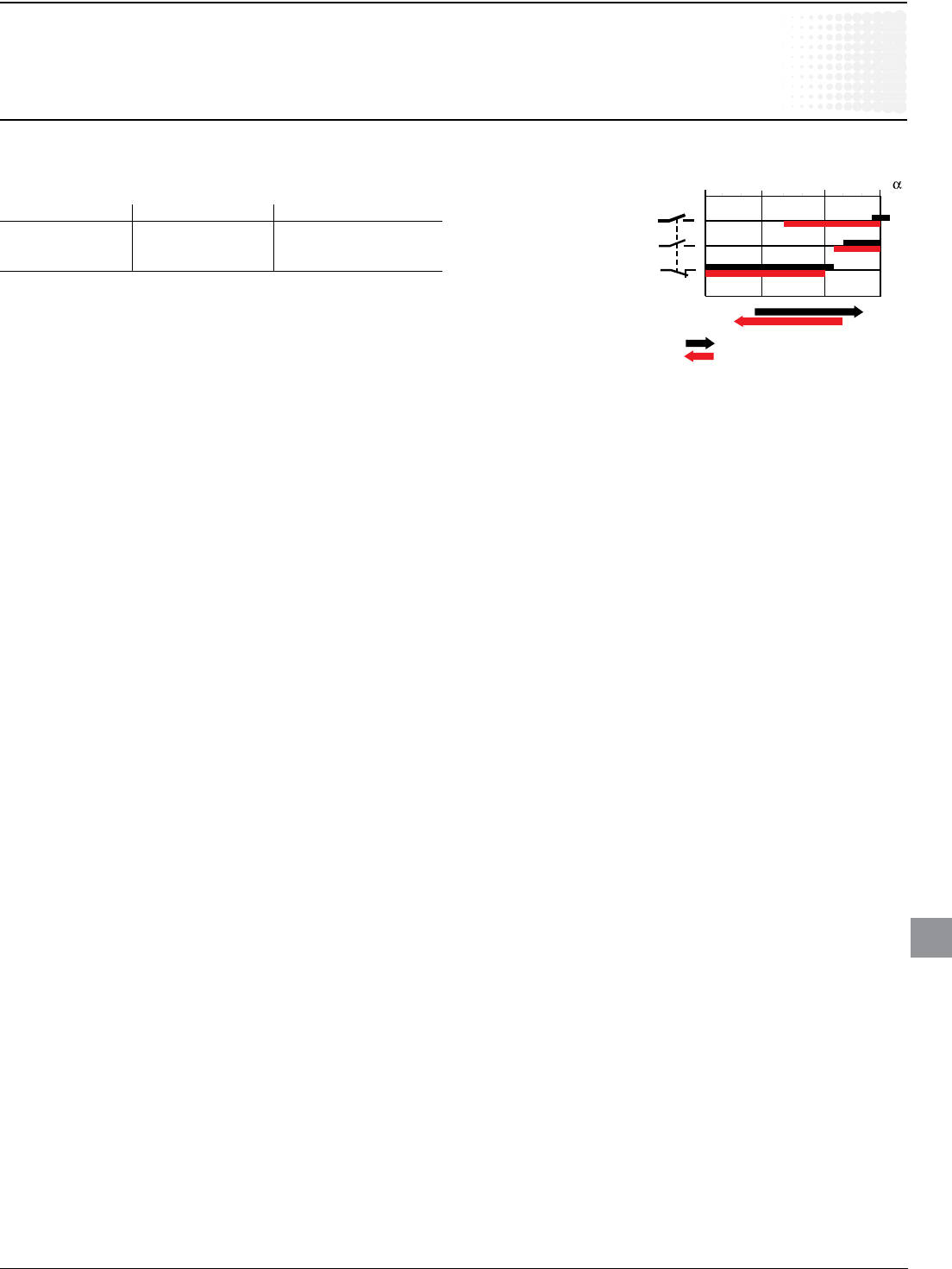

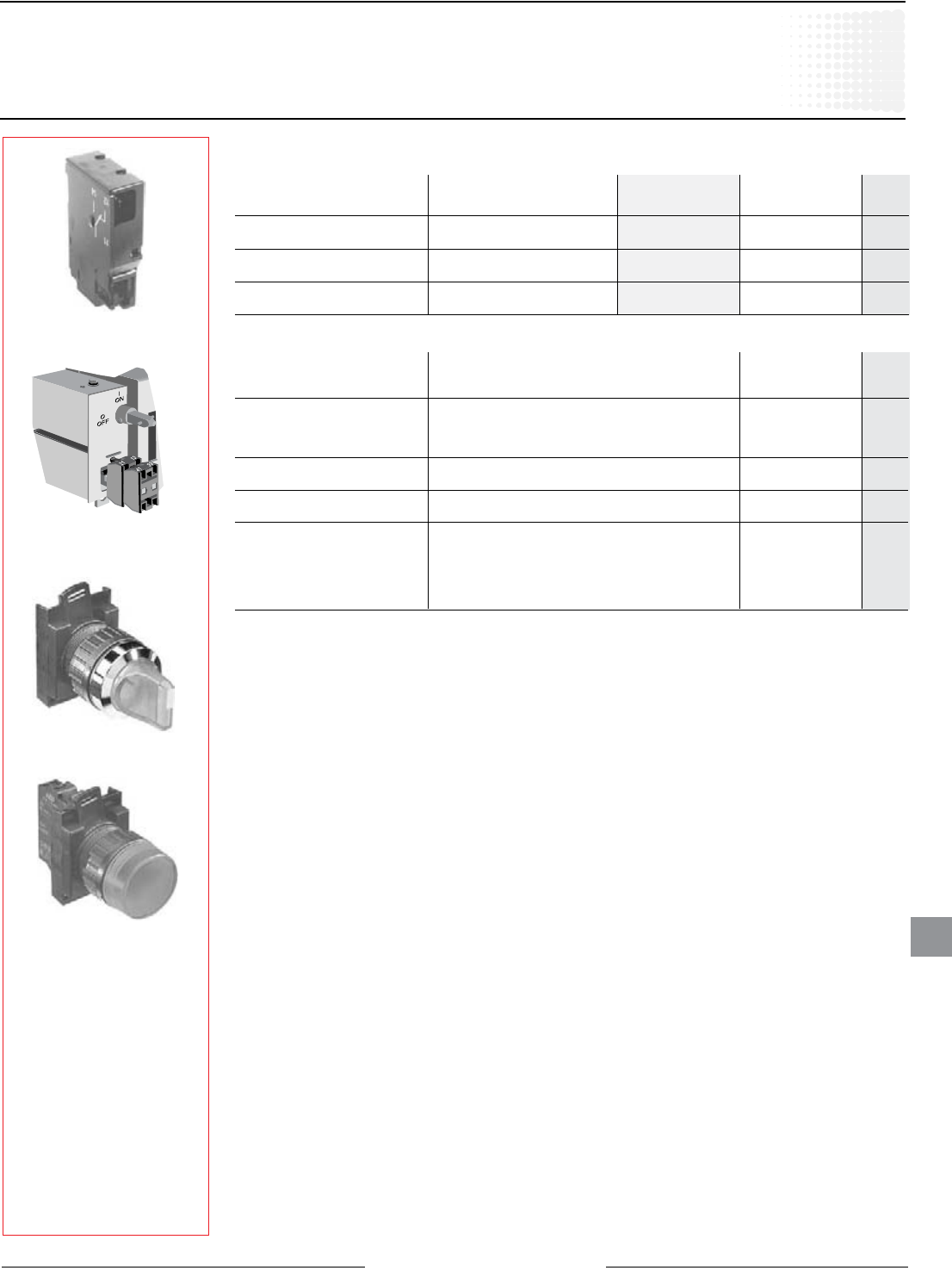

Auxiliary contacts 1 —snap-onmounting

1 ULFile#E83510

2 Switchacceptsonepowerpoleoroneterminalpoleperside.Onlyonepowerpoleperswitch.

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

Power poles

• Onlyonepowerpoleperswitch

• Mountsonleftorrightsideofswitch

Terminal poles

• Switchacceptsoneterminalpoleperside

• Mountsonleftorrightsideofswitch

OTP_63ED

OA1G__

OTP_32ED

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

  OT16,OT25,OT32 0.07 40 600 OTPS32ED $ 36

 Fourthpole2 OT45,OT63 0.13 80 600 OTPS63ED 44

  OT30,OT60,OT100 0.20 100 600 OTPS125ED 54

  OT16,OT25,OT32 0.07 40 600 OTPL32ED 36

 Late-break/early-make2 OT45,OT63 0.13 80 600 OTPL63ED 44

  OT30,OT60,OT100 0.20 100 600 OTPL125ED 54

  OT16,OT25,OT32 0.07 40 600 OTPN32ED $ 20

Solid neutral 2 OT45,OT63 0.13 80 600 OTPN63ED 36

  OT30,OT60,OT100 0.20 100 600 OTPN125ED 50

  OT16,OT25,OT32 0.07 40 600 OTPD32ED 28

Detachable neutral 2 OT45,OT63 0.13 80 600 OTPD63ED 36

OT30,OT60,OT100 0.20 100 600 OTPD125ED 50

  OT16,OT25,OT32 0.07 40 600 OTPE32ED 20

Ground terminal 2 OT45,OT63 0.13 80 600 OTPE63ED 36

OT30,OT60,OT100 0.20 100 600 OTPE125ED 50

Discount schedule H6: Handles,shaftsandaccessories

1 N.O.

 mountsonrighthand  0.07 10 600 OA1G10 $ 20

side of switch

1 N.C.

 mountsonlefthand  0.07 10 600 OA1G01 20

side of switch

Max. two contacts on each side of switch.

OT16 – OT100

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.19

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

16A – 100A, Door mounted

Accessories

OTS32T3 OTS32T1

OTS63T3 OTS63T1

 OTS125T3 OTS125T1

OP_

OP_EN1

Description Foruseon: Catalog List

      number price

Blankplate

 Black OH_1_&OH_3_  OPB1 $ 6

 Yellow OH_1_&OH_3_  OPY1 6

 Black OH_2_  OPB2 8

 Yellow OH_2_  OPY2 8

Platemarkedwith:MAINSWITCH

 Black OH_1_&OH_3_  OPB1EN1 10

 Yellow OH_1_&OH_3_  OPY1EN1 10

 Black OH_2_  OPB2EN1 12

 Yellow OH_2_  OPY2EN1 12

Legend plates for selector handles

Description Foruseon: Catalog List

      number price

Door mounted switch

 handlelockingclip OT16,OT25,OT32  CXBY68140 $ 11

Locking clip(replacementpart)

CXBY68140

Terminal shrouds* —snap-onmountingforlineorloadside

Description Foruseon: Weight Catalog List

   (lbs)   number price

 3pole OT16,OT25,OT32 0.02 OTS32T3 $ 8

 includesoneshroud OT45,OT63 0.02 OTS63T3 12

 forlineorloadside OT30,OT60,OT100 0.02 OTS125T3 20

 4thpole OTP_32ED 0.02 OTS32T1 4

 includesoneshroud OTP_63ED 0.02 OTS63T1 6

 forlineorloadside OTP_125ED 0.02 OTS125T1 10

*AlldisconnectsareIP20touchsafeasstandard.Terminalshroudsprovideanadditionallevelofprotection.

Discount schedule H6: Handles,shaftsandaccessories

I

O

OFF

Disconnect

switches

Non-fusible

18.20 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

125A

Foracompleteassembly,

pleaseselectoneofeach:

1 switch

1 handle

1 shaft

1Asnaponfourthpolemaybeadded–pleasereferenceaccessoriespage18.21.

2Mountingdepthisthedistancefromtheoutsideofthedoortothedisconnectswitchmountingplate.Shaftcanbecuttodesiredlength.

OT160ET3

OXP6X__

OHY__J6

OHB__J6

 OT160E3    OXP6X210  OHB65J6

125 Amp Door mounted switch1, 600V, 3 pole

 UL IEC Maximumhorsepowerrating

general AC21 Terminal lugs

 purpose amp    Threephase      Catalog List

amprating rating   240V 480V 600V Wiresize Wiretype number price

 125 160  30 75 100 #8–1/0 Cu OT160ET3 $ 548

OXP6X__/45

 UL/NEMA IEC Color Length Marking Defeat- Padlock- Weight Catalog List

 type type  in/mm  able able (lbs) number price

Pistol handles —forusewith .24x.24"( 6 x 6 mm)

 1,3R,12 IP65 Black 2.6/65 O/I&Off/On Yes Yes 0.29 OHB65J6 $ 80

 1,3R,12 IP65 Red/Yel 2.6/65 O/I&Off/On Yes Yes 0.29 OHY65J6 80

 1,3R,12 IP65 Black 3.1/80 O/I&Off/On Yes Yes 0.30 OHB80J6 90

 1,3R,12 IP65 Red/Yel 3.1/80 O/I&Off/On Yes Yes 0.30 OHY80J6 90

1,3R,4,4X,12 IP66 Black 3.1/80 O/I&Off/On Yes Yes 0.30 OHB80L6 130

   Red/Yel      OHY80L6

1,3R,4,4X,12 IP66 Stainless 2.6/65 O/I&Off/On Yes Yes 1.60 OHM65L6 750

Steel

 Shaftlength Mountingdepth2 Weight Catalog List

 inches/mm ininches (lbs) number price

Shafts —forusewithpistolhandles .24x.24"( 6 x 6 mm)

 5.2/130 4.3 – 6.0 0.08 OXP6X130 $ 12

 5.9/150 5.0 – 6.7 0.09 OXP6X150 12

 8.3/210 7.4 – 9.1 0.13 OXP6X210 16

 11.4/290 10.5 – 12.2 0.18 OXP6X290 20

 14.2/360 13.3 – 15.0 0.23 OXP6X360 24

 16.9/430 16.0 – 17.8 0.27 OXP6X430 28

 Shaftlength Mountingdepth2 Weight Catalog List

 inches/mm ininches (lbs) number price

Twisted shafts —Rotateshandle45° .24x.24"( 6 x 6 mm)

 5.2/130 4.3–6.0 0.08 OXP6X130-45 $ 12

 8.3/210 7.4–9.1 0.13 OXP6X210-45 16

 11.4/290 10.5–12.2 0.18 OXP6X290-45 20

 14.2/360 13.3–15.0 0.23 OXP6X360-45 24

125 Amp Base & DIN rail mounted switches1, 600V

 UL IEC Maximumhorsepowerrating

general AC21 Terminal lugs

 purpose amp Threephase  Catalog List

amprating rating    240V 480V 600V Wiresize Wiretype number price

2 pole 2 pole

 125 160   — — — #8–1/0 Cu  OT160E2 $ 380

3 pole 3 pole

 125 160   40 75 100 #8–1/0 Cu  OT160E3 420

Discount schedule H2: NF,125A–800A

Discount schedule H6: Handles,shaftsandaccessories

Item Weight Catalog Lis

  (lbs) number price

Direct mount handle

 Mountsdirectlyonswitch.Noshaftnecessary. 0.05 OHB13 $ 22

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.21

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

125A

Accessories

Auxiliary contacts, top mounted

• Acceptsfourcontactsmaximum,mountingbasealwaysrequired

Description Forusewith: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

Description Foruseon: Packageqty. Catalog List

     number price

Auxiliary contacts, side mounted

• Acceptsfourcontactsmaximum

1 Type_AUforlowenergyapplications.Thecontactsaregold-plated.AC&DCratings—Maximum:A600&P600.Minimum:12V,1mA;

5V,2mA

2 Requiredifseveralcontactblocksareusedinthesameinstallation.

Numbering stickers 2

Power pole — for use with base or door mounted switch

• Onlyonepowerpoleperswitch

• Mountsonleftorrightsideofswitch

Discount schedule H6: Handles,shaftsandaccessories

Terminal poles — for use with base or door mounted switch

• Switchacceptsoneterminalpoleperside

• Mountsonleftorrightsideofswitch

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

Detachable neutral

mounts on side of OT160 0.66 125 600 OTPN160EP $ 100

switch or DIN rail

Ground terminal OT160 0.66 125 600 OTPE160EP 100

 Fourthpole OT160 0.66 125 600 OTPS160EP $ 100

1 Pkg. of blank labels for OT160 10 OBEA-ZX10 $ 32

 OBEA-10,1N.O.  

1 Pkg. of blank labels for OT160 10 OBEA-ZX01 32

 OBEA-01,1N.C. 

1 N.O. & 1 N.C. OT160 0.07 10 600 OA2G11 $ 40

Mountingbase–requiredforOA2G11 OT160 0.06 — — OAZX1 20

Max. two contacts on each side of switch. One mounting base required for each side of switch

Locking accessories

Cam attachment forKirkKey,Castell,

 Lowe&FletcherandRonisinterlock. 5,6&8mm

 Foradaptingtotheinterlocksystem shafts 0.29 OETL-ZW16 $ 190

The interlock is not included.

OBEA-10 OBEA-01

OEZNP1

OETL-ZW16

Description Foruseon: Weight Catalog List

   (lbs)   number price

OTP_160EP

Description Foruseon: Weight AC thermal AC rated Catalog List

   (lbs) amprating voltage number price

 Allowspistolhandletobe

directly mounted to switch OT160 0.33 OHZX5 $ 24

behind the door

Description Foruseon: Weight Catalog List

   (lbs)   number price

Handle support bracket

1 N.O. OEZNP1 0.07 10 600 OBEA-10 $ 28

1 N.C. OT160 10 600 OBEA-01 28

 1N.O.goldplated1 OEZNP1 0.07 10 600 OBEA-10AU 56

1N.C.goldplated1 OT160 10 600 OBEA-01AU 56

 Mountingbase–requiredforOBEA_ OBEA__ 0.06 — — OEZNP1 20

 OAZX1 OA2G11

Shaft extension couplers

 Description Foruseon: Weight Catalog List

   (lbs) number price

 Joinstwoshaftstogether

 forapplicationswhere for6mm shafts 0.26 OESA-ZX167 $ 56

extended length is required

OETL-ZX167

OETL-ZX95

Disconnect

switches

Non-fusible

18.22 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Drawing and mounting information found on pg 18.66

125A

Accessories

6 or 8 pole—OESA-ZW2

6(8)polemechanismallowstwoswitches

controlledbyonehandle,toopenorclose

simultaneously.

Equipmentrequiredforacompleteinstallation:

• IncludesOHB145J12handle

• Oneconversionmechanism

• Twodisconnectswitches

• Twoshafts(seepage18.20)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O=Open

POS. I POS. O POS. II

SW. A X O O

SW. B O O X

X = Closed

O=Open

Discount schedule H6: Handles,shaftsandaccessories

OESA-ZW2

Description Foruseon:

Weight UL/NEMA Catalog List

   (lbs.) type number price

Description Foruseon: Weight Catalog List

   (lbs)   number price

Conversion mechanisms

• ForusewithBaseandDinrailmountedswitchesonly

• Switchesarenotincluded

Shaft adapter

OETL-ZK19

(X=6mm)

OESA-ZW1

Transfer—OESA-ZW1

Transfer mechanism manually transfers

betweentwopowersourcesusingtwo

switchesandacenterOFFposition.

A3positionhandleisincluded.

OHB80J6E011(ULType1,3R&12)or

OHB80L6E011(ULType1,3R,4,4X,12)

Shaftsincluded.Equipmentrequiredfora

completeinstallation:

• Oneconversionmechanism

• Twodisconnectswitches(see

page18.20)

1 =Threepoles

 Description Foruseon: Weight   Catalog List

   (lbs)   number price

 Interlocksapower

 polewithan OT160  0.05  CXBY68005 $ 12

 adjacentpowerpole

Power pole interlock (replacementpart)

CXBY68005

 Description Foruseon: Weight   Catalog List

   (lbs)   number price

Replacement collar (optionalreplacementforknob)

 6or8pole  1.52 — OESA-ZW2 $ 220

 Transfer OT160 2.20 Type1,3R,12 OESA-ZW1 300

 Transfer  2.20 Type1,3R,4,4X,12 OESA-ZW1X 340

 Mechanicalinterlock  0.55 — OTZW10 100

 Adaptsoneend

 ofa5or6mm shaft to 12mm 5&6mm shafts 0.20 OETL-ZK19 $ 40

 Usewithshaftextensioncoupler

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O=Open

Mechanical interlock —OTZW10

Mechanicalinterlockmechanismpreventsboth

switchesfrombeingintheONpositionatthe

same time.

Equipmentrequiredforacompleteinstallation:

• Oneconversionmechanism

• Twodisconnectswitches(seepage18.20)

• Twohandles(seepage18.20)

• Twoshafts(seepage18.20)

OTZW10

 Redknob(likeoriginal)

 forlockingshaftinplace OT160  0.05  CXBY68100 $ 2

** re-use original set screw **

 Metalcollarreplacesoriginal

 redknobforlockingshaftinplace OT160  0.05  OTZS2 13

 Setscrew OT160  —  FLAKM5X10X 2

OTZS2

OT160

) / ))

,/!$ ,/!$ ,/!$

37! 37" 37! 37" 37! 37"

x-1

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.23

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

200A

1 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit OT200U03 + OXP6X210 + OHB80J6 + OZXA-200

OXP6X360-45

OT200U03

OHB__J6

OXP6X__

OHY__J6

Discount schedule H2: NF, 125A – 800A

Discount schedule H6: Handles, shafts, accessories

OTV250EK

200 Amp switches, 600V

general

purpose

amp rating

IEC

AC21

Amp

rating

Maximum horsepower rating

Three phase Catalog

number

List

price

240V 480V 600V

2 pole

250 75 150 200

OT200U02 $ 560

200

3 pole OT200U03

620

200 OT200U12

OT200U30

4 pole OT200U04

780

OT200U13

200 OT200U22

OT200U40

Pistol handles — for use with shafts .24 x .24" ( 6 x 6mm)

UL/NEMA

type

IEC

type Color Length

mm Marking Defeat-

able

Padlock-

able

Weight

(lbs)

Catalog

number

List

price

1,3R,12 IP65 Black 3.1/80 O/I & Off/On Yes Yes 0.30 OHB80J6 $ 90

1,3R,12 IP65 Red/Yel 3.1/80 O/I & Off/On Yes Yes 0.30 OHY80J6

1,3R,4,4X,12 IP66 Black 3.1/80 O/I & Off/On Yes Yes 0.30 OHB80L6 130

Red/Yel OHY80L6

1,3R,4,4X,12 IP66 Stainless 2.6/65 O/I & Off/On Yes Yes 1.60 OHM65L6 750

Steel

Shafts for use with pistol grip handles

.24 x .24" ( 6 x 6mm)

Length

in / mm

Mounting depth 1 in inches

OT200U

Weight

lbs

Catalog

number

List

price

5.1 / 130

5.9 / 150

8.3 / 210

11.4 / 290

14.2 / 360

16.9 / 430

4.3 - 6.5

5.0 - 7.2

7.4 - 9.6

10.5 - 12.7

13.3 - 15.5

16 - 18.2

0.08

0.10

0.13

0.18

0.23

0.28

OXP6X130

OXP6X150

OXP6X210

OXP6X290

OXP6X360

OXP6X430

$ 12

Twisted shafts — Rotates handle 45° .24 x .24" ( 6 x 6mm)

Shaft length

(inches/mm)

Mounting depth 1 in inches

OT200

Weight

lbs

Catalog

number

List

price

5.2 / 130

8.3 / 210

11.4 / 290

14.2 / 360

4.29 - 6.85

7.44 - 10.0

10.59 - 13.15

13.34- 15.9

0.08

0.13

0.18

0.23

OXP6X130-45

OXP6X210-45

OXP6X290-45

OXP6X360-45

$ 12

Direct mount handle Test-OFF ON

Item

Weight

lbs

Catalog

number

List

price

Up to 3 padlocks in OFF-position. Includes shaft and mechanism

.22 OTV250EK

OTVY250EK $ 105

Disconnect

switches

Non-fusible

18.24 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

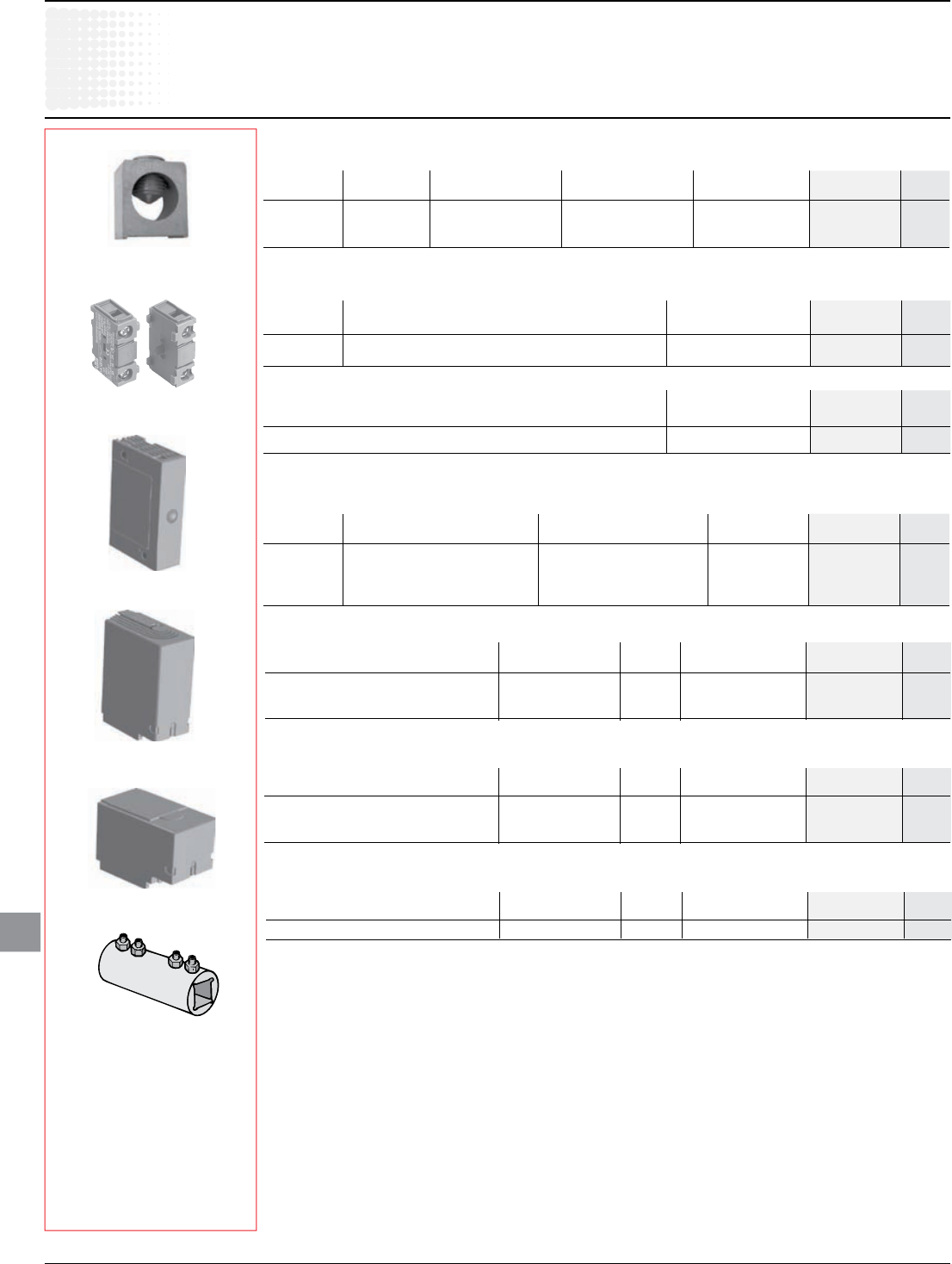

OETL-ZX95

Shaft extension coupler

Description For use on: Weight Catalog List

(lbs.) number price

Joins two shafts together

for applications where 6mm shafts 0.26 OESA-ZX167 $ 56

extended length is required

Shaft adapter

Description For use on: Weight Catalog List

(lbs.) number price

Adapts one end of a

5 or 6mm shaft to a 12mm shaft. 5 or 6mm shafts 0.20 OETL-ZK19 $ 40

Use with shaft extension coupler.

200A

Accessories

1 UL File E83510

OZXA-200

OTS250G1S/3

OTS250G1L/3

Discount schedule H6: Handles, shafts, accessories

OA1G__

Terminal lug kits

For use on Wire size Wire type Lugs /kit Weight lbs. Catalog

number

List

price

OT200_

#4 - 300kcmil

(6) 14-6 AWG

Cu /Al

0.25

OZXA-200

OZXA-200/3

OZXA-206T

$ 80

200

Auxilliary contacts blocks

Mounting on the left side of the switch: Max 8 auxilliary contact blocks with the OEA28 module

Mounting under the mechanism cover: Max 4 auxilliary contact blocks

Function Protection degree Weight lbs Catalog

number

List

price

1 NO

1 NC IP20 0.07 OA1G10

OA3G01 $ 20

Module for auxilliary contacts

Description Weight lbs Catalog

number

List

price

Screw mounting to the left side of the switch 0.1 OEA28 $ 50

Terminal shrouds

Snap-on mounting, grey plastic, IP30. Transparent shrouds available on request.

Includes 3 shrouds for either line or load side

For use with: Description Number of poles Weight

lbs

Catalog

number

List

price

OT200_

Long type

Short type

Long type

Short type

0.20

0.13

0.26

0.18

OTS250G1L/3

OTS250G1S/3

OTS250G1L/4

OTS250G1S/4

$ 50

OEA28

Set screw (replacement part)

Description For use on: Weight Catalog List

(lbs.) number price

Set screw OT200 — FLSWMSX6X $ 2

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.25

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

200A

Accessories

Discount schedule H6: Handles, shafts, accessories

) / ))

,/!$ ,/!$ ,/!$

37! 37" 37! 37" 37! 37"

6 or 8 pole — OESA-ZW2

6 (8) pole mechanism allows two switches

controlled by one handle, to open or close

simultaneously.

Equipment required for a complete installation:

• Includes OHB145J12 handle

• One conversion mechanism

• Two disconnect switches

• Two shafts (see page 18.23)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O = Open

POS. I POS. O POS. II

SW. A X O O

SW. B O O X

X = Closed

O = Open

OESA-ZW2

Description For use on:

Weight UL/NEMA Catalog List

(lbs.) type number price

Conversion mechanisms

• ForusewithBaseandDinrailmountedswitchesonly

• Switchesarenotincluded

OESA-ZW1

Transfer — OTZW25, OTZW25X

Transfer mechanism manually transfers

between two power sources using two

switches and a center OFF position.

A 3 position handle is included.

OHB80J6E011 (UL Type 1, 3R & 12) or

OHB80L6E011 (UL Type 1, 3R, 4, 4X, 12)

Shafts included. Equipment required for a

complete installation:

• One conversion mechanism

• Two disconnect switches (see

page 18.23)

1 = Three poles

6 or 8 pole 1.52 — OESA-ZW2 $ 220

Transfer OT160 2.20 Type 1,3R,12 OTZW25 790

Transfer 2.20 Type 1,3R,4,4X,12 OTZW25X 840

Mechanical interlock 0.55 — OTZW10 100

Bypass OS200 7.28 1, 3R, 12 OTZW26 950

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

Mechanical interlock — OTZW10

Mechanical interlock mechanism prevents both

switches from being in the ON position at the

same time.

Equipment required for a complete installation:

• One conversion mechanism

• Two disconnect switches (see page 18.23)

• Two handles (see page 18.23)

• Two shafts (see page 18.23)

OTZW10

OT200

OTZW26

) / ))

Bypass— OTZW26

Bypass mechanism operates three switches:

Two switches in series and one changeover

switch to allow power bypass.

A 3-position handle is included: OHB-

145J12E011 (Type 1,3R & 12) or

OHB145L12E011 (Type 1, 3R, 4, 4X, 12)

Shafts included.

Equipment required for a complete installation:

• One conversion mechanism

• Three disconnect switches (see page 18.23)

POS. I POS.O POS.II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O = Open

Disconnect

switches

Non-fusible

18.26 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

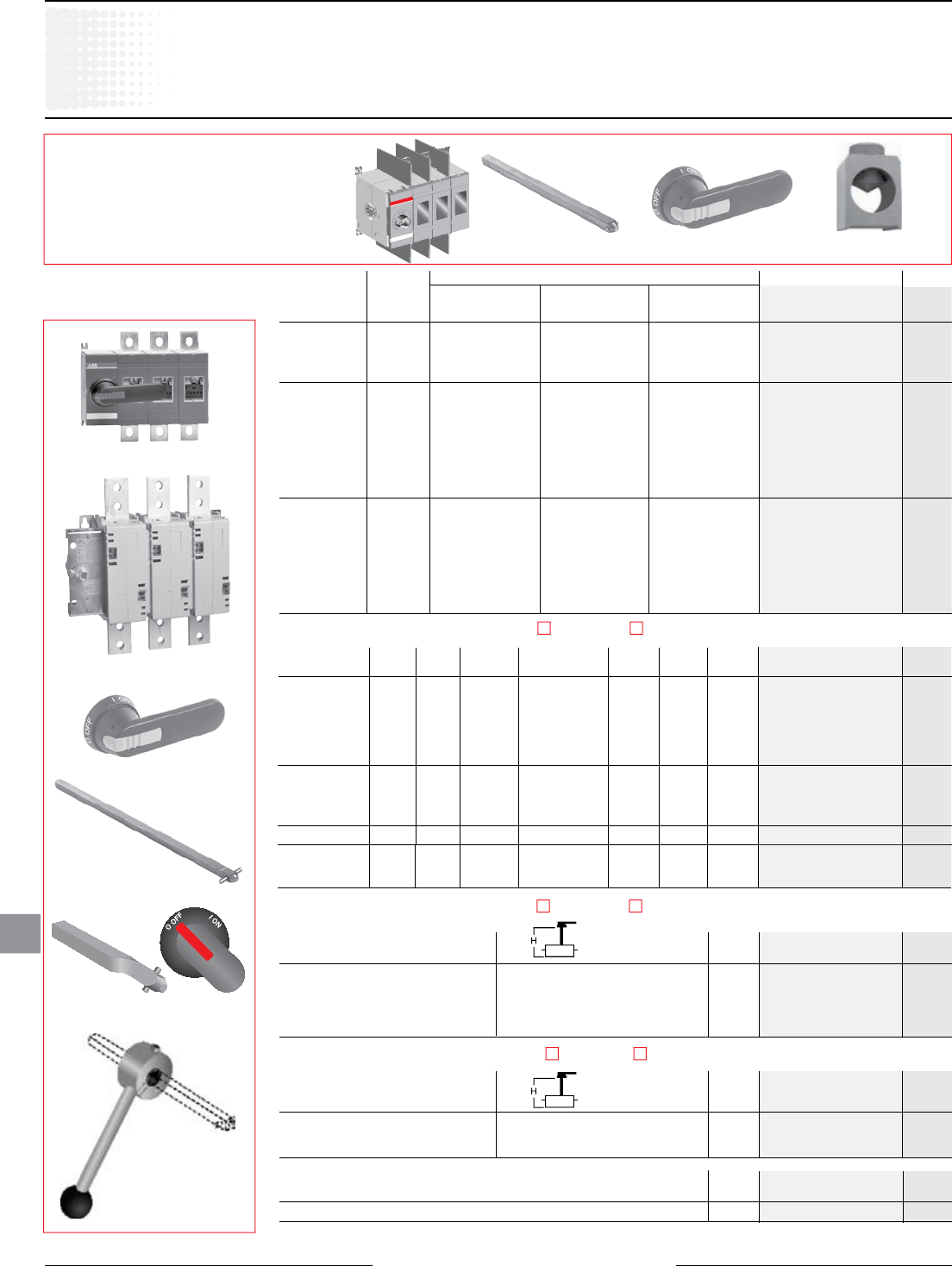

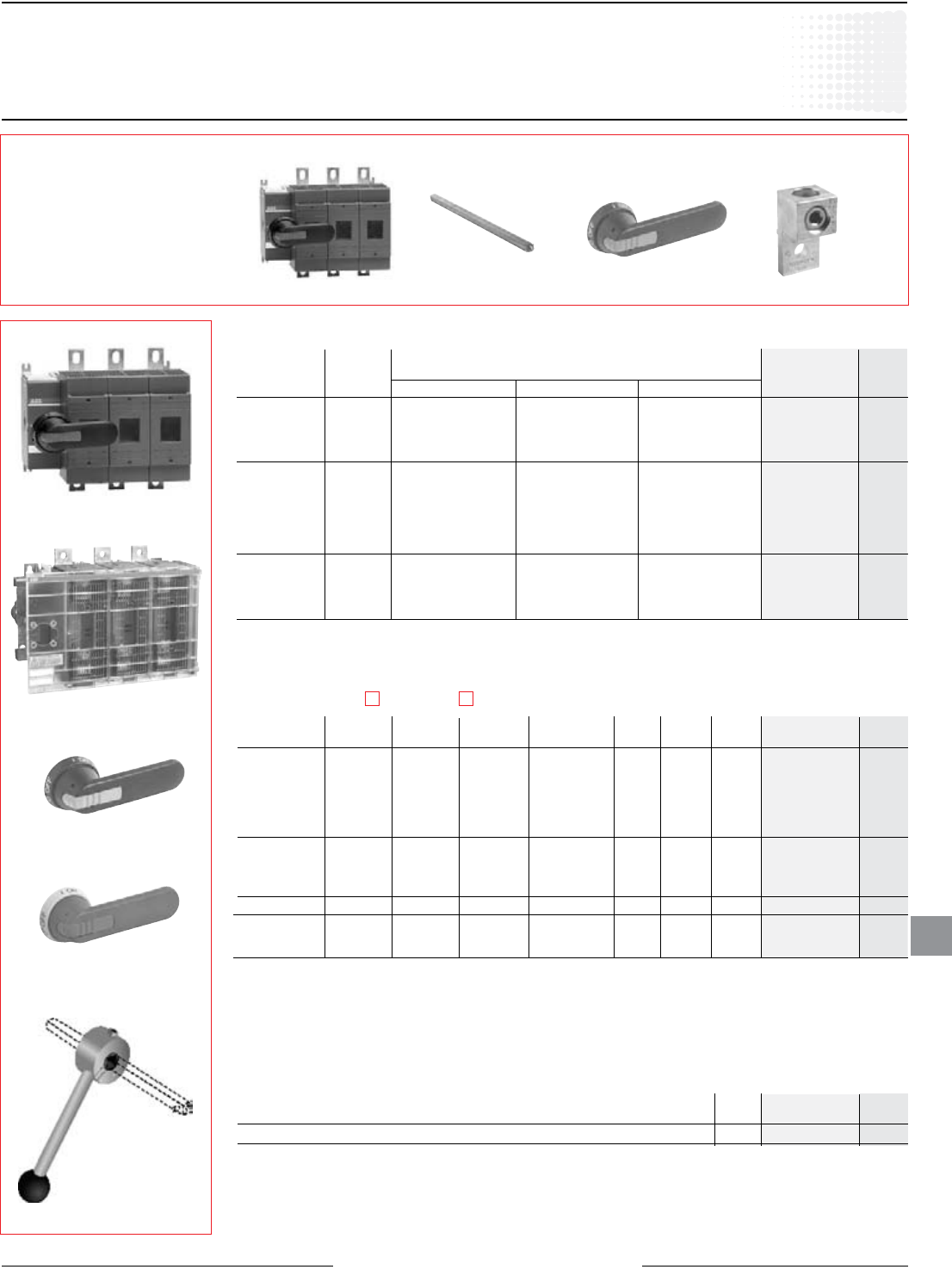

400A – 800A

1 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit

Shaft length Mounting depth 1 Weight Catalog List

inches/mm in inches (lbs) number price

11.0/280 10.2 – 14.5 0.77 OXP12X280 $ 36

12.8/325 12.0 – 16.3 0.90 OXP12X325 40

15.6/395 14.8 – 19.1 1.10 OXP12X395 44

18.3/465 17.5 – 21.9 1.32 OXP12X465 48

21.1/535 20.3 – 24.6 1.54 OXP12X535 52

Shafts — for use with pistol handles .47 x .47" ( 12 x 12 mm)

OXP12X__/45

OT400U03 OXP12X280 + OHB145J12 + OZXA-400

OT600U03

OHB_J12

OXP12X__

Pistol handles — for use with shafts .47 x .47” ( 12 x 12 mm)

UL/NEMA IEC Color Length Marking Defeat- Padlock- Weight Catalog List

type type in/mm able able (lbs) number price

1,3R,12 IP65 Blk 4.9/125 0.39 OHB125J12 $ 90

1,3R,12 IP65 R/Y 4.9/125 0.39 OHY125J12 90

1,3R,12 IP65 Blk 5.7/145 O/I & Off/On Yes Ye s 0.39 OHB145J12 90

1,3R,12 IP65 R/Y 5.7/145 0.39 OHY145J12 90

1,3R,12 IP65 Blk 6.9/175 0.41 OHB175J12 100

1,3R,12 IP65 R/Y 6.9/175 0.41 OHY175J12 100

1,3R,4,4X,12 IP66 Blk 5.7/145 0.39 OHB145L12 130

1,3R,4,4X,12 IP66 R/Y 5.7/145 O/I & Off/On Yes Ye s 0.39 OHY145L12 130

1,3R,4,4X,12 IP66 Blk 6.9/175 0.41 OHB175L12 140

1,3R,4,4X,12 IP66 R/Y 6.9/175 0.41 OHY175L12 140

1,3R,4,4X,12 IP65 Metal 8.7/220 Off/On — Ye s 1.50 YASDA-8 190

Shaft length Mounting depth1 Weight Catalog List

inches/mm in inches (lbs) number price

11.0/280 10.2 – 14.5 0.77 OXP12X280-45 $ 36

12.8/325 12.0 – 16.3 0.90 OXP12X325-45 40

18.3/465 17.5 – 21.9 1.32 OXP12X465-45 48

Twisted shafts — Rotates handle 45° .47 x .47" ( 12 x 12 mm)

Discount schedule H2: NF, 125A – 800A

Discount schedule H6: Handles, shafts, accessories

YASDA-33

Item Weight Catalog List

(lbs) number price

Direct mount handle

Mounts on shaft. .78 YASDA-33 $ 150

2 pole

400 630 — — — OT400U02 $ 1280

600 800 — — — OT600U02 2000

800 1250 — — — OETL-NF800A2SW 2600

3 pole

400 630 125 250 350 OT400U03 1420

400 630 125 250 350 OT400U30 1420

400 630 125 250 350 OT400U12 1420

600 800 200 400 500 OT600U03 2200

600 800 200 400 500 OT600U30 2200

600 800 200 400 500 OT600U12 2200

800 1250 250 500 600 OETL-NF800ASW 4200

4 pole

400 630 125 250 350 OT400U04 1800

400 630 125 250 350 OT400U40 1800

400 630 125 250 350 OT400U22 1800

600 800 200 400 500 OT600U04 2800

600 800 200 400 500 OT600U22 2800

600 800 200 400 500 OT600U40 2800

— 1250 250 500 600 OETL-NF800A4SW 5200

UL IEC Maximum horsepower rating

general AC21

purpose amp Catalog List

amp rating rating 240V 480V 600V number price

1,3R,4,4X,12 IP66

Stain-

less

Steel

4.9/125 1.70 OHM125L12 900

6.9/175 O/I & Off/On Yes Yes 1.80 OHM175L12 1100

10.8/275 2.10 OHM275L12 1200

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.27

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

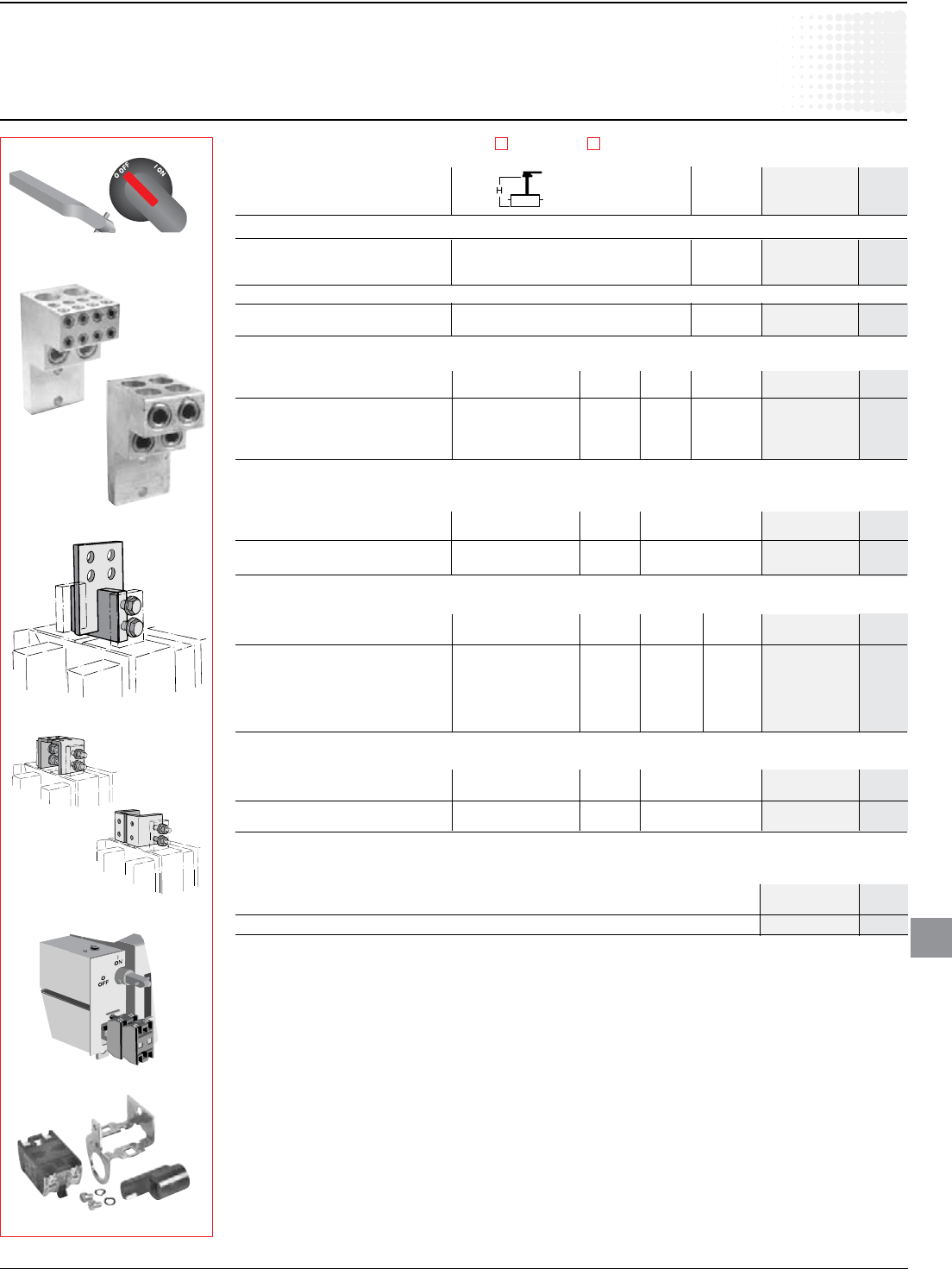

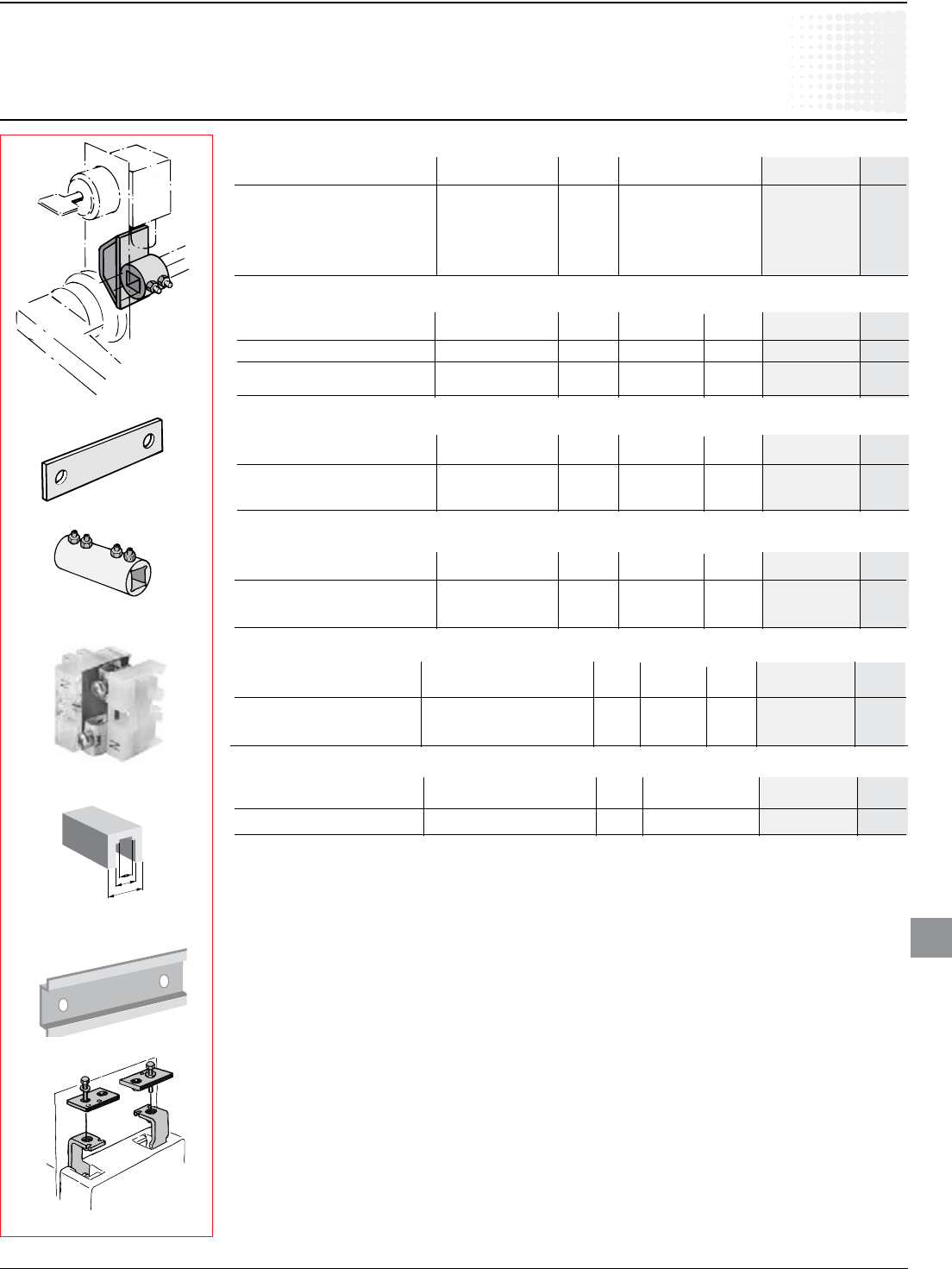

400A – 800A

Accessories

OHZX1, OHZX3

OETL, -ZX94, -ZX800A

OZXK-1, -2, -3, -4, -5, -6

OZXA-400

For use on: Wire Kit weight Wire Terminal Kit catalog List

size (lbs.) type

lugs per kit

number price

Terminal lug kits

OT400 #2 – 600 kcmil 0.50 6 OZXA-400 $ 190

OT400 #2 – 600 kcmil 0.25 3 OZXA-400/3P 95

OT400 (2) #4 – 300 mcm 0.50 6 OZXA-402 210

OT400 (6) #14 – 6 AWG 0.50 3 OZXA-406 270

OT600 (2) #2 – 600 kcmil 0.50 Cu/Al 6 OZXA-800 360

OT600 (2) #2 – 600 kcmil 0.50 3 OZXA-800/3 180

OETL-NF800A (2) #2 – 600 kcmil 6.90 6 OZXA-30 740

OETL-NF800A (2) #2 – 600 kcmil 3.45 3 OZXA-30/3P 370

OETL-NF800A 1 (8) 2/0 + (2)#2 600 kcmil 6.90 3 OZXA-32 600

Auxiliary contacts 2

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

1 N.O. + 1 N.C. 0.20 10 600 OZXK-1 $ 100

2 N.O. + 2 N.C. 0.26 10 600 OZXK-2 170

4 N.O. + 4 N.C 0.40 10 600 OZXK-3 340

2 N.O. OETL-NF800A 0.18 10 600 OZXK-4 100

4 N.O. 0.25 10 600 OZXK-5 170

8 N.O. 0.40 10 600 OZXK-6 340

Handle support bracket

Description For use on: Weight Catalog List

(lbs) number price

Allows handle to be directly mounted to switch behind the door OETL-NF800A 0.88 OHZX3 $ 30

Discount schedule H6: Handles, shafts, accessories

OESA-ZX85

OZXA-30

Terminal shrouds – OETL-NF800A

Includes one shroud for line or load side OETL-NF800A 0.88 OETL-ZX800A 180

Description For use on: Weight Catalog List

(lbs) number price

OZXA-27

1 A load side distribution lug eliminates the need to purchase, install and wire a separate distribution block.

2 UL File E57057

OZXA-175/400

OZXA-32

Auxilliary contacts blocks

Mounting on the left side of the switch: Max 8 auxilliary contact blocks with the OEA28 module

Mounting under the mechanism cover: Max 4 auxilliary contact blocks

Function For use on Protection degree Weight lbs Catalog

number

List

price

1 NO

1 NC OT400

– 600

IP20 0.07 OA1G10

OA3G01 $ 20

Module for auxilliary contacts

Description Catalog

number

List

price

Screw mounting to the left side of the switch 0.1 OEA28 $ 50

Terminal shrouds – OT400, OT600

Description

For use with: Number of

poles

Weight

lbs

Catalog

number

List

price

3 Pole shrouds OT400_ 30.33 OTS403 $ 113

OT600_ 30.33 OTS603 190

Direct mount handle – Test-OFF ON

Item

Weight

lbs

Catalog

number

List

price

Up to 3 padlocks in OFF-position. Includes shaft and mechanism

.44

OTV400EK

OTVY400EK $ 130

OTV800EK

OTVY800EK

Consult

factory

Disconnect

switches

Non-fusible

18.28 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

400A – 800A

Accessories

OETL-ZX108

OETL-ZX95

OETL-ZW5

OETL-ZT80_

OETL-ZT100

Description For use on: Weight Catalog List

(lbs) number price

Shaft extension coupler

Joins two shafts together

for applications where 12mm shafts 0.26 OETL-ZX95 $ 100

extended length is required

Discount schedule H6: Handles, shafts, accessories

Locking accessories

Cam attachment for Kirk Key, Castell,

Lowe & Fletcher and Ronis interlock.

For adapting to the interlock system 12mm shafts 0.29 OETL-ZW5 $ 190

The interlock is not included.

Electrical interlock Closed circuit

principle for interlocking the switch

movement. When the coil circuit is

dead, A-types cannot be operated OT400 – 600

to ON-position and L-types cannot 2.42 OETL-ZT 80A∆ 1280

be operated to ON- or OFF-position. OETL-NF800A OETL-ZT 80L∆ 1220

Coil voltages 110VAC, 220VAC,

24VDC, 48VDC, 60 VDC,

110VDC, 220VDC, P = 15W

U = 0.7 – 1.1 Un

(U = coil voltage, Un = nominal voltage)

∆ – Coil voltage

Description For use on: Weight Catalog List

(lbs) number price

Description For use on: Weight Catalog List

(lbs) number price

90° angle kit

Converts switch mechanism from OT400, OT600 4.63 OETL-ZX108 $ 794

front operation to side operation OETL-NF800A

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.29

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

Conversion mechanisms

• Switchesarenotincluded

400A – 800A

Accessories

6 or 8 pole — OETL-ZW9

6 (8) pole mechanism allows two switches

controlled by one handle to open or close

simultaneously.

Equipment required for a complete installation:

• One conversion mechanism

• Two disconnect switches (see page 18.26)

• One handle (see page 18.26)

• Two shafts (see page 18.26)

) / ))

,/!$ ,/!$ ,/!$

37! 37" 37! 37" 37! 37"

POS. I POS.O POS.II

SW. A X O O

SW. B O O X

X = Closed

O = Open

Transfer — OETL-ZW12

Transfer mechanism manually transfers

between two power sources using two

switches and a center OFF position. A 3

position handle is included. YASDA-21

(UL Type 1, 3R, 4, 4X, 12). Shafts included.

Equipment required for a complete

installation:

• One conversion mechanism

• Two disconnect switches (see

page 18.26)

) / ))

POS. I POS.O POS.II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O = Open

Bypass— OETL-ZW13

Bypass mechanism operates three

switches: Two switches in series and one

changeover switch to allow power bypass.

A 3 position handle is included. YASDA-6

(UL Type 1, 3R, 4, 4X, 12). Shafts included.

Equipment required for a complete

installation:

• One conversion mechanism

• Three disconnect switches (see

page 18.26)

Mechanical interlock — OETL -ZW3,

OETL-ZW14, OETL-ZW15

Mechanical interlock mechanism prevents both

switches from being in the ON position at the

same time.

Equipment required for a complete installation:

• One conversion mechanism

• Two disconnect switches (see page 18.26)

• Two shafts (see page 18.26)

• Two handles (see page 18.26)

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

POS.O POS.I

SW. A O X

SW. B O X

X = Closed

O = Open

OETL-ZW3, -ZW14, -ZW15

OETL-ZW13

OETL-ZW9

Discount schedule H6: Handles, shafts, accessories

1 = Three poles

OETL-ZW12

Drawing and mounting information found on pg 18.67 & 18.68

Description For use on: Weight UL/NEMA Catalog List

(lbs) type number price

6 or 8 pole 2.42 — OETL-ZW9 $ 260

Transfer OT400 – 600 10.1 1,3R,4,4X,12 OETL-ZW12 560

Bypass 8.81 1,3R,4,4X,12 OETL-ZW13 560

OETL-NF800A 1.26 — OETL-ZW3 140

Mechanical interlock 1.15 — OETL-ZW14 140

2.64 — OETL-ZW15 160

Disconnect

switches

Non-fusible

18.30 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

1200A – 3150A

For a complete assembly

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit

1200 – 3150 Amp switches, 600V

OETL-NF1200ASW + OXP12X280 + OHB175J12 + OZXA-28

OETL-NF1600SW

OETL-NF2000SW

OETL-NF3150SW

OXP12X__

OHY_J12

OHB_J12

Pistol handles — for use with shaft .47 x .47” ( 12 x 12mm)

UL/NEMA type IEC

type Color Length mm Marking Defeat-

able

Padlock-

able

Weight

lbs

Catalog

number

List

price

ForusewithOETL-NF1200

Black 5.7/145 0.39 OHB145J12 $ 90

1,3R,12 IP65 Red/Yel 5.7/145 O/I & Off/On Yes Yes 0.39 OHY145J12 90

Black 6.9/175 0.41 OHB175J12 100

Red/Yel 6.9/175 0.41 OHY175J12 100

IP66 Black 5.7/145 0.39 OHB145L12 130

1,3R,4,4X,12 IP66 Red/Yel 5.7/145 O/I & Off/On Yes Yes 0.39 OHY145L12 130

IP66 Black 6.9/175 0.41 OHB175L12 140

IP65 Red/Yel 6.9/175 0.41 OHY175L12 140

1,3R,4,4X,12 IP65 Metal 8.7/220 Off/On —Yes 1.50 YASDA-8 190

1,3R,4,4X,12 IP66 Stainless

steel

6.9/175 O/I & Off/On Yes Yes 1.80 OHM175L12 1100

10.8/275 2.10 OHM275L12 1200

ForusewithOETL-NF1600–OETL-NF3150

1,3R,4,4X,12 IP65 Metal 8.7/220 Off/On —Yes 1.50 YASDA-8 190

1,3R,4,4X,12 IP66 Stainless

steel

6.9/175 O/I & Off/On Yes Yes 1.80 OHM175L12 1100

10.8/275 2.10 OHM275L12 1200

YASDA-8

1 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

Shafts — for use with pistol handles .47 x .47" ( 12 x 12 mm)

Shaft length Mounting depth1 Weight Catalog List

inches/mm in inches (lbs) number price

ForusewithOETL-NF1200

11.0/280 11.6 – 15.3 0.77 OXP12X280 $ 36

12.8/325 13.7 – 17.1 0.90 OXP12X325 40

15.6/397 16.2 – 19.9 1.10 OXP12X395 44

18.3/465 18.9 – 22.6 1.32 OXP12X465 48

21.1/535 21.7 – 25.4 1.54 OXP12X535 52

ForusewithOETL-NF1600–OETL-NF3150

12.8/325 13.7 – 17.1 0.90 OXP12X325 40

15.6/397 16.2 – 19.9 1.10 OXP12X395 44

18.3/465 18.9 – 22.6 1.32 OXP12X465 48

21.1/535 21.7 – 25.4 1.54 OXP12X535 52

The US National Electric Code does not specify

HP ratings for switches this large. Please select

a switch based on 115% of application FLA. For

example: a motor with an FLA of 800A would

require a 1200A switch: 800A x 115% = 920A, the

closest higher rated switch is 1200A.

Discount schedule H3: NF, 1200A – 3150A

Discount schedule H6: Handles, shafts, accessories

2 pole 2 pole

1200 1600 OETL-NF12002SW $ 6200

1600 2500 OETL-NF16002SW 14,800

2000 2500 OETL-NF20002SW 15,500

– 3150 OETL-NF31502SW 17,000

3 pole 3 pole

1200 1600 OETL-NF1200SW 6800

1600 2500 OETL-NF1600SW 16,400

2000 2500 OETL-NF2000SW 17,200

— 3150 OETL-NF3150SW 18,900

4 pole 4 pole

— 1600 OETL-NF12004SW 8600

— 2500 OETL-NF16004SW 20,500

— 2500 OETL-NF20004SW 21,500

— 3150 OETL-NF31504SW 23,600

UL IEC

general AC21 Maximum horsepower rating

purpose amp Catalog List

amp rating rating number price

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.31

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

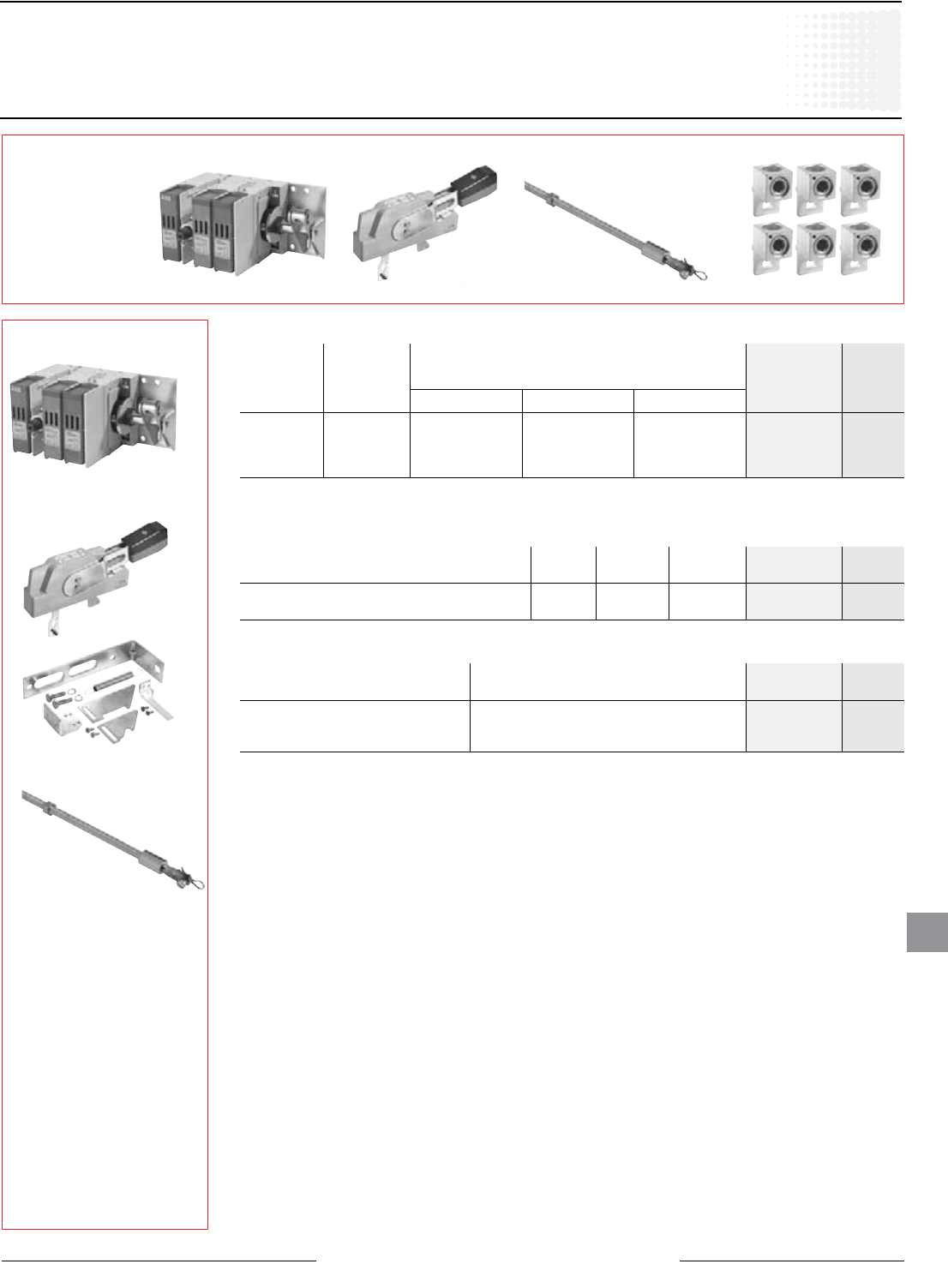

1200A – 3150A

Accessories

OESA-ZK__/45

OETL-ZX115

OETLZX114

OZXK-1

OZXK-6

1 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

2 A load side distribution lug eliminates the need to purchase, install and wire a separate distribution block.

3 Provided as standard with OETL-NF1600, OETL-NF2000 and OETL-NF3150.

Description For use on: Weight Catalog List

(lbs) number price

Includes one shroud OETL-NF1200 1.20 OETL-ZX119 $ 220

for line or load side

Terminal shrouds

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

1 N.O. + 1 N.C. 0.20 10 600 OZXK-1 $ 100

2 N.O. + 2 N.C.

0.26 10 600 OZXK-2 170

4 N.O. + 4 N.C. OETL-NF1200 – 0.40 10 600 OZXK-3 340

2 N.O. OETL-NF31500 .18 10 600 OZXK-4 100

4 N.O. 0.25 10 600 OZXK-5 170

8 N.O.

0.40 10 600 OZXK-6 340

Auxiliary contacts

Terminal lug kits

Twisted shafts – Rotates handle 45° .47 x .47" ( 12 x 12 mm)

Discount schedule H6: Handles, shafts, accessories

OZXK-1

Description For use on: Weight Catalog List

(lbs) number price

Busbarconnections

Vertical 3, back or OETL-NF1600 – 46.2 OETL-ZX115 $ 3920

edgewise mounting OETL-NF3150 31.0 OETL-ZX114 2820

OZXA-32

OZXA-28

OZXA-28/2

Item Catalog Lis

number price

Direct mount handle

Mounts on shaft. YASDA-34 $ 180

Shaft length Mounting depth 1 Weight Catalog List

inches/mm in inches (lbs) number price

For use with OETL-NF1200

11.0/280 11.6 – 15.3 0.77 OXP12X280-45 $ 36

12.8/325 13.7 – 17.1 0.90 OXP12X325-45 40

18.3/465 18.9 – 22.6 1.32 OXP12X465-45 48

For use with OETL-NF1600 – OETL-NF3150

12.8/325 16.2 – 19.9 0.90 OXP12X325-45 40

18.3/465 18.9 – 22.6 1.32 OXP12X465-45 48

OETL-NF1200 & OETL-NF1600 (4) #2 – 600 kcmil 10.44 Cu/Al 6 OZXA-28 $ 1000

OETL-NF1200 & OETL-NF1600 (4) #2 – 600 kcmil 5.22 Cu/Al 3 OZXA-28/3P 500

OETL-NF1200 & OETL-NF16002

(8) 2/0 + (2) #2 600kcmil

10.44 Cu/Al 3 OZXA-32 600

OETL-NF2000 & OETL-NF3150 (8) #2 – 600kcmil 20.88 Cu/Al 12 OZXA-28/2 2000

OZXA-32 Power distribution lugs eliminate the need to purchase a separate distribution block

For use on: Wire Kit weight Wire Terminal Kit catalog List

size (lbs.) type lugs per kit number price

Disconnect

switches

Non-fusible

18.32 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

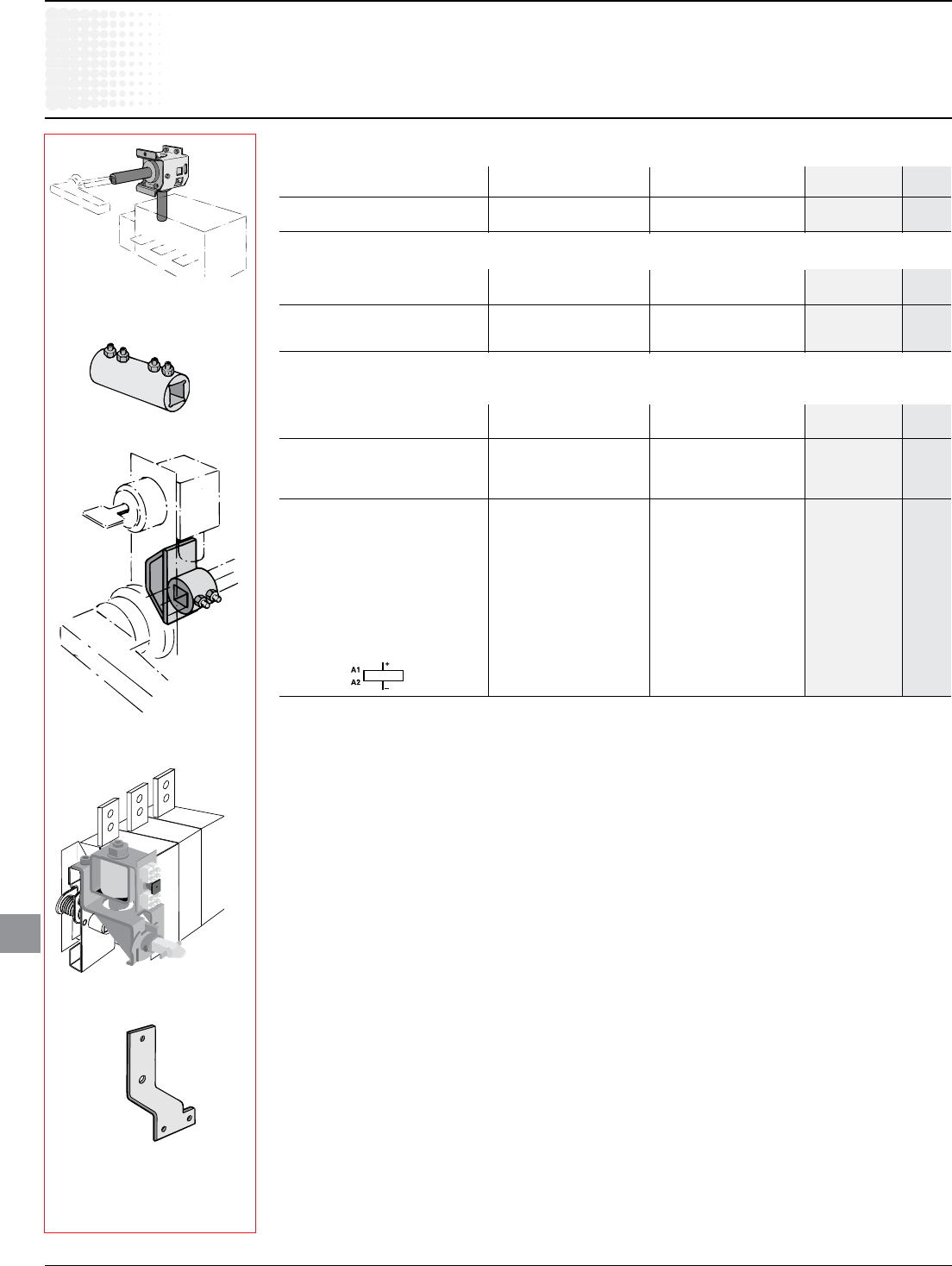

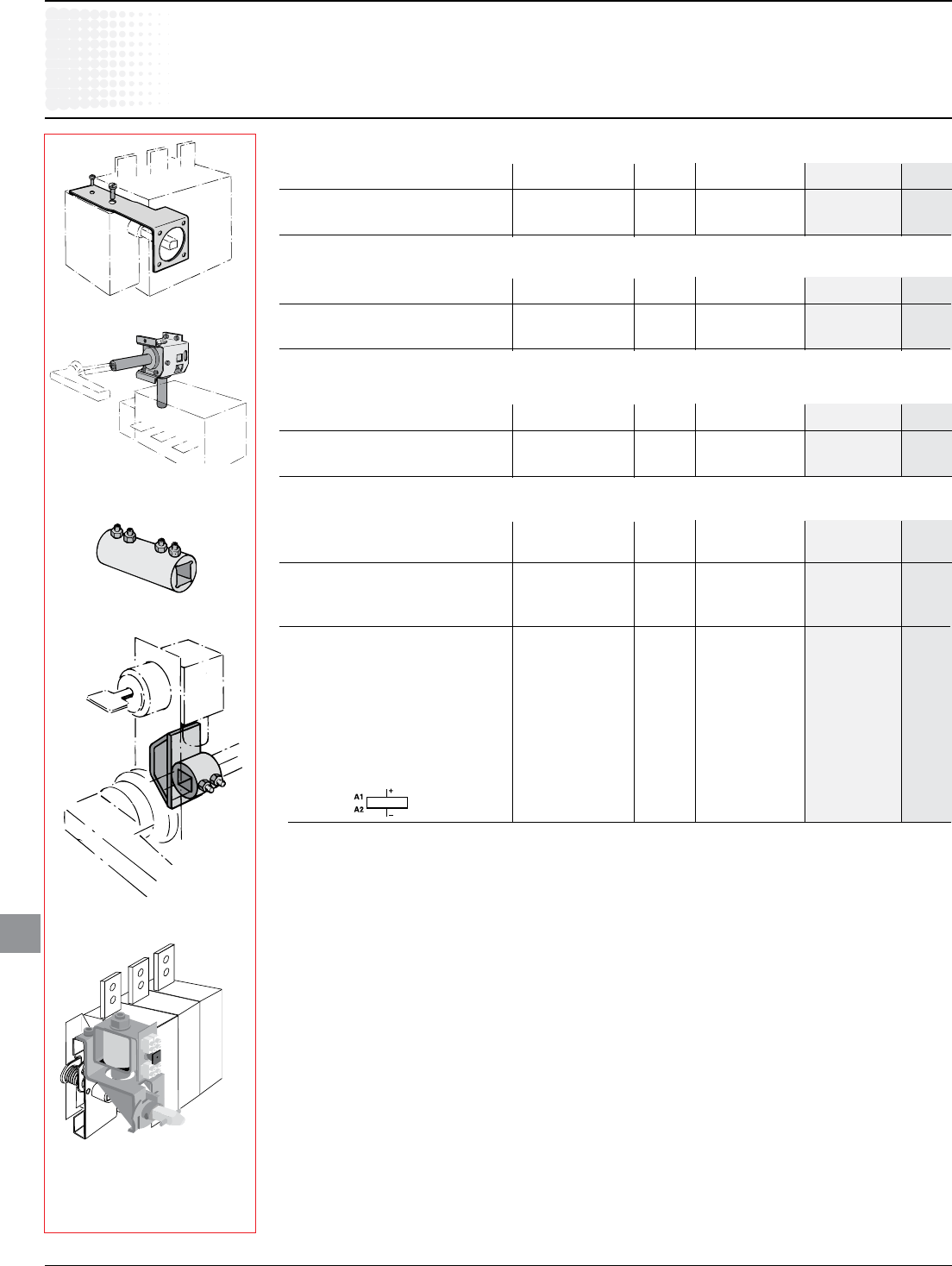

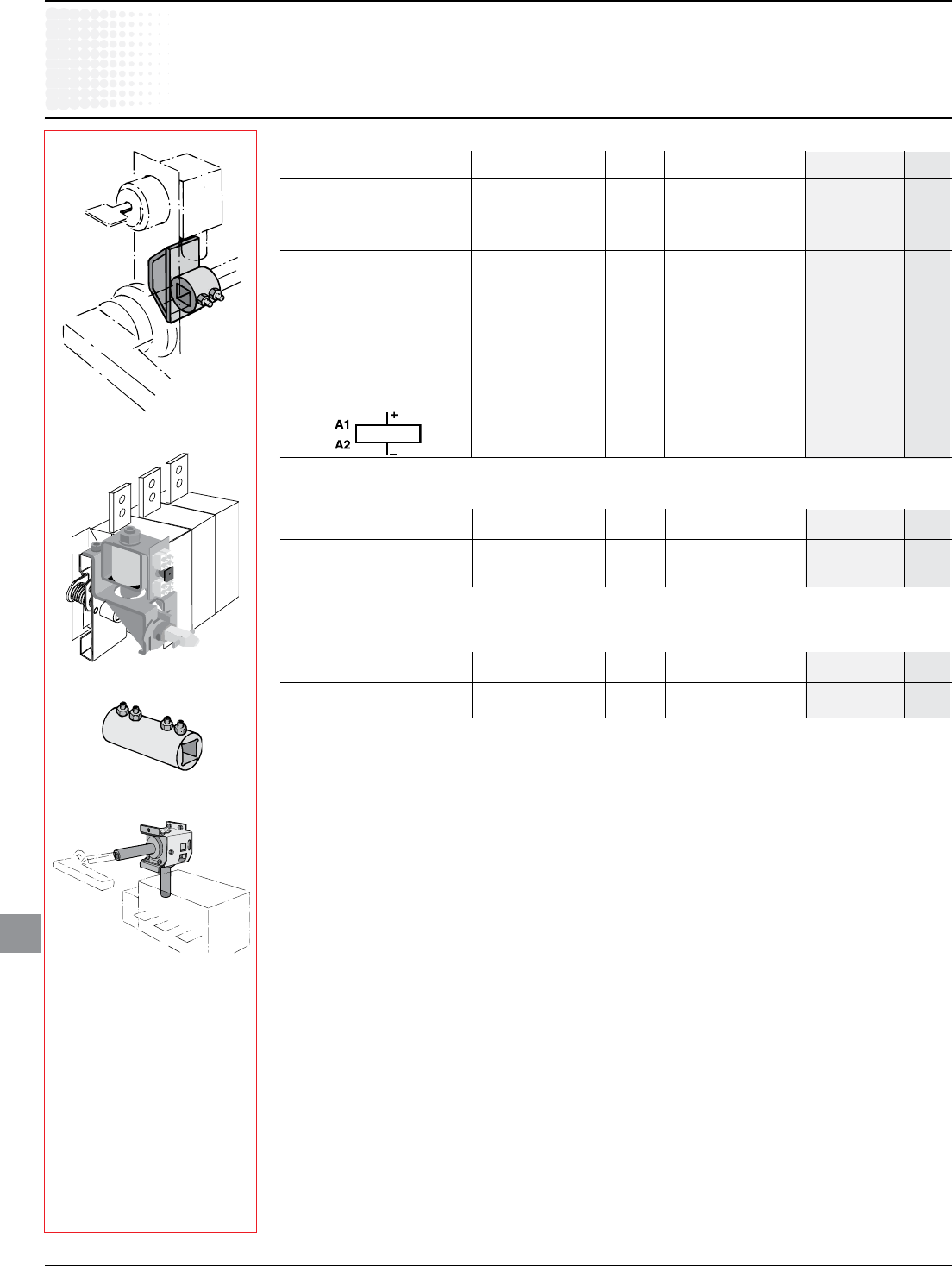

Locking accessories

OHZX3

OETL-ZX108

OETL-ZX95

OETL-ZW5

OETL-ZT80

Handle support bracket

Description For use on: Weight Catalog List

(lbs) number price

Allows handle to be directly OETL-NF1200 –

mounted to switch OETL-NF3150 0.88 OHZX3 $ 30

behind the door

90° angle kit

Description For use on: Weight Catalog List

(lbs) number price

Converts switch mechanism OETL-NF1200 –

from front operation OETL-NF3150 4.63 OETL-ZX108 $ 794

to side operation

1200A – 3150A

Accessories

Discount schedule H6: Handles, shafts, accessories

Description For use on: Weight Catalog List

(lbs) number price

Shaft extension coupler

Joins two shafts together

for applications where 12mm shafts 0.26 OETL-ZX95 $ 100

extended length is required

Description For use on: Weight Catalog List

(lbs) number price

Cam attachment for Kirk Key, Castell,

Lowe & Fletcher and Ronis interlock.

For adapting to the interlock system 12mm shafts 0.29 OETL-ZW5 $ 190

The interlock is not included.

Electrical interlock Closed circuit

principle for interlocking the switch

movement. When the coil circuit is

dead, A-types cannot be operated

to ON-position and L-types cannot 

be operated to ON- or OFF-position. OETL-NF1200 2.42 OETL-ZT80A/∆1280

Coil voltages 110VAC, 220VAC, OETL-NF3150 OETL-ZT80L/∆1220

24VDC, 48VDC, 60 VDC,

110VDC, 220VDC, P = 15W

U = 0.7 – 1.1 Un

(U= coil voltage, Un = nominal voltage)

∆ = Coil voltage

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.33

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

Conversion mechanisms

• Switchesarenotincluded

Transfer — OETL-ZW12

Transfer mechanism manually transfers

between two power sources using two

switches and a center OFF position. A 3

position handle is included. YASDA-21

(Type 1, 3R, 4, 4X, 12). Shafts included.

Equipment required for a complete

installation:

• One conversion mechanism

• Two disconnect switches

(see page 18.30)

Bypass— OETL-ZW13

Bypass mechanism operates three

switches: Two switches in series and one

changeover switch to allow power bypass.

A 3 position handle is included. YASDA-6

(Type 1, 3R, 4, 4X, 12). Shafts included.

Equipment required for a complete

installation:

• One conversion mechanism

• Three disconnect switches

(see page 18.30)

1200A – 3150A

Accessories

POS. I POS.O POS.II

SW. A X O O

SW. B O O X

X = Closed

O = Open

POS. I POS.O POS.II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O = Open

Mechanical interlock —OETL-ZW15

Mechanical interlock mechanism prevents both

switches from being in the "ON" position at the

same time. Handles are not included.

Equipment required for a complete installation:

• One conversion mechanism

• Two disconnect switches (see page 18.30)

• Two shafts (see page 18.30)

• Two handles (see page 18.30)

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

6 or 8 pole — OETL-ZW9

6 (8) pole mechanism allows two switches

controlled by one handle to open or close

simultaneously.

Equipment required for a complete

installation:

• One conversion mechanism.

• Two disconnect switches

(see page 18.30)

• One handle (see page 18.30)

• Two shafts (see page 18.30)

POS. O POS.I

SW. A O X

SW. B O X

X = Closed

O = Open

OETL-ZW9

OETL-ZW12

OETL-ZW13

Discount schedule H6: Handles, shafts, accessories

1 = Three poles

Drawing and mounting information found on pg 18.67 & 18.68

OETL-ZW15

) / ))

,/!$ ,/!$ ,/!$

37! 37" 37! 37" 37! 37"

) / ))

Description For use on: Weight UL/NEMA Catalog List

(lbs) type number price

6 or 8 pole 2.42 — OETL-ZW9 $ 280

Transfer OETL-NF1200 10.1 1,3R,4,4X,12 OETL-ZW12 560

Bypass 8.81 1,3R,4,4X,12 OETL-ZW13 560

OETL-NF1200 –

Mechanical interlock OETL-NF3150 2.64 — OETL-ZW15 160

Disconnect

switches

Non-fusible

18.34 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

Othercongurations

Side operated

30A – 800A 12

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit

1 Side operated switches available through 800A as IEC rated.

2 Please consult factory for additional information.

OETL-NF200A-S + OXP8X240 + OHB80J8TE00S

OHY__J__

OXP5X170

OXP8X240

OXP12X325

OZXA-26 OZXA-27

OZXA-24 OZXA-25

OETL-ZX74

OSNF30-S

Side operated switches — 3 pole

UL IEC Maximum horsepower rating

general AC21 Weight Catalog List

purpose amp Three phase (lbs) number Price

amp rating rating 240V 480V 600V

30 32 7.5 15 20 1.90 OSNF30-S $ 380

60 63 15 30 50 3.90 OSNF60-S 560

100 125 30 60 75 4.50 OSNF100-S 660

200 250 75 150 200 6.61 OETL-NF200A-S 780

400 630 125 250 350 13.66 OETL-NF400-S 1500

600 800 200 400 500 13.66 OETL-NF600A-S 2400

Discount schedule H1: NF, 16A – 100A

Discount Schedule H2: NF, 125A – 800A

Discount Schedule H6: Handles, shafts, accessories

Terminal lug kits

OSNF30-S #18 – 8 — Cu — Integral —

OSNF60-S #14 – 4 — Cu — Integral —

OSNF100-S #14 – 2/0 0.43 Cu/Al 6 OZXA-24 $ 24

OETL-NF200A-S #6 – 300 kcmil 0.93 Cu/Al 6 OZXA-25 80

OETL-NF400-S #2 – 600 kcmil 3.520 Cu/Al 6 OZXA-26 190

OETL-NF600A-S (2) #2 – 600 kcmil 4.62 Cu/Al 6 OZXA-27 380

For use on: Wire size Weight Wire type Lugs Catalog List

per kit number price

Shafts

OSNF30-S 6.7/170 .20 x .20” (5 x 5mm) 0.08 OXP5X170 $ 16

OSNF60-S – OSNF100-S 8.3/210 .24 x .24” (6 x 6mm) 0.10 OXP6X210 16

OETL-NF175-S – OETL-NF200A-S 9.5/240 .31 x .31” (8 x 8mm) 0.26 OXP8X240 24

OETL-NF400-S – OETL-NF600A-S 12.8/325 .47 X .47” (12 X 12mm) 0.90 OXP12X325 40

Length Description Weight Catalog List

For use with: inches/mm (lbs) number price

Handles

UL/NEMA Color Length Marking Defeat- Padlock- Weight Catalog List

type inches/mm able able (lbs) number price

ForusewithOSNF30-S

1, 12, 3R Black 2.65/65 O/I & Off/On Yes Yes 0.29 OHB65J5 $ 80

1, 12, 3R Red/Yel 2.65/65 O/I & Off/On Yes Yes 0.29 OHY65J5

ForusewithOSNF60-S—OSNF100-S

1, 12, 3R Black 3.1/80 O/I & Off/On Yes Yes 0.30 OHB80J6 80

1, 12, 3R Red/Yel 3.1/80 O/I & Off/On Yes Yes 0.30 OHY80J6

ForusewithOETL-NF200A-S

1, 12, 3R Black 3.1/80 O/I & Off/On Yes Yes 0.30 OHB80J8 80

1, 12, 3R Red/Yel 3.1/80 O/I & Off/On Yes Yes 0.30 OHY80J8

ForusewithOETL-400DM1—OETL-NF600A-S

1, 12, 3R Black 4.9/145 O/I & Off/On Yes Yes 0.39 OHB145J12 80

1, 12, 3R Red/Yel 4.9/145 O/I & Off/On Yes Yes 0.39 OHY145J12 80

1, 12, 3R Metal 4.9/145 Off/On Yes Yes 1.50 OETL-ZX74 190

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.35

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

DSFHN-HS12

DSFHS-12

OETL-NF200A-F

Discount schedule H1: NF16A - 100A

Discount schedule H2: NF125A - 800A

Discount schedule H6: Handles, shafts, accessories and lug kits

Discount schedule SH: Door hardware kits

Flangehandlesfor use with OT30_, OT60_, OT100_ and OETL-NF200_

UL/ NEMA type Marking Defeatable Padlock-

able

Catalog

number

List

price

1, 3R, 12

4, 4X

OFF/ON

Yes

DSFHN-HS12

DSFHN-HS4

$ 156

240

Shafts

For use with: Maximum enclosure depth (inches) Catalog

number

List

price

OT30_ - OT100_

OTFS-16

OTFS-24

$ 25

Flangeoperated

Shaft operated non-fusible

30A - 200A

For a complete assembly, please select one of each.

Switch Handle Shaft Lug kit (as required)

Flangeoperatedfusibleandnon-fusibledisconnectswitches

ABB’s solution for complying with the new NFPA79 requirements is Flange Operated Fusible and Non-fusible Disconnect

Switches.

New 2002 NFPA 79 changes requires main disconnecting means to be operable without the use of accessory tools or de-

vices, independent of door position. This code also includes an interlocking provision to prevent the closing of disconnects

while the enclosure door is open, unless an interlock is operated by a deliberate action.

The ange operated disconnect switches are available as ridged shaft or exible cable operated versions. The cable oper-

ated version allows you to install the disconnect switch anywhere in the enclosure depending on the length of the cable.

Cables are available in lengths up to 84 inches.

The designs are cost-effective NFPA 79 solutions offering quick and easy installation.

30A-200AFlangeoperatednon fusible switches (Shaft) - 3 pole

UL general

purpose amp rating

Maximum horsepower rating

Catalog

number

List

price

Three phase

240V 480V 600V

100

OT30E3-F

OT60E3-F

OT100E3-F

$ 500

590

690

Disconnect

switches

Non-fusible

18.36 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

OZXA-25 OZXA-175

OTS125T3

OA1G__

Discount schedule H1: NF16A - 100A

Discount schedule H2: NF125A - 800A

Discount schedule H6: Handles, shafts, accessories and lug kits

Discount schedule SH: Door hardware kits

Terminal lug kit and accessories

For use on: Description Wire size Wire type Qty. Catalog

number

List

price

OT30E3-F

OT60E3-F

OT100E3-F

Lug

#14 - #4

#8 - 1/0

Integral

OT30_ - OT100_ Shroud Includes one shroud for line or load side 1 OTS125T3 20

OT30_ - OT100_ Aux. Contact

1 NO

1 NC

1 NO + 1 NC

OA1G10

OA1G01

OA2G11

DoorhardwareNEMA12

Item Catalog

number

List

price

Safety door latch, 2 point, door less than 40” high

Safety door latch, 3 point, door greater than 40” high

KDH2R

KDH3R

$ 200

225

Flangeoperated

Shaft operated non-fusible

30A - 200A

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.37

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

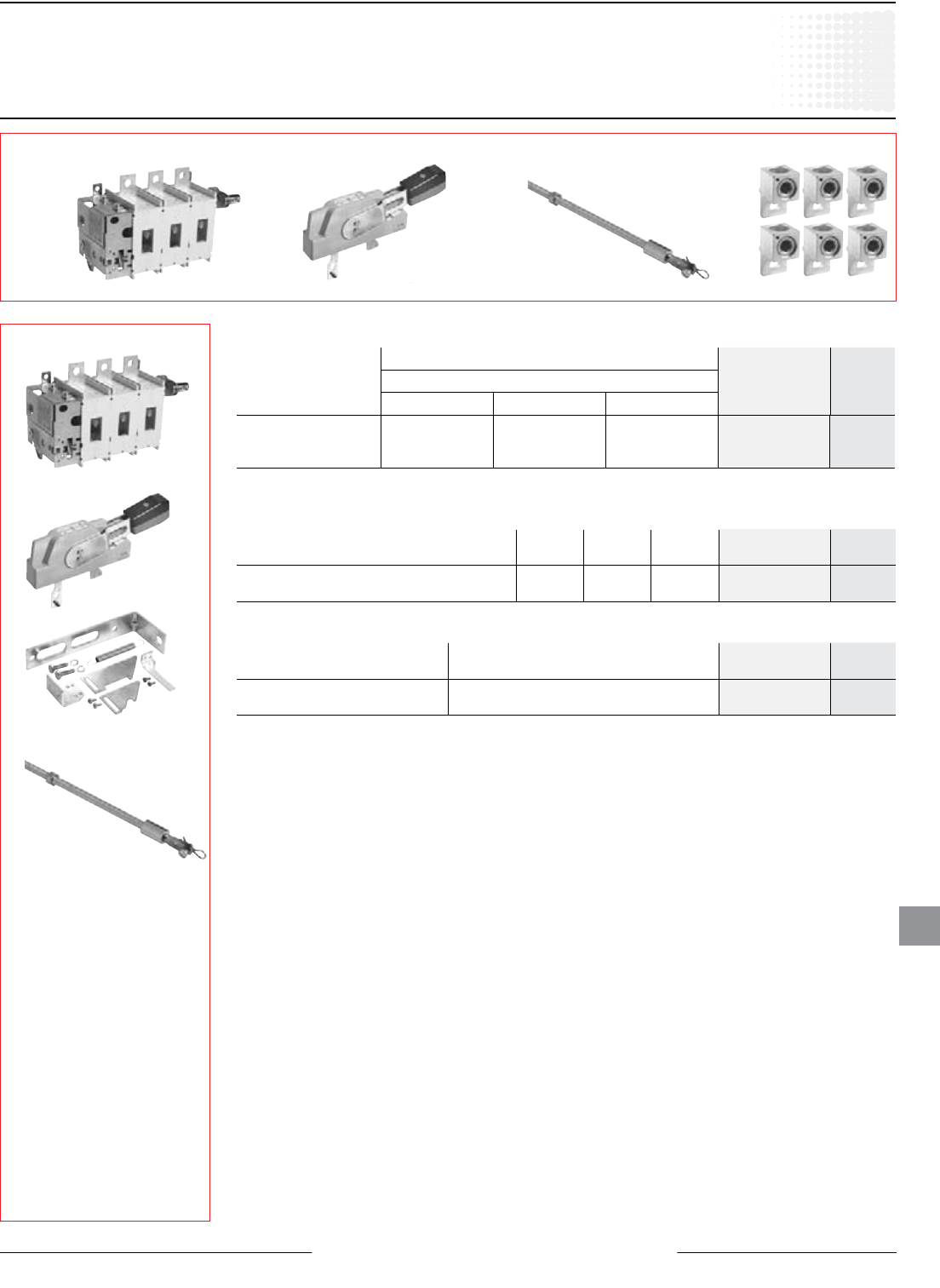

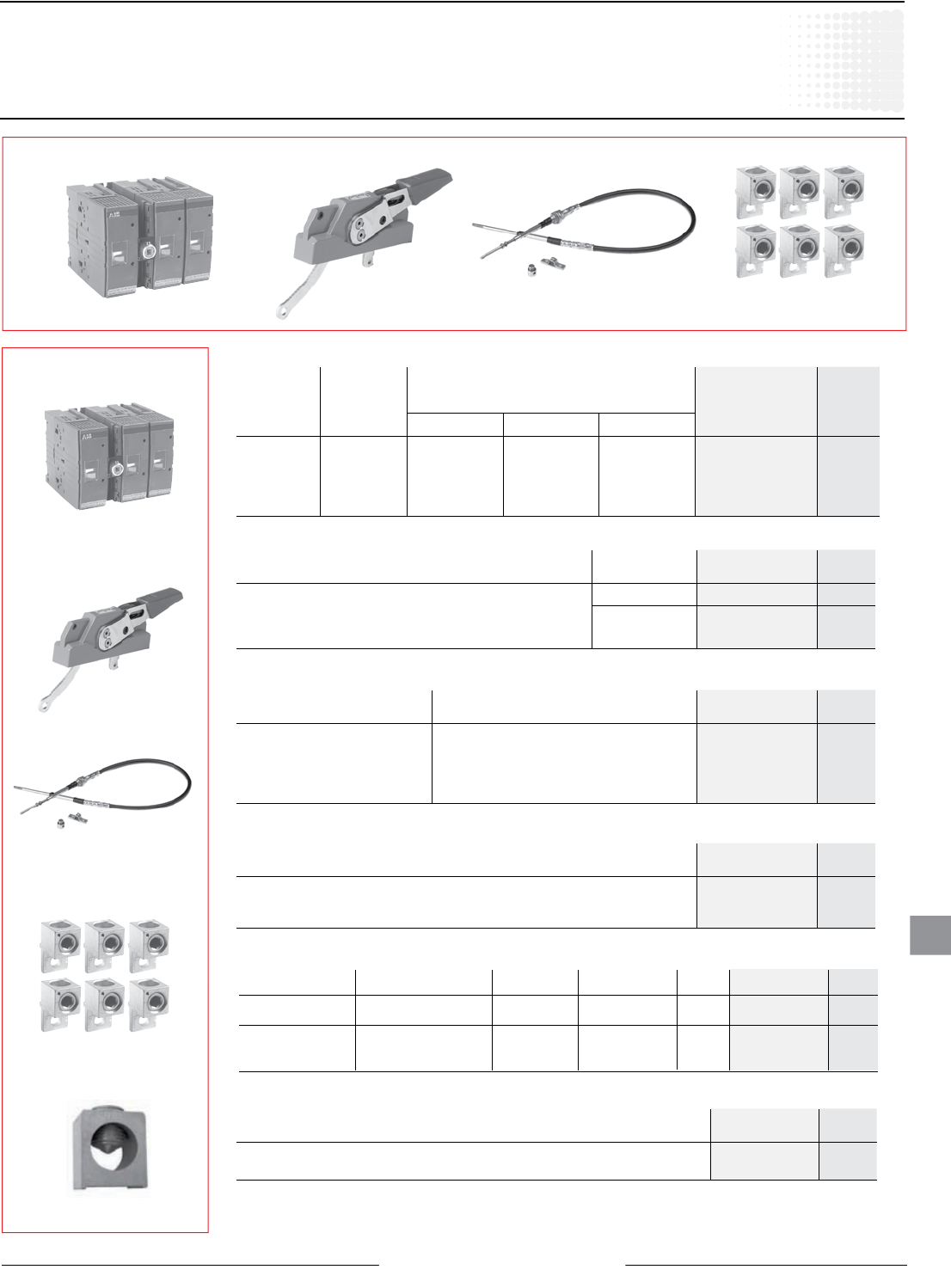

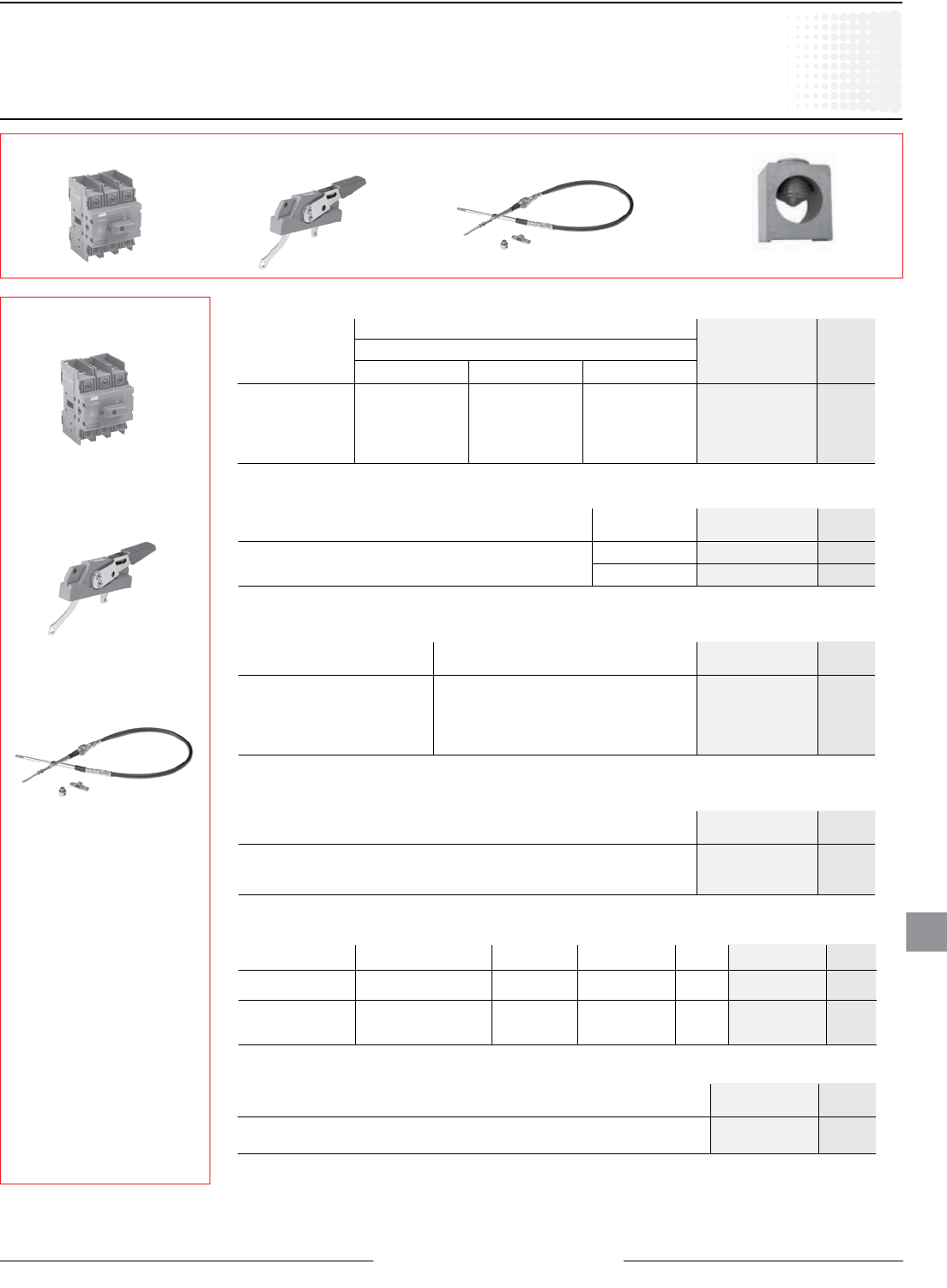

Flangehandles-UL98; UL le #E101914

For use with: Environmental

rating

Catalog

number

List

price

OT30 - 160E3

OT200U30

NEMA 1, 3R, 12 OHF1C12 $ 213

NEMA 4, 4X OHF1C4 243

FlexibleCables

For use with: Cable length (inches) Catalog

number

List

price

OT30 - OT160E3

OT200U30

OXC1L36

OXC1L48

OXC1L60

OXC1L72

OXC1L84

$ 114

146

160

175

204

OperatingMechanisms

For use with: Catalog

number

List

price

OT30 - 100E3

OT160E3

OT200U30

MKCS1

MKCS3

MKCS4

$ 135

162

171

Flangeoperated

Cable operated non-fusible

30A - 200A

For a complete assembly, please select one of each.

Discount schedule H2: NF125A - 800A

Discount schedule H6: Handles, shafts, accessories and lug kits

Discount schedule H3: NF1200A - 3150A

Discount schedule SH: Door hardware kits

Non-fusible

UL general purpose

amp rating

Maximum horsepower rating

Catalog

number

List

price

Three phase

240V 480V 600V

100

125

200

150

100

200

OT30E3

OT60E3

OT100E3

OT160E3

OT200U30

$ 150

175

200

420

620

Terminal lug kits

OT30 - 60E3 #14 – 4 Cu — — INTEGRAL —

OT100 - 160E3 #8 – 1/0 Cu — — INTEGRAL —

OT200U30

#4 – 300 Kcmil Cu/Al — 6 OZXA-200 $ 80

#4 – 300 Kcmil Cu/Al — 3 OZXA-200/3 40

(6) #4-6 AWG Cu/Al Distribution lug 3 OZXA-206 200

For use with Wire size Wire type Description Lugs Catalog List

per kit number price

Switch Handle Cable Lug kit (as required)

OT100E3

OHF1C12

OXC1L36-

OXC1L84

DoorhardwareNEMA12

Item Catalog

number

List

price

Safety door latch, 2 point, door less than 40” high

Safety door latch, 3 point, door greater than 40” high

KDH2R

KDH3R

$ 200

225

Disconnect

switches

Non-fusible

18.38 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

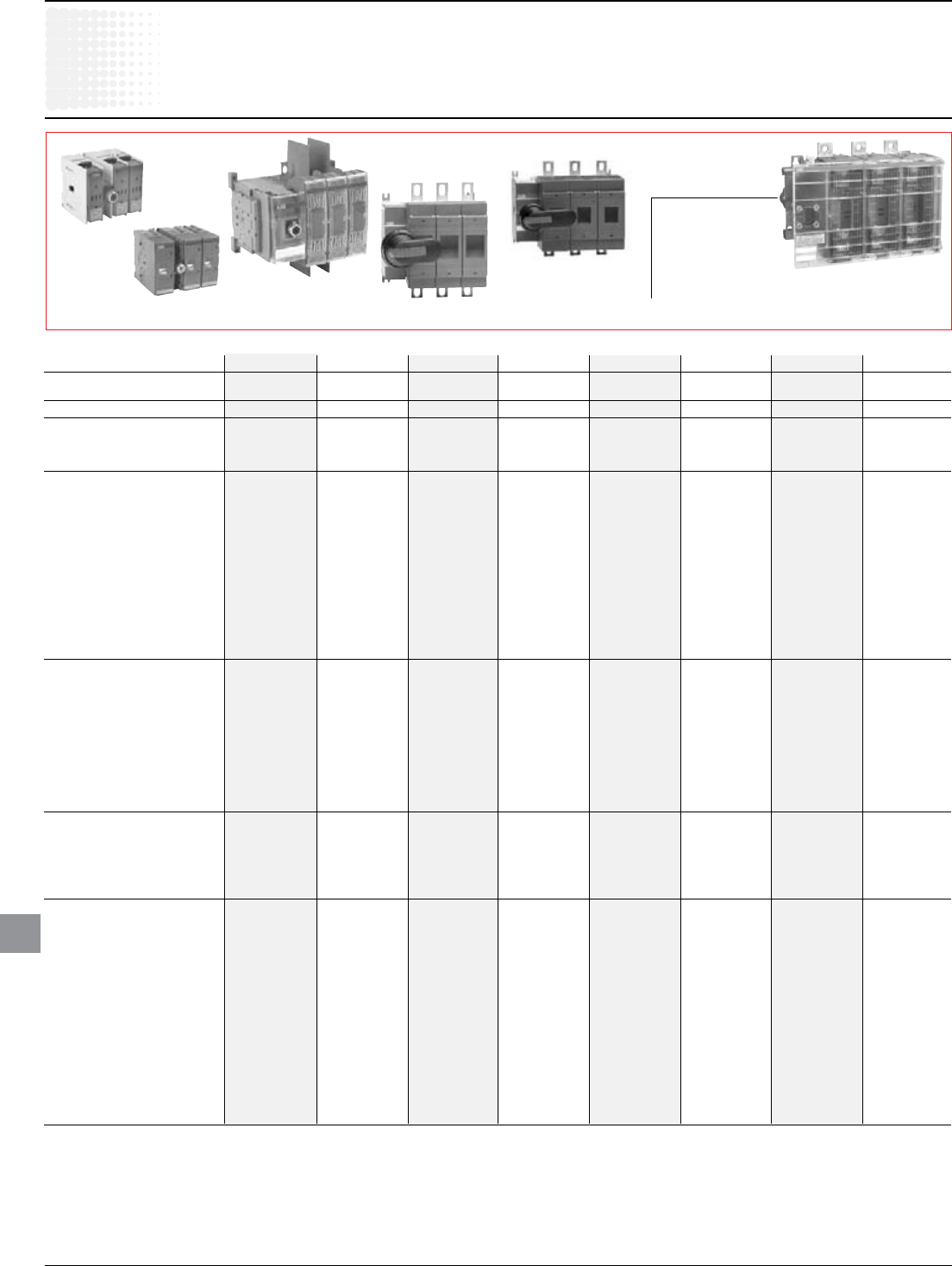

Technical data

OT16E3 – OT160E3

UL & CSA

Catalog number 3 pole OT16E3 OT25E3 OT32E3 OT45E3 OT63E3 OT30E3 OT60E3 OT100E3 OT160E3

1 UL Listed switches are also CSA Approved.

2 UL98overloadtest,50operations,pf0.40–0.50at2xFLA.

3 Multi-taplugavailable,pleaseseepg.18.24and18.27.

4Fusesize70AforRK5

5 WhenprotectedbyanyListedfuseorListedcircuitbreakerwhosecurrentratingdoesnotexceedthemaximumthermalcurrentratingoftheswitch.

UL & CSA

Approvals1 2 pole N/A N/A N/A N/A N/A N/A N/A N/A UL98 & IEC

    3pole UL508&IEC UL508&IEC UL508&IEC UL508&IEC UL508&IEC UL98&IEC UL98&IEC UL98&IEC UL98&IEC

    4pole UL508&IEC UL508&IEC UL508&IEC UL508&IEC UL508&IEC UL98&IEC UL98&IEC UL98&IEC UL98&IEC

General purpose amp rating -40°to40°C

  pf=0.7–0.8  A 16 25 40 60 80 30 60 100 125

Max.operatingvoltage  V 600 600 600 600 600 600 600 600 600

Max.horsepowerrating/motorFLAcurrent,

 pf=0.4–0.5

Three phase

   240V HP/A 5/15.2 7.5/22.0 10/28.0 15/42.0 20/54.0 10/28.0 20/54.0 30/80.0 40/104.0

   480V HP/A 10/14.0 15/21.0 20/27.0 30/40.0 40/52.0 20/27.0 40/52.0 50/65.0 75/96.0

600V HP/A 10/11.0 20/22.0 25/27.0 30/32.0 40/41.0 30/32.0 40/41.0 50/52.0 100/99.0

Singlephase 120V HP/A 1/16 1.5/20 2/24 2/24.0 2/24.0 2/24.0 3/34.0 5/56.0 7.5/80

   240V HP/A 2/13.2 3/18.7 5/30.8 7.5/40.0 10/57.5 5/28.0 7.5/40.0 15/68.0 20/88.0

Short circuit rating with fuse

  Fusetype CC kA 10 — 10 —- 10 —- — — — — — — — — — — —

  Fusetype J  kA 10 10 10 10 10 10 100 — 100 — 50 — 50 — 50 — 100

  Fusetype T kA 10 10 10 10 10 10 100 — 100 — 50 — 50 — 50 — —

  Fusetype RK1 kA 10 — 10 — 10 — — — — — — — — — — — —

  Fusetype RK5 kA 5 5 5 5 5 5 10 5 10 5 — — — — — — —

  Fusetype L kA — — — — — — — — — — — — — — — — —

  Fusetype H kA — — — — — — — 5 — 5 — — — — — — —

Maximumfusesize A 30 604 30 60 4 30 60 4 100 150 100 150 60 — 150 — 150 — 200

3 cycle short circuit current withstand rating 5

kA — — — — — — — — 25

Endurances

Min. Electrical endurance,

 pf=0.75–0.80  operationcycles 6000 6000 6000 6000 6000 6000 6000 6000 6000

Min. Electrical endurance,

 pf=0.40–0.50  operationcycles 1000 1000 1000 1000 1000 2 2 2 2

Mechanical endurance

operations 20,000 20,000 20,000 20,000 20,000 20,000 20,000 20,000 16,000

Physical characteristics

 Weight,switches 3pole  lb 0.24 0.24 0.24 0.59 0.59 0.79 0.79 0.79 2.42

   4pole  lb 0.33 0.33 0.33 0.77 0.77 1.10 1.10 1.10 2.86

 Dimension,switches 3pole H in 2.68 2.68 2.68 3.60 3.60 3.94 3.94 3.94 5.00

    W in 1.38 1.38 1.38 2.07 2.07 2.76 2.76 2.76 4.96

    D in 2.20 2.20 2.20 2.85 2.85 2.95 2.95 2.95 2.93

Shaft set screw tightening torque lb. in. 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9

 Shaftsize—square  in .20x.20 .20x.20 .20x.20 .20x.20 .20x.20 .20x.20 .20x.20 .20x.20 .24x.24

    mm 5x5 5x5 5x5 5x5 5x5 5x5 5x5 5x5 6x6

 Switchoperatingtorquefor lb.in. 8.8 8.8 8.8 10.5 10.5 17.5 17.5 17.5 52.5

rotary 3 pole switches

Terminal lug kits

Not required Not required Not required Not required Not required Not required Not required Not required

Not required

 Wirerange  AWG #18–8 #18–8 #18–8 #14–4 #14–4 #14–4 #14–4 #8–1/0 #8–1/0

Torque:

  Wiretightening  lb.in. 7 7 7 18 18 55 55 55 70

Lug mounting lb. in. Integral Integral Integral Integral Integral Integral Integral Integral Integral

Auxiliarycontacts OA1G_ _ OA1G_ _ OA1G_ _ OA1G_ _ OA1G_ _ OA1G_ _ OA1G_ _ OA1G_ _ OBEA_ _

NEMA ratings, AC A600 A600 A600 A600 A600 A600 A600 A600 A600

AC rated voltage VAC 600 600 600 600 600 600 600 600 600

AC thermal rated current A 10 10 10 10 10 10 10 10 10

 ACmaximumvolt-amperemaking VA 7200 7200 7200 7200 7200 7200 7200 7200 7200

 ACmaximumvolt-amperebreaking VA 720 720 720 720 720 720 720 720 720

NEMAratings,DC   R300 R300 R300 R300 R300 R300 R300 R300 P600

DC rated voltage VDC 300 300 300 300 300 300 300 300 600

 DCthermalratedcurrent A 1 1 1 1 1 1 1 1 5

 DCmaximummake-break VA 28 28 28 28 28 28 28 28 138

 Torque:Wiretightening lb.in 7 7 7 7 7 7 7 7 7

 Wirerange  AWG #18–14 #18–14 #18–14 #18–14 #18–14 #18–14 #18–14 #18–14 #22–14

T: OT16E3 - OT160E3, UL & CSA

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.39

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Technical data

OT200U03–OETL-NF3150

UL & CSA

Catalog number 3 pole OT200U03 OT400U03 OT600U03 OETL-NF800A OETL-NF1200 OETL-NF1600 OETL-NF2000 OETL-NF3150 5

1 UL Listed switches are also CSA Approved.

2 UL98overloadtest,50operations,pf0.40–0.50at2xFLA.

3 Multi-taplugavailable,pleaseseepg.18.24and18.27.

4 Fusesize70AforRK5

5 IEC rated only.

6 WhenprotectedbyanyListedfuseorListedcircuitbreakerwhosecurrentratingdoesnotexceedthemaximumthermalcurrentratingoftheswitch.

UL & CSA

Approvals1 2 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC

3 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC IEC

    4pole IEC UL98&IEC UL98&IEC IEC IEC IEC IEC IEC

General purpose amp rating -40°to40°C

 pf=0.7–0.8 A 200 400 600 800 1200 1600 2000 3150

Max.operatingvoltage  V 600 600 600 600 600 600 480 —

Max.horsepowerrating/Max.motorFLAcurrent,

 pf=0.4–0.5

Three phase

   240V HP/A 75/192.0 125/312.0 200/480.0 250/602.0 — — — —

   480V HP/A 150/180.0 250/302.0 400/515 500/590.0 — — — —

   600V HP/A 200/192.0 350/336.0 500/472.0 600/576 — — — —

 Singlephase 120V HP/A — — — — — — — —

   240V HP/A — — — — — — — —

Short circuit rating with fuse

  FusetypeCC  kA —  — — — — — — —

  FusetypeJ   kA 100  100 —/100 — — — — —

  FusetypeT  kA —  — 100/— — — — — —

  FusetypeRK1 kA —  — — — — — — —

  FusetypeRK5 kA —  — 100 — — — — —

  FusetypeL  kA —  — 100/— 100 100 100 100 —

  FusetypeH  kA —  — —/100 — — — — —

Maximumfusesize  A 350  600 600/800 1200 1200 2000 2000 —

3 cycle short circuit current withstand rating 6

kA 15 30 50 50 50 65 65 —

Endurances

Min. Electrical endurance,

 pf=0.75–0.80  operationcycles 6000 1000 1000 500 500 500 500 400

Min. Electrical endurance,

 pf=0.40–0.50  operationcycles 2 2 2 2 2 2 2 2

Mechanical endurance operations 20,000 20,000 10,000 10,000 10,000 6000 6000 6000

Physical characteristics

 Weight,switches 3pole  lb 2.9 5.7 11.4 35.9 38.55 127.7 127.7 127.7

   4pole  lb 3.5 6.8 14.3 45.15 49.56 149.7 149.7 149.7

 Dimension,switches 3pole H in 5.9 6.9 10 14.65 14.65 21.5 21.5 21.5

    W in 6.7 8.7 10.64 14.25 14.25 18.11 18.11 18.11

    D in 2.8 3.4 5.56 4.92 4.92 10.67 10.67 10.67

 Shaftsetscrewtighteningtorque lb.in. 14-17.7 — — — — — — —

 Shaftsize—square  in .24x.24 .47x.47 .47x.47 .47x.47 .47x.47 .47x.47 .47x.47 .47x.47

    mm 6x6 12x12 12x12 12x12 12x12 12x12 12x12 12x12

Switch operating torque for lb.in. 62 142 184 184 184 438 438 438

rotary 3 pole switches

Terminal lug kits   OZXA-200 OZXA-400 OZXA-800 OZXA-30 OZXA-28 OZXA-28 OZXA-28/2 OZXA-28/2

 Wirerange  AWG #4-300kcmil3 #2-600kcmil3 (2)#2-600kcmil3 (2)#2-600kcmil3 (4)#2-600kcmil (4)#2-600kcmil (8)#2-600kcmil (8)#2-600kcmil

Torque:

  Wiretightening lb.in. 200 375 375 375 375 375 375 375

  Lugmounting  lb.in. 72 240 240 230 230 230 230 230

Auxiliarycontacts   OA_G_ OA_G_ OA_G_ OZXK-__ OZXK-__ OZXK-__ OZXK-__ OZXK-__

NEMA ratings, AC A600 A600 A600 A600 A600 A600 A600 A600

AC rated voltage VAC 600 600 600 600 600 600 600 600

AC thermal rated current A 10 10 10 10 10 10 10 10

 ACmaximumvolt-amperemaking VA 7200 7200 7200 7200 7200 7200 7200 7200

 ACmaximumvolt-amperebreaking VA 720 720 720 720 720 720 720 720

NEMA ratings, DC P600 P600 P600 P600 P600 P600 P600 P600

DC rated voltage VDC 600 600 600 600 600 600 600 600

 DCthermalratedcurrent A 5 5 5 5 5 5 5 5

 DCmaximummake-break VA 138 138 138 138 138 138 138 138

 Torque:Wiretightening lb.in 7 7 7 7 7 7 7 7

 Wirerange  AWG #22–#14 #22–#14 #22–#14 #22–#14 #22–#14 #22–#14 #22–#14 #22–#14

T:OT200U03-OETL-NF3150,UL&CSA

Disconnect

switches

Non-fusible

18.40 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

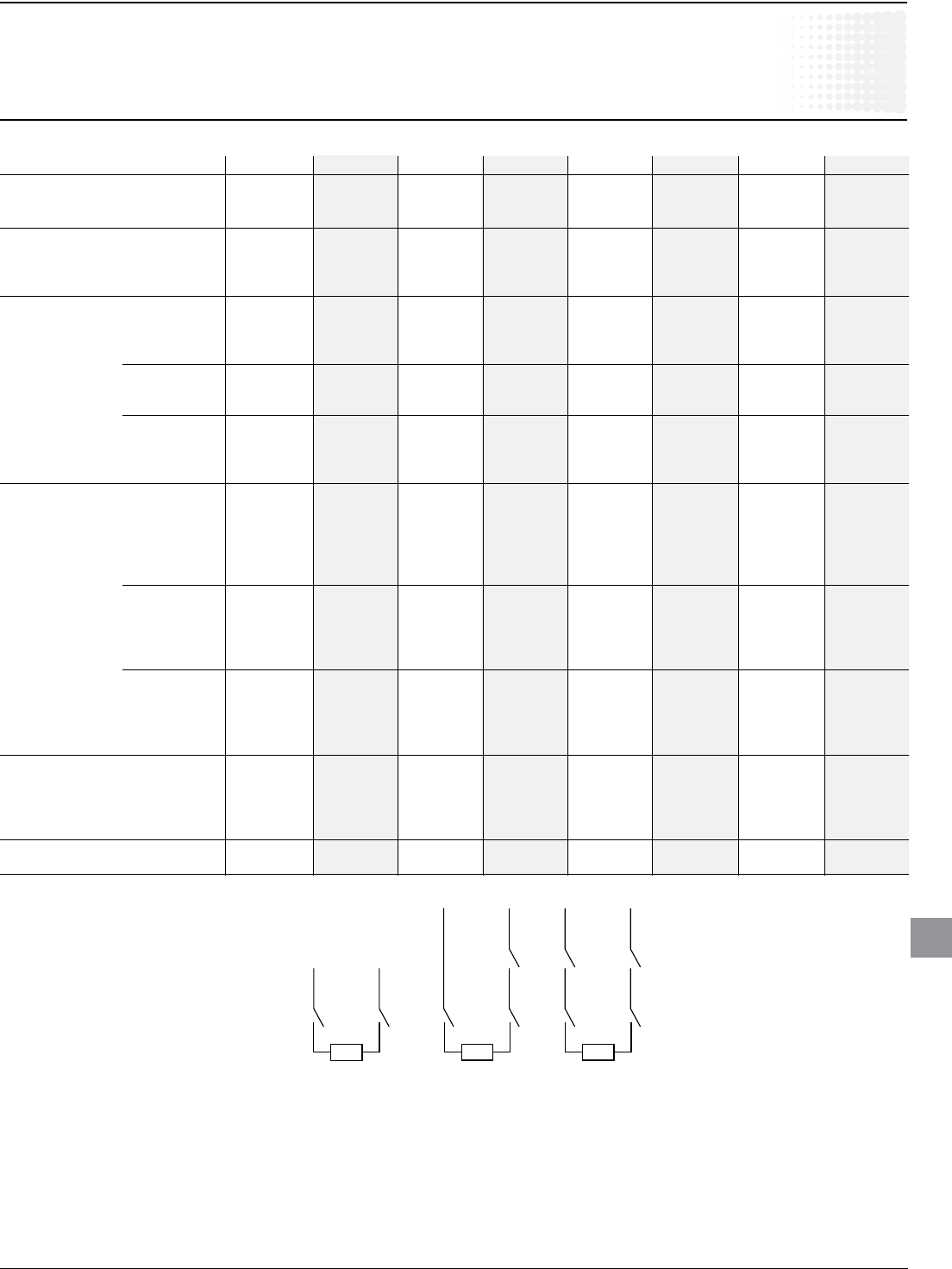

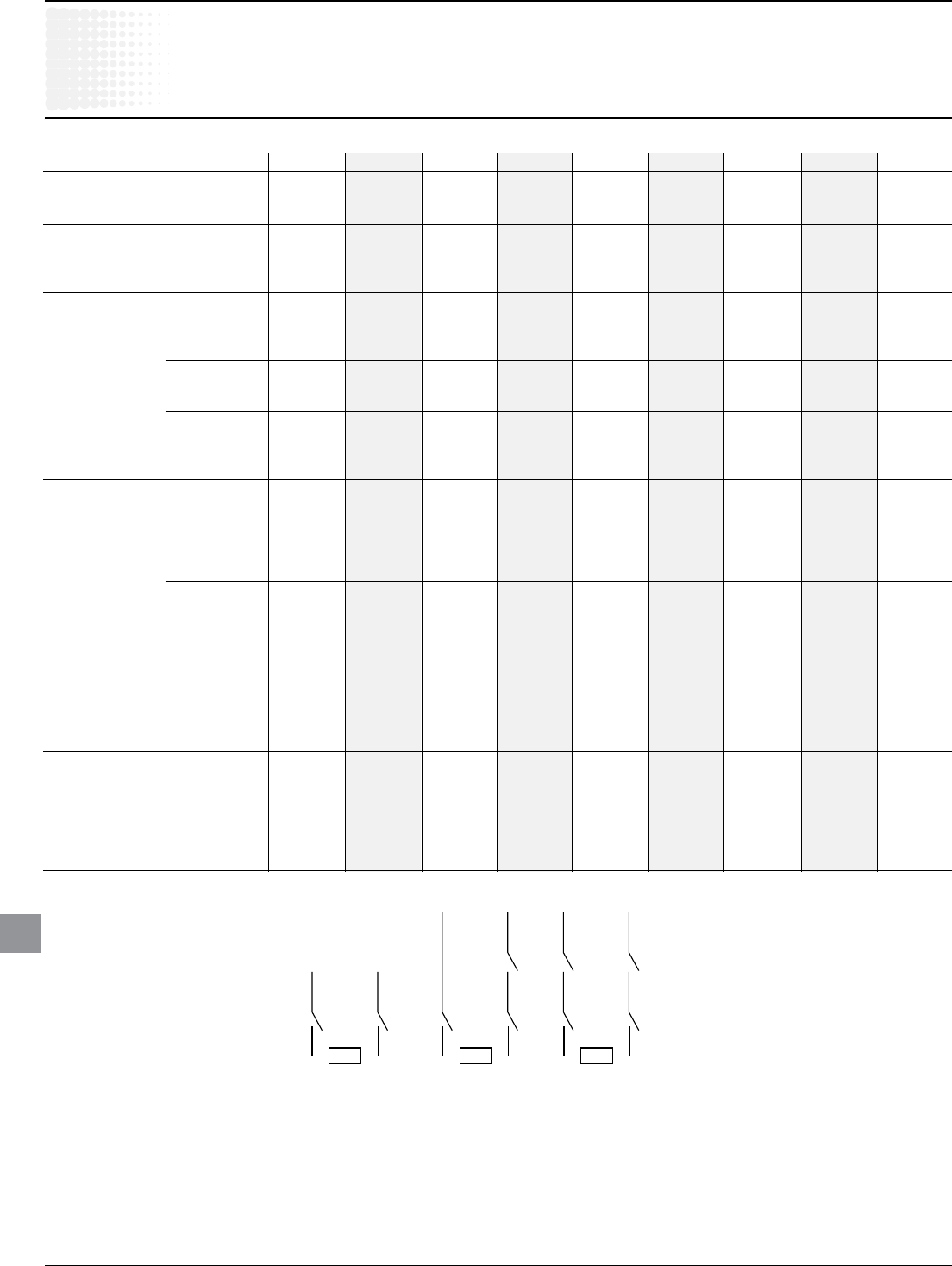

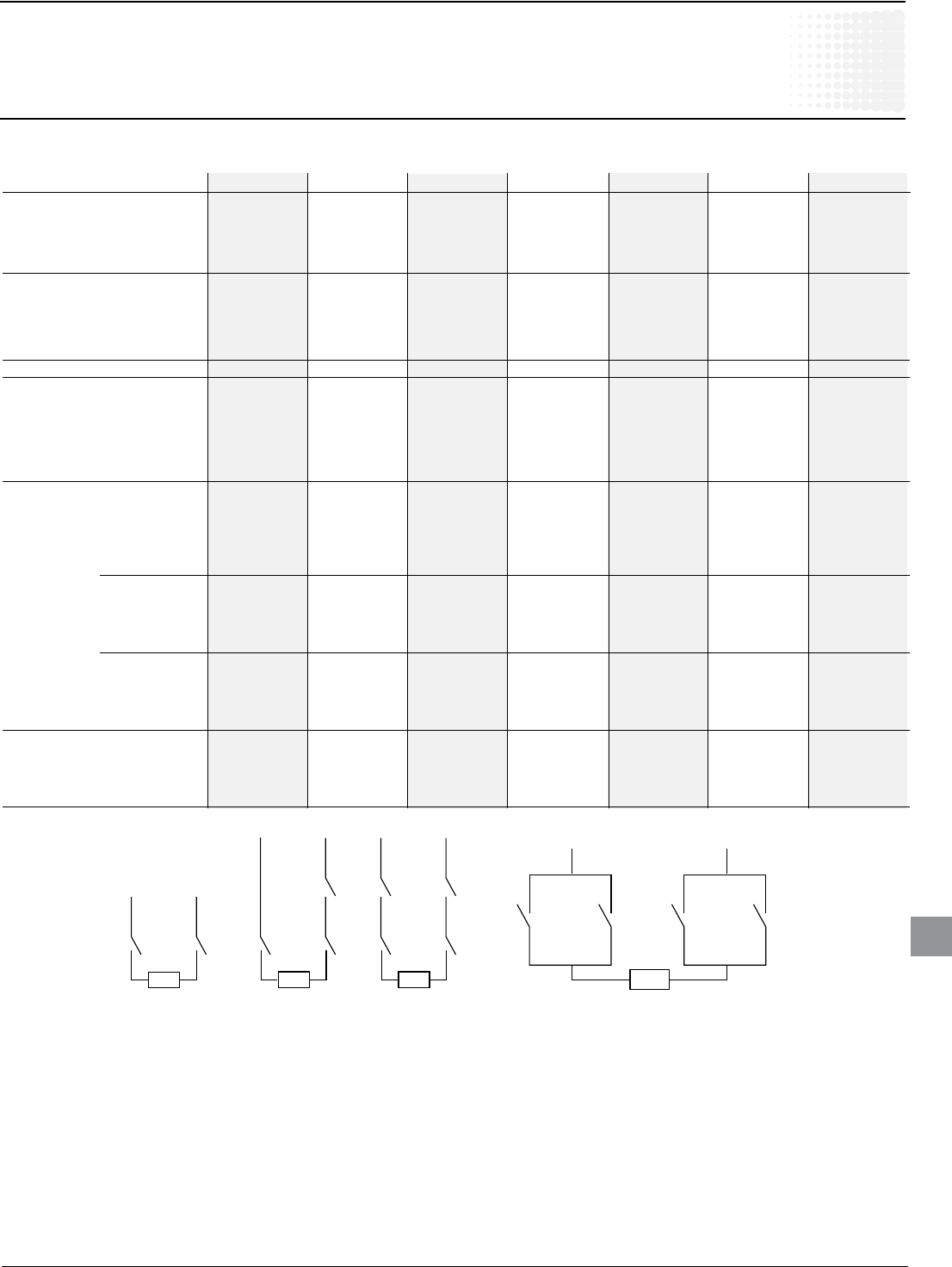

Catalog number 3 pole OT16E3 OT25E3 OT32E3 OT45E3 OT63E3 OT30E3 OT60E3 OT100E3 OT160E3

Technical data

OT16E3 – OT160E3

IEC

1 Theambientairtemperaturedoesnotexceed+40°Canditsaverageovera

periodof24hoursdoesnotexceed+35°CaccordingtoIEC947.

2 IEC947-3,utilizationcategoryB,infrequentoperation.

3 Not available at time of printing, please consult factory.

IEC

Ratedinsulationandoperation 40°C

voltage,AC20andDC20  V 750 750 750 750 750 750 750 750 750

Ratedimpulsewithstandvoltage kV 8 8 8 8 8 8 8 8 12

Ratedthermalcurrent,Ith

AC 20/DC 20 open 1  A 25 32 40 63 80 40 63 115 200

   40°Cenclosed A 25 32 40 63 80 40 63 115 160

   60°Cenclosed A 25 32 40 63 80 40 63 115 160

Ratedoperationalcurrents

AC21A  ≤500V A 16 25 40 63 80 40 63 100 160

   ≤690V A 16 25 40 63 80 40 63 100 160

   ≤1000V A — — — — — — — — —

AC22A  ≤500V A 16 25 40 63 80 40 63 100 160

   ≤690V A 16 25 40 63 80 40 63 100 160

   ≤1000V A — — — — — — — — —

AC23A  ≤415V A 16 20 23 45 75 40 63 80 135

   ≤500V A 16 20 23 45 58 40 60 60 125

   ≤690V A 10 11 12 20 20 40 40 40 80

   ≤1000V A — — — — — — — — —

Ratedoperationalcurrents/polesinseries

DC21A  48V A 16/1 25/1 32/1 45/1 63/1 40/1 63/1 100/1 160/1

110V A 16/2 25/2 32/2 45/2 63/2 40/2 63/2 100/2 160/1

220V A 16/3 25/3 32/3 45/4 63/4 40/4 63/4 100/4 160/2

   440V A 16/4 25/6 32/6 3 3 3 3 3 160/3

   750V A 16/8 25/8 32/8 3 3 3 3 3 160/4

DC22A  48V A 16/1 25/1 32/1 45/1 63/1 40/1 63/1 100/1 160/1

110V A 16/2 25/2 32/2 45/2 63/2 40/2 63/2 100/2 160/1

220V A 16/3 25/3 32/4 45/4 63/4 40/4 63/4 63/4 160/2

   440V A 16/6 25/8 3 3 3 3 3 3 160/3

   750V A 16/8 25/8 3 3 3 3 3 3 3

DC23A  48V A 16/1 25/1 32/1 45/1 63/1 40/1 63/1 100/1 160/1

110V A 16/2 25/2 32/2 45/2 63/2 40/2 63/2 100/2 160/1

   220V A 16/4 25/4 32/4 45/4 63/4 40/4 63/4 63/4 160/2

   440V A 10/4 3 3 3 3 3 3 3 160/3

   750V A 16/8 3 3 3 3 3 3 3 3

Ratedoperationalpower

AC23A  230V kW 3 4 5.5 11 22 7.5 11 22 45

   400/415V kW 7.5 9 11 22 37 15 18.5 37 75

   500V kW 7.5 9 11 22 37 15 18.5 37 75

   690V kW 7.5 9 11 15 18.5 15 15 37 75

Short-circuitcurrent  kA 50 50 50 50 50 50 50 50 100

withback-upfusesofsize A 25 32 40 63 80 100 100 100 200

2 poles

in series

Load

3 poles

in series

4 poles

in series

Load Load

T: OT16E3 - OT160E3, IEC

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.41

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

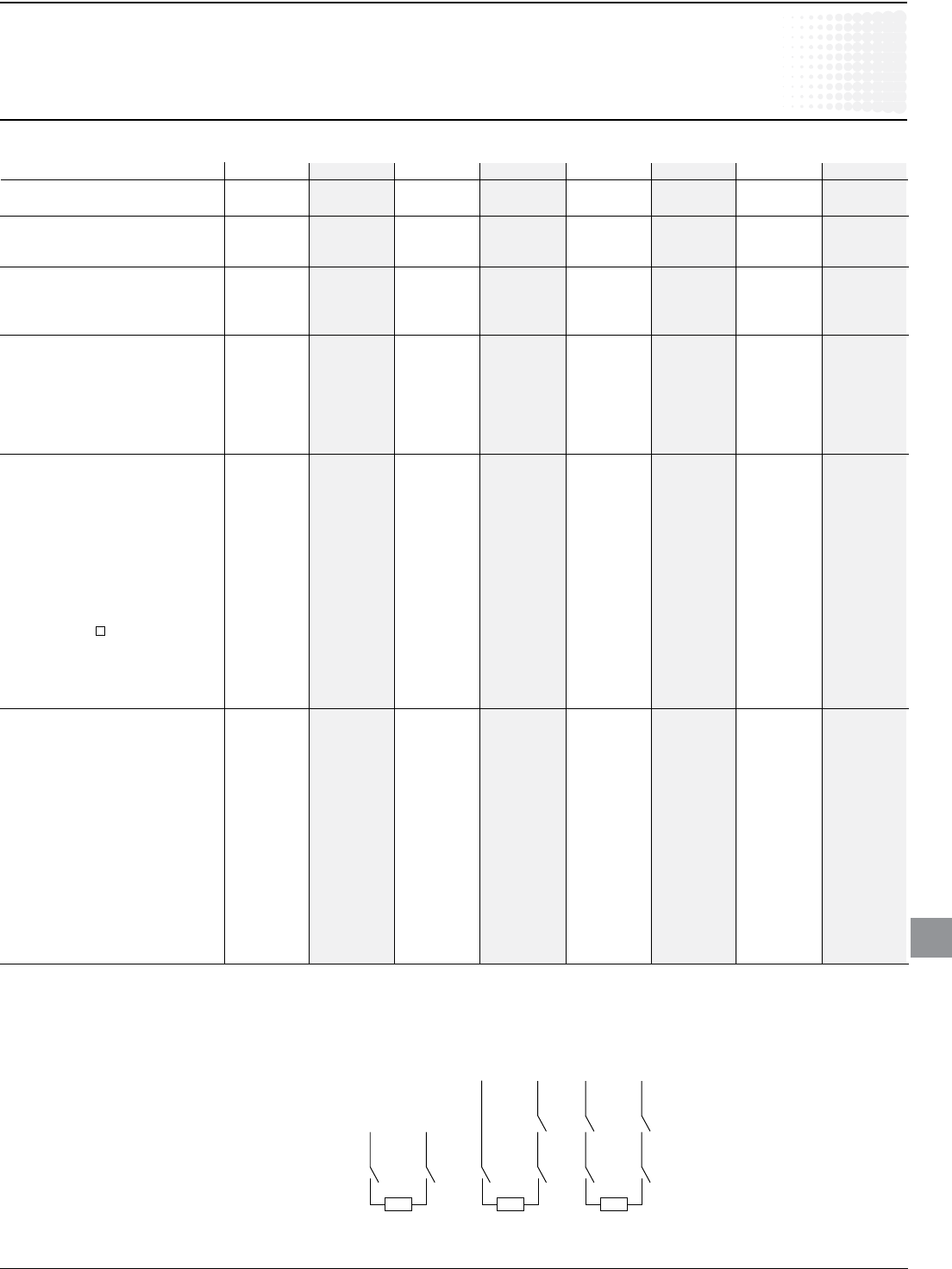

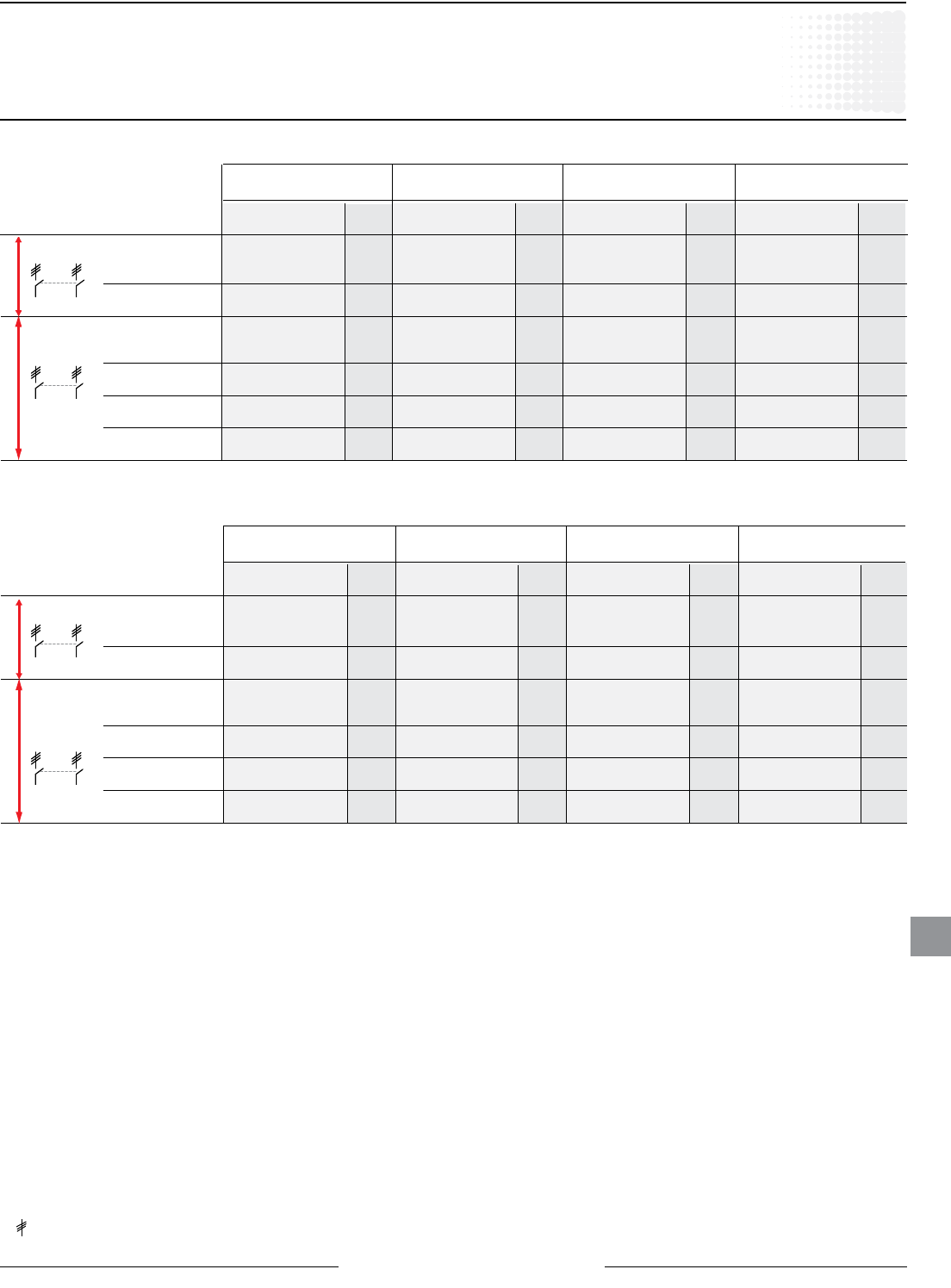

Technical data

OT200U03–OETL-NF3150

IEC

Catalog number 3 pole OT200U03 OT400U03 OT600U03 OETL-NF800A OETL-NF1200 OETL-NF1600 OETL-NF2000 OETL-NF3150

1 Theambientairtemperaturedoesnotexceed+40°Canditsaverageovera

periodof24hoursdoesnotexceed+35°CaccordingtoIEC947.

2 IEC947-3,utilizationcategoryB,infrequentoperation.

3 Not available at time of printing, please consult factory.

4 690V/500V

IEC

Ratedinsulationandoperational 40°C

voltage, AC20 and DC20 V 1000 1000 1000 1000 1000 1000 1000 1000

Ratedimpulsewithstandvoltage kV 12 12 12 8 8 8 8 8

Ratedthermalcurrent,Ith

AC 20/DC 20 open1 A 250 400 800 1250 1600 2500 3150

   40°Cenclosed A 250 400 800 1250 1600 2300 2300 2600

   60°Cenclosed A — — — 1000 1250 1950 1950 2300

Ratedoperationalcurrents

AC21A  ≤500V A 250 400 800 1250 1600 25002 25002 31502

   ≤690V A 250 400 800 1250 1600 25002 25002 31502

   ≤1000V A — — 800 — — — — —

AC22A  ≤500V A 250 400 800 1250 1600 16002 16002 16002

   ≤690V A 250 400 800 — — — — —

   ≤1000V A — — 800 — — — — —

AC23A  ≤415V A 250 400 800 800 800 8002 8002 8002

   ≤500V A 250 400 800 800 800 8002 8002 8002

   ≤690V A 250 400 800 — — — — —

   ≤1000V A — — 800 — — — — —

Ratedoperationalcurrents/polesinseries

DC21A  48V A 250/1 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   110V A 250/2 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   220V A 250/2 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   440V A 250/3 630/3 800/3 1250/3 1600/3 2500/3 2500/3 3150/2

   750V A 250/4 — — — — — — —

DC22A  48V A 250/1 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   110V A 250/2 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   220V A 250/2 630/2 800/2 1250/2 1600/2 2500/2 2500/2 3150/2

   440V A 250/3 630/3 800/3 — — — — —

   750V A 250/4 — — — — — — —

DC23A  48V A 250/1 630/2 — — — — — —

   110V A 250/2 630/2 — — — — — —

   220V A 250/2 630/2 — — — — — —

   440V A 250/3 — — — — — — —

   750V A 250/4 — — — — — — —

Ratedoperationalpower

AC23A  230V  kW 75 110 — 250 250 250 250 250

   400/415V kW 132/140 220/230 450 400 400 400 400 400

   500V kW 170 280 560 450 450 450 450 450

   690V kW 240 355 800 — — — — —

Short-circuitcurrent  kA 100 100 100 50/504 50/504 50/634 50/634 50/634

withback-upfusesofsize A 400 800 800 — — — — —

2 poles

in series

Load

3 poles

in series

4 poles

in series

Load Load

T:OT200U03-OETL-NF3150,IEC

Disconnect

switches

Non-fusible

18.42 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Catalog number 3 pole OT16E3 OT25E3 OT32E3 OT45E3 OT63E3 OT30E3 OT60E3 OT100E3 OT160E3

Technical data

OT16E3 – OT160E3

IEC

1 Not available at time of printing, please consult factory.

2 AC15,accordingtoIEC947-5-1.

Ratedshort-circuitmakingcapacity,

prospective peak value, Icm kA 0.7 0.7 0.7 1.4 1.4 3.6 3.6 3.6 12

Ratedshorttimewithstandcurrent,

RMSlcw  0.2s  kA — — — — — — — — 7

RMSlcw  1.0s kA 0.5 0.5 0.5 1 1 2.5 2.5 2.5 4

AC breaking capacity

 pf=0.35 ≤415V A 128 160 184 240 304 320 504 640 1080

   ≤500V  A 128 160 184 240 256 320 480 480 1000

   ≤690V A 80 88 96 160 160 320 320 320 640

DC breaking capacity/poles in series

 L/R=15ms,3poleinseries

   ≤48V A 64/1 100/1 128/1 180/1 252/1 160/1 252/1 400/1 640/1

   ≤110V  A 64/2 100/2 128/2 180/2 252/2 160/2 252/2 400/2 640/1

   ≤220V A 64/3 100/4 128/4 180/4 180/4 160/4 252/4 252/4 640/2

   ≤440V A 1 1 1 1 1 1 1 1 640/3

   ≤750V A 1 1 1 1 1 1 1 1 1

Physical characteristics

Electrical endurance at rated operational

current,pf=0.65  operationcycles 3000 3000 3000 3000 3000 3000 3000 3000 1000

Mechanical endurance operations 20,000 20,000 20,000 20,000 20,000 20,000 20,000 20,000 16,000

Weight  3pole kg 0.11 0.11 0.11 0.27 0.27 0.36 0.36 0.36 1.1

   4pole kg 0.15 0.15 0.15 0.35 0.35 0.5 0.5 0.5 1.3

Dimension 3pole H mm 68 68 68 91.5 91.5 100 100 100 127

    W mm 35 35 35 52.5 52.5 70 70 70 126

    D mm 56 56 56 72.5 72.5 75 75 75 74.5

Powerlossperpole  W 0.3 0.6 1 1.4 2.8 1 1.6 4 6.5

Shaftsize—square mm 5X5 5x5 5x5 5x5 5x5 5x5 5x5 5x5 6x6

Switch operating torque for

rotary 3 pole switches Nm 1 1 1 1.2 1.2 2 2 2 6

SuitableconductorcrosssectionCu mm2 0.75–10 0.75–10 0.75–10 1.5–25 1.5–25 1.5–25 1.5–25 10–70 10–70

Boltsize    — — — — — — — — —

Auxiliarycontacts   OA1G__ OA1G__ OA1G__ OA1G__ OA1G__ OA1G__ OA1G__ OA1G__ OBEA__

RatingsaccordingtoIEC947-5-1

Ratedvoltage,Ui VAC 690 690 690 690 690 690 690 690 690

Thermal current, Ith A 16 16 16 16 16 16 16 16 10

AC12/DC12 Ie, A Ue=120V A — — — — — — — — 8/—

  125V  A — — — — — — — — —/1.1

  240V  A 62 6 2 6 2 6 2 6 2 6 2 6 2 6 2 6/—

  250V  A — — — — — — — — —/0.55

  400V  A 42 42 42 42 42 42 42 42 4/—

  415V  A — — — — — — — — 4/—

  440V  A — — — — — — — — —/0.31

  480V  A — — — — — — — — 3/—

  500V  A — — — — — — — — 3/0.27

  600V  A — — — — — — — — —/0.2

690V A 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2/—

IEC

2 poles

in series

Load

3 poles

in series

4 poles

in series

Load Load

T: OT16E3 - OT160E3, IEC

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.43

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Technical data

OT200U03–OETL-NF3150

IEC

Catalog number 3 pole OT200U03 OT400U03 OT600U03 OETL-NF800A OETL-NF1200 OETL-NF1600 OETL-NF2000 OETL-NF3150

IEC

1 Not available at time of printing, please consult factory.

2 Maximumdistancebetweenbusbarsupportandswitchterminal70mm.

3 pf0.95.

4 pf0.65.

5 IEC947-3,utilizationcategoryB,infrequentoperation.

Ratedshort-circuitmakingcapacity,

prospective peak value, Icm500/690V kA 30 65 80 105 105 140/105 140/105 140/105

Ratedshorttimewithstandcurrent,

RMSlcw 0.2s kA 15 28 36 — — — — —

RMSlcw  1.0s kA 8 15 20 502 502 80 2 80 2 80 2

AC breaking capacity

 pf=0.35 ≤415V A 2000 3200 5760 6400 6400 6400 6400 6400

   ≤500V A 2000 3200 5600 6400 6400 6400 6400 6400

   ≤690V A 2000 3200 5600 25003 25003 48004 48004 48004

DC breaking capacity/poles in series

 L/R=15ms,3poleinseries

   48V A 1000/2 1 1 1 1 1 1 1

110V A 1000/2 1 1 1 1 1 1 1

220V A 1000/2 1600/2 2000/2 1900/2 2600/2 2600/2 2600/2 2600/2

   440V A 1000/3 1600 2000/3 1 1 1 1 1

   750V A 1000/4 1 1 1 1 1 1 1

Physical characteristics

Electrical endurance at rated operational

current,pf=0.65  operationcycles 1000 1000 1000 500 500 1005 100 5 100 5

Mechanical endurance operations 20,000 16,000 10,000 10,000 10,000 6000 6000 6000

Weight  3pole  kg 1.2 2.2 5.2 16.3 17.5 37 37 37

   4pole  kg 1.6 2.6 6.5 20.5 22.5 47 47 47

Dimension 3pole  H mm 162 216 250 372 372 546 546 546

    W mm 219 260 266 363 363 468 468 468

    D mm 92.5 130 139 125 125 271 271 271

Powerlossperonepole  W 6.5 10 40 40 67 90 90 140

Shaftsize—square   mm 6x6 12x12 12x12 12x12 12x12 12x12 12x12 12x12

Switch operating torque for

rotary3poleswitches  Nm 7 16 21 21 21 50 50 50

Suitable conductor cross section Cu mm2 — — — — — — — —

Boltsize    8x25 10x30 12x40 12x60 12x60 12x60 12x60 12x60

Auxiliarycontacts   OA_G_ OA_G_ OA_G_ OZXK-__ OZXK-__ OZXK-__ OZXK-__ OZXK-__

RatingsaccordingtoIEC947-5-1

Ratedvoltage,Ui VAC 690 690 690 690 690 690 690 690

Thermal rated current, Ith A 16 16 10 10 10 10 10 10

AC12/DC12 Ie, A Ue =  120V A — — 8/— 8/— 8/— 8/— 8/— 8/—

   125V A — — —/1.1 —/1.1 —/1.1 —/1.1 —/1.1 —/1.1

   240V A 6/— 6/— 6/— 6/— 6/— 6/— 6/— 6/—

   250V A — — —/0.55 —/0.55 —/0.55 —/0.55 —/0.55 —/0.55

   400V A 4/— 4/— 4/— 4/— 4/— 4/— 4/— 4/—

   415V A — — 4/— 4/— 4/— 4/— 4/— 4/—

   440V A — — —/0.31 —/0.31 —/0.31 —/0.31 —/0.31 —/0.31

   480V A — — 3/— 3/— 3/— 3/— 3/— 3/—

   500V A — — 3/0.27 3/0.27 3/0.27 3/0.27 3/0.27 3/0.27

   600V A — — —/0.2 —/0.2 —/0.2 —/0.2 —/0. 2—/0.2

   690V A 2/— 2/— 2/— 2/— 2/— 2/— 2/— 2/—

2 poles

in series

Load

3 poles

in series

4 poles

in series

Load Load

T:OT200U03-OETL-NF3150,IEC

Disconnect

switches

Non-fusible

18.44 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Selecting switches

per NEC & IEC

Selecting switches per IEC

Utilization categories

 Natureofcurrent  Utilizationcategory  Typicalapplications

  Frequentoperation  Infrequentoperation

  AC-20A  AC-20B • Connectinganddisconnectingunderno-load

conditions

  AC-21A  AC-21B • Switchingofresistiveloadsincludingmoderate

overloads(PF>0.95)

 Alternatingcurrent AC-22A  AC-22B • Switchingofmixedresistiveandinductiveloads,

includingmoderateoverloads(PF>0.65)

  AC-23A  AC-23B • Switchingofmotorloadsorotherhighly

inductiveloads(PF>0.45below100A;

PF>0.35above100A)

  DC-20A  DC-20B • Connectinganddisconnectingunderno-load

conditions

  DC-21A  DC-21B • Switchingofresistiveloadsincludingmoderate

overloads(L/R<1ms)

 Directcurrent DC-22A  DC-22B • Switchingofmixedresistiveandinductiveloads,

including moderate overloads e.g., shunt motors

(L/R<2.5ms)

  DC-23A  DC-23B • Switchingofhighlyinductiveloadse.g.,series

motors(L/R<15ms)

Mechanical endurance Number of operations Number of operations

100A 10,000 2000

 315A 8000  1600

 >315A 2000  400

• CategoryAC-23includesoccasionalswitchingofindividualmotors.Theswitchingofcapacitorsoftungstenlamentlampsshallbesubjecttoagreementbetween

manufacturer and user.

Article 430 of the US National Electric Code includes two methods for properly sizing disconnect switches:

Selecting switches per NEC

1. Single motor application

Aproperlysizeddisconnectswitchforasinglemotorwill:

a) haveanampereratinggreaterthanorequalto115percent

oftheratedmotorfullloadcurrent;or,

b) haveaHPratinggreaterthanorequaltotheratedmotor

HP(atappliedvoltage)ifthedisconnectswitchunder

considerationisHPrated.

2. Combination load application

Aproperlysizeddisconnectswitchforacombinationloadwill

be selected by adding all the simultaneous individual loads in

the circuit under consideration.

Using motor nameplate information, load information, and

tablesfromsection430oftheNEC,determineoneequivalent

full load current and one equivalent locked rotor current. The

equivalentlockedrotorcurrentcanbeusedwithtable430-151

todetermineanequivalentHPrating.Selectadisconnect

switch:

a) greaterthanorequalto115percentoftheequivalentfull

loadcurrent;and,

b) greaterthanorequaltotheequivalentHPrating.

S: Selecting switches per NEC & IEC

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.45

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

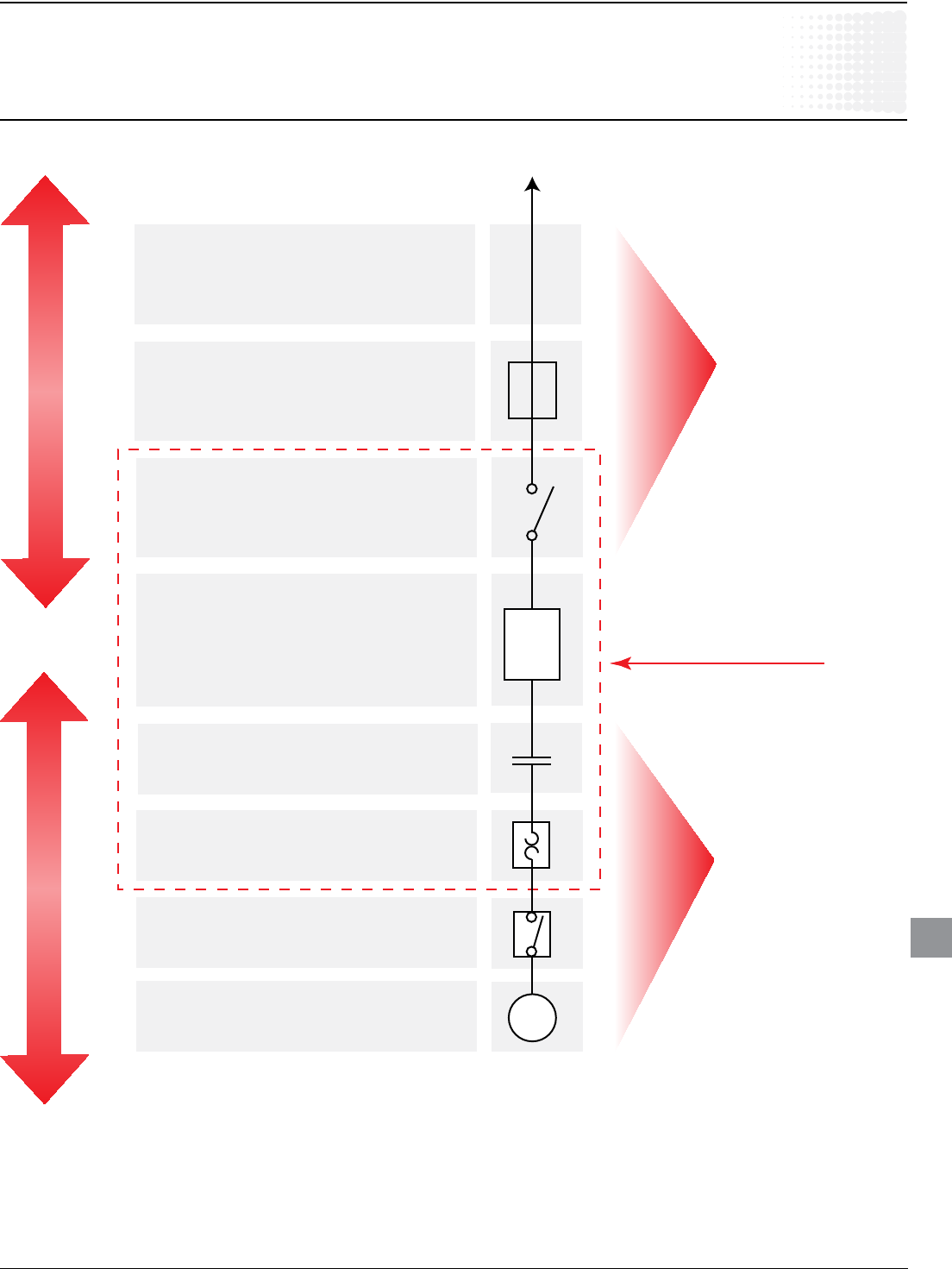

Motor feeder

Motor feeder short circuit and

ground fault protection

Motor disconnecting means

(NEC ® 430.101 - 430.113)

UL98

UL508

Motor controller

(NEC ® 430.81 - 4.30.91)

Motor overload protection

(NEC ® 430.31 - 4.30.44)

OSHA Lockout/tagout disconnect

(NEC ® 430.81 - 430.91)

Motor

Motor branch-circuit

short-circuit

protection

(NEC ® 430.51 - 430.58)

To supply

UL98

Fusible Switches

OS30, OS60, OS100,

OS200, OS400, OS600

OES800

UL98

Non-Fusible Switches

OT30, OT60, OT100

OT125, OT200,

OT400, OT600

OETL-NF800 thru

OETL-NF2000

UL508

Non-Fusible Switches

OT16, OT25, OT32,

OT45, OT63

(UL98 switches can also

be applied)

Typical control panel

Feeder Circuit

Branch Circuit

Use of UL98 & UL508 Disconnects

According to

NEC ®

Article430

S:UseofUL98&UL508Disconnects

Disconnect

switches

Non-fusible

18.46 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Deﬁnitions

AC – Alternating current — Current that reverses its direction

of ow twice per cycle.

Ambient temperature —Temperatureoftheairsurrounding

the unit.

Amp rating — The basic unit of measurement for electric

current (columbs / seconds).

Conventional thermal current Ith—Valueofthecurrentthe

disconnect switch can withstand with poles in closed position,

in free air for an eight hour duty, without the temperature

riseofitsvariouspartsexceedingthelimitsspeciedbythe

standards.

Cycle duration — Totaltimeoftheon-load+off-loadperiod.

DC – Direct current—Currentthatowsinonlyonedirection.

Electrical endurance—Numberofon-loadoperatingcycles.

IEC environmental protection type —seepage18.48.

Full load amp current FLA—Thecurrentrequiredbyamotor

to produce full-load torque at the motor's rated speed.

Inductive load—Anelectricalloadcharacterizedbyhaving

signicantinrush(5to6timesFLAfortypicaldesign-BAC

induction motors).

kW—Kilowatts(1000watts)

Lockout/Tagout—Meansofremovingpowerfromelectrical

equipment during inspection, service or repair.

Make / Break — ON/OFF

Mechanical endurance—Numberofoff-loadoperatingcycles.

Poles in series—Meansofconnectionpolesusingwiresor

bus bars to increase breaking capacity of load.

Power factor—Therelationshipbetweenworkingpowerand

total power consumed. Power factor measures how effectively

electrical power is being used.

Rated insulation Ui — Voltage value which designates the unit

and to which dielectric tests, clearance and creepage distances

are referred.

Rated operating current Ie—Currentvaluestatedbythe

manufacturer and taking into account the rated operating

voltage Ue,theratedfrequency,theratedduty,theutilization

category, the electrical contact life and the type of protective

enclosure.

Rated operating voltage Ue — Voltage value to which

utilizationcharacteristicsofthedisconnectswitcharereferred,

i.e. phase-to-phase voltage in 3 phase circuits.

Rated short circuit making capacity Icm—Theratedshort-

circuit making capacity of a disconnect switch, a disconnector

or a switch-disconnector is the value assigned to equipment at

theratedoperationalvoltage,frequency(ifany)andspecied

power-factorforACortimeconstantforDC.Itisexpressed

asthemaximumprospectivepeakcurrentunderprescribed

conditions.

Rated short time withstand current Icw—Theratedshort-

time withstand current of a disconnect switch, a disconnector

or a switch-disconnector is the value that the equipment can

carrywithoutdamage,underthetestconditionsspeciedin

the relevant product standard. The value of the rated short-

time withstand current shall be not less than twelve times the

maximumratedoperationalcurrentunlessotherwisestatedby

manufacturer and the duration of the current shall be 1 s.

Resistive load—Anelectricalloadcharacterizedbynot

havinganysignicantinrushcurrent.

Short circuit protection coordination —Co-ordinationtypes

"1"and"2"aredenedinIEC947-4-1.

Type 1 coordination—Therehastobenodischargeof

parts beyond the enclosure. Damage to the contactor and the

overload is acceptable.

Type 2 coordination—Nodamagetotheoverloadrelayor

otherpartshasoccurred,exceptthatweldingofcontactoror

starter contacts is permitted, if they are easily separated.

Time constant—Ratioofinductancetotheresistance:

L/R=mH/Ohm=ms.

Torque—Theforcethatproducesrotation.Itiscommonly

measured in pound-feet (lb-ft). Torque applies to such things as

motor operations, handle rotations, wire tightening.

NEMA environmental protection type —seepage18.47.

Volt —Theunitofelectricalpotentialdifferenceand

electromotive force.

S:Denitions

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.47

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

NEMA Environmental ratings

– Indoors

– Outdoors

– Water

– Dirt/dust

– Corrosion

Legend

Type 1

Enclosures are intended for indoor use

primarily to provide a degree of protection

against limited amounts of falling dirt.

(NEMAStandard7-15-1991.)

 Type3R

Enclosures are intended for outdoor use

primarily to provide a degree of protection

againstrain,sleetanddamagefromexternal

iceformation.(NEMAStandard7-15-1991.)

 Type4

Enclosures are intended for indoor or

outdoor use primarily to provide a degree

of protection against windblown dust and

rain, splashing water, hose-directed water

anddamagefromexternaliceformation.

(NEMAStandard1-10-1979.)

 Type4X

Enclosures are intended for indoor or outdoor

use primarily to provide a degree of protection

against corrosion, windblown dust and

rain, splashing water, hose-directed water

anddamagefromexternaliceformation.

(NEMAStandard1-10-1979)

Type 12

Enclosures are intended for indoor

use primarily to provide a degree of

protection against circulating dust, falling

dirt, and dripping noncorrosive liquids.

(NEMAStandard7-15-1991.)

Type 13

Enclosures are intended for indoor

use primarily to provide a degree of

protection against dust, spraying of

water, oil and noncorrosive coolant.

(NEMAStandard1-10-1979.)

 Type7

Enclosures are intended for indoor use in

locationsclassiedasClassI,Groups,A,B,

C,orD,asdenedintheNationalElectrical

Code.(NEMAStandard7-15-1991.)

Type 9

Enclosures are intended for indoor use in

locationsclassiedasClassII,GroupsE,F,or

G,asdenedintheNationalElectricalCode.

(NEMAStandard7-15-1991.)

Deﬁnitions pertaining to nonhazardous locations Deﬁnitions pertaining to hazardous

locations

Introduction

An enclosure is a surrounding case constructed to provide a

degree of protection to personnel against accidental contact

with the enclosed equipment and to provide a degree of

protectiontotheenclosedequipmentagainstspecied

environmental conditions.

A brief description of the more common types of enclosures

used by the electrical industry relating to their environmental

capabilitiesfollows.RefertoNEMAStandardsPublicationfor

more information regarding applications, features and design

tests.

Individual NEMA product Standards Publications or third party

certicationstandardsmaycontainadditionalrequirementsfor

product testing and performance.

S: NEMA Environmental ratings

Disconnect

switches

Non-fusible

18.48 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

no protection

protected against vertically

falling rain or condensation

protected against direct

  spraysofwaterupto15°

from vertical

protected against sprays to

  60°fromvertical

protected against water

sprayed from all directions

protected against low

  pressurejetsofwaterfrom

all directions

  protectedfromstrongjetsof

water (e.g. for use on ship

decks)

protected against the effects

  ofimmersionbetween15cm

and 1m

no protection

protected against solid

  objectsover50mm(e.g. 

accidental touch by hands.)

protected against solid

  objectsover12mm

  (e.g.ngers)

protected against solid

  objectsover2.5mm(tools&

wires)

protected against solid

  objectsover1mm(small 

tools & small wires)

protected against dust (no

harmful deposit)

totally protected against dust

no protection

  impact0,225joule

  150gfallingfrom15cm

  impact0,375joule

  250gfallingfrom15cm

  impact0,50joule

  250gfallingfrom20cm

  impact2,00joule

  500gfallingfrom40cm

  impact6,00joule

  1.5kgfallingfrom40cm

  impact20,00joule

  5kgfallingfrom40cm

IEC Environmental ratings

IP ratings indicate the degree of protection against dust, liquids and impacts. The IP degrees of protection are deﬁned by

the French standard NFC 20-010. To rate a device's degrees of protection, the letters IP are followed by up to three

numbers. These numbers are deﬁned as follows:

first number second number third number

protectionagainstsolidobjects protectionagainstliquids protectionagainstmechanicalimpacts

S: IEC Environmental ratings

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.49

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

O OFF

I ON

OFF

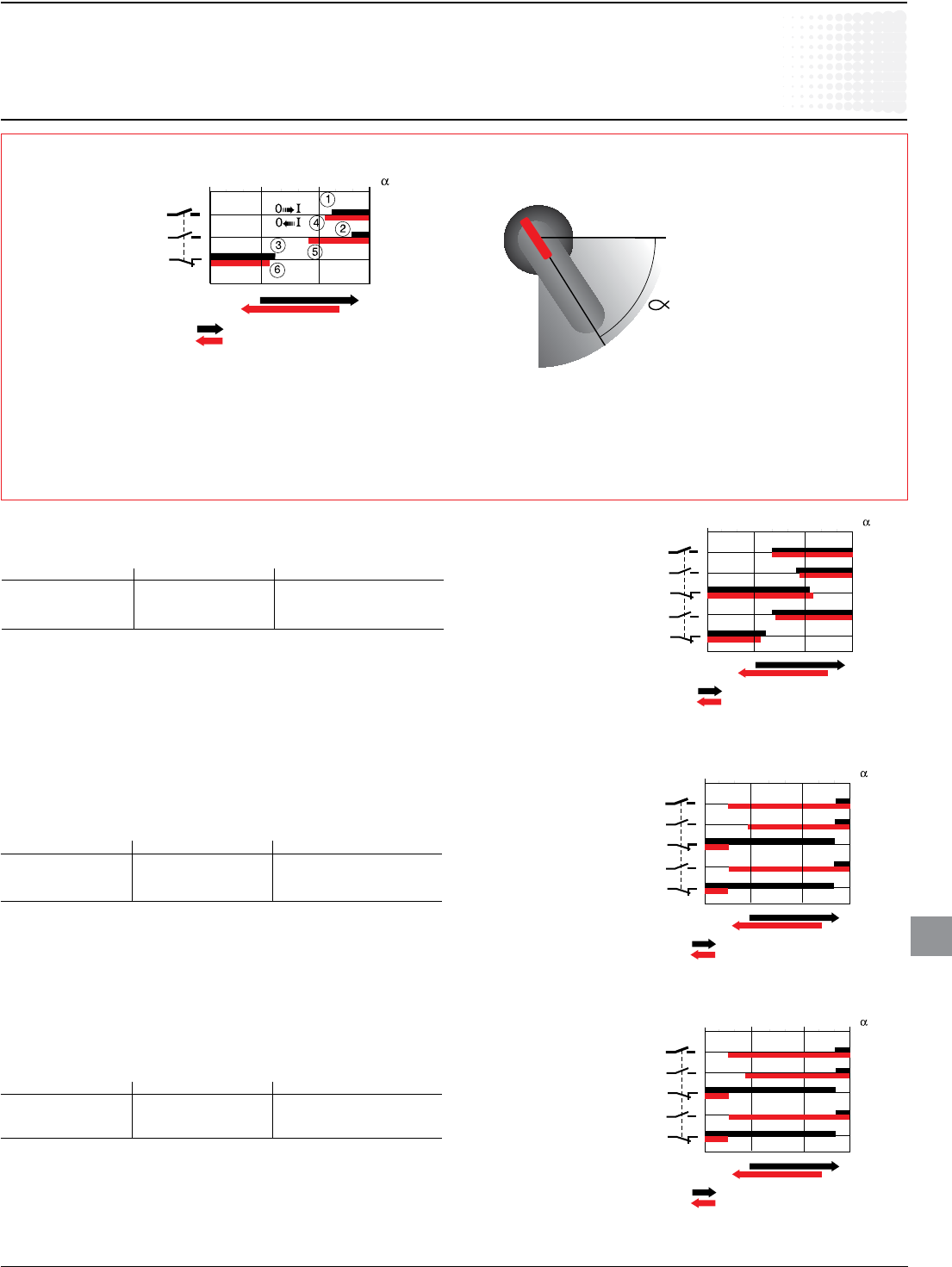

Auxiliary contact timing diagrams

OT16 – OT100

Contacts closing Contacts opening

1 Main contacts close 4 Main contacts open

2N.O.auxiliarycontactsclose 5N.O.auxiliarycontactsopen

3N.C.auxiliarycontactsopen 6N.C.auxiliarycontactsclose

Legend

OT16, OT25, OT32

 Catalognumber Auxiliarycontact Contactconguration

OA1G10 1 N.O.

 OT16,OT25,OT32 OA1G01 1N.C.

OA2G11 1 N.O. & 1 N.C.

OT45, OT63

 Catalognumber Auxiliarycontact Contactconguration

OA1G10 1 N.O.

 OT45,OT63 OA1G01 1N.C.

OA2G11 1 N.O. & 1 N.C.

OT30, OT60, OT100

 Catalognumber Auxiliarycontact Contactconguration

OA1G10 1 N.O.

OT30, OT60, OT100 OA1G01 1 N.C.

OA2G11 1 N.O. & 1 N.C.

OA1G10

OA1G01

OA2G11

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

OA1G10

OA1G01

OA2G11

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

OA1G10

OA1G01

OA2G11

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

T:Auxiliarycontacttimingdiagrams,OT16-OT100

Disconnect

switches

Non-fusible

18.50 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

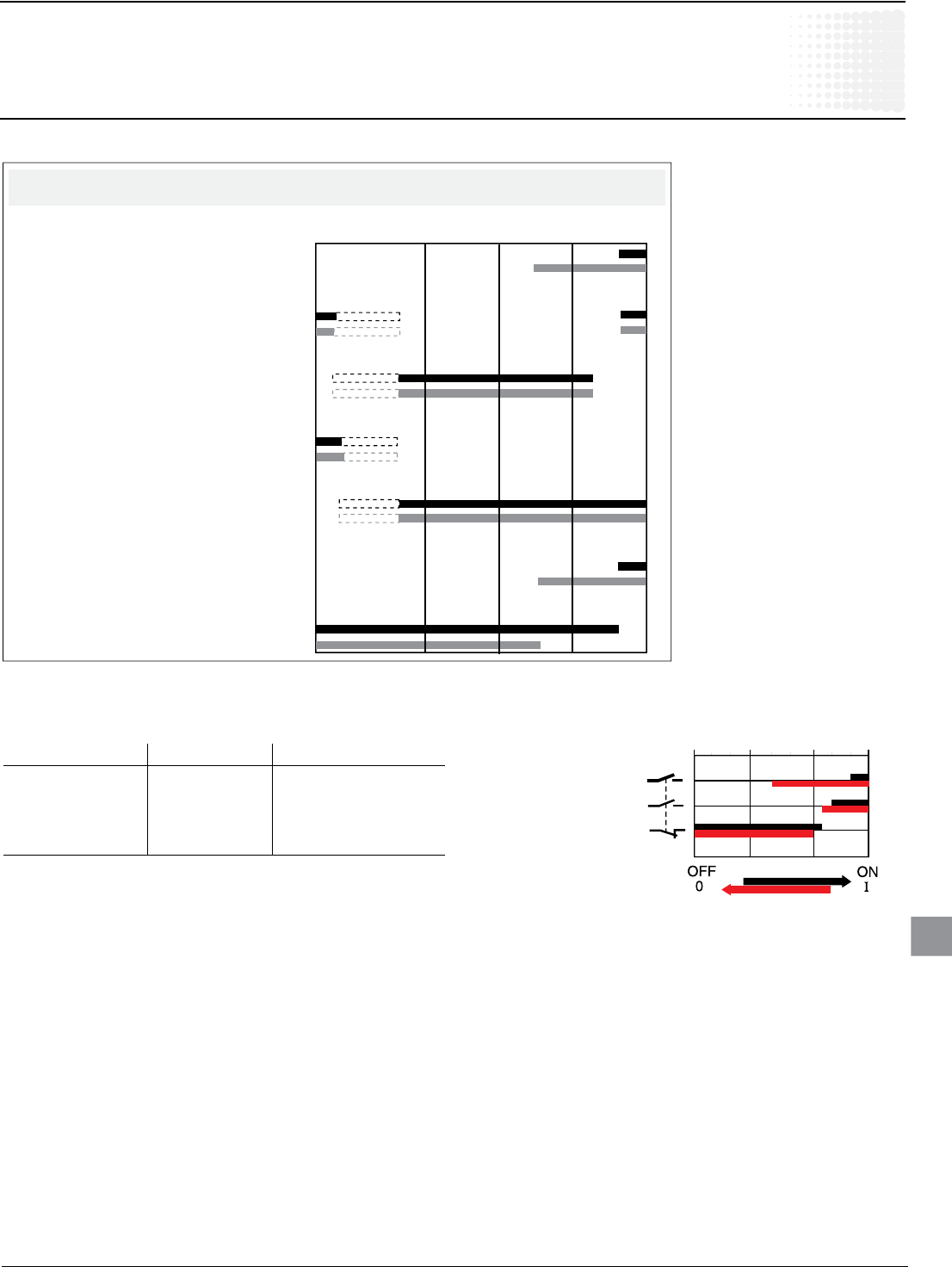

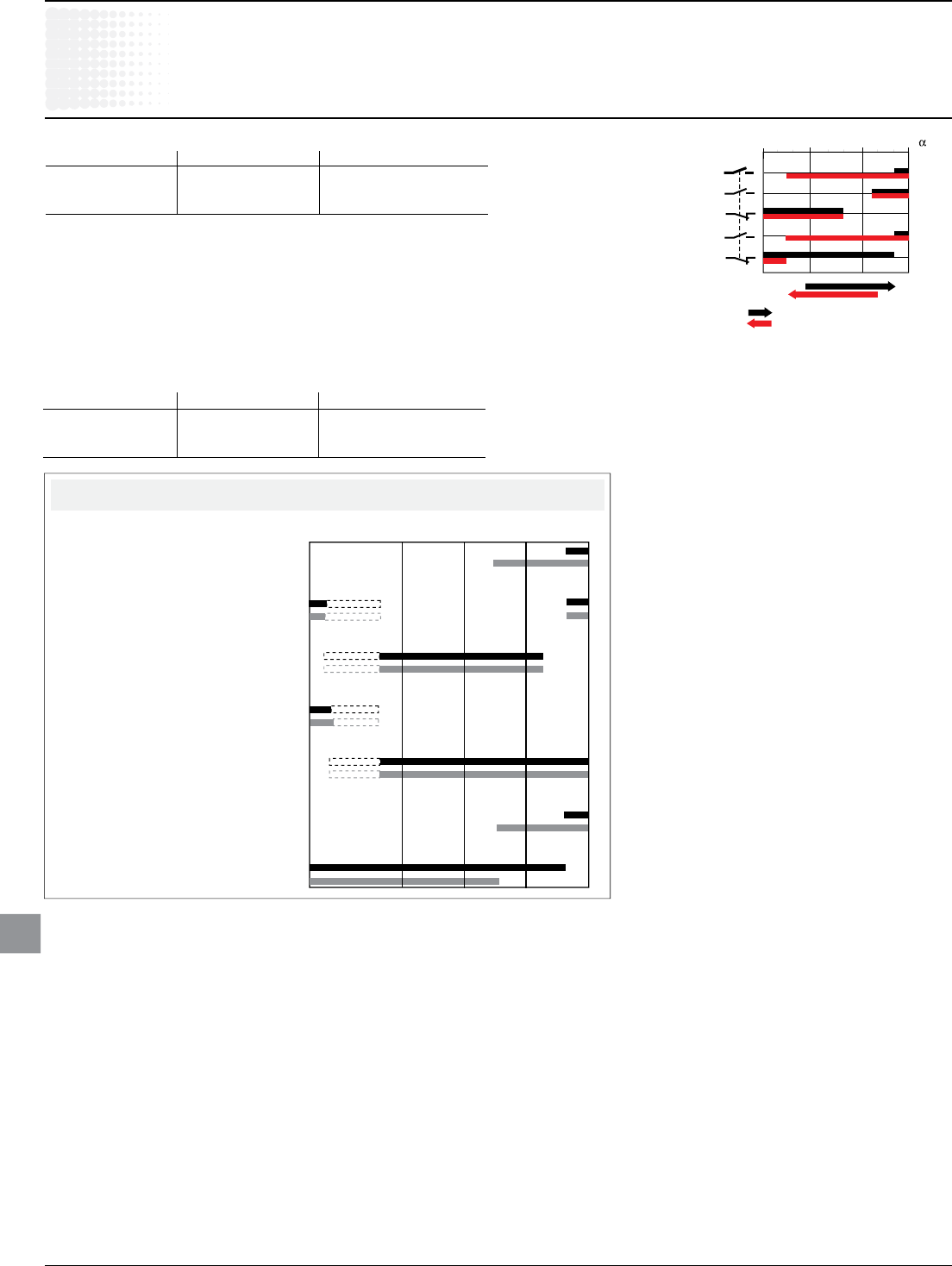

Auxiliary contact timing diagrams

OT160–OT400

OT160E3

 Catalognumber Auxiliarycontact Contactconguration

OBEA-10 1 N.O.

OT160E3 OBEA-01 1 N.C.

OA2G11 1 N.O. & 1 N.C.

 Catalognumber Auxiliarycontact Contactconguration

OA1G10 1 N.O.

OT200U03 – OA3G01 1 N.C.

OT600U03

OT200U03 – OT600U03

4%34 /&& /.

    

.#TESTINDICATINGCONTACTS

INSIDETHEMECHANISM

#ONTACTTYPE

-AINCONTACTS

./TESTCONTACTS

INSIDETHEMECHANISM

.#TESTCONTACTS

INSIDETHEMECHANISM

./TESTINDICATINGCONTACTS

INSIDETHEMECHANISM

./AUXILIARYCONTACTSINTHE

MODULEONTHESIDEOFTHESWITCH

.#AUXILIARYCONTACTSINTHE

MODULEONTHESIDEOFTHESWITCH

)

/.AND/&&FUNCTIONSOFMAINANDAUXILIARYCONTACTS

3HAFT

MOVEMENT

(ANDLEMOVEMENT

OBEA-10

OBEA-01

OA2G11

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

T:Auxiliarycontacttimingdiagrams,OT160-OT400

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.51

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Auxiliary contact timing diagrams

OETL-NF800–OETL-NF3150

OETL-NF800A – OETL-NF3150

OETL-NF800A– OZXK-1 1N.O.&1N.C.

OETL-NF3150 OZXK-2 2N.O.&2N.C.

  OZXK-3 4N.O.&4N.C.

 Catalognumber Auxiliarycontact Contactconguration

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90°

OZXK-1

OZXK-2

OZXK-3

T:Auxiliarycontacttimingdiagrams,OETL-NF800-OETL-NF3150

Disconnect

switches

Non-fusible

18.52 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

OT16,25,32

2.68

1.77

2.20

1.38

0.20

2.36

1.38

0.43

2.13

0.47

0.43

0.87

0.18

4.5

DIA.

0.51

0.43

OT45,63

2.85

72.5

0.59

3.25

82.5

1.71

43.5

2.07

52.5

0.69

17.5

0.69

17.5

0.69

17.5

0.18

4.5

DIA.

2.76

2.89

73.5

1.38

3.60

91.5

0.20

0.43

OT100E3

0.20

2.76

1.04

26.5

0.88

22.5

0.88

22.5

2.20

3.94

100

3.54

0.59

0.18

4.5 DIA.

2.48

2.93

74.5

1.38

3.94

100

0.43

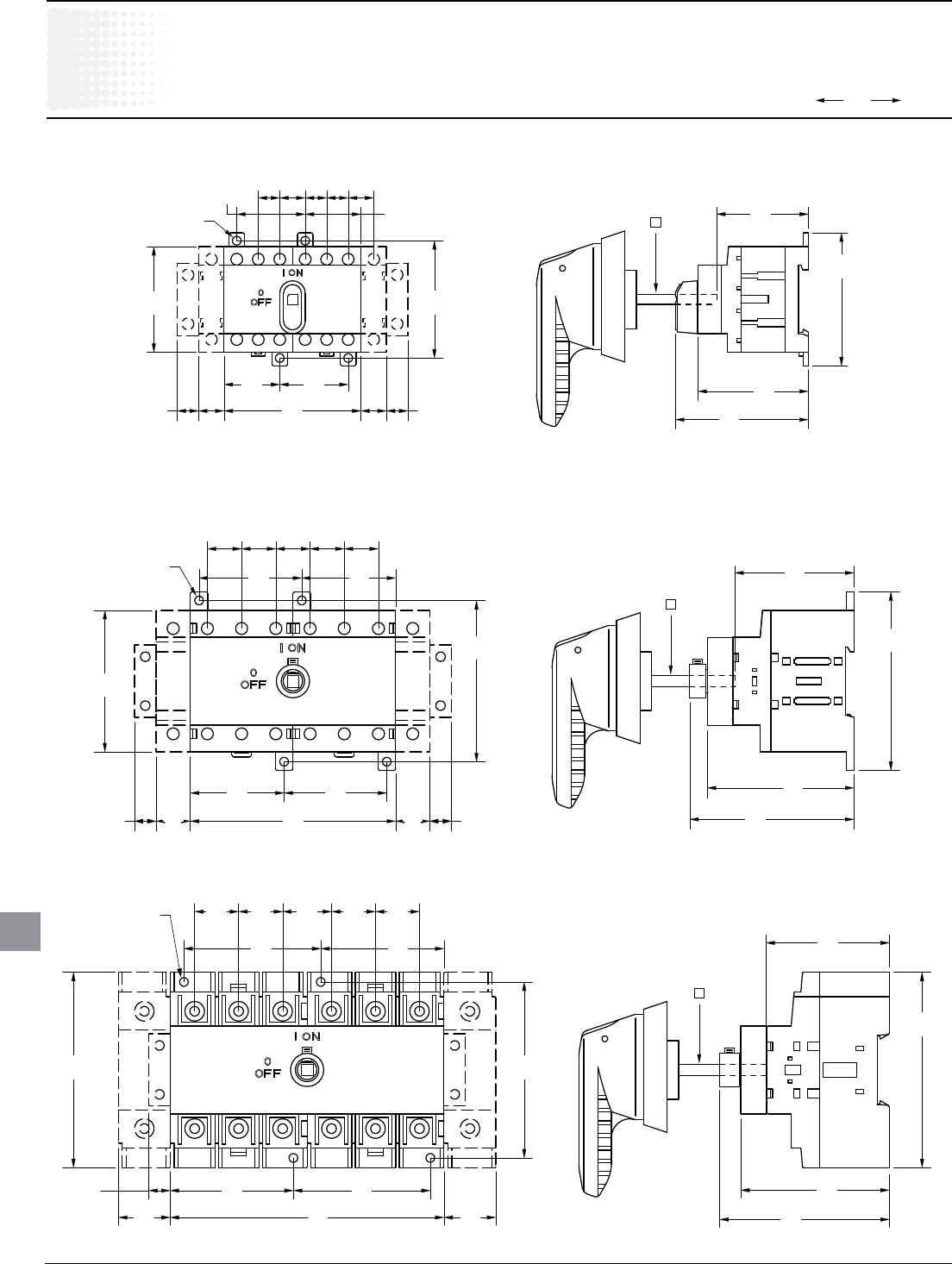

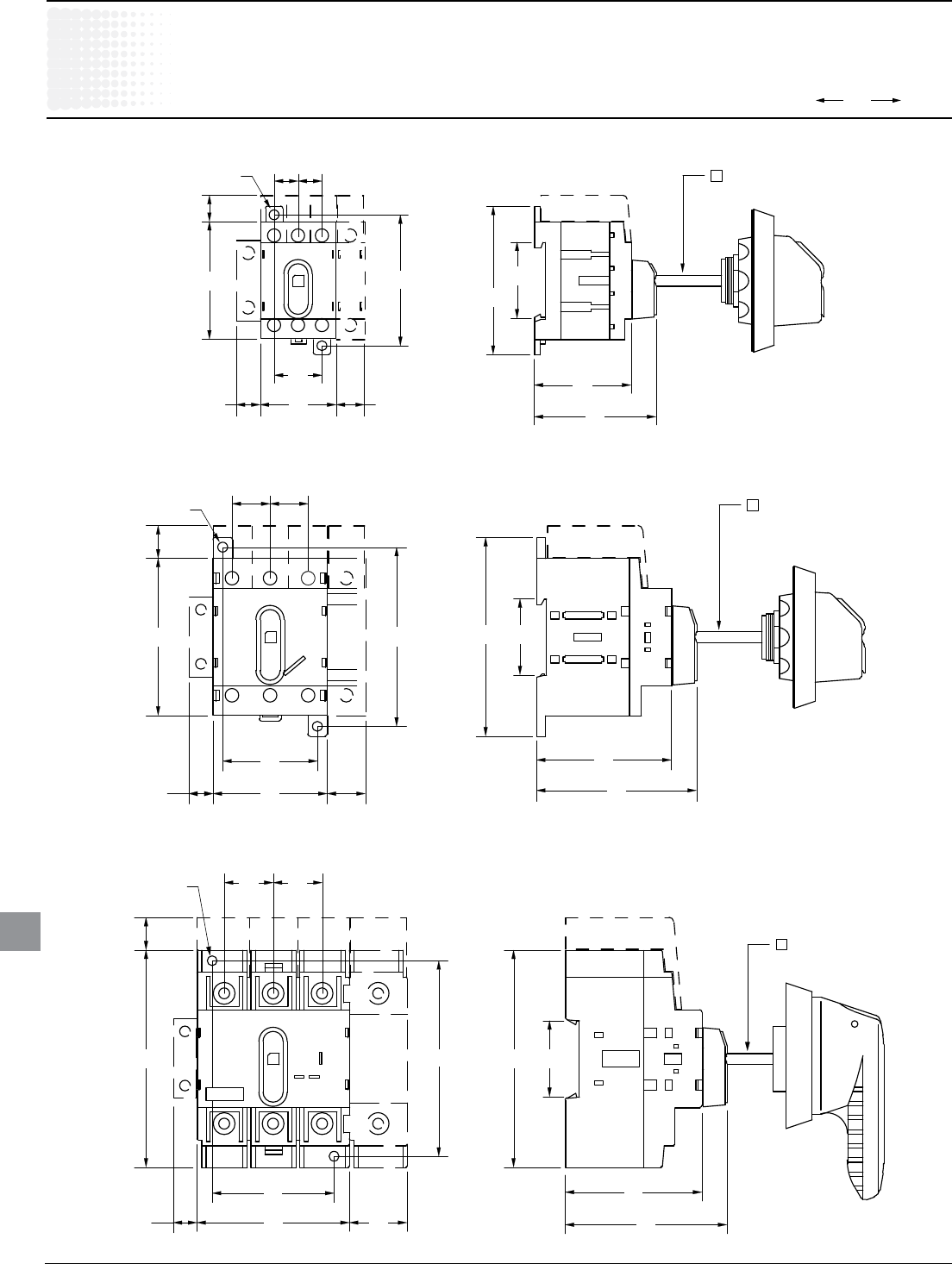

Approximate dimensions

OT16E3 – OT100E3

Base & DIN rail mounted switches

OT16E3, OT25E3, OT32E3 — base & DIN rail mounted switch

OT45E3, OT63E3 — base & DIN rail mounted switch

OT30E3, OT60E3, OT100E3 — base & DIN rail mounted switch

00.00

Inches

[Millimeters]

D: OT16E3 - OT100E3

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.53

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

0.43

2.13

1.38

1.69

0.51

2.64

2.05

0.88

0.08

0.06

1.5

MOUNTING HOLE

DETAIL

0.51

0.43

OT 16 & 32ET

2.72

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

2.07

52.5

2.56

2.85

72.5

0.43

1.42

1.89

0.71

0.16

0.88

MOUNTING HOLE

DETAIL

1.42

1.89

0.71

OT63ET3

OT100ET3

2.76

1.04

26.5

3.94

100

0.43

0.88

22.5

0.88

22.5

0.88

66.5

MOUNTING HOLE

DETAIL

0.16

0.88

0.94

1.89

2.20

0.94

1.89

2.20

0.55

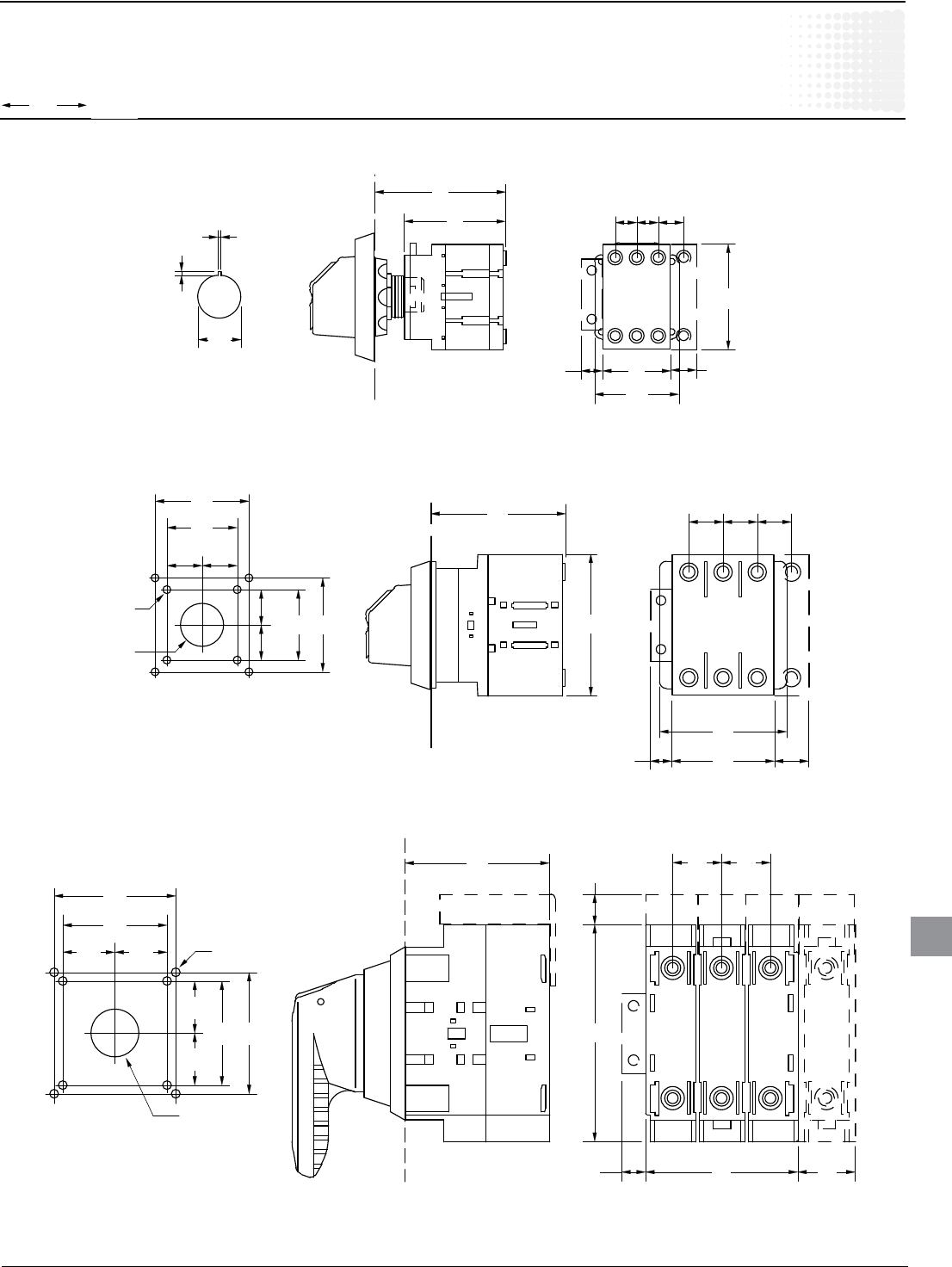

Approximate dimensions

OT16ET3 – OT100ET3

Door mounted switches

OT16ET3, OT25ET3, OT32ET3 — door mounted switch

OT45ET3, OT63ET3 — door mounted switch

OT30ET3, OT60ET3, OT100ET3 — door mounted switch

00.00

Inches

[Millimeters]

D: OT16E3 - OT100E3, Door mounted switches

Disconnect

switches

Non-fusible

18.54 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

2.36

2.76

2.13

0.18

4.5 DIA.

0.51

0.43

0.51

1.12

28.5

1.38

1.12

28.5

1.38

2.68

2.22

56.5

2.68

35mm

DIN rail

1.85

shaft depth

0.20

2.85

72.5

3.25

82.5

0.18

4.5 DIA.

2.95

3.31

3.60

91.5

4.13

105

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

1.89

2.07

52.5

1.89

2.07

52.5

0.43

35mm

DIN rail

2.40

shaft depth

0.24

0.88

22.5

0.88

22.5

0.88

22.5

0.88

22.5

0.98

25.0

2.76

3.94

100

3.54

5.51

140

1.04

26.5

1.04

26.5

2.76

2.48

2.76

2.48

0.43

0.18

4.5 DIA.

2.99

3.43

3.94

100

35mm

DIN rail

2.50

63.5

shaft depth

0.24

Approximate dimensions

OT16E6 & E8 – OT100E6 & E8

6-pole switches

OT16, 25, 32E6 & E8 — 6 Pole switches

OT45, 63E6 & E8 — 6 Pole switches

OT100E6 & E8 — 6 Pole switches

00.00

Inches

[Millimeters]

D: OT16E3 & E8 - OT100E6 & E8 6 pole switches

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.55

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

2.36

2.76

2.13

0.18

4.5 DIA.

0.51

0.43

0.51

1.12

28.5

1.38

1.12

28.5

1.38

2.68

2.22

56.5

2.68

35mm

DIN rail

1.85

shaft depth

0.20

2.85

72.5

3.25

82.5

0.18

4.5 DIA.

2.95

3.31

3.60

91.5

4.13

105

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

0.69

17.5

1.89

2.07

52.5

1.89

2.07

52.5

0.43

35mm

DIN rail

2.40

shaft depth

0.20

0.88

22.5

0.88

22.5

0.88

22.5

0.88

22.5

0.98

25.0

2.76

3.94

100

3.54

5.51

140

1.04

26.5

1.04

26.5

2.76

2.48

2.76

2.48

0.43

0.18

4.5 DIA.

2.99

3.43

3.94

100

35mm

DIN rail

2.50

63.5

shaft depth

0.20

Approximate dimensions

OT16E3C & E4C – OT100E3C & E4C

Transfer switches

OT16, 25, 32E3C & E4C – Transfer switches

OT45, 63E3C & E4C – Transfer switches

OT100E3C & E4C – Transfer switches

00.00

Inches

[Millimeters]

D: OT16E3 & E4C - OT100E3C & E4C transfer switches

Disconnect

switches

Non-fusible

18.56 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

OT160E3

5.16

131

1.38

2.36

2.93

74.5

4.96

126

6.02

153

5.00

127

3.35

6.69

170

5.67

144

3.35

4.69

119

1.06

1.42

2.34

59.5

0.18

4.5

DIA.

0.24

4.96

126

6.02

153

5.00

127

2.34

59.5

3.01

76.5

1.42

1.06

0.24

5.16

131

2.91

3.50

2.09

45º

0.20

MOUNTING HOLE

DETAIL

1.22

3.31

OT160ET

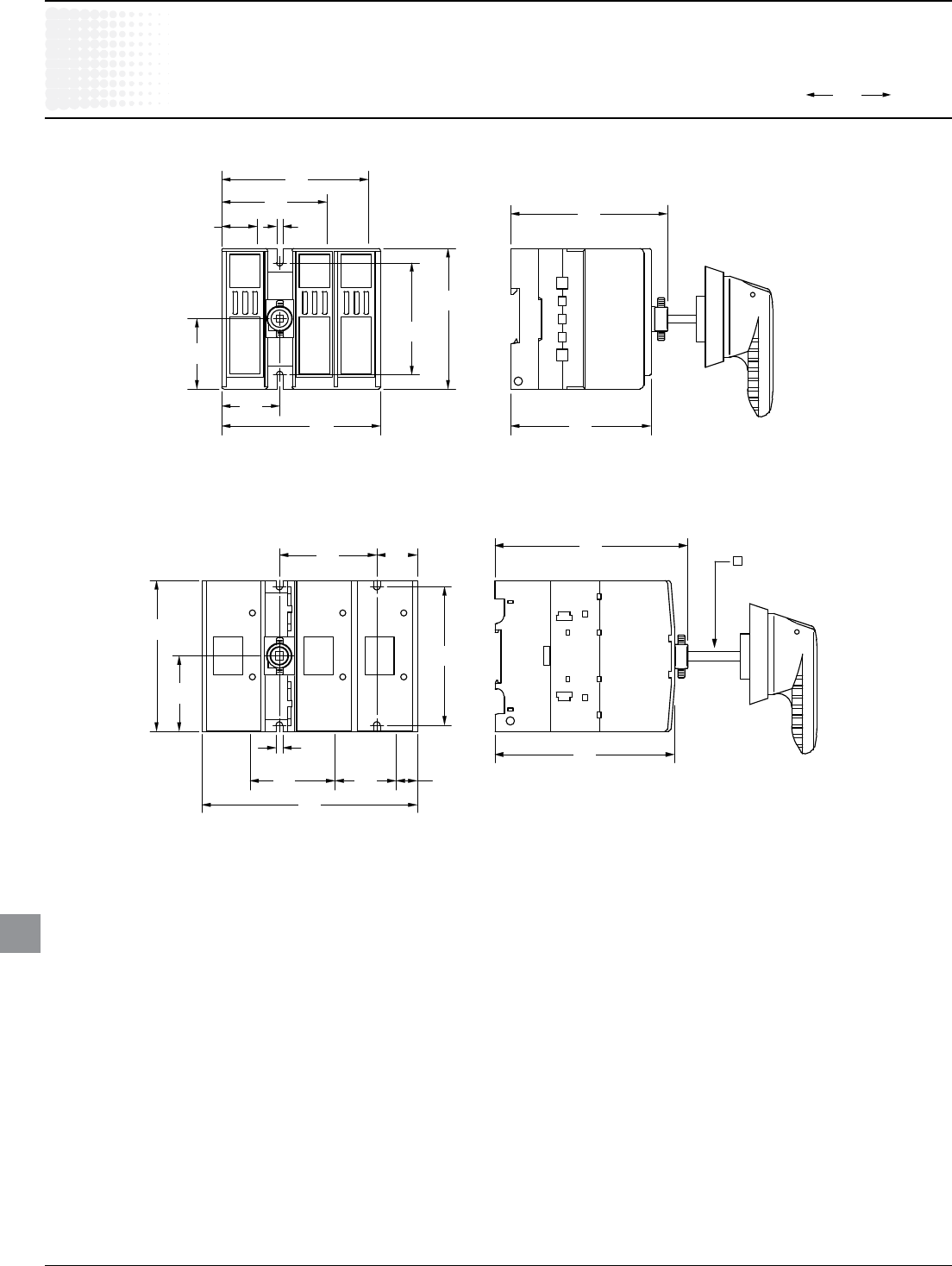

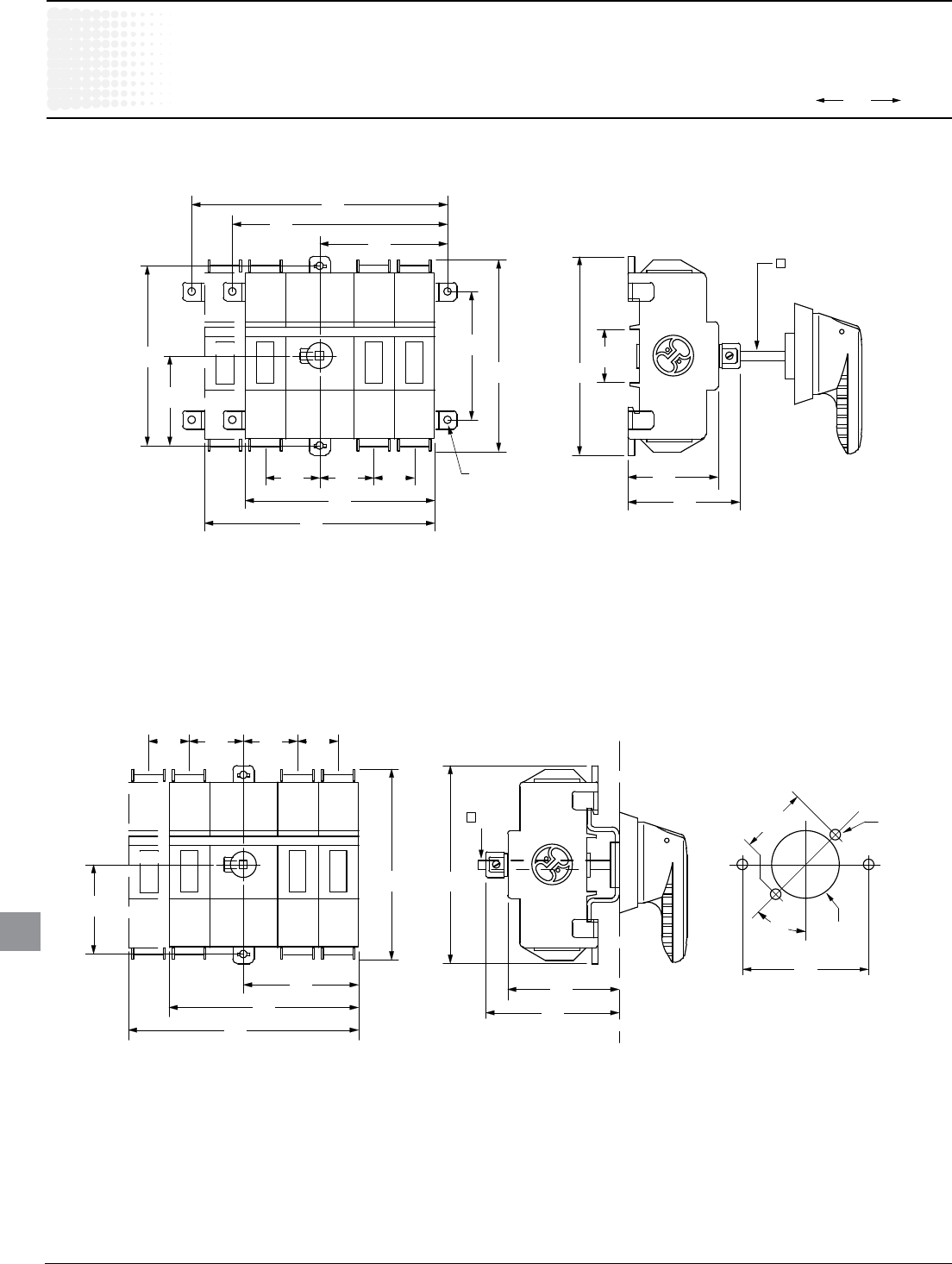

Approximate dimensions

OT160E3 & OT160ET3

OT160E3 — base & DIN rail mounted switch

OT160ET3 — Door mounted switch

00.00

Inches

[Millimeters]

D: OT16E3 & OT160ET3

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.57

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

5.71 34 401

001

35 A

221

9 Ø

5.33

071 051

502...041 54

nim 41

52 53

2B 2C

)161x6 PXO (

221

1 00

68 34

11 4

410

34 20

70 140 ... 205

PXO( 6x161) 45

14 nim

170

150 Ø 16

33 .5

25 35

A3 B3

Approximate dimensions

OT200_

OT200U03, -04

OT200U12, -13, -22

OT200 (mm)

U03 U04

A 43 43

B 169.5 212.5

A1 114 114

A2 149 192

B1 109.5 109.5

B2 165 208

C1 84 84

C2 179 222

OT200 (mm)

U12 U13 U22

A 96 96 139

B 174.5 217.5 217.5

A1 114 114 114

A2 149 192 192

A3 53 53 96

B1 109.5 109.5 109.5

B2 165 208 208

B3 61 61 104

C1 184 84 84

C2 179 222 222

C3 68 68 111

 -ILLIMETERS

D: OT200

Disconnect

switches

Non-fusible

18.58 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

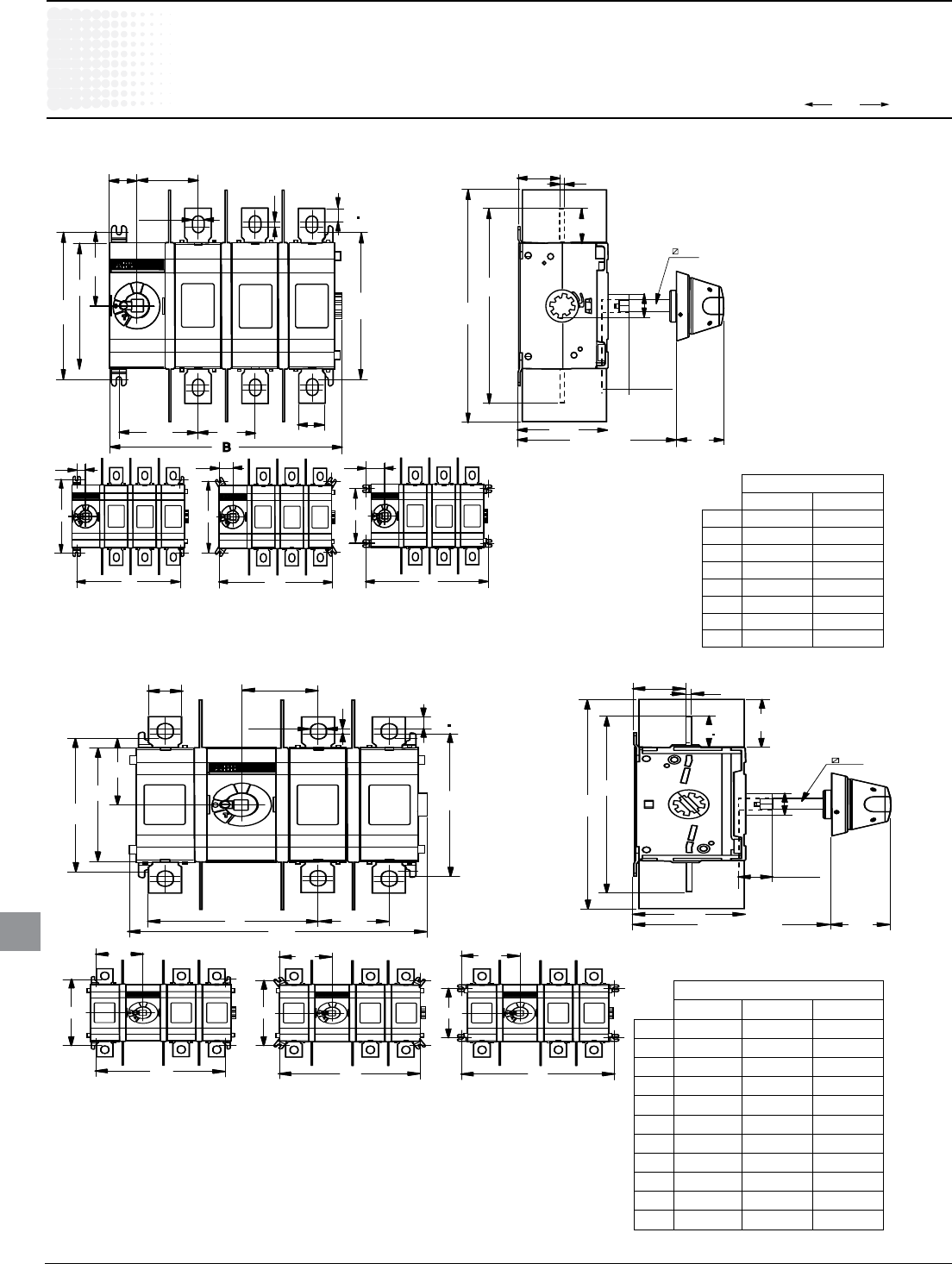

041

021

26 58

Ø 11

21 .5

041

5257 A

04 4

022

185

85 41 6 ... 22 6

(OXP 21 x1 66 )

52 nim

Ø 22

041

021

552 8

Ø 11

21 .5

051

B45

04 4

23 .5

022

185

52 nim

Ø 22

41 6 ... 22 6

(OXP 21 x1 66 ) 54

Approximate dimensions

OT400_

 -ILLIMETERS

OT400U03, -04

OT400 (mm)

U03 U04

A 54 54

B 221 275

A1 140 140

A2 196 250

B1 135 135

B2 214 268

C1 104 104

C2 232 286

OT400U12, -13. -22

OT400 (mm)

U12 U13 U22

A 129 129 183

B 226 280 280

A1 140 140 140

A2 196 250 250

A3 71 71 125

B1 135 135 135

B2 214 268 268

B3 80 80 134

C1 104 104 104

C2 232 286 286

C3 89 89 143

D: OT400

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.59

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

OETL-NF800A

1.56

39.5

0.79

1.97

0.55

0.59

3.74

7.48

190

3.54

1.57

0.47

5.04

128

8.35

212

14.65

372

0.35

DIA.

0.47

1.10

5.75

146

10.47

266

19.21

488

4.92

125

10.71

272

(2 Pole)

14.25

362

(3 Pole)

17.80

452

(4 Pole)

8.07

205

(2 Pole)

11.61

295

(3 Pole)

15.16

385

(4 Pole)

0.94

2.07

52.5

OETL-NF800A

Approximate dimensions

OT600U03 – OETL-NF800A

OT600U03

00.00

Inches

[Millimeters]

D: OT600U03 - OETL-NF800A

Disconnect

switches

Non-fusible

18.60 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

OETL-NF1200

1.57

8.35

212

14.65

372

0.47

4.92

125

5.75

146

5.20

132

0.63

1.56

39.5

0.79

1.97

0.55

0.59

0.94

3.74

7.48

190

3.54

0.35

9DIA.

1.10

10.47

266

19.21

488

10.71

272

(2 Pole)

14.25

362

(3 Pole)

17.80

452

(4 Pole)

8.19

208

(2 Pole)

11.73

298

(3 Pole)

15.27

388

(4 Pole)





POLE





















































$)!





$)!























/%4,.&





POLE





POLE





POLE





POLE





POLE



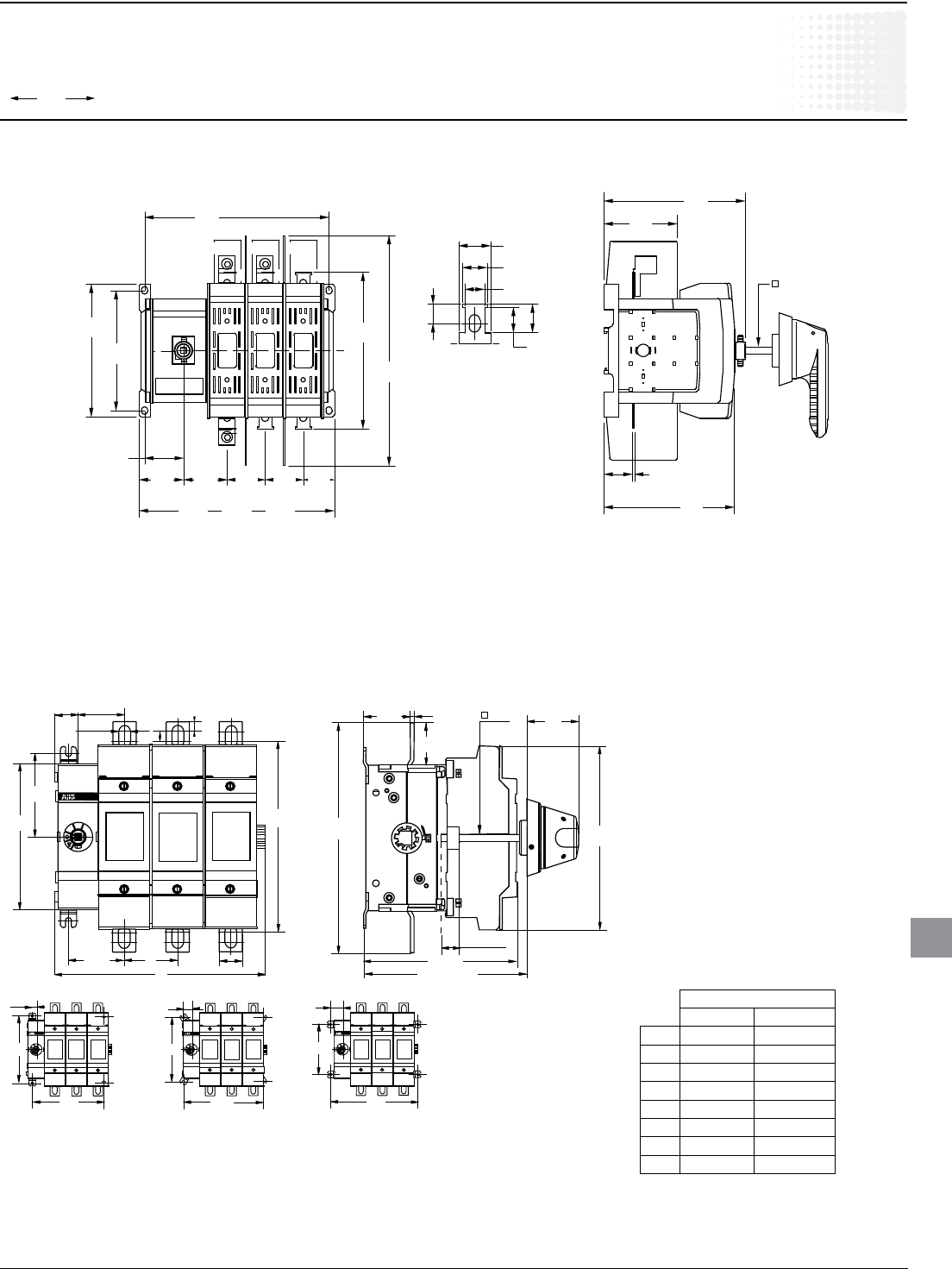

Approximate dimensions

OETL-NF1200 – OETL-NF1600

OETL-NF1200

OETL-NF1600

00.00

Inches

[Millimeters]

D: OETL-NF1200 – OETL-NF1600

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.61

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

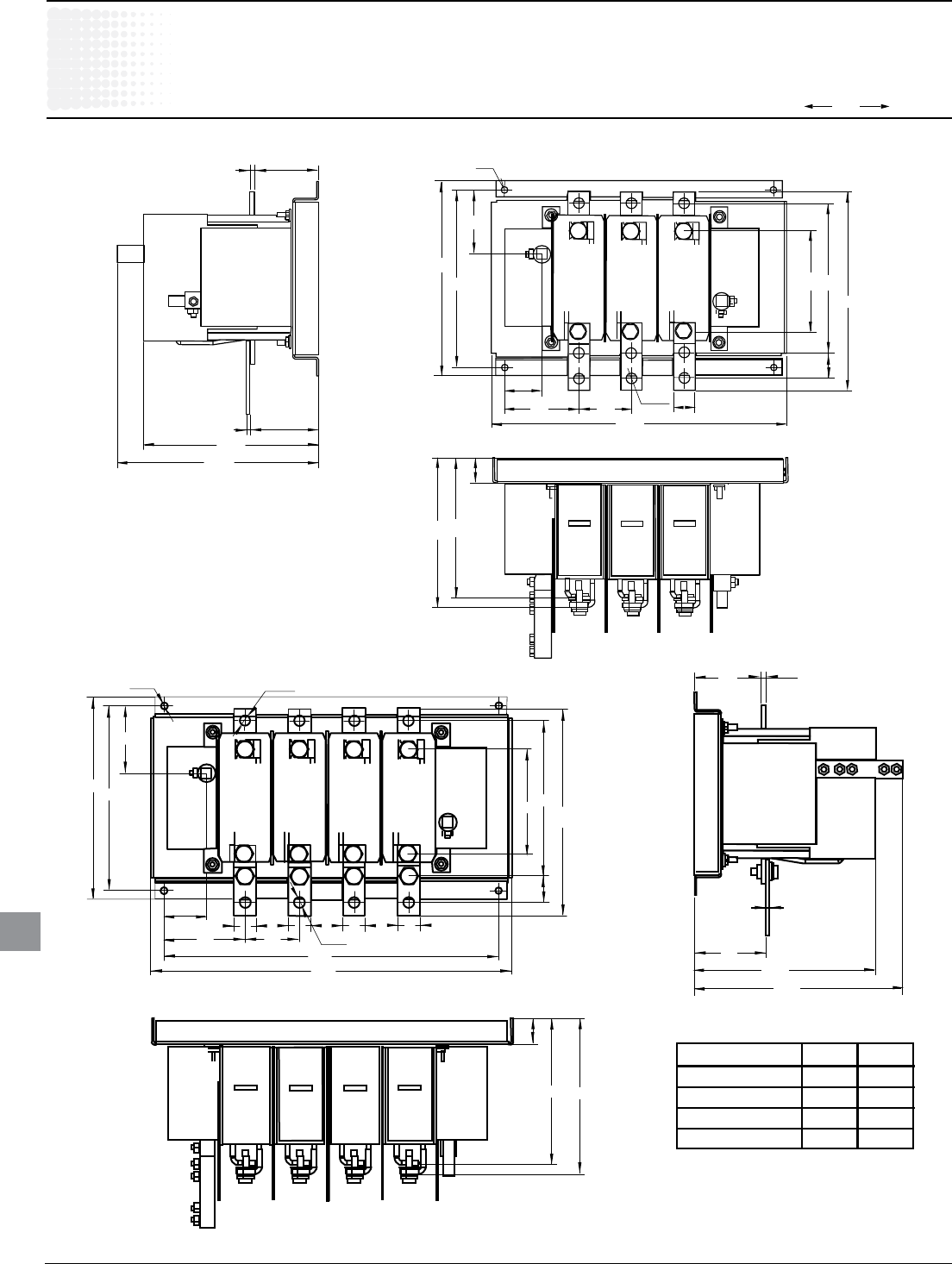

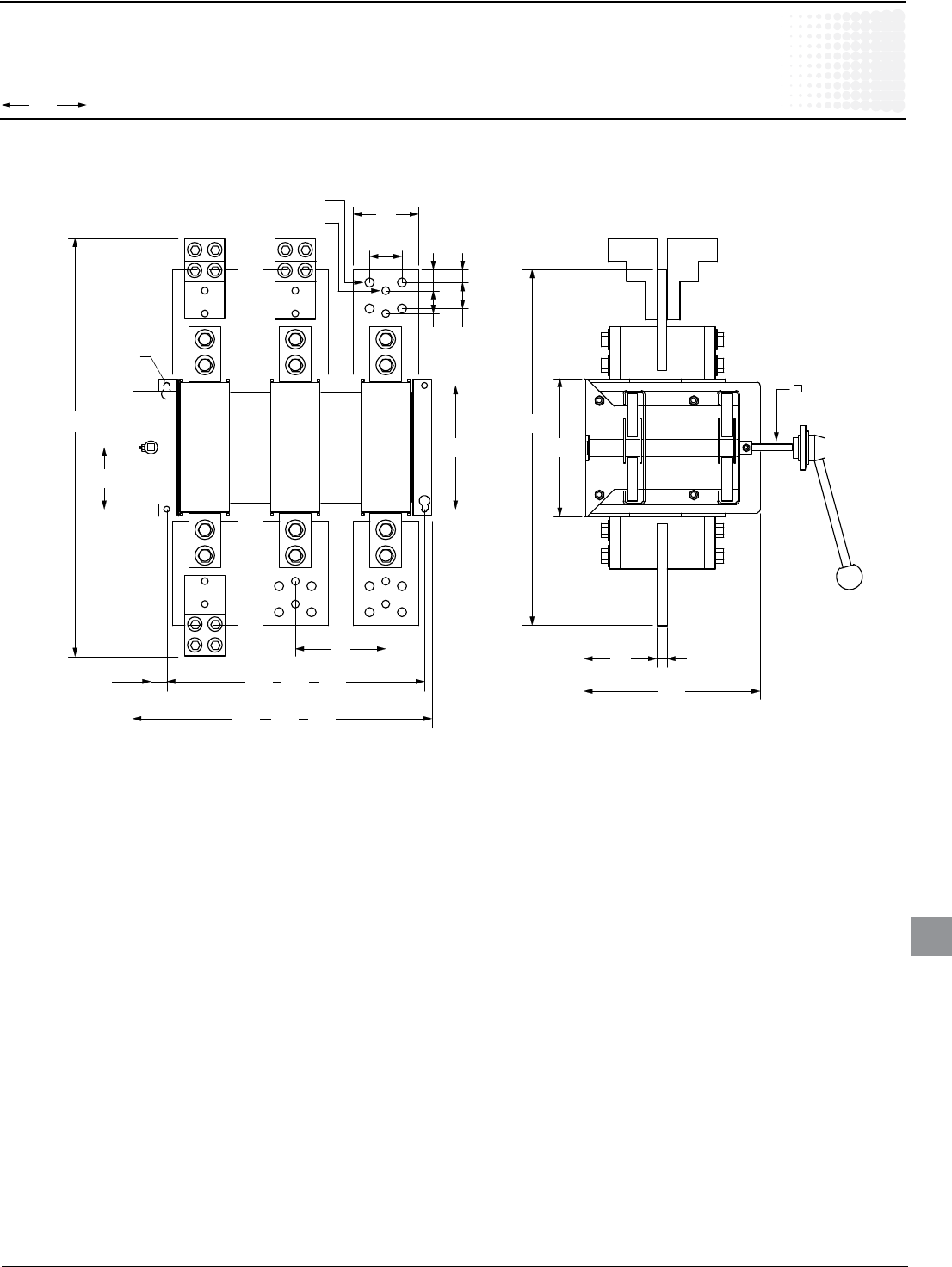

Approximate dimensions

OETL-NF2000 – OETL-NF3150

00.00

Inches

[Millimeters]

/%4,.&





































































$)!













$)!





POLE





POLE





POLE





POLE





POLE





POLE

D: OETL-NF2000 – OETL-NF3150

Disconnect

switches

Non-fusible

18.62 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

480

206

237

575

88 62 Ø12 25

348

232

177

119

230

210

177 166

Ø 7

230

210

92 62 Ø12

380

410

232

177

119

Ø 11

166 177

206

237

75 5

AA A B

OESC 250K04

OESC 500K04

OESC 250K04N2

OESC400K04N2

AxC

25x4

BxC

25x4

30x8

Approximate dimensions

OESC250 — OESC500

OESC250 – OESC500 – 3 pole

OESC250 – OESC500 – 4 pole

 -ILLIMETERS

D: OESC250 — OESC500

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.63

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

1.57

4.92

125

0.37

9.5

1.38

C.L. 0.75

3.00

0.41

10.3

OZXA-30

0.75

3.00

4.92

125

2.47

0.37

9.5

1.38

C.L.

0.41

10.3

OZXA-28

#,

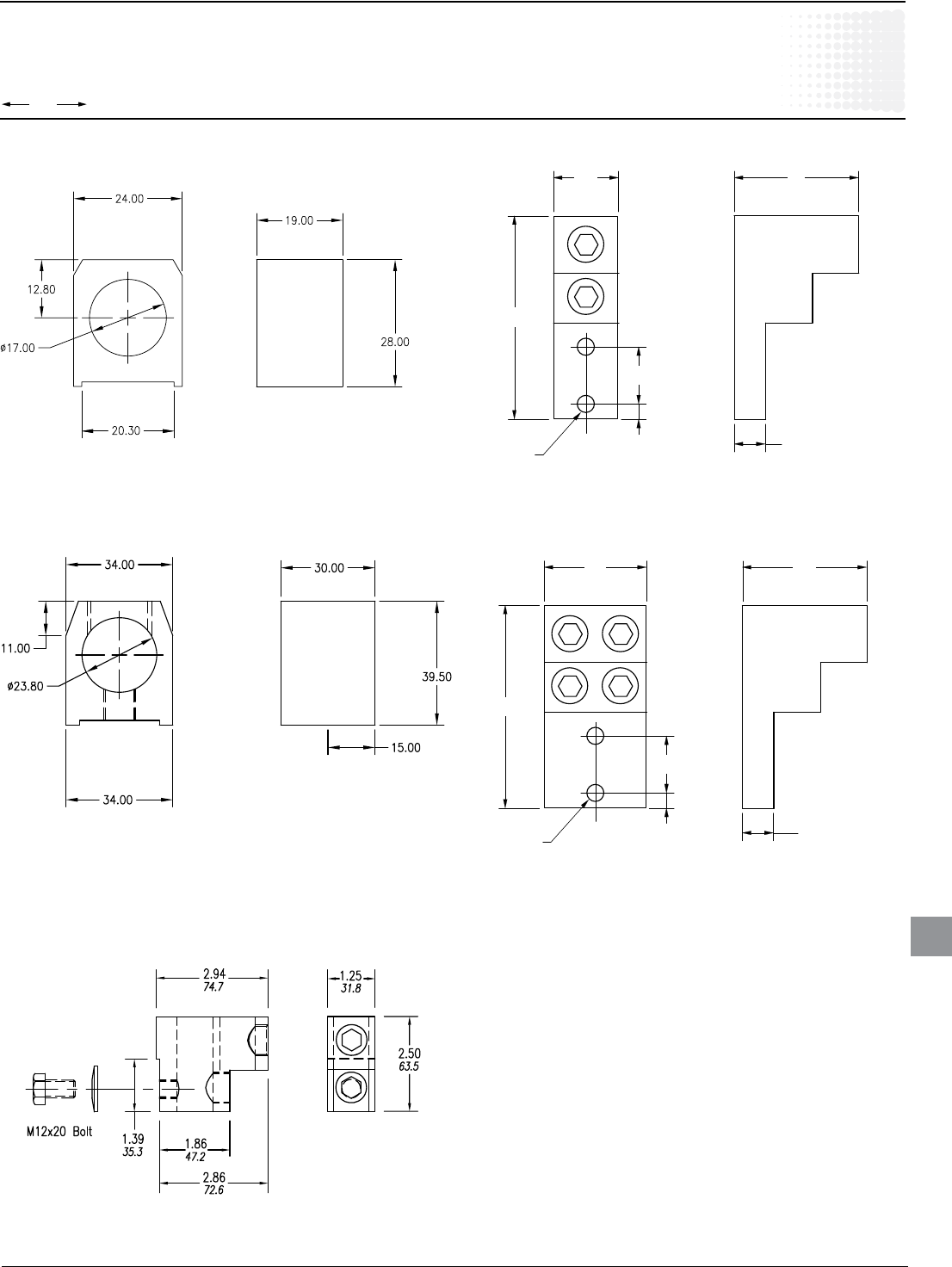

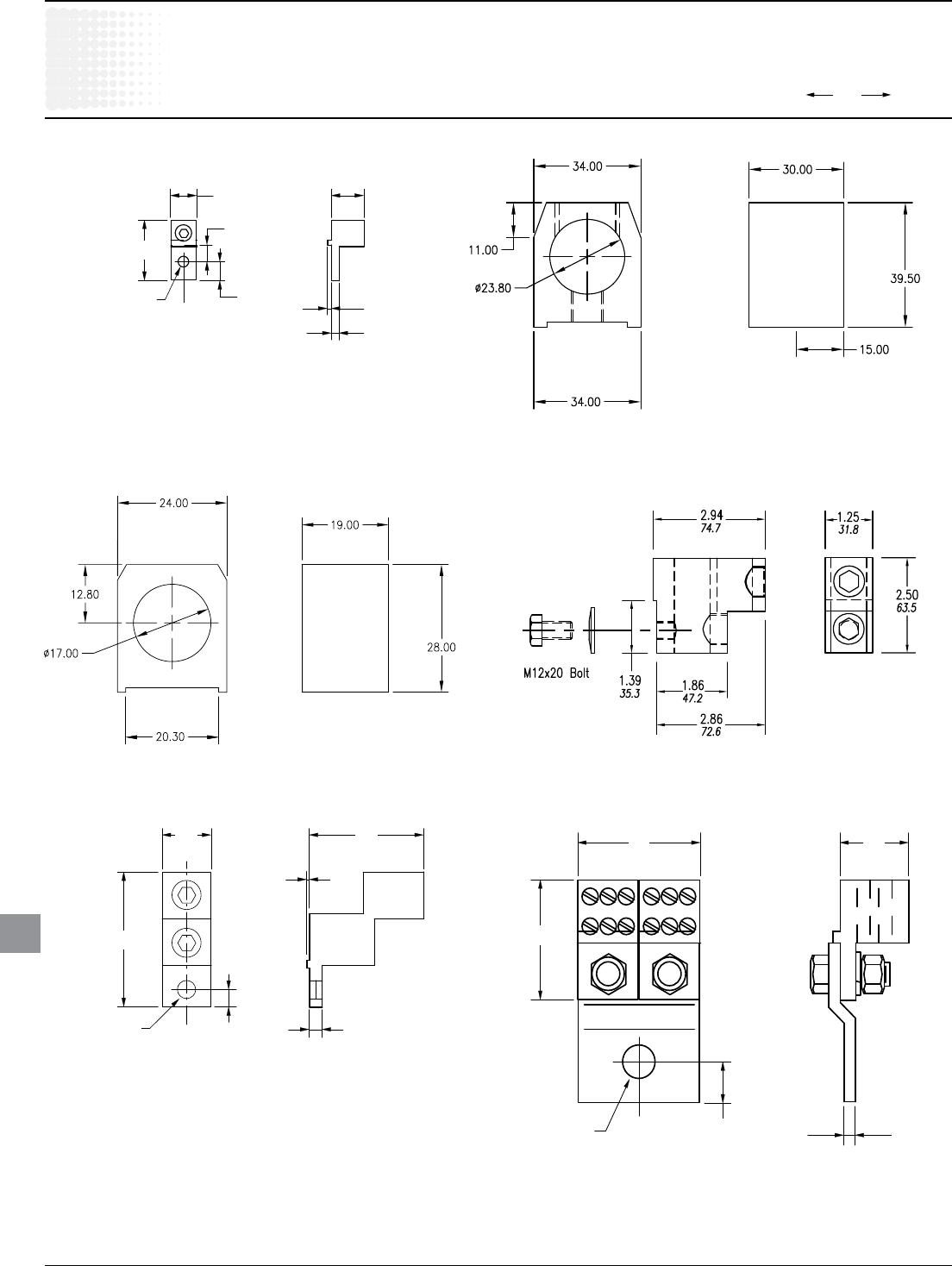

Approximate dimensions

for Terminal lugs

OZXA-200

OZXA-400

OZXA-800

OZXA-30 — for use with 800A switches

OZXA-28 & OZXA-28/2 — for use with 1200A – 3150A switches

00.00

Inches

[Millimeters]

D: Terminal lugs

Disconnect

switches

Non-fusible

18.64 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

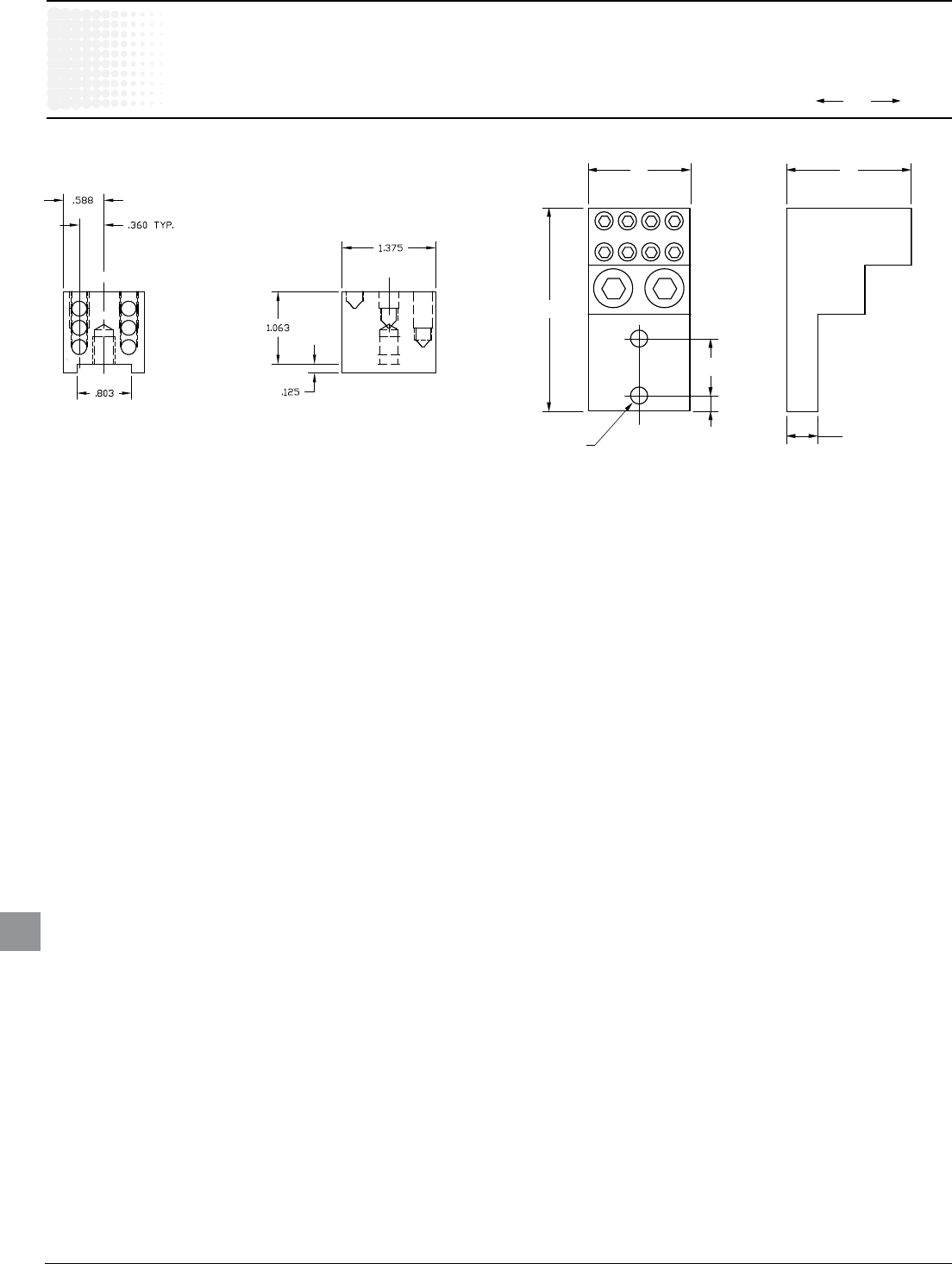

Approximate dimensions

for Terminal lugs

OZXA-32 – for use with 800A - 1600A switches

OZXA-406 – for use with 400A switches

00.00

Inches

[Millimeters]

OZXA-32

0.75

3.00

4.92

125

2.47

0.37

9.5

1.38

C.L.

0.41

10.3

#,

D: Terminal lugs

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.65

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

2.83

10.71

272

0.59

1.54

2.17

1.18

1.54

3.54...9.45

90...240

15mm STEPS

0.24

0.20

OTZW6

0.59

1.18

0.59

(0...13) STEPS

0.20

OTZW8

2.83

10.71

272

0.59

1.54

2.17

1.18

1.54

3.54...8.27

90...210

15mm STEPS

0.24

0.20

4.72...9.45

120...240

15mm STEPS

OTZW17

3.94

100

0.20

Approximate dimensions

for 16A – 100A conversion mechanisms

6 or 8 pole — OTZW8

Transfer switch — OTZW6, OTZW6X

Bypass switch — OTZW17, OTZW17X

For installation of 6 or 8 pole, transfer and bypass mechanisms, the following

minimum and maximum mounting dimensions are given below.

1 Deeper enclosures will require a longer shaft. Please select a 5mm shaft from page 18.10 - 18.11.

OTZW8 Minimum Maximum

in combination with: inches/mm inches/mm

OT16E3, OT25E3, OT32E3 3.07/78 N/A

OT45E3, OT63E3 3.74/95 N/A

OT30E3, OT60E3, OT100E3 3.82/97 N/A

OTZW6, OTZW6X Minimum Maximum1

in combination with: inches/mm inches/mm

OT16E3, OT25E3, OT32E3 4.61/117 6.57/167

OT45E3, OT63E3 5.31/135 7.28/185

OT30E3, OT60E3, OT100E3 4.84/123 6.81/173

OTZW17, OTZW17X Minimum Maximum1

in combination with: inches/mm inches/mm

OT16E3, OT25E3, OT32E3 4.61/117 6.57/167

OT45E3, OT63E3 5.31/135 7.28/185

OT30E3, OT60E3, OT100E3 4.84/123 6.81/173

Mechanical interlock — OETL-ZW24

OETL-ZW24 Minimum Maximum1

in combination with: inches/mm inches/mm

OT16E3, OT25E3, OT32E3 3.39 / 86 —

OT45E3, OT63E3 4.09 / 104 —

OT30E3, OT60E3, OT100E3 4.13 / 105 —

00.00

Inches

[Millimeters]

D: 16A - 100A conversion mechanisms

Disconnect

switches

Non-fusible

18.66 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

7.48

190

0.24

1.77...9.49

45...240

(15mm Steps)

0.59

0.24

0.47

4.72

120

7.72

196

1.57

OESA-ZW2

2.83

10.71

272

0.59

2.17

4.57

116

1.54

39 0.24

0.24

1.54

3.54...9.45

90...240

15mm STEPS

OESA-ZW1

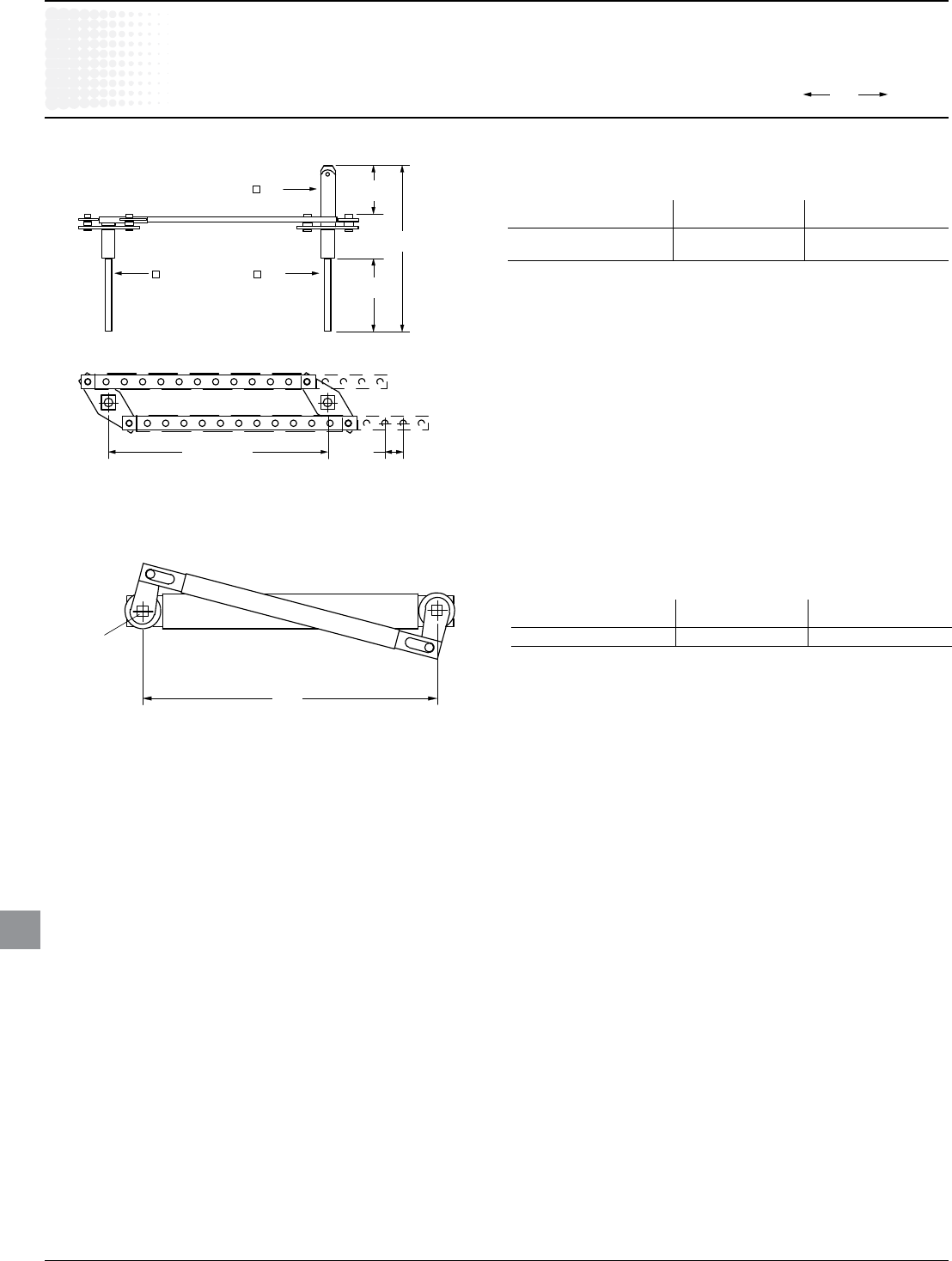

Approximate dimensions

for 125 – 200A conversion mechanisms

6 or 8 pole — OESA-ZW2

Transfer switch — OESA-ZW1, OESA-ZW1X

For installation of 6 or 8 pole, transfer and bypass mechanisms, the following

minimum and maximum mounting dimensions are given below.

OESA-ZW2 Minimum Maximum

in combination with: inches/mm inches/mm

OT160 - OT200 5.35/136 9.49/241

NOTE: Deeper enclosures will require a longer shaft. Please select a 12mm shaft from page

18.26 and an OETL-ZX95 shaft extension coupler from page 18.28.

OTZW10 Minimum Maximum

in combination with: inches/mm inches/mm

OT160 - OT200 4.13 / 105 —

NOTE: Deeper enclosures will require a longer shaft. Please select a 6mm shaft from page 18.20

or 18.23.

Mechanical interlock — OTZW10

OESA-ZW1, OESA-ZW1X Minimum Maximum

in combination with: inches/mm inches/mm

OT160 - OT200 4.61/117 6.57/167

NOTE: Deeper enclosures will require a longer shaft. Please select a 6mm shaft from page 18.20

or 18.23.

00.00

Inches

[Millimeters]

D: 125A - 200A conversion mechanisms

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.67

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

2.36...17.32

60...240

20mm Steps

0.79

0.47

1.46

OETL-ZW9

4.53

115

1.89

1.57

3.31

0.47

3.54

0.79

8.27...24.02

210...610

20mm steps

0.47

26.06

662

OETL-ZW12

Approximate dimensions

for 400A – 1200A conversion mechanisms

6 or 8 pole — OETL-ZW9

Transfer switch — OETL-ZW12

1 Deeper enclosures will require a longer shaft. Please select a 12mm shaft from page 18.26 and an OETL-ZX95 shaft extension coupler from pg. 18.28.

For installation of 6 or 8 pole, transfer and bypass mechanisms, the following

minimum and maximum mounting dimensions are given below.

OETL-ZW9 Minimum Maximum

in combination with: inches/mm inches/mm

OT400 7.52/191 N/A

OT600 7.52/191 N/A

OETL-NF800A 7.52/191 N/A

OETL-NF1200 7.52/191 N/A

NOTE: Handle not included

OETL-ZW12 Minimum Maximum1

in combination with: inches/mm inches/mm

OT400 8.19/208 11.73/298

OT600 8.19/208 11.73/298

OETL-NF800A 8.19/208 11.73/298

OETL-NF1200 8.19/208 11.73/298

NOTE: Includes YASDA-21 handle

00.00

Inches

[Millimeters]

D: 400A - 1200A conversion mechanisms

Disconnect

switches

Non-fusible

18.68 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

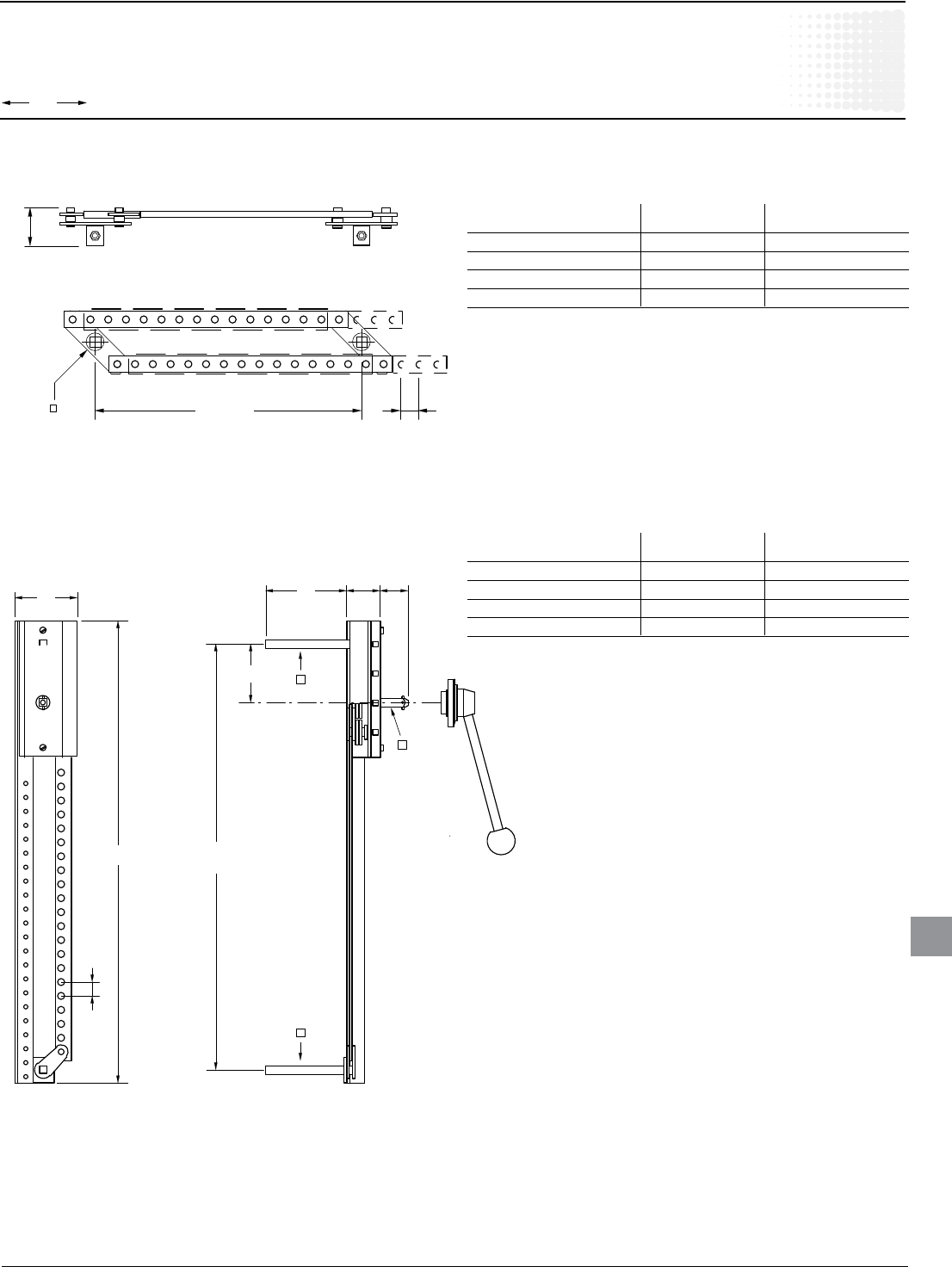

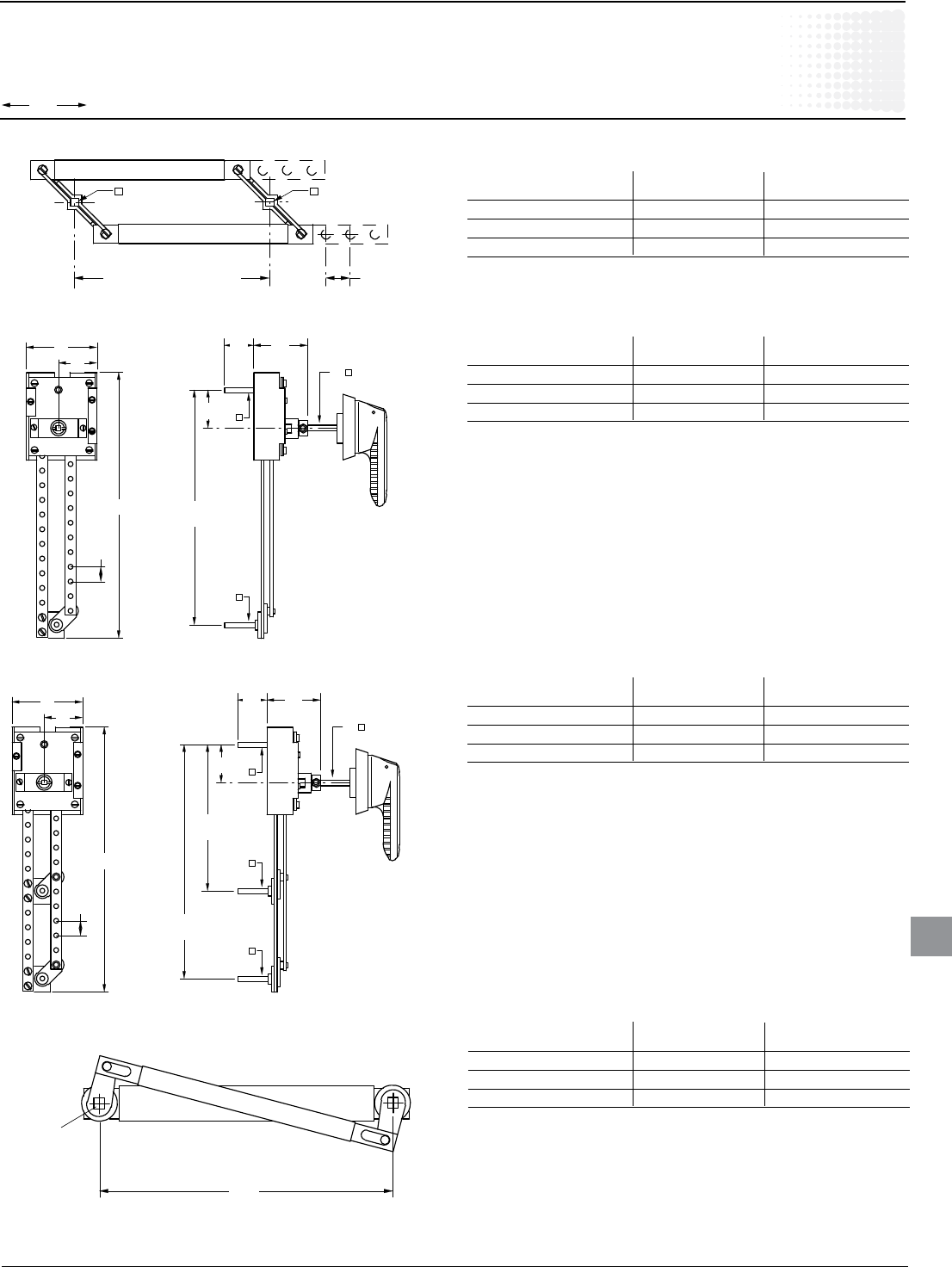

4.53

115

2.07

52.5

1.32

33.5

3.31

8.27...22.44

210...570

0.47

9.84...24.02

250...610

0.47

OETL-ZW13

3.54

26.06

662

0.79

Dimensions in Inches

& mm

OETL-ZW3 11.81 0.47

300.0 12.0

OETL-ZW14 9.84 0.47

250.0 12.0

OETL-ZW15 19.69 0.47

500.0 12.0

OETL-ZW3, 14, 15

Bypass switch — OETL-ZW13

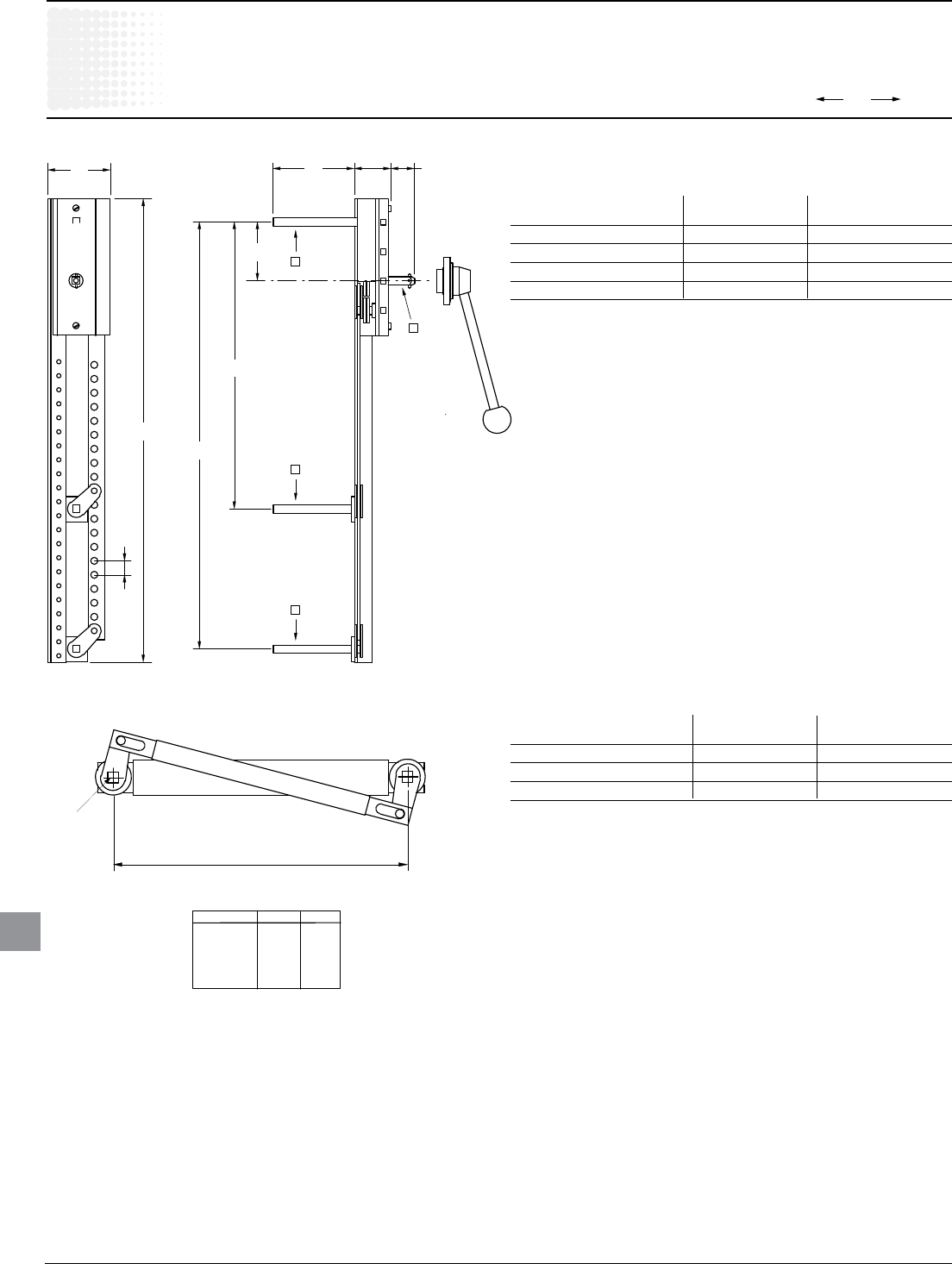

Approximate dimensions

for 400A – 3150A conversion mechanisms

1 Deeper enclosures will require a longer shaft. Please select a 12mm shaft from page 18.26 and an OETL-ZX95 shaft extension coupler from page 18.28.

For installation of 6 or 8 pole, transfer and bypass mechanisms, the following

minimum and maximum mounting dimensions are given below.

OETL-ZW12 Minimum Maximum1

in combination with: inches/mm inches/mm

OT400 8.19/208 11.73/298

OT600 8.19/208 11.73/298

OETL-NF800A 8.19/208 11.73/298

OETL-NF1200 8.19/208 11.73/298

NOTE: Includes YASDA-21 handle

OETL-ZW3, 14 & 15 Minimum Maximum1

in combination with: inches/mm inches/mm

OT400 & OT600 6.50/165 —

OETL-NF800 – OETL-NF1200 6.30/160 —

OETL-NF1600 – OETL-NF3150 12.00/305 —

NOTE: Handle(s) not included.

NOTE: OETL-ZW15 is the only mechnical interlock

OETL-NF1200 – OETL-NF3150 can use.

Mechanical interlock — OETL-ZW3, OETL-ZW14, OETL-ZW15

00.00

Inches

[Millimeters]

D: 400A - 3150A conversion mechanisms

Disconnect

switches

Non-fusible

Low Voltage Products & Systems 18.69

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

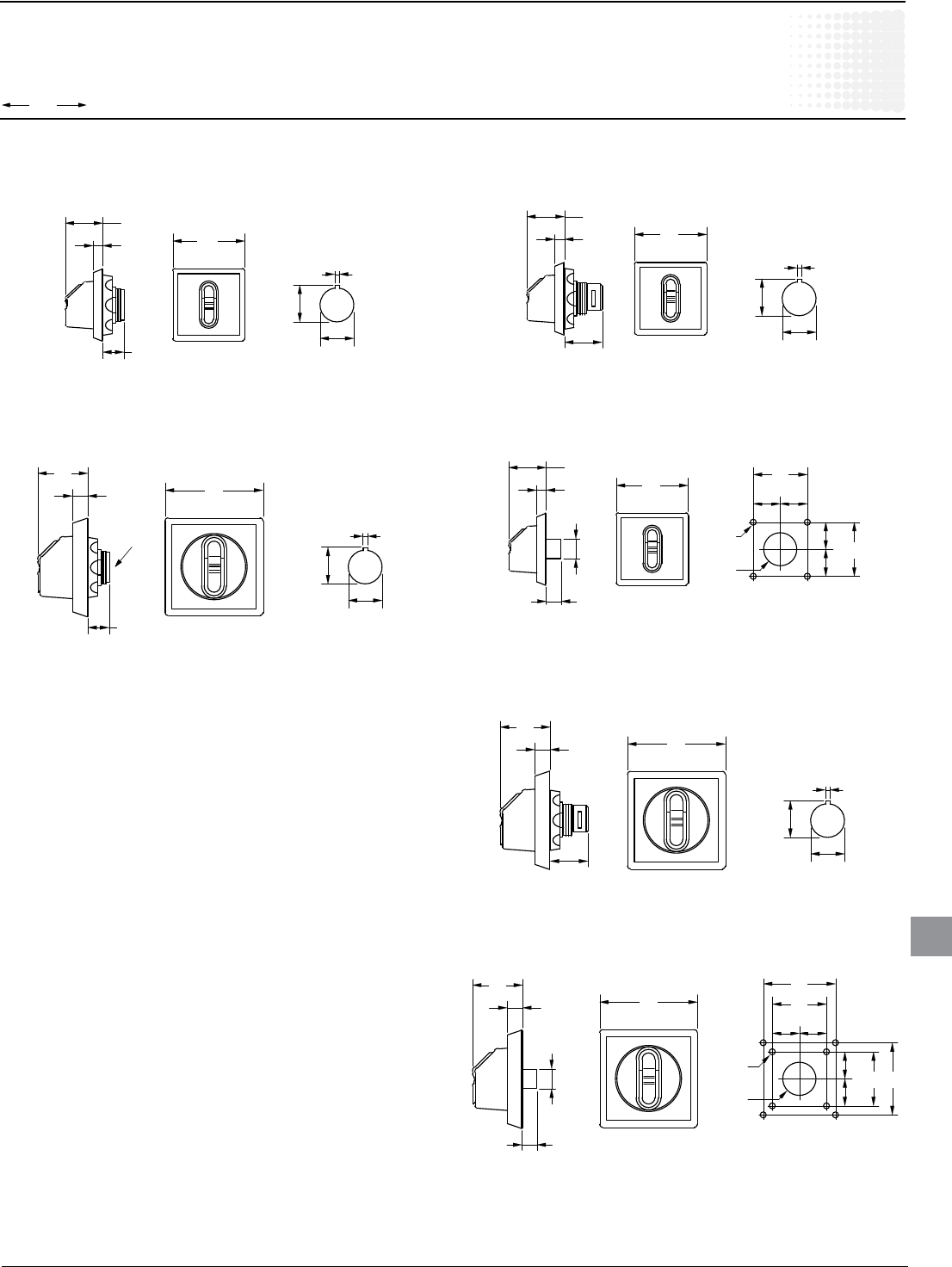

0.125

3.2

0.88

22.5

0.96

24.5

MOUNTING HOLE

DETAIL

1.89

0.98

0.26

6.5

0.55

OH_1A,3A

0.125

3.2

0.88

22.5

0.96

24.5

MOUNTING HOLE

DETAIL

2.56

1.30

0.39

0.55

OH_2A_

0.125

3.2

0.88

22.5

0.96

24.5

MOUNTING HOLE

DETAIL

1.89

0.98

0.26

6.5

0.98

OH_1P, 3P

1.42

0.71

1.89

0.98

0.26

6.5

0.16

0.88

0.39

0.53

13.5

MOUNTING HOLE

DETAIL

OH_1R, 3R

0.125

3.2

0.88

22.5

0.96

24.5

MOUNTING HOLE

DETAIL

2.56

1.30

0.39

0.98

OH_2P_

1.42

1.89

MOUNTING HOLE

DETAIL

1.42

1.89

0.71

2.56

1.30

0.39

0.16

0.88

0.39

0.53

13.5

OH_2R_

Approximate dimensions

for Handles

Selector handles for base and DIN rail mounted switches Selector handles for door mounted switches

OH_1AH1 & OH_3AH1

OH_2A_

OH_1P_ & OH_3P_

OH_2P_

OH_2R_

OH_1R_ & OH_3R_

00.00

Inches

[Millimeters]

D: Handles

Disconnect

switches

Non-fusible

18.70 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

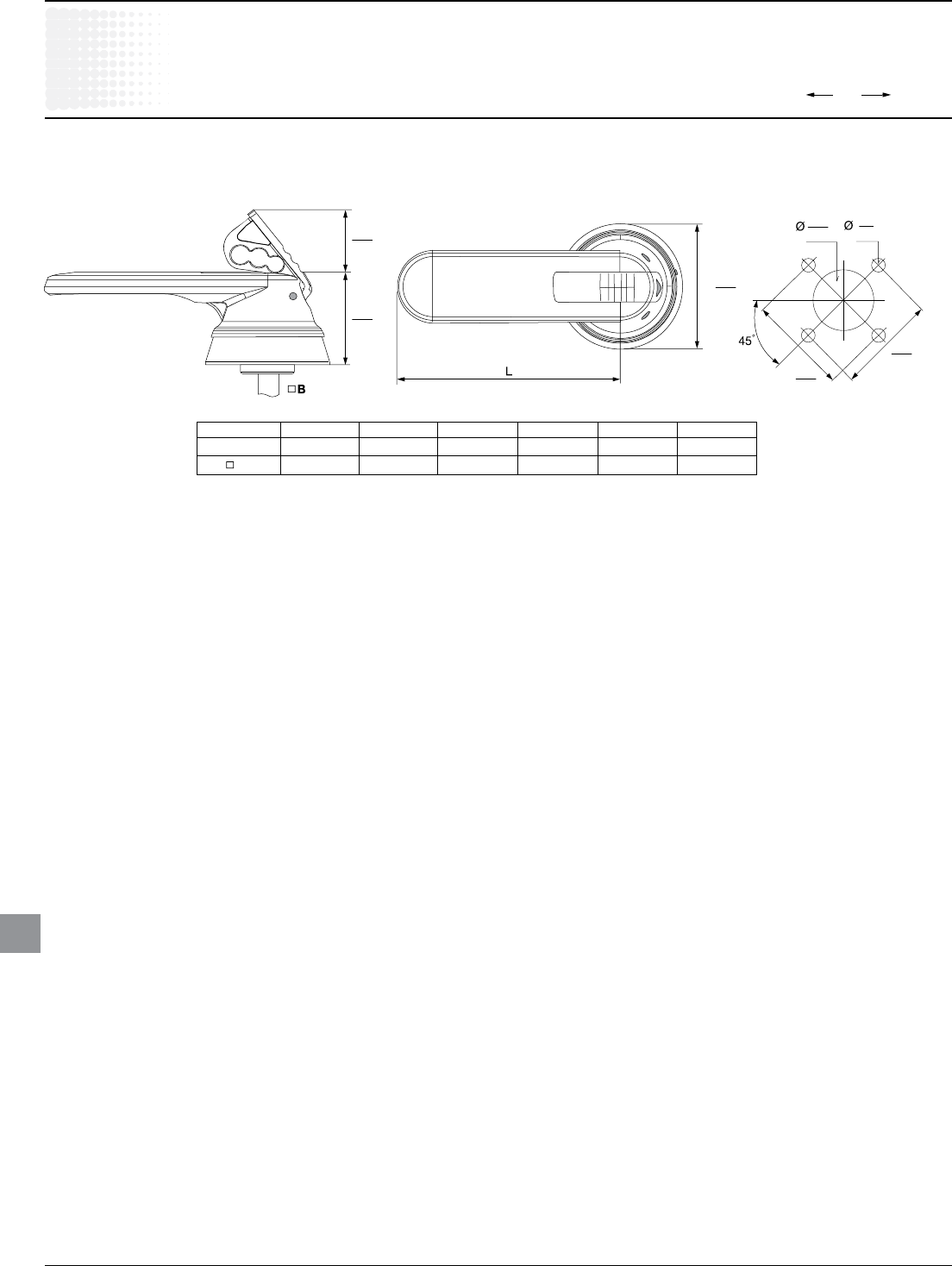

1.46

2.01

2.72

1.22

.20

2.09

Handle type OHM45L5 OHM65L5 OHM65L6 OHM125L12 OHM175L12 OHM275L12

L 1.8/45 2.6/65 2.6/65 4.9/125 6.9/175 10.8/275

B .2/5 .2/5 .2/6 .5/12 .5/12 .5/12

METAL HANDLE

1.57

3.94

100

2.20

45°

1.77

0.28

MOUNTING HOLE

DETAIL

2.76

70.0

2.66

67.5

1.77

B2.09

45°

MOUNTING HOLE

DETAIL

1.22

0.20

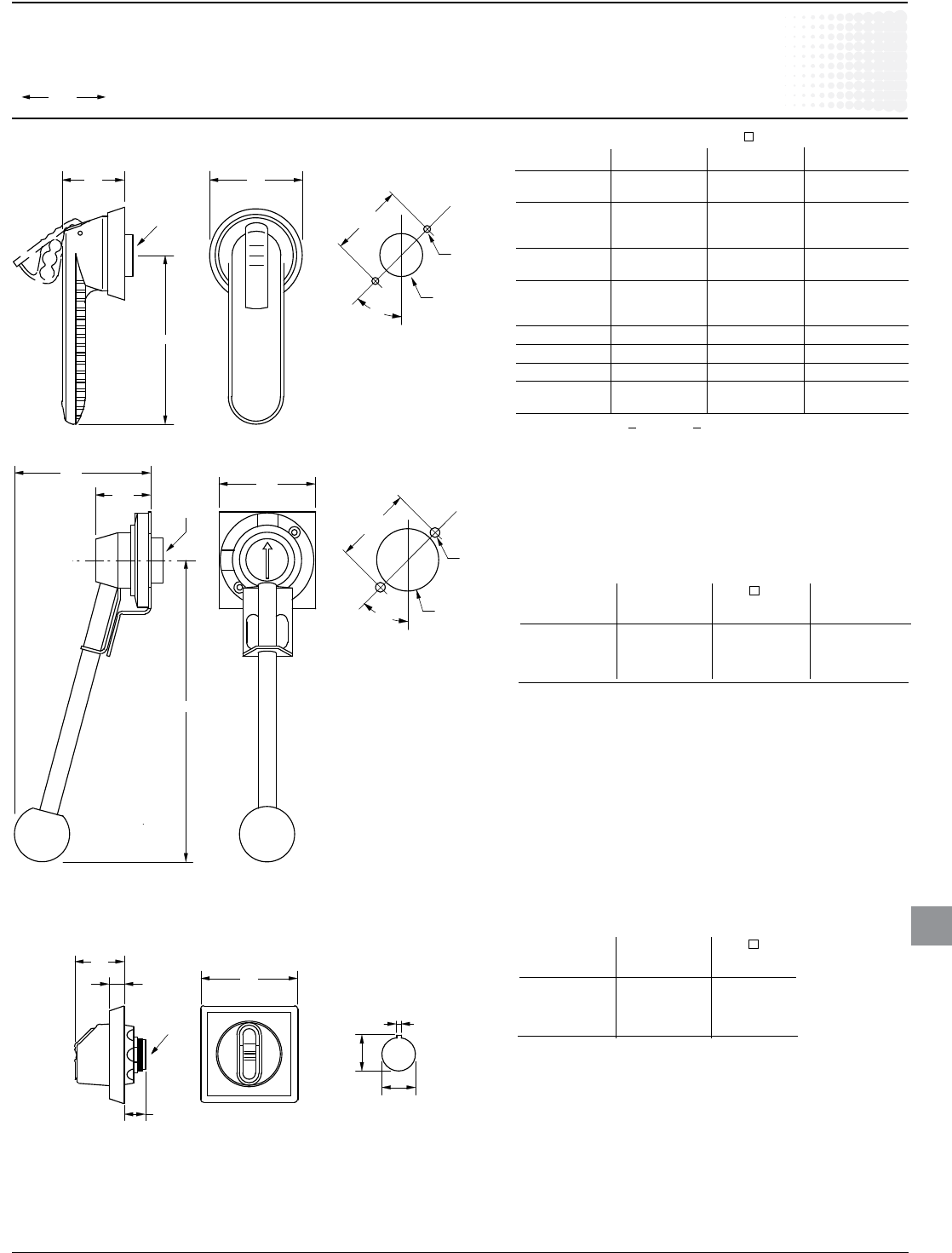

Approximate dimensions

for Handles

Pistol handles

A L Shaft size NEMA Type

catalog number inches/mm inches/mm

YASDA-7 8.66/220 0.47/12 1, 3R, 4, 4X, 12

YASDA-8 8.66/220 0.47/12 1, 3R, 4, 4X, 12

YASDA-21 8.66/220 0.47/12 1, 3R, 4, 4X, 12

YASDA-6 12.60/320 0.47/12 1, 3R, 4, 4X, 12

A L Shaft size NEMA / UL Type

Catalog number Inches/ mm Inches/ mm

OH_45J5 1.8/45 0.20/5 1, 3R, 12

OH_65J5 2.6/65 0.20/5 1, 3R, 12

OH_45J6 1.8/45 0.24/6 1, 3R, 12

OH_65J6 2.6/65 0.24/6 1, 3R, 12

OH_80J6 3.1/80 0.24/6 1, 3R, 12

OH_65J8 2.6/65 0.31/8 1, 3R, 12

OH_80J8 3.1/80 0.31/8 1, 3R, 12

OH_125J12 4.9/125 0.47/12 1, 3R, 12

OH_145J12 5.7/145 0.47/12 1, 3R, 12

OH_175J12 6.9/175 0.47/12 1, 3R, 12

OH_65L5 2.6/65 0.20/5 1, 3R, 4, 4X, 12

OH_80L6 3.1/80 0.24/6 1, 3R, 4, 4X, 12

OH_80L8 3.1/80 0.31/8 1, 3R, 4, 4X, 12

OH_145L12 5.7/145 0.47/12 1, 3R, 4, 4X, 12

OH_175L12 6.9/175 0.47/12 1, 3R, 4, 4X, 12

__ = Handle color, B (Black) or Y (Red/Yellow)

00.00

Inches

[Millimeters]

D: Handles

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.71

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

PowerLine

Compact, heavy duty

Fusible disconnect switches

30A – 800A, 600V

ABB PowerLine includes seven different amperage sizes

from 30A to 800A. All PowerLine fusible switches are

designed to meet customer requirements in terms of high

interrupting capacity and long electrical life while occupying

little more panel space than the appropriate fuses. The

basic construction provides exibility and high performance

in an extremely compact size. ABB PowerLine switches

are a perfect choice to withstand the heat and humidity of

the tropics, the extreme cold of the arctic and any rugged

industrial environment you may have.

PowerLine Fusible

Disconnect switches

S: Description

Disconnect

switches

Fusible

18.72 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

General information

Selection guide

OS30ACC12 – OES800L3

UL listed, CSA approved, IEC rated, CE marked, CCC certiﬁed

S = Standard

• = Available

— = Not available

Catalog number 3 pole OS30ACC12 OS30AJ12 OS60J12 OS100J03 OS200J03 OS400J03 OS600J03 OES800L3

General purpose

amp rating A 30 30 60 100 200 400 600 800

Catalog reference Page # 18.79 18.79 18.83 18.83 18.83 18.87 18.87 18.87

Approvals 1

2 pole N/A N/A N/A UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

3 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

4 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

Technical ratings

(UL,CSA)

Max operating voltage V 600 600 600 600 600 600 600 600

Max horsepower rating

Three phase

240V HP 7.5 7.5 15 30 60 125 200 250

480V HP 15 15 30 60 125 250 400 500

600V HP 20 20 50 75 150 350 500 600

Single phase

120V HP 2 2 — — — — — —

240V HP 3 3 — — — — — —

UL fuse class CC J J J J J J L

Technical ratings (IEC)

Rated insulation and operational

voltage. AC20 and DC20 V 1000 1000 1000 1000 1000 1000 1000 1000

Rated thermal current, Ith

AC 20/DC 20 open A 32 32 63 160 200 400 630 800

AC 20/DC 20 enclosed A 32 32 63 160 200 400 600 720

AC 21A ≤500V A 32 32 63 160 200 400 630 800

≤690V A 32 32 63 160 200 400 630 800

Rated operational power AC23

400/415V kW 14/15 14/15 30 80/90 110 220/230 355 350/380

690V kW 25 25 60 132 200 400 560 600

Physical characteristics

Weight 3 pole switch lb 1.54 1.54 2.86 3.30 5.9 12.56 28.66 37.44

4 pole lb 1.98 1.98 3.52 3.96 7.5 15.21 37.48 46.26

Dimension 3 pole H in 3.66 3.60 3.94 5.67 6.5 9.29 12.04 10.10

W in 4.15 4.15 5.63 7.07 7.1 10.04 13.50 14.80

D in 4.10 4.10 5.04 5.10 5.2 6.93 9.17 9.17

Accessories

Double break contacts S S S S S S S S

Fuse cover S S S S S S S S

Terminal lug kit Integral Integral Integral OZXA-24 OZXA-200 OZXA-400 OZXA-800 OZXA-27

Terminal shroud Not required Not required Not required • • • • •

Auxiliary contact • • • • • • • •

Handle UL/NEMA type

Type 1, 3R, 12 • • • • • • • •

Type 1, 3R, 4, 4X, 12

• • • • • • • •

Conversion kit

6 pole • • • • • • • •

Transfer • • • • • • • •

Bypass — — • • • • • •

Mechanical interlock • • • • • • • •

Electrical interlock — — — — — • • •

OS30A_12 OS60J12 OS100J03 OS200J03 OS400J03 OS600J03 OES800L3

1 UL listed switches are also CSA approved.

S: Selection guide, OS30ACC12 - OES800L3

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.73

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

OFF

Total installed costs

Traditional

switches

ABB

switches

Cost reduction Switches

Accessories

Installation

Space

General information

Versatility

ABB PowerLine fusible disconnect switches are designed to offer maximum versatility in

many ways.

Broad range

PowerLine is seven amperage sizes from 30A – 800A. All sizes are compact, heavy duty,

600V disconnect switches. Many sizes are available in 2, 3, 4, 6, and 8 pole congurations.

Compact size

The PowerLine’s unique compact dimensions allow panel size reduction in new

applications or easily retrots into space-sensitive existing applications. The entire switch

occupies little more panel space than the appropriate fuses.

International acceptance

PowerLine fusible switches are available with a wide range of fuse clip options:

UL USA CSA Canada

DIN Europe BS United Kingdom

NFC France Ultra-rapid

As well as the corresponding approvals: UL listed, CSA approved, IEC rated, CE marked, and

most other international standards.

UL98 (CSA 22.2 No.4) — UL File # E101914, CSA File #LR58077

For 30A – 800A switches, OH__ pistol grip handles

Suitable for use as motor disconnects or industrial control panel disconnects on service entrance

equipment, panelboards, switchboards, industrial control equipment, motor control centers, etc.

and are horsepower rated and ampere rated.

IEC

Tested in accordance to IEC 947-1 and 3, IEC 664, IEC 269, and IEC 204

Compliance with the European Machine Directive IEC 204 (EN 60204)

Installation options

Rotary through the door: available in all sizes, 30A – 800A

Flange: versions available in 30A to 200A sizes

A rotary disconnect switch may be installed nearly anywhere in a control panel — mounting is

not limited to the upper right hand corner of the panel.

Mount the switch where it conveniently ts in your panel and simply install the handle on

the door, in line with the switch. The switch and handle are mechanically linked through an

easily adjusted shaft. This allows fast and easy installation into panels of different depths and

layouts.

Rotary through the door installation Easily adjusted shaft

S: General information

Disconnect

switches

Fusible

18.74 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

General information

Broad range of accessories

• Handles — UL/NEMA type 1, 3R, 4, 4X, 12

IP 54, 65, 66

• Auxiliary contacts available for every switch size

• Additional terminal poles (neutrals & grounds)

• Terminal shrouds

• 6 & 8 pole mechanisms

• Transfer mechanisms

• Bypass mechanisms

• Mechanical interlock mechanisms

• Electro-mechanical interlock mechanisms

• Motor operators

Mounting

PowerLine disconnect switch mounting possibilities:

• DIN rail mounting — OS30, OS60 & OS100

• Base mounting with screws

DIN rail mounting

Base mounting with screws

Incoming power feeds

All PowerLine disconnect switches

can be used equally

well with either

top or bottom

incoming power

feeds.

Terminal connections

Versatile connecting possibilities, 100A – 800A:

• Ring tongue crimp on lugs

• Direct bus

• Terminal lugs

Top feed

Bottom feed

S: General information

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.75

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

General information

1 Please consult ABB sales ofce for additional information

High performance

The mechanism is quick-make/quick-break, meaning the

contacts operate independently of the speed and force at

which the handle is operated. This, in combination with unique,

patented self-cleaning contacts, provides a long, reliable,

electrical life.

Modular construction1

Modular switch construction allows the operating mechanism to

be placed at either end of the switch or anywhere in-between,

100A – 800A.

Mounting positions

PowerLine disconnect switches may be mounted

in any position:

Vertical Horizontal Ceiling Floor

Unique terminal locations1

• Side connections

• Rear connections

• Bus stabs

OFF

S: General information

Disconnect

switches

Fusible

18.76 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

Superior short circuit protection

Fuses efciently limit the peak let-through current, i2t,

during a fault better than any other product, contributing to

safety and reliability. Selectivity and coordination are easily

accomplished with fused protection. PowerLine fusible

disconnect switches accept a wide range of North American

fuses:

Class CC 30A

Class J 30A – 600A

Class L 800A

Class T 800A

Finger proof

Dead-front construction plus terminal shrouds reduce the risk

of touching live parts, improving the safety and reliability of the

installation.

Fuse isolation

PowerLine switches contain contacts on both sides of the fuse. The

fuses are totally isolated in the “OFF” position, reducing the risk of shock

to authorized personnel — even if the switch has been back fed.

General information

Positive opening operation

All switches operate according to the “positive opening operation” principle.

This means the contacts are opened and closed by a driven mechanism,

a solid moving bridge, not merely springs. This provides reliable position

indication to the user; if the switch is in the “OFF” position, the contacts are

open.

Positive opening operation

Fuse Circuit breaker

Superior short circuit protection

Fuse isolation

All frames rated at

200kA!!

S: General information

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.77

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

MAIN SWITCH

OFF

45o

Max

Welded contact protection

Positive opening operation safeguards users in case of welded contacts due to an

overload or short circuit.

The switch can not reach the “OFF” position unless the contacts are truly open. If any or

all of the contacts are welded shut, the switch mechanism will only allow the handle to

operate a maximum of 45o. This safeguards personnel by:

• alerting them a problem has occurred

• maintaining the door interlock and

• not allowing a padlock to be inserted.

General information

Clear position indication

All switches and handles have clear “ON” and “OFF” designations. Whether the

door is open or closed, it is possible to simply look at the switch and determine

if the switch is “ON” or “OFF”.

Door interlock

The handle and shaft provide door interlock, the door can not be

opened when the switch is in the “ON” position. NOTE: Some handles

provide a method for qualied personnel to circumvent the door

interlock. This is commonly referred to as a “defeater” mechanism.

Padlockable

Handles can be padlocked in the “OFF” position with up to three

padlocks; additionally, the switch mechanism can be directly

padlocked in the “OFF” position when the door is open. NOTE:

Some handles can be ordered with the ability to padlock in both the

“ON” & “OFF” positions. Please consult your ABB sales ofce for

ordering information.

Door interlock

Handle and mechanism padlocked OFF

Track resistant material

Excellent track resistant material, CTI > 600V, IEC

112, reduces the risk of ashover between phases

in even the most severe circumstances.

S: General information

Disconnect

switches

Fusible

18.78 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Kits with selector handles

Each kit includes:

1 three pole switch

1 handle

1 shaft

1 terminal lug kit

 30 J 5 7.5 7.5 15 20 OSJ30B2A1-180 $ 314

 30 CC 5 7.5 7.5 15 20 OSC30B2A1-180 314

UL UL

general Fuse Maximum horsepower rating Kit

purpose type Three phase catalog List

amp rating 600V 200V 208V 240V 480V 600V number price

Kits with pistol handles

Kit

handle

shaft

switch

terminal lug kit2

1 Other pole congurations available. Please see the individual component pages.

2 30Aand60-Afusibleswitchesincludestandardintegralterminallugs.

3 All handles are black and accept three padlocks. For others, please see the individual component pages.

4 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

If other handles or shafts are desired, please order from the individual component pages 18.79 – 18.91.

Kit

catalog Catalog NEMA Handle Mounting Length

number number type Marking Defeat- catalog depth5 Shaft Catalog Wire Wire Catalog

able number (inches) (inches/mm) number size type number

OSJ30B6-150 OS30AJ12 1,3R,12 I/O&Off/On Yes OHB65J5 5.3-8.3 5.9/150 OXP5X150 #18–8 Cu Integral

OSC30B6-150 OS30ACC12 1,3R,12 I/O&Off/On Yes OHB65J5 5.3-8.3 5.9/150 OXP5X150 #18–8 Cu Integral

OSJ60B6-150 OS60J12 1,3R,12 I/O&Off/On Yes OHB65J6 5.5-8.5 5.9/150 OXP6X150 #14–4 Cu Integral

OSJ100B8-150 OS100J03 1,3R,12 I/O&Off/On Yes OHB80J6 5.5-8.5 5.9/150 OXP6X150 #14–2/0 Cu/Al OZXA-24

OSKJ200B8-290 OS200J03 1,3R,12 I/O&Off/On Yes OHB80J6 10.5-12.7 11.4/290 OXP6X290 #6–300kcmil Cu/Al OZXA-200

OSKJ400B4-280 OS400J03 1,3R,12 I/O&Off/On Yes OHB145J12 7.9-12.2 11.0/280 OXP12X280 #2–600kcmil Cu/Al OZXA-400

OSKJ600B4-280 OS600J03 1,3R,12 I/O&Off/On Yes OHB145J12 11.2-14.0 11.0/280 OXP12X280 (2)#2–600kcmil Cu/Al OZXA-800

OSL800B4-280 OES800J3 1,3R,12 I/O&Off/On Yes OHB145J12 11.2-14.0 11.0/280 OXP12X280 (2)#2–600kcmil Cu/Al OZXA-27

Components for kits with pistol handles

Switch Handle 3Shaft 4Terminal lugs

Components for kits with selector handles

Kit

catalog Catalog NEMA Handle Mounting Length Shaft

number number type Marking Defeat- catalog depth5

(inches/mm) Catalog Wire Wire Catalog

able number (inches) number size type number

OSJ30B2A1-180 OS30AJ12 1,3R,12 I/O&Off/On — OHB2AJ1 6.3-9.5 7.1/180 OXS5X180 #18–8 Cu Integral

OSC30B2A1-180 OS30ACC12 1,3R,12 I/O&Off/On — OHB2AJ1 6.3-9.5 7.1/180 OXS5X180 #18–8 Cu Integral

Switch Handle 3Shaft 4Terminal lugs

UL UL

general Fuse Maximum horsepower rating Kit

purpose type Three phase catalog List

amp rating 600V 200V 208V 240V 480V 600V number price

 30 J 5 7.5 7.5 15 20 OSJ30B6-150 $ 374

 30 CC 5 7.5 7.5 15 20 OSC30B6-150 374

60 J 15 15 15 30 50 OSJ60B6-150 472

100 J 25 25 30 60 75 OSJ100B8-150 646

200 J 50 50 60 125 150 OSKJ200B8-290 1566

400 J 100 125 125 250 350 OSKJ400B4-280 2176

600 J 150 150 200 400 500 OSKJ600B4-280 3406

 800 L 200 200 250 500 600 OSL800B4-280 5266

Discount schedule H4: F, 30A – 100A

Discount schedule H5: F, 200A – 800A

Kits

30A – 800A, 600V, 3 pole 1

UL fuse class J, CC, L

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.79

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

30A, Base & DIN rail mounted

UL fuse Class J,CC

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

30 Amp switches, 600V

1Rejectionstylefusesonly.

UL UL Maximum horsepower rating Terminal lugs

general Fuse Three phase

purpose type Wire Wire Catalog List

amp rating 600V 240V 480V 600V size type number price

Selector handles —forusewithshafts .20 x .20" ( 5x5mm)

 UL/NEMA IEC Color Defeat- Padlock- Weight Catalog List

type type able able (lbs.) number price

 3.3/85 5.5 – 5.7  0.04 OXS5X85 $ 4

 4.1/105 5.5– 6.5  0.04 OXS5X105 4

 4.7/120 5.5 –7.1  0.05 OXS5X120 4

 5.1/130 5.5 – 7.5  0.05 OXS5X130 6

7.1/180 6.3 – 9.4 0.08 OXS5X180 6

 9.8/250 9.1 – 12.2  0.10 OXS5X250 12

 13.0/330 12.2–15.4  0.14 OXS5X330 20

Shaft length Mounting depth1 Weight Catalog List

(inches/mm) (in inches) (lbs.) number price

Shafts —forusewithOH_2_selectorhandles .20 x .20" ( 5x5mm)

OS30A__12

OHY2__

OXS5X__

 OS30AJ12 + OXS5X180 + OHB2AJ1

OHB2__

3 pole 3 pole

 30 J   7.5 15 20 #18–8 Cu OS30AJ12 $ 280

301 CC   7.5 15 20 #18–8 Cu OS30ACC12

4 pole 4 Pole

 30 J   7.5 15 20 #18–8 Cu OS30AJ22F 350

301 CC   7.5 15 20 #18–8 Cu OS30ACC22F

Discount schedule H4: F, 30A – 100A

Discount schedule H6: Handles, shafts, accessories

All marked both O/I & Off/On

 1,3R,12 IP65 Black — Yes 0.16 OHB2AJ1 $ 28

 1,3R,12 IP65 Red/Yel — Yes 0.16 OHY2AJ1 28

 1,3R,12 IP65 Blk Yes Yes 0.16 OHB2AJ 30

 1,3R,12 IP65 Red/Yel Yes Yes 0.16 OHY2AJ 30

Disconnect

switches

Fusible

18.80 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

30A, Base & DIN rail mounted

Handles & shafts

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

OHB5

OHB5Mounted

OHB5Mounted depth

Direct mount handle — mounts directly to switch, no shaft necessary

UL/NEMA Color Marking Length Padlockable Weight Catalog List

type mm (lbs.) number price

 1 Blk O/I/Test 50 Yes 0.10 OHB5 $ 60

 OS30AJ12 + OXP5X170 + OHB65J5

OHB_J5

Pistol handles —forusewithshafts .20 x .20" ( 5x5mm)

 UL/NEMA IEC Color Marking Length Defeat- Padlock- Weight Catalog List

type type inches/mm able able (lbs.) number price

   Black  1.8/45   0.28 OHB45J5 $ 70

1,3R,12 IP65 R/Y O/I & Off/On 1.8/45 Yes Ye s 0.28 OHY45J5 70

   Black  2.6/65   0.29 OHB65J5 80

   R/Y  2.6/65   0.29 OHY65J5 80

1,3R,4,4X,12 IP65 Black O/I & Off/On 2.6/65 Yes Ye s 0.29 OHB65L5 120

   R/Y      OHY65L5

1,3R,12 IP65 Black Off/On/Test 2.6/65 Yes Yes 0.29 OHB65J5T1 100

   R/Y      OHY65J5T1

1,3R,4,4X,12 IP66 Stainless O/I & Off/On 1.8/45 Yes Ye s 1.40 OHM45L5 700

   steel  2.6/65   1.60 OHM65L5 700

Discount schedule H6: Handles, shafts, accessories

OXP5X__

OHY_J5 Shafts —forusewithpistolhandles .20 x .20" ( 5x5mm)

 5.9/150 4.9 – 8.9 0.07 OXP5X150 $ 14

 6.7/170 5.9 – 9.7 0.08 OXP5X170 16

 10.4/265 9.5 – 13.4 0.12 OXP5X265 18

 15.8/400 15.0 – 18.7 0.18 OXP5X400 30

 19.7/500 20.5–22.6 0.23 OXP5X500 42

Shaft length Mounting depth Weight Catalog List

(inches/mm) (in inches) (lbs.) number price

1 TheOS30_switchhasaTESTposition,accessedbyrotatingthemechanism45°counterclockwisefromtheOFFposition.IntheTESTposition,

optional auxiliary contacts, OA4B1C, are actuated but the main switch contacts are not.

5.20"

132mm

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.81

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

30A, Base & DIN rail mounted

Accessories

1ULFile#E83510

2 Solid link installed in carrier.

Terminal cover (replacement part)

Description For use on: Catalog List

number price

Covers terminal OS30_    CXBY67121 $ 10

below fuse carrier

Mounting base

Description For use with: Weight Catalog List

(lbs) number price

Mounting base OA1G10, OA3G01 0.08 OSZ4 $ 20

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

Terminal pole

Detachable neutral mounts OS30_ 0.45 30 600 OESA-ZX171 $ 40

on side of switch or DIN rail

Fuse carriers (replacement part)

Description For use on: Catalog List

number price

 CCfusecarrier OS30CC_   OESAZD48

 Jfusecarrier OS30AJ_    OESAZD28 $ 50

Solid link carrier2 OS30_    OESAZD55

Description For use on: Weight Length Catalog List

(lbs.) inches/mm number price

 35mmDINRail OS30_ 2.96 39.4/1000 DINRAIL $ 52

DIN rail

Auxiliary contacts 1

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

 FormC1N.O.&1N.C. OS30_    

  fordirectmounting 0.04  6 250 OA4B1C $ 40

(2 maximum) to switch

 1N.O. OS30_     OA1G10

 1N.C. OSZ4mounting 0.03 NEMAA600,P600 OA3G01

(6 maximum) base required

Discount schedule H6: Handles, shafts, accessories

OS30AJ12 with auxiliaries

CXBY67121

DIN rail

OESA-ZX171

 OESAZD28 OESAZD55

 OESAZD48

Shaft set screw (replacement part)

Description For use on: Catalog List

number price

 Setscrew OS30_    FL8WM5X8AX $ 2

Disconnect

switches

Fusible

18.82 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

30A, Base & DIN rail mounted

Accessories

Conversion mechanisms

• Switchesarenotincluded

6 or 8 pole —OWP5DS1,OWP5DS2

6 (8) pole mechanism allows two switches,

controlled by one handle, to open or close

simultaneously.

Equipment required for a complete installation:

• Oneconversionmechanism

• Twodisconnectswitches(seepg.18.79)

• Onehandle(seepg.18.80)

• One5mmshaft(seepg.18.80)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O = Open

Mechanical interlock—OWM5DS1,

OWM5DS2

Mechanical interlock mechanism prevents

both switches from being in the "ON" position

at the same time.

Equipment required for a complete installation:

• Oneconversionmechanism

• Twodisconnectswitches(frompg.18.79)

• Twohandles(frompgs.18.80)

• Two5mmshafts(frompgs.18.80)

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

Description For use on: Weight UL/NEMA Catalog List

(lbs) type number price

 6pole OS30A_12 1.74 — OWP5DS1 $ 220

 8pole OS30A_22 1.90 — OWP5DS2 240

Mechanical interlock

 3pole OS30A_12 1.74 — OWM5DS1 190

 4pole OS30A_22 1.90 — OWM5DS2 190

Discount schedule H6: Handles, shafts, accessories

1 = Three poles

OWC5DSH1

OWC5DSH2

OWM5DS1

OWM5DS2

OWP5DS1

OWP5DS2

Drawing and mounting information found on pg 18.115

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.83

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

60A – 200A

Base & DIN rail mounted

UL fuse class J

 OS60J12 + OXP6X210 + OHB65J6

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit

OXP6X__

OXP6X__-45

Shafts — .24 x .24" ( 6 x 6mm)

 5.9/150 5.0 – 8.5 0.09 OXP6X150 $ 12

8.3/210 7.4 – 11.0 0.13 OXP6X210 16

 11.4/290 10.5 – 14.0 0.18 OXP6X290 20

14.2/360 13.3 – 16.8 0.23 OXP6X360 24

16.9/430 16 – 19.7 0.27 OXP6X430 28

Shaft length Mounting depth Weight Catalog List

(inches/mm) (inches) (lbs.) number price

OS60J12

OHB__J6

 5.1/130 4.3– 7.8 0.08 OXP6X130-45 $ 12

8.3/210 7.4 – 11.0 0.13 OXP6X210-45 16

 11.4/290 10.5 – 14.0 0.18 OXP6X290-45 20

14.2/360 13.3 – 16.8 0.23 OXP6X360-45 24

Shaft length Mounting depth Weight Catalog List

(inches/mm) (inches) (lbs.) number price

Twisted shafts —Rotateshandle45° .24 x .24" ( 6 x 6mm)

UL/NEMA IEC Color Length Marking De- Pad- Weight Catalog List

type type in/mm featable lockable (lbs.) number price

Pistol handles — .24 x .24" ( 6 x 6mm)

 1,3R,12 IP65 Black 2.6/65 O/I&Off/On Yes Yes 0.29 OHB65J6 $ 80

 1,3R,12 IP65 Red/Yel 2.6/65 O/I&Off/On Yes Yes 0.29 OHY65J6 80

 1,3R,12 IP65 Black 3.1/80 O/I&Off/On Yes Yes 0.30 OHB80J6 90

 1,3R,12 IP65 Red/Yel 3.1/80 O/I&Off/On Yes Yes 0.30 OHY80J6 90

 1,3R,4,4X,12 IP65 Black 3.1/80 O/I&Off/On Yes Yes 0.30 OHB80L6 130

 1,3R,4,4X,12 IP65 Red/Yel 3.1/80 O/I&Off/On Yes Yes 0.30 OHY80L6 130

1,3R,4,4X,12 IP66 Stainless 2.65/65 O/I&Off/On Yes Yes 1.60 OHM65L6 750

steel

Direct mount handle — mounts directly to switch, no shaft necessary

For use on Color Marking Length Padlockable Weight Catalog List

mm (lbs.) number price

OS60-OS100 Black O/I 50 Yes 0.10 OHB4 $ 60

OS200 Black O/I — Ye s 0.30 OSV200BK 130

 Red/Yel     OSVY200BK

Discount schedule H4: F, 30A – 100A

Discount schedule H5: F, 200A

Discount schedule H6: Handles, shafts, accessories

OS100J03

OHB4

60 – 200 Amp switches, 600V

2 pole

200 J  60 125 150 OS200J30 $ 1240

3 pole

60 J   15 30 50 OS60J12 380

 100 J   30 60 75 OS100J03 520

 200 J   60 125 150 OS200J03 1380

 200 J   60 125 150 OS200J12 1380

200 J   60 125 150 OS200J30 1380

4 pole

60 J   15 30 50 OS60J22F 490

 100 J   30 60 75 OS100J04F 660

200 J   60 125 150 OS200J04F 1725

200 J   60 125 150 OS200J13F 1725

 200 J   60 125 150 OS200J22F 1725

UL UL Maximum horsepower rating

general Fuse Three phase

purpose type Catalog List

amp rating 600V 240V 480V 600V number price

OSV250

Disconnect

switches

Fusible

18.84 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

60A – 200A

Accessories

Discount schedule H6: Handles, shafts, accessories

OZXA-24

Terminal lug kits – OS60 & OS100

Kit

For use on: Wire weight Wire Terminal Catalog List

size (lbs) type lugs per kit number price

 OS60J_ #14–4 — Cu — Integral —

 OS100J_ #14–2/0 0.43 Cu/Al 6 OZXA-24 $ 24

OA1G10, OA3G01

 OSC60J1 CXBY68362

OSS160T3

Replacement parts

Description For use on: Catalog List

number price

Removablefusecarrier OS60J12 OSC60J3 $ 60

OS60J22F OSC60J4 80

Transparent fuse cover OS100 CXBY68362 20

Fuse cover OS200 CXBY68674 20

Phase barrier CXBY68794 15

Set screw OS60T12, OS200 FLSWM5X8AX 2

Set screw OS100 FLSWM5X6X 2

Terminal lug kits – OS200

For use on Wire size Wire type Description Lugs /kit Catalog

number

List

price

OS200_

#4-300kcmil

(6)14-6AWG

Cu /Al

—

Distribution lug

OZXA-200

OZXA-200/3P

OZXA-206/S

$ 80

180

Auxiliary contacts

Description For use on: Weight Catalog

number

List

price

1 N.O. OS60-OS100 .07 OA1G10

$ 20

1 N. C. OA3G01

1 N.O. OS200 .07 OA1G10

1 N. C. OA3G01

Module for auxiliary contacts 1

Description Weight Catalog

number

List

price

Screw mounting to the left side of the switch 0.1 OEA28 $ 50

Mounting on the left side of the switch :Max 8 auxiliary contact blocks with the OEA28 module

Mounting under the mechanism cover: Max 4 auxiliary contact blocks

Terminal shrouds

For use on: Description Number

of poles

Weight

lbs

Catalog

number

List

price

OS100 10.04 OSS160T1 $ 20

3 OSS160T3 60

OS200_

Long type

Short type

Long type

Short type

0.20

0.13

0.26

0.18

OSS200G1L/3

OSS200G1S/3

OSS200G1L/4

OSS200G1S/4

Snap-onmounting,greyplastic,IP3XTransparentshroudsavailableonrequest.

Shaft Guide

Description Catalog

number

List

price

Fits all pistol grip handles, mounts on the inside of the enclosure

door with provided hardware OHZX10 $ 12

OHZX10

OEA28

OSS200G1L/3

OSS200G1S/3

1 For use on OS200 only.

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.85

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

DIN rail

OSZ1

OESA-ZX1-J1T6

DIN rail

Description For use on: Weight Length Catalog List

(lbs.) inches/mm number price

 35mmDINRail OS60 2.36 39.4/1000 DINRAIL $ 52

Terminal poles

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

60A – 200A

Accessories

OETL-ZK19

(X=6MM)

OESA-ZX167

OETL-ZX95

OESA-ZS36

OETL-ZW16

Discount schedule H6: Handles, shafts, accessories

Shorting bars

Description For use on: AC thermal AC rated Catalog List

amp rating voltage number price

Dummy fuse OS60 60 600 OESA-ZD54 $ 50

Solid links: Metal strap OS100 100 600 OESA-ZS36 24

OS200 400 600 OESA-ZK98 23

Shaft adapter

Description For use on: Weight Catalog List

(lbs) number price

Adapts one end of a

6mm shaft to 12mm. Use with 6mm shafts 0.20 OETL-ZK19 $ 40

shaft extension coupler

Shaft extension coupler

Description For use on: Weight Catalog List

(lbs) number price

Joins two shafts together

for applications where 6mm shafts 0.26 OESA-ZX167 $ 56

extended length is required

Locking accessories

Description For use on: Weight Catalog List

(lbs) number price

Cam attachment for Kirk Key,

Castell, Lowe & Fletcher and

 Ronisinterlock.Camattachment OS60–

 foradaptingtothe OS200 0.25   OETL-ZW16 $ 190

interlock system. The

interlock is not included.

Detachable neutral OS60 0.13 63 600 OSZ1 $ 50

mounts on side OS100 0.31 125 600 OSZ2 50

of switch or DIN rail OS200 .88 200 600 OXN250 1

x-1

1 Consult Factory.

Disconnect

switches

Fusible

18.86 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

60A – 200A

Accessories

6 or 8 pole —OESA-ZW2

6 (8) pole mechanism allows two switches

controlled by one handle, to open or close

simultaneously.OHB145J12handleincluded.

Equipment required for a complete installation:

• Oneconversionmechanism

• Twodisconnectswitches(seepg.18.83)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O = Open

OESA-ZW2

OESA-ZW1

Conversion mechanisms

• Switchesarenotincluded

Description For use on: Weight UL/NEMA Catalog List

(lbs) type number price

 6and8pole OS60–OS200 1.52 — OESA-ZW2 $ 220

 Mechanicalinterlock OS60–OS200 0.55 — OTZW10 100

Bypass OS100,OS200 7.28 1,3R,12 OTZW26 950

Discount schedule H6: Handles, shafts, accessories

1 = Three poles

Drawing and mounting information found on pg 18.116

Mechanical interlock —OTZW10

Mechanical interlock mechanism prevents

both switches from being in the "ON"

position at the same time.

Equipment required for a complete

installation:

• Oneconversionmechanism

• Twodisconnectswitches(seepg.18.83)

• Twohandles(seepg.18.83)

• Twoshafts(seepg.18.83)

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

OTZW10

Bypass —OTZW26

Bypass mechanism operates three switches:

Two switches in series and one changeover

switch to allow power bypass.

A3-positionhandleisincluded:OHB-

145J12E011(Type1,3R&12)or

OHB145L12E011(Type1,3R,4,4X,12)

Shafts included.

Equipment required for a complete installation:

• Oneconversionmechanism

• Threedisconnectswitches(seepage18.83)

POS. I POS.O POS.II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O = Open

OTZW26

) / ))

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.87

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

400A – 800A

UL fuse class J, L

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug kit

OHY__J12

OES800L3

OS400J03

OS400J03 + OXP12X280 + OHB145J12 + OZXA-400

OHB__J12

400 – 800 Amp switches, 600V

2 pole

 400 J   — — —  OS400J02 $ 1680

 600 J   — — —  OS600J02 2600

 800 L   — — —  OES800L2 4280

3 pole

 400 J   125 250 350  OS400J03 1860

400 J   125 250 350  OS400J30 1860

 600 J   200 400 500  OS600J03 2900

600 J   200 400 500  OS600J30 2900

 800 L   250 500 600  OES800L3 4760

4 pole

 400 J   125 250 350  OS400J04F 2320

 600 J   200 400 500  OS600J04F 3620

 800 L   250 500 600  OES800L4 5950

UL UL Maximum horsepower rating

general Fuse Three phase

purpose type Catalog List

amp rating 600V 240V 480V 600V number price

Pistol handles — .47 x .47" ( 12 x 12mm)

UL/NEMA IEC Color Length Marking Defeat- Padlock- Weight Catalog List

type type inches/mm able able (lbs) number price

   Black 4.9/125    0.39 OHB125J12 $ 90

   Red/Yel 4.9/125    0.39 OHY125J12 90

1,3R,12 IP65 Black 5.7/145 O/I & Off/On Yes Yes 0.39 OHB145J12 90

   Red/Yel 5.7/145    0.39 OHY145J12 90

   Black 6.9/175    0.41 OHB175J12 100

   Red/Yel 6.9/175    0.41 OHY175J12 100

   Black 5.7/145    0.39 OHB145L12 130

1,3R,4,4X,12 IP65 Red/Yel 5.7/145 O/I & Off/On Yes Yes 0.39 OHY145L12 130

   Black 6.9/175    0.41 OHB175L12 140

   Red/Yel 6.9/175    0.41 OHY175L12 140

 1,3R,4,4X,12 IP65 Metal 8.7/220 Off/On — Yes 1.50 YASDA-8 190

Discount schedule H5: F, 200A – 800A

Discount schedule H6: Handles, shafts, accessories

Item Weight Catalog List

(lbs) number price

Direct mount handles

Mounts to 12mm shaft 0.78 YASDA-33 $ 155

YASDA-33

1,3R,4,4X,12 IP66 Stainless

Steel

4.9/125 1.70 OHM125L12 900

6.9/175 O/I & Off/On Yes Yes 1.80 OHM175L12 1100

10.8/275 2.10 OHM275L12 1200

Disconnect

switches

Fusible

18.88 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

400A – 800A

Accessories

OXP12X__-45

OESA-ZX1-J_

1 Mounting depth is the distance from the outside of the door to the disconnect switch mounting plate. Shaft can be cut to desired length.

Discount schedule H6: Handles, shafts, accessories

OZXA-27

OZXA-26

OXP12X__

Shafts — .47 x .47" ( 12 x 12mm)

Shaft length Mounting depth1 in inches Weight Catalog List

inches/mm (lbs) number price

For use on OS400

8.7/220 7.9 – 12.2 0.61 OXP12X220 $ 28

 9.8/250 9.1 – 13.4 0.70 OXP12X250 32

 11.0/280 10.2 – 14.5 0.77 OXP12X280 36

 12.8/325 12.0 – 16.3 0.90 OXP12X325 40

 15.6/395 14.8 – 19.1 1.10 OXP12X395 44

 18.3/465 17.5 – 21.9 1.32 OXP12X465 48

 21.1/535 20.3 – 24.6 1.54 OXP12X535 52

For use on OS600 – OES800

 9.8/250 10.0 – 12.8 0.70 OXP12X250 32

11.0/280 11.2 – 14.0 0.77 OXP12X280 36

 12.8/325 13.0 – 15.8 0.90 OXP12X325 40

 15.6/395 15.8 – 18.6 1.10 OXP12X395 44

 18.3/465 18.5 – 21.3 1.32 OXP12X465 48

 21.1/535 21.1 – 24.1 1.54 OXP12X535 52

Twisted shafts —Rotateshandle45° .47 x .47" ( 12 x 12mm)

Shaft length Mounting depth Weight Catalog List

(inches/mm) (inches) (lbs.) number price

For use on OS400

 11.0/280 10.2 – 14.5 0.77 OXP12X280-45 $ 36

 12.8/325 12.0 – 16.3 0.90 OXP12X325-45 40

 18.3/465 17.5 – 21.9 1.32 OXP12X465-45 48

For use on OS600 - OES800

11.0/280 11.2 – 14.0 0.77 OXP12X280-45 36

 12.8/325 13.0 – 15.8 0.90 OXP12X325-45 40

 18.3/465 18.5 – 21.3 1.32 OXP12X465-45 48

“T” type fuse adapter kit

For use on: For use with AC thermal AC rated Poles Catalog List

amp rating voltage number price

OES800 300 & 600V Class T fuse 800 600 3

OESA-ZX1-L8T6

$ 280

Terminal lug kit

 OS400 #2 – 600kcmil — Cu/Al 6 OZXA-400 $ 190

OS400 (2)#2 – 300kcmil — Cu/Al 6 OZXA-402 95

 OS400 (2)#2 – 500kcmil — Cu/Al 6 OZXA-33 375

OS600 (2)#2 – 600kcmil — Cu/Al 6 OZXA-800 360

OS600 (2)#2 – 600kcmil — Cu/Al 3 OZXA-800/3 180

 OES800 (12)#14 – 6kcmil 1.10 Cu/Al 3 OZXA-175/400 270

 OES800 (2)#2 – 600kcmil 4.62 Cu/Al 6 OZXA-27 380

OES800 (2)#2 – 600kcmil 2.31 Cu/Al 3 OZXA-27/3P 190

Kit

For use on: Wire weight Wire Terminal Catalog List

size (lbs) type

lugs per kit

number price

OZXA-175/400

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.89

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

400A – 800A

Accessories

OESA-ZX85

OESA-ZX88

OESA-ZX271

OESA-ZX216

OESA-ZX272

OESA-ZX196

OESA-ZX204

OESA-ZX273

OESA-ZX197

1ULle#E57057

OZXK-_

400A 600A & 800A

Switches Switches

Discount schedule H6: Handles, shafts, accessories

Auxiliary contacts 1

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

1 N.O. + 1 N.C. 0.20 10 600 OZXK-1 100

2 N.O. + 2 N.C. 0.26 10 600 OZXK-2 170

4 N.O. + 4 N.C. 0.40 10 600 OZXK-3 340

2 N.O. OES800 0.18 10 600 OZXK-4 100

 4N.O.  0.25 10 600 OZXK-5 170

8 N.O. 0.40 10 600 OZXK-6 340

Fuse covers (replacement part)

Description For use on: Weight Catalog List

(lbs) number price

2 pole 0.40 OESA-ZX216 180

 3pole OES800 0.50   OESA-ZX196 260

4 pole 0.67 OESA-ZX197 350

Terminal pole

Description For use on: Weight AC thermal AC rated Catalog List

(lbs) amp rating voltage number price

OESA-ZX70

OESA-ZX123

OESA-ZX125

Fuse cover interlock

Description For use on: Catalog List

number price

Prevents the fuse cover from

being opened when the switch OES800 OESA-ZX204 $ 90

is in the ON position

Terminal shroud

Description For use on: Weight Catalog List

(lbs) number price

Includes one terminal shroud OS400 0.13 OSS403 $ 113

for line or load side OS600 0.11 OSS603 190

OES800 0.11 OESA-ZX125 160

Detachable neutral mounts on OES800 1.19 800 600 OESA-ZX88 $ 160

side of switch or DIN rail

1 N.O. OS400 – 600 .07 10 600 OA1G10

$ 20

1 N.C. OA3G01

Module for Auxilliary Contacts

Description For use on: Weight Catalog List

(lbs) number price

Screw mounting to left OS400 – 600 0.1 OEA28 $ 50

side of the switch

Disconnect

switches

Fusible

18.90 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

400A – 800A

Accessories

OETL-ZT80

OETL-ZX108

OETL-ZX95

OETL-ZW5

Discount schedule H6: Handles, shafts, accessories

Shaft extension coupler

Description For use on: Weight Catalog List

(lbs) number price

Joins two shafts together

for applications where 12mm shafts 0.26 OETL-ZX95 $ 100

extended length is required

Description For use on: Weight Catalog List

(lbs) number price

90° angle kit

Converts switch mechanism from OES800 4.63 OETL-ZX108 $ 794

front operation to side operation

Locking accessories

Description For use on: Weight Catalog List

(lbs) number price

Cam attachment for Kirk Key,

Castell, Lowe & Fletcher and

Ronisinterlock.Foradapting OS400–600 0.29   OETL-ZW5 $ 190

to the interlock system.

The interlock is not included.

Electrical interlock Closed

circuit principle for interlocking

the switch movement. When the

coilcircuitisdead,A-typescannot

beoperatedtoON-positionand OES800 2.42   OETL-ZT80A 1280

L-typescannotbeoperatedto     OETL-ZT80L 1220

ON-orOFF-position.

Coil voltages 110VAC, 220VAC,

24VDC, 48VDC, 60 VDC

 110VDC,220VDC,P=15W

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.91

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

400A – 800A

Accessories

6 or 8 pole —OETL-ZW9

6 (8) pole mechanism allows two switches

controlled by one handle, to open or close

simultaneously.

Equipment required for a complete

installation:

• Oneconversionmechanism

• Twodisconnectswitches(seepg.18.87)

• Onehandle(seepg.18.87)

• Twoshafts(seepg.18.88)

POS. O POS. I

SW. A O X

SW. B O X

X = Closed

O = Open

Bypass —OETL-ZW13

Bypass mechanism operates three switches:

Two switches in series and one changeover

switch to allow power bypass. A 3 position

handleisincluded.YASDA-6

(ULType1,3R,4,4X&12).

Equipment required for a complete installation:

• Oneconversionmechanism

• Threedisconnectswitches(seepg.18.87)

• ThreeOETL-ZX95shaftextensioncouplers

(see pg. 18.90)

• Threeshafts(seepg.18.88)

POS. I POS. O POS. II

SW. A O O X

SW. B O O X

SW. C X O O

X = Closed

O = Open

Mechanical interlock —OETL-ZW3,

OETL-ZW14,OETL-ZW15

Mechanical interlock mechanism prevents

both switches from being in the "ON"

position at the same time.

Equipment required for a complete

installation:

• Oneconversionmechanism

• Twodisconnectswitches(seepg.18.87)

• Twohandlesseepage18.87)

• Twoshafts(seepg.18.88)

SW. A SW. B

POS. I POS. I

SW. A X O

SW. B O X

X = Closed

O = Open

Conversion mechanisms

• Switchesarenotincluded

 6or8pole OS400–600;OES800 2.42 — OETL-ZW9 $ 260

 Bypass OS400–600;OES800 8.81 1,3R,4,4X,12 OETL-ZW13 560

   1.26 — OETL-ZW3 140

 Mechanicalinterlock OS400–600;OES800 1.15 — OETL-ZW14 140

   2.64 — OETL-ZW15 160

Description For use on: Weight UL/NEMA Catalog List

(lbs) type number price

OETL-ZW9

OETL-ZW12

OETL-ZW13

OETL-ZW3

OETL-ZW14

OETL-ZW15

Discount schedule H6: Handles, shafts, accessories

1 = Three poles

Drawing and mounting information found on pg 18.117

) / ))

Disconnect

switches

Fusible

18.92 Low Voltage Products & Systems

 

Other conﬁgurations

Side operated

30A – 400A, UL fuse class J,CC,T

For a complete assembly,

please select one of each:

1 switch

1 handle

1 shaft

1 terminal lug

     

Side operated switches — 3 pole

Kit

For use on: Wire weight Wire Lugs Catalog List

size (lbs) type per kit number price

For use with: Length Description Weight Catalog List

(inches/mm) (lbs.) number price

   mm) 0.08  $ 16

   mm) 0.08  16

   mm) 0.90  40

OS30AJS30 & OS30ACCS30 #18 – 8 — Cu — Integral —

       

       $ 24

      80

       190

UL UL

general fuse 

purpose type Three phase Weight Catalog List

         

    Length Marking     

inches/mm able able number price

OS100JS30









Handles

Shafts

Terminal lug kit

         OS30AJS30 $ 360

      

OS30ACCS30

360

         540

         OS100JS30 640

          1800

          2600

Discount schedule H4: F, 30A – 100A

Discount schedule H5: 

Discount schedule H6: 

For use with OS30A_S30

          $ 80

         

For use with OS60JS30 & OS100JS30

          90

         

For use with OES200J3-S & OES400J3-S

          80

         

          190

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.93

 

Discount schedule H4: 

Discount schedule H6: 

Discount schedule SH: Door hardware kits

Flange handles

 Marking Defeatable Padlockable Catalog

number

List

price

1, 3R, 12

4, 4X

OFF/ON







$ 156

240

Shafts

For use with:  Catalog

number

List

price













$ 28

Flange operated

Shaft operated



For a complete assembly, please select one of each.

    





OS30AJF30

Flange operated fusible and non-fusible disconnect switches



Switches.



vices, independent of door position. This code also includes an interlocking provision to prevent the closing of disconnects

while the enclosure door is open, unless an interlock is operated by a deliberate action.



ated version allows you to install the disconnect switch anywhere in the enclosure depending on the length of the cable.

Cables are available in lengths up to 84 inches.



30A -100A Flange operated 

UL general

purpose

amp rating

UL fuse type



 Catalog

number

List

price

Three phase

240V 480V 



100











OS30AJF30

OS30ACCF30



OS100JF30

$ 500

500

590

690

Disconnect

switches

Fusible

18.94 Low Voltage Products & Systems

 





OA1G__



Discount schedule H4: 

Discount schedule H6: 

Discount schedule SH: Door hardware kits

Flange operated

Shaft operated



Terminal lug kits and accessories

For use on: Description Wire size Wire type Qty. Catalog

number

List

price

OS30_



OS100_

Lug







Cu/Al





Integral



$ 24

 



1 NO

1 NC

OA1G10

OA3G01

OS30_ Adapter  1 OSZ4 20

OS100_ Shroud Includes one set of 3 for use on line or load side 1  60

Door hardware NEMA 12

Item Catalog

number

List

price

Safety door latch, 2 point, door less than 40” high

Safety door latch, 3 point, door greater than 40” high





$ 200

225

Disconnect

switches

Fusible

Low Voltage Products & Systems 

 

Flange operated

Cable operated



Discount schedule H3:

Discount schedule H6:

Discount schedule H5:

Discount schedule SH: Door hardware kits



OXC1L84





    

Flange handles - 

For use with: 

rating

Catalog

number

List

price

OS30_12



OS100AJ30

OS200J30

1, 3R, 12  $ 213

4, 4X  243

Flexible cables

For use with: Cable length (inches) Catalog

number

List

price

OS30_12



OS100AJ30

OS200J30









OXC1L48





OXC1L84

$ 114

146

160

175

204

Operating mechanisms

For use with: Catalog

number

List

price

OS30AJ12, OS30ACC12



OS100AJ30, OS200J30

MKCS2

MKCS3

MKCS4

$ 135

162

171

Terminal lug kits

OS30_12 #18 – 8/0 Cu — —  —

 #14 – 4 Cu — —  —

      $ 80

OS100AJ30 #4 – 300 Kcmil Cu/Al — 3  40

OS200J30      180

For use with Wire size Wire type Description Lugs Catalog List

per kit number price

Door hardware NEMA 12

Item Catalog

number

List

price

Safety door latch, 2 point, door less than 40” high

Safety door latch, 3 point, door greater than 40” high





$ 200

225

Fusible

UL general

purpose amp

rating

UL fuse type



 Catalog

number

List

price

Three phase

240V 480V 



100

200



















OS30AJ12

OS30ACC12



OS100AJ30

OS200J30

$ 280

280

380

520

1380



Lug Kit

Disconnect

switches

Fusible

 Low Voltage Products & Systems

 

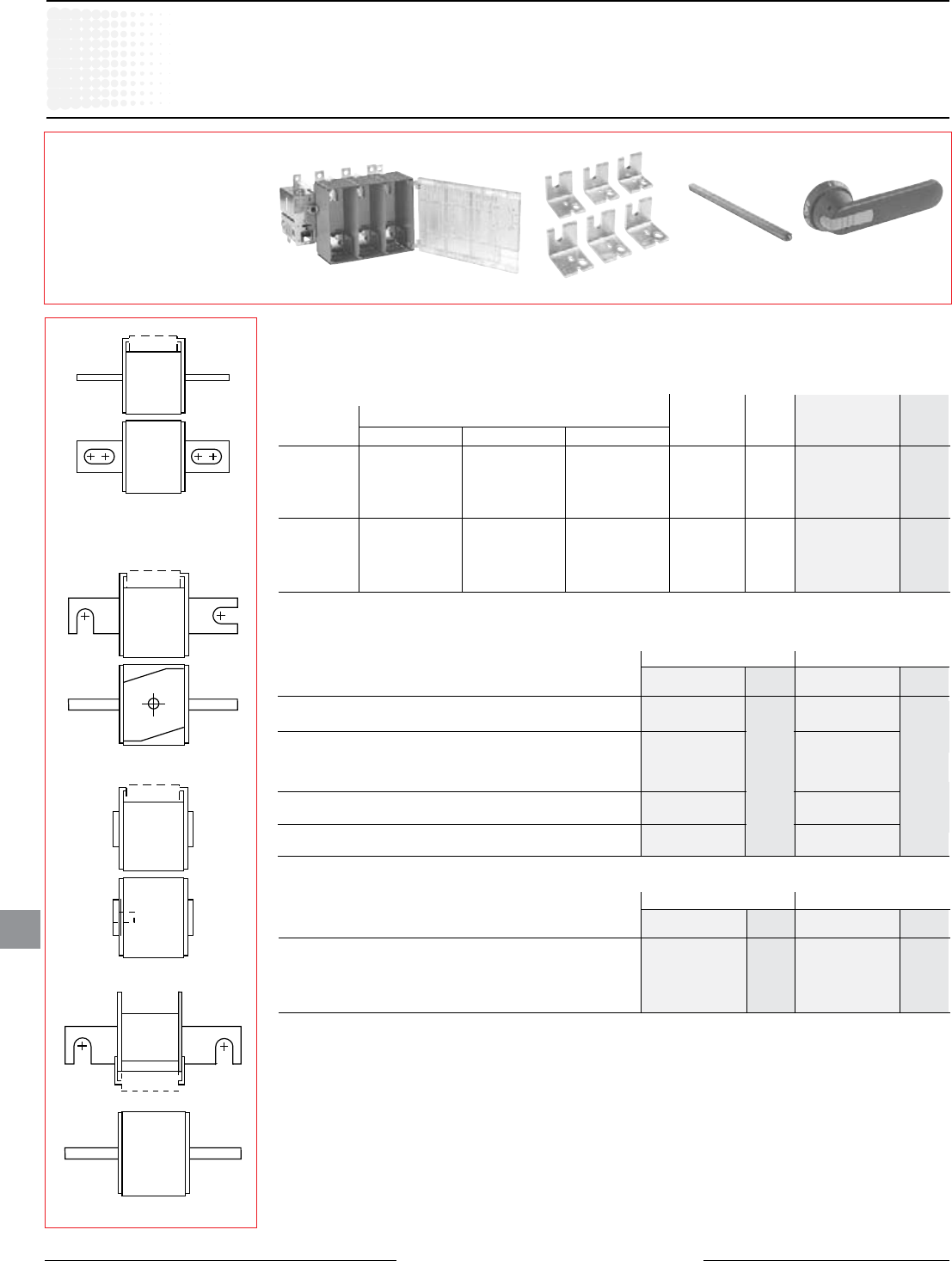

Switch bodies — 200A through 800A

3 pole

        

         1

        

        

4 pole

        

         1

        

        

UL 

general purpose Three phase Weight Catalog List

amp rating      (lbs) number price

Fuse adapter kits 

For 3 pole switch For 4 pole switch

Fuse standard Catalog List Catalog List

number price number price

American standard  

 

   

    

    1  1

    

    

    

French  

French with micro switches  

Fuse adapter kits 

For 3 pole switch For 4 pole switch

Fuse standard Catalog List Catalog List

number price number price

American standard  

    

    1  1

French  

French with micro switches  

Handles and shafts



to give a general fuse selection table for your use. Therefore we ask you to contact ABB Inc., Wichita Falls, in

application issues. Information needed is nominal current of the application and catalog number of the fuse.

Selecting switch bodies and adapter kits

Please select switch body and adapter kit according to your fuses. Switch body alone can not be used — an

adapter kit is always needed.

For a complete assembly,

please select one of each:

1 switch body

1 adapter kit

1 shaft

1 handle        

Other conﬁgurations



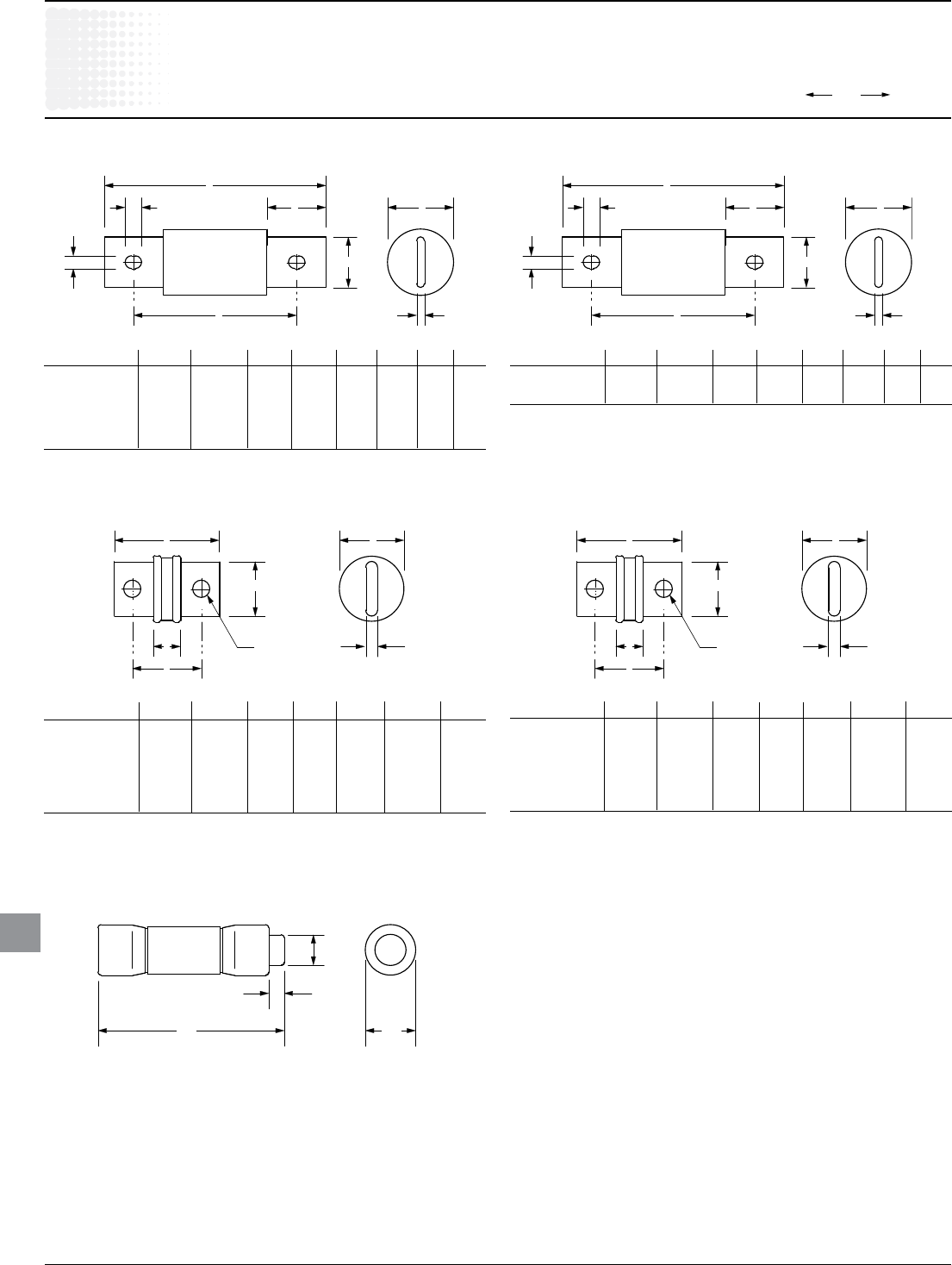

Special type fuses



Flush end

French style

American standard

Discount schedule H4: F, 30A – 100A

Discount schedule H5: 

Discount schedule H6: 



fuse power

dissipation at

rated current

1 Consult Factory.

Disconnect

switches

Fusible

Low Voltage Products & Systems 

 

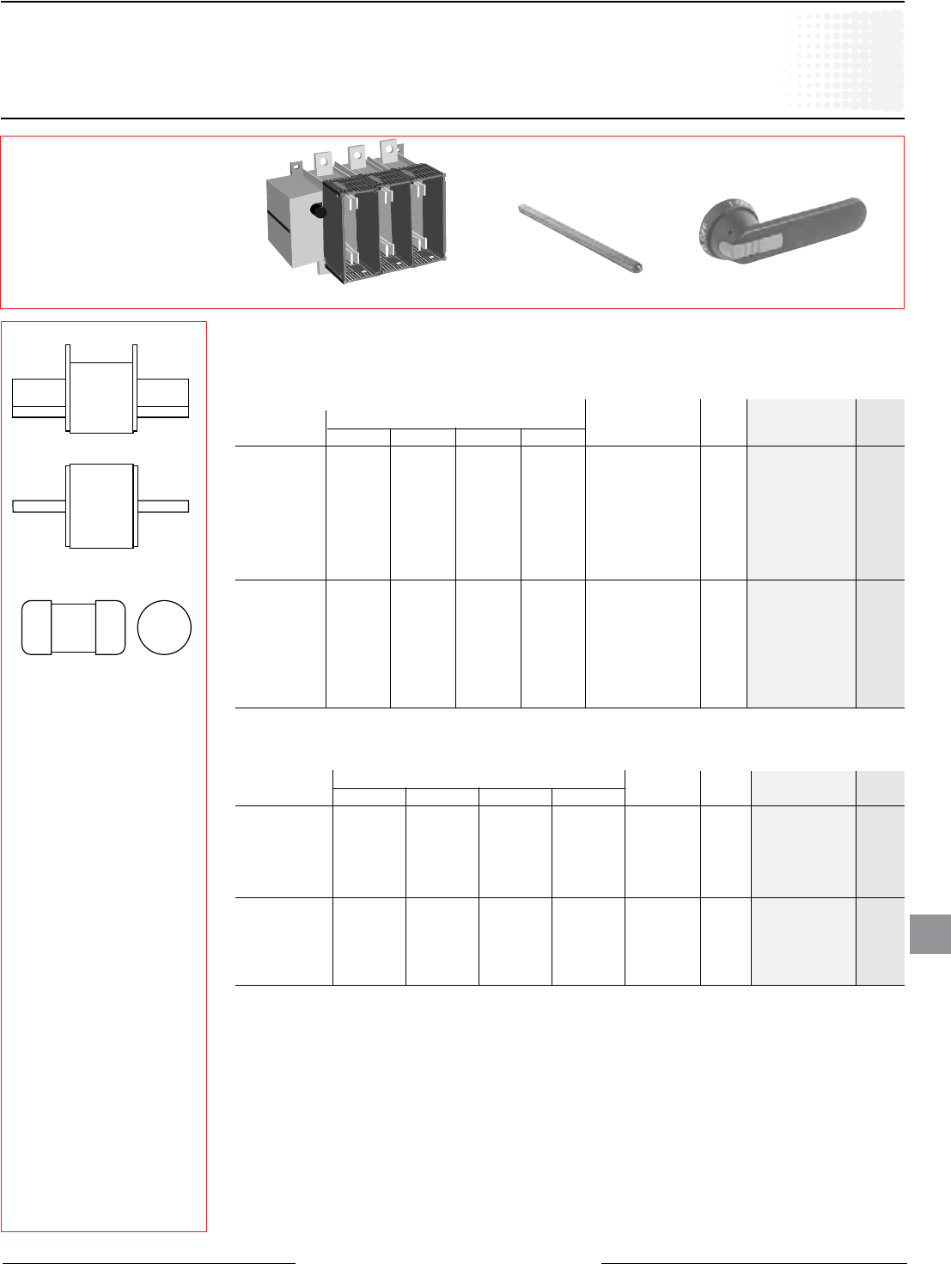

Other conﬁgurations



Standard switches

DIN-style fusible disconnects — 32A through 800A1

Selecting switch bodies



For a complete assembly,

please select one switch

catalog number which

includes:

general purpose AC23A rated operational power in kW Fuse Weight Catalog List

amp rating     type (lbs.) number price



fuse selection table for your use. Therefore we ask you to contact ABB Control Inc., Wichita Falls, regarding application

issues.

NFC-style fusible disconnects 2

3 pole

        

        OS32RF1214

         3

        

        

4 pole

        

        OS32RF2214

         3

        

        

general purpose AC23A rated operational power in kW Fuse Weight Catalog List

         

3 pole

        OS32RD12

        

        

         3

        

400 110 210 280 330 DIN 0, 1, 2 18.3 

        

        

4 pole

        OS32RD22

        

        

         3

        

        

        

        

1 

 

 

2 

 

3 Consult Factory.



Discount schedule H4: F, 30A – 100A

Discount schedule H5:

Discount schedule H6: 

NFC Style

Switch body + shaft + handle

Disconnect

switches

Fusible

18.98 Low Voltage Products & Systems

 

BS fuse pattern switches (20A – 32A)



Catalog Number Rated op. current/ Fuse Fuse

number of poles Rated op. power type and standard

  size

Other conﬁgurations

BS fuse pattern 1

20A – 800A

1 Please consult factory for additional information.

2 The fourth pole is provided with a solid link which can be replaced with a fuse.

BS pattern switches (32A – 800A)



Fuse covers included for 200A – 800A

Rated Rated operational current/ Weight

    th Rated operational power in with

      

number voltage age

          

OS20B12A1 3 20 A 20A A1

     

OS20B22A1F 4

OS32B12A1 3 32 A 32A A1 

      

OS32B22A1F 4

OS32B12A2 3 32 A 32A A2

     

OS32B12F1 3 32 A 32A F1 

     

OS32B12A1



OS32B12 3        1.3

OS32B22N1 42        

          1.3

  2        

          

OS100B13 42        1.8

OS100B01 1 0.9

OS100B11 2 1.9

          

         1 1.8

          

          

          

  2        

          

          

          

  2 8.2

          

  2

       8.9

          

          

          

  2

       9.4

          

          

          

  2        

          

          

          

  2        

          

          

Discount schedule H4: F, 30A –100A

Discount schedule H5: F, 200A – 800A









Disconnect

switches

Fusible

Low Voltage Products & Systems 18.99

 

Other conﬁgurations

DIN fuse pattern 1

32A – 800A

1 Please consult factory for additional information.

DIN pattern switches (32A – 800A)



Rated Rated operational current/ Weight

    th Rated operational power in with

      

voltage age

          

OS32D12 3 1.3

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          

          



Discount schedule H4: F, 30A – 100A

Discount schedule H5: F, 200A – 800A











Disconnect

switches

Fusible

18.100 Low Voltage Products & Systems

 

Other conﬁgurations

NFC fuse pattern

, 

NFC fuse pattern 



Rated Weight

    th Rated operational power in with

number voltage age

          

1 Please consult factory for additional information.

Discount schedule H4: F, 30A – 100A

          

          

          

          

OS100F03 3 2.2

          

          

          

          

          

NFC fuse pattern switches 



Catalog Number Rated op. current/ Fuse Fuse

number of poles Rated op. power type and standard

  size

     

      

     

OS32F1214 3   

      

OS32F2214F 4

OS32F1214





NFC fuses are used in France and in French

speaking Africa

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.101

 

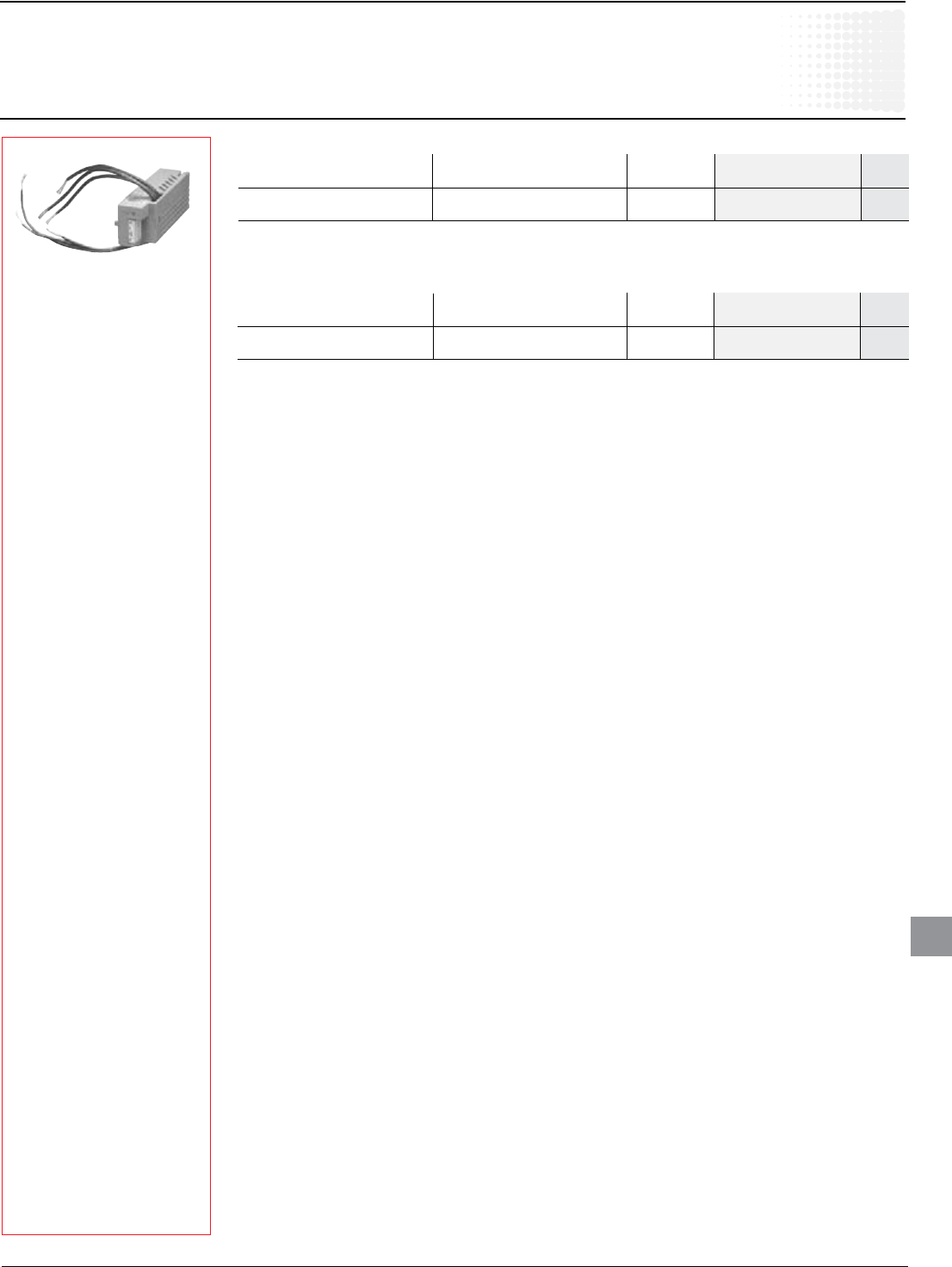

Fuse monitors

For switch Crimp terminal Catalog List

size size (mm) number price

    OFMZX2 $ 20

    OFMZX4 70



Mounting accessories

Description

 

 

 

 

 

 

 

 

 

 

 

OFM_

For switch Rated Weight Catalog List

size voltage (lbs.) number price



   OFM240 $ 435

    



Fuse monitors

Disconnect

switches

Fusible

18.102 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Catalog number 3 pole

OS30A_12 OS60J12 OS100J03 OS200J03 OS400J03 OS600J03 OES800L3

Technical data

OS30A_12 – OES800L3

UL & CSA

1 The following UL Listed switches are also CSA approved.

Approvals 1

2 pole N/A N/A IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

3 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

4 pole UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC UL98 & IEC

Technical ratings -40°to40°C

General purpose amp rating A 30 60 100 200 400 600 800

pf = 0.7 – 0.8

Max operating voltage V 600 600 600 600 600 600 600

Max horsepower rating/

Max motor FLA current

 pf=0.4–0.5

Three phase

240V HP/A 7.5/22.0 15/42.0 30/80.0 60/145.0 125/312.0 200/480.0 250/602.0

480V HP/A 15/21.0 30/40.0 60/77.0 125/156.0 250/302.0 400/477.0 500/590.0

600V HP/A 20/22.0 50/52.0 75/77.0 150/144.0 350/336.0 500/472.0 600/—

Single phase

120V HP/A 2/24.0 — — — — — —

240V HP/A 3/17.0 — — — — — —

Short circuit rating with fuse kA 200 200 200 200 200 200 100

UL Fuse size A 30 60 100 200 400 600 800

UL Fuse type J/CC J J/T J/T J J L

Endurances

Min. Electrical endurance,

 pf=0.75–0.80 operationcycles 6000 6000 6000 6000 1000 1000 500

Mechanical endurance

operation 20,000 20,000 20,000 20,000 12,000 10,000 7000

Physical characteristics

 Weight  3pole lb 1.54 2.86 3.30 5.9 12.56 28.66 37.44

   4pole lb 1.98 3.52 3.96 7.5 15.21 37.48 46.26

 Dimension 3pole H in 3.66 3.94 5.67 6.5 9.29 12.04 10.10

   W in 4.15 5.63 7.07 7.1 10.04 13.50 14.80

   D in 4.10 5.04 5.10 5.2 6.93 9.17 9.17

Shaft size square in .20 .24 x .24 .24 x .24 .24 x .24 .47 x .47 .47 x .47 .47 x .47

   mm 5x5 6x6 6x6 6x6 12x12 12x12 12x12

 Switchoperatingtorque lb.in. 26.6 35.5 70.9 195 195 248 248

for rotary 3 pole switches

Terminal lug kits

Integral Integral OZXA-24 OZXA-200 OZXA-400 OZXA-800 OZXA-27

Wire range AWG #18 – 8 #14 – 4 #14 – 2/0

#4 – 300kcmil #2 – 600kcmil (2) #2 – 600 kcmil (2) #2 – 600 kcmil

Torque:

  Wiretightening  lb.in. 17 30 120 200 500 500 500

Lug mounting lb. in. N/A N/A 50 72 480 480 480

Auxiliary contacts

OA4G_ OA1/3G_

OA_G_

 OZXK-__

NEMA ratings, AC — A600 A600 A600 A600 A600 A600 A600

AC rated voltage VAC 250 600 600 600 600 600 600 600

AC thermal rated current A 6 10 10 10 10 10 10 10

maximum volt ampere making

VA — 7200 7200 7200 7200 7200 7200 7200

maximum volt ampere breaking VA

— 720 720 720 720 720 720 720

NEMA ratings, DC — P300 R300 R300 R300 P600 P600 P600

DC rated voltage VDC — 300 300 300 300 600 600 600

DC thermal rated current A — 1 1 1 1 1 7 5

DC maximum make break current A

 — 28 28 28 28 28 28 138

Torque:

Wire tightening lb. in. 7 7 7 7 7 7 7

Wire range AWG #22 – 14/#18 – 14 #18 – 14 #18 – 14 #18 – 14 #18 – 14 #18 – 14 #20 – 12

T: OS30A_12 – OES800L3, UL & CSA

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.103

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Technical data

OS30A_12 – OES800L3

IEC

1 Ambienttemperature60°C:derating20percent.Mountingonceiling:derating10percent.Mountingonwall,horizontalfuses:derating8percent.

2 Theambientairtemperaturedoesnotexceed+40°Canditsaverageoveraperiodof24hdoesnotexceed+35°CaccordingtoIEC947.

3 For 30A switches, use 2 + 2 parallel contacts in series.

4 Available on request.

5 IEC947-3,utilizationcategoryB,infrequentoperation.

6 Pollutiondegree3:Conductivepollutionoccurs,ordry,non-conductivepollutionoccurs,whichbecomesconductiveduetocondensation.

Catalog number 3 pole

OS30A_12 OS60J12 OS100J03 OS200J03 OS400J03 OS600J03 OES800L3

IEC

Technicalratings  -40°to40°C

Rated insulation voltage

Pollution degree 3 6 V 1000 1000 1000 1000 1000 1000 1000

Dielectricstrength 50Hz/60Hz,1min kV 10 10 10 10 10 10 10

Rated impulse withstand voltage kV 12 12 12 12 12 12 12

Rated thermal current, Ith/

max. fuse power dissipation 1

AC 20/DC 20 open 2  A/W 32/3.5 63/7.5 160/12 200/17 400/45 630/60 800/65

 40°Cenclosed  A/W 32/3.5 63/7.5 160/10,135/12 200/17 400/34,360/37 600/45,570/50 720/55

 Enclosedwithsolidlinks A/W 32 85 175 280 450 700 900

with minimum cable cross section Cu mm2 6 16 70 95 240 2x185 2x240

Rated operational voltage AC 20 and DC 20V 1000 1000 1000 1000 1000 1000 1000

AC Rated operational currents

AC21A ≤500V A 32 63 160 200 400 630 800

≤690V A 32 63 160 200 400 630 800

AC22A ≤500V A 32 63 160 200 400 630 800

≤690V A 32 63 160 200 400 630 800

AC23A ≤500V A 32 635 160 5 200 400 630 720

≤690V A 32 63 5 160 5 200 400 630 720

DC Rated operational currents/poles in series

DC21A 48V A 32/2 3 4 4 200/1 400/2 — 800/2

110V A 32/2 4 4 200/1 400/2 — 800/2

220V A 32/2 4 4 200/1 400/2 — 800/2

440V A 32/4 63/4 160/3 200/2 400/2 — 800/2

  750V A — 4 4 180/4 400/3 — 800/3

  1000V A — 4 4 — 400/4 — 800/4

DC22A 48V A 32/2 3 4 4 200/1 400/2 — 800/2

110V A 32/2 4 4 200/1 400/2 — 800/2

220V A 32/2 4 4 200/1 400/2 — 800/2

440V A 32/4 63/4 160/3 200/2 400/2 — 800/2

  750V A — 4 4 180/4 400/3 — 800/3

  1000V A — 4 4 — 400/4 — 800/4

DC23A 48V A 32/2 3 4 4 200/1 400/2 — 800/2

110V A 32/2 4 4 200/1 400/2 — 800/2

220V A 32/2 4 4 200/1 400/2 — 800/2

440V A 32/4 63/4 160/3 200/2 400/2 — 800/2

  750V A — 4 4 180/4 400/3 — 800/3

  1000V A — 4 4 — — — 800/4

Rated operational power AC23A

  230V kW 8 18.5 45 60 132 200 200

400V kW 14 30 80 110 220 355 350

  415V kW 15 30 90 110 230 355 380

  500V kW 18 37 110 140 280 450 470

  690V kW 25 60 132 190 400 630 600

2 poles

in series

Load

3 poles

in series

4 poles

in series

Load Load

Load

2 + 2 parallel contacts in series

T: OS30A_12 – OES800L3, IEC

Disconnect

switches

Fusible

18.104 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Technical data

OS30A_12 – OES800L3

IEC

Catalog number 3 pole

OS30A_12 OS60J12 OS100J03 OS200J03 OS400J03 OS600J03 OES800L3

IEC

1 AC15/DC12,accordingtoIEC947-5-1

2 AC15,accordingtoIEC947-5-1

3 Valuesshownarecorrespondingmax.allowedcut-offcurrent,peak-valuespersinglephasefusetests.

Rated breaking capacity

incategoryAC-23A 500V  A 256 504 1280 1600 3200 5760 5760

  690V A 256 504 1280 1600 3200 5760 5760

Rated breaking capacity/poles in series

incategoryDC-23 <220V  A 128/2 — — 1000/2 1600/2 3200/2 3200/2

  440V  A 128/4 — — 1000/2 1600/2 3200/2 3200/2

  500–750V  A — — — 1000/3 1600/3 3200/3 3200/3

  1000V  A — — — — — 3200/4 3200/4

Ratedconditionalshort-circuitcurrentr.m.s.3

  80kA,415V  kA 9 17 22 35 40 75 75

  100kA,500V  kA 7.5 17 22 37.5 40 75 75

  50kA,690V  kA 6 13 15 35 35 60 60

Ratedshorttimewithstandcurrent,1s. kA 1 2.5 5 8 10 16 16

Rated capacitor power

The capacitor rating of the fusible

disconnect switch is limited by the fuse link

  400V kVar 15 30 — — 180 250 310

  415V kVar 15 32 — — 200 270 340

  690V kVar 25 50 — — 325 450 550

Power loss/pole

with rated current, without fuse W 2 4 9 8 30 46 77

Mechanical endurance operations 20,000 20,000 20,000 20,000 16,000 10,000 10,000

Fusetypes,IEC269-2 DIN43620 — 000,00 000,00 — 0–2 3 3

   NFC 10x38,14x51 14x51,22x58 22x58 — 0–2 3 —

BS 88 A1, A2, F1 A2 – A3 A2 – A4 B1 – B2 B1 – B4 C1 – C2 C1 – C3

 size/distanceoflinkbolts  M4/44.5(A1) M5/73 M5/73 M6/111 M8/111 M10/133,184 M10/133,184

    M5/73(A2)  M8/94   

Physical characteristics

 Weight 3pole kg 0.7 1.3 1.5 2.6 5.7 13.0 17.0

4 pole kg 0.9 1.6 1.8 7.9 6.9 17.0 21.0

 Dimension 3pole Hmm 93 100 144 198.5 236 306 282

   Wmm 106 143 179 181.5 255 343 376

D mm 104 120 129 132 176 233 233

Shaft size square mm 5x5 6x6 6x6 6x6 12x12 12x12 12x12

Terminals

Built-interminalsize mm2  0.5–10 2.5–25 — — — — —

Terminal bolt size, metric thread

 diameterxlength mm — — — M6x20 M8x25 M10x40 M12x40 M12x40

Terminalbolttighteningtorque Nm 2 3.5 6–9 15–22 30–44 50–75 50–75

Fuse-linksboltstighteningtorque Nm 2 3.5 3.5–5 4 15 40 40

Operating torque Nm 3 4 8 7 22 28 28

Auxiliary contacts OA4G_ OA1/3G OA_G_ OA_G_ OA_G_ OA_G_ OA_G_ OZXK-_

1 2 2 2 2

RatingsaccordingtoIEC947-5-1

Rated voltage, Ui VAC 690 690 690 690 690 690 690 690

Thermal current, Ith A 10 16 16 16 16 16 16 10

AC12 / DC12, Ie U

e=24V A —/6 — — — — — — —

  120V A —/6 — — — — — — 8/—

  125V A — — — — — — — —/1.1

  230V A — 6/— 6/— 6/— 6/— — — 6/—

  250V A 3/0.1 — — — — — — —/0.55

  400V A — 4/— 4/— 4/— 4/— — — 4/—

  415V A — — — — — — — 4/—

  440V A 2/— — — — — — — —/0.31

  480V A — — — — — — — 3/—

  500V A — — — — — — — 3/0.27

  600V A — — — — — — — —/0.2

  690V A — 2/— 2/— 2/— 2/— 2/— 2/— 2/—

T: OS30A_12 – OES800L3, IEC

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.105

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Selecting switches

per NEC & IEC

Selecting switches per IEC

Utilization categories

Nature of current Utilization category Typical applications

Frequent operation Infrequent operation

  AC-20A  AC-20B • Connectinganddisconnectingunderno-load

conditions

  AC-21A  AC-21B • Switchingofresistiveloadsincludingmoderate

overloads(PF>0.95)

 Alternatingcurrent AC-22A  AC-22B • Switchingofmixedresistiveandinductiveloads,

includingmoderateoverloads(PF>0.65)

  AC-23A  AC-23B • Switchingofmotorloadsorotherhighly

inductiveloads(PF>0.45below100A;

      PF>.35above100A

  DC-20A  DC-20B • Connectinganddisconnectingunderno-load

conditions

  DC-21A  DC-21B • Switchingofresistiveloadsincludingmoderate

overloads(L/R<1ms)

 Directcurrent DC-22A  DC-22B • Switchingofmixedresistiveandinductive

loads, including moderate overloads, e.g., shunt

motors(L/R<2.5ms)

  DC-23A  DC-23B • Switchingofhighlyinductiveloads,e.g.,series

motors(L/R<15ms)

Mechanical endurance Number of operations Number of operations

100A 10,000 2000

 315A 8000  1600

 >315A 2000  400

manufacturer and user.

Article 430 of the US National Electric Code includes two methods for properly sizing disconnect switches:

Selecting switches per NEC

1. Single motor application

A properly sized disconnect switch for a single motor will:

a) haveanampereratinggreaterthanorequalto115percentoftherated

motorfullloadcurrent;or,

b) have a HP rating greater than or equal to the rated motor HP (at applied

voltage) if the disconnect switch under consideration is HP rated.

2. Combination load application

A properly sized disconnect switch for a combination load will be selected by

adding all the simultaneous individual loads in the circuit under consideration.

Using motor nameplate information, load information, and tables from section 430

of the NEC, determine one equivalent full load current and one equivalent locked

rotorcurrent.Theequivalentlockedrotorcurrentcanbeusedwithtable430-151

to determine an equivalent HP rating. Select a disconnect switch:

a) greaterthanorequalto115percentoftheequivalentfullloadcurrent;and,

b) greater than or equal to the equivalent HP rating.

S: Selecting switches per NEC & IEC

Disconnect

switches

Fusible

18.106 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Motor feeder

Motor feeder short circuit and

ground fault protection

Motor disconnecting means

(NEC ® 430.101 - 430.113)

UL98

UL508

Motor controller

(NEC ® 430.81 - 4.30.91)

Motor overload protection

(NEC ® 430.31 - 4.30.44)

OSHA Lockout/tagout disconnect

(NEC ® 430.81 - 430.91)

Motor

Motor branch-circuit

short-circuit

protection

(NEC ® 430.51 - 430.58)

To supply

UL98

Fusible Switches

OS30, OS60, OS100,

OS200, OS400, OS600

OES800

UL98

Non-Fusible Switches

OT30, OT60, OT100

OT125, OT200,

OT400, OT600

OETL-NF800 thru

OETL-NF2000

UL508

Non-Fusible Switches

OT16, OT25, OT32,

OT45, OT63

(UL98 switches can also

be applied)

Typical control panel

Feeder Circuit

Branch Circuit

Use of UL98 & UL508 Disconnects

S:UseofUL98&UL508Disconnects

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.107

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Deﬁnitions

AC – Alternating current — Current that reverses its direction of ow

twice per cycle.

Ambient temperature —Temperatureoftheairsurroundingtheunit.

Amp rating — The basic unit of measurement for electric current

(columbs / seconds).

Conventional thermal current Ith—Valueofthecurrentthe

disconnect switch can withstand with poles in closed position, in free

air for an eight hour duty, without the temperature rise of its various

partsexceedingthelimitsspeciedbythestandards.

Cycle duration — Totaltimeoftheon-load+off-loadperiod.

DC – Direct current—Currentthatowsinonlyonedirection.

Electrical endurance—Numberofon-loadoperatingcycles.

IEC environmental protection type —seepage18.48.

Full load amp current FLA—Thecurrentrequiredbyamotorto

producefull-loadtorqueatthemotor'sratedspeed.

Inductive load—Anelectricalloadcharacterizedbyhavingsignicant

inrush(5to6timesFLAfortypicaldesign-BACinductionmotors).

kW—Kilowatts(1000watts)

Lockout/Tagout—Meansofremovingpowerfromelectrical

equipment during inspection, service or repair.

Make / Break — ON / OFF

Mechanical endurance—Numberofoff-loadoperatingcycles.

Poles in series—Meansofconnectionpolesusingwiresorbusbars

to increase breaking capacity of load.

Power factor—Therelationshipbetweenworkingpowerandtotal

power consumed. Power factor measures how effectively electrical

power is being used.

Rated insulation Ui — Voltage value which designates the unit and to

which dielectric tests, clearance and creepage distances are referred.

Rated operating current Ie—Currentvaluestatedbythe

manufacturer and taking into account the rated operating voltage

Ue, the rated frequency, the rated duty, the utilization category, the

electrical contact life and the type of protective enclosure.

Rated operating voltage Ue — Voltage value to which utilization

characteristicsofthedisconnectswitcharereferred,i.e.phase-to-

phase voltage in 3 phase circuits.

Rated short circuit making capacity Icm —Theratedshort-

circuit making capacity of a disconnect switch, a disconnector or a

switch-disconnectoristhevalueassignedtoequipmentattherated

operationalvoltage,frequency(ifany)andspeciedpower-factor

for AC or time constant for DC. It is expressed as the maximum

prospective peak current under prescribed conditions.

Rated short time withstand current Icw—Theratedshort-time

withstandcurrentofadisconnectswitch,adisconnectororaswitch-

disconnector is the value that the equipment can carry without damage,

underthetestconditionsspeciedintherelevantproductstandard.

Thevalueoftheratedshort-timewithstandcurrentshallbenotless

than twelve times the maximum rated operational current unless

otherwise stated by manufacturer and the duration of the current shall

be 1 s.

Resistive load—Anelectricalloadcharacterizedbynothavingany

signicantinrushcurrent.

Short circuit protection co-ordination—Co-ordinationtypes"1"and

"2"aredenedinIEC947-4-1.

Type 1 co-ordination—Therehastobenodischargeofparts

beyond the enclosure. Damage to the contactor and the overload is

acceptable.

Type 2 co-ordination—Nodamagetotheoverloadrelayorother

parts has occured, except that welding of contactor or starter

contacts is permitted, if they are easily separated.

Time constant—Ratioofinductancetotheresistance:

L/R = mH/Ohm = ms.

Torque—Theforcethatproducesrotation.Itiscommonlymeasured

inpound-feet(lb-ft).Torqueappliestosuchthingsasmotoroperations,

handle rotations, wire tightening.

UL environmental protection type —seepage18.49.

Volt —Theunitofelectricalpotentialdifferenceandelectromotive

force.

S:Denitions

Disconnect

switches

Fusible

18.108 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

‡

OFF

= Contacts in closed position

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

0°30°60°90° a

Auxiliary contact timing diagrams

OS30_ – OS100

OS30_

OS60

 Catalognumber Auxiliarycontact Contactconguration

OA4B1C 1 N.O. & 1 N.C.

OS30_ OA1G10 1 N.O.

OA3G01 1 N.C.

 Catalognumber Auxiliarycontact Contactconguration

OS60 OA1G10 1 N.O.

OA3G01 1 N.C.

OS100

 Catalognumber Auxiliarycontact Contactconguration

OS100 OA1G10 1 N.O.

OA3G01 1 N.C.

Contacts closing Contacts opening

1 Main contacts close 4 Main contacts open

2 N.O. auxiliary contacts close 5 N.O. auxiliary contacts open

3 N.C. auxiliary contacts open 6 N.C. auxiliary contacts close

Legend

O OFF

I ON

OFF

OA4B1C

OA1G10

Test

OA3G01

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

-45°0°30°60°90° a

OA1G10

OA3G01

Test

OA1G10

Installed in mechansim

Installed on side of switch

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

-45°0°30°60°90° a

OA3G01

OA1G10

Ins talled in me chanis m

Ins talled on s ide of s witch

OA3G01

Test

OA1G10

T e s t loc a tion

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

N.O. auxiliary contact

N.C. auxiliary contact

-45°0°30°60°90° α

T:Auxiliarycontacttimingdiagrams,OS30-OS100

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.109

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Auxiliary contact timing diagrams

OS200 – OES800

  OZXK-1 1N.O.&1N.C.

  OZXK-2 2N.O.&2N.C.

 OES800 OZXK-3 4N.O.&4N.C.

  OZXK-4 2N.O.

  OZXK-5 4N.O.

  OZXK-6 8N.O.

OES800

 Catalognumber Auxiliarycontact Contactconguration

OS200 - OS600

030 60 90 α

oooo

Main contacts

N.O. auxiliary contact

N.C. auxiliary contact

OZXK-1

OZXK-2

OZXK-3

OZXK-4

OZXK-5

OZXK-6

4%34 /&& /.

    

.#TESTINDICATIONCONTACTS

INSIDETHEMECHANISM

#ONTACTTYPE

-AINCONTACTS

./TESTCONTACTS

INSIDETHEMECHANISM

.#TESTCONTACTS

INSIDETHEMECHANISM

./TESTINDICATINCONTACTS

INSIDETHEMECHANISM

./AUXILIARYCONTACTSINTHE

MODULEONTHESIDEOFTHESWITCH

.#AUXILIARYCONTACTSINTHE

MODULEONTHESIDEOFTHESWITCH

)

/.AND/&&FUNCTIONSOFMAINANDAUXILIARYCONTACTS

3HAFT

MOVEMENT

(ANDLEMOVEMENT

T:Auxiliarycontacttimingdiagrams,OS200-OES800

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.110 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Approximate dimensions

OS30A_ – OS60_

OS30AJ12 & OS30ACC12

OS60J12

OS30A_12

4.10

104

3.66

3.84

97.5

2.75

0.18

4.5

0.93

23.5

1.83

46.5

1.52

38.5

4.15

105.5

2.95...3.15

75...80

3.66

OS60J12

2.55

64.7

1.06

0.18

4.5

3.94

100

1.97

3.62

5.04

128 0.24

4.72

120

2.23

56.6

1.59

40.5

0.55

5.63

143

D:OS30A-OS60

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.111

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Approximate dimensions

OS100_ – OS200_

OS100J03

1.02

26.0

0.08

2.0

4.72

120

0.24

2.64

4.35

110.5

4.80

122

6.67

169.5

1.38

1.12

28.5

1.60

40.5

1.61

41.0

1.38

1.42

36.0

5.67

144

8.35

212

Terminal detail

(enlarged)

6.6 X 10.6mm

OB round hole

0.79

0.59

0.47

0.61

15.5

0.69

17.5

5.10

129.5

5.69

144.5

(2 pole)

7.07

179.5

(3 pole)

8.44

214.5

(4 pole)

OS200J03, -04

OS200 (mm)

J03 J04F

A 46 46

B181.5 222.75

A1 144 144

A2 152.5 198.5

B1 138.5 138.5

B2 171.5 217.5

C1 108 108

C2 188.5 234.5

6.8 4.8

02 04

2.01Ø

621

A5.84

5.461

231

502...041

nim 41

5.891

5.04

5.63

951

5.8

5.62

)161X6 PXO(

D:OS100-OS200

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.112 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Approximate dimensions

OS200_ – OES200_

OS200J11, -12, -13, -22

OS200 (mm)

J11 J12 J13 J22

A 92 92 92 138

B 132.1 178.1 224.1 224.1

A1 144 144 144 144

A2 104 150 196 196

A3 52 52 52 98

B1 109.4 109.4 109.4 109.4

B2 105.9 140.9 140.9 175.9

B3 61.5 61.5 61.5 107.5

C1 108 108 108 108

C2 140 186 232 232

C3 70 70 70 116

441

1 8.9 40

10.2

.8 6 .8 4

A46

164.7

40 3

36.3

1 .89 7

Ø 16

41 nim

132.2

41 0 ... 205

( PXO 6x161)

15 8.8

OS400J03

D:OS200-OES200

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.113

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Approximate dimensions

OS600J03

D: OS600J03

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.114 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

0.63

0.45

11.5

0.41

10.5

1.46

C.L.

0.18

4.5

0.10

2.5

0.79

0.26

6.5

OZXA-24

OZXA-33

0.31

3.25

82.5

C.L. 0.42

9.5

1.18

2.75

0.06

1.5

0.44

OZXA-175/400

1.91

48.5

2.00

51.0

1.12

28.5

0.65

16.5

C.L.

0.53

13.5

0.19

4.8

Approximate dimensions

for Terminal lugs

OZXA-200 — for use with 200A switches

OZXA-400 — for use with 400A switches

OZXA-800 — for use with 600A switches

OZXA-24 — for use with 100A switches

OZXA-33 — for use with 400A switches OZXA-175/400 — for use with 800A switches

#,

D: Terminal lugs

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.115

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Approximate dimensions

for 30A Conversion mechanisms

6 pole — OWP5DS1

Mechanical interlock — OWM5DS1

 OWP5DS1_ Minimum Maximum1

in combination with: inches/mm inches/mm

 OS30_ 5.51/140 n/a

 OWM5DS1 Minimum Maximum

in combination with: inches/mm inches/mm

 OS30_ 5.51/140 n/a

9.49

241

8.74

222

4.61

117

4.13

105

4.65

118

0.55

9.49

241

8.74

222

4.61

117

4.13

105

4.65

118

0.55

D: 30A Conversion mechanisms

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.116 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Approximate dimensions

for 60A – 100A conversion mechanisms

6 or 8 pole — OESA-ZW2 For installation of 6 or 8 pole and transfer mechanisms, the following minimum

andmaximummountingdimensionsaregivenbelow.

 OESA-ZW2 Minimum Maximum1

in combination with: inches/mm inches/mm

 OS60 6.89/175 10.83/275

 OS100 6.89/175 10.83/275

Note: Deeper enclosures will require a longer shaft, please select a 12mm shaft

frompage18.88,andanOETL-ZX95shaftextensioncouplerfrompage18.90.

Mechanical interlock — OTZW10

 OTZW10 Minimum Maximum1

in combination with: inches/mm inches/mm

 OS60-OS200 6.3/160 —

Note: Deeper enclosures will require a longer shaft, please select a 6mm shaft from

page 18.83.

1.77...9.49

45...240

(15mm Steps)

0.59

0.24

0.47

4.72

120

7.72

196

1.57

OESA-ZW2

7.48

190

0.24

D:60A-100Aconversionmechanisms

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.117

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Dimensions in Inches

& mm

OETL-ZW3 11.81 0.47

300.0 12.0

OETL-ZW14 9.84 0.47

250.0 12.0

OETL-ZW15 19.69 0.47

500.0 12.0

OETL-ZW3, 14, 15

4.53

115

2.07

52.5

1.32

33.5

3.31

8.27...22.44

210...570

0.47

9.84...24.02

250...610

0.47

OETL-ZW13

3.54

26.06

662

0.79

Approximate dimensions

for 400A – 800A conversion mechanisms

6 or 8 pole — OETL-ZW9 For installation of 6 or 8 pole and transfer mechanisms, the following minimum

andmaximummountingdimensionsaregivenbelow.

 OETL-ZW9 Minimum Maximum1

in combination with: inches/mm inches/mm

 OS400 9.84/250 N/A

OS600 11.02/280 N/A

OES800 11.02/280 N/A

Bypass switch — OETL-ZW13

Mechanical interlock — OETL-ZW3, OETL-ZW14 & OETL-ZW15

For installation of bypass and mechanical interlock mechanisms, the following

minimumandmaximummountingdimensionsaregivenbelow.

 OETL-ZW13 Minimum Maximum1

in combination with: inches/mm inches/mm

 OS400 11.61/295 N/A

 OS600 12.80/325 N/A

 OES800 12.80/325 N/A

IncludesYASDA-21handle.

NOTE: Deeper enclosures require a longer shaft. Select a 12mm shaft from

page18.88andanOETLZX95shaftextensioncouplerfrompage18.90.

 OETL-ZW3,14,15 Minimum Maximum1

in combination with: inches/mm inches/mm

 OS400 9.45/240 N/A

 OS600 10.43/265 N/A

 OES800 10.43/265 N/A

Handle(s) not included.

2.36...17.32

60...240

20mm Steps

0.79

0.47

1.46

OETL-ZW9

Dimensions in Inches

& mm

OETL-ZW3 11.81 0.47

300.0 12.0

OETL-ZW14 9.84 0.47

250.0 12.0

OETL-ZW15 19.69 0.47

500.0 12.0

OETL-ZW3, 14, 15

D:400A-800AConversionmechanisms

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.118 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Class J (600V)

Class T (300V)

Class CC (600V) — Rejection type

Class L (600V)

Class T (600V)

Ampere rating A B C D E F G H

1 – 30 .88 .41 — — — — —

 31–60 .88 .56 — — — — —

 61–100 2.16 .81 .12 .75 1 3.62 .38

 101-200 2.45 1.06 .19 1.12 1.38 4.38 .38

 201-400 2.75 1.33 .25 1.62 1.88 5.25 .53

 401-600 3.06 1.62 .31 2.00 2.12 6.00 .69

 601-800 3.38 2.08 .38 1.75 2.22 .55 .88

Ampere rating A B C D F G J

Ampere rating A B C D E F G H

 1–30 2.25 .81 — — — — — —

31 – 60 2.38 1.06 — — — — — —

 61–100 4.62 1.12 .12 .75 1 3.62 .38 .28

 101-200 5.75 1.62 .19 1.12 1.38 4.38 .38 .28

 201-400 7.12 2.12 .25 1.62 1.88 5.25 .53 .41

 401600 8.00 2.5 .38 2.00 2.12 6.00 .69 .53

Ampere rating A B C D F G J

 200-600 8.62 2.00 .31 1.62 2.41 6.25 1.12 .62

 601-800 8.62 2.50 .38 2.00 2.41 6.25 1.12 .62

 1–30 1.50 .56 — — — — —

 35–60 1.56 .81 — — — — —

 70–100 2.95 — .12 .75 2.36 .28 1.64

 110-200 3.25 — .19 .88 2.50 .34 1.66

 225-400 3.62 — .25 1.00 2.69 .41 1.64

 450-600 3.98 — .31 1.25 2.95 .48 1.78

 601-800 4.37 — .38 1.75 3.17 .55 1.88

Approximate dimensions

for Fuses

A B

0.13

3.18

1.50

38.10

0.41

10.31

0.25

6.35

CC FUSE

REJECTION TYPE

600V

A B

D: Fuses

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

Low Voltage Products & Systems 18.119

ABBInc.•888-385-1221•www.abb-control.com 1SXU000023C0202

Approximate dimensions

Handles

Pistol handles

 OH_45J5 1.8/45 0.20/5 1,3R,12

 OH_65J5 2.6/65 0.20/5 1,3R,12

 OH_45J6 1.8/45 0.24/6 1,3R,12

 OH_65J6 2.6/65 0.24/6 1,3R,12

OH_80J6 3.1/80 0.24/6 1, 3R, 12

 OH_65J8 2.6/65 0.31/8 1,3R,12

OH_80J8 3.1/80 0.31/8 1, 3R, 12

 OH_125J12 4.9/125 0.47/12 1,3R,12

 OH_145J12 5.7/145 0.47/12 1,3R,12

 OH_175J12 6.9/175 0.47/12 1,3R,12

 OH_65L5 2.6/65 0.20/5 1,3R,4,4X,12

OH_80L6 3.1/80 0.24/6 1, 3R, 4, 4X, 12

OH_80L8 3.1/80 0.31/8 1, 3R, 4, 4X, 12

 OH_145L12 5.7/145 0.47/12 1,3R,4,4X,12

 OH_175L12 6.9/175 0.47/12 1,3R,4,4X,12

__ = Handle color, B (Black) or Y (Red/Yellow)

 L  Shaftsize UL/NEMAType

Catalog number Inches/ mm Inches/ mm

 YASDA-7 8.66/220 0.47/12 1,3R,4,4X,12

 YASDA-8 8.66/220 0.47/12 1,3R,4,4X,12

 YASDA-21 8.66/220 0.47/12 1,3R,4,4X,12

 YASDA-6 12.60/320 0.47/12 1,3R,4,4X,12

  L Shaftsize UL/NEMAType

Catalog number Inches/ mm Inches/ mm

OH_2A_

 OHB2AJ1 No 0.20/5

 OHY2AJ1 No 0.20/5

 OHB2AJ Yes 0.20/5

 OHY2AJ Yes 0.20/5

Catalog number B

UL Type Defeatable Shaft size

1, 3R, 12 Inches/ mm

2.66

67.5

1.77

B2.09

45°

MOUNTING HOLE

DETAIL

1.22

0.20

METAL HANDLE

1.57

3.94

100

2.20

45°

1.77

0.28

MOUNTING HOLE

DETAIL

2.76

70.0

0.125

3.2

0.88

22.5

0.96

24.5

MOUNTING HOLE

DETAIL

2.56

1.30

0.39

0.55

OH_2A_

D: Handles

00.00

Inches

[Millimeters]

Disconnect

switches

Fusible

18.120 Low Voltage Products & Systems

1SXU000023C0202 ABBInc.•888-385-1221•www.abb-control.com

Approximate dimensions

Handles

1.46

2.01

2.72

1.22

.20

2.09

Handle type OHM45L5 OHM65L5 OHM65L6 OHM125L12 OHM175L12 OHM275L12

L 1.8/45 2.6/65 2.6/65 4.9/125 6.9/175 10.8/275

B .2/5 .2/5 .2/6 .5/12 .5/12 .5/12

Pistol handles stainless steel OHM

D: Handles

Disconnect

switches

Non-fusible

Enclosed

Low Voltage Products & Systems 18.121

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

SafeLine

Compact, heavy duty

Enclosed disconnect switches

16A – 3150A Non-fusible

30A – 3000A Fusible

SafeLine enclosed disconnect switches are designed to meet customer

requirements in terms of safety, ease of installation, space savings

and operational convenience. They are available in a wide range of

amperage ratings, are UL approved and NEMA rated to satisfy rugged

industrial environments.

SafeLine Enclosed

Disconnect switches

Disconnect

switches

Non-fusible

Enclosed

18.122 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

eOT Enclosed manual motor controllers

The eOT series of enclosed manual motor controllers are rotary operated,

3 pole, 600V Hp rated switches, housed in thermoplastic/polycarbonate

enclosures suitable for wet and corrosive environments.

Ordering data

NEMA 3R/12

Handle Type Handle Color Amp Rating Auxiliary Contacts Catalog Number List

Price

Selector Black 16 -- EOT16U3P3-S $ 250

Selector Black 40 -- EOT32U3P3-S 300

Selector Black 60 -- EOT45U3P3-S 325

Pistol Black 80 -- EOT63U3P3-P 355

Selector Black 16 1 NO EOT16U3P3-1S 305

Selector Black 40 1 NO EOT32U3P3-1S 370

Selector Black 60 1 NO EOT45U3P3-1S 405

Pistol Black 80 1 NO EOT63U3P3-1P 435

Selector Red/Yellow 16 -- EOT16U3P3-S1 250

Selector Red/Yellow 40 -- EOT32U3P3-S1 300

Selector Red/Yellow 60 -- EOT45U3P3-S1 325

Pistol Red/Yellow 80 -- EOT63U3P3-P1 355

Selector Red/Yellow 16 1 NO EOT16U3P3-1S1 305

Selector Red/Yellow 40 1 NO EOT32U3P3-1S1 370

Selector Red/Yellow 60 1 NO EOT45U3P3-1S1 405

Pistol Red/Yellow 80 1 NO EOT63U3P3-1P1 435

NEMA 4/4X

Pistol Black 16 -- EOT16U3P4-P $ 270

Pistol Black 40 -- EOT32U3P4-P 325

Pistol Black 60 -- EOT45U3P4-P 365

Pistol Black 80 -- EOT63U3P4-P 385

Pistol Black 16 1 NO EOT16U3P4-1P 335

Pistol Black 40 1 NO EOT32U3P4-1P 400

Pistol Black 60 1 NO EOT45U3P4-1P 445

Pistol Black 80 1 NO EOT63U3P4-1P 475

Pistol Red/Yellow 16 -- EOT16U3P4-P1 270

Pistol Red/Yellow 40 -- EOT32U3P4-P1 325

Pistol Red/Yellow 60 -- EOT45U3P4-P1 365

Pistol Red/Yellow 80 -- EOT63U3P4-P1 385

Pistol Red/Yellow 16 1 NO EOT16U3P4-1P1 335

Pistol Red/Yellow 40 1 NO EOT32U3P4-1P1 400

Pistol Red/Yellow 60 1 NO EOT45U3P4-1P1 445

Pistol Red/Yellow 80 1 NO EOT63U3P4-1P1 475

Accessories for eOT16 – eOT63

Description For use on AC thermal

amp rating

AC rated

voltage Catalog number

Auxiliary contacts 2

NO, mounts on right side of the switch only eOT16 - 63 10 600 OA1G10

NC, mounts on left side of the switch only 10 600 OA1G01

4th pole 3

4th pole eOT16 & 40 600 OTPS32EP

4th pole, late-break / early-make function eOT32 40 600 OTPL32EP

4th pole eOT45 & 80 600 OTPS63EP

4th pole, late-break / early-make function eOT63 80 600 OTPL63EP

1 Due to torque requirements, the eOT63 is equipped with a pistol handle for both 3X/12 & 4/4X versions.

2 Maximum number of auxiliary contacts: 2NO + 1NC.

3 Only one additional pole per switch.

Disconnect

switches

Non-fusible

Enclosed

Low Voltage Products & Systems 18.123

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

eOT45U_ (enclosure size 2 with selector switch)

eOT16_, eOT32_ (enclosure size 1)

eOT45U_ (enclosure size 2 with pistol grip handle)

200

7.87

188

7.40

176

6.93

3.46

2.87

146

5.75

Ø 4.5

0.18 103.5

4.07 34.5

1.36

138

5.43

40.3

1.59

30.5

1.20

3/4 " 1 "

188

7.40

3/4 " 1 "

EOT32U_ , EOT45U_

0.79

100

140

152

7,40

4,5

5,98

1,97

161,4

6,35

152

5,98

5,51

2,99

0,18

0,29

3,94

34,5

1,36

3,19

115,5

4,55

ONI

O OFF

Handle OHB 2AJ

Knock-outs

on top and bottom

1,18

1/2 "

3/4 "

0,79

Knock-outs M20

M25

0,09

R2,25

200

7.87

188

7.40

176

6.93

3.46

2.87

146

5.75

Ø 4.5

0.18 103.5

4.07 45

1.77

148.5

5.84

40.3

1.59

30.5

1.20

3/4 " 1 "

188

7.40

3/4 " 1 "

EOT32U_ , EOT45U_

0.79

eOT Enclosed manual motor controllers

Approximate dimensions

eOT16_ - eOT45U

Disconnect

switches

Non-fusible

Enclosed

18.124 Low Voltage Products & Systems

1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com

eOT63_ (enclosure size 3)

eOT series enclosed manual motor controllers

Approximate dimensions

eOT Enclosed manual motor controllers

Approximate dimensions

eOT63_

Disconnect

switches

Non-fusible

Enclosed

Low Voltage Products & Systems 18.125

ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU000023C0202

General information

Non-fusible and fusible

Clear position indications:

I-ON

O-OFF

Door interlocked when handle

padlocked to OFF position

Handle padlockable with up to

three padlocks

Door interlocked when handle is in

ON position. Door interlock can be

defeated by authorized personnel.

Pilot devices can be added

Lockable

UL Listed to UL 508 and UL 98.

CSA approved

IEC rated

CE marked

Modern appearance

Quick make, quick brake

mechanism

Heavy duty disconnect, 600VAC

Extremely compact size

Finger-proof construction. No

hazardous exposed parts

3/4/6/8 pole constructions; transfer

switches and by-pass switches

available

Snap on accessories include addi-

tional poles, auxiliary contacts, etc.

Enclosures available in plastic,

metal, or stainless steel in NEMA

1, 3R, 12, 4X, 7 & 9 environmental

137682 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
