General and Heavy Duty
Vacu-Break Enclosed Switch
Replacement Parts

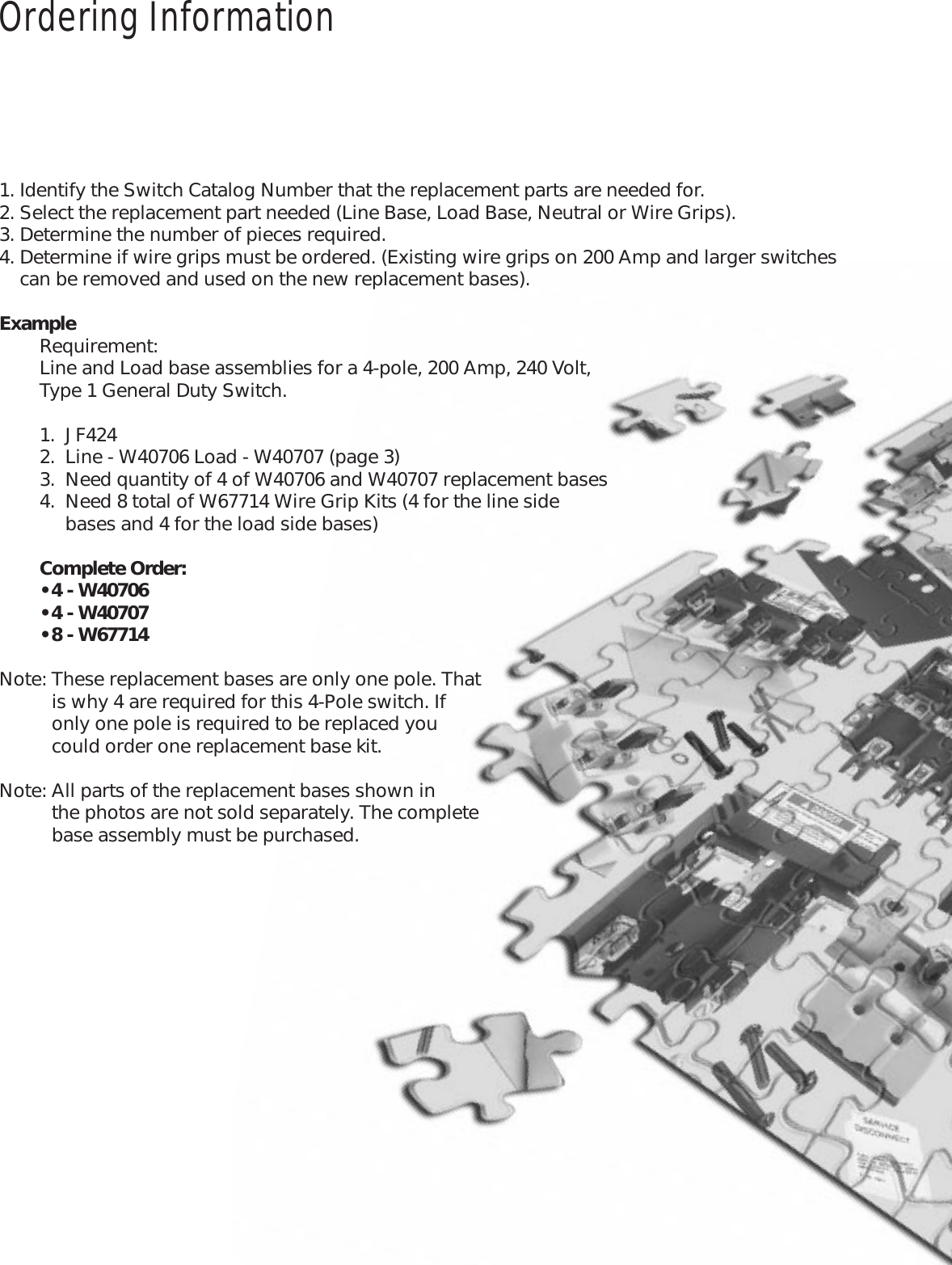

Ordering Information
1. Identify the Switch Catalog Number that the replacement parts are needed for.
2. Select the replacement part needed (Line Base, Load Base, Neutral or Wire Grips).
3. Determine the number of pieces required.
4. Determine if wire grips must be ordered. (Existing wire grips on 200 Amp and larger switches
can be removed and used on the new replacement bases).
Example
Requirement:
Line and Load base assemblies for a 4-pole, 200 Amp, 240 Volt,
Type 1 General Duty Switch.
1. JF424
2. Line - W40706 Load - W40707 (page 3)
3. Need quantity of 4 of W40706 and W40707 replacement bases
4. Need 8 total of W67714 Wire Grip Kits (4 for the line side
bases and 4 for the load side bases)
Complete Order:
• 4 - W40706
• 4 - W40707
• 8 - W67714
Note: These replacement bases are only one pole. That
is why 4 are required for this 4-Pole switch. If
only one pole is required to be replaced you
could order one replacement base kit.
Note: All parts of the replacement bases shown in
the photos are not sold separately. The complete
base assembly must be purchased.

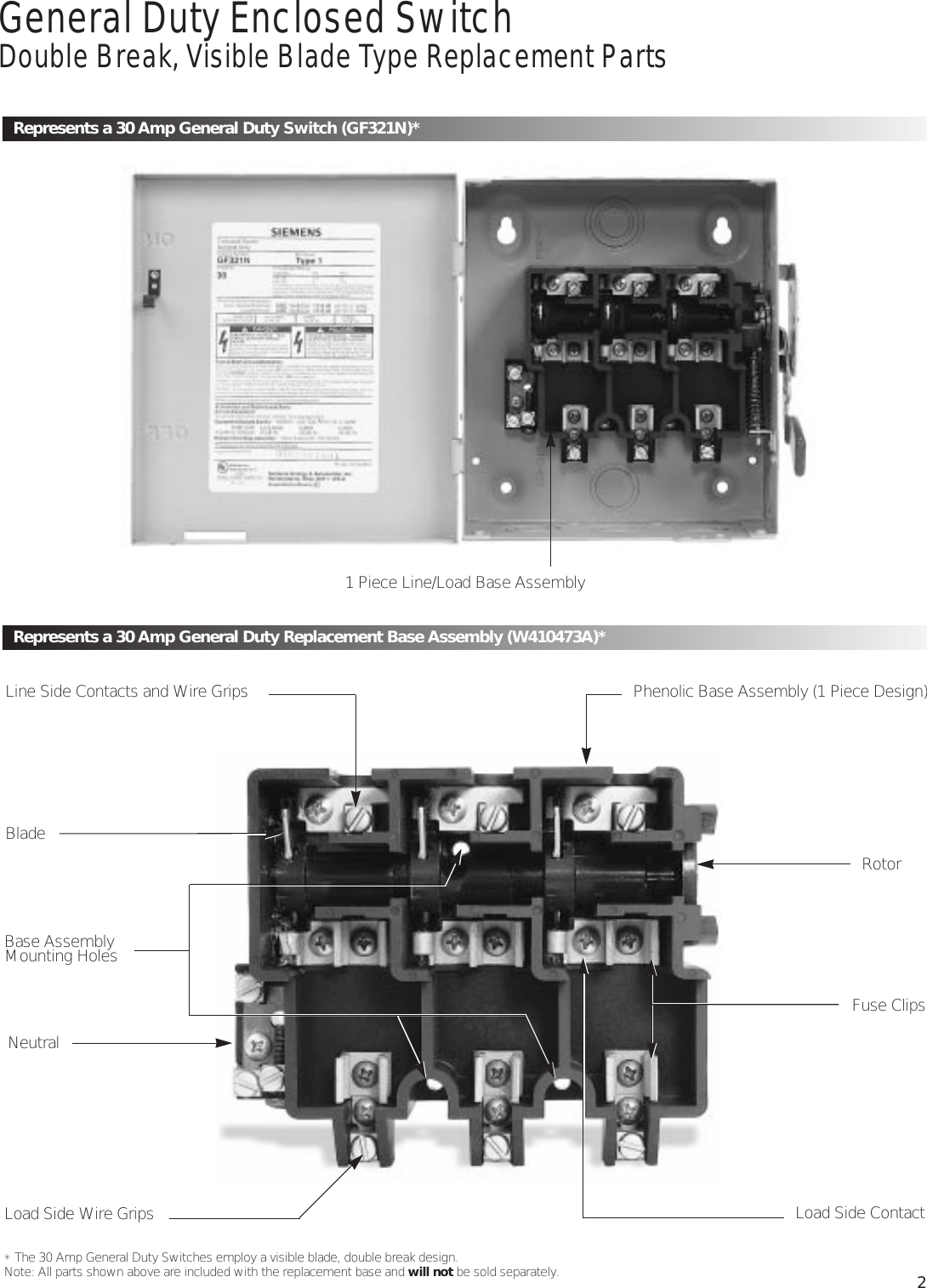

General Duty Enclosed Switch
Double Break, Visible Blade Type Replacement Parts
1 Piece Line/Load Base Assembly
Represents a 30 Amp General Duty Switch (GF321N)*
Represents a 30 Amp General Duty Replacement Base Assembly (W410473A)*
Phenolic Base Assembly (1 Piece Design)
Load Side Wire Grips
Base Assembly
Mounting Holes
Blade
Neutral
Line Side Contacts and Wire Grips
Load Side Contact
Fuse Clips
Rotor
2
*The 30 Amp General Duty Switches employ a visible blade, double break design.
Note: All parts shown above are included with the replacement base and will not be sold separately.
3

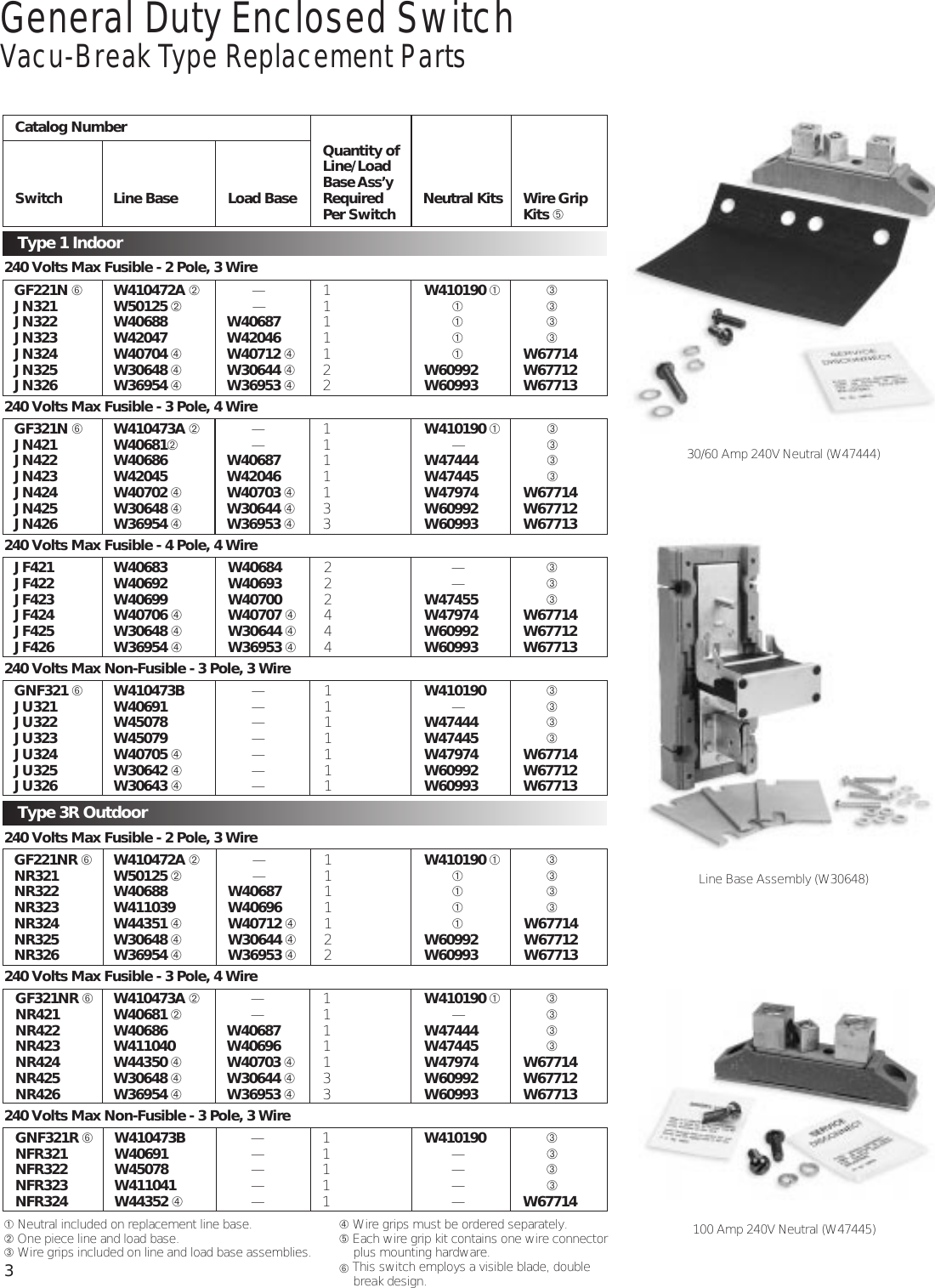

General Duty Enclosed Switch
Vacu-Break Type Replacement Parts
30/60 Amp 240V Neutral (W47444)
100 Amp 240V Neutral (W47445)
Type 1 Indoor
Type 3R Outdoor
Catalog Number
Quantity of
Line/Load
Base Ass’y
Switch Line Base Load Base Required Neutral Kits Wire Grip
Per Switch Kits ➄
GF221N ➅W410472A ➁—1 W410190 ➀➂
JN321 W50125 ➁—1 ➀➂
JN322 W40688 W40687 1➀➂
JN323 W42047 W42046 1➀➂
JN324 W40704 ➃W40712 ➃1➀W67714
JN325 W30648 ➃W30644 ➃2W60992 W67712
JN326 W36954 ➃W36953 ➃2W60993 W67713
240 Volts Max Fusible - 2 Pole, 3 Wire
GF321N ➅W410473A ➁—1 W410190 ➀➂
JN421 W40681➁—1 — ➂
JN422 W40686 W40687 1W47444 ➂
JN423 W42045 W42046 1W47445 ➂
JN424 W40702 ➃W40703 ➃1W47974 W67714
JN425 W30648 ➃W30644 ➃3W60992 W67712
JN426 W36954 ➃W36953 ➃3W60993 W67713
240 Volts Max Fusible - 3 Pole, 4 Wire
JF421 W40683 W40684 2—➂
JF422 W40692 W40693 2—➂
JF423 W40699 W40700 2W47455 ➂
JF424 W40706 ➃W40707 ➃4W47974 W67714
JF425 W30648 ➃W30644 ➃4W60992 W67712
JF426 W36954 ➃W36953 ➃4W60993 W67713
240 Volts Max Fusible - 4 Pole, 4 Wire
GNF321 ➅W410473B —1 W410190 ➂
JU321 W40691 —1 — ➂
JU322 W45078 —1 W47444 ➂
JU323 W45079 —1 W47445 ➂
JU324 W40705 ➃—1 W47974 W67714
JU325 W30642 ➃—1 W60992 W67712
JU326 W30643 ➃—1 W60993 W67713
240 Volts Max Non-Fusible - 3 Pole, 3 Wire
GF221NR ➅W410472A ➁—1 W410190 ➀➂
NR321 W50125 ➁—1 ➀➂
NR322 W40688 W40687 1➀➂
NR323 W411039 W40696 1➀➂
NR324 W44351 ➃W40712 ➃1➀W67714
NR325 W30648 ➃W30644 ➃2W60992 W67712
NR326 W36954 ➃W36953 ➃2W60993 W67713
240 Volts Max Fusible - 2 Pole, 3 Wire
GF321NR ➅W410473A ➁—1 W410190 ➀➂
NR421 W40681 ➁—1 — ➂
NR422 W40686 W40687 1W47444 ➂
NR423 W411040 W40696 1W47445 ➂
NR424 W44350 ➃W40703 ➃1W47974 W67714
NR425 W30648 ➃W30644 ➃3W60992 W67712
NR426 W36954 ➃W36953 ➃3W60993 W67713
240 Volts Max Fusible - 3 Pole, 4 Wire
GNF321R ➅W410473B —1 W410190 ➂
NFR321 W40691 —1 — ➂
NFR322 W45078 —1 — ➂
NFR323 W411041 —1 — ➂
NFR324 W44352 ➃—1 —W67714
240 Volts Max Non-Fusible - 3 Pole, 3 Wire
➀ Neutral included on replacement line base.
➁ One piece line and load base.
➂ Wire grips included on line and load base assemblies.
➃ Wire grips must be ordered separately.
➄ Each wire grip kit contains one wire connector
plus mounting hardware.
➅This switch employs a visible blade, double
break design.
Line Base Assembly (W30648)
4

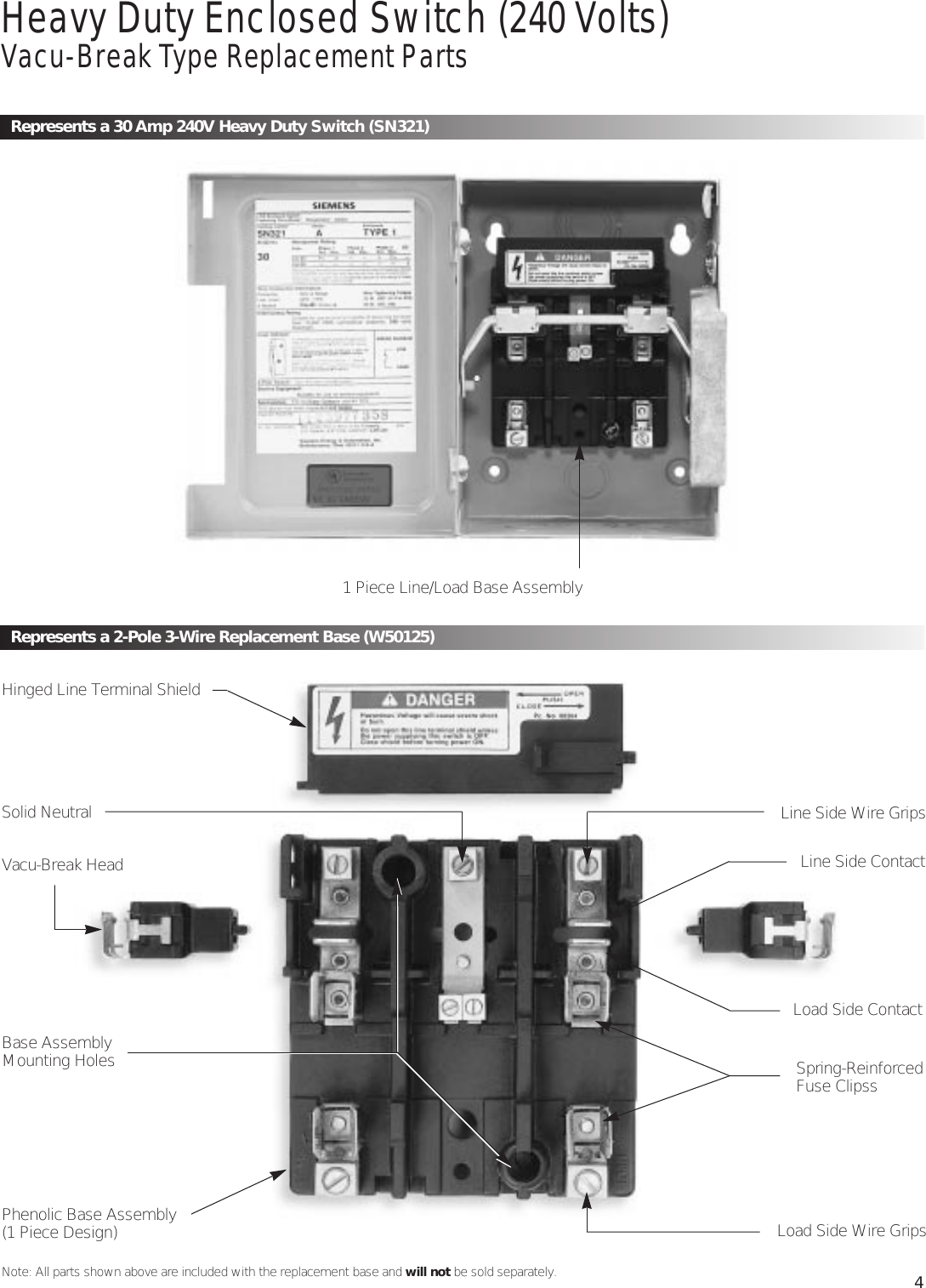

Heavy Duty Enclosed Switch (240 Volts)
Vacu-Break Type Replacement Parts
1 Piece Line/Load Base Assembly
Represents a 30 Amp 240V Heavy Duty Switch (SN321)
Represents a 2-Pole 3-Wire Replacement Base (W50125)
Hinged Line Terminal Shield
Phenolic Base Assembly
(1 Piece Design)
Base Assembly
Mounting Holes
Solid Neutral
Load Side Wire Grips
Load Side Contact
Line Side Wire Grips
Line Side Contact
Spring-Reinforced
Fuse Clipss
Vacu-Break Head
Note: All parts shown above are included with the replacement base and will not be sold separately.
5

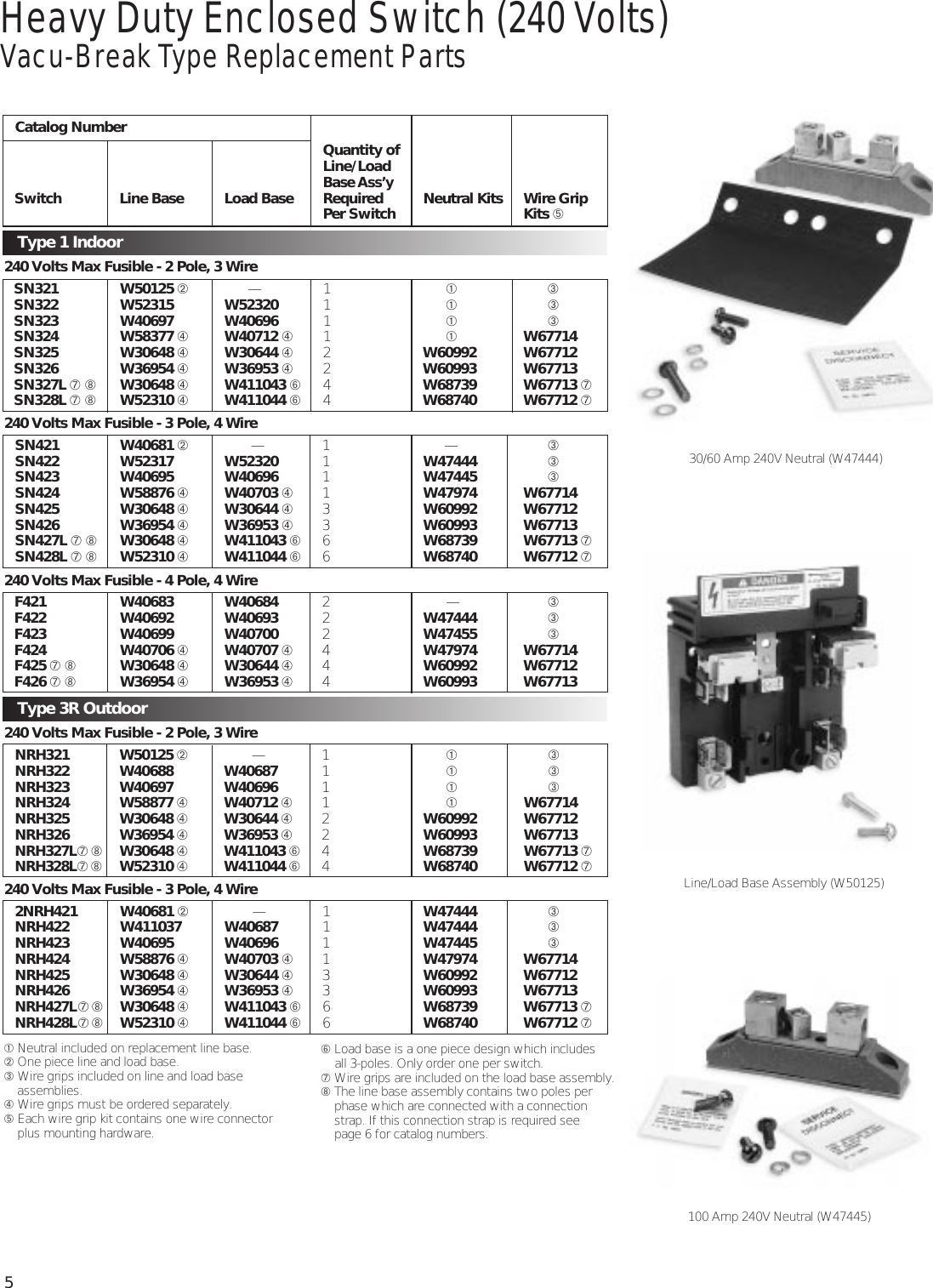

Heavy Duty Enclosed Switch (240 Volts)
Vacu-Break Type Replacement Parts
30/60 Amp 240V Neutral (W47444)
Line/Load Base Assembly (W50125)
100 Amp 240V Neutral (W47445)
Type 1 Indoor
Type 3R Outdoor
SN321 W50125 ➁—1 ➀➂
SN322 W52315 W52320 1➀➂
SN323 W40697 W40696 1➀➂
SN324 W58377 ➃W40712 ➃1➀W67714
SN325 W30648 ➃W30644 ➃2W60992 W67712
SN326 W36954 ➃W36953 ➃2W60993 W67713
SN327L ➆ ➇ W30648 ➃W411043 ➅4W68739 W67713 ➆
SN328L ➆ ➇ W52310 ➃W411044 ➅4W68740 W67712 ➆
240 Volts Max Fusible - 2 Pole, 3 Wire
SN421 W40681 ➁—1 — ➂
SN422 W52317 W52320 1W47444 ➂
SN423 W40695 W40696 1W47445 ➂
SN424 W58876 ➃W40703 ➃1W47974 W67714
SN425 W30648 ➃W30644 ➃3W60992 W67712
SN426 W36954 ➃W36953 ➃3W60993 W67713
SN427L ➆ ➇ W30648 ➃W411043 ➅6W68739 W67713 ➆
SN428L ➆ ➇ W52310 ➃W411044 ➅6W68740 W67712 ➆
240 Volts Max Fusible - 3 Pole, 4 Wire
F421 W40683 W40684 2—➂
F422 W40692 W40693 2W47444 ➂
F423 W40699 W40700 2W47455 ➂
F424 W40706 ➃W40707 ➃4W47974 W67714
F425 ➆ ➇ W30648 ➃W30644 ➃4W60992 W67712
F426 ➆ ➇ W36954 ➃W36953 ➃4W60993 W67713
240 Volts Max Fusible - 4 Pole, 4 Wire
NRH321 W50125 ➁—1 ➀➂
NRH322 W40688 W40687 1➀➂
NRH323 W40697 W40696 1➀➂
NRH324 W58877 ➃W40712 ➃1➀W67714
NRH325 W30648 ➃W30644 ➃2W60992 W67712
NRH326 W36954 ➃W36953 ➃2W60993 W67713
NRH327L
➆➇ W30648 ➃W411043 ➅4W68739 W67713 ➆
NRH328L
➆➇ W52310 ➃W411044 ➅4W68740 W67712 ➆
240 Volts Max Fusible - 2 Pole, 3 Wire
2NRH421 W40681 ➁—1 W47444 ➂
NRH422 W411037 W40687 1W47444 ➂
NRH423 W40695 W40696 1W47445 ➂
NRH424 W58876 ➃W40703 ➃1W47974 W67714
NRH425 W30648 ➃W30644 ➃3W60992 W67712
NRH426 W36954 ➃W36953 ➃3W60993 W67713
NRH427L
➆➇ W30648 ➃W411043 ➅6W68739 W67713 ➆
NRH428L
➆➇ W52310 ➃W411044 ➅6W68740 W67712 ➆
240 Volts Max Fusible - 3 Pole, 4 Wire
➀ Neutral included on replacement line base.
➁ One piece line and load base.
➂ Wire grips included on line and load base
assemblies.
➃ Wire grips must be ordered separately.
➄ Each wire grip kit contains one wire connector
plus mounting hardware.
➅ Load base is a one piece design which includes
all 3-poles. Only order one per switch.
➆ Wire grips are included on the load base assembly.
➇ The line base assembly contains two poles per
phase which are connected with a connection
strap. If this connection strap is required see
page 6 for catalog numbers.
Catalog Number
Quantity of
Line/Load
Base Ass’y
Switch Line Base Load Base Required Neutral Kits Wire Grip
Per Switch Kits ➄
6

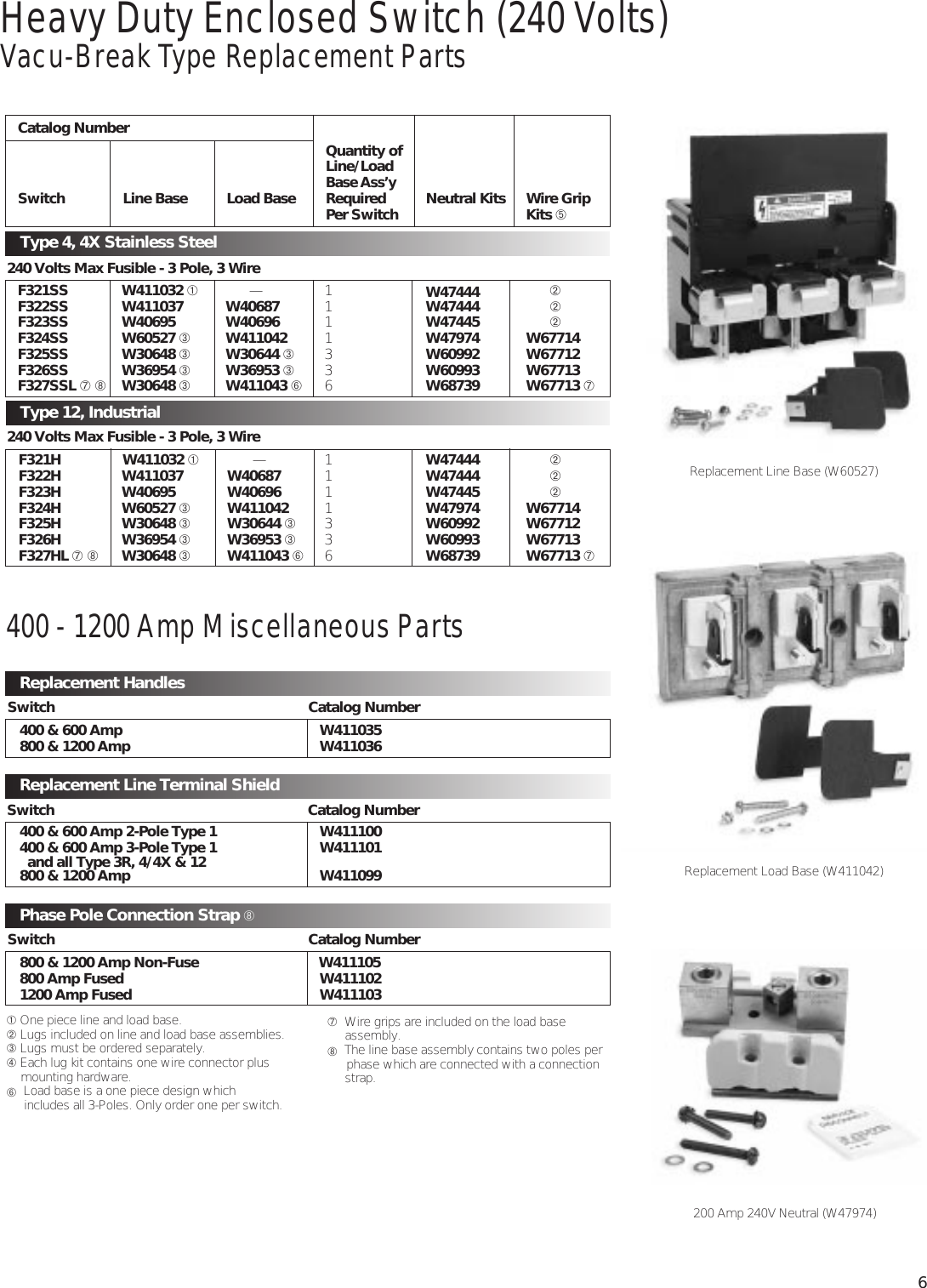

Heavy Duty Enclosed Switch (240 Volts)
Vacu-Break Type Replacement Parts
Replacement Line Base (W60527)
Replacement Load Base (W411042)
200 Amp 240V Neutral (W47974)
Type 4, 4X Stainless Steel
Type 12, Industrial
F321SS W411032 ➀—1 W47444 ➁
F322SS W411037 W40687 1W47444 ➁
F323SS W40695 W40696 1W47445 ➁
F324SS W60527 ➂W411042 1W47974 W67714
F325SS W30648 ➂W30644 ➂3W60992 W67712
F326SS W36954 ➂W36953 ➂3W60993 W67713
F327SSL ➆➇ W30648 ➂W411043 ➅6W68739 W67713 ➆
240 Volts Max Fusible - 3 Pole, 3 Wire
F321H W411032 ➀—1 W47444 ➁
F322H W411037 W40687 1W47444 ➁
F323H W40695 W40696 1W47445 ➁
F324H W60527 ➂W411042 1W47974 W67714
F325H W30648 ➂W30644 ➂3W60992 W67712
F326H W36954 ➂W36953 ➂3W60993 W67713
F327HL ➆ ➇ W30648 ➂W411043 ➅6W68739 W67713 ➆
240 Volts Max Fusible - 3 Pole, 3 Wire
➀ One piece line and load base.
➁ Lugs included on line and load base assemblies.
➂ Lugs must be ordered separately.
➃ Each lug kit contains one wire connector plus
mounting hardware.
➅ Load base is a one piece design which
includes all 3-Poles. Only order one per switch.
➆Wire grips are included on the load base
assembly.
➇ The line base assembly contains two poles per
phase which are connected with a connection
strap.
Catalog Number
Quantity of
Line/Load
Base Ass’y
Switch Line Base Load Base Required Neutral Kits Wire Grip
Per Switch Kits ➄
Replacement Handles
400 & 600 Amp W411035
800 & 1200 Amp W411036
Switch Catalog Number
Replacement Line Terminal Shield
400 & 600 Amp 2-Pole Type 1 W411100
400 & 600 Amp 3-Pole Type 1 W411101
and all Type 3R, 4/4X & 12
800 & 1200 Amp W411099
Switch Catalog Number
Phase Pole Connection Strap ➇
800 & 1200 Amp Non-Fuse W411105
800 Amp Fused W411102
1200 Amp Fused W411103
Switch Catalog Number
400 - 1200 Amp Miscellaneous Parts
7

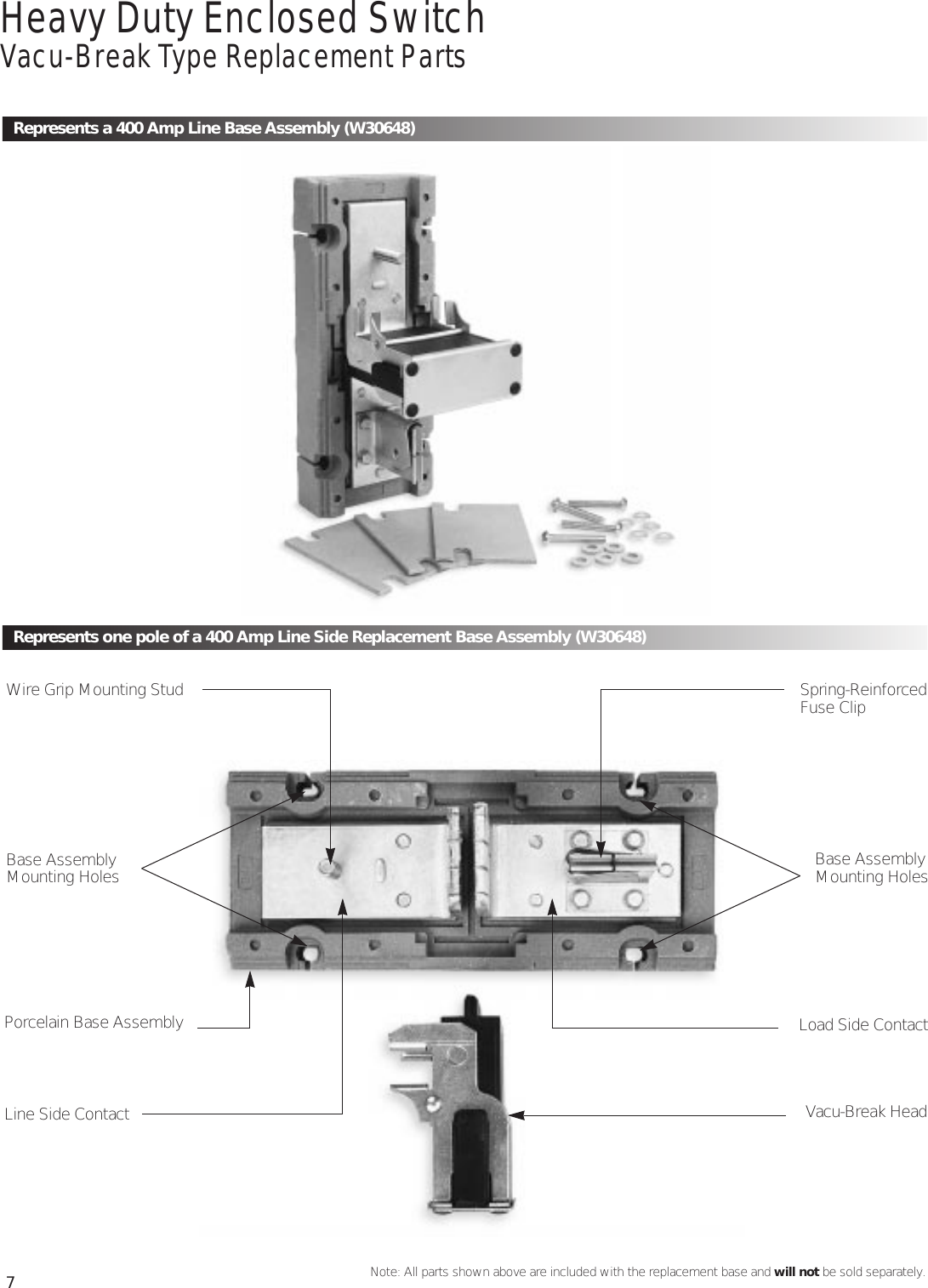

Heavy Duty Enclosed Switch
Vacu-Break Type Replacement Parts
Represents a 400 Amp Line Base Assembly (W30648)
Represents one pole of a 400 Amp Line Side Replacement Base Assembly (W30648)
Base Assembly
Mounting Holes
Base Assembly
Mounting Holes
Porcelain Base Assembly
Line Side Contact
Wire Grip Mounting Stud
Load Side Contact
Spring-Reinforced
Fuse Clip
Vacu-Break Head
Note: All parts shown above are included with the replacement base and will not be sold separately.
8

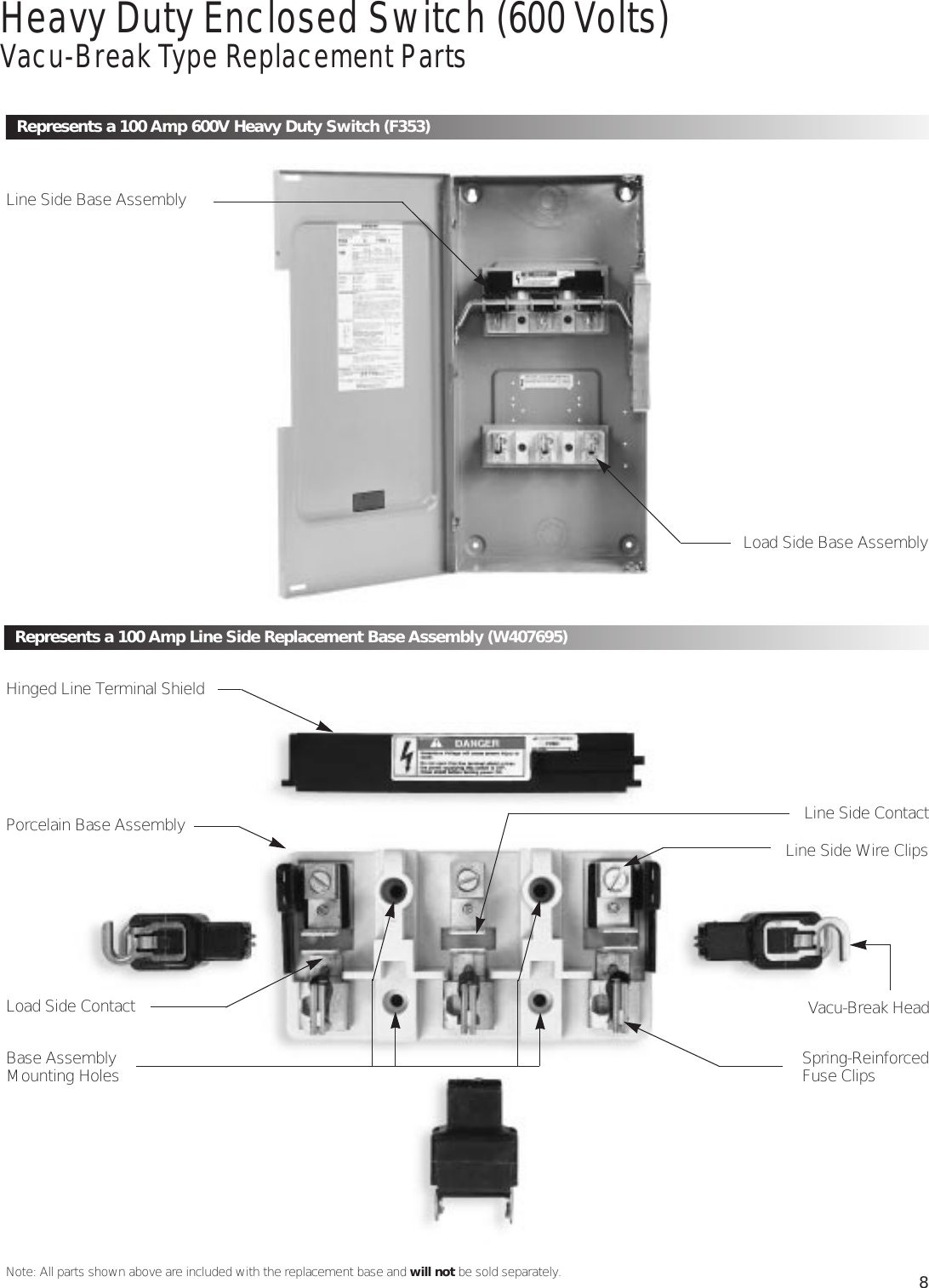

Heavy Duty Enclosed Switch (600 Volts)
Vacu-Break Type Replacement Parts
Line Side Base Assembly
Load Side Base Assembly
Represents a 100 Amp 600V Heavy Duty Switch (F353)
Represents a 100 Amp Line Side Replacement Base Assembly (W407695)
Hinged Line Terminal Shield
Base Assembly
Mounting Holes
Porcelain Base Assembly
Load Side Contact
Line Side Wire Clips
Line Side Contact
Spring-Reinforced
Fuse Clips
Vacu-Break Head
Note: All parts shown above are included with the replacement base and will not be sold separately.
9

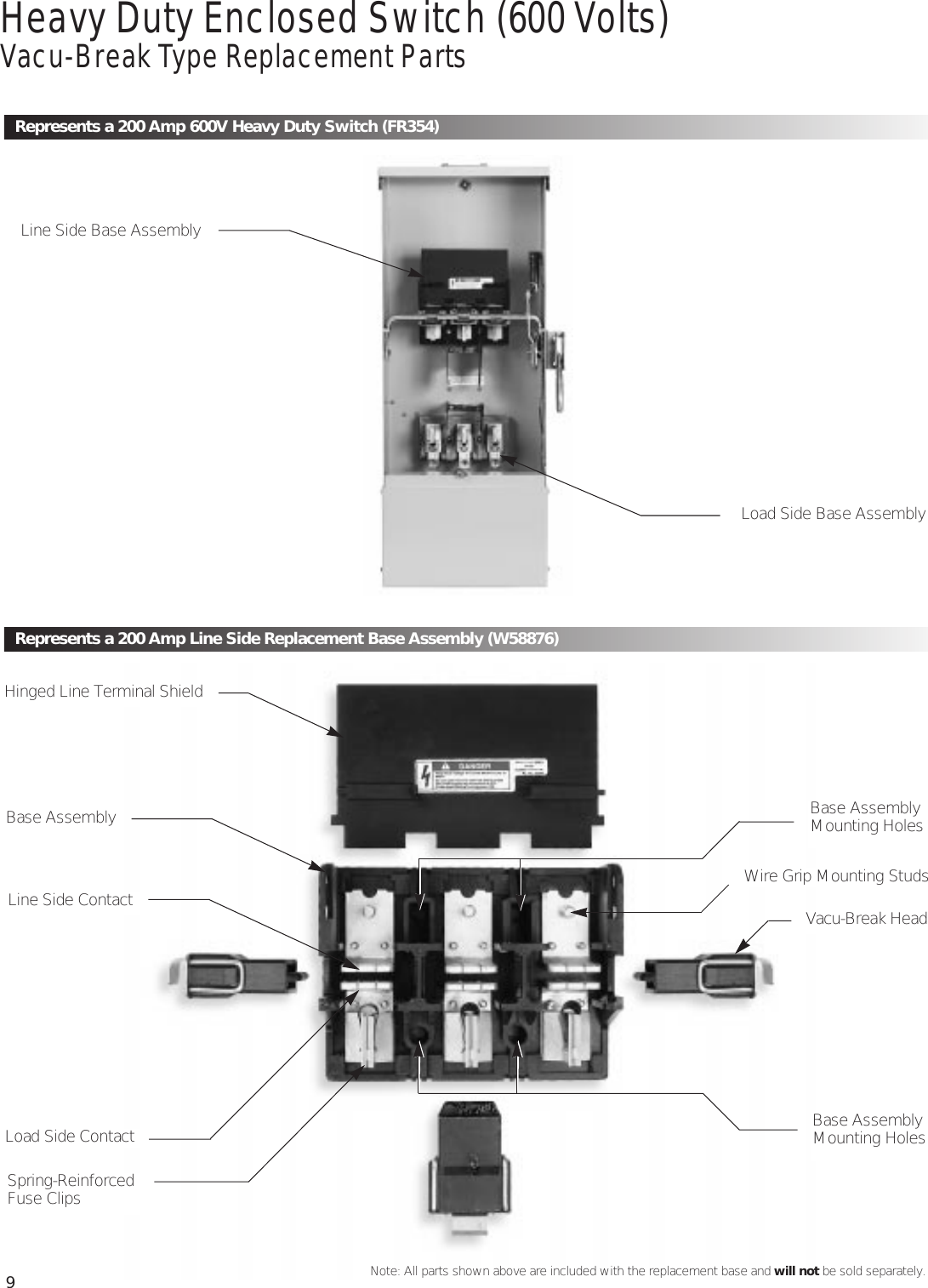

Heavy Duty Enclosed Switch (600 Volts)
Vacu-Break Type Replacement Parts
Line Side Base Assembly
Load Side Base Assembly
Represents a 200 Amp 600V Heavy Duty Switch (FR354)
Represents a 200 Amp Line Side Replacement Base Assembly (W58876)
Hinged Line Terminal Shield
Base Assembly
Mounting Holes
Base Assembly
Mounting Holes
Base Assembly
Line Side Contact Wire Grip Mounting Studs
Load Side Contact
Spring-Reinforced
Fuse Clips
Vacu-Break Head
Note: All parts shown above are included with the replacement base and will not be sold separately.
10

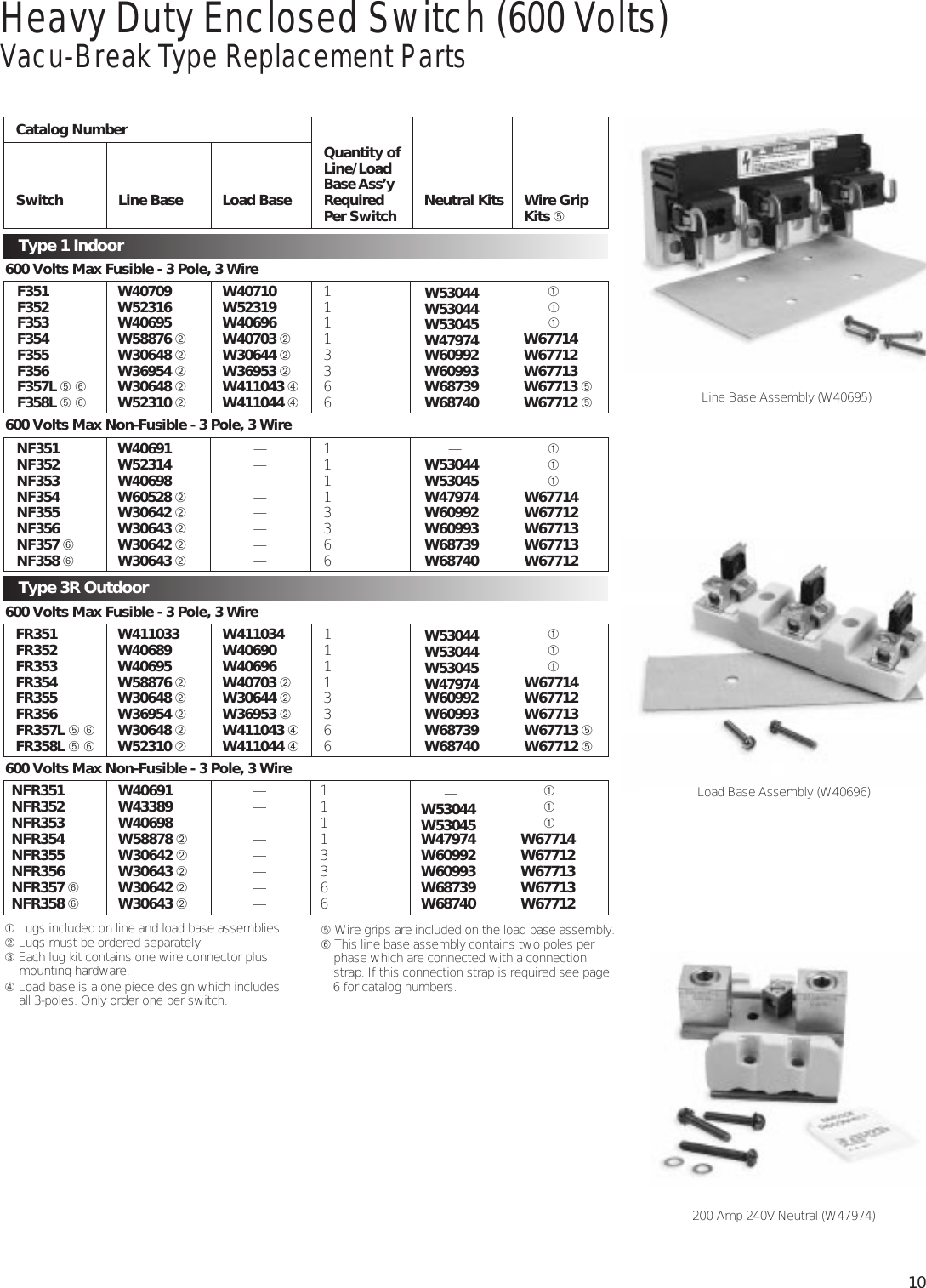

Heavy Duty Enclosed Switch (600 Volts)
Vacu-Break Type Replacement Parts
Line Base Assembly (W40695)
Load Base Assembly (W40696)
Type 1 Indoor
Type 3R Outdoor
F351 W40709 W40710 1W53044 ➀
F352 W52316 W52319 1W53044 ➀
F353 W40695 W40696 1W53045 ➀
F354 W58876 ➁W40703 ➁1W47974 W67714
F355 W30648 ➁W30644 ➁3W60992 W67712
F356 W36954 ➁W36953 ➁3W60993 W67713
F357L ➄ ➅ W30648 ➁W411043 ➃6W68739 W67713 ➄
F358L ➄ ➅ W52310 ➁W411044 ➃6W68740 W67712 ➄
600 Volts Max Fusible - 3 Pole, 3 Wire
FR351 W411033 W411034 1W53044 ➀
FR352 W40689 W40690 1W53044 ➀
FR353 W40695 W40696 1W53045 ➀
FR354 W58876 ➁W40703 ➁1W47974 W67714
FR355 W30648 ➁W30644 ➁3W60992 W67712
FR356 W36954 ➁W36953 ➁3W60993 W67713
FR357L ➄ ➅ W30648 ➁W411043 ➃6W68739 W67713 ➄
FR358L ➄ ➅ W52310 ➁W411044 ➃6W68740 W67712 ➄
600 Volts Max Fusible - 3 Pole, 3 Wire
NF351 W40691 —1 — ➀
NF352 W52314 —1 W53044 ➀
NF353 W40698 —1 W53045 ➀
NF354 W60528 ➁—1 W47974 W67714
NF355 W30642 ➁—3 W60992 W67712
NF356 W30643 ➁—3 W60993 W67713
NF357 ➅W30642 ➁—6 W68739 W67713
NF358 ➅W30643 ➁—6 W68740 W67712
600 Volts Max Non-Fusible - 3 Pole, 3 Wire
NFR351 W40691 —1 —➀
NFR352 W43389 —1 W53044 ➀
NFR353 W40698 —1 W53045 ➀
NFR354 W58878 ➁—1 W47974 W67714
NFR355 W30642 ➁—3 W60992 W67712
NFR356 W30643 ➁—3 W60993 W67713
NFR357 ➅W30642 ➁—6 W68739 W67713
NFR358 ➅W30643 ➁—6 W68740 W67712
600 Volts Max Non-Fusible - 3 Pole, 3 Wire
➀ Lugs included on line and load base assemblies.
➁ Lugs must be ordered separately.
➂ Each lug kit contains one wire connector plus
mounting hardware.
➃ Load base is a one piece design which includes
all 3-poles. Only order one per switch.
➄ Wire grips are included on the load base assembly.
➅ This line base assembly contains two poles per
phase which are connected with a connection
strap. If this connection strap is required see page
6 for catalog numbers.
Catalog Number
Quantity of
Line/Load
Base Ass’y
Switch Line Base Load Base Required Neutral Kits Wire Grip
Per Switch Kits ➄
200 Amp 240V Neutral (W47974)

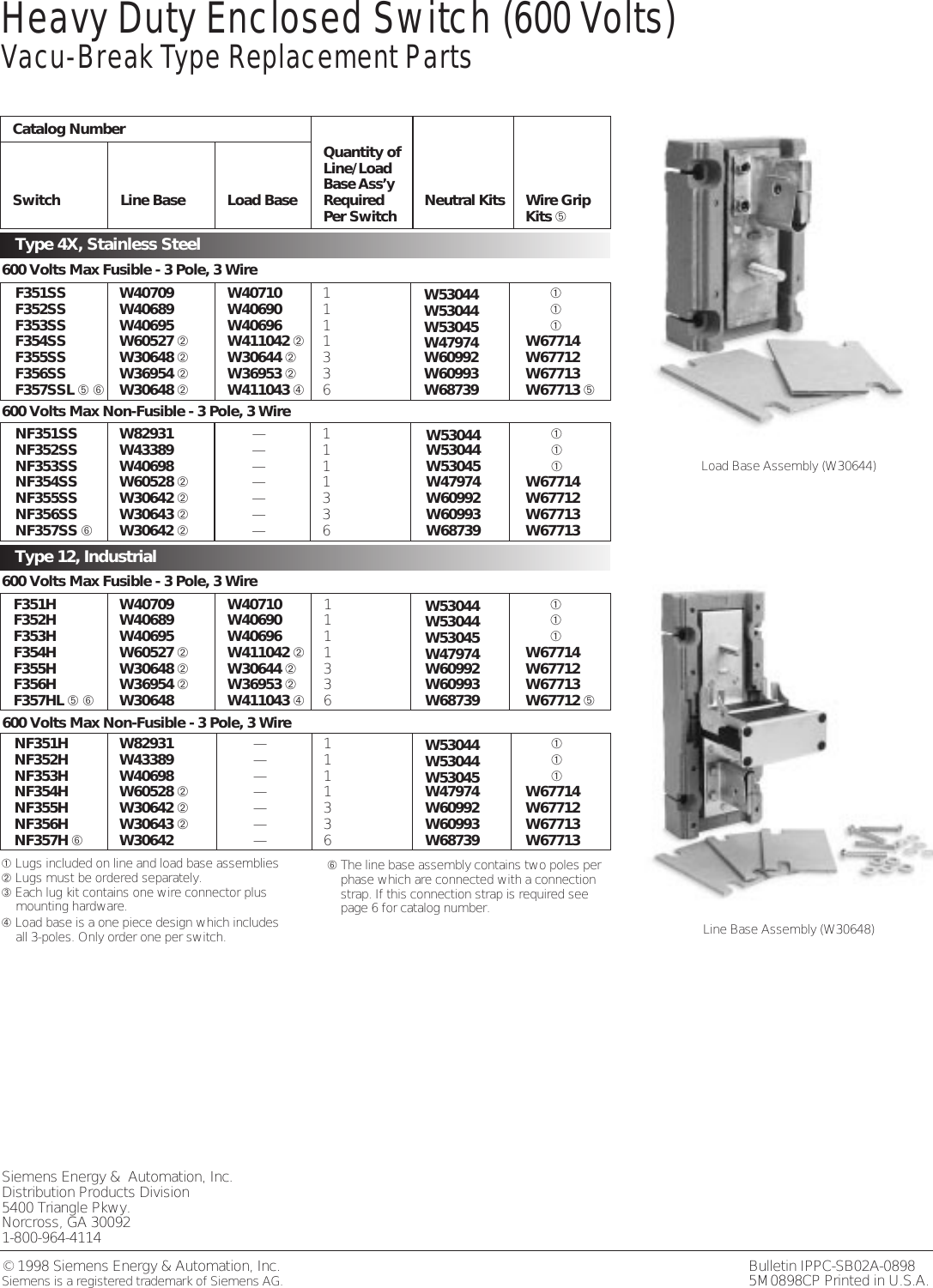

Heavy Duty Enclosed Switch (600 Volts)
Vacu-Break Type Replacement Parts
Siemens Energy & Automation, Inc.
Distribution Products Division
5400 Triangle Pkwy.
Norcross, GA 30092
1-800-964-4114
© 1998 Siemens Energy & Automation, Inc. Bulletin IPPC-SB02A-0898
Siemens is a registered trademark of Siemens AG. 5M0898CP Printed in U.S.A.
Type 4X, Stainless Steel
Type 12, Industrial
F351SS W40709 W40710 1W53044 ➀
F352SS W40689 W40690 1W53044 ➀
F353SS W40695 W40696 1W53045 ➀
F354SS W60527 ➁W411042 ➁1W47974 W67714
F355SS W30648 ➁W30644 ➁3W60992 W67712
F356SS W36954 ➁W36953 ➁3W60993 W67713
F357SSL ➄ ➅ W30648 ➁W411043 ➃6W68739 W67713 ➄
600 Volts Max Fusible - 3 Pole, 3 Wire
F351H W40709 W40710 1W53044 ➀
F352H W40689 W40690 1W53044 ➀
F353H W40695 W40696 1W53045 ➀
F354H W60527 ➁W411042 ➁1W47974 W67714
F355H W30648 ➁W30644 ➁3W60992 W67712
F356H W36954 ➁W36953 ➁3W60993 W67713
F357HL ➄ ➅ W30648 W411043 ➃6W68739 W67712 ➄
600 Volts Max Fusible - 3 Pole, 3 Wire
NF351SS W82931 —1 W53044 ➀
NF352SS W43389 —1 W53044 ➀
NF353SS W40698 —1 W53045 ➀
NF354SS W60528 ➁—1 W47974 W67714
NF355SS W30642 ➁—3 W60992 W67712
NF356SS W30643 ➁—3 W60993 W67713
NF357SS ➅W30642 ➁—6 W68739 W67713
600 Volts Max Non-Fusible - 3 Pole, 3 Wire
NF351H W82931 —1 W53044 ➀
NF352H W43389 —1 W53044 ➀
NF353H W40698 —1 W53045 ➀
NF354H W60528 ➁—1 W47974 W67714
NF355H W30642 ➁—3 W60992 W67712
NF356H W30643 ➁—3 W60993 W67713
NF357H ➅W30642 —6 W68739 W67713
600 Volts Max Non-Fusible - 3 Pole, 3 Wire
➀ Lugs included on line and load base assemblies
➁ Lugs must be ordered separately.
➂ Each lug kit contains one wire connector plus
mounting hardware.
➃ Load base is a one piece design which includes
all 3-poles. Only order one per switch.
➅ The line base assembly contains two poles per
phase which are connected with a connection
strap. If this connection strap is required see
page 6 for catalog number.
Catalog Number
Quantity of
Line/Load
Base Ass’y
Switch Line Base Load Base Required Neutral Kits Wire Grip
Per Switch Kits ➄
Line Base Assembly (W30648)
Load Base Assembly (W30644)
